Terrain HDPE
Product Guide
JULY 2009TAGIG1-PT
2

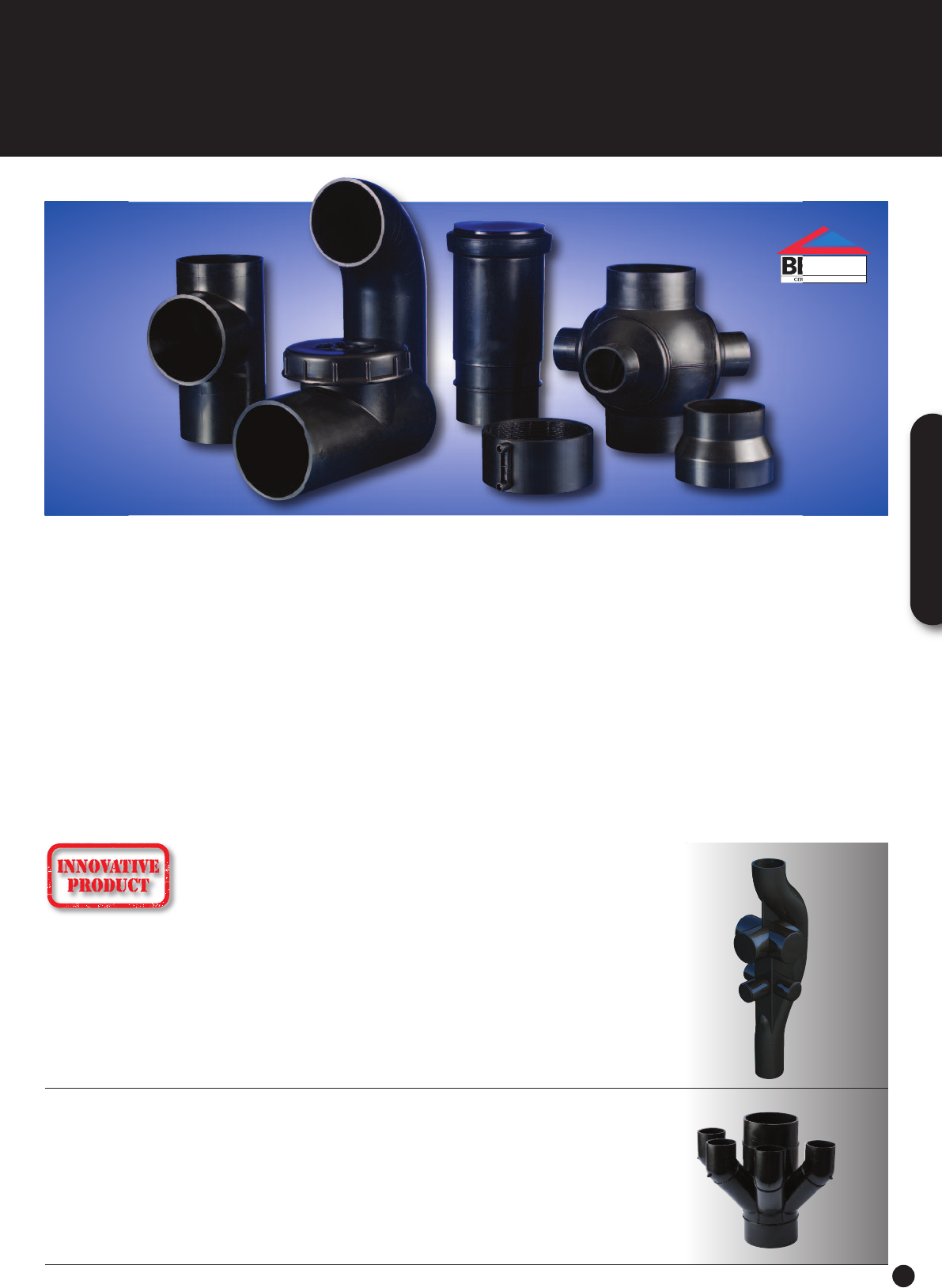

A modern high density polyethylene system with many advantages over cast iron and other traditional systems. Terrain HDPE is a
top-to-bottom solution for all above ground drainage and many chemical waste applications. It allows specifiers and installers to benefit
by providing them maximum flexibility in the design process.
Utilising the intrinsic properties of high-density polyethylene, Terrain HDPE offers greater benefits above and beyond more traditional
materials and performs significantly better when tested for impact and abrasion resistance, chemical corrosion and extreme temperatures.
The lightweight nature of Terrain HDPE allows the product to be installed quickly and efficiently, giving direct,
resource-saving benefits to specifiers and installers.
HDPE offers exceptional performance above and beyond traditional pipe materials including:
■Versatile application
■Highly resistant to impact even at low temperatures
■Highly resistant to chemical agents
■Corrosion resistant
■Abrasion resistant
■Lightweight and easy to install
■Ideal for pre-fabrication
■Suitable for use with Terrain HydroMax™ Siphonic System
(see page 41 for further details)
Innovative Products
Ventilation Branch
■Negates the need for a separate ventilation pipe
■Reduces the speed of the descending water
■3 x 110mm and 3 x 75mm connections
■Ventilation at each branch
■Available in 110mm or 160mm
■See page 28 for further details
Universal Soil Manifold
■For connection of 56mm waste pipes at oor level
■4 inlets
■Compact size
■110mm & 160mm
■110mm available with 90° or 45° inlets
■See page 24 for further details
Building on its reputation for innovation, Terrain has developed these
problem solving products to offer unrivalled installation options
BBA BRITISH
BOARD OF
AGRÉMENT
CERTIFICATE No. 07/4479
Terrain HDPE
Terrain
3

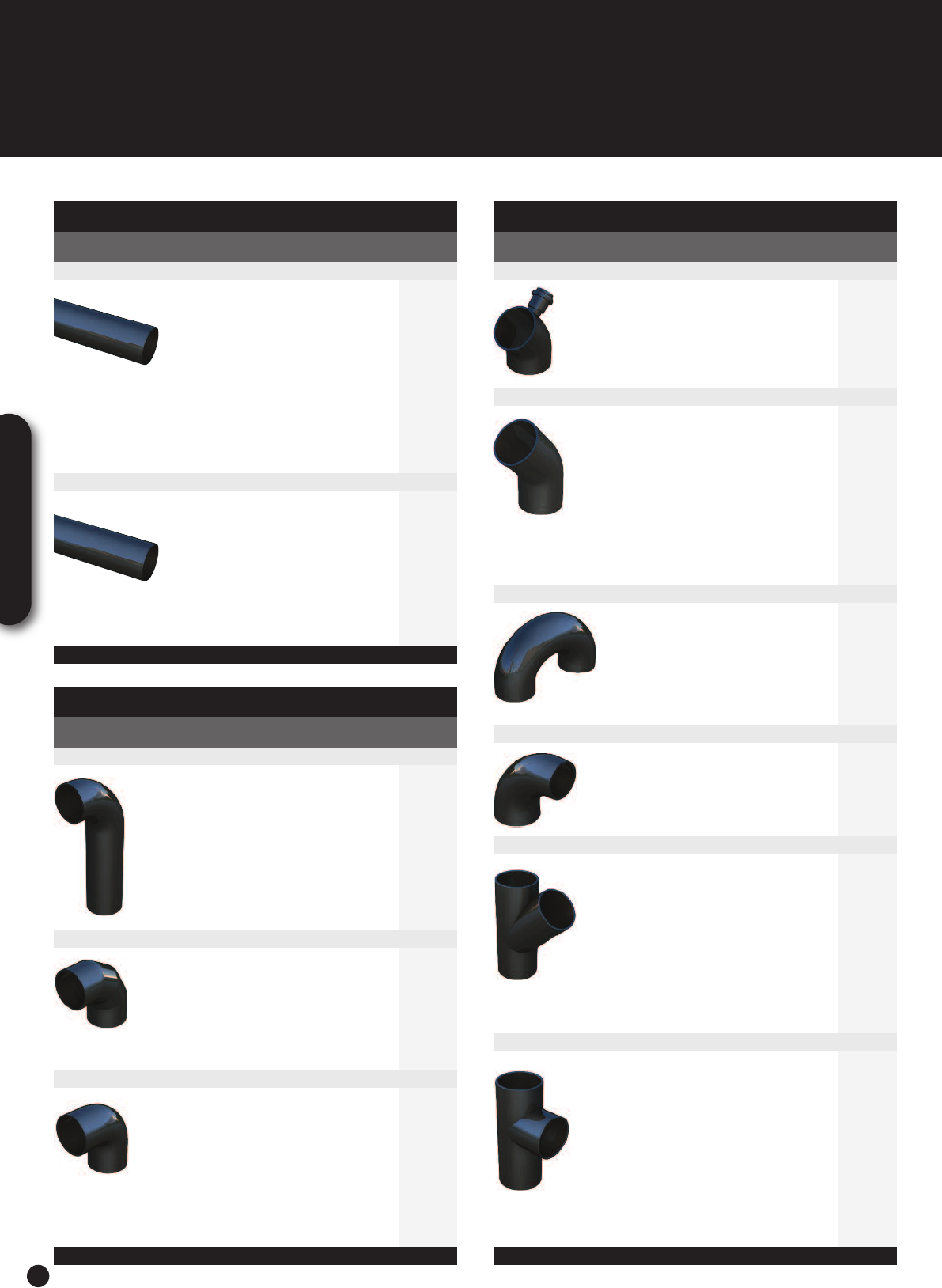

Pipes
Packing Pack
Size mm Code
Length Quantity
HDPE Pipe - 5 metre length
40 550 110 900.40.50
50 430 86 900.50.50
56 490 98 900.56.50
63 330 66 900.63.50
75 290 58 900.75.50
90 290 58 900.90.50
110 285 57 900.110.50
125 170 34 900.125.50
160 50 10 900.160.50
200 50 10 900.200.50
250 40 8 900.250.50
315 30 6 900.315.50
HDPE Pipe - 3 metre length
40 150 50 900.40.30
50 150 50 900.50.30
56 120 40 900.56.30
63 105 35 900.63.30
75 90 30 900.75.30
90 60 20 900.90.30
110 45 15 900.110.30
125 30 10 900.125.30
160 30 10 900.160.30
sshown are for one item excluding VAT Note: Orders must be in pack quantity multiples
Fittings
Pack
Size mm Code
Quantity
HDPE 90° bend
40 50 907.40.90
50 25 907.50.90
56 25 907.56.90
63 20 907.63.90
75 25 907.75.90
90 15 907.90.90
110 10 907.110.90
125 10 907.125.90
160 1 907.160.90
HDPE 90° wide radius bend
200* 1 907.200.90
250* 1 907.250.90
315* 1 907.315.90
*Segmented
HDPE 91.5° (88.5°) bend
40 50 901.40.92
50 20 901.50.92
56 20 901.56.92
63 25 901.63.92
75 20 901.75.92
90 15 901.90.92
110 15 901.110.92
125 10 901.125.92
160 1 901.160.92
Fittings
Pack
Size mm Code
Quantity
HDPE 45° bend with socket branch
110/40 1 901.11040.135
90/40 1 901.9040.135
110/50 1 901.11050.135
HDPE 45° bend
40 40 901.40.135
50 30 901.50.135
56 25 901.56.135
63 30 901.63.135
75 25 901.75.135
90 20 901.90.135
110 25 901.110.135
125 15 901.125.135
160 1 901.160.135
200* 1 901.200.135
250* 1 901.250.135
*Segmented 315* 1 901.315.135
HDPE 180° bend
40 40 901.40.180
50 20 901.50.180
56 20 901.56.180
63 20 901.63.180
75 10 901.75.180
90 10 901.90.180
110 10 901.110.180
HDPE 90° reducing bend
50/40 40 901.5040.90
63/50 20 901.6350.90
HDPE Y branch 45°
40 50 904.40.135
50 20 904.50.135
56 20 904.56.135
63 15 904.63.135
75 20 904.75.135
90 15 904.90.135
110 10 904.110.135
125 10 904.125.135
160 1 904.160.135
200* 1 904.200.135
250* 1 904.250.135
*Welded 315* 1 904.315.135
HDPE branch 90°
40 50 904.40.90
50 25 904.50.90
56 25 904.56.90
63 20 904.63.90
75 15 904.75.90
90 20 904.90.90
110 15 904.110.90
125 15 904.125.90
160 1 904.160.90
200* 1 904.200.90
250* 1 904.250.90
*Welded 315* 1 904.315.90
4
Fittings
Pack
Size mm Code
Quantity

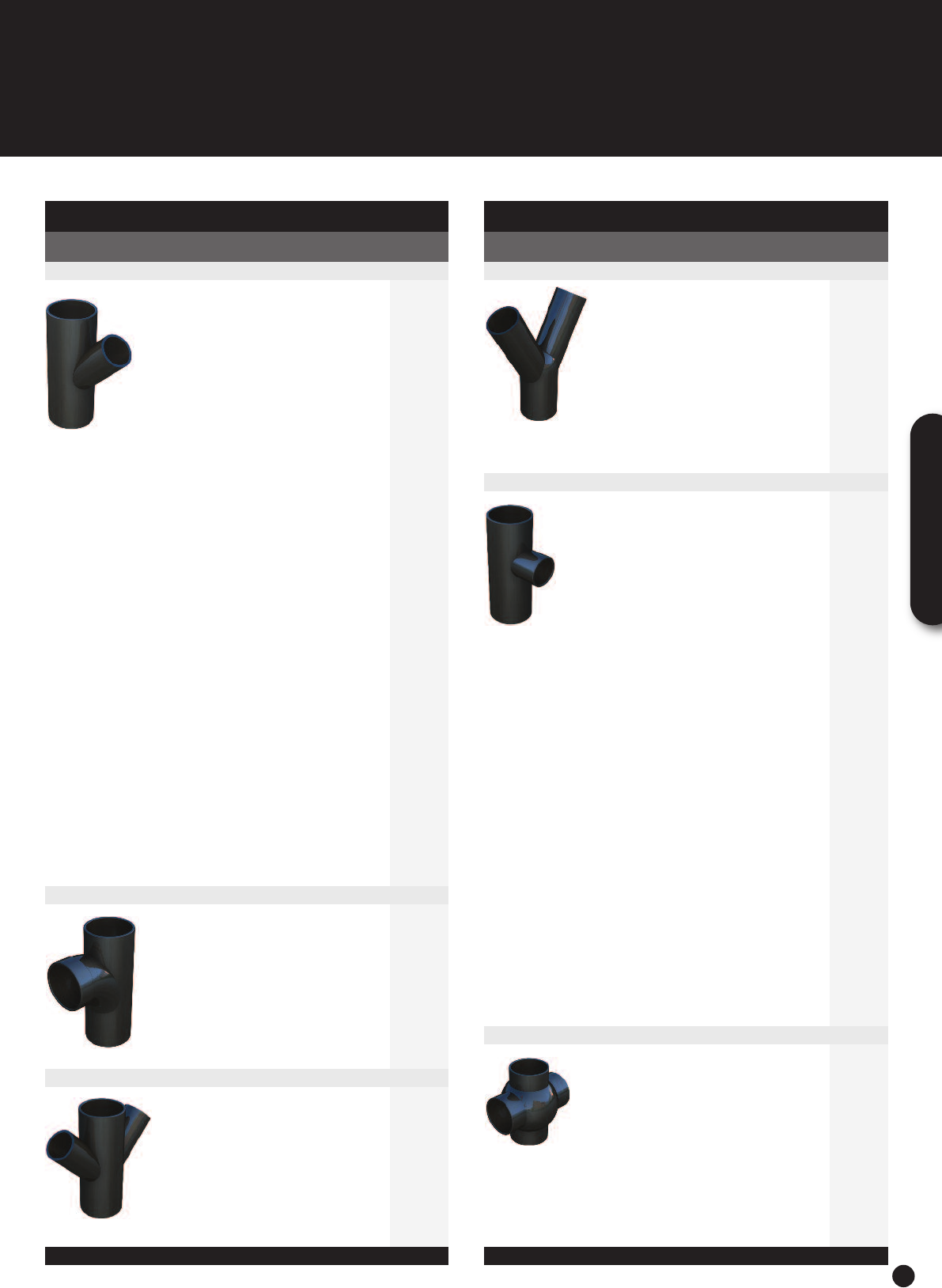

HDPE reducing Y branch 45°
50/40 20 904.5040.135
56/50 20 904.5650.135
63/40 15 904.6340.135
63/50 15 904.9056.135
63/56 15 904.6350.135
75/40 25 904.6356.135
75/50 25 904.7540.135
75/56 25 904.9075.135
75/63 25 904.7550.135
90/40 15 904.7556.135
90/50 15 904.9040.135
90/56 20 904.7563.135
90/63 15 904.9050.135
90/75 15 904.11040.135
110/40 10 904.9063.135
110/50 10 904.11050.135
110/56 10 904.11056.135
110/63 10 904.11063.135
110/75 10 904.11075.135
110/90 10 904.11090.135
125/40 10 904.12540.135
125/50 10 904.12550.135
125/56 10 904.12556.135
125/63 10 904.12563.135
125/75 10 904.12575.135
125/90 10 904.12590.135
125/110 10 904.125110 .135
160/110 1 904.160110.135
160/125 1 904.160125.135
200/110* 1 904.200110.135
200/125* 1 904.200125.135
200/160* 1 904.200160.135
250/110* 1 904.250110.135
250/125* 1 904.250125.135
250/160* 1 904.250160.135
250/200* 1 904.250200.135
315/110* 1 904.315110.135
315/125* 1 904.315125.135
315/160* 1 904.315160.135
315/200* 1 904.315200.135
*Welded 315/250* 1 904.315250.1 35
HDPE swept branch tting
110/110 15 904.315200.135
HDPE 45° double reducing branch
110/40 10 906.11040.135
110/50 10 906.11050.135
110/110 10 906.110.135
Fittings
Pack
Size mm Code
Quantity
HDPE double Y branch 60°
50/40 25 906.5040.60
63/50 25 906.6350.60
110/110 10 906.110.60
HDPE reducing branch 90°
50/40 25 904.5040.90
56/50 25 904.5650.90
6¾0 20 904.6340.90
63/50 20 904.6350.90
63/56 20 904.6356.90
75/40 25 904.7540.90
75/50 20 904.7550.90
75/56 20 904.7556.90
75/63 20 904.7563.90
90/40 20 904.9040.90
90/50 20 904.9050.90
90/56 20 904.9056.90
90/63 20 904.9063.90
90/75 20 904.9075.90
110/40 15 904.11040.90
110/50 15 904.11050.90
110/56 15 904.11056.90
110/63 15 904.11063.90
110/75 15 904.11075.90
110/90 15 904.11090.90
125/110 15 904.125110.90
160/110 1 904.160110.90
160/125 1 904.160125.90
200/110* 1 904.200110.90
200/125* 1 904.200125.90
200/160* 1 904.200160.90
250/110* 1 904.250110.90
250/125* 1 904.250125.90
250/160* 1 904.250160.90
250/200* 1 904.250200.90
315/110* 1 904.315110.90
315/125* 1 904.315125.90
315/160* 1 904.315160.90
315/200* 1 904.315200.90
315/250* 1 904.315250.90
*Welded
HDPE 180° double branch ball tting
110/50 5 916.11050.180
110/56 5 916.11056.180
110/75 5 916.11075.180
110/90 5 916.11090.180
110/110 5 916.110.180
125/50 5 916.12550.180
125/56 5 916.12556.180
125/75 5 916.12575.180
125/90 5 916.12590.180
125/110 5 916.125110.180
125/125 5 916.125.180
HDPE
Terrain
5
Fittings
Pack
Size mm Code
Quantity

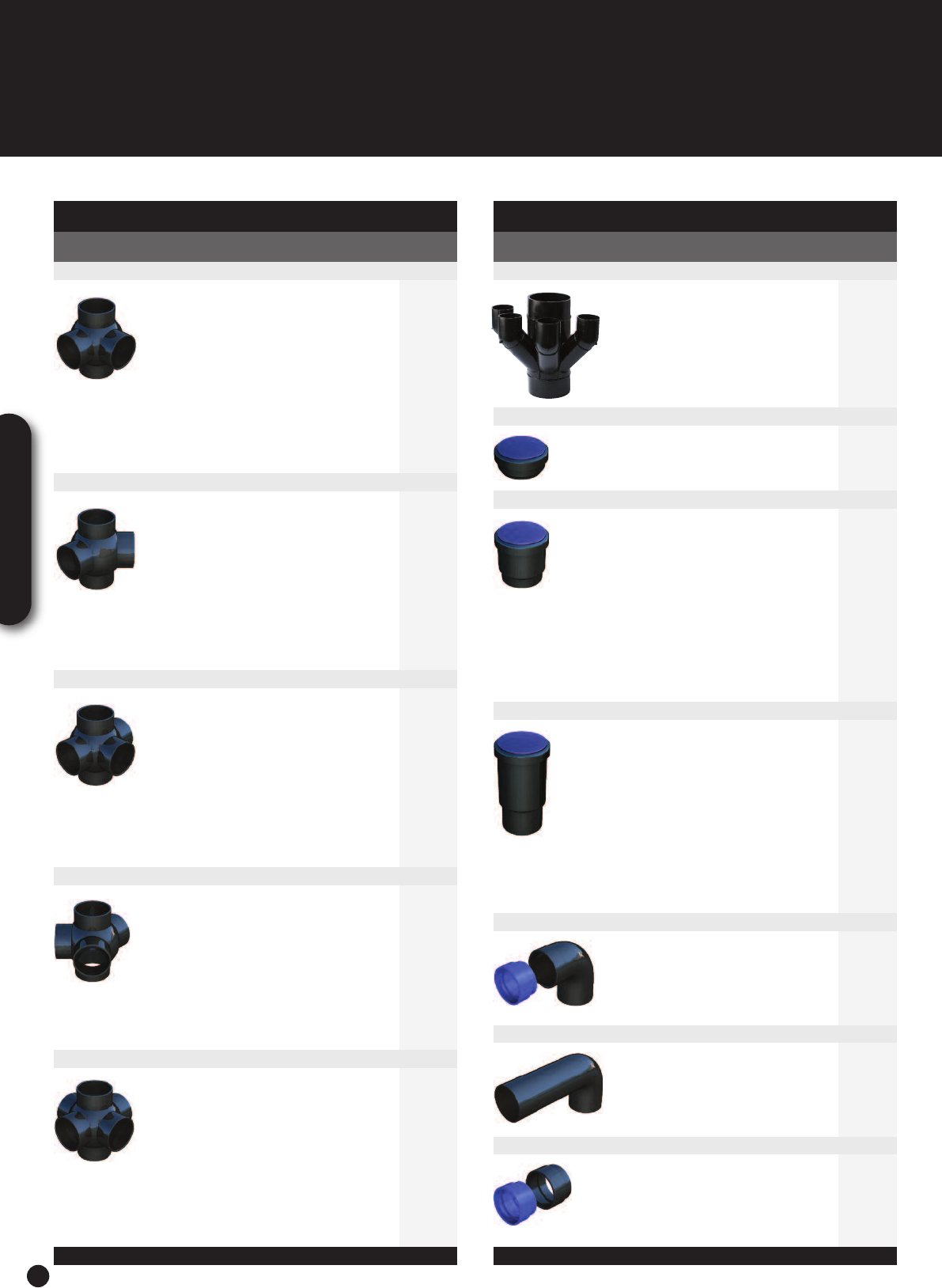

HDPE 90° double branch ball tting
110/50 5 916.11050.90
110/56 5 916.11056.90
110/75 5 916.11075.90
110/90 5 916.11090.90
110/110 5 916.110.90
125/50 5 916.12550.90
125/56 5 916.12556.90
125/75 5 916.12575.90
125/90 5 916.12590.90
125/110 5 916.125110.90
125/90 5 916.12590.90
125/125 5 916.125.90
HDPE 135° double branch ball tting
110/50 5 916.11050.135
110/56 5 916.11056.135
110/75 5 916.11075.135
110/90 5 916.11090.135
110/110 5 916.110.135
125/50 5 916.12550.135
125/56 5 916.12556.135
125/75 5 916.12575.135
125/90 5 916.12590.135
125/110 5 916.125110.135
125/125 5 916.125.135
HDPE 90° multi branch ball tting
110/50 5 916.11050.903
110/56 5 916.11056.903
110/75 5 916.11075.903
110/90 5 916.11090.903
110/110 5 916.110.903
125/50 5 916.12550.903
125/56 5 916.12556.903
125/75 5 916.12575.903
125/90 5 916.12590.903
125/110 5 916.125110.903
125/125 5 916.125.903
HDPE 135° multi branch ball tting
110/50 5 916.11050.1353
110/56 5 916.11056.1353
110/75 5 916.11075.1353
110/90 5 916.11090.1353
110/110 5 916.110.1353
125/50 5 916.12550.1353
125/56 5 916.12556.1353
125/75 5 916.12575.1353
125/90 5 916.12590.1353
125/110 5 916.125110.1353
HDPE 90° multi branch ball tting
110/50 5 916.11050.904
110/56 5 916.11056.904
110/75 5 916.11075.904
110/90 5 916.11090.904
110/110 5 916.110.904
125/50 5 916.12550.904
125/56 5 916.12556.904
125/75 5 916.12575.904
125/90 5 916.12590.904
125/110 5 916.125110.904
125/125 5 916.125.904
Fittings
Pack
Size mm Code
Quantity
HDPE universal soil manifold
For connections of 56mm waste pipes at oor level.
Incorporates 4 inlets to accept 56mm waste pipes.
160 45° inlets 1
919.160.56
110 45° inlets 1
919.110.56A
110 90° inlets 1
919.110.56AB
HDPE short ring seal socket
90/90 25 909.90
110/110 25 909.110
HDPE ring seal adaptors with cap
40 40 927.40
50 30 927.50
56 30 927.56
63 20 927.63
75 20 927.75
90 25 927.90
110 10 927.110
125 10 927.125
160 1 927.160
200 1 927.200
250 1 927.250
315 1 927.315
HDPE expansion joint with cap
40 20 911.40
50 15 911.50
56 15 911.56
63 15 911.63
75 10 911.75
90 15 911.90
110† 10 911.110
125 10 911.125
160 1 911.160
200 1 911.200
†For Rigid pipe support 250* 1 911.250
*without cap 315* 1 911.315

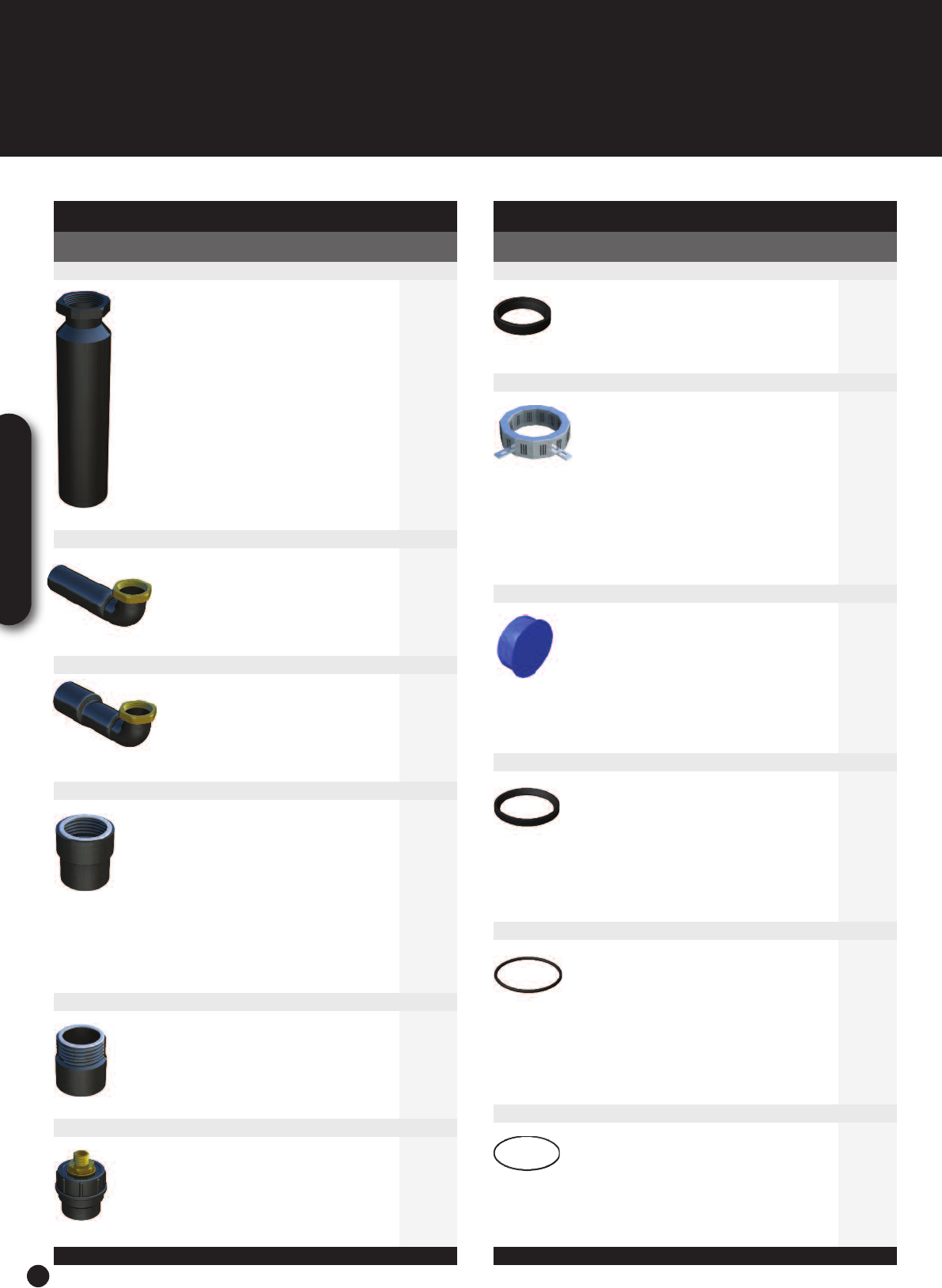

HDPE spigot bend with cap
40/46 40 917.4046.90
50/46 40 917.5046.90
50/58 20 917.5058.90
56/46 20 917.5646.90
56/58 20 917.5658.90
HDPE extended spigot bend
56 20 902.56.90
HDPE sleeve
40/46 40 917.4046
50/46 40 917.5046
50/58 20 917.5058
56/46 20 917.5646
56/58 20 917.5658
6
Fittings
Pack
Size mm Code
Quantity

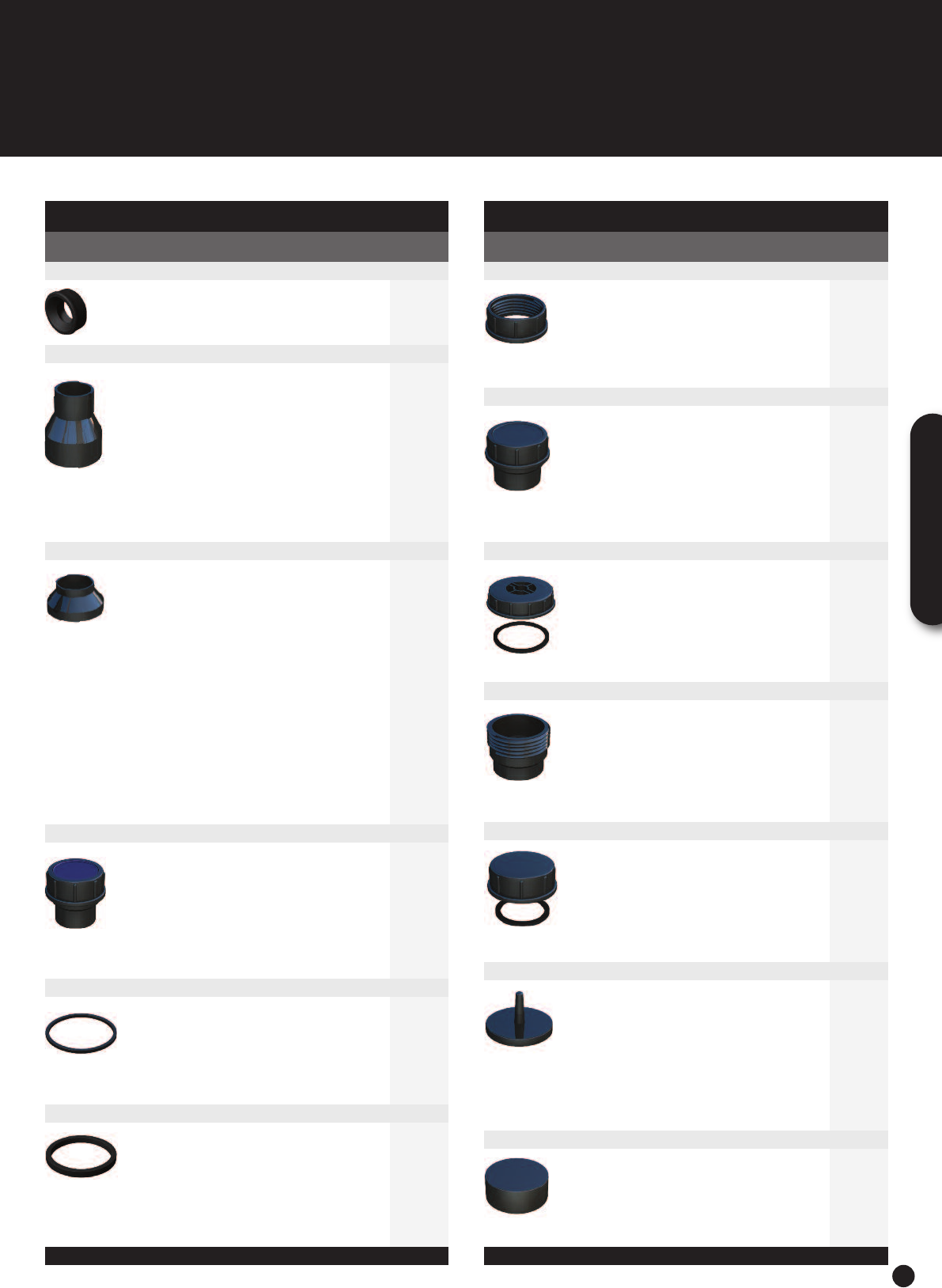

HDPE gasket
46/36-40 100 917.4636.908
58/36-40 100 917.5836.908
58/47-50 100 917.5847.908
HDPE concentric reducer
50/40 50 924.5040
56/50 50 924.5650
63/40 40 924.6340
63/50 40 924.6350
63/56 40 924.6356
75/40 40 924.7540
75/50 30 924.7550
75/56 30 924.7556
75/63 30 924.7563
90/40 20 924.9040
90/50 20 924.9050
HDPE concentric reducer
90/56 20 924.9056
90/63 20 924.9063
90/75 20 924.9075
110/40 25 924.11040
110/50 25 924.11050
110/56 25 924.11056
110/63 25 924.11063
110/75 20 924.11075
110/90 20 924.11090
125/50 20 924.12550
125/56 20 924.12556
125/63 20 924.12563
125/75 20 924.12575
125/90 20 924.12590
125/110 20 924.125110
160/110 1 924.160110
200/160 1 924.200160
HDPE threaded coupling
50 30 912.50
56 20 912.56
56/63 20 912.63
63 20 912.5663
75 20 912.75
90 15 912.90
110 10 912.110
HDPE ring
50 10 9118.50
56 10 9118.56
63 10 9118.63
75 10 9118.75
90 10 9118.90
110 10 9118.110
HDPE ring seal
50 1 9119.50
56 1 9119.56
63 1 9119.63
75 1 9119.75
90 1 9119.90
110a 1 9119.110
110b 1 9119.110B
Fittings
Pack
Size mm Code
Quantity
HDPE nut
50 10 9120.50
56 10 9120.56
63 10 9120.63
75 10 9120.75
110 10 9120.110
HDPE screwed end cap
40936.40
50 30 936.50
56 20 936.56
63 20 936.63
75 20 936.75
90 15 936.90
110 15 936.110
HDPE short end cap with seal
110 10 9938.110
HDPE threaded union
50 10 9122.50
56 10 9122.56
63 10 9122.63
75 10 9122.75
90 10 9122.90
110 10 9122.110
HDPE end cap with seal
50 10 9121.50
56 10 9121.56
63 10 9121.63
75 10 9121.75
90 10 9121.90
110 10 9121.110
HDPE blank end
40 100 930.40
50 100 930.50
56 100 930.56
63 50 930.63
75 30 930.75
90 30 930.90
110 30 930.110
125 20 930.125
HDPE end cap
160 1 930.160
200 1 930.200
250 1 930.250
315 1 930.315
HDPE
Terrain
7

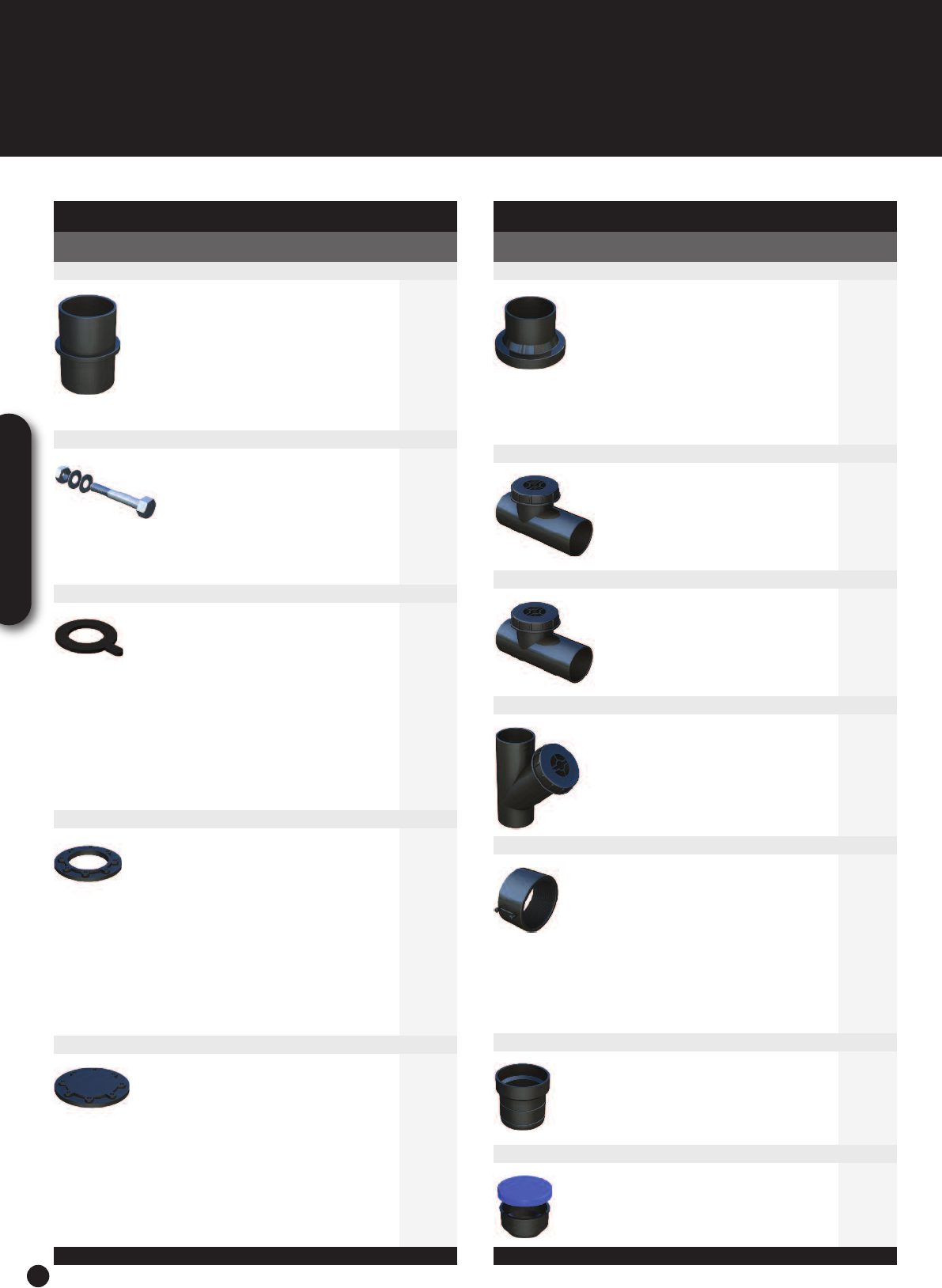

Fittings
Pack
Size mm Code
Quantity
HDPE anchor pipe
50 40 970.50
56 20 970.56
63 20 970.63
75 20 970.75
90 15 970.90
110 10 970.110
HDPE galvanised bolt with washer for ange
M16x90 (50-56 ange) 1(4pcs) 984.1650
M16x100(63-75 ange) 1(4pcs) 984.1663
M16x100(90 ange) 1(8pcs) 984.1690
M16x110(110-140 ange) 1(8pcs) 984.16110
M20x110(160 ange) 1(8pcs) 984.20160
M20x130(200-315 ange) 1
(12pcs)
984.20250
Rubber ange seal
50 1 982.50
56 1 982.56
63 1 982.63
75 1 982.75
90 1 982.90
110 1 982.110
125 1 982.125
160 1 982.160
200 1 982.200
250 1 982.250
315 1 982.315
Painted aluminium backing ange
50 1 981.50
56 1 981.56
63 1 981.63
75 1 981.75
90 1 981.90
110 1 981.110
125 1 981.125
160 1 981.160
200 1 981.200
250 1 981.250
315 1 981.315
Painted aluminium blank ange
50 1 983.50
56 1 983.56
63 1 983.63
75 1 983.75
90 1 983.90
110 1 983.110
125 1 983.125
160 1 983.160
200 1 983.200
250 1 983.250
315 1 983.315
Fittings
Pack
Size mm Code
Quantity
HDPE ange adaptors
50 1 980.50
56 1 980.56
63 1 980.63
75 1 980.75
90 1 980.90
110 1 980.110
125 1 980.125
160 1 980.160
200 1 980.200
250 1 980.250
315 1 980.315
HDPE 90° access pipe with screw cap
50 1 938.50.90
56 1 938.56.90
63 1 938.63.90
75 1 938.75.90
HDPE 90° access pipe with screw cap
90 1 938.90.90
110 1 938.110.90
125 1 938.125.90
160 1 938.160.90
200 1 938.200.90
250 1 938.250.90
315 1 938.315.90
HDPE 45° access pipe with screw cap
110/110 1 938.110.135
125/110 1 938.125.135
160/110 1 938.160.135
HDPE electrofusion couplings
40 10 910.40
50 10 910.50
56 10 910.56
63 10 910.63
75 10 910.75
90 10 910.90
110 10 910.110
125 5 910.125
160 5 910.160
200 1 910.200
250 1 910.250
315 1 910.315
HDPE male PVC adaptor with ring seal
110/100 10 9113.110100
HDPE WC pan connector with cap
90 20 925.90
110 20 925.110
8

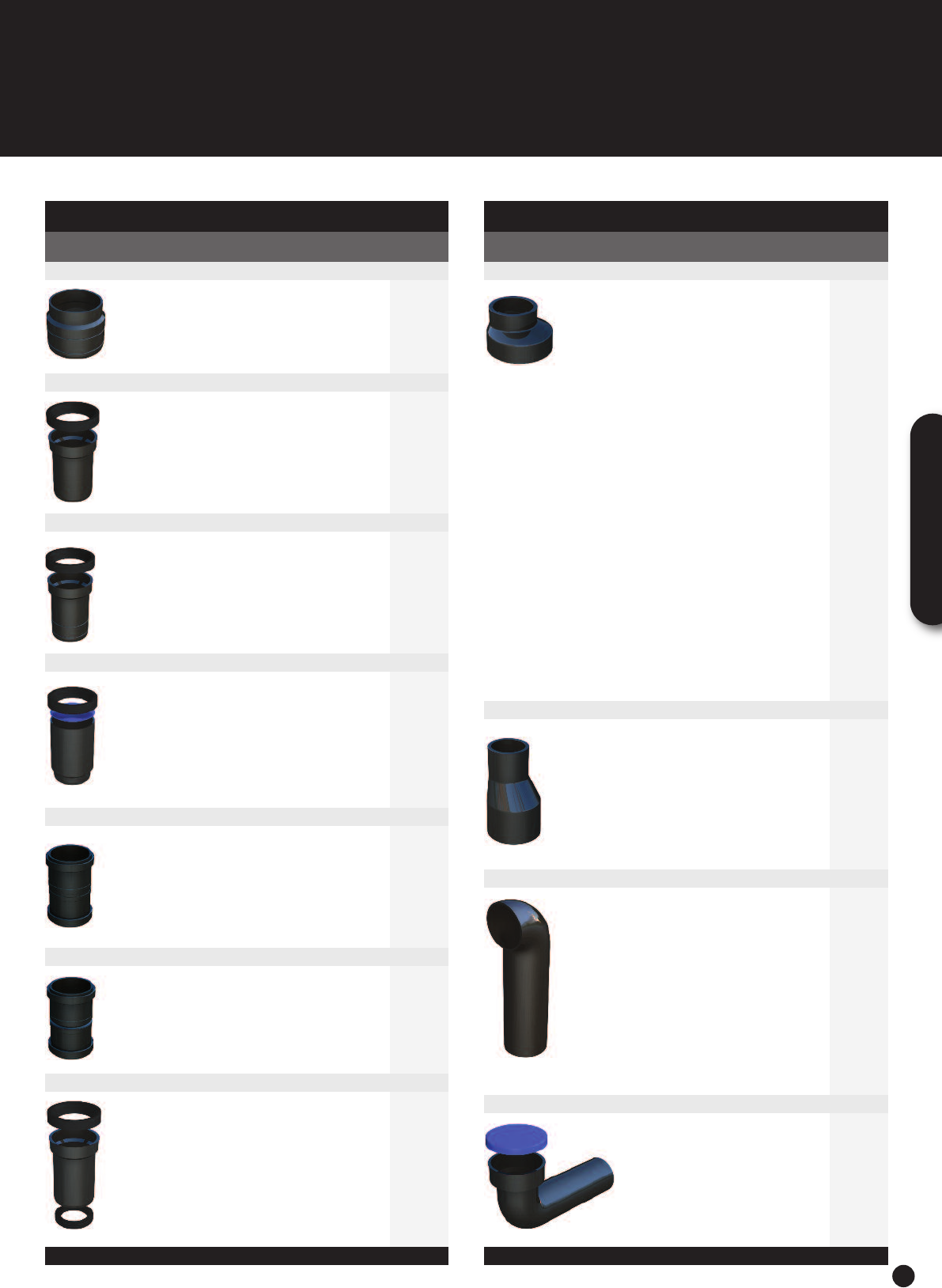

Fittings
Pack
Size mm Code
Quantity
HDPE male PVC adaptor
90/100 15 9113.80100
HDPE female PVC adaptor with ring seal
90/100 10 925.90100
110/100 10 925.110100
HDPE WC connector for PVC with ring seal
100 10 925.100
HDPE extended WC pan connector with cap
90 20 993.90
100 20 993.90
HDPE sliding connector
160 1 911s.160
200 1 911s.200
250 1 911s.250
315 1 911s.315
HDPE ring seal socket
160 1 910p.160
200 1 910p.200
250 1 910p.250
315 1 910p.315
HDPE extended oor pan connector with 2 seals
110 10 993.110D
Fittings
Pack
Size mm Code
Quantity
HDPE eccentric reducer
50/40 50 923.5040
56/50 30 923.5650
63/40 30 923.6340
63/50 30 923.6350
63/56 30 923.6356
75/40 30 923.7540
75/50 30 923.7550
75/56 30 923.7556
75/63 30 923.7563
90/40 20 923.9040
90/50 20 923.9050
90/56 20 923.9056
90/63 20 923.9063
90/75 20 923.9075
110/40 20 923.11040
110/50 20 923.11050
110/56 20 923.11056
110/63 20 923.110.63
110/75 20 923.11075
110/90 20 923.11090
125/50 10 923.12550
125/56 10 923.12556
125/63 10 923.12563
125/75 10 923.12575
125/90 10 923.12590
125/110 10 923.125110
160/110 5 923.160110
160/125 5 923.160125
HDPE long eccentric reducer
160/110 5 923.160110L
160/125 5 923.160125L
200/110 1 923.200110L
200/125 1 923.200125L
200/160 1 923.200160L
250/200 1 923.250200L
315/200 1 923.315200L
315/250 1 923.315250L
HDPE short radius bend
90 10 902.90.90
110 10 902.110.90
HDPE WC bend with cap
90 10 929.90.90
110 10 929.110.90
HDPE
Terrain
9

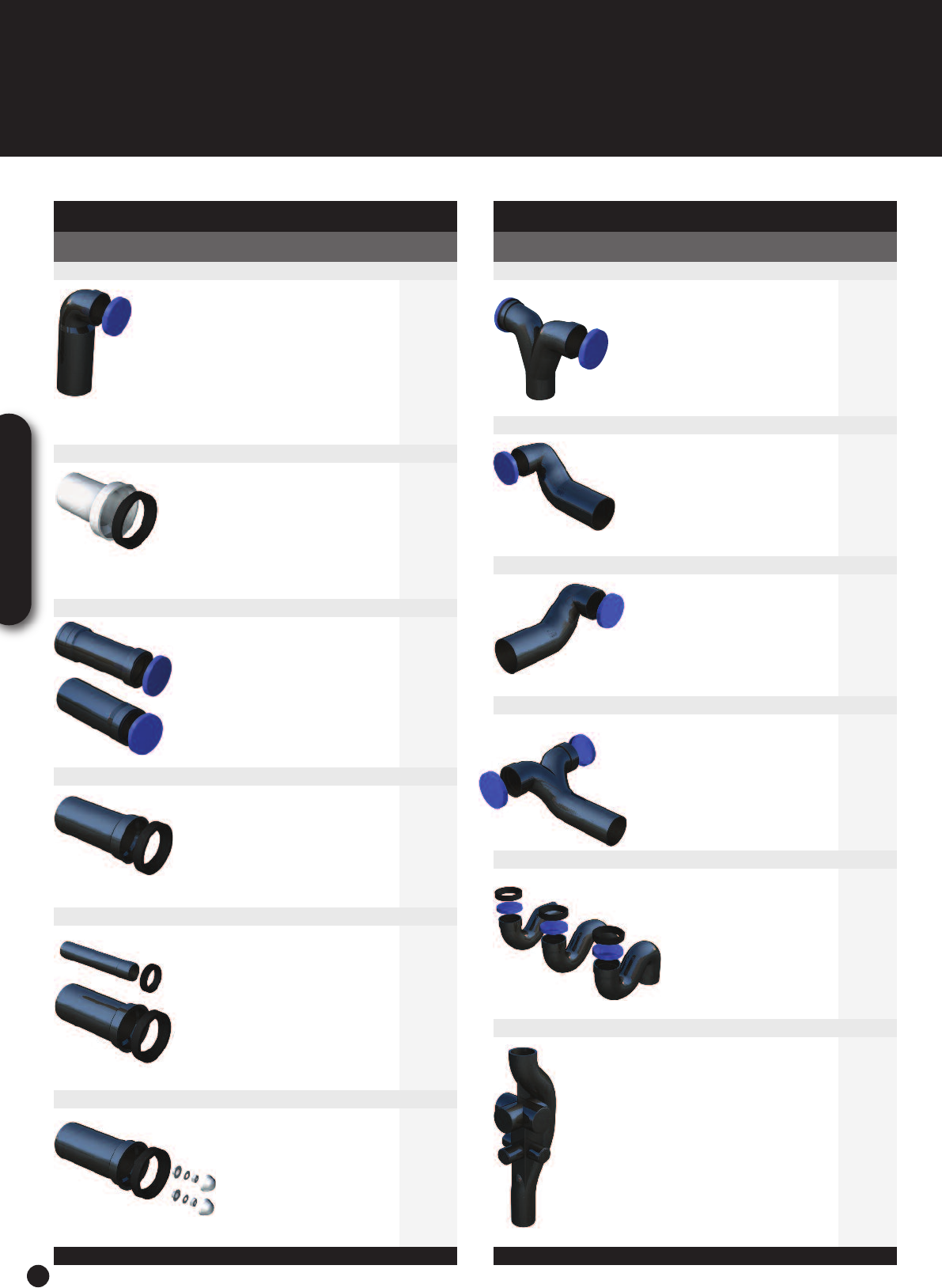

Fittings
Pack
Size mm Code
Quantity
HDPE WC bend for hanging pan with seal and cap
90/90 10 999.90.90
110/110 10 999.110.90
HDPE WC pan connector - white
90 10 925.90w
110 10 925.110w
HDPE straight WC pan connector with seal and cap
90/100 10 999.90100.00
90/100 10 998.90100.00
HDPE long WC pan connector with seal
90 (length 200mm) 10 925L.90
90 (length 300mm) 10 925XL.90
HDPE connector for wall hung pan with seal & white covering
90/44 10 925.9044
110/44 10 925.11044
HDPE WC connector for wall hung pan with seal & white covering
90 10 925.90
110 10 925.110
Fittings
Pack
Size mm Code
Quantity
HDPE double WC pan connector with 1 lip seals and caps
90/110 5 929.90110.90D
110/110 5 929.110.90D
HDPE bend for wall hung pan with 1 lip seal and cap, left
110/110 5 949.110L
90/90 5 949.90L
110/90 5 949.11090L
HDPE bend for wall hung pan with 1 lip seal and cap, right
110/110 5 949.110R
90/90 5 949.90R
110/90 5 949.11090R
HDPE WC pan connectors
110/110 5 949.110D
110/90 5 949.11090D
HDPE trap with seal and cap
110 5 9631.110.0
110 (45° tail) 5 9631.110.45
110 (90° tail) 5 9631.110.90
HDPE ventilation branch
110 1 908.110
160 1 908.160
10

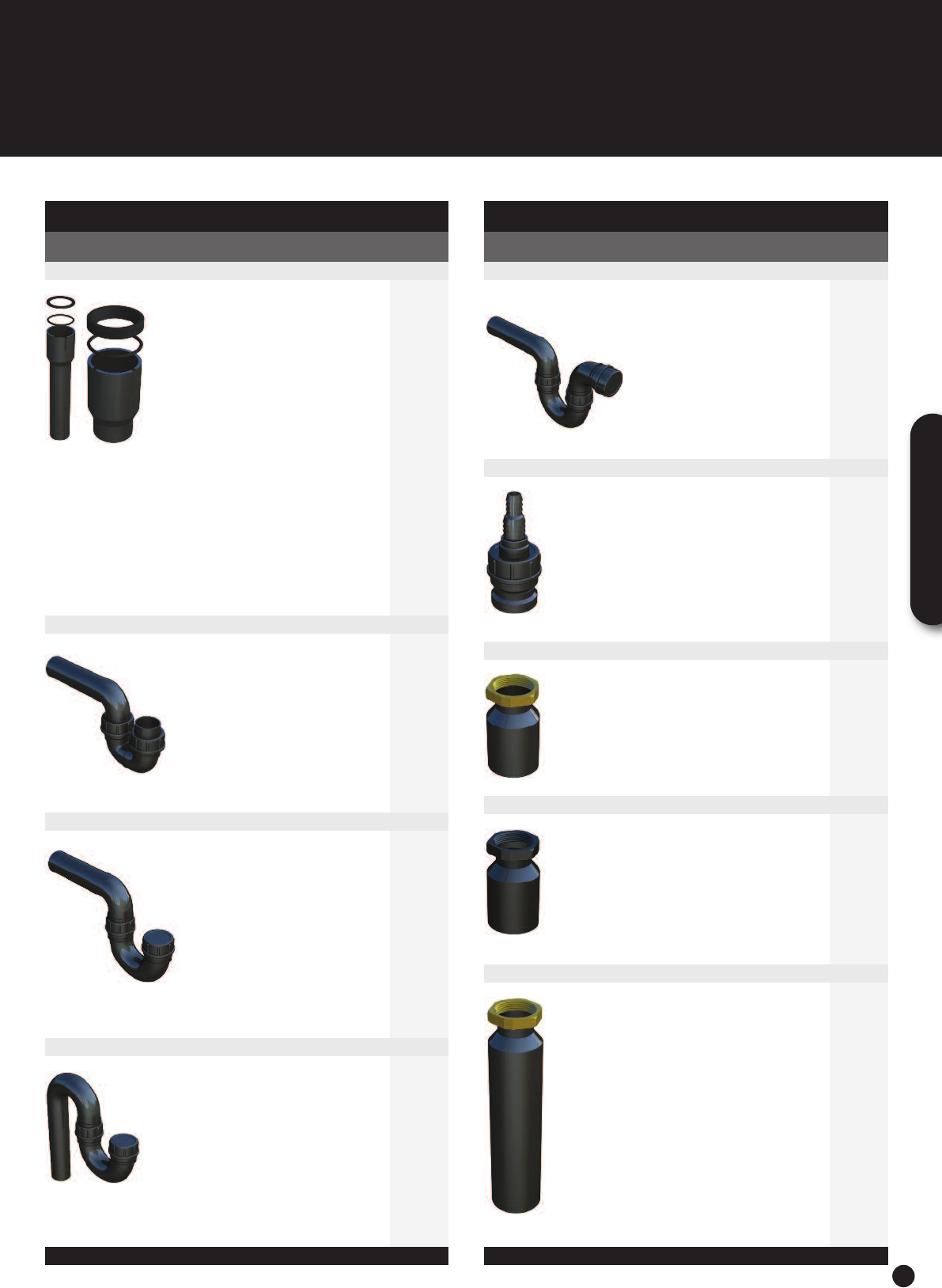

Fittings
Pack
Size mm Code
Quantity
HDPE adaptor - cast iron, steel, asbestos cement pipes
50/60 15 926.5060
50/73 15 926.5073
50/80 15 926.5080
50/90 15 926.5090
50/100 15 926.50100
56/60 15 926.5660
56/73 15 926.5673
56/80 15 926.5680
56/90 15 926.5690
56/100 15 926.56100
63/73 15 926.6373
63/80 15 926.6380
63/90 15 926.6390
75/80 15 926.7580
75/90 15 926.7590
75/100 15 926.75100
90/110 15 926.90110
110/125 15 926.110125
110/140 15 926.110140
125/150 15 926.125150
HDPE universal trap, vertical inlet and horizontal outlet
63 1 931.63
75 1 931.75
90 1 931.90
110 1 931.110
HDPE trap, vertical inlet and horizontal outlet
40/40 10 931.4040
40/50 10 931.4050
40/56 10 931.4056
50/50 10 931.5050
50/56 10 931.5056
HDPE trap - vertical inlet and outlet
40/40 10 932.4040
40/50 10 932.4050
40/56 10 932.4056
50/50 10 932.5050
50/56 10 932.5056
Fittings
Pack
Size mm Code
Quantity
HDPE trap - horizontal inlet and outlet
40/40 10 945.4040
40/50 10 945.4050
40/56 10 945.4056
50/50 10 945.5050
50/56 10 945.5056
HDPE washing machine connector
50 20 933.50
HDPE tting with nut - brass
40mm/1¼” 40 918.40.125B
40mm/1½” 40 918.40.15B
50mm/1¼” 40 918.40.125EB
50mm/1½” 40 918.50.15B
HDPE tting with nut - plastic
32mm/1¼” 40 918.32.125
40mm/1¼” 40 918.40.125
40mm/1½” 40 918.40.15
50mm/1¼” 40 918.50.125
50mm/1½” 40 918.50.15
HDPE extended tting with nut - brass
40mm/1¼” 20 918.40.125EB
40mm/1½” 20 918.40.15EB
50mm/1¼” 20 918.50.125EB
50mm/1½” 20 918.50.15EB
HDPE
Trap adaptors are available 40mm to 1¼” and 50mm to 1½”
Terrain
11
Fittings
Pack
Size mm Code
Quantity
HDPE extended tting with nut - plastic
40mm/1¼”
20 918.40.125E
40mm/1½”
20 918.40.15E
50mm/1¼”
20 918.50.125E
50mm/1½”
20918.50.15E
HDPE bend with nut - *brass •plastic
40mm/1¼”* 20 918.40.125.90B
40mm/1½”* 20 918.40.15.90B
40mm/1¼”• 20 918.40.125.90
40mm/1½”• 20 918.40.15.90
HDPE reducing bend with nut - *brass •plastic
40/50mm/1¼”* 20 918.4050.125.90B
40/50mm/1½”* 20 918.4050.15.90B
40/50mm/1¼”• 20 918.4050.125.90
40/50mm/1½”• 20 918.4050.15.90
HDPE end with internal threading, reinforced with steel ring
40mm x ½” 10 916.40.05
40mm x ¾” 10 916.40.075
40mm x 1” 10 916.40.1
50mm x ½” 10 916.50.05
50mm x ¾” 10 916.50.075
50mm x 1” 10 916.50.1
50mm x 1¼” 10 916.50.125
50mm x 1½” 10 916.50.15
56mm x 2” 10 916.56.2
63mm x 2” 10 916.63.2
75mm x 2½” 10 916.75.25
HDPE end with external threading, reinforced with steel ring
50mm x 1¼” 10 917.50.125
50mm x 1½” 10 917.50.15
56mm x 2” 10 917.56.2
63mm x 2” 10 917.63.2
75mm x 2½” 10 917.75.25
HDPE threaded tting with brass nipple
40mm/½” x 15 10 936.40.05N
40mm/¾” x 18 10 936.40.075N
50mm/½” x 15 10 936.50.05N
50mm/¾” x 18 10 936.50.075N
50mm1” x 22 10 936.50.1N
Fittings
Pack
Size mm Code
Quantity
HDPE seal for WC sleeves and extended bends
115 20 9129.125
HDPE re stop
50 1 9725.50
56 1 9725.56
63 1 9725.63
75 1 9725.75
90 1 9725.90
110 1 9725.110
125 1 9725.125
160 1 9725.160
200 1 9725.200
250 1 9725.250
315 1 9725.315
HDPE protective cap for socket
56 40 9130.56
63 30 9130.50
75 30 9130.75
90 30 9130.63
110 30 9130.110
125 20 9130.125
160 10 9130.160
200 1 9130.200
HDPE 1 lip seal for sockets
100 20 927.100.908
90 20 927.90.908
110 20 927.110.908
125 20 927.125.908
160 20 927.160.908
200 20 927.200.908
250 1 927.250.908
315 1 927.315.908
HDPE O ring for sockets
40 20 9116.40
50 20 9116.50
56 20 9116.56
63 20 9116.63
75 20 9116.75
90 20 9116.90
110 20 9116.110
125 20 9116.125
160 20 9116.160
HDPE O ring 100m for adaptors - PVC
100 20 9113.908

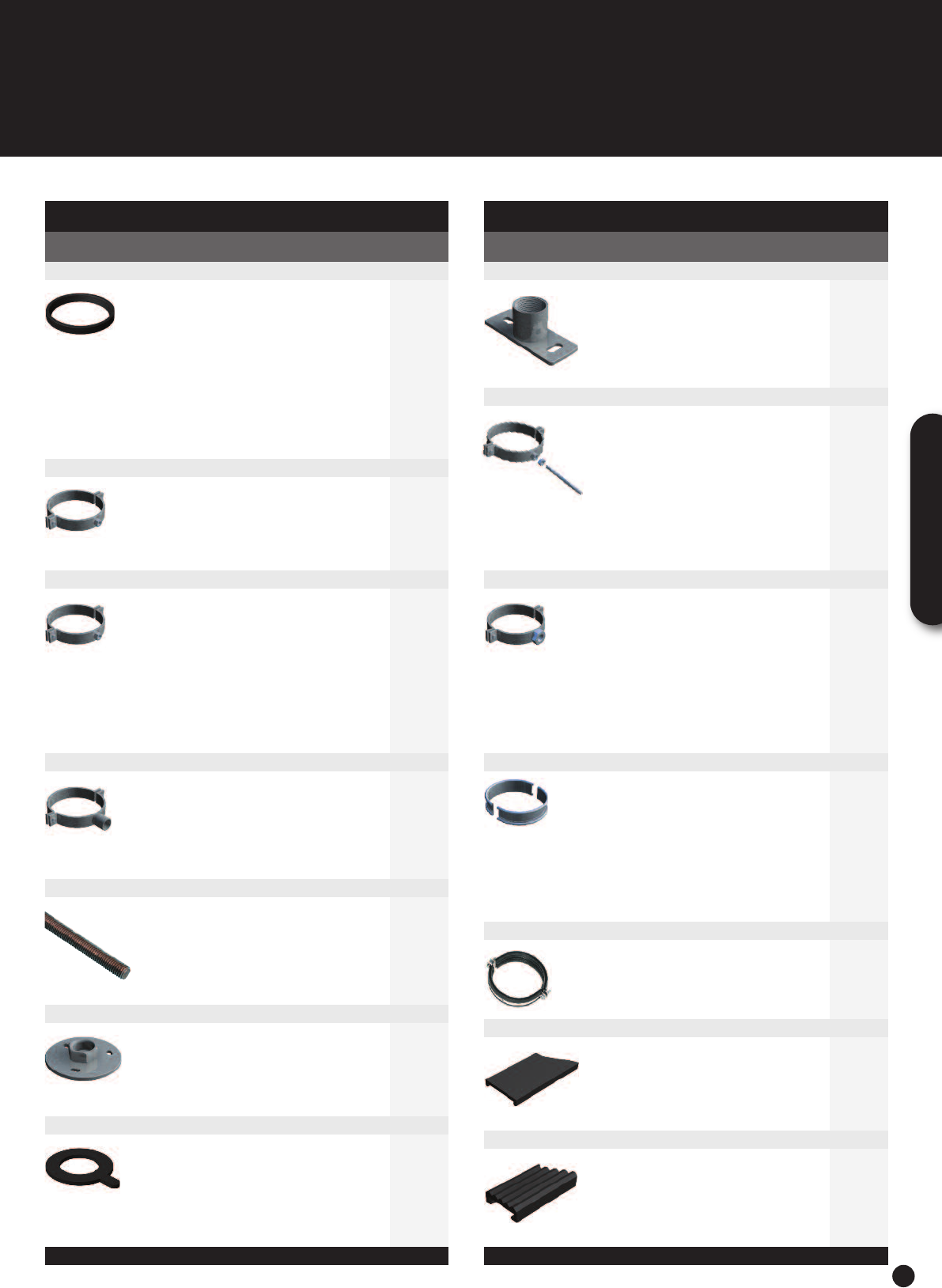

Fittings
Pack
Size mm Code
Quantity
HDPE seal for expansion sockets
40 20 911.40.908
50 20 911.50.908
56 20 911.56.908
63 20 911.63.908
75 20 911.75.908
90 20 911.90.908
110 20 911.110.908
125 20 911.125.908
160 20 911.160.908
200 1 911.200.908
HDPE M10 bracket
40mm 50 9144.40
Adjustable pipe bracket M10
50mm x M10 50 9144.50
56mm x M10 50 9144.56
63mm x M10 50 9144.63
75mm x M10 25 9144.75
90mm x M10 25 9144.90
110mm x M10 25 9144.110
125mm x M10 25 9144.125
160mm x M10 25 9144.160
Adjustable pipe bracket G1”
200mm x 1” 10 9144.200
250mm x 1” 10 9144.250
315mm x 1” 10 9144.315
Threaded bar
M10 x 1 metre 1 9147
Mounting plate
M10 100 9148.10
G ½” 100 9148.19
HDPE rubber at seal
40mm x ¼” 10 918.40.908
40mm x ½” 10 918.40.918
Fittings
Pack
Size mm Code
Quantity
Galvanised steel ange 1”
G1” 25 9148.25
HDPE M10 anchor bracket
40 50 9142.40
50 50 9142.50
56 50 9142.56
63 50 9142.63
75 25 9142.75
90 25 9142.90
110 25 9142.110
125 25 9142.125
160 25 9142.160
HDPE ½” bracket
40 50 9143.40
50 50 9143.50
56 50 9143.56
63 50 9143.63
75 25 9143.75
90 25 9143.90
110 25 9143.110
125 25 9143.125
160 25 9143.160
HDPE pipe clip
40 50 9145.40
50 50 9145.50
56 50 9145.56
63 50 9145.63
75 25 9145.75
90 25 9145.90
110 25 9145.110
125 25 9145.125
160 25 9145.160
Acoustic pipe bracket
90 25 9146.90
110 25 9146.110
160 25 9146.160
Rubber insert strip
40mm x 10m 25 9104.40
30mm x 50m 25 9104.30
Anti vibration insert
30mm x 30 9105.30
(58mm-314mm)
HDPE
12
Terrain
13

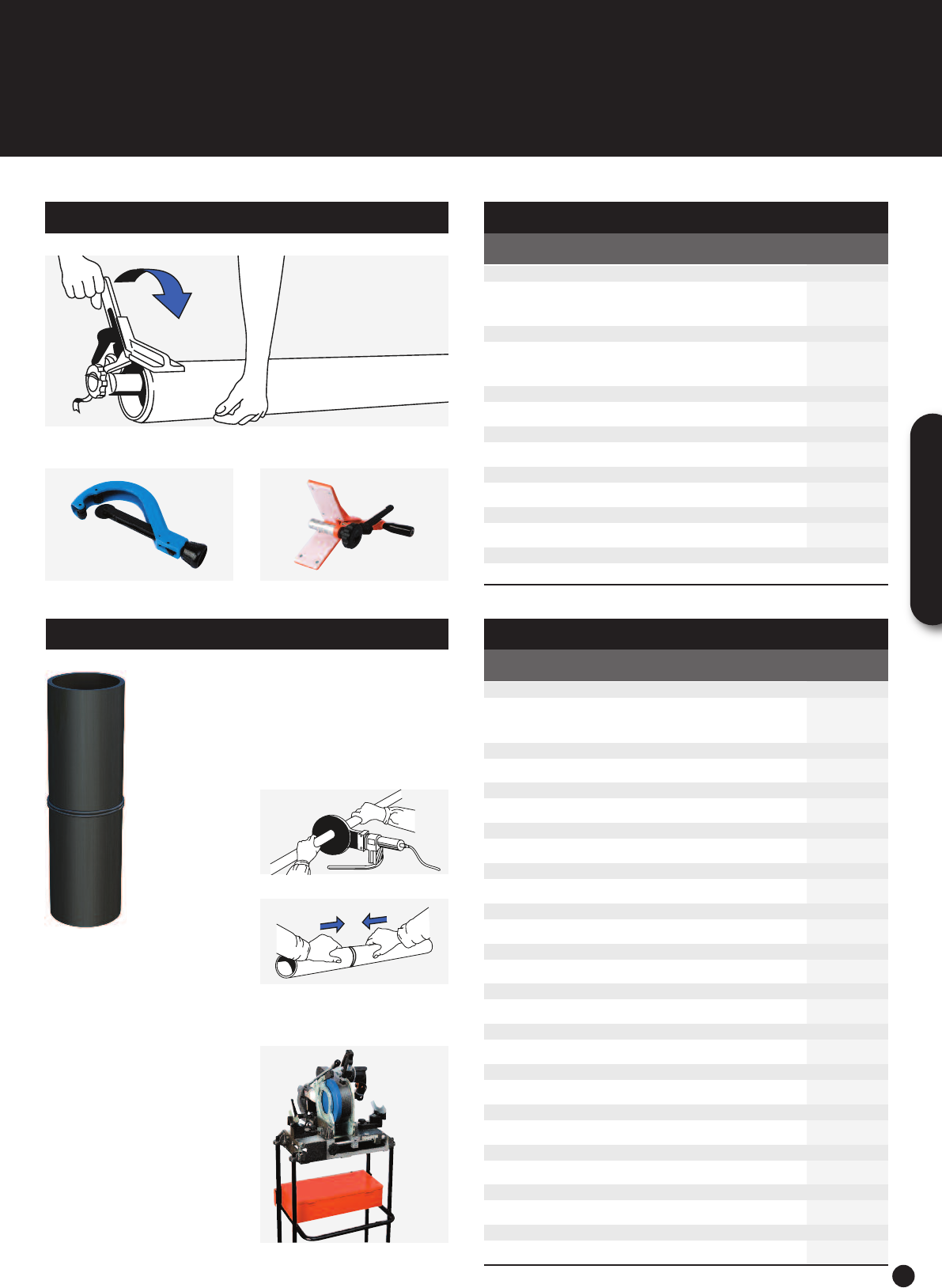

Electrofusion Coupling
Description Quantity Product Code
HDPE electrofusion welding machine 40 to 160mm
40 to 160mm 1 HDN464001
Cable and plugs
230 Volt 1 HDC464222
Universal electrofusion machine with scraper 40 to 315mm
230 Volt 1 HDN464333
110 Volt 1 HDN464005
HDPE pipe scraper
1HDC465333
Pipe cutter
40 to 63mm 1 HDC458001
50 to 140mm 1 HDC458003
Spare blades
40 to 63mm 1 HDC459001
50 to 140mm 1 HDC459003
HDPE pencils
1 (12Pcs.) HDC474001
HDPE knife
1(12Pcs.) HDC473001
Available in sizes 40 - 315mm
Connection properties:
Non-removable
Tension resistant
Use
This form of jointing is suitable for on-site
welding, additional installations, repair work
and modications.
The pressure required for welding is obtained
from the shrinking effect of the sleeve upon
heating and is distributed equally over the entire weld.
This shrinkage has a compensating effect on pipe
diameter measurement tolerances.
By removing the central stop ring, the electrical sleeves can be
made to slide to enable system modications and repairs.
The electrical resistance wires will not corrode as they are protected
by HDPE after welding.

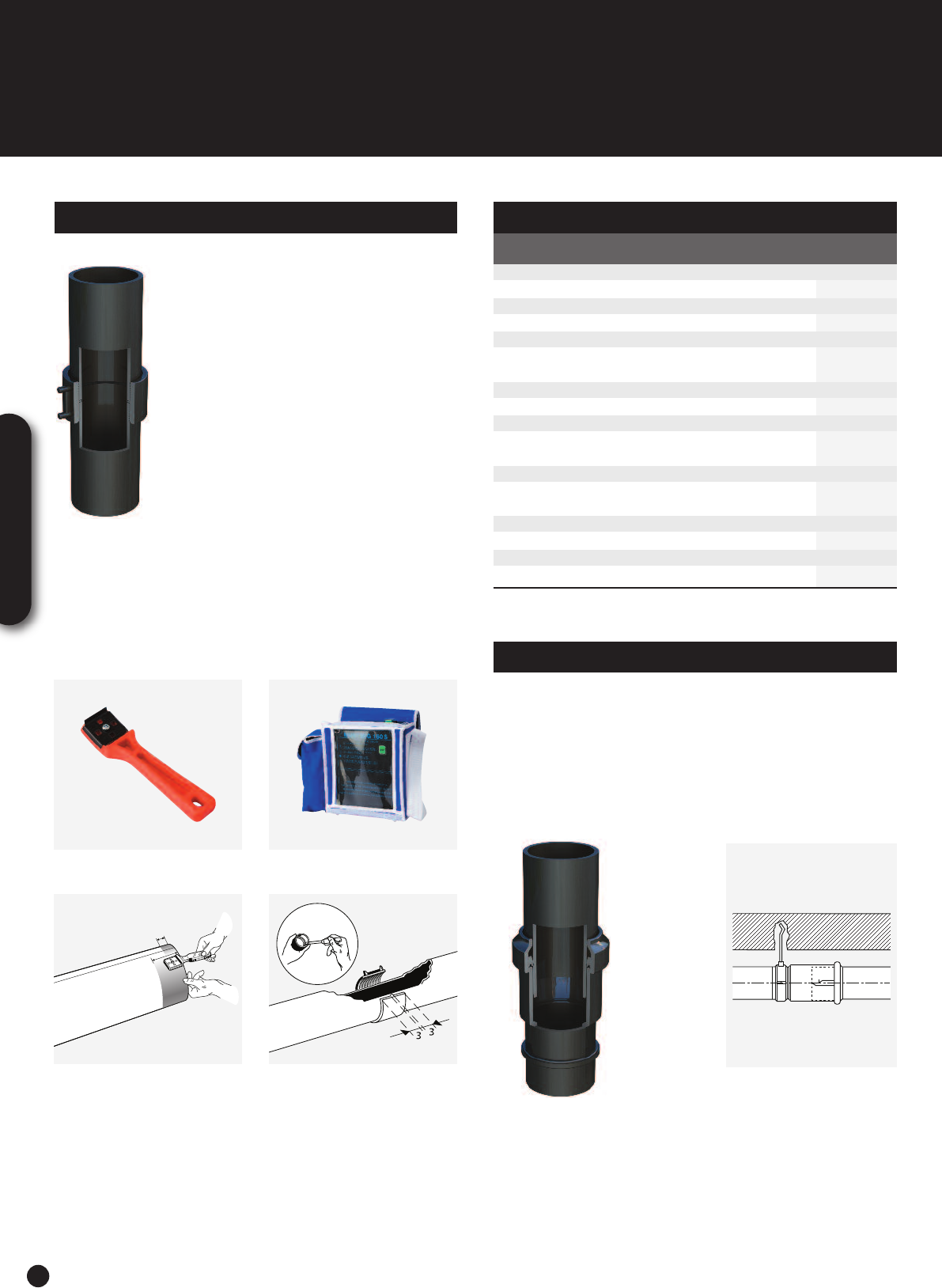

Electrofusion Coupling
10cm
3,5cm
Cut the pipe squarely, dry, clean and
scrape the welding surfaces.
The surface must remain clean and
dry during the whole welding
process,
therefore do not touch with your
hands.
The length of pipe to be scraped with
diameters ranging from 40 - 160mm is
35mm.
The length of pipe to be scraped with
diameters 200, 250 and 300mm is
100mm.
Insert pipe or tting into sleeve coupling.
If the stop ring in the sleeve needs to be
removed, mark the depth at 30mm.
Deoxidise pipe
Expansion Socket with Ring Seal
Available in sizes 40 - 315mm
Connection properties:
Non-removable
Non-tension resistant
Use
Expansion sockets can be used in underground pipe systems as
normal push-t ttings but must be provided on vertical stacks
running from oor to oor and for rainwater pipes
both inside and outside the building.
20°C
Horizontal assembly (e.g. at an
ambient temperature of 20°C).
Pipe scraper Electrofusion welding machine
33
HDPE
Expansion Socket with Ring Seal
The pipe should be chamfered to approximately 15° and lubricated with suitable Terrain
product. Do not use oil or grease which can damage the rubber seal.
Pipe cutter Bevelling tool
Expansion Socket with Ring Seal
Description Quantity Product Code
Pipe cutter
40 to 63mm 1 HDC458001
50 to 140mm 1 HDC458003
Spare blades
40 to 63mm 1 HDC459001
50 to 140mm 1 HDC459003
Bevelling tool
40 to 250mm 1 HDC460003
Spare blades
40 to 250mm 1 HDC460111
HDPE pencils
1(12Pcs.) HDC474001
HDPE knife
1 (12Pcs.) HDC473001
Lubricant
Please refer to page 19
Butt welding
Description Quantity Product Code
welding plate with steel box
40 to 160mm 1 HDC450001
110 to 300mm 1 HDC450003
Portable welding machine Practica 160
40 to 160mm 1 HDN466003
Spare blade Practica 160
Practica 160 1 HDN477515
Driving belt
Practica 160 1 HDN477500
Portable welding machine standard
40 to 160mm 1 HDN468160
Spare blade
Standard 1 HDN477515
Driving belt Practica 160
Standard 1 HDN477500
Portable welding machine super
75 to 250mm 1 HDN470001
Spare blade
Super 1 HDN477525
Driving belt
Super 1 HDN477520
Welding machine Maxi
90 to 315mm 1 HDN470005
Spare blade
Maxi 1 HDN477535
Driving belt
Maxi 1 HDN477540
HDPE knife
1 (12Pcs.) HDC473001
Suitable for diameters 40 - 315mm
Connection properties:
Non-removable
Tension resistant
Butt welding can be used in all
cases where workshop or on
site prefabrication is available.
Butt Welding requires minimal
space. This form of jointing is
safe, strong, economical and
quick.
Welding up to Ø63mm
Machine welding for all diameters
Butt welding
Plumbing and Drainage Solutions
for International Markets
Polypipe Terrain
New Hythe Business Park
College Road
Aylesford
Kent
ME20 7PJ
United Kingdom
Tel: +44 1622 795200
Fax: +44 1622 716796
international@polypipe.com
www.terraindrainage.com
Polypipe Gulf
Dubai Airport Free Zone (DAFZA)
Building 4EA
Ofce 213
Dubai
United Arab Emirates
Tel: +971 46091371
Fax: +971 46091372
polypipegulf.fze@polypipe.com
