UM10204

I2C-bus specification and user manual

Rev. 6 — 4 April 2014 User manual

Document information

Info Content

Keywords I2C, I2C-bus, Standard-mode, Fast-mode, Fast-mode Plus, Fm+,

Ultra Fast-mode, UFm, High Speed, Hs, inter-IC, SDA, SCL, USDA, USCL

Abstract Philips Semiconductors (now NXP Semiconductors) developed a simple

bidirectional 2-wire bus for efficient inter-IC control. This bus is called the

Inter-IC or I2C-bus. Only two bus lines are required: a serial data line

(SDA) and a serial clock line (SCL). Serial, 8-bit oriented, bidirectional

data transfers can be made at up to 100 kbit/s in the Standard-mode, up to

400 kbit/s in the Fast-mode, up to 1 Mbit/s in the Fast-mode Plus (Fm+), or

up to 3.4 Mbit/s in the High-speed mode. The Ultra Fast-mode is a

uni-directional mode with data transfers of up to 5 Mbit/s.

User manual Rev. 6 — 4 April 2014 2 of 64

Contact information

For more information, please visit: http://www.nxp.com

For sales office addresses, please send an email to: salesaddresses@nxp.com

NXP Semiconductors UM10204

I2C-bus specification and user manual

Revision history

Rev Date Description

v.6 20140404 User manual; sixth release

Modifications: •Figure 41 “Rp(max) as a function of bus capacitance” updated (recalculated)

•Figure 42 “Rp(min) as a function of VDD” updated (recalculated)

v.5 20121009 User manual; fifth release

v.4 20120213 User manual Rev. 4

v.3 20070619 Many of today’s applications require longer buses and/or faster speeds. Fast-mode Plus was

introduced to meet this need by increasing drive strength by as much as 10× and increasing the

data rate to 1 Mbit/s while maintaining downward compatibility to Fast-mode and Standard-mode

speeds and software commands.

v2.1 2000 Version 2.1 of the I2C-bus specification

v2.0 1998 The I2C-bus has become a de facto world standard that is now implemented in over 1000 different

ICs and licensed to more than 50 companies. Many of today’s applications, however, require higher

bus speeds and lower supply voltages. This updated version of the I2C-bus specification meets those

requirements.

v1.0 1992 Version 1.0 of the I2C-bus specification

Original 1982 first release

User manual Rev. 6 — 4 April 2014 3 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

1. Introduction

The I2C-bus is a de facto world standard that is now implemented in over 1000 different

ICs manufactured by more than 50 companies. Additionally, the versatile I2C-bus is used

in various control architectures such as System Management Bus (SMBus), Power

Management Bus (PMBus), Intelligent Platform Management Interface (IPMI), Display

Data Channel (DDC) and Advanced Telecom Computing Architecture (ATCA).

This document assists device and system designers to understand how the I2C-bus works

and implement a working application. Various operating modes are described. It contains

a comprehensive introduction to the I2C-bus data transfer, handshaking and bus

arbitration schemes. Detailed sections cover the timing and electrical specifications for the

I2C-bus in each of its operating modes.

Designers of I2C-compatible chips should use this document as a reference and ensure

that new devices meet all limits specified in this document. Designers of systems that

include I2C devices should review this document and also refer to individual component

data sheets.

2. I2C-bus features

In consumer electronics, telecommunications and industrial electronics, there are often

many similarities between seemingly unrelated designs. For example, nearly every

system includes:

•Some intelligent control, usually a single-chip microcontroller

•General-purpose circuits like LCD and LED drivers, remote I/O ports, RAM,

EEPROM, real-time clocks or A/D and D/A converters

•Application-oriented circuits such as digital tuning and signal processing circuits for

radio and video systems, temperature sensors, and smart cards

To exploit these similarities to the benefit of both systems designers and equipment

manufacturers, as well as to maximize hardware efficiency and circuit simplicity, Philips

Semiconductors (now NXP Semiconductors) developed a simple bidirectional 2-wire bus

for efficient inter-IC control. This bus is called the Inter IC or I2C-bus. All I2C-bus

compatible devices incorporate an on-chip interface which allows them to communicate

directly with each other via the I2C-bus. This design concept solves the many interfacing

problems encountered when designing digital control circuits.

Here are some of the features of the I2C-bus:

•Only two bus lines are required; a serial data line (SDA) and a serial clock line (SCL).

•Each device connected to the bus is software addressable by a unique address and

simple master/slave relationships exist at all times; masters can operate as

master-transmitters or as master-receivers.

•It is a true multi-master bus including collision detection and arbitration to prevent data

corruption if two or more masters simultaneously initiate data transfer.

•Serial, 8-bit oriented, bidirectional data transfers can be made at up to 100 kbit/s in

the Standard-mode, up to 400 kbit/s in the Fast-mode, up to 1 Mbit/s in Fast-mode

Plus, or up to 3.4 Mbit/s in the High-speed mode.

User manual Rev. 6 — 4 April 2014 4 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

•Serial, 8-bit oriented, unidirectional data transfers up to 5 Mbit/s in Ultra Fast-mode

•On-chip filtering rejects spikes on the bus data line to preserve data integrity.

•The number of ICs that can be connected to the same bus is limited only by a

maximum bus capacitance. More capacitance may be allowed under some

conditions. Refer to Section 7.2.

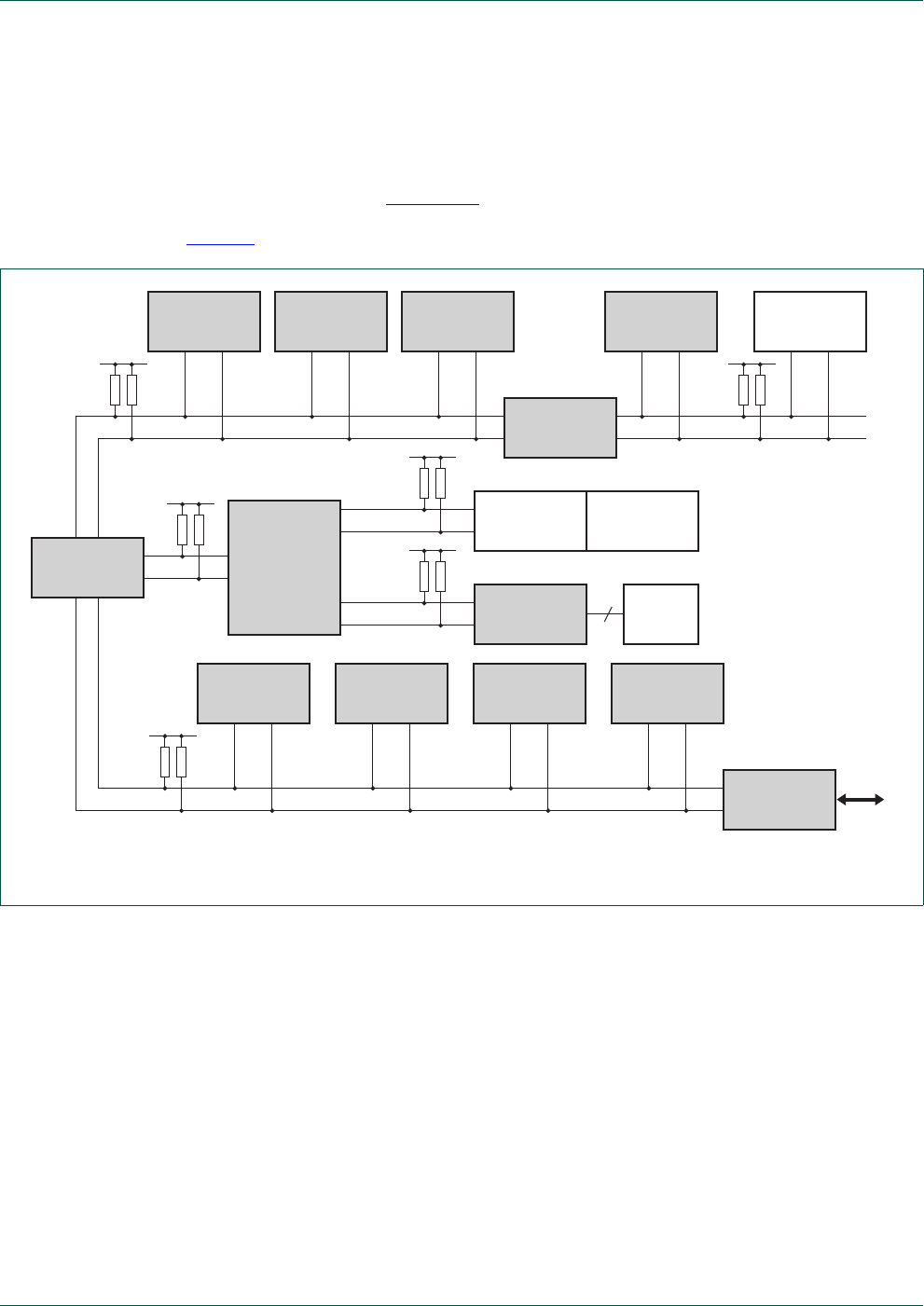

Figure 1 shows an example of I2C-bus applications.

2.1 Designer benefits

I2C-bus compatible ICs allow a system design to progress rapidly directly from a

functional block diagram to a prototype. Moreover, since they ‘clip’ directly onto the

I2C-bus without any additional external interfacing, they allow a prototype system to be

modified or upgraded simply by ‘clipping’ or ‘unclipping’ ICs to or from the bus.

Here are some of the features of I2C-bus compatible ICs that are particularly attractive to

designers:

•Functional blocks on the block diagram correspond with the actual ICs; designs

proceed rapidly from block diagram to final schematic.

•No need to design bus interfaces because the I2C-bus interface is already integrated

on-chip.

Fig 1. Example of I2C-bus applications

I2C

A/D or D/A

Converters

I2C

General Purpose

I/O Expanders

I2C

LED Controllers

VDD4

I2C

Repeaters/

Hubs/Extenders

I2C

DIP Switches

VDD5

I2C

Slave

VDD0

VDD1

PCA9541

I2C

Master Selector/

Demux

I2C

Multiplexers

and Switches

VDD2

I2C Port

via HW or

Bit Banging

I2C

Bus Controllers

MCUs

8MCUs

I2C

Serial EEPROMs

LCD Drivers

(with I2C)

I2C

Real Time Clock/

Calendars

VDD3

I2C

Temperature

Sensors

Bridges

(with I2C)

SPI

UART

USB

002aac858

User manual Rev. 6 — 4 April 2014 5 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

•Integrated addressing and data-transfer protocol allow systems to be completely

software-defined.

•The same IC types can often be used in many different applications.

•Design-time reduces as designers quickly become familiar with the frequently used

functional blocks represented by I2C-bus compatible ICs.

•ICs can be added to or removed from a system without affecting any other circuits on

the bus.

•Fault diagnosis and debugging are simple; malfunctions can be immediately traced.

•Software development time can be reduced by assembling a library of reusable

software modules.

In addition to these advantages, the CMOS ICs in the I2C-bus compatible range offer

designers special features which are particularly attractive for portable equipment and

battery-backed systems.

They all have:

•Extremely low current consumption

•High noise immunity

•Wide supply voltage range

•Wide operating temperature range.

2.2 Manufacturer benefits

I2C-bus compatible ICs not only assist designers, they also give a wide range of benefits

to equipment manufacturers because:

•The simple 2-wire serial I2C-bus minimizes interconnections so ICs have fewer pins

and there are not so many PCB tracks; result — smaller and less expensive PCBs.

•The completely integrated I2C-bus protocol eliminates the need for address decoders

and other ‘glue logic’.

•The multi-master capability of the I2C-bus allows rapid testing and alignment of

end-user equipment via external connections to an assembly line.

•The availability of I2C-bus compatible ICs in various leadless packages reduces

space requirements even more.

These are just some of the benefits. In addition, I2C-bus compatible ICs increase system

design flexibility by allowing simple construction of equipment variants and easy

upgrading to keep designs up-to-date. In this way, an entire family of equipment can be

developed around a basic model. Upgrades for new equipment, or enhanced-feature

models (that is, extended memory, remote control, etc.) can then be produced simply by

clipping the appropriate ICs onto the bus. If a larger ROM is needed, it is simply a matter

of selecting a microcontroller with a larger ROM from our comprehensive range. As new

ICs supersede older ones, it is easy to add new features to equipment or to increase its

performance by simply unclipping the outdated IC from the bus and clipping on its

successor.

User manual Rev. 6 — 4 April 2014 6 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

2.3 IC designer benefits

Designers of microcontrollers are frequently under pressure to conserve output pins. The

I2C protocol allows connection of a wide variety of peripherals without the need for

separate addressing or chip enable signals. Additionally, a microcontroller that includes an

I2C interface is more successful in the marketplace due to the wide variety of existing

peripheral devices available.

3. The I2C-bus protocol

3.1 Standard-mode, Fast-mode and Fast-mode Plus I2C-bus protocols

Two wires, serial data (SDA) and serial clock (SCL), carry information between the

devices connected to the bus. Each device is recognized by a unique address (whether

it is a microcontroller, LCD driver, memory or keyboard interface) and can operate as

either a transmitter or receiver, depending on the function of the device. An LCD driver

may be only a receiver, whereas a memory can both receive and transmit data. In addition

to transmitters and receivers, devices can also be considered as masters or slaves when

performing data transfers (see Table 1). A master is the device which initiates a data

transfer on the bus and generates the clock signals to permit that transfer. At that time,

any device addressed is considered a slave.

The I2C-bus is a multi-master bus. This means that more than one device capable of

controlling the bus can be connected to it. As masters are usually microcontrollers, let us

consider the case of a data transfer between two microcontrollers connected to the

I2C-bus (see Figure 2).

Table 1. Definition of I2C-bus terminology

Term Description

Transmitter the device which sends data to the bus

Receiver the device which receives data from the bus

Master the device which initiates a transfer, generates clock signals and

terminates a transfer

Slave the device addressed by a master

Multi-master more than one master can attempt to control the bus at the same time

without corrupting the message

Arbitration procedure to ensure that, if more than one master simultaneously tries to

control the bus, only one is allowed to do so and the winning message is

not corrupted

Synchronization procedure to synchronize the clock signals of two or more devices

User manual Rev. 6 — 4 April 2014 7 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

This example highlights the master-slave and receiver-transmitter relationships found on

the I2C-bus. Note that these relationships are not permanent, but only depend on the

direction of data transfer at that time. The transfer of data would proceed as follows:

1. Suppose microcontroller A wants to send information to microcontroller B:

–microcontroller A (master), addresses microcontroller B (slave)

–microcontroller A (master-transmitter), sends data to microcontroller B

(slave-receiver)

–microcontroller A terminates the transfer.

2. If microcontroller A wants to receive information from microcontroller B:

–microcontroller A (master) addresses microcontroller B (slave)

–microcontroller A (master-receiver) receives data from microcontroller B

(slave-transmitter)

–microcontroller A terminates the transfer.

Even in this case, the master (microcontroller A) generates the timing and terminates the

transfer.

The possibility of connecting more than one microcontroller to the I2C-bus means that

more than one master could try to initiate a data transfer at the same time. To avoid the

chaos that might ensue from such an event, an arbitration procedure has been developed.

This procedure relies on the wired-AND connection of all I2C interfaces to the I2C-bus.

If two or more masters try to put information onto the bus, the first to produce a ‘one’ when

the other produces a ‘zero’ loses the arbitration. The clock signals during arbitration are a

synchronized combination of the clocks generated by the masters using the wired-AND

connection to the SCL line (for more detailed information concerning arbitration see

Section 3.1.8).

Generation of clock signals on the I2C-bus is always the responsibility of master devices;

each master generates its own clock signals when transferring data on the bus. Bus clock

signals from a master can only be altered when they are stretched by a slow slave device

holding down the clock line or by another master when arbitration occurs.

Table 2 summarizes the use of mandatory and optional portions of the I2C-bus

specification and which system configurations use them.

Fig 2. Example of an I2C-bus configuration using two microcontrollers

mbc645

SDA

SCL

MICRO -

CONTROLLER

STATIC

RAM OR

EEPROM

LCD

DRIVER

GATE

ARRAY ADC

MICRO -

CONTROLLER

User manual Rev. 6 — 4 April 2014 8 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

[1] Also refers to a master acting as a slave.

[2] Clock stretching is a feature of some slaves. If no slaves in a system can stretch the clock (hold SCL LOW),

the master need not be designed to handle this procedure.

[3] ‘Bit banging’ (software emulation) multi-master systems should consider a START byte. See

Section 3.1.15.

3.1.1 SDA and SCL signals

Both SDA and SCL are bidirectional lines, connected to a positive supply voltage via a

current-source or pull-up resistor (see Figure 3). When the bus is free, both lines are

HIGH. The output stages of devices connected to the bus must have an open-drain or

open-collector to perform the wired-AND function. Data on the I2C-bus can be transferred

at rates of up to 100 kbit/s in the Standard-mode, up to 400 kbit/s in the Fast-mode, up to

1 Mbit/s in Fast-mode Plus, or up to 3.4 Mbit/s in the High-speed mode. The bus

capacitance limits the number of interfaces connected to the bus.

For a single master application, the master’s SCL output can be a push-pull driver design

if there are no devices on the bus which would stretch the clock.

Table 2. Applicability of I2C-bus protocol features

M = mandatory; O = optional; n/a = not applicable.

Feature Configuration

Single master Multi-master Slave[1]

START condition M M M

STOP condition M M M

Acknowledge M M M

Synchronization n/a M n/a

Arbitration n/a M n/a

Clock stretching O[2] O[2] O

7-bit slave address M M M

10-bit slave address O O O

General Call address O O O

Software Reset O O O

START byte n/a O[3] n/a

Device ID n/a n/a O

VDD2, VDD3 are device-dependent (for example, 12 V).

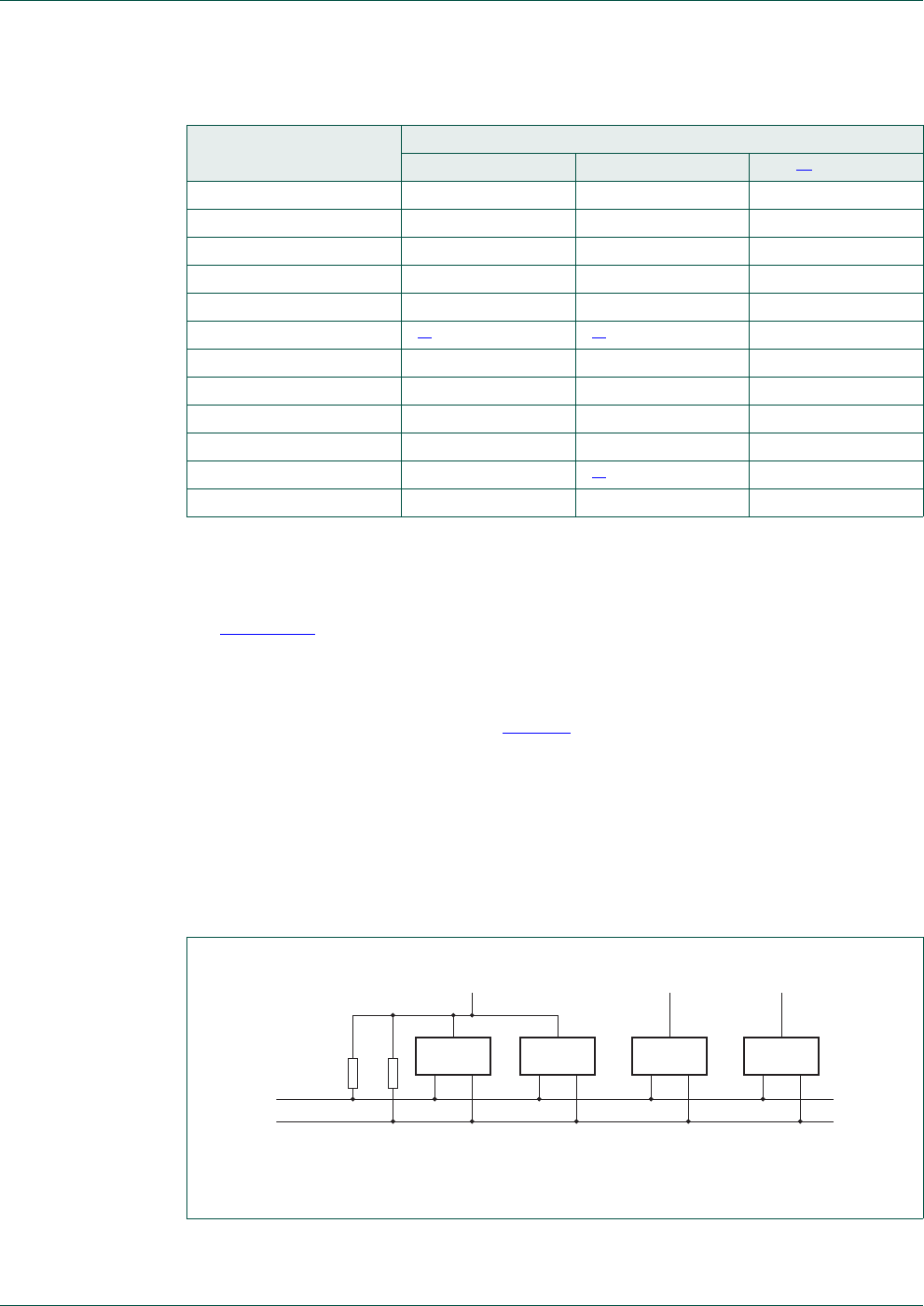

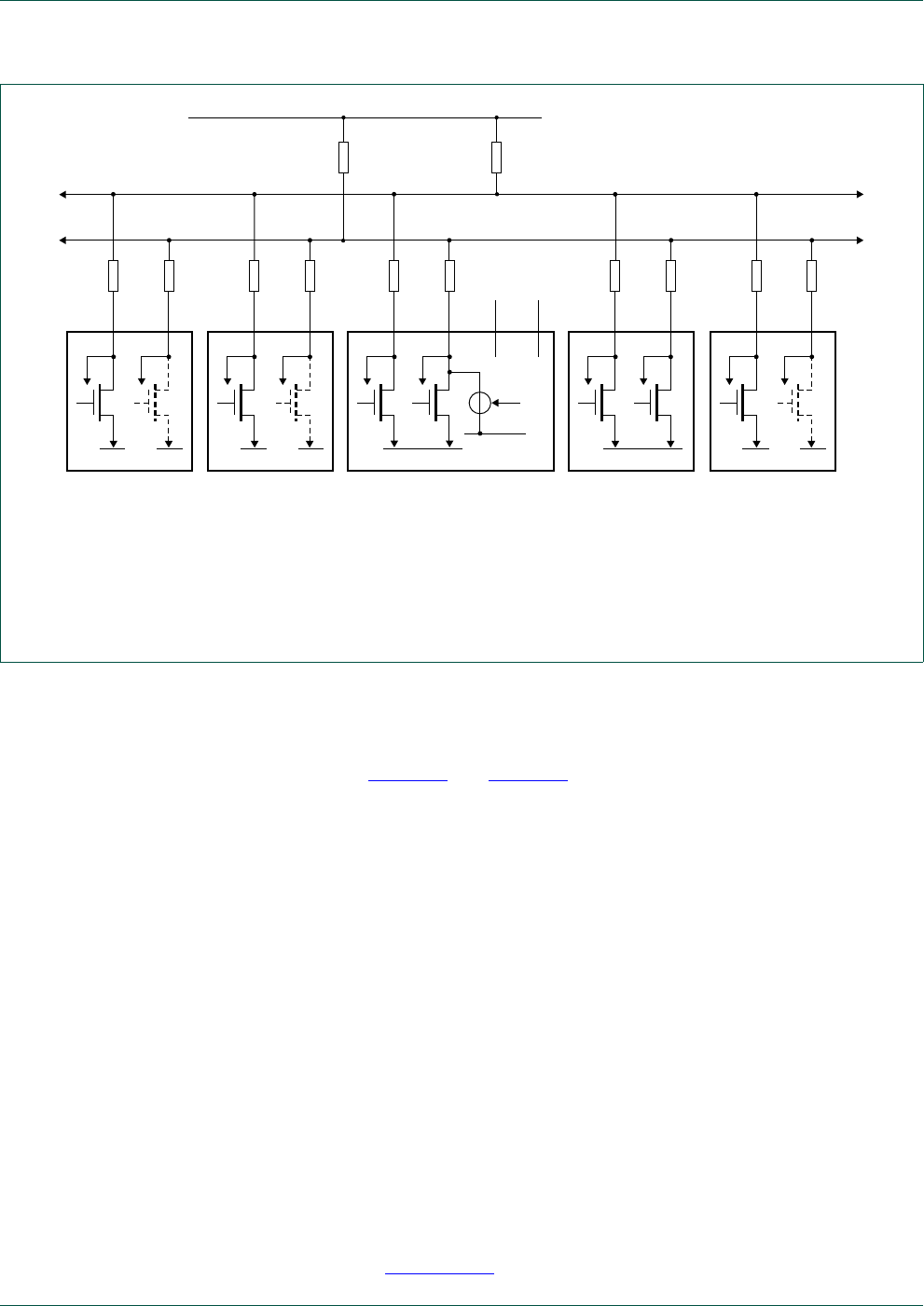

Fig 3. Devices with various supply voltages sharing the same bus

CMOS CMOS NMOS BIPOLAR

002aac860

DD1

5 V ± 10 %

SDA

SCL

DD2

DD3

User manual Rev. 6 — 4 April 2014 9 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.1.2 SDA and SCL logic levels

Due to the variety of different technology devices (CMOS, NMOS, bipolar) that can be

connected to the I2C-bus, the levels of the logical ‘0’ (LOW) and ‘1’ (HIGH) are not fixed

and depend on the associated level of VDD. Input reference levels are set as 30 % and

70 % of VDD; VIL is 0.3VDD and VIH is 0.7VDD. See Figure 38, timing diagram. Some

legacy device input levels were fixed at VIL = 1.5 V and VIH = 3.0 V, but all new devices

require this 30 %/70 % specification. See Section 6 for electrical specifications.

3.1.3 Data validity

The data on the SDA line must be stable during the HIGH period of the clock. The HIGH

or LOW state of the data line can only change when the clock signal on the SCL line is

LOW (see Figure 4). One clock pulse is generated for each data bit transferred.

3.1.4 START and STOP conditions

All transactions begin with a START (S) and are terminated by a STOP (P) (see Figure 5).

A HIGH to LOW transition on the SDA line while SCL is HIGH defines a START condition.

A LOW to HIGH transition on the SDA line while SCL is HIGH defines a STOP condition.

START and STOP conditions are always generated by the master. The bus is considered

to be busy after the START condition. The bus is considered to be free again a certain

time after the STOP condition. This bus free situation is specified in Section 6.

The bus stays busy if a repeated START (Sr) is generated instead of a STOP condition. In

this respect, the START (S) and repeated START (Sr) conditions are functionally identical.

For the remainder of this document, therefore, the S symbol is used as a generic term to

represent both the START and repeated START conditions, unless Sr is particularly

relevant.

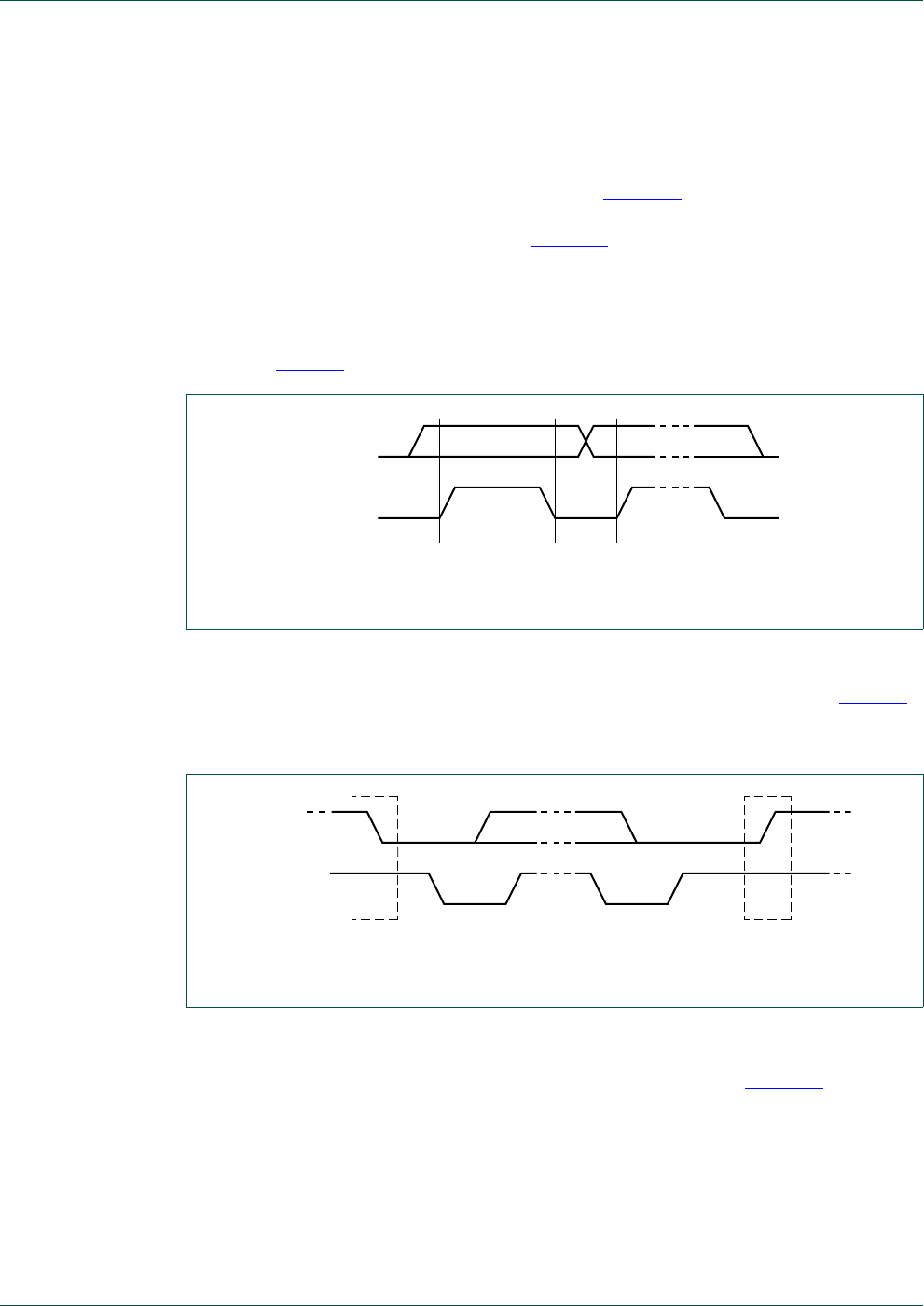

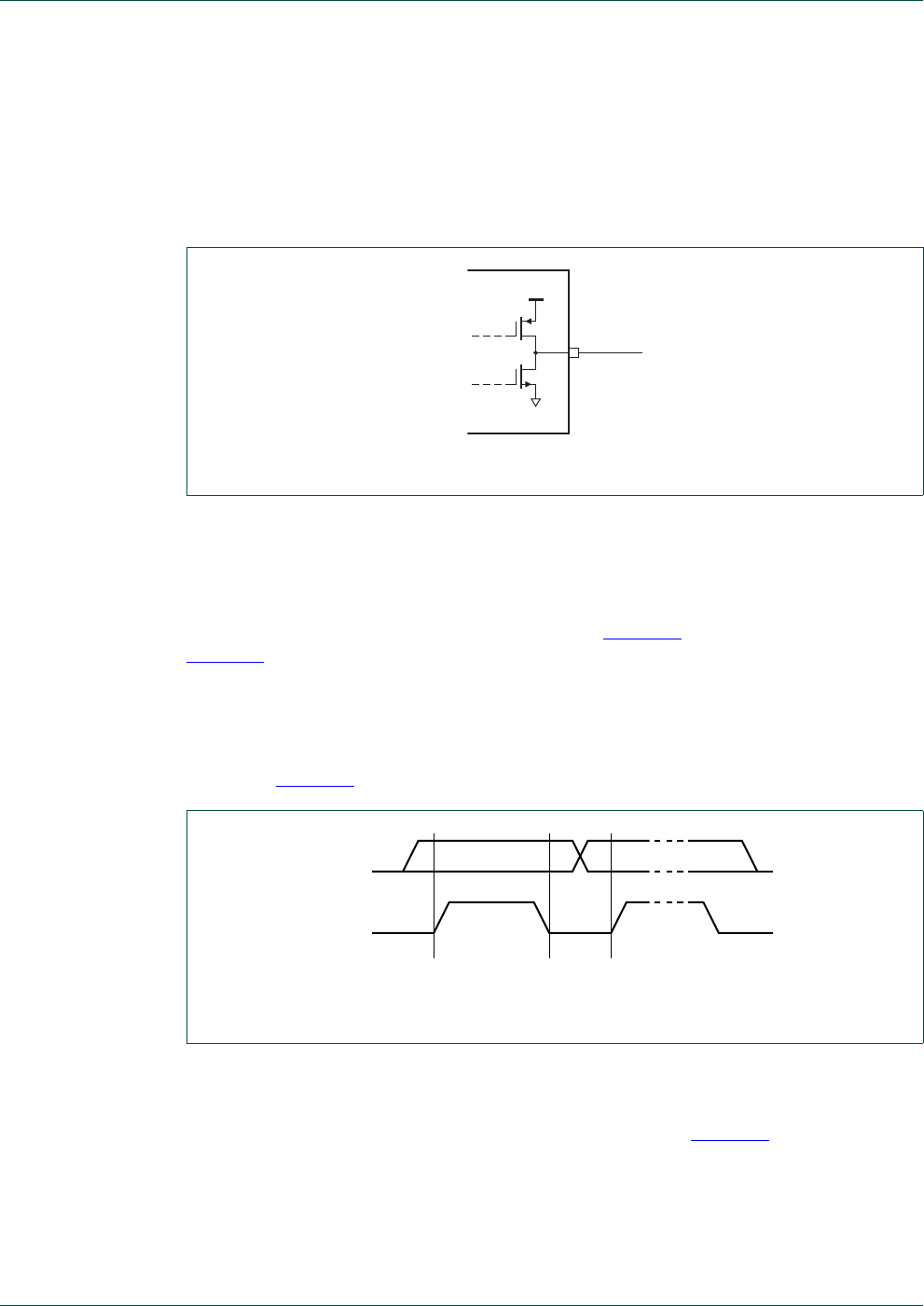

Fig 4. Bit transfer on the I2C-bus

mba607

data line

stable;

data valid

change

of data

allowed

SDA

SCL

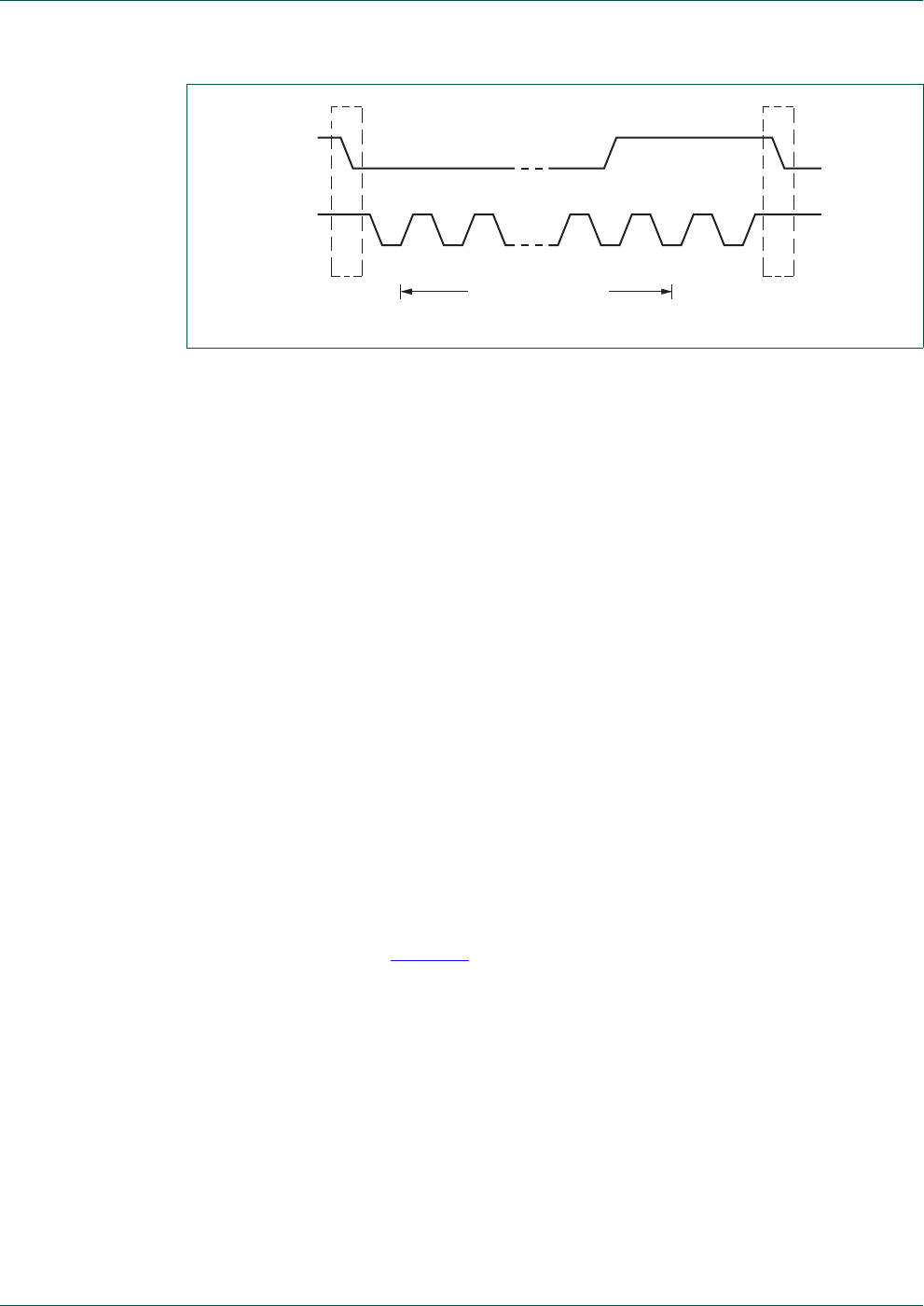

Fig 5. START and STOP conditions

mba608

SDA

SCL P

STOP condition

START condition

User manual Rev. 6 — 4 April 2014 10 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

Detection of START and STOP conditions by devices connected to the bus is easy if they

incorporate the necessary interfacing hardware. However, microcontrollers with no such

interface have to sample the SDA line at least twice per clock period to sense the

transition.

3.1.5 Byte format

Every byte put on the SDA line must be eight bits long. The number of bytes that can be

transmitted per transfer is unrestricted. Each byte must be followed by an Acknowledge

bit. Data is transferred with the Most Significant Bit (MSB) first (see Figure 6). If a slave

cannot receive or transmit another complete byte of data until it has performed some other

function, for example servicing an internal interrupt, it can hold the clock line SCL LOW to

force the master into a wait state. Data transfer then continues when the slave is ready for

another byte of data and releases clock line SCL.

3.1.6 Acknowledge (ACK) and Not Acknowledge (NACK)

The acknowledge takes place after every byte. The acknowledge bit allows the receiver to

signal the transmitter that the byte was successfully received and another byte may be

sent. The master generates all clock pulses, including the acknowledge ninth clock pulse.

The Acknowledge signal is defined as follows: the transmitter releases the SDA line

during the acknowledge clock pulse so the receiver can pull the SDA line LOW and it

remains stable LOW during the HIGH period of this clock pulse (see Figure 4). Set-up and

hold times (specified in Section 6) must also be taken into account.

When SDA remains HIGH during this ninth clock pulse, this is defined as the Not

Acknowledge signal. The master can then generate either a STOP condition to abort the

transfer, or a repeated START condition to start a new transfer. There are five conditions

that lead to the generation of a NACK:

1. No receiver is present on the bus with the transmitted address so there is no device to

respond with an acknowledge.

2. The receiver is unable to receive or transmit because it is performing some real-time

function and is not ready to start communication with the master.

3. During the transfer, the receiver gets data or commands that it does not understand.

4. During the transfer, the receiver cannot receive any more data bytes.

5. A master-receiver must signal the end of the transfer to the slave transmitter.

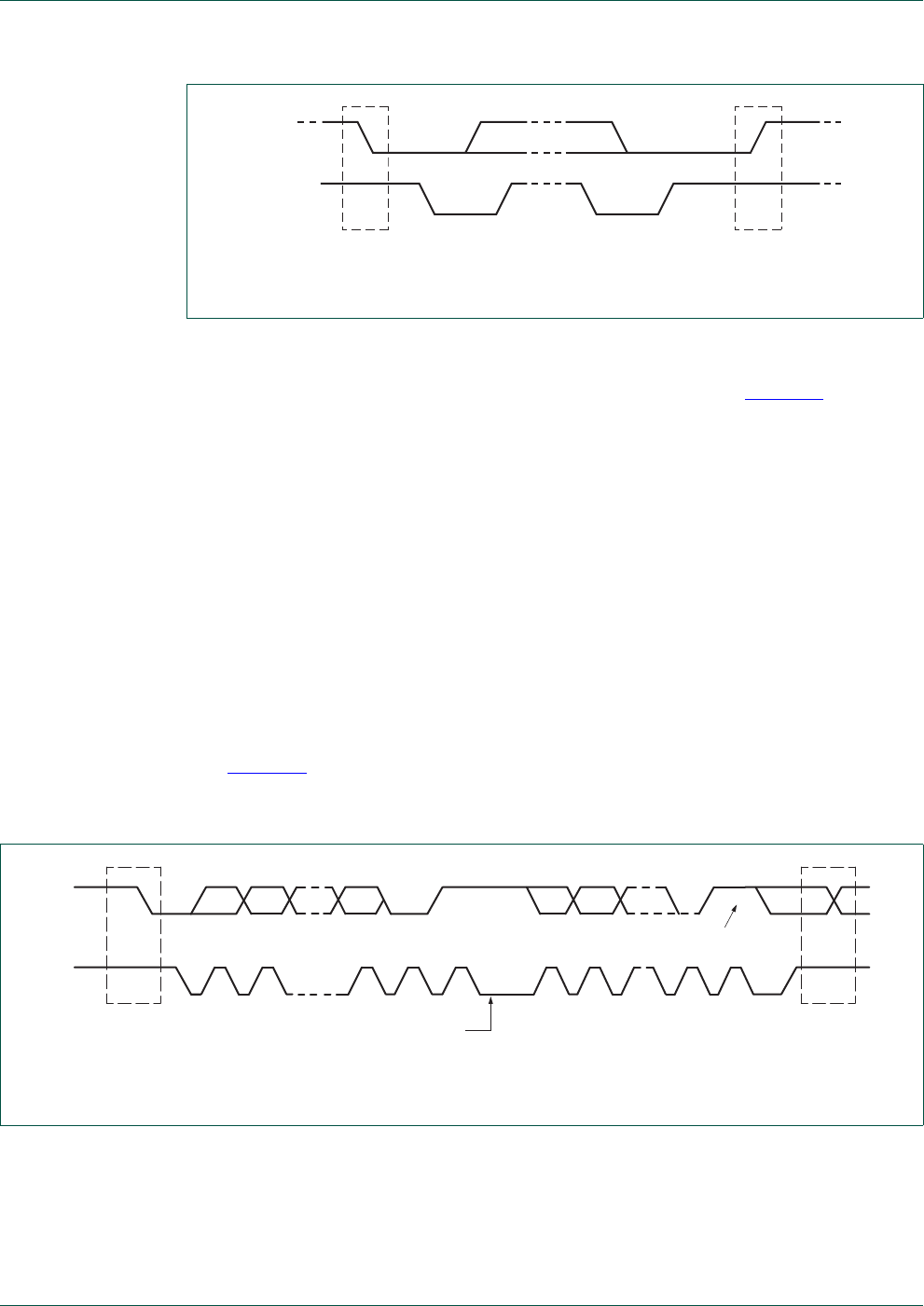

Fig 6. Data transfer on the I2C-bus

S or Sr Sr or P

SDA

SCL

MSB

1 2 7 8 9 1 2 3 to 8 9

ACK ACK

002aac861

START or

repeated START

condition

STOP or

repeated START

condition

acknowledgement

signal from slave

byte complete,

interrupt within slave clock line held LOW

while interrupts are serviced

acknowledgement

signal from receiver

User manual Rev. 6 — 4 April 2014 11 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.1.7 Clock synchronization

Two masters can begin transmitting on a free bus at the same time and there must be a

method for deciding which takes control of the bus and complete its transmission. This is

done by clock synchronization and arbitration. In single master systems, clock

synchronization and arbitration are not needed.

Clock synchronization is performed using the wired-AND connection of I2C interfaces to

the SCL line. This means that a HIGH to LOW transition on the SCL line causes the

masters concerned to start counting off their LOW period and, once a master clock has

gone LOW, it holds the SCL line in that state until the clock HIGH state is reached (see

Figure 7). However, if another clock is still within its LOW period, the LOW to HIGH

transition of this clock may not change the state of the SCL line. The SCL line is therefore

held LOW by the master with the longest LOW period. Masters with shorter LOW periods

enter a HIGH wait-state during this time.

When all masters concerned have counted off their LOW period, the clock line is released

and goes HIGH. There is then no difference between the master clocks and the state of

the SCL line, and all the masters start counting their HIGH periods. The first master to

complete its HIGH period pulls the SCL line LOW again.

In this way, a synchronized SCL clock is generated with its LOW period determined by the

master with the longest clock LOW period, and its HIGH period determined by the one

with the shortest clock HIGH period.

3.1.8 Arbitration

Arbitration, like synchronization, refers to a portion of the protocol required only if more

than one master is used in the system. Slaves are not involved in the arbitration

procedure. A master may start a transfer only if the bus is free. Two masters may

generate a START condition within the minimum hold time (tHD;STA) of the START

condition which results in a valid START condition on the bus. Arbitration is then required

to determine which master will complete its transmission.

Arbitration proceeds bit by bit. During every bit, while SCL is HIGH, each master checks to

see if the SDA level matches what it has sent. This process may take many bits. Two

masters can actually complete an entire transaction without error, as long as the

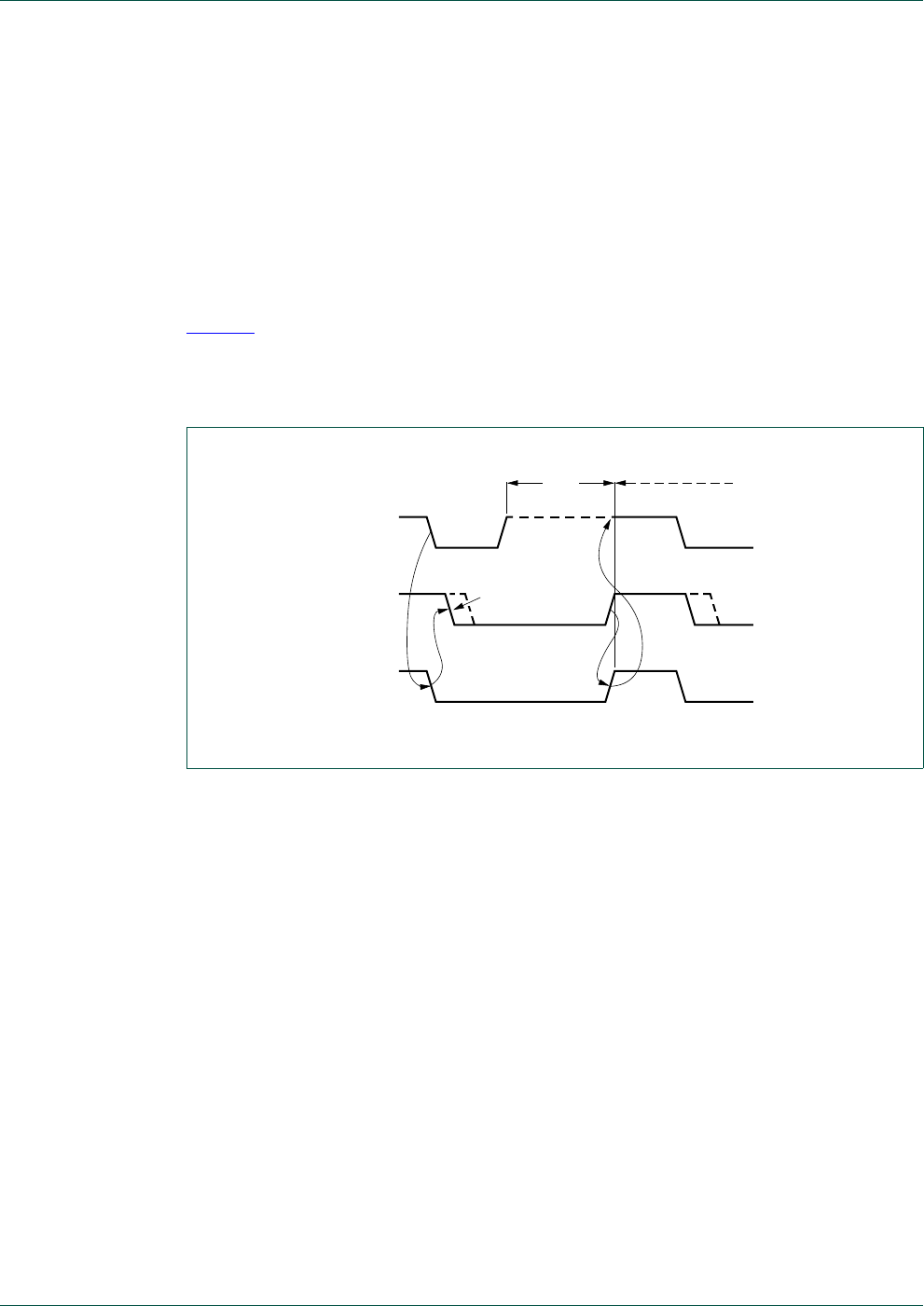

Fig 7. Clock synchronization during the arbitration procedure

CLK

SCL

counter

reset

wait

state

start counting

HIGH period

mbc632

User manual Rev. 6 — 4 April 2014 12 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

transmissions are identical. The first time a master tries to send a HIGH, but detects that

the SDA level is LOW, the master knows that it has lost the arbitration and turns off its

SDA output driver. The other master goes on to complete its transaction.

No information is lost during the arbitration process. A master that loses the arbitration

can generate clock pulses until the end of the byte in which it loses the arbitration and

must restart its transaction when the bus is free.

If a master also incorporates a slave function and it loses arbitration during the addressing

stage, it is possible that the winning master is trying to address it. The losing master must

therefore switch over immediately to its slave mode.

Figure 8 shows the arbitration procedure for two masters. More may be involved

depending on how many masters are connected to the bus. The moment there is a

difference between the internal data level of the master generating DATA1 and the actual

level on the SDA line, the DATA1 output is switched off. This does not affect the data

transfer initiated by the winning master.

Since control of the I2C-bus is decided solely on the address and data sent by competing

masters, there is no central master, nor any order of priority on the bus.

There is an undefined condition if the arbitration procedure is still in progress at the

moment when one master sends a repeated START or a STOP condition while the other

master is still sending data. In other words, the following combinations result in an

undefined condition:

•Master 1 sends a repeated START condition and master 2 sends a data bit.

•Master 1 sends a STOP condition and master 2 sends a data bit.

•Master 1 sends a repeated START condition and master 2 sends a STOP condition.

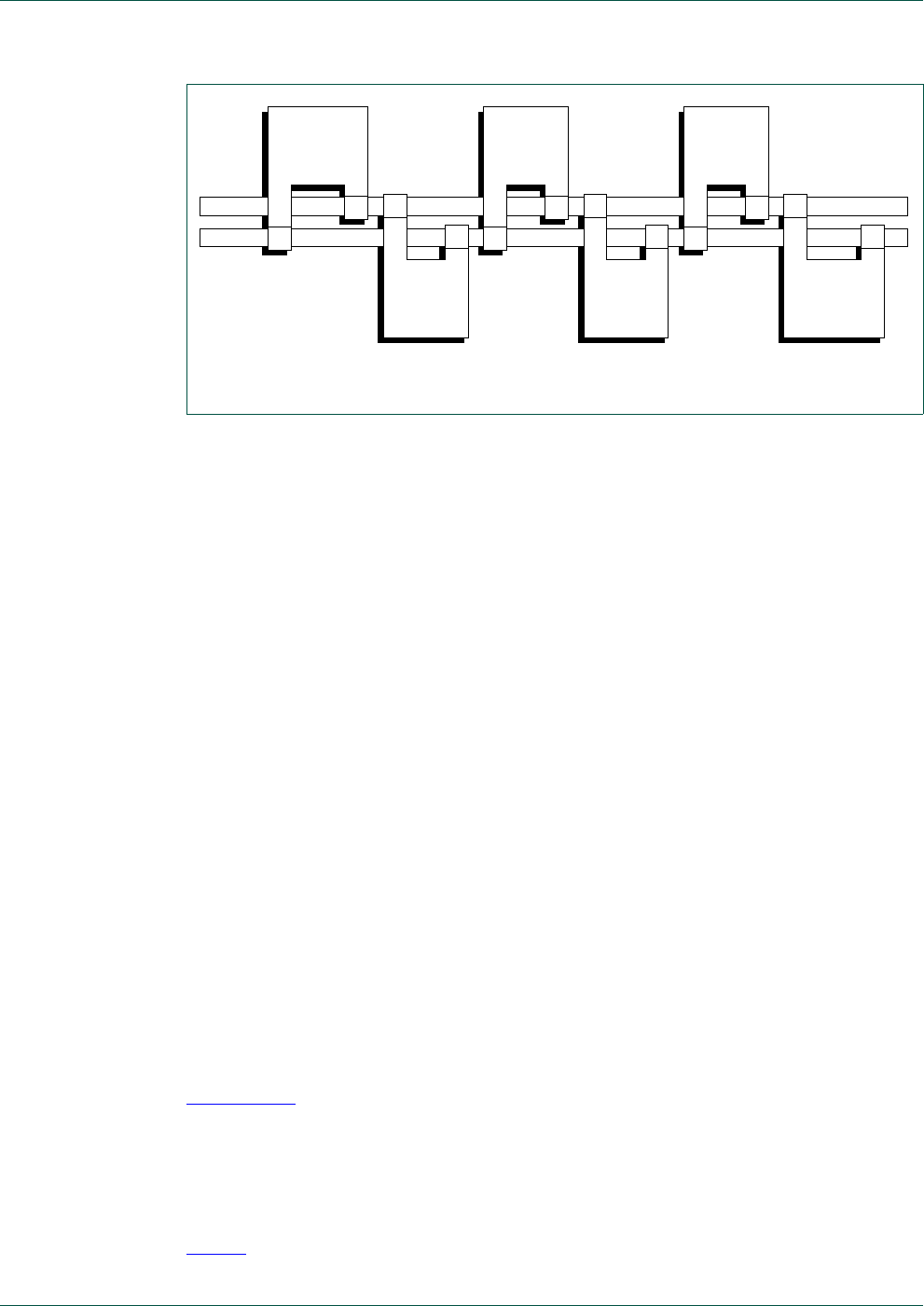

Fig 8. Arbitration procedure of two masters

msc609

DATA

SDA

SCL

master 1 loses arbitration

DATA 1 SDA

User manual Rev. 6 — 4 April 2014 13 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.1.9 Clock stretching

Clock stretching pauses a transaction by holding the SCL line LOW. The transaction

cannot continue until the line is released HIGH again. Clock stretching is optional and in

fact, most slave devices do not include an SCL driver so they are unable to stretch the

clock.

On the byte level, a device may be able to receive bytes of data at a fast rate, but needs

more time to store a received byte or prepare another byte to be transmitted. Slaves can

then hold the SCL line LOW after reception and acknowledgment of a byte to force the

master into a wait state until the slave is ready for the next byte transfer in a type of

handshake procedure (see Figure 7).

On the bit level, a device such as a microcontroller with or without limited hardware for the

I2C-bus, can slow down the bus clock by extending each clock LOW period. The speed of

any master is adapted to the internal operating rate of this device.

In Hs-mode, this handshake feature can only be used on byte level (see Section 5.3.2).

3.1.10 The slave address and R/W bit

Data transfers follow the format shown in Figure 9. After the START condition (S), a slave

address is sent. This address is seven bits long followed by an eighth bit which is a data

direction bit (R/W) — a ‘zero’ indicates a transmission (WRITE), a ‘one’ indicates a

request for data (READ) (refer to Figure 10). A data transfer is always terminated by a

STOP condition (P) generated by the master. However, if a master still wishes to

communicate on the bus, it can generate a repeated START condition (Sr) and address

another slave without first generating a STOP condition. Various combinations of

read/write formats are then possible within such a transfer.

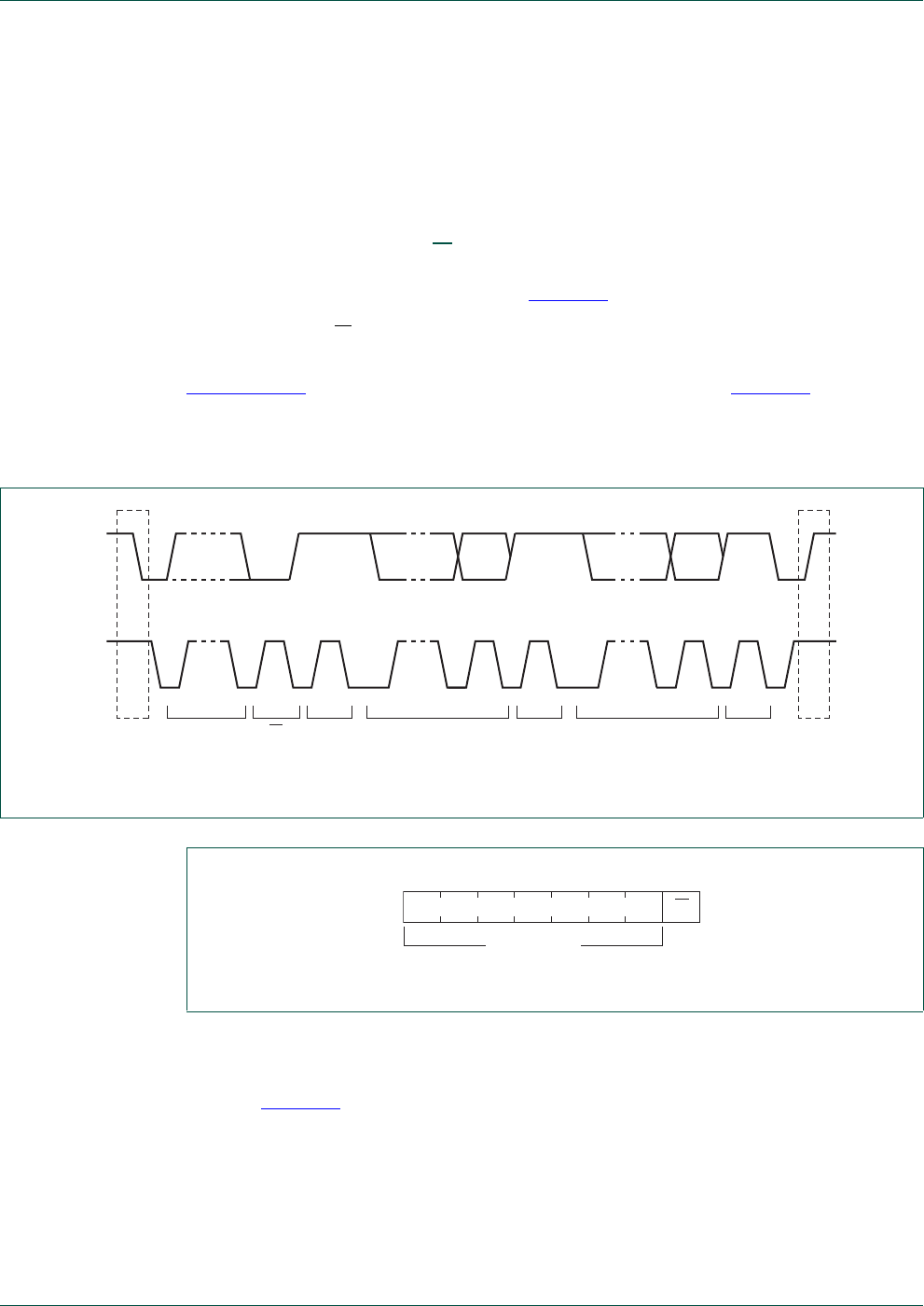

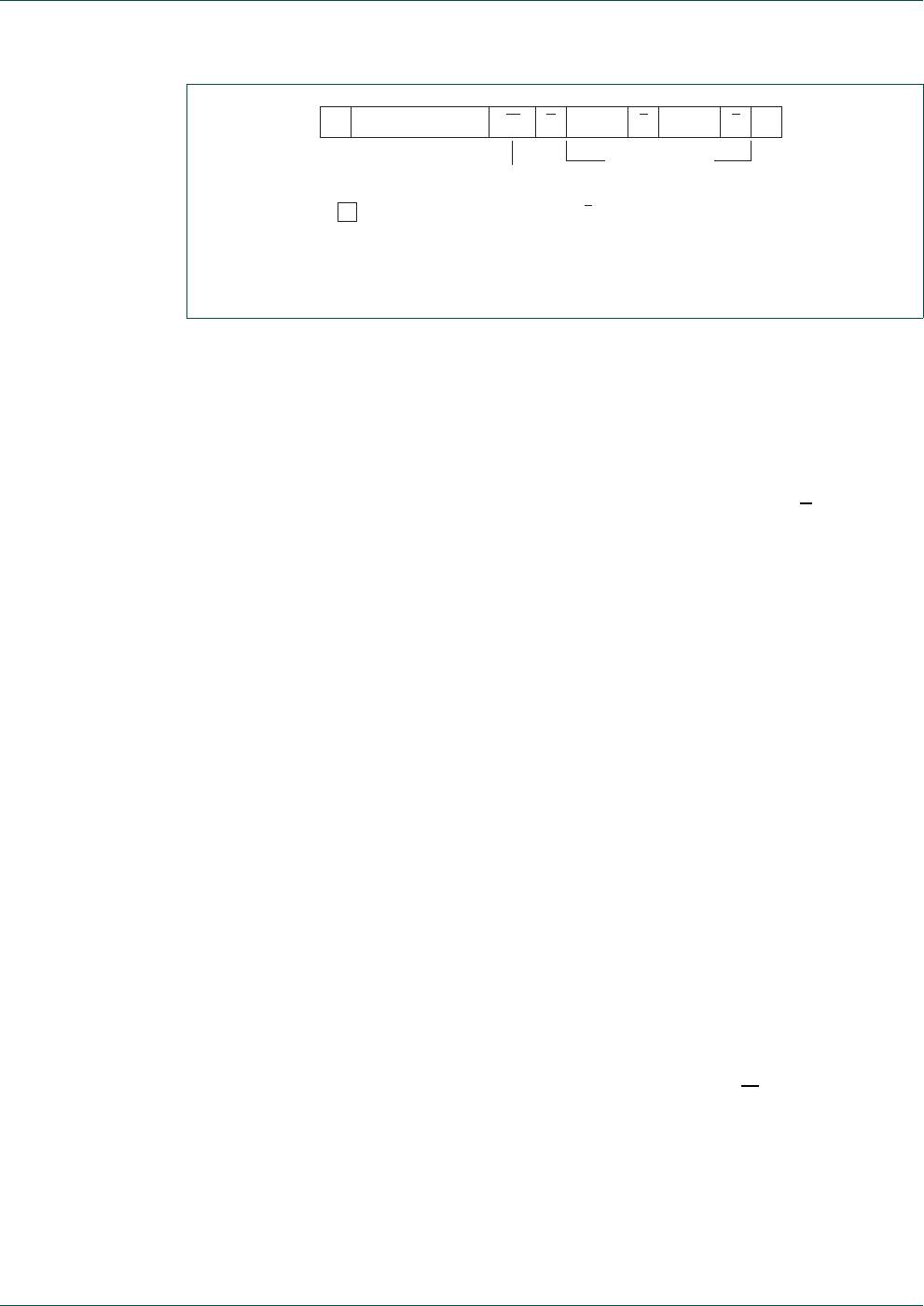

Fig 9. A complete data transfer

1 - 7 8 9 1 - 7 8 9 1 - 7 8 9

STOP

condition

START

condition DATA ACKDATA ACKADDRESS ACKR/W

SDA

SCL

mbc604

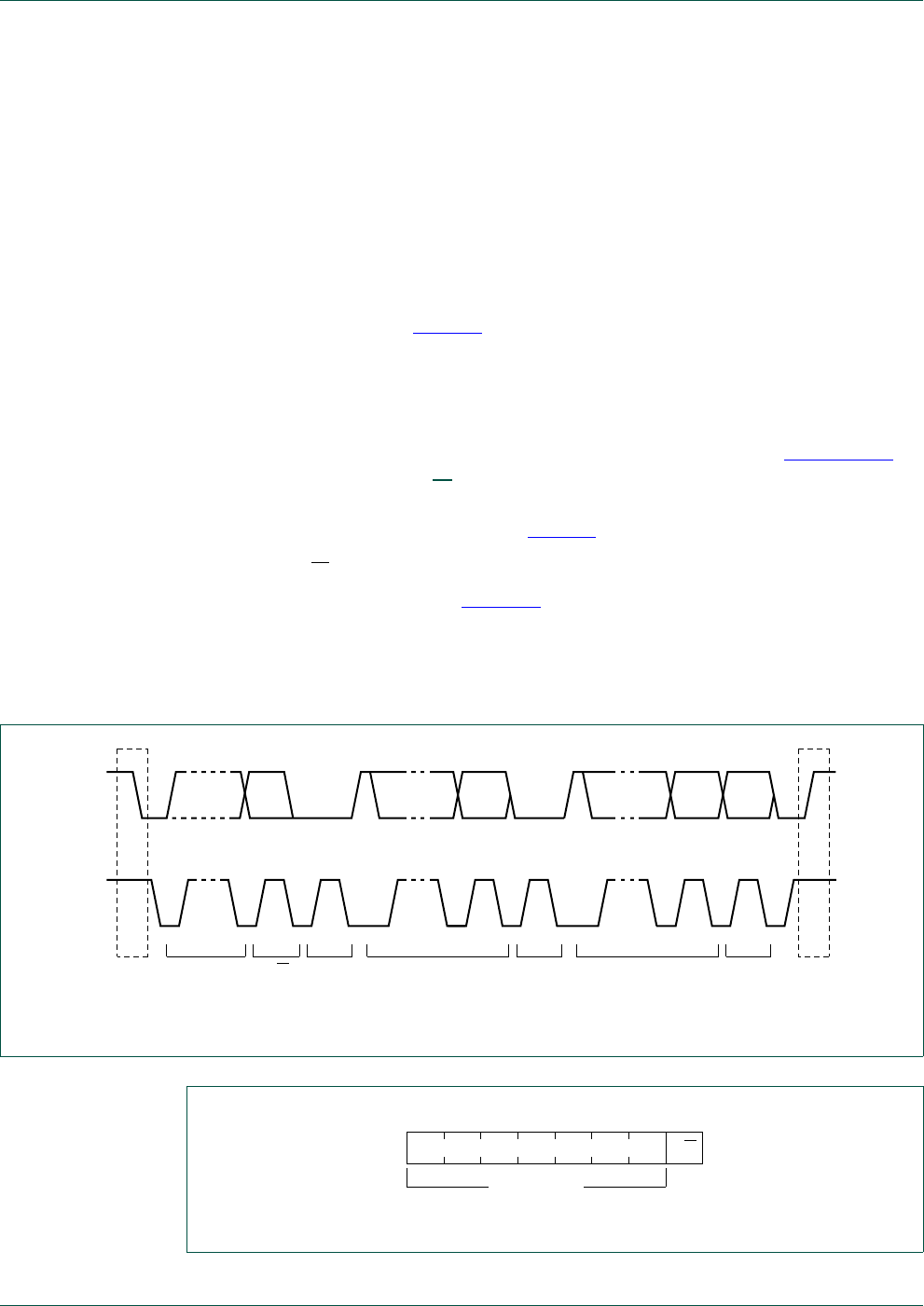

Fig 10. The first byte after the START procedure

mbc608

R/W

LSBMSB

slave address

User manual Rev. 6 — 4 April 2014 14 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

Possible data transfer formats are:

•Master-transmitter transmits to slave-receiver. The transfer direction is not changed

(see Figure 11). The slave receiver acknowledges each byte.

•Master reads slave immediately after first byte (see Figure 12). At the moment of the

first acknowledge, the master-transmitter becomes a master-receiver and the

slave-receiver becomes a slave-transmitter. This first acknowledge is still generated

by the slave. The master generates subsequent acknowledges. The STOP condition

is generated by the master, which sends a not-acknowledge (A) just before the STOP

condition.

•Combined format (see Figure 13). During a change of direction within a transfer, the

START condition and the slave address are both repeated, but with the R/W bit

reversed. If a master-receiver sends a repeated START condition, it sends a

not-acknowledge (A) just before the repeated START condition.

Notes:

1. Combined formats can be used, for example, to control a serial memory. The internal

memory location must be written during the first data byte. After the START condition

and slave address is repeated, data can be transferred.

2. All decisions on auto-increment or decrement of previously accessed memory

locations, etc., are taken by the designer of the device.

3. Each byte is followed by an acknowledgment bit as indicated by the A or A blocks in

the sequence.

4. I2C-bus compatible devices must reset their bus logic on receipt of a START or

repeated START condition such that they all anticipate the sending of a slave

address, even if these START conditions are not positioned according to the proper

format.

5. A START condition immediately followed by a STOP condition (void message) is an

illegal format. Many devices however are designed to operate properly under this

condition.

6. Each device connected to the bus is addressable by a unique address. Normally a

simple master/slave relationship exists, but it is possible to have multiple identical

slaves that can receive and respond simultaneously, for example in a group

broadcast. This technique works best when using bus switching devices like the

PCA9546A where all four channels are on and identical devices are configured at the

same time, understanding that it is impossible to determine that each slave

acknowledges, and then turn on one channel at a time to read back each individual

device’s configuration to confirm the programming. Refer to individual component

data sheets.

User manual Rev. 6 — 4 April 2014 15 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.1.11 10-bit addressing

10-bit addressing expands the number of possible addresses. Devices with 7-bit and

10-bit addresses can be connected to the same I2C-bus, and both 7-bit and 10-bit

addressing can be used in all bus speed modes. Currently, 10-bit addressing is not being

widely used.

The 10-bit slave address is formed from the first two bytes following a START condition

(S) or a repeated START condition (Sr).

The first seven bits of the first byte are the combination 1111 0XX of which the last two bits

(XX) are the two Most-Significant Bits (MSB) of the 10-bit address; the eighth bit of the

first byte is the R/W bit that determines the direction of the message.

Although there are eight possible combinations of the reserved address bits 1111 XXX,

only the four combinations 1111 0XX are used for 10-bit addressing. The remaining four

combinations 1111 1XX are reserved for future I2C-bus enhancements.

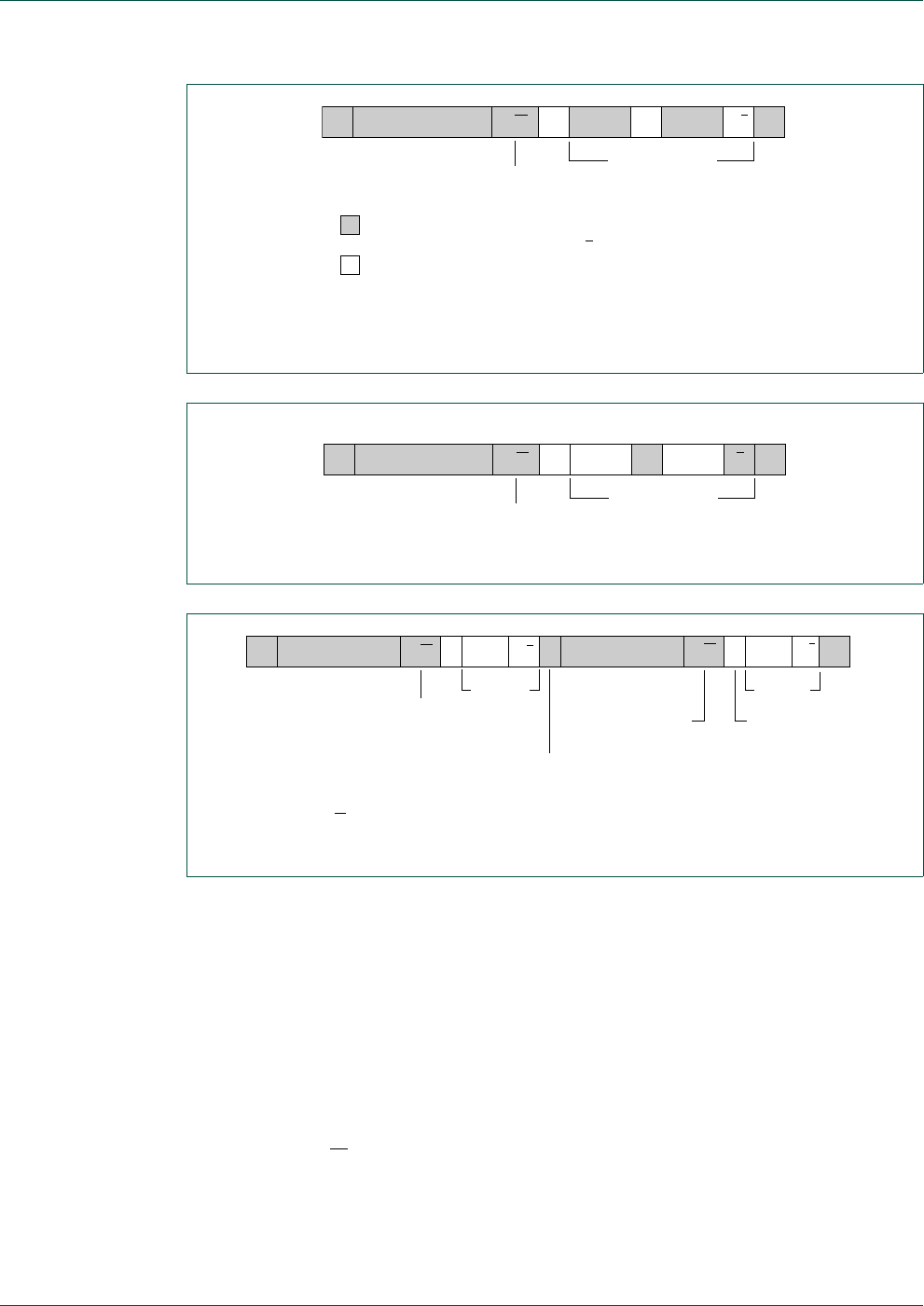

Fig 11. A master-transmitter addressing a slave receiver with a 7-bit address

(the transfer direction is not changed)

Fig 12. A master reads a slave immediately after the first byte

Fig 13. Combined format

mbc605

A/A

'0' (write) data transferred

(n bytes + acknowledge)

A = acknowledge (SDA LOW)

A = not acknowledge (SDA HIGH)

S = START condition

P = STOP condition

R/W

from master to slave

from slave to master

DATADATAASLAVE ADDRESSS P

mbc606

(read) data transferred

(n bytes + acknowledge)

R/W A

PDATADATASLAVE ADDRESSSA

mbc607

DATAAR/W

read or write

A/A

DATAAR/W

(n bytes

+ ack.)*

direction of transfer

may change at this

point.

read or write

(n bytes

+ ack.)*

Sr = repeated START condition

A/A

*not shaded because

transfer direction of

data and acknowledge bits

depends on R/W bits.

SLAVE ADDRESSSSrPSLAVE ADDRESS

User manual Rev. 6 — 4 April 2014 16 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

All combinations of read/write formats previously described for 7-bit addressing are

possible with 10-bit addressing. Two are detailed here:

•Master-transmitter transmits to slave-receiver with a 10-bit slave address.

The transfer direction is not changed (see Figure 14). When a 10-bit address follows

a START condition, each slave compares the first seven bits of the first byte of the

slave address (1111 0XX) with its own address and tests if the eighth bit (R/W

direction bit) is 0. It is possible that more than one device finds a match and generate

an acknowledge (A1). All slaves that found a match compare the eight bits of the

second byte of the slave address (XXXX XXXX) with their own addresses, but only

one slave finds a match and generates an acknowledge (A2). The matching slave

remains addressed by the master until it receives a STOP condition (P) or a repeated

START condition (Sr) followed by a different slave address.

•Master-receiver reads slave-transmitter with a 10-bit slave address.

The transfer direction is changed after the second R/W bit (Figure 15). Up to and

including acknowledge bit A2, the procedure is the same as that described for a

master-transmitter addressing a slave-receiver. After the repeated START condition

(Sr), a matching slave remembers that it was addressed before. This slave then

checks if the first seven bits of the first byte of the slave address following Sr are the

same as they were after the START condition (S), and tests if the eighth (R/W) bit is 1.

If there is a match, the slave considers that it has been addressed as a transmitter

and generates acknowledge A3. The slave-transmitter remains addressed until it

receives a STOP condition (P) or until it receives another repeated START condition

(Sr) followed by a different slave address. After a repeated START condition (Sr), all

the other slave devices will also compare the first seven bits of the first byte of the

slave address (1111 0XX) with their own addresses and test the eighth (R/W) bit.

However, none of them will be addressed because R/W = 1 (for 10-bit devices), or the

1111 0XX slave address (for 7-bit devices) does not match.

Slave devices with 10-bit addressing react to a ‘general call’ in the same way as slave

devices with 7-bit addressing. Hardware masters can transmit their 10-bit address after a

‘general call’. In this case, the ‘general call’ address byte is followed by two successive

bytes containing the 10-bit address of the master-transmitter. The format is as shown in

Figure 15 where the first DATA byte contains the eight least-significant bits of the master

address.

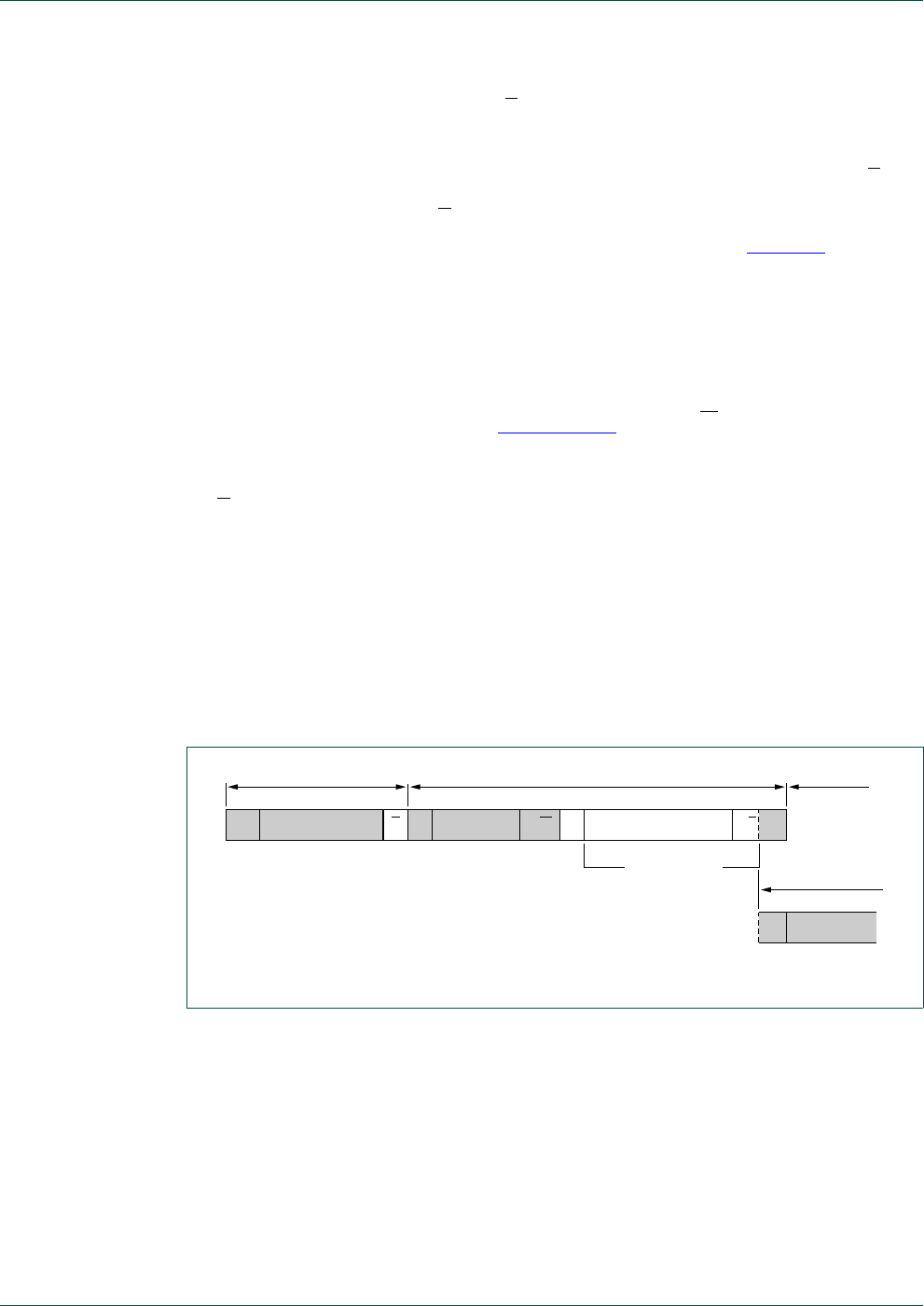

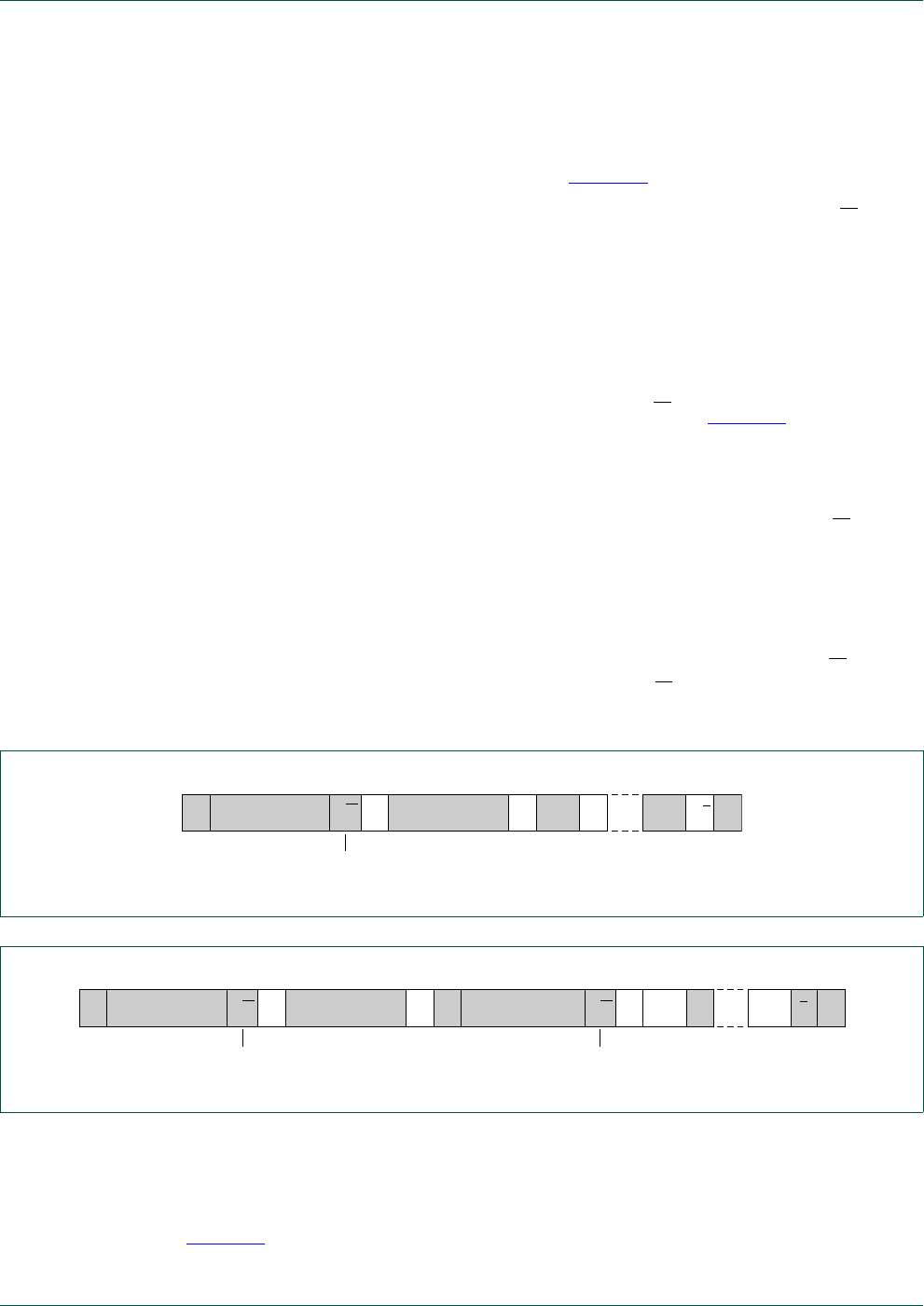

Fig 14. A master-transmitter addresses a slave-receiver with a 10-bit address

mbc613

R/W A1

(write)

A2 AA/A

1 1 1 1 0 X X 0

SLAVE ADDRESS

1st 7 BITS

S DATA PDATA

SLAVE ADDRESS

2nd BYTE

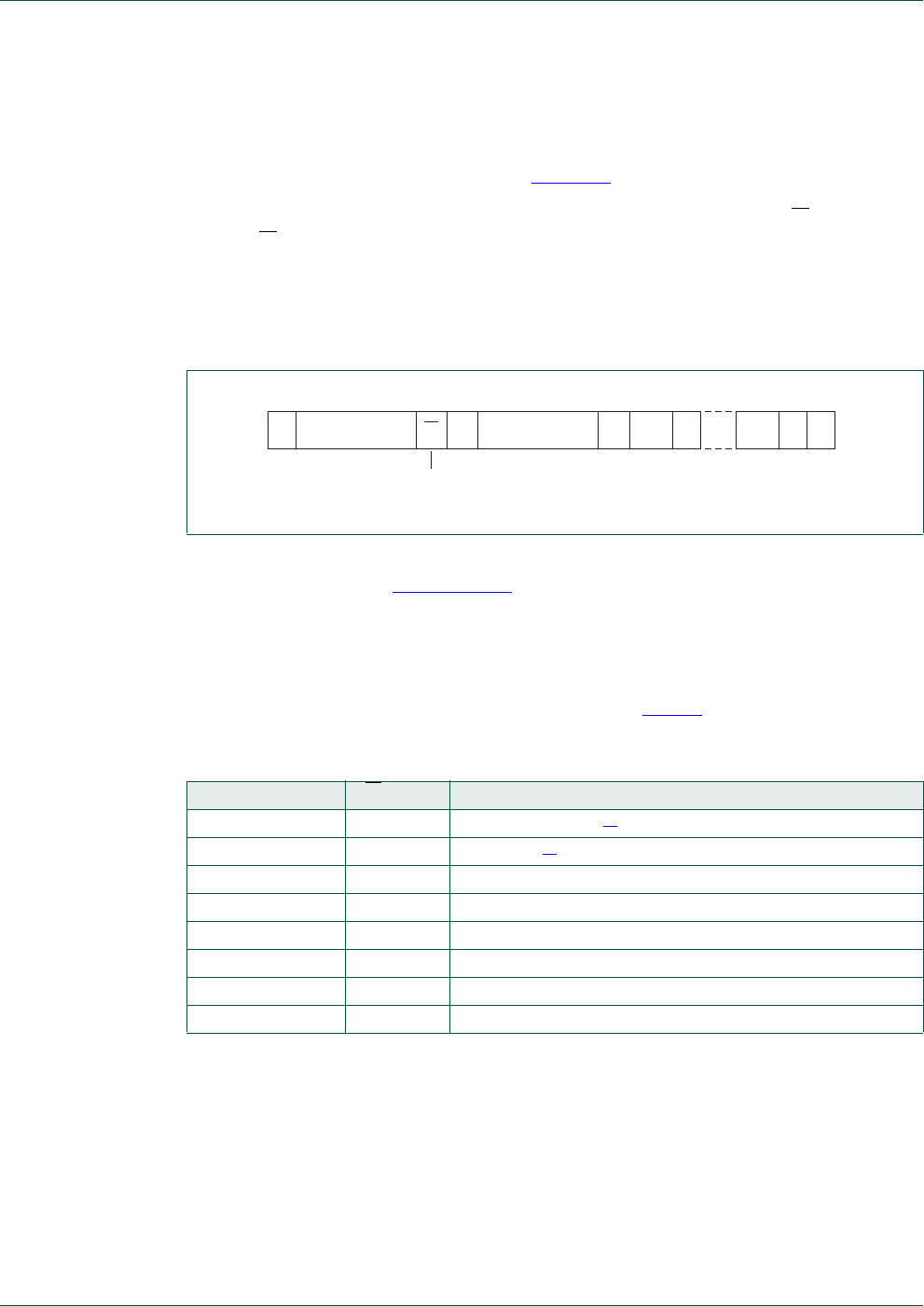

Fig 15. A master-receiver addresses a slave-transmitter with a 10-bit address

mbc614

R/W A1

(write)

A3 DATA DATAA2 R/W

(read)

1 1 1 1 0 X X 0 1 1 1 1 0 X X 1

APSr

SLAVE ADDRESS

1st 7 BITS SLAVE ADDRESS

2nd BYTE SLAVE ADDRESS

1st 7 BITS

User manual Rev. 6 — 4 April 2014 17 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

The START byte 0000 0001 (01h) can precede the 10-bit addressing in the same way as

for 7-bit addressing (see Section 3.1.15).

3.1.12 Reserved addresses

Two groups of eight addresses (0000 XXX and 1111 XXX) are reserved for the purposes

shown in Table 3.

[1] The general call address is used for several functions including software reset.

[2] No device is allowed to acknowledge at the reception of the START byte.

[3] The CBUS address has been reserved to enable the inter-mixing of CBUS compatible and I2C-bus

compatible devices in the same system. I2C-bus compatible devices are not allowed to respond on

reception of this address.

[4] The address reserved for a different bus format is included to enable I2C and other protocols to be mixed.

Only I2C-bus compatible devices that can work with such formats and protocols are allowed to respond to

this address.

Assignment of addresses within a local system is up to the system architect who must

take into account the devices being used on the bus and any future interaction with other

conventional I2C-buses. For example, a device with seven user-assignable address pins

allows all 128 addresses to be assigned. If it is known that the reserved address is never

going to be used for its intended purpose, a reserved address can be used for a slave

address.

3.1.13 General call address

The general call address is for addressing every device connected to the I2C-bus at the

same time. However, if a device does not need any of the data supplied within the general

call structure, it can ignore this address by not issuing an acknowledgment. If a device

does require data from a general call address, it acknowledges this address and behave

as a slave-receiver. The master does not actually know how many devices acknowledged

if one or more devices respond. The second and following bytes are acknowledged by

every slave-receiver capable of handling this data. A slave who cannot process one of

these bytes must ignore it by not-acknowledging. Again, if one or more slaves

acknowledge, the not-acknowledge will not be seen by the master. The meaning of the

general call address is always specified in the second byte (see Figure 16).

Table 3. Reserved addresses

X = don’t care; 1 = HIGH; 0 = LOW.

Slave address R/W bit Description

0000 000 0 general call address[1]

0000 000 1 START byte[2]

0000 001 X CBUS address[3]

0000 010 X reserved for different bus format[4]

0000 011 X reserved for future purposes

0000 1XX X Hs-mode master code

1111 1XX 1 device ID

1111 0XX X 10-bit slave addressing

User manual Rev. 6 — 4 April 2014 18 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

There are two cases to consider:

•When the least significant bit B is a ‘zero’.

•When the least significant bit B is a ‘one’.

When bit B is a ‘zero’, the second byte has the following definition:

•0000 0110 (06h): Reset and write programmable part of slave address by

hardware. On receiving this 2-byte sequence, all devices designed to respond to the

general call address reset and take in the programmable part of their address.

Precautions must be taken to ensure that a device is not pulling down the SDA or SCL

line after applying the supply voltage, since these low levels would block the bus.

•0000 0100 (04h): Write programmable part of slave address by hardware.

Behaves as above, but the device does not reset.

•0000 0000 (00h): This code is not allowed to be used as the second byte.

Sequences of programming procedure are published in the appropriate device data

sheets. The remaining codes have not been fixed and devices must ignore them.

When bit B is a ‘one’, the 2-byte sequence is a ‘hardware general call’. This means that

the sequence is transmitted by a hardware master device, such as a keyboard scanner,

which can be programmed to transmit a desired slave address. Since a hardware master

does not know in advance to which device the message has to be transferred, it can only

generate this hardware general call and its own address — identifying itself to the system

(see Figure 17).

The seven bits remaining in the second byte contain the address of the hardware master.

This address is recognized by an intelligent device (for example, a microcontroller)

connected to the bus which then accepts the information from the hardware master. If the

hardware master can also act as a slave, the slave address is identical to the master

address.

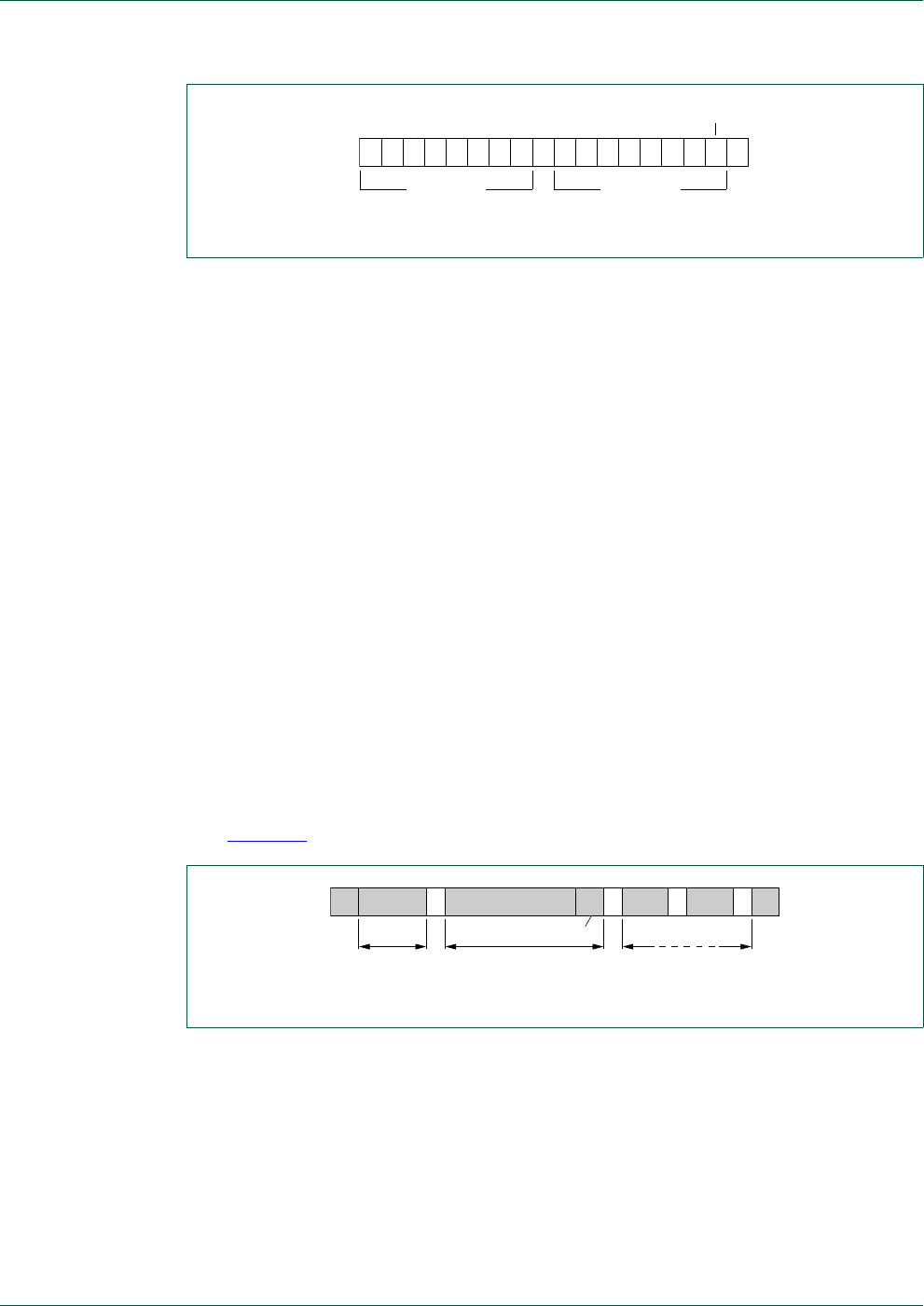

Fig 16. General call address format

Fig 17. Data transfer from a hardware master-transmitter

mbc623

LSB

second byte

0 0 0 0 0 0 0 0 A X X X X X X X BA

first byte

(general call address)

mbc624

general

call address

(B)

A A

second

byte

A A

(n bytes + ack.)

S 00000000 MASTER ADDRESS 1 PDATA DATA

User manual Rev. 6 — 4 April 2014 19 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

In some systems, an alternative could be that the hardware master transmitter is set in the

slave-receiver mode after the system reset. In this way, a system configuring master can

tell the hardware master-transmitter (which is now in slave-receiver mode) to which

address data must be sent (see Figure 18). After this programming procedure, the

hardware master remains in the master-transmitter mode.

3.1.14 Software reset

Following a General Call, (0000 0000), sending 0000 0110 (06h) as the second byte

causes a software reset. This feature is optional and not all devices respond to this

command. On receiving this 2-byte sequence, all devices designed to respond to the

general call address reset and take in the programmable part of their address.

Precautions must be taken to ensure that a device is not pulling down the SDA or SCL line

after applying the supply voltage, since these low levels would block the bus.

3.1.15 START byte

Microcontrollers can be connected to the I2C-bus in two ways. A microcontroller with an

on-chip hardware I2C-bus interface can be programmed to be only interrupted by requests

from the bus. When the device does not have such an interface, it must constantly monitor

the bus via software. Obviously, the more times the microcontroller monitors, or polls the

bus, the less time it can spend carrying out its intended function.

There is therefore a speed difference between fast hardware devices and a relatively slow

microcontroller which relies on software polling.

In this case, data transfer can be preceded by a start procedure which is much longer than

normal (see Figure 19). The start procedure consists of:

•A START condition (S)

•A START byte (0000 0001)

•An acknowledge clock pulse (ACK)

•A repeated START condition (Sr).

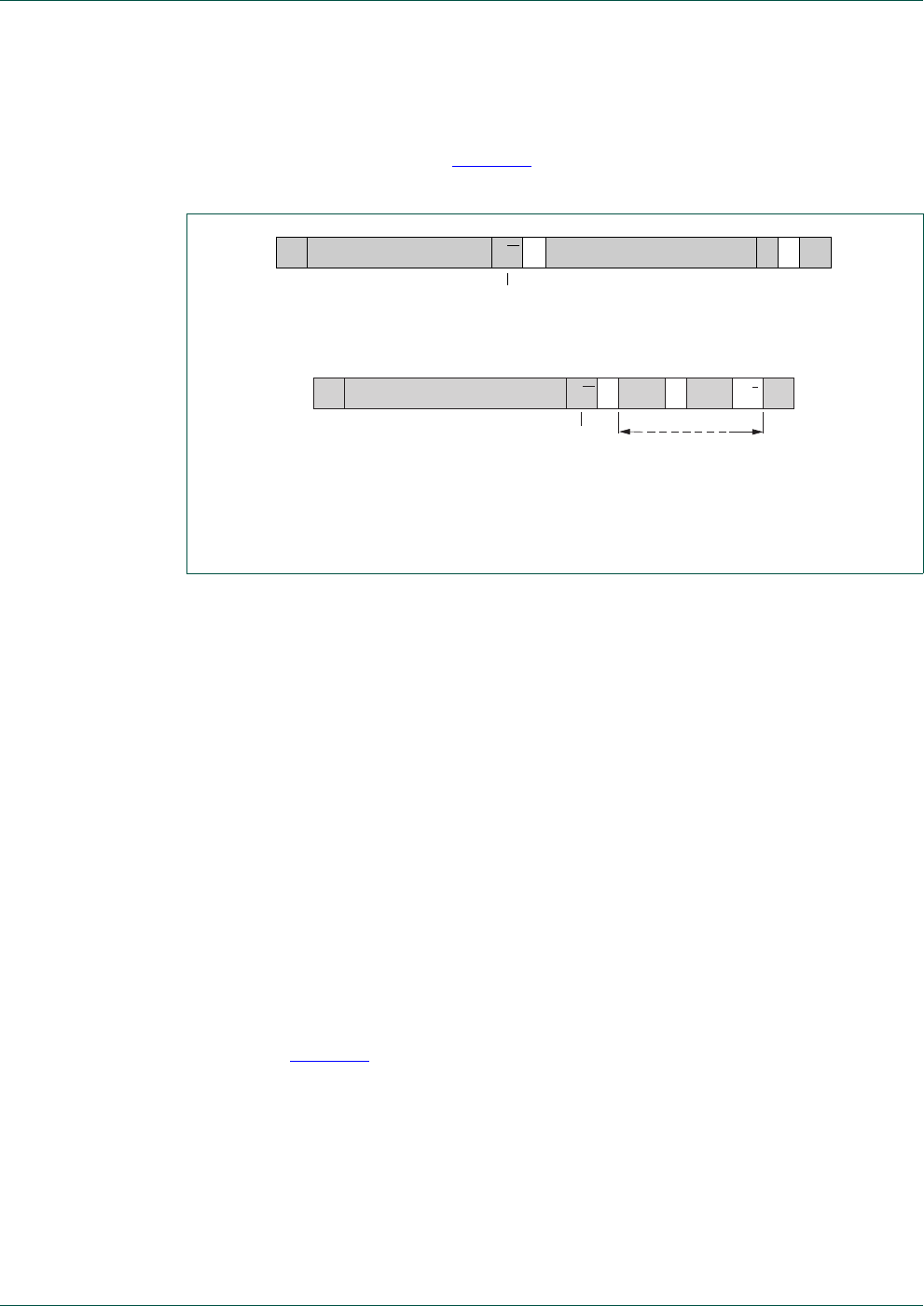

a. Configuring master sends dump address to hardware master

b. Hardware master dumps data to selected slave

Fig 18. Data transfer by a hardware-transmitter capable of dumping data directly to slave

devices

002aac885

write

AAR/WS PSLAVE ADDR. H/W MASTER DUMP ADDR. FOR H/W MASTER X

002aac886

R/W

write

(n bytes + ack.)

A/A

S PDUMP ADDR. FROM H/W MASTER DATA DATA

User manual Rev. 6 — 4 April 2014 20 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

After the START condition S has been transmitted by a master which requires bus access,

the START byte (0000 0001) is transmitted. Another microcontroller can therefore sample

the SDA line at a low sampling rate until one of the seven zeros in the START byte is

detected. After detection of this LOW level on the SDA line, the microcontroller can switch

to a higher sampling rate to find the repeated START condition Sr which is then used for

synchronization.

A hardware receiver resets upon receipt of the repeated START condition Sr and

therefore ignores the START byte.

An acknowledge-related clock pulse is generated after the START byte. This is present

only to conform with the byte handling format used on the bus. No device is allowed to

acknowledge the START byte.

3.1.16 Bus clear

In the unlikely event where the clock (SCL) is stuck LOW, the preferential procedure is to

reset the bus using the HW reset signal if your I2C devices have HW reset inputs. If the

I2C devices do not have HW reset inputs, cycle power to the devices to activate the

mandatory internal Power-On Reset (POR) circuit.

If the data line (SDA) is stuck LOW, the master should send nine clock pulses. The device

that held the bus LOW should release it sometime within those nine clocks. If not, then

use the HW reset or cycle power to clear the bus.

3.1.17 Device ID

The Device ID field (see Figure 20) is an optional 3-byte read-only (24 bits) word giving

the following information:

•Twelve bits with the manufacturer name, unique per manufacturer (for example, NXP)

•Nine bits with the part identification, assigned by manufacturer (for example,

PCA9698)

•Three bits with the die revision, assigned by manufacturer (for example, RevX)

Fig 19. START byte procedure

002aac997

9821

NACK

dummy

acknowledge

(HIGH)

START byte 0000 0001

SDA

SCL

User manual Rev. 6 — 4 April 2014 21 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

The Device ID is read-only, hard-wired in the device and can be accessed as follows:

1. START condition

2. The master sends the Reserved Device ID I2C-bus address followed by the R/W bit

set to ‘0’ (write): ‘1111 1000’.

3. The master sends the I2C-bus slave address of the slave device it must identify. The

LSB is a ‘Don’t care’ value. Only one device must acknowledge this byte (the one that

has the I2C-bus slave address).

4. The master sends a Re-START condition.

Remark: A STOP condition followed by a START condition resets the slave state

machine and the Device ID Read cannot be performed. Also, a STOP condition or a

Re-START condition followed by an access to another slave device resets the slave

state machine and the Device ID Read cannot be performed.

5. The master sends the Reserved Device ID I2C-bus address followed by the R/W bit

set to ‘1’ (read): ‘1111 1001’.

6. The Device ID Read can be done, starting with the 12 manufacturer bits (first byte +

four MSBs of the second byte), followed by the nine part identification bits (four LSBs

of the second byte + five MSBs of the third byte), and then the three die revision bits

(three LSBs of the third byte).

7. The master ends the reading sequence by NACKing the last byte, thus resetting the

slave device state machine and allowing the master to send the STOP condition.

Remark: The reading of the Device ID can be stopped anytime by sending a NACK.

If the master continues to ACK the bytes after the third byte, the slave rolls back to the first

byte and keeps sending the Device ID sequence until a NACK has been detected.

Fig 20. Device ID field

002aab942

0 0

00000000

revision

0 0 0 0

part identification

manufacturer

User manual Rev. 6 — 4 April 2014 22 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

Designers of new I2C devices who want to implement the device ID feature should contact

NXP at i2c.support@nxp.com to have a unique manufacturer ID assigned.

Table 4. Assigned manufacturer IDs

Manufacturer bits Company

11 10 9876543210

000000000000NXP Semiconductors

000000000001NXP Semiconductors (reserved)

000000000010NXP Semiconductors (reserved)

000000000011NXP Semiconductors (reserved)

000000000100Ramtron International

000000000101Analog Devices

000000000110STMicroelectronics

000000000111ON Semiconductor

000000001000Sprintek Corporation

000000001001ESPROS Photonics AG

000000001010Fujitsu Semiconductor

000000001011Flir

000000001100O

2Micro

000000001101Atmel

User manual Rev. 6 — 4 April 2014 23 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.2 Ultra Fast-mode I2C-bus protocol

The UFm I2C-bus is a 2-wire push-pull serial bus that operates from DC to 5 MHz

transmitting data in one direction. It is most useful for speeds greater than 1 MHz to drive

LED controllers and other devices that do not need feedback. The UFm I2C-bus protocol

is based on the standard I2C-bus protocol that consists of a START, slave address,

command bit, ninth clock, and a STOP bit. The command bit is a ‘write’ only, and the data

bit on the ninth clock is driven HIGH, ignoring the ACK cycle due to the unidirectional

nature of the bus. The 2-wire push-pull driver consists of a UFm serial clock (USCL) and

serial data (USDA).

Slave devices contain a unique address (whether it is a microcontroller, LCD driver, LED

controller, GPO) and operate only as receivers. An LED driver may be only a receiver and

can be supported by UFm, whereas a memory can both receive and transmit data and is

not supported by UFm.

Since UFm I2C-bus uses push-pull drivers, it does not have the multi-master capability of

the wired-AND open-drain Sm, Fm, and Fm+ I2C-buses. In UFm, a master is the only

device that initiates a data transfer on the bus and generates the clock signals to permit

that transfer. All other devices addressed are considered slaves.

Let us consider the case of a data transfer between a master and multiple slaves

connected to the UFm I2C-bus (see Figure 21).

Table 5. Definition of UFm I2C-bus terminology

Term Description

Transmitter the device that sends data to the bus

Receiver the device that receives data from the bus

Master the device that initiates a transfer, generates clock signals and

terminates a transfer

Slave the device addressed by a master

Fig 21. Example of UFm I2C-bus configuration

002aag654

USDA

USCL

Master ASIC LED

controller 3

LCD

DRIVER

LED

controller 1

LED

controller 2 GPO

User manual Rev. 6 — 4 April 2014 24 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

This highlights the master/transmitter-slave/receiver relationship found on the UFm

I2C-bus. Note that these relationships are permanent, as data transfer is only permitted in

one direction. The transfer of data would proceed as follows:

Suppose that the master ASIC wants to send information to the LED controller 2:

•ASIC A (master-transmitter), addresses LED controller 2 (slave-receiver) by sending

the address on the USDA and generating the clock on USCL.

•ASIC A (master-transmitter), sends data to LED controller 2 (slave-receiver) on the

USDA and generates the clock on USCL.

•ASIC A terminates the transfer.

The possibility of connecting more than one UFm master to the UFm I2C-bus is not

allowed due to bus contention on the push-pull outputs. If an additional master is required

in the system, it must be fully isolated from the other master (that is, with a true ‘one hot’

MUX) as only one master is allowed on the bus at a time.

Generation of clock signals on the UFm I2C-bus is always the responsibility of the master

device, that is, the master generates the clock signals when transferring data on the bus.

Bus clock signals from a master cannot be altered by a slave device with clock stretching

and the process of arbitration and clock synchronization does not exist within the UFm

I2C-bus.

Table 6 summarizes the use of mandatory and optional portions of the UFm I2C-bus

specification.

Table 6. Applicability of I2C-bus features to UFm

M = mandatory; O = optional; n/p = not possible

Feature Configuration

Single master

START condition M

STOP condition M

Acknowledge n/p

Synchronization n/p

Arbitration n/p

Clock stretching n/p

7-bit slave address M

10-bit slave address O

General Call address O

Software Reset O

START byte O

Device ID n/p

User manual Rev. 6 — 4 April 2014 25 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.2.1 USDA and USCL signals

Both USDA and USCL are unidirectional lines, with push-pull outputs. When the bus is

free, both lines are pulled HIGH by the upper transistor of the output stage. Data on the

I2C-bus can be transferred at rates of up to 5000 kbit/s in the Ultra Fast-mode. The

number of interfaces connected to the bus is limited by the bus loading, reflections from

cable ends, connectors, and stubs.

3.2.2 USDA and USCL logic levels

Due to the variety of different technology devices (CMOS, NMOS, bipolar) that can be

connected to the I2C-bus, the levels of the logical ‘0’ (LOW) and ‘1’ (HIGH) are not fixed

and depend on the associated level of VDD. Input reference levels are set as 30 % and

70 % of VDD; VIL is 0.3VDD and VIH is 0.7VDD. See Figure 40, timing diagram. See

Section 6 for electrical specifications.

3.2.3 Data validity

The data on the USDA line must be stable during the HIGH period of the clock. The HIGH

or LOW state of the data line can only change when the clock signal on the USCL line is

LOW (see Figure 23). One clock pulse is generated for each data bit transferred.

3.2.4 START and STOP conditions

Both data and clock lines remain HIGH when the bus is not busy. All transactions begin

with a START (S) and can be terminated by a STOP (P) (see Figure 24). A HIGH to LOW

transition on the USDA line while USCL is HIGH defines a START condition. A LOW to

HIGH transition on the USDA line while USCL is HIGH defines a STOP condition.

Fig 22. Simplified schematic of USCL, USDA outputs

002aag655

VDD(IO)

VSS

USCL or

USDA pin

Fig 23. Bit transfer on the UFm I2C-bus

002aaf113

data line

stable;

data valid

change

of data

allowed

USDA

USCL

User manual Rev. 6 — 4 April 2014 26 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

START and STOP conditions are always generated by the master. The bus is considered

to be busy after the START condition. The bus is considered to be free again a certain

time after the STOP condition. This bus free situation is specified in Section 6. The bus

stays busy if a repeated START (Sr) is generated instead of a STOP condition. In this

respect, the START (S) and repeated START (Sr) conditions are functionally identical. For

the remainder of this document, therefore, the S symbol is used as a generic term to

represent both the START and repeated START conditions, unless Sr is particularly

relevant.

Detection of START and STOP conditions by devices connected to the bus is easy if they

incorporate the necessary interfacing hardware. However, microcontrollers with no such

interface have to sample the USDA line at least twice per clock period to sense the

transition.

3.2.5 Byte format

Every byte put on the USDA line must be eight bits long. The number of bytes that can be

transmitted per transfer is unrestricted. The master drives the USDA HIGH after each byte

during the Acknowledge cycle. Data is transferred with the Most Significant Bit (MSB) first

(see Figure 25). A slave is not allowed to hold the clock LOW if it cannot receive another

complete byte of data or while it is performing some other function, for example servicing

an internal interrupt.

Fig 24. Definition of START and STOP conditions for UFm I2C-bus

002aaf145

USDA

USCL

STOP condition

START condition

Fig 25. Data transfer on the UFm I2C-bus

S or Sr Sr or P

USDA

USCL

MSB

12 89 12

3 to 7 8

NACK NACK

002aag657

START or

repeated START

condition

STOP or

repeated START

condition

byte complete,

interrupt within slave

Master drives the line HIGH on 9th clock cycle.

Slave never drives the USDA line.

User manual Rev. 6 — 4 April 2014 27 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.2.6 Acknowledge (ACK) and Not Acknowledge (NACK)

Since the slaves are not able to respond the ninth clock cycle, the ACK and NACK are not

required. However, the clock cycle is preserved in the UFm to be compatible with the

I2C-bus protocol. The ACK and NACK are also referred to as the ninth clock cycle. The

master generates all clock pulses, including the ninth clock pulse. The ninth data bit is

always driven HIGH (‘1’). Slave devices are not allowed to drive the SDA line at any time.

3.2.7 The slave address and R/W bit

Data transfers follow the format shown in Figure 26. After the START condition (S), a

slave address is sent. This address is seven bits long followed by an eighth bit which is a

data direction bit (W) — a ‘zero’ indicates a transmission (WRITE); a ‘one’ indicates a

request for data (READ) and is not supported by UFm (except for the START byte,

Section 3.2.12) since the communication is unidirectional (refer to Figure 27). A data

transfer is always terminated by a STOP condition (P) generated by the master. However,

if a master still wishes to communicate on the bus, it can generate a repeated START

condition (Sr) and address another slave without first generating a STOP condition.

The UFm data transfer format is:

•Master-transmitter transmits to slave-receiver. The transfer direction is not changed

(see Figure 28). The master never acknowledges because it never receives any data

but generates the ‘1’ on the ninth bit for the slave to conform to the I2C-bus protocol.

Fig 26. A complete UFm data transfer

1 - 7 8 9 1 - 7 8 9 1 - 7 8 9

STOP

condition

START

condition

DATA NACKDATA NACKADDRESS NACKW

USDA

USCL

002aag658

Fig 27. The first byte after the START procedure

002aag659

LSBMSB

slave address

User manual Rev. 6 — 4 April 2014 28 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

Notes:

1. Individual transaction or repeated START formats addressing multiple slaves in one

transaction can be used. After the START condition and slave address is repeated,

data can be transferred.

2. All decisions on auto-increment or decrement of previously accessed memory

locations, etc., are taken by the designer of the device.

3. Each byte is followed by a Not-Acknowledgment bit as indicated by the A blocks in the

sequence.

4. I2C-bus compatible devices must reset their bus logic on receipt of a START or

repeated START condition such that they all anticipate the sending of a slave

address, even if these START conditions are not positioned according to the proper

format.

5. A START condition immediately followed by a STOP condition (void message) is an

illegal format. Many devices however are designed to operate properly under this

condition.

6. Each device connected to the bus is addressable by a unique address. A simple

master/slave relationship exists, but it is possible to have multiple identical slaves that

can receive and respond simultaneously, for example, in a group broadcast where all

identical devices are configured at the same time, understanding that it is impossible

to determine that each slave is responsive. Refer to individual component data

sheets.

3.2.8 10-bit addressing

10-bit addressing expands the number of possible addresses. Devices with 7-bit and

10-bit addresses can be connected to the same I2C-bus, and both 7-bit and 10-bit

addressing can be used in all bus speed modes.

The 10-bit slave address is formed from the first two bytes following a START condition

(S) or a repeated START condition (Sr). The first seven bits of the first byte are the

combination 1111 0XX of which the last two bits (XX) are the two Most Significant Bits

(MSBs) of the 10-bit address; the eighth bit of the first byte is the R/W bit that determines

the direction of the message.

Although there are eight possible combinations of the reserved address bits 1111 XXX,

only the four combinations 1111 0XX are used for 10-bit addressing. The remaining four

combinations 1111 1XX are reserved for future I2C-bus enhancements.

Fig 28. A master-transmitter addressing a slave receiver with a 7-bit address

002aag660

‘0’ (write)

data transferred

(n bytes + not acknowledge)

A = not acknowledge (USDA HIGH)

S = START condition

P = STOP condition

from master to slave

DATADATAASLAVE ADDRESSS P

User manual Rev. 6 — 4 April 2014 29 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

Only the write format previously described for 7-bit addressing is possible with 10-bit

addressing. Detailed here:

•Master-transmitter transmits to slave-receiver with a 10-bit slave address. The

transfer direction is not changed (see Figure 29). When a 10-bit address follows a

START condition, each slave compares the first seven bits of the first byte of the slave

address (1111 0XX) with its own address and tests if the eighth bit (R/W direction bit)

is 0 (W). All slaves that found a match compare the eight bits of the second byte of the

slave address (XXXX XXXX) with their own addresses, but only one slave finds a

match. The matching slave remains addressed by the master until it receives a STOP

condition (P) or a repeated START condition (Sr) followed by a different slave

address.

The START byte 0000 0001 (01h) can precede the 10-bit addressing in the same way as

for 7-bit addressing (see Section 3.2.12).

3.2.9 Reserved addresses in UFm

The UFm I2C-bus has a different physical layer than the other I2C-bus modes. Therefore

the available slave address range is different. Two groups of eight addresses (0000 XXX

and 1111 XXX) are reserved for the purposes shown in Table 7.

[1] The general call address is used for several functions including software reset.

[2] No UFm device is allowed to acknowledge at the reception of the START byte.

Assignment of addresses within a local system is up to the system architect who must

take into account the devices being used on the bus and any future interaction with

reserved addresses. For example, a device with seven user-assignable address pins

allows all 128 addresses to be assigned. If it is known that the reserved address is never

going to be used for its intended purpose, then a reserved address can be used for a

slave address.

Fig 29. A master-transmitter addresses a slave-receiver with a 10-bit address

002aag661

(write)

AANA

1 1 1 1 0 X X 0

SLAVE ADDRESS

1st 7 BITS

S DATA PDATA

SLAVE ADDRESS

2nd BYTE

Table 7. Reserved addresses

X = don’t care; 1 = HIGH; 0 = LOW.

Slave address R/W bit Description

0000 000 0 general call address[1]

0000 000 1 START byte[2]

0000 001 X reserved for future purposes

0000 010 X reserved for future purposes

0000 011 X reserved for future purposes

0000 1XX X reserved for future purposes

1111 1XX X reserved for future purposes

1111 0XX X 10-bit slave addressing

User manual Rev. 6 — 4 April 2014 30 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

3.2.10 General call address

The general call address is for addressing every device connected to the I2C-bus at the

same time. However, if a device does not need any of the data supplied within the general

call structure, it can ignore this address. If a device does require data from a general call

address, it behaves as a slave-receiver. The master does not actually know how many

devices are responsive to the general call. The second and following bytes are received

by every slave-receiver capable of handling this data. A slave that cannot process one of

these bytes must ignore it. The meaning of the general call address is always specified in

the second byte (see Figure 30).

There are two cases to consider:

•When the least significant bit B is a ‘zero’

•When the least significant bit B is a ‘one’

When bit B is a ‘zero’, the second byte has the following definition:

0000 0110 (06h) — Reset and write programmable part of slave address by hardware.

On receiving this 2-byte sequence, all devices designed to respond to the general call

address reset and take in the programmable part of their address.

0000 0100 (04h) — Write programmable part of slave address by hardware. Behaves as

above, but the device does not reset.

0000 0000 (00h) — This code is not allowed to be used as the second byte.

Sequences of programming procedure are published in the appropriate device data

sheets. The remaining codes have not been fixed and devices must ignore them.

When bit B is a ‘one’, the 2-byte sequence is ignored.

3.2.11 Software reset

Following a General Call, (0000 0000), sending 0000 0110 (06h) as the second byte

causes a software reset. This feature is optional and not all devices respond to this

command. On receiving this 2-byte sequence, all devices designed to respond to the

general call address reset and take in the programmable part of their address.

3.2.12 START byte

Microcontrollers can be connected to the I2C-bus in two ways. A microcontroller with an

on-chip hardware I2C-bus interface can be programmed to be only interrupted by requests

from the bus. When the device does not have such an interface, it must constantly monitor

the bus via software. Obviously, the more times the microcontroller monitors, or polls the

bus, the less time it can spend carrying out its intended function.

There is therefore a speed difference between fast hardware devices and a relatively slow

microcontroller which relies on software polling.

Fig 30. General call address format

002aag662

LSB

second byte

0 0 0 0 0 0 0 0 A X X X X X X X BA

first byte

(general call address)

User manual Rev. 6 — 4 April 2014 31 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

In this case, data transfer can be preceded by a start procedure which is much longer than

normal (see Figure 31). The start procedure consists of:

•A START condition (S)

•A START byte (0000 0001)

•A Not Acknowledge clock pulse (NACK)

•A repeated START condition (Sr)

After the START condition S has been transmitted by a master which requires bus access,

the START byte (0000 0001) is transmitted. Another microcontroller can therefore sample

the USDA line at a low sampling rate until one of the seven zeros in the START byte is

detected. After detection of this LOW level on the USDA line, the microcontroller can

switch to a higher sampling rate to find the repeated START condition Sr, which is then

used for synchronization. A hardware receiver resets upon receipt of the repeated START

condition Sr and therefore ignores the START byte. An acknowledge-related clock pulse

is generated after the START byte. This is present only to conform with the byte handling

format used on the bus. No device is allowed to acknowledge the START byte.

3.2.13 Unresponsive slave reset

In the unlikely event where the slave becomes unresponsive (for example, determined

through external feedback, not through UFm I2C-bus), the preferential procedure is to

reset the slave by using the software reset command or the hardware reset signal. If the

slaves do not support these features, then cycle power to the devices to activate the

mandatory internal Power-On Reset (POR) circuit.

3.2.14 Device ID

The Device ID field is not supported in UFm.

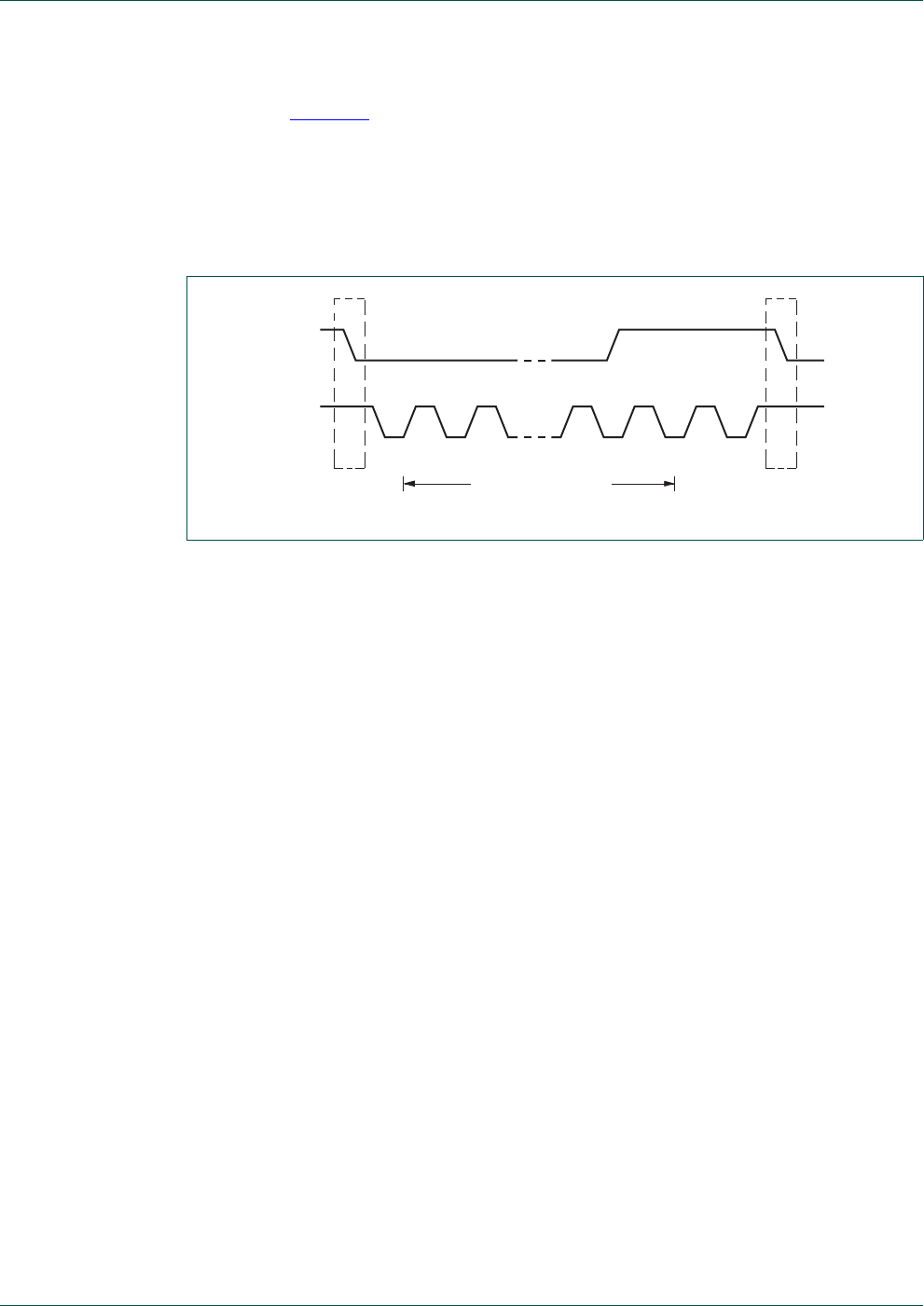

Fig 31. START byte procedure

002aag663

9821

NACK

dummy

acknowledge

(HIGH)

START byte 0000 0001

USDA

USCL

User manual Rev. 6 — 4 April 2014 32 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

4. Other uses of the I2C-bus communications protocol

The I2C-bus is used as the communications protocol for several system architectures.

These architectures have added command sets and application-specific extensions in

addition to the base I2C specification. In general, simple I2C-bus devices such as I/O

extenders could be used in any one of these architectures since the protocol and physical

interfaces are the same.

4.1 CBUS compatibility

CBUS receivers can be connected to the Standard-mode I2C-bus. However, a third bus

line called DLEN must then be connected and the acknowledge bit omitted. Normally, I2C

transmissions are sequences of 8-bit bytes; CBUS compatible devices have different

formats.

In a mixed bus structure, I2C-bus devices must not respond to the CBUS message. For

this reason, a special CBUS address (0000 001X) to which no I2C-bus compatible device

responds has been reserved. After transmission of the CBUS address, the DLEN line can

be made active and a CBUS-format transmission sent. After the STOP condition, all

devices are again ready to accept data.

Master-transmitters can send CBUS formats after sending the CBUS address. The

transmission is ended by a STOP condition, recognized by all devices.

Remark: If the CBUS configuration is known, and expansion with CBUS compatible

devices is not foreseen, the designer is allowed to adapt the hold time to the specific

requirements of the device(s) used.

4.2 SMBus - System Management Bus

The SMBus uses I2C hardware and I2C hardware addressing, but adds second-level

software for building special systems. In particular, its specifications include an Address

Resolution Protocol that can make dynamic address allocations.

Dynamic reconfiguration of the hardware and software allow bus devices to be

‘hot-plugged’ and used immediately, without restarting the system. The devices are

recognized automatically and assigned unique addresses. This advantage results in a

plug-and-play user interface. In both those protocols, there is a very useful distinction

made between a System Host and all the other devices in the system that can have the

names and functions of masters or slaves.

SMBus is used today as a system management bus in most PCs. Developed by Intel and

others in 1995, it modified some I2C electrical and software characteristics for better

compatibility with the quickly decreasing power supply budget of portable equipment.

SMBus also has a ‘High Power’ version 2.0 that includes a 4 mA sink current that cannot

be driven by I2C chips unless the pull-up resistor is sized to I2C-bus levels.

4.2.1 I2C/SMBus compliancy

SMBus and I2C protocols are basically the same: A SMBus master is able to control I2C

devices and vice versa at the protocol level. The SMBus clock is defined from 10 kHz to

100 kHz while I2C can be 0Hz to 100kHz, 0Hz to 400kHz, 0Hz to 1MHz and

0 Hz to 3.4 MHz, depending on the mode. This means that an I2C-bus running at less

than 10 kHz is not SMBus compliant since the SMBus devices may time-out.

User manual Rev. 6 — 4 April 2014 33 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

Logic levels are slightly different also: TTL for SMBus: LOW = 0.8 V and HIGH = 2.1 V,

versus the 30 %/70 % VDD CMOS level for I2C. This is not a problem if VDD > 3.0 V. If the

I2C device is below 3.0 V, then there could be a problem if the logic HIGH/LOW levels are

not properly recognized.

4.2.2 Time-out feature

SMBus has a time-out feature which resets devices if a communication takes too long.

This explains the minimum clock frequency of 10 kHz to prevent locking up the bus. I2C

can be a ‘DC’ bus, meaning that a slave device stretches the master clock when

performing some routine while the master is accessing it. This notifies the master that the

slave is busy but does not want to lose the communication. The slave device will allow

continuation after its task is complete. There is no limit in the I2C-bus protocol as to how

long this delay can be, whereas for a SMBus system, it would be limited to 35 ms.

SMBus protocol just assumes that if something takes too long, then it means that there is

a problem on the bus and that all devices must reset in order to clear this mode. Slave

devices are not then allowed to hold the clock LOW too long.

4.2.3 Differences between SMBus 1.0 and SMBus 2.0

The SMBus specification defines two classes of electrical characteristics: low power and

high power. The first class, originally defined in the SMBus 1.0 and 1.1 specifications, was

designed primarily with Smart Batteries in mind, but could be used with other low-power

devices.

The 2.0 version introduces an alternative higher power set of electrical characteristics.

This class is appropriate for use when higher drive capability is required, for example with

SMBus devices on PCI add-in cards and for connecting such cards across the PCI

connector between each other and to SMBus devices on the system board.

Devices may be powered by the bus VDD or by another power source, VBus (as with, for

example, Smart Batteries), and will inter-operate as long as they adhere to the SMBus

electrical specifications for their class.

NXP devices have a higher power set of electrical characteristics than SMBus 1.0. The

main difference is the current sink capability with VOL =0.4V.

•SMBus low power = 350 μA

•SMBus high power = 4 mA

•I2C-bus = 3 mA

SMBus ‘high power’ devices and I2C-bus devices will work together if the pull-up resistor

is sized for 3 mA.

For more information, refer to: www.smbus.org/.

User manual Rev. 6 — 4 April 2014 34 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

4.3 PMBus - Power Management Bus

PMBus is a standard way to communicate between power converters and a system host

over the SMBus to provide more intelligent control of the power converters. The PMBus

specification defines a standard set of device commands so that devices from multiple

sources function identically. PMBus devices use the SMBus Version 1.1 plus extensions

for transport.

For more information, refer to: www.pmbus.org/.

4.4 Intelligent Platform Management Interface (IPMI)

Intelligent Platform Management Interface (IPMI) defines a standardized, abstracted,

message-based interface for intelligent platform management hardware. IPMI also

defines standardized records for describing platform management devices and their

characteristics. IPMI increases reliability of systems by monitoring parameters such as

temperatures, voltages, fans and chassis intrusion.

IPMI provides general system management functions such as automatic alerting,

automatic system shutdown and restart, remote restart and power control. The

standardized interface to intelligent platform management hardware aids in prediction and

early monitoring of hardware failures as well as diagnosis of hardware problems.

This standardized bus and protocol for extending management control, monitoring, and

event delivery within the chassis:

•I2C based

•Multi-master

•Simple Request/Response Protocol

•Uses IPMI Command sets

•Supports non-IPMI devices

•Physically I2C but write-only (master capable devices); hot swap not required

•Enables the Baseboard Management Controller (BMC) to accept IPMI request

messages from other management controllers in the system

•Allows non-intelligent devices as well as management controllers on the bus

•BMC serves as a controller to give system software access to IPMB.

Hardware implementation is isolated from software implementation so that new sensors

and events can then be added without any software changes.

For more information, refer to: www.intel.com/design/servers/ipmi/ipmi.htm.

User manual Rev. 6 — 4 April 2014 35 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

4.5 Advanced Telecom Computing Architecture (ATCA)

Advanced Telecom Computing Architecture (ATCA) is a follow-on to Compact PCI (cPCI),

providing a standardized form-factor with larger card area, larger pitch and larger power

supply for use in advanced rack-mounted telecom hardware. It includes a fault-tolerant

scheme for thermal management that uses I2C-bus communications between boards.

Advanced Telecom Computing Architecture (ATCA) is backed by more than

100 companies including many of the large players such as Intel, Lucent, and Motorola.

There are two general compliant approaches to an ATCA-compliant fan control: the first is

an Intelligent FRU (Field Replaceable Unit) which means that the fan control would be

directly connected to the IPMB (Intelligent Platform Management Bus); the second is a

Managed or Non-intelligent FRU.

One requirement is the inclusion of hardware and software to manage the dual I2C-buses.

This requires an on-board isolated supply to power the circuitry, a buffered dual I2C-bus

with rise time accelerators, and 3-state capability. The I2C controller must be able to

support a multi-master I2C dual bus and handle the standard set of fan commands

outlined in the protocol. In addition, on-board temperature reporting, tray capability

reporting, fan turn-off capabilities, and non-volatile storage are required.

For more information, refer to: www.picmg.org/v2internal/resourcepage2.cfm?id=2.

4.6 Display Data Channel (DDC)

The Display Data Channel (DDC) allows a monitor or display to inform the host about its

identity and capabilities. The specification for DDC version 2 calls for compliance with the

I2C-bus standard mode specification. It allows bidirectional communication between the

display and the host, enabling control of monitor functions such as how images are

displayed and communication with other devices attached to the I2C-bus.

For more information, refer to: www.vesa.org.

5. Bus speeds

Originally, the I2C-bus was limited to 100 kbit/s operation. Over time there have been

several additions to the specification so that there are now five operating speed

categories. Standard-mode, Fast-mode (Fm), Fast-mode Plus (Fm+), and High-speed

mode (Hs-mode) devices are downward-compatible — any device may be operated at a

lower bus speed. Ultra Fast-mode devices are not compatible with previous versions

since the bus is unidirectional.

•Bidirectional bus:

– Standard-mode (Sm), with a bit rate up to 100 kbit/s

– Fast-mode (Fm), with a bit rate up to 400 kbit/s

– Fast-mode Plus (Fm+), with a bit rate up to 1 Mbit/s

– High-speed mode (Hs-mode), with a bit rate up to 3.4 Mbit/s.

•Unidirectional bus:

– Ultra Fast-mode (UFm), with a bit rate up to 5 Mbit/s

User manual Rev. 6 — 4 April 2014 36 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

5.1 Fast-mode

Fast-mode devices can receive and transmit at up to 400 kbit/s. The minimum

requirement is that they can synchronize with a 400 kbit/s transfer; they can then prolong

the LOW period of the SCL signal to slow down the transfer. The protocol, format, logic

levels and maximum capacitive load for the SDA and SCL lines are the same as the

Standard-mode I2C-bus specification. Fast-mode devices are downward-compatible and

can communicate with Standard-mode devices in a 0 to 100 kbit/s I2C-bus system. As

Standard-mode devices, however, are not upward compatible; they should not be

incorporated in a Fast-mode I2C-bus system as they cannot follow the higher transfer rate

and unpredictable states would occur.

The Fast-mode I2C-bus specification has the following additional features compared with

the Standard-mode:

•The maximum bit rate is increased to 400 kbit/s.

•Timing of the serial data (SDA) and serial clock (SCL) signals has been adapted.

There is no need for compatibility with other bus systems such as CBUS because

they cannot operate at the increased bit rate.

•The inputs of Fast-mode devices incorporate spike suppression and a Schmitt trigger

at the SDA and SCL inputs.

•The output buffers of Fast-mode devices incorporate slope control of the falling edges

of the SDA and SCL signals.

•If the power supply to a Fast-mode device is switched off, the SDA and SCL I/O pins

must be floating so that they do not obstruct the bus lines.

The external pull-up devices connected to the bus lines must be adapted to accommodate

the shorter maximum permissible rise time for the Fast-mode I2C-bus. For bus loads up to

200 pF, the pull-up device for each bus line can be a resistor; for bus loads between

200 pF and 400 pF, the pull-up device can be a current source (3 mA max.) or a switched

resistor circuit (see Section 7.2.4).

5.2 Fast-mode Plus

Fast-mode Plus (Fm+) devices offer an increase in I2C-bus transfer speeds and total bus

capacitance. Fm+ devices can transfer information at bit rates of up to 1 Mbit/s, yet they

remain fully downward compatible with Fast- or Standard-mode devices for bidirectional

communication in a mixed-speed bus system. The same serial bus protocol and data

format is maintained as with the Fast- or Standard-mode system. Fm+ devices also offer

increased drive current over Fast- or Standard-mode devices allowing them to drive

longer and/or more heavily loaded buses so that bus buffers do not need to be used.

The drivers in Fast-mode Plus parts are strong enough to satisfy the Fast-mode Plus

timing specification with the same 400 pF load as Standard-mode parts. To be backward

compatible with Standard-mode, they are also tolerant of the 1 μs rise time of

Standard-mode parts. In applications where only Fast-mode Plus parts are present, the

high drive strength and tolerance for slow rise and fall times allow the use of larger bus

capacitance as long as set-up, minimum LOW time and minimum HIGH time for

Fast-mode Plus are all satisfied and the fall time and rise time do not exceed the 300 ns tf

and 1 μs tr specifications of Standard-mode. Bus speed can be traded against load

capacitance to increase the maximum capacitance by about a factor of ten.

User manual Rev. 6 — 4 April 2014 37 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

5.3 Hs-mode

High-speed mode (Hs-mode) devices offer a quantum leap in I2C-bus transfer speeds.

Hs-mode devices can transfer information at bit rates of up to 3.4 Mbit/s, yet they remain

fully downward compatible with Fast-mode Plus, Fast- or Standard-mode (F/S) devices for

bidirectional communication in a mixed-speed bus system. With the exception that

arbitration and clock synchronization is not performed during the Hs-mode transfer, the

same serial bus protocol and data format is maintained as with the F/S-mode system.

5.3.1 High speed transfer

To achieve a bit transfer of up to 3.4 Mbit/s, the following improvements have been made

to the regular I2C-bus specification:

•Hs-mode master devices have an open-drain output buffer for the SDAH signal and a

combination of an open-drain pull-down and current-source pull-up circuit on the

SCLH output. This current-source circuit shortens the rise time of the SCLH signal.

Only the current-source of one master is enabled at any one time, and only during

Hs-mode.

•No arbitration or clock synchronization is performed during Hs-mode transfer in

multi-master systems, which speeds-up bit handling capabilities. The arbitration

procedure always finishes after a preceding master code transmission in F/S-mode.

•Hs-mode master devices generate a serial clock signal with a HIGH to LOW ratio of

1 to 2. This relieves the timing requirements for set-up and hold times.

•As an option, Hs-mode master devices can have a built-in bridge. During Hs-mode

transfer, the high-speed data (SDAH) and high-speed serial clock (SCLH) lines of

Hs-mode devices are separated by this bridge from the SDA and SCL lines of

F/S-mode devices. This reduces the capacitive load of the SDAH and SCLH lines

resulting in faster rise and fall times.

•The only difference between Hs-mode slave devices and F/S-mode slave devices is

the speed at which they operate. Hs-mode slaves have open-drain output buffers on

the SCLH and SDAH outputs. Optional pull-down transistors on the SCLH pin can be

used to stretch the LOW level of the SCLH signal, although this is only allowed after

the acknowledge bit in Hs-mode transfers.

•The inputs of Hs-mode devices incorporate spike suppression and a Schmitt trigger at

the SDAH and SCLH inputs.

•The output buffers of Hs-mode devices incorporate slope control of the falling edges

of the SDAH and SCLH signals.

Figure 32 shows the physical I2C-bus configuration in a system with only Hs-mode

devices. Pins SDA and SCL on the master devices are only used in mixed-speed bus

systems and are not connected in an Hs-mode only system. In such cases, these pins can

be used for other functions.

Optional series resistors Rs protect the I/O stages of the I2C-bus devices from

high-voltage spikes on the bus lines and minimize ringing and interference.

Pull-up resistors Rp maintain the SDAH and SCLH lines at a HIGH level when the bus is

free and ensure that the signals are pulled up from a LOW to a HIGH level within the

required rise time. For higher capacitive bus-line loads (>100 pF), the resistor Rp can be

replaced by external current source pull-ups to meet the rise time requirements. Unless

User manual Rev. 6 — 4 April 2014 38 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

proceeded by an acknowledge bit, the rise time of the SCLH clock pulses in Hs-mode

transfers is shortened by the internal current-source pull-up circuit MCS of the active

master.

5.3.2 Serial data format in Hs-mode

Serial data transfer format in Hs-mode meets the Standard-mode I2C-bus specification.

Hs-mode can only commence after the following conditions (all of which are in F/S-mode):

1. START condition (S)

2. 8-bit master code (0000 1XXX)

3. Not-acknowledge bit (A)

Figure 33 and Figure 34 show this in more detail. This master code has two main

functions:

•It allows arbitration and synchronization between competing masters at F/S-mode

speeds, resulting in one winning master.

•It indicates the beginning of an Hs-mode transfer.

Hs-mode master codes are reserved 8-bit codes, which are not used for slave addressing

or other purposes. Furthermore, as each master has its own unique master code, up to

eight Hs-mode masters can be present on the one I2C-bus system (although master code

0000 1000 should be reserved for test and diagnostic purposes). The master code for an

Hs-mode master device is software programmable and is chosen by the System

Designer.

(1) SDA and SCL are not used here but may be used for other functions.

(2) To input filter.

(3) Only the active master can enable its current-source pull-up circuit.

(4) Dotted transistors are optional open-drain outputs which can stretch the serial clock signal SCLH.

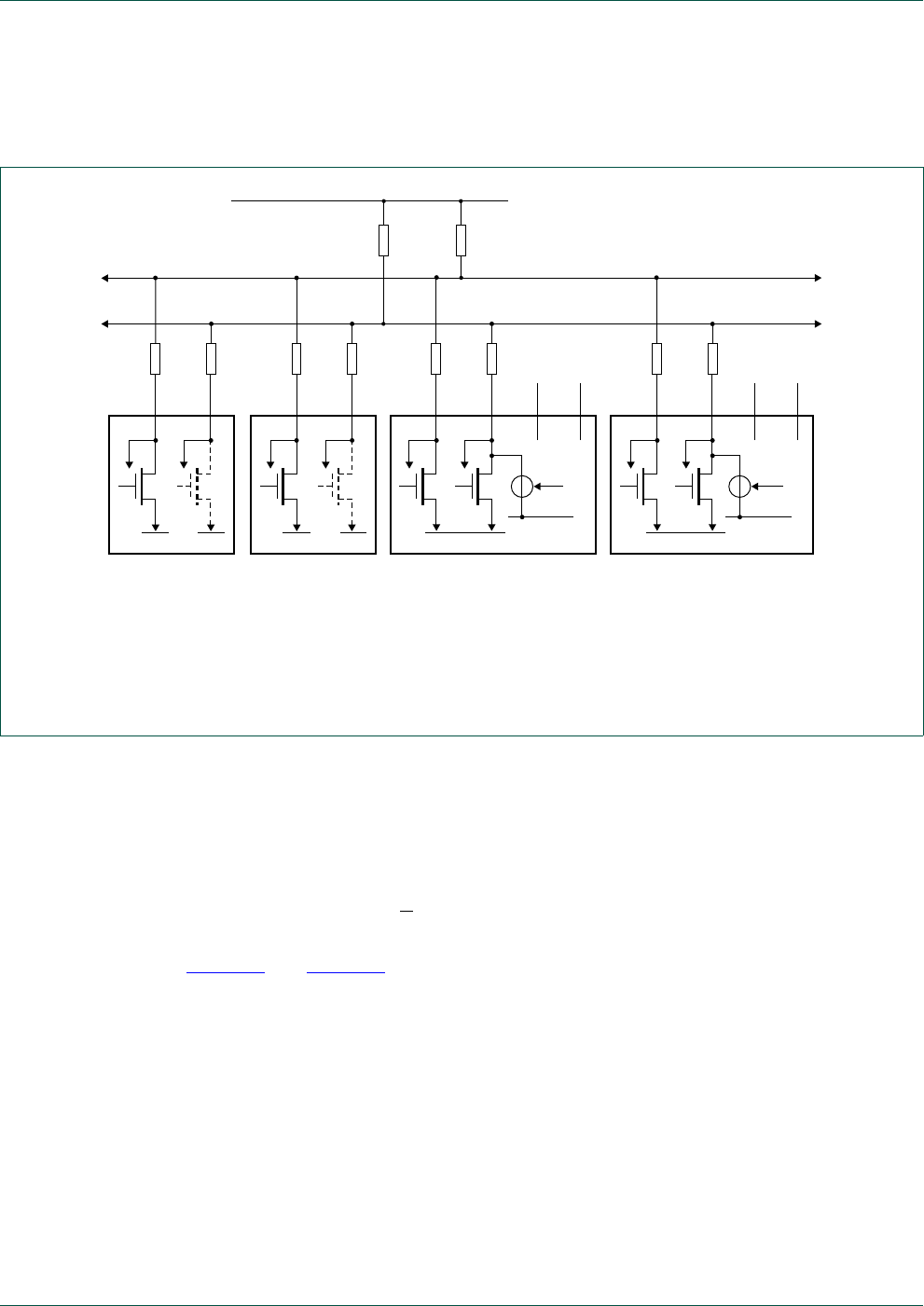

Fig 32. I2C-bus configuration with Hs-mode devices only

msc612

VSS

SLAVE

SDAH SCLH

VSS

MASTER/SLAVE

SDAH SCLH SDA

MCS

SCL

RsRs

SLAVE

SDAH SCLH

VSS

RsRsRsRs

VDD

VSS

MASTER/SLAVE

SDAH SCLH SDA SCL

RsRs

VDD

(1) (1)(1) (1)

(2) (2)

(4) (4) (3) MCS(3)

(2) (2) (2) (2) (2) (2)

VDD

SCLH

SDAH

User manual Rev. 6 — 4 April 2014 39 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

Arbitration and clock synchronization only take place during the transmission of the

master code and not-acknowledge bit (A), after which one winning master remains active.

The master code indicates to other devices that an Hs-mode transfer is to begin and the

connected devices must meet the Hs-mode specification. As no device is allowed to

acknowledge the master code, the master code is followed by a not-acknowledge (A).

After the not-acknowledge bit (A), and the SCLH line has been pulled-up to a HIGH level,

the active master switches to Hs-mode and enables (at time tH, see Figure 34) the

current-source pull-up circuit for the SCLH signal. As other devices can delay the serial

transfer before tH by stretching the LOW period of the SCLH signal, the active master

enables its current-source pull-up circuit when all devices have released the SCLH line

and the SCLH signal has reached a HIGH level, thus speeding up the last part of the rise

time of the SCLH signal.

The active master then sends a repeated START condition (Sr) followed by a 7-bit slave

address (or 10-bit slave address, see Section 3.1.11) with a R/W bit address, and

receives an acknowledge bit (A) from the selected slave.

After a repeated START condition and after each acknowledge bit (A) or not-acknowledge

bit (A), the active master disables its current-source pull-up circuit. This enables other

devices to delay the serial transfer by stretching the LOW period of the SCLH signal. The

active master re-enables its current-source pull-up circuit again when all devices have

released and the SCLH signal reaches a HIGH level, and so speeds up the last part of the

SCLH signal’s rise time.

Data transfer continues in Hs-mode after the next repeated START (Sr), and only

switches back to F/S-mode after a STOP condition (P). To reduce the overhead of the

master code, it is possible that a master links a number of Hs-mode transfers, separated

by repeated START conditions (Sr).

Fig 33. Data transfer format in Hs-mode

F/S-mode Hs-mode (current-source for SCLH enabled) F/S-mode

msc616

AA A/ADATA

(n bytes + ack.)

S R/WMASTER CODE Sr SLAVE ADD.

Hs-mode continues

Sr SLAVE ADD.

User manual Rev. 6 — 4 April 2014 40 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

5.3.3 Switching from F/S-mode to Hs-mode and back

After reset and initialization, Hs-mode devices must be in Fast-mode (which is in effect

F/S-mode, as Fast-mode is downward compatible with Standard-mode). Each Hs-mode

device can switch from Fast-mode to Hs-mode and back and is controlled by the serial

transfer on the I2C-bus.

Before time t1 in Figure 34, each connected device operates in Fast-mode. Between times

t1 and tH (this time interval can be stretched by any device) each connected device must

recognize the ‘S 00001XXX A’ sequence and has to switch its internal circuit from the

Fast-mode setting to the Hs-mode setting. Between times t1 and tH, the connected master

and slave devices perform this switching by the following actions.

The active (winning) master:

1. Adapts its SDAH and SCLH input filters according to the spike suppression

requirement in Hs-mode.

2. Adapts the set-up and hold times according to the Hs-mode requirements.

3. Adapts the slope control of its SDAH and SCLH output stages according to the

Hs-mode requirement.

4. Switches to the Hs-mode bit-rate, which is required after time tH.

5. Enables the current source pull-up circuit of its SCLH output stage at time tH.

Fig 34. A complete Hs-mode transfer

msc618

8-bit master code 0000 1xxx AtH

F/S mode

HS mode If P then

F/S mode

If Sr (dotted lines)

then HS mode

16789 67891

1 2 to 5

2 to 5

67 89

SDA high

SCL high

SDA high

SCL high

tHtFS

Sr Sr P

n + (8-bit data + A/A)

7-bit SLA R/W A

= Master current source pull-up

= Resistor pull-up

User manual Rev. 6 — 4 April 2014 41 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

The non-active, or losing masters:

1. Adapt their SDAH and SCLH input filters according to the spike suppression

requirement in Hs-mode.

2. Wait for a STOP condition to detect when the bus is free again.

All slaves:

1. Adapt their SDAH and SCLH input filters according to the spike suppression

requirement in Hs-mode.

2. Adapt the set-up and hold times according to the Hs-mode requirements. This

requirement may already be fulfilled by the adaptation of the input filters.

3. Adapt the slope control of their SDAH output stages, if necessary. For slave devices,

slope control is applicable for the SDAH output stage only and, depending on circuit

tolerances, both the Fast-mode and Hs-mode requirements may be fulfilled without

switching its internal circuit.

At time tFS in Figure 34, each connected device must recognize the STOP condition (P)

and switch its internal circuit from the Hs-mode setting back to the Fast-mode setting as

present before time t1. This must be completed within the minimum bus free time as

specified in Table 10 according to the Fast-mode specification.

5.3.4 Hs-mode devices at lower speed modes

Hs-mode devices are fully downwards compatible, and can be connected to an F/S-mode

I2C-bus system (see Figure 35). As no master code is transmitted in such a configuration,

all Hs-mode master devices stay in F/S-mode and communicate at F/S-mode speeds with

their current-source disabled. The SDAH and SCLH pins are used to connect to the

F/S-mode bus system, allowing the SDA and SCL pins (if present) on the Hs-mode

master device to be used for other functions.

User manual Rev. 6 — 4 April 2014 42 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

5.3.5 Mixed speed modes on one serial bus system

If a system has a combination of Hs-mode, Fast-mode and/or Standard-mode devices,

it is possible, by using an interconnection bridge, to have different bit rates between

different devices (see Figure 36 and Figure 37).

One bridge is required to connect/disconnect an Hs-mode section to/from an F/S-mode

section at the appropriate time. This bridge includes a level shift function that allows

devices with different supply voltages to be connected. For example F/S-mode devices

with a VDD2 of 5 V can be connected to Hs-mode devices with a VDD1 of 3 V or less

(that is, where VDD2 ≥VDD1), provided SDA and SCL pins are 5 V tolerant. This bridge is

incorporated in Hs-mode master devices and is completely controlled by the serial signals

SDAH, SCLH, SDA and SCL. Such a bridge can be implemented in any IC as an

autonomous circuit.

TR1, TR2 and TR3 are N-channel transistors. TR1 and TR2 have a transfer gate function,

and TR3 is an open-drain pull-down stage. If TR1 or TR2 are switched on they transfer a

LOW level in both directions, otherwise when both the drain and source rise to a HIGH

level there is a high-impedance between the drain and source of each switched-on

transistor. In the latter case, the transistors act as a level shifter as SDAH and SCLH are

pulled-up to VDD1 and SDA and SCL are pulled-up to VDD2.

During F/S-mode speed, a bridge on one of the Hs-mode masters connects the SDAH

and SCLH lines to the corresponding SDA and SCL lines thus permitting Hs-mode

devices to communicate with F/S-mode devices at slower speeds. Arbitration and

synchronization are possible during the total F/S-mode transfer between all connected

devices as described in Section 3.1.7. During Hs-mode transfer, however, the bridge

(1) Bridge not used. SDA and SCL may have an alternative function.

(2) To input filter.

(3) The current-source pull-up circuit stays disabled.

(4) Dotted transistors are optional open-drain outputs which can stretch the serial clock signal SCL.

Fig 35. Hs-mode devices at F/S-mode speed

VSS VSS

Hs-mode

SLAVE

SDAH SCLH

VSS

Hs-mode

MASTER/SLAVE

SDAH SCLH SDA SCL

RsRs

Hs-mode

SLAVE

SDAH SCLH

VSS

RsRs

F/S-mode

MASTER/SLAVE

SDA SCL

RsRs

F/S-mode

SLAVE

SDA SCL

VSS

RsRs

VDD

(1)

(2) (2)

(4) (4) (4)

(2) (2) (2) (2) (2) (2) (2) (2)

(3)

(1)

VDD

SCL

SDA

msc613

User manual Rev. 6 — 4 April 2014 43 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

opens to separate the two bus sections and allows Hs-mode devices to communicate with

each other at 3.4 Mbit/s. Arbitration between Hs-mode devices and F/S-mode devices is

only performed during the master code (0000 1XXX), and normally won by one Hs-mode

master as no slave address has four leading zeros. Other masters can win the arbitration

only if they send a reserved 8-bit code (0000 0XXX). In such cases, the bridge remains

closed and the transfer proceeds in F/S-mode. Table 8 gives the possible communication

speeds in such a system.

Remark: Table 8 assumes that the Hs devices are isolated from the Fm and Sm devices

when operating at 3.4 Mbit/s. The bus speed is always constrained to the maximum

communication rate of the slowest device attached to the bus.

(1) Bridge not used. SDA and SCL may have an alternative function.

(2) To input filter.

(3) Only the active master can enable its current-source pull-up circuit.

(4) Dotted transistors are optional open-drain outputs which can stretch the serial clock signal SCL or SCLH.

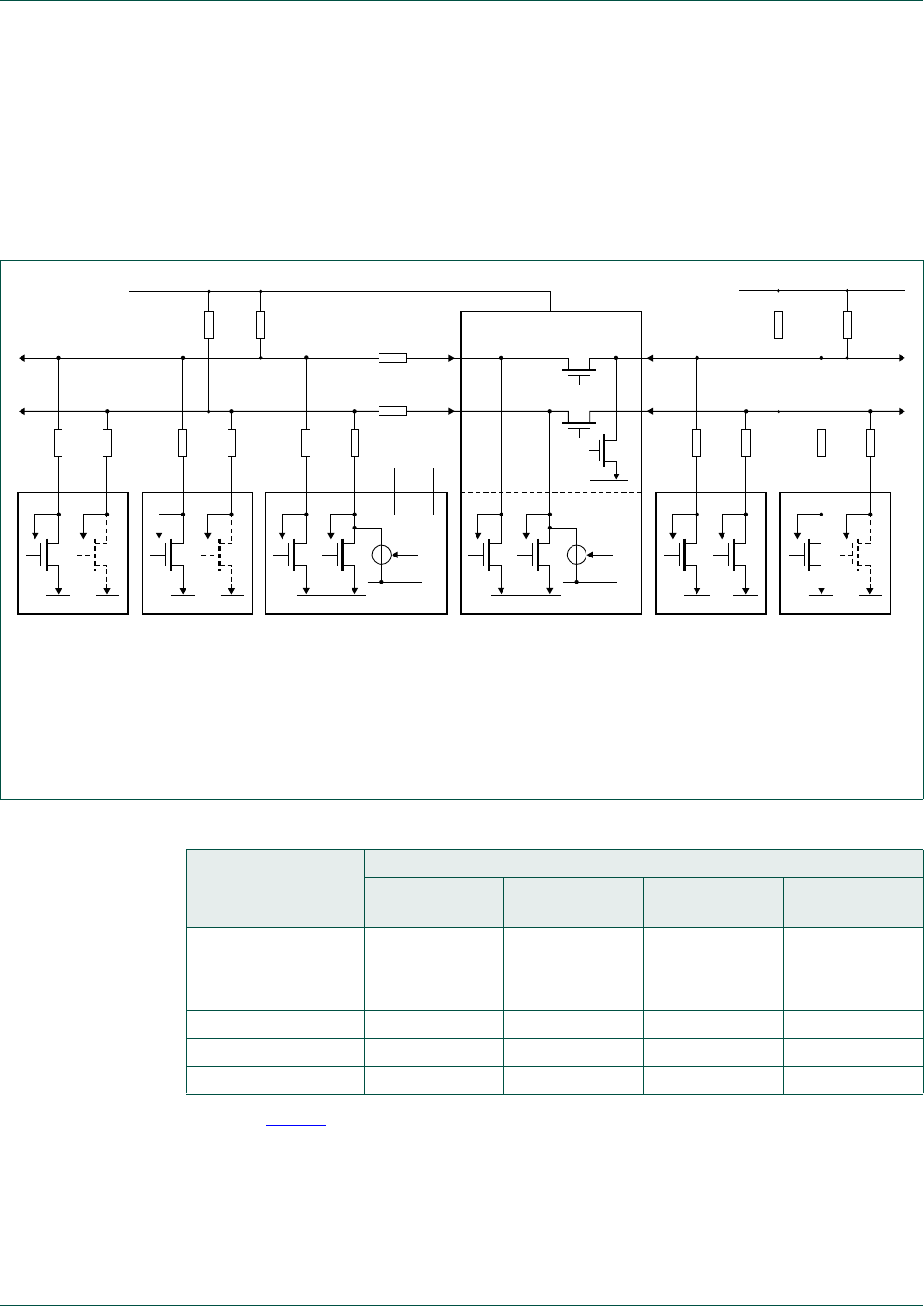

Fig 36. Bus system with transfer at Hs-mode and F/S-mode speeds

msc614

VSS

Hs-mode

SLAVE

SDAH SCLH

VSS

Hs-mode

MASTER/SLAVE

SDAH SCLH SDA SCL

RsRs

Hs-mode

SLAVE

SDAH SCLH

VSS

RsRs

F/S-mode

MASTER/SLAVE

SDA

SDAH

SCLH

SDA

SCL

VSS

RsRs

F/S-mode

SLAVE

SDA SCL

VSS

RsRs

VDD

VSS

Hs-mode

MASTER/SLAVE

VDD

VDD1

VDD2

SCLH

SDAH

MCSMCS

(3)

(2)(2) (2)(2) (2)(2) (2)(2)(2)(2)(2)

(4) (4) (4)

(2)

(1) (1)

BRIDGE

TR1

TR3

TR2

Table 8. Communication bit rates in a mixed-speed bus system

Transfer between Serial bus system configuration

Hs + Fast +

Standard Hs + Fast Hs + Standard Fast + Standard

Hs ↔Hs 0 to 3.4 Mbit/s 0 to 3.4 Mbit/s 0 to 3.4 Mbit/s -

Hs ↔Fast 0 to 100 kbit/s 0 to 400 kbit/s - -

Hs ↔Standard 0 to 100 kbit/s - 0 to 100 kbit/s -

Fast ↔Standard 0 to 100 kbit/s - - 0 to 100 kbit/s

Fast ↔Fast 0 to 100 kbit/s 0 to 400 kbit/s - 0 to 100 kbit/s

Standard ↔Standard 0 to 100 kbit/s - 0 to 100 kbit/s 0 to 100 kbit/s

User manual Rev. 6 — 4 April 2014 44 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

5.3.6 Standard, Fast-mode and Fast-mode Plus transfer in a mixed-speed bus

system

The bridge shown in Figure 36 interconnects corresponding serial bus lines, forming one

serial bus system. As no master code (0000 1XXX) is transmitted, the current-source

pull-up circuits stay disabled and all output stages are open-drain. All devices, including

Hs-mode devices, communicate with each other according to the protocol, format and

speed of the F/S-mode I2C-bus specification.

5.3.7 Hs-mode transfer in a mixed-speed bus system

Figure 37 shows the timing diagram of a complete Hs-mode transfer, which is invoked by

a START condition, a master code, and a not-acknowledge A (at F/S-mode speed).

Although this timing diagram is split in two parts, it should be viewed as one timing

diagram were time point tH is a common point for both parts.

The master code is recognized by the bridge in the active or non-active master (see

Figure 36). The bridge performs the following actions:

1. Between t1 and tH (see Figure 37), transistor TR1 opens to separate the SDAH and

SDA lines, after which transistor TR3 closes to pull-down the SDA line to VSS.

2. When both SCLH and SCL become HIGH (tH in Figure 37), transistor TR2 opens to

separate the SCLH and SCL lines. TR2 must be opened before SCLH goes LOW

after Sr.

Hs-mode transfer starts after tH with a repeated START condition (Sr). During Hs-mode

transfer, the SCL line stays at a HIGH and the SDA line at a LOW steady-state level, and

so is prepared for the transfer of a STOP condition (P).

After each acknowledge (A) or not-acknowledge bit (A), the active master disables its

current-source pull-up circuit. This enables other devices to delay the serial transfer by

stretching the LOW period of the SCLH signal. The active master re-enables its

current-source pull-up circuit again when all devices are released and the SCLH signal

reaches a HIGH level, and so speeds up the last part of the SCLH signal rise time. In

irregular situations, F/S-mode devices can close the bridge (TR1 and TR2 closed, TR3

open) at any time by pulling down the SCL line for at least 1 μs, for example, to recover

from a bus hang-up.

Hs-mode finishes with a STOP condition and brings the bus system back into the

F/S-mode. The active master disables its current-source MCS when the STOP condition

(P) at SDAH is detected (tFS in Figure 37). The bridge also recognizes this STOP

condition and takes the following actions:

1. Transistor TR2 closes after tFS to connect SCLH with SCL; both of which are HIGH at

this time. Transistor TR3 opens after tFS, which releases the SDA line and allows it to

be pulled HIGH by the pull-up resistor Rp. This is the STOP condition for the

F/S-mode devices. TR3 must open fast enough to ensure the bus free time between

the STOP condition and the earliest next START condition is according to the

Fast-mode specification (see tBUF in Table 10).

2. When SDA reaches a HIGH (t2 in Figure 37), transistor TR1 closes to connect SDAH

with SDA. (Note: interconnections are made when all lines are HIGH, thus preventing

spikes on the bus lines.) TR1 and TR2 must be closed within the minimum bus free

time according to the Fast-mode specification (see tBUF in Table 10).

User manual Rev. 6 — 4 April 2014 45 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

5.3.8 Timing requirements for the bridge in a mixed-speed bus system

It can be seen from Figure 37 that the actions of the bridge at t1, tH and tFS must be so fast

that it does not affect the SDAH and SCLH lines. Furthermore the bridge must meet the

related timing requirements of the Fast-mode specification for the SDA and SCL lines.

Fig 37. A complete Hs-mode transfer in a mixed-speed bus system

mcs611

8-bit Master code 00001xxx AtH

F/S mode

Hs-mode If P then

F/S mode

If Sr (dotted lines)

then Hs-mode

16789

16789 67891

1 2 to 5

2 to 5

67 89

SDAH

SCLH

SDA

SCL

SDAH

SCLH

SDA

SCL

tHtFS

Sr Sr P

n × (8-bit DATA + A/A)

7-bit SLA R/W A

= MCS current source pull-up

= Rp resistor pull-up

User manual Rev. 6 — 4 April 2014 46 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

5.4 Ultra Fast-mode

Ultra Fast-mode (UFm) devices offer an increase in I2C-bus transfer speeds. UFm

devices can transfer information at bit rates of up to 5 Mbit/s. UFm devices offer push-pull

drivers, eliminating the pull-up resistors, allowing higher transfer rates. The same serial

bus protocol and data format is maintained as with the Sm, Fm, or Fm+ system. UFm bus

devices are not compatible with bidirectional I2C-bus devices.

6. Electrical specifications and timing for I/O stages and bus lines

6.1 Standard-, Fast-, and Fast-mode Plus devices

The I/O levels, I/O current, spike suppression, output slope control and pin capacitance

are given in Table 9. The I2C-bus timing characteristics, bus-line capacitance and noise

margin are given in Table 10. Figure 38 shows the timing definitions for the I2C-bus.

The minimum HIGH and LOW periods of the SCL clock specified in Table 10 determine

the maximum bit transfer rates of 100 kbit/s for Standard-mode devices, 400 kbit/s for

Fast-mode devices, and 1000 kbit/s for Fast-mode Plus. Devices must be able to follow

transfers at their own maximum bit rates, either by being able to transmit or receive at that

speed or by applying the clock synchronization procedure described in Section 3.1.7

which forces the master into a wait state and stretch the LOW period of the SCL signal.

In the latter case, the bit transfer rate is reduced.

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx x x x xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xx xx xxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxx x x

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

User manual Rev. 6 — 4 April 2014 47 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

[1] Some legacy Standard-mode devices had fixed input levels of VIL = 1.5 V and VIH = 3.0 V. Refer to component data sheets.

[2] Maximum VIH =V

DD(max) + 0.5 V or 5.5 V, which ever is lower. See component data sheets.

[3] The same resistor value to drive 3 mA at 3.0 V VDD provides the same RC time constant when using <2 V VDD with a smaller current draw.

[4] In order to drive full bus load at 400 kHz, 6 mA IOL is required at 0.6 V VOL. Parts not meeting this specification can still function, but not at 400 kHz and 400 pF.

[5] The maximum tf for the SDA and SCL bus lines quoted in Table 10 (300 ns) is longer than the specified maximum tof for the output stages (250 ns). This allows series protection

resistors (Rs) to be connected between the SDA/SCL pins and the SDA/SCL bus lines as shown in Figure 45 without exceeding the maximum specified tf.

[6] Necessary to be backwards compatible with Fast-mode.

[7] In Fast-mode Plus, fall time is specified the same for both output stage and bus timing. If series resistors are used, designers should allow for this when considering bus timing.

[8] Input filters on the SDA and SCL inputs suppress noise spikes of less than 50 ns.

[9] If VDD is switched off, I/O pins of Fast-mode and Fast-mode Plus devices must not obstruct the SDA and SCL lines.

[10] Special purpose devices such as multiplexers and switches may exceed this capacitance because they connect multiple paths together.

Table 9. Characteristics of the SDA and SCL I/O stages

n/a = not applicable.

Symbol Parameter Conditions Standard-mode Fast-mode Fast-mode Plus Unit

Min Max Min Max Min Max

VIL LOW-level input voltage[1] −0.5 0.3VDD −0.5 0.3VDD −0.5 0.3VDD V

VIH HIGH-level input voltage[1] 0.7VDD [2] 0.7VDD [2] 0.7VDD[1] [2] V

Vhys hysteresis of Schmitt trigger inputs - - 0.05VDD - 0.05VDD -V

VOL1 LOW-level output voltage 1 (open-drain or open-collector)

at 3 mA sink current;

VDD >2V

0 0.4 0 0.4 0 0.4 V

VOL2 LOW-level output voltage 2 (open-drain or open-collector)

at 2 mA sink current[3];

VDD ≤2V

-- 00.2V

DD 00.2V

DD V

IOL LOW-level output current VOL =0.4V 3 - 3 - 20 - mA

VOL =0.6V

[4] -- 6 - - -mA

tof output fall time from VIHmin

to VILmax

- 250[5] 20 ×

(VDD /5.5V)

[6] 250[5] 20 ×

(VDD /5.5V)

[6] 120[7] ns

tSP pulse width of spikes that must be

suppressed by the input filter

-- 0 50

[8] 050

[8] ns

Iiinput current each I/O pin 0.1VDD <V

I < 0.9VDDmax −10 +10 −10[9] +10[9] −10[9] +10[9] μA

Cicapacitance for each I/O pin[10] -10 - 10 - 10pF

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx x x x xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xx xx xxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxx x x

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

User manual Rev. 6 — 4 April 2014 48 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

[1] All values referred to VIH(min) (0.3VDD) and VIL(max) (0.7VDD) levels (see Table 9).

[2] tHD;DAT is the data hold time that is measured from the falling edge of SCL, applies to data in transmission and the acknowledge.

[3] A device must internally provide a hold time of at least 300 ns for the SDA signal (with respect to the VIH(min) of the SCL signal) to bridge the undefined region of the falling edge of

SCL.

[4] The maximum tHD;DAT could be 3.45 μs and 0.9 μs for Standard-mode and Fast-mode, but must be less than the maximum of tVD;DAT or tVD;ACK by a transition time. This maximum

must only be met if the device does not stretch the LOW period (tLOW) of the SCL signal. If the clock stretches the SCL, the data must be valid by the set-up time before it releases

the clock.

Table 10. Characteristics of the SDA and SCL bus lines for Standard, Fast, and Fast-mode Plus I2C-bus devices[1]

Symbol Parameter Conditions Standard-mode Fast-mode Fast-mode Plus Unit

Min Max Min Max Min Max

fSCL SCL clock frequency 0 100 0 400 0 1000 kHz

tHD;STA hold time (repeated) START condition After this period, the first

clock pulse is generated.

4.0 - 0.6 - 0.26 - μs

tLOW LOW period of the SCL clock 4.7 - 1.3 - 0.5 - μs

tHIGH HIGH period of the SCL clock 4.0 - 0.6 - 0.26 - μs

tSU;STA set-up time for a repeated START

condition

4.7 - 0.6 - 0.26 - μs

tHD;DAT data hold time[2] CBUS compatible masters

(see Remark in Section 4.1)

5.0 - - - - - μs

I2C-bus devices 0[3] -[4] 0[3] -[4] 0-μs

tSU;DAT data set-up time 250 - 100[5] -50 -ns

trrise time of both SDA and SCL signals - 1000 20 300 - 120 ns

tffall time of both SDA and SCL

signals[3][6][7][8] - 300 20 ×

(VDD /5.5V)

300 20 ×

(VDD /5.5V)

[9] 120[8] ns

tSU;STO set-up time for STOP condition 4.0 - 0.6 - 0.26 - μs

tBUF bus free time between a STOP and

START condition

4.7 - 1.3 - 0.5 - μs

Cbcapacitive load for each bus line[10] - 400 - 400 - 550 pF

tVD;DAT data valid time[11] -3.45

[4] -0.9

[4] -0.45

[4] μs

tVD;ACK data valid acknowledge time[12] -3.45

[4] -0.9

[4] -0.45

[4] μs

VnL noise margin at the LOW level for each connected device

(including hysteresis)

0.1VDD -0.1V

DD -0.1V

DD -V

VnH noise margin at the HIGH level for each connected device

(including hysteresis)

0.2VDD -0.2V

DD -0.2V

DD -V

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx x x x xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xx xx xxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxx x x

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

User manual Rev. 6 — 4 April 2014 49 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

[5] A Fast-mode I2C-bus device can be used in a Standard-mode I2C-bus system, but the requirement tSU;DAT 250 ns must then be met. This will automatically be the case if the

device does not stretch the LOW period of the SCL signal. If such a device does stretch the LOW period of the SCL signal, it must output the next data bit to the SDA line

tr(max) +t

SU;DAT = 1000 + 250 = 1250 ns (according to the Standard-mode I2C-bus specification) before the SCL line is released. Also the acknowledge timing must meet this

set-up time.

[6] If mixed with Hs-mode devices, faster fall times according to Table 10 are allowed.

[7] The maximum tf for the SDA and SCL bus lines is specified at 300 ns. The maximum fall time for the SDA output stage tf is specified at 250 ns. This allows series protection

resistors to be connected in between the SDA and the SCL pins and the SDA/SCL bus lines without exceeding the maximum specified tf.

[8] In Fast-mode Plus, fall time is specified the same for both output stage and bus timing. If series resistors are used, designers should allow for this when considering bus timing.

[9] Necessary to be backwards compatible to Fast-mode.

[10] The maximum bus capacitance allowable may vary from this value depending on the actual operating voltage and frequency of the application. Section 7.2 discusses techniques

for coping with higher bus capacitances.

[11] tVD;DAT = time for data signal from SCL LOW to SDA output (HIGH or LOW, depending on which one is worse).

[12] tVD;ACK = time for Acknowledgement signal from SCL LOW to SDA output (HIGH or LOW, depending on which one is worse).

User manual Rev. 6 — 4 April 2014 50 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

6.2 Hs-mode devices

The I/O levels, I/O current, spike suppression, output slope control and pin capacitance for

I2C-bus Hs-mode devices are given in Table 11. The noise margin for HIGH and LOW

levels on the bus lines are the same as specified for F/S-mode I2C-bus devices.

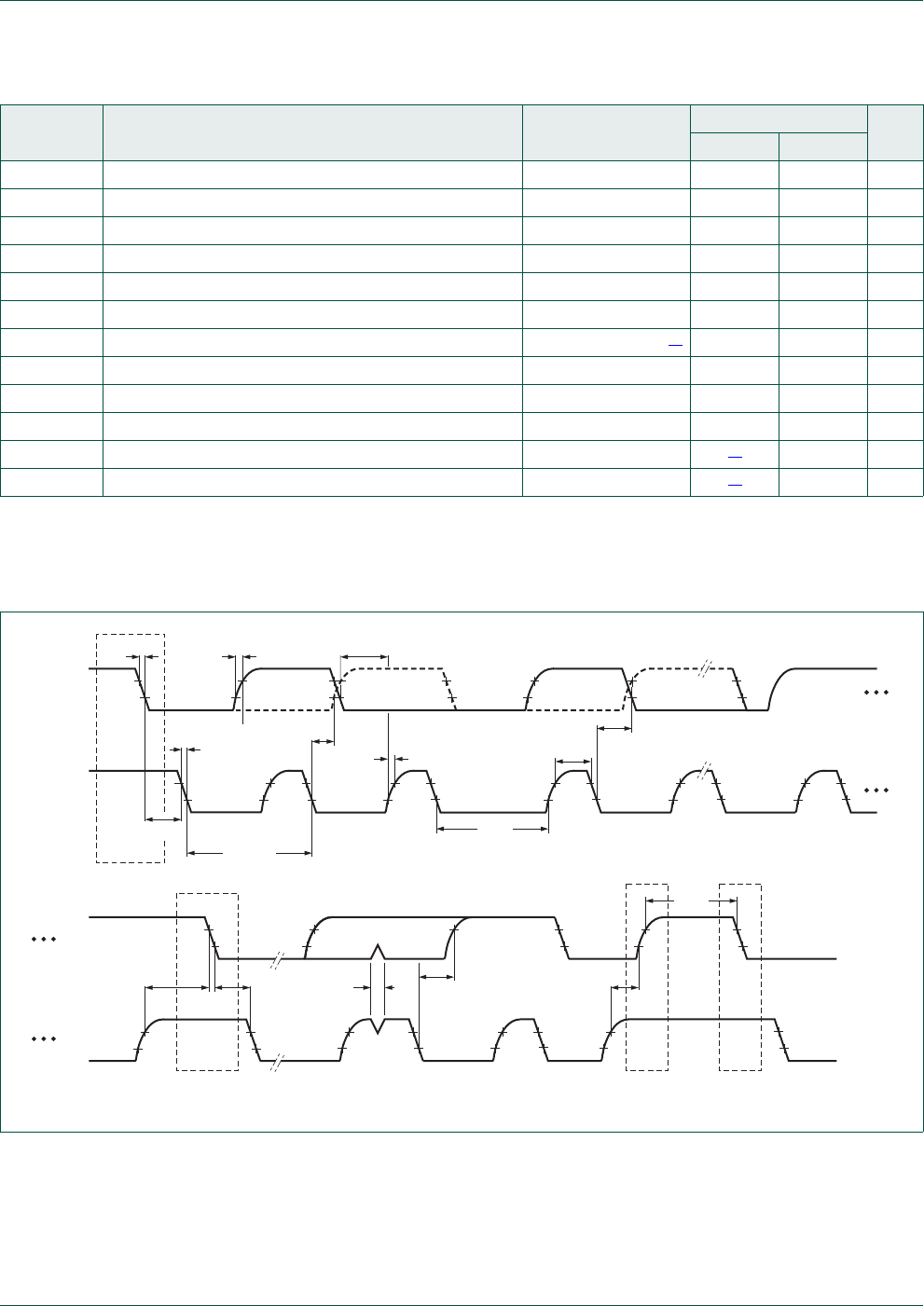

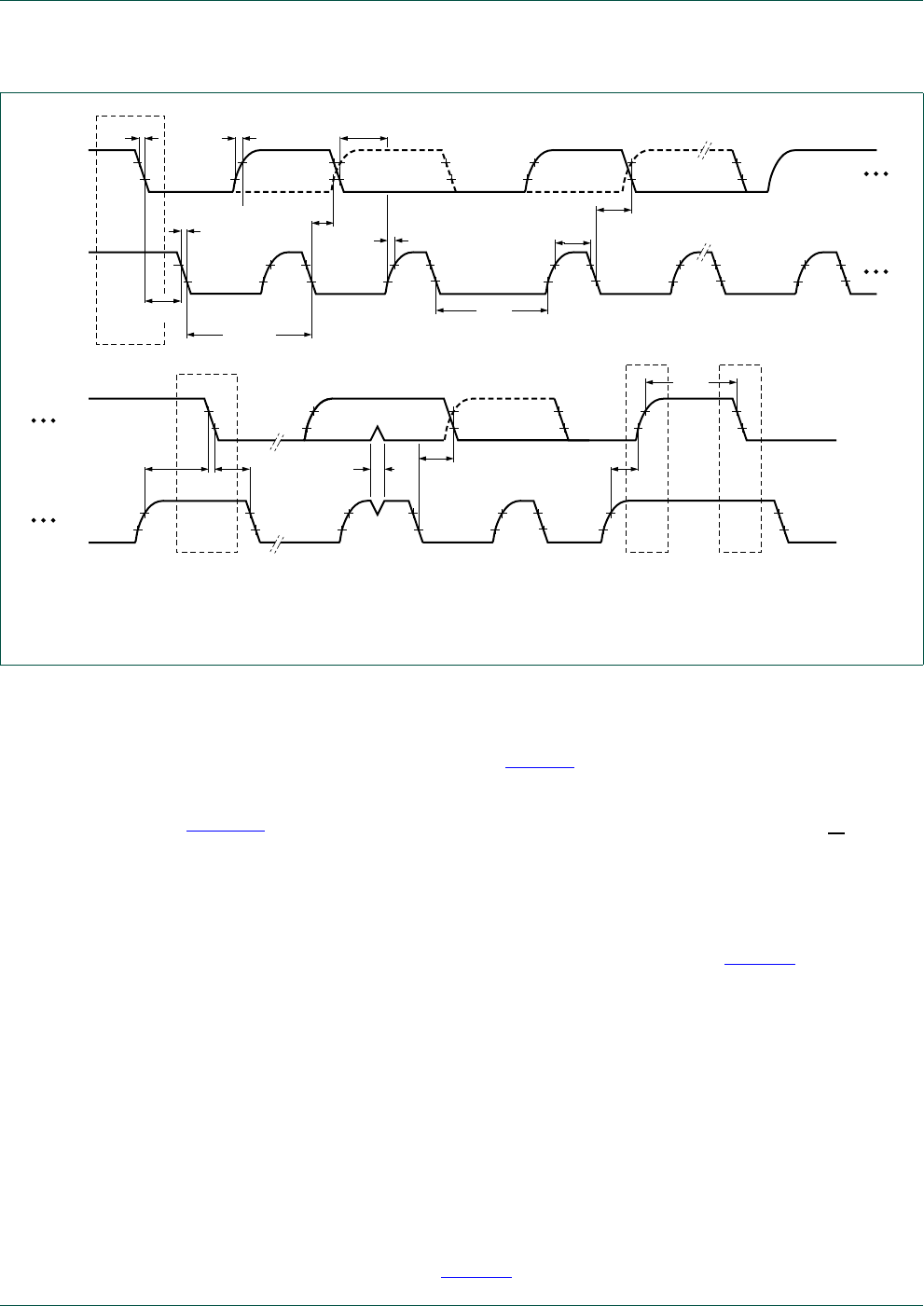

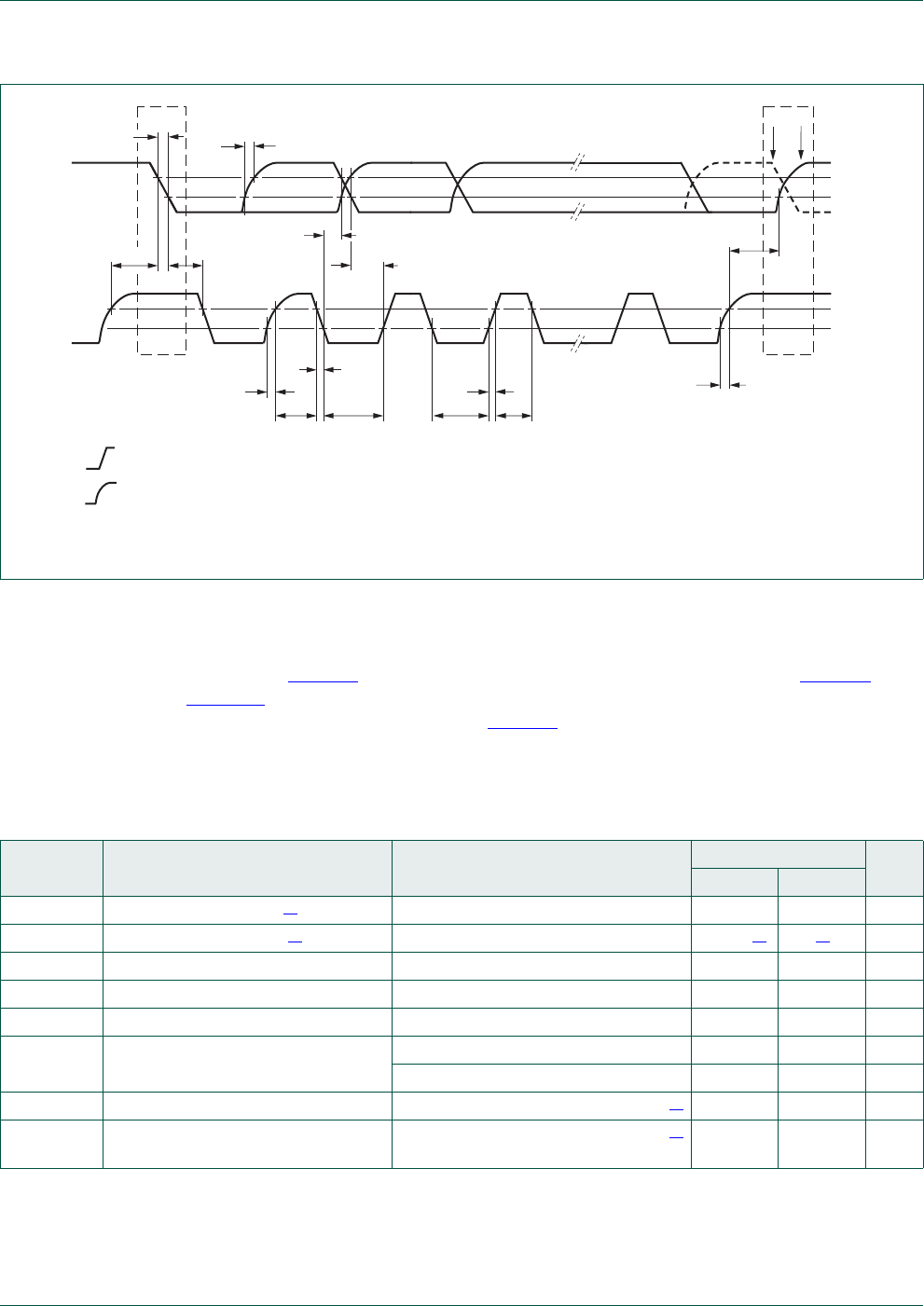

Figure 39 shows all timing parameters for the Hs-mode timing. The ‘normal’ START

condition S does not exist in Hs-mode. Timing parameters for Address bits, R/W bit,

Acknowledge bit and DATA bits are all the same. Only the rising edge of the first SCLH

clock signal after an acknowledge bit has a larger value because the external Rp has to

pull up SCLH without the help of the internal current-source.

The Hs-mode timing parameters for the bus lines are specified in Table 12. The minimum

HIGH and LOW periods and the maximum rise and fall times of the SCLH clock signal

determine the highest bit rate.

With an internally generated SCLH signal with LOW and HIGH level periods of 200 ns and

100 ns respectively, an Hs-mode master fulfills the timing requirements for the external

SCLH clock pulses (taking the rise and fall times into account) for the maximum bit rate of

3.4 Mbit/s. So a basic frequency of 10 MHz, or a multiple of 10 MHz, can be used by an

Hs-mode master to generate the SCLH signal. There are no limits for maximum HIGH and

LOW periods of the SCLH clock, and there is no limit for a lowest bit rate.

Timing parameters are independent for capacitive load up to 100 pF for each bus line

allowing the maximum possible bit rate of 3.4 Mbit/s. At a higher capacitive load on the

bus lines, the bit rate decreases gradually. The timing parameters for a capacitive bus

load of 400 pF are specified in Table 12, allowing a maximum bit rate of 1.7 Mbit/s. For

VIL =0.3V

VIH =0.7V

Fig 38. Definition of timing for F/S-mode devices on the I2C-bus

002aac938

70 %

30 %

SDA

70 %

30 %

70 %

30 %

70 %

30 %

tHD;DAT

SCL

1 / fSCL

1st clock cycle

70 %

30 %

70 %

30 %

tVD;DAT

cont.

SDA

SCL

tSU;STA tHD;STA

tSP tSU;STO

tBUF

P S

tHIGH

9th clock

tHD;STA tLOW

70 %

30 %

tVD;ACK

9th clock

tSU;DAT

User manual Rev. 6 — 4 April 2014 51 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

capacitive bus loads between 100 pF and 400 pF, the timing parameters must be

interpolated linearly. Rise and fall times are in accordance with the maximum propagation

time of the transmission lines SDAH and SCLH to prevent reflections of the open ends.

[1] Devices that use non-standard supply voltages which do not conform to the intended I2C-bus system levels must relate their input levels

to the VDD voltage to which the pull-up resistors Rp are connected.

[2] Devices that offer the level shift function must tolerate a maximum input voltage of 5.5 V at SDA and SCL.

[3] For capacitive bus loads between 100 pF and 400 pF, the rise and fall time values must be linearly interpolated.

[4] If their supply voltage has been switched off, SDAH and SCLH I/O stages of Hs-mode slave devices must have floating outputs. Due to

the current-source output circuit, which normally has a clipping diode to VDD, this requirement is not mandatory for the SCLH or the

SDAH I/O stage of Hs-mode master devices. This means that the supply voltage of Hs-mode master devices cannot be switched off

without affecting the SDAH and SCLH lines.

[5] Special purpose devices such as multiplexers and switches may exceed this capacitance because they connect multiple paths together.

Table 11. Characteristics of the SDAH, SCLH, SDA and SCL I/O stages for Hs-mode I2C-bus devices

Symbol Parameter Conditions Hs-mode Unit

Min Max

VIL LOW-level input voltage −0.5 0.3VDD[1] V

VIH HIGH-level input voltage 0.7VDD[1] VDD +0.5

[2] V

Vhys hysteresis of Schmitt trigger inputs 0.1VDD[1] -V

VOL LOW-level output voltage (open-drain) at 3 mA sink current at

SDAH, SDA and SCLH

VDD >2V 0 0.4 V

VDD ≤2V 0 0.2V

DD V

RonL transfer gate on resistance for

currents between SDA and SDAH or

SCL and SCLH

VOL level; IOL =3mA - 50 Ω

RonH[2] transfer gate on resistance between

SDA and SDAH or SCL and SCLH

both signals (SDA and SDAH, or SCL

and SCLH) at VDD level

50 - kΩ

ICS pull-up current of the SCLH

current-source

SCLH output levels between 0.3VDD and

0.7VDD

312mA

trCL rise time of SCLH signal output rise time (current-source enabled)

with an external pull-up current source of

3mA

capacitive load from 10 pF to 100 pF 10 40 ns

capacitive load of 400 pF[3] 20 80 ns

tfCL fall time of SCLH signal output fall time (current-source enabled)

with an external pull-up current source of

3mA

capacitive load from 10 pF to 100 pF 10 40 ns

capacitive load of 400 pF[3] 20 80 ns

tfDA fall time of SDAH signal capacitive load from 10 pF to 100 pF 10 80 ns

capacitive load of 400 pF[3] 20 160 ns

tSP pulse width of spikes that must be

suppressed by the input filter

SDAH and SCLH 0 10 ns

Ii[4] input current each I/O pin input voltage between 0.1VDD and

0.9VDD

-10μA

Cicapacitance for each I/O pin[5] -10pF

User manual Rev. 6 — 4 April 2014 52 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

[1] All values referred to VIH(min) and VIL(max) levels (see Table 11).

[2] For bus line loads Cb between 100 pF and 400 pF the timing parameters must be linearly interpolated.

[3] A device must internally provide a data hold time to bridge the undefined part between VIH and VIL of the falling edge of the SCLH signal.

An input circuit with a threshold as low as possible for the falling edge of the SCLH signal minimizes this hold time.

Table 12. Characteristics of the SDAH, SCLH, SDA and SCL bus lines for Hs-mode I2C-bus devices[1]

Symbol Parameter Conditions Cb= 100 pF (max) Cb= 400 pF[2] Unit

Min Max Min Max

fSCLH SCLH clock frequency 0 3.4 0 1.7 MHz

tSU;STA set-up time for a repeated

START condition

160 - 160 - ns

tHD;STA hold time (repeated) START

condition

160 - 160 - ns

tLOW LOW period of the SCL clock 160 - 320 - ns

tHIGH HIGH period of the SCL clock 60 - 120 - ns

tSU;DAT data set-up time 10 - 10 - ns

tHD;DAT data hold time 0[3] 70 0[3] 150 ns

trCL rise time of SCLH signal 10 40 20 80 ns

trCL1 rise time of SCLH signal after a

repeated START condition and

after an acknowledge bit

10 80 20 160 ns

tfCL fall time of SCLH signal 10 40 20 80 ns

trDA rise time of SDAH signal 10 80 20 160 ns

tfDA fall time of SDAH signal 10 80 20 160 ns

tSU;STO set-up time for STOP condition 160 - 160 - ns

Cb[2] capacitive load for each bus line SDAH and SCLH lines - 100 - 400 pF

SDAH + SDA line and

SCLH + SCL line

- 400 - 400 pF

VnL noise margin at the LOW level for each connected device

(including hysteresis)

0.1VDD -0.1V

DD -V

VnH noise margin at the HIGH level for each connected device

(including hysteresis)

0.2VDD -0.2V

DD -V

User manual Rev. 6 — 4 April 2014 53 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

6.3 Ultra Fast-mode devices

The I/O levels, I/O current, spike suppression, output slope control and pin capacitance

are given in Table 13. The UFm I2C-bus timing characteristics are given in Table 14.

Figure 40 shows the timing definitions for the I2C-bus. The minimum HIGH and LOW

periods of the SCL clock specified in Table 14 determine the maximum bit transfer rates of

5000 kbit/s for Ultra Fast-mode. Devices must be able to follow transfers at their own

maximum bit rates, either by being able to transmit or receive at that speed.

[1] Refer to component data sheets for actual switching points.

[2] Maximum VIH = VDD(max) + 0.5 V or 5.5 V, whichever is lower. See component data sheets.

[3] Special purpose devices such as multiplexers and switches may exceed this capacitance because they connect multiple paths together.

[4] Input filters on the USDA and USCL slave inputs suppress noise spikes of less than 10 ns.

(1) First rising edge of the SCLH signal after Sr and after each acknowledge bit.

Fig 39. Definition of timing for Hs-mode devices on the I2C-bus

002aag825

SDAH

SrSr P

SCLH

= MCS current source pull-up

= Rp resistor pull-up

tfDA trDA

tHD;STA tSU;DAT

trCL

tLOW tHIGH

tHD;DAT

tLOW

tHIGH

trCL1

tfCL

tSU;STO

trCL1

(1)

tSU;STA

0.7 × VDD

0.3 × VDD

0.7 × VDD

0.3 × VDD

Table 13. Characteristics of the USDA and USCL I/O stages

n/a = not applicable.

Symbol Parameter Conditions Ultra Fast-mode Unit

Min Max

VIL LOW-level input voltage[1] −0.5 +0.3VDD V

VIH HIGH-level input voltage[1] 0.7VDD[1] -[2] V

Vhys hysteresis of Schmitt trigger inputs 0.05VDD -V

VOL LOW-level output voltage at 4 mA sink current; VDD >2V 0 0.4 V

VOH HIGH-level output voltage at 4 mA source current; VDD >2V V

DD −0.4 - V

ILleakage current VDD =3.6V −1+1μA

VDD =5.5V −10 +10 μA

Ciinput capacitance [3] -10pF

tSP pulse width of spikes that must

be suppressed by the input filter

[4] -10ns

User manual Rev. 6 — 4 April 2014 54 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

[1] tVD;DAT = minimum time for USDA data out to be valid following USCL LOW.

[2] Typical rise time or fall time for UFm signals is 25 ns measured from the 30 % level to the 70 % level (rise time) or from the 70 % level to

the 30 % level (fall time).

Table 14. UFm I2C-bus frequency and timing specifications

Symbol Parameter Conditions Ultra Fast-mode Unit

Min Max

fUSCL USCL clock frequency 0 5000 kHz

tBUF bus free time between a STOP and START condition 80 - ns

tHD;STA hold time (repeated) START condition 50 - ns

tSU;STA set-up time for a repeated START condition 50 - ns

tSU;STO set-up time for STOP condition 50 - ns

tHD;DAT data hold time 10 - ns

tVD;DAT data valid time [1] 10 - ns

tSU;DAT data set-up time 30 - ns

tLOW LOW period of the USCL clock 50 - ns

tHIGH HIGH period of the USCL clock 50 - ns

tffall time of both USDA and USCL signals -[2] 50 ns

trrise time of both USDA and USCL signals -[2] 50 ns

Fig 40. Definition of timing for Ultra Fast-mode devices on the I2C-bus

002aag826

70 %

30 %

USDA

70 %

30 %

70 %

30 %

70 %

30 %

HD;DAT

USCL

1 / f

USCL

1st clock cycle

70 %

30 %

70 %

30 %

VD;DAT

cont.

USDA

USCL

SU;STA

HD;STA

SU;STO

BUF

P S

HIGH

9th

clock

HD;STA

LOW

70 %

30 %

VD;ACK

9th

clock

SU;DAT

User manual Rev. 6 — 4 April 2014 55 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

7. Electrical connections of I2C-bus devices to the bus lines

7.1 Pull-up resistor sizing

The bus capacitance is the total capacitance of wire, connections and pins. This

capacitance limits the maximum value of Rp due to the specified rise time. Figure 41

shows Rp(max) as a function of bus capacitance.

Consider the VDD related input threshold of VIH =0.7V

DD and VIL =0.3V

DD for the

purposes of RC time constant calculation. Then V(t) = VDD (1 −e−t/RC

), where t is the

time since the charging started and RC is the time constant.

V(t1) = 0.3 ×VDD =V

DD (1 −e−t1 / RC); then t1 = 0.3566749 ×RC

V(t2) = 0.7 ×VDD =V

DD (1 −e−t2 / RC); then t2 = 1.2039729 ×RC

T=t2−t1 = 0.8473 ×RC

Figure 41 and Equation 1 shows maximum Rp as a function of bus capacitance for

Standard-, Fast- and Fast-mode Plus. For each mode, the Rp(max) is a function of the

rise time maximum (tr) from Table 10 and the estimated bus capacitance (Cb):

(1)

The supply voltage limits the minimum value of resistor Rp due to the specified minimum

sink current of 3 mA for Standard-mode and Fast-mode, or 20 mA for Fast-mode Plus.

Rp(min) as a function of VDD is shown in Figure 42. The traces are calculated using

Equation 2:

(2)

Rpmax()

0.8473 Cb

-----------------------------

(1) Standard-mode

(2) Fast-mode

(3) Fast-mode Plus

(1) Fast-mode and Standard-mode

(2) Fast-mode Plus

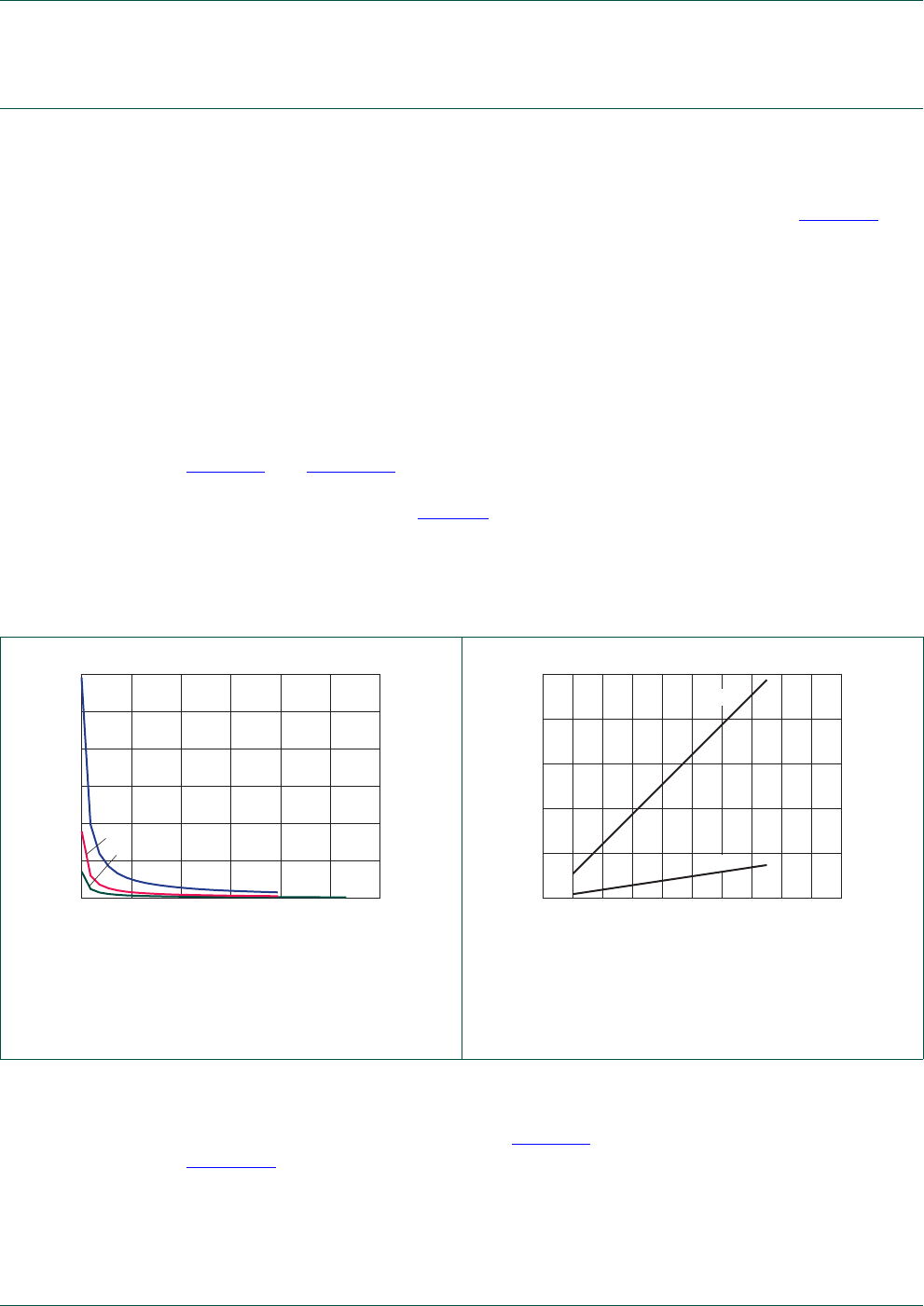

Fig 41. Rp(max) as a function of bus capacitance Fig 42. Rp(min) as a function of VDD

120

Rp(max)

(kΩ)

aaa-012677

Cb (pF)

0 600400200

(1)

(2)

(3)

p(min)

(kΩ)

(V)

020168124

aaa-012678

3 mA

20 mA

(1)

(2)

Rpmin()

VDD VOL max()

–

IOL

--------------------------------------

User manual Rev. 6 — 4 April 2014 56 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

The designer now has the minimum and maximum value of Rp that is required to meet the

timing specification. Portable designs with sensitivity to supply current consumption can

use a value toward the higher end of the range in order to limit IDD.

7.2 Operating above the maximum allowable bus capacitance

Bus capacitance limit is specified to limit rise time reductions and allow operating at the

rated frequency. While most designs can easily stay within this limit, some applications

may exceed it. There are several strategies available to system designers to cope with

excess bus capacitance.

•Reduced fSCL (Section 7.2.1): The bus may be operated at a lower speed (lower fSCL).

•Higher drive outputs (Section 7.2.2): Devices with higher drive current such as those

rated for Fast-mode Plus can be used (PCA96xx).

•Bus buffers (Section 7.2.3): There are a number of bus buffer devices available that

can divide the bus into segments so that each segment has a capacitance below the

allowable limit, such as the PCA9517 bus buffer or the PCA9546A switch.

•Switched pull-up circuit (Section 7.2.4): A switched pull-up circuit can be used to

accelerate rising edges by switching a low value pull-up alternately in and out when

needed.

7.2.1 Reduced fSCL

To determine a lower allowable bus operating frequency, begin by finding the tLOW and

tHIGH of the most limiting device on the bus. Refer to individual component data sheets for

these values. Actual rise time (tr) depends on the RC time constant. The most limiting fall

time (tf) depends on the lowest output drive on the bus. Be sure to allow for any devices

that have a minimum tr or tf. Refer to Equation 3 for the resulting fmax.

(3)

Remark: Very long buses must also account for time of flight of signals.

Actual results are slower, as real parts do not tend to control tLOW and tHIGH to the

minimum from 30 % to 70 %, or 70 % to 30 %, respectively.

7.2.2 Higher drive outputs

If higher drive devices like the PCA96xx Fast-mode Plus or the P82B bus buffers are

used, the higher strength output drivers sink more current which results in considerably

faster edge rates, or, looked at another way, allows a higher bus capacitance. Refer to

individual component data sheets for actual output drive capability. Repeat the calculation

above using the new values of Cb, Rp, tr and tf to determine maximum frequency. Bear in

mind that the maximum rating for fSCL as specified in Table 10 (100 kHz, 400 kHz and

1000 kHz) may become limiting.

7.2.3 Bus buffers, multiplexers and switches

Another approach to coping with excess bus capacitance is to divide the bus into smaller

segments using bus buffers, multiplexers or switches. Figure 43 shows an example of a

bus that uses a PCA9515 buffer to deal with high bus capacitance. Each segment is then

allowed to have the maximum capacitance so the total bus can have twice the maximum

fmax 1

tLOW min()

tHIGH min()

tr actual()

tf actual()

+++

-------------------------------------------------------------------------------------------------------------

User manual Rev. 6 — 4 April 2014 57 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

capacitance. Keep in mind that adding a buffer always adds delays — a buffer delay plus

an additional transition time to each edge, which reduces the maximum operating

frequency and may also introduce special VIL and VOL considerations.

Refer to application notes AN255, I2C / SMBus Repeaters, Hubs and Expanders and

AN262, PCA954x Family of I2C / SMBus Multiplexers and Switches for more details on

this subject and the devices available from NXP Semiconductors.

7.2.4 Switched pull-up circuit

The supply voltage (VDD) and the maximum output LOW level determine the minimum

value of pull-up resistor Rp (see Section 7.1). For example, with a supply voltage of

VDD =5V±10 % and VOL(max) = 0.4 V at 3 mA, Rp(min) =(5.5−0.4) / 0.003 = 1.7 kΩ. As

shown in Figure 42, this value of Rp limits the maximum bus capacitance to about 200 pF

to meet the maximum tr requirement of 300 ns. If the bus has a higher capacitance than

this, a switched pull-up circuit (as shown in Figure 44) can be used.

Remark: Some buffers allow VDD1 and VDD2 to be different levels.

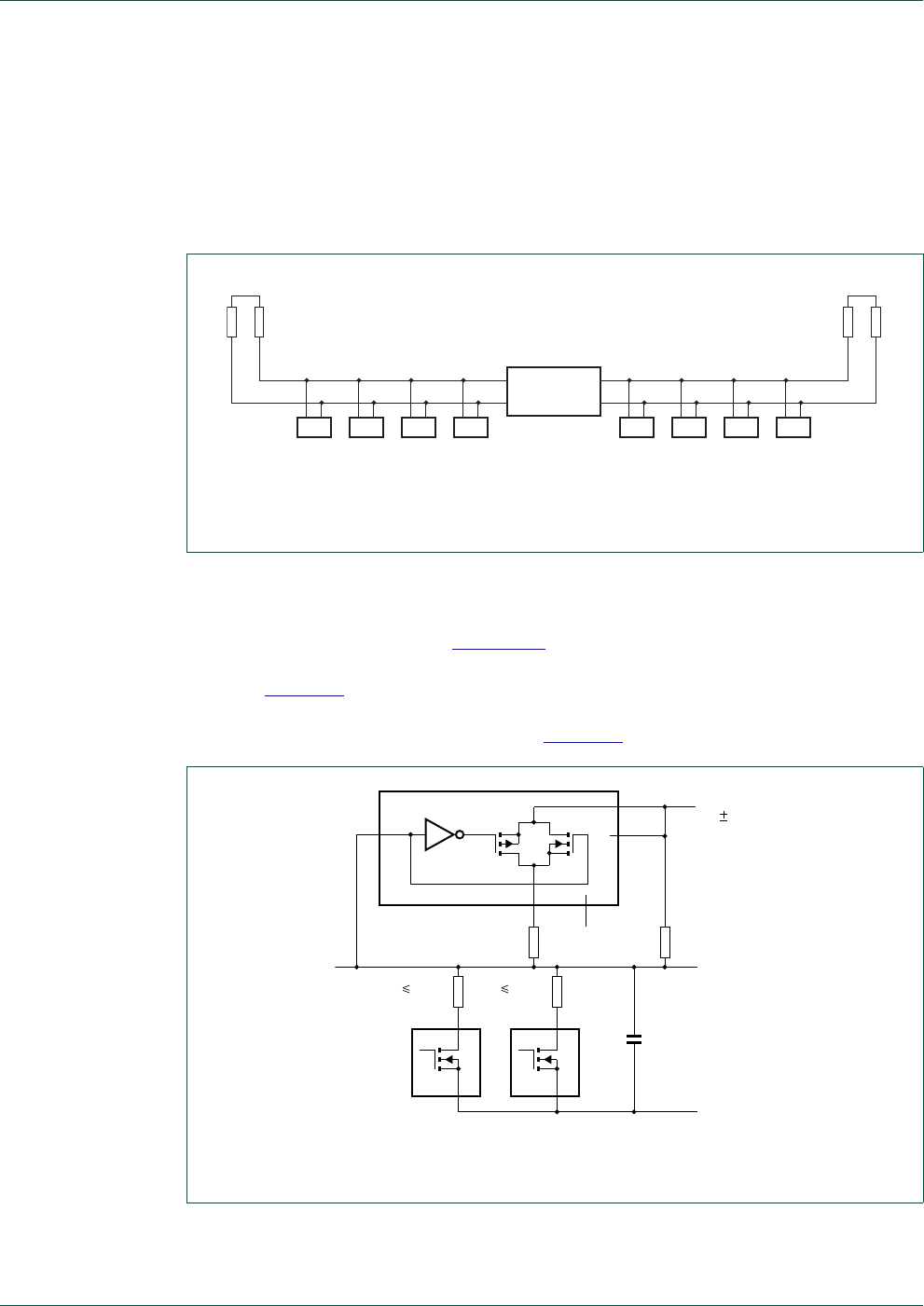

Fig 43. Using a buffer to divide bus capacitance

BUFFER

002aac882

DD1

SDA

SCL

slaves and masters

400 pF

slaves and masters

400 pF

DD2

Fig 44. Switched pull-up circuit

mbc620

1.3 kΩ

I/O Cb

SDA or SCL

bus line

1/4 HCT4066

nZ GND

5V 10 %

Rp2 1.7 kΩRp1

100 ΩRs

I/O

100 ΩRs

400 pF

max.

FAST - MODE I C BUS DEVICES

User manual Rev. 6 — 4 April 2014 58 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

The switched pull-up circuit in Figure 44 is for a supply voltage of VDD =5V±10 % and a

maximum capacitive load of 400 pF. Since it is controlled by the bus levels, it needs no

additional switching control signals. During the rising/falling edges, the bilateral switch in

the HCT4066 switches pull-up resistor Rp2 on/off at bus levels between 0.8 V and 2.0 V.

Combined resistors Rp1 and Rp2 can pull up the bus line within the maximum specified

rise time (tr) of 300 ns.

Series resistors Rs are optional. They protect the I/O stages of the I2C-bus devices from

high-voltage spikes on the bus lines, and minimize crosstalk and undershoot of the bus

line signals. The maximum value of Rs is determined by the maximum permitted voltage

drop across this resistor when the bus line is switched to the LOW level in order to switch

off Rp2.

Additionally, some bus buffers contain integral rise time accelerators. Stand-alone rise

time accelerators are also available.

7.3 Series protection resistors

As shown in Figure 45, series resistors (Rs) of, for example, 300 Ω can be used for

protection against high-voltage spikes on the SDA and SCL lines (resulting from the

flash-over of a TV picture tube, for example). If series resistors are used, designers must

add the additional resistance into their calculations for Rp and allowable bus capacitance.

The required noise margin of 0.1VDD for the LOW level, limits the maximum value of Rs.

Rs(max) as a function of Rp is shown in Figure 46. Note that series resistors affect the

output fall time.

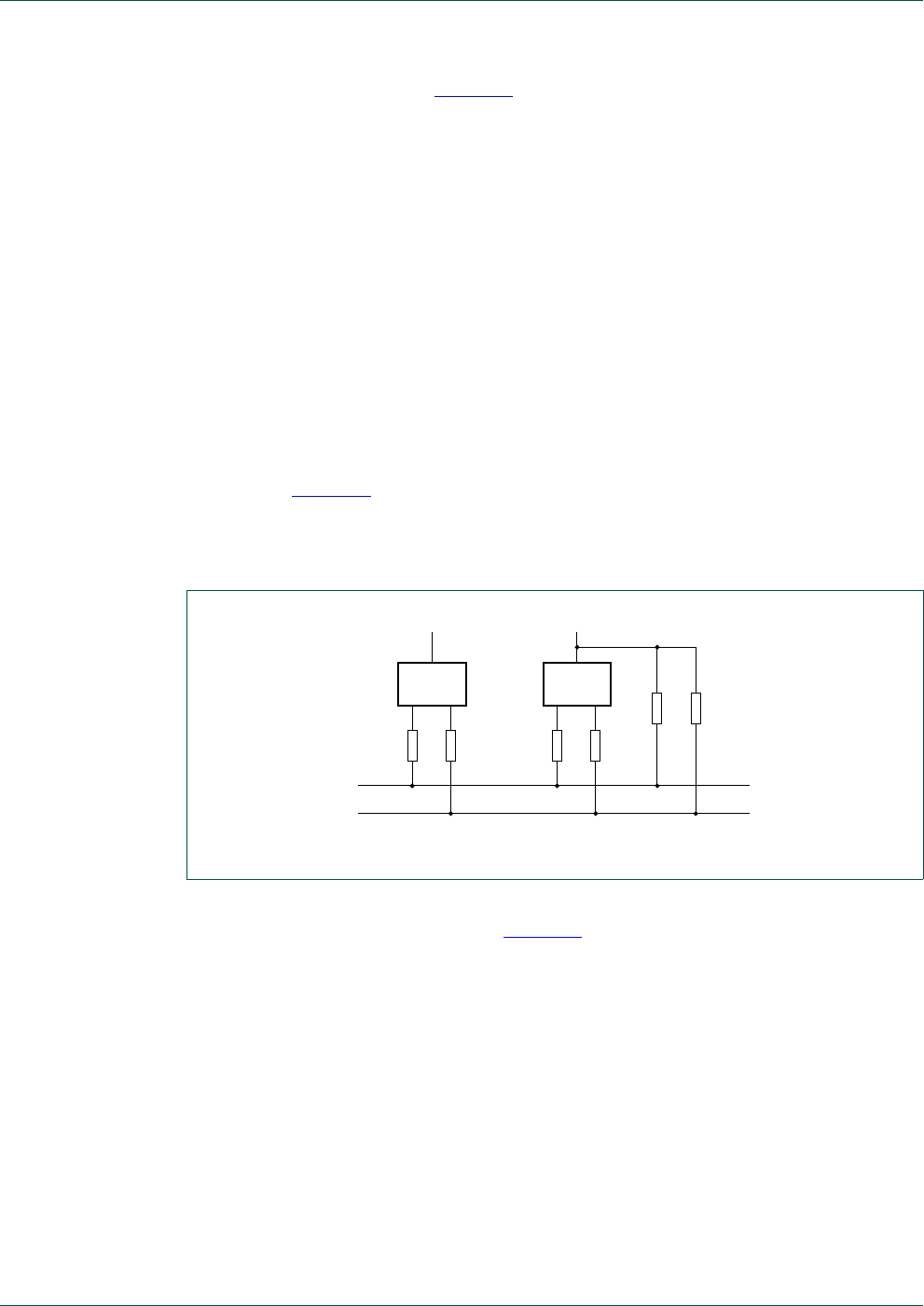

Fig 45. Series resistors (Rs) for protection against high-voltage spikes

mbc627

SDA

SCL

DEVICE

VDD VDD

I2C

RsRsRsRs

RpRp

DEVICE

I2C

User manual Rev. 6 — 4 April 2014 59 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

7.4 Input leakage

The maximum HIGH level input current of each input/output connection has a specified

maximum value of 10 μA. Due to the required noise margin of 0.2VDD for the HIGH level,

this input current limits the maximum value of Rp. This limit depends on VDD. The total

HIGH-level input current is shown as a function of Rp(max) in Figure 47.

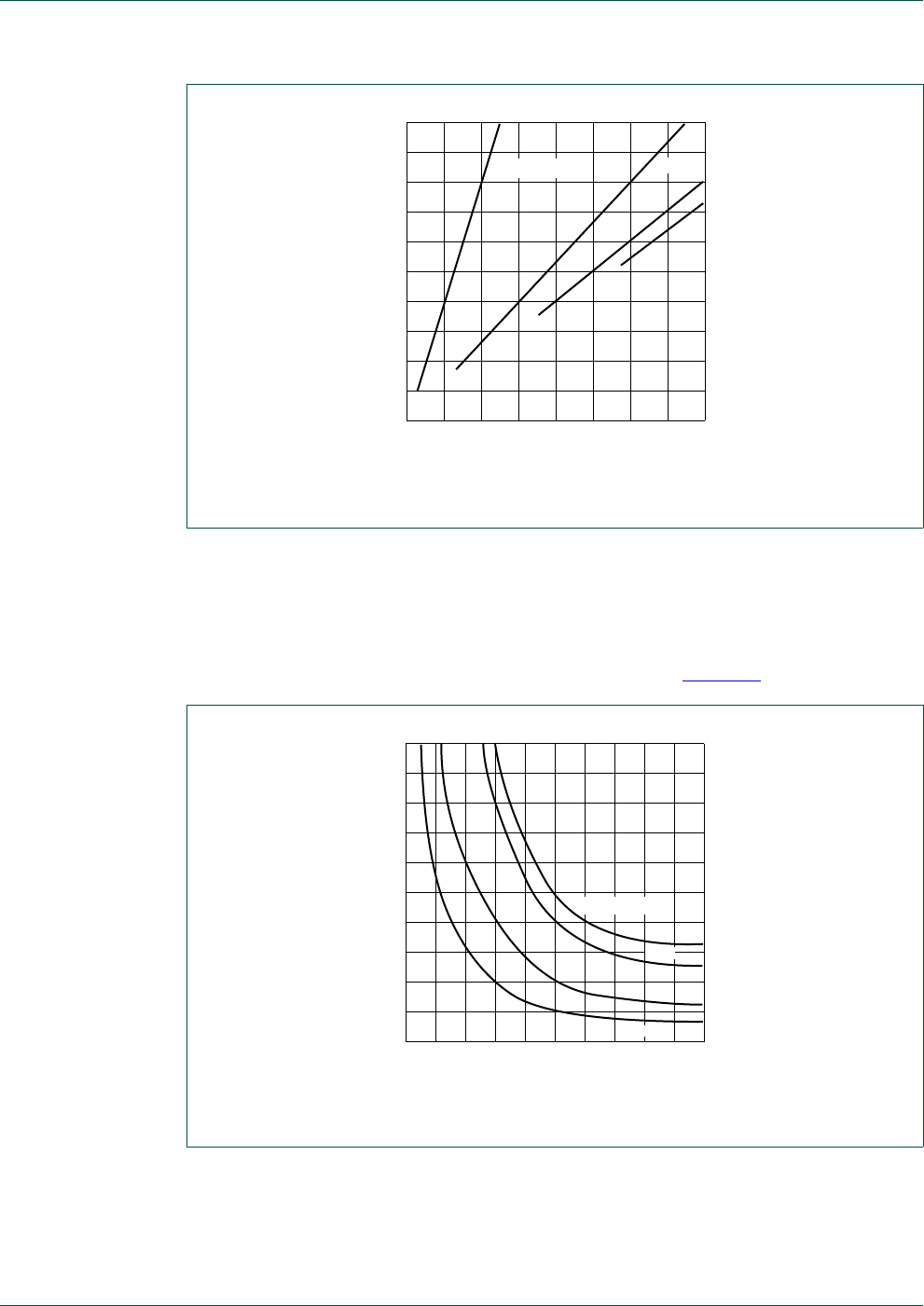

Fig 46. Maximum value of Rs as a function of the value of Rp with supply voltage as a

parameter

0 400 800 1600

mbc629

1200

maximum value Rs (Ω)

15 V

10 V

(kΩ)VDD = 2.5 V 5 V

Fig 47. Total HIGH-level input current as a function of the maximum value of Rp with

supply voltage as a parameter

0 200

mbc630

40 80 120 160

total high level input current (μA)

maximum

value Rp

(k )Ω

5 V

VDD = 15 V

2.5 V

10 V

User manual Rev. 6 — 4 April 2014 60 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

7.5 Wiring pattern of the bus lines

In general, the wiring must be chosen so that crosstalk and interference to/from the bus

lines is minimized. The bus lines are most susceptible to crosstalk and interference at the

HIGH level because of the relatively high impedance of the pull-up devices.

If the length of the bus lines on a PCB or ribbon cable exceeds 10 cm and includes the

VDD and VSS lines, the wiring pattern should be:

SDA _______________________

VDD ________________________

VSS ________________________

SCL _______________________

If only the VSS line is included, the wiring pattern should be:

SDA _______________________

VSS ________________________

SCL _______________________

These wiring patterns also result in identical capacitive loads for the SDA and SCL lines.

If a PCB with a VSS and/or VDD layer is used, the VSS and VDD lines can be omitted.

If the bus lines are twisted-pairs, each bus line must be twisted with a VSS return.

Alternatively, the SCL line can be twisted with a VSS return, and the SDA line twisted with

a VDD return. In the latter case, capacitors must be used to decouple the VDD line to the

VSS line at both ends of the twisted pairs.

If the bus lines are shielded (shield connected to VSS), interference is minimized.

However, the shielded cable must have low capacitive coupling between the SDA and

SCL lines to minimize crosstalk.

User manual Rev. 6 — 4 April 2014 61 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

8. Abbreviations

Table 15. Abbreviations

Acronym Description

A/D Analog-to-Digital

ATCA Advanced Telecom Computing Architecture

BMC Baseboard Management Controller

CMOS Complementary Metal-Oxide Semiconductor

cPCI compact Peripheral Component Interconnect

D/A Digital-to-Analog

DIP Dual In-line Package

EEPROM Electrically Erasable Programmable Read Only Memory

HW Hardware

I/O Input/Output

I2C-bus Inter-Integrated Circuit bus

IC Integrated Circuit

IPMI Intelligent Platform Management Interface

LCD Liquid Crystal Display

LED Light Emitting Diode

LSB Least Significant Bit

MCU Microcontroller

MSB Most Significant Bit

NMOS Negative-channel Metal-Oxide Semiconductor

PCB Printed-Circuit Board

PCI Peripheral Component Interconnect

PMBus Power Management Bus

RAM Random Access Memory

ROM Read-Only Memory

SMBus System Management Bus

SPI Serial Peripheral Interface

UART Universal Asynchronous Receiver/Transmitter

USB Universal Serial Bus

User manual Rev. 6 — 4 April 2014 62 of 64

NXP Semiconductors UM10204

I2C-bus specification and user manual

9. Legal information

9.1 Definitions

Draft — The document is a draft version only. The content is still under

internal review and subject to formal approval, which may result in

modifications or additions. NXP Semiconductors does not give any

representations or warranties as to the accuracy or completeness of

information included herein and shall have no liability for the consequences of

use of such information.

9.2 Disclaimers

Limited warranty and liability — Information in this document is believed to

be accurate and reliable. However, NXP Semiconductors does not give any

representations or warranties, expressed or implied, as to the accuracy or

completeness of such information and shall have no liability for the

consequences of use of such information. NXP Semiconductors takes no

responsibility for the content in this document if provided by an information

source outside of NXP Semiconductors.

In no event shall NXP Semiconductors be liable for any indirect, incidental,

punitive, special or consequential damages (including - without limitation - lost

profits, lost savings, business interruption, costs related to the removal or

replacement of any products or rework charges) whether or not such

damages are based on tort (including negligence), warranty, breach of

contract or any other legal theory.

Notwithstanding any damages that customer might incur for any reason

whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards

customer for the products described herein shall be limited in accordance

with the Terms and conditions of commercial sale of NXP Semiconductors.

Right to make changes — NXP Semiconductors reserves the right to make

changes to information published in this document, including without

limitation specifications and product descriptions, at any time and without

notice. This document supersedes and replaces all information supplied prior

to the publication hereof.

Suitability for use — NXP Semiconductors products are not designed,

authorized or warranted to be suitable for use in life support, life-critical or

safety-critical systems or equipment, nor in applications where failure or

malfunction of an NXP Semiconductors product can reasonably be expected

to result in personal injury, death or severe property or environmental

damage. NXP Semiconductors and its suppliers accept no liability for

inclusion and/or use of NXP Semiconductors products in such equipment or

applications and therefore such inclusion and/or use is at the customer’s own

risk.

Applications — Applications that are described herein for any of these

products are for illustrative purposes only. NXP Semiconductors makes no

representation or warranty that such applications will be suitable for the

specified use without further testing or modification.

Customers are responsible for the design and operation of their applications

and products using NXP Semiconductors products, and NXP Semiconductors

accepts no liability for any assistance with applications or customer product

design. It is customer’s sole responsibility to determine whether the NXP

Semiconductors product is suitable and fit for the customer’s applications and

products planned, as well as for the planned application and use of

customer’s third party customer(s). Customers should provide appropriate

design and operating safeguards to minimize the risks associated with their

applications and products.

NXP Semiconductors does not accept any liability related to any default,

damage, costs or problem which is based on any weakness or default in the

customer’s applications or products, or the application or use by customer’s

third party customer(s). Customer is responsible for doing all necessary

testing for the customer’s applications and products using NXP

Semiconductors products in order to avoid a default of the applications and

the products or of the application or use by customer’s third party

customer(s). NXP does not accept any liability in this respect.

Export control — This document as well as the item(s) described herein

may be subject to export control regulations. Export might require a prior

authorization from competent authorities.

Translations — A non-English (translated) version of a document is for

reference only. The English version shall prevail in case of any discrepancy

between the translated and English versions.

9.3 Trademarks

Notice: All referenced brands, product names, service names and trademarks

are the property of their respective owners.

I2C-bus — logo is a trademark of NXP Semiconductors N.V.

User manual Rev. 6 — 4 April 2014 63 of 64

continued >>

NXP Semiconductors UM10204

I2C-bus specification and user manual

10. Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 I2C-bus features . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Designer benefits . . . . . . . . . . . . . . . . . . . . . . . 4

2.2 Manufacturer benefits. . . . . . . . . . . . . . . . . . . . 5

2.3 IC designer benefits . . . . . . . . . . . . . . . . . . . . . 6

3 The I2C-bus protocol . . . . . . . . . . . . . . . . . . . . . 6

3.1 Standard-mode, Fast-mode and

Fast-mode Plus I2C-bus protocols . . . . . . . . . . 6

3.1.1 SDA and SCL signals . . . . . . . . . . . . . . . . . . . . 8

3.1.2 SDA and SCL logic levels. . . . . . . . . . . . . . . . . 9

3.1.3 Data validity . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1.4 START and STOP conditions . . . . . . . . . . . . . . 9

3.1.5 Byte format . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.1.6 Acknowledge (ACK) and Not Acknowledge

(NACK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.1.7 Clock synchronization. . . . . . . . . . . . . . . . . . . 11

3.1.8 Arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.1.9 Clock stretching . . . . . . . . . . . . . . . . . . . . . . . 13

3.1.10 The slave address and R/W bit . . . . . . . . . . . 13

3.1.11 10-bit addressing . . . . . . . . . . . . . . . . . . . . . . 15

3.1.12 Reserved addresses. . . . . . . . . . . . . . . . . . . . 17

3.1.13 General call address. . . . . . . . . . . . . . . . . . . . 17

3.1.14 Software reset. . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1.15 START byte . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1.16 Bus clear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.1.17 Device ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2 Ultra Fast-mode I2C-bus protocol. . . . . . . . . . 23

3.2.1 USDA and USCL signals . . . . . . . . . . . . . . . . 25

3.2.2 USDA and USCL logic levels . . . . . . . . . . . . . 25

3.2.3 Data validity . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.2.4 START and STOP conditions . . . . . . . . . . . . . 25

3.2.5 Byte format . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.2.6 Acknowledge (ACK) and Not Acknowledge

(NACK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.2.7 The slave address and R/W bit . . . . . . . . . . . 27

3.2.8 10-bit addressing . . . . . . . . . . . . . . . . . . . . . . 28

3.2.9 Reserved addresses in UFm . . . . . . . . . . . . . 29

3.2.10 General call address. . . . . . . . . . . . . . . . . . . . 30

3.2.11 Software reset. . . . . . . . . . . . . . . . . . . . . . . . . 30

3.2.12 START byte . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.2.13 Unresponsive slave reset . . . . . . . . . . . . . . . . 31

3.2.14 Device ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4 Other uses of the I2C-bus communications

protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.1 CBUS compatibility. . . . . . . . . . . . . . . . . . . . . 32

4.2 SMBus - System Management Bus . . . . . . . . 32

4.2.1 I2C/SMBus compliancy. . . . . . . . . . . . . . . . . . 32

4.2.2 Time-out feature. . . . . . . . . . . . . . . . . . . . . . . 33

4.2.3 Differences between SMBus 1.0 and

SMBus 2.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.3 PMBus - Power Management Bus. . . . . . . . . 34

4.4 Intelligent Platform Management Interface

(IPMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.5 Advanced Telecom Computing Architecture

(ATCA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.6 Display Data Channel (DDC) . . . . . . . . . . . . . 35

5 Bus speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.1 Fast-mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.2 Fast-mode Plus . . . . . . . . . . . . . . . . . . . . . . . 36

5.3 Hs-mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

5.3.1 High speed transfer . . . . . . . . . . . . . . . . . . . . 37

5.3.2 Serial data format in Hs-mode . . . . . . . . . . . . 38

5.3.3 Switching from F/S-mode to Hs-mode and

back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

5.3.4 Hs-mode devices at lower speed modes . . . . 41

5.3.5 Mixed speed modes on one serial bus

system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

5.3.6 Standard, Fast-mode and Fast-mode Plus

transfer in a mixed-speed bus system . . . . . . 44

5.3.7 Hs-mode transfer in a mixed-speed bus

system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5.3.8 Timing requirements for the bridge in a

mixed-speed bus system . . . . . . . . . . . . . . . . 45

5.4 Ultra Fast-mode . . . . . . . . . . . . . . . . . . . . . . . 46

6 Electrical specifications and timing for

I/O stages and bus lines. . . . . . . . . . . . . . . . . 46

6.1 Standard-, Fast-, and Fast-mode Plus

devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

6.2 Hs-mode devices . . . . . . . . . . . . . . . . . . . . . . 50

6.3 Ultra Fast-mode devices . . . . . . . . . . . . . . . . 53

7 Electrical connections of I2C-bus devices

to the bus lines . . . . . . . . . . . . . . . . . . . . . . . . 55

7.1 Pull-up resistor sizing. . . . . . . . . . . . . . . . . . . 55

7.2 Operating above the maximum allowable

bus capacitance . . . . . . . . . . . . . . . . . . . . . . . 56

7.2.1 Reduced fSCL . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.2.2 Higher drive outputs. . . . . . . . . . . . . . . . . . . . 56

7.2.3 Bus buffers, multiplexers and switches . . . . . 56

7.2.4 Switched pull-up circuit . . . . . . . . . . . . . . . . . 57

7.3 Series protection resistors . . . . . . . . . . . . . . . 58

7.4 Input leakage . . . . . . . . . . . . . . . . . . . . . . . . . 59

7.5 Wiring pattern of the bus lines . . . . . . . . . . . . 60

8 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . 61

NXP Semiconductors UM10204

I2C-bus specification and user manual

For more information, please visit: http://www.nxp.com

For sales office addresses, please send an email to: salesaddresses@nxp.com

Date of release: 4 April 2014

Document identifier: UM10204

Please be aware that important notices concerning this document and the product(s)

described herein, have been included in section ‘Legal information’.

9 Legal information. . . . . . . . . . . . . . . . . . . . . . . 62

9.1 Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.2 Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.3 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 62

10 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

UM10204 I2C Bus Specification And User Manual SPEC

UM10204%20I2C-bus%20specification%20and%20user%20manual

UserManual_i2c

Navigation menu

Versions of this User Manual:

Views

Navigation
