EPOS Print API User's Manual

User Manual:

Open the PDF directly: View PDF PDF.
Page Count: 240 [warning: Documents this large are best viewed by clicking the View PDF Link!]

User’s Manual
ePOS-Print API
M00042110
Rev.K
Overview
Sample Program
Programming Guide
ePOS-Print API
ePOS-Print Canvas API
Describes the features and development environment.
Describes how to use the sample program and how
to build a system.
Describes how to write programs in Web application
development.
Describes the ePOS-Print API.
Describes the ePOS-Print CanvasAPI.
Appendix
Describes the specifications for printers used for ePOS-Print,
how to use the rendering of images in HTML5 Canvas.

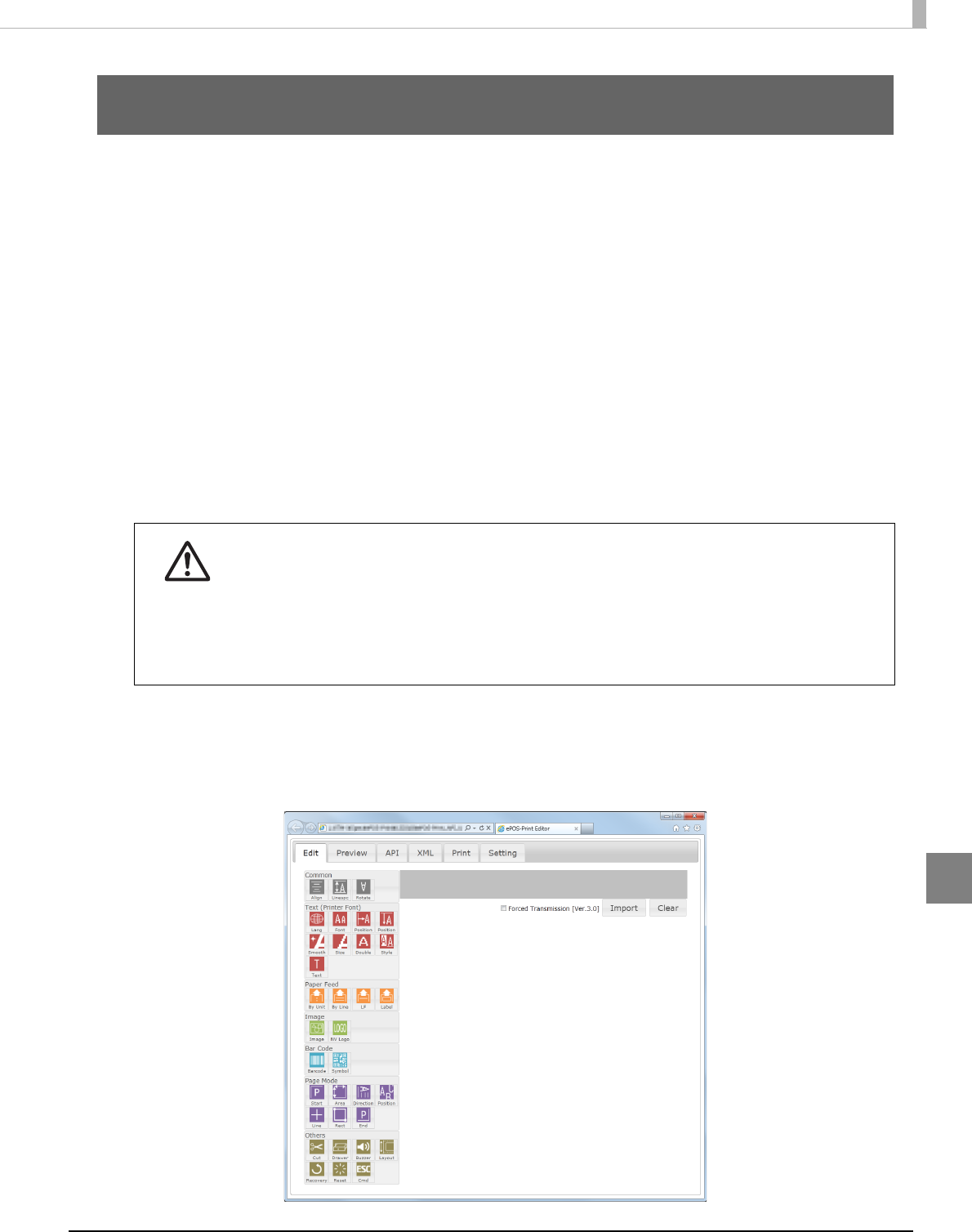

ePOS-Print Editor
Describes the ePOS-Print Editor.
2
Cautions
• No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or
by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written
permission of Seiko Epson Corporation.
• The contents of this document are subject to change without notice. Please contact us for the latest
information.
• While every precaution has taken in the preparation of this document, Seiko Epson Corporation assumes
no responsibility for errors or omissions.
• Neither is any liability assumed for damages resulting from the use of the information contained herein.
• Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of:
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this
product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and
maintenance instructions.
• Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any
options or any consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by Seiko Epson Corporation.
Trademarks
EPSON is a registered trademark of Seiko Epson Corporation.
Exceed Your Vision and ESC/POS are registered trademarks or trademarks of Seiko Epson Corporation.
Microsoft, Windows, Internet Explorer and Visual Studio are either registered trademarks or trademarks
of Microsoft Corporation in the United States and other countries.
SafariTM and TrueType are either registered trademarks or trademarks of Apple Inc. in the United States and
other countries.
AndroidTM and Google ChromeTM are either registered trademarks or trademarks of Google Inc. in the
United States and other countries.
Mozilla and Firefox are either registered trademarks or trademarks of Mozilla Foundation in the United
States and other countries.
IOS is registered trademarks or trademarks of Cisco in the United States and other countries.
All other trademarks are the property of their respective owners and used for identification purpose only.
ESC/POS® Command System
EPSON has been taking industry’s initiatives with its own POS printer command system (ESC/POS). ESC/POS
has a large number of commands including patented ones. Its high scalability enables users to build versa-
tile POS systems. The system is compatible with all types of EPSON POS printers (excluding the TM-C100) and
displays. Moreover, its flexibility makes it easy to upgrade the future. The functionality and the user-friendli-
ness is valued around the world.
© Seiko Epson Corporation 2011-2014. All rights reserved.
3
For Safety
Key to Symbols
The symbols in this manual are identified by their level of importance, as defined below. Read the following
carefully before handling the product.
Restriction of Use
When this product is used for applications requiring high reliability/safety such as transportation devices
related to aviation, rail, marine, automotive etc.; disaster prevention devices; various safety devices etc; or
functional/precision devices etc, you should use this product only after giving consideration to including fail-
safes and redundancies into your design to maintain safety and total system reliability. Because this product
was not intended for use in applications requiring extremely high reliability/safety such as aerospace
equipment, main communication equipment, nuclear power control equipment, or medical equipment
related to direct medical care etc, please make your own judgment on this product’s suitability after a full
evaluation.
Provides information that must be observed to avoid damage to your equipment or a
malfunction.
Provides important information and useful tips.
4
About this Manual
Aim of the Manual
This manual is intended to provide development engineers with all the information necessary for building/
designing a printing system or developing/designing an ePOS-Print printer application.
In this manual, "ePOS-Print supported printer" is a generic term for the TM-i series and TM printers that support
the ePOS-Print API.
The TM-i series in this manual is a generic term for the following printers.
Manual Content
The manual is made up of the following sections:
TM-T88V-i TM-T70-i TM-L90-i
Chapter 1 Overview
Chapter 2 Sample Program
Chapter 3 Programming Guide
Chapter 4 ePOS-Print API
Chapter 5 ePOS-Print Canvas API
Chapter 6 ePOS-Print Editor
Appendix Printer specifications
Rendering in HTML5 Canvas
Windows Store Apps
5
Contents
■For Safety .............................................................................................................................. 3
Key to Symbols ....................................................................................................................................... 3
■Restriction of Use.................................................................................................................. 3
■About this Manual................................................................................................................ 4
Aim of the Manual ................................................................................................................................. 4
Manual Content .................................................................................................................................... 4
■Contents................................................................................................................................ 5
Overview ......................................................................................11
■Overview of ePOS-Print ..................................................................................................... 11
Features................................................................................................................................................. 12
Print Example........................................................................................................................................ 13
Print Flow ............................................................................................................................................... 15
Features................................................................................................................................................. 16
■Operating Environment ..................................................................................................... 17
Applications environment................................................................................................................... 17
Terminal ................................................................................................................................................. 17
ePOS-Print Supported TM printer........................................................................................................ 17
Printers That Can Be Controlled ......................................................................................................... 18
■System Construction Example.......................................................................................... 19
Registering a Web Application Into the Web Server....................................................................... 19
Registering a Web Application Into a TM-i .......................................................................................20
Registering a Web application to a cloud ....................................................................................... 21
Specifying the Print Job ID from the Application ............................................................................. 22
Spooler Function .................................................................................................................................. 23
■Contents in the Package................................................................................................... 26
Download ............................................................................................................................................. 27
■Restrictions.......................................................................................................................... 28
Sample Program..........................................................................29
■Sample Program System Overview.................................................................................. 29

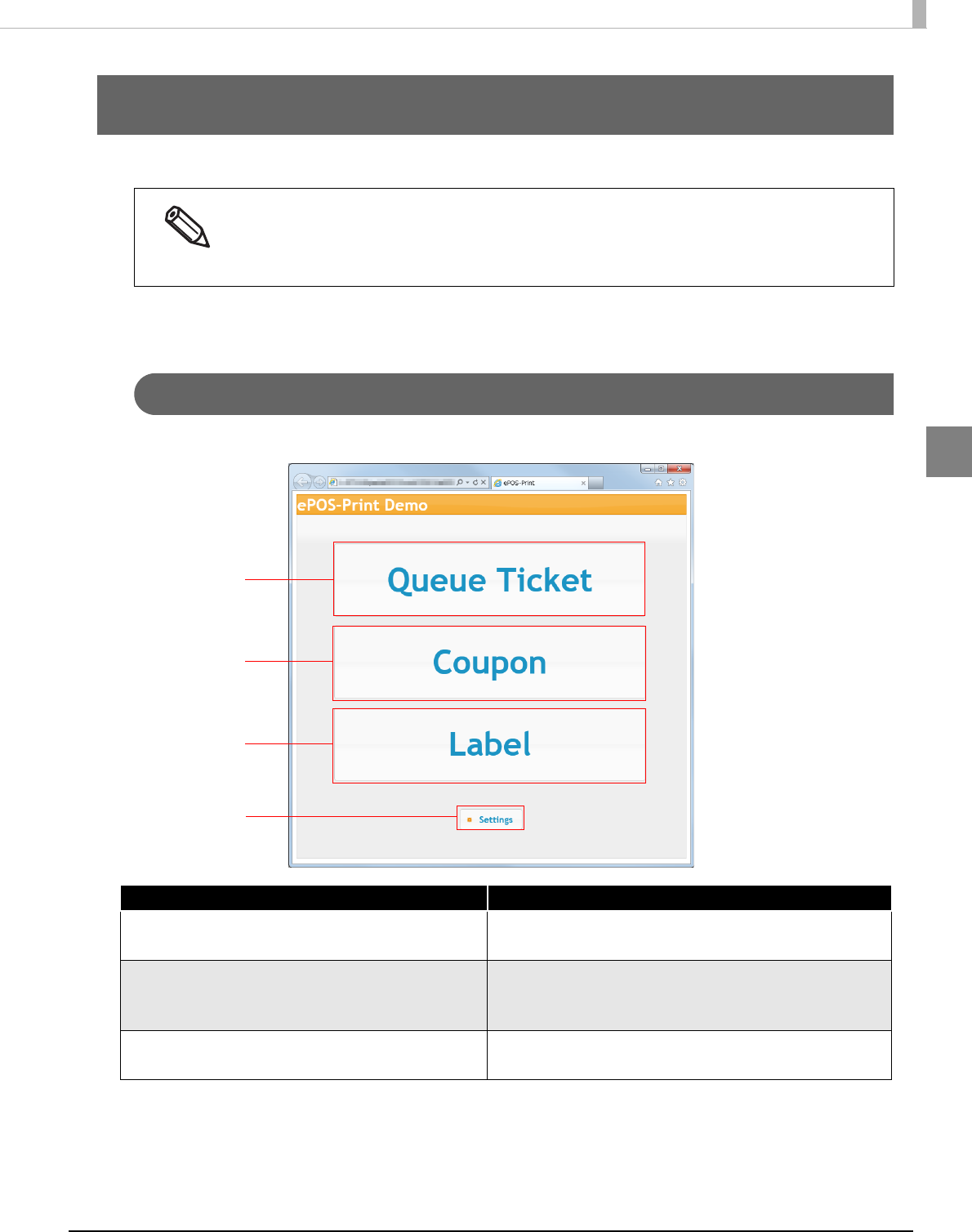

Sample Program Screen ..................................................................................................................... 29
Print Image............................................................................................................................................ 31
Program Flow........................................................................................................................................ 32
■Operating Environment ..................................................................................................... 35
TM-i......................................................................................................................................................... 35
■Environment Settings.......................................................................................................... 36
Registration of Sample Program......................................................................................................... 38

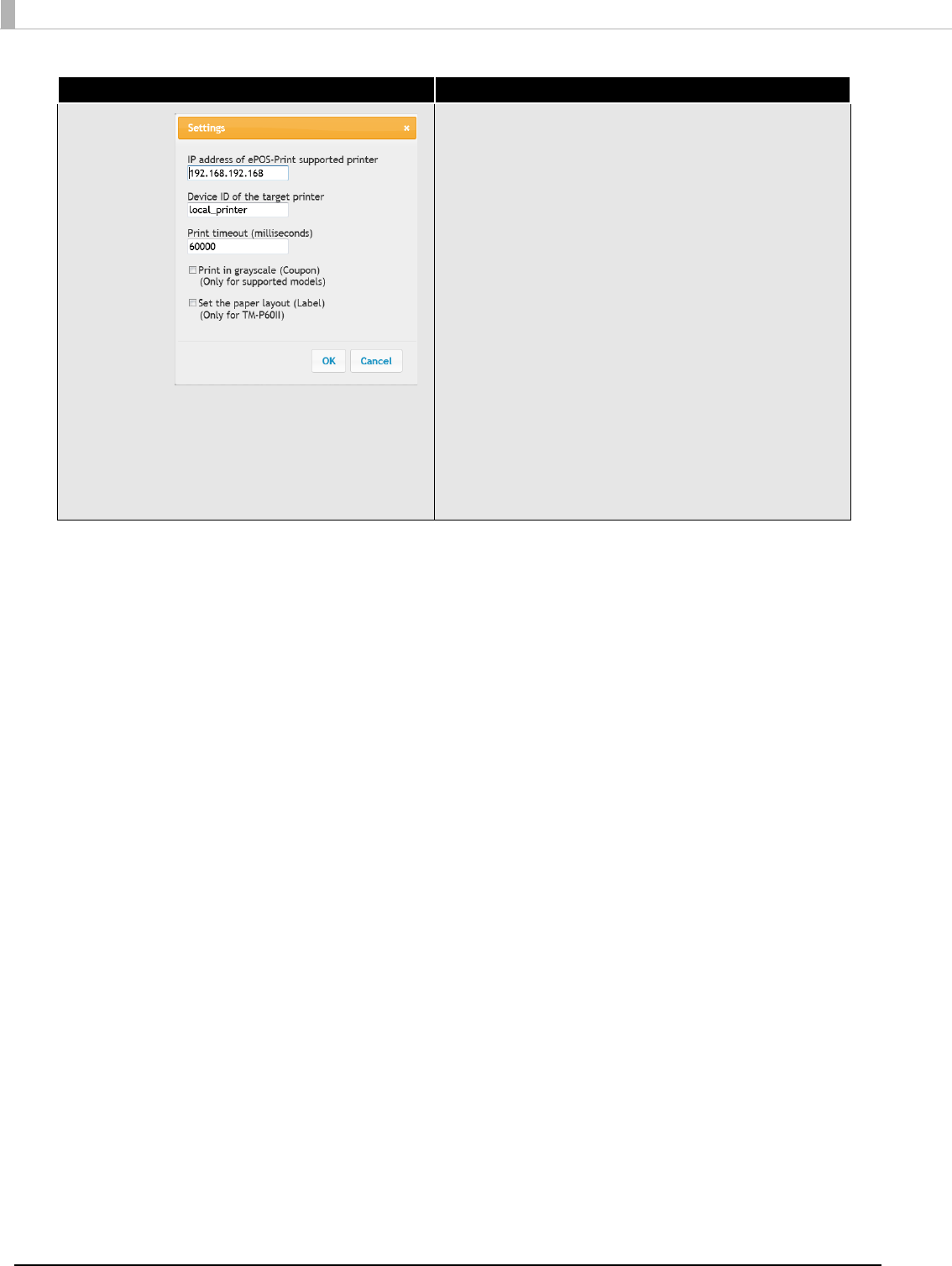

Sample Program Settings .................................................................................................................... 39
6
Programming Guide....................................................................41
■ePOS-Print API..................................................................................................................... 41
Print Mode .............................................................................................................................................41
Programming Flow................................................................................................................................41
Embedding of ePOS-Print API .............................................................................................................42
Print Document Creation ....................................................................................................................43
Transmission of Print Document...........................................................................................................46
Reception of Print Result......................................................................................................................47
Reception of Status Event ...................................................................................................................49
■ePOS-Print Canvas API....................................................................................................... 50
Embedding of ePOS-Print Canvas API ...............................................................................................51
Rendering in HTML5 Canvas................................................................................................................52
Prints an Canvas image.......................................................................................................................53
Reception of Print Result......................................................................................................................54
Reception of Status Event ...................................................................................................................56
■Using the Spooler Function................................................................................................ 57
ePOS-Print API ..............................................................................61
■List of API functions............................................................................................................. 61
window.epson.ePOSBuilder Components.........................................................................................61
window.epson.ePOSPrint Components .............................................................................................65
■ePOS-Print Builder Object.................................................................................................. 66
Constructor ...........................................................................................................................................66
addTextAlign method ..........................................................................................................................67
addTextLineSpace method ................................................................................................................68
addTextRotate method .......................................................................................................................69
addText method...................................................................................................................................70
addTextLang method ..........................................................................................................................71
addTextFont method ...........................................................................................................................74
addTextSmooth method .....................................................................................................................75
addTextDouble method ......................................................................................................................76
addTextSize method ............................................................................................................................78
addTextStyle method...........................................................................................................................79
addTextPosition method......................................................................................................................81
addTextVPosition method ...................................................................................................................82
addFeedUnit method ..........................................................................................................................83
addFeedLine method..........................................................................................................................84
addFeedPosition method....................................................................................................................85
addFeed method.................................................................................................................................87
addImage method ..............................................................................................................................88
addLogo method.................................................................................................................................90
addBarcode method ..........................................................................................................................91
addSymbol method.............................................................................................................................96
addHLine method ..............................................................................................................................102
addVLineBegin method ....................................................................................................................104
addVLineEnd method .......................................................................................................................105
7
addPageBegin method.................................................................................................................... 106
addPageEnd method ....................................................................................................................... 107
addPageArea method ..................................................................................................................... 108
addPageDirection method .............................................................................................................. 110
addPagePosition method................................................................................................................. 112
addPageLine method....................................................................................................................... 114
addPageRectangle method ........................................................................................................... 116
addCut method................................................................................................................................. 118
addPulse method .............................................................................................................................. 119
addSound method ............................................................................................................................ 121
addLayout method ........................................................................................................................... 123
addRecovery method ...................................................................................................................... 127
addReset method ............................................................................................................................. 128
addCommand method.................................................................................................................... 129
toString method ................................................................................................................................. 130
halftone property............................................................................................................................... 131
brightness property............................................................................................................................ 132
force property .................................................................................................................................... 133
message property.............................................................................................................................. 134
■ePOS-Print Object ............................................................................................................ 135
Constructor......................................................................................................................................... 135
send method...................................................................................................................................... 136
getPrintJobStatus method ................................................................................................................ 138
open method ..................................................................................................................................... 139
close method ..................................................................................................................................... 140
address property................................................................................................................................ 141
enabled property .............................................................................................................................. 142
interval property................................................................................................................................. 142
status property ................................................................................................................................... 143
battery property ................................................................................................................................ 143
timeout property ................................................................................................................................ 144
onreceive event................................................................................................................................. 145
onerror event...................................................................................................................................... 148
onstatuschange event...................................................................................................................... 149
onbatterystatuschange event ......................................................................................................... 149
ononline event ................................................................................................................................... 150
onoffline event ................................................................................................................................... 150
onpoweroff event .............................................................................................................................. 151
oncoverok event................................................................................................................................ 151
oncoveropen event........................................................................................................................... 152
onpaperok event............................................................................................................................... 152
onpapernearend event.................................................................................................................... 153
onpaperend event............................................................................................................................ 153
ondrawerclosed event...................................................................................................................... 154
ondraweropen event ........................................................................................................................ 154
onbatteryok event............................................................................................................................. 155
onbatterylow event........................................................................................................................... 155
8
ePOS-Print Canvas API..............................................................157
■List of ePOS-Print Canvas API functions.......................................................................... 157
window.epson.CanvasPrint Components .......................................................................................157
■ePOS-Print Canvas API Object........................................................................................ 159
Constructor .........................................................................................................................................159
print method .......................................................................................................................................160
getPrintJobStatus method.................................................................................................................162
open method......................................................................................................................................163
close method......................................................................................................................................164
recover method..................................................................................................................................165
reset method.......................................................................................................................................165
address property ................................................................................................................................166
enabled property...............................................................................................................................167
interval property .................................................................................................................................168
status property ....................................................................................................................................169
battery property .................................................................................................................................170
timeout property ................................................................................................................................171
halftone property ...............................................................................................................................172
brightness property ............................................................................................................................173
cut property ........................................................................................................................................174
mode property ...................................................................................................................................175
align property .....................................................................................................................................176
color property .....................................................................................................................................177
feed property......................................................................................................................................178
paper property ...................................................................................................................................179
layout property ...................................................................................................................................180
onreceive event .................................................................................................................................185
onerror event ......................................................................................................................................188
onstatuschange event ......................................................................................................................189
onbatterystatuschange event..........................................................................................................190
onbatteryok event .............................................................................................................................191
onbatterylow event ...........................................................................................................................191
ononline event....................................................................................................................................192
onoffline event ....................................................................................................................................192
onpoweroff event...............................................................................................................................193
oncoverok event ................................................................................................................................193
oncoveropen event ...........................................................................................................................194
onpaperok event ...............................................................................................................................194
onpapernearend event ....................................................................................................................195
onpaperend event ............................................................................................................................195
ondrawerclosed event ......................................................................................................................196
ondraweropen event.........................................................................................................................196
ePOS-Print Editor ........................................................................197
■ePOS-Print Editor Operating Environment...................................................................... 197
■Displaying ePOS-Print Editor............................................................................................ 197
■Setting................................................................................................................................ 198
■Creating a Sample Code ................................................................................................ 199

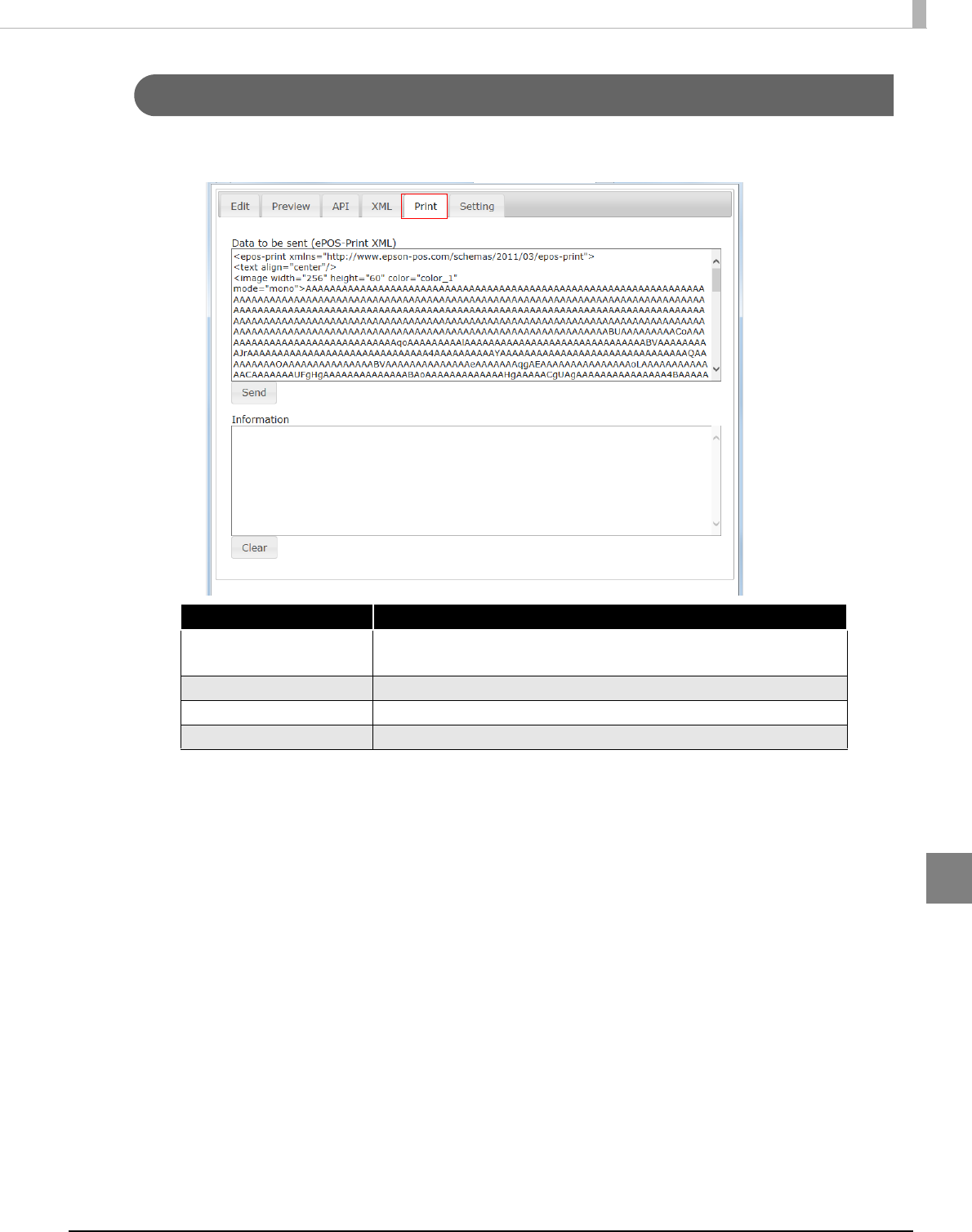

Print ......................................................................................................................................................201
Import ..................................................................................................................................................202
9
Appendix....................................................................................203
■Printer specifications........................................................................................................ 203
TM-L90-i/ TM-L90 ................................................................................................................................. 203
TM-T70-i/ TM-T70.................................................................................................................................. 205
TM-T70-i (Multi-language model) ..................................................................................................... 206
TM-T88V-i/ TM-T88V............................................................................................................................. 207
TM-P60II................................................................................................................................................ 209
TM-P60II with Peeler ........................................................................................................................... 211
TM-P80 ................................................................................................................................................. 213
TM-T20.................................................................................................................................................. 215
TM-T70 (Multi-language model) ....................................................................................................... 217
TM-T88IV .............................................................................................................................................. 218
TM-T90.................................................................................................................................................. 220
TM-U220............................................................................................................................................... 222
■Rendering in HTML5 Canvas............................................................................................ 224

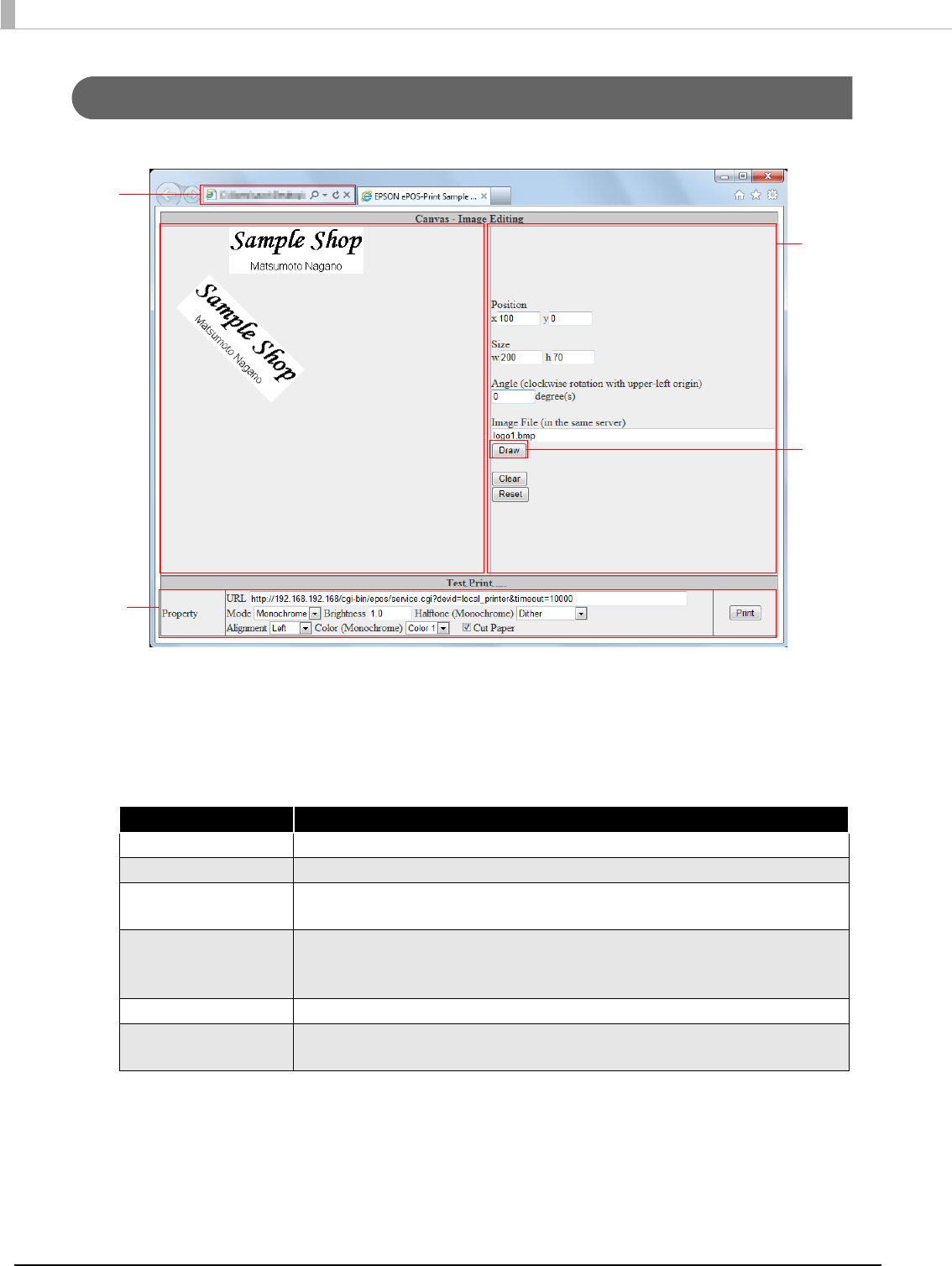

Rendering Text (canvas-print-text.html) .......................................................................................... 224
Rendering Images (canvas-print-image.html) ............................................................................... 226

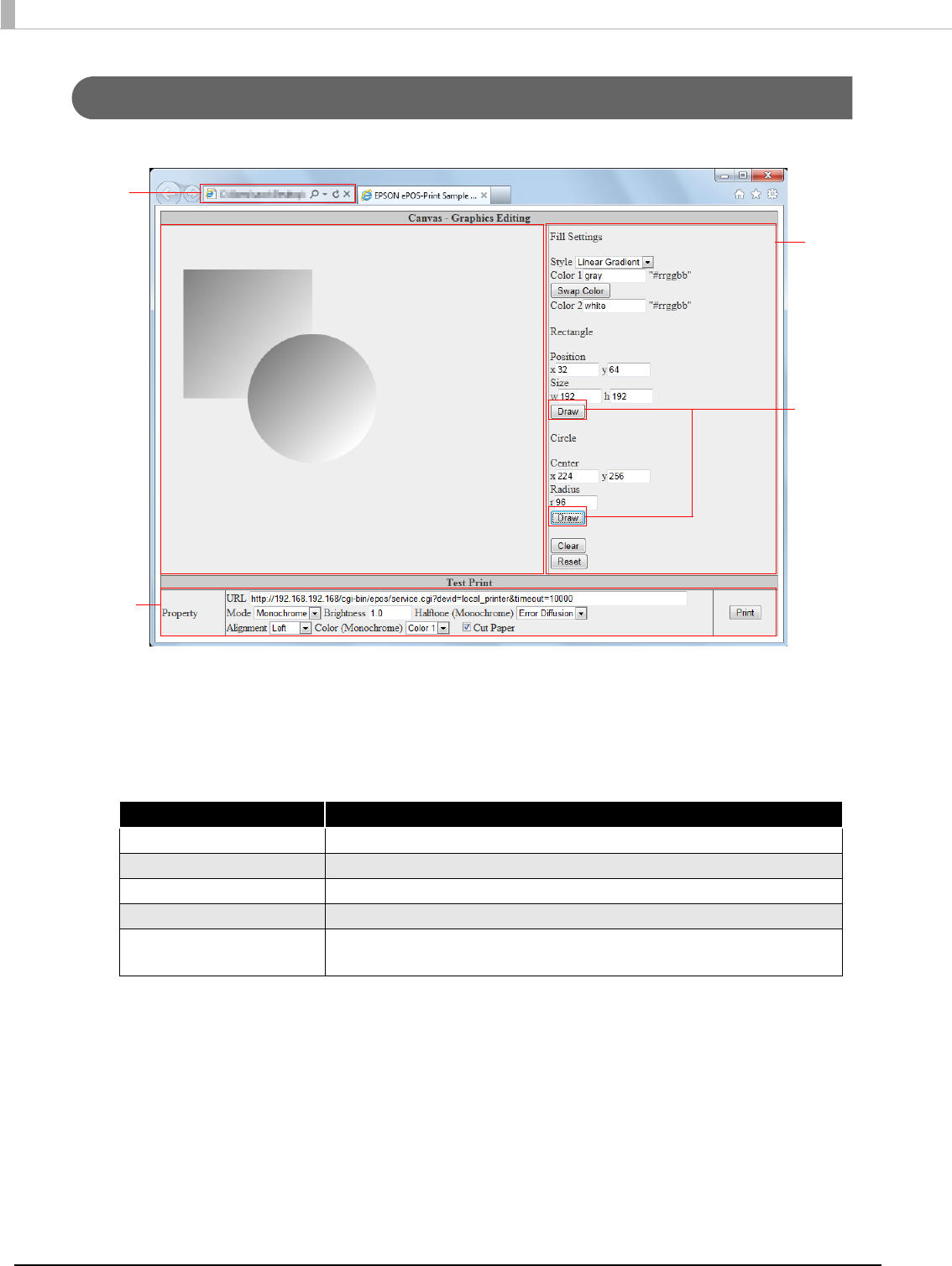

Rendering Graphics (canvas-print-graph.html)............................................................................. 228
Rendering Handwritten Images (canvas-print-hand.html)........................................................... 230
Rendering Barcode (canvas-print-barcode.html)......................................................................... 232
Rendering Label (canvas-print-label.html)..................................................................................... 234
■Windows Store Apps ........................................................................................................ 236

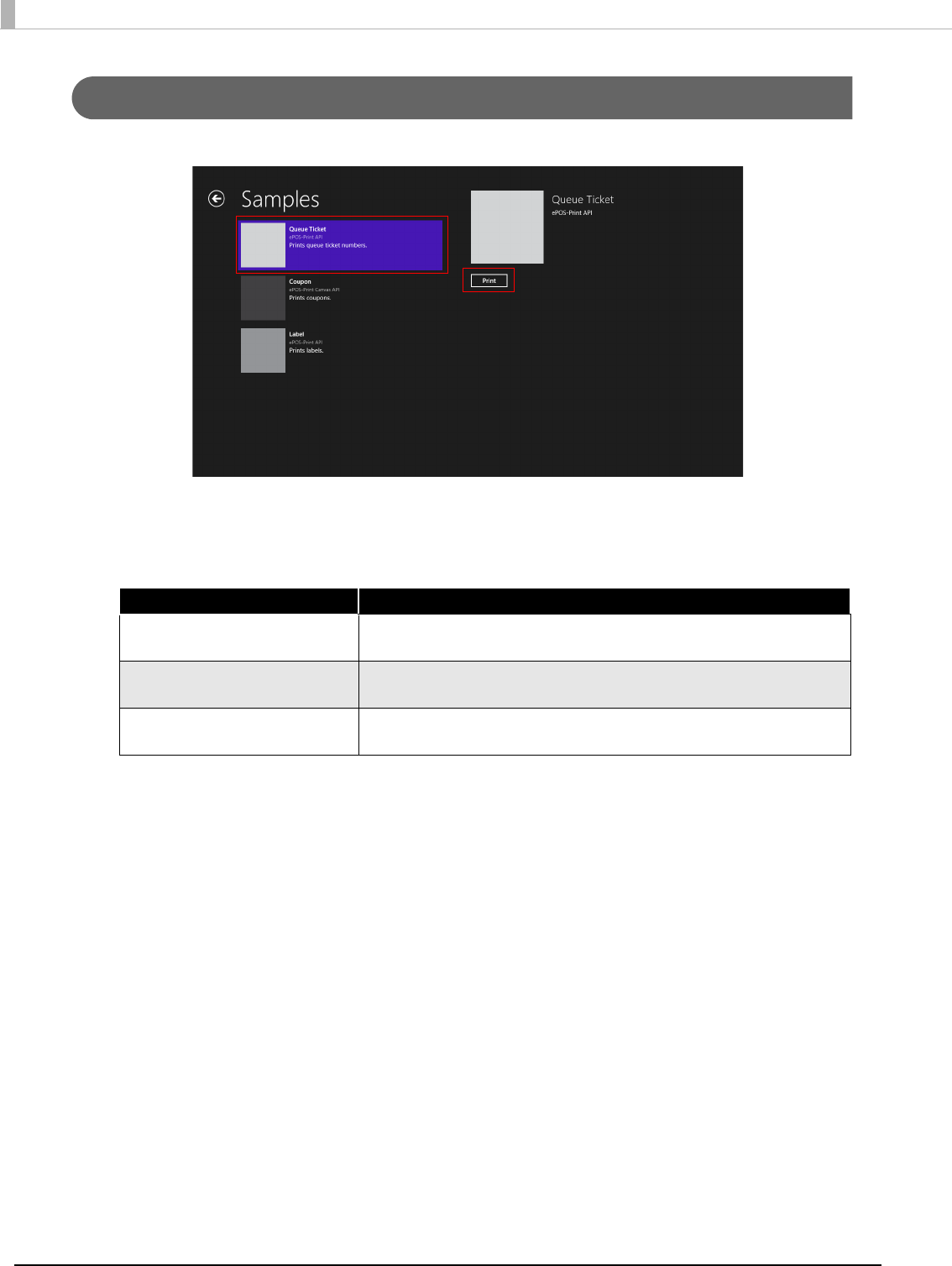

Sample Program Screen ................................................................................................................... 236
Environment of Sample Program ..................................................................................................... 238
Sample Program Settings .................................................................................................................. 239
Printing................................................................................................................................................. 240
10
11
Chapter 1 Overview
1
Overview
This chapter describes the features of and the specifications for ePOS-Print API.
Overview of ePOS-Print
ePOS-Print API is a function used to allow printing to ePOS-Print-supported printers under a multi-platform
environment. Printing is available from a Web browser on devices such as computers, smart phones and
tablets.
In addition, print images rendered in HTML5 Canvas can be printed.
ePOS-Print API provides the API for print commands.

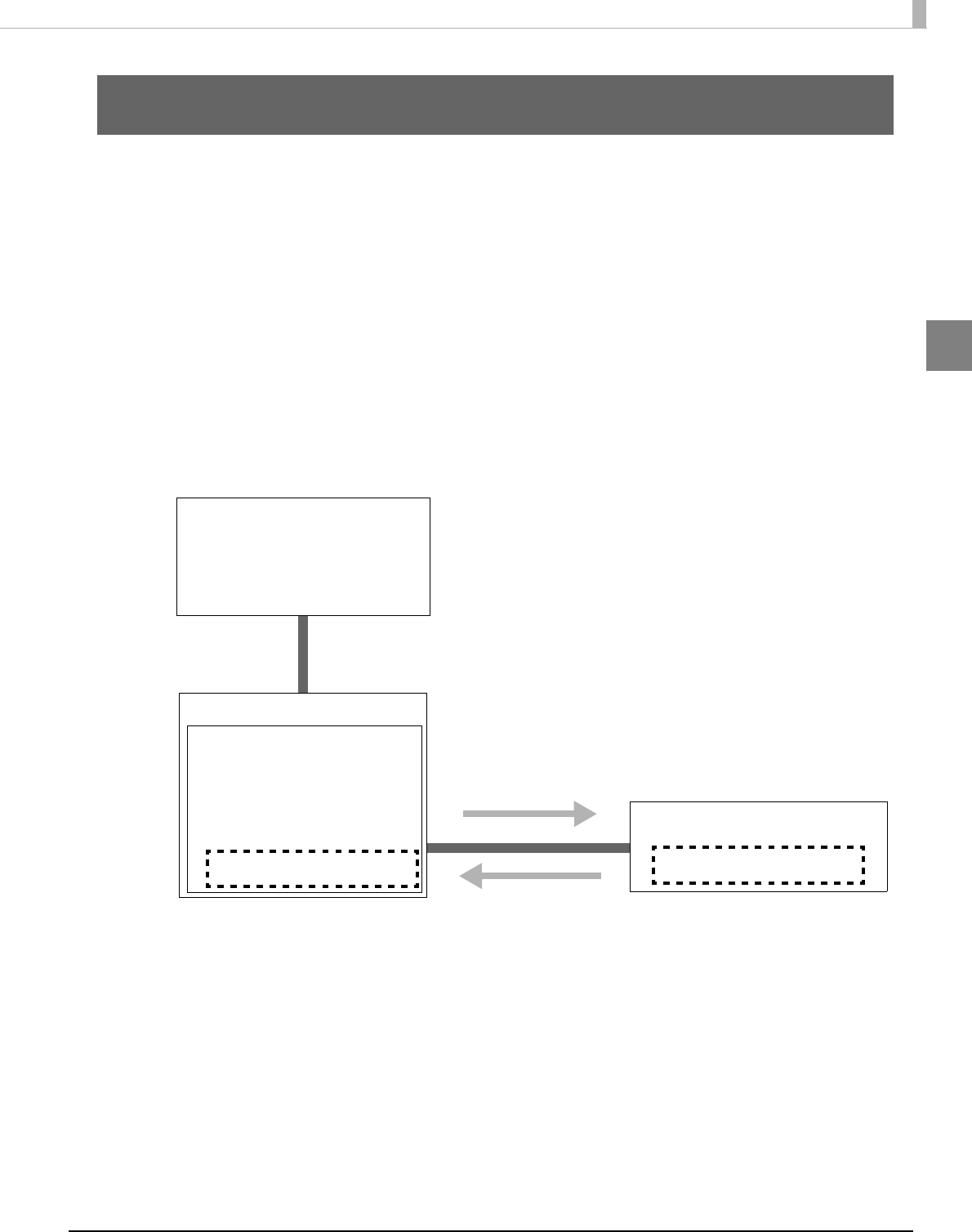

When a print document (Request) is sent via HTTP from the host to the ePOS-Print Service of a ePOS-Print
supported TM printer, ePOS-Print processes the printing of that document and returns a response document
(Response).
Web Server
Internet
Intranet
TM-i web server
Web Browser
Web Page
HTML
CSS
JavaScript
ePOS-Print API
(Response)
(Request)
ePOS-Print supported TM printer
ePOS-Print Service
12
Features
❏As long as it is in a network environment, a terminal with an HTML5-supported Web browser can perform
printing from anywhere.
❏It supports Windows store apps (JavaScript).
❏Installation of drivers and plug-ins is not required.
❏No PCs or servers are required for printing.
❏Allows printing from public and private clouds.
❏Allows printing in languages supported in Web browsers.
❏Automatically checks the status of the TM printer before printing. There is no need for checking the status
of the TM printer in advance.
❏Does not respond to a printer's function to automatically send its status (AutoStatusBack). Instead, capa-
ble of sending an empty print command and checking the status of the TM printer based on the result of
command transmission.
❏Printing requests can be made to the printer by specifying the printing job ID. *2
For details, refer to Specifying the Print Job ID from the Application(p.22).
❏Printing data can be sent to the printer without waiting for a printing complete response from the printer.
(Spooler) *2
For details, refer to Spooler Function(p.23).
❏Print data can be sent to another printer if the printer sends an error response (PAPER END, COVER OPEN,
etc.) or does not return a response. (Print forwarding) *2
For details, refer to Forwarding(p.25).To change the printer settings, utility programs dedicated to each
printer or other utility programs should be used.
❏In case of TM-i series, it can print to other TM printer via TM-i.
❏Provides ePOS-Print API and ePOS-Print Canvas API.
<<ePOS-Print API>>
Allows device fonts to be used for printing.
Allows barcode printing.
<<ePOS-Print Canvas API>>
Allows printing of images rendered in HTML5 Canvas.
Allows TrueType fonts to be used for printing.
*1 ePOS-Print Service Ver.4.1 or later versions supported.
*2 TM-i firmware Ver.4.1 or later versions supported.
13
Chapter 1 Overview
1
Print Example
ePOS-Print API
Printing a Logo
Alignment: Center
Paper Feed
Paper Feed and Paper Cut
Printing a raster image
Printing text in the double-sized width style
Scale: x 6 (horizontal) and x 4 (vertical)
Alignment: Center
Printing a Barcode
Your Number:
14
ePOS-Print Canvas API
Monochrome or Grayscale
Monochrome
15
Chapter 1 Overview
1

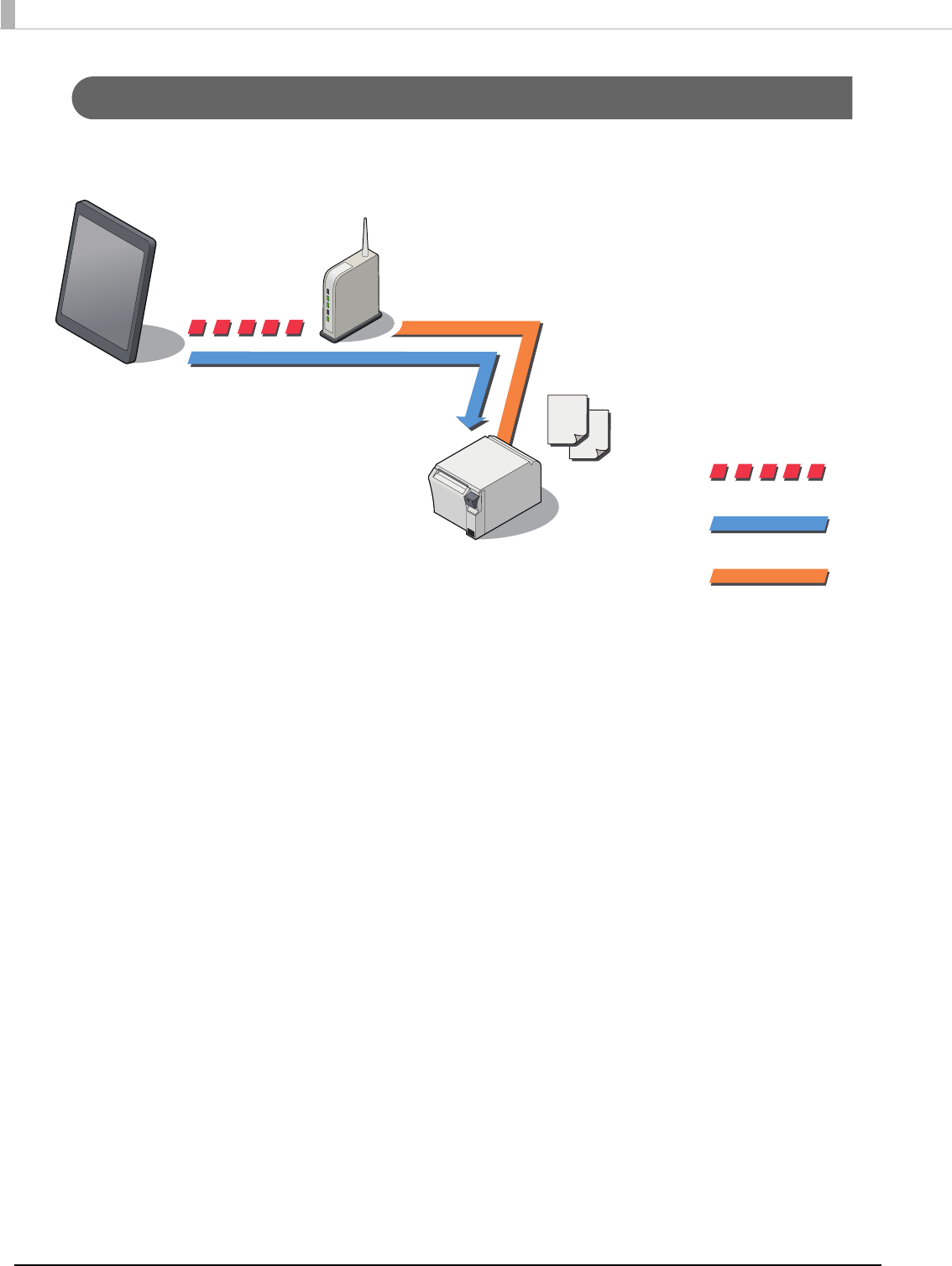

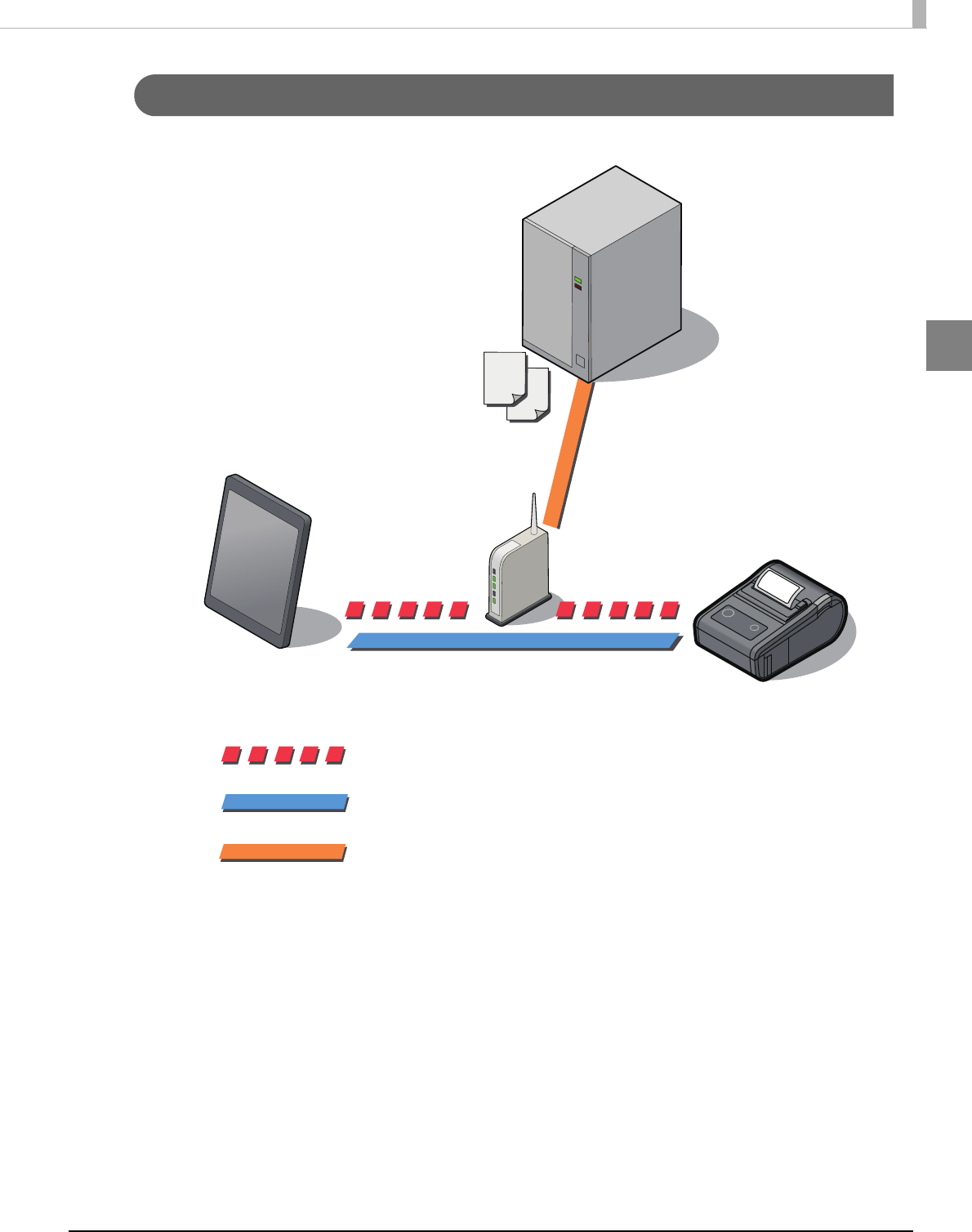

Print Flow
1A Web application is placed.
2A Web browser displays the Web application.
3The Web browser sends print data.
For an ePOS-Print supported printer, the print data for the unit printer is printed.
4For a TM-i, the print data is sent to a controllable printer.
5The data is printed from printers that can be controlled.
6The ePOS-Print supported TM printer returns a response document to the terminal.
"
<Web Server>
Web
Application
<Web Browser>
<ePOS-Print supported TM printer>
<Printers that can be
controlled>
Wireless
Network
Device Control
Wireless LAN /
Router
16
Features
ePOS-Print API contains the following printing methods. These may be used successively within a single
document, however, they cannot be used simultaneously.
Printing functions of ePOS-Print API
❏Print setting (alignment/line feed space/text rotation/page mode)
❏Character data setting (language/font (device font)/double-sizing/scale/smoothing/print position)
❏Character style setting (inversion of black and white/underline/bold)
❏Paper feed setting (in dots/in lines)
❏Image printing (raster image/NV graphics)
❏Barcode printing
(For barcodes that can be printed by each model, refer to "Printer specifications" on page 203)
❏Two dimensional symbol printing
(For two dimensional symbols that can be printed by each model, refer to "Printer specifications" on page
203.)
❏Ruled line setting
❏Control of label paper/black mark paper
❏Drawer kick function
❏Buzzer function
❏ESC/POS command transmission
❏Response document acquisition (print result/printer status/system error status)
❏Paper layout setting (Label paper)
❏Recovery from an error
❏Reset
Printing functions of ePOS-Print Canvas API
❏Printing of images (raster images) rendered in HTML5 Canvas
❏Control of label paper/black mark paper
❏Feed cut
❏Response document acquisition (print result/printer status/system error status)
❏Paper layout setting
❏Recovery from an error
❏Reset
The installed functions vary depending on the model. For details, refer to Printer
specifications(p.203).
Print Method Description
ePOS-Print API This is suited to mainly text printing. Printing is done with the device font
mounted on the TM printer. Barcodes can also be printed upon developing
them as images on the TM printer side.
ePOS-Print Canvas API Highly expressive printing is possible. Images painted on HTML5 Canvas are
printed.
17
Chapter 1 Overview
1
Operating Environment
Applications environment
❏HTML5-supported Web browser
Windows Internet Explorer 9 or later
From Internet Explorer, Web pages (HTTPS) that are securely protected cannot be printed on the TM
printer.
Mozilla Firefox 3.6 or later
Google Chrome 7 or later
Safari in iOS4.0 or later
Standard browser in Android 2.2 or later
❏Windows Store apps
JavaScript project
Terminal
Terminal with an HTML5-supported Web browser
ePOS-Print Supported TM printer
TM-i Series
❏TM-T88V-i
❏TM-T70-i
❏TM-L90-i
TM Printer
When using the following printers, use ePOS-Print SDK for JavaScript:
❏TM-P60II
❏TM-P60II with Peeler
❏TM-P80
TM-L90-i does not support TM-i Firmware Ver.4.0 or later.
Unable to control other TM printer
18
ePOS-Print Service Versions
The table below shows the relationship between the ePOS-Print Service version and TM-i Firmware version of
the TM-i series.
Printers That Can Be Controlled
TM printers that can be controlled via the TM-i series.
Available TM printers are different depending on the TM-i Firmware version installed in the product.
For details, refer to Technical Reference Guide for each printer.
ePOS-Print Service TM-i Firmware
1.2 1.2x
2.0 2.0x
2.1 2.1x
2.2 -
3.0 3.0x, 3.1x, 4.0x
3.2 -
4.1 4.1x
If API of newly added ePOS-Print Builder is used on unsupported models, schema error is
returned and printing cannot be done. The latest version of ePOS-Print API JavaScript is
recommended regardless of ePOS-Print Service version installed on a printer. ePOS-Print API
JavaScript. is bundled with the sample program.
For details, refer to "Contents in the Package" on page 26.
19
Chapter 1 Overview
1
System Construction Example
Registering a Web Application Into the Web Server
❏Web Server
A Web application is placed.
❏Terminal
Executes the Web application using a browser (HTML5-supported Web browser).
❏TM-i
Receives/prints print data sent from the Web browser or controls other devices.
❏Printers That Can Be Controlled
Print the print data received from the TM-i.
<Web Server>
Web
Application
<Terminal>
Web Browser
<TM-i>
<Printers That Can Be Controlled>
Wireless
Network
Device Control
Wireless LAN /
Router
20
Registering a Web Application Into a TM-i
❏Terminal
Executes the Web application using a browser.
❏TM-i
Mounts the Web application. Creates and prints the print data using transmission with the input terminal's
Web browser.
Web
Application
<Terminal>
Web Browser
<TM-i>
Wireless
Network
Device Control
Wireless LAN /
Router
21
Chapter 1 Overview
1
Registering a Web application to a cloud
❏Terminal
Executes the Web application using a browser.
❏TM Printer (Wireless LAN Model)
<TM Printer>
(Wireless LAN Model)
<Terminal>
Web Browser
Wireless
Wireless LAN /
Router
Web
Application
<Web Server>
Device Control
Network
22
Specifying the Print Job ID from the Application
A response containing the specified print job ID will be returned when sending a request from the
application by specifying the print job ID. (ePOS-Print Service Ver.4.1 or later versions)
Job ID : ABC123
Print data
Job ID : ABC123
Response data
23
Chapter 1 Overview
1
Spooler Function
The spooler function is a function used to temporarily store printing data received from the application in
the TM-i to carry out background printings sequentially. (TM-i firmware Ver.4.1 or later versions)
TM-i return response data to the application the moment the printing data enters the spooler to make it
possible for applications to proceed to the next process without waiting for a printing complete response.
The application can use the job ID included in the response data to send an inquiry on the printing status.
EPSON TMNet WebConfig is used to configure the spooler.
Perform the following settings. For details, refer to the Technical Reference Guide for each TM-i.
Settings to enable the spooler
Print process retry settings
Forwarding can be used to send a printing job to a different printer if the printer does not respond to retry
processing. For details, refer to Forwarding(p.25).

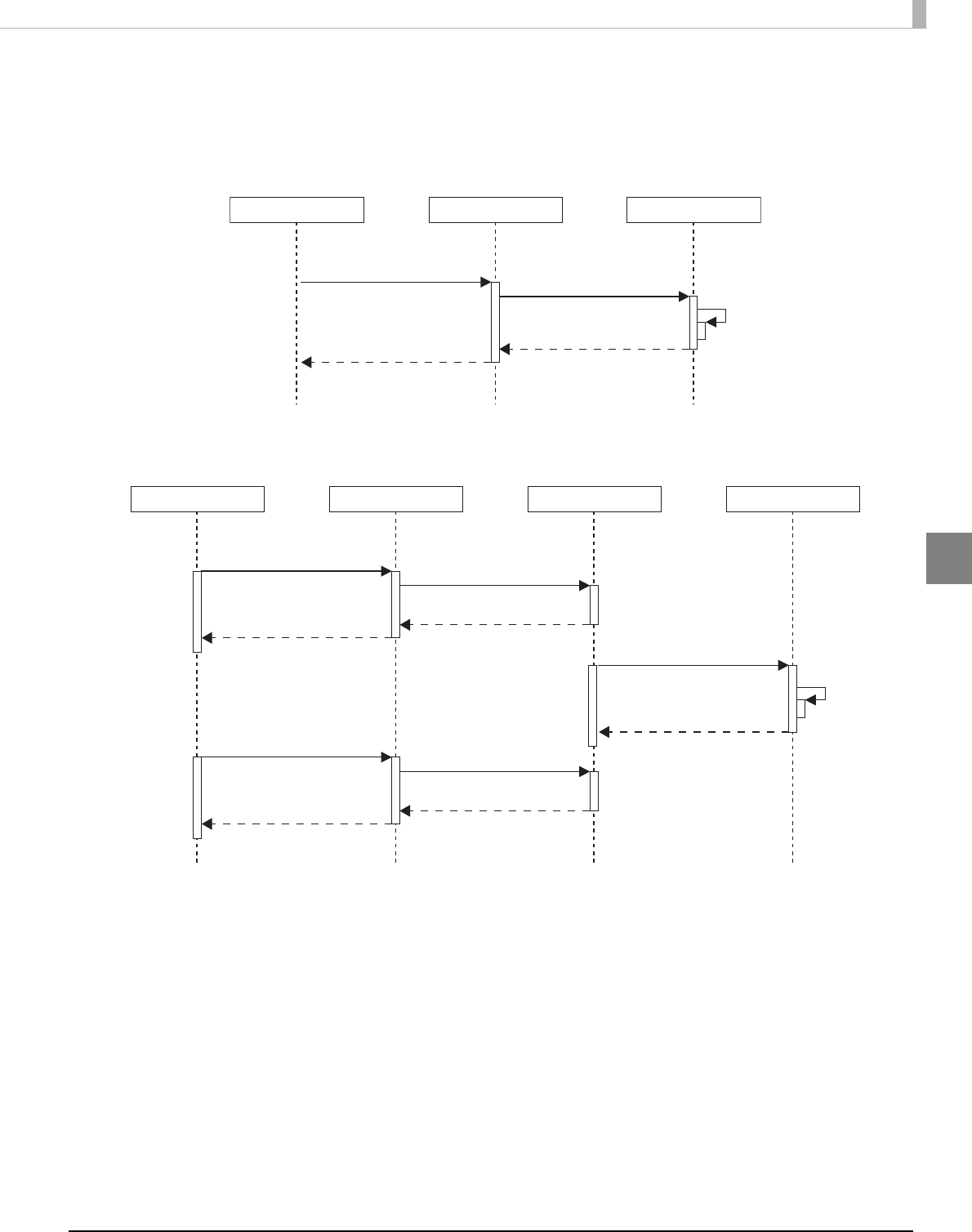

Example
1Send print data A to a TM-i (ePOS-Print Service I/F) from the input terminal.
2The TM-i will save the print data A to the spooler and will return response data to
the input terminal.
3The TM-i will retrieve the print data and issue a print command to another TM-i
printer.
<TM-i><Input Terminal> <Printer A>
<Print Data>
24
4Print data B will be sent to the TM-i from the input terminal.
5The TM-i will save the print data B to the spooler and will return response data to
the input terminal.
6The TM-i will retrieve the print data B and issue a print command to printer A.
7Print data A is complete.
8A query on print data A results will be sent to the TM-i from the input terminal.
9The TM-i will return response data back to the input terminal signifying that print
data A completed without error.
25
Chapter 1 Overview
1
Forwarding
1Send print data to ePOS-Print Service I/F from the input terminal.
2The TM-i issues a print command to printer A.
3Printer A does not respond.
4The TM-i reissues a print command to printer A.
If printer A still does not respond to the reissued print command, the print com-
mand will be issued to printer B.
5Print data sent from the input terminal will be printed using printer B.
EPSON TMNet WebConfig is used to configure forwarding settings. For details, refer to the
Technical Reference Guide for each TM-i.
<TM-i>
<Input Terminal>
<Printer A> <Printer B>
26
Contents in the Package
Manual
❏ePOS-Print API User’s Manual (This Document)
❏ePOS-Print XML User’s Manual
❏TM-T88V-i Technical Reference Guide
❏TM-T70-i Technical Reference Guide
❏TM-L90-i Technical Reference Guide
❏TM-P60II Technical Reference Guide
❏TM-P80 Technical Reference Guide
Sample Program
ePOS-Print_Sample_API_V4.x.xE.zip
The following are included:
❏epos-print-4.x.x.js (ePOS-Print JavaScript for embedding)
❏sample/index.html (Sampleprogram)
❏editor/index.html (ePOS-Print Editor)
❏win8/ePOS-Print Demo.zip (Windows Store apps sample program)
❏Rendering in HTML5 Canvas
canvas/canvas-print-text.html(Rendering text)
canvas/canvas-print-image.html(Rendering images)
canvas/canvas-print-graph.html(Rendering graphics)
canvas/canvas-print-hand.html(Rendering handwritten images)
canvas/canvas-print-barcode.html(Rendering barcode)
canvas/canvas-print-label.html(Rendering label)
❏README.txt
Utility
❏TM-i Series
Utility TM-T88V-i TM-T70-i TM-L90-i
Model-Dedicated Utility ●--
Memory Switch Setting Utility - - ●
TM Flash Logo Setup Utility
(TMFLogo) -●●
TMNet WinConfig
(EpsonNet Config) ● ● ●
27
Chapter 1 Overview
1
Download
For customers in North America, go to the following web site:
http://www.epsonexpert.com/ and follow the on-screen instructions.
For customers in other countries, go to the following web site:
https://download.epson-biz.com/?service=pos
28
Restrictions
❏The drawer and the buzzer cannot be used together.
❏The buzzer function cannot be used if the printer is not provided with the buzzer.
❏Internet Explorer 9 does not allow printing to the printer to be performed from security-protected Web
pages (HTTPS).
❏When multiple tones are set for raster images, intermitting printing may occur because the amount of
data to print increases and white stripes may appear in the print result.
❏The scan quality of barcodes/two-dimensional symbols printed as multiple-tone raster images cannot be
guaranteed. Print them as two-tone images.
❏If printing was cancelled, perform the following settings to clear the data left in the printer.
In the printer DIP switches (memory switches), configure the Busy condition only for the receive buffer
full.
Disable the command execution (offline). (TM-P60II, TM-P80)
29
Chapter 2 Sample Program
2
Sample Program
This chapter describes how to use the sample program.
Sample Program System Overview
Sample Program Screen
The screen compositions for the sample program are as follows:
• In this chapter, descriptions are made based on a system configuration using a Web server.
• Descriptions are made assuming that the Web server in this chapter is a Web server configured
by using IIS (Microsoft Internet Information Services). If your Web server is used in a different
environment, interpret the descriptions accordingly.
Item Description
1 Queue Ticket Prints queue ticket numbers.
This is a sample program using the ePOS-Print API.
2 Coupon
Prints coupons.
This is a sample program using the ePOS-Print Canvas
API.
3 Label Prints labels.
This is a sample program using the ePOS-Print API.
1
2
4
3
30
4 Settings
Displays the "Settings" screen. The screen is used to set
the following:
IP address of the ePOS-Print supported TM printer
(Default :
TM-i: DHCP
(If an address fails to be assigned via DHCP, the
value becomes "192.168.192.168".)
TM Printer:
192.168.192.168
)
Device ID of the target printer
(Default : local_printer)
Print timeout( milliseconds )
(Default : 60000)
Prints coupons in gray scale (Coupon)
(Default : No)
Prints labels with specified layout (Label)
(Default: No)
Item Description
31
Chapter 2 Sample Program
2
Print Image
The sample program prints the following:
Your Number:
Name
Color
Code
*2012001*
Item A
Red
Coupon
(ePOS-Print Canvas API)
Your Number
(ePOS-Print API)
Label *
(ePOS-Print API)
*: Die cut label: mount width 58 mm or above
Label size: width 54 mm x height 25.4 mm or above
32

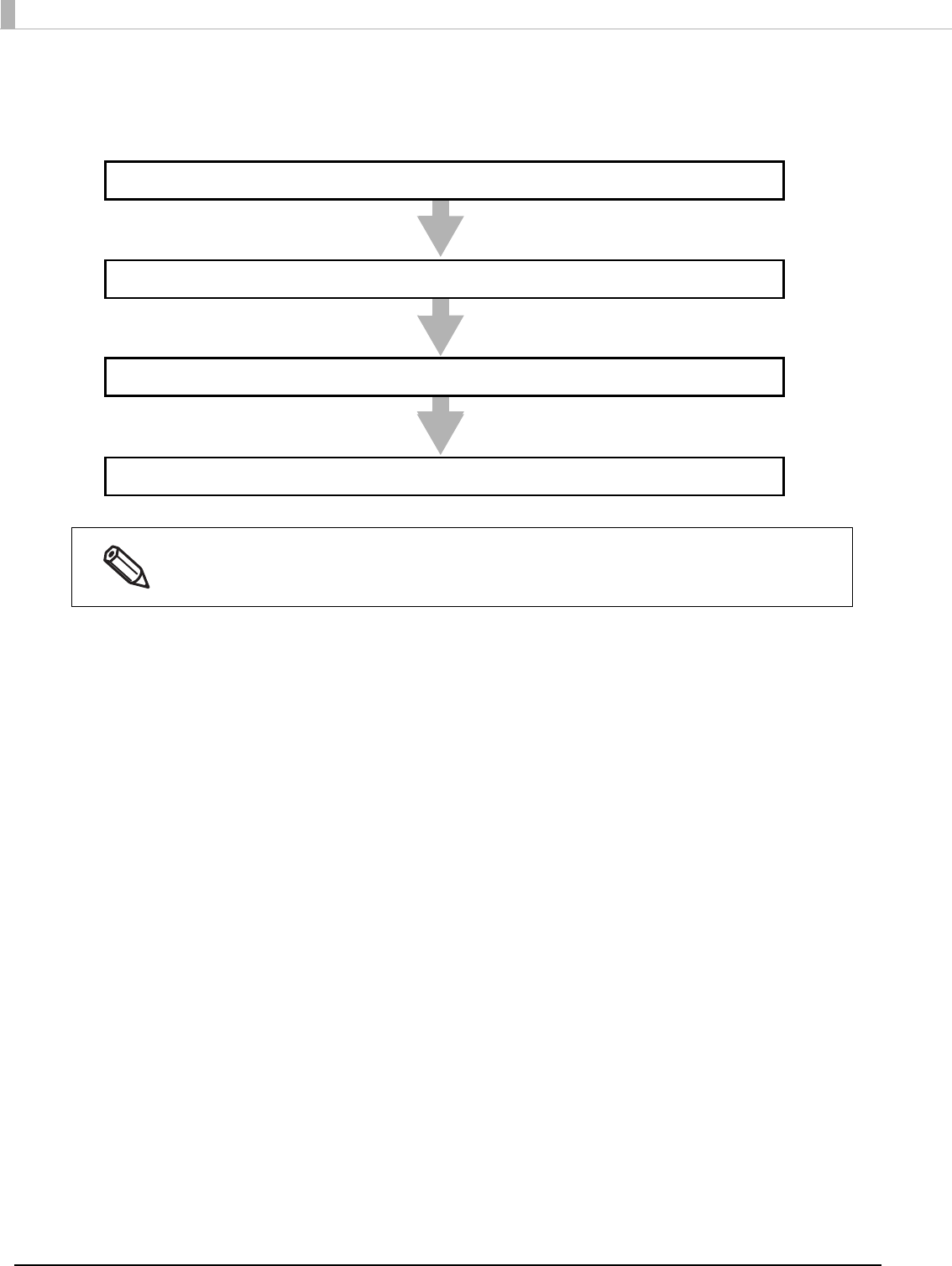

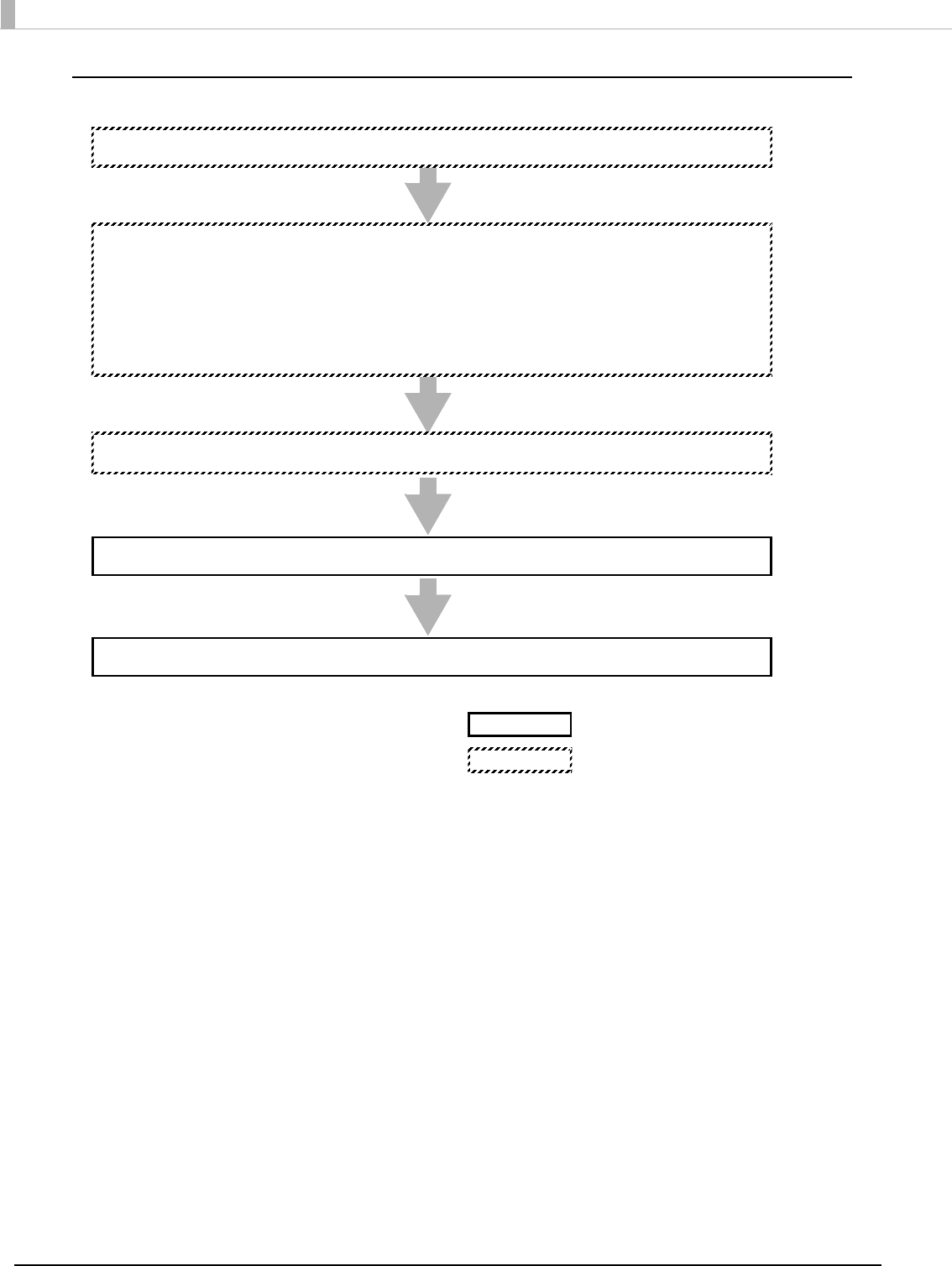

Program Flow
From its initial display state up to print job completion, the sample program flows as below.
Queue ticket number issuance (ePOS-Print API)
3. Click "Queue Ticket"
2. Settings
❏Settings of IP address of ePOS-Print supported TM printer
❏Device ID of the printer to be controlled
❏Print timeout time
1. Open the sample program Web page
4. Creates print data (ePOS-Print Builder Object)
Action on the sample program
Action on the customer
5. Prints (ePOS-Print Object)
33
Chapter 2 Sample Program
2
Coupon issuance (ePOS-Print Canvas API)
3. Click “Coupon”
2. Settings
❏Settings of IP address of ePOS-Print supported TM printer
❏Device ID of the printer to be used for printing
❏Print timeout time
1. Open the sample program Web page
4. Render in HTML5 Canvas
5. Prints (ePOS-Print Canvas API Object)
Action on the sample program
Action on the customer
34
Label issuance (ePOS-Print API)
3. Click "Label"
2. Settings
❏Settings of IP address of ePOS-Print supported TM printer
❏Device ID of the printer to be controlled
❏Print timeout time
❏Settings of with or without layout specification in label printing of TM-P60II
1. Open the sample program Web page
4. Creates print data (ePOS-Print Builder Object)
Action on the sample program
Action on the customer
5. Prints (ePOS-Print Object)
35
Chapter 2 Sample Program
2
Operating Environment
TM-i
The system configuration diagram for the sample programs is as below.
❏Web server/computer to configure the settings
(Descriptions here are made assuming that the Web server is the same as the computer to configure the
settings.)
❏Wireless LAN Router
❏TM-i (1 set)
❏Terminal
Terminal with an HTML5-supported Web browser
• The figure below also describes an example of IP address settings as network settings.
• In the sample program, "Printer to be controlled" is not required. Refer to it if necessary.
Web Server
Computer to configure the settings
[192.168.192.10]
Terminal
[192.168.192.XXX] *
Wireless LAN Router
[192.168.192.1]
TM-i
[192.168.192.20]
Printer to be controlled
[192.168.192.21]
Wireless
Network
*: When DHCP is used for the terminal
36
Environment Settings
A flow for configuring the environment settings for the sample program is shown as follows:
3.Registration of Sample Program (p.38)
1. Router Settings
Configure the settings such as SSID, IP address, DHCP, and allocated IP address. For
details, refer to the manual for the device you are using.
1. Network Settings
Configure the network settings for the computer such as IP address.
2. Web Server Configuration
Configure a Web server on the computer.
2. Computer Settings
4. Terminal settings
Configure the wireless LAN (Wi-Fi) settings of the terminal to match the router settings so as to
enable network connection. For details, refer to the manual for the device you are using.
5. Network Setting of ePOS-Print Supported TM printer
Configure the network settings for an ePOS-Print-supported TM printer such as IP address.
Configure the network settings for the computer such as IP address by using EPSON TMNet
WebConfig from the Web browser on the computer to configure the settings.
For the configuration procedure, refer to Technical Reference Guide for each TM printer.
6. Network settings for the printer to be controlled
Configure these settings by using the network setting utility. For details, refer to the detailed
instruction manual for the printer (these settings are not required in this sample program).
37
Chapter 2 Sample Program
2
7. Device ID Settings
Configure the settings for the computer by using EPSON TMNet WebConfig from a Web browser.
For the configuration procedure, refer to Technical Reference Guide for each TM-i.
(these settings are not required in this sample program)
8. Print Forwarding Settings
Configure these settings to set forwarding on the TM-i series. For details, refer to Technical Reference
Guide for TM-i.
(these settings are not required in this sample program)
9. Sample Program Settings (p.39)
Configuration is done from a Web browser(these settings are not required in this sample program).
38
Registration of Sample Program
Register the sample program into the Web server.
Register the program according to the following procedure:
1Start the Web server.
2Explode the sample program (ePOS-Print_Sample_API_V4.x.xE.zip) and then copy
the exploded contents into the following folder:
Example: Web server configured by using IIS
System drive:\ Inetpub\wwwroot
Download ePOS-Print_Sample_API_V4.x.xE.zip.
For details, refer to Contents in the package (p. 26).
Copy the sample program as a user with administrator authority.
39
Chapter 2 Sample Program
2
Sample Program Settings
Configure the settings for the sample program according to the procedure below.
1Start the Web server.
2Connect all the printers to the network and turn their power ON.
3Open the following URL page using the Web browser.
http://Web server IP address/sample/index.html
4The sample program page opens. Click [Settings].
In the sample program, "Device ID Settings" are not required. Refer to it if necessary.
40
5The “Settings” screen appears. Specify the following and click [OK].
Item Description
IP address of the intelligent printer
Specifies the IP address of the ePOS-Print supported TM
printer.
(Default value:
TM-i: DHCP
(If an address fails to be assigned via DHCP, the
value becomes "192.168.192.168".)
TM Printer: 192.168.192.168
)
Device ID of the target printer
Specifies the Device ID of the printer to print queue
ticket numbers and coupons. (Default value:
local_printer)
Print timeout (millisecond) Specifies the timeout time. (default : 60000)
Print in grayscale (Coupon)
(Only for supported models)
Prints coupons in gray scale. (Default: No)
Set the paper layout (Label)
(Only for TM-P60II)
Prints labels with specified layout (Default: No)
41
Chapter 3 Programming Guide
3
Programming Guide
This chapter describes how to write programs in the application development using ePOS-Print.
ePOS-Print API
Print Mode
There are two types of print modes: standard and page modes.
Standard mode
In standard mode, characters are printed line by line. The line feed space is adjusted based on the font size
and the height of images, barcodes, etc. This mode is suitable for the type of printing such as printing
receipts that requires the paper length to change according to the print space.
Page mode
In page mode, you set a print area, lay out data in it, and print the data in a batch operation. Characters,
images, and barcodes are laid out in the print positions (coordinates).
Programming Flow
For the ePOS-Print API, programming is performed based on the following work flow:
• ePOS-Print supported TM printer checks the status of the TM printer to be used for printing and
then starts printing operation.
• A status event helps check the status of the TM printer. For details on the procedure, refer to
Reception of Status Event (p. 49).
1. Embedding of ePOS-Print API (p.42)
2. Print Document Creation (p.43)
❏To create a text print document: (p.44)
❏To create a graphic print document: (p.44)
❏To create a page mode print document (p.45)
4. Reception of Print Result (p.47)
3. Transmission of Print Document (p.46)
42
Embedding of ePOS-Print API
The ePOS-Print API is provided so that ePOS-Print can be used from the JavaScript on the client side.
It is provided as JavaScript, and its file name is “epos-print-4.x.x.js”.
The ePOS-Print API is used by embedding epos-print-4.x.x.js into applications.
Preparation
To use the ePOS-Print API, place epos-print-4.x.x.js on the Web server.
Embedding into Web pages
Embed the script into the Web page by using the HTML <script> tags.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function buildMessage() {
var builder = new epson.ePOSBuilder();
.
.
}
</script>
</head>
<body>
.
.
</body>
</html>
Embed
43
Chapter 3 Programming Guide
3
Print Document Creation
A print document is created using an ePOS-Print Builder object.
Create an ePOS-Print Builder object using the constructor for it; create a print document using the object's
methods; and then acquire that print document using the toString method. For details, refer to List of API
functions (p.61).
Refer to the following program for print document creation.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function buildMessage() {
//Create an ePOS-Print Builder object
var builder = new epson.ePOSBuilder();
//Create a print document
builder.addTextLang('en')
builder.addTextSmooth(true);
builder.addTextFont(builder.FONT_A);
builder.addTextSize(3, 3);
builder.addText('Hello,\tWorld!\n');
builder.addCut(builder.CUT_FEED);
//Acquire the print document
var request = builder.toString();
alert(request);
}
</script>
</head>
<body>
<button onclick=”buildMessage()”>Run</button>
</body>
</html>
Create a print document
44
To create a text print document:
To create a text print document, store the font settings into the command buffer using text methods and
then create a print document. Refer to the following program.
To create a graphic print document:
To create a graphic print document, store a raster image obtained by rendering an image in HTML5
Canvas into the command buffer using the addImage method. Refer to the following program.
This section describes how to print a raster image. In addition, there is also a method of printing
graphics registered in the NV memory of the printer. For details, refer to addLogo method (p.90).
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function buildMessage() {
//Create an ePOS-Print Builder object
var builder = new epson.ePOSBuilder();
//Create a print document
//<Configure the print character settings>
builder.addTextLang('en');
builder.addTextSmooth(true);
builder.addTextFont(builder.FONT_A);
builder.addTextSize(4, 4);
builder.addTextStyle(false, false, true, undefined);
//<Specify the print data>
builder.addText('Hello,\tWorld!\n');
builder.addCut(builder.CUT_FEED);
//Acquire the print document
var request = builder.toString();
}
</script>
For the string "Hello World!", to create a print document based on the following settings:
❏Font: FontA
❏Scale: x 4 (horizontal) and x 4 (vertical)
❏Style: Bold
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function buildMessage() {
//Create an ePOS-Print Builder object
var builder = new epson.ePOSBuilder();
//Render an image in HTML5 Canvas
var canvas = document.getElementById('canvas');
var context = canvas.getContext('2d');
context.drawImage(document.getElementById('logo'), 0, 0, 200, 70);
//Create a print document
builder.addTextAlign(builder.ALIGN_CENTER);
builder.addImage(context, 0, 0, canvas.width, canvas.height, builder.COLOR_1);
builder.addCut(builder.CUT_FEED);
//Acquire the print document
var request = builder.toString();
}
</script>
To create a print document for the image file “logo.bmp”
45
Chapter 3 Programming Guide
3
To create a page mode print document
When the addPageBegin method is stored in the command buffer, the page mode starts. Store the print
area (addPageArea method) and the print start position (addPagePosition method) into the command
buffer. Specify the print start position according to the print data. After that, store the methods into the
command buffer to create print data. For the end of page mode, store the addPageEnd method into the
command buffer.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function buildMessage() {
//Create an ePOS-Print Builder object
var builder = new epson.ePOSBuilder();
//Create a print document
//<The page mode starts>
builder.addPageBegin();
//<Specify the page mode print area>
builder.addPageArea(100, 50, 200, 100);
//<Specify the page mode print position>
builder.addPagePosition(0, 42);
//<Specify the print data>
builder.addTextLang('en');
builder.addTextFont(builder.FONT_A);
builder.addTextSize(4, 4);
builder.addTextStyle(false, false, true, undefined);
builder.addText('Hello,\tWorld!\n');
//<The page mode ends>
builder.addPageEnd();
builder.addCut(builder.CUT_FEED);
//Acquire the print document
var request = builder.toString();
}
</script>
For the string "Hello World!", to create a print document based on the following settings:
46
Transmission of Print Document
A print document is sent using an ePOS-Print object.
Create an ePOS-Print object using the constructor and specify the end point address for the printer to be
used for printing as well as the print document into the send method to send the document.
For the details about the printer end point address, refer to Printer End Point Address (p.46).
Refer to the following program.
Printer End Point Address
Specify the printer end point address in the following format:
http://[domain]/cgi-bin/epos/service.cgi?devid=[device ID]&timeout=[timeout time]
Items to specify Description
Domain Specify IP address or domain of ePOS-Print supported TM printer.
Device ID Specifies the printer to be used for printing.
Specify device ID registered with EPSON TMNet WebConfig of ePOS-Print
supported TM printer.
Timeout period Specifies the time to abort the process in milliseconds.
The timeout parameter is optional; when it is omitted, 300 seconds (300000) is set.
When the timeout period elapses, the print job is canceled; the data already
interpreted by the printer before the start of the print abort process is printed.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function buildMessage() {
//Create a print document
var builder = new epson.ePOSBuilder();
builder.addTextLang('en');
builder.addTextSmooth(true);
builder.addTextFont(builder.FONT_A);
builder.addTextSize(3, 3);
builder.addText('Hello,\tWorld!\n');
builder.addCut(builder.CUT_FEED);
var request = builder.toString();
//Set the end point address
var address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer&timeout=10000';
//Create an ePOS-Print object
var epos = new epson.ePOSPrint(address);
//Send the print document
epos.send(request);
}
</script>
</head>
<body>
<button onclick=”buildMessage()”>Run</button>
</body>
</html>
Transmission of print document
47
Chapter 3 Programming Guide
3
Reception of Print Result
The print result can be received by setting a callback function using the onreceive property (p. 145) of the
ePOS-Print object. The following information is obtained:
❏Print result
❏Error code
❏Printer status
Refer to the following program. For the details about how to program a callback function in detail, refer to
Error handling (p.48).
The printer status can be obtained when communication with the printer is possible.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function buildMessage() {
//Create a print document
var builder = new epson.ePOSBuilder();
builder.addTextLang('en');
builder.addTextSmooth(true);
builder.addTextFont(builder.FONT_A);
builder.addTextSize(3, 3);
builder.addText('Hello,\tWorld!\n');
builder.addCut(builder.CUT_FEED);
var request = builder.toString();
var address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer&timeout=10000';
//Create an ePOS-Print object
var epos = new epson.ePOSPrint(address);
//Set a response receipt callback function
epos.onreceive = function (res) {
//When the printing is not successful, display a message
if (!res.success) {
alert('A print error occurred');
}
}
//Send the print document
epos.send(request);
}
</script>
</head>
<body>
<button onclick=”buildMessage()”>Run</button>
</body>
</html>
Print result receipt
callback function
48
Error handling
Refer to the following program for the error handling method by a callback function.
//Create an ePOS-Print object
var epos = new epson.ePOSPrint(address);
// Set a response receipt callback function
epos.onreceive = function (res) {
// Obtain the print result and error code
var msg = 'Print' + (res.success ? 'Success' : 'Failure') + '\nCode:' + res.code
+ '\nStatus:\n';
// Obtain the printer status
var asb = res.status;
if (asb & epos.ASB_NO_RESPONSE) {
msg += ' No printer response\n';
}
if (asb & epos.ASB_PRINT_SUCCESS) {
msg += ' Print complete\n';
}
if (asb & epos.ASB_DRAWER_KICK) {
msg += ' Status of the drawer kick number 3 connector pin = "H"\n';
}
if (asb & epos.ASB_OFF_LINE) {
msg += ' Offline status\n';
}
if (asb & epos.ASB_COVER_OPEN) {
msg += ' Cover is open\n';
}
if (asb & epos.ASB_PAPER_FEED) {
msg += ' Paper feed switch is feeding paper\n';
}
if (asb & epos.ASB_WAIT_ON_LINE) {
msg += ' Waiting for online recovery\n';
}
if (asb & epos.ASB_PANEL_SWITCH) {
msg += ' Panel switch is ON\n';
}
if (asb & epos.ASB_MECHANICAL_ERR) {
msg += ' Mechanical error generated\n';
}
if (asb & epos.ASB_AUTOCUTTER_ERR) {
msg += ' Auto cutter error generated\n';
}
if (asb & epos.ASB_UNRECOVER_ERR) {
msg += ' Unrecoverable error generated\n';
}
if (asb & epos.ASB_AUTORECOVER_ERR) {
msg += ' Auto recovery error generated\n';
}
if (asb & epos.ASB_RECEIPT_NEAR_END) {
msg += ' No paper in the roll paper near end detector\n';
}
if (asb & epos.ASB_RECEIPT_END) {
msg += ' No paper in the roll paper end detector\n';
}
if (asb & epos.ASB_BUZZER) {
msg += ' Sounding the buzzer (limited model)\n';
}
if (asb & epos.ASB_SPOOLER_IS_STOPPED) {
msg += ' Stop the spooler\n';
}
//Display in the dialog box
alert(msg);
}
49
Chapter 3 Programming Guide
3
Reception of Status Event
The status event notification function is used to check the printer status without printing. Refer to the
following:
//Set the end point address
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer
&timeout=10000';
//Create an ePOS-Print Builder object
var builder = new epson.ePOSBuilder(address);
//Set an event callback function (cover open)
epos.oncoveropen = function () {
alert('coveropen');
};
//Set an event callback function (paper near end)
epos.onpapernearend = function () {
alert('papernearend');
};
//Enable status event operation
epos.open();
50
ePOS-Print Canvas API
For the ePOS-Print Canvas API, programming is performed based on the following work flow:
• ePOS-Print supported TM printer starts printing after checking the status of TM printer.
• A status event helps check the status of the TM printer. For details on the procedure, refer to
Reception of Status Event (p. 49).
1. Embedding of ePOS-Print Canvas API (p.51)
4. Reception of Print Result (p.54)
3. Prints an Canvas image (p.53)
2. Rendering in HTML5 Canvas (p.52)
51
Chapter 3 Programming Guide
3
Embedding of ePOS-Print Canvas API
The ePOS-Print Canvas API is provided as JavaScript. And its file name is "epos-print-4.x.x.js".
It is used by embedding epos-print-4.x.x.js into applications.
Preparation
To use the ePOS-Print Canvas API, place epos-print-4.x.x.js on the Web server.
Embedding into Web pages
Embed the script into the Web page by using the HTML <script> tags.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function drawCanvas() {
.
.
}
</script>
</head>
<body>
.
.
</body>
</html>
Embed
52
Rendering in HTML5 Canvas
Render an image in HTML5 Canvas.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function drawCanvas() {
// Rendering in HTML5 Canvas
//<Obtain the context>
var canvas = document.getElementById('myCanvas');
var context = canvas.getContext('2d');
//<Render an image>
context.clearRect(0, 0, 512, 480);
context.drawImage(document.getElementById('coffee'), 0, 0
, 512, 384);
context.fillStyle = 'rgba(255, 255, 255, 0.5)';
context.fillRect(0, 0, 512, 480);
context.fillStyle = 'rgba(0, 0, 0, 1.0)';
//<Render a water mark for the image>
context.drawImage(document.getElementById('wmark'), 0, 0);
context.drawImage(document.getElementById('wmark'), 256, 324);
//<Render text>
context.textAlign = 'center';
context.textBaseline = 'alphabetic';
context.font = 'bold normal normal 48px "Times New Roman", serif';
context.fillText('FREE Coffee', 256, 224);
}
</script>
</head>
<body>
<button onclick="drawCanvas()">Run</button>
<canvas id="myCanvas" width="512" height="480"></canvas>
<img id="coffee" src="img/coffee.jpg" alt="">
<img id="wmark" src="img/wmark.png" alt="">
</body>
</html>
Rendering in HTML5 Canvas
53
Chapter 3 Programming Guide
3
Prints an Canvas image
Content drawn in HTML5 Canvas is printed using the ePOS-Print Canvas API.
Create an ePOS-Print Canvas API object using the constructor; for the Print method, specify the end point
address for the printer to be used for printing as well as the canvas content and whether to select paper
cut; and then print a document. For the details about the printer end point address, refer to Printer End
Point Address (p.46).
Refer to the following program.
For the details about the printer end point address, refer to Printer End Point Address (p.46).
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function drawCanvas() {
// Rendering in HTML5 Canvas
//<Obtain the context>
var canvas = document.getElementById('myCanvas');
var context = canvas.getContext('2d');
.
.
.
//Set the end point address
var address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer&timeout=10000';
//Create an ePOS-Print Canvas API object
var epos = new epson.CanvasPrint(address);
//Print
epos.cut = true;
epos.print(canvas);
}
</script>
</head>
<body>
<button onclick="drawCanvas()">Run</button>
<canvas id="myCanvas" width="512" height="480"></canvas>
<img id="coffee" src="img/coffee.jpg" alt="">
<img id="wmark" src="img/wmark.png" alt="">
</body>
</html>
Transmission of print document
54
Reception of Print Result
The print result can be received by setting a callback function using the onreceive property (p. 145) of the
ePOS-Print Canvas API object. The following information is obtained:
❏Print result
❏Error code
❏Printer Status
Refer to the following program. For the details about how to program a callback function in detail, refer to
Error handling (p.48).
The printer status can be obtained when communication with the printer is possible.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>TITLE</title>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
function drawCanvas() {
// Rendering in HTML5 Canvas
//<Obtain the context>
var canvas = document.getElementById('myCanvas');
var context = canvas.getContext('2d');
.
.
.
//Set the end point address
var address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer&timeout=10000';
//Create an ePOS-Print Canvas API object
var epos = new epson.CanvasPrint(address);
//Set a response receipt callback function
epos.onreceive = function (res) {
//When the printing is not successful, display a message
if (!res.success) {
alert('A print error occurred');
}
}
//Print
epos.cut = true;
epos.print(canvas);
}
</script>
</head>
<body>
<button onclick="drawCanvas()">Run</button>
<canvas id="myCanvas" width="512" height="480"></canvas>
<img id="coffee" src="img/coffee.jpg" alt="">
<img id="wmark" src="img/wmark.png" alt="">
</body>
</html>
Print result receipt
callback function
55
Chapter 3 Programming Guide
3
Error handling
Refer to the following program for the error handling method by a callback function.
var epos = new epson.CanvasPrint(address);
// Set a response receipt callback function
epos.onreceive = function (res) {
// Obtain the print result and error code
var msg = ''Print ' + (res.success ? 'Success' : 'Failure') + '\nCode:'
+ res.code + '\nStatus:\n';
// Obtain the printer status
var asb = res.status;
if (asb & epos.ASB_NO_RESPONSE) {
msg += ' No printer response\n';
}
if (asb & epos.ASB_PRINT_SUCCESS) {
msg += ' Print complete\n';
}
if (asb & epos.ASB_DRAWER_KICK) {
msg += ' Status of the drawer kick number 3 connector pin = "H"\n';
}
if (asb & epos.ASB_OFF_LINE) {
msg += ' Offline status\n';
}
if (asb & epos.ASB_COVER_OPEN) {
msg += ' Cover is open\n';
}
if (asb & epos.ASB_PAPER_FEED) {
msg += ' Paper feed switch is feeding paper\n';
}
if (asb & epos.ASB_WAIT_ON_LINE) {
msg += ' Waiting for online recovery\n';
}
if (asb & epos.ASB_PANEL_SWITCH) {
msg += ' Panel switch is ON\n';
}
if (asb & epos.ASB_MECHANICAL_ERR) {
msg += ' Mechanical error generated\n';
}
if (asb & epos.ASB_AUTOCUTTER_ERR) {
msg += ' Auto cutter error generated\n';
}
if (asb & epos.ASB_UNRECOVER_ERR) {
msg += ' Unrecoverable error generated\n';
}
if (asb & epos.ASB_AUTORECOVER_ERR) {
msg += ' Auto recovery error generated\n';
}
if (asb & epos.ASB_RECEIPT_NEAR_END) {
msg += ' No paper in the roll paper near end detector\n';
}
if (asb & epos.ASB_RECEIPT_END) {
msg += ' No paper in the roll paper end detector\n';
}
if (asb & epos.ASB_BUZZER) {
msg += ' Sounding the buzzer (limited model)\n';
}
if (asb & epos.ASB_SPOOLER_IS_STOPPED) {
msg += ' Stop the spooler\n';
}
//Display in the dialog box
alert(msg);
}
56
Reception of Status Event
The status event notification function is used to check the printer status without printing. Refer to the
following.
//Set the end point address
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer
&timeout=10000';
//Create an ePOS-Print Canvas API object
var epos = new epson.CanvasPrint(address);
//Set an event callback function (cover open)
epos.oncoveropen = function () {
alert('coveropen');
};
//Set an event callback function (paper near end)
epos.onpapernearend = function () {
alert('papernearend');
};
//Enable status event operation
epos.open();
57
Chapter 3 Programming Guide
3
Using the Spooler Function
A printing job will be executed immediately and a response will be returned to the application after printing
is complete when sending a printing request to ePOS-Print Service I/F from the application when the spooler
function is disabled.
The print data job will be added to the queue and a response will be returned to the application without
waiting for printing to complete when sending a printing request to ePOS-Print Service I/F from the
application when the spooler function is enabled.
ePOS-Print Printer
Application
1.2 : Printing results
1.1 : Cmd()
1.3 : callback(” success”)
1.1.1 : Print()
1 : send()
ePOS-Print Printer
Application Spooler
1.2 : Execution result
1.1 : send()
1.3 : callback(” success”)
2.1 : Print()
2 : Cmd()
Print result
1 : send(printjobid)
3 : getPrintJobStatus(printjobid)
3.2 : Print result
3.1 : getPrintJobStatus()
3.3 : callback(” success”)
58
Even if the output printer cannot complete the printing task, ePOS-Print Service I/F does not return an error
to the application. Enabling forward printing will allow for the printing task to be completed on a substitute
printer, with the application acquiring the printing results afterward. Refer to the sequence diagram below.
ePOS-Print Printer Forwarding printer
Application Spooler
1.2 : Execution result
1.1 : send()
1.3 : callback(” success”)
2.1 : Print()
2 : Cmd()
Printing results (Failure)
3.1 : Print()
3 : Cmd()
Printing results (Success)
1 : send(printjobid)
4 : getPrintJobStatus(printjobid)
4.2 : Printing result
4.1 : getPrintJobStatus()
4.3 : callback(” success”)
59
Chapter 3 Programming Guide
3
Programming Example
A response containing the specified print job ID will be returned when the spooler function is enabled.
ePOS-Print Service I/F will issue a print job ID if the print job ID is not specified by the application.
The print job status can be acquired using the print job ID contained in the response.
var printjobid = '';
function sendJob() {
var builder = new epson.ePOSBuilder();
builder.addText('Hello, World!\n');
builder.addCut();
var request = builder.toString();
var address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onreceive = function (res) {
if (res.success) {
printjobid = res.printjobid;
}
}
epos.onerror = function (err) { alert(err.status); };
epos.send(request);
}
function getJobStatus() {
if (printjobid.length > 0) {
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi';
var epos = new epson.ePOSPrint(address);
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.getPrintJobStatus(printjobid);
}
}
60
61
Chapter 4 ePOS-Print API
4
ePOS-Print API
This chapter describes the ePOS-Print API.
List of API functions
ePOS-Print provides the following objects:
❏ePOS-Print Builder (window.epson.ePOSBuilder) Object (p. 61)
❏ePOS-Print (window.epson.ePOSPrint) Object (p. 65)
window.epson.ePOSBuilder Components
Elem-
ent API Description
Stan-
dard
mode
page
mode
Pa-
ge
Constructor
ePOS Builder Initializes an ePOS-Print XML Builder
object ● ● 66
Method
Text
addTextAlign Adds a tag for the text alignment
setting. ●-67
addText-
LineSpace
Adds a tag for the line feed space
setting. ●●68
addTextRotate Adds a tag for the text rotation set-
ting. ●-69
addText Adds a tag for printing text. ●●70
addTextLang Adds a tag for the target language
setting. ● ● 71
addTextFont Adds a tag for the text font setting. ●●74
addTextSmooth Adds a tag for the text smoothing
setting. ● ● 75
addTextDouble Adds a tag for specifying the dou-
ble-sized text setting. ●●76
addTextSize Adds a tag for the text scale setting. ● ● 78
addTextStyle Adds a tag for the text style setting. ●●79
addTextPosition Adds a tag for specifying the print
position of text. ● ● 81
addTextVPosi-
tion *3
Adds a tag for specifying the print
vertical position of text. -●82
62
Method
Paper
Feed
addFeedUnit Adds a tag for paper feeding (in
dots). ●●83
addFeedLine Adds a tag for paper feeding (in
lines). ● ● 84
addFeedPosition
*1
Adds control of label paper/black
mark paper to command buffer ●-85
addFeed Adds a line feed to the command
buffer. ●-87
Graphi-
c
addImage Adds a tag for a raster image to be
printed. ●●88
addLogo Adds a tag for an NV logo to be
printed. ● ● 90
Bar-
code
addBarcode Adds a tag for a bar code to be
printed. ●●91
addSymbol Adds a tag for a two-dimensional
code to be printed. ● ● 96
Ruled
line
addHLine Adds a tag for a horizontal line to be
printed. ●-102
addVLineBegin Adds a tag for starting a vertical line. ●-104
addVLineEnd Adds a tag for finishing a vertical
line. ●-105
Page-
mode
addPageBegin Adds a tag for switching to page
mode. ●-106
addPageEnd Adds a tag for finishing page mode. ●-107
addPageArea Adds a tag for specifying the print
area in page mode. -●108
addPageDirec-
tion
Adds a tag for specifying the print
direction in page mode. -●110
addPagePosition Adds a tag for specifying the print
position in page mode. -●112
addPageLine Adds a tag for drawing a line in
page mode. -●114
addPageRect-
angle
Adds a tag for drawing a rectangle
in page mode. -●116
Cut addCut Adds a tag for paper cut. - ●118
Drawer
kick-
out
addPulse Adds a tag for the drawer kick-out. ●-119
Buzzer addSound Adds a tag for turning on the buzzer. ●-121
Layout addLayout *2 Adds the paper layout setup to
command buffer ●-123
Recov-
ery addRecovery *3 Adds a tag for recovering from an
error. ●-127
Reset addReset *3 Adds a tag for resetting the printer. ●-128
Elem-
ent API Description
Stan-
dard
mode
page
mode
Pa-
ge
63
Chapter 4 ePOS-Print API
4
● : Available, - : Not available
*1 ePOS-Print Service Ver.2.1 or later versions supported
*2 ePOS-Print Service Ver.2.2 or later versions supported
*3 ePOS-Print Service Ver.3.0 or later versions supported
*1 ePOS-Print Service Ver.2.1 or later versions supported
*2 ePOS-Print Service Ver.2.2 or later versions supported
*3 ePOS-Print Service Ver.3.0 or later versions supported
Method
Send
Com-
mand
addCommand Adds commands to the command
buffer. Sends ESC/POS commands. ● ● 129
Create
a Print
Docu-
ment
toString
Obtains a print document gener-
ated by on ePOS-Print Builder
object.
●-130
Element API Description Page
Property
halftone Raster image halftone processing method 131
brightness Raster image brightness correction value 132
force *3 Forced transmission mode 133
message Message buffer 134
Constant
FONT_* font
ALIGN_* alignment
COLOR_* color specification
HALFTONE_* Halftone type
MODE_* Color mode
BARCODE_* bar code type
HRI_* HRI position
SYMBOL_* two-dimensional code type
LEVEL_* error correction level
LINE_* line style
DIRECTION_* page mode print direction
CUT_* paper cut type
DRAWER_* drawer kick-out connector
PULSE_* drawer kick-out pulse length
Constant
PATTERN_* buzzer sound pattern
FEED_* Paper feed position of label paper/black mark paper
LAYOUT_* Type of papers
Elem-
ent API Description
Stan-
dard
mode
page
mode
Pa-
ge
64
Numerical values to be set to parameters
In the ePOS-Print Builder object API, numerical values are set to some parameters. Set values with the
following in mind:
❏Unit
Specify numbers in dots for units that represent length.
(Print position, paper feed space, width and height of images and barcodes, etc.)
❏Range
Depending on the printer specifications, a specifiable range is predetermined. For details, refer to Printer
specifications (p.203).
❏Resolution
The resolution varies depending on the printer. It affects the actual print size. The higher the resolution is,
the smaller the print size becomes, and vice versa. For each printer's resolution, refer to Printer specifica-
tions (p.203).
65
Chapter 4 ePOS-Print API
4
window.epson.ePOSPrint Components
*1 ePOS-Print Service Ver.4.1 or later versions supported
Element API Description Page
Constructor
ePOS-Print Initializes an ePOS-Print object 135
Method
send Sends a message 136
getPrintJobStatus *1 Acquires print job status. 138
open Enables status event operation 139
close Disables status event operation 140
Property
address URL of the printer 141
enabled Enabling/disabling of status event 142
interval Printer status update interval 142
status Status 143
battery Battery status 143
timeout The connecting was timeout. 144
Event
onreceive Response message receipt event 145
onerror Communication error event 148
onstatuschange Status change event 149
onbatterystatuschange Battery status chenge event 149
ononline Online event 150
onoffline Offline event 150
onpoweroff Non-response event 151
oncoverok Cover close event 151
oncoveropen Cover open event 152
onpaperok Paper remaining event 152
onpapernearend Paper near end event 153
onpaperend Paper end event 153
Event
ondrawerclosed Drawer close event 154
ondraweropen Drawer open event 154
onbatteryok Battery OK event 155
onbatterylow Battery low event 155
Constant
ASB_* Status
66
ePOS-Print Builder Object
This objects creates a print document for printer control commands that specify strings or graphics to be
printed, paper cut, etc.
Constructor
Constructor for an ePOS-Print Builder object.
Creates a new ePOS-Print Builder object and initializes it.
Syntax
ePOSBuilder();
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
}
//-->
</script>
67
Chapter 4 ePOS-Print API
4
addTextAlign method
Adds the text alignment setting to the command buffer.
Syntax
addTextAlign(align);
Parameter
align : ( Required parameter, Object type : String)
Specifies the text alignment.
Return value
Exception
Example
• This API setting is applied to raster image/NV logo/barcode/two-dimensional symbol.
• When using the standard mode, specify addTextAlign in "Position at the beginning of lines".
• In the page mode, addTextAlign method specification cannot be used.
In the page mode, use the addTextPosition method to designate the horizontal print position.
• When the page mode is selected for the print mode, to set text rotation, use the
addPageDirection method (p. 110) instead of this API function.
Constant(align) Description
ALIGN_LEFT (default) Alignment to the left
ALIGN_CENTER Alignment to the center
ALIGN_RIGHT Alignment to the right
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextAlign(builder.ALIGN_CENTER);
}
//-->
</script>
To set alignment to the center:
68
addTextLineSpace method
Adds the line feed space setting to the command buffer.
Syntax
addTextLineSpace(linespc);
Parameter
linespc : ( Required parameter, Object type : Number)
Specifies the line feed space (in dots). Specifies an integer from 0 to 255.
Return value
Exception
Example
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextLineSpace(30);
}
//-->
</script>
To set the line feed space to 30 dots:
69
Chapter 4 ePOS-Print API
4
addTextRotate method
Adds the text rotation setting to the command buffer.
Syntax
addTextRotate(rotate);
Parameter
rotate : ( Required parameter, Object type : Boolean)
Specifies whether to rotate text.
Return value
Exception
Example
• This API setting also applies to barcodes/two dimensional symbols.
• When using the standard mode, specify addTextAlign in "Position at the beginning of lines".
• In the page mode, addTextAlign method specification cannot be used.
• When the page mode is selected for the print mode, to set text rotation, use the
addPageDirection method (p.110) instead of this API function.
Setting Description
true or 11 Specifies rotated printing of text.
false or 0 (default) Cancels rotated printing of text.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextRotate(true);
}
//-->
</script>
To set text rotation:
70
addText method
Adds the printing of text to the command buffer.
Syntax
addText(data);
Parameter
data : ( Required parameter, Object type : String)
Specify a character string to be printed.
For the horizontal tab/line feed, use the following escape sequences:
Return valueReturn value
Exception
Example
• After printing text, to print content other than text, execute line feed or paper feed.
• In page mode, characters are laid out in the current print position with the reference point being
the character baseline dot (Printer specifications (p.203).
String Description
\t Horizontal tab(HT)
\n Line feed (LF)
\\ Carriage return
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addText('Hello,\t').addText('World\n');
}
//-->
</script>
To add character strings:
71
Chapter 4 ePOS-Print API
4
addTextLang method
Adds the language setting to the command buffer.
Syntax
addTextLang(lang);
Parameter
lang : ( Required parameter, Object type : String)
Specifies the target language.
*ePOS-Print Service Ver.2.2 or later versions supported
Setting Language
en(default) English(ANK)
de German (ANK)
fr French (ANK)
it Italian (ANK)
es Spanish (ANK)
ja Japanese
(International character set changes to Japan.)
ja-jp Japanese
(International character set changes to Japan.)
ko Korean
(International character set changes to Korean.)
ko-kr Korean
(International character set changes to Korean.)
zh-hans * Simplified Chinese
(International character set changes to China.)
zh-cn Simplified Chinese
(International character set changes to China.)
zh-hant * Traditional Chinese
zh-tw Traditional Chinese
Language code besides above English(ANK)
Characters not installed in a printer cannot be printed.
For printable character code, refer to the Technical Reference Guide of your
printer.
72
Depending on language specification, a part of characters is printed as follows.
Return value
Exception
Example
Language Characters $(U+0024) Characters \(U+005C)
Japanese $ ¥
Korean $\
Simplified Chinese ¥\
Traditional Chinese $ \
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextLang('en');
}
//-->
</script>
To set the language as English:
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextLang('ko');
}
//-->
</script>
To set the language as Korean:
73
Chapter 4 ePOS-Print API
4
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextLang('zh-hans');
}
//-->
</script>
To set the language as Simplified Chinese:
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextLang('zh-hant');
}
//-->
</script>
To set the language as Traditional Chinese:
74
addTextFont method
Adds the text font setting to the command buffer.
Syntax
addTextFont(font);
Parameter
font : ( Required parameter, Object type : String)
Specifies the font.
*ePOS-Print Service Ver.3.2 or later versions supported
Return value
Exception
Example
Constant (font) Language
FONT_A (default) Font A
FONT_B Font B
FONT_C Font C
FONT_D * Font D
FONT_E * Font E
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextFont(builder.FONT_B);
}
//-->
</script>
To set the font B:
75
Chapter 4 ePOS-Print API
4
addTextSmooth method
Adds the smoothing setting to the command buffer.
Syntax
addTextSmooth(smooth);
Parameter
smooth : ( Required parameter, Object type : Boolean)
Specifies whether to enable smoothing.
Return value
Exception
Example
Setting Description
true or 1 Specifies smoothing.
false or 0 (default) Cancels smoothing
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextSmooth(true);
}
//-->
</script>
To enable smoothing:
76
addTextDouble method
Adds the double-sized text setting to the command buffer.
Syntax
addTextDouble(dw, dh);
Parameter
dw : ( Optional parameter, Object type : Boolean)
Specifies the double-sized width.
dh : ( Optional parameter, Object type : Boolean)
Specifies the double-sized height.
Return value
Exception
Setting Description
true or 1 Specifies the double-sized width.
false or 0 (default) Cancels the double-sized width
undefined
(When not specified) Retains the current setting for double-sized width.
Setting Description
true or 1 Specifies the double-sized height
false or 0 (default) Cancels the double-sized height
undefined
(When not specified) Retains the current setting for double-sized height
When true or 1 is set for both the dw and dh parameters, double width and height characters are
printed.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
77
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextDouble(true, true);
}
//-->
</script>
To set the size as double width and height:
78
addTextSize method
Adds the text scale setting to the command buffer.
Syntax
addTextSize(width, height);
Parameter
width : ( Optional parameter, Object type : Number)
Specifies the horizontal scale of text.
height : ( Optional parameter, Object type : Number)
Specifies the vertical scale of text.
Return value
Exception
Example
Setting Description
Integer from 1 to 8 Horizontal scale (default : 1)
undefined
(When not specified) Retains the current setting for the horizontal scale.
Setting Description
Integer from 1 to 8 Vertical scale (default : 1)
undefined
(When not specified) Retains the current setting for the vertical scale.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextSize(4, 4);
}
//-->
</script>
To set a horizontal scale of x 4 and a vertical scale of x 4:
79
Chapter 4 ePOS-Print API
4
addTextStyle method
Adds the text style setting to the command buffer.
Syntax
addTextStyle(reverse, ul, em, color);
Parameter
reverse : ( Optional parameter, Object type : Boolean)
Specifies inversion of black and white for text.
ul : ( Optional parameter, Object type : Boolean)
Specifies the underline style.
em : ( Optional parameter, Object type : Boolean)
Specifies the bold style.
color : ( Optional parameter, Object type : String)
Specifies the color.
Setting Description
true or 1 Specifies the inversion of black and white parts
of characters.
false or 0 (default) Cancels the inversion of black and white parts
of characters.
undefined
(When not specified)
Retains the current setting for inversion of black
and white.
Setting Description
true or 1 Specifies underlining.
false or 0 (default) Cancels underlining.
undefined
(When not specified) Retains the current underlining setting.
Setting Description
true or 1 Specifies emphasized printing of characters.
false or 0 (default) Cancels emphasized printing of characters.
undefined
(When not specified)
Retains the current setting for emphasized print-
ing.
Setting Description
COLOR_NONE Characters are not printed.
COLOR_1 (default) First color
COLOR_2 Second color
COLOR_3 Third color
COLOR_4 Fourth color
undefined
(When not specified) Retains the current color setting
80
Return value
Exception
Example
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextStyle(undefined, true);
}
//-->
</script>
To set the underline style:
81
Chapter 4 ePOS-Print API
4
addTextPosition method
Adds the horizontal print start position of text to the command buffer.
Syntax
addTextPosition(x);
Parameter
x : ( Required parameter, Object type : Number)
Specifies the horizontal print start position (in dots).
Specifies an integer from 0 to 65535.
Return value
Exception
Example
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addTextPosition(120);
}
//-->
</script>
To set the print position at 120 dots from the left end:
82
addTextVPosition method
Adds the vertical print start position of text to the command buffer. (in ePOS-Print Service Ver.3.0 and later)
Syntax
addTextVPosition(y);
Parameter
y : ( Required parameter, Object type : Number)
Specifies the vertical print start position (in dots).
Specifies an integer from 0 to 65535.
Return value
Exception
Example
Use this API function by inserting it between addPageBegin to addPageEnd.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addTextVPosition(120);
builder.addPageEnd();
}
//-->
</script>
To set the print position at 120 dots from the top:
83
Chapter 4 ePOS-Print API
4
addFeedUnit method
Adds paper feeding in dots to the command buffer.
Syntax
addFeedUnit(unit);
Parameter
unit : ( Required parameter, Object type : Number)
Specifies the paper feed space (in dots). Specifies an integer from 0 to 255.
Return value
Exception
Example
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addFeedUnit(30);
}
//-->
</script>
To feed paper by 30 dots:
84
addFeedLine method
Adds paper feeding in lines to the command buffer.
Syntax
addFeedLine(line);
Parameter
line : ( Required parameter, Object type : Number)
Specifies the paper feed space (in lines). Specifies an integer from 0 to 255.
Return value
Exception
Example
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addFeedLine(3);
}
//-->
</script>
To feed paper by 3 lines:
85
Chapter 4 ePOS-Print API
4
addFeedPosition method
Adds label/black mark paper feeding to the command buffer.
Syntax
addFeedPosition(pos);
Parameter
pos : ( Required parameter, Object type : String)
Specifies the feed position.
Return value
Exception
• Control of label paper/black mark paper must be done in the standard mode.
• In the page mode, addFeedPosition method specification cannot be used.
Setting Description
FEED_PEELING Feeds to the peeling position.
FEED_CUTTING Feeds to the cutting position.
FEED_CURRENT_TOF Feeds to the top of the current label.
FEED_NEXT_TOF Feeds to the top of the next label.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
86
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addFeedPosition(builder.FEED_CURRENT_TOF);
builder.addBarcode('0001', builder.BARCODE_CODE39, builder.HRI_BELOW);
builder.addFeedPosition(builder.FEED_PEELING);
}
//-->
</script>
To print while peeling the label one by one
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addFeedPosition(builder.FEED_CURRENT_TOF);
builder.addBarcode('0001', builder.BARCODE_CODE39, builder.HRI_BELOW);
builder.addFeedPosition(builder.NEXT_TOF);
builder.addBarcode('0002', builder.BARCODE_CODE39, builder.HRI_BELOW);
builder.addFeedPosition(builder.NEXT_TOF);
builder.addBarcode('0003', builder.BARCODE_CODE39, builder.HRI_BELOW);
builder.addFeedPosition(builder.NEXT_TOF);
}
//-->
</script>
To print labels consecutively
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addFeedPosition(builder.FEED_CURRENT_TOF);
builder.addBarcode('0001', builder.BARCODE_CODE39, builder.HRI_BELOW);
builder.addFeedPosition(builder.FEED_CUTTING);
builder.addCut(builder.CUT_NO_FEED);
}
//-->
</script>
To print tickets with black mark paper
87
Chapter 4 ePOS-Print API
4
addFeed method
Adds a line feed to the command buffer.
Syntax
addFeed();
Return value
Example
Return value Object type
ePOS-Print Builder Object ePOS Builder
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addText(“Hello”).addFeed();
builder.addText(“World”).addFeed();
}
//-->
</script>
To start a new line after printing a character string:
88
addImage method
Adds raster image printing to the command buffer.
Prints graphics rendered in HTML5 Canvas.
Converts the specified range in a RGBA full-color image of HTML5 Canvas into raster image data according
to the settings of the halftone and brightness properties. One pixel in an image equals to one printer dot.
When an image contains any transparent color, the background color of the image is assumed to be white.
Syntax
addImage(context, x, y, width, height, color, mode);
Parameter
context : ( Required parameter, Object type : Context)
Specifies the 2D context of HTML5 Canvas.
x : ( Required parameter, Object type : Number)
Specifies the horizontal start position in the print area. Specifies an integer from 0 to 65535.
y : ( Required parameter, Object type : Number)
Specifies the vertical start position in the print area. Specifies an integer from 0 to 65535.
width : ( Required parameter, Object type : Number)
Specifies the width of the print area. Specifies an integer from 0 to 65535.
height : ( Required parameter, Object type : Number)
Specifies the height of the print area. Specifies an integer from 0 to 65535.
color : ( Optional parameter, Object type : String)
Specifies the color.
If an HTML5 Canvas image contains images downloaded from different domains, you cannot print
the image. In this case, a security error occurs due to violation of the same origin policy of
JavaScript.
• To print a raster image at high speed, specify ALIGN_LEFT for the addTextAlign method (p.
67), and specify a multiple of 8 not exceeding the printer's paper width for the width parameter
of this API.
• In page mode, a raster image is laid out in the current print position with the reference point
being its bottom left dot. The print position will not move.
• Multiple tone printing is not supported in Page Mode. Multiple tone graphic printing is supported
in Standard Mode only.
Setting Description
COLOR_NONE Characters are not printed.
COLOR_1 (default) First color
COLOR_2 Second color
COLOR_3 Third color
COLOR_4 Fourth color
undefined
(When not specified) First color
89
Chapter 4 ePOS-Print API
4
mode : ( Optional parameter, Object type : String)
Specifies the color mode.
Return value
Exception
Example
Setting Description
MODE_MONO Monochrome (two-tone)
MODE_GRAY16 Gray scale (16-tone)
undefined
(When not specified) Monochrome (two-tone)
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
var canvas = document.getElementById('canvas');
if (canvas.getContext) {
var context = canvas.getContext('2d');
builder.addImage(context, 0, 0, canvas.width, canvas.height);
}
}
//-->
</script>
var canvas = document.getElementById('myCanvas');
var context = canvas.getContext('2d');
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addPageArea(0, 0, 300, 300);
builder.addPagePosition(0, 299);
builder.addImage(context, 0, 0, 300, 300);
builder.addPageEnd();
To print an image 300 dots wide and 300 dots high in page mode:
90
addLogo method
Adds NV logo printing to the command buffer.
Prints a logo registered in the NV memory of the printer.
Syntax
addLogo(key1, key2);
Parameter
key1 : ( Required parameter, Object type : Number)
Specifies the key code 1 of an NV logo. Specifies an integer from 0 to 255.
key2 : ( Required parameter, Object type : Number)
Specifies the key code 2 of an NV logo. Specifies an integer from 0 to 255.
Return value
Exception
Example
• Using model-dedicated utility or logo registration utility (TMFLogo), register a logo in the printer
in advance.
• In page mode, a logo is laid out in the current print position with the reference point being its
bottom left dot.
• Multiple tone printing is not supported in Page Mode. Multiple tone graphic printing is supported
in Standard Mode only.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addLogo(48, 48);
}
//-->
</script>
91
Chapter 4 ePOS-Print API
4
addBarcode method
Adds barcode printing to the command buffer.
Syntax
addBarcode(data, type, hri, font, width, height);
Parameter
data : ( Required parameter, Object type : String)
Specifies the barcode data as a string.
In page mode, a barcode is laid out in the current print position with the reference point being its
bottom left dot (except for HRI).
Barcode type Description
UPC-A
When an 11-digit number is specified, a check digit is
automatically added.
When a 12-digit number is specified, the 12th digit is pro-
cessed as a check digit but the check digit is not vali-
dated.
UPC-E
Specify 0 as the first digit.
Specify the manufacturer code in the digits 2 to 6.
Specify (right-align) the item code in the digits 7 to 11.
The number of item code digits varies depending on the
manufacturer code. Specify 0s in empty digits.
When an 11-digit number is specified, a check digit is
automatically added.
When a 12-digit number is specified, the 12th digit is pro-
cessed as a check digit but the check digit is not vali-
dated.
EAN13 When an 12-digit number is specified, a check digit is
automatically added.
When a 13-digit number is specified, the 12th digit is pro-
cessed as a check digit but the check digit is not vali-
dated.
JAN13
EAN8 When a 7-digit number is specified, a check digit is auto-
matically added.
When an 8-digit number is specified, the 8th digit is pro-
cessed as a check digit but the check digit is not vali-
dated.
JAN8
CODE39
When the first character is *, the character is processed as
the start character. In other cases, a start character is
automatically added.
ITF Start and stop codes are automatically added.
Check digits are not added or validated.
CODABAR
Specify a start character (A to D, a to d).
Specify a stop character (A to D, a to d).
Check digits are not added or validated.
92
*1: How to specify Code128 special characters
CODE93 Start and stop characters are automatically added.
A check digit is automatically calculated and added.
CODE128
Specify a start character (CODE A, CODE B, CODE C).
A stop character is automatically added.
A check digit is automatically calculated and added.
To encode each of the following characters, specify two
characters starting with the character "{":
< How to specify special characters >*1
< How to specify CODE C >*2
GS1-128
A start character, FNC1, a check digit, and a stop
character are automatically added.
To automatically calculate and add a check digit for an
application identifier (AI) and the subsequent data,
specify the character "*" in the position of the check digit.
You can enclose an application identifier (AI) in
parentheses. The parentheses are used as HRI print
characters and are not encoded as data.
You can insert spaces between an application identifier
(AI) and data. The spaces are used as HRI print
characters and are not encoded as data.
To encode each of the following characters, specify two
characters starting with the character "{":
< How to specify special characters >*3
< How to specify CODE C >*2
GS1 DataBar Omnidi-
rectional Specify a 13-digit global trade item number (GTIN) not
including an application identifier (AI) or a check digit.
GS1 DataBar Truncated
GS1 DataBar Limited
GS1 Databar
Expanded
You can enclose an application identifier (AI) in
parentheses. The parentheses are used as HRI print
characters and are not encoded as data.
To encode each of the following characters, specify two
characters starting with the character "{":
< How to specify special characters >*4
Data Specified character string
FNC1 {C
FNC2 {2
FNC3 {3
FNC4 {4
CODE A {A
CODE B {B
CODE C {1
SHIFT {S
{{{
Barcode type Description
93
Chapter 4 ePOS-Print API
4
*2: How to specify Code128 CODE C and GS1-128 CODE C.
*3: How to specify GS1-128 special characters
*4: How to specify GS1 DataBar Expanded special characters
To specify binary data that cannot be represented by character strings, use the following escape
sequences.
Data Specified character string
00 \x00
01 \x01
...
09 \x09
10 \x0a
...
98 \x62 or b
99 \x63 or c
Data Specified character string
FNC1 {1
FNC3 {3
({(
){)
*{*
{{{
Data Specified character string
FNC1 {1
({(
){)
String Description
\xnn Control code
\\ Back slash
94
type : ( Required parameter, Object type : String)
Specifies the barcode type.
hri : ( Optional parameter, Object type : String)
Specifies the HRI position.
font : ( Optional parameter, Object type : String)
Specifies the HRI font.
*ePOS-Print Service Ver.4.1 or later versions supported
width : ( Optional parameter, Object type : Number)
Specifies the width of each module in dots. Specifies an integer from 2 to 6.
height : ( Optional parameter, Object type : Number)
Specifies the barcode height in dots. Specifies an integer from 1 to 255.
Return value
Constant (type) Barcode type
BARCODE_UPC_A UPC-A
BARCODE_UPC_E UPC-E
BARCODE_EAN13 EAN13
BARCODE_JAN13 JAN13
BARCODE_EAN8 EAN8
BARCODE_JAN8 JAN8
BARCODE_CODE39 CODE39
BARCODE_ITF ITF
BARCODE_CODABAR CODABAR
BARCODE_CODE93 CODE93
BARCODE_CODE128 CODE128
BARCODE_GS1_128 GS1-128
BARCODE_GS1_DATABAR_OMNIDIRECTIONAL GS1 DataBar Omnidirectional
BARCODE_GS1_DATABAR_TRUNCATED GS1 DataBar Truncated
BARCODE_GS1_DATABAR_LIMITED GS1 DataBar Limited
BARCODE_GS1_DATABAR_EXPANDED GS1 Databar Expanded
Constant (hri) Description
HRI_NONE (default) HRI not printed
HRI_ABOVE Above the bar code
HRI_BELOW Below the bar code
HRI_BOTH Both above and below the bar code
Constant (font) Language
FONT_A(default) Font A
FONT_B Font B
FONT_C Font C
FONT_D * Font D
FONT_E * Font E
Return value Object type
ePOS-Print Builder Object ePOS Builder
95
Chapter 4 ePOS-Print API
4
Exception
Example
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addBarcode('01234567890', builder.BAROCDE_UPC_A,
builder.HRI_BELOW, undefined, 2, 64);
builder.addBarcode('01234500005', builder.BAROCDE_UPC_E);
builder.addBarcode('201234567890', builder.BAROCDE_EAN13);
builder.addBarcode('201234567890', builder.BAROCDE_JAN13);
builder.addBarcode('2012345', builder.BAROCDE_EAN8);
builder.addBarcode('2012345', builder.BAROCDE_JAN8);
builder.addBarcode('ABCDE', builder.BAROCDE_CODE39);
builder.addBarcode('012345', builder.BAROCDE_ITF);
builder.addBarcode('A012345A', builder.BAROCDE_CODABAR);
builder.addBarcode('ABCDE', builder.BAROCDE_CODE93);
builder.addBarcode('{Babcde', builder.BAROCDE_CODE128);
builder.addBarcode('(01)201234567890*', builder.BAROCDE_GS1_128);
builder.addBarcode('0201234567890',
builder.BAROCDE_GS1_DATABAR_OMNIDIRECTIONAL);
builder.addBarcode('0201234567890',
builder.BAROCDE_GS1_DATABAR_TRUNCATED);
builder.addBarcode('0201234567890',
builder.BAROCDE_GS1_DATABAR_LIMITED);
builder.addBarcode('(01)2012345678903',
builder.BAROCDE_GS1_DATABAR_EXPANDED);
}
//-->
</script>
To print barcodes:
96
addSymbol method
Adds two-dimensional symbol printing to the command buffer.
Syntax
addSymbol(data, type, level, width, height, size);
Parameter
data : ( Required parameter, Object type : String)
Specifies two-dimensional symbol data as a character string.
In page mode, a two-dimensional symbol is laid out in the current print position with the reference
point being its bottom left dot.
2D-Code type Description
Standard PDF417 Convert the character string to the string in UTF-
8, apply the escape sequence, and then
encode the string.
The data area can contain up to 928 code
words in a maximum of 90 rows, each of which
can contain up to 30 code words.
Truncated PDF417
QR Code Model 1 Convert the character string to the string in Shift-
JIS, apply the escape sequence, and then
encode the string based on the data type as
shown below.
Number: 0 to 9
Alphanumeric character:
0 to 9, A to Z, space, $, %, *, +, -, ., /, :
Kanji character: Shift-JIS value
8-bit, byte data:
0x00 to 0xff
QR Code Model 2
Micro QR Code *2
97
Chapter 4 ePOS-Print API
4
*1 ePOS-Print Service Ver.2.2 or later versions supported
*2 ePOS-Print Service Ver.4.1 or later versions supported
MaxiCode Mode 2 Convert the character string to the string in UTF-
8, apply the escape sequence, and then
encode the string.
In Modes 2 and 3, when the first piece of data is
[)>\ x1e01\x1dyy (where yy is a two-digit num-
ber), this is processed as the message header,
and the subsequent data is processed as the
primary message. In other cases, from the first
piece of data, data is processed as the primary
message.
In Mode 2, specify the primary message in the
following format:
Postal code (1- to 9-digit number) GS:(\x1d) ISO
country code (1- to 3-digit number) GS:(\x1d)
Service class code (1- to 3-digit number)
In Mode 3, specify the primary message in the
following format:
Postal code (1 to 6 pieces of data convertible
by Code Set A) GS:(\x1d) ISO country code (1-
to 3-digit number) GS:(\x1d) Service class code
(1- to 3-digit number)
MaxiCode Mode 3
MaxiCode Mode 4
MaxiCode Mode 5
MaxiCode Mode 6
GS1 DataBar Stacked Convert the character string to the string in UTF-
8, apply the escape sequence, and then
encode the string.
Specify a 13-digit global trade item number
(GTIN) not including an application identifier
(AI) or a check digit.
GS1 DataBar Stacked
Omnidirectional
GS1 DataBar Expanded Stacked
Convert the character string to the string in UTF-
8, apply the escape sequence, and then
encode the string.
You can enclose an application identifier (AI) in
parentheses. The parentheses are used as HRI
print characters and are not encoded as data.
To encode each of the following characters,
specify two characters starting with the
character "{":
FNC1: {1
(: {(
): {)
Aztec Code *1 After converting the character string to UTF-8,
conduct the escape sequence and encode.
DataMatrix *1 After converting the character string to UTF-8,
conduct the escape sequence and encode.
2D-Code type Description
98
To specify binary data that cannot be represented by character strings, use the following escape
sequences.
type : ( Required parameter, Object type : String)
Specifies the two-dimensional symbol type.
*1 ePOS-Print Service Ver.2.2 or later versions supported
*2 ePOS-Print Service Ver.4.1 or later versions supported
String Description
\xnn Control code
\\ Back slash
Constant (type) 2D-Code type
SYMBOL_PDF417_STANDARD Standard PDF417
SYMBOL_PDF417_TRUNCATED Truncated PDF417
SYMBOL_QRCODE_MODEL_1 QR Code Model 1
SYMBOL_QRCODE_MODEL_2 QR Code Model 2
SYMBOL_QRCODE_MICRO *2 Micro QR Code
SYMBOL_MAXICODE_MODE_2 MaxiCode Mode 2
SYMBOL_MAXICODE_MODE_3 MaxiCode Mode 3
SYMBOL_MAXICODE_MODE_4 MaxiCode Mode 4
SYMBOL_MAXICODE_MODE_5 MaxiCode Mode 5
SYMBOL_MAXICODE_MODE_6 MaxiCode Mode 6
SYMBOL_GS1_DATABAR_STACKED GS1 DataBar Stacked
SYMBOL_GS1_DATABAR_STACKED_
OMNIDIRECTIONAL
GS1 DataBar Stacked
Omnidirectional
SYMBOL_GS1_DATABAR_EXPANDED_STACKED GS1 DataBar Expanded Stacked
SYMBOL_AZTECCODE_FULLRANGE *1 Aztec Code Full-Range mode
SYMBOL_AZTECCODE_COMPACT *1 Aztec Code Compact mode
SYMBOL_DATAMATRIX_SQUARE *1 DataMatrix ECC200 square
SYMBOL_DATAMATRIX_RECTANGLE_8 *1 DataMatrix ECC200 rectangle,
8 lines
SYMBOL_DATAMATRIX_RECTANGLE_12 *1 DataMatrix ECC200 rectangle,
12 lines
SYMBOL_DATAMATRIX_RECTANGLE_16 *1 DataMatrix ECC200 rectangle,
16 lines
99
Chapter 4 ePOS-Print API
4
level : ( Optional parameter, Object type : String)
Specifies the error correction level.
*ePOS-Print Service Ver.2.2 or later versions supported
width : ( Optional parameter, Object type : Number)
Specifies the module width. Specifies an integer from 0 to 255.
*ePOS-Print Service Ver.2.2 or later versions supported
Constant (level) Description
LEVEL_0 PDF417 error correction level 0
LEVEL_1 PDF417 error correction level 1
LEVEL_2 PDF417 error correction level 2
LEVEL_3 PDF417 error correction level 3
LEVEL_4 PDF417 error correction level 4
LEVEL_5 PDF417 error correction level 5
LEVEL_6 PDF417 error correction level 6
LEVEL_7 PDF417 error correction level 7
LEVEL_8 PDF417 error correction level 8
LEVEL_L QR Code error correction level L
LEVEL_M QR Code error correction level M
LEVEL_Q QR Code error correction level Q
LEVEL_H QR Code error correction level H
LEVEL_DEFAULT Default level
Integer from 5 to 95 * Aztec Code error correction level (Default: 23)
• Select the level according to the two-dimensional symbol type.
• For MaxiCode and two-dimensional GS1 DataBar, select LEVEL_DEFAULT.
• Micro QR Code does not support LEVEL_H.
2D-Code type Valid value range Default value
PDF417 2 to 8 3
QR Code 3 to 16 3
MaxiCode Ignored
2D GS1 Databar 2 to 8 2
Aztec Code * 2 to 16 3
DataMatrix * 2 to 16 3
100
height : ( Optional parameter, Object type : Number)
Specifies the module height. Specifies an integer from 0 to 255.
*ePOS-Print Service Ver.2.2 or later versions supported
size : ( Optional parameter, Object type : Number)
Specifies the two-dimensional symbol maximum size. Specifies an integer from 0 to 65535.
*ePOS-Print Service Ver.2.2 or later versions supported
Return value
Exception
2D-Code type Valid value range Default value
PDF417 2 to 8
(Magnification for width) 3
QR Code
Ignored
MaxiCode
2D GS1 Databar
Aztec Code *
DataMatrix *
2D-Code type Default value Description
PDF417 0 (Auto) Specifies the number of
code words for each row
QR Code Ignored
MaxiCode
2D GS1 Databar 0 (Auto)
Specifies the maximum
width for the barcode
(106 or above)
Aztec Code * Ignored
DataMatrix *
(Others) Ignored
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
101
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addSymbol('ABCDE', builder.SYMBOL_PDF417_STANDARD);
builder.addSymbol('ABCDE', builder.SYMBOL_QRCODE_MODEL_2,
builder.LEVEL_Q);
builder.addSymbol('908063840\x1d850\x1d001\x1d\x04',
builder.SYMBOL_MAXICODE_MODE_2);
builder.addSymbol('0201234567890', builder.SYMBOL_
GS1_DATABAR_STACKED);
builder.addSymbol('0201234567890',
builder.SYMBOL_GS1_DATABAR_STACKED_OMNIDIRECTIONAL);
builder.addSymbol('(01)02012345678903',
builder.SYMBOL_GS1_DATABAR_EXPANDED_STACKED);
builder.addSymbol('ABCDE', builder.SYMBOL_AZTECCODE_FULLRANGE, 23);
builder.addSymbol('ABCDE', builder.SYMBOL_DATAMATRIX_SQUARE);
}
//-->
</script>
To print two-dimensional symbols:
102
addHLine method
Adds horizontal line printing to the command buffer.
Draws horizontal lines.
Syntax
addHLine(x1, x2, style);
Parameter
x 1: ( Required parameter, Object type : Number)
Specifies the start position of the horizontal line (in dots). Specifies an integer from 0 to 65535.
x2 : ( Required parameter, Object type : Number)
Specifies the end position of the horizontal line (in dots). Specifies an integer from 0 to 65535.
style : ( Optional parameter, Object type : String)
Specifies the line type.
Return value
Exception
Not available in page mode.
Constant (style) Description
LINE_THIN Solid line: Thin
LINE_MEDIUM Solid line: Medium
LINE_THICK Solid line: Thick
LINE_THIN_DOUBLE Double line: Thin
LINE_MEDIUM_DOUBLE Double line: Medium
LINE_THICK_DOUBLE Double line: Thick
undefined (When not specified) Solid line: Thin
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
103
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addHLine(100, 200, builder.LINE_THIN_DOUBLE);
builder.addHLine(400, 500, builder.LINE_THIN_DOUBLE);
}
//-->
</script>
To draw double horizontal lines in the following positions:
Between 100 dots and 200 dots from the left end
Between 400 dots and 500 dots from the left end
104
addVLineBegin method
Adds the beginning of vertical line to the command buffer. Starts to draw vertical lines.
Syntax
addVLineBegin(x, style);
Parameter
x : ( Required parameter, Object type : Number)
Specifies the start position of the vertical line (in dots). Specifies an integer from 0 to 65535.
style : ( Optional parameter, Object type : String)
Specifies the line type.
Return value
Exception
Example
• Not available in page mode.
• Vertical lines are drawn until their end is specified by addVLineEnd (p. 105). Use this API
function with addVLineEnd.
Constant (style) Description
LINE_THIN Solid line: Thin
LINE_MEDIUM Solid line: Medium
LINE_THICK Solid line: Thick
LINE_THIN_DOUBLE Double line: Thin
LINE_MEDIUM_DOUBLE Double line: Medium
LINE_THICK_DOUBLE Double line: Thick
undefined (When not specified) Solid line: Thin
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addVLineBegin(100).addVLineBegin(200);
builder.addFeedUnit(100);
builder.addVLineEnd(100).addVLineEnd(200);
}
//-->
</script>
To draw thin vertical lines at 100 dots and 200 dots from the left end:
105
Chapter 4 ePOS-Print API
4
addVLineEnd method
Adds the end of vertical line to the command buffer. Finishes drawing vertical lines.
Syntax
addVLineEnd(x, style);
Parameter
x : ( Required parameter, Object type : Number)
Specifies the end position of the vertical line (in dots). Specifies an integer from 0 to 65535.
style : ( Optional parameter, Object type : String)
Specifies the type of the line you want to finish drawing.
Return value
Exception
Example
• Not available in page mode.
• Use this API function with addVLineBegin (p. 104).
Constant (style) Description
LINE_THIN Solid line: Thin
LINE_MEDIUM Solid line: Medium
LINE_THICK Solid line: Thick
LINE_THIN_DOUBLE Double line: Thin
LINE_MEDIUM_DOUBLE Double line: Medium
LINE_THICK_DOUBLE Double line: Thick
undefined (When not specified) Solid line: Thin
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addVLineBegin(100).addVLineBegin(200);
builder.addFeedUnit(100);
builder.addVLineEnd(100).addVLineEnd(200);
}
//-->
</script>
To draw thin vertical lines at 100 dots and 200 dots from the left end:
106
addPageBegin method
Adds the switching to page mode to the command buffer. The page mode process starts.
Syntax
addPageBegin();
Return value
Example
Vertical lines are processed in page mode until their end is specified by addPageEnd (p. 107). Use
this API function with addPageEnd.
Return value Object type
ePOS-Print Builder Object ePOS Builder
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addText('ABCDE');
builder.addPageEnd();
}
//-->
</script>
To print the characters "ABCDE" in page mode:
107
Chapter 4 ePOS-Print API
4
addPageEnd method
Adds the end of page mode to the command buffer. The page mode process ends.
Syntax
addPageEnd();
Return value
Example
Use this API function with addPageBegin (p. 106).
Return value Object type
ePOS-Print Builder Object ePOS Builder
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addText('ABCDE');
builder.addPageEnd();
}
//-->
</script>
To print the characters "ABCDE" in page mode:
108
addPageArea method
Adds the print area in page mode to the command buffer.
Specifies the print area in page mode (coordinates). After this API function, specify a print data API function
such as the addText method.
Syntax
addPageArea(x, y, width, height);
Parameter
x : ( Required parameter, Object type : Number)
Specifies the origin of the horizontal axis (in dots). Specifies an integer from 0 to 65535. 0 is the
left end of the printer's printable area.
y : ( Required parameter, Object type : Number)
Specifies the origin of the vertical axis (in dots). Specifies an integer from 0 to 65535. 0 is the
position in which no paper feed has been performed.
width : ( Required parameter, Object type : Number)
Specifies the width of the print area (in dots). Specifies an integer from 0 to 65535.
height : ( Required parameter, Object type : Number)
Specifies the height of the print area (in dots). Specifies an integer from 0 to 65535.
Return value
Exception
• Specify a print area to cover the content to be printed. If the print data extends beyond the print
area, the print result will be such that the print data has been printed incompletely.
• Use this API function by inserting it between addPageBegin (p. 106) and addPageEnd (p. 107).
Determine the width and height of the print area according to the print direction setting. Otherwise,
the print data might not be printed completely.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
109
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addPageArea(100, 50, 200, 30);
builder.addText('ABCDE');
builder.addPageEnd();
}
//-->
</script>
To specify the print area with the origin (100, 50), a width of 200 dots, and a height of 30 dots and print
the characters "ABCDE":
110
addPageDirection method
Adds the page mode print direction setting to the command buffer. Specifies the print direction in page
mode. This function can be omitted if rotation is not required.
Syntax
addPageDirection(dir);
Parameter
dir : ( Required parameter, Object type : String)
Specifies the print direction in page mode.
Return value
Exception
Use this API function by inserting it between addPageBegin (p. 106) and addPageEnd (p. 107).
Constant (dir) Description
DIRECTION_LEFT_TO_RIGHT(default)
Left to right
(No rotation.Data is printed from the top left
corner to the right.)
DIRECTION_BOTTOM_TO_TOP
Bottom to top
(Counterclockwise rotation by 90 degrees.
Data is printed from the bottom left corner
to the top.)
DIRECTION_RIGHT_TO_LEFT
Right to left
(Rotation by 180 degrees.Data is printed
from the bottom right corner to the left.)
DIRECTION_TOP_TO_BOTTOM
Top to bottom
(Clockwise rotation by 90 degrees.
Data is printed from the top right corner to
the bottom.)
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
111
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addPageArea(100, 50, 30, 200);
builder.addPageDirection(builder.DIRECTION_TOP_TO_BOTTOM);
builder.addText('ABCDE');
builder.addPageEnd();
}
//-->
</script>
To print the characters "ABCDE" by rotating them 90 degrees clockwise:
112
addPagePosition method
Adds the page mode print-position-set area to the command buffer.
Specifies the print start position (coordinates) in the area specified by the addPageArea method.
Syntax
addPagePosition(x, y);
Parameter
x : ( Required parameter, Object type : Number)
Specifies the horizontal print position (in dots). Specifies an integer from 0 to 65535.
y : ( Required parameter, Object type : Number)
Specifies the vertical print position (in dots). Specifies an integer from 0 to 65535.
Return value
Exception
Use this API function by inserting it between addPageBegin (p. 106) and addPageEnd (p. 107).
Specify the print start position (coordinates) according to the content to be printed. Refer to the
following.
To print a character string:
Specify the left end of the baseline for the first character. This can be omitted for left-aligned
printing of standard-sized characters. To print double-sized height characters, specify a value
equal to or greater than 42 for y.
To print a barcode:
Specify the bottom left of the symbol. And specify the barcode height for y.
To print a graphic/logo:
Specify the bottom left of the graphic data. And specify the graphic data height for y.
To print a two-dimensional symbol:
Specify the top left of the symbol. This can be omitted when printing from the top left.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
113
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addPageArea(100, 50, 200, 100);
builder.addPagePosition(50, 30);
builder.addText('ABCDE');
builder.addPageEnd();
}
//-->
</script>
To specify (50,30) for the print start position in the area specified by the addPageArea method and
print the characters "ABCDE":
114
addPageLine method
Adds line drawing in page mode to the command buffer. Draws a line in page mode.
Syntax
addPageLine(x1, y1, x2, y2, style);
Parameter
x 1: ( Required parameter, Object type : Number)
Specifies the horizontal start position of the line (in dots). Specifies an integer from 0 to 65535.
y 1: ( Required parameter, Object type : Number)
Specifies the vertical start position of the line (in dots). Specifies an integer from 0 to 65535.
x2 : ( Required parameter, Object type : Number)
Specifies the horizontal end position of the line (in dots). Specifies an integer from 0 to 65535.
y2 : ( Required parameter, Object type : Number)
ècSpecifies the vertical end position of the line (in dots). Specifies an integer from 0 to 65535.
style : ( Optional parameter, Object type : String)
Specifies the line type.
Return value
Exception
• Diagonal lines cannot be drawn.
• Use this API function by inserting it between addPageBegin (p. 106) and addPageEnd (p. 107).
Constant (style) Description
LINE_THIN Solid line: Thin
LINE_MEDIUM Solid line: Medium
LINE_THICK Solid line: Thick
LINE_THIN_DOUBLE Double line: Thin
LINE_MEDIUM_DOUBLE Double line: Medium
LINE_THICK_DOUBLE Double line: Thick
undefined
(When not specified) Solid line: Thin
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
115
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addPageLine(100, 0, 500, 0, builder.LINE_THIN);
builder.addPageEnd();
}
//-->
</script>
To draw a thin solid line between the start position (100, 0) and the end position (500, 0):
116
addPageRectangle method
Adds rectangle drawing in page mode to the command buffer. Draws a rectangle in page mode.
Syntax
addPageRectangle(x1, y1, x2, y2, style);
Parameter
x 1: ( Required parameter, Object type : Number)
Specifies the horizontal start position of the line (in dots). Specifies an integer from 0 to 65535.
y 1: ( Required parameter, Object type : Number)
Specifies the vertical start position of the line (in dots). Specifies an integer from 0 to 65535.
x2 : ( Required parameter, Object type : Number)
Specifies the horizontal end position of the line (in dots). Specifies an integer from 0 to 65535.
y2 : ( Required parameter, Object type : Number)
ècSpecifies the vertical end position of the line (in dots). Specifies an integer from 0 to 65535.
style : ( Optional parameter, Object type : String)
Specifies the line type.
Return value
Exception
Use this API function by inserting it between addPageBegin (p. 106) and addPageEnd (p. 107).
Constant (style) Description
LINE_THIN Solid line: Thin
LINE_MEDIUM Solid line: Medium
LINE_THICK Solid line: Thick
LINE_THIN_DOUBLE Double line: Thin
LINE_MEDIUM_DOUBLE Double line: Medium
LINE_THICK_DOUBLE Double line: Thick
undefined (When not specified) Solid line: Thin
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
117
Chapter 4 ePOS-Print API
4
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPageBegin();
builder.addPageLine(100, 0, 500, 200, builder.LINE_THIN_DOUBLE);
builder.addPageEnd();
}
//-->
</script>
To draw a rectangle with a thin double line, with the start position (100, 0) and the end position (500,
200) as its vertexes:
118
addCut method
Adds paper cut to the command buffer. Sets paper cut.
Syntax
addCut(type);
Parameter
type : ( Optional parameter, Object type : String)
Specifies the paper cut type.
Return value
Exception
Example
Not available in page mode.
Setting Description
CUT_NO_FEED Cut without feeding
(The paper is cut without being fed.)
CUT_FEED Feed cut
(The paper is fed to the cut position and then is cut.)
CUT_RESERVE
Cut reservation
(Printing continues until the cut position is reached, at
which the paper is cut.)
undefined
(When not specified)
Feed cut
(The paper is fed to the cut position and then is cut.)
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addCut(builder.CUT_FEED);
}
//-->
</script>
To perform feed cut operation:
119
Chapter 4 ePOS-Print API
4
addPulse method
Adds the drawer kick to the command buffer. Sets the drawer kick.
Syntax
addPulse(drawer, time);
Parameter
drawer : ( Optional parameter, Object type : String)
Specifies the drawer kick connector.
time : ( Optional parameter, Object type : String)
Specifies the ON time of the drawer kick signal.
Return value
Exception
• Not available in page mode.
• The drawer and the buzzer cannot be used together.
Setting Description
DRAWER_1 Pin 2 of the drawer kick-out connector
DRAWER_2 Pin 5 of the drawer kick-out connector
undefined
(When not specified) Pin 2 of the drawer kick-out connector
Setting Description
PULSE_100 100 ms
PULSE_200 200 ms
PULSE_300 300 ms
PULSE_400 400 ms
PULSE_500 500 ms
undefined
(When not specified) 100 ms
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
120
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addPulse(builder.DRAWER_1, builder.PULSE_100);
}
//-->
</script>
To send a 100 msec pulse signal to the pin 2 of the drawer kick connector:
121
Chapter 4 ePOS-Print API
4
addSound method
Adds the turning on of the buzzer to the command buffer. Sets the buzzer.
Syntax
addSound(pattern, repeat, cycle);
Parameter
pattern : ( Optional parameter, Object type : String)
Specifies the buzzer pattern.
*ePOS-Print Service Ver.2.2 or later versions supported
• Not available in page mode.
• The buzzer function and the drawer cannot be used together.
• This API function cannot be used if the printer is not provided with the buzzer.
Setting Description
PATTERN_NONE Stop
PATTERN_A Pattern A
PATTERN_B Pattern B
PATTERN_C Pattern C
PATTERN_D Pattern D
PATTERN_E Pattern E
PATTERN_ERROR Error sound pattern
PATTERN_PAPER_END Pattern when there is no paper
PATERN_1 * Pattern 1
PATERN_2 * Pattern 2
PATERN_3 * Pattern 3
PATERN_4 * Pattern 4
PATERN_5 * Pattern 5
PATERN_6 * Pattern 6
PATERN_7 * Pattern 7
PATERN_8 * Pattern 8
PATERN_9 * Pattern 9
PATERN_10 * Pattern 10
undefined
(When not specified) Pattern A
122
repeat : ( Optional parameter, Object type : String)
Specifies the number of repeats.
cycle : ( Optional parameter, Object type : String, When not specified : 1000)
(in ePOS-Print Service Ver.2.2 and later)
Specifies the buzzer sounding cycle (in units of milliseconds)
Return value
Exception
Example
Setting Description
0 The buzzer does not stop.
1 to 255 Number of repeats
undefined
(When not specified) One time
After “0” is specified for repeat, if you want to stop the buzzer, execute this API function and
specify PATTERN_NONE for pattern.
Setting Description
1000 to 25500 1000 to 25500 milliseconds
undefined 1000 milliseconds
PATTERN_A to PATTERN_E/PATTERN_ERROR/PATTERN_PAPER_END is disregarded.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addSound(builder.PATTERN_A, 3);
}
//-->
</script>
To repeat the sound pattern A three times:
123
Chapter 4 ePOS-Print API
4
addLayout method
Adds paper layout information to the command buffer. (in ePOS-Print Service Ver.2.2 and later)
Syntax
addLayout(type, width, height, margin_top,
margin_bottom, offset_cut, offset_label);
Parameter
type : ( Required parameter, Object type : String)
Specifies the paper type.
width : ( Optional parameter, Object type : Number, When not specified : 580)
Specifies paper width (in units of 0.1 mm). Specifies an integer from 290 to 600. *
height : ( Optional parameter, Object type : Number, When not specified : 0)
Specifies paper height (in units of 0.1 mm).
margin_top : ( Optional parameter, Object type : Number, When not specified : 0)
Specifies top margin (in units of 0.1 mm).
Setting of page layout must be done in the standard mode. In the page mode, addLayout
cannot be specified.
Constant (type) Description
LAYOUT_RECEIPT Receipt (without black mark)
LAYOUT_RECEIPT_BM Receipt (with black mark)
LAYOUT_LABEL Die-cut label (without black mark)
LAYOUT_LABEL_BM Die-cut label (with black mark)
Paper Type Valid value range Description
Receipt
(without black mark) 0 Setup not necessary
Receipt (with black mark)
0 (Auto)
284 to 1550 (Manual) *
Distance from the top of
black mark to the top of
next black mark
Die-cut label
(without black mark)
Distance from the top of
label to the top of next label
Die-cut label
(with black mark)
Distance from the bottom of
black mark to the bottom of
next black mark.
Paper Type Valid value range Description
Receipt
(without black mark) 0 Setup not necessary
Receipt (with black mark) -150 to 1500 * Distance from the top of
black mark
Die-cut label
(without black mark) 0 to 1500 * Distance from the top of
label
Die-cut label
(with black mark) -15 to 1500 * Distance from the bottom of
black mark
124
margin_bottom :( Optional parameter, Object type : Number, When not specified : 0)
Specifies bottom margin (in units of 0.1 mm).
offset_cut : ( Optional parameter, Object type : Number, When not specified : 0)
Specifies cut position (in units of 0.1 mm).
In case of die cut label paper, it is a distance from the bottom of label.
When a paper has black mark, it is a distance from the beginning of black mark.
offset_label* : ( Optional parameter, Object type : Number, When not specified : 0)
Specifies label bottom position (sd) per 0.1 mm unit.
*: Valid value of range is depending on the printer model. For detail, refer to Printer specifications (p.203).
Paper Type Valid value range Description
Receipt
(without black mark) 0Setup not necessary
Receipt (with black mark) 0
Die-cut label
(without black mark) -15 to 0 *
Distance from the bottom of
label (paper feed direction
is a positive number)
Die-cut label
(with black mark) -15 to 15 *
Distance from the top of
black mark (paper feed
direction is a positive num-
ber)
Paper Type Valid value range Description
Receipt
(without black mark) 0 Setup not necessary
Receipt (with black mark) -290 to 50 *
Distance from the top of
black mark to the cutting
position
Die-cut label
(without black mark) 0 to 50 * Distance from the bottom of
label to the cutting position
Die-cut label
(with black mark) 0 to 50 *
Distance from the top of
black mark to the cutting
position
Paper Type Valid value range Description
Receipt
(without black mark) 0
Setup not necessary
Receipt (with black mark) 0
Die-cut label
(without black mark) 0
Die-cut label
(with black mark) 0 to 15 *
Distance from the top of
black mark to the bottom of
label
125
Chapter 4 ePOS-Print API
4
Return value
Exception
Detailed description
See below for the parameters that can be specified for each type of paper, and the positions for those
parameters.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
Mark Parameter
sf width
sa height
sb margin_top
se margin_bottom
sc offset_cut
sd offset_label
sf sf
sf sf
sb
sb
sc
sc sc
sa sa
sa
Receipt
Label se
se
sb
sd
Cut
Cut
Cut
Bottom edge
of print area
Bottom edge
of print area
Standard eject
Top position
Bottom edge
of label
<with Black Mark>
sc
Top position
Top position
<without Black Mark>
126
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addLayout(builder.LAYOUT_RECEIPT, 580);
}
//-->
</script>
To set 58 mm receipt (without black mark):
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addLayout(builder.LAYOUT_RECEIPT_BM, 580, 0, 15, 0);
}
//-->
</script>
To set 58 mm receipt (with black mark):
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addLayout(builder.LAYOUT_LABEL, 580, 0, 15, -15, 25);
}
//-->
</script>
To set 58 mm die-cut label (without black mark):
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addLayout(builder.LAYOUT_LABEL_BM, 580, 0, 15, -15, 25, 15);
}
//-->
</script>
To set 58 mm die-cut label (with black mark):
127
Chapter 4 ePOS-Print API
4
addRecovery method
Adds the recovery from errors to the command buffer. (in ePOS-Print Service Ver.3.0 and later)
Syntax
addRecovery();
Return value
Exception
Example
Enable forced transmission mode to use this API. The printer recovers from errors that can be
recovered from and clears the buffer.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.force = true;
builder.addRecovery();
}
//-->
</script>
Recovers from errors that can be recovered from and clears the buffer:
128
addReset method
Adds the printer reset to the command buffer. (in ePOS-Print Service Ver.3.0 and later)
Syntax
addReset();
Return value
Exception
Example
Other printing commands in the print document are ignored.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addReset();
}
//-->
</script>
Resets the printer:
129
Chapter 4 ePOS-Print API
4
addCommand method
Adds commands to the command buffer. Sends ESC/POS commands.
Syntax
addCommand(data);
Parameter
data : (Optional parameter, Object type : String)
Specifies ESC/POS command as a character string.
Return value
Exception
Example
For information about ESC/POS commands, see the ESC/POS Command Reference.
You can view the ESC/POS Command Reference from https://reference.epson-biz.com/.
Return value Object type
ePOS-Print Builder Object ePOS Builder
Exception Object type
Parameter " ... " is invalid Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
var doc = builder.addCommand('ABC\x44\x45\x0a');
}
//-->
</script>
130
toString method
Obtains a print document generated by an ePOS-Print Builder object.
Syntax
toString();
Return value
Example
Return value Object type
Document to be printed String
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
var doc = builder.toString();
}
//-->
</script>
131
Chapter 4 ePOS-Print API
4
halftone property
Halftone processing method.
Object type
String
Description
The halftone processing method to be applied to monochrome (two-tone) printing is specified.
The default value is HALFTONE_DITHER.
Example
Constant Description
HALFTONE_DITHER (default) Dithering, suitable for printing graphics only.
HALFTONE_ERROR_DIFFUSION Error diffusion, suitable for printing text and graphics together.
HALFTONE_THRESHOLD Threshold, suitable for printing text only.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
var canvas = document.getElementById('canvas');
if (canvas.getContext) {
var context = canvas.getContext('2d');
builder.halftone = epos.HALFTONE_ERROR_DIFFUSION;
builder.addImage(context, 0, 0, canvas.width, canvas.height);
}
}
//-->
</script>
To set the halftone type as error diffusion:
132
brightness property
Brightness correction value.
Object type
Number
Description
A gamma value in the range 0.1-10.0 is specified for the brightness correction value.
The default value is 1.0.
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
var canvas = document.getElementById('canvas');
if (canvas.getContext) {
var context = canvas.getContext('2d');
builder.brightness = 2.2;
builder.addImage(context, 0, 0, canvas.width, canvas.height);
}
}
//-->
</script>
To set brightness as 2.2:
133
Chapter 4 ePOS-Print API
4
force property
This is the forced transmission mode. (in ePOS-Print Service Ver.3.0 and later)
Object type
Boolean
Description
If you enable forced transmission mode, print commands are forcibly sent to the printer.
Example
• Use forced transmission mode when the printer is offline. It will result in an error if the printer is
online.
• The following functions are enabled in forced transmission mode.
Drawer kick-out (addPulse method (p.119))
Stopping the buzzer (addSound method (p.121))
Recovery from errors that can be recovered from (addRecovery method (p.127))
Reset (addReset method (p.128))
Sending commands in real time (addCommand method (p.129))
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.force = true;
builder.addPulse();
}
//-->
</script>
Performs a drawer kick-out when the paper is at the end:
134
message property
Command buffer.
Object type
String
Description
Commands, which are usually added by methods of the ePOS-Print Builder object, can be operated
directly from this property for addition or deletion.
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function buildMessage() {
var builder = new epson.ePOSBuilder();
builder.addText('ABCDE');
builder.message = '';
}
//-->
</script>
To clear the command and reset it to the initial state:
135
Chapter 4 ePOS-Print API
4
ePOS-Print Object
Sends a print document created using an ePOS-Print Builder object to control the printer and monitor the
transmission result or the communication status.
Constructor
Constructor for an ePOS-Print object. Creates a new ePOS-Print object and initializes it.
Syntax
ePOSPrint(address);
Parameter
address : ( Optional parameter, Object type : String)
Specifies the URL of the printer to send a print document to.
The URL is as follows:
Example
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function sendMessage() {
var address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
}
//-->
</script>
136
send method
Sends a print document created using an ePOS-Print Builder object.
Syntax
❏send(request);
❏For acquiring the job ID
send(request, printjobid);
Parameter
request : (Required parameter, Object type : String)
Specifies the print document.
printjobid : (Optional parameter, Object type : String)
Specify the print job ID. (ePOS-Print Service Ver.4.1 or later versions)
1 to 30 alphanumeric characters, including underscores, hyphens and periods, may be used.
Exception
Example
A print document is obtained by executing the toString method (p. 130) of the ePOS-Print Builder
object.
The syntax used to specify job IDs is only compatible with ePOS-Print Service Ver.4.1 or
later. For details, refer to Specifying the Print Job ID from the Application (p.22).
Exception Object type
Parameter " ... " is invalid Error
XMLHttpRequest is not supported Error
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printHellowWorld() {
var builder = new epson.ePOSBuilder();
builder.addText('Hello, World!\n');
builder.addCut();
var request = builder.toString();
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.send(request);
}
//-->
</script>
137
Chapter 4 ePOS-Print API
4
To specify a print job ID from the application
var printjobid = 'ABC123';
var builder = new epson.ePOSBuilder();
builder.addText('Hello, World!\n');
builder.addCut();
var request = builder.toString();
var address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onreceive = function (res) { alert(res.printjobid); };
epos.onerror = function (err) { alert(err.status); };
epos.send(request, printjobid);
138
getPrintJobStatus method
Acquires print job status. (ePOS-Print Service Ver.4.1 or later versions)
Syntax
getPrintJobStatus(printjobid);
Parameter
printjobid : (Required parameter, Object type : String)
Specifies the print job ID to be verified.
1 to 30 alphanumeric characters, including underscores, hyphens and periods, may be used.
Exception
Example
• The results of executing this API will be returned to an onreceive event (p.145).
• The latest print job status will be obtained when executing multiple printing processes with the
same job ID.
Exception Object type
Parameter " ... " is invalid Error
XMLHttpRequest is not supported Error
var printjobid = '12345';
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi';
var epos = new epson.ePOSPrint(address);
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.getPrintJobStatus(printjobid);
139
Chapter 4 ePOS-Print API
4
open method
Enables status event operation.
Sends the status of the printer specified by the address property using an event.
Updates the status at the interval specified by the interval property.
Syntax
open();
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer'
var epos = new epson.ePOSPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
function startMonitor() {
epos.open();
}
function stopMonitor() {
epos.close();
}
//-->
</script>
140
close method
Disables status event operation.
Syntax
close();
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer'
var epos = new epson.ePOSPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
function startMonitor() {
epos.open();
}
function stopMonitor() {
epos.close();
}
//-->
</script>
141
Chapter 4 ePOS-Print API
4
address property
URL of the printer.
Object type
String
Description
The URL of the printer to be used for printing is specified.
The URL is shown as follows:
The default value is the address specified by the constructor.
Example
To acquire print job status, it is not necessary to specify "devid" and "timeout".
(For ePOS-Print Service Ver.4.1 or later and with the spooler enabled)
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var epos = new epson.ePOSPrint();
epos.address = 'http://192.168.192.168/cgi-bin/epos/
service.cgi?devid=local_printer';
epos.oncoveropen = function () { alert('coveropen'); };
epos.open();
//-->
</script>
142
enabled property
Retains the enabled/disabled setting for status event operation.
Object type
Boolean
Description
The enabled/disabled setting for status event operation is retained using a logical value. This is read-only.
The default value is false.
Example
interval property
Specifies the interval of upgrading the status.
Object type
Number
Description
The interval of upgrading the status is specified in milliseconds.
Default value: 3000 (three seconds)
Minimum value: 1000 (one second or longer)
When an invalid value is specified, it is assumed to be 3000.
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.oncoveropen = function () { alert('coveropen'); };
epos.open();
alert(epos.enabled);
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.interval = 1000;
epos.oncoveropen = function () { alert('coveropen'); };
epos.open();
//-->
</script>
143
Chapter 4 ePOS-Print API
4
status property
Status of the printer.
Object type
Number
Description
This is the status last obtained from the printer. This is read-only.
Default value: 0
Example
battery property
Battery status of the printer.
Object type
Number
Description
Battery status obtained from the last printer status. This is read-only.
Default value: 0
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onoffline = function () {
alert(epos.status);
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onbatterylow = function () {
alert(epos.battery);
};
epos.open();
//-->
</script>
144
timeout property
Specifies connection timeout.
Object type
Number
Description
Specifies connection timeout with ePOS-Print supported printer in milliseconds. When the transmission of
print document by send method times out, onerror even is generated.
Default value: 300000 (5 minutes)
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var builder = new epson.ePOSBuilder();
builder.addText('Hello, World!\n');
builder.addCut();
var request = builder.toString();
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.timeout = 60000;
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.send(request);
//-->
</script>
145
Chapter 4 ePOS-Print API
4
onreceive event
This property registers the callback function and obtains a response message receipt event.
Syntax
Function (response)
Parameter of the callback function
Parameters: response (See “Properties of the response object” on page 145.)
Name: Response message
Object type: Object
Properties of the response object
*ePOS-Print Service Ver.4.1 or later versions supported
Value of success
Value o f c o de
*ePOS-Print Service Ver.4.1 or later versions supported
Property Name Object type
success (p. 145) Print result Boolean
code (p. 145)Error code String
status (p. 146) Status Number
battery (p. 146)Battery status Number
printjobid (p. 146) * Print job ID String
Value Description
true or 1
Printing succeeded
Processing succeeded (When the spooler function is enabled)
false or 0
Printing Failed
Processing Failed (When the spooler function is enabled)
Value Description
'EPTR_AUTOMATICAL' An automatically recoverable error occurred
'EPTR_BATTERY_LOW' No remaining battery
'EPTR_COVER_OPEN' A cover open error occurred
'EPTR_CUTTER' An autocutter error occurred
'EPTR_MECHANICAL' A mechanical error occurred
'EPTR_REC_EMPTY' No paper in roll paper end sensor
'EPTR_UNRECOVERABLE' An unrecoverable error occurred
'SchemaError' The request document contains a syntax error
'DeviceNotFound' The printer with the specified device ID does not exist
'PrintSystemError' An error occurred on the printing system
'EX_BADPORT' An error was detected on the communication port
'EX_TIMEOUT' A print timeout occurred
'EX_SPOOLER' * There is not enough space available in the printing queue
'JobNotFound' * The specified job ID does not exist
'Printing' * Print job now printing
146
Value of status
*ePOS-Print Service Ver.4.1 or later versions supported
Value of battery
Status of power
Remaining battery
Constant (status) Description
ASB_NO_RESPONSE No response from the TM printer
ASB_PRINT_SUCCESS Printing is successfully completed
ASB_DRAWER_KICK Status of the 3rd pin of the drawer kick-out connector = "H"
ASB_BATTERY_OFFLINE Battery offline status (only for applicable devices)
ASB_OFF_LINE Offline
ASB_COVER_OPEN The cover is open
ASB_PAPER_FEED Paper is being fed by a paper feed switch operation
ASB_WAIT_ON_LINE Waiting to be brought back online
ASB_PANEL_SWITCH The paper feed switch is being pressed (ON)
ASB_MECHANICAL_ERR A mechanical error occurred
ASB_AUTOCUTTER_ERR An autocutter error occurred
ASB_UNRECOVER_ERR An unrecoverable error occurred
ASB_AUTORECOVER_ERR An automatically recoverable error occurred
ASB_RECEIPT_NEAR_END No paper in roll paper near end sensor
ASB_RECEIPT_END No paper in roll paper end sensor
ASB_BUZZER A buzzer is on (only for applicable devices)
ASB_WAIT_REMOVE_LABEL Waiting for label to be removed (only for applicable devices)
ASB_NO_LABEL No paper in label peeling sensor (only for applicable devices)
ASB_SPOOLER_IS_STOPPED * The spooler has stopped
Value (batter y) Description
0x30XX The AC adapter is connected
0x31XX The AC adapter is connected
Value (batter y) Description
0xXX36 Battery amount 6
0xXX35 Battery amount 5
0xXX34 Battery amount 4
0xXX33 Battery amount 3
0xXX32 Battery amount 2
0xXX31 Battery amount 1 (Near end)
0xXX30 Battery amount 0 (Real end)
0 is shown when the model doesn't have a battery installed.
147
Chapter 4 ePOS-Print API
4
Value of printjobid
Example
Value Description
'...' Print job ID
(An empty string denotes that a print job ID has not been set)
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printHellowWorld() {
var builder = new epson.ePOSBuilder();
builder.addText('Hello, World!\n');
builder.addCut();
var request = builder.toString();
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onreceive = function (res) {
var success = res.success;
var code = res.code;
var status = res.status;
alert(success);
}
epos.send(request);
}
//-->
</script>
To create and send a print document.
To display the print result in a message box.
148
onerror event
This property registers the callback function and obtains a communication error event.
Syntax
Function (error)
Parameter of the callback function
Parameters: error (See “Properties of the error object” on page 148.)
Name: Communication error information
Object type: Object
Properties of the error object
Example
Property Name Object type
status HTTP Status Number
responseText Response text String
<script type="text/javascript" src=”epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printHellowWorld() {
var builder = new epson.ePOSBuilder();
builder.addText('Hello, World!\n');
builder.addCut();
var request = builder.toString();
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onerror = function (err) {
var status = err.status;
var text = err.responseText;
alert(status);
}
epos.send(request);
}
//-->
</script>
To create and send a print document.
To display the HTTP status code in a message box when a communication error occurs.
149
Chapter 4 ePOS-Print API
4
onstatuschange event
Registers a callback function to obtain a status change event.
Syntax
Function (status)
Parameter of the callback function
Parameters: status
Name: Status
Object type: Number
Example
onbatterystatuschange event
Registers call back function and obtains battery status change event. (in ePOS-Print Service Ver.2.2 and
later)
Object type
Function (battery)
Parameter of the callback function
Parameters: battery
Name: Batterystatus
Object type: Number
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onstatuschange = function (status) {
alert(status);
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onbatterystatuschange = function (battery) {
alert(battery);
};
epos.open();
//-->
</script>
150
ononline event
Registers a callback function to obtain a online event.
Object type
Function ()
Example
onoffline event
Registers a callback function to obtain a offline event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.ononline = function () {
alert('online');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onoffline = function () {
alert('offline');
};
epos.open();
//-->
</script>
151
Chapter 4 ePOS-Print API
4
onpoweroff event
Registers a callback function to obtain a non-response event.
Object type
Function ()
Example
oncoverok event
Registers a callback function to obtain a cover close event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onpoweroff = function () {
alert('poweroff');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.oncoverok = function () {
alert('coverok');
};
epos.open();
//-->
</script>
152
oncoveropen event
Registers a callback function to obtain a cover open event.
Object type
Function ()
Example
onpaperok event
Registers a callback function to obtain a paper remaining event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onpaperok = function () {
alert('paperok');
};
epos.open();
//-->
</script>
153
Chapter 4 ePOS-Print API
4
onpapernearend event
Registers a callback function to obtain a paper near end event.
Object type
Function ()
Example
onpaperend event
Registers a callback function to obtain a paper end event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onpapernearend = function () {
alert('papernearend');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onpaperend = function () {
alert('paperend');
};
epos.open();
//-->
</script>
154
ondrawerclosed event
Registers a callback function to obtain a drawer close event.
Object type
Function ()
Example
ondraweropen event
Registers a callback function to obtain a drawer open event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.ondrawerclosed = function () {
alert('drawerclosed');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.ondraweropen = function () {
alert('draweropen');
};
epos.open();
//-->
</script>
155
Chapter 4 ePOS-Print API
4
onbatteryok event
Registers call back function and obtains remaining battery event. (in ePOS-Print Service Ver.2.2 and later)
Object type
Function ()
Example
onbatterylow event
Registers call back function and obtains no remaining battery event. (in ePOS-Print Service Ver.2.2 and
later)
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onbatteryok = function () {
alert('batteryok');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.ePOSPrint(address);
epos.onbatterylow = function () {
alert('batterylow');
};
epos.open();
//-->
</script>
156
157
Chapter 5 ePOS-Print Canvas API
5
ePOS-Print Canvas API
This chapter describes the ePOS-Print Canvas API.
List of ePOS-Print Canvas API functions
The ePOS-Print Canvas API provides the following object:
❏ePOS-Print Canvas API (window.epson.CanvasPrint) object (p. 157)
window.epson.CanvasPrint Components
Element API Description Page
Constructor
CanvasPrint Initializes an ePOS-Print Canvas API object. 159
method
print Prints an HTML5 Canvas image. 160
getPrintJobStatus *4 Acquires print job status. 162
open Enables status event operation 163
close Disables status event operation 164
recover *3 Recovers from an error 165
reset *3 Resets the printer 165
Property
address URL of the printer 166
enabled Enabling/disabling of status event 167
interval Printer status update interval 168
status Status 169
battery Battery status 170
timeout Connection timeout 171
halftone Raster image halftone processing method 172
brightness Raster image brightness correction value 173
cut Paper cut 174
Property
mode Color mode 175
align Position alignment 176
color Printing color 177
feed *1 Control of label paper/black mark paper 178
paper *1 Type of papers 179
layout *2 Paper layout 180
158
*1 ePOS-Print Service Ver.2.1 or later versions supported
*2 ePOS-Print Service Ver.2.2 or later versions supported
*3 ePOS-Print Service Ver.3.0 or later versions supported
*4 ePOS-Print Service Ver.4.1 or later versions supported
Event
onreceive Response message receipt event 185
onerror Communication error event 188
onstatuschange Status change event 189
onbatterystatuschange Battery status change event 190
onbatteryok Battery OK event 191
onbatterylow Battery low event 191
ononline Online event 192
onoffline Offline event 192
onpoweroff Non-response event 193
oncoverok Cover close event 193
oncoveropen Cover open event 194
onpaperok Paper remaining event 194
onpapernearend Paper near end event 195
onpaperend Paper end event 195
ondrawerclosed Drawer close event 196
ondraweropen Drawer open event 196
Constant
ASB_* Response document status
HALFTONE_* Halftone type
MODE_* Color mode
ALIGN_* Position alignment
COLOR_* Color specification
FEED_* Paper feed position of label paper/black mark paper
PAPER_* Type of papers
Element API Description Page
159
Chapter 5 ePOS-Print Canvas API
5
ePOS-Print Canvas API Object
Prints a print image rendered in HTML5 Canvas and monitors the print result or the communication status.
Constructor
Constructor for an ePOS-Print Canvas API object.
Creates a new ePOS-Print Canvas API object and initializes it.
Syntax
CanvasPrint(address);
Parameter
address : ( Optional parameter, Object type : String)
Specifies the address property (URL of printer to be used for printing).
The URL is as follows:
Example
http://[ePOS-Print supported TM printer]/cgi-bin/epos/service.cgi?devid=[device
ID of printer to be used for printing]&timeout=[timeout time]
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printCanvas() {
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
}
//-->
</script>
160
print method
Prints an image rendered in HTML5 Canvas.
Converts the specified range in a RGBA full-color image of HTML5 Canvas into raster image data according
to the settings of the halftone and brightness properties. One pixel in an image equals to one printer dot.
When an image contains any transparent color, the background color of the image is assumed to be white.
Syntax
❏print(canvas);
❏For acquiring the job ID
print(canvas, printjobid);
❏print(canvas, cut, mode);
Parameter
canvas : ( Required parameter, Object type : canvas)
Specify the HTML5 Canvas object to be printed.
printjobid : (Optional parameter, Object type : String)
Specify the print job ID. (ePOS-Print Service Ver.4.1 or later versions)
1 to 30 alphanumeric characters, including underscores, hyphens and periods, may be used.
cut : ( Optional parameter, Object type : Boolean)
Sets whether to cut paper.
mode : ( Optional parameter, Object type : String)
Specifies the color mode.
If an HTML5 Canvas image contains images downloaded from different domains, you cannot print
the image. In this case, a security error occurs due to violation of the same origin policy of
JavaScript.
The syntax used to specify job IDs is only compatible with ePOS-Print Service Ver.4.1 or
later. For details, refer to Specifying the Print Job ID from the Application (p.22).
This syntax is compatible version.
Setting Description
true or 1 Cuts the paper after printing
false or 0 Does not cut the paper after printing
undefined Does not cut the paper after printing
Setting Description
MODE_MONO Monochrome (two-tone)
MODE_GRAY16 Multiple tones (16-tone)
undefined Monochrome (two-tone)
161
Chapter 5 ePOS-Print Canvas API
5
Exception
Example
Exception Object type
Parameter " ... " is invalid Error
XMLHttpRequest is not supported Error
Canvas is not supported Error
To print Canvas(ID=’myCanvas’):
<script type="text/javascript" src=”epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printCanvas() {
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.print(canvas);
}
//-->
</script>
To specify a print job ID from the application:
<script type="text/javascript" src=”epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printCanvas() {
var printjobid = 'ABC123';
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.print(canvas, printjobid);
}
//-->
</script>
162
getPrintJobStatus method
Acquires print job status. (ePOS-Print Service Ver.4.1 or later versions)
Syntax
getPrintJobStatus(printjobid);
Parameter
printjobid : (Required parameter, Object type : String)
Specifies the print job ID to be verified.
1 to 30 alphanumeric characters, including underscores, hyphens and periods, may be used.
Exception
Example
• The results of executing this API will be returned to an onreceive event (p.185).
• The latest print job status will be obtained when executing multiple printing processes with the
same job ID.
Exception Object type
Parameter " ... " is invalid Error
XMLHttpRequest is not supported Error
var printjobid = '12345';
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi';
var epos = new epson.ePOSPrint(address);
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.getPrintJobStatus(printjobid);
163
Chapter 5 ePOS-Print Canvas API
5
open method
Enables status event operation.
Sends the status of the printer specified by the address property using an event.
Updates the status at the interval specified by the interval property.
Syntax
open();
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
function startMonitor() {
epos.open();
}
function stopMonitor() {
epos.close();
}
//-->
</script>
164
close method
Disables status event operation.
Syntax
close();
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
function startMonitor() {
epos.open();
}
function stopMonitor() {
epos.close();
}
//-->
</script>
165
Chapter 5 ePOS-Print Canvas API
5
recover method
Recovers from an error.(in ePOS-Print Service Ver.3.0 and later)
Recovers from errors that can be recovered from and clears the buffer.
Syntax
recover();
Example
reset method
Resets the printer. (in ePOS-Print Service Ver.3.0 and later)
Syntax
reset();
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
function recover() {
epos.recover();
}
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
function reset() {
epos.reset();
}
//-->
</script>
166
address property
URL of the printer.
Object type
String
Description
The URL of the printer to be used for printing is specified.
The URL is shown as follows:
The default value is the address specified by the constructor.
Example
To acquire print job status, it is not necessary to specify "devid" and "timeout".
(For ePOS-Print Service Ver.4.1 or later and with the spooler enabled)
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var epos = new epson.CanvasPrint();
epos.address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
epos.oncoveropen = function () { alert('coveropen'); };
epos.open();
//-->
</script>
167
Chapter 5 ePOS-Print Canvas API
5
enabled property
Retains the enabled/disabled setting for status event operation.
Object type
Boolean
Description
The enabled/disabled setting for status event operation is retained using a logical value. This is read-only.
The default value is false.
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.oncoveropen = function () { alert('coveropen'); };
epos.open();
alert(epos.enabled);
//-->
</script>
168
interval property
Specifies the interval of upgrading the status.
Object type
Number
Description
The interval of upgrading the status is specified in milliseconds.
Default value: 3000 (three seconds)
Minimum value: 1000 (one second or longer)
When an invalid value is specified, it is assumed to be 3000.
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.interval = 1000;
epos.oncoveropen = function () { alert('coveropen'); };
epos.open();
//-->
</script>
169
Chapter 5 ePOS-Print Canvas API
5
status property
Status of the printer.
Object type
Number
Description
This is the status last obtained from the printer. This is read-only.
Default value: 0
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onoffline = function () {
alert(epos.status);
};
epos.open();
//-->
</script>
170
battery property
Battery status of the printer.
Object type
Number
Description
Battery status obtained from the last printer status. This is read-only.
Default value: 0
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onbatterylow = function () {
alert(epos.battery);
};
epos.open();
//-->
</script>
171
Chapter 5 ePOS-Print Canvas API
5
timeout property
Specifies connection timeout.
Object type
Number
Description
Specifies connection timeout with ePOS-Print supported printer in milliseconds.
When the transmission of print document by print method times out, onerror even is generated.
Default value: 300000 (5 minutes)
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.timeout = 60000;
epos.onreceive = function (res) { alert(res.success); };
epos.onerror = function (err) { alert(err.status); };
epos.print(canvas);
//-->
</script>
172
halftone property
Halftone processing method.
Object type
String
Description
The halftone processing method to be applied to monochrome (two-tone) printing is specified.
The default value is HALFTONE_DITHER.
Example
Constant Description
HALFTONE_DITHER Dithering, suitable for printing graphics only.
HALFTONE_ERROR_DIFFUSION Error diffusion, suitable for printing text and graphics together.
HALFTONE_THRESHOLD Threshold, suitable for printing text only.
To set the halftone type as error diffusion:
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.halftone = epos.HALFTONE_ERROR_DIFFUSION;
epos.print(canvas);
//-->
</script>
173
Chapter 5 ePOS-Print Canvas API
5
brightness property
Brightness correction value.
Object type
Number
Description
A gamma value in the range 0.1-10.0 is specified for the brightness correction value.
The default value is 1.0.
Example
To set brightness as 2.2:
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.brightness = 2.2;
epos.print(canvas);
//-->
</script>
174
cut property
It sets with or without paper cut.
Object type
Boolean
Description
It specifies with or without paper cut.
Example
Value Description
true/1 Cut paper after printing
false/0 (Default) Do not cut paper
It sets paper cut after printing.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.cut = true;
epos.print(canvas);
//-->
</script>
175
Chapter 5 ePOS-Print Canvas API
5
mode property
It sets the color mode.
Object type
String
Description
It specifies the color mode.
Example
Value Description
MODE_MONO (Default) Monochrome (2-tone)
MODE_GRAY16 Multiple tones (16-tone)
Prints with multiple tones.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.mode = epos.MODE_GRAY16;
epos.print(canvas);
//-->
</script>
176
align property
It sets the position alignment.
Object type
String
Description
It specifies the position alignment.
Example
Value Description
ALIGN_LEFT (Default) Alignment to the left
ALIGN_CENTER Alignment to the center
ALIGN_RIGHT Alignment to the right
Prints with center alignment.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.align = epos.ALIGN_CENTER;
epos.print(canvas);
//-->
</script>
177
Chapter 5 ePOS-Print Canvas API
5
color property
It sets printing color.
Object type
String
Description
It specifies printing color.
Example
Value Description
COLOR_NONE No printing
COLOR_1 1st color
COLOR_2 2nd color
COLOR_3 3rd color
COLOR_4 4th color
Prints with the 2nd color.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.color = epos.COLOR_2;
epos.print(canvas);
//-->
</script>
178
feed property
It sets paper feed of label paper/black mark paper. (in ePOS-Print Service Ver.2.1 and later)
Object type
String
Description
Paper feed position of label paper/black mark paper.
Example
Value Description
FEED_PEELING Feeds to the peeling position.
FEED_CUTTING Feeds to the cutting position.
FEED_CURRENT_TOF (Default) Feeds to the top of the current label.
FEED_NEXT_TOF Feeds to the top of the next label.
After printing a label, it feeds paper to the peeling position.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.paper = epos.PAPER_LABEL;
epos.feed = epos.FEED_PEELING;
epos.print(canvas);
//-->
</script>
179
Chapter 5 ePOS-Print Canvas API
5
paper property
It sets paper type. (in ePOS-Print Service Ver.2.1 and later)
Object type
String
Description
It specifies paper type.
Example
Value Description
PAPER_RECEIPT (Default) Receipt (without black mark)
PAPER_RECEIPT_BM Receipt (with black mark)
PAPER_LABEL Die-cut label (without black mark)
PAPAER_LABEL_BM Die-cut label (with black mark)
Prints a label.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.paper = epos.PAPER_LABEL;
epos.feed = epos.FEED_PEELING;
epos.print(canvas);
//-->
</script>
180
layout property
It sets paper layout. (in ePOS-Print Service Ver.2.2 and later)
Object type
Object
Description
It specifies paper layout.
Property of layout being setup
Value of width (Object type : Number, When not specified : 580)
Specifies paper width (in units of 0.1 mm). Specifies an integer from 290 to 600. *
Value of height (Object type : Number, When not specified : 0)
Specifies paper height (in units of 0.1 mm).
Property Name Object type
width Paper width Number
height Paper height Number
margin_top Top margin Number
margin_bottom Bottom margin Number
offset_cut Cutting position Number
offset_label Bottom position of label Number
Paper type Valid value range Description
Receipt
(without black mark)
0 Setup not necessary
Receipt (with black mark)
0 (auto)
284 to 1550 (manual) *
Distance from the top of black
mark to the top of next black
mark
Die-cut label
(without black mark)
Distance from the top of label to
the top of next label
Die-cut label
(with black mark)
Distance from the bottom of
black mark to the bottom of next
black mark
181
Chapter 5 ePOS-Print Canvas API
5
Value of margin_top (Object type : Number, When not specified : 0)
Specifies top margin (in units of 0.1 mm).
Value of margin_bottom (Object type : Number, When not specified : 0)
Specifies bottom margin (in units of 0.1 mm).
Value of offset_cut (Object type : Number, When not specified : 0)
Specifies cut position (in units of 0.1 mm).
In case of die cut label paper, it is a distance from the bottom of label.
When a paper has black mark, it is a distance from the beginning of black mark.
Paper type Valid value range Description
Receipt
(without black mark)
0 Setup not necessary
Receipt (with black mark) -150 to 1500 * Distance from the top of black
mark
Die-cut label
(without black mark)
0 to 1500 * Distance from the top of label
Die-cut label
(with black mark)
-15 to 1500 * Distance from the bottom of
black mark
Paper type Valid value range Description
Receipt
(without black mark)
0 Setup not necessary
Receipt (with black mark) 0
Die-cut label
(without black mark)
-15 to 0 * Distance from the bottom of
label (paper feed direction is a
positive number)
Die-cut label
(with black mark)
-15 to 15 * Distance from the top of black
mark (paper feed direction is a
positive number)
Paper type Valid value range Description
Receipt
(without black mark)
0 Setup not necessary
Receipt (with black mark)
-290 to 50 * Distance from the top of black
mark to the top of next black
mark
Die-cut label
(without black mark)
0 to 50 * Distance from the bottom of
label to the cutting position
Die-cut label
(with black mark)
0 to 50 * Distance from the top of black
mark to the cutting position
182
Value of offset_label (Object type : Number, When not specified : 0)
Specifies label bottom position (sd) per 0.1 mm unit.
*: Valid value of range is depending on the printer model. For detail, refer to "Appendix - Printer
Specifications".
Layout property positions that can be designated for each type of paper
Paper type Valid value range Description
Receipt
(without black mark)
0 Setup not necessary
Receipt (with black mark) 0
Die-cut label
(without black mark)
0
Die-cut label
(with black mark)
0 to 15 * Distance from the top of black
mark to the bottom of label
Mark Parameter
sf width
sa height
sb margin_top
se margin_bottom
sc offset_cut
sd offset_label
sf sf
sf sf
sb
sb
sc
sc sc
sa sa
sa
Receipt
Label se
se
sb
sd
Cut
Cut
Cut
Bottom edge
of print area
Bottom edge
of print area
Standard eject
Top position
Bottom edge
of label
<with Black Mark>
sc
Top position
Top position
<without Black Mark>
183
Chapter 5 ePOS-Print Canvas API
5
Example
To set 58 mm receipt (without black mark):
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.paper = epos.PAPER_RECEIPT;
epos.layout = { width: 580 };
epos.cut = true;
epos.print(canvas);
//-->
</script>
To set 58 mm receipt (with black mark):
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.paper = epos.PAPER_RECEIPT_BM;
epos.layout = { width: 580, height: 0, margin_top:15, offset_cut: 0 };
epos.cut = true;
epos.print(canvas);
//-->
</script>
To set 58 mm die-cut label (without black mark):
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.paper = epos.PAPER_LABEL;
epos.layout = { width: 580, height: 0, margin_top: 15, margin_bottom: -15,
offset_cut: 25 };
epos.cut = true;
epos.print(canvas);
//-->
</script>
184
To set 58 mm die-cut label (with black mark):
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.paper = epos.PAPER_LABEL_BM;
epos.layout = { width: 580, height: 0, margin_top: 15, margin_bottom: -15
offset_cut: 25, offset_label: 15 };
epos.cut = true;
epos.print(canvas);
//-->
</script>
185
Chapter 5 ePOS-Print Canvas API
5
onreceive event
This property registers the callback function and obtains a response message receipt event.
Syntax
Function (response)
Parameter of the callback function
Parameter: response (See “Properties of the response object” on page 185.)
Name: Response message
Object type: Object
Properties of the response object
*ePOS-Print Service Ver.4.1 or later versions supported
Value o f su ccess
Value o f c o de
*ePOS-Print Service Ver.4.1 or later versions supported
Parameter Name Object type
success (p. 185) Print result Boolean
code (p. 185)Error code String
status (p. 186) Status Number
battery (p. 186)Battery status Number
printjobid (p. 186) * Print job ID String
Value Description
true or 1 Printing succeeded
Processing succeeded (When the spooler function is enabled)
false or 0 Printing Failed
Processing Failed (When the spooler function is enabled)
Value Description
'EPTR_AUTOMATICAL' An automatically recoverable error occurred
'EPTR_BATTERY_LOW' No remaining battery
'EPTR_COVER_OPEN' A cover open error occurred
'EPTR_CUTTER' An autocutter error occurred
'EPTR_MECHANICAL' A mechanical error occurred
'EPTR_REC_EMPTY' No paper in roll paper end sensor
'EPTR_UNRECOVERABLE' An unrecoverable error occurred
'SchemaError' The request document contains a syntax error
'DeviceNotFound' The printer with the specified device ID does not exist
'PrintSystemError' An error occurred on the printing system
'EX_BADPORT' An error was detected on the communication port
'EX_TIMEOUT' A print timeout occurred
'EX_SPOOLER' * There is not enough space available in the printing queue
'JobNotFound' * The specified job ID does not exist
'Printing' * Print job now printing
186
Value of satus
*ePOS-Print Service Ver.4.1 or later versions supported
Value of battery
0 is shown when the model doesn't have a battery installed.
Status of power
Remaining battery
Value of printjobid
Constant (status) Description
ASB_NO_RESPONSE No response from the TM printer
ASB_PRINT_SUCCESS Printing is successfully completed
ASB_DRAWER_KICK Status of the 3rd pin of the drawer kick-out connector = "H"
ASB_BATTERY_OFFLINE Off line status from remaining battery
(only for applicable devices)
ASB_OFF_LINE Offline
ASB_COVER_OPEN The cover is open
ASB_PAPER_FEED Paper is being fed by a paper feed switch operation
ASB_WAIT_ON_LINE Waiting to be brought back online
ASB_PANEL_SWITCH The paper feed switch is being pressed (ON)
ASB_MECHANICAL_ERR A mechanical error occurred
ASB_AUTOCUTTER_ERR An autocutter error occurred
ASB_UNRECOVER_ERR An unrecoverable error occurred
ASB_AUTORECOVER_ERR An automatically recoverable error occurred
ASB_RECEIPT_NEAR_END No paper in roll paper near end sensor
ASB_RECEIPT_END No paper in roll paper end sensor
ASB_BUZZER A buzzer is on (only for applicable devices)
ASB_WAIT_REMOVE_LABEL Waiting period for removal of label (only for applicable devices)
ASB_NO_LABEL No paper in label peeling sensor (only for applicable devices)
ASB_SPOOLER_IS_STOPPED * The spooler has stopped
Value (batter y) Description
0x30XX AC adapter is connected
0x31XX AC adapter is not connected
Value (batter y) Description
0xXX36 Remaining battery 6
0xXX35 Remaining battery 5
0xXX34 Remaining battery 4
0xXX33 Remaining battery 3
0xXX32 Remaining battery 2
0xXX31 Remaining battery 1 (Near end)
0xXX30 Remaining battery 0 (Real end)
Value Description
'...' Print job ID
(An empty string denotes that a print job ID has not been set)
187
Chapter 5 ePOS-Print Canvas API
5
Example
To print Canvas(ID=myCanvas):
To display the print result in a message box.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printCanvas() {
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.onreceive = function (res) {
var success = res.success;
var code = res.code;
var status = res.status;
alert(success);
};
epos.print(canvas);
}
//-->
</script>
188
onerror event
This property registers the callback function and obtains a communication error event.
Syntax
Function (error)
Parameter of the callback function
Parameter: error (See “Properties of the error object” on page 188.)
Name: Communication error information
Object type: Object
Properties of the error object
Example
property Name Object type
status HTTP status Number
responseText Responce text String
To print Canvas(ID=myCanvas):
To display the HTTP status code in a message box when a communication error occurs.
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
function printCanvas() {
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var canvas = document.getElementById('myCanvas');
var epos = new epson.CanvasPrint(address);
epos.onerror = function (err) {
var status = err.status;
var text = err.responseText;
alert(status);
};
epos.print(canvas);
}
//-->
</script>
189
Chapter 5 ePOS-Print Canvas API
5
onstatuschange event
Registers a callback function to obtain a status change event.
Syntax
Function (status)
Parameter of the callback function
Parameters: status
Name: Status
Object type: Number
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onstatuschange = function (status) {
alert(status);
};
epos.open();
//-->
</script>
190
onbatterystatuschange event
Registers call back function and obtains battery status change event. (in ePOS-Print Service Ver.2.2 and
later)
Syntax
Function (battery)
Parameter of the callback function
Parameters: battery
Name: Battery status
Object type: Number
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onbatterystatuschange = function (battery) {
alert(battery);
};
epos.open();
//-->
</script>
191
Chapter 5 ePOS-Print Canvas API
5
onbatteryok event
Registers call back function and obtains remaining battery event. (in ePOS-Print Service Ver.2.2 and later)
Syntax
Function ()
Example
onbatterylow event
Registers call back function and obtains no remaining battery event. (in ePOS-Print Service Ver.2.2 and
later)
Syntax
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onbatteryok = function () {
alert('batteryok’);
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onbatterylow = function () {
alert('batterylow’);
};
epos.open();
//-->
</script>
192
ononline event
Registers a callback function to obtain a online event.
Object type
Function ()
Example
onoffline event
Registers a callback function to obtain a offline event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.ononline = function () {
alert('online');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onoffline = function () {
alert('offline');
};
epos.open();
//-->
</script>
193
Chapter 5 ePOS-Print Canvas API
5
onpoweroff event
Registers a callback function to obtain a non-response event.
Object type
Function ()
Example
oncoverok event
Registers a callback function to obtain a cover close event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onpoweroff = function () {
alert('poweroff');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.oncoverok = function () {
alert('coverok');
};
epos.open();
//-->
</script>
194
oncoveropen event
Registers a callback function to obtain a cover open event.
Object type
Function ()
Example
onpaperok event
Registers a callback function to obtain a paper remaining event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.oncoveropen = function () {
alert('coveropen');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onpaperok = function () {
alert('paperok');
};
epos.open();
//-->
</script>
195
Chapter 5 ePOS-Print Canvas API
5
onpapernearend event
Registers a callback function to obtain a paper near end event.
Object type
Function ()
Example
onpaperend event
Registers a callback function to obtain a paper end event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onpapernearend = function () {
alert('papernearend');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.onpaperend = function () {
alert('paperend');
};
epos.open();
//-->
</script>
196
ondrawerclosed event
Registers a callback function to obtain a drawer close event.
Object type
Function ()
Example
ondraweropen event
Registers a callback function to obtain a drawer open event.
Object type
Function ()
Example
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.ondrawerclosed = function () {
alert('drawerclosed');
};
epos.open();
//-->
</script>
<script type="text/javascript" src="epos-print-4.x.x.js"></script>
<script type="text/javascript">
<!--
var address = 'http://192.168.192.168/cgi-bin/epos/service.cgi?devid=local_printer';
var epos = new epson.CanvasPrint(address);
epos.ondraweropen = function () {
alert('draweropen');
};
epos.open();
//-->
</script>
197
Chapter 6 ePOS-Print Editor
6
ePOS-Print Editor
This section describes how to use ePOS-Print Editor included in the contents in the package.
This tool allows you to create an ePOS-Print API (p. 61) sample code as you like. Use this tool for your Web
application development.
ePOS-Print Editor Operating Environment
❏Web Browser
Windows Internet Explorer 9 or later
Mozilla Firefox 13 or later
Google Chrome 19 or later
Apple Safari 5.1.7 or later
iPad Safari in iOS 5.1 or later
Displaying ePOS-Print Editor
1Open the following URL page using the Web browser.
http://[Web server IP address]/editor/index.html
2ePOS-Print Editor appears.
• If opening a page with ePOS-Print Editor's HTML file placed on the local disk, some
functionality does not operate due to your Web browser's security policy. Place the HTML file of
ePOS Editor to a folder under Web server.
• In Google Chrome, when a preview image including pictures is displayed, a "SECURITY_ERR:
DOM Exception 18" error occurs.
• In Windows Internet Explorer 9, when printing is performed, a "SCRIPT5: Access is denied."
error occurs.
198
Setting
Perform the print setting and the preview setting. Select the [Setting] tab to display the Setting screen.
Item Description
Model, Paper width (Liner width) Select printer model to be used and paper width (for label
paper, the mount width).
The Preview screen resizes according to the paper width
set to the model.
IP address of ePOS-Print supported TM
printer
Specify the IP address of the printer.
Be sure to specify this item.
Device ID of the target printer Specify the device ID of the printer.
Be sure to specify this item.
Print timeout (milliseconds) Specify the print timeout time in milliseconds.
The maximum value is 60000 (60 seconds).
Monitor the status When this checkbox is checked, the printer's status is
monitored.
Use print job ID Check this for a print job ID to be assigned when printing.
199
Chapter 6 ePOS-Print Editor
6
Creating a Sample Code
Select the [Edit] tab to display the Edit screen. Create an ePOS-Print API sample code in the Edit screen.
Item Description
Menu area Displays the available functions.
Click an icon to add it to the bottom of the edit area, and drag an icon to
insert it anywhere in the edit area.
Edit area Displays the functions selected in the menu area.
Drag an element to change its position. An element can be deleted using
the x button located on its right side.
Import Using ePOS-Print XML, ePOS-Print Editor can import XML data stored in the
past. For details, refer to Import (p.202).
Clear Deletes the edited details.
Forced Transmission Sets forced transmission mode.
Edit area
Menu area
200
Create a sample code as follows:
1Click an icon in the menu area to add an element in the edit area.
The position of the added function can be changed by dragging.
2Configure the added element.
Example: When the NV logo is added, set the key code.
3Select the [Preview] tab to check the preview image.
When a printer is connected, you can also check the image by printing.
For details, refer to Print (p.201).
4Select the [API] tab. The ePOS-Print API sample code appears. Use it by copying.
• Logo printing, barcode printing, 2D code printing, ESC command, buzzer sound, drawer kick,
and paper cut are displayed as icons.
• The layout may change depending on the preview settings.
(For details, refer to Setting (p.198)).
The ePOS-Print XML print document is used for importing. If necessary, select the XML tab and
save the content of the ePOS-Print XML print document by copying.
201
Chapter 6 ePOS-Print Editor
6
Print
Using the printer, print the print document according to the printer's settings to perform test printing.
(For details on the printer settings, refer to Setting (p.198)).
Perform printing as follows:
1Select the [Print] tab.
2Check the content in the [Data to be sent (ePOS-Print XML)] box and press the
[Send] button.
The ePOS-Print XML print document created using the [Edit] tab page is displayed in "Data to be sent
(ePOS-Print XML)".
3The print document is printed to ePOS-Print supported TM printer. The acquired
status is displayed in the Information box.
Item Description
Data to be sent
(ePOS-Print XML)
The ePOS-Print XML document is displayed.
Send Sends data to the printer and performs printing.
Information Displays the print status.
Clear Deletes the content in the [Information] box.
202
Import
ePOS-Print Editor can import and re-edit the ePOS-Print XML print document once created.
ePOS-Print Editor can import an ePOS-Print XML print document as follows:
1Select the [Edit] tab and click the [Import] button.
2The "Import" screen appears. Paste the ePOS-Print XML print document in the
[Data to be import (ePOS-Print XML)] box.
3Click the [Apply] button.
4The "Confirmation" screen appears. Click the [Yes] button.
Note that you cannot perform import operation using ePOS-Print API source code.
Perform import operation using ePOS-Print XML print data.
Item Description
Data to be import
(ePOS-Print XML)
Paste and check the ePOS-Print XML print document to be imported.
Apply Imports the ePOS-Print XML print document.
Information Displays the import information.
Close Closes the Import screen.
203
Appendix
Appendix
Printer specifications
TM-L90-i/ TM-L90
Receipt Die-cut label
Interface Ethernet, Wireless LAN
Resolution 203 dpi x 203 dpi (W x H)
Print Width 256 dots (38 mm) to
576 dots (80 mm)
224 dots (38 mm) to
560 dots (80 mm)
Font Font A, Font B, Font C
For more information about what character codes can be printed,
refer to the user's manual that came with the printer.
Characters in a
Line
Font A ANK: 48 characters, ANK: 46 characters
Font B ANK: 57 characters ANK: 56 characters
Font C ANK: 72 characters ANK: 70 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 10 dots x 24 dots (W x H)
Font C ANK: 8 dots x 16 dots (W x H)
Character
Baseline
Font A At the 21st dot from the top of the character
Font B At the 21 st dot from the top of the character
Font C At the 15 st dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
First color, Second color (when two-color printing is set)
Raster Image Monochrome image, Two color image
Logo Monochrome image, Two color image
(To perform two-color printing, change the settings of the printer
using the memory switch setting utility.)
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF, CODABAR,
CODE93, CODE128
Two-Dimensional Code PDF417, QR Code, MaxiCode
204
Ruled Line Not supported
Page Mode Default Area 576 dots x 738 dots (W x H) 560 dots x 738 dots (W x H)
when two-
color printing
is set
576 dots x 369 dots (W x H) 560 dots x 369 dots (W x H)
Page Mode Maximum Area 576 dots x 1476 dots (W x H) 560 dots x 1476 dots (W x H)
when two-
color printing
is set
576 dots x 738 dots (W x H) 560 dots x 738 dots (W x H)
Page Mode Line Not supported
Rectangle
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark
paper
Supported
Drawer Kick-Out Supported
Buzzer Not supported
Paper Layout Settings Not supported (With automatic setup mode)
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
Receipt Die-cut label
205
Appendix
TM-T70-i/ TM-T70
80 mm
Interface Ethernet, Wireless LAN
Resolution 180 dpi x 180 dpi (W x H)
Print Width 512 dots
Font Font A, Font B
For more information about what character codes can be
printed, refer to the user's manual that came with the printer.
Characters in a Line Font A ANK: 42 characters
Font B ANK: 56 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character Baseline Font A At the 21st dot from the top of the character
Font B At the 15th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
Page Mode Default Area 512 dots x 1662 dots (W x H)
Page Mode Maximum Area 512 dots x 1662 dots (W x H)
Raster image Monochrome image
Logo Monochrome image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF,
CODABAR, CODE93, CODE128
Two-Dimensional Code PDF417, QR Code
Ruled Line Not supported
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark paper Not supported
Drawer Kick-Out Supported
Buzzer Not supported
Paper Layout Settings Not supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
206
TM-T70-i (Multi-language model)
80 mm
Interface Ethernet, Wireless LAN
Resolution 203 dpi x 203 dpi (W x H)
Print Width 576 dots
Font Font A, Font B
For more information about what character codes can be
printed, refer to the user's manual that came with the printer.
Characters in a Line Font A ANK: 48 characters
Font B ANK: 64 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character Baseline Font A At the 21st dot from the top of the character
Font B At the 15th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
Page Mode Default Area 576 dots x 1662 dots (W x H)
Page Mode Maximum Area 576 dots x 1662 dots (W x H)
Raster image Monochrome image
Logo Monochrome image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF,
CODABAR, CODE93, CODE128
Two-Dimensional Code PDF417, QR Code
Ruled Line Not supported
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark paper Not supported
Drawer Kick-Out Supported
Buzzer Not supported
Paper Layout Settings Not supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
207
Appendix
TM-T88V-i/ TM-T88V
80 mm 58 mm
Interface Ethernet, Wireless LAN
Resolution 180 dpi x 180 dpi (W x H)
Print Width 512 dots 360 dots
Font Font A, Font B
For more information about what character codes can be
printed, refer to the user's manual that came with the printer.
Characters in a Line Font A ANK: 42 characters ANK: 30 characters
Font B ANK: 56 characters ANK: 40 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character Baseline Font A At the 21st dot from the top of the character
Font B At the 16th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
Page Mode Default Area 512 dots x 831 dots (W x H) 360 dots x 831 dots (W x H)
Page Mode Maximum Area 512 dots x 1662 dots (W x H) 360 dots x 1662 dots (W x H)
Raster image Monochrome image, two-color image
Logo Monochrome image, two-color image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF,
CODABAR, CODE93, CODE128, GS1-128,GS1 DataBar
Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited,
GS1 Databar Expanded
Two-Dimensional Code PDF417, QR Code, MaxiCode, GS1 DataBar Stacked,
GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded
Stacked (Composite Symbology not supported)
Ruled Line Not supported
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark
paper
Not supported
Drawer Kick-Out Supported
Buzzer Optional (Pattern A ~ Pattern E, Error, No paper, Stop)
Paper Layout Settings Not supported
208
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
80 mm 58 mm
209
Appendix
TM-P60II
Receipt 58 mm Receipt 60 mm
Interface Wireless LAN
Resolution 203 dpi x 203 dpi (W x H)
Print Width 420 dots 432 dots
Font Font A, Font B, Font C
For more information about what character codes can be printed,
refer to the user's manual that came with the printer.
Characters in a
Line
Font A ANK: 35 characters, ANK: 36 characters
Font B ANK: 42 characters ANK: 43 characters
Font C ANK: 52 characters ANK: 54 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 10 dots x 24 dots (W x H)
Font C ANK: 8 dots x 16 dots (W x H)
Character
Baseline
Font A At the 21st dot from the top of the character
Font B At the 21 st dot from the top of the character
Font C At the 15 th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
Raster Image Monochrome image
Logo Monochrome image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF, CODABAR,
CODE93, CODE128, GS1-128, GS1 DataBar Omnidirectional, GS1
DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded
Two-Dimensional Code PDF417, QR Code, MaxiCode, GS1 DataBar Stacked, GS1 DataBar
Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Aztec
Code, DataMatrix (Composit Symbology : Not supported)
Ruled Line Not supported
Page Mode Default Area 420 dots x 1624 dots (W x H) 432 dots x 1624 dots (W x H)
Page Mode Maximum Area 420 dots x 1624 dots (W x H) 432 dots x 1624 dots (W x H)
Page Mode Line Supported (Only solid line)
Rectangle
Paper Cut Cut, Feed cut
210
Specification of the paper feed
position for labels / black mark
paper
Not supported
Drawer Kick-Out Not supported
Buzzer Support (Pattern1 ~ Pattern 10, Stop)
Paper Layout Settings Not supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
Receipt 58 mm Receipt 60 mm
211
Appendix
TM-P60II with Peeler
Receipt 58 mm Receipt 60 mm Die-cut label
Interface Wireless LAN
Resolution 203 dpi x 203 dpi (W x H)
Print Width 420 dots 432 dots 160 dots ~ 400 dots
Font Font A, Font B, Font C
For more information about what character codes can be printed,
refer to the user's manual that came with the printer.
Characters in a
Line
Font A ANK: 35 characters, ANK: 36 characters ANK: 33 characters
Font B ANK: 42 characters ANK: 43 characters ANK: 40 characters
Font C ANK: 52 characters ANK: 54 characters ANK: 50 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 10 dots x 24 dots (W x H)
Font C ANK: 8 dots x 16 dots (W x H)
Character
Baseline
Font A At the 21st dot from the top of the character
Font B At the 21 st dot from the top of the character
Font C At the 15 th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
Raster Image Monochrome image
Logo Monochrome image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF, CODABAR,
CODE93, CODE128, GS1-128, GS1 DataBar Omnidirectional, GS1
DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded
Two-Dimensional Code PDF417, QR Code, MaxiCode, GS1 DataBar Stacked, GS1 DataBar
Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Aztec
Code, DataMatrix (Composit Symbology : Not supported)
Ruled Line Not supported
Page Mode Default Area 420 dots x 1624 dots
(W x H)
432 dots x 1624 dots
(W x H)
400 dots x 1624 dots
(W x H)
Page Mode Maximum Area 420 dots x 1624 dots
(W x H)
432 dots x 1624 dots
(W x H)
400 dots x 1624 dots
(W x H)
Page Mode Line Supported (Only solid line)
Rectangle
212
Paper Layout
Paper Cut Feed cut (Feeds paper to cutting position)
Specification of the paper feed
position for labels / black mark
paper
Supported
Drawer Kick-Out Not supported
Buzzer Support (Pattern1 ~ Pattern 10, Stop)
Paper Layout Settings Supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
Paper type
Receipt paper
(without black
mark)
Receipt paper
(with black
mark)
Die-cut label
paper
(without black
mark)
Die-cut label
paper
(with black
mark)
width (sf) 290 to 600 290 to 600 290 to 600 290 to 600
height (sa) 0 0, 284 to 1550 0, 284 to 1550 0, 284 to 1550
margin_top (sb) 0 -130 to 1500 0 to 1500 -15 to 1500
margin_bottom (se) 0 0 -15 to 0 -15 to 15
offset_cut (sc) 0 -256 to 50 0 to 50 0 to 50
offset_label (sd)0000 to 15
Receipt 58 mm Receipt 60 mm Die-cut label
213
Appendix
TM-P80
Receipt 80 mm
Interface Wireless LAN
Resolution 203 dpi x 203 dpi (W x H)
Print Width 576 dots, 546 dots (42 column mode)
Font Font A, Font B
For more information about what character codes can be printed,
refer to the user's manual that came with the printer.
Characters in a
Line
Font A ANK: 48 characters,
Font B ANK: 64 characters
Font A
(42 column
mode)
ANK: 42 characters
Font B
(42 column
mode)
ANK: 60 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Font A ANK: 13 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character
Baseline
Font A At the 21st dot from the top of the character
Font B At the 15 th dot from the top of the character
Default Line Feed Space 3.75 mm {0.15”}
Color Specification First color
Raster Image Monochrome image
Logo Monochrome image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF, CODABAR,
CODE93, CODE128, GS1-128, GS1 DataBar Omnidirectional, GS1
DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded
214
Paper Layout
Two-Dimensional Code PDF417, QR Code, MaxiCode, GS1 DataBar Stacked, GS1 DataBar
Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Aztec
Code, DataMatrix
Ruled Line Not supported
Page Mode Default Area 576 dots x 1662 dots (W x H), 546 dots x 1662 dots (W x H) (42 column
mode)
Page Mode Maximum Area 576 dots x 1662 dots (W x H), 546 dots x 1662 dots (W x H) (42 column
mode)
Page Mode Line
Supported (Only solid line)
Rectangle
Paper Cut Feed cut (Feeds paper to cutting position)
Specification of the paper feed
position for labels / black mark
paper
Supported (Only for black mark paper)
Drawer Kick-Out Not supported
Buzzer Support (Pattern1 ~ Pattern 10, Stop)
Paper Layout Settings Supported (Only for receipt paper)
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
Paper type Receipt paper
(without black mark)
Receipt paper
(with black mark)
width (sf) 800 800
height (sa) 0 0, 284 to 3100
margin_top (sb) 0 -98 to 3100
margin_bottom (se) 0 0
offset_cut (sc) 0 -173 to 50
offset_label (sd) 0 0
Receipt 80 mm
215
Appendix
TM-T20
58 mm 80 mm
Interface Ethernet
Resolution 203 dpi x 203 dpi (W x H)
Print Width 420 dots 576 dots
Font Font A, Font B
For more information about what character codes can be printed,
refer to the user's manual that came with the printer.
Characters in a
Line
Font A ANK: 35 characters, ANK: 48 characters
Font B ANK: 46 characters ANK: 64 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character
Baseline
Font A At the 21st dot from the top of the character
Font B At the 16 st dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
Raster Image Monochrome image
Logo Monochrome image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF, CODABAR,
CODE93, CODE128, GS1-128, GS1 DataBar Omnidirectional, GS1
DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded
Two-Dimensional Code PDF417, QR Code, MaxiCode, GS1 DataBar Stacked, GS1 DataBar
Stacked Omnidirectional, GS1 DataBar Expanded Stacked
(Composit Symbology : Not supported)
Ruled Line Not supported
Page Mode Default Area 420 dots x 831 dots (W x H) 576 dots x 831 dots (W x H)
Page Mode Maximum Area 420 dots x 1662 dots (W x H) 576 dots x 1662 dots (W x H)
Page Mode Line Not supported
Rectangle
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark
paper
Not supported
216
Drawer Kick-Out Supported
Buzzer Optional (Pattern A ~ Pattern E, Error, No paper, Stop)
Paper Layout Settings Not supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
58 mm 80 mm
217
Appendix
TM-T70 (Multi-language model)
80 mm 58 mm
Interface Ethernet, Wireless LAN
Resolution 203 dpi x 203 dpi (W x H)
Print Width 576 dots 416 dots
Font Font A, Font B
For more information about what character codes can be
printed, refer to the user's manual that came with the printer.
Characters in a Line Font A ANK: 42 characters ANK: 34 characters
Font B ANK: 56 characters ANK: 46 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character Baseline Font A At the 21st dot from the top of the character
Font B At the 15th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
Page Mode Default Area 576 dots x 1662 dots (W x H) 416 dots x 1662 dots (W x H)
Page Mode Maximum Area 576 dots x 1662 dots (W x H) 416 dots x 1662 dots (W x H)
Raster image Monochrome image
Logo Monochrome image
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF,
CODABAR, CODE93, CODE128
Two-Dimensional Code PDF417, QR Code
Ruled Line Not supported
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark paper Not supported
Drawer Kick-Out Supported
Buzzer Not supported
Paper Layout Settings Not supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
218
TM-T88IV
80 mm 58 mm
Interface Ethernet, Wireless LAN
Resolution 180 dpi x 180 dpi (W x H)
Print Width 512 dots 360 dots
Font Font A, Font B
For more information about what character codes can be
printed, refer to the user's manual that came with the printer.
Characters in a Line Font A ANK: 42 characters ANK: 30 characters
Font B ANK: 56 characters ANK: 40 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character Baseline Font A At the 21st dot from the top of the character
Font B At the 16th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
First color, Second color (when two-color printing is set)
Page Mode Default Area 512 dots x 831 dots (W x H) 360 dots x 831 dots (W x H)
when two-
color
printing is set
512 dots x 415 dots (W x H) 360 dots x 415 dots (W x H)
Page Mode Maximum Area 512 dots x 1662 dots (W x H) 360 dots x 1662 dots (W x H)
when two-
color
printing is set
512 dots x 831 dots (W x H) 360 dots x 831 dots (W x H)
Raster image Monochrome image, two-color image
Logo Monochrome image, two-color image
(To perform two-color printing, change the settings of the printer
using the memory switch setting utility.)
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF,
CODABAR, CODE93, CODE128, GS1-128
Two-Dimensional Code PDF417, QR Code
Ruled Line Not supported
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark
paper
Not supported
Drawer Kick-Out Supported
Buzzer Not supported
219
Appendix
Paper Layout Settings Not supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
80 mm 58 mm
220
TM-T90
58 mm 60 mm 80 mm
Interface Ethernet, Wireless LAN
Resolution 180 dpi x 180 dpi (W x H)
Print Width 360 dots 384 dots 512 dots
Font Font A, Font B
For more information about what character codes can be printed,
refer to the user's manual that came with the printer.
Characters in a
Line
Font A ANK: 30 characters, ANK: 32 characters ANK: 42 characters
Font B ANK: 40 characters ANK: 42 characters ANK: 56 characters
Character Size Font A ANK: 12 dots x 24 dots (W x H)
Font B ANK: 9 dots x 17 dots (W x H)
Character
Baseline
Font A At the 21st dot from the top of the character
Font B At the 16 th dot from the top of the character
Default Line Feed Space 30 dots
Color Specification First color
First color, Second color (when two-color printing is set)
Raster Image Monochrome image, Two color image
Logo Monochrome image, Two color image
(To perform two-color printing, change the settings of the printer
using the memory switch setting utility.)
Bar Code UPC-A, UPC-E, EAN13, JAN13, EAN8, JAN8, CODE39, ITF, CODABAR,
CODE93, CODE128
Two-Dimensional Code PDF417
Ruled Line Not supported
Page Mode Default Area 360 dots x 831 dots
(W x H)
384 dots x 831 dots
(W x H)
512 dots x 831 dots
(W x H)
when two-
color printing
is set
360 dots x 415 dots
(W x H)
384 dots x 415 dots
(W x H)
512 dots x 415 dots
(W x H)
Page Mode Maximum Area 360 dots x 1662 dots
(W x H)
384 dots x 1662 dots
(W x H)
512 dots x 1662 dots
(W x H)
when two-color printing is set 360 dots x 831 dots
(W x H)
384 dots x 831 dots
(W x H)
512 dots x 831 dots
(W x H)
221
Appendix
Page Mode Line Not supported
Rectangle
Specification of the paper feed
position for labels / black mark
paper
Not supported
Paper Cut Cut, Feed cut
Drawer Kick-Out Supported
Buzzer Supported via Drawer Kick-Out
Paper Layout Settings Not supported
Forced transmission mode Supported
Recovery from an error Supported
Reset Supported
Command Supported
58 mm 60 mm 80 mm
222
TM-U220
76 mm 70 mm 58 mm
Interface Ethernet, Wireless LAN
Resolution 80 dpi x 72 dpi (W x H)
Print Width 200 dots 180 dots 150 dots
Font Font A, Font B
For more information about what character codes can be printed,
refer to the user's manual that came with the printer.
Characters in a
Line
Font A ANK: 33 characters, ANK: 30 characters ANK: 25 characters
Font B ANK: 40 characters ANK: 36 characters ANK: 30 characters
Character Size Font A ANK: 4.5 dots x 9 dots (W x H)
Font B ANK: 3.5 dots x 9 dots (W x H)
Character
Baseline
Font A Bottom of the characters
Font B Bottom of the characters
Default Line Feed Space 12 dots
Color Specification First color
First color, Second color (When using a two-color ribbon cassette )
Raster Image Monochrome image
Logo Not supported
Bar Code Not supported
Two-Dimensional Code Not supported
Ruled Line Not supported
Page Mode Default Area Not supported
Page Mode Maximum Area Not supported
Page Mode Line Not supported
Rectangle
Paper Cut Cut, Feed cut
Specification of the paper feed
position for labels / black mark
paper
Not supported
Drawer Kick-Out Supported
Buzzer Not supported
223
Appendix
Paper Layout Settings Not supported
Forced transmission mode Not supported
Recovery from an error Not supported
Reset Supported
Command Supported
76 mm 70 mm 58 mm
224
Rendering in HTML5 Canvas
This section describes how to use Web pages using the ePOS-Print Canvas API in the package.
You can try how to render images in HTML5 Canvas and see what images can be rendered.
The following Web pages are available:
Rendering Text (canvas-print-text.html) (p.224)
Rendering Images (canvas-print-image.html) (p.226)
Rendering Graphics (canvas-print-graph.html) (p.228)
Rendering Handwritten Images (canvas-print-hand.html) (p.230)
Rendering Barcode (canvas-print-barcode.html) (p.232)
Rendering Barcode (canvas-print-barcode.html) (p.232)
Rendering Text (canvas-print-text.html)
Print text in HTML5 Canvas and perform a test print.
1Open the following URL page using the Web browser.
http://[Web server IP address]/canvas/canvas-print-text.html
The Web pages introduced here are embedded into the sample program. For the details about
how to place them, refer to Environment Settings (p.36).
1
4
2
3
225
Appendix
2“EPSON ePOS-Print Sample Program” appears.
Set items on the right of the page. The following items can be set:
3Click the [Enter] button.
The text is printed on Canvas on the left of the page according to the settings
made on the right of the page.
4Set the following and click the [Print] button.
5The print result is displayed.
Item Description
Position Specify the rendering coordinates
Text Specify the text to be printed
Style Specify the text style
Clear Clears the image drawn in the Canvas
Reset Clears the image drawn in the Canvas.
In addition, the settings are reset to their default values.
Item Description
URL Enter the following URL:
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
Mode Set the color mode (Monochrome, Grayscale).
Brightness Adjust the brightness. (Gamma value in the range 0.1-10.0)
Halftone Set the halftone processing method for monochrome printing (two-
tone).
Cut Paper When this item is selected, feed cut is performed after printing.
Alignment Specify the printing position alignment.
Color(Monochrome) Specify the printing color in 2-tone.
226
Rendering Images (canvas-print-image.html)
Draw an image in HTML5 Canvas and perform a test print.
1Open the following URL page using the Web browser.
http://[Web server IP address]/canvas/canvas-print-image.html
2“EPSON ePOS-Print Sample Program” appears.
Set items on the right of the page. The following items can be set:
Item Description
Position Specify the rendering coordinates
Size Specify the width and height of the image.
Angle Specify the rotation angle of the image.
The rotation angle is counted clockwise from the top left corner.
Image File
(in the same server)
Specify the path to the image file.
In this Web page, specify the name of an image file placed under the
same directory as this Web page.
Clear Clears the image drawn in the Canvas.
Reset Clears the image drawn in the Canvas.
In addition, the settings are reset to their default values.
1
4
2
3
227
Appendix
3Click the [Draw] button.
The image is drawn on Canvas on the left of the page according to the settings
made on the right of the page.
4Set the following and click the [Print] button.
5The print result is displayed.
Item Description
URL Enter the following URL:
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
Mode Set the color mode (Monochrome, Grayscale).
Brightness Adjust the brightness. (Gamma value in the range 0.1-10.0)
Halftone Set the halftone processing method for monochrome printing (two-
tone).
Cut Paper When this item is selected, feed cut is performed after printing.
Alignment Specify the printing position alignment.
Color(Monochrome) Specify the printing color in 2-tone.
228
Rendering Graphics (canvas-print-graph.html)
Draw an image in HTML5 Canvas and perform a test print.
1Open the following URL page using the Web browser.
http://[Web server IP address]/canvas/canvas-print-graph.html
2"EPSON ePOS-Print Sample Program" appears.
Set items on the right of the page. The following items can be set:
3Click the [Draw] button.
The image is drawn on Canvas on the left of the page according to the settings
made on the right of the page.
Item Description
Fill Settings Specify the fill type and color
Rectangle Specify the start coordinates, width and height.
Circle Specify the central coordinates and radius.
Clear Clears the image drawn in the Canvas
Reset Clears the image drawn in the Canvas.
In addition, the settings are reset to their default values.
1
4
2
3
229
Appendix
4Set the following and click the [Print] button.
5The print result is displayed.0
Item Description
URL Enter the following URL:
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
Mode Set the color mode (Monochrome, Grayscale).
Brightness Adjust the brightness. (Gamma value in the range 0.1-10.0)
Halftone Set the halftone processing method for monochrome printing (two-
tone).
Cut Paper When this item is selected, feed cut is performed after printing.
Alignment Specify the printing position alignment.
Color(Monochrome) Specify the printing color in 2-tone.
230
Rendering Handwritten Images (canvas-print-hand.html)
Draw a handwritten image and perform a test print.
1Open the following URL page using the Web browser.
http://[Web server IP address]/canvas/canvas-print-hand.html
2“EPSON ePOS-Print Sample Program” appears. Set the size of the pen on the right
of the page.
3Draw a freehand line on Canvas on the left of the page. For the mouse, drag it to
draw a line; for the touch screen monitor, draw a line on the touch screen.
To erase the drawn image, click the [Clear] button.
1
4
2
3
231
Appendix
4Set the following and click the [Print] button.
5The print result is displayed.
Item Description
URL Enter the following URL:
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
Mode Set the color mode (Monochrome, Grayscale).
Brightness Adjust the brightness. (Gamma value in the range 0.1-10.0)
Halftone Set the halftone processing method for monochrome printing (two-
tone).
Cut Paper When this item is selected, feed cut is performed after printing.
Alignment Specify the printing position alignment.
Color(Monochrome) Specify the printing color in 2-tone.
232
Rendering Barcode (canvas-print-barcode.html)
Draw a barcode in HTML5 Canvas and perform a test print.
In the following example, an EAN13, JAN13 or UPC-A is drawn.
1Open the following URL page using the Web browser.
http://[Web server IP address]/canvas/canvas-print-barcode.html
2"EPSON ePOS-Print Sample Program" appears.
Set items on the right of the page. The following items can be set:
Item Description
Position Specify the rendering coordinates.
Module Size Specify the width and height of the bars.
Data Specify EAN13 (JAN13) data.
For 12-digit numerical data, calculate and add the check digit.
For 13-digit numerical data, verify the check digit.
For UPC-A data, add 0 at the start of the string to make it 12-or 13-
digit data.
Clear Clears the image drawn in the Canvas.
Reset Clears the image drawn in the Canvas.
In addition, the settings are reset to their default values.
1
4
2
3
233
Appendix
3Click the [Draw] button.
The image is drawn on Canvas on the left of the page according to the settings
made on the right of the page.
4Set the following and click the [Print] button.
5The print result is displayed.
Item Description
URL Enter the following URL:
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
Mode Set the color mode (Monochrome, Grayscale).
Brightness Adjust the brightness. (Gamma value in the range 0.1-10.0)
Halftone Set the halftone processing method for monochrome printing (two-
tone).
Cut Paper When this item is selected, feed cut is performed after printing.
Alignment Specify the printing position alignment.
Color(Monochrome) Specify the printing color in 2-tone.
234
Rendering Label (canvas-print-label.html)
Draw a label in HTML5 Canvas and perform a test print.
1Open the following URL page using the Web browser.
http://[Web server IP address]/canvas/canvas-print-label.html
2"EPSON ePOS-Print Sample Program" appears.
Set items on the right of the page. The following items can be set:
Item Description
Name Specifies print data in the name field of label.
Description Specifies print data in the description field of label.
Code Prints barcode corresponding to the value.
EAN13(JAN13)
In case of 12 digits, check digit is added.
In case of 13 digits, check digit is added.
UPC-A
Add 0 at the beginning and adjust to 12 to 13 digits.
Price Specifies print data in the price field of label.
Clear Clears the image drawn in the Canvas.
Reset Clears the image drawn in the Canvas.
In addition, the settings are reset to their default values.
1
4
2
3
235
Appendix
3Click the [Draw] button.
The image is drawn on Canvas on the left of the page according to the settings
made on the right of the page.
4Set the following and click the [Print] button.
5The print result is displayed.
Item Description
URL Enter the following URL:
http://[IP address of ePOS-Print supported TM printer]/cgi-bin/epos/
service.cgi?devid=[device ID of printer to be used for
printing]&timeout=[timeout time]
Mode Set the color mode (Monochrome, Grayscale).
Brightness Adjust the brightness. (Gamma value in the range 0.1-10.0)
Halftone(Monochrome) Set the halftone processing method for monochrome printing (two-
tone).
Alignment Specify the printing position alignment.
Color(Monochrome) Specify the printing color in 2-tone.
Paper Specifie the paper type.
Feed to Specify the paper feeding position.
Cut Paper When this item is selected, feed cut is performed after printing.
Set the paper layout
(only for TM-P60II/TM-P80)
Check when printing labels with paper layout specified.
Layout Specify the label paper layout. Setting become effective when [Set
the paper layout] is checked.
236
Windows Store Apps
In this section, how to use the sample program with Windows store apps is described.
Sample Program Screen
Display the [Sample] screen. Executes printing. It can print the following.
Item Description Page
[1]Samples
Display the [Sample] screen. Executes printing. It can print the
following.
Queue Ticket
Coupon
Label
238
[2]Settings
Display the [Settings] screen. Set up the following.
Specifies the IP address of the ePOS-Print supported printer. (Default
value: 192.168.192.168)
Specifies the Device ID of the printer to print queue ticket numbers
and coupons. (Default value: local_printer)
Specifies the timeout time. (default : 60000)
Prints coupons in gray scale. (Only for supported models)
(Default: No)
Specifies paper layout and print. (Only for TM-P60II Peeler)
(Default: No)
239
[1]
[2]
237
Appendix
Print Image
Coupon
(ePOS-Print Canvas API)
Your Number
(ePOS-Print API)
Label *
(ePOS-Print API)
Name
Color
Code
*2012001*
Item A
Red
Your Number:
*: Die cut label: mount width 58 mm or above
Label size: width 54 mm x height 25.4 mm or above
238
Environment of Sample Program
The environment of sample program is shown below.
Environment setting Procedure
1Configure your computer and ePOS-Print supported TM printer so that they can
connect to the network.
2Uncompress the sample program into any folder.
3Open the sample program solution file using Visual Studio.
4Start debugging.
Item Description
Development environment
(example)
Microsoft Visual Studio 2012
Required than Windows 8
Sample program file name win8/ePOS-Print Demo.zip
239
Appendix
Sample Program Settings
The screen is used to set the following:
Item Description
IP address of the ePOS-Print
supported printer
Specifies the IP address of the ePOS-Print supported printer.
(Default value:
TM-i: DHCP
(If an address fails to be assigned via DHCP, the value
becomes "192.168.192.168".)
TM Printer: 192.168.192.168
)
Device ID of the target printer Specifies the Device ID of the printer to print queue ticket
numbers and coupons. (Default value: local_printer)
Print timeout (milliseconds) Specifies the timeout time. (default : 60000)
Print in grayscale (Coupon)
(Only for supported models) Prints coupons in gray scale. (Default: No)
Set the paper layout (Label)
(Only for TM-P60II/TM-P80) Prints a label in a specified layout. (Default: No)
240
Printing
It executes printing.
Run the program according to the following procedure:
1Select a type of printing from the left screen. There are following printing types.
2Press [Print].
Item Description
Queue Ticket Prints queue ticket numbers.
This is a sample program using the ePOS-Print API.
Coupon Prints coupons.
This is a sample program using the ePOS-Print Canvas API.
Label Prints labels.
This is a sample program using the ePOS-Print API.
