WebSuite Cash Management Connectivity Guide Web Suite Mgt

User Manual:

Open the PDF directly: View PDF PDF.
Page Count: 436 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Wall Street Systems – Empowering Treasury Trade and Settlement
www.wallstreetsystems.com
Wallstreet Suite
WebSuite
Cash Management Connectivity Guide
Version 7.3.16
2
Information in this document is subject to change without notice and does not represent a commitment on the part
of Wall Street Systems. The software and documentation, which includes information contained in any databases,
described in this document is furnished under a license agreement or nondisclosure agreement and may only be
used or copied in accordance with the terms of the agreement. It is against the law to copy the software or
documentation except as specially allowed in the license or nondisclosure agreement. No part of this publication
may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of Wall Street Systems.
Although Wall Street Systems has tested the software and reviewed the documentation, Wall Street Systems
makes herein no warranty or representation, either expressed or implied, with respect to software or
documentation, its quality, performance, marketability, or fitness for a particular purpose. As a result, this
software is provided "as is", and in no event will Wall Street Systems be liable for direct, indirect, special,
incidental, or consequential damages from any defect in the software or by virtue of providing this
documentation, even if advised of the possibility of such damages. The documentation may contain technical
inaccuracies and omissions.
The mention of an activity or instrument in this publication does not imply that all matters relating to that activity or
instrument are supported by Wallstreet Suite, nor does it imply that processing of or by that activity or instrument is
carried out in any particular way, even if such processing is customary in some or all parts of the industry.
The windows and screen images shown herein were obtained from prototypes during software development. The
actual windows and screen images in the software may differ.
Wall Street Systems, WSS, WALLSTREET, WALLSTREET SUITE and the Wall Street Systems logos are
trademarks of Wall Street Systems Delaware, Inc.
Finance KIT, Trema and Trema logo are trademarks of Wall Street Systems Sweden AB.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
All other products mentioned in this book may be trademarks or service marks of their respective companies or
organizations.
Company names, people names, and data used in examples are fictitious unless otherwise noted.
This edition applies to Wallstreet Suite version 7.3.16 and to all later releases and versions until indicated in new
editions or Wall Street Systems communications. Make sure you are using the latest edition for the release level of
the Wall Street Systems product.
© Copyright 2011 Wall Street Systems IPH AB. All rights reserved.
First Edition (August 2011)
WebSuite Cash Management Connectivity Guide 3
Contents
Preface ...........................................................................................................................17
Introduction .................................................................................................................................. 17
How to use this guide .................................................................................................................. 17
Recommended reading ............................................................................................................. 17
Assumptions .............................................................................................................................. 18
Associated documents ................................................................................................................ 18
1 Overview ....................................................................................................................19
1.1 Understanding interfaces ..................................................................................................... 19
1.2 Defining interface components ........................................................................................... 20
1.2.1 Defining formats .............................................................................................................. 20
1.2.2 Connection points ........................................................................................................... 21
1.2.3 Transport mechanisms ................................................................................................... 22
1.2.4 Security mechanisms ...................................................................................................... 23

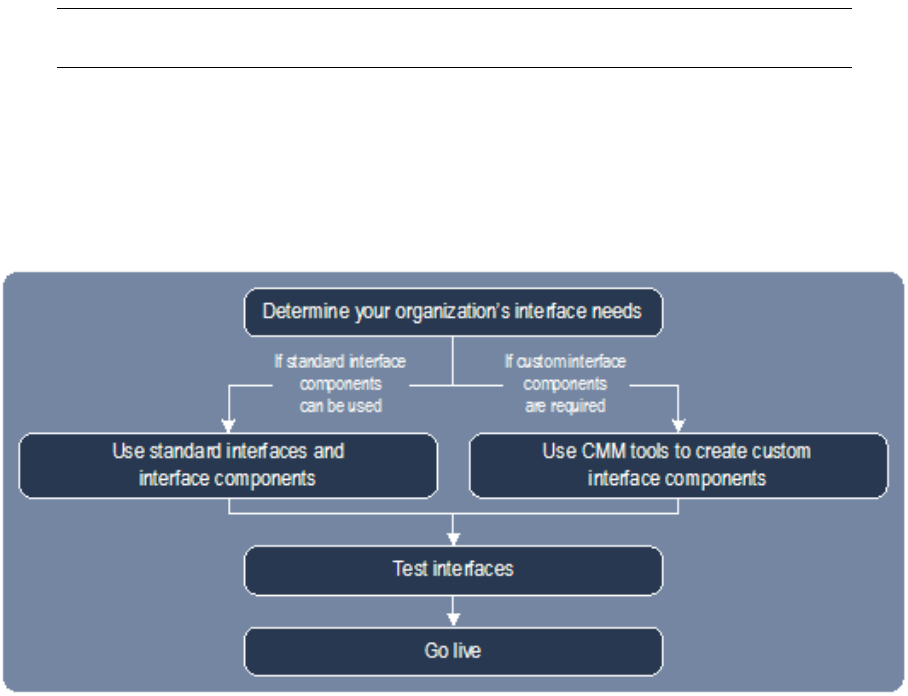

1.3 Implementing interfaces ....................................................................................................... 23
1.3.1 Determining your organization’s interface needs ............................................................ 24
1.3.2 Using standard interface components ............................................................................ 24
1.3.3 Using CMM tools to create custom interface components .............................................. 24
1.3.3.1 Web services interface ......................................................................................... 25
1.3.3.2 Command line interface ........................................................................................ 25
1.3.3.3 XML-template-based formats ............................................................................... 25
1.3.4 Testing interfaces ............................................................................................................ 26
1.3.5 Going live ........................................................................................................................ 26
1.4 Setting configuration parameters ........................................................................................ 26
1.4.1 Prerequisites ................................................................................................................... 27
1.4.2 Setting configuration parameters using the Configuration Parameters function ............. 27
1.4.3 Setting configuration parameters using the Interfaces Configuration Maintenance function
27
1.4.4 Setting interface configuration parameters ..................................................................... 27
1.4.4.1 Attached to SWIFT Network ................................................................................. 27
1.4.4.2 BAI Validation on Control Amount ........................................................................ 28
1.4.4.3 Citibank Enterprise ID ........................................................................................... 28
1.4.4.4 Communication Maximum Buffer Size .................................................................. 28
1.4.4.5 Default File Export Directory ................................................................................. 29
1.4.4.6 Default File Import Directory ................................................................................. 29
1.4.4.7 Enable Shared Service Center ............................................................................. 29
1.4.4.8 GnuPG Home Directory ........................................................................................ 29
1.4.4.9 Import of value date balances enabled ................................................................. 30
4 © Wall Street Systems IPH AB - Confidential
1.4.4.10 Maintain SWIFT Template At Payment and Deal Entry ...................................... 30
1.4.4.11 Maximum String Buffer Process Size ................................................................. 30
1.4.4.12 SafeX File Location ............................................................................................ 31
1.4.4.13 Static SWIFT Template Data .............................................................................. 31
1.4.4.14 SWIFT Duplicate Transaction Handling ............................................................. 31
1.4.4.15 SWIFT MT320 Version ....................................................................................... 32
1.4.4.16 SWIFT Payment Export Format ......................................................................... 32
1.4.4.17 Third-Party Software Location ............................................................................ 32
1.5 Opening configuration files .................................................................................................32
1.5.1 Configuration overrides ...................................................................................................33
1.5.2 Customization ................................................................................................................. 33
1.5.3 Upgrade .......................................................................................................................... 33
1.5.4 Prerequisites ................................................................................................................... 34
1.5.5 Opening configuration files with the Review CMM Configuration Documents function .. 34
1.5.6 Opening configuration files without the Review CMM Configuration Documents function .
35
1.5.7 Returning a configuration file to its default settings ........................................................ 35
2 Managing formats .....................................................................................................37
2.1 Configuring the fileimportexportformats.xml file .............................................................. 37
2.1.1 Prerequisites ................................................................................................................... 37
2.1.2 Removing formats from the fileimportexportformats.xml file ........................................... 37
2.2 Configuring the importfilepattern.xml file .......................................................................... 38
2.2.1 Prerequisites ................................................................................................................... 38
2.2.2 Removing format patterns from the importfilepattern.xml file ......................................... 38
2.2.3 Verifying the business types of bank message import formats ....................................... 38
3 Managing interchanges (and related data) .............................................................41
3.1 Managing transport mechanisms ........................................................................................ 41
3.1.1 Managing communication protocols ............................................................................... 41
3.1.1.1 Prerequisites ......................................................................................................... 41
3.1.1.2 Installing third-party software ................................................................................ 41
3.1.1.3 Enabling communication protocols ....................................................................... 42
3.1.2 Managing communication protocol parameters .............................................................. 42
3.1.2.1 Prerequisites ......................................................................................................... 42
3.1.2.2 Creating FIN Message Manager protocol parameters .......................................... 42
3.1.2.3 Creating FTP communication protocol parameters .............................................. 43
3.1.2.4 Creating MQSeries communication protocol parameters ..................................... 43
3.1.2.5 Creating SWIFTNet Adaptor communication protocol parameters ....................... 44
3.1.2.6 Creating command line communication protocol parameters ............................... 45

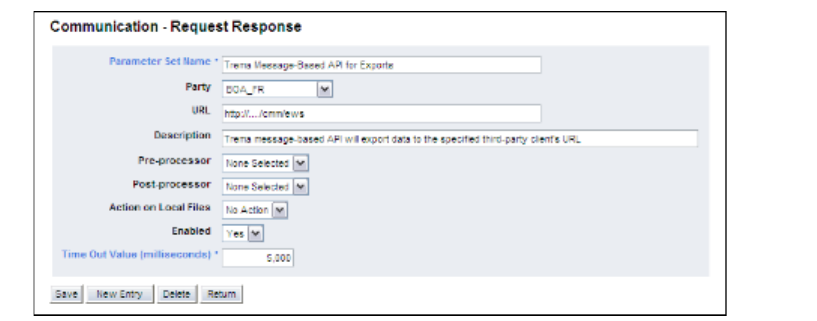

3.1.2.7 Creating request response communication protocol parameters ......................... 45
3.1.2.8 Editing communication protocol parameters ........................................................ 45
3.1.2.9 Deleting communication protocol parameters ...................................................... 46
3.1.3 Completing other tasks ................................................................................................... 46
3.1.3.1 Prerequisites ......................................................................................................... 46
3.1.3.2 Manually executing communication protocols ...................................................... 46
WebSuite Cash Management Connectivity Guide 5
3.1.3.3 Running processes remotely through communication protocols .......................... 46

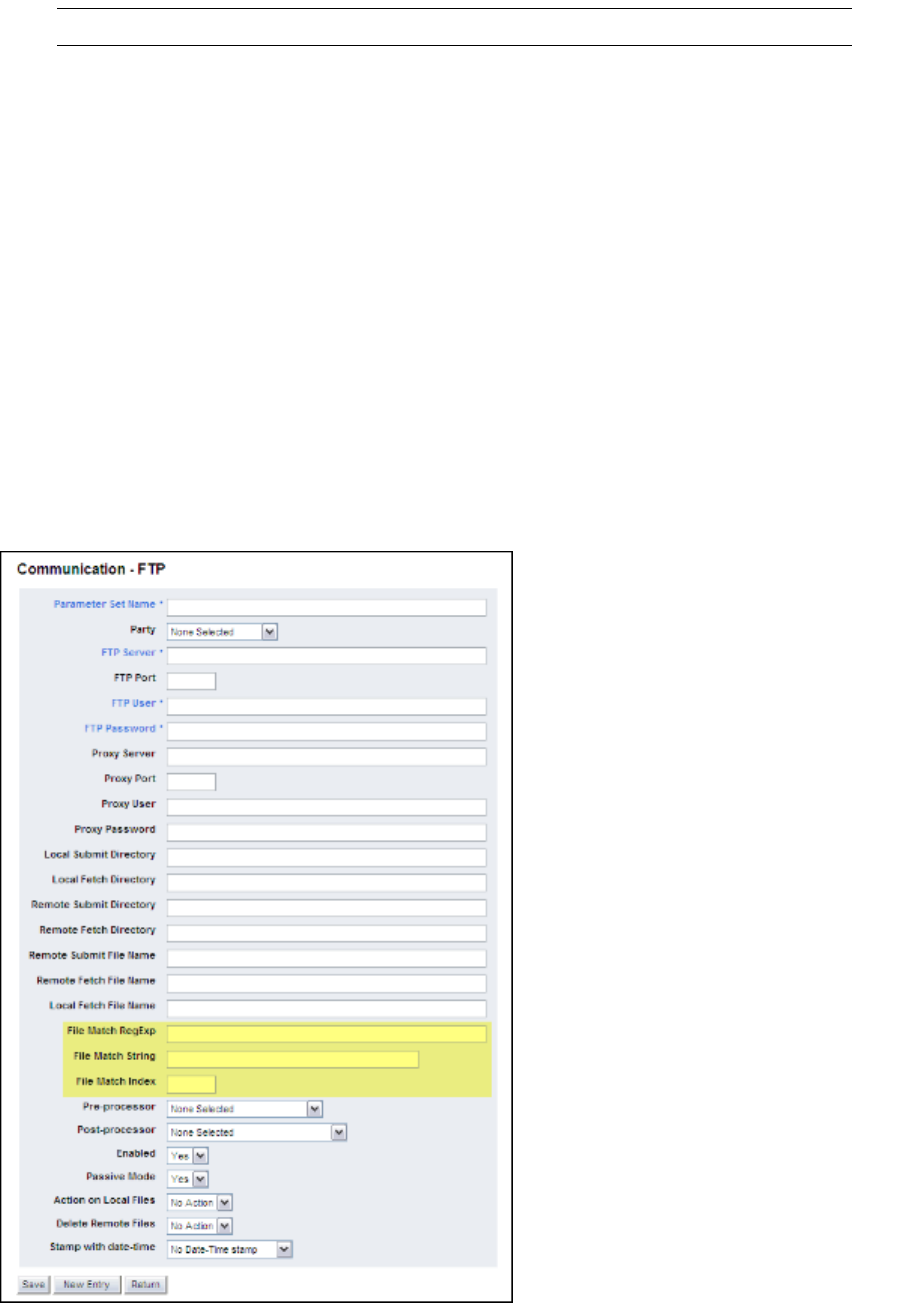

3.1.4 Entering data in FTP communication protocol parameter file matching fields ................ 47
3.1.4.1 Entering data in the File Match RegExp field ....................................................... 48
3.1.4.2 Entering data in the File Match String field ........................................................... 50
3.1.4.3 Entering data in the File Match Index field ........................................................... 50
3.2 Managing security mechanisms .......................................................................................... 51
3.2.1 Managing signers ............................................................................................................ 51
3.2.1.1 Prerequisites ......................................................................................................... 51
3.2.1.2 Installing third-party software ................................................................................ 51
3.2.1.3 Enabling signers ................................................................................................... 52
3.2.2 Managing signer parameters .......................................................................................... 52
3.2.2.1 Prerequisites ......................................................................................................... 52
3.2.2.2 Creating Entrust encryption signer parameters .................................................... 53
3.2.2.3 Creating Entrust decryption signer parameters .................................................... 53
3.2.2.4 Creating GnuPG encryption signer parameters ................................................... 53
3.2.2.5 Creating GnuPG decryption signer parameters ................................................... 53
3.2.2.6 Creating PGP encryption signer parameters ........................................................ 53
3.2.2.7 Creating PGP decryption signer parameters ........................................................ 54
3.2.2.8 Creating safeX encryption signer parameters ...................................................... 54
3.2.2.9 Creating safeX decryption signer parameters ...................................................... 54
3.2.2.10 Creating command line encryption signer parameters ....................................... 54

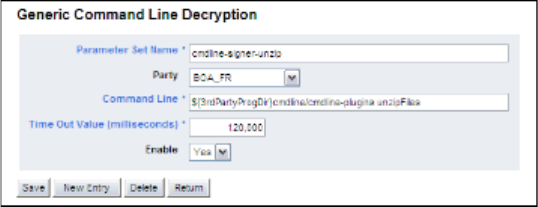

3.2.2.11 Creating command line decryption signer parameters ....................................... 54
3.2.2.12 Editing signer parameters ................................................................................... 55
3.2.2.13 Deleting signer parameters ................................................................................ 55
3.3 Managing format processors ............................................................................................... 55
3.3.1 Prerequisites ................................................................................................................... 55

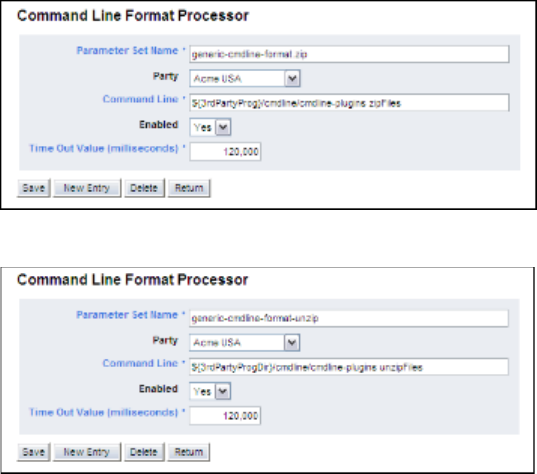

3.3.2 Creating format processor parameters ........................................................................... 56
3.3.3 Editing format processor parameters .............................................................................. 56
3.3.4 Deleting format processor parameters ............................................................................ 56
3.4 Managing interchanges ........................................................................................................ 56
3.4.1 Prerequisites ................................................................................................................... 57

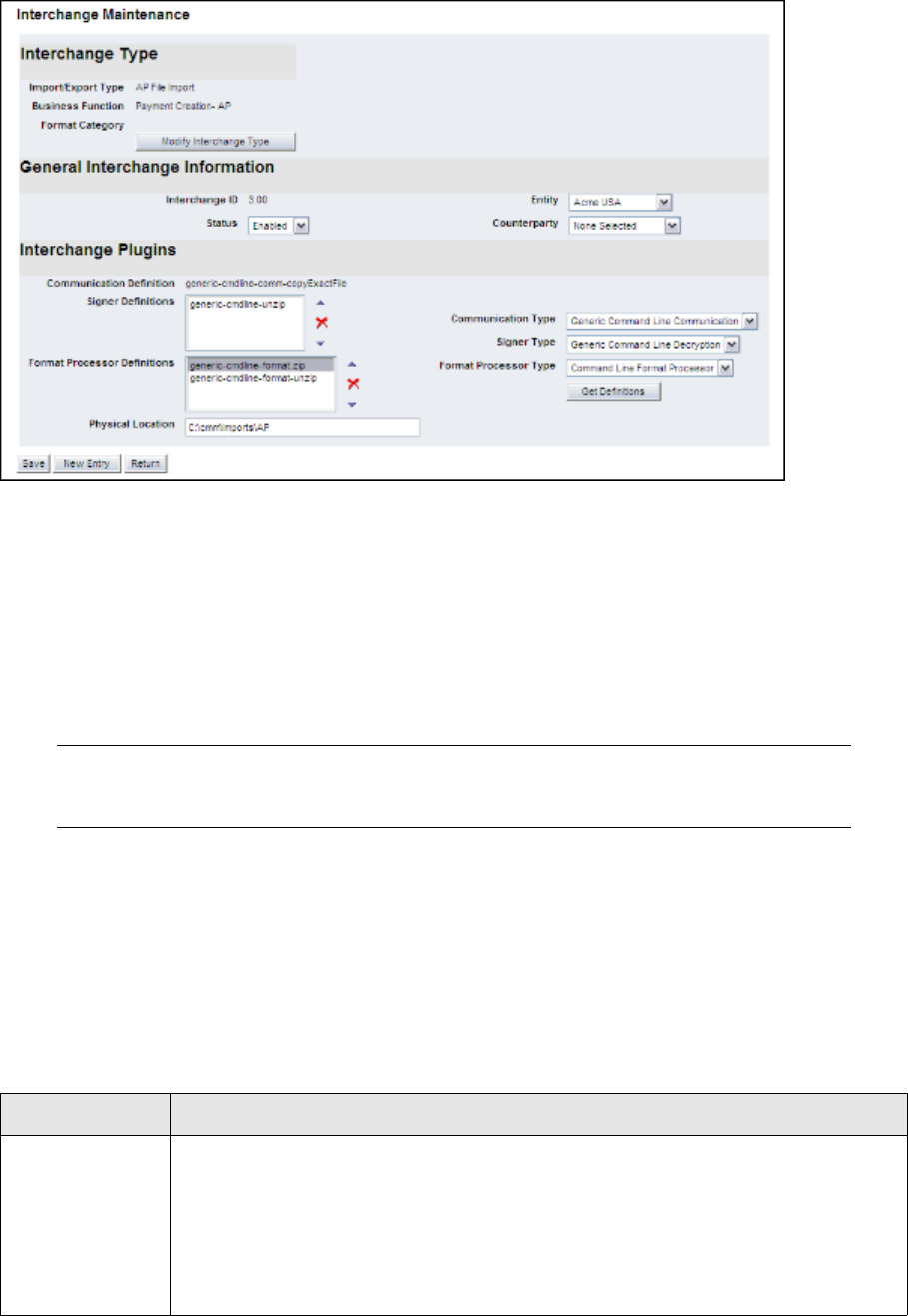

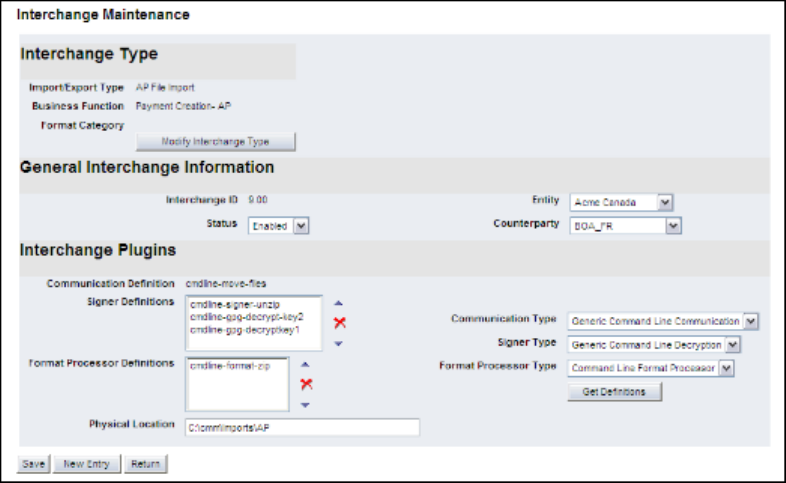

3.4.2 Creating interchanges .....................................................................................................57
3.4.3 Editing interchanges ....................................................................................................... 57
3.4.4 Deleting interchanges .....................................................................................................58
3.4.5 Enabling and disabling interchanges .............................................................................. 58
3.4.6 Linking interchanges to character sets ........................................................................... 58
3.4.7 Optimizing interchanges ................................................................................................. 59
4 Managing other interface data .................................................................................61
4.1 Managing transaction subtype mappings .......................................................................... 61
4.1.1 Managing internal file codes ........................................................................................... 61
4.1.1.1 Prerequisites ......................................................................................................... 61
4.1.1.2 Creating internal file codes ................................................................................... 62
4.1.1.3 Editing internal file codes ...................................................................................... 62
4.1.1.4 Deleting internal file codes ................................................................................... 62
4.1.2 Managing counterparty file codes ................................................................................... 62
4.1.2.1 Prerequisites ......................................................................................................... 63
6 © Wall Street Systems IPH AB - Confidential
4.1.2.2 Creating counterparty file codes ........................................................................... 63
4.1.2.3 Editing counterparty file codes ............................................................................. 63
4.1.2.4 Deleting counterparty file codes ........................................................................... 64
4.1.2.5 Managing counterparty file codes for SWIFT ACK and NACK bank messages ... 64
4.1.2.6 Managing mappings ............................................................................................. 65
4.2 Managing branch qualifiers ................................................................................................. 65
4.2.1 Prerequisites ................................................................................................................... 65
4.2.2 Creating branch qualifiers ............................................................................................... 65
4.2.3 Editing branch qualifiers .................................................................................................. 66
4.2.4 Deleting branch qualifiers ............................................................................................... 66
5 Using the web services interface ............................................................................67
5.1 SOAP schemas ...................................................................................................................... 67
5.1.1 Request/response header schema ................................................................................. 67
5.1.2 Request body schema .................................................................................................... 69
5.1.3 Response body schema ................................................................................................. 69
5.2 Importing messages using the web services interface ..................................................... 70
5.2.1 Deploying the web service and creating the adaptor ...................................................... 72
5.2.2 Securing the web service ................................................................................................ 72
5.2.2.1 Generating and configuring SSL certificates ........................................................ 72
5.2.2.2 Editing the extwsaccessconfig.xml file ................................................................. 73
5.2.3 Managing the interchange (and related data) ................................................................. 76
5.2.3.1 Managing the interchange (and related data) ....................................................... 76
5.2.4 Testing the import process .............................................................................................. 76
5.2.4.1 Testing an accounts payable file import process that uses the web services interface
77
5.2.4.2 Testing a direct debit file import process that uses the web services interface .... 78
5.3 Exporting messages using the web services interface ..................................................... 79
5.3.1 Deploying the web service and creating the adaptor ...................................................... 80
5.3.2 Securing the web service ................................................................................................ 81
5.3.2.1 Editing the sslconnectionproperties.xml file .......................................................... 81
5.3.3 Managing the interchange (and related data) ................................................................. 82
5.3.4 Managing the interchange (and related data) ................................................................. 82
5.3.5 Testing the export process .............................................................................................. 82
5.3.5.1 Testing a payment file export process that uses the web services interface ........ 83
5.3.5.2 Testing a direct debit file export process that uses the web services interface .... 83
5.4 Example SOAP messages .................................................................................................... 83
5.4.1 Initiation request message .............................................................................................. 83
5.4.2 Positive initiation response message .............................................................................. 83
5.4.3 Negative initiation response message ............................................................................ 84
5.4.4 Transaction request message ......................................................................................... 85
5.4.5 Positive transaction response message ......................................................................... 85
5.4.6 Negative transaction response message ........................................................................ 86
5.5 Example SOAP message construction and consumption ................................................ 86
5.5.1 Binding XML schemas to Java code ............................................................................... 87
5.5.2 Constructing and consuming SOAP messages .............................................................. 89
WebSuite Cash Management Connectivity Guide 7
5.5.2.1 Constructing and consuming SOAP messages for the import process ................ 90
5.5.2.2 Constructing and consuming SOAP messages for the export process ................ 97
6 Using the command line interface ...........................................................................99
6.1 Connecting interface components ...................................................................................... 99
6.1.1 Connecting transport mechanisms ................................................................................. 99
6.1.2 Connecting security mechanisms ................................................................................. 100
6.1.3 Connecting format processors ...................................................................................... 101
6.1.4 Configuring interchanges that use the command line parameters ................................ 101
6.2 Example implementation of the command line interface ................................................ 102
6.2.1 Completing prerequisite steps ...................................................................................... 103
6.2.2 Configuring the transport mechanism ........................................................................... 104
6.2.2.1 Setting up and connecting the transport mechanism ......................................... 104
6.2.2.2 Testing the transport mechanism ....................................................................... 106
6.2.3 Configuring the security mechanisms ........................................................................... 106
6.2.3.1 Generating GnuPG keys .................................................................................... 106
6.2.3.2 Testing GnuPG keys .......................................................................................... 107
6.2.3.3 Setting up and connecting the security mechanism ........................................... 107
6.2.3.4 Testing the security mechanisms ....................................................................... 112
6.2.4 Configuring the format processors ................................................................................ 113
6.2.4.1 Setting up and connecting format processors .................................................... 113
6.2.5 Importing bank transaction files using the command line interface .............................. 114
6.2.5.1 Creating the bank transaction import interface ................................................... 114
6.2.5.2 Testing the bank transaction import interface with unencrypted files ................. 115
6.2.5.3 Testing the bank transaction import interface with encrypted files ..................... 115
6.2.6 Importing accounts payable files using the command line interface ............................. 116
6.2.6.1 Creating the accounts payable import interface ................................................. 116
6.2.6.2 Testing the accounts payable import interface ................................................... 117
6.2.7 Exporting payment files using the command line interface ........................................... 117
6.2.7.1 Creating the payment export interface ............................................................... 117
6.2.7.2 Testing the payment export interface ................................................................. 118
7 Using XML-template-based formats ......................................................................119
7.1 Creating custom formats .................................................................................................... 120
7.1.1 Creating custom import formats .................................................................................... 121
7.1.1.1 Adding formats to the fileimportexportformats.xml file ........................................ 121
7.1.1.2 Adding format patterns to the importfilepattern.xml file ...................................... 123
7.1.1.3 Creating transaction subtype mappings for formats ........................................... 124
7.1.1.4 Adding formats to the appropriate specification map files .................................. 124
7.1.1.5 Creating format parser and mapping files .......................................................... 126
7.1.2 Creating custom export formats .................................................................................... 127
7.1.2.1 Adding formats to the fileimportexportformats.xml file ........................................ 127
7.1.2.2 Creating breakup definitions ............................................................................... 127
7.1.2.3 Creating payment aggregation definitions .......................................................... 127
7.1.2.4 Adding formats to the specificationmap.xml file ................................................. 128
7.1.2.5 Creating format validation and generation files .................................................. 128
8 © Wall Street Systems IPH AB - Confidential
7.2 Testing custom formats ..................................................................................................... 129
7.2.1 Testing custom formats ................................................................................................. 129
7.2.2 Troubleshooting ............................................................................................................ 130
7.3 Going live ............................................................................................................................. 132
Appendix A: Standard formats .............................................................................................133
A.1 Summary of standard banking formats ............................................................................ 133
A.2 Forecast import formats .................................................................................................... 134
A.2.1 Wallstreet XML forecast ............................................................................................... 134
A.2.1.1 transactions element .......................................................................................... 135
A.2.1.2 transaction elements .......................................................................................... 135
A.2.1.3 attribute elements ............................................................................................... 136
A.2.2 Wallstreet flat file forecast ............................................................................................ 136
A.2.2.1 Wallstreet flat file forecast header ...................................................................... 136
A.2.2.2 Wallstreet flat file forecast body ......................................................................... 138
A.3 Transaction import formats ............................................................................................... 143
A.3.1 Wallstreet XML transaction ........................................................................................... 143
A.3.1.1 transactions element .......................................................................................... 144
A.3.1.2 transaction elements .......................................................................................... 144
A.3.1.3 attribute elements ............................................................................................... 145
A.3.1.4 component_transaction elements ...................................................................... 145
A.3.2 Wallstreet flat file accounts payable ............................................................................. 146
A.3.2.1 Wallstreet flat file accounts payable header ....................................................... 146
A.3.2.2 Wallstreet flat file accounts payable body .......................................................... 147
A.3.3 Wallstreet flat file accounts receivable ......................................................................... 159
A.3.3.1 Wallstreet flat file accounts receivable ............................................................... 160
A.3.3.2 Wallstreet flat file accounts receivable body ...................................................... 161
A.3.4 Wallstreet flat file direct debit ........................................................................................ 164
A.3.4.1 Wallstreet flat file direct debit header ................................................................. 165
A.3.4.2 Wallstreet flat file direct debit body .................................................................... 166
A.3.5 EDIFACT PAYEXT ....................................................................................................... 174
A.3.5.1 EDIFACT PAYEXT start of interchange ............................................................. 175
A.3.5.2 EDIFACT PAYEXT start of message ................................................................. 177
A.3.5.3 EDIFACT PAYEXT segment group 1 ................................................................. 180
A.3.5.4 EDIFACT PAYEXT segment group 2 ................................................................. 181
A.3.5.5 EDIFACT PAYEXT segment group 3 ................................................................. 182
A.3.5.6 EDIFACT PAYEXT segment group 4 ................................................................. 185
A.3.5.7 EDIFACT PAYEXT segment group 5 ................................................................. 190
A.3.5.8 EDIFACT PAYEXT segment group 7 ................................................................. 191
A.3.5.9 EDIFACT PAYEXT segment group 8 ................................................................. 193
A.3.5.10 EDIFACT PAYEXT segment group 15 ............................................................. 195
A.3.5.11 EDIFACT PAYEXT end of message ................................................................ 196
A.3.5.12 EDIFACT PAYEXT end of interchange ............................................................ 197
A.4 Bank message import formats .......................................................................................... 198
A.4.1 Wallstreet XML bank message ..................................................................................... 198
A.4.1.1 transactions element .......................................................................................... 198
WebSuite Cash Management Connectivity Guide 9
A.4.1.2 transaction elements .......................................................................................... 199
A.4.1.3 attribute elements ............................................................................................... 199
A.4.2 Wallstreet XML transaction acknowledgement ............................................................. 199
A.4.2.1 transactions element .......................................................................................... 200
A.4.2.2 transaction elements .......................................................................................... 200
A.4.3 ISO 20022 XML payment status ................................................................................... 201
A.4.3.1 ISO 20022 XML payment status format ............................................................. 201
A.4.3.2 ISO 20022 XML payment status parsing logic ................................................... 204
A.4.3.3 ISO 20022 XML payment status valid codes ..................................................... 206
A.5 Bank transaction and balance import formats ................................................................ 211
A.5.1 Wallstreet XML bank statement .................................................................................... 211
A.5.1.1 bankaccountstatementholder element ............................................................... 212
A.5.1.2 account_statement elements ............................................................................. 213
A.5.1.3 account elements ............................................................................................... 213
A.5.1.4 balance elements ............................................................................................... 213
A.5.1.5 transaction elements .......................................................................................... 214
A.5.2 Wallstreet XML bank transaction and balance ............................................................. 214
A.5.2.1 transactions element .......................................................................................... 215
A.5.2.2 transaction elements .......................................................................................... 215
A.5.2.3 attribute elements ............................................................................................... 216
A.5.3 SWIFT MT940 .............................................................................................................. 216
A.5.3.1 SWIFT MT940 layout ......................................................................................... 217
A.5.3.2 SWIFT MT940 header blocks ............................................................................ 217
A.5.3.3 SWIFT MT940 main message block .................................................................. 221
A.5.3.4 SWIFT MT940 validation .................................................................................... 221
A.5.4 SWIFT MT940 BCS ...................................................................................................... 224
A.5.4.1 SWIFT MT940 BCS layout ................................................................................. 225
A.5.4.2 SWIFT MT940 BCS tags .................................................................................... 225
A.5.4.3 SWIFT MT940 BCS validation ........................................................................... 227
A.6 Deal import formats ............................................................................................................ 229
A.6.1 Wallstreet flat file deal .................................................................................................. 229
A.6.1.1 Wallstreet flat file deal header ............................................................................ 230
A.6.1.2 Wallstreet flat file deal body ............................................................................... 231
A.6.1.3 Dates in Wallstreet flat file deal .......................................................................... 240
A.7 Transaction export formats ............................................................................................... 241
A.7.1 SWIFT MT101 .............................................................................................................. 241
A.7.1.1 SWIFT MT101 payment scenarios ..................................................................... 242
A.7.1.2 SWIFT MT101 layout ......................................................................................... 243
A.7.1.3 SWIFT MT101 header blocks ............................................................................ 244
A.7.1.4 SWIFT MT101 main message block .................................................................. 245
A.7.2 SWIFT MT101 validation .............................................................................................. 249
A.7.3 SWIFT MT104 .............................................................................................................. 250
A.7.3.1 SWIFT MT104 header block .............................................................................. 250
A.7.3.2 SWIFT MT104 main message block .................................................................. 251
A.7.4 SWIFT MT210 .............................................................................................................. 255
A.7.4.1 SWIFT MT210 header block .............................................................................. 255
A.7.4.2 SWIFT MT210 main message block .................................................................. 256
10 © Wall Street Systems IPH AB - Confidential
A.7.5 ISO 20022 XML credit transfer ..................................................................................... 257
A.7.5.1 ISO 20022 XML credit transfer format ............................................................... 258
A.7.5.2 ISO 20022 XML credit transfer rules .................................................................. 265
A.7.6 ISO 20022 XML direct debit transfer ............................................................................ 267
A.7.6.1 ISO 20022 XML direct debit transfer format ....................................................... 268
A.8 Transaction message export formats ............................................................................... 272
A.8.1 Wallstreet XML payment message ............................................................................... 272
A.8.1.1 transactions element .......................................................................................... 275
A.8.1.2 transaction elements .......................................................................................... 275
A.8.1.3 debit elements .................................................................................................... 275
A.8.1.4 debit_basics elements ........................................................................................ 276
A.8.1.5 debit_bank_account elements ........................................................................... 276
A.8.1.6 debit_bank elements .......................................................................................... 276
A.8.1.7 debit_party elements .......................................................................................... 277
A.8.1.8 credit elements ................................................................................................... 277
A.8.1.9 credit_basics elements ....................................................................................... 277
A.8.1.10 credit_bank_account elements ........................................................................ 278
A.8.1.11 credit_bank elements ....................................................................................... 278
A.8.1.12 intermediary_bank elements ............................................................................ 279
A.8.1.13 credit_party elements ....................................................................................... 279
A.8.1.14 originating_party elements ............................................................................... 279
A.8.1.15 additional_info elements .................................................................................. 280
A.8.1.16 remittance_details elements ............................................................................ 280
A.8.2 Wallstreet XML receipt message .................................................................................. 281
A.8.2.1 transactions element .......................................................................................... 283
A.8.2.2 transaction elements .......................................................................................... 284
A.8.2.3 credit elements ................................................................................................... 284
A.8.2.4 credit_basics elements ....................................................................................... 284
A.8.2.5 credit_bank_account elements .......................................................................... 284
A.8.2.6 credit_bank elements ......................................................................................... 285
A.8.2.7 credit_party elements ......................................................................................... 285
A.8.2.8 debit elements .................................................................................................... 285
A.8.2.9 debit_basics elements ........................................................................................ 286
A.8.2.10 debit_bank_account elements ......................................................................... 286
A.8.2.11 debit_bank elements ........................................................................................ 287
A.8.2.12 intermediary_bank elements ............................................................................ 287
A.8.2.13 debit_party elements ........................................................................................ 287
A.8.2.14 originating_party elements ............................................................................... 288
A.8.2.15 additional_info elements .................................................................................. 288
A.9 General ledger posting export formats ............................................................................ 289
A.9.1 Wallstreet XML general ledger posting ......................................................................... 289
A.9.1.1 transactions element .......................................................................................... 290
A.9.1.2 transaction elements .......................................................................................... 290
A.10 Free formats ...................................................................................................................... 291
A.10.1 SWIFT MT199 and MT999 ......................................................................................... 291
A.10.1.1 SWIFT MT199 and MT999 header block ......................................................... 292
A.10.1.2 SWIFT MT199 and MT999 main message block ............................................. 292
WebSuite Cash Management Connectivity Guide 11
A.11 Wallstreet XML schemas ................................................................................................. 292
A.11.1 Transaction schema ................................................................................................... 293
A.11.2 Transaction acknowledgement schema ..................................................................... 294
A.11.3 Bank statement schema ............................................................................................. 294
A.11.4 Payment message schema ........................................................................................ 296
A.11.5 Receipt message schema .......................................................................................... 299
A.11.6 General ledger posting schema .................................................................................. 301
A.12 Supplemental information for EDIFACT formats ........................................................... 302
A.12.1 EDIFACT Level A character set ................................................................................. 302
A.12.1.1 Alphabetic characters (a) ................................................................................. 303
A.12.1.2 Numeric characters (n) ..................................................................................... 303
A.12.1.3 Alphabetic characters (an) ............................................................................... 303
A.12.1.4 Element lengths ............................................................................................... 303
A.13 Supplemental information for SWIFT formats ............................................................... 303
A.13.1 SWIFT field lengths .................................................................................................... 303
A.13.2 SWIFT field types ....................................................................................................... 304
A.13.3 SWIFT character sets ................................................................................................. 304
A.13.3.1 SWIFT X character set ..................................................................................... 304
A.13.3.2 SWIFT Y character set ..................................................................................... 304
A.13.3.3 SWIFT Z character set ..................................................................................... 304
A.13.4 SWIFT transaction type identification code mappings ................................................ 305
A.13.5 SWIFT business transaction code (GVC) mappings .................................................. 306
A.14 Syntactic validation of incoming and outgoing MX messages .................................... 308
Appendix B: Attributes ..........................................................................................................311
B.1 Import attributes ................................................................................................................. 312
B.1.1 Forecast import attributes ............................................................................................. 312
B.1.2 Accounts payable import attributes .............................................................................. 316
B.1.3 Accounts receivable import attributes ........................................................................... 325
B.1.4 Bank transaction import attributes ................................................................................ 328
B.1.5 Bank balance import attributes ..................................................................................... 330
B.1.6 Bank message import attributes ................................................................................... 331
B.1.7 Interchange import attributes ........................................................................................ 332
B.1.8 File import attributes ..................................................................................................... 333
B.2 Export attributes ................................................................................................................. 334
B.2.1 Payment export attributes ............................................................................................. 334
B.2.2 Receipt export attributes ............................................................................................... 351
B.2.3 Credit advice export attributes ...................................................................................... 358
B.2.4 Remittance detail export attributes ............................................................................... 359
B.2.5 Bank statement export attributes .................................................................................. 360
B.2.6 Company general ledger export attributes ................................................................... 365
B.2.7 Interchange export attributes ........................................................................................ 366
Appendix C: Handlers............................................................................................................369
C.1 add_to_buffer ...................................................................................................................... 371
C.1.1 Parameters ................................................................................................................... 371
12 © Wall Street Systems IPH AB - Confidential
C.1.2 Examples ...................................................................................................................... 371
C.2 attribute_defined_element ................................................................................................. 371
C.2.1 Parameters ................................................................................................................... 371
C.2.2 Examples ...................................................................................................................... 372
C.3 build_mail_message .......................................................................................................... 372
C.3.1 Parameters ................................................................................................................... 372
C.3.2 Examples ...................................................................................................................... 372
C.4 build_txn_groups ............................................................................................................... 373
C.4.1 Parameters ................................................................................................................... 373
C.4.2 Examples ...................................................................................................................... 373
C.5 charset ................................................................................................................................. 374
C.5.1 Parameters ................................................................................................................... 374
C.5.2 Examples ...................................................................................................................... 374
C.6 component_transactions ................................................................................................... 375
C.6.1 Parameters ................................................................................................................... 375
C.6.2 Examples ...................................................................................................................... 375
C.7 condition_test_element ..................................................................................................... 375
C.7.1 Parameters ................................................................................................................... 375
C.7.2 Component handlers .................................................................................................... 376
C.7.3 Examples ...................................................................................................................... 380
C.8 configure_attribute_container ........................................................................................... 383
C.8.1 Parameters ................................................................................................................... 383
C.8.2 Examples ...................................................................................................................... 383
C.9 context_defined_element .................................................................................................. 383
C.9.1 Parameters ................................................................................................................... 384
C.9.2 Examples ...................................................................................................................... 384
C.10 context_value_iterator ..................................................................................................... 385
C.10.1 Parameters ................................................................................................................. 385
C.10.2 Examples .................................................................................................................... 385
C.11 create_node ...................................................................................................................... 385
C.11.1 Parameters ................................................................................................................. 385
C.11.2 Examples .................................................................................................................... 385
C.12 create_object .................................................................................................................... 385
C.12.1 Parameters ................................................................................................................. 386
C.12.2 Examples .................................................................................................................... 386
C.13 create_tree ........................................................................................................................ 386
C.13.1 Parameters ................................................................................................................. 386
C.13.2 Examples .................................................................................................................... 386
C.14 echo ................................................................................................................................... 386
C.14.1 Parameters ................................................................................................................. 387
C.14.2 Examples .................................................................................................................... 387
C.15 find_parent_node ............................................................................................................. 387
C.15.1 Parameters ................................................................................................................. 388
C.15.2 Examples .................................................................................................................... 388
WebSuite Cash Management Connectivity Guide 13
C.16 find_root_node ................................................................................................................. 388
C.16.1 Parameters ................................................................................................................. 388
C.16.2 Examples .................................................................................................................... 388
C.17 get_system_date .............................................................................................................. 388
C.17.1 Parameters ................................................................................................................. 388
C.17.2 Examples .................................................................................................................... 389
C.18 if ......................................................................................................................................... 389
C.18.1 Parameters ................................................................................................................. 389
C.18.2 Examples .................................................................................................................... 389
C.19 include ............................................................................................................................... 390
C.19.1 Parameters ................................................................................................................. 390
C.19.2 Examples .................................................................................................................... 391
C.20 increment_counter ........................................................................................................... 391
C.20.1 Parameters ................................................................................................................. 391
C.20.2 Examples .................................................................................................................... 391
C.21 insert_chars ...................................................................................................................... 391
C.21.1 Parameters ................................................................................................................. 391
C.21.2 Examples .................................................................................................................... 392
C.22 iterate_db_result_set ....................................................................................................... 392
C.22.1 Parameters ................................................................................................................. 392
C.22.2 Examples .................................................................................................................... 392
C.23 jython_script ..................................................................................................................... 393
C.23.1 Parameters ................................................................................................................. 393
C.23.2 Examples .................................................................................................................... 393
C.24 log_invalid_transaction ................................................................................................... 393
C.24.1 Parameters ................................................................................................................. 393
C.24.2 Examples .................................................................................................................... 393
C.25 map_value ......................................................................................................................... 394
C.25.1 Parameters ................................................................................................................. 394
C.25.2 Examples .................................................................................................................... 394
C.26 mathFunction .................................................................................................................... 395
C.26.1 Parameters ................................................................................................................. 395
C.26.2 Examples .................................................................................................................... 395
C.27 pad_handler ...................................................................................................................... 395
C.27.1 Parameters ................................................................................................................. 396
C.27.2 Examples .................................................................................................................... 396
C.28 parse_delimiter ................................................................................................................. 396
C.28.1 Parameters ................................................................................................................. 396
C.28.2 Examples .................................................................................................................... 397
C.29 parse_fixed_width ............................................................................................................ 397
C.29.1 Parameters ................................................................................................................. 398
C.29.2 Examples .................................................................................................................... 398
C.30 parse_range_width ........................................................................................................... 398
C.30.1 Parameters ................................................................................................................. 398
14 © Wall Street Systems IPH AB - Confidential
C.30.2 Examples .................................................................................................................... 399
C.31 parse_xml_tree ................................................................................................................. 399
C.31.1 Parameters ................................................................................................................. 400
C.31.2 Examples .................................................................................................................... 400
C.32 remittance_details_list ..................................................................................................... 400
C.32.1 Parameters ................................................................................................................. 400
C.32.2 Examples .................................................................................................................... 400
C.33 remove_chars ................................................................................................................... 400
C.33.1 Parameters ................................................................................................................. 401
C.33.2 Examples .................................................................................................................... 401
C.34 remove_context_variable ................................................................................................ 401
C.34.1 Parameters ................................................................................................................. 401
C.34.2 Examples .................................................................................................................... 401
C.35 replace_string ................................................................................................................... 402
C.35.1 Parameters ................................................................................................................. 402
C.35.2 Examples .................................................................................................................... 402
C.36 reset_counter .................................................................................................................... 402
C.36.1 Parameters ................................................................................................................. 402
C.36.2 Examples .................................................................................................................... 402
C.37 save_value_to_context .................................................................................................... 403
C.37.1 Parameters ................................................................................................................. 403
C.37.2 Examples .................................................................................................................... 403
C.38 send_mail_message ......................................................................................................... 403
C.38.1 Parameters ................................................................................................................. 404
C.38.2 Examples .................................................................................................................... 404
C.39 set_context_variable ........................................................................................................ 404
C.39.1 Parameters ................................................................................................................. 404
C.39.2 Examples .................................................................................................................... 404
C.40 set_node_attribute ........................................................................................................... 405
C.40.1 Parameters ................................................................................................................. 405
C.40.2 Examples .................................................................................................................... 405
C.41 set_value ........................................................................................................................... 406
C.41.1 Parameters ................................................................................................................. 406
C.41.2 Examples .................................................................................................................... 406
C.42 sql_query_call ................................................................................................................... 407
C.42.1 Parameters ................................................................................................................. 407
C.42.2 Examples .................................................................................................................... 408
C.43 static_data_element ......................................................................................................... 409
C.43.1 Parameters ................................................................................................................. 409
C.43.2 Examples .................................................................................................................... 409
C.44 store_object ...................................................................................................................... 409
C.44.1 Parameters ................................................................................................................. 409
C.44.2 Examples .................................................................................................................... 409
C.45 substring ........................................................................................................................... 409
WebSuite Cash Management Connectivity Guide 15
C.45.1 Parameters ................................................................................................................. 410
C.45.2 Examples .................................................................................................................... 410
C.46 traverse_tree ..................................................................................................................... 410
C.46.1 Parameters ................................................................................................................. 410
C.46.2 Examples .................................................................................................................... 411
C.47 truncate_handler .............................................................................................................. 412
C.47.1 Parameters ................................................................................................................. 412
C.47.2 Examples .................................................................................................................... 412
C.48 txn_aggregation ................................................................................................................ 413
C.48.1 Parameters ................................................................................................................. 413
C.48.2 Examples .................................................................................................................... 414
C.49 txn_groups_list ................................................................................................................. 414
C.49.1 Parameters ................................................................................................................. 415
C.49.2 Examples .................................................................................................................... 415
C.50 txn_list ............................................................................................................................... 415
C.50.1 Parameters ................................................................................................................. 415
C.50.2 Examples .................................................................................................................... 415
C.51 use_attribute_container ................................................................................................... 416
C.51.1 Parameters ................................................................................................................. 416
C.51.2 Examples .................................................................................................................... 416
C.52 use_buffer_input .............................................................................................................. 416
C.52.1 Parameters ................................................................................................................. 416
C.52.2 Examples .................................................................................................................... 416
C.53 use_node_attribute .......................................................................................................... 417
C.53.1 Parameters ................................................................................................................. 417
C.53.2 Examples .................................................................................................................... 417
C.54 use_node_value ................................................................................................................ 417
C.54.1 Parameters ................................................................................................................. 417
C.54.2 Examples .................................................................................................................... 417
C.55 use_output_device ........................................................................................................... 418
C.55.1 Parameters ................................................................................................................. 418
C.55.2 Examples .................................................................................................................... 418
Appendix D: SSL certificate generation and configuration ...............................................419
D.1 Assumptions ....................................................................................................................... 420
D.2 Generating SSL certificates ............................................................................................... 420
D.2.1 Generating SSL certificates .......................................................................................... 420
D.3 Creating a secure website using IIS ................................................................................. 423
D.3.1 Assigning an additional IP address .............................................................................. 423
D.3.1.1 Assigning an additional IP address .................................................................... 424
D.3.2 Creating a secure website ............................................................................................ 424
D.3.2.1 Creating a secure website ................................................................................. 424
D.3.3 Configuring the secure website .................................................................................... 425
D.3.3.1 Configuring the secure website .......................................................................... 425
16 © Wall Street Systems IPH AB - Confidential
D.3.4 Creating a virtual folder for content .............................................................................. 427
D.3.4.1 Creating a virtual folder for content .................................................................... 427
D.3.5 Configuring two-way SSL ............................................................................................. 428
D.3.5.1 Importing server and CA certificates .................................................................. 428
D.3.5.2 Assigning the server certificate .......................................................................... 431
D.3.6 Configuring one-way SSL ............................................................................................. 432
D.3.6.1 Configuring one-way SSL .................................................................................. 432
D.4 Creating a secure website using Tomcat ......................................................................... 433
D.4.1 Creating a secure website using Tomcat ..................................................................... 434
D.5 Testing HTTPS configuration ............................................................................................ 434
D.5.1 Importing client certificates to the web browser ........................................................... 434
D.5.2 Configuring CMM with PKI X509 .................................................................................. 435
D.5.3 Testing CMM with PKI X509 ........................................................................................ 436
WebSuite Cash Management Connectivity Guide 17
Preface
Introduction
This guide enables WebSuite system administrators to set up the Cash Management Module’s
interfaces and, where appropriate, to use the Web services interface, the command line interface,
and XML-template-based formats to create custom interface components.
Note: The term "interfaces" in this guide refers to interfaces that connect WebSuite to banks and
other external systems. For information on the user interface, see the WebSuite User
Guide and the WebSuite System Administration Guide.
WebSuite users and system administrators as well as other interest parties should have a general
knowledge of the following:
•Basic cash management
•The bank, enterprise resource planning (ERP), and other systems connected to WebSuite
•The technologies used in setting up interfaces, particularly XML
•The Web browser you are using to access CMM (for example, Microsoft Internet Explorer).
Experience with Wallstreet Suite’s other modules—particularly Transaction and Risk Module (TRM)
and Accounting Module (ACM)—is beneficial but not necessary.
How to use this guide
To use this guide, follow the recommended reading and be aware of the assumptions defined in this
section.
Recommended reading
If you are new to CMM, read Chapter 1 Overview on page 19.
If you are responsible for configuring interfaces, read the following chapters in this guide:
•Chapter 2 Managing formats on page 37
•Chapter 3 Managing interchanges (and related data) on page 41
•4.1 Managing transaction subtype mappings on page 61.
If you are responsible for creating or maintaining customized interface components, the following
chapters in this guide:
•Chapter 5 Using the web services interface on page 67
•Chapter 6 Using the command line interface on page 99
•Chapter 7 Using XML-template-based formats on page 119.
18 © Wall Street Systems IPH AB - Confidential
Note: Connecting to the SWIFT system is described in the WSS SWIFT Connectivity Guide.
Assumptions
This guide assumes the following:
•You are using the default menu installed with CMM.
•You have enabled JavaScript by setting the JavaScript Enabled configuration parameter to True.
•You are using Microsoft Internet Explorer.
•You have access to the CMM application server.
Associated documents
Associated documents can be accessed from the Help menu of TRM and ACM. All Wallstreet Suite
user documentation can be downloaded from the Wallstreet Customer Support site
http://www.trema.com/support.
WebSuite Cash Management Connectivity Guide 19
Chapter 1 Overview
An important step in implementing the Cash Management Module (CMM) part of WebSuite for an
organization is connecting the module to other financial systems through interfaces.
The creation and maintenance of interfaces is an involved process. It requires the efforts of several
parties, including the following:
•Your organization
•Wallstreet or one of its implementation partners
•The external systems to which your organization wants to connect CMM (particularly bank
systems).
1.1 Understanding interfaces
Interfaces are a key feature of CMM. They facilitate straight-through processing of information
between CMM and your organization’s bank, enterprise resource planning, treasury management,
and other external systems.
Using interfaces, you can import information to and export information from CMM:
Each interface your organization uses in CMM is defined by an interchange. An interchange specifies
its interface’s type and format as well as how information is transferred between CMM and other
financial systems.
Note: For more information on interchanges, see Chapter 3 Managing interchanges (and related
data) on page 41.
Imports Exports
•Forecasts
•Payments (AP)
• Receipts (AR)
• Direct debits
•Bank transactions
• Bank messages
• Free format messages
• Interest rates
•Foreign exchange rates
• Static data.
•Payments
•Receipts
•Credit advices
• Direct debits
• Letters of credit
• Positive payments
•Remittance advices
• Confirmation messages
•Requisition messages
• Free format messages
• Bank statements
•Bank balances
• General ledger postings.
20 © Wall Street Systems IPH AB - Confidential
1.2 Defining interface components
Each interface in CMM consists of the following components:
•One format
•One connection point
•One transport mechanism
•One or more security mechanisms.
With these components, you can import and export information as presented in the following
diagram:
1.2.1 Defining formats
An interface’s format specifies the layout of its files. Each format can be one of the following:
•An industry standard, such as SWIFT MT103 for payments
•A variation of an industry standard used by a specific party or in a specific country or region
•A CMM standard
•Proprietary.
A set of default formats are provided with CMM. These formats are specified in a file named
fileimportexportformats.xml, which is included in the CMM installation. You can add formats to
WebSuite Cash Management Connectivity Guide 21
this file. In addition, you should remove formats from this file that your organization is not planning
to use to ensure optimal performance of CMM.
Note: For information on the fileimportexportformats.xml file, see 2.1 Configuring the
fileimportexportformats.xml file on page 37.
If a format is specified in the fileimportexportformats.xml file, you can import or export files in
that format. However, if a format is not specified in the fileimportexportformats.xml file, you
need to transform files in that format to a format in the file before importing or exporting them. You
do this using format processor parameters.
Note: For information on format processor parameters, see 3.3 Managing format processors on
page 55.
1.2.2 Connection points
A connection point is a location from which CMM picks up files (for imports) or to which CMM drops
off files (for exports).
Usually, you define an interface’s connection point in its interchange. This is the approach Wallstreet
recommends. However, if you do not define a connection point in the interface’s interchange, CMM
refers to and uses the default import or export folder instead.
The following table presents the default folders for imports:
Note: In the above table, [DefaultImportFolder] is the default import folder defined by the
Default File Import Directory configuration parameter (for example, C:\cmm\Imports\)
and [CounterpartyID] is the ID of the interface’s counterparty (for example, SmithCo).
The following table presents the default folders for exports:
Interface type Location
Forecast files [DefaultImportFolder]\forecasts\
Accounts payable files [DefaultImportFolder]\[CounterpartyID]\AP\
Accounts receivable files [DefaultImportFolder]\[CounterpartyID]\AR\
Direct debit files [DefaultImportFolder]\[CounterpartyID]\DD\
Bank transactions [DefaultImportFolder]\BankImports\[CounterpartyID]\
Bank messages [DefaultImportFolder]\BankImports\[CounterpartyID]\
Interest rates [DefaultImportFolder]\InterestRates\
Foreign exchange rates [DefaultImportFolder]\FxRates\
Static data (entities) [DefaultImportFolder]\Entity\
Static data (counterparties) [DefaultImportFolder]\Counterparty\
Static data (bank accounts) [DefaultImportFolder]\BankAcct\
Interface type Location
Payment files [DefaultExportFolder]\BankPayment\[CounterpartyID]\
Receipt files [DefaultExportFolder]\BankReceipt\[CounterpartyID]\
Credit advice files [DefaultExportFolder]\CreditAdvice\[CounterpartyID]\
22 © Wall Street Systems IPH AB - Confidential
Note: In the above table, [DefaultExportFolder] is the default export folder defined by the
Default File Export Directory configuration parameter (for example, C:\cmm\Exports\) and
[CounterpartyID] is the ID of the interface’s counterparty (for example, SmithCo).
For information on setting the Default File Import Directory and Default File Export Directory
configuration parameters, see 1.4.4 Setting interface configuration parameters on page 27.
Locations defined in interchanges and the previously mentioned configuration parameters must be
physical folders accessible to the CMM application server.
1.2.3 Transport mechanisms
A transport mechanism allows CMM to pick up files from or drop off files to the connection point
without intervention from external applications.
In CMM, transport mechanisms are called "communication protocols". The following are the
communication protocols available for use in the module:
Note: For information on creating and maintaining parameters for communication protocols, see
3.1 Managing transport mechanisms on page 41.
Direct debit files [DefaultExportFolder]\DirectDebit\[CounterpartyID]\
Letter of credit files [DefaultExportFolder]\Default\[CounterpartyID]\
Positive pay files [DefaultExportFolder]\PositivePay\[CounterpartyID]\
Remittance advice files [DefaultExportFolder]\Ra\
Confirmation messages (BANSTA) [DefaultExportFolder]\Bansta\
Confirmation messages (HTML) [DefaultExportFolder]\Html\
Requisition messages [DefaultExportFolder]\Requisition\
Bank statements [DefaultExportFolder]\Default\[CounterpartyID]\
External general ledger files
(code-based)
[DefaultExportFolder]\GL\
External general ledger files
(template-based)
[DefaultExportFolder]\Default\[CounterpartyID]\
Interface type Location
Communication protocol Reason to use the communication protocol
FTP You are transporting files through FTP.
MQ Series Communication You are transporting files through MQSeries.
Generic command line You are transporting files through a third-party tool connected to CMM by the
command line interface.
Request Response You are transporting files through a third-party tool connected to CMM by the
web services interface.
SWIFTNet Adaptor You are transporting files to and from SWIFTNet.
WebSuite Cash Management Connectivity Guide 23
1.2.4 Security mechanisms
Security mechanisms ensure a file cannot be tampered with while being transported to or from
CMM. You can assign one or more security mechanisms to each interface.
In CMM, a security mechanism is called a "signer". Signers either encrypt export files or decrypt
import files. In addition, you can use signers to create or verify digital signatures. A digital signature
identifies the sender and connects the sender to an exact message. When combined with a digital
time stamp, a digital signature can be used to verify the time the message was sent. Anyone who
has a party’s public key can verify the integrity of that party’s digital signature. If a message from
the party is altered in any way, the signature does not decrypt properly. This indicate that the
message was altered in transit or that copying it from a different message forged the signature.
CMM supports the following third-party tools:
•Entrust
•GnuPG
•PGP
•safeX.
If your organization has installed these tools, it can create and maintain signer parameters in CMM
that use them to encrypt, decrypt and sign files.
If you want to use other tools or use these tools in a manner different than how they were
implemented in CMM, you can use the command line interface.
Note: For information on creating and maintaining signer parameters, see 3.2 Managing security
mechanisms on page 51.
1.3 Implementing interfaces
Implementing interfaces requires the following steps:
24 © Wall Street Systems IPH AB - Confidential
1.3.1 Determining your organization’s interface needs
The first step in implementing interfaces is to determine your organization’s specific interface needs.
To do this, ask yourself the following questions:
•Imports
–What information will you be importing to CMM?
–What is the source of this information?
–What is the format of this information?
–How will the information be transported to CMM?
–Will security (decryption and digital signatures) be required?
•Exports
–What information will you be exporting from CMM?
–What is the destination of this information?
–What is the format of this information?
–How will the information be transported from CMM?
–Will security (encryption and digital signatures) be required?
You may need to work with your organization’s banks and other providers as well as Wallstreet or
one of its partners to answer these questions.
When you have completed answering these questions, you will have a list of formats, transport
mechanisms, and security mechanisms, some of which will be supported by CMM and some of which
will not be supported by CMM:
•For the former, you can use standard interface components.
For more information, see 1.3.2 Using standard interface components on page 24.
•For the latter, you (or a consultant) must use CMM tools to create custom interface components.
For more information, see 1.3.3 Using CMM tools to create custom interface components on
page 24.
1.3.2 Using standard interface components
As noted in 1.2 Defining interface components on page 20, CMM supports a standard set of interface
formats, transport mechanisms (or "communication protocols"), and security mechanisms (or
"signers").
If these standard interface components meet the needs you identified in 1.3.1 Determining your
organization’s interface needs on page 24, you can create parameters in CMM that utilize them. You
can then create interchanges that refer to those parameters. For more information, see Chapter 3
Managing interchanges (and related data) on page 41.
1.3.3 Using CMM tools to create custom interface components
If one or more of your needs are not satisfied by CMM’s standard interface components, you can
create custom interface components using the following CMM tools:
Tool Use to createº
Formats Transport mechanisms Security mechanisms
Web services interface
WebSuite Cash Management Connectivity Guide 25
Each tool uses a different set of web-based technologies and requires varying levels of technical
knowledge. If you do not have this knowledge, consider hiring a consultant.
1.3.3.1 Web services interface
The web services interface allows you to connect CMM to an application external to CMM through an
adaptor. The application then transforms, secures, or transports files for CMM.
To use an application external to CMM with the web services interface, you must install it in an
appropriate location accessible to the CMM application server and create an adaptor to connect it to
CMM. Therefore, you require extensive knowledge of the third-party application.
The application can create status messages and pass them on to CMM. These status messages
display in CMM’s job log. Therefore, exception handling and status reporting for interfaces created
through the web services interface are independent of CMM’s standard exception handling and
status reporting and can be as detailed and user friendly as you require.
For more information on the web services interface, see Chapter 5 Using the web services interface
on page 67.
1.3.3.2 Command line interface
The command line interface allows you to use applications external to CMM to transform, secure,
and transport files (assuming the applications are executable from the command line).
To use an application external to CMM with the command line interface, you must install it in an
appropriate location accessible to the CMM application server and create commands. This requires
knowledge of the third-party application. For example, to use Perl to transform files from one format
to another, you need know how to install Perl and create commands in it.
After you have installed the application and created commands, you can create communication
protocol, signer, or format processor parameters in CMM that reference the application through the
command line interface. You can then create interchanges that use these parameters.
For more information on the command line interface, see Chapter 6 Using the command line
interface on page 99.
1.3.3.3 XML-template-based formats
Using XML templates, you can specify custom formats for the following types of information:
To import files using XML-template-based formats, you must first map attributes from the source
external system to attributes in CMM, you can create an XML template based on this mapping.
To export files using XML-template-based formats, you follow a similar process.
Command line interface
XML-template-based formats
Tool Use to createº
Imports Exports
•Forecasts
•Payments (AP)
• Receipts (AR)
• Direct debits
•Bank statements
• Bank messages.
•Payments
• Direct debits
• Letters of credit
•Preadvices
•Credit advices
• Bank statements
• General ledger postings.
26 © Wall Street Systems IPH AB - Confidential
For more information on XML-template-based formats, see Chapter 7 Using XML-template-based
formats on page 119.
1.3.4 Testing interfaces
Wallstreet recommends you test your interfaces before going live. To do this, set up the interfaces
on your organization’s CMM test environment. Working with your organization’s banks and other
external systems, import sample files to the test environment or export sample files from the test
environment. If exporting sample files, confirm with the banks or other external systems that they
have received and can process the files.
1.3.5 Going live
If your interfaces pass testing, you can set them up in your production environment and go live.
The following tasks require interchanges (using your interfaces) be set up to run successfully:
•Importing static data
•Importing interest rates
•Importing foreign exchange rates
•Importing forecasts
•Importing transactions
•Releasing transactions
•Managing bank messages
•Managing free format bank messages
•Importing bank statements, transactions, and balances
•Exporting bank statements
•Exporting bank balances
•Exporting external general ledger files.
You can schedule these tasks in the Task Scheduler function or manually run them on a one-time
basis. For more information, see the WebSuite User Guide and the WebSuite System Administration
Guide.
1.4 Setting configuration parameters
CMM’s configuration parameters allow you to configure key components of the module, including
default functional settings and file paths. A subset of these configuration parameters is relevant to
interfaces and can be set in either the Configuration Parameters function or the Interfaces
Configuration Maintenance function.
WebSuite Cash Management Connectivity Guide 27
1.4.1 Prerequisites
The following are prerequisites for opening configuration files:
1.4.2 Setting configuration parameters using the Configuration Parameters
function
To set a configuration parameter using the Configuration Parameters function:
1. Select Admin - Utilities - Setup - Configuration Parameters.
2. In the Configuration Parameters Maintenance [list] page, enter search criteria.
3. Click Search.
4. Drill down on the configuration parameter.
5. In the Configuration Parameters Maintenance [editor] page, set the configuration parameter.
6. Click Save.
1.4.3 Setting configuration parameters using the Interfaces Configuration
Maintenance function
To set a configuration parameter using the Interfaces Configuration Maintenance function:
1. Select Admin - Static Data - Bank Interfacing - Interfaces Configuration Maintenance.
2. In the resulting page, set the configuration parameter.
3. Click Save.
1.4.4 Setting interface configuration parameters
This section defines the configuration parameters relevant to interfaces. You must set these
configuration parameters before configuring interfaces.
1.4.4.1 Attached to SWIFT Network
The Attached to SWIFT Network configuration parameter specifies if specific SWIFT message
processing is enabled:
Category Tasks
Security Ensure you have access to the following functions:
• FG-0014 Configuration Parameters
• FG-0460 View/Edit Interfaces Configuration.
For more information, see the WebSuite System Administration Guide.
Attribute Value
Possible values • True
Specific SWIFT message processing is enabled because the application server has direct
access to the SWIFT network.
• False
Specific SWIFT message processing is not enabled.
Default value • False
28 © Wall Street Systems IPH AB - Confidential
1.4.4.2 BAI Validation on Control Amount
The BAI Validation on Control Amount configuration parameter specifies if control amount validation
during BAI import is enabled:
1.4.4.3 Citibank Enterprise ID
The Citibank Enterprise ID configuration parameter specifies the Citibank message request
enterprise ID:
1.4.4.4 Communication Maximum Buffer Size
The Communication Maximum Buffer Size configuration parameter specifies the maximum size of
the communication processing buffer in bytes:
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Attribute Value
Possible values • True
Control amount validation during BAI import is enabled.
• False
Control amount validation during BAI import is disabled.
Default value • True
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • [Valid Citibank enterprise ID]
The Citibank message request enterprise ID.
Default value •N/A
Editable in • Configuration Parameters
Attribute Value
Possible
values
•[Valid number]
The maximum size of the communication processing buffer in bytes. For example, MQSeries
requires string buffers on import and export. If the buffer size is too large, out of memory
errors can occur. (During imports, if the buffer size is exceeded, an error displays asking you
to increase buffer size to process messages. During exports, if the buffer size is exceeded,
CMM splits the messages into smaller files.)
Default
value
• 4194304
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
WebSuite Cash Management Connectivity Guide 29
1.4.4.5 Default File Export Directory
The Default File Export Directory configuration parameter specifies the default file path CMM
references when writing export files:
1.4.4.6 Default File Import Directory
The Default File Import Directory configuration parameter specifies the default file path CMM
references when reading import files:
1.4.4.7 Enable Shared Service Center
The Enable Shared Service Center configuration parameter specifies whether the Shared Service Center
field displays in the Interchanges function for SWIFT format interchanges:
1.4.4.8 GnuPG Home Directory
The GnuPG Home Directory configuration parameter specifies the file path in which GnuPG is
installed:
Attribute Value
Possible values • [Valid file path]
The default file path CMM references when writing export files.
Default value • d:\cmm\Exports
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • [Valid file path]
The default file path CMM references when reading import files.
Default value • d:\cmm\Imports
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • True
The Shared Service Center field displays in the Interchanges function for SWIFT format
interchanges.
• False
The Shared Service Center field does not display in the Interchanges function for SWIFT
format interchanges.
Default value •N/A
Editable in • Configuration Parameters
Attribute Value
Possible values • [Valid file path]
The file path in which GnuPG is installed.
Default value •N/A
30 © Wall Street Systems IPH AB - Confidential
1.4.4.9 Import of value date balances enabled
The Import of value date balances enabled configuration parameter specifies how to treat tags 64
and 65 in a SWIFT MT940 message:
1.4.4.10 Maintain SWIFT Template At Payment and Deal Entry
The Maintain SWIFT Templates At Payment and Deal Entry configuration parameter specifies if users
can add or edit SWIFT templates during transaction or deal entry:
1.4.4.11 Maximum String Buffer Process Size
The Maximum String Buffer Process Size configuration parameter specifies the maximum size of the
string buffer for import/export processing:
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Attribute Value
Possible values •True
SWIFT MT940 message import: field 64 (Closing Available Balance) and field 65
(Forward Available Balance) are imported into WebSuite and are not recalculated.
•False
SWIFT MT940 message import: field 64 (Closing Available Balance) and field 65
(Forward Available Balance) are ignored by WebSuite which calculates these figures.
Default value •True
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • True
Users can add or edit SWIFT templates during transaction or deal entry.
• False
Users cannot add or edit SWIFT templates during transaction or deal entry.
Default value • True
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • [Valid whole number greater than 0]
The maximum size of the string buffer for import/export processing (defined in
kilobytes).
Default value • 150
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
WebSuite Cash Management Connectivity Guide 31
1.4.4.12 SafeX File Location
The SafeX 2.x File Location configuration parameter specifies the file path of the safeX executable:
1.4.4.13 Static SWIFT Template Data
The Static SWIFT Template Data configuration parameter specifies if users can edit the default fields
of the SWIFT template:
1.4.4.14 SWIFT Duplicate Transaction Handling
The SWIFT Duplicate Transaction Handling configuration parameter specifies if CMM verifies that the
transactions in SWIFT files have not already been imported when import SWIFT files:
Attribute Value
Possible values • [Valid file path]
The file path of the safeX executable.
Default value •N/A
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • True
Users can edit the default fields of the SWIFT template.
• False
Users cannot edit the default fields of the SWIFT template.
Default value • False
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible
values • True
When importing SWIFT files, CMM verifies that the transactions in the files have not already
been imported. If they have, CMM invokes duplicate transaction handling.
• False
When importing SWIFT files, CMM does not verify that the transactions in the files have not
already been imported.
Default value • False
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
32 © Wall Street Systems IPH AB - Confidential
1.4.4.15 SWIFT MT320 Version
The SWIFT MT320 Version configuration parameter specifies the version of SWIFT messaging
(MT320) used by CMM:
1.4.4.16 SWIFT Payment Export Format
The SWIFT Payment Export Format configuration parameter specifies whether CMM uses the MT100
or MT103 format for SWIFT payment exports:
1.4.4.17 Third-Party Software Location
The Third-Party Software Location configuration parameter specifies the file path for third-party
software accessed for interface security and communication:
1.5 Opening configuration files
Some interface tasks in CMM require you to open and edit configuration files.
Attribute Value
Possible values • Version 1
CMM uses version 1 of SWIFT messaging (MT320).
• Version 2
CMM uses version 2 of SWIFT messaging (MT320).
Default value • Version 2
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • MT100
CMM uses the older MT100 format for SWIFT payment exports.
• MT103
CMM uses the newer MT103 format for SWIFT payment exports.
Default value • MT103
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
Attribute Value
Possible values • [Valid file path]
The file path for third-party software accessed for interface security and communication.
Default value • D:\cmm\3rdPartyProgDir
Editable in • Configuration Parameters
• Interfaces Configuration Maintenance
WebSuite Cash Management Connectivity Guide 33
Most configuration files utilize XML and are stored in one of these three locations:
•Configuration files that are relevant to individual application servers are maintained in an
InstallationData folder for each application server. This folder is located here:
<install home>\envs\<env>\etc\wss-web\cmm\InstallationData
•Configuration files that are relevant to the web interface as a whole are maintained in a central
ConfigurationData folder. This folder is located here:
<install home>\envs\<env>\etc\wss-web\cmm\ConfigurationData
•Default configuration files that contain all of the CMM configuration. This folder is located here:
<install
home>\components\wss-web\websuite\DefaultData\default\AurosConfigData\standard
1.5.1 Configuration overrides
Any configuration file in the ConfigurationData or InstallationData folder overrides its "twin"
configuration file in the default CMM configuration directory (assuming it is in the correct subfolder)
without actually overwriting it.
The override order is as follows: the InstallationData folder takes precedence over
ConfigurationData which takes precedence over DefaultData.
1.5.2 Customization
Any customization must be done in the ConfigurationData or InstallationData folder.
If by default, the configuration file to customize is not present in these two folders, the original file
must be copied from the DefaultData folder and put under ConfigurationData folder (if this is to
be a global configuration change) or under the InstallationData folder (if this is an
environment-specific change), respecting the same directory hierarchy.
1.5.3 Upgrade
When upgrading Wallstreet Suite, before applying the old configuration files from the
InstallationData and ConfigurationData folders, you must check them against the new default
configurations available in the InstallationData/ConfigurationData/DefaultData folders of the
new installation, and merge what has been added between the two versions (for example, a new
import format may have been added).
Contact the Support Center if you have any doubts regarding the configuration merging.
You can edit most configuration files using the Review CMM Configuration Documents function. As a
result, you do not need access to the application server to edit files.
As of this release, the following configuration files are not available in the Review CMM Configuration
Documents function:
•Class map files
•Service definition files
•Object mapping files
•Files that can be modified through editors in the user interface.
In most situations, you do not need to edit these files. In a future release, you may be able to view
(but not edit) these files from the Review CMM Configuration Documents function.
34 © Wall Street Systems IPH AB - Confidential
1.5.4 Prerequisites
The following are prerequisites for opening configuration files:
1.5.5 Opening configuration files with the Review CMM Configuration Documents
function
To open configuration files with the Review CMM Configuration Documents function:
1. Select Admin - Utilities - Setup - Review CMM Configuration Documents.
2. In the Review Configuration Documents page:
–To view or edit all editable configuration files, or edit a configuration file, select
Installation Config Documents in the list.
–To view or edit a subset of the most commonly modified editable configuration files, select
Standard Config Documents in the list.
You can also access files in the Runtime and VirtualDirectory folders:
–To view a file in the Runtime folder, select Runtime Directory Documents in the list.
–To view or edit a file in the VirtualDirectory folder, select Virtual Directory Config
Documents in the list.
3. Navigate to the configuration file you want to open using the bulleted list.
In the bulleted list, folders are represented by black bulleted list items while configuration files
are represented by blue bulleted list items. To view the contents of a folder, click its bulleted list
item.
4. Click the configuration file. A window opens, displaying the contents of the configuration file:
5. Edit and save the configuration file as described in this guide.
Category Tasks
Security Ensure you have access to the following function:
• FG-0400 Review CMM Configuration.
For more information, see the WebSuite System Administration Guide.
WebSuite Cash Management Connectivity Guide 35
When you first edit a configuration file in the Review CMM Configuration Documents function,
WebSuite creates a version of the file in the ConfigurationData folder. This version overrides
the default version from the DefaultData folder. However, the function allows you to delete the
custom version in the ConfigurationData folder and resume using the default version in the
DefaultData folder.
1.5.6 Opening configuration files without the Review CMM Configuration
Documents function
To open configuration files without the Review CMM Configuration Documents function (assuming
the files is not present already in the InstallationData or ConfigurationData folder):
1. Open the DefaultData folder:
<install
home>\components\wss-web\websuite\DefaultData\default\AurosConfigData\standard
2. Locate and copy the configuration file to the appropriate location in the ConfigurationData
folder.
3. Open the configuration file in a text editor.
4. Edit and save the configuration file as described in the documentation.
1.5.7 Returning a configuration file to its default settings
To return a configuration file to its default settings:
1. Select Admin - Utilities - Setup - Review CMM Configuration Documents.
2. In the Review Configuration Documents page:
–To view or edit all editable configuration files, or edit a configuration file, select
Installation Config Documents in the list.
–To view or edit a subset of the most commonly modified editable configuration files, select
Standard Config Documents in the list.
3. Navigate to the configuration file you want to edit using the bulleted list.
In the bulleted list, folders are represented by black bulleted list items while configuration files
are represented by blue bulleted list items. To view the contents of a folder, click its bulleted list
item.
4. Click the configuration file. A window opens, displaying the contents of the configuration file.
5. Click Revert to Default.
An archived version of the edited file is saved in [WebSuite installation
root]\ConfigurationData\Archive.
(If the file is not available in the Review CMM Configuration Documents function, you can return
it to its default settings by removing it from the ConfigurationData folder.)
36 © Wall Street Systems IPH AB - Confidential
WebSuite Cash Management Connectivity Guide 37
Chapter 2 Managing formats
A set of default formats are provided with CMM. You can manage these formats through two
configuration files included in the CMM installation:
•fileimportexportformats.xml specifies import and export formats supported by CMM
•importfilepattern.xml specifies import format patterns supported by CMM.
To ensure optimal performance of CMM, remove all unneeded formats from the
fileimportexportformats.xml file and all unneeded format patterns from the
importfilepattern.xml file.
2.1 Configuring the fileimportexportformats.xml file
Like all of CMM’s XML-based configuration files, the fileimportexportformats.xml file is located in
the CMM DefaultData folder.
Before you can edit the fileimportexportformats.xml file, you must copy it from the CMM
defaultData folder and place it in the correct location in the ConfigurationData folder. See
“Opening configuration files” on page 32.
Note: In Chapter 7 Using XML-template-based formats on page 119, you will add custom formats
to the file.
2.1.1 Prerequisites
The following are prerequisites for configuring the fileimportexportformats.xml file:
2.1.2 Removing formats from the fileimportexportformats.xml file
To remove formats from the fileimportexportformats.xml file:
1. In the table_data element, delete the row_data child element of the first format you want to
remove.
3. Repeat step 1 for each format you want to remove.
4. Save and close the file.
Category Tasks
Security Ensure you have access to the following function:
• FG-0400 Review CMM Configuration.
For more information, see the WebSuite System Administration Guide.
38 © Wall Street Systems IPH AB - Confidential
2.2 Configuring the importfilepattern.xml file
Like the fileimportexportformats.xml file, the importfilepattern.xml file is located in the CMM
DefaultData folder.
Before you can edit the importfilepattern.xml file, you must copy it from the CMM DefaultData
folder and place it in the correct location in the ConfigurationData folder. See “Opening
configuration files” on page 32.
Note: In Chapter 7 Using XML-template-based formats on page 119, you will add custom format
patterns to the file.
2.2.1 Prerequisites
The following are prerequisites for configuring the importfilepattern.xml file:
2.2.2 Removing format patterns from the importfilepattern.xml file
To remove format patterns from the importfilepattern.xml file:
1. In the import_file_pattern element, delete the pattern child element of the first format
pattern you want to remove.
2. Repeat step 2 for each format pattern you want to remove.
3. Save and close the file.
2.2.3 Verifying the business types of bank message import formats
In select export format interchanges, you can specify if your organization expects to receive an
acknowledgment and acceptance messages from the receiving bank for transactions released
through the interchange:
If you enable these options in the export interchange, you need to ensure the corresponding bank
message import formats have the correct business types.
To verify the business type of a bank message import format:
1. Open the following configuration file:
[Standard configuration file path]
interfaces
importfilepattern.xml
Category Tasks
Security Ensure you have access to the following function:
• FG-0400 Review CMM Configuration.
For more information, see the WebSuite System Administration Guide.
WebSuite Cash Management Connectivity Guide 39
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. In the import_file_pattern element, locate the pattern child element of the bank message
format.
3. Verify that the business_type attribute is set properly:
–ACKNOWLEDGEMENT for acknowledgement bank messages
–ACCEPTANCE for acceptance bank messages.
4. Save and close the file.
40 © Wall Street Systems IPH AB - Confidential
WebSuite Cash Management Connectivity Guide 41
Chapter 3 Managing interchanges (and related
data)
To implement an interface in CMM, you must create parameters for its transport mechanism,
security mechanisms, and format processors. You then create an interchange that references these
parameters as well as specifying the interface’s type, format, and connection point.
3.1 Managing transport mechanisms
A transport mechanism allows CMM to pick up files from or drop off files to the connection point
without intervention from external applications. In CMM, transport mechanisms are referred to as
"communication protocols".
3.1.1 Managing communication protocols
You can enable the following communication protocols in the Communication Protocols function:
•FIN Message Manager
•FTP (File Transfer Protocol)
•Generic Command Line Communication
•MQSeries
•Native Command Line Communication
•Request Response
•SWIFTNet Adaptor
3.1.1.1 Prerequisites
The following are prerequisites for managing communication protocols:
3.1.1.2 Installing third-party software
Before enabling the MQSeries communication protocol, you must install third-party software.
To install third-party software for the MQSeries communication protocol:
1. Purchase a license of MQSeries from IBM.
CMM currently supports version 6.0 of MQSeries.
2. Install MQSeries in a location accessible to CMM.
For more information, see the documentation provided by IBM.
Category Tasks
Security Ensure you have access to the following function:
• FG-0096 Communication Protocol Maintenance.
For more information, see the WebSuite System Administration Guide.
42 © Wall Street Systems IPH AB - Confidential
3.1.1.3 Enabling communication protocols
To enable a communication protocol:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocols.
2. In the Communication Protocol Maintenance List page:
–To enable the communication protocol, select its Enabled in CMM checkbox.
–To allow the enabled communication protocol to be manually executed through the Task
Scheduler or Communication Dispatch functions, select its Manually Executable checkbox.
–To allow the enabled communication protocol to create a remote connection between two
servers for remote processes, select its Remote Connection Enabled checkbox.
3. Click Save.
If you cleared the Enabled in CMM checkbox of a previously enabled communication protocol, CMM
does not delete or otherwise change any parameters that reference that communication
protocol. To discontinue using the communication protocol, you must remove all communication
protocol parameters and interchanges that reference it.
3.1.2 Managing communication protocol parameters
When a communication protocol is enabled, it displays in the Communication Protocol Parameters
function. As a result, you can create parameters that reference the communication protocol and
then use those parameters in interchanges.
3.1.2.1 Prerequisites
The following are prerequisites for managing communication protocol parameters:
3.1.2.2 Creating FIN Message Manager protocol parameters
To route SWIFT FIN messages via TRMSwift so that they are available in the Fin Message Admin
application:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the Fin Message Manager option button.
3. Click Edit Parameter.
4. In the Communication - Fin Message Manager Adapter page, click New Entry.
5. In the Communication - Fin Message Manager Adapter page, set the Protocol Type to FIN, and
select the correct Internal BIC and External BIC as declared in the ESIAdapter Client Relationship
Editor.
6. Click Save.
Category Tasks
Static data Ensure the following static data are available:
•Counterparties .
For more information, see the WebSuite User Guide.
Interfaces Ensure the following task has been completed:
• 3.1.1 Managing communication protocols on page 41.
Security Ensure you have access to the following function:
• FG-0038 Communications Protocol Parameters Maintenance.
For more information, see the WebSuite System Administration Guide.
WebSuite Cash Management Connectivity Guide 43
3.1.2.2.1 Using the richer XML FIN message format
There are two formats available for the FIN message(s) produced by CMM to be sent to ESIAdapter:
text or XML depending on the Format Specification selected in the corresponding interchange.
To change Format Specification, follow the steps in 3.4.3 Editing interchanges on page 57, then:
•Select a different Format Specification: the XML versions are prefixed FIN_ (text versions are
prefixed STD_). If you route SWIFT FIN messages via TRMSwift, so that they are available in the
FIN Message Admin application, then you get the most benefit from using the XML version. You
will see that FIN message(s) released using this set of format specifications will populate the FIN
Sequence and Subfield columns of the FIN Message Field view of the FIN Message Admin. This
allows full usage of the FIN Message Admin through rules and actions, as this complementary
metadata enables you to identify the business reason of a line in a FIN message instead of only
using technical identifiers like the Order ID. This makes the whole process more efficient.
To route your FIN message(s) towards ESIAdapter via TRMSwift:
•Select Fin Message Manager as the Communication Type, under the Interchange Plugins group. For
more information, see 3.4.3 Editing interchanges on page 57.
3.1.2.3 Creating FTP communication protocol parameters
To create an FTP communication protocol parameter:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the FTP - File Transfer Protocol option button.
3. Click Edit Parameter.
4. In the Communication - FTP [list] page, click New Entry.
5. In the Communication - FTP [editor] page, create the communication protocol parameter.
The following is an example FTP communication protocol parameter:
6. Click Save.
3.1.2.4 Creating MQSeries communication protocol parameters
The number of MQSeries queues (communication protocol parameter sets) that is required depends
on the number of interchanges configured in the system. Typically each of these interchanges uses
a distinct communication protocol parameter set with each set defining its own queue either for
sending or receiving.
CMM itself does not impose any restraints on the MQSeries naming convention; rules for naming
thus depends on MQSeries itself, and other allied systems that consume and produce messages.
To create an MQSeries communication protocol parameter:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the MQ Series Communication option button.
3. Click Edit Parameter.
4. In the Communication - MQ Series [list] page, click New Entry.
5. In the Communication - MQ Series [editor] page, create the communication protocol parameter.
6. Click Save.
When an interchange with an MQSeries communication protocol parameter encounters an error
during import, it attempts to post the transaction data to a queue. You can then view the transaction
data in the queue. To facilitate this, you must create an MQSeries submit communication protocol
parameter with the following value in the Parameter Set Name field:
MQ SERIES ERROR STREAM (DO NOT CHANGE NAME)
44 © Wall Street Systems IPH AB - Confidential
3.1.2.5 Creating SWIFTNet Adaptor communication protocol parameters
To create a SWIFTNet Adaptor communication protocol parameter:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the SWIFTNet Adaptor option button.
3. Click Edit Parameter.
4. In the Communication - SWIFTNet Adaptor [list] page, click New Entry.
5. In the Communication - SWIFTNet Adaptor [editor] page, create the communication protocol
parameter.
6. Click Save.
The following are examples of SWIFTNet Adaptor communication protocol parameters:
FIN
FileAct
Note that the Internal and External configuration setup is not required for the FIN protocol type.
Internal and external BICs are set in the ESIAdapter Client Relationship Editor (also known as
ESIAdapter Editor), see the Wallstreet Suite SWIFT Connectivity Guide.
WebSuite Cash Management Connectivity Guide 45
3.1.2.6 Creating command line communication protocol parameters
To create a command line communication protocol parameter:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the Generic Command Line Communication option button.
3. Click Edit Parameter.
4. In the Communication - Generic Command Line [list] page, click New Entry.
5. In the Communication - Generic Command Line [editor] page, create the communication
protocol parameter.
For more information on command line communication protocol parameters, see 6.1 Connecting
interface components on page 99.
6. Click Save.
3.1.2.7 Creating request response communication protocol parameters
To create a request response communication protocol parameter:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the Request Response option button.
3. Click Edit Parameter.
4. In the Communication - Request Response [list] page, click New Entry.
5. In the Communication - Request Response [editor] page, create the communication protocol
parameter.
For more information on request response communication protocol parameters, see 5.2.3
Managing the interchange (and related data) on page 76 and 5.3.3 Managing the interchange
(and related data) on page 82.
6. Click Save.
3.1.2.8 Editing communication protocol parameters
To edit a communication protocol parameter:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the appropriate communication protocol’s
option button.
3. Click Edit Parameter.
4. In the communication protocol’s parameter list page, drill down on the communication protocol
parameter.
5. In the communication protocol’s parameter editor page, edit the communication protocol
parameter.
For descriptions of the controls on this page, see the appropriate Creating section.
6. Click Save.
46 © Wall Street Systems IPH AB - Confidential
3.1.2.9 Deleting communication protocol parameters
To delete a communication protocol parameter:
1. Select Admin - Static Data - Bank Interfacing - Communication Protocol Parameters.
2. In the Communication Protocols page, select the appropriate communication protocol’s
option button.
3. Click Edit Parameter.
4. In the communication protocol’s parameter list page, drill down on the communication protocol
parameter.
5. In the communication protocol’s parameter editor page, click Delete.
6. In the resulting dialog, click OK.
3.1.3 Completing other tasks
In addition to managing communication protocol parameters, you can complete the following tasks
after enabling communication protocols:
•Manually execute communication protocols
•Run processes remotely through communication protocols.
3.1.3.1 Prerequisites
The following are prerequisites for completing other tasks:
3.1.3.2 Manually executing communication protocols
If you selected a communication protocol’s Manually Executable checkbox in the Communication
Protocols function, you can manually execute that communication protocol by scheduling the
appropriate Communication task in the Task Scheduler function. For more information, see the
WebSuite System Administration Guide.
You can also manually execute communication protocols on a one-time basis using the
Communication Dispatch function:
1. Select Admin - Utilities - Bank Interfacing - Communication Dispatch.
2. In the Communication Dispatch page, select the checkboxes of communication protocols you
want to manually execute.
3. Click Dispatch Messages.
3.1.3.3 Running processes remotely through communication protocols
If you selected a communication protocol’s Remote Connection Enabled checkbox in the Communication
Protocols function, you can run processes remotely through that communication protocol in the
Remote Processes function.
Category Tasks
Interfaces Ensure the following task has been completed:
• 3.1.1 Managing communication protocols on page 41.
Security Ensure you have access to the following functions:
• FG-0215 Communication Dispatch
• FG-0303 Remote Process Maintenance.
For more information, see the WebSuite System Administration Guide.
WebSuite Cash Management Connectivity Guide 47
Note: For information on specific processes, contact Wallstreet.
To run a process remotely through a communication protocol:
1. Select Admin - Utilities - Setup - Remote Processes.
2. In the Remote Process Maintenance page, drill down on the process.
3. In the Remove [Process] Communication Protocol page, select the communication protocol’s
Remote option button.
4. Click Save.
5. In the communication protocol’s parameter editor page, create a communication protocol
parameter for the process.
For descriptions of the controls on this page, see 3.1.2 Managing communication protocol
parameters on page 42.
6. Click Save.
3.1.4 Entering data in FTP communication protocol parameter file matching fields
If you are creating or editing an FTP communication protocol parameter in the Communication
Protocol Parameters function, three fields related to file matching display on the Communication –
FTP [editor] page:
48 © Wall Street Systems IPH AB - Confidential
3.1.4.1 Entering data in the File Match RegExp field
The File Match RegExp field specifies the file or files CMM is to retrieve from the FTP server. You need to
enter a valid regular expression in this field so that CMM can recognize which file or files to retrieve
from the FTP server. Therefore, it is important to update this field if there are any changes to the
standard file names or folder structure on the FTP server.
3.1.4.1.1 Regular expression syntax
The following table presents syntax you can use in regular expressions:
Syntax Purpose
.Matches any character except a new line.
^Matches the start of the string and, in multiline mode, also matches immediately after each new
line.
$Matches the end of the string and, in multiline mode, also matches before a new line.
Example:
fo matches fo and food, but fo$ only matches fo.
*Causes a match of zero or more repetitions of the preceding regular expression.
Example:
ab* matches a, ab, or abbb… (a followed by two or more bs).
+Causes a match of one or more repetitions of the preceding regular expression.
Example:
ab+ matches ab or abbb… (a followed by two or more bs) but does not match a (a followed
by no bs).
?Causes a match of zero or one repetition of the preceding regular expression.
Example:
ab? matches a or ab.
Adding ? after the qualifiers (*, +, and ?) makes them perform the match in a minimal fashion,
where as few characters as possible are matched.
Examples:
If <.*> is matched against <H1>title</H>, it matches the entire string.
If <.*?> is matched against <H1>title</H>, it only matches <H1>.
{m,n}Causes a match from m to n repetitions of the preceding regular expression, attempting to match
as many repetitions as possible.
Example:
a{3,5} matches from three to five a characters.
Omitting n specifies an infinite upper bound.
Example:
a{3} matches from three to infinity a characters.
{m,n}? Causes a match from m to n repetitions of the preceding regular expression, attempting to match
as few repetitions as possible.
Examples:
If a{3,5} is matched against aaaaaa, it matches five a characters.
If a{3,5}? is matched against aaaaaa, it only matches three a characters.
WebSuite Cash Management Connectivity Guide 49
[] Indicates a set of characters. Characters can be listed individually, or a range of characters can be
indicated by listing two characters separated by a hyphen. Special characters are not active inside
sets.
Examples:
[akm$] matches any of the characters a, k, m, or $.
[a-z] matches any lowercase letter.
[a-zA-Z0-9] matches any letter or digit.
Character classes, such as \w or \S, are also accepted inside a range. If you want to include a
closing bracket or hyphen inside a set, precede it with a back slash or place it as the first character.
Example:
[]] matches ].
You can also match the characters not within a range by including a ^ as the first character of the
set.
Example:
[^5] matches any character except 5
(^ elsewhere simply matches the ^ character.)
A|BCreates a regular expression that matches either A or B (where A and B are regular expressions).
This can be used inside groups as well. To match |, use \| or enclose it inside a character class (for
example, [|]).
\Escapes special characters, enabling you to match characters such as asterisk and question mark.
Example:
\* matches *.
Back slashes (\) can also signal special sequences:
•\
number
matches the contents of the group of the same number. Groups are numbered
starting from one.
Example:
(.+)\1 matches the the or 55 55 but not the end.
This special sequence can only be used with numbers 1 to 99. If the first digit of a number is 0
or the number is three digits long, it will not be interpreted as a group match.
•\A matches only at the start of the string
•\b matches the empty string, but only at the beginning or end of a word. A word is defined as a
sequence of alphanumeric characters, so the end of a word is indicated by white space or a
non-alphanumeric character. Inside a character range, \b represents the backspace character
for compatibility with Python’s string literals.
•\B matches the empty string, but only when it is not at the beginning or end of a word.
•\d matches any decimal digit. This is equivalent to the set [0-9].
•\D matches any non-digit character. This is equivalent to the set [^0-9].
•\s matches any white space character. This is equivalent to the set [ \t\n\r\f\v].
•\S matches any non-white space character. This is equivalent to the set [^ \t\n\r\f\v].
•\w matches any alphanumeric character. This is equivalent to the set [a-zA-Z0-9_].
•\W matches any non-alphanumeric character. This is equivalent to the set [^a-zA-Z0-9_].
•\Z matches only at the end of the string.
•\\ matches a literal back slash.
Syntax Purpose
50 © Wall Street Systems IPH AB - Confidential
3.1.4.1.2 Example
The following string:
(.*\s+)(\d+\s+)(\S+\s+)(\d+)(\s+\w{3}\s+\d{1,2}\s+\d{1,2}:?\d{0,2}\s+)([a-z,A-Z]
*\.?[B,b][A,a][I,i])\s
Matches:
-rw-r--r-- 1 treasury 2439 Aug 30 09:01 CitiDEBAI
The following table explains why this is the case:
3.1.4.2 Entering data in the File Match String field
Wallstreet recommends you enter the following value in the File Match String field:
(.*\s+)(\d+\s+)(\S+\s+)(\d+)(\s+\w{3}\s+\d{1,2}\s+\d{1,2}:?\d{0,2}\s+)([a-z,A-Z]*\.?
[B,b][A,a][I,i])\s
3.1.4.3 Entering data in the File Match Index field
After you have entered a value in the File Match RegExp field, you need to enter a corresponding value
in the File Match Index field. This field indicates which group matches the file name.
If you entered the example described in 3.1.4.1 Entering data in the File Match RegExp field on page
48 in the File Match RegExp field, enter 6 in the File Match Index field because the sixth group,
([a-z,A-Z]*\.?[B,b][A,a][I,i])\s, matches the file name, CitiDEBAI.
(A)Matches the regular expression A inside the parentheses and indicates the start and end of a
group. The content of a group can be retrieved after a match has been performed and can be
matched later in the string with the \number special sequence. To match ( and ), use \( and \) or
enclose them inside character classes (for example, [(] and [)]).
No. Regular
expression Matching text Explanation
1(.*\s+) -rw-r--r-- This expression matches any characters for zero or more
repetitions followed by one or more white space characters.
2(\d+\s+) 1This expression matches any decimal digits for one or more
repetitions followed by one or more white space characters.
3(\S+\s+) treasury This expression matches any non-white space character for one
or more repetitions followed by one or more white space
characters.
4(\d+) 2439 This expression matches any decimal digits for one or more
repetitions.
5(\s+\w{3}\s+\d{
1,2}\s+\d{1,2}:
?\d{0,2}\s+)
Aug 30 09:01 This expression matches any one or more white space characters
followed by any three alphanumeric characters, followed by one
or more white space characters, followed by one to two decimal
digits, followed by one or more white space characters, followed
by one to two decimal digits, followed by zero or one colons,
followed by zero to two decimal digits, followed by one or more
white space characters.
6([a-z,A-Z]*\.?[
B,b]
[A,a][I,i])\s
CitiDEBAI This expression matches any letter for zero or more repetitions,
followed by zero or one periods, followed by BAI or bai, followed
by any white space character.
Syntax Purpose
WebSuite Cash Management Connectivity Guide 51
3.2 Managing security mechanisms
A security mechanism ensures a file cannot be tampered with while being transported to or from
CMM. In CMM, security mechanisms are referred to as "signers".
3.2.1 Managing signers
You can enable the following signers in the Signers function:
•Entrust
•GnuPG
•PGP
•safeX
•Command line.
3.2.1.1 Prerequisites
The following are prerequisites for managing signers:
3.2.1.2 Installing third-party software
Before enabling the Entrust, GnuPG, PGP, and safeX signers, you must install third-party software.
To install third-party software for the Entrust signers:
1. Download the current version of the CMM application from the UIS section of the Wallstreet
support site.
The Wallstreet support site is password protected. If you do not have a password for the site,
contact Wallstreet.
2. Copy the websuite-entrust.jar file to the $JAVA_HOME\jre\lib\ext directory. This is the
same JDK that is used to run Websuite.
3. Take the XCC file which was obtained from Citibank, rename the file to entrust.xcc and copy it
to the $JAVA_HOME\jre\lib\ext directory.
4. Take the file enttoolkit.jar which is a component of the Entrust Toolkit V7 obtained from
Entrust, and copy it to the %JAVA_HOME%\jre\lib\ext directory.
To install third-party software for the GnuPG signers:
1. Download GnuPG from the GnuPG website.
CMM currently supports version 1.2.1 of GnuPG.
2. Install GnuPG in a location accessible to CMM.
For more information, see the documentation provided on the GnuPG website.
3. Log into CMM and set the GnuPG Home Directory configuration parameter.
For information on setting this configuration parameter, see 1.4.4 Setting interface configuration
parameters on page 27.
To install third-party software for the PGP signers:
1. Purchase a license of McAfee E-Business Server from McAfee Inc.
Category Tasks
Security Ensure you have access to the following function:
• FG-0183 Signer Maintenance.
For more information, see the WebSuite System Administration Guide.
52 © Wall Street Systems IPH AB - Confidential
CMM currently supports version 7.0 of McAfee E-Business Server.
2. Install McAfee E-Business Server in …\3rdPartyProgDir\pgp\.
For more information, see the documentation provided by McAfee Inc.
To install third-party software for the safeX signers:
1. Purchase a license of safeX from R&L AG.
CMM currently supports version 2.1 of safeX.
2. Install safeX in a location accessible to CMM.
For more information, see the documentation provided by R&L AG.
3. Log into CMM and set the SafeX 2.x File Location configuration parameter.
For information on setting this configuration parameter, see 1.4.4 Setting interface configuration
parameters on page 27.
3.2.1.3 Enabling signers
To enable a signer:
1. Select Admin - Static Data - Bank Interfacing - Signers.
2. In the Signer Maintenance List page, select the signer’s Installed checkbox.
3. Click Save.
If you cleared the Installed checkbox of a previously enabled signer, CMM does not delete or
otherwise change any parameters that reference that signer. To discontinue using the
communication protocol, you must remove all signer parameters and interchanges that
reference it.
3.2.2 Managing signer parameters
When a signer is enabled, it displays in the Signer Parameters function. As a result, you can create
parameters that reference the signer and then use those parameters in interchanges.
3.2.2.1 Prerequisites
The following are prerequisites for managing signer parameters:
Category Tasks
Static data Ensure the following static data are available:
• Counterparties.
For more information, see the WebSuite User Guide.
Interfaces Ensure the following task has been completed:
• 3.2.1 Managing signers on page 51.
Security Ensure you have access to the following function:
• FG-0184 Signer Parameter Maintenance.
For more information, see the WebSuite System Administration Guide.
WebSuite Cash Management Connectivity Guide 53
3.2.2.2 Creating Entrust encryption signer parameters
To create an Entrust encryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic Entrust Encryption.
3. In the Generic Entrust Encryption [list] page, click New Entry.
4. In the Generic Entrust Encryption [editor] page, create the signer parameter.
The following is an example Entrust encryption signer parameter:
5. Click Save.
3.2.2.3 Creating Entrust decryption signer parameters
To create an Entrust decryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic Entrust Decryption.
3. In the Generic Entrust Decryption [list] page, click New Entry.
4. In the Generic Entrust Decryption [editor] page, create the signer parameter.
5. Click Save.
3.2.2.4 Creating GnuPG encryption signer parameters
To create a GnuPG encryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic GnuPG Encryption.
3. In the Generic GnuPG Encryption [list] page, click New Entry.
4. In the Generic GnuPG Encryption [editor] page, create the signer parameter.
5. Click Save.
3.2.2.5 Creating GnuPG decryption signer parameters
To create a GnuPG decryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic GnuPG Decryption.
3. In the Generic GnuPG Decryption [list] page, click New Entry.
4. In the Generic GnuPG Decryption [editor] page, create the signer parameter.
5. Click Save.
3.2.2.6 Creating PGP encryption signer parameters
To create a PGP encryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic PGP Encryption.
3. In the Generic PGP Encryption [list] page, click New Entry.
4. In the Generic PGP Encryption [editor] page, create the signer parameter.
5. Click Save.
54 © Wall Street Systems IPH AB - Confidential
3.2.2.7 Creating PGP decryption signer parameters
To create a PGP decryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic PGP Decryption.
3. In the Generic PGP Decryption [list] page, click New Entry.
4. In the Generic PGP Decryption [editor] page, create the signer parameter.
5. Click Save.
3.2.2.8 Creating safeX encryption signer parameters
To create a safeX encryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic safeX Encryption.
3. In the Generic SafeX Encryption [list] page, click New Entry.
4. In the Generic SafeX Encryption [editor] page, create the signer parameter.
5. Click Save.
3.2.2.9 Creating safeX decryption signer parameters
To create a safeX decryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic SafeX Decryption.
3. In the Generic SafeX Decryption [list] page, click New Entry.
4. In the Generic SafeX Decryption [editor] page, create the signer parameter.
5. Click Save.
3.2.2.10 Creating command line encryption signer parameters
To create a command line encryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic Command Line Encryption.
3. In the Generic Command Line Encryption [list] page, click New Entry.
4. In the Generic Command Line Encryption [editor] page, create the signer parameter.
For more information on command line encryption signer parameters, see 6.1 Connecting
interface components on page 99.
5. Click Save.
3.2.2.11 Creating command line decryption signer parameters
To create a command line decryption signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on Generic Command Line Decryption.
3. In the Generic Command Line Decryption [list] page, click New Entry.
4. In the Generic Command Line Decryption [editor] page, create the signer parameter.
WebSuite Cash Management Connectivity Guide 55
For more information on command line decryption signer parameters, see 6.1 Connecting
interface components on page 99.
5. Click Save.
3.2.2.12 Editing signer parameters
To edit a signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on the appropriate signer.
3. In the signer’s parameter list page, drill down on the signer parameter.
4. In the signer’s parameter editor page, edit the signer parameter.
For descriptions of the controls on this page, see the appropriate Creating section.
5. Click Save.
3.2.2.13 Deleting signer parameters
To delete a signer parameter:
1. Select Admin - Static Data - Bank Interfacing - Signer Parameters.
2. In the Signer Parameter Maintenance page, drill down on the appropriate signer.
3. In the signer’s parameter list page, drill down on the signer parameter.
4. In the signer’s parameter editor page, click Delete.
5. In the resulting dialog, click OK.
3.3 Managing format processors
When importing or exporting a file, CMM can transform it from one format to another according to
the format processor parameters in the file’s interchange:
•For an import process, the format processor transforms the data file from a user-specified
format to an appropriate CMM import format. It then stores the results in a specified output file
so that CMM can retrieve the file and continue processing.
•For an export process, the format processor transforms the data file from the appropriate CMM
export format to a user-specified format that can be processed by an external system such as a
bank. It stores the results in the specified output data file so that CMM can retrieve the file and
continue processing.
3.3.1 Prerequisites
The following are prerequisites for managing format parameters:
Category Tasks
Static data Ensure the following static data are available:
•Counterparties.
For more information, see the WebSuite User Guide.
Security Ensure you have access to the following function:
• FG-0359 Format Processor Parameters.
For more information, see the WebSuite System Administration Guide.
56 © Wall Street Systems IPH AB - Confidential
3.3.2 Creating format processor parameters
To create a format processor parameter:
1. Select Admin - Static Data - Bank Interfacing - Command Line Processors.
2. In the Format Processor Parameters page, drill down on the appropriate format processor.
3. In the Command Line Format Processor [list] page, click New Entry.
4. In the Command Line Format Processor [editor] page, create the format processor parameter.
5. Click Save.
3.3.3 Editing format processor parameters
To edit a format processor parameter:
1. Select Admin - Static Data - Bank Interfacing - Command Line Processors.
2. In the Format Processor Parameters page, drill down on the appropriate format processor.
3. In the Command Line Format Processor [list] page, drill down on the format processor
parameter.
4. In the Command Line Format Processor [editor] page, edit the format processor parameter.
5. Click Save.
3.3.4 Deleting format processor parameters
To delete a format processor parameter:
1. Select Admin - Static Data - Bank Interfacing - Command Line Processors.
2. In the Format Processor Parameters page, drill down on the appropriate format processor.
3. In the Command Line Format Processor [list] page, drill down on the format processor
parameter.
4. In the Command Line Format Processor [editor] page, click Delete.
5. In the resulting dialog, click OK.
3.4 Managing interchanges
When you have an interface’s format, connection point, communication protocol parameter, signer
parameters, and format processor parameters, you can create an interchange for that interface.
Afterwards, you can assign the interchange to import and export parameter sets in the Task
Scheduler function.
This section documents a general procedure for creating and maintaining interchanges.
Note: Each interchange has a unique name. If you do not specify the name, CMM creates it using
the values in the Business Function, Priority Status, Format Specification, Domestic/Cross-Border, Entity,
and Counterparty (or Bank) controls.
WebSuite Cash Management Connectivity Guide 57
3.4.1 Prerequisites
The following are prerequisites for configuring interchanges:
3.4.2 Creating interchanges
To create an interchange:
1. Select Admin - Static Data - Bank Interfacing - Interchanges.
2. In the Interchange - Criteria Selection page, click Search.
3. In the Interchange Maintenance List page, click New Entry.
4. In the Select Interchange Type - Criteria Selection page, enter an import/export type, business
function, and format category.
5. Click Continue.
6. In the Interchange Maintenance page, create the interchange.
7. Click Save.
3.4.3 Editing interchanges
To edit an interchange:
1. Select Admin - Static Data - Bank Interfacing - Interchanges.
2. In the Interchange - Criteria Selection page, enter search criteria.
3. Click Search.
4. In the Interchange Maintenance List page, drill down on the interchange.
5. In the Interchange Maintenance page, edit the interchange.
For descriptions of the controls on this page, see the appropriate Creating section.
Category Tasks
Static data Ensure the following static data are available:
• Currencies
•Payment methods
• Entities
• Counterparties
•Banks
• Cash flow types.
For more information, see the WebSuite User Guide.
Interfaces Ensure the following tasks have been completed:
• Chapter 2 Managing formats on page 37
• 3.1.2 Managing communication protocol parameters on page 42
• 3.2.2 Managing signer parameters on page 52
• 3.3 Managing format processors on page 55.
Security Ensure you have access to the following functions:
• FG-0175 Interchanges
• FG-0400 Review CMM Configuration.
For more information, see the WebSuite System Administration Guide.
58 © Wall Street Systems IPH AB - Confidential
(You can edit the interchange’s import/export type, business function, and format category by
clicking Modify Interchange Type.)
6. Click Save.
3.4.4 Deleting interchanges
To delete an interchange:
1. Select Admin - Static Data - Bank Interfacing - Interchanges.
2. In the Interchange - Criteria Selection page, enter search criteria.
3. Click Search.
4. In the Interchange Maintenance List page, select the interchange’s checkbox.
5. Click Delete.
3.4.5 Enabling and disabling interchanges
To enable or disable an interchange:
1. Select Admin - Static Data - Bank Interfacing - Interchanges.
2. In the Interchange - Criteria Selection page, enter search criteria.
3. Click Search.
4. In the Interchange Maintenance List page, select the interchange’s checkbox.
5. Do one of the following:
–To enable the interchange, click Enable.
–To disable the interchange, click Disable.
3.4.6 Linking interchanges to character sets
By default, all interchanges in CMM use the UTF-8 character set. If you need to import or export
data containing characters not in UTF-8, you can edit the charsetMapping.xml file.
To link interchanges to character sets:
1. Open the following configuration file:
[Standard configuration file path]
interfaces
interchanges
charsetMapping.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. Do the following:
–To define a default character set other than UTF-8, change the value of the charset attribute
in the default interchange element.
–To override the default character set for a specific interchange, create an interchange
element for that interchange. The following is an example:
<?xml version="1.0" encoding="UTF-8"?>
<interchanges>
<interchange interchange_id="default" charset="UTF-8"/>
<interchange interchange_id="138" charset="ISO-8859-1"/>
WebSuite Cash Management Connectivity Guide 59
</interchanges>
3. Save and close the file.
3.4.7 Optimizing interchanges
When you edit an import interchange (AP, DD, AR) and do not select a format type, you can allot
extra computer resources to the interchange by checking the Multithreaded for parsing checkbox. This
activates the parsing of the files in a multithreaded mode.
When this checkbox is checked, multithreaded parsing only occurs when the file being parsed has a
minimum number of lines.
This minumum number is set in the runtime_parameters.xml file, located in the
etc/wss-web/cmm/InstallationData/installation folder. The entry below defines the
maximum number of lines in a file before splitting.
<name name="maxTransactionNumberInStandardFormatImportBeforeSplittingFile">
<description/>
<value>100</value>
</name>
The purpose of this parameter is to ensure that you do not assign computer resources needlessly for
a small file. If your interchange is configured as multithreaded, but the file that you are going to
import is too small (number of lines is less than the parameter) the system parses the file in a single
thread mode.
60 © Wall Street Systems IPH AB - Confidential
WebSuite Cash Management Connectivity Guide 61
Chapter 4 Managing other interface data
The following are data outside of interchanges that are relevant to the setup and configuration of
interfaces:
•Transaction subtype mappings
•Branch qualifiers.
4.1 Managing transaction subtype mappings
All bank files contain unique codes to classify their contents. CMM refers to these codes as
counterparty file codes. You can map each counterparty file code to an internal file code called a
transaction subtype. This allows you to track where information from each file will appear and
behave within CMM. For example, during the bank transaction import process, CMM matches the
internal file codes to their mapped counterparty file codes and displays the transaction information
in cash records, the cash flow forecast, and the general ledger.
4.1.1 Managing internal file codes
CMM has a standard list of internal file codes. You can add to this list to suit your needs. The
standard internal file codes are numbered 1 to 999. The internal file codes you enter are numbered
1,000 or higher.
You cannot delete an internal file code that is mapped to counterparty file codes. You must remove
the counterparty file code mapping first.
4.1.1.1 Prerequisites
The following are prerequisites for managing internal file codes:
Category Tasks
Static data Ensure the following static data are available:
•Cash flow types.
For more information, see the WebSuite User Guide.
Security Ensure you have access to the following function:
• FG-0085 Transaction Subtype Mapping.
For more information, see the WebSuite System Administration Guide.
62 © Wall Street Systems IPH AB - Confidential
4.1.1.2 Creating internal file codes
To create an internal file code:
1. Select Admin - Static Data - Bank Interfacing - Transaction Subtype Mapping.
2. In the Transaction Sub Type Maintenance page, click Internal File Codes.
3. In the Internal File Code - Criteria Selection page, enter search criteria.
4. Click Search.
5. In the Internal File Code List page, click New Entry.
6. In the Internal File Code Maintenance page, create the internal file code.
7. Click Save.
4.1.1.3 Editing internal file codes
To edit an internal file code:
1. Select Admin - Static Data - Bank Interfacing - Transaction Subtype Mapping.
2. In the Transaction Sub Type Maintenance page, click Internal File Codes.
3. In the Internal File Code - Criteria Selection page, enter search criteria.
4. Click Search.
5. In the Internal File Code List page, drill down on the internal file code.
6. In the Internal File Code Maintenance page, edit the internal file code.
Only the Cash Flow Type list is editable for internal file codes with IDs less than 1,000. (The
internal file codes are Wallstreet defined.)
7. Click Save.
4.1.1.4 Deleting internal file codes
To delete an internal file code:
1. Select Admin - Static Data - Bank Interfacing - Transaction Subtype Mapping.
2. In the Transaction Sub Type Maintenance page, click Internal File Codes.
3. In the Internal File Code - Criteria Selection page, enter search criteria.
4. Click Search.
5. In the Internal File Code List page, drill down on the internal file code.
Internal file codes with IDs less than 1,000 are Wallstreet defined and cannot be deleted.
6. In the Internal File Code Maintenance page, click Delete.
7. In the resulting dialog, click OK.
4.1.2 Managing counterparty file codes
CMM needs counterparty file codes to interpret the information within the files and map it to internal
file codes.
When you enter a counterparty file code, you can map it to an internal file code. You can later view
the counterparty file codes mapped to an internal file code in the Internal File Code List page.
Each counterparty file code associates a file format and a counterparty. Each counterparty file code
can be mapped to only one internal file code under the same counterparty and file format.
WebSuite Cash Management Connectivity Guide 63
Note: In the Internal File Code List page, you can view counterparty file codes mapped to an
internal file code and create, edit, and delete counterparty file codes.
4.1.2.1 Prerequisites
The following are prerequisites for managing counterparty file codes:
4.1.2.2 Creating counterparty file codes
To create a counterparty file code:
1. Select Admin - Static Data - Bank Interfacing - Transaction Subtype Mapping.
2. In the Transaction Sub Type Maintenance page, click Counterparty File Codes.
3. In the Import Export Type Selection page, select the appropriate import or export type in the
Import Export Type list.
4. Click Continue.
5. In the Counterparty File Code - Criteria Selection page, enter search criteria.
6. Click Search.
7. In the Counterparty File Code List page, click New Entry.
8. In the Counterparty File Code Maintenance page, create the counterparty file code.
9. Click Save.
4.1.2.3 Editing counterparty file codes
To edit a counterparty file code:
1. Select Admin - Static Data - Bank Interfacing - Transaction Subtype Mapping.
2. In the Transaction Sub Type Maintenance page, click Counterparty File Codes.
3. In the Import Export Type Selection page, select the appropriate import or export type in the
Import Export Type list.
4. Click Continue.
5. In the Counterparty File Code - Criteria Selection page, enter search criteria.
6. Click Search.
7. In the Counterparty File Code List page, drill down on the counterparty file code.
8. In the Counterparty File Code Maintenance page, edit the counterparty file code.
9. Click Save.
Category Tasks
Static data Ensure the following static data are available:
•Counterparties.
For more information, see the WebSuite User Guide.
Interfaces Ensure the following task has been completed:
• 4.1.1 Managing internal file codes on page 61.
Security Ensure you have access to the following function:
• FG-0085 Transaction Subtype Mapping.
For more information, see the WebSuite System Administration Guide.
64 © Wall Street Systems IPH AB - Confidential
4.1.2.4 Deleting counterparty file codes
To delete a counterparty file code:
1. Select Admin - Static Data - Bank Interfacing - Transaction Subtype Mapping.
2. In the Transaction Sub Type Maintenance page, click Counterparty File Codes.
3. In the Import Export Type Selection page, select the appropriate import or export type in the
Import Export Type list.
4. Click Continue.
5. In the Counterparty File Code - Criteria Selection page, enter search criteria.
6. Click Search.
7. In the Counterparty File Code List page, drill down on the counterparty file code.
8. In the Counterparty File Code Maintenance page, click Delete.
9. In the resulting dialog, click OK.
4.1.2.5 Managing counterparty file codes for SWIFT ACK and NACK bank messages
If your organization imports SWIFT ACK bank messages, it needs to create a counterparty file code
with the following values:
Table notes:
1. All file codes provided by the external party must be stored with leading zeros (for example, 007
rather than 7).
2. This assumes the Bank Message Accepted internal file code has already been created.
The counterparty file code for SWIFT NACK bank messages is provided by SWIFT in the 405: tag of
the file, but there may be bank-specific codes as well. These need to be defined as counterparty file
codes in theTransaction Subtype Mapping function and mapped to the Bank Message Rejected
internal file code if your organization imports SWIFT NACK bank messages.
Attribute Value
Import/export type Bank Messages Import
Counterparty Default
File format SWIFT_ACK - Bank Messages Import
File code [1]007
File code description [Appropriate description]
Internal file code [2]Bank Message Accepted
Code domain Messages
WebSuite Cash Management Connectivity Guide 65
4.1.2.6 Managing mappings
To manage mappings:
1. Select Admin - Static Data - Bank Interfacing - Transaction Subtype Mapping.
2. In the Transaction Sub Type Maintenance page, click Internal File Codes.
3. In the Internal File Code - Criteria Selection page, enter search criteria.
4. Click Search.
5. In the Internal File Code List page, click View in the internal file code’s row.
6. In the Internal File Code Mapping List page:
–To create a new counterparty file code, click Add Mapping… and follow the procedure in
Creating counterparty file codes.
–To edit an existing counterparty file code, drill down on it and follow the procedure in Editing
counterparty file codes.
–To delete an existing counterparty file code, drill down on it and follow the procedure in
Deleting counterparty file codes.
4.2 Managing branch qualifiers
Branch qualifiers are required for EDIFACT formats. You can create one branch qualifier for each coun-
try in CMM.
4.2.1 Prerequisites
The following are prerequisites for managing branch qualifiers:
4.2.2 Creating branch qualifiers
To create a branch qualifier:
1. Select Admin - Static Data - Bank Interfacing - Branch Qualifiers.
2. In the Branch Qualifiers List page, click New Entry.
3. In the Bank Branch Qualifier Maintenance page, create the branch qualifier.
4. Click Save.
Category Tasks
Static data Ensure the following static data are available:
•Countries.
For more information, see the WebSuite User Guide.
Security Ensure you have access to the following function:
• FG-0004 Branch Qualifiers.
For more information, see the WebSuite System Administration Guide.
66 © Wall Street Systems IPH AB - Confidential
4.2.3 Editing branch qualifiers
To edit a branch qualifier:
1. Select Admin - Static Data - Bank Interfacing - Branch Qualifiers.
2. In the Branch Qualifiers List page, drill down on the branch qualifier.
3. In the Bank Branch Qualifier Maintenance page, edit the branch qualifier.
4. Click Save.
4.2.4 Deleting branch qualifiers
To delete a branch qualifier:
1. Select Admin - Static Data - Bank Interfacing - Branch Qualifiers.
2. In the Branch Qualifiers List page, drill down on the branch qualifier.
3. In the Bank Branch Qualifier Maintenance page, Click Delete.
4. In the resulting dialog, click OK.
WebSuite Cash Management Connectivity Guide 67
Chapter 5 Using the web services interface
CMM supports two types of web service:
The web services interface utilizes the second of these two types and allows you to connect CMM to
an application external to CMM through an adaptor. The application then transforms, secures, or
transports messages for CMM.
You can use applications connected to CMM through the web services interface for both import and
export processes. To use such applications, you must install them in locations accessible to the CMM
application server and create adaptors to connect them to CMM. Therefore, you require extensive
knowledge of the applications as well as web services technology in general.
The web services interface utilizes the following technologies:
Table notes:
1. The web services utilized by the interface are intended to act as a transport protocol for
importing data to and exporting data from CMM. The web services utilized by the interface are
not compliant with Web Services Description Language (WSDL).
5.1 SOAP schemas
Three schemas define the structure of SOAP messages that can be transmitted between CMM and
external applications through the web services interface:
•Request/response header (requestresponseheader.xsd)
•Request body (requestbody.xsd)
•Response body (responsebody.xsd).
For example SOAP messages that are compliant with these schemas, see 5.4 Example SOAP
messages on page 83.
5.1.1 Request/response header schema
This schema is used for constructing and consuming the header of both request and response SOAP
messages:
Name Use
Internal Integration with the other modules of Wallstreet Suite.
External Transferring of information between CMM and external applications.
Name Use
Web services [1] Transfer messages between CMM and external applications
SOAP messages Contain messages’ contents
SSL over HTTP (HTTPS) Secure messages
68 © Wall Street Systems IPH AB - Confidential
<?xml version="1.0" encoding="UTF-8"?>
<!--@author 2004-Nov-09 GWang Created-->
<xsd:schema
targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="unqualified"
attributeFormDefault="unqualified"
jaxb:version="1.0"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns="http://www.trema.com/externalinterface/XMLschema"
xmlns:jaxb="http://java.sun.com/xml/ns/jaxb">
<xsd:annotation>
<xsd:documentation xml:lang="en">
CMM request SOAP header to external interface clients
Copyright 2004 trema.com. All rights reserved.
</xsd:documentation>
</xsd:annotation>
<xsd:element name="trema_web_service_header">
<xsd:complexType>
<xsd:sequence>
<!--Contains the destination servlet URL-->
<xsd:element name="end_point_url" type="xsd:anyURI"/>
<xsd:element name="message_type" type="xsd:string"/>
<xsd:element name="additional_properties"
type="additionalPropertyType" minOccurs="0" maxOccurs="unbounded"/>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:complexType name="additionalPropertyType">
<xsd:sequence>
<xsd:element name="name" type="xsd:string"/>
<xsd:element name="value" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
</xsd:schema>
You need to provide three mandatory input parameters when constructing the SOAP element of
trema_web_service_header for the following elements:
•end_point_url: The web service endpoint. For the import process, this is a published web
service URL from CMM.
•message_type: The type of the SOAP request. Valid values are initiation and transaction.
•additional_properties: Additional properties about the type of the SOAP request, such as the
name-value pair transaction_function=2 where 2 is the import/export type ID:
ID Description Import/export
2 AP File Import I
6AR File Import I
8Bank Account Import I
10 Bank Messages Import I
1 Bank Transaction Import I
9Counterparty Bank Import I
7 Counterparty Import I
27 Direct Debit Import I
24 Entity Import I
WebSuite Cash Management Connectivity Guide 69
5.1.2 Request body schema
This schema is used for constructing and consuming the body of the request SOAP message:
<?xml version="1.0" encoding="UTF-8"?>
<!-- @author 2004-Nov-09 GWang Created -->
<xsd:schema
targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="unqualified"
attributeFormDefault="unqualified"
jaxb:version="1.0"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema"
xmlns:jaxb="http://java.sun.com/xml/ns/jaxb">
<xsd:annotation>
<xsd:documentation xml:lang="en">
CMM initiated request SOAP body to external interface client or external
client initiated request SOAP body to CMM
Copyright 2004 trema.com. All rights reserved.
</xsd:documentation>
</xsd:annotation>
<xsd:element name="trema_web_service_request">
<xsd:complexType>
<xsd:sequence>
<xsd:element ref="format"/>
<!--this is the destination bank’s identification, which is mutually
recognizable between CMM and the external interface client and is used
to uniquely identify the destination bank-->
<xsd:element name="interchange_receiver_id" type="xsd:string"/>
<!--this is the id assigned to CMM as an identification, which is
mutually recognizable between CMM and the external interface client-->
<xsd:element name="interchange_sender_id" type="xsd:string"/>
<!--this is the batch id cross referenced between CMM and the external
client to identify the all the transaction messages in one process-->
<xsd:element name="interchange_control_batch_id" type="xsd:string"/>
<!--this is the transaction message sequence number cross referenced
between CMM and the external client-->
<!--This number is unique to each message within one interchange
control batch id-->
<xsd:element name="message_sequence_number"
type="xsd:nonNegativeInteger"/>
<xsd:element name="message_generation_datetime" type="xsd:dateTime"/>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<!--this is the format code mutually recognizable between CMM and external
client-->
<xsd:element name="format" type="xsd:string">
</xsd:element>
<!--put the actual transaction message in SOAP attachment part-->
</xsd:schema>
5.1.3 Response body schema
This schema is used for constructing and consuming the body of the response SOAP message:
38 Forecast Import I
ID Description Import/export
70 © Wall Street Systems IPH AB - Confidential
<?xml version="1.0" encoding="UTF-8"?>
<!-- @author 2004-Nov-09 GWang Created -->
<xsd:schema
targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="unqualified"
attributeFormDefault="unqualified"
jaxb:version="1.0"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema"
xmlns:jaxb="http://java.sun.com/xml/ns/jaxb">
<xsd:annotation>
<xsd:documentation xml:lang="en">
external interface client response SOAP body to CMM initiated request or
CMM response SOAP body to external interface client initiated request
Copyright 2004 trema.com. All rights reserved.
</xsd:documentation>
</xsd:annotation>
<xsd:element name="trema_web_service_response">
<xsd:complexType>
<xsd:sequence>
<!--this is the batch id cross referenced between CMM and the external
client to identify the all the transaction messages in one process-->
<xsd:element name="interchange_control_batch_id" type="xsd:string"/>
<!--this is the transaction message sequence number cross referenced
between CMM and the external client-->
<!--This number is unique to each message within one interchange control
batch id-->
<xsd:element name="message_sequence_number"
type="xsd:nonNegativeInteger"/>
<xsd:element name="message_generation_datetime" type="xsd:dateTime"/>
<xsd:element name="request_success" type="xsd:boolean"/>
<!-- this element presents only if the message type is initiation in the
header and the request_success is true-->
<xsd:element name="max_number_transactions_permessage"
type="xsd:nonNegativeInteger" minOccurs ="0"/>
<!-- this element presents only if the request_success is true-->
<xsd:element name="rejection_reason" type="xsd:string" minOccurs="0"/>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:schema>
5.2 Importing messages using the web services interface
The following diagram and table present the steps involved when you import messages from an
external application to CMM using the web services interface:
WebSuite Cash Management Connectivity Guide 71
For examples of the messages sent between CMM and the external application, see 5.4 Example
SOAP messages on page 83.
Number Description Subsequent action
1 The external application sends an initiation request SOAP
message to CMM.
The message contains basic information about the subsequent
transaction messages. It consists of a header, defined by the
request/response header schema, and a body, defined by the
request body schema.
None
2CMM sends an initiation acknowledgement response SOAP
message to the external application.
The message indicates if CMM is ready to receive the
transaction messages and the maximum number of transactions
per message it will allow. It consists of a header, defined by the
request/response header schema, and a body, defined by the
response body schema.
If the message is positive, the
process continues to step 3.
If the message is negative, the
process stops.
3 The external application sends a transaction request SOAP
message to CMM. CMM then validates the message and imports
the message’s transaction data.
The message consists of a header, defined by the
request/response header schema, and a body, defined by the
request body schema. The body contains the transaction data
as an attachment in a format that CMM can support.
None
4CMM sends a transaction acknowledgement response SOAP
message to the external application.
The message consists of a header, defined by the
request/response header schema, and a body, defined by the
response body schema.
If the message is positive, the
process returns to step 3. (The
process repeats steps 3 and 4
until all messages have been
imported.)
If the message is negative, the
process stops.
72 © Wall Street Systems IPH AB - Confidential
5.2.1 Deploying the web service and creating the adaptor
CMM is deployed with a web service in the ews folder of the same web container as the application.
For example, if CMM’s URL is http://treasury.acme-co.com:8080/cmm, the web service’s URL is
http://treasury.acme-co.com:8080/cmm/ews.
You need to create an adaptor to do the following:
•Construct and consume SOAP messages (including attachments).
The SOAP messages must be compliant with CMM’s schemas.
•Call the Web service through its URL.
You can write the adaptor in a language of your choice as long as the adaptor can complete the
above two tasks.
For demonstration purpose, Wallstreet has implemented an example import adaptor in Java. It is
contained in the following zip file, which is included in every CMM release’s package:
external interfaces cmmext-client-cmm-[Release].zip
Where [Release] is the release’s version and build numbers (for example, 7.1.5.0-b0001).
To use the example import adaptors, you need to extract the zip file from the package of the current
CMM release your organization is using and run it in an application outside of CMM.
The example import adaptor’s class is
com.trema.cmmext.service.CaOutboundMessageInitiatorDemoImpl. To use this adaptor, you
must create a request response communication protocol parameter and interchange (see Chapter 3
Managing interchanges (and related data) on page 41). You can then import messages.
5.2.2 Securing the web service
You can secure data at the following levels:
In CMM, the transport level is addressed through the web service, while the message level is
addressed through the signer parameters assigned to interchanges. (For more information on
interchanges, see 3.4 Managing interchanges on page 56.)
To secure a web service for an import process, you need to complete the following steps:
1. Generate and configure SSL certificates.
2. Edit the extwsaccessconfig.xml file.
Note: The technology CMM uses for web services security is client-certificate authentication over
HTTP/SSL, which needs to be enabled on the client side and authenticated on the server
side.
5.2.2.1 Generating and configuring SSL certificates
The first step in securing a web service for an import process is to generate and configure SSL
certificates.
For instructions on generating and configuring SSL certificates, see Appendix D SSL certificate
generation and configuration on page 419.
Name Description
Transport Authentication, which involves verifying the identity of a user, device, or other entity in a
computer system, usually as a prerequisite to allowing access to resources in a system.
Message Content encryption and digital signatures.
WebSuite Cash Management Connectivity Guide 73
5.2.2.2 Editing the extwsaccessconfig.xml file
The second step in securing a web service for an import process is to edit the
extwsaccessconfig.xml file.
The extwsaccessconfig.xml file defines whether SSL over HTTPS is enabled or not and, if it is, the
validation to be completed on the request URL and client certificate to ensure a request is from a
trusted source. If a request passes the validation, CMM invokes the web service; otherwise, CMM
filters out the request and returns a SOAP fault message.
Note: The extwsaccessconfig.xml file is for external web services only. There is a separate but
nearly identical file for internal web services, intwsaccessconfig.xml.
The following is an example of the extwsaccessconfig.xml file:
º
<strong_authentication>
<mapping login_id="…" ssl_enable="true">
<validate_request id="RequestURL" name="req_url" pattern="^https:.*"/>
<certificate id="javax.servlet.request.X509Certificate"
issuer_dn_pattern="(OU=C([a-zA-Z]*) A([a-zA-Z]*),)">
<value id="SubjectDN" classname="alterna.appserver.security.cert.
CaX509CertificateStringValueParser" pattern="=(\w*)@" />
…
</certificate>
…
</mapping>
…
</strong_authentication>
As this example shows, the extwsaccessconfig.xml consists of several elements:
•strong_authentication: This is the root element of the document. It has a single child element
that describes the mapping configuration, mapping. It has no attributes.
•mapping: This element is used to define the validation rules. A request is only valid if it passes
the validate_request and certificate validation rules defined in this element.
Attributes:
Name Description Default value (if any)
ssl_enable The value of this attribute tells the web service filter
whether to perform client request certificate
validation or not.
•If the value is true, the validation is enabled
and requests fail if they do not pass the rules
defined in this configuration file.
•If the value is false, the validation is disabled
and requests go through without validation
against the rules defined in this configuration
file.
You can set this attribute to false in testing
environments if you only want to ensure that
messages follow through HTTP regardless of
security.
Wallstreet recommends that you set this attribute
to true in production environments.
true
74 © Wall Street Systems IPH AB - Confidential
Child elements:
–validate request
–certificate.
•validate_request: This element defines the validation rule for attributes of the client request.
One typical attribute you should validate is RequestURL. Other attributes that you may want to
validate include RemoteHost and RemoteAddr.
You can define the validate_request element multiple times within the parent element
(mapping), provided each element has a unique value for the id attribute. A request is validated
against each item defined in the validate_request element’s attributes, and if it passes
validation against all items, it is passed on to certificate validation.
Attributes:
•certificate: This element defines the validation rule for the client certificate provided in the
request.
In most cases you only need to define one of these elements in the parent element (mapping)
since most likely you are dealing with only one issuer. However, you are allowed to define
multiple instances of this element provided each element has a different value for the
issuer_dn_pattern attribute. Certificates from requests are validated against each
certificate rule (per issuer_dn_pattern). A request passes validation if it passes any of the
certificate rules.
Attribute:
Name Description Default value (if
any)
id The ID to be valid for the request.
Acceptable values:
•RequestURL
•RemoteHost
•RemoteAddr.
name A name corresponding to the ID. There is no restriction
on the name as long as it is meaningful to the user. If
not specified, it is defaulted to id.
pattern The regular expression pattern used to validate the
value from request for the ID specified.
Wallstreet recommends that you follow the regular
expression guidelines from Sun when constructing or
consuming your own pattern and that you test it before
going to production.
Name Description Default value (if any)
id The unique ID that identifies the type of certificate
to be validated. The current implementation
supports the following types:
•javax.servlet.request.X509Certific
ate.
This is the key attribute in the HTTP request in the
secured connection.
[Fixed value]
WebSuite Cash Management Connectivity Guide 75
Child elements:
–value.
•value: This element defines the validation rule for the individual attributes of the certificate such
as SubjectDN and SerialNumber.
The individual value of the certificate as specified by the ID will be validated against the pattern
defined. To pass the certificate validation, it has to pass each individual value validation. The
certificate validation fails if any individual validation fails.
Attributes:
To edit the extwsaccessconfig.xml file:
1. Open the following configuration file:
[Standard configuration file path]
issure_dn_pattern The regular expression pattern used to validate the
issuer of the certificate.
Wallstreet recommends that you follow the regular
expression guidelines from Sun when constructing
or consuming your own pattern and that you test it
before going to production.
In addition, the pattern should be constructed so
that it returns only a single group instead of
multiple groups. If it is constructed to return
multiple groups, the last one is returned.
Name Description Default value (if any)
id The ID attribute that tells where the information is
retrieved from the certificate.
Acceptable values:
•SubjectDN
•IssuerDN
•SigAlgName
•SigAlgOID
•SerialNumber.
In most situations, you use SubjectDN as the
value for this attribute.
classname The class name. alterna.appserver.
security.cert.
CaX509Certificate
StringValueParser
pattern The regular expression pattern used to validate the
attribute of the certificate as defined in the id
attribute.
Wallstreet recommends that you follow the regular
expression guidelines from Sun when constructing
or consuming your own pattern and that you test it
before going to production.
In addition, the pattern should be constructed so
that it returns only a single group instead of
multiple groups. If it is constructed to return
multiple groups, the last one is returned.
Name Description Default value (if any)
76 © Wall Street Systems IPH AB - Confidential
appserver
authentication
ws
extwsaccessconfig.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. Edit the file.
3. Save and close the file.
5.2.3 Managing the interchange (and related data)
After deploying and securing a web service, and creating an adaptor for an import process, you can
create the interchange (and related data) for that import process.
5.2.3.1 Managing the interchange (and related data)
To manage the interchange (and related data):
1. In the Communication Protocols function, ensure the Request Response communication protocol
is enabled and manually executable.
For instructions on enabling communication protocols, see 3.1.1 Managing communication
protocols on page 41.
2. In the Communication Protocol Parameters function, create a request response communication
protocol parameter. The following is an example:
Do not specify a value in the URL field, as the external application sends requests to the web
service on the CMM side for import processes.
Though Time Out Value is a required field, CMM does not use it for request response communication
protocols. Therefore, the value you enter it is not particularly relevant.
For instructions on creating communication protocol parameters, see 3.1.2 Managing
communication protocol parameters on page 42.
3. In the Interchanges function, create an interchange that references the request communication
protocol parameter you created in step 2.
For instructions on creating interchanges, see 3.4 Managing interchanges on page 56.
5.2.4 Testing the import process
After deploying and securing a web service, creating an adaptor, and setting up the interchange and
related components, you should test the import process to ensure it works properly.
WebSuite Cash Management Connectivity Guide 77
This section includes two examples to show how to test an import process. The first example is for
an accounts payable file import process, while the second is for a direct debit file import process.
5.2.4.1 Testing an accounts payable file import process that uses the web services interface
To test an accounts payable file import process that uses the web services interface:
1. Using the external application, generate an accounts payable file.
2. Using the adaptor, call the web service and transfer the accounts payable file to CMM using
SOAP messages.
You can use the example import adaptor provided with CMM for this step. For more information
on the example import adaptor, see 5.2.1 Deploying the web service and creating the adaptor
on page 72.
3. Review the job log:
–If the import was successful, its status in the job log will be "Successful" and the log file will
reflect this:
º
07:00</message_generation_datetime>
<request_success xmlns="">true</request_success>
<max_number_transactions_permessage
º
–If the import was not successful because of a duplicate file, its status in the job log will be
"Duplicate File" and the log file will reflect this:
º
07:00</message_generation_datetime>
<request_success xmlns="">false</request_success>
<max_number_transactions_permessage
xmlns="">0</max_number_transactions_permessage>
<rejection_reason xmlns="">Unexpected Exception: importFile( BOA_FR
http://localhost/cmm/tws ) failed - message = Duplicate File - File has been
imported.</rejection_reason>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
transaction request of 2 to http://localhost/cmm/tws is rejected due to:
Unexpected Exception: importFile( BOA_FR http://localhost/cmm/tws ) failed -
message = Duplicate File - File has been imported.
º
–If the import was not successful because CMM could not locate an appropriate interchange,
the log file will reflect this:
º
07:00</message_generation_datetime>
<request_success xmlns="">false</request_success>
<max_number_transactions_permessage
xmlns="">0</max_number_transactions_permessage>
<rejection_reason xmlns="">Unexpected Exception: There is no request response
interchange configured for the import type of: 2</rejection_reason>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
transaction request of 2 to http://localhost/cmm/tws is rejected due to:
Unexpected Exception: There is no request response interchange configured for
the import type of: 2
º
For instructions on reviewing the job log, see the WebSuite System Administration Guide.
78 © Wall Street Systems IPH AB - Confidential
5.2.4.2 Testing a direct debit file import process that uses the web services interface
To test a direct debit file import process that uses the web services interface:
1. Using the external application, generate a direct debit file.
2. Using the adaptor, call the web service and transfer the direct debit file to CMM using SOAP
messages.
You can use the example import adaptor provided with CMM for this step. For more information
on the example import adaptor, see 5.2.1 Deploying the web service and creating the adaptor
on page 72.
3. Review the job log:
–If the import was successful, its status in the job log will be "Successful" and the log file will
reflect this:
º
07:00</message_generation_datetime>
<request_success xmlns="">true</request_success>
<max_number_transactions_permessage
º
–If the import was not successful because of a duplicate file, its status in the job log will be
"Duplicate File" and the log file will reflect this:
º
07:00</message_generation_datetime>
<request_success xmlns="">false</request_success>
<max_number_transactions_permessage
xmlns="">0</max_number_transactions_permessage>
<rejection_reason xmlns="">Unexpected Exception: importFile( BOA_FR
http://localhost/cmm/tws ) failed - message = Duplicate File - File has been
imported.</rejection_reason>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
transaction request of 2 to http://localhost/cmm/tws is rejected due to:
Unexpected Exception: importFile( BOA_FR http://localhost/cmm/tws ) failed -
message = Duplicate File - File has been imported.
º
–If the import was not successful because CMM could not locate an appropriate interchange,
the log file will reflect this:
º
07:00</message_generation_datetime>
<request_success xmlns="">false</request_success>
<max_number_transactions_permessage
xmlns="">0</max_number_transactions_permessage>
<rejection_reason xmlns="">Unexpected Exception: There is no request response
interchange configured for the import type of: 2</rejection_reason>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
transaction request of 2 to http://localhost/cmm/tws is rejected due to:
Unexpected Exception: There is no request response interchange configured for
the import type of: 2
º
For instructions on reviewing the job log, see the WebSuite System Administration Guide.
WebSuite Cash Management Connectivity Guide 79
5.3 Exporting messages using the web services interface
The following diagram and table present the steps involved when you export messages from CMM to
an external application using the web services interface:
Number Description Subsequent action
1 CMM sends an initiation request SOAP message to the external
application.
The message contains basic information about the subsequent
transaction messages. It consists of a header, defined by the
request/response header schema, and a body, defined by the
request body schema.
None
2The external application sends an initiation acknowledgement
response SOAP message to CMM.
The message indicates if the external application is ready to
receive the transaction messages and the maximum number of
transactions per message it will allow. It consists of a header,
defined by the request/response header schema, and a body,
defined by the response body schema.
If the message is positive, the
process continues to step 3.
If the message is negative, the
process stops.
3 CMM sends a transaction request SOAP message to the external
application.
The message consists of a header, defined by the
request/response header schema, and a body, defined by the
request body schema. The body contains the transaction data
as an attachment in a format that CMM can support.
None
80 © Wall Street Systems IPH AB - Confidential
For examples of the messages sent between CMM and the external application, see 5.4 Example
SOAP messages on page 83.
5.3.1 Deploying the web service and creating the adaptor
You need to deploy the web service on the external application’s side. The specific location (URL)
depends on the external application.
Wallstreet provides a demonstration web service (com.trema.cmmext.service.
CaExtRequestResponseServlet). If you want to use demonstration web service, you need to deploy
it in your J2EE web container by mapping the servlet to the web.xml file:
º
<!-- External Interface Client Web Service -->
<servlet>
<servlet-name>ExternalInterfaceWebService</servlet-name>
<display-name>ExternalInterfaceWebService</display-name>
<servlet-class>com.trema.cmmext.service.CaExtRequestResponseServlet</servlet-cla
ss>
</servlet>
º
<!-- External Interface Client Web Service Servelet Mapping-->
<servlet-mapping>
<servlet-name>ExternalInterfaceWebService</servlet-name>
<url-pattern>/ews/*</url-pattern>
<load-on-startup>20</load-on-startup>
</servlet-mapping>
º
In addition, you need to create an adaptor to do the following:
•Construct and consume SOAP messages (including attachments).
The SOAP messages must be compliant with CMM’s schemas.
•Call the web service through its URL.
You can write the adaptor in a language of your choice as long as the adaptor can complete the
above two tasks.
For demonstration purpose, Wallstreet has implemented an example export adaptor in Java. It is
contained in the following zip file, which is included in every CMM release’s package:
external interfaces cmmext-client-cmm-[Release].zip
Where [Release] is the release’s version and build numbers (for example, 7.1.5.0-b0001).
To use the example export adaptors, you need to extract the zip file from the package of the current
CMM release your organization is using and run it in an application outside of CMM.
The example export adaptor’s class is
com.trema.cmmext.service.CaInboundSOAPServiceDemoImpl. To use this adaptor, you must
create a request response communication protocol parameter and interchange (see Chapter 3
Managing interchanges (and related data) on page 41). You can then export messages.
4The external application sends a transaction acknowledgement
response SOAP message to CMM.
The message consists of a header, defined by the
request/response header schema, and a body, defined by the
response body schema.
If the message is positive, the
process returns to step 3. (The
process repeats steps 3 and 4
until all messages have been
exported.)
If the message is negative, the
process stops.
Number Description Subsequent action
WebSuite Cash Management Connectivity Guide 81
5.3.2 Securing the web service
Because the web service resides on the external application side for exports, how you secure the
web service varies.
If you want to secure the web service on the external application side in a manner similar to how the
web service on the CMM side is secured, Wallstreet provides a demonstration implementation of
CaDemoSSLConnectionPropertyBuilder. You can set up your own implementation of
CaDemoSSLConnectionPropertyBuilder and return it from CaRequestResposeServiceProvider.
If you choose to secure the web service on the external application side in a manner similar to how
the web service on the CMM side is secured, you need to edit the sslconnectionproperties.xml
file on the CMM side.
The sslconnectionproperties.xml file allows you configure the SSL certificate properties per
target URL. If the certificate properties of your target URL are specified in this file, the SSL
connection for your target URL is enabled whenever you make a connection to that URL and is
removed once the connection is released.
The following is an example of the sslconnectionproperties.xml file:
º
<ssl_connection_properties>
<target_ws_url value="https://localhost:8143/cmm//jws/tes" description="the end
point url of the target web service, this should be in https protocol">
<!--properties of the key store-->
<keystoreFile value="C:/security/alterna.p12" description="the full path of
the key store file"/>
<keystoreType value="PKCS12" description="this should be the Java supported
type only (PKCS12,JKS)"/>
<keystorePass value="trema.ca" description="this is the password of the key
store"/>
<!--properties of the trusted CA-->
<truststoreFile value="C:/security/myCA.p12" description="the full path of
the trust store file"/>
<truststoreType value="PKCS12" description="this should be the Java supported
type only (PKCS12,JKS)"/>
<truststorePass value="trema.ca" description="this is the password of the
trust store"/>
<debug value="false" description="for debug purpose, set to true while you
doing test"/>
</target_ws_url>
<!-- additional ssl connection properties for other target_ws_url can be added
here -->
º
</ssl_connection_properties>
5.3.2.1 Editing the sslconnectionproperties.xml file
To edit the sslconnectionproperties.xml file:
1. Open the following configuration file:
[Standard configuration file path]
appserver
authentication
ws
sslconnectionproperties.xml
82 © Wall Street Systems IPH AB - Confidential
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. Edit the file.
3. Save and close the file.
5.3.3 Managing the interchange (and related data)
After deploying and securing a web service, and creating an adaptor for an export process, you can
configure the interchange (and related components) for that export process.
5.3.4 Managing the interchange (and related data)
To manage the interchange (and related data):
1. In the Communication Protocols function, ensure the Request Response communication protocol
is enabled and manually executable.
For instructions on enabling communication protocols, see 3.1.1 Managing communication
protocols on page 41.
2. In the Communication Protocol Parameters function, create a request response communication
protocol parameter. The following is an example:
You need to specify a value in the URL field. Specifically, you need to enter the URL of the web
service on the external application side.
Though Time Out Value is a required field, CMM does not use it for request response communication
protocols. Therefore, the value you enter it is not particularly relevant.
For instructions on creating communication protocol parameters, see 3.1.2 Managing
communication protocol parameters on page 42.
3. In the Interchanges function, create an interchange that references the request communication
protocol parameter you created in step 2.
For instructions on creating interchanges, see 3.4 Managing interchanges on page 56.
5.3.5 Testing the export process
After deploying and securing a web service, creating an adaptor, and setting up the interchange and
related components, you should test the export process to ensure it works properly.
This section includes two examples to show how to test an export process. The first example is for a
payment file export process, while the second is for a direct debit file export process.
WebSuite Cash Management Connectivity Guide 83
5.3.5.1 Testing a payment file export process that uses the web services interface
Test the export process by releasing the payments you previously imported and then checking the
jog log. The payment files will be exported to the designated output folder.
For instructions on releasing payments and reviewing the jog log, see the WebSuite User Guide and
the WebSuite System Administration Guide.
5.3.5.2 Testing a direct debit file export process that uses the web services interface
Test the export process by releasing the direct debits you previously imported and then checking the
jog log. The direct debit files will be exported to the designated output folder.
For instructions on releasing direct debits and reviewing the jog log, see the WebSuite User Guide
and the WebSuite System Administration Guide.
5.4 Example SOAP messages
This section presents example SOAP messages that are compliant with the schemas documented in
5.1 SOAP schemas on page 67.
5.4.1 Initiation request message
The following is an example of an initiation request message:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header xmlns="http://www.trema.com/externalinterface/
XMLschema">
<end_point_url xmlns="">Http://localhost:1108/cmm</end_point_url>
<message_type xmlns="">initiation</message_type>
<additional_properties xmlns="">
<name xmlns="">transaction_function</name>
<value xmlns="">1</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<trema_web_service_request xmlns="http://www.trema.com/externalinterface/
XMLschema" xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<format xmlns="">FINSTA</format>
<interchange_receiver_id xmlns=""/>
<interchange_sender_id xmlns="">test request id</interchange_sender_id>
<interchange_control_batch_id xmlns="">108</interchange_control_batch_id>
<message_sequence_number xmlns="">1</message_sequence_number>
<message_generation_datetime xmlns="">2005-01-06T14:36:04.671-07:00
</message_generation_datetime>
</trema_web_service_request>
</soapenv:Body>
</soapenv:Envelope>
5.4.2 Positive initiation response message
The following is an example of a positive initiation response message:
84 © Wall Street Systems IPH AB - Confidential
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header xmlns="http://www.trema.com/externalinterface/
XMLschema">
<end_point_url xmlns="">Http://localhost:1108/cmm</end_point_url>
<message_type xmlns="">initiation</message_type>
<additional_properties xmlns="">
<name xmlns="">transaction_function</name>
<value xmlns="">1</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<trema_web_service_response xmlns="http://www.trema.com/externalinterface/
XMLschema" xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<interchange_control_batch_id xmlns="">108</interchange_control_batch_id>
<message_sequence_number xmlns="">1</message_sequence_number>
<message_generation_datetime xmlns="">2005-01-06T14:36:05.609-07:00
</message_generation_datetime>
<request_success xmlns="">true</request_success>
<max_number_transactions_permessage xmlns="">5000
</max_number_transactions_permessage>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
5.4.3 Negative initiation response message
The following is an example of a negative initiation response message:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header xmlns="http://www.trema.com/externalinterface/
XMLschema">
<end_point_url xmlns="">Http://localhost:1108/cmm</end_point_url>
<message_type xmlns="">initiation</message_type>
<additional_properties xmlns="">
<name xmlns="">transaction_function</name>
<value xmlns="">1</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<trema_web_service_response xmlns="http://www.trema.com/externalinterface/
XMLschema" xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<interchange_control_batch_id xmlns="">108</interchange_control_batch_id>
<message_sequence_number xmlns="">1</message_sequence_number>
<message_generation_datetime xmlns="">2005-01-06T14:36:05.609-07:00
</message_generation_datetime>
<request_success xmlns="">false</request_success>
<rejection_reason xmlns="">Missing segment of BUS</rejection_reason>
</trema_web_service_response>
</soapenv:Body>
WebSuite Cash Management Connectivity Guide 85
</soapenv:Envelope>
5.4.4 Transaction request message
The following is an example of a transaction request message:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header xmlns="http://www.trema.com/externalinterface/
XMLschema">
<end_point_url xmlns="">Http://localhost:1108/cmm</end_point_url>
<message_type xmlns="">transaction</message_type>
<additional_properties xmlns="">
<name xmlns="">transaction_function</name>
<value xmlns="">5</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<trema_web_service_request xmlns="http://www.trema.com/externalinterface/
XMLschema" xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<format xmlns="">CRG_PAYMUL</format>
<interchange_receiver_id xmlns=""/>
<interchange_sender_id xmlns="">test request id</interchange_sender_id>
<interchange_control_batch_id xmlns="">108</interchange_control_batch_id>
<message_sequence_number xmlns="">1</message_sequence_number>
<message_generation_datetime xmlns="">2005-01-06T14:36:05.796-07:00
</message_generation_datetime>
</trema_web_service_request>
</soapenv:Body>
</soapenv:Envelope>
------=_Part_0_25222452.1105047365843
Content-Type: text/plain
Content-Transfer-Encoding: binary
Content-Id: <trema_message_content_id>
UNB+UNOA:1+5563295673:ZZ+5013546080448+030708:1341+6’UNH+2021+PAYMUL:D:96A:UN:…----
--=_Part_0_25222452.1105047365843--
5.4.5 Positive transaction response message
The following is an example of a positive transaction response message:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header xmlns="http://www.trema.com/externalinterface/
XMLschema">
<end_point_url xmlns="">Http://localhost:1108/cmm</end_point_url>
<message_type xmlns="">transaction</message_type>
<additional_properties xmlns="">
<name xmlns="">transaction_function</name>
<value xmlns="">5</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
86 © Wall Street Systems IPH AB - Confidential
</soapenv:Header>
<soapenv:Body>
<trema_web_service_response xmlns="http://www.trema.com/externalinterface/
XMLschema" xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<interchange_control_batch_id xmlns="">108</interchange_control_batch_id>
<message_sequence_number xmlns="">1</message_sequence_number>
<message_generation_datetime xmlns="">2005-01-06T14:36:06.515-07:00
</message_generation_datetime>
<request_success xmlns="">true</request_success>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
5.4.6 Negative transaction response message
The following is an example of a negative transaction response message:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header xmlns="http://www.trema.com/externalinterface/
XMLschema">
<end_point_url xmlns="">Http://localhost:1108/cmm</end_point_url>
<message_type xmlns="">transaction</message_type>
<additional_properties xmlns="">
<name xmlns="">transaction_function</name>
<value xmlns="">5</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<trema_web_service_response xmlns="http://www.trema.com/externalinterface/
XMLschema" xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<interchange_control_batch_id xmlns="">108</interchange_control_batch_id>
<message_sequence_number xmlns="">1</message_sequence_number>
<message_generation_datetime xmlns="">2005-01-06T14:36:06.515-07:00
</message_generation_datetime>
<request_success xmlns="">false</request_success>
<max_number_transactions_permessage xmlns="">0
</max_number_transactions_permessage>
<rejection_reason xmlns="">Missing segment of BUS</rejection_reason>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
5.5 Example SOAP message construction and consumption
This section documents the steps required to construct and consume SOAP messages that can be
transported with the CMM web services interface using the SAAJ and JAXB APIs.
Note: This is not the only way that you can create and manipulate SOAP messages in Java—it is
an example of one way to do it. If you are more comfortable with other technologies, you
can use them instead.
WebSuite Cash Management Connectivity Guide 87
SAAJ (SOAP with Attachments API for Java) contains APIs for creating and populating SOAP
messages that may or may not contain attachments. It also contains APIs for sending
point-to-point, non-provider-based, request-and-response SOAP messages.
JAXB (Java Architecture for XML Binding) provides a convenient way to bind an XML schema to a
representation in Java code. This makes it easy for you to incorporate XML data and processing
functions in applications based on Java technology without having to know much about XML itself.
CMM’s demo web services implementations use JAXB API to bind an XML schema to a representation
in Java code and SAAJ API to attach a transactional document to a SOAP message before sending it
to the web service endpoint. To transmit a SOAP message to a web service endpoint, the
implementations use HttpClient API to handle both HTTP and HTTPS protocols, minimizing side
effects on the client environment.
Note: This section does not include steps on how to transport SOAP messages via HttpClient.
5.5.1 Binding XML schemas to Java code
When communicating with CMM web services, a SOAP message needs to be compliant with CMM’s
web service schemas for both request and response SOAP messages. These schema files are
provided to you in the cmmext-client-[Release].jar file.
Because CMM uses JAXB API to bind an XML schema to Java code, the module also provide a
pre-compiled version of these Java classes in the cmmext-client-[Release].jar file. The sources
are located in the cmmext-client-[Release]-src.jar file. These Java classes are generated by an
XJC tool provided by Sun. To learn how to use this tool, visit the Sun website.
The following are additional libraries required for running the XJC tool:
•jwsdp-1_4_jaxb-jaxb-xjc-1_4-TEST-DEPENDENCY.jar
•jwsdp-1_4_jaxb-xercesImpl-1_4-TEST-DEPENDENCY.jar.
You can copy these Java archive files from the CMM application folder or the cmm.war file.
When running the XJC tool, you need to provide three input parameters:
The following is a sample output log:
parsing a schema...
compiling a schema...
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\UnmarshallingEv
entHandler.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\ErrorHandlerAda
ptor.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\NamespaceContex
t2.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\ContentHandlerA
daptor.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\UnmarshallerImp
l.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\XMLSerializable
.java
Name Description
-xmlschema Physical path of the schema file.
-p Fully qualified package name in which you want to generate the classes.
If the schema file is requestresponseheader.xsd, the desired package name would be
com.trema.cmmext.message.bindings.requestresponseheader.
-d Physical path of the folder in which you want to output Java classes.
88 © Wall Street Systems IPH AB - Confidential
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\ValidatorImpl.j
ava
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\NamespaceContex
tImpl.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\GrammarInfo.jav
a
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\ValidationConte
xt.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\PrefixCallback.
java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\ValidatableObje
ct.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\Util.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\UnmarshallingEv
entHandlerAdaptor.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\MSVValidator.ja
va
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\UnmarshallableO
bject.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\SAXMarshaller.j
ava
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\InterningUnmars
hallerHandler.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\GrammarInfoImpl
.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\GrammarInfoFaca
de.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\MarshallerImpl.
java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\Discarder.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\XMLSerializer.j
ava
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\UnmarshallingCo
ntext.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\SAXUnmarshaller
HandlerImpl.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\
AbstractUnmarshallingEventHandlerImpl.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\ValidatingUnmar
shaller.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\DefaultJAXBCont
extImpl.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\runtime\SAXUnmarshaller
Handler.java
com\trema\cmmext\message\bindings\requestresponseheader\AdditionalPropertyType.java
com\trema\cmmext\message\bindings\requestresponseheader\ObjectFactory.java
com\trema\cmmext\message\bindings\requestresponseheader\TremaWebServiceHeader.java
com\trema\cmmext\message\bindings\requestresponseheader\TremaWebServiceHeaderType.ja
va
com\trema\cmmext\message\bindings\requestresponseheader\bgm.ser
com\trema\cmmext\message\bindings\requestresponseheader\jaxb.properties
com\trema\cmmext\message\bindings\requestresponseheader\impl\AdditionalPropertyTypeI
mpl.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\JAXBVersion.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\TremaWebServiceHeaderIm
pl.java
com\trema\cmmext\message\bindings\requestresponseheader\impl\TremaWebServiceHeaderTy
peImpl.java
WebSuite Cash Management Connectivity Guide 89
Wallstreet has generated Java classes for the following schema files:
•Request/response header
•Request SOAP body
•Response SOAP body.
For information on these schema files, see 5.1 SOAP schemas on page 67.
5.5.2 Constructing and consuming SOAP messages
A SOAP message is made up of a SOAP envelope and zero or more attachments. The SOAP envelope
is then made up of a SOAP header and a SOAP body. SOAP attachments allow the SOAP message to
contain not only XML data but also non-XML data such as a JPEG files. SOAP attachments use the
MIME multipart as a container for these non-XML data.
The SAAJ API provides the SOAPMessage class to represent a SOAP message, the SOAPPart class to
represent the SOAP part, the SOAPEnvelope interface to represent the SOAP envelope, and so on.
When you create a new SOAPMessage object, it automatically has the parts that are required to be in
a SOAP message. In other words, a new SOAPMessage object has a SOAPPart object that contains a
SOAPEnvelope object. The SOAPEnvelope object, in turn, automatically contains an empty
SOAPHeader object followed by an empty SOAPBody object. If you do not need the SOAPHeader
object, as it is optional, you can delete it. The rationale for having it automatically included is that
more often than not you will need it, so it is more convenient to have it provided. The SOAPHeader
object may contain one or more headers with information about the sending and receiving parties.
The SOAPBody object, which always follows the SOAPHeader object if there is one, provides a simple
way to send information intended for the ultimate recipient. For example, if there is a SOAPFault
object, it must be in the SOAPBody object.
A SOAP message may include one or more attachment parts in addition to the SOAP part. The SOAP
part may contain only XML content. As a result, if any of the content of a message is not in XML
format, it must occur in an attachment part. For example, if you want your message to contain a
binary file, your message must have an attachment part for it. An attachment part can contain any
kind of content, so it can contain data in XML format as well.
The SAAJ API provides the AttachmentPart class to represent the attachment part of a SOAP
message. A SOAPMessage object automatically has a SOAPPart object and its required subelements,
but because AttachmentPart objects are optional, you have to create and add them yourself.
SAAJ API belongs to the javax.xml.soap.* package. SOAPConnection provides request/response
SOAP message exchange. SOAPMessage creates and populates SOAP messages (consisting of
SOAPPart and AttachmentPart).
90 © Wall Street Systems IPH AB - Confidential
The following diagram presents the relationships across these different components:
Note the following assumptions:
•The getMsgUtil() method returns an instance of CaExtMessageUtil, a utility class that is
responsible for constructing or consuming a SOAP message through SAAJ and DOM API.
•The getJAXBUtil() method returns an instance of CaExtJAXBUtil, a utility class that is
responsible for creating the appropriate DOM document through JAXB API. This includes the
methods to marshall a Java object into a DOM document and unmarshall a DOM document or
element into an appropriate Java object.
•The getTransportService() method returns an instance of an
IaSOAPRequestResponseService interface. For the import process,
CaExtSOAPTransportService would be the instance. For the export process,
CaInboundSOAPServiceDemoImpl would be the instance.
5.5.2.1 Constructing and consuming SOAP messages for the import process
To construct and consume SOAP messages for the import process:
1. Create an initiation request SOAP message to CMM:
SOAPMessage initiation_request = createRequest("initiation");
Although this step is optional, it is highly recommended to send the initiation request to CMM to
ensure CMM is ready to receive the transactional messages. This is a simple SOAP message that
tests the connection to CMM web services.
As the request SOAP messages for both initiation and transaction processes need to be created,
it would be a good idea to factor this out in a separate method:
private SOAPMessage createRequest(String msg_type) throws Exception
{
SOAPMessage req= getMsgUtil().createEmptySOAPMessage();
WebSuite Cash Management Connectivity Guide 91
populateHeader(req, msg_type);
populateBody(req, msg_type);
return req;
}
CaExtMessageUtil provides an API to create an empty SOAP message from a default
implementation of a MessageFactory class:
public SOAPMessage createEmptySOAPMessage() throws Exception
{
MessageFactory f = MessageFactory.newInstance();
return f.createMessage();
}
A SOAPMessage object is required to have certain elements, and as stated previously, the SAAJ
API simplifies things for you by returning a new SOAPMessage object that already contains these
elements. So the message, which was created in the preceding line of code, automatically has
the following:
–A SOAPPart object that contains
–A SOAPEnvelope object that contains
– An empty SOAPHeader object
– An empty SOAPBody object.
For CMM to understand this SOAP message, the SOAPHeader and SOAPBody objects need to be
populated based on the XML schema files provided previously:
private void populateHeader(SOAPMessage req, String msg_type)throws Exception
{
String url = getCMMWebServiceURL();
String txn_funct = getTransactionFunction();
// create TREMA SOAPHeader using the API in JAXB Utility
TremaWebServiceHeader trema_header = getJAXBUtil().createTremaHeader(url,
msg_type,txn_funct);
String class_path = getClassPath(TremaWebServiceHeader.class);
// convert a Java object into a TREMA Header XML document using the API in
JAXB Utility Document
trema_header_doc = getJAXBUtil().marshall(trema_header,class_path);
// add TREMA Header XML document to the SOAP message using the API in
CaExtMessageUtil
getMsgUtil().addTremaHeader(req,trema_header_doc);
}
Similarly, for the SOAPBody element:
private void populateBody(SOAPMessage req, String msg_type) throws Exception
{
//body may be populated differently based on the msg_type
// create an empty TREMA Request Body using the API in JAXB Utility
TremaWebServiceRequest req_body = getJAXBUtil().createTremaRequestBody();
// populate the request body
req_body.setFormat(getFormat());
req_body.setInterchangeSenderId(getInterchangeSenderID());
req_body.setInterchangeReceiverId(getInterchangeReceiverID());
req_body.setInterchangeControlBatchId(getInterchangeBatchID());
req_body.setMessageSequenceNumber(getMessageSequenceNumber());
req_body.setMessageGenerationDatetime(getMessageGenerationTime());
String class_path = getClassPath(TremaWebServiceRequest.class);
// convert TREMA Request Boday to a XML document using the API in JAXB Utility
Document
req_body_doc = getJAXBUtil().marshall(req_body,class_path);
// add TREMA Request Body XML document into a SOAP message using the API in
Msg Util
92 © Wall Street Systems IPH AB - Confidential
getMsgUtil().addTremaBody(req,req_body_doc);
}
To print the SOAP message to the standard output, you can use the following code fragment:
getMsgUtil().printMessage(initiation_request);
You first need enable the debug mode by calling getMsgUtil().setDebug(true).
The result of the SOAP message that would be sent to CMM should be similar to this:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<tws:trema_web_service_header
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:tws="http://www.trema.com/externalinterface/XMLschema">
<end_point_url
xmlns="">http://localhost:1234/cmm/ews/</end_point_url>
<message_type xmlns="">initiation</message_type>
<additional_properties xmlns="">
<name>transaction_function</name>
<value>2</value>
</additional_properties>
</tws:trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<ns1:trema_web_service_request
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<ns1:format>PAYEXT97</ns1:format>
<interchange_receiver_id xmlns="">test receiver
id</interchange_receiver_id>
<interchange_sender_id xmlns="">test sender id</interchange_sender_id>
<interchange_control_batch_id
xmlns="">batch-1</interchange_control_batch_id>
<message_sequence_number xmlns="">0</message_sequence_number>
<message_generation_datetime xmlns="">2006-04-04T11:20:30.296-06:00
</message_generation_datetime>
</ns1:trema_web_service_request>
</soapenv:Body>
</soapenv:Envelope>
2. Transmit an initiation SOAP message to CMM:
SOAPMessage initiation_response =
getTransportService().onMessage(initiation_request);
When the initiation SOAP message is fully populated and ready to send, use the API in
IaSOAPRequestResponseService to send a SOAP message to CMM. It can be sent through a
secured or non-secured channel.
3. Receive a response SOAP message from CMM.
When CMM has processed the request, it sends back a response SOAP message to indicate the
status of the process. This could be a FAULT SOAP message when CMM has encountered a fatal
error during processing. The reason of the fault message is stored in the fault string element:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Body>
<soapenv:Fault>
<faultcode>soapenv:Server</faultcode>
WebSuite Cash Management Connectivity Guide 93
<faultstring>Failed on security validation, check your request security
setting, then discuss it with your web service provider</faultstring>
<faultactor>urn:trema-webserivce</faultactor>
<detail/>
</soapenv:Fault>
</soapenv:Body>
</soapenv:Envelope>
When a response SOAP message is returned, use the API in CaExtMessageUtil to check
whether it is a FAULT SOAP message:
if(getMsgUtil().hasSOAPFault(initiation_response))
{
String ex_msg = "Initiation Response is SOAPFault: ";
// you can custom your error handling here
throw new Exception(ex_msg +
getMsgUtil().getSOAPFaultDetails(initiation_response));
}
When CMM has processed the request without encountering any fatal error, it will send back a
response SOAP message that would be similar to this:
<?xml version="1.0" encoding="UTF-8"?>
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:tws="http://www.trema.com/externalinterface/XMLschema">
<end_point_url
xmlns="">http://localhost:1234/cmm/ews/</end_point_url>
<message_type xmlns="">initiation</message_type>
<additional_properties xmlns="">
<name>transaction_function</name>
<value>2</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<trema_web_service_response
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<interchange_control_batch_id
xmlns="">batch-1</interchange_control_batch_id>
<message_sequence_number xmlns="">0</message_sequence_number>
<message_generation_datetime xmlns="">2006-04-05T09:58:41.564-06:00
</message_generation_datetime>
<request_success xmlns="">true</request_success>
<max_number_transactions_permessage xmlns="">1000
</max_number_transactions_permessage>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
94 © Wall Street Systems IPH AB - Confidential
Note:
–The request and response SOAP messages share the same SOAPHeader element.
–The status of the process can be located in the request_success element having a boolean
value of either true or false.
–When the status of the process is false, the rejection reason will be populated in the
rejection_reason element. This error can also be reviewed in CMM using the job log.
–The value of the max_number_transactions_permessage element is not applicable in the
import process as you can send CMM as many transactions per message as you wish. This
element is more applicable for the export process when you can only process a limited
number of transactions at a time. This way you can specify how many transactions per
message you would like to receive from CMM.
–Currently, CMM does not provide details of the errors at the transaction level in the response
SOAP message. This will be addressed in a future release.
You can use the APIs in JAXB utility and SOAP message utility to extract the values in the
SOAPHeader and SOAPBody elements:
TremaWebServiceHeader ini_trema_header = getTremaHeader(initiation_response);
TremaWebServiceResponse ini_trema_response_body =
getTremaResponseBody(initiation_response);
if(ini_trema_response_body.isRequestSuccess())
{
// you can start sending transaction data to CMM
processTransactions(ini_trema_header,ini_trema_response_body);
}
else
{
// when there was a failure, you need to handle the error accordingly
handleNegativeResponse(ini_trema_header,ini_trema_response_body);
}
private TremaWebServiceHeader getTremaHeader(SOAPMessage response)throws
Exception
{
Element e_trema_header = getMsgUtil().getTremaHeader(response);
String class_path = getClassPath(TremaWebServiceHeader.class);
return (TremaWebServiceHeader)
getJAXBUtil().unmarshall(e_trema_header,class_path);
}
private TremaWebServiceResponse getTremaResponseBody(SOAPMessage response) throws
Exception
{
Element e_body = getMsgUtil().getTremaResponseBody(response);
String class_path = getClassPath(TremaWebServiceResponse.class);
return (TremaWebServiceResponse) getJAXBUtil().unmarshall(e_body,class_path);
}
4. Create a transaction SOAP request to CMM:
SOAPMessage request = createRequest("transaction");
Similar to the initiation request, you can use the same createRequest() method to create a
default SOAP message to CMM.
5. Attach a transactional data stream to the request SOAP message:
CaSOAPMessageAttachUtil.attachToMessage(request, transaction_msg_content,
"ISO-8859-1");
Once the default request SOAP message has been created, you can attach the transaction data
stream to the SOAP message using the API in CaSOAPMessageAttachUtil.
WebSuite Cash Management Connectivity Guide 95
Note:
–To preserve the data integrity of the attachment message, you should set the character set
of this attachment to ISO-8859-1. This way the I/O operations treat the input stream as a
binary stream and not as a character stream. The encrypted or Unicode data stream is not
be corrupted during the I/O processing.
–You should only attach a single transactional data stream to the SOAP message, which may
contain more than one transaction’s data.
Below is a sample implementation of the attachToMessage() method in
CaSOAPMessageAttachUtil:
public static void attachToMessage(SOAPMessage soap_msg, Object
transaction_msg_content, String charset) throws Exception
{
// to preserve the data sending the attachment as binary
AttachmentPart attachment = soap_msg.createAttachmentPart();
if ( transaction_msg_content instanceof InputStream )
{
String content_type = "application/octet-stream";
attachment = soap_msg.createAttachmentPart(transaction_msg_content,
content_type);
attachment.setMimeHeader("Content-Type", content_type + "; charset=" +
charset);
}
else if ( transaction_msg_content instanceof File )
{
File file = (File)transaction_msg_content;
DataHandler dh = new DataHandler(new FileDataSource(file));
attachment = soap_msg.createAttachmentPart(dh);
String content_type = "application/octet-stream";
attachment.setMimeHeader("Content-Type", content_type + "; charset=" +
charset);
}
else
{
String content_type = "application/octet-stream";
String str = (String)transaction_msg_content;
InputStream is = new ByteArrayInputStream(str.getBytes(charset));
attachment = soap_msg.createAttachmentPart(is, content_type);
attachment.setMimeHeader("Content-Type", content_type + "; charset=" +
charset);
}
attachment.setContentId(TRANACTION_ATTACHMENT_CONTENT);
soap_msg.addAttachmentPart(attachment);
}
The result of the transaction request SOAP message should look similar to this:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<tws:trema_web_service_header
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:tws="http://www.trema.com/externalinterface/XMLschema">
<end_point_url
xmlns="">http://localhost:1234/cmm/ews/</end_point_url>
<message_type xmlns="">transaction</message_type>
<additional_properties xmlns="">
<name>transaction_function</name>
<value>2</value>
96 © Wall Street Systems IPH AB - Confidential
</additional_properties>
</tws:trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<ns1:trema_web_service_request
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<ns1:format>PAYEXT97</ns1:format>
<interchange_receiver_id xmlns="">test receiver
id</interchange_receiver_id>
<interchange_sender_id xmlns="">test sender id</interchange_sender_id>
<interchange_control_batch_id
xmlns="">batch-1</interchange_control_batch_id>
<message_sequence_number xmlns="">1</message_sequence_number>
<message_generation_datetime xmlns="">2006-04-05T09:58:41.939-06:00
</message_generation_datetime>
</ns1:trema_web_service_request>
</soapenv:Body>
</soapenv:Envelope>
---GgtA4s1Zac7_w7Y_ZQnQ_D8T_g4okiNkJ Content-Disposition: form-data;
name="transaction_message_attachment"; filename="attachment" Content-Type:
application/octet-stream; charset=ISO-8859-1 Content-Transfer-Encoding: binary
HEADER ROUTING/FUH_TEST_ALL
º
---GgtA4s1Zac7_w7Y_ZQnQ_D8T_g4okiNkJ--
6. Transmit a request SOAP message with attachment to CMM:
SOAPMessage transaction_response = getTransportService().onMessage(request);
Similarly, use the API in IaSOAPRequestResponseService to send a SOAP message to CMM.
7. Receive a response SOAP message from CMM.
As in step 3, CMM sends back a response SOAP message once it has processed the request:
<?xml version="1.0" encoding="UTF-8"?>
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance">
<soapenv:Header>
<tws_wrapper soapenv:mustUnderstand="0">
<trema_web_service_header
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:tws="http://www.trema.com/externalinterface/XMLschema">
<end_point_url
xmlns="">http://localhost:1234/cmm/ews/</end_point_url>
<message_type xmlns="">transaction</message_type>
<additional_properties xmlns="">
<name>transaction_function</name>
<value>2</value>
</additional_properties>
</trema_web_service_header>
</tws_wrapper>
</soapenv:Header>
<soapenv:Body>
<trema_web_service_response
xmlns="http://www.trema.com/externalinterface/ XMLschema"
xmlns:ns1="http://www.trema.com/externalinterface/XMLschema">
<interchange_control_batch_id
xmlns="">batch-1</interchange_control_batch_id>
<message_sequence_number xmlns="">0</message_sequence_number>
WebSuite Cash Management Connectivity Guide 97
<message_generation_datetime xmlns="">2006-04-05T09:58:46.267-06:00
</message_generation_datetime>
<request_success xmlns="">false</request_success>
<max_number_transactions_permessage xmlns="">0
</max_number_transactions_permessage>
<rejection_reason xmlns="">Unexpected Exception: There is no request
response interchange configured for the import type of:
2</rejection_reason>
</trema_web_service_response>
</soapenv:Body>
</soapenv:Envelope>
8. Repeat step 4 for each transaction data message.
5.5.2.2 Constructing and consuming SOAP messages for the export process
The construction and consumption of SOAP messages for the export process is very similar to the
one for the import process except that you are listening for the incoming requests from CMM. Once
you have received a SOAP message from CMM, you are responsible for extracting the attachments
from the SOAP message using the API in CaSOAPMessageAttachUtil.
Therefore, this guide does not document the steps for creating SOAP messages in the export
process.
98 © Wall Street Systems IPH AB - Confidential
WebSuite Cash Management Connectivity Guide 99
Chapter 6 Using the command line interface
Parties outside of Wallstreet’s R&D department can create custom interfaces using technologies of
their choice. The command line interface allows these parties to connect their custom interfaces to
CMM. This allows your organization to implement interfaces independently of the release schedule
for CMM.
6.1 Connecting interface components
Using the command line interface, you can connect interface components developed outside of CMM
to CMM. The command line interface supports the following types of interface components:
•Transport mechanisms
•Security mechanisms
•Format processor.
After creating parameters for these components, you can use the parameters in interchanges.
6.1.1 Connecting transport mechanisms
To connect transport mechanisms:
1. In the Communication Protocols function, ensure the Generic Command Line communication
protocol is enabled and manually executable.
In a standard installation, the Generic Command Line communication protocol is enabled and
manually executable by default.
For instructions on enabling communication protocols, see 3.1.1 Managing communication
protocols on page 41.
2. Using a technology of your choice, create a batch file for the transport mechanism you want to
connect to CMM.
The technology you use to create the batch file must be installed on the same computer as the
CMM application server.
Wallstreet recommends that you use Ant to execute the batch file, as Ant allows you to be
cross-platform compliant. (Ant has an <exec> task that allows different commands to be
executed based on the operating system being used.)
When you execute the batch file, CMM sets the following session environment variables:
–ENV_LOCAL_PATH
–ENV_REMOTE_PATCH
–ENV_FILE_FILTERS.
100 © Wall Street Systems IPH AB - Confidential
When you execute the batch file for an export process, CMM sets the following additional session
environment variables:
–ENV_SOURCE_FILENAME
–ENV_SOURCE_FILE
–ENV_SOURCE_DIR.
The batch file must pass the correct exit code to CMM so that the module can log the code in the
database. CMM will interpret the code as follows:
–"0" represents success
–Any other value represents failure.
3. In the Communication Protocol Parameters function, create a command line communication
protocol parameter for the transport mechanism.
For instructions on creating communication protocol parameters, see 3.1.2 Managing
communication protocol parameters on page 42.
4. Repeat steps 2 to 3 for each transport mechanism you want to connect to CMM.
6.1.2 Connecting security mechanisms
To connect security mechanisms:
1. In the Signers function, ensure the Generic Command Line Encryption and Generic
Command Line Decryption signers are enabled.
In a standard installation, the Generic Command Line Encryption and Generic Command Line
Decryption signers are enabled by default.
For instructions on enabling signers, see 3.2.1 Managing signers on page 51.
2. Using a technology of your choice, create a batch file for the security mechanism you want to
connect to CMM.
The technology you use to create the batch file must be installed on the same computer as the
CMM application server.
Wallstreet recommends that you use Ant to execute the batch file, as Ant allows you to be
cross-platform compliant. (Ant has an <exec> task that allows different commands to be
executed based on the operating system being used.)
When you execute the batch file, CMM sets the following session environment variables:
–ENV_INPUT_FILENAME
–ENV_INPUT_FILE
–ENV_INPUT_DIR
–ENV_OUTPUT_FILENAME
–ENV_OUTPUT_FILE
–ENV_OUTPUT_DIR.
The bath file must pass the correct exit code to CMM so that the module can log the code in the
database. CMM will interpret the code as follows:
–"0" represents success
–Any other value represents failure.
3. In the Signer Parameters function, create a command line signer parameter for the security
mechanism.
WebSuite Cash Management Connectivity Guide 101
For instructions on creating signer parameters, see 3.2.2 Managing signer parameters on page
52.
4. Repeat steps 2 to 3 for each security mechanism you want to connect to CMM.
6.1.3 Connecting format processors
To connect format processors:
1. Using a technology of your choice, create a batch file for the format processor you want to
connect to CMM.
The technology you use to create the batch file must be installed on the same computer as the
CMM application server.
Wallstreet recommends that you use Ant to execute the batch file, as Ant allows you to be
cross-platform compliant. (Ant has an <exec> task that allows different commands to be
executed based on the operating system being used.)
When you execute the batch file, CMM sets the following session environment variables:
–ENV_INPUT_FILENAME
–ENV_INPUT_FILE
–ENV_INPUT_DIR
–ENV_OUTPUT_FILENAME
–ENV_OUTPUT_FILE
–ENV_OUTPUT_DIR.
The batch file must pass the correct exit code to CMM so that the module can log the code in the
database. CMM will interpret the code as follows:
–"0" represents success
–Any other value represents failure.
2. In the Command Line Processors function, create a command line format processor parameter
for the format processor.
For instructions on creating format processor parameters, see 3.3 Managing format processors
on page 55.
3. Repeat steps 1 to 2 for each format processor you want to connect to CMM.
6.1.4 Configuring interchanges that use the command line parameters
After you have created command line communication protocol, signer, and format processor
parameters, you can use them in interchanges.
The following is an example interchange:
102 © Wall Street Systems IPH AB - Confidential
When CMM imports accounts payable files using this example interchange, it does the following:
•Copies the source accounts payable files from the remote server using the communication
command line (generic-cmdline-comm-copyExactFile)
•Places the files in the specified folder (C:\cmm\Imports\AP)
•Decrypts the files using the zip tool (generic-cmdline-unzip)
•Transforms the files using generic-cmdline-format.zip and generic-cmdline-format-unzip
•Imports the files’ data into CMM.
Note: You do not necessarily have to use command line parameters for all components of an
interchange. For example, you could use command line parameters for the communication
and format processor components but not the security component.
For detailed instructions on managing interchanges, see 3.4 Managing interchanges on page 56.
6.2 Example implementation of the command line interface
This section presents an example implementation of the command line interface. It shows you the
steps involved in setting up and testing the following interfaces created with the command line
interface:
Interface Description
Bank transaction
import
CMM retrieves files from a remote FTP server (Remote FTP Server 1) and places them in a
temporary folder. It then removes the folders from Remote FTP Server 1 and send them
to another remote FTP server (Remote FTP Server 2).
This example will support two scenarios:
• The files are not encrypted.
• The files are encrypted by GnuPG, then signed by GnuPG, and finally compressed by a
zip utility.
WebSuite Cash Management Connectivity Guide 103
The examples in this section are for demonstration purposes. Therefore, if you decide to create the
examples by following the procedures in this section, do so in a test environment rather than a
production environment.
6.2.1 Completing prerequisite steps
Before creating the example documented in the subsequent procedures of this section, you must
complete the following prerequisite steps:
•Install Apache Ant 1.6.0 in C:\cmm\3rdPartyProgDir\.
Apache Ant is available from the Apache website.
•Install GnuPG 1.2.1 in C:\cmm\3rdPartyProgDir\gpg\bin.
GnuPG is available from the GnuPG website.
•Create the following parties:
–Entities
–Ent1
–External banks
–BOA_FR
–BOA_US.
For instructions on creating parties, see the WebSuite User Guide.
•Create the following bank accounts:
–1019567 (held by Ent1 at BOA_FR)
–1010125 (held by Ent1 at BOA_US).
For instructions on creating bank accounts, see the WebSuite User Guide.
•Create the following transaction authorization rule:
Account payable
import
CMM retrieves files from Remote FTP Server 1 and places copies in Remote FTP Server 2
before importing them.
The files are encrypted by GnuPG, then signed by GnuPG, and finally compressed by a zip
utility.
The format processor first compresses the files and then decompresses them. This places
the files back into their original format so that they can be imported into CMM.
Note: In practice, format processors are used to reformat files in foreign data formats to
formats that are recognized and supported by CMM.
Payment export Once the imported payments have been processed as required by CMM, released, and
written to files, CMM encrypts, signs, and zips the files before sending them to the bank
via FTP.
The format processor first compresses the files and then decompresses them. This places
the files back into their original format so that they can be exported to the bank.
Note: In practice, format processors are used to reformat files in CMM formats into
formats that are recognized and supported by banks.
Interface Description
104 © Wall Street Systems IPH AB - Confidential
For instructions on creating transaction authorization rules, see the WebSuite System
Administration Guide.
6.2.2 Configuring the transport mechanism
The first step in creating the example implementation of the command line interface is to set up,
connect, and test a transport mechanism.
6.2.2.1 Setting up and connecting the transport mechanism
To set up and connect the transport mechanism:
1. Create the following two folders on the remote server:
–RemoteFetchFolder
–RemoteFetchFolder2.
2. Create a user named ftpuser with full access to these folders.
Full access is required because the transport mechanism will copy and delete files in
RemoteFetchFolder and paste them in RemoteFetchFolder2.
3. Open the cmdline-plugins.xml file (located in …\3rdPartyProgDir\cmdline\).
4. Edit the marked attributes’ values:
º
<!-- Move Files from remote Server 1 to remote Server 2 -->
<target name="moveFiles" description="Move all files matching the regular
expression pattern from remote server 1 to remote server 2">
<antcall target="showEnvironments">
<param name="param_env_pattern" value="ENV_"/>
</antcall>
<!-- declaration of local properties -->
<property name="tmp_folder" value="tmp_files_copied_from_server1"/>
<property name="remote_server1"value="localhost"/>
Enter the name of Remote Server 1.
Enter the value of Remote Server 1.
<property name="remote_server2"value="localhost"/>
Enter the name of Remote Server 2.
Enter the value of Remote Server 2.
<property name="remote_server2_path"
value="/cmdline/Imports/RemoteFetchFolder2"/>
<!-- empty the temporary folder -->
<delete dir="${env.ENV_LOCAL_PATH}/${tmp_folder}" includeemptydirs="true"/>
<!-- create a temporary folder to store the files being fetched from remote
server 1 -->
<mkdir dir="${env.ENV_LOCAL_PATH}/${tmp_folder}"/>
WebSuite Cash Management Connectivity Guide 105
<!-- get all files matching the regular expression pattern from remote server
1 and store them in ${tmp_folder} -->
<ftp action="get" server="${remote_server1}" userid="ftpuser"
password="$testING1"depends="yes" verbose="true"
remotedir="${env.ENV_REMOTE_PATH}">
Enter the password of ftpuser.
<fileset dir="${env.ENV_LOCAL_PATH}/${tmp_folder}">
<include name="${env.ENV_FILE_FILTERS}"/>
</fileset>
</ftp>
<!-- delete all files being copied from remote server 1 -->
<ftp action="del" server="${remote_server1}" userid="ftpuser"
password="$testING1"depends="yes" verbose="true"
remotedir="${env.ENV_REMOTE_PATH}">
Enter the password of ftpuser.
<fileset dir="${env.ENV_LOCAL_PATH}/${tmp_folder}">
<include name="${env.ENV_FILE_FILTERS}"/>
</fileset>
</ftp>
<!-- copy all files being copied from remote server 1 in the temporary folder
to remote server 2 -->
<ftp action="put" server="${remote_server2}" userid="ftpuser"
password="$testING1"depends="yes" verbose="true"
remotedir="${remote_server2_path}">
Enter the password of ftpuser.
<fileset dir="${env.ENV_LOCAL_PATH}/${tmp_folder}">
<include name="${env.ENV_FILE_FILTERS}"/>
</fileset>
</ftp>
<!-- copy all files to CMM import folder from the temporary folder -->
<copy todir="${env.ENV_LOCAL_PATH}">
<fileset dir="${env.ENV_LOCAL_PATH}/${tmp_folder}"/>
</copy>
<!-- empty the temporary folder -->
<delete dir="${env.ENV_LOCAL_PATH}/${tmp_folder}" includeemptydirs="true"/>
</target>
º
For the purposes of this example, Remote Server 1 and Remote Server 2 are identical. In a
production environment, you would change attributes 3 and 4 with the actual host name of the
remote FTP servers.
You are responsible for protecting the cmdline-plugins.xml file so that unauthorized users
cannot open it and access user names and passwords from it.
5. Save and close the file.
6. Create a communication protocol parameter for the transport mechanism:
106 © Wall Street Systems IPH AB - Confidential
7. Disable all other communication protocol parameters.
For instructions on creating and disabling communication protocol parameters, see 3.1.2
Managing communication protocol parameters on page 42.
6.2.2.2 Testing the transport mechanism
To test the transport mechanism:
1. Place the following sample files (provided by Wallstreet) in RemoteFetchFolder:
–BT_BAI_template_enc_sign_zip.txt
–BT_BAI_template2_enc_sign_zip.txt.
2. Delete any existing files in RemoteFetchFolder2.
3. Select Admin - Utilities - Bank Interfacing - Communication Dispatch.
4. In the Communication Dispatch page, select the Generic Command Line Communication checkbox and
clear all other checkboxes.
5. Click Dispatch Message.
6. Review the job log.
7. Confirm that the same files were moved from RemoteFetchFolder to RemoteFetchFolder2.
6.2.3 Configuring the security mechanisms
The second and third steps in creating the example implementation of the command line interface
are to generate and test GnuPG key and to set up, configure, and test security mechanisms.
Note: CMM includes a built-in GnuPG file signer. However, for the purposes of the example, you
will using the command line interface to connect an external one to CMM.
6.2.3.1 Generating GnuPG keys
To generate GnuPG keys:
1. Open a command prompt.
2. Navigate to …\3rdPartyProgDir\gpg\bin:
$> cd C:\cmm\3rdPartyProgDir\gpg\bin
3. List the public key ring:
$> gpg --homedir . --list-keys
4. Generate two different GnuPG keys:
WebSuite Cash Management Connectivity Guide 107
$> gpg --homedir . --gen-key
5. List the secret keys:
$> gpg --homedir . --list-secret-keys
.\secring.gpg
-------------
sec 1024D/05D08C89 2005-09-07 Phu Vuong (key does not expire)
<phu.vuong@trema.com>
ssb 1024g/559A0D5D 2005-09-07
sec 1024D/BA045DB0 2005-09-07 Phu Vuong (Test Key 2 does not expire)
<phu.vuong@trema.com>
ssb 1024g/FA71BB85 2005-09-07
6.2.3.2 Testing GnuPG keys
To test the GnuPG keys:
1. Open a command prompt.
2. Navigate to …\3rdPartyProgDir\gpg\bin:
$> cd C:\cmm\3rdPartyProgDir\gpg\bin
3. Encrypt the test file from the sender test key 1 to the recipient test key 2:
$> gpg --homedir . --output C:\temp\gpg\BT_BAI_template_enc.txt --local-user
0x05D08C89 --recipient 0xBA045DB0 --encrypt C:\temp\gpg\BT_BAI_template.txt
4. Sign the encrypted file:
$> gpg --homedir . --output C:\temp\gpg\BT_BAI_template_enc_sign.txt --local-user
0x05D08C89 --recipient 0xBA045DB0 --sign C:\temp\gpg\BT_BAI_template_enc.txt
5. Verify the signed test file:
$> gpg --homedir . --output C:\temp\gpg\BT_BAI_template_enc_unsign.txt --verify
C:\temp\gpg\BT_BAI_template_enc_sign.txt
6. Decrypt the signed test file:
$> gpg --homedir . --output C:\temp\gpg\BT_BAI_template_enc_unsign.txt --decrypt
C:\temp\gpg\BT_BAI_template_enc_sign.txt
6.2.3.3 Setting up and connecting the security mechanism
To set up and connect the security mechanism:
1. Open the cmdline-plugins.xml file (located in …\3rdPartyProgDir\cmdline\).
2. Confirm the following sections are available in the file and configure them as appropriate:
–GnuPG encryption
º
<target name="gpg_enc" description="Generic GnuPG function to encrypt, sign or
both sign and encrypt the file">
<antcall target="showEnvironments">
<param name="param_env_pattern" value="ENV_"/>
</antcall>
<!-- required input parameters -->
<fail unless="param.gpg.op"/>
<fail unless="param.input.file"/>
<fail unless="param.output.file"/>
<fail unless="param.sender.keyid"/>
<fail unless="param.passphrase"/>
<fail unless="param.receiver.keyid"/>
<echo message="GnuPG Home = ${env.GPG_HOME}"/>
<echo message="param.gpg.op = ${param.gpg.op}"/>
108 © Wall Street Systems IPH AB - Confidential
<echo message="param.input.file = ${param.input.file}"/>
<echo message="param.output.file = ${param.output.file}"/>
<echo message="param.sender.keyid = ${param.sender.keyid}"/>
<echo message="param.receiver.keyid = ${param.receiver.keyid}"/>
<echo message=""/>
<if>
<equals arg1="${param.gpg.op}" arg2="--sign" />
<then>
<property name="__recipient_key" value=""/>
</then>
<else>
<property name="__recipient_key" value="--recipient
${param.receiver.keyid}"/>
</else>
</if>
<property name="__gpg_cmd_args" value="--batch --no-tty --yes
--no-secmem-warning -- homedir ${env.GPG_HOME} --passphrase-fd 0 --output
${param.output.file} --local- user ${param.sender.keyid} ${__recipient_key}
${param.gpg.op} ${param.input.file}"/>
<echo message="gpg ${__gpg_cmd_args}"/>
<exec executable="gpg" inputstring="${param.passphrase}">
<arg line="${__gpg_cmd_args}"/>
</exec>
</target>
…
–GnuPG encryption and signing (from the command line)
º
<target name="gpg.encrypt" description="Encrypt the file with GnuPG">
<antcall target="gpg_enc">
<param name="param.gpg.op" value="--encrypt"/>
</antcall>
</target>
<target name="gpg.sign" description="Sign the file with GnuPG">
<antcall target="gpg_enc">
<param name="param.gpg.op" value="--sign"/>
</antcall>
</target>
<target name="gpg.sign.encrypt" description="Sign and encrypt the file with
GnuPG">
<antcall target="gpg_enc">
<param name="param.gpg.op" value="--sign --encrypt"/>
</antcall>
</target>
…
–GnuPG encryption and signing (from CMM)
º
<target name="cmm.gpg.encrypt" description="Encrypt the file with GnuPG
calling from CMM">
<antcall target="gpg_enc">
<param name="param.gpg.op" value="--encrypt"/>
<param name="param.input.file" value="${env.ENV_INPUT_FILE}"/>
<param name="param.output.file" value="${env.ENV_OUTPUT_FILE}"/>
<param name="param.sender.keyid" value="0x05D08C89"/>
<param name="param.passphrase" value="phu.vuong"/>
<param name="param.receiver.keyid" value="0xBA045DB0"/>
</antcall>
</target>
<target name="cmm.gpg.sign" description="Sign the file with GnuPG calling from
CMM">
WebSuite Cash Management Connectivity Guide 109
<antcall target="gpg_enc">
<param name="param.gpg.op" value="--sign"/>
<param name="param.input.file" value="${env.ENV_INPUT_FILE}"/>
<param name="param.output.file" value="${env.ENV_OUTPUT_FILE}"/>
<param name="param.sender.keyid" value="0x05D08C89"/>
<param name="param.passphrase" value="phu.vuong"/>
<param name="param.receiver.keyid" value="0xBA045DB0"/>
</antcall>
</target>
<target name="cmm.gpg.sign.encrypt" description="Sign and encrypt the file
with GnuPG calling from CMM">
<antcall target="gpg_enc">
<param name="param.gpg.op" value="--sign --encrypt"/>
<param name="param.input.file" value="${env.ENV_INPUT_FILE}"/>
<param name="param.output.file" value="${env.ENV_OUTPUT_FILE}"/>
<param name="param.sender.keyid" value="0x05D08C89"/>
<param name="param.passphrase" value="phu.vuong"/>
<param name="param.receiver.keyid" value="0xBA045DB0"/>
</antcall>
</target>
º
–GnuPG decryption
º
<target name="gpg_dec" description="Generic GnuPG fucntion to verify or
decrypt the data file">
<antcall target="showEnvironments">
<param name="param_env_pattern" value="ENV_"/>
</antcall>
<!-- required input parameters -->
<fail unless="param.gpg.op"/>
<fail unless="param.input.file"/>
<fail unless="param.output.file"/>
<fail unless="param.passphrase"/>
<echo message="GnuPG Home = ${env.GPG_HOME}"/>
<echo message="param.gpg.op = ${param.gpg.op}"/>
<echo message="param.input.file = ${param.input.file}"/>
<echo message="param.output.file = ${param.output.file}"/>
<echo message=""/>
<property name="__gpg_cmd_args" value="--batch --no-tty --yes
--no-secmem-warning -- homedir ${env.GPG_HOME} --passphrase-fd 0 --output
${param.output.file} ${param.gpg.op} ${param.input.file}"/>
<echo message="gpg ${__gpg_cmd_args}"/>
<exec executable="gpg" inputstring="${param.passphrase}">
<arg line="${__gpg_cmd_args}"/>
</exec>
</target>
º
–GnuPG decryption (from the command line)
º
<target name="gpg.verify" description="Verify the signature of the data file">
<antcall target="gpg_dec">
<param name="param.gpg.op" value="--verify"/>
</antcall>
</target>
<target name="gpg.decrypt" description="Decrypt the file with GnuPG">
<antcall target="gpg_dec">
<param name="param.gpg.op" value="--decrypt"/>
</antcall>
</target>
110 © Wall Street Systems IPH AB - Confidential
…
–GnuPG decryption (from CMM)
º
<target name="gpg.decrypt.k1" description="Decrypt the file with GnuPG using
Test Key 1">
<antcall target="gpg_dec">
<param name="param.gpg.op" value="--decrypt"/>
<param name="param.input.file" value="${env.ENV_INPUT_FILE}"/>
<param name="param.output.file" value="${env.ENV_OUTPUT_FILE}"/>
<param name="param.passphrase" value="phu.vuong"/>
</antcall>
</target>
<target name="gpg.decrypt.k2" description="Decrypt the file with GnuPG using
Test Key 2">
<antcall target="gpg_dec">
<param name="param.gpg.op" value="--decrypt"/>
<param name="param.input.file" value="${env.ENV_INPUT_FILE}"/>
<param name="param.output.file" value="${env.ENV_OUTPUT_FILE}"/>
<param name="param.passphrase" value="phu.vuong"/>
</antcall>
</target>
…
–Zip compression and decompression
º
<!-- Data Security for Zip Compression -->
<target name="zipFiles" description="Zip up all files.">
<antcall target="showEnvironments">
<param name="param_env_pattern" value="ENV_"/>
</antcall>
<zip destfile="${env.ENV_OUTPUT_FILE}">
<fileset dir="${env.ENV_INPUT_DIR}"
includes="${env.ENV_INPUT_FILENAME}"/>
</zip>
</target>
<!-- Data Security for unZip Decompression -->
<target name="unzipFiles" description="UnZip all files.">
<antcall target="showEnvironments">
<param name="param_env_pattern" value="ENV_"/>
</antcall>
<unzip src="${env.ENV_INPUT_FILE}" dest="${env.ENV_OUTPUT_DIR}"/>
</target>
…
3. Create signer parameters for the security mechanisms:
–GnuPG encryption
–GnuPG signing
WebSuite Cash Management Connectivity Guide 111
–GnuPG encryption and signing
–GnuPG decryption (key 1)
–GnuPG decryption (key 2)
–Zip compression
–Zip decompression
112 © Wall Street Systems IPH AB - Confidential
For instructions on creating singer parameters, see 3.2.2 Managing signer parameters on page
52.
6.2.3.4 Testing the security mechanisms
To test the security mechanisms:
1. Place the following sample files (provided by Wallstreet) in C:\temp\gpg:
–BT_BAI_template.txt
–BT_BAI_template2.txt
–AP_FUH_TEST.txt.
2. Open a command prompt.
3. Enter the following commands to test encryption of the BT_BAI_template.txt file:
$> set TEST_FILE_NAME=BT_BAI_template
$> set ANT_PROPERTIES=-Dparam.input.file=C:\temp\gpg\%TEST_FILE_NAME%.txt
-Dparam.output.file=C:\temp\gpg\%TEST_FILE_NAME%_enc.txt
-Dparam.sender.keyid=0x05D08C89 -Dparam.passphrase=phu.vuong
-Dparam.receiver.keyid=0xBA045DB0
$> cmdline-plugins gpg.encrypt
$> set ANT_PROPERTIES=-Dparam.input.file=C:\temp\gpg\%TEST_FILE_NAME%_enc.txt
-Dparam.output.file=C:\temp\gpg\%TEST_FILE_NAME%_enc_sign.txt
-Dparam.sender.keyid=0x05D08C89 -Dparam.passphrase=phu.vuong
-Dparam.receiver.keyid=0xBA045DB0
$> cmdline-plugins gpg.sign
$> set ANT_PROPERTIES=-Dparam.input.file=C:\temp\gpg\%TEST_FILE_NAME%.txt
-Dparam.output.file=C:\temp\gpg\%TEST_FILE_NAME%_enc_sign2.txt
-Dparam.sender.keyid=0x05D08C89 -Dparam.passphrase=phu.vuong
-Dparam.receiver.keyid=0xBA045DB0
$> cmdline-plugins gpg.sign.encrypt
$> mkdir C:\temp\gpg\zip $> del /f /s /q C:\temp\gpg\zip
$> copy C:\temp\gpg\%TEST_FILE_NAME%_enc_sign.txt
C:\temp\gpg\zip\%TEST_FILE_NAME%_enc_sign_zip.txt
$> del /f /q C:\temp\gpg\%TEST_FILE_NAME%_enc_sign_zip.txt
$> zip -j C:\temp\gpg\%TEST_FILE_NAME%_enc_sign_zip.txt
C:\temp\gpg\zip\%TEST_FILE_NAME%_enc_sign_zip.txt
Ensure the file being zipped has the same name as the zipped file. Otherwise, when the file is
unzipped, CMM will not be able to find it during the import process.
4. Enter the following commands to test decryption of the BT_BAI_template.txt file:
$> mkdir C:\temp\gpg\out
$> set ANT_PROPERTIES=-Dparam.input.file=C:\temp\gpg\%TEST_FILE_NAME%_enc.txt
-Dparam.output.file=C:\temp\gpg\out\%TEST_FILE_NAME%_enc.out
-Dparam.passphrase=phu.vuong
$> cmdline-plugins gpg.decrypt
$> set
ANT_PROPERTIES=-Dparam.input.file=C:\temp\gpg\%TEST_FILE_NAME%_enc_sign.txt
WebSuite Cash Management Connectivity Guide 113
-Dparam.output.file=C:\temp\gpg\out\%TEST_FILE_NAME%_enc_sign.out
-Dparam.passphrase=phu.vuong
$> cmdline-plugins gpg.verify $> unzip -o
C:\temp\gpg\%TEST_FILE_NAME%_enc_sign_zip.txt -d C:\temp\gpg\unzip
$> set
ANT_PROPERTIES=-Dparam.input.file=C:\temp\gpg\unzip\%TEST_FILE_NAME%_enc_sign_zi
p.txt -Dparam.output.file=C:\temp\gpg\unzip\%TEST_FILE_NAME%_enc_sign_zip.txt.txt
-Dparam.passphrase=phu.vuong
$> cmdline-plugins gpg.decrypt
$> set
ANT_PROPERTIES=-Dparam.input.file=C:\temp\gpg\unzip\%TEST_FILE_NAME%_enc_sign_zi
p.txt.txt
-Dparam.output.file=C:\temp\gpg\unzip\%TEST_FILE_NAME%_enc_sign_zip.txt.txt.txt
-Dparam.passphrase=phu.vuong
$> cmdline-plugins gpg.decrypt
5. Repeat steps 3 to 4 for the BT_BAI_template2.txt file.
6. Repeat steps 3 to 4 for the AP_FUH_TEST.txt file.
6.2.4 Configuring the format processors
The fourth step in creating the example implementation of the command line interface is to set up
and connect format processors.
6.2.4.1 Setting up and connecting format processors
To set up and connect format processors:
1. Open the cmdline-plugins.xml file (located in …\3rdPartyProgDir\cmdline\).
2. Confirm the following section is available in the file and configure it as appropriate:
º
<!-- Data Security for Zip Compression -->
<target name="zipFiles" description="Zip up all files.">
<antcall target="showEnvironments">
<param name="param_env_pattern" value="ENV_"/>
</antcall>
<zip destfile="${env.ENV_OUTPUT_FILE}">
<fileset dir="${env.ENV_INPUT_DIR}"
includes="${env.ENV_INPUT_FILENAME}"/>
</zip>
</target>
<!-- Data Security for unZip Decompression -->
<target name="unzipFiles" description="UnZip all files.">
<antcall target="showEnvironments">
<param name="param_env_pattern" value="ENV_"/>
</antcall>
<unzip src="${env.ENV_INPUT_FILE}" dest="${env.ENV_OUTPUT_DIR}"/>
</target>
…
3. Create format processor parameters for the format processors:
–Zip compression
114 © Wall Street Systems IPH AB - Confidential
–Zip decompression
For instructions on creating format processor parameters, see 3.3 Managing format processors
on page 55.
6.2.5 Importing bank transaction files using the command line interface
After configuring the transport mechanism and security mechanisms, you can create and then test
an interface to import bank transaction files.
6.2.5.1 Creating the bank transaction import interface
To create the bank transaction import interface:
1. In the fileimportexportformats.xml file, ensure format ID 1’s modeltypecode attribute is set
to "2":
º
<row_data fileformatuniqueid="1" importexporttypeid="1" fileformatcode="BAI"
fileformatname="BAI" fileformatdesc="Bank Administration Institute"
formatcategoryid="4" modeltypecode="2"/>
º
For instructions on extracting and editing the fileimportexportformats.xml file, see 2.1
Configuring the fileimportexportformats.xml file on page 37.
2. Create the following interchange:
WebSuite Cash Management Connectivity Guide 115
For instructions on creating interchanges, see 3.4 Managing interchanges on page 56.
6.2.5.2 Testing the bank transaction import interface with unencrypted files
To test the bank transaction import interface with unencrypted files:
1. Place the following sample files (provided by Wallstreet) in RemoteFetchFolder:
–BT_BAI_template.txt
–BT_BAI_template2.txt.
If you have previously imported these files, you need to undo the imports before continuing.
2. In the Import Bank Transaction Files function, import the files.
3. In the Review Job Log function, review the jog log to ensure the import was successful.
4. Confirm that the files were moved from RemoteFetchFolder to RemoteFetchFolder2.
For instruction on importing bank transaction files and reviewing the jog log, see the WebSuite User
Guide and the WebSuite System Administration Guide.
6.2.5.3 Testing the bank transaction import interface with encrypted files
To test the bank transaction import interface with encrypted files:
1. Place the following sample files (provided by Wallstreet) in RemoteFetchFolder:
–BT_BAI_template_enc_sign_zip.txt
–BT_BAI_template2_enc_sign_zip.txt.
If you have previously imported these files, you need to undo the imports before continuing.
2. Edit the previously created interchange:
116 © Wall Street Systems IPH AB - Confidential
For instructions on editing interchanges, see 3.4 Managing interchanges on page 56.
3. In the Import Bank Transaction Files function, import the files.
4. In the Review Job Log function, review the jog log to ensure the import was successful.
5. Confirm that the files were moved from RemoteFetchFolder to RemoteFetchFolder2.
For instruction on importing bank transaction files and reviewing the jog log, see the WebSuite User
Guide and the WebSuite System Administration Guide.
6.2.6 Importing accounts payable files using the command line interface
After configuring the transport mechanism, security mechanisms, and format processors you can
create and then test an interface to import accounts payable files.
6.2.6.1 Creating the accounts payable import interface
Create the following interchange:
WebSuite Cash Management Connectivity Guide 117
For instructions on creating interchanges, see 3.4 Managing interchanges on page 56.
6.2.6.2 Testing the accounts payable import interface
To test the accounts payable import interface:
1. Place the following sample file (provided by Wallstreet) in RemoteFetchFolder:
–AP_FUH_TEST_enc_sign_zip.txt.
If you have previously imported this file, you need to undo the import before continuing.
2. In the Import Transaction Files function, import the file.
3. In the Review Job Log function, review the jog log to ensure the import was successful.
4. Confirm that the file was moved from RemoteFetchFolder to RemoteFetchFolder2.
For instruction on importing transaction files and reviewing the jog log, see the WebSuite User Guide
and the WebSuite System Administration Guide.
6.2.7 Exporting payment files using the command line interface
After configuring the transport mechanism, security mechanisms, and format processors you can
create and then test an interface to export payment files.
6.2.7.1 Creating the payment export interface
Create the following interchange:
118 © Wall Street Systems IPH AB - Confidential
For instructions on creating interchanges, see 3.4 Managing interchanges on page 56.
6.2.7.2 Testing the payment export interface
To test the payment export interface:
1. In the Release Payments function, release the transactions you imported from the accounts
payable file.
2. In the Review Job Log function, review the jog log to ensure the export was successful.
For instruction on exporting payments and reviewing the jog log, see the WebSuite User Guide and
the WebSuite System Administration Guide.
WebSuite Cash Management Connectivity Guide 119
Chapter 7 Using XML-template-based formats
Using XML templates, you can create and implement custom formats for the following import and
export processes:
Note: Unlike the web services and command line interfaces, XML templates only apply to the
format components of interfaces—not the connection point, transport mechanism, and
security mechanism components.
There are several benefits to creating and implementing custom formats with XML templates rather
than using standard formats:
•Your organization has control over its custom formats.
•Custom formats reside outside of the CMM DefaultData folder (see 1.5 Opening configuration
files on page 32) and, therefore, are not overwritten when your organization upgrades to a new
CMM release or patch.
•You can modify custom formats without having to request and wait for changes by Wallstreet.
•You can quickly and easily create variations of formats for new countries or banks with specific
needs.
Creating and implementing a custom format using XML templates involves three stages:
Imports Exports
•Forecasts
•Payments (AP)
• Receipts (AR)
• Direct debits
•Bank statements
• Bank messages.
•Payments
•Direct debits
• Letters of credit
•Preadvices
•Credit advices
• Bank statements
• General ledger postings.
120 © Wall Street Systems IPH AB - Confidential
7.1 Creating custom formats
Creating a custom format involves different steps depending on whether the format is for imports or
exports.
Note: This chapter assumes you are completing these steps in a test environment. In a later
section, 7.3 Going live on page 132, you will transfer the files you created while completing
these steps to a production environment.
WebSuite Cash Management Connectivity Guide 121
7.1.1 Creating custom import formats
Creating a custom import format involves five steps:
1. Add the format to the fileimportexportformats.xml file.
2. Add the format’s pattern to the importfilepattern.xml file.
3. Manage transaction subtype mappings for the format (if required).
4. Add the format to the specificationmap.xml file.
5. Create the format’s parser and mapping files.
7.1.1.1 Adding formats to the fileimportexportformats.xml file
In 2.1 Configuring the fileimportexportformats.xml file on page 37, you edited the
fileimportexportformats.xml file and removed unneeded formats from it to ensure optimal
performance.
In this step, you will add a format to the fileimportexportformats.xml file.
To add formats to the fileimportexportformats.xml file:
1. Open the following configuration file:
[Standard configuration file path]
data
table
fileimportexportformats.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. In the table_data element, enter a row_data child element for the first format you want to add.
122 © Wall Street Systems IPH AB - Confidential
The following table defines the attributes to include in the row_data child element:
Attribute Value
fileformatuniqueid The format’s unique ID.
Note: Wallstreet recommends you use unique IDs of 1,000 or higher for
custom formats.
importexporttypeid The format’s import/export type:
•1 for bank transaction import
•2 for accounts payable file import
•3 for foreign exchange rate import
•4 for external general ledger file export
•5 for payment file export
•6 for accounts receivable file import
•7 for counterparty import
•8 for bank account import
•9 for counterparty bank import
•10 for bank message import
•11 for remittance advice export
•12 for interest rate import
•13 for deal import
•17 for deal confirmation export
•19 for bank account confirmation message export
•22 for negative payment confirmation message export
• 23 for export of bank payment file - VALIDATE
•24 for entity import
•25 for receipt file export
•26 for positive payment confirmation message export
•27 for direct debit file import
•28 for direct debit file export
•29 for bank transaction export
•30 for positive pay file export
•31 for requisition message export
•32 for transaction export for posting
•33 for bank balance export
•37 for letter of credit file export
• 38 for forecast import
•41 for credit advice file export.
fileformatcode The format’s code.
Note: This code will be mapped to the format’s corresponding
specificationmap.xml file and will be referenced in the
importfilepattern.xml file.
fileformatname The format’s name.
Note: Be descriptive, as the value you enter in this attribute displays in
Format Supplications lists in the Interchanges function.
fileformatdesc A detailed description of the format.
Note: This attribute is optional.
WebSuite Cash Management Connectivity Guide 123
3. Repeat step 2 for each format you want to add.
4. Save and close the file.
7.1.1.2 Adding format patterns to the importfilepattern.xml file
The importfilepattern.xml file you edited in 2.2 Configuring the importfilepattern.xml file on
page 38 defines the format patterns that allow CMM to correctly identify and parse import files.
As part of creating a custom import format, you must add the format’s pattern to the
importfilepattern.xml file.
To add format patterns to the importfilepattern.xml file:
1. Open the following configuration file:
[Standard configuration file path]
interfaces
importfilepattern.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. In the import_file_pattern element, enter a pattern child element for the first format pattern
you want to add.
formatcategoryid The format’s category:
•1 for EDIFACT
•2 for X12
•3 for SWIFT
•4 for proprietary.
modeltypecode 2.
Note: Entering 2 in this attribute indicates the format is XML template
based.
Attribute Value
124 © Wall Street Systems IPH AB - Confidential
The following table defines the attributes to include in the pattern child element:
3. Repeat step 2 for each format pattern you want to add.
4. Save and close the file.
7.1.1.3 Creating transaction subtype mappings for formats
For select formats (currently bank transaction import and bank message import formats), you need
to create transaction subtype mappings so that CMM properly processes a file’s records after
importing the file.
For more information on creating transaction subtype mappings, see 4.1 Managing transaction
subtype mappings on page 61.
7.1.1.4 Adding formats to the appropriate specification map files
The specificationmap.xml file defines the import/export type codes used in the
importexporttypeid attributes of the fileimportexportformats.xml file.
Note: The specificationmap.xml file is included in the CMM DefaultData folder. See 1.5
Opening configuration files on page 32.
The specificationmap.xml file references six other XML configuration files:
•apimportspectmap.xml
•arimportspectmap.xml
•balanceandtransactionimportspectmap.xml
•bankmessageimportspectmap.xml
•ddimportspectmap.xml
•forecastimportspectmap.xml.
Each of these files defines the formats for it respective import/export type as shown in the following
example:
<?xml version="1.0"?>
<spec_map>
Attribute Value
format_code The format pattern’s code.
Note: The value you enter in this attribute must exactly match the value you entered
in the appropriate fileformatcode attribute in the
fileimportexportformats.xml file.
pattern A regular expression that specifies the format pattern. The following is an example
for a FINSTA format:
(?s)UNB\+.*?UNH\+.*?\+FINSTA.*?:9
Note: Ensure your regular expressions patterns are unique to identify all formats you
plan to import into CMM.
format_sub_type The format pattern’s subtype.
Note: This attribute is optional.
format_type The format pattern’s type.
Note: This attribute is optional.
business_type ACKNOWLEDGEMENT or ACCEPTANCE.
Note: This attribute is only required for bank message import format patterns.
WebSuite Cash Management Connectivity Guide 125
<condition_test_element condition_type="switch">
<attribute_id value="format_specification"/>
<result_handler status_code="BAI">
<include filename="interfaces.imports.demo.bai.baispec.xml"/>
</result_handler>
<result_handler status_code="MEESFLEX">
<include filename="interfaces.imports.demo.meesflex.spec.xml"/>
</result_handler>
<result_handler status_code="SWIFT">
<include filename="interfaces.imports.swift.standard.bank_statement.
swiftspec.xml"/>
</result_handler>
<result_handler status_code="TREMA_BANK_STATEMENT">
<include filename="interfaces.imports.trema_bank_statement.
trema_statement_spec.xml"/>
</result_handler>
<result_handler status_code="default">
<abort message="There is no matching spec for format
${format_specification}, check your spec map xml files"/>
</result_handler>
</condition_test_element>
</spec_map>
If you attempt to import a file in a format not defined in these files, the following error message
displays:
There is no matching spec for format ${format_specification}, check your spec map xml
files.
To prevent this error from displaying for your custom formats, you must add the formats to the
appropriate specification map files:
1. Open one of the following configuration files:
[Standard configuration file path]
interfaces
imports
apimportspectmap.xml
arimportspectmap.xml
balanceandtransactionimportspectmap.xml
bankmessageimportspectmap.xml
ddimportspectmap.xml
forecastimportspectmap.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. In the condition_test_element element, enter a result_handler child element for the first
format you want to add. The following is an example:
<?xml version="1.0"?>
<spec_map>
<condition_test_element condition_type="switch">
…
<result_handler status_code="ACME_BANK_STATEMENT">
<include
filename="interfaces.imports.acme.acme_bank_statement_spec.xml"/>
</result_handler>
…
</condition_test_element>
126 © Wall Street Systems IPH AB - Confidential
</spec_map>
3. Repeat step 2 for each format you want to add.
4. Save and close the file.
7.1.1.5 Creating format parser and mapping files
The third parties from which you are importing information can provide you with specifications that
define their format and business rule requirements. You need to map these requirements to your
XML template-based format.
Note: If an existing format in CMM closely matches a third party’s format and business rule
requirements, consider using it as a template rather than creating a new format.
CMM includes a set of attribute and handlers that you can use to define your formats. Using the
attributes and handlers, you can take advantage of all of the information in an import file and
ensure the file is parsed correctly. For more information on attributes and handlers, see Appendix B
Attributes on page 311 and Appendix C Handlers on page 369.
There may be differences in how you want to approach the types of files that can be imported into
CMM. For example, you may want to treat statement and message files from banks differently from
files generated internally, or you may want to create separate formats for accounts payable files
depending on their sources.
Depending on the complexity of the information you are importing, you may decide to use a tree:
You can use a tree for simple information. However, Wallstreet does not recommend using a tree if
you can manage without it to avoid unnecessary steps and memory consumption. You may decide
to use trees initially but later move away from them as you become familiar with creating formats.
Because most banks use standard formats but can implement them in slightly different ways, you
can adapt a format after creating it for subsequent banks, countries, or both. You have the option of
creating multiple versions of a format or making the processing conditional within a single format.
Should the rule for the variation be dependent upon something fixed, such as a bank or country, it is
best to create a separate format that can be attached to a specific interchange rather than making
the original format extremely complex so it applies to many bank variations.
Wallstreet can provide you with several example of standard and custom formats.
Type Example Procedure
Simple A fixed-length-based
format
When you read the data, you know what field you are reading and you
can directly set the field read from the file to the business object (for
example, an AP data record), or you can save the value in context first
and then manipulate the value if required and then set the manipulated
context variable to the business object.
Complex EDIFACT and BAI When you read the data, you do not always know what attribute of the
business object to which you should map, or it may be difficult to manage
the mapping logic. Creating a tree allows you to put those values read
from the file to a visualized tree structure. As a result, you can print out
the tree if you want to look at it before mapping. After the tree is
established, you can traverse it with ease, and map the proper node of
the tree to the correct business object.
WebSuite Cash Management Connectivity Guide 127
7.1.2 Creating custom export formats
Creating a custom export format involves five steps:
1. Add the format to the fileimportexportformats.xml file.
2. Create breakup definitions.
3. Create payment aggregation definitions.
4. Add the format to the specificationmap.xml file.
5. Create the format’s validation and generation files.
7.1.2.1 Adding formats to the fileimportexportformats.xml file
For information on adding formats to the fileimportexportformats.xml file, see 7.1.1 Creating
custom import formats on page 121.
7.1.2.2 Creating breakup definitions
Breakup definitions allow you to generate multiple files, batches, or both for the same format in a
single release. You can break up files according to the specifications of the receiving system or
user-defined business drivers.
You can group transactions using multiple grouping attributes. Grouping attributes are set in such a
way that the transactions must match all specified attributes to be placed in the same file. For
example, all payments must be paid from the same bank account and have the same value date.
Any payment which does not match these two criteria generates a separate file or batch.
You can also group transactions using a maximum group size. This can be used alone or in
conjunction with defined group attributes. This limits the number of transactions that can be
included in a single file or batch even though they share the same specified group attributes.
To create a breakup definition:
1. Open the following configuration file:
[Standard configuration file path]
interfaces
exports
paymentfilebreakupspecification.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. Change the build_payment_groups attribute for each format you want to modify. The following
is an example:
<result_handler status_code="Datanet">
<build_txn_groups group_id="default_id">
<group_by attribute_id="payor_bank_account_id"/>
<group_by attribute_id="value_date"/>
</build_txn_groups>
</result_handler>
For more information on the build_txn_groups handler, see C.4 build_txn_groups on page 373.
3. Save and close the file.
7.1.2.3 Creating payment aggregation definitions
When creating an interchange, you must define its aggregation type by selecting the appropriate
value in the Aggregation Type list. If you are using a custom format, you must set this list to
XML AGGREGATION. (If you select COMMUNITY AGGREGATION, MULTI CREDIT AGGREGATION, NETTING
AGGREGATION, or SINGLE CREDIT AGGREGATION, CMM will attempt to aggregate data using a legacy
Java-based method. If you select, NO AGGREGATION, CMM does not attempt to aggregate data.)
128 © Wall Street Systems IPH AB - Confidential
You do not have to make any changes to CMM to use default aggregation. However, you can create
new payment aggregation definitions and apply them to specific formats if required. However, if you
create a new payment aggregation definition for a format, the new definition will continue to display
as XML AGGREGATION in the Aggregation Type list of the Interchanges function.
Note: If a format does not have a payment aggregation definition, no aggregation is completed
when you export files using that format.
To create a payment aggregation definition:
1. Using a text editor, create an aggregation definition file. The following is an example that groups
payments by paying bank account, value date, currency, delivery channel,
domestic/cross-border status, transaction type, and batch ID:
<?xml version="1.0" ?>
<txn_aggregation type="AP Batch">
<aggregation_key>
<attribute id="payor_bank_account_id"/>
<attribute id="value_date"/>
<attribute id="payment_currency"/>
<attribute id="payment_primary_delivery_channel"/>
<attribute id="domestic_crossborder_status"/>
<attribute id="transaction_type_code"/>
<attribute id="source_batch_id"/>
</aggregation_key>
</txn_aggregation>
For more information on the txn_aggregation handler, see C.48 txn_aggregation on page 413.
2. Save the file with an appropriate name and the .xml extension in
…\InstallationData\interfaces\exports\aggregation\.
3. Close the file.
4. Open the following configuration file:
[Standard configuration file path]
interfaces
exports
aggregation
paymentaggregators.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
5. Change the filename attribute for each format for which you want to use the payment
aggregation definition. The following is an example:
<result_handler status_code="CRG_PAYMUL">
<include filename="interfaces.exports.aggregation.acmeaggregator.xml"/>
</result_handler>
6. Save and close the file.
7.1.2.4 Adding formats to the specificationmap.xml file
For information on adding formats to the specificationmap.xml file, see 7.1.1 Creating custom
import formats on page 121.
7.1.2.5 Creating format validation and generation files
The third parties to which you are exporting information can provide you with specifications that
define their format and business rule requirements. You need to map these requirements to your
XML template-based format.
WebSuite Cash Management Connectivity Guide 129
Note: If an existing format in CMM closely matches a third party’s format and business rule
requirements, consider using it as a base template rather than creating an entirely new
format.
CMM includes a set of attributes and handlers that you can use to define your formats. Using the
attributes and handlers, you can execute complex logic to ensure the final format is correct for the
third party. For more information on attributes and handlers, see Appendix B Attributes on page 311
and Appendix C Handlers on page 369.
Because most banks use standard formats but can implement them in slightly different ways, you
can adapt a format after creating it for subsequent banks, countries, or both. You have the option of
creating multiple versions of a format or making the processing conditional within a single format.
Should the rule for the variation be dependent upon something fixed, such as a bank or country, it is
best to create a separate format that can be attached to a specific interchange rather than making
the original format extremely complex so it applies to many bank variations.
Wallstreet can provide you with several examples of standard and custom formats.
7.2 Testing custom formats
After completing the steps in 7.1 Creating custom formats on page 120 but before going live, you
can test your new custom formats.
7.2.1 Testing custom formats
To test custom formats:
1. Create one or more interchanges for the new formats.
For information on creating interchanges, see 3.4 Managing interchanges on page 56.
2. Do the following:
–If you are testing import formats, ensure properly formatted test files are available in the
correct locations and the required static data are available in CMM.
–If you are testing export formats, ensure test data are available in CMM to export.
3. Use the appropriate functions to import or export data:
Type Function
Imports
Forecasts Import Forecasts
Payments (AP) Import Transaction Files
Receipts (AR) Import AR Files
Direct debits Import Transaction Files
Bank statements Import Bank Transaction Files
Bank messages Import Bank Message Files
Exports
Payments Release Payments
Direct debits Release Receipts
Letters of credit Release Receipts
130 © Wall Street Systems IPH AB - Confidential
For information on using these functions, see their context-sensitive help.
4. Review the job log to ensure the imports and exports were successful:
–If all imports and exports were successful, continue to step 5.
–If an import or export was not successful, correct any problems with the format and repeat
steps 1 to 4 until the import or export is successful.
For information on the job log, see the WebSuite System Administration Guide.
5. Do the following:
–If you are testing import formats, check the resulting records in the database against the
import file.
–If you are testing export formats, check the resulting export files against the records in the
database and, if required, submit the files to the appropriate banks or other external
systems to ensure they can process the files.
7.2.2 Troubleshooting
If you are encountering errors while testing custom formats, you need to troubleshoot.
To troubleshoot import formats:
•Review template parsing (if the format creates a tree during parsing):
a. Select Admin - Utilities - Analysis - Message Log.
b. In the Message Control Data Maintenance - Selection page, click 0Appserver.TemplateParsing.
c. In the Message Levels section of the Message Control Data Maintenance page, select the
Verbose checkbox.
d. In the Output Destinations section of the Message Control Data Maintenance page, select the
CMM Log checkbox.
e. Click Save.
The next time you import or export data, the logging is enabled.
f. Review the template parsing log, which is available on the CMM server at
…\VirtualDirectory\logs\ml.TemplateParsing.YYYY_MM_DD_HH_MM_SS.txt (where
YYYY_MM_DD_HH_MM_SS is the day and time on which the log was generated).
After you have reviewed template parsing, return to the Message Log function to turn off the
logging.
•Review echo messages:
a. Add the echo handler to the configuration files you want to troubleshoot. The following is an
example:
<echo message="in standardrecord 1" verbose="true"/>
Preadvices Release Receipts
Credit advices N/A
Bank statements Export Bank Statements
General ledger postings Export G/L Postings
Type Function
WebSuite Cash Management Connectivity Guide 131
For more information on the echo handler, see C.14 echo on page 386.
b. Select Admin - Utilities - Analysis - Message Log.
c. In the Message Control Data Maintenance - Selection page, click 0AppserverXMLEchoMessage.
d. In the Message Levels section of the Message Control Data Maintenance page, select the
appropriate message levels’ checkboxes. (The message levels you selected in this step
should be same as the ones you specified in the echo handler in step a.)
e. In the Output Destinations section of the Message Control Data Maintenance page, select the
appropriate output destinations’ checkboxes.
f. Click Save.
The next time you import or export data, the logging is enabled.
g. Select Admin - Utilities - Analysis - Log Viewer.
h. In the Log Viewer page, drill down on the ml.user.alterna.YYYY_MM_DD_HH_MM.txt log file
(where YYYY_MM_DD_HH_MM is the day and time on which the log was generated).
•Review the import’s record in the job log for an indication of the import’s status.
For more information on reviewing the job log, see the WebSuite System Administration Guide.
•If you encounter exceptions such as file errors or unknown errors, review the appropriate log file
in the Log Viewer function. (You may need to send this file to Wallstreet for further diagnose.)
For more information on using the Log Viewer function, see the WebSuite System Administration
Guide.
To troubleshoot export formats:
•Review echo messages:
a. Add the echo handler to the configuration files you want to troubleshoot. The following is an
example:
<echo message="in standardrecord 1" verbose="true"/>
For more information on the echo handler, see C.14 echo on page 386.
b. Select Admin - Utilities - Analysis - Message Log.
c. In the Message Control Data Maintenance - Selection page, click 0AppserverXMLEchoMessage.
d. In the Message Levels section of the Message Control Data Maintenance page, select the
appropriate message levels’ checkboxes. (The message levels you selected in this step
should be same as the ones you specified in the echo handler in step a.)
e. In the Output Destinations section of the Message Control Data Maintenance page, select the
appropriate output destinations’ checkboxes.
f. Click Save.
The next time you import or export data, the logging is enabled.
g. Select Admin - Utilities - Analysis - Log Viewer.
h. In the Log Viewer page, drill down on the ml.user.alterna.YYYY_MM_DD_HH_MM.txt log file
(where YYYY_MM_DD_HH_MM is the day and time on which the log was generated).
•Review the export’s record in the job log for an indication of the export’s status.
For more information on reviewing the job log, see the WebSuite System Administration Guide.
•If you encounter exceptions such as file errors or unknown errors, review the appropriate log file
in the Log Viewer function. (You may need to send this file to Wallstreet for further diagnose.)
For more information on using the Log Viewer function, see the WebSuite System Administration
Guide.
132 © Wall Street Systems IPH AB - Confidential
7.3 Going live
Once you have completed testing and are satisfied with the custom formats, you can move them to
a production environment.
Warning: Test all possible scenarios before going live.
To do this:
1. Copy the affected configuration files from the test environment to the production environment.
If one of the files you are copying over is fileimportexportformats.xml, you need to restart
the production environment’s application server as well to ensure the changes in the
fileimportexportformats.xml file are reflected in the database.
2. Repeat the steps in 7.2 Testing custom formats on page 129 in the production environment to
create and test interchanges in that environment.
3. Complete additional testing to satisfy your organization’s and the bank’s (or other external
system’s) requirements for production interfaces. Specifically, complete nominal value testing,
where very low value payments are created from the affected account(s) to another corporate
entity, and sent to the bank as an actual payment file. Once those payments have been
successfully executed by the bank and all appropriate message files received back, the interface
is ready to go live.
Note: Most banks do not accept payments from new interfaces until they have certified the
interfaces for format and content.
WebSuite Cash Management Connectivity Guide 133
Appendix A Standard formats
Wallstreet offers two standard format types:
•XML (.xml)
•Tab- or comma-delimited flat file (.txt, .tab, or .csv).
Note: Wallstreet recommends you use the XML formats over the flat file formats because the
XML formats are newer and offer more advanced features.
In addition to the Wallstreet standard formats, CMM supports industry standard formats from
organizations such as EDIFACT and SWIFT.
In this appendix, Wallstreet standard format are prefixed with "Wallstreet" and industry standard
formats are prefixed by the names of their organizations (for example, "EDIFACT" and "SWIFT").
Note: You can create custom formats in addition to these standard ones. For more information,
see Chapter 7 Using XML-template-based formats on page 119.
A.1 Summary of standard banking formats
The table below summarizes the supported banking formats.
Type Wallstreet formats EDIFACT
formats SWIFT formats Other formats
Forecast • XML forecast
• Flat file forecast
N/A N/A N/A
Accounts
payable
•XML transaction
• Flat file accounts payable
• BANSTA [1]
•PAYEXT
N/A • HTML [1]
•RA01 [1
]
Accounts
receivable
•XML transaction
• Flat file accounts receivable
N/A N/A N/A
Direct debit • XML transaction
• Flat file direct debit
N/A N/A N/A
Bank message • XML bank message
•XML transaction
acknowledgement
• BANSTA [1]
•CONTRL [1
]
• ACK/NACK [1]
• ISO 20022 XML
payment status
• ANSI X12
824 [1]
• ANSI X12
997 [1]
• CFONB/AFB
REJ240 [1]
Bank
statement
• XML bank statement N/A N/A N/A
134 © Wall Street Systems IPH AB - Confidential
A.2 Forecast import formats
CMM supports the following standard formats for forecast imports:
A.2.1 Wallstreet XML forecast
The following is an example Wallstreet XML forecast file:
<?xml version="1.0" encoding="UTF-8" ?>
<transactions document_reference_id="107" format_code="ATTRS_TXN"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<transaction sequence="1" type="forecast">
<attribute name="payment_method" value="EFT"/>
<attribute name="currency" value="USD"/>
<attribute name="amount" value="50000.00"/>
<attribute name="value_date" value="20-Oct-2006"/>
Bank
transaction
and balance
• XML bank transaction and
balance
•FINSTA [1]• MT940
• MT940 BCS
• MT942 [1]
• MT950 [1]
•BAI [1]
• CFONB/AFB
RDC120 [1]
Deal • Flat file deal N/A N/A N/A
Payment N/A • PAYEXT [1]
•PAYMUL [1
]
• MT100 [1]
• MT101
• MT103 [1]
• MT202 [1]
• ISO 20022 XML
credit transfer
• ANSI X12
820 [1]
•BACS [1
]
• CFONB/AFB
VIR106 [1]
Direct debit N/A •DIRDEB [1]•SWIFTMT104
• ISO 20022 XML
directdebit
transfer
• CFONB/AFB
PRE160 [1]
Letter of credit N/A N/A N/A • CFONB/AFB
LCR240 [1]
Pre-advice N/A N/A •SWIFTMT210 N/A
Transaction
message
•XML payment message
• XML receipt message
• BANSTA [1]N/A •HTML [1]
Deal • XML general ledger posting N/A N/A N/A
Free format N/A N/A • MT199
• MT999
N/A
Type Wallstreet formats EDIFACT
formats SWIFT formats Other formats
Type Wallstreet formats EDIFACT
formats SWIFT formats Other
formats
Forecast • XML forecast
• Flat file forecast
N/A N/A N/A
WebSuite Cash Management Connectivity Guide 135
<attribute name="description" value="Invoice 67003"/>
<attribute name="party_id" value="AcmeUS"/>
<attribute name="cpty_id" value="SmithCo"/>
</transaction>
<transaction sequence="2" type="forecast">
<attribute name="payment_method" value="EFT"/>
<attribute name="currency" value="USD"/>
<attribute name="amount" value="60000.00"/>
<attribute name="value_date" value="21-Oct-2006"/>
<attribute name="description" value="Invoice 67004"/>
<attribute name="party_id" value="AcmeUS"/>
<attribute name="cpty_id" value="SmithCo"/>
</transaction>
</transactions>
This file contains three basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML transaction schema. For more information on the
Wallstreet XML transaction schema, see A.11 Wallstreet XML schemas on page 292.
A.2.1.1 transactions element
A Wallstreet XML forecast file contains only one transactions element.
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
A.2.1.2 transaction elements
A Wallstreet XML forecast file can contain multiple transactions with each transaction represented by
a transaction element.
Each transaction element defines its transaction’s sequence number and type as specified in the
element’s two attributes:
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual transaction in the file.
attribute An individual attribute of a transaction.
Attribute Acceptable values
document_reference_ID [A unique identifier for the file]
format_code ATTRS_TXN
xmlns http://www.trema.com/externalinterface/XMLschema
Attribute Acceptable values
sequence [A unique sequence number for the transaction (In a typical file, the first transaction is
numbered 1; the second, 2; the third, 3; and so on.)]
type forecast
136 © Wall Street Systems IPH AB - Confidential
A.2.1.3 attribute elements
Each transaction element contains a set of attribute elements. These elements define the
transactions’ attributes and the values of those attributes.
Each attribute element has two attributes:
As noted in B.1 Import attributes on page 312, some attributes are required and must be provided
with every transaction while others are not required.
You can specify the attributes in any order in the Wallstreet XML forecast files. In addition, you do
not need to specify the same set of attributes in every transaction in a file. For example, one
transaction can include the description attribute while all others in the file do not.
A.2.2 Wallstreet flat file forecast
The following is an example forecast flat file (with tabs as the delimiters):
This file contains four lines grouped into two sections:
A.2.2.1 Wallstreet flat file forecast header
The header section of a forecast flat file consists of three lines:
•File information (line 1)
•File layout (line 2)
•Date format (line 3).
Attribute Acceptable values
name [The attribute’s name as specified in B.1 Import attributes on page 312 (The value you provide
in this attribute must exactly match the value in the "Name" column in B.1 Import attributes
on page 312.)]
value [The attribute’s value (The value you provide in this attribute must comply with the type, size,
and other requirements specified in B.1 Import attributes on page 312.)]
Line Name Description
Header
1File information General information on the file.
2 File layout The columns included in the file (in the order in which they display in
line 4).
3Date format The date format used in the file.
Note: This line is optional.
Body
4Forecast details The individual forecasts.
Note: Include one line 4 for each forecast in the file.
WebSuite Cash Management Connectivity Guide 137
A.2.2.1.1 File information (line 1)
Line 1 contains general information on the file:
The following table defines the components of this line:
A.2.2.1.2 File layout (line 2)
Line 2 defines columns included in the file:
The following table defines the components of this line:
No. Component Description Value Constraints Req. Source
1a File
information
indicator
An indicator that the line contains
general file information.
HEADER •None Yes User
1b File ID A unique identifier for the file.
Note: CMMchecks the value of this
component before loading the
file to prevent accidentally
reimporting the same file
twice.
Text (50
characters
maximum)
•None Yes User
1c Control total The sum of all forecast amounts in
the file. This is a positive number,
based on summing the absolute
values of the amounts from each
record.
Note: If you supply a value (which
must be positive), CMM does
not sum the amounts of all
forecasts in the file to confirm
completeness before
importing.
Positive
floating point
number
•None No User/
System
1d Type indicator The file type indicator. AP •None Yes User
No. Component Description Value Constraints Req. Source
2a File layout
indicator
An indicator that the line
contains file layout information.
FORMAT1 • None Yes User
2b Columns A list (tab- or comma-delimited)
of all of the columns that appear
in the file.
This list identifies:
•The columns you are
providing in the import file
• The order of the columns.
The valid columns are
documented in A.2.2.2
Wallstreet flat file forecast body
on page 138.
Text •None Yes User
138 © Wall Street Systems IPH AB - Confidential
A.2.2.1.3 Date format (line 3)
Line 3 defines the date format used in the file:
The following table defines the components of this line:
A.2.2.2 Wallstreet flat file forecast body
The body section of a forecast flat file consists of one line:
•Forecast details (line 4).
A.2.2.2.1 Forecast details (line 4)
Line 4 contains individual forecasts. (Include one line 4 for each forecast in the file.)
The column values in line 4 must display in the same order as the columns in line 2 and must be
delimited with tabs or commas.
The following are columns supported by the Wallstreet standard forecast flat file format:
No. Component Description Value Constraints Req. Source
3a Date format
indicator
An indicator that the line contains
date format information.
DATEFORMAT •None Yes User
3b Data format The date format used when parsing
the file. The value of this
component indicates the following:
• The order of the date
component fields (year, month,
day, and so on)
• Any delimiters or separators
between the fields.
Note: If you do not specify a value,
CMM uses the default format
(dd-MMM-yyyy).
Text •None Yes User
Column Description Value Constraints Req. Source
Basic
CurrencyCode The forecast’s
currency.
Currency ID •None Yes User
ForecastAmountInput The forecast’s
amount (in the
forecast’s
currency).
Floating point
number
•None Yes User
ForecastItemTypeCode The forecast’s type. One of the
following values:
• General
•Big Ticket
Item
•None No User
WebSuite Cash Management Connectivity Guide 139
Bucket The forecast’s time
bucket, which
indicates whether
the forecast is
short-term or
long-term.
One of the
following values:
• day
• month
•None Yes User
CashFlowDirection A value that
indicates whether
the forecast is a
payment or a
receipt.
One of the
following values:
•P if the
forecast is a
payment
•R if the
forecast is a
receipt
•None Yes User
InstrumentTypeID The forecast’s cash
flow type.
By assigning cash
flow types to
forecasts and other
activity in CMM,
you can categorize
this activity for a
variety of purposes.
In particular, you
can run several
reports in the
module that display
activity by cash
flow type.
Note: In CMM, a
cash flow
type is an
instrument
type with the
Status
attribute set
to
Enabled.
Instrument type
ID
•None No User
PaymentMethodID The forecast’s
payment method.
A forecast’s
payment method
defines how the
forecast is to be
paid (for example,
by EFT or by check)
if it becomes a
releasable
transaction.
Payment
method ID
•None No User
Column Description Value Constraints Req. Source
140 © Wall Street Systems IPH AB - Confidential
ForecastValueDate The forecast’s
starting value date.
Note: Medium- and
long-term
forecasts can
span a range
of value
dates (for
example, a
medium-ter
m forecast
can span a
month),
while
short-term
forecasts
usually only
span one
value date.
Date •None Yes User
InvoiceDate The forecast’s
invoice date.
Date •None No User
WorkflowAction The action CMM
should take upon
importing the
forecast.
Note: If you do not
specify a
value in this
column, CMM
creates a
new record
for the
forecast upon
importing it.
One of the
following values:
• edit
• cancel
•None No User
Description A relevant
description of or
other information
pertaining to the
forecast.
Text (2,000
characters
maximum)
•None No User
Party
PartyID The forecast’s
party.
Entity ID •None Yes User
Party bank
BankID The bank where the
forecast’s party
bank account is
held.
In-house bank
ID
External bank ID
•Must be
provided if
the party
bank
account
number is
also
provided
No User
Party bank account
Column Description Value Constraints Req. Source
WebSuite Cash Management Connectivity Guide 141
BankAccountNumber The forecast’s party
bank account.
It is not usually
necessary to define
a party bank
account for a
forecast. However,
this attribute is
provided for
situations in which
you need to define
a party bank
account for a
short-term forecast
(or "cash
position").
Note: Do not
include
format
characters
(_, -, and so
on) in this
column.
Entity bank
account number
•None No System
BankAccountCurrencyCod
e
The curency of the
forecast’s party
bank account.
Currency ID •Must be
provided if
the party
bank
account
number is
also
provided
No User
Counterparty
CptyID The forecast’s
counterparty.
It is not usually
necessary to define
a counterparty for a
forecast. However,
this attribute is
provided for
situations in which
you need to define
a counterparty for a
short-term forecast
(or "cash
position").
Entity ID
Counterparty ID
•None
Counterparty bank
CounterpartyBankAccoun
tBankID
The ID of the bank
where the
forecast’s
counterparty bank
account is held.
In-house bank
ID
External bank ID
•Must be
provided if
the
counterpart
y bank
account
number is
also
provided
No User
Counterparty bank account
Column Description Value Constraints Req. Source
142 © Wall Street Systems IPH AB - Confidential
CounterpartyBankAccoun
tNumber
The bank account
number of the
forecast’s
counterparty bank
account.
Note: Do not
include
format
characters
(_, -, and so
on) in this
column.
Entity bank
account number
Counterparty
bank account
number
•None No User
CounterpartyBankAccoun
tCurrencyCode
The ISO currency
code of the
forecast’s
counterparty bank
account.
Currency ID •Must be
provided if
the
counterpart
y bank
account
number is
also
provided
No User
Other
BusinessSegmentID The forecast’s
business segment.
A business segment
is a business-based
division of your
organization used
for reporting
purposes.
Business
segment ID
•None No User
RegionID The forecast’s
region.
A region is a
geographic-based
division of your
organization for
reporting purposes.
Region ID •None No User
SourceReferenceTextID The forecast’s
source reference
text ID.
Text (50
characters
maximum)
•None No User
StringAttributeValue_0
StringAttributeValue_1
StringAttributeValue_2
StringAttributeValue_3
StringAttributeValue_4
StringAttributeValue_5
StringAttributeValue_6
StringAttributeValue_7
StringAttributeValue_8
StringAttributeValue_9
The forecast’s
custom attributes.
Note: You or
another user
in your
organization
can define
custom
attributes (or
"parameters"
) for
forecasts in
the
Parameter
Editor
function.
Text (50
characters
maximum per
field)
•None No User
Column Description Value Constraints Req. Source
WebSuite Cash Management Connectivity Guide 143
A.3 Transaction import formats
CMM supports the following standard formats for transaction imports:
A.3.1 Wallstreet XML transaction
The following is an example Wallstreet XML transaction file:
<?xml version="1.0" encoding="UTF-8" ?>
<transactions document_reference_id="107" format_code="ATTRS_TXN"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<transaction sequence="1" type="aprecord">
<attribute name="payment_method" value="EFT"/>
<attribute name="currency" value="USD"/>
<attribute name="amount" value="50000.00"/>
<attribute name="txn_date" value="20-Oct-2006"/>
<attribute name="description" value="Invoice 67003"/>
<attribute name="customer_reference_id" value="123456"/>
<attribute name="party_id" value="AcmeUS"/>
<attribute name="cpty_id" value="SmithCo"/>
</transaction>
<transaction sequence="2" type="aprecord">
<attribute name="payment_method" value="EFT"/>
<attribute name="currency" value="USD"/>
<attribute name="amount" value="25000.00"/>
<attribute name="txn_date" value="20-Oct-2006"/>
<attribute name="description" value="Invoice 67004"/>
<attribute name="customer_reference_id" value="123457"/>
<attribute name="party_id" value="AcmeUS"/>
<attribute name="cpty_id" value="WilliamsCo"/>
<attribute composite="true" name="remittance_details">
<component_transaction type="remittancedetail">
<attribute name="remittance_date" value="20-Oct-2006"/>
<attribute name="remittance_detail_message_type" value="100"/>
<attribute name="remittance_retail_reference_type_code" value=""/>
<attribute name="remittance_invoice_number" value="invoice_1"/>
<attribute name="remittance_detail_reference" value=""/>
<attribute name="remittance_currency_code" value="USD"/>
<attribute name="document_amount" value="25000.00"/>
<attribute name="document_amount_type" value="204"/>
</component_transaction>
<component_transaction type="remittancedetail">
<attribute name="remittance_date" value="20-Oct-2006"/>
<attribute name="remittance_detail_message_type" value="100"/>
Type Wallstreet formats EDIFACT formats SWIFT formats Other
formats
Accounts
payable
•XML transaction
• Flat file accounts payable
• BANSTA [1]
•PAYEXT
N/A • HTML
[1]
•RA01
[1]
Accounts
receivable
•XML transaction
• Flat file accounts receivable
N/A N/A N/A
Direct debit • XML transaction
• Flat file direct debit
N/A N/A N/A
Tab le n otes :
1. For information on formats not documented in this appendix, contact Wallstreet.
144 © Wall Street Systems IPH AB - Confidential
<attribute name="remittance_retail_reference_type_code" value=""/>
<attribute name="remittance_invoice_number" value="invoice_1"/>
<attribute name="remittance_detail_reference" value=""/>
<attribute name="remittance_currency_code" value="USD"/>
<attribute name="document_amount" value="25000.00"/>
<attribute name="document_amount_type" value="203"/>
</component_transaction>
</attribute>
</transaction>
</transactions>
This file contains four basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML transaction schema. For more information on the
Wallstreet XML transaction schema, see A.11 Wallstreet XML schemas on page 292.
A.3.1.1 transactions element
A Wallstreet XML transaction file contains only one transactions element.
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
A.3.1.2 transaction elements
A Wallstreet XML transaction file can contain multiple transactions with each transaction
represented by a transaction element.
Each transaction element defines its transaction’s sequence number and type as specified in the
element’s two attributes:
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual transaction in the file.
attribute An individual attribute of a transaction.
component_transaction An individual remittance detail in a transaction.
Note: This element is only applicable to the accounts payable and
direct debit formats.
attribute An individual attribute of a remittance detail.
Attribute Acceptable values
document_reference_ID [A unique identifier for the file]
format_code ATTRS_TXN
xmlns http://www.trema.com/externalinterface/XMLschema
Attribute Acceptable values
sequence [A unique sequence number for the transaction (In a typical file, the first transaction is
numbered 1; the second, 2; the third, 3; and so on.)]
type aprecord
arrecord
ddrecord
WebSuite Cash Management Connectivity Guide 145
A.3.1.3 attribute elements
Each transaction element contains a set of attribute elements. These elements define the
transactions’ attributes and the values of those attributes.
There are two types of attribute elements:
Each attribute element of the first type has two attributes:
Each attribute element of the second type has two attributes:
As noted in B.1 Import attributes on page 312, some attributes are required and must be provided
with every transaction while others are not required.
You can specify the attributes in any order in the Wallstreet XML transaction files. In addition, you
do not need to specify the same set of attributes in every transaction in a file. For example, one
transaction can include the description attribute while all others in the file do not.
A.3.1.4 component_transaction elements
In a Wallstreet XML accounts payable or direct debit file, each transaction can contain multiple
remittance details with each remittance detail represented by a component_transaction element.
Note: component_transaction elements must be nested inside an appropriate attribute
element of their parent transaction.
Each component_transaction element defines its remittance detail’s type as specified in the
element’s attribute:
Type Available in
attribute elements that do not contain component_transaction
elements
• Accounts payable
• Accounts receivable
• Direct debit
attribute elements that contain component_transaction elements • Accounts payable
• Direct debit
Attribute Acceptable values
name [The attribute’s name as specified in B.1 Import attributes on page 312 (The value you provide
in this attribute must exactly match the value in the "Name" column in B.1 Import attributes
on page 312.)]
value [The attribute’s value (The value you provide in this attribute must comply with the type, size,
and other requirements specified in B.1 Import attributes on page 312.)]
Attribute Acceptable values
composite true
name remittance_detail
Attribute Acceptable values
type remittancedetail
146 © Wall Street Systems IPH AB - Confidential
A.3.2 Wallstreet flat file accounts payable
The following is an example accounts payable flat file (with tabs as the delimiters):
This file contains four lines grouped into two sections:
A.3.2.1 Wallstreet flat file accounts payable header
The header section of an accounts payable flat file consists of two lines:
•File information (line 1)
•File layout (line 2).
A.3.2.1.1 File information (line 1)
Line 1 contains general information on the file:
The following table defines the components of this line:
Line Name Description
Header
1File information General information on the file.
2 File layout The columns included in the file (in the order in which they display in
line 3).
Body
3 Transaction details The individual transactions.
Note: Include one line 3 for each transaction in the file.
4Remittance details The individual remittance details.
Note: Include one line 4 for each remittance detail in the file.
No. Component Description Value Constraints Req. Source
1a File
information
indicator
An indicator that the line contains
general file information.
HEADER •None Yes User
1b File ID A unique identifier for the file.
Note: CMMchecks the value of this
component before loading the
file to prevent accidentally
reimporting the same file
twice.
Text (50
characters
maximum)
•None Yes User
WebSuite Cash Management Connectivity Guide 147
A.3.2.1.2 File layout (line 2)
Line 2 defines columns included in the file:
The following table defines the components of this line:
Note: Do not place a tab, comma, space, or other character between the file layout indicator
(component 2a) and the columns (component 2b).
A.3.2.2 Wallstreet flat file accounts payable body
The body section of an accounts payable flat file consists of two lines:
•Transaction details (line 3)
•Remittance details (line 4).
A.3.2.2.1 Transaction details (line 3)
Line 3 contains the individual transactions. (Include one line 3 for each transaction in the file.)
The column values in line 3 must display in the same order as the columns in line 2 and must be
delimited with tabs or commas.
1c Control total The sum of all transaction amounts in
the file. This is a positive number,
based on summing the absolute
values of the amounts from each
record.
Note: If you supply a value (which
must be positive), CMM does
not sum the amounts of all
transactions in the file to
confirm completeness before
importing.
Positive
floating point
number
•None No User/
System
1d Type indicator The file type indicator. AP •None Yes User
1e User ID Your user ID. Text •None No User
No. Component Description Value Constraints Req. Source
No. Component Description Value Constraints Req. Source
2a File layout
indicator
An indicator that the line
contains file layout information.
FORMAT1 • None Yes User
2b Columns A list (tab- or comma-delimited)
of all of the columns that appear
in the file.
This list identifies:
•The columns you are
providing in the import file
• The order of the columns.
The valid columns are
documented in A.3.2.2
Wallstreet flat file accounts
payable body on page 147.
Text •None Yes User
148 © Wall Street Systems IPH AB - Confidential
The following are columns supported by the Wallstreet standard accounts payable flat file format:
Column Description Value Constraints Req.
Basic
CURRENCYCODE The transaction’s
currency. (String of three
alphabetical characters in
capital letters.)
Currency ID Must be a valid
ISO currency
code
Yes
AMOUNT The transaction’s absolute
value (in the transaction’s
currency).
Maximum size is 1E15.
Floating point number None Yes
PAYMENTSTATUS
CODE
A value that indicates
whether the transaction is
actual activity or
forecasted activity.
Note: CMM 7.1 introduced
forecasts as a
replacement for
forecasted
transactions.
One of the following:
•Actual if the
transaction is actual
activity
•Forecast if the
transaction is
forecasted activity
Note: If you do not
specify a value in
this column, system
sets it to A.
None Yes
PRIORITYID The transaction’s priority. One of the following
values:
•1=NON-URGENT if
the transaction is not
urgent
•2=URGENT if the
transaction is urgent
Note: If you do not
specify a value in
this column, the
system sets it to 1
(non-urgent)
None No
CASHFLOWTYPE The transaction’s cash
flow type.
By assigning cash flow
types to transactions and
other activity in CMM, you
can categorize this
activity for a variety of
purposes. In particular,
you can run several
reports in the module that
display activity by cash
flow type.
Note: In CMM, a cash flow
type is an
instrument type
with the Status
attribute set to
Enabled.
Instrument type ID
Note: If you do not
specify a value in
this column, CMM
sets it to COMMP
(Commercial
Payment)
regardless of the
cash flow type
default value set in
User Options.
Must be a valid
cash flow type
ID.
Must be included
in the selected
report mapping
•No
WebSuite Cash Management Connectivity Guide 149
PAYMENTMETHOD The transaction’s payment
method.
A transaction’s payment
method defines how the
transaction is to be paid
when it is released (for
example, by EFT or by
check).
Payment method ID
Default value is EFT
regarless of the cash flow
type default value set in
User Options.
Note that, based on the
chosen value,
counterparty bank
account details might be
required. (Check for
example does not require
any counterparty account
details)
None • No
TRANSACTIONDA
TE
The transaction’s
transaction date.
Date
Note: If you do not
specify a value in
this column, CMM
sets it to the
current system
date.
None No
VALUEDATE The transaction’s value
date.
Date
Note: If you do not
specify a value in
this column, CMM
sets it to the same
value as
TRANSACTIONDATE
None No
CREATIONDATE The transaction’s creation
date.
Date
Note: If you do not
specify a value in
this column, CMM
sets it to the same
value as
TRANSACTIONDATE
None No
DESCRIPTION/R
EFERENCE
A relevant description of
or other information
pertaining to the
transaction.
Text
(2,000 characters
maximum)
None No
Party
ENTITYID The transaction’s party. Entity ID
(25 characters maximum)
Must be a valid
entity ID or
mapped in
"Entity Codes
Mapping Table
Maintenance"
Yes
Column Description Value Constraints Req.
150 © Wall Street Systems IPH AB - Confidential
SUPPLYPAYINGA
CCOUNT
A value that indicates
whether you are
supplying party bank
account details.
One of the following
values:
•Y if you are supplying
party bank account
details
•N if you are not
supplying party bank
account details
Note: N is the default if
you do not specify a
value or if you do
not provide this
column.
None No
Party bank
ENTITYBANKBR
ANCHID [1]
The branch ID of the
transaction’s party bank
(as assigned by an
agency).
Text (15 characters
maximum)
None No
Party bank account
ENTITYBANKAC
COUNTNUMBER
[1]
The transaction’s party
bank account.
Note: If you do not
provide a party
bank account, CMM
can select one
using routing rules.
Entity bank account
primary number
See Entity bank account
checks on page 156.
Must be held by
the transaction’s
party
No
BANKACCOUNT
ENTITYID [1]
The owner of the
transaction’s party bank
account.
Entity ID
See Entity bank account
checks on page 156.
When provided,
it has to be equal
or mapped with
ENTITYID.
No
ENTITYBANKAC
COUNTCURRENC
YCODE [1]
The currency of the
transaction’s party bank
account.
Currency ID
See Entity bank account
checks on page 156.
None No
Counterparty
COUNTERPARTYI
D
The transaction’s
counterparty.
Counterparty ID
(25 characters maximum)
Must be a valid
party ID.
If you select a
counterparty
and a
counterparty
type in the
criteria, but the
counterparty
type is not
assigned to the
counterparty,
the report
contains no
results
Column Description Value Constraints Req.
WebSuite Cash Management Connectivity Guide 151
SUPPLYCPTYDET
AILS
A value that indicates
whether you are
supplying counterparty
details.
One of the following
values:
•Y if you are supplying
counterparty details
•N if you are not
supplying
counterparty details
Note: N is the default if
you do not specify a
value or if you do
not provide this
column.
None No
COUNTERPARTY
NAME [2]
The name of the
transaction’s
counterparty.
Text
(35 characters maximum)
None No
COUNTERPARTYA
DDRESS1
COUNTERPARTYA
DDRESS2
COUNTERPARTYA
DDRESS3
COUNTERPART
YADDRESS4
[2]
The address of the
transaction’s
counterparty.
Text
(40 characters maximum
per field)
None No
COUNTERPARTY
CITY [2]
The city of the
transaction’s
counterparty.
Text
(50 characters maximum)
None No
COUNTERPART
YSTATE [2]
The state of the
transaction’s
counterparty.
State ID
(20 characters maximum)
None No
COUNTERPARTY
COUNTRYCODE
[2]
The country of the
transaction’s
counterparty.
Country ID
(two-character ISO
country code)
None No
COUNTERPART
YZIP [2]
The postal or ZIP code of
the transaction’s
counterparty.
Text
(10 characters maximum)
None No
Counterparty bank
COUNTERPART
YBANKCODE
[2]
The SWIFT or ABA code of
the transaction’s
counterparty bank.
Considered a branch Sort
Code if BANKCODETYPE is
A or ABA, and then
checked against country
code rules (See Country
Code Maintenance).
Text
(20 characters maximum)
None No
COUNTERPARTY
BANKCODETYPE
[2]
The SWIFT or ABA code
type of transaction’s
counterparty bank.
One of the following:
•S if the code type is
SWIFT
•A if the code type is
ABA
None No
Column Description Value Constraints Req.
152 © Wall Street Systems IPH AB - Confidential
COUNTERPART
YBANKBRANCH
ID [2]
The branch ID of the
transaction’s counterparty
bank (as assigned by an
agency).
Considered a branch Sort
Code if BANKCODETYPE is
empty and then checked
against country code
rules(See Country Code
Maintenance).
Text
(15 characters maximum)
None No
COUNTERPARTYB
ANKNAME
The name of the
transaction’s counterparty
bank.
Text
(35 characters maximum)
None No
COUNTERPARTYB
ANKADDRESS
COUNTERPARTYB
ANKADDRESS2
The address of the
transaction’s counterparty
bank.
Text
(40 characters maximum
per field)
None No
COUNTERPARTYB
ANKCITY
The city of the
transaction’s counterparty
bank.
Text
(50 characters maximum)
None No
COUNTERPARTYB
ANKSTATE
The state of the
transaction’s counterparty
bank.
State ID
(20 characters maximum)
None No
COUNTERPARTYB
ANKZIP
The postal or ZIP code of
the transaction’s
counterparty bank.
Text
(10 characters maximum)
None No
Counterparty bank account
COUNTERPARTY
BANKACCOUNTN
UMBER [2]
The primary number
(usually, BBAN) of the
transaction’s counterparty
bank account.
Text
(35 characters maximum)
Must validate
against the
BBAN rules of
the bank
account’s
country.
See Entity bank
account checks
on page 156.
No
CPTYPRIMARY
ACCOUNTNUMB
ERTYPE [2]
The primary number type
of the transaction’s
counterparty bank
account.
BBAN None
See Entity bank
account checks
on page 156.
No
CPTYSECONDAR
YACCOUNTNUMB
ER [2]
The secondary number
(usually IBAN) of the
transaction’s counterparty
bank account.
Text
(34 characters maximum)
Must validate
against the
IBAN rules
See Entity bank
account checks
on page 156.
No
CPTYSECONDA
RYACCOUNTNU
MBERTYPE
[2]
The secondary number
type of the transaction’s
counterparty bank
account.
IBAN None
See Entity bank
account checks
on page 156.
No
Column Description Value Constraints Req.
WebSuite Cash Management Connectivity Guide 153
COUNTERPARTYB
ANKACCOUNTCOU
NTRYCODE
The country of the
transaction’s counterparty
bank.
Country ID
(ISO country code on 2
characters)
None
See Entity bank
account checks
on page 156.
No
COUNTERPARTYB
ANKCCOUNTCURR
ENCYCODE
The currency of the
transaction’s counterparty
bank account.
Currency ID None
See Entity bank
account checks
on page 156.
No
Intermediary bank
INTERMEDIARYB
ANKCODE
The SWIFT or ABA code of
the transaction’s
intermediary bank.
Text
(20 characters maximum)
None No
INTERMEDIARYB
ANKCODETYPE
The SWIFT or ABA code
type of transaction’s
intermediary bank.
One of the following
values:
•S if the code type is
SWIFT
•A if the code type is
ABA
None No
INTERMEDIARYB
ANKNAME
The name of the
transaction’s intermediary
bank.
Text
(40 characters maximum)
None No
INTERMEDIARYB
ANKADDRESS
INTERMEDIARYB
ANKADDRESS2
The address of the
transaction’s intermediary
bank.
Text
(40 characters maximum
per field)
None No
INTERMEDIARYC
ITY
The city of the
transaction’s intermediary
bank.
Text
(40 characters maximum)
None No
INTERMEDIARYS
TATE
The state of the
transaction’s intermediary
bank.
State ID
(20 characters maximum)
None No
INTERMEDIARYC
OUNTRYCODE
The country of the
transaction’s intermediary
bank.
Country ID
(Two-character ISO
country code)
None No
INTERMEDIARYZ
IP
The postal or ZIP code of
the transaction’s
intermediary bank.
Text
(40 characters maximum)
None No
Intermediary bank account
INTERMEDIARYB
ANKACCOUNTNUM
BER
The primary number
(usually BBAN) of the
transaction’s intermediary
bank account.
Text
(40 characters maximum)
Must validate
against the
BBAN rules of
the bank
account’s
country
No
Secondary intermediary bank
SECONDINTERME
DIARYBANKCODE
The SWIFT or ABA code of
the transaction’s
intermediary bank.
Text
(20 characters maximum)
None No
Column Description Value Constraints Req.
154 © Wall Street Systems IPH AB - Confidential
SECONDINTERME
DIARYBANKCODE
TYPE
The SWIFT or ABA code
type of transaction’s
intermediary bank.
One of the following
values:
•S if the code type is
SWIFT
•A if the code type is
ABA
None No
SECONDINTERME
DIARYBANKNAME
The name of the
transaction’s intermediary
bank.
Text
(40 characters maximum)
None No
SECONDINTERME
DIARYBANKADDR
ESS
SECONDINTERME
DIARYBANKADDR
ESS2
The address of the
transaction’s intermediary
bank.
Text
(40 characters maximum
per field)
None No
SECONDINTERME
DIARYCITY
The city of the
transaction’s intermediary
bank.
Text
(40 characters maximum)
None No
SECONDINTERME
DIARYSTATE
The state of the
transaction’s intermediary
bank.
State ID
(20 characters maximum)
None No
SECONDINTERME
DIARYCOUNTRYC
ODE
The country of the
transaction’s intermediary
bank.
Country ID
(Two-character ISO
country code)
None No
SECONDINTERME
DIARYZIP
The postal or ZIP code of
the transaction’s
intermediary bank.
Text
(40 characters maximum)
None No
Second intermediary bank account
SECONDINTERME
DIARYBANKACCO
UNTNUMBER
The primary number
(usually BBAN) of the
transaction’s intermediary
bank account.
Text
(40 characters maximum)
Must validate
against the
BBAN rules of
the bank
account’s
country
No
Aggregation
AGGREGATEDETA
ILCODE
A value that indicates
whether the transaction is
an aggregate or detail.
One of the following
values:
•A if the transaction is
an aggregate
•D if the transaction is
a detail
None No
AGGREGATEREFE
RENCEID
If the transaction is an
aggregate, the
transaction’s unique
reference number.
If the transaction is a
detail, the reference
number of the aggregate
transaction in which the
detail transaction is
contained.
Text
(50 characters maximum)
None No
Column Description Value Constraints Req.
WebSuite Cash Management Connectivity Guide 155
Tax
TAXPAYMENTTYP
ECODE
A code identifying the
type of tax being paid.
Text
(255 characters
maximum)
None No
TAXPAYMENTSUB
TYPECODE
A code identifying the
subtype of tax being paid.
Text
(255 characters
maximum)
None No
TAXPAYERID A number assigned to a
purchaser by a taxing
jurisdiction.
Note: This ID is also
known as a tax
exemption number
or certificate
number.
Text
(255 characters
maximum)
None No
TAXPAYERVERIF
ICATIONID
An ID the receiver can use
to confirm the taxpayer’s
identity.
Text
(255 characters
maximum)
None No
Regulatory reporting
REGULATORYCOD
E
The transaction’s
regulatory code.
Regulatory code None No
REGULATORYQUA
LIFIER
The qualifier of the
transaction’s regulatory
code.
Text
(50 characters maximum)
None No
REGULATORYAGE
NCY
The agency of the
transaction’s regulatory
code.
Text
(50 characters maximum)
Must be provided
if the
transaction’s
regulatory code
is provided
No
REGULATORYDES
CRIPTION
A description of the
transaction’s regulatory
code.
Text
(50 characters maximum)
None No
Other
BANKINSTRUCTI
ONS
Instructions or other
messages to the bank.
Text
(100 characters
maximum)
None No
CHEQUENUMBER The transaction’s check
number (if the transaction
is paid by check).
Text
(35 characters maximum)
None No
COUNTERPARTYM
ESSAGE
Instructions or other
messages to the
transaction’s
counterparty.
Text
(255 characters
maximum)
None No
CUSTOMERBATCH
REFERENCEID
The customer’s batch
reference ID for the
transaction.
Text
(30 characters maximum)
None No
CUSTOMERREFER
ENCENUMBER
The transaction’s
customer reference ID.
Text
(50 characters maximum)
None No
Column Description Value Constraints Req.
156 © Wall Street Systems IPH AB - Confidential
Entity bank account checks
The system searches for a valid Bank Account using:
•ENTITYID
•ENTITYBANKACCOUNTNUMBER
•ENTITYBANKACCOUNTCURRENCYCODE
•ENTITYBANKBRANCHID
If the currency of the bank account (ENTITYBANKACCOUNTCURRENCYCODE) is not provided, CMM
uses the transaction currency (CURRENCYCODE) instead for the search.
This can be disabled by setting the configuration parameter 'Default bank account currency to
transaction currency during routing' to False.
If Bank Sort Code (ENTITYBANKBRANCHID) is not provided, the system ignores it in the search.
CUSTOMERTRANS
ACTIONREFEREN
CEID
The customer’s reference
ID for the transaction.
Note: This ID does not
have to be unique.
Text
(30 characters maximum)
None No
FINANCIALCHAR
GEALLOCATION
The financial allocation
charge of the transaction.
One of the following
values:
• 1 if the financial
charges are being
shared equally
between the sender
and receiver
• 2 if the financial
charges are being paid
entirely by the sender
• 3 if the financial
charges are being paid
entirely by the
receiver
None No
HANDLINGINSTR
UCTIONCODE
The ID of the transaction’s
handling instructions.
Text
(5 characters maximum)
None No
PERSONALIDENT
IFICATIONNUMB
ER
The personal identification
number of the
transaction.
Text
(255 characters
maximum)
None No
RETRIEVALLOCA
TIONID
The ID of the transaction’s
pickup location.
Note: This attribute is
used in eastern
Europe.
Text
(255 characters
maximum)
None No
TRANSACTIONTY
PECODE
The ID of the transaction’s
type.
Note: This is country and
bank specific.
Text
(10 characters maximum)
None No
Tab le n otes :
Only supply a value in this column if you have set SUPPLYPAYINGACCOUNT to Y.
Only supply a value in this column if you have set SUPPLYCPTYDETAILS to Y.
Column Description Value Constraints Req.
WebSuite Cash Management Connectivity Guide 157
If it is provided, this code could be ignored by setting the configuration parameter 'Use Bank Branch
ID (sort code) during routing' to False.
The search is:
•Done first with the bank account ENTITYBANKACCOUNTNUMBER as BBAN (Primary Account
Number),
•Then, should the first search be unsuccessful, a second search is done with the bank account
number (ENTITYBANKACCOUNTNUMBER) considered as IBAN (Secondary Account Number).
The search is unsuccessful if none or multiple account(s) are found.
Counterparty bank account checks
During Import (before routing)
If SUPPLYCPTYDETAILS is Y, the system validates the format of primary and secondary counterparty
bank account numbers (COUNTERPARTYBANKACCOUNTNUMBER,
CPTYSECONDARYACCOUNTNUMBER):
•Both account numbers cannot be identical.
•If both accounts are provided, the primary account must be a BBAN number and the secondary
account has to be an IBAN (use CPTYPRIMARYACCOUNTNUMBERTYPE and
CPTYSECONDARYACCOUNTNUMBERTYPE to specify the types).
•If the primary account only is provided, the number can be in IBAN or BBAN format. If the
format is not specified (COUNTERPARTYBANKACCOUNTNUMBER) or is specified as BBAN
(CPTYPRIMARYACCOUNTNUMBERTYPE), the systen still tries to convert it (runs IBAN country
specific checks through it) to IBAN before accepting it as BBAN. If the bank account number
complies with the country's specific checks, it is considered as IBAN.
•If the secondary account number only is provided (CPTYSECONDARYACCOUNTNUMBER), it must
be in IBAN format (set CPTYSECONDARYACCOUNTNUMBERTYPE accordingly).
In all cases, both IBAN and BBAN account formats are validated against country rules using the
country code if provided (COUNTERPARTYBANKACCOUNTCOUNTRYCODE).
If the configuration parameter "AllowTransactionsOnClosedCounterpartyAccounts" is set to False,
the system checks that the specified account is Open and disallows closed account selection.
The system then tries to find the counterparty bank account using:
•COUNTERPARTYID
Total specific: If Counterparty (COUNTERPARTYID) is not specified, the system tries to deduce it
from the counterparty account numbers (COUNTERPARTYBANKACCOUNTNUMBER and
CPTYSECONDARYACCOUNTNUMBER) and the counterparty bank account currency.
•COUNTERPARTYBANKCODE
•COUNTERPARTYBANKACCOUNTNUMBER
•COUNTERPARTYBANKACCOUNTCURRENCYCODE
If Counterparty Bank (COUNTERPARTYBANKCODE) is not provided, it is ignored.
If Counterparty Bank Account Currency Code (COUNTERPARTYBANKACCOUNTCURRENCYCODE) is
not provided, the transaction currency is used instead.
If the search is not successful, the process is not interrupted as the Routing process will try to
complete the payment using the configurable routing rules. An unsuccessful search means that
either the account was not found using the search criteria, or multiple accounts were found.
During routing
158 © Wall Street Systems IPH AB - Confidential
To search for a valid counterparty account, the system uses:
•COUNTERPARTYID
•COUNTERPARTYBANKACCOUNTNUMBER
•CPTYPRIMARYACCOUNTNUMBERTYPE
•COUNTERPARTYBANKACCOUNTCURRENCYCODE
If the counterparty bank account bank currency (COUNTERPARTYBANKACCOUNTCURRENCYCODE)
is not provided, the system uses the transaction currency instead. This can be disabled by setting
the configuration parameter "Default bank account currency to transaction currency during routing"
to False.
Only Open accounts are used.
Other Checks:
•If payment method (PAYMENTMETHOD) is ITC, Paying Account has to be internal,
•If payment method (PAYMENTMETHOD) is DD and Transaction Type Code
(TRANSACTIONTYPECODE) is "Direct Debit", paying and payee country codes must be the same.
A.3.2.2.2 Remittance details (line 4)
Line 4 contains the individual remittance details:
(Include one line 4 for each remittance detail in the file.)
The following table defines the components of this line:
No. Component Description Value Constraints Req. Srce
4a Remittance
indicator
An indicator that
the line contains
file layout
information.
Remittance •None Yes
4b Remittance
handling code
A value that
indicates how
remittance details
are handled in the
file.
One of the following values:
•S if the remittance details
are handled in a single
line
•M if the remittance details
are handled in multiple
lines
Note: If you enter M, provide
one remittance line
detail for the invoice
amount and one for
the actual amount
paid.
•None Yes
4c Document type
code
The remittance
detail’s type.
One of the following values:
•100 if the remittance
detail is an invoice
•101 if the remittance
detail is a credit
•103 if the remittance
detail is a debit
•None Yes
WebSuite Cash Management Connectivity Guide 159
A.3.3 Wallstreet flat file accounts receivable
The following is an example accounts receivable flat file (with tabs as the delimiters):
This file contains three lines grouped into two sections:
4d Document
message
number
The remittance
detail’s invoice,
credit note, or
debit note.
Text (35 characters
maximum)
•None Yes
4e Document date The remittance
detail’s date.
Date •None Yes
4f Document
amount type
The type of the
remittance detail’s
amount.
One of the following values:
•Due if the remittance
handling code is set to S
•201 if the remittance
detail’s amount is paid
•202 if the remittance
detail’s amount is
remitted
•203 if the remittance
detail’s amount is
discontinued
•204 if the remittance
detail’s amount is
payable
•None No
4g Document
Amount
The remittance
detail’s amount.
Floating point number •None Yes
4h Document
currency code
The remittance
detail’s currency.
Currency ID •None No
4i Amount paid The actual amount
paid.
Floating point number •Can only be
provided if the
remittance
handling code
is Y.
No
4j Amount
Discounted
The amount
discounted.
Floating point number •Can only be
provided if the
remittance
handling code
is Y.
No
No. Component Description Value Constraints Req. Srce
Line Name Description
Header
1File information General information on the file.
160 © Wall Street Systems IPH AB - Confidential
A.3.3.1 Wallstreet flat file accounts receivable
The header section of an accounts receivable flat file consists of two lines:
•File information (line 1)
•File layout (line 2).
A.3.3.1.1 File information (line 1)
Line 1 contains general information on the file:
The following table defines the components of this line:
Note: Line 1 is not required for accounts receivable flat files.
A.3.3.1.2 File layout (line 2)
Line 2 defines columns included in the file:
2 File layout The columns included in the file (in the order in which they display in
line 3).
Body
3 Transaction details The individual transactions.
Note: Include one line 3 for each transaction in the file.
Line Name Description
No. Component Description Value Constraints Req. Source
1a File
information
indicator
An indicator that the line contains
general file information.
HEADER •None Yes User
1b File ID A unique identifier for the file.
Note: CMMchecks the value of this
component before loading the
file to prevent accidentally
reimporting the same file
twice.
Text (50
characters
maximum)
•None Yes User
1c Control total The sum of all transaction amounts in
the file.
Note: If you supply a value, CMM
does not sum the amounts of
all transactions in the file to
confirm completeness before
importing.
Floating point
number
•None No User
1d Type indicator The file type indicator. AR •None Yes User
WebSuite Cash Management Connectivity Guide 161
The following table defines the components of this line:
A.3.3.2 Wallstreet flat file accounts receivable body
The body section of an accounts receivable flat file consists of one line:
•Transaction details (line 3).
A.3.3.2.1 Transaction details (line 3)
Line 3 contains the individual transactions. (Include one line 3 for each transaction in the file.)
The column values in line 3 must display in the same order as the columns in line 2 and must be
delimited with tabs or commas.
The following are columns supported by the Wallstreet standard accounts receivable flat file format:
No. Component Description Value Constraints Req. Source
2a File layout
indicator
An indicator that the line
contains file layout information.
FORMAT1 • None Yes User
2b Columns A list (tab- or comma-delimited)
of all of the columns that appear
in the file.
This list identifies:
•The columns you are
providing in the import file
• The order of the columns.
The valid columns are
documented in A.3.3.2
Wallstreet flat file accounts
receivable body on page 161.
Text •None Yes User
Column Description Value Constraints Req. Srce
Basic
CURRENCYCODE The transaction’s
currency.
Currency ID •None Yes User
AMOUNT The transaction’s
absolute value (in
the transaction’s
currency).
Floating point
number
• None Yes User
RECEIPTSTATUSCODE A value that
indicates whether
the transaction is
actual activity or
forecasted activity.
Note: CMM 7.1
introduced
forecasts as a
replacement
for
forecasted
transactions.
One of the
following:
•A if the
transaction is
actual activity
•F if the
transaction is
forecasted
activity
Note: A is the
default if you
do not
specify a
value.
•None No User
162 © Wall Street Systems IPH AB - Confidential
CASHFLOWTYPE The transaction’s
cash flow type.
By assigning cash
flow types to
transactions and
other activity in
CMM, you can
categorize this
activity for a variety
of purposes. In
particular, you can
run several reports
in the module that
display activity by
cash flow type.
Note: In CMM, a
cash flow
type is an
instrument
type with the
Status
attribute set
to
Enabled.
Instrument type ID
Note: COMMR
(Commercial
Receipt) is
the default if
you do not
specify a
value.
•None No User
RECEIPTMETHOD The transaction’s
payment method.
A transaction’s
payment method
defines how the
transaction is to be
paid when it is
released (for
example, by EFT or
by check).
Payment method ID •None Yes User
TRANSACTIONDATE The transaction’s
transaction date.
Date
Note: The current
date is the
default if you
do not
specify a
value.
•None No User
VALUEDATE The transaction’s
value date.
Date
Note: The
transaction
date is the
default if you
do not
specify a
value.
•None No User
DESCRIPTION/REFERE
NCE
A relevant
description of or
other information
pertaining to the
transaction.
Text (2,000
characters
maximum)
•None No User
Party
ENTITYID The transaction’s
party.
Entity ID • None Yes User
Column Description Value Constraints Req. Srce
WebSuite Cash Management Connectivity Guide 163
SUPPLYRECEIVINGACC
OUNT
A value that
indicates whether
you are supplying
party bank account
details.
One of the following
values:
•Y if you are
supplying party
bank account
details
•N if you are not
supplying party
bank account
details
Note: N is the
default if you
do not
specify a
value.
•None No User
Party bank
ENTITYBANKBRANCHI
D [1]
The branch ID of
the transaction’s
party bank (as
assigned by an
agency).
Text (15 characters
maximum)
•None No User
Party bank account
ENTITYBANKACCOUNT
NUMBER [1]
The transaction’s
party bank account.
Note: If you do not
provide a
party bank
account,
CMM can
select one
using routing
rules.
Entity bank account
primary number
• Must be held
by the
transaction’s
party
No User
BANKACCOUNTENTI
TYID [1]
The owner of the
transaction’s party
bank account.
Entity ID •None No User
ENTITYBANKACCOUNT
CURRENCYCODE [1]
The currency of the
transaction’s party
bank account.
Currency ID •None No User
Counterparty
COUNTERPARTYID The transaction’s
counterparty.
Entity ID
Counterparty ID
•None No User
Other
CUSTOMERREFERENCEN
UMBER
The transaction’s
customer reference
ID.
Text (50 characters
maximum)
•None No User
Column Description Value Constraints Req. Srce
164 © Wall Street Systems IPH AB - Confidential
A.3.4 Wallstreet flat file direct debit
The following is an example direct debit flat file (with tabs as the delimiters):
This file contains four lines grouped into two sections:
DELETEEXISTINGREFE
RENCE
A value that
indicates whether
CMM should delete
existing receipts for
the current invoice.
One of the following
values:
•Y if CMM should
deleting existing
receipts
•N if CMM should
not delete
existing receipts
Note: N is the
default if you
do not
specify a
value.
•None No User
HANDLINGINSTRUCTIO
NCODE
The ID of the
transaction’s
handling
instructions.
Text (5 characters
maximum)
•None No User
INVOICENUMBER The transaction’s
invoice number.
Text (20 characters
maximum)
•Must be
provided if
existing
references
are deleted.
No User
Tab le n otes :
1. Only supply a value in this column if you have set SUPPLYPAYINGACCOUNT to Y.
Column Description Value Constraints Req. Srce
Line Name Description
Header
1File information General information on the file.
2 File layout The columns included in the file (in the order in which they display in
line 3).
Body
3 Transaction details The individual transactions.
Note: Include one line 3 for each transaction in the file.
4Remittance details The individual remittance details.
Note: Include one line 4 for each remittance detail in the file.
WebSuite Cash Management Connectivity Guide 165
A.3.4.1 Wallstreet flat file direct debit header
The header section of a direct debit flat file consists of two lines:
•File information (line 1)
•File layout (line 2).
A.3.4.1.1 File information (line 1)
Line 1 contains general information on the file:
The following table defines the components of this line:
A.3.4.1.2 File layout (line 2)
Line 2 defines columns included in the file:
The following table defines the components of this line:
No. Component Description Value Constraints Req. Source
1a File
information
indicator
An indicator that the line contains
general file information.
HEADER •None Yes User
1b File ID A unique identifier for the file.
Note: CMMchecks the value of this
component before loading the
file to prevent accidentally
reimporting the same file
twice.
Text (50
characters
maximum)
•None Yes User
1c Control total The sum of all transaction amounts in
the file.
Note: If you supply a value, CMM
does not sum the amounts of
all transactions in the file to
confirm completeness before
importing.
Floating point
number
•None No User
1d Type indicator The file type indicator. DD •None Yes User
1e User ID Your user ID. Text •None No User
No. Component Description Value Constraints Req. Source
2a File layout
indicator
An indicator that the line
contains file layout information.
FORMAT1 • None Yes User
166 © Wall Street Systems IPH AB - Confidential
Note: Do not place a tab, comma, space, or other character between the file layout indicator
(component 2a) and the columns (component 2b).
A.3.4.2 Wallstreet flat file direct debit body
The body section of a direct debit flat file consists of two lines:
•Transaction details (line 3)
•Remittance details (line 4).
A.3.4.2.1 Transaction details (line 3)
Line 3 contains the individual transactions. (Include one line 3 for each transaction in the file.)
The column values in line 3 must display in the same order as the columns in line 2 and must be
delimited with tabs or commas.
The following are columns supported by the Wallstreet standard direct debit flat file format:
2b Columns A list (tab- or comma-delimited)
of all of the columns that appear
in the file.
This list identifies:
•The columns you are
providing in the import file
• The order of the columns.
The valid columns are
documented in A.3.4.2
Wallstreet flat file direct debit
body on page 166.
Text •None Yes User
No. Component Description Value Constraints Req. Source
Column Description Value Constraint
sReq. Srce
Basic
CURRENCYCODE The transaction’s
currency.
Currency ID •None Yes User
AMOUNT The transaction’s
absolute value (in the
transaction’s
currency).
Floating point number •None Yes User
PAYMENTSTATUSCODE A value that indicates
whether the
transaction is actual
activity or forecasted
activity.
Note: CMM 7.1
introduced
forecasts as a
replacement for
forecasted
transactions.
One of the following:
•A if the transaction
is actual activity
•F if the transaction
is forecasted
activity
Note: A is the default
if you do not
specify a value.
•None No User
WebSuite Cash Management Connectivity Guide 167
CASHFLOWTYPE The transaction’s cash
flow type.
By assigning cash flow
types to transactions
and other activity in
CMM, you can
categorize this activity
for a variety of
purposes. In
particular, you can run
several reports in the
module that display
activity by cash flow
type.
Note: In CMM, a cash
flow type is an
instrument type
with the Status
attribute set to
Enabled.
Instrument type ID
Note: COMMP
(Commercial
Payment) is
the default if
you do not
specify a value.
•None No User
PAYMENTMETHOD The transaction’s
payment method.
A transaction’s
payment method
defines how the
transaction is to be
paid when it is
released (for example,
by EFT or by check).
Payment method ID •None User
TRANSACTIONDATE The transaction’s
transaction date.
Date
Note: The current
date is the
default if you do
not specify a
value.
•None No User
VALUEDATE The transaction’s
value date.
Date
Note: The transaction
date is the
default if you do
not specify a
value.
•None No User
CREATIONDATE The transaction’s
creation date.
Date
Note: The transaction
date is the
default if you do
not specify a
value.
•None No User
DESCRIPTION/REFER
ENCE
A relevant description
of or other
information pertaining
to the transaction.
Text (2,000 characters
maximum)
•None No User
Entity
ENTITYID The transaction’s
party.
Entity ID •None Yes User
Column Description Value Constraint
sReq. Srce
168 © Wall Street Systems IPH AB - Confidential
SUPPLYPAYINGACCOU
NT
A value that indicates
whether you are
supplying party bank
account details.
One of the following
values:
•Y if you are
supplying party
bank account
details
•N if you are not
supplying party
bank account
details
Note: N is the default
if you do not
specify a value.
•None No User
Entity bank
ENTITYBANKBRANC
HID [1]
The branch ID of the
transaction’s party
bank (as assigned by
an agency).
Text (15 characters
maximum)
•None No User
Entity bank account
ENTITYBANKACCOU
NTNUMBER [1]
The transaction’s
party bank account.
Note: If you do not
provide a party
bank account,
CMM can select
one using
routing rules.
Entity bank account
primary number
•Must be
held by
the
transac
tion’s
party
No User
BANKACCOUNTENTIT
YID [1]
The owner of the
transaction’s party
bank account.
Entity ID •None No User
ENTITYBANKACCOU
NTCURRENCYCODE
[1]
The currency of the
transaction’s party
bank account.
Currency ID •None No User
Counterparty
COUNTERPARTYID The transaction’s
counterparty.
Entity ID
Counterparty ID
•None No User
SUPPLYCPTYDETAILS A value that indicates
whether you are
supplying
counterparty details.
One of the following
values:
•Y if you are
supplying
counterparty
details
•N if you are not
supplying
counterparty
details
Note: N is the default
if you do not
specify a value.
•None No User
Column Description Value Constraint
sReq. Srce
WebSuite Cash Management Connectivity Guide 169
COUNTERPARTYNAM
E [2]
The name of the
transaction’s
counterparty.
Text (35 characters
maximum)
•None No User
COUNTERPARTYADDRE
SS1
COUNTERPARTYADDRE
SS2
COUNTERPARTYADDRE
SS3
COUNTERPARTYADDR
ESS4 [2]
The address of the
transaction’s
counterparty.
Text (35 characters
maximum per field)
•None No User
COUNTERPARTYCIT
Y [2]
The city of the
transaction’s
counterparty.
Text (35 characters
maximum)
•None No User
COUNTERPARTYSTAT
E [2]
The state of the
transaction’s
counterparty.
State ID •None No User
COUNTERPARTYCOU
NTRYCODE [2]
The country of the
transaction’s
counterparty.
Country ID •None No User
COUNTERPARTYZIP
[2]
The postal or ZIP code
of the transaction’s
counterparty.
Text (10 characters
maximum)
•None No User
Counterparty bank
COUNTERPARTYBANK
CODE [2]
The SWIFT or ABA
code of the
transaction’s
counterparty bank.
Text (20 characters
maximum)
•None No User
COUNTERPARTYBAN
KCODETYPE [2]
The SWIFT or
ABA code type of
transaction’s
counterparty bank.
One of the following:
•S if the code type
is SWIFT
•A if the code type
is ABA
•None No User
COUNTERPARTYBANK
BRANCHID [2]
The branch ID of the
transaction’s
counterparty bank (as
assigned by an
agency).
Text (15 characters
maximum)
•None No User
COUNTERPARTYBANKN
AME
The name of the
transaction’s
counterparty bank.
Text (35 characters
maximum)
•None No User
COUNTERPARTYBANKA
DDRESS
COUNTERPARTYBANKA
DDRESS2
The address of the
transaction’s
counterparty bank.
Text (35 characters
maximum per field)
•None No User
COUNTERPARTYBANKC
ITY
The city of the
transaction’s
counterparty bank.
Text (35 characters
maximum)
•None No User
Column Description Value Constraint
sReq. Srce
170 © Wall Street Systems IPH AB - Confidential
COUNTERPARTYBANKS
TATE
The state of the
transaction’s
counterparty bank.
State ID •None No User
COUNTERPARTYBANKZ
IP
The postal or ZIP code
of the transaction’s
counterparty bank.
Text (10 characters
maximum)
•None No User
Counterparty bank account
COUNTERPARTYBAN
KACCOUNTNUMBER
[2]
The primary number
(usually, BBAN) of the
transaction’s
counterparty bank
account.
Text (60 characters
maximum)
•Must
validate
against
the
BBAN
rules of
the
bank
account
’s
country
No User
CPTYPRIMARYACCOU
NTNUMBERTYPE [2]
The primary number
type of the
transaction’s
counterparty bank
account.
BBAN •None No User
CPTYSECONDARYAC
COUNTNUMBER [2]
The secondary
number (usually
IBAN) of the
transaction’s
counterparty bank
account.
Text (60 characters
maximum)
•Must
validate
against
the
IBAN ru
les
No User
CPTYSECONDARYACC
OUNTNUMBERTYPE [2]
The secondary
number type of the
transaction’s
counterparty bank
account.
IBAN •None No User
COUNTERPARTYBANKA
CCOUNTCOUNTRYCODE
The country of the
transaction’s
counterparty bank.
Country ID •None No User
COUNTERPARTYBANKC
COUNTCURRENCYCODE
The currency of the
transaction’s
counterparty bank
account.
Currency ID •None No User
Intermediary bank
Intermediary bank account
INTERMEDIARYBANKA
CCOUNTNUMBER
The primary number
(usually BBAN) of the
transaction’s
intermediary bank
account.
Text (60 characters
maximum)
•Must
validate
against
the
BBAN
rules of
the
bank
account
’s
country
No User
Column Description Value Constraint
sReq. Srce
WebSuite Cash Management Connectivity Guide 171
Aggregation
AGGREGATEDETAILCO
DE
A value that indicates
whether the
transaction is an
aggregate or detail.
One of the following
values:
•A if the transaction
is an aggregate
•D if the transaction
is a detail
•None No User
AGGREGATEREFERENC
EID
If the transaction is an
aggregate, the
transaction’s unique
reference number.
If the transaction is a
detail, the reference
number of the
aggregate transaction
in which the detail
transaction is
contained.
Text (50 characters
maximum)
•None No User
Regulatory reporting
REGULATORYCODE The transaction’s
regulatory code.
Regulatory code •None No User
REGULATORYQUALIFI
ER
The qualifier of the
transaction’s
regulatory code.
Text (50 characters
maximum)
•None No User
REGULATORYAGENCY The agency of the
transaction’s
regulatory code.
Text (50 characters
maximum)
•Must be
provide
d if the
transac
tion’s
regulat
ory
code is
provide
d
No User
REGULATORYDESCRIP
TION
A description of the
transaction’s
regulatory code.
Text (50 characters
maximum)
•None No User
Other
BANKINSTRUCTIONS Instructions or other
messages to the bank.
Text (100 characters
maximum)
•None No User
BANKPREAUTHORIZAT
IONID
The transaction’s
pre-authorization ID.
Text (255 characters
maximum)
•None No User
BANKPREAUTHORIZAT
IONSTATUS
The transaction’s
pre-authorization
status.
One of the following:
• AUTHORIZED
• UNAUTHORIZED
•None No User
COUNTERPARTYMESSA
GE
Instructions or other
messages to the
transaction’s
counterparty.
Text (100 characters
maximum)
•None No User
Column Description Value Constraint
sReq. Srce
172 © Wall Street Systems IPH AB - Confidential
A.3.4.2.2 Remittance details (line 4)
Line 4 contains the individual remittance details:
(Include one line 4 for each remittance detail in the file.)
The following table defines the components of this line:
CUSTOMERBATCHREFE
RENCEID
The customer’s batch
reference ID for the
transaction.
Text (30 characters
maximum)
•None No User
CUSTOMERREFERENCE
NUMBER
The transaction’s
customer reference
ID.
Text (50 characters
maximum)
•None No User
CUSTOMERTRANSACTI
ONREFERENCEID
The customer’s
reference ID for the
transaction.
Note: This ID does not
have to be
unique.
Text (30 characters
maximum)
•None No User
HANDLINGINSTRUCTI
ONCODE
The ID of the
transaction’s handling
instructions.
Text (5 characters
maximum)
•None No User
TRANSACTIONTYPECO
DE
The ID of the
transaction’s type.
Note: This is country
and bank
specific.
Text (10 characters
maximum)
•None No User
Tab le n otes :
1. Only supply a value in this column if you have set SUPPLYPAYINGACCOUNT to Y.
2. Only supply a value in this column if you have set SUPPLYCPTYDETAILS to Y.
Column Description Value Constraint
sReq. Srce
No. Component Description Value Constraints Req. Source
4a Remittance
indicator
An indicator that
the line contains
file layout
information.
Remittance • None Yes User
WebSuite Cash Management Connectivity Guide 173
4b Remittance
handling code
A value that
indicates how
remittance details
are handled in the
file.
One of the following
values:
•S if the remittance
details are handled in
a single line
•M if the remittance
details are handled in
multiple lines
Note: If you enter M,
provide one
remittance line
detail for the
invoice amount and
one for the actual
amount paid.
•None Yes User
4c Document type
code
The remittance
detail’s type.
One of the following
values:
•100 if the remittance
detail is an invoice
•101 if the remittance
detail is a credit
•103 if the remittance
detail is a debit
• None Yes User
4d Document
message
number
The remittance
detail’s invoice,
credit note, or
debit note.
Text (35 characters
maximum)
•None Yes User
4e Document date The remittance
detail’s date.
Date •None No User
4f Document
amount type
The type of the
remittance detail’s
amount.
One of the following
values:
•Due if the remittance
handling code is set to
S
•201 if the remittance
detail’s amount is paid
•202 if the remittance
detail’s amount is
remitted
•203 if the remittance
detail’s amount is
discontinued
•204 if the remittance
detail’s amount is
payable
•None No User
4g Document
Amount
The remittance
detail’s amount.
Floating point number •None No User
4h Document
currency code
The remittance
detail’s currency.
Currency ID •None No User
No. Component Description Value Constraints Req. Source
174 © Wall Street Systems IPH AB - Confidential
A.3.5 EDIFACT PAYEXT
This section documents the EDIFACT D97A extended payment order (PAYEXT) message file format
that CMM currently supports for accounts payable file imports.
The following table presents the components of the PAYEXT message file format:
4i Amount paid The actual amount
paid.
Floating point number •Can only be
provided if the
remittance
handling code
is Y.
No User
4j Amount
Discounted
The amount
discounted.
Floating point number •Can only be
provided if the
remittance
handling code
is Y.
No User
No. Component Description Value Constraints Req. Source
Level Name Description Required Repetitions
1 UNB Interchange header Yes 1
1UNH Message header Yes 1
1 BGM Beginning of message Yes 1
1BUS Business function No 0 to 1
1 PAI Payment instructions No 0 to 1
1DTM Date/time/period Yes 1 to 4
1 PAYEXT01 Segment group 1 No 0 to 1
2RFF Reference No 0 to 1
2 DTM Date/time/period No 0 to 1
1PAYEXT02 Segment group 2 Yes 1
2 MOA Monetary amount Yes 1
1PAYEXT03 Segment group 3 No 0 to 1
2 FII Financial institution information Yes 1 to 2
2CTA Contact information No 0 to 1
2 COM Communication contact No 0 to 1
1PAYEXT04 Segment group 4 No 0 to 6
2 NAD Name and address Yes 1
2CTA Contact information No 0 to 1
2 COM Communication contact No 0 to 1
1PAYEXT05 Segment group 5 No 0 to 4
2 INP Parties to instruction Yes 1
2FTX Free text No 0 to 1
2 DTM Date/time/period No 0 to 2
1PAYEXT07 Segment group 7 No 0 to 1
WebSuite Cash Management Connectivity Guide 175
Note: CMM does not support segment groups 1 and 5.
For each element, this section documents the following:
A.3.5.1 EDIFACT PAYEXT start of interchange
The start of interchange specifies the start of the interchange. This group is required and can be
repeated once. It contains the following segment:
A.3.5.1.1 UNB segment
The UNB segment starts, identifies, and specifies an interchange.
The following table presents the elements of this segment:
2 PRC Process identification Yes 1
2FTX Fee text No 0 to 5
2 PAYEXT08 Segment group 8 No 0 to 9,999
3DOC Document/message details Yes 1
3 MOA Monetary amount Yes 0 to 5
3DTM Date/time/period Yes 0 to 5
3 RFF Reference Yes 0 to 5
1PAYEXT15 Segment group 15 No 0 to 5
2 AUT Authentication result Yes 1
2DTM Date/time/period No 0 to 1
1 UNT Message trailer Yes 1
1UNZ Interchange trailer Yes 1
Criterion Description
Segment The element’s parent segment.
Sep. The character that separates the element from neighbor elements.
Element The element’s identifier.
Description A brief description of the element.
Req. A flag indicating if the element is required or not.
Used A flag indicating if the element is used by CMM or not.
Format The element’s format. For more information, see A.12.1 EDIFACT Level A character set
on page 302.
Level Name Description Required Repetitions
ID Name Required Repetitions
UNB Interchange header Yes 1
Segment Sep. Element Description Req. Used Format
UNB Segment identifier Yes Yes
176 © Wall Street Systems IPH AB - Confidential
The following is an example of this segment:
UNB+UNOB:2+ENTITY1+CITIGB2L+970115:0920+INTERCHANGEREF++PAYEXT’
S001 Syntax identifier Yes Yes
+ 0001 Syntax identifier [1]YesYesa4
:0002 Syntax version number [2]Yes Yes n1
S002 Interchange sender Yes Yes
+0004 Sender identifier [3]Yes Yes an..35
: 0007 Sender identifier code qualifier No Yes an..4
S003 Interchange recipient Yes No
+ 0010 Recipient identifier Yes No an..35
:0007 Recipient identifier code qualifier Yes No an..4
S004 Date/time of preparation Yes Yes
+0017 Date of preparation [4]Yes Yes n6
: 0019 Time of preparation [5]YesYesn4
+0020 Interchange control reference [6]Yes Yes an..14
S005 Recipient’s reference/password No No
+0022 Recipient’s reference/password Yes No an..14
: 0025 Recipient’s reference/password
qualifier
No No an2
+0026 Application reference [7]No Yes an..14
+ 0029 Processing priority code No No a1
+0031 Acknowledgement request No No n1
+ 0032 Communications agreement identifier No No an..35
+0035 Tes t indicator No Yes n1
’ End of segment marker Yes Yes
Tab le n otes :
1. This element contains a fixed value of UNOB, indicating that the interchange uses the EDIFACT Level A
character set. For more information, see A.12.1 EDIFACT Level A character set on page 302.
2. This element contains a fixed value of 2.
3. This element contains the sender’s EDI organization identifier code as specified in the interchange
agreement. For CMM, this element must contain a valid entity ID from the CMM database or an ID that is
mapped to a valid entity ID from the CMM database.
4. This element contains the date on which the interchange was prepared in YYMMDD format.
5. This element contains the time on which the interchange was prepared in HHMM format.
6. This element contains a unique reference for the interchange, assigned by the sender. This is a sequential
number that is incremented by one for each interchange sent. In a customer payment, this element must
always be identical to element 0020 in the UNZ segment.
7. This element contains the message type. The value of this element is usually PAYEXT, which is identical to
element 0065 in the UNH segment.
Segment Sep. Element Description Req. Used Format
WebSuite Cash Management Connectivity Guide 177
A.3.5.2 EDIFACT PAYEXT start of message
The start of message specifies the start of the message. This group is required and can be repeated
once. It contains the following segment:
The UNH and BGM segments contain data related to the whole message. The BUS, PAI, and DTM
segments contain date related to the payment means, charge allocation, and message creation date
respectively.
A.3.5.2.1 UNH segment
The UNH segment is a service segment that starts and uniquely identifies a message.
The following table presents the elements of this segment:
The following is an example of this segment:
UNH+1+PAYEXT:D:97A:UN:PH0011’
ID Name Required Repetitions
UNH Message header Yes 1
BGM Beginning of message Yes 1
BUS Business function No 1
PAI Payment instructions No 1
DTM Date/time/period Yes 4
Segment Sep. Element Description Req. Used Format
UNH Segment identifier Yes Yes
+0062 Message reference number [1]Yes Yes an..14
S009 Message identifier Yes Yes
+0065 Message type [2]Yes Yes an..6
: 0052 Message version number
[3]
Yes Yes an..3
:0054 Message release number
[4]
Yes Yes an..3
: 0051 Controlling agency [5]YesYesan..2
:0057 Association-assigned code No No an..6
’ End of segment marker Yes Yes
Tab le n otes :
1. This element contains a unique reference for the message, assigned by the sender. The value for element
0062 in this segment must be the same as value for element 0062 in the UNT segment.
2. This element contains the EDIFACT message type defined within the UNH and UNT segments. In an
extended payment order message, the message type must always be PAYEXT.
3. This element identifies the EDIFACT version number. The version of an extended payment order message
must always be D.
4. This element contains the EDIFACT release number. The release number of an extended payment order
message must always be 97A.
5. Because PAYEXT messages are defined by UN/EDIFACT, this element contains the value UN.
178 © Wall Street Systems IPH AB - Confidential
A.3.5.2.2 BGM segment
The BGM segment is used by the sender to uniquely identify the message by using its code type,
number, and—when necessary—function.
The following table presents the elements of this segment:
The following is an example of this segment:
BGM+451+PO176521A’
A.3.5.2.3 BUS segment
The BUS segment is used to:
•Identify the payment as belonging to a particular business function (for example, GDS for
"Goods and Services")
•Indicate if it is domestic or international
•Indicate if it is intercompany and can be routed through in-house bank accounts.
The following table presents the elements of this segment:
Segment Sep. Item Description Req. Used Format
BGM Segment identifier Yes Yes
C002 Document/message name No Yes
+ 1001 Document/message name
(coded) [1]
No Yes an..3
+1004 Document/message number [2]No Yes an..35
+ 1225 Message function (coded) No No an..3
+4343 Response type (coded) No No an..3
’ End of segment marker Yes Yes
Tab le n otes :
1. This element contains the type of document contained within the message, in coded format. The valid value
is 451 for extended payment order.
2. This element contains a reference to the transaction assigned by the sender. For CMM, this element is used
as the customer reference number and must be unique across the whole organization.
Segment Sep. Item Description Req. Used Format
BUS Segment identifier Yes Yes
+C521 Business function [1]No Yes
: 4027 Business function qualifier [2]Yes Yes an..3
:4025 Business function (coded) [3]Yes Yes an..3
: 1131 Code list qualifier No No an..3
:3055 Code list responsible agency
(coded)
No No an..3
: 4022 Business description No No an..70
+3279 Geographic environment (coded) [4]No Yes an..3
+ 4487 Type of financial transaction (coded) No Yes an..3
C551 Bank operation No No
WebSuite Cash Management Connectivity Guide 179
The following is an example of this segment:
BUS+1:GDS+DO+++1’
A.3.5.2.4 PAI segment
The PAI segment specifies the method of payment and the payment channel to be used for the
payment. This segment is not required and can be included once per file.
Note: The absence of this segment means that the payment is to be made via EFT (42).
The following table presents the elements of this segment:
The following is an example of this segment:
+ 4383 Bank operation (coded) No No an..3
+4463 Intercompany payment (coded) [5]Yes Yes an..3
’ End of segment marker Yes Yes
Tab le n otes :
1. This composite element contains the regulatory code information. Elements used to make up the regulatory
code information include 4027, 4025, 1131, 3055, and 4022.
2. This element contains the type of business function.
3. This element contains a code describing the specific business function.
4. This element indicates whether the payment is domestic or international. Acceptable values: DO for
domestic and IN for international. Through CMM’s routing functionality, an international payment can be
routed through a domestic account.
5. This element indicates whether the payment is intercompany and should be routed through in-house bank
accounts or external and should be routed through external bank accounts. If the payment is
intercompany, both payor and payee must be valid entities in CMM and must have in-house bank accounts.
Acceptable values: 1 for intercompany and any value other than 1 for external.
Segment Sep. Item Description Req. Used Format
PAI Segment identifier Yes Yes
C534 Payment instruction details Yes Yes
+ 4439 Payment conditions (coded) No No an..3
:4431 Payment guarantee (coded) No No an..3
: 4461 Payment means (coded) [1]No Yes an..3
:1131 Code list qualifier No No an..3
: 3055 Code list resp. agency
(coded)
No No an..3
:4435 Payment channel (coded) [2]No Yes an..3
’ End of segment marker Yes Yes
Tab le n otes :
1. This element contains the means by which payment or reimbursement is to be made. Acceptable values:
20 for check (US and Canada only) and 42 for payment to bank account (wire transfer). If the payment
method is set to 42, the payment method in CMM is set to EFT. At payment release, CMM determines if the
payment method is a wire transfer or must go through a clearing system if it is domestic.
2. This element contains a fixed value of 6.
Segment Sep. Item Description Req. Used Format
180 © Wall Street Systems IPH AB - Confidential
PAI+::42:::6’
A.3.5.2.5 DTM segment
The DTM segment can be repeated twice to include the value date (203) and transaction date (137)
in CMM.
The following table presents the elements of this segment:
The following is an example of this segment:
DTM+137:20000728:102’
A.3.5.3 EDIFACT PAYEXT segment group 1
Segment group 1 identifies the ACH transaction code. This group is required and can be repeated
once. It contains the following segments:
Note: This group is not supported by CMM.
A.3.5.3.1 RFF segment
The RFF segment identifies the ACH transaction code.
The following table presents the elements of this segment:
Segment Sep. Item Description Req. Used Format
DTM Segment identifier Yes Yes
C507 Date/time/period Yes Yes
+ 2005 Date/time/period qualifier [1]Yes Yes an..3
:2380 Date/time/period [2]No Yes an..35
: 2379 Date/time/period format
qualifier [3]
No Yes an..3
’End of segment marker Yes Yes
Tab le n otes :
1. This element contains the date type. Acceptable values: 137 for message creation date (transaction date in
CMM) and 203 for value date (value date in CMM).
2. This element contains the message creation date or value date and must be in the YYYYMMDD format.
3. This element contains the date format and must always be 102 (for the YYYYMMDD format).
ID Name Required Repetitions
RFF Reference (ACH transaction code) Yes 1
DTM Date/time period Yes 1
Segment Sep. Item Description Req. Used Format
RFF Segment identifier Yes Yes
C506 Reference Yes Yes
+ 1153 Reference qualifier [1]Yes Yes an..3
: 1154 Reference number [2]No Yes an..35
’ End of segment marker Yes Yes
WebSuite Cash Management Connectivity Guide 181
The following is an example of this segment:
RFF+RT:0123’
A.3.5.3.2 DTM segment
The DTM segment can be repeated once to include the value date (203) in CMM.
The following table presents the elements of this segment:
The following is an example of this segment:
DTM+137:20000728:102’
A.3.5.4 EDIFACT PAYEXT segment group 2
Segment group 2 identifies the monetary amount of the payment. This group is required and can be
repeated once. It contains the following segments:
A.3.5.4.1 MOA segment
The MOA segment identifies the original amount requested by the ordering customer to be paid to
the beneficiary’s (or "payee’s") account.
The following table presents the elements of this segment:
Tab le n otes :
1. This element contains the type of reference in coded form. The valid value is RT for payee’s financial
institution transit routing number.
2. This element contains the ACH transaction code (usually four characters) as defined in the country rules.
Its use is dictated by the requirements of individual countries.
Segment Sep. Item Description Req. Used Format
DTM Segment identifier Yes Yes
C507 Date/time/period Yes Yes
+ 2005 Date/time/period qualifier [1]Yes Yes an..3
:2380 Date/time/period [2]No Yes an..35
: 2379 Date/time/period format
qualifier [3]
No Yes an..3
’End of segment marker Yes Yes
Tab le n otes :
1. This element contains the date type. Acceptable value: 203 for order execution date.
2. This element contains the message creation date or value date and must be in the YYYYMMDD format.
3. This element contains the date format and must always be 102 (for the YYYYMMDD format).
Segment Sep. Item Description Req. Used Format
ID Name Required Repetitions
MOA Monetary amount Yes 1
Segment Sep. Item Description Req. Used Format
MOA Segment identifier Yes Yes
C516 Monetary amount Yes Yes
182 © Wall Street Systems IPH AB - Confidential
The following is an example of this segment:
MOA+9:1000.00:EUR’
A.3.5.5 EDIFACT PAYEXT segment group 3
Segment group 3 identifies the financial institutions (including their contact people or departments
and their communication numbers) and accounts involved in the transaction. This group is required
and can be repeated twice. It contains the following segments:
A.3.5.5.1 Entity bank FII segment
The FII segment identifies a specific account and related financial institution involved in the
extended payment order. The first occurrence of this segment identifies the entity’s (ordering
party’s) account information.
Note: If routing is enabled in CMM, this section is ignored and the payment is routed through the
most cost effective bank account.
The following table presents the elements of this segment:
+ 5025 Monetary amount type
qualifier [1]
Yes Yes an..3
:5004 Monetary amount No Yes n..18
: 6345 Currency (coded) [2]YesYesan..3
:6343 Currency qualifier [3]No Yes an..3
’ End of segment marker Yes Yes
Tab le n otes :
1. This element contains the monetary amount type. Acceptable value: 9 for amount due/amount payable.
2. This element must contain a valid ISO 4217 currency code.
3. This element contains the currency qualifier: 11 for payment currency. CMM is only concerned with the
monetary amount (element 5004) and the currency and always assumes the currency is the payment
currency.
Segment Sep. Item Description Req. Used Format
ID Name Required Repetitions
FII Financial institution information Yes 1
CTA Contact information No 1
COM Communication contact No 1
Segment Sep. Item Description Req. Used Format
FII Segment identifier Yes Yes
+ 3035 Party qualifier [1]YesYes
C078 Account identification No Yes an..35
+ 3194 Account holder number [2]No Yes an..35
: 3192 Account holder name [3]No Yes an..35
: 3192 Account holder name [3]No Yes an..35
: 6345 Currency (coded) [4]NoYesan..3
WebSuite Cash Management Connectivity Guide 183
Table notes:
1. This element contains the function of the party identified. Acceptable value: OR for ordered bank.
2. This element contains the number of the account that is to be debited to effect the payment.
3. This element contains the name of the account holder.
4. This element must contain a valid ISO 4217 currency code.
5. This composite element contains the ordered bank.
6. This element must contain a valid ISO bank identifier code.
7. This element must contain 25 (bank identification).
8. This element contains the bank name.
9. This element contains the bank city.
10. This element contains the bank country.
The following is an example of this segment:
FII+OR+999888333:::EUR+3000400813:25:108::::BANQUE NATIONALE DE PARIS:PARIS+FR’
A.3.5.5.2 Target bank FII segment
The FII segment identifies a specific account and related financial institution involved in the
extended payment order. The second occurrence identifies the beneficiary’s bank and account. The
information from this segment (or the lack of) can sometimes result in the payment not being
processed by the sending bank. Therefore, it is recommended to send as much information as
possible in this segment.
The following table presents the elements of this segment:
C088 Institution identification [5]NoYesan..35
+ 3433 Institution name identifier [6]No Yes an..11
: 1131 Code list qualifier [7]NoYesan..3
: 3055 Code list rsp. agency (coded) No No an..3
: 3434 Institution branch number No No an..17
: 1131 Code list qualifier No No an..3
: 3055 Code list rsp. agency (coded) No No an..3
: 3432 Institution name [8]NoYesan..70
: 3436 Institution branch place [9]No Yes an..70
+ 3207 Country (coded) [10]NoYesan..3
’ End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
FII Segment identifier Yes Yes
+3035 Party qualifier [1]Yes Yes
C078 Account identification No Yes an..35
+3194 Account holder number [2]No Yes an..35
: 3192 Account holder name [3]NoYesan..35
Segment Sep. Item Description Req. Used Format
184 © Wall Street Systems IPH AB - Confidential
Table notes:
1. This element contains the function of the party identified. Acceptable value: BF for beneficiary
bank.
2. This element contains the number of the account that is to be debited to effect the payment.
3. This element contains the name of the account holder.
4. This element must contain a valid ISO 4217 currency code.
5. This composite element contains the beneficiary’s bank. Certain countries and banks require
different beneficiary information for processing payments, and this validation exists within CMM.
For example, there are certain countries (for example, Italy) that require the institution name
(element 3436) for the payment to be processed. If certain information, such as the institution
name, exists in the AP file generation system that is being used, Wallstreet recommends that
this information be provided in the file for CMM purposes.
6. This element must contain a valid eight- or eleven-digit SWIFT code.
7. This element must contain 25 (bank identification).
8. This element must contain 5 (BIC).
9. If an eight-digit SWIFT code is provided in element 3433, this element is required for processing
the payment.
10. If an eight-digit SWIFT code is provided in element 3433, this element is required for processing
the payment. In addition, certain countries require this information be provided.
11. If an eight-digit SWIFT code is provided in element 3433, this element is required for processing
the payment. In addition, certain countries require this information be provided.
12. This element must contain a valid ISO two-character alphabetic country code. This element is
required as it determines routing that takes place in CMM.
The following is an example of this segment:
FII+OR+999888333:::EUR+3000400813:25:108::::BANQUE NATIONALE DE PARIS:PARIS+FR’
A.3.5.5.3 CTA segment
The CTA segment identifies the contact person at either of the financial institutions.
:3192 Account holder name [3]No Yes an..35
: 6345 Currency (coded) [4]NoYesan..3
C088 Institution identification [5]No Yes an..35
+ 3433 Institution name identifier [6]No Yes an..11
:1131 Code list qualifier [7]No Yes an..3
: 3055 Code list rsp. agency (coded)
[8]
No No an..3
:3434 Institution branch number [9]No No an..17
: 1131 Code list qualifier No No an..3
:3055 Code list rsp. agency (coded) No No an..3
: 3432 Institution name [10]NoYesan..70
:3436 Institution branch place [11]No Yes an..70
+ 3207 Country (coded) [12]NoYesan..3
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
WebSuite Cash Management Connectivity Guide 185
The following table presents the elements of this segment:
Table notes:
1. This element must contain IC (information contact).
2. This element contains the internal identification code.
3. This element contains the department or person within an organizational entity.
The following is an example of this segment:
CTA+IC+:T Smith’
A.3.5.5.4 COM segment
The COM segment provides the communication details necessary for sending printed information to
the financial institutions. This segment is not required and can be included once per file.
The following table presents the elements of this segment:
Table notes:
1. This element contains the communication number.
2. This element contains the communication channel. Acceptable values: MA for mail, TM for
telemail, FX for facsimile, and EM for e-mail.
A.3.5.6 EDIFACT PAYEXT segment group 4
Segment group 4 identifies the parties involved in the extended payment order by function as well
as by identifier or by name and address. This group is not required and can be repeated six times. It
contains the following segments:
Segment Sep. Item Description Req. Used Format
CTA Segment identifier Yes Yes
+3139 Contact function (coded) [1]No Yes an..3
+ C056 Department or employee details No Yes
:3413 Department or employee
identifier [2]
No Yes an..17
: 3412 Department or employee [3]No Yes an..35
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
COM Segment identifier Yes Yes
C076 Communication contact Yes Yes
+ 3148 Communication number [1] Yes Yes an..512
:3155 Communication channel qualifier
[2]
Yes Yes an..3
’ End of segment marker Yes Yes
ID Name Required Repetitions
NAD Payee name and address Yes 1
CTA Payee contact information No 1
186 © Wall Street Systems IPH AB - Confidential
A.3.5.6.1 Payee NAD segment
The NAD segment identifies a specific party involved in the extended payment order. The first
occurrence of this segment identifies the payee.
The following table presents the elements of this segment:
COM Payee communication contact No 1
NAD Payor name and address Yes 1
CTA Payor contact information No 1
COM Payor communication contact No 1
Segment Sep. Item Description Req. Used Format
NAD Segment identifier Yes Yes
+3035 Party qualifier [1]Yes Yes an..3
C082 Party identification details No Yes
+3039 Party identification [2]Yes Yes an..35
: 1131 Code list qualifier No No an..3
:3055 Code list resp. agency (coded) No No an..3
C058 Name and address [3]NoYes
+3124 Name and address line Yes Yes an..35
: 3124 Name and address line No Yes an..35
:3124 Name and address line No Yes an..35
: 3124 Name and address line No Yes an..35
:3124 Name and address line No Yes an..35
C080 Party name [4]NoYes
+3036 Party name Yes Yes an..35
: 3036 Party name No Yes an..35
:3036 Party name No Yes an..35
: 3036 Party name No Yes an..35
:3036 Party name No Yes an..35
C059 Street [5]NoYes
+3042 Street and number/PO box Yes Yes an..35
: 3042 Street and number/PO box No Yes an..35
:3042 Street and number/PO box No Yes an..35
: 3042 Street and number/PO box No Yes an..35
+3164 City name No Yes an..35
+ 3229 Country subentity identifier No Yes an..9
+3251 Postal code No Yes an..9
+ 3207 Country (coded) [6]NoYesan..3
ID Name Required Repetitions
WebSuite Cash Management Connectivity Guide 187
Table notes:
1. This element contains the function of the party identified. Acceptable value: PE for payee.
2. If the payment is intercompany, this element must contain an entity ID stored in CMM.
3. For proper handling in CMM, use composite elements C080 and C059 rather than C058.
4. If the payment method is check, this composite element is required.
5. If the payment method is check, this composite element is required.
6. This element must contain a valid ISO country code.
The following is an example of this segment:
NAD+PE+88889999:160:92++PAYEE+123 MAIN STREET+NEW YORK+NY+82100+US’
A.3.5.6.2 Payee CTA segment
The payee CTA segment identifies the contact person for the payee.
The following table presents the elements of this segment:
Table notes:
1. This element must contain IC (information contact).
2. This element contains the internal identification code.
3. This element contains the department or person within an organizational entity.
The following is an example of this segment:
CTA+IC+:T Smith’
A.3.5.6.3 Payee COM segment
The payee COM segment provides the communication details necessary for sending printed
information to the payee.
The following table presents the elements of this segment:
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
CTA Segment identifier Yes Yes
+3139 Contact function (coded) [1]No Yes an..3
+ C056 Department or employee details No Yes
:3413 Department or employee
identifier [2]
No Yes an..17
: 3412 Department or employee [3]No Yes an..35
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
COM Segment identifier Yes Yes
C076 Communication contact Yes Yes
+ 3148 Communication number [1] Yes Yes an..512
Segment Sep. Item Description Req. Used Format
188 © Wall Street Systems IPH AB - Confidential
Table notes:
1. This element contains the communication number.
2. This element contains the communication channel. Acceptable values: MA for mail, TM for
telemail, FX for facsimile, and EM for e-mail.
A.3.5.6.4 Payor NAD segment
The NAD segment identifies a specific party involved in the extended payment order. The first
occurrence of this segment identifies the payor.
The following table presents the elements of this segment:
:3155 Communication channel qualifier
[2]
Yes Yes an..3
’ End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
NAD Segment identifier Yes Yes
+3035 Party qualifier [1]Yes Yes an..3
C082 Party identification details No Yes
+3039 Party identification [2]Yes Yes an..35
: 1131 Code list qualifier No No an..3
:3055 Code list resp. agency (coded) No No an..3
C058 Name and address [3]NoYes
+3124 Name and address line Yes Yes an..35
: 3124 Name and address line No Yes an..35
:3124 Name and address line No Yes an..35
: 3124 Name and address line No Yes an..35
:3124 Name and address line No Yes an..35
C080 Party name [4]NoYes
+3036 Party name Yes Yes an..35
: 3036 Party name No Yes an..35
:3036 Party name No Yes an..35
: 3036 Party name No Yes an..35
:3036 Party name No Yes an..35
C059 Street [5]NoYes
+3042 Street and number/PO box Yes Yes an..35
: 3042 Street and number/PO box No Yes an..35
:3042 Street and number/PO box No Yes an..35
: 3042 Street and number/PO box No Yes an..35
+3164 City name No Yes an..35
Segment Sep. Item Description Req. Used Format
WebSuite Cash Management Connectivity Guide 189
Table notes:
1. This element contains the function of the party identified. Acceptable value: PR for payor.
2. If the payment is intercompany, this element must contain an entity ID stored in CMM.
3. For proper handling in CMM, use composite elements C080 and C059 rather than C058.
4. If the payment method is check, this composite element is required.
5. If the payment method is check, this composite element is required.
6. This element must contain a valid ISO country code.
The following is an example of this segment:
NAD+PR+99998888:160:92++PAYEE+123 MAIN STREET+CHICAGO+IL+58018+US’
A.3.5.6.5 Payor CTA segment
The payor CTA segment identifies the contact person for the payor.
The following table presents the elements of this segment:
Table notes:
1. This element must contain IC (information contact).
2. This element contains the internal identification code.
3. This element contains the department or person within an organizational entity.
The following is an example of this segment:
CTA+IC+:T Smith’
A.3.5.6.6 Payor COM segment
The payor COM segment provides the communication details necessary for sending printed
information to the payor.
+ 3229 Country subentity identifier No Yes an..9
+3251 Postal code No Yes an..9
+ 3207 Country (coded) [6]NoYesan..3
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
CTA Segment identifier Yes Yes
+3139 Contact function (coded) [1]No Yes an..3
+ C056 Department or employee details No Yes
:3413 Department or employee
identifier [2]
No Yes an..17
: 3412 Department or employee [3]No Yes an..35
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
190 © Wall Street Systems IPH AB - Confidential
The following table presents the elements of this segment:
Table notes:
1. This element contains the communication number.
2. This element contains the communication channel. Acceptable values: MA for mail, TM for
telemail, FX for facsimile, and EM for e-mail.
A.3.5.7 EDIFACT PAYEXT segment group 5
Segment group 5 contains instructions and related information from the originator of the payment
to the parties identified in segment groups 3 and 4. This group is not required and can be repeated
four times. It contains the following segments:
Note: This group is not supported by CMM.
A.3.5.7.1 INP segment
The INP segment specifies parties to an instruction and, where relevant, the instruction.
The following table presents the elements of this segment:
Segment Sep. Item Description Req. Used Format
COM Segment identifier Yes Yes
C076 Communication contact Yes Yes
+ 3148 Communication number [1] Yes Yes an..512
:3155 Communication channel qualifier
[2]
Yes Yes an..3
’ End of segment marker Yes Yes
ID Name Required Repetitions
INP Parties to instruction Yes 1
FTX Free text No 1
DTM
Segment Sep. Item Description Req. Used Format
INP Segment identifier Yes No
C849 Parties to instruction No No
+ 3301 Party enacting instruction
identifier [1]
Yes No an..17
:3285 Recipient of instruction
identifier
No No an..17
C522 Instruction No No
+4403 Instruction qualifier Yes No an..3
: 4401 Instruction (coded) No No an..3
’End of segment marker Yes No
WebSuite Cash Management Connectivity Guide 191
Table notes:
1. This element contains the party to which the instruction is addressed. Acceptable values: REC for
receiving bank and ACC for target bank.
The following is an example of this segment:
INP+REC’
A.3.5.7.2 FTX segment
The FTX segment contains bank-to-bank information in free-text format.
The following table presents the elements of this segment:
Table notes:
1. This element contains the type of information that will be carried in the FTX segment. Acceptable
value: AAG for party instructions.
2. This element contains bank-to-bank instructions. A maximum of five free-text elements can be
accepted.
The following is an example of this segment:
FTX+AAG++BANK-TO-BANK INSTRUCTIONS:BANK-TO-BANK INSTRUCTIONS’
A.3.5.8 EDIFACT PAYEXT segment group 7
Segment group 7 provides information relating to the purpose of the payment from the ordering
customer to the beneficiary. In this implementation, this group is used for remittance advice details
in either structured or unstructured form. This group is not required and can be repeated once. It
contains the following segments:
Segment Sep. Item Description Req. Used Format
FTX Segment identifier Yes No
+4451 Text subject qualifier [1]Yes No an..3
+ 4453 Text function (coded) No No an..3
C107 Text reference No No
+ 4441 Free text (coded) Yes No an..3
:1131 Code list qualifier No No an..3
: 3055 Code list resp. agency
(coded)
No No an..3
C108 Text lite ral No No
+ 4440 Free text [2]YesNoan..70
:4440 Free text [2]No No an..70
: 4440 Free text [2]NoNoan..70
:4440 Free text [2]No No an..70
: 4440 Free text [2]NoNoan..70
+3453 Language (coded) No No an..3
’ End of segment marker Yes No
ID Name Required Repetitions
PRC Process identification Yes 1
192 © Wall Street Systems IPH AB - Confidential
Note: Segment group 7 also contains segment group 8. For more information on segment group
8, see A.3.5.9 EDIFACT PAYEXT segment group 8 on page 193.
A.3.5.8.1 PRC segment
This segment identifies the type of process on the beneficiary’s side of the payment.
The following table presents the elements of this segment:
Table notes:
1. This element contains the type of process required. Acceptable values: 11 for processing of
unstructured information and 8 for processing of structured information. CMM only supports
structured remittance advice information.
The following is an example of this segment:
PRC+8’
A.3.5.8.2 FTX segment
The FTX segment specifies free-form or coded text information relevant to the message. It allows
the ordering customer to provide remittance advice information in a free-text format.
The following table presents the elements of this segment:
FTX Free text No 5
Segment Sep. Item Description Req. Used Format
PRC Segment identifier Yes Yes
C242 Process type and description Yes Yes
+ 7187 Process type identification [1]Yes Yes an..17
:1131 Code list qualifier No Yes an..3
: 3055 Code list resp. agency (coded) No Yes an..3
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
FTX Segment identifier Yes No
+4451 Text subject qualifier [1]Yes No an..3
+ 4453 Text function (coded) No No an..3
C107 Text reference No No
+ 4441 Free text (coded) Yes No an..3
:1131 Code list qualifier No No an..3
: 3055 Code list resp. agency
(coded)
No No an..3
C108 Text lite ral No No
+ 4440 Free text [2]YesNoan..70
:4440 Free text [2]No No an..70
ID Name Required Repetitions
WebSuite Cash Management Connectivity Guide 193
Table notes:
1. This element contains the type of information that will be carried in the FTX segment. Acceptable
value: PMD for party detail/remittance information.
2. These elements contain free text and can be used in the following ways: as headings (the first
element contains HEADER, and the second element contains the headings for the remittance
advice details); as 20-character remittance detail lines (the first element contains DETAIL 120,
the second element contains the first 70 characters of the first detail line, the third element
contains the remaining 50 characters of the first detail line, the fourth element contains the first
70 characters of the second detail line if any, and the fifth line contains the remaining 50
characters of the second detail line if any); or as 70-character remittance detail lines (all five
elements contain remittance detail information).
A.3.5.9 EDIFACT PAYEXT segment group 8
Segment group 8 provides details of all documents (for example, invoices) to which the extended
payment order refers. This group includes information on the monetary amounts for each document.
This group is not required and can be repeated 9,999 times. It contains the following segments:
A.3.5.9.1 DOC segment
The DOC segment identifies the documents, meaningful to the beneficiary, to which the extended
payment order relates.
The following table presents the elements of this segment:
: 4440 Free text [2]NoNoan..70
:4440 Free text [2]No No an..70
: 4440 Free text [2]NoNoan..70
+3453 Language (coded) No No an..3
’ End of segment marker Yes No
Segment Sep. Item Description Req. Used Format
ID Name Required Repetitions
DOC Document/message details Yes 1
MOA Monetary amount No 5
DTM Date/time/period No 5
RFF Reference No 1
Segment Sep. Item Description Req. Used Format
DOC Segment identifier Yes Yes
C002 Document/message name Yes Yes
+ 1001 Document/message name
(coded) [1]
No Yes an..3
:1131 Code list qualifier No No an..3
: 3055 Code list resp. agency (coded) No No an..3
:1000 Document/message name No No an..35
C503 Document/message details No Yes
+1004 Document/message number [2]No Yes an..35
194 © Wall Street Systems IPH AB - Confidential
Table notes:
1. This element contains the type of related document in coded form. Acceptable values: 380 for
commercial invoice, 381 for credit note, and 383 for debit note.
2. This element contains the invoice/credit note number.
The following is an example of this segment:
DOC+380+123456’
A.3.5.9.2 MOA segment
The MOA segment specifies the monetary amount of each referenced document and the relevant
currency, if necessary.
Note: There may be one or two occurrences of this segment. The first occurrence must always
contain the amount due/payable and the optional second occurrence can contain the
amount remitted. The currency of the latter, if given, must be the same as that of the
former.
The following table presents the elements of this segment:
Table notes:
1. This element contains the type of amount. Acceptable values: 9 for amount due/amount
payable, 12 for amount remitted, and 11 for amount paid.
2. This element must contain the ISO 4217 currency code.
The following is an example of this segment:
MOA+9:100:USD’
A.3.5.9.3 DTM segment
The DTM segment specifies the date of the reference document and indicates any other relevant
dates applicable.
: 1373 Document/message status
(coded)
No No an..3
:1366 Document/message source No No an..35
: 3453 Language (coded) No No an..3
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
MOA Segment identifier Yes Yes
C516 Monetary amount Yes Yes
+ 5025 Monetary amount type qualifier
[1]
Yes Yes an..3
:5004 Monetary amount No Yes n..18
: 6345 Currency (coded) [2]NoYesan..3
:6343 Currency qualifier No No an..3
’ End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
WebSuite Cash Management Connectivity Guide 195
The following table presents the elements of this segment:
Table notes:
1. This element contains the date type. Acceptable value: 137 for document/message date/time.
2. This element contains the document message date/time and must be in the YYYYMMDD format.
3. This element contains the date format and must always be 102 (for the YYYYMMDD format).
The following is an example of this segment:
DTM+171:19971201:102’
A.3.5.9.4 RFF segment
The RFF segment identifies a transaction from the ordering customer to the beneficiary and/or from
the order customer to the ordered bank.
The following table presents the elements of this segment:
Table notes:
1. This element contains the type of reference in coded form. Acceptable value: ACE for related
document number.
The following is an example of this segment:
RFF+RA:0123’
A.3.5.10 EDIFACT PAYEXT segment group 15
Segment group 15 specifies the details of any authentication (validation) procedure applied to the
PAYEXT message. This group is not required and can be repeated once. It contains the following
segments:
Segment Sep. Item Description Req. Used Format
DTM Segment identifier Yes Yes
C507 Date/time/period Yes Yes
+ 2005 Date/time/period qualifier [1]Yes Yes an..3
:2380 Date/time/period [2]No Yes an..35
: 2379 Date/time/period format
qualifier [3]
No Yes an..3
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
RFF Segment identifier Yes Yes
C506 Reference Yes Yes
+ 1153 Reference qualifier [1]Yes Yes an..3
:1154 Reference number No Yes an..35
’ End of segment marker Yes Yes
ID Name Required Repetitions
AUT Authentication result Yes 1
DTM Date/time/period No 1
196 © Wall Street Systems IPH AB - Confidential
A.3.5.10.1 AUT segment
The AUT segment specifies the details of any authentication (validation) procedures applied to the
extended payment order. This segment is composed of the validation result optionally followed by
the validation key identification.
The following table presents the elements of this segment:
The following is an example of this segment:
AUT+9876532+1515’
A.3.5.10.2 DTM segment
The DTM segment identifies the date of authentication.
The following table presents the elements of this segment:
Table notes:
1. This element contains the date type. Acceptable value: 218 for authentication/validation
date/time.
2. This element contains the authentication/validation date/time and must be in the YYYYMMDD
format.
3. This element contains the date format and must always be 102 (for the YYYYMMDD format).
The following is an example of this segment:
DTM+218:19980115:102’
A.3.5.11 EDIFACT PAYEXT end of message
The end of message specifies the end of the message. This group is required and can be repeated
once. It contains the following segment:
Segment Sep. Item Description Req. Used Format
AUT Segment identifier Yes Yes
+9280 Validation result Yes Yes an..35
+ 9282 Validation key identifier Yes Yes an..35
’End of segment marker Yes Yes
Segment Sep. Item Description Req. Used Format
DTM Segment identifier Yes Yes
C507 Date/time/period Yes Yes
+ 2005 Date/time/period qualifier [1]Yes Yes an..3
:2380 Date/time/period [2]No Yes an..35
: 2379 Date/time/period format
qualifier [3]
No Yes an..3
’End of segment marker Yes Yes
ID Name Required Repetitions
UNT Message trailer Yes 1
WebSuite Cash Management Connectivity Guide 197
A.3.5.11.1 UNT segment
The UNT segment specifies the end of the message, providing the total number of segments and
control reference number of the message, as quoted in the UNH segment.
The following table presents the elements of this segment:
Table notes:
1. This element contains the total number of segments, starting with the UNH segment and ending
with the UNT segment, that have been used in the message. This information provides the
receiver with the necessary data to ensure that the entire message has been received.
2. This element contains a message by a unique number within a range of messages (for example,
the first message is 1; the second, 2; the third, 3; and so on). The value for element 0062 in this
segment must be the same as the value in element 0062 in the corresponding UNH segment.
The following is an example of this segment:
UNT+78+1’
A.3.5.12 EDIFACT PAYEXT end of interchange
The end of interchange specifies the end of the interchange. This group is required and can be
repeated once. It contains the following segment:
A.3.5.12.1 UNZ segment
The UNZ segment ends and checks the completeness of an interchange.
The following table presents the elements of this segment:
Table notes:
1. This element contains the number of messages within the interchange, where the start of each
message is denoted by a UNH segment and the end of each message is denoted by a UNT
segment.
2. This element contains a unique reference for the message, assigned by the sender. This
reference must contain the same value as element 0020 in the UNB segment.
The following is an example of this segment:
Segment Sep. Item Description Req. Used Format
UNT Segment identifier Yes Yes
+0074 Number of segments in message
[1]
Yes Yes n..6
+ 0062 Message reference number [2]Yes Yes an..14
’End of segment marker Yes Yes
ID Name Required Repetitions
UNZ Interchange trailer Yes 1
Segment Sep. Item Description Req. Used Format
UNZ Segment identifier Yes Yes
+0036 Interchange control count [1]Yes Yes n..6
+ 0020 Interchange control reference [2]Yes Yes an..14
’End of segment marker Yes Yes
198 © Wall Street Systems IPH AB - Confidential
UNZ+22+INTERCHANGEREF’
A.4 Bank message import formats
CMM supports the following standard formats for bank message imports:
Table notes:
1. For information on formats not documented in this appendix, contact Wallstreet.
A.4.1 Wallstreet XML bank message
The following is an example Wallstreet XML bank message file:
<?xml version="1.0" encoding="UTF-8" ?>
<transactions document_reference_id="107" format_code="ATTRS_TXN"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<transaction sequence="1" type="bankmessage">
<attribute name="customer_reference_id" value="123456"/>
<attribute name="bank_reference_id" value="123456"/>
<attribute name="message_text_desc" value="Description"/>
</transaction>
<transaction sequence="2" type="bankmessage">
<attribute name="customer_reference_id" value="123457"/>
<attribute name="bank_reference_id" value="123457"/>
<attribute name="message_text_desc" value="Description"/>
</transaction>
</transactions>
This file contains three basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML transaction schema. For more information on the
Wallstreet XML transaction schema, see A.11 Wallstreet XML schemas on page 292.
A.4.1.1 transactions element
A Wallstreet XML bank message file contains only one transactions element.
Type Wallstreet formats EDIFACT formats SWIFT formats Other formats
Bank
message
•XML bank message
•XML transaction
acknowledgement
• BANSTA [1]
•CONTRL [1
]
• ACK/NACK [1]
• ISO 20022 XML
payment status
• ANSI X12 824
[1]
• ANSI X12 997
[1]
•CFONB/AFB
REJ240 [1]
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual transaction in the file.
attribute An individual attribute of a transaction.
WebSuite Cash Management Connectivity Guide 199
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
A.4.1.2 transaction elements
A Wallstreet XML bank message file can contain multiple transactions with each transaction
represented by a transaction element.
Each transaction element defines its transaction’s sequence number and type as specified in the
element’s two attributes:
A.4.1.3 attribute elements
Each transaction element contains a set of attribute elements. These elements define the
transactions’ attributes and the values of those attributes.
Each attribute element has two attributes:
As noted in B.1 Import attributes on page 312, some attributes are required and must be provided
with every transaction while others are not required.
You can specify the attributes in any order in the Wallstreet XML bank message files. In addition,
you do not need to specify the same set of attributes in every transaction in a file. For example, one
transaction can include the description attribute while all others in the file do not.
A.4.2 Wallstreet XML transaction acknowledgement
The following is an example Wallstreet XML transaction acknowledgement file:
<?xml version="1.0" encoding="UTF-8" ?>
<transactions xmlns="http://www.trema.com/externalinterface/XMLschema"
format_code="TREMA_ACK" document_reference_id = "test_1">
<transaction sequence="1" type="acknowledgement">
<transaction_id>26</transaction_id>
<customer_reference_number>ACH32934298349834</customer_reference_number>
<external_reference_number>ext_1</external_reference_number>
<transaction_success>false</transaction_success>
<rejection_reason>invalid beneficiary bank account number</rejection_reason>
</transaction>
Attribute Acceptable values
document_reference_ID [A unique identifier for the file]
format_code ATTRS_TXN
xmlns http://www.trema.com/externalinterface/XMLschema
Attribute Acceptable values
sequence [A unique sequence number for the transaction (In a typical file, the first transaction is
numbered 1; the second, 2; the third, 3; and so on.)]
type bankmessage
Attribute Acceptable values
name [The attribute’s name as specified in B.1 Import attributes on page 312 (The value you provide
in this attribute must exactly match the value in the "Name" column in B.1 Import attributes
on page 312.)]
value [The attribute’s value (The value you provide in this attribute must comply with the type, size,
and other requirements specified in B.1 Import attributes on page 312.)]
200 © Wall Street Systems IPH AB - Confidential
<transaction sequence="2" type="acknowledgement">
<transaction_id>27</transaction_id>
<customer_reference_number>FT89438904384585489</customer_reference_number>
<external_reference_number>ext_2</external_reference_number>
<transaction_success>true</transaction_success>
</transaction>
</transactions>
This file contains two basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML transaction acknowledgement schema. For more information on
the Wallstreet XML transaction acknowledgment schema, see A.11
Wallstreet XML schemas on page 292.
A.4.2.1 transactions element
A Wallstreet XML transaction acknowledgement file contains only one transactions element.
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
A.4.2.2 transaction elements
A Wallstreet XML transaction acknowledgement file can contain multiple transaction
acknowledgements with each transaction acknowledgement represented by a transaction
element.
Each transaction element defines its transaction acknowledgement’s sequence number and type
as specified in the element’s two attributes:
In addition, each transaction element defines its transaction acknowledgement’s details as
specified in the element’s child elements:
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual transaction acknowledgement in the file.
Attribute Acceptable values
xmlns http://www.trema.com/externalinterface/XMLschema
format_code TREMA_ACK
document_reference_id [A unique identifier for the file]
Attribute Acceptable values
sequence [A unique sequence number for the transaction acknowledgement (In a typical file, the first
transaction acknowledgement is numbered 1; the second, 2; the third, 3; and so on.)]
type acknowledgement
Element Acceptable values
transaction_id [The transaction’s ID]
customer_reference_number [The transaction’s customer reference number]
external_reference_number [The transaction’s external reference number]
WebSuite Cash Management Connectivity Guide 201
A.4.3 ISO 20022 XML payment status
The ISO 20022 XML standard is an effort of financial institution, corporations, and vendors to define
standard message formats for financial transactions. SWIFT is heavily involved in the standard by
providing expertise and facilitating meetings.
Using CMM’s XML template tool, Wallstreet has implemented a subset of the initial ISO 20022 XML
standard formats—including the payment status format. You can use Wallstreet’s initial work as the
basis for implementing the ISO 20022 XML standard. You can also customize the formats to
accommodate your banks’ unique interpretations of the standard.
The ISO 20022 XML payment status message is sent by an instructing agent to the previous party in
the payment chain. It is used to inform the party of the positive or negative status of an instruction
(either a single transaction or a file). It is also used to report on a pending instruction.
The ISO 20022 XML payment status message consists of the following sections:
A.4.3.1 ISO 20022 XML payment status format
The following table presents the format of ISO 20022 XML payment status messages:
transaction_success true if the transaction was accepted
false if the transaction was rejected
rejection_reason [The reason for the rejection of the transaction.]
Note: This element is only required if the value of the
transaction_success element is false.
Element Acceptable values
Name Required Number of
occurrences Contents
Group header Yes One Element such as MessageIdentification and
CreationDateAndTime
Original group
information and
status
Yes One Elements such as OriginalMessageIdentification,
OriginalMessageNameIdentification, and GroupStatus
Transaction
information and
status
No Multiple Elements referencing the original instruction
Message item XML tag Mult/format Data type CMM mapping and
posting
Group header <GrpHdr> N/A N/A N/A
MessageIdentific
ation
<MsgID> [1..1] Text Map to file_id
CreationDateTim
e
<CreDtTm> [1..1] Date/time Map to
file_creation
_time
InitiatingParty <InitgPty> [0..1] N/A N/A
ForwardingAgent <FwdgAgt> [0..1] Indicator N/A
DebtorAgent <DbtrAgt> [0..1] N/A N/A
CreditorAgent <CdtrAgt> [0..1] N/A N/A
202 © Wall Street Systems IPH AB - Confidential
InstructingAgent <InstgAgt> [0..1] N/A N/A
InstructedAgent <InstdAgt> [0..1] N/A N/A
OriginalGroupInfor
mationAndStatus
<OrgnlGrpInfAndS
ts>
N/A N/A N/A
OriginalMessage
Identification
<OrgnlMsgId> [1..1] Text Map to
orig_file_exp
ort_reference
_id
NetworkFileNam
e
<NtwkFileNm> [1..1] Text N/A
OriginalMessage
NameIdentificati
on
<OrgnlMsgNmID> [1..1] N/A Post one of the
following:
• pain.001.001
.02
• pain.008.001
.01
• pain.007.001
.01
• pain.006.001
.01
OriginalCreation
DateTime
<OrgnlCreDtTm> [0..1] Date/time N/A
FileOriginator <FileOrgtr> [0..1] Text N/A
OriginalNumber
OfTransactions
<OrgnlNbOfTxs> [0..1] Text N/A
OriginalControlS
um
<OrgnlCtrlSum> [0..1] Quantity N/A
GroupStatus <GrpSts> [0..1] Code Map to
external_messag
e_code and
message_text_de
sc
StatusReasonInf
ormation
<StsRsnInf> [0..n] N/A N/A
StatusOrig
inator <StsOrgtr> [0..1] N/A N/A
StatusRea
son <StsRsn> [0..1] N/A N/A
Code <Cd> [1..1] Code Map to
message_text_de
sc
Proprietary <Prtry> [1..1] Text Map to
message_text_
desc
Message item XML tag Mult/format Data type CMM mapping and
posting
WebSuite Cash Management Connectivity Guide 203
AdditionalSta
tusReasonInf
ormation
<AddtlStsRsnInf> [0..n] Text N/A
NumberOfTransa
ctionsPerStatus
<NbOfTxsPerSts> [0..n] N/A N/A
DetailedNum
berOfTransac
tions
<DtldNbOfTxs> [1..1] Text N/A
DetailedStat
us
<DtldSts> [1..1] Code Map to
message_text_
desc
DetailedCont
rolSum
<DtldCtrlSum> [0..1] Quantity N/A
TransactionInform
ationAndStatus
<TxInfAndSts> [0..n] N/A N/A
StatusIdentificat
ion
<StsId> [0..1] Text N/A
OriginalPayment
InformationIden
tification
<OrgnlPmtInfId> [0..1] Text N/A
OriginalInstructi
onIdentification
<OrgnlInstrId> [0..1] Text N/A
OriginalEndToEn
dIdentification
<OrgnlEndToEndId
>
[0..1] Text Map to
customer_refe
rence_id
OriginalTransacti
onIdentification
<OrgnlTxId> [0..1] Text Map to
customer_refere
nce_id
TransactionStatu
s
<TxSts> [0..1] Code Map to
external_mess
age_code and
message_text_
desc
StatusReasonInf
ormation
<StsRxnInf> [0..n] N/A N/A
StatusOrigin
ator
<StsOrgtr> [0..1] N/A N/A
StatusReaso
n
<StsRsn> [0..1] N/A N/A
Code <Cd> [1..1] Code Map to
message_text_
desc
Proprietary <Prtry> [1..1] Text Map to
message_text_de
sc
AdditonalStat
usReasonInfo
rmation
<AddtlStsRsnInf> [0..n] Text N/A
Message item XML tag Mult/format Data type CMM mapping and
posting
204 © Wall Street Systems IPH AB - Confidential
A.4.3.2 ISO 20022 XML payment status parsing logic
This section defines parsing logic for ISO 20022 XML payment status messages.
A.4.3.2.1 OriginalGroupInformationAndStatus parsing logic
The following is the logic to parse OriginalGroupInformationAndStatus:
1. This status is related to the import/export status log; it is a file-level bank message. CMM
creates one or more bank messages based on this group, and they are all linked with an export
active in the import/export log. CMM sets orig_file_export_reference_id with the value of
OriginalMessageIdentification.
2. If GroupStatus are not RJCT and are not empty:
CMMa. parses the general GroupStatus:
–CMM sets external_message_code with the value of GroupStatus.
–CMM sets message_text_desc with the definition of the code of GroupStatus.
–CMM builds a bank message record.
CMMb. parses NumberOfTransactionsPerStatus.
ChargesInformat
ion
<ChrgsInf> [0..n] N/A N/A
AcceptanceDate
Time
<AccptncDtTm> [0..1] Date/time N/A
InstructingAgent <InstgAgt> [0..1] N/A N/A
InstructedAgent <InstdAgt> [0..1] N/A N/A
OriginalTransacti
onReference
<OrgnlTxRef> [0..1] N/A N/A
Message item XML tag Mult/format Data type CMM mapping and
posting
WebSuite Cash Management Connectivity Guide 205
If NumberOfTransactionsPerStatus exists:
–CMM sets external_message_code with DetailedStatus.
–CMM sets message_text_desc with the definition of the code of DetailedStatus.
–CMM builds a new bank messages record.
3. If GroupStatus are RJCT:
CMMa. parses the general GroupStatus:
–CMM sets external_message_code with RJCT.
–CMM sets message_text_desc with Payment initiation or individual transaction
included in the payment initiation has been rejected..
–CMM builds a bank message record.
CMMb. parses StatusReasonInformation:
–CMM does one of the following:
–CMM set external_message_code with RJCT.
–CMM sets message_text_desc with the definition of the code of StatusReason.
–CMM builds a new bank messages record.
4. If GroupStatus are empty:
CMMa. parses StatusReasonInformation:
–CMM does one of the following:
-CMM sets external_message_code with RJCT.
-CMM sets message_text_desc with the definition of the code of StatusReason.
- CMM builds a new bank message record.
CMMb. parses NumberOfTransactionsPerStatus:
–If NumberOfTransactionsPerStatus exists:
–CMM sets external_message_code with DetailedStatus.
–CMM sets message_text_desc with the definition of the code of DetailedStatus.
–CMM builds a new bank message record.
206 © Wall Street Systems IPH AB - Confidential
A.4.3.2.2 TransactionInformationAndStatus parsing logic
The following is the logic to parse TransactionInformationAndStatus:
1. If TransactionInformationAndStatus exists:
CMMa. parses OriginalEndtoEndIdentification:
–CMM validates if OriginalEndToEndIdentification is present since it is mandatory.
–If valid, CMM sets customer_reference_id with OriginalEndToEndIdentification.
CMMb. parses general TransactionStatus
–CMM sets external_message_code with the value of TransactionStatus
–CMM sets message_text_desc with the definition of the code of TransactionStatus
–CMM builds a bank messages record.
CMMc. parses StatusReasonInformation:
–CMM sets external_message_code with RJCT.
–CMM sets message_text_desc with the definition of the code of StatusReason.
–CMM builds a new bank message record.
A.4.3.3 ISO 20022 XML payment status valid codes
This section defines valid codes for ISO 20022 XML payment status messages.
A.4.3.3.1 GroupStatus valid codes
The following table presents valid codes for GroupStatus:
Code Name Definition
ACCP AcceptedCustomerProfile Preceding check of technical validation was successful.
Customer profile check was also successful. This includes the
assessment of the static risks.
ACCR AcceptedCancellationRequest Cancellation is accepted.
ACSC AcceptedSettlementCompleted Settlement on the debtor’s account has been completed.
Usage: This can be used by the first agent to report to the debtor
that the transaction has been completed.
Warning: This status is provided for transaction status reasons,
not for financial information. It can only be used after bilateral
agreement.
ACSP AcceptedSettlementInProcess All preceding checks, such as technical validation and customer
profile, were successful. Dynamic risk assessment is now also
successful; therefore, the payment initiation has been accepted
for execution.
ACTC AcceptedTechnicalValidation Authentication and syntactical and semantical validation are
successful.
ACWC AcceptedWithChange Instruction is accepted but a change will be made (for example,
date, remittance not sent).
PART PartiallyAccepted A number of transactions have been accepted, whereas another
number of transactions have not yet achieved "accepted" status.
PDNG Pending Payment initiation or an individual transaction included in the
payment initiation is pending. Further checks and status updates
will be performed.
WebSuite Cash Management Connectivity Guide 207
A.4.3.3.2 Group StatusReason valid codes
The following table presents valid codes for group StatusReason:
RCVD Received Payment initiation has been received by the receiving agent.
RJCT Rejected Payment initiation or an individual transaction included in the
payment initiation has been rejected.
Code Name Definition
AC01 IncorrectAccountNumber Format of the account number specified is not correct.
AC04 ClosedAccountNumber Account number specified has been closed on the
receiver’s books.
AC06 BlockedAccount Account specified is blocked, prohibiting posting of
transactions against it.
AG01 TransactionForbidden Transaction forbidden on this type of account (formerly
NoAgreement).
AG02 InvalidBankOperationCode Bank operation code specified in the message is not
valid for receiver.
AM01 ZeroAmount Specified message amount is equal to zero.
AM02 NotAllowedAmount Specified transaction/message amount is greater than
allowed maximum.
AM03 NotAllowedCurrency Specified message amount is in an non processable
currency outside of existing agreement.
AM04 InsufficientFunds Amount of funds available to cover specified message
amount is insufficient.
AM05 Duplication Message appears to have been duplicated.
AM06 TooLowAmount Specified transaction amount is less than agreed
minimum.
AM07 BlockedAmount Amount specified in message has been blocked by
regulatory authorities.
AM09 WrongAmount Amount received is not the amount agreed upon or
expected.
AM10 InvalidControlSum Sum of instructed amounts does not equal the control
sum.
BE01 InconsistentWithEndCustomer Identification of end customer is not consistent with
associated account number (formerly
CreditorConsistency).
BE04 MissingCreditorAddress Specification of creditor’s address, which is required for
payment, is missing/not correct (formerly
IncorrectCreditorAddress).
BE05 UnrecognisedInitiatingParty Party who initiated the message is not recognized by
the end customer.
BE06 UnknownEndCustomer End customer specified is not known at associated
sort/national bank code or no longer exists in the books.
BE07 MissingDebtorAddress Specification of debtor’s address, which is required for
payment, is missing/not correct.
DT01 InvalidDate Invalid date (for example, wrong settlement date).
Code Name Definition
208 © Wall Street Systems IPH AB - Confidential
A.4.3.3.3 DetailedStatus valid codes
The following table presents valid codes for DetailedStatus:
A.4.3.3.4 TransactionStatus valid codes
The following table presents valid codes for TransactionStatus:
ED01 CorrespondentBankNotPossible Correspondent bank not possible.
ED03 BalanceInfoRequested Balance of payments complementary information is
requested.
ED05 SettlementFailed Settlement of the transaction has failed.
MD01 NoMandate Mandate is canceled or invalid.
MD02 MissingMandatoryInformationInMandate Mandate related information data required by the
scheme is missing.
Code Name Definition
ACCP AcceptedCustomerProfile Preceding check of technical validation was successful.
Customer profile check was also successful. This includes
the assessment of the static risks.
ACCR AcceptedCancellationRequest Cancellation is accepted.
ACSC AcceptedSettlementCompleted Settlement on the debtor’s account has been completed.
Usage: This can be used by the first agent to report to the
debtor that the transaction has been completed.
Warning: This status is provided for transaction status
reasons, not for financial information. It can only be used
after bilateral agreement.
ACSP AcceptedSettlementInProcess All preceding checks, such as technical validation and
customer profile, were successful. Dynamic risk
assessment is now also successful; therefore, the
payment initiation has been accepted for execution.
ACTC AcceptedTechnicalValidation Authentication and syntactical and semantical validation
are successful.
ACWC AcceptedWithChange Instruction is accepted but a change will be made (for
example, date, remittance not sent).
PDNG Pending Payment initiation or an individual transaction included in
the payment initiation is pending. Further checks and
status updates will be performed.
RJCT Rejected Payment initiation or an individual transaction included in
the payment initiation has been rejected.
Code Name Definition
ACCP AcceptedCustomerProfile Preceding check of technical validation was successful.
Customer profile check was also successful. This includes
the assessment of the static risks.
ACCR AcceptedCancellationRequest Cancellation is accepted.
Code Name Definition
WebSuite Cash Management Connectivity Guide 209
A.4.3.3.5 Transaction StatusReason valid codes
The following table presents valid codes for transaction StatusReason:
ACSC AcceptedSettlementCompleted Settlement on the debtor’s account has been completed.
Usage: This can be used by the first agent to report to the
debtor that the transaction has been completed.
Warning: This status is provided for transaction status
reasons, not for financial information. It can only be used
after bilateral agreement.
ACSP AcceptedSettlementInProcess All preceding checks, such as technical validation and
customer profile, were successful. Dynamic risk
assessment is now also successful; therefore, the
payment initiation has been accepted for execution.
ACTC AcceptedTechnicalValidation Authentication and syntactical and semantical validation
are successful.
ACWC AcceptedWithChange Instruction is accepted but a change will be made (for
example, date, remittance not sent).
PDNG Pending Payment initiation or an individual transaction included in
the payment initiation is pending. Further checks and
status updates will be performed.
RJCT Rejected Payment initiation or an individual transaction included in
the payment initiation has been rejected.
Code Name Definition
AC01 IncorrectAccountNumber Format of the account number
specified is not correct.
AC04 ClosedAccountNumber Account number specified has been
closed on the receiver’s books.
AC06 BlockedAccount Account specified is blocked,
prohibiting posting of transactions
against it.
AG01 TransactionForbidden Transaction forbidden on this type of
account (formerly NoAgreement).
AG02 InvalidBankOperationCode Bank operation code specified in the
message is not valid for receiver.
AM01 ZeroAmount Specified message amount is equal
to zero.
AM02 NotAllowedAmount Specified transaction/message
amount is greater than allowed
maximum.
AM03 NotAllowedCurrency Specified message amount is in an
non processable currency outside of
existing agreement.
AM04 InsufficientFunds Amount of funds available to cover
specified message amount is
insufficient.
AM05 Duplication Message appears to have been
duplicated.
Code Name Definition
210 © Wall Street Systems IPH AB - Confidential
AM06 TooLowAmount Specified transaction amount is less
than agreed minimum.
AM07 BlockedAmount Amount specified in message has
been blocked by regulatory
authorities.
AM09 WrongAmount Amount received is not the amount
agreed upon or expected.
AM10 InvalidControlSum Sum of instructed amounts does not
equal the control sum.
BE01 InconsistentWithEndCustomer Identification of end customer is not
consistent with associated account
number (formerly
CreditorConsistency).
BE04 MissingCreditorAddress Specification of creditor’s address,
which is required for payment, is
missing/not correct (formerly
IncorrectCreditorAddress).
BE05 UnrecognisedInitiatingParty Party who initiated the message is
not recognized by the end customer.
BE06 UnknownEndCustomer End customer specified is not known
at associated sort/national bank code
or no longer exists in the books.
BE07 MissingDebtorAddress Specification of debtor’s address,
which is required for payment, is
missing/not correct.
DT01 InvalidDate Invalid date (for example, wrong
settlement date).
ED01 CorrespondentBankNotPossible Correspondent bank not possible.
ED03 BalanceInfoRequested Balance of payments complementary
information is requested.
ED05 SettlementFailed Settlement of the transaction has
failed.
MD01 NoMandate Mandate is canceled or invalid.
MD02 MissingMandatoryInformationInMandate Mandate related information data
required by the scheme is missing.
MD03 InvalidFileFormatForOtherReasonThanGroupingIndicator File format incomplete or invalid.
MD04 InvalidFileFormatForGroupingIndicator File format incorrect in terms of
grouping indicator.
MD06 RefundRequestByEndCustomer Return of funds requested by end
customer.
MD07 EndCustomerDeceased End customer is deceased.
MS02 NotSpecifiedReasonCustomerGenerated Reason has not been specified by end
customer.
MS03 NotSpecifiedReasonAgentGenerated Reason has not been specified by
agent.
NARR Narrative Reason is provided as narrative
information in the additional reason
information.
Code Name Definition
WebSuite Cash Management Connectivity Guide 211
A.5 Bank transaction and balance import formats
CMM supports the following standard formats for bank transaction and balance imports:
Table notes:
1. For information on formats not documented in this appendix, contact Wallstreet.
A.5.1 Wallstreet XML bank statement
The following is an example Wallstreet XML bank statement file:
<?xml version="1.0" encoding="UTF-8"?>
<bankaccountstatementholder document_reference_id="test1" statement_type="P"
format_code="TREMA_BANK_STATEMENT"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<account_statement sequence="1">
<account>
<bank_swift_code/>
<bank_branch_number>1234</bank_branch_number>
<account_number>10101</account_number>
<account_iban/>
<account_currency>USD</account_currency>
</account>
<balance type="19">
<date>2005-05-02</date>
<amount>300.89</amount>
</balance>
<balance type="6">
<date>2005-05-02</date>
<amount>1300.89</amount>
RC01 BankIdentifierIncorrect Bank identifier code specified in the
message has an incorrect format
(formerly
IncorrectFormatForRoutingCode).
RF01 NotUniqueTransactionReference Transaction reference is not unique
within the message.
UNIFI (ISO 20022) - Payments
Standards - Initiation October 2006
Message: PaymentStatusReportV02
<pain.002.001.02> Page 252
TM01 CutOffTime Associated message was received
after agreed processing cut-off time.
Code Name Definition
Type Wallstreet formats EDIFACT formats SWIFT formats Other formats
Bank
statement
• XML bank statement N/A N/A N/A
Bank
transaction
and balance
• XML bank transaction and
balance
• FINSTA [1]•MT940
• MT940 BCS
• MT942 [1]
• MT950 [1]
•BAI [1]
•CFONB/AFB
RDC120 [1]
212 © Wall Street Systems IPH AB - Confidential
</balance>
<transaction type="1">
<customer_reference_number>test_123</customer_reference_number>
<bank_reference_number>98548958</bank_reference_number>
<book_date>2005-05-02</book_date>
<value_date>2005-05-02</value_date>
<amount>-50.89</amount>
<description>test pmt</description>
</transaction>
<transaction type="2">
<customer_reference_number>test_456</customer_reference_number>
<bank_reference_number>985489586</bank_reference_number>
<book_date>2005-05-02</book_date>
<value_date>2005-05-02</value_date>
<amount>150.89</amount>
<description>test rct</description>
</transaction>
<transaction type="4">
<customer_reference_number>test_789</customer_reference_number>
<bank_reference_number>9854895866</bank_reference_number>
<book_date>2005-05-02</book_date>
<value_date>2005-05-02</value_date>
<amount>-1150.89</amount>
</transaction>
</account_statement>
</bankaccountstatementholder>
This file contains four basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML bank statement schema. For more information on the
Wallstreet XML bank statement schema, see A.11 Wallstreet XML schemas on page 292.
A.5.1.1 bankaccountstatementholder element
A Wallstreet XML bank statement file contains only one bankaccountstatementholder element.
The bankaccountstatementholder element defines the file’s identifier, bank statement type, format
code, and schema as specified in the element’s three attributes:
Element Description
bankaccountstatementholder The file’s identifier, bank statement type, format
code, and schema.
account_statement An individual bank statement in the file.
account The bank account to which the bank statement
applies.
balance An individual bank balance in the bank statement.
transaction An individual bank transaction in the bank
statement.
Attribute Acceptable values
document_reference_id [A unique identifier for the file]
statement_type C for an intraday bank statement
P for a previous-day bank statement
WebSuite Cash Management Connectivity Guide 213
A.5.1.2 account_statement elements
A Wallstreet XML bank statement file can contain multiple bank statements with each bank
statement represented by an account_statement element.
Each account_statement element defines its bank statement’s sequence number as specified in the
element’s attribute:
A.5.1.3 account elements
Each account_statement element in a Wallstreet XML bank statement file must contain one
account child element that defines the bank account to which the bank statement applies.
Each account element defines its bank statement’s bank account as specified in the element’s child
elements:
A.5.1.4 balance elements
Each account_statement element in a Wallstreet XML bank statement file can contain one or more
balance child element that define bank balances in the bank statement.
Each balance element defines its bank balance’s type as specified in the element’s attribute:
format_code TREMA_BANK_STATEMENT
xmlns http://www.trema.com/externalinterface/XMLschema
Attribute Acceptable values
Attribute Acceptable values
sequence [A unique sequence number for the bank statement (In a typical file, the first bank
statement is numbered 1; the second, 2; the third, 3; and so on.)]
Element Acceptable values
bank_swift_code [The SWIFT code of the bank in which the bank account is held]
bank_branch_number [The branch number of the bank in which the bank account is held]
account_number [The bank account’s basic bank account number (BBAN)]
account_iban [The bank account’s international bank account number (IBAN)]
account_currency [The bank account’s currency]
Attribute Acceptable values
type 3 for opening value date
6 for closing value data
8 for opening transaction date
19 for closing transaction date
1001 for opening bank statement
1002 for closing bank statement
214 © Wall Street Systems IPH AB - Confidential
In addition, each balance element defines its bank balance’s date and amount as specified in the
element’s child elements:
A.5.1.5 transaction elements
Each account_statement element in a Wallstreet XML bank statement file can contain one or more
transaction child element that define bank transactions in the bank statement.
Each transaction element defines its bank transaction’s type as specified in the element’s
attribute:
In addition, each transaction element defines its bank transaction’s customer and bank reference
numbers, book and value dates, amounts, and descriptions as specified in the element’s child
elements:
A.5.2 Wallstreet XML bank transaction and balance
The following is an example Wallstreet XML bank transaction and balance file:
<?xml version="1.0" encoding="UTF-8" ?>
<transactions document_reference_id="107" format_code="ATTRS_TXN"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<transaction sequence="1" type="banktxn">
Element Acceptable values
date [The bank balance’s date]
amount [The bank balance’s amount]
Attribute Acceptable values
type COMMP for commercial payment
COMMR for commercial receipt
INTER_ACCT for intercompany
AGGRP for aggregate
RCNADJ for reconciliation adjustment
POOL for pool transfer
ZBA for zero balance
BANKINT for interest
BANKFEE for bank fee
COMMFEE for commitment fee
OVDRFEE for overdraft fee
TAX for tax
Element Acceptable values
customer_reference_number [The bank transaction’s customer reference number]
bank_reference_number [The bank transaction’s bank reference number]
book_date [The bank transaction’s book (or "invoice") date]
value_date [The bank transaction’s value date]
amount [The bank transaction’s amount]
description [A description of the bank transaction]
WebSuite Cash Management Connectivity Guide 215
<attribute name="currency_code" value="USD"/>
<attribute name="amount" value="50000.00"/>
<attribute name="txn_date" value="20-Oct-2006"/>
<attribute name="description" value="Invoice 67003"/>
<attribute name="customer_reference_id" value="123456"/>
<attribute name="bank_acct_number" value="12345678"/>
<attribute name="cpty_bank_account_number" value="87654321"/>
</transaction>
<transaction sequence="1" type="banktxn">
<attribute name="currency_code" value="USD"/>
<attribute name="amount" value="60000.00"/>
<attribute name="txn_date" value="21-Oct-2006"/>
<attribute name="description" value="Invoice 67004"/>
<attribute name="customer_reference_id" value="123456"/>
<attribute name="bank_acct_number" value="12345678"/>
<attribute name="cpty_bank_account_number" value="87654321"/>
</transaction>
</transactions>
This file contains three basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML transaction schema. For more information on the
Wallstreet XML transaction schema, see A.11 Wallstreet XML schemas on page 292.
A.5.2.1 transactions element
A Wallstreet XML bank transaction and balance file contains only one transactions element.
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
A.5.2.2 transaction elements
A Wallstreet XML bank transaction and balance file can contain multiple transactions with each
transaction represented by a transaction element.
Each transaction element defines its transaction’s sequence number and type as specified in the
element’s two attributes:
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual transaction in the file.
attribute An individual attribute of a transaction.
Attribute Acceptable values
document_reference_ID [A unique identifier for the file]
format_code ATTRS_TXN
xmlns http://www.trema.com/externalinterface/XMLschema
Attribute Acceptable values
sequence [A unique sequence number for the transaction (In a typical file, the first transaction is
numbered 1; the second, 2; the third, 3; and so on.)]
216 © Wall Street Systems IPH AB - Confidential
A.5.2.3 attribute elements
Each transaction element contains a set of attribute elements. These elements define the
transactions’ attributes and the values of those attributes.
Each attribute element has two attributes:
As noted in B.1 Import attributes on page 312, some attributes are required and must be provided
with every transaction while others are not required.
You can specify the attributes in any order in the Wallstreet XML bank transaction and balance files.
In addition, you do not need to specify the same set of attributes in every transaction in a file. For
example, one transaction can include the description attribute while all others in the file do not.
A.5.3 SWIFT MT940
The Society for Worldwide Interbank Financial Telecommunication (SWIFT) is owned by the financial
industry to cooperatively supply secure, standardized messaging across more than 200 countries.
SWIFT supports many different formats. A few of the common message formats are MT940, MT942,
and MT950. They are used for current day, previous day, and summary reporting on bank accounts
with the bank. Many of Wallstreet’s CMM customers do business with banks that report bank account
information in these formats.
CMM can import and export SWIFT message files. CMM’s bank transaction import and export
functionality supports both code-based and XML-template based formats.
The following table presents the major features of the SWIFT message file format:
type banktxn
bankbalance
Attribute Acceptable values
Attribute Acceptable values
name [The attribute’s name as specified in B.1 Import attributes on page 312 (The value you provide
in this attribute must exactly match the value in the "Name" column in B.1 Import attributes
on page 312.)]
value [The attribute’s value (The value you provide in this attribute must comply with the type, size,
and other requirements specified in B.1 Import attributes on page 312.)]
Features Description
Acknowledgements (imports) These formats support positive and negative acknowledgements; however,
they do not support SWIFT delivery notifications.
Transaction types These formats support bank statements for internal (activity on bank accounts
with the in-house bank) and external (activity on external bank accounts)
transactions.
Bank statement file names File names follow the CMM standard. In other words, CMM creates the file
name as a concatenation of the date-time stamp and the bank name to ensure
it is unique.
Interface component scope The file is plain text only. There is no digital signature, encryption, or other
security features required. If you want to use these feature, you can do so by
adding them to the interchange (see 3.4 Managing interchanges on page 56).
WebSuite Cash Management Connectivity Guide 217
A.5.3.1 SWIFT MT940 layout
SWIFT MT940 message files can consist of up to five blocks:
Note: Each block is started by an opening brace ({) and terminated by a closing brace (}). Block
4 is terminated by a hyphen followed by a closing brace (-}). Only the contents of block 4
are mappable using XML-based files.
The following is an example SWIFT MT940 message file:
{1:F01SWIFTBOFAB1X0000000000}{2:O9400000000000SWIFTBOFAB1X0000000000000000N}{3:}{4:
:20:cititest
:25:12345678
:28C:109/10
:60F:C040920USD0,
º
-}
A.5.3.2 SWIFT MT940 header blocks
SWIFT MT940 message files begin with three header blocks:
1. Fixed basic header block
2. Fixed application header block
3. User header block.
Header block 3 is usually omitted. CMM does not currently support this header block and ignore it if
it is included in import files.
A.5.3.2.1 Fixed basic header block
The following table presents the contents of the fixed basic header block:
Block Contents
1 to 3 Header information, such as the sender, receiver, and SWIFT category information.
For more information, see A.5.3.2 SWIFT MT940 header blocks on page 217.
4Main message information, usually beginning with tag 20.
For more information, see A.5.3.3 SWIFT MT940 main message block on page 221.
5 Control information
(This block is optional and is usually omitted.)
Content Description Required Acceptable values XML attribute
{1: Fixed basic
header identifier
Yes {1: Not available
aApplication
identifier
Yes Alphabetic (A to Z) Not available
01 Service identifier Yes 01 to 99 Not available
aaaaaaaaxxxx ID of the ordering
party bank
Yes Alphabetic (A to Z)
Note: If the ID of the
ordering party bank is
not 12 characters long,
add Xs until it is 12
characters long.
interchange_
interchange_
sender_id
218 © Wall Street Systems IPH AB - Confidential
A.5.3.2.2 Fixed application input header block
The following table presents the contents of the fixed application input header block:
The following is an example input application header:
{2:I202BANKDEFFXXXXu3003}
dddd Number of data
sets
Yes 0001 to 9999 Not available
dddddd} Transaction
number in the file
Yes 000001 to 999999 Not available
Content Description Required Acceptable values XML attribute
{2: Fixed application
header identifier
Yes {2: Not available
IInput/output
identifier
Yes INot available
ddd Message type Yes 001 to 999 Not available
aaaaaaaaxxxx Destination address Yes Alphabetic (A to Z)
Note: If the destination address
is not 12 characters long,
add Xs until it is 12
characters long.
interchange_
interchange_
recipient_id
a Message priority Yes S for user-to-system messages
U for urgent messages.
N for all user-to-user messages
Not available
dMessage monitoring No If the message priority is U,
message monitoring must be 1
or 3
If the message priority is N,
message monitoring can be 2
Not available
ddd Obsolescence period
Note: If the
obsolescence
period is
provided, the
message
monitoring
must also be
provided.
No If the message priority is U, the
default obsolescence period is 3
(15 minutes)
If the message priority is N, the
default obsolescence period is
20 (100 minutes)
Note: CMM assumes the default
periods for the
obsolescence period
regardless of the values
specified by the user.
Not available
Content Description Required Acceptable values XML attribute
WebSuite Cash Management Connectivity Guide 219
A.5.3.2.3 Fixed application output header block
The following table presents the contents of the fixed application input header block:
The following is an example output application header:
{2:O2020900970503BANJBEBBAXXX22221234569705030900S}
A.5.3.2.4 User header block
The following table presents the contents of the user header block:
Content Description Required Acceptable values XML
attribute
{2: Fixed application
header identifier
Yes {2: Not
available
OInput/output
identifier
Yes ONot
available
ddd Message type Yes 001 to 999 Not
available
dddd Input time Yes hhmm Not
available
dddddd Date sent Yes yymmdd Not
available
aaaaaaaaxxxx Message input
reference
Yes Alphabetic (A to Z)
Note: If the message input
reference is not 12 characters
long, add Xs until it is 12
characters long.
Not
available
dddddd Date (output date
local to the receiver
Yes yymmdd Not
available
dddd Sender session
number
Yes 0000 to 9999 Not
available
dddddd Sender session ISN Yes 000000 to 999999 Not
available
dddddd Output date Yes yymmdd Not
available
dddd Output time Yes hhmm Not
available
aMessage priority Yes S for user-to-system messages
U for urgent messages
N for all user-to-user messages
Not
available
Content Description Required Acceptable values XML
attribute
{3: User header
identifier
Yes {3: Not
available
103: Service identifier No For any message which the user submits to a FIN
copy service, block 3 requires an additional field
103 which contains a three-character service
identifier unique to a specific FIN copy service. By
using a unique identifier, it is possible to support
access to multiple services within the same CBT.
Not
available
220 © Wall Street Systems IPH AB - Confidential
113: Banking priority
Note: The banking
priority is
assigned by
the sender of
the message.
No See SWIFT documentation for details. Not
available
108: Message user
reference
Note: The banking
priority is
assigned by
the sender of
the message.
No See SWIFT documentation for details. Not
available
119: Validation flag No An indicator of whether a special validation needs
to be performed by FIN. The following are
examples of the values this field may take:
•ISITC indicates validation of ISITC
standards. This is only used with MT 521 and
MT 523.
•REMIT identifies the presence of field 77T.
This is only used in MT 103.
•RFDD indicates that the message is a request
for direct debit. This is only used in MT 104.
•STP indicates that the message is validated
according to straight through processing
principles. This is only used in MT 103.
Note: This list is subject to change.
The following codes may be used in MT 503, 504,
505, 506, and 507 to indicate exposure type or
collateral reason:
•COMM
•CRPR
•CRSP
•CRTL
•EXTD
•FIXI
•FORX
•LIQU
•OTCD
•PAYM
•REPO
•SBSB
•SCRP
•SECL
•SLEB
•TCRP.
Not
available
Content Description Required Acceptable values XML
attribute
WebSuite Cash Management Connectivity Guide 221
The following is an example output application header:
{3:{108:PRIORITY 2}}
A.5.3.3 SWIFT MT940 main message block
Block 4 contains the main message of a SWIFT MT940 message file. It usually begins with tag 20.
The following table presents the available tags that can be included in block 4:
Table notes:
1. For more information on the codes used in this column, see A.13.1 SWIFT field lengths on page
303 and A.13.2 SWIFT field types on page 304.
2. Loop tag 61 for each transaction in the statement. For more information on the contents of this
tag, see A.13.4 SWIFT transaction type identification code mappings on page 305.
3. Loop tag 86 for each transaction in the statement.
4. Loop tag 65 for each forward available balance.
A.5.3.4 SWIFT MT940 validation
Validation is performed during the import and parsing of the file for import files and during the
export and file creation process for export files.
115:aaa
…
Addressee
information
No Information from the central institution to the
receiver of the payment message. Information is
input in the MT 097 FIN Copy Message
Authorization/Refusal Notification in Y-Copy mode.
See FIN Copy Service Description for further
information.
Not
available
Content Description Required Acceptable values XML
attribute
Tag Name Required Contents [1] XML attribute
20 Transaction reference number Yes 16x
21 Related reference No 16x
25 Account identification Yes 35x
28C Statement number/ sequence
number
Yes 5n[/5n]
60F Opening balance Yes 1!a6!n3!a15d
61 [2]Statement line No 6!n[4!n]2a[1!a]15d1!a3!c16
x[//16x] [34x]
86 [3] Information to account owner No 6×65x
62F Closing balance (booked funds) No 1!a6!n3!a15d
64 Closing available balance (available
balance)
No 1!a6!n3!a15d
65 [4]Forward available balance No 1!a6!n3!a15d
86 Information to account owner No 6×65x
222 © Wall Street Systems IPH AB - Confidential
For the most part, the validation rules below are based on the validation rules set out by the SWIFT
specifications:
Fields Validation types Validation
Transaction reference number (tag 20) Must exist
Transaction reference number (tag 20) Length 1 to 16
Transaction reference number (tag 20) Structure SWIFT X character set
Related reference number (tag 21) Optional
Related reference number (tag 21) Length 1 to 16
Related reference number (tag 21) Structure SWIFT X character set
Account identification (tag 25) Must exist
Account identification (tag 25) Length 1 to 35
Account identification (tag 25) Structure SWIFT X character set
Statement number (tag 28C) Must exist
Statement number (tag 28C) Length 1 to 5
Statement number (tag 28C) Structure Digits 0 to 9
Sequence number (tag 28C) Optional
Sequence number (tag 28C) Length 1 to 5
Sequence number (tag 28C) Structure Digits 0 to 9
C/D mark (tag 60F) Must exist
C/D mark (tag 60F) Length 1
C/D mark (tag 60F) Structure C or D
Statement start date (tag 60F) Must exist
Statement start date (tag 60F) Length 6
Statement start date (tag 60F) Structure Digits in YYMMDD format
Opening balance currency code (tag 60) Must exist
Opening balance currency code (tag 60) Length 3
Opening balance currency code (tag 60) Structure Letters A to Z (uppercase)
Opening balance actual amount (tag 60) for
transaction date
Must exist
Opening balance actual amount (tag 60) for
transaction date
Length 1 to 15
Opening balance actual amount (tag 60) for
transaction date
Structure Digits 0 to 9 and , and .
Transaction value date (tag 61) Must exist
Transaction value date (tag 61) Length 6
Transaction value date (tag 61) Structure Digits 0 to 9 in YYMMDD format
Transaction effective date (tag 61) Length 4
Transaction effective date (tag 61) Structure Digits 0 to 9 in MMDD format
Transaction type code (tag 61) Domain P or R
WebSuite Cash Management Connectivity Guide 223
Transaction amount (tag 61) Must exist
Transaction amount (tag 61) Length 1 to 15
Transaction amount (tag 61) Structure Digits 0 to 9 and , and .
Transaction funds type code (tag 61) Must exist
Transaction customer reference number (tag 61) Length 1 to 16
Transaction customer reference number (tag 61) Structure SWIFT X character set
Transaction bank reference number (tag 61) Length 1 to 16
Transaction bank reference number (tag 61) Structure SWIFT X character set
Transaction description (tag 61) Must exist
Transaction description (tag 61) Length 1 to 34
Transaction description (tag 61) Structure SWIFT X character set
Information to account owner (tag 86) Length 1 to 390
Information to account owner (tag 86) Structure SWIFT X character set
C/D mark (tag 62) Must exist
C/D mark (tag 62) Length 1
C/D mark (tag 62) Structure C or D
Statement end date (tag 62) Must exist
Statement end date (tag 62) Length 6
Statement end date (tag 62) Structure Digits in YYMMDD format
Closing balance currency code (tag 62) for
transaction date
Must exist
Closing balance currency code (tag 62) for
transaction date
Length 3
Closing balance currency code (tag 62) for
transaction date
Structure Letters A to Z (uppercase)
Closing balance actual amount (tag 62) for
transaction date
Must exist
Closing balance actual amount (tag 62) for
transaction date
Length 1 to 15
Closing balance actual amount (tag 62) for
transaction date
Structure Digits 0 to 9 and , and .
Closing balance currency code (tag 62) for value
date
Length 3
Closing balance currency code (tag 62) for value
date
Structure Letters A to Z (uppercase)
Closing balance actual amount (tag 62) for value
date
Length 1 to 15
Closing balance actual amount (tag 62) for value
date
Structure Digits 0 to 9 and , and .
Closing available balance C/D mark (tag 64) Optional
Fields Validation types Validation
224 © Wall Street Systems IPH AB - Confidential
A.5.4 SWIFT MT940 BCS
The Society for Worldwide Interbank Financial Telecommunication (SWIFT) is owned by the financial
industry to cooperatively supply secure, standardized messaging across more than 200 countries.
SWIFT supports many different formats. A few of the common message formats are MT940, MT942,
and MT950. They are used for current day, previous day, and summary reporting on bank accounts
with the bank. Many of Wallstreet’s CMM customers do business with banks that report bank account
information in these formats.
Certain financial institutions report bank account information in a modified format (based on the
SWIFT formats) called SWIFT BCS (Banking Communication Standard). The German banking
market supports a German SWIFT BCS format that is widely used and adopted by financial
institutions in the region. These formats have been defined by the BCS. The German SWIFT BCS
format follows the SWIFT message format specifications, but with a slight modification and exclusion
of certain components. This format is used and recommended by ERPs such as SAP.
Closing available balance C/D mark (tag 64) Length 1
Closing available balance C/D mark (tag 64) Structure C or D
Closing available balance date (tag 64) Optional
Closing available balance date (tag 64) Length 6
Closing available balance (tag 64) Structure Digits in YYMMDD format
Closing available balance currency code (tag 64) Optional
Closing available balance currency code (tag 64) Length 3
Closing available balance currency code (tag 64) Structure Letters A to Z (uppercase)
Closing available balance amount (tag 64) Optional
Closing available balance amount (tag 64) Length 1 to 15
Closing available balance amount (tag 64) Structure Digits 0 to 9 and , and .
Forward available balance C/D mark (tag 65) Optional
Forward available balance C/D mark (tag 65) Length 1
Forward available balance C/D mark (tag 65) Structure C or D
Forward available balance date (tag 65) Optional
Forward available balance date (tag 65) Length 6
Forward available balance (tag 65) Structure Digits in YYMMDD format
Forward available balance currency code (tag 65) Optional
Forward available balance currency code (tag 65) Length 3
Forward available balance currency code (tag 65) Structure Letters A to Z (uppercase)
Forward available balance amount (tag 65) Optional
Forward available balance amount (tag 65) Length 1 to 15
Forward available balance amount (tag 65) Structure Digits 0 to 9 and , and .
Information to account owner (tag 86) Length 1 to 390
Information to account owner (tag 86) Structure SWIFT X character set
Fields Validation types Validation
WebSuite Cash Management Connectivity Guide 225
CMM can import and export SWIFT BCS message files. CMM’s bank transaction import and export
functionality supports both code-based and XML-template-based formats.
The following table presents the major features of the SWIFT BCS message file format:
A.5.4.1 SWIFT MT940 BCS layout
SWIFT BCS messages are different from typical SWIFT messages in that their files begin with tag
20. Similar to the SWIFT format, the SWIFT BCS format’s main message content ends the message
with a hyphen (-) but does not continue to end the block with a closing brace (}). In addition, the
SWIFT BCS format does not include block 5.
The following is an example SWIFT BCS message file:
:20:cititest
:25:12345678
:28C:109/10
:60F:C040920USD0,
º
-
A.5.4.2 SWIFT MT940 BCS tags
The following table presents the available tags that can be included in SWIFT BCS messages:
Features Description
Acknowledgements (imports) These formats support positive and negative acknowledgements; however,
they do not support SWIFT delivery notifications.
Transaction types These formats support bank statements for internal (activity on bank accounts
with the in-house bank) and external (activity on external bank accounts)
transactions.
Bank statement file names File names follow the CMM standard. In other words, CMM creates the file
name as a concatenation of the date-time stamp and the bank name to ensure
it is unique.
Interface component scope The file is plain text only. There is no digital signature, encryption, or other
security features required. If you want to use these feature, you can do so by
adding them to the interchange (see 3.4 Managing interchanges on page 56).
No. Name Required Contents [1] XML attribute
Tag 20
N/A Transaction reference number Yes 16x
Tag 25 [2]
N/A ABA code (sort code) and bank account
number
Yes 35x
Tag 28C [3]
N/A Statement number and sequence number Yes 5n[/5n]
Tag 60F (Opening balance)
1Credit/debit indicator Yes 1a
2 Statement start date Yes 6n
3ISO currency code Yes 3a
4 Actual amount Yes 15d
226 © Wall Street Systems IPH AB - Confidential
Tag 61 (Statement line) [4]
1Value date Yes 6!n
2Transaction date (if different than the
value date)
Yes 4!n
3 Credit/debit indicator Yes 2a
4[Not used] Yes 1!a
5 Amount Yes 15d
6SWIFT transaction type code (hard coded) Yes 3!c
7 [5] Cash flow type Yes 16x
N/A Separator Yes //
8 [6] Bath ID and transaction ID Yes 16x
N/A Separator Yes /
9 [7] Currency and amount Yes 34x
Tag 86 (Information to account owner) [8]
1 [9]GVC Yes 3n
2Counterparty ID Yes ?00x (An 25)
3 [Not used] Yes ?10x (An 6)
4Description Yes ?20x (An 27)
5 Description Yes ?21x (An 27)
6Description Yes ?22x (An 27)
7 Description Yes ?23x (An 27)
8Description Yes ?24x (An 27)
9 Description Yes ?25x (An 27)
10 Description Yes ?26x (An 27)
11 Description Yes ?27x (An 27)
12 Description Yes ?28x (An 27)
13 Description Yes ?29x (An 27)
14 Description Yes ?32x (An 27)
15 Description Yes ?33x (An 27)
16 Description Yes ?60x (An 27)
17 Description Yes ?61x (An 27)
18 Description Yes ?62x (An 27)
19 Description Yes ?63x (An 27)
Tag 62 F (Closing balance)
1 Credit/debit indicator Yes 1!a
2Statement end date Yes 6!n
No. Name Required Contents [1] XML attribute
WebSuite Cash Management Connectivity Guide 227
Table notes:
1. For more information on the codes used in this column, see A.13.1 SWIFT field lengths on page
303 and A.13.2 SWIFT field types on page 304.
2. Tag 25 contains the ABA code (sort code), followed by a forward slash (/), followed by the bank
account number.
3. Tag 28C contains the statement number, followed by a forward slash (/), followed by the
sequence number.
4. Loop tag 61 for each transaction in the statement.
5. For more information on the contents of section 7 of tag 61, see A.13.4 SWIFT transaction type
identification code mappings on page 305.
6. Section 8 of tag 61 contains the batch ID, followed by a semicolon (;), followed by the
transaction ID.
7. Section 9 of tag 61 contains OCMT/, followed by the ISO code of the currency, followed by the
amount in 13,2 format.
8. Loop tag 86 for each transaction in the statement.
9. For more information on the contents of section 1 of tag 86, see A.13.5 SWIFT business
transaction code (GVC) mappings on page 306.
A.5.4.3 SWIFT MT940 BCS validation
Validation is performed during the import and parsing of the file for import files and during the
export and file creation process for export files.
For the most part, the validation rules below are based on the validation rules set out by the SWIFT
specifications:
3 ISO currency code Yes 3!a
4Actual amount Yes 15d
No. Name Required Contents [1] XML attribute
Fields Validation types Validation
Transaction reference number (tag 20) Must exist
Transaction reference number (tag 20) Length 1 to 16
Transaction reference number (tag 20) Structure SWIFT X character set
Account identification (tag 25) Must exist
Account identification (tag 25) Length 1 to 35
Account identification (tag 25) Structure SWIFT X character set
Statement number (tag 28C) Must exist
Statement number (tag 28C) Length 1 to 5
Statement number (tag 28C) Structure Digits 0 to 9
Sequence number (tag 28C) Optional
Sequence number (tag 28C) Length 1 to 5
Sequence number (tag 28C) Structure Digits 0 to 9
C/D mark (tag 60F) Must exist
C/D mark (tag 60F) Length 1
228 © Wall Street Systems IPH AB - Confidential
C/D mark (tag 60F) Structure C or D
Statement start date (tag 60F) Must exist
Statement start date (tag 60F) Length 6
Statement start date (tag 60F) Structure Digits in YYMMDD format
Opening balance currency code (tag 60) Must exist
Opening balance currency code (tag 60) Length 3
Opening balance currency code (tag 60) Structure Letters A to Z (uppercase)
Opening balance actual amount (tag 60) for
transaction date
Must exist
Opening balance actual amount (tag 60) for
transaction date
Length 1 to 15
Opening balance actual amount (tag 60) for
transaction date
Structure Digits 0 to 9 and , and .
Transaction value date (tag 61) Must exist
Transaction value date (tag 61) Length 6
Transaction value date (tag 61) Structure Digits 0 to 9 in YYMMDD format
Transaction effective date (tag 61) Length 4
Transaction effective date (tag 61) Structure Digits 0 to 9 in MMDD format
Transaction type code (tag 61) Domain P or R
Transaction amount (tag 61) Must exist
Transaction amount (tag 61) Length 1 to 15
Transaction amount (tag 61) Structure Digits 0 to 9 and , and .
Transaction funds type code (tag 61) Must exist
Transaction customer reference number (tag 61) Length 1 to 16
Transaction customer reference number (tag 61) Structure SWIFT X character set
Transaction bank reference number (tag 61) Length 1 to 16
Transaction bank reference number (tag 61) Structure SWIFT X character set
Transaction description (tag 61) Must exist
Transaction description (tag 61) Length 1 to 34
Transaction description (tag 61) Structure SWIFT X character set
Information to account owner (tag 86) Length 1 to 390
Information to account owner (tag 86) Structure SWIFT X character set
C/D mark (tag 62) Must exist
C/D mark (tag 62) Length 1
C/D mark (tag 62) Structure C or D
Statement end date (tag 62) Must exist
Statement end date (tag 62) Length 6
Fields Validation types Validation
WebSuite Cash Management Connectivity Guide 229
A.6 Deal import formats
CMM supports the following standard formats for deal imports:
A.6.1 Wallstreet flat file deal
The following is an example deal flat file (with tabs as the delimiters):
Statement end date (tag 62) Structure Digits in YYMMDD format
Closing balance currency code (tag 62) for
transaction date
Must exist
Closing balance currency code (tag 62) for
transaction date
Length 3
Closing balance currency code (tag 62) for
transaction date
Structure Letters A to Z (uppercase)
Closing balance actual amount (tag 62) for
transaction date
Must exist
Closing balance actual amount (tag 62) for
transaction date
Length 1 to 15
Closing balance actual amount (tag 62) for
transaction date
Structure Digits 0 to 9 and , and .
Closing balance currency code (tag 62) for value
date
Length 3
Closing balance currency code (tag 62) for value
date
Structure Letters A to Z (uppercase)
Closing balance actual amount (tag 62) for value
date
Length 1 to 15
Closing balance actual amount (tag 62) for value
date
Structure Digits 0 to 9 and , and .
Information to account owner (tag 86) Length 1 to 390
Information to account owner (tag 86) Structure SWIFT X character set
Fields Validation types Validation
Type Wallstreet formats EDIFACT
formats SWIFT formats Other
formats
Deal • Flat file deal N/A N/A N/A
230 © Wall Street Systems IPH AB - Confidential
This file contains three lines grouped into two sections:
Each of these lines contains required and non-required components. While you do not have to
provide information for non-required components, you must include delimiters (tabs) for them to
indicate their place in the file.
Deal flat files must be tab delimited with file names in the following format: DEAL[Date].tab, where
[Date] is the date of the deal in MMDDYY format.
Note: If the source system cannot generate tab-delimited files, contact Wallstreet for information
on alternatives.
The deal flat file format supports the following deal types:
•Securities
•Deposits
•Borrowings
•Long-term securities
•Spot foreign exchanges
•Forward foreign exchanges
•Non-deliverable foreign exchanges.
As of this release, the deal flat file format does not support the following deal types:
•Swaps
•Options
•Swap deposits.
Note: The deal flat file format is intended for customers using the treasury management
functionality of CMM instead of TRM.
A.6.1.1 Wallstreet flat file deal header
The header section of a deal flat file consists of one line:
•File information (line 1).
Line Name Description
Header
1File information General information on the file.
Body
2Deal details The individual deal.
Note: Include one line 2 for each deal in the file.
3 Cash flow details The individual cash flow.
Note: Include one line 3 for each cash flow in a deal.
WebSuite Cash Management Connectivity Guide 231
A.6.1.1.1 File information (line 1)
Line 1 contains general information on the file:
The following table defines the components of this line:
A.6.1.2 Wallstreet flat file deal body
The body section of a deal flat file consists of two lines:
•Deal details (line 2)
•Cash flow details (line 3).
A.6.1.2.1 Deal details (line 2)
Line 2 contains the individual deals. (Include one line 2 for each deal in the file.)
No. Name Req’
d
Max.
size
Data
type Description Example
1a File
information
indicator
Yes N/A Constant An indicator that the line contains general file
information.
The value of this component must be HEA00.
HEA00
1b Batch ID Yes 8Integer A unique identifier for the batch.
The originating system must be able to generate
a unique number per batch.
Note: CMM checks the value of this component
before loading the file to prevent
accidentally reimporting the same batch
twice.
1
1c Originating
system ID
Yes 20 String A unique code for the originating system. If
there are several instances of an originating
system in an organization, the different
instances must be labeled uniquely. For example,
the name of the system could be concatenated
with a sequence number.
ABC
1d Creating
date/time
Yes 20 Date/tim
e
The date and time when the batch was created.
For more information on dates in the deal flat file
format, see A.6.1.3 Dates in Wallstreet flat file
deal on page 240.
10/20/20
06
14:45:00
1e Time zone No 8 String The time zone of the originating system,
expressed in reference to Greenwich Mean Time
(GMT).
Wallstreet recommend you include this
component if you are working in an environment
where the originating systems are in different
time zones.
GMT-2:00
232 © Wall Street Systems IPH AB - Confidential
The components in line 2 must display in the following order:
Name Req’d Max.
size
Data
type Description Example
Deal detail
indicator
(Component 1)
Yes N/A Constant An indicator that the line contains general
file information.
The value of this component must be
DEA00.
DEA00
Action code
(Component 2)
Yes N/A String A code indicating the action CMM should
take.
Acceptable values:
•U to insert a new deal or replace an
existing deal
•D to delete a deal.
Note: Only use D for new and forecasted
deals.
U
Deal ID
(Component 3)
Yes 20 String The deal’s unique ID.
Note: This component links the deal to its
associated cash flow.
ABC1234567
Deal processing
status
(Component 4)
Yes N/A String A code to indicate the actions that have
already been taken on the deal.
Acceptable values:
•U for an unmodeled deal
•M for a modeled deal.
Confirmation and settlement of an
unmodeled deal occur in CMM. An
unmodeled deal is equivalent to a deal that
is manually entered in CMM. An unmodeled
deal does not need cash flow details, as
CMM calculates them automatically. For
CMM to import an unmodeled deal, it must
be able to support (or "model") the deal’s
type. For more information, contact CMM.
A modeled deal is a deal that has been
precalculated. CMM expects the cash
records resulting from the deal to be
attached in subsequent cash flow details.
CMM only supports modeled deals in the
LTS instrument category.
U
Deal status
(Component 5)
Yes N/A String The deal’s status.
Acceptable values:
•F for a forecasted deal
•A for an actual deal
•C for a confirmed deal
•S for a settled deal
•M for a matured deal
•D for a deleted deal.
Note: This component is only applicable for
new deals. For existing deals, CMM
uses the deals’ statuses as recorded
in the database.
A
WebSuite Cash Management Connectivity Guide 233
Instrument
category
(Component 6)
Yes 10 String The ID of the deal’s instrument category.
Acceptable values for unmodeled deals:
•DEP for deposit
•BRW for borrowing
•SEC for security
•LOC for line of credit
•FEXSPOT for FX spot
•FEXFWD for FX forward
•FEXND for non-deliverable FX
•CEQT for common equity
•LTS for long-term security.
Acceptable value for modeled deals:
•LTS for long-term security.
SEC
Instrument type
(Component 7)
Yes 10 String The ID of the deal’s instrument type.
This must be valid instrument type for the
selected instrument category.
SECBA
Entity ID
(Component 8)
Yes 25 String The ID of the deal’s entity. 1234
Counterparty ID
(Component 9)
Yes 25 String The ID of the deal’s counterparty. DEFco
Book date
(Component 10)
Yes N/A Date The deal’s booking date.
For more information on dates in the deal
flat file format, see A.6.1.3 Dates in
Wallstreet flat file deal on page 240.
10/20/2006
Value date
(Component 11)
Yes N/A Date The deal’s value date.
For more information on dates in the deal
flat file format, see A.6.1.3 Dates in
Wallstreet flat file deal on page 240.
10/20/2006
Maturity date
(Component 12)
Yes N/A Date The deal’s maturity date.
For more information on dates in the deal
flat file format, see A.6.1.3 Dates in
Wallstreet flat file deal on page 240.
10/20/2006
Previous interest
date
(Component 13)
Cond.
[1]
N/A Date The deal’s previous interest date.
This date must be before the deal’s value
date.
For more information on dates in the deal
flat file format, see A.6.1.3 Dates in
Wallstreet flat file deal on page 240.
09/20/2006
Next interest
date
(Component 14)
Cond.
[1]
N/A Date The deal’s next interest date.
This date must on or after the deal’s value
date.
For more information on dates in the deal
flat file format, see A.6.1.3 Dates in
Wallstreet flat file deal on page 240.
11/20/2006
Name Req’d Max.
size
Data
type Description Example
234 © Wall Street Systems IPH AB - Confidential
Amount
(Component 15)
Yes 21 Double The deal’s amount (in the currency defined
in component 16).
Note: Do not include thousand separators
in amounts.
11000000.00
Currency code
(Component 16)
Yes N/A String The ISO code of the deal’s currency. USD
Contra currency
code
(Component 17)
No 6 String The ISO code of the deal’s contra-currency
(for foreign exchange deals).
CAD
Quoted against
currency code
(Component 18)
No 20 Double The ISO code of the currency to use as the
base for the foreign exchange rate (for
foreign exchange deals).
If you do not provide a value for this
component, CMM uses the value of
component 16.
USD
Commission
amount
(Component 19)
No 21 Double The deal’s commission amount. 1000
Fee amount
(Component 20)
No 21 Double The deal’s fee amount. 1000
Trader ID
(Component 21)
Yes 40 String The user ID of the deal’s trader. JSMITH
Portfolio ID
(Component 22)
Yes 10 String The ID of the deal’s portfolio. 123456
Buy/sell code
(Component 23)
Yes 2 String A code indicating whether the deal was
bought or sold
Acceptable values:
•B for buy (in other words, purchase or
investment)
•S for sell (in other words, borrow or
issue debt).
B
Original deal ID
(Component 24)
No 20 String The ID of the deal’s original deal. ABC1234566
Issuer ID
(Component 25)
No 20 String The ID of the deal’s issuing entity. 1233
Issue ID
(Component 26)
No 20 String The ID of the deal’s issue. 123
Issue ID type ID
(Component 27)
No 4 Integer The ID of the deal’s issue type.
Acceptable values:
•1 for COSIP
•2 for ISIN
•3 for SODOL
•4 for other.
1
Name Req’d Max.
size
Data
type Description Example
WebSuite Cash Management Connectivity Guide 235
Aggregate
position
(Component 28)
No 2String The deal’s aggregate position.
Acceptable values:
•C
•D
•I.
C
Interest discount
code
(Component 29)
Yes 20 String The deal’s interest discount code.
Acceptable values for short-term
instrument types (BRW, DEP, and SEC):
•EXCTSMPINT for exact simple interest
•SMPINT for ordinary simple interest
•DSCNTQYLD for discount—quoted yield
•DSCNTQPRICE for discount—quoted
price
•SMPDSCNT for discount.
Acceptable values for long-term instrument
types (LTS):
•AMORTIZATION for amortization
•FLOATINGRATE for floating rate
•FIXEDRATE for fixed rate.
Acceptable values for short- and long-term
instrument types:
•MODELED for modeled deals.
SMPINT
Interest type
(Component 30)
No 20 Double The deal’s interest type.
Day basis
(Component 31)
Yes 3 Integer The deal’s day basis.
Acceptable values:
•1 for 360
•2 for 365
•3 for 366
•4 for 30/360
•5 for 30E/360
•6 for Actual/360
•7 for Actual/365
•8 for Actual/Actual
•9 for Actual W/252.
Note: 1 through 4 are for backwards
compatibility only.
8
Price
(Component 32)
Cond.
[2]
20 Double The deal’s quoted price.
If you do not provide a value for this
component, CMM uses 1.
1
Price divisor
(Component 33)
No 20 Double The divisor CMM uses for securities pricing
if other than one.
.9
Name Req’d Max.
size
Data
type Description Example
236 © Wall Street Systems IPH AB - Confidential
Tax met hod co de
(Component 34)
Cond.
[2]
4Integer The code of the deal’s tax method. 0
Tax amount
(Component 35)
Cond.
[2]
20 Double The deal’s tax amount. 0
Tax amount
withheld
(Component 36)
Cond.
[2]
20 Double The deal’s tax amount withheld. 0
Commission
method
(Component 37)
Cond.
[2]
4 Integer The deal’s commission method. 0
Fee method
(Component 38)
Cond.
[2]
4Integer The deal’s fee method. 0
Clearing system
(Component 39)
No 25 String The deal’s clearing system. ClearSys
Clearing agent
(Component 40)
No 25 String The deal’s clearing agent. ClearAgent
Safekeeper
(Component 41)
No 25 String The deal’s safekeeper. SafeKeeper
Withholding
Agent
(Component 42)
No 25 String The deal’s withholding agent. WithHold
Agent
Other charges
(Component 43)
No 20 Double The deal’s other charges. 500
Rate
(Component 44)
Cond.
[3]
20 Double The deal’s quoted rate (for SEC, DEP, and
LTS deals), contract rate (for FEXSPOT
deals), or forward point (for FEXFWD
deals).
0.0025
Spot rate
(Component 45)
No 20 Double The deal’s spot rate (for foreign exchange
deals).
0.0025
Entity paying
bank account
number
(Component 46)
Cond.
[3]
30 String The number of the deal’s paying entity
bank account.
123-456-789
Entity paying
bank account
currency code
(Component 47)
Cond.
[3]
N/A String The ISO currency code of the deal’s paying
entity bank account.
USD
Entity paying
account bank
branch ID
(Component 48)
Cond.
[3]
15 String The sort or ABA code of the deal’s paying
entity bank account.
Entity receiving
bank account
number
(Component 49)
Cond.
[3]
30 String The number of the deal’s receiving entity
bank account.
123-456-789
Name Req’d Max.
size
Data
type Description Example
WebSuite Cash Management Connectivity Guide 237
Entity receiving
bank account
currency code
(Component 50)
Cond.
[3]
N/A String The ISO currency code of the deal’s paying
entity bank account.
USD
Entity receiving
account bank
branch ID
(Component 51)
Cond.
[3]
15 String The sort or ABA code of the deal’s paying
entity bank account.
Counterparty
bank code
(Component 52)
Cond.
[3]
20 String The SWIFT code of the deal’s counterparty
bank.
Counterparty
bank code type
ID
(Component 53)
Cond.
[3]
20 String The bank code type of the deal’s
counterparty bank.
Counterparty
bank account
number
(Component 54)
Cond.
[3]
30 String The number of the deal’s counterparty
bank account.
987-654-321
Counterparty
receiving bank
account currency
code
(Component 55)
Cond.
[3]
N/A String The ISO currency code of the deal’s
counterparty bank account.
CAD
Counterparty
receiving account
bank branch ID
(Component 56)
Cond.
[3]
15 String The sort or ABA code of the deal’s
counterparty bank account.
Holiday country
code
(Component 57)
Cond.
[3]
20 String The code of the deal’s bank holiday
country.
CMM uses this component to calculate
payment and receipt dates.
US
DAN adv. type
(Component 58)
No N/A N/A This component is a placeholder for future
development.
N/A
Payment
frequency
(Component 59)
Cond.
[3]
N/A Integer The deal’s principal frequency.
Acceptable values:
•24 for maturity
•12 for monthly
•6 for bimonthly
•4 for quarterly
•3 for third year
•2 for semi-annually
•1 for annually.
12
Name Req’d Max.
size
Data
type Description Example
238 © Wall Street Systems IPH AB - Confidential
Table notes:
1. This component is required for unmodeled long-term securities.
2. This component is required for unmodeled deals.
3. This component is required for confirmed and settled deals.
4. This component is required for unmodeled deals with component 29 set to Amortization or
Floating Rate.
A.6.1.2.2 Cash flow details (line 3)
Line 3 contains the individual cash flow details:
(Include one line 3 for each cash flow detail in a deal.)
Interest
calculation
frequency
(Component 60)
No N/A Integer The deal’s interest calculation frequency.
Acceptable values:
•12 for monthly
•6 for bimonthly
•4 for quarterly
•3 for third year
•2 for semi-annually
•1 for annually.
12
Put/call
(Component 61)
No N/A N/A This component is a placeholder for future
development.
N/A
Compounding
type
(Component 62)
No N/A N/A This component is a placeholder for future
development.
N/A
Description
(Component 63)
No 60 String A description of the deal. See Corp.
Treasury for
details
Interest
calculation
frequency
(Component 64)
Cond.
[4]
N/A Integer The deal’s interest calculation frequency.
Acceptable values:
•12 for monthly
•6 for bimonthly
•4 for quarterly
•3 for third year
•2 for semi-annually
•1 for annually.
12
Name Req’d Max.
size
Data
type Description Example
WebSuite Cash Management Connectivity Guide 239
The following table defines the components of this line:
No. Name Req’d Max.
size Data type Description Example
3a Cash flow
detail
indicator
Yes N/A Constant An indicator that the line
contains cash flow details.
The value of this
component must be
CFL00.
CFL00
3b Deal ID Yes 20 String The ID of the cash flow
detail’s parent deal.
ABCD1234567
3c Cash flow
date
Yes N/A Date The cash flow detail’s value
date.
For more information on
dates in the deal flat file
format, see A.6.1.3 Dates
in Wallstreet flat file deal
on page 240.
10/20/2006
3d Amount Yes N/A Double The cash flow detail’s
amount (in the currency
defined in currency code).
Note: Do not include
thousand separators
in amounts.
461312.50
3e Currency
code
Yes N/A String The ISO code of the cash
flow detail’s currency.
USD
3f Cash flow
direction
Yes N/A String The cash flow detail’s
direction.
Acceptable values:
•C for credits (inflows)
•D for debits (outflows).
C
3g Cash flow
type
Yes 20 String The cash flow detail’s type.
Acceptable values:
•Interest for
payment or receipt of
interest
•Principal for
payment or receipt of
principal
•Commissions for
payment or receipt of
commission
•Fees for payment or
receipt of fees
•Other for any other
items.
Interest
240 © Wall Street Systems IPH AB - Confidential
A.6.1.3 Dates in Wallstreet flat file deal
Wallstreet recommends using dates with four digit years in the deal flat file format (for example,
2-Sep-2006).
CMM can accept dates with two-digit years after 2000 (for example, 2-Sep-06). However, this
practice is not recommended due to possible misinterpretation.
Leading zeros on days and months (if numeric months are used) are not required.
Do not use the DD/MM/YY format as this can be misinterpreted as MM/DD/YY in ambiguous cases.
For example, 01/02/03 could be interpreted as January 2, 2003; February 1, 2003; or
February 3, 2001.
3h Cash flow
status
Yes N/A String The cash flow detail’s
status.
Acceptable values:
•N for new
•F for forecast
•C for confirmed
•S for settled.
N
3i Action code Yes N/A String The action to take.
Acceptable values:
•A to add the new cash
flow detail as a new
event
•U to replace an event
already in the database
•D to delete an event
from the database.
A
3j Description No 256 String A description of the cash
flow detail.
Note: You must provide a
tab even if you do
not provide a
description
(assuming the file it
tab delimited).
Final
cash flow
No. Name Req’d Max.
size Data type Description Example
WebSuite Cash Management Connectivity Guide 241
A.7 Transaction export formats
CMM supports the following standard formats for transaction exports:
Table notes:
1. For information on formats not documented in this appendix, contact Wallstreet.
A.7.1 SWIFT MT101
The SWIFT MT101 message is sent by a financial institution on behalf of an account owner/ordering
party that is not a financial institution. The SWIFT MT101 formats are the most commonly used
SWIFT payment formats and support multiple types of commercial payments. They carry minimal
information—just enough to allow the payment instruction to be correctly executed by the paying
bank and deposited into the correct account by the beneficiary’s bank. The SWIFT MT101 formats
can be used to order the movement of funds:
•Between ordering customer accounts
•In favor of a third party, either locally or internationally.
CMM supports two SWIFT MT101 formats:
•Batch: Multiple payments are sent in one file using the batch debit/multiple credit approach.
•Transaction: Individual payments are sent in separate files.
The following table presents the major features of the SWIFT MT101 formats:
Type Wallstreet formats EDIFACT formats SWIFT formats Other formats
Payment N/A • PAYEXT [1]
•PAYMUL [1
]
• MT100 [1]
•MT101
• MT103 [1]
• MT202 [1]
• ISO 20022 XML
credit transfer
• ANSI X12 820
[1]
• BACS [1]
•CFONB/AFB
VIR106 [1]
Direct
debit
N/A •DIRDEB [1]• SWIFT MT104
• ISO 20022 XML
directdebit
transfer
•CFONB/AFB
PRE160 [1]
Letter of
credit
N/A N/A N/A • CFONB/AFB
LCR240 [1]
Pre-advic
e
N/A N/A • SWIFT MT210 N/A
Features Description
Payment types The formats support domestic non-urgent, domestic urgent, cross-border non-urgent,
cross-border urgent, cross-border intermediary non-urgent, and cross-border
intermediary urgent payments.
Payment capture Payments can be captured manually, imported from an accounts payable file, or
created at the time a deal is settled.
Payment file names File names follow the CMM standard. In other words, CMM creates the file name as a
concatenation of the date-time stamp and the receiving bank ID to ensure it is unique.
Interface component
scope
The file is plain text only. There is no digital signature, encryption, or other security
features required. If you want to use these feature, you can do so by adding them to
the interchange (see 3.4 Managing interchanges on page 56).
242 © Wall Street Systems IPH AB - Confidential
A.7.1.1 SWIFT MT101 payment scenarios
This page documents the payment scenarios CMM supports for SWIFT MT101.
A.7.1.1.1 Scenario 1A
In this scenario, a head office sends a payment on behalf of itself and multiple subsidiaries using a
direct method.
To implement this scenario in CMM, do the following:
1. Create an interchange for the receiver bank.
2. In the interchange, set the head office entity as the sender.
The head office entity’s SWIFT code is posted in the Ordering Customer position in the
SWIFT MT101 message file.
A.7.1.1.2 Scenario 1B
In this scenario, a head office sends a payment on behalf of itself and multiple subsidiaries using a
relay method.
To implement this scenario in CMM, do the following:
1. Create an aggregate bank with a SWIFT code equal to the receiving bank BIC.
2. Create the head office serving bank as the aggregate bank’s child.
3. Create an interchange for the aggregate bank.
4. In the interchange, set the head office entity as the sender.
The head office entity’s SWIFT code is posted in the Ordering Customer position in the
SWIFT MT101 message file.
A.7.1.1.3 Scenario 2A
In this scenario, a head office sends a payment from a subsidiary bank account using a direct
method.
To implement this scenario in CMM, do the following:
1. Create an interchange for the receiver bank.
2. In the interchange, set the head office entity as the sender.
The head office entity’s SWIFT code is posted in the Instructing Party position in the
SWIFT MT101 message file.
During the release process, CMM determines if the bank account belongs to the head office
entity, which distinguishes this scenario from 1A. This is required because some of the field
mappings differ between the two scenarios.
Interface content
scope
The interface only handles payments/debits. Receipts/credits are not catered for.
Data assumption Users capture valid SWIFT codes into the import file or static data. CMM does not
verify the veracity of the SWIFT code, merely the length.
Payment group rules CMM does not apply any payment grouping rule.
Bank payment
message format
The SWIFT MT101 formats produced from the XML tool does not introduce or support
any new optional fields or segments that were not supported in the Java code.
Features Description
WebSuite Cash Management Connectivity Guide 243
A.7.1.1.4 Scenario 2B
In this scenario, a head office sends a payment from a subsidiary bank account using a relay
method.
To implement this scenario in CMM, do the following:
1. Create an aggregate bank with a SWIFT code equal to the receiving bank BIC.
2. Create the subsidiary serving bank as the aggregate bank’s child.
3. Create an interchange for the aggregate bank.
4. In the interchange, set the head office entity as the sender.
The head office entity’s SWIFT code is posted in the Instructing Party position in the
SWIFT MT101 message file.
During the release process, CMM determines if the bank account belongs to the head office
entity, which distinguishes this scenario from 1B. This is required because some of the field
mappings differ between the two scenarios.
A.7.1.1.5 Scenario 3A
In this scenario, a shared service center or payment factory sends a payment using a direct method.
To implement this scenario in CMM, do the following:
1. Set the Enable Shared Service Center configuration parameter to True.
2. Create an interchange for the receiver bank.
3. In the interchange, enter the shared service center’s BIC in the Sender LT Address or Shared Service
Center BIC field.
4. In the interchange, set the head office entity as the sender.
The head office entity’s SWIFT code is posted in the Ordering Customer position in the
SWIFT MT101 message file.
The difference between this scenario and 1A is that the entity SWIFT code is not the same as the
interchange sender ID.
The difference between this scenario and 2A is that the transaction in this scenario is an
on-behalf-of payment.
A.7.1.1.6 Scenario 3B
In this scenario, a shared service center or payment factory sends a payment using a relay method.
To implement this scenario in CMM, do the following:
1. Create an aggregate bank with a SWIFT code equal to the receiving bank BIC.
2. Create the subsidiary serving bank as the aggregate bank’s child.
3. Set the Enable Shared Service Center configuration parameter to True.
4. Create an interchange for the aggregate bank.
5. In the interchange, enter the shared service center’s BIC in the Sender LT Address or Shared Service
Center BIC field.
6. In the interchange, set the head office entity as the sender.
The head office entity’s SWIFT code is posted in the Ordering Customer position in the
SWIFT MT101 message file.
A.7.1.2 SWIFT MT101 layout
The SWIFT MT101 message file layout is identical to that of the SWIFT MT940 message file layout
(see A.5.3.1 SWIFT MT940 layout on page 217).
244 © Wall Street Systems IPH AB - Confidential
A.7.1.3 SWIFT MT101 header blocks
SWIFT MT101 message files begin with three header blocks:
1. Fixed basic header block
2. Fixed application header block
3. User header block.
Header block 3 is usually omitted. CMM does not currently support this header block and ignore it if
it is included in import files.
A.7.1.3.1 Fixed basic header block
The following table presents the contents of the fixed basic header block:
A.7.1.3.2 Fixed application header block
The following table presents the contents of the fixed application header block:
Content Description Required Acceptable values XML attribute
{1: Fixed basic
header identifier
Yes {1: Not available
aApplication
identifier
Yes F (All user-to-user, FIN
system, and FIN service
messages)
Not available
01 Service identifier Yes 01 Not available
aaaaaaaaxxxx ID of the ordering
party bank
Yes Alphabetic (A to Z)
Note: If the ID of the
ordering party bank is
not 12 characters long,
add Xs until it is 12
characters long.
interchange_
interchange_
sender_id
dddd Number of data
sets
Yes 0000 Not available
dddddd} Transaction
number in the file
Yes 000000 Not available
Content Description Required Acceptable
values XML attribute
{2: Fixed application header identifier Yes {2: Not available
IInput/output identifier Yes INot available
ddd Message type Yes 101 Not available
WebSuite Cash Management Connectivity Guide 245
Table notes:
1. This content is currently out of scope.
A.7.1.4 SWIFT MT101 main message block
Block 4 contains the main message of a SWIFT message file. It usually begins with tag 20.
For the batch format, CMM groups the payments by party ID and payment currency (one single
debit entry). This section considers two possible scenarios:
•The paying bank account is identical (hereinafter referred to as "pay-account-identical")
•The paying bank account is not identical (hereinafter referred to as "not pay-account-identical").
A.7.1.4.1 Supported tags
The following table presents the available tags that are supported:
aaaaaaaaxxxx Destination address Yes Alphabetic
(A to Z)
Note: If the
destin
ation
addre
ss is
not 12
chara
cters
long,
add
Xs
until it
is 12
chara
cters
long.
interchange_i
nterchange_re
cipient_id
a Message priority Yes S for
user-to-syst
em
messages
U for urgent
messages.
N for all
user-to-user
messages
Not available
d [1]Message monitoring No N/A N/A
ddd1Obsolescence period No N/A N/A
Content Description Required Acceptable
values XML attribute
Tag Name Required Contents [1] CMM mapping
Sequence A: General information
20 Sender’s
reference
M16x • In the batch format: Batch ID
• In the transaction format: Customer reference
ID
246 © Wall Street Systems IPH AB - Confidential
21
R
Customer
specified
reference
O 16x • In the batch format: Batch ID
• In the transaction format: N/A
28
D
Message
index/total
M5n/5n 1/1 (static value)
50
a
Instructing party O C or L • When the sender is the bank account owner:
N/A (case 1A, 1B)
• When the sender is not the bank account
owner and is not the shared service center:
Interchange sender ID (case 2A, 2B)
• When the sender is the shared service center:
N/A (case 3A, 3B)
50
a
Ordering
customer
OG or H • When the sender is the shared service center:
(case 3A, 3B)
• For pay-account-identical:
- When the sender is the bank account
owner: Use 50G and map to the bank
account number and entity BEI
- When the sender is not the account owner
and is not the shared service center: Use
50H and map to the bank account number,
payor long name, and payor full address
52
a
Account servicing
institution
O A or C When pay-account-identical and aggregated bank
interchange: Use 52A and map to the bank BIC
51
a
Sending
institution
ON/A
30 Request
execution date
M6!n Value date
25 Authorization O35x N/A
Sequence B: Transaction details (repeat once for each transaction in the group)
21 Transaction
reference
M16x Customer reference ID
21
F
F/X deal
reference
O16x N/A
23
E
Instruction code O4!c[/30x] Bank instructions
32
B
Currency/transact
ion amount
M 3!a15d Payment currency
Payment amount
50
a
Instructing party OC or L (35x) • When the sender is the bank account owner:
Originator long name (case 1A, 1B)
• When the sender is not the bank account
owner and is not the shared service center:
N/A (case 2A, 2B)
• When the sender is the shared service center:
Originator long name (case 3A, 3B)
(If the instructing party is posted in sequence A,
nothing is not posted here.)
Tag Name Required Contents [1] CMM mapping
WebSuite Cash Management Connectivity Guide 247
50
a
Ordering
customer
OG
(34x/4!a2!a2!c
[3!c]) or H
(34x/4*35)
• When the sender is the shared service center:
use 50H and map to bank account number,
payor long name, and payor full address
• For not pay-account-identical:
- When the sender is the bank account
owner: Use 50G and map to bank account
number and entity BEI
- When the sender is not the bank account
owner and is not the shared service center:
Use 50H and map to bank account number,
payor long name, and payor full address
(If the instructing party is posted in sequence A,
nothing is not posted here because the ordering
customer is the same as the instructing party.)
52
a
Account servicing
institution
OA
([/1!a][/34x]4!
a2!a2!c[3!c])
or C (/34x)
When not pay-account-identical and
aggr-bank-interchange: Use 52A and map to the
bank BIC
(If the instructing party is posted in sequence A,
nothing is not posted here because the account
servicing institution is the same as the instructing
party.)
56
a
Intermediary O A, C, or D • If the intermediary bank SWIFT code exists,
use 56A and map to the code
• If the intermediary bank name and address
exist, use 56D and map to the name and
address
57
a
Account with
institution
OA, C, or D • If UK domestic payment: Post :57D:/SC/payee
bank branch ID
• If not UK domestic payment and the payee
bank BIC exists: Post :57A:payee bank BIC
• Otherwise: Post :57D:payee bank long name
and address
59
a
Beneficiary M A or no option
letter
• If the payee has a BIC or BEI: Post
:59A:+"/payee bank account number"+BIC or
BEI
• If the payee does not have a BIC or BEI: Post
:59:+"/payee bank account number"+payee
name and address
Tag Name Required Contents [1] CMM mapping
248 © Wall Street Systems IPH AB - Confidential
Table notes:
1. For more information on the codes used in this column, see A.13.1 SWIFT field lengths on page
303 and A.13.2 SWIFT field types on page 304.
70 Remittance
information
O4*35x Beneficiary message
• INV: If remittance details are available, build
INV based on the details (for example,
/INV/AUG06-345//AUG06-346).
• ROC: If remittance details are not available,
build ROC with the customer reference ID (for
example, /ROC/RA-PL-9876-103).
• IPI: If the counterparty message is not empty,
build IPI with the counterparty message
trimmed to 20 characters. (Users can put a
unique reference identifying a related
international payment in the counterparty
message.)
• RFB: If the beneficiary customer BIC or BEI is
available, build RFB with the BIC or BEI.
Otherwise, build RFB with the beneficiary long
name truncated to 16 characters.
• ULTB: N/A. (It is assumed the beneficiary is
always the ultimate beneficiary.)
• INST: If the instructing party is different from
the ordering customer, build INST with the
instructing party.
The order of these items in the tag is as follows:
1. INV or DOC
2. IPI
3. RFB
4. INST
77
B
Regulatory
reporting
O 3*35x Regulatory code
(This tag is only posted for cross-border
payments.)
33
B
Currency/original
ordered amount
O3!a15d N/A
71
A
Details of charges M 3!a Financial charge allocation:
• BEN: All transaction charges, including the
charges of the financial institution serving the
order customer’s bank account, for the
subsequent credit transfers are to be borne by
the beneficiary customer.
• OUR: All transaction charges for the
subsequent credit transfer are to be borne by
the ordering customer.
• SHA: All transaction charges other than the
charges of the financial institution servicing the
ordering customer bank account are borne by
the beneficiary customer.
25
A
Charges account O/34x N/A
36 Exchange rate O 12d N/A
Tag Name Required Contents [1] CMM mapping
WebSuite Cash Management Connectivity Guide 249
A.7.1.4.2 Unsupported tags
The following table presents the available tags that are unsupported:
Table notes:
1. For more information on the codes used in this column, see A.13.1 SWIFT field lengths on page
303 and A.13.2 SWIFT field types on page 304.
A.7.2 SWIFT MT101 validation
Validation is performed during the export and file creation process.
Tag Name Required Contents [1] CMM mapping
Mandatory sequence A general information
21
R
Customer specified
reference
O16x All debit items are posted individually.
50
a
Instructing party O C or L Use this only when the instructing customer is not
also the account owner. In CMM, the payor is
always the owner of the account.
51
a
Sending institution ON/A as this field is only valid for IFT.
25 Authorization O Additional security provisions: digital signature
which is not supported by CMM.
Mandatory repetitive sequence B transaction details
50
a
Instructing party O C or L Use this only when the instructing customer is not
also the account owner. In CMM, the payor is
always the owner of the account.
50
a
Ordering customer OG or H This field is populated in the sequence A. Based on
condition C3, this field will not be displayed in
here.
52
a
Account servicing
institution
O A or C This field is populated in the sequence A. Based on
condition C6, this field will not be displayed in
here.
70 Remittance
information
OThe existing codes use CptyMessage. However,
this is incorrect and should be modified.
77
B
Regulatory
reporting
O When the residence of either the ordering
customer or beneficiary customer is to be
identified.
N/A in CMM.
33
B
Currency/original
ordered amount
OThis field is only used when the currency and
amount are different from those specified in field
32B.
N/A in CMM.
25
A
Charges account O When used, the account number must be different
from the account number specified in tag 50a.
N/A in CMM.
36 Exchange rate ON/A in CMM.
250 © Wall Street Systems IPH AB - Confidential
For the most part, the validation rules below are based on the validation rules set out by the SWIFT
specifications:
A.7.3 SWIFT MT104
The SWIFT MT104 message is sent by a corporation to a financial institution to request the direct
debit of the debtor’s bank account in the receiver’s country and, subsequently, to credit the
creditor’s bank account maintained by the receiving institution or one of its branches. The
SWIFT MT104 message is only appropriate to a "request for debit transfer" scenario.
A.7.3.1 SWIFT MT104 header block
The following table presents the contents of the SWIFT MT104 header block:
Field Validation type Validation
CUSTOMER REFERENCE ID Must exist
Length 1 to 16
VALUE DATE Must exist
PAYMENT CURRENCY Must exist
PAYMENT AMOUNT Must exist
PAYOR Must exist
PAYOR BANK Must exist
PAYOR BANK ACCT Must exist
PAYOR LONG NAME Must exist
PAYOR BANK ACCT NUMBER Must exist
Length 1 to 34
PAYOR BANK SWIFT CODE Must exist
Length Either 8 to 11
PAYEE LONG NAME Must exist
PAYEE BANK ACCT NUMBER Must exist
Length 1 to 34
PAYEE BANK SWIFT CODE or PAYEE BANK
LONG NAME
At least one of them must exist
PAYEE BANK SWIFT CODE If it exists, its length must be Either 8 or 11
INTERMEDIARY BANK SWIFT CODE If it exists, its length must be Either 8 or 11
INTERMEDIARY BANK ACCT NUMBER If it exists, its length must be 1 to 34
Illegal Characters Should not contain one of the
following special characters:
:@!%&*#{}<=^>|;$~\\\"
All of these are mapped to
the ? character
Tag CMM mapping Example
Sender Interchange sender ID PLATUS33
Message type Static value 104 104
Receiver Interchange receiver ID AAAAUS33
WebSuite Cash Management Connectivity Guide 251
A.7.3.2 SWIFT MT104 main message block
The main message block of a SWIFT MT104 message consists of the following sequences:
The following table presents the available tags:
Letter Name Required Number of
occurrences Contents
A General
information
Yes One Information to be applied to all individual
transactions detailed in sequence B
BTransaction
details
Yes Multiple Details of one individual transaction
C Settlement
details
No Multiple Further settlement information for all
transactions mentioned in sequence B
Note: When the message is used as a request
for direct debit, this sequence is not
used. When the message is used as a
direct debit, this sequence is
mandatory.
Tag Name Required Contents
[1] CMM mapping Example
Sequence A: General information
2
0
Sender’s
reference
M16x Import/export ID :20:PLANT-12345
2
1
R
Customer
specified
reference
O 16x • In the batch format:
customer reference ID
• In the transaction format:
N/A
:21R:PLTOL104-56
2
3
E
Instruction
code
O30x The type of direct debit
instructions contained in the
message (for example,
:23E:RFDD).
Note: CMM inserts the static
value RFDD in this tag,
indicating that the
message contains a
request for direct debit
instructions.
:23E:RFDD
2
1
E
Registration
reference
O35xN/A N/A
3
0
Requested
execution
date
M6!n Value date :30:060929
5
0
A
Sending
institution
ON/A N/A N/A
252 © Wall Street Systems IPH AB - Confidential
50a Instructing
party
OC or L • When the sender is the
bank account owner: N/A
• When the sender is not the
bank account owner and is
not the shared service
center: Interchange sender
ID
• When the sender is the
shared service center: N/A
:50C:SPRNGB2L
50a Creditor O A or K • When the sender is the
shared service center: N/A
•For pay-account-identical:
- When the sender is the
bank account owner:
Use 50A and map to the
bank account number
and BEI
- When the sender is not
the account owner: Use
50K and map to the
bank account number,
party long name, and
party local address
:50A:289523984:SPRNGB
2L
52a Creditor’s
bank
OA, C, or D When pay-account-identical
and aggregated bank
interchange: Use 52A and map
to the bank BIC
:52A:ZZZZUS33
26T Transaction
type code
O 3!c Transaction type code :26T:COM
77B Regulatory
reporting
O3*35x The static value BENEFRES,
followed by the debtor cpty
bank country code (if it exists),
followed by the party company
identifier
:77B:BENEFRESUSSPRNG
B2L
71A Details of
changes
O3!aN/A N/A
72 Sender-to-rec
eiver
information
O6*35x N/A N/A
Sequence B: Transaction details (repeat once for each transaction in the group)
21 Transaction
reference
M16x Customer reference ID :21:TR1-PL
23E Instruction
code
O4!c[/30x]
Static value AUTH :23E:AUTH
21C Mandate
reference
O35x N/A N/A
21D Direct debit
reference
O35xN/A N/A
21E Registration
reference
O35x N/A N/A
Tag Name Required Contents
[1] CMM mapping Example
WebSuite Cash Management Connectivity Guide 253
32B Currency/tran
saction
amount
M 3!a15d Currency and amount :32B:USD118982,05
50a Instructing
party
OC or L Originator long name N/A
50a Creditor O A or K Party bank account IBAN or
BBAN then party long name
and part local address
:50A:289523984:SPRNGB
2L
52a Creditor’s
bank
OA
([/1!a][/34
x]4!a2!a2!c
[3!c]) or C
(/34x)
Party bank account number :52A:ZZZZUS33
57a Debtor’s bank O A, C, or D • 57A: counterparty bank
SWIFT code
• 57D: counterparty bank
local address
:57A:CCCCGB2L
59a Debtor MA or no
option
letter
• If the payee has a BIC or
BEI: Post
:59A:+/counterparty bank
account IBAN or BBAN+BIC
or BEI
• If the payee does not have
a BIC or BEI: Post
:59:+"counterparty bank
account
number"+counterparty
name and address
:59:/GB111111THOMSON
FACTORY GB-LIVERPOOL
Tag Name Required Contents
[1] CMM mapping Example
254 © Wall Street Systems IPH AB - Confidential
70 Remittance
information
O 4*35x Beneficiary message
• INV: If remittance details
are available, build INV
based on the details.
• ROC: If remittance details
are not available, build ROC
with the customer reference
ID.
• IPI: If the counterparty
message is not empty, build
IPI with the counterparty
message trimmed to 20
characters. (Users can put a
unique reference identifying
a related international
payment in the
counterparty message.)
• RFB: If the beneficiary
customer BIC or BEI is
available, build RFB with
the BIC or BEI. Otherwise,
build RFB with the
beneficiary long name
truncated to 16 characters.
• ULTB: N/A. (It is assumed
the beneficiary is always
the ultimate beneficiary.)
• INST: If the instructing
party is different from the
ordering customer, build
INST with the instructing
party.
The order of these items in the
tag is as follows:
1. INV or DOC
2. IPI
3. RFB
4. INST
:70:/INV/AUG06-345//A
UG06-346
:70:/ROC/RA-PL-9876-8
7 /INSTPLANTOIL AXIM
:70:ROC/RA-PL-9876-10
3 /INST/PLANTOIL
PRODUCTIONS
:70:/INVTH9876//TH987
7 /INST/SPRINGS INC
:70:INV/MLRAB98
/INST/SPRINGS INC
:70:/ROC/BGF89765
/INST/BIOGEN FRANCE
:70:/INV/BW654//BW655
//BW656 /INST/BIOGEN
HONG KONG
26T Transaction
type code
O3!c Transaction type code :26T:COM
77B Regulatory
reporting
O 3*35x Regulatory code
Note: Only post this tag for
cross-border payments.
:77B:/BENEFRES/US//CV
S//060
33B Currency/origi
nal ordered
amount
O3!a15d N/A N/A
Tag Name Required Contents
[1] CMM mapping Example
WebSuite Cash Management Connectivity Guide 255
Table notes:
1. For more information on the codes used in this column, see A.13.1 SWIFT field lengths on page
303 and A.13.2 SWIFT field types on page 304.
A.7.4 SWIFT MT210
The SWIFT MT210 message is sent by a bank account owner (or a party authorized by the bank
account owner) to one of its bank account service institutions. It is an advice notice to the bank
account servicing institution that indicates that the bank account owner will receive funds to be
credited to its bank account.
The SWIFT MT210 message provides the bank account servicing institution with early visibility into
incoming funds, allowing the institution to mange its liquidity and ensure the bank account owner is
credited with good value date.
A.7.4.1 SWIFT MT210 header block
The following table presents the contents of the SWIFT MT210 header block:
71A Details of
charges
O 3!a Financial charge allocation:
•BEN: All transaction
charges, including the
charges of the financial
institution serving the order
customer’s bank account,
for the subsequent credit
transfers are to be borne by
the beneficiary customer.
• OUR: All transaction
charges for the subsequent
credit transfer are to be
borne by the ordering
customer.
•SHA: All transaction
charges other than the
charges of the financial
institution servicing the
ordering customer bank
account are borne by the
beneficiary customer.
:71A:SHA
71F Sender’s
charges
O3!a15d N/A N/A
71G Receiver’s
charges
O 3!a15d N/A N/A
36 Exchange rate O12d N/A N/A
Tag Name Required Contents
[1] CMM mapping Example
Tag CMM mapping Example
Sender Interchange sender ID PLATUS33
Message type Static value 210 210
Receiver Interchange receiver ID AAAAUS33
256 © Wall Street Systems IPH AB - Confidential
A.7.4.2 SWIFT MT210 main message block
The following table presents the available tags in the main message block of a SWIFT MT210
message:
Tag Name Required Contents
[1] CMM mapping Example
20 Transaction
reference
number
M 16x Customer reference ID :20:txn0001
25 Account
identification
O35X Party bank account number
Note: This tag is used when the
receiver services more
than one bank account for
the sender
:25:987678998
30 Value date M 6!n Value date :30:070711
21 Related
reference
M16x Customer reference ID
Note: This tag contains the same
value as tag 20
(transaction reference
number).
:21:txn0001
32B Currency/trans
action amount
M 3!a15d Currency and amount :32B:GBP675100,
50C
50
Ordering
customer
O4!a2!a2!c[3!
c] (for 50C)
4*35x (for
50)
• If the ordering customer has
a BEI: Party SWIFT code
• If the ordering customer does
not have a BEI: Party long
name followed by party
address lines 1 to 4
Note: The first option is
preferred. The second
option should only be used
when the ordering
customer does not have a
BEI.
:50C:CorPSWFT
:50:corporation
Corporation
address
52A
52D
Ordering
institution
C2 [/1!a][/34x]
4!a2!a2!c[3!
x] (for 52A)
[/1!a][/34x]
4*35x (for
52D)
• If the financial institution has
a BIC: Party SWIFT code
• If the financial intuition does
not have a BIC: Party long
name followed by party
address lines 1 to 4
Note: The first option is
preferred. The second
option should only be used
when the financial
institution does not have a
BIC.
:52A:BANKSWIFT01
:52D:bank name
address 1 address 2
WebSuite Cash Management Connectivity Guide 257
Table notes:
1. For more information on the codes used in this column, see A.13.1 SWIFT field lengths on page
303 and A.13.2 SWIFT field types on page 304.
A.7.5 ISO 20022 XML credit transfer
The ISO 20022 XML standard is an effort of financial institution, corporations, and vendors to define
standard message formats for financial transactions. SWIFT is heavily involved in the standard by
providing expertise and facilitating meetings.
Using CMM’s XML template tool, Wallstreet has implemented a subset of the initial ISO 20022 XML
standard formats—including the credit transfer format. You can use Wallstreet’s initial work as the
basis for implementing the ISO 20022 XML standard. You can also customize the formats to
accommodate your banks’ unique interpretations of the standard.
The ISO 20022 XML credit transfer message is sent from the initiating party to the debtor agent or
forwarding agent. It is used to request movement of funds from a debtor account to a creditor.
Depending on the service level agreed between the debtor agent and the initiating party, the debtor
agent may send a payment status message to inform the initiating party of the status of the
initiation. (For more information on ISO 20022 XML payment status messages, see A.4.3 ISO 20022
XML payment status on page 201.)
The ISO 20022 XML credit transfer message:
•Can contain one or more customer credit transfer instructions
•Can be used by an initiating party that has authority to send the message on behalf of the
debtor
This allows for the scenarios where a payment factory initiates all payments on behalf of a large
corporation.
•Can be used for domestic or cross-border scenarios.
Three types of customer roles can be played on the initiating side:
56A
56D
Intermediary O[/1!a][/34x]
4!a2!a2!c[3!
x] (for 56A)
[/1!a][/34x]
4*35x (for
56D)
• If the intermediary has a
BIC: Intermediary bank
SWIFT code
• If the intermediary does not
have a BIC: Intermediary
bank long name followed by
intermediary bank local
address lines 1 to 4
Note: The first option is
preferred. The second
option should only be used
when the intermediary
does not have a BIC.
:56A:INTERMBANK1
:56D:Intermediary_
bank_name
Intermediary_bank_
address
Tag Name Required Contents
[1] CMM mapping Example
Name Description
Initiating party The party sending the message (payment factory or treasury)
Debtor The debit account owner (for example, an in-house bank)
Ultimate debtor The party that owes the cash to the creditor as a result of the receipt of goods or serves
(for example, a subsidiary).
258 © Wall Street Systems IPH AB - Confidential
Two types of customer roles can be played on the receiving side:
These roles can be played by the same actor or by different actors. The message allows inclusion of the
different roles on the initiating side and receiving side.
Note: A relay credit transfer scenario consists of the initiating party sending a message to the
forwarding agent, which will then forward the message to the debitor agent.
The ISO 20022 XML credit transfer message consists of the following sections:
A.7.5.1 ISO 20022 XML credit transfer format
The following table presents the format of ISO 20022 XML credit transfer messages:
Name Description
Creditor The credit account owner
Ultimate creditor The party that is the ultimate beneficiary of the cash transfer
Name Required Number of
occurrences Contents
Group header Yes One Element such as MessageIdentification,
CreationDateAndTime, and Grouping
Payment information Yes Multiple Elements related to the debit side of the
transaction, such as Debtor and
PaymentTypeInformation
Credit transfer
transaction
information
Yes Multiple Elements related to the credit side of the
transaction, such as Creditor and
RemittanceInformation
Message item XML tag Mult/format Data type CMM mapping and
posting
Group header <GrpHdr> [1..1] N/A N/A
MessageIdentific
ation
<MsgID> [1..1]/[1,35] Text Map to
import_export_i
d
CreationDateTim
e
<CreDtTm> [1//1]/ Date/time Post current
date/time in format
YYYY-MM-DDTHH
:MM:SS
Authorization <Authstn> [0..2]/[1,120] Text N/A
BatchBooking <BtchBookg> [0..1]/MeaningWhe
nTrue or
MeaningWhenFalse
Indicator Post one of the
following:
• true
• false
NumberOfTransa
ctions
<NbOfTxs> [1..1]/[0-9]{1,15} Text Post valid
transaction number
ControlSum <CtrlSum> [0..1]/17 or 18 Quantity Post total of all
individual amounts
by runtime
calculation
WebSuite Cash Management Connectivity Guide 259
Grouping <Grpg> [1..1]/GRPD, MIXD,
SNGL
Code Post default value
MIXD
Note: Mixed case
(MIXD)
covers both
single and
grouped
cases. Mixed
allows the
payment
information
block to be
present once
or may be
repeated.
Each
sequence of
the payment
information
block may
contain one
or more credit
transfer
transaction
information
block(s).
InitiatingParty <InitgPty> [1..1]/<Nm>
<PstlAdr> <Id>
<CtryOfRes>
± Post sending party’s
PartyIdentification
information at the
interchange level
ForwardingAgent <FwdgAgt> [0..1]/<FinInstnI
d> <Brnchld>
±Post receiving
institution’s
BranchAndFinancialI
nstitutionIdentificati
on information at
the interchange
level if receiving is
an aggregated bank
Payment
information
<PmtInf> [1..n] N/A N/A
PaymentInforma
tionIdentification
<PmtInfId> [0..1]/[1,35] Text N/A
PaymentMethod <PmtMtd> [1..1] Code Post one of the
following:
•CHK for cheque
•TRA for transfer
advice
•TRF for credit
transfer
PaymentTypeInf
ormation
<PmtTpInf> [0..1] N/A Only post
<InstrPrty>
(NORM or HIGH)
based on
priority_code
Message item XML tag Mult/format Data type CMM mapping and
posting
260 © Wall Street Systems IPH AB - Confidential
RequestedExecu
tionDate
<ReqdExctnDt> [1..1] Date/time Map to
value_date in
ISO date format
PoolingAdjustme
ntDate
<PoolgAdjstmntDt
>
[0..1] Date/time N/A
Debtor <Dbtr> [1..1] ± Post payor’s
PartyIdentification
information
DebtorAccount <DbtrAcct> [1..1] ±Post payor bank
account’s
CashAccount
information
DebtorAgent <DbtrAgt> [1..1] ± Post payor bank’s
BranchAndFinancialI
nstituationIdentifica
tion information
DebtorAgentAcc
ount
<DbtrAgtAcct> [0..1] ±N/A
UltimateDebto
r<UltmtDbtr> [0..1] ± N/A
ChargeBearer <ChrgBr> [0..1] Code N/A
ChargesAccount <ChrgsAcct> [0..1] ± N/A
ChargesAccount
Agent
<ChrgsAcctAgt> [0..1] ±N/A
CreditTransferTr
ansactionInform
ation
<CdtTrfTxInf> [1..n] N/A N/A
Credit transfer
transaction
information
<CdtTrfTxInf> [1..n] N/A N/A
PaymentInforma
tionIdentification
<PmtInfId> [0..1]/[1,35] Text N/A
PaymentIdentific
ation
<PmtId> [1..1] N/A Post
<EndToEndId> to
map the customer
reference ID
PaymentTypeInf
ormation
<PmtTpInf> [0..1] N/A Only post
<InstrPrty>
(NORM or HIGH)
based on
priority_code
Amount <Amt> [1..1] N/A Post <InstdAmt>
based on
payment_amount
and
payment_currenc
y
ExchangeRateInf
ormation
<XchgRateInf> [0..1] N/A N/A
Message item XML tag Mult/format Data type CMM mapping and
posting
WebSuite Cash Management Connectivity Guide 261
ChargeBearer <ChrgBr> [0..1] Code Post default value
SHAR
ChequeInstructi
on
<ChqInstr> [0..1] ± Post Cheque
information if
payment_metho
d is CHQ
UltimateDebtor <UltmtDbtr> [0..1] ±Post originator’s
PartyIdentification
information if the
originator is
different than the
debtor
IntermediaryAge
nt1
<IntrmyAgt1> [0..1] ± Post intermediary
bank’s
BranchAndFinancialI
nstitutionIdentificati
on information
IntermediaryAge
nt1Account
<IntrmyAgt1Acct> [0..1] ±Post intermediary
bank account’s
CashAccount infor-
mation
IntermediaryAge
nt2
<IntrmyAgt2> [0..1] ± N/A
IntermediaryAge
nt2Account
<IntrmyAgt2Acct> [0..1] ±N/A
IntermediaryAge
nt3
<IntrmyAgt3> [0..1] ± N/A
IntermediaryAge
nt3Account
<IntrmyAgt3Acct> [0..1] ±N/A
CreditorAgent <CdtrAgt> [0..1] ± Post payee bank’s
BranchAndFinancialI
nstitutionIdentificati
on information
CreditorAgentAc
count
<CdtrAgtAcct> [0..1] ±N/A
Creditor <Cdtr> [0..1] ± Post payee’s
PartyIdentification
information
CreditorAccount <CdtrAcct> [0..1] ±Post payee bank
account’s
CashAccount
information
UltimateCreditor <UltmtCdtr> [0..1] ± N/A
InstructionForCr
editorAgent
<InstrForCdtrAgt
>
[0..n] N/A Map to
beneficiary_mes
sage
InstructionForDe
btorAgent
<InstrForDbtrAgt
>
[0..1] Text Map to
bank_instruct
ion
Message item XML tag Mult/format Data type CMM mapping and
posting
262 © Wall Street Systems IPH AB - Confidential
Purpose <Purp> [0..1] N/A Map to
payment_descrip
tion
RegulatoryRepor
ting
<RgltryRptg> [0..10] N/A N/A
Tax <Tax> [0..1] ±Post TaxInformation
(if any)
RelatedRemittan
ceInformation
<RltdRmInf> [0..10] N/A N/A
RemittanceInfor
mation
<RmtInf> [0..1] N/A Post
RemittanceInformati
on
PartyIdentification N/A N/A N/A N/A
Name <Nm> [0..1] Text Post party’s long
name
PostalAddress <PstlAdr> [0..1] N/A Post party’s postal
address
AddressType <AdrTp> [0..1] Code Post default value
ADDR
AddresssLine <AdrLine> [0..5] Text Post party’s
ADDRESS1,
ADDRESS2,
ADDRESS3,
ADDRESS4
StreetName <StrtNm> [0..1] Text N/A
BuildingNum
ber
<BldgNb> [0..1] Text N/A
PostCode <PstCd> [0..1] Text Post party’s
POSTALCODE
TownName <TwnNm> [0..1] Text Post party’s CITY
CountrySubD
ivision
<CtrySubDvsn> [0..1] Text Post party’s STATE
Country <Ctry> [1..1] Code Post party’s
COUNTRYCODE
Identification <Id> [0..1] N/A Post party’s
organization
identification
BIC <BIC> [0..1] Identifier Post party’s
SWIFT code if the
party is an
institution
IBEI <IBEI> [0..1] Identifier N/A
BEI <BEI> [0..1] Identifier Post party’s SWIFT
code if the party is a
corporation
EANGLN <EANGLN> [0..1] Identifier N/A
Message item XML tag Mult/format Data type CMM mapping and
posting
WebSuite Cash Management Connectivity Guide 263
CHIPSUniver
salIdentificati
on
<USCHU> [0..1] Identifier N/A
DUNS <DUNS> [0..1] Identifier N/A
BankPartyIde
ntification
<BkPtyId> [0..1] Text N/A
TaxIdent if icat
ionName
<TaxIdNb> [0..1] Text N/A
ProprietaryId
entification
<PrtryId> [0..1] N/A N/A
Identifica
tion
<Id> [1..1] Text N/A
Issuer <Issr> [0..1] Text N/A
CountryOfReside
nce
<CtryOfRes> [0..1] Code Post party’s country
code
BranchAndFinanci
alInstitutionIdentifi
cation
N/A N/A N/A N/A
FinancialInstituti
onIdentification
<FinInstnID> [1..1] N/A Post financial
institution’s
identification
BIC <BIC> [1..1] Identifier Post bank’s SWIFT
code
ClearingSyst
emMemberId
entification
<ClrSysMmbId> [1..1] N/A N/A
NameAnd
Address <NmAndAdr> [1..1] N/A N/A
Name <Nm> [1..1] N/A Post bank’s name
Address <PstlAdr> [1..1] N/A Post bank’s address
ProprietaryId
entification
<PrtryId> [1..1] N/A N/A
CombinedIde
ntification
<CmbndId> [1..1] N/A N/A
BranchIdentificat
ion
<BrnchId> [0..1] N/A N/A
CashAccount N/A N/A N/A N/A
Identification <Id> [1..1] N/A N/A
IBAN <IBAN> [1..1] Identifier Post IBAN
BBAN <BBAN> [1..1] Identifier Post BBAN
UPIC <UPIC> [1..1] Identifier N/A
ProprietaryAc
count
<PrtryAcct> [1..1] N/A N/A
Message item XML tag Mult/format Data type CMM mapping and
posting
264 © Wall Street Systems IPH AB - Confidential
Type <Tp> [0..1] N/A Post bank account’s
type ID
Currency <Ccy> [0..1] Code Post bank account’s
currency code
Name <Nm> [0..1] Text Post bank account’s
name
Cheque N/A N/A N/A N/A
ChequeType <ChqTp> [0..1] Code Post default value
BCHQ (bank check)
ChequeNumber <ChqNb> [0..1] Text Post
cheque_number
ChequeFrom <ChqFr> [0..1] N/A Post payor’s long
name and postal
address
DeliveryMethod <DlvryMtd> [0..1] N/A N/A
DeliverTo <DlvrTo> [0..1] N/A Post payee’s long
name and postal
address
InstructionPriorit
y
<InstrPrty> [0..1] Code Map to
priority_code
ChequeMaturity
Date
<ChqMtrtyDt> [0..1] Date/time Map to
value_date
FormsCode <FrmsCd> [0..1] Text N/A
MemoField <MemoFld> [0..1] Text N/A
RegionalClearing
Zone
<RgnlClrZone> [0..1] Text N/A
PrintLocation <PrtLctn> [0..1] Text N/A
TaxInformation N/A N/A N/A N/A
CreditorTaxIdent
ification
<CdtrTaxId> [0..1] Text N/A
CreditorTaxType <CdtrTaxTp> [0..1] Text N/A
DebtorTaxIdentfi
ciation
<DbtrTaxId> [0..1] Text Map to
tax_payer_id
TaxReferenceNu
mber
<TaxRefNb> [0..1] Text Map to
tax_payer_verif
ication_id
TotalTaxableBas
eAmount
<TtlTaxblBaseAmt
>
[0..1] Amount N/A
TotalTaxAmount <TtlTaxAmt> [0..1] Amount Map to
payment_amount
Tax Date <TaxDt> [0..1] Date/time Map to
value_date
Message item XML tag Mult/format Data type CMM mapping and
posting
WebSuite Cash Management Connectivity Guide 265
A.7.5.2 ISO 20022 XML credit transfer rules
This section defines rules for ISO 20022 XML credit transfer messages.
A.7.5.2.1 Grouping
If GroupHeader/Grouping is present and equals GRPD, one and only one occurrence of
PaymentInformation must be present.
If GroupHeader/Grouping is present and equals SNGL, each occurrence of PaymentInformation must
contain one and only one occurrence of PaymentInformation/CreditTransferTransactionInformation.
A.7.5.2.2 ChargeBearer
If ChargeBearer is present, CreditTransferTransactionInformation/ChargeBearer is not allowed.
If CreditTransferTransactionInformation/ChargeBearer is present, ChargeBearer is not allowed.
CreditTransferTransactionInformation/ChargeBearer and ChargeBearer may both be absent.
TaxTypeInformat
ion
<TaxTpInf> [0..n] N/A N/A
RemittanceInforma
tion
<RmtInf> N/A N/A N/A
Structured
format
<Strd> N/A N/A N/A
ReferredDoc
umentInform
ation
<RfrdDocInf> [0..1] N/A N/A
Referred
Documen
tType
<RfrdDocTp> [0..1] N/A Map to
remittance_deta
il_message_type
Referr
edDoc
ument
Numb
er
<RfrdDocNb> [0..1] Type Map to
remittance_in
voice_number
ReferredDoc
umentRelate
dDate
<RfrdDocRltdDt> [0..1] Date/time Map to
remittance_date
ReferredDoc
umentAmoun
t
<RfrdDocAmt> [0..n] N/A Map to
document_amou
nt
CreditorRefer
enceInformat
ion
<CdtrRefInf> [0..1] N/A N/A
Invoicer <Invcr> [0..1] ± N/A
Invoicee <Invcee> [0..1] ±N/A
AdditionalRe
mittanceInfo
rmation
<AddtlRmtInf> [0..1] Text N/A
Message item XML tag Mult/format Data type CMM mapping and
posting
266 © Wall Street Systems IPH AB - Confidential
A.7.5.2.3 ChargesAccountAgentRule
If ChargesAccountAgent is present, it must contain a branch of the DebtorAgent. It must not contain
a completely different financial institution.
A.7.5.2.4 ChargesAccountRule
If ChargesAccountAgent is present, ChargesAccount must be present.
A.7.5.2.5 ChequeInstructionRule
If PaymentMethod is CHK, CreditTransferTransactionInformation/ChequeInstruction is optional.
If PaymentMethod is different from CHK, CreditTransferTransactionInformation/ChequeInstruction is
not allowed.
Rule rationale: ChequeInstructionDetails may be present if the payment method is Cheque. It must
not be present if the payment method is Transfer.
A.7.5.2.6 CreditorAgentRule
If PaymentMethod is CHK and if
CreditTransferTransactionInformation/ChequeInstruction/DeliveryMethod is present and is equal to
MLFA, CRFA, RGFA, or PUFA, CreditTransferTransactionInformation/ CreditorAgent is mandatory.
If PaymentMethod is CHK and if CreditTransferTransactionInformation/
ChequeInstruction/DeliveryMethod is not present or is not equal to MLFA, CRFA, RGFA, or PUFA,
CreditTransferTransactionInformation/CreditorAgent is not allowed.
A.7.5.2.7 CreditorAndOrCreditorAccountRule
If PaymentMethod is CHK, CreditTransferTransactionInformation/CreditorAccount is not allowed.
If PaymentMethod is different from CHK and if CreditTransferTransactionInformation/Creditor is not
present, CreditTransferTransactionInformation/CreditorAccount is mandatory.
If PaymentMethod is different from CHK and if CreditTransferTransactionInformation/Creditor is
present, CreditTransferTransactionInformation/CreditorAccount is optional.
A.7.5.2.8 PaymentTypeInformationRule
If PaymentTypeInformation is present,
CreditTransferTransactionInformation/PaymentTypeInformation is not allowed.
A.7.5.2.9 ChequeFromGuideline
CreditTransferTransactionInformation/ChequeInstruction/ChequeFrom may only be present if
different from CreditTransferTransactionInformation/UltimateDebtor or Debtor.
A.7.5.2.10 ChequeInstructionDeliverToCreditorAgentGuideline
If CreditTransferTransactionInformation/ChequeInstruction/DeliveryMethod is present and is CRFA,
MLFA, PUFA, or RGFA, CreditTransferTransactionInformation/ChequeInstruction/DeliverTo may only
be present if different than CreditTransferTransactionInformation/Creditor.
A.7.5.2.11 ChequeInstructionDeliverToCreditorGuideline
If PaymentInformation/CreditTransferTransactionInformation/ChequeInstruction/DeliveryMethod is
present and is CRCD or MLCD or PUCD or RGCD,
CreditTransferTransactionInformation/ChequeInstruction/DeliverTo may only be present if different
from CreditTransferTransactionInformation/ Creditor.
WebSuite Cash Management Connectivity Guide 267
A.7.5.2.12 ChequeInstructionDeliverToDebtorGuideline
If CreditTransferTransactionInformation/ChequeInstruction/DeliveryMethod is present and if
CreditTransferTransactionInformation/ChequeInstruction/DeliveryMethod/Code is CRDB, MLDB, PUDB,
or RGDB, CreditTransferTransactionInformation/ChequeInstruction/DeliverTo may only be present if
different than Debtor.
A.7.5.2.13 UltimateDebtorGuideline
UltimateDebtor may only be present if different from Debtor.
A.7.5.2.14 InstructionForCreditorAgentRule
If InstructionForCreditorAgent/Code contains CHQB, CreditorAccount is not allowed.
A.7.5.2.15 IntermediaryAgent1AccountRule
If IntermediaryAgent1 is not present, IntermediaryAgent1Account is not allowed.
A.7.5.2.16 IntermediaryAgent2AccountRule
If IntermediaryAgent2 is not present, IntermediaryAgent2Account is not allowed.
A.7.5.2.17 IntermediaryAgent2Rule
If IntermediaryAgent2 is present, IntermediaryAgent1 must be present.
A.7.5.2.18 IntermediaryAgent3AccountRule
If IntermediaryAgent3 is not present, IntermediaryAgent3Account is not allowed.
A.7.5.2.19 IntermediaryAgent3Rule
If IntermediaryAgent3 is present, IntermediaryAgent2 must be present.
A.7.5.2.20 UltimateCreditorGuideline
UltimateCreditor may only be present if different from Creditor.
A.7.5.2.21 UltimateDebtorGuideline
UltimateDebtor may only be present if different from Debtor.
A.7.5.2.22 ChequeMaturityDateRule
If ChequeType is present and is DRFT or ELDR, ChequeMaturityDate is optional.
If ChequeType is not present or is different from DRFT or ELDR, ChequeMaturityDate is not allowed.
Rule rationale: ChequeMaturityDate may be present only when ChequeType is DRFT or ELDR.
A.7.5.2.23 Country
The code is checked against the list of country names obtained from the United Nations (ISO 3166,
Alpha-2 code).
A.7.6 ISO 20022 XML direct debit transfer
The ISO 20022 XML standard is an effort of financial institution, corporations, and vendors to define
standard message formats for financial transactions. SWIFT is heavily involved in the standard by
providing expertise and facilitating meetings.
Using CMM’s XML template tool, Wallstreet has implemented a subset of the initial ISO 20022 XML
standard formats—including the direct debit transfer format. You can use Wallstreet’s initial work as
268 © Wall Street Systems IPH AB - Confidential
the basis for implementing the ISO 20022 XML standard. You can also customize the formats to
accommodate your banks’ unique interpretations of the standard.
The ISO 20022 XML direct debit transfer message is sent by the initiating party to the forwarding
agent or creditor agent. It is used to request single or bulk collection(s) of funds from one or various
debtor’s account(s) for a creditor.
The ISO 20022 XML direct debit transfer message consists of the following sections:
A.7.6.1 ISO 20022 XML direct debit transfer format
The following table presents the format of ISO 20022 XML direct debit transfer messages:
Name Required Number of
occurrences Contents
Group header Yes One Element such as MessageIdentification,
CreationDateAndTime, and Grouping
Payment information Yes Multiple Elements related to the credit side of the
transaction, such as Creditor and
PaymentTypeInformation
Credit transfer
transaction
information
Yes Multiple Elements related to the debit side of the
transaction, such as Debitor and
RemittanceInformation
Message item XML tag Mult/format Data type CMM mapping and posting
Group header <GrpHdr> [1..1] N/A N/A
MessageIdentific
ation
<MsgID> [1..1]/[1,35] Text Map to import_export_id
CreationDateTim
e
<CreDtTm> [1//1]/ Date/time Post current date/time in
format
YYYY-MM-DDTHH:MM:SS
Authorization <Authstn> [0..2]/[1,120] Text N/A
BatchBooking <BtchBookg> [0..1]/MeaningWhe
nTrue or
MeaningWhenFalse
Indicator Post one of the following:
• true
• false
NumberOfTransa
ctions
<NbOfTxs> [1..1]/[0-9]{1,15} Text Post valid transaction number
ControlSum <CtrlSum> [0..1]/17 or 18 Quantity Post total of all individual
amounts by runtime calculation
Grouping <Grpg> [1..1]/GRPD, MIXD,
SNGL
Code Post default value MIXD
Note: Mixed case (MIXD)
covers both single and
grouped cases. Mixed
allows the payment
information block to be
present once or may be
repeated. Each sequence
of the payment
information block may
contain one or more
direct debit transfer
transaction information
block(s).
WebSuite Cash Management Connectivity Guide 269
InitiatingParty <InitgPty> [1..1]/<Nm>
<PstlAdr> <Id>
<CtryOfRes>
± Post sending party’s
PartyIdentification information
at the interchange level
ForwardingAgent <FwdgAgt> [0..1]/<FinInstnI
d> <Brnchld>
±Post receiving institution’s
BranchAndFinancialInstitutionI
dentification information at the
interchange level if receiving is
an aggregated bank
Payment
information
<PmtInf> [1..n] N/A N/A
PaymentInforma
tionIdentification
<PmtInfId> [0..1]/[1,35] Text N/A
PaymentMethod <PmtMtd> [1..1] Code Post DD
PaymentTypeInf
ormation
<PmtTpInf> [0..1] N/A Only post <InstrPrty>
(NORM or HIGH) based on
priority_code
RequestedCollec
tionDate
<ReqdCollDt> [1..1] Date/time Map to value_date in ISO
date format
Creditor <Cdtr> [1..1] ±Post payor’s PartyIdentification
information
CreditorAccount <CdtrAcct> [1..1] ± Post payor bank account’s
CashAccount information
CreditorAgent <CdtrAgt> [1..1] ±Post payor bank’s
BranchAndFinancialInstituation
Identification information
CreditorAgentAc
count
<CdtrAgtAcct> [0..1] ± N/A
UltimateCredit
or <UltmtCdtr> [0..1] ±N/A
ChargeBearer <ChrgBr> [0..1] Code N/A
ChargesAccount <ChrgsAcct> [0..1] ±N/A
ChargesAccount
Agent
<ChrgsAcctAgt
>
[0..1] ± N/A
CreditTransferTr
ansactionInform
ation
<CdtTrfTxInf> [1..n] N/A N/A
Direct debit
transaction
information
<CdtTrfTxInf> [1..n] N/A N/A
PaymentIdentific
ation
<PmtId> [1..1] N/A Post <EndToEndId> to map
the customer reference ID
PaymentTypeInf
ormation
<PmtTpInf> [0..1] N/A Only post <InstrPrty>
(NORM or HIGH) based on
priority_code
InstructedAmou
nt
<Amt> [1..1] N/A Post <InstdAmt> based on
payment_amount and
payment_currency
Message item XML tag Mult/format Data type CMM mapping and posting
270 © Wall Street Systems IPH AB - Confidential
ChargeBearer <ChrgBr> [0..1] Code Post default value SHAR
DirectDebitTrans
action
<DrctDbtTx> [0..1] N/A N/A
UltimateCreditor <UltmtCdtr> [0..1] ± Post originator’s
PartyIdentification information
if the originator is different
than the creditor
DebitorAgent <DbtrAgt> [0..1] ±Post counterparty bank’s
BranchAndFinancialInstitutionI
dentification information
DebitorAgentAcc
ount
<DbtrAgtAcct> [0..1] ± N/A
Debitor <Dbtr> [0..1] ±Post counterparty’s
PartyIdentification information
DebitorAccount <DbtrAcct> [0..1] ± Post countparty bank account’s
CashAccount information
UltimateDebitor <UltmtDbtr> [0..1] ±N/A
InstructionForCr
editorAgent
<InstrForCdtr
Agt>
[0..n] N/A Map to bank_instruction
Purpose <Purp> [0..1] N/A Map to
payment_description
RegulatoryRepor
ting
<RgltryRptg> [0..10] N/A N/A
Tax <Tax> [0..1] ±N/A
RelatedRemittan
ceInformation
<RltdRmInf> [0..10] N/A N/A
RemittanceInfor
mation
<RmtInf> [0..1] N/A Post unstructured format
information
Map to
beneficiary_message
PartyIdentification N/A N/A N/A N/A
Name <Nm> [0..1] Text Post party’s long name
PostalAddress <PstlAdr> [0..1] N/A Post party’s postal address
AddressType <AdrTp> [0..1] Code Post default value ADDR
AddresssLine <AdrLine> [0..5] Text Post party’s ADDRESS1,
ADDRESS2, ADDRESS3,
ADDRESS4
StreetName <StrtNm> [0..1] Text N/A
BuildingNum
ber
<BldgNb> [0..1] Text N/A
PostCode <PstCd> [0..1] Text Post party’s POSTALCODE
TownName <TwnNm> [0..1] Text Post party’s CITY
CountrySubD
ivision
<CtrySubDvsn> [0..1] Text Post party’s STATE
Message item XML tag Mult/format Data type CMM mapping and posting
WebSuite Cash Management Connectivity Guide 271
Country <Ctry> [1..1] Code Post party’s COUNTRYCODE
Identification <Id> [0..1] N/A Post party’s organization
identification
BIC <BIC> [0..1] Identifier Post party’s SWIFT code if the
party is an institution
IBEI <IBEI> [0..1] Identifier N/A
BEI <BEI> [0..1] Identifier Post party’s SWIFT code if the
party is a corporation
EANGLN <EANGLN> [0..1] Identifier N/A
CHIPSUniver
salIdentificati
on
<USCHU> [0..1] Identifier N/A
DUNS <DUNS> [0..1] Identifier N/A
BankPartyIde
ntification
<BkPtyId> [0..1] Text N/A
TaxIdent if icat
ionName
<TaxIdNb> [0..1] Text N/A
ProprietaryId
entification
<PrtryId> [0..1] N/A N/A
Identifica
tion
<Id> [1..1] Text N/A
Issuer <Issr> [0..1] Text N/A
CountryOfReside
nce
<CtryOfRes> [0..1] Code Post party’s country code
BranchAndFinanci
alInstitutionIdentifi
cation
N/A N/A N/A N/A
FinancialInstituti
onIdentification
<FinInstnID> [1..1] N/A Post financial institution’s
identification
BIC <BIC> [1..1] Identifier Post bank’s SWIFT code
ClearingSyst
emMemberId
entification
<ClrSysMmbId> [1..1] N/A N/A
NameAnd
Address <NmAndAdr> [1..1] N/A N/A
Name <Nm> [1..1] N/A Post bank’s name
PostalAdd
ress
<PstlAdr> [1..1] N/A Post bank’s address
ProprietaryId
entification
<PrtryId> [1..1] N/A N/A
CombinedIde
ntification
<CmbndId> [1..1] N/A N/A
BranchIdentificat
ion
<BrnchId> [0..1] N/A N/A
CashAccount N/A N/A N/A N/A
Message item XML tag Mult/format Data type CMM mapping and posting
272 © Wall Street Systems IPH AB - Confidential
A.8 Transaction message export formats
CMM supports the following standard formats for transaction message exports:
Table notes:
1. For information on formats not documented in this appendix, contact Wallstreet.
A.8.1 Wallstreet XML payment message
The following is an example Wallstreet XML payment message file:
<?xml version="1.0" encoding="UTF-8"?>
<transactions xmlns="http://www.trema.com/externalinterface/XMLschema"
document_reference_id="12" format_code="TREMA_PAYMENT">
<transaction sequence="1" type="payment">
<debit>
<debit_basics>
<aggregate_transaction_id>15004</aggregate_transaction_id>
<aggregate_transaction_amount>5848889.1</aggregate_transaction_amount>
<transaction_currency>USD</transaction_currency>
<value_date>2005-03-01</value_date>
</debit_basics>
<debit_bank_account>
<account_number>004857658</account_number>
<account_iban/>
<account_clearing_reference_number/>
<account_name>ABCsubUSD</account_name>
<account_currency>USD</account_currency>
<account_residency/>
</debit_bank_account>
<debit_bank>
<swift_code>BIGBAK32</swift_code>
<branch_number>10098</branch_number>
Identification <Id> [1..1] N/A N/A
IBAN <IBAN> [1..1] Identifier Post IBAN
BBAN <BBAN> [1..1] Identifier Post BBAN
UPIC <UPIC> [1..1] Identifier N/A
ProprietaryAc
count
<PrtryAcct> [1..1] N/A N/A
Type <Tp> [0..1] N/A Post bank account’s type ID
Currency <Ccy> [0..1] Code Post bank account’s currency
code
Name <Nm> [0..1] Text Post bank account’s name
Message item XML tag Mult/format Data type CMM mapping and posting
Type Wallstreet formats EDIFACT formats SWIFT formats Other formats
Transaction
message
•XML payment message
• XML receipt message
• BANSTA [1] N/A • HTML [1]
WebSuite Cash Management Connectivity Guide 273
<party_identification/>
<party_name>Big Bank</party_name>
<street_address>2008 Colling Street NW</street_address>
<city>New York</city>
<province>NY</province>
<country_code>US</country_code>
<postal_code/>
</debit_bank>
<debit_party>
<party_identification/>
<party_name>ABC Subsidiary (USD)</party_name>
<street_address/>
<city>Honolulu</city>
<province>HI</province>
<country_code>US</country_code>
<postal_code>30000345</postal_code>
<phone_number>1 418 256 7890</phone_number>
<fax_number>1 418 257 4567</fax_number>
<email_account>test@yahoo.com</email_account>
</debit_party>
</debit>
<credit sequence="1">
<credit_basics>
<transaction_id>5005</transaction_id>
<customer_reference_number>5005</customer_reference_number>
<transaction_amount>5848389.09</transaction_amount>
<transaction_currency>USD</transaction_currency>
<value_date>2005-03-01</value_date>
<transaction_date>2005-03-01</transaction_date>
<transaction_priority_code>1</transaction_priority_code>
<original_transaction_method>EFT</original_transaction_method>
<transaction_delivery_channel>ACH</transaction_delivery_channel>
<domestic_crossborder_status>DOMESTIC</domestic_crossborder_status>
<clearing_system_type>LVC</clearing_system_type>
<is_intercompany_payment>false</is_intercompany_payment>
<repetitive_code/>
<beneficiary_message/>
<transaction_description>test again</transaction_description>
<bank_instruction>test payment 2</bank_instruction>
<original_system_code>Manual</original_system_code>
<original_source_batch_id>0</original_source_batch_id>
<financial_charge_allocation>2</financial_charge_allocation>
<regulatory_code/>
</credit_basics>
<credit_bank_account>
<account_number>Ext4_BOA_USD00</account_number>
<account_iban/>
<account_clearing_reference_number/>
<account_name>Ext 4&apos;s external acct in USD</account_name>
<account_currency>USD</account_currency>
<account_residency>RESIDENT</account_residency>
</credit_bank_account>
<credit_bank>
<swift_code>BOAUSAUS</swift_code>
<branch_number/>
<party_identification/>
<party_name>Bank of America in US</party_name>
<street_address>236 Green Avenue</street_address>
<city>Boston</city>
<province/>
<country_code>US</country_code>
<postal_code>4949849</postal_code>
274 © Wall Street Systems IPH AB - Confidential
</credit_bank>
<intermediary_bank>
<swift_code/>
<branch_number/>
<party_name/>
<street_address/>
<city/>
<province/>
<country_code/>
<postal_code/>
</intermediary_bank>
<credit_party>
<party_identification/>
<party_name>External Party 4</party_name>
<street_address>226 Clinton Park</street_address>
<city>Houston</city>
<province/>
<country_code>US</country_code>
<postal_code/>
<phone_number/>
<fax_number/>
<email_account/>
</credit_party>
<originating_party>
<party_identification/>
<party_name>ABC Subsidiary (USD)</party_name>
<street_address/>
<city>Honolulu</city>
<province>HI</province>
<country_code>US</country_code>
<postal_code>30000345</postal_code>
<phone_number>1 418 256 7890</phone_number>
<fax_number>1 418 257 4567</fax_number>
<email_account>test@yahoo.com</email_account>
</originating_party>
<additional_info>
<transaction_contract_number/>
<transaction_type_code/>
<cheque_number/>
<retrieval_location_id/>
<retrieval_location_name/>
<retrieval_location_address/>
</additional_info>
<remittance_details/>
</credit>
</transaction>
</transactions>
This file contains 16 basic elements:
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual payment in the file.
debit The debit component of a payment.
debit_basics Basic information for the debit component.
debit_bank_account Bank account information for the debit component.
debit_bank Bank information for the debit component.
WebSuite Cash Management Connectivity Guide 275
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML payment message schema. For more information on the
Wallstreet XML payment message schema, see A.11 Wallstreet XML schemas on page 292.
A.8.1.1 transactions element
A Wallstreet XML payment message file contains only one transactions element.
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
A.8.1.2 transaction elements
A Wallstreet XML payment message file can contain multiple payments with each payment
represented by a transaction element.
Each transaction element defines its payment’s sequence number and type as specified in the
element’s two attributes:
A.8.1.3 debit elements
Each transaction element contains one debit element. The debit element defines the debit
component of a payment.
debit_party Party information for the debit component.
credit A credit component of the payment.
credit_basics Basic information for the credit component.
credit_bank_account Bank account information for the credit component.
credit_bank Bank information for the credit component.
intermediary_bank Intermediary bank information for the credit component.
credit_party Party information for the credit component.
originating_party Originating party information for the credit component.
additional_info Additional information for the credit component.
remittance_details Remittance details.
Element Description
Attribute Acceptable values
xmlns http://www.trema.com/externalinterface/XMLschema
document_reference_id [A unique identifier for the file]
format_code TREMA_PAYMENT
Attribute Acceptable values
sequence [A unique sequence number for the payment (In a typical file, the first payment is
numbered 1; the second, 2; the third, 3; and so on.)]
type payment
276 © Wall Street Systems IPH AB - Confidential
A.8.1.4 debit_basics elements
Each debit element contains one debit_basics element.
Each debit_basics element defines its debit component’s basic information as specified in the
element’s child elements:
A.8.1.5 debit_bank_account elements
Each debit element contains one debit_bank_account element.
Each debit_bank_account element defines its debit component’s bank account information as
specified in the element’s child elements:
A.8.1.6 debit_bank elements
Each debit element contains one debit_bank element.
Each debit_bank element defines its debit component’s bank information as specified in the
element’s child elements:
Element Acceptable values
aggregate_transaction_id [The debit component’s ID]
aggregate_transaction_ amount [The debit component’s amount]
transaction_currency [The debit component’s currency]
value_date [The debit component’s value date]
Element Acceptable values
account_number [The BBAN of the debit component’s bank account]
account_iban [The IBAN of the debit component’s bank account]
account_clearing_ reference_number [The clearing reference number of the debit component’s
bank account]
account_name [The name of the debit component’s bank account]
account_currency [The currency of the debit component’s bank account]
account_residency [The residency of the debit component’s bank account]
Element Acceptable values
swift_code [The SWIFT code of the debit component’s bank]
branch_number [The branch number of the debit component’s bank]
party_identification [The ID of the debit component’s bank]
party_name [The name of the debit component’s bank]
street_address [The address of the debit component’s bank]
city [The city of the debit component’s bank]
province [The state or province of the debit component’s bank]
country_code [The country of the debit component’s bank]
postal_code [The ZIP or postal code of the debit component’s bank]
WebSuite Cash Management Connectivity Guide 277
A.8.1.7 debit_party elements
Each debit element contains one debit_party element.
Each debit_party element defines its debit component’s party information as specified in the
element’s child elements:
A.8.1.8 credit elements
Each transaction element contains one or more credit elements. A credit element defines a
credit component of a payment.
Each credit element defines its credit component’s sequence number with the payment as specified
in the element’s attribute:
A.8.1.9 credit_basics elements
Each credit element contains one credit_basics element.
Each credit_basics element defines its credit component’s basic information as specified in the
element’s child elements:
Element Acceptable values
party_identification [The ID of the debit component’s party]
party_name [The name of the debit component’s party]
street_address [The address of the debit component’s party]
city [The city of the debit component’s party]
province [The state or province of the debit component’s party]
country_code [The country of the debit component’s party]
postal_code [The ZIP or postal code of the debit component’s party]
phone_number [The telephone number of the debit component’s party]
fax_number [The fax number of the debit component’s party]
email_account [The e-mail address of the debit component’s party]
Attribute Acceptable values
sequence [A unique sequence number for the credit component (In a typical payment, the first credit
component is numbered 1; the second, 2; the third, 3; and so on.)]
Element Acceptable values
transaction_id [The credit component’s ID]
customer_reference_number [The credit component’s customer reference number]
transaction_amount [The credit component’s amount]
transaction_currency [The credit component’s currency]
value_date [The credit component’s value date]
transaction_date [The credit component’s transaction date]
transaction_priority_code [The credit component’s priority]
original_transaction_ method [The credit component’s transaction method]
transaction_delivery_ channel [The credit component’s transaction delivery channel]
278 © Wall Street Systems IPH AB - Confidential
A.8.1.10 credit_bank_account elements
Each credit element contains one credit_bank_account element.
Each credit_bank_account element defines its credit component’s bank account information as
specified in the element’s child elements:
A.8.1.11 credit_bank elements
Each credit element contains one credit_bank element.
Each credit_bank element defines its credit component’s bank information as specified in the
element’s child elements:
domestic_crossborder_ status DOMESTIC
CROSSBORDER
clearing_system_type [The credit component’s clearing system]
is_intercompany_payment true
false
repetitive_code [The credit component’s repetitive code]
beneficiary_message [A message to the credit component’s beneficiary]
transaction_description [A description of the credit component]
bank_instruction [A message to the credit component’s bank]
original_system_code [The credit component’s original system code]
original_source_batch_id [The credit component’s original source batch ID]
financial_charge_ allocation [The credit component’s financial charge allocation]
regulatory_code [The credit component’s regulatory code]
Element Acceptable values
Element Acceptable values
account_number [The BBAN of the credit component’s bank account]
account_iban [The IBAN of the credit component’s bank account]
account_clearing_ reference_number [The clearing reference number of the credit component’s
bank account]
account_name [The name of the credit component’s bank account]
account_currency [The currency of the credit component’s bank account]
account_residency [The residency of the credit component’s bank account]
Element Acceptable values
swift_code [The SWIFT code of the credit component’s bank]
branch_number [The branch number of the credit component’s bank]
party_identification [The ID of the credit component’s bank]
party_name [The name of the credit component’s bank]
street_address [The address of the credit component’s bank]
WebSuite Cash Management Connectivity Guide 279
A.8.1.12 intermediary_bank elements
Each credit element contains one intermediary_bank element.
Each intermediary_bank element defines its credit component’s intermediary bank information as
specified in the element’s child elements:
A.8.1.13 credit_party elements
Each credit element contains one credit_party element.
Each credit_party element defines its credit component’s party information as specified in the
element’s child elements:
A.8.1.14 originating_party elements
Each credit element contains one originating_party element.
city [The city of the credit component’s bank]
province [The state or province of the credit component’s bank]
country_code [The country of the credit component’s bank]
postal_code [The ZIP or postal code of the credit component’s bank]
Element Acceptable values
Element Acceptable values
swift_code [The SWIFT code of the credit component’s intermediary bank]
branch_number [The branch number of the credit component’s intermediary bank]
party_name [The name of the credit component’s intermediary bank]
street_address [The address of the credit component’s intermediary bank]
city [The city of the credit component’s intermediary bank]
province [The state or province of the credit component’s intermediary bank]
country_code [The country of the credit component’s intermediary bank]
postal_code [The ZIP or postal code of the credit component’s intermediary bank]
Element Acceptable values
party_identification [The ID of the credit component’s party]
party_name [The name of the credit component’s party]
street_address [The address of the credit component’s party]
city [The city of the credit component’s party]
province [The state or province of the credit component’s party]
country_code [The country of the credit component’s party]
postal_code [The ZIP or postal code of the credit component’s party]
phone_number [The telephone number of the credit component’s party]
fax_number [The fax number of the credit component’s party]
email_account [The e-mail address of the credit component’s party]
280 © Wall Street Systems IPH AB - Confidential
Each originating_party element defines its credit component’s originating party information as
specified in the element’s child elements:
A.8.1.15 additional_info elements
Each credit element contains one additional_info element.
Each additional_info element defines its credit component’s additional information as specified in
the element’s child elements:
A.8.1.16 remittance_details elements
Each credit element contains one remittance_details element. In turn, each
remittance_details element can contain one or more invoice elements.
Each invoice element defines its remittance detail as specified in the element’s child elements:
Element Acceptable values
party_identification [The ID of the credit component’s originating party]
party_name [The name of the credit component’s originating party]
street_address [The address of the credit component’s originating party]
city [The city of the credit component’s originating party]
province [The state or province of the credit component’s originating
party]
country_code [The country of the credit component’s originating party]
postal_code [The ZIP or postal code of the credit component’s originating
party]
phone_number [The telephone number of the credit component’s originating
party]
fax_number [The fax number of the credit component’s originating party]
email_account [The e-mail address of the credit component’s originating party]
Element Acceptable values
transaction_contract_ number [The credit component’s contract number]
transaction_type_code [The credit component’s type]
cheque_number [The credit component’s check number]
retrieval_location_id [The ID of credit component’s retrieval location]
retrieval_location_name [The name of credit component’s retrieval location]
retrieval_location_address [The address of credit component’s retrieval location]
Element Acceptable values
invoice_number [The remittance detail’s number]
invoice_type [The remittance detail’s type]
invoice_amount [The remittance detail’s amount]
invoice_amount_type [The type of the remittance detail’s amount]
invoice_date [The remittance detail’s invoice date]
WebSuite Cash Management Connectivity Guide 281
A.8.2 Wallstreet XML receipt message
The following is an example Wallstreet XML receipt message file:
<?xml version="1.0" encoding="UTF-8"?>
<transactions xmlns="http://www.trema.com/externalinterface/XMLschema"
document_reference_id="15" format_code="TREMA_DIRDEB">
<transaction sequence="1" type="direct_debit">
<credit>
<credit_basics>
<aggregate_transaction_id>15011</aggregate_transaction_id>
<aggregate_transaction_amount>112.99</aggregate_transaction_amount>
<transaction_currency>FRF</transaction_currency>
<value_date>2005-03-01</value_date>
</credit_basics>
<credit_bank_account>
<account_number>3000400074500025628778</account_number>
<account_iban/>
<account_clearing_reference_number/>
<account_name>ent1 account1</account_name>
<account_currency>EUR</account_currency>
</credit_bank_account>
<credit_bank>
<swift_code/>
<branch_number>3000400074</branch_number>
<party_name>Bank of America in France</party_name>
<street_address>301 Bull Street</street_address>
<city/>
<province/>
<country_code>FR</country_code>
<postal_code/>
</credit_bank>
<credit_party>
<party_identification/>
<party_name>Entity 1</party_name>
<street_address>408 Green Ave</street_address>
<city>Paris</city>
<province/>
<country_code>FR</country_code>
<postal_code/>
<phone_number/>
<fax_number/>
<email_account/>
</credit_party>
</credit>
<debit sequence="1">
<debit_basics>
<transaction_id>15011</transaction_id>
<customer_reference_number>DD_EXT_ONE_OFF_123</customer_reference_numbe
r>
<transaction_amount>112.99</transaction_amount>
<transaction_currency>FRF</transaction_currency>
<value_date>2005-03-01</value_date>
<transaction_date>2005-03-01</transaction_date>
invoice_currency [The remittance detail’s currency]
invoice_reference [The remittance detail’s reference]
Element Acceptable values
282 © Wall Street Systems IPH AB - Confidential
<transaction_priority_code>1</transaction_priority_code>
<original_transaction_method>DD</original_transaction_method>
<repetitive_code/>
<beneficiary_message/>
<transaction_description/>
<bank_instruction/>
<original_system_code>Man-OneOff</original_system_code>
<original_source_batch_id>0</original_source_batch_id>
<financial_charge_allocation>1</financial_charge_allocation>
<regulatory_code/>
</debit_basics>
<debit_bank_account>
<account_number>3000401328900010899022</account_number>
<account_iban/>
<account_clearing_reference_number>60089
</account_clearing_reference_number>
<account_name/>
<account_currency/>
</debit_bank_account>
<debit_bank>
<swift_code/>
<branch_number>3000401328</branch_number>
<party_name>Counterparty Bank</party_name>
<street_address/>
<city/>
<province/>
<country_code>FR</country_code>
<postal_code/>
</debit_bank>
<intermediary_bank>
<swift_code/>
<branch_number/>
<party_name/>
<street_address/>
<city/>
<province/>
<country_code/>
<postal_code/>
</intermediary_bank>
<debit_party>
<party_identification/>
<party_name>DD Counterparty</party_name>
<street_address/>
<city/>
<province/>
<country_code>FR</country_code>
<postal_code/>
<phone_number/>
<fax_number/>
<email_account/>
</debit_party>
<originating_party>
<party_identification/>
<party_name>Entity 1</party_name>
<street_address>408 Green Ave</street_address>
<city>Paris</city>
<province/>
<country_code>FR</country_code>
<postal_code/>
<phone_number/>
<fax_number/>
<email_account/>
WebSuite Cash Management Connectivity Guide 283
</originating_party>
<additional_info>
<transaction_contract_number>2223</transaction_contract_number>
<transaction_type_code>87</transaction_type_code>
<bank_pre_authorization_id/>
<bank_pre_authorization_status/>
<revocable_status/>
</additional_info>
</debit>
</transaction>
</transactions>
This file contains 15 basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML receipt message schema. For more information on the
Wallstreet XML receipt message schema, see A.11 Wallstreet XML schemas on page 292.
A.8.2.1 transactions element
A Wallstreet XML receipt message file contains only one transactions element.
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual payment in the file.
credit The credit component of a payment.
credit_basics Basic information for the credit component.
credit_bank_account Bank account information for the credit component.
credit_bank Bank information for the credit component.
credit_party Party information for the credit component.
debit A debit component of the payment.
debit_basics Basic information for the debit component.
debit_bank_account Bank account information for the debit component.
debit_bank Bank information for the debit component.
intermediary_bank Intermediary bank information for the debit component.
debit_party Party information for the debit component.
originating_party Originating party information for the debit component.
additional_info Additional information for the debit component.
Attribute Acceptable values
xmlns http://www.trema.com/externalinterface/XMLschema
document_reference_id [A unique identifier for the file]
284 © Wall Street Systems IPH AB - Confidential
A.8.2.2 transaction elements
A Wallstreet XML receipt message file can contain multiple receipts with each receipt represented by
a transaction element.
Each transaction element defines its receipt’s sequence number and type as specified in the
element’s two attributes:
A.8.2.3 credit elements
Each transaction element contains one credit element. The credit element defines the credit
component of a receipt.
A.8.2.4 credit_basics elements
Each credit element contains one credit_basics element.
Each credit_basics element defines its credit component’s basic information as specified in the
element’s child elements:
A.8.2.5 credit_bank_account elements
Each credit element contains one credit_bank_account element.
Each credit_bank_account element defines its credit component’s bank account information as
specified in the element’s child elements:
format_code TREMA_DIRDEB
TREMA_LETTER_OF_CREDIT
TREMA_PREADVICE
Attribute Acceptable values
Attribute Acceptable values
sequence [A unique sequence number for the receipt (In a typical file, the first receipt is numbered
1; the second, 2; the third, 3; and so on.)]
type direct_debit
letter_of_credit
pre_advice
Element Acceptable values
aggregate_transaction_id [The credit component’s ID]
aggregate_transaction_ amount [The credit component’s amount]
transaction_currency [The credit component’s currency]
value_date [The credit component’s value date]
Element Acceptable values
account_number [The BBAN of the credit component’s bank account]
account_iban [The IBAN of the credit component’s bank account]
account_clearing_ reference_number [The clearing reference number of the credit component’s
bank account]
account_name [The name of the credit component’s bank account]
WebSuite Cash Management Connectivity Guide 285
A.8.2.6 credit_bank elements
Each credit element contains one credit_bank element.
Each credit_bank element defines its credit component’s bank information as specified in the
element’s child elements:
A.8.2.7 credit_party elements
Each credit element contains one credit_party element.
Each credit_party element defines its credit component’s party information as specified in the
element’s child elements:
A.8.2.8 debit elements
Each transaction element contains one or more debit elements. A debit element defines a debit
component of a receipt.
account_currency [The currency of the credit component’s bank account]
Element Acceptable values
Element Acceptable values
swift_code [The SWIFT code of the credit component’s bank]
branch_number [The branch number of the credit component’s bank]
party_name [The name of the credit component’s bank]
street_address [The address of the credit component’s bank]
city [The city of the credit component’s bank]
province [The state or province of the credit component’s bank]
country_code [The country of the credit component’s bank]
postal_code [The ZIP or postal code of the credit component’s bank]
Element Acceptable values
party_identification [The ID of the credit component’s party]
party_name [The name of the credit component’s party]
street_address [The address of the credit component’s party]
city [The city of the credit component’s party]
province [The state or province of the credit component’s party]
country_code [The country of the credit component’s party]
postal_code [The ZIP or postal code of the credit component’s party]
phone_number [The telephone number of the credit component’s party]
fax_number [The fax number of the credit component’s party]
email_account [The e-mail address of the credit component’s party]
286 © Wall Street Systems IPH AB - Confidential
Each debit element defines its debit component’s sequence number with the receipt as specified in
the element’s attribute:
A.8.2.9 debit_basics elements
Each debit element contains one debit_basics element.
Each debit_basics element defines its debit component’s basic information as specified in the
element’s child elements:
A.8.2.10 debit_bank_account elements
Each debit element contains one debit_bank_account element.
Each debit_bank_account element defines its debit component’s bank account information as
specified in the element’s child elements:
Attribute Acceptable values
sequence [A unique sequence number for the debit component (In a typical receipt, the first debit
component is numbered 1; the second, 2; the third, 3; and so on.)]
Element Acceptable values
transaction_id [The debit component’s ID]
customer_reference_number [The debit component’s customer reference number]
transaction_amount [The debit component’s amount]
transaction_currency [The debit component’s currency]
value_date [The debit component’s value date]
transaction_date [The debit component’s transaction date]
transaction_priority_code [The debit component’s priority]
original_transaction_method [The debit component’s transaction method]
repetitive_code [The debit component’s repetitive code]
beneficiary_message [A message to the debit component’s beneficiary]
transaction_description [A description of the debit component]
bank_instruction [A message to the debit component’s bank]
original_system_code [The debit component’s original system code]
original_source_batch_id [The debit component’s original source batch ID]
financial_charge_ allocation [The debit component’s financial charge allocation]
regulatory_code [The debit component’s regulatory code]
Element Acceptable values
account_number [The BBAN of the debit component’s bank account]
account_iban [The IBAN of the debit component’s bank account]
account_clearing_ reference_number [The clearing reference number of the debit component’s
bank account]
account_name [The name of the debit component’s bank account]
account_currency [The currency of the debit component’s bank account]
WebSuite Cash Management Connectivity Guide 287
A.8.2.11 debit_bank elements
Each debit element contains one debit_bank element.
Each debit_bank element defines its debit component’s bank information as specified in the
element’s child elements:
A.8.2.12 intermediary_bank elements
Each debit element contains one intermediary_bank element.
Each intermediary_bank element defines its debit component’s intermediary bank information as
specified in the element’s child elements:
A.8.2.13 debit_party elements
Each debit element contains one debit_party element.
Each debit_party element defines its debit component’s party information as specified in the
element’s child elements:
Element Acceptable values
swift_code [The SWIFT code of the debit component’s bank]
branch_number [The branch number of the debit component’s bank]
party_name [The name of the debit component’s bank]
street_address [The address of the debit component’s bank]
city [The city of the debit component’s bank]
province [The state or province of the debit component’s bank]
country_code [The country of the debit component’s bank]
postal_code [The ZIP or postal code of the debit component’s bank]
Element Acceptable values
swift_code [The SWIFT code of the debit component’s intermediary bank]
branch_number [The branch number of the debit component’s intermediary bank]
party_name [The name of the debit component’s intermediary bank]
street_address [The address of the debit component’s intermediary bank]
city [The city of the debit component’s intermediary bank]
province [The state or province of the debit component’s intermediary bank]
country_code [The country of the debit component’s intermediary bank]
postal_code [The ZIP or postal code of the debit component’s intermediary bank]
Element Acceptable values
party_identification [The ID of the debit component’s party]
party_name [The name of the debit component’s party]
street_address [The address of the debit component’s party]
city [The city of the debit component’s party]
province [The state or province of the debit component’s party]
288 © Wall Street Systems IPH AB - Confidential
A.8.2.14 originating_party elements
Each debit element contains one originating_party element.
Each orginating_party element defines its debit component’s originating party information as
specified in the element’s child elements:
A.8.2.15 additional_info elements
Each debit element contains one additional_info element.
Each additional_info element defines its debit component’s additional information as specified in
the element’s child elements:
country_code [The country of the debit component’s party]
postal_code [The ZIP or postal code of the debit component’s party]
phone_number [The telephone number of the debit component’s party]
fax_number [The fax number of the debit component’s party]
email_account [The e-mail address of the debit component’s party]
Element Acceptable values
Element Acceptable values
party_identification [The ID of the debit component’s originating party]
party_name [The name of the debit component’s originating party]
street_address [The address of the debit component’s originating party]
city [The city of the debit component’s originating party]
province [The state or province of the debit component’s originating party]
country_code [The country of the debit component’s originating party]
postal_code [The ZIP or postal code of the debit component’s originating
party]
phone_number [The telephone number of the debit component’s originating
party]
fax_number [The fax number of the debit component’s originating party]
email_account [The e-mail address of the debit component’s originating party]
Element Acceptable values
transaction_contract_number [The debit component’s contract number]
transaction_type_code [The debit component’s type]
bank_pre_authorization_id [The debit component’s bank preauthorization ID]
bank_pre_authorization_ status [The debit component’s bank preauthorization status]
revocable_status [The debit component’s revocable status]
WebSuite Cash Management Connectivity Guide 289
A.9 General ledger posting export formats
CMM supports the following standard formats for general ledger posting exports:
A.9.1 Wallstreet XML general ledger posting
The following is an example Wallstreet XML general ledger posting file:
<transactions xmlns="http://www.trema.com/externalinterface/XMLschema"
format_code="TREMA_COMPANY_GL" document_reference_id="6">
<transaction sequence="1">
<accounting_period_number>1</accounting_period_number>
<gl_group_id>123667</gl_group_id>
<gl_account_code>Code1</gl_account_code>
<txn_direction>C</txn_direction>
<txn_date>2006-02-07</txn_date>
<value_date>2006-07-24</value_date>
<txn_amount>73732.08</txn_amount>
<txn_currency>USD</txn_currency>
<base_currency_amount>764376.00</base_currency_amount>
<base_currency>CAD</base_currency>
<description/>
<customer_reference_id>cus-ref-2</customer_reference_id>
<originating_system_code>Manual</originating_system_code>
<party_id>ABCco</party_id>
<bank_account_number>Ent1_IHB_EUR</bank_account_number>
<bank_account_name>Ent1 IHB EUR 1</bank_account_name>
<cpty_id>Ext1</cpty_id>
<instrument_category>COMM</instrument_category>
<instrument_type_code>COMMP</instrument_type_code>
<treasure_gl_id>0</treasure_gl_id>
<intercompany_txn>0</intercompany_txn>
<set_of_books_name/>
<cash_deal>C</cash_deal>
<source_reference_id>3</source_reference_id>
</transaction>
<transaction sequence="2">
<accounting_period_number>2</accounting_period_number>
<gl_group_id>123554</gl_group_id>
<gl_account_code>Code2</gl_account_code>
<txn_direction>D</txn_direction>
<txn_date>2006-02-07</txn_date>
<value_date>2006-07-24</value_date>
<txn_amount>832873.99</txn_amount>
<txn_currency>USD</txn_currency>
<base_currency_amount>6535.00</base_currency_amount>
<base_currency>CAD</base_currency>
<description/>
<customer_reference_id>cus ref-1</customer_reference_id>
<originating_system_code>Manual</originating_system_code>
<party_id>ABCco</party_id>
<bank_account_number>Ent1_IHB_EUR</bank_account_number>
<bank_account_name>Ent1 IHB EUR 1</bank_account_name>
<cpty_id>Ext2</cpty_id>
<instrument_category>COMM</instrument_category>
<instrument_type_code>COMMFEE</instrument_type_code>
Type Wallstreet formats EDIFACT
formats SWIFT formats Other
formats
Deal • XML general ledger posting N/A N/A N/A
290 © Wall Street Systems IPH AB - Confidential
<treasure_gl_id>0</treasure_gl_id>
<intercompany_txn>0</intercompany_txn>
<set_of_books_name/>
<cash_deal>C</cash_deal>
<source_reference_id>1</source_reference_id>
</transaction>
</transactions>
This file contains two basic elements:
Note: The elements must be nested as displayed in the above table, and the file must validate
against the Wallstreet XML general ledger posting schema. For more information on the
Wallstreet XML general ledger posting schema, see A.11 Wallstreet XML schemas on page
292.
A.9.1.1 transactions element
A Wallstreet XML general ledger posting file contains only one transactions element.
The transactions element defines the file’s identifier, format code, and schema as specified in the
element’s three attributes:
A.9.1.2 transaction elements
A Wallstreet XML general ledger posting file can contain multiple general ledger postings with each
general ledger posting represented by a transaction element.
Each transaction element defines its general ledger posting’s sequence number as specified in the
element’s attribute:
In addition, each transaction element defines its general ledger posting’s details as specified in the
element’s child elements:
Element Description
transactions The file’s identifier, format code, and schema.
transaction An individual general ledger posting in the file.
Attribute Acceptable values
xmlns http://www.trema.com/externalinterface/XMLschema
format_code TREMA_COMPANY_GL
document_reference_id [A unique identifier for the file]
Attribute Acceptable values
sequence [A unique sequence number for the general ledger posting (In a typical file, the first
general ledger posting is numbered 1; the second, 2; the third, 3; and so on.)]
Element Acceptable values
accounting_period_number [The general ledger posting’s accounting period]
gl_group_id [The general ledger posting’s group ID]
gl_account_code [The general ledger posting’s account code]
txn_direction C for credit
D for debit
WebSuite Cash Management Connectivity Guide 291
A.10 Free formats
CMM supports the following free formats:
A.10.1 SWIFT MT199 and MT999
The SWIFT MT199 and MT999 messages are sent by a financial institution or a corporation to deliver
information for which there is no other applicable SWIFT message type.
txn_date [The general ledger posting’s transaction date]
value_date [The general ledger posting’s value date]
txn_amount [The general ledger posting’s amount in the transaction
currency]
txn_currency [The general ledger posting’s transaction currency]
base_currency_amount [The general ledger posting’s amount in the base currency]
base_currency [The general ledger posting’s base currency]
description [A description of the general ledger posting]
customer_reference_id [The general ledger posting’s customer reference number]
originating_system_code [The general ledger posting’s originating system]
party_id [The general ledger posting’s party]
bank_account_number [The number of the general ledger posting’s party bank
account]
bank_account_name [The name of the general ledger posting’s party bank account]
cpty_id [The general ledger posting’s counterparty]
instrument_category [The general ledger posting’s instrument category]
instrument_type_code [The general ledger posting’s instrument type]
treasure_gl_id [The general ledger posting’s treasury general ledger ID]
intercompany_txn 0 for external
1 for intercompany
set_of_books_name [The general ledger posting’s set of books]
cash_deal C for cash
D for deal
source_reference_id [The general ledger posting’s source reference ID]
Element Acceptable values
Type Wallstreet formats EDIFACT
formats SWIFT formats Other
formats
Free
format
N/A N/A • MT199
•MT999
N/A
292 © Wall Street Systems IPH AB - Confidential
Note: The SWIFT MT199 and MT999 messages can be used in place of the SWIFT MT195 and
MT196 messages.
A.10.1.1 SWIFT MT199 and MT999 header block
The following table presents the contents of the SWIFT MT199 and MT999 header block:
A.10.1.2 SWIFT MT199 and MT999 main message block
The following table presents the available tags in the main message blocks of SWIFT MT199 and
MT999 messages:
Table notes:
1. For more information on the codes used in this column, see A.13.1 SWIFT field lengths on page
303 and A.13.2 SWIFT field types on page 304.
A.11 Wallstreet XML schemas
Each of the Wallstreet XML formats must validate against one of the following six schemas:
•Transaction
•Transaction acknowledgement
•Bank statement
•Payment message
•Receipt message
•General ledger posting.
Tag CMM mapping Example
Sender Interchange sender ID PLATUS33
Message type Static value 199 or 999 199
Receiver Interchange receiver ID AAAAUS33
Tag Name Required Contents
[1] CMM mapping Example
20 Transaction
reference
number
M 16x Message ID :20:497
21 Related
reference
O16x Related reference :21:29472394
79 Narrative M 35*50x Message text :79:The referenced
payment has an incorrect
bank account and should
be rejected. We will send
a revised payment later
today.
WebSuite Cash Management Connectivity Guide 293
A.11.1 Transaction schema
The Wallstreet XML transaction schema is defined by the tremaattributestransaction.xsd file.
The following are the contents of this file:
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="qualified" attributeFormDefault="unqualified"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<xsd:annotation>
<xsd:documentation xml:lang="en">
This is the standard Trema XML attribute transactions schema definition.
This schema can be used for any type of transactions imported to CMM
including AP, AR, DD, Bank Balance and transaction, bank message as long as
the supported transaction attributes are provided. Copyright 2005
trema.com. All rights reserved.
</xsd:documentation>
</xsd:annotation>
<xsd:element name="transactions">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="transaction" maxOccurs="unbounded"
type="transaction_definition"/>
</xsd:sequence>
<xsd:attribute name="document_reference_id" use="required"
type="xsd:string"/>
<xsd:attribute name="format_code" use="required" fixed="ATTRS_TXN"/>
</xsd:complexType>
</xsd:element>
<xsd:complexType name="transaction_definition">
<xsd:sequence>
<xsd:element name="attribute" maxOccurs="unbounded"
type="attribute_definition"/>
</xsd:sequence>
<xsd:attribute name="sequence" use="optional" type="xsd:positiveInteger"/>
<xsd:attribute name="error" use="optional" type="xsd:string"/>
<xsd:attribute name="type" use="required" type="transaction_types"/>
</xsd:complexType>
<xsd:complexType name="attribute_definition">
<xsd:sequence>
<xsd:element name="component_transaction" minOccurs="0"
maxOccurs="unbounded" type="transaction_definition"/>
</xsd:sequence>
<xsd:attribute name="name" use="required" type="xsd:string"/>
<xsd:attribute name="value" use="optional" default="" type="xsd:string"/>
<xsd:attribute name="composite" use="optional" type="xsd:boolean"/>
</xsd:complexType>
<xsd:simpleType name="transaction_types">
<xsd:restriction base="xsd:string">
<xsd:enumeration value="aprecord"/>
<xsd:enumeration value="arrecord"/>
<xsd:enumeration value="ddrecord"/>
<xsd:enumeration value="remittancedetail"/>
<xsd:enumeration value="bankmessage"/>
<xsd:enumeration value="bankbalance"/>
<xsd:enumeration value="banktxn"/>
<xsd:enumeration value="forecast"/>
</xsd:restriction>
</xsd:simpleType>
</xsd:schema>
294 © Wall Street Systems IPH AB - Confidential
A.11.2 Transaction acknowledgement schema
The Wallstreet XML transaction acknowledgement schema is defined by the
trematransactionacknowledgement.xsd file. The following are the contents of this file:
<?xml version="1.0" encoding="UTF-8"?>
º
<xsd:schema targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="qualified" attributeFormDefault="unqualified"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<xsd:annotation>
<xsd:documentation xml:lang="en">
This is the standard Trema XML transaction acknowledgement message schema
definition Copyright 2004 trema.com. All rights reserved.
</xsd:documentation>
</xsd:annotation>
<xsd:element name="transactions">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="transaction" maxOccurs="unbounded"
type="transaction_definition"/>
</xsd:sequence>
…
<xsd:attribute name="document_reference_id" use="required"
type="xsd:string"/>
<xsd:attribute name="format_code" use="required" fixed="TREMA_ACK"/>
</xsd:complexType>
</xsd:element>
<xsd:complexType name="transaction_definition">
<xsd:sequence>
<xsd:element name="transaction_id" type="xsd:positiveInteger"
minOccurs="0"/>
<xsd:element name="customer_reference_number" type="xsd:string"/>
<xsd:element name="external_reference_number" type="xsd:string"
minOccurs="0"/>
<xsd:element name="transaction_success" type="xsd:boolean"/>
<xsd:element name="rejection_reason" type="xsd:string" minOccurs="0"/>
</xsd:sequence>
<xsd:attribute name="sequence" use="required" type="xsd:positiveInteger"/>
<xsd:attribute name="type" use="required" fixed="acknowledgement"/>
</xsd:complexType>
</xsd:schema>
A.11.3 Bank statement schema
The Wallstreet XML bank statement schema is defined by the tremabankaccountstatement.xsd
file. The following are the contents of this file:
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="qualified" attributeFormDefault="unqualified"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<xsd:annotation>
<xsd:documentation xml:lang="en">
This is the standard Trema XML bank account statement (balance and
transactions) schema definition Copyright 2004 trema.com. All rights
reserved.
</xsd:documentation>
</xsd:annotation>
<xsd:element name="bankaccountstatementholder">
WebSuite Cash Management Connectivity Guide 295
<xsd:complexType>
<xsd:sequence>
<xsd:element name="account_statement" maxOccurs="unbounded"
type="statement_definition"/>
</xsd:sequence>
<xsd:attribute name="document_reference_id" use="required"
type="xsd:string"/>
<xsd:attribute name="format_code" use="required"
fixed="TREMA_BANK_STATEMENT"/>
<xsd:attribute name="statement_type" use="required"
type="statement_type_definition"/>
</xsd:complexType>
</xsd:element>
<xsd:simpleType name="statement_type_definition">
<xsd:restriction base="xsd:string">
<xsd:enumeration value="P"/>
<xsd:enumeration value="C"/>
</xsd:restriction>
</xsd:simpleType>
<xsd:complexType name="statement_definition">
<xsd:sequence>
<xsd:element name="account" type="account_definition"/>
<xsd:element name="balance" type="balance_definition" minOccurs="0"
maxOccurs="unbounded"/>
<xsd:element name="transaction" type="transaction_definition"
minOccurs="0" maxOccurs="unbounded"/>
</xsd:sequence>
<xsd:attribute name="sequence" use="required" type="xsd:positiveInteger"/>
<xsd:attribute name="statement_number" use="optional" type="xsd:string"/>
</xsd:complexType>
<xsd:complexType name="account_definition">
<xsd:sequence>
<xsd:element name="bank_swift_code" type="xsd:string" minOccurs="0"/>
<xsd:element name="bank_branch_number" type="xsd:string" minOccurs="0"/>
<xsd:element name="account_number" type="xsd:string" minOccurs="0"/>
<xsd:element name="account_iban" type="xsd:string" minOccurs="0"/>
<xsd:element name="account_currency" type="xsd:string" minOccurs="0"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="balance_definition">
<xsd:sequence>
<xsd:element name="date" type="xsd:date"/>
<xsd:element name="amount" type="xsd:decimal"/>
</xsd:sequence>
<xsd:attribute name="type" use="required" type="balance_type"/>
</xsd:complexType>
<xsd:simpleType name="balance_type">
<xsd:restriction base="xsd:positiveInteger">
<xsd:enumeration value="3"/>
<xsd:enumeration value="6"/>
<xsd:enumeration value="8"/>
<xsd:enumeration value="19"/>
<xsd:enumeration value="1001"/>
<xsd:enumeration value="1002"/>
</xsd:restriction>
</xsd:simpleType>
<xsd:complexType name="transaction_definition">
<xsd:sequence>
<xsd:element name="customer_reference_number" type="xsd:string"/>
<xsd:element name="bank_reference_number" type="xsd:string"
minOccurs="0"/>
<xsd:element name="check_number" type="xsd:string" minOccurs="0"/>
296 © Wall Street Systems IPH AB - Confidential
<xsd:element name="other_reference_number" type="xsd:string"
minOccurs="0"/>
<xsd:element name="book_date" type="xsd:date"/>
<xsd:element name="value_date" type="xsd:date"/>
<xsd:element name="amount" type="xsd:decimal"/>
<xsd:element name="description" type="xsd:string" minOccurs="0"/>
</xsd:sequence>
<xsd:attribute name="type" use="optional" type="transaction_type"/>
</xsd:complexType>
<xsd:simpleType name="transaction_type">
<xsd:restriction base="xsd:string">
<xsd:enumeration value="COMMP"/>
<xsd:enumeration value="COMMR"/>
<xsd:enumeration value="BANKFEE"/>
<xsd:enumeration value="ZBA"/>
<xsd:enumeration value="RCNADJ"/>
<xsd:enumeration value="TAX"/>
<xsd:enumeration value="BANKINT"/>
<xsd:enumeration value="POOL"/>
<xsd:enumeration value="COMMFEE"/>
<xsd:enumeration value="INTER_ACCT"/>
<xsd:enumeration value="OVDRFEE"/>
<xsd:enumeration value="AGGRP"/>
</xsd:restriction>
</xsd:simpleType>
</xsd:schema>
A.11.4 Payment message schema
The Wallstreet XML payment message schema is defined by the tremapayment.xsd file. The
following are the contents of this file:
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="qualified" attributeFormDefault="unqualified"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<xsd:annotation>
<xsd:documentation xml:lang="en">
This is the standard Trema XML payment message schema definition Copyright
2004 trema.com. All rights reserved.
</xsd:documentation>
</xsd:annotation>
<xsd:element name="transactions">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="transaction" maxOccurs="unbounded"
type="transaction_definition"/>
</xsd:sequence>
<xsd:attribute name="document_reference_id" use="required"
type="xsd:string"/>
<xsd:attribute name="format_code" use="required" fixed="TREMA_PAYMENT"/>
</xsd:complexType>
</xsd:element>
<xsd:complexType name="transaction_definition">
<xsd:sequence>
<xsd:element name="debit" type="debit_definition"/>
<xsd:element name="credit" maxOccurs="unbounded"
type="credit_definition"/>
</xsd:sequence>
<xsd:attribute name="sequence" use="required" type="xsd:positiveInteger"/>
WebSuite Cash Management Connectivity Guide 297
<xsd:attribute name="type" use="required" fixed="payment"/>
</xsd:complexType>
<xsd:complexType name="debit_definition">
<xsd:sequence>
<xsd:element name="debit_basics" type="debit_basics_definition"/>
<xsd:element name="debit_bank_account" type="bank_account_definition"/>
<xsd:element name="debit_bank" type="bank_definition"/>
<xsd:element name="debit_party" type="party_definition"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="credit_definition">
<xsd:sequence>
<xsd:element name="credit_basics" type="credit_basics_definition"/>
<xsd:element name="credit_bank_account" type="bank_account_definition"
minOccurs="0"/>
<xsd:element name="credit_bank" type="bank_definition" minOccurs="0"/>
<xsd:element name="intermediary_bank" type="bank_definition"
minOccurs="0"/>
<xsd:element name="credit_party" type="party_definition"/>
<xsd:element name="originating_party" type="party_definition"/>
<xsd:element name="additional_info" minOccurs="0"
type="additional_info_definition"/>
<xsd:element name="remittance_details" minOccurs="0"
type="remittance_details_definition"/>
</xsd:sequence>
<xsd:attribute name="sequence" use="required" type="xsd:positiveInteger"/>
</xsd:complexType>
<xsd:complexType name="debit_basics_definition">
<xsd:sequence>
<xsd:element name="aggregate_transaction_id" type="xsd:positiveInteger"/>
<xsd:element name="aggregate_transaction_amount" type="xsd:decimal"/>
<xsd:element name="transaction_currency" type="xsd:string"/>
<xsd:element name="value_date" type="xsd:date"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="credit_basics_definition">
<xsd:sequence>
<xsd:element name="transaction_id" type="xsd:positiveInteger"/>
<xsd:element name="customer_reference_number" type="xsd:string"/>
<xsd:element name="transaction_amount" type="xsd:decimal"/>
<xsd:element name="transaction_currency" type="xsd:string"/>
<xsd:element name="value_date" type="xsd:date"/>
<xsd:element name="transaction_date" type="xsd:date"/>
<xsd:element name="transaction_priority_code"
type="xsd:positiveInteger"/>
<xsd:element name="original_transaction_method" type="xsd:string"/>
<xsd:element name="transaction_delivery_channel" type="xsd:string"/>
<xsd:element name="domestic_crossborder_status" type="xsd:string"/>
<xsd:element name="clearing_system_type" type="xsd:string"/>
<xsd:element name="is_intercompany_payment" type="xsd:boolean"/>
<xsd:element name="repetitive_code" type="xsd:string"/>
<xsd:element name="beneficiary_message" type="xsd:string"/>
<xsd:element name="transaction_description" type="xsd:string"/>
<xsd:element name="bank_instruction" type="xsd:string"/>
<xsd:element name="original_system_code" type="xsd:string"/>
<xsd:element name="original_source_batch_id"
type="xsd:nonNegativeInteger"/>
<xsd:element name="financial_charge_allocation"
type="xsd:positiveInteger"/>
<xsd:element name="regulatory_code" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
298 © Wall Street Systems IPH AB - Confidential
<xsd:complexType name="bank_account_definition">
<xsd:sequence>
<xsd:element name="account_number" type="xsd:string"/>
<xsd:element name="account_iban" type="xsd:string"/>
<xsd:element name="account_clearing_reference_number" type="xsd:string"/>
<xsd:element name="account_name" type="xsd:string"/>
<xsd:element name="account_currency" type="xsd:string"/>
<xsd:element name="account_residency" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="bank_definition">
<xsd:sequence>
<xsd:element name="swift_code" type="xsd:string"/>
<xsd:element name="branch_number" type="xsd:string"/>
<xsd:element name="party_identification" type="xsd:string" minOccurs="0"/>
<xsd:element name="party_name" type="xsd:string"/>
<xsd:element name="street_address" type="xsd:string"/>
<xsd:element name="city" type="xsd:string"/>
<xsd:element name="province" type="xsd:string"/>
<xsd:element name="country_code" type="xsd:string"/>
<xsd:element name="postal_code" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="party_definition">
<xsd:sequence>
<xsd:element name="party_identification" type="xsd:string"/>
<xsd:element name="party_name" type="xsd:string"/>
<xsd:element name="street_address" type="xsd:string"/>
<xsd:element name="city" type="xsd:string"/>
<xsd:element name="province" type="xsd:string"/>
<xsd:element name="country_code" type="xsd:string"/>
<xsd:element name="postal_code" type="xsd:string"/>
<xsd:element name="phone_number" type="xsd:string"/>
<xsd:element name="fax_number" type="xsd:string"/>
<xsd:element name="email_account" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="additional_info_definition">
<xsd:sequence>
<xsd:element name="transaction_contract_number" type="xsd:string"
minOccurs="0"/>
<xsd:element name="transaction_type_code" type="xsd:string"
minOccurs="0"/>
<xsd:element name="cheque_number" type="xsd:string" minOccurs="0"/>
<xsd:element name="retrieval_location_id" type="xsd:string"
minOccurs="0"/>
<xsd:element name="retrieval_location_name" type="xsd:string"
minOccurs="0"/>
<xsd:element name="retrieval_location_address" type="xsd:string"
minOccurs="0"/>
<xsd:any minOccurs="0" maxOccurs="unbounded"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="remittance_details_definition">
<xsd:sequence>
<xsd:element name="invoice" minOccurs="0" maxOccurs="unbounded"
type="invoice_definition"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="invoice_definition">
<xsd:sequence>
<xsd:element name="invoice_number" type="xsd:string"/>
WebSuite Cash Management Connectivity Guide 299
<xsd:element name="invoice_type" type="xsd:string"/>
<xsd:element name="invoice_amount" type="xsd:decimal"/>
<xsd:element name="invoice_amount_type" type="xsd:positiveInteger"/>
<xsd:element name="invoice_date" type="xsd:date"/>
<xsd:element name="invoice_currency" type="xsd:string"/>
<xsd:element name="invoice_reference" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
</xsd:schema>
A.11.5 Receipt message schema
The Wallstreet XML receipt message schema is defined by the tremareceipt.xsd file. The following
are the contents of this file:
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="qualified" attributeFormDefault="unqualified"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<xsd:annotation>
<xsd:documentation xml:lang="en">
This is the standard Trema XML receipt message (Direct Debit, Letter of
Credit and Pre advice) schema definition Copyright 2004 trema.com. All
rights reserved.
</xsd:documentation>
</<xsd:annotation>
<xsd:element name="transactions">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="transaction" maxOccurs="unbounded"
type="transaction_definition"/>
</xsd:sequence>
<xsd:attribute name="document_reference_id" use="required"
type="xsd:string"/>
<xsd:attribute name="format_code" use="required">
<xsd:simpleType>
<xsd:restriction base="xsd:string">
<xsd:enumeration value="TREMA_DIRDEB"/>
<xsd:enumeration value="TREMA_LETTER_OF_CREDIT"/>
<xsd:enumeration value="TREMA_PREADVICE"/>
</xsd:restriction>
</xsd:simpleType>
</xsd:attribute>
</xsd:complexType>
</xsd:element>
<xsd:complexType name="transaction_definition">
<xsd:sequence>
<xsd:element name="credit" type="credit_definition"/>
<xsd:element name="debit" type="debit_definition" maxOccurs="unbounded"/>
</xsd:sequence>
<xsd:attribute name="sequence" use="required" type="xsd:positiveInteger"/>
<xsd:attribute name="type" use="required">
<xsd:simpleType>
<xsd:restriction base="xsd:string">
<xsd:enumeration value="direct_debit"/>
<xsd:enumeration value="letter_of_credit"/>
<xsd:enumeration value="pre_advice"/>
</xsd:restriction>
</xsd:simpleType>
</xsd:attribute>
300 © Wall Street Systems IPH AB - Confidential
</xsd:complexType>
<xsd:complexType name="credit_definition">
<xsd:sequence>
<xsd:element name="credit_basics" type="credit_basics_definition"/>
<xsd:element name="credit_bank_account" type="bank_account_definition"
minOccurs="0"/>
<xsd:element name="credit_bank" type="bank_definition" minOccurs="0"/>
<xsd:element name="credit_party" type="party_definition"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="debit_definition">
<xsd:sequence>
<xsd:element name="debit_basics" type="debit_basics_definition"/>
<xsd:element name="debit_bank_account" type="bank_account_definition"/>
<xsd:element name="debit_bank" type="bank_definition"/>
<xsd:element name="intermediary_bank" type="bank_definition"
minOccurs="0"/>
<xsd:element name="debit_party" type="party_definition"/>
<xsd:element name="originating_party" type="party_definition"/>
<xsd:element name="additional_info" minOccurs="0"
type="additional_info_definition"/>
</xsd:sequence>
<xsd:attribute name="sequence" use="required" type="xsd:positiveInteger"/>
</xsd:complexType>
<xsd:complexType name="credit_basics_definition">
<xsd:sequence>
<xsd:element name="aggregate_transaction_id" type="xsd:positiveInteger"/>
<xsd:element name="aggregate_transaction_amount" type="xsd:decimal"/>
<xsd:element name="transaction_currency" type="xsd:string"/>
<xsd:element name="value_date" type="xsd:date"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="debit_basics_definition">
<xsd:sequence>
<xsd:element name="transaction_id" type="xsd:positiveInteger"/>
<xsd:element name="customer_reference_number" type="xsd:string"/>
<xsd:element name="transaction_amount" type="xsd:decimal"/>
<xsd:element name="transaction_currency" type="xsd:string"/>
<xsd:element name="value_date" type="xsd:date"/>
<xsd:element name="transaction_date" type="xsd:date"/>
<xsd:element name="transaction_priority_code"
type="xsd:positiveInteger"/>
<xsd:element name="original_transaction_method" type="xsd:string"/>
<xsd:element name="repetitive_code" type="xsd:string"/>
<xsd:element name="beneficiary_message" type="xsd:string"/>
<xsd:element name="transaction_description" type="xsd:string"/>
<xsd:element name="bank_instruction" type="xsd:string"/>
<xsd:element name="original_system_code" type="xsd:string"/>
<xsd:element name="original_source_batch_id"
type="xsd:nonNegativeInteger"/>
<xsd:element name="financial_charge_allocation"
type="xsd:positiveInteger"/>
<xsd:element name="regulatory_code" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="bank_account_definition">
<xsd:sequence>
<xsd:element name="account_number" type="xsd:string"/>
<xsd:element name="account_iban" type="xsd:string"/>
<xsd:element name="account_clearing_reference_number" type="xsd:string"/>
<xsd:element name="account_name" type="xsd:string"/>
<xsd:element name="account_currency" type="xsd:string"/>
WebSuite Cash Management Connectivity Guide 301
<xsd:element name="account_residency" type="xsd:string" minOccurs="0"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="bank_definition">
<xsd:sequence>
<xsd:element name="swift_code" type="xsd:string"/>
<xsd:element name="branch_number" type="xsd:string"/>
<xsd:element name="party_identification" type="xsd:string" minOccurs="0"/>
<xsd:element name="party_name" type="xsd:string"/>
<xsd:element name="street_address" type="xsd:string"/>
<xsd:element name="city" type="xsd:string"/>
<xsd:element name="province" type="xsd:string"/>
<xsd:element name="country_code" type="xsd:string"/>
<xsd:element name="postal_code" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="party_definition">
<xsd:sequence>
<xsd:element name="party_identification" type="xsd:string"/>
<xsd:element name="party_name" type="xsd:string"/>
<xsd:element name="street_address" type="xsd:string"/>
<xsd:element name="city" type="xsd:string"/>
<xsd:element name="province" type="xsd:string"/>
<xsd:element name="country_code" type="xsd:string"/>
<xsd:element name="postal_code" type="xsd:string"/>
<xsd:element name="phone_number" type="xsd:string"/>
<xsd:element name="fax_number" type="xsd:string"/>
<xsd:element name="email_account" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="additional_info_definition">
<xsd:sequence>
<xsd:element name="transaction_contract_number" type="xsd:string"
minOccurs="0"/>
<xsd:element name="transaction_type_code" type="xsd:string"
minOccurs="0"/>
<xsd:element name="bank_pre_authorization_id" type="xsd:string"
minOccurs="0"/>
<xsd:element name="bank_pre_authorization_status" type="xsd:string"
minOccurs="0"/>
<xsd:element name="revocable_status" type="xsd:string" minOccurs="0"/>
<xsd:any minOccurs="0" maxOccurs="unbounded"/>
</xsd:sequence>
</xsd:complexType>
</xsd:schema>
A.11.6 General ledger posting schema
The Wallstreet XML general ledger posting schema is defined by the tremaCompanyGLExport.xsd
file. The following are the contents of this file:
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema targetNamespace="http://www.trema.com/externalinterface/XMLschema"
elementFormDefault="qualified" attributeFormDefault="unqualified"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.trema.com/externalinterface/XMLschema">
<xsd:annotation>
<xsd:documentation xml:lang="en">
This is the standard Trema XML receipt message (Direct Debit, Letter of
Credit and Pre advice) schema definition Copyright 2006 trema.com. All
rights reserved.
302 © Wall Street Systems IPH AB - Confidential
</xsd:documentation>
</xsd:annotation>
<xsd:element name="transactions">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="transaction" maxOccurs="unbounded"
type="transaction_definition"/>
</xsd:sequence>
<xsd:attribute name="document_reference_id" use="required"
type="xsd:string"/>
<xsd:attribute name="format_code" use="required"
fixed="TREMA_COMPANY_GL"/>
</xsd:complexType>
</xsd:element>
<xsd:complexType name="transaction_definition">
<xsd:attribute name="sequence" use="required" type="xsd:positiveInteger"/>
<xsd:sequence>
<xsd:element name="accounting_period_number" type="xsd:positiveInteger"/>
<xsd:element name="gl_group_id" type="xsd:positiveInteger"/>
<xsd:element name="gl_account_code" type="xsd:string"/>
<xsd:element name="txn_direction" type="txn_direction_definition"/>
<xsd:element name="txn_date" type="xsd:date"/>
<xsd:element name="txn_amount" type="xsd:decimal"/>
<xsd:element name="txn_currency" type="xsd:string"/>
<xsd:element name="base_currency_amount" type="xsd:decimal"
minOccurs="0"/>
<xsd:element name="base_currency" type="xsd:string" minOccurs="0"/>
<xsd:element name="description" type="xsd:string" minOccurs="0"/>
<xsd:element name="party_id" type="xsd:string" minOccurs="0"/>
<xsd:element name="bank_account_number" type="xsd:string" minOccurs="0"/>
<xsd:element name="cpty_id" type="xsd:string" minOccurs="0"/>
</xsd:sequence>
</xsd:complexType>
<xsd:simpleType name="txn_direction_definition">
<xsd:restriction base="xsd:string">
<xsd:enumeration value="C"/>
<xsd:enumeration value="D"/>
</xsd:restriction>
</xsd:simpleType>
</xsd:schema>
A.12 Supplemental information for EDIFACT formats
This section contains supplemental information for EDIFACT formats.
A.12.1 EDIFACT Level A character set
The PAYEXT message file format supports the EDIFACT Level A character set. The tables in the
previous section indicated the type of characters supported by each element:
ID Name
a Alphabetic characters
nNumeric characters
an Alphanumeric characters
WebSuite Cash Management Connectivity Guide 303
A.12.1.1 Alphabetic characters (a)
Alphabetic characters include letters A to Z (uppercase only) and the following additional characters:
SPACE * . , - ( ) / = + : ’
Do not use EDIFACT syntax characters (+, :, and ’) in EDI message data as they are interpreted as
separators. If you need to use one of these characters, proceed it with a question mark (?).
Certain Latin characters can be imported into CMM and, at payment release, are translated into the
appropriate characters:
À Á Â Ã Ç È É Ê Ë Ì Í Î Ï Ð Ñ Ò Ó Ô Õ × Ù Ú Û · Ý à á â ã ç è é ê ë ì í î ï ð ñ ò
ó ô õ ÷ ù ú û ý þ
A.12.1.2 Numeric characters (n)
Numeric characters include numerals 0 to 9, the negative sign (-), the thousand separator (,) and
the decimal point (.).
Note: The length of the number does not include the decimal point or negative sign. For
example, an element of length n..5 could contain -12345 or 123.45.
A.12.1.3 Alphabetic characters (an)
Alphabetic characters include all alphabetic and number characters.
A.12.1.4 Element lengths
For variable-length elements, each of the above abbreviations is followed by two periods (..) and a
number, where the number denotes the maximum number of digits or characters in the element.
For fixed-length elements, the periods are omitted and the number denotes the exact number of
digits or characters that must be in the data element.
A.13 Supplemental information for SWIFT formats
This section contains supplemental information for SWIFT formats.
A.13.1 SWIFT field lengths
The following table presents field lengths supported by the SWIFT message file formats:
Field length Description
nn Maximum length (minimum is one)
nn to nn Minimum and maximum lengths
nn! Fixed length
nnxnn Maximum number of lines times maximum line length
304 © Wall Street Systems IPH AB - Confidential
A.13.2 SWIFT field types
The following table presents field types supported by the SWIFT message file formats:
A.13.3 SWIFT character sets
SWIFT supports three character sets:
•X
•Y
•Z.
A.13.3.1 SWIFT X character set
The following table presents the allowed characters in the SWIFT X character set:
A.13.3.2 SWIFT Y character set
The following table presents the allowed characters in the SWIFT Y character set:
A.13.3.3 SWIFT Z character set
The following table presents the allowed characters in the SWIFT Z character set:
Field type Name Allowed characters
n Numeric 0 to 9 only.
dAmount 0 to 9, comma (,), and period (.).
a Alphabetic A to Z (uppercase only).
xSWIFT X character set See A.13.3 SWIFT character sets on page 304.
y SWIFT Y character set See A.13.3 SWIFT character sets on page 304.
zSWIFT Z character set See A.13.3 SWIFT character sets on page 304.
Category Allowed characters
Alphabetic A to Z (uppercase), a to z (lowercase)
Numeric 0 to 9
Special / - ? : ( ) . , ’ + SPACE CrLF
Category Allowed characters
Alphabetic A to Z (uppercase)
Numeric 0 to 9
Special SPACE . , - ( ) / = ’ + : ?
Special (incompatible with international telex) ! " % & * ; < >
Category Allowed characters
Alphabetic A to Z (uppercase), a to z (lowercase)
Numeric 0 to 9
Special . , - ( ) / = ’ + : ? @ # CrLF SPACE {
WebSuite Cash Management Connectivity Guide 305
A.13.4 SWIFT transaction type identification code mappings
The SWIFT transaction type identification codes in tag 61 are mapped to a subset of CMM cash flow
types as defined in the MT940_funds_type_code_mapping.xml file.
The following table presents the default mapping of SWIFT transaction type identification codes to
CMM cash flow types in the MT940_funds_type_code_mapping.xml file:
If you create a new instrument type, you need to add it to the
MT940_funds_type_code_mapping.xml file to include it in SWIFT MT940 or MT940 BCS exported
bank statements:
1. Open the following configuration file:
[Standard configuration file path]
interfaces
exports
banktxn
swift
MT940
MT940_funds_type_code_mapping.xml
For instructions on opening configuration files, see “Opening configuration files” on page32.
2. Add a mapping element for the new cash flow type, where the value of the attribute_value
attribute is the cash flow type ID and the value of the spec_value attribute is the SWIFT
transaction type identification code.
The following is an example:
<mapping attribute_value="GVTTAX" spec_value="CHG"/>
3. Save and close the file.
Special (incompatible with international telex) ! " % & * ; < >
Category Allowed characters
SWIFT transaction type identification code CMM cash flow type
TRF AGGRP
CHG BANKFEE
INT BANKINT
TRF COMMP
COL COMMR
CHG COMMFEE
TRF INTER_ACCT
CHG OVDRFEE
TRF POOL
TRF RCNADJ
CHG TAX
CMZ ZBA
306 © Wall Street Systems IPH AB - Confidential
A.13.5 SWIFT business transaction code (GVC) mappings
This mapping is used in section 1 of tag 86 in SWIFT MT940 BCS messages:
Cash flow type GV
C
ID Name Category ID Name
BANKFEE Bank Fee COMM 809 Provisionen
BANKINT Bank Interest COMM 814 Zinsen
COMMFEE Commitment Fee COMM 809 Provisionen
COMMP Commercial Payment –
Not Deal
COMM 020 Überweisungsauftrag
COMMR Commercial Receipt –
Not Deal
COMM 051 Überweisungsgutschrift
OVDRFEE Overdraft Fee COMM 809 Provisionen
CM-CHEQUES CM-CHEQUES COMM 074 TC (Scheckbelastung)
CM-CHEQCOL CM-CHEQUE-COLLECTION COMM 070 Scheckeinreichung
CM-CHEQPAF CM-CHEQUE-PAYM-FACT COMM 209 Zahlung per Scheck
CM-CHQDCNA CM-CHEQUE-DC-NACOS COMM 074 TC (Scheckbelastung)
CM-PAFDOME CM-PAYM-FACT-DOMESTIC COMM 020 Überweisungsauftrag
CM-PAFXBOR CM-PAYM-FACT-XBORDER COMM 201 Zahlungsauftrag
CM-PFRVDOM CM-PAYM-FACT-NOT-SETTL-
DOMEST
COMM 009 Retourenhülle (Lastschrift)
CM-PFRVXBO CM-PAYM-FACT-NOT-SETTL-
XBORDER
COMM 009 Retourenhülle (Lastschrift)
CM-CACONIC CM-CASH-CONCENTRATION-
IC
COMM 833 Cash Concentrating: Buchung
Hauptkonten
CM-CACONDC CM-CASH-CONCENTRATION-
DC
COMM 833 Cash Concentrating: Buchung
Hauptkonten
CM-ICPROBO CM-IC-PMT-REC-ON-BEHALF COMM 051 Überweisungsgutschrift
CM-ICCLEAR CM-IC-CLEARING COMM 834 Cash Concentration:
Avisinformation Nebenkonten
CM-ICSETPF CM-IC-SETTL-PAYM-FACT COMM 012 Zahlungsanweisung zur
Verrechnung
CM-ICSETMA CM-IC-SETTLEMENT-MANUAL COMM 012 Zahlungsanweisung zur
Verrechnung
CM-ICINTER CM-IC-INTEREST COMM 814 Zinsen
CM-ICCOMMT CM-IC-COMMITMENT-FEE COMM 809 Provisionen
CM-ICOVERD CM-IC-OVERDRAFT-FEE COMM 809 Provisionen
CM-ICGUFEE CM-IC-GUARANTEE-FEE COMM 809 Provisionen
GL-BANKFEE GL-BANK-FEE COMM 809 Provisionen
GL-BANKINT GL-BANK-INTEREST COMM 814 Zinsen
GL-COMMFEE GL-COMMITMENT-FEE COMM 809 Provisionen
WebSuite Cash Management Connectivity Guide 307
GL-OVDRFEE GL-OVERDRAFT-FEE COMM 809 Provisionen
GL-LCREFEE GL-LETTER-OF-CREDIT-FEE COMM 809 Provisionen
GL-COMMCOP GL-COMMISSION-FOR-CP COMM 809 Provisionen
GL-PAYMRET GL-PAYMENT-RETURN COMM 009 Retourenhülle (Lastschrift)
TR-OA-LOAN-
DEPOSIT-IAM
TR-OA-LOAN-DEPOSIT-IAM TRM 823 Festgeld
TR-OA-LOAN-
DEPOSIT-FIXED
TR-OA-LOAN-DEPOSIT-FIXED TRM 823 Festgeld
TR-OA-LOAN-
DEPOSIT-FLOAT
TR-OA-LOAN-DEPOSIT-FLOAT TRM 823 Festgeld
TR-CALL-MONEY TR-CALL-MONEY TRM 823 Festgeld
TR-CP-INVEST TR-CP-INVEST TRM 823 Festgeld
TR-ABCP-INVEST TR-ABCP-INVEST TRM 823 Festgeld
TR-OA-DISCOUNT TR-OA-DISCOUNT TRM 823 Festgeld
TR-STOCK TR-STOCK TRM 303 Effekten
TR-SPECIAL-FUND TR-SPECIAL-FUND TRM 303 Effekten
TR-INVESTMENT-FUN
D
TR-INVESTMENT-FUND TRM 303 Effekten
TR-WARRANT TR-WARRANT TRM 303 Effekten
TR-CERTIFICATE TR-CERTIFICATE TRM 303 Effekten
TR-LI-LOAN-
DEPOSIT-IAM
TR-LI-LOAN-DEPOSIT-IAM TRM 823 Festgeld
TR-LI-LOAN-DEPOSIT-
FIXED
TR-LI-LOAN-DEPOSIT-FIXED TRM 823 Festgeld
TR-LI-LOAN-
DEPOSIT-FLOAT
TR-LI-LOAN-DEPOSIT-FLOAT TRM 823 Festgeld
TR-CP-ISSUE TR-CP-ISSUE TRM 823 Festgeld
TR-ABCP-ISSUE TR-ABCP-ISSUE TRM 823 Festgeld
TR-LI-DISCOUNT TR-LI-DISCOUNT TRM 823 Festgeld
TR-IR-SWAP-IRS TR-IR-SWAP-IRS TRM 405 Finanzinnovation
TR-IR-SWAP- CCIRS TR-IR-SWAP-CCIRS TRM 405 Finanzinnovation
TR-IR-SWAP-LEG TR-IR-SWAP-LEG TRM 405 Finanzinnovation
TR-FRA TR-FRA TRM 405 Finanzinnovation
TR-CAP-FLOOR-
COLLAR
TR-CAP-FLOOR-COLLAR TRM 405 Finanzinnovation
TR-SWAPTION-IRS TR-SWAPTION-IRS TRM 405 Finanzinnovation
TR-MM-FUTURE TR-MM-FUTURE TRM 405 Finanzinnovation
TR-OPTION-MM-FUTU
RE
TR-OPTION-MM-FUTURE TRM 405 Finanzinnovation
TR-BOND-FUTURE TR-BOND-FUTURE TRM 405 Finanzinnovation
Cash flow type GV
C
308 © Wall Street Systems IPH AB - Confidential
A.14 Syntactic validation of incoming and outgoing MX
messages
The ESIAdapter SWIFT connectivity module supports syntax checking of ISO20022 messages sent
or received over FileAct. Currently, only WebSuite supports ISO20022 messages.
This validation checks incoming and outgoing messages against corresponding XSDs.
Here is the list of XSDs currently associated with this checking:
TR-OPTION-
BOND-FUTURE
TR-OPTION-BOND-FUTURE TRM 405 Finanzinnovation
TR-CO-SPOT-METAL TR-CO-SPOT-METAL TRM 405 Finanzinnovation
TR-CO-SPOT-OTHER TR-CO-SPOT-OTHER TRM 405 Finanzinnovation
TR-CO-SWAP-METAL TR-CO-SWAP-METAL TRM 405 Finanzinnovation
TR-CO-SWAP-OTHER TR-CO-SWAP-OTHER TRM 405 Finanzinnovation
TR-CO-OPTION TR-CO-OPTION TRM 405 Finanzinnovation
TR-FX-SPOT TR-FX-SPOT TRM 402 Termindevisen
TR-FX-FORWARD TR-FX-FORWARD TRM 402 Termindevisen
TR-FX-SWAP TR-FX-SWAP TRM 402 Termindevisen
TR-FX-OPTION TR-FX-OPTION TRM 402 Te rmindevisen
TR-EQ-FUTURE TR-EQ-FUTURE TRM 405 Finanzinnovation
TR-OPTION-STOCK TR-OPTION-STOCK TRM 405 Finanzinnovation
TR-OPTION-INDEX TR-OPTION-INDEX TRM 405 Finanzinnovation
All other cash flow types 835
Cash flow type GV
C
camt_026_001_03
camt_027_001_03
camt_028_001_03
camt_029_001_03
camt_030_001_03
camt_031_001_03
camt_032_001_02
camt_033_001_03
camt_034_001_03
camt_035_001_02
camt_036_001_02
camt_037_001_03
WebSuite Cash Management Connectivity Guide 309
Should you require that this list be amended, please contact Wallstreet Systems Customer Support.
camt_038_001_02
camt_039_001_03
camt_052_001_02
camt_053_001_02
camt_054_001_02
camt_055_001_01
camt_056_001_01
pain_001_001_02
pain_001_001_03
pain_002_001_03
pain_007_001_02
pain_008_001_02
pain_009_001_01
pain_010_001_01
pain_011_001_01
pain_012_001_01
pacs_002_001_03
pacs_003_001_02
pacs_004_001_02
pacs_007_001_02
pacs_008_001_02
pacs_009_001_02
310 © Wall Street Systems IPH AB - Confidential
WebSuite Cash Management Connectivity Guide 311
Appendix B Attributes
CMM supports a set of attributes that you can use in files based on Wallstreet standard XML formats
or customized formats:
•For information on Wallstreet standard XML formats, see Appendix A Standard formats on page
133.
•For information on customized formats, see Chapter 7 Using XML-template-based formats on
page 119.
In these formats, a value can be derived in one of the following ways (called "map types"):
Name Description Example
CMM No Map • The value is identified by an
attribute ID.
• The value is obtained from CMM
through the attribute provider.
• The value is not mapped (in other
words, the value in CMM is the
value in the import or export).
ISO country codes that reside in CMM
are the same as those in EDI messages.
CMM Map • The value is identified by an
attribute ID.
• The value is obtained from CMM
through the attribute provider.
• The value is mapped in CMM.
• The mapping logic resides in
transaction subtype mapping or
controller preprocessing.
Remittance detail codes are mapped
from CMM internal codes to EDI standard
codes using transaction sub type
mapping.
Spec Map • The value is identified by an
attribute ID.
• The value is obtained from CMM
through the attribute provider.
• The value is mapped in the
template message generator.
• The mapping logic resides in XML
files similar to the
format/validation specifications.
The domestic or international flag is
mapped to format standard and bank
required values through mappings
defined in XML files.
Spec Derived • The value is identified by an
attribute ID.
• The value is derived in the
template message generator.
The number of successful transactions
written to the file can by derived from
specifications.
Static No Map • The value is hard-coded in the
specification.
• The value is not based on a CMM
value but on a segment/element
specification.
EDIFACT segment tags like FII and NAD
are static constants in specifications.
312 © Wall Street Systems IPH AB - Confidential
B.1 Import attributes
CMM supports the following import attributes:
•Forecast
•Accounts payable
•Accounts receivable
•Bank transaction
•Bank balance
•Bank message
•Interchange
•File.
B.1.1 Forecast import attributes
The following table presents common forecast import attributes supported by CMM:
Attribute Description Value Constraints Req. Source Map type
Basic
currency_code The forecast’s
currency.
Currency ID •None Yes User CMM No Map
amount The forecast’s
amount (in the
forecast’s
currency).
Floating point
number
• None Yes User CMM No Map
bucket The forecast’s time
bucket, which
indicates whether
the forecast is
short-term or
long-term.
One of the following
values:
•day
• month
•None Yes User CMM No Map
cash_flow_direct
ion
A value that
indicates whether
the forecast is a
payment or a
receipt.
One of the following
values:
•P if the forecast
is a payment
•R if the forecast
is a receipt
• None Yes User CMM No Map
WebSuite Cash Management Connectivity Guide 313
instrument_type The forecast’s cash
flow type.
By assigning cash
flow types to
forecasts and other
activity in CMM,
you can categorize
this activity for a
variety of purposes.
In particular, you
can run several
reports in the
module that display
activity by cash
flow type.
Note: In CMM, a
cash flow
type is an
instrument
type with the
Status
attribute set
to Enabled.
Instrument type ID •None No User CMM No Map
payment_method The forecast’s
payment method.
A forecast’s
payment method
defines how the
forecast is to be
paid (for example,
by EFT or by check)
if it becomes a
releasable
transaction.
Payment method ID • None No User CMM No Map
value_date The forecast’s
starting value date.
Note: Medium- and
long-term
forecasts can
span a range
of value
dates (for
example, a
medium-ter
m forecast
can span a
month),
while
short-term
forecasts
usually only
span one
value date.
Date •None Yes User CMM No Map
invoice_date The forecast’s
invoice date.
Date • None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
314 © Wall Street Systems IPH AB - Confidential
work_flow_action The action CMM
should take upon
importing the
forecast.
Note: If you do not
specify a
value in this
column, CMM
creates a
new record
for the
forecast
upon
importing it.
One of the following
values:
•edit
• cancel
•None No User CMM No Map
description A relevant
description of or
other information
pertaining to the
forecast.
Text (2,000
characters
maximum)
• None No User CMM No Map
Party
party_id The forecast’s
party.
Entity ID • None Yes User CMM No Map
Party bank
party_bank_id The bank where the
forecast’s party
bank account is
held.
In-house bank ID
External bank ID
•Must be
provided
if the
party
bank
account
number
is also
provided
No User CMM No Map
Party bank account
party_bank_accou
nt_number
The forecast’s party
bank account.
It is not usually
necessary to define
a party bank
account for a
forecast. However,
this attribute is
provided for
situations in which
you need to define
a party bank
account for a
short-term forecast
(or "cash
position").
Note: Do not
include
format
characters
(_, -, and so
on) in this
column.
Entity bank account
number
• None No System CMM No Map
Attribute Description Value Constraints Req. Source Map type
WebSuite Cash Management Connectivity Guide 315
party_bank_accou
nt_currency_code
The curency of the
forecast’s party
bank account.
Currency ID •Must be
provided
if the
party
bank
account
number
is also
provided
No User CMM No Map
Counterparty
cpty_id The forecast’s
counterparty.
It is not usually
necessary to define
a counterparty for a
forecast. However,
this attribute is
provided for
situations in which
you need to define
a counterparty for a
short-term forecast
(or "cash
position").
Entity ID
Counterparty ID
•None CMM
No
Map
Counterparty bank
cpty_bank_id The ID of the bank
where the
forecast’s
counterparty bank
account is held.
In-house bank ID
External bank ID
•Must be
provided
if the
counterp
arty
bank
account
number
is also
provided
No User CMM No Map
Counterparty bank account
cpty_bank_accoun
t_number
The bank account
number of the
forecast’s
counterparty bank
account.
Note: Do not
include
format
characters
(_, -, and so
on) in this
column.
Entity bank account
number
Counterparty bank
account number
•None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
316 © Wall Street Systems IPH AB - Confidential
B.1.2 Accounts payable import attributes
The following table presents common accounts payable import attributes supported by CMM:
cpty_bank_accoun
t_currency_code
The ISO currency
code of the
forecast’s
counterparty bank
account.
Currency ID •Must be
provided
if the
counterp
arty
bank
account
number
is also
provided
No User CMM No Map
Other
customer_referen
ce_id
The forecast’s
source reference
text ID.
Text (50 characters
maximum)
• None No User CMM No Map
customer_attribu
te_0
customer_attribu
te_1
customer_attribu
te_2
customer_attribu
te_3
customer_attribu
te_4
customer_attribu
te_5
customer_attribu
te_6
customer_attribu
te_7
customer_attribu
te_8
customer_attribu
te_9
The forecast’s
custom attributes.
Note: You or
another user
in your
organization
can define
custom
attributes (or
"parameters"
) for
forecasts in
the
Parameter
Editor
function.
Text (50 characters
maximum per field)
•None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
Attribute Description Value Constraints Req. Source Map type
Basic
currency The transaction’s
currency.
Currency ID •None Yes User CMM No Map
amount The transaction’s
absolute value (in
the transaction’s
currency).
Floating point
number
•None Yes User CMM No Map
WebSuite Cash Management Connectivity Guide 317
priority_code The transaction’s
priority.
One of the following
values:
•1 if the
transaction is
not urgent
•2 if the
transaction is
urgent
Note: 1 is the
default if you
do not specify
a value.
•None No User CMM No Map
cash_flow_type_i
d
The transaction’s
cash flow type.
By assigning cash
flow types to
transactions and
other activity in
CMM, you can
categorize this
activity for a
variety of purposes.
In particular, you
can run several
reports in the
module that display
activity by cash
flow type.
Note: In CMM, a
cash flow
type is an
instrument
type with the
Status
attribute set
to
Enabled.
Instrument type ID
Note: COMMP
(Commercial
Payment) is
the default if
you do not
specify a
value.
• None No User CMM No Map
payment_method The transaction’s
payment method.
A transaction’s
payment method
defines how the
transaction is to be
paid when it is
released (for
example, by EFT or
by check).
Payment method ID •None User CMM No Map
txn_date The transaction’s
transaction date.
Date
Note: The current
date is the
default if you
do not specify
a value.
• None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
318 © Wall Street Systems IPH AB - Confidential
value_date The transaction’s
value date.
Date
Note: The
transaction
date is the
default if you
do not specify
a value.
•None No User CMM No Map
description A relevant
description of or
other information
pertaining to the
transaction.
Text (2,000
characters
maximum)
• None No User CMM No Map
Party
external_sour
ce_party_id [1]
The external
system ID of the
transaction’s party.
Text (25 characters
maximum)
• None No User CMM Map
party_id [2]The transaction’s
party.
Entity ID •None Yes User CMM No Map
Party bank
party_bank_branc
h_id
The branch ID of
the transaction’s
party bank (as
assigned by an
agency).
Text (15 characters
maximum)
•None No User CMM No Map
Party bank account
party_bank_acco
unt_number [3]
The transaction’s
party bank account.
Note: If you do not
provide a
party bank
account,
CMM can
select one
using routing
rules.
Entity bank account
primary number
•Must be
held by
the
transacti
on’s
party
No User CMM No Map
party_bank_ac
count_currenc
y_code [4]
The currency of the
transaction’s party
bank account.
Currency ID • None No User CMM No Map
Counterparty
cpty_id [5]The transaction’s
counterparty.
Entity ID
Counterparty ID
• None No User CMM No Map
cpty_name The name of the
transaction’s
counterparty.
Text (35 characters
maximum)
•None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
WebSuite Cash Management Connectivity Guide 319
cpty_local_addre
ss_line_1
cpty_local_addre
ss_line_2
cpty_local_addre
ss_line_3
cpty_local_addre
ss_line_4
The address of the
transaction’s
counterparty.
Text (35 characters
maximum per field)
• None No User CMM No Map
cpty_city_name The city of the
transaction’s
counterparty.
Text (35 characters
maximum)
•None No User CMM No Map
cpty_state_name The state of the
transaction’s
counterparty.
State ID • None No User CMM No Map
cpty_country_cod
e
The country of the
transaction’s
counterparty.
Country ID •None No User CMM No Map
cpty_postal_code The postal or ZIP
code of the
transaction’s
counterparty.
Text (10 characters
maximum)
• None No User CMM No Map
Counterparty bank
cpty_bank_id
[6]
The ID of the
transaction’s
counterparty bank.
In-house bank ID
External bank ID
• None No User CMM No Map
cpty_bank_swift_
code
The SWIFT code of
the transaction’s
counterparty bank
account.
Text (20 characters
maximum)
•None No User CMM No Map
cpty_bank_branch
_id
The branch ID of
the transaction’s
counterparty bank
(as assigned by an
agency).
Text (15 characters
maximum)
• None No User CMM No Map
cpty_bank_name The name of the
transaction’s
counterparty bank.
Text (35 characters
maximum)
•None No User CMM No Map
cpty_bank_addres
s_1
cpty_bank_addres
s_2
The address of the
transaction’s
counterparty bank.
Text (35 characters
maximum per field)
• None No User CMM No Map
cpty_bank_city_n
ame
The city of the
transaction’s
counterparty bank.
Text (35 characters
maximum)
•None No User CMM No Map
cpty_bank_state_
name
The state of the
transaction’s
counterparty bank.
State ID • None No User CMM No Map
cpty_bank_postal
_code
The postal or ZIP
code of the
transaction’s
counterparty bank.
Text (10 characters
maximum)
•None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
320 © Wall Street Systems IPH AB - Confidential
Counterparty bank account
cpty_bank_accou
nt_id [7]
The ID of the
transaction’s
counterparty bank.
In-house bank ID
External bank ID
•None No User CMM No Map
cpty_bank_accoun
t_number
The primary
number (usually,
BBAN) of the
transaction’s
counterparty bank
account.
Text (60 characters
maximum)
•Must
validate
against
the
BBAN
rules of
the bank
account’
s
country
No User CMM No Map
cpty_bank_accoun
t_iban
The secondary
number (usually
IBAN) of the
transaction’s
counterparty bank
account.
Text (60 characters
maximum)
•Must
validate
against
the
IBAN rul
es
No User CMM No Map
cpty_bank_accoun
t_country_code
The country of the
transaction’s
counterparty bank.
Country ID •None No User
cpty_bank_accoun
t_currency_code
The currency of the
transaction’s
counterparty bank
account.
Currency ID •None No User CMM No Map
Intermediary bank
intermediary_ba
nk_id [8]
The transaction’s
primary
intermediary bank.
In-house bank ID
External bank ID
•None No User CMM No Map
intermediary_ban
k_swift_code
The SWIFT code of
the transaction’s
intermediary bank
account.
Text (40 characters
maximum)
• None No User CMM No Map
intermediary_ban
k_branch_id
The branch ID of
the transaction’s
intermediary bank
(as assigned by an
agency).
Text (15 characters
maximum)
•None No User CMM No Map
intermediary_ban
k_name
The name of the
transaction’s
intermediary bank.
Text (35 characters
maximum)
• None No User CMM No Map
intermediary_ban
k_address_line_1
intermediary_ban
k_address_line_2
The address of the
transaction’s
intermediary bank.
Text (35 characters
maximum per field)
•None No User CMM No Map
intermediary_ban
k_city_name
The city of the
transaction’s
intermediary bank.
Text (35 characters
maximum)
• None No User CMM No Map
intermediary_ban
k_state_name
The state of the
transaction’s
intermediary bank.
State ID •None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
WebSuite Cash Management Connectivity Guide 321
intermediary_ban
k_country_code
The country of the
transaction’s
intermediary bank.
Country ID • None No User CMM No Map
intermediary_ban
k_postal_code
The postal or ZIP
code of the
transaction’s
intermediary bank.
Text (10 characters
maximum)
•None No User CMM No Map
Intermediary bank account
intermediary_ba
nk_account_id
[9]
The transaction’s
primary
intermediary bank
account.
Entity bank account
ID
•None No User CMM No Map
intermediary_
bank_account_
number [10]
The primary
number (usually
BBAN) of the
transaction’s
intermediary bank
account.
Text (60 characters
maximum)
•Must
validate
against
the
BBAN
rules of
the bank
account’
s
country
No User CMM No Map
Secondary intermediary bank
second_interm
ediary_bank_i
d [11]
The transaction’s
secondary
intermediary bank.
In-house bank ID
External bank ID
• None No User CMM No Map
second_intermedi
ary_bank_swift_c
ode
The SWIFT code of
the transaction’s
intermediary bank
account.
Text (40 characters
maximum)
•None No User CMM No Map
second_intermedi
ary_bank_branch_
id
The branch ID of
the transaction’s
intermediary bank
(as assigned by an
agency).
Text (15 characters
maximum)
• None No User CMM No Map
second_intermedi
ary_bank_name
The name of the
transaction’s
intermediary bank.
Text (35 characters
maximum)
•None No User CMM No Map
second_intermedi
ary_bank_address
_line_1
second_intermedi
ary_bank_address
_line_2
The address of the
transaction’s
intermediary bank.
Text (35 characters
maximum per field)
• None No User CMM No Map
second_intermedi
ary_bank_city_na
me
The city of the
transaction’s
intermediary bank.
Text (35 characters
maximum)
•None No User CMM No Map
second_intermedi
ary_bank_state_n
ame
The state of the
transaction’s
intermediary bank.
State ID • None No User CMM No Map
second_intermedi
ary_bank_country
_code
The country of the
transaction’s
intermediary bank.
Country ID •None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
322 © Wall Street Systems IPH AB - Confidential
second_intermedi
ary_bank_postal_
code
The postal or ZIP
code of the
transaction’s
intermediary bank.
Text (10 characters
maximum)
• None No User CMM No Map
Second intermediary bank account
second_interm
ediary_bank_a
ccount_id [12]
The transaction’s
secondary
intermediary bank
account.
Entity bank account
ID
• None No User CMM No Map
second_intermed
iary_bank_accou
nt_number [13]
The primary
number (usually
BBAN) of the
transaction’s
intermediary bank
account.
Text (60 characters
maximum)
•Must
validate
against
the
BBAN
rules of
the bank
account’
s
country
No User CMM No Map
Aggregation
aggregate_detail
_code
A value that
indicates whether
the transaction is
an aggregate or
detail.
One of the following
values:
•A if the
transaction is an
aggregate
•D if the
transaction is a
detail
•None No User CMM No Map
aggregate_refere
nce_id
If the transaction is
an aggregate, the
transaction’s
unique reference
number.
If the transaction is
a detail, the
reference number
of the aggregate
transaction in which
the detail
transaction is
contained.
Text (50 characters
maximum)
• None No User CMM No Map
Tax
tax_payment_type
_code
A code identifying
the type of tax
being paid.
Text (255
characters
maximum)
• None No User CMM No Map
tax_payment_subt
ype_code
A code identifying
the subtype of tax
being paid.
Text (255
characters
maximum)
•None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
WebSuite Cash Management Connectivity Guide 323
tax_payer_id A number assigned
to a purchaser by a
taxing jurisdiction.
Note: This ID is
also known
as a tax
exemption
number or
certificate
number.
Text (255
characters
maximum)
• None No User CMM No Map
tax_payer_verifi
cation_id
An ID the receiver
can use to confirm
the taxpayer’s
identity.
Text (255
characters
maximum)
•None No User CMM No Map
Regulatory reporting
regulatory_code The transaction’s
regulatory code.
Regulatory code •None No User CMM No Map
Other
bank_preauthoriz
ation_id
The transaction’s
pre-authorization
ID.
Text (255
characters
maximum)
•None No User CMM No Map
bank_preauthoriz
ation_status
The transaction’s
pre-authorization
status.
One of the
following:
• AUTHORIZED
• UNAUTHORIZED
• None No User CMM No Map
cheque_number The transaction’s
check number (if
the transaction is
paid by check).
Text (35 characters
maximum)
•None No User CMM No Map
cpty_message Instructions or
other messages to
the transaction’s
counterparty.
Text (100
characters
maximum)
• None No User CMM No Map
customer_batch_r
eference_id
The customer’s
batch reference ID
for the transaction.
Text (30 characters
maximum)
•None No User CMM No Map
customer_referen
ce_id
The transaction’s
customer reference
ID.
Text (50 characters
maximum)
• None No User CMM No Map
customer_txn_ref
erence_id
The customer’s
reference ID for the
transaction.
Note: This ID does
not have to
be unique.
Text (30 characters
maximum)
•None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
324 © Wall Street Systems IPH AB - Confidential
external_referen
ce
The reference
number or numbers
of an external
transaction as
supplied by an
external system
(includes TRM).
String. List of
values delimited by
; (semicolons)
which can be
escaped with \
(backslash).
Each value must not
exceed 255
characters.
• None No User CMM No Map
external_transac
tion_type_code
The ID of the
transaction’s type.
Note: This is
country and
bank specific.
Text (10 characters
maximum)
• None No User CMM No Map
financial_alloca
tion_charge
The financial
allocation charge of
the transaction.
One of the following
values:
• 1 if the financial
charges are
being shared
equally between
the sender and
receiver
• 2 if the financial
charges are
being paid
entirely by the
sender
• 3 if the financial
charges are
being paid
entirely by the
receiver
Note: 1 is the
default if you
do not specify
a value.
•None No User CMM No Map
perosnal_identif
ication_number
The personal
identification
number of the
transaction.
Text (255
characters
maximum)
• None No User CMM No Map
remittance_detai
ls
The transaction’s
remittance details.
Remittance detail
information can be
captured for each
transaction.
Multiple remittance
detail information is
possible for one
transaction.
Text •None No User CMM No Map
repetitive_code A bank-defined
code that uniquely
identifies the static
attributes of the
transaction.
Text (255
characters
maximum)
• None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
WebSuite Cash Management Connectivity Guide 325
Table notes:
1. This attribute and party_id are mutually exclusive.
2. This attribute and external_source_party_id are mutually exclusive.
3. If you do not provide this attribute, you must provide either external_source_party_id or
party_id.
4. This attribute is required if party_bank_account_number is also provided.
5. This attribute and all other counterparty attributes are mutually exclusive.
6. This attribute and all other counterparty bank attributes are mutually exclusive.
7. This attribute and all other counterparty bank account attributes are mutually exclusive.
8. This attribute and all other intermediary bank attributes are mutually exclusive.
9. This attribute and intermediary_bank_account_number are mutually exclusive.
10. This attribute and intermediary_bank_account_id are mutually exclusive.
11. This attribute and all other second intermediary bank attributes are mutually exclusive.
12. This attribute and second_intermediary_bank_account_number are mutually exclusive.
13. This attribute and second_intermediary_bank_account_id are mutually exclusive.
B.1.3 Accounts receivable import attributes
The following table presents common accounts receivable import attributes supported by CMM:
retrieval_locati
on_address_1
retrieval_locati
on_address_2
The address of the
transaction’s pickup
location.
Note: This attribute
is used in
eastern
Europe.
Text (255
characters
maximum per field)
•None No User CMM No Map
retrieval_locati
on_id
The ID of the
transaction’s pickup
location.
Note: This attribute
is used in
eastern
Europe.
Text (255
characters
maximum)
• None No User CMM No Map
retrieval_locati
on_name
The name of the
transaction’s pickup
location.
Note: This attribute
is used in
eastern
Europe.
Text (255
characters
maximum)
•None No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
Attribute Description Value Constraints Req. Source Map type
Basic
currency The transaction’s
currency.
Currency ID •None Yes User CMM No Map
326 © Wall Street Systems IPH AB - Confidential
amount The transaction’s
absolute value (in the
transaction’s currency).
Floating point
number
•None Yes User CMM No Map
cash_flow_type_i
d
The transaction’s cash
flow type.
By assigning cash flow
types to transactions
and other activity in
CMM, you can
categorize this activity
for a variety of
purposes. In particular,
you can run several
reports in the module
that display activity by
cash flow type.
Note: In CMM, a cash
flow type is an
instrument type
with the Status
attribute set to
Enabled.
Instrument
type ID
Note: COMMR
(Commer
cial
Receipt)
is the
default if
you do
not
specify a
value.
•None No User CMM No Map
payment_method The transaction’s
payment method.
A transaction’s
payment method
defines how the
transaction is to be paid
when it is released (for
example, by EFT or by
check).
Payment
method ID
•None Yes User CMM No Map
txn_date The transaction’s
transaction date.
Date
Note: The
current
date is
the
default if
you do
not
specify a
value.
•None No User CMM No Map
value_date The transaction’s value
date.
Date
Note: The
transacti
on date
is the
default if
you do
not
specify a
value.
•None No User
description A relevant description
of or other information
pertaining to the
transaction.
Text (2,000
characters
maximum)
•None No User CMM No Map
Party
Attribute Description Value Constraints Req. Source Map type
WebSuite Cash Management Connectivity Guide 327
Table notes:
1. This attribute and party_id are mutually exclusive.
2. This attribute and external_source_party_id are mutually exclusive.
3. If you do not provide this attribute, you must provide either external_source_party_id or
party_id.
4. This attribute is required if party_bank_account_number is also provided.
5. This attribute and cpty_id are mutually exclusive.
6. This attribute and external_source_cpty_id are mutually exclusive.
external_source
_party_id [1]
The external system ID
of the transaction’s
party.
Text (25
characters
maximum)
•None No User CMM Map
party_id [2]The transaction’s party. Entity ID •None Yes User CMM No Map
Party bank
party_bank_branc
h_id
The branch ID of the
transaction’s party
bank (as assigned by
an agency).
Text (15
characters
maximum)
• None No User CMM No Map
Party bank account
party_bank_ac
count_number
[3]
The transaction’s party
bank account.
Note: If you do not
provide a party
bank account,
CMM can select
one using routing
rules.
Entity bank
account
primary
number
•Must be
held by
the
transacti
on’s
party
No User CMM No Map
party_bank_acco
unt_currency_co
de [4]
The currency of the
transaction’s party
bank account.
Currency ID •None No User CMM No Map
Counterparty
external_source
_cpty_id [5]
The external system ID
of the transaction’s
party.
Text (25
characters
maximum)
•None No User CMM Map
cpty_id [6]The transaction’s
counterparty.
Entity ID
Counterparty
ID
• None No User CMM No Map
Other
customer_referen
ce_id
The transaction’s
customer reference ID.
Text (50
characters
maximum)
• None No User CMM No Map
invoice_number The transaction’s
invoice number.
Text (20
characters
maximum)
•Must be
provided
if
existing
referenc
es are
deleted.
No User CMM No Map
Attribute Description Value Constraints Req. Source Map type
328 © Wall Street Systems IPH AB - Confidential
B.1.4 Bank transaction import attributes
The following table presents common bank transaction import attributes supported by CMM:
Attribute Description Value Constraints Req
.Source Map type
Basic
currency_code The bank
transaction’s
currency.
Currency ID •None Yes User CMM No Map
amount The bank
transaction’s absolute
value (in the bank
transaction’s
currency).
Floating
point number
• None Yes User CMM No Map
type_code A value that indicates
whether the bank
transaction is a
payment or a receipt.
One of the
following:
•P if the
bank
transactio
n is a
payment
•R if the
bank
transactio
n is a
receipt
•None No User CMM Map
funds_type_code The bank
transaction’s cash
flow type.
By assigning cash
flow types to bank
transactions and
other activity in CMM,
you can categorize
this activity for a
variety of purposes.
In particular, you can
run several reports in
the module that
display activity by
cash flow type.
Note: In CMM, a cash
flow type is an
instrument
type with the
Status attribute
set to
Enabled.
Instrument
type ID
•Is
mutually
exclusive
with the
counterp
arty file
code ID
No User CMM Map
external_txn_sub_t
ype
The bank
transaction’s
counterparty file
code.
Counterparty
file code ID
•Is
mutually
exclusive
with the
cash flow
type ID
No User CMM Map
txn_date The bank
transaction’s
transaction date.
Date • None Yes User CMM No Map
WebSuite Cash Management Connectivity Guide 329
value_date The bank
transaction’s value
date.
Date •None Yes User CMM No Map
description A relevant description
of or other
information
pertaining to the
bank transaction.
Text (2,000
characters
maximum)
• None No User CMM No Map
bank_txn_stmt_star
t_date
Sets the statement
start date. Use the
time stamp 00:00:00
for the given day.
Date/Time • None No User CMM no Map
bank_txn_stmt_end_
date
Sets the statement
end date. Use the
time stamp 23:59:59
for the given day.
Date/Time • None No User CMM no Map
Entity
bank_acct_number The primary number
(usually, BBAN) of the
bank transaction’s
party bank account.
Entity bank
account
primary
number
Counterparty
bank account
primary
number
• None Yes User CMM Map
bank_acct_name The name of the bank
transaction’s party
bank account.
Entity bank
account
primary
name
Counterparty
bank account
primary
name
•None No User CMM Map
originating_bank_i
d
The bank
transaction’s party
bank.
In-house
bank ID
External
bank ID
• None No User CMM No Map
Counterparty
cpty_bank_account_
number
The primary number
(usually, BBAN) of the
bank transaction’s
counterparty bank
account.
Counterparty
bank account
primary
number
• None No User CMM No Map
Other
Attribute Description Value Constraints Req
.Source Map type
330 © Wall Street Systems IPH AB - Confidential
B.1.5 Bank balance import attributes
The following table presents common bank balance import attributes supported by CMM:
customer_reference
_id
The bank
transaction’s
customer reference
ID.
Note: If you do not
specify a value
in this
attribute, CMM
cannot
automatically
reconcile the
bank
transaction.
Text (50
characters
maximum)
• None No User CMM No Map
bank_reference_num
ber
The bank
transaction’s bank
reference ID.
Text (50
characters
maximum)
•None No User CMM No Map
cheque_number The bank
transaction’s check
number (if the bank
transaction is paid by
check).
Text (35
characters
maximum)
• None No User CMM No Map
Attribute Description Value Constraints Req
.Source Map type
Attribute Description Value Constraints Req. Source Map type
Basic
currency_co
de
The bank
balance’s
currency.
Currency ID •None Yes User CMM No Map
actual_amou
nt
The bank
balance’s value
(in the bank
balance’s
currency).
Note: The value
can be
positive
or
negative.
Floating point
number
•None Yes User CMM No Map
WebSuite Cash Management Connectivity Guide 331
B.1.6 Bank message import attributes
The following table presents common bank message import attributes supported by CMM:
txn_sub_typ
e_id
The bank
balance’s
internal type.
One of the
following:
•8 if the bank
balance is
opening
transaction
date
•19 if the
bank balance
is closing
transaction
date
•3 if the bank
balance is
opening
value date
•6 if the bank
balance is
closing value
date
•Is
mutually
exclusive
with the
external
type
No User CMM No Map
external_ba
lance_type
The bank
balance’s
external type.
Text •Is
mutually
exclusive
with the
internal
type
No User CMM Map
balance_dat
e
The bank
balance’s date.
Date •None Yes User CMM No Map
Entity
bank_acct_n
umber
The primary
number
(usually, BBAN)
of the bank
balance’s party
bank account.
Entity bank
account primary
number
Counterparty
bank account
primary number
•None Yes User CMM Map
bank_acct_n
ame
The name of
the bank
balance’s party
bank account.
Entity bank
account primary
name
Counterparty
bank account
primary name
•None No User CMM Map
Attribute Description Value Constraints Req. Source Map type
Attribute Description Value Constraint
sReq. Source Map type
File level
interchange_c
ontrol_ref_nu
m
The file-level bank
reference identifier.
Text (35
characters
maximum)
•None No User CMM No Map
332 © Wall Street Systems IPH AB - Confidential
B.1.7 Interchange import attributes
The following table presents common interchange import attributes supported by CMM:
Transaction level
orig_file_exp
ort_reference
_id
The export log
identifier in CMM for
the original file
exported to and sent
back from the bank.
Integer •None No User CMM No Map
external_mess
age_code
The status of the
message.
Note: The value in this
attribute must
be mapped to
an internal
status code in
CMM, such as
PA, PR, PH, or
400.
Text •None Yes User CMM Map
bank_referenc
e_id
The bank’s ID for the
transaction.
Text (50
characters
maximum)
•None No User CMM No Map
message_text_
desc
A description of the
message’s status.
Text • None No User CMM No Map
customer_refe
rence_id
The originating
system’s unique ID for
the transaction.
Text •None No User CMM No Map
Attribute Description Value Constraint
sReq. Source Map type
Attribute Description Value Constraint
sReq. Source Map type
Basic attributes
interchange_s
ender_id
The ID of the
interchange’s EDI
sender.
Text (35
characters
maximum)
•None No User CMM No Map
sender_id_qua
lifier_code
The qualifier code of
the interchange’s EDI
sender.
Text (4
characters
maximum)
• None No User CMM No Map
interchange_r
ecipient_id
The ID of the
interchange’s EDI
recipient.
Text (35
characters
maximum)
•None No User CMM No Map
recipient_id_
qualifier_cod
e
The qualifier code of
the interchange’s EDI
receiver.
Text (4
characters
maximum)
• None No User CMM No Map
functional_gr
oup_sender_id
The functional group
of the interchange’s
EDI sender.
Text (35
characters
maximum)
•None No User CMM No Map
functional_gr
oup_receiver_
id
The functional group
of the interchange’s
EDI receiver.
Text (35
characters
maximum)
• None No User CMM No Map
WebSuite Cash Management Connectivity Guide 333
B.1.8 File import attributes
The following table presents common file import attributes supported by CMM:
Runtime-specific attributes
import_export
_id
A unique sequential ID
assigned to every
interface with CMM.
Note: The value of this
attribute is
derived at
runtime and
provided by the
controller.
Integer • None No User CMM No Map
Attribute Description Value Constraint
sReq. Source Map type
Attribute Description Value Constraints Req. Source Map type
file_id The file’s ID. Text •Must be
unique within
files imported
for the select
import type
Yes User CMM No Map
file_creati
on_time
The file’s
creation date.
Date
Note: The
current
date is
the
default
if you
do not
specify
a value.
•None No User CMM No Map
file_type The file’s
type.
One of the
following:
•C if the file
is intraday
(CDR)
•P if the file
is
previous-d
ay (PDR)
•Must be
provided for
bank
statement
files
No User CMM No Map
business_ty
pe
The file’s
business
type.
Text •Must be
provided for
bank
statement
files
No User CMM No Map
334 © Wall Street Systems IPH AB - Confidential
B.2 Export attributes
CMM supports the following export attributes:
•Payment
•Receipt
•Credit advice
•Remittance detail
•Bank statement
•Company general ledger
•Interchange.
B.2.1 Payment export attributes
The following table presents common payment export attributes supported by CMM:
Name Data type Map type Description Example
Basic attributes
payment_currency String CMM No Map The ISO currency code
of the transaction.
USD
payment_amount Double CMM No Map The absolute value of the
transaction (in the
currency defined in
payment_currency)
.
5000.00
bank_account_curren
cy_amount
Double CMM No Map The absolute value of the
transaction (in the
currency of the
transaction’s bank
account.)
5000.00
is_foreign_currency
_txn
String CMM No Map The foreign currency
status of the transaction.
Acceptable values:
•YES if the
transaction currency
is different than the
paying entity bank
account’s currency
•NO if the transaction
currency is the same
as the paying entity
bank account’s
currency.
Note: This attribute was
originally provided
to support foreign
transactions in
CMM 6.5.x.
NO
WebSuite Cash Management Connectivity Guide 335
foreign_txn_currenc
y
String CMM No Map The ISO currency code of
the transaction.
Note: This attribute was
originally provided
to support foreign
transactions in
CMM 6.5.x. As of
CMM 7.1.x, this
attribute returns
the same value as
the
payment_curren
cy attribute.
Therefore,
Wallstreet
recommends you
use the
payment_curren
cy attribute rather
than this attribute
if possible.
USD
foreign_txn_amount Double CMM No Map The absolute value of the
transaction (in the
currency defined in
foreign_txn_curr
ency).
Note: This attribute was
originally provided
to support foreign
transactions in
CMM 6.5.x. As of
CMM 7.1.x, this
attribute returns
the same value as
the
payment_amou
nt attribute.
Therefore,
Wallstreet
recommends you
use the
payment_amou
nt attribute
rather than this
attribute if
possible.
5000.00
originator_country_
code
String CMM No Map The ISO country code of
the transaction’s
originating entity.
CA
cash_flow_type String CMM No Map The type of the
transaction.
Acceptable values:
•P for payment
•R for receipt.
P
transaction_type_co
de
String CMM No Map The cash flow type of the
transaction.
COMMP
Name Data type Map type Description Example
336 © Wall Street Systems IPH AB - Confidential
priority_code Integer Spec Map The priority of the
transaction.
Acceptable values:
•1 for not urgent
•2 for urgent.
2
payment_method String CMM Map The payment method of
the transaction.
EFT
payment_primary_del
ivery_channel
String Spec Map The primary delivery
channel of the
transaction.
Acceptable values:
•ACH for automated
clearing system
•WT for wire transfer
•CHQ for check.
Note: This attribute is
similar to but
more accurate
than
payment_meth
od. Wallstreet
recommends you
use it rather than
payment_meth
od when possible.
The logic for the
derivation is
defined in
paymentPrima
ryDeliveryCh
annelInstruc
tion.xml.
ACH
clearing_system_typ
e
String Spec Map The clearing system type
of the transaction.
Acceptable values:
•LVC for low-value
clearing system
•HVC for high-value
clearing system.
Note: This attribute is
only applicable to
transactions
delivered through
an automated
clearing system.
The logic for the
derivation is
defined in
clearingSystem
SelectionInstr
uction.xml.
LVC
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 337
domestic_crossborde
r_status
String Spec Map The
domestic/cross-border
status of the transaction.
Acceptable values:
•DOMESTIC for
domestic
transactions
•CROSS_BORDER for
cross-border
(international)
transactions.
Note: The logic for this
derivation is
defined in
domesticInte
rnationalIns
truction.xml.
DOMESTIC
payment_residency_f
low_status
String Spec Map The residency flow
status of the transaction.
Acceptable values:
•RESIDENT TO
RESIDENT
•RESIDENT TO
NON_RESIDENT
•NON_RESIDENT TO
RESIDENT
•NON_RESIDENT TO
NON_RESIDENT.
Note: This attribute is
only applicable to
domestic
transactions.
RESIDENT TO
RESIDENT
foreign_exchange_st
atus
String Spec Map The foreign exchange
status of the transaction.
Acceptable values:
•REQUIRED for
transactions
requiring foreign
exchange
•NOT_REQUIRED for
transactions not
required foreign
exchange.
Note: The logic for this
derivation is
defined in
foreignExcha
ngeStatusIns
truction.xml.
NOT_REQUIRED
payment_destination
_country_code
String CMM No Map The ISO country code of
the destination of the
transaction.
US
Name Data type Map type Description Example
338 © Wall Street Systems IPH AB - Confidential
transaction_date Date CMM No Map The transaction date of
the transaction.
20-Oct-2006
value_date Date CMM No Map The value date of the
transaction.
20-Oct-2006
is_valid_transactio
n
String CMM No Map A flag that indicates
whether the transaction
is valid.
Acceptable values:
•YES
•NO.
YES
is_intercompany_pay
ment
String CMM No Map A flag that indicates
whether the transaction
is intercompany
Acceptable values:
•YES
•[Blank].
YES
payment_description String CMM No Map A relevant description of
or other information
pertaining to the
transaction.
Invoice No. 9876
beneficiary_message String CMM No Map A message to the
transaction’s beneficiary.
bank_instruction String CMM No Map Instructions to the
transaction’s bank.
payment_details String Static Map A concatenation of
payment_descriptio
n,
beneficiary_messag
e, and
bank_instruction.
Invoice No. 9876
Paying entity attributes
payor_long_name String CMM No Map The name of the
transaction’s paying
entity.
Acme USA
payor_local_addr
ess_line1
String CMM No Map The first address line of
the transaction’s paying
entity.
Suite 100
payor_local_addr
ess_line2
String CMM No Map The second address line
of the transaction’s
paying entity.
123 Main St.
payor_local_addr
ess_line3
String CMM No Map The third address line of
the transaction’s paying
entity.
payor_local_addr
ess_line4
String CMM No Map The fourth address line
of the transaction’s
paying entity.
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 339
payor_local_address String CMM No Map A concatenation of
payor_local_addr
ess_line1 to
payor_local_addr
ess_line4.
Suite 100123
Main St.
payor_city_name String CMM No Map The city of the
transaction’s paying
entity.
New York
payor_state_name String CMM No Map The state or province of
the transaction’s paying
entity.
NY
payor_country_code String CMM No Map The ISO country code of
the transaction’s paying
entity.
US
payor_postal_code String CMM No Map The ZIP or postal code of
the transaction’s paying
entity.
12345
payor_phone_number String CMM No Map The telephone number of
the paying entity.
payor_fax_number String CMM No Map The fax number of the
paying entity.
payor_email_account String CMM No Map The e-mail account of
the paying entity.
payor_branch_id String CMM No Map The branch ID of the
paying entity.
Note: This attribute is
only relevant to
financial
institution
counterparties.
payor_swift_code String CMM No Map The SWIFT code of the
paying entity.
Note: This attribute is
only relevant to
financial
institution
counterparties.
Originating entity attributes
originator_long_nam
e
String CMM No Map The name of the
transaction’s originating
entity.
Acme Canada
originator_local_ad
dress_line_1
String CMM No Map The first address line of
the transaction’s
originating entity.
Suite 100
originator_local_ad
dress_line_2
String CMM No Map The second address line
of the transaction’s
originating entity.
123 Main St.
originator_local_ad
dress_line_3
String CMM No Map The third address line of
the transaction’s
originating entity.
Name Data type Map type Description Example
340 © Wall Street Systems IPH AB - Confidential
originator_local_ad
dress_line_4
String CMM No Map The fourth address line
of the transaction’s
originating entity.
originator_local_ad
dress
String CMM No Map A concatenation of
originator_local
_address_line1 to
originator_local
_address_line4.
Suite 100123
Main St.
originator_city_nam
e
String CMM No Map The city of the
transaction’s originating
entity.
Toronto
originator_state_na
me
String CMM No Map The state or province of
the transaction’s
originating entity.
ON
originator_postal_c
ode
String CMM No Map The ZIP or postal code of
the transaction’s
originating entity.
A1B 2C3
Paying entity bank attributes
payor_bank_swift_co
de
String CMM No Map The SWIFT code of the
transaction’s paying
entity bank.
payor_bank_branch_i
d
String CMM No Map The branch ID of the
transaction’s paying
entity bank (as assigned
by an agency).
Note: This ID is also
known as a bank
sort code.
payor_bank_branch_q
ualifier_code
String CMM No Map The branch ID type of
the transaction’s paying
entity bank.
Note: This attribute is
equivalent to the
SWIFT clearing
code and depends
on countries and
clearing systems.
payor_bank_branch_a
gency_code
String CMM No Map The agency that
assigned the branch ID
to the transaction’s
paying entity bank.
payor_bank_long_nam
e
String CMM No Map The name of the
transaction’s paying
entity bank.
BankOfComm
payor_bank_address_
1
String CMM No Map The first address line of
the transaction’s paying
entity bank.
Suite 100
payor_bank_address_
2
String CMM No Map The second address line
of the transaction’s
paying entity bank.
123 Main St.
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 341
payor_bank_address_
3
String CMM No Map The third address line of
the transaction’s paying
entity bank.
payor_bank_address_
4
String CMM No Map The fourth address line
of the transaction’s
paying entity bank.
payor_bank_name_and
_adddress
String CMM No Map A concatenation of
payor_bank_long_
name and
payor_bank_addre
ss_1 to
payor_bank_addre
ss_4.
Suite 100123
Main St.
payor_bank_local_ad
ddress
String CMM No Map A concatenation of
payor_bank_address
_1 to
payor_bank_address
_4.
Suite 100123
Main St.
payor_bank_city_nam
e
String CMM No Map The city of the
transaction’s paying
entity bank.
Boston
payor_bank_state_na
me
String CMM No Map The state or province of
the transaction’s paying
entity bank.
MA
payor_bank_country_
code
String CMM No Map The ISO country code of
the transaction’s paying
entity bank.
US
payor_bank_postal_c
ode
String CMM No Map The ZIP or postal code of
the transaction’s paying
entity bank.
12345
payor_bank_national
_currency_code
String CMM Map The national currency of
the transaction’s paying
entity bank.
USD
Paying entity bank account attributes
payor_bank_account_
number
String CMM No Map The BBAN of the
transaction’s paying
entity bank account.
12345678
payor_bank_account_
iban
String CMM No Map The IBAN of the
transaction’s paying
entity bank account.
US9012345678
payor_bank_account_
name
String CMM No Map The name of the paying
entity bank account.
AcmeUSBA
payor_bank_account_
type
String CMM No Map The type of the paying
entity bank account.
General
payor_bank_account_
currency_code
String CMM No Map The currency of the
paying entity bank
account.
USD
Name Data type Map type Description Example
342 © Wall Street Systems IPH AB - Confidential
payor_bank_account_
resident_status
String Spec Map The resident status of
the transaction’s paying
entity bank account.
Acceptable values:
•RESIDENT if the
paying entity bank
account is a resident
account.
•NON_RESIDENT if
the paying entity
bank account is a
non-resident
account.
Note: The logic for this
derivation is
defined in
bankaccountRes
idencyStatusIn
struction.xml.
RESIDENT
payor_bank_acctount
_clearing_number
String CMM No Map A unique identifier
assigned to the paying
entity bank account by a
clearing system (for
example, a Giro
number).
Counterparty attributes
payee_long_name String CMM No Map The name of the
transaction’s
counterparty.
Smith Company
payee_local_address
_line_1
String CMM No Map The first address line of
the transaction’s
counterparty.
Suite 100
payee_local_address
_line_2
String CMM No Map The second address line
of the transaction’s
counterparty.
123 Main St.
payee_local_address
_line_3
String CMM No Map The third address line of
the transaction’s
counterparty.
payee_local_address
_line_4
String CMM No Map The fourth address line
of the transaction’s
counterparty.
payee_name_and_addr
ess
String CMM No Map A concatenation of
payee_long_name and
payee_local_addres
s_line_1 to
payee_local_addres
s_line_4.
Smith
CompanySuite
100123 Main St.
payee_local_address String CMM No Map A concatenation of
payee_local_addr
ess_line_1 to
payee_local_addr
ess_line_4.
Suite 100123
Main St.
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 343
payee_city_name String CMM No Map The city of the
transaction’s
counterparty.
Chicago
payee_state_name String CMM No Map The state or province of
the transaction’s
counterparty.
IL
payee_country_code String CMM No Map The ISO country code of
the transaction’s
counterparty.
US
payee_country_name String CMM No Map The country name of the
transaction’s
counterparty.
United States
payee_postal_code String CMM No Map The ZIP or postal code of
the transaction’s
counterparty.
12345
payee_phone_number String CMM No Map The telephone number of
the counterparty.
234-567-8901
payee_branch_id String CMM No Map The branch ID of the
counterparty.
Note: This attribute is
only relevant to
financial
institution
counterparties.
payee_swift_code String CMM No Map The SWIFT code of the
counterparty.
Note: This attribute is
only relevant to
financial
institution
counterparties.
Counterparty bank attributes
payee_bank_swift_co
de
String CMM No Map The SWIFT code of the
transaction’s
counterparty bank.
payee_bank_branch_i
d
String CMM No Map The branch ID of the
transaction’s
counterparty bank (as
assigned by an agency).
Note: This ID is also
known as a bank
sort code.
payee_bank_branch_q
ualifier_code
String CMM No Map The branch ID type of
the transaction’s
counterparty bank.
Note: This attribute is
equivalent to the
SWIFT clearing
code and depends
on countries and
clearing systems.
Name Data type Map type Description Example
344 © Wall Street Systems IPH AB - Confidential
payee_bank_branch_a
gency_code
String CMM No Map The agency that
assigned the branch ID
to the transaction’s
counterparty bank.
payee_bank_long_nam
e
String CMM No Map The name of the
transaction’s
counterparty bank.
First National
Bank
payee_bank_address_
1
String CMM No Map The first address line of
the transaction’s
counterparty bank.
Suite 100
payee_bank_address_
2
String CMM No Map The second address line
of the transaction’s
counterparty bank.
123 Main St.
payee_bank_address_
3
String CMM No Map The third address line of
the transaction’s
counterparty bank.
payee_bank_address_
4
String CMM No Map The fourth address line
of the transaction’s
counterparty bank.
payee_bank_name_and
_address
String CMM No Map A concatenation of
payee_bank_long_na
me and
payee_bank_address
_1 to
payee_bank_address
_4.
First National
BankSuite 100123
Main St.
payee_bank_local_ad
dress
String CMM No Map A concatenation of
payee_bank_addre
ss_1 to
payee_bank_addre
ss_4.
Suite 100123
Main St.
payee_bank_city_nam
e
String CMM No Map The city of the
transaction’s
counterparty bank.
Chicago
payee_bank_state_na
me
String CMM No Map The state or province of
the transaction’s
counterparty bank.
IL
payee_bank_country_
code
String CMM No Map The ISO country code of
the transaction’s
counterparty bank.
US
payee_bank_postal_c
ode
String CMM No Map The ZIP or postal code of
the transaction’s
counterparty bank.
12345
Counterparty bank account attributes
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 345
counter_party_ba
nk_account_requi
remnt
String Spec Map A flag indicating if
counterparty bank
account information is
required.
Acceptable values:
•REQUIRED for
transactions
requiring a
counterparty bank
account
•NOT_REQUIRED for
transactions not
requiring a
counterparty bank
account.
REQUIRED
payee_bank_accou
nt_number
String CMM No Map The primary bank
account number of the
transaction’s
counterparty bank
account.
Note: This can be either
BBAN or IBAN.
12345678
payee_bank_accou
nt_bban
String CMM No Map The BBAN of the
transaction’s
counterparty bank
account.
12345678
payee_bank_accou
nt_iban
String CMM No Map The IBAN of the
transaction’s
counterparty bank
account.
US9012345678
payee_bank_accou
nt_name
String CMM No Map The name of the
counterparty bank
account.
AcmeUSBA
payee_bank_accou
nt_type
String CMM No Map The type of the
counterparty bank
account.
General
payee_bank_accou
nt_currency_code
String CMM No Map The currency of the
counterparty bank
account.
USD
Name Data type Map type Description Example
346 © Wall Street Systems IPH AB - Confidential
payee_bank_account_
resident_status
String Spec Map The resident status of
the transaction’s
counterparty bank
account.
Acceptable values:
•RESIDENT if the
counterparty bank
account is a resident
account.
•NON_RESIDENT if
the counterparty
bank account is a
non-resident
account.
Note: The logic for this
derivation is
defined in
bankaccountRes
idencyStatusIn
struction.xml.
RESIDENT
payee_bank_acctount
_clearing_number
String CMM No Map A unique identifier
assigned to the
counterparty bank
account by a clearing
system (for example, a
Giro number).
Intermediary bank attributes
intermediary_bank_s
wift_code
String CMM No Map The SWIFT code of the
transaction’s
intermediary bank.
intermediary_bank_b
ranch_id
String CMM No Map The branch ID of the
transaction’s
intermediary bank (as
assigned by an agency).
Note: This ID is also
known as a bank
sort code.
intermediary_bank_b
ranch_qualifier_cod
e
String CMM No Map The branch ID type of
the transaction’s
intermediary bank.
Note: This attribute is
equivalent to the
SWIFT clearing
code and depends
on countries and
clearing systems.
intermediary_bank_b
ranch_agency_code
String CMM No Map The agency that
assigned the branch ID
to the transaction’s
intermediary bank.
intermediary_bank_l
ong_name
String CMM No Map The name of the
transaction’s
intermediary bank.
TransWorld Bank
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 347
intermediary_bank_a
ddress_1
String CMM No Map The first address line of
the transaction’s
intermediary bank.
Suite 100
intermediary_bank_a
ddress_2
String CMM No Map The second address line
of the transaction’s
intermediary bank.
123 Main St.
intermediary_bank_a
ddress_3
String CMM No Map The third address line of
the transaction’s
intermediary bank.
intermediary_bank_a
ddress_4
String CMM No Map The fourth address line
of the transaction’s
intermediary bank.
intermediary_bank_n
ame_and_address
String CMM No Map A concatenation of
intermediary_bank_
long_name and
intermediary_bank_
address_1 to
intermediary_bank_
address_4.
TransWorld
BankSuite 100123
Main St.
intermediary_bank_l
ocal_address
String CMM No Map A concatenation of
intermediary_ban
k_address_1 to
intermediary_ban
k_address_4.
Suite 100123
Main St.
intermediary_bank_c
ity_name
String CMM No Map The city of the
transaction’s
intermediary bank.
Atlanta
intermediary_bank_s
tate_name
String CMM No Map The state or province of
the transaction’s
intermediary bank.
GA
intermediary_bank_c
ountry_code
String CMM No Map The ISO country code of
the transaction’s
intermediary bank.
US
intermediary_bank_p
ostal_code
String CMM No Map The ZIP or postal code of
the transaction’s
intermediary bank.
12345
Intermediary bank account attributes
intermediary_bank_a
ccount_number
String CMM No Map The primary bank
account number of the
intermediary bank
account.
intermediary_bank_a
ccount_name
String CMM No Map The name of the
intermediary bank
account.
Second intermediary bank attributes
second_intermediary
_bank_swift_code
String CMM No Map The SWIFT code of the
transaction’s
intermediary bank.
Name Data type Map type Description Example
348 © Wall Street Systems IPH AB - Confidential
second_intermediary
_bank_branch_id
String CMM No Map The branch ID of the
transaction’s
intermediary bank (as
assigned by an agency).
Note: This ID is also
known as a bank
sort code.
second_intermediary
_bank_long_name
String CMM No Map The name of the
transaction’s
intermediary bank.
TransWorld Bank
second_intermediary
_bank_address_1
String CMM No Map The first address line of
the transaction’s
intermediary bank.
Suite 100
second_intermediary
_bank_address_2
String CMM No Map The second address line
of the transaction’s
intermediary bank.
123 Main St.
second_intermediary
_bank_address_3
String CMM No Map The third address line of
the transaction’s
intermediary bank.
second_intermediary
_bank_address_4
String CMM No Map The fourth address line
of the transaction’s
intermediary bank.
second_intermediary
_bank_name_and_addr
ess
String CMM No Map A concatenation of
intermediary_ban
k_long_name and
intermediary_ban
k_address_1 to
intermediary_ban
k_address_4.
TransWorld
BankSuite 100123
Main St.
second_intermediary
_bank_local_address
String CMM No Map A concatenation of
intermediary_bank_
address_1 to
intermediary_bank_
address_4.
Suite 100123
Main St.
second_intermediary
_bank_city_name
String CMM No Map The city of the
transaction’s
intermediary bank.
Atlanta
second_intermediary
_bank_state_name
String CMM No Map The state or province of
the transaction’s
intermediary bank.
GA
second_intermediary
_bank_country_code
String CMM No Map The ISO country code of
the transaction’s
intermediary bank.
US
second_intermediary
_bank_postal_code
String CMM No Map The ZIP or postal code of
the transaction’s
intermediary bank.
12345
Second intermediary bank account attributes
second_intermediary
_bank_account_numbe
r
String CMM No Map The primary bank
account number of the
intermediary bank
account.
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 349
second_intermediary
_bank_account_name
String CMM No Map The name of the
intermediary bank
account.
Tax attributes
tax_payment_type_co
de
String CMM No Map A code identifying the
type of tax being paid.
tax_payment_subtype
_code
String CMM No Map A code identifying the
subtype of tax being
paid.
tax_payer_id String CMM No Map A number assigned to a
purchaser by a taxing
jurisdiction.
Note: This ID is also
known as a tax
exemption number
or certificate
number.
tax_payer_verificat
ion_id
String CMM No Map An ID the receiver can
use to confirm the
taxpayer’s identity.
Aggregation attributes
is_aggregate_paymen
t
String Derived Map A flag that indicates
whether the transaction
is an aggregate.
Acceptable values:
•YES
•NO.
YES
aggregate_status Boolean Derived Map The aggregation status
of the transaction.
Acceptable values:
•true
•false.
true
payment_aggregation
_type
String CMM No Map The aggregation type of
the transaction.
Acceptable values:
•SINGLE_CREDIT
•MULTI_CREDIT
•NO_AGGREGATION.
SINGLE_CREDIT
number_of_component
_payments
Integer CMM No Map The total number of
component payments
contained in the
aggregate transaction.
50
component_payments Vector CMM No Map A list of the component
payment objects of the
transaction.
Other attributes
Name Data type Map type Description Example
350 © Wall Street Systems IPH AB - Confidential
bank_reference_numb
er
String CMM No Map The sending institution’s
reference number for the
transaction.
central_bank_report
ing_reason_code
String CMM No Map The reason code of the
transaction supplied by
the central bank.
Note: Wallstreet
recommends not
to use this
attribute as the
code mapping is
not fully in place
yet.
cheque_number String CMM No Map The check number of the
transaction.
customer_batch_refe
rence_id
String CMM No Map The customer batch
reference ID of the
transaction from the ERP
system.
customer_reference_
id
String CMM No Map The customer’s unique
ID for the transaction.
123456
customer_txn_refere
nce_id
String CMM No Map The customer
transaction reference ID
from the ERP system.
financial_charge_al
location
String CMM No Map The financial charge
allocation of the
transaction.
Note: This attribute
defaults to 1 (both
payor and payee
share charges).
1
interface_type String Static No Map The interface type of the
transaction.
payment
number_of_remittanc
e_details
Integer CMM No Map The number of
remittance details for the
transaction.
50
originator_identifi
cation_number
String CMM No Map The originating party
identification number of
the transaction.
payee_bank_company_
identifier
String CMM No Map The payee bank
company identifier of the
transaction.
payee_identificatio
n_number
String CMM No Map The payee identification
number of the
transaction.
payment_contract_nu
mber
String CMM No Map The payment contract
number of the
transaction.
payor_bank_company_
identifier
String CMM No Map The payor bank company
identifier of the
transaction.
Name Data type Map type Description Example
WebSuite Cash Management Connectivity Guide 351
B.2.2 Receipt export attributes
The following table presents common receipt export attributes supported by CMM:
payor_company_ident
ifier
String CMM No Map The payor identification
number of the
transaction.
repetitive_code String CMM No Map A bank-defined code that
uniquely identifies the
static attributes of the
transaction.
retrieval_location_
address
String CMM No Map The address of the
location where the
transaction can be
picked up.
Note: This attribute is
used in eastern
Europe.
retrieval_location_
id
String CMM No Map The ID of the location
where the transaction
can be picked up.
Note: This attribute is
used in eastern
Europe.
retrieval_location_
name
String CMM No Map The name of the location
where the transaction
can be picked up.
Note: This attribute is
used in eastern
Europe.
second_company_iden
tifier
String CMM No Map The payor secondary
identification number of
the transaction.
source_batch_id String CMM No Map The source batch ID of
the transaction.
Name Data type Map type Description Example
Name Data
type Map type Description Example
Basic attributes
currency String CMM
No Map
The ISO currency code of the
transaction.
USD
amount Double CMM
No Map
The absolute value of the
transaction (in the currency
defined in
payment_currency).
5000.00
cash_flow_type String CMM
No Map
The cash flow type of the
transaction. COMMP
352 © Wall Street Systems IPH AB - Confidential
transaction_type_code String CMM
No Map
The customer-definable
transaction type code.
Note: This attribute maps to
the Transaction Type
Code additional
attribute.
123
payment_method String CMM
Map
The payment method of the
transaction.
EFT
txn_date Date CMM
No Map
The transaction date of the
transaction.
20-Oct-2006
value_date Date CMM
No Map
The value date of the
transaction.
20-Oct-2006
description String CMM
No Map
A relevant description of or
other information pertaining to
the transaction.
Invoice No.
9876
beneficiary_message String CMM
No Map
A message to the transaction’s
beneficiary.
bank_instruction String CMM
No Map
Instructions to the
transaction’s bank.
Receiving entity attributes
party_company_identifier String CMM
No Map
The identification number of
the transaction’s receiving
entity.
party_second_company_iden
tifier
String CMM
No Map
The secondary identification
number of the transaction’s
receiving entity.
party_short_name String CMM
No Map
The short name of the
transaction’s receiving entity.
Acme USA
party_long_name String CMM
No Map
The long name of the
transaction’s receiving entity.
Acme USA Inc.
party_address_line1 String CMM
No Map
The first address line of the
transaction’s receiving entity.
Suite 100
party_address_line2 String CMM
No Map
The second address line of the
transaction’s receiving entity.
123 Main St.
party_address_line3 String CMM
No Map
The third address line of the
transaction’s receiving entity.
party_address_line4 String CMM
No Map
The fourth address line of the
transaction’s receiving entity.
party_city_name String CMM
No Map
The city of the transaction’s
receiving entity.
New York
party_state_name String CMM
No Map
The state or province of the
transaction’s receiving entity.
NY
party_country_code String CMM
No Map
The ISO country code of the
transaction’s receiving entity.
US
Name Data
type Map type Description Example
WebSuite Cash Management Connectivity Guide 353
party_postal_code String CMM
No Map
The ZIP or postal code of the
transaction’s receiving entity.
12345
Originating entity attributes
originator_companyidentif
ier
String CMM
No Map
The identifier of the
transaction’s originating entity.
originator_short_name String CMM
No Map
The short name of the
transaction’s originating entity.
Acme Canada
originator_long_name String CMM
No Map
The long name of the
transaction’s originating entity.
Acme Canada
Inc.
originator_address_line_1 String CMM
No Map
The first address line of the
transaction’s originating entity.
Suite 100
originator_address_line_2 String CMM
No Map
The second address line of the
transaction’s originating entity.
123 Main St.
originator_address_line_3 String CMM
No Map
The third address line of the
transaction’s originating entity.
originator_address_line_4 String CMM
No Map
The fourth address line of the
transaction’s originating entity.
originator_city_name String CMM
No Map
The city of the transaction’s
originating entity.
Toronto
originator_state_name String CMM
No Map
The state or province of the
transaction’s originating entity.
ON
originator_country_code String CMM
No Map
The ISO country code of the
transaction’s originating entity.
CA
originator_postal_code String CMM
No Map
The ZIP or postal code of the
transaction’s originating entity.
A1B 2C3
Receiving entity bank attributes
party_bank_swift_code String CMM
No Map
The SWIFT code of the
transaction’s receiving entity
bank.
party_bank_sort_code String CMM
No Map
The sort code of the
transaction’s receiving entity
bank (as assigned by an
agency).
party_bank_branch_qualifi
er_code
String CMM
No Map
The branch ID type of the
transaction’s receiving entity
bank.
Note: This attribute is
equivalent to the SWIFT
clearing code and
depends on countries
and clearing systems.
party_bank_branch_agency_
code
String CMM
No Map
The agency that assigned the
branch ID to the transaction’s
receiving entity bank.
Name Data
type Map type Description Example
354 © Wall Street Systems IPH AB - Confidential
party_bank_long_name String CMM
No Map
The long name of the
transaction’s receiving entity
bank.
BankOfComm
party_bank_short_name String CMM
No Map
The short name of the
transaction’s receiving entity
bank.
Bank of
Commerce
party_bank_address_1 String CMM
No Map
The first address line of the
transaction’s receiving entity
bank.
Suite 100
party_bank_address_2 String CMM
No Map
The second address line of the
transaction’s receiving entity
bank.
123 Main St.
party_bank_address_3 String CMM
No Map
The third address line of the
transaction’s receiving entity
bank.
party_bank_address_4 String CMM
No Map
The fourth address line of the
transaction’s receiving entity
bank.
party_bank_city_name String CMM
No Map
The city of the transaction’s
receiving entity bank.
Boston
party_bank_state_name String CMM
No Map
The state or province of the
transaction’s receiving entity
bank.
MA
party_bank_country_code String CMM
No Map
The ISO country code of the
transaction’s receiving entity
bank.
US
party_bank_postal_code String CMM
No Map
The ZIP or postal code of the
transaction’s receiving entity
bank.
12345
Receiving entity bank account attributes
party_bank_account_number String CMM
No Map
Thef the transaction’s
receiving entity bank account.
12345678
party_bank_account_id String CMM
No Map
The ID of the receiving entity
bank account.
AcmeUSBA
party_bank_account_name String CMM
No Map
The name of the receiving
entity bank account.
AcmeUSBA
Counterparty attributes
cpty_long_name String CMM
No Map
The short name of the
transaction’s counterparty.
Smith Company
cpty_short_name String CMM
No Map
The long name of the
transaction’s counterparty.
Smith Company
Ltd.
cpty_local_address_line_1 String CMM
No Map
The first address line of the
transaction’s counterparty.
Suite 100
cpty_local_address_line_2 String CMM
No Map
The second address line of the
transaction’s counterparty.
123 Main St.
Name Data
type Map type Description Example
WebSuite Cash Management Connectivity Guide 355
cpty_local_address_line_3 String CMM
No Map
The third address line of the
transaction’s counterparty.
cpty_local_address_line_4 String CMM
No Map
The fourth address line of the
transaction’s counterparty.
cpty_city_name String CMM
No Map
The city of the transaction’s
counterparty.
Chicago
cpty_state_name String CMM
No Map
The state or province of the
transaction’s counterparty.
IL
cpty_country_code String CMM
No Map
The ISO country code of the
transaction’s counterparty.
US
cpty_postal_code String CMM
No Map
The ZIP or postal code of the
transaction’s counterparty.
12345
cpty_phone_number String CMM
No Map
The telephone number of the
counterparty.
234-567-8901
Counterparty bank attributes
cpty_bank_swift_code String CMM
No Map
The SWIFT code of the
transaction’s counterparty
bank.
cpty_bank_sort_code String CMM
No Map
The sort code of the
transaction’s counterparty
bank (as assigned by an
agency).
cpty_bank_branch_qualifie
r_code
String CMM
No Map
The branch ID type of the
transaction’s counterparty
bank.
Note: This attribute is
equivalent to the SWIFT
clearing code and
depends on countries
and clearing systems.
cpty_bank_branch_agency_c
ode
String CMM
No Map
The agency that assigned the
branch ID to the transaction’s
counterparty bank.
cpty_bank_long_name String CMM
No Map
The name of the transaction’s
counterparty bank.
First National
Bank
cpty_bank_address_1 String CMM
No Map
The first address line of the
transaction’s counterparty
bank.
Suite 100
cpty_bank_address_2 String CMM
No Map
The second address line of the
transaction’s counterparty
bank.
123 Main St.
cpty_bank_address_3 String CMM
No Map
The third address line of the
transaction’s counterparty
bank.
cpty_bank_address_4 String CMM
No Map
The fourth address line of the
transaction’s counterparty
bank.
Name Data
type Map type Description Example
356 © Wall Street Systems IPH AB - Confidential
cpty_bank_local_address String CMM
No Map
A concatenation of
payee_bank_address_1 to
payee_bank_address_4.
Suite 100123
Main St.
cpty_bank_city_name String CMM
No Map
The city of the transaction’s
counterparty bank.
Chicago
cpty_bank_state_name String CMM
No Map
The state or province of the
transaction’s counterparty
bank.
IL
cpty_bank_country_code String CMM
No Map
The ISO country code of the
transaction’s counterparty
bank.
US
cpty_bank_postal_code String CMM
No Map
The ZIP or postal code of the
transaction’s counterparty
bank.
12345
Counterparty bank account attributes
ctpy_bank_account_number String CMM
No Map
The primary bank account
number of the transaction’s
counterparty bank account.
Note: This can be either BBAN
or IBAN.
12345678
ctpy_bank_account_name String CMM
No Map
The name of the counterparty
bank account.
AcmeUSBA
ctpy_bank_account_currenc
y_code
String CMM
No Map
The currency of the
counterparty bank account.
USD
Intermediary bank attributes
intermediary_bank_swift_c
ode
String CMM
No Map
The SWIFT code of the
transaction’s intermediary
bank.
intermediary_bank_sort_co
de
String CMM
No Map
The sort code of the
transaction’s intermediary
bank (as assigned by an
agency).
intermediary_bank_branch_
qualifier_code
String CMM
No Map
The branch ID type of the
transaction’s intermediary
bank.
Note: This attribute is
equivalent to the SWIFT
clearing code and
depends on countries
and clearing systems.
intermediary_bank_branch_
agency_code
String CMM
No Map
The agency that assigned the
branch ID to the transaction’s
intermediary bank.
intermediary_bank_short_n
ame
String CMM
No Map
The short name of the
transaction’s intermediary
bank.
TransWorld Bank
intermediary_bank_long_na
me
String CMM
No Map
The long name of the
transaction’s intermediary
bank.
TransWorld Bank
Corp.
Name Data
type Map type Description Example
WebSuite Cash Management Connectivity Guide 357
intermediary_bank_address
_1
String CMM
No Map
The first address line of the
transaction’s intermediary
bank.
Suite 100
intermediary_bank_address
_2
String CMM
No Map
The second address line of the
transaction’s intermediary
bank.
123 Main St.
intermediary_bank_address
_3
String CMM
No Map
The third address line of the
transaction’s intermediary
bank.
intermediary_bank_address
_4
String CMM
No Map
The fourth address line of the
transaction’s intermediary
bank.
intermediary_bank_city_na
me
String CMM
No Map
The city of the transaction’s
intermediary bank.
Atlanta
intermediary_bank_state_n
ame
String CMM
No Map
The state or province of the
transaction’s intermediary
bank.
GA
intermediary_bank_country
_code
String CMM
No Map
The ISO country code of the
transaction’s intermediary
bank.
US
intermediary_bank_postal_
code
String CMM
No Map
The ZIP or postal code of the
transaction’s intermediary
bank.
12345
Intermediary bank account attributes
intermediary_bank_account
_number
String CMM
No Map
The primary bank account
number of the intermediary
bank account.
intermediary_bank_account
_name
String CMM
No Map
The name of the intermediary
bank account.
Other attributes
bank_preauthorization_id String CMM
No Map
A unique authorization ID for
the transaction.
Note: This is primarily used for
direct debits.
bank_preauthorization_sta
tus
String CMM
No Map
The authorization status for
the transaction.
Note: This is primarily used for
direct debits.
bank_reference_number String CMM
No Map
The sending institution’s
reference number for the
transaction.
cash_record_id Integer CMM
No Map
The CMM cash record ID for
the transaction.
123456
customer_batch_reference_
id
String CMM
No Map
The customer batch reference
ID of the transaction from the
ERP system.
customer_reference_id String CMM
No Map
The customer’s unique ID for
the transaction.
123456
Name Data
type Map type Description Example
358 © Wall Street Systems IPH AB - Confidential
B.2.3 Credit advice export attributes
The following table presents common credit advice export attributes supported by CMM:
customer_txn_reference_id String CMM
No Map
The customer transaction
reference ID from the ERP
system.
direct_debit_contract_num
ber
String CMM
No Map
The contract number of the
direct debit transaction.
interface_type String Static No
Map
The interface type of the
transaction.
payment
lcr_contract_number String CMM
No Map
The contract number of the
letter of credit transaction.
reconciliation_id String CMM
No Map
The reconciliation ID of the
truncation.
repetitive_code String CMM
No Map
A bank-defined code that
uniquely identifies the static
attributes of the transaction.
Name Data
type Map type Description Example
Name Data
type Map type Description Example
Basic attributes
currency String CMMNo Map The ISO currency code of the
transaction.
USD
amount Double CMMNo Map The absolute value of the
transaction (in the currency
defined in
payment_currency).
5000.00
settlement_curre
ncy
String CMMNo Map The settlement ISO currency code
of the transaction.
USD
settlement_amoun
t
Double CMMNo Map The absolute value of the
transaction (in the currency
defined in
settlement_currency).
5000.00
txn_date Date CMMNo Map The transaction date of the
transaction.
20-Oct-20
06
value_date Date CMMNo Map The value date of the transaction. 20-Oct-20
06
message_issue_da
te
Date CMMNo Map The creation date of the
transaction.
20-Oct-20
06
Entity attributes
paror_short_name String CMMNo Map The short name of the
transaction’s entity.
Acme USA
paror_id String CMMNo Map The ID of the transaction’s entity. AcmeUS
Counterparty attributes
WebSuite Cash Management Connectivity Guide 359
B.2.4 Remittance detail export attributes
The following table presents common remittance detail export attributes supported by CMM:
payee_short_name String CMMNo Map The short name of the
transaction’s counterparty.
Smith
Company
payee_id String CMMNo Map The ID of the transaction’s
counterparty.
SmithCo
Other attributes
cash_record_i
d
Integer CMMNo Map The CMM cash record ID for the
transaction.
123456
customer_refe
rence_id
String CMMNo Map The customer’s unique ID for the
transaction.
123456
number_of_rem
ittance_detai
ls
Integer CMMNo Map The number of remittance details
for the transaction.
50
Name Data
type Map type Description Example
Name Data
type Map type Description Example
remittance_invoi
ce_number
String CMMNo Map The invoice number of the
remittance detail.
remittance_date String CMMNo Map The invoice date of the remittance
detail.
remittance_amoun
t_payable
String CMMNo Map The amount payable as stated on
the invoice.
remittance_amoun
t_credit_note
String CMMNo Map The amount of the credit note.
remittance_amoun
t_discounted
String CMMNo Map The amount of discount.
remittance_amoun
t_remitted
String CMMNo Map The amount actually paid
(payable-credit-discount).
remittance_curre
ncy_code
String CMMNo Map The ISO currency code of the
remittance detail.
Note: If you do not provide this
attribute, CMM uses the
parent transaction’s currency
code instead.
remittance_detai
l_message_type
String Spec map The message type of the remittance
detail.
Note: The value of this attribute is
an internal code only and is
not mapped to an external
code. Therefore, use this
attribute with care.
remittance_retai
l_reference_type
_code
String CMMNo Map The reference type code of the
remittance detail.
360 © Wall Street Systems IPH AB - Confidential
B.2.5 Bank statement export attributes
The following table presents common bank statement export attributes supported by CMM:
remittance_detai
l_reference
String CMMNo Map The reference of the remittance
detail.
remittance_detai
l_id
Integer CMMNo Map A unique, sequential, numeric ID
assigned to the remittance detail.
remittance_detai
l_source_referen
ce_id
Integer CMMNo Map The cash record ID of the
remittance detail’s transaction.
remittance_detai
l_group_id
Integer CMMNo Map The group ID of the remittance
detail.
Name Data
type Map type Description Example
Name Data
type Map type Description Example
Basic attributes
statement_stateme
nt_number
String The number of the bank statement.
statement_start_d
ate
Date The starting date of the bank statement.
statement_end_dat
e
Date The ending date of the bank statement.
statement_is_inte
rnal
Boolean A flag that indicates whether the bank
statement is internal.
statement_is_clos
able
Boolean A flag that indicates whether the bank
statement can be closed.
statement_is_exte
rnal_stmt_period
Boolean A flag that indicates whether the bank
statement is external (in other words, the
bank statement’s period is External).
statement_is_vali
d_transaction
Boolean A flag that indicates whether the bank
statement is valid.
Bank account attributes
bankaccount_bank_
sort_code
String The sort code of the bank account’s bank.
bankaccount_numbe
r
String The bank account number of the bank
account.
bankaccount_type_
id
String The type of the bank account.
bankaccount_statu
s_code
String The status of the bank account.
Acceptable values:
•Open
•Closed
• Ceased to exist
• Incomplete.
WebSuite Cash Management Connectivity Guide 361
bankaccount_name String The name of the bank account.
bankaccount_addre
ss1
String The first address line of the bank
account.
bankaccount_addre
ss2
String The second address line of the bank
account.
bankaccount_addre
ss3
String The third address line of the bank
account.
bankaccount_addre
ss4
String The fourth address line of the bank
account.
bankaccount_city String The city of the bank account.
bankaccount_state String The state or province of the bank
account.
bankaccount_count
ry_code
String The ISO country code of the bank
account.
bankaccount_posta
l_code
String The ZIP or postal code of the bank
account.
bankaccount_phone
_number
String The telephone number of the bank
account.
bankaccount_fax_n
umber
String The fax number of the bank account.
bankaccount_email String The e-mail address of the bank account.
bankaccount_curre
ncy_code
String The ISO currency code of the bank
account.
Entity attributes
entity_swift_code The SWIFT code of the entity.
entity_aba_code The ABA code of the entity.
entity_party_stat
us
The status of the entity.
entity_parent_par
ty_id
The ID of the entity’s parent.
entity_short_name The short name of the entity.
entity_long_name The long name of the entity.
entity_address1 The first address line of the entity.
entity_address2 The second address line of the entity.
entity_address3 The third address line of the entity.
entity_address4 The fourth address line of the entity.
entity_city The city of the entity.
entity_state The state or province of the entity.
entity_country_co
de
The ISO country code of the entity.
Name Data
type Map type Description Example
362 © Wall Street Systems IPH AB - Confidential
entity_region_id The region of the entity.
entity_postal_cod
e
The postal code of the entity.
entity_phone_numb
er
The telephone number of the entity.
entity_fax_number The fax number of the entity.
entity_email The e-mail address of the entity.
entity_functional
_currency_code
The ISO currency code of the entity.
entity_country_of
_incorporation
The country of incorporation of the entity.
Bank attributes
bank_swift_code The SWIFT code of the bank.
bank_aba_code The ABA code of the bank.
bank_party_status The status of the bank.
bank_parent_party
_id
The ID of the bank’s parent.
bank_short_name The short name of the bank.
bank_long_name The long name of the bank.
bank_address1 The first address line of the bank.
bank_address2 The second address line of the bank.
bank_address3 The third address line of the bank.
bank_address4 The fourth address line of the bank.
bank_city The city of the bank.
bank_state The state or province of the bank.
bank_country_code The ISO country code of the bank.
bank_region_id The region of the bank.
bank_postal_code The postal code of the bank.
bank_phone_number The telephone number of the bank.
bank_fax_number The fax number of the bank.
bank_email The e-mail address of the bank.
bank_functional_c
urrency_code
The ISO currency code of the bank.
bank_country_of_i
ncorporation
The country of incorporation of the bank.
Bank balance attributes
balance_currency_
code
String CMM No Map The ISO currency code of the bank
balance.
USD
Name Data
type Map type Description Example
WebSuite Cash Management Connectivity Guide 363
balance_actual_am
ount
Double CMM No Map The actual value of the balance (in the
currency defined in
payment_currency).
5000.00
balance_fcast_amo
unt
Double The forecast value of the balance (in the
currency defined in
payment_currency).
balance_date Date CMM No Map The date of the bank balance.
balance_posting_d
ate
Date The posting date of the bank balance.
balance_bank_acct
_name
String CMM Map The name of the bank balance’s bank
account.
balance_bank_acct
_number
String CMM Map The bank account number of the bank
balance’s bank account.
balance_external_
balance_type
String CMM Map The external type of the bank balance.
balance_txn_sub_t
ype_id
The transaction subtype of the bank
balance.
Bank transaction attributes
txn_currency_code String CMM No Map The ISO currency code of the bank
transaction.
USD
txn_amount Double CMM No Map The absolute value of the bank
transaction (in the currency defined in
currency_code).
5000.00
txn_fx_rate String The foreign exchange rate of the bank
transaction.
txn_type_code String CMM Map The type of the bank transaction.
Acceptable values:
•P for payment
•R for receipt.
P
txn_bank_txn_stat
us_code
String The status of the bank transaction.
txn_change_histor
y
String The change history of the bank
transaction.
txn_funds_type_co
de
String CMM Map The cash flow type of the bank
transaction.
Note: This must be a valid cash flow type
ID.
COMMP
txn_external_txn_
sub_type
String CMM Map The counterparty file code of the bank
transaction.
Note: This must be a valid counterparty
file code.
1234
txn_txn_date Date CMM No Map The transaction date of the bank
transaction.
20-Oct-2006
txn_value_date Date CMM No Map The value date of the bank transaction. 20-Oct-2006
Name Data
type Map type Description Example
364 © Wall Street Systems IPH AB - Confidential
txn_description String CMM No Map A relevant description of or other
information pertaining to the bank
transaction.
Invoice No.
9876
txn_bank_acct_num
ber
String CMM Map The bank account number of the bank
transaction’s entity bank account.
12345678
txn_bank_acct_nam
e
String CMM Map The name of the bank transaction’s entity
bank account
AcmeUSBA
txn_originating_b
ank_id
String CMM No Map The ID of the bank transaction’s entity
bank.
BankOfComm
txn_cpty_bank_acc
ount_number
String CMM No Map The bank account number of the bank
transaction’s counterparty bank account.
87654321
txn_customer_refe
rence_id
String CMM No Map The originating system’s unique ID for
the bank transaction.
Note: If you do not specify a value in this
attribute, CMM cannot
automatically reconcile the bank
transaction.
123456
txn_customer_acco
unt_number
String The customer account number of the
bank transaction.
txn_customer_refe
rence_number
String The customer reference number of the
bank transaction.
txn_bank_referenc
e_number
String CMM No Map The bank’s unique ID for the bank
transaction.
654321
txn_bank_instruct
ions
String Instructions to the bank transaction’s
bank.
txn_cpty_message String A message to the bank transaction’s
counterparty.
txn_cheque_number String CMM No Map The check number of the bank
transaction.
561866166
txn_file_type String The file type of the bank transaction.
txn_file_sub_type String The file subtype of the bank transaction.
txn_is_internal Integer A flag that indicates whether the bank
transaction is internal.
Acceptable values:
•0 for no
•1 for yes.
txn_reconciled_in
d
Integer A flag that indicates whether the bank
transaction is reconciled.
Acceptable values:
•0 for no
•1 for yes.
txn_aggregate_ind Integer A flag that indicates whether the bank
transaction is an aggregate.
txn_statement_num
ber
String The number of the bank transaction’s
bank statement.
Name Data
type Map type Description Example
WebSuite Cash Management Connectivity Guide 365
B.2.6 Company general ledger export attributes
The following table presents common company general ledger export attributes supported by CMM:
txn_statement_seq
uence_number
String The sequence number of the bank
transaction’s bank statement.
txn_financial_cas
h_flow_types
String CMM No Map Financial cash flow types coming from
TRM
Interest;
Discount
Premium;
Issuer Fee
txn_external_refe
rences
String CMM No Map TRM transaction numbers 3412;3413
Name Data
type Map type Description Example
Name Data
type Map type Description Example
accounting_period_n
umber
Integer CMM No Map The number of the transaction’s
accounting period.
64691
bank_account_number String CMM No Map The bank account number of the
transaction’s entity bank account.
643-63232
7
base_currency String CMM No Map The base ISO currency code of the
transaction.
USD
base_currency_amoun
t
Double CMM No Map The value of the transaction (in the
currency defined in base_currency).
4367.98
cpty_id String CMM No Map The ID of the transaction’s counterparty. SmithCo
customer_reference_
id
String CMM No Map The customer reference ID of the
transaction.
description String CMM No Map A description of the transaction.
gl_account_code String CMM No Map The company general ledger account to
which the transaction is mapped.
T123
gl_group_id Integer CMM No Map The general ledger group ID of the
transaction.
10
instrument_category String CMM No Map The instrument category of the
transaction.
instrument_type_cod
e
String CMM No Map The instrument type of the transaction.
intercomapny_txn String CMM No Map A toggle indicating if the transaction is
intercompany or not.
366 © Wall Street Systems IPH AB - Confidential
B.2.7 Interchange export attributes
The following table presents common interchange export attributes supported by CMM:
originating_system_
code
String CMM No Map The originating system of the
transaction.
Acceptable values:
•AP for AP imported transaction
•AR for AR import imported
transaction
•DD for direct debit imported
transaction
•PMTPROC for payment processing
(routing) created transaction
•Manual for manually entered
transaction
•Man-OneOff for manually entered
one-off counterparty transaction
•Man-Template for template
manually entered transaction.
party_id String CMM No Map The ID of the transaction’s entity. AcmeUS
set_of_books_name Strong CMM No Map The set of books of the transaction.
Note: This is specified as additional
attribute of the entity.
source_reference_id Strong CMM No Map The original ID of the transaction.
treasure_gl_id Integer CMM No Map The ID of the treasury general ledger
entry.
txn_amount Double CMM No Map The value of the transaction (in the
currency defined in txn_currency).
4566.45
txn_currency String CMM No Map The ISO currency code of the
transaction.
USD
txn_date Date CMM No Map The actual date of the transaction. 20-Oct-20
06
txn_direction double CMM No Map The direction of the transaction.
Acceptable values:
•C for credit
•D for debit.
C
value_date Date CMM No Map The value date of the transaction. 20-Oct-20
06
Name Data
type Map type Description Example
Name Data
type Map type Description Example
Basic attributes
interchange_sende
r_id
String CMM No Map ID code published by the sender for other
parties to use as the receiver ID.
WebSuite Cash Management Connectivity Guide 367
sender_id_qualifi
er_code
String CMM No Map The system/method of the code structure used
to designate the sender or receiver ID element
being qualified.
interchange_recip
ient_id
String CMM No Map ID code published by the receiver of data.
recipient_id_qual
ifier_code
String CMM No Map The system/method of the code structure used
to designate the sender or receiver ID element
being qualified.
functional_group_
sender_id
String CMM No Map ID code published by the sender of the data at
the group level.
Note: This attribute is used in the X12 format.
functional_group_
receiver_id
String CMM No Map ID code published by the receiver of the data at
the group level.
Note: This attribute is used in the X12 format.
Runtime-specific attributes
import_export_id Integer CMM No Map A unique sequential ID assigned to every
interface with CMM.
Note: The value of this attribute is derived at
runtime and provided by the controller.
Name Data
type Map type Description Example
368 © Wall Street Systems IPH AB - Confidential
WebSuite Cash Management Connectivity Guide 369
Appendix C Handlers
CMM includes several handlers that you can use in XML template-based formats.
Handlers are tools that interact with your XML files and the application. They can retrieve or update
data, and perform conditional handling or operations. They are created and maintained by Wall
Street Systems as part of the CMM DefaultData folder.
Handlers are meant to be as generic as possible so that they can support a number of functions
rather than very specific conditions or processing requirements.
Handlers cannot be moved outside the CMM DefaultData folder and cannot be changed by any
organization outside of Wall Street Systems.
This section lists the most common handlers supported by CMM. For documentation on all handlers
supported by CMM, navigate to the following files under
[CMM Server]/cmm/xml_handler_spec/handlers using your browser:
add_to_buffer.html
attribute_defined_element.html
build_mail_message.html
build_txn_groups.html
charset.html
component_transactions.html
condition_test_element.html
configure_attribute_container.html
context_defined_element.html
context_value_iterator.html
create_node.html
create_object.html
create_tree.html
echo.html
find_parent_node.html
find_root_node.html
get_system_date.html
if.html
include.html
increment_counter.html
insert_chars.html
iterate_db_result_set.html
log_invalid_transaction.html
370 © Wall Street Systems IPH AB - Confidential
Note: In the above URL, [CMM Server] is the location of your CMM server (for example,
http://treasury.acme-co.com).
map_value.html
mathFunction.html
pad_handler.html
parse_delimiter.html
parse_fixed_width.html
parse_range_width.html
parse_xml_tree.html
remittance_details_list.html
remove_chars.html
remove_context_variable.html
replace_string.html
reset_counter.html
save_value_to_context.html
send_mail_message.html
set_context_variable.html
set_node_attribute.html
set_value.html
sql_query_call.html
static_data_element.html
store_object.html
substring.html
traverse_tree.html
truncate_handler.html
txn_aggregation.html
txn_groups_list.html
txn_list.html
use_attribute_container.html
use_buffer_input.html
use_node_attribute.html
use_node_value.html
use_output_device.html.
WebSuite Cash Management Connectivity Guide 371
C.1 add_to_buffer
This handler reads the data from the current input device and adds them to the buffer in a context
with the supplied buffer name and value. If a value is not provided, the handler retrieves the value
from the input device and adds it to the buffer in a context.
C.1.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.1.2 Examples
The following is an example application of this handler:
<add_to_buffer buffer_name="current_node" value="segment"/>
This example reads the data from the current input device and adds them to the buffer with
current_node as the value of buffer_name and segment as the value of value.
C.2 attribute_defined_element
This handler translates and formats the attribute ID into the corresponding data value.
C.2.1 Parameters
The following are this handler’s parameters that are specified as attributes:
Attribute Data type Description Required Default value
buffer_name String The name of the buffer in a
context.
Yes
value String The value of the data in a context. No
Attribute Data type Description Required Default value
value String The ID of the attribute. Yes
format String The format pattern for the
attribute.
No
datatype String The data type of the attribute. No
start_index Integer The starting index of the
attribute.
No
end_index Integer The ending index of the attribute. No
currency_attribute String The currency code to format the
attribute.
No
thousands_delimiter Char The delimiter for thousands. No
decimal_delimiter Char The delimiter for decimals. No
decimal_delimiter_req
uired
Boolean A boolean value that determines
whether the decimal delimiter is
required or not.
No false
372 © Wall Street Systems IPH AB - Confidential
C.2.2 Examples
The following is an example application of this handler:
<attribute_defined_element value="customer_reference_id" length="16" pad_char=" "
side="PAD_RIGHT"/>
This example formats the value of customer_reference_id by padding a blank to the right if its
length is less than 16 characters.
C.3 build_mail_message
Creates a mail message. Mail message is stored in the current context.
C.3.1 Parameters
See the example below.
C.3.2 Examples
<build_mail_message mail_message_id="message1">
<message_subject>
Deal Position Report Completed
</message_subject>
<message_priority value="important"/>
<message_text content_type="text/plain">
Scheduled Deal Position report generation task has completed. See attached
decimal_digits String The number of decimal digits.
Note: implied indicates this
value is derived based on
the currency code.
No
side String The side of the attribute to be
manipulated.
Acceptable values:
•PAD_LEFT
•PAD_RIGHT.
No PAD_LEFT
length Integer The maximum length of the
attribute.
No 0
pad_char Char A character that is used for
padding.
No blank
escape_characters_cou
nted
Boolean A boolean value that determines
whether the escape characters
should be counted.
No false
splitter_group_length Integer The splitter group length. No
splitter_delimiter String The splitter delimiter. No
zero_decimals_elimina
ted
Boolean A boolean value that determines
whether to eliminate the zero
decimals.
No false
Attribute Data type Description Required Default value
WebSuite Cash Management Connectivity Guide 373
report
</message_text>
<message_attachments>
<attachment
physical_path="${_runtime_}\Development\CmmInstallationData\DealPosition.html"/>
</message_attachments>
</build_mail_message>
C.4 build_txn_groups
This handler groups transactions based on grouping criteria.
Note: You need to use the appropriate transaction attributes, such as payment and receipt
attributes.
C.4.1 Parameters
The following are this handler’s parameters that are specified as attributes:
The following are this handler’s parameters that are specified as child elements:
•group_by
Grouping criteria.
This child element contains the following attribute:
C.4.2 Examples
The following is an example application of this handler:
<build_txn_groups>
<group_by attribute_id="party_bank_account_id"/>
<group_by attribute_id="value_date"/>
<group_by attribute_id="currency"/>
</build_txn_groups>
This example groups the transactions based on the entity bank account ID, the value date, and the
currency code of the transaction.
Attribute Data type Description Required Default
value
grouping_id String The ID of the transaction grouping. No
max_group_size Integer The maximum group size by which to split
all the transaction lists into child lists.
No
Attribute Data
type Description Required Default value
attribute_id String A grouping criterion on the
transaction list.
Yes
374 © Wall Street Systems IPH AB - Confidential
C.5 charset
This handler forces CMM to transform data to the specified character set.
C.5.1 Parameters
The following are this handler’s parameters that are specified as child elements:
•valid
A valid character in the character set. This child element is only required if other child elements
are not specified.
This child element contains the following attribute:
•mapped
A mapping of one character to another. This child element is only required if other child
elements are not specified.
This child element contains the following attributes:
•default
A default character in the character set. This child element is only required if other child
elements are not specified.
This child element contains the following attribute:
C.5.2 Examples
The following is an example application of this handler:
<charset>
<valid char="A"/>
<valid char="B"/>
<valid char="C"/>
<valid char="D"/>
<mapped from="@" to="?"/>
<mapped from=";" to="?"/>
º
</charset>
Attribute Data
type Description Required Default value
char Char A character being specified as
a valid character in the set.
Yes
Attribute Data
type Description Required Default value
from Char A character being mapped to
another character.
Yes
to Char A character being mapped to
another character.
Yes
Attribute Data
type Description Required Default value
value Char A character being defined as
a default character.
Yes
WebSuite Cash Management Connectivity Guide 375
C.6 component_transactions
This handler iterates through the component transactions of the current transaction (assuming the
current transaction is an aggregate transaction).
C.6.1 Parameters
This handler does not have parameters.
C.6.2 Examples
The following is an example application of this handler:
<if condition="${is_aggregate_transaction}" operator="equals" value="YES">
<component_transactions>
<include filename="interfaces.exports.clieop03.pmt.transactionRecord.xml"/>
</component_transactions>
</if>
This example populates the component transaction information if the current transaction is an
aggregate.
C.7 condition_test_element
This handler allows you to test a condition on the attribute value.
C.7.1 Parameters
The following are this handler’s parameters that are specified as attributes:
The following are this handler’s parameters that are specified as child elements:
•attribute_id
The ID of the attribute. This child element can be specified more than once.
This child element contains the following attribute:
•parameter
The value of the parameter. This child element can be specified more than once and is required
when list_parameter is not available.
Attribute Data type Description Required Default value
condition_type String The type of the condition test. Yes
Attribute Data
type Description Required Default value
value String the ID of the attribute. Yes
376 © Wall Street Systems IPH AB - Confidential
This child element contains the following attributes:
•list_parameter
The list of parameters. This child element can be specified more than once and is required when
parameter is not available.
This child element contains the following attributes:
•result_handler
The status code of the result handler. This element can be specified more than once.
This child element contains the following attribute:
C.7.2 Component handlers
The following are this handler’s component handlers that are specified as child elements:
•string_length_validation
A component handler that allows you to validate the length of a string. Possible status codes:
–WITHIN_BOUNDS
–LESS_THAN_MIN
–GREATER_THAN_MAX
–INVALID_TEST_PARAMETERS
–VALUE_IS_NULL.
Attribute Data
type Description Required Default value
id String The ID of the parameter. Yes
value String The value of the parameter. Yes
Attribute Data
type Description Required Default value
id String The ID of the parameter. Yes
list_item.value Element The value of the list_item
element of the parameter.
Yes
Attribute Data
type Description Required Default value
status_code String The status code of the result
handler.
Yes
WebSuite Cash Management Connectivity Guide 377
This component handler contains the following attributes:
•equals
A component handler that allows you to test the equality of two values. Possible status codes:
–EQUAL
–NOT_EQUAL.
This component handler contains the following attributes:
•exists
A component handler that allows you to test whether the value does exist or not. Possible status
codes:
–EXISTS
–DOES_NOT_EXIST.
This component handler contains the following attribute:
•attribute_value_in_domain
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
min_length Integer The minimum length of the
string that is specified in a
parameter element.
Yes
max_length Integer The maximum length of the
string that is specified in a
parameter element.
Yes
Attribute Data
type Description Required Default value
attribute_id String The first value taken from the
first element of
attribute_id in the
input attribute list.
Yes
static_string String The second value taken from
the first element of
parameter or
list_parameter if
available; otherwise, the
second element of the
attribute element.
Yes
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
378 © Wall Street Systems IPH AB - Confidential
A component handler that allows you to test whether the value does exist in the given domain.
Possible status codes:
–NO_DOMAIN_DEFINED
–NO_VALUE_DEFINED
–VALUE_IN_DOMAIN
–VALUE_NOT_IN_DOMAIN.
This component handler contains the following attribute:
•string_length_in_domain
A component handler that allows you to test whether the length of the value does exist in the
given domain. Possible status codes:
–NO_DOMAIN_DEFINED
–NO_VALUE_DEFINED
–VALUE_IN_DOMAIN
–VALUE_NOT_IN_DOMAIN.
This component handler contains the following attributes:
•number_range
A component handler that allows you to test whether the numeric value is in the certain range.
Possible status codes:
–WITHIN_BOUNDS
–VALUE_IS_NULL
–INVALID_TEST_PARAMETERS
–LESS_THAN_MIN
–GREATER_THAN_MAX.
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
domain Element The domain values specified
in the list_item child
elements being taken from
the list_parameter
element if available.
Yes
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id in
the input attribute list.
Yes
domain Element The domain values specified in
the list_item child elements
being taken from the
list_parameter element if
available.
Yes
WebSuite Cash Management Connectivity Guide 379
This component handler contains the following attribute:
•is_numeric_validation
A component handler that allows you to test whether the value is a number. Possible status
codes:
–VALUE_IS_NULL
–IS_NUMERIC
–IS_NOT_NUMERIC.
This component handler contains the following attribute:
•number_length_validation
A component handler that allows you to validate the length of the value. Possible status code:
–WITHIN_BOUNDS
–LESS_THAN_MIN
–GREATER_THAN_MAX
–INVALID_TEST_PARAMETERS
–VALUE_IS_NULL.
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
minimum Integer The minimum number that is
specified in a parameter
element.
Yes
maximum Integer The maximum number that is
specified in a parameter
element.
Yes
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
380 © Wall Street Systems IPH AB - Confidential
This component handler contains the following attributes:
•regex
A component handler that allows you to evaluate the value based on the given regular
expression. This is a very powerful handler that you do almost any validations with the
appropriate regular expression. Possible status codes:
–INVALID_PATTERN
–VALUE_IS_NULL
–MATCHES
–DOES_NOT_MATCH.
This component handler contains the following attributes:
•switch
A component handler that allows you to test whether the value is met the specified condition
before switching to that block. Possible status code: Anything that you are expected from the
attribute value.
This component handler contains the following attributes:
C.7.3 Examples
The following is an example application of this handler that uses the string_length_validation
component handler:
<condition_test_element condition_type="string_length_validation">
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
min_length Integer The minimum length of the
string that is specified in a
parameter element.
Yes
max_length Integer The maximum length of the
string that is specified in a
parameter element.
Yes
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
attribute_id String The value taken from the first
element of attribute_id in
the input attribute list.
Yes
Attribute Data
type Description Required Default value
attribute_id String The value taken from the first
element of attribute_id
in the input attribute list.
Yes
WebSuite Cash Management Connectivity Guide 381
<attribute_id value="payee_bank_account_number"/>
<parameter id="min_length" value="1"/>
<parameter id="max_length" value="34"/>
<result_handler status_code="LESS_THAN_MIN">
<log_invalid_transaction attribute_id="payee_bank_account_number"
user_message="Payee Bank Account Number must be an alphanumeric string length
range between 1 to 34."/>
</result_handler>
<result_handler status_code="GREATER_THAN_MAX">
<log_invalid_transaction attribute_id="payee_bank_account_number"
user_message="Payee Bank Account Number must be an alphanumeric string length
range between 1 to 34."/>
</result_handler>
</condition_test_element>
Note: An example using the number_length_validation component handler would be similar in
structure.
The following is an example application of this handler that uses the equals component handler:
<condition_test_element condition_type="equals">
<attribute_id value="is_valid_transaction"/>
<parameter id="static_string" value="YES"/>
<result_handler status_code="EQUAL">
<include
filename="interfaces.exports.citibank.payext.ceemea.transactionFormat.xml"/>
<increment_counter counter_id="transaction_set_count"/>
<flag_payment_as_exported/>
</result_handler>
</condition_test_element>
The following is an example application of this handler that uses the exists component handler:
<condition_test_element condition_type="exists">
<attribute_id value="payor_bank_swift_code"/>
<result_handler status_code="DOES_NOT_EXIST">
<log_invalid_transaction user_message="Payor bank SWIFT code is not
provided,which is mandatory for all SWIFT payments."/>
</result_handler>
<result_handler status_code="EXISTS">
<condition_test_element condition_type="string_length_in_domain">
<attribute_id value="payor_bank_swift_code"/>
<list_parameter id="domain">
<list_item value="8"/>
<list_item value="11"/>
</list_parameter>
<result_handler status_code="VALUE_NOT_IN_DOMAIN">
<log_invalid_transaction attribute_id ="payor_bank_swift_code"
user_message="Invalid payor bank SWIFT code, it must be either 8 or 11
characters long."/>
</result_handler>
</condition_test_element>
</result_handler>
</condition_test_element>
The following is an example application of this handler that uses the attribute_value_in_domain
component handler:
<condition_test_element condition_type="attribute_value_in_domain">
<attribute_id value="payment_primary_delivery_channel"/>
<list_parameter id="domain">
<list_item value="ACH"/>
<list_item value="WT"/>
<list_item value="BOOK_TRANSFER"/>
382 © Wall Street Systems IPH AB - Confidential
<list_item value="CHQ"/>
</list_parameter>
<result_handler status_code="VALUE_NOT_IN_DOMAIN">
<log_invalid_transaction attribute_id ="payment_primary_delivery_channel"
user_message="invalid payment type, it is not supported by this interface
currently"/>
</result_handler>
<result_handler status_code="VALUE_IN_DOMAIN">
º
</result_handler>
</condition_test_element>
The following is an example application of this handler that uses the string_length_in_domain
component handler:
<condition_test_element condition_type="string_length_in_domain">
<attribute_id value="payor_bank_swift_code"/>
<list_parameter id="domain">
<list_item value="8"/>
<list_item value="11"/>
</list_parameter>
<result_handler status_code="VALUE_NOT_IN_DOMAIN">
<log_invalid_transaction attribute_id ="payor_bank_swift_code"
user_message="Invalid payor bank SWIFT code, it must be either 8 or 11
characters long."/>
</result_handler>
</condition_test_element>
The following is an example application of this handler that uses the number_range component
handler.
<condition_test_element condition_type="number_range">
<attribute_id value="payment_amount"/>
<parameter id="minimum" value="1"/>
<parameter id="maximum" value="12500"/>
<result_handler status_code="LESS_THAN_MIN">
<log_invalid_transaction attribute_id="payment_amount" user_message="Payment
Amount must be a number whose range is between 1 and 12500."/>
</result_handler>
<result_handler status_code="GREATER_THAN_MAX">
<log_invalid_transaction attribute_id="payment_amount" user_message="Payment
Amount must be a number whose range is between 1 and 12500."/>
</result_handler>
</condition_test_element>
The following is an example application of this handler that uses the is_numeric_validation
component handler:
<condition_test_element condition_type="is_numeric_validation">
<attribute_id value="payment_amount"/>
<result_handler status_code ="IS_NOT_NUMERIC">
<log_invalid_transaction attribute_id ="payment_amount" user_message="Payment
Amount should be a numeric value"/>
</result_handler>
</condition_test_element>
The following is an example application of this handler that uses the regex handler:
<condition_test_element condition_type="regex">
<attribute_id value="customer_reference_id"/>
<parameter id="pattern" value="[/].*"/>
<result_handler status_code ="MATCHES">
<log_invalid_transaction attribute_id
="customer_reference_id"user_message="Customer reference ID must not start
with a slash ’/’ "/>
WebSuite Cash Management Connectivity Guide 383
</result_handler>
</condition_test_element>
The following is an example application of this handler that uses the switch handler.
<condition_test_element condition_type="switch">
<attribute_id value="format_specification"/>
<result_handler status_code="TREMA_LETTER_OF_CREDIT">
<include filename="interfaces.exports.trema.receipt.lcrspec.xml"/>
</result_handler>
<result_handler status_code="CFONB">
<include filename="interfaces.exports.cfonb.letters_of_credit.lcr_spec.xml"/>
</result_handler>
</condition_test_element>
C.8 configure_attribute_container
This handler configures an attribute container in a context by setting the container ID, the attribute
definition provider context ID, and the context ID.
C.8.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.8.2 Examples
The following is an example application of this handler:
<configure_attribute_container context_id="bank_balance"/>
This example configures an attribute container in a context with bank_balance as the value of
context_id.
C.9 context_defined_element
This handler translates and formats the attribute ID to the corresponding data value.
Attribute Data type Description Required Default
value
container_id String The ID of the container in a context. No
adp_context_id String The attribute definition provider ID in a
context.
No
context_id String The ID of a context. Yes
filter_null_value
s
Boolean A boolean value that determines whether
the container should filter null values when
setting values.
No true
384 © Wall Street Systems IPH AB - Confidential
C.9.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.9.2 Examples
The following is an example application of this handler:
<attribute_defined_element value="customer_reference_id" length="16" pad_char=" "
side="PAD_RIGHT"/>
This example formats the value of customer_reference_id by padding a blank to the right if its
length is less than 16 characters.
Attribute Data type Description Required Default
value
value String The ID of the attribute. Yes
format String The format pattern for the attribute. No
datatype String The data type of the attribute. No
start_index Integer The starting index of the attribute. No
end_index Integer The ending index of the attribute. No
currency_attribute String The currency code to format the
attribute.
No
thousands_delimiter Char The delimiter for thousands. No
decimal_delimiter Char The delimiter for decimals. No
decimal_delimiter_req
uired
Boolean A boolean value that determines
whether the decimal delimiter is
required.
No false
decimal_digits String The number of decimal digits.
Note: implied indicates this value is
derived based on the currency
code.
No
side String The side on which the attribute
should be manipulated.
Acceptable values:
•PAD_LEFT
•PAD_RIGHT.
No PAD_LEFT
length Integer The maximum length of the attribute. No 0
pad_char Char A character that is used for padding. No blank
escape_characters_cou
nted
Boolean A boolean that determines whether
the escape characters should be
counted.
No false
splitter_group_length Integer The splitter group length. No
splitter_delimiter String The splitter delimiter. No
zero_decimals_elimina
ted
Boolean A boolean value that determines
whether to eliminate the zero
decimals.
No false
WebSuite Cash Management Connectivity Guide 385
C.10 context_value_iterator
This handler stores the next value from the supplied iterator in the context with the supplied key
and a list ID if one exists.
C.10.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.10.2 Examples
The following is an example application of this handler:
<context_value_iterator key="attribute_name">
<value value="BATCHID"/>
<value value="ORIGINATINGSYSTEMID"/>
</context_value_iterator>
This example iterates the list in a context with attribute_name as the value of key and set values in
the context.
C.11 create_node
This handler creates a node in a tree, or a child node under a parent node, with a node name.
C.11.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.11.2 Examples
The following is an example application of this handler:
<create_node node_name="segment"/>
This example creates a node in a tree with segment as node_name.
C.12 create_object
This handler creates an object with a context ID and type. Usually, it is used before the
store_object handler.
Attribute Data type Description Required Default value
key String The value of the key in a context. Yes
list_id String The ID of the list in a context. No
value String The value of the value in a context. No
Attribute Data type Description Required Default value
node_name String The name of the node in a tree. Yes
386 © Wall Street Systems IPH AB - Confidential
C.12.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.12.2 Examples
The following is an example application of this handler:
<create_object type ="file_attribute" context_id ="file_level_ob"/>
This example creates an object with file_attribute as the value of type and file_level_ob as
the value of context_id.
C.13 create_tree
This handler creates a tree with a node name and tree ID.
C.13.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.13.2 Examples
The following is an example application of this handler:
<create_tree tree_id="bai_tree" node_name="file" >
This example creates a tree with bai_tree as the value of tree_id and file as the value of
node_name.
C.14 echo
This handler logs a message to either the standard output or the log file. This handler is very useful
for debugging XML-template-based formats.
Attribute Data
type Description Required Default
value
context_id String The ID of the object in the context. Yes
type String The type of the object.
Note: file_attribute, bankbalance, banktxn,
and bankmessage imply the file attribute, bank
balance, bank transaction, and bank message
objects respectively.
Yes
Attribute Data type Description Required Default value
node_name String The name of the node in a tree. Yes
tree_id String The ID of the tree. Yes
WebSuite Cash Management Connectivity Guide 387
C.14.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.14.2 Examples
The following is an example application of this handler:
<echo message="payee_long_name=${payee_long_name}" systemout="true"/>
<if condition="${payee_long_name}" operator="equals" value="">
<log_invalid_transaction attribute_id ="payee_long_name" user_message="payee long
name is not provided."/>
</if>
This example echoes the value of payee_long_name to the standard output before performing the
condition test.
C.15 find_parent_node
This handler finds a parent node in a tree with a parent node name. Usually, it is used in conjunction
with the create_node handler.
Attribute Data type Description Required Default
value
message String The message to be logged. Yes
verbose Boolean The verbose mode for the message logging.
Note: The output logs can be found in
…\CmmVirtualDirectory\logs\auros under the
user message log file.
No false
terse Boolean The terse mode for the message logging.
Note: The output logs can be found in
…\CmmVirtualDirectory\logs\auros under the
user message log file.
No false
warning Boolean The warning mode for the message logging.
Note: The output logs can be found in
…\CmmVirtualDirectory\logs\auros under the
user message log file.
No false
error Boolean The error mode for the message logging.
Note: The output logs can be found in
…\CmmVirtualDirectory\logs\auros under the
user message log file.
No false
systemout Boolean The systemout mode for the message logging.
Note: The output logs can be found in
…\CmmRuntime\var\jvm_stdout.yyyy_MM_d
d_hh_mm_ss.log.
No false
388 © Wall Street Systems IPH AB - Confidential
C.15.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.15.2 Examples
The following is an example application of this handler:
<find_parent_node parent_node_name="file"/>
<create_node node_name="segment"/>
º
This example finds the parent node in a tree with file as the value of parent_node_name and
creates a node with segment as the value of node_name so that the segment node becomes the child
node of the file node.
C.16 find_root_node
This handler finds the root node in a tree. Usually, it is used before a tree is traversed.
C.16.1 Parameters
This handler does not have parameters.
C.16.2 Examples
The following is an example application of this handler:
<find_root_node/>
<use_attribute_container container_id="BankBalanceContainer">
<traverse_tree>
º
</traverse_tree>
</use_attribute_container>
This example finds the root node in a tree.
C.17 get_system_date
This handler retrieves the system date in a specified format.
C.17.1 Parameters
The following are this handler’s parameters that are specified as attributes:
Attribute Data type Description Required Default value
parent_node_na
me
String The name of a parent
node in a tree.
Yes
Attribute Data type Description Required Default value
variable_name String The name of the context variable. Yes
WebSuite Cash Management Connectivity Guide 389
C.17.2 Examples
The following is an example application of this handler:
<get_system_date variable_name="my_formatted_date" format="dd-MMM-yyyy"/>
This example gets the system date in the format pattern dd-MMM-yyyy storing it in the
my_formatted_date context variable.
C.18 if
This handler tests a condition before executing a block of scripts if the condition is satisfied.
C.18.1 Parameters
The following are this handler’s parameters that are specified as attributes:
Table notes:
1. Only if is_defined is not available.
2. Only if condition is not available.
C.18.2 Examples
The following is an example application of this handler:
<if is_defined="cheque_number">
<attribute_defined_element value="cheque_number" end_index="30"/>
</if>
format String The format pattern of the system date.
Note: See the Sun website for instructions
on how to specify this format pattern.
No
Attribute Data type Description Required Default value
Attribute Data type Description Required Default Value
condition String The value being evaluated against the value.
Note: If the condition holds a boolean value,
the value can be omitted.
Yes [1]
value String The value being evaluated against the value
of the condition.
No
is_defined String The identifier of the attribute.
Note: Use operator="notequals" to
negate the condition.
Yes [2]
operator String The operator for the condition test.
Acceptable values:
•equals
•notequals
•lessthan
•greaterthan.
No equals
390 © Wall Street Systems IPH AB - Confidential
This example truncate cheque_number to a maximum of 30 characters (if cheque_number is
defined).
The following is another example application of this handler:
<payment_list>
<if condition="${is_valid_transaction}" operator="equals" value="YES">
º
</if>
</payment_list>
or
<payment_list>
<set_context_variable variable_name="__is_valid" value="false"/>
<if condition="${is_valid_transaction}" operator="equals" value="YES">
<set_context_variable variable_name="__is_valid" value="true"/>
</if>
<if condition="${__is_valid}">
º
</if>
</payment_list>
This example populates the payment message if and only if the payment is a valid transaction.
C.19 include
This handler references other scripts within a script.
Note: Do not use this handler to reference scripts with child nodes.
C.19.1 Parameters
The following are this handler’s parameters that are specified as attributes:
Table notes:
1. Only if the filename_attribute_id attribute is not available.
2. Only if the filename attribute is not available.
Attribute Data
Type Description Required Default
Value
target_node String The ID of the target node. No
filename String The absolute path of the referenced script. Yes [1]
filename_attri
bute_id
String The ID of the filename attribute. Yes [2]
priority_filen
ame_list
String The absolute path of the script to invoke as a last
resort.
Note: This is very useful for the export framework
when dealing with a variety of country
specifications. The filename attribute can
specify the path to the country specification and
the priority_filename_list attribute can
specify the path to the generic specification in
case the country specification does not exist.
No
WebSuite Cash Management Connectivity Guide 391
C.19.2 Examples
The following is an example application of this handler:
<include filename="interfaces.exports.swift.generic.character_set.xml"/>
This example includes the script in the specified path of filename.
The following is another example application of this handler:
<include
filename="interfaces.exports.boa.ansi.820.${country_spec}.TransactionSetFormat.xml"
priority_filename_list="interfaces.exports.boa.ansi.820.${countries_generic}.Transac
tionSetFormat.xml"/>
This example includes the TransactionSetFormat.xml script if the path of filename exists;
otherwise, it loads the script from the path of priority_filename_list.
C.20 increment_counter
This handler increments the counter variable by one.
C.20.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.20.2 Examples
The following is an example application of this handler:
<increment_counter value="num_of_payments"/>
This example increments the counter variable, num_of_payments, by 1.
C.21 insert_chars
This handler inserts special characters in the attribute value.
Warning: The modified value is stored in the result_attribute_id if it is provided; otherwise,
the modified value replaces the original value.
C.21.1 Parameters
The following are this handler’s parameters that are specified as attributes:
Attribute Data type Description Required Default value
counter_id String The ID of the counter variable. Yes
Attribute Data type Description Required Default value
attribute_id String The ID of the attribute. Yes
result_attribute_id String The ID of the result attribute. No
392 © Wall Street Systems IPH AB - Confidential
C.21.2 Examples
The following is an example application of this handler:
<insert_chars attribute_id="my_var" insert_indexes="3,9" insert_string="test"/>
This example inserts the special string, test, at the specified indexes of the value of the my_var
attribute and stores the modified value to my_var. The special string is only inserted if the index is
less than the length of the attribute value.
The following is another example application of this handler:
<insert_chars attribute_id="my_var" result_attribute_id="his_var"
insert_indexes="3,9" insert_string="test"/>
This example inserts the special string, test, at the specified indexes of the value of the my_var
attribute and stores the modified value to his_var. The special string is only inserted if the index is
less than the length of the attribute value.
C.22 iterate_db_result_set
This handler iterates the SQL query result set and stores the field value of every row to the context
keyed by the column name. The action handler specified performs actions on those context variables
(individual field values). This handler must be used in conjunction with the sql_query_call
handler.
C.22.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.22.2 Examples
The following is an example application of this handler:
<sql_query_call query="select BALANCETYPEDESC, DATETIMEMODIFIED from balancetypes
where TXNSUBTYPEID in (3,6)" result_set_id="balance_types_id"/>
<iterate_db_result_set result_set_id ="balance_types_id">
<echo message="current balance type desc is: ${BALANCETYPEDESC}"
systemout="true"/>
<echo message="current date time modified is: ${DATETIMEMODIFIED}"
systemout="true"/>
insert_indexes Integer A list of indexes where the special
string is inserted.
Note: Each index is separated by a
comma.
No
insert_string String The special string to be inserted
into the attribute value.
No
Attribute Data type Description Required Default value
Attribute Data type Description Required Default
value
result_set_i
d
String The context variable name for the result set
stored in context when the sql_query_call
handler is called.
Yes
WebSuite Cash Management Connectivity Guide 393
</iterate_db_result_set>
This example iterates the result set of a select query and prints out each individual field value. This
example expect to return two rows and two columns; you should see four values printed out.
C.23 jython_script
This handler allows you to call Python scripts from within XML handler scripts.
C.23.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.23.2 Examples
The following is an example application of this handler:
<script_def>
<jython_script script_location="C:\PythonTest" script_name="testscript.py"/>
</script_def>
C.24 log_invalid_transaction
This handler asserts the error message to the user whenever the transaction fails on the validations.
For the release process, this error message can be viewed from the release screen.
C.24.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.24.2 Examples
The following is an example application of this handler:
<log_invalid_transaction attribute_id="payor_bank_account_number"
user_message="payor bank account number is not provided or invalid, it must be
numeric value with length of 10"/>
Attribute Data
type Description Required Default
value
script_locati
on
String The file location of the Python script.
If you do not provide this parameter, the default
location is …\InstallationData\installation\scripts\.
No
script_name String The file name of the Python script. No
Attribute Data type Description Required Default value
attribute_id String The ID of the attribute. No
user_message String The error message to be displayed
to the user.
No
394 © Wall Street Systems IPH AB - Confidential
This example asserts the error message to the user when the payor bank account number does not
match the expected length of 10 numeric characters.
The following is another example application of this handler:
<log_invalid_payment attribute_id="payor_bank_account_number" user_message="payor
bank account number is not provided or invalid, it must be numeric value with length
of 10"/>
This example produces the same results as the one above. However, the log_invalid_payment
handler is deprecated. Use the log_invalid_transaction handler instead.
C.25 map_value
This handler maps the values from the context to the attribute container if the source ID is
provided; otherwise, the value read from the input device is mapped. If the target ID cannot be
found, the default value is used.
C.25.1 Parameters
The following are this handler’s parameters that are specified as attributes:
The following are this handler’s parameters that are specified as child elements:
•map
•mapping
This child element contains the following attributes:
C.25.2 Examples
The following is an example application of this handler:
<map_value source_id="report_id" target_id="file_type" default_value="P">
<map>
<mapping source_value="1" target_value="P"/>
<mapping source_value="2" target_value="R"/>
</map>
</map_value>
Attribute Data type Description Required Default value
source_id String The ID of the source in a context or in
the input stream.
Yes
target_id String The ID of the target in a context or in
the input stream.
Yes
default_value String The default value for the mapping. No
Attribute Data type Description Required Default value
source_value String The value of the source from a
context or the input stream.
Yes
target_value String The value of the target from a
context or the input stream.
Yes
WebSuite Cash Management Connectivity Guide 395
This example map the values with report_id as the value of source_id in a context or in the input
device, file_type as the value of target_id in a context or in the input device, and P as the value
of default_value.
C.26 mathFunction
This handler creates a new attribute that holds a given math function value of a given attribute.
C.26.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.26.2 Examples
Suppose the payment_amount value is 99.99:
<mathfunction new_attribute_id="new_payment_amount" attribute_id="payment_amount"
function="int"/>
The new_payment_amount value is 99.00.
<mathfunction new_attribute_id="new_payment_amount" attribute_id="payment_amount"
function="floor"/>
The new_payment_amount value is 99.00.
<mathfunction new_attribute_id="new_payment_amount" attribute_id="payment_amount"
function="ceil"/>
The new_payment_amount value is 100.00.
<mathfunction new_attribute_id="new_payment_amount" attribute_id="payment_amount"
function="abs"/>
The new_payment_amount value is 99.00.
<mathfunction new_attribute_id="new_payment_amount" attribute_id="payment_amount"
function="round"/>
The new_payment_amount value is 100.00.
C.27 pad_handler
This handler allows you to manipulate an attribute by padding the characters to the left or the right
of its value.
Attribute Data type Description Required Default
value
new_attribute_id String The ID of the new attribute that holds a
given math function value of a given
attribute.
Yes
attribute_id String The ID of the attribute. Yes
function String The ID of the math function. Yes
396 © Wall Street Systems IPH AB - Confidential
Warning: The padded value is stored in the result_attribute_id if it is provided; otherwise,
the padded value replaces the original value.
C.27.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.27.2 Examples
The following is an example application of this handler:
<pad_handler attribute_id="customer_reference_id" length="16" pad_char=" "
side="PAD_RIGHT"/>
This example formats the value of customer_reference_id by padding a blank to the right if its
length is less than 16 characters and stores the padded value to the customer_reference_id
attribute.
The following is another example application of this handler:
<pad_handler attribute_id="customer_reference_id" result_attribute_id="cus_ref_id"
length="16" pad_char=" " side="PAD_RIGHT"/>
This example formats the value of customer_reference_id by padding a blank to the right if its
length is less than 16 characters and stores the padded value to the cus_ref_id attribute.
C.28 parse_delimiter
This handler parses the data from the input device when the node pattern is encountered. The
parsed data can be stored in a tree or in context for subsequent processes. If the string of the
pattern is empty, the default string of the pattern is used except for those used above.
C.28.1 Parameters
The following are this handler’s parameters that are specified as child elements:
•pattern
Attribute Data type Description Required Default
Value
attribute_id String The ID of the source attribute. Yes
result_attribute_
id
String The ID of the result attribute. No
length Integer The specified length of the attribute value. Yes
side String The side on which the attribute value should
be padded.
Acceptable values:
•PAD_LEFT
•PAD_RIGHT.
No PAD_LEFT
pad_char Char A character that is padded to the attribute
value if the length of the attribute value is
less than the specified length.
No
WebSuite Cash Management Connectivity Guide 397
This child element contains the following attributes:
C.28.2 Examples
The following is an example application of this handler:
<parse_delimiter>
<pattern string="/&#13;&#10;">
<set_context_variable variable_name="is_start_of_segment" value="true"/>
</pattern>
<pattern string="/&#13;">
<set_context_variable variable_name="is_start_of_segment" value="true"/>
</pattern>
<pattern string=",">
<find_parent_node parent_node_name="segment"/>
<create_node node_name="element"/>
</pattern>
<pattern string="">
<if is_defined="is_start_of_segment">
<find_parent_node parent_node_name="file"/>
<create_node node_name="segment"/>
<remove_context_variable variable_name="is_start_of_segment"/>
</if>
<set_node_attribute attribute_name="value"/>
</pattern>
</parse_delimiter>
In this example:
•The first pattern is encountered in the input device and its value is a string /&#13;&#10; (slash
carriage return and line feed), so the context variable is set with is_start_of_segment as
variable_name and true as value.
•The second pattern is encountered and its value is a string /&#13; (slash carriage return), and
the context variable is also set with is_start_of_segment as variable_name and true as
value.
•The third pattern is encountered and its value is a string ",", the handler finds the parent node
segment and creates a child node element under it.
•The fourth pattern is encountered and its value is a string "" (an empty string) meaning that
except for the above patterns, the default pattern is an empty string, so the handler first checks
that if a variable is_start_of_segment is defined or not then tries to find the parent node file
and creates a child node segment under it, set the node attribute with the variable_name value
and ends the parse_delimiter.
C.29 parse_fixed_width
This handler parses the data from the input device when the attribute width is encountered. The
parsed data can be stored in a tree or context for subsequent processes. If the width and length are
both defined, the handler verifies the length of the data to decide if the parsing continues. If the
width is defined but the length is not defined, the parsing continues anyways.
Attribute Data type Description Required Default value
string String The value of the pattern in a
tree.
Yes
398 © Wall Street Systems IPH AB - Confidential
C.29.1 Parameters
The following are this handler’s parameters that are specified as child elements:
•width
This child element contains the following attributes:
C.29.2 Examples
The following is an example application of this handler:
<parse_fixed_width>
<width length="2">
<verify_input_stream value="12"/>
</width>
</parse_fixed_width>
In this example, the node width is encountered in the input device and the value of length is 2, and
the value 12 is verified in the input stream of the context with that in the tree.
The following is another example application of this handler:
<parse_fixed_width>
<width>
<verify_input_stream value="bank_reference"/>
</width>
</parse_fixed_width>
In this example, the node width is encountered in the input device and no value of the length
specified, and the value bank_reference is verified in the input stream of the context with that in
the tree.
C.30 parse_range_width
This handler parses data from the input stream based on the width range and data type defined. The
actual data parsed is within the range defined but has to match the data type defined. This is useful
in parsing SWIFT files, which have range fields and specific data types defined.
C.30.1 Parameters
The following are this handler’s parameters that are specified as child elements:
•width
This child element contains the following attributes:
Attribute Data type Description Required Default value
length String The value of the width of the data in the
input device.
No
Attribute Data type Description Required Default value
min integer The minimum width of the data to be
read.
No 1
max integer The maximum width of the data to be
read.
No Maximum Integer
WebSuite Cash Management Connectivity Guide 399
Table notes:
1. Only if the type attribute is set to fixed_values.
C.30.2 Examples
The following is an example application of this handler:
<parse_range_width>
<width min="3" max="3" type="numeric">
<save_value_to_context key="account_num">
</width>
<width min="2" max="2" type="numeric" mandatory="false">
<save_value_to_context key="branch_num">
</width>
<width max="5" type="alpha">
<save_value_to_context key="transaction_reference">
</width>
<width max="15" type="decimal">
<save_value_to_context key="transaction_amount">
</width>
<width min="2" max="3" type="fixed_values" valid_values="AB,BA,CDC,HK,XYZ,PL">
<save_value_to_context key="transaction_type">
</width>
<width type="any"/>
<save_value_to_context key="transaction_description">
</width>
</parse_range_width>
C.31 parse_xml_tree
This handler parses an XML file and stores the DOM tree parsed to the context for subsequent tree
traversing. If the schema file is provided, the XML file is first validated by the schema; otherwise,
only the DOM tree is generated.
type String The characters type of the data to be
read.
Acceptable values:
•alpha
•numeric
•alpha_numeric
•decimal
•fixed_values
•any.
Yes
mandatory boolean A boolean value that determines if
this field is mandatory or optional.
No true
valid_values String The valid values. Yes [1]
Attribute Data type Description Required Default value
400 © Wall Street Systems IPH AB - Confidential
C.31.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.31.2 Examples
The following is an example application of this handler:
<parse_xml tree_id="my_tree"
schema_file="com.trema.cmmext.message.schema.tremabankaccountstatement.xml"/>
<include filename="interfaces.imports.demo.demo_traverse_dom_tree.xml"/>
In this example:
•The first element validates the XML file with the schema specified, parses the XML file into a
DOM tree, and store the DOM tree into the context with a tree ID of my_tree.
•The second element traverse the tree stored in context and maps the node attributes and values
to the corresponding business objects subsequently based on the mapping logic defined in the
demo_traverse_dom_tree.xml file.
C.32 remittance_details_list
This handler iterates through the remittance details list for the population of a payment message.
C.32.1 Parameters
This handler does not have parameters.
C.32.2 Examples
The following is an example application of this handler:
<remittance_details_list>
º
</remittance_details_list>
This example populates the remittance details for the payment message.
C.33 remove_chars
This handler removes special characters from an attribute’s value.
Warning: The modified value is stored in result_attribute_id if it is provided; otherwise, the
modified value replaces the original value.
Attribute Data type Description Required Default value
schema_file String The relative path of the XSD schema file to be
used to validate the XML stream.
No
tree_id String An ID to be used to track the tree in the
context.
No dom_tree_id
WebSuite Cash Management Connectivity Guide 401
C.33.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.33.2 Examples
The following is an example application of this handler:
<remove_chars attribute_id="my_var" remove_chars="-"/>
This example removes the hyphen from the value of the my_var attribute and stores the modified
value in the my_var attribute.
The following is an example application of this handler:
<remove_chars attribute_id="my_var" result_attribute_id="his_var" remove_chars="-"/>
This example removes the hyphen from the value of the my_var attribute and stores the modified
value in the his_var attribute.
C.34 remove_context_variable
This handler allows you to remove previously declared context variables.
C.34.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.34.2 Examples
The following is an example application of this handler:
<remove_context_variable variable_name ="is_uk_domestic"/>
This example removes the context variable with the name is_uk_domestic.
Attribute Data type Description Required Default value
attribute_id String The ID of the attribute. Yes
result_attribute_id String The ID of the result attribute. No
remove_chars String Special characters to be removed
from the attribute value.
No
Attribute Data type Description Required Default
value
variable_name String The name of the context variable. Yes
remove_all Boolean A boolean value that determines whether
all the context variables should be
removed.
No
402 © Wall Street Systems IPH AB - Confidential
C.35 replace_string
This handler allows you to replace all occurrences of an old string component with a new string
component for an attribute value.
Warning: The modified value is stored in the result_attribute_id if it is provided; otherwise, the
modified value replaces the original value.
C.35.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.35.2 Examples
The following is an example application of this handler:
<replace_string attribute_id="my_var" old_string="abc" new_string="xyz"/>
This example replaces all occurrences of abc in the my_var variable with xyz and stores the modified
value to the my_var attribute.
The following is an example application of this handler:
<replace_string attribute_id="my_var" result_attribute_id="his_var" old_string=","
new_string="."/>
This example replaces all occurrences of , in the my_var variable with . and stores the modified
value to the his_var attribute.
C.36 reset_counter
This handler resets the counter variable to its original value (0).
C.36.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.36.2 Examples
The following is an example application of this handler:
Attribute Data type Description Required Default value
attribute_id String The ID of the source attribute. Yes
result_attribute_id String The ID of the result attribute. No
old_string String The string component to be
replaced.
Yes
new_string String The string to replace all occurrence
of old_string.
Yes
Attribute Data type Description Required Default value
counter_id String The ID of the counter variable. Yes
WebSuite Cash Management Connectivity Guide 403
<reset_counter counter_id="num_of_payments"/>
This example resets the num_of_payments counter variable to 0.
C.37 save_value_to_context
This handler attempts to retrieve the value from the current node with the node attribute if it is
provided. If there is no value found, the handler then attempts to retrieve it from the current input
device and saves it to the context with a key. The context variable can be treated as a list; in this
case, a list is stored in the context with the supplied key and the value from the input device is
appended to the list. Usually, this handler is used in conjunction with the use_node_attribute
handler.
C.37.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.37.2 Examples
The following is an example application of this handler:
<use_node_attribute attribute_id="FileID">
<save_value_to_context key="fileid"/>
</use_node_attribute>
This example retrieves a value with the attribute name FileID, which is the attribute ID of the
use_node_attribute handler in the current node, and saves it to the context with fileid as the
value of the key.
The following is an example application of this handler:
<action>
<save_value_to_context key="message_reference_id" node_attribute ="value"/>
</action>
This example saves the value to the context with value as the value of node_attribute and
message_reference_id as the value of key.
C.38 send_mail_message
Send a mail message thats been built and stored in the user context.
Mail is sent to the SMTP server configured through Configuration Parameters (on page 2 of the
interface).
Attribute Data type Description Required Default value
key String The value of the key in a context. Yes
node_attribute String The value of the attribute of the
current node.
No
is_list boolean A boolean value that determines
whether it is set in a context.
No
404 © Wall Street Systems IPH AB - Confidential
C.38.1 Parameters
See the example below.
C.38.2 Examples
<send_mail_message mail_message_id="message1">
<message_addresses>
<from_address value="support@company.com"/>
<to_addresses>
<address value="dmossman@company.com"/>
</to_addresses>
<cc_addresses>
</cc_addresses>
<bcc_addresses>
</bcc_addresses>
<reply_to_addresses>
<address value="person@company.com"/>
</reply_to_addresses>
</message_addresses>
</send_mail_message>
C.39 set_context_variable
This handler declares a variable within the context. Once declared, it can be referenced afterwards.
It is strongly recommended to remove the context variable when it is not used.
C.39.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.39.2 Examples
The following is an example application of this handler:
<set_context_variable variable_name="is_uk_domestic" value="F"/>
Attribute Data type Description Required Default value
variable_name String The name of the context variable. Yes
value String The value of the context variable. Yes
datatype String The data type of the context
variable.
Acceptable values:
•string
•date
•double
•integer.
No
format String The format pattern of the context
variable.
No
WebSuite Cash Management Connectivity Guide 405
<condition_test_element condition_type="equals">
<attribute_id value="payor_bank_country_code"/>
<parameter id="static_string" value="GB"/>
<result_handler status_code="EQUAL">
<set_context_variable variable_name ="is_uk_domestic" value="T"/>
</result_handler>
</condition_test_element>
This example declares a context variable, is_uk_domestic, whose value is T if the payor bank
country code is in the United Kingdom or F if it is not.
C.40 set_node_attribute
This handler sets an attribute in the current node in a tree with an attribute name when the append
attribute exists and is true and when there is a value attribute provided set the value with it. If the
value is not provided, this handler sets the value by getting it from the current input device.
C.40.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.40.2 Examples
The following is an example application of this handler:
<root>
<create_tree tree_id="tree" node_name="a"/>
<create_node node_name="b"/>
<set_node_attribute attribute_name="z" value="Z"/>
<set_node_attribute attribute_name="y" value="Y"/>
<set_node_attribute attribute_name="x" value="X"/>
<set_node_attribute attribute_name="x" value="eks" append="true"/>
<set_node_attribute attribute_name="w" value="W"/>
<set_node_attribute attribute_name="w" value="doubleyou"/>
<create_node node_name="c"/>
<set_node_attribute attribute_name="v"/>
<find_parent_node parent_node_name="a"/>
<create_node node_name="d"/>
</root>
Attribute Data type Description Required Default
value
attribute_name String The name of the attribute on the current
node in a tree.
Yes
append boolean A boolean value that determines if the
value of the attribute needs to be
appended.
No
value String The value of the value on the current
node in a tree.
No
406 © Wall Street Systems IPH AB - Confidential
This example supports three scenarios:
•The attribute is set to the current node in a tree with an attribute_name and value.
•The attribute is set to the current node in a tree with an attribute_name and value when
append is true
•The attribute is set to the current node in a tree with only an attribute_name provided.
C.41 set_value
This handler sets the value of the current object with a value if it is provided; otherwise, this handler
retrieves the value form the current input device and sets it into the current object with a value ID,
data type, and format if the value and format exist. If the value is specified and the data type is not
specified, the data type is defaulted to string.
C.41.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.41.2 Examples
The following is an example application of this handler:
<build_transaction_object>
<set_value value_id="bank_acct_number" value="5168516"/>
<set_value value_id="currency_code" value="GBP"/>
Attribute Data
type Description Required Default
value
value_id String The attribute ID of the current object.
Note: This must be a valid attribute ID of the current
object.
Yes
value String The value to be set to the attribute ID of the current
object.
No
datatype String The data type of the value to be set to the attribute IDof
the current object.
Valid data types are:
• integer
• double
• date
•boolean.
Note: If the data type value is specified, it has to match
the data type required by the attribute
ID.Mismatching will cause runtime exceptions. If
the data type value is not specified, String will
be the default data type.
No String
format String The format of the value to be set to the current object.
If the value of the datatype attribute is date, the value
you provide for this attribute must conform to the Java
simple date format pattern (see the Sun website).
No
WebSuite Cash Management Connectivity Guide 407
<NAryFunction arg1="${transaction_amount}" arg2="100" operation="/"
result_variable_name="txn_amount_with_decimal"/>
<set_value value_id="amount" value="516.61" datatype="double"/>
<set_value value_id="originating_bank_id"/>
<set_value value_id="type_code" value="B"/>
<set_value value_id="value_date" value="20050718" datatype="date"
format="yyyyMMdd"/>
</build_transaction_object>
This example supports four scenarios:
•Set the value into the object with a value_id and value.
•Set the value into the object with a value_id, value, and datatype.
•Set the value into the object with only a value_id.
•Set the value into the object with a value_id, value, datatype, and format.
C.42 sql_query_call
This handler calls a stored procedure or SQL query statement and stores the query result set in the
context as a context variable for other handlers to process. The nesting parameter is only required if
the call is a stored procedure call.
C.42.1 Parameters
The following are this handler’s parameters that are specified as attributes:
Attribute Data
type Description Required Default
value
db_config_name String The database configuration file name
without .xml. This file should be stored
in
<CMMHOME>\InstallationData\in
stallation\database
and should be based on config.xml in
the same directory.
No config
stored_procedure_name String The stored procedure name of the
underlying database.
Yes, but only if the
SQL call is a stored
procedure call.
query String The complete SQL query statement to
query the underlying database.
Yes, but only if
the SQL call is a
query call.
result_set_id String The context variable name for the result
set returned from the query or stored
procedure.
Wallstreet recommends you specify this
only if you expect to return multiple
rows and you want to process all the
rows. The individual field value of the
first row is always stored in the context
keyed by the column name regardless
of the resut_set_id attribute, which
is for multiple rows.
No
408 © Wall Street Systems IPH AB - Confidential
The following are this handler’s parameters that are specified as child elements:
•stored_procedure_name
If this is provided, you have to specify the stored procedure parameters in the nested parameter
elements in the order of appearance in the stored procedure call.
This child element contains the following attributes:
C.42.2 Examples
The following is an example application of this handler:
<sql_query_call db_config_name="TRM_config", query="select
BALANCETYPEDESC,DATETIMEMODIFIED from balancetypes where TXNSUBTYPEID in (3,6)"
result_set_id="balance_types_id"/>
This example calls the select query to query the TRM database and stores the result set into context.
The following is another example application of this handler:
<set_context_variable variable_name="block_size" value="100"/>
<sql_query_call stored_procedure_name="Block_ID">
<parameter name="tablename" value="INTERCHANGE" param_type="input"/>
<parameter name="columnname" value="INTERCHANGEID" param_type="input"/>
<parameter name="block" value="${block_size}" data_type="integer"
param_type="input"/>
<parameter name="sequenceid" data_type="integer" param_type="output"/>
</sql_query_call>
This examples calls the select query to query the TRM database and stores the result set into
context.
Attribute Data
type Description Required Default value
name String The parameter name. Yes
value String The parameter value. Yes
data_type String The parameter data type.
Acceptable values:
•integer
•double
•date
•string.
No string
param_type String The parameter type that
indicates whether the
parameter is an input,
output, or return parameter.
Acceptable values:
•input
•output
•return.
return must appear in
the first parameter
element.
Yes
WebSuite Cash Management Connectivity Guide 409
C.43 static_data_element
This handler writes static text in the value attribute to the output stream. For the release process,
static text is written to the bank file.
C.43.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.43.2 Examples
The following is an example application of this handler:
<static_data_element value="UNZ"/>
This example write the value UNZ to the output stream.
C.44 store_object
This handler stores an object in a data container in a context with a context ID.
C.44.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.44.2 Examples
The following is an example application of this handler:
<store_object context_id="bank_balance"/>
This example store an object into a data container in a context with bank_balance as the value of
context_id.
C.45 substring
This handler creates a new attribute that holds a substring of a given attribute.
Attribute Data type Description Required Default value
value String The static data element. Yes
Attribute Data type Description Required Default value
context_id String The ID of the object in a context. Yes
remove_after_s
tore
boolean A boolean value that determines if
the object is removed from the
context after store.
No true
(To avoid duplicated
object storing)
410 © Wall Street Systems IPH AB - Confidential
C.45.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.45.2 Examples
Suppose payor_bank_account_number value is 123456789:
<substring substring_attribute_id="payor_bank_account_number_x1"
attribute_id="payor_bank_account_number" start_index="1" end_index="1"/>
The payor_bank_account_number_x1 value is 1.
<substring substring_attribute_id="payor_bank_account_number_x2"
attribute_id="payor_bank_account_number" start_index="2" end_index="2"/>
The payor_bank_account_number_x2 value is 2.
<substring substring_attribute_id="payor_bank_account_number_x13"
attribute_id="payor_bank_account_number" end_index="3"/>
The payor_bank_account_number_x13 value is 123.
<substring substring_attribute_id="payor_bank_account_number_x49"
attribute_id="payor_bank_account_number" start_index="4"/>
The payor_bank_account_number_x49 value is 456789.
<substring substring_attribute_id="payor_bank_account_number_x"
attribute_id="payor_bank_account_number"/>
The payor_bank_account_number_x value is 123456789.
C.46 traverse_tree
This handler traverses a tree to map values and store data in objects when a node is encountered. If
the value of the domain_match attribute is true, the handler attempts to match the element defined
in a tree with the one defined here at any position of the sequence; otherwise, the handler attempts
to match the element defined in a tree with the one defined here at the exact position of the
sequence. If the value of the repeating attribute is true, the handler repeats the action when the
element defined in a tree matches the one defined here; otherwise, it does not repeat the action. If
there is an attribute with a name and value under a node with a name, the handler attempts to
match the attribute name and value in a tree with the one defined here and takes action.
C.46.1 Parameters
The following are this handler’s parameters that are specified as child elements:
•node
Attribute Data type Description Required Default value
substring_attribute_i
d
String The ID of the substring of the
given attribute.
No
attribute_id String The ID of the attribute. Yes
start_index Integer The starting index of the
attribute.
No 1
end_index Integer The ending index of the
attribute.
No length of
value
WebSuite Cash Management Connectivity Guide 411
This child element contains the following attributes:
•attribute
This child element contains the following attributes:
•action
C.46.2 Examples
The following is an example application of this handler:
<traverse_tree>
<node name="file" domain_match="true">
<action>
<set_context_variable variable_name="is_file_attribute_stored"
value="false"/>
</action>
<node name="segment">
<attribute name="value" value="01"/>
<action>
<create_object type="file_attribute" context_id="file_level_ob"/>
</action>
<node name="element" repeating="true">
<action>
<include
filename="interfaces.imports.demo.bai.fileheadermapping.xml"/>
</action>
</node>
</node>
</node>
</traverse_tree>
This example traverses a tree. When the first node file is encountered with the value of
domain_match set to true, the traverse_tree handler tries to match the element in the tree with
the one defined here and takes the set_context_variable action with is_file_attribute_stored
as the value of variable_name and false as the value of value. When the second node segment is
Attribute Data
type Description Required Default value
name String The name of the node in a
tree.
Yes
domain_match boolean A boolean value that
determines if the elements in
a tree match those defined
here.
No
repeating boolean A boolean value that
determines if the action
needs to be repeated when
the elements in a tree match
the ones defined here.
No
Attribute Data
type Description Required Default value
name String The name of the attribute of
the node in a tree.
Yes
value String The value of the attribute of
the node in a tree.
Yes
412 © Wall Street Systems IPH AB - Confidential
encountered, the handler tries to match the element with value as the attribute name and 01 as the
value of the attribute value in the tree with the one defined here and takes the create_object
action with file_attribute as the type of the object and file_level_ob as the value of
context_id. When the third node element is encountered with the value of repeating set to true,
the handler tries to match the element in the tree with the one defined here and takes the include
action with interfaces.imports.demo.bai.fileheadermapping.xml as the value of filename.
C.47 truncate_handler
This handler updates the attribute by truncating its value either to the left or the right.
Warning: The modified value will be stored in the result_attribute_id if it is provided;
otherwise, the modified value will replace the original value.
C.47.1 Parameters
The following are this handler’s parameters that are specified as attributes:
C.47.2 Examples
The following is an example application of this handler:
<truncate_handler attribute_id="customer_reference_id" length="16"
side="KEEP_LEFT"/>
This example formats the value of customer_reference_id by truncating the right if its length
exceeds 16 characters and stores the truncated value to the customer_reference_id attribute.
The following is another example application of this handler:
<truncate_handler attribute_id="customer_reference_id"
result_attribute_id="cus_ref_id" length="16" side="KEEP_LEFT"/>
This example formats the value of customer_reference_id by truncating the right if its length
exceeds 16 characters and stores the truncated value to the cus_ref_id attribute.
Attribute Data Type Description Required Default Value
attribute_id String The ID of the attribute. Yes
result_attribute_id String The ID of the result attribute. No
length Integer The specified length of the
attribute value.
Yes
side String The side on which the attribute
value should be kept.
Acceptable values:
•KEEP_LEFT
•KEEP_RIGHT.
No KEEP_LEFT
WebSuite Cash Management Connectivity Guide 413
C.48 txn_aggregation
This handler groups transactions based on the given criteria defined in the aggregation_key child
element.
C.48.1 Parameters
The following table presents this handler’s parameters specified as attributes:
The following are this handler’s parameters that are specified as child elements:
•aggregation_key
A component handler that allows you to group the transactions based on the given transaction
criteria.
•attribute
The transaction attribute to be grouped with.
This child element contains the following attribute:
•attribute
The transaction attribute to be grouped with.
This child element contains the following attributes:
•accumulate_attributes
Attribute Data type Description Required Default value
type String The ID of the transaction
aggregation.
Yes
assign_default_attri
butes
Boolean A boolean value that determines
whether to assign the default
attributes.
No true
max_size Integer A number that determines whether
to assign the default attributes.
No 0
(All in a single
list)
Attribute Data
type Description Required Default value
id String The ID of the attribute.
Note: Refer to the
appropriate transaction
attribute
documentation for this
value.
Yes
Attribute Data
type Description Required Default value
id String The ID of the attribute.
Note: Refer to the
appropriate transaction
attribute
documentation for this
value.
Yes
414 © Wall Street Systems IPH AB - Confidential
A component handler that accumulates the transaction attributes together.
•attribute
Optional. The transaction attribute to be grouped with.
This child element contains the following attributes:
Table notes:
1. Only if the operation attribute is set to append.
C.48.2 Examples
The following is an example application of this handler:
<txn_aggregation type="AP Batch">
<aggregation_key>
<attribute id="payor_bank_account_id"/>
<attribute id="value_date"/>
<attribute id="payment_currency"/>
<attribute id="payment_primary_delivery_channel"/>
<attribute id="domestic_crossborder_status"/>
<attribute id="transaction_type_code"/>
<attribute id="source_batch_id"/>
</aggregation_key>
<accumulate_attributes>
<!-- do nothing for now -->
</accumulate_attributes>
</txn_aggregation>
This example presents a sample payment aggregator for payments coming from the same accounts
payable batch. This could also be used for other transaction types like direct debits and letters of
credit.
C.49 txn_groups_list
This handler iterates through transactions that have been grouped by the build_txn_groups
handler.
Attribute Data
type Description Required Default value
id String The ID of the attribute. Yes
operation String The type of operation to be
performed on the specified
attributes.
Acceptable values:
•append
•sum
•assign.
Yes
delimeter Char A delimiter to be used in the
concatenation of the
transaction attributes.
Yes [1]
max_length Integer The maximum length of the
output string.
Yes [1]
WebSuite Cash Management Connectivity Guide 415
C.49.1 Parameters
The following table presents this handler’s parameters specified as attributes:
C.49.2 Examples
The following is an example application of this handler:
<txn_groups_list>
<if condition="${is_valid_transaction}" operator="equals" value="YES">
<include filename="interfaces.exports.cfonb.dd.DD_Record.xml"/>
</if>
</txn_groups_list>
This example iterates through the groups of transaction lists for the population of the direct debit
export message.
C.50 txn_list
This handler iterates through a list of transactions for the population of the transaction message.
Note: You need to use the appropriate transaction attributes, such as payment and receipt
attributes.
C.50.1 Parameters
This handler does not have parameters.
C.50.2 Examples
The following is an example application of this handler:
<txn_list>
<if condition="${is_valid_transaction}" operator="equals" value="YES">
º
</if>
</txn_list>
This example iterates through the transaction list to populate the export message.
The following is another example application of this handler:
<txn_list>
<include filename="interfaces.exports.cfonb.dd.DD_Record06.xml"/>
</txn_list>
This example presents another way to populate the direct debits message.
Attribute Data type Description Required Default value
grouping_id String The ID of the transaction
grouping.
No
416 © Wall Street Systems IPH AB - Confidential
C.51 use_attribute_container
This handler uses an attribute container with a container_id to set values in the objects in the
container or store some objects in the container.
C.51.1 Parameters
The following table presents this handler’s parameters specified as attributes:
C.51.2 Examples
The following is an example application of this handler:
<use_attribute_container container_id="BankBalanceContainer">
<traverse_tree>
º
</traverse_tree>
</use_attribute_container>
This example uses the attribute container with BankBalanceContainer as the value of
container_id to set values in the objects in the container or store some objects in the container.
C.52 use_buffer_input
This handler uses data in the buffer in the current input device with a buffer_name to set the data
and put it in the input device.
C.52.1 Parameters
The following table presents this handler’s parameters specified as attributes:
C.52.2 Examples
The following is an example application of this handler:
<use_buffer_input buffer_name="current_node">
<set_node_attribute attribute_name="value"/>
</use_buffer_input>
This example uses the data with the buffer_name current_node in the buffer in the current input
device to set the attribute of the node with value as attribute_name in the input device.
Attribute Data type Description Required Default value
container_id String The ID of the container. Yes
Attribute Data type Description Required Default value
buffer_name String The name of the buffer. Yes
WebSuite Cash Management Connectivity Guide 417
C.53 use_node_attribute
This handler uses the value of the attribute_id of the current node in a tree as the attribute name
to set or save values.
C.53.1 Parameters
The following table presents this handler’s parameters specified as attributes:
C.53.2 Examples
The following is an example application of this handler:
<use_node_attribute attribute_id="FileID">
<save_value_to_context key="fileid"/>
</use_node_attribute>
This example retrieves the value with the attribute name FileID, which is the attribute ID of the
use_node_attribute handler in the current node, and saves it to the context with fileid as the
value of key.
The following is an example application of this handler:
<use_node_attribute attribute_id="value">
<set_value value_id="actual_amount" datatype="double"/>
</use_node_attribute>
This example retrieves the value with the attribute name value, which is the attribute ID of the
use_node_attribute handler in the current node, and sets it to the context with actual_amount as
the value of value_id and double as the value of datatype.
C.54 use_node_value
This handler uses the node value of the current node in a tree as the source value for subsequent
processes.
C.54.1 Parameters
This handler does not have parameters.
C.54.2 Examples
The following is an example application of this handler:
<use_node_value>
<save_value_to_context key="fileid"/>
</use_node_value>
This example retrieves the value from the current node and saves it to the context with fileid as
the variable name.
The following is another example application of this handler:
<use_node_value>
Attribute Data type Description Required Default value
attribute_id String The ID of the attribute for a node
in a tree.
Yes
418 © Wall Street Systems IPH AB - Confidential
<set_value value_id="actual_amount" datatype="double"/>
</use_node_value>
This example retrieves the value from the current node and sets it to the current object with
actual_amount as value_id and double as datatype.
C.55 use_output_device
This handler uses an output device, such as a file or a database, with a device_id to do something
like storing objects in the output device.
C.55.1 Parameters
The following table presents this handler’s parameters specified as attributes:
C.55.2 Examples
The following is an example application of this handler:
<use_output_device device_id="BankBalanceOutput">
<store_object context_id="bb"/>
</use_output_device>
This example uses the output device with BankBalanceOutput as the value of the device_id here to
store an object with bb as the value of context_id into the output device.
Attribute Data type Description Required Default value
device_id String The ID of the device for output. Yes
WebSuite Cash Management Connectivity Guide 419
Appendix D SSL certificate generation and
configuration
E-business relies on the exchange of information between business partners over a network. As
information travels from the source to the destination, there is a risk of it being stolen or modified.
In web services transactions using SOAP, information is passed between the service invoker and
service provider as plain XML. Therefore, any person who intercepts the messages can read the
information exchanged.
CMM has implemented its own web services security model to secure web services applications
using secure socket layer (SSL) over HTTPS. SSL allows web browsers and web servers to
communicate over a secured connection. Therefore, the information being sent is encrypted by one
side, transmitted, and then decrypted by the other side before processing. This is a two-way
process, meaning that both the server and the browser encrypt all traffic before sending
information. Such secured authentication guarantees that the service is accessible for anyone with a
verified identity.
The remainder of this appendix provide the guidelines for setting up web services security in CMM
for both internal and external types. Specifically, the remainder of this appendix documents the
steps required to set up a new secure website for listening to incoming requests over HTTPS and to
generate SSL certificates.
Note: This appendix uses OpenSSL to generate the internal SSL certificates and even the
external certificates. However, you can use other tools that work for your organization.
420 © Wall Street Systems IPH AB - Confidential
D.1 Assumptions
This appendix assumes the following:
•Your organization has successfully installed CMM.
•Your organization has successfully installed the following software:
•To generate SSL certificates in an operating system other than Windows, OpenSSL is installed
and accessible from the command line. Usually, OpenSSL is automatically included with Linux.
D.2 Generating SSL certificates
To establish a trusted network among business partners or within the entities of an organization, the
certificates being exchanged must be signed by the same trusted certificate authority (CA).
D.2.1 Generating SSL certificates
To generate SSL certificates:
1. Obtain the latest version of SSL-KeyTool from Wallstreet.
2. Extract SSL-KeyTool to a temporary folder (for example, c:\temp\SSL-KeyTool\).
3. Navigate to the temporary folder you created in step 2.
4. Open the build.properties file in a text editor.
5. Locate the following section:
global.country=CA
global.state=Alberta
global.location=Calgary
global.organization=Trema Laboratories Inc.
global.organization.unit=
global.emailaddress=
global.common.name=wsdemo.corp.trema.com
global.domain.name=trema.com
global.storepass=trema.ca
global.ca.keystore=cacerts.jks
global.cert.validity=9999
6. For each property in this section (except global.ca.keystore), enter an appropriate value.
Category Requirement
Operating system • Microsoft Windows 2000 Server
• Microsoft Windows Server 2003
Web server • Microsoft IIS 5.0
• Microsoft IIS 6.0
•Apache Tomcat 5.x
CMM application server • BEA WebLogic 9.2
•Apache Tomcat 5.x
CMM database server •Oracle
• Microsoft SQL Server
SSL-KeyTool • Version 2.4 or later (provided by Wallstreet)
WebSuite Cash Management Connectivity Guide 421
For the global.common.name property, enter the fully qualified domain on which IIS is running.
For example, if CMM’s URL is https://wsdemo.trema.com/cmm, enter wsdemo.corp.trema.com.
7. Locate the following section:
cert.auth.id=myCA
cert.auth.name=My Certificate Authority
cert.auth.country=
cert.auth.state=
cert.auth.location=
cert.auth.organization=
cert.auth.organization.unit=Certificate Authorities
cert.auth.emailaddress=
cert.auth.common.name=
cert.auth.storepass=
cert.auth.cert.validity=
cert.auth.outpass=trema.ca
8. For each property in this section, do one of the following:
–Enter an appropriate value.
–Leave the value blank to use the corresponding global property’s value instead.
The cert.auth properties are only applicable if you are generating a self-signed CA certificate.
The value of the cert.auth.organization.unit property is used for additional validation of the
client certificate when accessing the web services.
9. Locate the following section:
client.id=
client.name=
client.country=
client.state=
client.location=
client.organization=
client.organization.unit=
client.emailaddress=
client.common.name=
client.storepass=
client.auth.cert.validity=
10. For each property in this section, do one of the following:
–Enter an appropriate value.
–Leave the value blank to use the corresponding global property’s value instead.
Leave as many values blank as possible.
The information provided in this section is used to generate the certificate request to send to the
CA for signing.
11. Locate the following section:
#openssl.cmd=<absolute path of openssl command>
422 © Wall Street Systems IPH AB - Confidential
#openssl.conf=<absolute path of the openssl configuration>
12. If you want to specify a custom path for the OpenSSL executable, remove the number signs (#)
and enter appropriate values for the properties in this section.
13. Save and close the file.
14. Open a command prompt and navigate to the temporary folder you created in step 2.
15. Initialize the environment variables:
–If you are using Windows, enter setup.
–If you are using Linux, enter . setup.sh.
16. Enter ant to view usage information.
17. Do one of the following:
–To generate a client SSL certificate with a self-signed CA:
a. Generate a CA certificate by entering ant create-CA. SSL-KeyTool creates the following
files:
b. Generate a self-signed X509 client certificate by entering "ant create-client-certificate".
SSL-KeyTool creates the following files:
Component Location
CA private key …\demoCA\private\<cert.auth.id.>key.pem
Self-signed CA certificate to sign the client
certificate
…\demoCA\<cert.auth.id>.cert
Public CA certificate in DER format to be
imported into the client trust store when using
IIS as the Web server
…\demoCA\newcerts\<cert.auth.id>.der
CA certificate including both private and public
keys in PKCS #12 format
Note: Do not give this CA certificate to others as
it can be used to sign the client certificate.
…\demoCA\<cert.auth.id>.p12
JKS keystore with a public CA certificate to ship
to a Java client
…\demoCA\cacerts.jks
Component Location
Client private key …\demoCA\private\<client.id.>key.pem
Client certificate request to be signed by the CA …\demoCA\<client.id>req.pem
Client certificate when the CA signs the client
certificate request
…\demoCA\newcerts\<client.id>.cer
Client certificate including both private and
public keys in PKCS #12 format to be imported
into the client browser
…\demoCA\<client.id>.p12
WebSuite Cash Management Connectivity Guide 423
To establish a secured connection with other parties being signed by the CA, a client
certificate (for example, <client.id>.p12) and public CA certificate (for example,
<cert.auth.id>.der or cacerts.jks) are required.
–To generate a client SSL certificate with a third-party CA:
a. Generate an X509 client certificate request by entering
ant create-client-certificate-request. SSL-KeyTool creates the following files:
b. Send the client certificate request to the third-party CA for signing.
Once the client certificate request is signed by the third-party CA, a signed certificate is
sent back. Place the signed certificate in …\demoCA\newcerts\<client.id>.cer for
exporting the client certificate in PKCS #12 format.
c. Export the client certificate in PKCS #12 format by entering
ant export-client-certificate. SSL-KeyTool creates the following files:
To establish a secured connection with other parties being signed by this third-party CA, a
client certificate (for example, <client.id>.p12) and a public CA certificate in either DER or
JKS format are required.
D.3 Creating a secure website using IIS
To minimize interference with the existing CMM website, you need to create a new website for
listening to incoming requests over HTTPS. To bypass this secure website, clients must go through
client authentication by exchanging SSL certificates between the client and the server; only SSL
certificates that are signed by the same CA can pass.
You can only create multiple websites in a single installation of IIS in server versions of Windows
(Window 2000 Server, Windows Server 2003, and so on).
Note: As you complete the procedures in this section, you will need to restart IIS several times;
therefore, Wallstreet recommends you shut down the CMM application server.
D.3.1 Assigning an additional IP address
To add a new website for HTTPS, you need to add a new IP address to the current local area
connection. Ideally, a DNS name must be assigned to this IP address so that it can be accessible
anywhere on the network.
Component Location
Client private key …\demoCA\private\<client.id.>key.pem
Client certificate request to be signed by
the third-party CA
…\demoCA\<client.id>req.pem
Component Location
Client certificate including both private and public keys in PKCS #12
format to be imported into the client browser
…\demoCA\<client.id>.p12
424 © Wall Street Systems IPH AB - Confidential
D.3.1.1 Assigning an additional IP address
To assign an additional IP address:
1. Select Start - Settings - Control Panel.
2. In the Control Panel window, double-click Network and Dial-up Connections.
3. In the Network and Dialup Connections window, right-click the appropriate Local Area Connection
and select Properties in the resulting popup menu.
4. In the Local Area Connection Properties dialog, click Properties.
5. In the Internet Protocol (TCP/IP) Properties dialog, click Advanced….
6. In the IP addresses section of the Advanced TCP/IP Settings dialog, click Add… to assign an
additional IP address to the connection.
In most organizations, the IT department is responsible for assigning the IP address.
Wallstreet recommends that you assign a DNS name to the IP address so that it is accessible
across the network. For example, the IP address 172.24.80.53 in the above image is assigned
to the DNS name wsdemo.corp.tream.com.
D.3.2 Creating a secure website
This section documents the required steps to create a new website for HTTPS in IIS.
D.3.2.1 Creating a secure website
To create a secure website:
1. Select Start - Settings - Control Panel.
2. In the Control Panel window, double-click Administrative Tools.
3. In the Administrative Tools window, double-click Internet Services Manager.
4. In the Internet Information Services window, right-click the computer’s icon in the left frame of
the window and select New - Web Site in the resulting popup menu.
5. In the Web Site Description panel of the website creation wizard, enter a description of the
website (for example, HTTPS Website) in the Description field.
6. Click Next >.
7. In the IP Address and Port Settings panel of the website creation wizard, select the IP address to
use for the website (for example, 172.24.80.53) in the Enter the IP address to use for this Web site
list.
8. Click Next >.
9. In the Web Site Home Directory panel of the website creation wizard, enter the path to the
website’s home folder (for example, C:\Inetpub\wwwroot-https) in the Path field.
WebSuite Cash Management Connectivity Guide 425
The wwwroot-https folder in the above example is a copy of the wwwroot folder, but it only
contains the BEA WebLogic IIS plug-in scripts:
The iisproxy.ini file in the wwwroot-https folder is very similar to the one in the wwwroot
folder:
WebLogicHost=localhost
WebLogicPort=4001
WlForwardPath=/cmm
HungServerRecoverSecs=86400
Idempotent=OFF
Debug=ALL
10. Click Next >.
11. In the Web Site Access Permissions panel of the website creation wizard, click Next >.
12. In the final panel of the website creation wizard, click Finish.
D.3.3 Configuring the secure website
This section documents the required steps to configure the BEA WebLogic IIS plug-ins for the secure
website you created in D.3.2 Creating a secure website on page 424.
D.3.3.1 Configuring the secure website
To configure the secure website:
1. Open the Internet Information Services window (if it is not already opened).
426 © Wall Street Systems IPH AB - Confidential
For instructions on opening the Internet Information Services window, see D.3.2 Creating a
secure website on page 424.
2. Right-click the secure website’s icon in the left frame of the window and select Properties in the
resulting popup menu.
3. In the [Secure website name] Properties dialog, click the Home Directory tab to open it.
4. Do one of the following:
–If you are using IIS 5.0, ensure the Application Protection list is set to High (Isolated).
–If you are using IIS on Windows Server 2003, ensure the Application name field and
Application pool list contain values.
5. Click Configuration….
6. In the Add/Edit Application Extension Mapping dialog, create an extension application mapping,
ensuring the Check that file exists checkbox is not selected.
7. Click OK.
8. In the [Secure website name] Properties dialog, click the ISAPI Filters tab to open it.
9. Click Add….
10. In the Filter Properties dialog, enter IISForward in the Filter Name field.
11. Enter the path to secure website’s iisforward.dll file (for example,
C:\Inetpub\wwwroot-https\iisforward.dll) in the Executable field.
12. Click OK.
13. In the Add/Edit Application Extension Mapping dialog, click Apply.
14. Click OK.
15. Do the following:
–If you are using Windows 2000 Server, restart IIS.
–If you are using Windows Server 2003:
a. Click Web Service Extensions in the left frame of the window.
b. In the Web Service Extensions panel that displays in the right frame, click Add new Web
service extension….
c. In the New Web Service Extension dialog, enter IISProxy_https in the Extension name
field.
d. Add a path to the secure website’s iisproxy.dll file (for example,
WebSuite Cash Management Connectivity Guide 427
C:\Inetpub\https-wwwroot\iisproxy.dll) in the Required files list.
e. Select the Set extension status to Allowed checkbox.
f. Click OK.
g. Restart IIS.
16. Right-click the secure website’s icon in the left frame of the window and select Properties in the
resulting popup menu.
17. In the [Secure website name] Properties dialog, click the ISAPI Filters tab to open it.
A green, upwards pointing arrow displays in the Status column of the IISForward ISAP filter.
If Unknown displays in the Priority column of the IISForward ISAP filter, navigate to the secure
website (for example, http://wsdemo.corp.trema.com) in your browser. This causes IIS to
load the ISAPI filter.
D.3.4 Creating a virtual folder for content
This section documents the required steps to create a virtual folder in which to store CMM web
content. The alias and path of this virtual folder should be similar to that of the default website (for
example, conten).
Note: This section assumes that you have already set up the BEA WebLogic IIS plug-in on HTTP
for the default website and that CMM has already been deployed to the BEA WebLogic
server.
D.3.4.1 Creating a virtual folder for content
To create a virtual folder for content:
1. Open the Internet Information Services window (if it is not already opened).
428 © Wall Street Systems IPH AB - Confidential
For instructions on opening the Internet Information Services window, see D.3.2 Creating a
secure website on page 424.
2. Right-click the computer’s icon in the left frame of the window and select New - Virtual Directory in
the resulting popup menu.
3. In the first panel of the virtual folder creation wizard, click Next >.
4. In the Virtual Directory Alias panel of the virtual folder creation wizard, enter an appropriate
alias for the virtual folder (for example, content) in the Alias field.
5. Click Next >.
6. In the Web Site Content Directory panel of the virtual folder creation wizard, enter the path of
the virtual folder (for example, C:\lhogD1\VirtualDirectory) in the Directory field.
7. Click Next >.
8. In the Access Permissions panel of the virtual folder creation wizard, click Next >.
9. In the final panel of the virtual folder creation wizard, click Finish.
10. Update the virtual folder path in the nvp.xml file:
<name name="ID_VirtualDirectory">
<description>
The virtual directory name for the path specified in
ID_VirtualDirectoryPath
</description>
<value>content</value>
</name>
For detailed instruction on modifying the nvp.xml file, see the WebSuite System Administration
Guide.
D.3.5 Configuring two-way SSL
This section documents the required steps to configure two-way SSL on the IIS secure website using
the test certificates you generated with the SSL-KeyTool.
D.3.5.1 Importing server and CA certificates
To import server and CA certificates:
1. Select Start - Run….
2. In the Run dialog, enter mmc in the Open field.
3. Click OK.
4. In the Console1 window, select Console - Add/Remove Snap-in….
5. In the Add/Remove Snap-in dialog, click Add….
6. In the Add Standalone Snap-in dialog, select Certificates in the Available Standalone Snap-ins
list.
7. Click Add.
8. In the Certificates snap-in panel of the certificates snapin wizard, select the Computer account
option button.
9. Click Next >.
10. In the Select Computer panel of the certificates snapin wizard, click Finish.
11. In the Add Standalone Snap-in dialog, click Close.
WebSuite Cash Management Connectivity Guide 429
A new snap-in, Certificates (Local Computer), appears in the Add Standalone Snap-in dialog:
12. In the Add Standalone Snap-in dialog, click OK.
The Console Root folder in the left frame of the Console1 window contains a new child folder,
Certificates (Local Computer):
430 © Wall Street Systems IPH AB - Confidential
13. In the left frame, navigate to and right-click Console Root\Certificates (Local Computer)\Personal\
Certificates. In the resulting popup menu, select Import….
14. In the first panel of the certificates import wizard, click Next >.
15. In the File to Import panel of the certificates import wizard, enter the path to the server
certificate (for example, C:\lhogD1\keystrokes\demoCA\server.p12) in the File name field.
16. Click Next >.
17. In the Password panel of the certificates import wizard, enter the private key for the server
certificate in the Password field.
The default private key for the test certificate is trema.ca.
18. Click Next >.
19. In the Certificate Store panel of the certificates import wizard, select the Place all certificates in the
following folder option button.
20. Click Next >.
21. In the Completing the Certificate Import Wizard panel of the certificates import wizard, click
Finish.
22. In the Certificate Import Wizard dialog, click OK.
The imported certificate displays in the right frame of the Console1 window:
WebSuite Cash Management Connectivity Guide 431
23. In the left frame, navigate to and right-click Console Root\Certificates (Local Computer)\ Trusted Root
Certification Authorities\Certificates. In the resulting popup menu, select Import….
24. In the first panel of the certificates import wizard, click Next >.
25. In the File to Import panel of the certificates import wizard, enter the patch to the server
certificate in the File name field.
26. Click Next >.
27. In the Certificate Store panel of the certificates import wizard, select the Place all certificates in the
following folder option button.
28. Click Next >.
29. In the Completing the Certificate Import Wizard panel of the certificates import wizard, click
Finish.
30. In the Certificate Import Wizard dialog, click OK.
The imported certificate displays in the right frame of the Console1 window:
D.3.5.2 Assigning the server certificate
To assign the server certificate:
1. Open the Internet Information Services window (if it is not already opened).
432 © Wall Street Systems IPH AB - Confidential
For instructions on opening the Internet Information Services window, see D.3.2 Creating a
secure website on page 424.
2. Right-click the secure website’s icon in the left frame of the window and select Properties in the
resulting popup menu.
3. In the [Secure website name] Properties dialog, click the Directory Security tab to open it.
4. In the Secure communications section of the [Secure website name] Properties dialog, click
Server Certificate….
5. In the first panel of the web server certificate wizard, click Next >.
6. In the Server Certificate panel of the web server certificate wizard, select the
Assign an existing certificate option button.
7. Click Next >.
8. In the Available Certificates panel of the web server certificate wizard, select the server
certificate.
9. Click Next >.
10. In the Certificate Summary panel of the web server certificate wizard, click Next >.
11. In the Completing the Web Server Certificate Wizard panel of the web server certificate wizard,
click Finish.
12. In the Secure communications section of the [Secure website name] Properties dialog, click
Edit….
13. In the Secure Communications dialog, select the Require secure channel (SSL) checkbox.
14. Select the Require client certificates option button.
15. Click OK.
16. In the [Secure website name] Properties dialog, click Apply.
17. Click OK.
D.3.6 Configuring one-way SSL
This section documents the required steps to enable the IIS web server to proxy the client certificate
to the BEA WebLogic server once the client has been successfully authenticated.
D.3.6.1 Configuring one-way SSL
To configure one-way SSL:
1. Open the iisproxy.ini file in a text editor.
2. Edit the file to forward requests to the BEA WebLogic server using HTTP:
WebLogicHost=localhost
WebLogicPort=4001
WlForwardPath=/cmm
HungServerRecoverSecs=86400
Idempotent=OFF
Debug=ALL
WebSuite Cash Management Connectivity Guide 433
In a production environment, you usually turn off the debug mode by removing Debug=ALL.
(When you include Debug=ALL, the debugging information is written to the /tmp/wlproxy.log
file in Unix systems and the C:\tmp\wlproxy.log file in Windows systems.)
3. Save and close the file.
4. Restart IIS.
5. Log into the BEA WebLogic Admin Console (available at http://localhost:7001/console) and
enable the client certificate proxy.
For detailed instructions, see the BEA WebLogic documentation.
6. Restart BEA WebLogic.
D.4 Creating a secure website using Tomcat
This section documents the required steps to create a new SSL port in Tomcat for listening to the
incoming requests to CMM web services.
Note: Adding a new SSL port is relatively simple in Tomcat compared to IIS. There is no need to
set up a new Tomcat home. All you need to do is to add a connector to the server.xml file.
434 © Wall Street Systems IPH AB - Confidential
D.4.1 Creating a secure website using Tomcat
To create a secure website using Tomcat:
1. Navigate to …\tomcat.5.x.xx\conf\.
2. Open the server.xml file in a text editor.
3. Add the following connector to the file:
<!-- Sample SSL configuration using client authentication -->
<Connector
port="8543"
maxThreads="150"
minSpareThreads="25"
maxSpareThreads="75"
enableLookups="false"
disableUploadTimeout="true"
acceptCount="100"
debug="0"
scheme="https"
secure="true"
clientAuth="true"
sslProtocol="TLS"
keystoreFile="C:/lhogD1/keystores/demoCA/server.p12"
keystorePass="trema.ca"
keystoreType="PKCS12"
truststoreFile="C:/lhogD1/keystores/demoCA/cacerts.jks"
truststorePass="trema.ca"
truststoreType="JKS"
algorithm="SunX509"/>
Do the following:
–Replace the SSL port so that it does not conflict with any existing ports.
–Ensure the clientAuth attribute is set to true.
–Replace the appropriate paths, types, and private keys for both the server certificate and CA
public certificate.
4. Save and close the file.
5. Restart Tomcat.
D.5 Testing HTTPS configuration
This section documents the required steps to test HTTPS configuration with CMM PKI X509.
D.5.1 Importing client certificates to the web browser
To import client certificates to the web browser:
1. Navigate to the extracted folder of keystores.
2. Double-click …\demoCA\alterna.p12 to import the client certificate into the personal account.
The default private key for the test certificate is trema.ca.
WebSuite Cash Management Connectivity Guide 435
D.5.2 Configuring CMM with PKI X509
Note: The following steps are for a configuration based on the test certificate information. For the
steps for a production configuration, contact Wallstreet.
To configure CMM with PKI X509:
1. Add the strong authentication service definition to …\CmmInstallationData\
installation\appserver\service_definitions\CredentialsServiceDefinitions.xml:
<ServiceDefinition
interface_classname="alterna.appserver.security.IaCredentialsAuthenticator"
implementation_classname="alterna.appserver.security.CaSACredentialsAuthentic
ator"
name="IaCredentialsAuthenticator"
registration_policy="append"/>
2. Configure the rules to validate the client certificate in …\CmmInstallationData\installation\
appserver\authentication\strong_auth\sa_cert_config.xml:
<strong_authentication>
<!-- Attributes that will be used in SA credential authenticator, mapping with
the name of value element -->
<mapping login_id="userid">
<!-- the certificate must be an instance of java.security.cert.Certificate
-->
<certificate id="javax.servlet.request.X509Certificate"
issuer_dn_pattern="(OU=C([a-zA-Z]*) A([a-zA-Z]*),)">
<!-- Possible IDs: SubjectDN, IssuerDN, SigAlgName, SigAlgOID and
SerialNumber -->
<value name="userid" id="SubjectDN"
classname="alterna.appserver.security.cert.CaX509CertificateStringValue
Parser" pattern="=(\w*)@" is_required="true" />
<!-- more value on different attributes of the certificate can be added
on here -->
</certificate>
<!-- more certificates can be added on here -->
</mapping>
</strong_authentication>
Note:
–The above setting is based on the issuer and subject of the client test certificate.
–The issuer_dn_pattern attribute of the certificate element tells CMM to only accept the
issuer having an organization unit (OU) with a first word starting with C and a second word
starting with A (for example, Certificate Authorities):
E = myCA@trema.com
CN = wsdemo.corp.trema.com
OU = Certificate Authorities
O = Trema Laboratories Inc.
L = Calgary
S = Alberta
C = CA
–The pattern attribute in the value element tells CMM to extract anything after the equal
sign (=) and before the at sign (@); this is usually the user ID in the e-mail address:
E = alterna@trema.com
CN = wsdemo.corp.trema.com
OU = Client - Alterna
O = Trema Laboratories Inc.
S = Alberta
436 © Wall Street Systems IPH AB - Confidential
C = CA
3. Restart the cmmS1 service.
D.5.3 Testing CMM with PKI X509
To test CMM with PKI X509, navigate to CMM in a browser (for example,
https://wsdemo.corp.trema.com/cmm). You may be prompted to select the client certificate for
client authentication:
After you select the client certificate:
•If the client authentication was successful, you are automatically logged in to CMM.
•Otherwise, the default login page displays.
Note: This appendix assumes that an alterna user exists in the CMM database. If not, you can
manually add one before continuing. Log into CMM using form-based authentication to
create a new user.
