Xtreme Power Conversion Corporation
920 Bay Vista Blvd. • Englewood, Fl 34223
Tel: 800.582.4524
www.xpcc.com
SNMP (Simple Network Management
Protocol) is used widely in the network
management eld. With the support for
SNMP, the .NETpower software user
interface turns the UPS into an industrial
standard managed network device. You
can use an SNMP NMS (such as HP
OpenView or a IBM NetView) to manage
your UPS over a LAN or the Internet.
DO YOU REQUIRE XTREME SNMP CONNECTIVITY?

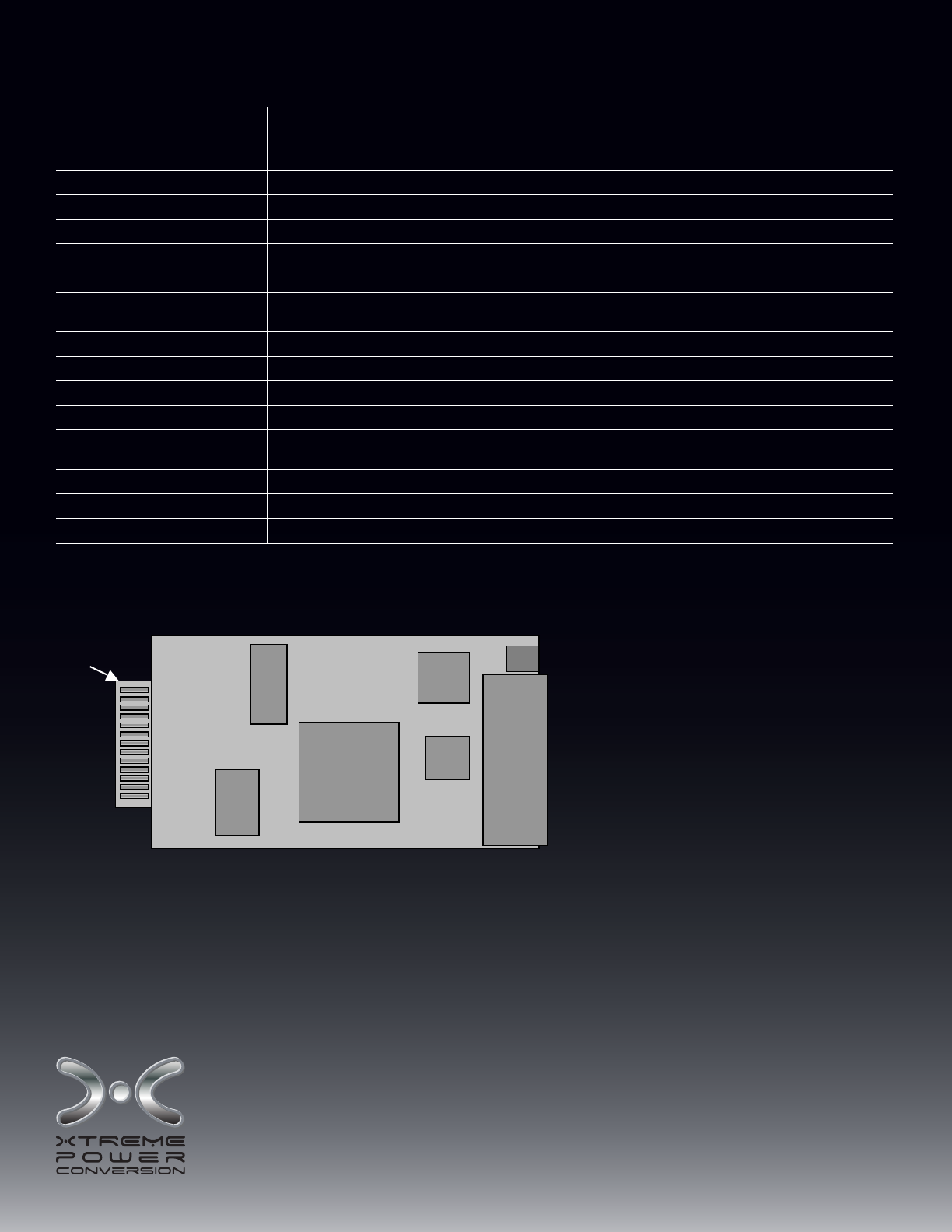

HARDWARE SPECIFICATIONS
U1: S3C4510B – Samsung 16/32 bits MCU
U2: Altima AC101 or AM79C874 – Ethernet Transceiver
U9: K4S281632D – 128Mbit SDRAM
U10: MX29LV160T – Flash Memory
J1: 10/100BaseT RJ-45 Phone Jack
J2: Modem or console port
J5: Extension Port
D2: Power/Diagnostic, Network Tx/Rx LEDs
J5
U1
U
9
U
10
T1
U2
PIN 1
D2
J2
J1
CPU SAMSUNG S3C4510B 16/32-bit RISC microcontroller
Memory Flash Memory – 16Mbits
SDRAM – 128Mbits
Ethernet Connector 10/100 BaseT RJ-45, auto switch
Power Input and Consumption 12V DC regulated, power consumption under 3 watts
Size 118 mm (L) x 89 mm (W) x 23 mm( H)
Network Interface UTP Fast Ethernet 10/100BastT RJ-45, auto-sense
Display Power, Diagnostic, TxD and RxD LEDs
Serial Port Two high speed RS-232 ports. One used as a console port or connected to a MODEM allowing PPP dial-in
and paging, another is golden nger type serial port and connected to UPS
Extension Port Connected to an extended device such as environment measurement through I2C
Real Time Clock Time can be adjusted by SNTP
Firmware Upgradeable Upgrades rmware via a web browser or TFTP
Telnet Management Allows management via telnet
SNMP Network Management Supports both SNMP v1 and v2. Supports RFC 1213 (MIB-II), RFC 1628 (UPS MIB) , and private UPS
extension MIB. Compatible with any standard SNMP NMS such as HP OpenView, IBM NetView
Web Network Management Supports HTTP 1.0 protocol. Combined with HTML, JavaScript and Java Applet
Setup/Conguration Allows setup via telnet or console
Operating Environment 0 to 60ºC
Moreover, the Net Logic SNMP card
will create a standard browser interface
for the UPS. This browser interface
allows easy viewing, management and
control of the UPS. In addition to the
network management function, it will
notify you when an event occurs, and
even shut down multiple systems on
the LAN.

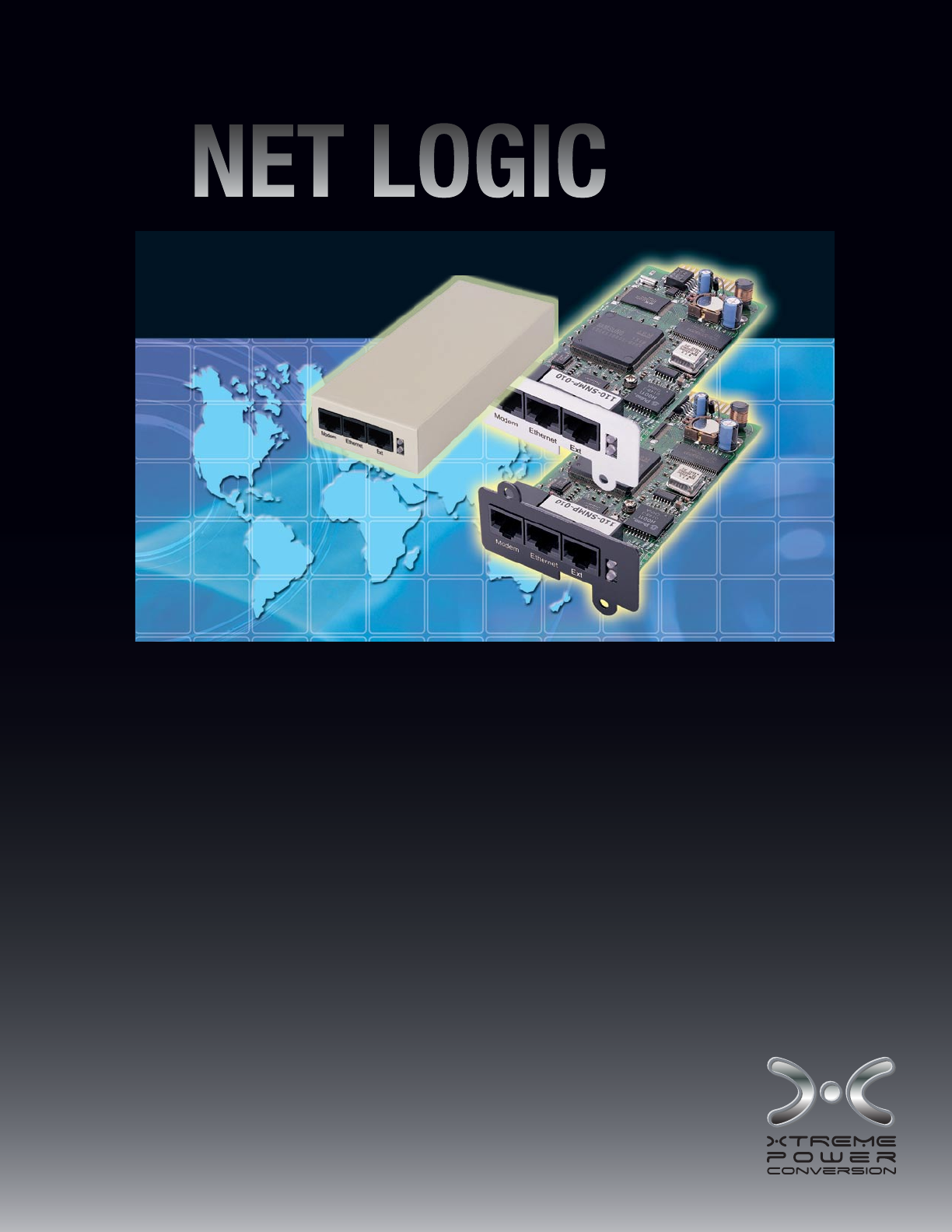

Ordering Information: NET Logic SNMP Card, Model No: XPRT-SNMP1 or XVRT-SNMPB
NET LOGIC
SNMP
Card
SNMP Communications Schematic
www.xpcc.com www.xpcc.com
• Network Interface
UTP Fast Ethernet 10/100 auto-sense
• Serial Port
Used as a console port or connected to a MODEM allowing PPP dial-in and paging
• Extension Port
Connected to an extended device such as environment measurement
• Real Time Clock
Time can be adjusted by SNTP
• Setup/Conguration
Allows setup via telnet or console
• Firmware Upgradeable
Upgrades rmware via a web browser or TFTP
• Multiple System Shutdown
Sends a shutdown signal to shut down multiple systems on LAN
• Event Notication
Includes network message, OnEvent multimedia message, email and page
• SNMP Network Management
Supports SNMP v1.0 and v2.0. Supports RFC 1213 (MIB-II), RFC 1628 (UPS MIB),
and private UPS extension MIB. Compatible with any standard SNMP NMS such as
HP OpenView and IBM NetView
• Web Network Management
Supports HTTP 1.0 protocol. Combined with HTML, Java Script and Java Applet
• Telnet Management
Allows management via telnet
• Graphic Information Management
Includes Power Meter, Block Diagram, Power Scope, and Log Analysis
• Event Logging
Contains all UPS-related events
Data Logging
A collection of the UPS power quality
Scheduling
Perform shutdown, startup, and self-test according to the scheduling settings
Flexible Event Action
Provides exible event action feature
UPS Control
Allows you to shut down, reset, or restart the UPS remotely
UPS Conguration
Allows you to congure the UPS remotely
Password Security
Provides password protection
Information Management
The .NETpower interface allows you to view the
information and status of the UPS locally or remotely. It
presents the information in graphical formats from different
points of view: inside activity, power meters, and scope
charts.
The .NETpower interface maintains two log les
• an event log le which contains all UPS related events
such as power failures, shutdowns, power recoveries,
etc.
• a data log le: which is a collection of the UPS power
quality, including input voltage, output voltage, battery
voltage, temperature, etc.
Flexible Event Action
You can dene actions for each event. The .NETpower interface will perform
actions according to your denitions when an event occurs. The actions
include logging, network notication, email, paging, executing command le,
and system shutdown.
OnEvent
OnEvent is a new notication technology which can exchange multimedia
messages over a LAN, regardless of operating system. When a power event
occurs, a multimedia message box will be displayed on each computer with
OnEvent software installed. It is also a shutdown agent which will shut down
the system when receiving a shutdown signal from the NETLogic card. It also
serves as a shutdown agent when a shutdown signal is received from the
.Netlogic card.
Scheduling
The .NETpower interface allows for a customizable UPS schedule setup for
automatic system shutdown/startups and self-tests.
Compatible Operating Systems
The SNMP CD is compatible with the following operating systems: FreeBSD,
Hpux, IBMaix, IBMos2, IRIX, Linux, Solsparc, Solx86, Windows
www.xpcc.com www.xpcc.com
• Network Interface
UTP Fast Ethernet 10/100 auto-sense
• Serial Port
Used as a console port or connected to a MODEM allowing PPP dial-in and paging
• Extension Port
Connected to an extended device such as environment measurement
• Real Time Clock
Time can be adjusted by SNTP
• Setup/Conguration
Allows setup via telnet or console
• Firmware Upgradeable
Upgrades rmware via a web browser or TFTP
• Multiple System Shutdown
Sends a shutdown signal to shut down multiple systems on LAN
• Event Notication
Includes network message, OnEvent multimedia message, email and page
• SNMP Network Management
Supports SNMP v1.0 and v2.0. Supports RFC 1213 (MIB-II), RFC 1628 (UPS MIB),
and private UPS extension MIB. Compatible with any standard SNMP NMS such as
HP OpenView and IBM NetView
• Web Network Management
Supports HTTP 1.0 protocol. Combined with HTML, Java Script and Java Applet
• Telnet Management
Allows management via telnet
• Graphic Information Management
Includes Power Meter, Block Diagram, Power Scope, and Log Analysis
• Event Logging
Contains all UPS-related events
Data Logging
A collection of the UPS power quality
Scheduling
Perform shutdown, startup, and self-test according to the scheduling settings
Flexible Event Action
Provides exible event action feature
UPS Control
Allows you to shut down, reset, or restart the UPS remotely
UPS Conguration
Allows you to congure the UPS remotely
Password Security
Provides password protection
Information Management
The .NETpower interface allows you to view the
information and status of the UPS locally or remotely. It
presents the information in graphical formats from different
points of view: inside activity, power meters, and scope
charts.
The .NETpower interface maintains two log les
• an event log le which contains all UPS related events
such as power failures, shutdowns, power recoveries,
etc.
• a data log le: which is a collection of the UPS power
quality, including input voltage, output voltage, battery
voltage, temperature, etc.
Flexible Event Action
You can dene actions for each event. The .NETpower interface will perform
actions according to your denitions when an event occurs. The actions
include logging, network notication, email, paging, executing command le,
and system shutdown.
OnEvent
OnEvent is a new notication technology which can exchange multimedia
messages over a LAN, regardless of operating system. When a power event
occurs, a multimedia message box will be displayed on each computer with
OnEvent software installed. It is also a shutdown agent which will shut down
the system when receiving a shutdown signal from the NETLogic card. It also
serves as a shutdown agent when a shutdown signal is received from the
.Netlogic card.
Scheduling
The .NETpower interface allows for a customizable UPS schedule setup for
automatic system shutdown/startups and self-tests.
Compatible Operating Systems
The SNMP CD is compatible with the following operating systems: FreeBSD,
Hpux, IBMaix, IBMos2, IRIX, Linux, Solsparc, Solx86, Windows
Xtreme Power Conversion Corporation
920 Bay Vista Blvd. • Englewood, Fl 34223
Tel: 800.582.4524
www.xpcc.com
SNMP (Simple Network Management
Protocol) is used widely in the network
management eld. With the support for
SNMP, the .NETpower software user
interface turns the UPS into an industrial
standard managed network device. You
can use an SNMP NMS (such as HP
OpenView or a IBM NetView) to manage
your UPS over a LAN or the Internet.
DO YOU REQUIRE XTREME SNMP CONNECTIVITY?
HARDWARE SPECIFICATIONS
U1: S3C4510B – Samsung 16/32 bits MCU
U2: Altima AC101 or AM79C874 – Ethernet Transceiver
U9: K4S281632D – 128Mbit SDRAM
U10: MX29LV160T – Flash Memory
J1: 10/100BaseT RJ-45 Phone Jack
J2: Modem or console port
J5: Extension Port
D2: Power/Diagnostic, Network Tx/Rx LEDs
J5
U1
U
9
T1
U2
PIN 1
D2
J2
J1
CPU SAMSUNG S3C4510B 16/32-bit RISC microcontroller
Memory Flash Memory – 16Mbits
SDRAM – 128Mbits
Ethernet Connector 10/100 BaseT RJ-45, auto switch
Power Input and Consumption 12V DC regulated, power consumption under 3 watts
Size 118 mm (L) x 89 mm (W) x 23 mm( H)
Network Interface UTP Fast Ethernet 10/100BastT RJ-45, auto-sense
Display Power, Diagnostic, TxD and RxD LEDs
Serial Port Two high speed RS-232 ports. One used as a console port or connected to a MODEM allowing PPP dial-in
and paging, another is golden nger type serial port and connected to UPS
Extension Port Connected to an extended device such as environment measurement through I2C
Real Time Clock Time can be adjusted by SNTP
Firmware Upgradeable Upgrades rmware via a web browser or TFTP
Telnet Management Allows management via telnet
SNMP Network Management Supports both SNMP v1 and v2. Supports RFC 1213 (MIB-II), RFC 1628 (UPS MIB) , and private UPS
extension MIB. Compatible with any standard SNMP NMS such as HP OpenView, IBM NetView
Web Network Management Supports HTTP 1.0 protocol. Combined with HTML, JavaScript and Java Applet
Setup/Conguration Allows setup via telnet or console
Operating Environment 0 to 60ºC
Moreover, the Net Logic SNMP card
will create a standard browser interface
for the UPS. This browser interface
allows easy viewing, management and
control of the UPS. In addition to the
network management function, it will
notify you when an event occurs, and
even shut down multiple systems on
the LAN.
Ordering Information: NET Logic SNMP Card, Model No: XPRT-SNMP1 or XVRT-SNMPB
NET LOGIC
SNMP
Card
SNMP Communications Schematic
