2011 Cold Weather Starting Products

Application Guide & Product Catalog

Weatherly Index #244

Phillips & Temro Industries

9700 West 74th Street

Eden Prairie, MN 55344

(800) 328-6108

(952) 941-9700 • Fax (952) 941-2285

Due to our constant efforts to provide the

most accurate and complete information

possible, the information presented in

this publication is subject to change.

To be sure you have the most current

information, visit our website

www.phillipsandtemro.com

If there are any new product or application

updates, you can download replacement

pages and/or entire catalog files from the

website. If you require additional

information regarding Phillips & Temro

Industries products and services, please

check our website, or call Customer

Service at the numbers below.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

PHILLIPS & TEMRO INDUSTRIES

Eden Prairie, MN

Winnipeg, MB

CONTENTS

Applications Automotive ...................................................5-26

Listings begin on page #

Acura,AMC,Audi,BMW,Buick ...............................................6-8

Cadillac ..................................................................8

Chevrolet ..............................................................9-10

Chrysler.................................................................11

Dodge Light-Medium Duty Trucks & Vans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12

Daewoo,Eagle,Fiat,Ford/Mercury ..........................................12-14

Geo,Honda ...........................................................14-15

Hummer,Hyundai,Infiniti .................................................15-16

International by Navistar, Isuzu, Jaguar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17

Kia,Lada,Lexus........................................................17-18

Mazda, Mercedes-Benz, Mini, Mitsubishi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-20

Nissan,Oldsmobile......................................................20-22

Pontiac, Porsche, Land Rover, Sab, Saturn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-24

Scion,Smart,Subaru,Suzuki.................................................24

Toyota ................................................................24-25

Volkswagen,Volvo ......................................................25-26

AutomotiveFootnotes ......................................................26

Applications Agricultural, Heavy Duty & Industrial App. ..........................27-65

AllisChalmers,Belarus,Bolens, ............................................28-29

DavidBrown,CaseIH/JICase ................................................29

Caterpillar ............................................................30-33

Chevrolet,Continental(Teledyne) ...........................................33-34

Cummins .............................................................33-37

DetroitDiesel ..........................................................37-40

Deutz-Allis,FAHR,Fiat ...................................................40-41

Ford .................................................................41-44

Hercules, Hino, International by Navistar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-48

Isuzu,Iveco ...........................................................48-50

JohnDeere ...........................................................50-51

Komatsu,Kubota .......................................................52-54

Lister-Petter,Lombardini,Mack ............................................54-56

Massey&MasseyFergusson ..............................................56-57

Mercedes, Minneapolis Moline, Mitsubishi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57-58

MitsubishiFuso,MWMMurphy ...............................................59

Nissan ...............................................................59-60

Oliver,Onan,Paccar,Perkins ..............................................60-62

Toyota...................................................................63

UDTrucks,Volkswagen,Volvo .............................................64-65

Yanmar,Zetor ............................................................65

Product Information .......................................................66-86

Threaded Oil Pan Heaters, Threaded Coolant Immersion Heaters . . . . . . . . . . . . . . . . . . . . . .66

Cab&CargoHeaters.....................................................67-68

CabPowerSystem .........................................................69

........................................................................70

CirculationHeaters ......................................................71-73

BatteryHeaters ...........................................................74

Cordsets&Accessories ..................................................75-78

FreezePlugReplacementCordsets.............................................75

Heavy-Duty Immersion Heater Replacement Cordsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

WeatherproofCordsets&Receptacles ..........................................76

Y-Cords&Thermostats......................................................77

IndicatorLightSystem ......................................................78

IntegratedIndicatorLight ....................................................79

DieselFuelHeaters.........................................................80

DieselStartingFluidSystems ..............................................81-84

InteriorWarmers...........................................................84

LowerRadiatorHoseHeaters .................................................85

MagneticHeaters ..........................................................85

RadiantHeaters ...........................................................85

Specialty Products - Vibra®DumpBodyVibrator ...................................86

EngineStartabilityChart .....................................................87

TechnicalInformation .......................................................88

WarrantyInformation.....................................................89-90

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

FREEZE PLUG HEATERS

The choice of professional installers

•Ensure quick winter starts -

reduce engine wear

•Highest rated, most efficient

type of heater

•V-Loc™locking system provides quick,

trouble-free installation

•Plated stamped-steel & forged brass adapters

with copper heating element for maximum

life and efficiency.

•Direct OEM replacement in many applications

•Replaceable cordset

V-Loc™in fully open position, prior to

tightening locking bolt.

V-Loc™clamp spreads outward as

locking bolt it tightened.

V-Loc™in fully locked position. Heater is

secured in engine block.

See pages 6-26 for Automotive Freeze Plug Applications and pages 27-65 for Agricultural,

Heavy Duty, and Industrial Applications.

Replacement cordset information - see Automotive Applications and page 75.

CHAUFFE-MOTEURS

Le choix des installateurs professionnels

• Pour assurer des démarrages rapides en hiver

et réduire l'usure du moteur

• Le réchauffeur le mieux coté et le

plus efficace

• Le système de verrouillage V-Loc™permet une

installation simple et sans problème

• Adaptateurs en laiton forgé et en acier estampé

plaqué avec élément chauffant en cuivre pour

une durabilité et une efficacité maximales

• Remplacement direct d'équipement d'origine

dans plusieurs applications

• Cordon amovible remplaçable

V-Loc™en position ouverte

avant de serrer le boulon d'arrêt.

La fixation V-Loc™s'ouvre vers l'extérieur

quand on serre le boulon d'arrêt.

V-Loc™en position complètement verrouillé.

Le réchauffeur est fixé au bloc-moteur.

Consultez les pages 6 à 26 pour connaître les applications du chauffe-moteur pour automobiles et les pages 27 à 65

pour les applications de machinerie agricole, lourde et industrielle.

Information sur le cordon amovible de rechange - consultez la rubrique applications pour automobiles et la page 75.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (États-Unis) ou 800-328-6108 • www.phillipsandtemro.com

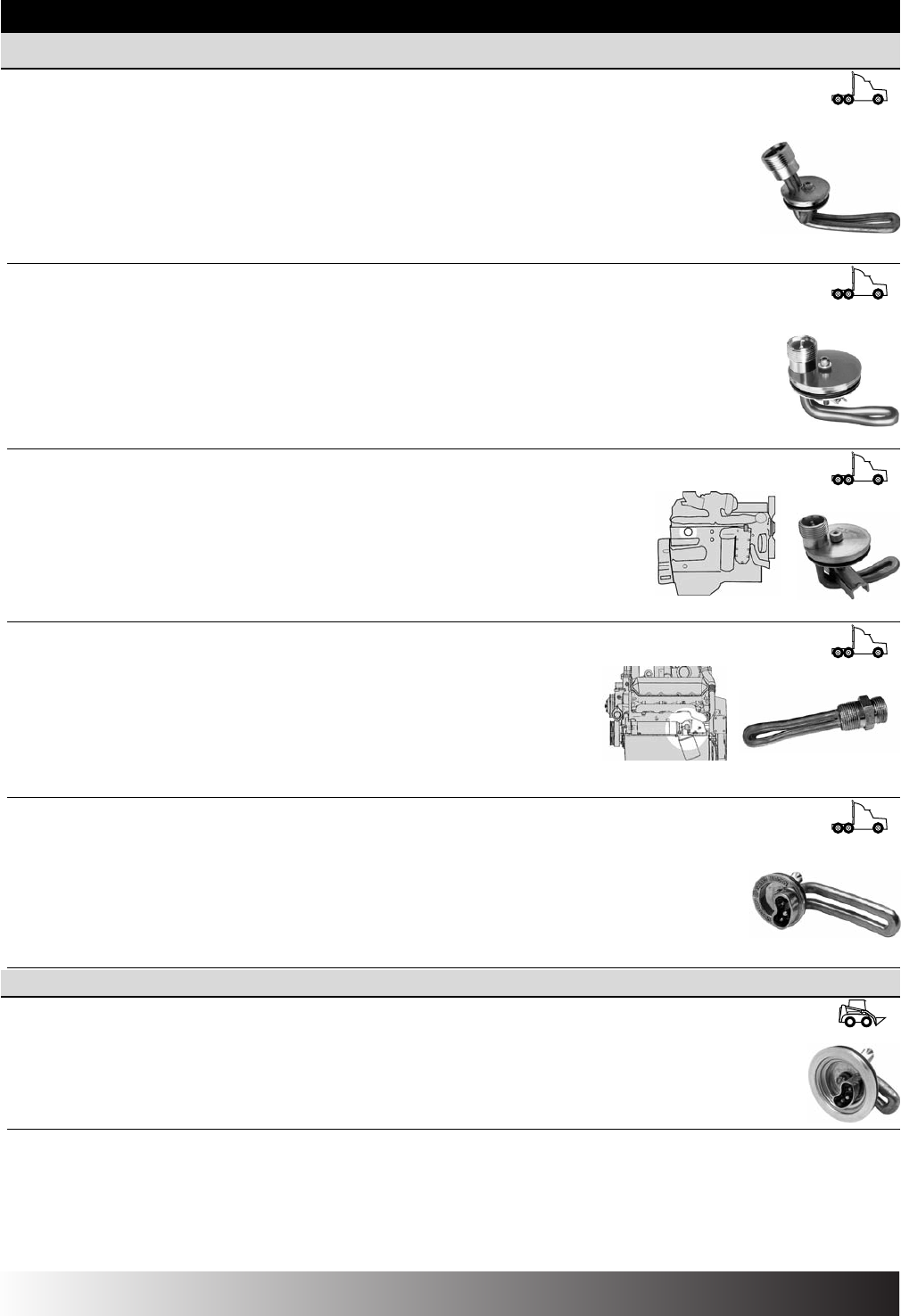

Agricultural, Heavy Duty, and Industrial listings appear as follows:

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Agricultural, Heavy Duty & Industrial App.

See page 4 for Automotive and Light-Duty Truck Applications.

MACK

E6 (672 CID 6 cyl.)

(Engines with smooth bore freeze plug. Example: EM6300, E6350, EM6237)

Part No. Watt Volt Diameter Type

8608748 1500 120 1-3/4" Freeze Plug

8609772 150 240 1-3/4" Freeze Plug

Installation Information:

Replaces 1-3/4" freeze plug on side of engine.

Available Service Parts: O-ring and clamping device kit (3500003)

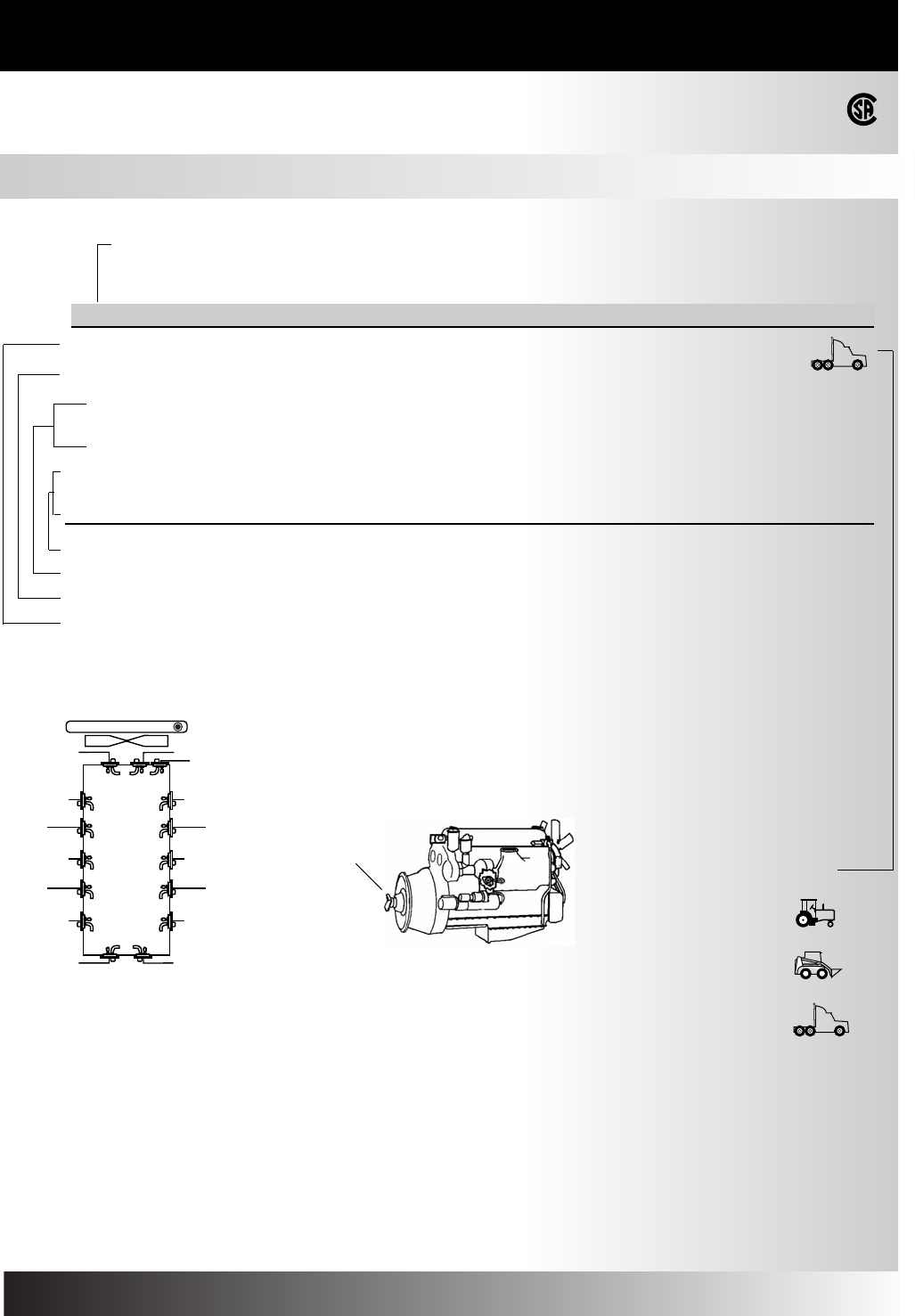

Manufacturer

Engine Model and/or size, plus any descriptions

Additional engine information, selection criteria

Part Number, Heater Wattage, Heater Voltage, Bore Diameter (if applicable), Heater Type. "Plate" indicates mounting plate installation.

Installation Information. See chart below for mounting location information.

Typical applications for engine:

Agricultural Use

Industrial Use

Heavy Duty Truck Use

LRF

LFF RFF

FF, Right

RFLF

LR RR

2nd LF

2nd LR 2nd RR

2nd RF

RRF

CF................................................Center Front

CR ................................................Center Rear

F ............................................................Front

FF ......................................Front face of block

LC..................................................Left Center

LF ....................................................Left Front

2nd LF................................2nd from left, front

LFF ..............................Front face, left cylinder

LLC ..............................Left side, lower center

LR ....................................................Left Rear

Heater installation locations are as viewed

from flywheel end of engine.

Flywheel

2nd LR ..............................2nd from left, Rear

LS......................................................Left side

R ............................................................Rear

RC................................................Right center

Rear ......................................Rear face or side

RF ..................................................Right front

2nd RF ..............................2nd from right front

RFF ....................Front face, right cylinder head

RR ..................................................Right Rear

RS ..................................................Right side

2nd RR..........2nd Core plug from the right rear

Engine diagram (if available)

Product photo (if applicable)

All Agricultural, Heavy Duty & Industrial

Applications are CSA Approved

(except where noted).

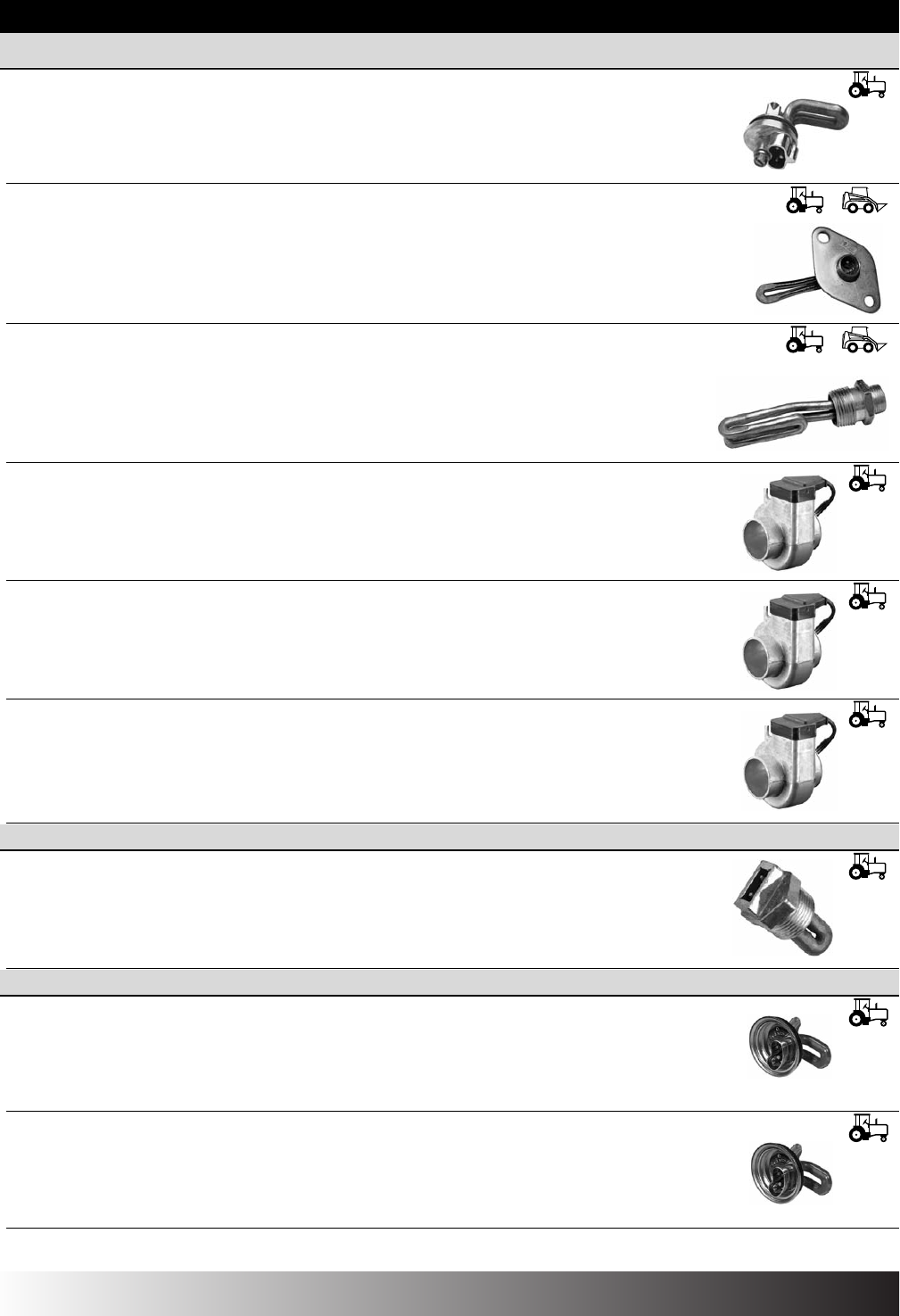

ALLIS CHALMERS

170 Diesel

Part No. Watt Volt Diameter Type Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Install in Left, 2nd from Rear. Point element UP/DOWN.

180, 185, 200, 7000, 7010, 7020

(649, 649T, 2800, 2900 engines)

Part No. Watt Volt Diameter Type Repl. Cord

3500014 1000 120 Plate Immersion 3600024

Installation Information:

Install in Right Rear (RR). Point element forward.

7030, 7040, 7045, 7050, 7060, 7080, 7580

(D21, 210, 220, 3500 & 3700, 670T & 670I engines)

Part No. Watt Volt Diameter Type Repl. Cord

3500013 1500 120 1" NPT Immersion 3600008

Installation Information:

Install in Right Rear (RR).

W, WC, WD, WF, WR, WD-45

Part No. Watt Volt Diameter Type Repl. Cord

3200003 600 120 1-1/2" LRHH 3600047

Installation Information:

Lower Radiator Hose Heater (see page 84). Circulation heater is acceptable alternative (see pages 71-73).

XP-170, XP190

Part No. Watt Volt Diameter Type Repl. Cord

3200004 600 120 1-3/4" LRHH 3600047

Installation Information:

Lower Radiator Hose Heater (see page 84). Circulation heater is acceptable alternative (see pages 71-73).

XP180, XP210, XP220

Part No. Watt Volt Diameter Type Repl. Cord

3200005 600 120 2" LRHH 3600047

Installation Information:

Lower Radiator Hose Heater (see page 84). Circulation heater is acceptable alternative (see pages 71-73).

BELARUS

500, 800, 900 Series

Part No. Watt Volt Diameter Type Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in Right Front (RF). Use 1" x 3/4" bushing.

BOLENS

TS1910, TS3420 (2 cyl.)

Part No. Watt Volt Diameter Type Repl. Cord

3100067 400 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in Left Side (LS). Point element DOWN.

G2102, 2104, 2702, 2704

Part No. Watt Volt Diameter Type Repl. Cord

3100067 400 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in Left Center (LC). Point element UP.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

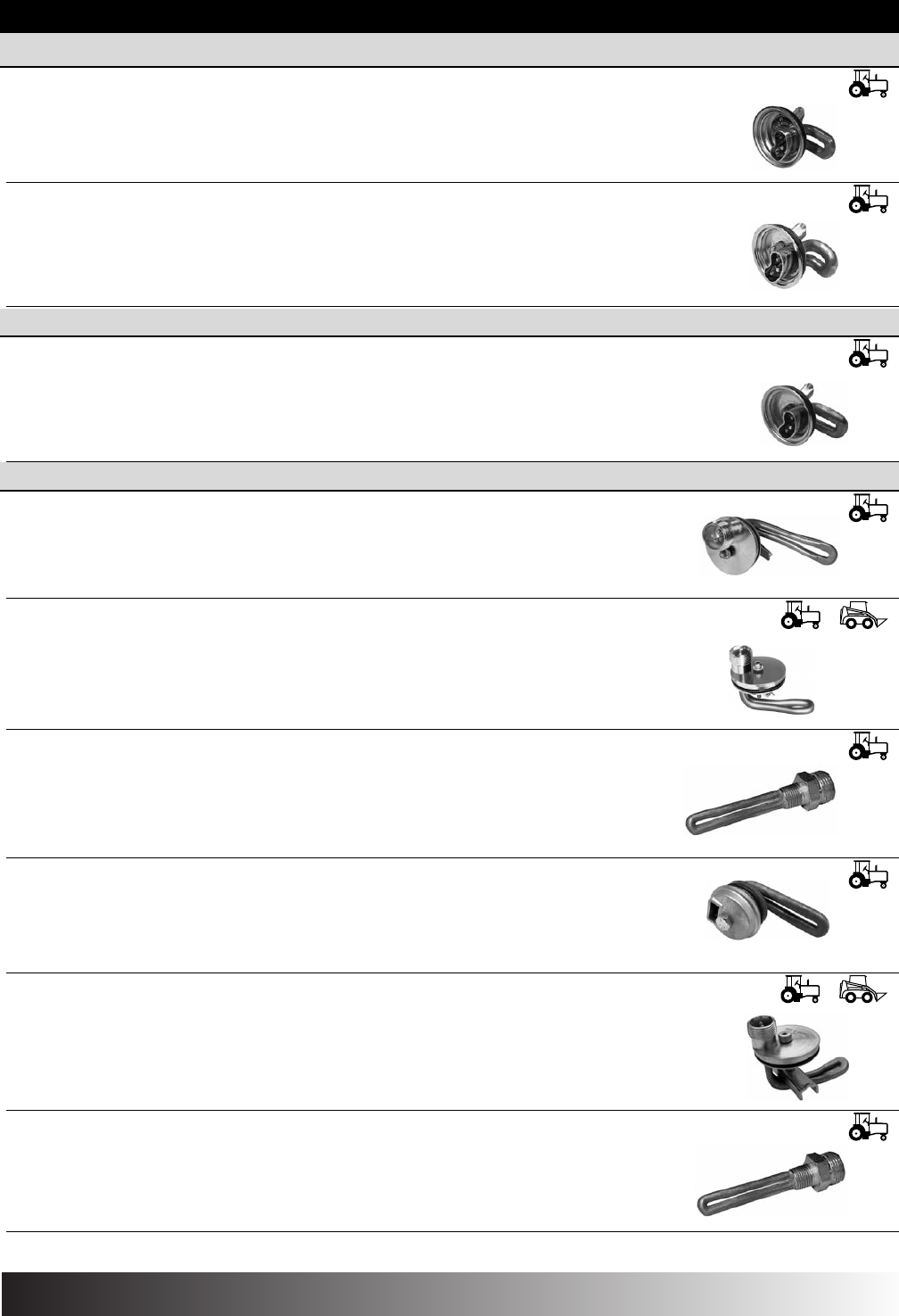

BOLENS - continued

TX1502, TX1504, TX1704

Part No. Watt Volt Diameter Type Repl. Cord

3100067 400 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in Right Side (RS). Point element UP.

5117H (Mitsubishi L3A)

Part No. Watt Volt Diameter Type Repl. Cord

3100049 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element 9 o'clock.

DAVID BROWN

All 900, 995, 1200, 1212

Part No. Watt Volt Diameter Type Repl. Cord

3100066 400 120 1-3/4" Freeze PluG 3600006

Installation Information:

Install in Left Center (LC). Point element 12 o'clock.

CASE IH/JI CASE

4 & 6 cyl: 336, 401, 451, 504 CID, 1470TK, W2A (504 CID)

Part No. Watt Volt Diameter Type Repl. Cord

3500024 1000 120 2" Freeze Plug 3600008

Installation Information:

Install in Right Rear (RR). Point element DOWN.

390 (4 cyl. 3.9L), 590 (6 cyl. 5.9L)

Part No. Watt Volt Diameter Type Repl. Cord

3500030 750 120 58mm Freeze Plug 3600008

8601666 750 240 58mm Freeze Plug 8608377

Installation Information:

Installs in Right Side (RS). Point element DOWN. Circulation heater is acceptable alternative (see pages 71-73).

All 430, 730, 830 (188D, 251G, 267D, 284D, 310D)

Part No. Watt Volt Diameter Type Repl. Cord

3500026 400 120 3/8" NPT Immersion N/A

Installation Information:

Install in Left Side (LS). Circulation heater (see pages 71-73) or #3200005 Lower Radiator

Hose Heater are acceptable alternatives.

6 cyl: 675 (675TWV, TV140)

Part No. Watt Volt Diameter Type Repl. Cord

3100112 750 120 1-1/2” Freeze Plug 3600023

Installation Information:

2nd core hole from rear right side.

830 (6 cyl.)

Part No. Watt Volt Diameter Type Repl. Cord

8601860 1000 120 58mm Freeze Plug 3600008

8601852 1000 240 58mm Freeze Plug 8608377

Installation Information:

Install in Right Rear (RR). Point element 4 o'clock. Circulation heater is acceptable alternative (see pages 71-73)

930 (6 cyl. 377G, 401D)

Part No. Watt Volt Diameter Type Repl. Cord

3500026 400 120 3/8" NPT Immersion N/A

Installation Information:

Install in Left Side (LS). Two heaters are required. Circulation heater is acceptable alternative (see pages 71-73).

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

CATERPILLAR

C10, C12

Part No. Watt Volt Diameter Type Repl. Cord

3500013 1500 120 1" NPT Immersion 3600008

3500031 1500 240 1" NPT Immersion 8608377

Installation Information:

Replaces 1" NPT plug in rear of oil cooler. Engine may also accept the following oil pan

heaters: 8609683, 8609659, 8609713 (requires 1" x 1/2" bushing to reduce port size.

See threaded immersion heater page for specifications.

2004-2006 C11 ACERT, C13 ACERT, 2004-2006 C11, C13

Part No. Watt Volt Diameter Type Repl. Cord

3500075 1500 120 1-5/16” STOR Immersion 3600008

3500074 1500 240 1-5/16” STOR Immersion 8608377

Installation Information:

Replaces 1-5/16” threaded plug in rear of oil cooler. Engine may also accept

the following oil pan heaters: 3500079, 3500078 (replaces 1-5/16” threaded plug).

2004-2006 ACERT C9, C15, C16

Part No. Watt Volt Diameter Type Repl. Cord

3500077 1500 120 1-3/16” THD Immersion 3600008

3500076 1500 240 1-3/16” THD Immersion 8608377

Installation Information:

Replaces 1-3/16” threaded plug in rear of oil cooler bonnet. Engine may also accept the

following oil pan heaters: 3500079, 3500078 (replaces 1-5/16” threaded plug).

2007 & NEWER CAT C13 ACERT & C15 ACERT

Part No. Watt Volt Diameter Type Repl. Cord

3500111 1500 120 1-3/16” #14 STOR Immersion 3600008

Installation Information:

Replaces 1-3/16” plug located in the rear of the oil cooler, on right hand side of engine.

C9, C15, C16

Part No. Watt Volt Diameter Type Repl. Cord

8600090 1000 120 1" NPT Immersion 3600008

8600120 1000 240 1" NPT Immersion 8608377

8605556 1500 120 1" NPT Immersion 3600008

8600260 1500 240 1" NPT Immersion 8608377

Installation Information:

Install in oil cooler rear bonnet.

1100 Series, 3100 Series

Part No. Watt Volt Diameter Type Repl. Cord

8601518 1000 120 1-3/4" Freeze Plug 3600008

8601577 1500 120 1-3/4" Freeze Plug 8608377

Installation Information:

Replaces freeze plug. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650).

1404 (163 CID)

Part No. Watt Volt Diameter Type Repl. Cord

3100088 400 120 2.125" Freeze Plug 3600006

Installation Information:

Install in Left Center (LC) or Left Rear (LR). Point element 12 o'clock.

1670 (350 CID), G/D 333 (525/638 CID), 1693, 1674 (638 CID)

Use Circulation heater (see pages 71-73)

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

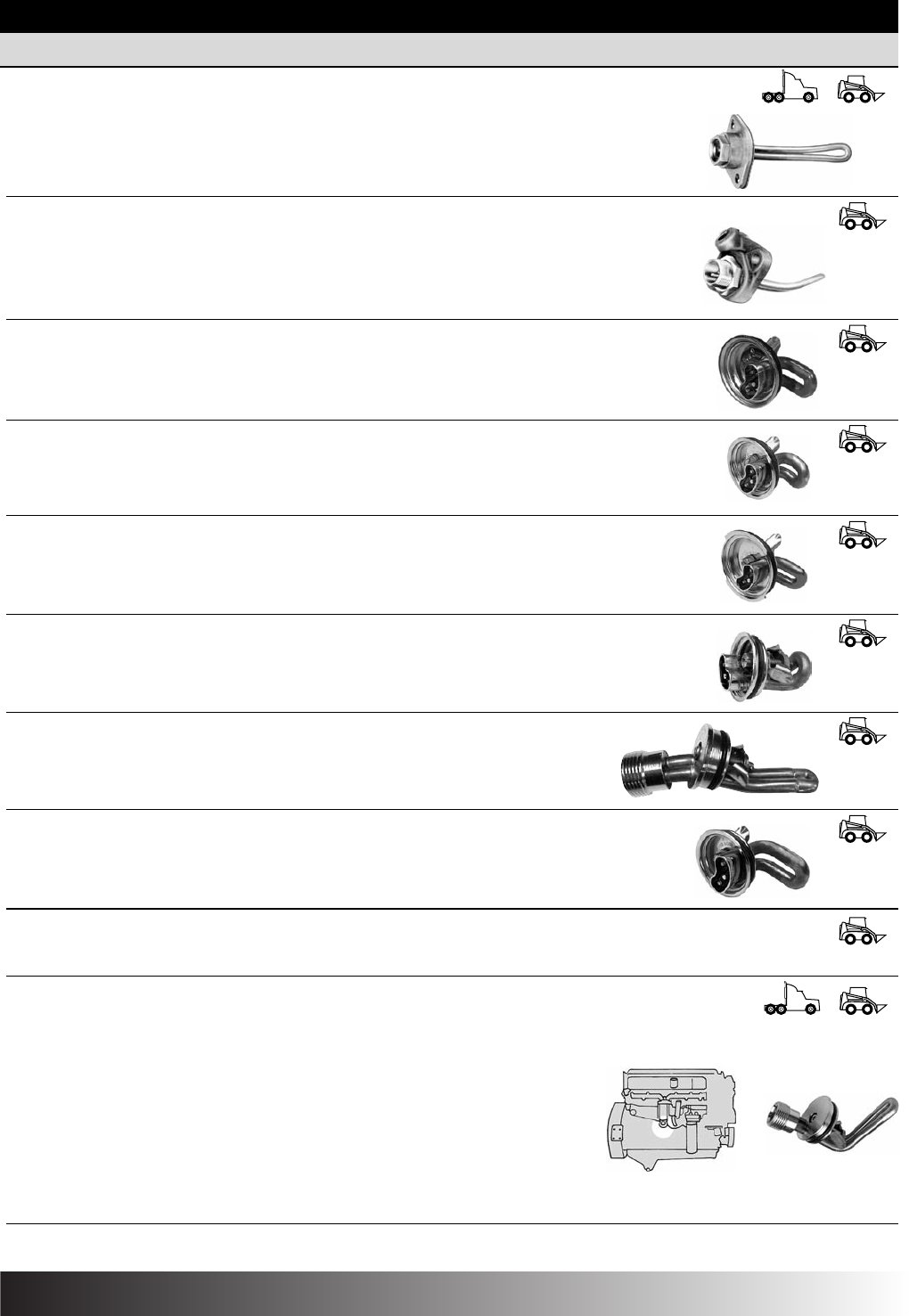

CATERPILLAR - continued

1693 & D343 (893 CID)

Part No. Watt Volt Diameter Type Repl. Cord

8601909 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650).

1693T & 1693TA (893 CID)

Part No. Watt Volt Diameter Type Repl. Cord

8601976 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650).

3003 (3 cyl.)

Part No. Watt Volt Diameter Type Repl. Cord

3100016 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 6 o'clock.

3013 (3 cyl.), 3024, 3014 (4 cyl.)

Part No. Watt Volt Diameter Type Repl. Cord

3100049 400 120 40mm Freeze Plug 3600006

Installation Information

Install in Left Front (LF). Point element 6 o'clock.

3034 (4 cyl.)

Part No. Watt Volt Diameter Type Repl. Cord

3100101 400 120 50mm Freeze Plug 3600006

Installation Information:

Install in back of head. Point element 4 o'clock.

3046 (5 Litre)

Part No. Watt Volt Diameter Type Repl. Cord

3100078 400 120 35mm Freeze Plug 3600006

Installation Information:

Install 2nd Left Rear (LR). Point element 6 o'clock.

2004-2006 3054C, 3054E, C4.4

Part No. Watt Volt Diameter Type Repl. Cord

3500084 750 120 1-1/4” Freeze Plug 3600008

Installation Information:

Install Right Rear, Point element 3 o’clock.

3054, 3056

Part No. Watt Volt Diameter Type Repl. Cord

3100045 600 120 1-1/2" Freeze Plug 3600007

Installation Information:

Install in 1-1/2" core hole on Right Side of engine, between #1 and #2 cylinders, behind exhaust manifold.

3064, 3066

Use Circulation heater (see pages 71-73)

2004-2007 C7 ACERT, 3114 (4.4L), 3116 (6.6L), 3126 (7.2L), 3126B (7.2L),

All years for previous engines prior to 2004 C7(7.2L),

CFE (Caterpillar/Freightliner Engine)

Part No. Watt Volt Diameter Type Repl. Cord

3500015 1000 120 44mm Freeze Plug 3600048

3500016 1000 240 44mm Freeze Plug N/A

3500081 1500 120 44mm Freeze Plug 3600048

Installation Information:

Replaces core plug on center of Right Side. Heater kit includes specia high temperature cordset.

Engine may also accept oil pan heater 3500006 (3116 only). See threaded immersion heater page for specifications.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

CATERPILLAR - continued

3150, 3160 (636 C.I.D.)

Part No. Watt Volt Diameter Type Repl. Cord

8602816 600 120 44mm Freeze Plug 3600008

Installation Information:

3150: Replaces rear freeze plug on right side of engine (requires one heater) 3160: Replaces center freeze plug on side of engine (requires two heaters)

Available Service Parts: Hex nut (8602999), Element gasket (8603650)

3176 (10.2L)

Part No. Watt Volt Diameter Type Repl. Cord

8601267 1500 120 3/4" NPT Immersion 3600008

Installation Instructions:

Replaces 3/4" pipe plug on Right Rear Side of engine. Special high temperature

cordset included in kit. Engine may also accept Oil Pan Heaters 8609683, 8609659,

or 8609713 (requires 1" x 1/2" bushing to reduce port size). See threaded immersion heater page for specifications.

3196

Part No. Watt Volt Diameter Type Repl. Cord

3500013 1500 120 1" NPT Immersion 3600008

3500031 1500 240 1" NPT Immersion 8608377

Installation Information:

Replaces 1" NPT plug in rear of oil cooler. Engine may also accept the following oil panheaters: 8609683, 8609659, 8609713

(requires 1" x 1/2" bushing to reduce port size. See page 64 for oil pan heater specifications).

3204, 3208 (636 CID)

Part No. Watt Volt Diameter Type Repl. Cord

8602816 600 120 44mm Freeze Plug 3600008

Installation Information:

3204: Replaces Rear freeze plug on Right Side of engine (requires one heater). 3208: Replaces center freeze plug on side of engine (requires two heaters).

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650).

3208 (636 CID) Swivel style heater

Part No. Watt Volt Diameter Type Repl. Cord

8602549 1000 120 3/4" NPT Immersion 3600008

8602514 1000 240 3/4" NPT Immersion 8608377

8602611 1500 120 3/4" NPT Immersion 3600008

8602573 1500 240 3/4" NPT Immersion 8608377

Installation Information:

Replaces 3/4" pipe plug on Front of engine.

3304 (with oil cooler), 3306 (638 CID)

Part No. Watt Volt Diameter Type Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

8600988 1000 240 3/4" NPT Immersion 8608377

8601011 1500 120 3/4" NPT Immersion 3600008

8601054 1500 240 3/4" NPT Immersion 8608377

Installation Information:

Replaces 3/4" pipe plug at Rear of oil cooler on Left Side of engine.

2006 & newer, C6.6

Part No. Watt Volt Diameter Repl. Cord

3500087 1000 120 1-1/4” 3600008

Installation Information:

Install in right rear.

3406 (Except 1998 models), 3406 (with BrakeSaver-through 1993 models), 3406E

Not for use with 1998 3406E or 15.8L 600 hp engine.

Part No. Watt Volt Diameter Type Repl. Cord

8600090 1000 120 1" NPT Immersion 3600008

8600120 1000 240 1" NPT Immersion 8608377

8605556 1500 120 1" NPT Immersion 3600008

8600260 1500 240 1" NPT Immersion 8608377

Installation Information:

Without BrakeSaver: Replaces 1" pipe plug in oil cooler rear bonnet (pictured).

With BrakeSaver: Install in front bonnet. Note: 8605580 not for use with BrakeSaver. Note: 8605580 not available in Canada.

3304 3306

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

Not available in Canada.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

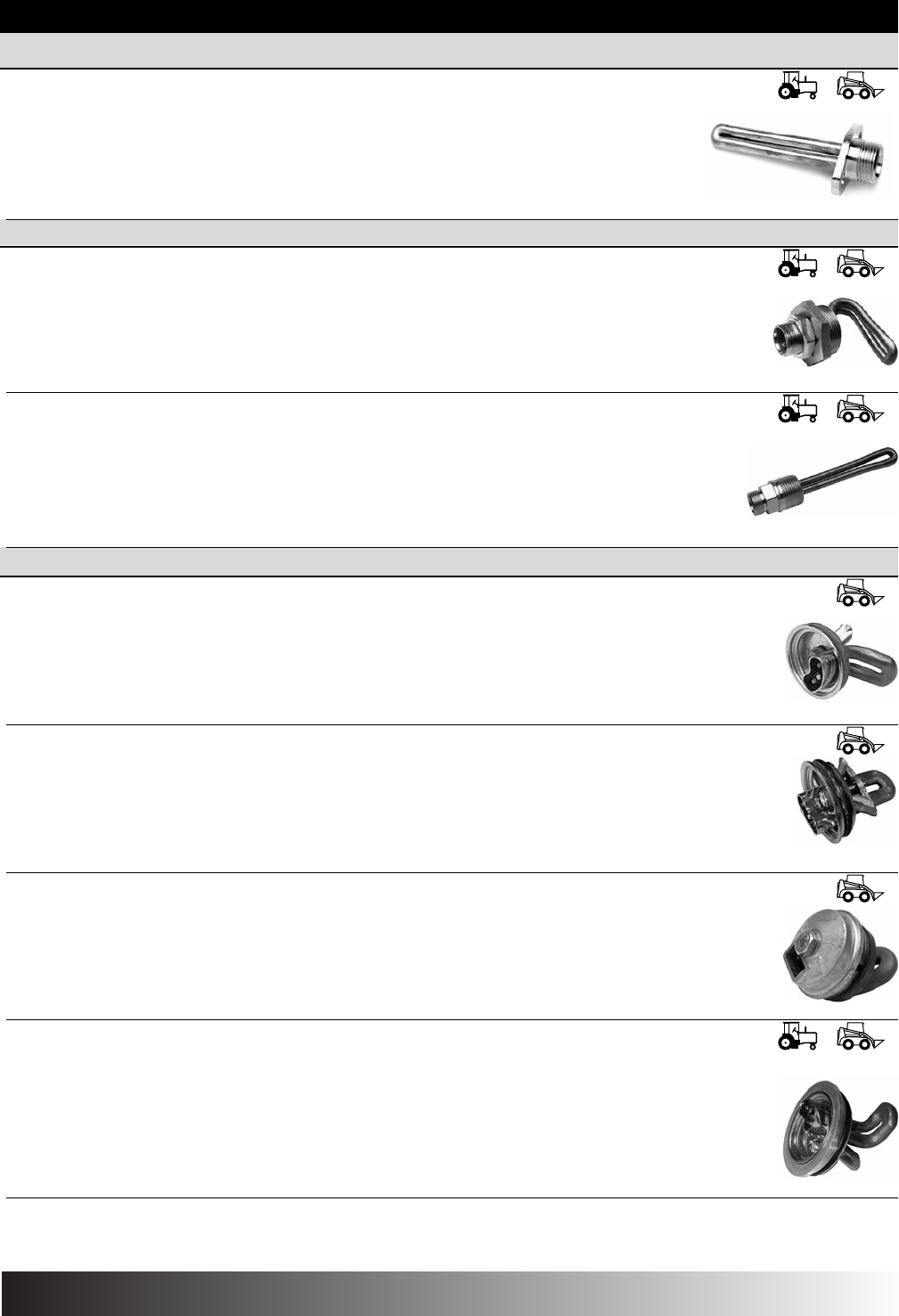

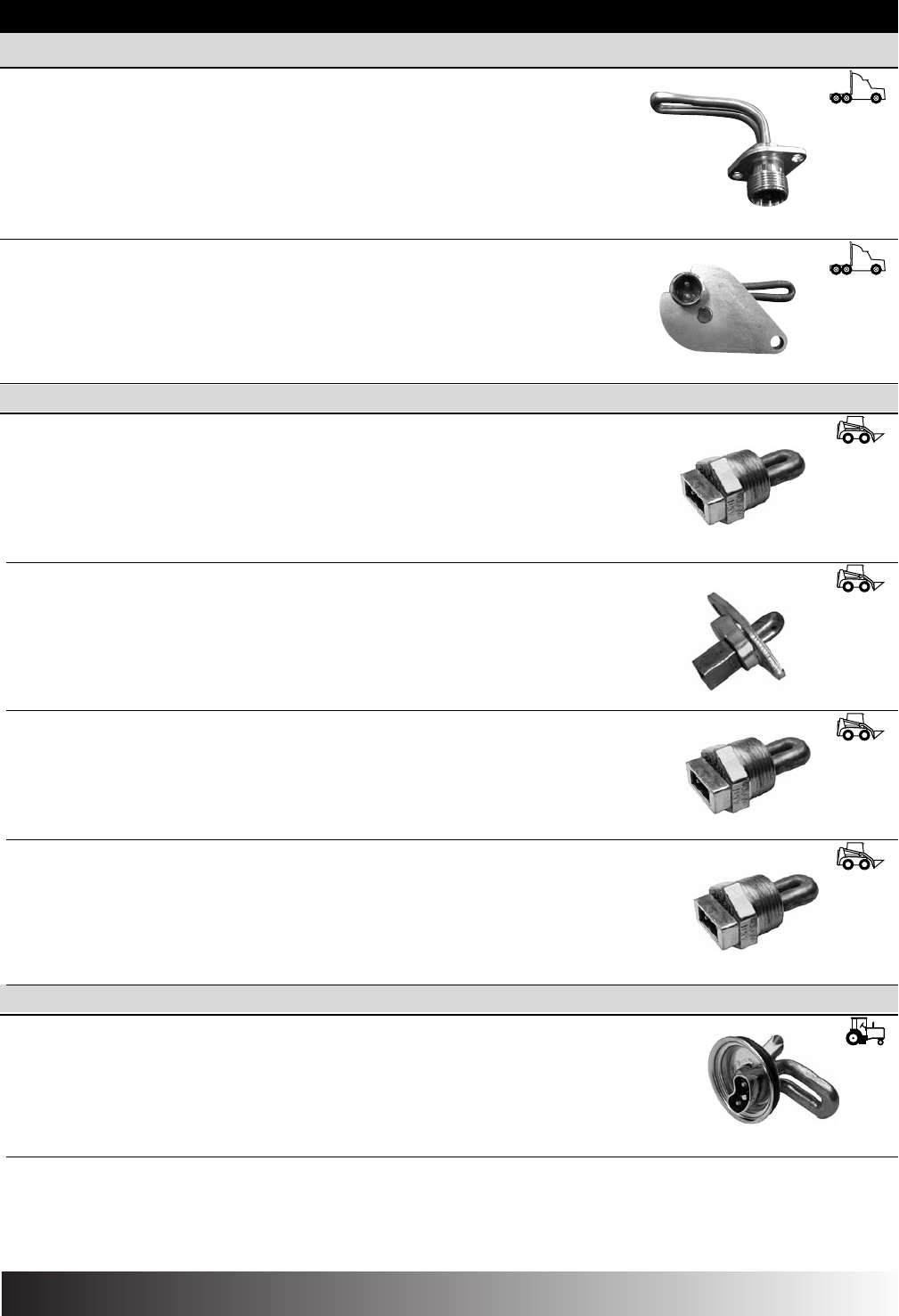

CATERPILLAR - continued

3406 (With BrakeSaver-1994 & newer)

Not for use with 1998 3406E or 15.8L 600hp models.

Part No. Watt Volt Diameter Type

Repl. Cord

3500013 1500 120 1" NPT Immersion 3600008

Installation Information:

Replaces 1" pipe plug in oil cooler, front bonnet.

3406E, 3456, 15.8L (600 hp) (1998 models only)

Part No. Watt Volt Diameter Type

Repl. Cord

3500033 1500 120 1" NPT Immersion

3500034 1500 120 1” NPT HTR-Only N/A

Installation Information:

Installs in oil cooler rear bonnet. Not interchangeable with 8605556 for this application due to unique 1998 engine design.

3408 (1099 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600090 1000 120 1" NPT Immersion 3600008

8600120 1000 240 1" NPT Immersion 8608377

8605556 1500 120 1" NPT Immersion 3600008

8600260 1500 240 1" NPT Immersion 8608377

Installation Information:

Replaces 1" pipe plug behind oil cooler on Right cylinder bank.

3412 (12 cyl.)

Use Circulation heater (see pages 71-73)

CHEVROLET

Forward & Tiltmaster, all gasoline engines

See Chevrolet Automotive/Light Truck gasoline applications - page 10.

CONTINENTAL (Teledyne)

F162, F163, Y112 (1981 & newer) 4 cyl.

Part No. Watt Volt Diameter Type

Repl. Cord

3100053 400 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in any Left Side (LS). Point element UP. Note: Heater for cup-type core hole only.

TM27, TMD27 4 cyl.

Part No. Watt Volt Diameter Type

Repl. Cord

3100060 400 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in any Right Side (RS). Point element UP.

F227, F245 (1979 & newer)

Part No. Watt Volt Diameter Type

Repl. Cord

3100053 400 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in any Left Side (LS). Point element UP.

F227, F245 (1979 & newer - alternate wattage)

Part No. Watt Volt Diameter Type

Repl. Cord

3100057 600 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in any Left Side (LS). Point element UP.

CUMMINS

2007 & Newer, ISX, QSX (Beginning July 2007)

Part No. Watt Volt Diameter Type

Repl. Cord

3500107 1500 120 26mm Immersion 3600008

Installation Information:

Install in Right Side (RS).

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

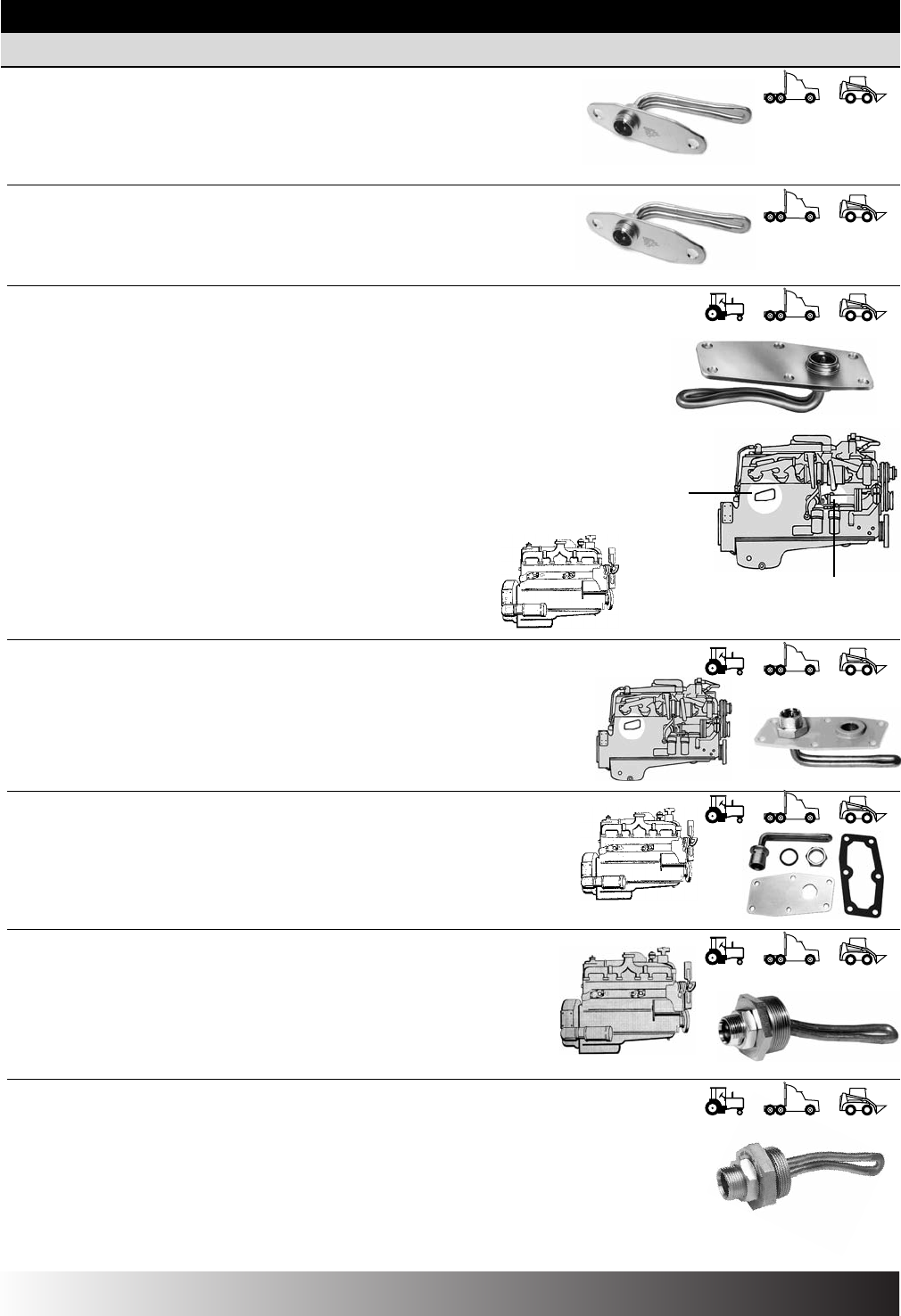

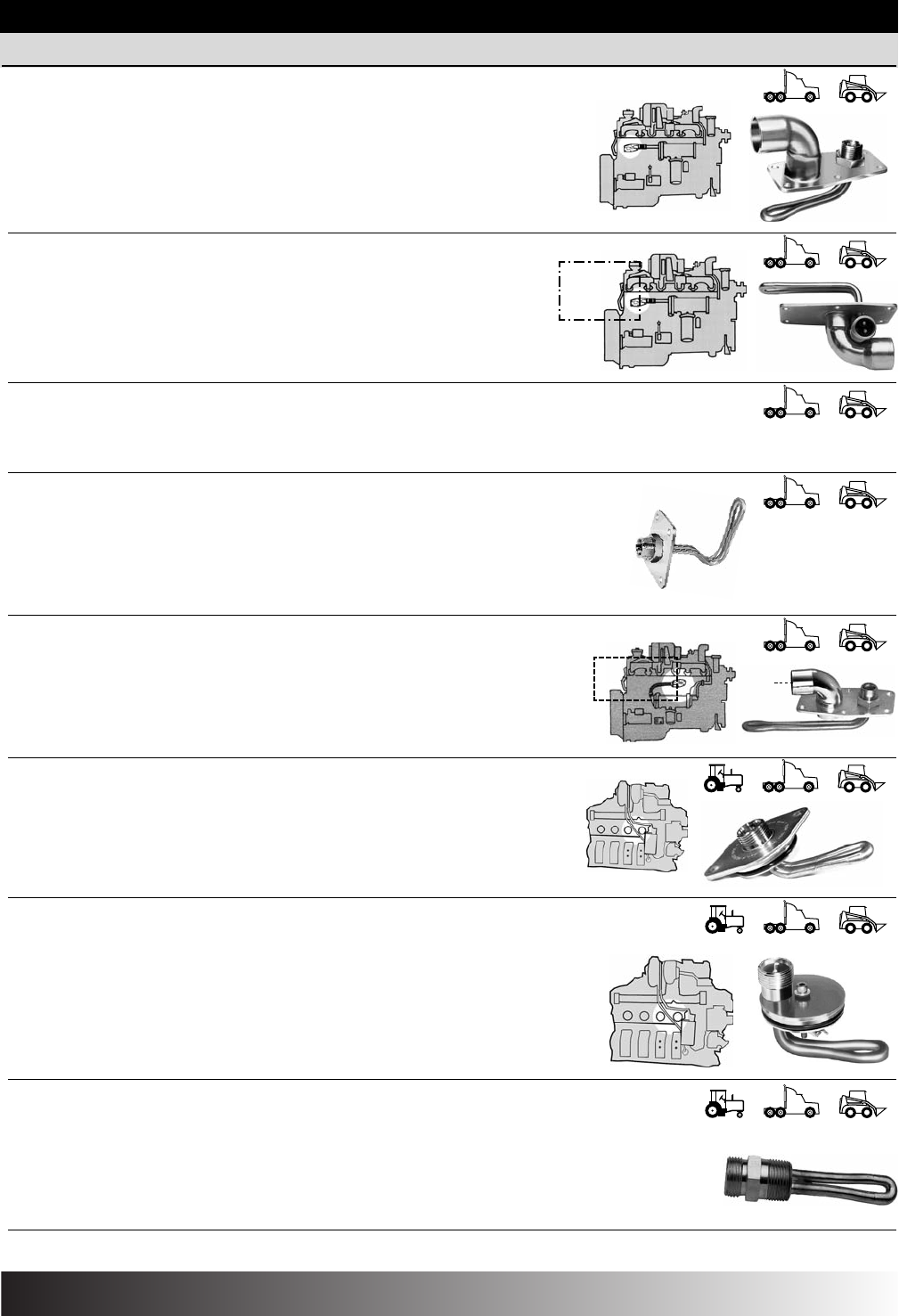

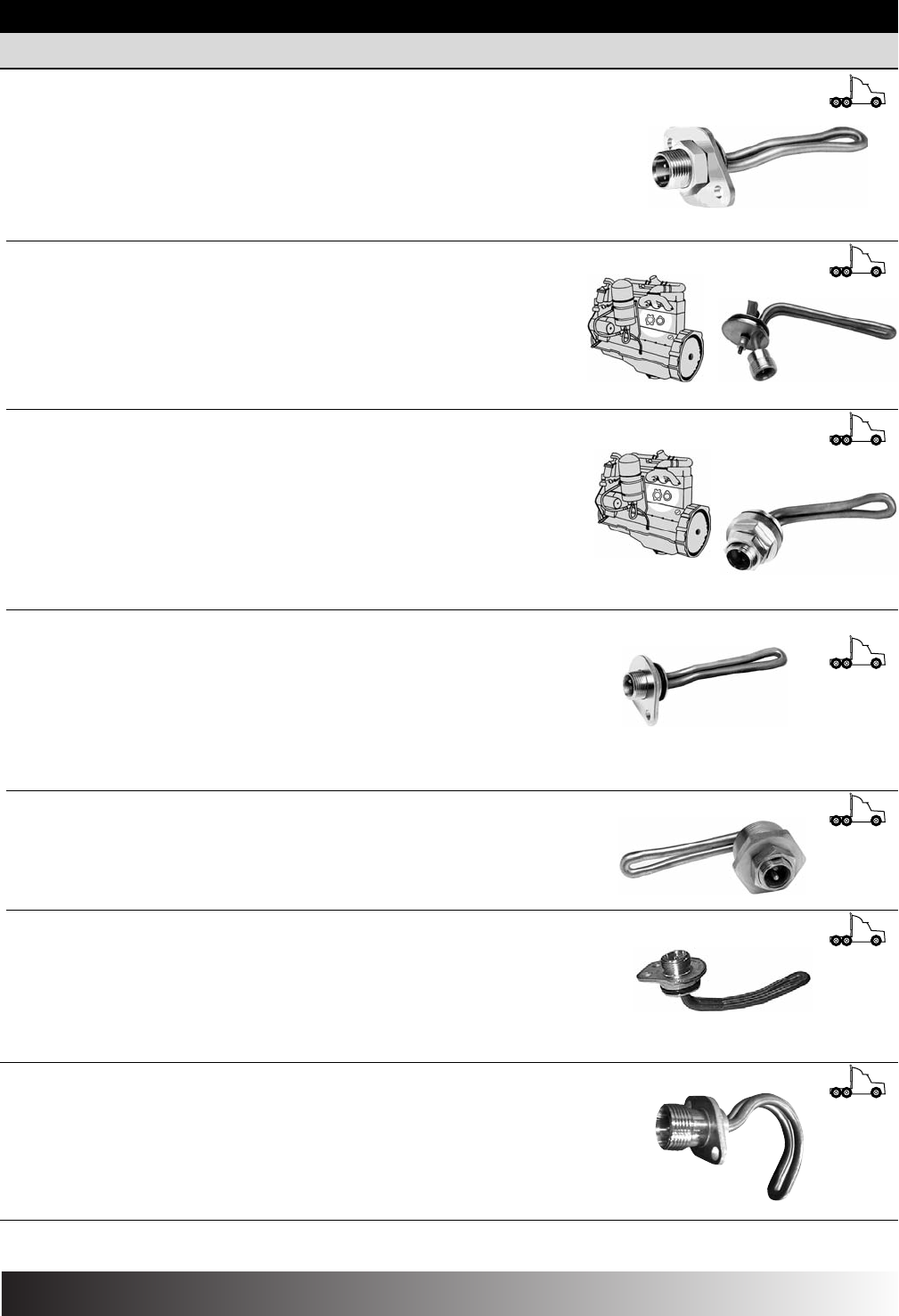

CUMMINS - continued

Signature 600, ISX, APEX

Part No. Watt Volt Diameter Type

Repl. Cord

3500108 1500 240 Plate Immersion 8608377

Installation Information:

Remove flat 2 - bolt cover on right side of block, near rear of water inlet casting.

Install with element pointing toward front of engine. Re-use gasket from cover. NOTE: gasket not supplied.

Signature 600, ISX, QSX (15L - 915 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3500038 1500 120 Plate Immersion 3600008

Installation Information:

Install in Right Side (RS).

Reuse gasket from plate that was removed.

Gasket not included.

N Series (855 CID-14 litre NT315, N14-330, N14-330E, N14-460, N14-460, etc.)

Big Cam IV, New Big Cam IV, 88NT, 444

(Engines without heater hose connection to rear plate or Full Flow Cooling)

Part No. Watt Volt Diameter Type

Repl. Cord

8601003 1000 120 Plate Immersion 3600008

8601046 1500 120 Plate Immersion 3600008

8601062 1500 240 Plate Immersion 8608377

Installation Information:

Due to oil cooler provisions on 855 CID series engines, special applications which accommodate full flow

cooling designs are necessary. Where there is interference,the heater required will depend upon the oil cooler

and exhaust configuration. Thevarious installation options are shown here. Also see alternate installation below.

Engine may accept oil pan heaters 8609683, 8609659, or 8609713 (requires 1" x 1/2"reducer

bushing to reduce port size). See page 66 for oil pan heater specifications.

N Series, Big cam IV, New Big Cam IV, 88NT (alternate installation)

(Engines with one heater hose connection (1/2" NPT) to Rear plate.

Part No. Watt Volt Diameter Type

Type

Repl. Cord

8601526

8601526 1500

1500 120

120 Plate

Plate Immersion

Immersion 3600008

3600008

Installation Information:

Replaces Rear access plate. Heater includes 1/2" NPT port for hose connection.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650), Plate Gasket (8603359)

New Big Cam IV

(Forward plate installations with reverse bolt pattern - without single-pass oil cooler 1986-1988)

Part No. Watt Volt Diameter Type

Repl. Cord

8600627 1500 120 Plate Immersion 3600008

8600651 1500 240 Plate Immersion 8608377

Installation Information:

Replaces forward side plate. Available Service Parts: Hex Nut (8602999), Plate Gasket (8603715).

855 CID (alternate installation)

(Rear plug location without aftercooler water connection.

Recommended as alternate location for cab-over vehicles only)

Part No. Watt Volt Diameter Type

Repl. Cord

3500036 1500 120 1-1/2" NPT Immersion 3600008

Installation Information:

Replaces 1-1/2" pipe plug on Rear face of engine, right side (above flywheel housing).

855 CID (alternate installation)

(1996 & newer engines with O-ring seal)

Part No. Watt Volt Diameter Type

Repl. Cord

3500023 1500 120 1-5/8" STOR Immersion 3600008

Installation Information:

Replaces 1-5/8" plug on Rear face of engine, right side (above flywheel housing).

Engines without FULL FLOW

COOLING - replaces Front or

Rear water jacket access plate.

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

Replaces

water jacket

access plate

BIG CAM IV with heater hose connection to

rear plate & pre-88NT engines install here

BIG CAM III, IV,

New BIG CAM IV,

88NT & N14

install here

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

CUMMINS - continued

855 CID (engines with full flow cooling, high-mount oil cooler)

(Uses hose and two clamps for water tube connection to casting.

Most engines manufactured from August 1975 to June 1982)

Part No. Watt Volt Diameter Type

Repl. Cord

8601100 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650), Plate Gasket (8603359)

855 CID (engines with full flow cooling, high-mount oil cooler-obstruction)

(Connected to Rear port which is partially blocked by exhaust)

Part No. Watt Volt Diameter Type

Repl. Cord

8608741 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine.

Available Service Parts: Plate Gasket (8603359)

855 CID (engines with full flow cooling, high-mount oil cooler - O-ring)

(Uses O-ring for water tube connection. Engines only produced prior to 1975)

Use Circulation heater (see pages 71-73)

855 CID (replacement element for existing 8602379 heater)

(Does NOT include casting. Cordset is included)

Part No. Watt Volt Diameter Type

Repl. Cord

8602301 1500 120 Plate Immersion 3600008

Installation Information:

Replaces heating element in casting.

Available Service Parts: Hex Nut (8602999), Plate (8603138), Gasket (8603383)

855 CID (engines with full flow cooling, low-mount oil cooler)

(Connected to Front port, Rear port blocked by exhaust)

Part No. Watt Volt Diameter Type

Repl. Cord

8608709 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650), Plate Gasket (8603359)

2005-2006 ISB 02 200 HP

Part No. Watt Volt Diameter Type

Repl. Cord

3500096 750 120 58mm Freeze Plug 3600008

Installation Information:

Replace freeze plug opening on Right front side of engine.

Must have threaded bolt holes in block for attaching mounting plate.

1987-2002 B Series: 4B3.9 & 4BT3.9 (3.9L 239 CID 4 cyl.) (Through model year 2002)

6B5.9 & 6BT5.9 (5.9L 359 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3500030 750 120 58mm Freeze Plug 3600008

8601666 750 240 58mm Freeze Plug 8608377

Installation Information:

Replaces freeze plug on Right side on engine.

Available Service Parts: O-ring and clamp device (3500002)

2007 ISB 6.7L & QSB (6.7L & 4.5L)

ISB, QSB Series (3.9L & 5.9L 4/6 cyl.), (Encore)

Part No. Watt Volt Diameter Type

Repl. Cord

3500022 750 120 3/4" NPT Immersion 3600008

3500110 750 240 3/4" NPT Immersion 8608377

Installation Information:

Installs in 3/4" NPT port to Rear of oil cooler.

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

partial exhaust obstruction

1.5”

Complete exhaust obstruction

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

CUMMINS - continued

B 3.3T (3l3L)

Part No. Watt Volt Diameter Type

Repl. Cord

3100046 400 120 40mm Freeze Plug 3600006

Installation Information:

Installs in Left Rear (LR).

C Series: 6C8.3 & 6CT8.3 (8.3L 505 CID), 6CTA8.3

Part No. Watt Volt Diameter Type

Repl. Cord

8601860 1000 120 58mm Freeze Plug 3600008

8601852 1000 240 58mm Freeze Plug 8608377

Installation Information:

Replaces freeze plug on Right rear side of engine.

Available Service Parts: O-ring and clamp device (3500002)

ISC, QSC Series (8.3L 505 CID), ISL Series (8.9L 543 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3500032 1000 120 3/4" NPT Immersion 3600008

Installation Information:

Installs in upper 3/4" NPT port, to front of oil cooler.

L10 (10L 611 CID 6 cyl.), M11, ISM Series, QSM11

Part No. Watt Volt Diameter Type

Repl. Cord

8600015 1500 120 38mm thd Immersion 3600008

8600031 1500 240 38mm thd Immersion 8608377

Installation Information:

Install in heater casting on Right rear side of engine.Available

Service Parts: Hex Nut (8602999), Element Gasket (8603650)

M11 (11L) (2000 and newer)

Part No. Watt Volt Diameter Type

Repl. Cord

3500042 1500 120 Plate Immersion 3600008

3500109 1500 240 plate immersion 8608377

Installation Information:

Install on Right rear side of engine.

K Series (KT19, KT450, KT1150, KTA525 - 1150 CID 6 cyl.), QSK Series

Part No. Watt Volt Diameter Type

Repl. Cord

3500017 1500 120

1-3/4"-18 thd

Immersion 3600008

Installation Information:

Replaces large hex plug at either upper front or center thread position on oil cooler cover.

Point element 6 o'clock or 12 o'clock position. Available Service Parts: Hex Nut (8602999),

Element Gasket (8603650)

V903, VT903, VT350, Formula VT300 (903 CID)

V6-195, 200, 215, 280 (588 CID)

V8-235, 265, 300, 370 785 CID), 350 & 430 (950 CID)

(Replacement element only)

Part No. Watt Volt Diameter Type

Repl. Cord

8607605 1500 120 Immersion 3600008

Installation Information:

Replacement element only. Circulation heater is acceptable alternative (see pages 71-73).

V903, VT903, VT350, Formula VT300 (903 CID) (Alternate installation)

Part No. Watt Volt Diameter Type

Repl. Cord

8601267 1500 120 3/4" NPT Immersion 3600008

8601054 1500 240 3/4" NPT Immersion 8608377

Installation Information:

Replaces 3/4" pipe plug at bottom rear of oil cooler.

Check engine to be sure 3/4" pipe plug is available on engine before proceeding.

NOT Correct

Correct

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

CUMMINS - continued

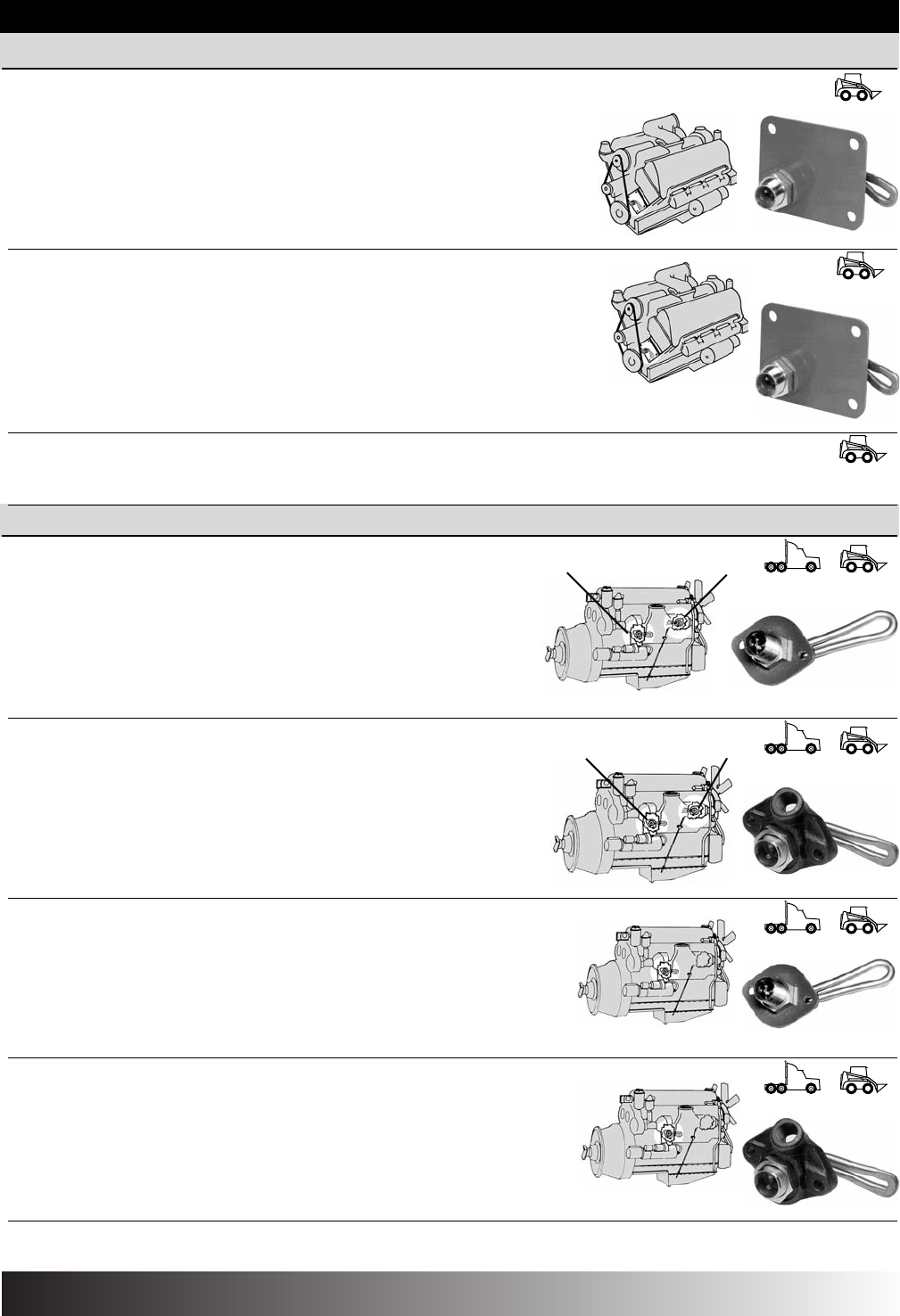

V6-140 (352 CID), V6-155 (378 CID)

(Engines without alternator mounted over water jacket access plate)

Part No. Watt Volt Diameter Type

Repl. Cord

8601763 1000 120 Plate Immersion 3600008

8601801 1000 240 Plate Immersion 8608377

8601844 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on front left cylinder bank.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

170 & 185 (470 CID), 210 (504 CID), VT225, V555, VT555 (555 CID)

(Engines without alternator mounted over water jacket access plate)

Part No. Watt Volt Diameter Type

Repl. Cord

8601763 1000 120 Plate Immersion 3600008

8601801 1000 240 Plate Immersion 8608377

8601844 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on front left cylinder bank. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

C & J 160, 175 & 190 (464 CID)

Use Circulation heater (see pages 71-73)

DETROIT DIESEL

3-53, 4-53, 3-71, 4-71

(Engines without water cooled compressor)

Part No. Watt Volt Diameter Type

Repl. Cord

8600295 750 120 Plate Immersion 3600008

8600368 1000 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine.

Note: Do not use 1000 watt heater on 3-53, 4-53, or 3-71 engines.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

3-53, 4-53, 3-71, 4-71

(Engines with water cooled compressor)

Part No. Watt Volt Diameter Type

Repl. Cord

8601291 750 120 Plate Immersion 3600008

8601305 1000 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine.

Note: Do not use 1000 watt heater on 3-53, 4-53, or 3-71 engines.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

6-71

(Engines without water cooled compressor)

Part No. Watt Volt Diameter Type

Repl. Cord

8600368 1000 120 Plate Immersion 3600008

8600422 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

6-71

(Engines with water cooled compressor)

Part No. Watt Volt Diameter Type

Repl. Cord

8601305 1000 120 Plate Immersion 3600008

8601372 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

71 Series 53 Series

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

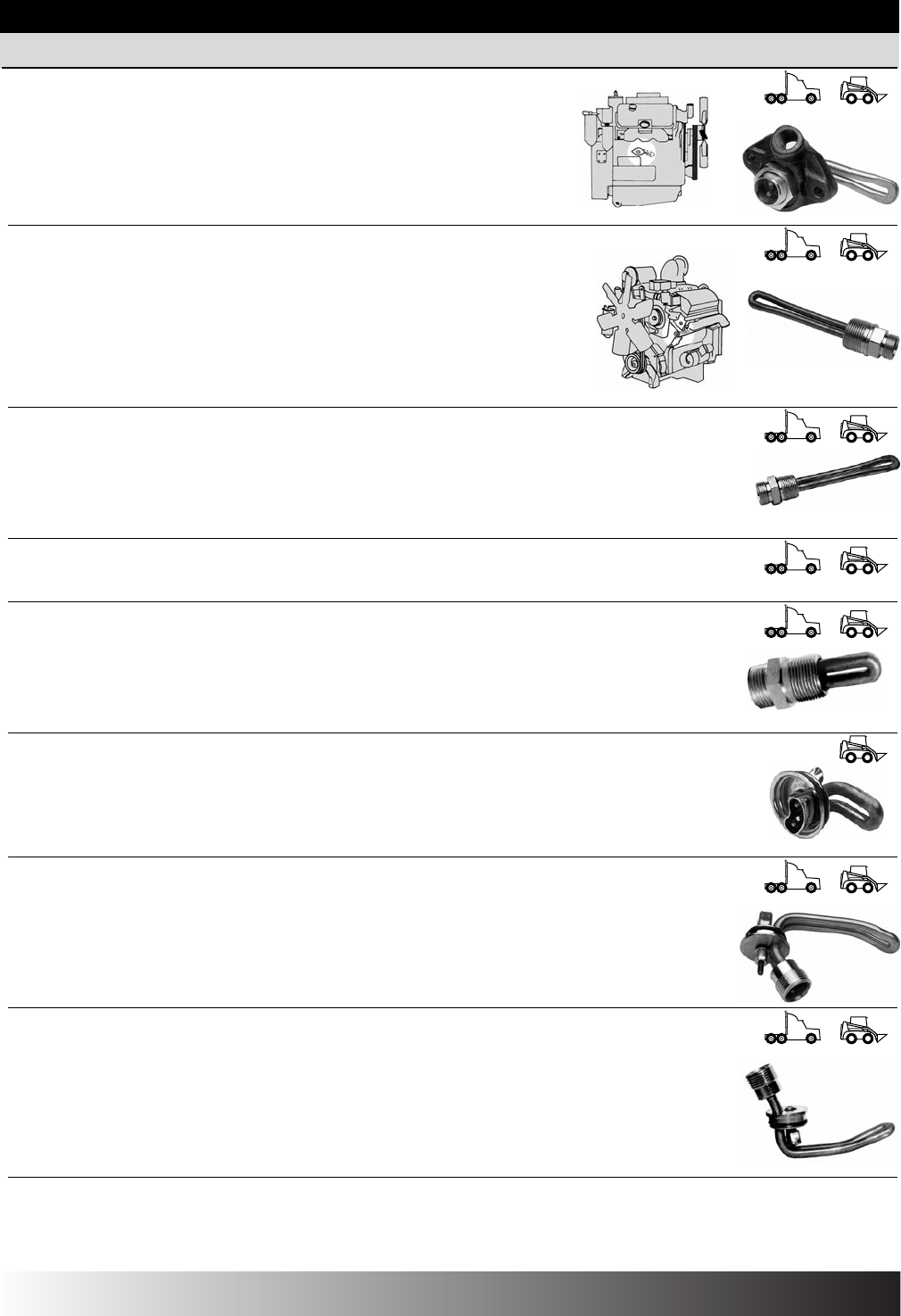

DETROIT DIESEL - continued

6V-53

(Vehicles with or without automatic transmission)

Part No. Watt Volt Diameter Type

Repl. Cord

3500021 1000 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on side of engine.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

6V-71, 8V-71 (Vehicles without power steering and/or air conditioning)

Part No. Watt Volt Diameter Type

Repl. Cord

8600090 1000 120 1" NPT Immersion 3600008

8600120 1000 240 1" NPT Immersion 8608377

8605556 1500 120 1" NPT Immersion 3600008

8600260 1500 240 1" NPT Immersion 8608377

Installation Information:

Replaces 1" pipe plug on front face of Left cylinder bank.

8.2 Litre (501 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

8600996 1000 240 3/4" NPT Immersion 8608377

Installation Information:

Replaces 3/4" pipe plug on Right front side of engine.

8V-53

Use 1500 or 2250 Watt Circulation heater (see pages 71-73)

D638 (3.8L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

8604967 600 120 3/4" NPT Immersion N/A

Installation Information:

Install in Right Side (RS) of engine.

Series 30

Part No. Watt Volt Diameter Type

Repl. Cord

3100045 600 120 1-1/2" Freeze Plug 3600007

Installation Information:

Install in Right Side (RS). Point element UP.

Series 40 (466 CID) (Engines manufactured prior to September 1993)

Part No. Watt Volt Diameter Type

Repl. Cord

8608512 1250 120 1-1/4" Freeze PluG 3600008

8608539 1250 240 1-1/4" Freeze Plug 8608377

Installation Information:

Replaces 3rd or 4th freeze plug on Left side of engine.

Available Service Parts: O-ring and clamp device (3500004)

Series 40 (6.7L 408 CID, 7.6L 466 CID, 8.7L 530 CID)

(Engines manufactured after August 1993)

Part No. Watt Volt Diameter Type

Repl. Cord

3500044 1250 120 1-1/4" Freeze Plug 3600008

8608911 1250 240 1-1/4" Freeze Plug 8608377

Installation Information:

Replaces 1-1/4" plug in boss on Left side of engine.

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

DETROIT DIESEL - continued

Series 50 (Except low-mount turbo)

Part No. Watt Volt Diameter Type

Repl. Cord

8600090 1000 120 1” NPT Immersion 3600008

8605556 1500 120 1" NPT Immersion 3600008

Installation Information:

Replaces 1" NPT plug in oil cooler casting.

Engine may also accept oil pan heater 8603243. See threaded immersion heater page for specifications.

Series 50

(Including low-mount turbo)

Part No. Watt Volt Diameter Type

Repl. Cord

3500007 1000 120 1-1/2" Freeze Plug 3600008

Installation Information:

Install in core plug behind oil cooler. Engine may also accept oil pan heater 8603243.

See threaded immersion heater page for specifications.

Series 55

Part No. Watt Volt Diameter Type

Repl. Cord Repl. Cord

3500008 1500 120 Plate Immersion 3600008

3500009 1500 240 Plate Immersion 8608377

Installation Information:

Replaces water jacket access plate on Left side of engine.

2008 & Newer (DD15, 14.8L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500095 1500 120 27mm Immersion 3600008

Installation Information:

Right side. M27 port in the oil module below intake.

2007 & Newer Series 60

Part No. Watt Volt Diameter Type

Repl. Cord

3500077 1500 120 1-3/16” STOR Immersion 3600008

Installation Information:

Upper hex port of oil cooler. Right side of engine.

Series 60 (11.1L 677 CID, 12.7L 775 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8605556 1500 120 1" NPT Immersion 3600008

8600260 1500 240 1" NPT Immersion 8608377

Installation Information:

Pre 1991 engines - Replaces 1" NPT plug in water pump outlet casting on Right front side of engine.

1991 & Newer replaces 1" pipe plug near top front of oil cooler.

May also accept oil pan heater 8603243. See threaded immersion heater page for specifications.

Silver Series (6V-92, 8V-92),

6V-71, 8V-71, 12V-71, 16V-71, 6V-92, 8V-92, 12V-92, 16V-92

(Engines without air conditioner compressor mounted next to water jacket access plate)

Part No. Watt Volt Diameter Type

Repl. Cord

8601631 1000 120 Plate Immersion 3600008

8601704 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on Left front cylinder bank. Available Service

Parts: Hex Nut (8602999), Element Gasket (8603650), Plate Gasket (8606854).

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

DETROIT DIESEL - continued

6V-71, 8V-71, 12V-71, 16V-71, 6V-92, 8V-92, 12V-92, 16V-92

(Engines with air conditioner compressor mounted next to water jacket access plate,

except for GMC General with 92 Series engine)

Part No. Watt Volt Diameter Type

Repl. Cord

8601658 1000 120 Plate Immersion 3600008

8601712 1500 120 Plate Immersion 3600008

Installation Information:

Replaces water jacket access plate on Left front cylinder bank.

Available Service Parts: Hex Nut (8602999), Plate Gasket (8606854

Silver Series (6V-92, 8V-92),

12V-71, 16V-71, 12V-92, 16V-92, GMC General (with 92 Series engine)

(Alternate installation)

Part No. Watt Volt Diameter Type

Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

8602514 1000 240 3/4" NPT Immersion 8608377

8602611 1500 120 3/4" NPT Immersion 3600008

8602573 1500 240 3/4" NPT Immersion 8608377

Installation Information:

Replaces 3/4" pipe plug in oil cooler elbow on right side of engine. Check engine carefully - 3/4" pipe plug not available on all engines.

DEUTZ

F3L912, F3L913 (3 cyl)

(Oil pan heater only)

Part No. Watt Volt Diameter Type

Repl. Cord

8603146 150 120 48mm thd Immersion 3600024

Installation Information:

Replaces 48mm plug in oil pan. Check engine carefully - 48mm plug not

available on all oil pans. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

BF4L913 (4 cyl.)

(Oil pan heater only)

Part No. Watt Volt Diameter Type

Repl. Cord

8603170 325 120 48mm thd Immersion 3600024

Installation Information:

Replaces 48mm plug in oil pan. Check engine carefully - 48mm plug not

available on all oil pans. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

F6L913, BF6L913 (6 cyl.)

(Oil pan heater only)

Part No. Watt Volt Diameter Type

Repl. Cord

8603170 325 120 48mm thd Immersion 3600024

Installation Information:

Dual kit - purchase two heaters and cordsets. Replaces 48mm plugs in oil pan.

Check engine carefully - 48mm plugs not available on all oil pans.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

1012, 1013, 2013

Part No. Watt Volt Diameter Type

Repl. Cord

3500019 750 120 Plate Immersion 3600020

Installation Information:

Install in oil cooler housing. Check engine - heater port not available on all engines.

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

FAHR

1012, 1013, 2013

Part No. Watt Volt Diameter Type

Repl. Cord

3500055 750 120 Plate Immersion 3600008

Installation Information:

Install in oil cooler housing. Check engine - heater port not available on all engines.

available on all oil pans. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

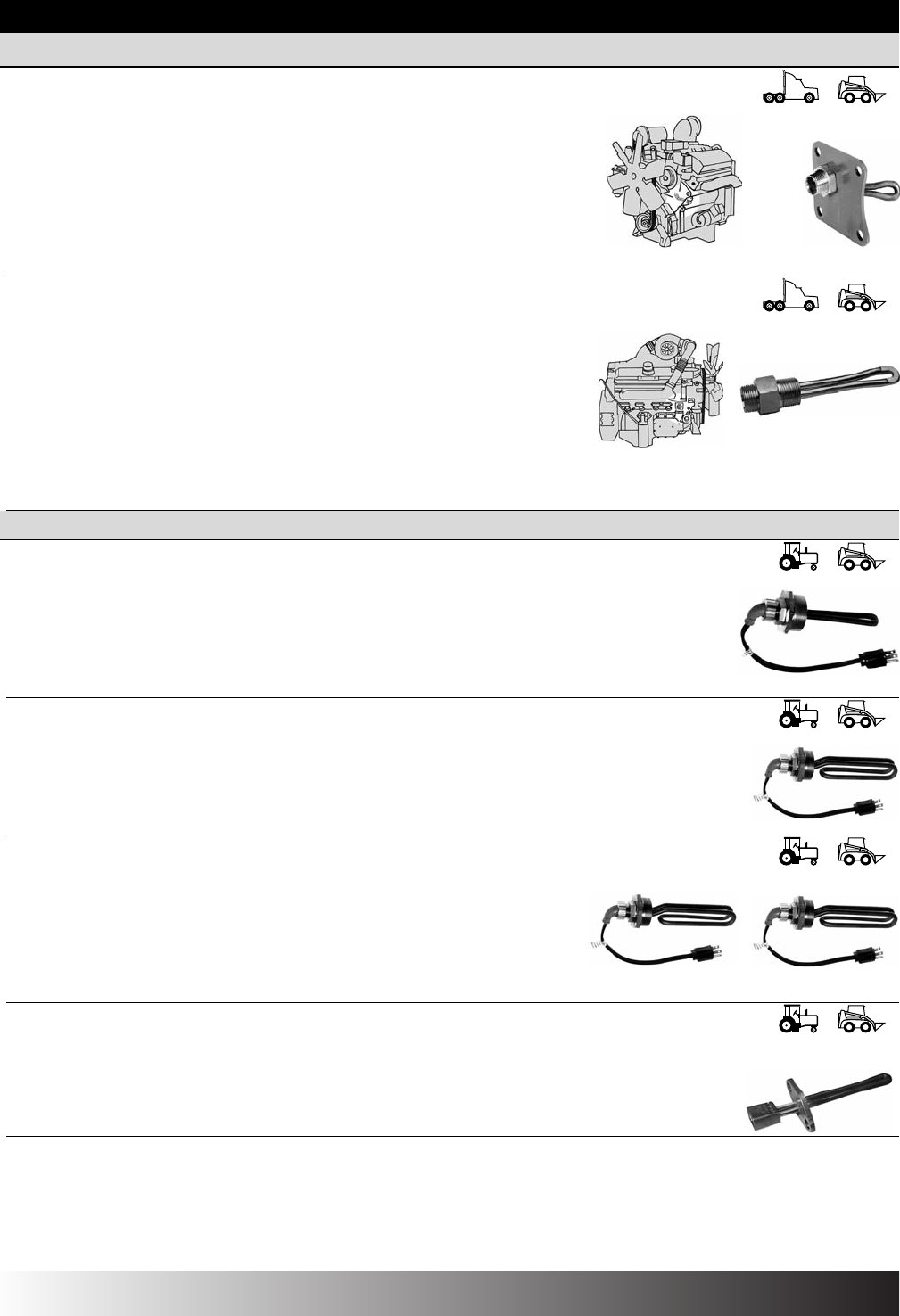

FIAT

8060, 8061, 8065 (5.5L 335 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600333 1000 120 42mm thd Immersion 3600008

Installation Information:

Install in 42mm threaded opening on Right rear of engine.

Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

8360, 8361 (8.1L 494 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600090 1000 120 1" NPT Immersion 3600008

8600120 1000 240 1" NPT Immersion 8608377

Installation Information:

Replaces 1" pipe plug in coolant elbow casting on Front left side.

FORD

KSG411 (67 CID 4 cyl.), KSG416 (98 CID 4 cyl.)

(Engines with distributor)

Part No. Watt Volt Diameter Type

Repl. Cord

3100053 400 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in Left Side (LS). Point element UP/DOWN.

VSG411 (67 CID 4 cyl.), VSG413 (79 CID 4 cyl.)

(Engines without distributor)

Part No. Watt Volt Diameter Type

Repl. Cord

3100085 400 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in back of head. Point element 3 o'clock.

091PV (91 CID 4 cyl.), GSG417 (104 CID 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100036 400 120 1-1/2" Freeze Plug 3600003

Installation Information:

Install in Right front face of cylinder head.

Point element UP or DOWN.

134, 172, 192 CID (Engines used in tractors)

NAA, NAB, 500, 600, 700; 800, 900, 901, 1800 G/D;

2000, 2100, 4000 G/D, 4110D, 4120, 4121

Part No. Watt Volt Diameter Type

Repl. Cord

3100087 600 120 2.06" Freeze Plug 3600006

Installation Information:

Install in any Left Side (LS). Point element UP or DOWN.

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

FORD - continued

2000, 3000, 4000, 5000, 6000 (3, 4, 6 cyl.)

(Engines manufactured up to 1967)

Part No. Watt Volt Diameter Type

Repl. Cord

3200004 600 120 1-3/4" LRHH 3600047

Installation Information:

Lower radiator hose heater (see page 64).

Circulation heater is acceptable alternative (see pages 71-73).

3000, 4000, 5000, 8000, 9000 Series

(Engines manufactured 1968-1970)

Part No. Watt Volt Diameter Type

Repl. Cord

3100065 600 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in 4th & 5th Right Side (RS). Two heaters required. Point element

DOWN. Circulation heater or LRHH are acceptable alternative (

see pages 71-73, 84

3000, 4000, 5000, 7000, 8000, 9000 Series

(Engines manufactured in 1971 and later)

Part No. Watt Volt Diameter Type

Repl. Cord

3100112 750 120 1-1/2" Freeze Plug 3600023

Installation Information:

Install in 4th and 5th Right Side (RS). Two heaters are required. Point

element DOWN. Circulation heater or LRHH are acceptable alternatives (see pages

71-73, 84

LSG423 (140 CID 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100039 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Install in Right rear. Point element UP/DOWN.

LRG423 (140 CID 4 cyl.), LRG425 (152 CID 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100084 400 120 1-1/2" Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element 3 o'clock.

DSD & ESD442 (254 CID 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100061 600 120 1-5/8" Freeze Plug 3600036

Installation Information:

Install in Left Center (LC). Point element UP.

LSG633 (200 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100065 600 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in Right Front (RF) or Right Center (RC). Point element UP or DOWN.

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

FORD - continued

CSG649 (300 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100054 600 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install 2nd Right Side. Point element UP.

SSD655 (335 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

8600333 1000 120 42mm thd Immersion 3600008

Installation Information:

Install in Right Rear (RR). Point element UP/DOWN.

DSD & ESD659 (362 CID 6 cyl.), 660 (363 CID 6 cyl.), 680 (380 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100061 600 120 1-5/8" Freeze Plug 3600036

Installation Information:

Install 2nd and 3rd Left side. Point element UP or DOWN.

Two heaters are recommended.

BSD666 (401 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100112 750 120 1-1/2" Freeze Plug 3600023

Installation Information:

Install in 4th and 5th Right side. Point element DOWN.

Two heaters are recommended.

WSG858 (351W V-8), 255 (V-8), 302 (V-8)

Part No. Watt Volt Diameter Type

Repl. Cord

3100039 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR) or Right Rear (RR). Point element DOWN.

LSG861 (370 CID V-8), LSG870 (429 CID V-8), LSG875 (460 CID V-8)

Part No. Watt Volt Diameter Type

Repl. Cord

3100039 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Install in Right Side (RS) or Left Side (LS). Point element UP.

401 CID (V-8), 477 CID (V-8), 534 CID (V-8)

Part No. Watt Volt Diameter Type

Repl. Cord

8601518 1000 120 1-3/4" Freeze Plug 3600008

Installation Information:

Install in any 1-3/4" freeze plug.

6.6L (401 CID), 7.8L (474 CID)

(Engines manufactured in August 1989 and later featuring plate type heater)

Part No. Watt Volt Diameter Type

Repl. Cord

3500048 1000 120 Plate Immersion 3600008

8606331 1250 120 Plate Immersion 8608377

Installation Information:

Replaces 2nd freeze plug from rear - right side. (Diameter of element in plate 1.5")

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

FORD - continued

6.6L (401 CID), 7.8L (474 CID)

(Engines manufactured prior to August 1989 featuring freeze plug type heater)

Part No. Watt Volt Diameter Type

Repl. Cord

2207044 1000 120 1-1/2" Freeze Plug 3600008

8601984 1500 120 1-1/2" Freeze Plug 3600008

8601968 1500 240 1-1/2" Freeze Plug 8608377

Installation Information:

Replaces 2nd freeze plug from rear - right side.

1060 (5.9L 359 CID 6 cyl. - Cummins B Series)

Part No. Watt Volt Diameter Type

Repl. Cord

3500030 750 120 58mm Freeze Plug 3600008

8601666 750 240 58mm Freeze Plug 8608377

Installation Information:

Replaces freeze plug on Right side of engine.

Available Service Parts: (O-ring & clamp device kit (3500002).

1460 (8.3L 505 6 cyl. - Cummins C Series)

Part No. Watt Volt Diameter Type

Repl. Cord

8601860 1000 120 58mm Freeze Plug 3600008

8601852 1000 240 58mm Freeze Plug 8608377

Installation Information:

Replaces freeze plug on Right rear side of engine.

Available Service Parts: O-ring & clamp device kit (3500002)

7.3L (445 CID V-8 - Navistar T444E engine)

Part No. Watt Volt Diameter Type

Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

8600996 1000 240 3/4" NPT Immersion 8608377

8602611 1500 120 3/4" NPT Immersion 3600008

Installation Information:

Replaces 3/4" NPT threaded plug in oil cooler.

6.9L (421 CID V-8), 7.3L (445 CID V-8)

(Except Navistar T444E engine)

Part No. Watt Volt Diameter Type

Repl. Cord

3100043 1000 120 1-1/2" Freeze Plug 3600010

Installation Information:

Replaces freeze plug on Right rear of engine. Point element 11 o'clock.

HERCULES

G1600 (2.7L 163 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3100088 400 120 2.135" Freeze Plug 3600006

Installation Information:

Install in Left Center (LC) or Left Rear (LR). Point element UP or DOWN.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

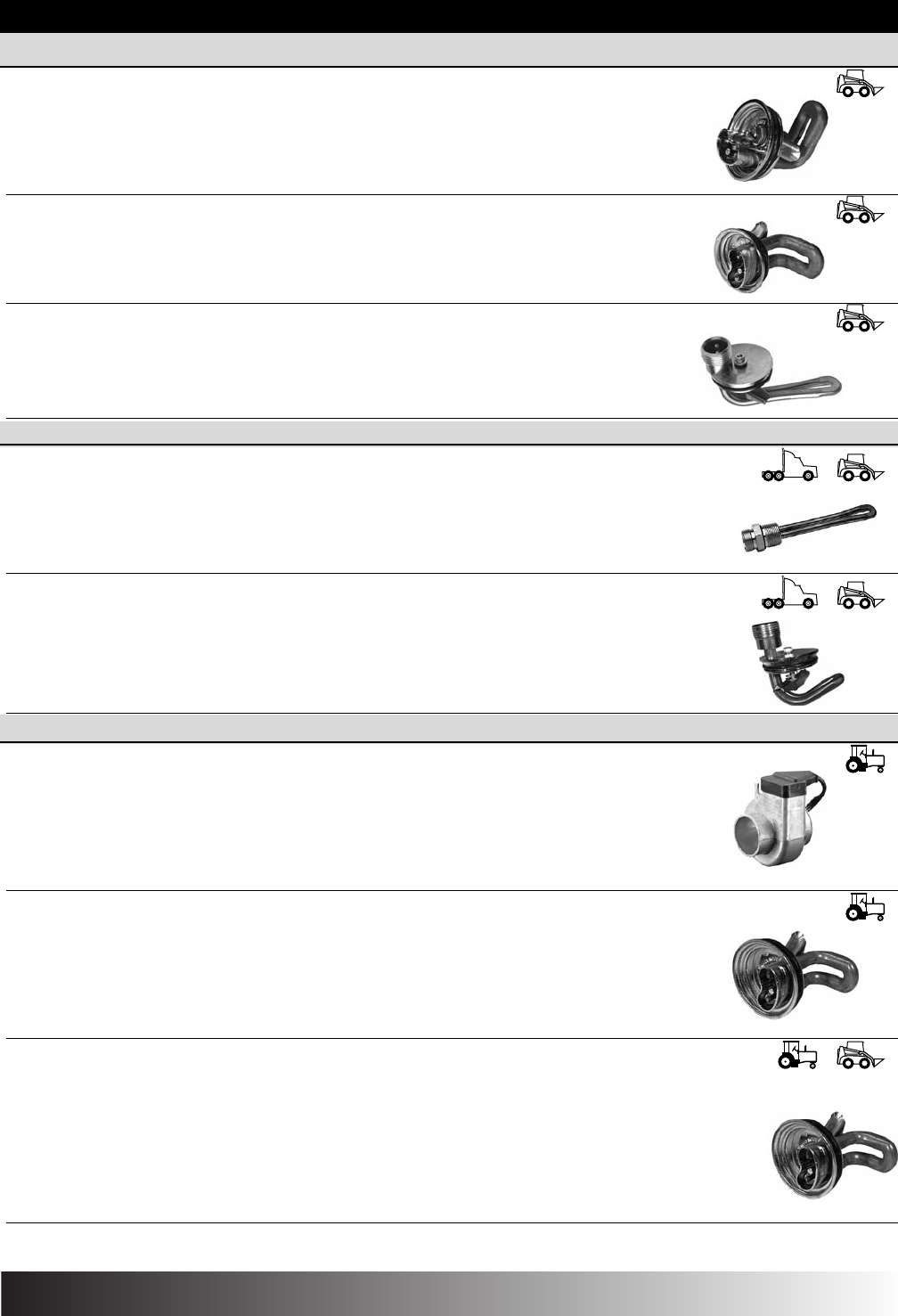

HERCULES - continued

G/D3400 & 3400T (339 CID)

(Engines manufactured up to 1982)

Part No. Watt Volt Diameter Type

Repl. Cord

3100039 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Replaces freeze plug on Right side of engine.

G/D2300, DT3.7 (226 CID), 5.8L (339 CID), G/D3400 (1983+engines), GT & DT 5.6

Part No. Watt Volt Diameter Type

Repl. Cord

3100027 600 120 35mm Freeze Plug 3600006

Installation Information:

Replace freeze plug on Right side of engine.

G/D4800 (7.8L 478 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3500025 1000 120 2" Freeze Plug 3600024

Installation Information:

Replaces freeze plug on Right side - near rear.

HINO

W04C, W06E, H06C-T, H07C-B (3.8L, 5.7L, 6.0L, 6.4L, 6.7L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

8600988 1000 240 3/4" NPT Immersion 8608377

Installation Information:

Replaces 3/4" plug in water transfer casting/oil cooler cover.

J Series: J05C (5.3L 4 cyl.), J08C (8.0L 6 cyl)

Part No. Watt Volt Diameter Type

Repl. Cord

3500018 1000 120 50mm Freeze Plug 3600008

Installation Information:

Replace core plug on Right front side of engine.

INTERNATIONAL / NAVISTAR

Cub Lo-Boy

Part No. Watt Volt Diameter Type

Repl. Cord

3200004 600 120 1-3/4" LRHH 3600047

Installation Information:

Lower radiator hose heater (see page 84).

Circulation heater is acceptable alternative (see pages 71-73).

460, 560, 660, 706, TD62, TD92 (All models)

Part No. Watt Volt Diameter Type

Repl. Cord

3100061 600 120 1-5/8" Freeze Plug 3600036

Installation Information:

Install in 3rd Right Side (RS). Point element DOWN, if no interference w/throttle rod. Use 12 o’clock for other installations.

Circulation heater or LRHH are acceptable alternatives (see pages

71-73, 84

806, 1206, 1256 (1963-67), 856, C152, C175, C200, C221, C263, C282,

C291, C301, D166, D188, D236, D282, D301, D361, D407, DT407

(Can be used on gas or diesel engines)

Part No. Watt Volt Diameter Type

Repl. Cord

3100061 600 120 1-5/8" Freeze Plug 3600036

Installation Information:

Install in 1st, 2nd, or 5th freeze plug on Right side. Point element DOWN.

Circulation heater or LRHH are acceptable alternatives (see pages

71-73, 84

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

INTERNATIONAL / NAVISTAR - continued

504 (153G), 606 (221G)

(Engines manufactured in 1964 and later)

(Can be used on gas or diesel engines)

Part No. Watt Volt Diameter Type

Repl. Cord

3100054 600 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in Right Center (RS). Point element DOWN.

Circulation heater is acceptable alternative (see pages 71-73).

966, 1066, 1086, 1466

Part No. Watt Volt Diameter Type

Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Installs in 3rd and 4th Left Side (LS). Two heaters required.

Circulation heater is acceptable alternative (see pages 71-73).

966, 1066, 1086, 1466

(Alternate installation)

Part No. Watt Volt Diameter Type

Repl. Cord

8608512 1250 120 1-1/4" Freeze Plug 3600008

Installation Information:

Install in Left side.

MV, 404, 446, 485 engines

Part No. Watt Volt Diameter Type

Repl. Cord

3100044 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Install in any Left Side (LS) or Right Side (RS). Point element between cylinders.

Circulation heater is acceptable alternative (see pages 71-73).

All with Neuss engine (179, 206, 239, 246, 268, 310, 358 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3500012 1000 120 1-1/4" Freeze Plug 3600024

Installation Information:

Install in Left Side (LS).

Circulation heater is acceptable alternative (see pages 71-73).

6.9L (421 CID), 7.3L (445 CID)

(Not for use with T444E engine)

Part No. Watt Volt Diameter Type

Repl. Cord

3100043 1000 120 1-1/2" Freeze Plug 3600010

Installation Information:

Replaces freeze plug on Right rear of engine. Point element 11 o'clock.

Available Service Parts: O-ring and clamp device (3500005)

T444E (7.3L V-8)

(Engines manufactured in 1994 and later)

Part No. Watt Volt Diameter Type

Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

8600996 1000 240 3/4" NPT Immersion 8608377

Installation Information:

Replaces 3/4" threaded plug in oil cooler.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

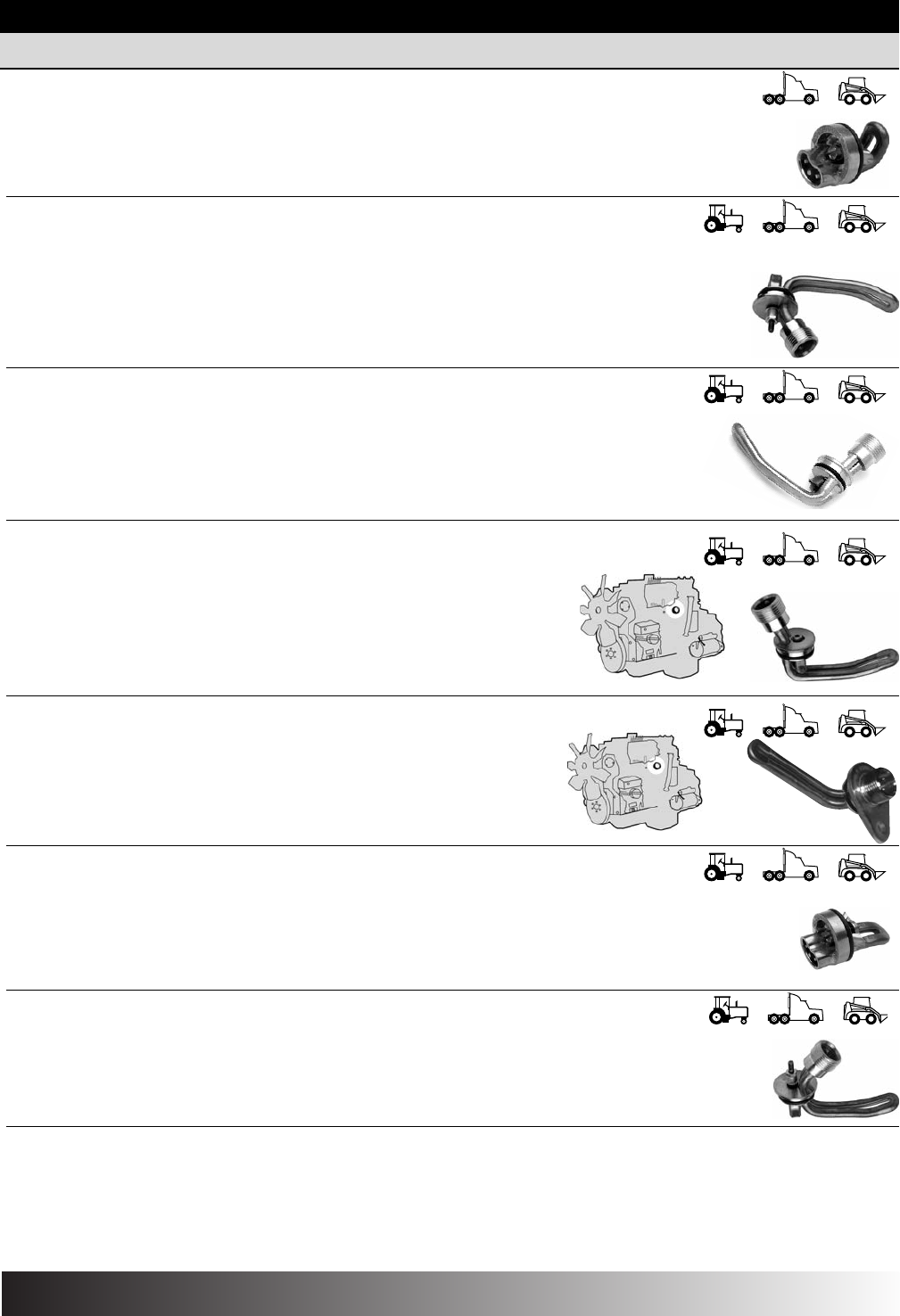

INTERNATIONAL / NAVISTAR - continued

D150, D170, D190 (461 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3100038 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Replaces any freeze plug. Point element UP.

D312, D414, DT414, D436, DT436, DTA466

(Engines manufactured prior to 1994)

Part No. Watt Volt Diameter Type

Repl. Cord

8608512 1250 120 1-1/4" Freeze Plug 3600008

8608539 1250 240 1-1/4" Freeze Plug 8608377

Installation Information:

Replaces 3rd or 4th freeze plug on Left side of engine.

2001-2003 DT466 High Torque, DT466, DT466E, HT 530, DT530

Part No. Watt Volt Diameter Type

Repl. Cord

3500054 1250 120 1-1/4" Immersion 3600008

Installation Information:

Left side, protruding boss above engine oil dipstick. Element direction 12 o’clock

2004-2006 DT466 & DT570

1994-2000 DT408, DT466, DT466E, 530, 570

Part No. Watt Volt Diameter Type

Repl. Cord

3500044 1250 120 1-1/4" Freeze Plug 3600008

8608911 1250 240 1-1/4" Freeze Plug 8608377

Installation Information:

Replaces 1-1/4" freeze plug in boss on Left side of engine.

2007 & Newer MaxxForce DT, MaxxForce 9 & 10

Part No. Watt Volt Diameter Type

Repl. Cord

3500098 1250 120 1-1/4" Freeze Plug 3600008

Installation Information:

Replaces 1-1/4" freeze plug in boss on Left side of engine.

D550 (549 CID), 9L (551 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3100044 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Replace any freeze plug. Point element between cylinders.

DT360, DTA360

Part No. Watt Volt Diameter Type

Repl. Cord

8608601 1000 120 1-1/4" Freeze Plug 3600008

Installation Information:

Replace 3rd or 4th freeze plug on Left side of engine.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

INTERNATIONAL / NAVISTAR - continued

V800 (798 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8605556 1500 120 1" NPT Immersion 3600008

8600260 1500 240 1" NPT Immersion 8608377

Installation Information:

Replace 1" pipe plug in oil cooler bonnet.

2007 & Newer, MaxxForce 5 & 7

VT365, VT275

Part No. Watt Volt Diameter Type

Repl. Cord

3500069 1000 120 27mm THD Immersion 3600008

Installation Information:

Right rear.

817 (817 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600759 1500 120 1-1/2" NPT Immersion 3600008

Installation Information:

Replace 1-1/2" pipe plug on side of engine.

400, 500, 600, 700, 900

(Engines built in 1986 and later)

See UD Truck listings - page 62

MaxxForce 11 & 13

Part No. Watt Volt Diameter Type

Repl. Cord

3500095 1500 120 27mm THD Immersion 3600008

Installation Information:

Lower right front.

ISUZU

4BD1 (3.9L 4 cyl.), 6BD1 (5.8L 6 cyl.), 6BG1 (6.5L 6 cyl.), 6HE1 (7.1L 6 cyl.), 6HK1 (7.8L ), 6SA1 (8.4L 6 cyl.)

Heavy Duty Applications

Part No. Watt Volt Diameter Type

Repl. Cord

3100089 600 120 1" NPT Immersion 3600006

Installation Information:

Installs in Left rear 1" threaded opening, except for 6SA1, which installs in Right

side 1" threaded opening. Two heaters recommended for 6SA1.

4BD1 (3.9L 4 cyl.), 6BD1 (5.8L 6 cyl.), 6BG1 (6.5L 6 cyl.), 6HK1 (7.1L 6 cyl.), 6SA1 (8.4L 6 cyl.)

QD-100 (3.9L), QD-145 (5.8L), 4BGI, 4BGIT, 4BGITC

Industrial Applications

Part No. Watt Volt Diameter Type

Repl. Cord

3100065 600 120 45mm Freeze Plug 3600006

Installation Information:

Replaces 45mm freeze plug in the back of head. Install element 1 o'clock.

2 Cylinder: QD-27 (2AB1), QT-15 (2KC1), 2AA1

Part No. Watt Volt Diameter Type

Repl. Cord

3100067 400 120 45mm Freeze Plug 3600006

Installation Information:

All except QT-15: Install Left Side (LS). Point element UP.

QT-15: Install in back of head. Point element 10 o'clock.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

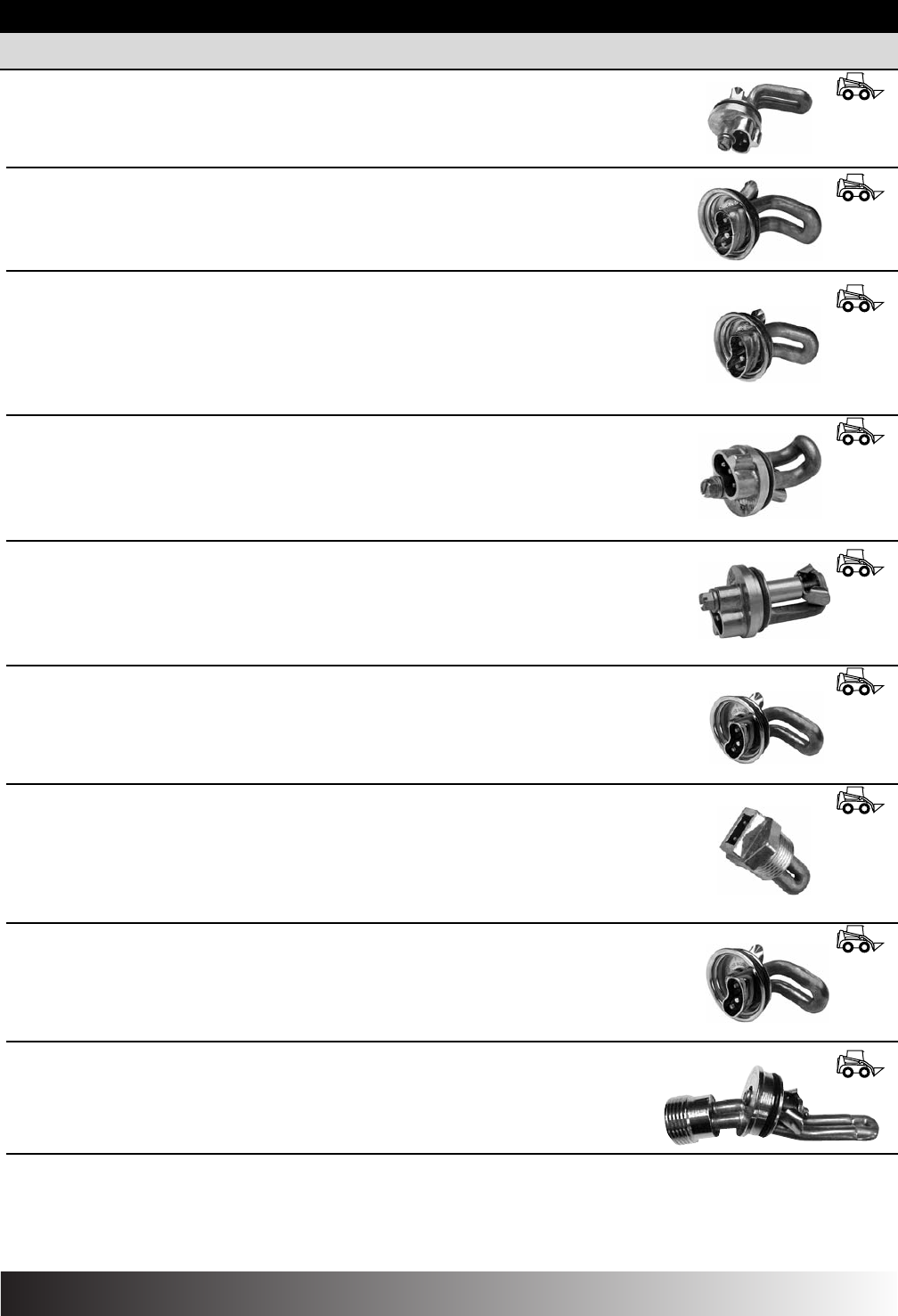

ISUZU - continued

3 Cylinder: QD-40 (3AB1 108 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3100068 400 120 45mm Freeze Plug 3600006

Installation Information:

Install in Left Side (LS). Point element 6 o'clock.

3 Cylinder: QT-23 (3KC-1 87 CID), QT-35 (3KR-1-60 87 CID), 3AA

Part No. Watt Volt Diameter Type

Repl. Cord

3100067 400 120 45mm Freeze Plug 3600006

Installation Information:

All except 3AA: Install in back of head. Point element 10 o'clock.

3AA: Install in Left Side (LS). Point element 6 o'clock.

QT-23 (3KC-1)

Part No. Watt Volt Diameter Type

Repl. Cord

3100026 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 9 o'clock.

3LD1 & 3LD2 (3 cyl.), 4LE1 & 4LE2 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100094 400 120 35mm Freeze Plug 3600005

Installation Information:

Install in any Left side. Point element 9 o'clock.

3LB1 (3 cyl.), 4LC1 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100098 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in any Left side. Point element 9 o'clock.

QD-60, C240, C201, C223 (144, 137 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3100068 400 120 45mm Freeze Plug 3600006

Installation Information:

Install in Left Side (LS). Position element 6 o'clock.

QD-90, 4BB1 (219 CID 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100065 600 120 45mm Freeze Plug 3600006

Installation Information:

Install in back of head. Point element 1 o'clock.

4FB1 (111 CID 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100018 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Right Rear (RR). Point element UP.

4JB1, 4JG (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100069 400 120 45mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element 6 o'clock.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

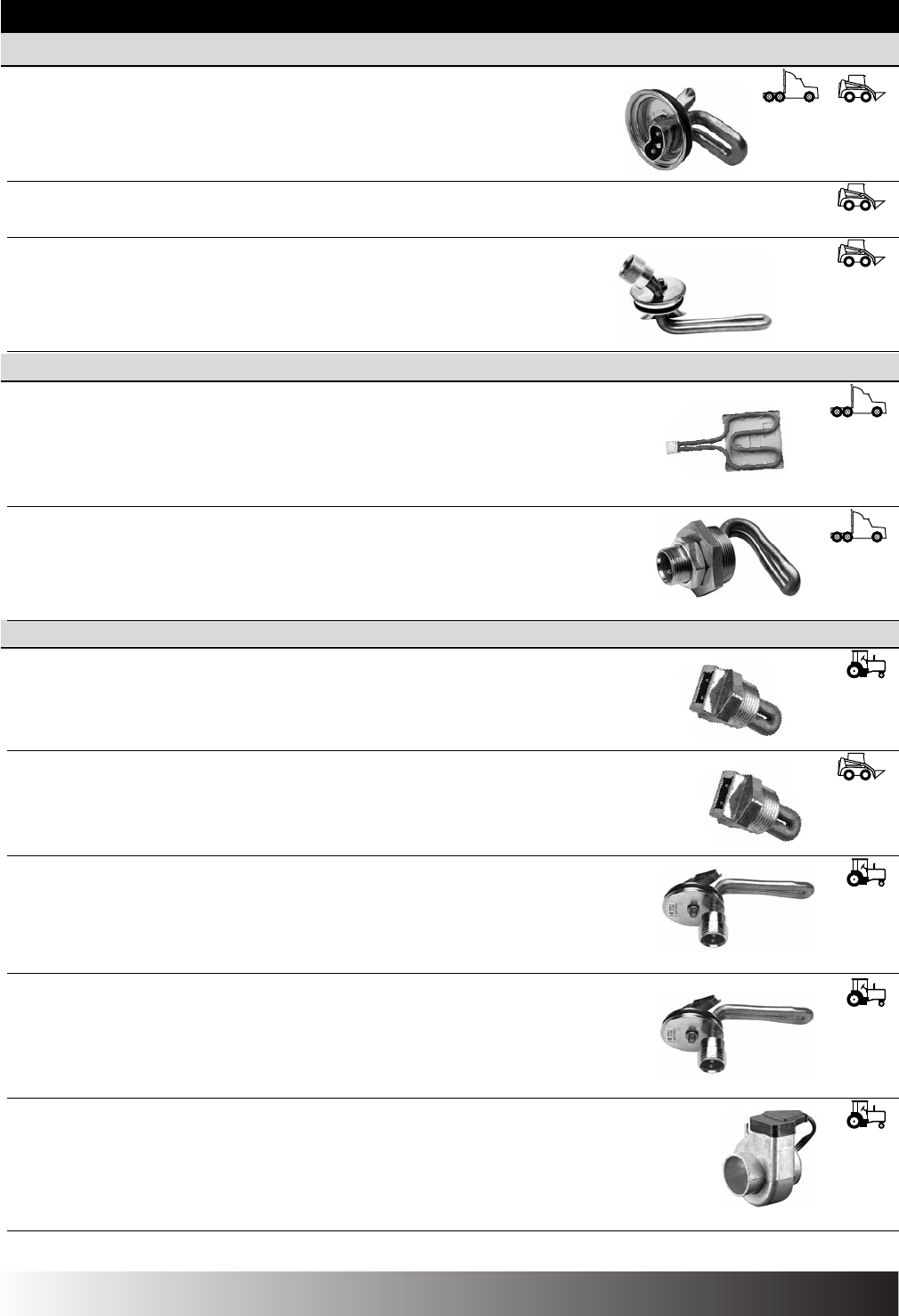

ISUZU - continued

QD-130 (6BB1 329 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100065 600 120 45mm Freeze Plug 3600006

Installation Information:

Install in back of head. Point element 1 o'clock.

6SA1, 6SA1-T, 6SD1, QD-170 & QD-170T (8.4L 6 cyl.)

Use circulation heater (see pages 71-73)

E-120 (733 CID 6 cyl.), 6RB-1 (839 CID 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

8602220 1250 120 45mm Freeze Plug 3600008

Installation Information:

Replace 45mm plug on Rear face or back - right side. Point element DOWN.

IVECO

Z100 (F5L-912 Deutz air cooled engine)

Part No. Watt Volt Diameter Type

Repl. Cord

3400014 500 120 6" x 6" Clamp-on 3600001

(15.2cm2)

Installation Information:

Clamp-on type heater. Engine may also use 22mm threaded oil pan heater - see page 84.

Z110, Z120, Z220, Z340 (335 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600333 1000 120 m42 x 1.5 Immersion 3600008

Installation Information:

Install in 42mm threaded opening on Right rear of engine. Available Service Parts: Hex Nut (8602999), Plate Gasket (8603650)

JOHN DEERE

All 50, 60, 70, 730 Series A, B, D, G

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in bottom of water jacket. Circulation heater is acceptable alternative (see pages 71-73).

3029

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Replaces 3/4" pipe plug on rear face of engine.

All 4230, 4430, 4630, 6030, 7020, 7520

(Tractors manufactured prior to 1976 without large hex plug)

Part No. Watt Volt Diameter Type

Repl. Cord

8602050 1000 120 2" Freeze Plug 3600024

Installation Information:

Install in Left Side (LS). Point element UP. Circulation heater is acceptable alternative (see pages 71-73).

6404, 6466, 6619

(Engines featuring smooth bore core hole - engines manufactured prior to 1976)

Part No. Watt Volt Diameter Type

Repl. Cord

8602050 1000 120 2" Freeze Plug 3600024

Installation Information:

Replace 2" diameter core hole on Left side of engine.

2010 (All)

Part No. Watt Volt Diameter Type

Repl. Cord

3200003 600 120 1-1/2" LRHH 3600047

Installation Information:

Lower radiator hose heater (see page 84). Circulation heater is acceptable alternative (see pages 71-73).

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

JOHN DEERE - continued

1020, 2020, 3010, 3020, 4000, 4010, 4020 (All)

Part No. Watt Volt Diameter Type

Repl. Cord

3200004 600 120 1-3/4" LRHH 3600047

Installation Information:

Lower radiator hose heater (see page 84). Circulation heater is acceptable alternative (see pages 71-73).

All tractors (manufactured 1977 and later featuring large hex plug on side of engine)

Part No. Watt Volt Diameter Type

Repl. Cord

3500029 1000 120 1-5/8" thd Immersion 3600008

Installation Information:

Install in Left Side (LS). Point element UP. Circulation heater is acceptable alternative (see pages 71-73).

Power Tech: 4045, 6068

Part No. Watt Volt Diameter Type

Repl. Cord

3500020 1000 120 1-5/8" thd Immersion 3600008

Installation Information:

Replace 1-5/8" threaded plug on Right side of engine.

6105, 6125

Part No. Watt Volt Diameter Type

Repl. Cord

3500013 1500 120 1" NPT Immersion 3600008

Installation Information:

Installs in oil cooler housing.

Series 250 PowerTech: 4024 PowerTech (2.4L, 4 Cyl.) & 5030 PowerTech (3.0L, 5 Cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3500089 600 120 1.25” Freeze Plug N/A

Installation Information:

Replace 1.25" diameter core hole on Left side of engine, near the starter.

Series 300 (3164, 3179, 4039, 4045, 4219, 4239, 4276, 6059, 6068, 6329, 6359, 6414)

Part No. Watt Volt Diameter Type

Repl. Cord

8603596 1000 120 3/4" NPT Immersion 3600024

Installation Information:

Replace 3/4" pipe plug on rear face of engine. Some engines

(manufactured in 1987 and later) may require a 1" x 3/4" reducer bushing.

Series 300: 3164, 4039, 4045, 4219, 4239, 4276, 6329, 6359, 6414, 6059, 6068

Series 400: 6076, 6081, 6101, 6414, 6466, 6619

Part No. Watt Volt Diameter Type

Repl. Cord

3500029 1000 120 1-5/8" thd Immersion 3600008

Installation Information:

Replaces 1-5/8" threaded plug on Left side of engine.

Series 300 (3029, etc.)

Part No. Watt Volt Diameter Type

Repl. Cord

3500045 1000 120 1" NPT Immersion 3600008

Installation Information:

Install in Left rear face of block.

Series 350 PowerTech Plus iT4 (Interim Tier 4): 4045 PowerTech Plus iT4 (4.5L, 4 Cyl.)

& 6068 PowerTech Plus iT4 (6.8L, 6 Cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3500069 1000 120 27mm Immersion 3600008

Installation Information:

Right Rear

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

KOMATSU

SA6D125 (624 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600880 1500 120 1-3/4" THD Immersion 3600008

8600813 1000 120 1-3/4" THD Immersion 3600008

Installation Information:

Replaces threaded core plug on Right side of engine.

S4D106-1

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1” NPT Freeze Plug 3600001

Installation Information:

Install in left center.

S6D-95L & SA6D-95L (298 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3100082 600 120 40mm Freeze Plug 3600006

3100010 600 120 30mm Freeze Plug 3600005

Installation Information:

3100082: Install in Left Rear (LR). Point element UP. 3100010: Insert at 3 o’clock and rotate to 4 o’clock.

4D95 (2.9L 164 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3100046 400 120 40mm Freeze Plug 3600006

Installation Information:

Replace 40mm core plug on Left rear of engine. Note: May not fit all engines due to block thickness. Maximum 5/18” (15.8mm) thickness.

S6D140, SA6D140

(Example: WA500 loader)

Part No. Watt Volt Diameter Type

Repl. Cord

8605602 1500 120 1-3/8" Immersion 3600008

8600880 1500 120 1-3/4" THD Immersion 3600008

Installation Information:

8605602: Replace 3rd core plug on right side of engine. 2001 and newer used 8600880: Replaces threaded core plug on right side of engine.

S6D170, SA6D170

(Example: WA600 loader)

Part No. Watt Volt Diameter Type

Repl. Cord

8602301 1500 120 Plate Immersion 3600008

Installation Information:

Install in rectangular water jacket access plate (6-bolt) located on the

Right side of engine - rear. Requires removal of engine side plate and hole to be drilled for heater installation.

KUBOTA

M Series (3 & 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in front.

B Series

(Except 2 cylinder)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in Right Front (RF). Use 1" x 3/4" pipe bushing.

L Series

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in Right Front (RF). Use 1" x 3/4" pipe bushing.

(8600880) (8605602)

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

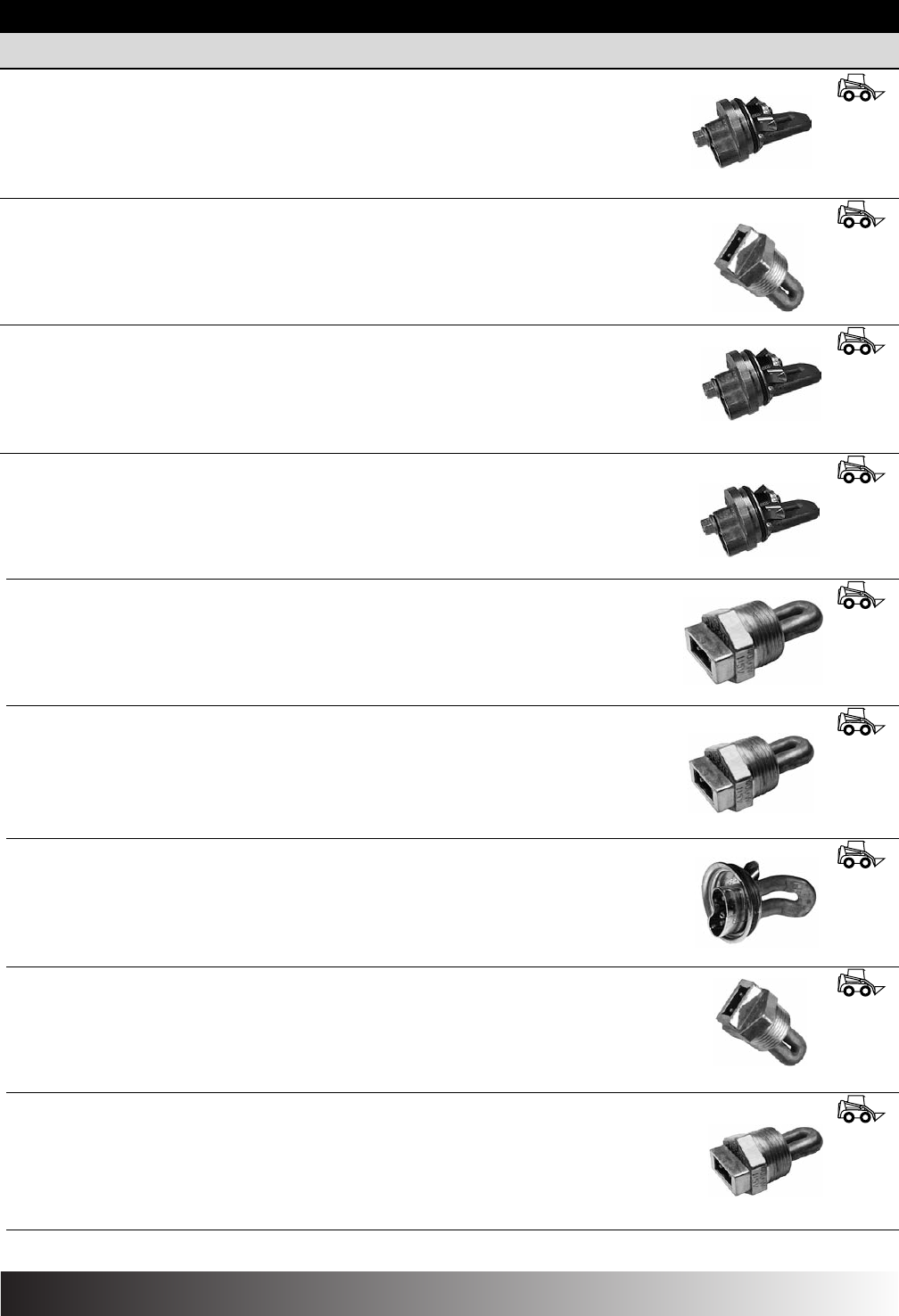

KUBOTA - continued

Z400, Z482, D722

(Super Mini/New Super Mini 2 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100099 400 120 30mm Freeze Plug 3600004

Installation Information:

Install in back of head.

Z600 & ZH600

(Super Mini/New Super Mini 2 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install Right Front (RF). Use 1" x 3/4" pipe bushing.

D600, D640, WG600, D662, D722, DG750, DF750, WG750

(Super Mini/New Super Mini 3 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100099 400 120 30mm Freeze Plug 3600004

Installation Information:

Install in back of head.

V800

(Super Mini/New Super Mini 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100099 400 120 30mm Freeze Plug 3600004

Installation Information:

Install in back of head.

D905, DH905, D1005, DH1005, D1105, V1205, VH1205, V1305, VH1305, V1505

(Super 5 Series)

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Immersion 3600001

Installation Information:

Install in Left Front (LF).

D3000B, D3200B

(3 cylinder)

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Immersion 3600001

Installation Information:

Install in front.

D1102, D1302, D1402, D1403, D1703, S2800

(3 cylinder)

Part No. Watt Volt Diameter Type

Repl. Cord

3100025 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in back of head. Point element 2 o'clock.

D650, D750, D850, DH850, D950

(3 cylinder)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in Right Front (RF). Use 1" x 3/4" pipe bushing.

V4000B, V4300B

(3 cylinder)

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Immersion 3600001

Installation Information:

Install in front.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

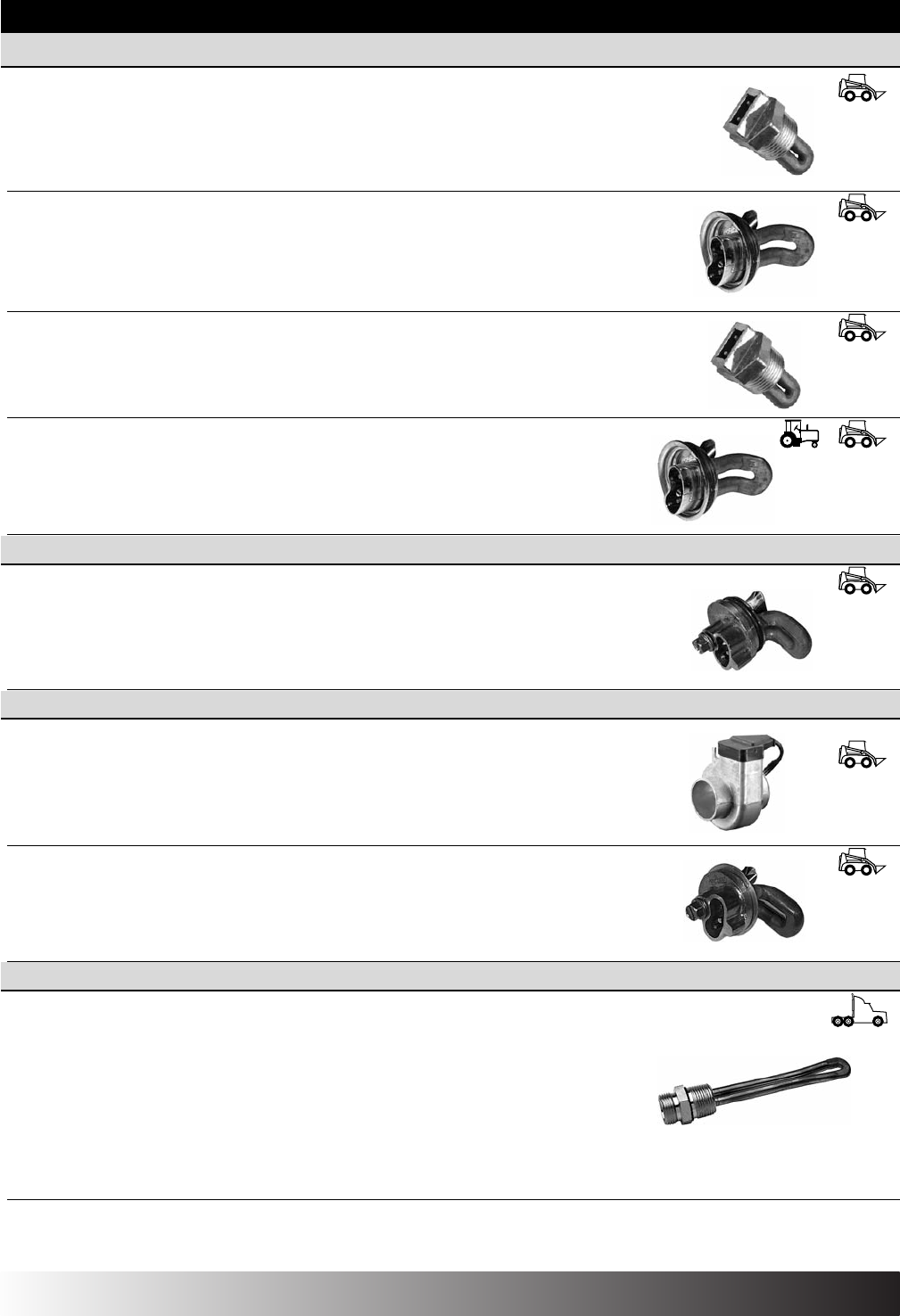

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

KUBOTA - continued

V1100, VH1100, V1200

(4 cylinder)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Instructions:

Install in Right Front (RF). Use 1" x 3/4" pipe bushing.

V1702, V1703, V1902, V1903, V2003, V2003T, V2203

(4 cylinder)

Part No. Watt Volt Diameter Type

Repl. Cord

3100025 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in back of head. Point element 2 o'clock.

V3300

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in Right Front (RF). Use 1" x 3/4" pipe bushing.

S2800 (6 cyl.), F2803 (5 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100025 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in back of head.

LISTER-PETTER

LPW Series (1994 & newer 56 CID 2 cyl., 85 CID 3 cyl., 113 CID 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100077 400 120 1-1/4" Freeze Plug 3600004

Installation Information:

Install between cylinders. Point element UP or DOWN.

LOMBARDINI

LDW602, LDW702 (2 cyl.), LDW903, LDW1003 (3 cyl.),

FOCS Series 1204, LDW1404, LDW1204T (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3200002 375 120 1-1/4" LRHH 3600047

Installation Information:

Lower radiator hose heater (see page 84).

CHD Series: LDW1503, LDW1603 (3 cyl.), LDW2004, LDW2204, LDW2004T (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100096 400 120 30mm Freeze Plug 3600004

Installation Information:

Install in Left Side (LS). Point element 3 or 9 o'clock.

MACK

865 Series, 866 & 1000 Series, EM9-400 (998 CID), E9

Part No. Watt Volt Diameter Type

Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

8600988 1000 240 3/4" NPT Immersion 8608377

8601011 1500 120 3/4" NPT Immersion 3600008

8601054 1500 240 3/4" NPT Immersion 8608377

Installation Information:

Installs in oil cooler casting. Two heaters are required. Engine may also accept oil pan heater 8609683, 8609659, 8609713 (requires 1" x 1/2" bushing to reduce port size).

See threaded immersion heater page for specifications.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

MACK - continued

Midliner: E3 (5.5L 335 CID, 6.2L), E5 (8.8L 537 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600317 1000 120 Plate Immersion 3600008

8600384 1500 120 Plate Immersion 3600008

8600414 1500 240 Plate Immersion 8608377

Installation Information:

E3: Replace plug in rear face of block (MS200 serial numbers 1915 and higher).

E5: Install in oil cooler water feed pipe (MS300 serial numbers 60131 and higher). Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

E6 (672 CID 6 cyl.)

(Engines with smooth bore freeze plug. Example: EM6300, E6350, EM6237)

Part No. Watt Volt Diameter Type

Repl. Cord

8609748 1500 120 1-3/4" Freeze Plug 3600008

8609772 1500 240 1-3/4" Freeze Plug 8608377

Installation Information:

Replaces 1-3/4" freeze plug on side of engine. Available Service Parts: O-ring and clamping device kit (3500003)

E6, EM6 (threaded freeze plug models manufactured prior to August 1981)

END465 (1957 & later), 711, EN438, 504, 707, 673, 675, 676 Series

Part No. Watt Volt Diameter Type

Repl. Cord

8600813 1000 120 1-3/4" Immersion 3600008

8600880 1500 120 1-3/4" Immersion 3600008

8600910 1500 240 1-3/4" Immersion 8608377

Installation Information:

Replaces 1-3/4" threaded plug on side of engine. Available Service Parts: Hex Nut (8602999), Element Gasket (8603650)

2004-2006 ASET Engine Series (AI, AC + AMI) (12.0L)

E7 & EM7 (12.0L)

(Example: EM7-300, E7-350)

Part No. Watt Volt Diameter Type

Repl. Cord

8607206 1500 120 1-3/8" Freeze Plug 3600008

8607184 1500 240 1-3/8" Freeze Plug 8608377

Installation Information:

Replace 1-3/8" core plug on Right side of block - front or rear face. Available Service Parts: O-Ring (3600059) 10 pack.

END465 (1953-56), 672, 673, 711, EN438, 540, 707

Part No. Watt Volt Diameter Type

Repl. Cord

8600759 1500 120 1-1/2" NPT Immersion 3600008

Installation Information:

Replace 1-1/2" pipe plug on side of engine.

E-Tech (water pump mount)

Part No. Watt Volt Diameter Type

Repl. Cord

3500051 1500 120 1-3/8" Immersion 3600008

3500052 1500 240 1-3/8" Immersion 8608377

3500070 1500 120 1-3/8" Immersion 3600008

Installation Information :

Mount in water pump. Available Service Parts: O-Ring (3600059) 10 Pack. 3500070 includes 84” weatherproof cord and receptacle.

MP7 (10.8L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500099 1000 120 25mm Immersion 3600085

3500100 1500 120 25mm Immersion 3600085

3500101 1500 240 25mm Immersion 3600086

Installation Information :

Right rear

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

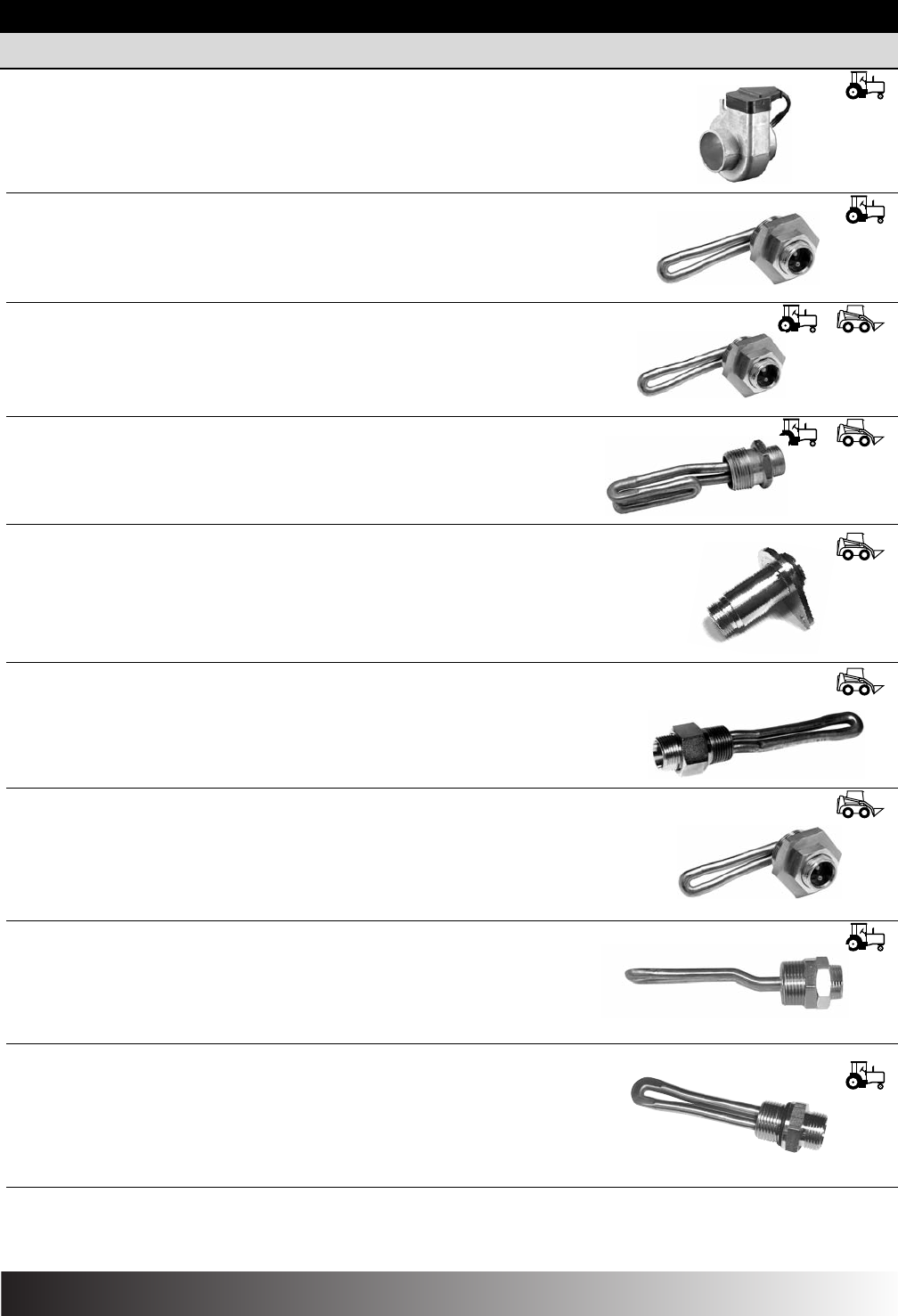

MACK - continued

MP8 (12.8L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500102 1500 240 25mm Immersion 3600086

3500103 1500 120 25mm Immersion 3600085

3500104 1000 120 25mm Immersion 3600085

Installation Information :

Right front, in coolant pipe.

MP10 (16.1L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500105 1500 120 62mm Immersion 3600085

3500106 1000 120 62mm Immersion 3600085

Installation Information :

Right front

MASSEY & MASSEY FERGUSSON

All 445P, 333, 444, 555, 88

Part No. Watt Volt Diameter Type

Repl. Cord

3100054 600 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in Right Front (RF). Circulation heater is acceptable alternative (see pages 71-73).

1100

Part No. Watt Volt Diameter Type

Repl. Cord

3200005 600 120 2" LRHH 3600047

Installation Information:

Lower radiator hose heater (see page 84). Circulation heater is acceptable alternative (see pages 71-73).

All MF-35, 40, 50, 150, 203, 205, 235, 2135 & 2200 (AD3-152)

Part No. Watt Volt Diameter Type

Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Install in Right Side (RS). Point element DOWN. Circulation heater is acceptable alternative (see pages 71-73).

All MF-65, 165, 255, 302, 304, 365 & 3165 (AD4-203)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Install in Left Side (LS). Circulation heater is acceptable alternative (see pages 71-73).

All MF-175, 180 & 265 (AD4-236)

Part No. Watt Volt Diameter Type

Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Install in Left, 2nd from rear. Point element UP/DOWN. Circulation heater is acceptable alternative (see pages 71-73).

MF-90, 1080, 1085 & 285 (A4-300)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Immersion 3600003

Installation Information:

Replaces existing heater. Circulation heater is acceptable alternative (see pages 71-73).

MF-1100, 1105, 1130 & 1135 (A6-354)

Part No. Watt Volt Diameter Type

Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Install in Left, 2nd from rear. Point element UP. Circulation heater is acceptable alternative (see pages 71-73).

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

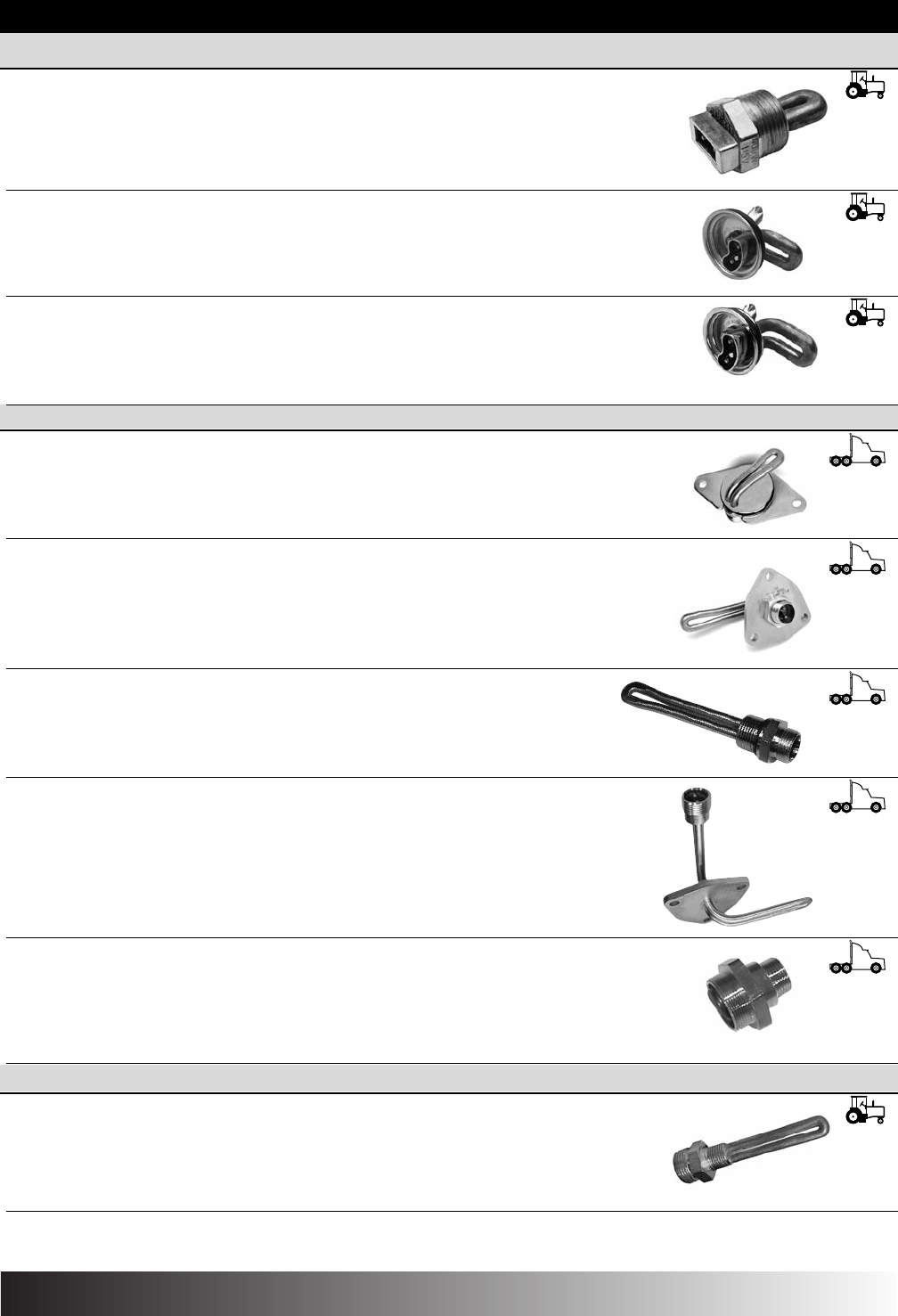

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

MASSEY & MASSEY FERGUSSON - continued

MF-1150, 1155 (AV510, 540)

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Immersion 3600001

Installation Information:

Install one heater in each side (two heaters required). Circulation heater is acceptable alternative (see pages 71-73).

MF-1140 & MF-1145 (1120, 1125 - 1240, 1250, 1260 Mfg. prior to mid ‘90’s before serial # E50101

Part No. Watt Volt Diameter Type

Repl. Cord

3100066 400 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 3 o'clock.

MF-3120, MF-3140

Part No. Watt Volt Diameter Type

Repl. Cord

3100045 600 120 1-1/2" Freeze Plug 3600007

Installation Information:

Install in Right Rear (RR) or Right Front (RF). Point element 12 o'clock. Circulation heater is acceptable alternative (see pages 71-73).

MERCEDES

MBE900 Series: OM904 & OM906

Part No. Watt Volt Diameter Type

Repl. Cord

3500046 1000 120 60mm Immersion 3600008

Installation Information:

Installation in Right Rear (RR) core hole. Point element down, 6 o’clock.

MBE4000 Series / OM460

Part No. Watt Volt Diameter Type

Repl. Cord

3500080 1500 120 Plate Immersion 3600008

3500053 1500 120 Plate Immersion 3600008

Installation Information:

3500080- replace plate on right side (center). Point element 9 o'clock. 3500053 - replace plate on left side.

MBE-HDEP 15.2 L

Part No. Watt Volt Diameter Type

Repl. Cord

3500095 120 120 27mm THD Immersion 3600008

Installation Information:

Installation in Right Rear (RR) core hole. Point element down, 6 o’clock.

2004 & Newer MBE4000 Series/OM460

Part No. Watt Volt Diameter Type

Repl. Cord

3500082 1500 120 Plate Immersion 3600008

3500083 1500 240 Plate Immersion 8608377

Installation Information:

Replaces plate on right side (center). Point element, 3 o’clock.

2.7L Freightliner Sprinter Van

Part No. Watt Volt Diameter Type

Repl. Cord

3100105 500 120 38mm THD Freeze Plug N/A

Installation Information:

Right rear. May need to heat existing plug to remove.

MINNEAPOLIS MOLINE

JetStar 3 (gas & diesel 206 CID), U302 (gas 220 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

3500026 400 120 3/8" NPT Immersion N/A

Installation Information:

Replaces existing heater. Circulation heater is acceptable alternative (see pages 71-73).

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

MINNEAPOLIS MOLINE - continued

M602, 604, 670, G705, 706, 900, 1000

Part No. Watt Volt Diameter Type

Repl. Cord

3100038 600 120 1-1/2" Freeze Plug 3600006

Installation Information:

Replaces existing heater. Circulation heater is acceptable alternative (see pages 71-73).

MITSUBISHI

L3A (3 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100049 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Right Rear (RR). Point element 9 o'clock.

K3A & K3B (3 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100067 400 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in Right Side (RS). Point element UP.

4G32 & 4G33 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100016 400 120 35mm Freeze Plug 3600006

Installation Information:

4G32: Install in Left Center (LC). Point element 9 o'clock.

4G33: Install in Left Center (LC). Point element UP.

4G52, 4G53, 4G54 (4 cyl. engines)

Part No. Watt Volt Diameter Type

Repl. Cord

3100071 400 120 50mm Freeze Plug 3600006

Installation Information:

Install in Right Center (RS). Point element 3 o'clock.

S4L2 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100078 400 120 35mm Freeze Plug 3600006

Installation Information:

Install Right Rear (RR). Point element 11 o'clock.

4G63 (2.0L 4 cyl.), 4G64 (2.4L 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100021 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 3 o'clock.

S6E & S6E2 (6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100078 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element 3 o'clock.

6G72 (3.0L)

Part No. Watt Volt Diameter Type

Repl. Cord

3100055 600 120 1-5/8" Freeze Plug 3600006

Installation Information:

Install in Right Rear (RR). Point element 9 o'clock.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

MITSUBISHI FUSO

4D31 (201 CID), 6D14 (400 CID), 6D31 (302 CID), 6D16 (460 CID)

4M40 (2835cc SOHC), 4D36 (3567cc)

Part No. Watt Volt Diameter Type

Repl. Cord

8604967 600 120 3/4" NPT Immersion N/A

Installation Information:

Replaces 3/4" threaded plug on Left rear side of engine.

MWM MURPHY

D225 & D226 Series (2, 3, 4, 6 cylinder)

Part No. Watt Volt Diameter Type

ype

Repl. Cord

3100071

3100071 400

400 120

120 50mm

50mm Free

Freeze Plug 3600006

Installation Information:

Replaces any freeze plug on Right side. Point element UP or DOWN.

NISSAN

H20, SD22, SD4-47 (2.2L), SD-25, A12 (1.2L), A15 (1.5L) (4 cylinder engines)

Part No. Watt Volt Diameter Type

Repl. Cord

3100016 400 120 35mm Freeze Plug 3600006

Installation Information:

H20: Install in Left Front (LF) or Left Rear (LR). Point element UP.

SD-22, SD4-47, SD-25: Install in Left Front (LF). Point element DOWN.

A15 install left front or left rear and point element 12 o’clock.

H20-2, H25 (4 cylinder engines)

Part No. Watt Volt Diameter Type

Repl. Cord

3100019 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element 3 o'clock.

Z24 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100048 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 12 o'clock.

TD42 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100090 600 120 35mm Freeze Plug 3600006

Installation Information:

Install in Right Center (RC). Remove 3-bolt plate.

SD-33 & SD6-72 (3.2L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100023 400 120 35mm Freeze Plug 3600006

3100108 400 120 35mm Freeze Plug - 12” Cord 3600036

Installation Information:

Install in 2nd and 4th Left side. Two heaters are required. Point element 12 o'clock.

P Series (4.0L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100049 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Right Front (RF).

LD-28 (2.8L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100016 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in 5th, Left side. Point element 12 o'clock.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

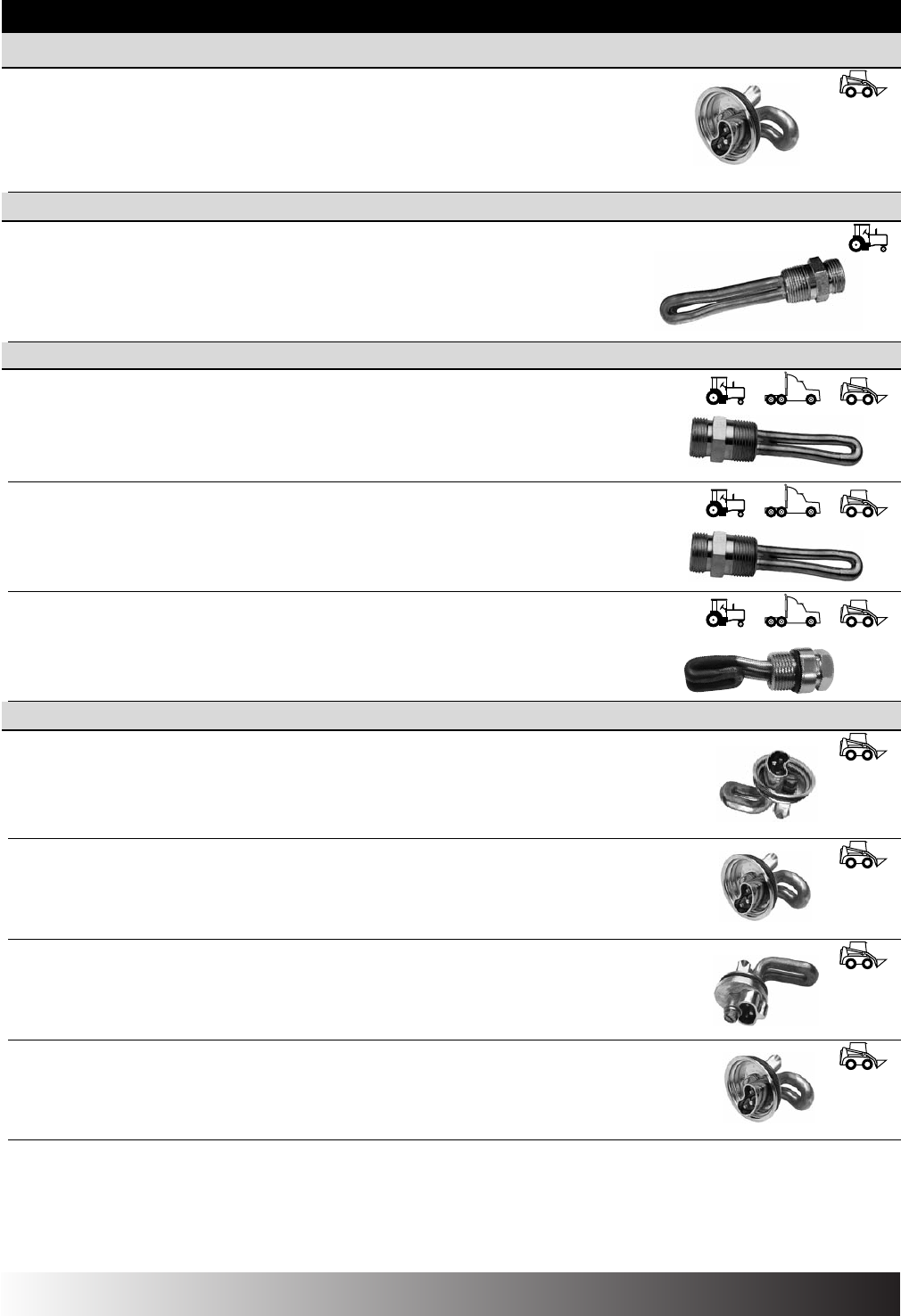

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

NISSAN - continued

FD6 (5.6L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100049 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Right Front (RF). Point element 3 o'clock.

OLIVER

All (except 1265, 1365, 1900)

Part No. Watt Volt Diameter Type

Repl. Cord

3500043 1000 120 3/4" NPT Immersion 3600008

Installation Information:

Install in cast elbow at front of engine - between radiator and engine block.

PACCAR

2007 PX-6 (6.7L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500022 750 120 3/4” NPT Immersion 3600008

Installation Information:

Installs in 3/4” NPT port to rear of oil cooler.

2007 PX-8 (8.3L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500032 1000 120 3/4” NPT Immersion 3600008

Installation Information:

Installs in upper 3/4” port to front of oil cooler.

2011 MX (12.9L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500113 1500 120 M27 Immersion 3600103

Installation Information:

TBD

PERKINS

103.06 (KB 3 cyl.), 103.07 (KL 3 cyl.), 103.09 (KC 3 cyl.), 103.10 (KD 3 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100016 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 6 o'clock.

103.12 (KG 3 cyl.), 103.13 (KH 3 cyl.), 103.15 (KE/KJ 3 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100049 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 6 o'clock.

3-152 (C Series 3 cyl.), 900 Series (CN)

Part No. Watt Volt Diameter Type

Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Install in Right Side (RS). Point element 6 o'clock.

104.19 (KF/KK 4 cyl.), 104.22 (KR 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100049 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF). Point element 6 o'clock.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PERKINS - continued

4-108 (E Series 4 cyl.), 4-236 (LD 4 cyl.), 4-248 (LF 4 cyl.), 4-248-2 (LG 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Install in Left, 2nd from rear. Point element UP or DOWN.

4-236 (4 cyl.) (Engines with larger core hole)

Part No. Watt Volt Diameter Type

Repl. Cord

3100027 600 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left side - 2nd from rear.

4-135 (GB Series 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100023 400 120 35mm Freeze Plug 3600006

3100108 400 120 35mm Freeze Plug - 12” Cord 3600036

Installation Information:

Install in Right Side (RS). Point element UP or DOWN.

4-154 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100010 400 120 30mm Freeze Plug 3600005

Installation Information:

Install in Left Side (LS). Point element UP or DOWN.

200 Series: 204.25 (GD 4 cyl.), 204.30 (GE 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100086 400 120 30mm Freeze Plug 3600004

Installation Information:

Install in Left Side (LS).

400 Series (4.41, T4.40), 4.0L

Part No. Watt Volt Diameter Type

Repl. Cord

3100045 600 120 1-1/2” Freeze Plug 3600007

Installation Information:

Right side, point element up.

4-203 (J Series 4 cyl.)

(Engines with no starter obstructions)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Freeze Plug 3600003

Installation Information:

Install in Left Side (LS). Point element up or down.

1004 (A Series 4 cyl.) (D Series 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100045 600 120 1-1/2" Freeze Plug 3600007

Installation Information:

Install in Right Rear (RR) or Right Front (RF). Point element 12 o'clock.

1104 (C Series 4 cyl.) (D Series)

Part No. Watt Volt Diameter Type

Repl. Cord

3500084 750 120 1-1/4" Freeze Plug 3600008

Installation Information:

Install in Right Rear (RR) or Right Front (RF). Point element 3 o'clock.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

PERKINS - continued

700 Series 704.30 (4A 4 cyl), 704.30T (4C 4 cyl.), 704.26 (4C 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100101 400 120 50mm Freeze Plug 3600006

Installation Information:

Install in back of head. Point element 4 o'clock.

N Series: 4-300 (4 cyl.), 4-318 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100093 400 120 3/4" NPT Freeze Plug 3600003

Installation Information:

Install in Left Side (LS).

T Series: 6-354 (6 cyl.), 6-354.4 (4 cyl.), 6-372 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100013 600 120 1-1/4" Freeze Plug 3600022

Installation Information:

Install in Right Rear (RR). Point element 12 o'clock.

6-354 (alternate), NA-120 (6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3500027 750 120 Plate Immersion 3600008

Installation Information:

Install in back of head.

1006 (Y Series 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100045 600 120 1-1/2" Freeze Plug 3600007

Installation Information:

Install in Right Rear (RR), or Right Front (RF). Point element 12 o'clock.

540 (8 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Immersion 3600001

Installation Information:

Install one heater in each side.

640 (Z Series 8 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

8605556 1500 120 1" NPT Immersion 3600008

Installation Information:

Install in Left Rear.

2006 and Newer, 1106D

Part No. Watt Volt Diameter Type

Repl. Cord

3500087 1000 120 1-1/4” Immersion 3600008

Installation Information:

Install in Right Rear.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

TOYOTA

5R (1.9L 4 cyl.), 2J (2.5L diesel)

Part No. Watt Volt Diameter Type

Repl. Cord

3100071 400 120 50mm Freeze Plug 3600006

Installation Information:

Install in Left Front (LF) or Left rear (LR). Point element 12 o'clock.

4Y (2.2L 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100019 400 120 35mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element 3 or 9 o'clock.

2F (4.2L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100071 400 120 50mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element 9 o'clock.

Part No. Watt Volt Diameter Type

Repl. Cord

3100101 400 120 50mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element at 45º angle.

UD TRUCK

FD35T (3.5L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100012 600 120 30mm Freeze Plug 3600004

Installation Information:

Replaces 30mm freeze plug on Right front of engine. Install element 3 o'clock.

FE6 & FE6T (6.9L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

8602441 1000 120 40mm Freeze Plug 3600008

Installation Information:

Replaces 40mm freeze plug on Right side of engine - 2nd from rear. Install element 5 o'clock.

NE6 & NE6T (7.4L 6 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

8602492 1500 120 50mm Freeze Plug 3600008

Installation Information:

Replaces 50mm freeze plug on Left rear of engine.

FD46TA

Part No. Watt Volt Diameter Type

Repl. Cord

3100103 400 120 40mm Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR) (above fuel pump).

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

UD TRUCK

TD42T

Part No. Watt Volt Diameter Type

Repl. Cord

3100090 600 120 35mm Immersion 3600006

Installation Information:

Install in Right center of oil cooler. Remove 3-hole plate.

VOLKSWAGEN

1588cc (049.6 & 068.5 4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100034 400 120 36.5mm Freeze Plug 3600016

Installation Information:

Install in Right Center (RC). Point element 6 o'clock.

VOLVO

TD60 & TD61 (334 CID), TD70 & TD71 (409 CID), TD73(427 CID),

TD100 & TD101, VE10 (586 CID), TD120, TD121, TD122, TD123 (732 CID)

Part No. Watt Volt Diameter Type

Repl. Cord

8600252 1000 120 44mm Immersion 3600008

8600287 1500 120 44mm Immersion 3600008

8600309 1500 240 44mm Immersion 8608377

Installation Information:

Replaces 44mm threaded plug on Left front of engine. Point element at 4 or 5 o’clock.

2002 & Newer VED-12

Part No. Watt Volt Diameter Type

Repl. Cord

3500090 1000 120 Plate Immersion 3600008

3500091 1500 120 Plate Immersion 3600008

Installation Information:

Mount below turbocharger at the Right center of engine.

VED-12( Engines manufactured prior to 2002)

Part No. Watt Volt Diameter Type

Repl. Cord

3500039 1000 120 Plate Immersion 3600008

8607702 1500 120 Plate Immersion 3600008

Installation Information:

Mount below turbocharger at the Right center of engine.

VE-D7

Part No. Watt Volt Diameter Type

Repl. Cord

3500041 1500 120 1-3/4"-18 Immersion 3600008

Installation Information:

Replace plug on Left rear of engine. Reuse existing seal. Point element at 1 o’clock.

D11 (10.8L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500099 1000 120 25mm Immersion 3600085

3500100 1500 120 25mm Immersion 3600085

3500101 1500 240 25mm Immersion 3600086

Installation Information :

Right rear

(Contact Volvo dealer for Replacement O’Ring P/N 975664).

ZEROSTART

Agricultural, Heavy Duty & Industrial Applications

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Lower Radiator Hose Heater information - page 84 • Circulation Heater information - pages 71-73

VOLVO - continued

D13 (12.8L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500102 1500 240 25mm Immersion 3600086

3500103 1500 120 25mm Immersion 3600085

3500104 1000 120 25mm Immersion 3600085

Installation Information :

Right front, in coolant pipe.

(Contact Volvo dealer for Replacement O’Ring P/N 975664).

D16 (16.1L)

Part No. Watt Volt Diameter Type

Repl. Cord

3500105 1500 120 62mm Immersion 3600085

3500106 1000 120 62mm Immersion 3600085

Installation Information :

Right front

YANMAR

3T72HLE (3 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Immersion 3600001

Installation Information:

Install in Left Front (LF).

3TN66, 3TN72 (3 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3500001 400 120 Plate Immersion 3600003

Installation Information:

Install in Right Rear (RR).

4TN82E & 4TNE98 (4 cyl.)

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Immersion 3600001

Installation Information:

Install in Left Center (LC).

YYDXL4.4 1 D4T

Part No. Watt Volt Diameter Type

Repl. Cord

3100003 400 120 1" NPT Freeze Plug 3600001

Installation Information:

Install in Left Center (LC).

ZETOR

All - except 278 (4.5L) & 417 (6.8L)

Part No. Watt Volt Diameter Type

Repl. Cord

3100065 600 120 1-3/4" Freeze Plug 3600006

Installation Information:

Install in Left Rear (LR). Point element UP.

NOTE: See next page (p. 66) for Universal Coolant Heater and Oil Pan Heater applications.

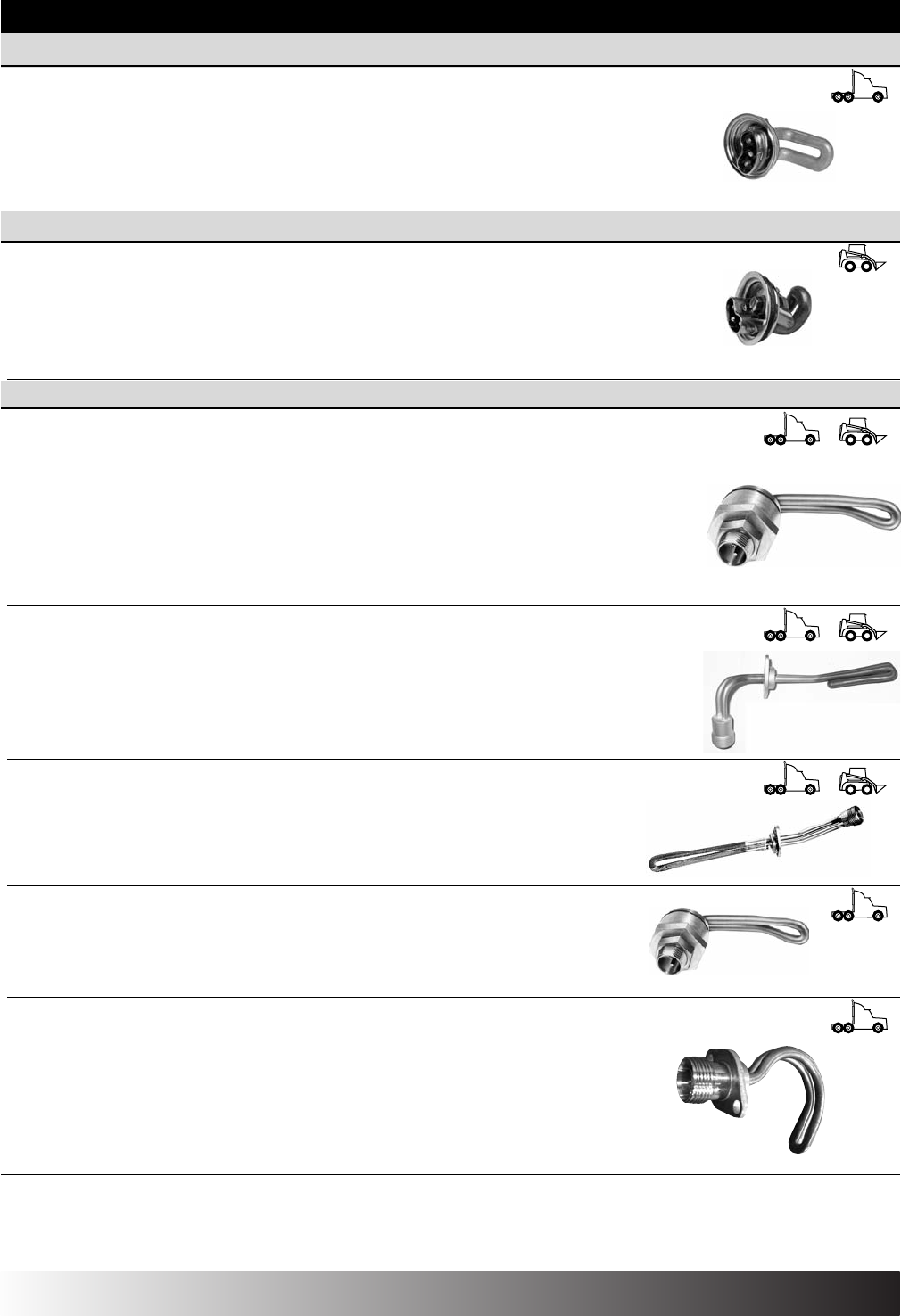

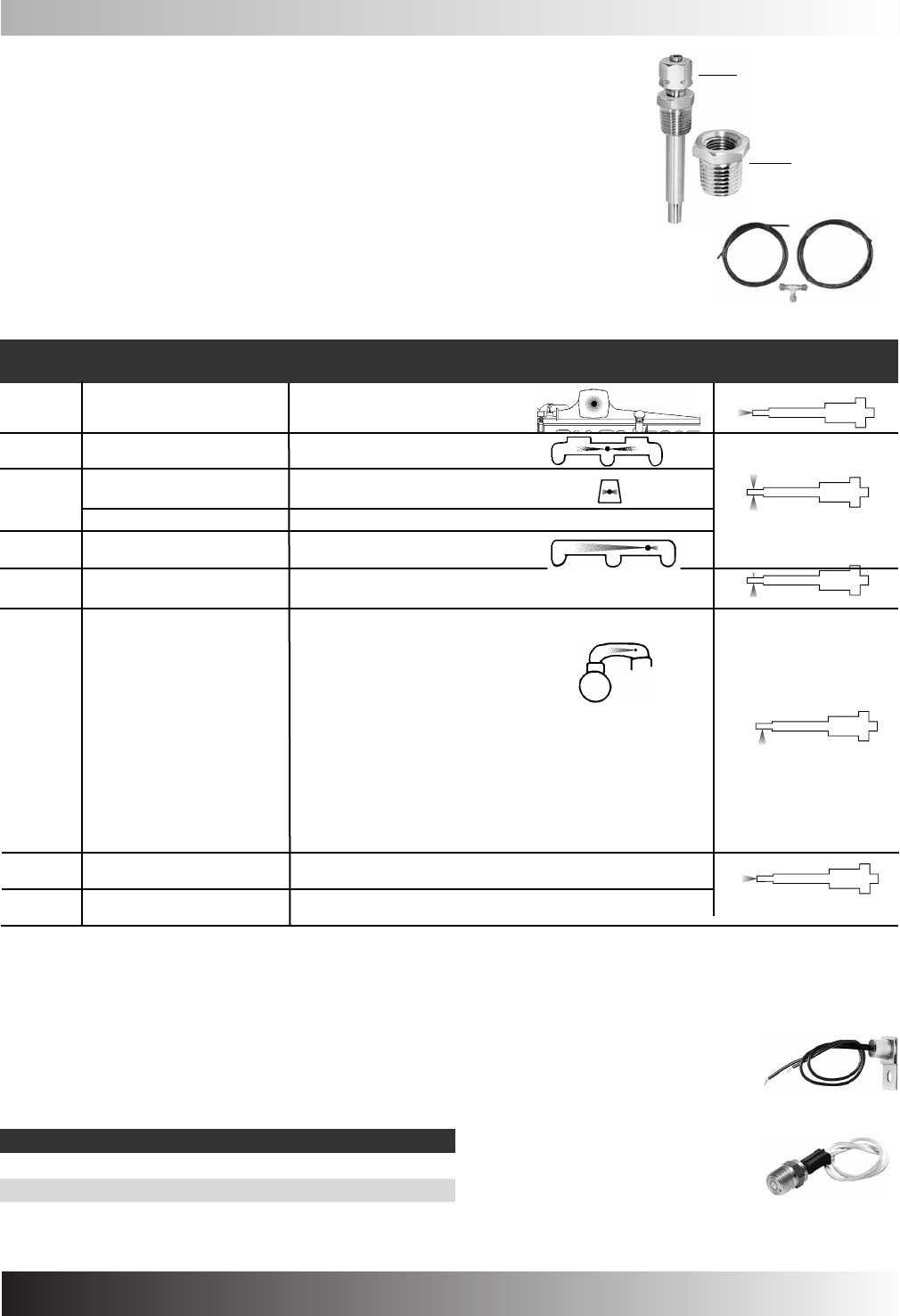

THREADED OIL PAN HEATERS (STAINLESS)

150 120 M22 x 1.5 7” (17.8cm) Water/Oil 3500047 — Stainless Steel

150 120 M25 x 1.5 3-1/2" (8.9cm) Water/Oil 3500071 — Stainless Steel

150 120 1/2" NPT 5" (12.7cm) Water/Oil 8609624 — Stainless Steel

150 120 1/2" NPT 7-3/4" (19.5cm) Water/Oil 2201712 — Stainless Steel

150 120 M22 x 1.5 3-1/2" (8.9cm) Water/Oil 8602859 8602794 Stainless Steel

150 120 1" NPT 5-5/8" (14.2cm) Oil 2200635 — Stainless Steel

150 120 1" NPT 6" (15.2cm) Water/Oil 8609802 8609845 Stainless Steel

150 120 1" NPT 6-5/8" (16.6cm) Oil 2204274** — Stainless Steel

150 240 1" NPT 6" (15.2cm) Water/Oil 8609837 — Stainless Steel

150 120 1-1/16" - 12 STOR 5" (12.7cm) Water/Oil 3500006 — Stainless Steel

150 120 1-5/16" 12 STOR 5" (12.7cm) Water/Oil 3500085 — Stainless Steel

150 240 1-5/16" 12 STOR 5" (12.7cm) Water/Oil 3500086 — Stainless Steel

150 120 M27 STOR 3-1/2" (8.9cm) Water/Oil 3500094 — Stainless Steel

300 120 1/2" NPT 5" (12.7cm) Water/Oil 8609683 — Stainless Steel

300 240 1/2" NPT 5" (12.7cm) Water/Oil 8609659 — Stainless Steel

300 120 3/4" NPT 11-1/8" (28.2cm) Oil 2201968 — Stainless Steel

300 120 M22 x 1.5 5-1/2" (13.9cm) Water/Oil 8602913 8602905 Stainless Steel

300 120 3/4" NPT 5-1/2" (13.9cm) Water/Oil 8603243 — Stainless Steel

300 120 1" NPT 6" (15.2cm) Oil 2202662 Stainless Steel

300 120 1" NPT 6" (15.2cm) Water/Oil 8609861 8609853 Stainless Steel

300 120 1-5/16" STOR 5" (12.7cm) Water/Oil 3500079 — Stainless Steel

300 240 1-5/16" STOR 5" (12.7cm) Water/Oil 3500078 — Stainless Steel

300 120 M27 STOR 5-1/2" (13.9cm) Water/Oil 3500093 — Stainless Steel

450 120 1/2" NPT 7-1/2" (19cm) Water/Oil 8609713 — Stainless Steel

450 120 M27 STOR 7-1/4" (18.4cm) Water/Oil 3500049 — Stainless Steel

1000 120 1" NPT 9-1/2" (24cm) Water/Oil 8609098 — Stainless Steel

Oil Heaters:

● Easy to spec: Not engine model specific!

● 10 watts of power per quart of oil

● Keeps oil warm and free flowing for instant lubrication

● Stainless steel low watt density heating elements for long life in oil and hydraulic fluid applications

● Can be used in oil pans, transmissions, hydraulic systems, etc.

For oil heater selection, measure space and determine

threading at installation location.

Note: Not all oil pans are equipped with ports. Inspect oil pan carefully before ordering to determine available ports.

When no pre-threaded port exists, contact the engine manufacturer for proper installation procedure.

All 120V Immersion

heaters CSA approved

**Welding flange included. Designed for Caterpillar 3406 with BrakeSaver

1Element does not turn during installation.

ZEROSTART

ELEMENT WITHOUT WITH ELEMENT

WATTAGE VOLTAGE THREAD SIZE LENGTH FOR USE IN THERMOSTAT THERMOSTAT CONSTRUCTION

ACCESSORY: 8602824;

1/2” NPT Adapter Bushing. For use on

steel pans only. 1/2" NPT oil pan heaters

are supplied with weld or braze-in adapter.

See page 76-77 for replacement cordset information

THREADED COOLANT IMMERSION HEATERS (COPPER)

400 120 3/8" NPT 2-3/4" (6.9cm) Water 3500026 — Copper

400 120 3/4" NPT 1" (2.5cm) Water 3100093 — Copper

400 120 1" NPT 1" (2.5cm) Water 3100003 — Copper

600 120 3/4" NPT 1-3/8" (3.4cm) Water 8604967 — Copper

750 120 3/4" NPT 2-7/8" (7.1cm) Water 3500022 — Copper

1000 120 3/4" NPT 4" (10.1cm) Water 8602549

— Copper

1000 240 3/4" NPT 4" (10.1cm) Water 8602514

—Copper

1000 240 3/4" NPT 4-1/2" (11.4cm) Water 8600988 — Copper

1000 120 1" NPT 4-1/4" (10.6cm) Water 8600090 — Copper

1000 240 1" NPT 4-1/4" (10.8cm) Water 8600120 — Copper

1000 120 3/4" NPT 3-3/8" (8.5cm) Water 3500032 — Copper

1000 120 3/4" NPT 3-7/8" (9.7 cm) Water 3500043 — Copper

1500 120 3/4" NPT 4-3/4" (12cm) Water 8602611

—Copper

1500 240 3/4" NPT 4-3/4" (12cm) Water 8602573

— Copper

1500 120 3/4" NPT 5-1/4"(13.3cm) Water 8601011 — Copper

1500 240 3/4" NPT 5-1/4" (13.3cm) Water 8601054 — Copper

1500 120 1" NPT 5" (12.7cm) Water 8605556 — Copper

1500 240 1" NPT 5" (12.7cm) Water 8600260 — Copper

1500 120 1" NPT 3-3/4" (9.5cm) Water 3500013 — Copper

1500 240 1" NPT 3-3/4" (9.5cm) Water 3500031 — Copper

ZEROSTART

ELEMENT WITHOUT WITH ELEMENT

WATTAGE VOLTAGE THREAD SIZE LENGTH FOR USE IN THERMOSTAT THERMOSTAT CONSTRUCTION

Note: To prevent potential damage to heater and fluid, oil pan heaters

should only be used to keep warm oil warm. Do not use with cold oil.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

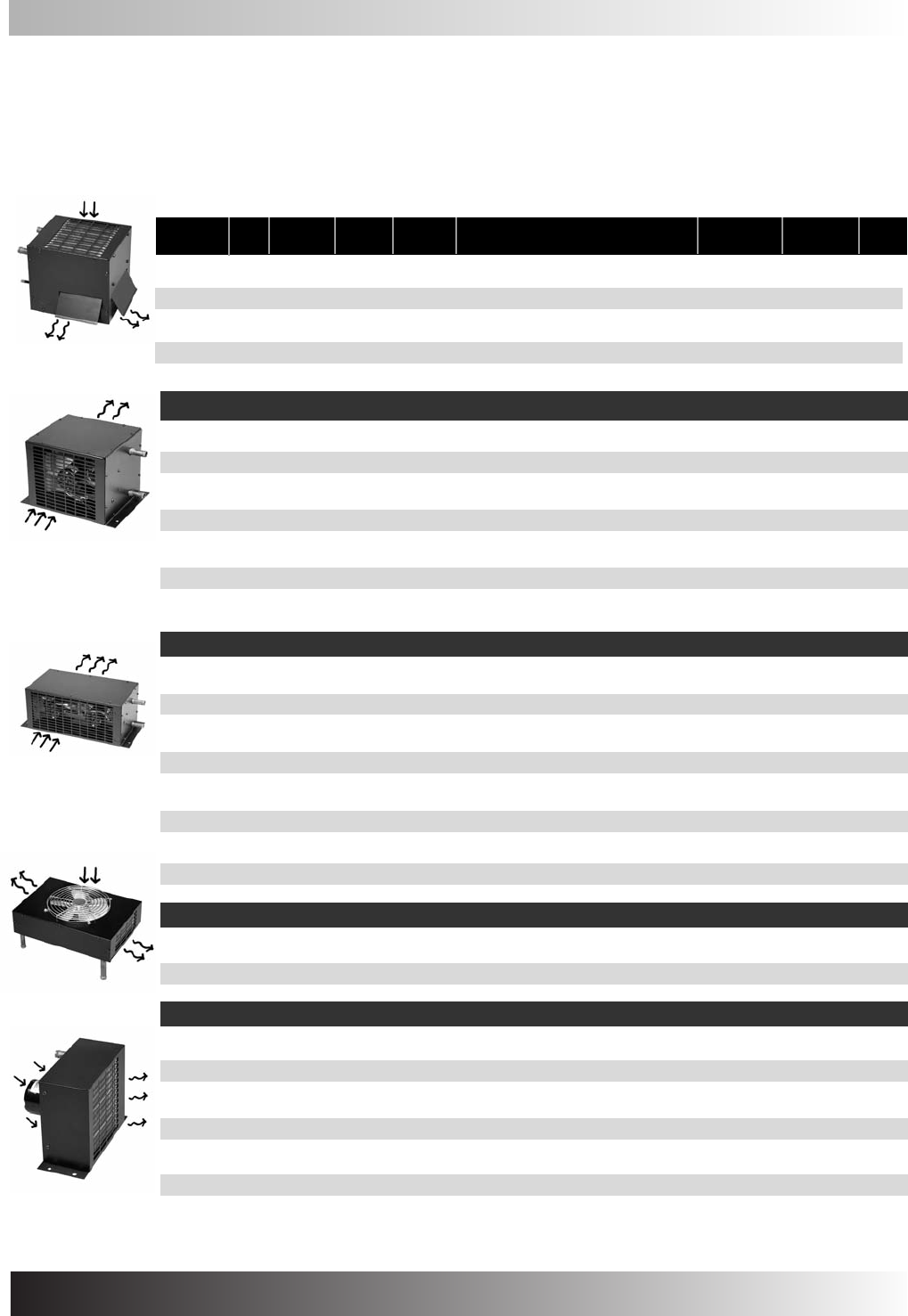

CAB & CARGO HEATERS

● Ideal as a secondary heat source in trucks, station wagons, sleeper cabs, etc.

● 2-speed reversible fan motors

● 14-gauge construction - (models 200 and 300)

● 20-gauge construction (models 100, 400, and 500)

● Installation kit included

● Custom fabrication available - contact Customer Service for more information

Model 100

(150 CFM Max)

Model 200

(7000202, 7000205,

7000208)

(250 CFM Max)

Model 300

(7000302, 7000305,

7000308, 7000311)

(325 CFM Max)

Model 400

(130 CFM Max)

Model 500

(7000502, 7000504,

7000506, 7000508)

(150 CFM Max)

ZEROSTART

CAPACITY AIRFLOW CURRENT OUTLET OUTLET WT.

PART NO. VOLT (BTU/HR) (CFM) (AMPS) DIMENSIONS (H X W X D) DIAMETER DIRECTION (LBS)

7000101 12 17,500 150 3.9 7.5 x 8.6 x 7.7" (191 x 219 x 196mm) 5/8" (16mm) Rear Top 10.0

7000102 12 17,500 150 3.9 7.5 x 8.6 x 7.7" (191 x 219 x 196mm) 3/4" (19mm) Rear Top 10.0

7000103 24 17,500 150 2.0 7.5 x 8.6 x 7.7" (191 x 219 x 196mm) 5/8" (16mm) Rear Top 10.0

7000104 24 17,500 150 2.0 7.5 x 8.6 x 7.7" (191 x 219 x 196mm) 3/4" (19mm) Rear Top 10.0

MODEL 200

7000201 12 30,000 250 9.4 9.3 x 11.5 x 10.6" (237 x 292 x 270mm) 5/8" (16mm) Rear left 26.5

7000202 12 30,000 250 9.4 9.3 x 11.5 x 10.6" (237 x 292 x 270mm) 5/8" (16mm) Left *26.5

7000203 12 30,000 250 9.4 9.3 x 11.5 x 10.6" (237 x 292 x 270mm) 5/8" (16mm) Right 26.5

7000205 12 30,000 250 9.4 9.3 x 11.5 x 10.6" (237 x 292 x 270mm) 3/4" (19mm) Left *26.5

7000206 12 30,000 250 9.4 9.3 x 11.5 x 10.6" (237 x 292 x 270mm) 3/4" (19mm) Right 26.5

7000207 24 30,000 250 4.7 9.3 x 11.5 x 10.6" (237 x 292 x 270mm) 5/8" (16mm) Rear Left 26.5

7000208 24 30,000 250 4.7 9.3 x 11.5 x 10.6" (237 x 292 x 270mm) 5/8" (16mm) Left *26.5

MODEL 300

7000301 12 40,000 325 8.9 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 5/8" (16mm) Rear Left 28.3

7000302 12 40,000 325 8.9 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 5/8" (16mm) Left *28.3

7000303 12 40,000 325 8.9 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 5/8" (16mm) Right 28.3

7000305 12 40,000 325 8.9 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 3/4" (19mm) Left *28.3

7000306 12 40,000 325 8.9 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 3/4" (19mm) Right 28.3

7000308 24 40,000 325 4.5 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 5/8" (16mm) Left *28.3

7000309 24 40,000 325 4.5 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 5/8" (16mm) Right 28.3

7000311 24 40,000 325 4.5 7.7 x 17.4 x 9.4" (196 x 442 x 239mm) 3/4" (19mm) Left *28.3

MODEL 400

7000401 12 13,500 130 4.3 3.1 x 13.0 x 9.0" (79 x 331 x 229mm) 5/8" (16mm) Bottom 10.4

7000403 24 13,500 130 2.2 3.1 x 13.0 x 9.0" (79 x 331 x 229mm) 5/8" (16mm) Bottom 10.4

MODEL 500

7000501 12 17,500 150 4.4 7.6 x 8.5 x 4.3" (193 x 216 x 109mm) 5/8" (16mm) Bottom Rt. 7.4

7000502 12 17,500 150 4.4 7.6 x 8.5 x 4.3" (193 x 216 x 109mm) 5/8" (16mm) Rear Right *7.4

7000503 12 17,500 150 4.4 7.6 x 8.5 x 4.3" (193 x 216 x 109mm) 3/4" (19mm) Bottom Rt. 7.4

7000504 12 17,500 150 4.4 7.6 x 8.5 x 4.3" (193 x 216 x 109mm) 3/4" (19mm) Rear Right *7.4

7000505 24 17,500 150 2.2 7.6 x 8.5 x 4.3" (193 x 216 x 109mm) 5/8" (16mm) Bottom Rt. 7.4

7000506 24 17,500 150 2.2 7.6 x 8.5 x 4.3" (193 x 216 x 109mm) 5/8" (16mm) Rear Right *7.4

7000508 24 17,500 150 2.2 7.6 x 8.5 x 4.3" (193 x 216 x 109mm) 3/4" (19mm) Rear Right *7.4

*Outlet direction featured in photo.

INSTALLATION KIT

7100001 —— Installation Kit

(includes on/off switch, electrical terminals)

FAN BLADES & DEFROSTER FAN

7100002 — 100, 300, 400, 500 7" (17.6cm) Fan Blade

7100003 — 200 8" (20.1cm) Fan Blade

7100025 — Model 7009001 6” (15.5cm) Fan Blade

7602855 — 12 Volt - Defroster Fan - 2 Speed

7602891 — 24 Volt - Defroster Fan - 2 Speed

7670036 — Replacement 2-Speed Switch

7675755 — Replacement Front Fan Guard

7675771 — Replacement Rear Fan Guard

MOTORS

7100004 — 100, 300, 400, 500, and 7009001 12-Volt Motor (short)

7100005 — 200 12-Volt Motor (long)

7100006 — 100, 300, 400, 500 24-Volt Motor (short)

7100007 — 200 24-Volt Motor (long)

Note: 12/24 Volt Motor SHORT — Shaft Size .3122” x 1.44”

Note: 12/24 Volt Motor LONG — Shaft Size .3122” x 1.88”

HEAT EXCHANGERS

7100022 Model 100 Heat Exchanger (3/4" R top)

7100023 Model 100 Heat Exchanger (5/8" R top)

7100012 Model 200 Heat Exchanger (3/4" side)

7100013 Model 200 Heat Exchanger (5/8" side)

7100014 Model 200 Heat Exchanger (3/4" rear)

7100015 Model 200 Heat Exchanger (5/8" rear)

7100016 Model 300 Heat Exchanger (3/4" side)

7100017 Model 300 Heat Exchanger (5/8" side)

7100020 Model 400 Heat Exchanger (3/4" bottom)

7100021 Model 400 Heat Exchanger (5/8" bottom)

7100008 Model 500 Heat Exchanger (3/4" bottom)

7100009 Model 500 Heat Exchanger (3/4" rear)

7100010 Model 500 Heat Exchanger (5/8" bottom)

7100011 Model 500 Heat Exchanger (5/8" rear)

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

CAB & CARGO HEATERS

PART NO. SAME AS: FOR USE IN MODEL NO.S DESCRIPTION

Cab & Cargo Heater Replacement Parts

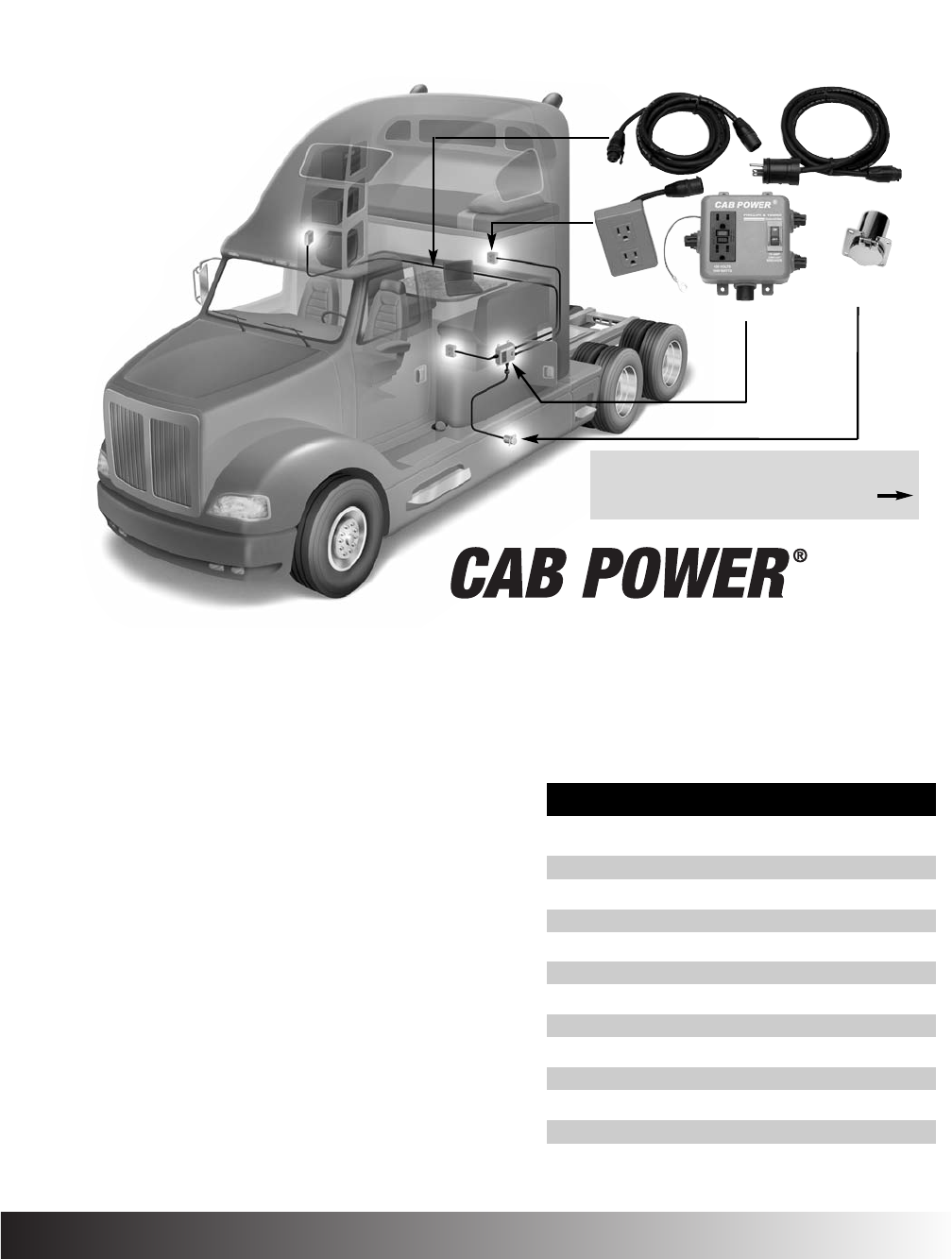

Ask for the Cab Power®

brand when spec’ing

your truck with an idle

reduction system.

Reduce Idling

Increase Cab Comfort & Convenience

PART #: 8500633 - BASIC KIT

Surface Mount

Receptacle Load Center

Weatherproof

Housing

Interior Wire

Harness

Exterior Wire

Harness

Now available with a battery inverter.

See Cab Power Plus on following page.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

THE CAB POWER®SYSTEM is a series of pre-wired, modular components for cabs and sleepers of

over-the-road trucks and service vehicles. The system allows for “living room” electrical convenience

without the need to keep the truck engine idling by distributing power from APU’s, inverters and land

based electrical grids (Shore Power).

Features and Benefits:

• Accommodates standard household appliances and office

equipment.

• Eliminates engine idling for electrical power generation reducing

air and noise pollution.

• Idling reduction results in fuel cost savings and less engine wear.

• Quick and simple installation (less than two hours).

• Adaptable, modular design features quick connect wires, and

unique mounting system.

• Easy to customize to all truck makes. Harnesses can be routed to

fit all interior cab configurations.

• System components are weatherproof, durable, and resistant to

adverse over-the-road trucking conditions.

• Can be factory installed or added as an aftermarket

enhancement..

PART NO. DESCRIPTION

CAB POWER ACCESSORIES

8500634 Surface Mount Outlet/Receptacle

8500635 Flush Mount Outlet/Receptacle

8500637 Weatherproof Housing w/Cab Power Insignia

8500640 85” Exterior Wire Harness (to housing)

8500641 54” Interior Wire Harness (to outlet)

8500638 96” Interior Wire Harness (to outlet)

8500639 163” Interior Wire Harness (to outlet)

8606048 Mounting Bracket For Weatherproof Housing

8500642 Inverter Outlet Extension Cord, 54”

8500643 Inverter Outlet Extension Cord, 96”

8500644 Inverter Outlet Extension Cord, 163”

8500647

Inverter, Panel-Mount Connector Kit (AC-in + AC-out)

* NOTE: Load center not available individually.

Long-haul Trucking Convenience Products

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

HIGH WATTAGE heavy duty engine pre-heater for use on industrial applications.

Our most powerful engine heater!

All Circulation Heaters feature:

●Low Watt-Density (replaceable) heating elements

(60-105 w/inch2) for long life

● 205°F (96°C) overheat thermostat

●NRTL/C approval (complies with UL/CSA)

● Thermally isolated regulating thermostat (models with t-stat)

● Four-bolt flange for easy element replacement

● 14 gauge SJOW cord (16 in. length - 40.6cm)

is abrasion, oil, and grease resistant

● Nylon check valve

● Premium grade tin-plated phosphor bronze blade connections

● 1 inch NPT inlet and outlet

● 1/4 inch NPT drain

● 3° tapered, permanent-mold aluminum housing

● High capacity circulation heater w/indicator light available on page 78

3300001 3300011 3300021 3300031 1500 120 12.5 (A)

3300002 3300012 3300022 3300032 2000 120 16.7 (C)

3300005 3300015 3300025 3300035 2250 120 18.8 (C)

————2250 240 9.4 (B)

3300007 ——3300037 2500 240 10.4 (B)

— 3300018 ——3000 240 12.5 (B)

—— —3300039 3500 240 14.6 (B)

——3300030 — 4000 240 16.6 3300060 (D)

High-Capacity Circulation Heaters - Complete kits, Ready to install

● Furnished with cord & molded plug (4000w Model features detachable plug)

Model With Thermostat Shown

(A) Furnished with standard 120V male plug.

(B) Furnished with standard 240V male plug.

(D) Plug not attached. High-current 240V detachable male plug is provided. 20 Amp electrical service required.

125 Volt

15 Amp

240 Volt

15 Amp

125 Volt

20 Amp

Standard

Plug

Weatherproof

Plug

NOTE: All circulation heaters on pages 71-73 are equipped with

different male plugs depending on the wattage and voltage

requirements of the heater. This diagram shows the plug

configuration for the three wattage/voltage combinations that are

used. Vehicles with heater hose connected to radiator cannot use

circulation type heaters.

A Note About Extension Cord Selection and Usage:

When using an extension cord with one or more heating devices, it is

important that the TOTAL current draw of all devices not exceed the capacity

of the extension cord or the AC circuit. Use only 3-wire GROUNDED

extension cords. Ground Fault Interrupter (GFI) service is also recommended.

See page 88 for more information on proper cord length and gauge.

240 Volt

20 Amp

Mounting space requirements (including thermostat):

27.5" (69.8cm) length x 3" (7.6cm) width x 6.5" (16.5cm) height.

ZEROSTART

HIGH HEATER HEATER HEATER

WATTAGE WITH WITH WITH

BASIC THERMOSTAT THERMOSTAT THERMOSTAT REPLACEMENT PLUG

HEATER RANGE A RANGE B RANGE C WATTS VOLTS AMPS ELEMENT CONFIGURATION

REPLACEABLE

THERMOSTATS THERMOSTAT RANGES

3300094 Range A: 80ºF ON - 100ºF OFF

(27°C ON - 38°C OFF)

3300095 Range B: 100ºF ON - 120ºF OFF

(38°C ON - 49°C OFF)

3300096 Range C: 120ºF ON - 140ºF OFF

(49°C ON - 60°C OFF)

CIRCULATION HEATERS

PLUG

CONFIGURATIONS (A) (B) (C) (D)

Regulating

Thermostat

Location

Overheat

Thermostat

Location

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

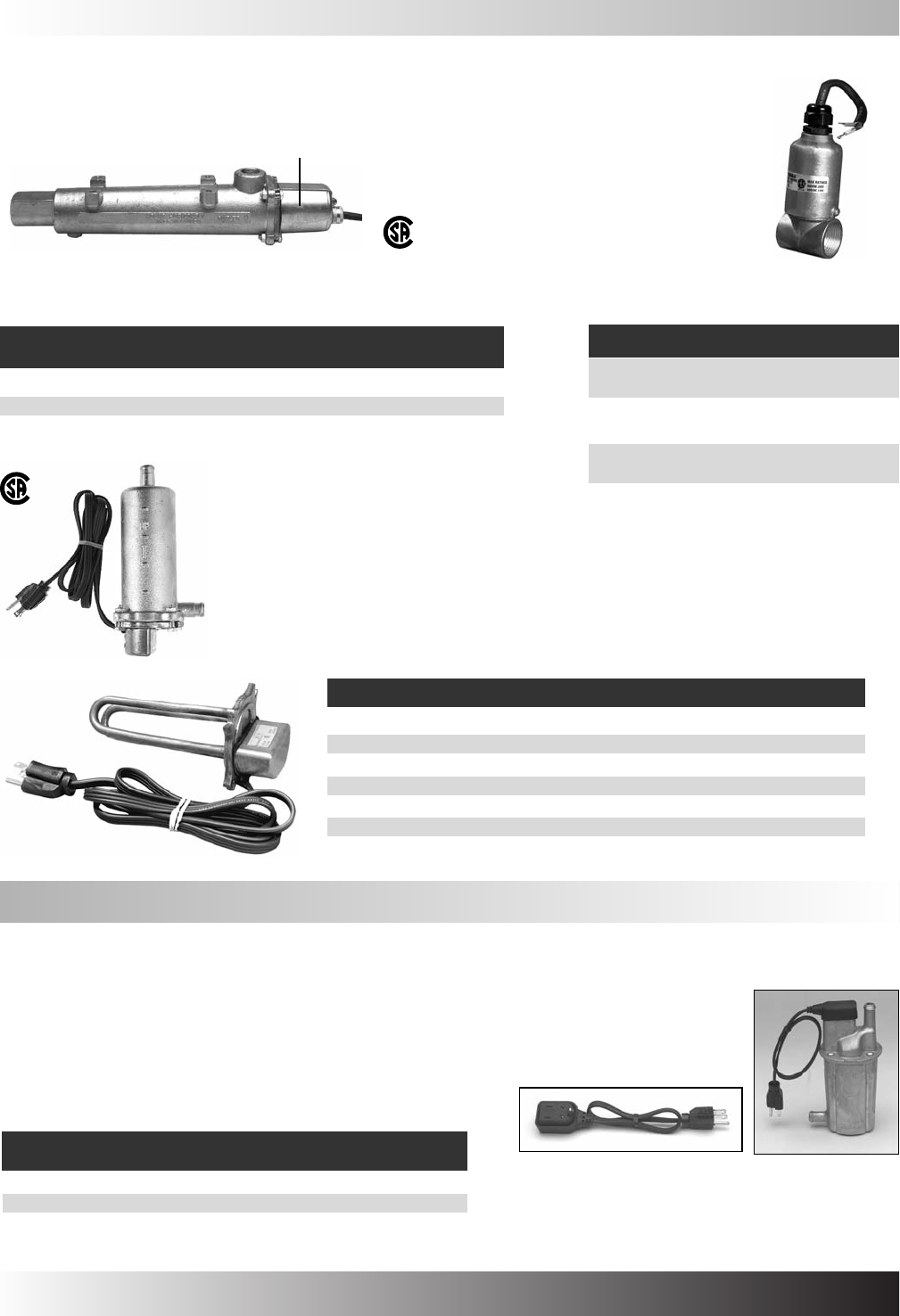

BASIC HEATERS—for custom installations

Heaters not furnished with regulating thermostat. Power cord is unfinished (not supplied with plug).

Mounting space requirements:

22.5 in. (57.1cm) length x 3 in. (7.6cm) width x 4.5 in. (11.4cm) height.

Series 41 Heaters & Replacement Parts

HEATER WATTAGE VOLTAGE ELEMENT THERMOSTAT

2204010 750 120 2204061 2204266

2204029 1000 120 2204088 2204266

2204037 1500 120 2204096 2204266

3300091 2000 120 3300093 2204266

* 1000 240 — 2204266

* 1500 240 2204126 2204266

* Replacement element and thermostat only.

● Thermostatically protected: opens at 190°F (88°C), closes at 151°F (66°C)

● Vertical installation only

● Heavy Duty 3-wire 5 ft. (1.52m) attached cord, 2000W heater has 22” attached cord.

● 5/8" inlet and outlet

● Dimensions: 2-3/4" x 8-1/2" (7cm x 21.6cm)

● Replaceable element and thermostat

Industrial Tank Heater - Series 41

CIRCULATION HEATERS

Overheat

Thermostat

Location

CIRCULATION HEATERS

Series 8000 Tank/Circulation Engine Heaters

● Cylindrical design of heater and universal mounting strap allow for convenient, new or retrofit applications.

● Integral check valve supports extensive range of plumbing configurations.

● New top-side location of power cord connection provides damage protection from road debris and chemicals.

● Rugged diecast aluminum construction is corrosion and impact resistant.

● New detachable power cord enhances ease of installation.

● Copper heating element provides excellent heat transfer.

● Temperature sensing thermostat provides overheat protection.

3308001 750 120 5/8”

3308002 1000 120 5/8”

3308003 1500 120 5/8”

NOTE: Use Series 41 Heater for 2000 Watt Applications.

Replacement Cord - Part No. 3309001 - 18”

Part No. 3309002 - 60”

PART NO. WATTS VOLTAGE HOSE CONNECTION

DIAMETER

Light-duty, off road, industrial and agricultural applications.

Optional Thermostat

(for use with basic heater only)

Complete Unit Shown

PART NO. OPERATING RANGE

3300061 80°F ON - 100°F OFF

(27°C ON - 38°C OFF)

3300062 100°F ON - 120°F OFF

(38°C ON - 49°C OFF)

3300063 120°F ON - 140°F OFF

(49°C ON - 60°C OFF)

BASIC REPLACEMENT

HEATER WATTAGE VOLTAGE AMPS ELEMENT

3300041 1500 120 12.5 3300051

3300042 2000 120 16.7 3300052

3300045 2250 120 18.8 3300055

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

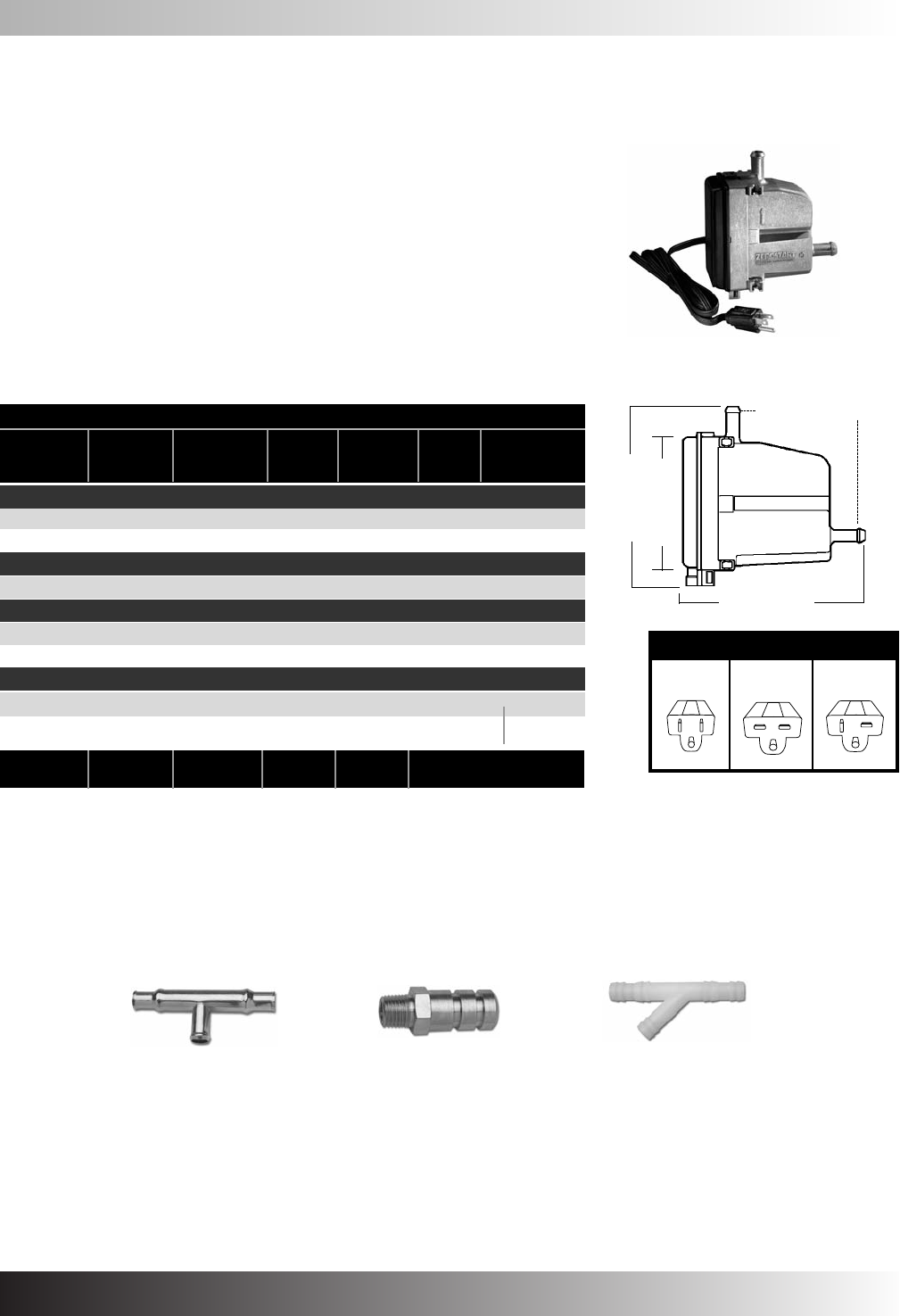

INDUSTRIAL TANK/CIRCULATION ENGINE HEATER offers dependable engine starts in all temperatures.

By circulating warmed coolant through an engine, it assures a quick start, reduces time to reach

operating speed and enhances immediate full-load acceptance.

● Rugged diecast aluminum construction is corrosion and impact resistant

● Low watt density copper heating element provides optimum performance

● Temperature sensing thermostat provides overheat protection. Regulating

thermostats included in three heat ranges

●Temperature and oil resistant, permanently connected 5 ft. (1.52m) power

cord with strain relief is flame retardant

● Water resistant terminal end cap protects against harsh chemicals

● Unique mounting system protects against road vibration

● Lead-free heater utilizes recyclable aluminum, plastic and copper to help

protect the environment

PLUG CONFIGURATIONS

125 Volt

15 Amp

250 Volt

15 Amp

125 Volt

20 Amp

AB C

3305004 2250 Yes (C) 120 18.8* 3/4" Large Body

NOTE: 3305004 does not include regulating thermostat

DDiimmeennssiioonnss

3/4" (19mm)

4.9" (124mm)

6.7" (170mm)

7.8" (198mm)

1500/2250 watt models

For additional product information, refer to

Circulation Data Sheet #LIT0311196.

ZEROSTART

REGULATING THERMOSTAT RANGE

ON/OFF ON/OFF ON/OFF MALE INLET/OUTLET

60°/80°F 80°/100°F 100°/120°F PLUG VOLTS AMPS SIZE

(10°/27°C) (27°/38°C) (38°/49°C)

ZEROSTART

PART MALE INLET/OUTLET TANK

NUMBER WATTAGE PLUG VOLTS AMPS SIZE SIZE

Heavy Duty/Industrial Series, Small Body Tank - 750 Watt

3305028 3305032 3305036 Yes (A) 120 6.3 5/8"

— 3305034 No 240 3.1 5/8"

Heavy Duty/Industrial Series, Small Body Tank - 1000 Watt

3305040 3305044 3305048 Yes (A) 120 8.3 5/8"

Heavy Duty/Industrial Series, Large Body Tank - 1500 Watt

3305052 3305056 3305060 Yes (A) 120 12.5 3/4"

— 3305058 3305062 No 240 6.3 3/4"

Heavy Duty/Industrial Series, Large Body Tank - 2250 Watt

3305064 3305068 3305072 No 120 18.8 3/4"

— 3305070 — No 240 9.4 3/4"

CIRCULATION HEATERS

Heavy-Duty Industrial Series Heaters

Part #3300090

5/8" (15.8 mm) x 3/4" (19mm)

Plastic "Y" fitting

The small size of some engine compartments, especially vehicles with transverse engines, may make circulation heater installation

difficult even though it may be listed as a heating option. The following accessories are available for use with circulation heaters:

Part #3300086

1/4" NPT (6mm)

"A" Adapter to

5/8" (15.8mm) hose

Part #3300085

5/8" (15.8mm) x 3/4” (19mm)

Metal “T” fitting

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

BATTERY HEATERS

Two types of battery heaters boost battery power as much as 75%

2800055 28" (71cm) 50 Series 26, 26R, 70

2800063 36" (91.5cm) 80 Series 24, 24F, 27, 27F, 74

2800071 72" (183 cm) 160 Truck batteries. Series-parallel systems.

Blanket Style Battery Heaters

• 120 Volt AC operation

• Blanket style heater warms battery core to 60° - 70° above ambient temperature for quick starts

• Thinsulate™thermal insulation helps maintain battery temperature in warm or cold weather

• Complete with 30 inch (76cm) grounded cord

• All battery blanket heaters are 5 in. (12.7cm) tall, 1/2 in. (1.1cm) thick

Battery Box Heater

• 200 Watt - 120 Volt AC or 240 Volt AC model available

• Preset thermostat maintains 80°F (27°C) battery warmth for quick starts

• Complete with 8 ft. (2.4m) grounded cord

• Dimensions: 9" (22.8cm) Length x 6" (15.1cm) Width x 3/4" (1.8cm) Height

Note: This product not available in Canada

(CSA approved model not available)

™Thinsulate is a registered trademark of 3M corporation.

CAUTION: Battery heaters are not recommended for nickel cadmium batteries.

Part No. 8500320 (120V)

Part No. 8500339 (240V)

At 20°below zero, your battery (with less than half the

normal available power) must start an engine that

requires 350% more starting power.

PART NO. LENGTH WATTAGE BATTERY SIZE

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Most “860” & "350" series heaters will use the

following standard replacement cordsets: Most

120 Volt heaters ship with cord #3600008.

Most 240 Volt heaters ship with #8608377.

PART NO. DESCRIPTION VOLTAGE LENGTH GA.

3600008 Heavy duty replacement cord 120 6 ft. (1.8m) 16

8608377 Heavy duty replacement cord 240 6 ft. (1.8m) 16

3600048 Hi-temp silicone repl. cord 120 6 ft. (1.8m) 16

3600015 Heavy duty replacement cord 120 5 ft. (1.5m) 16

3600024 Heavy duty replacement cord 120 1 ft. (30.1cm) 16

3600085 Hi-temp replacement cord - Volvo 120 6 ft. (1.8m) 14

3600086 Hi-temp replacement cord - Volvo 240 6 ft. (1.8m) 14

Heavy-Duty Immersion Heater Replacement Cordsets

Also see “Y-Cord” thermostat kits - page 77

Accessories

CORDSETS & ACCESSORIES

Fig A Fig CFig B Fig D

(For Aluminum

& Brass Heaters)

Fig E

(For Steel Heaters)

FIG PART NO. LENGTH DESCRIPTION

A 3600001 5 ft. (1.52m) Silicone cord w/right angle connector

A 3600002 5 ft. (1.52m) Radiant heater replacement cord

C 3600003 5 ft. (1.52m) Silicone cord with straight connector

H 3600004 5 ft. (1.52m) Silicone cord with right angle connector (brass and aluminum heaters)

D 3600005 5 ft. (1.52m) Silicone cord with straight connector

E 3600006 5 ft. (1.52m) Silicone cord with 90° connector (steel heaters)

F 3600007 5 ft. (1.52m) Reverse freeze plug cord

B 3600010 7.5 ft. (2.29m) Silicone cord

G 3600016 6 ft. (1.83m) Silicone cord with 90° connector

B 3600019 3 ft. (.9 m) Replacement cord

E 3600021 94 in. (2.4m) Silicone cord with 90° connector

E 3600036 1 ft. (30.3cm) Replacement cordset with silicone connectors (steel heaters)

H 3600022 1 ft. (30.3cm) Replacement cordset with silicone connector (brass and aluminum heaters)

A 3600023 1 ft. (30.3cm) Replacement cordset with silicone connector (brass and aluminum heaters)

I 3600080 5 ft. (1.52m) Pyroil Replacement Cordset with silicone connector (use with all Pyroil Freeze plug heaters)

J 3600082 5 ft. (1.52m) GM Replacement Cordset with thermostat

J 3600083 5 ft. (1.52m) GM Replacement Cordset with silicone connector (No t-stat)

Fig F Fig G

If you cannot locate a replacement freeze plug cordset part number from the application section of this publication,

try matching the old cordset to the photos below to identify the correct replacement cordset.

Freeze Plug Replacement Cordsets

Fig H Fig I

PPaarrtt NNoo.. 33660000001122 -- Plug Protector

● Prevents freeze up - keeps moisture out

● Keeps plug contacts clean for optimum power and safety

PPaarrtt NNoo.. 33660000004400

3-Way Connector

● Use multiple cold weather products with one common cord

● 14 gauge 3-wire grounded cord

● Cord length: 23 in. (59cm)

Note: This product not available in Canada

(CSA approved model not available)

PPaarrtt NNoo.. 33660000004455 -- Cord Holder

Narrow plug provides

easy installation in

tight grille areas

PPaarrtt NNoo.. 33660000001188

Low-profile, 2 piece, Through-The-Grille Cordset

Avoid ugly plugs hanging from the grille

● Prevents plug from being visible

● Fits all vehicles

● 1500 Watt rating - 120 Volt AC

● Required for routing through narrow grille openings

(1/3" x 1" [7, 62mm x 25, 4mm) minimum clearance)

● Cord length: 6 ft. (1.8m)

Fig J

NOTE: 3600082 must be used in all 2006 and newer GM passenger cars to avoid a Check Engine Light.

CORDSETS & ACCESSORIES

Weatherproof Cordsets & Accessories

A 3600046 Weatherproof Cordset with frost plug connector 120 6 ft. (1.8m) 18 —

B 8605688 Weatherproof Field-wired receptacle—chrome plated 120 ——4-hole square

C 8605505 Weatherproof Field-wired receptacle—zinc plated 120 ——3-hole round

D 8605645 Replacement rubber boot for WP receptacle ———

E 8605254 Replacement male plug for WP receptacle kit 120 ——

F 8606005 WP Silicone Cordset & chrome plated receptacle 120 6 ft. (1.8m) 16 4-hole square

F 8606013 WP Silicone Cordset & chrome plated receptacle 120 10 ft. (3.1m) 16 4-hole square

G 8606048 Mounting bracket—chrome plated ———2 & 4 hole square

H 8606080 Receptacle only—chrome plated ———4-hole square

N 3600088 Receptacle only—black ———4-hole square

I 3600028 Weatherproof Cordset with Receptacle 120 8 ft. (2.4m) 16 2-hole square

I 3600014 Weatherproof Cordset with Receptacle 120 12 ft. (3.6m) 16 2-hole square

J 8608652 Weatherproof Cordset with Silicone connector 120 7 ft. (2.2m) 14 —

J 8605122 Weatherproof Cordset with Silicone connector 240* 7 ft. (2.2m) 14 —

J 8608814 Weatherproof Cordset with Silicone connector 120 10 ft. (3.1m) 14 —

J 8608849 Weatherproof Cordset with Silicone connector 120 5.5 ft. (1.7m) 14 —

J 8608857 Weatherproof Cordset with Silicone connector 120 12 ft. (3.6m) 14 —

J 8608865 Weatherproof Cordset with Silicone connector 120 14 ft. (4.3m) 14 —

K 8602891 Weatherproof Cordset & zinc-plated receptacle 120 6 ft. (1.8m) 16 3-hole round

K 8602921 Weatherproof Cordset & zinc-plated receptacle 240* 6 ft. (1.8m) 16 3-hole round

K 8602948 Weatherproof Cordset & zinc-plated receptacle 120 10 ft. (3m) 16 3-hole round

L 3600041 3-way connector w/chrome plated receptacle (not CSA approved) 120 5 ft. (1.5m) 14 4-hole square

8608032 Square receptacle 2-hole w/gasket

8605149 Square receptacle only 2-hole w/o gasket

3600056 Round receptacle 3-hole w/gasket

C 8605513 Weatherproof field-wired receptacle - zinc plated 240* 3-hole round

M 8606056 Mounting bracket 3-hole round

Fig A Fig B Fig C Fig F Fig G

Fig H Fig I Fig J Fig K

Fig D Fig E

Weatherproof Receptacles

●One-piece molded cordset with labor-saving QuickConnect™ receptacles

●Molded connector end snaps into receptacle housing, screws into heater -

forming a positive weatherproof seal at both ends

● Round and square weatherproof housings available

● Receptacle enhances vehicle appearance - eliminating messy cords

● Field-wired model allows for custom installations

● Most models CSA approved except 3600041

● Housing dimensions: 2.5" (6.2cm) x 2.5" (6.2cm), mounting hole

required: 1-5/8" (4.1cm)

Fig L

Also see page 78 for NEW indicator light weatherproof cordset system.

ZEROSTART

CORD WIRE RECEPTACLE

FIG PART NO. DESCRIPTION VOLTAGE LENGTH GAUGE SPECIFICATIONS

Fig M

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

Fig N

240V/15A

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

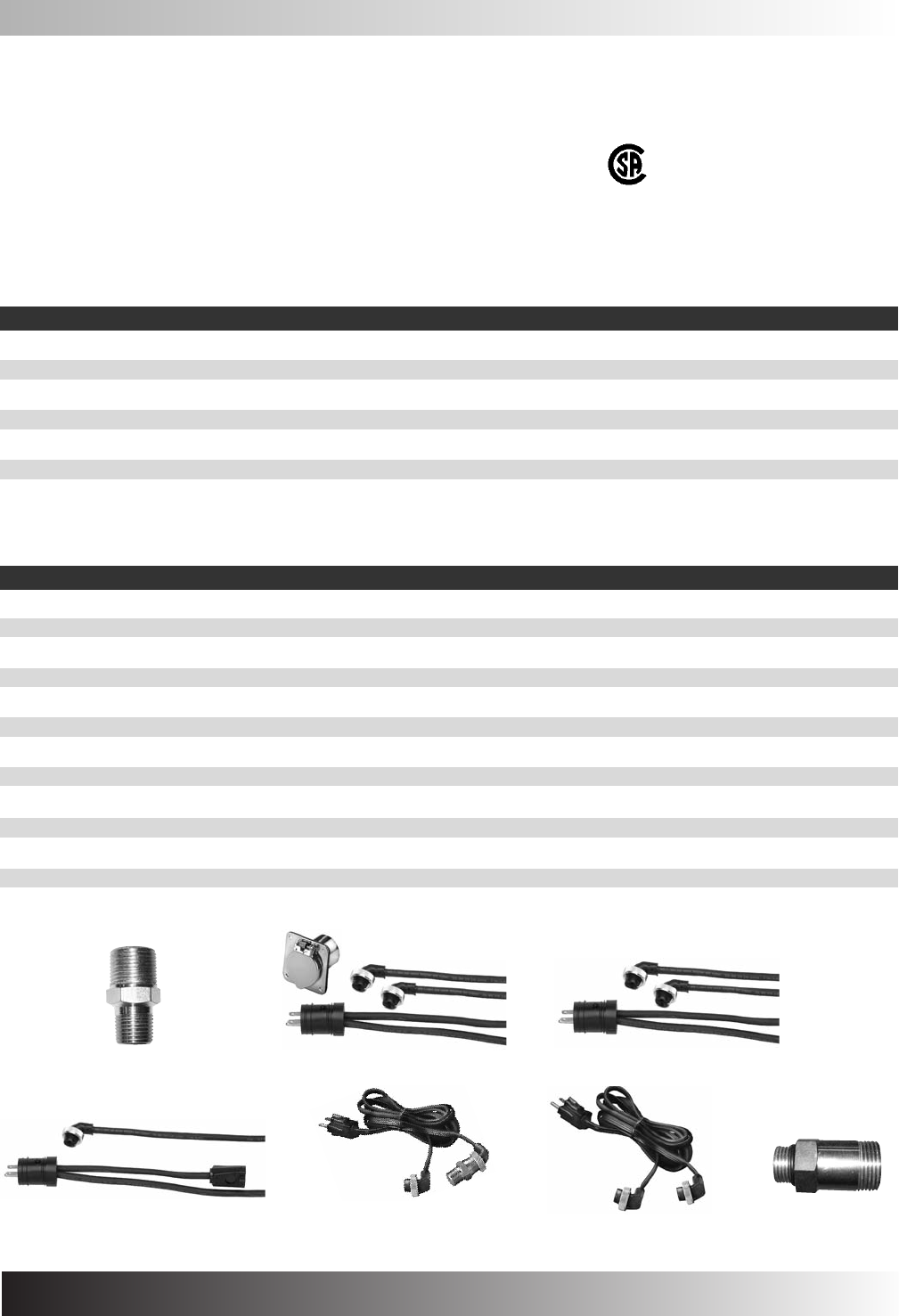

CORDSETS & ACCESSORIES

FIG PART NO. DESCRIPTION VOLTS LENGTH GA. CHARACTERISTICS

C 3600064 Series Weatherproof Y-Cord 120 6/6 ft. (1.8m) 16 Two 6 ft. (1.8m) lengths — Flat Wire

C 3600089 Series Weatherproof Y-Cord 120 8.5 ft. (2.6m) / 14 ft. (4.3m) 14 One 8.5 ft. (2.6m) & one 14 ft. (4.3m) lengths

F 3600065 Series Y-Cord (standard plug) 120 6/6 ft. (1.8m) 16 Two 6 ft. (1.8m) lengths

G 3600081 #8 STOR thermostat only 40°F ON/55°F OFF

A 3600057 1/2” NPT thermostat only 100°F ON/120°F OFF

A 3600058 1/2” NPT thermostat only 55°F ON/75°F OFF

A 3600066 3/4” NPT thermostat Only 40°F ON/55°F OFF

A 3600068 1/2” NPT thermostat Only 40°F ON/55°F OFF

A 3600073 M22 x 1.5 thermostat only 40°F ON/55°F OFF

E 8604037 Series Y-Cord with thermostat 240 6/6 ft. (1.8m) 16 100°F ON/120°F OFF

— 3600087 M27 thermostat only 40° ON/55°F OFF

E 3600054 Series Y-Cord with thermostat 120 6 ft. (1.6m) / 6 ft. (1.6m) 16

Fig A Fig B Fig C

Fig D

Series Y-Cords & Thermostats - See page 80 for engine applications chart

Use SERIES Y-cords with one thermostat and one heater.

FIG PART NO. DESCRIPTION VOLTS LENGTH GA. CHARACTERISTICS

B 8607311 Weatherproof Y-Cord Parallel 120 7/9 ft. 14 Includes 4-hole receptacle

C 8607990 Weatherproof Y-Cord Parallel 120 7/7 ft. 14 Two 7' (2.1m) lengths

C 8608059 Weatherproof Y-Cord Parallel 120 7/10 ft. 14 One 7' (2.1m) One 10' (3m)

C 8608423 Weatherproof Y-Cord Parallel 120 14/14 ft. 14 Two 14' (4.3m) lengths

D 8608768 Weatherproof Y-Cord Parallel with AC outlet 120 1/7 ft. 14 One 12" (30cm) (AC) One 7'

D 8608792 Weatherproof Y-Cord Parallel with AC outlet 120 1/10 ft. 14 One 12" (30cm) (AC) One 10'

— 3600094 Weatherproof W-Cord Parallel

Parallel Weatherproof “Y” Cord Assemblies (for use with weatherproof housing)

Use PARALLEL Y-cords with two heaters.

Thermostatically Controlled Engine Immersion Heater Systems

● Saves money by reducing engine heater operating hours

● For new installations or replacement use

● For more economy use lower thermostat temperature settings

Fig E

Now offering more thermostat models for increased application coverage.

Fig G

Fig F

Lower LED light illuminating (red)

indicates current flowing through

heater (heater operating)

Upper LED light illuminating (red)

indicates the presence of

AC voltage, providing instant

visual proof of connections

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

CORDSETS & ACCESSORIES

ENGINE IMMERSION HEATER LED INDICATOR LIGHT SYSTEM

Standard Kit

(Includes weatherproof housing and cord)

PART NO. CORD LENGTH

3600049 6 ft. (1830mm)

3600051 12 ft. (3660mm)

Weatherproof Series Y-Cord for Thermostat Option

PART NO. CORD LENGTH

3600079 Weatherproof Series Y-Cord Only, 72”x72”

3600090 Weatherproof Series Y-Cord Only, 55”x110”

3600091 Weatherproof Series Y-Cord Only, 100”x168”

3600097 Weatherproof Series Y-Cord Only, 168”x168”

PART NO. DESCRIPTION

3600098 Single Indicator Light (Harness Only)

(7.8 ft / 2.4m)

3600099 Single Indicator Light (Harness)

with Weatherproof Housing

(7.8 ft / 2.4m)

Indicator Light Kit

PART NO. DESCRIPTION

3600061 Dual Heater Sensing Indicator Light Kit

84” x 120”, 120V, Parrallel Y-Cord

● Indicator lights visible up to 150 ft. (50m)!

● 120 Volt - 15 Amp rating

● Minimum wattage required is 150W

● Chrome plated, four-hole mount square flanged

weatherproof receptacle with gasket

● Mounting plate dimensions: 3.56"

(90mm) (W) x 2.56" (65mm) (H)

Also see page 76 for standard weatherproof cordsets and accessories.

Specially designed wire harness with two-light system

allows operators or fleet personnel to quickly determine

both power availability and heater operation.

Indicator Replacement Parts

PART NO. DESCRIPTION

3600060 Chrome Replacement Indicator Light

Plate, 120V

3600077 Black Replacement Indicator Light Plate

3600062 Indicator Light System Cord, 6 ft.

3600078 Indicator Light System Cord, 12 ft.

3600067 Replacement LED Light

8606080 Receptacle only, chrome plated (4-hole)

See page 79 for Indicator Light information

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

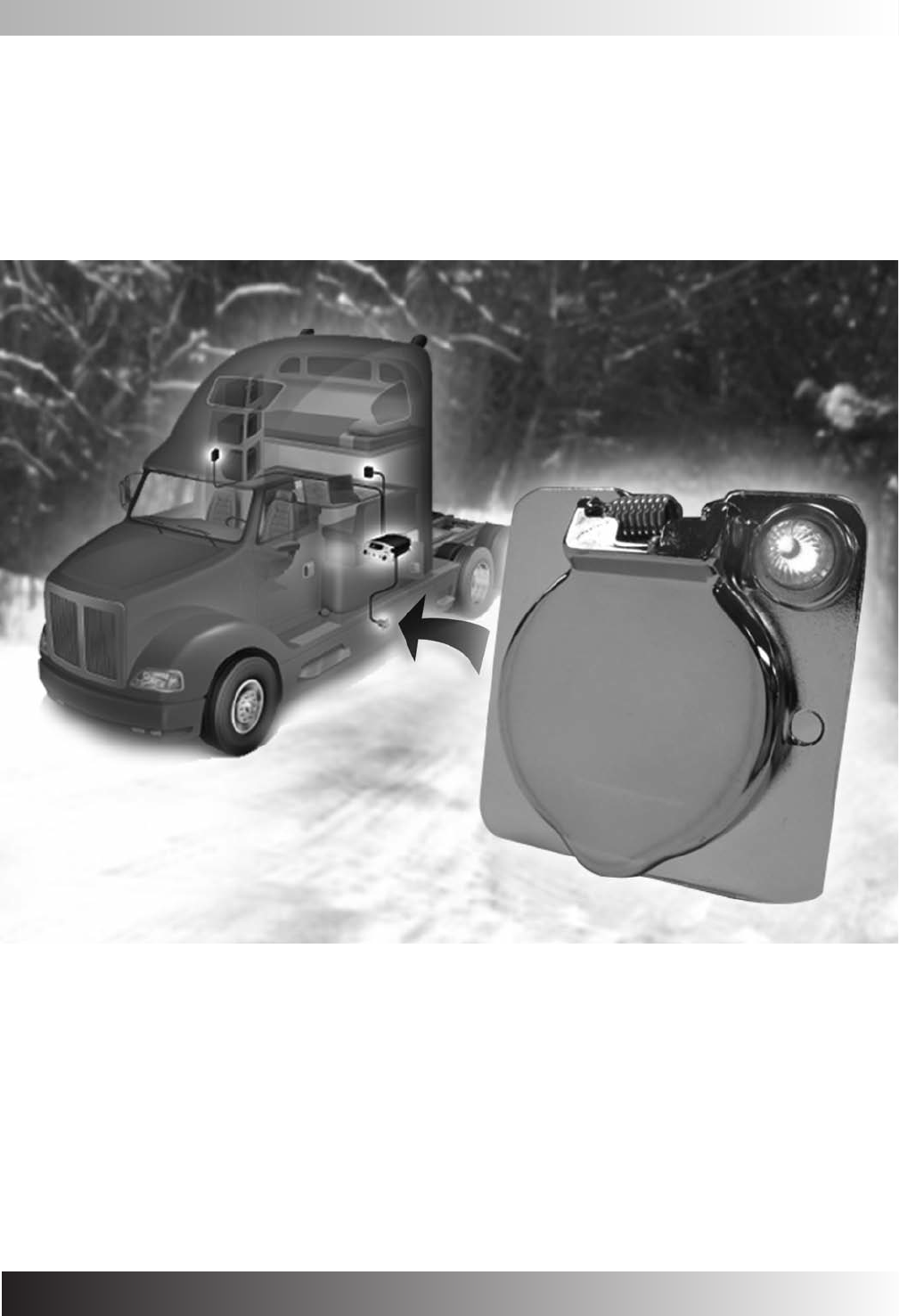

INTEGRATED INDICATOR LIGHT

DON’T GET LEFT OUT IN THE COLD

Eliminate no starts with an Integrated Indicator Light

for your Engine Block Heater

Confirm engine block heater operation at a glance and ensure

cold weather starts with Phillips & Temro’s Integrated Indicator Light.

When the bright red LED light is on, it indicates that:

● Utility power is functional

● Your block heater is operating

Part No. 3600098, 3600099

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

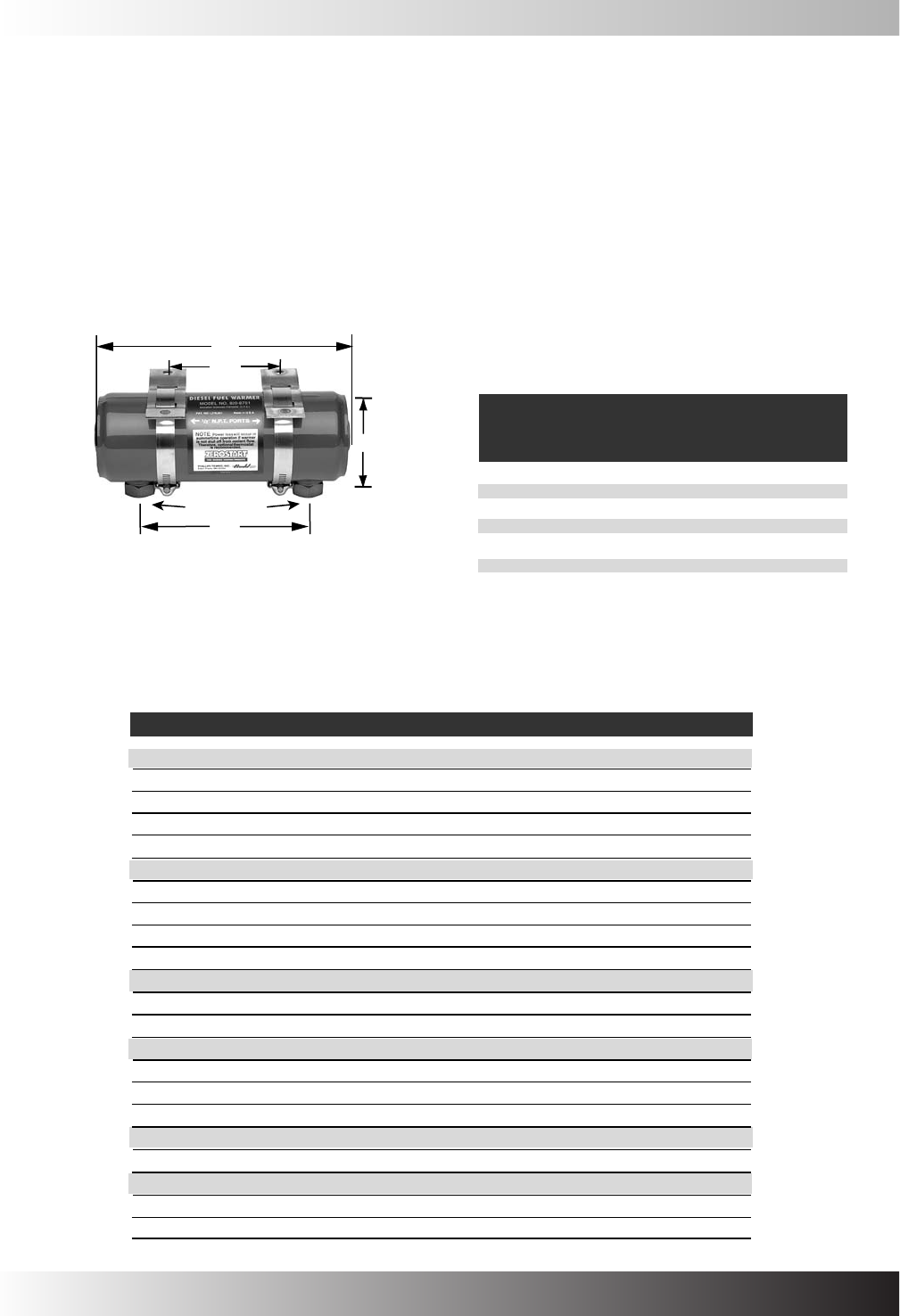

Heavy Duty Model

Part No. 8208751

TEMPERATURE RISE

INLET OUTLET FUEL TEMP

FUEL TEMP. FUEL FLOW RATE

°F/°C 2-1/2 GPM 1-1/2 GPM 1/2 GPM

-30/-34 +32/0 +38/3 +52/11

-10/-23 +39/4 +45/7 +55/13

+10/-12 +47/8 +53/12 +59/15

+30/-1 +60/16 +62/17 +67/19

+50/10 +71/22 +74/23 +77/25

+70/21 +85/29 +87/31 +88/31

10"

5.8"

FUEL PORTS

4.13"

●Transfers heat from engine coolant to the fuel just before the fuel filter for maximum efficiency

●Eliminates clogged fuel filters when temperatures are below 10°F (-12°C)

● Exclusive stainless steel construction with no internal welds prevents coolant from leaking into fuel

● Minimal pressure drop

● Can be used as a heat exchanger in some hydraulic applications

● Port size: 1/2 - 14 NPT (Heavy-Duty)

COOLANT PORT

(each end)

Lower operating costs by using #2 fuel all year

Based on a 140°F (60°C) coolant temperature.

Specifications

Pressure Drop ..................................................less than 0.05 psi

Maximum operating pressure ............................................75 psi

Maximum operating temperature ..........................350°F (177°C)

Test pressure ..................................................................100 psi

Weight (without bracket) ..........................................2 lbs. (907g)

DIESEL FUEL HEATERS

CATERPILLAR

3406E 3600066 3/4” NPT

C9 3600081 #8 STOR

C11 & C13 3600081 #8 STOR

C15 & C16 3600081 #8 STOR

CUMMINS

ISB 3600066 3/4” NPT

ISC 3600066 3/4” NPT

ISM 3600068 1/2” NPT

ISX 3600087 M27

DETROIT DIESEL

Series-60 3600066 3/4” NPT

DD15 3600087 M27

INTERNATIONAL

DT-466 (Non-EGR 1998-2005) 3600068 1/2” NPT

DT 5 & 7 3600087 M27

DT 11 & 13 3600087 M27

MACK

E-Tech 3600068 1/2” NPT

PACCAR

PX-6 3600066 3/4” NPT

PX-8 3600066 3/4” NPT

ENGINE PART NO. DESCRIPTION

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

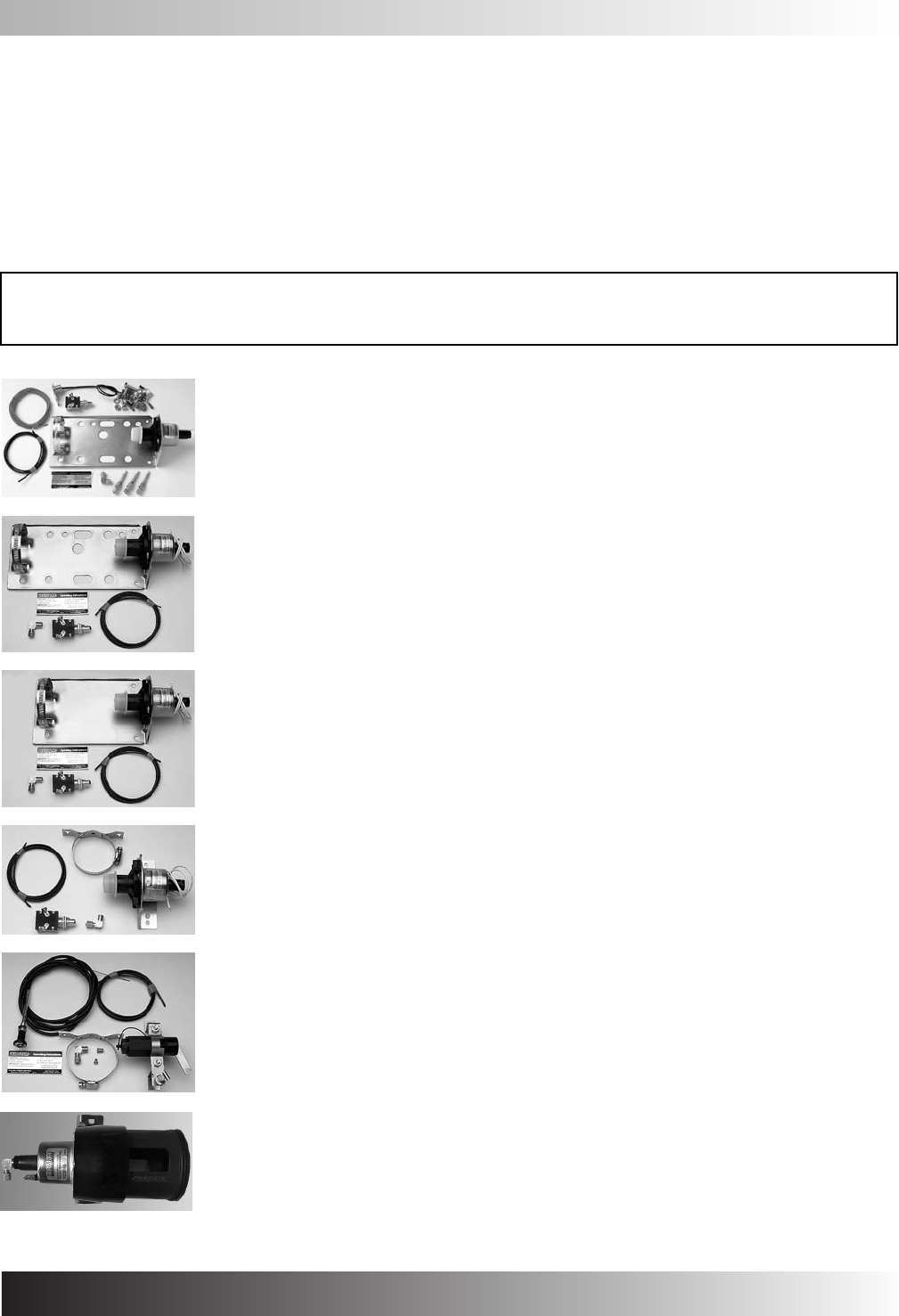

DIESEL STARTING FLUID SYSTEMS

E-Z Stock, E-Z Mount Electrical Kit (12 Volt) - Part No. 8203237

One part number covers most class 7 and 8 vehicles. Kit includes: 3 atomizers (8202966, 8202974, 8202982),

switch, valve fitting, 48" nylon tube, dash decal, 16 gauge wire, valve & mounting brackets, surface-mount

thermostat. Starting fluid cylinder NOT included.

Note: To change to 24V system - you need to purchase 8204020 Bracket/Valve assembly. All other components

are compatable.

E-Z Mount Electrical Kit (12/24 Volt) (See page 79 for applications)

Replace existing systems, or custom design your own. Kit includes: Valve & mounting bracket, switch, valve fitting,

dash decal, 48" nylon tubing. Atomizer not included - see page 82.

Standard Electrical Kit (12/24 Volt) (See page 81 for applications)

Direct replacement for some factory installed systems. Kit includes: Valve, switch, cylinder clamp, valve fitting,

dash decal, 48" nylon tubing. Atomizer not included - see page 82.

Mechanical Kit (See page 81 for applications)

A simple, economical way to add ether injection. Kit includes: Valve, cylinder clamp, 84" control cable, valve fitting,

dash decal, 48" nylon tubing. Atomizer not included - see page 82.

Mini E-Z Mount Electrical Kit (12 Volt) - Part No. 8200001

Provides the benefits of our full-size measured shot system in a compact design—for use with 250-500 CID

applications. Includes: Mini valve with mounting bracket, pushbutton switch, valve fitting, 48" nylon tubing,

dash decal. See page 79 for applications. Atomizer not included - see page 82 for information.

●Pre-heats combustion chamber in diesel engines for quick starts

●Measured/metered shot system limits the amount of starting fluid that can enter an engine—

provides for optimum starting with less chance of waste or engine damage

●Convenient, one person operation

●Economical—about 16#per start

●High pressure replacement cylinders meet D.O.T. standards

●Available in 12 and 24 volt electrical and mechanically operated models

●Uses standard 1 inch cylinders

Aerosol Starting Fluid Valve (12 Volt) Part No. 5801001

Continuous flow system for replacement of industrial and agricultural applications. Uses standard 7.5 - 8.5 oz.

spray can (not included). Leak-proof seal and easy one-hand installation of starting fluid can simplify use.

Kit includes ether valve and elbow connection.

NOTE: Diesel Starting Fluid Systems are NOT for use with engines equipped with glow plug or flame thrower systems,

or engines equipped with intake air heater.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

GENERAL APPLICATIONS (SPECIFIC ENGINES LISTED BELOW)

EZ-MOUNT ELECTRICAL STANDARD ELECTRICAL MECHANICAL

Engine Size Shot Size 12V 24V 12V 24V

Under 250 CID (4L) 1.5 cc 8204136 N/A 8204179 N/A N/A

250-500 CID (4-8L) 3 cc 8203938 8203946 8200106 8200165 8200211

450-950 CID (8-15.5L) 6 cc 8203954 8203962 8200157 8200238 8200270

Over 900 CID (14-7L) 12 cc 8203970 8203989 N/A 8200602 8200432

REPLACEMENT PARTS

EZ-MOUNT ELECTRICAL STANDARD ELECTRICAL MECHANICAL

Engine Size Description 12 V 24 V 12 V 24 V

Under 250 CID Valve Only N/A N/A 8204101 N/A N/A

250-500 CID Valve Only 8203997 N/A 8202427 N/A 8202397

450-950 CID Valve Only 8204012 N/A 8202435 8202478 N/A

Over 900 CID Valve Only 8204039 N/A 8202443 N/A 8202419

Cylinder Clamp N/A N/A 8202575 8202575 N/A

Switch 8202699 8202699 8202699 8202699 N/A

84" Control Cable N/A N/A N/A N/A 8202559

Wirestop N/A N/A N/A N/A 8202567

Valve fitting 8202532 8202532 8202532 8202532 8202532

48" Nylon tube 8202540 8202540 8202540 8202540 8202540

Dash decal 8202583 8202583 8202583 8202583 8202583

Note: All starting

fluid kits, except

mini-ether kits,

use starting fluid

cylinder #8200327

(not included).

All kits, except for

#8203237 require

atomizer. See

page 80 for

atomizer

information.

Make & Engine Model E-Z Stock E-Z Mount Electrical Standard Electrical Mechanical Atomizer

E-Z Mount 12 V 24 V 12 V 24 V

CATERPILLAR

1100, 3208, 3306, others over 500 cid1 8203237 8203954 8203962 8200157 8200238 8200270 8202982

3406, 3408, 1693, D3461 8203237 8203954 8203962 8200157 8200238 8200270 82029661

3406B turbo1 — 8203954 8203962 8200157 8200238 8200270 82030671

31761 8203237 8203954 8203962 8200157 8200238 8200270 82029821

CUMMINS

855 CID series, all turbo over 400 cid 8203237 8203954 8203962 8200157 8200238 8200270 8202982

B Series - 4 cylinder 48204136 — 8204179 ——8202931

B Series - 6 cylinder 48203938 8203946 8200106 8200165 8200211 8202931

C Series — 8203954 8203962 8200157 8200238 8200270 8202931

10 Litre, 11 Litre 8203237 8203954 8203962 8200157 8200238 8200270 8202982

DETROIT DIESEL

3-53, 4-53, 3-71, 4-71 48203938 8203946 8200106 8200165 8200211 2, 3

6-71, 6V-53, 8V-53, 6V-71, 6V-92 8203237 8203954 8203962 8200157 8200238 8200270 2, 3

8V-71, 8V-92 — 8203970 8203989 8200548 8200602 8200432 2, 3

8.2 Litre — 8203954 8203962 8200157 8200238 8200270 8202958

Series 60 (677 & 774 CID) — 8203954 8203962 8200157 8200238 8200270 8202966

FORD

6.6L, 7.8L 8203237 8203938 8203946 8200106 8200165 8200211 8202974

INTERNATIONAL

D150 (461 CID), D170, D190 8203237 8203954 8203962 8200157 8200238 8200270 2, 3

D550 (549 CID), V800 (798 CID) 8203237 8203954 8203962 8200157 8200238 8200270 2, 3

817 (817 CID), 9 Litre 8203237 8203954 8203962 8200157 8200238 8200270 2, 3

D, DT31—DT312, DT360, DT436, DT466 48203938 8203946 8200106 8200165 8200211 8202974

MACK

Midliner — 8203938 8203946 8200106 8200165 8200211 8203016

ALL 6 Cylinder — 8203954 8203962 8200157 8200238 8200270 8202990

864, 865 & 866 V-8 series — 8203954 8203962 8200157 8200238 8200270 8202982

MERCEDES TRUCK

ALL — 8203938 8203946 8200106 8200165 8200211 8202958

PERKINS

ALL 48203938 8203946 8200106 8200165 8200211 8202982

If your engine is not under “Specific Applications”, then choose a kit based on the engine size.

1Air-to-air aftercooled engines (ATAAC) generally will use an 8202982 atomizer installed in pipe between discharge side of aftercooler and engine manifold.

2Use 8202966 if installed in blower box or manifold.

3Use 8202982 if installed in air intake horn.

4Mini ether system (#8200001) may be used for this application.

STARTING FLUID SYSTEMS APPLICATIONS

DIESEL STARTING FLUID SYSTEMS

ENGINE SPECIFIC APPLICATIONS

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

DIESEL STARTING FLUID SYSTEMS

PART NO. TYPE TEMP ON TEMP OFF

8200386 Surface Mount 60°F (16°C) 85°F (29°C)

8202281 Threaded 45°F (7°C) 65°F (18°C)

8291837 Threaded 70°F (21°C) 100°F (38°C)

Surface Mount

Threaded Style

Diesel Starting Fluid System Thermostats

● Locks out electrical valve operation at specified engine temperatures

● Surface mount installs without draining engine coolant

● Threaded 1/2" NPT installs directly in any 1/2" NPT opening in water jacket

8203067 Caterpillar 3406B Turbo Pre-tapped hole in aftercooler

.018

8202931 Cummins B & C Series Pre-tapped manifold

.011

8202966* Cummins Non-Turbo Center intake manifold

.018 & other manifolds over 2"

Blue Detroit Diesel blower box Center blower box

8202990 Mack in-line 6 Pre-tapped hole between

.018 cylinders #5 & #6

8203016 Mack Midliner Air intake pipe or intake manifold

.013

Under

500 CID Ford 6.6/7.8L, Cummins

8202974* & Perkins in-line, all Direct ether flow against

.013 Turbocharged engines flow of incoming air

Yellow

8200003 Cummins 600

.018 Swivel Style

8200004 Cummins 600

. .013 Swivel Style

Over

450 CID (Pressure side of turbo),

8202982* DDA or IH Air Intake Horn

.018

Red

8202958 DDA 8.2 Litre Pre-tapped hole in air cleaner adapter

.013

8203008 Ford industrial diesel Direct flow of starting fluid into air stream, not directly into cylinder.

.018

Atomizer (see below)

(1/8" x 1-1/4")

1/4" Bushing

#8203032

*Included in kit 8203237 Note: All atomizers 1/8" NPT.

Atomizer Applications

Dual Atomizer Kit

(for use with "V' engines)

#8203091

Starting Fluid System Atomizers

● Designed for most engines with 1/8" or 1/4" NPT opening

● Provides proper direction and atomization of pressurized fluid

● Sintered bronze filter maintains purity of intake air

● Spray pattern clearly marked for easy installation

PART NO. APPLICATIONS LOCATION SPRAY PATTERN

ORIFICE/SIZE

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

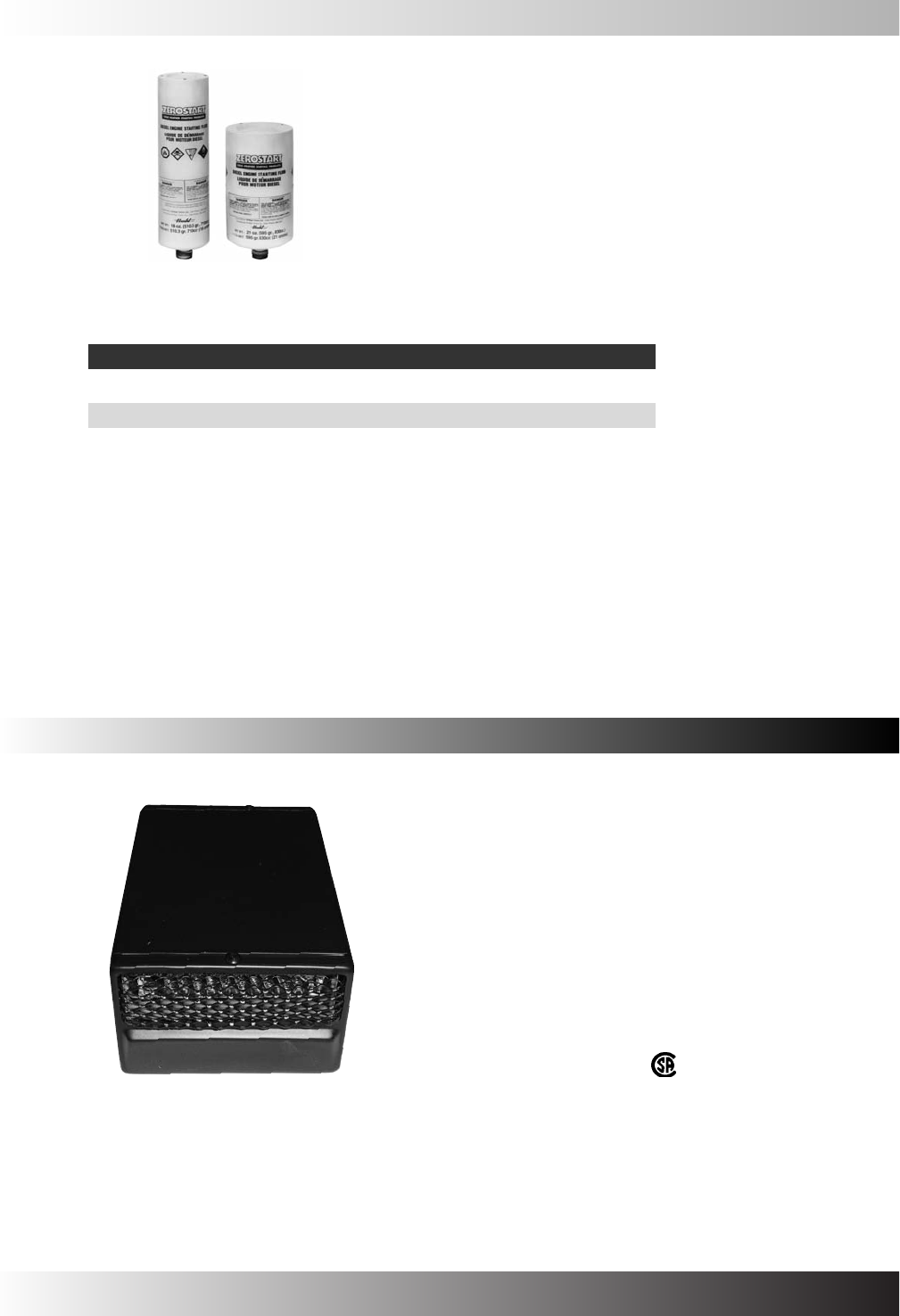

8200327 8201277

PART NO. DESCRIPTION SIZE NOZZLE

8200327 18 oz. 1" neck (Used with most kits) 3" x 11" 1" - 20

8201277 21 oz. 1" neck (Fits Dieselmatic®kits 4" x 8" 1" - 20

8203903 1" standard gaskets (cork gasket flat) Pkg. of 50

D.O.T. Approved Replacement Starting Fluid Cylinders

NOTE: All ZeroStart®Diesel Starting Fluid kits require cylinder #8200327.

Gaskets are not included with cylinders.

MINIMUM QUANTITY OF STARTING FLUID THAT CAN BE SHIPPED IS 1 COMPLETE CASE (12 CYLINDERS).

STARTING FLUID CYLINDERS ARE NOT RETURNABLE.

NOTE: A disposal fee will be charged for each cylinder included in a product return.

DIESEL STARTING FLUID

PPaarrtt NNoo.. 22660000990000

● Ideal for use in passenger, light-duty, and recreational vehicles

● 900 Watts - 120 Volt AC

● Mounts on floor or under dash. Mounting bracket included

● Compact size: 7” (17.6 cm) (L) x 4.5” (11.3 cm) (W) x 2.75” (7 cm (H)

● Cord length: 7.5 ft. (2.3 m)

PPaarrtt NNoo.. 33660000005555

Car Warmer Replacement Cord

LITTLE BUDDY

INTERIOR WARMER

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

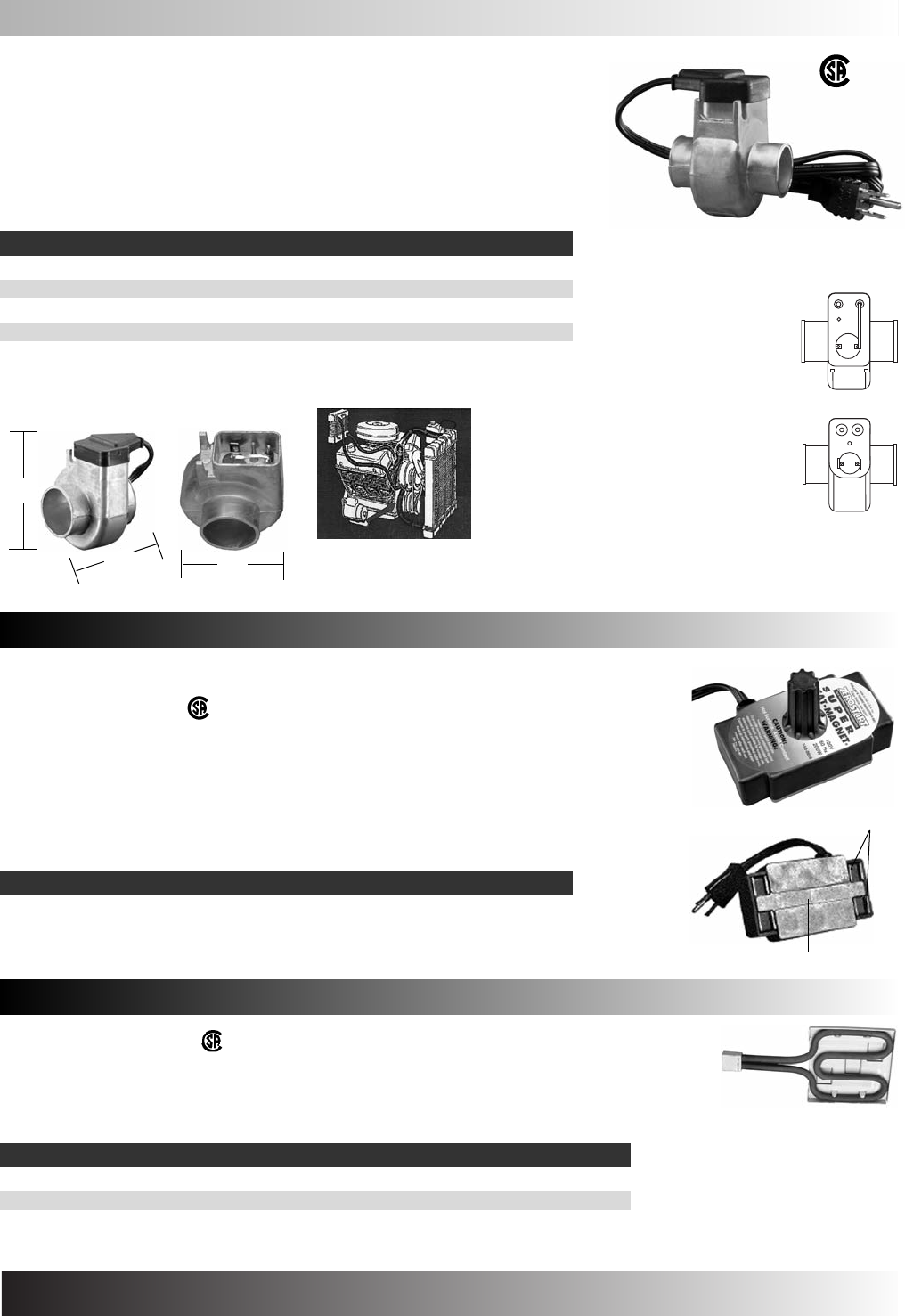

LOWER RADIATOR HOSE HEATERS

For heaters with this configuration.

Heater stamped with Model C

(example 150C) on bottom of unit.

Part No. 3600009

For heaters with this configuration.

Heater stamped with Model D

(example 150D) on bottom of unit.

Part No. 3600047

PART NO. FITS HOSE SIZE WATT VOLT DIM A DIM B DIM C

3200001 1" (2.4cm) 375 120 3.5" (8.6cm) 3" (7.5cm) 2.5" (6.4cm)

3200002 1-1/4" (3.1cm) 375 120 3.5" (8.6cm) 3" (7.5cm) 2.5" (6.4cm)

3200003 1-1/2" (3.7cm) 600 120 4" (10cm) 3" (7.5cm) 3" (7.5cm)

3200004 1-3/4" (4.3cm) 600 120 4" (10cm) 3" (7.5cm) 3" (7.5cm)

3200005 2" (5cm) 600 120 4.25" (10.5cm) 3" (7.5cm) 3.25" (8cm)

Replacement Cordsets

120 Volt AC, 42" (112cm)

Tube type hose heater replacement cord

Part No. 3600017

Lower Radiator Hose Heater

Hose must have a minimum 15° rise

Must be installed in smooth, molded hose

Must have direct access to engine water jacket

Efficient engine heating from die-cast aluminum design

● Installs in minutes in non-corrugated lower radiator hose

● Available in five hose sizes for best coverage

● Thermostatically protected (245°F/118°C maximum heater temperature)

● Replaceable cordset

● Consult application section for size/use information

Super Heat Magnet®

●200 Watt - 120 Volt AC

●Built-in thermostat maintains optimum temperature—will not exceed 250°F (121°C)

●Quick grip handle protects hands from heat

● Dimensions - Length: 4-3/8" (11cm), Width: 2-1/2" (6.3cm), Height: 3" (7.5cm)

(including handle)

PART NO. DESCRIPTION

3400017 UL/CSA Approved Model - 6 in. (15cm) cordset

Floating Magnets

Concave Center Groove

PART NO. DIMENSIONS WATTS VOLT REPLACEMENT CORDSET

3400014 6" x 6" (15.2cm x 15.2cm) 500 120 3600002

3400011 4" x 4" (10.1cm x 10.1cm) 300 120 3600002

Bolt-on Radiant Heaters

●For applications with no core plug or core plug access

●Heating element conducts heat directly

●Universal mounting clamp included

DIM

Note: All dimensions reflect approximate installation space requirements, not exact product measurements.

Dimension "A" includes cord.

Magnetic utility heater provides heat when and where you need it.

DIM

MAGNETIC HEATERS

RADIANT HEATERS

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

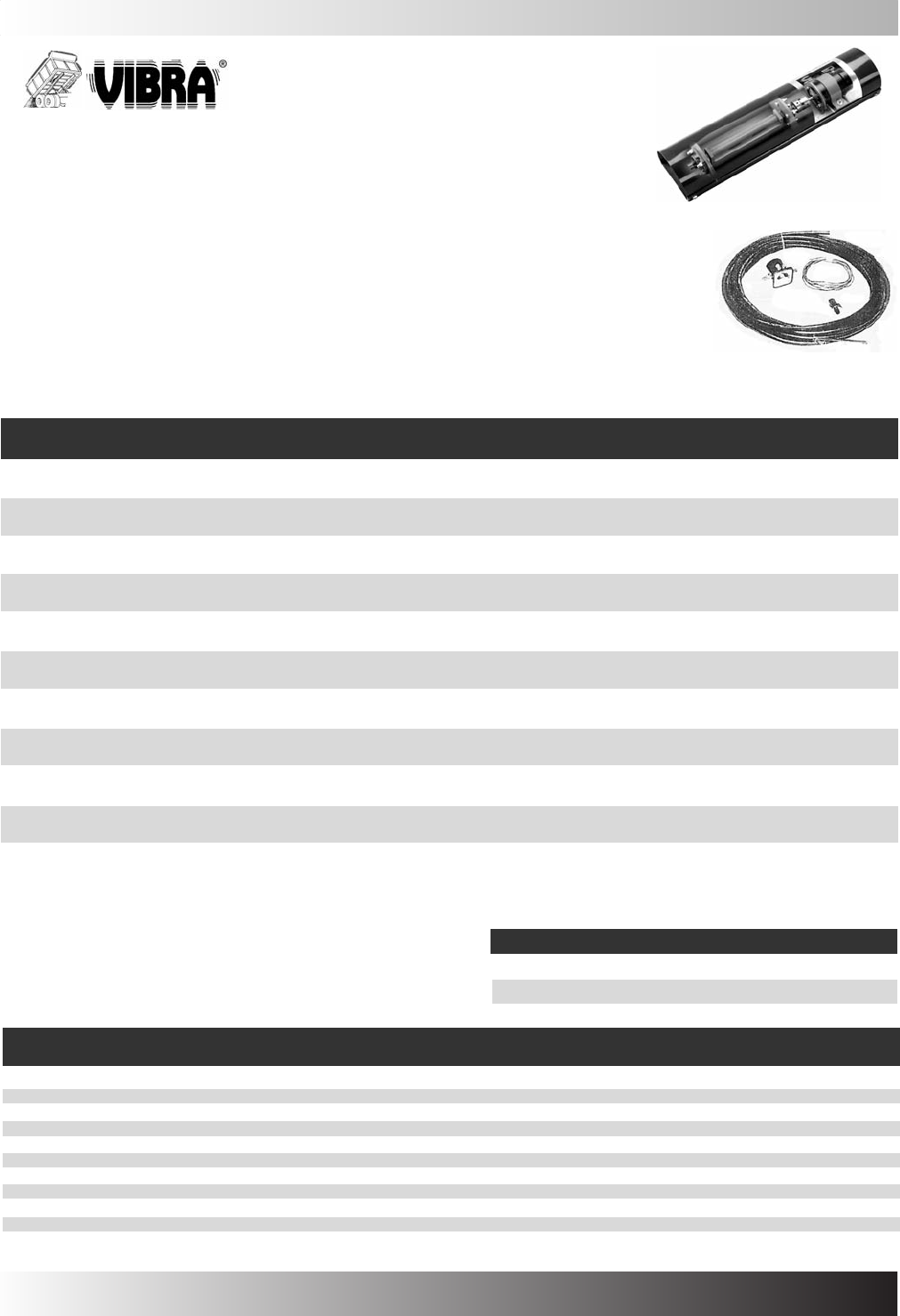

SPECIALTY PRODUCTS

Dump Body Vibrators

PART POWER THRUST OPERATING INSTALLATION SHIPPING

NO. SERIES TYPE REQUIREMENTS IMPACT FORCE DIMENSIONS TEMPERATURE KIT WEIGHT

8000581 V2000 Electric 12 volt 2000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included 110 lbs.

380 amp (907 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (50 kg)

8000905 V2000 Electric 12 volt 2000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included1103 lbs.

380 amp (907 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (47 kg)

8000875 V3000 Electric 12 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included3104 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (52 kg)

8000867 V3000 Electric 12 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included1100 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (45 kg)

8001014 V3000 Electric 12 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included2108 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (45 kg)

8000883 V3000 Electric 24 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included 115 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (52 kg)

8000840 V3000 Hydraulic 5.5 Gpm@ 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Not Included 115 lbs.

1800 PSI (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (52 kg)

8003301 V3000-I Electric 12 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included2115 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (52 kg)

8003302 V3000-I Electric 12 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included1100 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (45 kg)

8003303 V3000-I Electric 12 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included3115 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (52 kg)

8003304 V3000-I Electric 24 volt 3000 lbs 35" x 9" x 6-5/8" -30° to +140° F Included 115 lbs.

380 amp (1360 kg) (890 x 230 x 168mm) (-34° to +60° C) (Underhood) (52 kg)

MODEL SHAFT COUPLING WITH STEEL HOOD END CAP INSERT ONLY

NO. BEARING RUBBER INSERT COVER (2) (FOR COUPLING) MOTOR SOLENOID SWITCH

8000581 8001081 8001154 8001367 8001006 8001200 8001030 8001251 8001316

8000905 8001081 8001154 8001367 8001006 8001200 8001030 8001251 8001316

8000875 8001081 8001154 8001367 8001006 8001200 8001030 8001251 8001316

8000867 8001081 8001154 8001367 8001006 8001200 8001030 8001251 8001316

8000883 8001081 8001154 8001367 8001006 8001200 8000964 8000948 8001316

8000840 8001081 8003305 8001367 8001006 8001200 8000859 8000948 8001315

8003301 8001170 8001154 8001367 8001006 8001200 8001030 8001251 8001316

8003302 8001170 8001154 8001367 8001006 8001200 8001030 8001251 8001316

8003303 8001170 8001154 8001367 8001006 8001200 8001030 8001251 8001316

8003304 8001170 8001154 8001367 8001006 8001200 8000964 8000948 8001316

Dump Body Vibrator Replacement Parts

VIBRA®2000 Designed for use on single-drive axle vehicles with dump bodies

10 feet (3m) in length and shorter, and for use on drop-in hoppers (asphalt and cement

contractors, landscapers and anyone using smaller dump truck/tipper bodies).

VIBRA®3000 Designed for use on tandem, tri-axle dump trucks and end-dump trailers

with dump bodies ranging from 10 feet (3m) to 40 feet (12m) in length (bottom dump trailers,

roll-off containers, hoppers and rubbish haulers).

VIBRA®3000-I Designed for severe service applications with large, heavy, rigid dump

boxes. Designed for use on tandem, tri-axle dump trucks and end-dump trailers with dump

bodies ranging from 10 feet (3m) to 40 feet (12m) in length (bottom dump trailers, roll-off

containers, hoppers, larger tipper/dump boxes and rubbish haulers), (formerly Vibra 4000).

LTL shipping required, no exceptions.

1Switch, solenoid wiring hardware only - power cable not included

2Includes standard installation kit with 44 ft. (13.4m) cable

3Includes standard installation kit with 34 ft. (10.3m) cable

Vibra®Dump Truck Body Vibrators deliver fast, complete and clean discharge of sticky,

compacted or frozen materials from dump truck bodies and dump trailers. Welded to the

underside of the dump box, Vibra®Dump Truck Body Vibrators use vibrating thrust to

dislodge materials from the dump body. (90-Day Warranty)

Standard Installation Kits include 34 ft. (10m) #4 AWG cable

MODEL NO. DESCRIPTION

8000980 Aluminum mounting plate

8000956 Accessory Package - V3000

Dump Body Vibrator Accessories

Electric Kit includes:

• 34 ft. cable

• Switch

• Magnetic Relay

• Primary Wire

• Connectors

* 12 volt version shown.

24 volt is a sealed solenoid.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

ENGINE STARTABILITY CHART

90% of Maximum Temperature rise of engine will be reached in 5 hours of operation,

but heater is designed for continuous overnight use.

SSmmaallll DDiieesseellss

150 to 350 CID

(2.4 to 5.7 liters)

MMeeddiiuumm DDuuttyy DDiieesseellss

to approx. 550 CID

(9.0 liters)

HHeeaavvyy DDuuttyy DDiieesseellss

to approx. 1150 CID

(18.8 liters)

LLaarrggee DDuuttyy DDiieesseellss

Industrial/Off

Highway

4400//44

00//--1188

--3300//--3344

--6600//--5511

CCoooollaanntt HHeeaatteerr

OOiill PPaann HHeeaatteerr

AAddddiittiioonnaall

PPrroodduuccttss

400 to 750 Watt

Immersion,

1000 Watt Circulation

Heater

150 Watt Immersion

with thermostat

Measured Shot Ether

Kit,

Battery Warmer

CCoooollaanntt HHeeaatteerr

OOiill PPaann HHeeaatteerr

AAddddiittiioonnaall

PPrroodduuccttss

600 or 750 Watt

Immersion,

1000 Watt Circulation

Heater

150 Watt Immersion

with thermostat

Measured Shot Ether

Kit,

Battery Heater

CCoooollaanntt HHeeaatteerr

OOiill PPaann HHeeaatteerr

AAddddiittiioonnaall

PPrroodduuccttss

750 Watt

Immersion,

Circulation

Heater

150 Watt Immersion

with thermostat

Measured Shot Ether

Kit,

Battery Heater

750 or 1000 Watt

Immersion, 1500 Watt

Circulation Heater

150 Watt Immersion

300 Watt Clamp-on

Measured Shot

Ether Kit,

Battery Warmer

1000 Watt Immersion,

Circulation Heater,

150 Watt Immersion

300 Watt Clamp-On

Measured Shot

Ether Kit,

Battery Heater

1500 Watt Immersion,

2000-2250 Watt

Circulation Heater

300 Watt Immersion

500 Watt Clamp-on

Measured Shot

Ether Kit,

Battery Heater

1500 Watt Immersion,

1500 Watt

Circulation Heater,

300 Watt Immersion

500 Watt Clamp-on

Measured Shot

Ether Kit,

Battery Warmer

1500 Watt Immersion,

2000 Watt Tank,

2000-2250 Watt

Circulation Heater

300 Watt Immersion

500 Watt Clamp-On

Measured Shot

Ether Kit,

Battery Heater

Measured Shot

Ether Kit,

Battery Heater

2000 Watt Immersion,

2500-3500 Watt

Circulation Heater

450 Watt Immersion

2500 Watt Tank,

2250-2500 Watt

Circulation Heater,

300 Watt Immersion

Measured Shot

Ether Kit,

Battery Warmer

2500 Watt Tank,

2250-3500 Watt

Circulation Heater

450 Watt Immersion

Measured Shot

Ether Kit,

Battery Heater

(2) 2500 Watt Circulation,

(2) 2500-3500 Watt

Circulation Heaters

450 Watt Immersion

Measured Shot

Ether Kit,

Battery Heater

EEnnggiinnee CCllaassss

TTEEMMPP

°°FF//°°CCSSttaarrttiinngg SSyysstteemm

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

TECHNICAL INFORMATION

75 0.63 0.31 .008

100 0.83 0.42 .010

150 1.25 0.63 .015

200 1.67 0.84 .020

300 2.50 1.25 .030

450 3.75 1.88 .045

500 4.17 2.08 .050

750 6.25 3.12 .075

850 7.08 3.54 .085

1000 8.33 4.16 .100

1500 12.50 6.25 .150

2000 16.67 8.34 .200

2500 20.83 10.42 .250

CCuurrrreenntt UUsseedd oonn HHeeaatteerrss ooff VVaarriioouuss WWaattttaaggeess aanndd VVoollttaaggeess

* Based on 10¢ per KWH

RReeccoommmmeennddeedd WWiirree GGaauuggeess ffoorr LLoonngg--LLeennggtthh PPoowweerr SSuuppppllyy CCoorrddss

15 18 18 16 16 16 16 14 14 12 12

25 18 18 16 16 14 14 12 12 12 10

50 18 18 16 16 14 14 12 12 12 10

100 16 16 14 14 14 14 12 12 10 10

150 16 14 12 12 12 12 10 10 10 8

LENGTH (FT) CURRENT CARRYING CAPACITY (IN AMPERES)

46810 12 14 16 18 20 25

Recommended Wire Gauge

AMPERES AMPERES

WATTS @ 120 VOLTS @ 240 VOLTS COST PER HOUR*

WARRANTY

This limited warranty is expressly limited to the Company's products that have been purchased by the original consumer purchaser or for

purposes of resale or use in the ordinary course of the purchaser's business. The term original consumer purchaser is defined as a person

who purchases Company products for personal, family, or household use.

The Company's products are warranted against defects in materials and workmanship for a period of one year from date of purchase by

purchaser. Sales receipt or proof of purchase must accompany product when returned to location of purchase. The exclusive remedy for any

product found to be defective under this limited warranty consists of the repair or replacement of the defective product. This limited warranty

does not apply to defects which arise from normal wear and tear, accident, misuse, abuse, neglect, mishandling, misapplication, faulty

installation, modification, improper or extraordinary use or use inconsistent with any instruction or recommendation issued by the Company.

The foregoing limited warranty is exclusive and in lieu of all other warranties, whether written or oral, express, implied or statutory.

*EXCLUDES DUMP BODY VIBRA — 90 DAY WARRANTY *

NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. THE LIMITED WARRANTY

CONTAINED HEREIN DOES NOT EXTEND TO INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS

PRODUCT, OR ARISING OUT OF A BREACH OF THIS WARRANTY.

To obtain performance of this limited warranty, the alleged defective product must be returned, together with reasonable proof of purchase,

postage or freight prepaid, directly to:

In U.S.A. In CANADA

Warranty Department Warranty Department

Phillips & Temro Industries Inc. Phillips & Temro Industries Ltd.

9700 West 74th Street 100 Paquin Road

Eden Prairie, MN 55344 Winnipeg, Manitoba R2J 3V4

The Company will return the repaired or replaced product, postage or freight prepaid. Final determination of defects shall be made in

accordance with procedures established by the Company.

This limited warranty gives the original consumer purchaser specific rights. You may have other rights which vary from state to state or

province to province depending upon the location of your residence. Some states do not allow the exclusion or limitation of incidental or

consequential damages.

Manufacturer's rights retained:

The Company reserves the right to make changes in design, additions or improvements to any of its products at any time without incurring

any obligation whatsoever to install or replace the same or improve upon products previously manufactured.

NOTE: Credit will be issued at previous years price.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

GARANTIE

Cette garantie limitée est expressément réservée aux produits de la Société qui ont été achetés par le consommateur-acheteur d'origine ou

aux fins de revente ou d'utilisation dans le cours normal des affaires de l'acheteur. Le terme « consommateur-acheteur d'origine » se définit

comme la personne ayant fait l'acquisition des produits de la Société à des fins personnelles, familiales ou domestiques.

Les produits de la Société sont garantis contre tout défaut matériel et vice de fabrication pendant une période d'un an à partir de la date

d'achat par l'acheteur. Un reçu de caisse ou une preuve d'achat doit accompagner le produit lorsqu'il est retourné au lieu de l'achat. Le

recours exclusif offert pour tout produit qui se révélera défectueux en vertu de cette garantie limitée consiste à réparer ou à remplacer le

produit défectueux. Cette garantie limitée ne s'applique pas aux défauts découlant d'une usure normale, d'un accident, d'un mauvais

emploi, d'un abus, d'une négligence, d'une mauvaise manutention, d'une mauvaise utilisation, d'une mauvaise installation, d'une

modification, d'une utilisation inadéquate ou inhabituelle et d'une utilisation contraire aux instructions ou aux recommandations fournies par

la Société.

La garantie limitée ci-dessus est exclusive et remplace toute autre garantie, qu'elle soit écrite ou orale, expresse, tacite ou statutaire.

*N’inclus pas le ‘ ‘ Dump Body Vibra ‘ ‘ 90 jours de garantie. *

AUCUNE GARANTIE IMPLICITE DE QUALITÉ MARCHANDE ET DE CONVENANCE PRÉCISE N'EST APPLICABLE. LA GARANTIE LIMITÉE

CONTENUE AUX PRÉSENTES NE S'APPLIQUE PAS AUX DOMMAGES INDIRECTS CAUSÉS PAR L'UTILISATION DE CE PRODUIT OU

SURVENANT EN RAISON D'UNE VIOLATION DE CETTE GARANTIE.

Pour obtenir l'exécution de cette garantie limitée, le produit présumé défectueux doit être retourné accompagné d'une preuve d'achat

raisonnable et l'affranchissement ou le fret payé d'avance, directement à :

Aux États-Unis Au Canada

Service de la garantie Service de la garantie

Phillips & Temro Industries inc. Phillips & Temro Industries ltée

9700 West 74th Street 100 Paquin Road

Eden Prairie, MN 55344 Winnipeg (Manitoba) R2J 3V4

La Société retournera le produit réparé ou remplacé sans frais d'expédition. La décision définitive quant aux défauts sera prise

conformément aux procédures établies par la Société.

Cette garantie limitée donne au consommateur-acheteur d'origine des droits particuliers. Vous pouvez bénéficier d'autres droits qui varient

selon votre état ou votre province de résidence. Certains états n'autorisent pas l'exclusion ou la limitation des dommages indirects.

Droits retenus par le fabricant :

La Société se réserve le droit de modifier ses produits, de faire des ajouts ou d'apporter des améliorations en tout temps et sans aucune

obligation d'installer ou de remplacer lesdits produits ou les produits améliorés fabriqués ultérieurement.

REMARQUE : le crédit accordé correspondra au prix des années antérieures.

PHILLIPS & TEMRO INDUSTRIES 952-941-9700 (US) or 800-328-6108 • www.phillipsandtemro.com

2 10 ZEROSTART GUTS

Navigation menu

Versions of this User Manual:

Views

Navigation
