AD 622
DATA ACQUISITION CARD
USER'S MANUAL
© 2014 HUMUSOFT®
© COPYRIGHT 2014 by HUMUSOFT s.r.o.. All rights reserved.
No part of this publication may be reproduced or distributed in any form or by any means, or
stored in a database or retrieval system, without the prior written consent of HUMUSOFT
s.r.o.
Limited Warranty: HUMUSOFT s.r.o. disclaims all liability for any direct or indirect
damages caused by use or misuse of the AD 622 device or this documentation.
HUMUSOFT is a registered trademark of HUMUSOFT s.r.o.
Other brand and product names are trademarks or registered trademarks of their respective
holders.
Printed in Czech Republic
Table of Contents
3
Table of Contents
1. Introduction 4
1.1. General Description ....................................... 4
1.2. Features List ............................................. 4
1.3. Specifications ............................................ 5
1.3.1. A/D Converter....................................... 5
1.3.2. D/A Converter....................................... 5
1.3.3. Digital Inputs........................................ 6
1.3.4. Digital Outputs ...................................... 6
2. Installation 7
2.1. Board Installation ......................................... 7
2.2. Driver Installation......................................... 8
3. Programming Guide 10
3.1. Register Map ........................................... 10
3.2. Register Description ...................................... 12
3.3. A/D Converter .......................................... 15
3.4. D/A Converters.......................................... 16
3.5. Digital I/O ............................................. 17
4. I/O Signals 18
4.1. Output Connector Signal Description . . . . . . . . . . . . . . . . . . . . . . . . . 18
IntroductionIntroduction
4
1. Introduction
1.1. General Description
The AD 622 data acquisition card is designed for the need of connecting PC
compatible computers to real world signals. The AD 622 contains 8 channel fast
14 bit A/D converter with simultaneous sample/hold circuit, 8 independent 14 bit
D/A converters, 8 bit digital input port and 8 bit digital output port. The card is
designed for standard data acquisition and control applications and optimized for
use with Real Time Toolbox for Simulink®. AD 622 features fully 32 bit
architecture for fast throughput.
1.2. Features List
The AD 622 offers following features:
C32-bit architecture
C14 bit A/D converter with simultaneous sample & hold circuit
CConversion time 1.6 ìs for single channel or 3.7 ìs for 8 channels
C8 channel single ended fault protected input multiplexer
CInput range ±10V
CInternal clock & voltage reference
C8 D/A converters with 14 bit resolution and ±10V output range
C8 bit TTL compatible digital input port
C8 bit TTL compatible digital output port
Introduction
5
CInterrupt
CRequires one PCI 2.3 slot and optional second slot for second connector
CCan be used in 5V or 3.3V slot
CPower consumption 500 mA@+5V, 150 mA@+12V, 150 mA@-12V
COperating temperature 0°C to +70°C
1.3. Specifications
1.3.1. A/D Converter
Resolution: 14 bits
Number of channels: 8 single ended
Sample/hold circuit: simultaneous sampling of all channels
Conversion time: 1.6 ìs single channel
1.9 ìs 2 channels
2.5 ìs 4 channels
3.7 ìs 8 channels
FIFO: 8 entries/one conversion cycle
Input ranges: ±10V
Input protection: ±18V
Input impedance: > 10 Ohm
10
1.3.2. D/A Converter
Resolution: 14 bit
Number of channels: 8
Settling time: max. 31 ìs (full scale swing, 1/2 LSB)
Slew Rate: 10 V/ìs
Output current: min. ±10 mA
Introduction
6
Short circuit current: ±15 mA
DC output impedance: max. 0.5 Ohm
Load capacitance: max. 50 pF
Differential nonlinearity: ±1 LSB
1.3.3. Digital Inputs
Number of bits: 8
Input signal levels: TTL
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
1.3.4. Digital Outputs
Number of bits: 8
Output signal levels: TTL
Logic 0: 0.5 V max. @ 24 mA (sink)
Logic 1: 2.0 V min. @ 15 mA (source)
Outputs: TTL
Hardware Installation
7
2. Installation
2.1. Board Installation
AD 622 has no switches or jumpers and you can install it in any free PCI
expansion slot of your computer. Follow the steps outlined below:
CTurn off the power of the computer system and unplug the power cord.
CDisconnect all cables connected to the computer system.
CUsing a screwdriver, remove the cover-mounting screws. These screws
are at the rear side of the PC.
CRemove the computer system's cover.
CFind an empty expansion slot in your computer for AD 622 card. If the
slot still has the metal expansion-slot cover attached, remove the cover
with a screwdriver. Save the screw to install the AD 622.
CHold the AD 622 firmly at the top of the board, and press the gold edge
connector into an empty PCI expansion slot.
CUsing a screwdriver, screw the retaining bracket tightly against the rear
plate of the computer system.
CIn case of using also quadrature encoder inputs or timer/counters install
also the aditional connector with metal slot cover to the neighbouring
slot. Otherwise you can disconnect the aditional connector from the
board and save it for future use.
CReplace the cover of the computer, and plug in the power cord.
CReconnect all cables that were previously attached to the rear of the
Hardware Installation
8
computer.
2.2. Driver Installation
Once you have installed AD 622 to PCI slot you can install Windows driver.
Follow the steps outlined below:

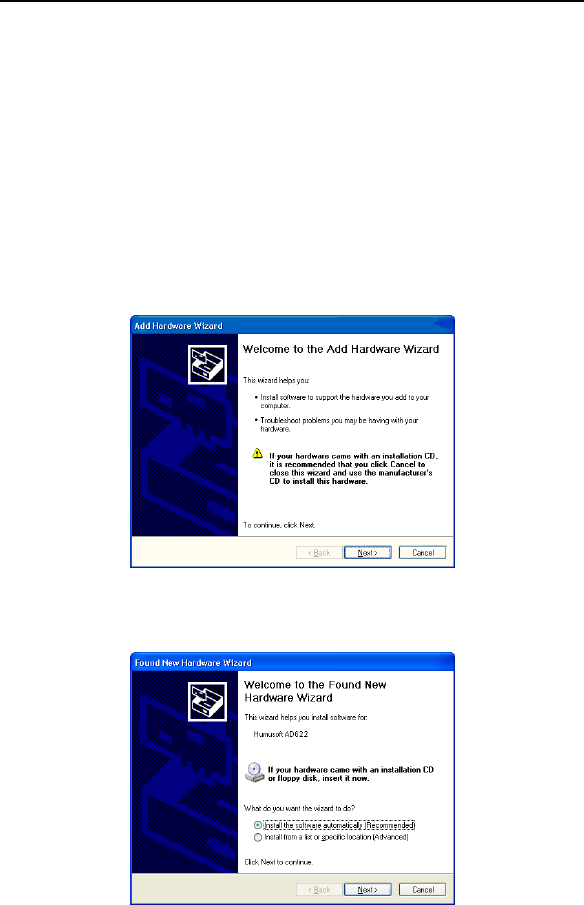

Turn on the computer, boot Microsoft Windows. AD 622 is detected by system
automatically. In Add Hardware Wizzard window click Next.
Insert installation floppy into drive a. In Found New Hardware Wizzard select
Install the software automatically and click Next.
Hardware Installation
9
When prompted for driver location type a:\ and click Next. Click Finish to
complete installation.
Programming Guide
10
3. Programming Guide
3.1. Register Map
AD 622 uses PCI Vendor ID 0x186C and Device ID 0x0622. Registers of AD 622
card are located in 3 memory mapped regions:
Region Function Size
(bytes)
Width
(bits)
BADR0
(memory mapped)
PCI chipset, interrupts, status bits,
special functions
32 32
BADR1
(memory mapped)
A/D, D/A, digital I/O 128 16/32
Table 1. Base Address Regions
PCI chipset (PCI 9030) and counter/timer chip are located in 32-bit regions and
should be accessed by 32-bit instructions. BADR1 containing analog I/O has 16-bit
architecture and registers are naturally 16-bit wide, but 32-bit access to this area is
allowed as well under certain conditions. 32-bit access is broken by PCI chipset
into two 16-bit cycles on the AD 622 internal bus. This allows increasing
throughput by accessing two consecutive internal 16-bit registers by single PCI
cycle. Therefore two D/A channels can be written or two A/D channels can be read
at once which increases speed of data transfers almost twice. Do not use 32-bit
access to other registers than ADDATA and DA0 - DA7.
Programming Guide
11
Address Read Write
BADR0+0x4C INTCSR INTCSR
BADR0+0x54 GPIOC GPIOC
Table 2. BADR0 Memory Map
Address Read Write
BADR1+0x00 ADDATA - A/D data ADCTRL - A/D control
BADR1+0x02 ADDATA - A/D data mirror
BADR1+0x04 ADDATA - A/D data mirror
BADR1+0x06 ADDATA - A/D data mirror
BADR1+0x08 ADDATA - A/D data mirror
BADR1+0x0A ADDATA - A/D data mirror
BADR1+0x0C ADDATA - A/D data mirror
BADR1+0x0E ADDATA - A/D data mirror
BADR1+0x10 DIN - Digital input DOUT - Digital output
BADR1+0x20 ADSTART - A/D SW trigger DA0 - D/A 0 data
BADR1+0x22 DA1 - D/A 1 data
BADR1+0x24 DA2 - D/A 2 data
BADR1+0x26 DA3 - D/A 3 data
BADR1+0x28 DA4 - D/A 4 data
BADR1+0x2A DA5 - D/A 5 data
BADR1+0x2C DA6 - D/A 6 data
BADR1+0x2E DA7 - D/A 7 data
Table 3. BADR1 Memory Map
Programming Guide
12
3.2. Register Description
INTCSR BADR0+0x4C Interrupt Control/Status R/W
Bit Description Default
0ADINT Enable. 1 enables A/D interrupt, 0 disables A/D
interrupt. 0
1
ADINT Polarity. 1 active high, 0 active low. Connected to
EOLC of A/D converter, should be set to active low for
normal operation.
0
2ADINT Status. 1 indicates interrupt active, 0 indicates
interrupt not active. 0
5:3 Reserved. 0
6PCI Interrupt Enable. 1 enables PCI interrupt. 0
7Software Interrupt. 1 generates PCI interrupt (INTA#) if
PCI Interrupt Enable bit is set (bit [6]=1). 0
8
ADINT Select Enable. 1 indicates edge triggered, 0 indicates
level triggered interrupt.
Note: Operates only in High-Polarity mode (bit [1]=1)
0
9 Reserved. 0
10 ADINT Clear. Writing 1 to this bit clears ADINT in edge
mode. 0
31:11 Reserved 0x000600
Table 4. INTCSR - Interrupt Control/Status Register Format
Programming Guide
13
GPIOC BADR0+0x54 Genaral Purpose I/O Control R/W
Bit Description Default
16:0 Reserved. 0x006C0
17
EOLC. Reads EOLC (end of last conversion) bit of A/D
converter. A ctive low, 0 when all channels converted, 1
during A/D conversion.
0
21:18 Reserved. 0x10
23
LDAC. Load D/A converters, active low. Writing 0 makes
D/A latches transparent, 1 holds D/A outputs. Can be used for
simultaneous update of analog outputs.
0
25:24 Reserved. 10
26 DACEN. 1 enables D/A outputs. 0 forces 0V to all D/A
outputs. 0
31:27 Reserved. 0
Table 5. GPIOC - General Purpose I/O Control Register Format
ADCTRL BADR1+0x00 A/D Control W
Bit Description Default
0CH0 select. 1 enables chanel 0 in channel scan list. 0
1CH1 select. 1 enables chanel 1 in channel scan list. 0
2CH2 select. 1 enables chanel 2 in channel scan list. 0
3CH3 select. 1 enables chanel 3 in channel scan list. 0
4CH4 select. 1 enables chanel 4 in channel scan list. 0
5CH5 select. 1 enables chanel 5 in channel scan list. 0
6CH6 select. 1 enables chanel 6 in channel scan list. 0
7CH7 select. 1 enables chanel 7 in channel scan list. 0
15:8 Reserved. 0x00
Table 6. ADCTRL - A/D Control Register Format
Programming Guide
14
ADDATA BADR1+0x00 A/D Data R
Bit Description Default
13:0
A/D Data. Reads data from A/D. Data is valid after EOLC bit
in GPIOC goes low. Data from channels selected in ADCTRL
register are available in FIFO, lower number channels first.
N/A
15:14 Reserved N/A
Table 7. ADDATA - A/D DATA Register Format
Note: ADDATA register has 7 mirror registers located from BADR1+0x02 to BADR1+0x0E.
This arrangement remaps FIFO to linear address space and allows reading consecutive
values from A/D FIFO by 32-bit instructions.
DIN BADR1+0x10 Digital Input R
Bit Description Default
7:0 Digital input 7:0. Reads digital input port. 1
15:8 Reserved N/A
Table 8. DIN - Digital Input Register Format
DOUT BADR1+0x10 Digital Output W
Bit Description Default
7:0 Digital output 7:0. Writes to digital output port. 0
15:8 Reserved N/A
Table 9. DOUT - Digital Output Register Format
ADSTART BADR1+0x20 A/D Conversion Start R
Bit Description Default
15:0 A/D Conversion Start. Reading this register triggers A/D
conversion for all channels selected in ADCTRL. N/A
Programming Guide
15
Table 10. ADSTART - A/D Conversion Start Register Format
DA0 BADR1+0x20 D/A Converter 0 W
DA1 BADR1+0x22 D/A Converter 1 W
DA2 BADR1+0x24 D/A Converter 2 W
DA3 BADR1+0x26 D/A Converter 3 W
DA4 BADR1+0x28 D/A Converter 4 W
DA5 BADR1+0x2A D/A Converter 5 W
DA6 BADR1+0x2C D/A Converter 6 W
DA7 BADR1+0x2E D/A Converter 7 W
Bit Description Default
13:0 DAx. D/A converter channel n data. 0x3FFF
15:14 Reserved. N/A
Table 12. DAx - D/A Converter Data Register Format
Note: D/A converter outputs are updated only if LDAC bit in GPIOC registrer is
set low (bit [23] at BADR0+0x54 =0). Otherwise D/A outputs are keeping old
values and data written to DAn registers are kept until LDAC goes low. LDAC bit
can be used for simultaneous update of D/A outputs.
3.3. A/D Converter
A/D converter is controlled through ADDATA, ADCTRL, ADSTART and GPIOC
registers.
Before starting a conversion it is necessary to configure channels which will be
converted by ADCTRL register. Each A/D channel has one bit in ADCTRL.
Setting this bit includes the channel in conversion scan list. Conversion can be
initiated by a read operation from ADSTART register. Once the conversion is
started, selected channels are simultaneously sampled and converted. When the
conversion of all selected channels is complete, EOLC (bit 17 in GPIOC register)
is set low which means that converted data is available in output FIFO and can be
Programming Guide
16
read from ADDATA register. EOLC remains low until next conversion is started.
Starting new conversion resets FIFO.
A/D converter has fixed input range ±10V and uses two's complement binary
coding. A/D converter zero offset can be adjusted by R23. A/D gain can be
adjusted by R25.
Digital Value Analog Voltage
0x3FFF -0.0012 V
0x2000 -10.0000 V
0x1FFF 9.9988 V
0x0000 0.0000 V
Table 13. A/D Inputs Coding
3.4. D/A Converters
D/A converters are accessed through eight data input latch registers DA0 - DA7.
D/A converter outputs are initially connected to ground until DACEN (bit 26 in
GPIOC register) is set to 1. This bit can be used to disconnecting all analog outputs
from D/A converters. Data from D/A input latch registers are passed to D/A
converters only if LDAC (bit 23 in GPIOC register) is 0. If this bit is set to 1, data
remains just in input latches without being written to D/A converters. Then if
LDAC is set to 0, all D/A outputs are updated simultaneously from input latch
registers.
Output voltage ranges of D/A converters are ±10V and straight binary coding is
used. After power-on or hardware reset the output voltage is set to 0V. D/A
converter positive range can be adjusted by R5 while negative range can be
adjusted by R8.
Programming Guide
17
Digital Value Analog Voltage
0x3FFF 9.9988 V
0x2000 0.0000 V
0x1FFF -0.0012 V
0x0000 -10.0000 V
Table 14. D/A Outputs Coding
3.5. Digital I/O
AD 622 contains one 8-bit digital input port and one 8-bit digital output port.
Digital input port can be accessed directly by read from DIN register. Inputs are
TTL compatible. Digital output port can be accessed by byte or word write to
DOUT register. Outputs are TTL compatible. After power-on or hardware reset
digital outputs are set to 0.
I/O Signals
18
4. I/O Signals
4.1. Output Connector Signal Description
The AD 622 multifunction I/O card is equipped with an on-board 37 pin D-type
female connector X1. For pin assignment refer to Table 15. TB 620 Terminal
Board can be connected to X1 connector.
AD0-AD7 Analog inputs
DA0-DA7 Analog outputs
DIN0-DIN7 TTL compatible digital inputs
DOUT0-DOUT7 TTL compatible digital outputs
+12V +12V power supply
-12V -12V power supply
+5V +5V power supply
AGND Analog ground
GND Digital ground
I/O Signals
19
AD0 1
20 DA0
AD1 2
21 DA1
AD2 3
22 DA2
AD3 4
23 DA3
AD4 5
24 DA4
AD5 6
25 DA5
AD6 7
26 -12V
AD7 8
27 +12V
AGND 9
28 +5V
DA6 10
29 GND
DA7 11
30 DOUT0
DIN0 12
31 DOUT1
DIN1 13
32 DOUT2
DIN2 14
33 DOUT3
DIN3 15
34 DOUT4
DIN4 16
35 DOUT5
DIN5 17
36 DOUT6
DIN6 18
37 DOUT7
DIN7 19
Table 15. X1 Connector Pin Assignement
Contact Address
20
Contact address:
HUMUSOFT s.r.o.
Pobøežní 20
186 00 Praha 8
Czech Republic
tel.: + 420 2 84011730
tel./fax: + 420 2 84011740
E-mail: info@humusoft.com
Homepage: http://www.humusoft.com
