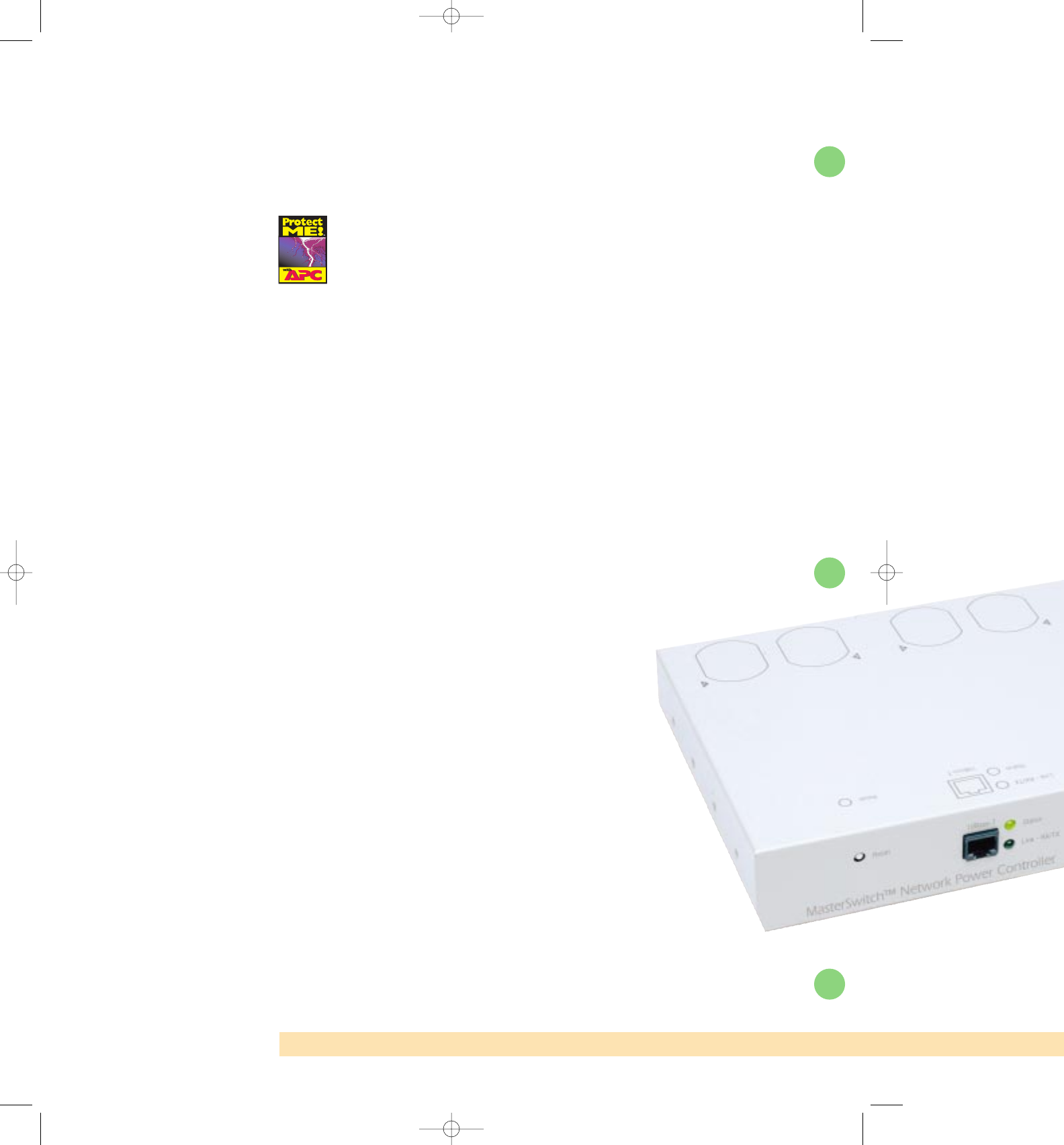

MasterSwitch™
MasterSwitch affords the network
manager complete control of power
in the network environment
MasterSwitch eases the burden of managing
remote sites and maximizes the uptime of servers
and internetworking equipment.
The MasterSwitch provides 8 relay-controlled
outlets. Each outlet offers independent switching
of power to a connected load, which allows
remote power control without affecting other
attached equipment. Whether you’re across the
country, across the city or across the hall,
MasterSwitch saves time, travel or a late night
visit to the office.
Managing a remote site can negatively impact a
company’s bottom line. Even a simple visit by a
field technician to reboot a locked up server can
be very costly. MasterSwitch eliminates such visits
for more cost-effective network management.
With the ever-increasing cost of on-site service
calls, the MasterSwitch pays for itself almost
immediately.
When connected to an APC UPS,
MasterSwitch lets you manage the
uptime of a system.
Power can be shutdown on a receptacle by
receptacle basis to extend the runtime of the UPS
powering mission-critical equipment. MasterSwitch
also allows systems to be powered up sequentially,
letting domain controllers boot before other
systems and preventing a high in-rush current.
MasterSwitch includes complete SNMP manage-
ment capability; APC extends industry standard
MIB-2 compliance to include its MIB for control-
lable power. The device can be managed alongside
any of APC’s intelligent UPSs via a standard
SNMP management system and MIB browser.
MasterSwitch features embedded
Web-based manageability.
An intuitive, low bandwidth graphical user inter-
face (GUI) is available and can be accessed by any
Web browser. Security for this interface follows
the HTTP 1.0 password standard. The interface
also lets the user set links to the connected
equipment, other managed devices or to APC’s
Web site and on-line technical support.
Finally, APC has provided built-in out-of-band
management capabilities through a RS-232
interface. By connecting a modem to the built-in
serial port, the MasterSwitch can be controlled
through a remote terminal.
MasterSwitch has easy installation
To make installation as simple as possible,
MasterSwitch can be configured over the
network or through a
local terminal
program. Bootp is
included for auto-
matic IP address
assignment. If bootp
is not available on
the user’s network, the
device’s IP address can
be assigned via the serial
interface. Once the device
is set-up on the network, no
custom client software is
needed: simply use a Web
browser, SNMP management
system or terminal program to
control your power.
MasterSwitch™provides complete
Web and SNMP management and
control of your network’s power
The MasterSwitch network power controller lets network administrators completely direct the
power to connected fileservers and internetworking equipment. From anywhere on the
network, administrators can use an SNMP management system or Web browser to power,
de-power or reboot equipment. Additionally, MasterSwitch can be connected to a modem for
out-of-band management.
996-0845C - IN PROGRESS 3/5/98 4:32 PM Page 2

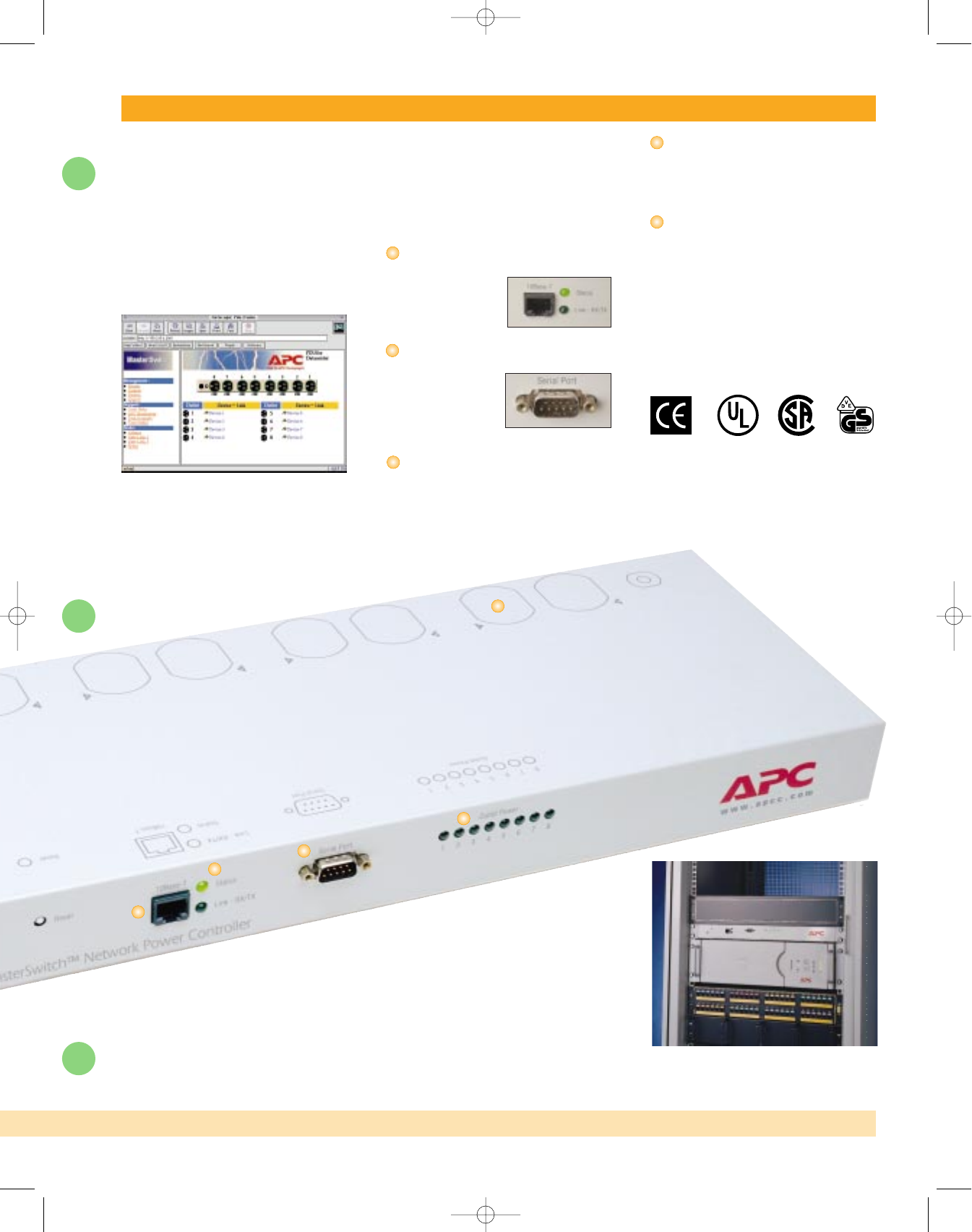

MasterSwitch™ controls power,
cuts service costs and eases
your power management burden
Web control
Seamless integration into Web-based
management strategies. The first power
switching device featuring embedded Web
management.
SNMP control
Network manageable by SNMP to integrate
with native SNMP management platforms.
LED status check
Front panel LED’s provide a quick status
check of powered loads.
Network Connection Status
Users can easily view MasterSwitch’s con-
nection status ensuring a clear communica-
tion link.
Certified for safety
The MasterSwitch is CE, CSA, FCC, UL, and
VDE verified.
Control UPS power output
Wherever you use an APC UPS, you can use
MasterSwitch to power down connected
equipment on an outlet by outlet basis to
conserve battery back-up power.
LAN connectivity
Built-in Ethernet
interface for direct
connection to the LAN.
Built-in serial port
Serial interface for
out-of-band or offline
configuration and
diagnostics.
Eight channels of manage-
able power
Eight independent power channels for
complete and flexible management of
connected equipment. MasterSwitch can be
used with or without a UPS.
For more information, visit APC’s Web site at www.apcc.com
Safety and Reliability
The MasterSwitch™ graphical user interface
can be conveniently called up through your
Web browser.
MasterSwitch™ (shown in an APC
NetShelter®) can easily reboot remote servers,
internetworking equipment or banks of
modems to prevent service calls. The perfect
complement to your APC Smart-UPS,®
MasterSwitch™ gives you complete, remote
control of eight independent power channels
to put an end to the frustration of locked-up
servers and wasted management time.
a
a
b
b
c
c
e
e
d
d
996-0845C - IN PROGRESS 3/5/98 4:33 PM Page 3
APC Corporate
132 Fairgrounds Road
West Kingston, RI
02892 USA
Worldwide
Tel: (401) 789-0204
Fax: (401) 789-3710
Czech & Slovak Rep.
Tel: (+420)(2) 683 7845
Denmark and Finland
Tel: (+45) 86 17 01 58
France
Tel: (+33)(1) 41 90 52 00
Germany
Tel: (+49) 89 51417-0
Hungary
Tel: (+36) 1 269 6433
India
Tel: (+91) 44 433-1124
Indonesia
Tel: (+6221) 650-0813
Italy
Tel: (+39) 2 29405508
Japan KK
Tel: (+813) 5434 2021
Korea
Tel: (+82) 2-501-6492
Malaysia
Tel: (+6)(03) 756-8785
Middle East
Tel: (+44) 181 769 1963
Moscow
Tel: (+7)(095) 929-90-95
Novosibirsk
Tel: (+7) 3832 32 00 05
Philippines
Tel: (+63)(96) 437-8549
Poland
Tel: (+48) 22 666 00 11
Portugal & Spain
Tel: (+34) 3-301 23 08
Singapore
Tel: (+65) 337 4462
South Africa
Tel: (+27) 11 465 5268
Sweden and Norway
Tel: (+46) 8 704 8340
APC’s quality system is certified by ISO 9002 standards. © 1998 APC. All Rights Reserved.
All APC trademarks are property of American Power Conversion. Other trademarks are property of their respective owners.
Australia
Tel: (+612) 9955-9366
Balkans
Tel: (+33) 1 41 90 52 26
Benelux
Tel: (+31) 183 611310
Central Africa
Tel: (+353) 91 702287
China
Tel: (+86) 10.6201.6688
Taiwan
Tel: (+886) 2 755 1945
Thailand
Tel: (+662) 2642885-6
Turkey
Tel: (+90)(212) 230 7156
UK
Tel: (+44) 1753 511 022
Ukraine
Tel: (+380) 44 2955292
Specifications are subject to change without notice.
Software and Accessories
PowerChute® plus
PowerNet® SNMP
UPS Accessories
Workstations
Back-UPS®
Back-UPS Office®
Back-UPS Pro®
Servers
Smart-UPS®
Datacenters
Matrix-UPS®
Symmetra®
Peripherals
SurgeArrest®
ProtectNet™
PowerManager™
Internet: apcinfo@apcc.com
APC Web site: www.apcc.com
APC Europe
Ballybrit Industrial Estate
Galway, Ireland
Tel: (+353) 91 702000
Fax: (+353) 91 756909
996-0845C
Secure your server, Smart-UPS®
and MasterSwitch™with an APC
NetShelter™premium enclosure
Measure-UPS® Switch Kit (AP9513)
provides easy monitoring of network
management nightmares like unauthorized
access, by connecting door sensors to
Measure-UPS II and reporting NetShelter
door openings.
NetShelter™, APC’s premium
network enclosure secures
and protects all equipment
Protecting today’s network environment
from power and environmental variables is
essential to ensuring high system reliabili-
ty. APC’s NetShelter solution provides
one-stop shopping to meet these needs for
rack-mount server and internetworking
equipment.

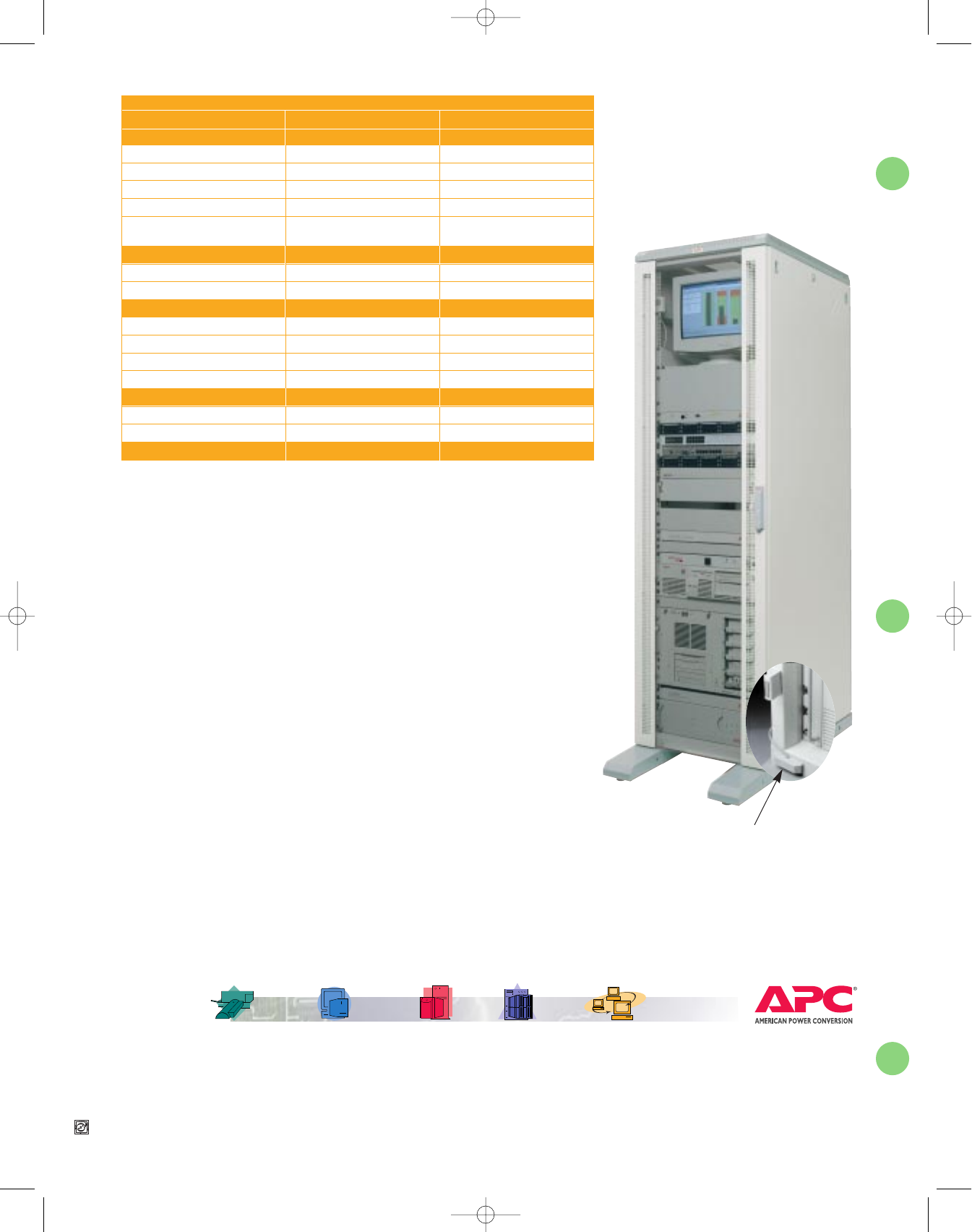

The NetShelter enclosure is a high-quality,
free-standing cabinet that saves floor
space, organizes your equipment, elimi-
nates cabling “rat’s nests,” and physically
protects your investment. NetShelter 42U
(shown at left) provides 73.5" of vertical
space for industry-standard 19" rackmount
equipment. Also available is the 22U
NetShelter, a quality solution designed for
remote branch locations that have space
limitations for equipment. Providing 22U
(38.5" / 978mm) of equipment (only 46"
high), this enclosure will easily fit in
almost any location within the datacenter.
APC’s award-winning Smart-UPS, power
management software, and environmental
monitoring accessories combine with the
NetShelter enclosure to form an integrated
solution ideal for a variety of network
configurations.
INPUT
Nominal input voltage 120 VAC 230 VAC
Acceptable input voltage 100-140 VAC 210-250 VAC
Nominal input frequency 50/60 Hz 50/60 Hz
Overcurrent protection 15A resettable circuit breaker 12A resettable circuit breaker
Input connector 15 ft. (4.5m) attached NEMA 5-15 2m IEC 320 to IEC 320
line cord cord
OUTPUT
Output connectors 8 NEMA 5-15 outlets 8 IEC 320 outlets
Maximum total current draw 15A 10A
PHYSICAL
Size (HxWxD) w/out mt. brackets 1.875” x 17” x 6.5” 4.7 x 43.2 x 16.5 cm
Size (HxWxD) w/ mt. brackets 1.875” x 19” x 6.5” 4.8 x 48.3 x 16.5 cm
Weight 6.5 lbs 3.0 kg
Shipping weight 10.0 lbs 4.5 kg
ENVIRONMENTAL
Operating elevation (storage) 0 to 3,000 m 0 to 15,000 m
Operating temperature 0 to 40º C 0 to 45º C
APPROVALS FCC, UL, CSA CE,VDE
MASTERSWITCH™
SPECIFICATIONS AP9210 AP9210i
996-0845C - IN PROGRESS 3/5/98 4:33 PM Page 4

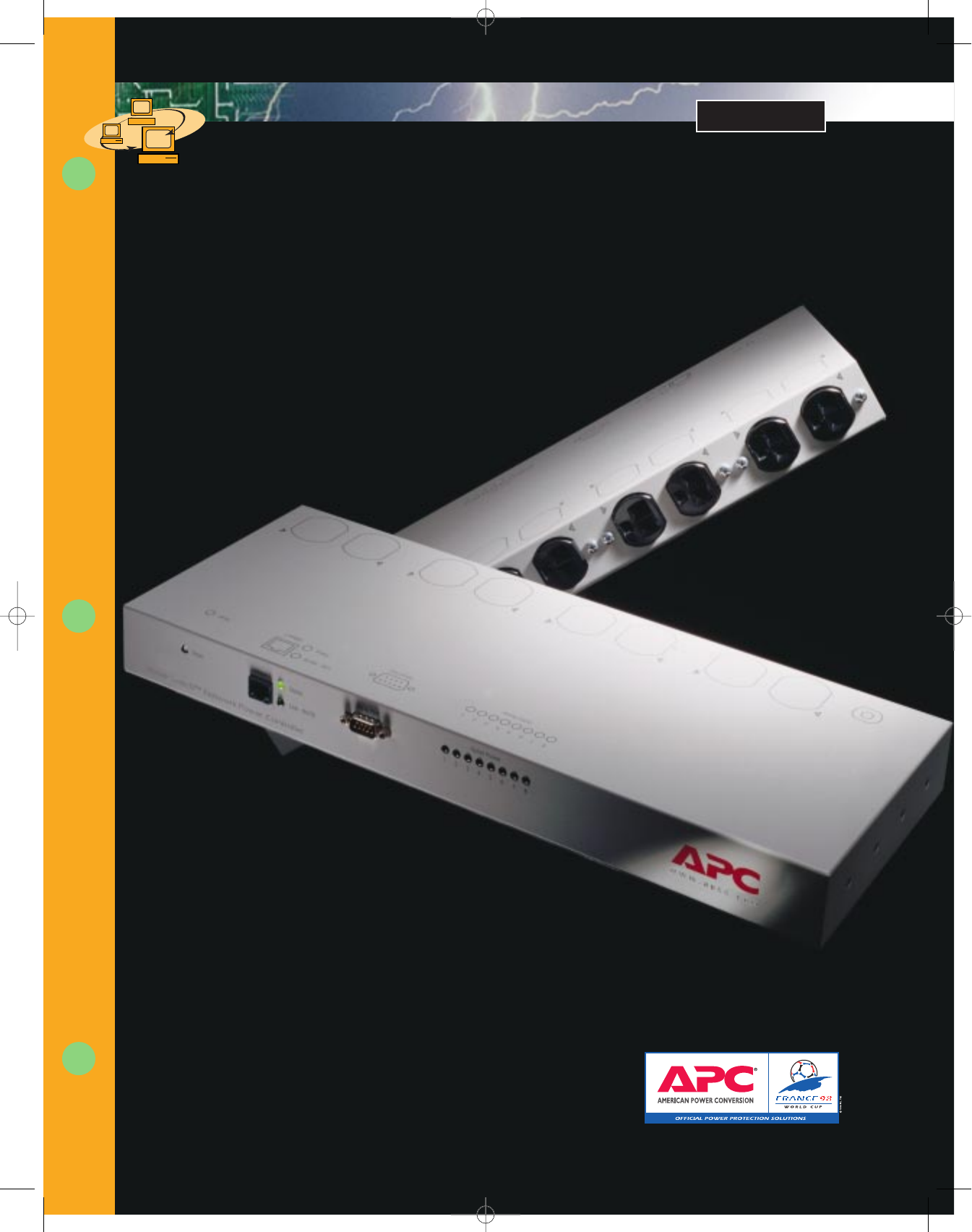

Network power control unit
for complete manageability
of your power
MasterSwitch™
120/230 V
