Pololu USB AVR Programmer v2 User’s Guide

Pololu USB AVR Programmer

v2 User’s Guide

https://www.pololu.com/docs/0J67/all Page 1 of 53

1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1. Supported AVR microcontrollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2. Supported operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2. Contacting Pololu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3. Pinout and components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4. Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.1. Installing Windows drivers and software . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2. Installing Linux software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.3. Installing Mac OS X software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.4. LED feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.5. Determining serial port names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5. AVR programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.1. Connecting an AVR for programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.2. AVR programming using Atmel Studio . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2.1. Faster programming with F5 in Atmel Studio . . . . . . . . . . . . . . . . . . . 29

5.3. AVR programming using AVR Studio 4 . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.4. AVR programming using the Arduino IDE . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.5. AVR programming using AVRDUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.6. Troubleshooting AVR programming issues . . . . . . . . . . . . . . . . . . . . . . . . 36

5.7. Programming faster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

5.8. Reading and writing from EEPROM and flash . . . . . . . . . . . . . . . . . . . . . . 41

5.9. Setting fuses and lock bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

5.10. Using the clock output to revive AVRs . . . . . . . . . . . . . . . . . . . . . . . . . . 42

6. USB-to-TTL serial adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

6.1. Asynchronous serial communication . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

6.2. Serial control lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

6.3. Connecting to a serial bootloader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

7. Power settings and status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8. Using VCC or VBUS to supply power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9. Upgrading firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Page 2 of 53

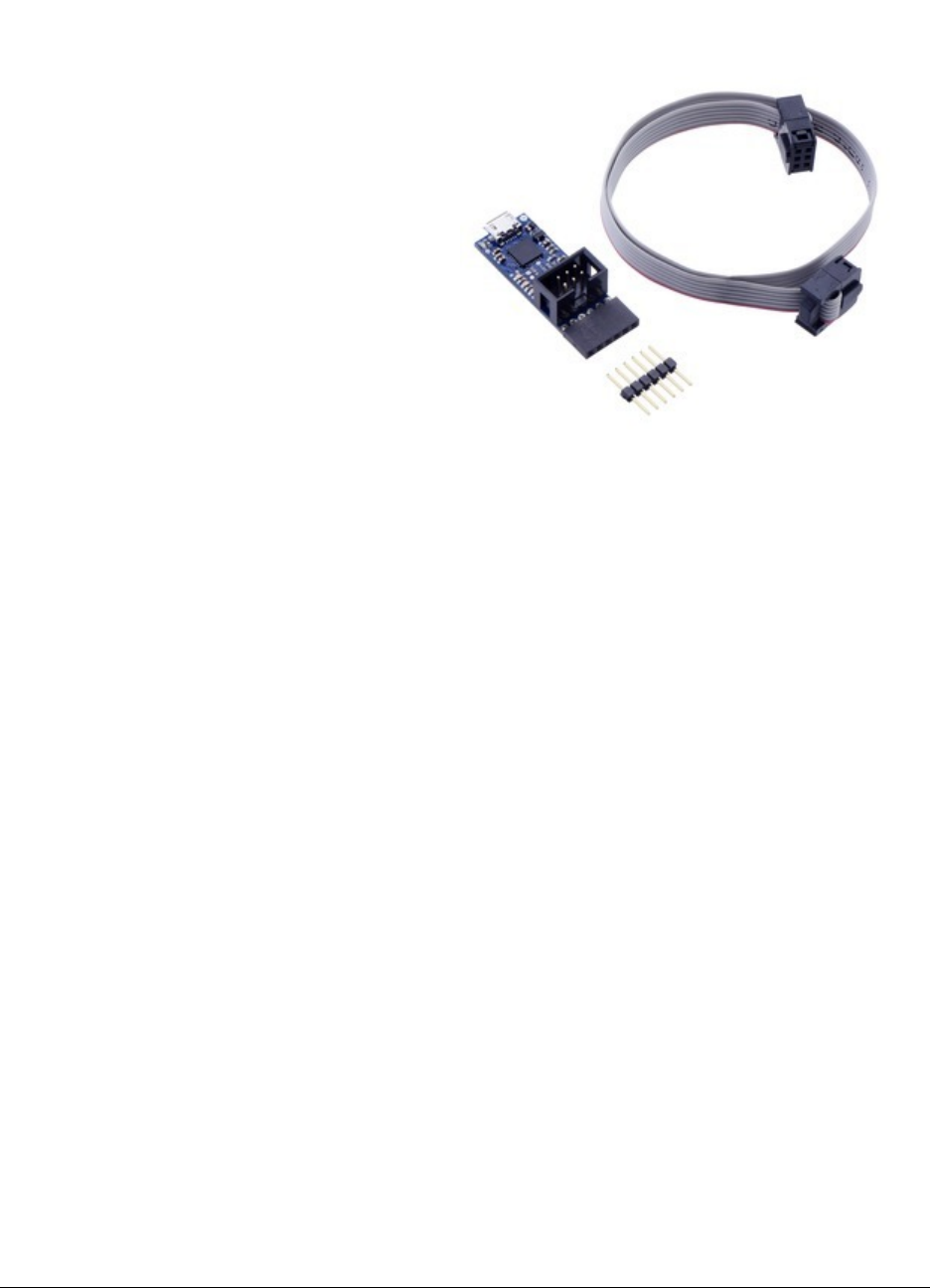

Pololu USB AVR Programmer v2 with included

hardware.

1. Overview

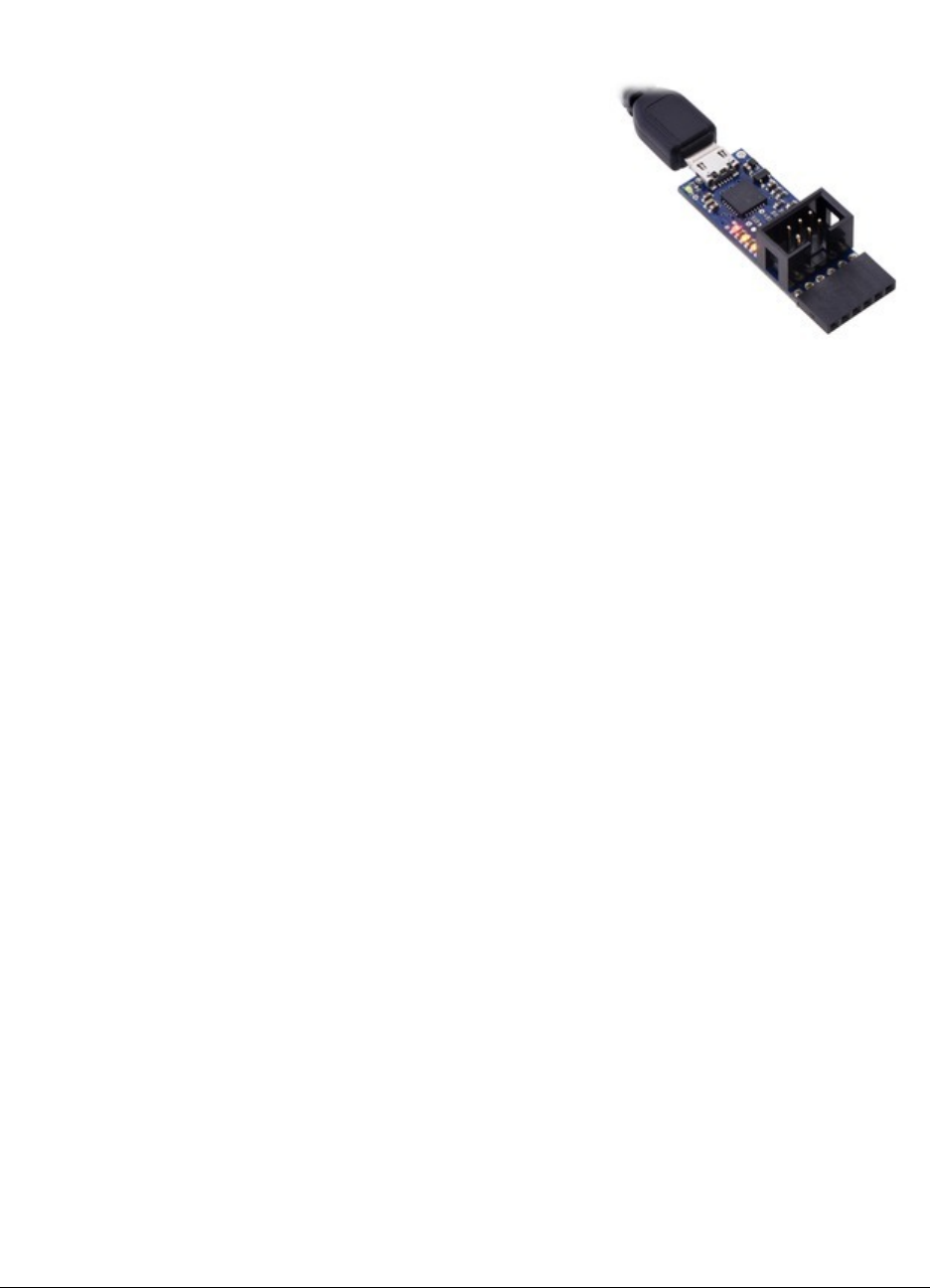

The Pololu USB AVR Programmer v2

[https://www.pololu.com/product/3170] is a compact,

low-cost in-system programmer (ISP) for

Atmel’s AVR microcontrollers. The programmer

provides an interface for transferring a compiled

AVR program from your computer to the target

AVR’s flash memory, allowing it to run the

program. It is a good solution for programming

AVR-based controllers like our Orangutan

robot controllers [https://www.pololu.com/

category/187/orangutan-robot-controllers], and it can

also be used to update, replace, or remove the

bootloader on Arduino boards

[https://www.pololu.com/category/125/arduino] and

our Arduino-compatible A-Star 32U4

controllers [https://www.pololu.com/category/149/a-

star-programmable-controllers]. This programmer is designed to work well with both 3.3 V and 5 V

devices, and it can even be configured to provide power to the target device in low-power systems.

Features and specifications

• Connects to a computer through USB via a USB A to Micro-B cable [https://www.pololu.com/

product/2072] (not included)

• Emulates an STK500 programmer through virtual COM port interface

• Works with standard AVR programming software, including Atmel Studio, AVRDUDE, and the

Arduino IDE

• Configuration software available for Windows, Mac OS X, and Linux

• Supports both 3.3 V and 5 V devices; can automatically switch operating voltage based on

detected target VCC

• Can optionally power the target at 3.3 V or 5 V in low-power systems

• USB-to-TTL serial adapter functionality for general-purpose serial communication

• Provides a 100 kHz clock output, which can be useful for reviving misconfigured AVRs

• All I/O pins are protected with 470 Ω resistors

•6-pin ISP cable [https://www.pololu.com/product/972] and a 1×6 double-sided male header

[https://www.pololu.com/product/1065] included

1. Overview Page 3 of 53

Distinguishing different Pololu programmers

Please note that this guide only applies to the Pololu USB AVR Programmer v2, which is Pololu’s

third-generation AVR programmer and is on the right side of the picture below. If you have the original

Orangutan USB programmer (left), you can find its user’s guide here [https://www.pololu.com/docs/0J6]. If

you have the second-generation Pololu USB AVR Programmer (middle), you can find its user’s guide

here [https://www.pololu.com/docs/0J36].

From left to right: the original Orangutan USB Programmer, the Pololu USB AVR

Programmer, and the Pololu USB AVR Programmer v2.

1.1. Supported AVR microcontrollers

The programmer should work with all AVRs that can be programmed with the AVR ISP (in-system

programming) interface, which is also known as in-circuit serial programming (ICSP), serial

programming, or serial downloading, but it has not been tested with all devices. We expect it to work

with most AVRs in the megaAVR (ATmega) family. This programmer works with some members of the

tinyAVR (ATtiny) family, but it does not support the Tiny Programming Interface (TPI). It does not work

with the XMEGA family or with 32-bit AVRs. The programmer features upgradable firmware, allowing

1. Overview Page 4 of 53

updates for future devices.

1.2. Supported operating systems

We support using the Pololu USB AVR Programmer v2 and its configuration software on Windows

Vista, Windows 7, Windows 8, Windows 10, Linux, and Mac OS X 10.11 or later. The programmer is

not likely to work on Windows 10 IoT Core, which is very different from the normal desktop versions of

Windows. We have tested the programmer and its software on Raspbian Jessie for the Raspberry Pi,

so we expect it to work on that version of Raspbian and later versions.

1. Overview Page 5 of 53

2. Contacting Pololu

We would be delighted to hear from you about any of your

projects and about your experience with the Pololu USB AVR

Programmer v2. You can contact us [https://www.pololu.com/

contact] directly or post on our forum [http://forum.pololu.com/]. Tell

us what we did well, what we could improve, what you would like

to see in the future, or anything else you would like to say!

2. Contacting Pololu Page 6 of 53

3. Pinout and components

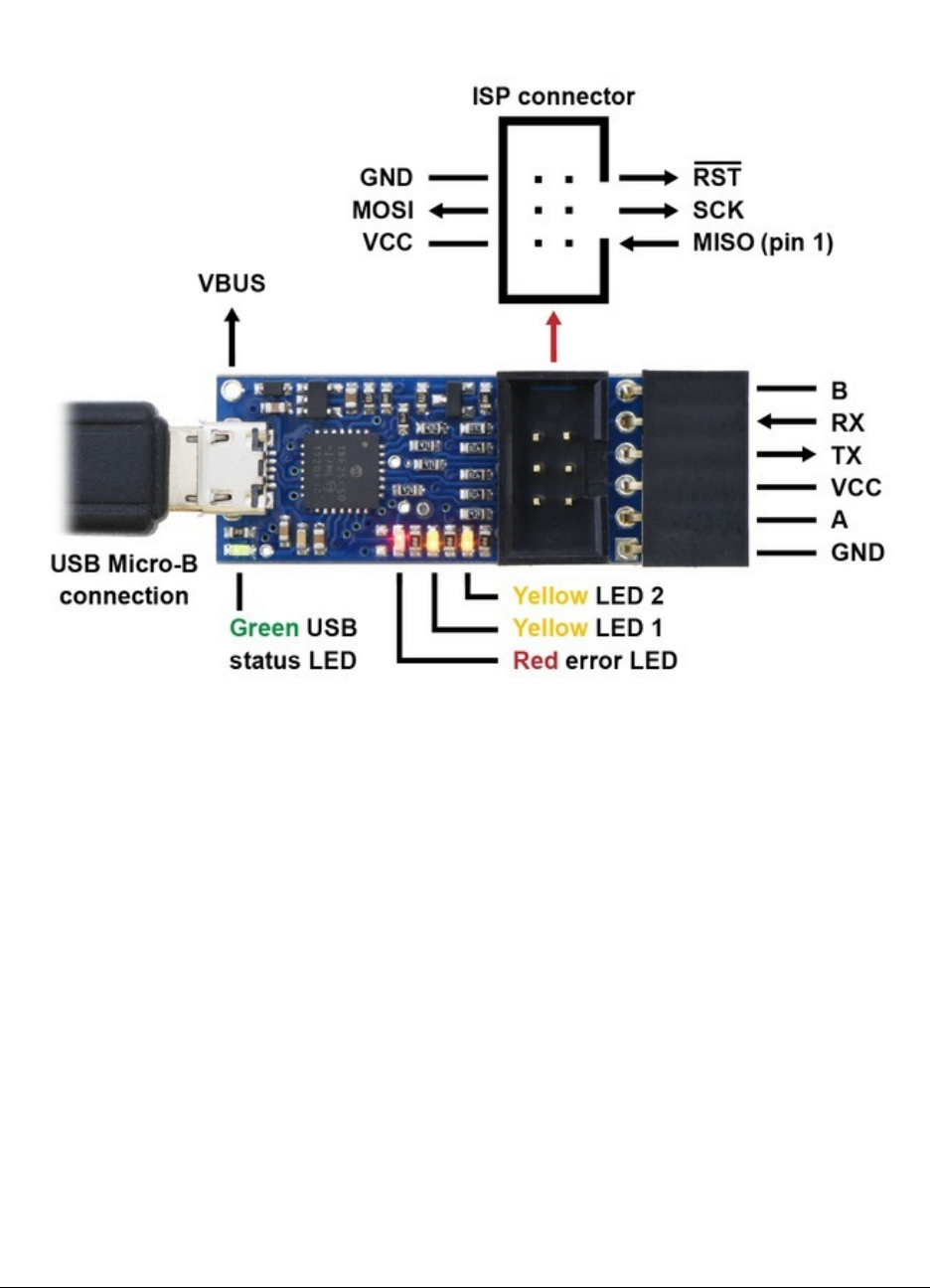

Pololu USB AVR Programmer v2, labeled top view.

The Pololu USB AVR Programmer v2 connects to a computer’s USB port via a USB A to Micro-B

cable [https://www.pololu.com/product/2072] (not included).

The programmer has a standard 6-pin AVR ISP connector for programming AVRs. It connects to the

target AVR device via an included 6-pin ISP cable [https://www.pololu.com/product/972]. The cable has a

keyed connector that matches the programmer’s shrouded header, making it impossible to plug the

cable into the programmer in the wrong orientation. The older 10-pin ISP connections are not directly

supported, but it is easy to create or purchase a 6-pin-to-10-pin ISP adapter. The six pins on the ISP

connector are:

1. MISO: The “Master Input, Slave Output” line for SPI communication with the target AVR. This

is called PDO in some AVR datasheets. The programmer is the master, so this line is an

input.

2. VCC: By default, this line is an input that the programmer uses to measure the voltage of the

target AVR (see Section 7). This line can also be configured to power the target device (see

3. Pinout and components Page 7 of 53

Section 8).

3. SCK: The clock line for SPI communication with the target AVR. The programmer is the

master, so this line is an output during programming.

4. MOSI: The “Master Output, Slave Input” line for SPI communication with the target AVR. This

is called PDI in some AVR datasheets. The programmer is the master, so this line is an output

during programming.

5. RST: The target AVR’s reset line. This line is used as an output driven low during

programming to hold the AVR in reset.

6. GND: Ground. This line should be connected to the target device’s ground.

When the programmer is not actively programming an AVR, the MISO, SCK, and MOSI pins are all

high-impedance inputs.

The end of the programmer has a 6-pin serial header with a pinout that is similar to commonly-

available FTDI cables and breakout boards. The programmer comes with a 6-pin right-angle female

header [https://www.pololu.com/product/2706] soldered in. The six pins on this header are:

1. GND: Ground. This is connected to the GND pin on the ISP header and the GND pin of the

USB cable.

2. A: By default, this line is just an input that is pulled up, but it can be configured to do serial

control/handshaking functions (see Section 6.1).

3. VCC: This is connected to the VCC pin on the ISP connector. By default it is an input, but it

can be configured as an output for powering other devices (see Section 7 and Section 8).

4. TX: This is a TTL serial output pin that can send data to another device (see Section 6.1).

5. RX: This is a TTL serial input pin that can receive data from another device (see Section

6.1).

6. B: By default, this line is configured to be the DTR (Data Terminal Ready) signal. It can be

configured for other serial/handshaking functions (see Section 6.1) or it can be used as a

clock output signal (see Section 5.10).

3. Pinout and components Page 8 of 53

Pololu USB AVR Programmer v2, bottom view with dimensions.

The programmer’s circuit board is 0.6″ wide and 1.35″ long. With the right-angle female header, it is

about 1.69″ long.

The programmer has 4 LEDs that indicate its status. The behavior of these LEDs is described in detail

in Section 4.4.

The VBUS line is connected directly to the USB cable’s 5V power supply line. It can be used to power

external devices as long as you are careful not to draw too much current from it (see Section 8).

Included accessories

The Pololu USB AVR Programmer v2 comes with the accessories shown in the picture below. The

6-pin ISP cable [https://www.pololu.com/product/972] can be used to program AVRs. The 1×6 double-

sided male header [https://www.pololu.com/product/1065] can be plugged into the serial header to

effectively reverse its gender (making it possible to connect that header to a breadboard

[https://www.pololu.com/category/28/solderless-breadboards] or female jumper wires [https://www.pololu.com/

category/65/premium-jumper-wires]). A USB A to Micro-B cable [https://www.pololu.com/product/2072] is

required and not included.

3. Pinout and components Page 9 of 53

Pololu USB AVR Programmer v2 with included hardware.

3. Pinout and components Page 10 of 53

4. Getting started

4.1. Installing Windows drivers and software

The Pololu USB AVR Programmer v2 has drivers and configuration software for Windows. The drivers

tell Windows how to recognize the programmer and set it up correctly. The drivers are needed for

Windows Vista, Windows 7, and Windows 8. For Windows 10 and later, the drivers are optional but

recommended. The configuration software allows you to change the programmer’s settings and can

be helpful for troubleshooting.

Before connecting your programmer to a computer running Microsoft Windows, we recommend

installing its drivers and software by following these steps.

1. Download and install the Pololu USB AVR Programmer v2 Software and Drivers for

Windows [https://www.pololu.com/file/download/pololu-usb-avr-programmer-

v2-1.0.1-win.msi?file_id=0J1119] (12MB msi). Please note that the drivers and software in this

installer will only work with the Pololu USB AVR Programmer v2, which is blue-colored.

2. During the installation, Windows will ask you if you want to install the drivers. Click “Install” to

proceed.

3. After the installation has finished, your computer should automatically set up the necessary

drivers when you connect a Pololu USB AVR Programmer v2, in which case no further action

from you is required.

After installing the drivers and plugging the programmer in via USB, if you go to your computer’s

Device Manager, you should see three entries for the programmer as shown below:

4. Getting started Page 11 of 53

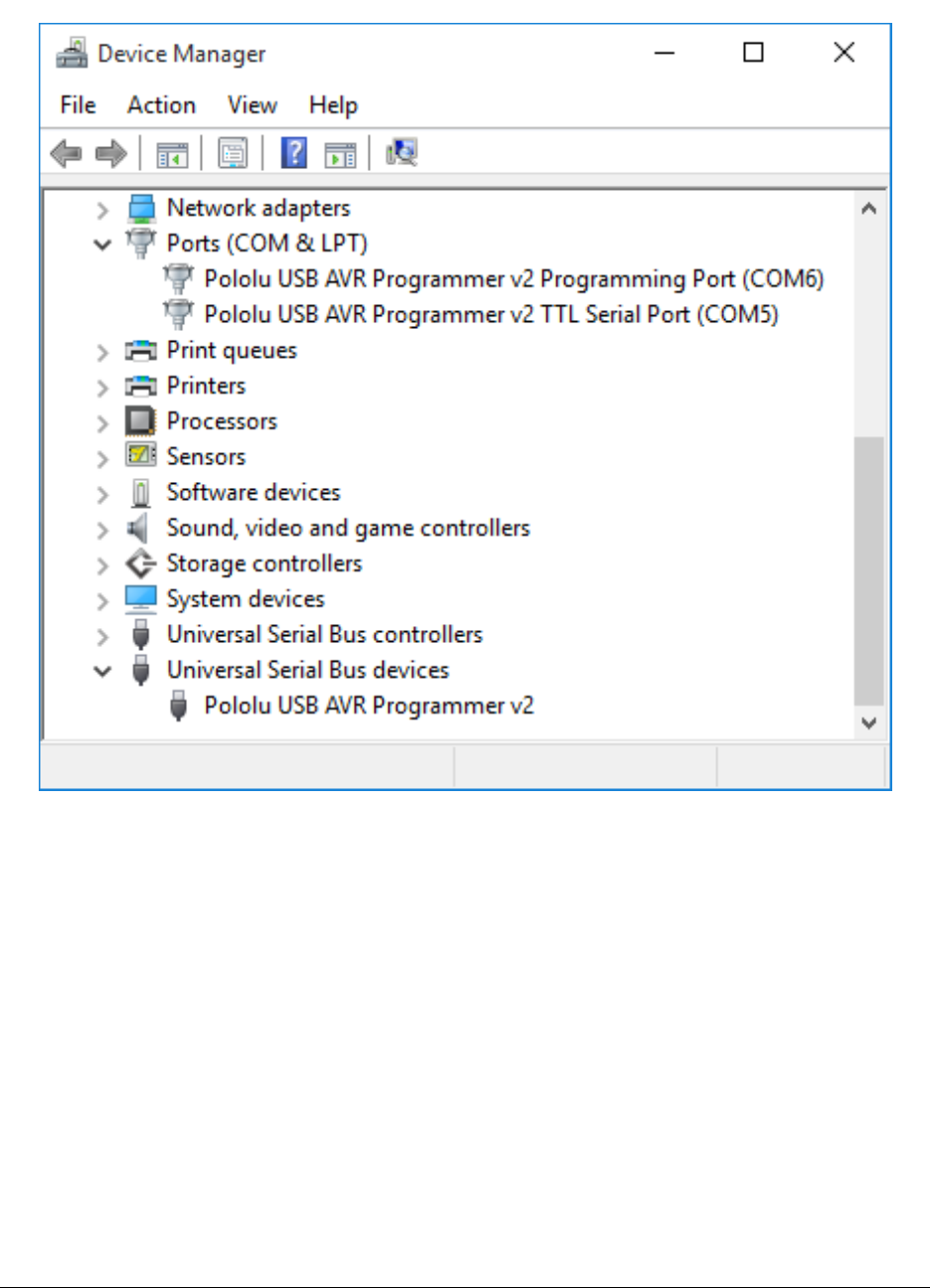

Windows 10 Device Manager showing the Pololu USB AVR Programmer v2

COM ports

In the “Ports (COM & LPT)” category, you should see two COM ports: “Pololu USB AVR Programmer

v2 Programming Port” and “Pololu USB AVR Programmer v2 TTL Serial Port”.

You might see that the COM ports are named “USB Serial Device” in the Device Manager instead of

having descriptive names. This can happen if you are using Windows 10 or later and you plugged the

programmer into your computer before installing our drivers for it. In that case, Windows will set up

your programmer using the default Windows serial driver (usbser.inf), and it will display “USB Serial

Device” as the name for each port. The ports will be usable, but it will be hard to distinguish the ports

from each other because of the generic name shown in the Device Manager. We recommend fixing the

names in the Device Manager by right-clicking on each “USB Serial Device” entry, selecting “Update

4. Getting started Page 12 of 53

Driver Software…”, and then selecting “Search automatically for updated driver software”. Windows

should find the drivers you already installed, which contain the correct name for the port.

If you are using Windows 10 or later and choose not to install the drivers, the programmer will still be

usable. See Section 4.5 for information about determining which COM port is which.

If you want to change the COM port numbers assigned to your programmer, you can do so using the

Device Manager. Double-click a COM port to open its properties dialog, and click the “Advanced…”

button in the “Port Settings” tab. Windows will associate this COM port number with the USB serial

number of your programmer and use it whenever you plug that programmer in. If you have multiple

programmers but only plug in one at a time, it can be helpful to assign each programmer to the same

set of COM ports.

Native USB interface

There should be an entry for the programmer in the “Universal Serial Bus devices” category called

“Pololu USB AVR Programmer v2”. This represents the programmer’s native USB interface, and it is

used by our configuration software. The programmer’s native USB interface implements Microsoft OS

2.0 Descriptors, so it will work on Windows 8.1 or later without needing any drivers. The driver we

provide is needed for earlier versions of Windows.

Windows USB driver troubleshooting

If the software you are using cannot communicate properly with the programmer, a good first step is

to just unplug it from everything and then plug it back in again.

You should also make sure you are specifying the right COM port name in your software. AVR

programming software should usually connect to the programmer’s programming port. If you want to

communicate using the RX and TX lines, you should connect to the TTL serial port. You can find the

right COM port names by following the instructions in Section 4.5.

If that does not work, you should try to locate all the entries for the programmer in the Device Manager.

Be sure to look in these categories: “Other devices”, “Ports (COM & LPT)” and “Universal Serial Bus

devices”. It might help to click “View”, select “Devices by Connection”, and then expand entries until

you can find entries relating to the programmer. When viewing devices by connection, the programmer

is normally represented by a “USB Composite Device” entry that has three child entries which should

look like the entries shown in the screenshot above. Any entry corresponding to the programmer might

have an incorrect name if the wrong driver is installed or there was an error. You can tell if an entry

corresponds to the programmer by unplugging the programmer and checking to see whether the entry

disappears. Finding the programmer’s entries in the Device Manager can often give you a good idea

of what is wrong.

If the programmer has no entries in your Device Manager, you probably have a low-level hardware

4. Getting started Page 13 of 53

problem. Try using a different USB cable and a different USB port. Make sure your cable is not a

charging-only cable.

If the programmer does have entries in the Device Manager, but they don’t look like the screenshot

above, then you might have a driver installation problem. To ask Windows to use the right drivers,

you can right-click on each entry, select “Update Driver Software…”, select “Browse my computer for

driver software”, and then enter the location of the “drivers” folder for the programmer. This is typically

“C:\Program Files (x86)\Pololu\USB AVR Programmer v2\drivers”.

Do not attempt to fix driver issues in your Device Manager using the “Add legacy hardware” option.

This is only for older devices that do not support Plug-and-Play, so it will not help. If you already tried

this option, we recommend unplugging the programmer from USB and then removing any entries you

see for the programmer by right-clicking on them and selecting “Uninstall”. Do not check the checkbox

that says “Delete the driver software for this device”.

Running the software

Our installer for the programmer comes with two software programs.

The Pololu USB AVR Programmer v2 Configuration Utility is a graphical user interface (GUI) for

configuring the programmer and viewing its status. You can find the configuration utility in your Start

Menu by searching for it or looking in the Pololu folder.

The Pololu USB AVR Programmer v2 Command-line Utility (pavr2cmd) is a command-line utility

that has all the features of the GUI. You can open a Command Prompt and type pavr2cmd with no

arguments to a see a summary of its options.

4. Getting started Page 14 of 53

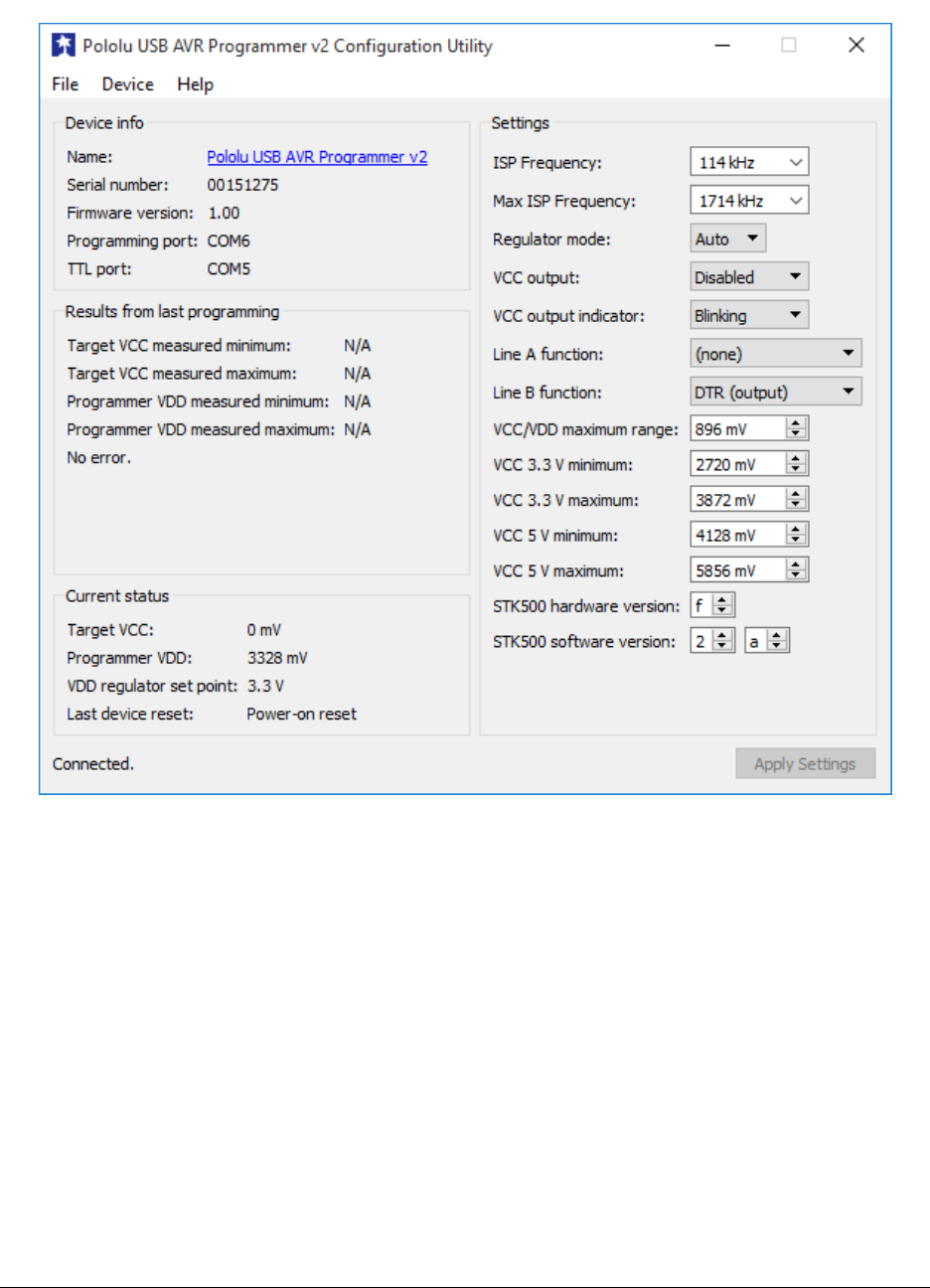

The Pololu USB AVR Programmer v2 Configuration Utility in Windows 10.

4.2. Installing Linux software

The Pololu USB AVR Programmer v2 configuration software works on Linux, but we do not provide

binary downloads. If you want to use the software, we recommend following the instructions in

BUILDING.md [https://github.com/pololu/pololu-usb-avr-programmer-v2/blob/master/BUILDING.md] in the

source code repository [https://github.com/pololu/pololu-usb-avr-programmer-v2] on GitHub. Those

instructions explain how to download the required source code, compile it, and install it on your

computer. They also mention a few changes you might need to make to your system to successfully

run the software.

The Pololu USB AVR Programmer v2 does not require any driver installation on Linux. The Linux

kernel’s cdc_acm module creates entries for the programmer’s virtual serial ports with names like

4. Getting started Page 15 of 53

/dev/ttyACM0 and /dev/ttyACM1 so that they can be used by software, and other parts of Linux allow

access to the programmer’s native USB interface. For more information about determining the names

assigned to the programmer’s virtual serial ports, see Section 4.5.

4.3. Installing Mac OS X software

The Pololu USB AVR Programmer v2 configuration software works on Mac OS X 10.11 or later. To

use it, you can download and install the Pololu USB AVR Programmer v2 Software for Mac OS X

[https://www.pololu.com/file/download/pololu-usb-avr-programmer-v2-1.0.2-mac.pkg?file_id=0J1120] (9MB pkg).

The Pololu USB AVR Programmer v2 does not require any driver installation on Mac OS X. The

AppleUSBCDCACM driver that comes with the operating system creates entries for the programmer’s

serial ports with names like /dev/cu.usbmodem00022331 so that they can be used by software, and other

parts of Mac OS X allow access to the programmer’s native USB interface. For more information about

determining the names assigned to the programmer’s virtual serial ports, see Section 4.5.

Running the software

Our installer for the programmer comes with two software programs.

The Pololu USB AVR Programmer v2 Configuration Utility is a graphical user interface (GUI) for

configuring the programmer and viewing its status. You can run the configuration utility by clicking on

“Pololu USB AVR Programmer v2” in your computer’s Appllications folder.

The Pololu USB AVR Programmer v2 Command-line Utility (pavr2cmd) is a command-line utility that

has all the features of the GUI. You can open a Terminal and type pavr2cmd with no arguments to a

see a summary of its options.

4.4. LED feedback

4. Getting started Page 16 of 53

Pololu USB AVR Programmer v2, labeled top view.

The Pololu USB AVR Programmer v2 has four LEDs to indicate its status.

Most of the information provided by the LEDs is also available in the programmer’s configuration

software. To see the programmer’s current status, just start the Pololu USB AVR Programmer v2

Configuration Utility or run pavr2cmd -s from a command prompt. However, learning the LED behavior

can be helpful if you want to quickly make sure that the programmer is in the right state before using

it.

The green LED indicates the USB status of the device. When you connect the programmer to the

computer via the USB cable, the green LED will start blinking slowly. The blinking continues until

the programmer gets a particular message from the computer that indicates that the programmer is

recognized. After the programmer gets that message, the green LED will be on, but it will flicker briefly

when there is USB activity. During suspend mode (e.g. while the computer is sleeping or while USB is

disconnected and the programmer is inadvertently powered through its VCC pin), the green LED will

be off but blink briefly every second to indicate that the programmer is powered but sleeping.

The red LED indicates an error or warning. When it is blinking, it means that the target AVR’s VCC

power line is outside of the acceptable range. The red LED will blink about once per second, and the

blinks will last about one half second (512 ms). When the red LED is on solid, it means that the last

attempt at programming resulted in an error. You can determine the source of the error by running the

4. Getting started Page 17 of 53

programmer’s configuration software. If the target’s VCC line goes out of the acceptable range, the red

LED will go back to blinking and no longer display the previous error even if target power is restored.

The two yellow LEDs indicate information about the programmer’s regulator mode, the current

operating voltage of the programmer, and whether VCC is an output or not. More information about

these settings can be found in the Power monitoring and regulator settings [https://www.pololu.com/

docs/0J67/7] section and the Using VCC or VBUS to supply power [https://www.pololu.com/docs/0J67/8]

section.

If VCC is configured to be an input (which is the default setting), the yellow LEDs behave as described

below:

• If the programmer’s regulator mode is Auto (which is the default and means that it will

automatically switch between 3.3 V and 5 V), and no power is currently detected on the

target’s VCC line, then both yellow LEDs will be off. This is the default state of the

programmer if you just plug it into a computer without changing any settings or connecting

anything else. The red LED will be blinking because the target power is not detected.

• If the programmer’s regulator mode is 3.3 V (meaning that it always operates at 3.3 V), but

the power on the the target’s VCC line is not within the acceptable range, then yellow LED 1

will blink once per second. Yellow LED 1 turns on a little bit (128 ms) after the red LED turns

on, and turns off at the same time as the red LED. This blinking pattern is also used if the

programmer’s regulator mode is Auto, and the programmer is currently operating at 3.3 V,

but the voltage on the target’s VCC line is above the acceptable range.

• If the programmer is currently operating at 3.3 V and the target’s VCC level is within the

acceptable range, then yellow LED 1 will blink briefly (64 ms) once per second.

• If the programmer’s regulator mode is 5 V (meaning that it always operates at 5 V), but the

power on the target’s VCC line is not within the acceptable range, then both yellow LEDs

will blink once per second. Yellow LED 1 turns on a little bit (128 ms) after the red LED turns

on. Yellow LED 2 turns on a little bit (128 ms) after yellow LED 1. Both yellow LEDs turn

off at the same time as the red LED. This blinking pattern is also used if the programmer’s

regulator mode is Auto, and the programmer is currently operating at 5 V, but the voltage on

the target’s VCC line is not within the acceptable range.

• If the programmer is currently operating at 5 V and the target’s VCC level is within the

acceptable range, then both yellow LEDs will blink briefly (64 ms) once per second. Yellow

LED 2 will blink a little bit after yellow LED 1 blinks.

If VCC is configured to be a 3.3 V output, then yellow LED 1 will blink eight times per second to warn

you. If VCC is configured to be a 5 V output, then both yellow LEDs will blink eight times per second to

warn you. If you want VCC to be an output but you do not want to see the yellow LEDs blinking so fast,

4. Getting started Page 18 of 53

you can change the “VCC Output Indicator” setting from “Blinking” to “Steady” using the configuration

software. This makes the yellow LEDs just stay on solid instead of blinking eight times per second.

Note that the LED blinking patterns described above are not directly affected by measurements of the

programmer’s actual operating voltage (VDD). In the descriptions above, a phrase like “operating at

3.3 V” just means that the programmer is trying to operate at that voltage.

To ensure that the programmer shows a complete blinking pattern instead of switching quickly

between two or more patterns, the yellow LED blinking pattern is only updated once per second. So

if you make a change to your system, you might have to wait for up to one second to see the LEDs

respond.

The LEDs will be noticeably brighter when the programmer is operating at 5 V as opposed to 3.3 V.

Startup blinking

When the programmer starts running, it tries to detect if it was reset by some special condition. You

can see the cause of the last reset in the configuration software’s “Last device reset” field, so it is

usually easiest to just look there to diagnose any problem you are having with the programmer getting

reset. The programmer also provides LED feedback to indicate why it was reset. If the programmer

was reset by anything other than a standard power-on reset (which happens whenever power is turned

on), the programmer will blink the red LED and/or yellow LED 1 in a special way for a second before it

starts operating. The way these LEDs blink depend on the cause of the reset:

• If a brown-out reset occurred, the red LED will blink four times while the yellow LEDs stay off.

A brownout-reset can happen if VCC is configured as an output and you are trying to power

a device that has too much capacitance or draws to much current, as described in Section

• If the programmer was reset by the reset line on its microcontroller, yellow LED 1 will blink

four times while the red LED stays off. This should almost never happen.

• If the programmer was reset by its watchdog timer, then the red LED and yellow LED 1 will

blink together four times. This is the expected behavior if the programmer was in bootloader

mode and then received the USB command to quit the bootloader and start running the

firmware.

• If any other type of non-standard reset happens, then the red LED will be on solid while yellow

LED 1 blinks four times.

Bootloader mode

In bootloader mode, which is used for updating the firmware of the programmer itself and should only

rarely be needed, the LEDs behave differently. The green LED still indicates the USB status, but it is

4. Getting started Page 19 of 53

different: after the programmer gets a particular message from the computer that indicates that the

programmer is recognized, the green LED will start doing a double blinking pattern every 1.4 seconds.

The yellow LED will usually be on solid, but it will blink quickly whenever a USB command is received.

The red LED will be on if and only if there is no firmware currently loaded on the device.

4.5. Determining serial port names

The USB interface of the Pololu USB AVR Programmer v2 provides two virtual serial ports: the

programming port and the TTL serial port. To use either of these serial ports, you will usually have to

know the name assigned to the serial port by the operating system (e.g. “COM6”).

The easiest way to find the serial port names is to run the configuration software we provide. You can

run the Pololu USB AVR Programmer v2 Configuration Utility and look in the upper left corner to see

the serial port names. In a command prompt, you can run pavr2cmd -s to see the port names. With

either of these two methods, a port name will be displayed as “(unknown)” if it cannot be determined.

You can also run pavr2cmd --prog-port or pavr2cmd --ttl-port in a command prompt. Each of these

commands simply prints the name assigned to the corresponding serial port. These commands are

useful if you want to write a script that connects to one of the programmer’s serial ports but you do

not know ahead of time what name it will have. These commands will print an error message on the

standard error pipe if anything goes wrong.

In Windows, you can also determine the COM port names by looking in the Device Manager. Usually,

both ports will be displayed in the “Ports (COM & LPT)” category. The descriptive name of the port (e.g.

“Pololu USB AVR Programmer v2 Programming Port”) will be displayed, followed by the COM port

name in parentheses. If the descriptive name is just “USB Serial Device” for both of the programmer’s

ports, then you can identify the two ports by double-clicking on each one and looking at the “Hardware

Ids” property in the “Details” tab. The programming port will have the ID USB\VID_1FFB&PID_00B0&MI_01,

while the TTL serial port will have the ID USB\VID_1FFB&PID_00B0&MI_03. If you have trouble finding the

ports in the Device Manager, see the USB driver troubleshooting tips in Section 4.1.

In Linux, the programmer’s two serial ports should show up as devices with names like /dev/ttyACM0

and /dev/ttyACM1. The name with the lower number usually corresponds to the programming port.

You can run ls /dev/ttyACM* to list those ports. These serial port names are not generally reliable,

because if /dev/ttyACM0 is already in use when the programmer gets plugged in, then its ports will

be assigned to higher numbers. If you want more reliable names for the serial ports, you can use the

symbolic links in the /dev/serial/by-id/ directory. The links for the programmer ending with if01 are

for the programming port, while the links ending with if03 are for the TTL serial port. For example, the

programming port of a programmer with serial number 00001234 would be:

/dev/serial/by-id/usb-Pololu_Corporation_Pololu_USB_AVR_Programmer_v2_00001234-if01

4. Getting started Page 20 of 53

In Mac OS X, the programmer’s two serial ports will have names like /dev/cu.usbmodem00022331.

The name with the lower number usually corresponds to the programming port. You can run ls

/dev/cu.usbmodem* to list those ports. You can also find these names by running ioreg -trc

IOSerialBSDClient. The output from this command is somewhat complicated, but you should see

entries for the Pololu USB AVR Programmer v2. An entry for the programmer with

IOUSBHostInterface@2 in it corresponds to the programming port, while an entry with

IOUSBHostInterface@4 in it corresponds to the TTL serial port.

4. Getting started Page 21 of 53

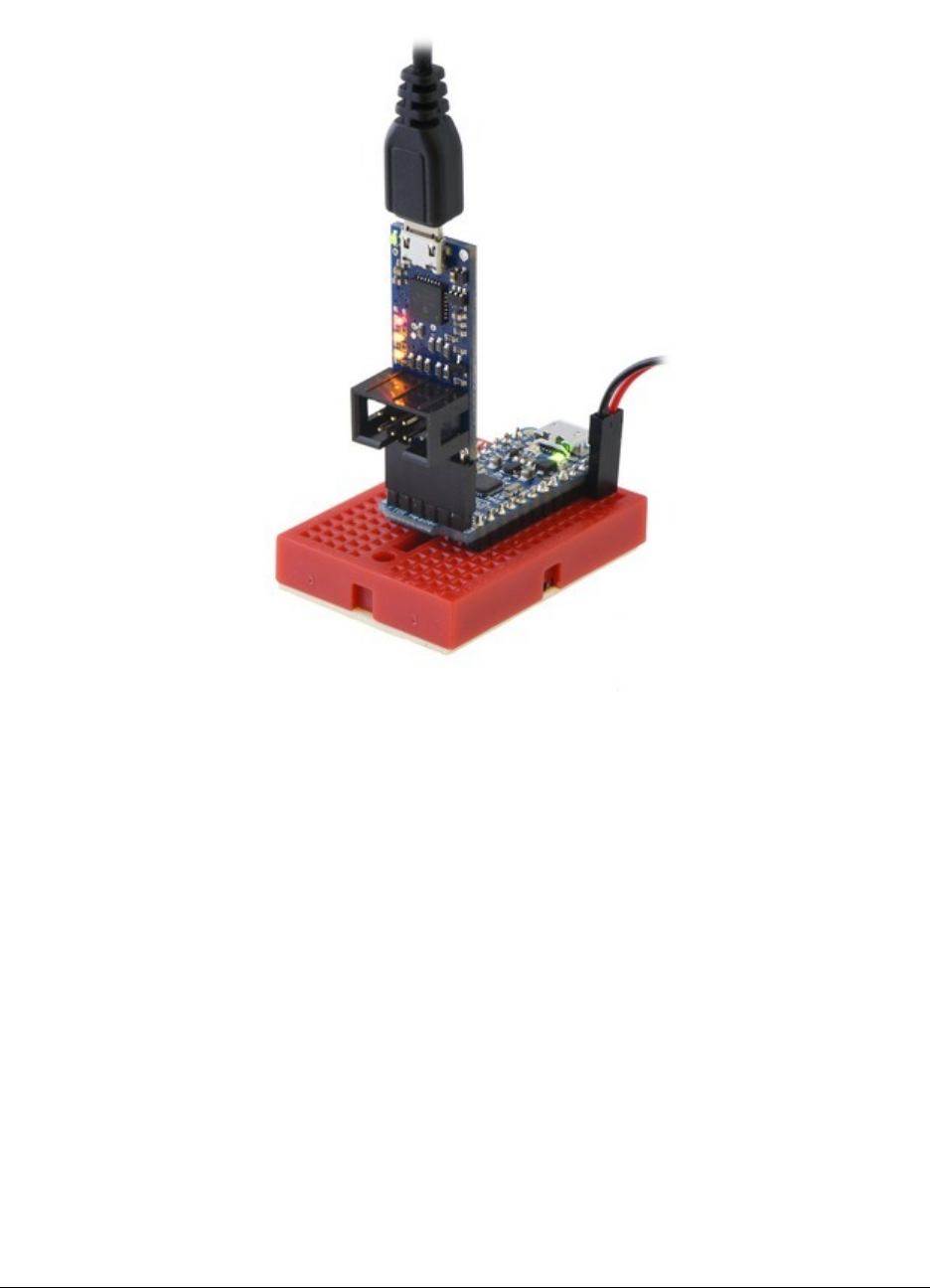

The Pololu USB AVR Programmer v2 (bottom)

connected to an A-Star 32U4 Prime SV for

programming.

5. AVR programming

5.1. Connecting an AVR for programming

This section explains how to connect the

programmer to an AVR microcontroller using its

in-system programming (ISP) interface, which is

also known as in-circuit serial programming

(ICSP), serial programming, or serial

downloading.

Many AVR boards feature a 6-pin male ISP

connector. If your board has a connector like

that, you can simply connect the programmer to

the ISP header using the included 6-pin ISP

cable. If your board does not have a shrouded

ISP connector to ensure proper orientation of

the cable, then you should make sure the cable is oriented so that pin 1 on the cable’s connector lines

up with pin 1 on your target device. The ISP cable’s connector has a faint triangle on it that points to pin

1, and the red wire in the cable also indicates pin 1.

If your AVR does not have a 6-pin ISP connector, then you will need to connect each of the six

programming pins from the programmer to the corresponding pin on the AVR. The programmer’s ISP

pins are labeled on the bottom of the programmer and also in the diagram below. The names we

use for the pins on the AVR programmer match the names typically used for the ISP pins in AVR

datasheets. For example, the ATmega328P datasheet indicates that MOSI is one of the names of pin

PB3, so you would need to connect the MOSI pin on the AVR programmer to the PB3/MOSI pin on the

ATmega328P. By referring to your specific AVR’s datasheet and the schematic of the circuit board the

AVR is on (if applicable), you should be able to identify connection points for the AVR’s GND, MISO,

MOSI, SCK, RST, and VCC pins. You will generally need six wires [https://www.pololu.com/category/65/

premium-jumper-wires] to make all the required connections.

5. AVR programming Page 22 of 53

Pololu USB AVR Programmer v2, labeled top view.

You will also need to make sure that the target device is powered on. The AVR microcontroller must be

powered during programming, and the programmer does not supply power by default. If you do want

to supply power to the target AVR from the programmer, see Section 8.

5.2. AVR programming using Atmel Studio

If you have an Orangutan or 3pi Robot or wish to use the Pololu AVR C/C++ Library

for some other reason, we recommend following the Pololu AVR Programming Quick

Start Guide [https://www.pololu.com/docs/0J51] instead of this tutorial.

The following tutorial covers the steps needed to program AVRs in Windows using Atmel Studio

[http://www.atmel.com/microsite/atmel-studio/] and a Pololu USB AVR Programmer v2. Atmel Studio is a

free integrated development environment (IDE) provided by Atmel for Microsoft Windows systems.

You will need to:

• Download and install Atmel Studio [http://www.atmel.com/microsite/atmel-studio/] by following the

instructions on Atmel’s website. This tutorial was written for Atmel Studio 7.0.

• Install the Pololu USB AVR Programmer v2 drivers on your computer. See Section 4.1 for

instructions.

5. AVR programming Page 23 of 53

Windows Vista users: You will need to use Atmel Studio 6.2 because that is the latest

version of Atmel Studio that supports Windows Vista. If your device is not listed in

the Device Programming window, you might need to add devices to Atmel Studio as

described in the Adding Devices to Atmel Studio 6 [https://www.pololu.com/docs/0J36/

3.b.1] section of the user’s guide for older programmer.

After you have completed these prerequisites, you can create a new Atmel Studio project:

1. Open Atmel Studio and click New Project. In the New Project dialog, select GCC C

Executable Project for the template. Enter the project name and location. In this tutorial,

we will name our project “BlinkLED” and put it in the “C:\” directory, but you can choose a

different name and location if you would like. Uncheck the Create directory for solution box

to simplify the directory structure of your project. Click OK.

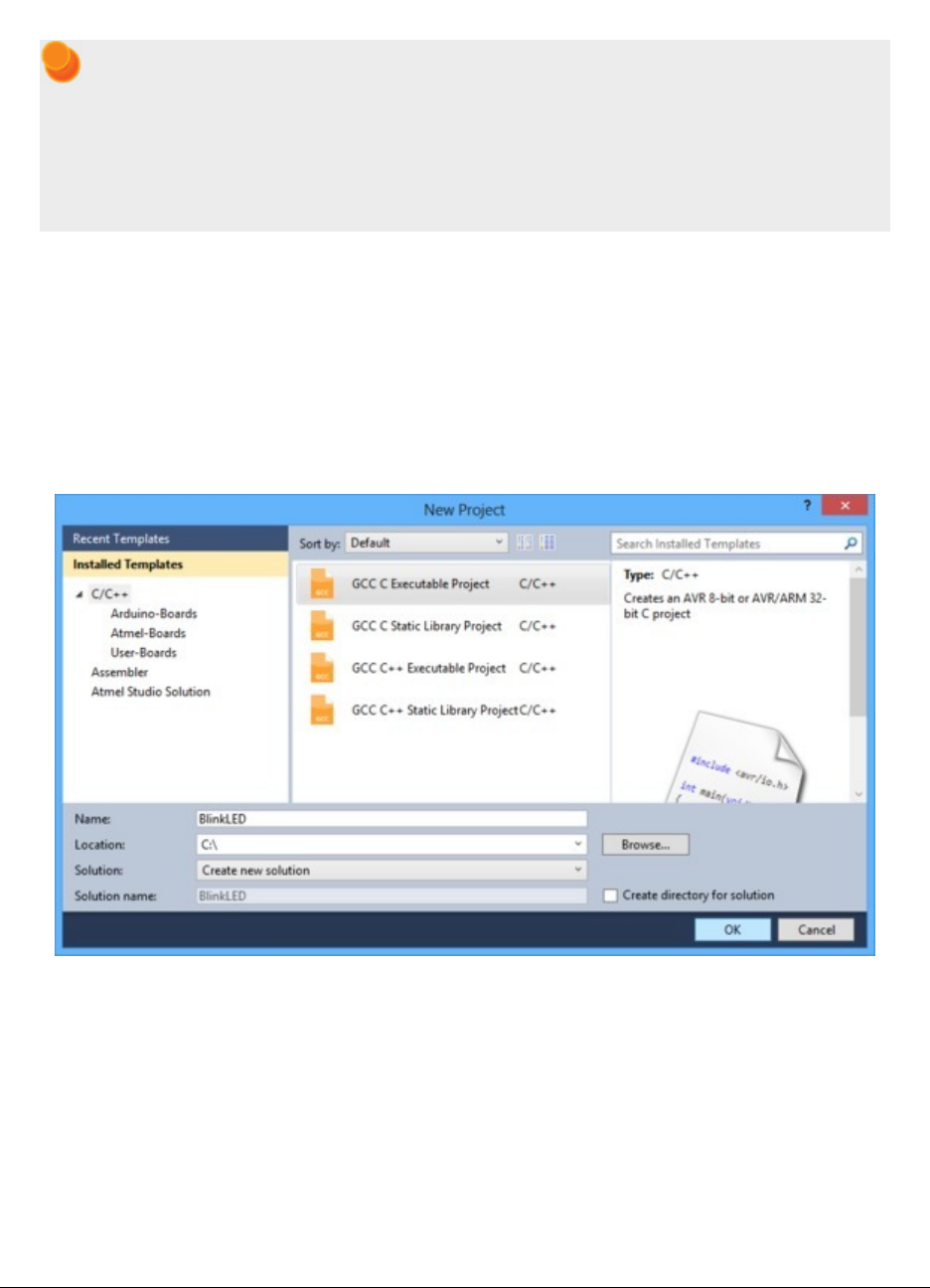

The New Project dialog of Atmel Studio 6.

2. In the Device Selection window, select the device name of your specific AVR. Click OK to

create the project.

5. AVR programming Page 24 of 53

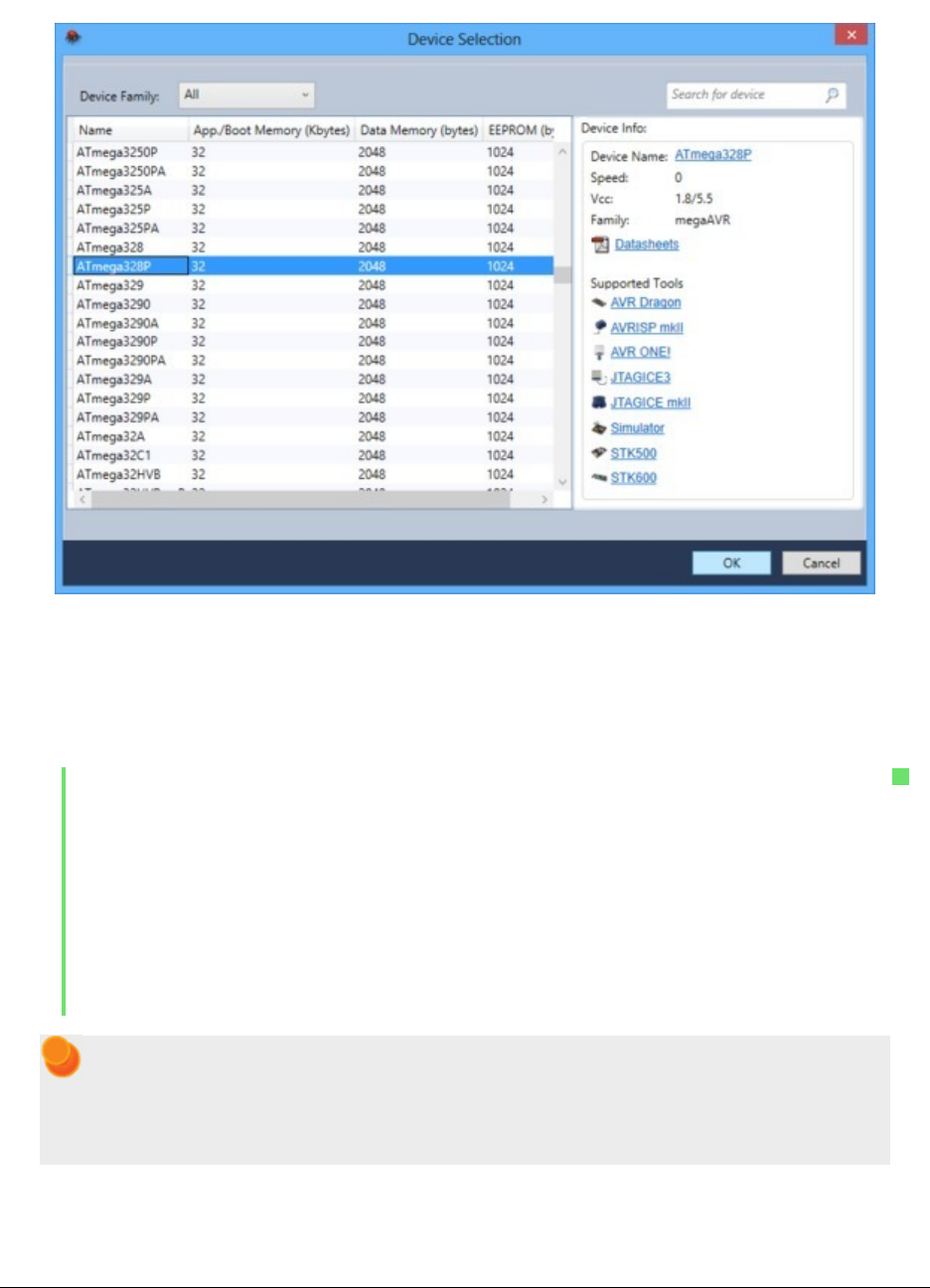

The Device Selection dialog of Atmel Studio 6.

3. Remove the template code that was automatically placed in BlinkLED.c and replace it with

the code below:

Note: The value of F_CPU should be the clock frequency of your AVR in units of Hz,

so if your AVR is not running at 20 MHz you will need to change that line. If you do not

make this change, the timing of _delay_ms() will be off, but the LED will still blink.

4. Click the Build Solution button on the toolbar (or press Ctrl+Shift+B) to compile the code.

#define F_CPU 20000000 // AVR clock frequency in Hz, used by util/delay.h

#include <avr/io.h>

#include <util/delay.h>

int main() {

DDRD |= (1<<1); // set LED pin PD1 to output

while (1) {

PORTD |= (1<<1); // drive PD1 high

_delay_ms(100); // delay 100 ms

PORTD &= ~(1<<1); // drive PD1 low

_delay_ms(900); // delay 900 ms

}

5. AVR programming Page 25 of 53

Building a project with Atmel Studio 6.

5. Make sure your programmer is connected to your computer via USB and then select Add

target… from the Tools menu. Select STK500 as the tool. Select the COM port that has been

assigned to the programmer’s programming port, and click Apply. If you are not sure which

COM port to select, run the Pololu USB AVR Programmer v2 Configuration Utility and look

in the upper left corner or see Section 4.5, which has more information about determining

serial port names. This step can be skipped if you have done it before.

5. AVR programming Page 26 of 53

The “Add target” dialog box in Atmel Studio 6.

6. In the Tools menu, select Device Programming.

7. This will bring up the Device Programming dialog. For the Tool, select the STK500 that you

added earlier. Select the same device you selected earlier. If your device is not available in

the list, we recommend upgrading to Atmel Studio 7.0 or later, but if you are using Windows

Vista, see the note about Windows Vista above. For the Interface, select ISP. Click Apply.

Selecting a programmer, device, and interface in the Device

Programming dialog of Atmel Studio 6.

If you get an error when you click “Apply”, then it means that Atmel Studio is having trouble

communicating with the programmer. You should try unplugging the programmer from everything and

then plug it back in. You should also make sure you have selected the right COM port. If that does not

help, see the Windows USB driver troubleshooting advice in Section 4.1.

8. If you have not done so already, connect the programmer to the target device using the 6-pin

ISP cable. Make sure the cable is oriented so that pin 1 on the connector lines up with pin 1

on your target device, and that the target device is powered on. If your device does not have

5. AVR programming Page 27 of 53

an ISP header, see Section 5.1 for more information about connecting the programmer. You

can test the connection by clicking the Read button next to the Device Signature box. This

sends a command to the target AVR asking for its signature. If everything works correctly,

you should see a number in hex notation appear in the Device Signature box. If you get an

error about the signature being wrong, you might have selected the wrong device. If you get a

warning that says “Read voltage … is outside selected device’s operating range” then double

check to make sure that your device is powered. For more help getting your connection

working, see Section 5.6.

Reading the device signature of an AVR in Atmel

Studio 6.

9. Now it is time to program your target device. Select the Memories section on the left. The

Flash box should contain the path to the ELF file that was generated when you built your

program. If it does not, you can browse for this using the “…” button to the right of the text

box. If you navigate to your project’s folder, you should find it as “Debug\<project name>.elf”.

Click the Program button in the Flash box.

5. AVR programming Page 28 of 53

The Memories section of the Device Programming dialog in Atmel Studio 6.

As your programmer programs the AVR, you should see all four LEDs flicker and you should see the

following text appear at the bottom of the window:

Erasing device... OK

Programming Flash...OK

Verifying Flash...OK

If there were no problems, the LED connected to PD1 of your AVR should now be flashing! Note that

if you are trying this on a 3pi robot and you have not yet soldered in the optional through-hole LEDs,

the flashing LED will be on the bottom of the robot. If there was a problem, please see Section 5.6 for

help identifying and fixing it.

5.2.1. Faster programming with F5 in Atmel Studio

The Device Programming dialog in Atmel Studio is modal, which means you must close it after you are

done programming in order to go back to editing your source code. It takes at least 4 clicks to open up

the dialog and initiate the programming process again. This section describes a different method for

programming that will allow you to compile and program simply by pressing F5.

5. AVR programming Page 29 of 53

First, in the View menu, select “Available Atmel Tools”. This will bring up the “Available Tools” window.

Make sure that there is one and only one STK500 in the list and make sure that the COM port number

matches the COM port number of the programmer’s programming port (see Section 4.5). If there are

multiple STK500 entries, right click on them and select “Remove” to remove the extra entries. You will

only have to do this once.

Next, open the project properties window by opening the Project menu and selecting the entry that

has the name of your project followed by the word Properties. In the Tool tab, select STK500 as the

debugger/programmer, and select ISP as the interface. Set the ISP Clock frequency to 115.2 kHz by

dragging the slider; this is a good default value that will work for most AVRs, but you can try increasing

it later if you want the programming to be faster.

5. AVR programming Page 30 of 53

Finally, you should be able to press F5 to build your project and program the resulting HEX file onto

your AVR. Alternatively you can program by selecting either “Continue” or “Start Without Debugging”

from the Debug menu.

5.3. AVR programming using AVR Studio 4

We have not tested the Pololu USB AVR Programmer v2 with AVR Studio 4, which is a predecessor

to Atmel Studio and is no longer supported by Atmel. However, we expect the programmer to work

with AVR Studio 4. We recommend using the latest version of Atmel Studio, but if you want to use AVR

Studio 4 then you can probably follow the instructions in the Programming AVRs Using AVR Studio

4[https://www.pololu.com/docs/0J36/3.c] section of the user’s guide for our older programmer.

5. AVR programming Page 31 of 53

5.4. AVR programming using the Arduino IDE

Note: We do not expect this tutorial to be useful for typical Arduino-compatible boards,

which usually come with a bootloader that can be used to load sketches. If you want to use

the programmer as a USB-to-serial adapter along with the Arduino IDE to load sketches

onto a board using its existing bootloader, see Section 6.3.

The following tutorial covers the steps needed to program AVRs in Windows using the Arduino

Software (IDE) [http://arduino.cc/en/Main/Software] and a Pololu USB AVR Programmer v2. In this tutorial,

we will use the programmer to directly load sketches (programs) onto an AVR using its ISP interface.

This could be useful if you want to program a bare AVR chip using the Arduino IDE.

1. Download and install the Arduino Software [http://arduino.cc/en/Main/Software].

2. Open the Arduino IDE. A new template program will automatically be generated.

3. In the Tools menu, find the Programmer menu, and then select Atmel STK500

development board. If you do not see an entry for the STK500, you should update to

Arduino 1.6.5 or later.

4. In the Ports menu, select the port that corresponds to the programmer’s programming port.

If you are not sure which of the listed serial ports is the programming port, see Section 4.5.

5. In the Boards menu, select an entry corresponding to the AVR microcontroller or board

you want to program. If there are no entries in the Boards menu that exactly match the

target you are trying to program, then there might be one that is close enough to work. For

example, if you are programming an ATmega328P running at 16 MHz, then the entry for the

“Arduino/Genuino Uno” will probably work since it uses the same processor and clock speed.

If needed, you can add a new entry to the Boards menu by locating the “hardware/arduino/

avr/boards.txt” file inside your Arduino IDE installation and editing it.

6. In the Sketch menu, select Upload with Programmer. This is a special version of the

upload command that causes the Arduino software to run AVRDUDE using the settings for

an STK500 instead of using the board’s usual bootloader. It should load the default template

program onto your AVR. If everything worked, the message “Done uploading.” will appear in

the status bar.

If an error occurs during the upload step, the first step to debugging it should be to turn on verbose

output during uploading. In the Arduino IDE, under the File menu, selected Preferences, then check

the upload checkbox on the line that says Show verbose output during, and click OK. Now when

you try to upload again, you will see detailed information about how the Arduino IDE is attempting

to load your program. One of the most important things to look at is the command used to invoke

5. AVR programming Page 32 of 53

AVRDUDE: you should make sure that it says “-cstk500”, uses the right COM port, and specifies the

right AVR microcontroller using the “-p” option. For more help troubleshooting, see Section 5.6.

5.5. AVR programming using AVRDUDE

If you have an Orangutan or 3pi Robot or wish to use the Pololu AVR C/C++ Library

for some other reason, we recommend following the Pololu AVR Programming Quick

Start Guide [https://www.pololu.com/docs/0J51] instead of this tutorial.

While it is possible to program AVRs using an integrated development environment like Atmel Studio

or the Arduino IDE, you can also set up your own development environment using a collection

command-line utilities. This tutorial will explain how to set up such an environment on Windows, Mac

OS X, or Linux. For each of these systems, the first thing we need to do is install AVR GCC, GNU

Make, and AVRDUDE. In this tutorial, the phrase “AVR GCC” means the full toolchain, including the

compiler, binary utilities (binutils), and AVR Libc. The instructions for installing these prerequisites

depend on the specific operating system you are using. Once you have those tools, you can write a

simple Makefile that supports compiling a program and loading it onto the AVR.

To successfully complete this tutorial, you will need to know how to use cd and ls to navigate the files

on your computer. You will also need to know how to use a text editor to create and edit files.

Installing prerequisites in Windows

On a computer running Microsoft Windows, we recommend that you install the Atmel AVR Toolchain

for Windows [http://www.atmel.com/tools/ATMELAVRTOOLCHAINFORWINDOWS.aspx], which is a standalone

version of AVR GCC for Windows. This toolchain is distributed by Atmel and used in Atmel Studio.

The installer is just a simple extractor that will extract the toolchain folder to a location you specify. We

recommend specifying “C:\” as the location, which means all the tools will be installed in “C:\avr8-gnu-

toolchain”. To make it easy to use the toolchain, you should add “C:\avr8-gnu-toolchain\bin\” to the end

of your PATH environment variable, making sure to separate it from any other paths using a semicolon.

You can edit environment variables like PATH from the Control Panel.

To get GNU Make and AVRDUDE on Windows, we recommend using MSYS2 [http://msys2.github.io/],

a distribution of open-source software for Windows. Be sure to follow the instructions on MSYS2’s

website to update the packages that come with MSYS2. Then install AVRDUDE and make by running

the following command:

pacman -S make mingw-w64-i686-avrdude

Next, launch MSYS2 using the “MinGW-w64 Win32 Shell” shortcut in your start menu (or by running

mingw32_shell.bat). There are other ways to start MSYS2, and if you start it the wrong way, then

5. AVR programming Page 33 of 53

the 32-bit version of AVRDUDE that we installed above will not be on your PATH, and you will get a

“command not found” error later when you try to run AVRDUDE.

If you have trouble using the AVR GCC provided by Atmel or the AVRDUDE provided by MSYS2,

another option is to use the versions of AVR GCC and AVRDUDE provided by the Arduino IDE. You

would have to add the “hardware\tools\avr\bin” folder inside your Arduino installation to your PATH

environment variable.

Installing prerequisites on Linux

GNU Make is very commonly used to build software on Linux, so if you are using Linux then you might

have it already. You can run “make -v” in a shell to see if you have it. If you do not have make, you

should install it using your system’s package manager.

Next, you should install the AVR toolchain and AVRDUDE. On Ubuntu, you can do this by running:

sudo apt-get install gcc-avr avr-libc avrdude

On Arch Linux, you can run:

sudo pacman -S avr-gcc avr-libc avrdude

For other Linux distributions, you should look in your distribution’s list of packages to find the relevant

AVR development tools.

Installing prerequisites on Mac OS X

The easiest way to install the prerequisites on Mac OS X is to download and install the CrossPack

for AVR Development [http://www.obdev.at/products/crosspack].

Checking the prerequisites

After you have installed the prerequisites, you should open your terminal/shell and try running each

tool to make sure it is available. Run the following commands:

avr-gcc -v

make -v

avrdude -v

If you installed the prerequisites correctly, each of the commands above should print a version number

and some other information about the corresponding tool.

Compiling a program

First, create a file named main.c with the following contents:

5. AVR programming Page 34 of 53

The C code above attempts to blink an LED connected to pin PD1 of your AVR. If you do not have an

LED connected to PD1, you should edit it to use a different pin. You should also adjust the definition

of F_CPU so that it is equal to the clock speed of your AVR in Hz.

Next, create a file named Makefile with the following contents:

MCU=atmega328p

PORT=$(shell pavr2cmd --prog-port)

CFLAGS=-g -Wall -mcall-prologues -mmcu=$(MCU) -Os

LDFLAGS=-Wl,-gc-sections -Wl,-relax

CC=avr-gcc

TARGET=main

all: $(TARGET).hex

clean:

rm -f *.o *.elf *.hex

%.hex: %.elf

avr-objcopy -R .eeprom -O ihex $< $@

$(TARGET).elf: $(TARGET).o

$(CC) $(CFLAGS) $(LDFLAGS) $^ -o $@

program: $(TARGET).hex

avrdude -c stk500v2 -P "$(PORT)" -p $(MCU) -U flash:w:$<:i

You should edit the MCU variable in the Makefile to match the part name of the AVR you are using.

This will be passed as an argument to both GCC and AVRDUDE.

If you did not install the software for the Pololu USB AVR Programmer v2, then you will not have

pavr2cmd, and you should manually set the PORT variable in the Makefile to be equal to the name

of the programmer’s programming port. See Section 4.5 for more information about determining port

names.

You can now run make to build the program.

Note that this is a simple Makefile that does not have real dependency tracking. It knows that if main.c

changes, then the other files need to rebuilt, but it does not account for changes in other files you

might add, such as header files.

#define F_CPU 20000000 // AVR clock frequency in Hz, used by util/delay.h

#include <avr/io.h>

#include <util/delay.h>

int main() {

DDRD |= (1<<1); // set LED pin PD1 to output

while (1) {

PORTD |= (1<<1); // drive PD1 high

_delay_ms(100); // delay 100 ms

PORTD &= ~(1<<1); // drive PD1 low

_delay_ms(900); // delay 900 ms

}

5. AVR programming Page 35 of 53

Programming the AVR

You can run make program to build the code and also program it onto your target AVR using AVRDUDE.

If this does not work, see Section 5.6 for help troubleshooting.

AVRDUDE’s terminal mode (the -t option) is not compatible with the programmer

because the programmer will exit programming mode and release the target AVR from

reset if it receives no programming commands for 1500 ms.

5.6. Troubleshooting AVR programming issues

This section helps solve problems you might have using the Pololu USB AVR Programmer v2 to

program AVRs.

If the programmer blinks its red LED and resets when you plug it into to

the AVR:

If the programmer’s regulator mode is set to Auto or 3.3 V, and you plug it in to a device running at 5 V

with a strong pull-up (less than 10kΩ) on its reset line, the programmer could experience a brown-out

reset. After all the pins are connected, the programmer will indicate the brown-out by blinking its red

LED four times, and then it will resume normal operation. Any programs using the programmer’s COM

ports or its native USB interface might need to be restarted. You can avoid this by setting the regulator

mode to 5 V, which can be done by running pavr2cmd --regulator-mode 5v or using the Pololu USB

AVR Programmer v2 Configuration Utility.

If a motor on your Baby Orangutan or 3pi Robot runs briefly:

If you plug the programmer into a Baby Orangutan or 3pi Robot, motor 2 might run as you are plugging

it in. After all the pins are connected, the motor will stop running. You can avoid this by adding

set_motors(0, 0); to the beginning of your program (e.g. the first line of main or setup) to ensure that

the motor PWM pins are driven low.

If the computer fails to connect to the programmer:

• Make sure that your software is configured to connect the Pololu USB AVR Programmer v2

Programming Port. You can find the name of this port by looking in the upper left corner

of the Pololu USB AVR Programmer v2 Configuration Utility software, or by following the

instructions in Section 4.5.

• If you are using Atmel Studio and programming with the F5 key does not work, then click

View > Available Atmel Tools. This will open the “Available Tools” window. Make sure that

there is one and only one STK500 in the list and make sure that the COM port number

matches the COM port number of the Pololu USB AVR Programmer v2 Programming Port.

5. AVR programming Page 36 of 53

If there are multiple STK500 entries, right click on them and select “Remove” to remove the

extra entries.

• If you are in Windows, make sure you have installed the drivers the programmer needs to

operate. Section 4.1 describes how to install the drivers in Windows.

• Make sure your programmer is connected to your computer via a USB A to micro-B cable.

• Try closing all programs using the programmer, unplug the programmer from everything, and

then plug it back into USB.

• Try using a different USB cable and a different USB port. Make sure your cable is not a

charging-only cable.

• Is the programmer’s green USB status LED on? This is the LED next to the USB connector.

If this LED is blinking slowly, then your drivers are not properly installed.

• If you are in Windows, can you see your programmer listed in the Device Manager? The

Device Manager should show three devices: under “Universal Serial Bus devices” should be

“Pololu USB AVR Programmer v2”, and under “Ports (COM & LPT)” should be “Pololu USB

AVR Programmer v2 Programming Port” and “Pololu USB AVR Programmer v2 TTL Serial

Port” and there should be no error symbols on the icons representing these devices.

• See Section 4.1 for some tips on Windows USB driver troubleshooting.

• On Windows, your computer will only let one program at a time have a given COM port open.

If you are connected to your programmer’s programming port using another program, such as

a terminal or a second instance of Atmel Studio, you will not be able to connect to that same

COM port with your programming software. Please make sure you do not have any terminal

programs connected to your programmer’s programming port. If you have multiple versions

of Atmel Studio running, make sure that you have closed the Device Programming dialogs

in all of them. When the Device Programming dialog is open and the Apply button at the top

is grayed out, that instance of Atmel Studio has an open connection to your programmer’s

programming port.

• If you are in Linux or Mac OS X, try running sudo dmesg immediately after plugging the

programmer in to see if the system reports anything about the programmer.

If the programmer has problems connecting to the target AVR:

• A common cause for this problem is an incorrect connection between your programmer and

your target device. See Section 5.1 for information on how to properly connect an AVR to the

programmer.

• The target AVR must be powered for programming to work. Please make sure that your target

device has power and is turned on. You can get a reading of the AVR’s VCC voltage by

running pavr2cmd -s or looking in the Pololu USB AVR Programmer v2 Configuration Utility.

5. AVR programming Page 37 of 53

If you are using Atmel Studio, you can get a reading of the AVR’s VCC voltage by clicking

the “Read” button next to the Target Voltage box in the upper right corner of the Device

Programming dialog.

• Your programmer’s ISP frequency must be less than a quarter of your target AVR’s clock

frequency, but frequencies that are too low can result in timeouts. The default frequency

of 114 kHz should work for most AVRs. Try setting the ISP frequency to 114 kHz using the

programmer’s configuration utility, or by supplying the -B 5 option to AVRDUDE. You can

also set the frequency using the Device Programming dialog in Atmel Studio, in the “Interface

settings” section. If you are programming in Atmel Studio with F5, go to the “Tool” section of

your project’s properties and set the frequency to 115.2 kHz by dragging the slider.

• If the red error LED is on solid after a programming attempt, then run the programmer’s

configuration utility or run pavr2cmd -s to determine the cause of the error.

• There may be a problem with the target device. It is possible to kill a device with a static

shock, by incorrectly connecting power, or by programming the fuses incorrectly. There could

also be a short or cut trace somewhere on your target device. The ideal way to test for

this is to try programming a different device with your programmer, or try using a different

programmer to program your target device. If this is not an option, try verifying that the

target device is still functional and perform some continuity tests to check for shorts or

disconnections on the ISP programming lines. Don’t forget to check the 6-pin ISP cable for

shorts as well.

• If you are programming by pressing F5 in Atmel Studio, try using the “Device Programming”

dialog instead. You can find it in “Tools” menu.

• It is possible that the AVR’s SPIEN fuse has been set to 1, meaning that the ISP interface

is disabled. This could potentially happen if you used the AVR’s debugWIRE interface to

program it. The debugWIRE interface is a different interface that is not supported by the

Pololu USB AVR Programmer v2. To fix this problem, you should use the debugWIRE

interface to set the SPIEN fuse to 0.

If the verification step fails for flash programming:

• Check the lock bits on your AVR to make sure you do not have any type of code protection

or memory lock enabled. Since those settings would prevent the programmer from reading

from your AVR’s flash, they would cause verification to fail.

If the verification step fails for fuses or lock bits:

• Verification of fuses or lock bits in AVRDUDE can fail because unimplemented fuse bits are

read as an arbitrary, constant value that might be different from the value you tried to program

into them. Consult the datasheet of your AVR to find out which fuse bits are unimplemented

5. AVR programming Page 38 of 53

and then change those bits in your AVRDUDE command to match what AVRDUDE is actually

reading from the chip. Be very careful whenever you are changing fuses!

Still need help?

If none of the above troubleshooting suggestions solve your problem, please contact us for support

[https://www.pololu.com/support].

5.7. Programming faster

If you are developing code for an AVR microcontroller, you might need to program it dozens or

hundreds of times before the code is good. This section gives tips on how to program your AVR quickly

so that you can be more productive.

If you are programming from Atmel Studio, you should try using the F5 key as described in Section

5.2.1. Then you can just press the F5 key to save, build, and program.

If you are using AVRDUDE or GNU Make from the command line, you should know that most shells

allow you to press the up arrow to go back to the last command you ran. So you can press up arrow

followed by Enter to very quickly run the last command. You should also learn the shortcut key for

saving a file in your text editor (often Ctrl+S), and learn your operating system’s shortcut key for

switching Windows (often Alt+Tab). Then you can just press a quick sequence of keystrokes to save,

switch to the terminal, program the AVR, and switch back.

Setting the ISP frequency

You should make sure to set the ISP Frequency setting on your programmer to the highest value that

the AVR can handle. The ISP Frequency setting has a large effect on how fast the programmer sends

commands to the AVR. The rest of this section talks about how to determine a good frequency and

configure your programmer to use it.

For most or all AVRs:

• The ISP Frequency should be less than 1/4 of the target clock frequency if the target clock

frequency is less than 12 MHz.

• The ISP Frequency should be less than 1/6 of the target clock frequency if the target clock

frequency is greater than or equal to 12 MHz.

These rules apply to most or all AVRs with an ISP interface. If you want to, you can check to see if

these rules apply to your AVR by looking for information about the minimum low and high periods for

the serial clock (SCK) input in the “Serial Downloading” or “Serial Uploading” section of your AVR’s

datasheet.

5. AVR programming Page 39 of 53

Here are some recommended values for typical setups:

AVR

Clock Frequency ISP Frequency

Atmel Studio

Setting

AVRDUDE

Option(1)

20 MHz 3000 kHz(2) 1.843 MHz -B 0.5

16 MHz 2400 kHz(2) 1.843 MHz -B 0.5

12 MHz 1714 kHz(2) 1.843 MHz -B 0.5

8 MHz 1714 kHz(2) 1.843 MHz -B 0.5

4 MHz 750 kHz(2) 1.843 MHz -B 0.5

1 MHz 114 kHz(3) 115.2 kHz -B 4

32.768 kHz 6.98 kHz(3) 7.008 kHz -B 123

(1): If the programmer is already configured to use the specified ISP Frequency, you do not need to

supply this option to AVRDUDE, but you probably should just in case.

(2): You should select this frequency using the programmer’s configuration software, so that the

programmer will use it instead of the 1.843 MHz frequency requested by Atmel Studio and AVRDUDE.

(3): Optional setting: the Atmel Studio and AVRDUDE settings will configure the programmer to use

this frequency or a nearby frequency that will also work.

The Pololu USB AVR Programmer v2 emulates the STK500 programmer from Atmel, which supports

255 different frequencies. Atmel Studio and AVRDUDE only know about those 255 frequencies, and

their user interfaces allow you to select one. The fastest frequency the STK500 supports is 1.843 MHz.

If you try to select that frequency in AVRDUDE or Atmel Studio, then the programmer will actually use

its Max ISP Frequency, a configurable setting which defaults to 1714 kHz.

The ISP Frequency column above lists ISP frequencies supported by the Pololu USB AVR

Programmer v2 which are appropriate for programming an AVR with the specified clock frequency.

You can select these ISP frequencies using the --freq option to pavr2cmd or you can select them in

the Pololu USB AVR Programmer v2 configuration utility. Just click the arrow on the “ISP Frequency”

input, select the frequency you want to use, and then click “Apply Settings” to apply the settings to the

device.

The Atmel Studio Setting column above shows the frequency you should select in Atmel Studio if you

are using Atmel Studio to program. Atmel Studio will always set the ISP frequency of the programmer,

whether you are using the F5 key to program, or using the Device Programming dialog. If you are

using F5 to program, you should check the “Tool” section of your project’s properties and set the ISP

Clock to the value listed above. If you are using the Device Programming dialog, you should set the

ISP Clock using the “Interface settings” section of the dialog.

The AVRDUDE Option column above shows the command-line arguments you should supply when

running AVRDUDE. The “-B” option to AVRDUDE takes one argument, which is a number. The

5. AVR programming Page 40 of 53

argument specifies the minimum allowed ISP period (one divided by the maximum allowed ISP

Frequency) in units of microseconds.

Any change to the programmer’s frequency—whether it comes from the programmer’s software, or

Atmel Studio, or AVRDUDE—is stored in the programmer’s non-volatile memory, so it will persist even

if the programmer is unplugged and powered off.

You can change the ISP Frequency and Max ISP Frequency settings using the Pololu USB AVR

Programmer v2 configuration software. The Max ISP Frequency must always be equal to the ISP

Frequency if the ISP Frequency is 462 kHz or higher. If you set the ISP Frequency to anything higher

than 462 kHz, the programmer’s software automatically sets the Max ISP Frequency setting as well.

The programmer itself runs at 12 MHz, so each possible value for the ISP Frequency and Max ISP

Frequency settings is equal to 12000 kHz divided by some whole number.

If you have any issues related to the frequency settings, you can use the configuration software to

set them back to their default values of 114 kHz for the ISP Frequency and 1714 kHz for the Max ISP

Frequency, respectively. You can also try resetting all of the programmer’s settings to their factory

defaults by running pavr2cmd --restore-defaults or selecting “Restore Default Settings” from the

“Device” menu of the configuration utility.

5.8. Reading and writing from EEPROM and flash

The Pololu USB AVR Programmer v2 supports reading and writing from an AVR’s EEPROM and flash

memories.

If you are using Atmel Studio, you can use the “Memories” section of the “Device Programming” dialog

to read and write from EEPROM and flash.

If you are using AVRDUDE, you can use the “-U” option:

• To read from flash and save the contents to a HEX file, use something like -U

flash:r:filename.hex:i

• To write a HEX file to flash, use something like -U flash:w:filename.hex:i (and see Section

5.5)

• To read from EEPROM and save the contents to a HEX file, use something like -U

eeprom:r:filename.hex:i

• To write a HEX file to EEPROM, use something like -U eeprom:w:filename.hex:i

In the examples above, filename.hex should be changed to actual name of the file you want to use.

5. AVR programming Page 41 of 53

Don’t forget to pass the other required options to AVRDUDE. A complete AVRDUDE command to read

from EEPROM would look something like this:

avrdude -c stk500v2 -P COM6 -p atmega328p -U eeprom:r:filename.hex:i

You’ll need to change “COM6” to the actual name of the programmer’s programming port, which you

can find by running pavr2cmd --prog-port or by following the instructions in Section 4.5.

More information is available in the AVRDUDE manual, which you can see by running man avrdude.

Note: Many AVRs have lock bits which might prevent you from reading the EEPROM or

flash without first performing a full chip erase.

5.9. Setting fuses and lock bits

Warning: Modifying an AVR’s fuses can leave it an unusable state. In particular, if you select

an invalid clock setting, then the AVR’s clock will not work and you won’t be able to program

it. You should make sure you know what you are doing and be very careful when setting the

fuses!

The Pololu USB AVR Programmer v2 supports reading and writing an AVR’s fuses and lock bits.

If you have Windows, the safest and easiest way to set the fuse bits is to use Atmel Studio’s

graphical user interface for it, which can be found in the “Fuses” and “Lock bits” section of the “Device

Programming” dialog. In case “Auto read” is turned off, click the “Read” button to read your device’s

settings. Then make any changes you want to make and click “Program”.

The fuses and lock bits can also be set using AVRDUDE. Here is an example command:

avrdude -c stk500v2 -P COM6 -p m32u4 -U lock:w:0xHH:m \

-U efuse:w:0xHH:m -U hfuse:w:0xHH:m -U lfuse:w:0xHH:m

To make the command above work, you would need to replace each Hwith a hexadecimal digit. Refer

to the your AVR’s datasheet to figure out the right values for each configuration byte.

You’ll also need to change “COM6” to the actual name of the programmer’s programming port, which

you can find by running pavr2cmd --prog-port or by following the instructions in Section 4.5.

5.10. Using the clock output to revive AVRs

It is possible to disable an AVR if you accidentally set its clock-related fuses to something invalid.

5. AVR programming Page 42 of 53

The clock settings must be valid for any kind of programming to work. If you are having trouble

programming an AVR and think it might be due to invalid clock settings, you can try the steps below to

supply a 100 kHz clock signal to the AVR and revive it.

1. Connect the AVR to the programmer in the usual way as described in Section 5.1.

2. Configure the programmer’s B pin to be a 100 kHz clock output by running pavr2cmd --line-

b clock or by opening the Pololu USB AVR Programmer v2 Configuration Utility, changing

“Line B function” to “Clock (output)”, and clicking “Apply Settings”.

3. Set the programmer’s ISP Frequency to 1.465 kHz by running pavr2cmd --freq 1.465 or by

using the configuration utility.

4. Connect a wire from the programmer’s B pin to the AVR’s XTAL2 pin.

5. Perform a full chip erase. In Atmel Studio, you can use the “Erase now” button in the

“Memories” section of the “Device Programming” dialog. If you are using AVRDUDE, you can

take a command you would normally use for programming, and replace the “-U” option and

its arguments with “-e”.

6. If the chip erase did not work, connect the B pin to XTAL1 and try again.

7. If you still cannot get the chip erase to work, read the troubleshooting advice in Section 5.6.

If you change anything, be sure to try both XTAL1 and XTAL2 again.

8. If you still cannot get the chip erase to work, then there is probably something wrong with the

AVR besides its clock settings, and you will not be able to revive it using these steps.

9. Reprogram your chip’s fuses to appropriate values. The easiest way to do this is to use Atmel

Studio’s user interface, but you can also use AVRDUDE as described in Section 5.9.

10. Disconnect the clock signal from the programmer, and setting the programmer’s ISP

frequency back to a reasonable value like 114 kHz.

11. Try programming to ensure that everything is working as expected. If this works, then you

have successfully revived the AVR!

5. AVR programming Page 43 of 53

6. USB-to-TTL serial adapter

6.1. Asynchronous serial communication

One bonus feature of the Pololu USB AVR Programmer v2 is the USB-to-TTL-serial adapter, which

can be used for connecting microcontroller projects to a personal computer. The USB-to-TTL-serial

adapter looks like a standard serial port to the operating system, allowing you to use existing terminal

programs and software designed to use serial ports. This feature is similar to our CP2104 USB-to-

Serial Adapter Carrier [https://www.pololu.com/product/1308].

The TX and RX lines of the programmer are used to perform asynchronous serial communication.

When the programmer receives a byte from the computer via USB, it will transmit that byte on the

TX line. When the programmer receives a byte on the RX input line, it will send that byte back to the

computer via USB.

The bytes are sent and received eight bits at a time, with the least significant bit first, with no parity and

one stop bit. This coding is sometimes abbreviated 8N1. The bits must be non-inverted, meaning that

a zero is sent as low voltage, and a one is sent as high voltage. All devices involved in asynchronous

serial communication need to agree ahead of time on the duration of one bit (the baud rate), so all

devices must be independently configured to run at the same baud rate before they will be able to

communicate with each other. The programmer supports all integer baud rates from 300 to 115200

bits per second. The following figure is an example of an 8N1 TTL serial byte transmitted at 5 V:

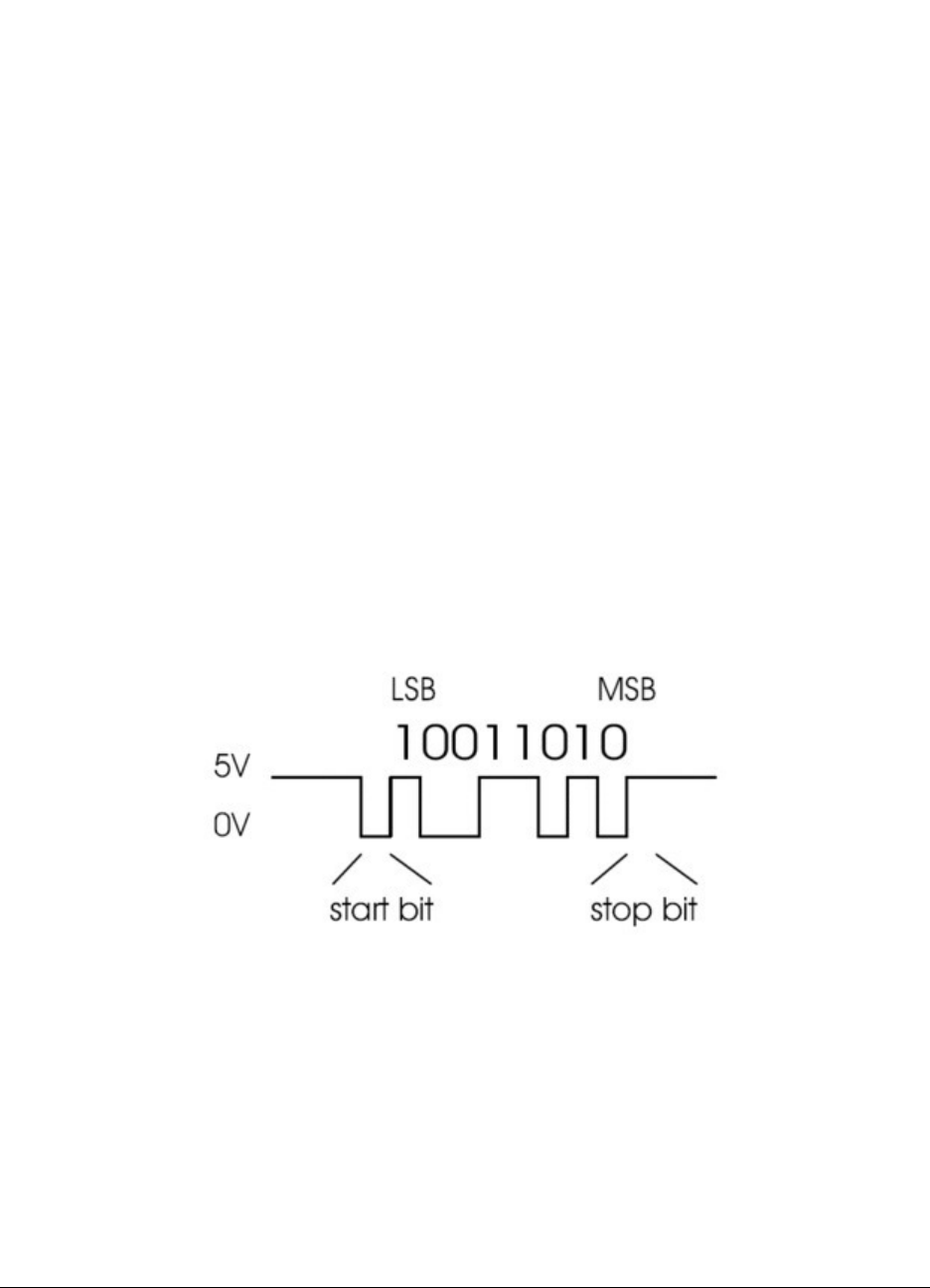

To make a working serial connection between the programmer and another device, you should make

sure to run the programmer at a voltage that is equal to or close to the voltage of the other device.

The programmer’s voltage regulator controls what voltage it will be using, and the regulator settings

are described in Section 7.

To use the USB-to-TTL-serial adapter, you must determine what port name the operating system has

assigned it. You can look in the upper left corner of the Pololu USB AVR Programmer v2 Configuration

Utility, or you can run pavr2cmd --ttl-port, or you can follow the instructions in Section 4.5.

6. USB-to-TTL serial adapter Page 44 of 53

After determining the port name, you can use any serial port software to communicate on that

port. There are many free terminal programs available, including PuTTY

[http://www.chiark.greenend.org.uk/~sgtatham/putty/] (Windows or Linux), Tera Term

[http://ttssh2.sourceforge.jp/] (Windows), Br@y Terminal [http://sites.google.com/site/terminalbpp/]

(Windows), and screen [http://linux.die.net/man/1/screen] (Linux or Mac OS X). Advanced users

developing scripted applications might prefer the free terminal program kermit [http://www.columbia.edu/

kermit/]. To use any of these terminal programs with the USB-to-TTL-serial adapter, you must specify

the port name determined above and your desired baud rate. The characters you type will be

transmitted on the programmer’s TX line. Bytes received by the programmer on the RX line will be

displayed on the screen by the terminal program.

If you need to send and receive non-ASCII bytes, you can use the Pololu Serial Transmitter Utility

for Windows [https://www.pololu.com/docs/0J23].

You can also write your own computer program to use the serial port. Windows, Linux, and Mac OS

X all provide C APIs for serial port communication. The Microsoft .NET framework supports serial port

communication with the System.IO.Ports.SerialPort class. The Qt framework provides the QSerialPort

class. Java programs can use the RXTX library.

6.2. Serial control lines

In addition to transmitting bytes on the TX line and receiving bytes on the RX line, the USB-to-TTL-

serial adapter can use programmer pins Aand Bas serial handshaking lines of your choosing. Each

pin can be configured as an input or an output by identifying it with a serial handshaking line. By

default, A is an unused pin that is pulled high, and B is DTR. To change the functions of A and B, you

can use the --line-a and --line-b options of pavr2cmd or you can configure the lines in the Pololu

USB AVR Programmer v2 Configuration Utility.

The following options are available for those lines:

•(none): The pin will not be used as a serial handshaking line. It will be an input that is pulled

high.

•CD (input): The pin will be an input that is pulled high, and the input’s value will be relayed

to the computer as the CD signal.

•DSR (input): The pin will be an input that is pulled high, and the input’s value will be relayed

to the computer as the DSR signal.

•DTR (output): The pin will be an output that reflects the value of the DTR signal from the

computer.

•RTS (output): The pin will be an output that reflects the value of the RTS signal from the

computer.

6. USB-to-TTL serial adapter Page 45 of 53

•Clock (output): The pin will be an output that sends a 100 kHz clock signal. This option is

only available for pin B.

•DTR reset (output): The pin will normally be floating, but it will drive low for about 1 ms

whenever the computer changes the DTR signal from 0 to 1.

(CTS is not available.)

The serial handshaking lines are inverted: unless otherwise specified, a voltage of 0 V corresponds to

a logical 1, while a voltage of high voltage (VDD) corresponds to a logical 0.

You can read input lines and/or set output lines by either using a terminal program that supports

control signals (such as Br@y Terminal [http://sites.google.com/site/terminalbpp/]) or by writing a computer

program. The Microsoft .NET framework contains a System.IO.Ports.SerialPort class that makes it

easy to read and write bytes from a serial port as well as set and read the control signals.

6.3. Connecting to a serial bootloader

6. USB-to-TTL serial adapter Page 46 of 53

The Pololu USB AVR Programmer v2 (top)

connected to an Adafruit Pro Trinket for

programming.

The six pins on the serial header (GND, A, VCC, TX, RX, and B) are arranged to be similar to

the pinout of commonly-available FTDI USB-to-serial cables and breakout boards. In the default

configuration, pin B is used as the DTR output (and pin A is an unused input). By default, the

programmer’s regulator mode is Auto, which means the programmer will operate at 3.3 V when it

starts up, but it will change to 5 V if you plug it into a 5 V device.

In this default configuration, the programmer can often be used in place of an FTDI cable: you can plug

it directly into various Arduino-compatible boards and use it to upload sketches via a serial bootloader.

The rest of this section explains the details of how this works.

When you click the “Upload” button in the Arduino IDE to program an Arduino such as the Arduino

Uno, the IDE will run AVRDUDE with a command like this:

avrdude -patmega328p -carduino -PCOM6 -b115200 -D -Uflash:w:Sketch.ino.hex:i

6. USB-to-TTL serial adapter Page 47 of 53

The -carduino option specifies that AVRDUDE is going to talk to an Arduino-style serial bootloader.

This means that after AVRDUDE opens up the specified serial port (COM6 in this case), it will set

the DTR and RTS signals on that port to 0, and then set them to 1. Typical serial terminal programs

will also set DTR and RTS to 1. When the signals change from 0 to 1, the programmer’s DTR line

will change from a high voltage (VDD) to low (GND). The board with the AVR on it will usually have

a simple circuit with a capacitor so that when DTR changes from high to low, the reset line of the

board’s AVR sees a low pulse, making it reset.. This feature is called “auto-reset”. Resetting the AVR

like this causes its bootloader to run, and AVRDUDE will attempt to talk to the bootloader using the

programmer’s RX and TX lines in order to upload the specified HEX file.

Using the programmer’s configuration software, you can change pin A or B to be the DTR reset signal.

This is an output that is designed specifically for the auto-reset feature. Whenever DTR changes from

0 to 1, the programmer will drive DTR reset low for 1 ms. You can plug the DTR reset signal directly

into an AVR microcontroller’s RST line without needing to use a capacitor.

6. USB-to-TTL serial adapter Page 48 of 53

7. Power settings and status

The Pololu USB AVR Programmer v2 has several settings that affect how power is regulated,

distributed, and monitored. These settings can be seen and changed in the Pololu USB AVR

Programmer v2 Configuration Utility or from the command-line utility pavr2cmd. These settings

are stored in the programmer’s non-volatile memory, so they will persist while the programmer is

unpowered.

The Regulator mode setting determines what voltage the programmer will operate at, and it has three

options:

•Auto (default): In this mode, the programmer will operate at 3.3 V when it starts up, and it will

switch to 5 V if the voltage on VCC rises above 4096 mV. The programmer will switch back

to 3.3 V if the voltage on VCC falls below 3712 mV.

•5 V: The programmer will operate at 5 V during normal operation. It will still be running at

3.3 V briefly when power is first applied, and it will still run at 3.3 V when it is in bootloader

mode (which is used for firmware updates).

•3.3 V: The programmer will always operate at 3.3 V.

The VCC output setting determines whether the VCC pin (which is on both the ISP connector and the

serial header) will be an input or an output. By default, the VCC output is disabled, so the VCC pin will

be an input. If you set the VCC pin to be an output, you must also set the regulator mode to either 5 V

or 3.3 V: that setting specifies both the voltage that the programmer will operate at and the voltage that

it will supply to the VCC pin. Using the VCC pin as an output can be useful for powering low-current

systems from USB. See Section 8 for more details.

If VCC is configured to be an output, then one or both of the yellow LEDs will blink eight times per

second to warn you, as described in Section 4.4. If you do not want the LEDs to be blink so fast,

you can change the VCC Output Indicator setting from “Blinking” (the default) to “Steady” using the

configuration software. This makes the yellow LEDs just stay on solid instead of blinking eight times

per second.

There are several settings that define what voltage levels on the programmer’s VDD line and the target

AVR’s VCC line are acceptable. Each of these settings can only be set to a value that is a multiple of

32 mV.

The VCC/VDD maximum range setting, which is 896 mV by default, defines the maximum allowed

difference between the highest measurement and the lowest measurement for both the programmer’s

VDD line and the target AVR’s VCC line. If the VCC or VDD varies by more than this amount during

programming, then the programmer will abort the current programming session.

7. Power settings and status Page 49 of 53

The VCC 3.3 V minimum and VCC 3.3 V maximum settings, which are 2720 mV and 3872 mV by

default, define the acceptable voltages for the target’s VCC line when the programmer’s regulator is

set to 3.3 V. If the VCC measurement ever returns a value outside of this range, the programmer will

abort the current programming session.

Similarly, the VCC 5 V minimum and VCC 5 V maximum settings, which are 4128 mV and 5856 mV

by default, define the acceptable voltages for the target’s VCC line when the programmer’s regulator

is set to 5 V.

The programmer also measures its own VDD voltage during programming. If the regulator is set to

3.3 V, the programmer expects the VDD measurements it to be no less than 2912 mV. It also expects

the VDD measurements to either be no more than 3712 mV, or to be no more than 256 mV higher than

the target’s VCC power. If the regulator is set to 5 V, the programmer expects the VDD measurements

to be between 3584 mV and 5792 mV.

Power status information

You can see a lot of information about the programmer’s power status in the Pololu USB AVR

Programmer v2 Configuration Utility and the command-line utility pavr2cmd. If you are using the

configuration utility, these variables are updated each second while the utility is connected to the

programmer. In the “Current status” box, you can see the latest measurements of the programmer’s

VDD voltage and the target’s VCC voltage. You can also see the VDD regulator set point, which is the

voltage that the programmer is currently setting the regulator to (3.3 V or 5 V).

After any programming attempt, the minimum and maximum measurements for both the programmer’s

VDD and the target’s VCC are shown in the “Results from last programming” box.

7. Power settings and status Page 50 of 53

8. Using VCC or VBUS to supply power

Generally, when you are programming an AVR or using the programmer’s USB-to-TTL serial header,

the device you are interface with should be powered from its own power supply. The programmer does

not supply any power on its VCC pins by default. However, if you want to power a low-current and

low-capacitance load, you can configure VCC to be an output using the progammer’s configuration

software. When VCC is an output, its voltage will either be 3.3 V or 5 V, and that is determined by the

programmer’s “Regulator mode” setting.

The VCC output should work fine if you just want to power a microcontroller and put a small capacitor

(e.g. 0.1 μF) between its GND and VCC pins. You should not connect VCC to the output of any other

device, since that could cause a short circuit. You should not draw more than 80 mA of current from

VCC. The load you put on VCC should not have more than a few microfarads of capacitance. If you

put too much capacitance on VCC, then it could cause the programmer to brown-out or it could cause

disruptions in the USB communication.

Alternatively, you can use the programmer’s VBUS pin to power external devices. This pin is

connected directly to the power line of the USB cable. As with the VCC output, you should not draw

more than 80 mA, and you should not have more than a few microfarads of capacitance.

It is generally safer to use the VCC output than to use VBUS. The power supplied to the VCC

output goes through a diode, which prevents current from flowing back into the USB port, and the

programmer’s linear regulator, which has current limiting. The VBUS pin provides no protections, so

there is a higher risk that you would accidentally damage something.

8. Using VCC or VBUS to supply power Page 51 of 53

9. Upgrading firmware

The firmware of the Pololu USB AVR Programmer v2 is the program that runs inside the programmer

itself. The programmer has field-upgradeable firmware that can be updated when bug fixes or new

features are available.

Most users should not need to upgrade the firmware. We only recommend upgrading the firmware if

you know that your programmer has an old version of the firmware and that a newer version of the

firmware has a specific change that you want.

Firmware versions

•Version 1.00: This is the original version.

•Version 1.01, released on 2016 Jun 20: This version makes the measurements of the voltage

on VDD and VCC more accurate.

Checking your firmware version

To determine which firmware version you are currently using, connect your programmer to your

computer via USB and run the Pololu USB AVR Programmer v2 Configuration Utility. The firmware

version is displayed in upper left corner. Alternatively, you can run pavr2cmd -s.

Upgrade instructions

To upgrade the firmware, follow these steps:

1. If you have not done so already, you will need to install the Pololu USB Bootloader Utility,

a command-line utility that supports firmware upgrades for several Pololu products. This

program is also known as “p-load” because that is the command used to run it from a

command prompt. Use the links below to download and install p-load:

◦Windows: Download and install the Pololu USB Bootloader Utility (p-load) for

Windows [https://www.pololu.com/file/download/p-load-2.0.0-win.msi?file_id=0J1125] (2MB

msi).

◦Mac OS X: Download and install the Pololu USB Bootloader Utility (p-load) for

Mac OS X [https://www.pololu.com/file/download/p-load-2.0.1-mac.pkg?file_id=0J1126] (112k

pkg).

◦Linux: Download the Pololu USB Bootloader Utility source code

[https://github.com/pololu/p-load]. Follow the instructions in BUILDING.md to configure,

compile, and install the utility.

2. Download the latest version of the firmware here:

9. Upgrading firmware Page 52 of 53

◦Firmware version 1.01 for the Pololu USB AVR Programmer v2

[https://www.pololu.com/file/download/pgm04a-v1.01.fmi?file_id=0J1178] (38k fmi)

3. If you changed any of the programmer’s settings in the configuration utility or with pavr2cmd,

record your current settings because the firmware upgrade process will reset the settings.

4. Close the Pololu USB AVR Programmer v2 Configuration Utility and any other programs that

might be using the programmer.

5. Open a command prompt and run the following command, replacing filename with the full

path to the firmware file that you downloaded:

p-load -w "filename"

For example, if you are using Windows, and your username is Casey, and you saved the

firmware to your Downloads folder, then you could run:

p-load -w "C:\Users\Casey\Downloads\pgm04a-v1.01.fmi"

6. When you run the command above, the Pololu USB Bootloader Utility should take care of

everything needed to upgrade the programmer’s firmware.

If you run into problems during a firmware upgrade, please contact us [https://www.pololu.com/contact]

for assistance.

9. Upgrading firmware Page 53 of 53

Pololu USB AVR Programmer V2 User’s Guide User

Navigation menu

Versions of this User Manual:

Views

Navigation
