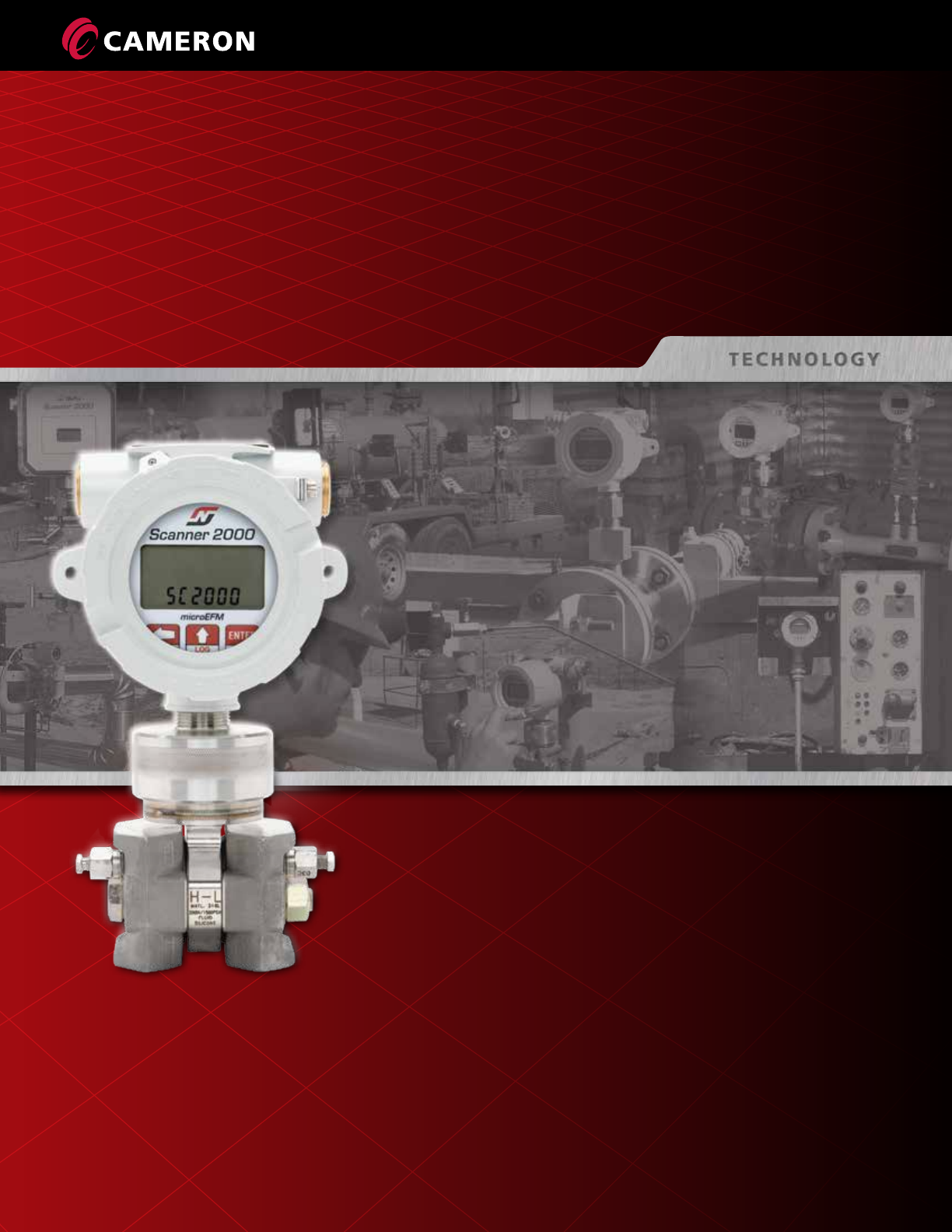

NUFLO Scanner 2000 microEFM

Well Testing Solution

2

• API21.1compliant

• Non-volatilememory

• Adjustablelogginginterval

 Fivesecondsto12hours

Packaging

• Easy-to-readLCD

• Userfriendlykeypadoperations

• Multipleenclosureandmountingoptions

Communications

• TwoRS-485communicationports

• USBlocalcommunicationsoption

• Modbus®protocol(RTUandENRON)

• Twowirecommunication

Calibration

• 1to12calibrationpointsavailable

forallinputs

Inputs/Outputs

• Accurate,stableandrepeatable

inputreadingsusinganintegralMVT

• Baseunit:

 Processtemperatureinput

 Turbinemeterinput

 Digitaloutput

(volumetricpulseoutputoralarm)

• Withexpansionboard:

 Secondturbinemeterinput

 Pulseinput

 Twoanaloginputs

 Analogoutput

Features

Power

• Low-poweroperation

• Fullyautonomousoperationvialithium

batterypack(1-yeartypical)forstand-

aloneinstallations

• Whendeviceisexternallypowered;

lithiumbatterypackprovidesbackup

powersupplyanddataisprotectedfor

upto10years

Performance

• Industrystandardcalculation

 AGA-3

 AGA-7

 ISO5167

 ASMEMFC-12M

(AveragingPitotTube)

 AGA-8(Detail&Gross)

 IF-97(Steam)

 API-2540(Liquid)

• FieldrecognizedDPConemeter

algorithm

• Archivesupto16user-selectable

parameters

• Generouslogcapacity:

 768dailyrecords

 2304intervalrecords

(6392withexpansionboardoption)

 1152event/alarmrecords

• Fastdatatransfer

 Fullarchivedownloadinapproximately

threeminuteswithmainboardonly

 Sixminuteswithexpansionboard

option

The convenience

Making Measurement

Easy...

-To Afford

-To Operate

-To Integrate

-To Optimize

Cameron’s NUFLO™ Scanner® 2000

microEFM packs the gas, liquid and

ancillary measurement capabilities,

traditionally found in large flow

computers, into a compact, low-

power instrument that operates

economically as a stand-alone

chart recorder replacement, flow

computer, data logger and totalizer

making it the ideal product for test

separator measurement.

By gathering all liquid and gas

flow rates, wellhead pressure and

temperature, casing pressure,

separator pressure and temperature

into a single common platform, all

the data is immediately available

to view, log or trend via industry

standard well testing software

packages. A reduction between 15%

to 20% of total transmitters and

vastly simplified wiring makes rig up

of portable test separators very quick

and simple. All the transmitters are

on a single RS485 loop.

Simplicity and ease of use are integral to the design of the

Scanner 2000. All parameters can be easily configured using

a PC or laptop and the ModWorX™ Pro software – which is

included with every Scanner 2000.

of a low-power, compact flow computer

2

The versatility

Totalizer/TFMMountforLiquidMeasurment

Turbine Meter Mount

Cameron’sEZ-INtubinemeteristheindustry

standardforwelltesting.

•Rugged,lowcostdesign

•ReducedweightoverconventionalTFMs

•Easytocalibrateintheeld

•Copeswithsandandwatermixture

Data Logging

Deliverscasing,tubing,wellhead,separatorpressures

andtemperaturesontothesameRS485loop.

•Logsdailyandintervalrecordsofupto16

user-selectableparametersandstoresthedatain

nonvolatilememoryforupto10years

•Explosion-proofenclosure

•External1to5VDCor4-20mAtransmittersorRTD

DP Cone Meter (or orifice fitting)

ThedirectmountedScanner2000/DPConesystemand

reducesriguptime,leakpathsandincreasesaccuracy.

•Widerangeofow

•ReducedpersonnelexposuretoH2S/HPgas

•Reducedweight

•Noplatestochange

•Lessinstallationlengthfromdualchamberoricettings

•Highlywearresistant

PID Control

•Levelcontrolofseparator

•Automaticswitchingbetween 

highandlowowmeters

•Separatorpressurecontrol

• Gasliftcontrol

• Twoanaloginputsfor

externaldevices

Simultaneous Gas/Liquid Measurement

Inexpensiveexpansionboardoptiondelivers:

•Increaseddevicememory

•Secondturbinemeterinput

•PulseInput

•Twoanaloginputs

3

of a low-power, compact flow computer of a common platform

4

The benefits of making it easy

Tubing

P & T

Down-

stream

P & T

Choke

Manifold

Casing

Press

Customer’s PC

Surge Tank

Gas Cone

Meter

Gas Cone

Meter(s)

Separator

Pilot

Relief

Valve

Free Water

TFM(s)

Emulsion

TFM(s)

Wellhead

Fardux Fekete

Expro EdgeX

Data Acquisition

System

to afford to operate and integrate to optimize

Reduces the total number

of transmitters required

Simplified wiring

– only two pairs required

for the entire package

Free interface software

(ModWorX Pro)

Operates for up to

12 months on an

internal battery

Simplified training

– one platform for

all transmitters

Reduced installation costs

Simplified spares

requirements, each

scanner shares the same

basic components

No need for additional

analog to digital interfaces

Integrating the Scanner 2000

Into Existing Data Aquisition Systems

Cameronactivelypursuestechnicalandstrategic

relationshipswithkeywelltestingdataaquisition

solutionsproviderstoensurethattheScanner2000

operatestransparentlywiththeirsoftware.Wehave

workedalongsidevariousproviderstoenabletheir

softwaretolog,trendanddisplayfast(onesecond)

updatingdisplaysfromnumerousScannersinone

system.Two-waycommunicationallowsforspecic

parameters,suchasplatesizes,K-factorsandgasSG

tobewrittendirectlyintothescannerfromwithin

theirsoftwareinthecontrolcabin.

5

Tubing

P & T

Down-

stream

P & T

Choke

Manifold

Casing

Press

Customer’s PC

Surge Tank

Gas Cone

Meter

Gas Cone

Meter(s)

Separator

Pilot

Relief

Valve

Free Water

TFM(s)

Emulsion

TFM(s)

Wellhead

Fardux Fekete

Expro EdgeX

Data Acquisition

System

to afford to operate and integrate to optimize

Transitioning Solutions

(frommechanicaltoelectronicmeasurement)

•Lowproducingwells

•Unconventionalgas

•Coalbedmethane

•Shale

•Airmeasurement

•Welltesting/Three-phaseseparatormeasurement

•Chemicalfracturing

•Rotarymetermeasurement

•LACTmeasurement

Expanding or Modernizing

Existing Measurement Systems

•Checkmeter

•Custodytransfer/measurement

Canadaapproval

•Gasstorage

•Three-phaseseparator

•Saltwaterdisposal

Application Solutions

•Singleowrun

•Multiowrun

•Steam

•Compensatedliquid

Single Source for

Meters and Electronics:

Easy Product Packages

•Scanner2000and

NUFLOOriceMeters

•Scanner2000and

NUFLODPCone

Meters

•Scanner2000and

NUFLOTurbineMeters

•Scanner2000andBARTON®TurbineMeters

Integrating the Scanner 2000

Into Existing Data Aquisition Systems

Cameronactivelypursuestechnicalandstrategic

relationshipswithkeywelltestingdataaquisition

solutionsproviderstoensurethattheScanner2000

operatestransparentlywiththeirsoftware.Wehave

workedalongsidevariousproviderstoenabletheir

softwaretolog,trendanddisplayfast(onesecond)

updatingdisplaysfromnumerousScannersinone

system.Two-waycommunicationallowsforspecic

parameters,suchasplatesizes,K-factorsandgasSG

tobewrittendirectlyintothescannerfromwithin

theirsoftwareinthecontrolcabin.

6

z

EZ-IN Series BF Flow Meter Specifications

Flow Meter

Size Linear Flow Ranges (based on Water) Nominal

Calibration Factor

Max. Output

Frequency Δρ at Max.

in. gal/min m3/h B/D pulses x 1000/m3pulses/gallon

pulses/sec psi (kPa)

3/8 0.3 to 3 0.068 to 0.68 10 to 100 22,000 (5812) 1100 4 (28)

1/2 0.75 to 7.5 0.17 to 1.70 25 to 250 14,500 ( 3830) 1815 12 (83)

3/4 2 to 15 0.45 to 3.41 68 to 515 2950 (780) 740 18 (124)

7/8 3 to 30 0.68 to 6.81 100 to 1000 2350 (621) 1175 20 (138)

15 to 50 1.14 to 11.36 170 to 1700 900 (28) 750 20 (138)

1 1/2 x 2 15 to 180 3.41 to 40.88 515 to 6000 325 (86) 975 16 (110)

240 to 400 9.09 to 90.85 1300 to 13,000 55 ( 14.5) 365 22 (152)

380 to 800 18.17 to 181.7 2,742 to 27,428 57 (15.2) 760 16 (110.4)

4100 to 1200 22.71 to 272.55 3400 to 41,000 30 (7.9) 600 10 (69)

6250 to 2500 56.78 to 567.82 8600 to 86,000 7 (1.8) 2900 10 (69)

8350 to 3500 79.49 to 7944.94 12,000 to 120,000 3 (0.8) 175 6 (41)

Note:Thelinearflowrangeofliquidswithnon-lubricatingcharacteristicsislimitedtotheupper60%oftheupperrating.Ifusingtheflowmeterwithliquidshavingviscosities

morethanfivecentistokes,consultthefactoryforengineeringassistance.

Bearing Support

Flow Meter Body

Socket Head

Capscrews

Rotor

Bearing Support

Socket Head

Screws

Rotorisaonepiececasting,withnoweldsorjointsto

causeweakspots.Theshaftcanbebrazedtotherotor,

soitcannotbeknockedloose.

Bearingsupportsareshieldedfromtheflowinarecessed

boreandareoverlappedbytheflange.

Capscrewsarethereonlyforbearingsupportretention

duringtransport/installation.Bearingsupportcannotbe

knockedloosebyfluidhammerorbyvibrationintheline.

Magnetic Pickup

Series BF Flow Meters

EZ-IN Liquid Meters

7

z

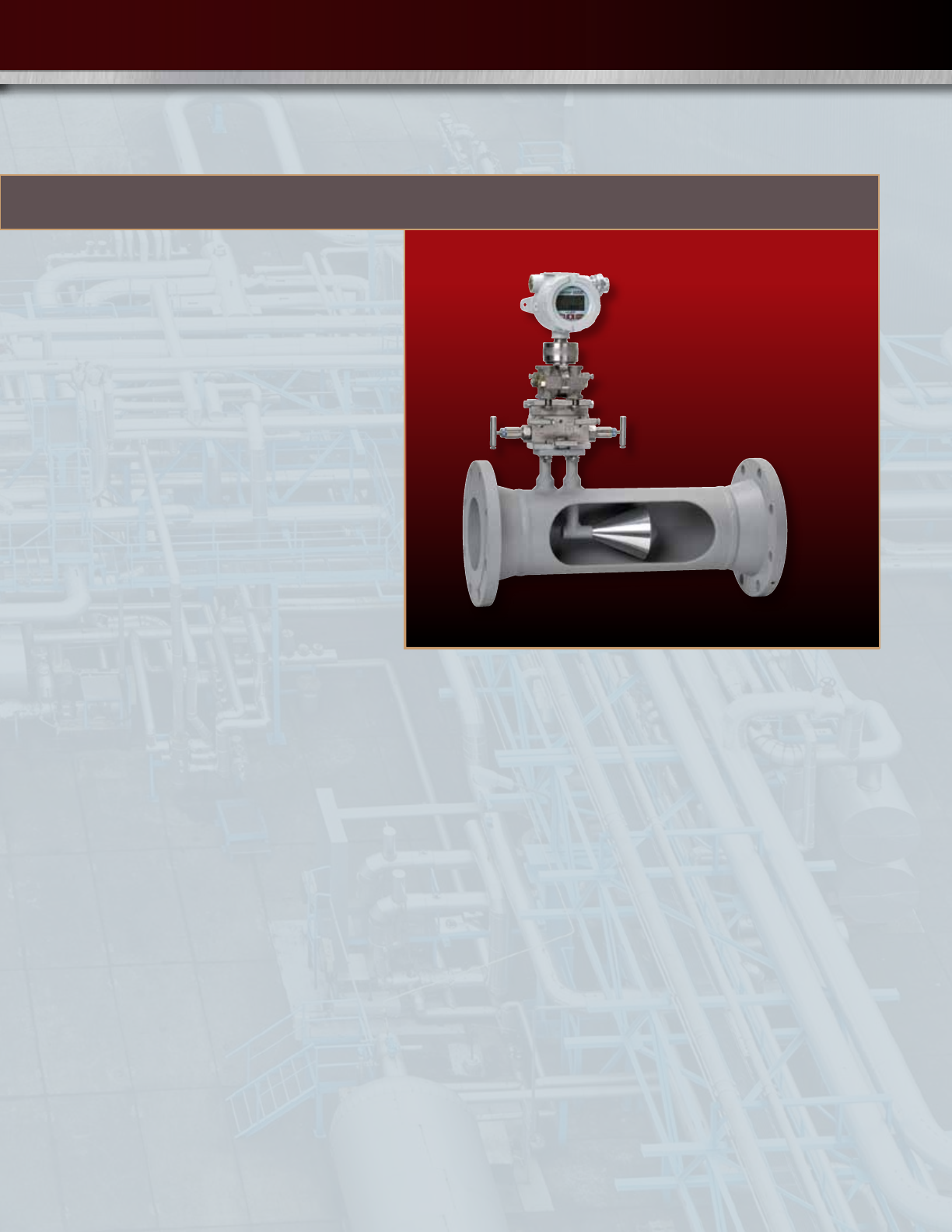

Cone Meter

Wide Rangeability

Cameron’sNUFLOConeMeterisdesignedto

operateoverlargeturndownswhichallowsdifferential

pressurestobemeasureddownto<1”watercolumn.The

conemeteralsogeneratesalownoisedifferentialpressure

signalatthecenterandbackofthecone.

High Performance Characteristics

TheNUFLOConeMeterachievesaccuraciesofupto±0.5%

ofreading(Reynoldsnumberandfluiddependent)witha

nominalrepeatabilityof0.1%undermanyconditionsand

modesofoperation.Themetercanoperatewithturndowns

nominallyupto10to1.Thesespecificationsmeetcustody

transferperformancerequirementsfornaturalgastransmission

measurementswithsizesto>36”.(ContactCameronfor

exactrangeabilityperprocessfluid.)

Technical Flexibility

TheNUFLOConeMetercanbemanufacturedindiameters

from1”to48”withflangesrangingfromClass150to1500

inaccordancewithASMEB31.3.Thissizingflexibility,plus

theavailabilityofspecialmaterials(duplexstainlesssteeland

hastelloy)offersanewsolutionforspecialtyfluid

meteringrequirements.

Space Savings and Weight Reduction

Differentialpressuresystemsusuallyrequirelongupstream

anddownstreamlengthswhichaddhighoverallcosttomost

meteringinstallations.TheNUFLOConeMeterhastheability

tore-distributeandchangethevelocityprofileupstreamofits

cone.Thisflowconditioningallowsfortheuseofashorter

meterrunwhichinturnreducesinstallationandsetupcosts.

Thisisespeciallysignificantinthewelltestingenvironment

wherespaceandweightissuesarerelevantandwhere

realestateisatapremium.

Low Cost of Ownership

TheNUFLOConeMeterhasnomovingpartsnordoesit

requirethereplacementofprimarysparepartsforthe

operationallifeoftheunit.Themeterisconstructedfrom

highgradetraceablematerialsandbothhighqualitywelding

andNDTtechniquesarestrictlyappliedthroughoutinthe

manufacturingprocess.

Minimumwearoccursatthebetaedgeoftheconebecause

thisedgeisdownstreamoftheflowwhichhelpstomaintaina

constantstablegeometrythroughthemeter’soperatinglife.

• Wideturndown(10:1)

• Reducedcapitalandmaintenancecosts

• Longtermstabilityandaccuracy

• Lowerpressurelossforsimilarflow

• Reducedinstallationspace

• Stable,lownoisemeasurement

• Abilitytocopewithwetgas

• Selfconditioningeffect

• Lighterandeasiertoinstallandtransport

• Nochangingplates–humanerror,

H2S/HPsafety,removingdamagedplate

• Simplifiedtraining

• Quickerdelivery

• Digitalinformation/dataloggingavailable

fromtheScanner2000

Repeatable

Accurate

Ideal for tough to measure

applications

Compact space saving design

Low cost of ownership

NUFLO DP Cone Meter shown with the NUFLO Scanner 2000 microEFM

benefits over an orifice plate

8©2013Cameron|NUFLOisaregisteredtrademarkofCameron.|SWP2M,02/13|AD00586M

H

E

A

L

T

H

S

A

F

E

T

Y

S

E

C

U

R

I

T

Y

A

N

D

E

N

V

I

R

O

N

M

E

N

T

A

L

E

X

C

E

L

L

E

N

C

E

C

A

M

E

R

O

N

NORTH AND SOUTH AMERICA

14450JFKBlvd.

Houston,TX77032

USA

Tel12815829500

ms-us@c-a-m.com

IndustrialProducts

4040CapitolAvenue

CityofIndustry,CA90601

Tel:5622228440

E-mail:ms-industry@c-a-m.com

EUROPE, AFRICA, CASPIAN AND RUSSIA

3SteyningWay

SouthernCrossTradingEstate

BognorRegis

WestSussexPO229TT

England,UK

Tel441243826741

ms-uk@c-a-m.com

MIDDLE EAST

Level9,AlJaziraClubTowerA

P.O.Box47280,MuroorRoad

AbuDhabi

UnitedArabEmirates

Tel97125968400

ms-uk@c-a-m.com

ASIA PACIFIC 

Suite16.02MenaraAmFirst

No.1Jalan19/3

46300PetalingJaya

SelangorDarulEhsan

Malaysia

Tel60379540145

ms-kl@c-a-m.com

HSSE Policy Statement

At Cameron, we are committed ethically, financially and personally to a

working environment where no one gets hurt and nothing gets harmed.

©2013Cameron|NUFLOandModWorXaretrademarksofCameron.BARTONandScannerareregisteredtrademarksofCameron.|SWP2M,04/13AD00586M
