Clevo P150HM, P151HM1 Service Manual. Www.s Manuals.com. P150hm Manual
User Manual: Notebook Clevo P150HM - Service manuals and Schematics, Disassembly / Assembly. Free.
Open the PDF directly: View PDF
.
Page Count: 117 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- Manual
- Preface
- Chapter 1: Introduction
- Overview
- External Locator - Top View with LCD Panel Open

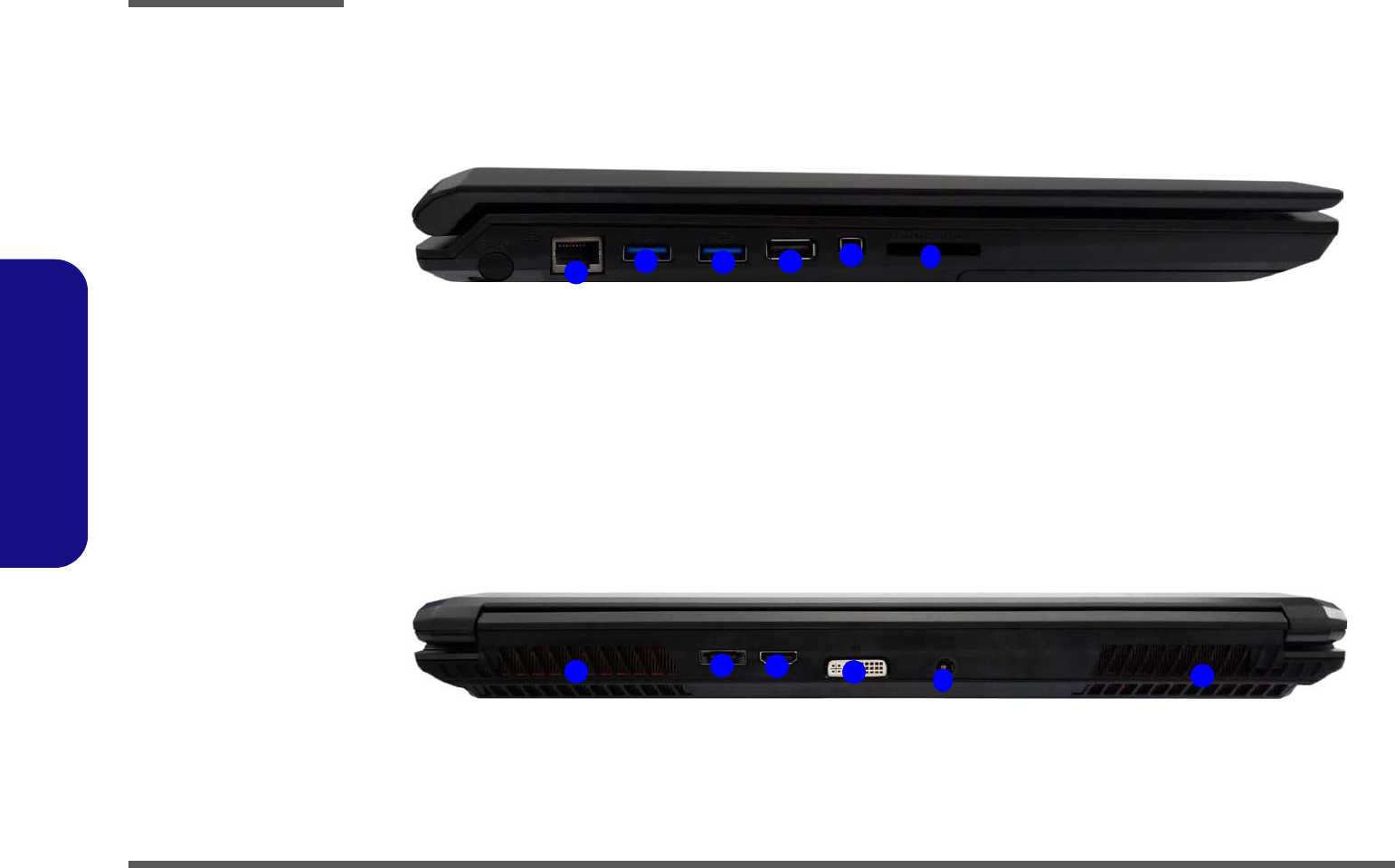

- External Locator - Front & Right side Views
- External Locator - Left Side & Rear View

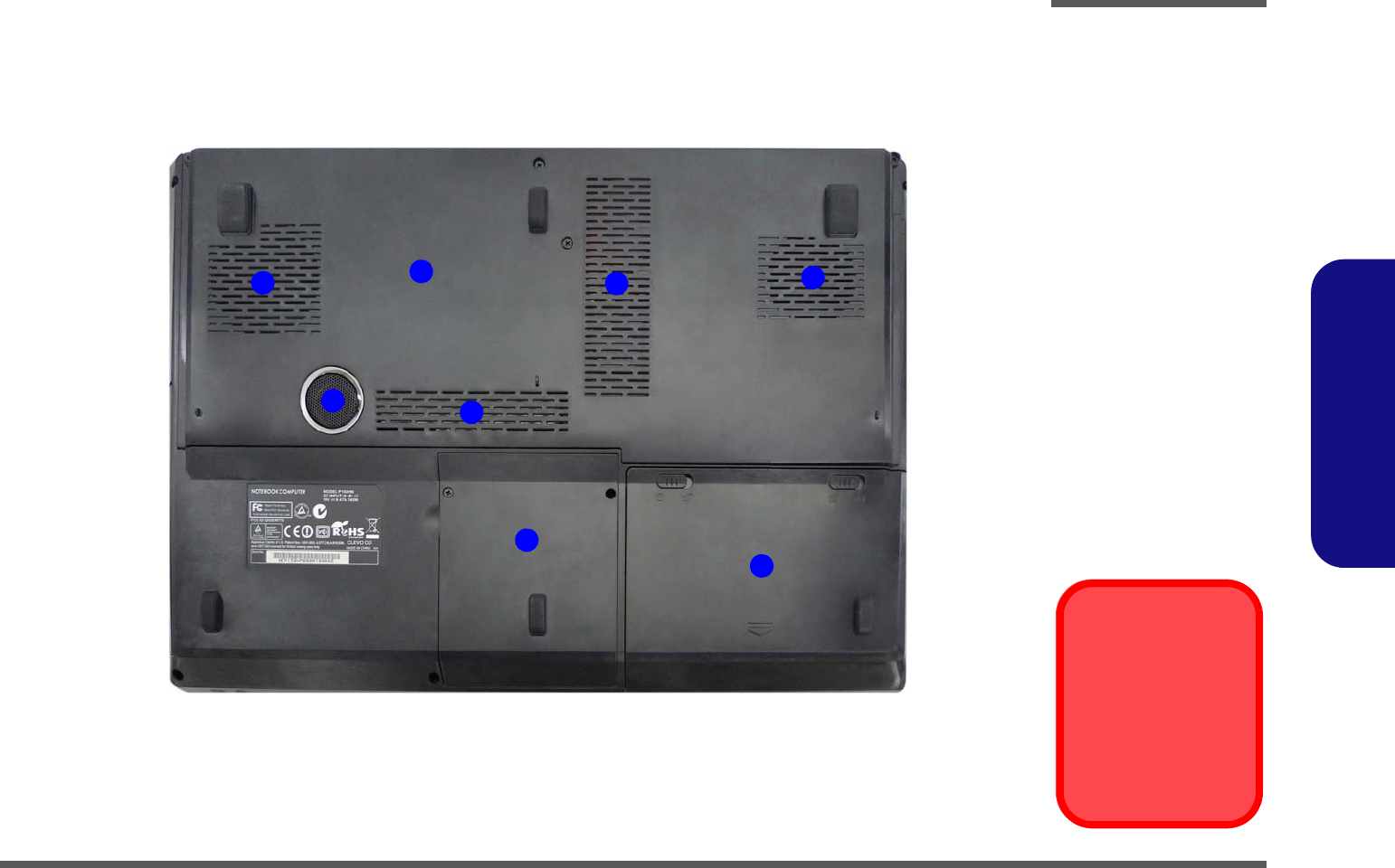

- External Locator - Bottom View

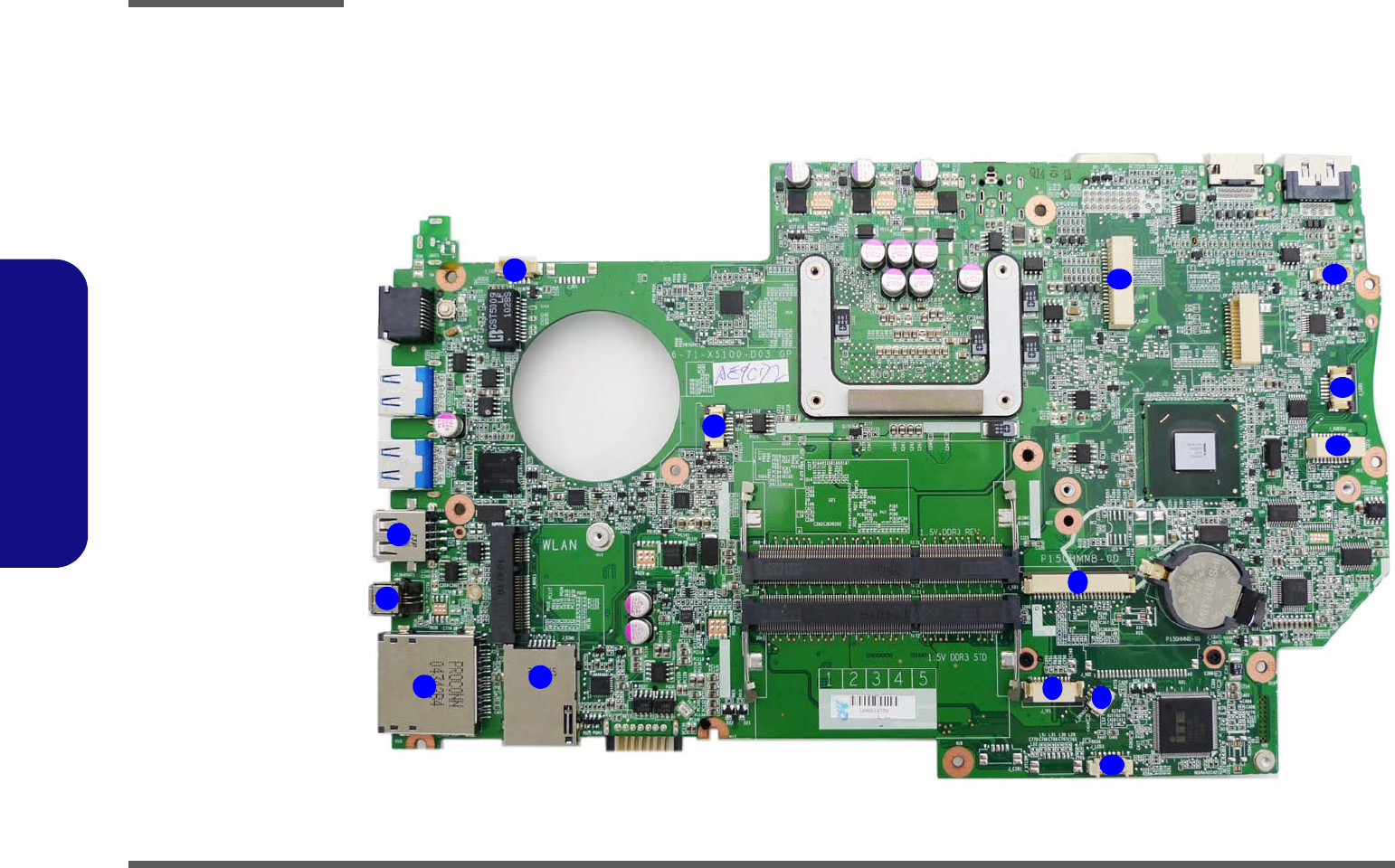

- Mainboard Overview - Top (Key Parts)
- Mainboard Overview - Bottom (Key Parts)

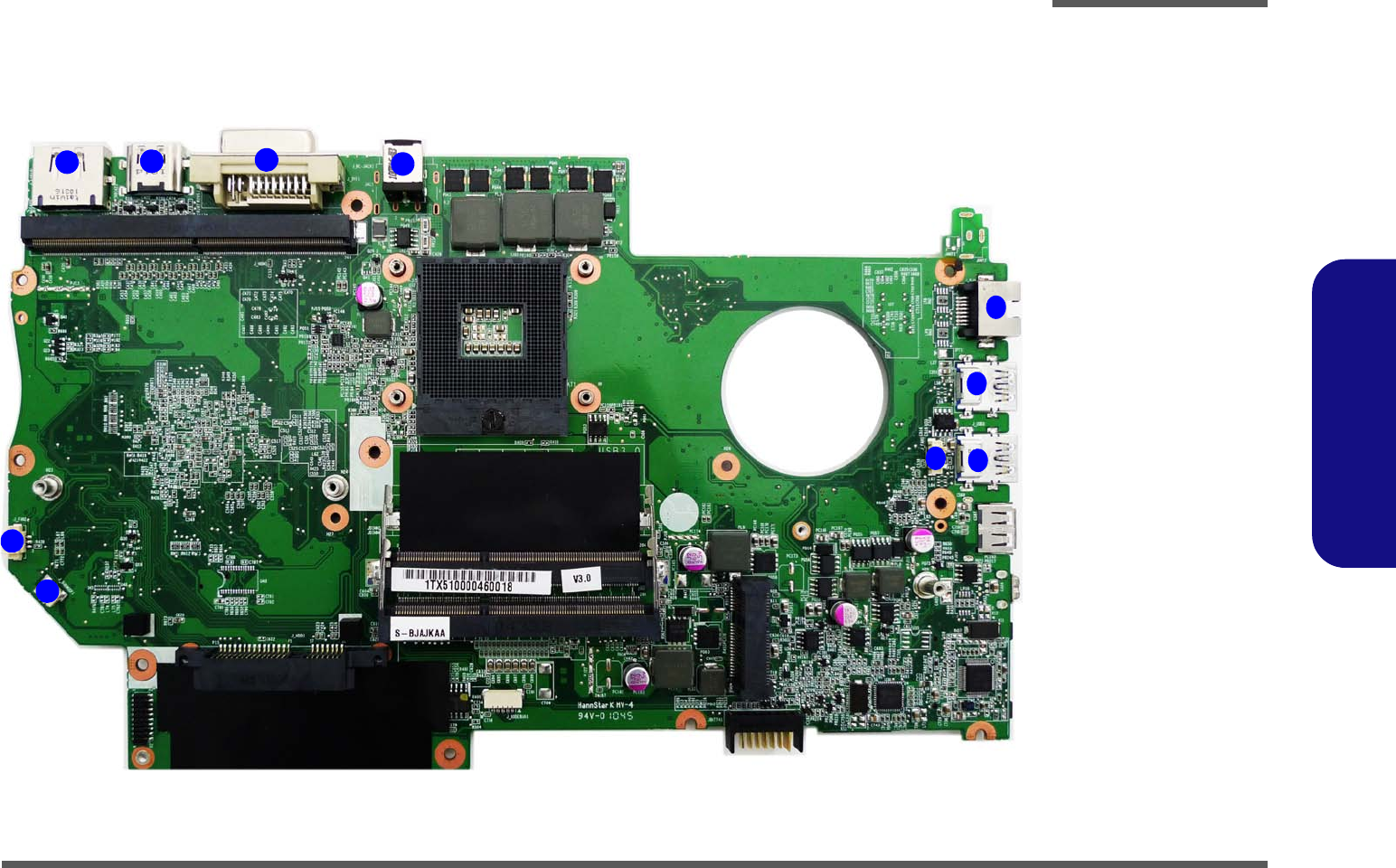

- Mainboard Overview - Top (Connectors)
- Mainboard Overview - Bottom (Connectors)
- Chapter 2: Disassembly
- Overview
- Maintenance Tools
- Connections
- Maintenance Precautions
- Disassembly Steps

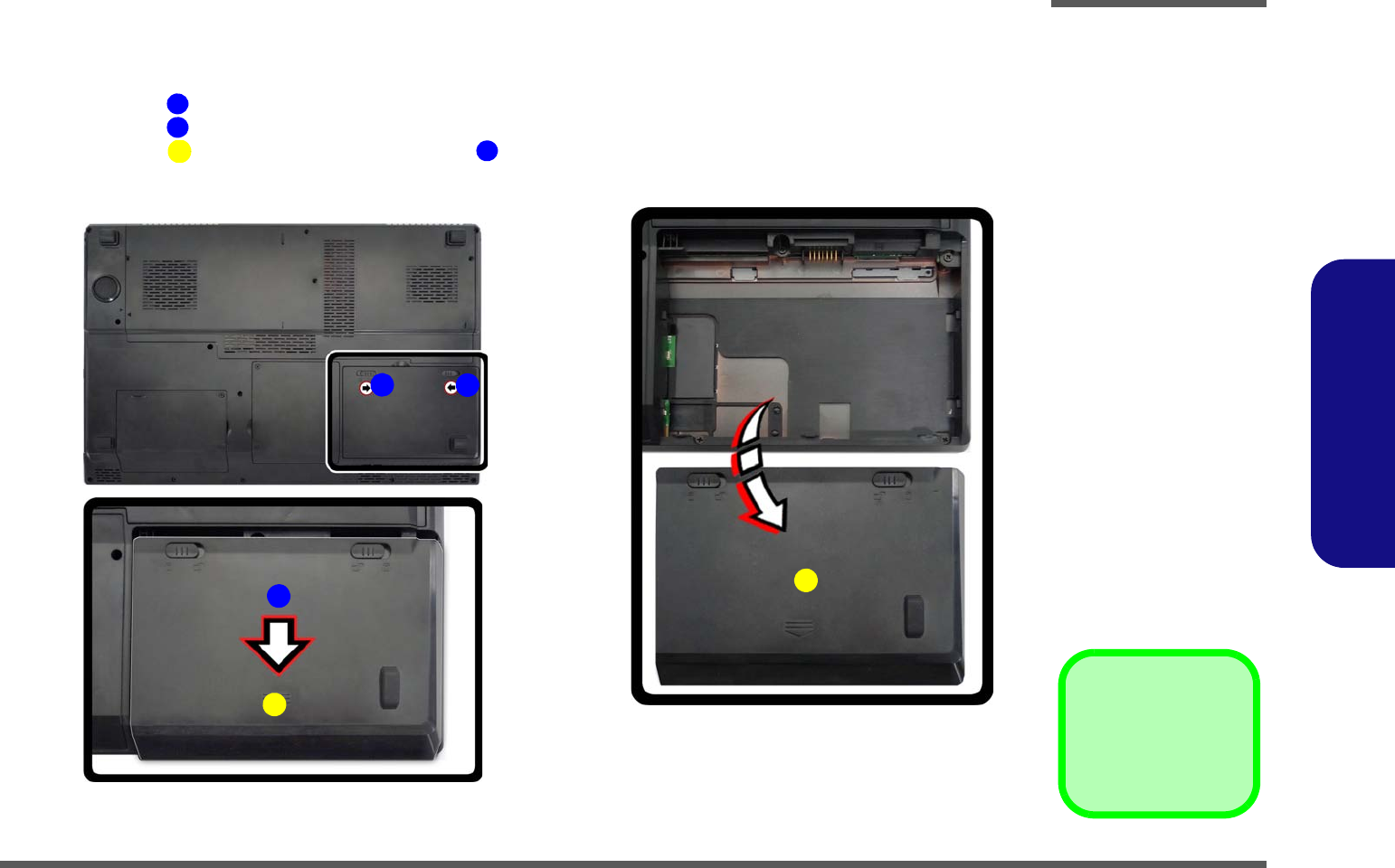

- Removing the Battery

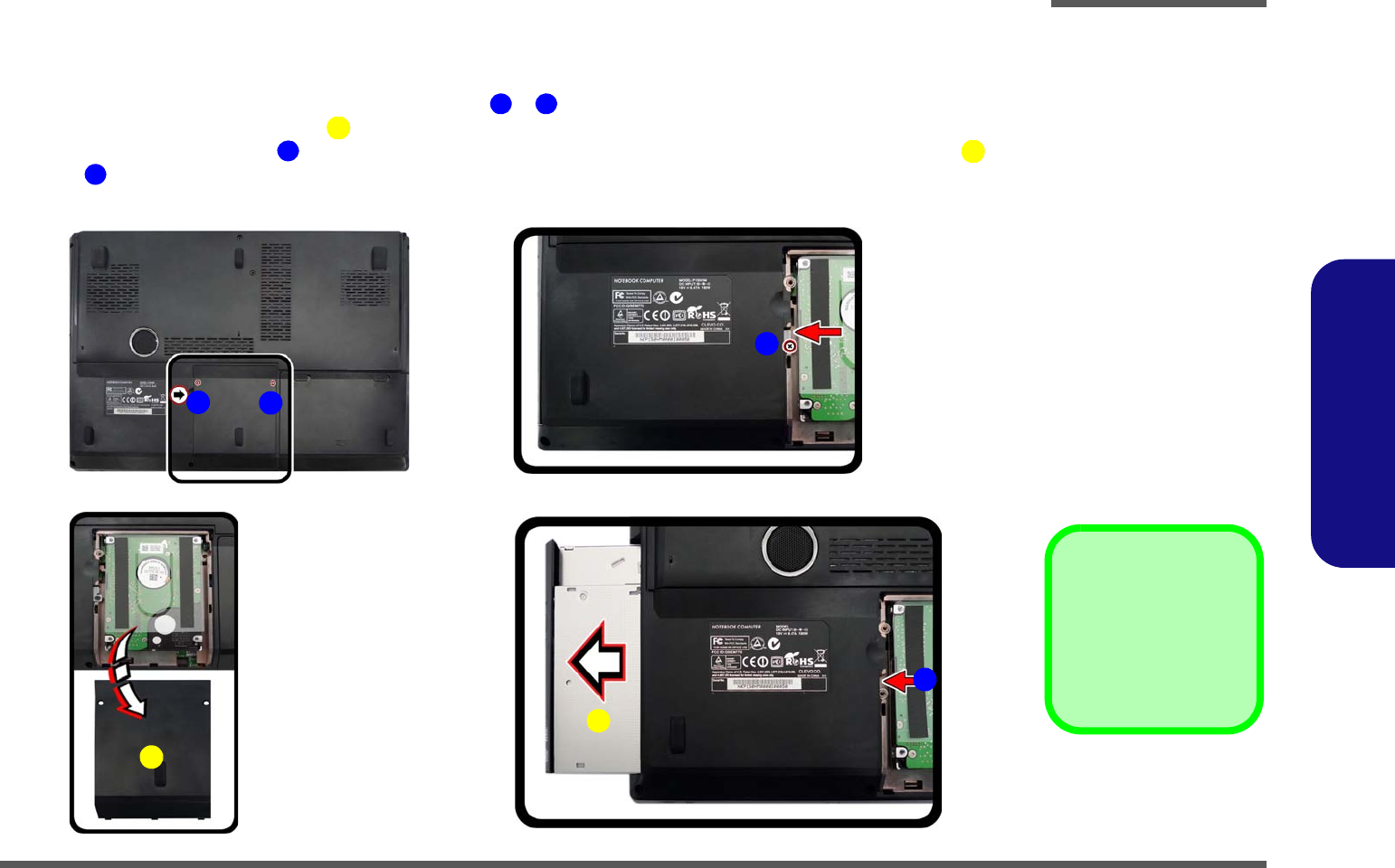

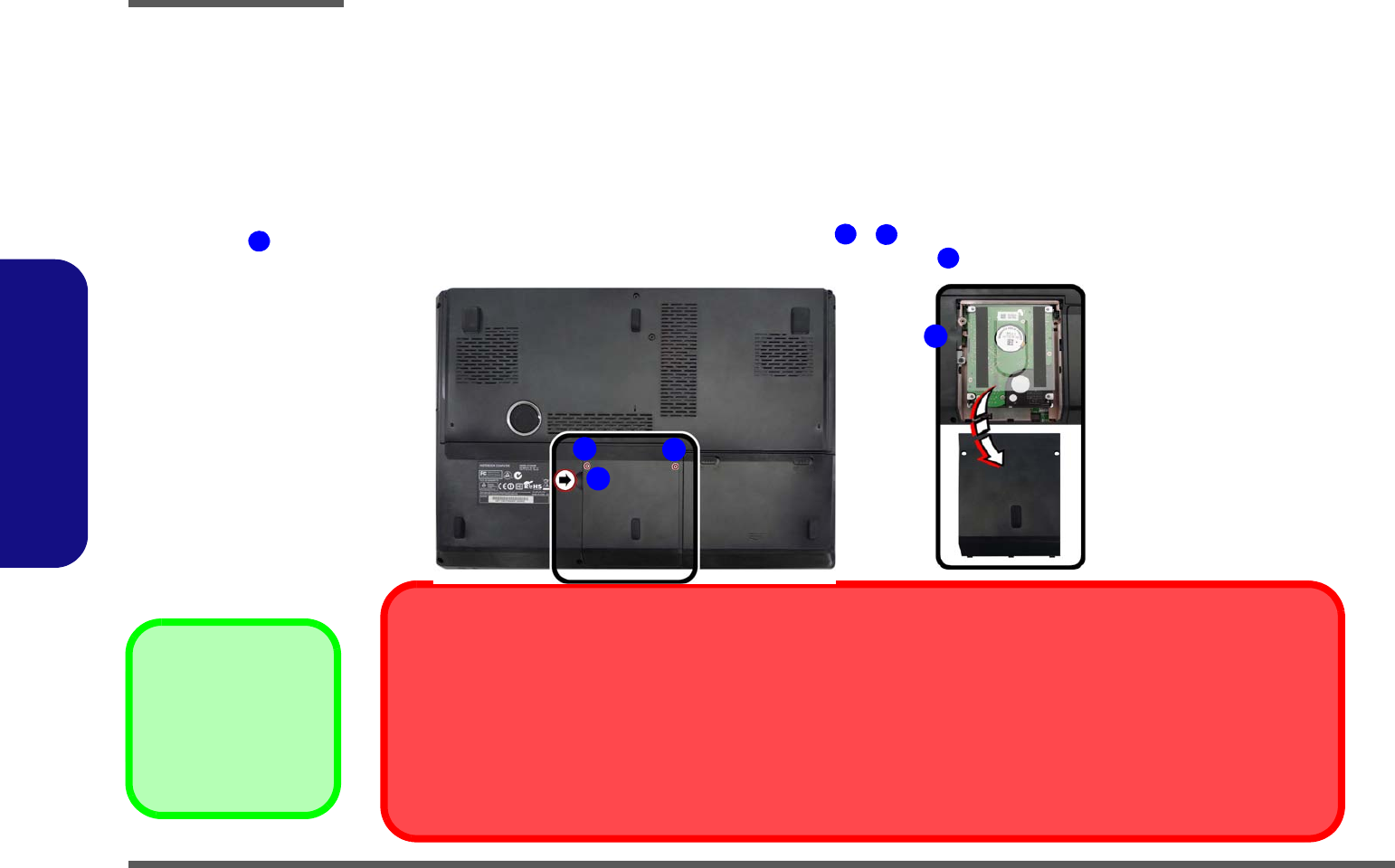

- Removing the Hard Disk Drive
- Inserting the Hard Disk Into the HDD Bay
- Removing the Optical (CD/DVD) Device
- Removing the Primary System Memory (RAM)

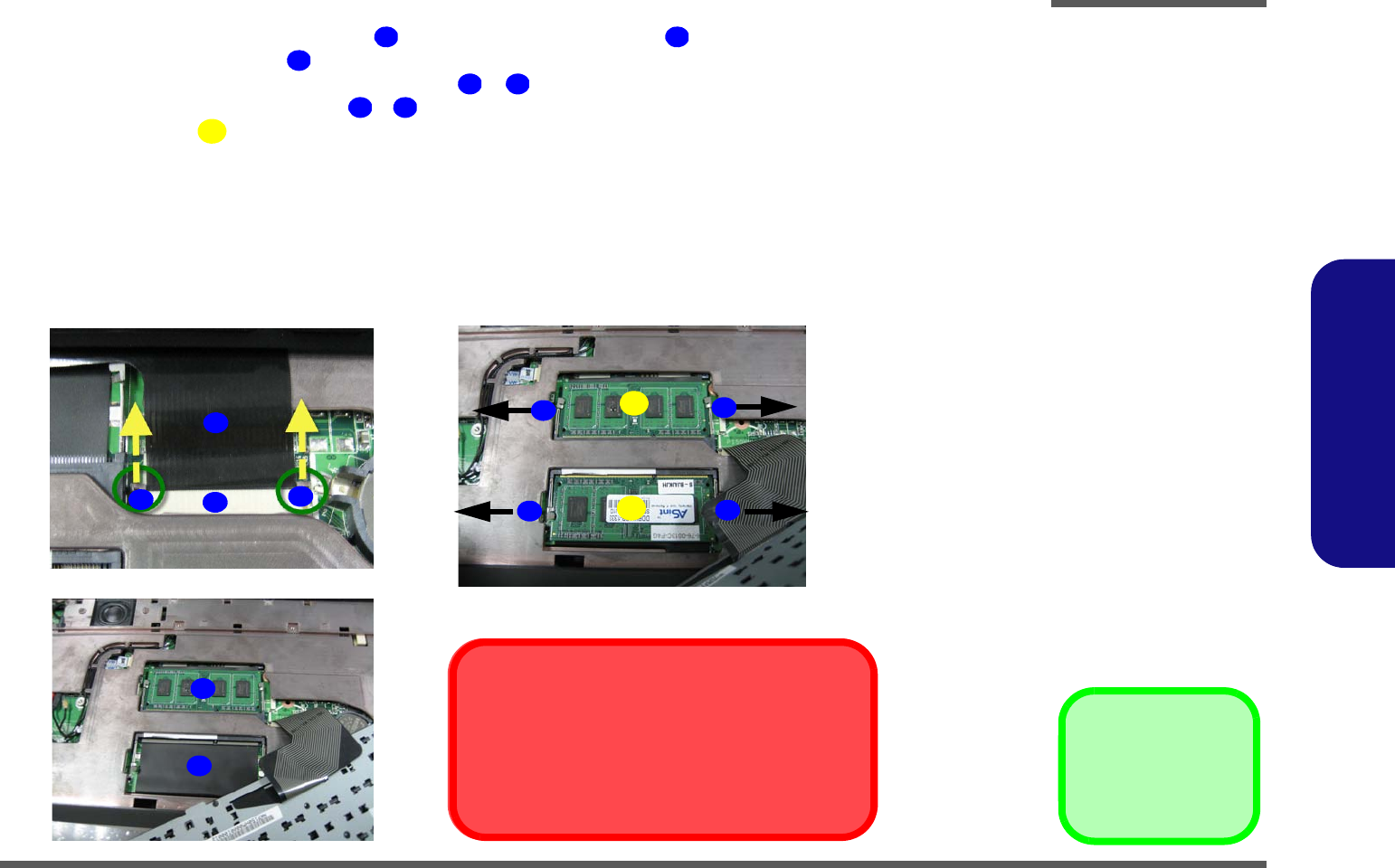

- Removing the System Memory (RAM) from Under the Keyboard

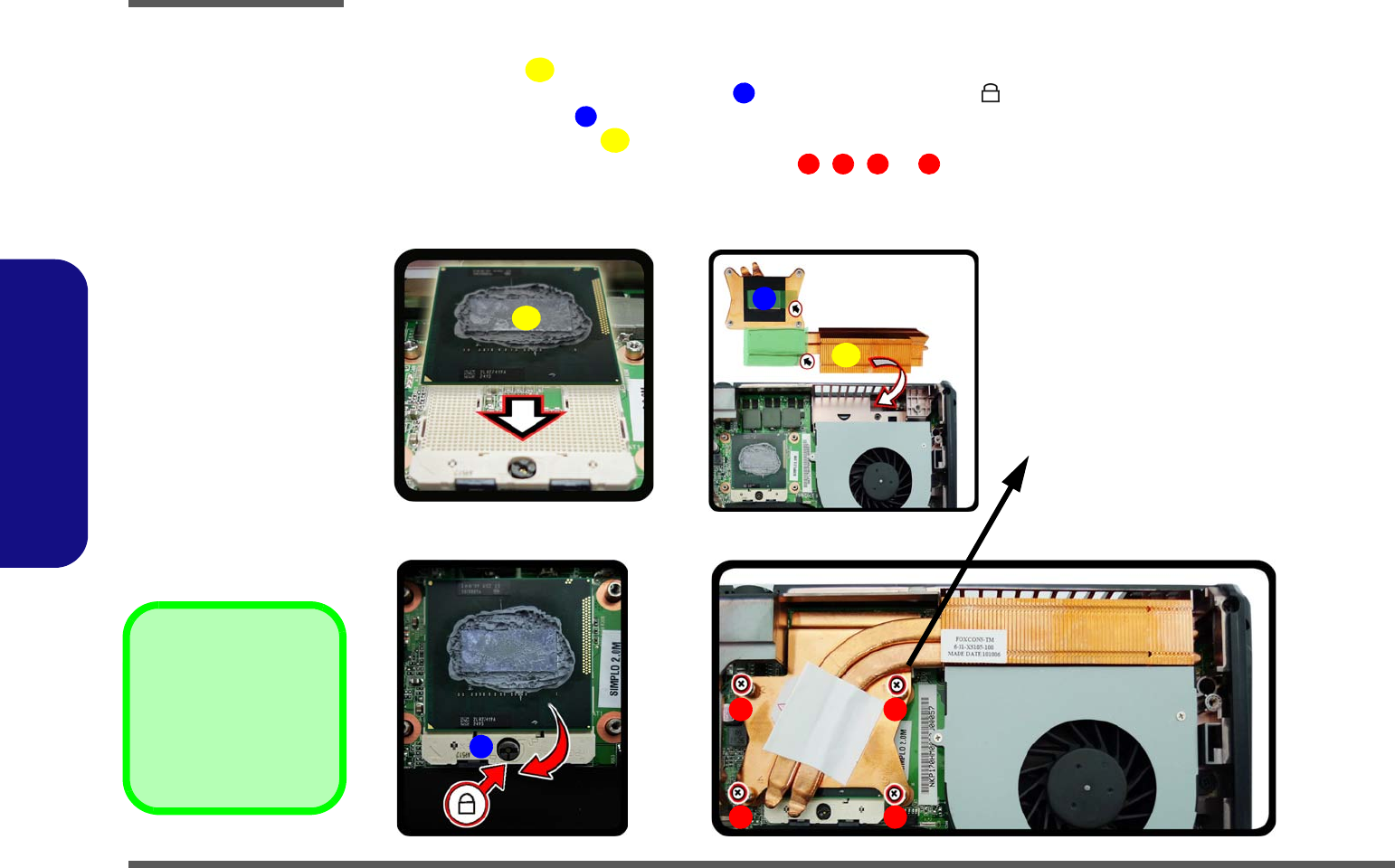

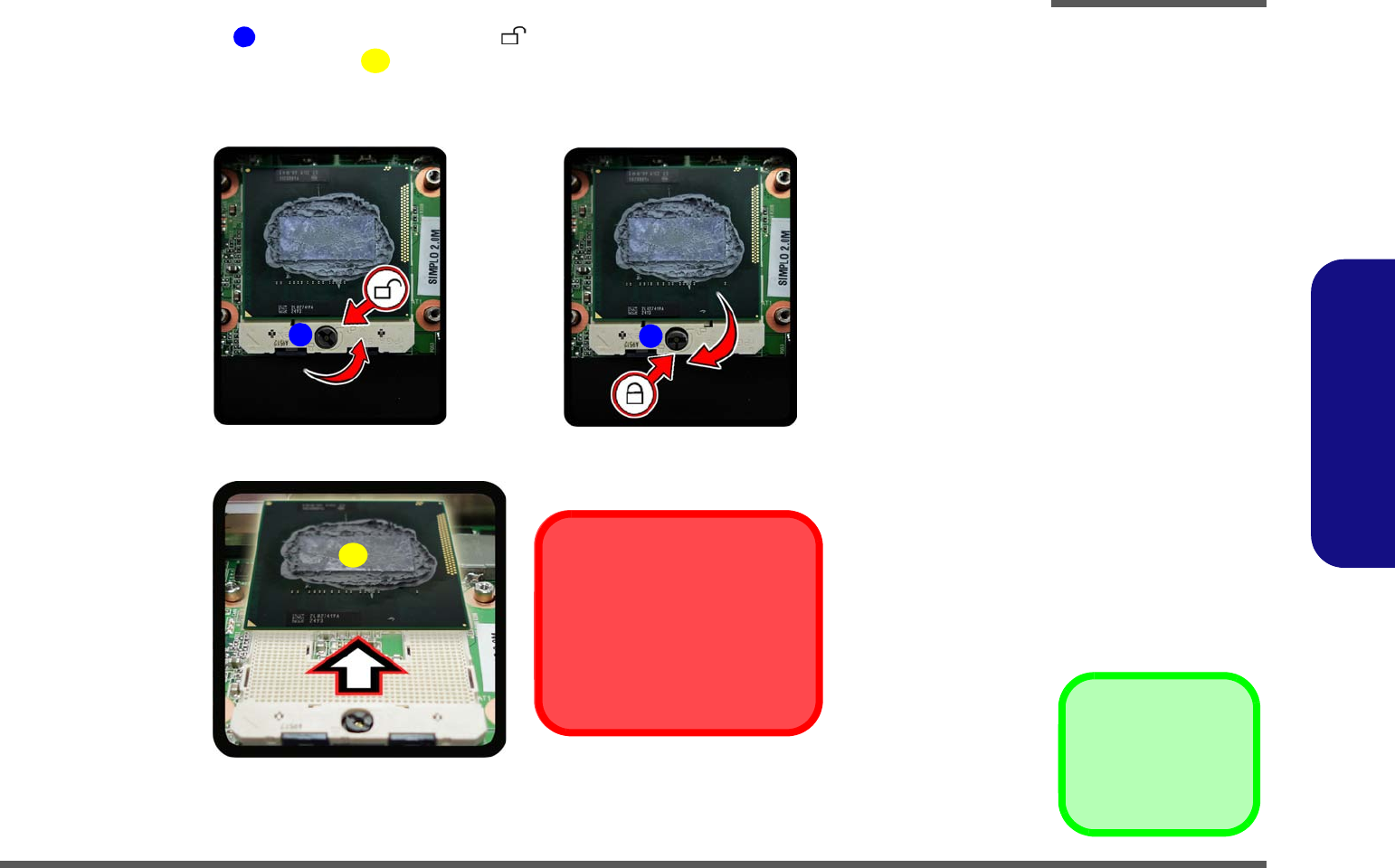

- Removing and Installing the Processor

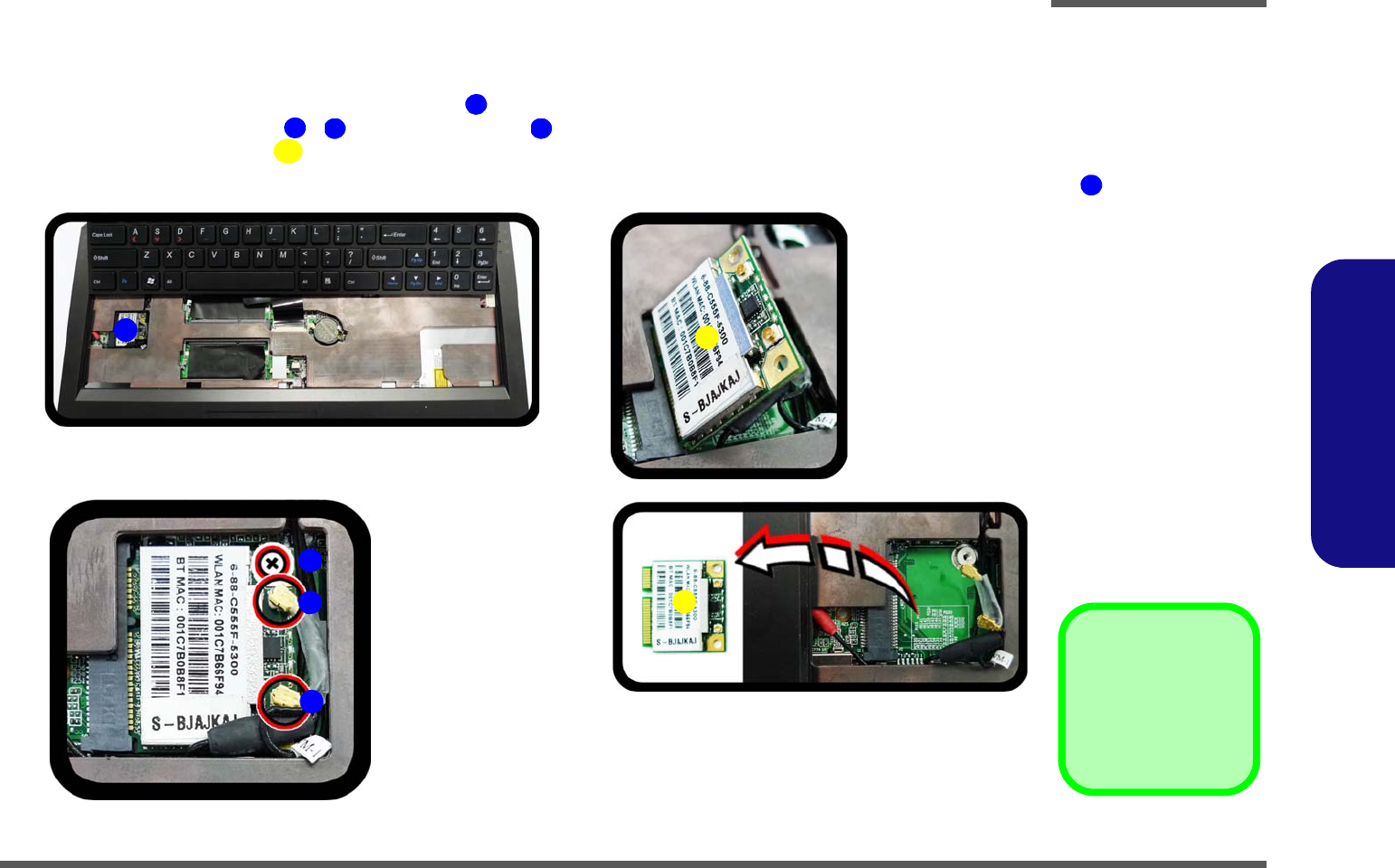

- Removing the Wireless LAN Module
- Removing the 3G Module

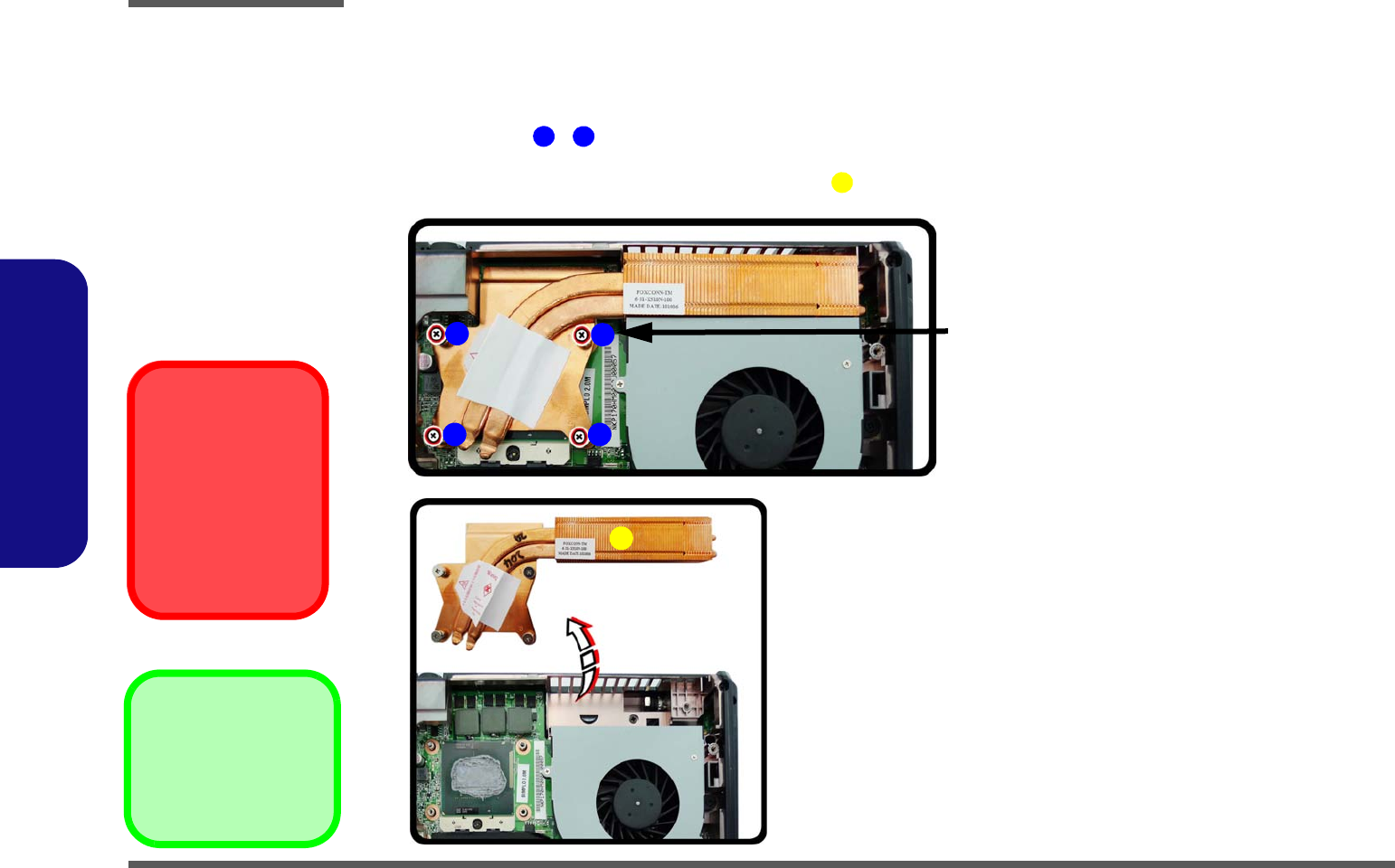

- Removing and Installing the Video Card
- Appendix A: Part Lists
- Appendix B: Schematic Diagrams

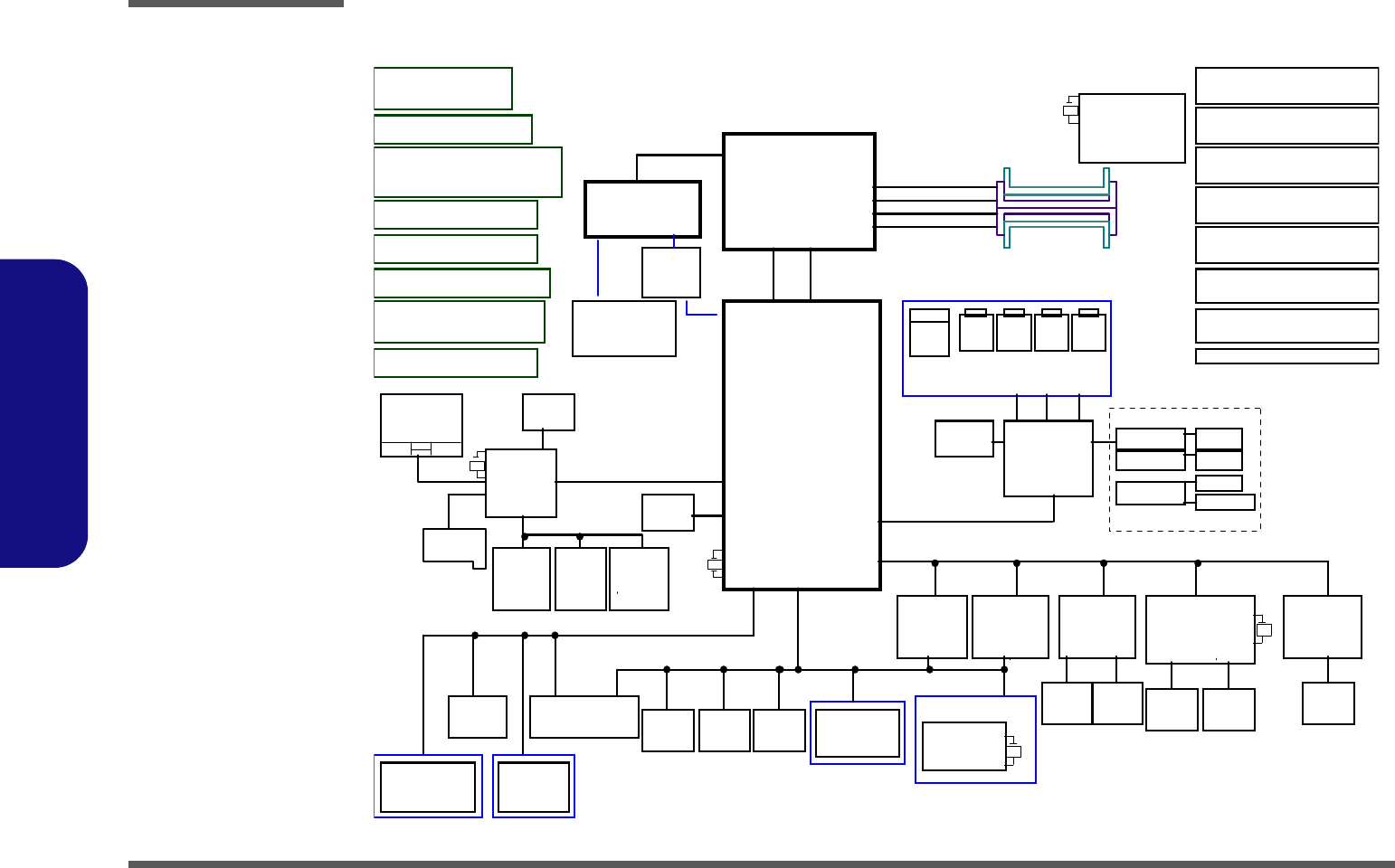

- System Block Diagram
- Processor 1/7
- Processor 2/7
- Processor 3/7
- Processor 4/7
- Processor 5/7
- Processor 6/7
- Processor 7/7

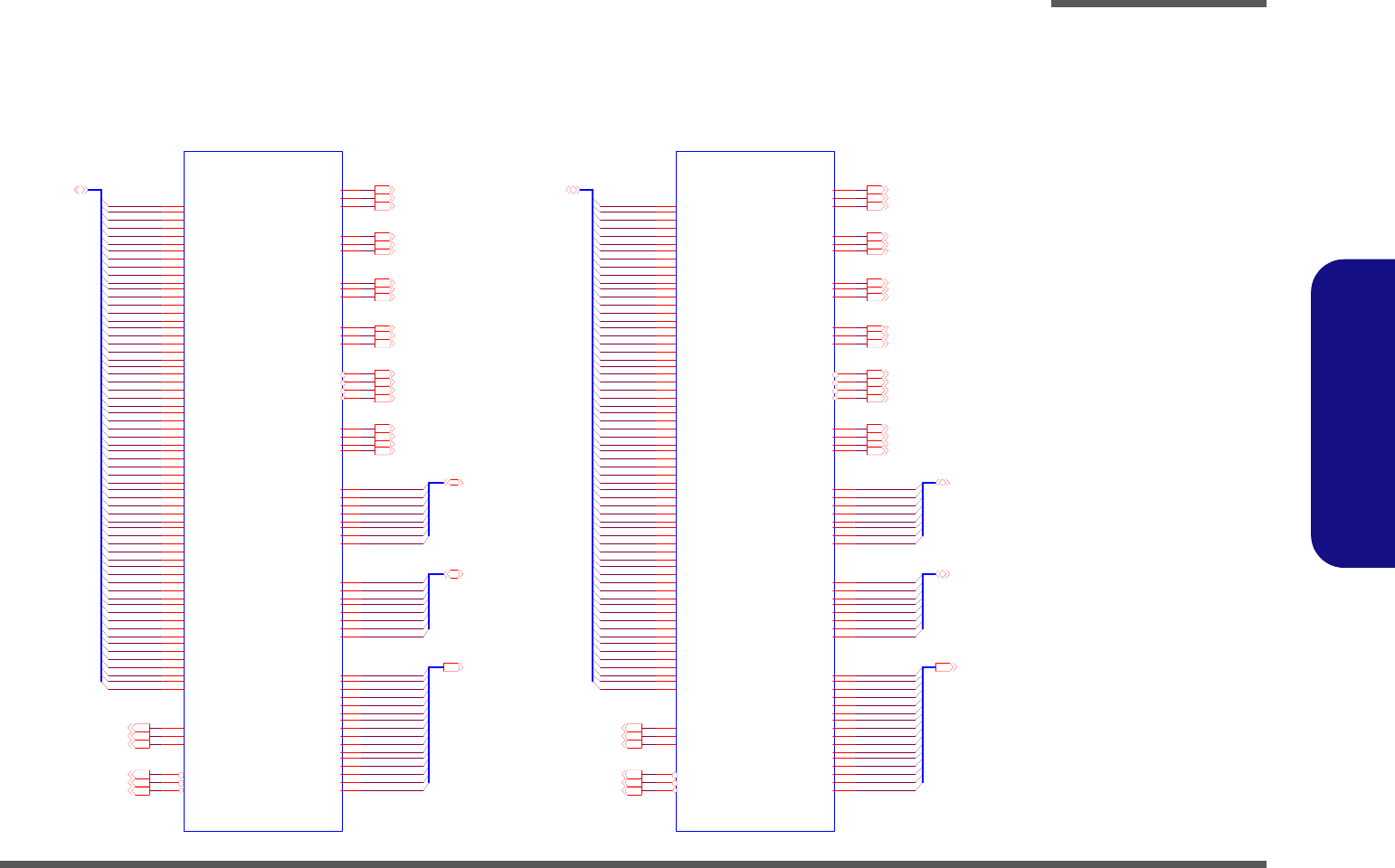

- DDRIII CHA SO-DIMM_0
- DDRIII CHA SO-DIMM_1
- DDRIII CHB SO-DIMM_0
- DDRIII CHB SO-DIMM_1

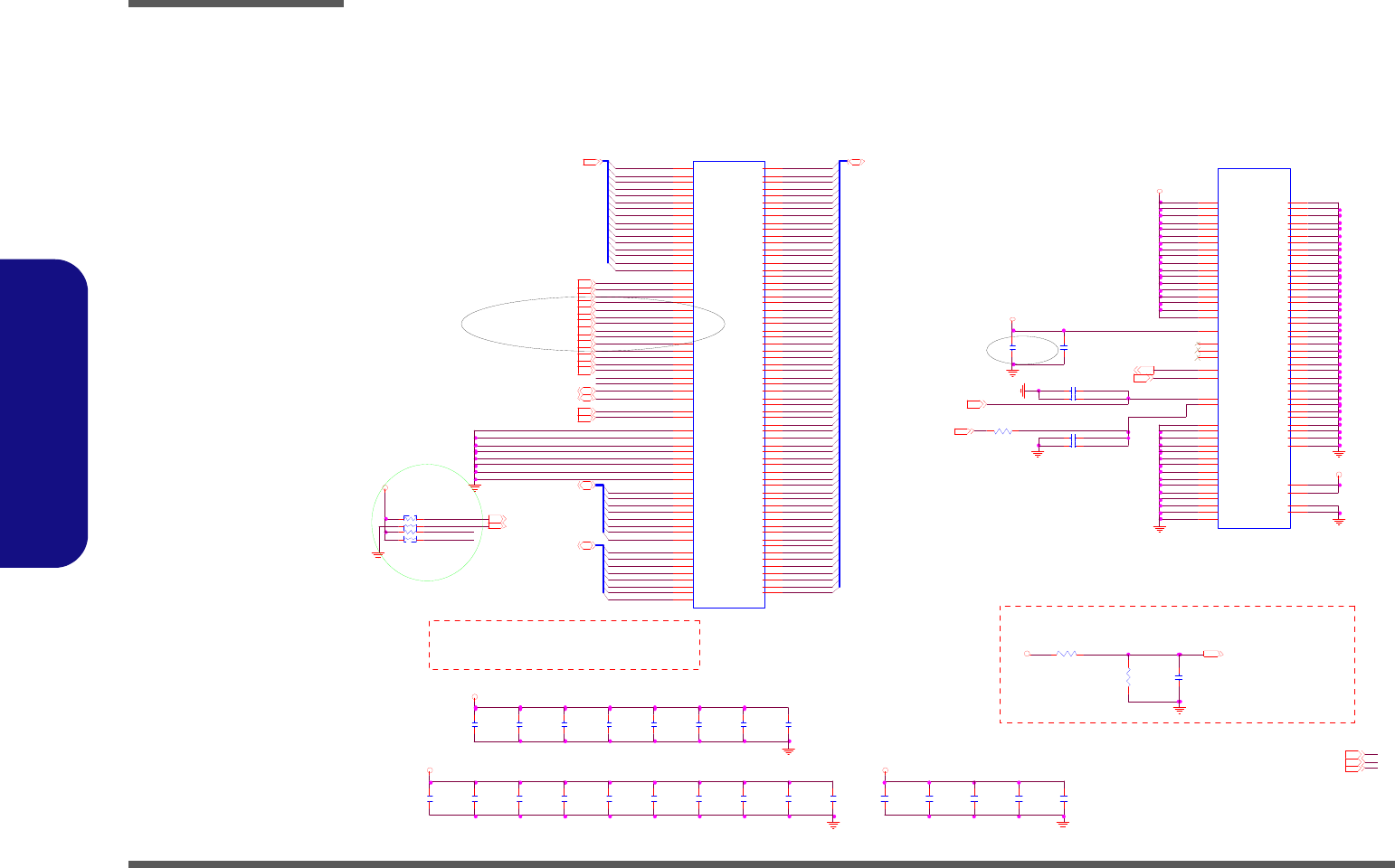

- MXM PCI-E
- Panel, Inverter, CRT
- 1394_JMB380C
- DVI
- HDMI
- CougarPoint - M 1/9
- CougarPoint - M 2/9
- CougarPoint - M 3/9
- CougarPoint - M 4/9
- CougarPoint - M 5/9
- CougarPoint - M 6/9
- CougarPoint - M 7/9
- CougarPoint - M 8/9
- CougarPoint - M 9/9
- 3G, CCD
- Mini PCIE, LID
- LED, Hotkey, LID SW, Fan
- RJ 45
- Codec Realtek ALC892
- APA2010D1-TPA2008D2
- KBC-ITE IT8519
- USB, TP, FP, MULTI-CONN
- Card Reader (JMC 251C)
- USB 3.0
- VDD3, VDD5
- 5V, 3.3V, 5VS, 3VS, 1.5VS, VIN1
- Power 1.05VS, 1.05VS_VTT
- Power 1.5V/VTT_MEM
- Power 1.8VS

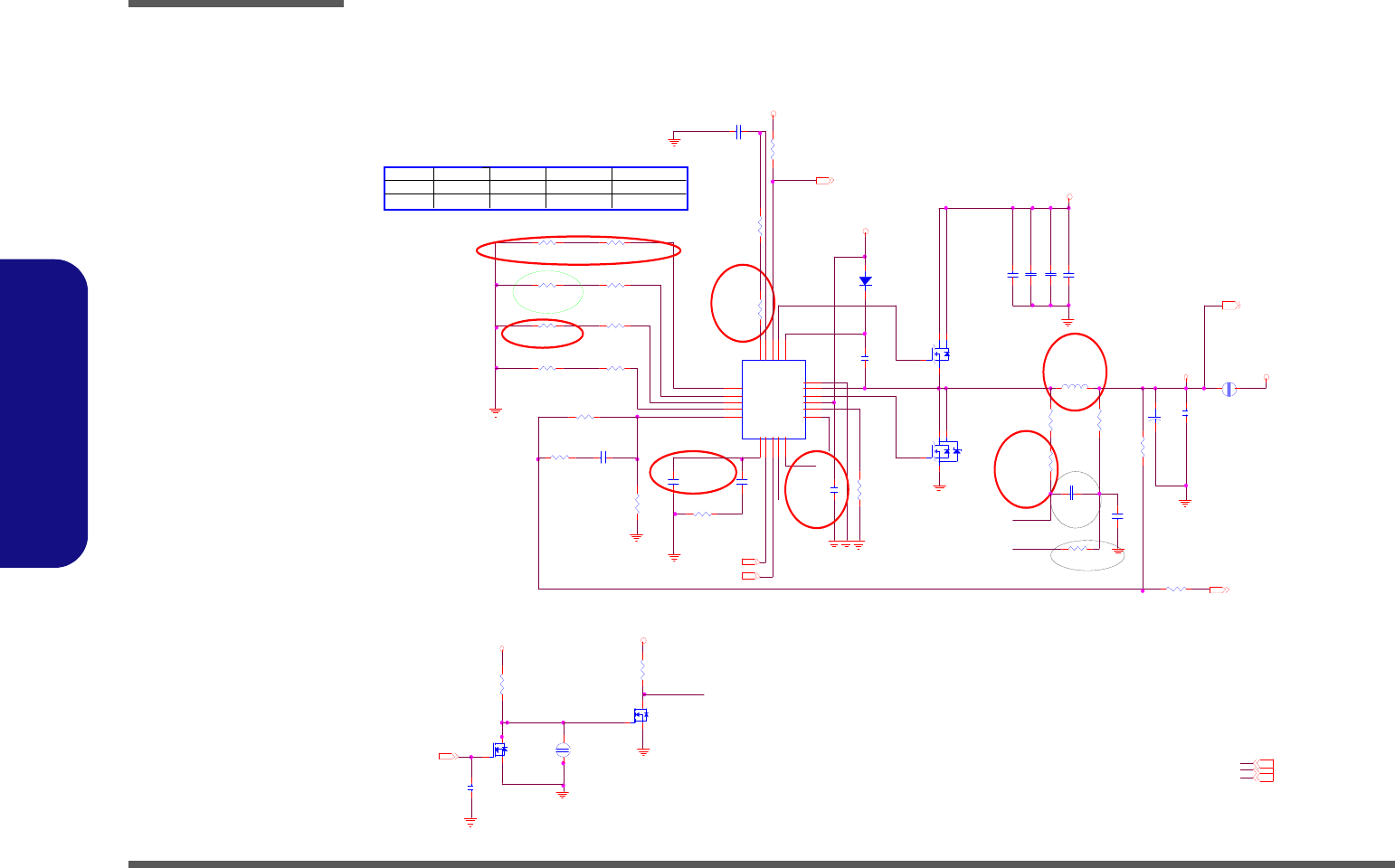

- Power V-Core 1
- Power V-Core 2

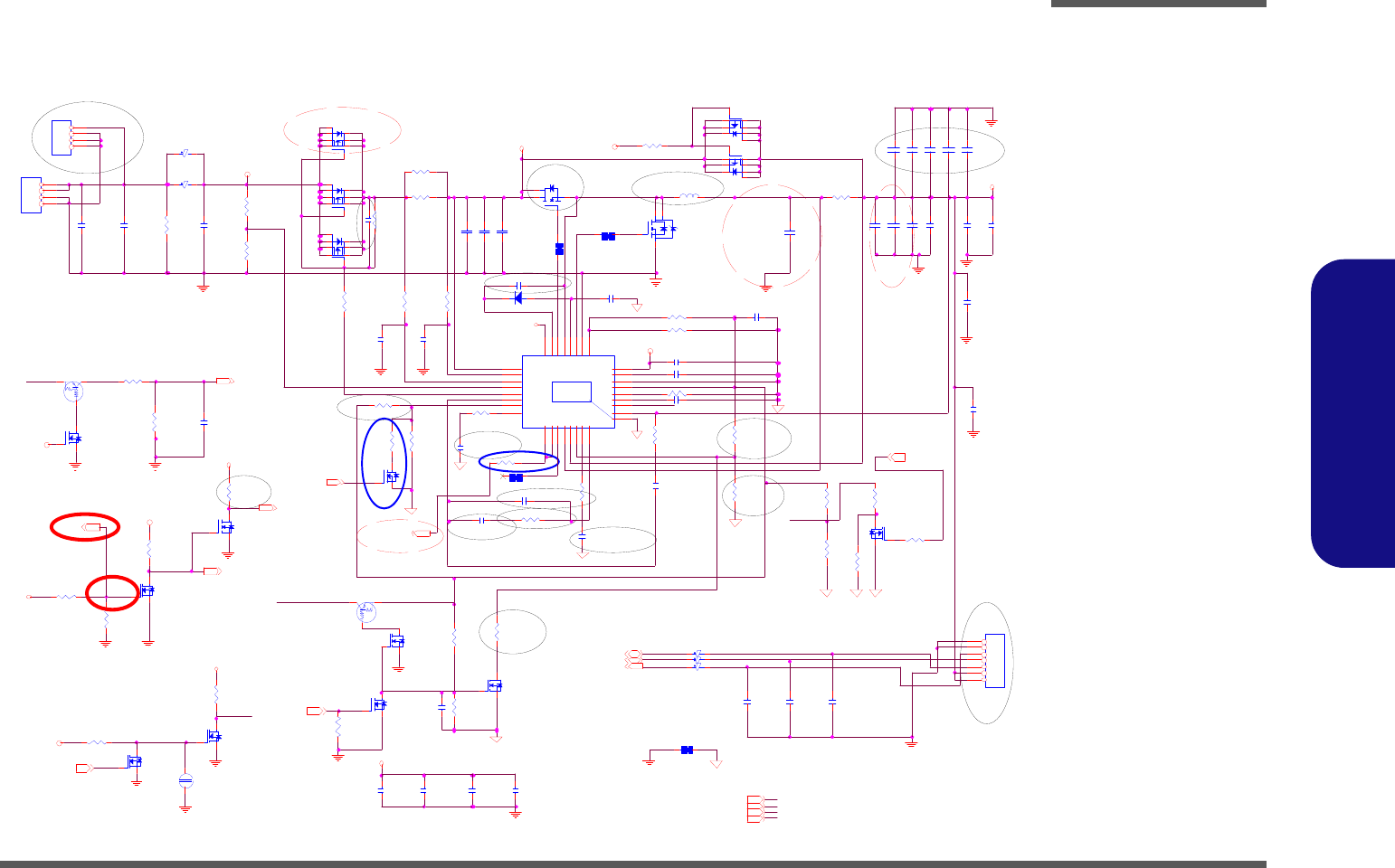

- AC_In, Charger
- Power 0.85VS

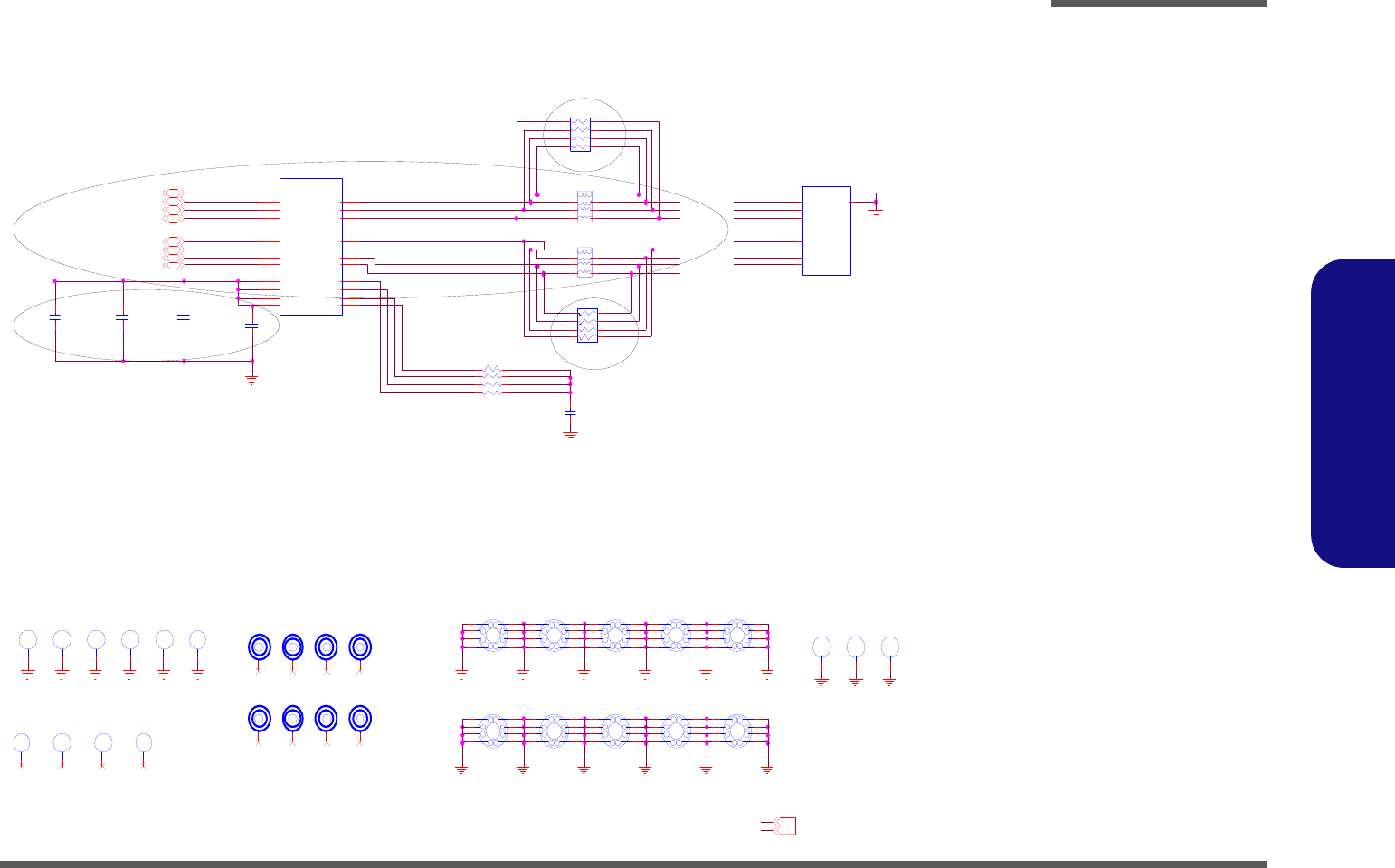

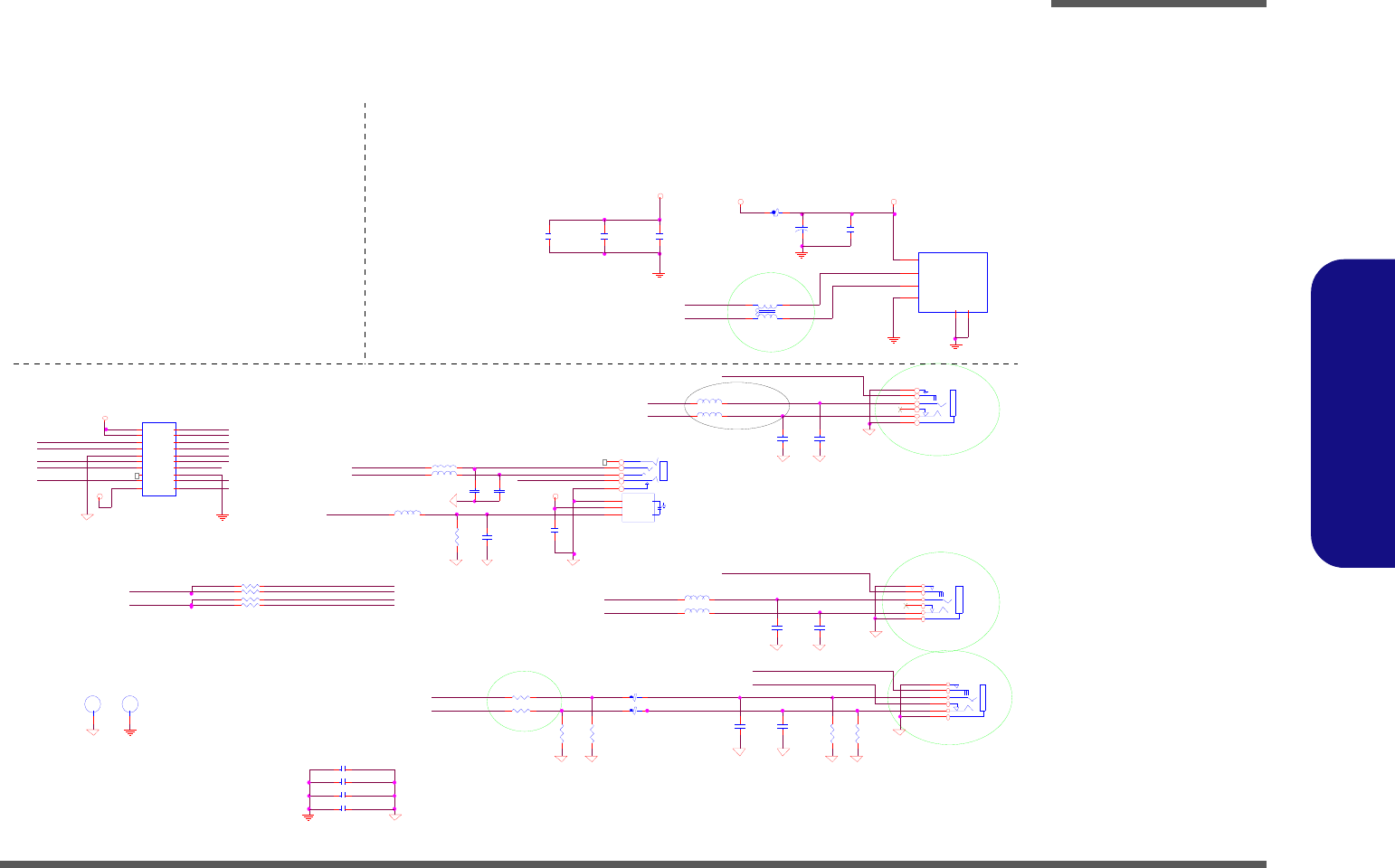

- Audio Jack
- X5100 ODD Board
- X5100 Click Board

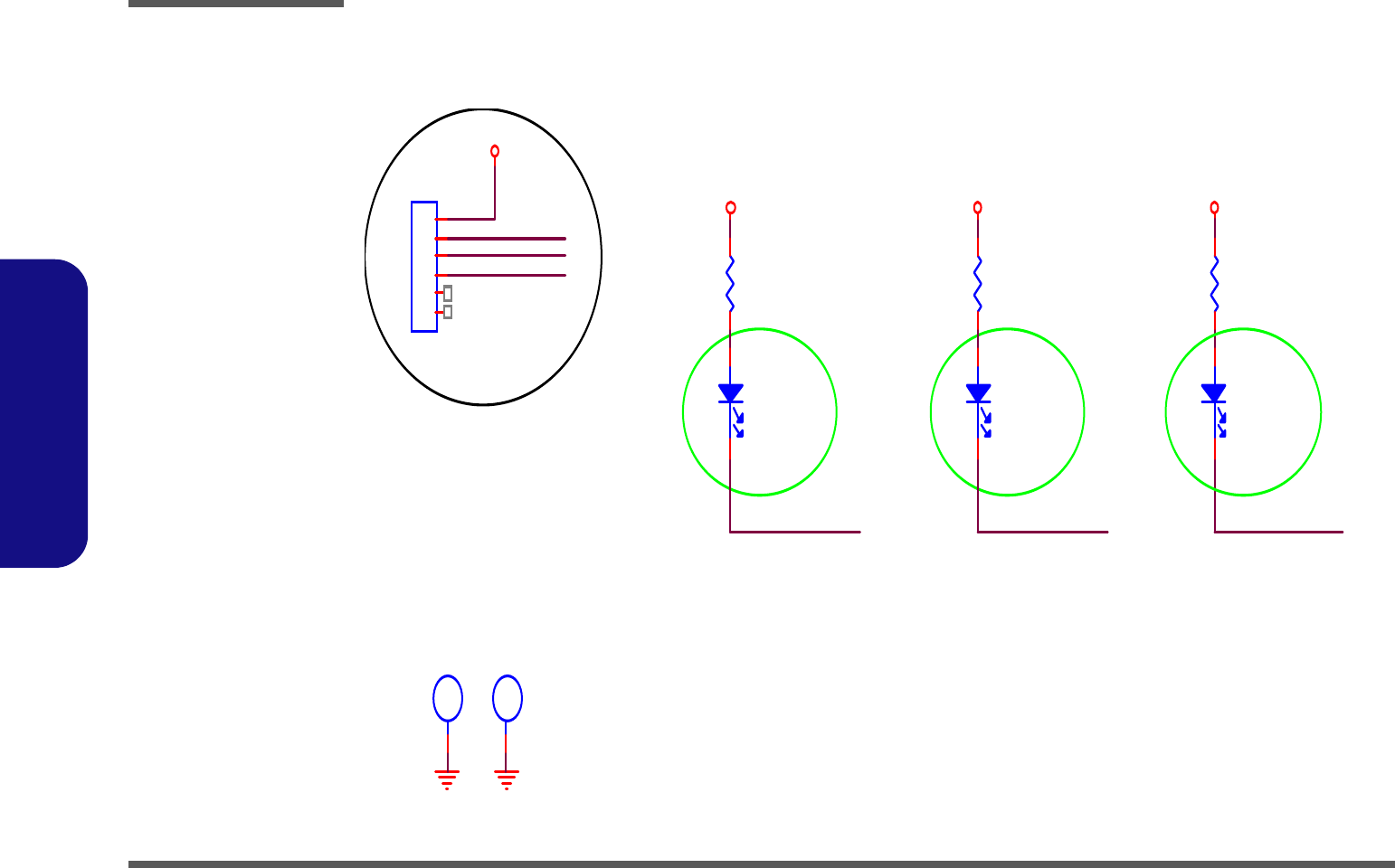

- X5100 LED 1 Board
- X5100 LED 2 Board
- X5100 LED 3 Board
- X7100 HDD & ODD Board

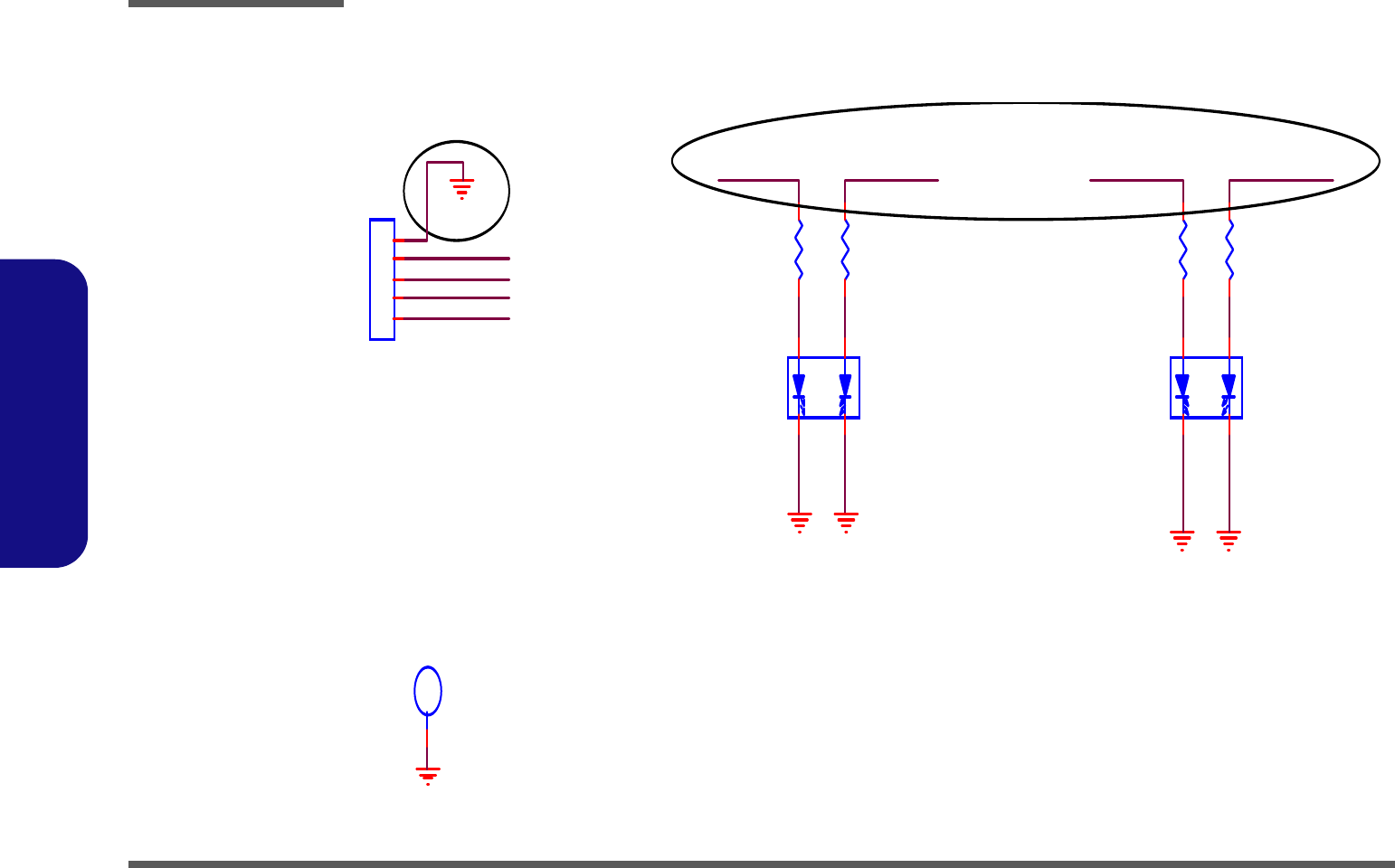

- CIR
- X7100 LED Board
- X7100 Click Board
- X7100 Fingerprint Board
- TPM
- X5100 HDD Board
- Appendix C: Updating the FLASH ROM BIOS
P150HM/
P151HM1
SERVICE
MANUAL
Preface
I
Preface
Notebook Computer
P150HM/P151HM1
Service Manual
Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 2.0
February 2011
Trademarks
Intel and Intel Core are trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.
Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the P150HM/
P151HM1 series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS
Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output
of 19V, 9.47A (180 Watts) minimum AC/DC Adapter.
CAUTION
This Computer’s Optical Device is a Laser Class 1 Product
Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable
surface. Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance
on your computer.
Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if
it is broken. Do not place heavy objects
on the power cord.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.
Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.
Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on Disc
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

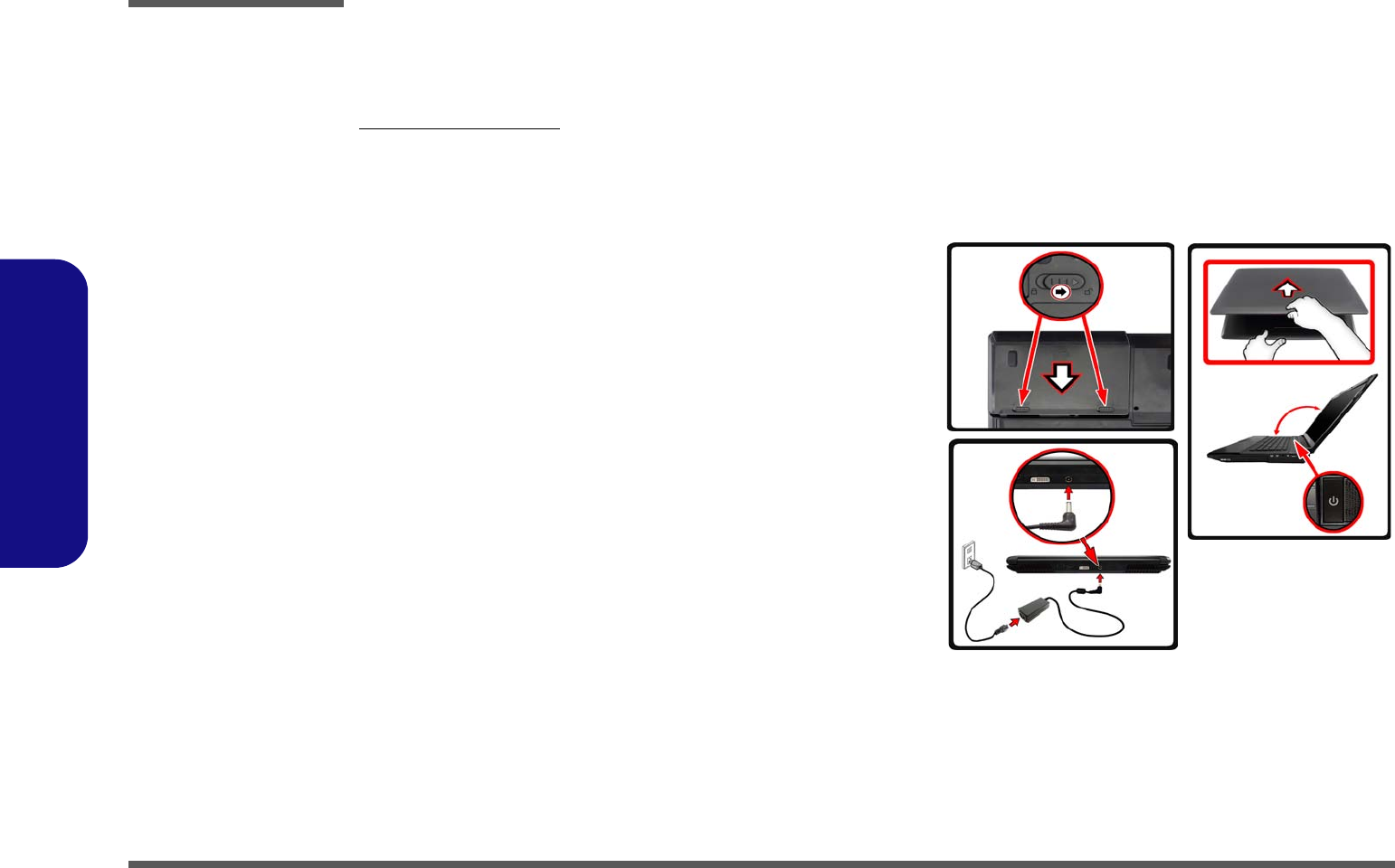

System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and tighten the screws.
4. Securely attach any peripherals you want to use with the
computer (e.g. keyboard and mouse) to their ports.
5. Attach the AC/DC adapter to the DC-In jack at the rear of the
computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC/DC adapter.
6. Use one hand to raise the lid/LCD to a comfortable viewing
angle (do not to exceed 135 degrees);
use the other hand (as
illustrated in <Hyperlink B n I>Figure 1) to support the base of
the computer (Note: Never lift the computer by the lid/LCD).
7. Press the power button to turn the computer “on”.
135 ﾟ
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
External Locator - Top View with LCD Panel Open ......................1-4
External Locator - Front & Right side Views .................................1-5
External Locator - Left Side & Rear View .....................................1-6
External Locator - Bottom View .....................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-6
Inserting the Hard Disk Into the HDD Bay .....................................2-8
Removing the Optical (CD/DVD) Device ......................................2-9
Removing the Primary System Memory (RAM) .........................2-10
Removing the System Memory (RAM) from Under the
Keyboard .......................................................................................2-12
Removing and Installing the Processor .........................................2-14
Removing the Wireless LAN Module ...........................................2-17
Removing the 3G Module .............................................................2-18
Removing and Installing the Video Card ......................................2-19
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top with Fingerprint ...................................................................... A-3
Top without Fingerprint ................................................................ A-4
Bottom ........................................................................................... A-5
LCD ............................................................................................... A-6
COMBO ......................................................................................... A-7
DVD-Dual Drive ............................................................................ A-8
2nd HDD ....................................................................................... A-9
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
Processor 1/7 ...................................................................................B-3
Processor 2/7 ...................................................................................B-4
Processor 3/7 ...................................................................................B-5
Processor 4/7 ...................................................................................B-6
Processor 5/7 ...................................................................................B-7
Processor 6/7 ...................................................................................B-8
Processor 7/7 ...................................................................................B-9
DDRIII CHA SO-DIMM_0 ..........................................................B-10
DDRIII CHA SO-DIMM_1 ..........................................................B-11
DDRIII CHB SO-DIMM_0 ..........................................................B-12
DDRIII CHB SO-DIMM_1 ..........................................................B-13
MXM PCI-E .................................................................................B-14
Panel, Inverter, CRT .....................................................................B-15
1394_JMB380C ............................................................................B-16
DVI ...............................................................................................B-17
HDMI ............................................................................................B-18
CougarPoint - M 1/9 .....................................................................B-19
CougarPoint - M 2/9 .....................................................................B-20
CougarPoint - M 3/9 .....................................................................B-21
CougarPoint - M 4/9 .....................................................................B-22
CougarPoint - M 5/9 .....................................................................B-23
Preface
X
Preface
CougarPoint - M 6/9 ..................................................................... B-24
CougarPoint - M 7/9 ..................................................................... B-25
CougarPoint - M 8/9 ..................................................................... B-26
CougarPoint - M 9/9 ..................................................................... B-27
3G, CCD ....................................................................................... B-28
Mini PCIE, LID ............................................................................ B-29
LED, Hotkey, LID SW, Fan ......................................................... B-30
RJ 45 ............................................................................................. B-31
Codec Realtek ALC892 ...............................................................B-32
APA2010D1-TPA2008D2 ........................................................... B-33
KBC-ITE IT8519 ......................................................................... B-34
USB, TP, FP, MULTI-CONN ...................................................... B-35
Card Reader (JMC 251C) ............................................................. B-36
USB 3.0 ........................................................................................B-37
VDD3, VDD5 ............................................................................... B-38
5V, 3.3V, 5VS, 3VS, 1.5VS, VIN1 .............................................. B-39
Power 1.05VS, 1.05VS_VTT ....................................................... B-40
Power 1.5V/VTT_MEM .............................................................. B-41
Power 1.8VS ................................................................................. B-42
Power V-Core 1 ............................................................................ B-43
Power V-Core 2 ............................................................................ B-44
AC_In, Charger ............................................................................B-45
Power 0.85VS ............................................................................... B-46
Audio Jack .................................................................................... B-47
X5100 ODD Board ....................................................................... B-48
X5100 Click Board ....................................................................... B-49
X5100 LED 1 Board ....................................................................B-50
X5100 LED 2 Board ....................................................................B-51
X5100 LED 3 Board ....................................................................B-52
X7100 HDD & ODD Board ......................................................... B-53
CIR ............................................................................................... B-54
X7100 LED Board .......................................................................B-55
X7100 Click Board .......................................................................B-56
X7100 Fingerprint Board ..............................................................B-57
TPM ..............................................................................................B-58
X5100 HDD Board .......................................................................B-59
Updating the FLASH ROM BIOS......... C-1
To update the FLASH ROM BIOS you must: C-1
Download the BIOS ........................................................................C-1
Unzip the downloaded files to a bootable CD/DVD/ or USB Flash
drive ................................................................................................C-1
Set the computer to boot from the external drive ...........................C-1
Use the flash tools to update the BIOS ...........................................C-2
Restart the computer (booting from the HDD) ...............................C-2
Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the P150HM/P151HM1 series notebook computer.
Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information
about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. Windows Vista, Windows 7, etc.) have their own manuals as do application software (e.g. word
processing and database programs). If you have questions about those programs, you should consult those manuals.
The P150HM/P151HM1 series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed
description of the upgrade procedures for each specific component. Please note the warning and safety information indi-
cated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.
Introduction
1 - 2 Overview
1.Introduction
Specifications
Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.
CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
Processor Options
P150HM:
Intel® Core™ i7 Processor Extreme Edition
i7-2920XM (2.50GHz)
8MB L3 Cache, 32nm, DDR3-1600MHz, TDP 55W
Intel® Core™ i7 Processor
i7-2820QM (2.30GHz)
8MB L3 Cache, 32nm, DDR3-1600MHz, TDP 45W
i7-2720QM (2.20GHz) , i7-2630QM (2.0GHz)
6MB L3 Cache, 32nm, DDR3-1600MHz, TDP 45W
i7-2520M (2.50GHz)
3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W
P151HM1:
Intel® Core™ i7 Processor
i7-2820QM (2.30GHz)
8MB L3 Cache, 32nm, DDR3-1600MHz, TDP 45W
i7-2720QM (2.20GHz) , i7-2630QM (2.0GHz)
6MB L3 Cache, 32nm, DDR3-1600MHz, TDP 45W
i7-2520M (2.50GHz)
3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W
Intel® Core™ i5 Processor
i5-2410M (2.30GHz)
3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W
Intel® Core™ i3 Processor
i3-2310M (2.10GHz)
3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W
Memory
*Four 204 Pin SO-DIMM Sockets Supporting DDR3 1333/
1600** MHz Memory Modules
Memory Expandable up to 16GB
Compatible with 2GB or 4GB Modules
*Note: Four SO-DIMMs are only supported by Quad-Core
CPUs; Dual-Core CPUs support two SO-DIMMs maximum
**Note:
1600 MHz Memory Modules
are only supported by
Quad-Core CPUs to a maximum of two SO-DIMMs
LCD
P150HM:
15.6" (39.62cm) FHD (1920 * 1080)
P151HM1:
15.6" (39.62cm) HD+ (1600 * 900)
BIOS
AMI BIOS (32Mb SPI Flash-ROM)
Storage
(Factory Option) One Changeable 12.7mm(h) Optical Device
Type Drive (Super Multi Drive Module or Blu-Ray Combo Drive
Module)
One Changeable 2.5" (6cm) 9.5mm (h) SATA (Serial) Hard
Disk Drive
Core Logic
Intel® HM65 Chipset
Video Adapter
P150HM:
nVIDIA® GeForce GTX 485M PCIe Video Card
2GB GDDR5 Video RAM on board
Microsoft DirectX® 11 Compatible
nVIDIA® GeForce GTX 460M PCIe Video Card
1.5GB GDDR5 Video RAM on board
Microsoft DirectX® 11 Compatible
P151HM1:
nVIDIA® GeForce GTX 460M PCIe Video Card
1.5GB GDDR5 Video RAM on board
Microsoft DirectX® 11 Compatible
Security
Security (Kensington® Type) Lock Slot
BIOS Password
(Factory Option) Fingerprint Reader Module
Audio
High Definition Audio Compliant Interface
THX TruStudio Pro
S/PDIF Digital Output
One (3W) Sub Woofer
Built-In Microphone
2 Speakers
Introduction
Overview 1 - 3
1.Introduction
Pointing Device
Built-in TouchPad (scrolling key functionality integrated)
Keyboard
Full-size “WinKey” keyboard with numeric keypad
Communication
Built-In Giga Base-TX Ethernet LAN
2.0M Pixel USB PC Camera Module
(Factory Option) 3.75G/HSPA Mini-Card Module (Models A
& B Only)
(Factory Option) TV Tuner Mini-Card Module (Model C Only)
(Factory Option) Intel® WiFi Link 6230 (802.11a/g/n) Wire-
less LAN + Bluetooth 3.0 Half Mini-Card Combo Module
(Factory Option) Intel® WiFi Link 6300 (802.11a/g/n) Wire-
less LAN Half Mini-Card Module
(Factory Option) Third-Party Wireless LAN (802.11b/g/n) +
Bluetooth 3.0 Half Mini-Card Combo Module
(Factory Option) Third-Party 802.11b/g/n Wireless LAN Half
Mini-Card Module
Card Reader
Embedded Multi-In-1 Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC
MS (Memory Stick) / MS Pro / MS Duo
Interface
Two USB 3.0 Ports
Two USB 2.0 Ports (Note one USB 2.0 port can supply power
when the system is off but still powered by the AC/DC adapter
- see page 11.)
One eSATA & USB 2.0 Combo Port
One HDMI-Out Port
One DVI-Out Port
One IEEE1394a Port
One S/PDIF-Out & Surround-Out Combo Jack
One Headphone/Speaker-Out Jack
One Microphone-In Jack
One Line-In Jack
One RJ-45 LAN
Jack
One DC-In Jack
Note: External 7.1CH Audio Output Supported by Headphone,
Microphone, Line-In and Surround-Out Jacks
Mini Card Slots
Slot 1 for WLAN Module or Combo WLAN and Bluetooth
Module
(Factory Option) Slot 2 for 3.75G/HSPA Half Mini-Card Mod-
ule
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Removable 8-cell cylinder battery, 76.96Wh (5200mAh)
P150HM :
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 9.47A (180W)
P151HM1 :
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 6.3A (120W)
Dimensions & Weight
376mm (w) * 256mm (d) * 35 - 43mm (h)
Around 3.1kg with Battery and ODD
Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction

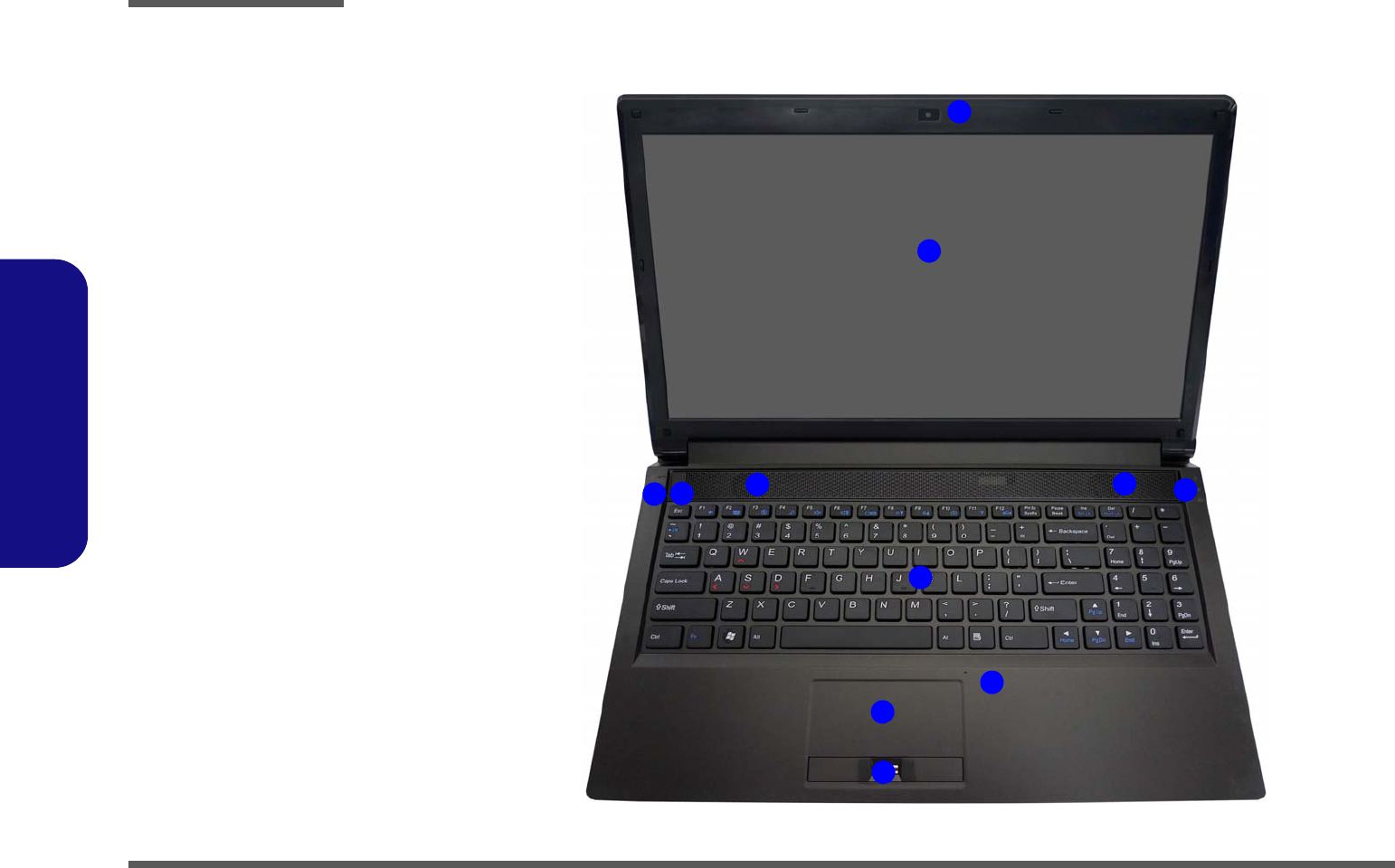

External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. PC Camera
2. LCD
3. LED Status
Indicators
4. Power Button
5. Speakers
6. Keyboard
7. Built-In
Microphone
8. TouchPad and
Buttons
9. Fingerprint
Reader (Optional)
2
1
8
9
7
3
6
5
453
15.6” (39.62cm)
Introduction
External Locator - Front & Right side Views 1 - 5
1.Introduction
External Locator - Front & Right side Views

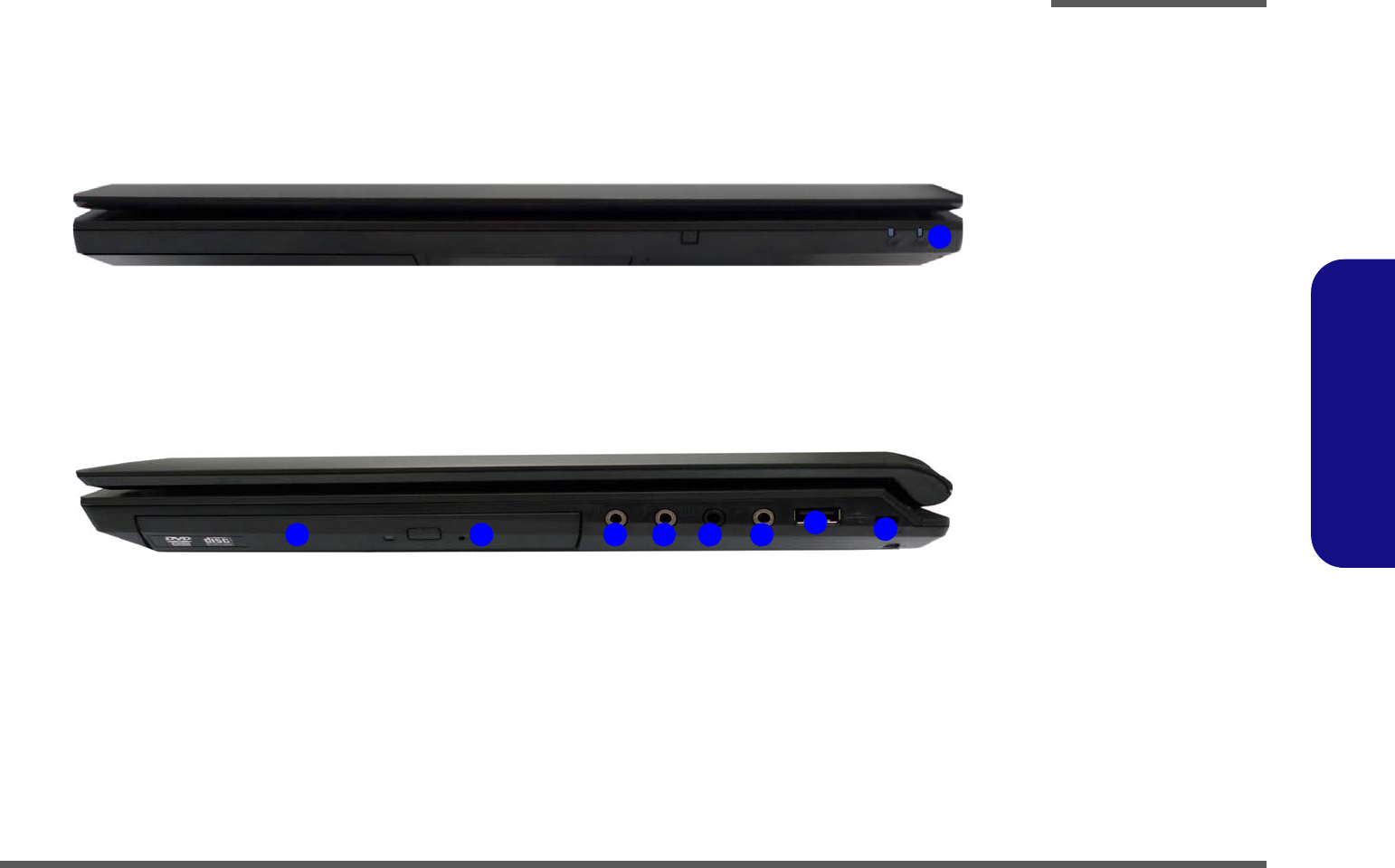

Figure 2
Front Views
1. LED Power
Indicators
Figure 3
Right Side Views
1. Optical Device
Drive Bay
2. Emergency Eject
Hole
3. Headphone Jack
4. Microphone Jack
5. S/PDIF-Out Jack
6. Line-In Jack
7. USB 2.0 Port
8. Security Lock Slot
1
Front
Right
1 2 3 4 5 6 78
Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. RJ-45 LAN Jack
2. USB 3.0 Ports
3. USB 2.0 Port
4. Mini-IEEE 1394a
Port
5. Multi-in-1 Card
Reader
45
122
Left
3
Figure 5
Rear View
1. Vent
2. eSATA/USB 2.0
Combo Port
3. HDMI-Out Port
4. DVI-Out Port
5. DC-In Jack
Rear
45
1231
Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Vent
2. Component Bay
Cover
3. Sub Woofer
4. HDD Bay
5. Battery
Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
3
2
1
45
1
1
1
Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction
Mainboard Overview - Top (Key Parts)

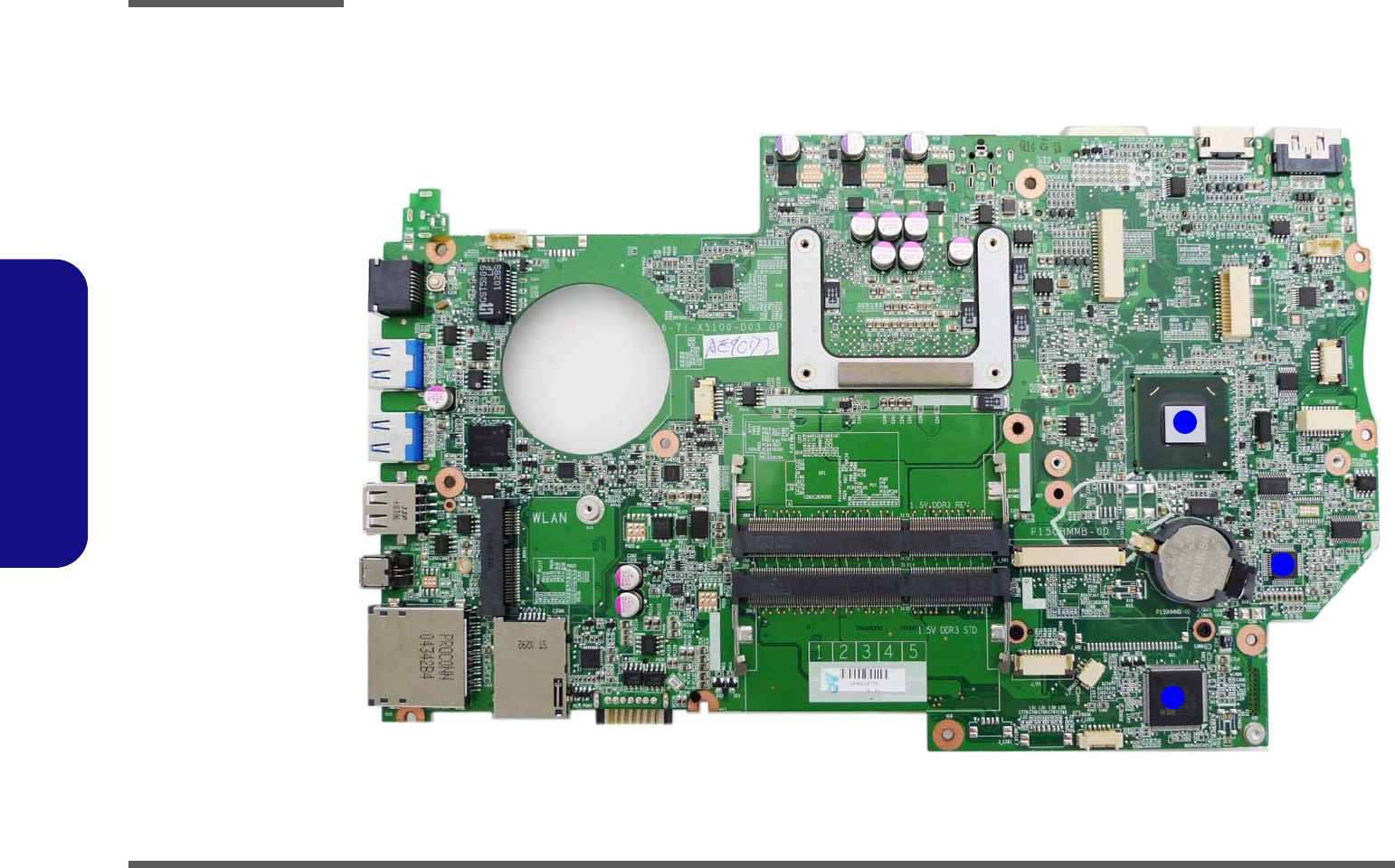

Figure 7
Mainboard Top
Key Parts
1. Platform
Controller Hub
2. Audio Codec
3. KBC ITE IT8519E
1
2
3
Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)

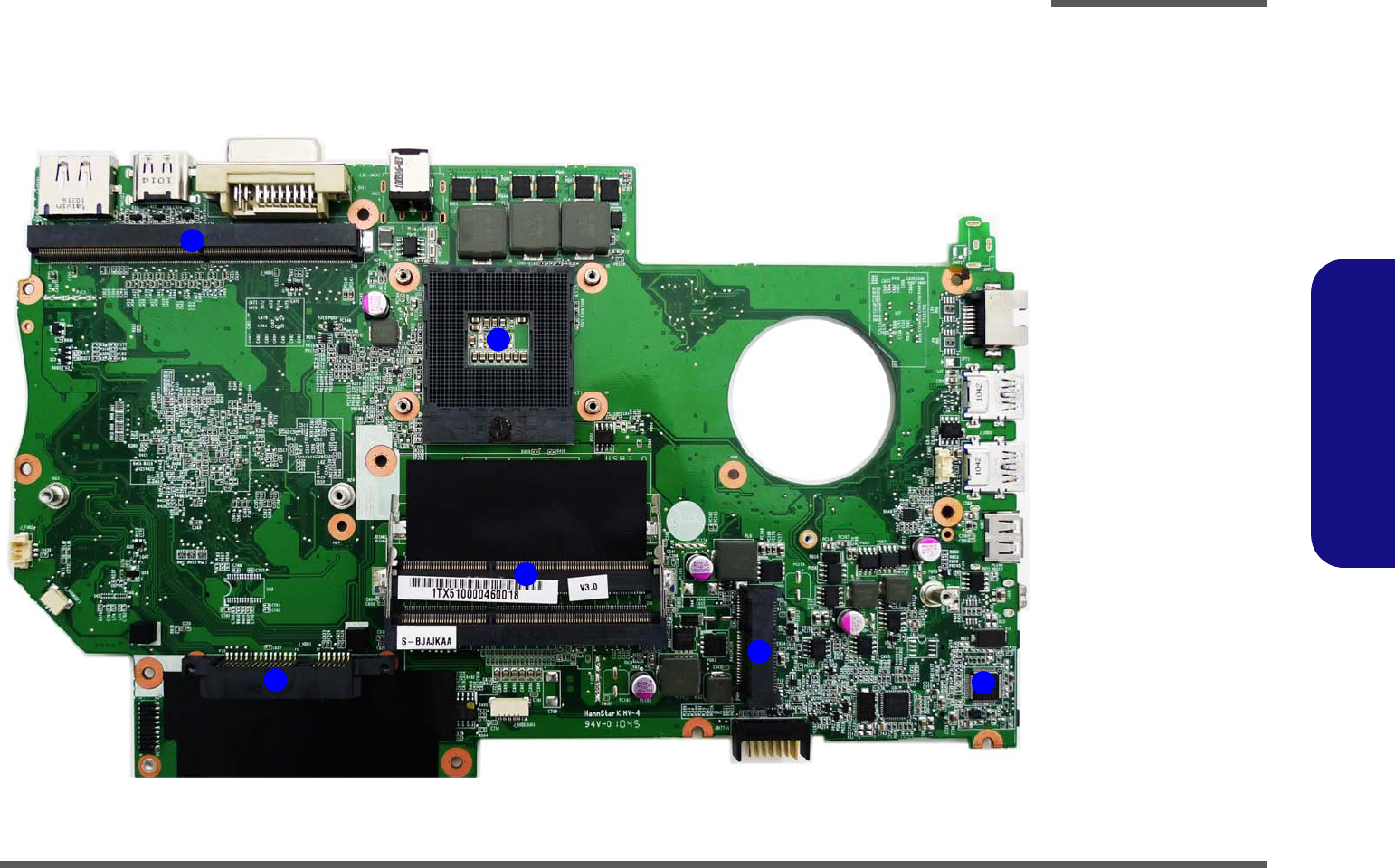

Figure 8
Mainboard Bottom
Key Parts
1. VGA-Card
Connector
2. CPU Socket (no
CPU installed)
3. Memory Slots
DDR3 SO-DIMM
(Primary)
4. Hard Disk
Connector
5. Mini-Card
Connector (3G
Module)
6. JMC 251C
5
2
1
4
3
6
Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. CCD Connector
2. USB 2.0 Port
3. Mini-IEEE 1394a
Port
4. Multi-in-1 Card
Reader
5. USIM Card
6. LED 2 Cable
Connector
7. Keyboard Cable
Connector
8. TouchPad Cable
Connector
9. Microphone
Cable Connector
10. LED 3 Cable
Connector
11. Audio Cable
Connector
12. LED 1 Cable
Connector
13. Speaker
Connector
14. LCD Cable
Connector
1
2
3
45
6
7
8
12
9
10
11
13
14
Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. DC-In Jack
2. DVI-Out Port
3. HDMI-Out Port
4. eSATA/USB 2.0
Combo Port
5. VGA Fan Cable
Connector
6. Sub Woofer
Cable Connector
7. CPU Fan Cable
Connector
8. USB 3.0 Ports
9. RJ-45 LAN Jack
1
2
3
4
5
6
78
9
8
Introduction
1-12
1.Introduction
Disassembly
Overview 2 - 1
2.Disassembly
Chapter 2: Disassembly
Overview
This chapter provides step-by-step instructions for disassembling the P150HM/P151HM1 series notebook’s parts and
subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).
We suggest you completely review any procedure before you take the computer apart.
Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are
repeated here for your convenience.
To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-
assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-
ous disassembly procedure. The amount of screws you should be left with will be listed here also.
A box with a will also provide any possible helpful information. A box with a contains warnings.
An example of these types of boxes are shown in the sidebar.
Information
Warning
Disassembly
2 - 2 Overview
2.Disassembly
NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).
Maintenance Tools
The following tools are recommended when working on the notebook PC:
• M3 Philips-head screwdriver
• M2.5 Philips-head screwdriver (magnetized)
• M2 Philips-head screwdriver
• Small flat-head screwdriver
• Pair of needle-nose pliers
• Anti-static wrist-strap
Connections
Connections within the computer are one of four types:
Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to
gently pry the locking collar away from its base. When replac-
ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.
Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently
rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.
Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-
ers to gently lift the connector away from its socket. When re-
placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.
Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as
you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.
Disassembly
Overview 2 - 3
2.Disassembly
Maintenance Precautions
The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-
moval and/or replacement job, take the following precautions:
1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other
components could be damaged.
2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.
3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).
4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly
damaged.
5. Be careful with power. Avoid accidental shocks, discharges or explosions.
•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.
•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.
6. Peripherals – Turn off and detach any peripherals.
7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.
Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.
8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-
duce oils which can attract corrosive elements.
9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted
to charged surfaces, reducing performance.
10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as
screws, loose inside the computer.
Cleaning
Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
Disassembly
2 - 4 Disassembly Steps
2.Disassembly
Disassembly Steps
The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.
To remove the Battery:
1. Remove the battery page 2 - 5
To remove and install the HDD:
1. Remove the battery page 2 - 5
2. Remove the HDD page 2 - 6
3. Install the HDD page 2 - 8
To remove the Optical Device:
1. Remove the battery page 2 - 5
2. Remove the Optical device page 2 - 9
To remove the Primary System Memory:
1. Remove the battery page 2 - 5
2. Remove the system memory page 2 - 12
To remove the System Memory under the
Keyboard:
1. Remove the battery page 2 - 5
2. Remove the keyboard page 2 - 10
3. Remove the system memory page 2 - 13
To remove and install the Processor:
1. Remove the battery page 2 - 5
2. Remove the system memory page 2 - 10
3. Remove the processor page 2 - 14
4. Install the processor page 2 - 16
To remove the WLAN Module:
1. Remove the battery page 2 - 5
2. Remove the keyboard page 2 - 10
3. Remove the wireless LAN page 2 - 17
To remove the 3G:
1. Remove the battery page 2 - 5
2. Remove the 3G page 2 - 18
To remove and install the Video Card:
1. Remove the battery page 2 - 5
2. Remove the video card page 2 - 19
3. Install the video card page 2 - 20
Disassembly
Removing the Battery 2 - 5
2.Disassembly
Removing the Battery
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow (Figure 1a).
3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a).
4. Lift the battery out in the direction of the arrow (Figure 1b & Figure 1c).
3. Battery
1
2
6
3
4
a.
b.
21
3
4
c.
3
Figure 1
Battery Removal
a. Slide the latch and hold in
place.
b. Lift the battery out in the
direction of the arrow.
Disassembly
2 - 6 Removing the Hard Disk Drive
2.Disassembly

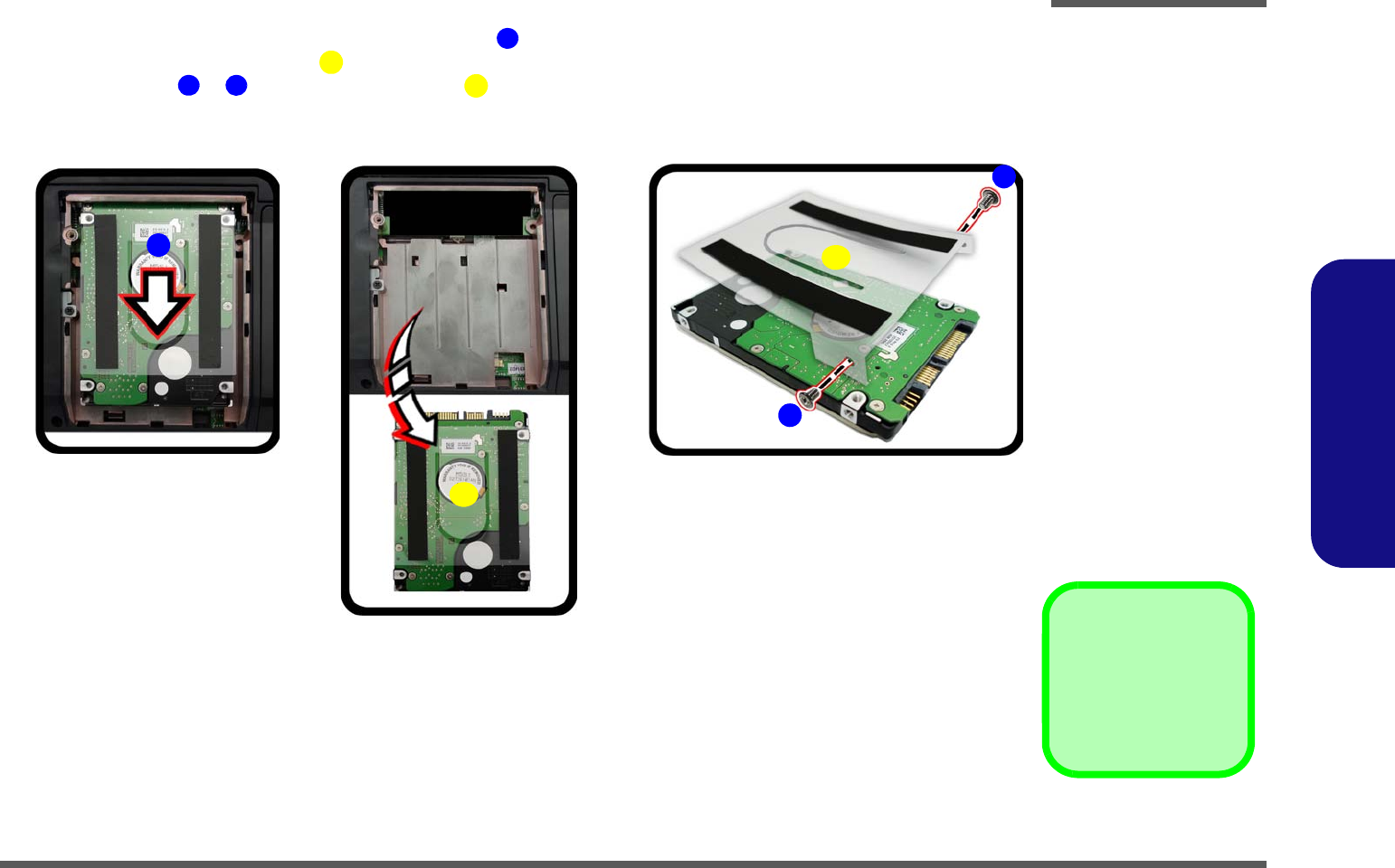

Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in
Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Upgrade Process
1. Turn off the computer, and remove the battery (page 2 - 5).

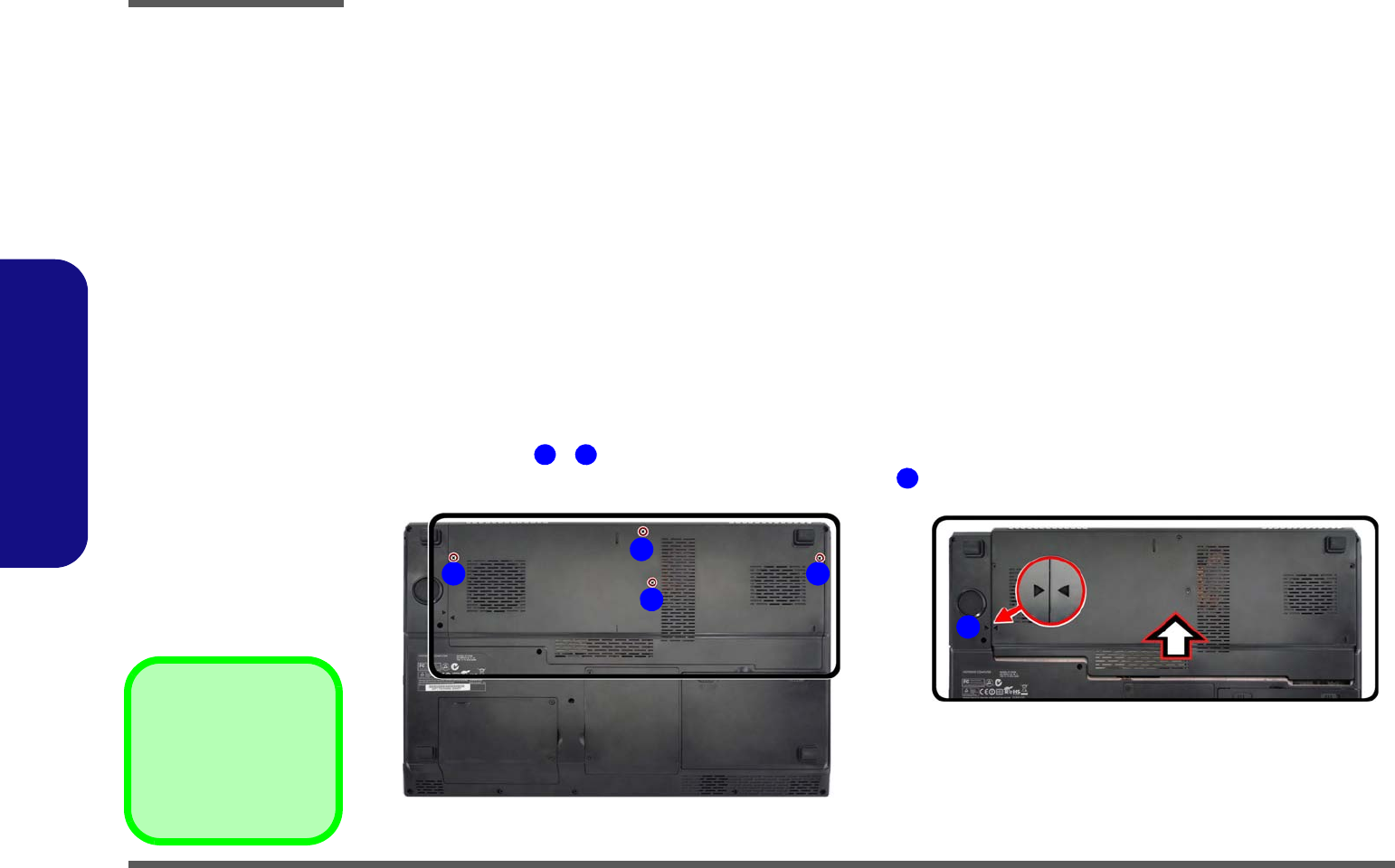

2. Locate the hard disk bay cover and emove screws - (Figure 2a).
3. Remove the hard disk bay cover by levering the cover at point (Figure 2b).
Figure 2
HDD Assembly
Removal
a. Locate the HDD bay
cover and remove the
screws.
b. Remove the hard disk
bay cover by levering the
cover at point .
3
•2 Screws
1
2
3
a.
HDD System Warning
New HDD’s are blank. Before you begin make sure:
You have backed up any data you want to keep from your old HDD.
You have all the CD-ROMs and FDDs required to install your operating system and programs.
If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan
to install. Copy these to a removable medium.
3
12
b.
3
Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly

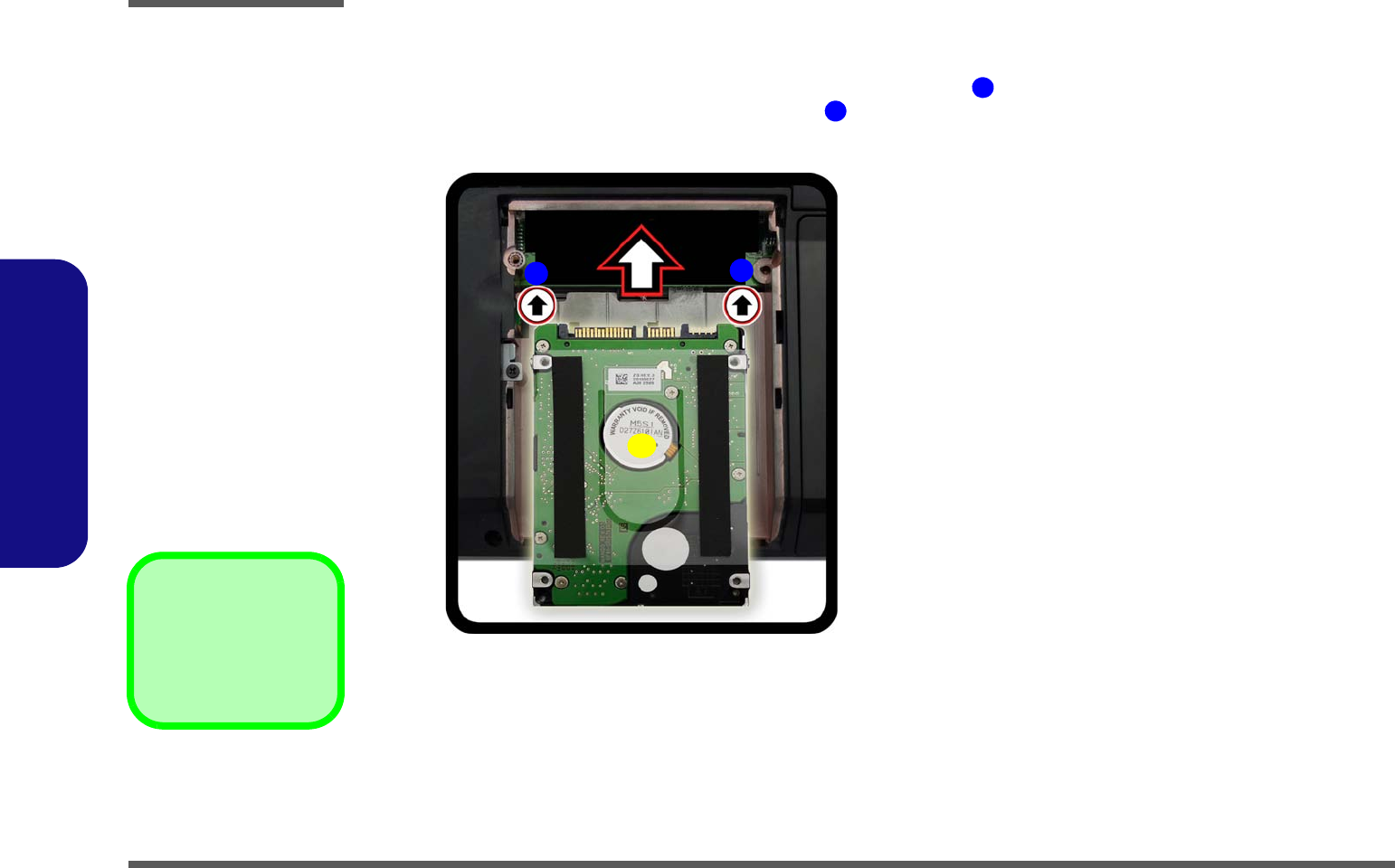

4. Slide the HDD assembly in the direction of the arrow (Figure 3c).
5. Remove the hard disk assembly (Figure 3d).
6. Remove screws & and the insulation plate (Figure 3e).
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
4
6
5
6
7
6
8
c. d.
5
6
4
7
e.
8
5. HDD
8. HDD Insulation Plate
•2 Screws
Figure 3
HDD Assembly
Removal (cont’d.)
c. Slide the HDD assembly
in the direction of the ar-
row.
d. Remove the hard disk
assembly.
e. Remove the screws and
the insulation plate.
Disassembly
2 - 8 Inserting the Hard Disk Into the HDD Bay
2.Disassembly
Inserting the Hard Disk Into the HDD Bay
1. Make sure the HDD assembly is aligned with the black taped area (Figure 4a).
2. When aligned, carefully insert the HDD assembly into the case so that the connectors line up (Figure 4a).
3. Replace the hard disk bay covers and screws.
2. HDD
Figure 4
Inserting the Hard
Disk Into the HDD
Bay
a. Make sure the HDD as-
sembly is aligned with the
black taped area. When
aligned, carefully insert
the HDD assembly into
the case so that the con-
nectors line up.
1
2
1
1
a.
2
Disassembly
Removing the Optical (CD/DVD) Device 2 - 9
2.Disassembly
Removing the Optical (CD/DVD) Device
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Locate the hard disk bay cover and remove screws & (Figure 5a).
3. Remove the hard disk bay cover (Figure 5b).
4. Remove the screw at point (Figure 5c), and use a screwdriver to carefully push out the optical device at
point (Figure 5d).
5. Reverse the process to install any new optical (CD/DVD) device.
Figure 5
Optical Device
Removal
a. Locate the hard disk bay
cover and remove the
screws.
b. Remove the hard disk
bay cover.
c. Remove the screw.
d. Use a screwdriver to
carefully push the optical
device out.
1
2
6
3
4
6
5
6
3. HDD Bay Cover
5. Optical Device
•3 Screws
a.
b.
3
c.
d.
12
6
4
5
Disassembly
2 - 10 Removing the Primary System Memory (RAM)
2.Disassembly
Removing the Primary System Memory (RAM)
The computer has four memory sockets for 204 pin Small Outline Dual In-line (SO-DIMM) DDR III (DDR3) type memory
modules. The total memory size is automatically detected by the POST routine once you turn on your computer.
Note that four SO-DIMMs are only supported by Quad-Core CPUs; Dual-Core CPUs support two SO-DIMMs maxi-
mum.
Two primary memory sockets are located under component bay cover (the bottom case cover), and two secondary
memory sockets are located under the keyboard (not user upgradable). If you are installing only two RAM modules
then they should be installed in the primary memory sockets under the component bay cover.
Note that the RAM located under the keyboard is not user upgradable. Contact your service center for more information if you
wish to upgrade the memory in the secondary memory sockets.
Memory Upgrade Process
1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).
2. Remove screws - (Figure 6a).
3. Slide the bottom cover until the cover and case indicators are aligned (Figure 6b).
Figure 6
RAM Module
Removal
a. Remove the screws.
b. Slide the bottom
cover until the cover
and case indicators
are aligned.
1
4
5
•4 Screws
a.
2
1 4
3
b.
5
Disassembly
Removing the Primary System Memory (RAM) 2 - 11
2.Disassembly
4. Lift the component bay cover off the computer case. The modules will be visible at point (Figure 7c).
5. Gently pull the two release latches ( & ) on the sides of the memory socket(s) in the direction indicated below
(Figure 7d).
6. The RAM module will pop-up, and you can remove it (Figure 7e).
7. Pull the latches to release the second module if necessary.

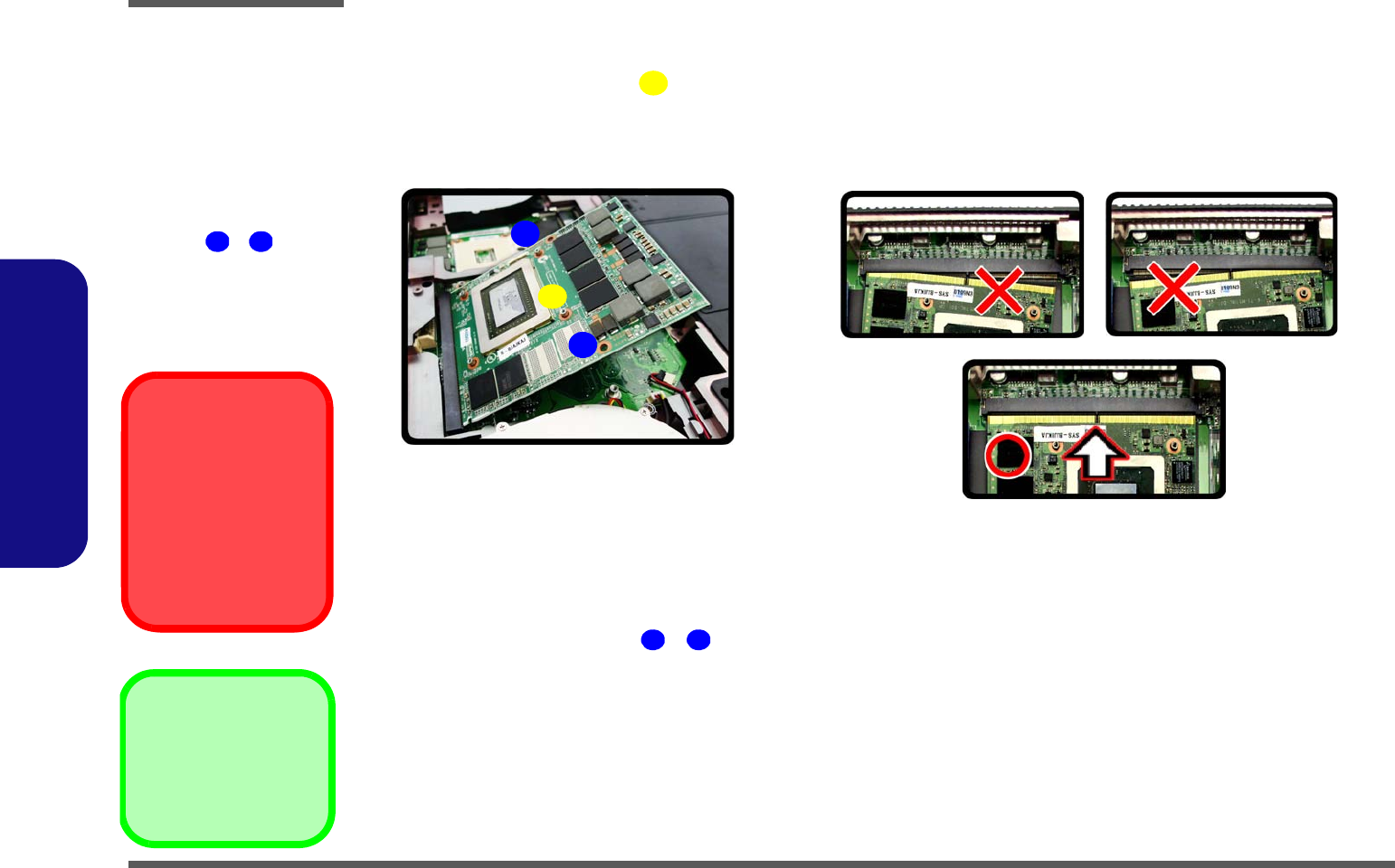

8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
9. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.
10. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
11. Replace the bay cover and screws.
12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
6
6
7
Figure 7
RAM Module
Removal (cont’d.)

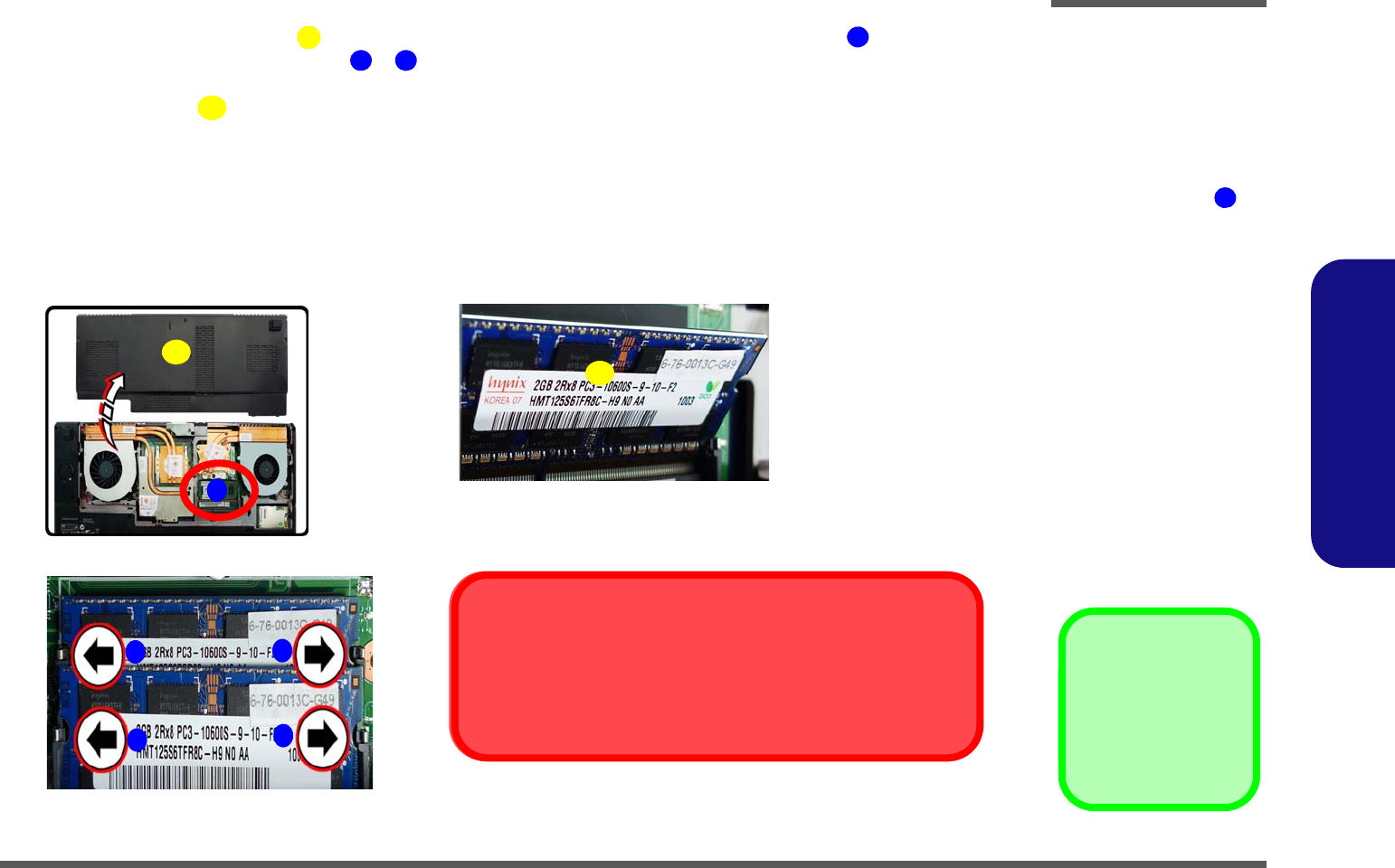

c. Lift the component bay
cover off the computer
case. The modules will
be visible at point .
d. Gently pull the two re-
lease latches on the
sides of the memory
socket(s) in the direc-
tion indicated below.
e. The RAM module will
pop-up, and you can
remove it.
7
6. Component Bay
Cover
10. RAM Module
8
9
10
d.
c.
7
8
e.
9
Contact Warning
Be careful not to touch the metal pins on the module’s connecting
edge. Even the cleanest hands have oils which can attract particles,
and degrade the module’s performance.
610
8
9
Disassembly
2 - 12 Removing the System Memory (RAM) from Under the Keyboard
2.Disassembly
Removing the System Memory (RAM) from Under the Keyboard
The computer has four memory sockets for 204 pin Small Outline Dual In-line (SO-DIMM) DDR III (DDR3) type memory
modules. The total memory size is automatically detected by the POST routine once you turn on your computer.
Note that four SO-DIMMs are only supported by Quad-Core CPUs; Dual-Core CPUs support two SO-DIMMs maxi-
mum.
Two primary memory sockets are located under component bay cover (the bottom case cover), and two secondary
memory sockets are located under the keyboard. If you are installing only two RAM modules then they should be in-
stalled in the primary memory sockets under the component bay cover.
Memory Upgrade Process
1. Remove screws - .
2. Use the small tool provided (see picture below) to carefully push out the top cover module at point .
3. Remove the top cover module and remove screws - .
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable .

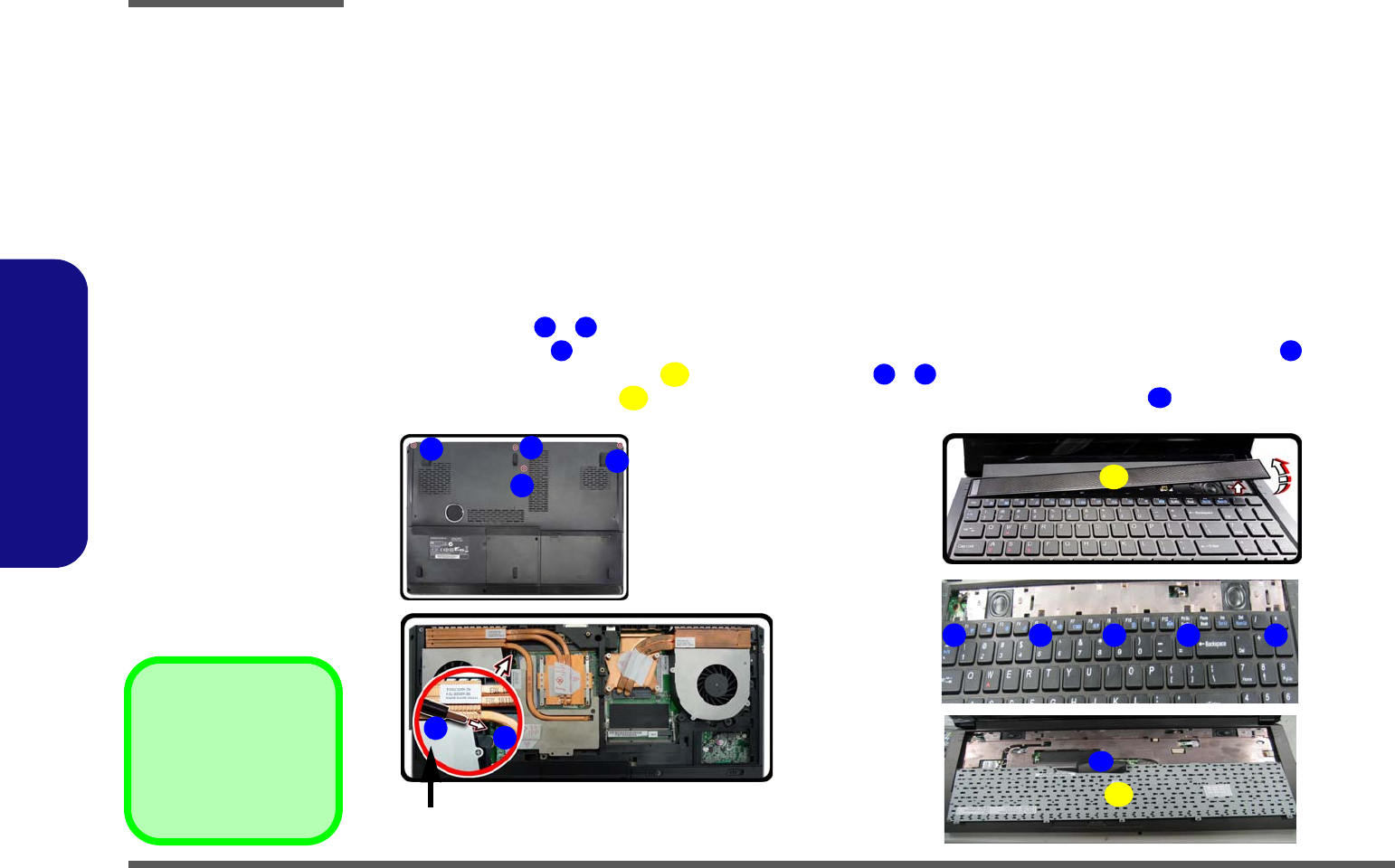

Figure 8
RAM Module
Removal
a. Remove the compo-
nent bay cover.
b. Use the small tool
provided to carefully
push out the top
cover module.
c. Remove the top
cover module.
d. Remove the screws.
e. Carefully lift the key-
board up, being
careful not to bend
the keyboard ribbon
cable.
1
4
A
B
C
5
9
D
10
C. Top Cover Module
D. Keyboard
•9 Screws
a. c.
C
A
Top Cover Module Tool
B
d.
965 87
e.
D
b.
2
1
43
10
Disassembly
Removing the System Memory (RAM) from Under the Keyboard 2 - 13
2.Disassembly
5. Disconnect the keyboard ribbon cable from the locking collar socket by using a small flat-head screwdriver
to pry the locking collar pins away from the base. (Figure 9c).
6. Remove the keyboard and the memory sockets & will be visible.
7. Gently pull the two release latches ( & ) on the sides of the memory socket(s) in the direction indicated below.
8. The RAM module will pop-up, and you can remove it.
9. Pull the latches to release the second module if necessary.
10. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
11. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.
12. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
13. Replace the bay cover and screws.
14. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
10
11
12
g.
f.
13
12
h.
10
11 12
17
17
Contact Warning
Be careful not to touch the metal pins on the module’s
connecting edge. Even the cleanest hands have oils
which can attract particles, and degrade the module’s
performance.
14
15 16
15 16
Figure 9
RAM Module
Removal (cont’d.)
f. Disconnect the key-
board ribbon cable
from the locking collar
socket by using a small
flat-head screwdriver
to pry the locking collar
pins away from the
base.
g. Remove the keyboard
and the memory sock-
ets will be visible.
h. Gently pull the two re-
lease latches on the
sides of the memory
socket(s) in the direc-
tion indicated below.
17. RAM Modules
13
14
15
16
17
Disassembly
2 - 14 Removing and Installing the Processor
2.Disassembly
Removing and Installing the Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5), and component bay cover (page 2 - 10).
2. Remove screws - from the heat sink unit in the order indicated on the label (i.e screw 4 first through to screw
1 last Figure 10a).
3. Carefully (it may be hot) remove the heat sink unit (Figure 10b).
1
4
5
Figure 10
Processor
Removal
Procedure
a. Remove the screws
in the correct order.
b. Carefully remove
the heat sink unit.
CPU Warning
In order to prevent
damaging the contact
pins when removing
the CPU, it is neces-
sary to first remove the
WLAN module from
the computer.
5. Heat Sink Unit
•4 Screws
a.
5
b.
Note: Loosen the screws in the reverse order
4-3-2-1 as indicated on the label.
21
4 3
Disassembly
Removing and Installing the Processor 2 - 15
2.Disassembly
4. Turn the release latch towards the unlock symbol , to release the CPU (Figure 11c).
5. Carefully (it may be hot) lift the CPU up out of the socket (Figure 11d).
6. See page 2 - 16 for information on inserting a new CPU.
7. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
6
A
Figure 11
Processor Removal
(cont’d)
c. Turn the release latch to
unlock the CPU.
d. Lift the CPU out of the
socket.
Caution
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Al-
low the area time to cool before re-
moving these parts.
6
c.
d.
Unlock Lock
6
A
A. CPU
Disassembly
2 - 16 Removing and Installing the Processor
2.Disassembly
Processor Installation Procedure
1. Insert the CPU , pay careful attention to the pin alignment (Figure 12a), it will fit only one way (DO NOT
FORCE IT!), and turn the release latch towards the lock symbol (Figure 12b).
2. Remove the sticker (Figure 12c) from the heat sink unit.
3. Insert the heat sink unit as indicated in Figure 12c.
4. Tighten the CPU heat sink screws in the order , , & (the order as indicated on the label and Figure
12d).
5. Replace the CPU fan, component bay cover and tighten the screws (page 2 - 14).
A
B
C
D
1
2
3
4
c.
b. d.
B
a.
C
D
1
4
2
Note:
Tighten the screws in the order 1-2-
3-4 as indicated on the label.
3
A
Figure 12
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Remove the sticker from
the heat sink unit and in-
sert the heat sink.
d. Tighten the screws.
A. CPU
D. Heat Sink
•4 Screws
Disassembly
Removing the Wireless LAN Module 2 - 17
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard (page 2 - 12).
2. The Wireless LAN module will be visible at point under the keyboard (Figure 13a).
3. Carefully disconnect cables - , then remove screw from the module socket (Figure 13b).
4. The Wireless LAN module will pop-up (Figure 13c).
5. Lift the Wireless LAN module (Figure 13d) up and off the computer.

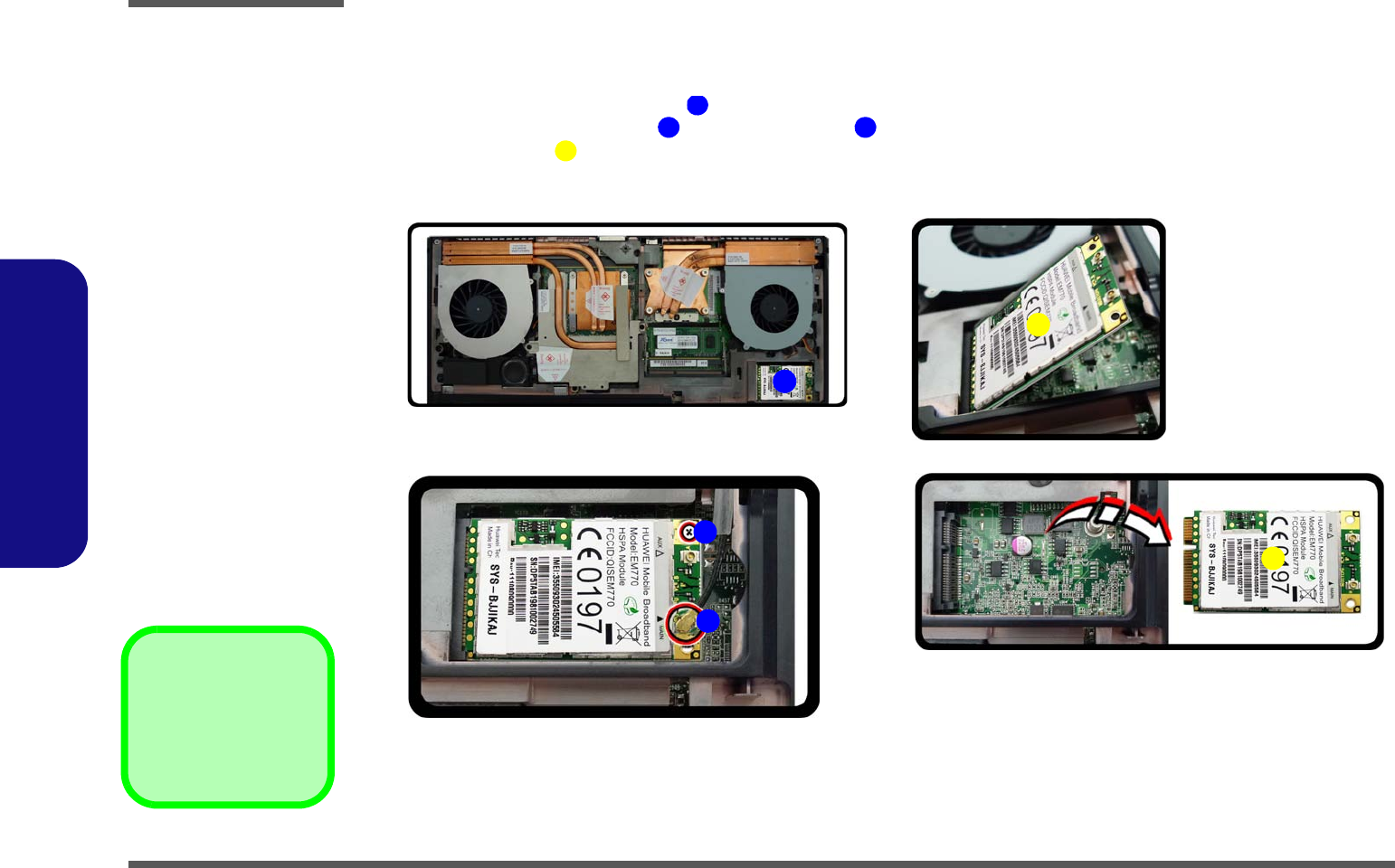

Figure 13
Wireless LAN
Module Removal
a. The Wireless LAN mod-
ule will be visible at point
under the keyboard
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.
1
1
2
3
4
5
5
b.
a.
d.
2
35
c.
4
1
5. WLAN Module
•1 Screw
Disassembly
2 - 18 Removing the 3G Module
2.Disassembly
Removing the 3G Module
1. Turn off the computer, remove the battery (page 2 - 5), and component bay cover (page 2 - 10).
2. Locate the 3G, it is visible at point (Figure 14a).
3. Carefully disconnect the cable and remove screw from the 3G module (Figure 14b).
4. Lift the 3G module up and off the computer (Figure 14b).
Figure 14
3G Module Removal
a. Remove the screw.
b. Disconnect the cable and
remove the screw.
c. Lift the 3G module up off
the socket.
1
2
3
4
a.
b.
1
4
2
3
4
c.
d.
4. 3G Module
•1 Screw
Disassembly
Removing and Installing the Video Card 2 - 19
2.Disassembly
Removing and Installing the Video Card
Video Card Removal Procedure
1. Turn off the computer, turn it over and remove the battery (page 2 - 5) and component cover (page 2 - 10).
2. Remove screws - from the heat sink unit in the order indicated on the label (i.e screw 7 first through to screw
1 last) (Figure 15a).
3. Carefully (it may be hot) remove the heat sink units & (Figure 15b).
4. Remove screws & from the video card. The video card will pop up (Figure 15c).
5. Remove the video card (Figure 15d).
8 & 9.Heat Sink Units
12. Video Card
•9 Screws
Caution
The heat sink, and video
card area in general,
contains parts which are
subject to high tempera-
tures. Allow the area
time to cool before re-
moving these parts.

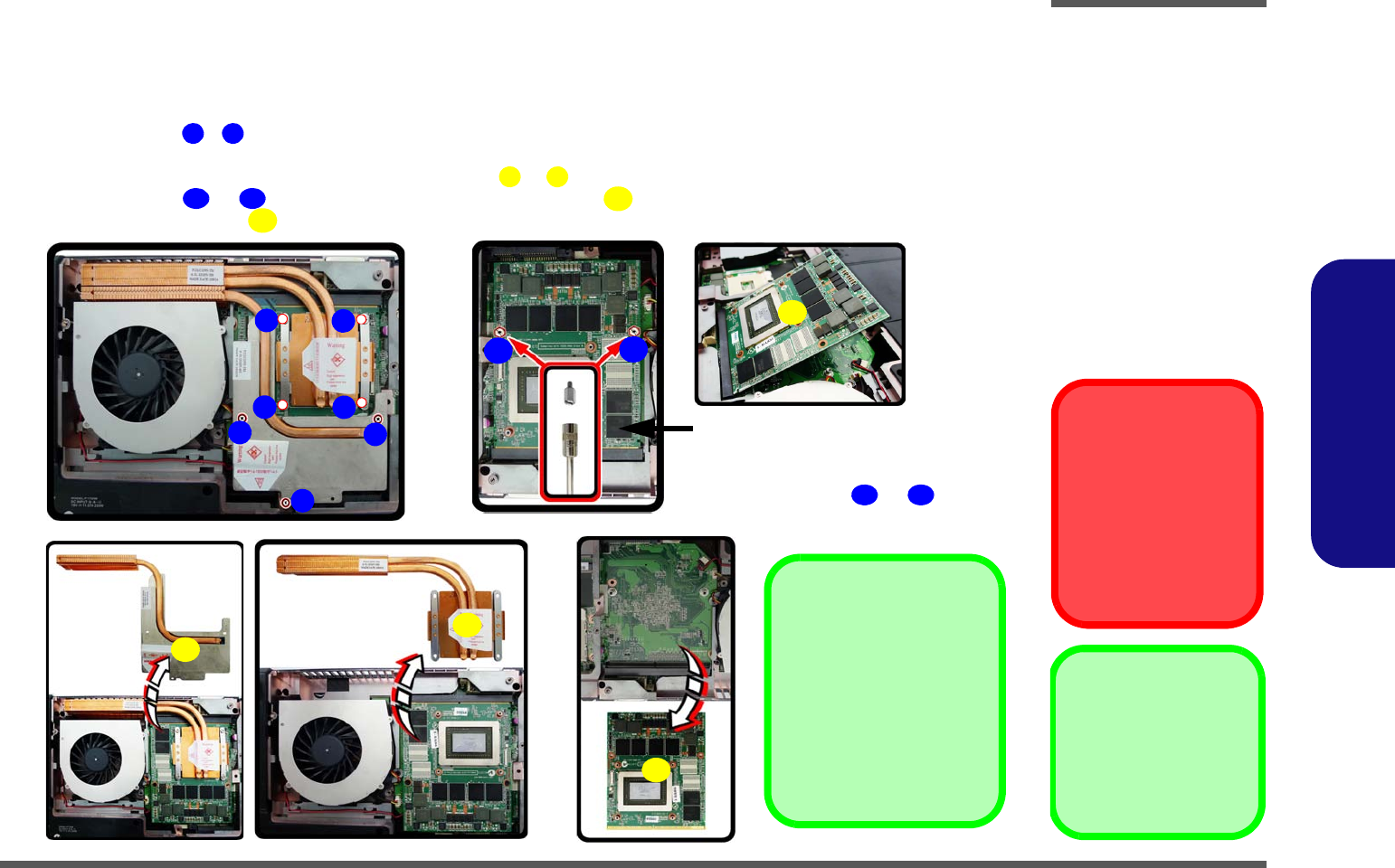

Figure 15
Video Card
Removal Procedure
a. Remove the screws in
the correct order.
b. Carefully remove the
heat sink units.
c. Remove the video card
screws. The video card
will pop up.
d. Remove the video card.
1
7
8
9
10
11
12
12
3
a.
2
14
67
5
9
12
c.
b.
8
d.
Heat Sink Screw Removal
and Insertion
Remove the screws from the
heat sink in the order indicated
here: 7-
6-5-4-3-2-1
.
When tightening the screws,
make sure that they are tight-
ened in the order:
1-2-3-4-5-6-7
.
15
10 11
9
c.
d.
12
Note:
Please use a hexagonal screwdriver
to remove screws & .
10
11
Disassembly
2 - 20 Removing and Installing the Video Card
2.Disassembly
Installing a New Video Card
1. Prepare to fit the video card into the slot by holding it at about a 30° angle (Figure 16e).
2. The card needs to be fully into the slot, and the video card and socket have a guide-key and pin which align to
allow the card to fit securely (Figure 16f).
3. Fit the connectors firmly into the socket, straight and evenly.
4. DO NOT attempt to push one end of the card in ahead of the other.
5. The card’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the socket
as it will go (none of the gold colored contact should be showing). DO NOT FORCE the card; it should fit without
much pressure.
6. Secure the card with screws & (Figure 15 on page 2 - 19).
7. Place the heat sink back on the card, and secure the screws in the order indicated in Figure 15 on page 2 - 19.
8. Attach the video card fan and secure with the screws as indicated in Figure 15 on page 2 - 19.
9. Reinsert the component bay cover, and secure with the screws as indicated in Figure 8 on page 2 - 12.
Figure 16
Installing a New
Video Card
e. Insert the video card at
a 30 degree angle.
f. Fit the connectors
straight and even, and
secure the card with
screws & .
10
11
12
e. f.
12
11
10
10
11
12. Video Card
•2 Screws
Caution
The heat sink, and video
card area in general,
contains parts which are
subject to high tempera-
tures. Allow the area
time to cool before re-
moving these parts.
Part Lists
A-1
A.Part Lists
Appendix A: Part Lists
This appendix breaks down the P150HM/P151HM1 series notebook’s construction into a series of illustrations. The
component part numbers are indicated in the tables opposite the drawings.
Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.
Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.
Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.
Part Lists
A - 2 Part List Illustration Location
A.Part Lists
Part List Illustration Location
The following table indicates where to find the appropriate part list illustration.
Table A- 1
Part List Illustration
Location
Parts W870CU
Top with Fingerprint page A - 3
Top without Fingerprint page A - 4
Bottom page A - 5
LCD page A - 6
COMBO page A - 7
DVD-Dual Drive page A - 8
2nd HDD page A - 9
Part Lists
Top with Fingerprint A - 3
A.Part Lists
Top with Fingerprint

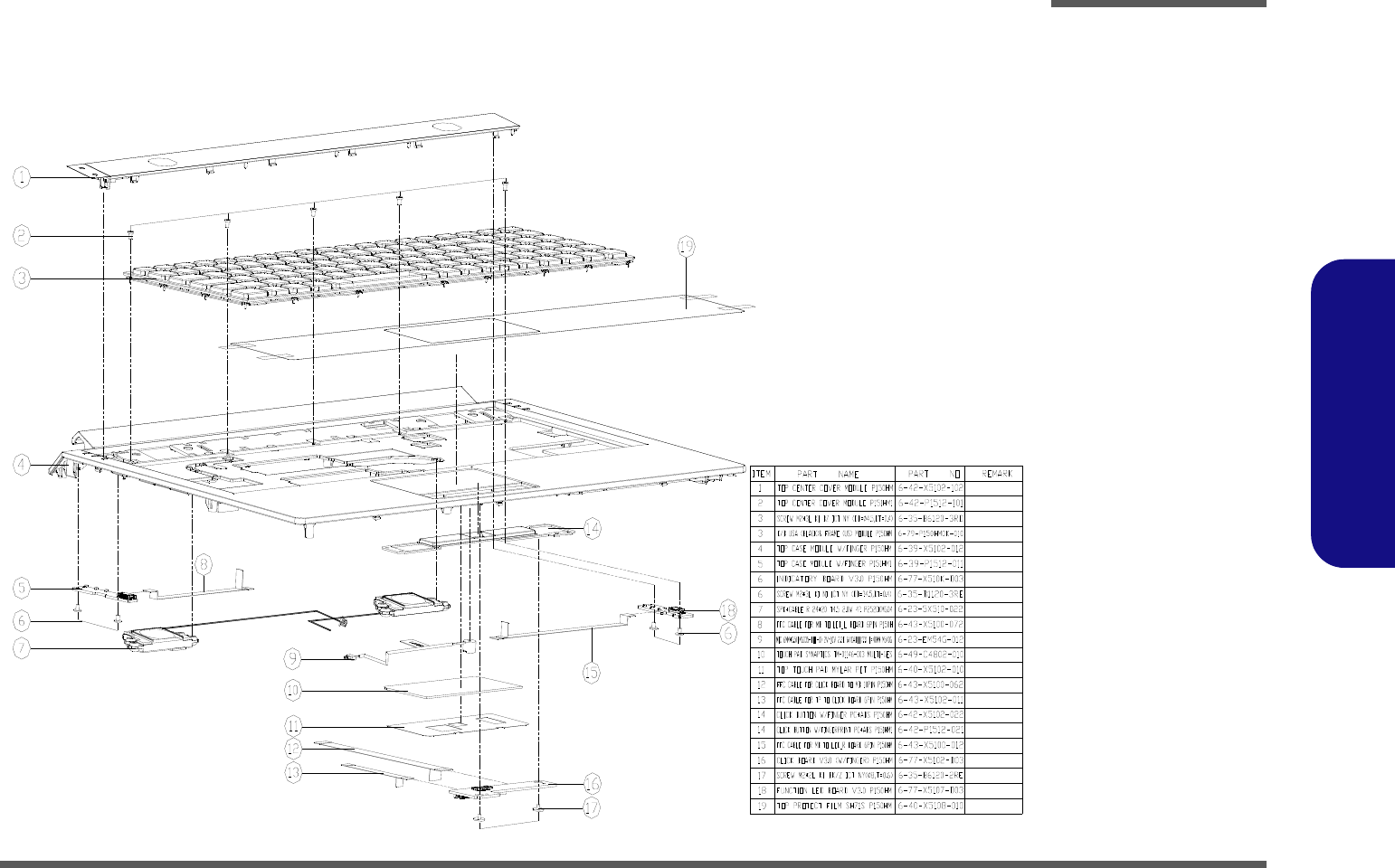

Figure A - 1
Top with
Fingerprint
Part Lists
A - 4 Top without Fingerprint
A.Part Lists
Top without Fingerprint

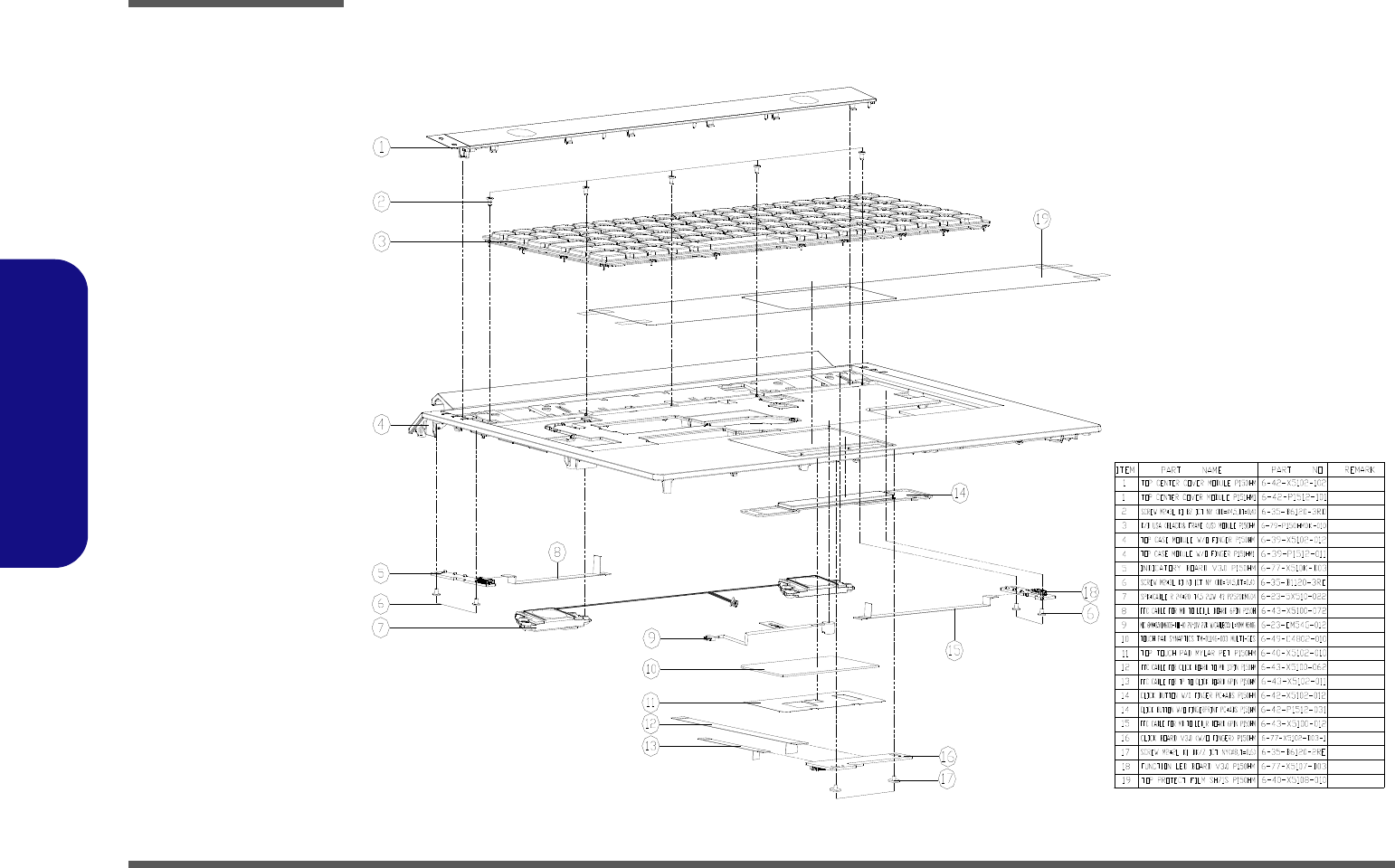

Figure A - 2
Top without
Fingerprint
Part Lists
Bottom A - 5
A.Part Lists
Bottom

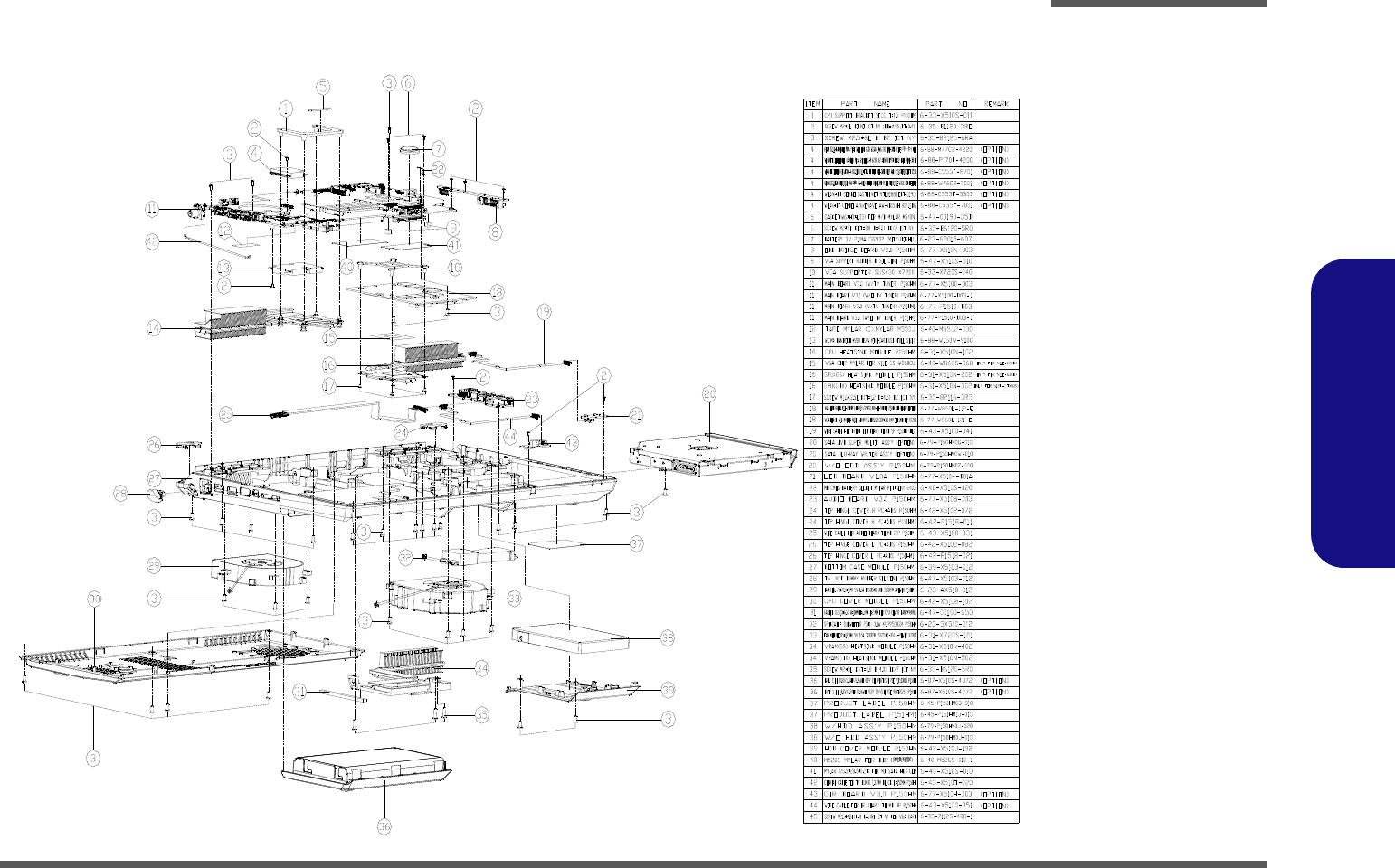

Figure A - 3
Bottom
Part Lists
A - 6 LCD
A.Part Lists
LCD

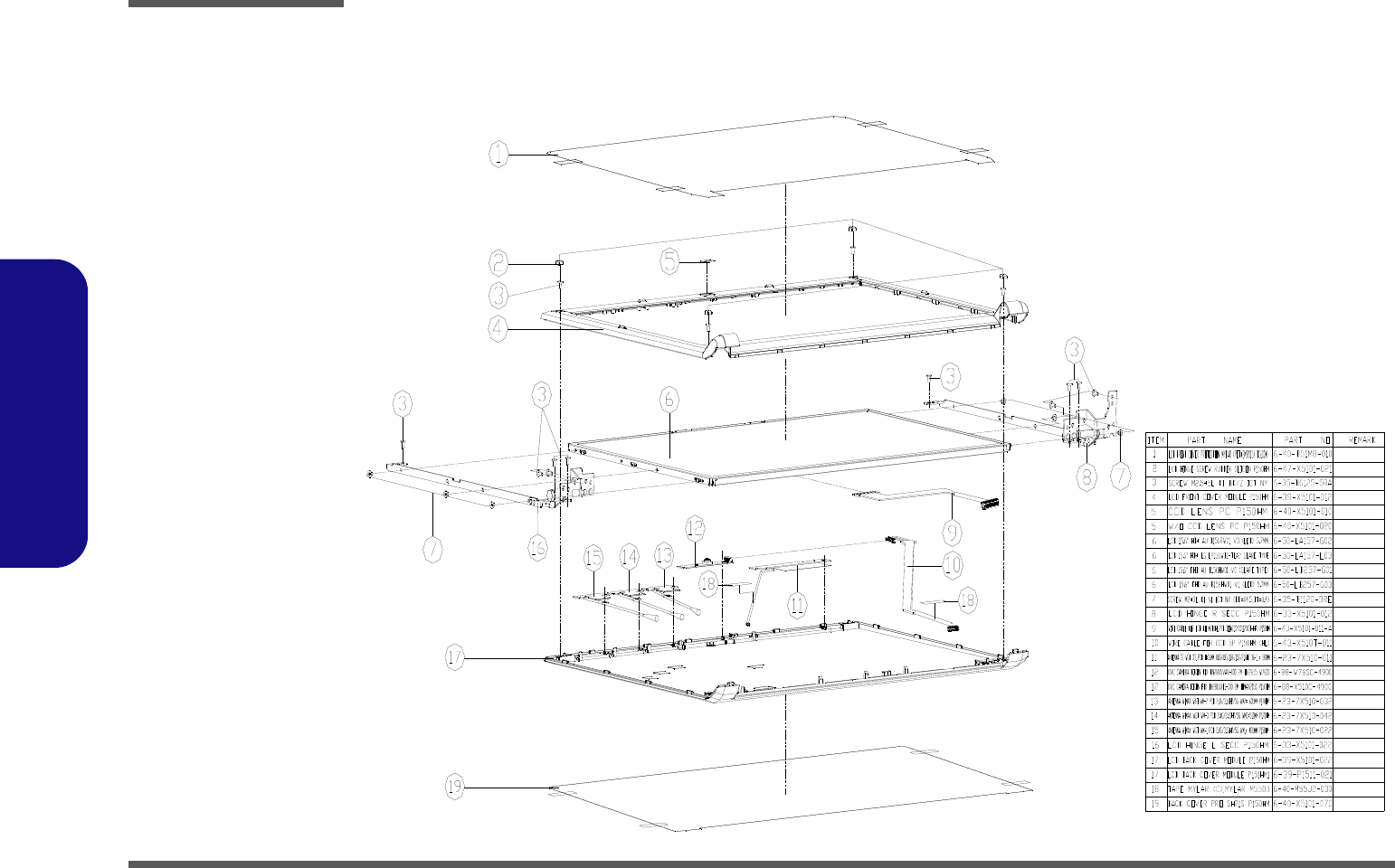

Figure A - 4
LCD
Part Lists
COMBO A - 7
A.Part Lists
COMBO
(祥和)

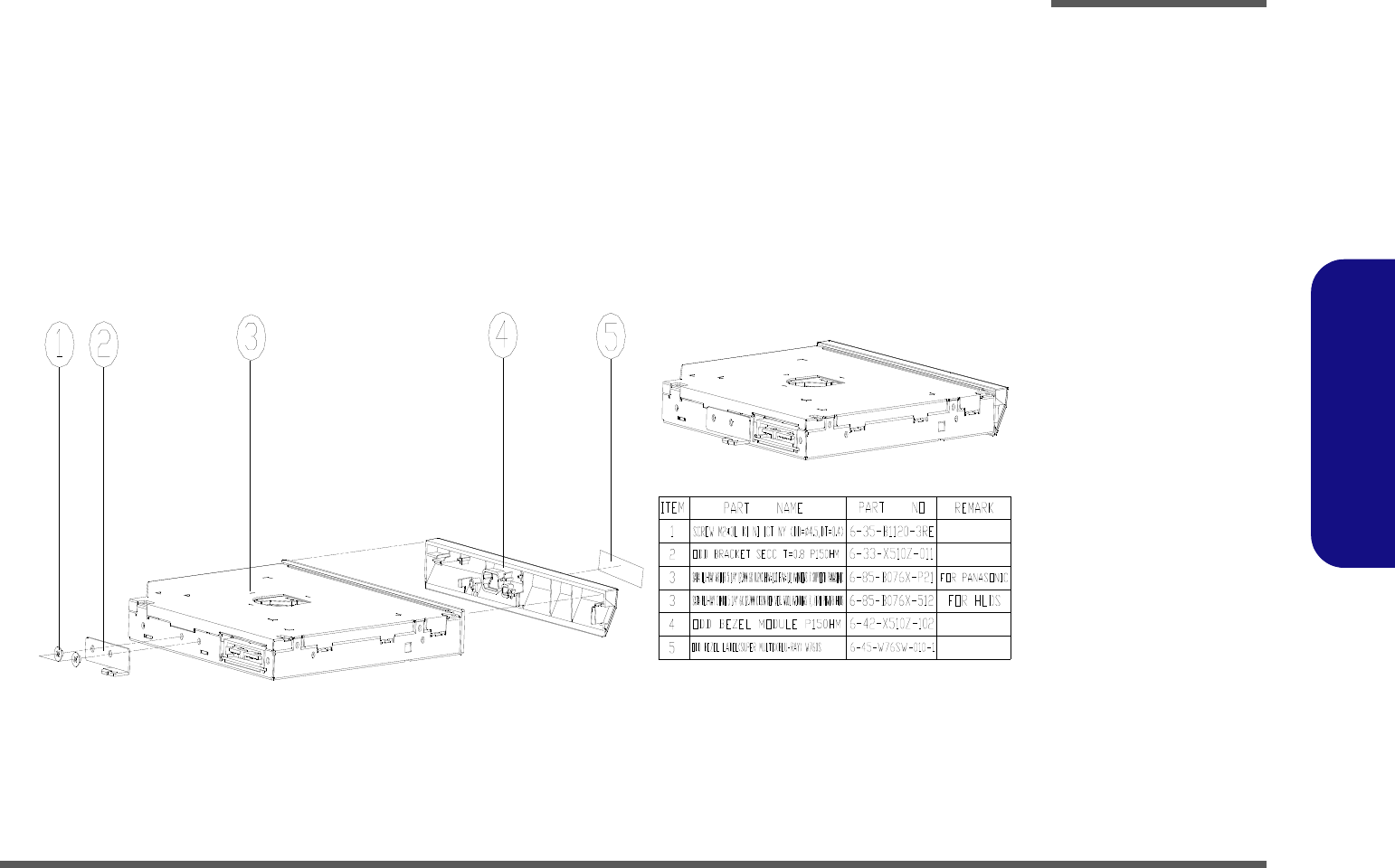

Figure A - 5
COMBO
Part Lists

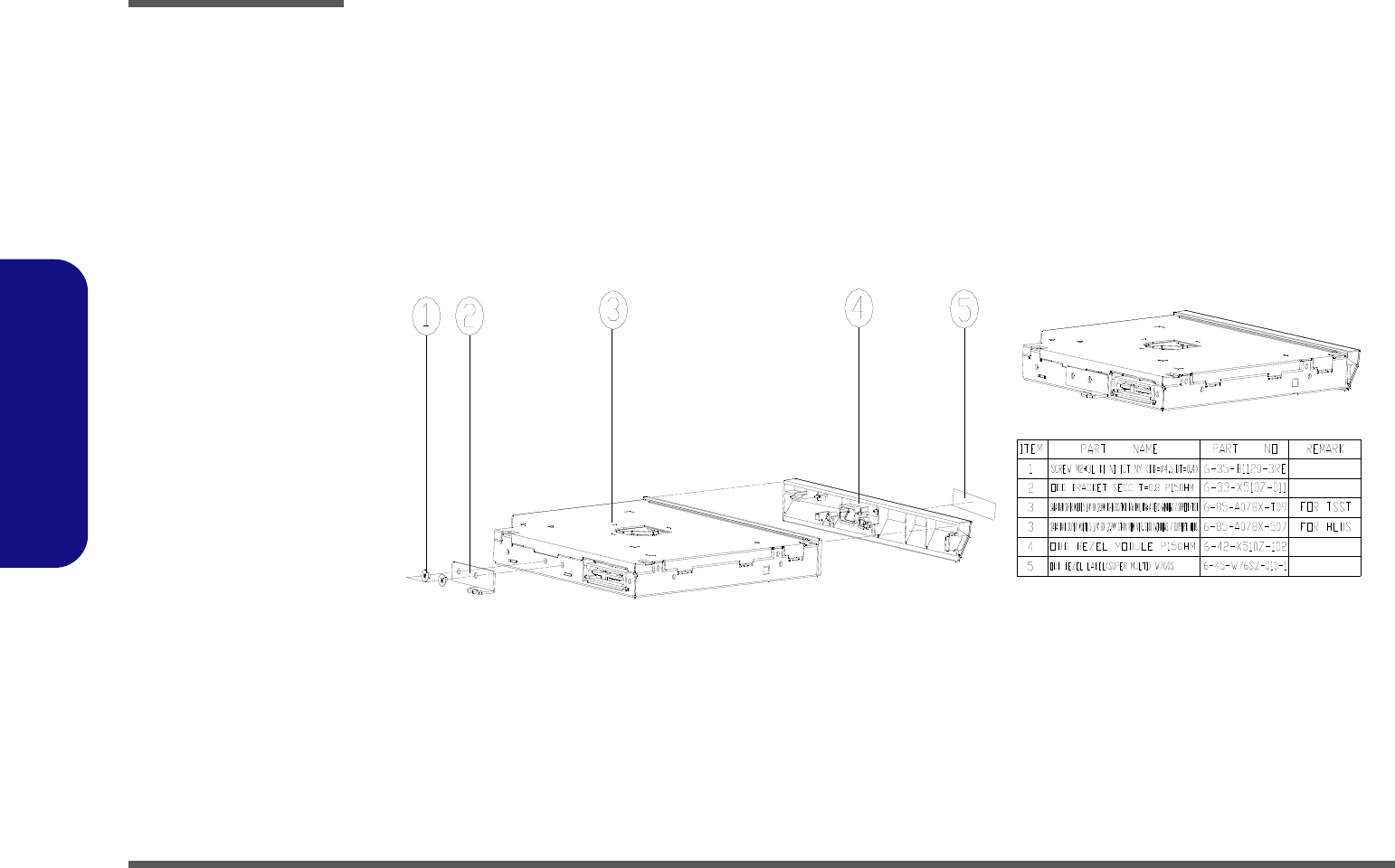

A - 8 DVD-Dual Drive
A.Part Lists
DVD-Dual Drive
(祥和)
Figure A - 6
DVD-Dual Drive
Part Lists
2nd HDD A - 9
A.Part Lists
2nd HDD
Figure A - 7
2nd HDD
Part Lists
A - 10
A.Part Lists
Schematic Diagrams
B-1
B.Schematic Diagrams
Appendix B: Schematic Diagrams
This appendix has circuit diagrams of the P150HM/P151HM1 notebook’s PCB’s. The following table indicates where
to find the appropriate schematic diagram.
Diagram - Page Diagram - Page Diagram - Page
System Block Diagram - Page B - 2 CougarPoint - M 4/9 - Page B - 22 Power 1.8VS - Page B - 42
Processor 1/7 - Page B - 3 CougarPoint - M 5/9 - Page B - 23 Power V-Core 1 - Page B - 43
Processor 2/7 - Page B - 4 CougarPoint - M 6/9 - Page B - 24 Power V-Core 2 - Page B - 44
Processor 3/7 - Page B - 5 CougarPoint - M 7/9 - Page B - 25 AC_In, Charger - Page B - 45
Processor 4/7 - Page B - 6 CougarPoint - M 8/9 - Page B - 26 Power 0.85VS - Page B - 46
Processor 5/7 - Page B - 7 CougarPoint - M 9/9 - Page B - 27 Audio Jack - Page B - 47
Processor 6/7 - Page B - 8 3G, CCD - Page B - 28 X5100 ODD Board - Page B - 48
Processor 7/7 - Page B - 9 Mini PCIE, LID - Page B - 29 X5100 Click Board - Page B - 49
DDRIII CHA SO-DIMM_0 - Page B - 10 LED, Hotkey, LID SW, Fan - Page B - 30 X5100 LED 1 Board - Page B - 50
DDRIII CHA SO-DIMM_1 - Page B - 11 RJ 45 - Page B - 31 X5100 LED 2 Board - Page B - 51
DDRIII CHB SO-DIMM_0 - Page B - 12 Codec Realtek ALC892 - Page B - 32 X5100 LED 3 Board - Page B - 52
DDRIII CHB SO-DIMM_1 - Page B - 13 APA2010D1-TPA2008D2 - Page B - 33 X7100 HDD & ODD Board - Page B - 53
MXM PCI-E - Page B - 14 KBC-ITE IT8519 - Page B - 34 CIR - Page B - 54
Panel, Inverter, CRT - Page B - 15 USB, TP, FP, MULTI-CONN - Page B - 35 X7100 LED Board - Page B - 55
1394_JMB380C - Page B - 16 Card Reader (JMC 251C) - Page B - 36 X7100 Click Board - Page B - 56
DVI - Page B - 17 USB 3.0 - Page B - 37 X7100 Fingerprint Board - Page B - 57
HDMI - Page B - 18 VDD3, VDD5 - Page B - 38 TPM - Page B - 58
CougarPoint - M 1/9 - Page B - 19 5V, 3.3V, 5VS, 3VS, 1.5VS, VIN1 - Page B - 39 X5100 HDD Board - Page B - 59
CougarPoint - M 2/9 - Page B - 20 Power 1.05VS, 1.05VS_VTT - Page B - 40
CougarPoint - M 3/9 - Page B - 21 Power 1.5V/VTT_MEM - Page B - 41
Table B - 1
Schematic
Diagrams
Version Note
The schematic dia-
grams in this chapter
are based upon ver-
sion 6-7P-X510D-001.
If your mainboard (or
other boards) are a lat-
er version, please
check with the Service
Center for updated di-
agrams (if required).
Schematic Diagrams
B - 2 System Block Diagram
B.Schematic Diagrams
System Block Diagram
Sheet 1 of 58
System Block
Diagram
Huron River System Block Diagram
FingerPrint
12 MHz
LCD
CON NECTOR
TOUCH PAD
DV II C O NN EC TO R
LPC
CARD
READER
SMART
BATTERY
HP
OU T
Front R
Function LED BOARD
Indicatory LED BOARD
X7100 ODD & 2nd HDD
BOARD
CIR BO ARD
<=8"
PCIE
27x27mm
989 Ball FCBGA
480 Mbps
SPI
0.5"~5.5"
1"~16"
DDRIII
INT MIC
25
MHz
Sandy Bridge
24 MHz
<12"
FDI
LINE
IN
SHEET 10~13
MI C
IN
SO-DIMM*4
32.768KHz
VCORE,
EC SM BUS
USB PORT
AZALIA LINK
FINGER PRINTER
ON CLICK BOARD
(U SB 1)
(U SB 9 ) USB PORT
0.1"~13
eS AT A
SYSTEM SMBUS
SA TA H DD
BIOS
SPI
LAN
IT E 85 19 BX
<12"
CougarPoint
Controller
Hub (PCH)
SPDIF
OUT
IN T. K /B
Azalia Codec
EC
AMP
TI TPA2008D2
0.5"~11"
<15"
5V,3.3V,5VS,3VS,
1.5VS,VIN1
1.5V,(VTT_MEM)
USB2.0
MXM 3.0
VDD3,VDD5
DMI*4
rPGA989/988
G711
32.768 KHz
JM IC RO
1.8VS
SATA I/II 3.0Gb/s
800/1067/1333 MHz
DDR3 / 1.5V
(Optional)
X5100M
P150HM-D03
REALTEK
ALC892
33 M Hz
THERMAL
SENSOR
100 MHz
PROCESSOR
SMART
FANx2
X5 10 0M
Au di o BO AR D
(RESERVE)
(U SB 0)
X5100M Audio BOARD
SLG8SP585
14.318 MHz
Clock Generator
PCIE*16
X5 10 0M
JMC251C
AU DI O BO AR D
RJ-45 7IN1
SOCKET
0.85VS
AC_IN,CHARGER
INT SPKER
USB
PORT
HD MI C o nn ec to r
TI TPA2008D2
AMP
TI TPA2008D2
Front L
(RESERVE)
AMP SURR L
SURR R
CENTER
SUBWOOFER
SOCKET
Mini PCIE Mini PCIE
SO CK ET
WLAN
US B3 .0
uP D7 20 20 0
USB3.0
PORT USB3.0
PORT
JM IC RO
JM B3 80 C
1394
PORT
(USB4)
(U SB 6)
3D IR
(USB5)
CC D
(USB2) (USB3)
X7100M
O DD & 2n d HD D
BOARD
3G CARD
FBVDDQ
1.05VS,1.05VS_VTT
PH ON E JA CK x 4, U SB x 1
AUDI O BOARD
VGFX_CORE
OD D BO AR D
AC-IN
POWER LED BOARD
CLICK & FINGER PRINTER
BOARD
Schematic Diagrams
Processor 1/7 B - 3
B.Schematic Diagrams
Processor 1/7
PEG _RX#_7
PEG _RX#_4
PEG _RX#_5
PEG _RX#_3
PEG _RX#_2
PEG _RX#_1
PEG _RX#_0
PEG _RX#_6
PL AC E NE A R U3
3
2
1
PEG _ IRC OM P_R
PEG _RX_2
PEG _RX_1
PEG _RX_0
PEG _RX_3
PEG _RX_7
PEG _RX_4
PEG _RX_5
PEG _RX_6
C 77 0.22u_10V_X5R _04
C 464 0.22u_10V_X5R _04
C 460 0.22u_10V_X5R _04
C 447 0.22u_10V_X5R _04
C 86 0.22u_10V_X5R _04
C 434 0.22u_10V_X5R _04
C 76 0.22u_10V_X5R _04
C 456 0.22u_10V_X5R _04
C 448 0.22u_10V_X5R _04
C 457 0.22u_10V_X5R _04
C 85 0.22u_10V_X5R _04
C 91 0.22u_10V_X5R _04
C 440 0.22u_10V_X5R _04
C 444 0.22u_10V_X5R _04
C 459 0.22u_10V_X5R _04
C 71 0.22u_10V_X5R _04
PEG _TX_8
PEG _TX_14
PEG _TX_12
PEG _TX_10
PEG _TX_9
C 441 0.22u_10V_X5R _04
C 98 0.22u_10V_X5R _04
PEG _TX_13
PEG _TX_11
PEG _TX_15
C 70 0.22u_10V_X5R _04
C 64 0.22u_10V_X5R _04
C 443 0.22u_10V_X5R _04
C 74 0.22u_10V_X5R _04
C 69 0.22u_10V_X5R _04
C 431 0.22u_10V_X5R _04
R 318 *0_04
C 87 0.22u_10V_X5R _04
C 467 0.22u_10V_X5R _04
C 65 0.22u_10V_X5R _04
C 465 0.22u_10V_X5R _04
C 78 0.22u_10V_X5R _04
C 88 0.22u_10V_X5R _04
C 68 0.22u_10V_X5R _04
C 94 0.22u_10V_X5R _04
C 66 0.22u_10V_X5R _04
C 63 0.22u_10V_X5R _04
C 433 0.22u_10V_X5R _04
C 453 0.22u_10V_X5R _04
C 92 0.22u_10V_X5R _04
C 466 0.22u_10V_X5R _04
R 95 24.9_1%_04
C 72 0.22u_10V_X5R _04
C451
0. 1u _ 1 0V _ X 7 R _ 0 4
C 96 0.22u_10V_X5R _04
C 462 0.22u_10V_X5R _04
C 458 0.22u_10V_X5R _04
C 437 0.22u_10V_X5R _04
C 95 0.22u_10V_X5R _04
Q2 0
G 711ST9U
OUT 1
VC C
2
GND
3
C 454 0.22u_10V_X5R _04
C 432 0.22u_10V_X5R _04
R315
24.9_1%_04
C 446 0.22u_10V_X5R _04
C 461 0.22u_10V_X5R _04
C 80 0.22u_10V_X5R _04
C 97 0.22u_10V_X5R _04
C 442 0.22u_10V_X5R _04
C 438 0.22u_10V_X5R _04
C452
0.1u_10V_X7R _04
C 89 0.22u_10V_X5R _04
C 445 0.22u_10V_X5R _04
C 90 0.22u_10V_X5R _04
C 75 0.22u_10V_X5R _04
C 79 0.22u_10V_X5R _04
C 455 0.22u_10V_X5R _04
C 439 0.22u_10V_X5R _04
C 93 0.22u_10V_X5R _04
C 73 0.22u_10V_X5R _04
C 463 0.22u_10V_X5R _04
PEG _RX#_14
PEG _RX#_15
PEG _RX#_12
PEG _RX#_13
PEG _RX#_11
PEG _RX#_10
PEG _RX#_9
PEG _RX#_8
PCI EXPRESS* - GRAPHICS
DMI
Intel(R) FDI
eDP
U32A
P Z98927-3641-01F
D MI_RX#[0]
B27
D MI_RX#[1]
B25
D MI_RX#[2]
A25
D MI_RX#[3]
B24
DMI_RX[0]
B28
DMI_RX[1]
B26
DMI_RX[2]
A24
DMI_RX[3]
B23
D MI_TX#[0]
G2 1
D MI_TX#[1]
E22
D MI_TX#[2]
F21
D MI_TX#[3]
D21
D MI_ TX[0 ]
G2 2
D MI_ TX[1 ]
D22
D MI_ TX[3 ]
C21 D MI_ TX[2 ]
F20
FD I0_TX#[0]
A21
FD I0_TX#[1]
H19
FD I0_TX#[2]
E19
FD I0_TX#[3]
F18
FD I1_TX#[0]
B21
FD I1_TX#[1]
C20
FD I1_TX#[2]
D18
FD I1_TX#[3]
E17
FD I0_TX[0]
A22
FD I0_TX[1]
G1 9
FD I0_TX[2]
E20
FD I0_TX[3]
G1 8
FD I1_TX[0]
B20
FD I1_TX[1]
C19
FD I1_TX[2]
D19
FD I1_TX[3]
F17
FD I0_FS YNC
J1 8
FD I1_FS YNC
J1 7
F D I_ INT
H20
FD I0_LSY NC
J1 9
FD I1_LSY NC
H17
PEG _I COM PI J22
PEG_IC OM PO J21
PEG _ RC OM PO H22
PEG_R X#[0] K33
PEG_R X#[1] M35
PEG_R X#[2] L34
PEG_R X#[3] J35
PEG_R X#[4] J32
PEG_R X#[5] H34
PEG_R X#[6] H31
PEG_R X#[7] G33
PEG_R X#[8] G30
PEG_R X#[9] F35
P E G _R X #[ 10 ] E3 4
P E G _R X #[ 11 ] E3 2
P E G _R X #[ 12 ] D33
P E G _R X #[ 13 ] D31
P E G _R X #[ 14 ] B3 3
P E G _R X #[ 15 ] C32
PEG_RX[0] J33
PEG_RX[1] L35
PEG_RX[2] K34
PEG_RX[3] H35
PEG_RX[4] H32
PEG_RX[5] G34
PEG_RX[6] G31
PEG_RX[7] F33
PEG_RX[8] F30
PEG_RX[9] E35
PEG_R X[ 10 ] E33
PEG_R X[ 11 ] F32
PEG_R X[ 12 ] D34
PEG_R X[ 13 ] E31
PEG_R X[ 14 ] C33
PEG_R X[ 15 ] B32
P EG_TX#[0] M29
P EG_TX#[1] M32
P EG_TX#[2] M31
P EG_TX#[3] L32
P EG_TX#[4] L29
P EG_TX#[5] K3 1
P EG_TX#[6] K2 8
P EG_TX#[7] J30
P EG_TX#[8] J28
P EG_TX#[9] H29
PEG_TX#[ 10] G27
PEG_TX#[ 11] E29
PEG_TX#[ 12] F27
PEG_TX#[ 13] D28
PEG_TX#[ 14] F26
PEG_TX#[ 15] E25
PEG _TX[0] M28
PEG _TX[1] M33
PEG _TX[2] M30
PEG _TX[3] L31
PEG _TX[4] L28
PEG _TX[5] K30
PEG _TX[6] K27
PEG _TX[7] J29
PEG _TX[8] J27
PEG _TX[9] H28
PEG_TX[10] G28
PEG_TX[11] E28
PEG_TX[12] F28
PEG_TX[13] D27
PEG_TX[14] E26
PEG_TX[15] D25
eDP _AU X
C15
eDP _AU X#
D15
eDP _TX[0]
C17
eDP _TX[1]
F16
eDP _TX[2]
C16
eDP _TX[3]
G1 5
eDP _TX#[0]
C18
eDP _TX#[1]
E16
eDP _TX#[2]
D16
eDP _TX#[3]
F15
eDP _C OMPIO
A18
eDP _H PD
B16 eDP _IC OM PO
A17
C 468 0.22u_10V_X5R _04
C 67 0.22u_10V_X5R _04
3.3V
1.05VS_VTT
1. 0 5 V S _ V T T
DM I_TXP321
DM I_TXP221 DM I_TXP121
DM I_TXP021
DM I_TXN221 DM I_T XN121
DM I_TXN021
DMI_RXN121
DMI_RXN021
DM I_TXN321
DMI_RXP021
DMI_RXN321
DMI_RXN221
DMI_RXP321
DMI_RXP221
DMI_RXP121
THE RM_VO LT 34 3.3V4,9,14,15,19,20,21,23,24, 25,26,28,29,30,32,35, 36,37,39,40,41,42
PEG _TXN 5 14
PEG _TXN 2 14
PEG _TXN 3 14
PEG _TXN 1 14
PEG _TXN 0 14
PEG _TXN 7 14
PEG _TXP6 14
PEG _TXN 4 14
PEG _TXN 6 14
PEG _TXP7 14
PEG _TXP4 14
PEG _TXP0 14
PEG _TXP3 14
PEG _TXP2 14
PEG _TXP5 14
PEG _TXP1 14
PEG _TXN 10 14
PEG _TXN 11 14
1.05VS_VTT4,6, 24,25,26,40,43
PEG _TXN 8 14
PEG _TXN 15 14
PEG _TXN 13 14
PEG _TXN 12 14
PEG _TXN 14 14
PEG _TXN 9 14
PEG _TXP12 14
PEG _TXP8 14
PEG _TXP11 14
PEG _TXP14 14
PEG _TXP13 14
PEG _TXP9 14
PEG _TXP15 14
PE G _ RXN1 2 1 4
PE G _ RXN1 0 1 4
PEG _TXP10 14
PE G _ RXN1 1 1 4
PE G _ RXN1 5 1 4
PE G _ RX N9 1 4
PE G _ RXN1 3 1 4
PE G _ RXN1 4 1 4
PE G _ RX N8 1 4
PE G _ RX N4 1 4
PE G _ RX N2 1 4
PEG _RXP1 3 14
PEG _RXP1 5 14
PEG _RXP1 2 14
PE G _ RX N7 1 4
PE G _ RX N1 1 4
PE G _ RX N3 1 4
PEG _RXP1 1 14
PEG _RXP1 0 14
PE G _ RX N5 1 4
PE G _ RX N6 1 4
PE G _ RX N0 1 4
PEG _RXP9 14
PEG _RXP1 4 14
PEG _RXP8 14
PEG _RXP2 14
PEG _RXP4 14
PEG _RXP5 14
PEG _RXP7 14
PEG _RXP6 14
PEG _RXP0 14
PEG _RXP3 14
PEG _RXP1 14
An a lo g Th er ma l Se ns or
CAD NOTE: PEG_ICOMPI and RCOMPO signals
should be shorted and routed with
- max length = 500 mils
- typical impedance = 43 mohms
PEG_ICOMPO signals should be routed with
- max length = 500 mils
- typical impedance = 14.5 mohms
20 mil
Q41
*T M P 2 0
NC 1
GN D 2
VO 3
GN D
5
VCC
4
SC70-5 & SC70-3
Co Lay
1:2 (4mils:8mils)
CAD NOTE: DP_COMPIO and ICOMPO signals
should be shorted near balls and routed with
- typical impedance < 25 mohms
PEG _TX#_6
PEG _TX#_2
PEG _TX#_5
PEG _TX#_7
PEG _TX#_3
PEG _TX#_0
PEG _TX#_1
PEG _TX#_4
Sandy Bridge Processor 1/7 ( DMI,PEG,FDI )
DP Compensation Signal
PEG _TX#_15
PEG _TX#_11
PEG _TX#_8
PEG _TX#_9
PEG _TX#_12
PEG _TX#_14
PEG _TX#_10
PEG _TX#_13
PEG _TX_0
PEG _TX_6
PEG _TX_4
PEG _TX_2
PEG _TX_1
PEG _TX_5
PEG _TX_3
PEG _TX_7
R420
1K_04
PEG Compensation Signal
PEG _RX_15
PEG _RX_12
PEG _RX_13
PEG _RX_14
PEG _RX_10
PEG _RX_9
PEG _RX_8
PEG _RX_11
Sheet 2 of 58
Processor 1/7
Schematic Diagrams

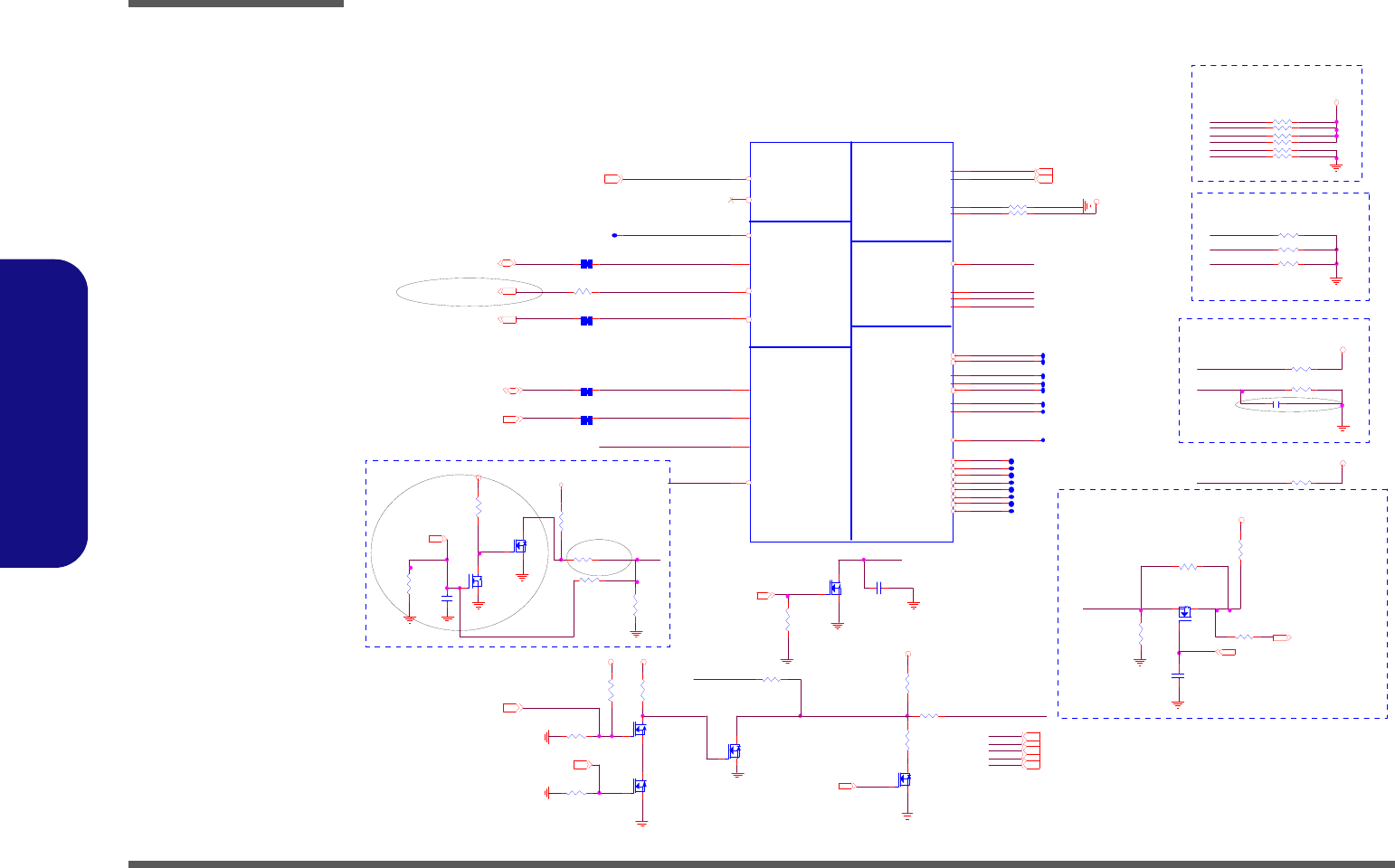

B - 4 Processor 2/7
B.Schematic Diagrams
Processor 2/7
R4910K_1% _04
C4 9 4
*47n_50V_04
R409 140_1%_04
3. 3 V S
R3 3 1
4.99K_1%_04
R67 51_04
R4262_04
R333 25.5_1%_04
D0 2A
R3 2 9
1K_04
R51 *10m il_short
R 308 51_04
R82 51_04
R 52 56_04
R41 *10m il_short
R 309 51_04
R334 200_1%_04
R 3 0 2 * 1 0m i l _s h o r t
Q24
R JU 003N03T106
G
DS
R84 *51_04
R327 *0_04
R50 *10m il_short
R76 51_04
1.5V
1.0 5 VS_ VT T 3 ,6 ,24,2 5,2 6,4 0 ,4 3
1.05VS_V TT
1.05 VS_ VTT
3.3V 3,9,14, 15,19,20,21,23,24,25,26,28,29,30,32,35,36,37,39,40,41,42
DRAMRST_CNTRL 9,20
DD R3 _D RAM RST# 1 0,1 1 ,1 2, 13
1.5V 9,10,11,12,13,26,30,37,39,41
C LK_E XP_ N 20
C LK_E XP_ P 20
1. 5 V S _ C P U 7 , 3 9
H_PROCHOT#43
CPU DRAM RST#
H_THRM TRIP#24
H_PECI24 , 3 4
H_PM_SYNC21
H_CPUPW RGD24
SUS B25,39,40,41,42
H_CPUPWRGD_R
R 127 130_04
XDP_DBR _R
BU F_ CPU_R ST#
R1 3 2
0_04
3.3VS
R3011K_04XDP_D BR_R
CLOCKS
MISCTHERMALPWR MANAGEMENT
DDR3
MISC
JTAG & BPM
U32 B
PZ 98927-3641-01F
SM_RC OM P[1] A5
SM_RC OM P[2] A4
SM_D RAM RST# R8
SM_RC OM P[0] AK1
BCLK# A27
BC LK A28
D PLL_R EF_S SCLK# A1 5
D PLL _REF_ SSC L K A1 6
CAT ER R#
AL33
PECI
AN33
PRO CH OT#
AL32
THERM TRIP#
AN32
SM_ DR AMP W RO K
V8
RESET#
AR33
PRDY# AP29
PREQ # AP2 7
TC K AR26
TM S AR27
TRST# AP30
TD I AR28
TDO AP2 6
DBR # AL 35
BPM#[0] AT28
BPM#[1] AR29
BPM#[2] AR30
BPM#[3] AT30
BPM#[4] AP32
BPM#[5] AR31
BPM#[6] AT31
BPM#[7] AR32
PM_SY NC
AM34
SKTOC C#
AN34
SNB_IVB#
C2 6
UN CO REPW R GO OD
AP33
R97
10K_04
3.3VS 10,11,12,13, 14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40, 43,58
V DDPW RGO OD _ R
SM_R CO MP_2
SM_R CO MP_1
SM_R CO MP_0
PLT_ R ST#14,23,58
XDP_TRST#
XDP_TCLK
VDDPWRGOOD_R
H_PRO CH OT# _D
H_CATERR#
XDP_TMS
CPU DR AMR ST #
XDP_PRE Q#
XDP_TDI_ R
XDP_TDO _R
R 3 28 1 K _0 4
S3 circuit:- DRAM_RST# to memory
sh ou ld b e hi gh d ur in g S 3
R118
*10K_04
3.3V
R1 0 7
*2 0 0 _0 4
R115
*100K_04
PM_ DR AM_PWR GD21 PM_DRAM_PWRGD
Q8
* MTN7002ZH S3
G
DS
Q1 0
*MTN 7002ZHS3
G
DS
Q11
* MTN7002ZH S3
G
DS
+1.5S_ CPU _PW RGD39,41
R103
*100K_04
XDP_PRD Y#
3.3V
H_PROCHOT#
C82 68P_50V_04
C 44 9 0. 1u _ 16 V _ Y 5 V _ 0 4
R 325 1K_04
1.05V S_VTT
H_CPUPW RGD_R
R1 1 7
20 0 _ 04
1. 5V S _ C P U
Add to connect to EC
DD R3 C om pe ns at io n Si gn al s
XD P _ TD O _ R
TRACE WIDTH 10MIL, LENGTH <500MILS
PU /P D fo r JT AG s ig na ls
XD P _ TM S
BUF_CPU _ RST#
P roc es so r Pu ll up s/ Pu ll d ow ns
XD P_ TR ST#
H_PROCHOT#
XD P _ TC L K
XD P_PREQ #
XD P _ TD I _ R
SM _R CO MP_1
SM _R CO MP_0
SM _R CO MP_2
H_ PR OCH OT# _ EC34
R34
100K_04
C6 0
68 P_50 V_ 04
R48
*7 5 0 _1 % _ 04
R 3 8 * 1 . 5K _1 % _ 04
Q3 7
MTN 7002ZHS3
G
DS
DR AMPW RGD _ CPU
Q38
MT N7 0 0 2Z H S 3
G
DS
1.05VS_VTT
R 322 1K_04
Q13
* MTN7002Z HS3
G
DS
Sandy Bridge Processor 2/7 ( CLK,MISC,JTAG )
R1 2 8
*3 9_ 0 4
R5 1 1
100K_04
BSS138 ( VGS 1.5V )
PR OC _SELET
R40 43.2_1% _04
Bu ff er ed r es et t o C PU
PM_DRAM_PWRGD
Q6
MTN 7002ZHS3
G
DS
PRO C_SELET24
R39
75_04
Sheet 3 of 58
Processor 2/7
Schematic Diagrams
Processor 3/7 B - 5
B.Schematic Diagrams
Processor 3/7
M_A _DQS#5
M_A _DQS#6
M_A _DQS#7
M_A _DQS#0
M_A _DQS#2
M_A _DQS#1
M_A _DQS#3
M_A _DQS#4
M_A _DQS4
M_A _DQS5
M_A _DQS6
M_A _DQS7
M_A _DQS0
M_A _DQS2
M_A _DQS1
M_A _DQS3
DDR SYSTEM MEMORY A
U32C
PZ98927-3641-01F
SA_ BS [ 0 ]
AE10
SA_ BS [ 1 ]
AF10
SA_ BS [ 2 ]
V6
SA_ C AS#
AE8
SA_ R AS#
AD 9
SA_WE#
AF9
SA_ C LK[ 0 ] AB6
SA_ C LK[ 1 ] AA5
SA_ C LK# [ 0 ] AA6
SA_ C LK# [ 1 ] AB5
SA_CKE[0] V9
SA_CKE[1] V1 0
SA_ C S#[ 0 ] AK3
SA_ C S#[ 1 ] AL3
SA_ODT[0] AH 3
SA_ODT[1] AG3
SA_ D QS[ 0 ] D4
SA _DQS#[0] C4
SA_ D QS[ 1 ] F6
SA _DQS#[1] G6
SA_ D QS[ 2 ] K3
SA _DQS#[2] J3
SA_ D QS[ 3 ] N6
SA _DQS#[3] M6
SA_ D QS[ 4 ] AL5
SA _DQS#[4] AL6
SA_ D QS[ 5 ] AM9
SA _DQS#[5] AM8
SA_ D QS[ 6 ] AR 11
SA _DQS#[6] AR 12
SA_ D QS[ 7 ] AM14
SA _DQS#[7] AM15
SA_ MA[ 0 ] AD 10
SA_ MA[ 1 ] W1
SA_ MA[ 2 ] W2
SA_ MA[ 3 ]
W7
SA_ MA[ 4 ] V3
SA_ MA[ 5 ] V2
SA_ MA[ 6 ] W3
SA_ MA[ 7 ] W6
SA_ MA[ 8 ]
V1
SA_ MA[ 9 ] W5
SA_ MA[ 1 0] AD 8
SA_ MA[ 1 1] V4
SA_ MA[ 1 2] W4
SA_ MA[ 1 3]
AF8
SA_ MA[ 1 4] V5
SA_ MA[ 1 5] V7
SA_ D Q[0]
C5
SA_ D Q[1]
D5
SA_ D Q[2]
D3
SA_ D Q[3]
D2
SA_ D Q[4]
D6
SA_ D Q[5]
C6
SA_ D Q[6]
C2
SA_ D Q[7]
C3
SA_ D Q[8]
F10
SA_ D Q[9]
F8
SA_ D Q[10]
G10
SA_ D Q[11]
G9
SA_ D Q[12]
F9
SA_ D Q[13]
F7
SA_ D Q[14]
G8
SA_ D Q[15]
G7
SA_ D Q[16]
K4
SA_ D Q[17]
K5
SA_ D Q[18]
K1
SA_ D Q[19]
J1
SA_ D Q[20]
J5
SA_ D Q[21]
J4
SA_ D Q[22]
J2
SA_ D Q[23]
K2
SA_ D Q[24]
M8
SA_ D Q[25]
N10
SA_ D Q[26]
N8
SA_ D Q[27]
N7
SA_ D Q[28]
M10
SA_ D Q[29]
M9
SA_ D Q[30]
N9
SA_ D Q[31]
M7
SA_ D Q[32]
AG6
SA_ D Q[33]
AG5
SA_ D Q[34]
AK6
SA_ D Q[35]
AK5
SA_ D Q[36]
AH 5
SA_ D Q[37]
AH 6
SA_ D Q[38]
AJ 5
SA_ D Q[39]
AJ 6
SA_ D Q[40]
AJ 8
SA_ D Q[41]
AK8
SA_ D Q[42]
AJ 9
SA_ D Q[43]
AK9
SA_ D Q[44]
AH 8
SA_ D Q[45]
AH 9
SA_ D Q[46]
AL9
SA_ D Q[47]
AL8
SA_ D Q[48]
AP11
SA_ D Q[49]
AN11
SA_ D Q[50]
AL12
SA_ D Q[51]
AM12
SA_ D Q[52]
AM11
SA_ D Q[53]
AL11
SA_ D Q[54]
AP12
SA_ D Q[55]
AN12
SA_ D Q[56]
AJ 1 4
SA_ D Q[57]
AH14
SA_ D Q[58]
AL15
SA_ D Q[59]
AK15
SA_ D Q[60]
AL14
SA_ D Q[61]
AK14
SA_ D Q[62]
AJ 1 5
SA_ D Q[63]
AH15
SA_ C LK[ 2 ] AB4
SA_ C LK# [ 2 ] AA4
SA_ C LK[ 3 ] AB3
SA_ C LK# [ 3 ] AA3
SA_CKE[2] W9
SA_CKE[3] W10
SA_ C S#[ 2 ] AG1
SA_ C S#[ 3 ] AH 1
SA_ODT[2] AG2
SA_ODT[3] AH 2
M_B_DQS#5
M_B_DQS#4
M_B_DQS#6
DDR SYSTEM MEMORY B
U32D
PZ98927-3641-01F
SB_BS[0]
AA9
SB_BS[1]
AA7
SB_BS[2]
R6
SB_ C AS #
AA 10
SB_ R AS #
AB8
SB_WE#
AB9
SB_ C L K[ 0] AE2
SB_ C L K[ 1] AE1
SB _CLK#[0] AD 2
SB _CLK#[1] AD 1
SB_ C KE[ 0 ] R9
SB_ C KE[ 1 ] R10
SB_ODT[0] AE4
SB_ODT[1] AD 4
SB _DQS[4] AN 6
SB_DQS#[4] AN 5
SB _DQS[5] AP8
SB_DQS#[5] AP9
SB _DQS[6] AK11
SB_DQS#[6] AK12
SB _DQS[7] AP14
SB_DQS#[7] AP15
SB _DQS[0] C7
SB_DQS#[0] D7
SB _DQS[1] G3
SB_DQS#[1] F3
SB _DQS[2] J6
SB_DQS#[2] K6
SB _DQS[3] M3
SB_DQS#[3] N3
SB_ MA[ 0 ] AA8
SB_ MA[ 1 ] T7
SB_ MA[ 2 ] R7
SB_ MA[ 3 ]
T6
SB_ MA[ 4 ] T2
SB_ MA[ 5 ] T4
SB_ MA[ 6 ] T3
SB_ MA[ 7 ] R2
SB_ MA[ 8 ]
T5
SB_ MA[ 9 ] R3
SB_ MA[ 1 0 ] AB7
SB_ MA[ 1 1 ] R1
SB_ MA[ 1 2 ] T1
SB_ MA[ 1 3 ]
AB10
SB_ MA[ 1 4 ] R5
SB_ MA[ 1 5 ] R4
SB_DQ[0]
C9
SB_DQ[1]
A7
SB_DQ[2]
D10
SB_DQ[3]
C8
SB_DQ[4]
A9
SB_DQ[5]
A8
SB_DQ[6]
D9
SB_DQ[7]
D8
SB_DQ[8]
G4
SB_DQ[9]
F4
SB_DQ[10]
F1
SB_DQ[11]
G1
SB_DQ[12]
G5
SB_DQ[13]
F5
SB_DQ[14]
F2
SB_DQ[15]
G2
SB_DQ[16]
J7
SB_DQ[17]
J8
SB_DQ[18]
K10
SB_DQ[19]
K9
SB_DQ[20]
J9
SB_DQ[21]
J10
SB_DQ[22]
K8
SB_DQ[23]
K7
SB_DQ[24]
M5
SB_DQ[25]
N4
SB_DQ[26]
N2
SB_DQ[27]
N1
SB_DQ[28]
M4
SB_DQ[29]
N5
SB_DQ[30]
M2
SB_DQ[31]
M1
SB_DQ[32]
AM5
SB_DQ[33]
AM6
SB_DQ[34]
AR3
SB_DQ[35]
AP3
SB_DQ[36]
AN3
SB_DQ[37]
AN2
SB_DQ[38]
AN1
SB_DQ[39]
AP2
SB_DQ[40]
AP5
SB_DQ[41]
AN9
SB_DQ[42]
AT5
SB_DQ[43]
AT6
SB_DQ[44]
AP6
SB_DQ[45]
AN8
SB_DQ[46]
AR6
SB_DQ[47]
AR5
SB_DQ[48]
AR9
SB_DQ[49]
AJ11
SB_DQ[50]
AT8
SB_DQ[51]
AT9
SB_DQ[52]
AH 11
SB_DQ[53]
AR8
SB_DQ[54]
AJ12
SB_DQ[55]
AH 12
SB_DQ[56]
AT11
SB_DQ[57]
AN 14
SB_DQ[58]
AR 14
SB_DQ[59]
AT14
SB_DQ[60]
AT12
SB_DQ[61]
AN 15
SB_DQ[62]
AR 15
SB_DQ[63]
AT15
SB_ C L K[ 2] AB2
SB _CLK#[2] AA2
SB_ C KE[ 2 ] T9
SB_ C L K[ 3] AA1
SB _CLK#[3] AB1
SB_ C KE[ 3 ] T10
SB_ C S# [ 0] AD 3
SB_ C S# [ 1] AE3
SB_ C S# [ 2] AD 6
SB_ C S# [ 3] AE6
SB_ODT[2] AD 5
SB_ODT[3] AE5
M_B_BS 012,13
M_A_D Q[63:0]10,11
M_B_DQS#7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_ A_ C KE1 1 0
M_B _DQ[63:0]12,13
M_B_BS 212,13
M_B_BS 112,13
M_A_CS#0 10
M_A_A[15:0] 10,11
M_A_C LK_DDR#110
M_A_C LK_DDR1 10
M_A_C LK_DDR0 10
M_ A_ C KE0 1 0
M_A_DQS#[7:0] 10,11
M_A_CS#1 10
M_A_DQS[ 7:0]10,11
M_A_ODT0 10
M_A_ODT1 10
M_A_C LK_DDR#010
M_ B_B6
M_ B_B5
M_ A_ R AS#10,11
M_ A_ C AS#10,11
M_ A_BS 210,11
M_ A_BS 110,11
M_ B_B0
M_ B_B1
M_ B_B2
M_ B_B3
M_ B_B4
M_ B_B[ 15:0] 12,13
M_B_D QS #[7:0] 12,13
M_ A_BS 010,11
M_A_WE#10,11
M_ B_B9
M_ B_B1 0
M_ B_B1 1
M_ B_B1 3
M_ B_B1 2
M_B_C AS#12,13
M_B_WE#12,13 M_B_R AS#12,13
M_B_D QS [7:0] 12,13
M_ B_B1 4
M_ B_B1 5
M_ B_B7
M_ B_B8
M_B_C KE0 13
M_B_CLK_DDR#1 13
M_B_CLK_DDR1 13
M_B_C KE1 13
M_B_ODT0 13
M_B_ODT1 13
M_B_CLK_DDR#0 13
M_B_CLK_DDR0 13
M_B_C S#1 13
M_B_C S#0 13
M_B_DQS6
M_B_DQS5
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS7
M_B_DQS0
M_B_DQS1
M_B_C KE3 12
M_B_C KE2 12
M_B_CLK_DDR#3 12
M_B_CLK_DDR3 12
M_B_CLK_DDR#2 12
M_B_CLK_DDR2 12
M_A_CS#2 11
M_A_CS#3 11
M_A_C LK_DDR2 11
M_ A_ C KE2 1 1
M_A_C LK_DDR#211
M_B_C S#3 12
M_B_C S#2 12
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ29
M_A_DQ4
M_A_DQ32
M_A_DQ31
M_A_DQ30
M_A_DQ37
M_A_DQ36
M_A_DQ35
M_A_DQ34
M_A_DQ33
M_A_DQ42
M_A_DQ41
M_A_DQ40
M_A_DQ39
M_A_DQ47
M_A_DQ46
M_A_DQ45
M_A_DQ44
M_A_DQ43
M_A_ODT2 11
M_A_ODT3 11
M_A_DQ51
M_A_DQ28
M_A_DQ50
M_A_DQ49
M_A_DQ38
M_A_DQ48
M_A_DQ55
M_A_DQ54
M_A_DQ53
M_A_DQ52
M_A_DQ5
M_A_DQ58
M_A_DQ57
M_A_DQ56
M_A_DQ6
M_A_DQ59
M_A_DQ63
M_A_DQ62
M_A_DQ61
M_A_DQ60
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ13
M_A_DQ12
M_A_DQ11
M_A_DQ19
M_A_DQ18
M_A_DQ17
M_A_DQ16
M_A_DQ15
M_A_DQ14
M_A_DQ10
M_A_DQ22
M_A_DQ21
M_A_DQ26
M_A_DQ25
M_A_DQ24
M_A_DQ23
M_A_DQ0
M_A_DQ20
M_A_DQ27
M_A_C LK_DDR#311
M_A_C LK_DDR3 11
M_ A_ C KE3 1 1
Sandy Bridge Processor 3/7 ( DDR3 )
M_B_DQ48
M_B_DQ47
M_B_DQ54
M_B_DQ53
M_B_DQ52
M_B_DQ51
M_B_DQ50
M_B_DQ49
M_B_DQ58
M_B_DQ57
M_B_DQ56
M_B_DQ55
M_B_DQ61
M_B_DQ60
M_B_DQ59
M_B_DQ11
M_B_DQ63
M_B_DQ62
M_B_DQ12
M_B_DQ3
M_B_DQ2
M_B_DQ1
M_B_DQ4
M_B_DQ6
M_B_DQ5
M_B_DQ9
M_B_DQ8
M_B_DQ7
M_B_DQ0
M_B_DQ10
M_B_DQ13
M_B_DQ14
M_B_DQ18
M_B_DQ17
M_B_DQ16
M_B_DQ15
M_B_DQ23
M_B_DQ22
M_B_DQ21
M_B_DQ20
M_B_DQ19
M_B_DQ28
M_B_DQ27
M_B_DQ26
M_B_DQ25
M_B_DQ24
M_B_DQ34
M_B_DQ33
M_B_DQ32
M_B_DQ31
M_B_DQ30
M_B_DQ29
M_B_DQ39
M_B_DQ38
M_B_DQ37
M_B_DQ36
M_B_DQ35
M_B_DQ44
M_B_DQ43
M_B_DQ42
M_B_DQ41
M_B_DQ40
M_B_DQ46
M_B_DQ45
M_B_ODT2 12
M_B_ODT3 12
M_A _A9
M_A _A4
M_A _A6
M_A _A5
M_A _A7
M_A _A8
M_A _A15
M_A _A0
M_A _A1
M_A _A2
M_A _A3
M_A _A10
M_A _A12
M_A _A11
M_A _A13
M_A _A14
Sheet 4 of 58
Processor 3/7
Schematic Diagrams

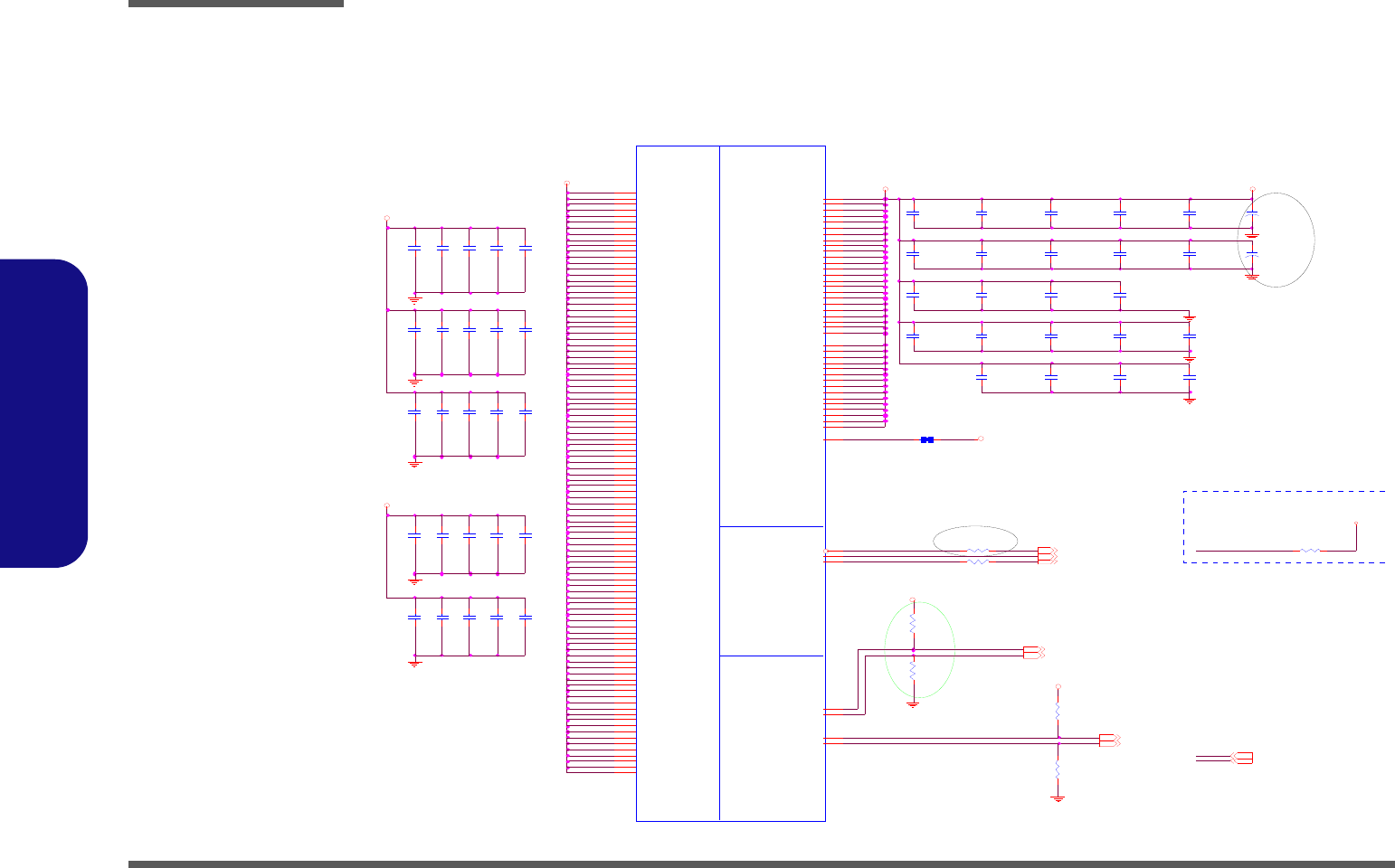

B - 6 Processor 4/7
B.Schematic Diagrams
Processor 4/7
C198
22u_6.3V_X5R_08
H_CPU_SVIDDAT_R
8. 5A
SVID Signals
C473
22u_6.3V_X5R_08
R300
100_04
C208
22u_6.3V_X5R_08
C484
*22u_6.3V_X5R_08
C482
*10u_6.3V_X5R_06
C190
22u_6. 3V_X5R_08
C479
22u_6.3V_X5R_08
C492
22u_6.3V_X5R_08
C185
22u_6. 3V_X5R_08
+
C181
330u_6. 3V_D
C189
22u_6.3V_X5R_08
C487
22u_6.3V_X5R_08
C493
22u_6. 3V_X5R_08
C481
22u_6.3V_X5R_08
C175
22u_6.3V_X5R_08
C186
22u_6.3V_X5R_08
C151
*10u_6.3V_X5R_06
C135
22u_6.3V_X5R_08
C472
22u_6.3V_X5R_08
C188
22u_6.3V_X5R_08
C475
*10u_6.3V_X5R_06
R68
100_04
C167
* 22u_6.3V_X5R_08
R53130_04
C128
* 10u_6.3V_X5R_06
C474
10u_6.3V_X5R_08
C488
22u_6.3V_X5R_08
C136
22u_6.3V_X5R_08
+
C180
330u_6. 3V_D
C483
* 22u_6.3V_X5R_08
C144
22u_6.3V_X5R_08
R5543.2_1%_04
C176
22u_6.3V_X5R_08
C164
10u_6.3V_X5R_08
C490
22u_6.3V_X5R_08
C169
22u_6.3V_X5R_08
POWER
CORE SUPPLY
PEG AND DDR
SENSE LINES SVID
U32F
PZ98927-3641-01F
VC C _ SEN SE AJ35
VS S_ SEN SE AJ34
VIDALERT# AJ29
VIDSCLK AJ30
VI D SO U T AJ28
VS SI O _ SEN SE A10
VC C1
AG35
VC C2
AG34
VC C3
AG33
VC C4
AG32
VC C5
AG31
VC C6
AG30
VC C7
AG29
VC C8
AG28
VC C9
AG27
VC C10
AG26
VC C11
AF3 5
VC C12
AF3 4
VC C13
AF3 3
VC C14
AF3 2
VC C15
AF3 1
VC C16
AF3 0
VC C17
AF2 9
VC C18
AF2 8
VC C19
AF2 7
VC C20
AF2 6
VC C21
AD35
VC C22
AD34
VC C23
AD33
VC C24
AD32
VC C25
AD31
VC C26
AD30
VC C27
AD29
VC C28
AD28
VC C29
AD27
VC C30
AD26
VC C31
AC35
VC C32
AC34
VC C33
AC33
VC C34
AC32
VC C35
AC31
VC C36
AC30
VC C37
AC29
VC C38
AC28
VC C39
AC27
VC C40
AC26
VC C41
AA35
VC C42
AA34
VC C43
AA33
VC C44
AA32
VC C45
AA31
VC C46
AA30
VC C47
AA29
VC C48
AA28
VC C49
AA27
VC C50
AA26
VC C51
Y35
VC C52
Y34
VC C53
Y33
VC C54
Y32
VC C55
Y31
VC C56
Y30
VC C57
Y29
VC C58
Y28
VC C59
Y27
VC C60
Y26
VC C61
V35
VC C62
V34
VC C63
V33
VC C64
V32
VC C65
V31
VC C66
V30
VC C67
V29
VC C68
V28
VC C69
V27
VC C70
V26
VC C71
U35
VC C72
U34
VC C73
U33
VC C74
U32
VC C75
U31
VC C76
U30
VC C77
U29
VC C78
U28
VC C79
U27
VC C80
U26
VC C81
R35
VC C82
R34
VC C83
R33
VC C84
R32
VC C85
R31
VC C86
R30
VC C87
R29
VC C88
R28
VC C89
R27
VC C90
R26
VC C91
P35
VC C92
P34
VC C93
P33
VC C94
P32
VC C95
P31
VC C96
P30
VC C97
P29
VC C98
P28
VC C99
P27
VC C100
P26
VCCIO1 AH13
VCCIO12 J11
VCCIO18 G12
VCCIO19 F14
VCCIO20 F13
VCCIO21 F12
VCCIO22 F11
VCCIO23 E14
VCCIO24 E12
VCCIO2 AH10
VCCIO3 AG10
VCCIO4 AC10
VCCIO5
Y10
VCCIO6 U10
VCCIO7 P10
VCCIO8 L10
VCCIO9 J14
VCCIO10 J13
VCCIO11 J12
VCCIO13 H14
VCCIO14 H12
VCCIO15 H11
VCCIO16 G14
VCCIO17 G13
VCCIO25 E11
VCCIO32 C12
VCCIO33 C11
VCCIO34 B14
VCCIO35 B12
VCCIO36 A14
VCCIO37 A13
VCCIO38 A12
VCCIO39 A11
VCCIO26 D14
VCCIO27 D13
VCCIO28 D12
VCCIO29 D11
VCCIO30 C14
VCCIO31
C13
VCC I O _SEN SE B10
VCCIO40 J23
C165
22u_6.3V_X5R_08
R330
10_04
C476
22u_6.3V_X5R_08
C191
22u_6.3V_X5R_08
C146
10u_6.3V_X5R_08
C471
22u_6.3V_X5R_08
C168
22u_6.3V_X5R_08
C143
10u_6.3V_X5R_08
C491
22u_6.3V_X5R_08
C489
22u_6. 3V_X5R_08
C166
10u_6.3V_X5R_08
R326
10_04
C193
22u_6.3V_X5R_08
C187
22u_6.3V_X5R_08
C470
10u_6.3V_X5R_08
C192
22u_6. 3V_X5R_08
C478
* 22u_6.3V_X5R_08
R88 *10mil _short
C145
*22u_6.3V_X5R_08
C134
22u_6.3V_X5R_08
VCORE
VCORE
1.05VS_VTT
1.05VS_V TT
VCORE
1. 05V S_VTT
1.05V S_VTT
1.05VS_V TT 3,4,24,25,26,40,43
VCORE 43,44
1.05VS_VTT
VC ORE
H_CPU_SVIDCLK43
VCO RE_VS S_SE NSE 43
VCO R E_ VC C _SEN SE 4 3
H_CPU_S VIDALRT# 43
D0 3
Sandy Bridge Processor 4/7 ( POWER )
H_CPU_SVIDALRT#_R
R540_04
VSS I O _SENSE 40
VC CIO_S ENSE 40
H_CPU_SVIDCLK H_CPU_SVIDDAT_R
P ROCES SOR UNCO RE PO WERPROC ESSO R CO RE PO WER
+V1.05S_VCCP_F
ICCMAX Maximum Processor SV 48
H_CPU_SVIDDAT 43
48A
Sheet 5 of 58
Processor 4/7
Schematic Diagrams

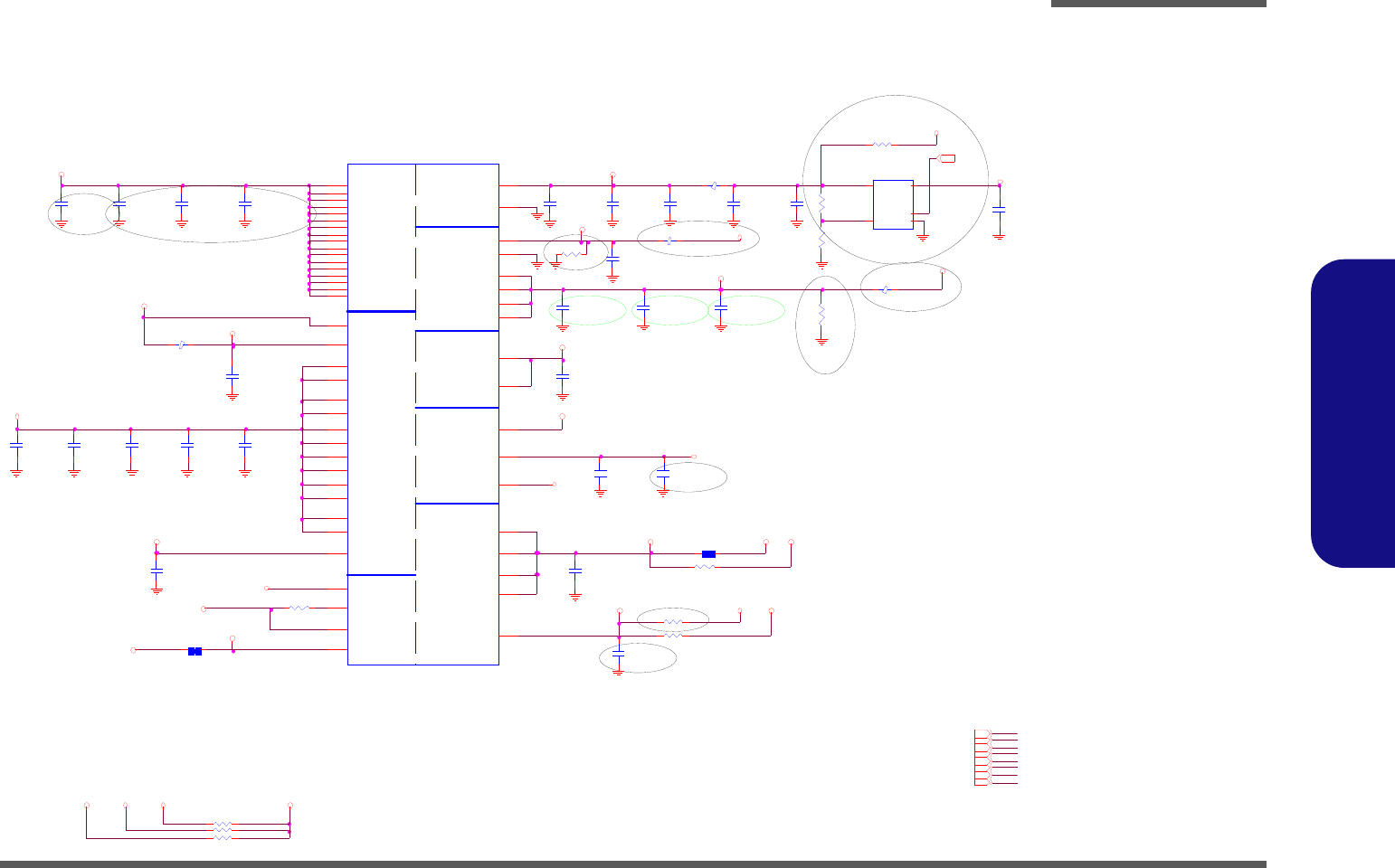

Processor 5/7 B - 7
B.Schematic Diagrams
Processor 5/7
Sandy Bridge Processor 5/7 ( GRAPHICS POWER )
R177 * 0_04
R410 * 0_04
1.5VS_CPU
VC C S A_ S EN S E 4 6
V_ SM_ V R EF
R321
0_04
C203
0. 1u_10V_X5R_04
R175
100_0 4
V_SM_VREF V_SM_ VRE F_CNT
POWER
GRAPHICS
DDR3 -1.5V RAILS SENSE
LINES
1.8V RAIL
SA RAIL
VREFMISC
U32G
PZ 98927- 3641-01F
SM_VREF AL1
V SS AXG_S EN S E AK34
V AXG_S EN S E AK35
VA XG1
AT 24
VA XG2
AT 23
VA XG3
AT 21
VA XG4
AT 20
VA XG5
AT 18
VA XG6
AT 17
VA XG7
AR24
VA XG8
AR23
VA XG9
AR21
VA XG10
AR20
VA XG11
AR18
VA XG12
AR17
VA XG13
AP 24
VA XG14
AP 23
VA XG15
AP 21
VA XG16
AP 20
VA XG17
AP 18
VA XG18
AP 17
VA XG19
AN24
VA XG20
AN23
VA XG21
AN21
VA XG22
AN20
VA XG23
AN18
VA XG24
AN17
VA XG25
AM24
VA XG26
AM23
VA XG27
AM21
VA XG28
AM20
VA XG29
AM18
VA XG30
AM17
VA XG31
AL 24
VA XG32
AL 23
VA XG33
AL 21
VA XG34
AL 20
VA XG35
AL 18
VA XG36
AL 17
VA XG37
AK 24
VA XG38
AK 23
VA XG39
AK 21
VA XG40
AK 20
VA XG41
AK 18
VA XG42
AK 17
VA XG43
AJ 24
VA XG44
AJ 23
VA XG45
AJ 21
VA XG46
AJ 20
VA XG47
AJ 18
VA XG48
AJ 17
VA XG49
AH24
VA XG50
AH23
VA XG51
AH21
VA XG52
AH20
VA XG53
AH18
VA XG54
AH17
VDDQ11 U4
VDDQ12 U1
VDDQ13 P7
VDDQ14 P4
VDDQ15 P1
VD D Q 1 AF7
VD D Q 2 AF4
VD D Q 3 AF1
VD D Q 4 AC7
VD D Q 5 AC4
VD D Q 6 AC1
VD D Q 7 Y7
VD D Q 8 Y4
VD D Q 9 Y1
VDDQ10 U7
VCCPLL1
B6
VCCPLL2
A6
VCCSA1 M27
VCCSA2 M26
VCCSA3 L26
VCCSA4 J26
VCCSA5 J25
VCCSA6 J24
VCCSA7 H26
VCCSA8 H25
VC CS A_ S ENS E H23
VCCS A_ VID1 C24
VCCPLL3
A2
FC_C22 C22
C2 40
1 0u_6.3V _X5R_08
C139
10u_6.3 V_X5R_0 8
C21 3
1u_ 6. 3 V_Y 5 V_04
C212
1u_6. 3V_Y5V_04
+
C126
330u_6. 3V_D
+
C502
3 30u_6.3V_D
VCCSA_VID1 46
C241
10u_6.3V _X5R_08
C243
10u _6.3V_X5R_08
C20 5
10u_6 .3V_ X5R_08
+
C239
330u_6 .3V_ D
C1 38
1 0u_6.3V _X5R_08
C469
10u_6.3V _X5R_08
C242
10u_6.3 V_X5R_0 8
1. 8VS
1.5 VS_CPU
0.8 5VS
1.05V S_VTT 3,4, 6,24, 25,26,4 0,43
1.5V S_ CPU 4,39
1.8V S 16,25, 42
1.5V 4,9,1 0,11,1 2,13,2 6,30,37 ,39,41
VCCSA 6A
R317 10K_04
C210
0.1 u_10V_ X5R_04
C209
0. 1u_10V_X5R_04
CAD No te: + V_S M_V RE F s hou ld
hav e 1 0 m il tr ace w idt h
0.85V S 46
C206
0. 1u_10V_X5R_04
R310 *0_04
VDDQ 10A
VCCPLL 1.2A
C245
0.1u_ 10V_X5R_04
D02
VCCSA_VID0 46
R31 1 10K_ 04
Q15
AO3402L
G
DS V_ S M_ VR E F_ C NT
R178
100_0 4
PS_S3CNTRL_1.5S 39
Sheet 6 of 58
Processor 5/7
Schematic Diagrams

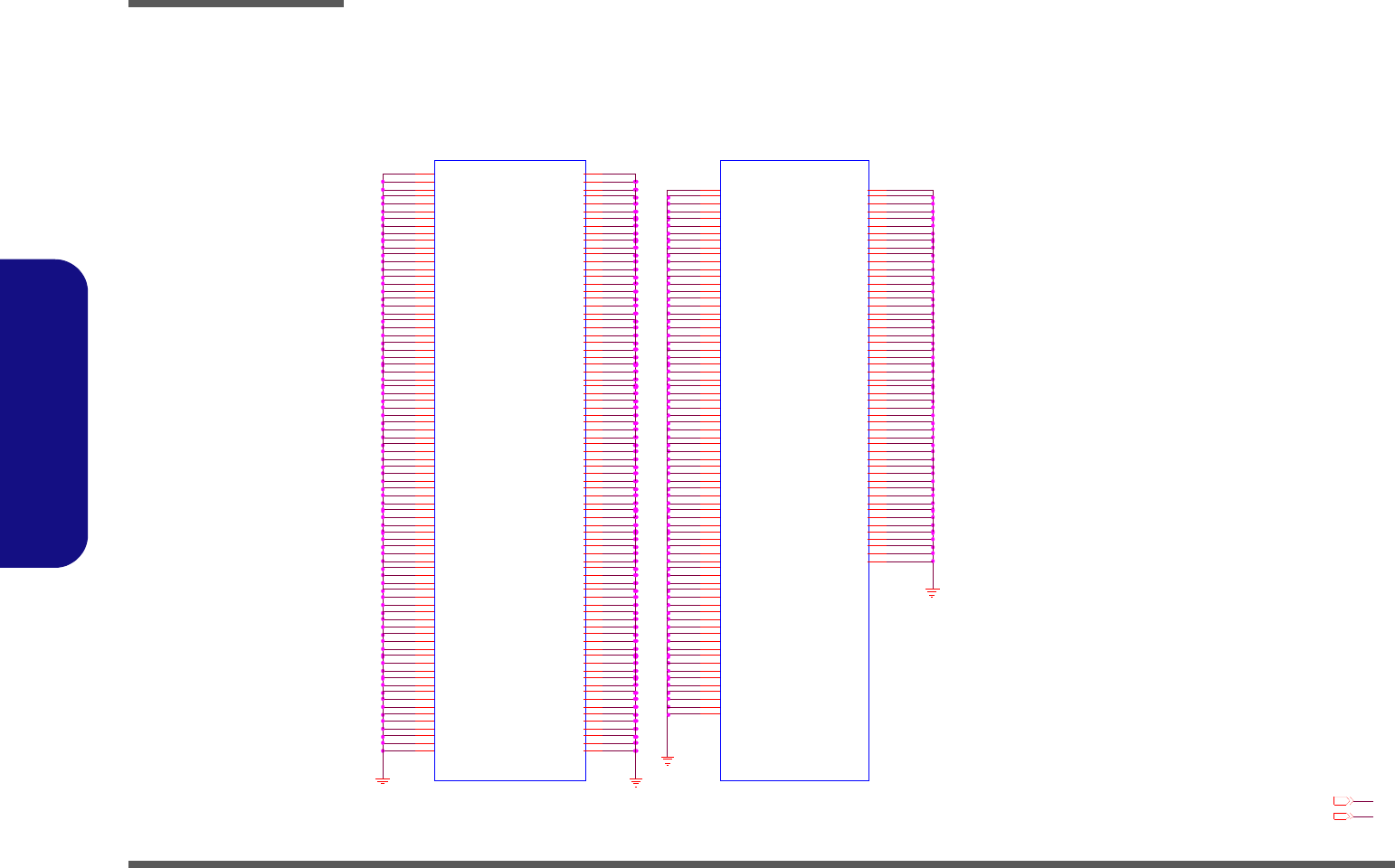

B - 8 Processor 6/7
B.Schematic Diagrams
Processor 6/7
3.3VS4,10,11, 12,13,14,15, 16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40, 43,58
VSS
U32H
PZ 98927-3641-01F
VSS 1
AT35
VSS 2
AT32
VSS 3
AT29
VSS 4
AT27
VSS 5
AT25
VSS 6
AT22
VSS 7
AT19
VSS 8
AT16
VSS 9
AT13
VSS 10
AT10
VSS 11
AT7
VSS 12
AT4
VSS 13
AT3
VSS 14
AR 25
VSS 15
AR 22
VSS 16
AR 19
VSS 17
AR 16
VSS 18
AR 13
VSS 19
AR 10
VSS 20
AR 7
VSS 21
AR 4
VSS 22
AR 2
VSS 23
AP3 4
VSS 24
AP3 1
VSS 25
AP2 8
VSS 26
AP2 5
VSS 27
AP2 2
VSS 28
AP1 9
VSS 29
AP1 6
VSS 30
AP1 3
VSS 31
AP1 0
VSS 32
AP7
VSS 33
AP4
VSS 34
AP1
VSS 35
AN 30
VSS 36
AN 27
VSS 37
AN 25
VSS 38
AN 22
VSS 39
AN 19
VSS 40
AN 16
VSS 41
AN 13
VSS 42
AN 10
VSS 43
AN 7
VSS 44
AN 4
VSS 45
AM 29
VSS 46
AM 25
VSS 47
AM 22
VSS 48
AM 19
VSS 49
AM 16
VSS 50
AM 13
VSS 51
AM 10
VSS 52
AM 7
VSS 53
AM 4
VSS 54
AM 3
VSS 55
AM 2
VSS 56
AM 1
VSS 57
AL34
VSS 58
AL31
VSS 59
AL28
VSS 60
AL25
VSS 61
AL22
VSS 62
AL19
VSS 63
AL16
VSS 64
AL13
VSS 65
AL10
VSS 66
AL7
VSS 67
AL4
VSS 68
AL2
VSS 69
AK3 3
VSS 70
AK3 0
VSS 71
AK2 7
VSS 72
AK2 5
VSS 73
AK2 2
VSS 74
AK1 9
VSS 75
AK1 6
VSS 76
AK1 3
VSS 77
AK1 0
VSS 78
AK7
VSS 79
AK4
VSS 80
AJ 2 5
VSS 81 AJ 22
VSS 82 AJ 19
VSS 83 AJ 16
VSS 84 AJ 13
VSS 85 AJ 10
VSS 86 AJ 7
VSS 87 AJ 4
VSS 88 AJ 3
VSS 89 AJ 2
VSS 90 AJ 1
VSS 91 AH35
VSS 92 AH34
VSS 93 AH32
VSS 94 AH30
VSS 95 AH29
VSS 96 AH28
VSS 97 AH26
VSS 98 AH25
VSS 99 AH22
VS S100 AH19
VS S101 AH16
VS S102 AH7
VS S103 AH4
VS S104 AG9
VS S105 AG8
VS S106 AG4
VS S107 AF6
VS S108 AF5
VS S109 AF3
VS S110 AF2
VS S111 AE35
VS S112 AE34
VS S113 AE33
VS S114 AE32
VS S115 AE31
VS S116 AE30
VS S117 AE29
VS S118 AE28
VS S119 AE27
VS S120 AE26
VS S121 AE9
VS S122 AD7
VS S123 AC9
VS S124 AC8
VS S125 AC6
VS S126 AC5
VS S127 AC3
VS S128 AC2
VS S129 AB35
VS S130 AB34
VS S131 AB33
VS S132 AB32
VS S133 AB31
VS S134 AB30
VS S135 AB29
VS S136 AB28
VS S137 AB27
VS S138 AB26
VS S139 Y9
VS S140 Y8
VS S141 Y6
VS S142 Y5
VS S143 Y3
VS S144 Y2
VS S145 W35
VS S146 W34
VS S147 W33
VS S148 W32
VS S149 W31
VS S150 W30
VS S151 W29
VS S152 W28
VS S153 W27
VS S154 W26
VS S155 U9
VS S156 U8
VS S157 U6
VS S158 U5
VS S159 U3
VS S160 U2
VSS
U32I
PZ98927-3641- 01F
V SS161
T3 5
V SS162
T3 4
V SS163
T3 3
V SS164
T3 2
V SS165
T3 1
V SS166
T3 0
V SS167
T2 9
V SS168
T2 8
V SS169
T2 7
V SS170
T2 6
V SS171
P9
V SS172
P8
V SS173
P6
V SS174
P5
V SS175
P3
V SS176
P2
V SS177
N3 5
V SS178
N3 4
V SS179
N3 3
V SS180
N3 2
V SS181
N3 1
V SS182
N3 0
V SS183
N2 9
V SS184
N2 8
V SS185
N2 7
V SS186
N2 6
V SS187
M3 4
V SS188
L3 3
V SS189
L3 0
V SS190
L2 7
V SS191
L9
V SS192
L8
V SS193
L6
V SS194
L5
V SS195
L4
V SS196
L3
V SS197
L2
V SS198
L1
V SS199
K35
V SS200
K32
V SS201
K29
V SS202
K26
V SS203
J3 4
V SS204
J3 1
V SS205
H3 3
V SS206
H3 0
V SS207
H2 7
V SS208
H2 4
V SS209
H2 1
V SS210
H1 8
V SS211
H1 5
V SS212
H1 3
V SS213
H1 0
V SS214
H9
V SS215
H8
V SS216
H7
V SS217
H6
V SS218
H5
V SS219
H4
V SS220
H3
V SS221
H2
V SS222
H1
V SS223
G3 5
V SS224
G3 2
V SS225
G2 9
V SS226
G2 6
V SS227
G2 3
V SS228
G2 0
V SS229
G1 7
V SS230
G1 1
V SS231
F34
V SS232
F31
V SS233
F29
VSS23 4 F22
VSS23 5 F19
VSS23 6 E30
VSS23 7 E27
VSS23 8 E24
VSS23 9 E21
VSS24 0 E18
VSS24 1 E15
VSS24 2 E13
VSS24 3 E10
VSS24 4 E9
VSS24 5 E8
VSS24 6 E7
VSS24 7 E6
VSS24 8 E5
VSS24 9 E4
VSS25 0 E3
VSS25 1 E2
VSS25 2 E1
VSS25 3 D35
VSS25 4 D32
VSS25 5 D29
VSS25 6 D26
VSS25 7 D20
VSS25 8 D17
VSS25 9 C34
VSS26 0 C31
VSS26 1 C28
VSS26 2 C27
VSS26 3 C25
VSS26 4 C23
VSS26 5 C10
VSS26 6 C1
VSS26 7 B22
VSS26 8 B19
VSS26 9 B17
VSS27 0 B15
VSS27 1 B13
VSS27 2 B11
VSS27 3 B9
VSS27 4 B8
VSS27 5 B7
VSS27 6 B5
VSS27 7 B3
VSS27 8 B2
VSS27 9 A35
VSS28 0 A32
VSS28 1 A29
VSS28 2 A26
VSS28 3 A23
VSS28 4 A20
VSS28 5 A3
Sandy Bridge Processor 6/7 ( GND )
1.5VS25,39
Sheet 7 of 58
Processor 6/7
Schematic Diagrams

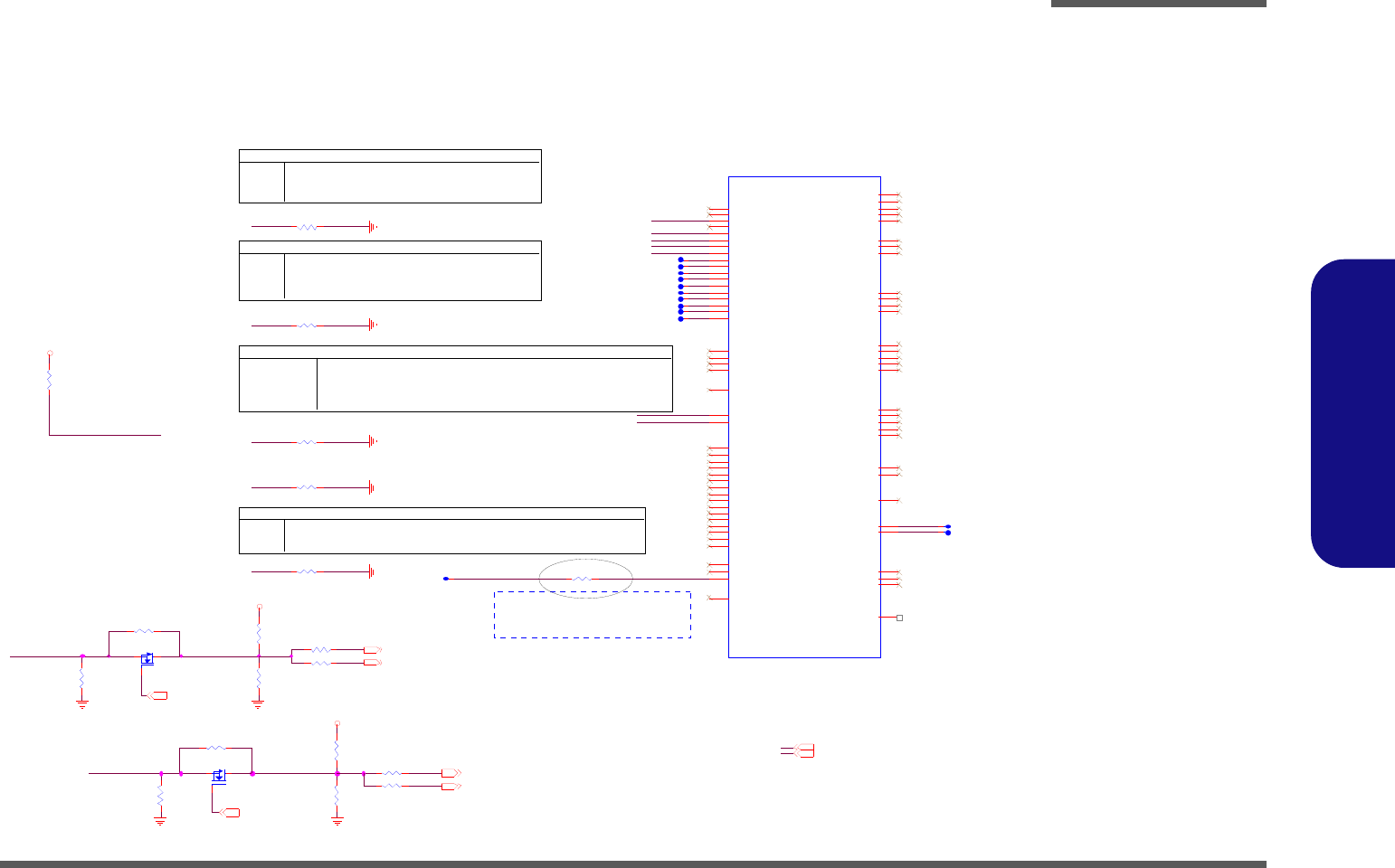

Processor 7/7 B - 9
B.Schematic Diagrams
Processor 7/7
Sheet 8 of 58
Processor 7/7
R 353 *0_04
H_CPU_RSVD7
R 362
1K_1%_04
Q2 6
*AO 3402L
G
DS
Q25
* AO3402L
G
DS
R339
*1K_04
R370
*1K _04
R 332
1K_1%_04
R369
1K_1%_04
R382
1K_1%_04
1.5V
DR AM RS T_ CN T RL 4 ,2 0
DR AMR ST_CN TRL 4,20
1. 5 V
H_CPU_RSVD6
CFG 2
On CRB
H_SNB_IVB#_PWRCTRL = low, 1.0V
H_SNB_IVB#_PWRCTRL = high/NC, 1.05V
CFG7
PEG DEFER TRAINING
1: (Default) PEG Train immediately following xxRESETB de assertion
0: PEG Wait for BIOS for training
H _SNB_IVB #_PW RC TRL
H_SNB_IVB#_PW RCTRL
CFG 4
3.3V 3,4,14,15,19,20,21,23,24,25, 26,28,29,30,32,35,36,37,39,40, 41,42
H_CPU_RSVD7
R 313 0_04
MVR EF_D Q_D IMM A 10,11
CFG 5
CFG 4
R375 *0_04
CFG 7
H_CPU_RSVD6
CFG 7
C FG S t ra ps fo r P ro c es so r
R74 *1K_04
R73 *1K_04
R77 *1K_04
R83 *1K_04
Sandy Bridge Processor 7/7 ( RESERVED )
RESERVED
U32E
PZ98927- 3641-01F
CF G[0 ]
AK28
CF G[1 ]
AK29
CF G[2 ]
AL26
CF G[3 ]
AL27
CF G[4 ]
AK26
CF G[5 ]
AL29
CF G[6 ]
AL30
CF G[7 ]
AM 31
CF G[8 ]
AM 32
CF G[9 ]
AM 30
CF G[1 0 ]
AM 28
CF G[1 1 ]
AM 26
CF G[1 2 ]
AN 28
CF G[1 3 ]
AN 31
CF G[1 4 ]
AN 26
CF G[1 5 ]
AM 27
CF G[1 6 ]
AK31
CF G[1 7 ]
AN 29
RSVD34 AM3 3
RSVD35 AJ 2 7
RSVD38 J16
RSVD42 AT34
RSVD39 H1 6
RSVD40 G1 6
RSVD41 AR35
RSVD43 AT33
RSVD45 AR34
RSVD56 AT2
RSVD57 AT1
RSVD58 AR1
RSVD46 B3 4
RSVD47 A3 3
RSVD48 A3 4
RSVD49 B3 5
RSVD50 C3 5
RSVD51 AJ 3 2
RSVD52 AK3 2
RSVD30 AE7
RSVD31 AK2
RSVD28 L7
RSVD29 AG7
RS VD 2 7
J15
RS VD 1 6
C30 RS VD 1 5
D23
RS VD 1 7
A31
RS VD 1 8
B30
RS VD 2 0
D30 RS VD 1 9
B29
RS VD 2 2
A30 RS V D2 1
B31
RS VD 2 3
C29
RS VD 2 4
J20
RSVD37 T8
RS VD6
B4
RS VD7
D1
RS VD8
F25
RS VD9
F24
RS VD 1 1
D24
RS VD 1 2
G25
RS VD 1 3
G24
RS VD 1 4
E23
RSVD32 W8
RSVD33 AT26
RS VD 2 5
B18
RSVD44 AP3 5
RS VD 1 0
F23
RS VD5
AJ26
RS VD1
AJ31
RS VD2
AH 31
RS VD3
AJ33
RS VD4
AH 33
KEY B1
RSVD53 AH27
RS VD 2 6
A19
RSVD54 AN35
RSVD55 AM3 5
R81 *1K_04
1.5V 4,10,11,12,13,26, 30,37,39,41
M VRE F_ DQ _D IM MB 1 2,1 3
R380 0_04
CFG 5
Display Port Presence Strap
1:(Default) Disabled; No Physical Display Port
attached to Embedded Display Port
0:Enabled; An external Display Port device is
connected to the Embedded Display Port
CFG4
R3 1 2
100K_04
3.3V
CFG 6
R3 7 4 * 0 _0 4 MVRE F_CA_D IMMB 12
CFG 6
CFG 2
1:(Default) Normal Operation; Lane #
definition matches socket pin map definition
0:Lane Reversed
CFG2
PEG Static Lane Reversal - CFG2 is for the 16x
CFG[6:5]
PCIE Port Bifurcation Straps
11: (Default) x16 - Device 1 functions 1 and 2 disabled
10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled
01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled
R 352 0_04
R 360 *0_04 MVREF_CA_DIMMA 10
Schematic Diagrams

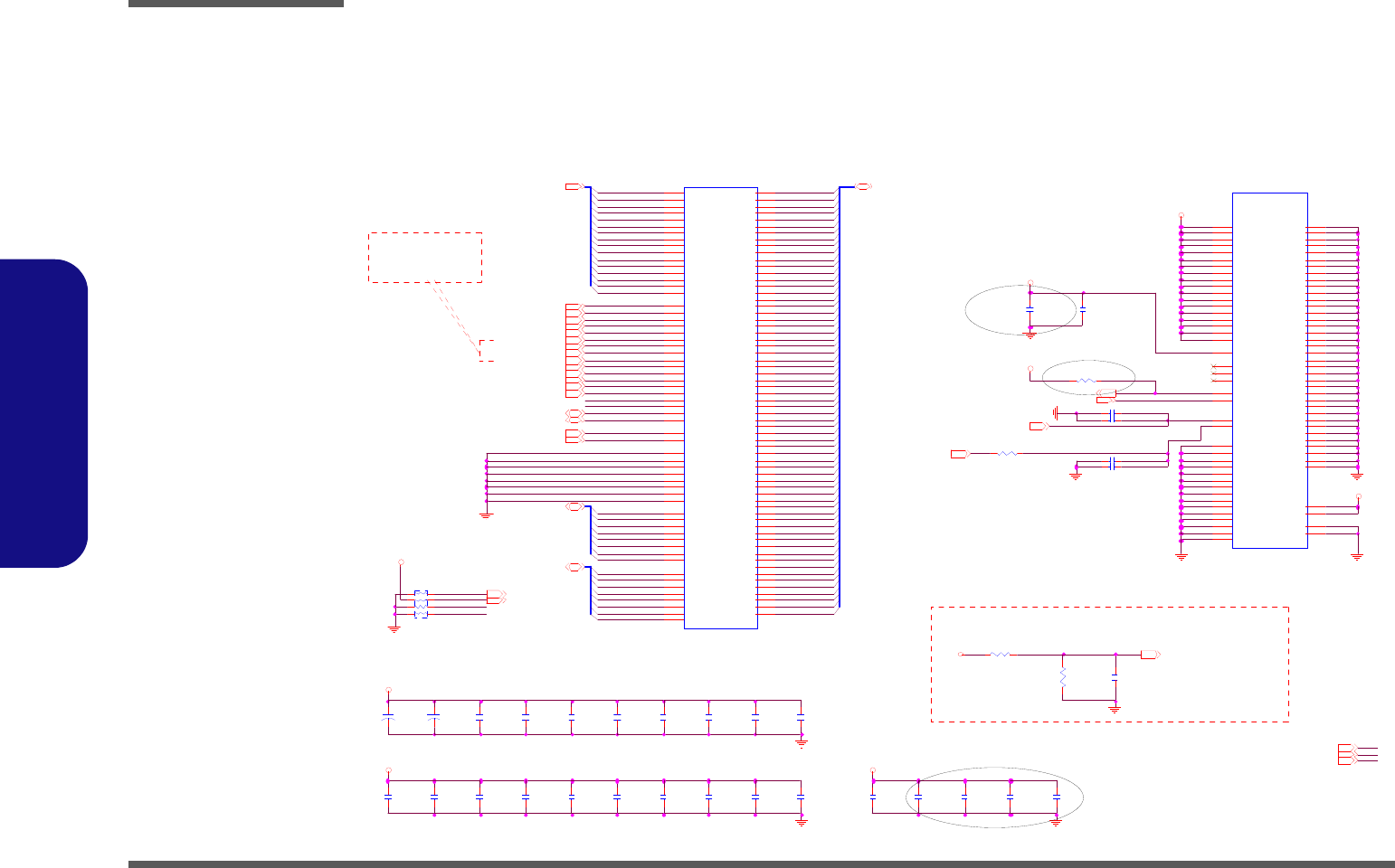

B - 10 DDRIII CHA SO-DIMM_0
B.Schematic Diagrams
DDRIII CHA SO-DIMM_0
Sheet 9 of 58
DDRIII CHA SO-
DIMM _0
Channel A SO-DIMM 0
M_ A_ D Q3
M_ A_ D Q2
M_ A_ D Q1
M_ A_ D Q3 2
M_ A_ D Q3 1
M_ A_ D Q3 0
M_ A_ D Q2 9
M_ A_ D Q4
M_ A_ D Q3 9
M_ A_ D Q3 7
M_ A_ D Q3 6
M_ A_ D Q3 5
M_ A_ D Q3 4
M_ A_ D Q3 3
M_ A_ D Q4 4
M_ A_ D Q4 3
M_ A_ D Q4 2
M_ A_ D Q4 1
M_ A_ D Q4 0
M_ A_ D Q4 9
M_ A_ D Q3 8
M_ A_ D Q4 7
M_ A_ D Q4 6
M_ A_ D Q4 5
M_ A_ D Q5 4
M_ A_ D Q5 3
M_ A_ D Q5 2
M_ A_ D Q5 1
M_ A_ D Q2 8
M_ A_ D Q5 0
M_ A_ D Q5 6
M_ A_ D Q6
M_ A_ D Q5
M_ A_ D Q4 8
M_ A_ D Q5 5
C579
1u_6.3V_04
M_ A_ D Q6 2
M_ A_ D Q6 1
M_ A_ D Q6 0
M_ A_ D Q5 8
M_ A_ D Q5 7
C664
0.1u_16V_Y5V_04
C 695
10u_10V _Y 5V_08
M_ A_ D Q1 1
M_ A_ D Q9
M_ A_ D Q8
M_ A_ D Q7
M_ A_ D Q5 9
M_ A_ D Q6 3
C334
1u_6.3V_Y 5V _04
C323
1u_6.3V_Y5V_04
M_ A_ D Q1 6
M_ A_ D Q1 5
M_ A_ D Q1 4
M_ A_ D Q1 3
M_ A_ D Q1 2
M_ A_ D Q2 1
M_ A_ D Q1 0
M_ A_ D Q1 9
M_ A_ D Q1 8
M_ A_ D Q1 7
C594
0.1u_10V _X5R _04
C639
1u_6.3V_04
M_ A_ D Q2 6
M_ A_ D Q2 5
M_ A_ D Q2 4
M_ A_ D Q2 3
M_ A_ D Q0
M_ A_ D Q2 2
C 576
0.1u_16V _Y 5V_04
+
C327
220u_4V_V_A
M_ A_ D Q2 0
M_ A_ D Q2 7
+
C 709
* 220u_4V_V_A
JD IMM3B
D D RSK- 20401-TR5B
VD D 1
75
VD D 2
76
VD D 3
81
VD D 4
82
VD D 5
87
VD D 6
88
VD D 7
93
VD D 8
94
VD D 9
99
VD D 10
100
VD D 11
105
VD D 12
106
VD D SPD
199
NC1
77
NC2
122
NCTEST
125
VR EF_D Q
1
VS S1
2
VS S2
3
VS S3
8
VS S4
9
VS S5
13
VS S6
14
VS S7
19
VS S8
20
VS S9
25
VS S10
26
VS S11
31
VS S12
32
VS S13
37
VS S14
38
VS S15
43
VSS16 44
VSS17 48
VSS18 49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26 72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
G2 GND2
G1 GND1
VTT2 204
VTT1 203
VR EF_C A
126
R ESET#
30 EV ENT#
198
VD D 13
111
VD D 14
112
VD D 16
118 VD D 15
117
VD D 17
123
VD D 18
124
C 638
0.1u_16V_Y5V_04
C696
10u_10V_Y5V_08
C663
0.1u_16V_Y5V_04
C667
0.1u_16V_Y 5V _04
C575
0.1u_16V_Y 5V _04
R44 2 * 10K _04
R440
1K_1% _04
C 592 0.1u_16V _Y 5V_04
C324
1u_6.3V_Y5V _04
R 443 1K_1%_04
C 330 0.1u_16V _Y 5V_04
C328
10u_10V_Y 5V _08
C595
0. 1u_16V_Y5V_04
C 333
1u_6.3V_Y5V_04
JD I M M 3 A
DD RSK -20401-TR5B
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/AP
107
A11
84
A12/BC#
83
A13
119
A14
80
A15
78
DQ 0 5
DQ 1 7
DQ 2 15
DQ 3 17
DQ 4 4
DQ 5 6
DQ 6 16
DQ 7 18
DQ 8 21
DQ 9 23
DQ10 33
DQ11 35
DQ12 22
DQ13 24
DQ14 34
DQ15 36
DQ16 39
DQ17 41
DQ18 51
DQ19 53
DQ20 40
DQ21 42
DQ22 50
DQ23 52
DQ24 57
DQ25 59
DQ26 67
DQ27 69
DQ28 56
DQ29 58
DQ30 68
DQ31 70
DQ32 129
DQ33 131
DQ34 141
DQ35 143
DQ36 130
DQ37 132
DQ38 140
DQ39 142
DQ40 147
DQ41 149
DQ42 157
DQ43 159
DQ44 146
DQ45 148
DQ46 158
DQ47 160
DQ48 163
DQ49 165
DQ50 175
DQ51 177
DQ52 164
DQ53 166
DQ54 174
DQ55 176
DQ56 181
DQ57 183
DQ58 191
DQ59 193
DQ60 180
DQ61 182
DQ62 192
DQ63 194
BA0
109
BA1
108
RAS#
110
WE#
113
CAS#
115
S0#
114
S1#
121
CKE0
73
CKE1
74
CK0
101
CK0#
103
CK1
102
CK1#
104
SDA
200 SCL
202 SA1
201 SA0
197
DM0
11
DM1
28
DM2
46
DM3
63
DM4
136
DM5
153
DM6
170
DM7
187
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
137
DQS5
154
DQS6
171
DQS7
188
DQS0#
10
DQS1#
27
DQS2#
45
DQS3#
62
DQS4#
135
DQS5#
152
DQS6#
169
DQS7#
186
ODT0
116
ODT1
120
BA2
79
C666
0.1u_16V_Y 5V_04
C 665
0.1u_16V _Y 5V_04
C593
0.1u_16V_Y 5V _04
C 580
1u_6.3V_04
C640
0.1u_16V_Y 5V_04
3.3VS
3.3VS
1.5V
1.5V
VTT_MEM
VTT_MEM
M_ A _ B S 15,11
M_A_CLK_DDR15
1.5V
1.5V
DD R3 _ DR AM RS T#4,11,12,13
M_ A _ O DT 15
M_ A _ R A S #5,11
M_A_CLK_DDR#15
SM B_C LK11,12,13,20
M_ A _ O DT 05
M_ A _ B S 05,11
M_ A _ W E #5,11
M_ A _ C A S #5,11
M_A_ C KE05
M_A_CLK_DDR05
1.5V4,9,11,12,13,26,30,37,39,41
VTT_MEM11,12,13,41
M_ A _ C S # 15
M _ A _ D Q [ 6 3: 0] 5 , 11
M_A_ C KE15
M_ A _ B S 25,11
TS #_D IMM 0_111,12,13
M_ A _ C S # 05
M_A_CLK_DDR#05
M_A_ D QS#[7:0]5,11
M _A_DQ S[7:0]5, 11
SM B_D ATA11,12,13,20
M _A_A[15:0]5, 1 1
CHANGE TO STANDARD
C HA_SA 1_D IM0
CH A_SA1 _ D IM1 11
C HA_SA 0_D IM1
C HA_SA 1_D IM1
C HA_SA 0_D IM0
CH A_SA0 _ D IM1 11
RN4
10K_8P4R_04
1
2
3
4 5
6
7
8
3. 3V S
CLOSE TO S O-DI MM
MVREF_C A_DIMMA _R
20mils
sign a l /spa c e /si g na l:
Layout Note:
8 / 4 / 8
20mils
C694
10u_10V_Y 5V _08
M_ A _ D M6
M_ A _ D M7
M_ A _ D M0
M_ A _ D M2
M_ A _ D M1
M_ A _ D M3
M_ A _ D M4
M_ A _ D M5
R 441 *0_04
M VRE F _ CA_ D IMM A_ R 1 1
C574
2.2U _6.3V_X5R_06
MVREF _DQ_DIMMA9,11
MVR EF_CA _D IM MA_R
MVRE F_CA_DIMMA9C 572 2.2u_6.3V _06
CH A_SA0_DI M0
CH A_SA1_DI M0
M_ A _ A6
M_ A _ A5
M_ A _ A7
M_ A _ A8
M_ A _ A9
M_ A _ A0
M_ A _ A1
M_ A _ A2
M_ A _ A3
M_ A _ A4
M_ A _ A1 2
M_ A _ A1 1
M_ A _ A1 3
M_ A _ A1 4
M_ A _ A1 5
M_ A _ A1 0
M_ A _ D QS 0
M_ A _ D QS 1
C577
1u_6.3V_04
M_ A _ D QS 2
M_ A _ D QS 3
M_ A _ D QS 4
M_ A _ D QS 5
M_ A _ D QS 6
M_ A _ D QS 7
M_ A _ D QS # 0
3.3VS4,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40,43,58
M_ A _ D QS # 1
M_ A _ D QS # 2
M_ A _ D QS # 3
C 325 2.2u_6.3V _Y 5V_06
M_ A _ D QS # 4
C578
1u_6.3V _04
M_ A _ D QS # 5
M_ A _ D QS # 6
M_ A _ D QS # 7

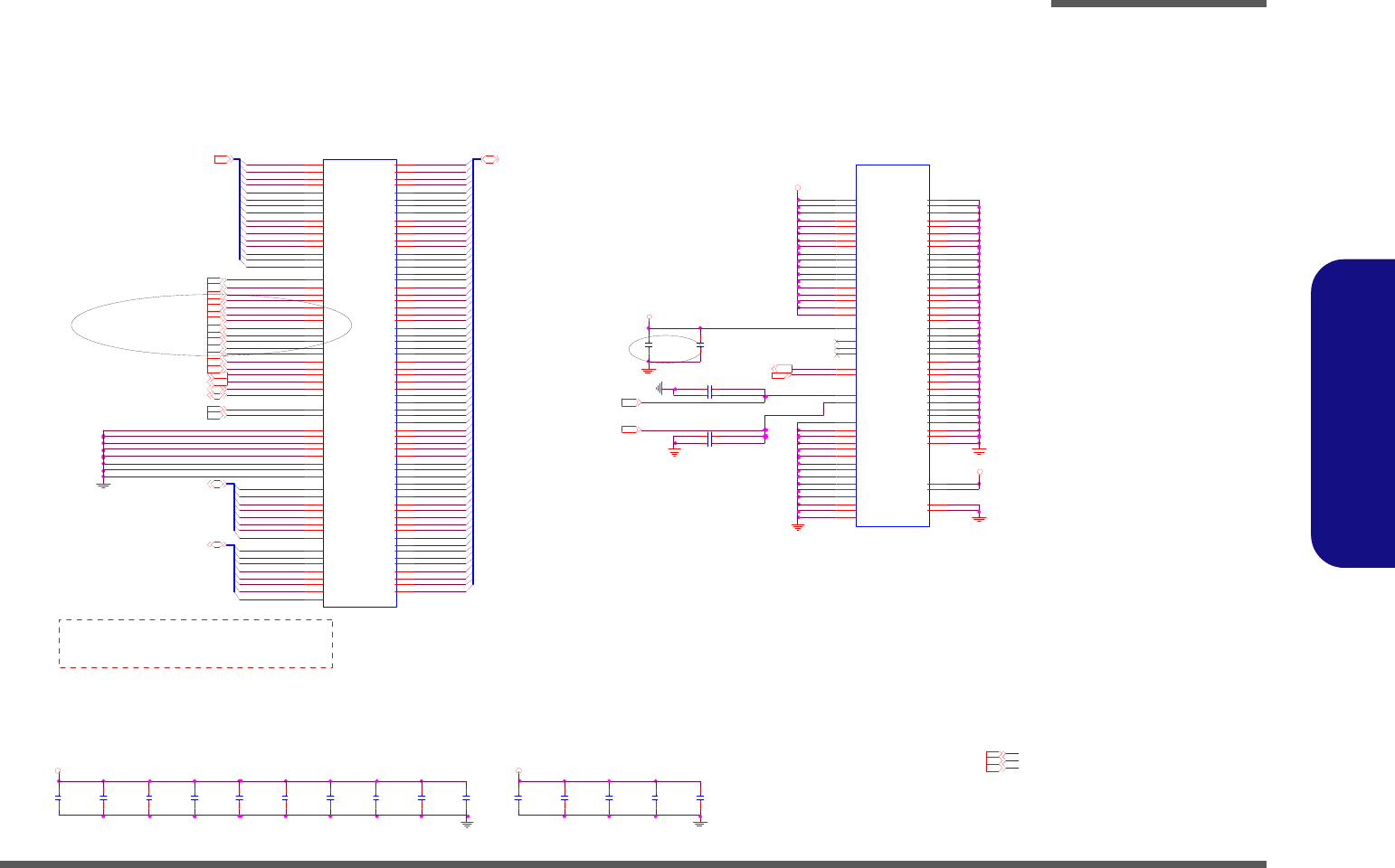

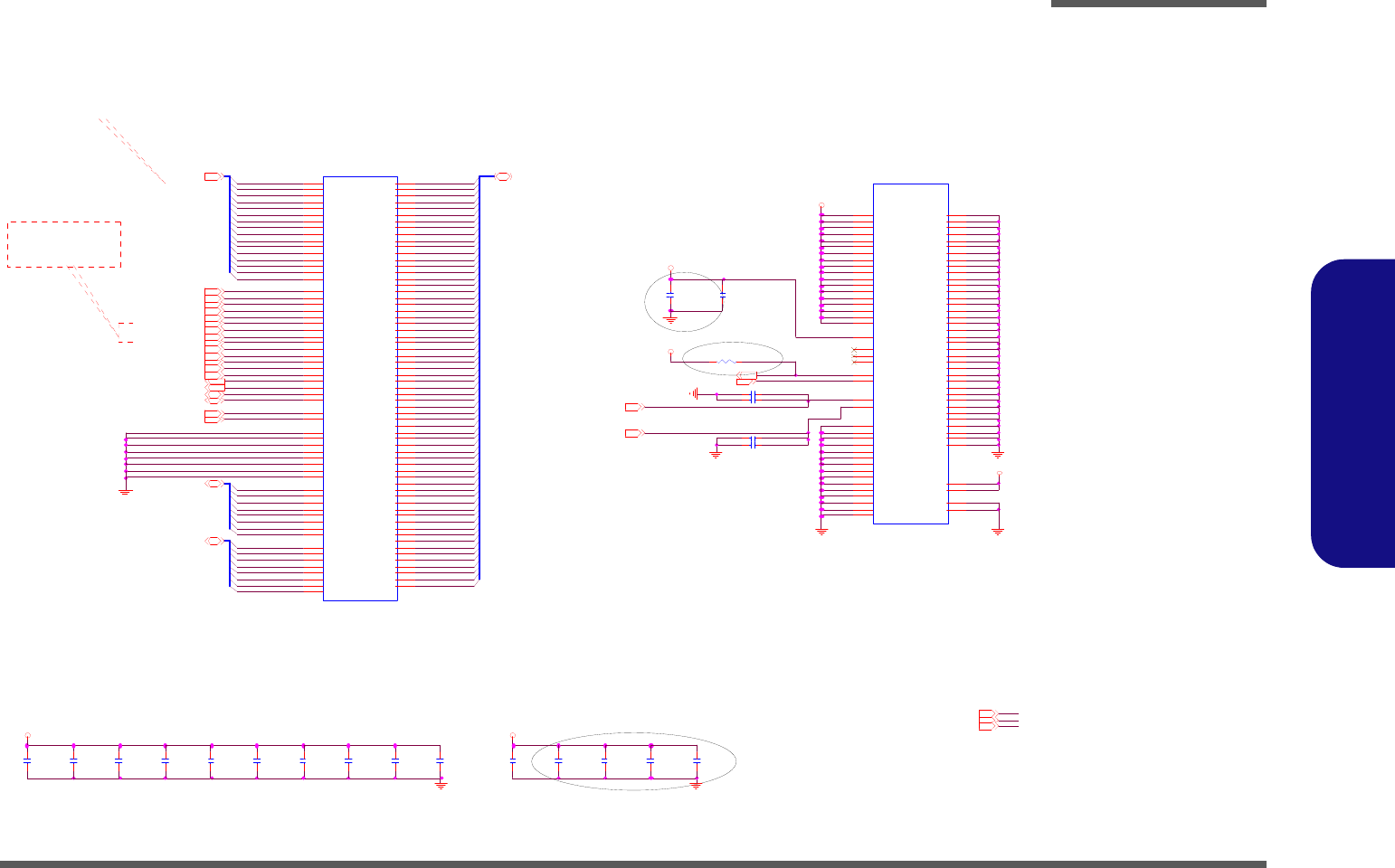

Schematic Diagrams
DDRIII CHA SO-DIMM_1 B - 11
B.Schematic Diagrams
DDRIII CHA SO-DIMM_1
Sheet 10 of 58
DDRIII CHA SO-
DIMM _1
CH A_ S A0 _ DI M1
M_ A _ D QS # 3
M_ A _ D QS 2
M_ A _ D QS 1
M_ A _ D QS # 7
M_ A _ D QS 6
M_ A _ D QS # 2
M_ A _ D QS 5
M_ A _ D QS 0
M_ A _ D QS 7
CH A_SA1 _DI M1
M_ A _ D QS # 5
M_ A _ D QS # 0
M_ A _ D QS # 6
M_ A _ D QS # 1
M_ A _ D QS 3
M_ A _ D QS 4
M_ A _ D QS # 4
M_ A _ D Q3 1
M_ A _ D Q3 0
M_ A _ D Q2 9
M_ A _ D Q4
M_ A _ D Q3
M_ A _ D Q2
M_ A _ D Q1
M_ A _ D Q3 8
M_ A _ D Q4 7
M_ A _ D Q4 6
M_ A _ D Q4 5
M_ A _ D Q4 4
M_ A _ D Q4 3
M_ A _ D Q4 2
M_ A _ D Q4 1
M_ A _ D Q4 0
M_ A _ D Q3 9
M_ A _ D Q3 7
M_ A _ D Q3 6
M_ A _ D Q3 5
M_ A _ D Q3 4
M_ A _ D Q3 3
M_ A _ D Q3 2
M_ A _ D Q6 1
M_ A _ D Q6 0
M_ A _ D Q5 8
M_ A _ D Q5 7
M_ A _ D Q5 6
M_ A _ D Q6
M_ A _ D Q5
M_ A _ D Q4 8
M_ A _ D Q5 5
M_ A _ D Q5 4
M_ A _ D Q5 3
M_ A _ D Q5 2
M_ A _ D Q5 1
M_ A _ D Q2 8
M_ A _ D Q5 0
M_ A _ D Q4 9
M_ A _ D Q1 0
M_ A _ D Q1 9
M_ A _ D Q1 8
M_ A _ D Q1 7
M_ A _ D Q1 6
M_ A _ D Q1 5
M_ A _ D Q1 4
M_ A _ D Q1 3
M_ A _ D Q1 2
M_ A _ D Q1 1
M_ A _ D Q9
M_ A _ D Q8
M_ A _ D Q7
M_ A _ D Q5 9
M_ A _ D Q6 3
M_ A _ D Q6 2
M_ A _ D Q2 0
M_ A _ D Q2 7
M_ A _ D Q2 6
M_ A _ D Q2 5
M_ A _ D Q2 4
M_ A _ D Q2 3
M_ A _ D Q0
M_ A _ D Q2 2
M_ A _ D Q2 1
M_ A_ A1 5
M_ A_ A0
M_ A_ A1
M_ A_ A2
M_ A_ A3
M_ A_ A4
M_ A_ A6
M_ A_ A5
M_ A_ A7
M_ A_ A8
M_ A_ A9
M_ A_ A1 0
M_ A_ A1 2
M_ A_ A1 1
M_ A_ A1 3
M_ A_ A1 4
M_ A _ D M0
M_ A _ D M2
M_ A _ D M1
M_ A _ D M3
M_ A _ D M4
M_ A _ D M5
M_ A _ D M6
M_ A _ D M7
C 590
0.1u_16V_Y5V_04
C587
0.1u_16V_Y 5V _04
C 606 0.1u_16V _Y 5V_04
C584
0.1u_16V_Y 5V_04
C 571 2.2u_6.3V _06
C358
10u_10V_Y 5V _08
C603
2.2U_6.3V_X5R _06
C581
0.1u_16V_Y5V_04
C 604 2.2u_6.3V _06
C585
0.1u_16V_Y 5V _04
C583
0.1u_16V_Y5V_04
C347
1u_6.3V_ Y 5V_04
C607
0.1u_16V_Y 5V _04
C586
0. 1u_16V_Y5V_04
C3 6 7
1u_6.3V_Y 5V _04
R 4 5 3 * 1 0K _0 4
JD I M M1 A
DD RSK -20401-TR4B
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/AP
107
A11
84
A12/BC#
83
A13
119
A14
80
A15
78
DQ 0 5
DQ 1 7
DQ 2 15
DQ 3 17
DQ 4 4
DQ 5 6
DQ 6 16
DQ 7 18
DQ 8 21
DQ 9 23
DQ10 33
DQ11 35
DQ12 22
DQ13 24
DQ14 34
DQ15 36
DQ16 39
DQ17 41
DQ18 51
DQ19 53
DQ20 40
DQ21 42
DQ22 50
DQ23 52
DQ24 57
DQ25 59
DQ26 67
DQ27 69
DQ28 56
DQ29 58
DQ30 68
DQ31 70
DQ32 129
DQ33 131
DQ34 141
DQ35 143
DQ36 130
DQ37 132
DQ38 140
DQ39 142
DQ40 147
DQ41 149
DQ42 157
DQ43 159
DQ44 146
DQ45 148
DQ46 158
DQ47 160
DQ48 163
DQ49 165
DQ50 175
DQ51 177
DQ52 164
DQ53 166
DQ54 174
DQ55 176
DQ56 181
DQ57 183
DQ58 191
DQ59 193
DQ60 180
DQ61 182
DQ62 192
DQ63 194
BA0
109
BA1
108
R AS#
110
WE#
113
C AS#
115
S0#
114
S1#
121
C KE0
73
C KE1
74
CK0
101
CK0#
103
CK1
102
CK1#
104
SDA
200 SCL
202 SA1
201 SA0
197
DM0
11
DM1
28
DM2
46
DM3
63
DM4
136
DM5
153
DM6
170
DM7
187
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
137
DQS5
154
DQS6
171
DQS7
188
DQS0#
10
DQS1#
27
DQS2#
45
DQS3#
62
DQS4#
135
DQS5#
152
DQS6#
169
DQS7#
186
ODT0
116
ODT1
120
BA2
79
C 365
1u_6.3V_Y5V_04
C 573 0.1u_16V _Y 5V_04
C588
0.1u_16V_Y 5V_04
C582
0.1u_16V _Y 5V_04
JD IMM 1B
D D RSK- 20401-TR4B
VD D 1
75
VD D 2
76
VD D 3
81
VD D 4
82
VD D 5
87
VD D 6
88
VD D 7
93
VD D 8
94
VD D 9
99
VD D 10
100
VD D 11
105
VD D 12
106
VD D SPD
199
NC1
77
NC2
122
NCTEST
125
VR EF_ D Q
1
VS S1
2
VS S2
3
VS S3
8
VS S4
9
VS S5
13
VS S6
14
VS S7
19
VS S8
20
VS S9
25
VS S10
26
VS S11
31
VS S12
32
VS S13
37
VS S14
38
VS S15
43
VSS16 44
VSS17 48
VSS18 49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26 72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
G2 GND2
G1 GND1
VTT2 204
VTT1 203
VR EF_ C A
126
RESET#
30 EV ENT#
198
VD D 13
111
VD D 14
112
VD D 16
118 VD D 15
117
VD D 17
123
VD D 18
124
C 589
0.1u_16V _Y 5V_04
C349
1u_6.3V_Y 5V_04
3.3VS
1.5V
3.3VS
VTT_MEM
1.5V
VTT_MEM
M _A_CLK_D DR 35
M_ A _ O D T35
M_A_ R AS#5,10
M_A_ BS15,10
SM B_C LK10,12,13,20
DD R3 _ DR A M RST #4,10,12,13
M_ A _ W E #5,10
M_A_ C AS#5,10
M _A_CLK_D DR #35
VTT_MEM10,12,13,41
M_ A _ O D T25
M_A_ BS05,10
M _A_CLK_D DR 25
1.5V4,9,10,12,13,26,30,37,39,41
M_A_ C KE35
M_A_ BS25,10
M_A_ C KE25
M _A_CLK_D DR #25
M_ A _ C S # 35
M _ A _ D Q [ 6 3: 0] 5 , 10
TS #_D IMM 0_110,12,13
M_ A _ C S # 25
M_ A _ D QS # [7 : 0 ]5,10
M _A_DQ S[7:0]5, 10
SM B_D ATA10,12,13,20
3.3VS4,10,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40,43,58
M_A_A[15:0]5, 1 0
20mils
Channel A SO-DIMM 1
CHANGE TO STANDARD
20mils
8 / 4 / 8
Layout Note:
signal/space/signal:
MVR EF_DQ_DI MMA9, 10
MV REF_C A_DI MM A_R10
CHA_SA1_DIM110 CHA_SA0_DIM110

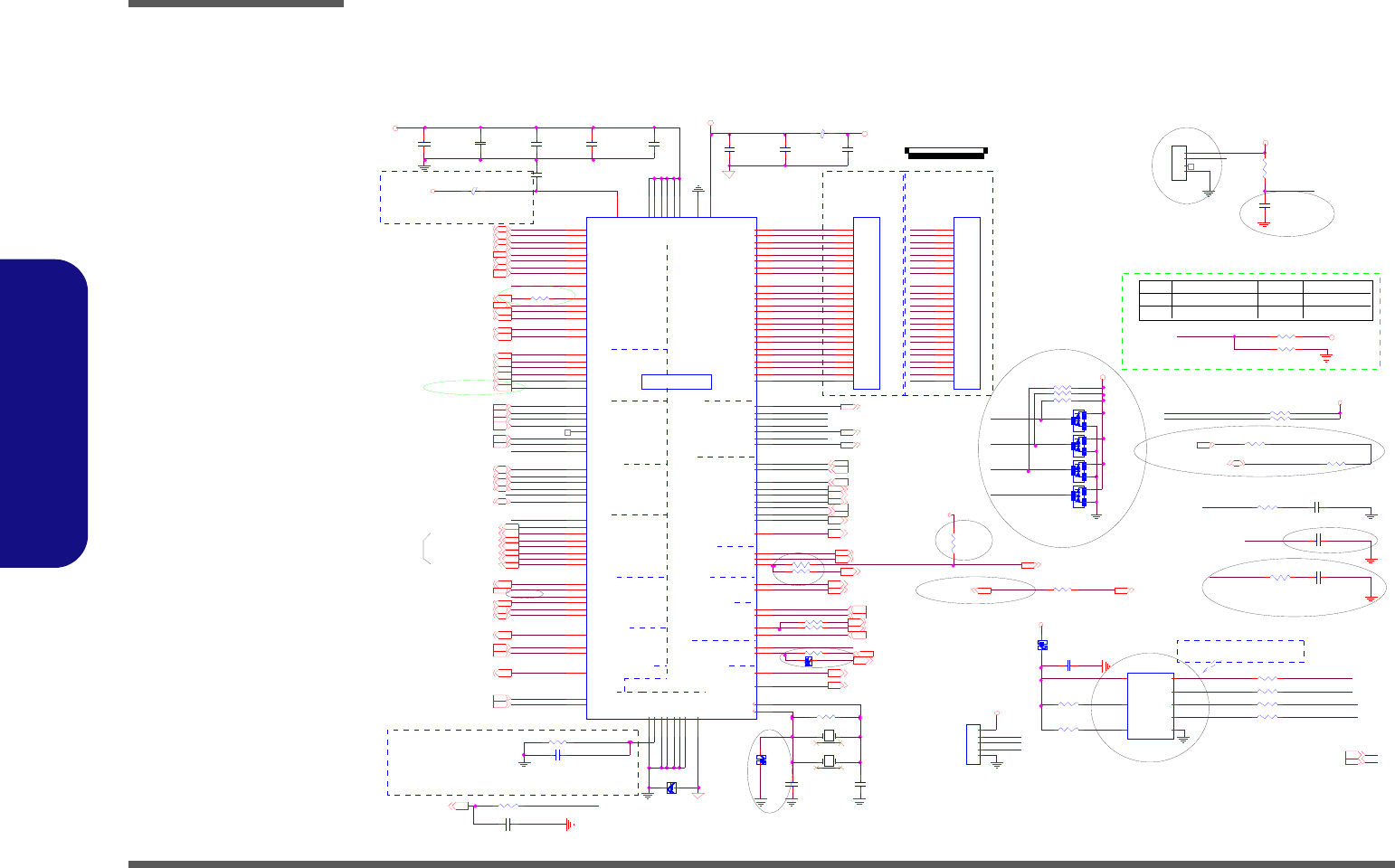

Schematic Diagrams
B - 12 DDRIII CHB SO-DIMM_0
B.Schematic Diagrams
DDRIII CHB SO-DIMM_0
Sheet 11 of 58
DDRIII CHB SO-
DIMM _0
MVRE F_C A_DIMMB _RR469 *0_04
C391 2.2u_6.3V _Y 5V_06
C677
1u_6.3V_04
M VR EF_CA_D IMM B_R M VREF_C A_DIM MB_R 13
Channel B SO-DIMM 0
CHANGE TO STANDARD
C678
1u_6.3V_04
M_ B _ D Q 3 1
M_ B _ D Q 4 6
M_ B _ D Q 1 3
M_ B _ D Q 2 4
M_ B _ D Q 5 6
M_ B _ D Q 2 8
M_ B _ D Q 1 1
M_ B _ D Q 2 3
M_ B _ D Q 6 1
M_ B _ D Q 6 2
M_ B _ D Q 5 8
M_ B _ D Q 5 0
M_ B _ D Q 1
M_ B _ D Q 1 6
M_ B _ D Q 6 0
M_ B _ D Q 2
M_ B _ D Q 4 0
M_ B _ D Q 5 4
M_ B _ D Q 4 1
M_ B _ D Q 5 7
M_ B _ D Q 3 7
M_ B _ D Q 2 5
M_ B _ D Q 3 0
M_ B _ D Q 2 7
M_ B _ D Q 4 4
M_ B _ D Q 3
M_ B _ D Q 7
M_ B _ D Q 9
M_ B _ D Q 3 4
M_ B _ D Q 5
M_ B _ D Q 4 7
M_ B _ D Q 4 3
M_ B _ D Q 3 8
M_ B _ D Q 1 7
M_ B _ D Q 4 2
M_ B _ D Q 8
M_ B _ D Q 5 9
M_ B _ D Q 3 5
M_ B _ D Q 3 6
M_ B _ D Q 4
M_ B _ D Q 2 6
M_ B _ D Q 6 3
M_ B _ D Q 3 3
M_ B _ D Q 4 5
M_ B _ D Q 4 8
M_ B _ D Q 5 5
M_ B _ D Q 2 9
M_ B _ D Q 1 5
M_ B _ D Q 1 0
M_ B _ D Q 5 2
M_ B _ D Q 5 3
M_ B _ D Q 6
M_ B _ D Q 1 9
M_ B _ D Q 1 8
M_ B _ D Q 0
M_ B _ D Q 1 2
M_ B _ D Q 2 0
M_ B _ D Q 3 9
M_ B _ D Q 4 9
M_ B _ D Q 5 1
M_ B _ D Q 2 1
M_ B _ D Q 3 2
M_ B _ D Q 1 4
M_ B _ D Q 2 2
C610
0.1u_16V_Y 5V _04
C601
1u_6.3V_Y5V_04
C598
1u_6.3V _04
C6 9 7
10u_10V_Y5V_08
C674
1u_6.3V_04
C651
0.1u_16V_Y5V_04
C676
0.1u_16V_Y5V_04
C647
0.1u_16V_Y5V_04
C646
0.1u_16V_Y5V_04
C650
0.1u_16V_Y5V_04
C599
10u_10V_Y5V_08
C654
1u_6.3V_04
C675
0.1u_16V_Y5V_04
R463
1K_1% _04
JDIMM2A
AS0A621-U 4RN -7F
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/A P
107
A11
84
A12/B C#
83
A13
119
A14
80
A15
78
DQ 0 5
DQ 1 7
DQ 2 15
DQ 3 17
DQ 4 4
DQ 5 6
DQ 6 16
DQ 7 18
DQ 8 21
DQ 9 23
DQ 1 0 33
DQ 1 1 35
DQ 1 2 22
DQ 1 3 24
DQ 1 4 34
DQ 1 5 36
DQ 1 6 39
DQ 1 7 41
DQ 1 8 51
DQ 1 9 53
DQ 2 0 40
DQ 2 1 42
DQ 2 2 50
DQ 2 3 52
DQ 2 4 57
DQ 2 5 59
DQ 2 6 67
DQ 2 7 69
DQ 2 8 56
DQ 2 9 58
DQ 3 0 68
DQ 3 1 70
DQ 3 2 12 9
DQ 3 3 13 1
DQ 3 4 14 1
DQ 3 5 14 3
DQ 3 6 13 0
DQ 3 7 13 2
DQ 3 8 14 0
DQ 3 9 14 2
DQ 4 0 14 7
DQ 4 1 14 9
DQ 4 2 15 7
DQ 4 3 15 9
DQ 4 4 14 6
DQ 4 5 14 8
DQ 4 6 15 8
DQ 4 7 16 0
DQ 4 8 16 3
DQ 4 9 16 5
DQ 5 0 17 5
DQ 5 1 17 7
DQ 5 2 16 4
DQ 5 3 16 6
DQ 5 4 17 4
DQ 5 5 17 6
DQ 5 6 18 1
DQ 5 7 18 3
DQ 5 8 19 1
DQ 5 9 19 3
DQ 6 0 18 0
DQ 6 1 18 2
DQ 6 2 19 2
DQ 6 3 19 4
BA0
109
BA1
108
RAS#
110
WE#
113
CAS#
115
S0#
114
S1#
121
CKE0
73
CKE1
74
CK0
101
CK0 #
103
CK1
102
CK1 #
104
SDA
200 SCL
202 SA1
201 SA0
197
DM 0
11
DM 1
28
DM 2
46
DM 3
63
DM 4
136
DM 5
153
DM 6
170
DM 7
187
DQ S0
12
DQ S1
29
DQ S2
47
DQ S3
64
DQ S4
137
DQ S5
154
DQ S6
171
DQ S7
188
DQ S 0 #
10
DQ S 1 #
27
DQ S 2 #
45
DQ S 3 #
62
DQ S 4 #
135
DQ S 5 #
152
DQ S 6 #
169
DQ S 7 #
186
OD T0
116
OD T1
120
BA2
79
C648
0.1u_16V_Y5V_04
C652
0.1u_16V_Y5V_04
SO-DIMM_1 is placed farther from the GMCH than SO-DIMM_0
C653
0.1u_16V_Y5V_04
C657
0.1u_10V_X5R _04
C 615
1u_6.3V _04
C6 4 9
0.1u_16V_Y5V_04
C673
1u_6.3V_04
C596
1u_6.3V_04
C699
10u_10V_Y5V_08
M_B _C LK_DD R#35
M_B _C LK_DD R35
M_ B _ C S #25
M _B_C KE35
M_B _C LK_DD R25
M _B_C KE25
M_ B _ O DT 25
M_ B _ C S #35
M_B _C LK_DD R#25
M_ B _ O DT 35
JD I MM 2 B
AS0A621-U 4RN -7F
VDD1
75
VDD2
76
VDD3
81
VDD4
82
VDD5
87
VDD6
88
VDD7
93
VDD8
94
VDD9
99
VDD10
100
VDD11
105
VDD12
106
V DD SPD
199
NC1
77
NC2
122
N CTEST
125
VREF_DQ
1
V SS1
2
V SS2
3
V SS3
8
V SS4
9
V SS5
13
V SS6
14
V SS7
19
V SS8
20
V SS9
25
V SS10
26
V SS11
31
V SS12
32
V SS13
37
V SS14
38
V SS15
43
VSS 16 44
VSS 17 48
VSS 18 49
VSS 19 54
VSS 20 55
VSS 21 60
VSS 22 61
VSS 23 65
VSS 24 66
VSS 25 71
VSS 26 72
VSS 27 127
VSS 28 128
VSS 29 133
VSS 30 134
VSS 31 138
VSS 32 139
VSS 33 144
VSS 34 145
VSS 35 150
VSS 36 151
VSS 37 155
VSS 38 156
VSS 39 161
VSS 40 162
VSS 41 167
VSS 42 168
VSS 43 172
VSS 44 173
VSS 45 178
VSS 46 179
VSS 47 184
VSS 48 185
VSS 49 189
VSS 50 190
VSS 51 195
VSS 52 196
G2 GND2
G1 GND1
VTT2 204
VTT1 203
VREF_CA
126
R ESET#
30 E VENT#
198
VDD13
111
VDD14
112
VDD16
118 VDD15
117
VDD17
123
VDD18
124
C698
10u_10V_Y5V_08
R 4 6 0 1K _1 % _ 0 4
CHA_DIMM0=00
CHA_DIMM1=01
CHB_DIMM0=10
CHB_DIMM1=11
3.3V S
1.5V
1.5V
1.5V
1.5V
VTT_MEM
VTT_ M EM
DD R3_DR AMR ST#4,10,11,13
1.5V4,9,10,11,13,26,30,37, 39,41
C HB_SA0 _DI M1
C HB_SA1 _DI M1
TS#_D IMM 0_110,11,13
SMB_CLK10,11,13,20
SMB_DATA10,11,13,20
VTT_M EM10,11, 13,41
3.3V S
RN 14
10K_8P4R_04
1
2
3
4 5
6
7
8
M_B_BS15,13
M_B _B[ 15:0]5, 1 3 M_B_D Q[63:0] 5,13
M_B _W E#5, 1 3
M _B _C AS#5, 1 3
M _B _R AS#5, 1 3
M_B_BS25,13
M_B_BS05,13
M_B_DQ S[7:0]5,13
M_B_D QS#[7:0]5,13
M_ B_ B4
M_ B_ B6
M_ B_ B5
M_ B_ B13
M_ B_ B12
M_ B_ B0
M_ B_ B1
M_ B_ B2
M_ B_ B3
M_ B_ B7
M_ B_ B8
M_ B_ B9
M_ B_ B10
M_ B_ B11
M_ B_ B14
20mils
La y o u t N ot e :
C633 2.2u_6.3V _06
CH B_SA1_DIM 0
MV RE F_ D Q_ DIM MB9,13
MV R E F _ C A _D I MM B9
CLOSE TO SO-DI MM
M_ B_ B15
M_ B_ D QS0
M_ B_ D QS6
M_ B_ D QS5
M_ B_ D QS4
M_ B_ D QS3
M_ B_ D QS2
M_ B_ D QS1
M_ B_ D QS#3
M_ B_ D QS#2
M_ B_ D QS#1
M_ B_ D QS#0
M_ B_ D QS7
M_ B_ D QS#7
M_ B_ D QS#6
M_ B_ D QS#5
M_ B_ D QS#4
M_ B _ D M7
M_ B _ D M1
M_ B _ D M3
M_ B _ D M4
M_ B _ D M5
M_ B _ D M6
M_ B _ D M0
M_ B _ D M2
3.3V S4,10,11,13,14,15,16,17,18,19,20, 21,23,24,25,26,29,30,32,33,34,35,36,39,40, 43,58
C HB_SA0 _DI M0
C HB_SA1 _DI M0
D03
C HB_SA1_ DIM 1 1 3
C HB_SA0_ DIM 1 1 3
C609
2.2U_6.3V_X5R _06
C656 0.1u_16V _Y 5V_04
C390 0.1u_16V _Y 5V_04
CH B_SA0_DIM 0
Schematic Diagrams
DDRIII CHB SO-DIMM_1 B - 13
B.Schematic Diagrams
DDRIII CHB SO-DIMM_1
Sheet 12 of 58
DDRIII CHB SO-
DIMM _1
C3 6 2
2.2U _6.3V_X5R_06
CH B_SA1 _ DI M1
CH B_SA0 _ DI M1 M_B_DQ31
M_B_DQ46
M_B_DQ40
M_B_DQ54
M_B_DQ62
M_B_DQ58
M_B_DQ50
M_B_DQ1
M_B_DQ16
M_B_DQ23
M_B_DQ61
M_B_DQ13
M_B_DQ24
M_B_DQ56
M_B_DQ28
M_B_DQ11
M_B_DQ17
M_B_DQ3
M_B_DQ7
M_B_DQ9
M_B_DQ34
M_B_DQ5
M_B_DQ25
M_B_DQ30
M_B_DQ27
M_B_DQ44
M_B_DQ41
M_B_DQ57
M_B_DQ37
M_B_DQ60
M_B_DQ2
M_B_DQ15
M_B_DQ4
M_B_DQ26
M_B_DQ63
M_B_DQ33
M_B_DQ42
M_B_DQ8
M_B_DQ59
M_B_DQ35
M_B_DQ36
M_B_DQ47
M_B_DQ43
M_B_DQ38
M_B_DQ51
M_B_DQ21
M_B_DQ6
M_B_DQ19
M_B_DQ18
M_B_DQ0
M_B_DQ12
M_B_DQ10
M_B_DQ52
M_B_DQ53
M_B_DQ45
M_B_DQ48
M_B_DQ55
M_B_DQ29
M_B_B1 1
M_B_B1 3
M_B_B1 2
M_B_B0
M_B_B1
M_B_B2
M_B_B3
M_B_B4
M_B_B6
M_B_B5
M_B_DQ32
M_B_DQ14
M_B_DQ22
M_B_DQ20
M_B_DQ39
M_B_DQ49
M_B_B1 4
M_B_B7
M_B_B8
M_B_B9
M_B_B1 0
M_B_D QS#5
M_B_D QS#4
M_B_D QS#3
M_B_D QS#2
M_B_D QS#1
M_B_D QS#0
M_B_D QS7
M_B_D QS6
M_B_D QS5
M_B_D QS4
M_B_D QS3
M_B_D QS2
M_B_D QS1
M_B_D QS0
M_B_B1 5
M_B_D QS#7
M_B_D QS#6
M_ B _ D M 0
M_ B _ D M 2
M_ B _ D M 1
M_ B _ D M 3
M_ B _ D M 4
M_ B _ D M 5
M_ B _ D M 6
M_ B _ D M 7
C632
1u_6. 3V _04
C645
0.1u_16V_Y 5V_04
JDIMM4B
DDRSK-20401-TR9D
VD D1
75
VD D2
76
VD D3
81
VD D4
82
VD D5
87
VD D6
88
VD D7
93
VD D8
94
VD D9
99
VD D10
100
VD D11
105
VD D12
106
VD DSPD
199
NC 1
77
NC 2
122
NC TEST
125
VR EF_ DQ
1
VSS1
2
VSS2
3
VSS3
8
VSS4
9
VSS5
13
VSS6
14
VSS7
19
VSS8
20
VSS9
25
VSS10
26
VSS11
31
VSS12
32
VSS13
37
VSS14
38
VSS15
43
VSS 16 44
VSS 17 48
VSS 18 49
VSS 19 54
VSS 20 55
VSS 21 60
VSS 22 61
VSS 23 65
VSS 24 66
VSS 25 71
VSS 26 72
VSS 27 12 7
VSS 28 12 8
VSS 29 13 3
VSS 30 13 4
VSS 31 13 8
VSS 32 13 9
VSS 33 14 4
VSS 34 14 5
VSS 35 15 0
VSS 36 15 1
VSS 37 15 5
VSS 38 15 6
VSS 39 16 1
VSS 40 16 2
VSS 41 16 7
VSS 42 16 8
VSS 43 17 2
VSS 44 17 3
VSS 45 17 8
VSS 46 17 9
VSS 47 18 4
VSS 48 18 5
VSS 49 18 9
VSS 50 19 0
VSS 51 19 5
VSS 52 19 6
G2 GN D2
G1 GN D1
VTT2 20 4
VTT1 20 3
VR EF_ CA
126
RE SET#
30 EVEN T#
198
VD D13
111
VD D14
112
VD D16
118 VD D15
117
VD D17
123
VD D18
124
C659 2.2u_6.3V_06
JD IMM4A
D DR SK-20401-TR 9D
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/AP
107
A11
84
A12/BC #
83
A13
119
A14
80
A15
78
DQ 0 5
DQ 1 7
DQ 2 15
DQ 3 17
DQ 4 4
DQ 5 6
DQ 6 16
DQ 7 18
DQ 8 21
DQ 9 23
DQ 1 0 33
DQ 1 1 35
DQ 1 2 22
DQ 1 3 24
DQ 1 4 34
DQ 1 5 36
DQ 1 6 39
DQ 1 7 41
DQ 1 8 51
DQ 1 9 53
DQ 2 0 40
DQ 2 1 42
DQ 2 2 50
DQ 2 3 52
DQ 2 4 57
DQ 2 5 59
DQ 2 6 67
DQ 2 7 69
DQ 2 8 56
DQ 2 9 58
DQ 3 0 68
DQ 3 1 70
DQ 3 2 129
DQ 3 3 131
DQ 3 4 141
DQ 3 5 143
DQ 3 6 130
DQ 3 7 132
DQ 3 8 140
DQ 3 9 142
DQ 4 0 147
DQ 4 1 149
DQ 4 2 157
DQ 4 3 159
DQ 4 4 146
DQ 4 5 148
DQ 4 6 158
DQ 4 7 160
DQ 4 8 163
DQ 4 9 165
DQ 5 0 175
DQ 5 1 177
DQ 5 2 164
DQ 5 3 166
DQ 5 4 174
DQ 5 5 176
DQ 5 6 181
DQ 5 7 183
DQ 5 8 191
DQ 5 9 193
DQ 6 0 180
DQ 6 1 182
DQ 6 2 192
DQ 6 3 194
BA 0
109
BA 1
108
R AS#
110
WE #
113
C AS#
115
S0#
114
S1#
121
C KE0
73
C KE1
74
CK0
101
CK0#
103
CK1
102
CK1#
104
SD A
200 SC L
202 SA 1
201 SA 0
197
DM0
11
DM1
28
DM2
46
DM3
63
DM4
136
DM5
153
DM6
170
DM7
187
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
137
DQS5
154
DQS6
171
DQS7
188
DQS0#
10
DQS1#
27
DQS2#
45
DQS3#
62
DQS4#
135
DQS5#
152
DQS6#
169
DQS7#
186
ODT0
116
ODT1
120
BA 2
79
C672
0.1u_16V_Y 5V_04
C670
0.1u_16V _Y 5V_04
C668
0. 1u_16V_Y5V_04
C642
0.1u_16V_Y 5V _04
C641
0. 1u_16V_Y5V_04
C6 4 4
0.1u_16V_Y5V_04
C669
0.1u_16V_Y 5V _04
C629
1u_6.3V _04
C 643
0.1u_16V _Y 5V_04
C618 2.2u_6.3V_06
C591
0.1u_16V_Y5V_04
C630
1u_6.3V_04
C631
1u_6.3V_04
C628 0.1u_16V_Y5V_04
C621 0.1u_16V_Y5V_04
C6 6 2
10u_10V_Y5V_08
C671
0.1u_16V_Y5V_04
3.3VS
1.5V
1.5V
VTT_M EM
VTT_MEM 1.5V4,9,10,11,12, 26,30,37,39,41 VTT_ME M10,11,12,41
DDR3_DRAMRST#4,10,11,12
TS#_DIM M0_110,11,12
SMB_C LK10,11,12,20
SMB_D ATA10,11,12,20
M _B_B[15 :0 ]5, 12 M _B _D Q [63:0] 5,12
M_B_RAS #5, 1 2
M_B _B S15,12
M_B_WE#5, 1 2
M_B_CAS #5, 1 2
M_B _B S05,12
M_B _B S25,12
M_B_D QS[ 7:0]5,12
3.3VS4,10,11,12,14,15,16,17,18,19,20,21,23,24,25, 26,29,30,32,33,34,35, 36,39,40,43,58
M_B_DQS#[7:0]5,12
CHANGE TO STANDARD
20mils
Layout Note:
SO-DIMM_1 is placed farther from the GMCH than SO-DIMM_0
Channel B SO-DIMM 1
M_B_CKE 05
M _B _C L K_ DD R# 15
M _B _C LK_DD R15
M _B_CLK_D DR #05
M_B _C S#05
M _B _C LK_DD R05
M_B _O DT15M_B _O DT05
M_B_CKE 15
M_B _C S#15
CH B_SA1_DIM 112 CH B_SA0_ DIM 112
MV R E F _ C A _ D I M MB _R12
MVREF_DQ_DIMMB9,12
Schematic Diagrams
B - 14 MXM PCI-E
B.Schematic Diagrams
MXM PCI-E
SM D_VGA_THERM _R
SM C_VGA_THERM _R
VG A_ PW RG D1
EX_DD C_CLK17EX_DD C_DATA17
SM D_VGA_THER M_R
SM C_VGA_THER M_R
PEG _R XN13
C99
4.7U_25V_X5R _08
PEG _TXP5
PEG _R XP15
Ma x: 0. 5in ch
PEG _R XP6
PEG _R XN4
PEG _R XN5
PEG _TXN9
PEG _R XN12
PEG _R XN10
PEG _TXN12
PEG _TXP12
PEG _TXP14
PEX_STD _SW#1
PEG _TXP8
TH_O VERT#1
PEG _R XP5
PEG _R XP10
PEG _TXP13
PEG _TXN14
PEG _R XN11
PEG _R XP12
PEG _TXN8
PEG _TXN11
PEG _R XN14
MX M_ R S T#
PEG _R XP13
PEG _R XN9
PEG _TXN10
PEG _TXP9
PEG _TXN3
MX M_ R S T #
PEG _TXN4
PJ2
OPEN-2 m m
1 2
C426
0.01u_50V_04
C4 35
0. 1 u _5 0 V _ Y 5 V _0 6
R16 *10K_04
Q2 2 M TN 7002ZHS3
G
DS
R3 5 0 _0 4
PEG _R XP3
R2 9 * 33 _ 04
R 3 06 * 33 _ 04
PEG _R XN3
PEG _TXN13
PEG _TXN6
PEG _TXP3
PEG _TXP11
MX M 3 .0 MO D U LE B O A R D CO NN E C TOR
J _ MX M1 A
91782-3140M-NV- 01
GN D
E3-1 0
5V
1
5V
3
5V
5
5V
7
5V
9
GN D
11
GN D
13
GN D
15
GN D
17
PEX_STD _SW #
19
VGA_ D ISABLE#
21
PNL_ PW R_ EN
23
PNL_BL_EN
25
PNL_ BL_PW M
27
HD MI_ CE C
29
DVI_ HP D
31
LVDS_DD C_DAT
33
LVDS_DD C_CLK
35
GN D
37
OEM
39
OEM
41
OEM
43
OEM
45
GN D
47
PEX_R X15 #
49
PEX_R X15
51
GN D
53
PEX_R X14 #
55
PEX_R X14
57
GN D
59
PEX_R X13 #
61
PEX_R X13
63
GN D
65
PEX_R X12 #
67
PEX_R X12
69
GN D
71
PEX_R X11 #
73
PEX_R X11
75
GN D
77
PEX_R X10 #
79
PEX_R X10
81
GN D
83
PEX_R X9#
85
PEX_R X9
87
GN D
89
PEX_R X8#
91
PEX_R X8
93
GN D
95
PEX_R X7#
97
PEX_R X7
99
GN D
10 1
PEX_R X6#
10 3
PEX_R X6
10 5
GN D
10 7
PEX_R X5#
10 9
PEX_R X5
11 1
GN D
11 3
PEX_R X4#
11 5
PEX_R X4
11 7
GN D
11 9
PEX_R X3#
12 1
PEX_R X3
12 3
GN D
12 5
PW R_SRC E2-5
GND E4-10
PR SNT_R # 2
WAKE# 4
PWR_GO OD 6
PW R_EN 8
RSVD 10
RSVD 12
RSVD 14
RSVD 16
PWR_L EVEL 18
TH_O VERT# 20
TH_ALERT# 22
TH_PWM 24
GPIO 0 26
GPIO 1 28
GPIO 2 30
SM B_D AT 32
SM B_C LK 34
GND 36
OEM 38
OEM 40
OEM 42
OEM 44
GND 46
PE X_ TX1 5# 48
PEX_ TX15 50
GND 52
PE X_ TX1 4# 54
PEX_ TX14 56
GND 58
PE X_ TX1 3# 60
PEX_ TX13 62
GND 64
PE X_ TX1 2# 66
PEX_ TX12 68
GND 70
PE X_ TX1 1# 72
PEX_ TX11 74
GND 76
PE X_ TX1 0# 78
PEX_ TX10 80
GND 82
PEX_ TX9# 84
PEX_TX9 86
GND 88
PEX_ TX8# 90
PEX_TX8 92
GND 94
PEX_ TX7# 96
PEX_TX7 98
GND 10 0
PEX_ TX6# 10 2
PEX_TX6 10 4
GND 10 6
PEX_ TX5# 10 8
PEX_TX5 11 0
GND 11 2
PEX_ TX4# 11 4
PEX_TX4 11 6
GND 11 8
PEX_ TX3# 12 0
PEX_TX3 12 2
GND 12 4
GN D
13 3
PEX_R X2#
13 5
PEX_R X2
13 7
GN D
13 9
PEX_R X1#
14 1
PEX_R X1
14 3
GN D
14 5
PEX_R X0#
14 7
PEX_R X0
14 9
GND 13 4
PEX_ TX2# 13 6
PEX_TX2 13 8
GND 14 0
PEX_ TX1# 14 2
PEX_TX1 14 4
GND 14 6
PEX_ TX0# 14 8
PEX_TX0 15 0
GND 15 2
GN D
15 1
PW R_SRC E2-1
PW R_SRC E2-2
PW R_SRC E2-3
PW R_SRC E2-4
PW R_SRC E2-6
PW R_SRC E2-7
PW R_SRC E2-8
PW R_SRC E2-9
PW R_SRC E2-10
GND E4-1
GND E4-2
GND E4-3
GND E4-4
GND E4-5
GND E4-6
GND E4-7
GND E4-8
GND E4-9
PW R_SR C
E1-1
PW R_SR C
E1-2
PW R_SR C
E1-3
PW R_SR C
E1-4
PW R_SR C
E1-5
PW R_SR C
E1-6
PW R_SR C
E1-7
PW R_SR C
E1-8
PW R_SR C
E1-9
PW R_SR C
E1-1 0
GN D
E3-1
GN D
E3-2
GN D
E3-3
GN D
E3-4
GN D
E3-5
GN D
E3-6
GN D
E3-7
GN D
E3-8
GN D
E3-9
R 31 *2.2K_04
C1 0 0
*4.7U_25V_08 C430
0.01u_50V_04
D03
MXM 3.0
MXM 3.0 MOD ULE BOAR D CONNECTOR
J_MXM1B
91782-3140M-NV-01
PEX_R EFCLK#
15 3
PEX_R EFCLK
15 5
GN D
15 7
RSVD
15 9
RSVD
16 1
RSVD
16 3
RSVD
16 5
RSVD
16 7
LVDS_UC LK#
16 9
LVDS_UC LK
17 1
GN D
17 3
LVDS_UTX3#
17 5
LVDS_UTX3
17 7
GN D
17 9
LVDS_UTX2#
18 1
LVDS_UTX2
18 3
GN D
18 5
LVDS_UTX1#
18 7
LVDS_UTX1
18 9
GN D
19 1
LVDS_UTX0#
19 3
LVDS_UTX0
19 5
GN D
19 7
DP_C_L0#
19 9
DP_C_L0
20 1
GN D
20 3
DP_C_L1#
20 5
DP_C_L1
20 7
GN D
20 9
DP_C_L2#
21 1
DP_C_L2
21 3
GN D
21 5
DP_C_L3#
21 7
DP_C_L3
21 9
GN D
22 1
DP_C_AU X#
22 3
DP_C_AU X
22 5
RSVD
22 7
RSVD
22 9
RSVD
23 1
RSVD
23 3
RSVD
23 5
RSVD
23 7
RSVD
23 9
RSVD
24 1
RSVD
24 3
RSVD
24 5
RSVD
24 7
RSVD
24 9
GN D
25 1
DP_A_L0#
25 3
DP_A_L0
25 5
GN D
25 7
DP_A_L1#
25 9
DP_A_L1
26 1
GN D
26 3
DP_A_L2#
26 5
DP_A_L2
26 7
GN D
26 9
DP_A_L3#
27 1
DP_A_L3
27 3
GN D
27 5
DP_A_AUX#
27 7
DP_A_AUX
27 9
PRSN T_L#
28 1
CL K_ R EQ # 15 4
PEX_RST# 15 6
VGA_DDC_DAT 15 8
VGA_DDC_CLK 16 0
VGA_VSY NC 16 2
VGA_HSY NC 16 4
GND 16 6
VG A_RED 16 8
VGA_G REEN 17 0
VGA _BLUE 17 2
GND 17 4
L VDS_ L CL K# 17 6
LVDS_LCLK 17 8
GND 18 0
LVDS_LTX3# 18 2
LV D S _ LT X 3 18 4
GND 18 6
LVDS_LTX2# 18 8
LV D S _ LT X 2 19 0
GND 19 2
LVDS_LTX1# 19 4
LV D S _ LT X 1 19 6
GND 19 8
LVDS_LTX0# 20 0
LV D S _ LT X 0 20 2
GND 20 4
DP_ D _L 0 # 20 6
DP_ D_ L 0 20 8
GND 21 0
DP_ D _L 1 # 21 2
DP_ D_ L 1 21 4
GND 21 6
DP_ D _L 2 # 21 8
DP_ D_ L 2 22 0
GND 22 2
DP_ D _L 3 # 22 4
DP_ D_ L 3 22 6
GND 22 8
DP_D_AUX# 23 0
DP_ D _AU X 23 2
DP_C_HPD 23 4
DP_D_HPD 23 6
RSVD 23 8
RSVD 24 0
RSVD 24 2
GND 24 4
D P_B_L0# 24 6
DP _B _ L 0 24 8
GND 25 0
D P_B_L1# 25 2
DP _B _ L 1 25 4
GND 25 6
D P_B_L2# 25 8
DP _B _ L 2 26 0
GND 26 2
D P_B_L3# 26 4
DP _B _ L 3 26 6
GND 26 8
DP_B_AUX# 27 0
DP_B_AUX 27 2
DP_ B_ HP D 27 4
DP_ A_ HP D 27 6
3V3 27 8
3V3 28 0
C 51 *0.1u_16V_04
C34
4.7U _25V_X5R_08
C62
4.7U _25V_X5R _08
R 319 *2.2K_04
C81
4.7U_25V_X5R_08
R2 7 * 0_ 0 4
R 32 *2.2K_04
R 3 04 * 4 . 3K _ 1 % _0 4
R307 *33_04
R24 47K_04
C52
*4.7U_25V_08
R 323 *2.2K_04
C436
0.1u_50V_Y5V_06
R3 0 * 33 _ 04
PJ1
OPEN-3 m m
1 2
PJ13 14mm
1 2
R33 10K_04
C425
0.1u_50V_Y 5V_06
C5 8
4. 7 U _2 5 V _X 5 R _ 0 8
Q2 3 MTN7002ZHS3
G
DS
R44
* 1 00 K _ 04
R 3 05 * 4 . 3K _ 1 % _0 4
U4
*7 4 AH C 1G 0 8G W
1
2
5
4
3
R2 8 * 33 _ 04
C101
4.7U _25V_X5R_08
PW R_SRC
3VRU N
5VRU N 3VRU N
3.3VS
5VRU N
PW R _SR C
5VRU N
3VRU N3.3VS
3.3V S
PWR _SRC
5VS
PW R _ SRCVIN
3.3V
PW R_SRC
3.3VS
3.3VS
3.3VS
5V S
MX M_ C L K R E Q # 20
CLK_PCIE_ MXM20 CLK_PCIE_MXM #20
EX_LVDS-L2P 15
EX_LVDS-L0P 15
EX_LVDS-LC LKN 15
EX_LVDS-LC LKP 15
EX_LVDS-L0N 15
EX_LVDS-L2N 15
EX_LVDS-L1N 15
EX_LVD S-UCLKP15
EX_LVD S-UCLKN15
EX_LVDS-L1P 15
EX_LVDS-U2P15
EX_LVDS-U0N15
EX_LVDS-U0P15
EX_LVDS-U1N15
EX_LVDS-U1P15
EX_LVDS-U2N15
EX_ D AC_VSYN C 17
EX_D AC_B 17
EX_D AC_G 17
EX_D AC_R 17
EX_ D AC_HSY NC 1 7
EX_ D VI_D 2P17
EX_ DVI_ D2 N17
EX_ D VI_H PD 17
EX_ DVI_ D0 N17
EX_HDMI_C1N18
EX_ H DMI_ CC L KN18
EX_ D VI_D 1P17
EX_ D VI_C LK N17
EX_ DVI_ CL KP17
PEG _TXP7
PEG _R XN7
EX_HD MI_CCLKP18
EX_ D VI_D 0P17
EX_HD MI_C1P18
EX_ DVI_ D1 N17
EX_ H DMI_ C_ S D A18
EX_HD MI_C2P18
EX_ H DMI_ C_ S C L18
EX_HDMI_C0N18
EX_HDM I_C 2N18
EX_HD MI_C0P18
PEG _ TXP [0..15 ] 3PEG_R XN [0..15]3
PEG_ R XP[0..1 5]3
A LL _ SYS_ PW RG D 1 5,21 ,3 4 ,43
AC/BATL# 45
PEG_ TXN[0 ..15 ] 3
EX_VG A_ENAVD D15
EX_ LVDS_ DD C_CLK15 EX_ LVDS_DD C_DAT15
DGPU_PR SNT# 20
D0 3
3VRU N(1A)--3.3V
SPDIFO32,35
HD A_SD IN119
EX_ VG A_BKL TEN15
PEG _R XP9
EX_ D VI_D 3P 17
EX_ D VI_D 5N 17
EX_ D VI_D 4P 17
EX_ D VI_D 3N 17
EX_ D VI_D 5P 17
EX_ D VI_D 4N 17
3. 3 V S4,10,11,12,13,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40,43,58 VIN15 , 3 8 , 39 , 4 0, 4 1 , 4 3, 4 4 , 4 5, 4 6
5V S15,17,18,19,25,26,30,32,33,35,39,43,44
SMD _VG A_TH ERM 34
PLT_ RST#4,23,58
DGPU_HOLD_RST#24
3. 3 V3,4, 9,15,19,20,21,23,24,25,26,28,29,30,32,35,36,37,39,40,41,42
D0 3
HDA_ S Y NC 1 9 ,3 2
HDA_BITCLK 19,32
SMC _VG A_TH ERM 34
EX_ H DMI_ CH P D 1 8
HDA_ R S T#19 , 3 2 HDA_ S D OUT 1 9 ,32 HDM I_ D_ S DA 1 5
HDM I_ D_ S CL 1 5
HDM I_ DHP D 1 5
HDM I_ D# 1 1 5
HDM I_ D2 1 5
HDM I_ D# 2 1 5
HDM I_DCLK 15
HDM I_ D# 0 1 5
HDM I_ D0 1 5
HDM I_ D1 1 5
PWR_ SRC(10A)--7-20V
HDM I_ DCL K # 1 5
PEG _TXN5
PEG _R XP7
PEG _R XP11
PEG _TXP6
EX_ VG A_BKL PW M15
R664 0_04
D03
PEG _R XN8
PEG _TXP4
5VRU N(2.5A)--5V
PEG _R XP14
PEG _TXN7
3.3VS
PEG _R XP8
PEG _R XN15
PEG _R XN6
PEG _R XP4
PEG _TXP15
PEG _TXN15
H23
H7 _ 0D 4_ 1
GN D
PEG _TXP10
C LOSE T O MXM CONN.C LOSE T O MXM PI N E1
R2 6 * 0_ 0 4
CL O SE TO M XM PI N E2 CL OSE TO MXM CONN.
C44
4.7U _25V_X5R_08
R 57 *0_04
D0 3
14A 14A
2A
3A 3A
2A
R4 6 0 _ 04
R4 5 0 _ 04
EX_DD C_CLK 17
EX_DD C_DATA 17
PEG _R XN2
R665
2. 2 K _ 0 4
PEG _R XP2
PEG _R XN1
C83
*4.7U_25V _08
PEG _R XP1
PEG _R XN0
TH_ALERT#1
PEG _R XP0
3.3VS
R6 6 6
2. 2 K _ 0 4
H2 4
H7_0D 4_1
GN D
PEG _TXP2
PEG _TXN1
PEG _TXP1
PEG _TXP0
PEG _TXN0
PEG _TXN2
D03
Sheet 13 of 58
MXM PCI-E
Schematic Diagrams

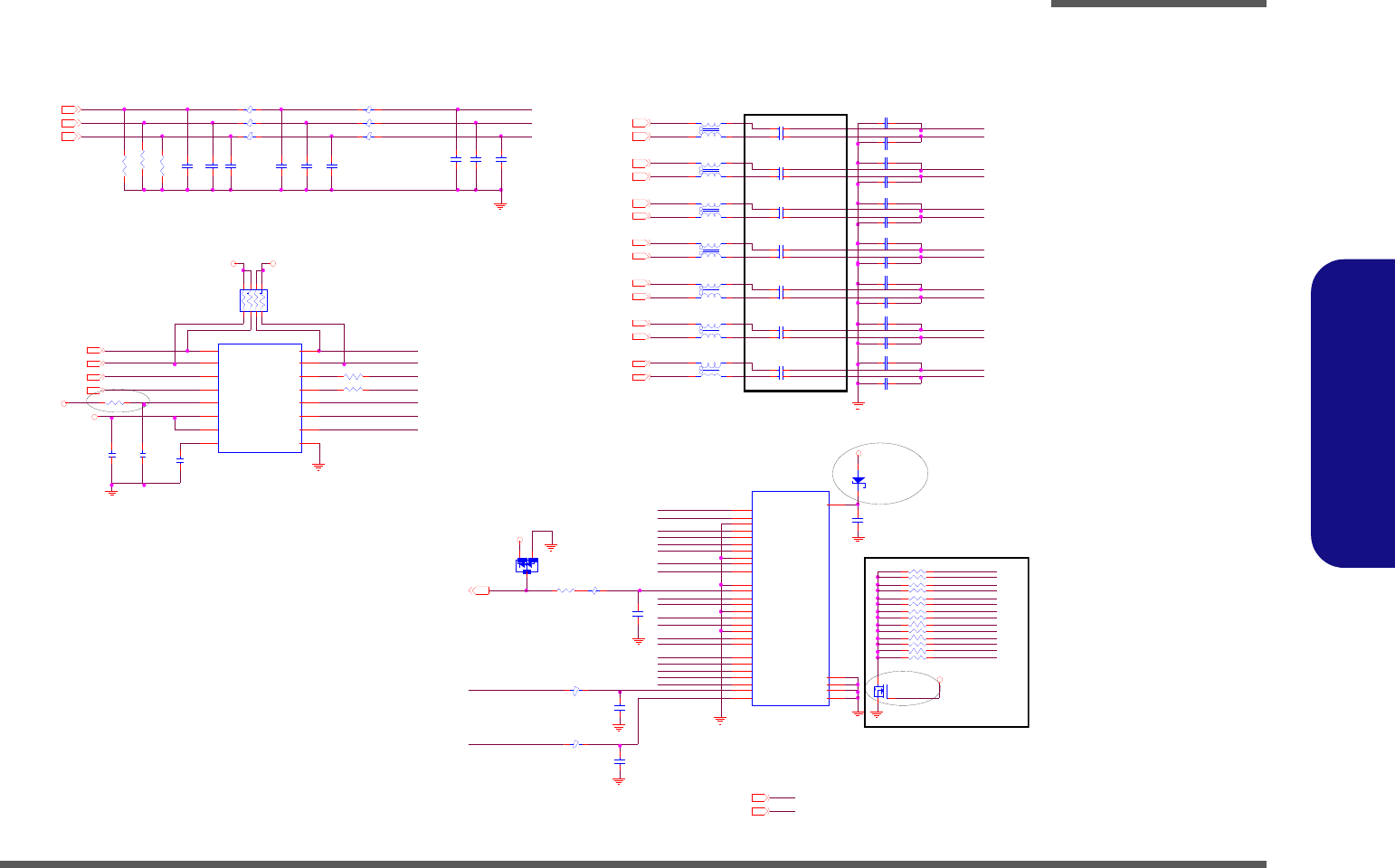

Panel, Inverter, CRT B - 15
B.Schematic Diagrams
Panel, Inverter, CRT
EX_LVDS-U2N 14
EX_ LVD S-U2 P
EX_ LVD S-U2 N
EX_LVDS-U2P 14
EX_LVD S-U CL KN14 EX_LVD S-U CL KN
EX_LVDS-L2N 14
EX_LVDS-L2P 14
5V S
EX_LVD S-L1N
BR IGHTNESS_ R
PLVDD
EX_LVD S-L1P
EX_LVD S-LC LKP
IN V_BLON
EX_LVD S-LC LKN
EX_VG A_EN AVD D14
EX_ VG A _BKL PW M_ R
R662
1M_04
R6 6 1
*100_04
Q4 3B
MT NN2 0 N0 3Q 8
6
5
4
Q4 4
*M TN 7002ZHS3
G
DS
R6 63
10K_04
C796
2200p_50V_X7R_04
Q43A
MT NN 20 N0 3 Q8
1
3
728
BRIGH TN ESS
SYS15V
3. 3 V
Q4 5
MT N7 00 2 Z HS 3
G
DS
NMOS
ON
EX_ LVD S_D DC_ DAT
EX_LVDS_DDC_CLK
R8 9
2. 2 K _ 04
EX_ LVD S_D DC_CLK 14
EX_ LVD S_D DC_DAT 14
R8 5
2.2K_04
3.3VS
D03
EX_ VGA_BKLPW M
EX_VGA_BKLPWM _S
BRIG HTNESS_R
Q40
AO 3415
G
D S
R8 6
*0 _ 04
R93
10K_04
D6
* B AV99 RE CT IFIER
A
CAC
BRIG HTN ESS34
PLVDD
3.3V
D03
SYS15V 38,39,40
D0 3
J_LC D2
88107-40001
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30
31
31 32 32
33
33 34 34
35
35 36 36
37
37 38 38
39
39 40 40
1
1
3
3
5
5
7
7
9
9
22
44
66
88
10 10
D0 3
J_LCD1
*88107-30001
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30
EX_ LVDS-LC LKN14 EX _L VDS-L CL K P14
EX_ LVD S-L0P
VLED
EX_ LVD S-L0N
EX_ LVD S_D DC_ DA T
EX_ LVD S-L2P
EX_ LVD S_D DC_ CL K
EX_ LVD S-L2N
3.3VS
EX_ VGA_ ENAVDD
EX_ LVDS-UC LKP 14
EX_LVDS-UC LKP EX_LVD S-L1 N
D03
5V S
EX_LVDS_ DD C_D AT
EX_LVDS-L0N
VLED
EX_LVD S-L1 P
PLVDD
EX_LVDS-L0P
EX_LVDS-L2N
EX_LVDS-L2P
EX_LVDS_DD C_C LK
3.3VS
INV_BLO N
EX_VG A_EN AVD D
EX_LVD S-LCLKN
EX_LVD S-LCLKP
BR IGHTNESS_R
PLVDD_SEL
BRIGH TNESS_SW # 21
J_D P1
88107-30001
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30

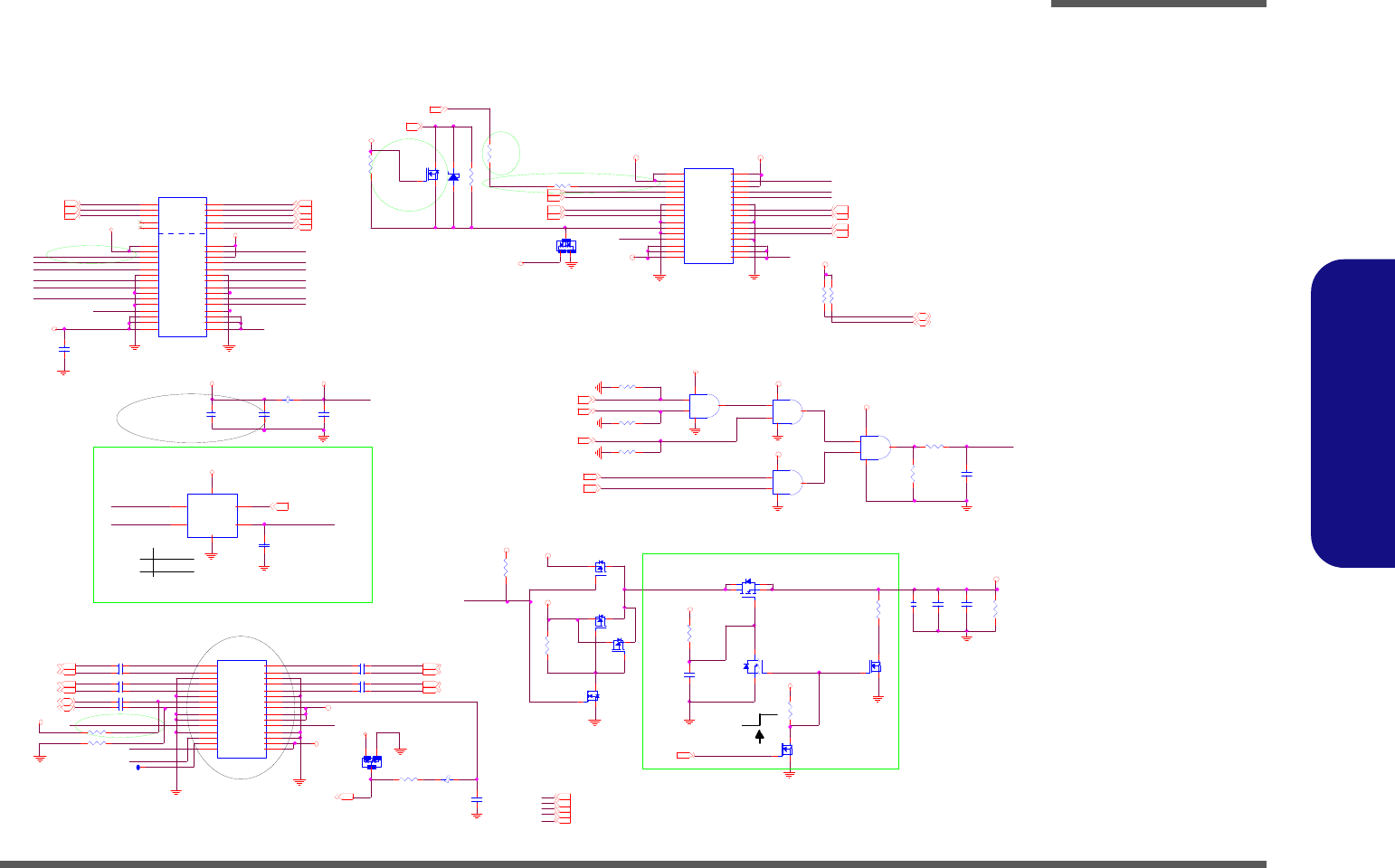

H N O t o CO M
L N C t o CO M
IN F unc tion
U48
*TS5A31 57
CO M 4
V+ 5
IN 6
GND
2
NC
3
NO
1
INV_BLON
D03
R667 *0_04
D0 3
IN V_BL ON
BKL_EN
D02
EX_ VGA_ BKLTEN
VLED
>100 mil
PLVDD POWER
>100 mil
>100mil>100 mil
C1 52
0.1u_16V_Y 5V_04
R9 4
*1 00 K _0 4
C156
10u_10V_Y5V_08
5VS
PLVDD
R509
10 K _0 4
Q33
AO3415
G
DS
PLV DD
LVD S:3 .3V 2A
eDP 3D :5V 3A
Q34
*AO3415
G
DS
5VS
PLVDD _SEL
R5 07
10 0 K_ 0 4
3.3VS C8 4
0 . 1u _1 6 V _Y 5V _ 04
EX_LVDS-U0P 14
EX_LVDS-U0N 14
EX_ LVD S-U0 P
EX_ LVD S-U0 N
Q3 5
MTN7002ZHS3
G
DS
EX_LVDS-L0N 14
EX_LVDS-L0P 14
R9 1
0_ 0 4
EX_ VGA_ BKLPW M14
3.3V
C1 53
0 . 1u _1 6 V _Y 5V _ 04
eDP
PANEL
EX_LVDS-L1N14
EX_LVDS-L1 P14EX_LVDS-U1P14 EX_LVD S-U 1P
EX_LVD S-U1N14 EX_LVD S-U 1N
EX_ VGA_ BKL PW M_ S
BR IGHT NESS _ R
EX_VGA_EN AVDD
EX_ VGA_ BKLPW M_ R
D7
*R B 75 1 V
A C
C39 0.1u_16V_Y 5V_04
C1 32
10u_25V_X5R_12
U8A
74LVC08PW1
1
2
3
147
C 36 0.1u_16V_Y5V_04
R 79 100K_04
.
L18
H CB1608KF-121T25
R9 6 * 10 0 K_0 4
Q4 6
MTN7002ZHS3
G
DS
C 42 0.1u_16V_Y5V_04
R8 7 * 10 0 K_0 4
C 104 0.1u_16V_Y5V_04
.
L17 FCM1608K-121T06
R 78 100K_04
U8B
74LVC08PW1
4
56
147
R92 100K_04
C429
1u_6.3V_X5R _04
C102
220p_50V_04
R56
10K_04
C40 0.1u_16V_Y 5V_04
C 37 0.1u_16V_Y5V_04
U8D
74LVC08PW1
12
13 11
147
C 43 0.1u_16V_Y5V_04
R9 8
*1 M_ 04
D3
BAV99
A
C
AC
C41 0.1u_16V_Y 5V_04
D02
R3 03
4.7K_04
C 103 0.1u_16V_Y5V_04
C785
* 0.1u_16V_Y5V_04
C38 0.1u_16V_Y 5V_04
C129
0.1u_50V_Y5V_06 U8 C
74 L V C 0 8P W 1
9
10 8
147
C105
0.1u_50V_Y 5V_06
3. 3 V
3.3V
3.3V
3. 3 V
VIN VLED
3.3VS
VLED
PLVDD
3.3VS
3.3V 3,4,9,14,19,20,21,23,24,25,26,28,29,30,32,35,36,37,39,40,41,42
5VS 14,17,18,19,25,26,30,32,33,35,39,43,44
VIN 14,38,39,40,41,43,44,45,46
LID_SW#29,34,35
AL L_SY S_PW RG D14,21,34,43
BKL_EN34
3.3VS 4,10,11,12,13,14,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40,43,58
SB_BLON24
EX_ VGA_ BKLTEN14
HD MI_ D_SD A14
HDMI_D_SCL14
HDMI_D014
HDMI_DCLK#14 HD MI_D CL K14
HD MI_D 2 14
HD MI_D #2 1 4HDMI_ D# 014
HDM I_DH PD14
HD MI_D 1 14
HD MI_D #1 1 4
Sheet 14 of 58
Panel, Inverter,
CRT
Schematic Diagrams

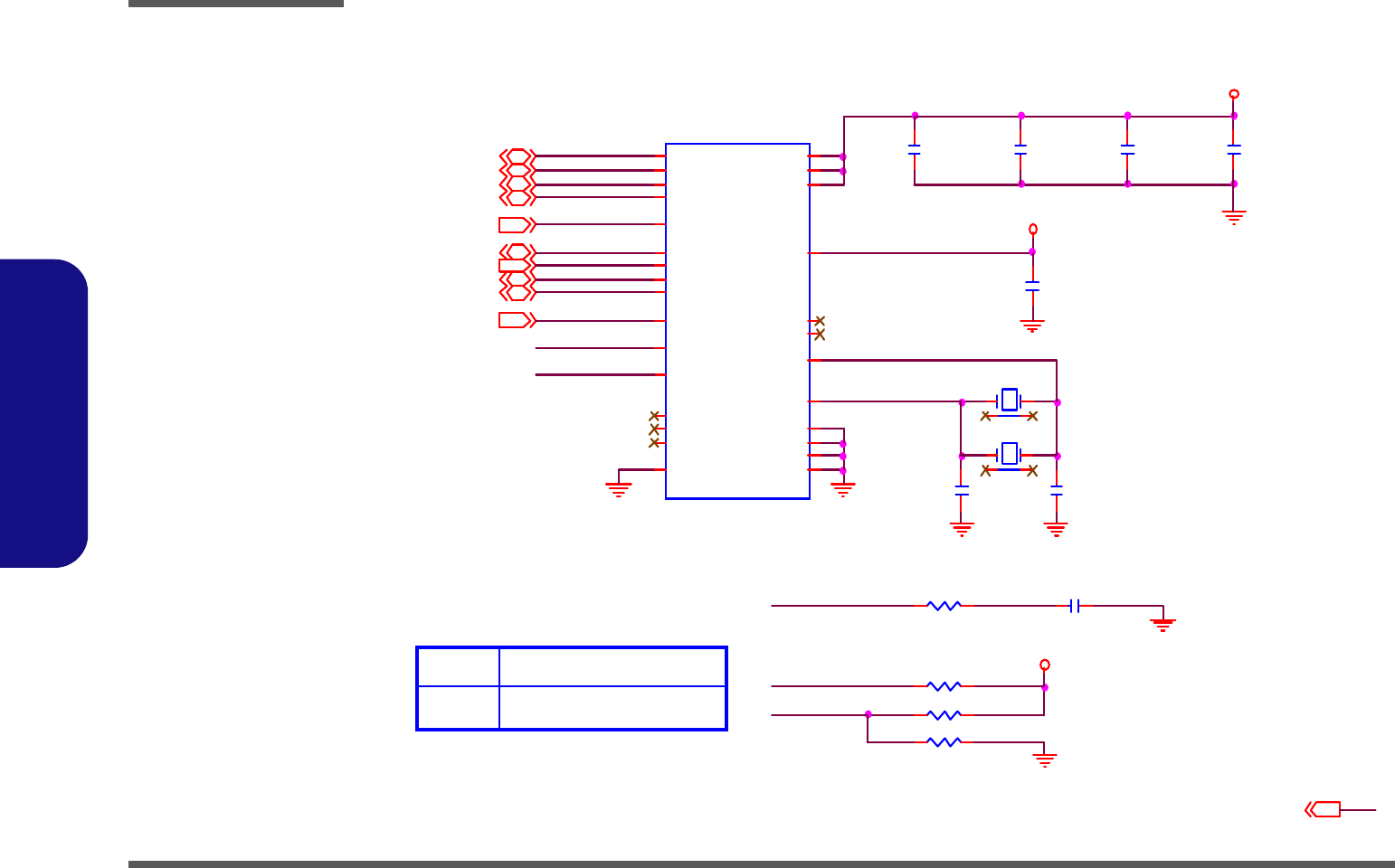

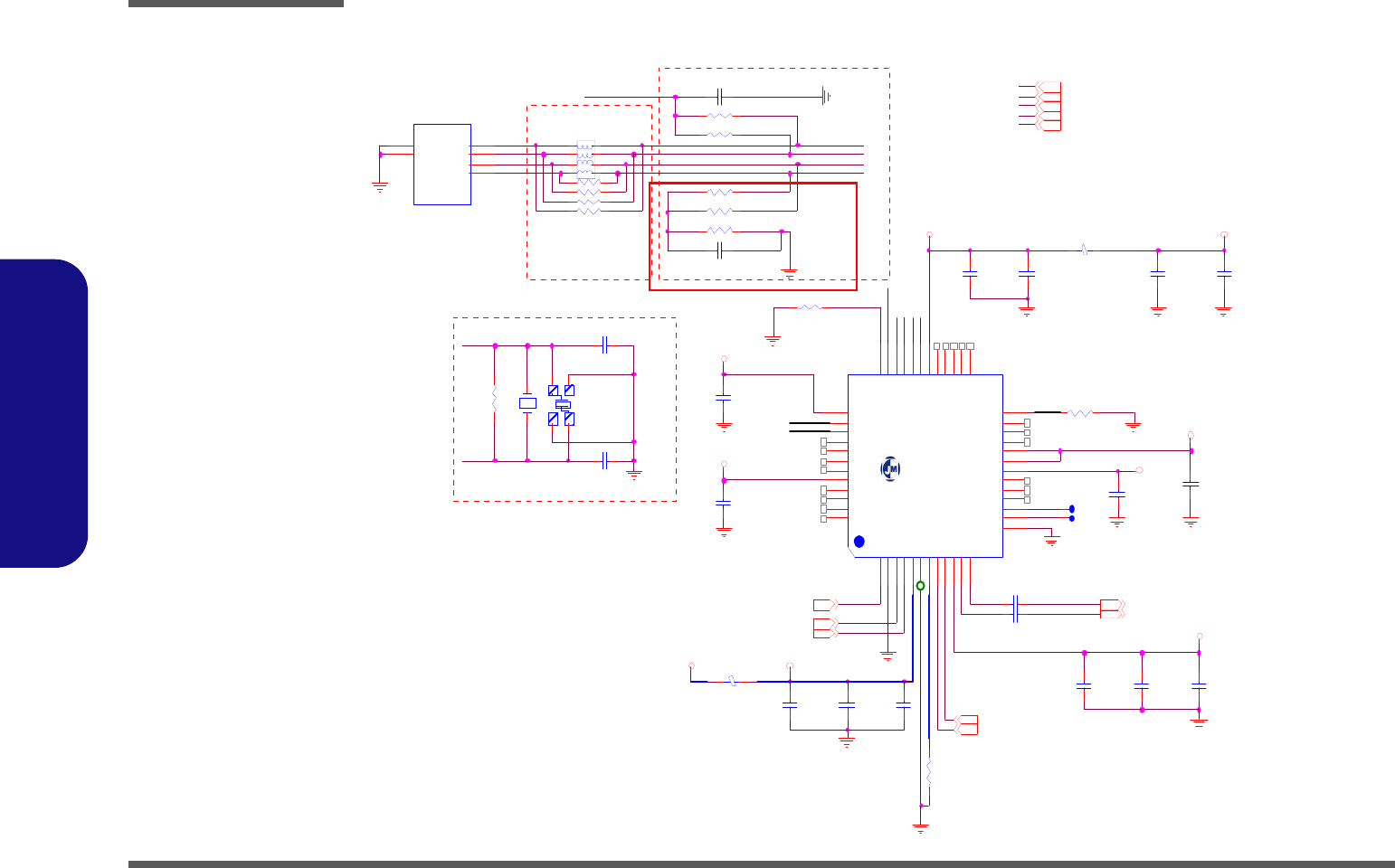

B - 16 1394_JMB380C
B.Schematic Diagrams
1394_JMB380C
X13
* 24 .57 6MHz
12
3 4
R496
1M _04
X14
24.576MHz
12
C716 2 0p_5 0V_04
C729 2 0p_5 0V_04
Note:
Close to JMB380
13 94_ XI
12mil
1394_TPA0-
R505
8.2K_0 4
DV1. 8V
DV1.8V
C7 39
10u _10V_Y 5V_08
C7 30
0.1 u_1 6V_Y5V_0 4
C743
10u_ 10V_Y5 V_ 08
C745
0.1u_16V_Y5V_04
JMB380
U38
JMI CRON
XRSTN
1
XTEST
2
APC LKN
3
AP C LK P
4
APVDD
5
AP G N D
6
APREXT
7
AP R X P
8
APRXN
9
APV18
10
APTXN
11
APTXP
12
SEEC LK 14
CR1 _CD1N 15
CR1 _CD0N 16
CR1 _PCTLN 17
DV18 18
REG_CTRL 19
DV33 20
CR_L EDN 21
MD IO14 22
MD IO13 23
TC P S 24
SEED AT 13
DV18
37
TXI N
38
TXO UT
39
MDI O7
40
MDI O6
41
MDI O5
42
MDI O4
43
DV33
44
MDI O3
45
MDI O2
46
MDI O1
47
MDI O0
48
TREXT 36
TPBIAS_1 35
TPA1P 34
TPA1N 33
TPB1P 32
TPB1N 31
TAV33 30
MD IO8 29
MDIO9 28
MD IO10 27
MDIO11 26
MDIO12 25
GND_M 49
1394_TPBIAS0
R4 91 10K_0 4
C74 6
0. 01u_ 50V_04
.
L71
* HCB 20 12K F-50 0T40
.
L69
HCB201 2KF- 500 T40
R486 1 2K_1%_04
C71 5
* 0.1 u_16 V_ 04
CLK_PCI E_ 1394#20
CLK_PCI E_ 139420
PCI E_ TXN4 _13 94 20
PCI E_ TXP 4_ 1394 2 0
139 4_T P A0 +
TCPS
C74 7 0.1u _16 V_ Y 5V_04
C74 8 0.1u _16 V_ Y 5V_04
3.3 VS
1. 8VS
1394 _XI
1394 _XO
B UF_ PL T_RS T#23 ,28, 29, 34, 36, 37
12mil
1 394 _T PB 0-
139 4_T P B0 +
C7 44
0. 1u_ 16V_Y5 V_ 04
C73 5
0. 1u_1 6V_Y5V_0 4
C71 0
0. 1u_1 6V_Y5V_0 4
C70 5
0. 1u_1 6V_Y5V_0 4
3. 3VS_ CAR D
C7 24
0.1u_16V_Y5V_04
PCIE _RX N4_1 394 20
PCIE _RX P4 _139 4 20
3.3 VS_C AR D
DV1.8 V
QFN-48
3. 3VS_ CAR D
C7 20
* 0. 1u_1 6V _04
DV1. 8V
C727
10 00p_ 50V_X7R_0 4
C7 11
* 0. 1u_1 6V _04
JMB380C
6-03-00380-032
40 mil
VI N 1 4,1 5,3 8,39 ,40 ,41 ,43, 44, 45, 46
5VS 1 4,1 5,1 7,18 ,19 ,25 ,26, 30, 32, 33, 35,3 9,4 3,4 4
3.3 V 3 ,4, 9,1 4,1 5,19 ,20 ,21 ,23, 24, 25, 26, 28,2 9,3 0,3 2,35 ,36 ,37 ,39, 40, 41, 42
3.3 VS 4 ,10 ,11 ,12, 13, 14, 15, 17,1 8,1 9,2 0,21 ,23 ,24 ,25, 26, 29, 30, 32,3 3,3 4,3 5,36 ,39 ,40 ,43, 58
1.8VS 7,25,42
R45 2 0_0 4
1394 _TPBIAS0
No t e:
Close to CON
IEEE1394
No t e:
Cl o se
to
JM B 38 0
L P1 0160 OHM #944 CM-0 051
1
2
3
4
6
5
7
8
C692 2 20p_ 50V _0 4
R490 5 6_0 4
R487 5 6_0 4
R488 5 6_0 4
13 94_ TPB0 +
R489 5 6_0 4
C6 93 0. 33u_ Y5V_16 V_ 06
R478 4 .99 K_ 1%_ 04
139 4_TPB0-
139 4_TPA0+
139 4_TPA0-
J139 4PORT1
MIE-0 4RH4G
TPA+ 4
TPA- 3
TPB+ 2
TPB- 1
GND
GND2 GND
GND1
R44 9 0_0 4
R45 0 0_0 4
R45 1 0_0 4
139 4_XO
Sheet 15 of 58
1394_JMB380C
Schematic Diagrams
DVI B - 17
B.Schematic Diagrams
DVI
EX_DVI_D4P14
EX_D VI_D 4N14
EX_DVI_DATA3_R
EX_DVI_DATA1_R
E X_DV I_D ATA4#_R
EX_DVI_DATA4_R
E X_DV I_D ATA5#_R
E X_DV I_D ATA1#_R
E X_DV I_D ATA0#_R
EX_DVI_DATA0_R
EX_DVI_DATA5_R
EX_DVI_CLK_R
EX_DVI_DATA2_R
EX_DVI_CLK#_R
E X_DV I_D ATA3#_R
E X_DV I_D ATA2#_R
EX_DVI_D2P14
EX_D VI_D 2N14
PLEASE CLOSE TO C ONNECT OR
.
L8
FCM 1608K-121T06
C1
12p_50V_04
DD CD AT A
FRED
FGRN
FBLUE
HSYNC
VSYNC
C19
0.22u_10V_Y5V_04
R13 33_04
C17
0.22u_10V_Y 5V_04
HSY NC
DDCLK
DD CD ATA
RN1
2.2K_8P4R _04
8 1
7 2
6
53
4
C13
0.22u_10V_Y5V_04
EX_D AC_VSY NC14
R15 33_04
EX_D DC _D ATA14
EX_D AC_HS YNC14
3.3VS
FBLU E
FG RN
EX_D DC _C L K14
FR ED
U1
IP4 7 72 C Z 16
VCC _SYN C
1
VCC _VIDEO
2
VID EO_1 3
VID EO_2 4
VID EO_3 5
GND 6
VCC _ DDC
7
BYP
8
DDC_OUT1 9
DD C_ IN1
10
DD C_ IN2
11 DDC_OUT2 12
SYN C_IN1
13 SY NC _O UT 1 14
SYN C_IN2
15 SY NC _O UT 2 16
5VS
VSY NC
3.3VS 5VS
PLEA SE CLO SE TO CONNE CTOR
FR ED
FBLUE
FG RN
.
L3 FC M1005MF-600T01_04
.
L1 FC M1005MF-600T01_04
.
L2 FC M1005MF-600T01_04
.
L7 FCM 1005 MF-600T01_04
C1 0
22p_50V_04
.
L6 FCM 1005 MF-600T01_04
.
L5 FCM 1005 MF-600T01_04
C8
22p_50V_04
C1 1
22p_50V_04
EX_DAC _G
EX_DAC _R
EX_DAC _B
C4
22p_50V_04
C6
22p_50V_04
C5
22p_50V_04
C9
22p_50V_04
R1
150_1%_04
R2
150_1%_04
R3
150_1% _04
C1 2
22 p _ 50 V _ 0 4
EX_DAC _B14
EX_DAC _G14
C3
22 p _ 50 V _ 0 4
EX_DAC _R14
R9 0 1 _0 4
.
L9
FCM 1608K-121T06
C2
12p_50V_04
EX_D VI_D 3N14
EX_DVI_D3P14
EX_D VI_D 5N14
EX_DVI_D5P14
EX_D VI_D 0N14
EX_DVI_D0P14
EX_DVI_CLK_R
EX_DVI_DATA1_R
EX_DVI_DATA0#_R
EX_DVI_DATA3#_R
EX_DVI_DATA2#_R
EX_DVI_DATA1#_R
EX_DVI_DATA5#_R
EX_DVI_DATA5_R
EX_DVI_DATA0_R
EX_DVI_CLK#_R
EX_DVI_DATA4_R
EX_DVI_DATA4#_R
EX_DVI_DATA3_R
EX_DVI_DATA2_R
C 119 0.1u_16V_Y5V_04
LP 4
D VI2012F2SF-900T05_08
1
4
2
3
R60 499_1%_04
C25 5P_50V_04
C 123 0.1u_16V_Y5V_04
R4
10K_04
LP 7
DVI2012F2SF-900T05_08
1
4
2
3
C 116 0.1u_16V_Y5V_04
C108 5P_50V_04
C 49 0.1u_16V_Y5V_04
LP 6
DVI2012F2SF-900T05_08
1
4
2
3
C 47 0.1u_16V_Y5V_04
C110 5P_50V_04
R65 499_1%_04
C 50 0.1u_16V_Y5V_04
C106 5P_50V_04
C 48 0.1u_16V_Y5V_04
Q1
MTN7002ZHS3
G
DS
R17 499_1%_04
R20 499_1%_04
C111 5P_50V_04
C 120 0.1u_16V_Y5V_04
D2
RB 751V
AC
LP 2
DVI2012F2SF-900T05_08
1
4
2
3
R19 499_1%_04
C21 5P_50V_04
R62 499_1%_04
C112 5P_50V_04
C 121 0.1u_16V_Y5V_04
R63 499_1%_04
R61 499_1%_04
D SUB
DVI
J_D VI1
D71110-29F-10105-R
TM D S D A T A 2 -
1
TM D S D A T A 2 +
2
TM DS 2/4 Shield
3
TM D S D A T A 4 -
4
TM D S D A T A 4 +
5
DD C Clk
6DD C Da ta
7V SYN C
8
TM D S D A T A 1 -
9
TM D S D A T A 1 +
10
TM D S D A T A 1 / 3 S h i e ld
11
TM D S D A T A 3 -
12
TM D S D A T A 3 +
13
+5V POWE R 14
GN D (AN ALO G)
15
HOT PLUG DETECT
16
TM D S D A T A 0 -
17
TM D S D A T A 0 +
18
TM D S D A T A 0 / 5 S h i e ld
19
TM D S D A T A 5 -
20
TM D S D A T A 5 +
21
TM DS C LK Shield
22
TM D S C L K +
23
TM D S C l k -
24
CASE M1
RED
C1
GR EEN
C2
BLU E
C3
H SY NC
C4
CASE M2
GN D C5
GN D C6
C113 5P_50V_04
.
L4
FC M1608K-121T06
C24 5P_50V_04
C1 6
0.1u_16V_Y5V_04
C20 5P_50V_04
R64 499_1%_04
C 45 0.1u_16V_Y5V_04
C107 5P_50V_04
R22 499_1%_04
C109 5P_50V_04
C 46 0.1u_16V_Y5V_04
EX _ DVI_ DA TA 2 _ R
C 117 0.1u_16V_Y5V_04
R66 499_1%_04
EX _ DVI_ DA TA 3 # _R
EX _ DVI_ DA TA 2 # _R
C23 5P_50V_04
LP 3
DVI2012F2SF-900T05_08
1
4
2
3
EX _ DVI_ DA TA 4 _ R
LP 1
DVI2012F2SF-900T05_08
1
4
2
3
R21 499_1%_04
EX _ DVI_ DA TA 1 _ R
EX _ DVI_ DA TA 4 # _R
EX _ DVI_ DA TA 3 _ R
EX _ DVI_ DA TA 1 # _R
R18 499_1%_04C7
220p_50V_04
LP 5
DVI2012F2SF-900T05_08
1
4
2
3
C 118 0.1u_16V_Y5V_04
C22 5P_50V_04
C 122 0.1u_16V_Y5V_04
R59 499_1%_04
D1
BAV99
A
C
AC
5VS
3. 3 V S
3. 3 V S
5VS14,15,18,19,25,26,30,32, 33,35,39,43,44
3.3VS4, 10,11,12,13,14,15,16,18,19,20,21,23,24,25,26,29,30,32,33,34,35, 36,39,40,43,58
EX_DVI_CLK_ R
EX_DVI_CLK# _R
EX _ DVI_ DA TA 5 # _R
EX _ DVI_ DA TA 5 _ R
EX _ DVI_ DA TA 0 _ R
EX_DVI_CLKP14
EX _ DVI_ DA TA 0 # _R
EX_DVI_CLKN14
EX_DVI_HP D14
D0 2
C lose to DVI PO RT
Close to DVI PORT
EX_D VI_D 1N14
EX_DVI_D1P14
DD CL K
Sheet 16 of 58
DVI
Schematic Diagrams
B - 18 HDMI
B.Schematic Diagrams
HDMI
Sheet 17 of 58
HDMI
R29 6
33 _04
C27 6
0.1u _16V _Y 5V _04
EX_HDMI_C_SCL14
R14 1_04R2 3 1 _04
200 9/11 /28 _Ale x
R299
4.7K _0 4
5VS_HDMI
.
L56
F CM16 08K-12 1T0 6
C424
10 p_50 V_ 04
EX_H DMI_ C_SDA_R
R298
10K_04
C 31 0. 1u_ 16V _Y5V_0 4
C 30 0. 1u_ 16V _Y5V_0 4
C42 3
2 20p _50V_0 4
.
L55 F C M 1608 K- 121T 06
C 33 0. 1u_ 16V _Y5V_0 4
C 32 0. 1u_ 16V _Y5V_0 4
D18
BAV99
A
C
AC
C 29 0. 1u_ 16V _Y5V_0 4
C 28 0. 1u_ 16V _Y5V_0 4
3. 3VSC 26 0. 1u_ 16V _Y5V_0 4
EX_H DMI_C 1P14
EX_H DMI_ CCLK P14
EX_H DMI_C 2P14
EX_HDM I_CCL KN14
EX_HDMI _C2N14
EX_HDMI _C0N14
EX_HDMI _C1N14
EX_H DMI_C 0P14
EX_HD MI_C1 P
EX_HD MI_C0 P
EX_ HDMI _C0N
EX _ H D M I _ C C L KN
.
L57
F CM16 08K-12 1T0 6
EX_HD MI_C2 P
EX_ HDMI _C2N
EX_ HDMI _C1N
EX _ H D M I _ C C L KP
C 27 0. 1u_ 16V _Y5V_0 4
C422
10 p_50 V_ 04
EX_H DMI_ CCLKP_R
EX_H DMI_ C_S CL_R
EX_HDM I_C1 N_R
EX_HDM I_C1 P_ R
EX_HDM I_C0 N_R
EX_HDM I_C0 P_ R
EX_H DMI_ CCLKN_R
EX_HDM I_C2 N_R
EX_HDM I_C2 P_ R
EX_HDMI _CHPD_R
EX_HD MI_C 2N_R
EX_HD MI_C 0N_R
EX_HD MI_C 0P_R
3. 3VS 4, 10,1 1,1 2,13 ,14 ,15 ,16, 17, 19, 20,2 1,2 3,24 ,25 ,26 ,29, 30, 32, 33,3 4,3 5,3 6,39 ,40 ,43, 58
EX_HD MI_C 2P_R
EX_HD MI_C1 N_R
EX_HD MI_C1 P_R
EX_HD MI_CC LKN_R
EX_HDMI _C_SDA14
R297
4.7K _0 4
R29 5
33 _04
5VS_HDMI 5VS_ HDMI
D1 7
BAV9 9
A
C
AC
Q4
MTN 70 02Z HS 3
G
DS
FOR HDMI SWITCH
EX_HD MI_C _S CL_R
EX_HD MI_CC LKP_ R
HDMI_ CEC
EX_HD MI_C HPD _R
EX_HDMI_C_SDA_R
HDMI GND
HDMI GND
Q5
MTN 70 02Z HS 3
G
DS
R 8 499_ 1%_ 04
L10 WC M201 2F2S-161 T03
1
4
2
3
R1 2 4 99_1 %_ 04
L11 WCM2012F2S-161T03
1
4
2
3R6 4 99_1 %_ 04
L13 WC M201 2F2S-161 T03
1
4
2
3
J_HDMI1
DF 03 -7
SH I E L D 2
2
TMDS D AT A1 +
4
TMDS D AT A1 -
6
SH I E L D 0
8
TMDS C LOC K+
10
TMDS C LOC K-
12
RESERVED
14
SD A
16
+5V
18
TMDS DA TA 2+ 1
TMDS DATA2- 3
SHIELD1 5
TMDS DA TA 0+ 7
TMDS DATA0- 9
CLK SHIELD 11
CEC 13
SCL 15
DDC/ CEC GND 17
HOT PL UG D ETECT 19
GND
GN D1
GND
GND2
GND
GND3
GND
GND4
R 7 499_ 1%_ 04
Q2
MTN7 002 ZHS 3
G
DS
R1 1 4 99_1 %_ 04
C15
22u _6.3 V_ X5R_ 08
L12 WCM2012F2S-161T03
1
4
2
3
R5 4 99_1 %_ 04
C14
22u_ 6.3 V_ X5R_0 8
R 10 499_ 1%_ 04
R 9 499_ 1%_ 04
5VS
5VS_HDMI
5VS
5VS_ HDMI
D1 9
BAV9 9
A
C
AC
PIN GND1~4=GND
HDMI CONNECTOR
EX_H DMI_ CHPD14 EX_H DMI_ CHPD
5VS 14, 15, 17, 19,2 5,2 6,3 0,32 ,33 ,35, 39, 43, 44
R47
4.7K _0 4
R43
4.7K _0 4
3.3 VS
3.3 VS
D02
D0 2
D0 2
EX_HDMI_C_SCL
EX_HDMI_C_SDA

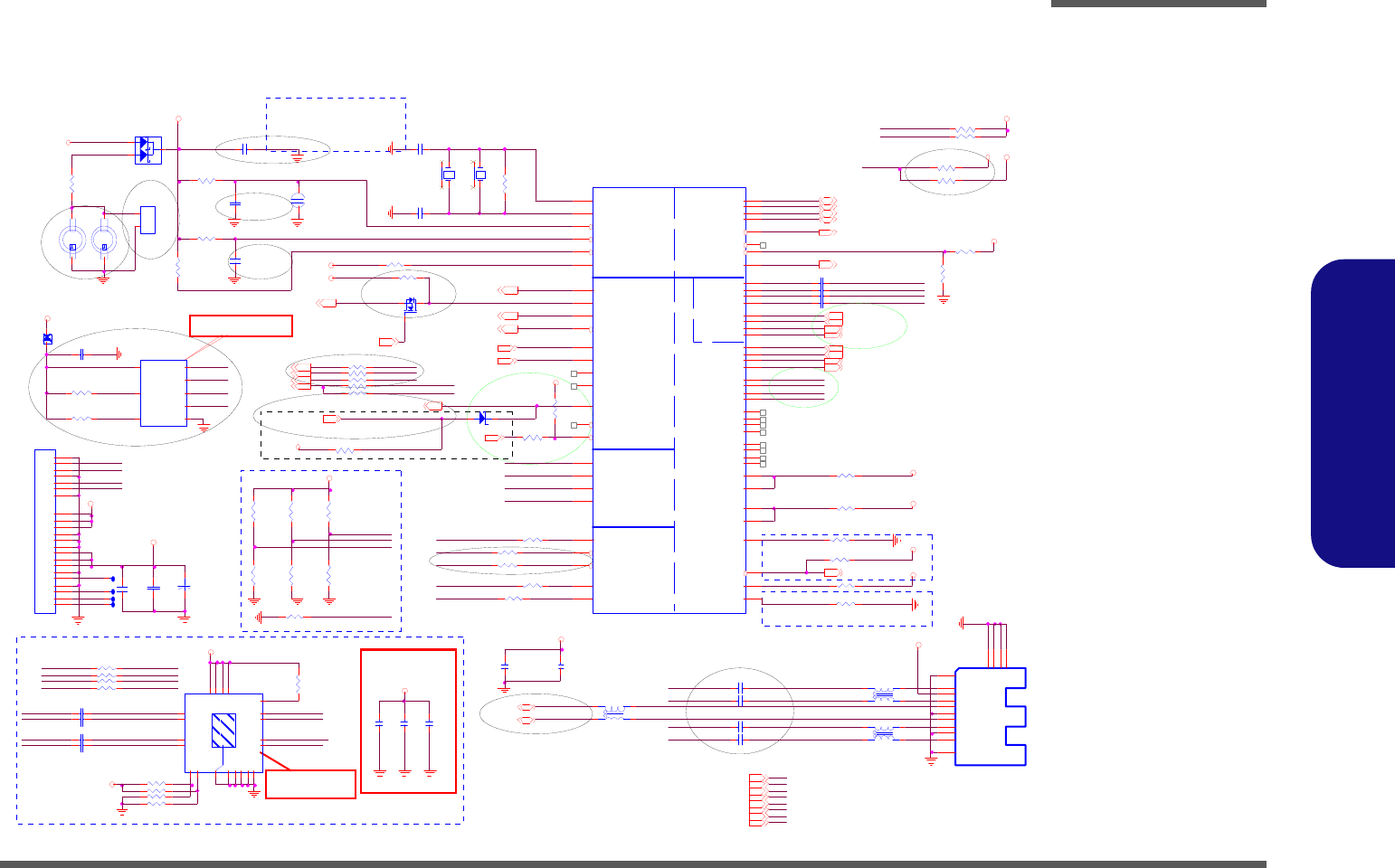

Schematic Diagrams
CougarPoint - M 1/9 B - 19
B.Schematic Diagrams
CougarPoint - M 1/9
HDA_RST#14,32
D0 2
R194 *1K_04
SATA HDD
R421
* 10K_04
R422
*10K_04
3. 3 V S
Flash Descriptor
Security Overide
ME_WE#34
INTVRMEN- Integrated SUS
1.05V VRM Enable
High - Enable Internal VRs
Low - Enable External VRs
PCH _JTAG _TD O
PCH _J TAG _TCK _BU F
PCH _JTAG _TD I
PCH _ JTAG _TM S
R 125 4. 7K_04
NO REBOOT STRAP: HDA_SPKR High Enable
R338
21 0 _ 06
R1 1 3
210_06
R1 4 5
100_04
R351
210_06
R361
100_04
3.3V
R359
100_04
HD A_SYN C14,32
5V26,28,32,35,37,39, 40,41,42,46
X4
*32.768KH z
14
3 2
L14
WC M2012F2S-161T03-short
1
4
2
3
1. 05 V S20,21, 25,26,30,40
SATA_R XN0
SATATXP0
SATATXN0
SATAR XP 0
SATAR XN 0C623 0.01u_16V_X5R _04
SATA_TXP0
SATA_TXN0
SATA_R XP0
C625 0.01u_16V_X5R _04
C626 0.01u_16V_X5R _04
C624 0.01u_16V_X5R _04
SPI_SO
Zo= 50O ? 5%
SPI_CS0# _R
HDA _SD IN032
J_CBAT1
BH800.9G
-
2+1
J_CBAT2
*KTS-BA T-012-001
-
2+1
NC2
SHO RT
D02
SATA_ L ED#
USBVCC01
SATATXP1 SATA_TXN 1_R
X 7100M
SATA_RXN1_R
S A TA _T X P 1 _R
6-02-75412-KQ0
S A TA _R XP 1_ R
SATA_TXP 1
SATA_RXN 1
SATA_TXN 1
SATA_RXP1
S ATA _TXN1_R
SN75LVCP412RTJ
SATARXN1 SATA_RXP1_R
ESATA REDRIVER
SATA_RXN 1_R
SATA_TXP 1_R
SA TAR XP1
SA TATXN1
SA TATXP1
SA TAR XN1
SATATXN 1
SATARXP1
Closed to U23
NEAR TO J_ESATA1
La yo ut n ot e:
Layout Note:
R 204 0_04
R 240 0_04
HS PI_C E#34 R 245 *0_04
HS PI_M SI34
SPI_CS1#
R 205 0_04
SPI_SCLK
SPI_SI
HS PI_M SO34
SPI_CS0#
SPI_SOR 238 0_04
HS PI_S CL K34 SATAR XP 1
SATATXN1
SATATXP1
H DA_SD OUT14,32
SATAR XN 1
SATAICO MP
BIOS ROM
OD D_DET EC T#
HD A_SDO UT
CougarPoint - M (HDA,JTAG,SATA)
5V S14,15,17,18,25,26,30,32,33, 35,39,43,44
BBS_BIT0
X51 00M
R4951K_1% _04
3. 3 V
SATA ODD
L16
W CM 2012F 2S-161T03-s hort
1
4
2
3
R 6 71 * 0 _0 4
R BIAS_SATA3
SPI_CS1# _R
1.5V_VCC SUSH DA
D03
D11RB751V
A C
B5100 R378
B4100 R403
SPI_SI
SPI_SC L K
SPI_C S0 #
SPI_C S1 #
D03
3.3VS
20mils
RT C CLE AR
20mils
10mils
H DA_BITCLK14,32
SATA_ RXN2 35
SATA_ TXP2 3 5
SATA_ TXN 2 35
SATA_ RXP2 3 5
H DA_SYN C
PC H_INTVR MEN
RT C_ X1
SRTC_R TC #
PC H_J TAG _TD I
PC H_J TAG _TM S
RT C_ X2
H DA_SPKR
SM_ INTR UDE R#
H DA_SYN C_R
SATA_ RXP4 3 5
SATA_ RXN4 35
SATA_ TXP4 3 5
SATA_ TXN 4 35
C18
0.1u_10V_X5R _04
C3 5
10u_10V_Y 5V_08
50 mil
U SBVCC 01
Support XHCI Function
HD D_ NC 3
HD D_ NC 1
HD D_ NC 0
HD D_ NC 2
RT CIH DA
SA TA
LP C
SP I JTAG
SATA 6G
U19A
CougarPoint_R ev_1p0
RTCX1
A20
RTCX2
C20
INTVRM EN
C17
INTRU DER #
K22
HDA _B C L K
N34
HDA _SY NC
L34
HDA _R ST #
K34
HDA _SD IN0
E34
HDA _SD IN1
G34
HDA _SD IN2
C34
HDA _SD O
A36
SATAL ED# P3
FW H0 / L AD0 C38
FW H1 / L AD1 A38
FW H2 / L AD2 B37
FW H3 / L AD3 C37
LD R Q 1# / G P I O2 3 K36
FW H4 / L FRA ME# D36
LDR Q0# E3 6
RTCR ST#
D20
HDA _SD IN3
A34
HDA _D OC K_E N# / GPIO 3 3
C36
HDA _D OC K_R ST# / GPIO 13
N32
SRTCR ST#
G22
SATA0RXN AM 3
SATA0 RXP AM 1
SATA0 TXN AP7
SATA 0TXP AP5
SATA1RXN AM 10
SATA1 RXP AM 8
SATA1 TXN AP1 1
SATA 1TXP AP10
SATA2RXN AD 7
SATA2 RXP AD 5
SATA2 TXN AH 5
SATA 2TXP AH 4
SATA3RXN AB8
SATA3 RXP AB1 0
SATA3 TXN AF3
SATA 3TXP AF1
SATA4RXN Y7
SATA4 RXP Y5
SATA4 TXN AD 3
SATA 4TXP AD 1
SATA5RXN Y3
SATA5 RXP Y1
SATA5 TXN AB3
SATA 5TXP AB1
SA TAIC OM PI Y10
SPI_CLK
T3
SPI_CS0#
Y14
SPI_CS1#
T1
SPI_MOS I
V4
SPI_MISO
U3
SATA0 GP / G PIO21 V14
SATA1 GP / G PIO19 P1
JT A G _T C K
J3
JT A G _T M S
H7
JT A G _T D I
K5
JT A G _T D O
H1
SER IRQ V5
SPKR
T10
SATAICO MPO Y11
SATA3C OM PI AB1 3
SATA3 RCO MPO AB1 2
SA TA3 R BIAS AH 1
P IN G ND 1~ 2 = G ND
SATA_ RXP0
SATA_ TXN0
SATA_ RXN 0
SATA_ TXP0
+
C393
100u_6.3V_B2
C620
1u_10V_06
X3
32.768KHz
14
3 2
J _ HD D1
SAT-22 SY 0B
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
C622
* 0 . 1u _ 1 6V _0 4
3.3VS
R670
* 10K_04
D0 3
BBS_BIT0 - BIOS BOOT STRAP BIT 0
SPI_SI
SPI_W P#
32 Mb it
SPI_VDD
SPI_CS0#
SPI_HO LD #
SPI_SCLK
SPI_SO
R149 *1K_04
USB_PN923 USB_PN 9
USB_PP9
L15
WCM 2012F2S-161T03-short
1
4
2
3
USB_PP923
R418*1K_04
R138 0_04
SPI_* = 1.5"~6.5"
R141 10K_04
R 106 * 4.7K_04
C 182 *0.01u_16V_X5R_04
R316 0_04
R203
*3.3K_1%_04
U25
*M X25L3205DM 2I- 12G
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SCK 6
HOLD#
7
VD D
8
C261
15p_50V_NPO _04
R161 10K _04
C322 1u_6.3V_X5R _06
C523
1u_6.3V_X5R _06
R 121 33_04
C54 0.01u_16V_X7R_04
R 105 * 4.7K_04
C173
*0.1u_16V_Y5V_04
R2 39
1K_04
R140 * 0_04
R408
1M_04
C55 0.01u_16V_X7R_04
R104
* 4.7K_04
R383 49.9_1%_04
C2 95
*0.1u_10V _X5R_04
R 109 * 4.7K_04
HD A_S Y NC _ CT RL34
C244
15p_50V_NPO _04
HO S T
DEV I C E
U1 1
*S N 7 5L VC P 41 2
D1
8
VDD 6
RX_ 0P
1
RX_ 0N
2
GN D
3
VD D 10
TX_1N
4
TX_1P
5
VDD 16
D0
9
GND
13
R X_1P 11
RX_1N 12
VDD 20
GN D
17
TX_0N 14
TX_0P 15
EN 7
T-PAD
21
GND
18
GN D
19
C 183 *0.01u_16V_X5R_04
R 169 330K_04
SER IRQ
H DA_SPKR R346*1K _04
R386 37.4_1%_04
R137 750_1%_04
R35810K _04
R233
*3.3K_1%_04
3.3VS
SATAICO MP
SATA_TXN1_C
SATA_RXN1_C
SATA_RXP1_C
C56 0.01u_16V_X7R_04
S ATA_TXN1_R
S ATA_R XN 1_R
S ATA_R XP1_R
SATA_TXP1_C
C171
*0.01u_16V _X5R _04
S ATA_TXP1_R
R314 0_04
D0 2
D02
D02
5V S
RTC_VBAT_ 1
R414
20K_1% _04
C2 02
*1u_6.3V_04
C 194 *0.01u_16V_X5R_04
R389
20K_1% _04
ESATA POART
C57 0.01u_16V_X7R_04
R320 0_04
R176
10M_04
C505
1u_6.3V_X5R _06 JO PEN 1
*O PEN_1 0m il-1M M
12
R324 0_04
J _ ESATA1
EU001-117CR L-TW
GN D1
5
TXP
6
TXN
7
GN D2
8
RXN
9
RXP
10
GN D3
11
VBU S
1
D-
2
D+
3
GN D4
4
GN D GN D1
GND GND 2
GN D G ND3
GND GND 4
R385 0_04
R 110 * 4.7K_04
C 177 *0.01u_16V_X5R_04
RTCV CC
RTCVCC
VD D3
3. 3 V S
3. 3V S
1. 05 V S
3.3VS
+V 1.05S_SATA3
3. 3 V S
3.3VS
3.3VS
SER IRQ
H DA_SPKR32
LPC _AD3 34,58
LPC _AD2 34,58
LPC _AD1 34,58
LPC _AD0 34,58
HDA _SD IN114
S ERIR Q 34,58
LPC _ FRAM E# 34,58
Board ID
RTCVC C21,26
1.05VS_V TT3,4,6, 24,25,26,40,43
3.3VS4,10,11,12,13,14,15,16,17,18,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40,43,58
VDD 329,34,35, 36,38,39,45
3. 3V3,4,9,14,15, 20,21,23,24,25,26,28,29,30,32,35,36,37, 39,40,41,42
SATA_LED# 30,35
3.3V
R122 0_04
Q36
MTN 7002ZHS3
G
DS
J_C BAT3
85204-0200N
1
2
R 510 10K_04
USB30_S MI#24,37
PC H_J TAG _TD O
P CH_ J T AG_ TCK _ BU F
SPI_SO _R
RT C_ RS T#
C
A
A
D1 4
BAT5 4C W GH
1
23
VDD 3
Sheet 18 of 58
CougarPoint - M 1/9
Schematic Diagrams

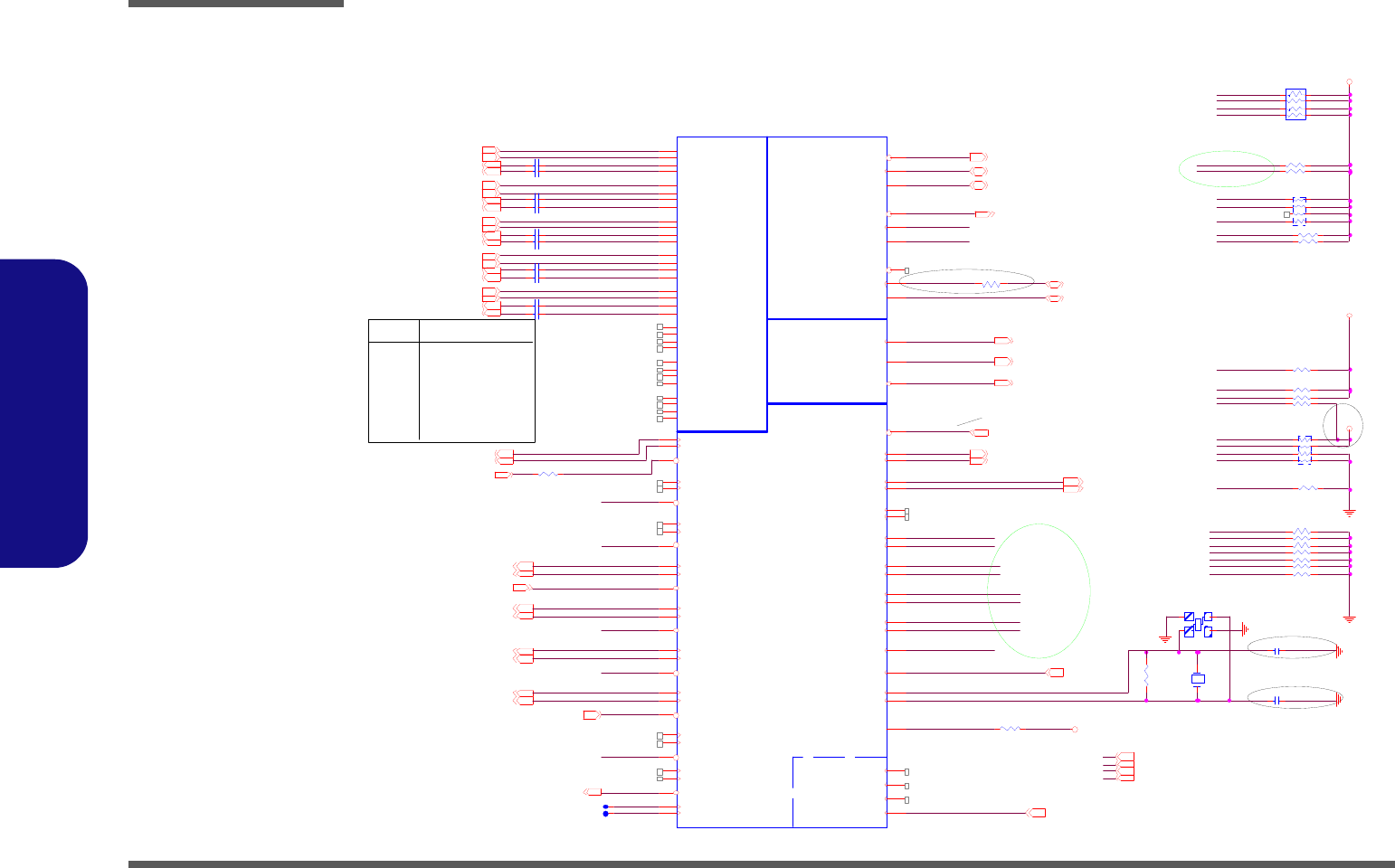

B - 20 CougarPoint - M 2/9
B.Schematic Diagrams
CougarPoint - M 2/9
R435 10K_04
CLK_ BU F_D OT96 _N _R
CLK_ BU F_D OT9 6 _P_R
R371 10K_04
1.05VS 19,21,25,26,30,40
CLK_ BU F_C KSSC D_ P_ R
CLK_ BU F_C KSSC D_ N_R
PCIE_RXN 4_139416 PCIE_RXP4_139416
CLK_BU F_D OT96_P _R
10K pull-down to
GND
PC IE_TXN 4_139416 PC IE_TXP4_139416
CLK_BU F_D OT96_N _R
C 565 0.1u_10V_X5R_04
C 564 0.1u_10V_X5R_04
3.3V
CL _ CL K1
CL _ DA TA 1
CL_RS T#1
PCIEC L KRQ 2#
X7 *25MHz
12
3 4
IC H_ G PIO4 6
U SB30 _C L KREQ #_ R
D03
PC I- E*
CL OC KS
FLEX CLOCKS
SM BU SCo nt ro ll er
Link
U19B
C ougarPoint_R ev_1p0
PER N1
BG 34
PER P1
BJ 34
PER N2
BE 34
PER P2
BF 34
PER N3
BG 36
PER P3
BJ 36
PER N4
BF 36
PER P4
BE 36
PER N5
BG 37
PER P5
BH 37
PER N6
BJ 38
PER P6
BG 38
PER N7
BG 40
PER P7
BJ 40
PER N8
BE 38
PER P8
BC 38
PETN 1
AV 32
PETP1
AU 32
PETN 2
BB 32
PETP2
AY 32
PETN 3
AV 34
PETP3
AU 34
PETN 4
AY 34
PETP4
BB 34
PETN 5
AY 36
PETP5
BB 36
PETN 6
AU 36
PETP6
AV 36
PETN 7
AY 40
PETP7
BB 40
PETN 8
AW 38
PETP8
AY 38
CLKOUT_PCIE0N
Y40
CLKOUT_PCIE0P
Y39
CLKOUT_PCIE1N
AB 49
CLKOUT_PCIE1P
AB 47
CLKOUT_PCIE2N
AA 48
CLKOUT_PCIE2P
AA 47
CLKOUT_PCIE3N
Y37
CLKOUT_PCIE3P
Y36
CLKOUT_PCIE4N
Y43
CLKOUT_PCIE4P
Y45
CLKOUT_PCIE5N
V45
CLKOUT_PCIE5P
V46
CL KIN_ G ND 1_ N BJ 30
CL KIN _ GND 1 _P BG30
CLKIN_DMI_N BF18
CLKIN_DMI_P BE18
CL KIN_ D OT_ 96 N G2 4
CLKIN_DOT_96P E2 4
CL KIN_ SA TA _ N AK7
CLKIN _SATA_P AK5
XTAL25_ IN V47
XTAL25_OU T V49
R EFC LK14IN K45
CLKIN _PC ILOO PBACK H4 5
CLKO UT_PEG_A_N AB37
CLKOUT_PEG_A_P AB38
PEG_A_CLKR Q# / GPI O47 M1 0
PC IECL KR Q0 # / GPIO 73
J2
PC IECL KR Q1 # / GPIO 18
M1
PC IECL KR Q2 # / GPIO 20
V10
PC IECL KR Q3 # / GPIO 25
A8
PC IECL KR Q4 # / GPIO 26
L12
PC IECL KR Q5 # / GPIO 44
L14
C LKOU TFLEX0 / GPI O64 K43
C LKOU TFLEX1 / GPI O65 F47
C LKOU TFLEX2 / GPI O66 H47
C LKOU TFLEX3 / GPI O67 K49
CL KOU T_D MI_N AV22
CL KO UT _ DM I_P AU22
PEG _B_CLKRQ # / GPIO 56
E6
C LK OUT_PEG _B_P
AB 40 C LK OUT_PEG _B_N
AB 42
XC LK_RCO MP Y47
CLKOUT_DP_P AM13
CLKO UT_DP_N AM12
CLKOUT_PCIE6N
V40
CLKOUT_PCIE6P
V42
PC IECL KR Q7 # / GPIO 46
K12
CLKOUT_PCIE7N
V38
CLKOUT_PCIE7P
V37
CLKOUT_ITPXDP_N
AK 14
CLKOUT_ITPXDP_P
AK 13
SM BAL ERT# / GPI O11 E12
SMBC LK H1 4
S MBD ATA C9
SML0 ALERT# / GPI O6 0 A12
SM L0C LK C8
SM L0 D ATA G1 2
SM L1ALER T# / PC HH OT# / GPI O7 4 C1 3
SM L 1C LK / GPI O5 8 E14
SM L 1D AT A / GPI O7 5 M1 6
CL_CLK1 M7
CL_DATA1 T1 1
CL_RST1# P10
PC IECL KR Q6 # / GPIO 45
T13
ICH _ GPIO 4641
C302 18p_50V_NPO _04
C LK_B UF_CPY CLK_N
RN3
10K_8P4R _04
1
2
3
45
6
7
8
C LK_B UF_CPY CLK_P
DGPU_PRSNT#
LAN_CLKREQ#
PC IECLKR Q1# R142 10K_04
M XM_CLKR EQ#
RN 8
10K_8P4R_04
1
2
3
45
6
7
8
SMC _CPU _TH ERM _R
SMD _CPU _TH ERM
R 162 1K_04
R210 *10K_04
3.3V
3.3VS
D RAM RST_ CN TRL
C 558 0.1u_10V_X5R_04
XCLK_RC OM P
PC H_ BT _ E N#
PC H_BT_EN #
SM B_D ATA
SM B_C LK
C LK _PC IE_139416 C LK_PCIE_1394#16
IC H_ GPIO 46
PC IECLKR Q6#
CLK_PCIE_3G#28 C LK _PC IE_3G28
SMC_CPU_THERM 34
SM B_CLK
DGPU_PRSNT# 14
CougarPoint - M (PCI-E,SMBUS,CLK)
R412 10K_04
Lane 1 USB3.0
Lane 2 GLAN / CARD READER
Lane 3 WLAN
Lane 4 1394
Lane 5 3G
Lane 6 X
Lane 7 X
Lane 8 X
UsagePCI-E x1
CLK_BUF_REF14_R
PCIE_RXN 5_ 3G28
PC IE_TXP5_3G28
PCIE_RXP5_ 3G28
C 567 0.1u_10V_X5R_04
PC IE_TXN 5_3G28 C 566 0.1u_10V_X5R_04
PC IEC LKR Q6#
IC H_ G PIO4 6
CLK_BU F_C KSSC D_N_R
CLK_BU F_C KSSC D_P_ R
90.9-O ?% pullup
to +VccIO
(1.05V, S0 rail)
CLK_BU F_R EF14_R
XTA L25_OU T
XTA L25_IN
CL K_ PC IE_ MXM
CL K_ PC IE_ MXM#
R 372 * 10K_04
R400 10K_04
R347 10K_04
PCIEC L KRQ 1#
PC IECLKR Q2#
R390 *0_04
C LK_P CIE_ICH _N_R
C LK_P CIE_ICH _P_R
R388 10K_04
1394_PCIE CLKRQ 5#
RN7
2.2K_8P 4R _04
81
72 6
5
3
4
DG PU_ P R SNT #
R 290 2.2K_04
PCIE_ RXP3 _W L AN29
PCIE_ RXN 3_ W LAN29
C 557 0.1u_10V_X5R_04
PCIE_TXP2_G LA N36
PC IE_R XP2_ G LA N36
PC IE_R XN2_ GL AN36
PCIE_TXN2_GLAN36
PC IE_TXP1_ USB3037
C 562 0.1u_10V_X5R_04
PC IE_TXN 1_ U SB3037 C 563 0.1u_10V_X5R_04
P CIE_RXP1_ USB3 037 P CIE_RXN 1_ U SB3037
C LK_ BUF_ CP YCL K_ P
C LK_ BUF_ CP YCL K_ N
C 555 0.1u_10V_X5R_04
PC IE_TXN 3_W LAN29
PC IE_TXP3_WLAN29 C 556 0.1u_10V_X5R_04
R349 10K_04
MXM _C LKREQ #
R395 10K_04
R335 0_04
CLK_PCIE _U SB3 0 #37
USB30_C LKREQ #37
CLK_PCIE_U SB3 037
USB30_C LKREQ #_R
3G_CLKR EQ#28
X8
X8A025000FG1H _25MH z
12
R208 90.9_1%_04
R217
1M _ 04
CL K_ PC IE_ ICH_ N _R
SM L0_DATA
S MC_ C PU_ T HER M_ R
D RAM RS T_ CN T RL _ R
SM D_CPU _ TH ERM
SM L0_CLK
DRAMRST_CNTRL 4,9
SMD_CPU_THERM 34
1. 0 5 V S
3.3V 3,4,9,14,15,19,21,23,24,25,26, 28,29,30,32,35,36,37,39,40,41,42
1.05VS_VTT 3,4,6,24,25,26,40,43
3.3VS 4,10,11, 12,13,14,15,16,17,18,19,21,23,24,25,26,29,30,32, 33,34,35,36,39,40,43,58
CL K_ PC IE_ ICH_ P_ R
R 397 2.2K_04
D0 3
SMB _D ATA 10,11,12, 13
SMB _C LK 10 ,11 ,1 2,13
PC H_BT_ EN#
C LK _PC IE_GLAN36
CLK_PCIE_GLAN#36
CLK_ PC IE_MIN I29
WLAN _C LKREQ #29
CLK_ PC I_F B 23
C LK _PC IE_ MIN I#29
CLK_EXP _N 4
CLK_EXP _P 4
CLK_PC IE_M XM 1 4
CL_ DATA1 29
MX M _C L K R E Q # 14
CLK_PC IE_M XM# 1 4
CL _ CL K 1 2 9
CL_RST#1 29
C303 18p_50V_NPO _04
LAN_C LKR EQ#
1394_PCIE CLKRQ 5#
R404 10K_04
SM B_DATA
SM L0_C LK
SM L0_D ATA
R348 10K_04
Sheet 19 of 58
CougarPoint - M 2/9
Schematic Diagrams
CougarPoint - M 3/9 B - 21
B.Schematic Diagrams
CougarPoint - M 3/9
R156 10K_04
R415 49.9_1% _04
3.3V
3.3V
1.05VS
3.3VS
3.3VS
3.3V
RTCVCC
1. 05VS _V TT 3,4,6,24,25,26,40,43
3.3V 3.3V
DDR1.5V_PWRGD41
3. 3V S 4,10,11,12,13,14,15, 16,17,18,19, 20,23,24,25, 26,29,30,32, 33,34,35,36, 39,40,43,58
3. 3V 3,4,9,14,15,19,20,23,24,25,26,28,29,30,32,35,36,37,39,40,41,42
R406 10K_04 SU SC# 3 4, 41
SU SB# 32, 33 ,3 4,37,39
H_PM_SYNC 4
RSMRST#34
PW R_BTN#34
AC _PRE SEN T23 , 3 4
SW I#34
PC IE_ W A KE# 2 8 ,2 9,3 6,3 7
PM_ D RAM _ PWR GD4
SU S_PW R _AC K34
DELAY_PWRGD43
0.85V S_PWR GD46
1.05VS_ VTT_EN 4 0
RTC VCC 1 9 ,2 6
DSWODVREN
1 .8 VS_ PW R G D42
ALL_SY S_PWR GD 14,15,34,43
R377 *0_04
R7V25 STUFFED,
R7V26 UNSTUFFED
DSWODVREN - On Die DSW VR Enable
SU S_STAT# 58
PC IE_ W AKE #
U1 7 A
74LVC 08PW
1
2
3
147
PM_C LKRU N #
S US_PW R_AC K
R7V26 STUFFED,
R7V25 UNSTUFFED
PM _P CH _PW R OK
R144 10K _04
SU S_PW R _A CK
RSM RS T#
0. 85 V S 7 , 4 6
PM _P CH _PW R OK
PM_SLP_LAN#
1. 05VS 19,20,25,26,30,40
B RIG HTN ESS_SW # 15
DM I_ CO MP _R
U17B
74LVC08PW
4
5
6
147
PM _CLKR UN # 58
PM_CLKRUN#
P CIE_W AKE#
Disabled
PWR_BTN#
D03
SY S_RE SET#
R 378 0_04
CougarPoint -M (DMI,FDI,GPIO)
A C_PR ESEN T
SLP_ SU S#
SLP_ A#
SW I#
PM _B ATLO W #
1.05VS_VTT_E N
DMI
FDI
System Power Management
U1 9 C
C ougarPoint_Rev_1p0
DMI0RXN
BC 24
DMI1RXN
BE20
DMI2RXN
BG 18
DMI3RXN
BG 20
DMI0RXP
BE24
DMI1RXP
BC 20
DMI2RXP
BJ18
DMI3RXP
BJ20
DMI0TXN
AW 2 4
DMI1TXN
AW 2 0
DMI2TXN
BB18
DMI3TXN
AV18
DMI0TXP
AY 24
DMI1TXP
AY 20
DMI2TXP
AY 18
DMI3TXP
AU 18
DMI_ZCOMP
BJ24
DMI_IRCOMP
BG 25
FDI_R XN0 BJ14
FDI_R XN1 AY14
FDI_R XN2 BE14
FDI_R XN3 BH13
FDI_R XN4 BC12
FDI_R XN5 BJ12
FDI_R XN6 BG10
FDI_R XN7 BG9
FD I_RXP0 BG14
FD I_RXP1 BB14
FD I_RXP2 BF14
FD I_RXP3 BG13
FD I_RXP4 BE12
FD I_RXP5 BG12
FD I_RXP6 BJ10
FD I_RXP7 BH9
FDI_FSYNC0 AV12
FDI_FSYNC1 BC10
FD I_LS YN C0 AV14
FD I_LS YN C1 BB10
FD I_INT AW16
PM SYN CH AP14
SLP_ SU S# G16
SLP_ S3 # F4
SLP_ S4 # H4
SLP_S5# / G PIO63 D10
SY S_RE SET#
K3
SY S_ PW R OK
P12
PW RBTN #
E20
RI#
A10
W AKE# B9
SU S_STAT# / G PIO6 1 G8
SU SC LK / G PIO62 N14
AC PR ESEN T / GP IO3 1
H20
BATLO W# / G PIO72
E10
PW RO K
L22
CL KR UN # / G PIO32 N3
SU SW AR N #/S USP W RD N ACK/ GPIO 30
K16
RSMRST#
C21
D RAM PW R OK
B13
SL P_L AN # / G PIO2 9 K14
APW RO K
L10
DPW RO K E22
DMI2RBIAS
BH 21
SLP_ A# G10
DS W VR ME N A18
SU SAC K#
C12
U17C
74 L V C 0 8P W
9
10 8
147
SU S_STAT#
PM_ M PW R OK
SWI#
Enabled (DEFAULT)
SLP_ S5 #
PM_MPWROK
D02
SY S_ PW R OK
P M _S LP _L A N #
DM I_ RX N 13
DM I_ RX N 03
RSMRST#
1.05VS_PWR G D40
DM I_ RX P03
DM I_ RX N 33
DM I_ RX N 23
DMI_TXN03
DM I_ RX P33DM I _ RXP23
DM I_ RX P13
DMI_TXN33
DMI_TXN23DMI_TXN13
DMI_TXP23
DMI_TXP13
DMI_TXP03
DMI_TXP33
ALL _S YS_PW RG D
DSWODVREN
SU S_PW R _ACK
R133 10K_04
P M_ BATL O W #
U17D
74LVC08PW
12
13
11
147
VDD 3 19,29,34,35,36,38,39,45
ON
SY S_ PW R O K
SU SB#
PWR _ BTN#
AC _P RESE NT
PM_PCH_PWROK34
R387 10K_04
R174 330K_04
R402 10K_04
R407 750_1%_04
R159 10K_04
R123 8.2K_04
R381 8.2K_04
R155 1K_04
R180 * 330K _04
R134
*10m il_short
R405 * 10K_04
R135
10 K _ 0 4
Sheet 20 of 58
CougarPoint - M 3/9
Schematic Diagrams

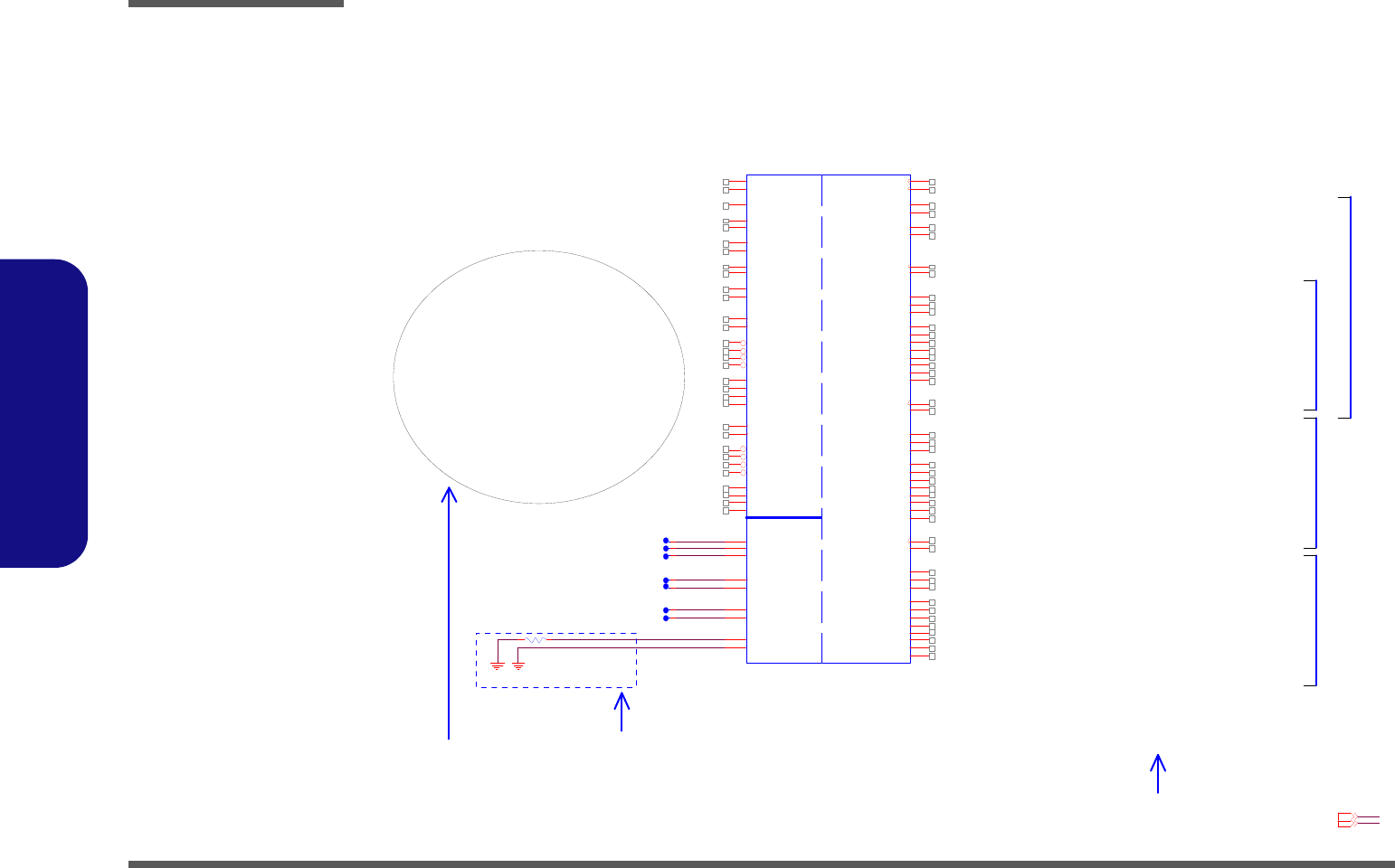

B - 22 CougarPoint - M 4/9
B.Schematic Diagrams
CougarPoint - M 4/9
External Graphics (PCH Integrated Graphics Disable)
No Connect
R431 1K_1%_04
3.3VS4,10,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34, 35, 36,39,40,43,58
5VS14,15,17,18,19,25,26,30, 32, 33,35,39,43,44
LVDS
Digital Display Interface
CRT
U19D
CougarPoi nt_Rev_1p0
L_B KLTCTL
P45
L_B KLTEN
J47
L_CTRL_CLK
T45
L_CTRL_DATA
P39
L_DDC_CLK
T40
L_DDC_DATA
K47
L_V DD_EN
M45
LVDSA_CLK#
AK39
LVDSA_CLK
AK40
LVDS A_ D ATA# 0
AN 4 8
LVDS A_ D ATA# 1
AM4 7
LVDS A_ D ATA# 2
AK47
LVDS A_ D ATA# 3
AJ 4 8
LVDS A_ D ATA0
AN 4 7
LVDS A_ D ATA1
AM4 9
LVDS A_ D ATA2
AK49
LVDS A_ D ATA3
AJ 4 7
LVDSB_CLK#
AF4 0
LVDSB_CLK
AF3 9
LVDS B_ D ATA# 0
AH 4 5
LVDS B_ D ATA# 1
AH 4 7
LVDS B_ D ATA# 2
AF4 9
LVDS B_ D ATA# 3
AF4 5
LVDS B_ D ATA0
AH 4 3
DDPB_0N AV 42
DDPB_1N AV 45
LVD_VREFH
AE48
LVD_VREFL
AE47
DDPD_2N BF 42
DDPD_3N BJ 42
DDPB_2N AU 48
DDPB_3N AV 47
DDPC_0N AY 47
DDPC_1N AY 43
DDPC_2N BA 47
DDPC_3N BB 47
DDPD_0N BB 43
DDPD_1N BF 44
DDPB_0P AV 40
DDPB_1P AV 46
DDPD_2P BE 42
DDPD_3P BG4 2
DDPB_2P AU 4 7
DDPB_3P AV 49
LVDS B_ D ATA1
AH 4 9
LVDS B_ D ATA2
AF4 7
LVDS B_ D ATA3
AF4 3
LVD_IBG
AF3 7
LVD_VBG
AF3 6
DDPC_1P AY 45
DDPC_0P AY 49
DDPC_2P BA 48
DDPC_3P BB 49
DDPD_0P BB 45
DDPD_1P BE 44
CRT_BLUE
N48
CRT_DDC_CLK
T39
CRT_DDC_DATA
M40
CRT_GREEN
P49
CRT_HSYNC
M47
CRT_IRTN
T42
CRT_RED
T49
CRT_VSYNC
M49
DAC _I R EF
T43
SD VO _CTRLCLK P38
SDVO_CTRLDATA M39
DDPC_CTRLCLK P46
DDPC_CTRLDATA P42
DDPD_CTRLCLK M43
DDPD_CTRLDATA M36
DDPB_AUXN AT49
DDPC_AUXN AP 47
DDPD_AUXN AT4 5
DDPB_AUXP AT47
DDPC_AUXP AP 49
DDPD_AUXP AT43
DDPB_HPD AT4 0
DDPC_HPD AT3 8
DDPD_HPD BH 4 1
SDVO_TVCLKI NPAP 4 5
SD VO _T VC LKI N N AP 43
SDVO_STALLP AM4 0
SDVO_STALLN AM4 2
SD VO _INTP AP 40
SDVO_INTN AP 39
DAC_IREF_R
External Graphics (PCH Integrated Graphics Disable)
Connect to GND
CougarPoint -M (LVDS,DDI)
Display P ort D Display P ort C Display P ort B
SDVO
Sheet 21 of 58
CougarPoint - M 4/9
Schematic Diagrams
CougarPoint - M 5/9 B - 23
B.Schematic Diagrams
CougarPoint - M 5/9
INT_PIRQE#
RN13
10K_8P4R_04
8 1
7 2
6
53
4INT_PIRQE#
DGPU_PWM_SE LEC T#
USB_OC#23
USB_OC#45
USB_OC#14
R157
100K_04
C228 * 0. 1u_10V_X5R_04
R398 *0_04
R206 10K_04
R187 22.6_1%_06
RN10
10K_8P4R_04
8 1
7 2
6
53
4
R430 * 1K_04
R654 *22_04
R436 * 1K_04
PCLK_TPM58 PCLK_TPM_R
R433 * 1K_04
U15
MC74VHC1G08DFT1G
1
2
5
4
3
R438 *10K_04
3.3VS
3.3V
3. 3VS
3.3V S4,10, 11, 12,13,14,15,16,17,18,19,20, 21, 24,25,26,29,30,32,33,34,35,36, 39, 40,43,58
3.3VS
BUF_P LT_RST# 16,28,29,34,36,37
3.3V3,4,9,14,15,19,20, 21, 24,25,26,28,29,30,32,35,36,37, 39, 40,41,42
AC_PRESENT 21,34
PLT_R ST#4, 14,58
PME#34
USB PO RT0
US B PORT1
SA TA_ ODD_DA#35
INT_PIRQH#
INT_PIRQG#
SA TA_ ODD_DA#
I N T_ PI R Q E#
R211 22_04
R434 22_04
C L K_PC I _ F B20
PCLK_K BC34 C L K_PC I _ K BC _ R
C L K_PC I _ F B_ R
USB_BI AS
D03
I N T_ PI R Q A#
INT_PIRQD#
INT_PIRQC#
I N T_ PI R Q B#
I N T_ PI R Q A#
MPC Sw itch Co ntrol
MPC OF F -- 0 DEFAULT
MPC ON -- 1
USB_OC#67
SATA_ODD_DA#
PLT_RS T#
U SB _ PP5 2 8
USB_PN5 28
U SB _ PP6 3 5
USB_PN6 35
PC I _ R EQ# 1
PC I _ R EQ# 3
PC I _ R EQ# 0
INT_PIRQD#
RN12
10K_8P4R_04
8 1
7 2
6
53
4
HM65 no support Port6 and Port7
D02
D02
INT_PIRQC#
I N T_ PI R Q B#
RN9
10K_8P4R_04
8 1
7 2
6
53
4
DGPU_PWM_ S EL EC T#
PC I _ GN T# 3
BB S_BI T1
RSVD
PC I
USB
U19E
CougarPoint_Rev_1p0
RSVD23 AV 5
RSVD1AY 7
RSVD2AV 7
RSVD3AU 3
RSVD4BG4
RSVD5AT1 0
RSVD6BC 8
RSVD7AU 2
RSVD8AT4
RSVD17 BB 5
RSVD18 BB 3
RSVD19 BB 7
RSVD20 BE 8
RSVD21 BD 4
RSVD22 BF 6
RSVD9AT3
RSVD10 AT1
RSVD11 AY 3
RSVD12 AT5
RSVD13 AV 3
RSVD14 AV 1
RSVD15 BB 1
RSVD16 BA 3
RSVD25 AT8
RSVD24 AV 10
RSVD26 AY 5
RSVD27 BA 2
RSVD28 AT1 2
RSVD29 BF 3
PIRQA #
K40
PIRQB #
K38
PIRQC#
H38
PIRQD#
G38
REQ1# / GPIO50
C46
REQ2# / GPIO52
C44
REQ3# / GPIO54
E40
GNT1# / GPIO51
D47
GNT2# / GPIO53
E42
GNT3# / GPIO55
F46
PIRQE # / GPIO2
G42
PIRQF # / GPIO3
G40
PIRQG# / GPI O4
C42
PIRQH# / GPI O5
D44
U SBP 0 N C24
USBP0P A24
U SBP 1 N C25
USBP1P B25
U SBP 2 N C26
USBP2P A26
U SBP 3 N K2 8
USBP3P H28
U SBP 4 N E2 8
USBP4P D28
U SBP 5 N C28
USBP5P A28
U SBP 6 N C29
USBP6P B29
U SBP 7 N N28
USBP7P M28
U SBP 8 N L30
USBP8P K30
U SBP 9 N G30
USBP9P E30
U SBP 1 0N C30
USBP10P A30
U SBP 1 1N L32
USBP11P K32
U SBP 1 2N G32
USBP12P E32
U SBP 1 3N C32
USBP13P A32
PME#
K10
CLKOUT_PCI0
H49
CLKOUT_PCI1
H43
CLKOUT_PCI2
J48
U SBR BI AS# C33
U SBR BI AS B33
OC0# / GPI O59 A1 4
OC1# / GPI O40 K2 0
OC2# / GPI O41 B1 7
OC3# / GPI O42 C16
OC4# / GPI O43 L16
OC5# / GPI O9A1 6
OC6# / GPI O10 D14
OC7# / GPI O14 C14
CLKOUT_PCI4
H40CLKOUT_PCI3
K42
PLTR S T#
C6
TP1
BG26
TP2
BJ26
TP3
BH25
TP6
AH38
TP7
AH37
TP8
AK 43
TP9
AK 45
TP16
Y13
TP17
K24
TP18
L24
TP19
AB 46
TP20
AB 45
TP21
B21
TP22
M20
TP23
AY16
TP25
BE 28
TP26
BC30
TP27
BE 32
TP28
BJ32
TP29
BC28
TP30
BE 30
TP31
BF 32
TP32
BG32
TP33
AV 26
TP34
BB 26
TP35
AU28
TP36
AY30
TP37
AU26
TP38
AY26
TP39
AV 28
TP40
AW 30
TP4
BJ16
TP5
BG16
TP15
AM5TP14
AM4TP13
AH12TP12
H3 TP11
N30TP10
C18
TP24
BG46
USB_OC#1 35
USB_OC#1011
USB_OC#89
USB_OC#1213
INT_PIRQH#
INT_PIRQG#
USB_OC#67
USB_OC#45
USB_OC#23
USB_OC#1
USB_OC#89
BBS _ BI T1
USB_OC#1213
USB_OC#14
GPIO14
USB_OC#1011
PC I _ GNT#3
Und erstand the RE D FONT d efine
PIN PLT_RST# to Buffer
BBS_BIT1 BBS_BIT0 Boot BIOS Location
0 0 LPC
0 1 Reserved (NAND)
1 0 PCI
1 1 SPI
Boot BIOS Strap
PLT_R ST#
CougarPoint -M (PCI,USB,NVRAM)
3.3VS
USB_PN1 35
USB_PN0 35
U SB _ PP1 3 5
U SB _ PP0 3 5
USB_PN3 29
U SB _ PP2 2 8
USB_PN2 28
U SB _ PP4 3 5
USB_PN4 35
U SB _ PP3 2 9
U S B_ PP 9 1 9
USB_PN9 19
R426 8.2K_04
PC I _ R EQ# 3
PC I _ R EQ# 1
PC I _ R EQ# 0
R427 8.2K_04
Sheet 22 of 58
CougarPoint - M 5/9
Schematic Diagrams
B - 24 CougarPoint - M 6/9
B.Schematic Diagrams
CougarPoint - M 6/9
IC C_ EN #
P RO C_SELET 4
H_ PE CI_ R
SMI#
DG PU_ H PD_IN TR#
MPC_LED_CTRL
SCI#
FD I_O VR VLTG
D02
PLL_O DV R_EN
ICC _ EN#
CR B_SV_ DE T
R147 *1K_04
R 3 66 10 0 K _ 0 4
R 3 94 10 K _ 0 4
R357
*0_04
R 126 *10K_04
R173 * 0_04
R124 * 10K_04
R356 100K _04
R 153 10K_04
R3 4 2 10 K _ 1% _ 0 4
R345 200K _04
R168 * 10K_04
R341
*0_04
R429 *10K_04
R143
100K_04
R344 10K_04
R200 1.5K_1%_04
R368 390_1%_04
R146
100K_04
R365 *1K_04
R340 10K_04
R393
*0_04
RN11
10K _8P4R _04
1
2
3
4 5
6
7
8
R198 1.5K_1%_04
RN6
10K _8P4R _04
1
2
3
4 5
6
7
8
R343 10K_04
3.3VS
3.3V
3.3V S
3.3V S
MF G _ MO DE
3.3V S
3.3V S
3.3V S 3.3VS
3.3V
3.3V S
1 . 05 V S _V TT
3. 3 V S4,10,11, 12,13,14,15,16,17,18,19,20,21,23,25,26,29,30,32,33, 34,35,36,39,40,43,58
3.3VS
3.3V S
GA20 34
1.05VS_ VTT3,4,6,25,26,40,43 3. 3 V3,4,9,14,15,19,20,21,23,25,26,28,29,30,32, 35,36,37,39,40,41,42
SCI#34
H_THRMTRIP# 4
KBC_RST# 34
H_CPUPWRGD 4
SMI#34
SATA_ODD_PRSNT#35
ICC _EN#41
R139 10K_04
SB_BLON15
SA TA _O D D_ PWR GT 3 5
DGPU HDP (NV CONTROL BYSELF)
FDI _O VR VLTG
ICC _EN#
SCI #
DG PU _H PD _IN TR#
SATA_O DD _P W RG T
R201 1.5K_1%_04 3.3VS
R 363 0_04
D03
PLL_O DV R_EN
HOST_ALERT#1
R379 10K_04
R355
1K_04
D GPU _ HO L D_ RS T#14
SATA_ O DD _ PW R GT
SMI #
MPC_LED_CTRL
BIOS RECOVERY
DISABLE----NO STUFF (DEFAULT)
ENABLE-----STUFF
BIO S_REC
SB_BLON
R428 10K_04
CPU/MISC
NCTF GP IO
U19F
C ougarPoint _R ev_1p0
GP I O2 7
E16
GP I O2 8
P8
GP IO2 4 / M EM_LED
E8
GP I O5 7
D6
LAN_PH Y_PW R_C TR L / G PIO12
C4
VSS_N CTF_ 1
A4
VSS_N CTF_ 2
A44
VSS_N CTF_ 3
A45
VSS_N CTF_ 4
A46
VSS_N CTF_ 5
A5
VSS_N CTF_ 6
A6
VSS_N CTF_ 7
B3
VSS_N CTF_ 8
B47
VSS_N CTF_ 9
BD 1
VSS_N CTF_ 10
BD 49
VSS_N CTF_ 11
BE1
VSS_N CTF_ 12
BE49
TACH 2 / G PIO6
H36
TACH 0 / G PIO17
D40
TACH 3 / G PIO7
E38
SATA3G P / G PIO37
M5
SATA5G P / G PIO49
V3
SC LO C K / GP IO22
T5
SLOA D / G PIO 38
N2
SD ATAOU T0 / GPI O39
M3
SD ATAOU T1 / GPI O48
V13
PRO CP W RG D AY 11
RC IN # P5
PECI AU 16
TH R M T R I P # AY 10
GP IO8
C10
BM BUS Y# / G PIO0
T7
GP I O1 5
G2
TACH 1 / G PIO1
A42
SATA2G P / G PIO36
V8
INIT3 _3V # T14
STP_ PC I# / GPI O3 4
K1
GP I O3 5
K4
SATA4G P / G PIO16
U2
VSS_N CTF_ 32 F49
A20 GATE P4
TAC H4 / GPIO 6 8 C4 0
TAC H6 / GPIO 7 0 C4 1
TAC H7 / GPIO 7 1 A40
TAC H5 / GPIO 6 9 B41
VSS_N CTF_ 17 BH 3
VSS_N CTF_ 18 BH 47
VSS_N CTF_ 19 BJ 4
VSS_N CTF_ 20 BJ 4 4
VSS_N CTF_ 21 BJ 4 5
VSS_N CTF_ 22 BJ 4 6
VSS_N CTF_ 23 BJ 5
VSS_N CTF_ 24 BJ 6
VSS_N CTF_ 25 C2
VSS_N CTF_ 26 C4 8
VSS_N CTF_ 27 D1
VSS_N CTF_ 28 D4 9
VSS_N CTF_ 29 E1
VSS_N CTF_ 30 E49
VSS_N CTF_ 31 F1
TS_VSS 4 AK10
TS_VSS 3 AH 10
TS_VSS 2 AK11
TS_VSS 1 AH 8
NC _ 1 P37
VSS_N CTF_ 13
BF1
VSS_N CTF_ 14
BF4 9
VSS_N CTF_ 15 BG 2
VSS_N CTF_ 16 BG 48
DF _ TV S AY 1
R160 10K_04
DGPU_HOLD_RST#
R 367 0_04
V_NVR AM _V CC Q
CR IT_TE MP_R EP#_R
SATA_ OD D _PR SN T#_R
DG P U _H OL D _ RS T#
R3 5 4
4.7K_04
U SB30_SMI#19,37
GFX_C RB_D ET
R672 0_04
GFX_C RB_D ET
PCH_GPIO57
H _PE CI 4,34
D03
R 514 *0_04
R163 *1K_04
TEST_SET_ UP
HO S T_ A L ERT # 2
HOST_ALERT#1
EDID _SELEC T#
DG PU _P W RO K
EDP _C AR D_D ET#
HO S T_ A L ERT # 2
R 364 0_04
INIT3_3V#
PC H_M UTE#33 PCH _MU TE#
CougarPoint - M (GPIO,VSS_NCTF,RSVD)
TEST_SET_UP
R 350 0_04
TES T_D ET
DG PU _P W RO K
MF G _ MO DE
Su pp or t XH CI F un ct io n
SA TA _O DD _ P RS NT# _ R
CRB/SV DETECT
N O ST UF F [D ET EC T ]
BIO S_REC
CR IT_TEM P_RE P#_R
DGPU_PWROK
ED P_CAR D_ D ET#
Sheet 23 of 58
CougarPoint - M 6/9
Schematic Diagrams
CougarPoint - M 7/9 B - 25
B.Schematic Diagrams
CougarPoint - M 7/9
570mA
1.5VS_1.8VS
D03
CougarPoint -M (POWER)
20mA
C500
1u_6.3V _X5R_04
C3 0 0
*22u_6.3V_X5R _08
.
L6 1
* BKP1005HS 121_04
.
L45
*H CB 1608KF-121T25
U13
*S C1563ISK-3.0TRT
IN 5
S HDN 1
GND 2
AD J
3
OUT
4
R3 9 9 * 0_ 0 4
R 384 *0_04
R 391 0_04
C2 2 1
22u_6.3V_X5R _08
C531
1 u _6 . 3 V _ X 5R _ 04
R131
*17.4K_1% _04
C5 4 1
0.1u_10V_X5R_04
C520
1u_6.3V_X5R _04
C510
1u_6. 3V_X5R_04
C218
* 1u_ 6.3V_X5R _04
C224
1u_6. 3V_X5R_04
C545
* 0.01u_16V_X5R_04
R114 0_06
R120 0_04
R 376 * 15m il_short_06
C512
10u_6.3V_X5R _06
C509
0.1u_10V _X5R_04
C2 1 7
0. 1u_10V_X5R_04
C5 2 2
1u_6.3V_X5R_04
C4 9 8
10u_6.3V_X5R_06
C5 4 6
*0.01u_16V_X5R_04
R148
*10K_1%_04
2009/11/12
C517
*10u_6.3V_X5R _06
.
L28
H CB1608KF-121T25
C499
1u_6.3V_X5R _04
R413 * 15m il_shor t_06
C3 0 1
0. 01u_16V_X7R _04
C529
10u_6.3V_X5R _06
C535
1u_6.3V_X5R_04
C2 2 2
10u_6.3V_X5R_06
R 392 *0_04
157mA
C2 7 5
0.1u_10V_X5R_04
C540
1u_6.3V_X5R_04
C2 9 2
0.1u_10V_X5R_04
1.05VS_VTT
1.5VS 1.8VS 1.5V S_1.8VS
+V 1.05S_VCC APLL_EXP
1. 05 V S
+V1.05S_VC C_DM I
1.5VS_1.8VS
1.05VS
VC CA_D AC_3 .3V S
3. 3 V S
1.05VS
5VS
3.3VS
1.8VS_VC CTX_LVD
1.8VS
1. 8 V SV_NVR AM_ VC CQ
1.05V S_V TT
3.3VVC CM E3.3V
3. 3V S
1.05VS
1.05VS
3. 3 V S
3. 3 V S
1.05VS_VTT3,4,6,24,26,40,43
1.05VS
5VS14,15,17,18,19,26,30,32,33,35,39,43,44 1.5VS_1.8VS26
1.8VS7,16,42 3.3VS4,10,11,12,13,14,15,16,17,18,19,20,21,23,24,26,29,30,32,33,34,35,36,39,40,43,58
3.3V3,4,9,14,15,19,20,21,23,24,26,28,29,30,32,35,36,37,39,40,41,42 1.5VS39
S USB 4,39,40,41,42
D02
1.6A
157mA
R209 *0_04
68mA
.
L62
* HC B1608KF-121T25
D02
R207
0_04
20mA
POWER
VC C CO RE
DM I
VC CI O
CR TLV DS
FD I
DF T / S PI HV CM OS
U19G
CougarPoint_R ev_1p0
V CCC OR E[1 ]
AA23
V CCC OR E[2 ]
AC 23
V CCC OR E[3 ]
AD 21
V CCC OR E[4 ]
AD 23
V CCC OR E[5 ]
AF21
V CCC OR E[6 ]
AF23
V CCC OR E[7 ]
AG 21
V CCC OR E[8 ]
AG 23
V CCC OR E[9 ]
AG 24
V CCC OR E[1 0 ]
AG 26
V CCC OR E[1 1 ]
AG 27
V CCC OR E[1 2 ]
AG 29
V CCC OR E[1 3 ]
AJ23
V CCC OR E[1 4 ]
AJ26
V CCC OR E[1 5 ]
AJ27
VC CD FTE RM[ 4] AJ1 7
VC CD FTE RM[ 3] AJ1 6
V CCI O[1 7 ]
AN 21
V CCI O[1 8 ]
AN 26
V CCI O[1 9 ]
AN 27
V CCI O[2 0 ]
AP21
V CCI O[2 3 ]
AP26
V CCI O[2 4 ]
AT24
V CCI O[1 5 ]
AN 16
V CCI O[1 6 ]
AN 17
V CCI O[2 1 ]
AP23
V CCI O[2 2 ]
AP24
VC CAD AC U4 8
VCC TX_ LVDS[ 1] AM37
VCC TX_ LVDS[ 2] AM38
VCC ALVDS AK36
V CCV RM[ 3] AT1 6
V CCV RM [2]
AP16
V CCA PLL EXP
BJ22
VccAFDIPLL
BG6
V CCI O[2 8 ]
AN 19 VCC TX_ LVDS[ 4] AP37
VCC TX_ LVDS[ 3] AP36
VSSAD AC U4 7
VSSALVDS AK3 7
V CCI O[2 7 ]
AP17
VC C3_ 3[ 6] V33
VC C3_ 3[ 7] V34
V CC3 _ 3 [3 ]
BH 29 VC CD FTE RM[ 2] AG17
VC CD FTE RM[ 1] AG16
VCCDMI[1] AT20
V CCI O[2 5 ]
AN 33
V CCI O[2 6 ]
AN 34
V CCC OR E[1 6 ]
AJ29
V CCC OR E[1 7 ]
AJ31
VC CSPI V1
VC CCLKD MI AB3 6
V CCD MI[ 2]
AU 20
20mA
R423 0_04
R373 *0_04
1.05VS19,20,21,26,30,40
C5 3 9
*10u_6.3V_X5R _06
3. 3 V S
3.3VS_VCC A_LVD
4A
Sheet 24 of 58
CougarPoint - M 7/9
Schematic Diagrams

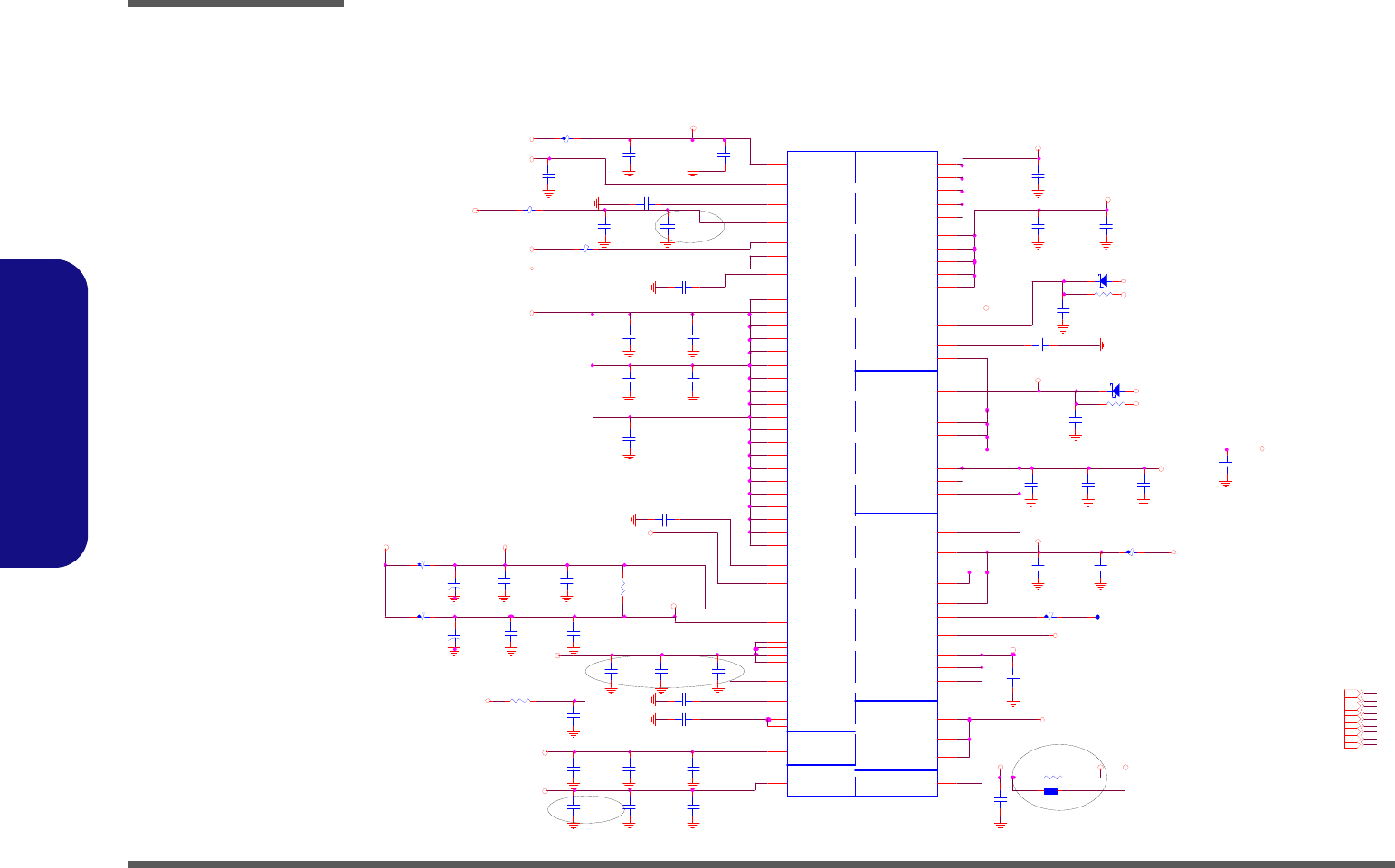

B - 26 CougarPoint - M 8/9
B.Schematic Diagrams
CougarPoint - M 8/9
10mA
+VCC APLL_C PY_PCH
PC H_VC CD SW
C 521 *1u_6.3V_X5R _04
C544
0.1u_10V _X5R_04
V CCS SC
1849mA
<1 m A
CougarPoint - M (POWER)
2m A
POWER
SA TA US B
Cl oc k an d Mi sc e ll an eo us
HD A
CP URT C
PC I/ GP IO /L P CMI SC
U19J
CougarPoint_R ev_1p0
D CP SUSBY P
V12
V CC ASW [1 ]
AA19
V CC ASW [2 ]
AA21
V CC ASW [3 ]
AA24
V CC ASW [5 ]
AA27
V CC ASW [6 ]
AA29
VCCSUSHDA P32
V CCS US3 _ 3[6 ] P24
VC CIO [34] T26
VCC IO[4] AD17
V CC ASW [7 ]
AA31
V CC ASW [8 ]
AC 26
V CC ASW [9 ]
AC 27
V CC ASW [1 0]
AC 29
V CC ASW [1 1]
AC 31
V CC ASW [1 2]
AD 29
V5REF P34
VC C3_3[4] T34
VCCRTC
A22
VCC SUS3_3[10] V24
V CCS US3 _ 3[9 ] V23
V CCS US3 _ 3[8 ] T24
V CCS US3 _ 3[7 ] T23
VCC IO[2] AC16
V CC ADPLLB
BF47
VCCDIFFCLKN[1]
AF33
V5R EF_ SUS M26
VCC IO[3] AC17
DCPSUS[1]
T17
V CC SSC
AG 33
V CC ADPLLA
BD 47
VCCVRM[4]
Y49
VCCACLK
AD 49
DCPRTC
N16
V CC ASW [4 ]
AA26
VCCDIFFCLKN[2]
AF34
VCCIO[7]
AF17
D CP SST
V16
VCC IO[5] AF13
VC CASW [22] T21
VC CASW [23] V21
VC CASW [21] T19
VC C3_3[1] AA16
VC C3_3[8] W16
V CCS US3 _ 3[2 ] N20
V CCS US3 _ 3[3 ] N22
V CCS US3 _ 3[4 ] P20
V CCS US3 _ 3[5 ] P22
VC CIO [29] N26
VC CIO [30] P26
VC CIO [31] P28
VC CIO [32] T27
V_PROC_IO
BJ 8
VC CIO [33] T29
VCCDIFFCLKN[3]
AG 34
V CC ASW [1 3]
AD 31
V CC ASW [1 4]
W21
V CC ASW [1 5]
W23
V CC ASW [1 6]
W24
V CC ASW [1 7]
W26
V CC ASW [1 8]
W29
V CC ASW [1 9]
W31
V CC ASW [2 0]
W33
VCC IO[6] AF14
VC CVR M[1] AF11
VC CIO [12] AH13
VC CIO [13] AH14
VC C3_3[2] AJ2
V CCA PLLSATA AK1
DCPSUS[3]
AL24
V CC IO[14]
AL29
DC PSUS[4] AN23
V CCS US3 _ 3[1 ] AN24
V CC APLL D MI2
BH 23
DCPSUS[2]
V19
V CC DSW3_3
T16
VCC3_3[5]
T38
142.6mA
L40
H CB 1005KF-121T20
C513
1u_6.3V_X5R _04
C 501 0.1u_10V_X5R _04
C497
1u_6.3V_X5R _04
C547
1u_6.3V_X5R_04
C234
0.1u_10V_X5R_04
C532
1u_6.3V_X5R_04
C542
1u_6.3V_X5R_04
C263
0.1u_10V_X5R_04
L42
*H CB1005KF-121T20
R216
*0 _ 0 4
C503
1u_6.3V_X5R_04
+
C309
*220u_4V_V_B
C321
22u_6.3V_X5R _08
.
L34 * HC B1608KF-121T25
C527
1u_6.3V_X5R_04
C278
22u_6.3V_X5R _08
+V1.05S_VCC APLL_SA TA3
C559
0.1u_10V_X5R _04
C534
0.1u_10V_X5R_04
C524
0.1u_10V_X5R_04
10mA
C 511 *1u_10V_X5R_04
C526
0.1u_10V_X5R _04
VC CSS C
C548
0.1u_10V_X5R _04
C525
1u_6.3V_X5R_04
C518
1u_6.3V_X5R_04
C496
*10u_6.3V_X5R _06
C290
1u_6.3V_X5R_04
C536
0.1u_10V _X5R_04
C530
0.1u_10V_X5R_04
C515 * 1u_6.3V _X5R_04
C2 8 7
22u_6. 3V_X5R_08
C569
10u_6.3V_X5R _06
C514
0.1u_10V_X5R _04
L60
H CB1005K F-121T20
L44
H CB 1005KF-121T20
C265
1u_6.3V_X5R_04
C291
* 0.1u_10V_X5R _04
+
C310
*220u_4V_V_B
C235
4.7u_6.3V _X5R_06
C 495 *0.1u_10V_X5R _04
C508 0.1u_10V_X5R _04
C543
1u_6.3V _X5R_04
C260
0.1u_10V_X5R _04
L2 9
*H CB1005KF-121T20
C272
22u_6.3V_X5R _08
C528
1u_6. 3V_X5R_04
C550
1u_6.3V_X5R _04
C297
* 10u_6.3V _X5R_06
R186
10_04
R197
10_04
C533
0. 1u_10V_X5R_04
C281
1u_6.3V_X5R_04
3. 3 V
3.3VS
5VS
3. 3V
+5V_P CH_VC C5RE FSUS
1.05V S_VTT
RTCVC C
1.5V_VC CS USH DA 1.5V
3.3V
5V
1.05VS
1.05VS
+V1.05S_SATA3
1.05VS
1.05VS_VC CA_CLK
3.3VS
1. 05 V S
3.3V
1.05VS
1.05VS
1.05VS
1.05V S
1. 0 5 V S
1.5VS _1.8VS
1. 1VS_VC CA_B_DP L
1.5VS_1.8VS
1.05VS
1.05 VS_ VCC A_A_D PL
1.05VS
1.05 VS_ VTT3,4,6,24,25,40,43
1.5V4,9,10,11,12,13,30,37,39,41 5V28,32,35,37,39,40,41,42,46
3.3V3,4,9,14,15,19,20,21,23,24,25,28, 29,30,32,35,36,37,39,40,41,42
3.3VS4,10,11,12,13,14,15,16,17,18,19,20,21,23,24,25,29, 30,32,33,34,35,36,39,40,43,58 RTC VCC19 , 2 1
1.5VS_1.8VS25 5VS14,15,17, 18,19,25,30,32,33,35,39,43,44
.
L43 HC B1608KF-121T25
3.3V
VC CSS T
D 10 C DBU 00340
AC
160mA
1.05VS
R 419 *15mil_short_06
320mA
1.05VS19,20,21,25,30,40
+VCC RTCEXT
R 416 *0_04
+V5A_PCH _VCC 5R EFSU S
159mA
+V1.05M_VCC SUS
97mA
+ VC CA_ US B S US
R425
0_04
3.3VS
D8 CDBU00340
AC
52 m A
Sheet 25 of 58
CougarPoint - M 8/9
Schematic Diagrams
CougarPoint - M 9/9 B - 27
B.Schematic Diagrams
CougarPoint - M 9/9
U19H
Co ug a rPo i n t_ R ev _ 1p 0
VSS [1]
AA17
VSS [2]
AA2
VSS [3]
AA3
VSS [5]
AA34
VSS [6]
AB11
VSS [7]
AB14
VSS [8]
AB39
VSS [9]
AB4
VSS [10]
AB43
VSS [11]
AB5
VSS [12]
AB7
VSS [13]
AC 19
VSS [14]
AC2
VSS [15]
AC 21
VSS [16]
AC 24
VSS [17]
AC 33
VSS [18]
AC 34
VSS [19]
AC 48
VSS [20]
AD 10
VSS [21]
AD 11
VSS [22]
AD 12
VSS [23]
AD 13
VSS [24]
AD 19
VSS [25]
AD 24
VSS [26]
AD 26
VSS [27]
AD 27
VSS [28]
AD 33
VSS [29]
AD 34
VSS [30]
AD 36
VSS [31]
AD 37
VSS [33]
AD 39
VSS [34]
AD4
VSS [35]
AD 40
VSS [36]
AD 42
VSS [37]
AD 43
VSS [38]
AD 45
VSS [39]
AD 46
VSS [43]
AF10
VSS [44]
AF12
VSS [46]
AD 16
VSS [47]
AF16
VSS [48]
AF19
VSS [49]
AF24
VSS [50]
AF26
VSS [51]
AF27
VSS [52]
AF29
VSS [53]
AF31
VSS [54]
AF38
VSS [55]
AF4
VSS [56]
AF42
VSS [57]
AF46
VSS [59]
AF7
VSS [60]
AF8
VSS [61]
AG19
VSS [62]
AG2
VSS [63]
AG31
VSS [64]
AG48
VSS [65]
AH 11
VSS [66]
AH3
VSS [67]
AH 36
VSS [68]
AH 39
VSS [69]
AH 40
VSS [70]
AH 42
VSS [71]
AH 46
VSS [72]
AH7
VSS [73]
AJ 19
VSS [76]
AJ 33
VSS [77]
AJ 34
VSS [78]
AK12
VSS [79]
AK3
VSS[ 80 ] AK38
VSS[ 81 ] AK4
VSS[ 82 ] AK42
VSS[ 83 ] AK46
VSS[ 84 ] AK8
VSS[ 85 ] AL1 6
VSS[ 86 ] AL1 7
VSS[ 87 ] AL1 9
VSS[ 88 ] AL2
VSS[ 89 ] AL2 1
VSS[ 90 ] AL2 3
VSS[ 91 ] AL2 6
VSS[ 92 ] AL2 7
VSS[ 93 ] AL3 1
VSS[ 96 ] AL4 8
VSS[ 97 ] AM11
VSS[ 98 ] AM14
VSS[ 99 ] AM36
VSS[ 1 00 ] AM39
VSS[ 1 02 ] AM45
VSS[ 1 03 ] AM46
VSS[ 1 04 ] AM7
VSS[ 1 05 ] AN 2
VSS[ 1 06 ] AN 29
VSS[ 1 07 ] AN 3
VSS[ 1 08 ] AN 31
VSS[ 1 09 ] AP12
VSS[ 1 10 ] AP19
VSS[ 1 11 ] AP28
VSS[ 1 12 ] AP30
VSS[ 1 13 ] AP32
VSS[ 1 14 ] AP38
VSS[ 1 16 ] AP42
VSS[ 1 17 ] AP46
VSS[ 1 18 ] AP8
VSS[ 1 19 ] AR 2
VSS[ 1 20 ] AR 48
VSS[ 1 21 ] AT11
VSS[ 1 22 ] AT13
VSS[ 1 23 ] AT18
VSS[ 1 24 ] AT22
VSS[ 1 25 ] AT26
VSS[ 1 26 ] AT28
VSS[ 1 27 ] AT30
VSS[ 1 28 ] AT32
VSS[ 1 31 ] AT42
VSS[ 1 32 ] AT46
VSS[ 1 33 ] AT7
VSS[ 1 34 ] AU 24
VSS[ 1 35 ] AU 30
VSS[ 1 36 ] AV16
VSS[ 1 37 ] AV20
VSS[ 1 38 ] AV24
VSS[ 1 39 ] AV30
VSS[ 1 40 ] AV38
VSS[ 1 41 ] AV4
VSS[ 1 42 ] AV43
VSS[ 1 43 ] AV8
VSS[ 1 44 ] AW 14
VSS[ 1 45 ] AW 18
VSS[ 1 46 ] AW 2
VSS[ 1 47 ] AW 22
VSS[ 1 48 ] AW 26
VSS[ 1 49 ] AW 28
VSS[ 1 50 ] AW 32
VSS[ 1 51 ] AW 34
VSS[ 1 52 ] AW 36
VSS[ 1 53 ] AW 40
VSS[ 1 54 ] AW 48
VSS[ 1 55 ] AV11
VSS[ 1 56 ] AY 12
VSS[ 1 57 ] AY 22
VSS[ 1 58 ] AY 28
VSS [40]
AD8
VSS [42]
AE3
VSS [45]
AD 14
VSS[ 1 15 ] AP4
VSS [0]
H5
VSS [58]
AF5
VSS [32]
AD 38
VSS [4]
AA33
VSS [74]
AJ 21
VSS [75]
AJ 24
VSS [41]
AE2
VSS[ 1 29 ] AT34
VSS[ 1 30 ] AT39
VSS[ 1 01 ] AM43
VSS[ 95 ] AL3 4
VSS[ 94 ] AL3 3
CougarPoint -M (GND)
U19I
CougarPoint_Rev _1p0
VSS[ 15 9]
AY 4
VSS[ 16 0]
AY 42
VSS[ 16 1]
AY 46
VSS[ 16 2]
AY 8
VSS[ 16 3]
B11
VSS[ 16 4]
B15
VSS[ 16 5]
B19
VSS[ 16 6]
B23
VSS[ 16 7]
B27
VSS[ 16 8]
B31
VSS[ 16 9]
B35
VSS[ 17 0]
B39
VSS[ 17 1]
B7
VSS[ 17 3]
BB12
VSS[ 17 4]
BB16
VSS[ 17 5]
BB20
VSS[ 17 6]
BB22
VSS[ 17 7]
BB24
VSS[ 17 8]
BB28
VSS[ 17 9]
BB30
VSS[ 18 0]
BB38
VSS[ 18 1]
BB 4
VSS[ 18 2]
BB46
VSS[ 18 3]
BC 1 4
VSS[ 18 4]
BC 1 8
VSS[ 18 5]
BC 2
VSS[ 18 6]
BC 2 2
VSS[ 18 7]
BC 2 6
VSS[ 18 8]
BC 3 2
VSS[ 18 9]
BC 3 4
VSS[ 19 0]
BC 3 6
VSS[ 19 1]
BC 4 0
VSS[ 19 2]
BC 4 2
VSS[ 19 3]
BC 4 8
VSS[ 19 4]
BD 4 6
VSS[ 19 5]
BD 5
VSS[ 19 6]
BE22
VSS[ 19 7]
BE26
VSS[ 19 8]
BE40
VSS[ 19 9]
BF10
VSS[ 20 0]
BF12
VSS[ 20 1]
BF16
VSS[ 20 2]
BF20
VSS[ 20 3]
BF22
VSS[ 20 4]
BF24
VSS[ 20 5]
BF26
VSS[ 20 6]
BF28
VSS[ 20 7]
BD 3
VSS[ 20 8]
BF30
VSS[ 20 9]
BF38
VSS[ 21 0]
BF40
VSS[ 21 1]
BF 8
VSS[ 21 2]
BG1 7
VSS[ 21 3]
BG2 1
VSS[ 21 4]
BG3 3
VSS[ 21 5]
BG4 4
VSS[ 21 6]
BG8
VSS[ 21 7]
BH 1 1
VSS[ 21 8]
BH 1 5
VSS[ 21 9]
BH 1 7
VSS[ 22 0]
BH 1 9
VSS[ 22 2]
BH 2 7
VSS[ 22 3]
BH 3 1
VSS[ 22 4]
BH 3 3
VSS[ 22 5]
BH 3 5
VSS[ 22 6]
BH 3 9
VSS[ 22 7]
BH 4 3
VSS[ 22 8]
BH 7
VSS[ 22 9]
D3
VSS[ 23 0]
D12
VSS[ 23 1]
D16
VSS[ 23 2]
D18
VSS[ 23 3]
D22
VSS[ 23 4]
D24
VSS[ 23 5]
D26
VSS[ 23 6]
D30
VSS[ 23 7]
D32
VSS[264] K7
VSS[265] L18
VSS[266] L2
VSS[267] L20
VSS[268] L26
VSS[269] L28
VSS[270] L36
VSS[271] L48
VSS[272] M12
VSS[273] P1 6
VSS[274] M18
VSS[275] M22
VSS[276] M24
VSS[277] M30
VSS[278] M32
VSS[279] M34
VSS[280] M38
VSS[281] M4
VSS[282] M42
VSS[283] M46
VSS[284] M8
VSS[285] N18
VSS[286] P3 0
VSS[288] P1 1
VSS[289] P1 8
VSS[290] T33
VSS[291] P4 0
VSS[292] P4 3
VSS[293] P4 7
VSS[294] P7
VSS[295] R2
VSS[296] R48
VSS[297] T12
VSS[298] T31
VSS[299] T37
VSS[300] T4
VSS[301] W34
VSS[302] T46
VSS[303] T47
VSS[304] T8
VSS[305] V1 1
VSS[306] V1 7
VSS[307] V2 6
VSS[308] V2 7
VSS[309] V2 9
VSS[310] V3 1
VSS[311] V3 6
VSS[312] V3 9
VSS[313] V4 3
VSS[314] V7
VSS[315] W17
VSS[316] W19
VSS[ 23 8]
D34
VSS[ 23 9]
D38
VSS[ 24 0]
D42
VSS[ 24 1]
D8
VSS[ 24 2]
E18
VSS[ 24 3]
E26
VSS[ 24 4]
G18
VSS[ 24 5]
G20
VSS[ 24 6]
G26
VSS[ 24 7]
G28
VSS[ 24 8]
G36
VSS[ 24 9]
G48
VSS[ 25 0]
H12
VSS[ 25 1]
H18
VSS[317] W2
VSS[318] W27
VSS[319] W48
VSS[320] Y12
VSS[321] Y38
VSS[322] Y4
VSS[323] Y42
VSS[324] Y46
VSS[325] Y8
VSS[328] BG 29
VSS[329] N24
VSS[330] AJ 3
VSS[287] N47
VSS[ 25 2]
H22
VSS[ 25 3]
H24
VSS[ 25 4]
H26
VSS[ 25 5]
H30
VSS[ 25 6]
H32
VSS[ 25 7]
H34
VSS[ 25 8]
F3
VSS[262] K3 9
VSS[263] K4 6
VSS[259] H46
VSS[260] K1 8
VSS[261] K2 6
VSS[331] AD 4 7
VSS[333] B4 3
VSS[334] BE10
VSS[335] BG 41
VSS[337] G14
VSS[338] H16
VSS[340] T36
VSS[342] BG 22
VSS[343] BG 24
VSS[344] C22
VSS[345] AP13
VSS[ 17 2]
F45
VSS[ 22 1]
H10
VSS[346] M14
VSS[347] AP3
VSS[348] AP1
VSS[349] BE16
VSS[350] BC 1 6
VSS[351] BG 28
VSS[352] BJ 28
Sheet 26 of 58
CougarPoint - M 9/9
Schematic Diagrams

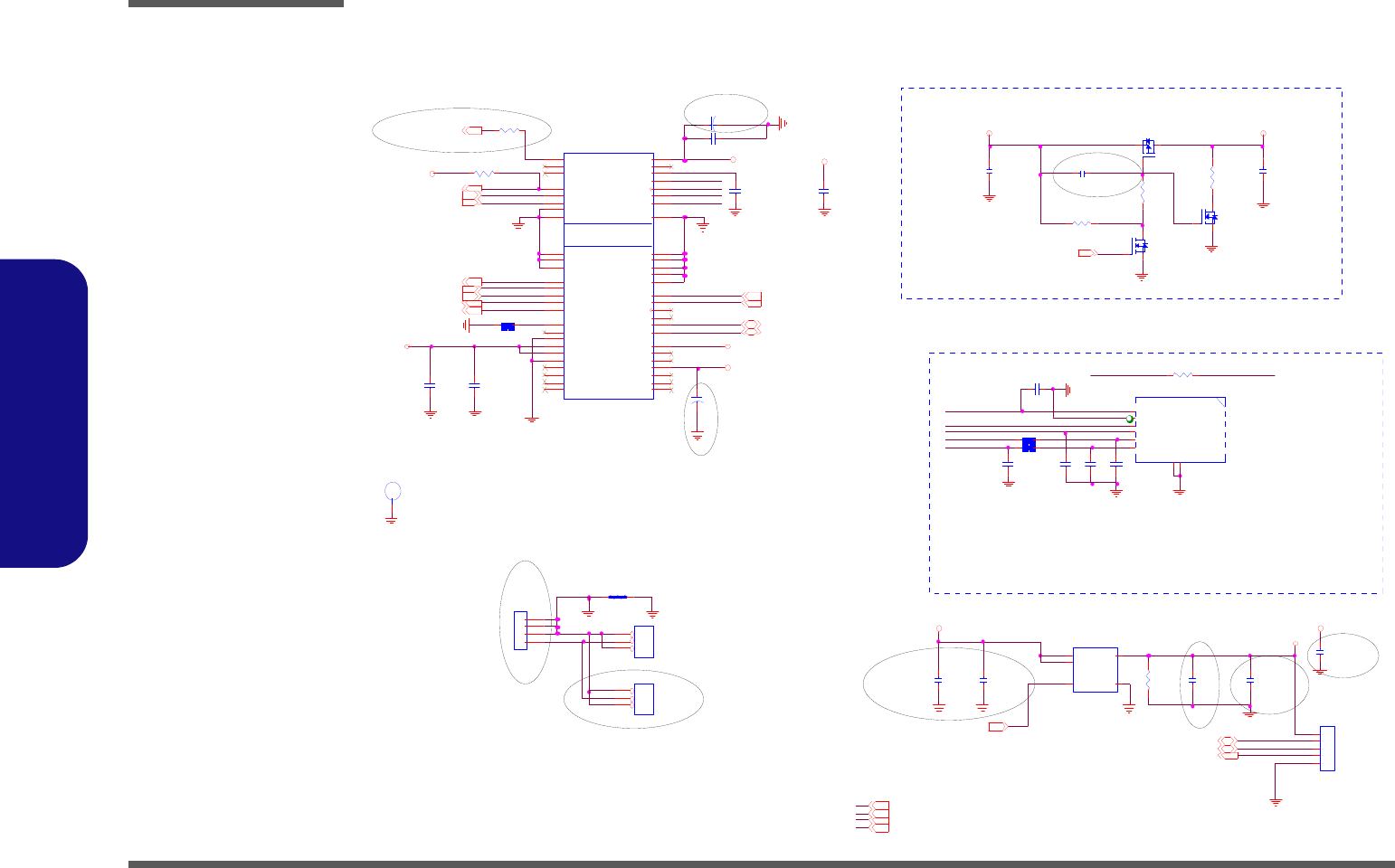

B - 28 3G, CCD
B.Schematic Diagrams
3G, CCD
+
C392
220u_6.3V_6.3*4.5
R455 *10m il_short
BU F_P LT_RS T#
GND
+
C 378 220u_6.3V _6.3*4.5
UIM _ RST
R484 * 10m il_short UIM_CLK_RUIM _ CL K
X5100
40 mil
R261
0_04
CCD_DET#34
TV ANTENNA
C691
*22p_50V_04
X5100 only
2009/11/30_Alex
B UF_PLT_R ST# 16,23,29, 34,36,37
C CD_ EN
1A
1A
R513 *0_04
PCI E_W AKE#21,29, 36,37
PCIE _TXN5_3G20 P CIE_TXP5_3G20
PCIE _R XP5_3 G20 PC IE_RXN5_3G20
UIM _ DAT A
UIM _ VPP
UIM _ PW R
48 mil
From KBC default HI
CCD
UIM _ RST
UIM _ CL K
H2 5
H7_0B4_0D 2_8
GN D
C690
*22p_50V_04
D0 2A
C6880.1u_16V_Y5V_04
GN D
GND
40 mil
Port 5
X5100
Port 2
UIM _VPP
40 mil
UIM _ DAT A
3G
GND
R483 4.7K_04
C125
0.1u_16V_Y 5V _04
C605 1u_6.3V_Y 5V_04
C687
0.1u_16V_Y 5V _04
R446
20K_04
R8 0
100K_04
( TO P VI EW )
J_SIM1
135306-1
UIM _ DAT A
7
UIM _ RST
2
UIM _ PW R
1
UIM _ CL K
3
UIM _ GN D
5
GN G
GND1
UIM _ I/O
6
GND
GN D2
Q28
MTN7002ZHS3
G
DS
C611
0.1u_16V_Y5V_04
C634
0.1u_16V_Y 5V_04
C159
1u_6.3V_Y5V_04
C 158
1u_6.3V _Y 5V_04
C718
0.1u_16V _Y 5V_04
JANT1
20279-001E-01
1
2
3
C124
1u_6.3V __Y 5V _04
R447 100K_04
C608 0.1u_16V_Y 5V_04
R 58 *0_12
C660
10u_10V_Y5V_08
U6
G 5243A
VIN
4
VIN
5
EN
3
VOU T 1
GND 2
Q2 9
AO 3415
G
DS
C130
1u_6.3V __Y 5V _04
KEY
J_3G1
88908-5204M-01
COE X1
3
COE X2
5
CL KRE Q#
7
GND 0
9
REF C L K-
11
REF C L K+
13
W AKE#
1
GND 1
15
PETn0
23
PETp0
25
GND 2
21
GND 3
27
PERn0
31
PERp0
33
GND 4
29
Re s erv ed 0
17
Re s erv ed 1
19
W_ D ISABL E# 20
GND 1 2
37
3. 3 V A U X _3
39
3. 3 V A U X _4
41
GND 1 3
43
Re s erv ed 2
45
Re s erv ed 3
47
Re s erv ed 4
49
Re s erv ed 5
51 LED _WLAN # 44
LE D _ W W A N # 42
GND6 18
UIM_VPP 16
UIM_RESET 14
3.3VAUX_0 2
UIM_CLK 12
UIM_DATA 10
UIM_PWR 8
1.5V_0 6
GND5 4
PER SET# 22
3.3VAUX_1 24
GND7 26
1.5V_1 28
SMB_C LK 30
SMB_D ATA 32
GND8 34
USB _ D - 36
USB _D + 38
GND9 40
LED_WPAN # 46
1.5V_2 48
GN D1 0 50
3.3VAUX_2 52
GND 1 1
35
JAN T2
FR -005E
11
22
33
44
C612
10u_10V_Y5V_08
3G _3.3V
3G _3.3V
3G_3.3V
3G _3.3V
3G _3.3V
GND
GND
GN D
GND
GND
GN D
GND
GN D
GND
GN D
3G _3.3V3.3V
5V_CC D
5V_CC D
5V
U SB_PP2 2 3
TV_GN D
3G_D ET#34
3G _E N 34
USB_PN2 23
3G_PO WER34
3.3V 3,4,9,14,15,19,20,21,23,24,25,26,29,30,32,35,36, 37,39,40,41,42
5V 26,32,35,37,39, 40,41,42,46
CC D_ EN34
3.3VS 4,10,11, 12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33, 34,35,36,39,40,43,58
V DD 5 35,38,39
R448 10K_043. 3 V
3G _C LKREQ #20CL K_ P C IE_3 G #20
CL K_ P C IE_ 3G20
USB_PP523
U SB_PN523
3G POWER
From EC default HI
>120mil
>120 mil
SIM CONN
J _ CC D1
85205-05001
1
2
3
4
5
R485
* 1 0m i l _s h o r t
UIM _ PW R
C704
*22p_50V_04
UIM_DATA_R
C689
*22p_50V_04
X7100
X5 10 0
JANT3
20279-001E-01
1
2
3
UIM _D AT AUIM _PW R
D0 2
Q18
M TN 7002ZH S3
G
DS
<4000 mils
Sheet 27 of 58
3G, CCD
Schematic Diagrams

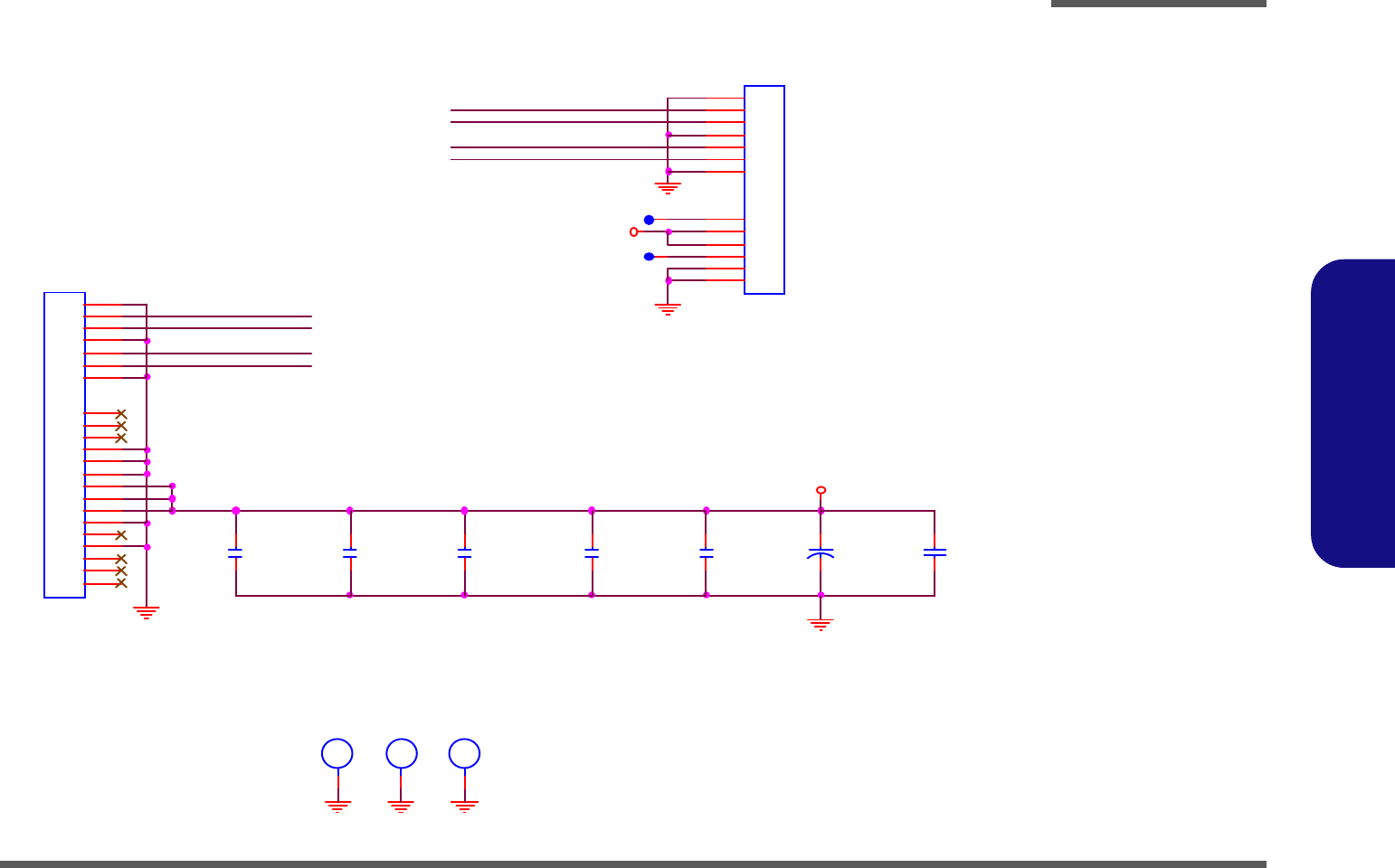

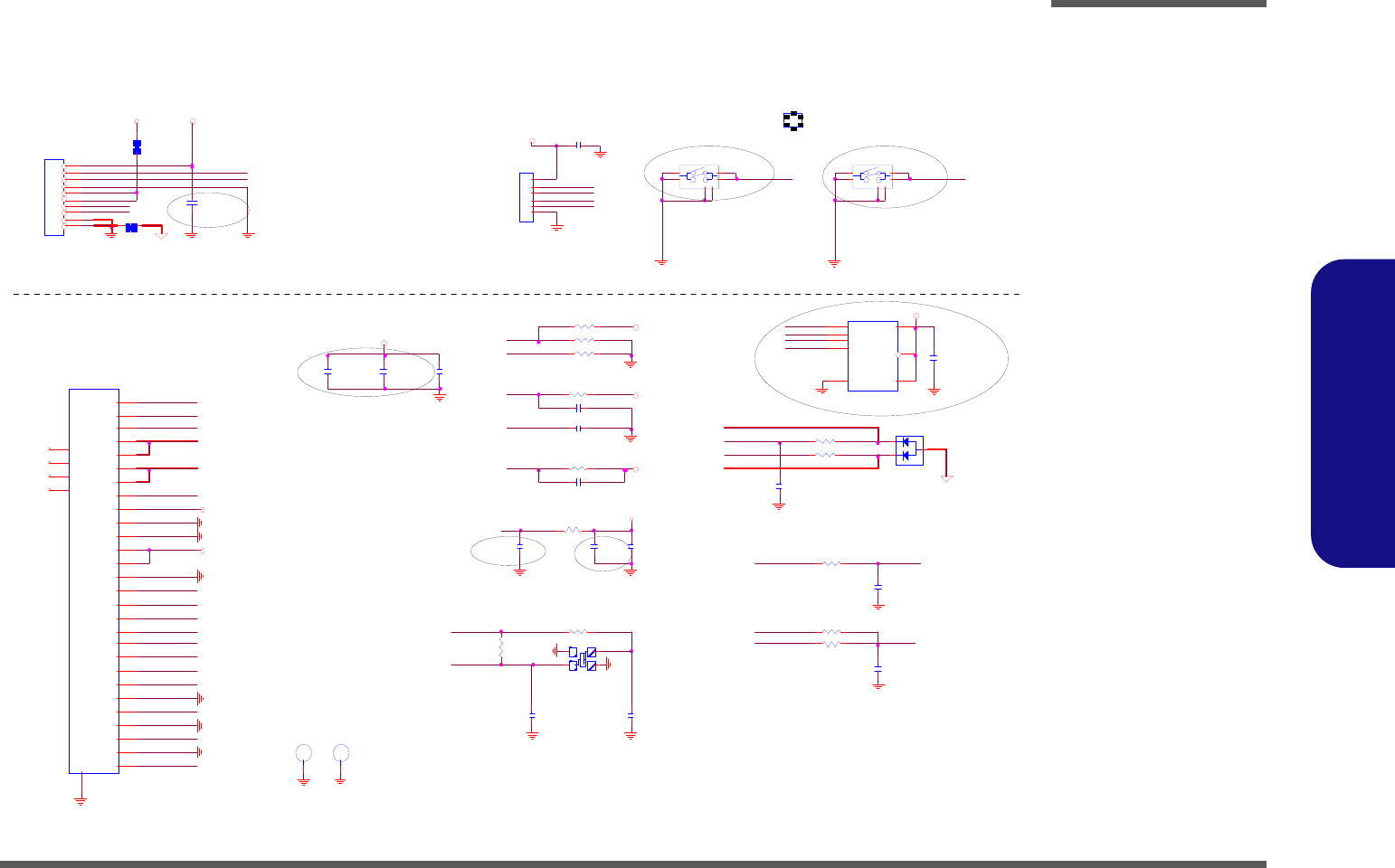

Mini PCIE, LID B - 29
B.Schematic Diagrams

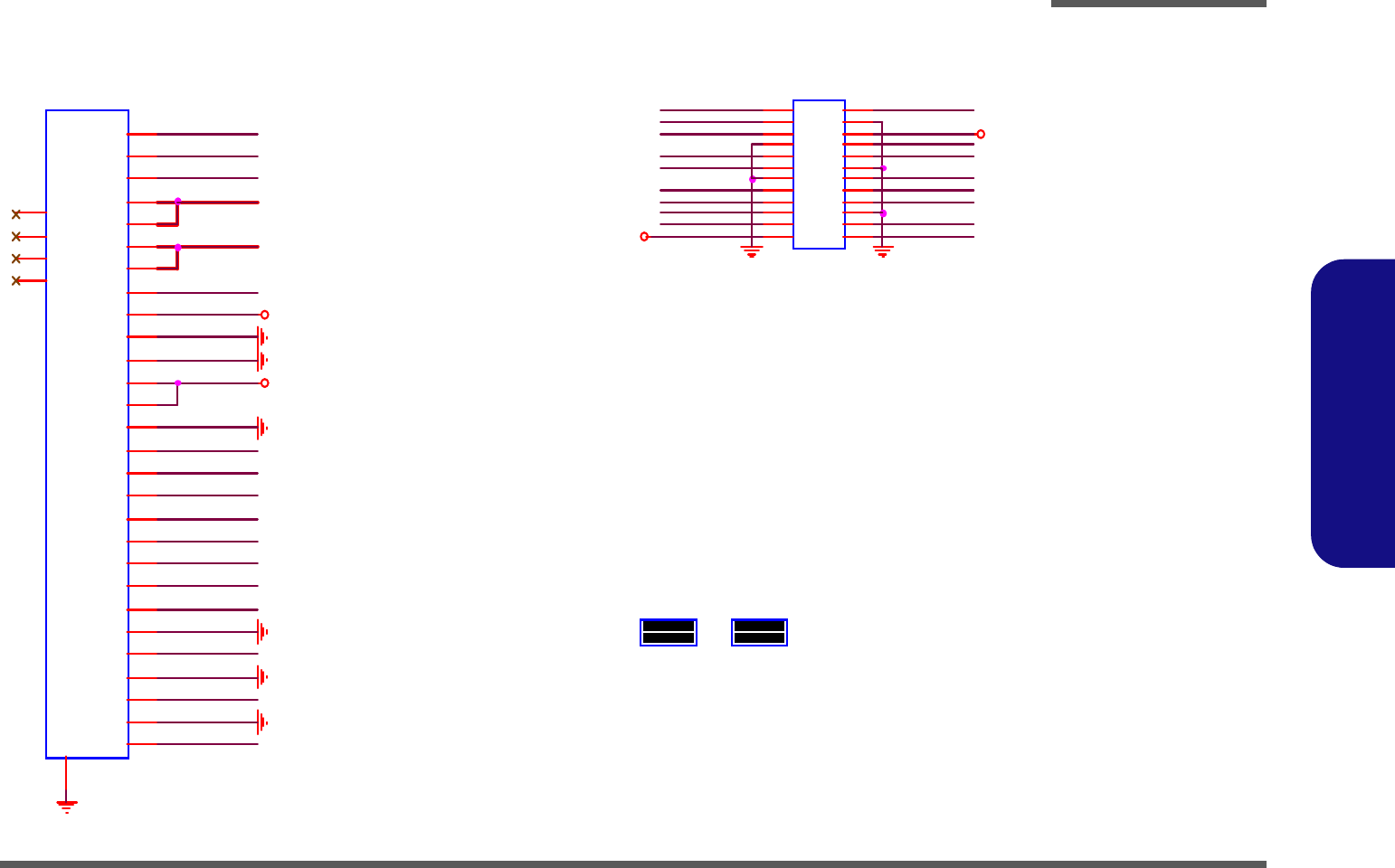

Mini PCIE, LID
BT_ EN30,34,35
BT_SBD #
BT_EN30,34,35
3.3VS 4,10,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,30,32,33,34,35,36,39,40,43,58
R249 0_04
R263 10K_04
BT_DET# 34
VDD 3
3.3V
3.3V
3.3V
3.3V
3.3V
U SB_PN 3 23
WLA N_CLKREQ #20
U SB_PP3 23
CL K_ PCIE_ MIN I#20
3IN1 34
80DET# 34
CL K_ PCIE _ MIN I20
80CLK 34
WLAN_EN 30,34, 35
1.5VS 25,39
3.3V 3,4,9,14,15,19,20,21,23,24,25,26,28,30,32,35,36,37,39,40,41,42
W LAN _D ET#34
PCIE_ TXN 3_ W L AN20
PC IE_TXP3_W LAN20
PCIE_R XN 3_W LAN20 PCIE_RXP3_W LAN20
R2 51 *0 _ 0 4
KEY
J_MINI1
M F 08 - 4 04 - 5 2 3A
CO EX1
3
CO EX2
5
CLKREQ #
7
GN D0
9
REFC LK -
11
REFC LK +
13
W AKE#
1
GN D1
15
PETn0
23
PETp0
25
GN D2
21
GN D3
27
PERn0
31
PERp0
33
GN D4
29
Re s erv e d 0
17
Re s erv e d 1
19
W _D ISABLE# 20
GN D1 2
37
3.3VAU X_3
39
3.3VAU X_4
41
GN D1 3
43
Re s erv e d 2
45
Re s erv e d 3
47
Re s erv e d 4
49
Re s erv e d 5
51 LE D _W L A N # 44
LED_WWAN # 42
GND6 18
UIM_ VPP 16
UIM_ RES E T 14
3.3VAUX_0 2
UIM_ C LK 12
UIM_ DA TA 10
UIM_PWR 8
1.5V_0 6
GND5 4
PER SET# 22
3.3VAUX_1 24
GND7 26
1.5V_1 28
SMB_C LK 30
SMB_DA TA 32
GND8 34
USB_ D- 36
USB_D + 38
GND9 40
LED_WPAN # 46
1.5V_2 48
GND 1 0 50
3.3VAUX_2 52
GN D1 1
35
40 mil
20 mil
MINI CARD
20 mil
20 mi l
PCIE_W AKE#
R 258 *0_04
R222 *0_04
3. 3 V
R252
10K_04 3.3VS
GND
LID_SW#
X5 10 0
1
PCIE_W AKE#21,28,36,37
2
3
PSU1, PSU2
C3 9 9
0.1u_16V_Y5V_04
VDD3
R 271 10K_04
LID SWITCH IC
GND
R223 0_04
Port 3
U5
MH -2 48
VCC
1OUT 2
GND
3
C329
0.1u_16V_Y5V_04
BU F_PLT_RST# 16,23,28,34,36,37
GND
3.3VAU X_1
R256 *0_04
LID _SW# 15,34,35
H15
H7_5B5_0D3_7
GND
CL_RST#120 R229 *0_04
CL_DATA120
R231 *0_04
R230 *0_04
CL_CLK120
BUF_PLT_R ST#
V D D 3 19 , 3 4 , 35 , 3 6, 38 , 3 9, 4 5
WLAN _LED # 30,34,35
BT_ SBD #
Sheet 28 of 58
Mini PCIE, LED
Schematic Diagrams
B - 30 LED, Hotkey, LID SW, Fan
B.Schematic Diagrams
LED, Hotkey, LID SW, Fan
LED_SC ROLL# 34,35
LED _SC RO LL#
C756
0.01u_16V_Y5V_04
3. 3 V
C4 1 6
0.1u_16V_Y5V_04
C1 6 1
0.1u_16V_Y5V_04
C115
0.1u_16V_Y5V_04
J_LED2
85201-06051
1
2
3
4
5
6
1. 5 V 4 , 9 , 10 , 1 1 , 12 , 1 3 , 26 , 3 7 , 39 , 4 1
C519
10u_10V_Y5V_08
J_ F A N 1
85205-03701
1
2
3
3. 3 V S
5VS_FAN
CPU_ F AN 3 4
CP U_ F A NSEN34
5VS
FO N
R417 4.7K_04
C5 1 6
0.1u_16V_Y5V_04
U33
APE88 72
VOU T
3
GN D 5
VIN
2FON
1
VSET
4GN D 6
GN D 8
GN D 7
J_FAN1
3
1
CPU FAN CONTROL
C504
4.7u _6. 3V_X5R _06
CPU_FAN
3.3VS
C184
0.01u_16V_Y5V_04
3. 3 V S
VDD 3 19,29,34,35,36,38,39,45
LED_PWR 34
C219
0.1u_16V_Y5V_04
C617
0.1u_16V_Y5V _04
C3 9 6
0.1u_16V_Y5V_04
3. 3 V
C174
0.1u_16V_Y5V_04
C395
0.1u_16V_Y5V_04
3. 3 V S
3.3VS
1.05VS 19,20,21,25,26,40
BT_EN 29,34,35
SATA_LED # 19,35
BT_EN
S ATA_LED#
J_LED 1
85201-06051
1
2
3
4
5
6
C757
0.01u_16V_X7R_04
C7 58
0.01u_16V_X7R _04
1. 5 V
Cl os e to H1 9Close to PC16
LED_ BAT_ CHG 34
LED _PWR
LED _AC IN
LED _BA T_FULL
LED _BA T_CH G
LED_AC IN 34
SPT1
SMD80X80
1
1
D02 only for X7100
X510 0 on ly
GND
GN D
C755
0.01u_16V_Y5V_04
C1 7 9
0.01u_16V_Y5V_04
5VS
LED_C AP# 34,35
LED_N UM# 34,35
LED_CAP#
LED_NUM#
3.3V 3,4,9, 14,15,19,20,21,23,24,25,26,28,29,32,35,36,37,39,40,41,42
5VS 14,15,17,18,19,25,26,32,33,35,39,43,44
3.3VS 4,10,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,32,33,34,35,36,39,40,43,58
5VS
J_LED 3
85204-05001
1
2
3
4
5
WLAN_EN 29,34,35
WLAN_EN
LED_BAT_FULL 34
WLAN _LED# W L A N _ L E D # 2 9, 34 , 3 5
EM I
C296
10u_10V_Y5V_08
J_ F A N 2
85205-03701
1
2
3
VG A_FAN 3 4
5VS_ VGA_FAN
3.3VS
VGA_FAN SEN34
5VS FON 1
R439 4.7K_04
C2 89
0.1u_16V_Y5V_04
U2 2
APE88 72
VOU T
3
GND 5
VIN
2FON
1
VSET
4GND 6
GND 8
GND 7
3
J_FAN1
VGA FAN CONTROL
1
C2 94
4.7u_6.3V_X5R _06
VGA_FAN
C271
0.1u_16V_Y5V_04
C7 2 3
0.1u_16V_Y5V_04
1.05VS
C los e to U3 9
Sheet 29 of 58
LED, Hotkey, LID
SW, Fan
Schematic Diagrams
RJ 45 B - 31
B.Schematic Diagrams
RJ 45
GND GND
1
H3
MTH8_0D2_8
2
3
4
5 6
7
8
9
LAN_MDIN136 LAN_MDIN1
GND
1
H11
MTH8_0D2_8
2
3
4
5 6
7
8
9
H9
H8_0D4_3
H26
H7_0D2_8
LAN_MDIP336 LAN_MDIP3
H27
H7_0D2_8
M8
M-MARK
M6
M-MAR K
M3
M-MARK
M5
M-MARK
LAN_MDIP036 LAN_MDIP0
M4
M-MARK
M2
M-MAR K
M7
M-MARK
M1
M-MARK
C142
*0.01u_16V_X7R_04
H1
C111D111N
C133
*0.01u_16V_X7R_04
C163
0.01u_16V_X7R_04 C178
* 0.01u_16V_X7R _04
LMX2-
LMX3-
40 mil
LMX4-
LMX2+
LMX3+
LMX4+
LMX1+
LMX1-
H2
C111D111N
DVD D 3 6
D02
L72
GST5009 LF
TCT1
1
TD1+
2TD1-
3
TCT2
4
TD2+
5TD2-
6
TCT3
7
TD3+
8TD3-
9
TCT4
10
TD4+
11 TD4-
12 MX4- 13
MX4+ 14
MCT4 15
MX3- 16
MX3+ 17
MCT3 18
MX2- 19
MX2+ 20
MCT2 21
MX1- 22
MX1+ 23
MCT1 24
H14
H3_5D1_8
GND
LAN_MDIN336 LAN_MDIN3
GND
1
H16
MTH8_0D2_8
2
3
4
5 6
7
8
9
GND
1
H12
MTH8_0D2_8
2
3
4
5 6
7
8
9
LAN_MDIN036 LAN_MDIN0
GND
1
H19
MTH8_0D2_8
2
3
4
5 6
7
8
9
GND
1
H13
MTH8_0D2_8
2
3
4
5 6
7
8
9
GND
1
H17
MTH8_0D2_8
2
3
4
5 6
7
8
9
H22
C111D111N
1
H4
MTH8_0D2_8
2
3
4
5 6
7
8
9
LAN_MDIP236 LAN_MDIP2
H20
H6_0D3_7
GND
130451-02
J_RJ1
DD-
8DD+
7
DB-
6
DC-
5DC+
4
DB+
3DA-
2DA+
1shield GND1
shield GND2
GND
DLMX3+
DLMX4+
DLMX3-
DLMX1-
DLMX2-
DLMX2+
DLMX1+
DLMX4-
3.3V 3,4,9,14,15,19,20,21,23,24,25,26,28,29,30,32,35,36,37,39,40,41,42
LAN_MDIP136 LAN_MDIP1
H6
H8_0D4_3
H21
C111D111N
1
H18
MTH8_0D2_8
2
3
4
5 6
7
8
9
H10
H8_0D4_3
GND
GNDGND
1
H7
MTH8_0D2_8
2
3
4
5 6
7
8
9H8
H3_5D1_8
GND
LAN_MDIN2
LAN_MDIN236
H5
H8_0D4_3
DLMX2-
DLMX4-
DLMX4+
DLMX3+
DLMX1-
DLMX2+
DLMX3-
DLMX1+
R69 75_1%_04
R72 75_1%_04
C114
1000p_2KV_X7R_12_H125
R71 75_1%_04
R70 75_1%_04
LP9
* SB0402TL-040
1
2
3
4
6
5
7
8
LP8
* SB0402TL-040
1
2
3
4
6
5
7
8
RN2
0_8P4R_04
81
72 6
5
3
4
RN5
0_8P4R_04
81
72
6
5
3
4
NMC T_3
NMC T_2
NMC T_4
NMC T_RNMCT_1
D02
Sheet 30 of 58
RJ 45
Schematic Diagrams
B - 32 Codec Realtek ALC892
B.Schematic Diagrams
Codec Realtek ALC892
R262 33_04
SU RR_ R 3 3
J_I NTMIC 1
88266-02001
PCB Footprint = 88266-2R
2
1
X7100 only
SIDE_L 35
SIDE_R 35
SU RR _L _ C
3.3V
R2 7 3
2.2K_04
C4 0 0
330p_50V_X7R _04
IN T_M IC
MIC2-VREFO
Q4 2
MTN7002Z HS3
G
DS
R668
100K_04
40 mil40 mi l
C375 1u_10V_06
T45
FR ON T_R 33
R2 43 *5 .1 K_1 % _ 04
C368
22u_6.3V_X5R _08
C 357 * 10u_10V_X5R _08
C353
0.1u_16V_Y5V_04
C377 *100p_50V _N PO_04
C376
0.1u_16V_Y 5V _04
C337 *100p_50V_NPO _04
DI GI TA L
ANALOG
U3 0
ALC 892
DVDD1 1
G PIO0/D MIC -CLK
2
GPIO1/DMIC-DATA
3DMIC_DAT
4
SD ATA-OU T
5
BIT-C LK
6
DVSS2 7
SD ATA-IN
8
DVD D2 9
SY NC
10
R ESET#
11
PC BEEP
12
Sens e A
13
FR _HP-L 14
FR_HP -R 15
MIC2-L
16
MIC2-R
17
CD-L
18
CD-GND
19
CD-R
20
MIC1-L
21
MIC1-R
22
LINE 1-L 23
LIN E1-R 24
AVS S1
26
VR EF 27
VREFOOUT-B_L 28
LDO _IN
29
VR EFOU T-F _L 30
VREFOUT-E 31
VR EFOU T-B_R 32
CAP 33
Sens e B
34
FR ON T-OU T-L 35
FRO NT-OU T-R 36
NC
37
SU RR -OU T-L 39
JDR EF 40
SU RR -OU T -R 41
AVSS2
42
CEN T ER 43
LFE 44
SIDE-L 45
SIDE -R 46
SPD IFI/EAP D
47
SPD IFO
48
AVDD 2 38
AVD D1 25
R257 33_04
C 366 *22p_50V_NPO _04
C385 4.7u_6.3V_X5R _06
C 352 10u_10V_Y 5V _08
C386 4.7u_6.3V_X5R _06
R267 75_04
C 372 0.1u_16V_Y 5V_04
L49 * HCB 1005KF-121T20
R264 4. 7K_04
L47 * HC B1005KF-121T20
R268 75_04
R265 47K_04
T44
R 2 42 20 K _ 1 % _0 4
C3 4 4
* 0.1 u_ 16V_ Y5 V_ 04
C369
0.1u_16V_Y 5V_04
C346
10u_10V_Y5V_08
C 361 * 0.1u_16V_Y5V_04
L50
H CB1608KF-121T25
C3 7 9
10u_10V_Y 5V_08
AU DG
AUD G
AUD G
AUD G
3.3V S_AU D3. 3 V S 5VS_AUD
AUD G
AUD G
5VS
VREF_C OD EC
5V
H DA_SD OU T14,19 H DA_BITC LK14,19
HD A_ RS T#14 , 1 9
A UDG
D0 3
MIC1-L35 MI C 1-R35
HDA_SYNC14,19 HD A_SDIN 019
FR ON T_L 33
FR ON T_L
M IC1 -VRE F O-L
SIDE-L _R
D0 3
D03
EAPD_M OD E
SIDE-R _ R
AU DIO _C EN_ C
LEF_OU T_C
M IC2 -VRE F O
LDO _IN
M IC1 -VRE F O-R
FR ON T_R
MIC 1- L
MIC 1- R
R235 75_1% _04
SP DIFO
BEE P
D0 3
port D
po r t B
port A
Max: 0.5inch
port C
port G
port H
port E
port F
Co nn ect st and by p ow er (f or
po p n ois e)
KBC _BEEP34
C
A
A
D1 6
BAT5 4C W G H
1
2
3
H DA_SPKR19
BluRay content
protection
VT1818S P2P ALC892
PC BEEP
CAP
R250 33_04
SU RR _R _ C
EA P D_ MO DE33
SPDIFO14,35
C371 0.1u_16V_Y5V_04
C 384 4.7u_6.3V _X5R_06
C 383 4.7u_6.3V _X5R_06
MIC2_R
MIC2_L
R 266 1K_04
C380 0.1u_16V_Y5V_04
IN T_ M IC
H EADPH ON E-R 35
H EADPH ON E-L 35
HEAD PHO NE-R
HEAD PHO NE-L
R 270 75_1%_04C 388 4.7u_6.3V_X5R _06
C 387 4.7u_6.3V_X5R _06 R 269 75_1% _04
C370
* 680p_50V_X5R _04
LINE- R 35
LINE- L 35
R260
2.2K_04
C363
*680p_50V_X5R _04
R253
2.2K_04
AUD GAUD G
MIC1-VREFO-L
MIC1-L
J D_SEN SEA35
J D_SEN SEB35
MIC1-R
M IC1 -VRE F O-R
C389 0.1u_16V_Y5V_04
C332 0.1u_16V_Y5V_04
C364 0.1u_16V_Y5V_04
A UDG
5V S14,15,17,18,19,25, 26,30,33,35,39,43,44
3. 3V S4,10, 11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,33,34,35,36,39,40, 43,58 3. 3 V3,4,9,14,15,19,20,21,23,24,25,26,28,29,30, 35,36,37,39,40,41,42
INT_ MIC _ R
R234 75_1% _04
R255 33_04
5V26,28, 35,37,39,40,41,42,46
D0 2
Q19
M TP 3403N3
G
D S
R476 10K_04
L73
*H CB1005KF- 121T20
5VS
3.3 VS_AU D
C781 0.1u_16V_Y5V_04
U4 6
PI5A3 158
0B0
2
1B0
11
S0
10
0B1
5
1B1
8
S1
7
VC C 12
A0 1
GN D 3
VC C 9
GN D 6
A1 4
L75
H CB1005KF-121T20
C782 0.1u_16V_Y5V_04
AUD G
3.3VS_AUD
AUD G
L74
H CB1005KF-121T20
3.3VS_AUD
SU RR _R _ C
FR ON T_R
SU RR _L _ C
FR ON T_L
LEF_OU T_C
FR ON T_R
AU DIO _C EN_ C
FR ON T_L
DOLBY_SEL
DO LBY_ SEL34 D OLBY_ SEL
D0 2
AUD G
AUD G
U4 5
PI5A3 158
0B0
2
1B0
11
S0
10
0B1
5
1B1
8
S1
7
VC C 12
A0 1
GN D 3
VC C 9
GN D 6
A1 4
LEF_O UT
CENTER
NERA CODEC
SU RR _R
SU RR _L
C336 4.7u_6.3V_X5R _06
C335 4.7u_6.3V_X5R _06
C4 5 0
10u_10V_Y 5V _08
D0 2
R259 33_04
C 373 2.2u_6.3V_Y5V_06
Layout Note:
U 43 pi n 1 ~ pi n 11 an d pi n 47 an d pi n 48
a re Di gi ta l si gn als .
T he ot he rs a re A nal og s ig na ls.
D02
( 1) MIC 1- L ( U1 3. 21) (2 )M IC 1-R (U 13 .2 2)
( 3) LIN E- L (U 13 .2 3) (4 )L IN E-R ( U1 3. 24 )
Layout Note:
CE NT ER 3 3
D02
L48
HC B1005KF-121T20
C 382 4.7u_6. 3V_X5R_06
C 381 4.7u_6. 3V_X5R_06
D15
* RB751V
A C
SUS B#21,33,34,37,39
LEF_OU T 33
SU RR_ L 3 3
Sheet 31 of 58
Codec Realtek
ALC892
Schematic Diagrams
APA2010D1-TPA2008D2 B - 33
B.Schematic Diagrams
APA2010D1-TPA2008D2
ROUT+
C338 0.1u_10V_X5R_04
ROU T-
D0 2
D02
LO U T +
AMP_EN
L46
H CB1608KF-121T25
LO U T -
R2 25
*0 _0 4
AM PGND
5VS14,15,17,18,19,25,26,30,32,35,39,43,44
20 Mil
20 Mil
R213 0_04
R218 0_04
R219 * 0_04
AMPGND
AMPGND
20 Mil
20 Mil
AMP_ EN
R293 * 0_04
R2 92 1 1K_ 1% _ 04
TPA2008D2
P2P BA20550
(TSSOP24)
AMPGND
C485 0.1u_10V_X5R_04
2W
2W
U44
T P A 2 00 8D 2
LINN
1
LINP
2
SH UTD OWN
3
PVDD L2 4
LOUTP 5
PG NDL1
6
PG NDL2
7
LOUTN 8
PVDD L1 9
COSC
10
ROSC
11 AGN D 12
VD D 13
VO LUM E
14
NC
15
PVDDR2 16
ROUTN 17
PG NDR1 18
PG NDR2 19
ROUTP 20
PVDDR1 21
BY PASS
22
RINP
23 RINN
24
Thermal_Pad
25
C 3 12 2. 2 U _ 6. 3 V _Y 5V _ 06
C313 0.1U_10V_X5R_04
C6 16
2 2 0p _5 0 V _0 4
R 2 21 1 0K _ 04
R 2 20 5 . 1K _ 1% _0 4
R45 4
120K_04
AMPGND
AMPGND
5VS
C 3 14 0 . 1u _1 0 V _X 5R _0 4
D02
AMPGND
R424 3.24K_1%_04
LEF_OU T32
C47 7
0.1u_10V_X5R_04
AMPGN D
D02
AM PGND R 212 *0_04
AM PGND
D02
C769 1000p_50V_X7R _04
R247 0_04
C770 1000p_50V_X7R_04
C7 73
0. 1 u _1 6V _ Y 5 V _0 4
C4 86
0. 1 u _1 6V _ Y 5 V _0 4
FRO NT_R
FRO NT_L
C 374 0.1u_Y5V_16V_04
R2 41 *0 _0 4
EAPD_MODE32
D13 CDBU0 03 4 0
AC
PC H _ M U T E #24
C3 31
*0 .1u_ 10 V_X5R _04
3.3VS
U2 8
MC 74 V H C 1 G 0 8D F T1 G
1
2
5
4
3
AMP_EN
KB C _M U TE #34
D12 *CDBU 00 34 0
AC
Low mute!
SUSB#2 1,3 2 ,34 ,37 ,39
R2 3 6
100K_1% _04
20 Mil
20 Mil
R2 4 6 *0 _0 4
AMP_ 5VS
Q3 0
MTN7002ZHS3
G
DS
AMP_EN
C7 61 1000p_50V_X7R_04
J_ X71 SPK1
85 20 4 - 06 00 1
1
2
3
4
5
6
R237 0_04
D02
R51 2
33 0K _ 0 4
AMPGN D
D03
C771 1000p_50V_X7R_04
C7 6 2 1000p_50V_X7R_04
TPA2008D2
P2P BA20550
(TSSOP24)
TPA2008D2
P2P BA20550
(TSSOP24)
R 232 *0_04
D02D02
D02
C772 1000p_50V_X7R_04
C76 3 1000p_50V_X7R_04
D02
D02
AM PGND
C7 64 1000p_50V_X7R _04
3. 3 V S
AMPG ND
R226 0_04
20 Mil
AMPGND
LOU T+
Q4 7
MT N7 00 2 ZH S 3
G
DS
FRONT_R
R674
100K_04
J _X5 1SPK1
85205-04001
1
2
3
4
D0 3
SPK_HP#35
The cut-off frequency Fcut
Fcut = 1 / (2 * Pi * (CA)
* (R A) ) Fcut(-3db)=485.4Hz
SUBWOOFER 3W
48 5. 4 Hz Lo w Pa s s Fi lt er
D0 3
AM PGND
THD+N at 1%
CENTER 2W
AMP_ 5VS
FRONT_L
SU BW O OFER+
SU BW O OFER-
B_ROUTP
ROUT-
B_ROUTN
LOUTP
ROUTN
ROUTP
B_ROU T+
B_ROU T-
CENTER+
CENTER-
LOUTN LOU T-
B_LO UTP
B_LOUT-
B_LO UTN
B_LO UT+
.
L19 FCM1005KF-121T03
C340 0.1u_10V_X5R_04
.
L21 FCM1005KF-121T03
C351 0.1u_10V_X5R_04
C35 6
220p_50V_04
C318 0.1u_10V_X5R_04
.
L20 FCM1005KF-121T03
U27
TPA2008D2
LINN
1
LINP
2
SHU TDO W N
3
PV DDL 2 4
LOUTP 5
PGN DL1
6
PGN DL2
7
LO U TN 8
PV DDL 1 9
CO SC
10
RO SC
11 AGND 12
VDD 13
VOLUME
14
NC
15
PVD DR2 16
RO UTN 17
PGN DR1 18
PGN DR2 19
ROUTP 20
PVD DR1 21
BYPASS
22
RIN P
23
RIN N
24
Thermal_Pad
25
.
L22 FCM1005KF-121T03
C286
22u_6.3V_X5R_08
U26
TPA2008D2
LINN
1
LINP
2
SHU TDO W N
3
PV DDL 2 4
LOUTP 5
PGN DL1
6
PGN DL2
7
LO U TN 8
PV DDL 1 9
CO SC
10
RO SC
11 AGND 12
VDD 13
VOLUME
14
NC
15
PVD DR2 16
RO UTN 17
PGN DR1 18
PGN DR2 19
ROUTP 20
PVD DR1 21
BYPASS
22
RIN P
23
RIN N
24
Thermal_Pad
25
C34 2
220p_50V_04
C293 2.2u_6.3V_Y5V_06
L6 7
FC M1005KF-121T03-7 J_ S U B W O O F1
88266-02001
PC B Footprint = 88266-2R
2
1
.
L31 FCM1005KF-121T03
.
L26 FCM1005KF-121T03
R227 10K_04
C35 5
0.1u_16V_Y5V_04
R248
12 0 K _0 4
C298 0.1U_10V_X5R _04
R228 7.15K_1%_04
C307
0.1u_16V_Y5V_04
.
L25 FCM1005KF-121T03
C34 1
0.1u_16V_Y5V_04
R215 7.5K_1% _04
.
L30 FCM1005KF-121T03
C320
22u_6.3V_X5R_08
L39
* H C B 10 05 K F -12 1 T2 0- 7
R214 10K_04
C29 9
0.1u_16V_Y5V_04
R244
12 0 K _0 4
C3 0 5
22U _6.3V_X5R_08
C311 2.2u_6.3V_Y5V_06
R254 *20m il_P_04
L52 FC M1005KF-121T03-7
C308 0.1U_10V_X5R_04
C354 0.1u_10V_X5R_04
L51 FC M1005KF-121T03-7
C31 9
0.1u_16V_Y5V_04
L6 6
FC M1005KF-121T03-7
5VS
AMP_5VS
AM PGND
5VS
AM PGND
AM PGND
AMPGN D
5V S
AM PGND
AM PGND
AM PGND
5V S
FRONT_R32
SURR_L32
FRONT_L32
CENT E R32
20 Mil
4 Ohm Speaker
AUDIO AMP
SURR_R32
20 Mil
Front Speaker R / L
20 Mil
4 Ohm Speaker
20 Mil
Back Surround
Speaker R / L
20 Mil
4 Oh m Sp e aker
20 Mil
20 Mil
On
4 Oh m S pe aker
D02
X 7100
X510 0
D0 2A
The volume con trol. the gai n ra nge is fro m
-80db(Vvolume=5V) to +20db(Vvolume=0V) with
64 steps p re cise co ntro l.
D02
C288 0.1U_10V_X5R_04
D02
D02
D02
D02
ROU T+
B_LO UT-
B_LO UT+
B_ROU T-
C767 1000p_50V_X7R_04
C 766 1000p_50V_X7R_04
C768 1000p_50V_X7R _04
C765 1000p_50V_X7R_04
3.3VS4,10,11,12,13,1 4 , 15 , 16 , 1 7, 1 8, 1 9 ,20,21,23,24,25,26,29,30,32,34,35,36,39,40,43,58
B_ROU T+
AM PGND
Sheet 32 of 58
APA2010D1-
TPA2008D2
Schematic Diagrams
B - 34 KBC-ITE IT8519
B.Schematic Diagrams
KBC-ITE IT8519
0V
RX
KB-SO 15
KB-SO 7
KB-SO 13
KB-SI0
KB-SI1
KB-SO 9
KB-SI6
KB-SI4
KB-SO 2
KB-SI3
KB-SO 11
KB-SO 8
KB-SO 6
KB-SO 14
KB-SI7
KB-SO 12
KB-SO 4
KB-SO 1
KB-SO 10
KB-SO 5
KB-SI2
KB-SO 3
KB-SI5
KB-SO 0
C ELL_CO NTRO L 45
0 _0 4 fo r M 76 0T /TU
B KP 10 05 HS1 21 _0 4 f or M74 0T /T U
E MI S ol uti on
H _P ROC HO T#_EC
U SB_P W R_ EN# 35
3G_DET#
EC _VCC
PCLK_KBC
NC 7
SHO RT
EC_H _PE CI_R
K/ B MA T R I X
FL A S H
LP C
SMBUS
PS/2
PWM
UART
DAC
CLOCK
IT8519
CI R
ADC
WAKE UP
PW M / CO U N T ER
LP C / WA K E UP
EX T GP I O
GP INTERRUPT
WAKE UP
GP I O
U3 1
IT8519E/BX (B)
WRST#
14
LP C C L K
13
LA D 0
10
LA D 1
9
LA D 2
8
LA D 3
7
LF R A M E #
6
( PD )LP CPD#/WU I6/GPE6 17
SERIR Q
5
ECSM I#/G PD4 ( PU )
15 ECSC I#/G PD3( PU )
23
GA20/GPB5
126
KBRST#/GPB6( PU )
4
KS I0/ST B# 58
KSI1/AFD# 59
KSI2/INI T# 60
KSI3/SLIN# 61
KSI4 62
KSI5 63
KSI6 64
KSI7 65
KS O0 /PD0 36
KS O1 /PD1 37
KS O2 /PD2 38
KS O3 /PD3 39
KS O4 /PD4 40
KS O5 /PD5 41
KS O6 /PD6 42
KS O7 /PD7 43
KSO 8/ACK# 44
KSO9 /BUS Y 45
KSO1 0/PE 46
KSO 11/ER R# 51
KSO1 2/SLCT 52
KSO 13 53
KSO 14 54
KSO 15 55
VCC 11
VSTB Y 26
VSTBY 50
VSTB Y 92
VSTBY 114
VSTBY 127
VSTBY 121
VBAT 3
AVC C 74
PS2C LK0/ GPF0 ( PU )
85
PS2D AT0/ GPF1 ( PU )
86
PS2C LK1/ GPF2 ( PU )
87
( PD )TM RI0 /W UI 2/G PC4 120
( PD )TM RI1 /W UI 3/G PC6 124
LPC RST#/W UI4/G PD2( PU )
22
( PD )W U I5 /GPE5 35
PWRSW /G PE4( PU )
125
RI1#/WUI0/GPD 0( PU )
18
RI2#/WUI1/GPD 1( PU )
21
( PD )RIN G#/PW R FAIL#/LPC RST#/GPB7 112
TXD/ GPB1( PU )
109 RXD/G PB0( PU )
108
( PD )CTX/GPB2 123
PS2D AT1/ GPF3 ( PU )
88
PS2C LK2/ GPF4 ( PU )
89
PS2D AT2/ GPF5 ( PU )
90 ( PD )TACH 0/G PD6 47
( PD )TACH 1/G PD7 48
PWM0/GPA0( PU )
24
PWM1/GPA1( PU )
25
PWM2/GPA2( PU )
28
PWM3/GPA3( PU )
29
PWM4/GPA4( PU )
30
PWM5/GPA5( PU )
31
PWM6/GPA6( PU )
32
PWM7/GPA7( PU )
34
ADC 0/G PI0
66
ADC 1/G PI1
67
ADC 2/G PI2
68
ADC 3/G PI3
69
ADC 4/G PI4
70
ADC 5/G PI5
71
ADC 6/G PI6
72
ADC 7/G PI7
73
VSS
1
VSS
12
VSS
27
VSS
49
VSS
122 VSS
113
AVSS
75
CK32KE 2
CK32K 128
DAC 3/G PJ 3
79 DAC 2/G PJ 2
78 GPJ 1
77 GPJ 0
76
( PD )EGC S#/GPE2 83
( PD )EGC LK/GPE3 84
( PD )EGAD /GPE1 82
GINT/G PD5( PU )
33
L80LLAT/G PE7( PU )
20
VSS
91
DAC 5/G PJ 5
81 DAC 4/G PJ 4
80
PWUR EQ#/GPC 7( PU )
16
( PD )CR X/G PC0 119
( PD )KSO 16/G PC3 56
( PD )KSO 17/G PC5 57
( P D )ID 0/G PH0 93
( P D )ID 1/G PH1 94
( P D )ID 2/G PH2 95
( P D )ID 3/G PH3 96
( P D )ID 4/G PH4 97
( P D )ID 5/G PH5 98
( P D )ID 6/G PH6 99
( P D )ID 7/G PG1 107
SMC LK0/G PB3
110
SMD AT0/G PB4
111
SMC LK1/G PC1
115
SMD AT1/G PC2
116
SMC LK2/G PF6( PU )
117
SMD AT2 /G PF7( PU )
118
FLFR AME #/G PG2 100
FLAD 0/SCE# 101
FL AD1/SI 102
FLAD 2/S O 103
FLAD 3/G PG6 104
FL C LK/SC K 105
( PD )F L RS T # /W UI7 /T M/G PG0 106
( PD )L80HLAT/GPE0 19
R 283 10K_0480DET#
RSM RST# 21
KBC_RST# 2 4
KB -SO1
KB -SO8
KB -SO4
KB -SI0
KB -SO7
KB -SO10
KB -SO6
KB -SO14
KB -SO0
KB -SI3
KB -SI6
KB -SI1
KB -SI7
KB -SO11
KB -SI2
KB -SI5
R432 X71? ?
KB -SO12
KB -SO5
KB -SO9
KB -SI4
KB -SO13
KB -SO2
KB -SO3
J_CIR 1
85204-04001
1
2
3
4
BAT_VO LT
SMC _BAT
SMD _BAT
BAT_D ET
R632 4.7K_04
D2 4
BAV99
A
C
AC
R630 10K_04
D2 1
BAV99
A
C
AC
D2 3
BAV99
A
C
AC
D2 2
BAV99
A
C
AC
R631 4.7K_04
VDD 3
0 _0 4 FO R I T8 51 2CX /E X
0 .1 U_ 04 FO R IT E85 12 -J (IT E8 50 2- J W/ 0 CIR )
E C Co st Do wn
D02
R5 15
10K_04
KB C_SPI_SO_R
KB C_SPI_SCLK_ R
KBC_H OLD#
SPI_VDD _1
4Mbit
KBC_FLASH
KBC _SPI_SC LK
KBC _SPI_SO
KB C_SPI_CE#_ R
KB C_SPI_SI_R KBC _SPI_SI
KBC _SPI_C E#
CIR _R X
R673 0_04
TOTAL_CUR45 TOTAL_CU R
R432* 0_04
3I N 1 3IN1 29
3G_D ET#
3IN1
BAT_ VOLT
PC LK_KB C
R282* 0_04
KBC _W RESET#
LCD _BRIG HTNESS
KBC_BEEP
LO W AC T I V E
SM D_BAT
MODEL_ID
SMC_CPU_THERM20
80CLK
SM C_BAT SMC_CPU_THERM
CCD_DET#
BAT_ DET
EC MODULE CHOOSE (FOR DIFFERENCE K/B TYPE)
3.3VS
D0 3
CC D_ DE T#
DOLBY_SEL32
KBC_SPI_*_R = 0.1"~0.5"
KB C_SPI_CE#
R642* 0_04
R 2 8 9 4 3 . 2 _1 % _ 04
R 284 *10M_04
C409
1u_10V_06
J _ KB2
85201-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
R274 10K_04
X9 * 32.768KHz
1 4
32
R286 47_04
C418
* 12p_50V_NP O_04
X10 * 32.768KHz
1 4
32
.
L54 HC B1005KF-121T20
C420
0.1u_16V_Y 5V_04
C406 *0.1u_16V _Y 5V _04
C413
0.1u_16V_Y5V_04
R285 15_1%_04
R280 *1 0 _0 4
C415
0.1u_16V_Y5V_04
80D ET#29
TOTAL_C UR
NC4
SH OR T
J_80DEB UG1
88266-05001
1
2
3
4
5
C414 0.1u_16V_Y5V_04
.
L5 3
HCB 1005K F-121T20
R 277 10K_04
R278 *10K_04
C410
* 0.1u_16V_Y 5V_04
J_K B1
85201-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
R288 47_04
C 403 1u_10V_Y 5V_06
C421
0. 1u_16V_Y5V_04
C734
0.1u_16V_Y5V_04
R281 *0_04
C419
*12p_50V_NPO _04
C411
*0.1u_16V_Y5V_04
NC3 SHORT
C 412 * 10p_50V_NPO _04
R504 4.7K_04
R279
100K_04
R276 0_04
R275 10K_04
C404
0.1u_16V_Y 5V_04
C401
10u_10V_Y 5V_08
C417
0.1u_16V_Y5V_04
U39
MX25L3206E
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SC K 6
HOLD#
7
VD D
8
R499 1K_04 R287 15_1%_04
R4 9 7 100_04
VD D3 VD D3
VD D3
VD D3
VD D3
KBC_AVD D
LC D_BR IGHTN ESS KB C_AGN D
KBC_AG ND
3.3VS
VDD 3
VDD 3
CCD _ EN 2 8
CHG _ E N 4 5
SWI# 21
VDD 319,29,35,36,38,39,45
3G _E N28
BAT_ VOLT
BRIG HT NES S15
SUSB# 21 ,32,33,37,39
SUSC # 21,41
LPC _AD 019,58
TP_DATA35
CCD _ DET #28
LID_SW#15,29,35
LPC _AD 119,58
LPC _AD 219,58
SERIR Q19,58
LPC_FR AME#19,58
SM D_BAT45
SM C_BAT45
LED _PW R30
TP_CLK35
LPC _AD 319,58
LE D_CAP#30,35
LED _BA T_FU LL30
LE D _ N U M #30 , 3 5
BUF_PLT_R ST#16,23,28,29, 36,37
KBC _BEEP32LED _S CRO LL#30,35
LED_BAT_CH G30
X7100
3G_DET#28
PW R _ SW #39
PCLK_ KBC23
X5100
GA2 024
AC_IN #35,45 LE D _ A C I N30
H_ PE C I4,24
80 C L K29
SMC _V GA_THER M14
SM D_ CP U _T H E RM20
VSHG _SE L 4 5
THER M_VOLT3
SMD _V GA_THER M14
BAT_ VOLT45 BAT_ D ET45
3. 3V S4,10,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30, 32,33,35,36,39,40,43,58
D02
H_PROCHOT#_EC4
AC_PR ESENT21 , 2 3
KBC _MUTE#33
SMI#24 SCI#24
3G_PO WER 28
WLAN _EN29 , 3 0 , 35
CPU _FA N30
BT_ DET#29
ME _W E #19
VGA_ FAN30
PWR_BTN#21
PME # 2 3
WL AN_DET#29
BKL_EN 15
BT_EN 29,30,35
HSPI_ SC LK 1 9
H SPI_CE# 1 9
HSPI_ MS I 19
HSPI_MS O 19
W LAN _LED #29,30,35
LAN _ PCIE_ W AKE# 36
SUS_PW R _AC K 21
T o tal _ CU R_ S EL45
KB C_SPI_SI
80CLK
3IN1
80DET#
R516 *0_04
C 480 1u_10V_Y 5V_06
KB C_SPI_SO
CK32K
CK32KE
KB C_SPI_SCLK
HDA_SYNC_CTRL 19
KB -SO15
D02
DD_O N 35,38,39
MOD EL_ID
EC _H_PECI_R
D03
1
CIR_RX
M OD EL_ ID
3.3VV1 .0 R277 10K/ R278 X
VE R. VO LT AG E
J_KB1
R 27 7 X /R 278 1 0K
NC6 SHOR T
SM D_ CP U _ TH ERM
P 15 0HM ,P 17 0HM
SM D_VGA _THE RM
SM C_VGA _THE RM
24
P 15 1HM
EC _VSS
RX
D0 3
KBC _W RESET#
R 294 0_04
R291 *0_04
CP U_ F ANSE N 3 0
ALL_SY S_PWRG D 14,15,21,43
VG A_FA NSEN 30
VC ORE _O N 4 3
PM _PC H_PW R OK 21
Sheet 33 of 58
KBC-ITE IT8519
Schematic Diagrams
USB, TP, FP, MULTI-CONN B - 35
B.Schematic Diagrams
USB, TP, FP, MULTI-CONN
Sheet 34 of 58
USB, TP, FP,
MULTI-CONN
D0 3
USB _PN 1 _R
USB _PP1_ R
USB_AC_IN
9/3
C568
10u_10V _Y 5V _08
R651 10K_1%_04
R647 10K_1%_04
TP_DATA
TP_CLK
R6 5 3 *0 _ 04
C78 4
0.1u_16V_Y5V_04
SIDE_L 3 2
5VS
USB_PP4 23
USB_PN4 23
3.3VS
C7 83
10u_10V_Y5V_08 U47
TPS2540
CTL1
6
NC 9
DM_ IN 11
DM _ O
2
DP_ IN 10
IN
1
EN /DSC
5
DP _O
3
ILIM_SEL
4
CTL2
7
CTL3
8
OUT 12
FAULT# 13
GND 14
ILI M1 15
ILI M0 16
PPAD 17
R650
10K_04
PR245
10K_1%_04
R646 15K_1%_04
R648 *10K_04
R 6 52 10 K _ 1 %_ 0 4
R6 4 9
10 K _ 0 4
R 6 4 5 1 0 K _1 % _ 04
VD D3
VDD 5 USBVCC_CHARGER
3.3V 3,4,9,14,15,19,20,21,23,24,25,26,28,29,30,32,36,37,39,40,41,42
VDD 5
3. 3V
VDD 5
VDD 3
U SB_PN 123
U SB_PP 123
DD _ ON34,38,39
USB_PW R _E N#34
AC_IN#34,45
CTL1 CTL2 CTL3: 0 X 1--- -- > De dicat ed Charging Po t, Aut o-det ect
CTL1 CTL2 CTL3: 1 1 1- --- -> Charging Downs tream Port, BC Specificat ion 1.1
CTL1 CTL2 CTL3: X 1 0--- -- > Standard Dow ns tream Por t, USB 2.0 Mode
M_PQFP16
U SB_PP1 _R
U SB_PN1_R
8/31
G_ OC #0 1
USB Charge PORT
3. 3 V S
5V 26,28,32,37,39,40,41,42,46
5VS 14,15,17,18,19,25,26,30,32,33,39,43,44
U SB_PP623 U SB_PN 623
USB_OC#123
F OR HD D& OD D BOA RD
+
C600
*100u_6.3V_B2
DD_ON#39,41
U29
R T9715BG S
VO UT1 6
VO UT3 8
VIN 2
3
VIN 1
2VO UT2 7
GND 1
EN #
4
FLG#
5
C3 6 0
0.1u_16V_Y5V_04
C3 4 3
10u_10V_Y5V_08
5V
C326
10u_10V_Y5V_08
10 0 m il
USBV CC015V
C348
* 0.1u_16V_04
C3 4 5
*0.1u_16V_04
C3 5 9
0.1u_16V_Y 5V_04
For ESD
C350
*10u_10V_08
JD_SEN SEA 32
J_TP1
85201-10051
1
2
3
4
5
6
7
8
9
10
JD _SENSEA
JD _SENSEB
.
L68
H CB1608KF-121T25
C597
0.1u_16V_Y 5V_04
U SB_VCC 01 _0
USBVC C_CH ARG ER
50 mil
P IN G N D3~4=G ND
Port 0
SIDE_R
SIDE_L
50 mil
WLAN _LED # 29,30,34
W L AN_ LED#
U43
G5243A
VIN 4
VIN 5
EN 3
VO UT
1
GN D
2
5VS
C780
0.1u_16V_Y5V_04
C7 7 9
*0.01u_50V_X7R _04
Zero_VIN R640 *15mil_short_06
R641
10 0 K _ 04
Zero Power ODD
SATA_ODD _PWRG T 24
LINE -R 32
C750
47P_50V_04
J_X71POW1
87151-15051
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
C751
47P_50V_04
C7 4 9
*10U_10V_08
R634
10K_04
5VS
5VS
R633
10K_04
D02
TP_CLK
SATA_ODD_PRSNT#24
SA TA_ O DD_D A#23
C759
0.01u_16V_X7R_04
JD_SEN SEB 32
USBVC C_ CH ARG ER
U SBVCC 01
C760
0.01u_16V_X 7R _04
J_USB1
U S04036BC A081
V+
1
GND 1
GN D1
DAT A_ L
2
DAT A_ H
3
GN D
4
GND2
GN D2
SATA_RXP2 19
SATA_RXN2 19
SATA_TXP2 1 9
SATA_TXN2 19
TP_DATA
EM I
VD D3 J_3D 1
85205-06001
1
2
3
4
5
6
SATA_TXP4
SATA_TXN 4
SATA_RXN4
SATA_TXN4 19
SATA_RXP4 19
SATA_RXN4 19
SATA_RXP4
SATA_TXP4 1 9
D0 3
3.3VS 4,10,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,36,39,40,43,58
LID_SW# 15,29,34
LID _SW #
TP_CLK 34
TP_DATA 34
FO R 3D E mi tte r Mo du le
WLAN_EN
BT_EN
SATA_LED #
BT_EN 29 ,30,34
SATA_LED # 19,30
LED_CAP#
LED_NU M#
LED _S CRO LL#
LED_NU M# 30,34
LED_SCR OLL# 30,34
WLAN_EN 29,30,34
M_ B T N# 39
LED_CAP# 30,34
M_ B T N#
100 mil
LI N E - R
VDD 3 19,29,34,36,38,39,45
LI N E - L LINE -L 32
PQ7 3
MTN7002ZH S3
G
DS
5VS
X7100 only
D0 3
??
C7 1 4
10u_10V_Y5V_08
5VS_O DD
+
C3 9 4
*1 0 0 u_ 6 .3 V _B 2
SPK_ HP#33
VDD 5 38,39
D02
SATA _O DD_PR SNT#
5V S _O D D
SATA_TXN2
SATA_RXP2
SATA_RXN2
SATA_TXP2
J _ SATA_ HOD D1
C 1943
11
2
2
33
4
4
55
6
6
77
8
8
99
10
10
11 11
12
12
13 13
14
14
15 15
16
16
17 17
18
18
19 19
20
20
D0 3
SIDE_R 3 2
USB PORT
L65
*W CM2012F2S-161T03-short
1
4
2
3
J_AU DIO 1
88107-20001
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
F OR C LI CK BO AR D
SPD IFO14 , 3 2
AU DG
.
L35
FC M1005KF-121T03_04
FOR A ud io JA CK BO AR D
SPDI FO_R
C273
1000p_50V_X7R _04
HEADPHONE-L32
MIC 1-L32
MIC 1-R32
HEADPHONE-R32
SPK_ HP#
U SB_P P023
U SB_P N023 USB_PN 0
USB_PP0
SATA _O DD_D A#
D02A
3. 3 V S
5VS
Schematic Diagrams
B - 36 Card Reader (JMC 251C)
B.Schematic Diagrams
Card Reader (JMC 251C)
D02
D02
D02
D02
5V26,28,32,35,37,39,40,41,42,46
R479 *0_04
LAN_SCL
LAN_SDA
BUF_PLT_RST#
D0 3
R465 0_04
D02
C708
0.1u_16V_Y 5V_04
A VDD12_55
R498
*0_04
R457
* 15m il_short_06
D02
D02
R470 1K_04 MS _ I N S #
D03
R462
* 15m il_short_06
A VDD12_52
X1 2 *2 5M Hz
12
3 4
C728
0.1u_16V_Y 5V_04
AVDD 12_7
D0 2
R459 *10K_1% _04
3.3VS
MS _ I N S #
D02
3. 3V_LAN
C658
*10u_10V_Y 5V_08
D02
near Pin#41
C740
* 10p_50V_NPO _06
SD_CLK
R464 *0_04
R466 *15m il_short_06
C680
0.1u_16V_Y 5V_04
AVD D12_13
A VDD12_62
C702
0.1u_16V_Y 5V_04
C683
0.1u_16V_Y5V_04
AVD D12_7
R474 * 4.7K_04
R473 * 4.7K_04
3.3V_LAN
U35
* A T 2 4C 02 B N
SC L
6
A0 1
A1 2
A2 3
WP 7
SD A
5
VC C
8
GND
4
ISON
DVDD
R 477 *0_04
4 IN 1 SOCKET SD/MMC/MS/MS Pro
VDD 3
3.3V
SD_D1
DVDD
.
L70
SWF2520C F-4R 7M-M
REG LX
S wit ch in g R eg ula to r
c los e to PI N3 3
Pin#33Pin#33
( >20 mi l)
F or JM C2 51/ 26 1
o nly
C742
10u_10V _Y 5V _08
(>2 0m il )
DVDD
R501 *100K_1%_04
C731
0.1u_16V_Y5V_04
C701
0.1u_16V_Y5V_04
LAN_MD IN231 LAN_MD IP231
LAN_MD IN331
LAN_MD IP331
C717
0.1u_16V_Y5V_04
BU F_P LT_RST# 16,23,28,29,34,37
ISON
3.3VS4, 10,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,39,40,43,58
DVDD
C733
0.1u_16V_Y 5V_04
C7 0 7
0.1u_16V_Y5V_04
C684
0.1u_16V_Y5V_04
C6 3 7
*10u_6.3V_X5R_06
C7 1 3
0.1u_16V_Y 5V_04
3.3V3, 4,9,14,15,19,20,21,23,24,25,26,28,29,30,32,35,37,39,40,41,42
A V DD12 _ 13
Reserved
Place all capacitors closed t o ch ip.
The subs cript in e ach CAP incic ates t he p in
n umb er o f JMC251/JMC261 t hat s hou ld b e
closed to.
Pin#55
Pin#43
Pin#59 Pin#2
Pin#43
Reserved
Pin#21Pin#59
C7 3 8
*0.1u_10V_X5R_04
C706
10u_6.3V_X5R_06
3.3V_LAN
3.3V_LAN
DVD D
AVD D12_52
LANXIN
SD_CLK
LA N _ M D I P 2
LA N _ M D I N 2
AVD D12_55
P CI e Dif fe re nti al
P ai rs = 10 0 Ohm
MD IO1 4
MD IO8
AVD D12_62
LA N _ M D I P 3
R472 *15m il_short_06
R 500 0_04
(LQ FP 6 4)
JMC251 C
U3 7
JMC 251_C
R EXT
1
AVDD 33
2
XIN
3
XOU T
4
GND
10
LX 33
AVD D12
7
CPPEN 23
CLKN
5
CL KP
6
AVDD 12
13
RXP
8
GND 22
TXN
11
TX P
12
PW R CR 30
RS TN 24
WAKEN 27
MP D 28
ISO N 45
L AN_ LE D2 26
CR_CD1N
16
CR_CD0N 17
RX N
9
MDIO 8
51
LAN_LED0 47
MDIO7
15
MD IO6 20
GND 44
MDIO5 41
MDIO4 40
MDIO3 39
VD DIO 43
MDIO2 38
MDIO1 37
MDIO0 36
MDIO 9
50 MDIO 1 0
49
MDIO11 48
MD I O1 2 19
VDD REG 32
MDIO13
14
MD I O1 4 18
CR _L ED 25
TEST 29
VD DIO 21
GND 34
VCC 3V 31
FB12 35
LA N _ LE D 1 46
VDDO 42
VDD
52
VIP_1
53
VIN_1
54
AVDD 12
55
VIP_2
56
VIN_2
57
GND
58
AVDD 33
59
VIP_3
60
VIN_3
61
AVDD 12
62
VIP_4
63
VIN_4
64
3.3V_LAN
VC C_ CAR D
SD _BS
LAN_MD IN131 LAN_MD IP131
LAN_MD IN031 LAN_MD IP031
JMC251 C
DVD D
(>20mil)
C LK_PC IE_G L AN 2 0
LAN_SC L
PN: 6- 20-G4000- 026
1- 081-4003 95-001
PN: 6- 21-G4000- 126
M SD0 19-C0-10A3
PC IE_TXN2_ GLAN 20
PCIE_TXP2_ G LAN 2 0
C4 0 2
0.1u_16V_Y5V_04
CLK_ PCIE_G LAN # 20
VCC _C ARD
AVDD 12_7
VCC _C ARD
3.3V_LAN
LANX OUT
C4 0 5
0.1u_16V_Y5V_04
R468
12K_1%_04
MDIO13
PC IE_R XN2_GLAN 20
PCIE_R XP2_GLAN 20
SD_BS
SD_D1
MDIO7
C 682 0.1u_16V_Y5V_04
SD_D0
SD_D0
SD_D3
SD_D3
SD_D2
SD_D2
C 681 0.1u_16V_Y5V_04
(>20mil)
SD_D1
3. 3 V S
LAN_SD A
J_CARD_NOR1
1-081-400395-001
WP_SD
P2
VS S_M S
P21
DAT1_SD
P3
DAT0_SD
P4
WP GND_SD
P5
VS S_SD
P6
VS S_M S
P7
BS _M S
P8
C LK_SD
P9
DAT1_MS
P10
SD IO/D AT0_M S
P11
VD D_SD
P12
DAT2_MS
P13
VS S_SD
P14
IN S_ MS
P15
DAT3_MS
P16
CMD_SD
P17
SC L K_M S
P18
VC C_MS
P19
C D/D AT3_SD
P20
CD_SD
P1
GN D P2 3
GN D P2 4
GN D P2 5
GN D P2 6
DAT2_SD
P22
MD IO 1 0
MS _ I N S #
SD_CLK
SD_W P
SD_BS
LAN _PC IE_WAKE#
SD_D 0
LAN _PC IE_W AKE# 3 4
SD_CD #
SD_CLK
PC IE_ W AKE#
R482 10K _1% _04
C7 41
2.2u_6.3V_Y5V_06
IN_ C
SDXC_ PO W ER
C776
* 82p_50V_NPO _04
Pin#31
MP D
C774
*1u_25V_08
R 637 *1.62K_1%_04
(> 20m il )
3.3V S
C778
* 10u_6.3V_X5R_06
C719
0.1u_16V_Y 5V_04
R638
* 2. 49K_1%_04
C725
10u_10V_Y 5V_08
VD D3
V DD3
Near Cardreader CONN
C398
0.1u_16V_Y5V_04
1A
VCC_CARD
DVDD
R636
*0_06
3.3V
R635
* 0_06
C397
10u_10V_Y5V_08
U42
*AX6610
GN D 1
VC NTL
6
VO UT
3
VIN 5
VO UT
4
VFB
2
POK 7
EN 8
VIN 9
3.3V_LAN
LAN_LED1
3.3V_LAN
Pin#32Pin#32
(> 20 mil )
VD D3
C736
10u_10V_Y5V_08
C726
0.1u_16V_Y 5V_04
MDIO11
MD IO9
VD D3
3.3V_LAN
SD _C D#
REGLX
SD_D 2
VDD 319,29,34,35,38,39,45
LAN_PC IE_WA KE#
Card Reader
Po we r
VC C_ C ARD
R272
75_1% _04
LA N _ M D I N 3
SD XC_POW E R
MDIO12
SD_D3
DVDD
C635
22p_50V_NPO _04
LA N X O U T
C636
22p_50V_NPO _04
R467 *1M _04
LANXIN
X11
X8A025000FG 1H _25MH z
12
DVDD
MP D
C712 0.1u_16V_Y5V_04
DVDD
DVDD
R494 * 4. 7K_04
VDD 3
R493 10K_04
Pin#31
3.3VS
D20
C DBU 00340
A C
VCC _C ARD
L AN_ LE D0
SD _W P
Card Reader Pull High/Low
Resistors
R 481 1K_04
3. 3 V S
SD_WP
R471 *4.7K_04
VCC_CARD
SD_CD #
D02
R639 0_06
R475 *15m il_short_06
PC IE_W AKE#21,28,29,37
3.3V_LAN
D02
D02
3.3V
R456
* 15m il_short_06
D02
D02
MS _ I N S #
Sheet 35 of 58
Card Reader (JMC
251C)
Schematic Diagrams
USB 3.0 B - 37
B.Schematic Diagrams
USB 3.0
L6 4
*W CM 2012F2S-161T03-short
1
4
2
3
D03
R100
10K_04
USB 3 0_ OC
3.3V
R 6 6 9 0_ 04
D02
AUXDET_R
AUXDET_ R
Port 2
AU XDET
40 M IL
PPON
f or X7 2 C99 0323
PPO N
50 M IL
CLOS E TO CONNEC TOR
C LOSE TO CO NNECT OR
SSTX2#
SSTX2
USB_SPI_ CE#_R
512Kb it
U SB_SPI_SI
U SB_SPI_SCLK
U SB_SPI_C E#
USB_HOLD#
USB_SPI_ VDD_1
USB_SPI_ SO _R
KBC_SPI_*_R = 0.1"~0.5"
U SB_SPI_SO
USB_SPI_ SC LK_R
U SB_FLASH
USB_SPI_ SI_R
USB_SPI_ CE#
USB_SPI_ SCLK
USB_SPI_ SI
USB_SPI_ SO L6 3
*W CM 2012F2S-161T03-short
1
4
2
3
U2DP2
U2DM2
USB30_OC
40 M I L
PEW AKE
L58
*WCM2012F2S-161T03-short
1
4
2
3
+
C23 2
2 20 u _6 . 3V _ 6. 3 *4 . 5
R167
47K_04
3.3V
SSTX1
Port 1
SSRX2
SSRX2#
R 1 81 0_ 04
R130
10 K _0 4
C554
0.01u_16V_X7R_04
D9
RB751V
A C
C250 0.1u_10V_X5R_04
R1 02
0_04
C201 10u_10V_Y 5V_08
PR 93 *15mil_short
C283
20p_50V_NPO _04
C551 0.01u_16V_X7R_04
C282
20p_50V_NPO_04
C62 7
1u _6 . 3 V_ X 5R _ 04
R188
68 0K _ 04
C262 10u_10V_Y5V_08
C25 4
0.01u_16V_X7R_04
.
L27
HC B1608KF-121T25
C269 0.1u_10V_X5R_04
C227
10u_10V_Y5V_08
NC 1
*NC_04
R 165 15_1%_04
R 154 47_04
SSTX1#
C 237 0.1u_16V_Y5V_04
C2 04
10u_10V_Y5V_08
R1 01
*1 0 K_ 0 4
C549
0 . 01 u_ 16 V _X 7 R _0 4
C25 3
0. 1 u_ 10 V _X 5R _0 4
Standar d-A
J_ USB2
C-317AH09FZTS494CB
VBUS
1
D-
2
D+
3
GND_ D
7
SSRX-
5
SSRX+
6GND
4
SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
U12
RT9715BG S
VO UT1 6
VO UT3 8
VIN2
3VIN1
2VO UT2 7
GND 1
EN#
4
FLG#
5
C223
1u_10V_06
????PIN6?
3A
R 151 47_04
u PD720200
U21
XT2
M1 4 XT1
N1 4
PONR STB
P5
PERSTB
H2
PEWAKEB
K1
PECREQB
K2
AUXDET
J2
U2AVDD3 3 P13
U3 AVDD3 3 D7
PECLKP
B2
PECLKN
B1
PETXP
D2
PETXN
D1
PERXP
F2
PERXN
F1
U3AVSS D6
U2AVSS N1 2
U2PVSS N1 1
CSEL
P6
SPISCK
M2
SPICSB
N2
GND
P4 GND
J1 3 GND
K14 GND
K13
VDD33 N5
VDD33 N4
VDD 33 L1 4
VDD33 L1 3
VDD33 L10
VDD33 L9
VD D33 G4
VDD 33 G3
VDD33 F14
VDD33 F13
VDD33 F3
VDD33 D1 0
GND
B13 GND
B11
VDD10 E4
VDD10 E3
VDD10 D9
VD D10 D8
VDD10 D5
VDD 10 C9
VDD10 C8
VDD10 C7
VDD10 C6
VD D10 C5
VDD 10 C4
VDD33 P3
VDD33 N6
GND
C1 4
GND
F8 GND
F7 GND
F6 GND
F4 GN D
E14 GND
E13 GND
E2 GND
E1
GND
D12 GN D
D11 GND
D4 GND
D3 GND
C13
GND
C1 1 GND
C1 0 GND
C3 GND
C2 GND
C1
GND
F9
GND
F1 1
GN D
F12
GND
G1
GND
G2
GND
G6
GND
G7
GND
G8
GND
G9
GN D
G11
GN D
G1 2
GND
G1 3
GND
H6
GND
H7
GND
H8
GND
H9
GN D
H12
GN D
J3
GND
J4
GND
J6
PSEL
J1
GND
J7
GND
J8
GND
J9
GN D
J1 1
GN D
J1 2
GND
K3
GND
K4
GND
L2
GND
L3
GND
L4
GND L6
GND L7
GND L11
GND L12
GND M3
GND M4
GND M5
GND M6
GND M7
GND M8
GND
A14
GND
B3
GND
B7
GND
B9
GND
B4
GND
B5
GND
A4
GND
A5
GND
A7
GND
A9
GND
A11
GND
A13
GND
A1
GND
A2
GND
A3
GND P14
GND P11
GND P9
GND P7
GND P2
GND P1
GND N1 3
GND N9
GND N7
GND N3
GND M1 3
GND M1 2
GND M1 1
GND M1 0
GND M9
SPISI
N1
SPISO
M1
VDD 10 E11
VD D10 E12
VDD10 H3
VDD10 H4
VDD 10 H1 1
VDD 10 K11
VDD10 K12
VDD10 L5
VDD10 L8
GND
L1
SMIB
H1
RREF P1 2
U3 TXDP 2 B6
U3T XDN2 A6
U3 RXDP 2 B8
U3 RXDN2 A8
U2 DP1 P1 0
U2 DM1 N1 0
U3 TXDP 1 B1 0
U3T XDN1 A10
U3 RXDP 1 B12
U3 RXDN1 A1 2
U2 DP2 P8
U2 DM2 N8
OCI 2 B G1 4
OCI 1 B H1 3
PPON2 H1 4
PPON1 J14
GND
B14
GND
C12
GND
D13
GND
D14
C27 9
0.1u_10V_X5R_04
C2 6 8
0.01u_16V_X7R_04
C2 49
0.1u_10V_X5R_04
C5 5 2
0.01u_16V_X7R_04
U1 6
M X 25 L5 12 1 EM C - 20 G
CE# 1
SO 2
WP#
3
VS S 4
SI 5
SCK 6
HOLD#
7
VDD
8
R 1 36 75 0_ 1 % _ 04
C553 5p_50V_04
R129
2.4K_1%_04
R1 82 *0 _0 4
X6 24MHz
12
C252
0 . 01 u_ 1 6V _ X7 R _ 04
C26 6
0.01u_16V_X7R_04
C21 1
0.1u_16V_Y5V_04
R 166 15_1%_04
R 183 10K_04
Standard -A
J_ USB3
C-317AH09FZTS494CB
VBU S
1
D-
2
D+
3
GND_ D
7
SSR X-
5
SSR X+
6
GND
4SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
R164 1K_04
C28 5
0.01u_16V_X7R_04
C2 30
*10U_10V_08
C2 48
0.1u_16V_Y5V_04
C215 0.1u_10V_X5R_04
.
L3 3 H C B 16 08 K F - 12 1T 25
R 195 1.6K_1%_04
Q7
*2 N7 00 2W
G
DS
R 171 0_04
C5 38
0 . 01 u_ 16 V _X 7 R _0 4
R17 2
10 K _0 4
C284
0 . 01 u_ 16 V _X 7 R _0 4
R158 4.7K_04
R 170 0_04
C229
10u_10V_Y5V_08
.
L36
H C B 16 08 K F - 12 1T 25
U1 4
AX 6610AESA
GND
1
VCNT L 6
VO UT 3
VIN
5
VO UT 4
VFB 2
POK
7
EN
8
VIN
9
D02
C251 0.1u_10V_X5R_04
C22 5
0. 1 u_ 16 V _Y 5V _ 04
C207
* 0.1u_ 16 V_ Y5V_ 04
C214 0.1u_10V_X5R_04
C56 1
0.01u_16V_X7R_04
X5 *24 MHz
12
3 4
2A
C2 80
0.1u_10V_X5R_04
C25 5
0.1u_10V_X5R_04
R202
100_04
C220 0.015u_10V_X7R_04
C56 0
0.01u_16V_X7R_04
C226
0.1u_16V_Y 5V_04
C274 0.1u_10V_X5R_04
Q16
*MT N 70 0 2Z H S 3
G
DS
C537
0. 1 u_ 10 V _X 5R _0 4
C216
1u _6 . 3V _ Y 5 V _0 4
3.3VA3.3V 1.05V
1.5V
3. 3 V A
5V
3.3VA
3.3V
5V
3.3V
UGND
1. 0 5V
UGND
3.3V
USB30 VCC
3.3V
(15nF ~48nF)
3.3V
USB30 VCC
5V
USB30 VCC
3. 3 V3,4,9,14,15,19,20,21,23,24,25,26,28,29,30,32,35,36,39,40,41,42 5V26,28,32,35,39,40,41,42,46
1. 5 V4,9,10,11,12,13,26,30,39,41SUSB#21,32,33,34,39
CLK_ PCIE_USB3 020 CL K_PCIE _ USB 30 #20
BUF_PLT_R ST#16,23,28,29,34,36 PCIE_W AKE#21,28,29,36 U SB3 0 _CLKREQ#20
PCIE_TXP1_ USB3020 PCIE_TXN1_USB3020
PC IE_RXN1_USB3020
PC IE_ RXP1_USB3020
L5 9
* WC M20 12 F 2S - 1 61 T 03 - sh or t
1
4
2
3
AU XD E T
FP- >UEA11 1RC-C ABUF- 7H
C99 0401
U2DP1
U2DM1
SSRX1#
SSRX1
USB30_ SMI#19,24
Sheet 36 of 58
USB 3.0
Schematic Diagrams
B - 38 VDD3, VDD5
B.Schematic Diagrams
VDD3, VDD5
EN_ALL
5A 5A
Rb
Ra
EN _3V
EN _5V
COPY C48
C980917
EN _3V
M990125
EN_5V
VDD3
AC_IN45
D03
PC 167
4.7u_25V_X5R _08
PC 98
1u_10V _06
PD3 R B054 0S2
A C
+
PC 172
220u_6.3V_6.3*4.5
PR 105 * 10K _04
PJ 20
*5 m m
12
PR82 * 0_04
PC 99
0.1u_50V_Y5V_06
PC95
1000p_50V_X7R _04
PC 176
4.7u_25V_X5R _08
PJ 1 9
*5 m m
1 2
PC 74
2200p_50V_X7R_04
PQ57
P1203BV
4
62 5
73
1
8
PR 114
100K_04
PR89
*0 _0 4
PR 123
13K_1% _06
PL8
4.7UH _6.8*7.3*3.5
1 2
PQ 56
P1203BV
4
62 5
73
1
8
PC 85
0.1u_50V _Y 5V_06
PQ 59
P1203BV
4
62 5
73
1
8
PQ 25
M TN 7002ZH S3
G
DS
PC76
4.7u_25V_X5R _08
PD7
R B0540S2
AC
PC93
1000p_50V_X7R _04
PR 98
10K_04
PD5 R B054 0S2
A C
PD 9
R B0540S2
A C PC 92
0.1u_16V_Y 5V_04
PR 109 100K_04
PC 79
0.01u_16V_X7R _04
PJ 6
*40mil
12
PR 117
20K_1% _04
+
PC177
220u_6.3V_6.3* 4.5
PC94
0.1u_16V_Y5V_04
PC 73
2200p_50V_X7R_04
PL10
4.7U H_6.8* 7.3* 3.5
12
PU7
uP6182
VREF 3
EN1 1
VFB1 2
TO NSEL 4
LDO 5
17
LG ATE1 19
PHAS E1 20
VFB2 5
UG ATE2
10
VCLK
18
BOO T2
9
EN2 6
VO2
7
LDO 3
8
PHA SE2
11
LGATE2
12
EN0
13
SKIPSEL
14
GN D
15
VIN
16
UG AT E1 21
BOO T1 22
POK 23
VO 1 24
GND PAD
25
P R115 0_04
PC88
1u_25V_08
PR118
100K_04
P R122
19.1K_1% _06
PC175
4.7u_25V _X5R_08
PR 119 *0_04
PC90
1u_6.3V_X5R_06
PR96
0_04
PC 97
100p_50V_N PO_04
PQ2 1
MTN7002ZHS3
G
DS
PQ 55
P1203BV
4
62 5
73
1
8
PD4 R B0540S2
AC
PC 78
1u_6.3V_X5R _06
PR83 0_04
PD 16
FMS3004-AS-H
A C
PR 113 0_0 4
PC 89 0.1u_10V_X5R_04
PR88
2. 2_ 0 6
PD6
RB0540S2
AC
PD8 R B054 0S2
AC
PC 80
0.01u_16V_X7R_04
PR 116 * 0_04
PR 91
*680K_1% _04
P R121
30K_1%_06
PC 96
1000p_50V_X7R _04
PC 166
4.7u_25V_X5R _08
PD17
FMS 30 0 4-AS-H
A C
PR 90
*0_04 SY S5V
VDD 3
SY S15V
VR EF
SY S3V
VIN
SY S10V
VDD 5
VIN
VREG 5
VRE G3
SYS5V
VREF
VR EG5VIN 1
VIN
VREG5
DD _ ON34,35,39
VR EG5 VR EG5
SY S5V
VD D535,39 S YS5V39
VD D319,29,34,35,36,39,45 VIN14,15,39,40,41,43,44,45,46
SYS15V15,39,40 VIN139
VDD5
D02
PQ 31
M TN 7002ZHS3
G
DS
Sheet 37 of 58
VDD3, VDD5
Schematic Diagrams
5V, 3.3V, 5VS, 3VS, 1.5VS, VIN1 B - 39
B.Schematic Diagrams
5V, 3.3V, 5VS, 3VS, 1.5VS, VIN1
NMOS
1.5VS_CPU
EMI
R108
*10K_04
3.3V
Q1 2
* MTN7002ZH S3
G
DS
M_ B T N #
POWER
SWITCH
LED
POWER BUTTON
20mil
20mil
20mil
R7 5
100_04
C127
*0.1u_16V_04
3.3VS
R1 1 1
*10K_04
3.3V
C246 0.1u_16V_Y 5V_04
SUSB
D4
K P-2012PBC-A
AC
C506 0.1u_16V_Y 5V_04
R655
*1 2K _0 4
NM OS
ON
SUSB
M_B TN #35
1.5VS
PJ9
*4 0m i l
12
PR 191
1M_04
PR194
10K_04
R1 7 9
100_04
PQ 28B
M TN N20N03Q8
6
5
4
C427
0. 1u _ 5 0V _ Y 5 V _ 0 6
PQ 60B
M TN N20N03Q8
6
5
4
C4 2 8
0.1u_50V_Y5V_06
C233
0.1u_16V _Y 5V_04
PR 196
1M_04
C570
0.1u_50V_Y5V _06
R224
1M_04
PC179
*0.1u_ 1 6V_Y 5V_04
PQ 16A
M TN N20N03Q8
1
3
7
28
R445
1M_04
C316
470p_50V_X7R_04
PC164
*0.1u_16V_Y5V_04
P Q60A
MTNN 20N 03Q8
1
3
728
PR 193
10K_04
PQ 54
MTN7002Z HS3
G
DS
U34
P2808A 1
VA
1
VIN
2
M_BTN#
3
IN STA NT-ON
4GND 5
PW R _SW # 6
DD _O N_ L AT CH 7
VIN 1 8
PC 159
2200p_50V_X7R_04
Q27
M TN 7002ZHS 3
G
DS
C721
0 . 1u _ 5 0V _ Y 5 V _ 0 6
PQ 53B
MTN N20N03Q8
6
5
4
P R195
100K_04
PC 161
* 10u_6.3V_X5R_06
PR192
* 220_04
C2 3 1
2200p_50V_X7R _04
R 458 1K_04
R461
10K_04
Q1 4
MTN 7002ZHS3
G
DS
C238
10u_10V_Y5V_08
C6 1 9
0.1u_50 V_ Y5V_0 6
C317
0.1u_16V_Y5V_04
PC 180
* 2200p_50V_X7R_04
C602
2200p_50V_X7R _04
R444
82_04
PQ52
* MTN7002ZHS3
G
DS
C614
10u_10V_Y5V_08
PQ 64A
M TN N20N03Q8
1
3
728
PQ 53 A
M TN N20N03Q8
1
3
728
PJ2 1
*40m il
12
P Q28A
MTNN 20N 03Q8
1
3
7
28
R1 5 2
1M _ 04
C613
0.1u_16V_Y5V_04
PQ6 1
MTN7002ZH S3
G
DS
1.5VS_EN
PC 160
* 0.1u_16V_Y 5V_04
5VSSY S1 5V VDD 5
3.3VSS YS15V SY S15V
1.5V
3.3V
3A
1.5VSSY S15V
VAVINVI N VA
VIN
VIN 1
VA
VDD 3
VD D3 VD D3
VA
SY S5V
SY S5V
1.5VS_C PU
SY S15V
1. 5 V
VIN14,15,38,40,41,43,44,45, 46
V DD319,29,34,35,36,38,45
VA45 VIN138
V DD535,38
SY S15 V15,38,40
5V26,28,32,35, 37,40,41,42,46
3. 3 V3,4,9,14,15,19, 20,21,23,24,25,26,28,29,30,32,35,36,37,40,41,42
SUSB 4,25, 40,41,42
1. 5 V4,9,10,11,12,13,26,30,37,41
1.5VS25
SYS5V38
3.3VS4,10,11,12, 13,14,15,16,17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,40,43,58
1.5V S_C PU4,7
5VS14,15,17,18,19,25,26,30,32,33, 35,43,44
1.8VS7,16,25,42
3A
DD _O N34,35,38
PWR _SW # 34
SU SB#21,32,33,34,37
SU SB 4,25,40,41,42
DD_ON# 35,41
NM OS
SUS B4,25,40,41,42
Power Plane
X5100
3.3VS
5VS
3.3V
5V
C339
0.1u_16V_Y5V_04
M_BTN #
.
L76
* AVLC15S02036_04
ON
D03
PC 193
* 470p_50V_X7R _04
PR 217
1M_04
PJ2 3
*40m il
12
PQ 71A
M TN N20N03Q8
1
3
7
28
S YS15V
3A
VD D5 5V
Power Plane
NM OS
3A
PQ 71 B
MTN N20N03Q8
6
5
4
DD_ O N#
ON
VIN
NMOS
+1.5S_C PU _PW RGD 4,41
D03
D02
PS_S3CN TR L_1.5S7
M_ B T N # R656 1K_1%_04
D03
D03
C507 0.1u_16V_Y 5V_04
Q9
*2N 3904
B
E C
1.5VS_CPU
R116*1 K _ 04
SW1
HCH_STS-02
314 2
PQ 16 B
M TN N20N03Q8
6
5
4
D03
C247 0.1u_16V_Y 5V_04
D03
PQ 64 B
MTN N20N03Q8
6
5
4
PJ3 MUST SHORT
SUSB
NM OS
ON
R 503 1K_1%_04
DD_ O N#
X7100
DD_ON
SUS B
DD_ON#
X5100
Sheet 38 of 58
5V, 3.3V, 5VS, 3VS,
1.5VS, VIN1
Schematic Diagrams
B - 40 Power 1.05VS, 1.05VS_VTT
B.Schematic Diagrams
Power 1.05VS, 1.05VS_VTT
Q39
2N3 904
B
E C
PR220
1K_04
6/22 Modify
PL11
1UH _10*1 0*4. 5
1 2
PC113
0.1 u_50V _Y5V _06
PC 1 0 8
20p_50V_NPO_04
R49 2
* 100_0 4
PC110
0. 1u_50V_Y5V_06
PC106
* 0.1u_1 6V_Y 5V_04
PR127
10K_04
S
D
G
PQ51A
MTD N7002Z HS 6R
2
6
1
R480
1M_04
PJ 11
*40m il
1 2
+
PC182
*5 60u_2.5V_6. 3*6
C661
10u_1 0V_Y5V_08
PR1 28
10K_ 1%_04
PC105
* 0.1u_ 16V_Y 5V_04
PR135
2 0K_1% _04
PC119
4.7 u_25V_X5R_0 8
PJ22
*OPEN-12mm
1 2
PR131 0_04
PR129
100K_1%_ 04
PR132 10K_04
+
PC183
560u_2. 5V_6. 3* 6
S
D
G
PQ32 B
MTDN7002 ZHS6R
5
3
4
PQ62
MDU2 654
4
62 73 8
5
1
PU9
SC412A / uP612 7
LX 1
BST 2
VC C 3
DL 4
GND
5
RTN
6
N.C
7
N.C
8
FB
9
VO U T
10
PGD
11
EN
12
ILIM 13
N.C 14
N. C 15
DH 16
PAD 17
PR137 90.9K_04
PD18
F MS3004 -AS -H
A C
PQ66B
MTNN20N03Q8
6
5
4
Q31
* MTN 7002 ZHS 3
G
DS
PJ 16
*40m il
1 2
PC 1 1 2
1u_10V_Y 5V_06
C679
0. 1u_16V_Y5V_04
PR133
100K_ 1%_04
PC111
0.1 u_50V_Y5V_0 6
PC 1 8 7
0.1u_ 16V_Y5V_04
P R130 * 0_04
C700
* 2200p_50 V_X7R _ 04
PC116
4. 7u_25V_X5R_ 08
+
PC 1 7 8
* 15u_25V _6.3* 4. 4_C
PR136 10 K_1%_04
PD12
RB 0540S2
AC
PR1 34
40.2K_1%_ 04
R506
10K_04
PC109
4 7p_50V_NPO_04
PQ66A
MTNN20N03Q8
1
3
728
PQ33
* MDU2654
4
62 73 8
5
1
PQ63
MDU2 657
4
62 73 8
5
1
PC107
0 .01u_16 V_X7R_ 04
5V
1. 05VS
5V
V1 . 0 5
5V
VIN
5V
1. 05VS _VTT
SYS15V 1 .05VS
3.3 VS3.3VS
VI N14,1 5,38,3 9,41,4 3,44,4 5,46
1.05V S_VTT3 ,4,6, 24,25, 26,43
5V26,2 8,32,3 5,37,3 9,41,4 2,46
1.05 VS_PWRGD21
3.3V3,4, 9,14,1 5,19,2 0,21,2 3,24,2 5,26,2 8,29,3 0,32,3 5,36,3 7,39,4 1,42
SY S15V15,3 8,39
SUSB4,25, 39,41, 42
1.05 VS_VTT3,4,6, 24,25, 26,43
1.05VS_VTT_ PWRGD 46
VS SI O_SE NSE 6
3.3VS4,10, 11,12, 13,14, 15,16, 17,18, 19,20, 21,23, 24,25, 26,29, 30,32, 33,34, 35,36, 39,43, 58 1. 05VS19,2 0,21,2 5,26,3 0
VC C I O _ SE N SE 6
3.3 V
Q32
MTN 7002Z HS3
G
DS
RTN
? ? ? ? PIN3?
SUSB
20A
1.05VS
1.0 5V_ON
RTN
1.05V S_ PWRGD
1.05V S_ VTT_EN21
9A
NMOS
1.05VS_VTT
ON
1.05 VS _VTT _EN#
Sheet 39 of 58
Power 1.05VS,
1.05VS_VTT
Schematic Diagrams
Power 1.5V/VTT_MEM B - 41
B.Schematic Diagrams
Power 1.5V/VTT_MEM
0730 modify
SUS B
V DDQ SET
PC83
0.1u_16V_Y5V_04
PR103 *0_04
PJ 2 9
*40mil
1 2
PC 104
10u_10V_Y5V_08
PR97 *10_04
PR104 0_06
PJ 8
* OPEN _2 A
12
PC 103
10u_10V_Y5V_08
PJ 1 8
*O PEN _8A
1 2
PU 8
uP6163
VTTGN D
1
VLDO IN
23
VTT
24
VTTSNS
2
GND
3
MODE
4
VTTREF
5VC C5 14
PGO OD 13
S5 11
S3 10
VD DQ SET
9
VD DQ SNS
8
COMP
6
CS 16
PG ND 18
DR VL 19
LL 20
DRVH 21
VBST 22
PVC C5 15
CS _G ND 17
NC
7
NC
12
GND
25
PR 108 10K_1%_06PR101 *0_04
PQ 20
MTN7002ZH S3
G
DS
PR 124 *22_04
PD11
FM S3 004 -AS-H
A C
PR 106 100K_04
PC 86 0.1u_10V_X5R _04
PR92 10K_ 1% _0 6
PR87
0_06
PC82
0.1u_16V_Y5V_04
PC91
1u_10V_06
PC 101
10u_10V_Y 5V_08 PC 100 0.1u_10V_X5R_04
PC16 9
0. 1u_50V_Y5V_06
PQ2 6
*M TN 7002ZH S3
G
DS
PR 79
100K_04
PR 100 0_ 06
PJ 2 8
*40mil
1 2
PQ24
MTN7002ZH S3
G
DS
PC17 1
4.7u_25V_X5R _08
PQ23
*M TN 7002ZH S3
G
DS
PR107 * 100K_04
PQ 29
*M DU 2 65 4
4
62 73 8
5
1
PQ1 9
MTN 7002ZHS3
G
DS
PQ30
MD U 2 6 54
4
62 73 8
5
1
+
PC 173 *15u_25V_6.3* 4.4_C
PR 125
0_06
PR 102 47K_04
PC81
* 1 00 0 p _X 5 R _0 4
PC170
0.1u_50V_Y5V_06
PQ58
MDU 2657
4
62 73 8
5
1
PR80
100K_04
PR112 0_06
PR 120 2.2_04
PC77
1u_6.3V_X5R_04
PR85
100K_04
PR110 100K_04
PC 75
1u_6.3V_X5R _04
PC162
0.1u_16V_Y5V_04
PL9
1.0U_10* 10* 5
1 2
PR 126
3.3_06
PD 10
RB 0540S2
A C
PR81
150K_1% _04
PC168
4.7u_25V _X5R _08
PR99
100K_04
PJ 7
*4 0m i l
12
PR 94
* 1 0K _1 % _ 04 PR95 10K_1%_06
PC 84
*1000p_X5R_04
PC 102
*10u_10V _Y 5V_08
PC87
1u_10V_06
PQ2 2
MTN 7002ZHS3
G
DS
PR 111
0_06
PR 84
100K_04
+
PC 174
560u_2.5V_6.3*6
PQ1 7
MTN7002ZH S3
G
DS
PQ1 8
MTN 7002ZHS3
G
DS
PC 163
0.1u_16V_Y5V_04
PR86
75K_1%_04
PQ2 7
MTN 7002ZHS3
G
DS
+
PC16 5
* 330u_2.5V_V_A
5V
VDD Q
5V
VD DQ
5V
5V
5V
VD DQ
VIN
3.3V
VTT_M EM
1.5V
VTT_MEM
5V
3.3V
5V
3.3V
3.3V
3.3V
SU SB4,25, 39,40,42
SUSC#21,34
DD_ON#35,39
DD R1 .5 V_ PW RG D 2 1
VIN14,15,38,39,40,43, 44,45,46 1.5V4,9,10,11,12,13,26, 30,37,39
+1.5S_ CPU _ PW RG D4,39
23A
1.5V
5V26,28,32,35,37,39, 40,42,46
VTT_M EM10 ,11,1 2,1 3 3.3V3,4,9,14,15, 19,20,21,23,24,25,26, 28,29,30,32,35,36,37, 39,40,42ICH _ GPIO 4620
ICC _EN #24
1.7 0V
1
0
1
1.6 0V
1
0
1.5 5V
0
Voltage
1.6 5V
1. 5_ CT RL 01. 5V_ CT RL 1
01
D0 3
9/17' 09
DD R1 .5 V _ PW RG D
SU SB
VTTEN
VD DQ SET
VTT_MEM
Sheet 40 of 58
Power 1.5V/
VTT_MEM
Schematic Diagrams
B - 42 Power 1.8VS
B.Schematic Diagrams
Power 1.8VS
M990125
1.8VS
C990317
1.8VS_PWRGD
PC64
* 1u_6.3V_Y5V_04 PC66 82p_50V_NPO_04
PC67
1u_10V_06
PU 6
AX66 10 / GS7 113
GND
1
VCNTL 6
VOU T 3
VI N
5
VOU T 4
VF B 2
POK
7
EN
8
VI N
9
PC65
2200p_50V_X7R_04
PC71
10u_ 10V_Y5V _08
PR 76
1K_1%_04
PJ 5
*OPEN_2A
1 2
PR 77 1.27K_1%_04
PC 68
0.1u_16V_Y 5V_04
PR75 10K_04
PQ15
2N7002
G
DS
PC 72
10u_10V_Y5V_08
PC 69
0.1u_16V_Y5V_04
PC70
* 10u_10V_Y 5V_08
R150 *10mil_short
PR78 10K_04
PR74 1M_04
V1. 8
3.3 V
5V
3.3V
5V
1.8VS_PWRGD21
SU S B4,25,39,40,41
1.8VS
5V26,28,32, 35,37,39,40, 41,46
3.3V3,4, 9,14,15,19,20, 21,23,24,25, 26,28,29,30,32, 35,36,37,39, 40,41 1.8VS7,16, 25
EN1. 8VS
2A
2A
Sheet 41 of 58
Power 1.8VS
Schematic Diagrams
Power V-Core 1 B - 43
B.Schematic Diagrams
Power V-Core 1
Sheet 42 of 58
Power V-Core 1
D03
D0 3
FBFBFBFB
CSP P1
VCORE_1
CSN 2CSN 2CSN 2CSN 2CSN 2
CSP P3C SPP3C SPP3C SPP3C SPP3C SPP3C SPP3C SPP3C SPP3C SPP3
PUT COLSE
TO VCORE
HOT SPOT
2 Phase:0 ohm
3 Phase:DNP
H_ C PU_ S VI D A L RT#
PUT COLSE
TO VCORE
Phase 1
Inductor
B~3964
CSP P2CSP P2CSP P2CSP P2CSP P2CSP P2CSP P2CSP P2CSP P2CSP P2
H_ CP U_ S VID CL K
H _CPU _SVIDD AT
H_CPU_SVIDALRT#
0804 modify
CSN1CSN1CSN1CSN1CSN1
H_ C PU_ S VI D CL K
OPTION:
DISALBE
V_GT
CSN 3CSN3CSN3CSN3CSN3CSN3CSN3CSN3CSN3CSN3
VR 1_C SRE F
6131_V CC
0804 modify
VR_O N
DIFFOUT
IM ON
TSENSETSENSETSENSETSENSETSENSE
COMP
B~ 43 50
VR_ON
H_ C PU_ S VI D DA T
CSC OM P
IMO N
Quad 45W CPU
VID 1=0. 9V
Ic cMa x = 94 A
R_LL= 1. 9m ohm
OCP ~ 12 0A
ICC_MAX_ 21h
=R*10uA*256A/2V
VR _R DY DRONDRONDRONDRONDRONDRONDRONDRONDRONDRON
CSSU M
PQ 9
* MTN7002ZHS3
G
DS
PR 65 0_04
PR55 24.9_1%_04
PC 56
0.1u_10V_X5R_04
PC 51
*0.1u_16V_Y5V_04
PR36 187K_1% _06
PQ 10
* MTN7002Z HS3
G
DS
PR58 10K_04
PC49
5600p_50V_X7R_04
PC44
0.1u_10V_X5R _04
PR54
*100K_04
PR 38
13.7K _1% _04
PR 15 98.25K_04
PR 71 2.2_06
TSENS E
RT1
100K_N TC _06_B
1 2
PR24
10K_04
PC58
0.01u_50V_X7R _04
PJ3
*6mil
12
P R160 *100_04
PR 20 10_04
PR69 * 10K_04
PC 45 22p_50V_N PO_04
PR61
54.9_1%_04
PC 30 0.047u_10v _X7R_04
P R16 *100_04
PR 66
*14K_04
PR 32 10_04
PR 22 10_04
PR39
1 6 5K _0 6
PR 43 21K_1% _04
PR68
*1 0 K_0 4
PC 31 0.047u_10v _X7R_04
PR27
75k_1%_04
PR 42
3.01K_1%_04
PR 67 1K _0 4
PR 25
10K _04
PR57 0_04
PR53 0_04
PC 53 100p_50V_NPO _04
PR 2 1 5. 49K_1 % _0 4
P R 4 9 24 . 9 k _ 1% _ 0 4
PR37 187K_1% _06
PR30 *15m il_short
PR34 75K_04
PC40 270p_50V_X7R_04
PC39 1000P_50V_04
PR55 change to 24.9 ohm
PR 46 1K_04
PU 4
NC P6131S
TSEN SE
2
VR HO T#
3
SC LK
5
ALER T#
6
VR _RD Y
7
VR _RD YA
8
VC C
10 EN ABLE
9
SD IO
4
FBA
16
DI FFOU TA
17
TRBST A
18
COMPA
19
CS N3 37
C SP3 36
CS N1 35
C SP1 34
DR ON 33
PW M1 /AD DR 32
PW M3 /VBO OT 31
PW M 2/ISHED 30
CS SUM A
24 IO UT A
23 CSC OM PA
22 DROOPA
21 ILI MA
20
VSPA
15
C SP2 38
CS N2 39
IO UT 43
CSS UM 44
CSCOMP 45
DR OO P 46
IL IM 47
COM P 48
FB 49
T RBST 50
VSN 51
ROSC
11
VR MP
12
C SPA
25
CSNA
26
IM AX 29
PW MA/IM AXA 28
CS REF 42
NC2 41
NC1 40
EPAD 53
VSP
1
TSEN SEA
13 VBOO TA 27
VS NA
14 D IFFO UT 52
PR70 *15m il_short
PR50 10_04
PC55
1000p_50V_X7R _04
PC 43 3300p_50V_X7R _04
PR 23 5. 49 K_1% _0 4
PC 38
1000p_50V_X7R_04
PR62
10K_04
PC 32 0.047u_10v _X7R_04
PC57
1u_6.3V_X5R _04
PR 219
110K_1%_04
PR 1 9 5.49K_ 1% _ 04
PR 26
* 0_04
PR35 187K_1% _06
P R 47 1. 21 K _ 0 4
RT2100K _N TC _06_B
12
PR60
130_04
PC47 680p_50V_X7R _04
PR63
75_04
PR33
*0_04
PJ27
*6mil
1 2
PJ 4 *6 m il
1 2
5VS
A_GN D
5VS
A_GN D
1.05 VS_VTT
A_GND
3. 3V S
A_GN D
A_GN D
5VS
A_GN D
A_GN D
A_G ND
A_G ND
3.3VS
A_G ND
VIN
A_GND
A_ G NDA_G ND
A_GN D
A_GN D
A_GN D
A_ G ND
3. 3 V S4,10,11,12,13,14,15,16, 17,18,19,20,21,23,24,25,26,29,30,32,33,34,35,36,39,40,58
VCORE_ON34
A_GN DA_ G ND
VC OR E_ VSS_SEN SE6
V CO RE_VC C_SEN SE6
VIN14,15,38,39,40,41,44,45,46
H_CPU_SVIDCLK6H_CPU_S VIDALRT#6
H_CPU_SVIDDAT6
C SP1 44
VCORE6,44
H_ PRO CH OT #4
DELAY_PWRGD21
CSN 2CSN 2CSN 2CSN2CSN2CSN2CSN2CSN2CSN2CSN2CSN2CSN2CSN2CSN2CSN2CSN2CSN2
CSN 1 4 4
C SP3 44
C SP2 44
CS N2 44
CSN 3 4 4
CSN 2 4 4
CS P3 44
CS N3 44
CS P2 44
VR 1_ PW M2 44
CS P1 44
CS N1 44
1.05V S_VTT3,4,6,24,25,26,40
DR ON 4 4 VR1_PWM1 44
VR1_PWM 3 44
AL L_S YS_ PW R GD14,15,21,34
5V S14,15,17,18,19,25,26,30,32,33,35,39,44
VR _O N
D0 2
TR BST
TR BST
CSN 1
07 30 modi fy
0804 modify
Schematic Diagrams
B - 44 Power V-Core 2
B.Schematic Diagrams
Power V-Core 2
Sheet 43 of 58
Power V-Core 2
VR EG_SW3_OU T
VREG _SW 1_H G
VREG _SW 2_H G
PR1 change to 0603 Size
VCORE_2
PR 2 c h ang e t o 06 03 Si ze
PR3 change to 0603 Size
PC3 change to 0603 Size and X7R Type
PC2 change to 0603 Size and X7R Type
PC1 change to 0603 Size and X7R Type
Del PC21
D02
PL4
0.36uH_13*13*3.5
1 2
PC 2 0.22u_10V_X7R _06
PQ4 3
MD U2654
G
DS
PR 6 49.9_1%_04
PR12 * 15m il_short
PC14
*4.7u_25V_X5R_08
PC10
*4.7u_25V_X5R_08
PL3
0.36uH _13* 13*3.5
1 2
PC 1 0.22u_10V_X7R _06
PQ 1
MDU 2657
G
DS
R25
0
+
PC33
330u_2.5V_9m _6.3*6
+
PC22
*330u_2.5V_9m _6.3*6
PR3 2.2_06
P R13 *15m il_short
PQ6
MD U2657
G
DS
PD13
FMS 3004-AS-H
A C
PQ4 4
MD U2 6 54
G
DS
PC 3 0.22u_10V_X7R _06
PQ5
*M DU 26 5 7
G
DS
PC11
*4 .7u _25 V_X5 R_ 08
PC5
0.1u_50V_Y5V_06
PQ4 8
MD U2654
G
DS
PR2 2.2_06
PR4
*0_04
PD14
FMS 3004-AS-H
A C
PC17
0.1u_50V_Y5V_06
+
PC25
33 0 u _2 . 5 V _ 9m _ 6 . 3 * 6
PR5 49.9_1%_04
PQ2
*M DU 26 5 7
G
DS
HG
SW
GN D
PAD
LGVC C
EN
PWM
BST
1
2
3
45
6
7
8
9
N CP5911PU 1
+
PC6
15u_25V _6.3*4.4
PC16
2.2u_6.3V _X5R _06
PC4
0.1u_50V_Y5V_06
PR 8 * 1 5m il_s h o rt
PR9 * 15m il_s ho rt
+
PC28
*330u_2.5V_9m _6.3*6
PC15
2.2u_6.3V _X5R _06
+
PC26
33 0 u _2 . 5 V _ 9m _ 6 . 3 * 6
PC18 2.2u_6.3V _X5R _06
PD15
F MS3004-AS-H
A C
HG
SW
GN D
PAD
LGVC C
EN
PWM
BST
1
2
3
45
6
7
8
9
N CP5911PU 2
PL2
0.36uH _13* 13*3.5
1 2
PQ3
MD U2657
G
DS
+
PC29
33 0 u _2 . 5 V _ 9m _ 6 . 3 * 6
PQ4 5
MD U2654
G
DS
P R10 *15m il_short
PQ4
*M DU 26 5 7
G
DS
+
PC8
15u_25V _6.3*4.4
+
PC34
330u_2.5V_9m _6.3*6
PR7 49.9_1%_04
PC13
* 4.7u_25V_X5R _08
+
PC7
15u_25V_6.3* 4. 4
PR1 2.2_06
PC12
*4 .7u _25 V_X5 R_ 08
PC9
*4.7u_25V_X5R_08
HG
SW
GN D
PAD
LGVC C
EN
PWM
BST
1
2
3
45
6
7
8
9
N CP5911PU 3
0804 modify
PQ 47
MDU 2654
G
DS
PQ4 6
MD U2 6 54
G
DS
+
PC27
33 0 u _2 . 5 V _ 9m _ 6 . 3 * 6
5VS
5VS
5VS
VIN
VIN
VC OR E 6,43
5VS
VIN
VR1_ PW M143
CSP 1 4 3
CSN 1 4 3
VR1_ PW M243
DR ON43
VR1_ PW M343
DR ON43
CSN 3 4 3
VCO RE 6,43
DR ON43
CSN2 43
VC OR E 6,43
CSP 3 4 3
VIN14,15,38,39,40,41,43,45,46
VCO RE6,43
C SP2 43
5VS14,15,17,18,19,25,26,30,32,33,35,39, 43
VR EG_SW2_OU T
Re se rve f o r
2 Ph ase
VREG _SW 2_ LG
VR EG_SW1_OU T
VCO RE
VC OR E
VCO RE
VR EG_SW3_LG
VR EG_SW3_HG
2 Ph a se: DNP
3 Ph a se: 0
ohm
VREG _SW 1_L G
Schematic Diagrams
AC_In, Charger B - 45
B.Schematic Diagrams
AC_In, Charger
12 V~ 16 .8V
B att er y Vo lt ag e:
Total Power : 200W
D02
PR 24 6
*100K_1%_04
X71 00
PC 130 4.7u_25V_X5R _08
PC129 4.7u_25V_X5R_08
CTL
X5100
PC141 4.7u_25V_X5R_08
CELLS
PC146 4.7u_25V_X5R_08
X51 00
PC 147 4.7u_25V_X5R _08
X7 100 B TJ -07 DT 0B_ 10 080 3
VO LT-SEL
10/26
CELLS
BAT
AC_IN
C ha rg e V ol tag e 16. 8V
BAT
AC_IN38
CTL
D02
T otal_ CU R_ SEL34
PR214
6.04K_1% _04
PR206
10K_1% _04
PC132 4.7u_25V_X5R_08
PQ 72
ME 44 2 5
4
6 2
5
7 3
1
8
PR157 0.01_1% _32
PR 14 0
200K_1%_04
PC 140
0.1u_50V_Y5V_06
PC126
0.1u_50V_Y5V_06
TRERMAL PAD
PU10
MB39A132
VC C
1
-IN C1
2
+IN C1
3
AC IN
4
AC OK
5
-IN E 3
6
AD J 1
7
-IN E 1
9
OUT C 1
10
OU T C 2
11
+IN C2
12
-INC 2
13
AD J 2
14
CO MP 2
15
BATT 17
ADJ3 18
CS 19
RT 20
VRE F 21
GND 22
CTL 1 23
CELLS 25
PGN D 26
OUT-2 27
VB 28
LX 29
OU T -1 30
CB 31
COMP1
8
COMP3
16
VIN 24
CT L2 32
SG ND 33
PQ6 5
MT N7 0 0 2Z H S 3
G
DS
PR153 39.2K_1%_04
PC 139
0.1u_50V_Y5V_06
PL1 2
BC IHP0735-6R8M -NL
PC134 0.1u_50V_Y5V_06
PQ4 2
M TN 7002ZHS3
G
DS
PC127 1u_25V_08
PL5
H CB4532KF-800T60
PR138
*1 0 K _ 04
C408
1000p_50V_X7R_04
PR 198
130K _1% _04
PR210
1M_04
PR 20 4
100K _04
PC 19 0
30p_50V_NPO_04
PR 21 1
100K_04
JBATTA1
BTJ-07AP0G-SD 001
1
2
3
4
5
6
7
PR209
102K_1%_04
PR 148 0_04
PC123
0. 1 u _ 50 V _ Y 5 V _ 06
PR 197
10K_1%_04
PR154 309K_1%_04
PQ68
DTA114EUA
C E
B
PR 21 6 1 0 0K_ 04
PC 133 0.1u_50V_Y5V_06
PQ 38
ME 4 4 25
4
62
5
73
1
8
PL14 HC B100 5KF-1 21T20
PC 192
0.1u_16V_Y 5V_04
PC 12 5
0.1u_50V _Y 5V_06
PQ34
M T N7 00 2 ZHS 3
G
DS
PC115 4.7u_25V_X5R_08
PR151
1K_1%_04
PQ 37
ME 4 4 25
4
62 5
73
1
8
PR 15
100K_04
PR 142
1 0 0K _ 1 % _0 4
PC185
2200p_50V_X7R_04
PC 120
0.1u_50V_Y5V_06
PR213
*0_04
PC 118 4.7u_25V_X5R_08
PR150 *0_04
PR11
10K_08
PR158 0.01_1% _32
PC 12 8 0.1u_50V_Y5V_06
PR202
49 . 9 K _ 1% _ 04
PR146
*1 0 mi l _s h o rt
PQ67
MTN7002ZHS3
G
DS
PQ 40
MT N7 0 02 Z H S 3
G
DS
PR 2 07 4 .7K _1% _0 4
PQ3 6 B
PD1503Y VS
4
3
5
6
PC 121
0.1u_50V _Y5V_06
PC124 0.1u_50V_Y5V_06
PC24
0.1u_50V_Y 5V_06
JA C 1
2MJ-3432-007
1
2
3
4
PR 13 9
10K_04
PR 200
1M_1% _04
PQ 49
ME 44 2 5
4
6 2
5
7 3
1
8
PR 20 5
1M_04
PR14
20 0 K _ 1% _ 04
PL1
H CB4532KF-800T60
PQ 7
ME 44 2 5
4
6 2
5
7 3
1
8
PC 189
30p_50V_NPO_04
Charge Current : 3.0A
PQ7 0
PDTA114EU
CE
B
PL15 HC B100 5KF-1 21T20
PR 21 5
30K_1%_04
PC136 0.1u_16V_Y5V_04
PC131 4.7u_25V_X5R_08
PJ 12
*1mm
12
PC 23 0.33u_16V_Y5V_06
PC138 4.7u_25V_X5R _08
PQ3 5
MTN7002ZH S3
G
DS
PC 186 *47p_50V_NP O_04
P C114 4.7u_25V_X5R _08
PR 141
10K_1%_04
PQ39
MTN 7002ZH S3
G
DS
PC19
0.1u_50V_Y5V_06
PC 18 8
3300P_50V_X7R_04
PR 152
76.8K_1%_04
PL13 HC B100 5KF-1 21T20
PC20
0.1u_50V_Y5V_06
PR143
0_ 0 4
PC135
100p_50V_NPO _04
PC117
0.01u_16V_X7R_04
10/26
PQ7 7
* MTN7002ZH S3
G
DS
PQ36A
PD1503YVS
7
8
1
2
PR144
0_04
PC122
0.1u_50V_Y5V_06
PR145 1M_04
PR208
2M _ 1% _ 04
PR149 *0_04
C407
0.1u_16V_Y5V_04
PR155 *15m il_short
PQ6 9
MT N7 0 02 Z H S 3
G
DS
PC181
0.01u_50V_X7R_04
PC191
30p_50V_NPO _04
PQ 41
M T N7 00 2 ZHS 3
G
DS
PR201 * 10m il_short
PR 15 6
0.02_1%_32
PD 19 RB0540S2
AC
PR147 * 10m il_s hort
P C 13 7 0 . 1 u_ 5 0 V _Y 5 V _0 6
PC184
0.1u_50V_Y5V_06
PR203
10 0 K _1 % _ 04
PR212 0_04
VA
VA
BAT
SY S3V
SG ND 5
SGN D5
SGND 5
VIN
VD D3
SGND 5
VA
SGND 5
SGN D5
SYS3V
SY S3V
VIN
VA
SGND 5
SGN D5
VA
VD D3
SG ND 5
SGN D5SG ND 5SG ND5
SYS5V38,39
AC_IN# 34,35
BAT_VO LT 34
VIN14,15,38,39,40,41,43,44,46
CHG_EN34
VD D319,29,34,35,36,38,39
AC/BATL# 14
V SHG_SEL 3 4
VA39
SMD _ BAT34
SMC _ BAT34
BAT_D ET34
TO TA L _ C U R34
CEL L_C ON TR OL34
3A
J_D C-JACK1
2DC -G213-B49
1
2
GND GND 1
GND GND 2
0730 modify
FOR EMI
VOL T-SEL
P R199 470K_1%_04
Sheet 44 of 58
AC_In, Charger
Schematic Diagrams
B - 46 Power 0.85VS
B.Schematic Diagrams
Power 0.85VS
Sheet 45 of 58
Power 0.85VS
CSN
POK
(Set3)(Set1)(Set2)(Set0)
CSP
1
0.8V
0
CSN
0.6 75V0.9V
0
0
VC CSA _VI D1
0
0. 72 5V
VC CSA _VI D0
1
1
1
0.85V_ON
CSPCSP
6A
0.85V_ON
10/26
10/26
PJ14
OPEN -5m m
1 2
PR176 1.3K_1%_04
PC151
47p_50V_NPO _04
PR189 10K_1% _04
PR 180 10K_1%_04
0730 modify
0730 modify
0730 modify0730 modify
0730 modify
PQ8B
PD1503YVS
4
3
5
6
PR 17 0
12K_1%_04
PJ1 5
*1 mm
12
PR 184 1K_1% _04
PQ50
M T N7 00 2 Z HS3
G
DS
S
D
G
PQ 51B
MT DN7 0 0 2Z H S6 R
5
34
PR190 15K_1% _04 PR 182 10K_1%_04
PC155
0.01u_16V_X7R _04
PC194
1u_25V_08
PR169
100K_04
PR173
0_04
PR 186 22_04
PR188 12K_1% _04
PR 18 3
*0 _0 4
PC 153 0.01u_16V_X7R_04
PC 149
0. 1u_50V_Y5V_06
PQ8A
PD1503Y VS
7
8
1
2
PR175 100K _1% _04
PL7
1 . 0U H _ 6 . 8* 7. 3 * 3. 5
1 2
PC152
0.1u_X7R _25V_06
PR 181 10K_1%_04
PR 168
10K_04
PR178
0_04
PR177
100_04
PC 14 4
0.1u_16V_Y5V_04
PR174
0_04
PC154
*0.1u_16V_X7R_06
PC 150
0.022u_16V_X7R_04
PC 36 4.7u_25V_X5R_08
PC37 4.7u_25V_X5R_08
PC 143 0.1u_50V_Y5V_06
PR187 9.31K_1% _04
PR 17 1
0_04
PR 16 7
33K_1% _04
PR185
100_04
+
PC145
560u_2.5V_6.6*6.6*5.9
PR 179 9.31K_1%_04
PU11
uP6122
BO OT 1
UG 2
POK 3
SS 4
EAP 5
SET3
6
SET2
7
SET1
8
SET0
9
FB
10
COM P
11
VID 0
12
VID1
13
EN/PS M
14
CSN
15
CSP 16
RT 17
VC C 18
LG 19
PHASE 20
GN D 21
PR172
100K_04
PC148
1u_6.3V_X5R_04
PC142 0.1u_50V_Y5V _06
PD1
RB0540S2
AC
V0.85 0.85VS
VIN
5V
5V
5V
0.85VS 7
5V
VCC SA_VID07
0.85VS_PWR GD 21
5V 26, 28,32,35,37,39,40,41,42
VIN 14,15,38,39,40,41,43,44,45
VCCS A_SEN SE 7
V CCSA_SEN SE 7
VCC SA_VID17
1.0 5VS_ VTT_ PW RG D40
D03
Schematic Diagrams
Audio Jack B - 47
B.Schematic Diagrams
Audio Jack
Sheet 46 of 58
Audio Jack
AH 1
H 8_0D2_8
AGND
AH2
H8 _0 D 2_ 8
A_A UDG
ASID E_SENSE
D0 3
ASIDE_R
AJ_ H P1
2SJ-T351-018
2
6
5
3
1
4
AUDIO JACK
A L11 H CB1608KF-121T25
AC 5
100p_50V _04 AR 2
*1K_04
A R 10 1 0K _1 % _0 4
AC4
100p_50V_04
AC 3
100p_50V _04
AR 6
22K_04
AC12 0.1u_16V_Y5V_04
AC 18
680p_50V_X7R_04
AC 9
100p_50V _04
AL6 FCM1005KF -121T03
AC 14
10u_10V_Y5V_08
AC11
0.1u_16V_Y5V_04
DR IV E
IC
TX
AJ _ SPDIF 1
TOJ-0015STR2-2-H4-PA9T-J
4
3
2
5
1
A
B
C
A L8 H CB1608KF-121T25
AR5 100_04
AC19
180p_50V_N PO_04
AC1 0.1u_16V_Y5V_04
AR 9 2 0K _1% _0 4
A R 7 3 9. 2 K _ 1 % _0 4
AR 3
22K _04
AC 6
100p_50V_04
AL5 FCM1005KF -121T03
AC 16
680p_50V_X7R _04
+
AC2
100u_6.3V_B2
AL2 FCM1005KF -121T03
AC 10
100p_50V _04
AR 1
* 1K_04
AJ _ USB1
U S04036BCA081
V+
1
GN D1
GN D1
DA TA_ L
2
DA TA_ H
3
GN D
4
GND 2
GN D2
AC8 0.1u_16V_Y5V_04
AR 8 5.1K _1%_04
AL7
* WCM 2012F2S -161T03-s hort
1
4
2
3
AC 17
0.1u_16V_Y 5V _04
AL1 HC B1608KF-121T25
AR4 100_04
AC 15
0.1u_16V_Y 5V_04
AC13 0.1u_16V_Y5V_04
AL4 HC B1608KF-121T25
AL10 H CB1608KF-121T25
AR 11
*220_04
AL3 FCM1005KF -121T03
AC7
*0.1u_16V_Y 5V_04
AL9
HC B1608KF-121T25
A_USBVC C2A_USBVC C
A_AUD GAGN D
AGN D
AGN D AG ND
A_ AUDG AG ND
A_AU DG
A_U SBVCC
A_AU DGA_AUD G
A_AUD GA_AUD G
A_AUD G
A_AUDG
A_AUDG
A_AU DG
A_AUD G
A_AUD GA_AUD G
A_AUD G
A_A UDGA_AUD G A_AUD G
A_AUD G
A_USBVC C
A_5VSA_5V S
AMIC 1-L
AM IC_SENS E
AMIC 1-R
MIC IN
ALINE- L
ALINE- R
HP_PLUG
ALIN E_SENSE
AMIC _SEN SE
ASIDE_SEN SE
AHP_SENS E
A JD _SE NSEA
ASPD IFO
AU SB_ PN0
AU SB_ PP0
AHEAD PHO NE-L
AHEAD PHO NE-R
60 mil
AM IC1-L
AM IC1-R
AUSB_PN0
AUSB_PP0_R
A U S B _P N 0 _R
AHP_SENSE
HP_PLUG
D03
D0 3
D0 3
ALINE -R
ALINE _SEN SE
ALINE -L
AJ_LINE1
2SJ-T351-018
2
6
5
3
1
4
A JD _SE NSEB
AHEADPHONE-L
AHEADPHONE-R
AJ D_ SEN SEB
AJ _ AUD IO1
88107-20001
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
A USB_PP0
USB PORT
50 mil
ASPDIF O
AG ND
D03
ASID E_L
ASID E_R
ASIDE_L
AJ _M IC1
2S J-T351-018
2
6
5
3
1
4
AJ D_ SEN SEA
Schematic Diagrams
B - 48 X5100 ODD Board
B.Schematic Diagrams
X5100 ODD Board
Sheet 47 of 58
X5100 ODD Board
OH5
H3_5D1_8
OGND
OH 2
H8 _ 0D 2 _8
OGND
OH 1
H8 _ 0 D2 _ 8
OGND
EODD_EDTECT#
EODD_DA#
OC1
*10u_10V_08
OJ_SATA_HODD1
C1952
11
2
2
33
4
4
55
6
6
77
8
8
99
10
10
11 11
12
12
13 13
14
14
15 15
16
16
17 17
18
18
19 19
20
20
OC7 0.01u_16V_X7R_04
OC5 0.01u_16V_X7R_04
OC6 0.01u_16V_X7R_04
OC2
0.01u_16V_X7R_04
OC3
0.1u_16V_Y5V_04
OC4 0.01u_16V_X7R_04
OG N D
O_5VS
OG N D
OGND
O_5VS
OGND
O_5V S
OGND
D02
OH4
H3_5D1_8
OGND
EODD_EDTECT#
OSATA_TXN0
OSATA_RXN0
OSATA_RXP0
OSATA_TXP0
FP->AT13035BAA089
C990326
X5100M ONLY
OJ _ O DD 1
SLS -1 3SBXG -SD 001
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
OS ATA_TXN 0
OSATA_ R XP 0
OSATA_RXN0
OSATA_TXP 0
EOD D_D A#
OH3
H6_5D2_5
OG N D
Schematic Diagrams
X5100 Click Board B - 49
B.Schematic Diagrams
X5100 Click Board
Sheet 48 of 58
X5100 Click Board
I t is s trongly re commende d t hat the TESD_ GND has
a de dic ate d c onnec tio n t o the s yst em ch as sis o r
cable shield.
RIGHT
KE Y
4
6-20-94A20-110
n ee ds t o be d esig n t o b e s hort and at low impedance.
T he TESD_GND trac e has to b e w ide (> 2 0mil)
The path be marked in
TUSB_PN_R
TMCLK
TBDRI VE1
TNRES ET
TMISO
TXIN
TBEZEL2
T USB_ CO NN
TMOSI
TREG_O UT
TXO UT
TMCS
TUSB_PP_R
TREF_ OSC
TBEZEL1
T PD_ REG
TBDRI VE2
TBDR IVE2
TBEZEL1
TMCS
TU SB_ CON N
TUSB_PN 10
TXOU T
TMCLK
TXIN TXIN _R
TU SB_ PN_ R
TMO SI
TBDR IVE1
TREG _O UT
TREF_O SC
TBEZEL2
TU SB_ PP_R
TPD_ RE G
TNR ESET
TU SB_ PP10
TMOSI
TMISO
TMISO
TU SB_PN10
TUSB_PP10
TC 6 1u_6.3V_X5R _04
TR13 4.7K_04
TSW1
T4 BJ B16 -Q
3
1
4
2
5
6
TR 5 470_04
TR 9 100_1%_04
TC 1
0.1u_16V_Y5V_04
TR 2 47K_04
TC15
0.1u_16V_Y 5V _04
TR1 2.2_1%_06
TC 4
18 p _ 50 V _ N P O _ 04
TC 7 1u_6.3V_X5R _04
TR 6 27.4_1%_04
TC 13
47p_50V_NPO _04
TU 1
*M 95128W M N6TP
CS#
1Q
2
WP# 3
VSS
4
S
5
SCK
6
HO L D# 7
VDD 8
FCR 1
*32m il_short
TC 11
47p_50V_NPO _04
TC9
0.1u_16V_Y5V_04
TC 12
1u_6.3V_Y5V_04
TC2
1u_10V_06
TSW2
T4BJB 16-Q
3
1
4
2
5
6
TR11 *4.7K_04
TP U 1
TC S 5XF
BDR IVE1 B11
BDR IVE2 B10
REF_OSC C1 1
R EG_ OU T A10
AVDD C1 0
MC S B2
ESD_GND3 C9
MIS O C6
DVDD 1 A1
ESD_GND1 A3
AG ND A8
BEZEL 1B A7
BEZEL 2B C7
ESD_GND2 C3
MC L K B3
U SB_DN B1
USB_D P C1
MO S I B4
PD_REG A4
NR ESET A2
DGND1 C4
BEZEL 1A A5
BEZEL 2A C5
DVDD 2 A11
XTAL IN B6
DGND2 C8
XTALOU T A6
ESD _GND 4
A9
NC1
B7
NC2
B8
NC3
B9
NC4
C2
U SB_ CO NNEC T B5
TC 5
1u_6.3V_Y 5V_04
TC 16 22p_50V_NPO _04
TC8
18p_50V _N PO_04
TC17
0.1u_16V_Y5V_04
TR 4
1M _04
TC 1 0
*0.1u_16V _Y 5V _04
TR14
* 32m il_short
TR10 *4.7K_04
TR 12 100_1% _04
TR 8 1.5K_1%_04
TR 7 27.4_1%_04
TC14
33p_50V_N PO_04
TJ_TP1
85201-06051
1
2
3
4
5
6
TC3
1u_10V_06
TU 2
R CLAM P0502B
1
23
TR 3 330K_04
TX1
HSX531S_12M HZ
12
3 4
TGN D
TGN D
TGN D
TGND
TGN D
TG ND
TGND
TG ND
TG ND
TESD _G ND
T3.3V
TAVDD
TGN D
TGN D
TG ND
TGN DTGN D
TG ND
T3.3V
T3.3V
TESD_GN D
T+5VS
TGN D
T+5VS
T3.3V
TGN D
TGND
TGND
T3.3V
T3 . 3 V
T3 . 3 V
TAVD D
TGN DTGN D
TGND
TGND
TGND
TGND
TGND
TGND
TGN D
TG TP_C LK
TGTP_DATA TTPBU TTO N_R TTPBU TTON _L
TGTP_DATA
TGTP_CLK
TTPBU TTO N_L
TTPBU TTO N_R
D02
TH1
H1 0 _ 0D 5 _5
TGN D
TH2
H 10_0D5_5
TG ND
TJ_TPB1
85201-10051
1
2
3
4
5
6
7
8
9
10
CSW1~2
2
3
X5100M ONLY
1
95 1 2 0 6
LIFT
KEY
HSX 531S+ -20ppm
Schematic Diagrams
B - 50 X5100 LED 1 Board
B.Schematic Diagrams
X5100 LED 1 Board
Sheet 49 of 58
X5100 LED 1 Board
SG
Y
LD2
KPB-3025YSGC
1
3
2
4
LR3
22 0_04
LR4
220_ 04
AC IN/POWER ON LED
LLED_BAT_FULL
LED_ GN D
LL ED _AC IN
LED_ GN D LED_GND
SG
Y
LD1
KPB-30 25Y SGC
1
3
2
4
BAT CHARGE/FULL LED
LED_GND
LR2
220_ 04
LR1
22 0_04
LED_GND
LH1
H 6_0 D2_ 3
LLED_PWR
LL ED _PWR
LL ED _AC IN
LED_GND
LJ_ LED1
85204-05 001
1
2
3
4
5
LLED_BAT_CHG
LLED_BAT_FULL
LLED_BAT_CHG
Schematic Diagrams
X5100 LED 2 Board B - 51
B.Schematic Diagrams
X5100 LED 2 Board
D03
D03
D03
L2GND
L2 GND
L2 H2
H 6_0D2_ 3
L2J_LED1
85201-06051
1
2
3
4
5
6
D03
L2BT_EN
L2GN D
L2_3.3VS
L2GND
L2H 1
H 6_0D2_ 3
LED
L2_3.3VS
L2Q 1
*DT C114EUA
CE
B
L2D2
KP-2012PBC-A
AC
L2 R2
22 0_04
L2D1
KP-2012PBC-A
AC
L2R 4 0_04
L2W LAN_EN
L2SAT A_LED #
HDD/CD-ROM
LED
L2_3.3VS
L2_W LAN _LED#
L2R3
220_04
L2S AT A_L ED #
L2BT_EN
L2 _3.3VS
L2GN D
L2_W LAN_LED#
L2D 3
KP-2012PBC -A
AC
L2Q2
DTC114EUA
CE
B
L2R1
220_04
L2W LAN _EN
D02
Sheet 50 of 58
X5100 LED 2 Board
Schematic Diagrams
B - 52 X5100 LED 3 Board
B.Schematic Diagrams
X5100 LED 3 Board
L3J_LED1
85201-06051
1
2
3
4
5
6
L3_3.3VS
L3LED_NUM#
L3R1
220_04
NUM LOCK
LED
L3D1
KP-2012PBC-A
AC
L3_GND
D02
D03D03D03
L3LED_CAP#
L3LED_NUM#
L3LED_SCROLL #
L3LED_CAP#
CAPS LOCK
LED
L3_3.3 VS
L3D2
KP-2012PBC-A
AC
L3R2
220_04
L3_GND
L3H1
H6_0 D2_3
L3LED_SC ROLL#
L3H2
H6_0D2_3
SCROLL
LOCK
LED
L3_3.3 VS
L3D3
KP-2012PBC-A
AC
L3R3
220_04
L3_3.3VS
Sheet 51 of 58
X5100 LED 3 Board
Schematic Diagrams
X7100 HDD & ODD Board B - 53
B.Schematic Diagrams
X7100 HDD & ODD Board
HJ_ODD1
C185 94-11305-L
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
HSATA_TXP0
HSATA_TXN0
HSATA_R XN0
HSATA_R XP0
HC 12
1u_6.3V_X5R _04
HC 8 0.01u_16V_X7R _04
+
HC1
100u_6.3V_B2
HC 10
* 10u_10V_08
HC9
0.1 u_16V_Y5V_04
HC 17
0.1u_16 V_Y 5V_04
HC 5 0.01u_16V_X7R _04
HC1 5 0.0 1u_16V_X7R_ 04
HC1 6 0.0 1u_16V_X7R_ 04
HC1 3 0.0 1u_16V_X7R_ 04
HC 2
10u_10V_Y 5V_ 08
HC 6 0.01u_16V_X7R _04
HJ _SATA_HO DD1
C1952
11
2
2
33
4
4
55
6
6
77
8
8
99
10
10
11 11
12
12
13 13
14
14
15 15
16
16
17 17
18
18
19 19
20
20
HC 7 0.01u_16V_X7R _04
HC4
0.1u_ 16V_ Y5V_04
HC11
* .01u_16V_04
HC1 4 0.0 1u_16V_X7R_ 04
HC3
* 22u_6.3V_12
H_5VS
HGN D HG ND
HGND
HGND
HGN D
HG ND
HGND
HG ND
H_5VS
H_3.3VS
H _5VS
H_3.3VS
H _5VS
HH1
H 6_0D2_ 3
HG ND
HH3
H 7_0D2 _8
HG NDHG ND
HH2
H 7_0D2 _8
D02
HJ_HDD1
SG 41718522F B0X0RA4
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
H_EODD _DA#
H _EO D D _ ED TEC T#
H_EODD _EDTECT#
FP->AT1 303 5BA A08 9
C990326
X7100M ONLY
PIN G ND 1 ~2 =G ND
H S AT A_ TX N 0
HSATA_TXN1
HSATA_RXN1
H _EO DD_ DA# HSATA_RXP0
H SATA_RXN0
H SATA_TXP0
HSATA_RXP1
H SATA_TXP1
HSATA_TXN1
HSATA_ RXN1
HSATA_TXP1
HSATA_RXP1
Sheet 52 of 58
X7100 HDD& ODD
Board
Schematic Diagrams
B - 54 CIR
B.Schematic Diagrams
CIR
CH4
H 6_0D2 _3 CH2
H6_0D 2_2
CJ_CIR1
85204-04001
1
2
3
4
D02
CIR_GNDCIR _GND CIR_RX_R
CIR
R629
1 00_04
CC2
0.1u_16V_Y5V_04
CC4
10u_1 0V_ Y5V_08
CU1
IRM-V038/TR 1
O
OG
G
V
V
GN D1 GND 1
GN D2 GND 2
CIR _VDD5
CIR_ GND
CIR_G ND
CIR _VD D5
CIR_G ND CIR_G ND
CIR_R X_R
D03
CJ_CIR2
85204-04001
1
2
3
4
Sheet 53 of 58
CIR
Schematic Diagrams
X7100 LED Board B - 55
B.Schematic Diagrams
X7100 LED Board
Sheet 54 of 58
X7100 LED Board
L4GND
L4_VDD3
L4_VDD3
L4H1
H6_0D2_3
L4_WLAN_EN
L4_BT_EN
L4_SATA_LED#
L4_LED_CAP#
L4_LED_NUM#
L4_LED_SCROLL#
L4GND
L4_3.3V S
L4_C1
0. 1u_16V _Y5V_04
L4_LID_SW#
D03
L4_3.3VS
L4_LED_CAP #
L4D4
KP-2012SGC
AC
L4R6
220_04
L4_3. 3VS
L4_LED_S CROLL#
L4D3
KP-2012SGC
AC
L4R5
220_04
L4_M_BTN#
L4H2
H6_0D2_3
L4GND
J_L4LED1
87151-15051
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
L4_M_BTN#
PO WER
SW ITCH
LE D
POW ER BUTT ON
20mil
20mil
20mil
L4C1
*0. 1u_16V _04
L4R8
100_04
L4D9
KP-2012SGC
AC
L4_3.3VS
L4_SW1
HCH_STS-02
314 2
L4GND
L4GND
L4GND
L4_WLAN_LE D#
L4_3.3VS
L4_LED_NUM#
L4D5
KP-2012SGC
AC
L4R7
220_04
L4_WLAN_LE D#
L4R1
0_04
D02
D02
L4GND
L4D8
KP-2012SGC
AC
L4_3.3VS
L4Q2
DTC114EUA
CE
BL4_BT_EN
L4R11
220_04
White
L4_SATA_LED#
L4D6
KP-2012SGC
AC
L4GND
L4_3.3VS
L4R9
220_04
HDD/CD -ROM
LED
L4GND
L4Q1
*DTC114EUA
CE
B
L4_3.3VS
L4D7
KP-2012SGC
AC
L4_WLAN_EN
L4R10
220_04
L4H3
H6_0D2_3
L4GND
L4_LI D_S W#
L4_U2
PT3661G-BB
VCC
1OUT 2
GN D
3
X7100
Schematic Diagrams
B - 56 X7100 Click Board
B.Schematic Diagrams
X7100 Click Board
P lace Bo tt on
CBEZEL2
CJ _ TP B1
85201-10051
1
2
3
4
5
6
7
8
9
10
24
CTPBUTT ON _R
CCH1
H 6_0D2_2
CGND
D0 3
C GTP_CLK
CREF_OSC
C NRES ET
CU SB_PP10
CM CS
CM ISO
CMOSI
C TP BUT TO N_ L
CREG_OUT
CUSB _C ON N
CU SB_PP 10
CGTP_DATA
C BEZEL 1
CPD_REG
CUSB _PN _R
CUS B_PN 10
C BEZEL 2
CUSB _PP_ R
CXOUT
CXIN
CMISO CM CL K
C BDR IVE1
CUSB_PN10
CG TP _D ATA
C G TP _C LK
C BDR IVE2
CXIN _R
CM OSI
CCH5
H 4_0D2_2
CC16
0.1u_16V_Y5V_04
CR12 *4.7K_04
CC H6
H4_0D 2_2
CR22
1M _04
CC3 0
47p_50V_NPO _04
CJ _F PB1
*C ON 24 A
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
2221
23 24
CC21 1u_6.3V_X5R _04
CR16 100_1%_04
C R18 2.2_1%_06
CR2 1 1 .5 K_ 1% _ 0 4
CJ_TP1
85201-06051
1
2
3
4
5
6
CC2 9
47p_50V_NPO _04
CC32
18p_50V _N PO_04
CC20 22p_50V_NPO _04
CR15 100_1%_04
CC 1 7
0.1u_16V_Y5V_04
CSW2
T4 BJ B16 -Q
3
14
2
5
6
CR11 *4.7K_04
CC19 1u_6.3V_X5R _04
CR17 330K_04
CC 2 6
1u_10V_06
CCH 2
H6 _0 D 2_ 2
CC 22
1u_6.3V_Y 5V_04
CC27
1u_10V_06
CGN D
FCR 7
*32m il_short
CU3
R CLAM P0502B
1
2
3
CC 2 4
0.1u_16V_Y 5V_04
CX1
HSX531S_ 12M HZ
12
3 4
CU 2
*M 95128W M N6TP
CS#
1Q
2
WP# 3
VSS
4
S
5
SCK
6
HO L D# 7
VDD 8
CR23 27.4_1%_04
CR14 47K_04
CR20 470_04
CC 18
*0.1u_16V_Y5V_04
C R13 4.7K_04
CC 23
1u_6.3V_Y 5V _04
CR10
* 32m il_s hort
CC 31
18p_50V_NPO _04
CC28
0.1u_16V_Y 5V _04
CC25
33p_50V_N PO_04
CR19 27.4_1%_04
CSW 1
T4B JB16-Q
3
14
2
5
6
CGN D
CGND
C3.3V
CG ND
CGND
CG ND
CGND
CG ND
CGND
CGN D
CGND
CTESD_GND
CGND
CG ND
CGND
CAVDD
CTESD _G ND
CAVDD
CG ND
CGND
CG ND
CGND
C3 .3 V
C3.3V
CG ND
C+5VS
C3 .3 V
C3 .3 V
C3 .3 V
C3 .3 V
C+ 5 VS
CGN D
CGND
CG ND
CGND
CG ND
X7100M ONLY
CG NDCGND
951206
LIFT
KEY
6-20-94A20-110
RIGHT
KE Y
I t is s tron gly re com mende d t hat the TE SD_ GND has
a de dic ate d c onnec tio n t o the s yst em chas sis o r
cable shield.
HSX531S+ -20ppm
CC H3
H6_0D 2_2
CG ND
CCH4
H 6_0D2_2
CGND
D03
CB DRIV E1
CT PBU TT ON _ R
CT PBU TT ON _ L
D02
CM CL K
CB DRIV E2
CM CS CPD _R EG
CXIN
CN RESE T CU SB_PN _ R
CU SB_PP _R
CM OSI CM ISO
CXO UT
CR EG_ O UT CR EF_O SC
CU SB_C ON N
24
C3 .3 V
CBEZEL1
1
1
23
2
6
2
BOTTON VIEW
TJ_FP1
TOP VIEW
J_FP1
Sheet 55 of 58
X7100 Click Board
Schematic Diagrams
X7100 Fingerprint Board B - 57
B.Schematic Diagrams
X7100 Fingerprint Board
123
FJ1
needs to be design to be short and at low im pedance.
TOP VIEW
24
X7100M ONLY
BOTTON VIEW
The TESD_GND trace has to be wide (> 20mil)
6-21-417 10-212
24
123
2
REDThe path be marked in
2
FP U1
TCS5XF
BDRIVE1 B11
BDRIVE2 B10
REF_OSC C11
REG_OUT A1 0
AVDD C10
MCS B2
ESD_GND3 C9
MISO C6
DVDD1 A1
ESD_GND1 A3
AGN D A8
BEZ EL1B A7
BEZ EL2B C7
ESD_GND2 C3
MCLK B3
USB_DN B1
USB_DP C1
MOSI B4
PD _R EG A4
NRESET A2
DGND1 C4
BEZ EL1A A5
BEZ EL2A C5
DVDD2 A11
XT A LI N B6
DGND2 C8
XT A LO U T A6
ESD_GND4
A9
NC1
B7
NC2
B8
NC3
B9
NC4
C2
USB_CONNECT B5
FPJT1
SPNZ-24S2-VB-017-1-R
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
2221
23 24
FGND
F3.3V
FGND
FA VDD
FAV D D
FGND
FGND
F3.3V
FGND
FGND
FGND
FGND
FGND
FBDRIVE1
FUS B_PN
FUSB _PN
F3.3V
FREF _OS C
FPD_REG
FMCLK
FB EZE L2
FUS B_C ONN
FMOSI
FMOS I
FB DRI V E1
FNRESET
FXIN
FNRESET
FMISO
FBE ZE L1
FBE ZE L2
FRE G_OU T
FUSB _CON N
FUSB _PP
FXOUT
FXOUT
FMCS
FXIN
FB DRI V E2
FUS B_PP
FRE F_OSC
FBDRIVE2
FB EZE L1
FRE G_OUT
FMISO
FMCS
FMCLK
FPD_REG
Sheet 56 of 58
X7100 Fingerprint
Board
Schematic Diagrams
B - 58 TPM
B.Schematic Diagrams
TPM
T PM _ BA DD
Asserted before entering S3
LPC reset timing:
TPM 1.2
HI: 4E/ 4F H
LOW: 2E/ 2F H
HI: A CCESS
LOW: NORMAL ( Inter nal PD )
TPM_PP
LPCPD# inactive to LRST# inactive 32~96us
X1 6 *MC-146_ 32.76 8KHZ
14
3 2
C792
* 18 p_50V_N PO_0 4
X1 5 * Z M2 00S_3 2. 768 KHZ
14
3 2
XT ALI
C791
*1 8p_ 50V_NPO_04
PC LK_ TPM
R660 * 10K_0 4
TPM_PP R658 * 10K_0 4
R659 * 10K_0 4
R657 * 33_0 4
LPC_AD219,34 LPC_AD119,34
PL T_R ST#4,1 4, 23
LPC_AD319,34
SUS_STAT#21
LPC_FRAME#19,34
PC LK_TPM23
PM_CLKRUN#21 SERIRQ19,34
LPC_AD019,34
C793 *1 0p_5 0V_04
3.3VS
C7 87
*0 .1u_16V_Y 5V_0 4
C7 86
*0.1u_16V_Y 5V_04
3.3 VS
C7 88
*0.1u_16V_Y5V_04
3.3VS
C789
* 1u_1 0V_06
C790
*0.1u_16V_Y5V_04
TPM_BAD D
TPM
U49
* SLB96 35TT
LAD3
17
LAD0
26
LAD1
23
LAD2
20
VDD1 10
XT ALI 13
VDD3 24
VDD2 19
LFRAME#
22
LCLK
21
LRESET#
16
SERIRQ
27
CLKRUN#
15
GND_1 4
GND_2 11
GND_3 18
GND_4 25
GPI O 6
GPIO2 2
XTALO 14
TESTI
8
TESTBI/BADD
9
PP
7
NC_1
1
NC_2
3
NC_3
12
LPCPD#
28
VSB 5
TPM_PP
TPM_BADD
XT ALO
3.3 VS4,10 ,11, 12, 13,1 4, 15,1 6,17, 1 8,19 , 20,21 ,23, 24,25,26 , 29,3 0,32, 3 3,34, 35, 36,3 9,40, 43
Sheet 57 of 58
TPM
Schematic Diagrams
X5100 HDD Board B - 59
B.Schematic Diagrams
X5100 HDD Board
DSATA_RXP0
DSATA_TXN0
DSATA_TXP0
DSATA_RXN0
+
DC8
*100U_6.3V_B2
6-21-C2700-122
PIN GND1~2=GND
DC6
1u_6 .3V _X5R_04
DC4
.1u_10V_X7R_04
DC7
*10u_10V_Y5V_08
DJ_HDD1
C16664-12204-L
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
DC5
.1u_10V_X7R_04
DC9
*22u_6.3V_12
DC3
.1u_10V_X7R_04
DGND
D_5VS
DGND
DJ_ODD1
242001-1
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
DGND
D_5VS
DGND
PIN
GND1 ~3=QGND
DSATA_TXP 0
DSATA_RXP0
DSATA_TXN0
DSATA_RXN0
DGND
DH3
H6_0D2_3
DH2
H6_0D2_3
DGND
DH1
H6_0D2_3
DGND
Sheet 58 of 58
X5100 HDD Board
Schematic Diagrams
B - 60
B.Schematic Diagrams
BIOS Update
C-1
C:BIOS Update
Appendix C:Updating the FLASH ROM BIOS
To update the FLASH ROM BIOS you must:
• Download the BIOS update from the web site.
• Unzip the files onto a bootable CD/DVD/USB Flash Drive.
• Reboot your computer from an external CD/DVD/USB Flash Drive.
• Use the flash tools to update the flash BIOS using the commands indicated below.
• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.
• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.
• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS
settings.
Download the BIOS
1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.
2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files
(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model
(see sidebar for important information on BIOS versions).
Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive
1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the
downloaded files.
2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB
flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).
Set the computer to boot from the external drive
1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the
computer and press F2 (in most cases) to enter the BIOS.
2. Use the arrow keys to highlight the Boot menu.
3. Use the “+” and “-” keys to move boot devices up and down the priority order.
4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.
5. Press F10 to save any changes you have made and exit the BIOS to restart the computer.
BIOS Version
Make sure you down-
load the latest correct
version of the BIOS ap-
propriate for the com-
puter model you are
working on.
You should only
download BIOS ver-
sions that are
V1.01.XX or higher as
appropriate for your
computer model.
Note that BIOS versions
are not backward com-
patible and therefore
you may not down-
grade your BIOS to an
older version after up-
grading to a later ver-
sion (e.g if you upgrade
a BIOS to ver 1.01.05,
you MAY NOT then go
back and flash the BIOS
to ver 1.01.04).
BIOS Update
C - 2
C:BIOS Update
Use the flash tools to update the BIOS
1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you
see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs
being loaded by DOS. Choose “N” for any memory management programs.
2. You should now be at the DOS prompt e.g: DISK C:\> (C is the designated drive letter for the CD/DVD drive/USB
flash drive).
3. Type the following command at the DOS prompt:
C:\> Flash.bat
4. The utility will then proceed to flash the BIOS.
5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but
make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer
restarts.
Restart the computer (booting from the HDD)
1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from
the HDD.
2. Press F2 as the computer restarts to enter the BIOS.
3. Use the arrow keys to highlight the Exit menu.
4. Select Load Setup Defaults (or press F9) and select “Yes” to confirm the selection.
5. Press F10 to save any changes you have made and exit the BIOS to restart the computer.
Your computer is now running normally with the updated BIOS
You may now enter the BIOS and make any changes you require to the default settings.
