Compal LA 2861 Schematics. Www.s Manuals.com. R1.0 Schematics

User Manual: Compal LA-2861 - Schematics. Free.

Open the PDF directly: View PDF .
Page Count: 43

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

Black Diagram

B

142

Thursday, August 04, 2005

2005/03/01 2006/03/01

LA-2861

UFC-PGA Dothan/ RC410MD(RC410MB)/ SB450

2005-07-11 Rev.1.0

HAZ00/HTW01

REV 1.0 Schematic

Compal Electronics, Inc.

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

Black Diagram

B

242

Thursday, August 04, 2005

2005/03/01 2006/03/01

PAGE 29

Embedded

Controller

SO-DIMM x 2(DDRII)

FSB

PAGE 6,7,8

PAGE 4,5,6

PAGE 21,22,23,24,25

ICS951411AGT

Primary

ATA-100 (5V)

LPC BUS 33MHz (3.3V)

ENE KB910

PAGE 11

Thermal Sensor

A-Link Express x 4

Memory Bus

BANK 0,1,2,3

PAGE 5

Clock Generator

PAGE 9,10

480MHz(5V)

400MHz

400/533/667MHz

(1.8V)

PAGE 24

AC97 CODEC

PAGE 36

PAGE 26

IDE HDD

HAZ00 IDE ODD

USB 2.0 Port *3

0,2,4

2.5GHz(1.2V)

Bandwidth 500MB

PCI BUS

PAGE 19

MDC

PAGE 33

AC-LINK

ALC 250

Connector

PAGE 26

ADM1032ARM

Secondary

ATA-100 (5V)

707 pin BGA

VGA M10P Embeded

564 pin BGA

ATI-SB450

page 12

page 12

LVDS & TV-OUT Conn.

INTEL

Celeron 479 pin

ATI-RC410MB

33MHz (3.3V)

14.318MHz(3.3V)

LCD Conn

CPU VID

PAGE 5

& I/O PORT

BIOS(1M)

PAGE 30 PAGE 30

Scan KB

PAGE 23

Mini PCI

FOR WLAN

RJ-45

PAGE 19

RTL8100CL

LAN

PAGE 20

CB1410

CARDBUS

PAGE 22

1394-Port

HAZ00 & HTW01 LA-2861 FUNCTION BLOCK DIAGRAM

CRT Conn.

page 13

APA2068

Audio Amplifier

PAGE 25

PAGE 22

TSB43AB21

PAGE 21

CARD BUS

SOCKET

BL10E IDE ODD

PAGE 26

Compal Electronics, Inc.

3V/5V/12V

DCIN&DETECTOR

LID/Kill Switch

Power Buttom

PAGE 38

PAGE 35

PAGE 31

1.5V/PROCHOT

PAGE 33

PAGE 40

CHARGER

FANController

1.8VCORE

PAGE 14

PAGE 41

PAGE 37

BATT CONN/OTP

PAGE 39

PAGE 40

RTC Battery

DC/DC Interface

PAGE 34

PAGE 36

CPU_CORE

DDR_1.8V/0.9VEP

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

Notes List

B

342

Thursday, August 04, 2005

2005/03/01 2006/03/01

Voltage Rails

VIN

B+

+CPU_CORE

+CPUVID

Adapter power supply (19V)

AC or battery power rail for power circuit.

Core voltage for CPU

1.2V switched power rail for CPU AGTL Bus

External PCI Devices

Device IDSEL# REQ#/GNT# Interrupts

TI 1410

Mini-PCI(WLAN)

LAN

AD20

AD18

AD22

EC SM Bus1 address

Device

ADM1032

S1 S3 S5

ON OFF

ON OFF

Power Plane Description

OFF

OFF

Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.

EC SM Bus2 address

Device

Smart Battery

2

3

PIRQA/PIRQB

PIRQF/PIRQG

1001 110X b0001 011X b

DOTHAN B

ON OFF OFF

+1.5VS

1PIRQG

SB450 SM Bus address

Device

Clock Generator

(ICS951413BGLFT)

Address

Address Address

+0.9VS 0.9V switched power rail

ON OFF OFF

DDR DIMM0

1010 0100b

DDR DIMM1

1010 0110b

Ra

+VGA_CORE ON OFF OFF1.0V/1.2V switched power rail for VGA chip

1101 001Xb

+1.8VS 1.8VS switched power rail OFFOFFON

ON

+RTCVCC

+3VS

+5VS

ON*ON

ON

OFF

OFF

ON

ON*12V always on power rail

OFF

ON

3.3V always on power rail

OFF

ON

5V always on power rail

+3VALW

ON ON

ON

+12VALW

RTC power

3.3V switched power rail

1.8V power rail

ON*

5V switched power rail

+1.8V

ON

ON

OFF

ON

ON+5VALW

+1.8VALW 1.8V always on power rail ON*ONON

ON

ON ON

ON

ON

ON

100K +/- 5%

Vcc

0.1, 0.2

PCB Revision

0 V

200K +/- 5%

Board ID Table for AD channel

Board ID

1.264 V1.185 V

OFF

2

1

0

56K +/- 5%

33K +/- 5%

18K +/- 5%

max

AD_BID

V

AD_BID

typV

AD_BID

0.875 V

HIGH

0.538 V

0.819 V

6

5

4

3

3.300 V

ON

7

SLP_S5#STATE

HIGHHIGH

LOW

LOW

LOWLOW

LOW

OFF

OFF

Rb

OFF

OFF

OFF

OFF

OFF

+VALW

S1(Power On Suspend)

Full ON

SIGNAL

1.650 V1.453 V

1.036 V

NC7

6

5

4

0 V

HIGH

HIGH

HIGH

0.503 V

Board ID

100K +/- 5%

3.3V +/- 5%

+V

2.341 V

3.300 V

2.200 V

2.500 V

1.935 V

1.759 V

0.712 V

0.436 V

0.289 V0.250 V0.216 V

0 V

8.2K +/- 5%

0

3

2

1

0

minV

+VSSLP_S3#

S5 (Soft OFF)

S4 (Suspend to Disk)

S3 (Suspend to RAM) ON

ON

ONON

ON

ON

ON

ON

ON

ON

Clock

+1.2VS 1.2VS for PCI-Express OFFON OFF

AD16

PIRQA

0

1394

Compal Electronics, Inc.

A4

A6

0.3

1.0

SKU ID

2

1

0

6

5

4

3

77 Buttons

1 Buttons

SKU Status

1

0

HDD Password

NO

Yes

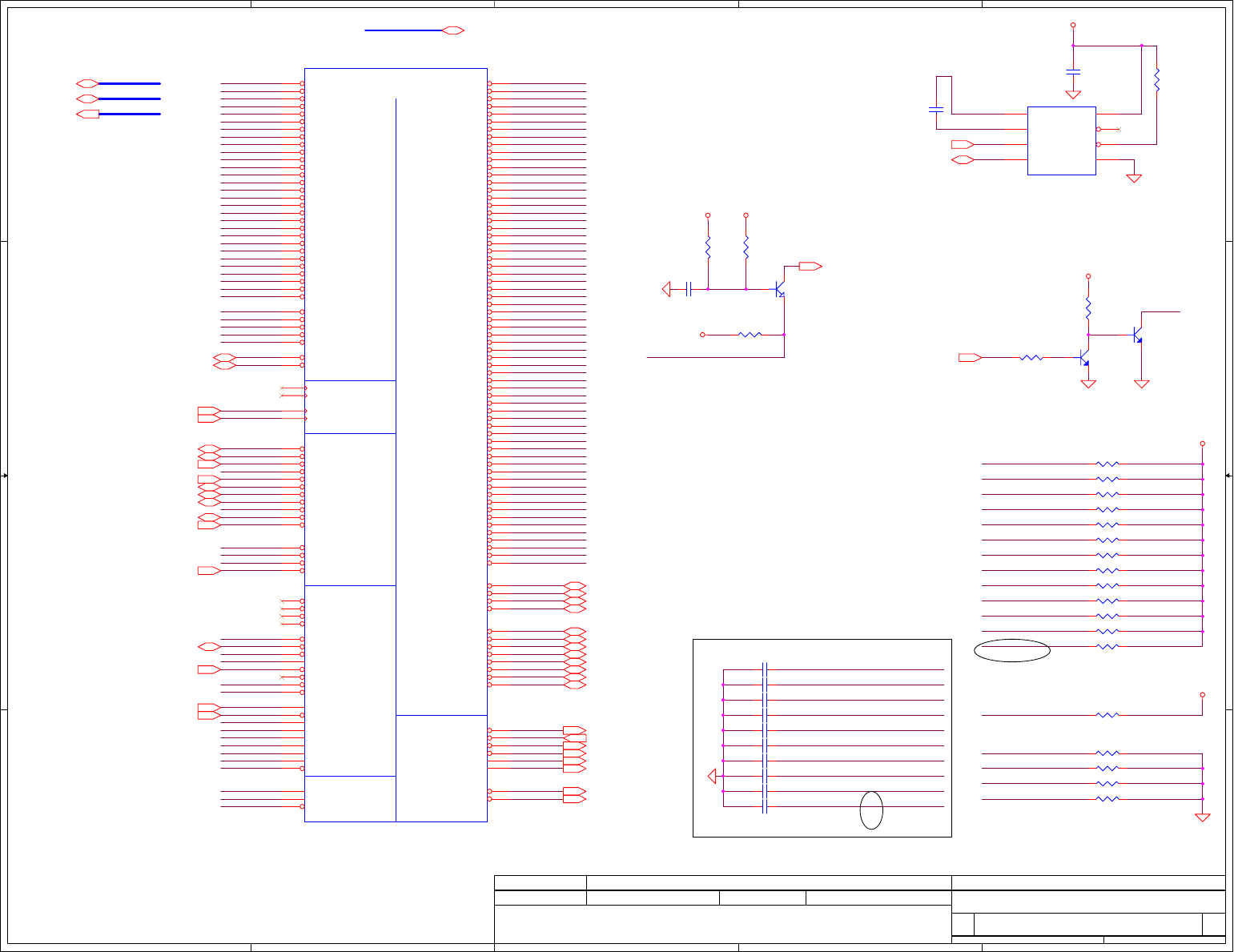

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

H_A#15

H_D#19

H_D#43

H_A#4

H_A#23

H_A#28

H_D#15

H_D#16

H_D#63

H_REQ#1

H_A#8

H_A#17

H_A#27

H_D#41

H_D#56

H_D#59

H_D#62

H_A#3

H_A#7

H_A#10

H_D#29

H_D#37

H_A#14

H_A#20

H_D#23

H_D#26

H_D#32

H_D#39

H_D#49

H_RS#0

H_D#2

H_D#4

H_D#8

H_D#28

H_D#45

H_D#51

H_DPSLP#

H_A#18

H_A#19

H_D#30

H_D#60

H_REQ#2

H_RESET#

H_D#27

H_D#55

H_A#6

H_D#1

H_D#7

H_D#10

H_D#17

H_D#18

H_REQ#0

H_A#24

H_D#3

H_D#44

H_D#52

H_A#12

H_D#0

H_D#12

H_D#14

H_D#38

H_D#40

H_D#46

H_D#50

H_D#61

H_REQ#4

H_A#29

H_A#30

H_D#21

H_D#48

H_D#58

H_IERR#

H_A#26

H_A#31

H_D#11

H_D#24

H_D#36

H_D#53

H_D#54

H_BR0#

H_A#5

H_D#9

H_D#20

H_D#22

H_A#9

H_A#25

H_D#5

H_D#13

H_D#33

H_D#57

H_RS#2

H_A#11

H_A#16

H_A#22

H_D#31

H_D#34

H_D#35

H_RS#1

H_A#13

H_A#21

H_D#6

H_D#25

H_D#42

H_D#47

H_REQ#3

THERMDA

THERMDC

H_A#[3..31]

H_REQ#[0..4]

H_D#[0..63]

PROCHOT#

H_PWRGOOD

ITP_DBRRESET#

ITP_TMS

ITP_TDO

ITP_TCK

THERMDA

THERMDC

PROCHOT#

ITP_TCK

ITP_TRST#

TEST1

ITP_TDO

ITP_TDI

ITP_TMS

TEST2

H_CPUSLP#

H_IERR#

ITP_DBRRESET#

TEST1

TEST2

H_RESET#

H_RS#[0..2]

ITP_TDI

ITP_TRST#

H_BR0#

H_IGNNE#

H_STPCLK#

H_SMI#

H_PWRGOOD

H_INTR

H_INIT#

H_A20M#

H_NMI

H_THERMTRIP#

H_DPSLP#

H_DPRSTP#

H_DPRSTP#

H_PWRGOOD

H_CPUSLP#

H_DPSLP#

H_THERMTRIP#

PREQ#

PREQ#

H_FERR#

H_CPUSLP#

H_FERR#

H_DINV#1 6

H_DINV#3 6

H_DSTBN#1 6

H_DSTBN#3 6

H_D#[0..63] 6

H_A#[3..31]6

H_REQ#[0..4]6

H_DSTBP#1 6

H_DSTBP#3 6

H_DINV#2 6

H_DINV#0 6

H_DSTBP#0 6

H_DSTBP#2 6

H_DSTBN#0 6

H_DSTBN#2 6

H_A20M# 14

H_INIT# 14

H_STPCLK# 14

H_SMI# 14

H_IGNNE# 14

H_RESET#6,14

H_NMI 14

H_INTR 14

H_CPUSLP#14 H_PWRGOOD14

H_ADS#6

H_ADSTB#06H_ADSTB#16

H_BNR#6H_BPRI#6

H_DBSY#6

H_DEFER#6

H_DPWR#6

H_DRDY#6

H_FERR# 14

H_HIT#6H_HITM#6

H_LOCK#6

H_TRDY#6

EC_SMB_CK228

EC_SMB_DA228

H_RS#[0..2]6

CLK_BCLK#11 CLK_BCLK11

CPU_STP#11,14,40

MAINPWON 15,34,35,37,38

+3VS

+1.05VS

+3VS

+1.05VS

+1.05VS

+1.05VS +CPU_CORE

Title

Size Document Number R ev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

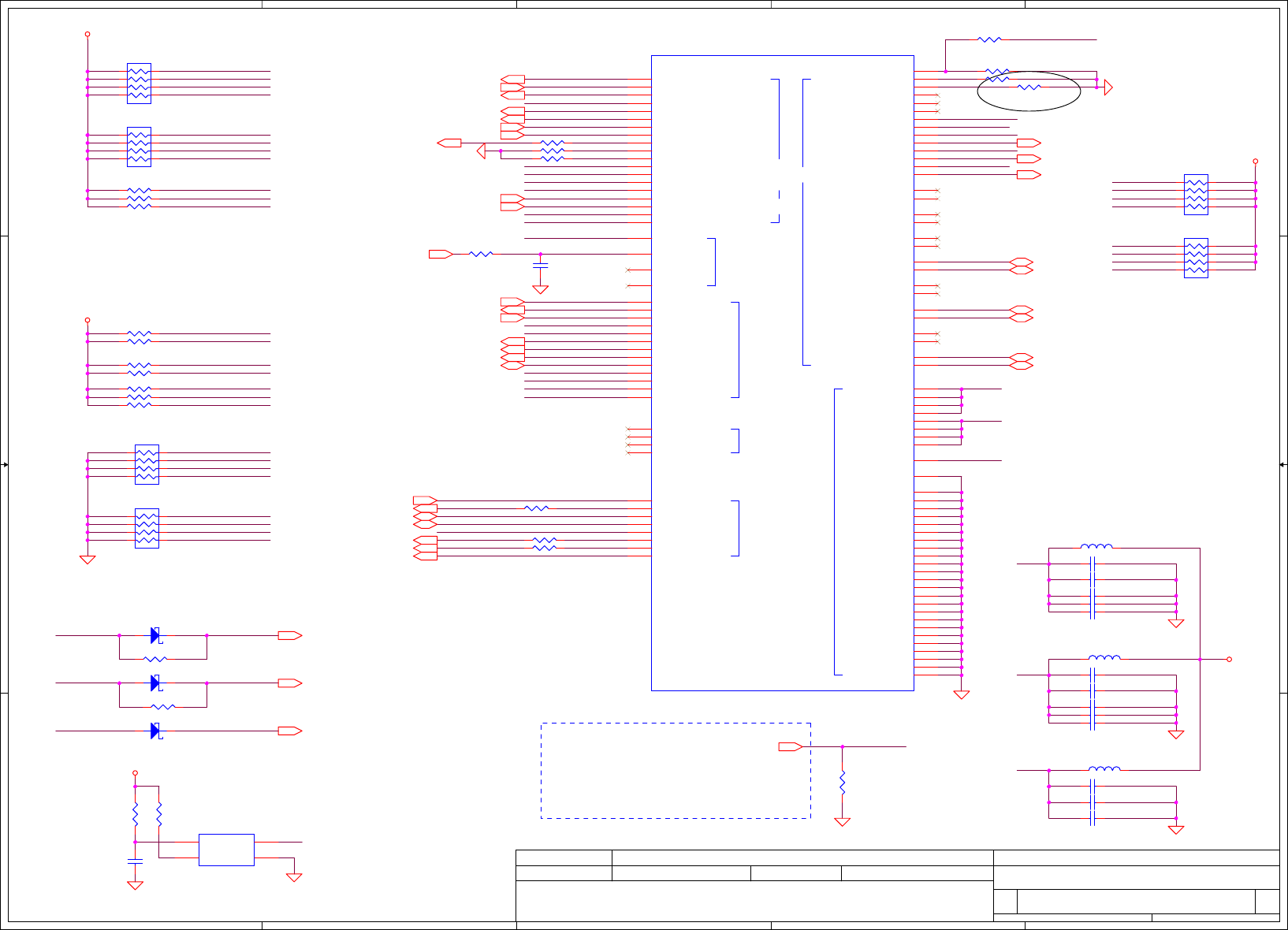

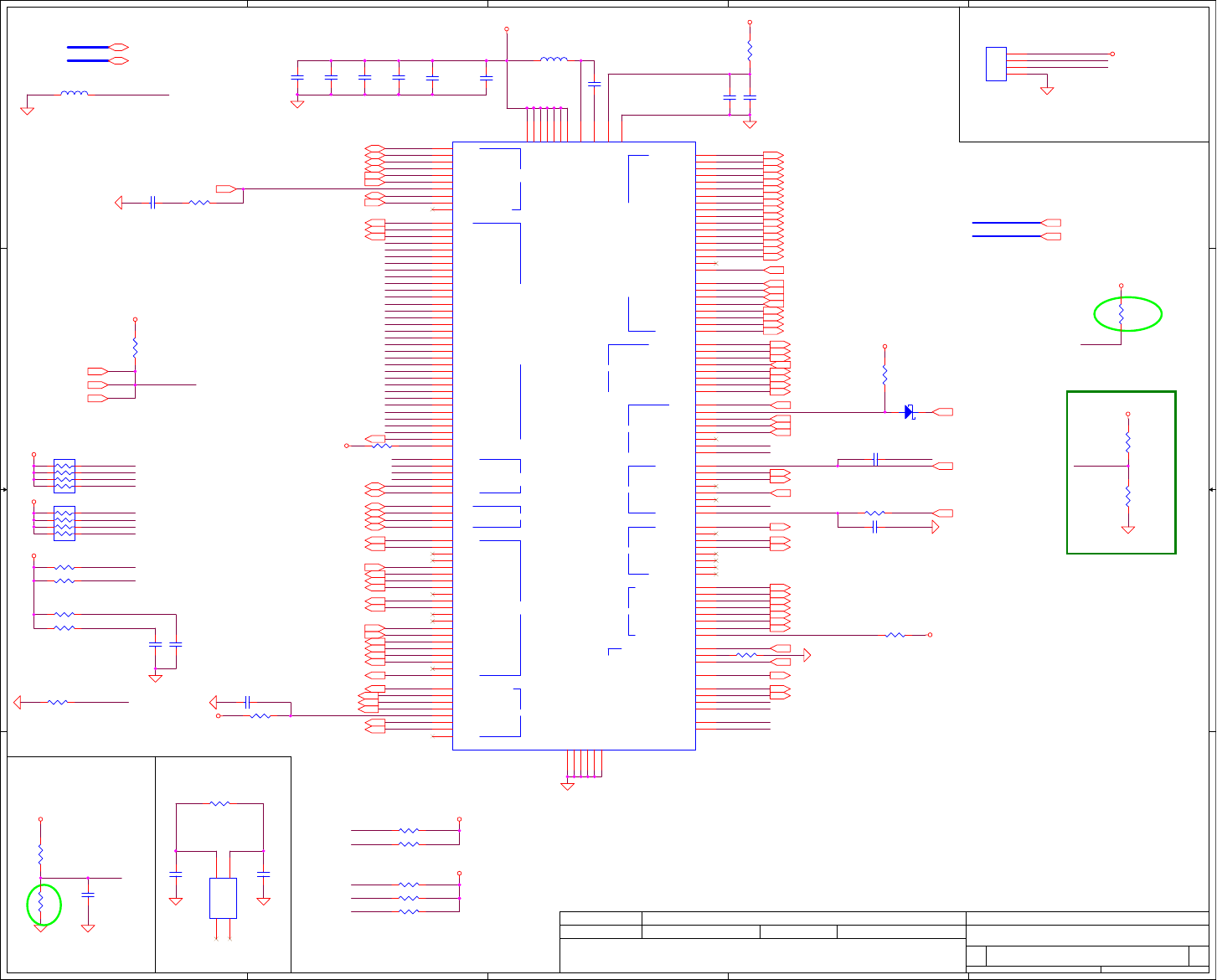

Dothan(1/2)

Custom

442Monday, August 08, 2005

2005/03/01 2006/03/01

THERMDA & THERMDC Trace / Space = 10 / 10 mil

Place Caps Close to CPU Socket

Compal Electronics, Inc.

R75 56_0402_5%

12

R66 56_0402_5%

12

R69

47K_0402_5%

12

R80 680_0402_5%

12

C502

0.1U_0402_16V4Z

1

2

C257 180P_0402_50V8J

1 2

C262 180P_0402_50V8J

1 2

R79 150_0402_5%

12

R166

470_0402_5%

12

R63 54.9_0402_1%@

12

R65 27.4_0402_1%

12

R67

56_0402_5%

1 2

R64 40.2_0402_1%

12

R76 150_0402_5%@

12

Q27

MMBT3904_SOT23

2

3 1

R70 200_0402_5%

1 2

R78 54.9_0402_1%@

12

C640 180P_0402_50V8J

1 2

C256 180P_0402_50V8J

1 2

R81 200_0402_5%

1 2

C260

0.1U_0603_25V7K@

1 2

R62 200_0402_5%

1 2

R77 56_0402_5%@

12

C264 180P_0402_50V8J

1 2

R82 200_0402_5%

12

C

B

E

Q22

2SC2411K_SC59

1

2

3

R68

47K_0402_5%@

12

C265 180P_0402_50V8J

1 2

U26

ADM1032ARM_RM8

VDD1 1

ALERT# 6

THERM# 4

GND 5

D+

2

D-

3

SCLK

8

SDATA

7

C261 180P_0402_50V8J@

1 2

R172

470_0402_5%

1 2

R294 1K_0402_5%@

12

ADDR GROUP

CONTROL GROUP

HOST CLK

MISC

DATA GROUP

THERMAL

DIODE

LEGACY CPU

Dothan

JP19A

TYCO_1612365-1_Dothan

A3#

P4

A4#

U4

A5#

V3

A6#

R3

A7#

V2

A8#

W1

A9#

T4

A10#

W2

A11#

Y4

A12#

Y1

A13#

U1

A14#

AA3

A15#

Y3

A16#

AA2

A17#

AF4

A18#

AC4

A19#

AC7

A20#

AC3

A21#

AD3

A22#

AE4

A23#

AD2

A24#

AB4

A25#

AC6

A26#

AD5

A27#

AE2

A28#

AD6

A29#

AF3

A30#

AE1

A31#

AF1

REQ0#

R2

REQ1#

P3

REQ2#

T2

REQ3#

P1

REQ4#

T1

ADSTB0#

U3

ADSTB1#

AE5

BCLK0

B15

BCLK1

B14

ITP_CLK0

A16

ITP_CLK1

A15

ADS#

N2

BNR#

L1

BPRI#

J3

BR0#

N4

DEFER#

L4

DRDY#

H2

HIT#

K3

HITM#

K4

IERR#

A4

LOCK#

J2

RESET#

B11

RS0#

H1

RS1#

K1

RS2#

L2

TRDY#

M3

BPM0#

C8

BPM1#

B8

BPM2#

A9

BPM3#

C9

DBR#

A7

DBSY#

M2

DPSLP#

B7

DPWR#

C19

PRDY#

A10

PREQ#

B10

PROCHOT#

B17

PWRGOOD

E4

SLP#

A6

TCK

A13

TDI

C12

TDO

A12

TEST1

C5

TEST2

F23

TMS

C11

TRST#

B13

THERMDA

B18

THERMDC

A18

THERMTRIP#

C17

D0# A19

D1# A25

D2# A22

D3# B21

D4# A24

D5# B26

D6# A21

D7# B20

D8# C20

D9# B24

D10# D24

D11# E24

D12# C26

D13# B23

D14# E23

D15# C25

D16# H23

D17# G25

D18# L23

D19# M26

D20# H24

D21# F25

D22# G24

D23# J23

D24# M23

D25# J25

D26# L26

D27# N24

D28# M25

D29# H26

D30# N25

D31# K25

D32# Y26

D33# AA24

D34# T25

D35# U23

D36# V23

D37# R24

D38# R26

D39# R23

D40# AA23

D41# U26

D42# V24

D43# U25

D44# V26

D45# Y23

D46# AA26

D47# Y25

D48# AB25

D49# AC23

D50# AB24

D51# AC20

D52# AC22

D53# AC25

D54# AD23

D55# AE22

D56# AF23

D57# AD24

D58# AF20

D59# AE21

D60# AD21

D61# AF25

D62# AF22

D63# AF26

DINV0# D25

DINV1# J26

DINV2# T24

DINV3# AD20

DSTBN0# C23

DSTBN1# K24

DSTBN2# W25

DSTBN3# AE24

DSTBP0# C22

DSTBP1# L24

DSTBP2# W24

DSTBP3# AE25

A20M# C2

FERR# D3

IGNNE# A3

INIT# B5

LINT0 D1

LINT1 D4

STPCLK# C6

SMI# B4

DPRSTP#

G1

C263 180P_0402_50V8J

1 2

C503

2200P_0402_50V7K

1

2

R61 1K_0402_5%@

12

Q26

MMBT3904_SOT23

2

3 1

R72 56_0402_5%

12

R303

10K_0402_5%@

12

R71 56_0402_5%@

12

C255 180P_0402_50V8J

1 2

C254 180P_0402_50V8J

1 2

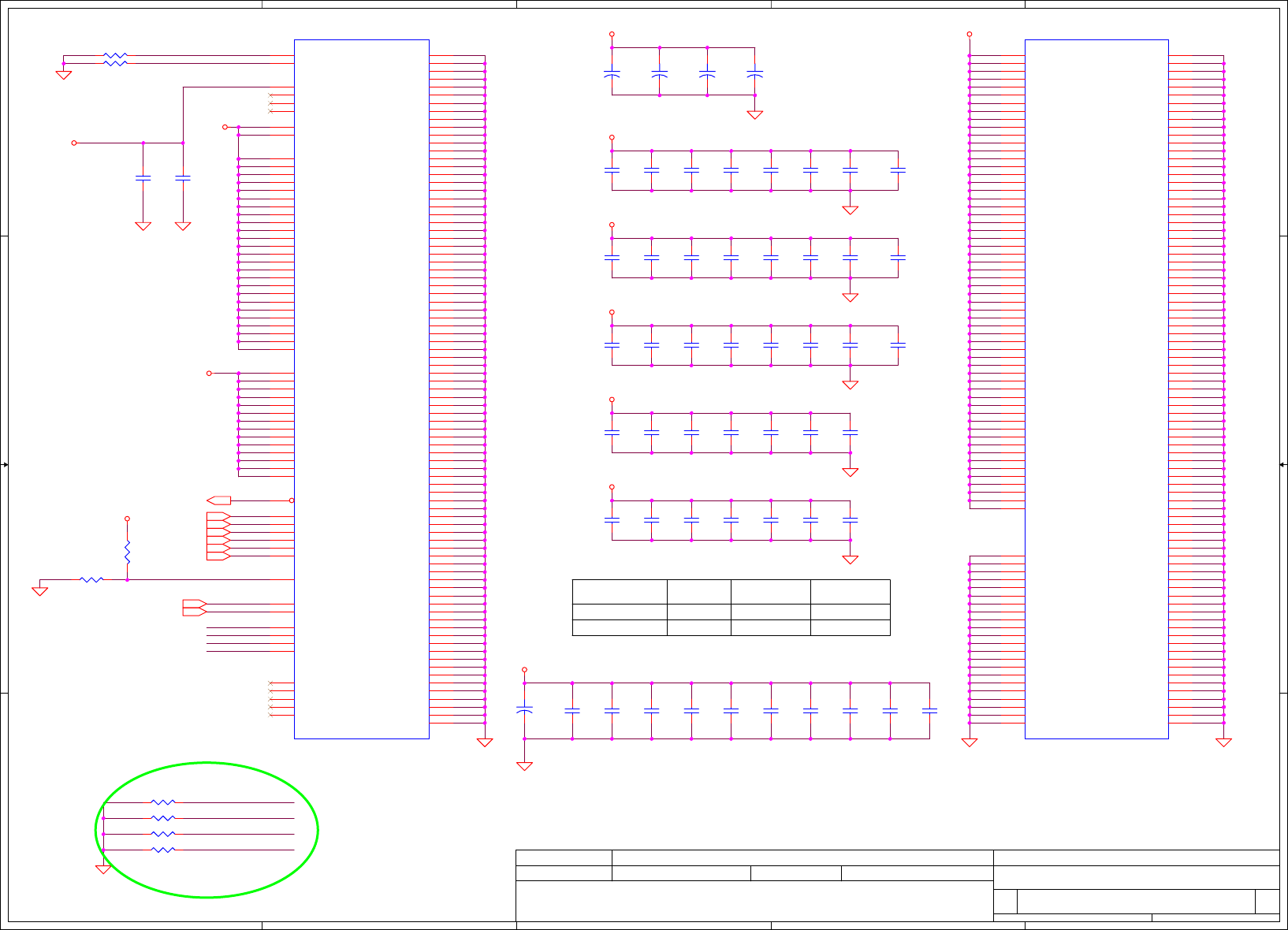

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

COMP3

GTL_REF0

COMP2

COMP1

VCCSENSE

VSSSENSE

COMP0

COMP3

COMP2

COMP1

COMP0

CPU_BSEL0

CPU_BSEL1

+VCCA

PSI#40

CPU_VID040

CPU_VID440 CPU_VID340

CPU_VID140

CPU_VID540

CPU_VID240

CPU_BSEL07,11 CPU_BSEL111

+CPU_CORE

+1.05VS

+1.05VS

+1.05VS

+CPU_CORE

+1.5VS

+CPU_CORE

+CPU_CORE

+CPU_CORE

+CPU_CORE

+CPU_CORE

+CPU_CORE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

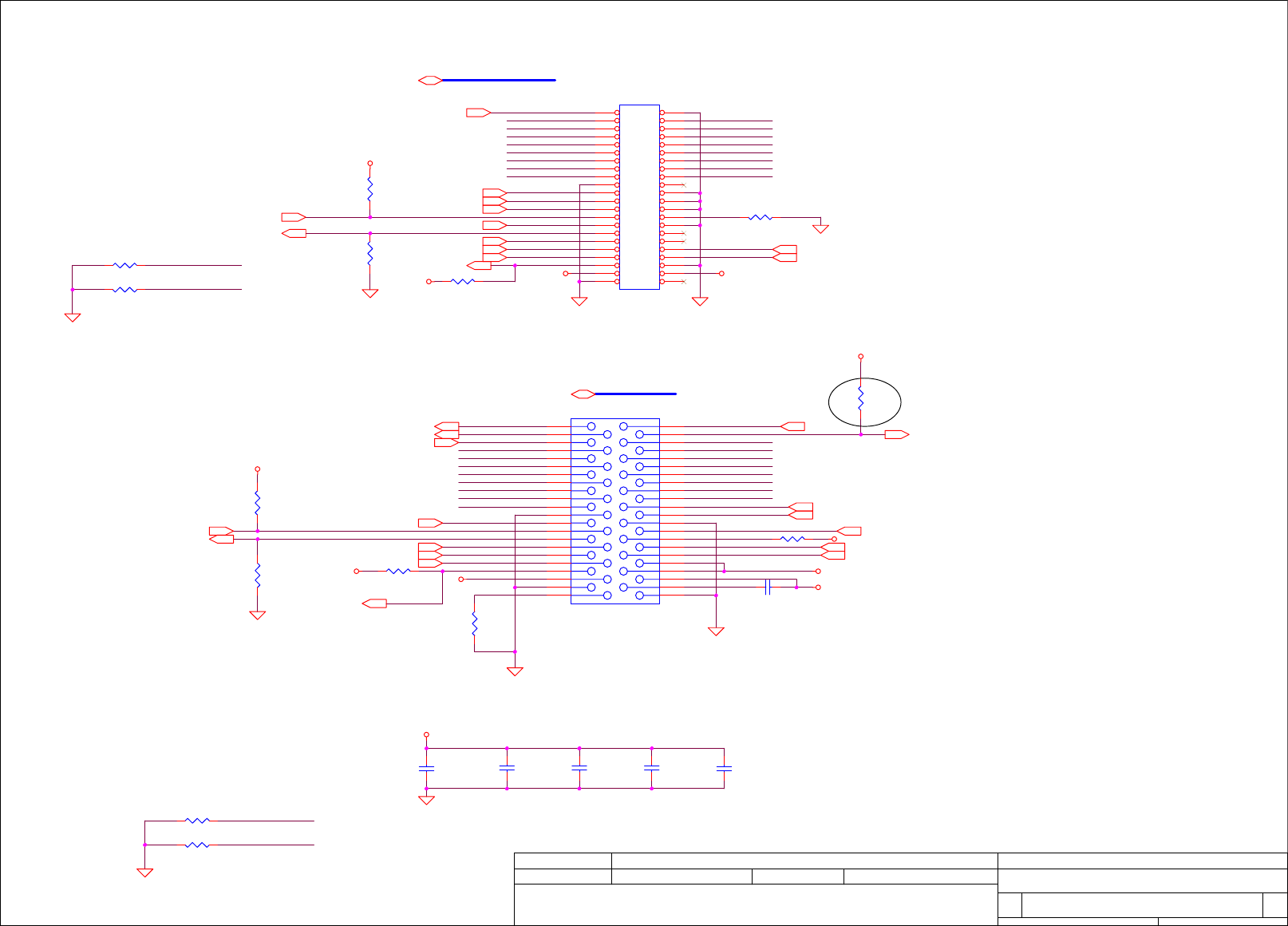

Dothan(2/2)

B

542Monday, August 08, 2005

2005/03/01 2006/03/01

4X330uF 7m ohm/2 3.5nH/2

Vcc-core

Decoupling

35X10uF 5m ohm/35 0.6nH/35

C,uF ESR, mohm ESL,nH

SPCAP,Polymer

MLCC 0805 X5R

1.5V FOR DOTHAN-B

TRACE CLOSELY CPU < 0.5'

COMP0, COMP2 layout : Width 18mils and Space 25mils

COMP1, COMP3 layout : Space 25mils

20mils

4 x 330uF(12mOhm/4)

Compal Electronics, Inc.

Width 12mils spacing 15mils

Dothan

POWER, GROUND

JP19C

TYCO_1612365-1_Dothan

VCC

F20

VCC

F22

VCC

G5

VCC

G21

VCC

H6

VCC

H22

VCC

J5

VCC

J21

VCC

K22

VCC

U5

VCC

V6

VCC

V22

VCC

W5

VCC

W21

VCC

Y6

VCC

Y22

VCC

AA5

VCC

AA7

VCC

AA9

VCC

AA11

VCC

AA13

VCC

AA15

VCC

AA17

VCC

AA19

VCC

AA21

VCC

AB6

VCC

AB8

VCC

AB10

VCC

AB12

VCC

AB14

VCC

AB16

VCC

AB18

VCC

AB20

VCC

AB22

VCC

AC9

VCC

AC11

VCC

AC13

VCC

AC15

VCC

AC17

VCC

AC19

VCC

AD8

VCC

AD10

VCC

AD12

VCC

AD14

VCC

AD16

VCC

AD18

VCC

AE9

VCC

AE11

VCC

AE13

VCC

AE15

VCC

AE17

VCC

AE19

VCC

AF8

VCC

AF10

VCC

AF12

VCC

AF14

VCC

AF16

VCC

AF18

VSS

M4

VSS

M5

VSS

M21

VSS

M24

VSS

N3

VSS

N6

VSS

N22

VSS

N23

VSS

N26

VSS

P2

VSS

P5

VSS

P21

VSS

P24

VSS

R1

VSS

R4

VSS

R6

VSS

R22

VSS

R25

VSS

T3

VSS

T5

VSS

T21

VSS

T23

VSS T26

VSS U2

VSS U6

VSS U22

VSS U24

VSS V1

VSS V4

VSS V5

VSS V21

VSS V25

VSS W3

VSS W6

VSS W22

VSS W23

VSS W26

VSS Y2

VSS Y5

VSS Y21

VSS Y24

VSS AA1

VSS AA4

VSS AA6

VSS AA8

VSS AA10

VSS AA12

VSS AA14

VSS AA16

VSS AA18

VSS AA20

VSS AA22

VSS AA25

VSS AB3

VSS AB5

VSS AB7

VSS AB9

VSS AB11

VSS AB13

VSS AB15

VSS AB17

VSS AB19

VSS AB21

VSS AB23

VSS AB26

VSS AC2

VSS AC5

VSS AC8

VSS AC10

VSS AC12

VSS AC14

VSS AC16

VSS AC18

VSS AC21

VSS AC24

VSS AD1

VSS AD4

VSS AD7

VSS AD9

VSS AD11

VSS AD13

VSS AD15

VSS AD17

VSS AD19

VSS AD22

VSS AD25

VSS AE3

VSS AE6

VSS AE8

VSS AE10

VSS AE12

VSS AE14

VSS AE16

VSS AE18

VSS AE20

VSS AE23

VSS AE26

VSS AF2

VSS AF5

VSS AF9

VSS AF11

VSS AF13

VSS AF15

VSS AF17

VSS AF19

VSS AF21

VSS AF24

C452

0.1U_0402_16V4Z

1

2

C475

10U_0805_6.3V6M

1

2

R44 54.9_0402_1%@

1 2

C196

10U_0805_6.3V6M

1

2

C461

10U_0805_6.3V6M

1

2

C489

10U_0805_6.3V6M

1

2

C478

10U_0805_6.3V6M

1

2

C197

10U_0805_6.3V6M

1

2

C459

0.1U_0402_16V4Z

1

2

C215

10U_0805_6.3V6M

1

2

C211

0.1U_0402_16V4Z

1

2

C470

0.1U_0402_16V4Z

1

2

C205

0.1U_0402_16V4Z

1

2

C463

10U_0805_6.3V6M

1

2

+

C466

330U_D_2VM@

1

2

C207

10U_0805_6.3V6M

1

2

C472

10U_0805_6.3V6M

1

2

C192

10U_0805_6.3V6M

1

2

C481

10U_0805_6.3V6M

1

2

C220

10U_0805_6.3V6M

1

2

C198

10U_0805_6.3V6M

1

2

C206

10U_0805_6.3V6M

1

2

C464

10U_0805_6.3V6M

1

2

C195

10U_0805_6.3V6M

1

2

R245 54.9_0402_1%

1 2

C451

10U_0805_6.3V6M

1

2

+

C209

330U_D_2VM@

1

2

C217

10U_0805_6.3V6M

1

2

C479

10U_0805_6.3V6M

1

2

+

C467

150U_D2_6.3VM

1

2

Dothan

POWER, GROUNG, RESERVED SIGNALS AND NC

JP19B

TYCO_1612365-1_Dothan

PSI#

E1

GTLREF

AD26

VCCQ0

P23

VCCQ1

W4

VCCSENSE

AE7

VSSSENSE

AF6

BSEL0

C16

BSEL1

C14

VCCA0

F26

VCCA1

B1

VCCA2

N1

VCCA3

AC26

VCCP

D10

VCCP

D12

VCCP

D14

VCCP

D16

VCCP

E11

VCCP

E13

VCCP

E15

VCCP

F10

VCCP

F12

VCCP

F14

VCCP

F16

VCCP

K6

VCCP

L5

VCCP

L21

VCCP

M6

VCCP

M22

VCCP

N5

VCCP

N21

VCCP

P6

VCCP

P22

VCCP

R5

VCCP

R21

VCCP

T6

VCCP

T22

VCCP

U21

VCC

D6

VCC

D8

VCC

D18

VCC

D20

VCC

D22

VCC

E5

VCC

E7

VCC

E9

VCC

E17

VCC

E19

VCC

E21

VCC

F6

VCC

F8

VCC

F18

VID0

E2

VID1

F2

VID2

F3

VID3

G3

VID4

G4

VID5

H4

COMP0

P25

COMP1

P26

COMP2

AB2

COMP3

AB1

RSVD

AF7

RSVD

B2

RSVD

C3

RSVD

E26

VSS A2

VSS A5

VSS A8

VSS A11

VSS A14

VSS A17

VSS A20

VSS A23

VSS A26

VSS B3

VSS B6

VSS B9

VSS B12

VSS B16

VSS B19

VSS B22

VSS B25

VSS C1

VSS C4

VSS C7

VSS C10

VSS C13

VSS C15

VSS C18

VSS C21

VSS C24

VSS D2

VSS D5

VSS D7

VSS D9

VSS D11

VSS D13

VSS D15

VSS D17

VSS D19

VSS D21

VSS D23

VSS D26

VSS E3

VSS E6

VSS E8

VSS E10

VSS E12

VSS E14

VSS E16

VSS E18

VSS E20

VSS E22

VSS E25

VSS F1

VSS F4

VSS F5

VSS F7

VSS F9

VSS F11

VSS F13

VSS F15

VSS F17

VSS F19

VSS F21

VSS F24

VSS G2

VSS G6

VSS G22

VSS G23

VSS G26

VSS H3

VSS H5

VSS H21

VSS H25

VSS J1

VSS J4

VSS J6

VSS J22

VSS J24

VSS K2

VSS K5

VSS K21

VSS K23

VSS K26

VSS L3

VSS L6

VSS L22

VSS L25

VSS M1

RSVD

AC1

C473

10U_0805_6.3V6M

1

2

C216

10U_0805_6.3V6M

1

2

R249

1K_0402_1%

12

R243 27.4_0402_1%

1 2

C454

0.1U_0402_16V4Z

1

2

R45 54.9_0402_1%@

1 2

C212

0.1U_0402_16V4Z

1

2

C495

0.01U_0402_16V7K

1

2

C460

10U_0805_6.3V6M

1

2

R274 54.9_0402_1%

1 2

C471

0.1U_0402_16V4Z

1

2

C477

10U_0805_6.3V6M

1

2

C469

10U_0805_6.3V6M

1

2

C480

10U_0805_6.3V6M

1

2

C468

10U_0805_6.3V6M

1

2

C219

10U_0805_6.3V6M

1

2

C193

10U_0805_6.3V6M

1

2

C462

10U_0805_6.3V6M

1

2

R275 27.4_0402_1%

1 2

C474

10U_0805_6.3V6M

1

2

C199

0.1U_0402_16V4Z

1

2

+

C492

330U_D_2VM

1

2

C218

10U_0805_6.3V6M

1

2

C465

10U_0805_6.3V6M

1

2

C194

10U_0805_6.3V6M

1

2

C214

10U_0805_6.3V6M

1

2

+

C180

330U_D_2VM

1

2

R250 2K_0402_1%

1 2

C482

10U_0805_6.3V6M

1

2

C201

0.1U_0402_16V4Z

1

2

C191

0.1U_0402_16V4Z

1

2

C210

0.1U_0402_16V4Z

1

2

C453

0.1U_0402_16V4Z

1

2

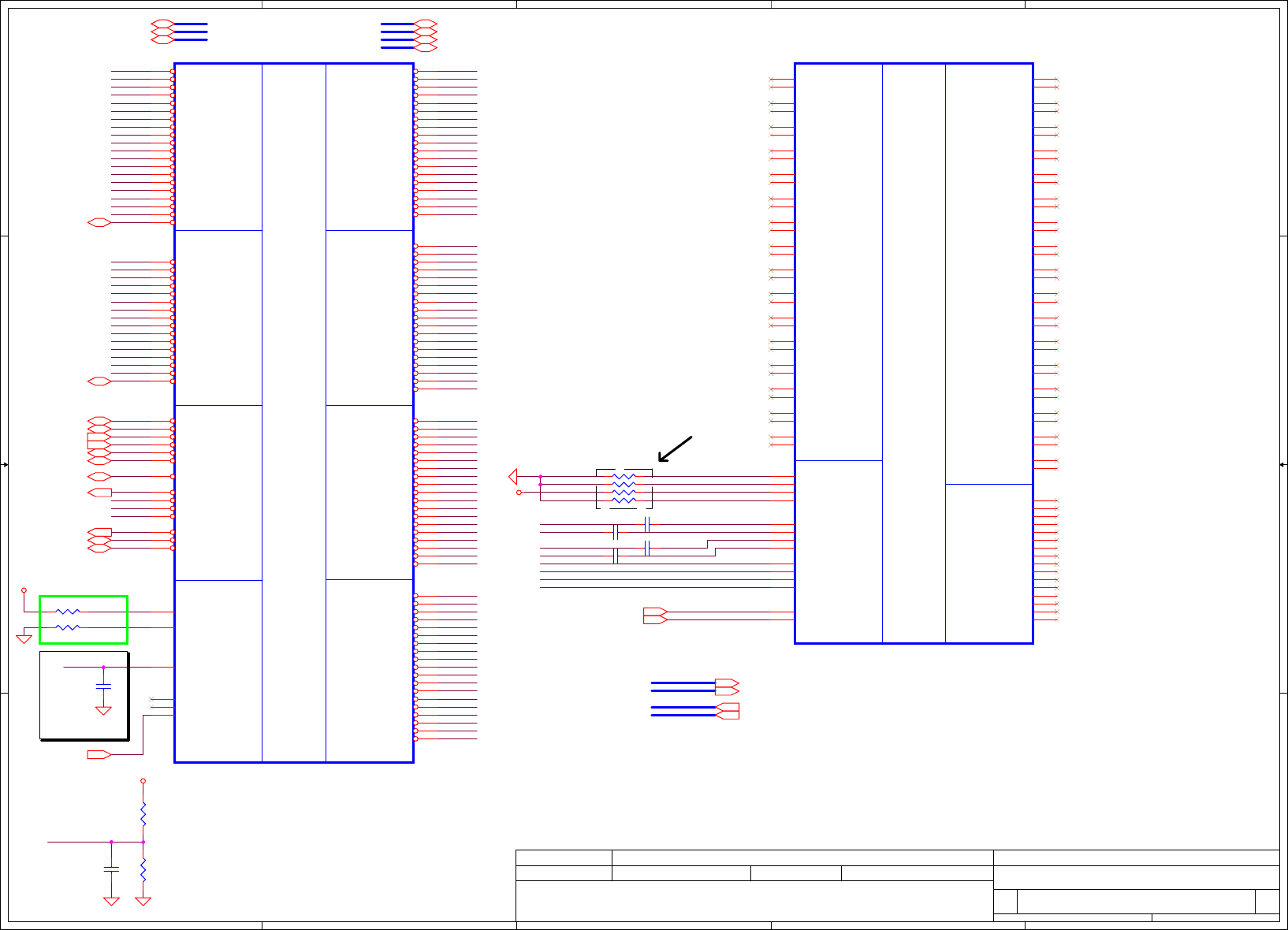

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

H_A#6

H_A#8

H_A#14

H_A#4

H_A#9

H_A#7

H_A#5

H_A#10

H_A#11

H_A#15

H_A#12

H_A#13

H_A#3

H_A#16

H_A#31

H_A#28

H_A#24

H_A#22

H_A#27

H_A#18

H_A#19

H_A#17

H_A#30

H_A#21

H_A#25

H_A#26

H_A#29

H_A#20

H_A#23

H_REQ#1

H_REQ#2

H_REQ#0

H_REQ#4

H_REQ#3

H_RS#2

H_RS#1

H_RS#0

HRCOMP

HSCOMP

H_D#10

H_D#4

H_D#13

H_D#1

H_D#7

H_D#31

H_D#28

H_D#16

H_D#22

H_D#25

H_D#39

H_D#44

H_D#33

H_D#38

H_D#32

H_D#50

H_D#58

H_D#52

H_D#51

H_D#56

H_D#60

H_D#63

H_D#59

H_D#48

H_D#62

H_D#57

H_D#55

H_D#53

H_D#54

H_D#61

H_D#49

H_DSTBN#3

H_DSTBP#3

H_DINV#3

H_DSTBN#2

H_DSTBP#2

H_DSTBP#1

H_DINV#0

H_D#19

CPU_VREF

SB_A_RXP1

NB_A_RXP1

SB_A_RXN[0..1]

SB_A_RXP[0..1]

NB_A_RXN[0..1]

NB_A_RXP[0..1]

CPU_VREF

SB_A_RXN0

SB_A_RXP0

PCE_NCAL

H_D#40

H_D#30

H_D#24

H_D#42

H_D#43

H_D#0

H_D#27

H_D#35

H_DSTBP#0

H_D#41

SB_A_RXN1

H_DSTBN#1

H_D#46

H_D#36

H_D#21

H_D#6

H_D#15

H_D#12

H_D#3

H_D#34

H_D#9

H_D#45

H_D#18

H_D#37

H_D#14

H_D#20

H_DSTBN#0

PCE_PCAL

H_D#5

NB_A_RXN1

H_D#23

H_D#17

H_D#11

NB_A_TXN1

H_D#8

H_D#29

H_DINV#1

H_D#26

H_D#2

H_DINV#2

H_D#47

NB_A_RXP0

NB_A_TXP0

NB_A_TXN0

NB_A_TXP1

PCE_TXISET

NB_A_RXN0

PCE_RXISET

H_ADSTB#14

H_A#[3..31]4H_REQ#[0..4]4

H_ADSTB#04

H_ADS#4

H_BPRI#4H_BNR#4

H_DEFER#4H_DRDY#4 H_DBSY#4

H_LOCK#4

H_RESET#4,14

H_TRDY#4H_HIT#4H_HITM#4

H_D#[0..63] 4

H_DINV#[0..3] 4

H_DSTBN#[0..3] 4

H_DSTBP#[0..3] 4

H_RS#[0..2]4

CLK_NB_ALINK11 CLK_NB_ALINK#11

SB_A_RXN[0..1] 14

SB_A_RXP[0..1] 14

NB_A_RXN[0..1] 14

NB_A_RXP[0..1] 14

H_DPWR#4

+1.05VS

+1.05VS

+1.2VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

RC410MD-FSB, PCIE,A-PCIE

B

642

Monday, August 08, 2005

2005/03/01 2006/03/01

CPU_VREF

Trace=12Mil

Space=15Mil

10 mils

10 mils

10 mils

10 mils

Place R

Close to Ball

Place C close

to Ball H22 To SB A-PCIE Link

***

***

Compal Electronics, Inc.

ATI recommendation R40, R41

R3382.5_0402_1%

12

R38

49.9_0402_1%

12

C121

1U_0402_6.3V4Z

1

2

R348.25K_0402_1%

12

R2910K_0402_1%

12

C429 0.1U_0402_10V6K

1 2

R28150_0402_1%

12

C430 0.1U_0402_10V6K

1 2

RC410MD

ADDR. GROUP

1ADDR. GROUP

0

CONTROLMISC.

DATA GROUP 0

DATA GROUP 1

DATA GROUP 2

DATA GROUP

3

CPU I/F

PART 1 OF 6

U21A

216CPP4AKA21HK_BGA707

CPU_ADS#

F25

CPU_BNR#

F24

CPU_BPRI#

E23

CPU_D0# E28

CPU_D1# D28

CPU_D2# D29

CPU_D3# C29

CPU_D4# D30

CPU_D5# C30

CPU_D6# B29

CPU_D7# C28

CPU_D8# C26

CPU_D9# B25

CPU_D10# B27

CPU_D11# C25

CPU_D12# A27

CPU_D13# C24

CPU_D14# A24

CPU_D15# B26

CPU_D16# C19

CPU_D17# C23

CPU_D18# C20

CPU_D19# C22

CPU_D20# B22

CPU_D21# B23

CPU_D22# C21

CPU_D23# B24

CPU_D24# E21

CPU_D25# B21

CPU_D26# B20

CPU_D27# G19

CPU_D28# F21

CPU_D29# B19

CPU_D30# E20

CPU_D31# D21

CPU_D32# C18

CPU_D33# F19

CPU_D34# E19

CPU_D35# A18

CPU_D36# D19

CPU_D37# B18

CPU_D38# C17

CPU_D39# B17

CPU_D40# E17

CPU_D41# B16

CPU_D42# C15

CPU_D43# A15

CPU_D44# B15

CPU_D45# F16

CPU_D46# G18

CPU_D47# F18

CPU_D48# E16

CPU_D49# D16

CPU_D50# C14

CPU_D51# B14

CPU_D52# E15

CPU_D53# D15

CPU_A3#

G28

CPU_A4#

H26

CPU_D54# C13

CPU_D55# E14

CPU_D56# F13

CPU_D57# B13

CPU_D58# A12

CPU_D59# C12

CPU_D60# E12

CPU_D61# D13

CPU_D62# D12

CPU_D63# B12

CPU_ADSTB0#

H27

CPU_ADSTB1#

L27

CPU_DBSY#

F23

CPU_DEFER#

E25

CPU_DRDY#

G24

CPU_LOCK#

E27

CPU_TRDY#

F22

CPU_REQ0#

F29

CPU_REQ1#

G25

CPU_REQ2#

F26

CPU_REQ3#

F28

CPU_REQ4#

E29

CPU_HIT#

D26

CPU_HITM#

E24

CPU_RS0#

E26 CPU_RS1#

G23 CPU_RS2#

D23

CPU_DSTBN3# F15

CPU_DSTBN2# D18

CPU_DSTBN1# D22

CPU_DSTBN0# A28

CPU_DSTBP3# G15

CPU_DSTBP2# E18

CPU_DSTBP1# E22

CPU_DSTBP0# B28

CPU_DBI3# E13

CPU_DBI2# C16

CPU_DBI1# A21

CPU_DBI0# C27

CPU_CPURSET#

C11

CPU_COMP_P

B11

CPU_COMP_N

D11

CPU_VREF

H22

CPU_A5#

G27

CPU_A6#

G30

CPU_A7#

G29

CPU_A8#

G26

CPU_A9#

H28

CPU_A10#

J28

CPU_A11#

H25

CPU_A12#

K28

CPU_A13#

H29

CPU_A14#

J29

CPU_A15#

K24

CPU_A16#

K25

CPU_A17#

M28

CPU_A18#

K29

CPU_A19#

K30

CPU_A20#

J26

CPU_A21#

L28

CPU_A22#

L29

CPU_A23#

M30

CPU_A24#

K27

CPU_A25#

M29

CPU_A26#

K26

CPU_A27#

N28

CPU_A28#

L26

CPU_A29#

N25

CPU_A30#

L25

CPU_A31#

N24

CPU_DPWR#

G22

RESERVED0

D25

RESERVED1

E11

R37

100_0402_1%

12

PCI EXPRESS I/F

RC410MD

A-LINK EXPRESS I/F

PCI EXPRESS I/F

PART 3 OF 6

U21C

216CPP4AKA21HK_BGA707

GFX_TX1N R2

GFX_TX1P P2

GFX_TX2N T1

GFX_TX2P R1

GFX_TX3N U2

GFX_TX3P T2

GFX_TX4N V1

GFX_TX4P V2

GFX_TX5N W2

GFX_TX5P W1

GFX_TX6N AA2

GFX_TX6P Y2

GFX_TX7N AB1

GFX_TX7P AA1

GFX_TX8N AC2

GFX_TX8P AB2

GFX_TX9N AD1

GFX_TX9P AD2

GFX_TX10N AE2

GFX_TX10P AE1

GFX_TX11N AG2

GFX_TX11P AF2

GFX_TX12N AH1

GFX_TX12P AG1

GFX_TX13N AJ2

GFX_TX13P AH2

GFX_TX14N AJ4

GFX_TX14P AJ3

GFX_TX15N AJ5

GFX_TX15P AK4

GFX_TX0N N2

GFX_TX0P N1

GFX_RX0N

J4

GFX_RX0P

J5

GFX_RX1N

L4

GFX_RX1P

K4

GFX_RX2N

L5

GFX_RX2P

L6

GFX_RX3N

M4

GFX_RX3P

M5

GFX_RX4N

P4

GFX_RX4P

N4

GFX_RX5N

P5

GFX_RX5P

P6

GFX_RX6N

R4

GFX_RX6P

R5

GFX_RX7N

T3

GFX_RX7P

T4

GFX_RX8N

U5

GFX_RX8P

U6

GFX_RX9N

V4

GFX_RX9P

V5

GFX_RX10N

W3

GFX_RX10P

W4

GFX_RX11N

Y5

GFX_RX11P

Y6

GFX_RX12N

AA4

GFX_RX12P

AA5

GFX_RX13N

AB3

GFX_RX13P

AB4

GFX_RX14N

AC5

GFX_RX14P

AC6

GFX_RX15N

AD4

GFX_RX15P

AD5

PCE_ISET

AJ12

PCE_TXISET

AK13

PCE_NCAL

AG12

PCE_PCAL

AH12

SB_TX0N

AJ11

SB_TX0P

AJ10

SB_TX1N

AK10

SB_TX1P

AK9

SB_RX0N

AG10

SB_RX0P

AG9

SB_RX1N

AF10

SB_RX1P

AE9

SB_CLKN

L2

SB_CLKP

K2

GFX_CLKN M1

GFX_CLKP M2

GPP_TX0N/SB_TX2N AJ9

GPP_TX0P/SB_TX2P AJ8

GPP_TX1N/SB_TX3N AF6

GPP_TX1P/SB_TX3P AE6

GPP_TX2N AK6

GPP_TX2P AJ6

GPP_TX3N AF4

GPP_TX3P AE4

GPP_RX0N/SB_RX2N AG8

GPP_RX0P/SB_RX2P AF8

GPP_RX1N/SB_RX3N AG7

GPP_RX1P/SB_RX3P AG6

GPP_RX2N AJ7

GPP_RX2P AK7

GPP_RX3N AH4

GPP_RX3P AG4

R30

24.9_0402_1%

12

C123

220P_0402_50V9J

1

2

C427 0.1U_0402_10V6K

1 2

R234

49.9_0402_1%

12

C432 0.1U_0402_10V6K

1 2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

RSET

NB_DDC_CLK

NB_TXOUT1-

NB_TXOUT1+

NB_TXOUT2+

NB_TXOUT0-

NB_TXOUT2-

NB_TXOUT0+

NB_TXCLK+

BM_REQ#

STRP_DATA

NB_RST#

SUS_STAT#

MEM_CAP2

MEM_CAP1

MEM_COMPP

DDR_SMA1

DDR_SMA2

DDR_SMA6

DDR_SMA0

DDR_SMA9

DDR_SMA3

DDR_SMA5

DDR_SMA7

DDR_SMA12

DDR_SMA11

DDR_SMA4

DDR_SMA8

DDR_SMA10

DDR_DQ0

DDR_DM3

DDR_DM6

DDR_DM7

DDR_DM2

DDR_DM0

DDR_DM5

DDR_DM4

DDR_DQ1

DDR_DQS2

DDR_DQS4

DDR_DQS0

DDR_DQS3

DDR_DQS5

DDR_DQS6

DDR_DQS7

DDR_DQS1

DDR_DQ3

DDR_DQ2

DDR_DQ5

DDR_DQ6

DDR_DQ7

DDR_DQ8

DDR_DQ9

DDR_DQ13

DDR_DQ14

DDR_DQ11

DDR_DQ16

DDR_DQ12

DDR_DQ10

DDR_DQ17

DDR_DQ20

DDR_DQ24

DDR_DQ19

DDR_DQ22

DDR_DQ18

DDR_DQ25

DDR_DQ21

DDR_DQ32

DDR_DQ28

DDR_DQ31

DDR_DQ27

DDR_DQ29

DDR_DQ30

DDR_DQ35

DDR_DQ37

DDR_DQ38

DDR_DQ40

DDR_DQ34

DDR_DQ44

DDR_DQ33

DDR_DQ39

DDR_DQ36

DDR_DQ56

DDR_DQ48

DDR_DQ41

DDR_DQ43

DDR_DQ47

DDR_DQ45

DDR_DQ42

DDR_DQ46

DDR_DQ52

DDR_DQ54

DDR_DQ55

DDR_DQ59

DDR_DQ53

DDR_DQ50

DDR_DQ49

DDR_DQ61

DDR_DQ63

DDR_DQ62

DDR_DQ58

DDR_DQ60

DDR_DQ57

MEM_COMPN

DDR_SMA13

+DDR_VREF

NB_EDID_DATA

NB_EDID_CLK

NB_EDID_CLK

NB_EDID_DATA

NB_DVI_DDCDATA

NB_DVI_DDCDATA

NB_EDID_CLK

STRP_DATA

DDR_SCS#0

DDR_SCS#1

DDR_SCS#3

DDR_SCS#2

+DDR_VREF

MEM_COMPN

MEM_CAP1

MEM_CAP2

MEM_COMPP

TESTMODE

NB_COMPS

NB_DDC_DATA

DDR_DQ4

DDR_DQ15

DDR_DQ26

DDR_DQ23

DDR_DQ51

DDR_DM1

NB_PWRGD

NB_TXCLK-

DDR_DQS#0

DDR_DQS#1

DDR_DQS#2

DDR_DQS#3

DDR_DQS#4

DDR_DQS#5

DDR_DQS#6

DDR_DQS#7

DDR_ODT0

DDR_ODT1

DDR_ODT2

DDR_ODT3

DDR_SMA[0..17]

DDR_DQS#[0..7]

DDR_DQ[0..63]

DDR_DQS[0..7]

DDR_DM[0..7]

LVDS_ENBKL

NB_PWRGD

LVDS_ENVDD

NB_RST#

SUS_STAT#

DDR_SMA14

DDR_SMA15

DDR_SMA16

DDR_SMA17

NB_CRT_VSYNC

BM_REQ#

NB_DDC_CLK

STRP_DATA

NB_CRT_HSYNC

LVDS_ENBKL

LVDS_ENVDD

NB_LUMA12

NB_CRT_B13

NB_CRT_VSYNC13

NB_DDC_DATA13 NB_DDC_CLK13

NB_CRMA12

NB_CRT_R13

NB_CRT_G13

NB_CRT_HSYNC13

NB_TXOUT2- 12

NB_TXCLK+ 12

NB_TXOUT1- 12

NB_TXOUT2+ 12

NB_TXOUT1+ 12

NB_TXOUT0+ 12

NB_TXOUT0- 12

CLK_NB_14M11

CLK_NB_BCLK11 CLK_NB_BCLK#11

BM_REQ# 14

NB_PWRGD 16

DDR_CLK09

DDR_CLK1#9

DDR_CLK0#9

DDR_CLK19

DDR_CLK4#10

DDR_CLK3#10 DDR_CLK310

DDR_CLK410

DDR_SRAS#9,10 DDR_SCAS#9,10 DDR_SWE#9,10

NB_RST# 14

NB_EDID_DATA12 NB_EDID_CLK12

DDR_SCKE19DDR_SCKE09

DDR_SCKE29,10 DDR_SCKE39,10

NB_TXCLK- 12

DDR_DQS#[0..7] 9,10

DDR_DM[0..7] 9,10

DDR_SMA[0..17] 9,10

DDR_DQ[0..63] 9,10

DDR_DQS[0..7] 9,10

ENBKL 28

NB_ENVDD 12

NB_SUS_STAT# 15

DDR_ODT09DDR_ODT19,10 DDR_ODT29DDR_ODT39,10

DDR_SCS#09DDR_SCS#19DDR_SCS#29,10 DDR_SCS#39,10

CPU_BSEL0 5,11

SB_PWRGD# 16

+1.8V

+1.8V

+3VS

+3VS

+1.8V +1.8V

+3VS

+3VS

+3VALW

+3VALW

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

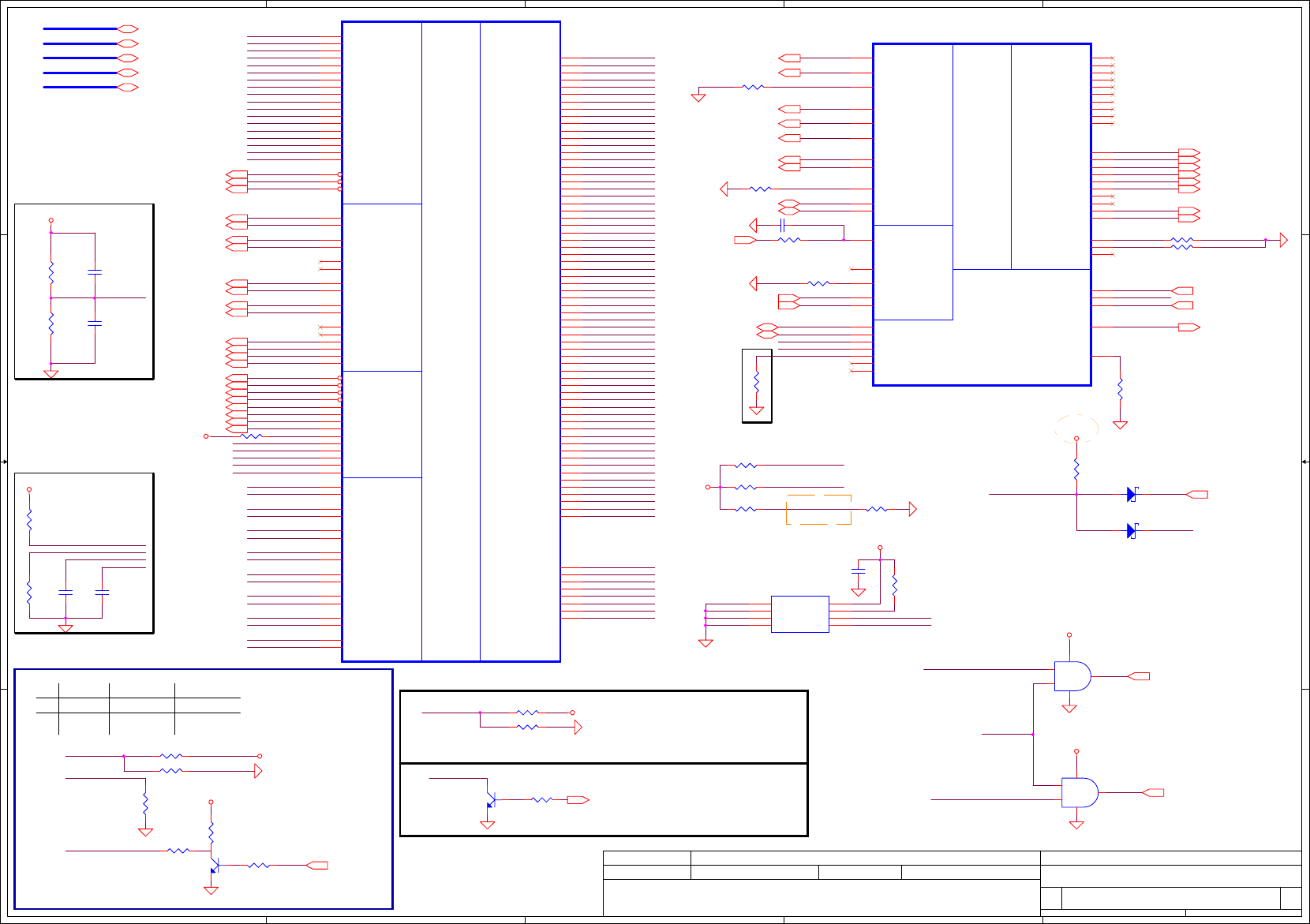

RC410MD-DDR/DISP/MISC

Custom

742

Monday, August 08, 2005

2005/03/01 2006/03/01

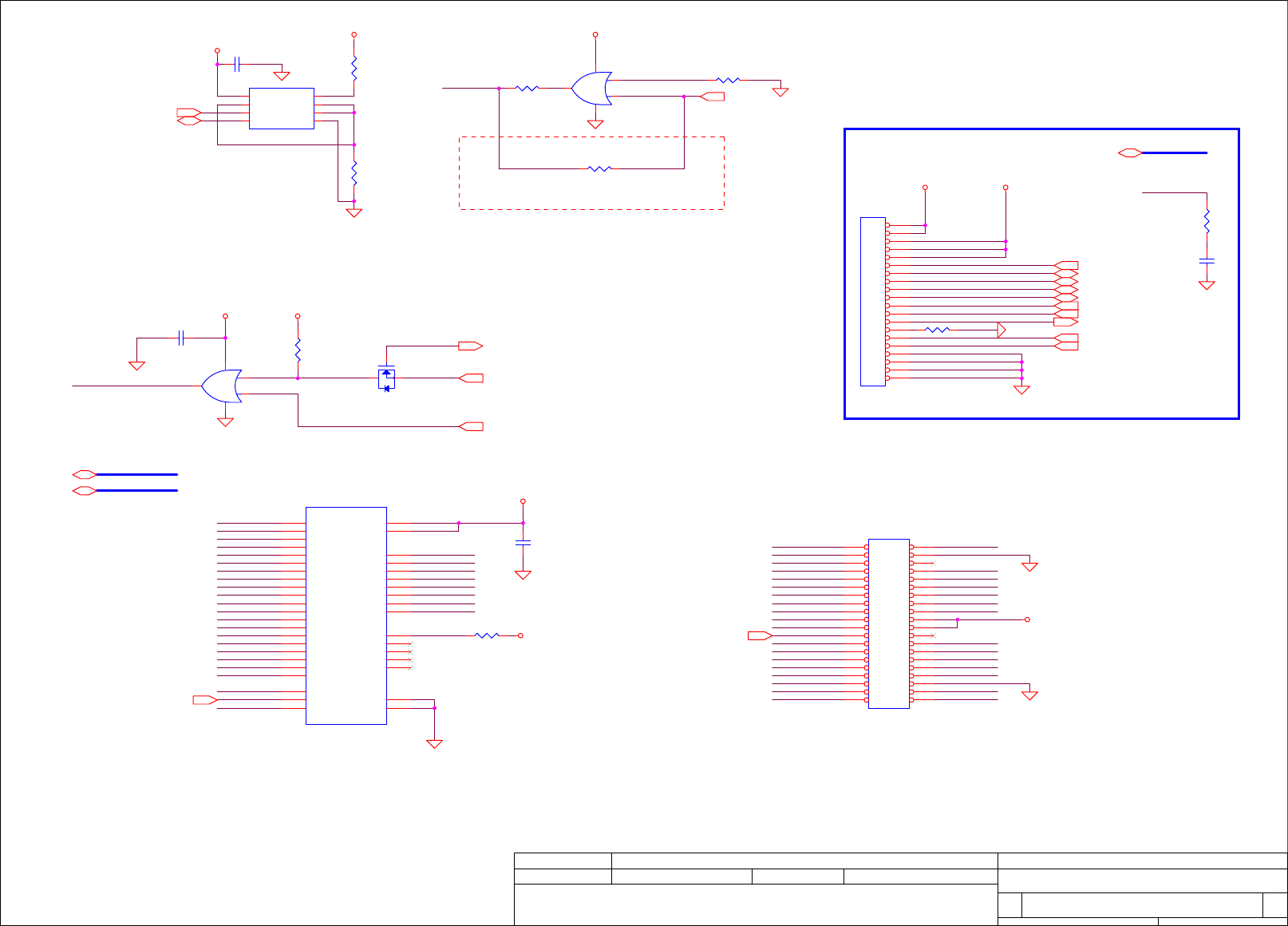

15mil

Low: Normal Mode(Fixed)

High: Test Mode

Place these R and C

close to relative Ball. **

***

20mil

10mil

10mil

10mil

10mil

MEM_VMODE: 1.8V: DDR2

***

BM_REQ# NB_CRT_HSYNC NB_CRT_VSYNC

NB_DDC_CLK: CPU VCC SEL

DEFAULT: 1 1: DESKTOP CPU 0: MOBILE CPU

STRP_DATA: DEBUG STRAP

DEFAULT: 1

0: MEMORY CHANNEL STRAPING

1: E2PROM STRAPING

NB STRAPING PINS

Compal Electronics, Inc.

133MHZ

100MHZ

0

1

0

0

0

0

FSB SPEED

U5A

SN74LVC08APW_TSSOP14

A

1

B

2O3

P14

G

7

R217 10K_0402_5%

1 2

D20

CH751H-40_SC76

2 1

R225

4.7K_0402_5%

1 2

C435

0.47U_0603_10V7K

1

2

C422

15P_0402_50V8D@

12

U5B

SN74LVC08APW_TSSOP14

A

4

B

5O6

P14

G

7

R23

4.7K_0402_5%@

1 2

R228

4.7K_0402_5%

1 2

CRT & TV

I/F

LVDS

RC410MD

PART 4 OF 6

CLK. GEN.

U21D

216CPP4AKA21HK_BGA707

TXOUT_U0N B4

TXOUT_U0P A4

TXOUT_U1N B5

TXOUT_U1P C6

TXOUT_U2N B6

TXOUT_U2P A6

TXOUT_L0N E5

TXOUT_L0P F5

TXOUT_L1N D5

TXOUT_L1P C5

TXOUT_L2N E6

TXOUT_L2P D6

C

D9

COMP

E9

DACHSYNC

C3

DACVSYNC

B3

RSET

B10

Y

F9

DACSCL

B2

DACSDA

C2

TXCLK_UN F7

TXCLK_UP F8

TXOUT_U3N B7

TXOUT_U3P A7

TXOUT_L3N E7

TXOUT_L3P E8

TXCLK_LN G6

TXCLK_LP F6

TMDS_HPD J2

TVCLKIN

G2

OSCIN

G1

OSCOUT

F1

LVDS_BLON G3

LVDS_DIGON E2

LVDS_BLEN F2

CPU_CLKP

J1

CPU_CLKN

K1

I2C_CLK

D2

I2C_DATA

C1

STRP_DATA

D1

TESTMODE

C4

THERMALDIODE_P

AH13

THERMALDIODE_N

AJ13

BMREQ# H2

DDC_DATA

H3

SYSRESET# A3

SUS_STAT# AH14

POWERGOOD E3

BLUE

D10

GREEN

E10

RED

F10

R42

1K_0603_1%

12

R237

61.9_0603_1%

12

R214

1K_0402_5%@

12

R236

4.7K_0402_5%

1 2

R20 4.7K_0402_5%

1 2

R218

10_0402_5%

12

C172

0.1U_0402_10V6K

1

2

R232 715_0402_1%

1 2

R242

61.9_0603_1%

12

R43 1K_0402_5%

1 2

D21

CH751H-40_SC76

2 1

R227

4.7K_0402_5%

12

R226

4.7K_0402_5%

1 2

C420

0.1U_0402_10V6K@

1

2

R230

4.7K_0402_5%

1 2

R224 4.7K_0402_5%@

1 2

R46

1K_0603_1%

12

R219

4.7K_0402_5%

1 2

R220

4.7K_0402_5%@

1 2

C450

0.47U_0603_10V7K

1

2

R11

2K_0402_5%

1 2

R21 4.7K_0402_5%@

1 2

R22

4.7K_0402_5%

1 2

R223 4.7K_0402_5%@

1 2

R216

10K_0402_5%

12

Q35

MMBT3904_SOT23

2

3 1

U19

AT24C04N-10SI-2.7_SO8~D@

NC

1

A1

2

A2

3

VSS

4

VCC 8

WP 7

SCL 6

SDA 5

R229

4.7K_0402_5%

12

Q5

MMBT3904_SOT23

2

3 1

C174

0.1U_0402_10V6K

1

2

MEMORY I/F

PART 2 OF

6

RC410MD

ADDRESS

DATA

DATA CLKMISC

U21B

216CPP4AKA21HK_BGA707

MEM_A0

AK27

MEM_A1

AJ27

MEM_A2

AH26

MEM_A3

AJ26

MEM_A4

AH25

MEM_A5

AJ25

MEM_A6

AH24

MEM_A7

AH23

MEM_A8

AJ24

MEM_A9

AJ23

MEM_A10

AH27

MEM_A11

AH22

MEM_A12

AJ22

MEM_A13

AF28

MEM_A14

AJ21

MEM_A15

AG27

MEM_A16

AJ28

MEM_A17

AH21

MEM_RAS#

AJ29

MEM_CAS#

AG28

MEM_WE#

AH30

MEM_DM7 R28

MEM_DM6 R26

MEM_DM5 AB28

MEM_DM4 Y27

MEM_DM3 AF25

MEM_DM2 AE20

MEM_DM1 AG15

MEM_DM0 AJ17

MEM_DQS0N

AH17

MEM_DQS0P

AJ18

MEM_DQS1N

AF15

MEM_DQS1P

AE14

MEM_DQS2N

AE22

MEM_DQS2P

AF22

MEM_DQS3N

AF26

MEM_DQS3P

AE25

MEM_DQS4N

W26

MEM_DQS4P

W27

MEM_DQS5N

AB30

MEM_DQS5P

AB29

MEM_DQS6N

R25

MEM_DQS6P

P25

MEM_DQS7N

R30

MEM_DQS7P

R29

MEM_CS#0

AH29

MEM_CS#1

AG29

MEM_CS#2

AH28

MEM_CS#3

AF29

MEM_ODT0

AG30

MEM_CK0N

AC26

MEM_CK0P

AC25

MEM_CK1N

AF16

MEM_CK1P

AE16

MEM_CK2N

V29

MEM_CK2P

V30

MEM_CK3N

AC24

MEM_CK3P

AC23

MEM_CK4N

AG17

MEM_CK4P

AF17

MEM_CK5N

W29

MEM_CK5P

W28

MEM_CKE0

AH20

MEM_CKE1

AJ20

MEM_DQ0 AJ16

MEM_DQ1 AH16

MEM_DQ2 AJ19

MEM_DQ3 AH19

MEM_DQ4 AH15

MEM_DQ5 AK16

MEM_DQ6 AH18

MEM_DQ7 AK19

MEM_DQ8 AF13

MEM_DQ9 AF14

MEM_DQ10 AE19

MEM_DQ11 AF19

MEM_DQ12 AE13

MEM_DQ13 AG13

MEM_DQ14 AF18

MEM_DQ15 AE17

MEM_DQ16 AF20

MEM_DQ17 AF21

MEM_DQ18 AG23

MEM_DQ19 AF24

MEM_DQ20 AG19

MEM_DQ21 AG20

MEM_DQ22 AG22

MEM_DQ23 AF23

MEM_DQ24 AD25

MEM_DQ25 AG25

MEM_DQ26 AE27

MEM_DQ27 AD27

MEM_DQ28 AE23

MEM_DQ29 AD24

MEM_DQ30 AE26

MEM_DQ31 AD26

MEM_DQ32 AA25

MEM_DQ33 Y26

MEM_DQ34 W24

MEM_DQ35 U25

MEM_DQ36 AA26

MEM_DQ37 Y25

MEM_DQ38 V26

MEM_DQ39 W25

MEM_DQ40 AC28

MEM_DQ41 AC29

MEM_DQ42 AA29

MEM_DQ43 Y29

MEM_DQ44 AD30

MEM_DQ45 AD29

MEM_DQ46 AA30

MEM_DQ47 Y28

MEM_DQ48 U27

MEM_DQ49 T27

MEM_DQ50 N26

MEM_DQ51 M27

MEM_DQ52 U26

MEM_DQ53 T26

MEM_DQ54 P27

MEM_DQ55 P26

MEM_DQ56 U29

MEM_DQ57 T29

MEM_DQ58 P29

MEM_DQ59 N29

MEM_DQ60 U28

MEM_DQ61 T28

MEM_DQ62 P28

MEM_DQ63 N27

MEM_VMODE

AD28

MEM_CAP1

AJ14

MEM_CAP2

N30

MEM_COMPP

AJ15

MEM_COMPN

AE29

MEM_VREF

AB27

MEM_ODT1

AE28

MEM_CKE2

AE24

MEM_CKE3

AE21

MEM_ODT2/RSV2

AC30

MEM_ODT3/RSV3

Y30

R222 4.7K_0402_5%

1 2

R27 75_0402_1%

1 2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

+LPVDD

+PLLVDD

+1.8VS

+1.2VS +1.8V

+AVDD

+1.8VS

+MPVDD

+1.05VS

+1.2VS

+1.05VS

+1.2VS

+1.8V

+1.8VS

+3VS

+AVDDQ +LPVDD

+1.8VS

+VDDQ

+PLLVDD

+CPVDD

+1.2VS

+1.8VS +1.8VS

+AVDD

+CPVDD

+1.8VS+MPVDD

+1.8VS

+3VS+VDDQ

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

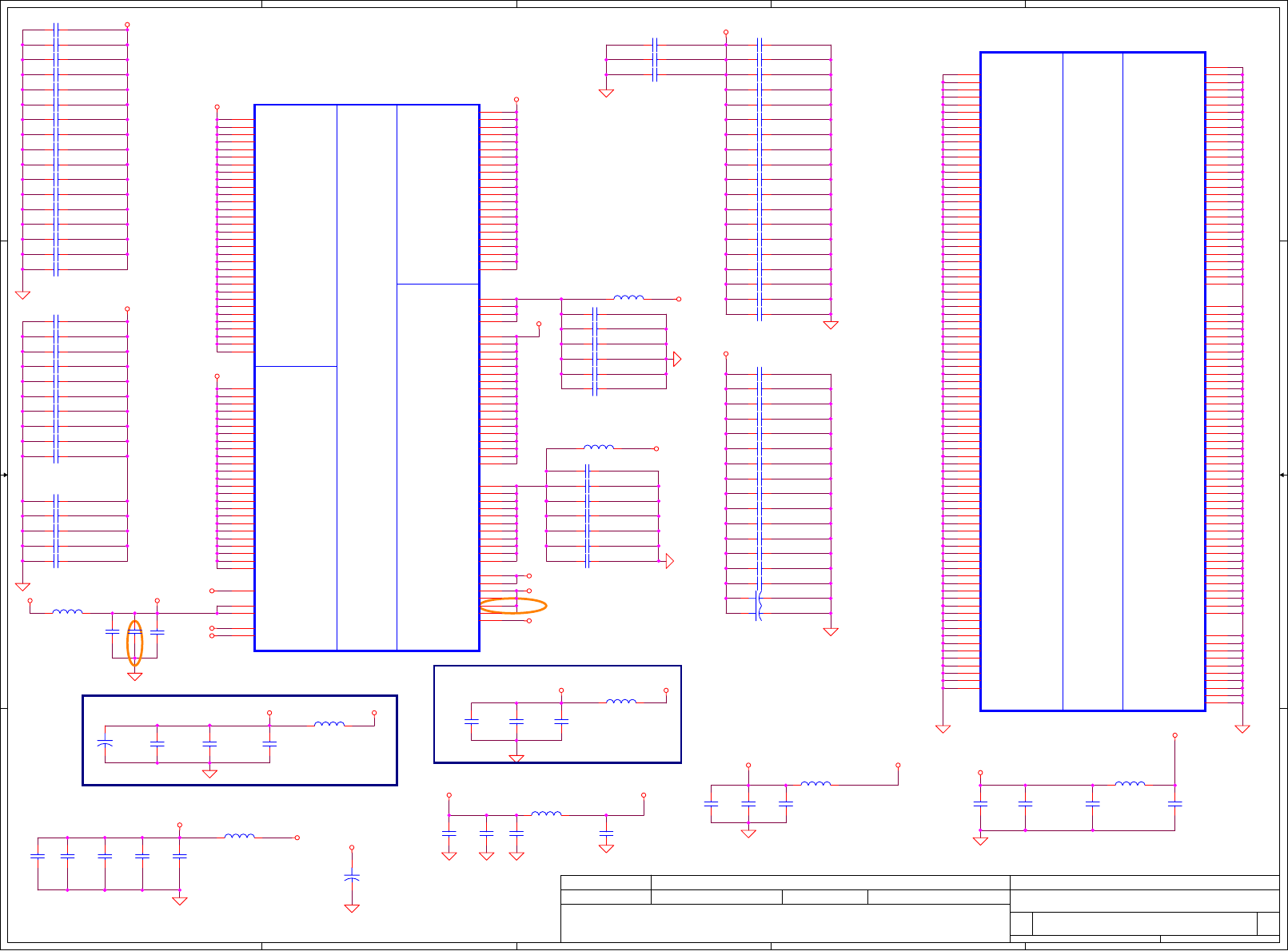

RC410MB PWR/GND

Custom

842

Thursday, August 04, 2005

2005/03/01 2006/03/01

Place C between

Ball D8,C8

2A

5A

5A

2.25A

0.75A

0.1A

0.1A

**

Place L close to Ball AB26

Place C between Ball AB26,AA27

Compal Electronics, Inc.

20mils

20mils

20mils

ATI recommend 2.2uF

ATI recommend separate pure power

C150 0.1U_0402_16V4Z

1 2

C118 10U_0805_10V4Z

1 2

C93 10U_0805_10V4Z

1 2

C81

1U_0402_6.3V4Z

1

2

C41 0.1U_0402_16V4Z

1 2

C51 0.1U_0402_16V4Z

1 2

C151 0.1U_0402_16V4Z

1 2

C37

0.1U_0402_16V4Z

1

2

C149 0.1U_0402_16V4Z

1 2

C648

10U_0805_10V4Z

1

2

C88 0.1U_0402_16V4Z

1 2

C32

1U_0402_6.3V4Z

1

2

C60

0.1U_0402_16V4Z

1

2

C105 0.1U_0402_16V4Z

1 2

+

C414 470U_D2_2.5VM

1 2

L4

CHB1608U301_0603

1 2

C56 1U_0402_6.3V4Z

1 2

C106 0.1U_0402_16V4Z

1 2

C65 10U_0805_10V4Z

1 2

C79 10U_0805_10V4Z

1 2

C70 0.1U_0402_16V4Z

1 2

C119 10U_0805_10V4Z

1 2

C92 0.1U_0402_16V4Z

1 2

C80 0.1U_0402_16V4Z

1 2

C57

1U_0402_6.3V4Z

1

2

C159

0.1U_0402_16V4Z

1

2

C649

0.1U_0402_16V4Z

1

2

C64 10U_0805_10V4Z

1 2

C95 0.1U_0402_16V4Z

1 2

C102 0.1U_0402_16V4Z

1 2

C68 0.1U_0402_16V4Z

1 2

C72 10U_0805_10V4Z

1 2

C99 0.1U_0402_16V4Z

1 2

C175

1U_0402_6.3V4Z

1

2

C67 0.1U_0402_16V4Z

1 2

C144 0.1U_0402_16V4Z

1 2

C107 0.1U_0402_16V4Z

1 2

GOUNDRC410MD

PART 6 OF 6

U21F

216CPP4AKA21HK_BGA707

VSS

A13

VSS

A16

VSS

A19

VSS

A2

VSS

A22

VSS

A25

VSS

A29

VSS

A9

VSS

AA23

VSS

AA24

VSS

AA28

VSS

AC11

VSS

AC12

VSS

AC14

VSS

AC15

VSS

AC17

VSS

AC18

VSS

AC20

VSS

AC27

VSS

AD11

VSS

AD12

VSS

AD14

VSS

AD15

VSS

AD17

VSS

AD18

VSS

AD20

VSS

AE30

VSS

AF12

VSS

AF27

VSS

AG14

VSS

AG16

VSS

AG18

VSS

AG21

VSS

AG24

VSS

AG26

VSS

AH11

VSS

AJ1

VSS

AJ30

VSS

AK12

VSS

AK15

VSS

AK18

VSS

AK2

VSS

AK22

VSS

AK25

VSS

AK29

VSS

B1

VSS

B30

VSS

D14

VSS

D17

VSS

D20

VSS

D24

VSS

D27

VSS

D3

VSS

D4

VSS

F27

VSS

F3

VSS

F30

VSS

F4

VSS

G10

VSS

H15

VSS

H18

VSS

J23

VSS

J24

VSS R19

VSS R23

VSS R24

VSS R27

VSS T12

VSS T14

VSS T16

VSS T18

VSS T30

VSS U13

VSS U15

VSS U17

VSS U19

VSS U23

VSS U24

VSS V12

VSS V14

VSS V16

VSS V18

VSS V27

VSS V28

VSS W13

VSS W15

VSS W17

VSS W19

VSS W23

VSS W30

VSS

J27

VSS

J3

VSS

J30

VSS

K23

VSS

K8

VSS

M12

VSS

M23

VSS

M24

VSS

M26

VSS

N13

VSS

N15

VSS

N17

VSS

N19

VSS

P12

VSS

P14

VSS

P16

VSS

P18

VSSA AA3

VSSA AA7

VSSA AA8

VSSA AB5

VSSA AB6

VSSA AC3

VSSA AD3

VSSA AD7

VSSA AD8

VSSA AE8

VSSA AF3

VSSA AF5

VSSA AF7

VSSA AF9

VSSA AG5

VSSA AH10

VSSA AH3

VSSA AH5

VSSA AH6

VSSA AH7

VSSA AH8

VSSA AH9

VSSA K5

VSSA L3

VSSA M3

VSSA N5

VSSA N6

VSSA N7

VSSA N8

VSSA P3

VSSA R3

VSSA R7

VSSA R8

VSSA T5

VSSA T6

VSSA U3

VSSA V3

VSSA V7

VSSA V8

VSSA W5

VSSA W6

VSSA Y3

AVSSN C10

AVSSQ B9

AVSSDI C8

LPVSS J7

LVSSR G7

PLLVSS H9

CPVSS H20

MPVSS AA27

VSS R13

VSS R15

VSS R17

VSS

M14

VSS

M16

VSS

M18

LVSSR G8

LVSSR G9

C74 0.1U_0402_16V4Z

1 2

L12

CHB1608U301_0603

1 2

C71 0.1U_0402_16V4Z

1 2

C166 0.1U_0402_16V4Z

1 2

C59 0.1U_0402_16V4Z

1 2

L11

CHB1608U301_0603

1 2

C140 0.1U_0402_16V4Z

1 2

L8

CHB1608U301_0603

1 2

+

C650

220U_D_6.3VM

1

2

C134 0.1U_0402_16V4Z

1 2

C141 0.1U_0402_16V4Z

1 2

C115 10U_0805_10V4Z

1 2

C30

10U_0805_10V4Z

1

2

C84 0.1U_0402_16V4Z

1 2

C31 10U_0805_10V4Z

1 2

C129 0.1U_0402_16V4Z

1 2

C40 0.1U_0402_16V4Z

1 2

C66 10U_0805_10V4Z

1 2

L6

CHB2012U170_0805

1 2

L10

CHB1608U301_0603

1 2

C130 0.1U_0402_16V4Z

1 2

C62 0.1U_0402_16V4Z

1 2

C73 0.1U_0402_16V4Z

1 2

C28 10U_0805_10V4Z

1 2

C116

10U_0805_10V4Z

1

2

C89 0.1U_0402_16V4Z

1 2

C77 0.1U_0402_16V4Z

1 2

C135 0.1U_0402_16V4Z

1 2

C86 0.1U_0402_16V4Z

1 2

C53

0.1U_0402_16V4Z

1

2

C87 0.1U_0402_16V4Z

1 2

C23 10U_0805_10V4Z

1 2

C138

1U_0402_6.3V4Z

1

2

C110 0.1U_0402_16V4Z

1 2

C418 10U_0805_10V4Z

1 2

C43 0.1U_0402_16V4Z

1 2

C75 0.1U_0402_16V4Z

1 2

C139 0.1U_0402_16V4Z

1 2

C78 0.1U_0402_16V4Z

1 2

C46

1U_0402_6.3V4Z

1

2

C85 0.1U_0402_16V4Z

1 2

+

C289

470U_D2_2.5VM

1

2

C47

0.1U_0402_16V4Z

1

2

C48

0.1U_0402_16V4Z

1

2

C122 0.1U_0402_16V4Z

1 2

L5

CHB2012U170_0805

1 2

C104 0.1U_0402_16V4Z

1 2

C55 0.1U_0402_16V4Z

1 2

C50 0.1U_0402_16V4Z

1 2

C117 0.1U_0402_16V4Z

1 2

C158

1U_0402_6.3V4Z

1

2

C641

10U_0805_10V4Z

1

2

C114

0.1U_0402_16V4Z

1

2

C44

0.1U_0402_16V4Z

1

2

C132 0.1U_0402_16V4Z

1 2

C54

0.1U_0402_16V4Z

1

2

C417 10U_0805_10V4Z

1 2

C25 1U_0402_6.3V4Z

1 2

C152 0.1U_0402_16V4Z

1 2

C61 10U_0805_10V4Z

1 2

C100 0.1U_0402_16V4Z

1 2

C29

22U_1206_6.3V6M

1

2

C124 0.1U_0402_16V4Z

1 2

C42 0.1U_0402_16V4Z

1 2

C45 10U_0805_10V4Z

1 2

C131 0.1U_0402_16V4Z

1 2

+

C15 470U_D2_2.5VM

1 2

POWER

CORE PWR

MEM I/F PWR

CPU I/F

PWR

RC410MD

PART 5 OF

6

U21E

216CPP4AKA21HK_BGA707

VDDR_MEM AB23

VDDR_MEM AB24

VDDR_MEM AC13

VDDR_MEM AC16

VDDR_MEM AC19

VDDR_MEM AC21

VDDR_MEM AC22

VDDR_MEM AD13

VDDR_MEM AD16

VDDR_MEM AD19

VDDR_MEM AD21

VDDR_MEM AD22

VDDR_MEM AD23

VDDR_MEM AK21

VDDR_MEM AK24

VDDR_MEM AK28

VDDR_MEM T23

VDDR_MEM T24

VDDR_MEM V23

VDDR_MEM V24

VDDR_MEM Y23

VDDR_MEM Y24

AVDD

C9

VDD_CORE

M13

VDD_CORE

M15

VDD_CORE

M17

VDD_CORE

M19

VDD_CORE

N12

VDD_CORE

N14

VDD_CORE

N16

VDD_CORE

N18

VDD_CORE

P13

VDD_CORE

P15

VDD_CORE

P17

VDD_CORE

P19

VDD_CORE

R12

VDD_CORE

R14

VDD_CORE

R16

VDD_CORE

R18

VDD_CORE

T13

VDD_CORE

T15

VDD_CORE

T17

VDD_CORE

T19

VDD_CORE

U12

VDD_CORE

U14

VDD_CORE

U16

VDD_CORE

U18

VDD_CORE

V13

VDD_CORE

V15

VDD_CORE

V17

VDD_CORE

V19

VDD_CORE

W12

VDD_CORE

W14

VDD_CORE

W16

VDD_CORE

W18

VDD_CPU

A10

VDD_CPU

F11

VDD_CPU

F12

VDD_CPU

F17

VDD_CPU

G11

VDD_CPU

G12

VDD_CPU

G13

VDD_CPU

G14

VDD_CPU

G16

VDD_CPU

G17

VDD_CPU

G20

VDD_CPU

H11

VDD_CPU

H12

VDD_CPU

H13

VDD_CPU

H14

VDD_CPU

H16

VDD_CPU

H17

VDD_CPU

H19

VDD_CPU

H23

VDD_CPU

H24

VDD_CPU

L23

VDD_CPU

L24

VDD_CPU

N23

VDD_CPU

P23

VDD_CPU

P24

AVDDQ

B8

AVDDDI

D8

VDD_18 AB22

VDD_18 AB9

VDD_18 J22

VDD_18 J9

VDDA_12 AB7

VDDA_12 AC7

VDDA_12 AC8

VDDA_12 AD9

VDDA_12 H4

VDDA_12 H5

VDDA_12 J6

VDDA_12 K6

VDDA_12 L7

VDDA_12 L8

VDDA_12 M7

VDDA_12 M8

VDDA_12 P7

VDDA_12 P8

VDDA_12 T7

VDDA_12 T8

VDDA_12 W7

VDDA_12 W8

VDDA_18 AB8

VDDA_18 AC10

VDDA_18 AC9

VDDA_18 AD10

VDDA_18 AE11

VDDA_18 AF11

VDDA_18 AG11

VDDA_18 U7

VDDA_18 U8

VDDA_18 Y7

VDDA_18 Y8

VDDR3 G4

VDDR3 G5

LPVDD J8

LVDDR18D C7

LVDDR18A H7

LVDDR18A H8

PLLVDD H10

CPVDD

H21

MPVDD

AB26

C137

10U_0805_10V4Z

1

2

L7

CHB1608U301_0603

1 2

C76 0.1U_0402_16V4Z

1 2

C91 0.1U_0402_16V4Z

1 2

C103 0.1U_0402_16V4Z

1 2

C90 0.1U_0402_16V4Z

1 2

C36 0.1U_0402_16V4Z

1 2

C58 0.1U_0402_16V4Z

1 2

C49 0.1U_0402_16V4Z

1 2

C69 0.1U_0402_16V4Z

1 2

C22 1U_0402_6.3V4Z

1 2

C63 0.1U_0402_16V4Z

1 2

C33

1U_0402_6.3V4Z

1

2

C133 0.1U_0402_16V4Z

1 2

L37

CHB2012U170_0805

1 2

C82

10U_0805_10V4Z

1

2

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

1 1

2 2

3 3

4 4

DDR_SCS#1

DDR_SMA11

DDR_SMA2

DDR_SMA0

DDR_SMA4

DDR_SMA6

DDR_SCAS#

DDR_SMA16

DDR_SRAS#

DDR_SMA17

DDR_ODT0

DDR_SCKE1

DDR_SCS#0

DDR_SMA1

DDR_SMA10

DDR_SMA3

DDR_SMA9 DDR_SMA7

DDR_SMA12

DDR_SMA5

DDR_SMA13

DDR_SMA8

DDR_DQ[0..63]

DDR_DQS[0..7]

DDR_SMA[0..17]

DDR_DM[0..7]

DDR_DQS#[0..7]

DDR_SCKE0

DDR_SWE#

DDR_ODT2

DDR_SMA15

DDR_SMA14

DDR_DQ28

DDR_DQS#2

DDR_DQ25

DDR_DQ27

DDR_DQ26

DDR_DQS2

DDR_DM3

DDR_DQ19

DDR_DQ24

DDR_DQ29

DDR_DQ30

DDR_DQ31

DDR_DQS3

DDR_DQS#3

DDR_DM2

DDR_DQ52

DDR_DM7 DDR_DQS#7

DDR_DQS7

DDR_DM6

DDR_CLK0

DDR_CLK0#

DDR_DQ57

DDR_DQS6

DDR_DQS#6

DDR_DQ36

DDR_DQ32

DDR_DQ45

DDR_DQS#5

DDR_DQS5

DDR_DQS#4

DDR_DQS4

DDR_DM5

DDR_DQ41

DDR_DQ47

DDR_DQ37

DDR_DQ33

DDR_DQ59

DDR_DQ58

DDR_DQ61 DDR_DQ60DDR_DQ56

DDR_DQ51

DDR_DQ49DDR_DQ48 DDR_DQ53

DDR_DQ43 DDR_DQ42DDR_DQ46

DDR_DQ40

DDR_DQ44

DDR_DQ38 DDR_DQ39

DDR_DQ35 DDR_DQ34

DDR_CLK1#

DDR_CLK1

DDR_DM4

DDR_DQ62 DDR_DQ63

DDR_DQ50 DDR_DQ55

DDR_DQ54

DDR_DQ23 DDR_DQ18

DDR_DQ22

DDR_DQ20

DDR_DQ16 DDR_DQ21

DDR_DQ17

DDR_SMA10

DDR_SMA13

DDR_ODT2

DDR_SMA17

DDR_SCAS#

DDR_ODT3

DDR_SMA12

DDR_SMA11DDR_SMA14

DDR_SCKE1

DDR_SCKE3 DDR_SCKE2

DDR_SCKE0

DDR_SMA8

DDR_SMA6DDR_SMA7

DDR_SMA9

DDR_SMA3

DDR_SMA4

DDR_SMA2

DDR_SMA5

DDR_SCS#0

DDR_SWE#

DDR_SCS#1 DDR_ODT0

DDR_SCS#3

DDR_ODT1

DDR_SCS#2

DDR_SRAS#

DDR_SMA0

DDR_SMA15

DDR_SMA16

DDR_SMA1

DDR_DQS#0

DDR_DQS0

DDR_DQS#1

DDR_DQS1

DDR_DM0

DDR_DM1

DDR_DQ12

DDR_DQ13

DDR_DQ11

DDR_DQ10

DDR_DQ9

DDR_DQ8

DDR_DQ15

DDR_DQ14

DDR_DQ5

DDR_DQ4

DDR_DQ3 DDR_DQ6

DDR_DQ2 DDR_DQ7

DDR_DQ1

DDR_DQ0

DDR_DQ[0..63] 7,10

DDR_DQS[0..7] 7,10

DDR_DM[0..7] 7,10

DDR_SMA[0..17] 7,10

DDR_DQS#[0..7] 7,10

DDR_SCS#17DDR_SCAS#7,10

DDR_SCKE07

DDR_SWE#7,10

DDR_SCKE1 7

DDR_SRAS# 7,10

DDR_SCS#0 7

DDR_ODT0 7

DDR_ODT27

SB_SMDATA10,11,15 SB_SMCLK10,11,15

DDR_CLK0 7

DDR_CLK0# 7

DDR_CLK1# 7

DDR_CLK1 7

DDR_SCKE2 7,10

DDR_ODT37,10

DDR_SCKE37,10

DDR_SCS#3 7,10

DDR_ODT1 7,10

DDR_SCS#27,10

+1.8V +1.8V

+0.9VS

+3VS

+0.9VS

+1.8V

+1.8V

DDR_VREF1

DDR_VREF1

+3VS

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

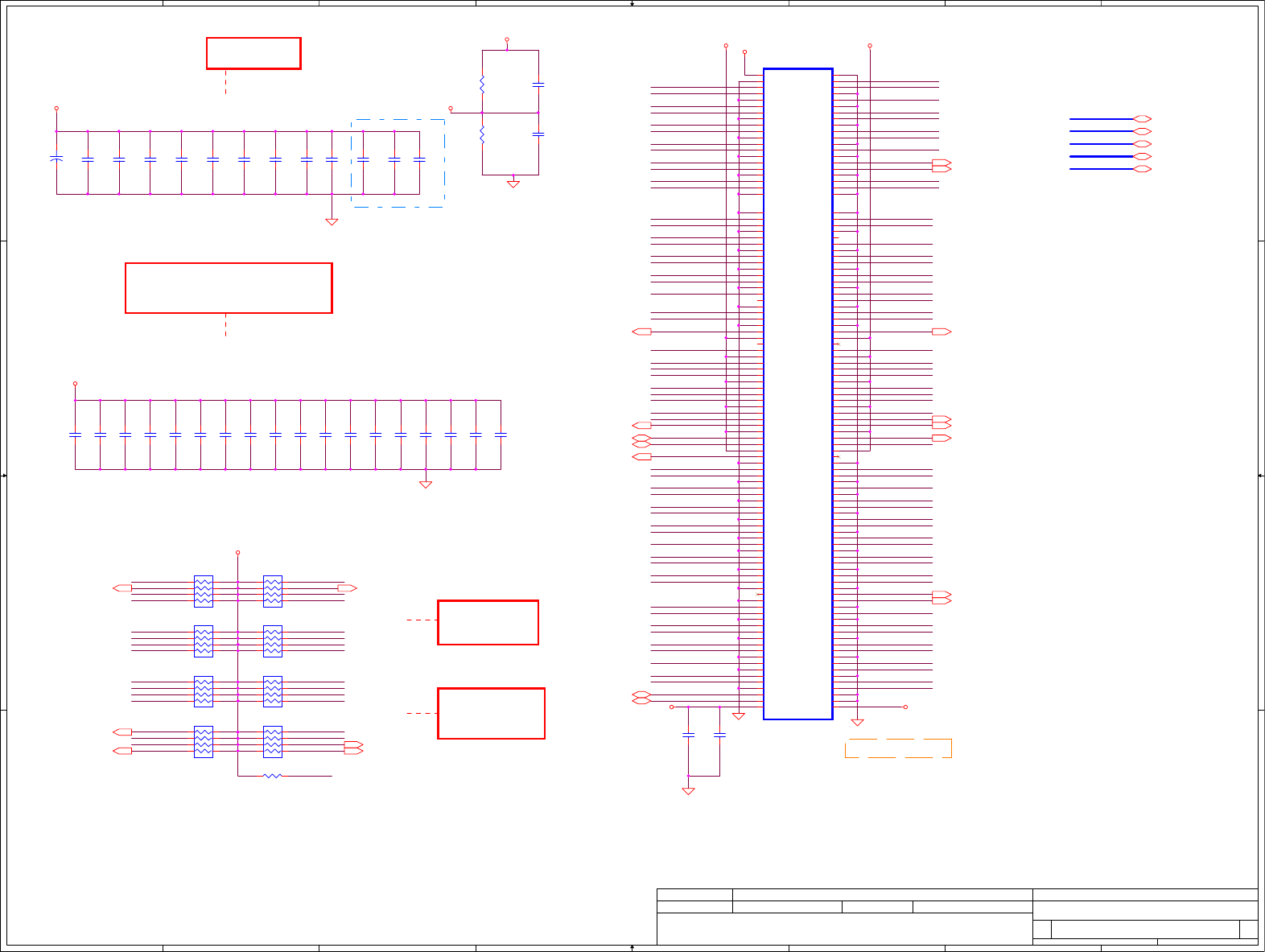

DDRII-SODIMM2

C

942

Monday, August 08, 2005

2005/03/01 2006/03/01

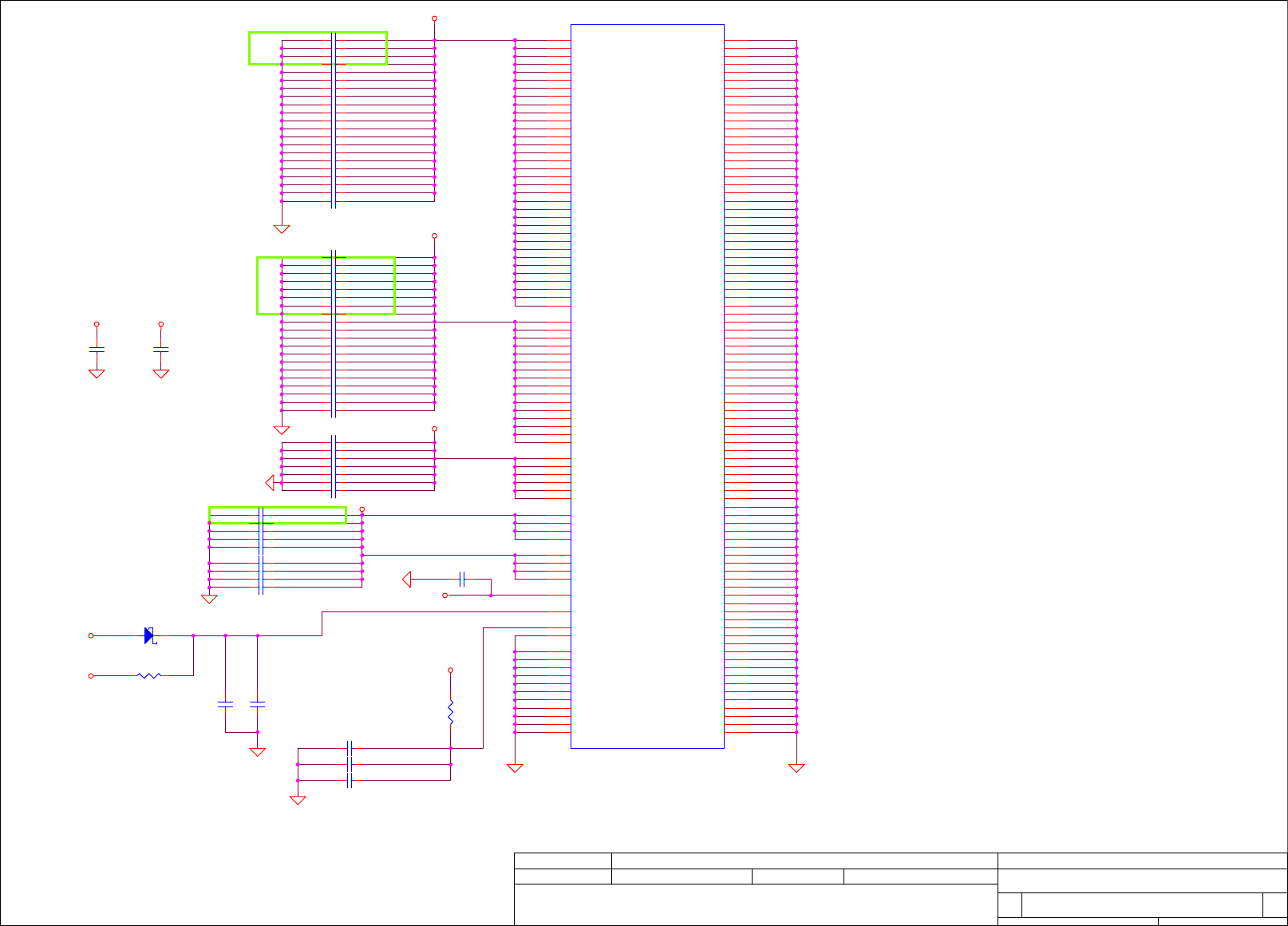

Layout Note:

Place near JDIM1

DIMMA

Reverse

Layout Note:

Place one cap close to every 2 pullup

resistors terminated to V_DDR_MCH_REF

Trace=20mil

Compal Electronics, Inc.

Layout Note:

Place these resistor

closely JDIM2,all

trace length<750 mil

Layout Note:

Place these resistor

closely JDIM2,all

trace length Max=1.3"

ATI recommendation

C120 0.1U_0402_16V4Z

1

2

RP11

56_1206_8P4R_5%

18 27 36 45

C643 0.1U_0402_16V4Z

1

2

C83 0.1U_0402_16V4Z

1

2

C154 0.1U_0402_16V4Z

1

2

C108 0.1U_0402_16V4Z

1

2

+

C148

470U_D2_2.5VM

1

2

RP13

56_1206_8P4R_5%

18 27 36 45

C101 0.1U_0402_16V4Z

1

2

C644 0.1U_0402_16V4Z

1

2

RP4

56_1206_8P4R_5%

1 8

2 7

3 6

4 5

C147 0.1U_0402_16V4Z

1

2

C145 0.1U_0402_16V4Z

1

2

RP12

56_1206_8P4R_5%

18 27 36 45

C445 0.1U_0402_16V4Z

1

2

C187 0.1U_0402_16V4Z

1

2

RP14

56_1206_8P4R_5%

18 27 36 45

C162 0.1U_0402_16V4Z

1

2

RP3

56_1206_8P4R_5%

1 8

2 7

3 6

4 5

C185

2.2U_0805_10V6K

1

2

RP2

56_1206_8P4R_5%

1 8

2 7

3 6

4 5

C163 0.1U_0402_16V4Z

1

2

C439 0.1U_0402_16V4Z

1

2

R13

1K_0402_5%

12

C96 0.1U_0402_16V4Z

1

2

C438 0.1U_0402_16V4Z

1

2

C177 22U_1206_6.3V6M

1

2

C443 0.1U_0402_16V4Z

1

2

C447 0.1U_0402_16V4Z

1

2

C161 0.1U_0402_16V4Z

1

2

C19

0.1U_0402_16V4Z

1

2

C113 0.1U_0402_16V4Z

1

2

C437 0.1U_0402_16V4Z

1

2

R14

1K_0402_5%

12

C642 0.1U_0402_16V4Z

1

2

C156 0.1U_0402_16V4Z

1

2

RP1

56_1206_8P4R_5%

1 8

2 7

3 6

4 5

R40

56_0402_5%

1 2

C18 0.1U_0402_16V4Z

1

2

C143 0.1U_0402_16V4Z

1

2

C436 0.1U_0402_16V4Z

1

2

C136 0.1U_0402_16V4Z

1

2

C176 22U_1206_6.3V6M

1

2

JP16

P-TWO_A5692B-A0G16-P

VREF

1

VSS

3

DQ0

5

DQ1

7

VSS

9

DQS0#

11

DQS0

13

VSS

15

DQ2

17

DQ3

19

VSS

21

DQ8

23

DQ9

25

VSS

27

DQS1#

29

DQS1

31

VSS

33

DQ10

35

DQ11

37

VSS

39

VSS

41

DQ16

43

DQ17

45

VSS

47

DQS2#

49

DQS2

51

VSS

53

DQ18

55

DQ19

57

VSS

59

DQ24

61

DQ25

63

VSS

65

DM3

67

NC

69

VSS

71

DQ26

73

DQ27

75

VSS

77

CKE0

79

VDD

81

NC

83

BA2

85

VDD

87

A12

89

A9

91

A8

93

VDD

95

A5

97

A3

99

A1

101

VDD

103

A10/AP

105

BA0

107

WE#

109

VDD

111

CAS#

113

NC/S1#

115

VDD

117

NC/ODT1

119

VSS

121

DQ32

123

DQ33

125

VSS

127

DQS4#

129

DQS4

131

VSS

133

DQ34

135

DQ35

137

VSS

139

DQ40

141

DQ41

143

VSS 2

DQ4 4

DQ5 6

VSS 8

DM0 10

VSS 12

DQ6 14

DQ7 16

VSS 18

DQ12 20

DQ13 22

VSS 24

DM1 26

VSS 28

CK0 30

CK0# 32

VSS 34

DQ14 36

DQ15 38

VSS 40

VSS 42

DQ20 44

DQ21 46

VSS 48

NC 50

DM2 52

VSS 54

DQ22 56

DQ23 58

VSS 60

DQ28 62

DQ29 64

VSS 66

DQS3# 68

DQS3 70

VSS 72

DQ30 74

DQ31 76

VSS 78

NC/CKE1 80

VDD 82

NC/A15 84

NC/A14 86

VDD 88

A11 90

A7 92

A6 94

VDD 96

A4 98

A2 100

A0 102

VDD 104

BA1 106

RAS# 108

S0# 110

VDD 112

ODT0 114

NC/A13 116

VDD 118

NC 120

VSS 122

DQ36 124

DQ37 126

VSS 128

DM4 130

VSS 132

DQ38 134

DQ39 136

VSS 138

DQ44 140

DQ45 142

VSS 144

VSS

145

DM5

147

VSS

149

DQ42

151

DQ43

153

VSS

155

DQ48

157

DQ49

159

VSS

161

NC,TEST

163

VSS

165

DQS6#

167

DQS6

169

VSS

171

DQ50

173

DQ51

175

VSS

177

DQ56

179

DQ57

181

VSS

183

DM7

185

VSS

187

DQ58

189

DQ59

191

VSS

193

SDA

195

SCL

197

VDDSPD

199

DQS5# 146

DQS5 148

VSS 150

DQ46 152

DQ47 154

VSS 156

DQ52 158

DQ53 160

VSS 162

CK1 164

CK1# 166

VSS 168

DM6 170

VSS 172

DQ54 174

DQ55 176

VSS 178

DQ60 180

DQ61 182

VSS 184

DQS7# 186

DQS7 188

VSS 190

DQ62 192

DQ63 194

VSS 196

SAO 198

SA1 200

C94 0.1U_0402_16V4Z

1

2

C111 0.1U_0402_16V4Z

1

2

C444 0.1U_0402_16V4Z

1

2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

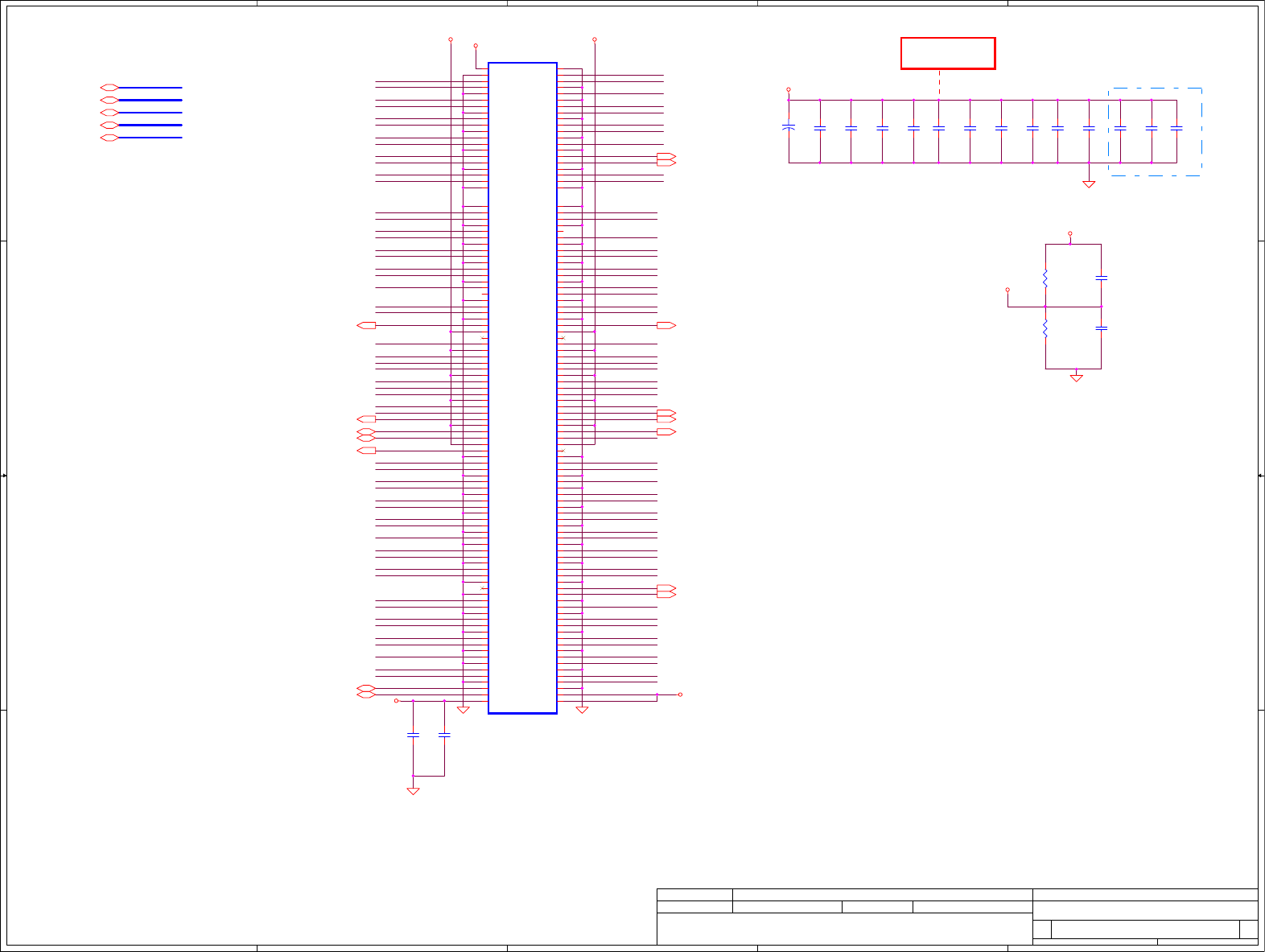

DDR_DQ25

DDR_DQ27

DDR_DQ26

DDR_DM3

DDR_SCS#3

DDR_SCAS#

DDR_SMA17

DDR_SMA1

DDR_SMA10

DDR_SMA3

DDR_SMA9

DDR_SMA12

DDR_SMA5

DDR_SWE#

DDR_SCKE2

DDR_SMA8

DDR_SMA15

DDR_ODT3

DDR_SMA11

DDR_SMA2

DDR_SMA0

DDR_SMA4

DDR_SMA6

DDR_SMA16

DDR_SRAS#

DDR_DQ30

DDR_DQ31

DDR_CLK3#

DDR_CLK3

DDR_ODT1

DDR_DQS3

DDR_DQS#3

DDR_SCKE3

DDR_SCS#2

DDR_SMA7

DDR_SMA13

DDR_SMA14

DDR_DQ[0..63]

DDR_DQS[0..7]

DDR_SMA[0..17]

DDR_DM[0..7]

DDR_DQS#[0..7]

DDR_DQ24

DDR_DQ29DDR_DQ28

DDR_CLK4

DDR_CLK4#

DDR_DQ36

DDR_DQ32

DDR_DQ38

DDR_DQS#4

DDR_DQS4

DDR_DQ35

DDR_DQ33

DDR_DQ34

DDR_DQ37

DDR_DQ39

DDR_DM4

DDR_DQ20

DDR_DQ16

DDR_DQS#2

DDR_DQS2

DDR_DQ19

DDR_DQ23 DDR_DQ18

DDR_DQ22

DDR_DQ21

DDR_DM2

DDR_DQ17

DDR_DQ62

DDR_DQ48

DDR_DQ50

DDR_DQ58

DDR_DQ54

DDR_DQ52

DDR_DQ43

DDR_DM7

DDR_DQ46

DDR_DQ61

DDR_DQ40

DDR_DQ56

DDR_DQS6

DDR_DQS#6

DDR_DQ45

DDR_DM5

DDR_DQ59

DDR_DQ63

DDR_DQ49

DDR_DQ55

DDR_DQ53

DDR_DQ42

DDR_DQS#7

DDR_DQS7

DDR_DM6

DDR_DQ60

DDR_DQ57

DDR_DQ47

DDR_DQ44

DDR_DQS#5

DDR_DQS5

DDR_DQ51

DDR_DQ41

DDR_DQ6

DDR_DQ7

DDR_DQ8

DDR_DQ15

DDR_DQ5

DDR_DM1

DDR_DQ12

DDR_DQ11

DDR_DQ4

DDR_DM0

DDR_DQ3

DDR_DQ2

DDR_DQ1

DDR_DQ0

DDR_DQ13

DDR_DQ10

DDR_DQ9

DDR_DQ14

DDR_DQS#0

DDR_DQS0

DDR_DQS#1

DDR_DQS1

DDR_SCKE27,9

DDR_SWE#7,9

DDR_SCS#37,9 DDR_SCAS#7,9

DDR_ODT37,9

DDR_CLK3 7

DDR_SCKE3 7,9

DDR_SCS#2 7,9

DDR_CLK3# 7

DDR_SRAS# 7,9

DDR_ODT1 7,9

DDR_DQ[0..63]7,9

DDR_DQS[0..7]7,9

DDR_DM[0..7]7,9

DDR_SMA[0..17]7,9

DDR_DQS#[0..7]7,9

SB_SMDATA9,11,15 SB_SMCLK9,11,15

DDR_CLK4# 7

DDR_CLK4 7

+1.8V +1.8V

+3VS +3VS

+1.8V

DDR_VREF2

DDR_VREF2

+1.8V

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

DDR-II SODIMM1

C

10 42

Monday, August 08, 2005

2005/03/01 2006/03/01

Reverse

DIMMB

Trace=20mil Layout Note:

Place near JDIM1

Compal Electronics, Inc.

R16

1K_0402_5%

12

C97 0.1U_0402_16V4Z

1

2

C165 0.1U_0402_16V4Z

1

2

C109 0.1U_0402_16V4Z

1

2

C157 0.1U_0402_16V4Z

1

2

C20

0.1U_0402_16V4Z

1

2

C645 0.1U_0402_16V4Z

1

2

C164 0.1U_0402_16V4Z

1

2

C646 0.1U_0402_16V4Z

1

2

C21

0.1U_0402_16V4Z

1

2

C184

2.2U_0805_10V6K

1

2

R15

1K_0402_5%

12

C125 0.1U_0402_16V4Z

1

2

C647 0.1U_0402_16V4Z

1

2

C98 0.1U_0402_16V4Z

1

2

+

C52

470U_D2_2.5VM

1

2

C155 0.1U_0402_16V4Z

1

2

C186

0.1U_0402_16V4Z

1

2

JP15

PTI_A5652D-A0G16-P

VREF

1

VSS

3

DQ0

5

DQ1

7

VSS

9

DQS0#

11

DQS0

13

VSS

15

DQ2

17

DQ3

19

VSS

21

DQ8

23

DQ9

25

VSS

27

DQS1#

29

DQS1

31

VSS

33

DQ10

35

DQ11

37

VSS

39

VSS

41

DQ16

43

DQ17

45

VSS

47

DQS2#

49

DQS2

51

VSS

53

DQ18

55

DQ19

57

VSS

59

DQ24

61

DQ25

63

VSS

65

DM3

67

NC

69

VSS

71

DQ26

73

DQ27

75

VSS

77

CKE0

79

VDD

81

NC

83

BA2

85

VDD

87

A12

89

A9

91

A8

93

VDD

95

A5

97

A3

99

A1

101

VDD

103

A10/AP

105

BA0

107

WE#

109

VDD

111

CAS#

113

NC/S1#

115

VDD

117

NC/ODT1

119

VSS

121

DQ32

123

DQ33

125

VSS

127

DQS4#

129

DQS4

131

VSS

133

DQ34

135

DQ35

137

VSS

139

DQ40

141

DQ41

143

VSS 2

DQ4 4

DQ5 6

VSS 8

DM0 10

VSS 12

DQ6 14

DQ7 16

VSS 18

DQ12 20

DQ13 22

VSS 24

DM1 26

VSS 28

CK0 30

CK0# 32

VSS 34

DQ14 36

DQ15 38

VSS 40

VSS 42

DQ20 44

DQ21 46

VSS 48

NC 50

DM2 52

VSS 54

DQ22 56

DQ23 58

VSS 60

DQ28 62

DQ29 64

VSS 66

DQS3# 68

DQS3 70

VSS 72

DQ30 74

DQ31 76

VSS 78

NC/CKE1 80

VDD 82

NC/A15 84

NC/A14 86

VDD 88

A11 90

A7 92

A6 94

VDD 96

A4 98

A2 100

A0 102

VDD 104

BA1 106

RAS# 108

S0# 110

VDD 112

ODT0 114

NC/A13 116

VDD 118

NC 120

VSS 122

DQ36 124

DQ37 126

VSS 128

DM4 130

VSS 132

DQ38 134

DQ39 136

VSS 138

DQ44 140

DQ45 142

VSS 144

VSS

145

DM5

147

VSS

149

DQ42

151

DQ43

153

VSS

155

DQ48

157

DQ49

159

VSS

161

NC,TEST

163

VSS

165

DQS6#

167

DQS6

169

VSS

171

DQ50

173

DQ51

175

VSS

177

DQ56

179

DQ57

181

VSS

183

DM7

185

VSS

187

DQ58

189

DQ59

191

VSS

193

SDA

195

SCL

197

VDDSPD

199

DQS5# 146

DQS5 148

VSS 150

DQ46 152

DQ47 154

VSS 156

DQ52 158

DQ53 160

VSS 162

CK1 164

CK1# 166

VSS 168

DM6 170

VSS 172

DQ54 174

DQ55 176

VSS 178

DQ60 180

DQ61 182

VSS 184

DQS7# 186

DQS7 188

VSS 190

DQ62 192

DQ63 194

VSS 196

SAO 198

SA1 200

C112 0.1U_0402_16V4Z

1

2

C142 0.1U_0402_16V4Z

1

2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

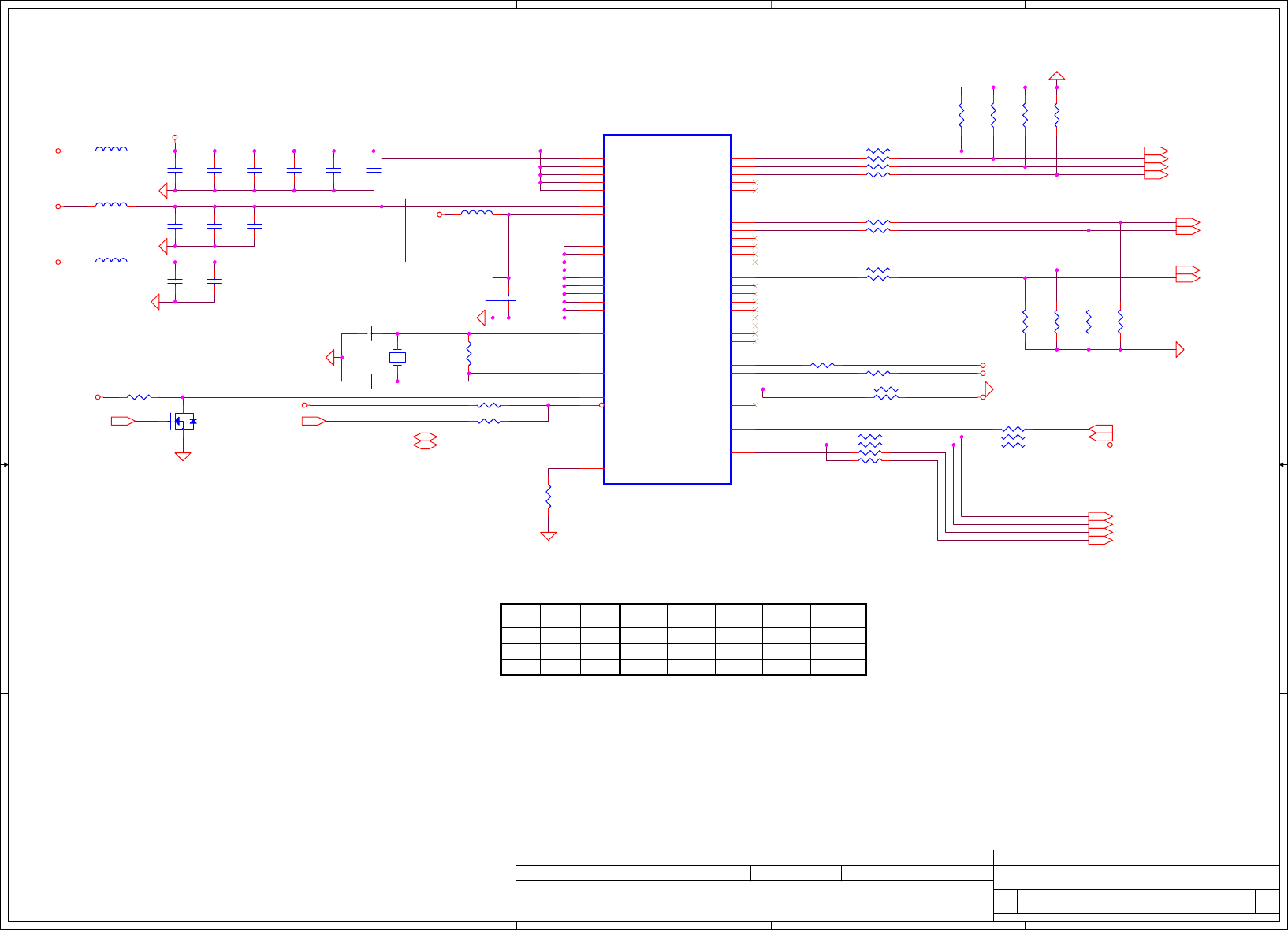

CPUCLKC1

CPUCLKT0

FS_B/REF1

SRCCLKT0

FS_C

SRCCLKC0

TEST_SEL/REF2

SRCCLKC3

CPUCLKT1

SRCCLKT3

CPUCLKC0

XTALIN_CLK

FS_A/REF0

XTALOUT_CLK

SB_SMDATA9,10,15

CLK_SB_ALINK 14

CLK_NB_BCLK# 7

SB_SMCLK9,10,15

CLK_BCLK 4

CLK_OK15,16

CLK_NB_BCLK 7

CLK_BCLK# 4

CLK_NB_14M 7

CLK_SB_ALINK# 14

CLK_SB_14M 15

CLK_NB_ALINK 6

CLK_NB_ALINK# 6

CPU_BSEL0 5,7

CPU_BSEL1 5

CPU_STP#4,14,40

CLK_AUDIO_14M 24

CLK_14M_SIO 29

+3VS

+3VS

+3VS

+3VS

+CLK_VDD1 +CLK_VDD1

+CLK_VDD1

+CLK_VDD1

+CLK_VDD1

+CLK_VDD1

+CLK_VDD1

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

ClockGen ICS 951411

B

11 42

Monday, August 08, 2005

2005/03/01 2006/03/01

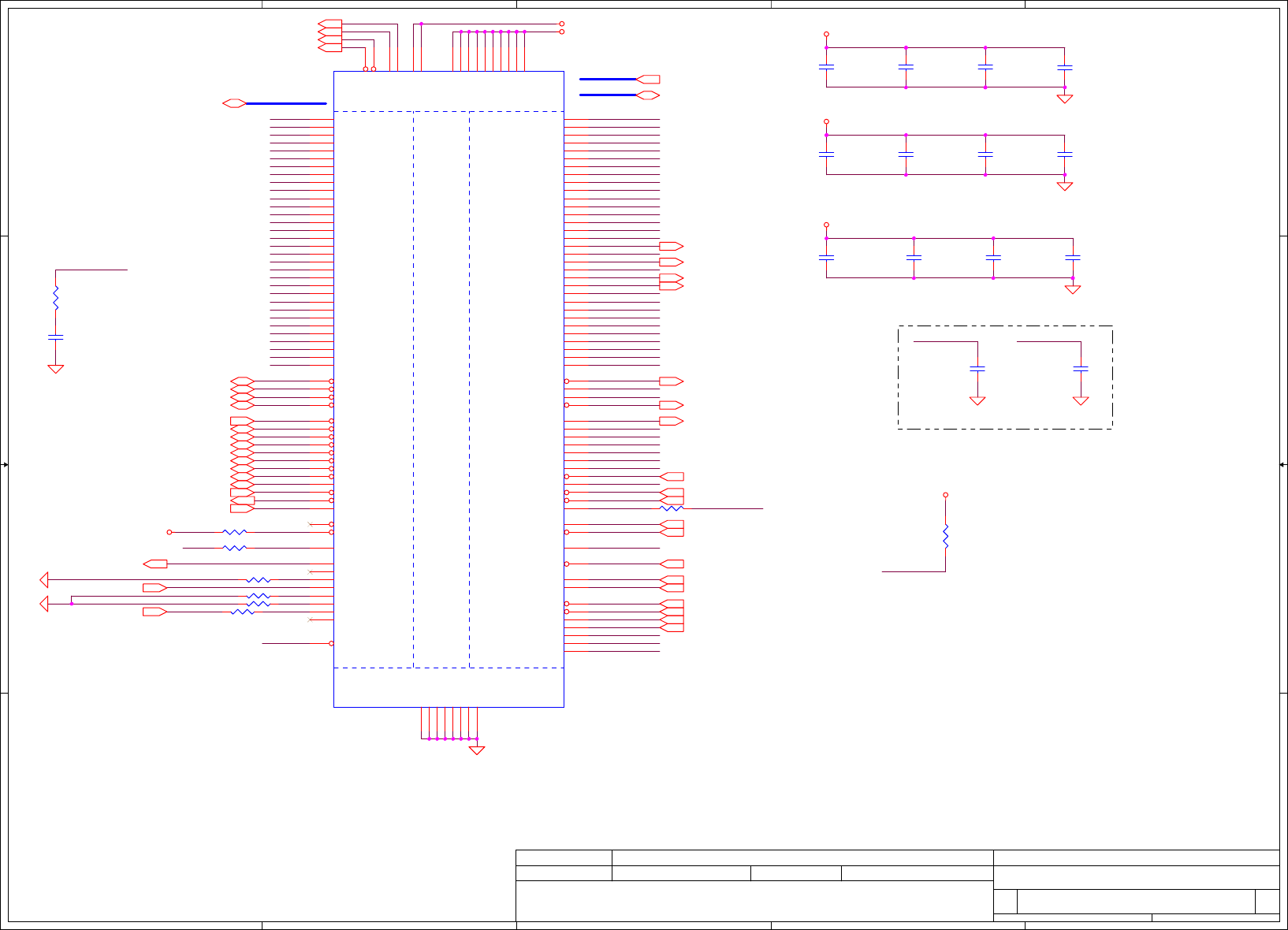

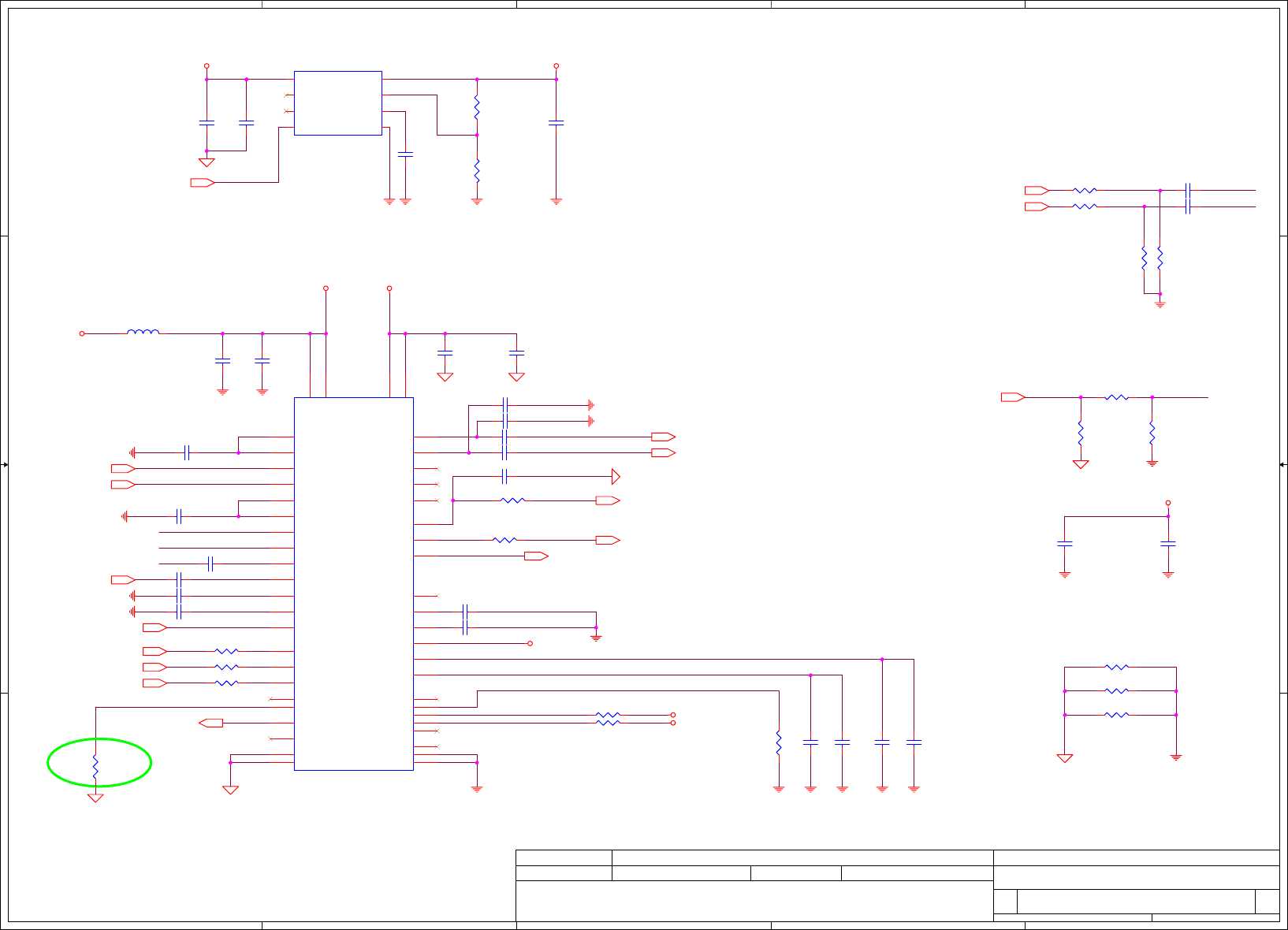

Clock Generator

2- ROUTE ALL CPUCLK/#, NBCLK/#, ITPCLK/#

AND SCR/# ,AS DIFFERENT PAIR RULE

ICS951413

3- PUT DECOUPLING CAPS CLOSE TO CLOCK GEN

POWER PIN

1- PLACE ALL THE SERIES TERMINATION

RESISTORS AS CLOSE TO CLOCK GEN AS POSSIBLE

FS_C FS_B FS_A

0

1

0

CPU SRC PCI REF USB

100.00

133.33

100.00

100.00

33.33

33.33

14.318

14.318

48.000

48.000

10

1

111 --- --- --- --- ---

Compal Electronics, Inc.

R266 33_0402_5%

1 2

R270 33_0402_5%

1 2

C501

22P_0402_50V8J

1 2

C221

10U_0805_10V4Z

1

2

C458

0.1U_0402_16V4Z

1

2

C457

0.1U_0402_16V4Z

1

2

U23

ICS951413CGLFT_TSSOP56

XIN

1

XOUT

2

VDDCPU

45

GNDCPU

44

VDDSRC

35

CK410#/PCICLK0 50

GNDSRC

36

VDDATI

32

GND

5

VDDPCI

51

CPU_STOP#

48

IREF

37

GNDA

38

VDDA

39

VTT_PWRGD#/PD

6

VDD48

3VDDSRC

21

GNDPCI

49

GND

55

SRCCLKT0 34

SRCCLKC0 33

ATIGCLKT0 30

ATIGCLKC0 29

ATIGCLKT1 27

ATIGCLKC1 28

SRCCLKT3 24

SRCCLKC3 25

SRCCLKT4 22

SRCCLKC4 23

SRCCLKT5 18

SRCCLKC5 19

SRCCLKT6 16

SRCCLKC6 17

CLKREQA# 10

CLKREQB# 11

USB_48MHZ 4

FS_B/REF1 53

FS_A/REF0 54

SDATA

8SCLK

7

VDDREF

56

SRCCLKT7 12

SRCCLKC7 13

FS_C 9

TEST_SEL/REF2 52

GNDATI

31

GNDSRC

26

GNDSRC

20

VDDSRC

14

GNDSRC

15

CPUCLKT0 47

CPUCLKC0 46

CPUCLKT1 43

CPUCLKC1 42

CPUCLKT2_ITP 41

CPUCLKC2_ITP 40

R285 33_0402_5%

1 2

R273 33_0402_5%

1 2

C190

0.1U_0402_16V4Z

1

2

C486

0.1U_0402_16V4Z

1

2

C500

22P_0402_50V8J

1 2

R284

10K_0402_5%

12

R282 4.7K_0402_5%

1 2

R277

1M_0402_5%@

12

R253 4.7K_0402_5%

1 2

R262

49.9_0402_1%

12

R256

49.9_0402_1%

1 2

C189

0.1U_0402_16V4Z

1

2

R278 33_0402_5%

1 2

C188

0.1U_0402_16V4Z

1

2

R257

49.9_0402_1%

1 2

L14

CHB1608U301_0603

1 2

C497

4.7U_0805_10V4Z

1

2

R265 33_0402_5%

1 2

L16

KC FBM-L11-201209-221LMAT_0805

1 2

R251 4.7K_0402_5%

1 2

R254 4.7K_0402_5%

1 2

R263 33_0402_5%

1 2

R271 33_0402_5%

1 2

C182

10U_0805_10V4Z

1

2

L33

CHB1608U301_0603

1 2

R286

49.9_0402_1%

12

C456

0.1U_0402_16V4Z

1

2

Y3

14.31818MHZ_20P_6X1430004201

12

R268 4.7K_0402_5%@

1 2

R267 33_0402_5%

1 2

R258

49.9_0402_1%

1 2

C203

10U_0805_10V4Z

1

2

C484

0.1U_0402_16V4Z

1

2

R279

49.9_0402_1%

12

G

D

S

Q40

2N7002_SOT23

2

13

C485

0.1U_0402_16V4Z

1

2

L13 CHB1608U301_0603

1 2

R283

10K_0402_5%

12

R255 0_0402_5%

12

R269 4.7K_0402_5%@

12

R260

475_0402_1%

12

R261 33_0402_5%

1 2

R272 33_0402_5%

1 2

R252 33_0402_5%

1 2

R281

10K_0402_5%

1 2

R264

49.9_0402_1%

12

R259

49.9_0402_1%

1 2

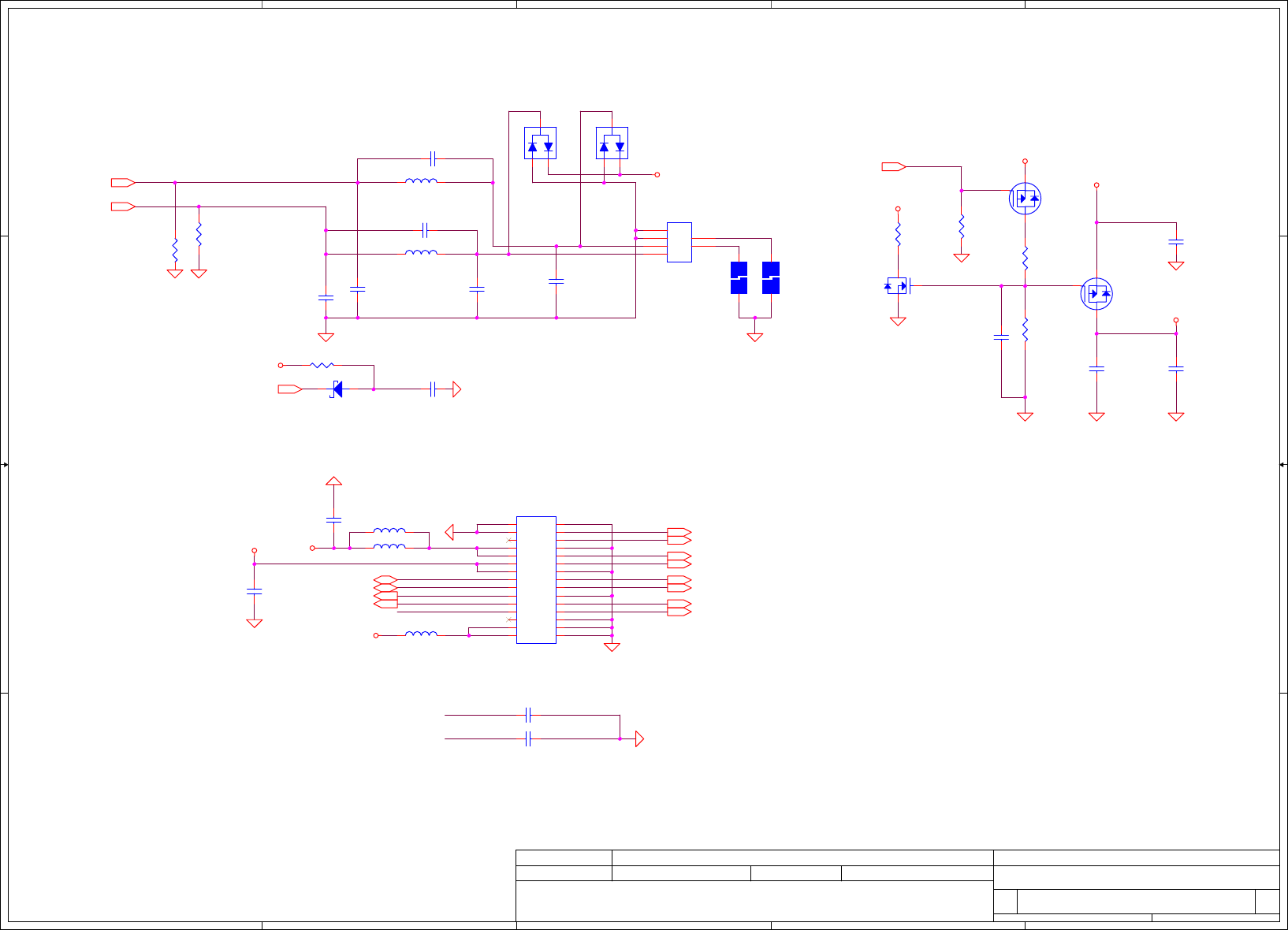

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

DISPOFF#

NB_EDID_DATA

NB_EDID_CLK

CRMA_2

LUMA_2

NB_CRMA

NB_LUMA

DAC_BRIG

INVT_PWM

NB_EDID_CLK

NB_EDID_DATA

DISPOFF# NB_TXOUT1+

NB_TXOUT1-

NB_TXOUT2+

NB_TXOUT2-

NB_TXOUT0+

NB_TXOUT0-

NB_TXCLK+

NB_TXCLK-

NB_ENVDD

BKOFF#28

NB_LUMA7

NB_CRMA7

NB_EDID_CLK7NB_EDID_DATA7DAC_BRIG28 INVT_PWM28

NB_TXCLK- 7

NB_TXOUT2- 7

NB_TXCLK+ 7

NB_TXOUT1- 7

NB_TXOUT2+ 7

NB_TXOUT1+ 7

NB_TXOUT0- 7

NB_TXOUT0+ 7

NB_ENVDD7

+3VS

+3VS

+LCDVDD

+3VS

B+

+LCDVDD

+3VALW

+3VS

+LCDVDD

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

TV-OUT, LVDS CONNECTOR

B

12 42

Monday, August 08, 2005

2005/03/01 2006/03/01

80mil

80mil

PANEL +LCDVDD CTRL CKT

TV-OUT CONNECTOR

Reduce LUMA_1 and CRMA_1 length

As short as possible

+LCDVDD Width: 40mils

LCD/PANEL BD. Conn.

Compal Electronics, Inc.

3. Y (luminance+sync)

1. Y ground

2. C ground

4. C (crominance)

L39

FBM-L11-201209-221LMA30T_0805

1 2

J1

JUMP_43X118@

11

2

2

C224

22P_0402_50V8J

1 2

C405

0.1U_0402_16V4Z

1

2

C410

220P_0402_50V7K

1 2

L40 FBM-L11-201209-221LMA30T_0805

1 2

C13

0.047U_0402_16V7K

1

2

L38 FBM-L11-201209-221LMA30T_0805

1 2

R59

75_0603_1%

12

JP18

ALLTO_C10877-104A1-L_4P

1

1

2

2

3

3

4

4

55

66

C411

4.7U_0805_10V4Z

1

2

C223

82P_0402_50V8J

1

2

C213

82P_0402_50V8J

1

2

R209 10K_0402_5%

1 2

G

D

S

Q2

SI2301BDS_SOT23

2

1 3

L15 CHB1608B121_0603

1 2

J4 JUMP_43X118@

1

122

R8

100K_0402_5%

12

L17 CHB1608B121_0603

1 2

G

D

S

Q3

2N7002_SOT23

2

13

R9

100K_0402_5%

12

JP1

ACES_88242-3000

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

C200

82P_0402_50V8J

1

2

R10

470_0402_5%

12

R57

75_0603_1%

12

G

D

S

Q34

SI2301BDS_SOT23

2

1 3

C408 47P_0402_50V8J

1 2

C406

0.1U_0402_16V4Z@

1

2

R7

100_0402_5%

12

C204

22P_0402_50V8J

1 2

D19 CH751H-40_SC76

21

D7

DAN217_SC59@

2

31

C202

82P_0402_50V8J

1

2

C409 47P_0402_50V8J

1 2

C407

0.1U_0402_16V4Z@

1

2

C404

4.7U_0805_10V4Z

1

2

D8

DAN217_SC59@

2

31

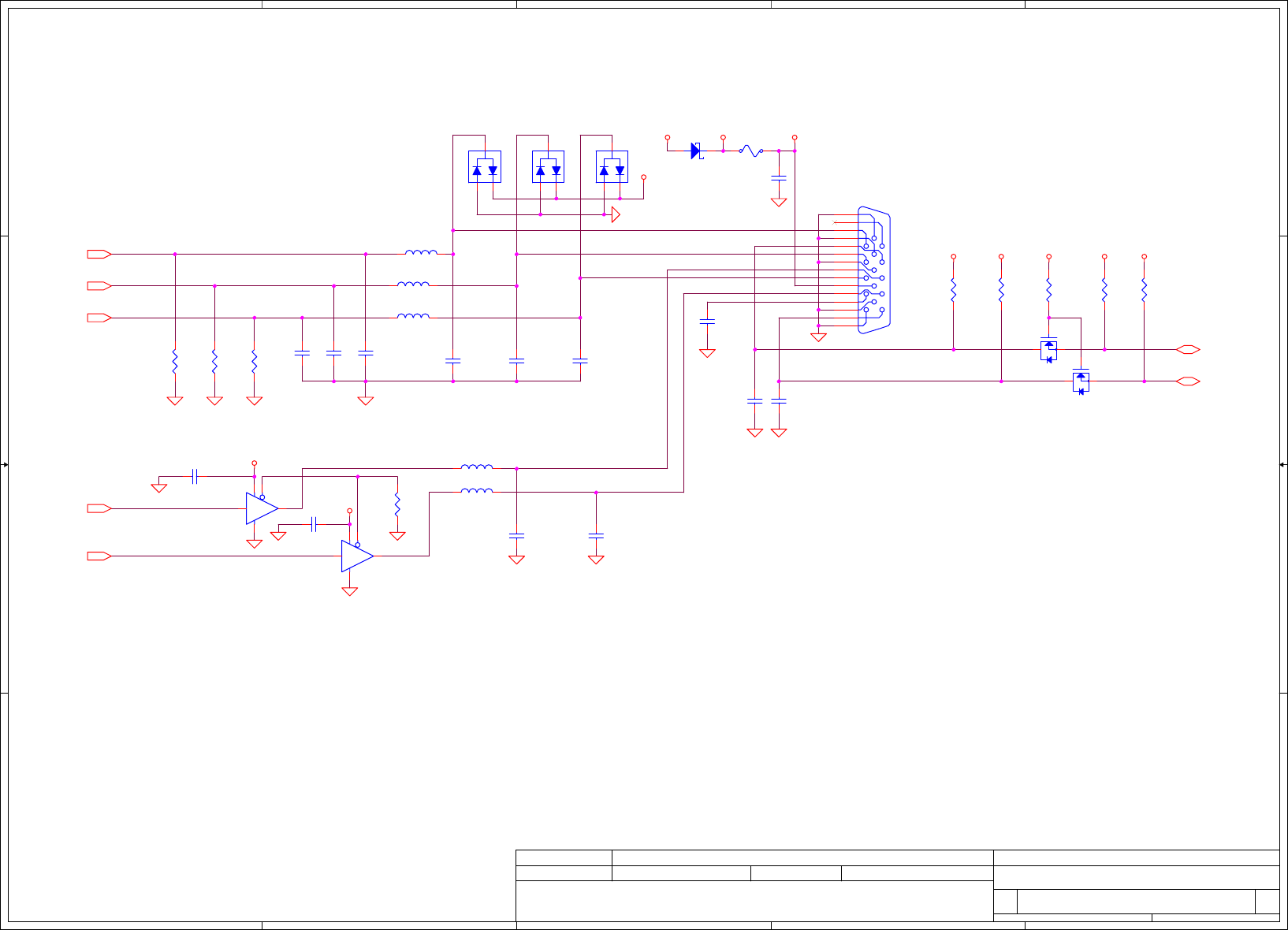

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DVI_HSYNC

DVI_VSYNC

DVI_B

DVI_R

DVI_G

NB_CRT_R7

NB_CRT_B7

NB_CRT_VSYNC7

NB_CRT_HSYNC7

NB_DDC_DATA 7

NB_DDC_CLK 7

NB_CRT_G7

+5VS +R_CRT_VCC

+3VS

+CRT_VCC

+CRT_VCC

+CRT_VCC

+3VS+CRT_VCC +3VS+CRT_VCC +3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

CRT CONNECTOR

B

13 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

CRT Conn.

CRT CONNECTOR

Compal Electronics, Inc.

JP14

TYCO_1470801-1

6

11

1

7

12

2

8

13

3

9

14

4

10

15

5

C8

6P_0402_50V8K

1

2

G

D

S

Q33

2N7002_SOT23

2

1 3

L1

FCM2012C-800_0805

1 2

C398

68P_0402_50V8K

1

2

R3

75_0603_1%

12

C5

6P_0402_50V8K

1

2

C11

0.1U_0402_16V4Z

1 2

C403

68P_0402_50V8K@

1

2

D1

DAN217_SC59@

2

31

F1

1A_6VDC_MINISMDC110

21

R1

75_0603_1%

12

L30

CHB1608B121_0603

1 2

R208

10K_0402_5%

1 2

C9

68P_0402_50V8K

1

2

R207

4.7K_0402_5%

1 2

D2

DAN217_SC59@

2

31

R4

1K_0402_5%

1 2

C7

6P_0402_50V8K@

1

2

R204

4.7K_0402_5%

1 2

L2

FCM2012C-800_0805

1 2

C12

0.1U_0402_16V4Z

1 2

C10

6P_0402_50V8K

1

2

C4

6P_0402_50V8K@

1

2

R206

10K_0402_5%

1 2

D4

CH491D_SC59

2 1

L3

FCM2012C-800_0805

1 2

U3

SN74AHCT1G125GW_SOT353-5

A

2Y4

OE# 1

G

3P5

C401

68P_0402_50V8K@

1

2

D3

DAN217_SC59@

2

31

R205

2.2K_0402_5%

1 2

L29

CHB1608B121_0603

1 2

C400

0.1U_0402_16V4Z

1

2

C402

220P_0402_50V7K

1

2

U2

SN74AHCT1G125GW_SOT353-5

A

2Y4

OE# 1

G

3P5

C6

6P_0402_50V8K@

1

2

R2 75_0603_1%

12

G

D

S

Q32

2N7002_SOT23

2

1 3

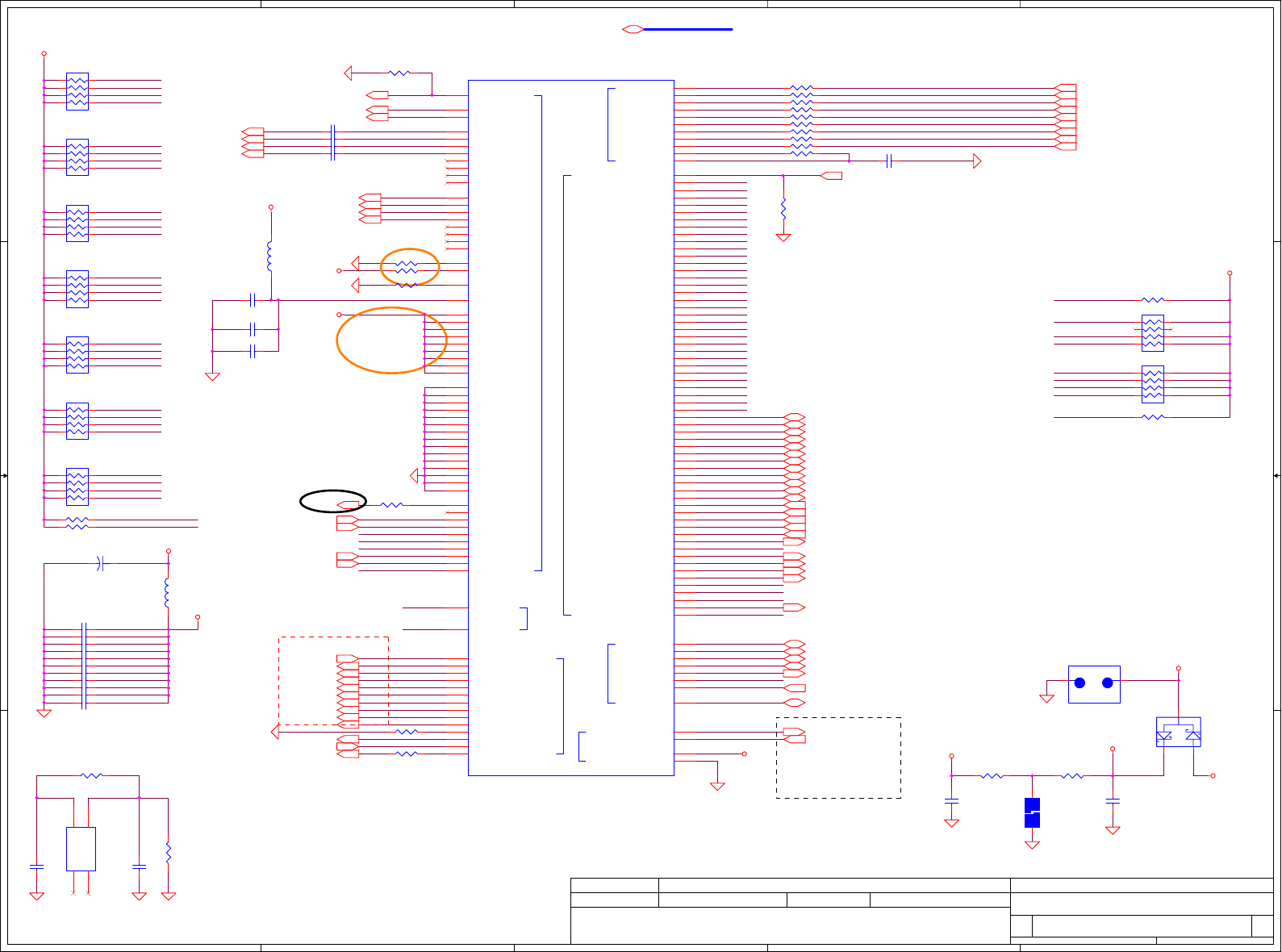

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PCI_AD[0..31]

PCI_REQ#2

PCI_GNT#4

PCI_GNT#6

PCI_REQ#6

PM_CLKRUN#

CLK_PCI7

CLK_PCI3

CLK_PCI_LAN

+RTCBATT

CLK_PCI_LPC

CLK_PCI2

CLK_PCI_MINI

CLK_PCI_1394

CLK_PCI_CB

CLK_PCI_SIO

PCI_PIRQE#

PCI_CLK2_R

H_PWRGD

SERIRQ

PCI_CLK1_R

PCI_CLK3_R

PCI_REQ#5

SB_32KHI

PCI_PIRQF#

PCI_CLK4_R

PCI_AD2

PCI_REQ#2

PCI_CLK6_R

PCI_GNT#2

PCI_PERR#

PCI_CLK0_R

PCI_FRAME#

PCI_AD30

PCI_PIRQD#

PCI_GNT#3

PCI_AD20

PCI_SERR#

PCI_AD4

PCI_PIRQA#

PCI_STOP#

PCI_AD9

PCI_AD6

PCICLK9_R

PCI_AD17

PCI_GNT#5

PCI_AD25

PCI_REQ#1

PCI_AD0

PCI_PIRQB#

SB_A_TXP0

PCI_PAR

LPC_AD1

PCI_AD12

PCI_AD28

PCI_GNT#4

PCI_PIRQG# PCI_GNT#1

NB_RST#

PCI_AD10

PCI_AD29

PCI_AD31

PCI_AD22

PCI_AD3

PCI_DEVSEL#

PCI_PIRQC#

PCI_AD11

PCICLKFB

PCI_CLK5_R

PCI_PIRQH#

PCI_GNT#0

PCI_REQ#0

H_A20M#

LPC_AD2

PCI_AD23

PM_CLKRUN#

PCI_AD5

PCI_AD18

PCI_CLK7_R

LPC_AD0

PCI_AD8

PCI_AD21

PCI_CLK8_R

PCIRST#

SB_32KH0

SB_32KH0

SB_A_TXN1

PCI_AD19

PCI_AD26

PCI_AD14

PCI_REQ#3

PCI_AD24

RTC_CLK

PCI_REQ#6

PCI_TRDY#

PCI_IRDY#

LPC_DRQ1#

PCI_REQ#4

PCI_AD7

LPC_AD3

PCI_AD27

LOCK#

SB_32KHI

SB_A_TXP1

SB_A_TXN0

PCI_AD15

PCI_AD16

LPC_FRAME#

PCI_AD13

PCI_AD1

PCI_REQ#0

PCI_FRAME#

PCI_IRDY#

PCI_TRDY#

PCI_STOP#

PCIE_PVDD

PCI_GNT#6

LPC_DRQ0#

LPC_DRQ0#

PCI_PERR#

PCI_SERR#

PCI_PAR

PCI_DEVSEL#

LOCK#

PCI_GNT#1

PCI_GNT#3

PCI_GNT#2

PCI_GNT#0

PCI_REQ#5

PCI_REQ#4

SERIRQ

LPC_DRQ1#

LPC_AD1

LPC_AD2

LPC_AD0

LPC_AD3

PCI_PIRQE#

PCI_PIRQF#

PCI_PIRQG#

PCI_PIRQH#

PCI_PIRQA#

PCI_PIRQB#

PCI_PIRQC#

PCI_PIRQD#

PCI_GNT#5

PCI_REQ#3

PCI_REQ#1

PCI_AD[0..31]18,19,20,22,23

NB_RST#7

PCIRST# 19,20,22,23,28,29

CLK_PCI_MINI 23

CLK_PCI_CB 20

CLK_PCI3 18

CLK_PCI7 18

CLK_PCI_1394 18,22

CLK_PCI_LAN 18,19

LPC_AD1 28,29

RTC_CLK 18

CLK_SB_ALINK11

PCI_REQ#1 19

H_INTR4

PCI_C/BE#1 19,20,22,23

BM_REQ#7

PCI_PAR 19,20,22,23

LPC_DRQ1#

CLK_SB_ALINK#11

LPC_AD0 28,29

PCI_GNT#3 23

PCI_C/BE#0 19,20,22,23

LPC_FRAME# 28,29

H_STPCLK#4

PCI_FRAME# 19,20,22,23

AUTO_ON# 18

H_SMI#4

PCI_IRDY# 19,20,22,23

LPC_AD2 28,29

H_FERR#4

PCI_C/BE#3 19,20,22,23

PCI_STOP# 19,20,22,23

PCI_GNT#2 20

PCI_TRDY# 19,20,22,23

H_INIT#4

PCI_PERR# 19,20,22,23

PCI_REQ#3 23PCI_PIRQB# PCI_REQ#2 20

PCI_DEVSEL# 19,20,22,23

H_A20M#4 SERIRQ 20,28,29

PCI_C/BE#2 19,20,22,23

H_NMI4

H_CPUSLP#4

PCI_SERR# 19,20,22,23

PCI_GNT#1 19

LPC_AD3 28,29

H_PWRGOOD4

PCI_PIRQA#20,22

H_IGNNE#4

PCI_PIRQG#19,23 PCI_PIRQF#23

PCI_REQ#4

CLK_PCI2 18

CLK_PCI_LPC 18,28

SB_A_RXP06 SB_A_RXN06 SB_A_RXP16 SB_A_RXN16

NB_A_RXP06 NB_A_RXN06 NB_A_RXP16 NB_A_RXN16

CPU_STP#4,11,40

DPRSLPVR40

H_RESET#4,6

CLK_PCI_SIO 18,29

PM_CLKRUN# 19,20,22,23,28

PCI_REQ#0 22

PCI_GNT#0 22

PCI_REQ#5

+3VS

+3VS

+1.8VS

+RTCVCC

+CHGRTC

+RTCBATT

+SB_VBAT

+PCIE_VDDR

+SB_VBAT

+PCIE_VDDR

+1.8VS

+PCIE_VDDR

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

PCI_EXP/LPC/RTC

14 42

Monday, August 08, 2005

2005/03/01 2006/03/01

-+

RTC Battery

W=20mils

Place J1 close

to DDR-SODIMM

No short

Pull-high on CPU side

Consider

--connect

RTC_CLK to EC

80mA

***

*** Compal Electronics, Inc.

Trace width

50mil trace lenght

R349 22_0402_5%

1 2

C531 0.1U_0402_16V4Z

1 2

C312

0.1U_0402_10V6K

1 2

C286

18P_0402_50V8J

1

2

C287

18P_0402_50V8J

1

2

C313

1U_0402_6.3V4Z

1 2

C314

10U_0805_10V4Z

1 2

R117 22_0402_5%

1 2

R163 8.2K_0402_5%

1 2

Y1

32.768KHZ_12.5P_1TJS125DJ2A073

OUT 4

IN 1

NC

3

NC

2

C562 0.1U_0402_16V4Z

1 2

C563

100P_0402_50V8J@

1 2

C550 0.1U_0402_16V4Z

1 2

R124 22_0402_5%

1 2

R165

8.2K_0402_5%

12

R363 22_0402_5%

1 2

RP25

8.2K_1206_8P4R_5%

1 8

2 7

3 6

4 5

L24

CHB2012U170_0805

1 2

C537 0.1U_0402_16V4Z

1 2

R151 4.7K_0402_5%

1 2

BATT1

RTCBATT45@

12

C291 10U_0805_10V4Z

1 2

C552 0.1U_0402_16V4Z

1 2

L22

CHB2012U170_0805

1 2

R118 22_0402_5%

1 2

C274

0.1U_0402_16V4Z

1

2

C2950.1U_0402_10V6K

1 2

R103

20M_0603_5%

1 2

RP21 100K_1206_8P4R_5%

1 8

2 7

3 6

4 5

C559 0.1U_0402_16V4Z

1 2

R365 22_0402_5%

1 2

R108 150_0402_1%

12

C278

1U_0402_6.3V4Z

1

2

RP22

8.2K_1206_8P4R_5%

18 27 36 45

R382 8.2K_0402_5%

1 2

RP23

8.2K_1206_8P4R_5%

18 27 36 45

C3050.1U_0402_10V6K

1 2

R87

470_0805_5%

1 2

C558 0.1U_0402_16V4Z

1 2

R354 22_0402_5%

1 2

R88

470_0805_5%

1 2

JOPEN1

JUMP_43X39 @

11

2

2

R343 4.12K_0603_1%

1 2

R110 150_0402_1%

12

C285 10U_0805_10V4Z

1 2

RP9

8.2K_1206_8P4R_5%

1 8

2 7

3 6

4 5

RP20 10K_1206_8P4R_5%

1 8

2 7

3 6

4 5

R340 22_0402_5%

1 2

R317

0_0402_5%@

1 2

C541 0.1U_0402_16V4Z

1 2

RP10

8.2K_1206_8P4R_5%

18 27 36 45

D12

BAS40-04_SOT23

1

2

3

PCI EXPRESS INTERFACE

SB400

PCI INTERFACE

LPC

RTC

CPU

XTAL

PCI CLKS

U9A

CHS-215SB400-02_BGA564

A_RST#

AH8

PCIE_RCLKP

L27

PCIE_RCLKN

M27

PCIE_TX0P

M30

PCIE_TX0N

N30

PCIE_TX1P

K30

PCIE_TX1N

L30

PCIE_TX2P

H30

PCIE_TX2N

J30

PCIE_TX3P

F30

PCIE_TX3N

G30

PCIE_RX0P

M29

PCIE_RX0N

N29

PCIE_RX1P

M28

PCIE_RX1N

N28

PCIE_RX2P

J29

PCIE_RX2N

K29

PCIE_RX3P

J28

PCIE_RX3N

K28

PCIE_CALRP

G27

PCIE_CALRN

H27

PCIE_CALI

G28

PCIE_PVDD

R30

PCIE_VDDR_1

F26

PCIE_VDDR_2

R29

PCIE_VDDR_3

G26

PCIE_VDDR_4

P26

PCIE_VDDR_5

K26

PCIE_VDDR_6

L26

PCIE_VDDR_7

P28

PCIE_VDDR_8

N26

PCIE_VDDR_9

P27

PCIE_VSS_1

H28

PCIE_VSS_2

F29

PCIE_VSS_3

H29

PCIE_VSS_4

H26

PCIE_VSS_5

F27

PCIE_VSS_6

G29

PCIE_VSS_7

L29

PCIE_VSS_8

J26

PCIE_VSS_9

L28

PCIE_VSS_10

J27

PCIE_VSS_11

N27

PCIE_VSS_12

M26

PCIE_VSS_13

K27

PCIE_VSS_14

P29

PCIE_VSS_15

P30

CPU_STP#/DPSLP#

AJ8

PCI_STP#

AK7

INTA#

AG5

INTB#

AH5

INTC#

AJ5

INTD#

AH6

INTE#/GPIO33

AJ6

INTF#/GPIO34

AK6

INTG#/GPIO35

AG7

INTH#/GPIO36

AH7

X1

B2

X2

B1

CPU_PG/LDT_PG

C29

INTR/LINT0

A28

NMI/LINT1

C28

INIT#

B29

SMI#

D29

SLP#/LDT_STP#

E4

IGNNE#

B30

A20M#

F28

FERR#

E28

STPCLK#/ALLOW_LDTSTP

E29

LDT_PG/SSMUXSEL/GPIO0

D25

DPRSLPVR

E27

BMREQ#

D27

LDT_RST#

D28

PCICLK0 L4

PCICLK1 L3

PCICLK2 L2

PCICLK3 L1

PCICLK4 M4

PCICLK5 M3

PCICLK6 M2

PCICLK7 M1

PCICLK8 N4

PCICLK9 N3

PCICLK_FB N2

PCIRST# AJ7

AD0/ROMA18 W3

AD1/ROMA17 Y2

AD2/ROMA16 W4

AD3/ROMA15 Y3

AD4/ROMA14 V1

AD5/ROMA13 Y4

AD6/ROMA12 V2

AD7/ROMA11 W2

AD8/ROMA9 AA4

AD9/ROMA8 V4

AD10/ROMA7 AA3

AD11/ROMA6 U1

AD12/ROMA5 AA2

AD13/ROMA4 U2

AD14/ROMA3 AA1

AD15/ROMA2 U3

AD16/ROMD0 T4

AD17/ROMD1 AC1

AD18/ROMD2 R2

AD19/ROMD3 AD4

AD20/ROMD4 R3

AD21/ROMD5 AD3

AD22/ROMD6 R4

AD23/ROMD7 AD2

AD24 P2

AD25 AE3

AD26 P3

AD27 AE2

AD28 P4

AD29 AF2

AD30 N1

AD31 AF1

CBE0#/ROMA10 V3

CBE1#/ROMA1 AB4

CBE2#/ROMWE# AC2

CBE3# AE4

FRAME# T3

DEVSEL#/ROMA0 AC4

IRDY# AC3

TRDY#/ROMOE# T2

PAR/ROMA19 U4

STOP# T1

PERR# AB2

SERR# AB3

REQ0# AF4

REQ1# AF3

REQ2# AG2

REQ3#/PDMA_REQ0# AG3

REQ4#/PLL_BP33/PDMA_REQ1# AH1

REQ5#/GPIO13 AH2

REQ6#/GPIO31 AH3

GNT0# AJ2

GNT1# AK2

GNT2# AJ3

GNT3#/PLL_BP66/PDMA_GNT0# AK3

GNT4#/PLL_BP50/PDMA_GNT1# AG4

GNT5#/GPIO14 AH4

GNT6#/GPIO32 AJ4

CLKRUN# AG1

LOCK# AB1

LAD0 AG25

LAD1 AH25

LAD2 AJ25

LAD3 AH24

LFRAME# AG24

LDRQ0# AH26

LDRQ1# AG26

SERIRQ AK27

RTCCLK C2

RTC_IRQ#/ACPWR_STRAP F3

VBAT A2

RTC_GND A1

R136 8.2K_0402_5%

1 2

R344 22_0402_5%

1 2

R102

20M_0603_5%

1 2

+

C288

470U_D2_2.5VM

12

RP8

8.2K_1206_8P4R_5%

1 8

2 7

3 6

4 5

C3000.1U_0402_10V6K

1 2

RP24

8.2K_1206_8P4R_5%

1 8

2 7

3 6

4 5

C561 0.1U_0402_16V4Z

1 2

C2980.1U_0402_10V6K

1 2

R162 8.2K_0402_5%

1 2

R333 22_0402_5%

1 2

R167 0_0402_5%

1 2

R336

10K_0402_5%

1 2

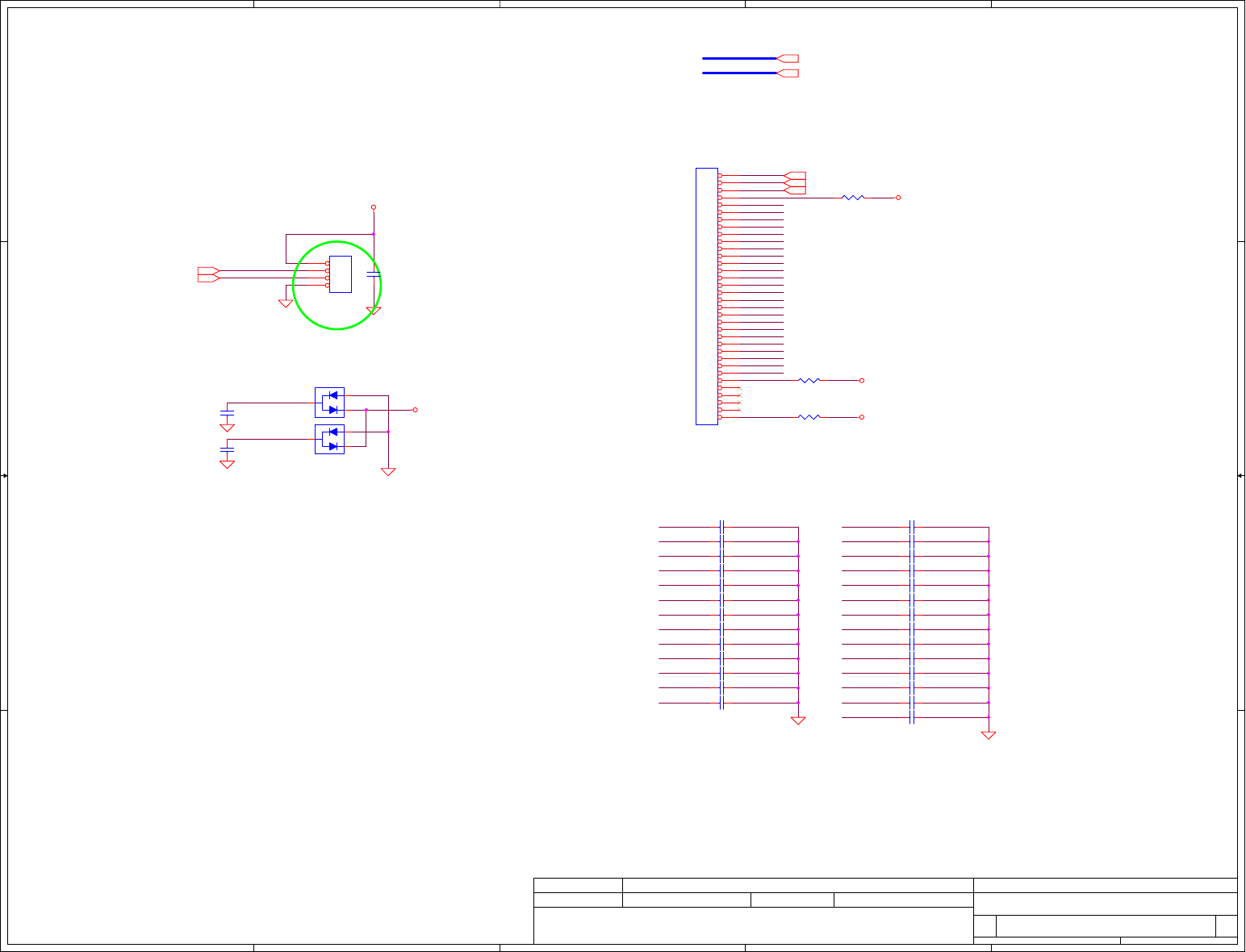

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

USBP0+

USBP0-

AVDDRX

AVDDTX

AVDDRX

AVDDTX

AVDDC

AVDDC

AGP_STP#

USB_RCOMP

GATEA20

KBRST#

PM_SLP_S3#

PM_SLP_S5#

EXTEVENT0#

PBTN_OUT#

SB_GA20

SB_KBRST#

EC_THRM#

MASTER_RST#

SPKR

SB_SMCLK

SB_SMDATA

GPIO9

GPIO8

AC_SYNC

AC_SDOUT

AC_RST#

USB_OC0#

GPIO11

SB_KBRST#

SB_SMCLK

SB_SMDATA

AC_BITCLK

SB_GA20

USB_OC4#

USB_OC2#

EC_LID_OUT#

OSCLIN

USBP2+

USBP2-

USBP4+

USBP4-

SIO_SMI#

AGP_BUSY#

EC_RSMRST#

AC_SDIN1

AC_SDIN2

AC_SDIN0

AC_RST#

MASTER_RST#

EC_THRM#

USB_OC4#

USB_OC2#

EC_LID_OUT#

USB_OC0#

EC_PME#

EC_SMI#

EC_SCI#

EC_SWI#

GPIO12

AC_BITCLK

GPIO11

GPIO8

AC_SDIN0

SPDIF_OUT

USB_OC1#

EC_SWI#

EC_PME#

EC_SMI#

USB_OC6#

USB_OC1#

EC_SCI#

PCIE_PME#

USB_OC6#

MAINPWON_R

OSCLIN

AGP_BUSY#

AGP_STP#

EC_RSMRST#

AC_SDIN1

AC_SDIN2

SB_GA20

SB_KBRST#

MAINPWON_R

PBTN_OUT#

PCIE_PME#

SIO_SMI#

SB_INT_FLASH_SEL

EXTEVENT0#

PM_SLP_S3#

PM_SLP_S5#

EC_FLASH#

GPIO9

GPIO12

USBP0- 27

USBP0+ 27

SB_PWRGD16

CLK_SB_14M11

CLK_OK11,16

EC_FLASH#29

GATEA20 28

KBRST# 28

PM_SLP_S5#28 PM_SLP_S3#28

PBTN_OUT#28

EC_THRM#28

SPKR25 SB_SMCLK9,10,11SB_SMDATA9,10,11

AC_RST#24,32 SPDIF_OUT18

AC_SYNC24,32

AC_BITCLK24,32AC_SDOUT18,24,32 AC_SDIN024 AC_SDIN132

NB_SUS_STAT#7

USBP2+ 27

USBP2- 27

USBP4+ 27

USBP4- 27

SIDERST#26

PIDERST#26

EC_SMI# 28

EC_SCI# 28

EC_SWI#28

EC_LID_OUT# 28

EC_RSMRST#28

MAINPWON 4,34,35,37,38

H_PROCHOT#

SIO_SMI#

SB_INT_FLASH_SEL29

+3VALW

+3VALW

+3VS

+3VALW

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

SB450 USB/ACPI/AC97/GPIO

Custom

15 42

Monday, August 08, 2005

2005/03/01 2006/03/01

**

**

**

Control by EC

Delay 50ms after +3VALW ready

Compal Electronics, Inc.

R95 0_0402_5%

1 2

R98 2.2K_0402_5%

1 2

R97

0_0402_5%

<BOM Structure>

12

R308 0_0402_5%

1 2

R94 10K_0402_5%

1 2

R314 10K_0402_5%

1 2

X1 48MHZ_4P_FN4800002

OUT 3

GND 2

VDD

4

OE

1

C512 0.1U_0402_16V4Z

1 2

C270 10U_0805_10V4Z

1 2

L21 FBM-10-201209-260-T_0805

1 2

R137

47K_0402_5%

12

R393

0_0402_5%

1 2

C281 1U_0402_6.3V4Z

1 2

R384 10K_0402_5%

1 2

C277 10U_0805_10V4Z

1 2

D31

CH751H-40_SC76@

2 1

R337 10K_0402_5%

1 2

C511 0.1U_0402_16V4Z

1 2

R392

0_0402_5%

1 2

R100 10K_0402_5%@

1 2

RP6

4.7K_1206_8P4R_5%

1 8

2 7

3 6

4 5

R326 10K_0402_5%

1 2

R318 11.3K_0603_1%

1 2

D11

CH751H-40_SC76

2 1

USB INTERFACE

SB400

USB PWR

CLK / RST

ACPI/WAKE UP EVENTS

GPIOAC97 (NOT USED)

U9B

CHS-215SB400-02_BGA564

TALERT#/TEMP_ALERT#/GPIO10

C6

BLINK/GPM6#

D5

PCI_PME#/GEVENT4#

C4

RI#/EXTEVNT0#

D3

SLP_S3#

B4

SLP_S5#

E3

PWR_BTN#

B3

PWR_GOOD

C3

SUS_STAT#

D4

TEST1

F2

TEST0

E2

GA20IN

AJ26

KBRST#

AJ27

SMBALERT#/THRMTRIP#/GEVENT2#

D6

LPC_PME#/GEVENT3#

C5

LPC_SMI#/EXTEVNT1#

A25

VOLT_ALERT#/S3_STATE/GEVENT5#

D8

SYS_RESET#/GPM7#

D7

WAKE#/GEVENT8#

D2

RSMRST#

D1

14M_X1/OSC

A23

14M_X2

B23

SIO_CLK

AK24

ROM_CS#/GPIO1

B25

GHI#/GPIO6

C25

VGATE/GPIO7

C23

AGP_STP#/GPIO4

D24

AGP_BUSY#/GPIO5

D23

FANOUT0/GPIO3

A27

SPKR/GPIO2

C24

SCL0/GPOC0#

A26

SDA0/GPOC1#

B26

DDC1_SCL/GPIO9

B27

DDC1_SDA/GPIO8

C26

DDC2_SCL/GPIO11

C27

DDC2_SDA/GPIO12

D26

NC1

J2

NC4

K3

NC3

J3

NC2

K2

AC_BITCLK

G1

AC_SDOUT

G2

AC_SDIN0

H4

AC_SDIN1

G3

AC_SDIN2

G4

AC_SYNC

H1

AC_RST#

H3

SPDIF_OUT

H2

48M_X1/USBCLK A15

48M_X2 B15

USB_RCOMP C15

USB_VREFOUT D16

USB_ATEST1 C16

USB_ATEST0 D15

USB_OC0#/GPM0# B8

USB_OC1#/GPM1# C8

USB_OC2#/FANOUT1/GPM2# C7

USB_OC3#/GPM3# B7

USB_OC4#/GPM4# B6

USB_OC5#/GPM5# A6

USB_OC6#/FAN_ALERT#/GEVENT6# B5

USB_OC7#/CASE_ALERT#/GEVENT7# A5

USB_HSDP7+ A11

USB_HSDM7- B11

USB_HSDP6+ A10

USB_HSDM6- B10

USB_HSDP5+ A14

USB_HSDM5- B14

USB_HSDP4+ A13

USB_HSDM4- B13

USB_HSDP3+ A18

USB_HSDM3- B18

USB_HSDP2+ A17

USB_HSDM2- B17

USB_HSDP1+ A21

USB_HSDM1- B21

USB_HSDP0+ A20

USB_HSDM0- B20

AVDDTX_0 C21

AVDDTX_1 C18

AVDDTX_2 D13

AVDDTX_3 D10

AVDDRX_0 D20

AVDDRX_1 D17

AVDDRX_2 C14

AVDDRX_3 C11

AVDDC A16

AVSSC B16

AVSS_USB_1 A9

AVSS_USB_2 A12

AVSS_USB_3 A19

AVSS_USB_4 A22

AVSS_USB_5 B9

AVSS_USB_6 B12

AVSS_USB_7 B19

AVSS_USB_8 B22

AVSS_USB_9 C9

AVSS_USB_10 C10

AVSS_USB_11 C12

AVSS_USB_12 C13

AVSS_USB_13 C17

AVSS_USB_14 C19

AVSS_USB_15 C20

AVSS_USB_16 C22

AVSS_USB_17 D9

AVSS_USB_18 D11

AVSS_USB_19 D12

AVSS_USB_20 D14

AVSS_USB_21 D18

AVSS_USB_22 D19

AVSS_USB_23 D21

AVSS_USB_24 D22

R84

0_0603_5%

1 2

L19 FBM-10-201209-260-T_0805

1 2

RP5

10K_1206_8P4R_5%

18 27 36 45

R74

10K_0402_5%

12

R327 33_0402_5%

1 2

C276 1U_0402_6.3V4Z

1 2

D32 CH751H-40_SC76@

2 1

C267

0.1U_0402_10V6K

1

2

RP17

10K_1206_8P4R_5%

1 8

2 7

3 6

4 5

RP16

10K_1206_8P4R_5%

18 27 36 45

R385 10K_0402_5%

1 2

C513 0.1U_0402_16V4Z

1 2

C279

15P_0402_50V8D@

1

2

C268 10U_0805_10V4Z

1 2

RP15

10K_1206_8P4R_5%

1 8

2 7

3 6

4 5

C504 0.1U_0402_16V4Z

1 2

C283 1U_0402_6.3V4Z

1 2

R307 10K_0402_5%@

1 2

R319 10K_0402_5%

1 2

R96 4.7K_0402_5%

1 2

C514 0.1U_0402_16V4Z

1 2

R113 33_0402_5%

1 2

R330 33_0402_5%

1 2

C510 0.1U_0402_16V4Z

1 2

R99 10K_0402_5%

1 2

L18 FBM-10-201209-260-T_0805

1 2

R325 2.2K_0402_5%

1 2

C521 0.1U_0402_16V4Z

1 2

RP7

10K_1206_8P4R_5%

1 8

2 7

3 6

4 5

R90 10K_0402_5%

1 2

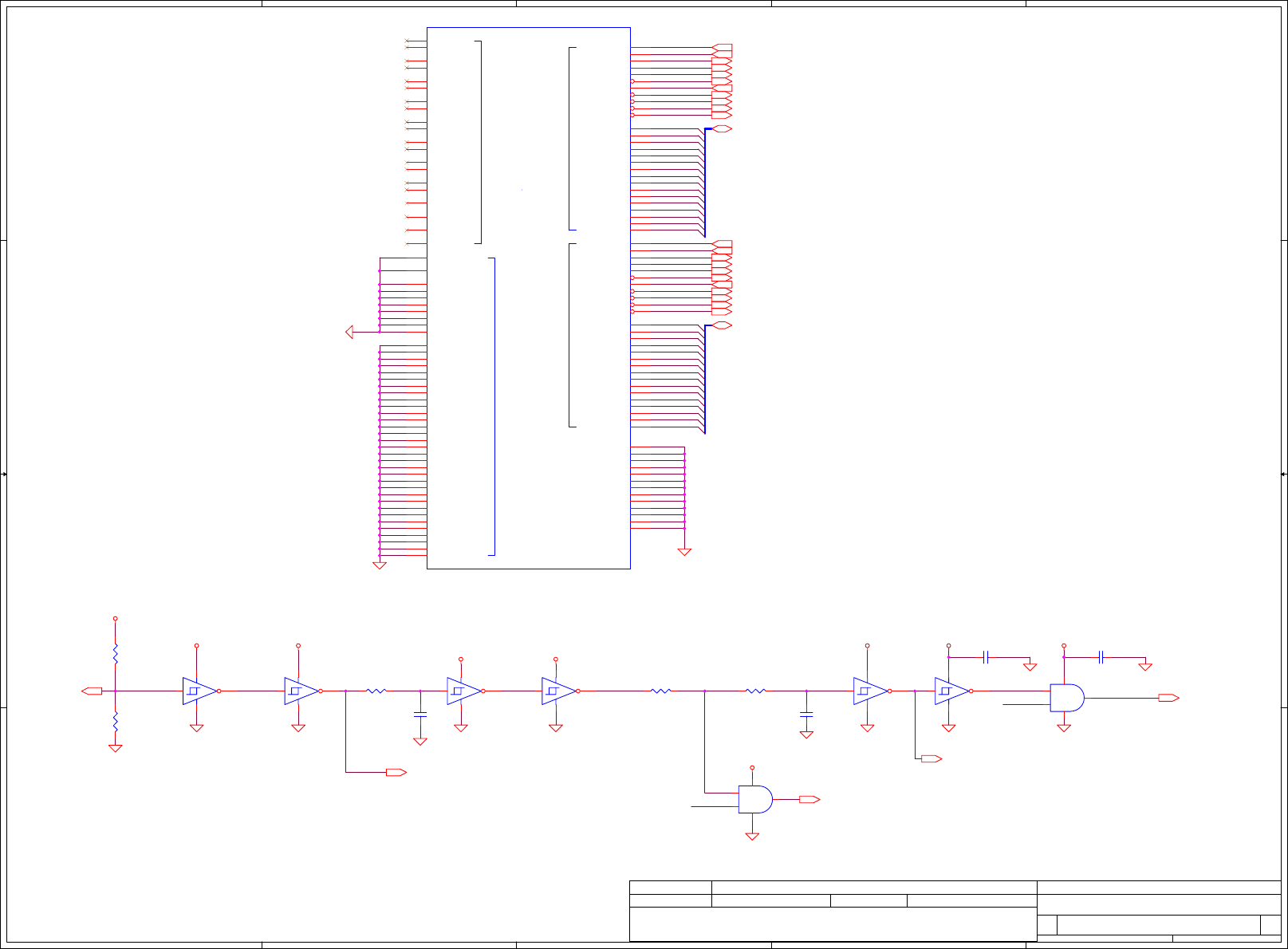

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CLK_OK

IDE_PDDACK#

IDE_PDDREQ

IDE_PDIOR#

IDE_PDIOW#

IDE_PDCS1#

IDE_PDCS3#

IDE_PDD10

IDE_PDD3

IDE_SDDREQ

IDE_SDDACK#

IDE_SDA1

INT_IRQ15

IDE_PDD9

IDE_PDD8

IDE_SDIORDY

IDE_SDA0

IDE_PDD7

IDE_SDIOR#

IDE_SDCS3#

IDE_PDD6

IDE_SDIOW#

IDE_PDD15

IDE_PDD14

IDE_PDD12

IDE_PDD2

IDE_SDCS1#

IDE_SDA2

IDE_PDD1

IDE_PDD5

IDE_PDD11

IDE_PDD13

IDE_PDD0

IDE_PDD4

IDE_SDD0

IDE_SDD1

IDE_SDD2

IDE_SDD3

IDE_SDD7

IDE_SDD4

IDE_SDD5

IDE_SDD6

IDE_SDD11

IDE_SDD8

IDE_SDD9

IDE_SDD10

IDE_SDD15

IDE_SDD12

IDE_SDD13

IDE_SDD14

IDE_PDA0

IDE_PDA1

IDE_PDA2

IDE_PDIORDY

INT_IRQ14

CLK_OK

CLK_OK

CLK_OK 11,15

IDE_PDIOR# 26

IDE_PDA0 26

INT_IRQ14 26

IDE_PDCS1# 26

IDE_PDDACK# 18,26

IDE_PDIORDY 26

IDE_PDA1 26

IDE_PDA2 26

IDE_PDCS3# 26

IDE_PDDREQ 26

IDE_PDIOW# 26

IDE_SDA2 26

IDE_SDDREQ 26

IDE_SDCS3# 26

IDE_SDCS1# 26

IDE_SDIOR# 26

IDE_SDIOW# 26

IDE_SDA1 26

IDE_SDIORDY 26

INT_IRQ15 26

IDE_SDA0 26

IDE_SDDACK# 26

IDE_SDD[0..15] 26

IDE_PDD[0..15] 26

NB_PWRGD 7

SB_PWRGD 15

SB_PWRGD# 7

VGATE40

+3VALW +3VALW

+3VS

+3VALW +3VALW +3VALW+3VALW+3VALW

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

SB450 IDE/SATA

Custom

16 42

Monday, August 08, 2005

2005/03/01 2006/03/01

U11-->please close to SB450(U7)

Compal Electronics, Inc.

C308

0.1U_0402_10V6K

1

2

SECONDARY ATA 66/100

PRIMARY ATA 66/100

SB400

SERIAL ATA POWER

SERIAL ATA

U9C

CHS-215SB400-02_BGA564

SATA_TX0+

AK22

SATA_TX0-

AJ22

SATA_RX0-

AK21

SATA_RX0+

AJ21

SATA_TX1+

AK19

SATA_TX1-

AJ19

SATA_RX1-

AK18

SATA_RX1+

AJ18

SATA_TX2+

AK14

SATA_TX2-

AJ14

SATA_RX2-

AK13

SATA_RX2+

AJ13

SATA_TX3+

AK11

SATA_TX3-

AJ11

SATA_RX3-

AK10

SATA_RX3+

AJ10

SATA_CAL

AJ15

SATA_X1

AJ16

SATA_X2

AK16

SATA_ACT#

AK8

PLLVDD_SATA

AH15

XTLVDD_SATA

AH16

AVDD_SATA_1

AG10

AVDD_SATA_2

AG14

AVDD_SATA_3

AH12

AVDD_SATA_4

AG12

AVDD_SATA_5

AG18

AVDD_SATA_6

AG21

AVDD_SATA_7

AH18

AVDD_SATA_8

AG20

AVSS_SATA_1

AG9

AVSS_SATA_2

AF10

AVSS_SATA_3

AF11

AVSS_SATA_4

AF12

AVSS_SATA_5

AF13

AVSS_SATA_6

AF14

AVSS_SATA_7

AF15

AVSS_SATA_8

AF16

AVSS_SATA_9

AF17

AVSS_SATA_10

AF18

AVSS_SATA_11

AF19

AVSS_SATA_12

AF20

AVSS_SATA_13

AF21

AVSS_SATA_14

AF22

AVSS_SATA_15

AH9

AVSS_SATA_16

AG11

AVSS_SATA_17

AG15

AVSS_SATA_18

AG17

AVSS_SATA_19

AG19

AVSS_SATA_20

AG22

AVSS_SATA_21

AG23

AVSS_SATA_22

AF9

AVSS_SATA_23

AH17

AVSS_SATA_24

AH23

AVSS_SATA_25

AH13

AVSS_SATA_26

AH20

AVSS_SATA_27

AK9

AVSS_SATA_28

AJ12

AVSS_SATA_29

AK17

AVSS_SATA_30

AK23

AVSS_SATA_31

AH10

AVSS_SATA_32

AJ23

PIDE_IORDY AD30

PIDE_IRQ AE28

PIDE_A0 AD27

PIDE_A1 AC27

PIDE_A2 AD28

PIDE_DACK# AD29

PIDE_DRQ AE27

PIDE_IOR# AE30

PIDE_IOW# AE29

PIDE_CS1# AC28

PIDE_CS3# AC29

PIDE_D0 AF29

PIDE_D1 AF27

PIDE_D2 AG29

PIDE_D3 AH30

PIDE_D4 AH28

PIDE_D5 AK29

PIDE_D6 AK28

PIDE_D7 AH27

PIDE_D8 AG27

PIDE_D9 AJ28

PIDE_D10 AJ29

PIDE_D11 AH29

PIDE_D12 AG28

PIDE_D13 AG30

PIDE_D14 AF30

PIDE_D15 AF28

SIDE_IORDY V29

SIDE_IRQ T27

SIDE_A0 T28

SIDE_A1 U29

SIDE_A2 T29

SIDE_DACK# V30

SIDE_DRQ U28

SIDE_IOR# W29

SIDE_IOW# W30

SIDE_CS1# R27

SIDE_CS3# R28

SIDE_D0/GPIO15 V28

SIDE_D1/GPIO16 W28

SIDE_D2/GPIO17 Y30

SIDE_D3/GPIO18 AA30

SIDE_D4/GPIO19 Y28

SIDE_D5/GPIO20 AA28

SIDE_D6/GPIO21 AB28

SIDE_D7/GPIO22 AB27

SIDE_D8/GPIO23 AB29

SIDE_D9/GPIO24 AA27

SIDE_D10/GPIO25 Y27

SIDE_D11/GPIO26 AA29

SIDE_D12/GPIO27 W27

SIDE_D13/GPIO28 Y29

SIDE_D14/GPIO29 V27

SIDE_D15/GPIO30 U27

AVSS_SATA_33 AG13

AVSS_SATA_34 AH22

AVSS_SATA_35 AK12

AVSS_SATA_36 AH11

AVSS_SATA_37 AJ17

AVSS_SATA_38 AH14

AVSS_SATA_39 AH19

AVSS_SATA_40 AJ20

AVSS_SATA_41 AH21

AVSS_SATA_42 AJ9

AVSS_SATA_43 AG16

AVSS_SATA_44 AK15

AVSS_SATA_45 AK20

C128 0.1U_0402_16V4Z

U7B

SN74LVC14APWLE_TSSOP14

O4

I

3

P14

G

7

U5D

SN74LVC08APW_TSSOP14

A

12

B

13 O11

P14

G

7

C127 0.1U_0402_16V4Z

U5C

SN74LVC08APW_TSSOP14

A

9

B

10 O8

P14

G

7

U7E

SN74LVC14APWLE_TSSOP14

O10

I

11

P14

G

7

R111

330K_0402_5%

1 2

R129

10K_0402_5%

12

R130

330K_0402_5%

1 2

C293

0.47U_0603_10V7K

1

2

R115

0_0402_5%

1 2

U7F

SN74LVC14APWLE_TSSOP14

O12

I

13

P14

G

7

U7C

SN74LVC14APWLE_TSSOP14

O6

I

5

P14

G

7

R128

1M_0402_5%

12

U7A

SN74LVC14APWLE_TSSOP14

O2

I

1

P14

G

7

U7D

SN74LVC14APWLE_TSSOP14

O8

I

9

P14

G

7

AVDD_CK

V5_VREF

+3VS

+1.8VS

+3VALW

+1.05VS

+1.8VS

+3VS

+5VS

+1.8VALW

+3VS +1.8VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

SB450/POWER/GND

B

17 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

220mA

Compal Electronics, Inc.

C576 0.1U_0402_16V4Z

1 2

C525 0.1U_0402_16V4Z

1 2

C566 1U_0402_6.3V4Z

1 2

C533 0.1U_0402_16V4Z

1 2

C536 1U_0402_6.3V4Z

1 2

C564 0.1U_0402_16V4Z

1 2

C596 0.1U_0402_16V4Z

1 2

C654 1U_0402_6.3V4Z

1 2

C530 0.1U_0402_16V4Z

1 2

SB400

POWER

U9D

CHS-215SB400-02_BGA564

VDDQ_1

A30

VDDQ_2

D30

VDDQ_3

E24

VDDQ_4

E25

VDDQ_5

J5

VDDQ_6

K1

VDDQ_7

K5

VDDQ_8

N5

VDDQ_9

P5

VDDQ_10

R1

VDDQ_11

U5

VDDQ_12

U26

VDDQ_13

U30

VDDQ_14

V5

VDDQ_15

V26

VDDQ_16

Y1

VDDQ_17

Y26

VDDQ_18

AA5

VDDQ_19

AA26

VDDQ_20

AB5

VDDQ_21

AC30

VDDQ_22

AD5

VDDQ_23

AD26

VDDQ_24

AE1

VDDQ_25

AE5

VDDQ_26

AE26

VDDQ_27

AF6

VDDQ_28

AF7

VDDQ_29

AF24

VDDQ_30

AF25

VDDQ_31

AK1

VDDQ_32

AK4

VDDQ_33

AK26

VDDQ_34

AK30

VDD_1

M12

VDD_2

M13

VDD_3

M18

VDD_4

M19

VDD_5

N12

VDD_6

N13

VDD_7

N18

VDD_8

N19

VDD_9

V12

VDD_10

V13

VDD_11

V18

VDD_12

V19

VDD_13

W12

VDD_14

W13

VDD_15

W18

VDD_16

W19

S5_3.3V_1

A3

S5_3.3V_2

A7

S5_3.3V_3

E6

S5_3.3V_4

E7

S5_3.3V_5

E1

S5_3.3V_6

F5

S5_1.8V_1

E9

S5_1.8V_2

E10

S5_1.8V_3

E20

S5_1.8V_4

E21

USB_PHY_1.8V_1

E13

USB_PHY_1.8V_2

E14

USB_PHY_1.8V_3

E16

USB_PHY_1.8V_4

E17

CPU_PWR

C30

V5_VREF

AG6

AVDDCK

A24

AVSSCK

B24

VSS_1

A4

VSS_2

A8

VSS_3

A29

VSS_4

B28

VSS_5

C1

VSS_6

E5

VSS_7

E8

VSS_8

E11

VSS_9

E12

VSS_10

E15

VSS_11

E18

VSS_12 E19

VSS_13 E22

VSS_14 E23

VSS_15 E26

VSS_16 E30

VSS_17 F1

VSS_18 F4

VSS_19 G5

VSS_20 H5

VSS_21 J1

VSS_22 J4

VSS_23 K4

VSS_24 L5

VSS_25 M5

VSS_26 P1

VSS_27 R5

VSS_28 R26

VSS_29 T5

VSS_30 T26

VSS_31 T30

VSS_32 W1

VSS_33 W5

VSS_34 W26

VSS_35 Y5

VSS_36 AB26

VSS_37 AB30

VSS_38 AC5

VSS_39 AC26

VSS_40 AD1

VSS_41 AF5

VSS_42 AF8

VSS_43 AF23

VSS_44 AF26

VSS_45 AG8

VSS_46 AJ1

VSS_47 AJ24

VSS_48 AJ30

VSS_49 AK5

VSS_50 AK25

VSS_51 M14

VSS_52 M15

VSS_53 M16

VSS_54 M17

VSS_55 N14

VSS_56 N15

VSS_57 N16

VSS_58 N17

VSS_59 P12

VSS_60 P13

VSS_61 P14

VSS_62 P15

VSS_63 P16

VSS_64 P17

VSS_65 P18

VSS_66 P19

VSS_67 R12

VSS_68 R13

VSS_69 R14

VSS_70 R15

VSS_71 R16

VSS_72 R17

VSS_73 R18

VSS_74 R19

VSS_75 T12

VSS_76 T13

VSS_77 T14

VSS_78 T15

VSS_79 T16

VSS_80 T17

VSS_81 T18

VSS_82 T19

VSS_83 U12

VSS_84 U13

VSS_85 U14

VSS_86 U15

VSS_87 U16

VSS_88 U17

VSS_89 U18

VSS_90 U19

VSS_91 V14

VSS_92 V15

VSS_93 V16

VSS_94 V17

VSS_95 W14

VSS_96 W15

VSS_97 W16

VSS_98 W17

C585 1U_0402_6.3V4Z

1 2

C280 0.1U_0402_16V4Z

1 2

C543 0.1U_0402_16V4Z

1 2

C532 0.1U_0402_16V4Z

1 2

C523 0.1U_0402_16V4Z

1 2

C553 1U_0402_6.3V4Z

1 2

C594 0.1U_0402_16V4Z

1 2

C572 0.1U_0402_16V4Z

1 2

C522 0.1U_0402_16V4Z

1 2

C657 1U_0402_6.3V4Z

1 2

C570 0.1U_0402_16V4Z

1 2

C520 0.1U_0402_16V4Z

1 2

C579 0.1U_0402_16V4Z

1 2

C655 1U_0402_6.3V4Z

1 2

C519 0.1U_0402_16V4Z

1 2

C565 0.1U_0402_16V4Z

1 2

C651 1U_0402_6.3V4Z

1 2

C524 0.1U_0402_16V4Z

1 2

C560 1U_0402_6.3V4Z

1 2

D14

CH751H-40_SC76

2 1

C586 0.1U_0402_16V4Z

1 2

C597 0.1U_0402_16V4Z

1 2

C656 1U_0402_6.3V4Z

1 2

C571 0.1U_0402_16V4Z

1 2

R154

1K_0402_5%

1 2

C578 0.1U_0402_16V4Z

1 2

C275 10U_0805_10V4Z

1 2

C568 0.1U_0402_16V4Z

1 2

C507 0.1U_0402_16V4Z

1 2

C652 1U_0402_6.3V4Z

1 2

C573 1U_0402_6.3V4Z

1 2

C557 0.1U_0402_16V4Z

1 2

C282 1U_0402_6.3V4Z

1 2

C556 0.1U_0402_16V4Z

1 2

C266 10U_0805_10V4Z

1 2

C337

1U_0402_6.3V4Z

1

2

C547 0.1U_0402_16V4Z

1 2

R86

0_0805_5%

12

C661

22U_1210_10V4Z

1

2

C577 0.1U_0402_16V4Z

1 2

C555 0.1U_0402_16V4Z

1 2

C660

22U_1210_10V4Z

1

2

C535 0.1U_0402_16V4Z

1 2

C269 10U_0805_10V4Z

1 2

C508 0.1U_0402_16V4Z

1 2

C516

0.1U_0402_16V4Z

1 2

C569 0.1U_0402_16V4Z

1 2

C554 0.1U_0402_16V4Z

1 2

C540 0.1U_0402_16V4Z

1 2

C584 0.1U_0402_16V4Z

1 2

C581 0.1U_0402_16V4Z

1 2

C653 1U_0402_6.3V4Z

1 2

C526 0.1U_0402_16V4Z

1 2

C587 1U_0402_6.3V4Z

1 2

C534 0.1U_0402_16V4Z

1 2

C598 0.1U_0402_16V4Z

1 2

C546 0.1U_0402_16V4Z

1 2

C589

0.1U_0402_16V4Z

1

2

C542 0.1U_0402_16V4Z

1 2

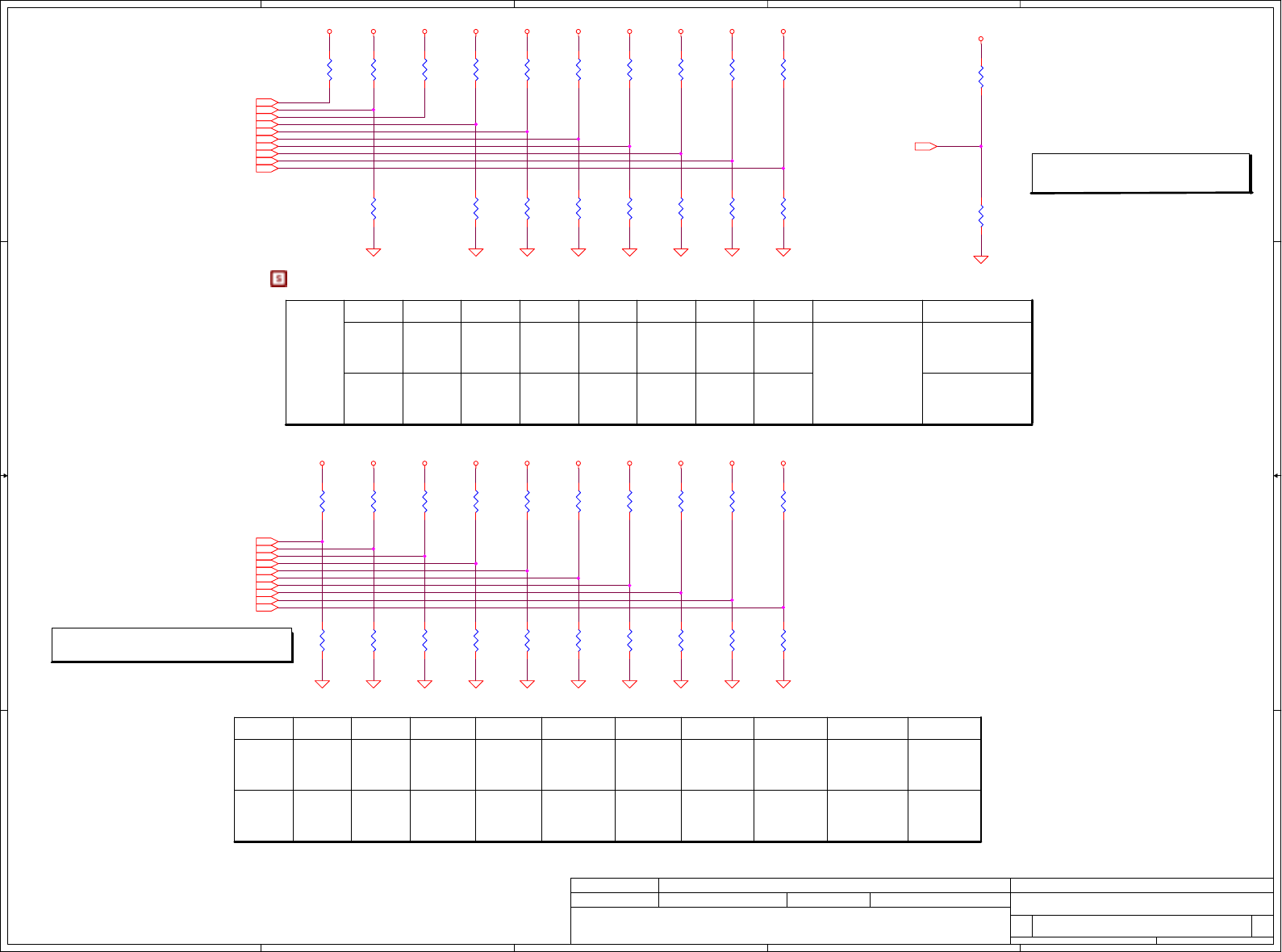

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CLK_PCI_LPC14,28

CLK_PCI314

RTC_CLK14 SPDIF_OUT15

AUTO_ON#14 AC_SDOUT15,24,32

CLK_PCI714

CLK_PCI_LAN14,19

CLK_PCI_139414,22

IDE_PDDACK#16,26

PCI_AD3014,19,20,22,23 PCI_AD3114,19,20,22,23

PCI_AD2914,19,20,22,23 PCI_AD2814,19,20,22,23

PCI_AD2614,19,20,22,23

PCI_AD2414,19,20,22,23

PCI_AD2714,19,20,22,23

PCI_AD2514,19,20,22,23

PCI_AD2314,19,20,22,23

CLK_PCI214

CLK_PCI_SIO14,29

+3VALW +3VS +3VALW +3VS +3VS +3VS +3VS +3VS +3VS +3VS

+3VS +3VS +3VS +3VS +3VS +3VS +3VS +3VS +3VS +3VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

HARDWARE TRAP

Custom

18 42

Monday, August 08, 2005

2005/03/01 2006/03/01

INTERNAL

RTC

DEFAULT

USE

DEBUG

STRAPS

CLK_PCI3

CPU I/F = K8

AUTO

PWR

ON

EXTERNAL

RTC (NOT

SUPPORTED

W/ IT8712 )

PCI_CLK6

PU for 48Mhz

XTAL mode

PCI_CLK8

ROM TYPE

PULL

HIGH

CLK_PCI_LPC

USB PHY

PWRDOWN

DISABLE

DEFAULT

PCIE CM_SET

HIGH

48M OSC

mode

DEFAULT

DEFAULT

Internal PLL

MANUAL

PWR ON

PULL

LOW

DEFAULT

CLK_PCI_LAN

PCIE CM_SET

low

RTC_CLK

DEFAULT

L,L = FWH ROM

H,H = PCI ROM

AC97_SDOUT SPDIF_OUT

External

Clock

PCI_CLK7

L,H = LPC ROM II

DEFAULT DEFAULT

CPU I/F = P4

DEFAULT

AUTO_ON#

H,L = LPC ROM I

USB PHY

PWRDOWN

ENABLE

ACPWRON

REQUIRED STRAPS

DEBUG STRAPS

PCI_AD25 PCI_AD24

USE EEPROM

PCIE STRAPS

USE DEFAULT

PCIE STRAPS

DEFAULT

PCI_AD29

BYPASS

ACPI

BCLK

USE

ACPI

BCLK

DEFAULT

Reserved

IDE_PDDACK#

USE IDE

PLL

USE

LONG

RESET

USE

SHORT

RESET

USE PCI

PLL

DEFAULT

BYPASS IDE

PLL

PULL

HIGH

PCI_AD31 PCI_AD30

DEFAULT

BYPASS

PCI PLL

PCI_AD27 PCI_AD26

PULL

LOW

PCI_AD28

DEFAULT

Reserved

Pop R634 when debug .

IGNORE

DEBUG

STRAPS

Selects type of 48MHz

clock pad

CLK_PCI_MINI2

Clock input buffer

Crytsal Pad

**

Reserved Reserved

PCI_AD23

Reserved

Compal Electronics, Inc.

R367

10K_0402_5%@

12

R143

10K_0402_5%@

12

R346

10K_0402_5%@

12

R380

10K_0402_5%

12

R315

10K_0402_5%

12

R351

10K_0402_5%@

12

R140

10K_0402_5%

12

R356

10K_0402_5%

12

R142

10K_0402_5%

12

R335

10K_0402_5%

12

R345

10K_0402_5%

12

R321

10K_0402_5%@

12

R126

10K_0402_5%@

12

R122

10K_0402_5%

12

R334

10K_0402_5%@

12

R369

10K_0402_5%@

12

R355

10K_0402_5%@

12

R132

10K_0402_5%@

12

R374

10K_0402_5%@

12

R309

10K_0402_5%

12

R131

10K_0402_5%

12

R341

10K_0402_5%

12

R149

10K_0402_5%@

12

R138

10K_0402_5%@

12

R320

10K_0402_5%

12

R328

10K_0402_5%

12

R381

10K_0402_5%@

12

R373

10K_0402_5%@

12

R329

10K_0402_5%@

12

R139

10K_0402_5%@

12

R350

10K_0402_5%

12

R123

10K_0402_5%@

12

R146

10K_0402_5%@

12

R147

10K_0402_5%@

12

R370

10K_0402_5%

12

R148

10K_0402_5%@

12

R127

10K_0402_5%@

12

R342

10K_0402_5%@

12

R141

10K_0402_5%@

12

R366

10K_0402_5%

12

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

1 1

2 2

3 3

4 4

+2.5V_LAN_VDD

PCI_C/BE#0

LINK_10_100#

LAN_TD+

ACTIVITY#

LAN_TD-

LAN_RD+

PCI_AD22

LAN_RD-

EEDI

+LAN_AVDDL

+LAN_DVDD

EESK

EEDO

EECS

PCI_PIRQG# CTRL25

LAN_X2

LAN_X2LAN_X1

RJ45_PR

PCI_C/BE#1

PCI_C/BE#2

PCI_C/BE#3 +LAN_DVDD CTRL25

LAN_RD-

LAN_RD+ RJ45_RX+

LAN_TD-

RJ45_RX-

LAN_TD+ RJ45_TX+

RJ45_TX-

PCI_AD31

PCI_AD27

PCI_AD13

PCI_AD22

PCI_AD25

PCI_AD10

PCI_AD17

PCI_AD11

PCI_AD8

PCI_AD29

PCI_AD9

PCI_AD21

PCI_AD30

PCI_AD5

PCI_AD26

PCI_AD28

PCI_AD23

PCI_AD18

PCI_AD3

PCI_AD0

PCI_AD7

PCI_AD12

PCI_AD14

PCI_AD24

PCI_AD19

PCI_AD1

PCI_AD15

PCI_AD20

PCI_AD4

PCI_AD16

PCI_AD2

PCI_AD6

PCI_AD[0..31]

LAN_X1

RJ45_RX-

RJ45_RX+

RJ45_TX-

RJ45_TX+

LANGND

ACTIVITY#

LINK_10_100#

RJ45_PR

PCI_C/BE#014,20,22,23

PCI_IRDY#14,20,22,23

PCI_PAR14,20,22,23

PCI_SERR#14,20,22,23

PCI_FRAME#14,20,22,23

PCI_DEVSEL#14,20,22,23 PCI_TRDY#14,20,22,23

PCI_STOP#14,20,22,23

CLK_PCI_LAN14,18

PCI_GNT#114

PCIRST#14,20,22,23,28,29

PCI_PERR#14,20,22,23

PCI_REQ#114

LAN_PME#22,23,28

PCI_C/BE#114,20,22,23 PCI_C/BE#214,20,22,23 PCI_C/BE#314,20,22,23

PCI_AD[0..31]14,18,20,22,23

PCI_PIRQG#14,23

PM_CLKRUN#14,20,22,23,28

+2.5V_LAN

+3VALW

+3VALW

+3VS

+3VALW

+3VALW

+2.5V_LAN

+2.5V_LAN

+3VALW

+3VALW

+3VALW

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

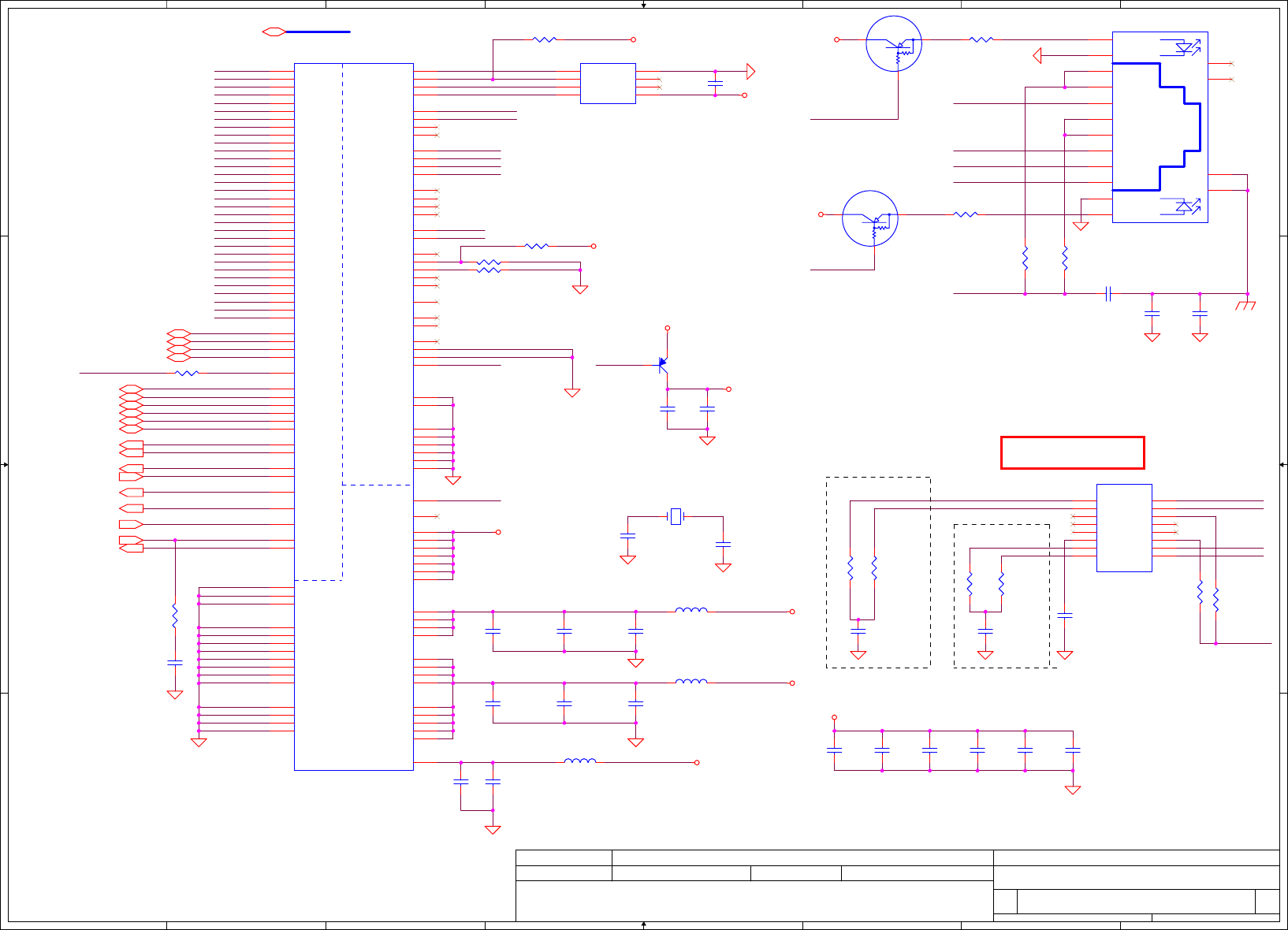

RTL8100CL

B

19 42

Monday, August 08, 2005

2005/03/01 2006/03/01

Layout Note

TS6121 pls close to

conn.

Closed to RTL8100CL Closed to RTL8100CL

10mil

10mil

40mil

40mil

40mil

20mil

Termination plane should be coupled to chassis ground

10mil

10mil

Compal Electronics, Inc.

C424

0.1U_0402_16V4Z

1

2

10K

47K

Q31

DTA114YKA_SC59

2

1 3

L31

KC FBM-L11-201209-221LMAT_0805

1 2

U4

AT93C46-10SI-2.7_SO8

CS

1SK

2DI

3DO

4

VCC 8

NC 7

NC 6

GND 5

R211

49.9_0402_1%

12

C412

0.1U_0402_16V4Z

1

2

R212

49.9_0402_1%

12

C39

0.1U_0402_16V4Z

1

2

R203 300_0402_5%

1 2

C34

10U_0805_10V4Z

1

2

R233 15K_0402_5%

12

C14

0.1U_0402_16V4Z

1

2

L32

KC FBM-L11-201209-221LMAT_0805

1 2

C431

0.1U_0402_16V4Z

1

2

R200 300_0402_5%

1 2

R6

75_0402_5%

12

R235

10_0402_5%

1 2

C421

0.1U_0402_16V4Z

1

2

JP12

TYCO_3-440470-4

PR1-

2

PR1+

1

PR2+

3

PR3+

4

PR3-

5

PR2-

6

PR4+

7

PR4-

8

Green LED+

9

Green LED-

10

Amber LED-

11

Amber LED+

12

SHLD1 13

SHLD2 14

SHLD2 16

SHLD1 15

C38

0.1U_0402_16V4Z

1

2

C440

0.1U_0402_16V4Z

1

2

C391

1000P_1206_2KV7K

1 2

C426

0.1U_0402_16V4Z

1

2

R238 100_0402_5%

1 2

R221

5.6K_0603_1%

12

U18

0.5u_TS6121C

TD+

1

TD-

3

CT

2

CT

7

RD+

6

RD-

8RX- 9

RX+ 11

CT 10

CT 15

TX- 14

TX+ 16

NC

4

NC

5NC 13

NC 12

C2

4.7U_0805_10V4Z

1

2

C433

22P_0402_50V8J

1

2

L9

CHB2012U170_0805

12

C428

0.1U_0402_16V4Z

1

2

R215 4.7K_0402_5%

12

R202

75_0402_5%

12

C416

27P_0402_50V8J

1

2

C434

0.1U_0402_16V4Z

1

2

C442

0.1U_0402_16V4Z

1

2

E

C

B

Q8

2SB1197K_SOT23

2

31

C441

0.1U_0402_16V4Z

1

2

R2311K_0402_5%

12

C1

0.1U_0402_16V4Z

1

2

C413

0.1U_0402_16V4Z

1

2

C419

0.1U_0402_16V4Z

1

2

PCI I/F

Power LAN I/F

U20

RTL8100CL_LQFP128

AD0

104

AD1

103

AD2

102

AD3

98

AD4

97

AD5

96

AD6

95

AD7

93

AD8

90

AD9

89

AD10

87

AD11

86

AD12

85

AD13

83

AD14

82

AD15

79

AD16

59

AD17

58

AD18

57

AD19

55

AD20

53

AD21

50

AD22

49

AD23

47

AD24

43

AD25

42

AD26

40

AD27

39

AD28

37

AD29

36

AD30

34

AD31

33

C/BE#3

44

IDSEL

46

C/BE#2

60

FRAME#

61

IRDY#

63

TRDY#

67

DEVSEL#

68

STOP#

69

PERR#

70

SERR#

75

PAR

76

C/BE#1

77 C/BE#0

92

ISOLATE# 23

EECS 106

RTSET 127

RTT3/CRTL18 125

PME#

31

LED0 117

LED1 115

LED2 114

X2 122

INTA#

25

RST#

27

CLK

28

GNT#

29 REQ#

30

TXD+/MDI0+ 1

TXD-/MDI0- 2

RXIN+/MDI1+ 5

RXIN-/MDI1- 6

AUX/EEDI 109

EESK 111

NC/VSS 9

NC/AVDDH 10

NC/HSDAC+ 11

NC/VSS 13

NC/MDI2+ 14

NC/MDI2- 15

NC/M66EN 88

NC/MDI3+ 18

NC/MDI3- 19

NC/GND 22

NC/VDD18 24

NC/GND 48

NC/GND 62

CLKRUN#

65

NC/SMBCLK 72

NC/GND 73

NC/SMBDATA 74

NC/VDD18 110

NC/GND 112

NC/GND 118

NC/HV 120

GND 123

GND 124

NC/LV2 126

NC/VDD18 45

NC/VDD18 64

VDD33 41

VDD33 56

VDD33 71

VDD33 84

VDD33 94

VDD33 107

AVDD33/AVDDL 3

AVDD33/AVDDL 20

AVDD33/AVDDL 7

VDD25/VDD18 54

VDD25/VDD18 78

VDD25/VDD18 99

AVDD25/HSDAC- 12

CTRL25 8

GND/VSS

4

GND/VSS

17

GND/VSSPST

21

GND

35

GND/VSSPST

38

GND/VSSPST

51

GND

52

GND/VSSPST

66

GND

80

GND/VSSPST

81

GND/VSSPST

91

GND

100

GND/VSSPST

101

GND/VSSPST

119

GND/VSS

128

VDD33 26

X1 121

NC/VDD18 116

VDD25/VDD18 32

LWAKE 105

EEDO 108

NC/LED3 113

NC/AVDDL 16

C17

0.1U_0402_16V4Z

1

2

R201

75_0402_5%

12

C425

0.1U_0402_16V4Z

1

2

R210

49.9_0402_1%

12

R5

75_0402_5%

12

C35

0.1U_0402_16V4Z

1

2

Y2

25MHZ_20P

12

R213

49.9_0402_1%

12

C423

0.1U_0402_16V4Z

1

2

C415

27P_0402_50V8J

1

2

10K

47K

Q1

DTA114YKA_SC59

2

1 3

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

S1_WP

S1_CD1# S1_CD2#

S1_D0

S1_D9

S1_D10

S1_D1

S1_D8

S1_A3

PCI_AD1

S1_A6

S1_A4

S1_A5

S1_A1

S1_A0

S1_A2

PCI_AD4

PCI_AD2

PCI_AD6

PCI_AD7

PCI_AD0

PCI_AD3

PCI_AD5

PCI_AD9

PCI_AD12

PCI_AD10

PCI_AD11

PCI_AD8

PCI_AD13

PCI_AD15

PCI_AD16

PCI_AD17

PCI_AD14

PCI_AD18

PCI_AD20

PCI_AD19

PCI_AD22

PCI_AD21

PCI_AD26

PCI_AD31

PCI_AD24

PCI_AD23

PCI_AD25

PCI_AD27

PCI_AD28

PCI_AD29

PCI_AD30

S1_A7

S1_A17

S1_A24

S1_A25

S1_D3

S1_D13

S1_D5

S1_D12

S1_D4

S1_D11

S1_IORD#

S1_CE2#

S1_A11

S1_D6

S1_A10

S1_D15

S1_D7

S1_IOWR#

S1_A9

S1_OE#

PCIRST#

S1_A8

S1_CE1#

S1_REG#

S1_A12

CLK_PCI_CB A16_CLK

S1_A22

S1_WAIT#

S1_RST

S1_A21

S1_A23

S1_A14

S1_INPACK#

S1_A20

S1_A15

S1_A13

S1_A16

S1_WE#

S1_WP

S1_BVD1

S1_A19

PCM_SPK#

S1_CD2#

S1_RDY#

S1_BVD2

S1_VS2

3V_PCM_SUSP

S1_VS1

S1_CD1#

S1_D[0..15]

S1_A[0..25]

PCI_AD[0..31]

PCM_IDPCI_AD20

S1_D2

S1_A18

S1_D14

CLK_PCI_CB

PCI_PIRQA#

PCIRST#

VCCD1#21 VCCD0#21

VPPD021 VPPD121

PCI_C/BE#314,19,22,23

PCI_C/BE#114,19,22,23 PCI_C/BE#014,19,22,23

PCI_C/BE#214,19,22,23

S1_IORD# 21

S1_IOWR# 21

S1_CE2# 21

S1_OE# 21

PCI_PERR#14,19,22,23

PCIRST#14,19,22,23,28,29

PCI_STOP#14,19,22,23

PCI_IRDY#14,19,22,23

PCI_DEVSEL#14,19,22,23

PCI_FRAME#14,19,22,23

PCI_TRDY#14,19,22,23

PCI_PAR14,19,22,23

PCI_GNT#214

PCI_SERR#14,19,22,23

PCI_REQ#214

CLK_PCI_CB14

S1_CE1# 21

S1_REG# 21

S1_A[0..25] 21

S1_D[0..15] 21

PCI_AD[0..31]14,18,19,22,23

S1_WAIT# 21

S1_INPACK# 21

S1_WE# 21

S1_RST 21

S1_WP 21

S1_BVD2 21

S1_RDY# 21

S1_BVD1 21

S1_CD1# 21

PCM_SPK# 25

S1_VS2 21

S1_CD2# 21

S1_VS1 21

SERIRQ14,28,29

PM_CLKRUN#14,19,22,23,28

PCI_PIRQA#14,22

+S1_VCC

+3VS

+S1_VCC

+3VS

+3VS

+3VS

+S1_VCC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

ENE-CB1410

B

20 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

IDSEL:

PCI_AD20

Close chip termenal

Closed to Pin A4Closed to Pin L12

Compal Electronics, Inc.

C343

0.1U_0402_16V4Z

1

2

C354

0.1U_0402_16V4Z

1

2

C357

10P_0402_50V8J

1

2

C334

0.1U_0402_16V4Z

1

2

C355

0.1U_0402_16V4Z

1

2

R17410K_0402_5%@

1 2

C349

0.1U_0402_16V4Z

1

2

R17110K_0402_5%@

1 2

R160 33_0402_5%

1 2

CARDBUS

PCI Interface

U29

PCI1410AGGU_PBGA144

PCIREQ#

A1

PCIGNT#

B1

AD31

C2

AD30

C1

AD29

D4

AD28

D2

AD27

D1

AD26

E4

AD25

E3

AD24

E2

CBE3#

E1

IDSEL

F4

VCC2 G1

AD23

F2

AD22

F1

AD21

G2

VCCA1 G13

AD20

G3

PCIRST#

G4

PCICLK

H1

AD19

H3

AD18

H4

AD17

J1

AD16

J2

CBE2#

J3

FRAME#

J4

IRDY#

K1

VCC3 K2

TRDY#

K3

DEVSEL#

L1

STOP#

L2

PERR#

L3

SERR#

M1

PAR

M2

CBE1#

N1

AD15

N2

AD14

M3

AD13

N3

AD12

K4

AD11

M4

VCCA2 A7

AD10

K5

AD9

L5

AD8

M5

CBE0#

N5

AD7

K6

VCC4 N4

AD6

M6

AD5

N6

AD4

M7

AD3

N7

AD2

L7

AD1

K7

AD0

N8

RIOUT#_PME#

L8

MFUNC0

K8

MFUNC1

N9

SPKROUT M9

VCC1 F3

MFUNC2

K9

MFUNC3

N10

GRST#

M10

MFUNC4

L10

MFUNC5

N11

MFUNC6

M11

SUSPEND#

L11

VPPD0 N12

VPPD1 M12

VCCD0# N13

VCCD1# M13

CCD1#/CD1# L12

CAD0/D3 L13

CAD2/D11 K10

CAD1/D4 K12

CAD4/D12 K13

CAD3/D5 J10

CAD6/D13 J11

CAD5/D6 J12

CAD7/D7 H10

VCC5 L6

CAD8/D15 H12

CCBE0#/CE1# H13

CAD9/A10 G12

VCC9 C8

CAD10/CE2# G11

CAD11/OE# G10

CAD13/IORD# F13

CAD12/A11 F11

CAD15/IOWR# F10

CAD14/A9 E13

CAD16/A17 E12

CCBE1#/A8 E11

CPAR/A13 D13

VCC6 L9

CBLOCK#/A19 D11

CPERR#/A14 C13

CSTOP#/A20 C12

CGNT#/WE# C11

CDEVSEL#/A21 B13

CCLK/A16 B12

CTRDY#/A22 A13

CIRDY#/A15 A12

CFRAME#/A23 B11

CCBE2#/A12 A11

CAD17/A24 D10

CAD18/A7 B10

CAD19/A25 A10

CVS2/VS2# D9

CAD20/A6 C9

CRST#/RESET B9

CAD21/A5 A9

CAD22/A4 D8

VCC7 H11

CREQ#/INPACK# B8

CAD23/A3 A8

CCBE3#/REG# B7

VCC10 B4

CAD24/A2 C7

CAD25/A1 D7

CAD26/A0 A6

CVS1/VS1 C6

CINT#/READY_IREQ# D6

CSERR#/WAIT# A5

CAUDIO/BVD2_SPKR# B5

CSTSCHG/BVD1_STSCHG# C5

CCLKRUN#/WP_IOIS16# D5

CCD2#/CD2# A4

VCC8 D12

CAD27/D0 C4

CAD28/D8 A3

CAD29/D1 B3

CAD30/D9 C3

CAD31/D10 B2

CRSV1/D14 J13

CRSV2/A18 E10

CRSV3/D2 A2

MFUNC7

J9

GND1

D3

GND2

H2

GND3

L4

GND4

M8

GND5

K11

GND6

F12

GND7

C10

GND8

B6

R180

43K_0402_5%@

12

R407

10_0402_5%@

12

C336

10P_0402_50V8J

1

2

C359

0.1U_0402_16V4Z

1

2

R159 10K_0402_5%

1 2

C348

0.1U_0402_16V4Z

1

2

C345

0.1U_0402_16V4Z

1

2

C347

0.1U_0402_16V4Z

1

2

R406 100_0402_5%

1 2

C340

0.1U_0402_16V4Z

1

2

C351

0.1U_0402_16V4Z

1

2

R161 0_0402_5%

1 2

R16810K_0402_5%@

1 2

C358

0.1U_0402_16V4Z

1

2

C612

18P_0402_50V8K@

1

2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

S1_RST

S1_A[0..25]

S1_D[0..15]

S1_CE2#

S1_CE1#

S1_WP

S1_OE#

VCCD1#

VPPD1

VCCD0#

VPPD0

S1_D11

S1_CD2#

S1_D13

S1_CE2#

S1_D12

S1_VS1

S1_D15

S1_A19

S1_A17

S1_IORD#

S1_D14

S1_A18

S1_A22

S1_IOWR#

S1_A21

S1_A23

S1_A20

S1_INPACK#

S1_A24

S1_VS2

S1_WAIT#

S1_A25

S1_D9

S1_BVD1

S1_D8

S1_BVD2

S1_RST

S1_REG#

S1_D10

S1_A14

S1_D5

S1_A15

S1_A5

S1_D0

S1_A16

S1_A13

S1_D4

S1_A0

S1_A2

S1_CE1#

S1_OE#

S1_A6

S1_RDY#

S1_WP

S1_A8

S1_D3

S1_A7

S1_A10

S1_D7

S1_A1

S1_D2

S1_A3

S1_WE#

S1_A12

S1_D6

S1_A9

S1_A4

S1_A11

S1_D1

S1_A[0..25]

S1_D[0..15]

S1_CD1#

S1_A[0..25]20

S1_D[0..15]20

VPPD0 20

VPPD1 20

VCCD0# 20

VCCD1# 20

S1_CD1# 20

S1_CE1# 20

S1_CE2# 20

S1_OE# 20

S1_VS1 20

S1_IORD# 20

S1_IOWR# 20

S1_WE# 20

S1_RDY# 20

S1_VS2 20

S1_RST 20

S1_WAIT# 20

S1_INPACK# 20

S1_REG# 20

S1_BVD2 20

S1_BVD1 20

S1_WP 20

S1_CD2# 20

+S1_VCC

+S1_VCC

+S1_VPP

+S1_VPP

+5VS

+3VS

+S1_VCC

+S1_VPP+S1_VCC

+S1_VCC

+S1_VPP

+S1_VCC +S1_VPP

S1_A[0..25]20

S1_D[0..15]20

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

CARD BUS SOCKET

B

21 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

Close to

CardBus Conn. Reserve for Debug.

PCMCIA Power Controller

CardBus Socket

40mil

40mil

W=40mil

W=40mil

CardBus Socket

Compal Electronics, Inc.

C322

0.1U_0402_16V4Z

C316

10U_0805_10V4Z

1

2

U10

TPS2211AIDBR_SSOP16

VCCD0 1

VCCD1 2

3.3V

3

3.3V

4

5V

5

5V

6

GND

7

OC 8

12V

9

VPP 10

VCC 11

VCC 12

VCC 13

VPPD1 14

VPPD0 15

SHDN

16

C321

0.1U_0402_16V4Z

C319

0.1U_0402_16V4Z

1

2

C318

0.1U_0402_16V4Z

R33247K_0402_5%

12

C320

4.7U_0805_10V4Z

1

2

C335

10U_0805_6.3V6M

1

2

C317

0.1U_0402_16V4Z

C303

4.7U_0805_10V4Z

1

2

C326

0.1U_0402_16V4Z

1

2

C331

0.1U_0402_16V4Z

1

2

R17343K_0402_5%

12

C329

10U_0805_10V4Z

1

2

C304

0.1U_0402_16V4Z

1

2

R135

10K_0402_5%

12

R15347K_0402_5%

12

R32447K_0402_5%

12

C323

0.01U_0402_25V4Z

1

2

C325

0.1U_0402_16V4Z

1

2

SANTA_130606-1_LT

JP7

GND 1

DATA3 2

DATA4 3

DATA5 4

DATA6 5

DATA7 6

CE1# 7

ADD10 8

OE# 9

ADD11 10

ADD9 11

ADD8 12

ADD13 13

ADD14 14

WE# 15

READY 16

VCC 17

VPP 18

ADD16 19

ADD15 20

ADD12 21

ADD7 22

ADD6 23

ADD5 24

ADD4 25

ADD3 26

ADD2 27

ADD1 28

ADD0 29

DATA0 30

DATA1 31

DATA2 32

WP 33

GND 34

GND 35

CD1# 36

DATA11 37

DATA12 38

DATA13 39

DATA14 40

DATA15 41

CE2# 42

VS1# 43

IORD# 44

IOWR# 45

ADD17 46

ADD18 47

ADD19 48

ADD20 49

ADD21 50

VCC 51

VPP 52

ADD22 53

ADD23 54

ADD24 55

ADD25 56

VS2# 57

RESET 58

WAIT# 59

INPACK# 60

REG# 61

BVD2 62

BVD1 63

DATA8 64

DATA9 65

DATA10 66

CD2# 67

GND 68

GND

69

GND

70

R31647K_0402_5%

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PCI_AD0

PCI_AD1

PCI_AD2

PCI_AD3

PCI_AD4

PCI_AD5

PCI_AD6

PCI_AD7

PCI_AD8

PCI_AD9

PCI_AD10

PCI_AD11

PCI_AD12

PCI_AD13

PCI_AD14

PCI_AD15

PCI_AD16

PCI_AD17

PCI_AD18

PCI_AD19

PCI_AD20

PCI_AD21

PCI_AD22

PCI_AD23

PCI_AD24

PCI_AD25

PCI_AD26

PCI_AD27

PCI_AD31

PCI_AD30

PCI_AD29

PCI_AD28

1394_PLLVDD

PCIRST# TPA0+

TPA0-

PCI_C/BE#0

PCI_C/BE#1

PCI_C/BE#2

PCI_C/BE#3

PCI_PAR

PCI_FRAME#

PCI_IRDY#

PCI_TRDY#

PCI_DEVSEL#

PCI_STOP#

1394_IDSEL

PCI_AD16

PCI_GNT#0

PCI_REQ#0

PCI_SERR#

PCI_PERR#

CLK_PCI_1394

1394_PME#

PM_CLKRUN#

PCI_PIRQA#

TPBIAS0

TPB0-

PCI_AD[0..31]

CLK_PCI_1394

1394_IDSEL

TPB0+

PCI_C/BE#014,19,20,23 PCI_C/BE#114,19,20,23 PCI_C/BE#214,19,20,23 PCI_C/BE#314,19,20,23

PCI_PAR14,19,20,23

PCI_FRAME#14,19,20,23 PCI_IRDY#14,19,20,23 PCI_TRDY#14,19,20,23

PCI_DEVSEL#14,19,20,23 PCI_STOP#14,19,20,23

PCI_REQ#014 PCI_GNT#014

PCI_PERR#14,19,20,23

PCI_SERR#14,19,20,23

CLK_PCI_139414,18

1394_PME#19,23,28

PM_CLKRUN#14,19,20,23,28 PCIRST#14,19,20,23,28,29

PCI_PIRQA#14,20

PCI_AD[0..31]14,18,19,20,23

+3VS

+3VS

+3VS

+3VS

+3VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

TSB43AB21

B

22 42

Monday, August 08, 2005

2005/03/01 2006/03/01

IDSEL:PCI_AD16

Compal Electronics, Inc.

J2

JUMP_43X118

@

11

2

2

R311

56.2_0603_1%1394@

C591

1000P_0402_50V7K1394@

C527

0.33U_0603_16V4Z1394@

C307

0.01U_0402_25V4Z1394@

L25

BLM21A601SPT_08051394@

1 2

C583

0.1U_0402_16V4Z1394@

C297

0.1U_0402_16V4Z1394@

R144

100_0402_5%

1394@

1 2

R352

220_0402_5%1394@

1 2

C548

22P_0402_50V8J1394@

R338

4.7K_0402_5%

1394@

1 2

R347

220_0402_5%1394@

1 2

R313

5.11K_0603_1%1394@

C538

0.1U_0402_16V4Z1394@

R312

56.2_0603_1%

1394@

R359

4.7K_0402_5%

1394@

1 2

C302

0.1U_0402_16V4Z1394@

C590

0.1U_0402_16V4Z1394@

R322

56.2_0603_1%

1394@

C580

1000P_0402_50V7K1394@

C299

0.1U_0402_16V4Z1394@

R121

6.34K_0603_1%

1394@

C593

0.1U_0402_16V4Z1394@

C567

10P_0402_50V8K

@

R360

4.7K_0402_5%1394@

12

C549

0.1U_0402_16V4Z1394@

C310

1000P_0402_50V7K1394@

C296

0.1U_0402_16V4Z1394@

R361

4.7K_0402_5%

1394@

1 2

C539 22P_0402_50V8J1394@

JP22

TYCO_1470383-21394@

1

12

23

34

4

G5

G6

R348

220_0402_5%1394@

1 2

C518

220P_0402_50V8K1394@

C592

1000P_0402_50V7K1394@

C574

0.1U_0402_16V4Z1394@

R120

1K_0402_5%1394@

1 2

R353

220_0402_5%1394@

1 2

R364

10_0402_5%

@

12

X3 24.576MHz_16P_3XG-24576-43E11394@

1 2

C575

1000P_0402_50V7K1394@

R323

56.2_0603_1%1394@

PHY PORT 1

POWER CLASS

EEPROM 2 WIRE BUS

FILTER

OSCILLATOR

BIAS CURRENT

PCI BUS INTERFACE

TSB43AB21

/(TSB43AB22)

U27

TSB43AB21_PQFP1281394@

CYCLEOUT/CARDBUS 86

CNA 96

TEST17 10

TEST16 11

CYCLEIN 87

VDDP 20

VDDP 35

VDDP 48

VDDP 62

VDDP 78

PCI_AD25

31 PCI_AD24

32 PCI_AD23

37 PCI_AD22

38 PCI_AD21

40 PCI_AD20

41 PCI_AD19

42 PCI_AD18

43 PCI_AD17

45 PCI_AD16

46 PCI_AD15

61 PCI_AD14

63 PCI_AD13

65 PCI_AD12

66 PCI_AD11

67 PCI_AD10

69 PCI_AD9

70 PCI_AD8

71 PCI_AD7

74 PCI_AD6

76 PCI_AD5

77 PCI_AD4

79 PCI_AD3

80 PCI_AD2

81 PCI_AD1

82 PCI_AD0

84

PCI_C/BE3

34

PCI_C/BE2

47

PCI_C/BE1

60

PCI_C/BE0

73

PCI_CLK

16

PCI_GNT

18

PCI_REQ

19

PCI_IDSEL

36

PCI_FRAME

49

PCI_IRDY

50

PCI_TRDY

52

PCI_DEVSEL

53

PCI_STOP

54

PCI_PERR

56

PCI_INTA/CINT

13

PCI_PME/CSTSCHG

21

PCI_SERR

57

PCI_PAR

58

PCI_CLKRUN

12

PCI_RST

85

G_RST

14

GPIO3

89

GPIO2

90

PLLGND1

8

REG_EN

9

AGND

109

AGND

110

AGND

111

AGND

117

AGND

126

AGND

127

AGND

128

DGND

17

DGND

23

REG18

30

DGND

33

DGND

44

DGND

55

DGND

64

DGND

68

DGND

75

DGND

83

REG18

93

DGND

103

DVDD 15

DVDD 27

DVDD 39

DVDD 51

DVDD 59

DVDD 72

DVDD 88

DVDD 100

PLLVDD 7

AVDD 1

AVDD 2

AVDD 107

AVDD 108

AVDD 120

CPS 106

NC/(TPBIAS1) 125

NC/(TPA1+) 124

NC/(TPA1-) 123

NC/(TPB1+) 122

NC/(TPB1-) 121

R0 118

R1 119

X0 6

X1 5

FILTER0 3

FILTER1 4

SDA 92

SCL 91

PC0 99

PC1 98

PC2 97

TPBIAS0 116

TPA0+ 115

TPA0- 114

TPB0 + 113

TPB0 - 112

TEST9 94

TEST8 95

TEST3 101

TEST2 102

TEST1 104

TEST0 105

PCI_AD31

22 PCI_AD30

24 PCI_AD29

25 PCI_AD28

26 PCI_AD27

28 PCI_AD26

29

R362 10K_0402_5%

1394@

1 2

C311

4.7U_0805_10V4Z1394@

C582

0.1U_0402_16V4Z1394@

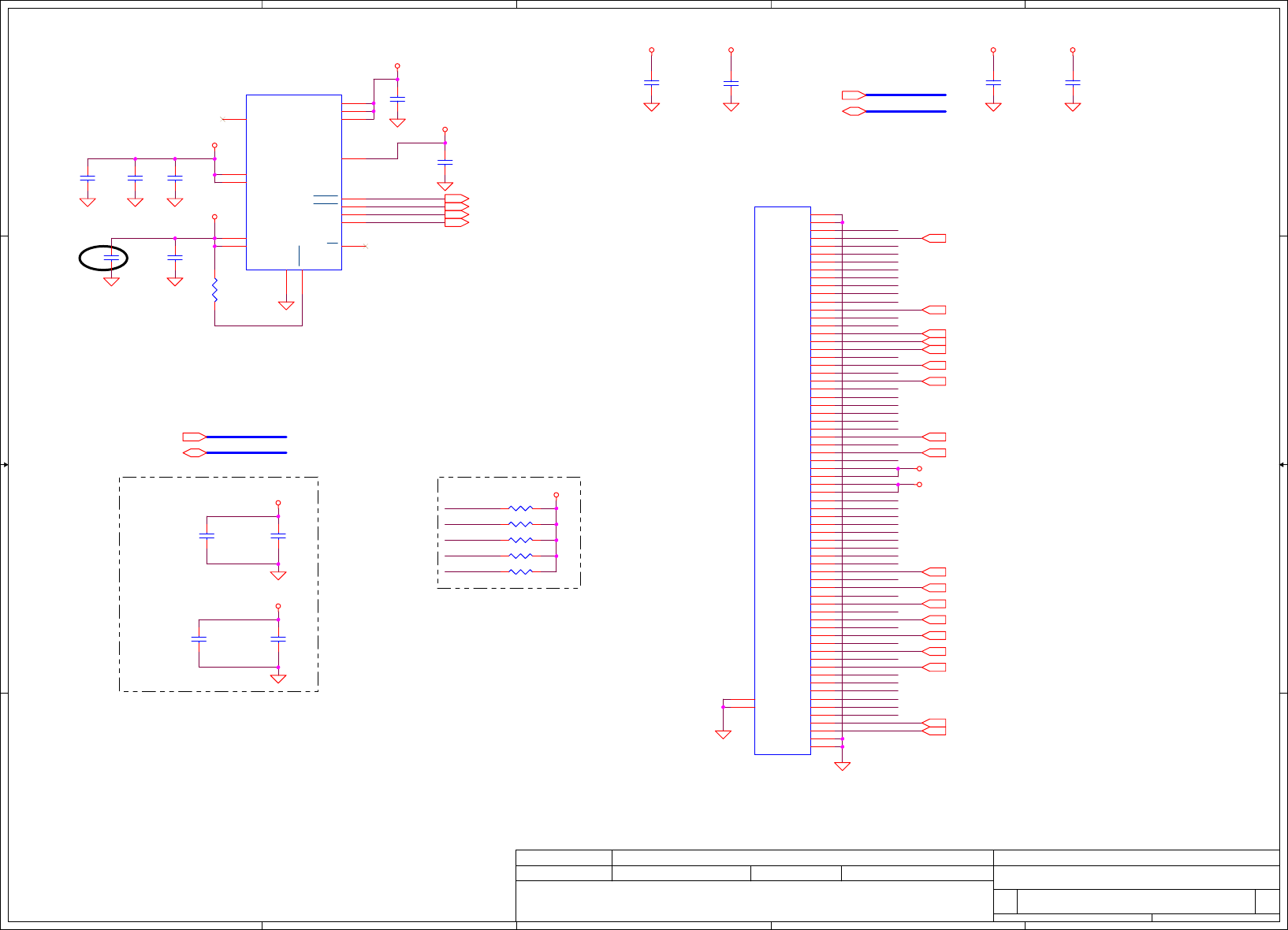

CLK_PCI_MINI

PCI_AD18

PCI_AD[0..31]

PCI_AD3

PCI_AD12

PCI_AD27

PCI_AD4

PCI_AD14

PCI_AD26

PCI_AD18

PM_CLKRUN#

PCI_AD21

PCI_AD11

PCI_AD17

PCI_AD23

PCI_AD13

PCI_AD20

PCI_AD5

PCI_AD9

PCI_AD10

PCI_AD19

PCI_AD24

PCIRST#

PCI_AD15

MINI_IDSEL

PCI_AD25

PCI_AD31

PCI_AD0

PCI_AD8

PCI_AD2

PCI_AD6

PCI_AD22

PCI_AD1

PCI_AD29

CLK_PCI_MINI

PCI_AD7

PCI_AD16

PCI_AD28

PCI_AD30

PCI_PIRQG# PCI_PIRQF#

CLK_PCI_MINI

PCI_C/BE#0

PCI_AD6

PCI_AD4

PCI_AD2

PCI_AD0

PCI_AD1

PCI_AD3

PCI_AD5

PCI_AD7

PCI_AD8

PCI_C/BE#1

PCI_C/BE#2

PCI_C/BE#3

PCIRST#

PCI_FRAME#

PCI_TRDY#

PCI_AD9

CLK_PCI_MINI14

PCI_C/BE#214,19,20,22

PCI_SERR#14,19,20,22

PCI_C/BE#314,19,20,22

PCI_PERR#14,19,20,22

PCI_IRDY#14,19,20,22

PCI_C/BE#114,19,20,22

PCI_REQ#314

PCI_AD[0..31] 14,18,19,20,22

PCIRST# 14,19,20,22,28,29

PCI_TRDY# 14,19,20,22

PCI_FRAME# 14,19,20,22

PCI_STOP# 14,19,20,22

PCI_GNT#3 14

PCI_PAR 14,19,20,22

PCI_DEVSEL# 14,19,20,22

WLANPME# 19,22,28

PCI_C/BE#0 14,19,20,22

KILL_SW#28,30

WL_OFF#28

PCI_PIRQF# 14

PCI_PIRQG#14,19

PM_CLKRUN#14,19,20,22,28

+3VS

+5VS

+3VS

+5VS

+3VS

+3VALW

+5VS

+3VALW

+5VS

+3VALW

+5VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

MINI PCI SLOT

B

23 42

Monday, August 08, 2005

2005/03/01 2006/03/01

LAN RESERVED

LAN RESERVED

W=30mils

W=30mils W=20mils

W=40mils

W=40mils

W=40mils

W=30mils

IDSEL : PCI_AD18

TIP

RING

MINI_PCI SOCKET FOR WLAN (BOTTOM)

Compal Electronics, Inc.

Place under MiniPCI Socket

**

Port 80 Debug Card Connector

C609 0.1U_0402_16V4ZWL@

1

2

C517

10U_0805_10V4ZWL@

1

2

C126

0.1U_0402_16V4ZWL@

12

C605

10U_0805_10V4ZWL@

1

2

C528

0.1U_0402_16V4ZWL@

1

2

C545

0.1U_0402_16V4ZWL@

1

2

C529

0.1U_0402_16V4ZWL@

1

2

D30

CH751H-40_SC76WL@

21

C599

0.1U_0402_16V4ZWL@

1

2

R368 100_0402_1%WL@

1 2

C544

22P_0402_50V8J@

1

2

R456

0_0402_5%@

1 2

C588

0.1U_0402_16V4ZWL@

1

2

C600

0.1U_0402_16V4ZWL@

1

2

JP29

ACES_85201-2005@

1

12

23

34

45

56

67

78

89

910

10 11

11 12

12 13

13 14

14

16

16 17

17 18

18

15

15

20

20

19

19

C614

0.1U_0402_16V4ZWL@

1

2

U30

TC7SH08FU_SSOP5WL@

B

1

A

2Y4

P5

G

3

R331

10_0402_5%

@

12

C551

10U_0805_10V4ZWL@

1

2

C602

1000P_0402_50V7KWL@

1

2

KEY KEY

JP24

FOX_AS0A226-S2T

3

344

5

566

7

788

9

910 10

11

11 12 12

13

13 14 14

15

15 16 16

17

17 18 18

19

19 20 20

21

21 22 22

23

23 24 24

25

25 26 26

27

27 28 28

29

29 30 30

31

31 32 32

33

33 34 34

35

35 36 36

37

37 38 38

39

39 40 40

41

41 42 42

43

43 44 44

45

45 46 46

47

47 48 48

49

49 50 50

51

51 52 52

53

53 54 54

55

55 56 56

57

57 58 58

59

59 60 60

61

61 62 62

63

63 64 64

65

65 66 66

67

67 68 68

69

69 70 70

71

71 72 72

73

73 74 74

75

75 76 76

77

77 78 78

79

79 80 80

81

81 82 82

83

83 84 84

85

85 86 86

87

87 88 88

89

89 90 90

91

91 92 92

93

93 94 94

95

95 96 96

97

97 98 98

99

99 100 100

101

101 102 102

103

103 104 104

105

105 106 106

107

107 108 108

109

109 110 110

111

111 112 112

113

113 114 114

115

115 116 116

117

117 118 118

119

119 120 120

121

121 122 122

123

123 124 124

125

125 126 126

1

122

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

AMP_RIGHT

LINEL

CD_L

CD_R

CD_GNA

CD_GNA

C_MIC

LINER

+VDDA

CD_R

CD_L

AMP_LEFT

AGND

CLK_AUDIO_14M

AC_SDIN0 15

EAPD28

AC_SYNC15,32

AC_RST#15,32

MONO_IN25

AC_SDOUT15,18,32

CD_AGND26

MIC30

NBA_PLUG25,30

INT_CD_L26

INT_CD_R26

AC_BITCLK 15,32

AMP_LEFT 25

AMP_RIGHT 25

CLK_AUDIO_14M 11

SUSP#28,29,33,38,39

SPK_SEL28

+AUD_VREF

+AVDD_AC97

+AUD_VREF

+VDDA

+AVDD_AC97

+3VS

+VDDA+5VALW

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

AC97 CODEC ALC250D

B

24 42

Monday, August 08, 2005

2005/03/01 2006/03/01

AC97 Codec

AGND

DGND

DGND To AGND Bypass

CD_AGND To CD_GNA Bypass

Analog Reference V

DGND

AGND

Audio Signal Bias Circuit

Adjustable Output

WITH 14.318MHz : RA POP

WITH 24.576MHz : RA DEPOP Compal Electronics, Inc.

RA

C378 1U_0402_6.3V4Z

1

2

R409 20K_0402_1%

12

C377 1U_0402_6.3V4Z

1 2

R412 20K_0402_1%

12

C633 1U_0402_6.3V4Z

1 2

R187

0_0603_5%

1 2

C635 1000P_0402_50V7K@

C367 4.7U_0805_10V4Z

R422 22_0402_5%

1 2

C376 1U_0402_6.3V4Z

1 2

L28

CHB2012U170_0805

1 2

C369

4.7U_0805_10V4Z

C638 1U_0402_6.3V4Z

1 2

C619 0.1U_0402_16V4Z

1 2

R198

0_0603_5%

1 2

C389

0.1U_0402_16V4Z

R427 22_0402_5%

1 2

C627 1U_0402_6.3V4Z

1

2

C630 27P_0402_50V8J

1 2

C379 1U_0402_6.3V4Z

1 2

R408

6.8K_0402_5%

12

R404

24K _0402_1%

12

C620 0.1U_0402_16V4Z

1 2

R411

6.8K_0402_5%

12

C388

10U_0805_10V4Z

1

2

U14

SI9182DH-AD_MSOP8

VIN

4

SD

8

VOUT 5

GND 3

SENSE or ADJ 6

ERROR

7CNOISE 1

DELAY

2

C365

4.7U_0805_10V4Z

R421 0_0603_5%

<BOM Structure>

1 2

C621 0.1U_0402_16V4Z

C628 1000P_0402_50V7K

C634 1000P_0402_50V7K@

C629 0.01U_0402_16V7K

1

2

C615 1U_0402_6.3V4Z

1 2

R426 22_0402_5%

1 2

C375 1U_0402_6.3V4Z

1 2

R428 0_0402_5%@

1 2

R414

6.8K_0402_5%

12

R413 20K_0402_1%

12

R436

0_0402_5%

1 2

C606 0.1U_0402_16V4Z

C616 1U_0402_6.3V4Z

1 2

R410

0_0402_5%

12

C363 0.1U_0402_16V4Z

R419 22_0402_5%

12

C623 1000P_0402_50V7K

R405

69.8K_0603_1%

1 2

U16

ALC250-VD_LQFP48

AUX_L

14

AUX_R

15

JD1

17

JD2

16

LINE_IN_L

23

LINE_IN_R

24

CD_L

18

CD_R

20

CD_GND

19

MIC1

21

MIC2

22

PHONE

13

PC_BEEP

12

LINE_OUT_L 35

LINE_OUT_R 36

MONO_OUT/VREFOUT3 37

RESET#

11

SYNC

10

BIT_CLK 6

SDATA_OUT

5

SDATA_IN 8

XTL_IN 2

XTL_OUT 3

AFILT1 29

AFILT2 30

VREFOUT 28

VREF 27

DVDD1 1

DVDD2 9

AVDD1 25

AVDD2 38

DCVOL 32

XTLSEL

46

SPDIFI/EAPD

47

SPDIFO

48

DVSS1

4

DVSS2

7

NC 31

VREFOUT2 33

VAUX 34

DISABLE# 43

SCK 44

SDA

45

NC 40

AVSS1 26

AVSS2 42

HP_OUT_L 39

HP_OUT_R 41

R437 10K_0402_5%

1 2

R441

0_0603_5%

1 2

R429 22_0402_5%

1 2

C362

0.1U_0402_16V4Z

C632

0.1U_0402_16V4Z C383

10U_0805_10V4Z

1

2

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

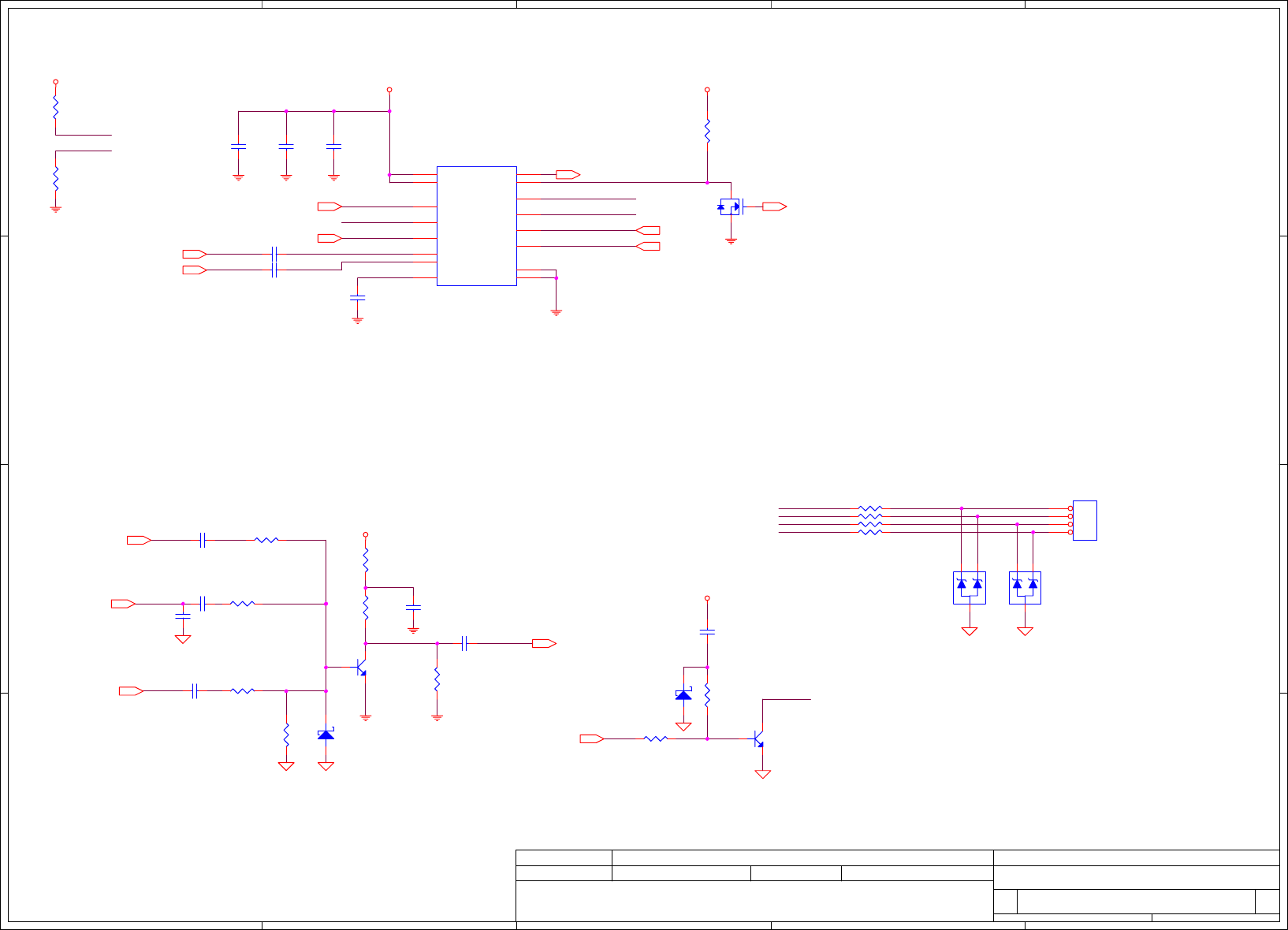

MONO_IN

TI_BIG2#

SPKL+

SPKL-

SPKR+

SPKR-

BYPASS

SPKR-

SPKL+

SPKR+

SPKL-

VOL_AMP

VOLMAX

VOLMAX

NBA_PLUG

NBA_PLUG

SHUTDOWN#

TI_BIG2#

TI_BIG

SPKR15

PCM_SPK#20

MONO_IN 24

BEEP#28

AMP_LEFT24

AMP_RIGHT24

AMP_MUTE 28

VOL_AMP30

TI_BUG28

NBA_PLUG24,30 SPKR+ 30

SPKL+ 30

EC_EAPD 28

+AVDD_AC97

+5VS +5VS+5VS

+S1_VCC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

AMP&Audio Jack

B

25 42

Monday, August 08, 2005

2005/03/01 2006/03/01

PCI Beep

CardBus Beep

EC Beep

Speaker Conn.

W=30mil

Compal Electronics, Inc.

C387

1U_0402_6.3V4Z

1 2

Q52

MMBT3904_SOT23

2

3 1

R26 0_0603_5%

1 2

C613 1U_0402_6.3V4Z

1 2

R442

100K_0402_5%

12

D6

PSOT24C_SOT23@

2

3

1

C386

1U_0402_6.3V4Z

@

1

2

G

D

S

Q29

2N7002_SOT23

2

13

D37

CH751H-40_SC76

2 1

C385

1U_0402_6.3V4Z

1 2

R189

2.4K_0402_5%

1 2

C381

1U_0402_6.3V4Z

1 2

D5

PSOT24C_SOT23@

2

3

1

R190

100K_0402_5%

12

C390

0.01U_0402_16V7K

1

2

R431

10K_0402_5%

12

C360 1U_0402_6.3V4Z

1 2

R430

10K_0402_5%

12

U15

APA2068KAI-TRL_SOP16

VOLUME

7

LOUT+ 11

ROUT+ 14

LIN-

6

RIN-

3

VDD

10

GND 5

MUTE 1

VOLMAX

8ROUT- 16

LOUT- 9

BYPASS

4

SE/BTL#

13

SHUTDOWN# 2

GND 12

VDD

15

R461

4.7K_0402_5%

1 2

C364

0.47U_0603_10V7K

1

2

C356

22U_1206_16V4Z

1

2

R196

560_0402_5%

1 2

JP2

ACES_85204-0400

1

2

3

4

C617

0.1U_0402_16V4Z

1

2

R440

10K_0402_5%

12

R199

560_0402_5%

1 2

C380

10U_0805_10V4Z

1

2

R35 0_0603_5%

1 2

Q30

MMBT3904_SOT23

2

3 1

R402

0_0402_5%

12

R36 0_0603_5%

1 2

C662

4.7U_0603_6.3V6M

1

2

R462

4.7K_0402_5%

1 2

R197

560_0402_5%

1 2

C384

1U_0402_6.3V4Z

1 2

R25 0_0603_5%

1 2

D34

CH751H-40_SC76

2 1

IDE_SDIORDY

IDE_PDD[0..15]

SHDD_LED#

CD_AGND

INT_CD_L

IDE_SDD[0..15]

INT_IRQ15

IDE_SDD7

IDE_SDD6

IDE_SDD5

IDE_SDD4

IDE_SDD3

IDE_SDD2

IDE_SDD1

IDE_SDD0

IDE_SDIOW#

IDE_SDA0

IDE_SDD8

IDE_SDD9

IDE_SDD10

IDE_SDCS1# IDE_SDCS3#

IDE_SDD11

IDE_SDD12

IDE_SDD13

IDE_SDD14

IDE_SDD15

IDE_SDDREQ

IDE_SDIOR#

IDE_SDA2

IDE_PDA1 IDE_PDA2

IDE_PDCS3#

IDE_PDIOW#

IDE_PDDACK#

IDE_PDCS1#

IDE_PDDREQ

IDE_PDIOR#

IDE_PDD14

IDE_PDD12

IDE_PDD8

IDE_PDD6

PCSEL

IDE_PDD3

IDE_PDD9

IDE_PDD2

IDE_PDD1 IDE_PDD13

IDE_PDD15

IDE_PDD4

IDE_PDD5

IDE_PDD0

IDE_PDA0

INT_IRQ14

IDE_PDD10

IDE_PDD11

IDE_PDD7

INT_CD_R

IDE_SDDACK#

IDE_PDDREQ

IDE_PDD7

IDE_SDDREQ

IDE_SDD7

IDE_SDA1

ODD_DET

SIDERST#15

PIDERST#15

INT_IRQ1416

IDE_PDIORDY16

INT_IRQ1516 IDE_SDIORDY16

PHDD_LED#28

IDE_PDD[0..15]16

CD_AGND24 INT_CD_L24

IDE_SDD[0..15]16

IDE_SDIOW#16

IDE_SDA116 IDE_SDA016 IDE_SDCS1#16 IDE_SDCS3# 16

IDE_SDDREQ 16

IDE_SDIOR# 16

IDE_SDA2 16

IDE_PDDREQ16

IDE_PDA116

IDE_PDDACK#16,18

IDE_PDIOR#16

IDE_PDCS3# 16IDE_PDCS1#16 IDE_PDA2 16

IDE_PDIOW#16

IDE_PDA016

INT_CD_R 24

IDE_SDDACK# 16

SHDD_LED#28

ODD_DET 28

+3VS

+3VS

+5VS +5VS +5VS

+5VS

+5VS

+5VS

+5VS

+5VS

+5VS

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

IDE/ ODD CONNECTORS

B

26 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

Placea caps. near HDD

CONN.

HDD CONNECTOR

HAZ00 ODD CONNECTOR

Compal Electronics, Inc.

R397

470_0805_5%

1 2

C372

10U_0805_10V4Z

1

2

R386

4.7K_0402_5%

1 2

R339 10K_0402_1%@

1 2

R455

4.7K_0402_5%

1 2

JP25

OCTEK_HDS-22TA1_44P_RV

1

1

3

3

5

5

7

7

9

9

11

11

17

17

23

23

25

25

19

19

13

13

21

21

15

15

27

27

29

29

31

31

33

33

35

35

37

37

39

39

41

41

43

43

22

44

66

88

10 10

12 12

14 14

16 16

18 18

20 20

22 22

24 24

26 26

28 28

30 30

32 32

34 34

36 36

38 38

40 40

42 42

44 44

R300

8.2K_0402_5%

12

R276

470_0805_5%

1 2

C476

0.1U_0402_10V6K

1 2

JP21

SUYIN 200109MA044G243ZR 44P

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

C368

1U_0402_6.3V4Z

1

2

R383 5.6K_0603_1% @

12

R293 100K_0402_5%

1 2

C374

0.1U_0402_16V4Z

R296

100K_0402_5%

1 2

R305 10K_0402_1%@

1 2

C373

1000P_0402_50V7K

R399

8.2K_0402_5%

1 2

R302

4.7K_0402_5%

1 2

C366

10U_0805_10V4Z

1

2

R304 5.6K_0603_1% @

12

R403 100K_0402_5%

1 2

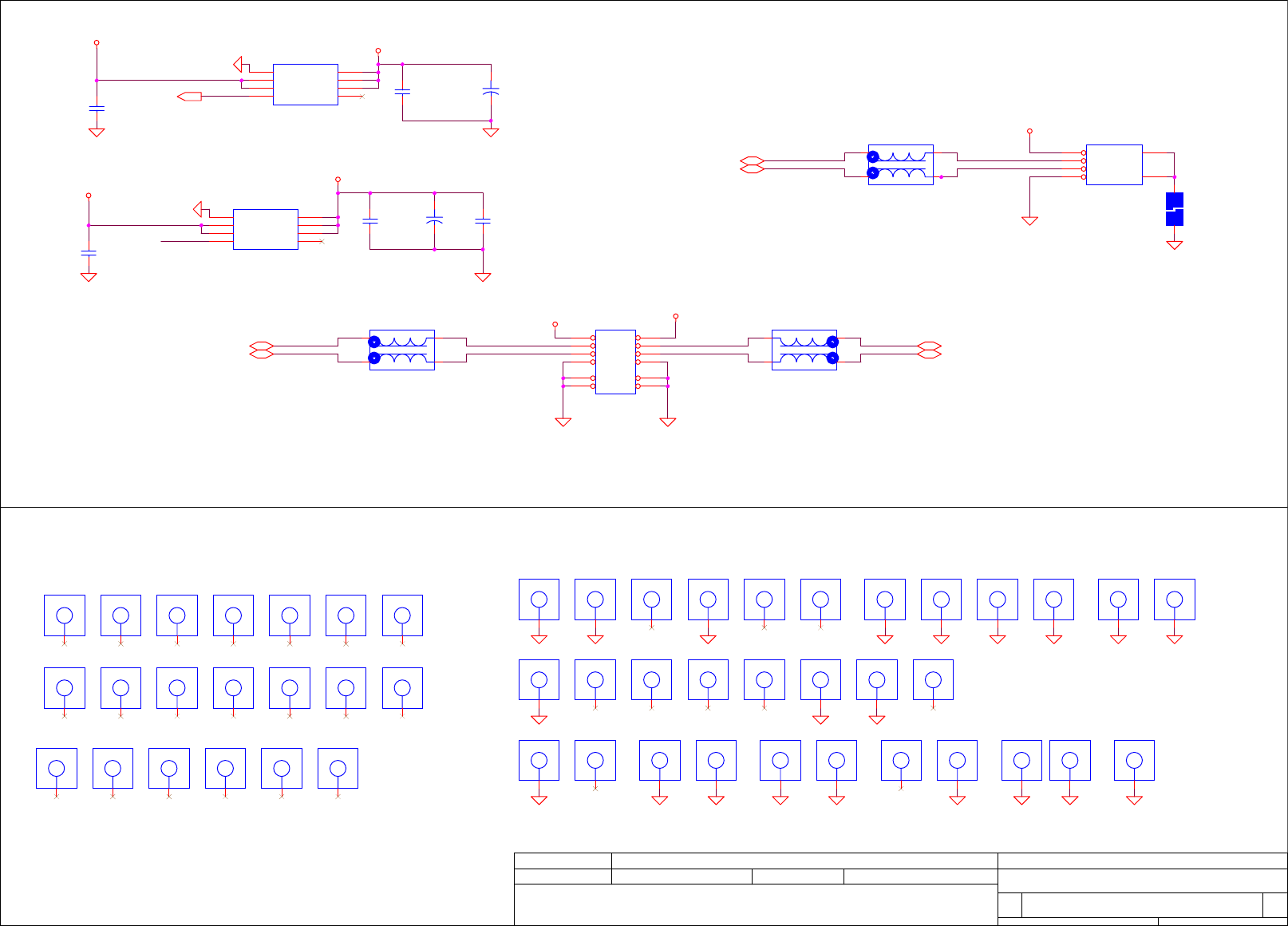

C_USB0+

C_USB0-

USB_EN#

+USB_AS

+USB_BS

C_USB2+ C_USB4-

C_USB4+

USB_EN#

USBP2+

USBP2- C_USB2- USBP4-

USBP4+

USBP0+

USBP0-

USBP0+15 USBP0-15

USBP2+15 USBP4+ 15

USBP2-15 USBP4- 15

USB_EN#28

+USB_AS

+5VALW

+USB_BS

+5VALW

+USB_BS +USB_BS

+USB_AS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

USB Conn.

B

27 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

USB CONNECTOR

Keep 20 mils minimum spacing between

USB signals and others signals

+USB_AS=60 mils

+USB_BS=60 mils

60 mils

60 mils

1.4A

1.4A

Compal Electronics, Inc.

USB CONNECTOR

H19

H_C256D177

1

CF14

SMD40M80

1

H31

H_S315D118

1

CF8

SMD40M80

1

CF1

SMD40M80

1

H24

H_C256D177

1

H7

H_C177D177N

1

FD5

FIDUCAL

1

CF6

SMD40M80

1

H32

H_S315D118

1

H18

H_C256D177

1

H27

H_S315D118

1

H30

H_S315D118

1

CF3

SMD40M80

1

H23

H_C177D177N

1

H26

H_S315D118

1

H28

H_C157D157N

1

H20

H_S315D118

1

FD4

FIDUCAL

1

+

C399

150U_D_6.3VM

1

2

U1

G528_SO8

GND

1

IN

2

FLG 5

OUT 6

OUT 8

IN

3

EN#

4

OUT 7

H33

H_S236D118

1

CF4

SMD40M80

1

H21

H_S315D118

1

CF5

SMD40M80

1

C395

0.1U_0402_16V4Z

H14

H_C315D118

1

FD1

FIDUCAL

1

H16

H_C118D118N

1

H9

H_S315D118

1

CF2

SMD40M80

1

H8

H_C315D118

1

U6

G528_SO8

GND

1

IN

2

FLG 5

OUT 6

OUT 8

IN

3

EN#

4

OUT 7

JP23

TYCO_3-1470859-1

VBUS

1

D-

2

D+

3

GND

4

S_GND 5

S_GND 6

H13

H_S315D157

1

H4

H_S295D110

1

JP13

TYCO_1470748-1

VCC

1

D0-

2

D0+

3

VSS

4

VCC 5

D1- 6

D1+ 7

VSS 8

G2

10 G1 9

G3 11

G4

12

H11

H_C118D118N

1

FD6

FIDUCAL

1

H34

H_S236D118

1

L35

WCM2012F2S-900T04_0805

1

122

33

4

4

CF15

SMD40M80

1

C3

0.1U_0402_16V4Z

1

2

H10

H_C79D79N

1

H1

H_C118D118N

1

H5

H_S315D142X118

1

H15

H_C79D79N

1

H25

H_C256D165

1

CF9

SMD40M80

1

FD3

FIDUCAL

1

H2

H_C138D138N

1

CF16

SMD40M80

1

L36

WCM2012F2S-900T04_0805

11

2

2

3

344

+

C505

150U_D_6.3VM

1

2

H6

H_C118D118N

1

CF7

SMD40M80

1

L34

WCM2012F2S-900T04_0805

1

122

33

4

4

CF12

SMD40M80

1

J3 JUMP_43X118@

11

2

2

C294

0.1U_0402_16V4Z

1

2

H3

H_O276X177D276X177N

1

H22

H_S315D118

1

CF13

SMD40M80

1

C394

0.1U_0402_16V4Z

FD2

FIDUCAL

1

C506

0.1U_0402_16V4Z

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

AD_BID0

ENBKL

CRY2CRY1

LPC_AD0

LPC_AD1

LPC_AD2

LPC_AD3

ECAGND

KSI1

KSI3

KSI0

KSI2

KSI4

KSI6

KSI5

KSI7

KSO1

KSO0

KSO2

KSO4

KSO3

KSO5

KSO6

KSO7

KSO8

KSO12

KSO10

KSO13

KSO11

KSO9

KSO15

KSO14

TP_CLK

TP_DATA

EC_SMI#

SUSP#

VR_ON

SYSON

BKOFF#

ENBKL

FSEL#

BATT_OVP

BATT_TEMP

ALI/MH#

IREF

EN_DFAN1#

DAC_BRIG

EC_LID_OUT#

EC_ON

INVT_PWM

PWR_SUSP_LED

BEEP#

ACOFF

PBTN_OUT#

NUM_LED#

PADS_LED#

EC_PME#

EC_SMB_CK1

EC_SMB_DA1

EC_SMB_DA2

EC_SMB_CK2

FAN_SPEED1

EC_PME#

EC_THRM#

KBA2

KBA1

KBA7

KBA5

KBA4

KBA3

KBA6

KBA0

ADB2

ADB7

ADB3

ADB0

ADB1

ADB4

ADB6

ADB5

ADB[0..7]

KBA[0..19]

FWR#

FRD#

KBA10

KBA14

KBA8

KBA9

KBA12

KBA11

KBA16

KBA17

KBA13

KBA15

KBA18

KBA19

FSTCHG

CAPS_LED#

ECAGND

TP_CLK

KBA5

KBA1

KBA4

KSO17

ECAGND

SELIO#

PSCLK1

PSDATA1

PSCLK2

PSDATA2

PSCLK1

PSDATA1

PSCLK2

PSDATA2

EC_SCI#

LID_SW#

KILL_SW#

E51_TXD

E51_RXD

BATT_CHGI_LED#

BATT_LOW_LED#

HDD_LED#

TP_DATA

CRY1

CRY2

PWR_LED#

MODE#

AD_BID0

SELIO#

MODE#

FSEL#

FRD#

EC_SMB_DA1

EC_SMB_CK1

EC_SMB_DA2

EC_SMB_CK2

KSI[0..7]

KSO[0..15]

IE_BTN#

SKU_ID1

SKU_ID1

EAPD

E51_TXD

E51_RXD

USB_EN#

EC_EAPD

AMP_MUTE

ODD_DET

HDD_PWRD

HDD_PWRD

WLANPME#19,22,23

LAN_PME#19,22,23

SERIRQ14,20,29

LPC_FRAME#14,29

LPC_AD214,29

LPC_AD014,29

LPC_AD314,29

LPC_AD114,29

CLK_PCI_LPC14,18

KBRST#15 GATEA2015

TP_DATA31 TP_CLK31

EC_SMI#15

EC_SWI#15 WL_OFF#23

SYSON30,33 SUSP#24,29,33,38,39 VR_ON40

ENBKL7BKOFF#12

FSEL#29

ALI/MH# 35,36

BATT_OVP 36

BATT_TEMPA 35

DAC_BRIG 12

EN_DFAN1 32

IREF 36

INVT_PWM 12

EC_LID_OUT# 15

EC_ON 30

BEEP# 25

ACOFF 36

PWR_SUSP_LED 30

PHDD_LED#26

PBTN_OUT#15

EC_SMB_DA129,35 EC_SMB_CK129,35

PCIRST#14,19,20,22,23,29

EC_SMB_DA24EC_SMB_CK24

FAN_SPEED1 32

EC_THRM# 15

PM_SLP_S3# 15

ON/OFF 30

PM_SLP_S5# 15

KBA[0..19] 29

ADB[0..7] 29

FWR#29 FRD#29

FSTCHG36

EC_RSMRST# 15

KSO17 30

EC_SCI#15

LID_SW#30

KILL_SW# 23,30 ACIN 30,34

WL_BT_LED# 30

BATT_LOW_LED# 30

BATT_CHGI_LED# 30

PWR_LED# 30

ADP_I 36

MODE#30

PADS_LED#31

NUM_LED#31 CAPS_LED#31

KSO0 31

KSO1 31

KSO2 31

KSO3 31

KSO4 31

KSO5 31

KSO6 31

KSO7 31

KSO8 31

KSO9 31

KSO10 31

KSO11 31

KSO12 31

KSO13 31

KSO14 31

KSO15 31

KSI4 31

KSI5 31

KSI6 31

KSI7 31

KSI[0..7] 30,31

KSO[0..15] 31

IE_BTN#30

EC_PLAYBTN# 30,31

EC_STOPBTN# 30,31

EC_FRDBTN# 30,31

EC_REVBTN# 30,31

SHDD_LED# 26

1394_PME#19,22,23

HDD_LED# 30

TI_BUG 25

EAPD 24

PM_CLKRUN#14,19,20,22,23

USB_EN# 27

EC_EAPD 25

AMP_MUTE25

ODD_DET26

SPK_SEL 24

+3VALW

+3VALW

+3VALW

+5VALW

+3VALW

+3VALW

+3VALW

+3VALW

+3VALW

+5VS

+3VALW

+3VALW

+3VALW

+3VALW

+S1_VCC

+3VALW

SKU_ID1 30

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

ENE-KB910

Custom

28 42

Monday, August 08, 2005

2005/03/01 2006/03/01

For EC Tools

Ra

Rb

Analog Board ID definition,

Please see page 3.

**

Compal Electronics, Inc.

0: NO

1: YES

C271 0.22U_0603_16V4Z

1 2

R375 4.7K_0402_5%

1 2

R459

10K_0402_5% @

1 2

X2

32.768KHZ_12.5P_1TJS125DJ2A073

OUT 4

IN 1

NC

3

NC

2

R125 10_0402_5% @

12

R114 100K_0402_5%

12

C327

0.1U_0402_16V4Z

1

2

LPC Interface

X-BUS Interface

PS2 Interface

Internal Keyboard

SMBus

ENE-KB910-B4

Pulse Width

Wake Up Pin

Timer Pin

Analog To Digital

Digital To Analog

Expanded I/O

MISC

FAN

GPIO

*

*

**

*

*

*

*

*

*

*

*

*

*

U8

KB910Q B4_LQFP176

GPOK0/KSO0 49

GPOK1/KSO1 50

GPOK2/KSO2 51

GPOK3/KSO3 52

GPOK4/KSO4 53

GPOK5/KSO5 56

GPOK6/KSO6 57

GPOK7/KSO7 58

GPOK8/KSO8 59

GPOK9/KSO9 60

GPOK10/KSO10 61

GPOK11/KSO11 64

GPOK12/KSO12 65

GPOK13/KSO13 66

GPOK14/KSO14 67

GPOK15/KSO15 68

GPOK16/KSO16 153

GPOK17/KSO17 154

GPIK0/KSI0 71

GPIK1/KSI1 72

GPIK2/KSI2 73

GPIK3/KSI3 74

GPIK4/KSI4 77

GPIK5/KSI5 78

GPIK6/KSI6 79

GPIK7/KSI7 80

GPOW0/PWM0 32

GPOW1/PWM1 33

FAN2PWM/GPOW2/PWM2 36

GPOW3/PWM3 37

GPOW4/PWM4 38

GPOW5/PWM5 39

GPOW6/PWM6 40

FAN1PWM/GPOW7/PWM7 43

GPWU0 2

GPWU1 26

GPWU2 29

GPWU3 30

GPWU4 44

GPWU5 76

TIN1/GPWU6 172

TIN2/FANFB2/GPWU7 176

GPIAD0/AD0 81

GPIAD1/AD1 82

GPIAD2/AD2 83

GPIAD3/AD3 84

GPIAD4/AD4 87

GPIAD5/AD5 88

GPIAD6/AD6 89

GPIAD7/AD7 90

GPODA0/DA0 99

GPODA1/DA1 100

GPODA2/DA2 101

GPODA3/DA3 102

GPODA4/DA4 1

GPODA5/DA5 42

GPODA6/DA6 47

GPODA7/DA7 174

GPIO18/XIO8CS# 85

GPIO19/XIO9CS# 86

GPIO1A/XIOACS# 91

GPIO1B/XIOBCS# 92

GPIO1C/XIOCCS# 93

GPIO1D/XIODCS# 94

GPIO1E/XIOECS# 97

GPIO1F/XIOFCS# 98

GPIO2E/TOUT1/FANFB1 171

DPLL_TP/GPIO06/FANFB3 12

TEST_TP/GPIO05/FAN3PWM 11

TOUT2/GPIO2F 175

LAD0

15

LAD1

14

LAD2

13

LAD3

10

LFRAME#

9

LRST#/GPIO2C

165

LCLK

18

SERIRQ

7

CLKRUN#/GPIO0C

25

LPCPD#/GPIO0B

24

FnLock#/GPIO12

55

CapLock#/GPIO011

54

NumLock#/GPIO0A

23

ScrollLock#/GPIO0F

41

ECRST#

19

GA20/GPIO02

5

KBRST#/GPIO03

6

ECSCI#

31

GPIO04

8

GPIO07

20

GPIO08

21

GPIO09

22

GPIO0D

27

GPIO0E

28

GPIO10

48

GPIO13

62

GPIO14

63

GPIO15

69

GPIO16

70

GPIO17

75

GPIO24

109

GPIO25

118

GPIO26

119

GPIO27

148

GPIO28

149

GPIO29

155

GPIO2A

156

GPIO2B

162

GPIO2D

168

SCL1

163

SDA1

164

SCL2

169

SDA2

170

PSCLK1

110

PSDAT1

111

PSCLK2

114

PSDAT2

115

PSCLK3

116

PSDAT3

117

RD#

150

WR#

151

MEMCS#

173

IOCS#

152

D0

138

D1

139

D2

140

D3

141

D4

144

D5

145

D6

146

D7

147

A0

124

A1/XIOP_TP

125

A2

126

A3

127

A4/DMRP_TP

128

A5/EMWB_TP

131

A6

132

A7

133

A8

143

A9

142

A10

135

A11

134

A12

130

A13

129

A14

121

A15

120

A16

113

A17

112

A18

104

A19

103

A20/GPIO23

108

E51CS#/GPIO20/ISPEN

105

GND

17

GND

35

GND

46

GND

122

GND

137

GND

167

VCCBAT 161

BATGND 159

VCC 16

VCC 34

VCC 45

VCC 123

VCC 136

VCC 157

VCC 166

VCCA 95

AGND 96

E51IT0/GPIO00 3

E51IT1/GPIO01 4

E51RXD/GPIO21/ISPCLK 106

E51TXD/GPIO22/ISPDAT 107

XCLKI 158

XCLKO 160

R372 1K_0402_5%

1 2

R357 4.7K_0402_5%

1 2

L20

FBM-L11-160808-800LMT_0603

1 2

C328

0.1U_0402_16V4Z

1

2

R358 4.7K_0402_5%

1 2

C330

1000P_0402_50V7K

1

2

R157 1.5K_0402_1%

1 2

C309

0.1U_0402_16V4Z

1

2

C290

0.1U_0402_16V4Z

1

2

R119 47K_0402_5%

12

R133 1K_0402_5%

1 2

C292

0.1U_0402_16V4Z

1

2

R116

10K_0402_5%

1 2

R155

0_0805_5%

1 2

C315

1000P_0402_50V7K

1

2

D13

CH751H-40_SC76

2 1

C272 0.01U_0402_16V7K

12

C301 0.1U_0402_16V4Z

12

C332

100P_0402_50V8J@

1

2

RP18

10K_1206_8P4R_5%

1 8

2 7

3 6

4 5

R101

18K_0402_5%

1 2

R376 1K_0402_5%

1 2

L23

FBM-L11-160808-800LMT_0603

1 2

R152

10K_0402_5%

1 2

R310

10K_0402_5%

12

R156 1.5K_0402_1%

1 2

R150

20M_0603_5%@

1 2

JP6

ACES_85205-0400@

11

22

33

44

R91

100K_0402_5%

1 2

C284

0.1U_0402_16V4Z

1

2

R377 1K_0402_5%

1 2

C342

10P_0402_50V8J

1

2

C333

100P_0402_50V8J@

1

2

R93 100K_0402_5%

1 2

R112 100K_0402_5%

1 2

R460

10K_0402_5%

1 2

R371 4.7K_0402_5%

1 2

C338

10P_0402_50V8J

1

2

C306

22P_0402_50V8J @

12

R92

100K_0402_5%

1 2

RP19

100K_1206_8P4R_5%

1 8

2 7

3 6

4 5

C339

1U_0402_6.3V4Z

1

2

C273

0.1U_0402_16V4Z

1

2

RESET#

FWE#

FSEL#

FRD#

KBA0

FRD#

FWE#

INT_FSEL#

KBA1

KBA2

KBA3

KBA6

KBA10

KBA4

KBA5

KBA7

KBA9

KBA15

KBA14

KBA8

KBA13

KBA11

KBA16

KBA17

ADB0

KBA18

KBA19

KBA12

ADB1

ADB3

ADB2

ADB4

RESET#

ADB6

ADB7

ADB5

INT_FLASH_EN#

ADB0

ADB3

ADB1

ADB2

ADB7

ADB4

ADB6

ADB5

KBA0

INT_FLASH_EN#

ADB[0..7]

KBA[0..19]

SB_INT_FLASH_SEL

FWE#

KBA2

KBA1

KBA5

KBA3

KBA4

KBA7

KBA10

KBA6

KBA8

KBA11

KBA9

KBA14

KBA12

KBA15 KBA17

KBA19

KBA16

KBA18

KBA13

FSEL#

INT_FSEL#

LPC_AD[0..3]

LPC_AD0

PCIRST#

LPC_AD3

CLK_PCI_SIO

LPC_FRAME#

LPC_AD2

LPC_AD1

SERIRQ

CLK_14M_SIO

CLK_PCI_SIO

LPC_DRQ1#

EC_SMB_CK128,35 EC_SMB_DA128,35

FWR# 28

ADB[0..7]28

KBA[0..19]28

FRD#28

EC_FLASH# 15

SUSP# 24,28,33,38,39

FSEL# 28

SB_INT_FLASH_SEL15

LPC_DRQ#1

LPC_FRAME# 14,28

LPC_AD2 14,28

LPC_AD0 14,28

LPC_AD3 14,28

LPC_AD1 14,28

PCIRST# 14,19,20,22,23,28

CLK_PCI_SIO 14,18

SERIRQ 14,20,28

CLK_14M_SIO 11

+5VALW

+5VALW

+3VALW

+3VALW

+3VALW

+3VALW

+3VALW

+3VALW

+5VS +3VS

LPC_AD[0..3]14,28

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

BIOS& I/O PORT

B

29 42

Monday, August 08, 2005

2005/03/01 2006/03/01

SB_INT_FLASH_SEL tie to ATI SB

GPIO1 and pull down

1MB Flash ROM

Reserve R4, if U1B is single gate.

1MB ROM Socket

Compal Electronics, Inc.

close to Moden Conn.

LPC Debug Port

R176

100K_0402_5%

1 2

U12B

SN74LVC32APWLE_TSSOP14

A4

B5

O

6

P14

G

7

R178

22_0402_5%

1 2

R179

100K_0402_5%

1 2

R177

0_0402_5%@

1 2

R458 0_0402_5%@

1 2

C658

10P_0402_50V8K@

1

2

C352

0.1U_0402_16V4Z

1

2

R158

100K_0402_5%

12

U12A

SN74LVC32APWLE_TSSOP14

A1

B2

O

3

P14

G

7

R170

100K_0402_5%

12

U11

AT24C16AN-10SI-2.7_SO8

A0 1

A1 2

SDA

5SCL

6

VCC

8

A2 3

GND 4

WP

7

G

D

S

Q28

2N7002_SOT23

2

1 3

R145

100K_0402_5%

12

JP30

ACES_85201-2005@

11

22

33

44

55

66

77

88

99

10 10

11 11

12 12

13 13

14 14

16 16

17 17

18 18

15 15

20 20

19 19

C341

0.1U_0402_16V4Z

1 2

U13

SST39VF080-70_TSOP40

A0

21

A1

20

A2

19

A3

18

A4

17

A5

16

A6

15

A7

14

A8

8

A9

7

A10

36

A11

6

A12

5

A13

4

A14

3

A15

2

A16

1

A18

13

CE#

22

OE#

24

D0 25

D1 26

D2 27

D3 28

D4 32

D5 33

D6 34

D7 35

GND1 39

A17

40

WE#

9

VCC1 30

VCC0 31

GND0 23

A19

37

NC0 29

NC1 38

NC 11

RP# 10

READY/BUSY# 12

C324

0.1U_0402_16V4Z

1 2

JP8

SUYIN_80065AR-040G2T@

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

39 40

R457

22_0402_5%

@

1 2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

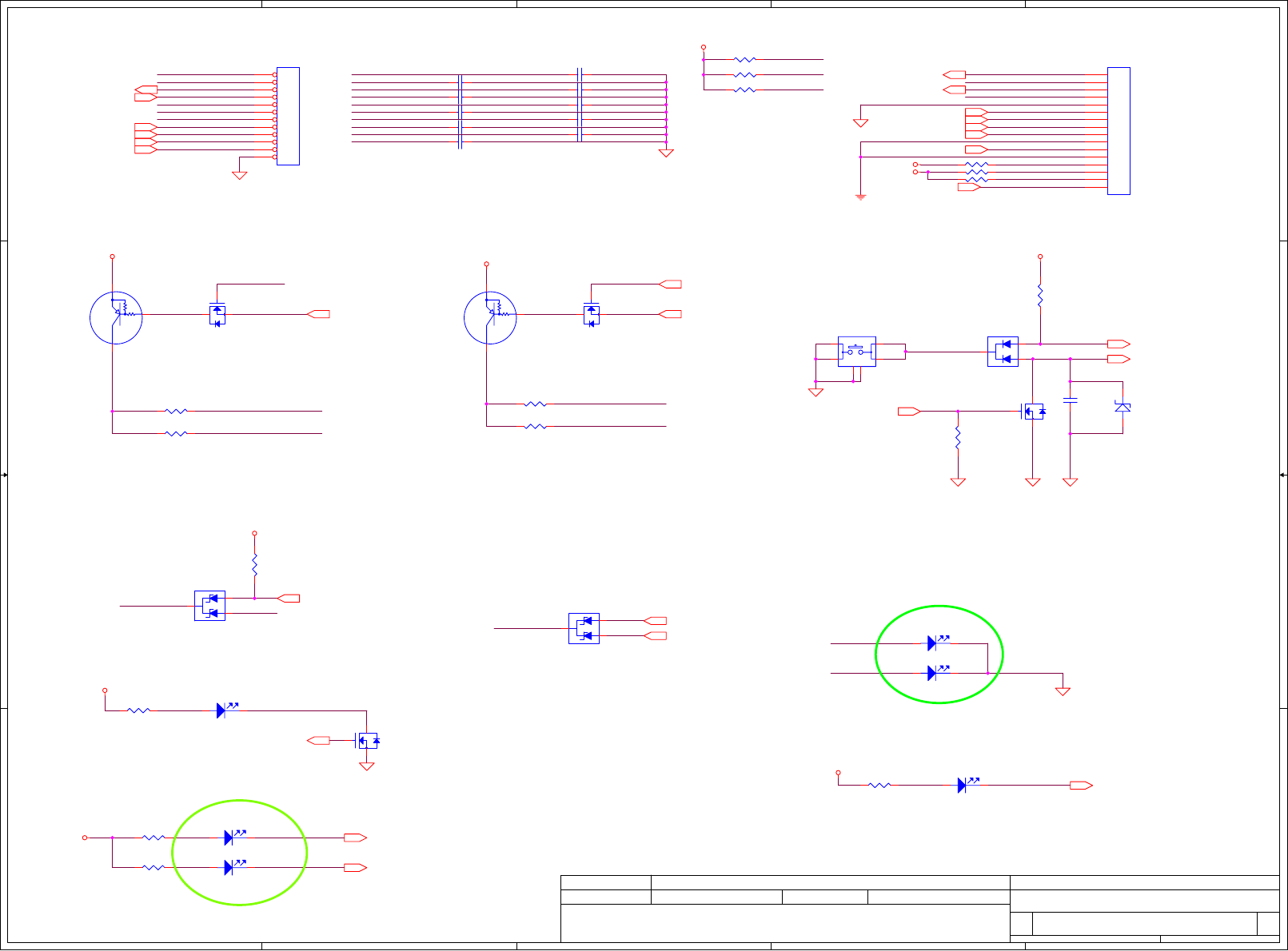

BATT_LOW_LED#

ON/OFFBTN#

51_ON#

MODEBTN#

PWR_LED_1#

KSO17

PWR_SUSPLED#

EC_STOPBTN#

EC_FRDBTN#

MODEBTN#

EC_REVBTN#

EC_PLAYBTN#

IEBTN#

51_ON#

IEBTN#

PWR_SUSPLED#

SYSON

PWR_SUSPLED1#

SUSPLEDS#

ON/OFFBTN#

MODEBTN#

SKU_ID1

PWR_LED_1#

PWR_SUSPLED#

IEBTN#

EC_PLAYBTN#

EC_STOPBTN#

EC_FRDBTN#

EC_REVBTN#

51_ON#

PWR_LED_0#

PWR_LED_1#

PWR_LED#PWR_SUSP_LED

PWR_LEDS

ON/OFFBTN#

EC_ON

+AUD_VREF1

VOL_AMP

NBA_PLUG

MIC

VOL_CTRL2

VOL_CTRL1

WL_BT_LED#

KILL_SW#

KILL_SW#

WL_PW

LID_SW#

LID_PW

SPKR+

SPKL+

WL_PW

LID_PW

PWR_SUSPLED1#

PWR_LED_0#

BATT_CHGI_LED#

HDD_LED# 28

BATT_LOW_LED# 28

BATT_CHGI_LED# 28

EC_ON28

51_ON# 34

ON/OFF 28

MODE# 28

IE_BTN# 28

PWR_SUSP_LED 28 PWR_LED# 28

KSO1728

EC_PLAYBTN#28,31 EC_STOPBTN#28,31 EC_FRDBTN#28,31 EC_REVBTN#28,31

SPKR+25 NBA_PLUG24,25

VOL_AMP25

MIC24

WL_BT_LED#28

KILL_SW#23,28

LID_SW#28 SPKL+25

ACIN28,34

+3VS

+3VALW

+3VALW

+3VALW

+3VALW

+3VALW

+3VALW

+AUD_VREF

+5VS

+3VALW

51_ON# 34

SKU_ID128

SYSON 28,33

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

Kill SW/ Sub Conn./LEDS

Custom

30 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

HDD LED

BATTERY CHG

AC IN LED

Switch Board Conn.

POWER/ON LED

Change from 300 to 120

Power Button

Change from 120 to 300

Compal Electronics, Inc.

VR Conn.

R244

100K_0402_5%

1 2

C181 220P_0402_50V7K

1 2

D27

DAN202U_SC70

2

3

1

D36

HT-191UYG-DT_GRN_0603

2 1

C178 220P_0402_50V7K

1 2

R48 120_0402_5%

1 2

D35

HT-191UYG-DT_GRN_0603

2 1

C153 220P_0402_50V7K

1 2

10K

47K

Q12

DTA114YKA_SC59

2

1 3

D25

DAN202U_SC70

2

3

1

R193

120_0402_5%

1 2

R448

2.2K_0402_5%

1 2

D15

HT-191UYG-DT_GRN_0603

2 1

G

D

S

Q50

2N7002_SOT23

2

13

R47 120_0402_5%

1 2

C146 220P_0402_50V7K

1 2

R447

100K_0402_5%

12

D17 HT-191UD_AMBER_0603

2 1

JP28

ACES_85201-1605

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

R50 120_0402_5%

1 2

R49 120_0402_5%

1 2

R194

120_0402_5%

1 2

D26

CHN202U_SC70

2

3

1

G

D

S

Q13

2N7002_SOT23

2

1 3

10K

47K

Q11

DTA114YKA_SC59

2

1 3

C167 220P_0402_50V7K

1 2

JP3

ACES_85201-1205

1

2

3

4

5

6

7

8

9

10

11

12

C455

1000P_0402_50V7K

R446

120_0402_5%

12

C168 220P_0402_50V7K

1 2

C169 220P_0402_50V7K

1 2

12

D24

MMGZ5248B_LL34

2 1

D18

HT-191UYG-DT_GRN_0603

2 1

R444 4.53K_0603_1%

1 2

R192

120_0402_5%

1 2

C179 220P_0402_50V7K

1 2

R195

120_0402_5%

1 2

R246

100K_0402_5%

1 2

R247

4.7K_0402_5%

1 2

R443 100K_0402_5%

1 2

D16

HT-191UD_AMBER_0603

2 1

C173 220P_0402_50V7K

1 2

G

D

S

Q14

2N7002_SOT23

2

1 3

G

D

S

Q38

2N7002_SOT23

2

13

C160 220P_0402_50V7K

1 2

SW6

SMT1-05_4P

3

2

1

4

5

6

R445

470_0402_5%

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

KSO14

KSI6

KSI7

KSO0

KSI[0..7]

KSO5

KSO7

KSI5

KSO4

KSO6

KSO15

KSO3

KSO2

KSI4

KSO1

TP_CLK

TP_DATA

PADS_LED#

KSO4

KSI1

KSO1

KSO8

KSO0

NUM_LED#

KSI0

KSI3

KSO5

KSO6

KSI5

KSI6

KSI4

KSO12

KSO7

KSO3

KSI0

KSO15

KSI7

KSO14

KSO13

KSO12

KSO11

KSO10

KSI1

KSI3

KSI2

KSO9

KSO13

KSO9

KSO8

KSO11

CAPS_LED#

KSO10

KSO[0..15]

KSI2

KSO2

TP_CLK

TP_DATA

NUM_LED# 28

PADS_LED# 28

CAPS_LED# 28

KSI[0..7] 28,30

KSO[0..15] 28

TP_CLK28 TP_DATA28

+5VS

+3VS

+3VS

+3VS

+5VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

KB/Touch Pad& hibernation

Custom

31 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

INT_KBD CONN.

TP CONN.

Touchpad mount direction:

Standard: N/A, Reverse: Stuff

Compal Electronics, Inc.

C229 100P_0402_25V8K

C241 100P_0402_25V8K

C253 100P_0402_25V8K

C238 100P_0402_25V8K

C247 100P_0402_25V8K

C183

0.1U_0402_16V4Z

C239 100P_0402_25V8K

C240 100P_0402_25V8K

C234 100P_0402_25V8K

D10 DAN217_SC59@

2

3

1

JP5

ACES_88170-3400

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

C252 100P_0402_25V8KC243 100P_0402_25V8K

C228 100P_0402_25V8K

C227 100P_0402_25V8K

C245 100P_0402_25V8KC237 100P_0402_25V8K

C258

180P_0402_50V8J@

1

2

C233 100P_0402_25V8K

C259

180P_0402_50V8J@

1

2

R298300_0402_5%

1 2

C249 100P_0402_25V8K

C242 100P_0402_25V8K

JP4

ACES_87151-0405

1

2

3

4

C232 100P_0402_25V8K

D9 DAN217_SC59@

2

3

1

C251 100P_0402_25V8K

C248 100P_0402_25V8K

R299300_0402_5%

1 2

C235 100P_0402_25V8K

C236 100P_0402_25V8K

C230 100P_0402_25V8K

C244 100P_0402_25V8K

C250 100P_0402_25V8K

C231 100P_0402_25V8K

R297300_0402_5%

1 2

C246 100P_0402_25V8K

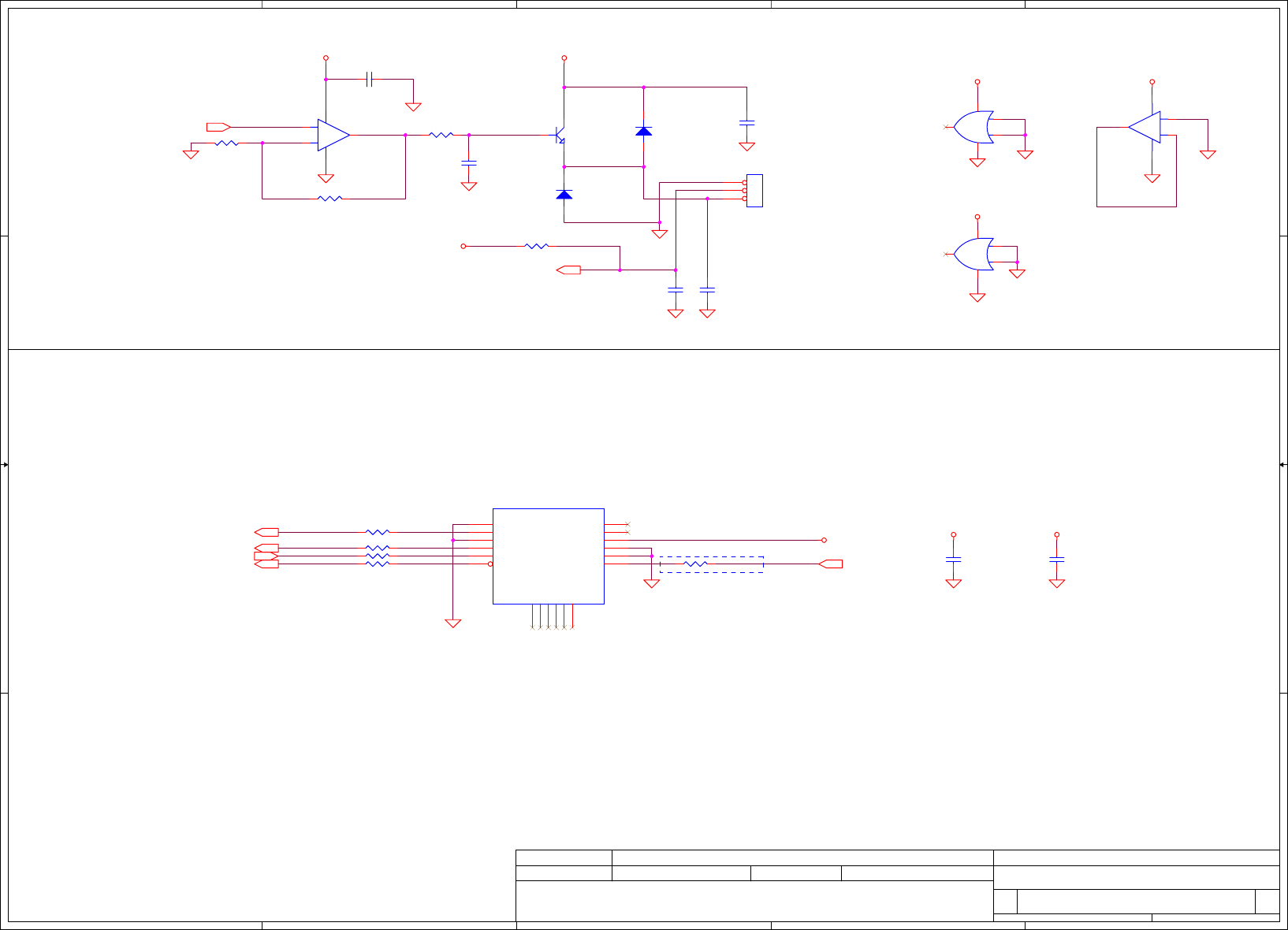

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

EN_DFAN1

FAN1

EN_FAN1

FAN_SPEED128

EN_DFAN128

AC_RST#15,24 AC_SDIN115 AC_SYNC15,24

AC_SDOUT15,18,24

AC_BITCLK 15,24

+3VALW

+3VALW

+12VALW +5VS

+3VS

+3VALW

+3VALW

+12VALW

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

FAN & MDC

B

32 42

Thursday, August 04, 2005

2005/03/01 2006/03/01

MDC CONN.

FAN Conn

Compal Electronics, Inc.

R183 22_0402_5%

1 2

R186 22_0402_5%

1 2

R184 22_0402_5%

1 2

D22

1SS355_SOD323

12

D23

1N4148_SOT23

12

C171

1000P_0402_50V7K@

1

2

R241

100_0402_5%

1 2

C350

1U_0402_6.3V4Z

1

2

Connector for MDC Rev1.5

JP27 TYCO_1-1775149-2~D

GND1

1

IAC_SDATA_OUT

3

GND2

5

IAC_SYNC

7

IAC_SDATA_IN

9

IAC_RESET#

11

RES0 2

RES1 4

3.3V 6

GND3 8

GND4 10

IAC_BITCLK 12

GND

13

GND

14

GND

15

GND

16

GND

17

GND

18

JP17

ACES_85205-0300

1

2

3

U22A

LM358A_SO8

+IN 3

-IN 2

OUT

1

P8

G

4

R185 22_0402_5%

1 2

C353

0.1U_0402_16V4Z

1

2

U12C

SN74LVC32APWLE_TSSOP14

A9

B10

O

8

P14

G

7

R41 10K_0402_5%

1 2

R240 8.2K_0402_5%

1 2

R181 22_0402_5%

1 2

C448

0.1U_0402_16V4Z@

1

2

C170

1000P_0402_50V7K@

1

2

U12D

SN74LVC32APWLE_TSSOP14

A12

B13

O

11

P14

G

7

C449

10U_1206_16V4Z

12

U22B

LM358A_SO8

+IN

5

-IN

6OUT 7

C

B

E

Q36

FMMT619_SOT23

1

2

3

R239

10K_0402_5%

12

C446

0.1U_0402_16V4Z

1 2

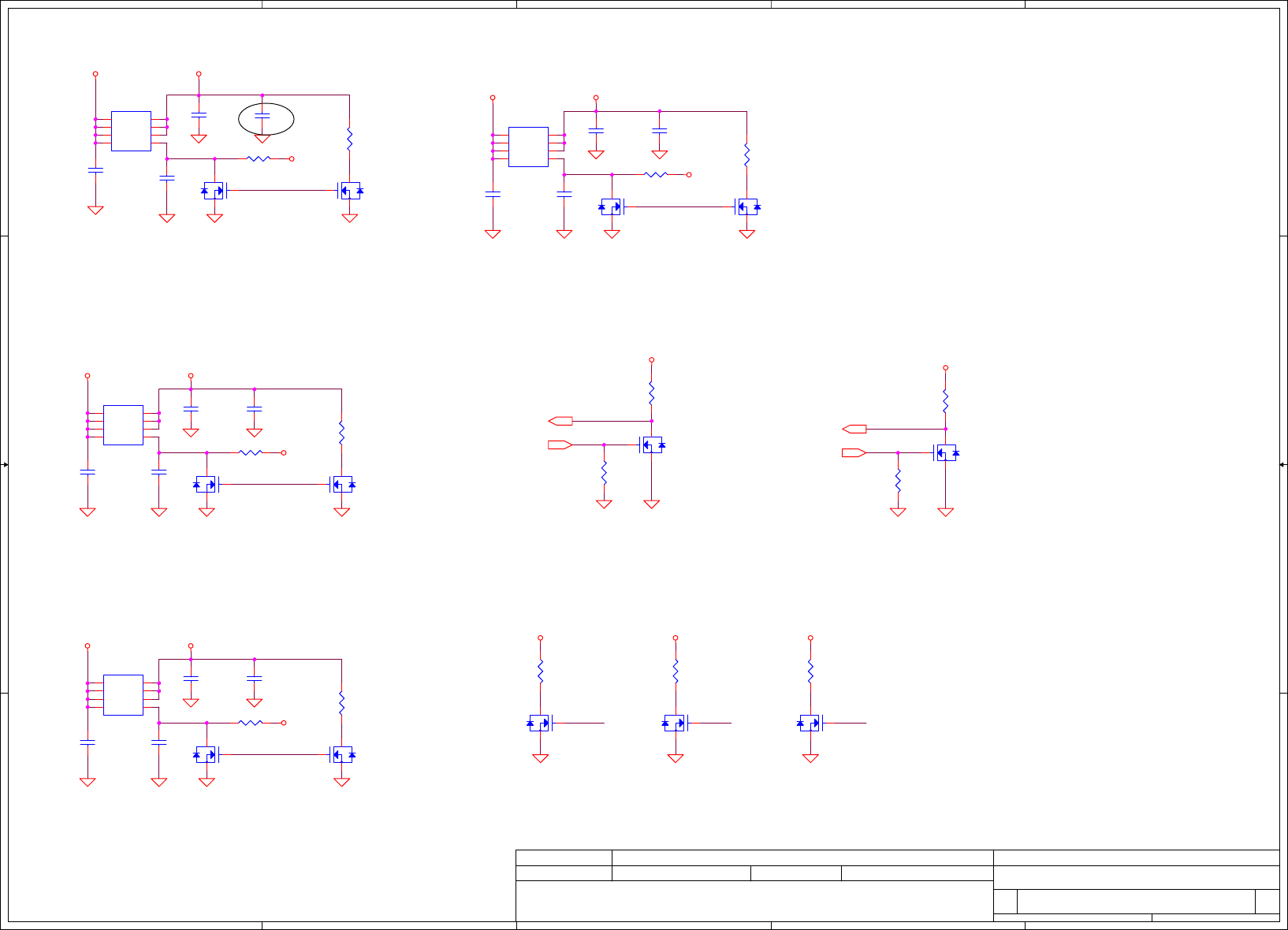

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

SUSP SUSP

SUSP

SYSON#

SUSP

SUSP

SUSP SYSON#

SUSP

SUSP#24,28,29,38,39

SUSP39

SYSON28,30

SYSON#

+1.2VS +0.9VS

+12VALW

+1.8VS

+1.8V

+12VALW

+1.8VALW +1.8V

+12VALW

+3VALW +3VS

+12VALW

+5VALW +5VS

+5VALW +5VALW

+1.8VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

HAZ00/BL10E (LA2861) 1.0

DC-DC INTERFACE

B

33 42

Monday, August 08, 2005

2005/03/01 2006/03/01

+1.8VALW TO +1.8VS

+3VALW TO +3VS

+1.8VALW TO +1.8V

+5VALW TO +5VS

Compal Electronics, Inc.

G

D

S

Q20

2N7002_SOT23

2

13

G

D

S

Q7

2N7002_SOT23

2

13

C608

1U_0402_6.3V4Z

1

2

G

D

S

Q25

2N7002_SOT23

@

2

13

G

D

S

Q17

2N7002_SOT23

2

13

R417

6.8K_0402_5%

1 2

R60

470_0805_5%

1 2

G

D

S

Q47

2N7002_SOT23

2

13

R416

68K_0402_1%

1 2

R24

470_0805_5%

1 2

C226

1U_0402_6.3V4Z

1

2

C27

1U_0402_6.3V4Z

1

2

G

D

S

Q18

2N7002_SOT23

2

13

R55

10K_0402_5%

1 2

G

D

S

Q49

2N7002_SOT23

2

13

R18

100K_0402_1%

1 2

R53

10K_0402_5%

1 2

G

D

S

Q10

2N7002_SOT23

2

13

G

D

S

Q45

2N7002_SOT23

2

13

G

D

S

Q9

2N7002_SOT23

2

13

C624

4.7U_0805_10V4Z

1

2

C222

0.1U_0402_16V7K

1

2

R109

470_0805_5%

@

1 2

R58

100K_0402_1%

1 2

Q46

SI4800BDY_SO8

S1

S2

S3

G4

D

8

D

7

D

6

D

5

G

D

S

Q16

2N7002_SOT23

2

13

C16

4.7U_0805_10V4Z

1

2

C225

10U_0805_10V4Z

1

2

C24 4.7U_0805_10V4Z

1

2

C26

0.1U_0402_16V7K

1

2

C610 4.7U_0805_10V4Z

1

2

R52

470_0805_5%

1 2

R54

10K_0402_5%

1 2

G

D

S

Q51

2N7002_SOT23

2

13

Q19

SI4800BDY_SO8

S1

S2

S3

G4

D

8

D

7

D

6

D

5

C622

4.7U_0805_10V4Z

1

2

C208

4.7U_0805_10V4Z

1

2

C625

1U_0402_6.3V4Z

1

2

R415

470_0805_5%

1 2

R418

470_0805_5%

1 2

C618

0.1U_0402_16V7K

1

2

Q4

SI4800BDY_SO8

S1

S2

S3

G4

D

8

D

7

D

6

D

5

C607

4.7U_0805_10V4Z

1

2

R56

10K_0402_5%

1 2

Q48

SI4800BDY_SO8

S1

S2

S3

G4

D

8

D

7

D

6

D

5

C611

0.1U_0402_16V7K

1

2

G

D

S

Q15

2N7002_SOT23

2

13

R39

470_0805_5%

1 2

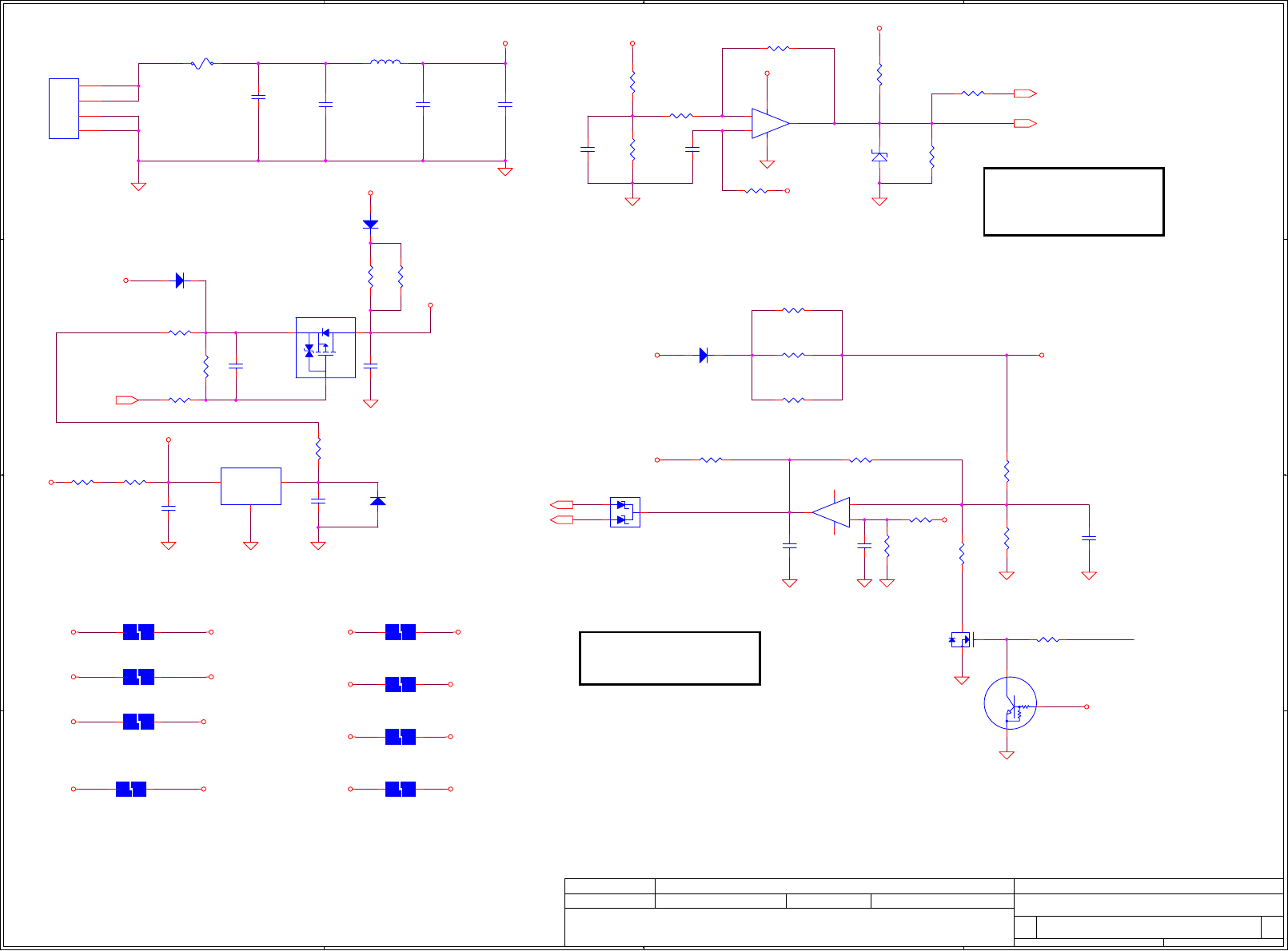

A

A

B

B

C

C

D

D

1 1

2 2

3 3

4 4

N2

PACIN

N1

PACIN

CHGRTCP

N3

DC_IN_S1 DC_IN_S2

ACIN 28,30

PACIN 36,37

51_ON#30

ACON36

MAINPWON4,15,35,37,38

VIN

VS

RTCVREF

+CHGRTC

RTCVREF

VIN

VS

BATT+

VL

B+

VL

+5VALWP

VIN

VIN

VS

+1.5VSP +1.5VS

+3VALWP +3VALW

+5VALWP +5VALW

+12VALWP +12VALW

+0.9VS+0.9VSP

+1.05VS+1.05VSP +1.2VS+1.2VSP

+1.8VALWP +1.8VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

DCIN & DETECTOR

34 42Thursday, August 04, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

3.3V

3.3V

Vin Detector

High 18.384 17.901 17.430

Low 17.728 17.257 16.976

Precharge detector

15.97V/14.84V FOR

ADAPTOR

(120mA,40mils ,Via NO.= 2)

(5A,200mils ,Via NO.= 10)

(2A,80mils ,Via NO.= 4)

(5A,200mils ,Via NO.= 10)

(5A,200mils ,Via NO.= 10) (4.5A,180mils ,Via NO.= 9)

(0.1A,20mils ,Via NO.=1)

DC301000F00

(6A,240mils ,Via NO.= 12)

PU1A

LM393M_SO8

+

3

-

2O1

P8

G

4

PR26 47K_0402_5%

12

PR23

499K_0402_1%

12

PC10

10U_0805_10V4Z

12

PU1B

LM393M_SO8

+5

-6

O

7

P8

G

4

PR1 1M_0402_1%

1 2

PD5

RLZ16B_LL34

2 1

PJP1

SINGA_2DW-0005-B03@

11

33

44

22

PL1

FBM-L18-453215-900LMA90T_1812

1 2

PR4

1K_0402_5%

1 2

PJ8

JUMP_43X118@

11

2

2

PJ1

JUMP_43X118@

11

2

2

PC13

1000P_0402_50V7K

12

PD1

RLZ4.3B_LL34

12

PC9

1U_0805_25V4Z

12

PR10

1K_1206_5%

1 2

PD6

RB715F_SOT323

2

31

PR9

68_1206_5%

12

PJ4

JUMP_43X118@

11

2

2PQ3

DTC115EUA_SC70

2

13

PJ6

JUMP_43X118@

11

2

2

PR22

34K_0402_1%

12

PR12

1K_1206_5%

1 2

PR21

560_0603_5%

1 2

PJ5

JUMP_43X39 @

11

2

2

PJ3

JUMP_43X118@

11

2

2

PR5 22K_0402_1%

1 2

PR15

1K_1206_5%

1 2

PC4

100P_0402_50V8J

12

PD4

1N4148_SOD80

12

PC7

0.22U_1206_25V7M

12

PC1

1000P_0402_50V7K

12

PR11

200_0603_5%

1 2

PR20

560_0603_5%

1 2

PR2

5.6K_0402_5%

12

PR24

66.5K_0402_1%

12

PF1

7A_24VDC_429007.WRML

21

PC11

1000P_0402_50V7K

12

PR13

100K_0402_1%

12

PC5

1000P_0402_50V7K

12

PJ2

JUMP_43X118@

11

2

2

PC2

100P_0402_50V8J

12

PC3

1000P_0402_50V7K

12

PR16

200_0603_5%

12

PR18 2.2M_0402_5%

12

PR25

191K_0402_1%

12

PR19

499K_0402_1%

12

PD2

1N4148_SOD80

1 2

PR6

20K_0402_1%

12

PD3

1N4148_SOD80

12

PU2 G920AT24U_SOT89

IN 2

GND

1

OUT

3

PQ1

TP0610K-T1-E3_SOT23

2

13

PR7

10K_0402_5%

12

PR3

84.5K_0402_1%

12

PR14 22K_0402_1%

1 2

G

D

S

PQ2

2N7002-7-F_SOT23-3

2

13

PC6

0.1U_0402_16V7K

12

PR8

10K_0402_5%

12

PJ7

JUMP_43X79 @

11

2

2

PC12

1000P_0402_50V7K

12

PC8

0.1U_0603_25V7K

12

PR17 100K_0402_1%

1 2

PR155

68_1206_5%

12

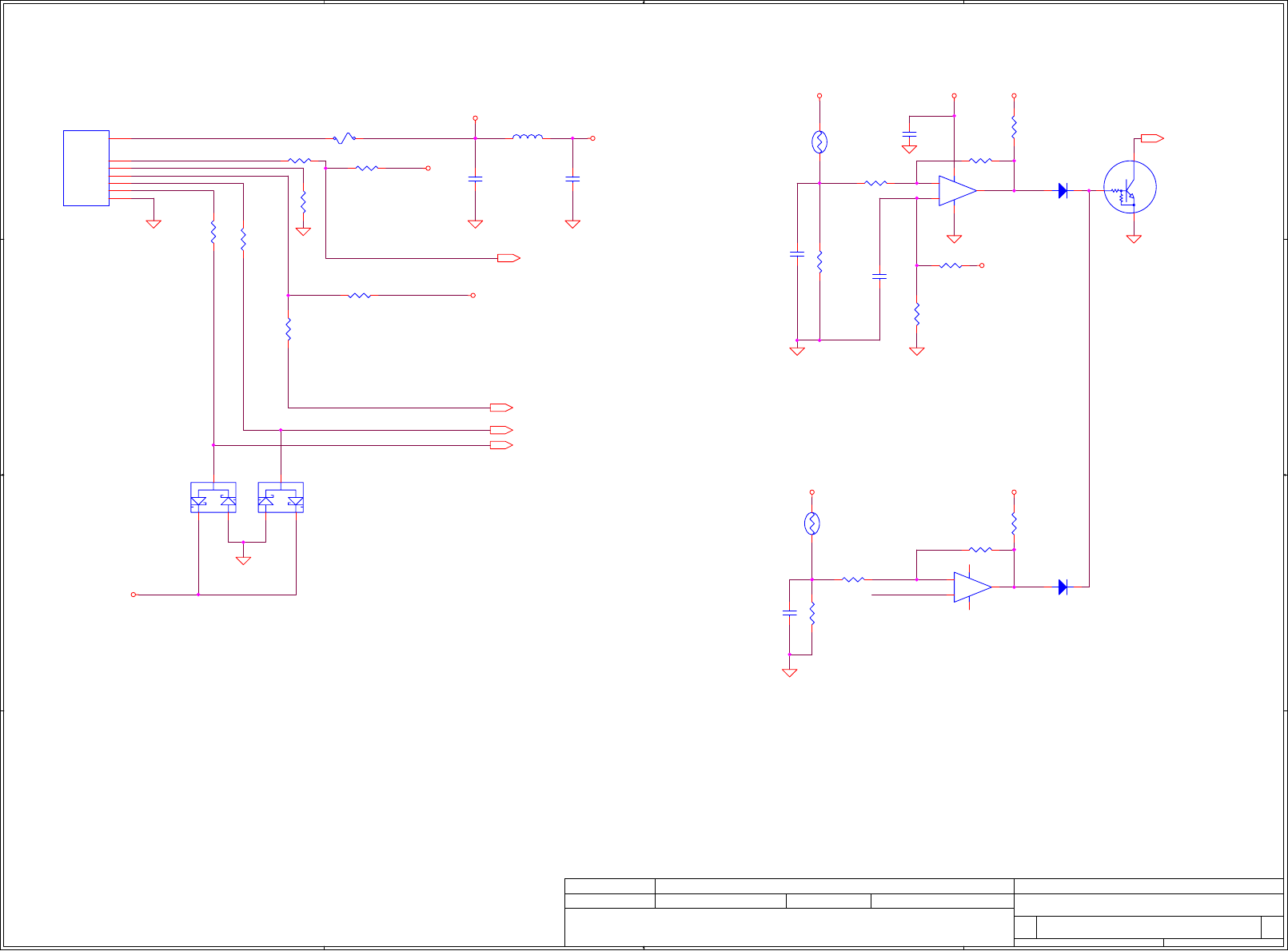

A

A

B

B

C

C

D

D

1 1

2 2

3 3

4 4

TS_A

AB/I

EC_SMDA

ALI/NIMH#

EC_SMCA

BATT_S1

TM_REF1

TM_REF1

EC_SMB_CK1 28,29

BATT_TEMPA 28

EC_SMB_DA1 28,29

ALI/MH# 28,36

MAINPWON 4,15,34,37,38BATT+

+3VALWP

VMB

+3VALWP

VL VS

VL

VL

VLVL

+5VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

BATTERY CONN / OTP

35 42Thursday, August 04, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

PH2 near main Battery CONN :

Recovery at 45 degree C

BAT. thermal protection at 79 degree C

Recovery at 45 degree C

CPU thermal protection at 84 degree C

PH1 under CPU botten side :

PC14

0.1U_0603_25V7K

12

PD21

BAS40-04_SOT23@

1

2

3

PR39

1K_0402_5%

12

PH2

100K_0603_1%_TH11-4H104FT

12

PR29

47K_0402_1%

1 2

PC19

0.22U_0805_16V7K

12

PC15

1000P_0402_50V7K

12

PL2

FBM-L18-453215-900LMA90T_1812

1 2

PR32

1K_0402_5%

12

PU3B

LM393M_SO8

+

5

-

6O7

P8

G

4

PR40

47K_0402_1%

1 2

PR36

100K_0402_1%

12

PD8

1SS355_SOD323

12

PR27

47K_0402_1%

1 2

PD7

1SS355_SOD323

12

PD20

BAS40-04_SOT23@

1

2

3

PR37

6.49K_0402_1%

12

PC17

0.22U_0805_16V7K

12

PJP2

SUYIN_250005MR007G132ZR@

BATT+ 1

B/I 3

TS 4

SMD 5

SMC 6

ID 2

GND 7

PR28

1K_0402_5%

1 2

PF2

12A_65VDC_451012

21

PR35

22K_0402_1%

12

PR41

47K_0402_1%

1 2

PR42

10.7K_0402_1%

1 2

PQ4

DTC115EUA_SC70

2

13

PC16

0.01U_0402_25V

12

PR34

100_0402_5%

1 2

PR38

100K_0402_1%

12

PR43

22K_0402_1%

12

PH1

100K_0603_1%_TH11-4H104FT

12

PR30

47K_0402_5%

1 2

PU3A

LM393M_SO8

+

3

-

2O1

P8

G

4

PR33

100_0402_5%

1 2

PC18

1000P_0402_50V7K

12

PR31

13.7K_0402_1%

1 2

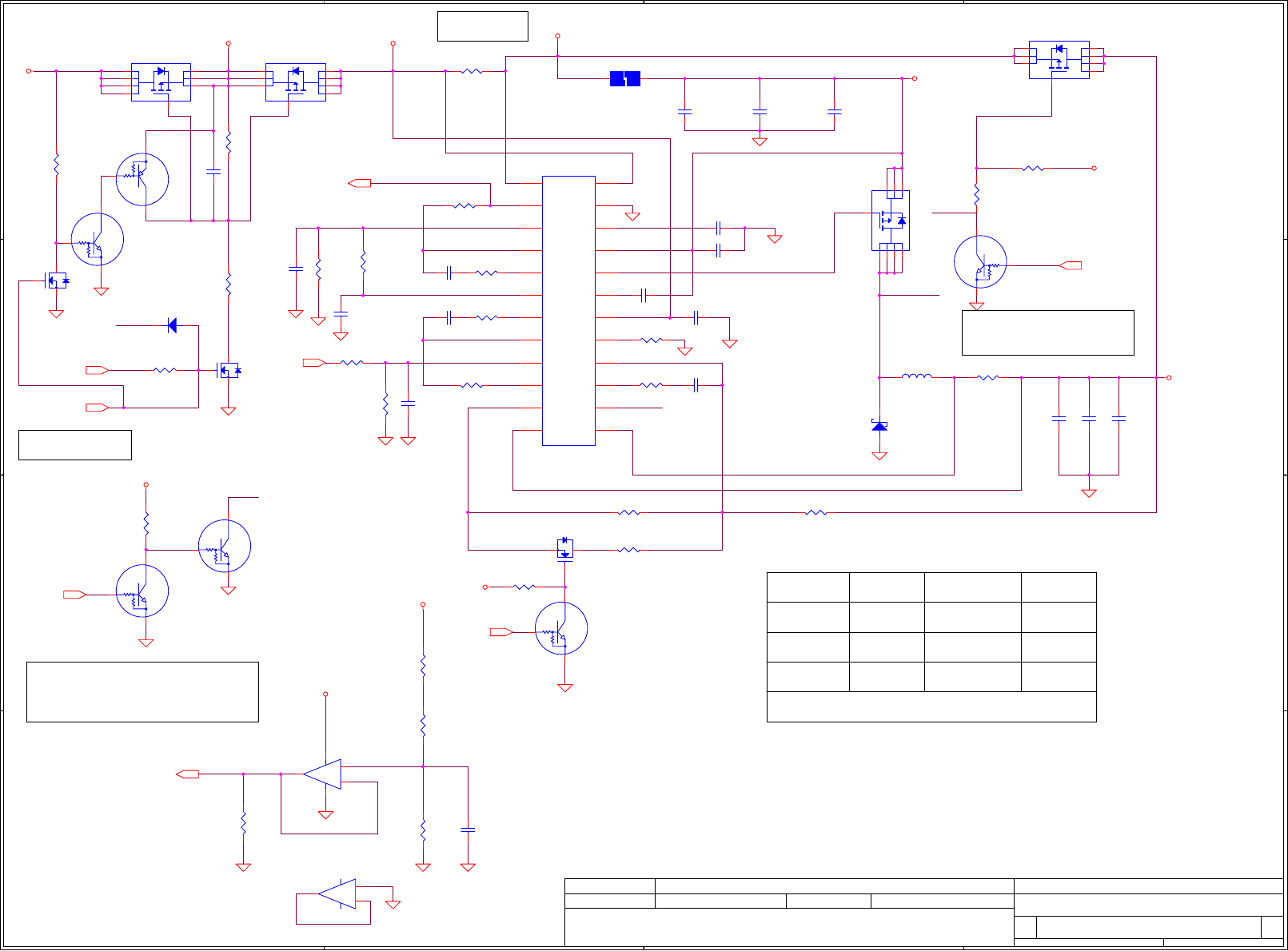

A

A

B

B

C

C

D

D

1 1

2 2

3 3

4 4

CS

ACON

CS

ISE_CHG+

DH_CHG

ACOFF#

PACIN

ACOFF#

LX_CHG

ACON

ACOFF 28

IREF28

FSTCHG28

ADP_I28

ACON34

PACIN34,37

BATT_OVP28

ALI/MH#28,35

VIN

VIN

BATT+

P2 P3 B+

B++

+3VALWP

VMB

+5VALWP

VL

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

CHARGER

36 42Monday, August 08, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

Iadp=0~3.125A

CC=0.5~3.1A

CV=16.8V(4/8 CELLS LI-ION)

IREF=0.73~3.3V

IREF=1.31*Icharge

4.2V

OVP voltage : LI

(BAT_OVP=0.1111 *VMB)

4S1P/4S2P : 17.4V--> BATT_OVP= 1.935V

4 CELL 1.5A

BATT Type Charge Current IREF

8 CELL 3A 3.144V

1.572V

6 CELL 3A 3.144V

ALI/MH#

3.3V

0V

0V

3S2P : 13.05V--> BATT_OVP= 1.45V

Triggle Charge 500mA IREF=0.524V

CV=12.6V(6 CELLS LI-ION)

PC22

4.7U_1206_25V6K

12

PC20

4.7U_1206_25V6K

12

PR65

300K_0603_0.1%

12

PL3

16UH_D104C-919AS-160M_3.7A_20%

1 2

PR53

150K_0402_1%

12

PR50

30K_0402_1%

12

PR56

162K_0402_1%

1 2

PR60

47K_0402_5%

1 2

PU5B

LM358A_SO8

+5

-6

0

7

PR44

0.02_2512_1%

12

PR62

150K_0603_0.1%

12

PC31

0.1U_0603_25V7K

1 2

PC37

0.01U_0402_25V

12

PR49 100K_0402_1%

12

PC34

4.7U_1206_25V6K

12

PQ15

DTC115EUA_SC70

2

13

PR68

2.21K_0402_1%

12

PC33

0.1U_0402_16V7K

12

PC30

1000P_0402_50V7K

1 2

PR59 10K_0402_5%

12

G

D

S

PQ12

2N7002-7-F_SOT23-3

2

13

PR64

47K_0402_5%

12

PC36

4.7U_1206_25V6K

12

G

D

S

PQ38

2N7002-7-F_SOT23-3

2

13

PQ10

DTC115EUA_SC70

2

13

PR63

300K_0603_0.1%

12

PR47

47K_0402_5%

1 2

PC29

0.1U_0402_16V7K

12

PR51

10K_0402_1%

12

PC32

1500P_0402_50V7K

1 2

PU5A

LM358A_SO8

+3

-2

0

1

P8

G

4

PR57

3K_0402_1%

1 2

PC35

4.7U_1206_25V6K

12

PC21

4.7U_1206_25V6K

12

PQ11

DTC115EUA_SC70

2

13

PR154

100K_0402_1%

1 2

PC28

0.1U_0603_25V7K

1 2

PR55

68.1K_0402_1%

1 2

PQ39

DTC115EUA_SC70

2

13

PR66

340K_0402_1%

12

PU4

MB3387PFV-ERE1_SSOP24~N

-INC2

1

OUTC2

2

+INE2

3

-INE2

4

+INC2 24

GND 23

CS 22

VCC(o) 21

FB2

5

VREF

6

FB1

7

-INE1

8

+INE1

9

OUTC1

10

OUTD

11

-INC1

12

OUT 20

VH 19

VCC 18

RT 17

-INE3 16

FB3 15

CTL 14

+INC1 13

PC24

0.022U_0402_16V7K

1 2

47K

47K

PQ8

DTA144EUA_SC70

2

1 3

PQ14

DTC115EUA_SC70

2

13

PR45

200K_0402_1%

12

PC23

0.1U_0603_25V7K

12

PR46

47K_0402_5%

12

PQ5

AO4407_SO8

3 6

5

7

8

2

4

1

PC25

0.1U_0603_25V7K

1 2

PC27

4700P_0402_25V7K

1 2

PQ9

AO4407_SO8

36

5

7

82

4

1

G

D

S

PQ13

2N7002-7-F_SOT23-3

2

13

PR67

499K_0402_1%

12

PR52

10K_0402_5%

1 2

PC26

0.1U_0402_16V7K

12

PQ7

AO4407_SO8

3 6

5

7

8

2

4

1

PD9

1SS355_SOD323

1 2

PQ6

AO4407_SO8

36

5

7

82

4

1PJ9

JUMP_43X118@

11

2

2

PR61

100K_0402_1%

12

PR48

10K_0402_5%

1 2

PR69

105K_0402_1%

12

EC31QS04

PD10

12

PR58

0.02_2512_1%

1 2

PR54

1K_0402_5%

1 2

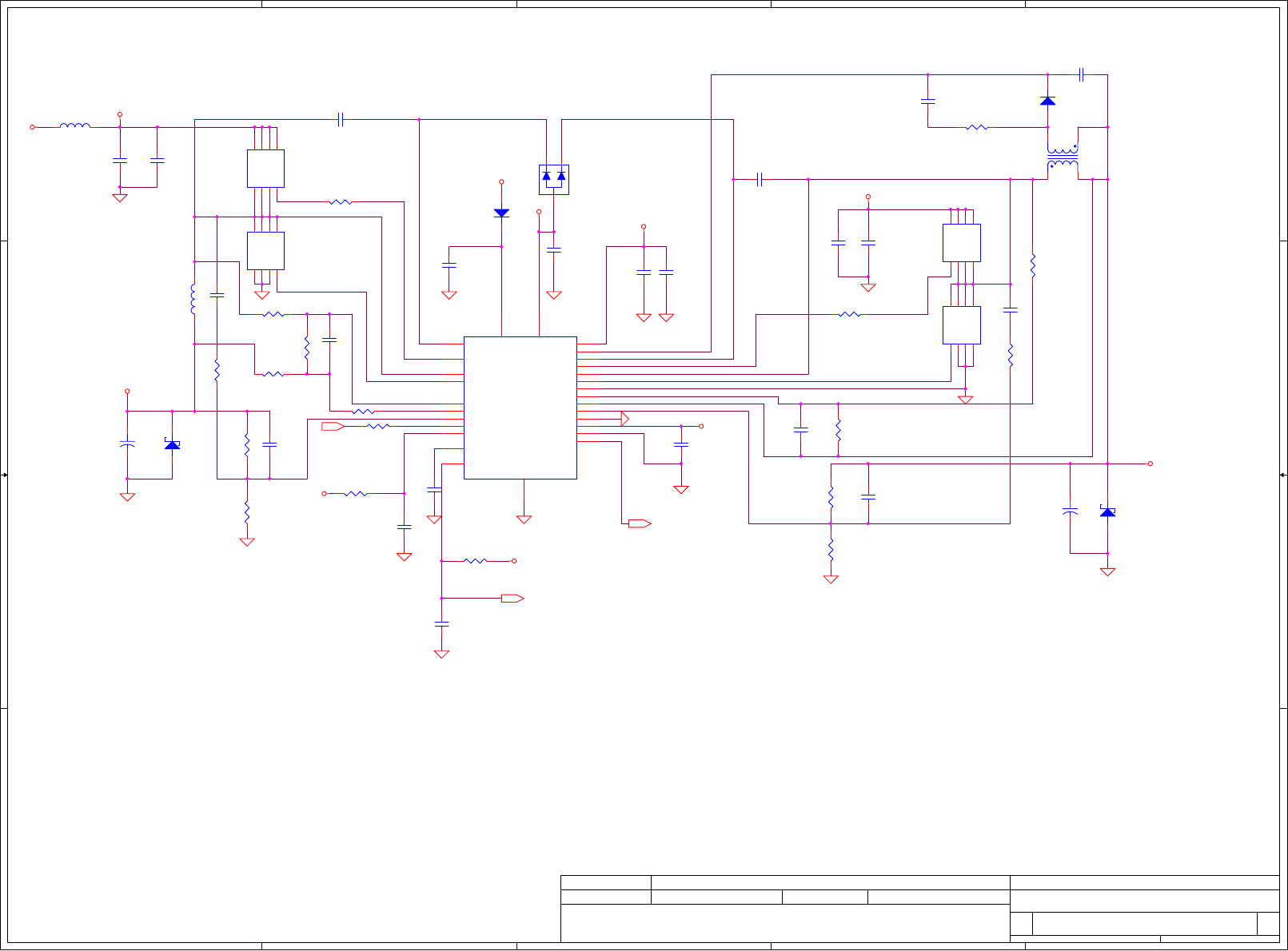

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

FLYBACKSNB

BST_5V

DH_3V-1

VSE_5V

ISE_3V+

DL_5V

LX_5V

VSE_3V

BST_3V

N4

DL_3V

LX_3V

ISE_3V- ISE_5V+

DH_3V-2

DH_5V-2DH_5V-1

MAINPWON 4,15,34,35,38

PACIN34,36

POK

+5VALWP

VS

B+++

B+++

VL

+12VALWP

B+

+3VALWP

VS

+2.5VREF

VL

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

3V / 5V / 12V

37 42Thursday, August 04, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

PC56

1000P_0402_50V7K

12

PR87

220K_0402_5%

12

PD12

DAP202U_SOT323

2

3

1

PC55

4.7U_0805_6.3V6K

12

PR84

10.2K_0402_1%

12

PR86

10K_0402_1%

12

PQ19

SI4810DY-T1-E3_SO8

S

1S

2S

3G

4

D8

D7

D6

D5

PQ18

SI4810DY-T1-E3_SO8

S

1

S

2

S

3

G

4

D8

D7

D6

D5

PR81

576_0402_1%

12

+

PC53

150U_D2E_6.3V_R18

1

2

PD15

SKUL30-02AT_SMA

2 1

PU6

MAX1902AEAI_SSOP28

LX3

26

DL3

24

BST3

25

DH3

27

CSH3

1

CSL3

2

FB3

3

SKIP#

10

GND

8

12OUT 4

VDD 5

BST5 18

DH5 16

LX5 17

DL5 19

PGND 20

CSH5 14

CSL5 13

FB5 12

SEQ 15

REF 9

SYNC 6

RST# 11

SHDN#

23

TIME/ON5

7

RUN/ON3

28

VL 21

V+ 22

PR76

2M_0402_1%

12

PR80

10K_0402_5%

1 2

PC44

4.7U_1206_25V6K

12

PC40

0.1U_0603_25V7K

1 2

+

PC58

150U_D2E_6.3V_R18

1

2

PC42

4.7U_1206_25V6K

12

PC38

4.7U_1210_25V

1 2

PD11

EC11FS2_SOD106

12

PL11

FBM-L18-453215-900LMA90T_1812

1 2

PC51

0.47U_0603_16V7K

12

PR77

1M_0402_1%

1 2

PC49

47P_0402_50V8J

12

PC60

0.47U_0603_16V7K

12

PC47

0.1U_0603_25V7K

12

PR79

1.24K_0402_1%

12

PC59

0.1U_0603_25V7K @

12

PR70 22_1206_5%

12

PC122

1U_0805_25V4Z

12

PC50

47P_0402_50V8J

12

PC52

0.47U_0603_16V7K

12

PD13

1SS355_SOD323

1 2

PR72

1.27K_0402_1%

12

PR75

3.74K_0402_1%

1 2

PC41

4.7U_1206_25V6K

12

PQ17

SI4800DY-T1-E3_SO8

S

1S

2S

3G

4

D8

D7

D6

D5

PC48

1U_0805_25V4Z

12

PL4

10U_LF919AS-100M-P3_4.5A_20%

12

PC46

4.7U_0805_6.3V6K

12

PT1

10UH_SDT-1403P-100-120GP_4.5A

1 4

3 2

PC57

100P_0402_50V8J

12

PC39

470P_0805_100V7K

1 2

PC45

4.7U_1206_25V6K

12

PR82

3.32K_0402_1%

1 2

PR74

0_0603_5%

12

PR78

0_0402_5%

12

PD14

SKUL30-02AT_SMA

2 1

PC43

0.1U_0603_25V7K

1 2

PR85

10K_0402_1%

1 2

PR83

47K_0402_5%

1 2

PR71

0_0603_5%

12

PQ16

SI4800DY-T1-E3_SO8

S

1

S

2

S

3

G

4

D8

D7

D6

D5

PC54

100P_0402_50V8J

12

PR73

1.87K_0402_1%

12

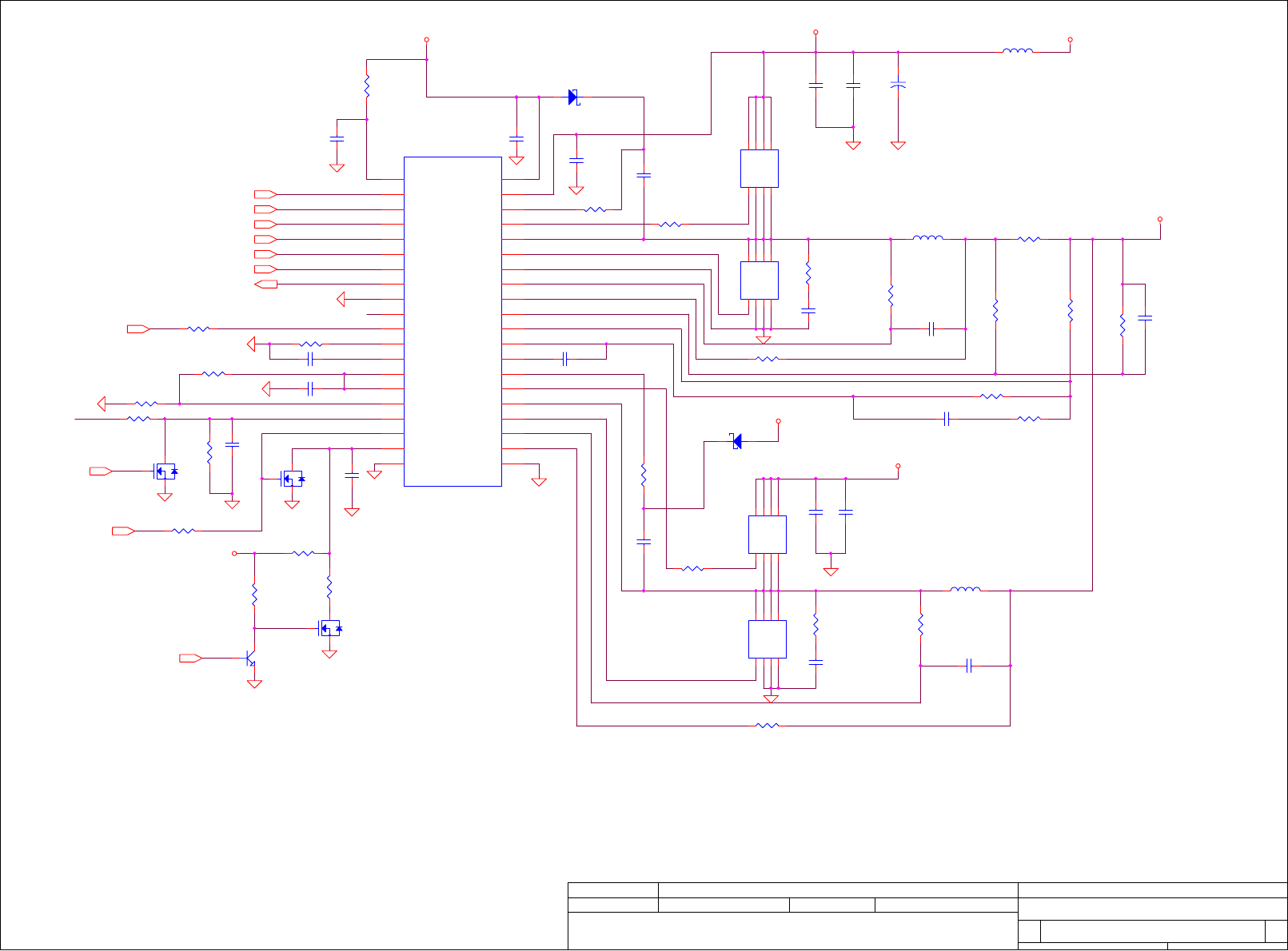

A

A

B

B

C

C

D

D

1 1

2 2

3 3

4 4

VSE_1.8V

BST_1.8V-1

BST_1.2V-2BST_1.8V-2

ISE_1.8V ISE_1.2V

DL_1.2V

DL_1.8V

BST_1.2V-1

LX_1.8V

LX_1.2V

DH_1.8V-2

DH_1.2V-1 DH_1.2V-2DH_1.8V-1

VSE_1.2V

MAINPWON4,15,34,35,37 SUSP# 24,28,29,33,39

B+

+5VALW

+1.8VALWP

+1.2VSP

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

1.8V / VGA_CORE

38 42Thursday, August 04, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

+1.2V

+1.8V

PQ23

SI4810DY-T1-E3_SO8

S

1S

2S

3G

4

D8

D7

D6

D5

PR103

10K_0402_1%

12

PR95

0_0402_5%

1 2

PR101 10K_0402_1%

1 2

PR157

4.7_1206_5%

1 2

PR96

2K_0402_1%

1 2

PR106

100K_0402_1%

12

PC61

4.7U_1206_25V6K

12

PR98

0_0402_5%

1 2

PR88

0_1206_5%

12

PQ22

SI4810DY-T1-E3_SO8

S

1

S

2

S

3

G

4

D8

D7

D6

D5

PC65

4.7U_0805_6.3V6K

12

PR158

4.7_1206_5%

1 2

PR104

6.49K_0402_1%

12

PC73

0.01U_0402_25V

12

PL6

1.8U_D104C-919AS-1R8N_9.5A_30%

1 2

PC76

0.1U_0402_16V7K@

12

PC123

680P_0603_50V8J

1 2

PC67

2.2U_0805_10V6K

12

PR99

2.21K_0402_1%

12

PR93

0_0603_5%

1 2

PC75

0.01U_0402_25V

12

PR100

47K_0402_1%@

1 2

PC70

0.1U_0402_16V7K

12

PC68

4700P_0402_25V7K

12

+

PC72

220U_6.3V_M_R13

1

2

PC63

4.7U_1206_25V6K

12

PR94

10.2K_0402_1%

12

PQ20

SI4800DY-T1-E3_SO8

S

1

S

2

S

3

G

4

D8

D7

D6

D5

PR89

2.2_0603_5%

1 2

PC124

680P_0603_50V8J

1 2

PL12

FBM-L18-453215-900LMA90T_1812

1 2

PD16

DAP202U_SOT323

2

31

PC66

0.1U_0603_25V7K

12

PL5

1.8U_D104C-919AS-1R8N_9.5A_30%

1 2

PC69

0.01U_0402_25V

12

+

PC74

220U_6.3V_M_R13

1

2

PQ21

SI4800DY-T1-E3_SO8

S

1S

2S

3G

4

D8

D7

D6

D5

PC77

0.1U_0402_16V7K@

12

PR107

100K_0402_1%

12

PR91

2.2_0603_5%

1 2

PC64

4.7U_1206_25V6K

12

PR156

47K_0402_1%

1 2

PC62

4.7U_1206_25V6K

12

PR92

0_0603_5%

1 2

PR105

0_0402_5%@

1 2

PC71

0.1U_0402_16V7K

12

PR90

2.2_0603_5%

1 2

PR102

0_0402_5%@

1 2

PR97

2K_0402_1%

1 2

PU7

ISL6227CAZ-T_SSOP28

GND

1

LGATE1

2

PGND1

3

PHASE1

4

UGATE1

5

BOOT1

6

ISEN1

7

EN1

8

VOUT1

9

VSEN1

10

OCSET1

11

SOFT1

12

DDR

13

VIN 14

PG1

15 PG2/REF 16

SOFT2 17

OCSET2 18

VSEN2 19

VOUT2 20

EN2 21

ISEN2 22

BOOT2 23

UGATE2 24

PHASE2 25

PGND2 26

LGATE2 27

VCC 28

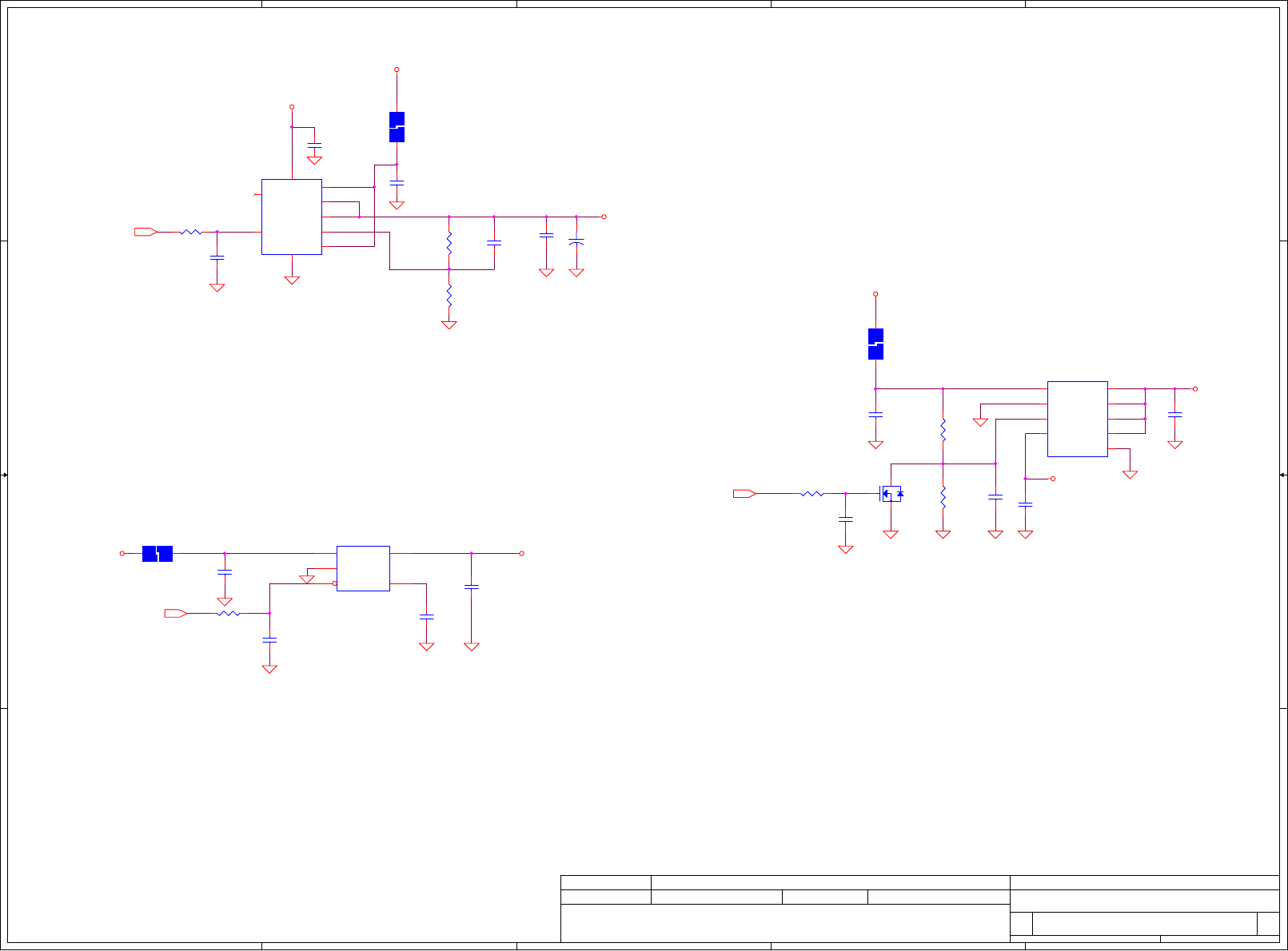

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SUSP33

SUSP#24,28,29,33,38

+1.2VS

+1.05VSP

+3VALWP

+0.9VSP

+1.8V

+3VALWP +1.5VSP

+5VS

SUSP#24,28,29,33,38

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

1.5V / 1.25V / 1.2V

39 42Thursday, August 04, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

G

D

S

PQ28

2N7002-7-F_SOT23-3

2

13

PR112

316_0402_1%

12

PU10

G914GF_SOT23-5

IN

1

GND

2

SHDN

3BYP 4

OUT 5

PR116

1K_0402_1%

12

PR111

0_0402_5%

1 2

PC86

10U_1206_6.3V7K

12

PC89

0.1U_0402_16V7K

12

PC90

1U_0603_6.3V6M

12

+

PC83

150U_D2E_6.3VM_R18@

1

2

PC87

1U_0603_6.3V6M

12

PJ12

JUMP_43X79

@

11

2

2

PC78

1U_0603_6.3V6M

12

PU8 APL5912-KAC-TRL_SO8~N

GND

1

VOUT 3

POK

7

EN

8

VCNTL 6

VIN 5

VOUT 4

FB 2

VIN 9

PJ14

JUMP_43X118 @

1

122

PC80

22U_1206_6.3V6M

12

PR117

0_0402_5%

12

PC88

1U_0603_6.3V6M

12

PC94

0.1U_0402_16V7K@

1 2

PR114

1K_0402_1%

12

PR113

1K_0402_1%

12

PJ13

JUMP_43X118@

11

2

2

PC84

0.1U_0402_16V7K@

12

PU9

APL5331KAC-TRL_SO8

VOUT

4

NC 5

GND

2

VREF

3

VIN

1VCNTL 6

NC 7

NC 8

TP 9

PC92

0.1U_0402_16V7K@

12

PC79

22U_1206_6.3V6M

12

PC93

0.33U_0603_10V7K

12

PR115

0_0402_5%

1 2

PC91

10U_1206_6.3V7K

12

PC85

0.01U_0402_25V

12

VCC

VSE_CPU

VSE_CPU

DH_CPU2-1

BST_CPU2-1

LX_CPU2

BST_CPU2-2

DL_CPU2

LX_CPU1

BST_CPU1-1

BST_CPU1-2

DL_CPU1

ISE_CPU1+

ISE_CPU1-

VCC

ISE_CPU2+

ISE_CPU2-

OAIN+

OAIN-

DH_CPU1-1 DH_CPU1-2

DH_CPU2-2

CPU_VID05

CPU_VID45

CPU_VID35

CPU_VID15

CPU_VID55

CPU_VID25

VGATE16

VR_ON28

DPRSLPVR14

PSI#5

CPU_STP#4,11,14

+5VS CPU_B+ B+

CPU_B+

+5VS

+CPU_CORE

+5VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

CPU_CORE

40 42Monday, August 08, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

CPU VCC SENSE

G

D

S

PQ36

RHU002N06_SOT323

2

13

PC117

4.7U_1206_25V6K

12

PR137 30.1K_0402_1%

12

PC104

1U_0603_6.3V6M

1 2

PR126

0_0603_5%

12

PR145

2.2_0603_5%

1 2

PR132 909_0402_1%

12

PC121

0.47U_0603_16V7K

1 2

PR144

10.7K_0402_1%

1 2

PR124

2.2_0603_5%

12

PC110

0.47U_0603_16V7K

1 2

PR152 909_0402_1%

12

PR138 909_0402_1%

1 2

PQ35

IRF7832PBF_SO8

S

1

S

3G

4

D8

D7

D6

D5

S

2

PR149

10K_0402_1%

1 2

+

PC100

220U_25V_M@

1

2

PC120

680P_0603_50V8J

1 2

PC114

2200P_0402_50V7K

1 2

PC107

0.22U_0805_16V7K

12

PR148

20K_0402_1%

1 2

PC118

4.7U_1206_25V6K

12

PU12

MAX1532AETL+T_TQFN40

TIME

1

TON

2

SUS

3

S0

4

S1

5

SHDN#

6

OFS

7

REF

8

ILIM

9

VCC

10

GND

11

CCV

12

GNDS 13

CCI 14

FB 15

OAIN- 16

OAIN+ 17

SKIP

18

D5

19

D4

20

D3

21

D2

22

D1

23

D0

24

VROK

25

BSTM 26

LXM 27

DHM 28

DLM 29

VDD 30

PGND 31

DLS 32

DHS 33

LXS 34

BSTS 35

V+ 36

CMP 37

CMN 38

CSN 39

CSP 40

C

B

E

PQ37

HMBT2222A_SOT23

1

2

3

PC113 0.22U_0805_16V7K

1 2

PC119

0.22U_0805_16V7K

12

PR128

0.001_2512_5%

1 2

PL9

0.56UH_ETQP4LR56WFC_21A_20%

1 2

PL8

FBM-L18-453215-900LMA90T_1812

1 2

PC112 470P_0402_50V8J

1 2

PL10

0.56UH_ETQP4LR56WFC_21A_20%

1 2

PD19

EP10QY03

21

PC115

100P_0402_50V8J

12

PC109

1000P_0402_50V7K

@

1 2

PR151

4.7_1206_5%

1 2

PR140

2.7K_0402_1%

1 2

PR150

100K_0402_1%

1 2

PR131

4.7_1206_5%

1 2

G

D

S

PQ33

RHU002N06_SOT323

2

13

PR133 499_0402_1%

12

PC106

0.01U_0402_25V

12

PR135

2.7K_0402_1%

1 2

PR147

0_0603_5%

12

PC103

4.7U_1206_25V6K

12

PR136

0_0402_5%

1 2

PR146

0_0402_5%

1 2

PR153

909_0402_1%

1 2

PR143

0_0402_5%

1 2

PC102

4.7U_1206_25V6K

12

PC116

27P_0402_50V8J

1 2

PR142 100K_0402_1%

1 2

G

D

S

PQ32

RHU002N06_SOT323

2

13

PQ34

IRF7821PBF_SO8

S

1

S

3G

4

D8

D7

D6

D5

S

2

PR134 499_0402_1%

12

PD18

EP10QY03

2 1

PC108

680P_0603_50V8J

1 2

PQ30

IRF7821PBF_SO8

S

1

S

3G

4

D8

D7

D6

D5

S

2

PC105

2.2U_0603_6.3V6K

1 2

PQ31

IRF7832PBF_SO8

S

1

S

3G

4

D8

D7

D6

D5

S

2

PR141

68.1K_0402_1%

1 2

PR121

10_0402_5%

12

PC111

270P_0402_50V7K

1 2

PR139 200K_0402_1%

1 2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR

41 42Monday, August 08, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

28 ADD R459, R460 For HDD password detect pin

28 Add @ on Super I/O circuit For DVT build

29 Modify pin74 net-name of KB910 Solving reserve button no function

31 Modify D16, D17

Add D35, D36 Change from double colors to signal color LED

Writed by Timo

Add C642, C643 and C644

For Increase the DDR bypass capaciotrs

Date Page Action Purpose

For Increase the DDR bypass capaciotrs

Add C645, C646 and C647

6/12

6/12 10

9

0.1==>0.2

12 Modify JP18 circuit Making TV out function become correct

Del R449~R45427 For EMI request

Add @ on R317 Metting ATI reference circuit15

24 Del @ on R436 Solving MDC issue and sound slow issue

26 Del R306 (move to sub board) To differentiate between HAZ00 and HTW01 BIOS

7/13

29 Add JP30, R457, C658 For LPC debug port

Del Super I/O circuit

23 ADD JP29, R456 For Port80 Debug card connector

6/22 27 Add H34, H33 For Me update new drawing

7/8 8

0.2==>0.3 Writed by Timo

Add C648, C649 and C650 Seperate the AVDD and DVDD for TVout and CRT

17 Add C651~C657

For height limited of SB

7/11

34 Change C225 from 4.7 to 10U

Change C585, C587, C566, C533,

C560, C573, C536 from

10 to 4.7U

For height limited of SB

25 Del R456

Add Q52 For insert card bus device beep sound issue.

12 ADD J1, J4

22

27

ADD J2

ADD J3 For EMI request

0.3==>1.0 Writed by Timo

25 Add C662, R461, D37, R462, Q52 For Insert card bus device PoPo noise sound7/28

29 Change R101 from 8.2k to 18kohm For Board ID change

Change C288 from 150U fo 470UF

Change C587, C585, C651, C652,

C566, C553, C560, C573,

C653, C654, C655, C656,

C536, C657

from 4.7U to 1U

17

14

Add C660, C661

For avoide the interfere area of HDD

Making the capacitors of 1.8VS source blance of SB

Making the capacitors of 1.8VALW and 3VS

sources blance of SB

Add @ in C261 For throttle issue

Add @ in C180 For cost down

Add L38, L39, L40 For EMI issue12

4

5

7/30

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.3

PIR

42 42Thursday, August 04, 2005

Compal Electronics, Inc.

2006/03/012005/03/01

page

EVT

Reason for change Modify list

37 12V noise Change PC38 from 4.7u_1206_25V to 4.7u_1210_25V

37 Lead free parts Change PC53,PC58 to NEC lead free parts.

38 Modify 1.8V power sequence for HW requirement Change PR100 from 0_0402_5% to 47K_0402_1%

Add 0.1u_0402_16V at PC76

39 Modify 1.05V circuit Delete PQ24,PQ26,PL7,PD17,PC82,PC81,PR109,PQ25,PQ27,PR110

Change PU8 to APL5912-KAC-TRL

Change PC85 to 0.01u_0402_25V

Change PR112 to 316_0402_1%

Change PR13 to 1K_0402_1%

39 Delete reserved 1.5V circuit Delete PU11,PC95,PR118,PR120,PQ29,PR119,PC99,PC97,PC98,PC96

39 Change 1.5V IC Change PU10 from APL5151 to G914

40 Add snubber for CPU CORE Add 4.7_1206_5% to PR131,PR151

Add 680P_0603_50V to PC108,PC120

DVT

Add bead at 3V/5V and 1.2V/1.8V input

for EMI requirement Add PL11,PL12 to replace PJ10,PJ1137,38

34 Change VS resistor to 33 ohm Change PR9 from 47_1206_5% to 33_1206_5%

34 Change 1N4148 to lead free P/N Change PD2,PD3,PD4 P/N to SC11N414880

40 Change HMBT2222 to lead free P/N Change PQ37 P/N to SB322220080

38 Raise 1.8V to 1.82V for HW requirement Change PR94 from 10K_0402_1% to 10.2K_0402_1%

PVT

34 Change VS resistor to standard part Change PR9 from 33_1206_5% to 68_1206_5%

Add 68_1206_5% at PR155

38 Change 1.8VALWP power sequence for

HW requirement Change 47K_0402_1% from PR100 to PR156

Delete PC76

Change PC68 from 0.01u_0402_25V to 4700P_0402_25V

Pre-MP

38 Add BOOST 2.2 ohm and snubber at

1.8V / 1.2V for EMI Add 4.7_1206_5% to PR157,PR158

Add 680P_0603_50V to PC123,PC124

Change PR90,PR91 from 0_0603_5% to 2.2_0603_5%

42 Change CPU CORE mosfet for EMI Change PQ30,PQ34 from AO4408 to IRF7821

Change PQ31,PQ35 from AO4410 to IRF7832

42 Delete CPU VID 0 ohm debug resistor Delete PR122,PR123,PR125,PR127,PR129,PR130

www.s-manuals.com
