2012-04-23 Rev 1.0
QAQ10/11
LA-8581P
Intel Ivy Bridge/Pather Point
SchematicREV1.0
Compal Confidential
UMA&OPT
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
160
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
160
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
160
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
MIC
page 38
Int.

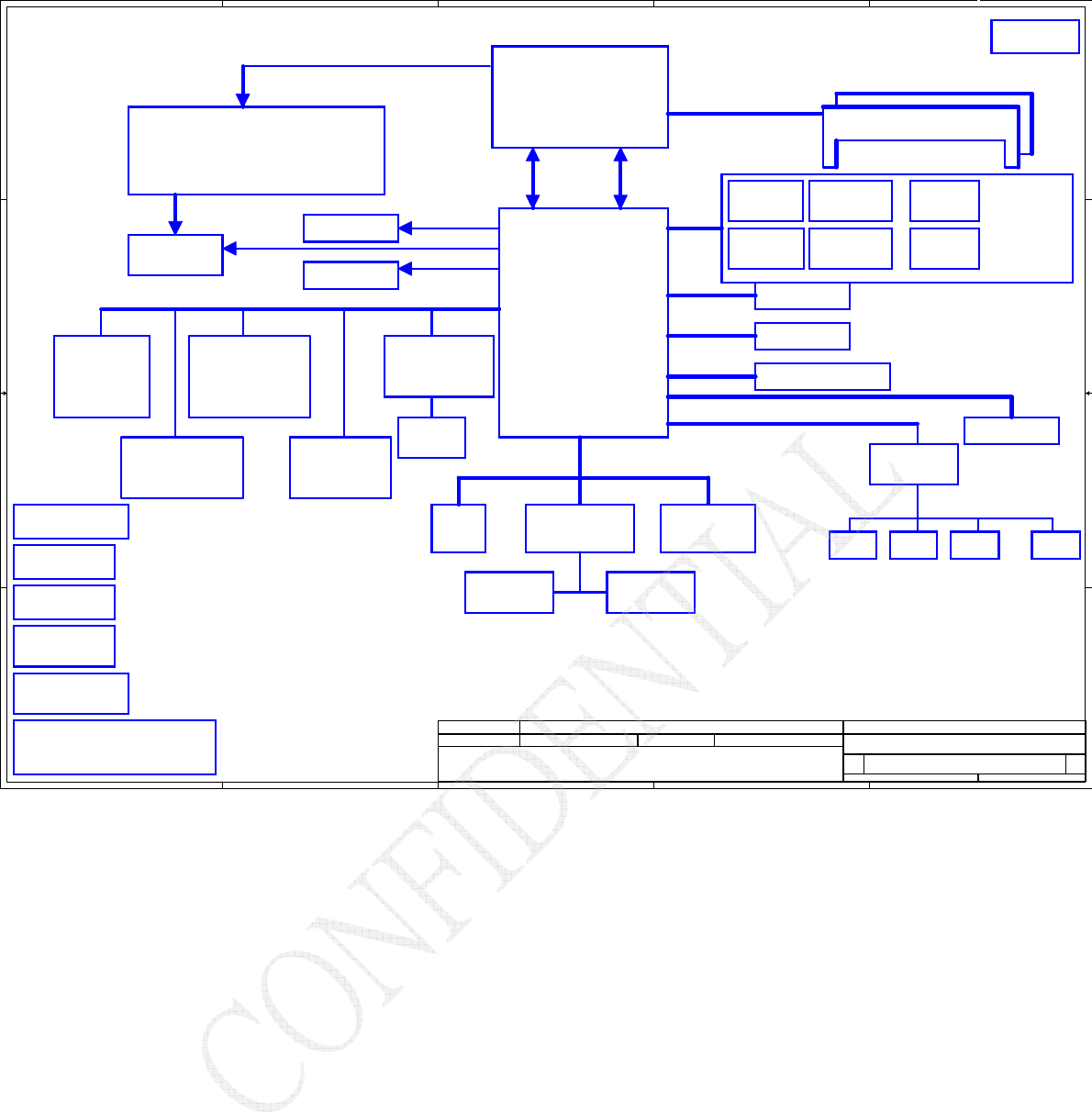

Model Name : QAQ10/11
USB&Function/B
page 43
37.5mm*37.5mm
Socket-rPGA988B/989
Mobile
CPU Dual Core
989pin FCBGA
Intel
Panther Point-M
DMI X4
File Name : LA-8581P
page 38
Compal Confidential
BANK 0, 1, 2, 3
ALC259
204pin DDRIII-SO-DIMM X2
1.5V DDRIII 1333/1600
page 5,6,7,8,9,10
HDA Codec
Memory BUS(DDRIII)
page 25 ~ 32
page 11,12
page 22
CRT
LCD Conn.
page 23
SATA ODD
5V 1.5GHz(150MB/s)
USB port 3,4
page 44
USB/B Right
Dual Channel
Power Circuit DC/DC
page 45
RTC CKT.
page 25,47
page 46,47,48,49,50,51,52,53,54,55,56,57,58
DC/DC Interface
Power/B
page 43
Touch Pad/B
page 43
Fan Control
page 6
USB
Ivy Bridge
SATA port 2
page 34
SATA HDD0
5V 1.5GHz(150MB/s)
SATA port 0
HP CONN
page 38
HD Audio
3.3V 24.576MHz/48Mhz
SPK CONN
page 38
MIC CONN
page 38
page 34
page 33
BIOS ROM
page 13,14,15,16,17,18,19,20,21
VGA (DDR3)
NVIDIA N13P-GLP, 128bit with 1GB/2GB
HDMI Conn.
page 24
PCI-E 2.0x16 5GT/s PER LANE100MHz
133MHz
PEG(DIS)
PCIe Port 2
PCIeMini Card
WLAN &BT
USB Port 13
RTL8111E&Intel 82579
PCIe port 1
port 4
100MHz
port 2 port 1
page 35,42
RJ45
page 39
page 36
PCI-Express x 8 (ARD PCIE2.0 2.5GT/s)
USB port 10
page 23
Int. Camera
USB port 11
page 40
33MHz
Touch Pad
LPC BUS
Int.KBD
page 41
page 40
page 43
ENE KB9012
FDI
OPT & UMA
OPT & UMA
TPM 1.2
page 34
PCIe Mini Card WWAN
&SIM
PCIe Port 5
USB Port 12
page 36
port 3
JMB385/388 Card Reader
&1394
PCIe Port 6
page 37
port 6
Express Card
PCIe Port 3
page 39
USB port 8
port 5
SATA port 4
page 43
E-SATA
5V 1.5GHz(150MB/s)
USB port 3
SIO
Page 47
Finger Print
USB Left Port
USB port 1,9
page 43
Smart Card
USB port 2
page 39
25mm*25mm
HM76
USB port 0
page 40
USB3.0
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
260Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
260Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
260Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA

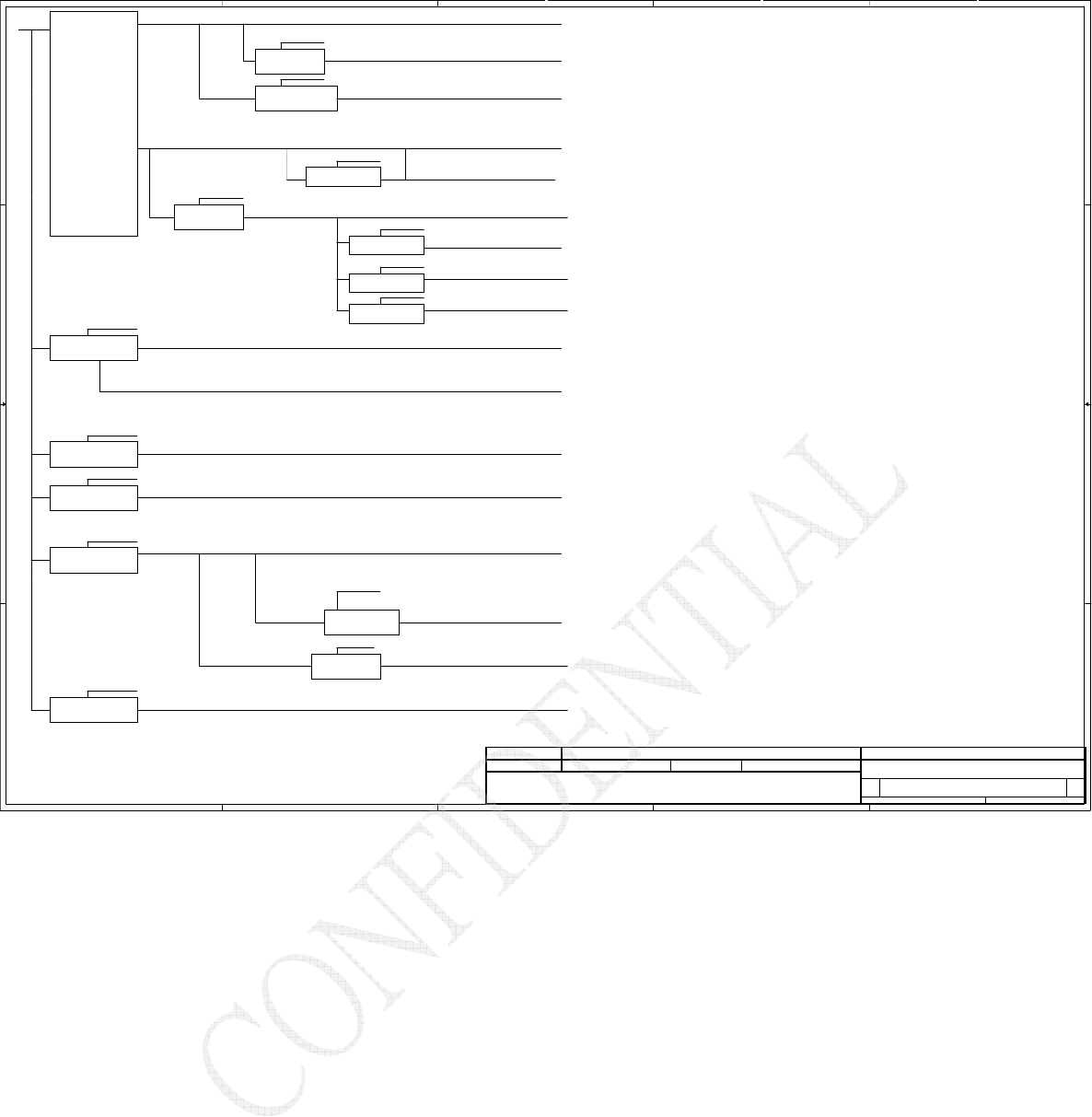

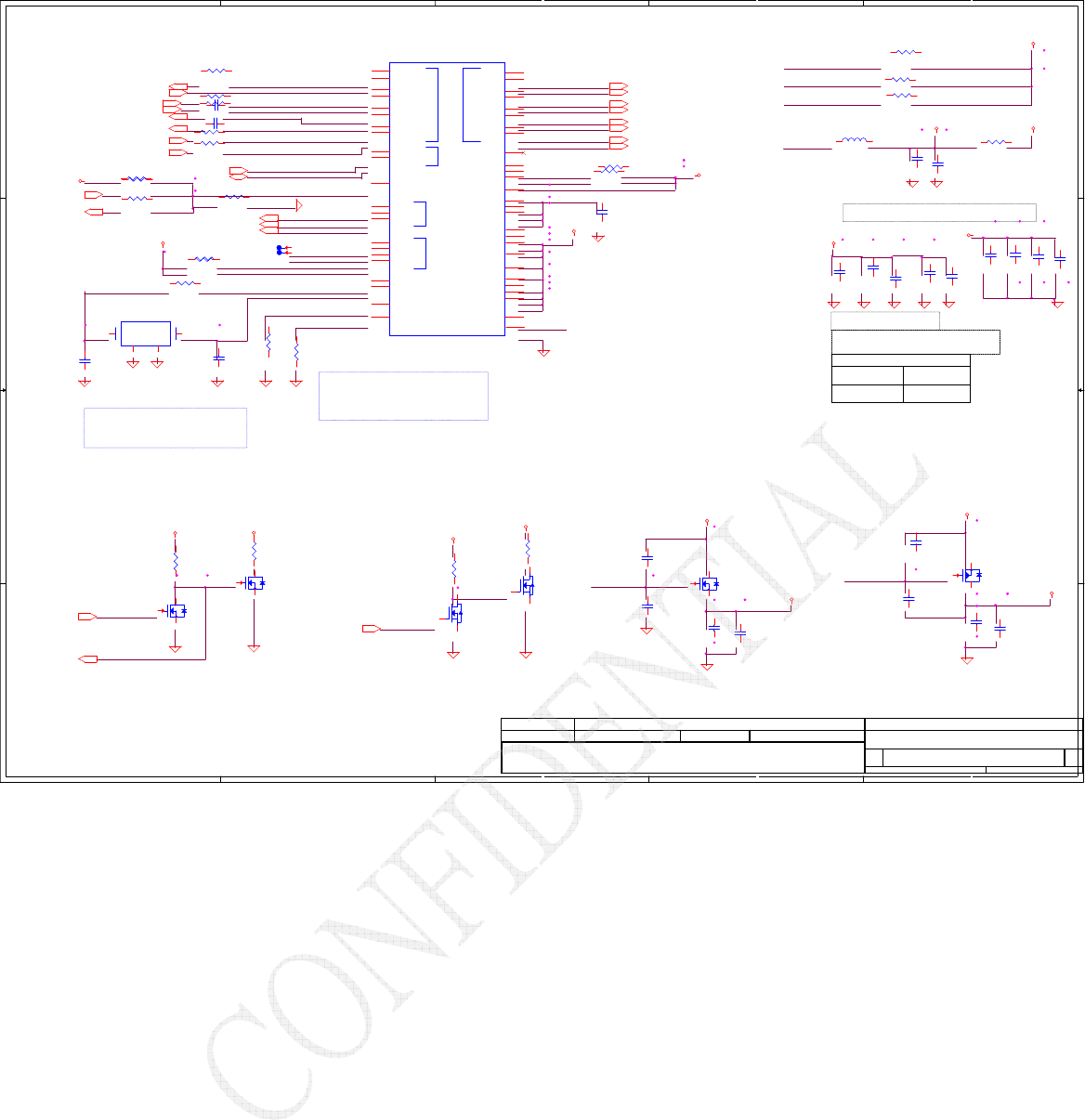

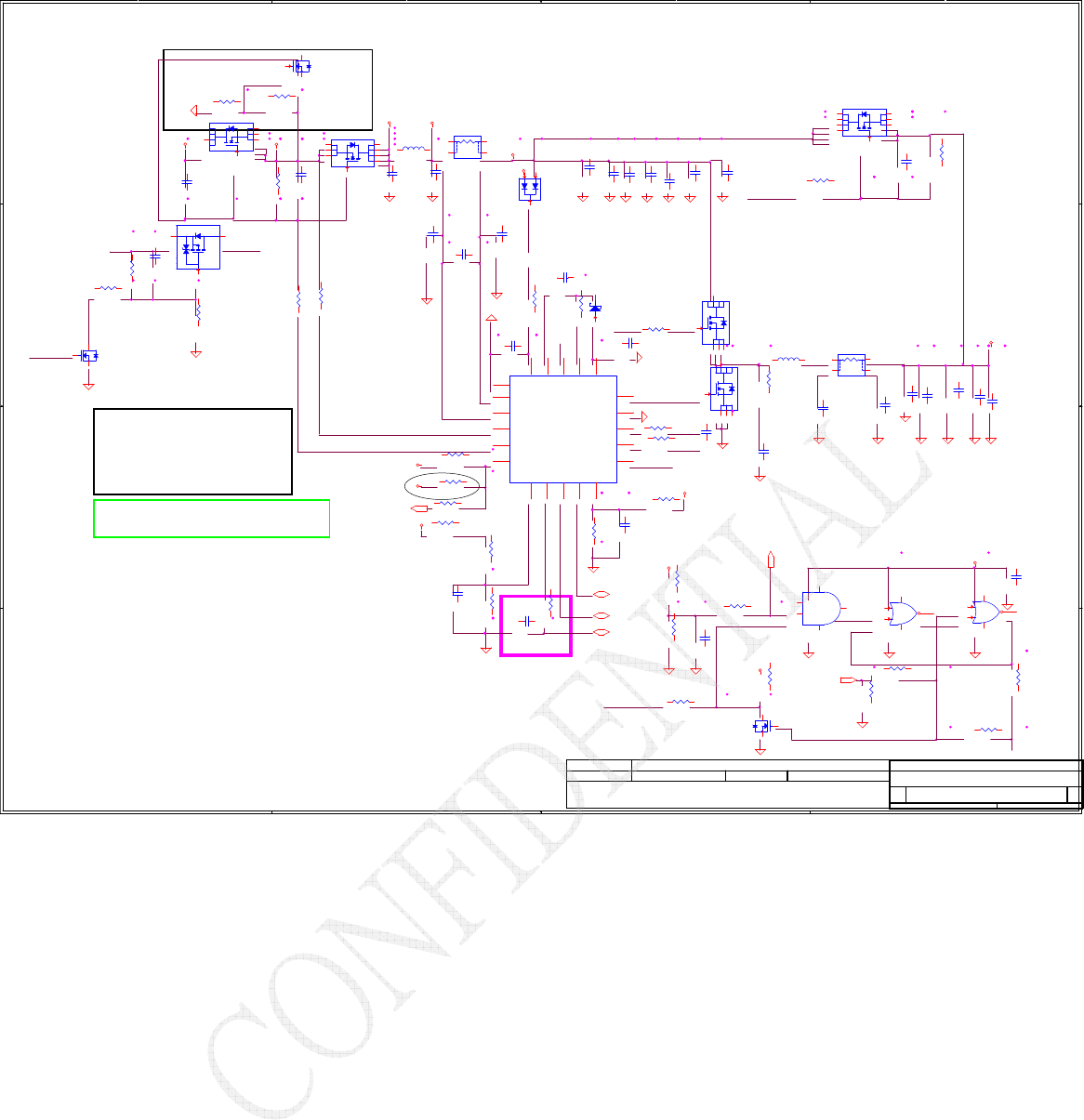

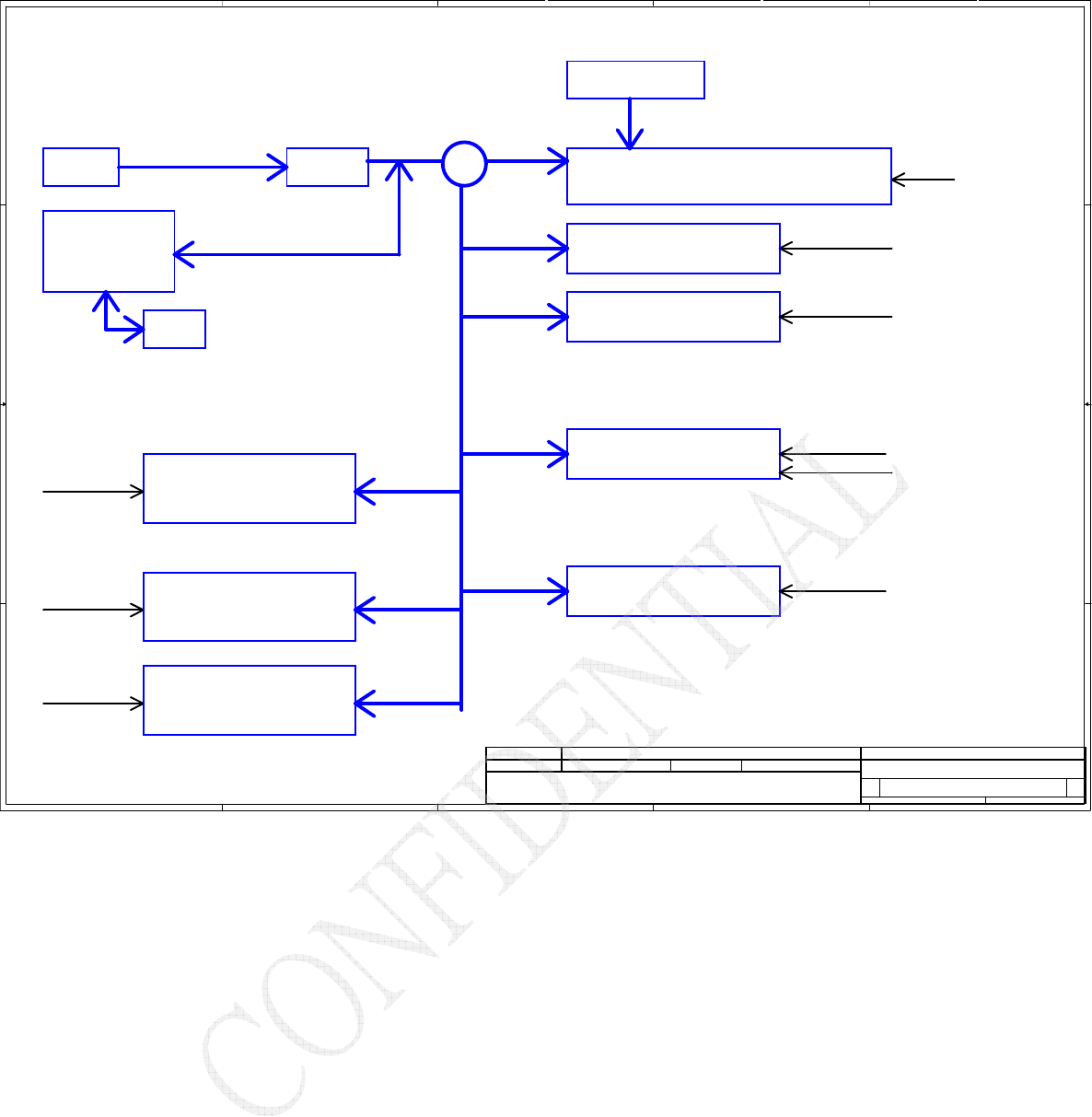

DESIGN CURRENT 2A
+1.8VS
+5VALW
DESIGN CURRENT 5A
N-CHANNEL
SI4800
SUSP
+5VS
DESIGN CURRENT 4A
Ipeak=5A, Imax=3.5A, Iocp min=7.9
Ipeak=5A, Imax=3.5A, Iocp min=7.7
Ipeak=15A, Imax=10.5A, Iocp min=16.5
Ipeak=18A, Imax=12.6A, Iocp min=19.8
B+
RT8205
AO-3413
+LCD_VDD
G5603RU1U
SUSP#
VGA_ENVDD
AO-3413
BT_PWR#
P-CHANNEL
+3VALW
DESIGN CURRENT 5A
G5603RU1U
+BT_VCC
+1.05VS_VCCP
ISL95831CRZ +CPU_CORE
DESIGN CURRENT 52A
+VCCSA
DESIGN CURRENT 6A
VR_ON
G5603RU1U
+1.5V
DESIGN CURRENT 15A
SYSON
SUSP#
N-CHANNEL
SI4800
+3VS
SUSP
SI4856
AO-3413
PCIE_OK
SUSP
+1.5VS
P-CHANNEL
+3VS_DELAY
DESIGN CURRENT 100mA
APL5336 +0.75VS
DESIGN CURRENT 2A
P-CHANNEL
APW7138 +VGA_CORE
DESIGN CURRENT 26A
DGPU_PWR_EN / SUSP#
DESIGN CURRENT 18A
+1.5V_CPU
DESIGN CURRENT 180mA
DESIGN CURRENT 1.5A
DESIGN CURRENT 4A
DESIGN CURRENT 12A
AO-3413
+3V_LAN
WOL_EN#
P-CHANNEL DESIGN CURRENT 330mA
SY8033BDBC
SUSP#
DESIGN CURRENT 30A
+GFX_CORE
CPU1.5V_S3_GATE / SUSP
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
360Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
360Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
360Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
ON OFF OFF
+0.75VS +0.75VP to +0.75VS switched power rail for DDR terminator
+RTCVCC RTC power
+1.5VS
+1.8VS (+5VALW or +3VALW) to 1.8V switched power rail to PCH & GPU
+3VS
+5VALW
+3VALW +3VALW always on power rail
+VSB +VSBP to +VSB always on power rail for sequence control ON ON*
ONON
ON
ON
OFF
+1.5V to +1.5VS switched power rail
+VCC_CORE
Voltage Rails
VIN
B+
+1.05VS_VCCP
Adapter power supply (19V)
AC or battery power rail for power circuit.
Core voltage for CPU
+1.05VS_VCCPP to +1.05VS_VCCP switched power rail for CPU
ON
OFF
ON
Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.
ON
ON
ON ON*
OFF
OFF
ON ON*
ON OFF OFF
+3VALW_PCH
+3V_LAN
+3VALW to +3VALW_PCH power rail for PCH (Short Jumper)
+3VALW to +3V_LAN power rail for LAN
ON ON
ON ON
S1
+5VALW_PCH
S3 S5
ON
ON
ON ON
OFF
N/A N/A N/A
N/AN/AN/A
Power Plane Description
OFF
OFF
+1.5VP to +1.5V power rail for DDRIII ON ON OFF
ON*
OFF
+1.5V
+1.0VSDGPU +1.0VSPDGPU to +1.0VSDGPU switched power rail for GPU
ON OFF OFF
+1.05VS_PCH +1.05VS_VCCP to +1.05VS_PCH power for PCH
ON OFF OFF
+VGA_CORE
ON OFF OFF
Core voltage for GPU
+VGFX_CORE Core voltage for UMA graphic ON OFF OFF
BATT+ Battery power supply (12.6V) N/A N/A N/A
+1.5VSDGPU +1.5VS to +1.5VSDGPU switched power rail for GPU ON OFF OFF
+3VALW_EC +3VALW always to KBC ON ON ON*
ON*
+3VALW to +3VS power rail
+5VALWP to +5VALW power rail
+5VALW to +5VALW_PCH power rail for PCH (Short resister)
+5VS +5VALW to +5VS switched power rail OFFON OFF
ON*
STATE SIGNAL
Full ON
S1(Power On Suspend)
S3 (Suspend to RAM)
S4 (Suspend to Disk)
S5 (Soft OFF)
SLP_S1# SLP_S3# SLP_S4# SLP_S5# +VALW +V +VS Clock
ON
ON
ON
ON
ON
ON
ON ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
LOW
LOW LOW LOW LOW
LOWLOWLOW
LOW
LOW
LOW
HIGH HIGH HIGH HIGH
HIGHHIGHHIGH
HIGH
HIGH
HIGH
PCH
+3VALW
Power
+3VS
+3VS
+3VS
+3VS VGA(N13P-GLP)+3VL charger
EC SM Bus1 address
DDR DIMMA
Device
DDR DIMMB
0x12
1001 010x b
1001 000x b
1101 001x b
Slot#1--WLAN
+3VS
Address
Clock Generator
Device
PCH SM Bus address
AddressAddress
+3VL Smart Battery
Device
EC SM Bus2 address
Power Power
+3VS PCH
8
7
BOM configu table
SKU Description Bom config
1
2
3
4
5
6
DA8@/8111E@/PCH@/UMA@/OPT@/385@/388@/389@/IN_TPM@/TPM@/WB_TPM@/SM@/COM@/030@/TF@
/WIN8@/10@/11@/12@/13@/Rev02@/Rev03@/Rev04@/Rev10@/VPRO@
X76 AND VGA configu table
SKU Description Config
1
2
3
4
5
4619IE30L11
QAQ10 UMA GIGA W/HDMI
DA8@/8111E@/OPT@/030@/13@/WIN8@/388@/COM@
/TPM@/IN_TPM@
QAQ11 DIS N13P-GLP
PCH And PCBA table
PCH
PCB
Board ID Table
Board ID Rb V min Vtyp Vmax PCB Revision
0
1
2
3
4
0
8.2K +/- 5%
18K +/- 5%
33K +/- 5%
56K +/- 5%
Ra VCC
100K +/- 5%
100K +/- 5%
100K +/- 5%
100K +/- 5%
100K +/- 5% 3.3V +/- 5%
3.3V +/- 5%
3.3V +/- 5%
3.3V +/- 5%
3.3V +/- 5%
0V
0.436 V
0.712 V
1.036 V
1.453 V
0.216 V
0V
0.250 V
1.935 V
2.500 V
0.503 V
0.819 V
1.185 V
1.650 V
2.200 V
3.300 V
0V
0.289 V
0.538 V
0.875 V
1.264 V
1.759 V
2.341 V
3.300 V
3.3V +/- 5%
3.3V +/- 5%
3.3V +/- 5%
100K +/- 5%
100K +/- 5%
100K +/- 5%
0.1
0.2
0.3
0.4
1.0
100K +/- 5%
200K +/- 5%
NC
5
6
7
VPRO
DA8@/8111E@/UMA@/TF@/10@/WIN8@/388@/COM@ 4619IE30L01
QAQ11 DIS N13PGLP1G W/HDMI DA8@/8111E@/OPT@/TF@/11@/WIN8@/388@/COM@ 4619IE30L11
QAQ13 DIS GLP2G W/HDMI/TPM 4619IE30L21
388@: with 1394;
389@: without 1394.
IN_TPM@: TPM chip from vendor "INFINEON";
WB_TPM@: TPM chip from vendor "Nuvoton"
With TPM SKUs: mount "TPM@ and IN_TPM@ " or "TPM@ and WB_TPM@".
0x16
0x96
0X9E
4619IE30L21 QAQ13 DIS N13P-GLP
If has Vpro@, no 8111E@, Rev02@,Rev03@, Rev04@ and Rev10@.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
4 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
4 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
4 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
UPCH1
BD82QM77 QPRE C1 BGA 989P PCH
VPRO@
ZZZ
SAM 2G
SAM2G@
ZZZ
PCB QAQ10
DAZ@
ZZZ
PCB LA-8581P REV1 M/B
DA8@
ZZZ
Hynix 2G
HY2G@
UPCH1
BD82HM76 SLJ8E C1 BGA 989P PCH 030!
8111E@
ZZZ
SAM 1G
SAM1G@
ZZZ
Hynix 1G
HY1G@
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA

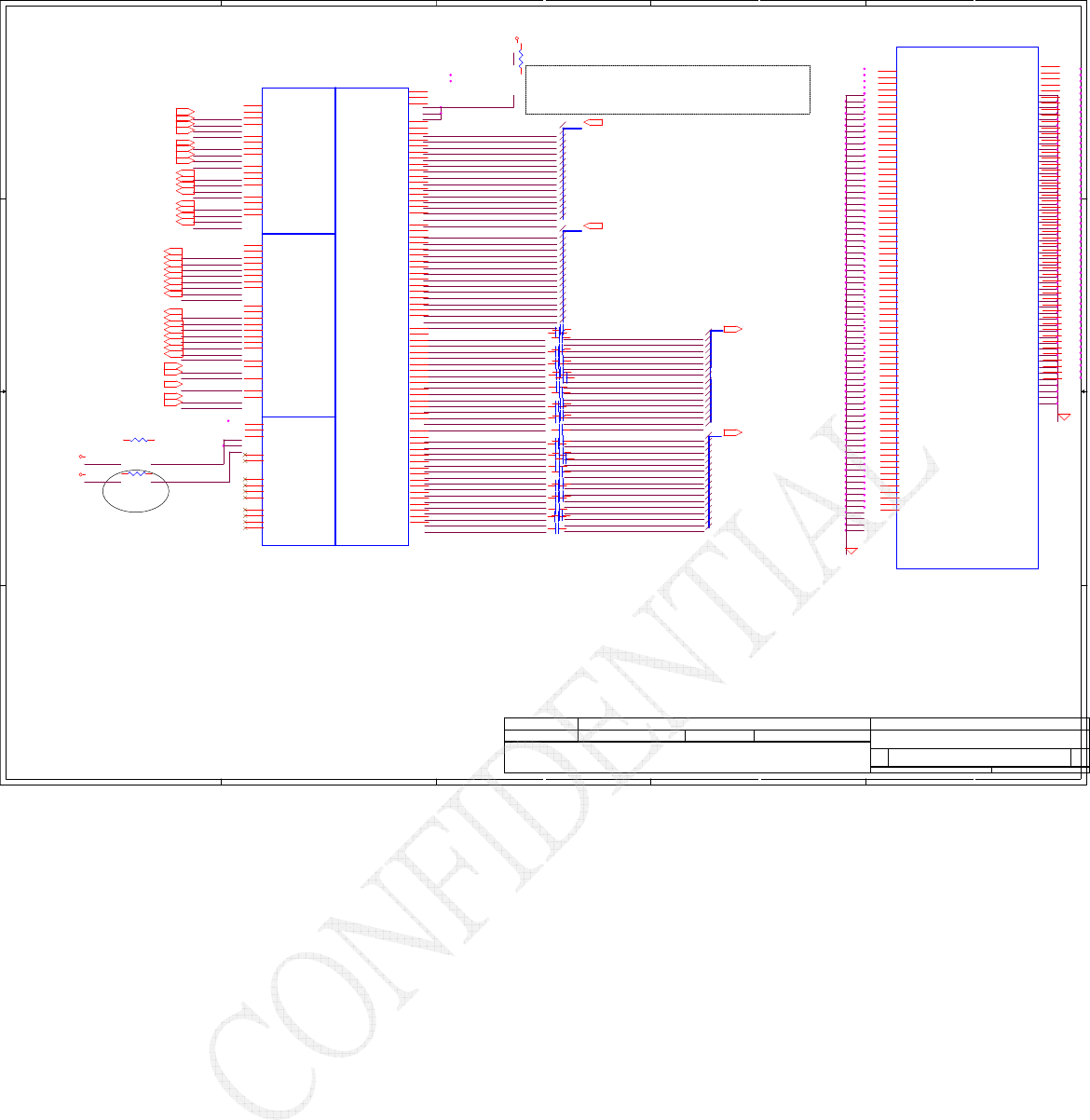

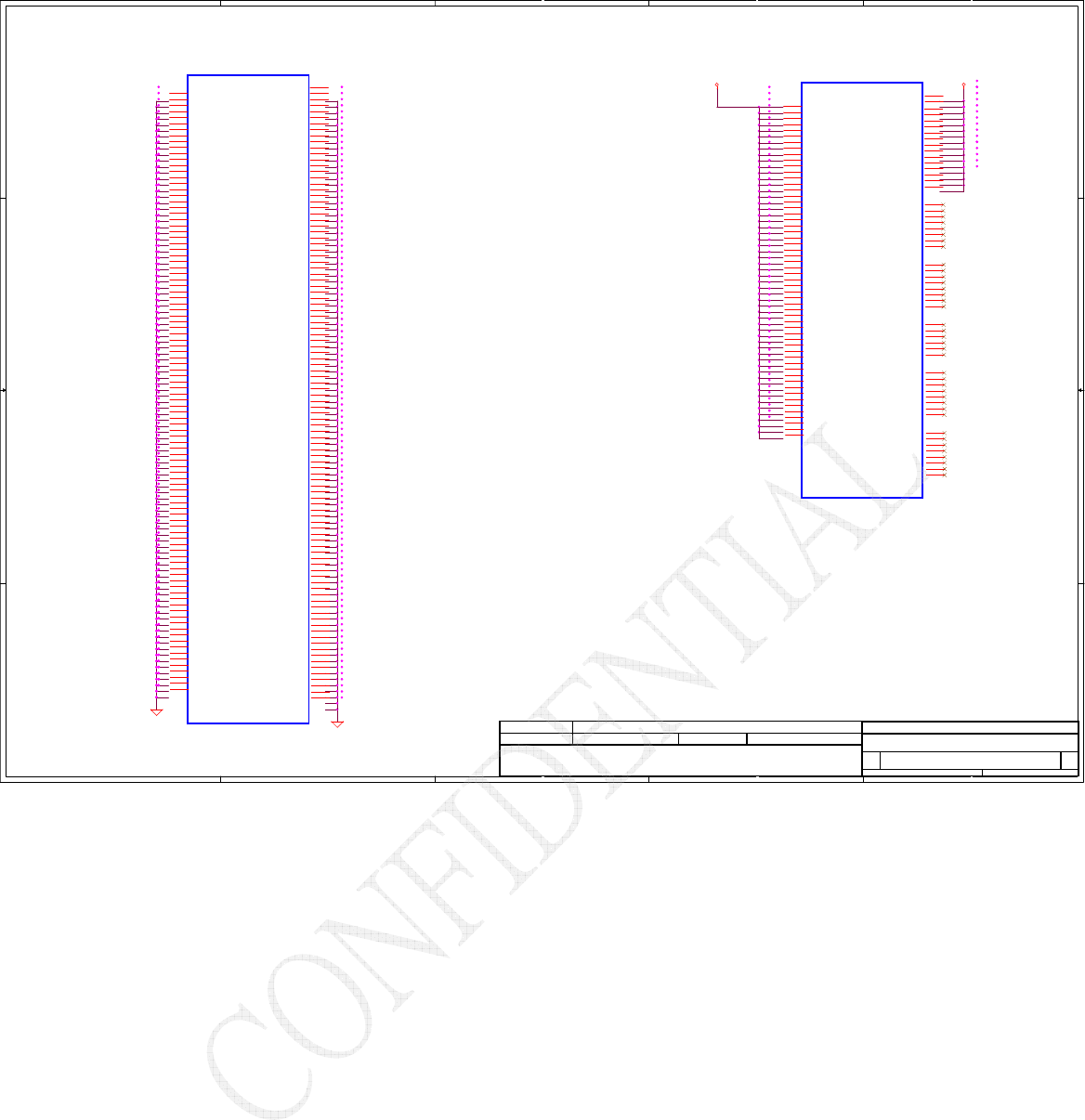

PEG_ICOMPI and RCOMPO signals should be shorted and routed
with - max length = 500 mils - typical impedance = 43 mohms
PEG_ICOMPO signals should be routed with - max length = 500 mils
- typical impedance = 14.5 mohms
Compal Electronics, Inc.
PEG signals swapped at VGA side.
PEG_COMP
EDP_HPD#
EDP_COMP
FDI_CTX_PRX_N1
FDI_CTX_PRX_N4
FDI_CTX_PRX_N6
FDI_CTX_PRX_P1
FDI_CTX_PRX_P6
FDI_FSYNC0
FDI_CTX_PRX_N0
FDI_CTX_PRX_N2
FDI_CTX_PRX_N3
FDI_CTX_PRX_N5
FDI_CTX_PRX_N7
FDI_CTX_PRX_P0
FDI_CTX_PRX_P2
FDI_CTX_PRX_P3
FDI_CTX_PRX_P4
FDI_CTX_PRX_P5
FDI_CTX_PRX_P7
FDI_LSYNC0
FDI_LSYNC1
FDI_FSYNC1
FDI_INT
PCIE_GTX_C_CRX_N4
PCIE_GTX_C_CRX_N0
PCIE_GTX_C_CRX_N1
PCIE_GTX_C_CRX_N2
PCIE_GTX_C_CRX_N10
PCIE_GTX_C_CRX_N9
PCIE_GTX_C_CRX_N8
PCIE_GTX_C_CRX_N5
PCIE_GTX_C_CRX_N3
PCIE_GTX_C_CRX_N7
PCIE_GTX_C_CRX_N14
PCIE_GTX_C_CRX_N15
PCIE_GTX_C_CRX_N12
PCIE_GTX_C_CRX_N11
PCIE_GTX_C_CRX_N6
PCIE_GTX_C_CRX_P3
PCIE_GTX_C_CRX_P2
PCIE_GTX_C_CRX_P7
PCIE_GTX_C_CRX_P1
PCIE_GTX_C_CRX_N13
PCIE_GTX_C_CRX_P10
PCIE_GTX_C_CRX_P11
PCIE_GTX_C_CRX_P8
PCIE_GTX_C_CRX_P5
PCIE_GTX_C_CRX_P4
PCIE_GTX_C_CRX_P0
PCIE_GTX_C_CRX_P13
PCIE_GTX_C_CRX_P14
PCIE_GTX_C_CRX_P15
PCIE_GTX_C_CRX_P6
PCIE_GTX_C_CRX_P9
PCIE_GTX_C_CRX_P12
PCIE_CTX_GRX_N2
PCIE_CTX_GRX_N0
PCIE_CTX_GRX_N5
PCIE_CTX_GRX_N3
PCIE_CTX_GRX_N7
PCIE_CTX_GRX_N4
PCIE_CTX_GRX_N1
PCIE_CTX_GRX_N11
PCIE_CTX_GRX_N6
PCIE_CTX_GRX_N10
PCIE_CTX_GRX_N9
PCIE_CTX_GRX_N8
PCIE_CTX_GRX_N13
PCIE_CTX_GRX_N14
PCIE_CTX_GRX_N15
PCIE_CTX_GRX_N12
PCIE_CTX_C_GRX_N7
PCIE_CTX_C_GRX_N0
PCIE_CTX_C_GRX_N10
PCIE_CTX_C_GRX_N8
PCIE_CTX_C_GRX_N4
PCIE_CTX_C_GRX_N2
PCIE_CTX_C_GRX_N1
PCIE_CTX_C_GRX_N14
PCIE_CTX_C_GRX_N12
PCIE_CTX_C_GRX_N3
PCIE_CTX_C_GRX_N5
PCIE_CTX_C_GRX_N9
PCIE_CTX_GRX_P1
PCIE_CTX_C_GRX_N13
PCIE_CTX_C_GRX_N15
PCIE_CTX_C_GRX_N11
PCIE_CTX_C_GRX_N6
PCIE_CTX_GRX_P5
PCIE_CTX_GRX_P4
PCIE_CTX_GRX_P0
PCIE_CTX_GRX_P3
PCIE_CTX_GRX_P2
PCIE_CTX_GRX_P7
PCIE_CTX_GRX_P6
PCIE_CTX_GRX_P9
PCIE_CTX_GRX_P10
PCIE_CTX_GRX_P11
PCIE_CTX_GRX_P8
PCIE_CTX_C_GRX_P7
PCIE_CTX_GRX_P12
PCIE_CTX_GRX_P13
PCIE_CTX_GRX_P14
PCIE_CTX_GRX_P15
PCIE_CTX_C_GRX_P3
PCIE_CTX_C_GRX_P0
PCIE_CTX_C_GRX_P4
PCIE_CTX_C_GRX_P5
PCIE_CTX_C_GRX_P2
PCIE_CTX_C_GRX_P1
PCIE_CTX_C_GRX_P11
PCIE_CTX_C_GRX_P10
PCIE_CTX_C_GRX_P6
PCIE_CTX_C_GRX_P9
PCIE_CTX_C_GRX_P15
PCIE_CTX_C_GRX_P14
PCIE_CTX_C_GRX_P13
PCIE_CTX_C_GRX_P12
PCIE_CTX_C_GRX_P8
DMI_CTX_PRX_P0<27>
DMI_CRX_PTX_P0<27>
DMI_CTX_PRX_N1<27>
DMI_CRX_PTX_N1<27>
DMI_CTX_PRX_P3<27>
DMI_CRX_PTX_P3<27>
DMI_CTX_PRX_P2<27>
DMI_CTX_PRX_N0<27>
DMI_CRX_PTX_N3<27>
DMI_CRX_PTX_P2<27>
DMI_CTX_PRX_N3<27>
DMI_CTX_PRX_P1<27>
DMI_CRX_PTX_N0<27>
DMI_CRX_PTX_N2<27>
DMI_CRX_PTX_P1<27>
DMI_CTX_PRX_N2<27>
FDI_CTX_PRX_N0<27>
FDI_CTX_PRX_N1<27>
FDI_CTX_PRX_N2<27>
FDI_CTX_PRX_N3<27>
FDI_CTX_PRX_N4<27>
FDI_CTX_PRX_N5<27>
FDI_CTX_PRX_N6<27>
FDI_CTX_PRX_N7<27>
FDI_CTX_PRX_P0<27>
FDI_CTX_PRX_P1<27>
FDI_CTX_PRX_P2<27>
FDI_CTX_PRX_P3<27>
FDI_CTX_PRX_P4<27>
FDI_CTX_PRX_P5<27>
FDI_CTX_PRX_P6<27>
FDI_CTX_PRX_P7<27>
FDI_FSYNC0<27>
FDI_FSYNC1<27>
FDI_INT<27>
FDI_LSYNC0<27>
FDI_LSYNC1<27>
PCIE_GTX_C_CRX_P[0..15] <13>
PCIE_GTX_C_CRX_N[0..15] <13>
PCIE_CTX_C_GRX_N[0..15] <13>
PCIE_CTX_C_GRX_P[0..15] <13>
+1.05VS_VCCP
+1.05VS_VCCP
+1.05VS_VCCP
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
5 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
5 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
5 60Friday, August 24, 2012
2011/09/23 2012/12/31
C79 0.1U_0402_16V7KOPT@
12
C224 0.1U_0402_16V7KOPT@
1
2
R88
10K_0402_5%
@
1
2
C111 0.1U_0402_16V7KOPT@
1
2
C67 0.1U_0402_16V7KOPT@
12
C223 0.1U_0402_16V7KOPT@
12
C118 0.1U_0402_16V7KOPT@
12
C72 0.1U_0402_16V7KOPT@
12
C117 0.1U_0402_16V7KOPT@
1
2
C69 0.1U_0402_16V7KOPT@
12
C136 0.1U_0402_16V7KOPT@
1
2
C68 0.1U_0402_16V7KOPT@
1
2
C78 0.1U_0402_16V7KOPT@
1
2
C135 0.1U_0402_16V7KOPT@
1
2
C70 0.1U_0402_16V7KOPT@
1
2
C59 0.1U_0402_16V7KOPT@
1
2
PCI EXPRESS* - GRAPHICS
DMI
Intel(R) FDI
eDP
JCPU1A
TYCO_2013620-2_IVY BRIDGE
CONN@
DMI_RX#[0]
B27
DMI_RX#[1]
B25
DMI_RX#[2]
A25
DMI_RX#[3]
B24
DMI_RX[0]
B28
DMI_RX[1]
B26
DMI_RX[2]
A24
DMI_RX[3]
B23
DMI_TX#[0]
G21
DMI_TX#[1]
E22
DMI_TX#[2]
F21
DMI_TX#[3]
D21
DMI_TX[0]
G22
DMI_TX[1]
D22
DMI_TX[3]
C21 DMI_TX[2]
F20
FDI0_TX#[0]
A21
FDI0_TX#[1]
H19
FDI0_TX#[2]
E19
FDI0_TX#[3]
F18
FDI1_TX#[0]
B21
FDI1_TX#[1]
C20
FDI1_TX#[2]
D18
FDI1_TX#[3]
E17
FDI0_TX[0]
A22
FDI0_TX[1]
G19
FDI0_TX[2]
E20
FDI0_TX[3]
G18
FDI1_TX[0]
B20
FDI1_TX[1]
C19
FDI1_TX[2]
D19
FDI1_TX[3]
F17
FDI0_FSYNC
J18
FDI1_FSYNC
J17
FDI_INT
H20
FDI0_LSYNC
J19
FDI1_LSYNC
H17
PEG_ICOMPI J22
PEG_ICOMPO J21
PEG_RCOMPO H22
PEG_RX#[0] K33
PEG_RX#[1] M35
PEG_RX#[2] L34
PEG_RX#[3] J35
PEG_RX#[4] J32
PEG_RX#[5] H34
PEG_RX#[6] H31
PEG_RX#[7] G33
PEG_RX#[8] G30
PEG_RX#[9] F35
PEG_RX#[10] E34
PEG_RX#[11] E32
PEG_RX#[12] D33
PEG_RX#[13] D31
PEG_RX#[14] B33
PEG_RX#[15] C32
PEG_RX[0] J33
PEG_RX[1] L35
PEG_RX[2] K34
PEG_RX[3] H35
PEG_RX[4] H32
PEG_RX[5] G34
PEG_RX[6] G31
PEG_RX[7] F33
PEG_RX[8] F30
PEG_RX[9] E35
PEG_RX[10] E33
PEG_RX[11] F32
PEG_RX[12] D34
PEG_RX[13] E31
PEG_RX[14] C33
PEG_RX[15] B32
PEG_TX#[0] M29
PEG_TX#[1] M32
PEG_TX#[2] M31
PEG_TX#[3] L32
PEG_TX#[4] L29
PEG_TX#[5] K31
PEG_TX#[6] K28
PEG_TX#[7] J30
PEG_TX#[8] J28
PEG_TX#[9] H29
PEG_TX#[10] G27
PEG_TX#[11] E29
PEG_TX#[12] F27
PEG_TX#[13] D28
PEG_TX#[14] F26
PEG_TX#[15] E25
PEG_TX[0] M28
PEG_TX[1] M33
PEG_TX[2] M30
PEG_TX[3] L31
PEG_TX[4] L28
PEG_TX[5] K30
PEG_TX[6] K27
PEG_TX[7] J29
PEG_TX[8] J27
PEG_TX[9] H28
PEG_TX[10] G28
PEG_TX[11] E28
PEG_TX[12] F28
PEG_TX[13] D27
PEG_TX[14] E26
PEG_TX[15] D25
eDP_AUX
C15
eDP_AUX#
D15
eDP_TX[0]
C17
eDP_TX[1]
F16
eDP_TX[2]
C16
eDP_TX[3]
G15
eDP_TX#[0]
C18
eDP_TX#[1]
E16
eDP_TX#[2]
D16
eDP_TX#[3]
F15
eDP_COMPIO
A18
eDP_HPD#
B16
eDP_ICOMPO
A17
RC2
24.9_0402_1%
1
2
C209 0.1U_0402_16V7KOPT@
12
C87 0.1U_0402_16V7KOPT@
1
2
C60 0.1U_0402_16V7KOPT@
1
2
C197 0.1U_0402_16V7KOPT@
1
2
C75 0.1U_0402_16V7KOPT@
1
2
C71 0.1U_0402_16V7KOPT@
12
C214 0.1U_0402_16V7KOPT@
1
2
C74 0.1U_0402_16V7KOPT@
12
C66 0.1U_0402_16V7KOPT@
1
2
C220 0.1U_0402_16V7KOPT@
12
C89 0.1U_0402_16V7KOPT@
12
C61 0.1U_0402_16V7KOPT@
12
C222 0.1U_0402_16V7KOPT@
12
C88 0.1U_0402_16V7KOPT@
12
C62 0.1U_0402_16V7KOPT@
12
VSS
JCPU1I
TYCO_2013620-2_IVY BRIDGE
CONN@
VSS161
T35
VSS162
T34
VSS163
T33
VSS164
T32
VSS165
T31
VSS166
T30
VSS167
T29
VSS168
T28
VSS169
T27
VSS170
T26
VSS171
P9
VSS172
P8
VSS173
P6
VSS174
P5
VSS175
P3
VSS176
P2
VSS177
N35
VSS178
N34
VSS179
N33
VSS180
N32
VSS181
N31
VSS182
N30
VSS183
N29
VSS184
N28
VSS185
N27
VSS186
N26
VSS187
M34
VSS188
L33
VSS189
L30
VSS190
L27
VSS191
L9
VSS192
L8
VSS193
L6
VSS194
L5
VSS195
L4
VSS196
L3
VSS197
L2
VSS198
L1
VSS199
K35
VSS200
K32
VSS201
K29
VSS202
K26
VSS203
J34
VSS204
J31
VSS205
H33
VSS206
H30
VSS207
H27
VSS208
H24
VSS209
H21
VSS210
H18
VSS211
H15
VSS212
H13
VSS213
H10
VSS214
H9
VSS215
H8
VSS216
H7
VSS217
H6
VSS218
H5
VSS219
H4
VSS220
H3
VSS221
H2
VSS222
H1
VSS223
G35
VSS224
G32
VSS225
G29
VSS226
G26
VSS227
G23
VSS228
G20
VSS229
G17
VSS230
G11
VSS231
F34
VSS232
F31
VSS233
F29
VSS234 F22
VSS235 F19
VSS236 E30
VSS237 E27
VSS238 E24
VSS239 E21
VSS240 E18
VSS241 E15
VSS242 E13
VSS243 E10
VSS244 E9
VSS245 E8
VSS246 E7
VSS247 E6
VSS248 E5
VSS249 E4
VSS250 E3
VSS251 E2
VSS252 E1
VSS253 D35
VSS254 D32
VSS255 D29
VSS256 D26
VSS257 D20
VSS258 D17
VSS259 C34
VSS260 C31
VSS261 C28
VSS262 C27
VSS263 C25
VSS264 C23
VSS265 C10
VSS266 C1
VSS267 B22
VSS268 B19
VSS269 B17
VSS270 B15
VSS271 B13
VSS272 B11
VSS273 B9
VSS274 B8
VSS275 B7
VSS276 B5
VSS277 B3
VSS278 B2
VSS279 A35
VSS280 A32
VSS281 A29
VSS282 A26
VSS283 A23
VSS284 A20
VSS285 A3
C221 0.1U_0402_16V7KOPT@
12
RC4 24.9_0402_1%
1
2
C115 0.1U_0402_16V7KOPT@
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA

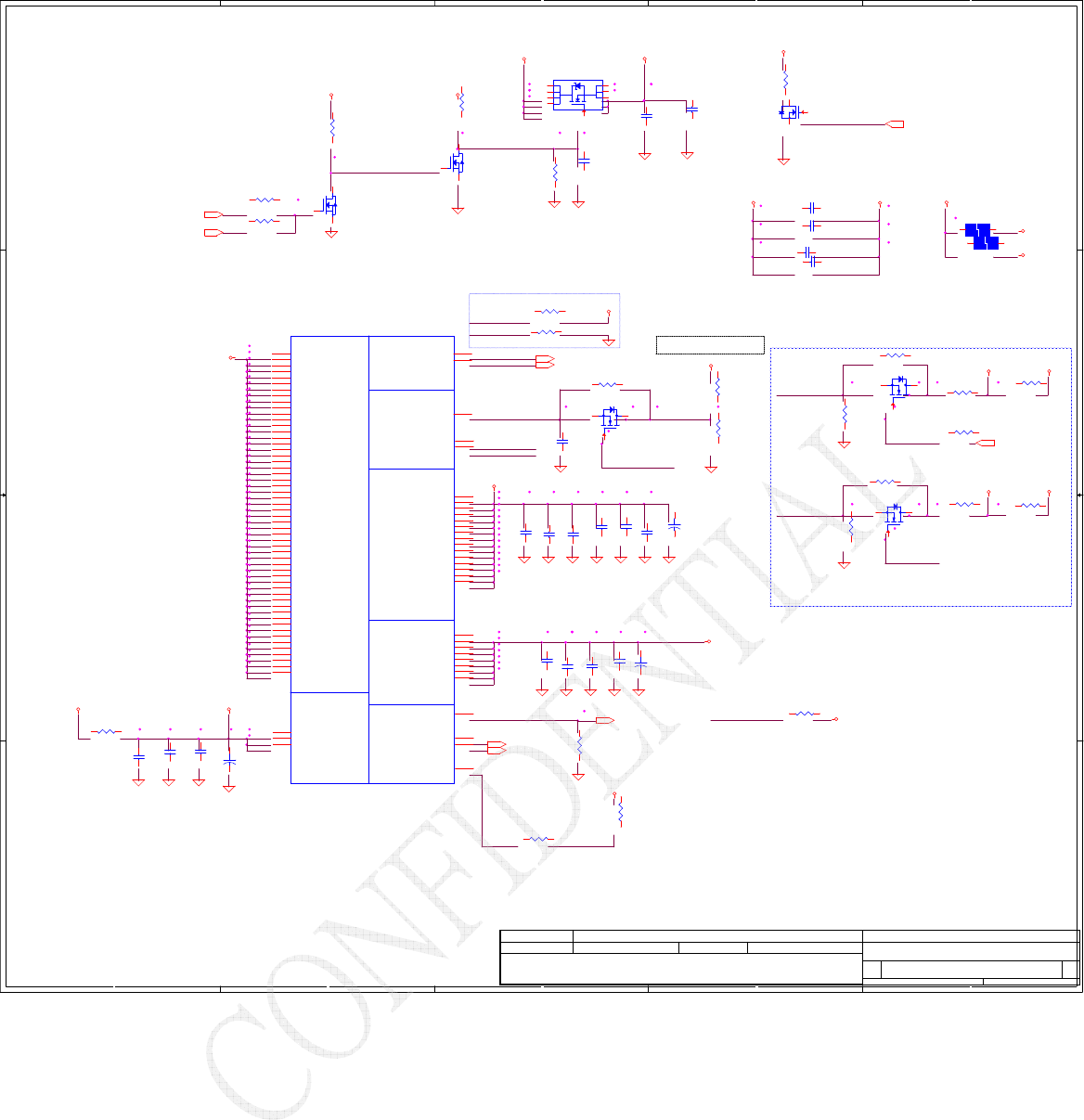

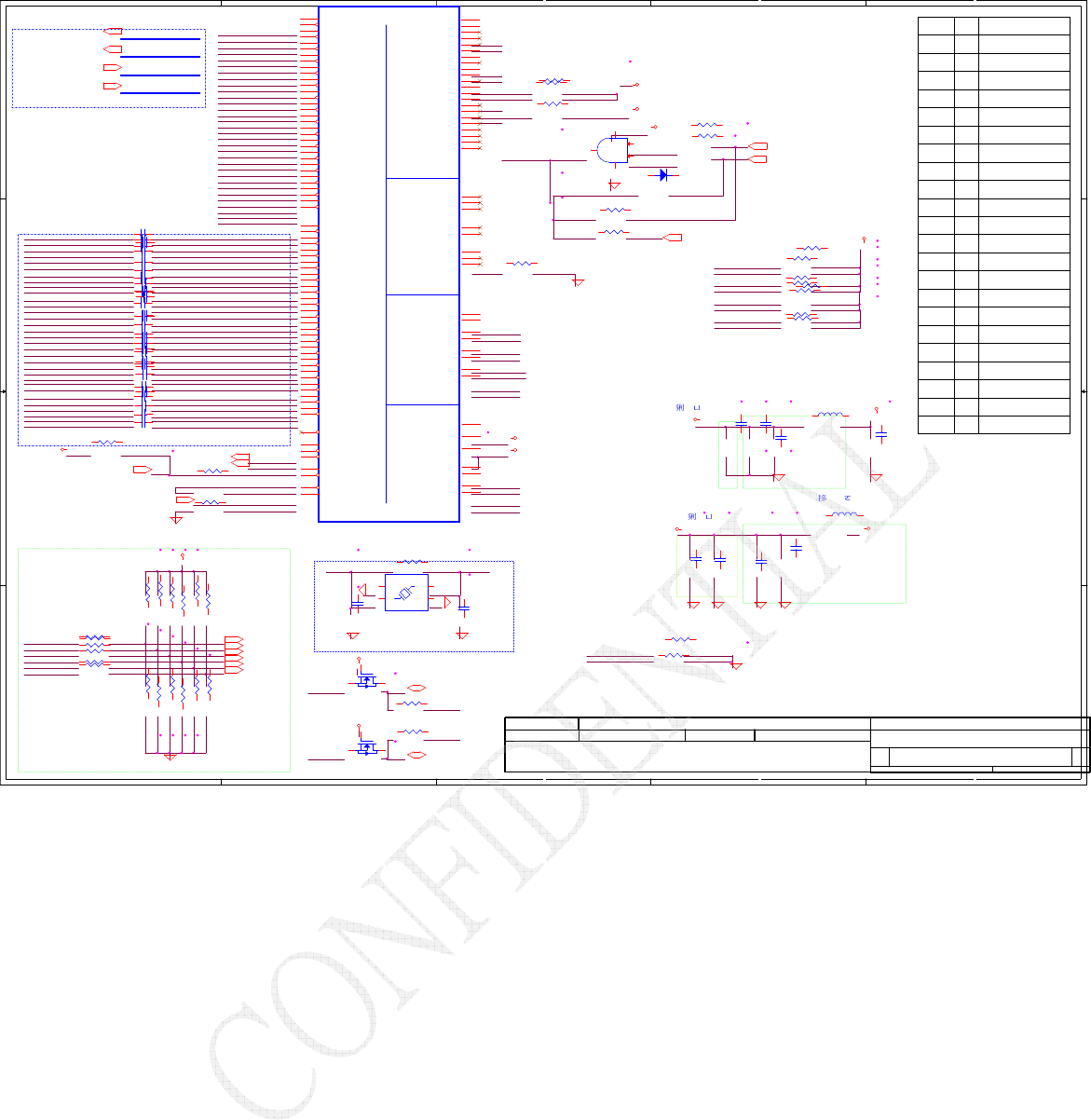

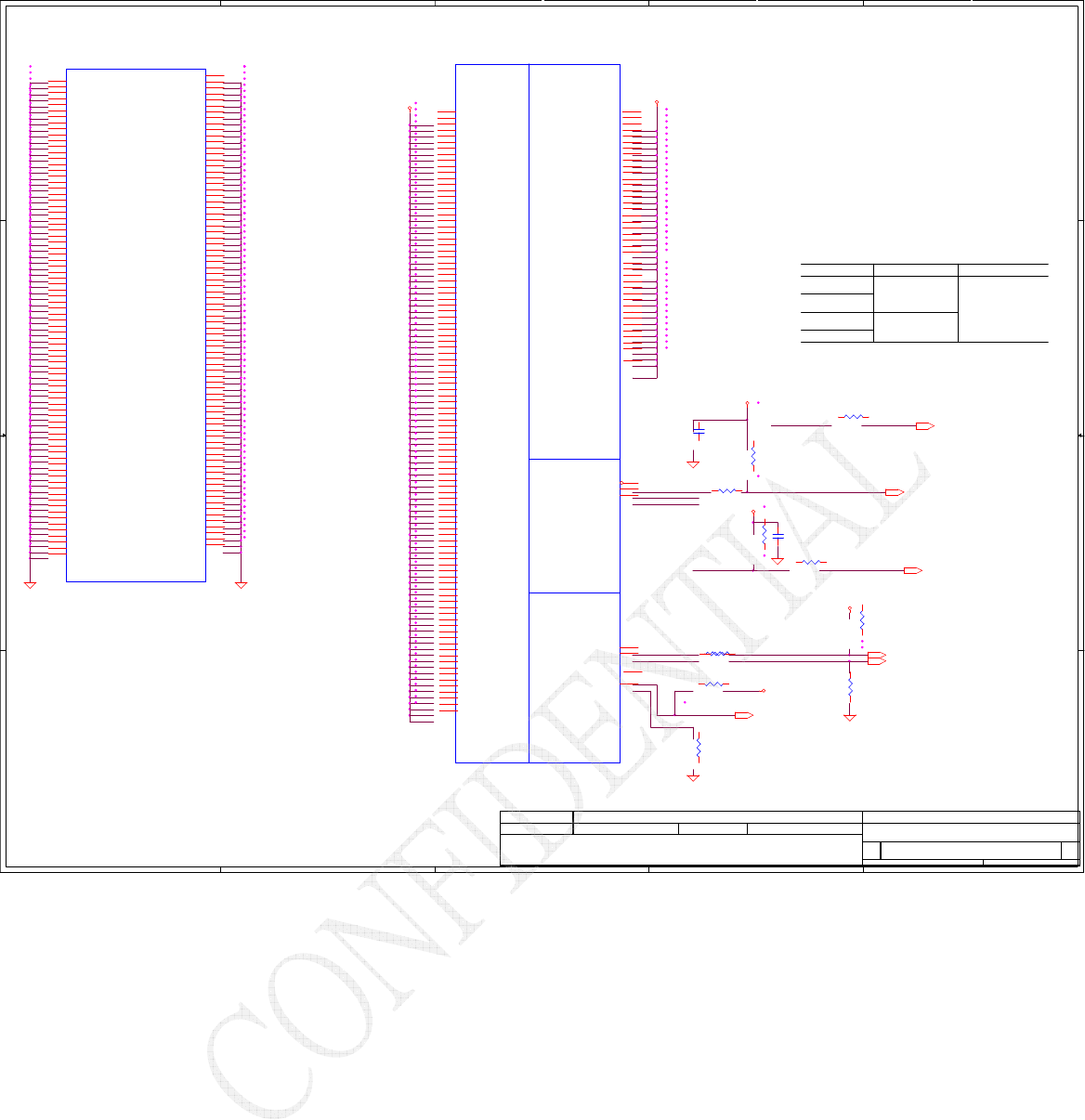

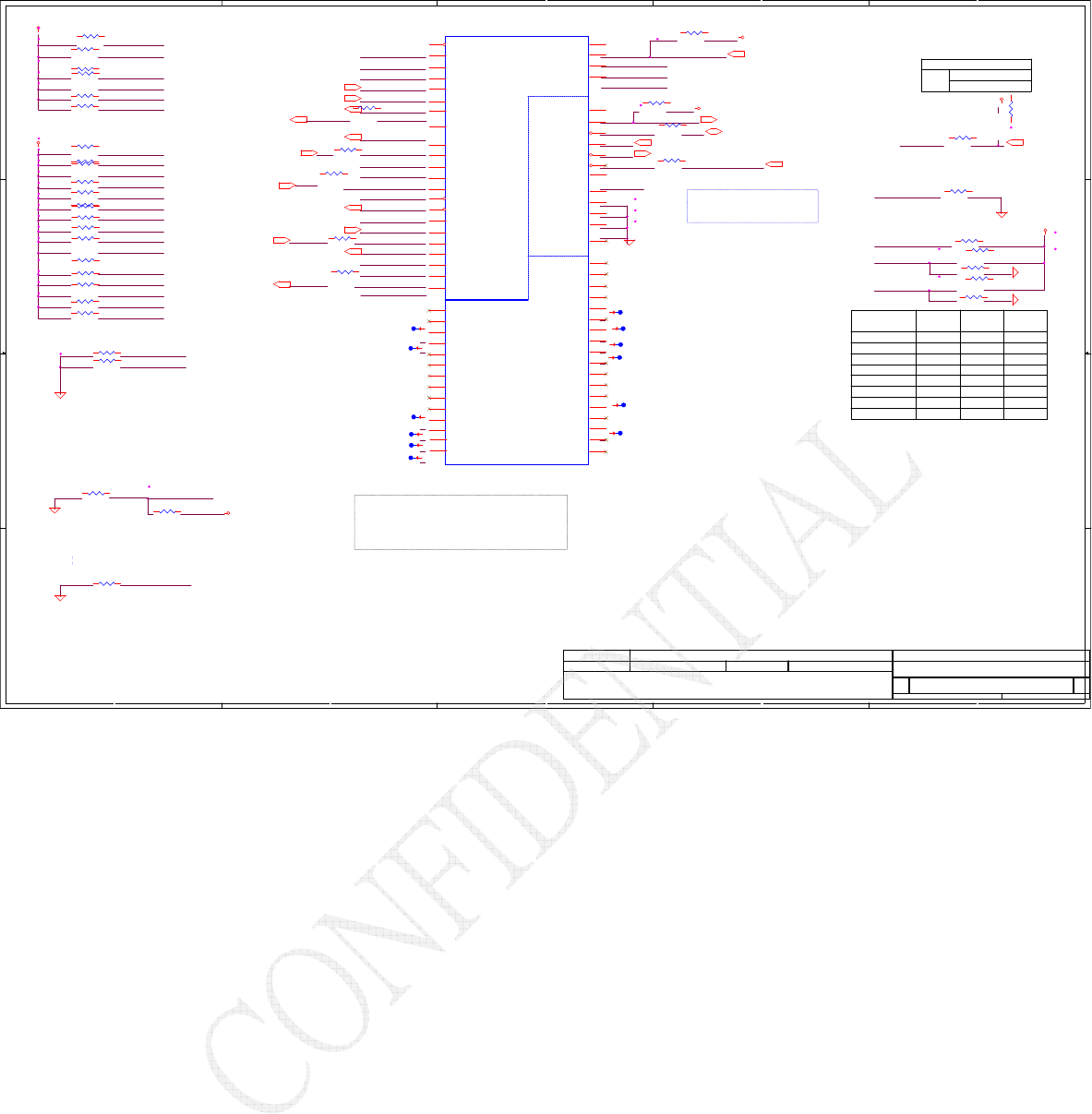

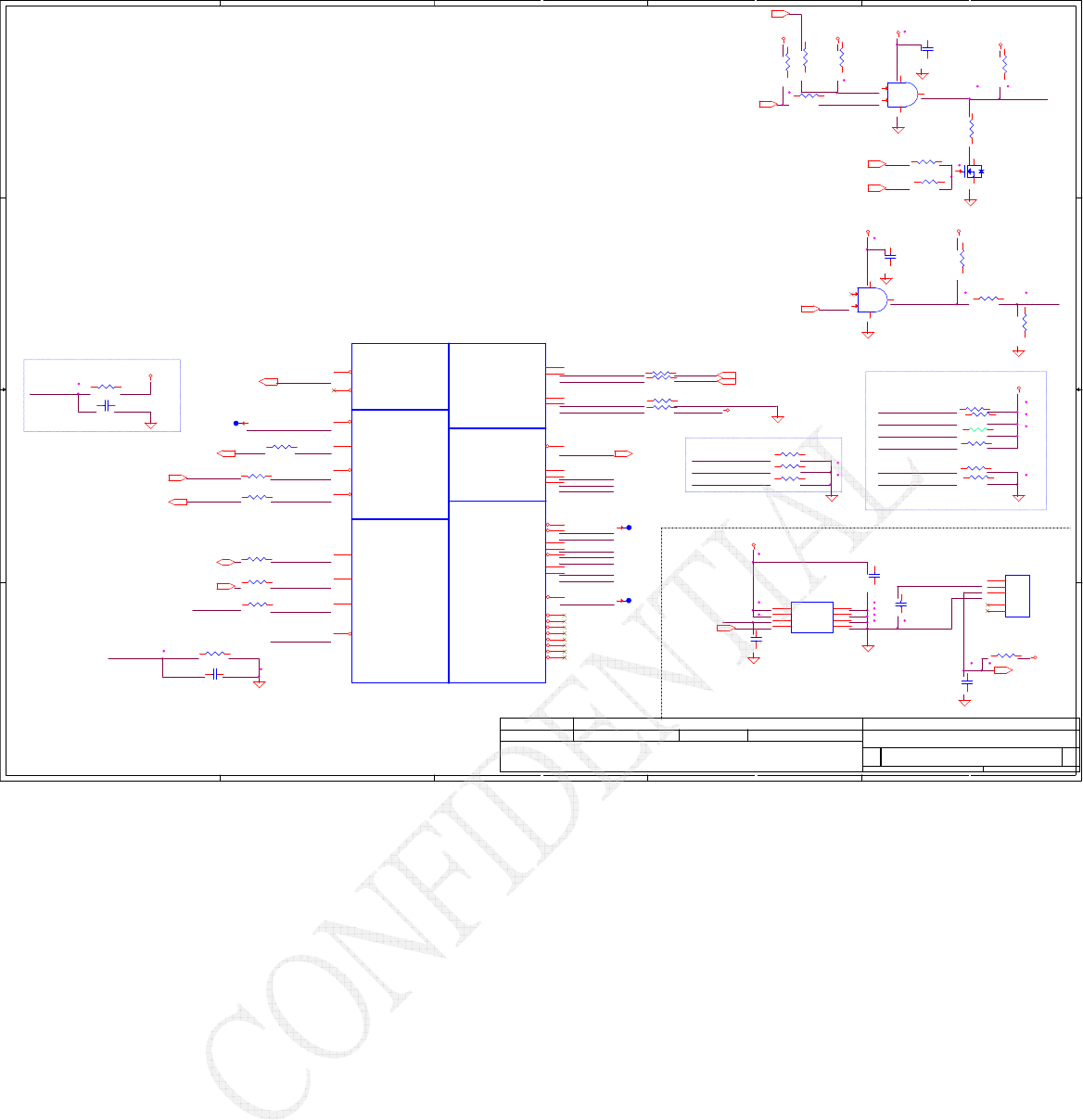

PU/PD for JTAG signals
DDR3 Compensation Signals
Processor Pullups
Compal Electronics, Inc.
1AFAN Control Circuit
10mil
PROC_SELECT#:
Sandy Bridge---output high;
Ivy Bridge---output low.
Place R58 close to CPU.
H_PROCHOT#_R
H_CPUPWRGD_R
VDDPWRGOOD_R
BUF_CPU_RST#
SM_RCOMP1
SM_RCOMP2
SM_RCOMP0
XDP_PRDY#_R
XDP_PREQ#_R
XDP_TCK_R
XDP_TMS_R
XDP_TRST#_R
H_DRAMRST#
XDP_TDI_R
XDP_TDO_R
XDP_TCK_R
XDP_TRST#_R
XDP_TMS_R
XDP_TDI_R
XDP_PREQ#_R
BUFO_CPU_RST#
BUF_CPU_RST#
SM_RCOMP1
SM_RCOMP2
SM_RCOMP0
XDP_TDO_R
CLK_CPU_DPLL_R
CLK_CPU_DPLL#_R
VDDPWRGOOD
CLK_CPU_DMI_R
CLK_CPU_DMI#_R
H_PROCHOT#
H_CATERR#
D_PWG
VDDPWRGOOD
XDP_DBRESET#
H_PROCHOT#
H_CPUPWRGD_R
H_PM_SYNC_R
+FAN1
+FAN1
H_PECI_R
H_THERMTRIP#_R
H_SNB_IVB#<29>
H_PM_SYNC<27>
H_THERMTRIP#<29>
H_CPUPWRGD<29>
H_PROCHOT#<41,47>
H_DRAMRST# <7>
CLK_CPU_DMI# <26>
CLK_CPU_DMI <26>
PM_DRAM_PWRGD<27>
PLT_RST#<28,34,35,36,37,39,41,42,44>
H_PECI<29,41>
SYSTEM_PWROK<27>
SUSP<11,40,43,45>
RUN_ON_CPU1.5VS3#<10,45>
FAN_SPEED <41>
EN_DFAN1<41>
+1.5V_CPU_VDDQ
+3VS
+3VALW
+3VALW
+3VS
+5VS
+3VS
+1.05VS_VCCP
+1.05VS_VCCP
+1.05VS_VCCP
+1.05VS_VCCP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
6 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
6 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
6 60Friday, August 24, 2012
2011/09/23 2012/12/31
R58
56_0402_5%
12
R138 0_0402_5%
short@
1
2
R110
39_0402_1%
@
RC4651_0402_5%
RC17
0_0402_5%
@
1
2
U58
G996P11U SOP 8P
EN
1
VIN
2
VOUT
3
VSET
4
GND 8
GND 7
GND 6
GND 5
U3
SN74LVC1G07DCKR_SC70-5
NC
1
A
2
G
3
Y4
P5
U5
74AHC1G08DCKR_SC70-5
B
1
A
2
G
3
O4
P5
C379
220P_0402_25V8J
@
R15
0_0402_5% short@
12
R3 10K_0402_5%
1
2
RC5751_0402_5%
R139 0_0402_5%
short@
12
C865
0.01U_0402_25V7K
@
1
2
R115 1K_0402_5%
12
R72
43_0402_1%
RC4951_0402_5%
C864
1000P_0402_50V7K
@
1
2
G
D
S
Q5
2N7002_SOT23-3
@
2
1
3
R126 1K_0402_5%
12
R16
0_0402_5% short@
1
2
C1
10U_0805_10V4Z
1
2
R14 0_0402_5%
short@
12
R64
75_0402_5%
1
2
R81
200_0402_1%
RC45200_0402_1%
12
RC42140_0402_1%
1
2
RC4325.5_0402_1%
12
RC16
0_0402_5%
@
1
2
CC62
220P_0402_25V8J
@
RC13
10K_0402_5%
@
R104
0_0402_5%
short@
1
2
RC4851_0402_5% @
T0501
C84
0.1U_0402_16V4Z
R5010K_0402_5%
JFAN
ACES_85205-03001
CONN@
1
1
2
2
3
3
GND
4
GND
5
R47
62_0402_5%
12
RC5551_0402_5%
R289
200_0402_1%
RC21 0_0402_5%
short@
RC44
43_0402_1%
12
R79
130_0402_1%
12
R73
0_0402_5%
@
1
2
C85
0.1U_0402_16V4Z
CLOCKS
MISCTHERMALPWR MANAGEMENT
DDR3
MISC
JTAG & BPM
JCPU1B
TYCO_2013620-2_IVY BRIDGE
CONN@
SM_RCOMP[1] A5
SM_RCOMP[2] A4
SM_DRAMRST# R8
SM_RCOMP[0] AK1
BCLK# A27
BCLKA28
DPLL_REF_CLK# A15
DPLL_REF_CLK A16
CATERR#
AL33
PECI
AN33
PROCHOT#
AL32
THERMTRIP#
AN32
SM_DRAMPWROK
V8
RESET#
AR33
PRDY# AP29
PREQ# AP27
TCK AR26
TMS AR27
TRST# AP30
TDI AR28
TDO AP26
DBR#AL35
BPM#[0] AT28
BPM#[1] AR29
BPM#[2] AR30
BPM#[3] AT30
BPM#[4] AP32
BPM#[5] AR31
BPM#[6] AT31
BPM#[7] AR32
PM_SYNC
AM34
SKTOCC#
AN34
PROC_SELECT#
C26
UNCOREPWRGOOD
AP33
RC4751_0402_5%
C863
10U_0805_10V4Z
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
Compal Electronics, Inc.

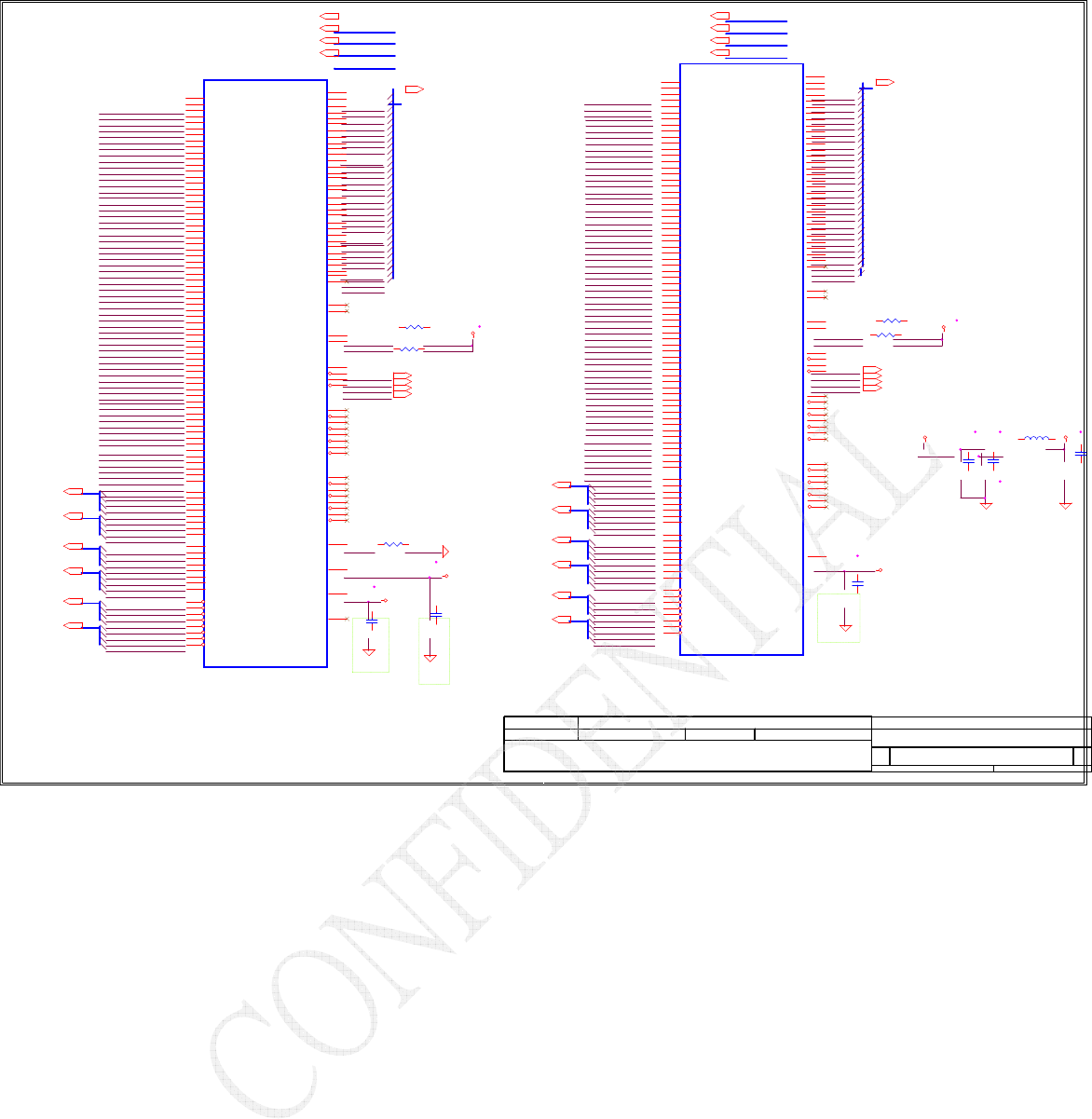

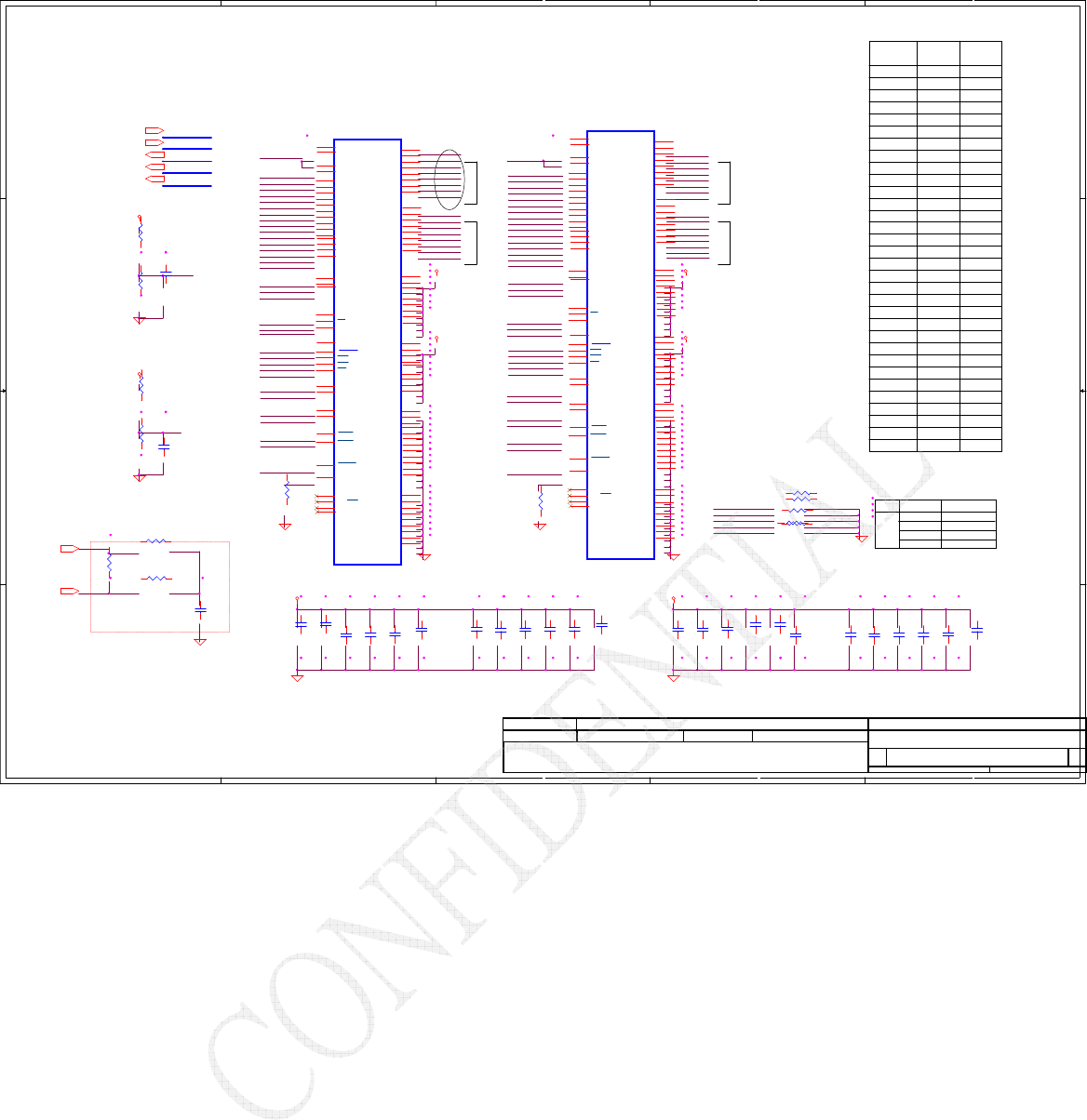

DDR_A_D63
DDR_A_D62
DDR_A_D8
DDR_A_D3
DDR_A_D4
DDR_A_D7
DDR_A_D5
DDR_A_D6
DDR_A_D59
DDR_A_D58
DDR_A_D57
DDR_A_D56
DDR_A_D47
DDR_A_D46
DDR_A_D42
DDR_A_D43
DDR_A_D34
DDR_A_D39
DDR_A_D44
DDR_A_D45
DDR_A_D35
DDR_A_D41
DDR_A_D40
DDR_A_D38
DDR_A_D36
DDR_A_D37
DDR_A_D32
DDR_A_D33
DDR_A_D61
DDR_A_D60
DDR_A_D2
DDR_A_D1
DDR_A_D0
DDR_A_D55
DDR_A_D54
DDR_A_D51
DDR_A_D48
DDR_A_D50
DDR_A_D49
DDR_A_D52
DDR_A_D53
DDR_A_D31
DDR_A_D14
DDR_A_D15
DDR_A_D25
DDR_A_D24
DDR_A_D26
DDR_A_D27
DDR_A_D30
DDR_A_D9
DDR_A_D13
DDR_A_D12
DDR_A_D10
DDR_A_D11
DDR_A_D29
DDR_A_D28
DDR_A_D19
DDR_A_D20
DDR_A_D16
DDR_A_D21
DDR_A_D17
DDR_A_D22
DDR_A_D18
DDR_A_D23
DDR_A_MA15
DDR_A_DQS0
DDR_A_DQS2
DDR_A_DQS1
DDR_A_DQS6
DDR_A_DQS5
DDR_A_DQS4
DDR_A_DQS3
DDR_A_DQS7
DDR_A_DQS#7
DDR_A_DQS#0
DDR_A_DQS#2
DDR_A_DQS#5
DDR_A_DQS#3
DDR_A_DQS#1
DDR_A_DQS#4
DDR_A_DQS#6
DDR_A_MA0
DDR_A_MA14
DDR_A_MA5
DDR_A_MA4
DDR_A_MA1
DDR_A_MA2
DDR_A_MA3
DDR_A_MA9
DDR_A_MA7
DDR_A_MA6
DDR_A_MA12
DDR_A_MA13
DDR_A_MA8
DDR_A_MA11
DDR_A_MA10
DDR_B_D33
DDR_B_D14
DDR_B_D42
DDR_B_D59
DDR_B_D63
DDR_B_D43
DDR_B_D55
DDR_B_D53
DDR_B_D29
DDR_B_D24
DDR_B_D34
DDR_B_D4
DDR_B_D26
DDR_B_D13
DDR_B_D10
DDR_B_D21
DDR_B_D11
DDR_B_D57
DDR_B_D44
DDR_B_D0
DDR_B_D7
DDR_B_D46
DDR_B_D3
DDR_B_D15
DDR_B_D27
DDR_B_D30
DDR_B_D35
DDR_B_D40
DDR_B_D49
DDR_B_D23
DDR_B_D25
DDR_B_D19
DDR_B_D37
DDR_B_D48
DDR_B_D36
DDR_B_D18
DDR_B_D8
DDR_B_D47
DDR_B_D9
DDR_B_D60
DDR_B_D50
DDR_B_D62
DDR_B_D52
DDR_B_D2
DDR_B_D51
DDR_B_D56
DDR_B_D39
DDR_B_D22
DDR_B_D28
DDR_B_D6
DDR_B_D45
DDR_B_D17
DDR_B_D58
DDR_B_D61
DDR_B_D31
DDR_B_D54
DDR_B_D1
DDR_B_D41
DDR_B_D5
DDR_B_D12
DDR_B_D20
DDR_B_D38
DDR_B_D32
DDR_B_D16
DDR_B_MA15
DDR_B_DQS#1
DDR_B_DQS#7
DDR_B_DQS#5
DDR_B_DQS#4
DDR_B_DQS#0
DDR_B_DQS#3
DDR_B_DQS#6
DDR_B_DQS#2
DDR_B_DQS7
DDR_B_DQS0
DDR_B_DQS1
DDR_B_DQS5
DDR_B_DQS4
DDR_B_DQS3
DDR_B_DQS2
DDR_B_DQS6
DDR_B_MA0
DDR_B_MA9
DDR_B_MA7
DDR_B_MA13
DDR_B_MA2
DDR_B_MA4
DDR_B_MA11
DDR_B_MA3
DDR_B_MA5
DDR_B_MA6
DDR_B_MA10
DDR_B_MA8
DDR_B_MA1
DDR_B_MA12
DDR_B_MA14
DDR3_DRAMRST#_R
H_DRAMRST#
DRAMRST_CNTRL
DDR_A_D[0..63]<11>
DDR_A_BS0<11>
DDR_A_BS1<11>
DDR_A_BS2<11>
DDR_A_WE#<11>
DDR_A_RAS#<11>
DDR_A_CAS#<11>
DDRA_CLK0 <11>
DDRA_CLK0# <11>
DDRA_CKE0 <11>
DDRA_CLK1 <11>
DDRA_CLK1# <11>
DDRA_CKE1 <11>
DDRA_SCS0# <11>
DDRA_SCS1# <11>
DDRA_ODT0 <11>
DDRA_ODT1 <11>
DDR_A_DQS#[0..7] <11>
DDR_A_DQS[0..7] <11>
DDR_A_MA[0..15] <11>
DDR_B_BS0<12>
DDR_B_BS1<12>
DDR_B_BS2<12>
DDR_B_D[0..63]<12>
DDR_B_WE#<12>
DDR_B_RAS#<12>
DDR_B_CAS#<12>
DDRB_SCS1# <12>
DDR_B_DQS[0..7] <12>
DDR_B_DQS#[0..7] <12>
DDRB_CLK0 <12>
DDRB_CLK0# <12>
DDRB_CKE0 <12>
DDRB_CLK1 <12>
DDRB_SCS0# <12>
DDRB_ODT1 <12>
DDRB_ODT0 <12>
DDRB_CKE1 <12>
DDRB_CLK1# <12>
DDR_B_MA[0..15] <12>
SM_DRAMRST# <11,12>
H_DRAMRST#<6>
DRAMRST_CNTRL_PCH <10,26>
+1.5V
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
7 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
7 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
7 60Friday, August 24, 2012
2011/09/23 2012/12/31
R119
4.99K_0402_1%
R129 1K_0402_5%
C86
0.047U_0402_16V4Z
R123
1K_0402_5%

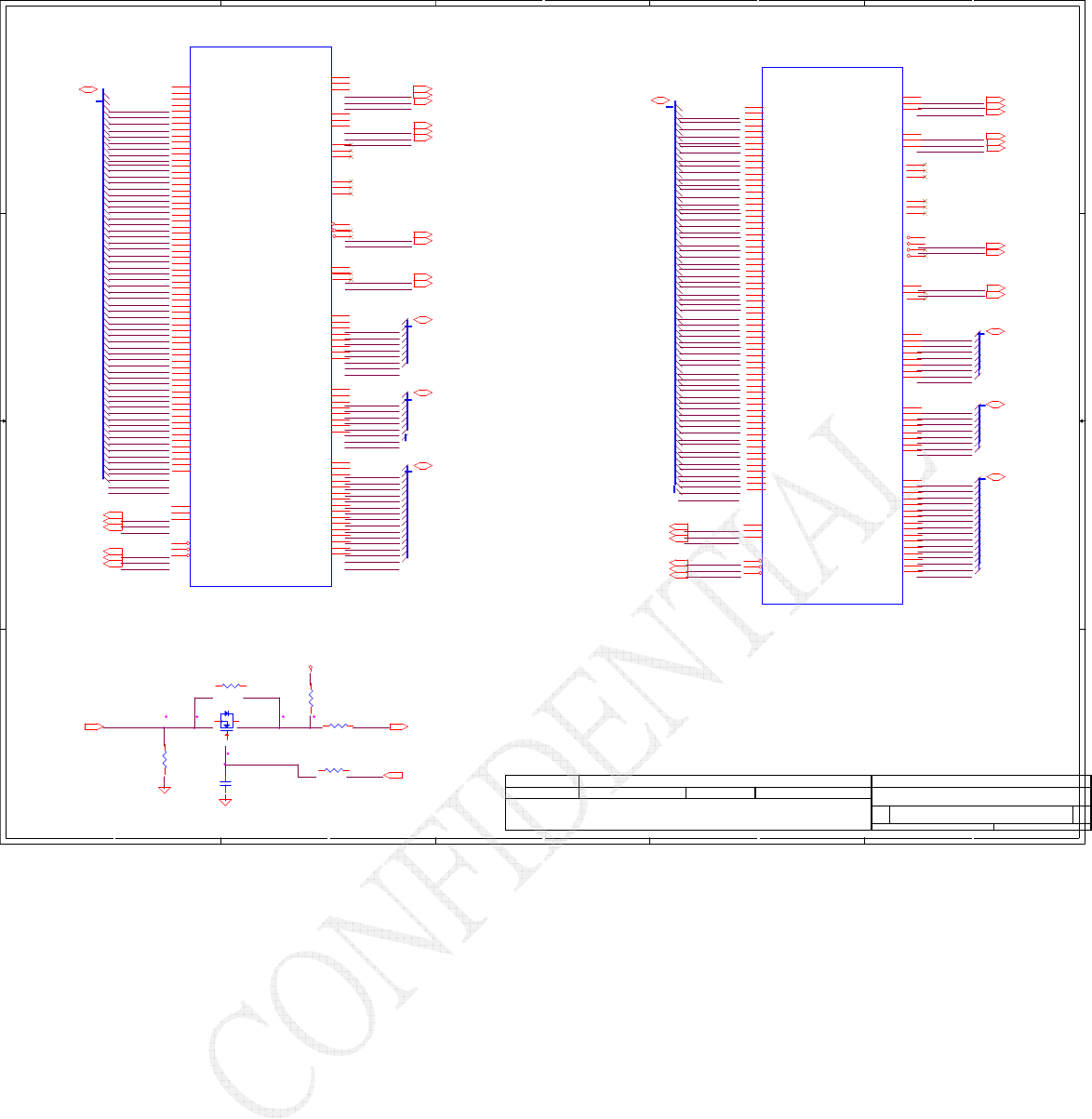

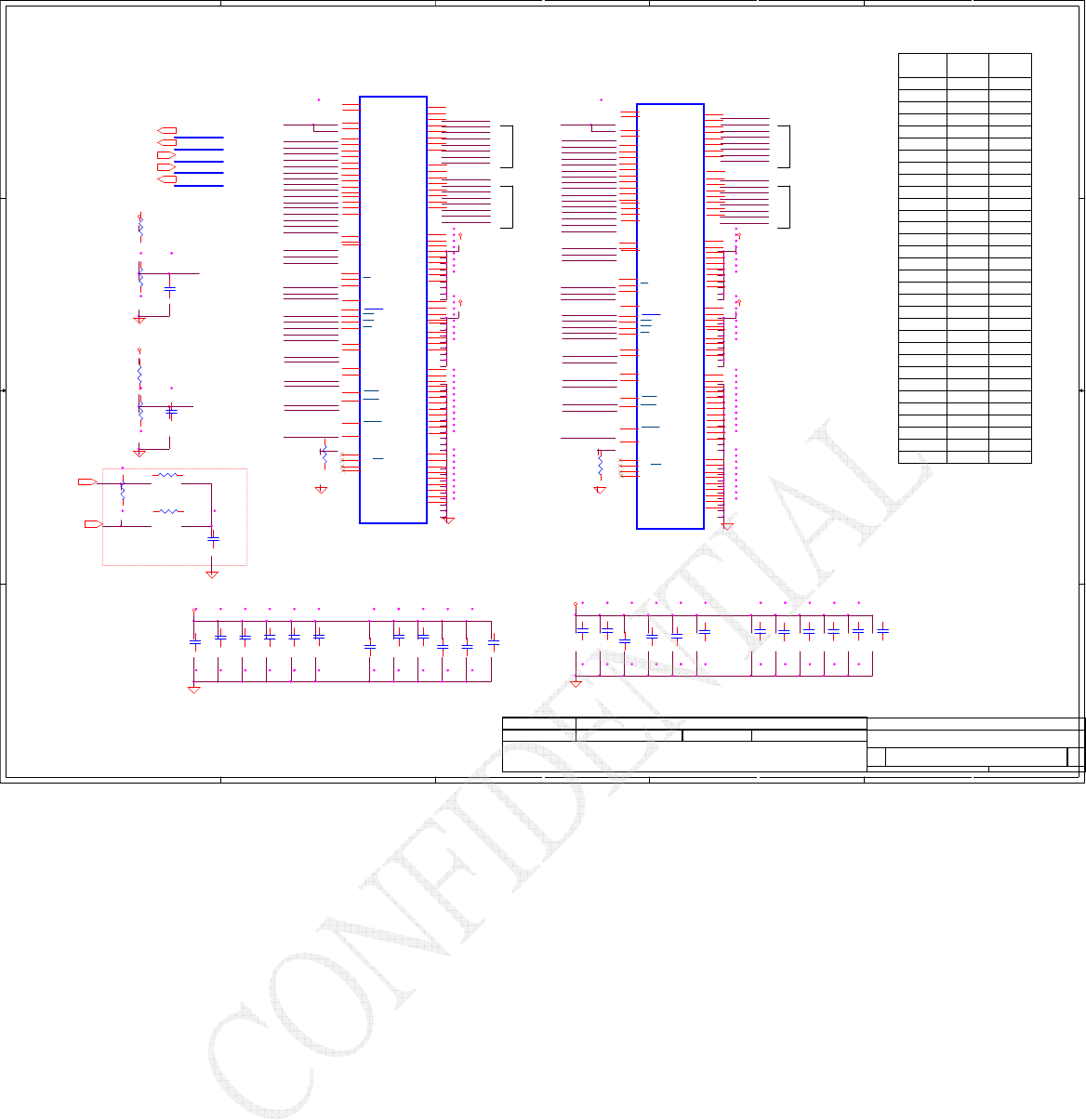

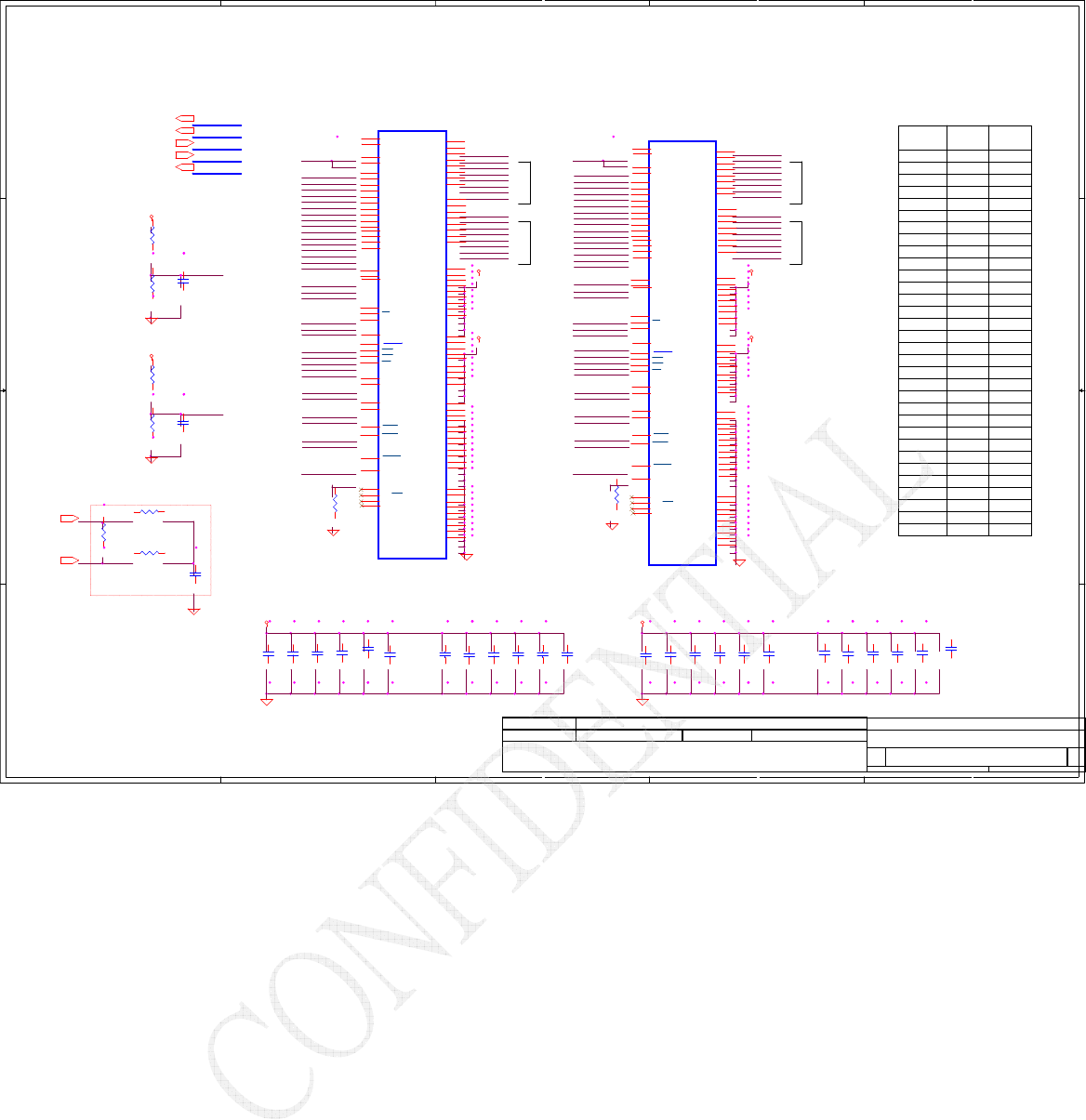

DDR SYSTEM MEMORY B
JCPU1D
TYCO_2013620-2_IVY BRIDGE
CONN@
SB_BS[0]
AA9
SB_BS[1]
AA7
SB_BS[2]
R6
SB_CAS#
AA10
SB_RAS#
AB8
SB_WE#
AB9
SB_CLK[0] AE2
SB_CLK[1] AE1
SB_CLK#[0] AD2
SB_CLK#[1] AD1
SB_CKE[0] R9
SB_CKE[1] R10
SB_ODT[0] AE4
SB_ODT[1] AD4
SB_DQS[4] AN6
SB_DQS#[4] AN5
SB_DQS[5] AP8
SB_DQS#[5] AP9
SB_DQS[6] AK11
SB_DQS#[6] AK12
SB_DQS[7] AP14
SB_DQS#[7] AP15
SB_DQS[0] C7
SB_DQS#[0] D7
SB_DQS[1] G3
SB_DQS#[1] F3
SB_DQS[2] J6
SB_DQS#[2] K6
SB_DQS[3] M3
SB_DQS#[3] N3
SB_MA[0] AA8
SB_MA[1] T7
SB_MA[2] R7
SB_MA[3] T6
SB_MA[4] T2
SB_MA[5] T4
SB_MA[6] T3
SB_MA[7] R2
SB_MA[8] T5
SB_MA[9] R3
SB_MA[10] AB7
SB_MA[11] R1
SB_MA[12] T1
SB_MA[13] AB10
SB_MA[14] R5
SB_MA[15] R4
SB_DQ[0]
C9
SB_DQ[1]
A7
SB_DQ[2]
D10
SB_DQ[3]
C8
SB_DQ[4]
A9
SB_DQ[5]
A8
SB_DQ[6]
D9
SB_DQ[7]
D8
SB_DQ[8]
G4
SB_DQ[9]
F4
SB_DQ[10]
F1
SB_DQ[11]
G1
SB_DQ[12]
G5
SB_DQ[13]
F5
SB_DQ[14]
F2
SB_DQ[15]
G2
SB_DQ[16]
J7
SB_DQ[17]
J8
SB_DQ[18]
K10
SB_DQ[19]
K9
SB_DQ[20]
J9
SB_DQ[21]
J10
SB_DQ[22]
K8
SB_DQ[23]
K7
SB_DQ[24]
M5
SB_DQ[25]
N4
SB_DQ[26]
N2
SB_DQ[27]
N1
SB_DQ[28]
M4
SB_DQ[29]
N5
SB_DQ[30]
M2
SB_DQ[31]
M1
SB_DQ[32]
AM5
SB_DQ[33]
AM6
SB_DQ[34]
AR3
SB_DQ[35]
AP3
SB_DQ[36]
AN3
SB_DQ[37]
AN2
SB_DQ[38]
AN1
SB_DQ[39]
AP2
SB_DQ[40]
AP5
SB_DQ[41]
AN9
SB_DQ[42]
AT5
SB_DQ[43]
AT6
SB_DQ[44]
AP6
SB_DQ[45]
AN8
SB_DQ[46]
AR6
SB_DQ[47]
AR5
SB_DQ[48]
AR9
SB_DQ[49]
AJ11
SB_DQ[50]
AT8
SB_DQ[51]
AT9
SB_DQ[52]
AH11
SB_DQ[53]
AR8
SB_DQ[54]
AJ12
SB_DQ[55]
AH12
SB_DQ[56]
AT11
SB_DQ[57]
AN14
SB_DQ[58]
AR14
SB_DQ[59]
AT14
SB_DQ[60]
AT12
SB_DQ[61]
AN15
SB_DQ[62]
AR15
SB_DQ[63]
AT15
RSVD_TP[11] AB2
RSVD_TP[12] AA2
RSVD_TP[13] T9
RSVD_TP[14] AA1
RSVD_TP[15] AB1
RSVD_TP[16] T10
SB_CS#[0] AD3
SB_CS#[1] AE3
RSVD_TP[17] AD6
RSVD_TP[18] AE6
RSVD_TP[19] AD5
RSVD_TP[20] AE5
R118 0_0402_5%
short@
G
D
S
QC3
BSS138_SOT23
2
1
3
DDR SYSTEM MEMORY A
JCPU1C
TYCO_2013620-2_IVY BRIDGE
CONN@
SA_BS[0]
AE10
SA_BS[1]
AF10
SA_BS[2]
V6
SA_CAS#
AE8
SA_RAS#
AD9
SA_WE#
AF9
SA_CLK[0] AB6
SA_CLK[1] AA5
SA_CLK#[0] AA6
SA_CLK#[1] AB5
SA_CKE[0] V9
SA_CKE[1] V10
SA_CS#[0] AK3
SA_CS#[1] AL3
SA_ODT[0] AH3
SA_ODT[1] AG3
SA_DQS[0] D4
SA_DQS#[0] C4
SA_DQS[1] F6
SA_DQS#[1] G6
SA_DQS[2] K3
SA_DQS#[2] J3
SA_DQS[3] N6
SA_DQS#[3] M6
SA_DQS[4] AL5
SA_DQS#[4] AL6
SA_DQS[5] AM9
SA_DQS#[5] AM8
SA_DQS[6] AR11
SA_DQS#[6] AR12
SA_DQS[7] AM14
SA_DQS#[7] AM15
SA_MA[0] AD10
SA_MA[1] W1
SA_MA[2] W2
SA_MA[3] W7
SA_MA[4] V3
SA_MA[5] V2
SA_MA[6] W3
SA_MA[7] W6
SA_MA[8] V1
SA_MA[9] W5
SA_MA[10] AD8
SA_MA[11] V4
SA_MA[12] W4
SA_MA[13] AF8
SA_MA[14] V5
SA_MA[15] V7
SA_DQ[0]
C5
SA_DQ[1]
D5
SA_DQ[2]
D3
SA_DQ[3]
D2
SA_DQ[4]
D6
SA_DQ[5]
C6
SA_DQ[6]
C2
SA_DQ[7]
C3
SA_DQ[8]
F10
SA_DQ[9]
F8
SA_DQ[10]
G10
SA_DQ[11]
G9
SA_DQ[12]
F9
SA_DQ[13]
F7
SA_DQ[14]
G8
SA_DQ[15]
G7
SA_DQ[16]
K4
SA_DQ[17]
K5
SA_DQ[18]
K1
SA_DQ[19]
J1
SA_DQ[20]
J5
SA_DQ[21]
J4
SA_DQ[22]
J2
SA_DQ[23]
K2
SA_DQ[24]
M8
SA_DQ[25]
N10
SA_DQ[26]
N8
SA_DQ[27]
N7
SA_DQ[28]
M10
SA_DQ[29]
M9
SA_DQ[30]
N9
SA_DQ[31]
M7
SA_DQ[32]
AG6
SA_DQ[33]
AG5
SA_DQ[34]
AK6
SA_DQ[35]
AK5
SA_DQ[36]
AH5
SA_DQ[37]
AH6
SA_DQ[38]
AJ5
SA_DQ[39]
AJ6
SA_DQ[40]
AJ8
SA_DQ[41]
AK8
SA_DQ[42]
AJ9
SA_DQ[43]
AK9
SA_DQ[44]
AH8
SA_DQ[45]
AH9
SA_DQ[46]
AL9
SA_DQ[47]
AL8
SA_DQ[48]
AP11
SA_DQ[49]
AN11
SA_DQ[50]
AL12
SA_DQ[51]
AM12
SA_DQ[52]
AM11
SA_DQ[53]
AL11
SA_DQ[54]
AP12
SA_DQ[55]
AN12
SA_DQ[56]
AJ14
SA_DQ[57]
AH14
SA_DQ[58]
AL15
SA_DQ[59]
AK15
SA_DQ[60]
AL14
SA_DQ[61]
AK14
SA_DQ[62]
AJ15
SA_DQ[63]
AH15
RSVD_TP[1] AB4
RSVD_TP[2] AA4
RSVD_TP[4] AB3
RSVD_TP[5] AA3
RSVD_TP[3] W9
RSVD_TP[6] W10
RSVD_TP[7] AG1
RSVD_TP[8] AH1
RSVD_TP[9] AG2
RSVD_TP[10] AH2
R124 0_0402_5%
@
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA

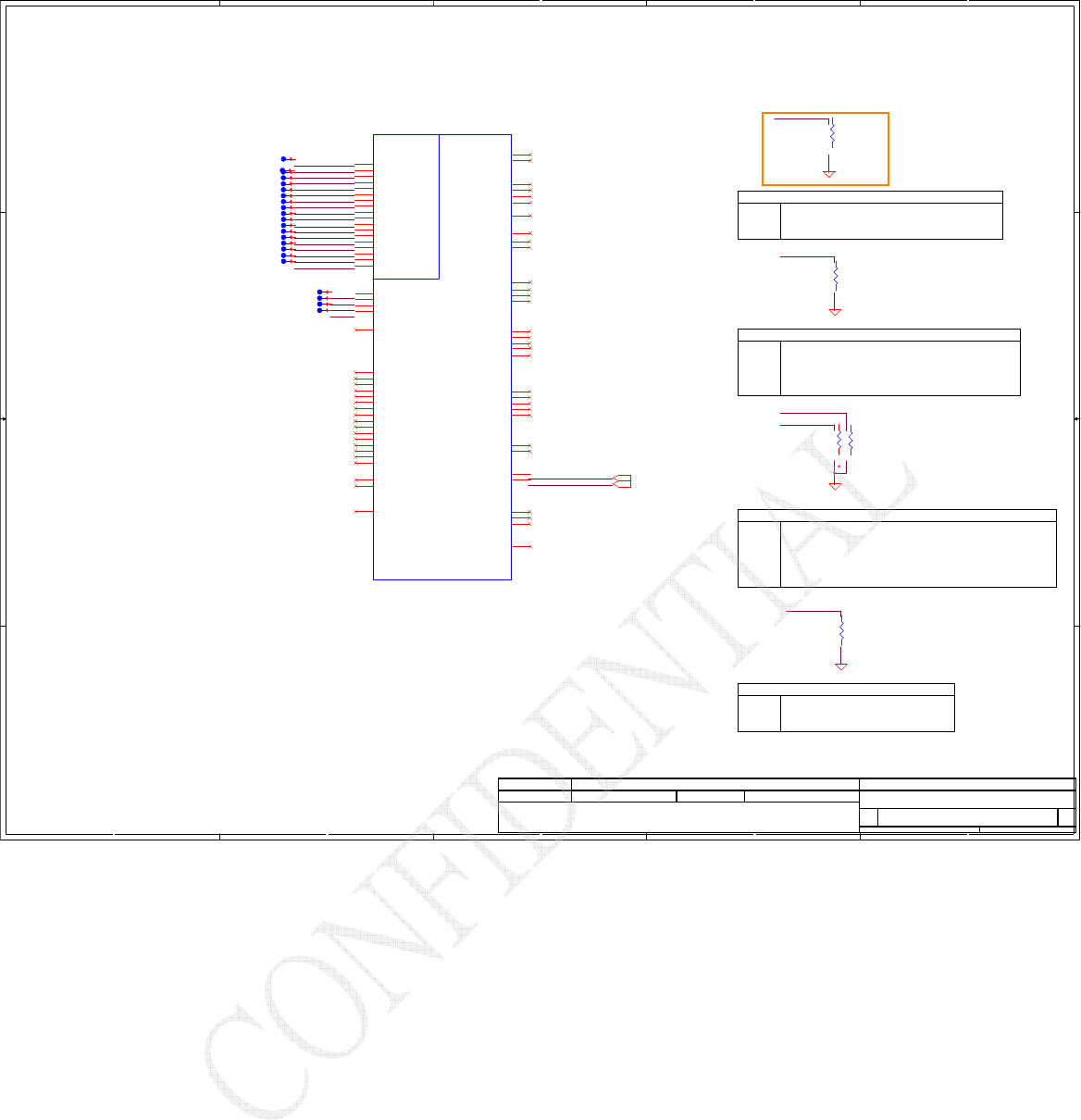

10: x8, x8 - Device 1 function 1 enabled ; function 2
disabled
PCIE Port Bifurcation Straps
CFG[6:5]
11: (Default) x16 - Device 1 functions 1 and 2 disabled
CFG7
PEG DEFER TRAINING
0: PEG Wait for BIOS for training
1: (Default) PEG Train immediately
following RESETB de assertion
CFG4
Display Port Presence Strap
0 : Enabled; An external Display Port device is
connected to the Embedded Display Port
1 : Disabled; No Physical Display Port
attached to Embedded Display Port

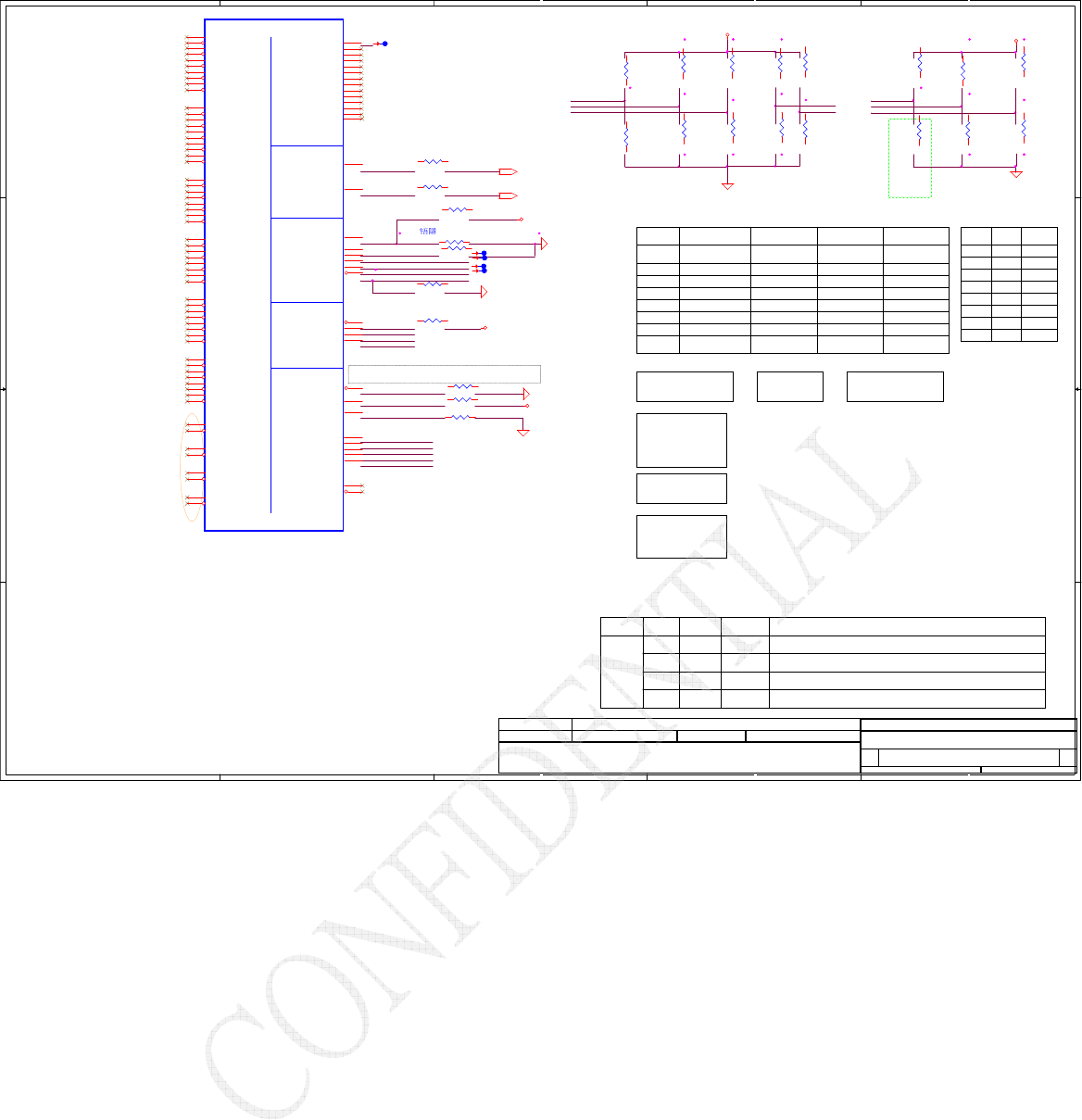

CFG Straps for Processor
01: Reserved - (Device 1 function 1 disabled ; function
2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled
PEG Static Lane Reversal - CFG2 is for the 16x
CFG2
0:Lane Reversed
1:(Default) Normal Operation; Lane #
definition matches socket pin map definition
Compal Electronics, Inc.
CFG[1:0]: reserved configuration lane.
CFG[3]: reserved
CFG[17:7]: reserved configuration lanes.
CFG[17:0]:
Processor internal pull up 5~15Kohm to VCCIO
CFG4
CFG6
CFG5
CFG2
CFG7
CFG10
CFG11
CFG13
CFG14
CFG15
CFG16
CFG17
CFG12
CFG1
CFG2
CFG0
CFG3
CFG4
CFG5
CFG6
CFG7
CFG8
CFG9
CLK_RES_ITP <26>
CLK_RES_ITP# <26>
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
8 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
8 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
8 60Friday, August 24, 2012
2011/09/23 2012/12/31
RC52
1K_0402_1%
@
RC56
1K_0402_1%
@
T251 PAD
RESERVED
CFG
JCPU1E
TYCO_2013620-2_IVY BRIDGE
CONN@
CFG[0]
AK28
CFG[1]
AK29
CFG[2]
AL26
CFG[3]
AL27
CFG[4]
AK26
CFG[5]
AL29
CFG[6]
AL30
CFG[7]
AM31
CFG[8]
AM32
CFG[9]
AM30
CFG[10]
AM28
CFG[11]
AM26
CFG[12]
AN28
CFG[13]
AN31
CFG[14]
AN26
CFG[15]
AM27
CFG[16]
AK31
CFG[17]
AN29
RSVD34 AM33
RSVD35 AJ27
RSVD38 J16
RSVD_NCTF2 AT34
RSVD39 H16
RSVD40 G16
RSVD_NCTF1 AR35
RSVD_NCTF3 AT33
RSVD_NCTF5 AR34
RSVD_NCTF11 AT2
RSVD_NCTF12 AT1
RSVD_NCTF13 AR1
RSVD_NCTF6 B34
RSVD_NCTF7 A33
RSVD_NCTF8 A34
RSVD_NCTF9 B35
RSVD_NCTF10 C35
RSVD51 AJ32
RSVD52 AK32
RSVD27
J15
RSVD16
C30 RSVD15
D23
RSVD17
A31
RSVD18
B30
RSVD20
D30
RSVD19
B29
RSVD22
A30
RSVD21
B31
RSVD23
C29
RSVD37 T8
RSVD8
F25
RSVD9
F24
RSVD11
D24
RSVD12
G25
RSVD13
G24
RSVD14
E23
RSVD32 W8
RSVD33 AT26
RSVD_NCTF4 AP35
RSVD10
F23
RSVD5
AJ26
VAXG_VAL_SENSE
AJ31
VSSAXG_VAL_SENSE
AH31
VCC_VAL_SENSE
AJ33
VSS_VAL_SENSE
AH33
KEY B1
VCC_DIE_SENSE AH27
BCLK_ITP AN35
BCLK_ITP# AM35
VSS_DIE_SENSE AH26
RSVD31 AK2
RSVD30 AE7
RSVD29 AG7
RSVD28 L7
RSVD24
J20
RSVD25
B18
T252 PAD
RC51
1K_0402_1%
T253 PAD
RC53
1K_0402_1%
@
T254 PAD
T255 PAD
T256 PAD
T248 PAD
T257 PAD
T246 PAD
T258 PAD
T247 PAD
T245 PAD
T259 PAD
T260 PAD
T266 PAD
T261 PAD
T267 PAD
T262 PAD
T268 PAD
RC54
1K_0402_1%
@
T263 PAD
T269 PAD
T270 PAD

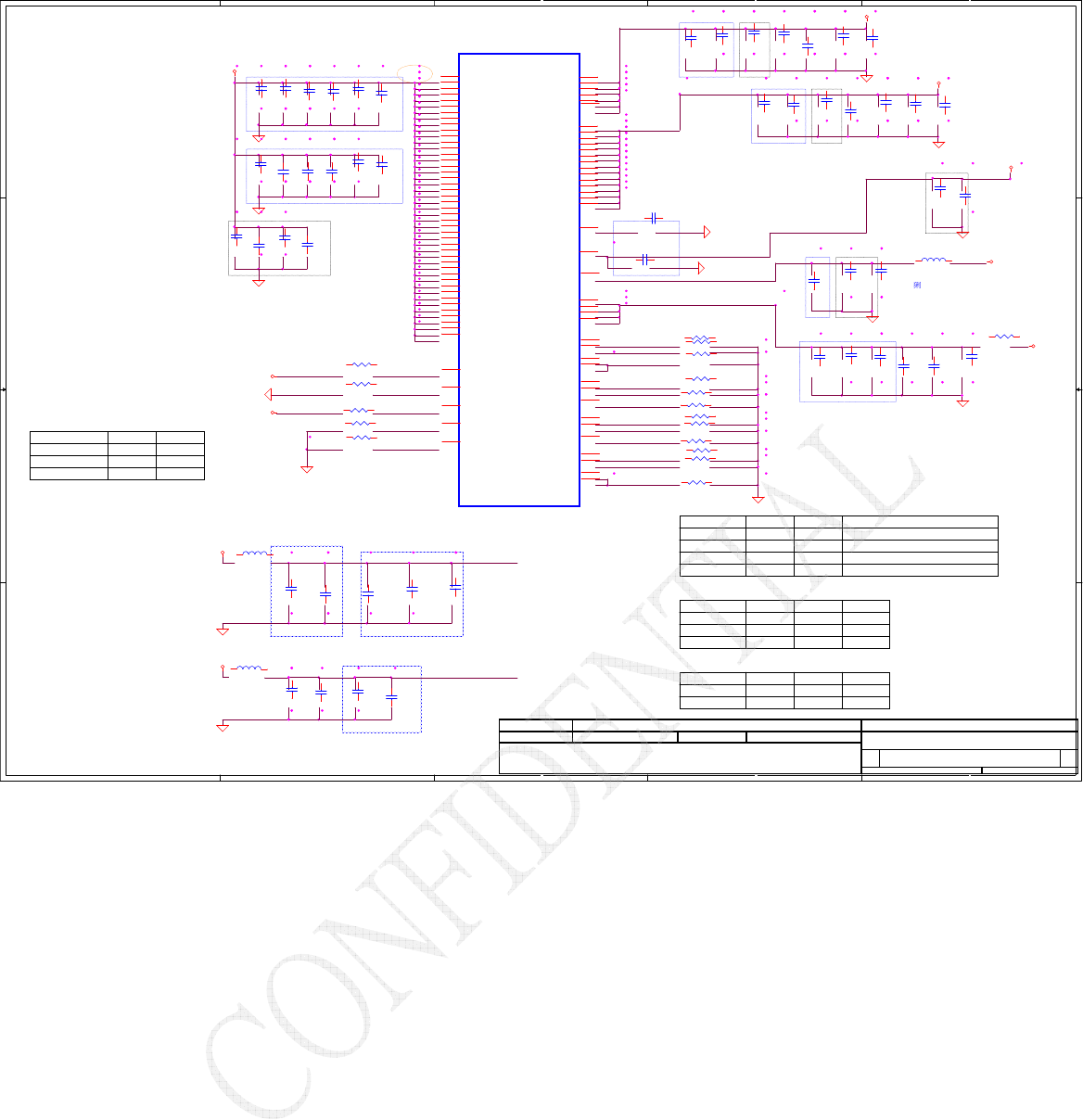

5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA

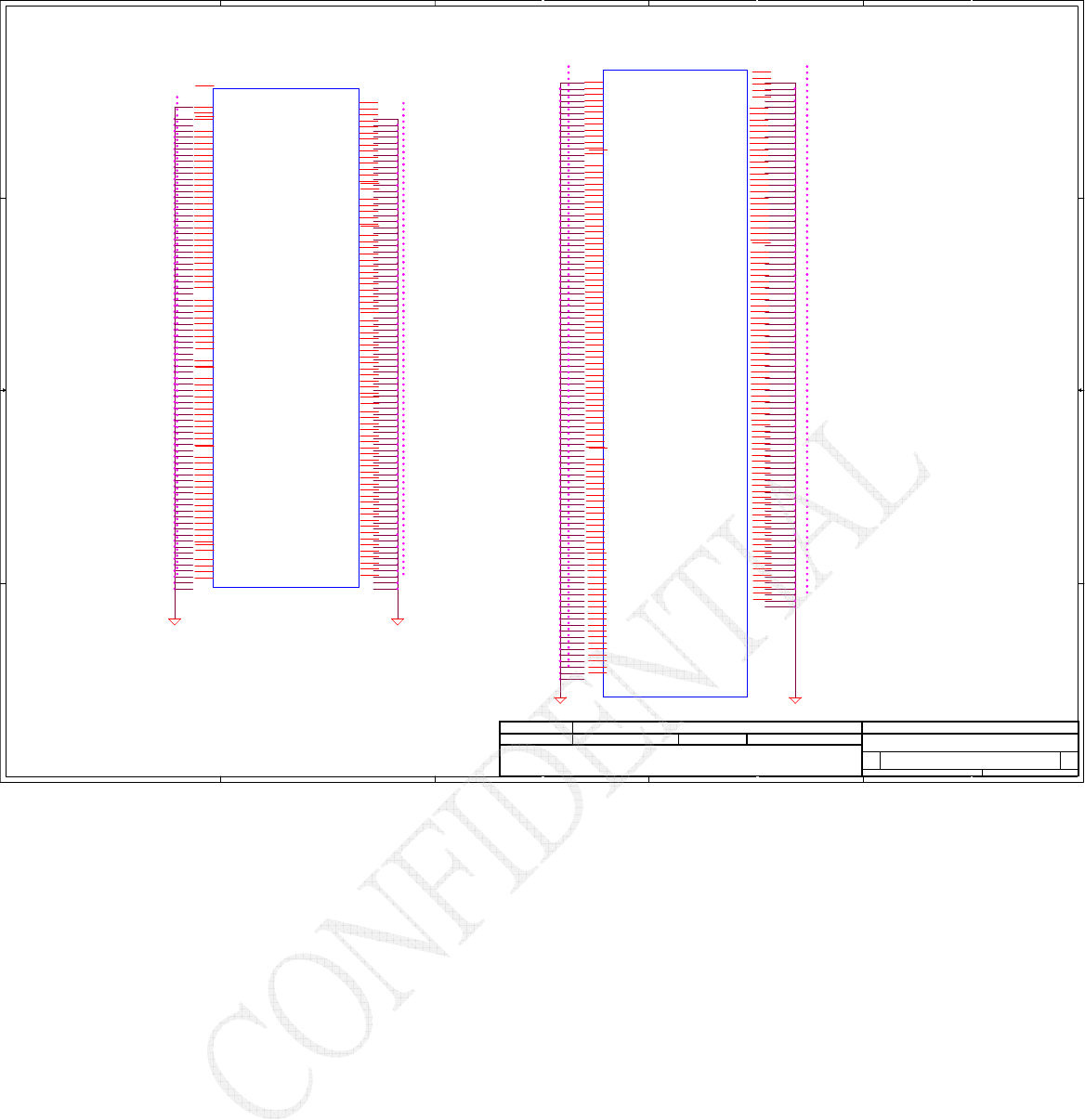

8.5A
97A
Place the PU resistors
RC60, RC137 close to CPU.
Place the PU resistors
R53, R54 close to CPU
Compal Electronics, Inc.
Package Sensing Recommendations--PDDG P30
Sense Trace Impedance Trace Length Match
VCC_SENSE /
VSS_SENSE
VCCAXG_SENSE /
VSSAXG_SENSE
VCCIO_SENSE /
VSS_SENSE_VCCIO
VCCSA
25.5-34.5ohm
55ohm
<25 mils
VSSSENSE_R
VCCSENSE_R
H_CPU_SVIDALRT#
H_CPU_SVIDCLK
H_CPU_SVIDDAT
H_CPU_SVIDDAT
H_CPU_SVIDCLK
VCCIO_SENSE <51>
VCCSENSE <54>
VSSSENSE <54>
VR_SVID_DAT <54>
VR_SVID_CLK <54>
VR_SVID_ALRT# <54>
+VCC_CORE
+VCC_CORE
+1.05VS_VCCP
+1.05VS_VCCP
+1.05VS_VCCP
+1.05VS_VCCP
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
9 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
9 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
9 60Friday, August 24, 2012
2011/09/23 2012/12/31
CC50
0.1U_0402_16V4Z
R54
100_0402_1%
1
2
R51 0_0402_5%
short@
RC61
43_0402_1%
VSS
JCPU1H
TYCO_2013620-2_IVY BRIDGE
CONN@
VSS1
AT35
VSS2
AT32
VSS3
AT29
VSS4
AT27
VSS5
AT25
VSS6
AT22
VSS7
AT19
VSS8
AT16
VSS9
AT13
VSS10
AT10
VSS11
AT7
VSS12
AT4
VSS13
AT3
VSS14
AR25
VSS15
AR22
VSS16
AR19
VSS17
AR16
VSS18
AR13
VSS19
AR10
VSS20
AR7
VSS21
AR4
VSS22
AR2
VSS23
AP34
VSS24
AP31
VSS25
AP28
VSS26
AP25
VSS27
AP22
VSS28
AP19
VSS29
AP16
VSS30
AP13
VSS31
AP10
VSS32
AP7
VSS33
AP4
VSS34
AP1
VSS35
AN30
VSS36
AN27
VSS37
AN25
VSS38
AN22
VSS39
AN19
VSS40
AN16
VSS41
AN13
VSS42
AN10
VSS43
AN7
VSS44
AN4
VSS45
AM29
VSS46
AM25
VSS47
AM22
VSS48
AM19
VSS49
AM16
VSS50
AM13
VSS51
AM10
VSS52
AM7
VSS53
AM4
VSS54
AM3
VSS55
AM2
VSS56
AM1
VSS57
AL34
VSS58
AL31
VSS59
AL28
VSS60
AL25
VSS61
AL22
VSS62
AL19
VSS63
AL16
VSS64
AL13
VSS65
AL10
VSS66
AL7
VSS67
AL4
VSS68
AL2
VSS69
AK33
VSS70
AK30
VSS71
AK27
VSS72
AK25
VSS73
AK22
VSS74
AK19
VSS75
AK16
VSS76
AK13
VSS77
AK10
VSS78
AK7
VSS79
AK4
VSS80
AJ25
VSS81 AJ22
VSS82 AJ19
VSS83 AJ16
VSS84 AJ13
VSS85 AJ10
VSS86 AJ7
VSS87 AJ4
VSS88 AJ3
VSS89 AJ2
VSS90 AJ1
VSS91 AH35
VSS92 AH34
VSS93 AH32
VSS94 AH30
VSS95 AH29
VSS96 AH28
VSS98 AH25
VSS99 AH22
VSS100 AH19
VSS101 AH16
VSS102 AH7
VSS103 AH4
VSS104 AG9
VSS105 AG8
VSS106 AG4
VSS107 AF6
VSS108 AF5
VSS109 AF3
VSS110 AF2
VSS111 AE35
VSS112 AE34
VSS113 AE33
VSS114 AE32
VSS115 AE31
VSS116 AE30
VSS117 AE29
VSS118 AE28
VSS119 AE27
VSS120 AE26
VSS121 AE9
VSS122 AD7
VSS123 AC9
VSS124 AC8
VSS125 AC6
VSS126 AC5
VSS127 AC3
VSS128 AC2
VSS129 AB35
VSS130 AB34
VSS131 AB33
VSS132 AB32
VSS133 AB31
VSS134 AB30
VSS135 AB29
VSS136 AB28
VSS137 AB27
VSS138 AB26
VSS139 Y9
VSS140 Y8
VSS141 Y6
VSS142 Y5
VSS143 Y3
VSS144 Y2
VSS145 W35
VSS146 W34
VSS147 W33
VSS148 W32
VSS149 W31
VSS150 W30
VSS151 W29
VSS152 W28
VSS153 W27
VSS154 W26
VSS155 U9
VSS156 U8
VSS157 U6
VSS158 U5
VSS159 U3
VSS160 U2
R168
10_0402_1%
12
R52 0_0402_5%short@
RC59 0_0402_5%
short@
RC60
75_0402_5%
1
2
R158
10_0402_1%
1
2
RC65 0_0402_5%
short@
CC49
0.1U_0402_16V4Z
POWER
CORE SUPPLY
PEG AND DDR
SENSE LINES SVID
JCPU1F
TYCO_2013620-2_IVY BRIDGE
CONN@
VCC_SENSE AJ35
VSS_SENSE AJ34
VIDALERT# AJ29
VIDSCLK AJ30
VIDSOUT AJ28
VSS_SENSE_VCCIO A10
VCC1
AG35
VCC2
AG34
VCC3
AG33
VCC4
AG32
VCC5
AG31
VCC6
AG30
VCC7
AG29
VCC8
AG28
VCC9
AG27
VCC10
AG26
VCC11
AF35
VCC12
AF34
VCC13
AF33
VCC14
AF32
VCC15
AF31
VCC16
AF30
VCC17
AF29
VCC18
AF28
VCC19
AF27
VCC20
AF26
VCC21
AD35
VCC22
AD34
VCC23
AD33
VCC24
AD32
VCC25
AD31
VCC26
AD30
VCC27
AD29
VCC28
AD28
VCC29
AD27
VCC30
AD26
VCC31
AC35
VCC32
AC34
VCC33
AC33
VCC34
AC32
VCC35
AC31
VCC36
AC30
VCC37
AC29
VCC38
AC28
VCC39
AC27
VCC40
AC26
VCC41
AA35
VCC42
AA34
VCC43
AA33
VCC44
AA32
VCC45
AA31
VCC46
AA30
VCC47
AA29
VCC48
AA28
VCC49
AA27
VCC50
AA26
VCC51
Y35
VCC52
Y34
VCC53
Y33
VCC54
Y32
VCC55
Y31
VCC56
Y30
VCC57
Y29
VCC58
Y28
VCC59
Y27
VCC60
Y26
VCC61
V35
VCC62
V34
VCC63
V33
VCC64
V32
VCC65
V31
VCC66
V30
VCC67
V29
VCC68
V28
VCC69
V27
VCC70
V26
VCC71
U35
VCC72
U34
VCC73
U33
VCC74
U32
VCC75
U31
VCC76
U30
VCC77
U29
VCC78
U28
VCC79
U27
VCC80
U26
VCC81
R35
VCC82
R34
VCC83
R33
VCC84
R32
VCC85
R31
VCC86
R30
VCC87
R29
VCC88
R28
VCC89
R27
VCC90
R26
VCC91
P35
VCC92
P34
VCC93
P33
VCC94
P32
VCC95
P31
VCC96
P30
VCC97
P29
VCC98
P28
VCC99
P27
VCC100
P26
VCCIO1 AH13
VCCIO12 J11
VCCIO18 G12
VCCIO19 F14
VCCIO20 F13
VCCIO21 F12
VCCIO22 F11
VCCIO23 E14
VCCIO24 E12
VCCIO2 AH10
VCCIO3 AG10
VCCIO4 AC10
VCCIO5 Y10
VCCIO6 U10
VCCIO7 P10
VCCIO8 L10
VCCIO9 J14
VCCIO10 J13
VCCIO11 J12
VCCIO13 H14
VCCIO14 H12
VCCIO15 H11
VCCIO16 G14
VCCIO17 G13
VCCIO25 E11
VCCIO32 C12
VCCIO33 C11
VCCIO34 B14
VCCIO35 B12
VCCIO36 A14
VCCIO37 A13
VCCIO38 A12
VCCIO39 A11
VCCIO26 D14
VCCIO27 D13
VCCIO28 D12
VCCIO29 D11
VCCIO30 C14
VCCIO31 C13
VCCIO_SENSE B10
VCCIO40 J23
R53
100_0402_1%
1
2
RC137
130_0402_1%
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
+1.5V_CPU_VDDQ
10A
+V_SM_VREF should
have 20 mil trace width
33A
Compal Electronics, Inc.
6A
1.5A
Close to CPU
VCCSA: 0.675V (Min) ~ 0.9V (Max)
SA: System Agent
(Memory controller, DMI, PCIE controllers, and display engine)
VCCSA_VID Configuration --CPU EDS Page99.
check Confirm QC6, QC7 is low Rdson or not--Joyce 0929
Intel future processor compatibility design. --DG1.5 P113
VCCSA_VID[0] output default logic state is low for Sandy Bridge processors
RUN_ON_CPU1.5VS3#
+V_SM_VREF
RUN_ON_CPU1.5VS3
RUN_ON_CPU1.5VS3
VSS_AXG_SENSE
VCC_AXG_SENSE
VSS_AXG_SENSE
VCC_AXG_SENSE
+V_SM_VREF_CNT
RUN_ON_CPU1.5VS3#
VREFDQ_DIMMA_CPU
VREFDQ_DIMMB_CPU
VREFDQ_DIMMA_CPU
VREFDQ_DIMMB_CPU
DRAMRST_CNT
DRAMRST_CNT
+VCCSA_SENSE
SUSP#<39,41,45,50,51,52,57>
+VCCSA_SENSE <53>
H_VCCSA_VID1 <53>
CPU1.5V_S3_GATE<41>
H_VCCSA_VID0 <53>
VCC_AXG_SENSE <54>
VSS_AXG_SENSE <54>
RUN_ON_CPU1.5VS3# <6,45>
DRAMRST_CNTRL_PCH <7,26>
+VCCSA
+1.5V
+1.5V_CPU_VDDQ
+VSB
+3VALW
+1.5V_CPU_VDDQ
+1.5V_CPU_VDDQ
+3VS
+1.8VS +1.8VS_VCCPLL
+GFX_CORE
+GFX_CORE
+1.5V_CPU_VDDQ +1.5V
+1.5V_CPU_VDDQ
+1.5V
+1.5VS
+1.5V_CPU_VDDQ
+V_DDR_REFA
+V_DDR_REFB
+VREF_CB
+VREF_CA
+VCCSA
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
10 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
10 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
10 60Friday, August 24, 2012
2011/09/23 2012/12/31
CC53
10U_0805_6.3V6M
RC121
1K_0402_1%
@
CC52
10U_0805_6.3V6M
RC79
0_0402_5% short@
R136
330K_0402_1%
1
2
J3
JUMP_43X118@
11
2
2
R86 100_0402_1%
1
2
RC111
0_0402_5%
@
CC41
10U_0805_6.3V6M
Q208A
2N7002DW-T/R7_SOT363-6
6
1
2
CC58
10U_0805_6.3V6M
Q208B
2N7002DW-T/R7_SOT363-6
3
5
4
QC7
AP2302GN-HF_SOT23-3
3
1
2
QC5
AP2302GN-HF_SOT23-3
@
3
1
2
CC42
10U_0805_6.3V6M
CC47 0.1U_0402_10V7K
CC38
10U_0805_10V4Z
@
RC78 0_0402_5%
@
+
CC61
330U_X_2VM_R6M
1
2
R131
220_0402_5%
CC51
10U_0805_6.3V6M
RC76 0_0402_5%
R134
100K_0402_5%
1
2
+
CC44
330U_X_2VM_R6M
1
2
CC178
0.1U_0402_16V4Z
1
2
CC56
10U_0805_6.3V6M
POWER
GRAPHICS
DDR3 -1.5V RAILS
SENSE
LINES
1.8V RAIL
SA RAIL
VREFMISC
JCPU1G
TYCO_2013620-2_IVY BRIDGE
CONN@
SM_VREF AL1
VSSAXG_SENSE AK34
VAXG_SENSE AK35
VAXG1
AT24
VAXG2
AT23
VAXG3
AT21
VAXG4
AT20
VAXG5
AT18
VAXG6
AT17
VAXG7
AR24
VAXG8
AR23
VAXG9
AR21
VAXG10
AR20
VAXG11
AR18
VAXG12
AR17
VAXG13
AP24
VAXG14
AP23
VAXG15
AP21
VAXG16
AP20
VAXG17
AP18
VAXG18
AP17
VAXG19
AN24
VAXG20
AN23
VAXG21
AN21
VAXG22
AN20
VAXG23
AN18
VAXG24
AN17
VAXG25
AM24
VAXG26
AM23
VAXG27
AM21
VAXG28
AM20
VAXG29
AM18
VAXG30
AM17
VAXG31
AL24
VAXG32
AL23
VAXG33
AL21
VAXG34
AL20
VAXG35
AL18
VAXG36
AL17
VAXG37
AK24
VAXG38
AK23
VAXG39
AK21
VAXG40
AK20
VAXG41
AK18
VAXG42
AK17
VAXG43
AJ24
VAXG44
AJ23
VAXG45
AJ21
VAXG46
AJ20
VAXG47
AJ18
VAXG48
AJ17
VAXG49
AH24
VAXG50
AH23
VAXG51
AH21
VAXG52
AH20
VAXG53
AH18
VAXG54
AH17
VDDQ11 U4
VDDQ12 U1
VDDQ13 P7
VDDQ14 P4
VDDQ15 P1
VDDQ1 AF7
VDDQ2 AF4
VDDQ3 AF1
VDDQ4 AC7
VDDQ5 AC4
VDDQ6 AC1
VDDQ7 Y7
VDDQ8 Y4
VDDQ9 Y1
VDDQ10 U7
VCCPLL1
B6
VCCPLL2
A6
VCCSA1 M27
VCCSA2 M26
VCCSA3 L26
VCCSA4 J26
VCCSA5 J25
VCCSA6 J24
VCCSA7 H26
VCCSA8 H25
VCCSA_SENSE H23
VCCSA_VID[1] C24
VCCPLL3
A2 VCCSA_VID[0] C22
SA_DIMM_VREFDQ B4
SB_DIMM_VREFDQ D1
VCCIO_SEL A19
RC77 0_0402_5%
@
C107
@
0.1U_0402_10V6K
1
2
R92
100_0402_1%
@
12
G
D
S
Q8
2N7002E-T1-GE3_SOT23-3
2
1
3
RC120
0_0805_5%
QC6
AP2302GN-HF_SOT23-3
3
1
2
R133
0_0402_5%
CC43
10U_0603_6.3V6M
@
+
CC57
330U_X_2VM_R6M
1
2
R135
100K_0402_5%
1
2
CC54
10U_0805_6.3V6M
CC59
1U_0402_6.3V6K
1
2
CC40
10U_0805_6.3V6M
C199 0.1U_0402_10V7K
R89
100_0402_1%
1
2
RC122
1K_0402_1%@
RC84
0_0402_5%
@
C201 0.1U_0402_10V7K
CC55
10U_0805_6.3V6M
RC118
1K_0402_1%
R120
0_0402_5%
short@
CC60
1U_0402_6.3V6K
1
2
Q7
AO4728L_SO8
4
7
8
6
5
1
2
3
C196
0.1U_0603_50V7K
CC48 0.1U_0402_10V7K
RC83
0_0402_5%
@
J2
JUMP_43X118@
11
2
2
RC112
10K_0402_5%
@
12
RC80
0_0402_5% short@
RC113
0_0402_5%@
R132
0_0402_5%
@
RC119
1K_0402_1%
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA

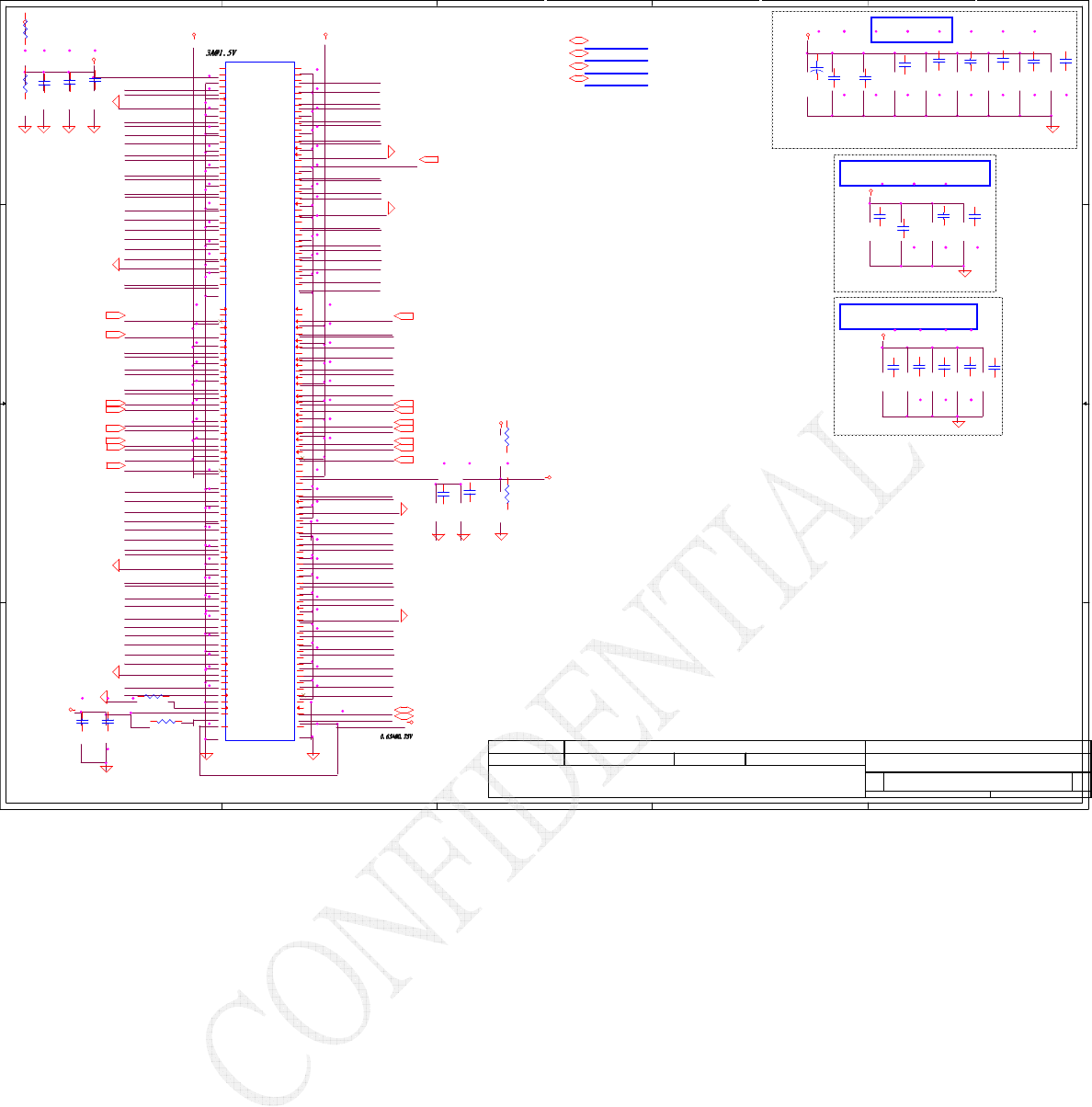

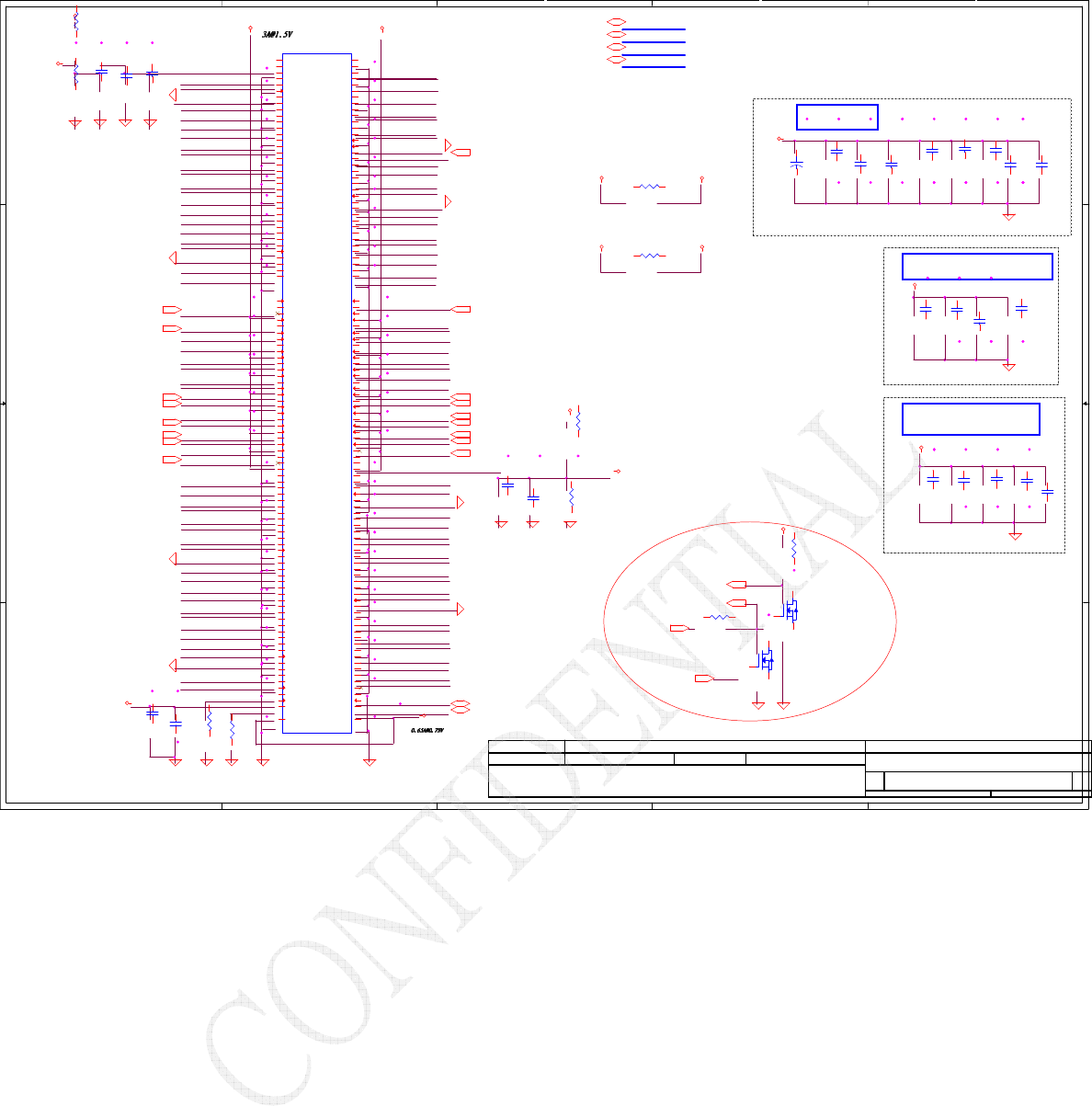

Layout Note: Place these 4 Caps near
Command and Control signals of JDDRL
Layout Note:
Place near JDDRL.203,204
DDR3 SO-DIMM A
Layout Note:
Place near JDDRL
refer to QAL51, need confirm. --Joyce 0929/2011
DDR_A_DM0
SM_DRAMRST#
DDR_A_MA15
DDR_A_D31
DDRA_CKE0
DDR_A_D12
DDR_A_D59
DDR_A_MA3
DDR_A_D6
DDRA_SCS1#
PM_SMBCLK
DDR_A_BS1
DDR_A_D39
DDR_A_W E#
DDR_A_DQS0
DDR_A_MA7
DDR_A_MA0
DDR_A_DM2
DDR_A_D0
DDR_A_DQS7
DDR_A_DM1
DDR_A_D28
DDR_A_D46
DDR_A_D57
DDR_A_D19
DDR_A_DQS#5
DDR_A_D4
DDR_A_D51
DDR_A_DM4
DDR_A_DQS2
DDR_A_D30
DDR_A_D44
DDR_A_D33
DDR_A_RAS#
DDR_A_DM5
DDR_A_D58
DDR_A_DQS3
DDR_A_MA8
DDRA_SCS0#
DDR_A_D27
DDR_A_MA6
DDR_A_D10
DDR_A_MA10
DDR_A_D3
DDR_A_DQS#7
DDR_A_DQS#6
DDR_A_D1
DDR_A_MA9
DDR_A_D40
DDR_A_D29
DDR_A_D16
DDR_A_D52
DDR_A_DQS#4
DDR_A_DM3
DDR_A_D54
DDR_A_DQS5
DDR_A_BS2
DDR_A_D49
DDR_A_D9
DDR_A_D45
DDR_A_MA1
DDR_A_D7
DDR_A_DM7
DDR_A_D20
DDR_A_D13
DDR_A_BS0
DDR_A_D60
DDRA_ODT0
DDR_A_CAS#
DDR_A_DQS#1
DDR_A_MA5
DDR_A_D37
DDR_A_MA14
DDR_A_D55
DDR_A_D21
DDR_A_MA4
DDR_A_D62
DDR_A_D23
DDR_A_D15
DDR_A_D24
DDR_A_D53
DDR_A_D56
DDR_A_D18
DDR_A_D47
DDR_A_D43
DDRA_ODT1
DDRA_CLK1
DDR_A_D34
DDR_A_D48
DDRA_CLK1#
DDR_A_D11
DDR_A_DQS#2
PM_SMBDATA
DDR_A_D38
DDRA_CLK0#
DDRA_CLK0
DDR_A_D8
DDR_A_D32
DDR_A_DQS#3
DDR_A_MA11
DDR_A_MA13
DDR_A_DQS1
DDR_A_D61
DDR_A_D50
DDR_A_D41
DDR_A_MA2
DDR_A_D17
DDR_A_D36
DDR_A_D26
DDR_A_D2
DDR_A_D63
DDR_A_D25
DDR_A_D22
DDR_A_D5
DDR_A_D35
DDR_A_DQS6
DDR_A_MA12
DDR_A_D14
DDR_A_DQS4
DDR_A_DQS#0
DDR_A_D42
DDR_A_DM6
DDRA_CKE1
0.75VR_EN
SUSP
DDR_A_DQS#[0..7]<7>
DDR_A_D[0..63]<7>
DDR_A_DQS[0..7]<7>
DDR_A_MA[0..15]<7>
DDR_A_BS2<7>
DDRA_CKE0<7>
DDRA_CLK0#<7>
DDRA_CLK0<7>
DDR_A_CAS#<7>
DDR_A_WE#<7>
DDR_A_BS0<7>
DDR_A_BS1 <7>
DDRA_CKE1 <7>
DDRA_SCS1#<7>
DDRA_SCS0# <7>
DDR_A_RAS# <7>
DDRA_CLK1# <7>
DDRA_CLK1 <7>
DDRA_ODT0 <7>
SM_DRAMRST# <7,12>
DDRA_ODT1 <7>
PM_SMBCLK <12,26,36,39>
PM_SMBDATA <12,26,36,39>
0.75VR_EN<52>
+1.05VSP_PW RGOOD<51,53>
0.75VR_EN#
SUSP<6,40,43,45>
+VREF_CA
+1.5V
+1.5V
+0.75VS
+3VS
+1.5V
+1.5V
+V_DDR_REFA
+1.5V
+1.5V
+0.75VS
+3VALW
+V_DDR_REFB
+V_DDR_REFA
+VREF_CB
+VREF_CA
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
11 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
11 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
11 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
C369
22U_0805_6.3V6M
1
2
+
C140
330U 2V Y D2 LESR9M
1
2
C139
2.2U_0603_6.3V4Z
1
2
C161
0.1U_0402_10V6K
1
2
CD15
10U_0603_6.3V6M
@
1
2
C153
47P_0402_50V8J
1
2
C145
10U_0603_6.3V6M
1
2
R68
10K_0402_5%
1
2
C151
0.1U_0402_10V6K
1
2
R60
1K_0402_1%
1
2
C144
10U_0603_6.3V6M
1
2
JDDRL
LCN_DAN06-K4526-0101
CONN@
VREF_DQ
1
VSS12
VSS2
3
DQ4 4
DQ0
5
DQ5 6
DQ1
7
VSS38
VSS4
9
DQS#0 10
DM0
11
DQS012
VSS5
13
VSS614
DQ2
15
DQ6 16
DQ3
17
DQ7 18
VSS7
19
VSS820
DQ8
21
DQ1222
DQ9
23
DQ1324
VSS9
25 VSS10 26
DQS#1
27
DM1 28
DQS1
29
RESET# 30
VSS11
31 VSS12 32
DQ10
33
DQ1434
DQ11
35
DQ1536
VSS13
37 VSS14 38
DQ16
39
DQ2040
DQ17
41
DQ2142
VSS15
43
VSS16 44
DQS#2
45
DM2 46
DQS2
47
VSS17 48
VSS18
49
DQ2250
DQ18
51
DQ2352
DQ19
53
VSS19 54
VSS20
55
DQ2856
DQ24
57
DQ2958
DQ25
59
VSS21 60
VSS22
61
DQS#3 62
DM3
63DQS364
VSS23
65
VSS24 66
DQ26
67
DQ3068
DQ27
69 DQ3170
VSS25
71
VSS26 72
A12/BC#
83
A11 84
A9
85 A786
VDD5
87
VDD688
A8
89
A690
CKE0
73
CKE174
VDD1
75
VDD276
NC1
77
A15 78
BA2
79
A14 80
VDD3
81
VDD482
A5
91
A492
VDD7
93
VDD894
A3
95 A296
A1
97
A098
VDD9
99
VDD10 100
CK0
101 CK1 102
CK0#
103
CK1#104
VDD11
105
VDD12 106
A10/AP
107
BA1 108
BA0
109
RAS#110
VDD13
111
VDD14 112
WE#
113
S0# 114
CAS#
115
ODT0116
VDD15
117
VDD16 118
A13
119
ODT1120
S1#
121 NC2 122
VDD17
123
VDD18 124
NCTEST
125
VREF_CA 126
VSS27
127 VSS28 128
DQ32
129
DQ36130
DQ33
131
DQ37132
VSS29
133
VSS30 134
DQS#4
135
DM4 136
DQS4
137
VSS31 138
VSS32
139
DQ38140
DQ34
141
DQ39142
DQ35
143
VSS33 144
VSS34
145
DQ44146
DQ40
147 DQ45148
DQ41
149
VSS35 150
VSS36
151
DQS#5 152
DM5
153 DQS5154
VSS37
155
VSS38 156
DQ42
157
DQ46158
DQ43
159 DQ47160
VSS39
161
VSS40 162
DQ48
163
DQ52164
DQ49
165
DQ53166
VSS41
167
VSS42 168
DQS#6
169
DM6 170
DQS6
171
VSS43 172
VSS44
173 DQ54174
DQ50
175
DQ55176
DQ51
177
VSS45 178
VSS46
179 DQ60180
DQ56
181
DQ61182
DQ57
183
VSS47 184
VSS48
185
DQS#7 186
DM7
187
DQS7188
VSS49
189
VSS50 190
DQ58
191
DQ62192
DQ59
193
DQ63194
VSS51
195
VSS52 196
SA0
197
EVENT# 198
VDDSPD
199 SDA 200
SA1
201
SCL 202
VTT1
203
VTT2204
G1
205
G2206
CD1
0.1U_0402_10V6K
1
2
RC81 0_0402_5%
@
C150
0.1U_0402_10V6K
1
2
C143
10U_0603_6.3V6M
1
2
C359
1U_0402_6.3V6K
1
2
RC82 0_0402_5%
@
R5535
100K_0402_5%
C149
0.1U_0402_10V6K
1
2
C146
10U_0603_6.3V6M
1
2
C360
1U_0402_6.3V6K
1
2
C148
10U_0603_6.3V6M
1
2
Q5520B
2N7002DW-T/R7_SOT363-6
3
5
4
R57
1K_0402_1%
1
2
C152
0.1U_0402_10V6K
1
2
C134
2.2U_0603_6.3V4Z
1
2
C361
1U_0402_6.3V6K
1
2
R67
10K_0402_5%
1
2
C147
10U_0603_6.3V6M
1
2
C138
0.1U_0402_10V6K
1
2
C362
1U_0402_6.3V6K
1
2
Q5520A
2N7002DW-T/R7_SOT363-6
6
1
2
R55
1K_0402_1%
1
2
R5536
100K_0402_5%
C133
0.1U_0402_10V6K
1
2
C160
2.2U_0603_6.3V4Z
1
2
R56
1K_0402_1%
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA
Layout Note:
Place near JDDRH
Layout Note: Place these 4 Caps near
Command and Control signals of JDDRH
Layout Note:
Place near JDDRH.203 and 204
SM_DRAMRST#
PM_SMBCLK
PM_SMBDATA
DDR_B_D36
DDR_B_D26
DDR_B_D63
DDR_B_D2
DDR_B_MA15
DDR_B_D5
DDR_B_D22
DDR_B_D25
DDR_B_DQS6
DDR_B_D35
DDR_B_D14
DDR_B_MA12
DDR_B_DQS#0
DDR_B_DQS4
DDR_B_DM6
DDR_B_D42
DDRB_CKE1
DDR_B_D31
DDR_B_D12
DDRB_CKE0
DDR_B_D59
DDR_B_D6
DDR_B_MA3
DDRB_SCS1#
DDR_B_D39
DDR_B_BS1
DDR_B_DQS0
DDR_B_WE#
DDR_B_MA7
DDR_B_MA0
DDR_B_DM2
DDR_B_DM1
DDR_B_DQS7
DDR_B_D0
DDR_B_D57
DDR_B_D46
DDR_B_D28
DDR_B_DM0
DDR_B_D19
DDR_B_DQS#5
DDR_B_D51
DDR_B_D4
DDR_B_DM4
DDR_B_D30
DDR_B_DQS2
DDR_B_D44
DDR_B_RAS#
DDR_B_D33
DDR_B_D58
DDR_B_DM5
DDR_B_DQS3
DDR_B_MA8
DDRB_SCS0#
DDR_B_D10
DDR_B_MA6
DDR_B_D27
DDR_B_D3
DDR_B_MA10
DDR_B_DQS#7
DDR_B_D1
DDR_B_DQS#6
DDR_B_D40
DDR_B_MA9
DDR_B_D16
DDR_B_D29
DDR_B_DQS#4
DDR_B_D52
DDR_B_DM3
DDR_B_DQS5
DDR_B_D54
DDR_B_D49
DDR_B_BS2
DDR_B_D45
DDR_B_D9
DDR_B_DM7
DDR_B_D7
DDR_B_MA1
DDR_B_D13
DDR_B_D20
DDR_B_D60
DDR_B_BS0
DDR_B_CAS# DDRB_ODT0
DDR_B_D37
DDR_B_MA5
DDR_B_DQS#1
DDR_B_MA14
DDR_B_D55
DDR_B_MA4
DDR_B_D21
DDR_B_D62
DDR_B_D24
DDR_B_D15
DDR_B_D23
DDR_B_D56
DDR_B_D53
DDR_B_D47
DDR_B_D18
DDRB_ODT1
DDR_B_D43
DDR_B_D34
DDRB_CLK1
DDRB_CLK1#
DDR_B_D48
DDR_B_DQS#2
DDR_B_D11
DDR_B_D38
DDRB_CLK0
DDRB_CLK0#
DDR_B_DQS#3
DDR_B_D32
DDR_B_D8
DDR_B_DQS1
DDR_B_MA13
DDR_B_MA11
DDR_B_D50
DDR_B_D61
DDR_B_MA2
DDR_B_D41
DDR_B_D17
+VREF_CB
DDR_B_DQS#[0..7]<7>
DDR_B_D[0..63]<7>
DDR_B_DQS[0..7]<7>
DDR_B_MA[0..15]<7>
SM_DRAMRST# <7,11>
DDRB_CKE1 <7>
DDRB_CLK1 <7>
DDRB_CLK1# <7>
DDR_B_BS1 <7>
DDR_B_RAS# <7>
DDRB_SCS0# <7>
DDRB_ODT0 <7>
DDRB_ODT1 <7>
DDR_B_BS2<7>
DDRB_CKE0<7>
DDRB_CLK0<7>
DDRB_CLK0#<7>
DDR_B_BS0<7>
DDR_B_WE#<7>
DDR_B_CAS#<7>
DDRB_SCS1#<7>
PM_SMBDATA <11,26,36,39>
PM_SMBCLK <11,26,36,39>
+1.5V
+0.75VS
+3VS
+1.5V
+1.5V
+1.5V
+V_DDR_REFB
+1.5V
+1.5V
+0.75VS
+VREF_CB
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
12 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
12 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
12 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.

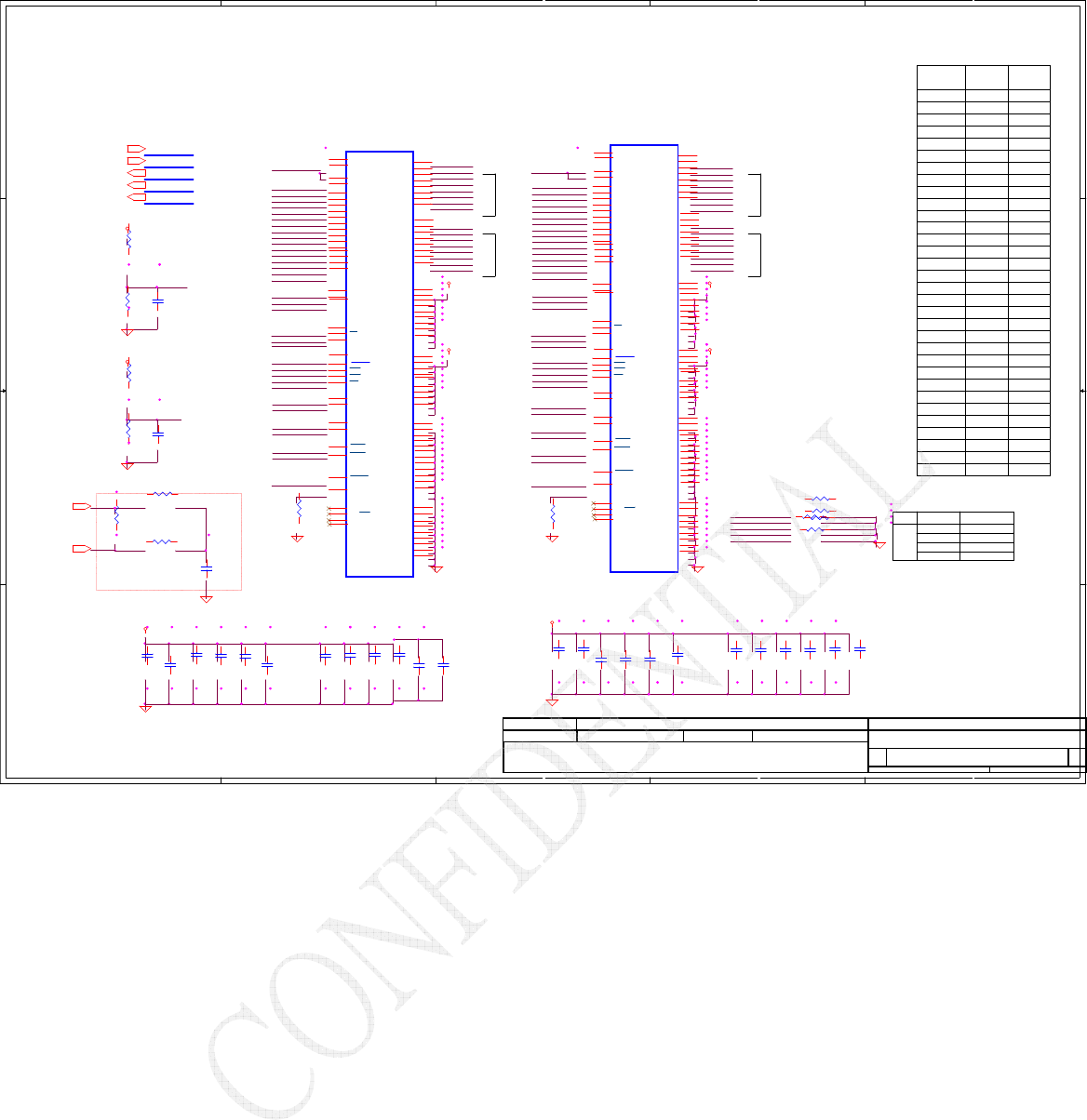

R76
10K_0402_5%
1
2
C172
10U_0603_6.3V6M
1
2
R77 10K_0402_5%
1
2
C171
10U_0603_6.3V6M
1
2
C178
0.1U_0402_10V6K
1
2
JDDRH
LCN_DAN06-K4926-0101
CONN@
VREF_DQ
1
VSS12
VSS2
3
DQ4 4
DQ0
5
DQ5 6
DQ1
7
VSS38
VSS4
9DQS#0 10
DM0
11
DQS012
VSS5
13
VSS614
DQ2
15
DQ6 16
DQ3
17
DQ7 18
VSS7
19
VSS820
DQ8
21
DQ1222
DQ9
23
DQ1324
VSS9
25
VSS10 26
DQS#1
27
DM1 28
DQS1
29
RESET# 30
VSS11
31
VSS12 32
DQ10
33
DQ1434
DQ11
35 DQ1536
VSS13
37
VSS14 38
DQ16
39
DQ2040
DQ17
41 DQ2142
VSS15
43
VSS16 44
DQS#2
45
DM2 46
DQS2
47 VSS17 48
VSS18
49
DQ2250
DQ18
51
DQ2352
DQ19
53
VSS19 54
VSS20
55
DQ2856
DQ24
57
DQ2958
DQ25
59
VSS21 60
VSS22
61
DQS#3 62
DM3
63
DQS364
VSS23
65
VSS24 66
DQ26
67
DQ3068
DQ27
69
DQ3170
VSS25
71
VSS26 72
A12/BC#
83 A11 84
A9
85
A786
VDD5
87
VDD688
A8
89A690
CKE0
73
CKE174
VDD1
75
VDD276
NC1
77A15 78
BA2
79
A14 80
VDD3
81
VDD482
A5
91
A4 92
VDD7
93
VDD894
A3
95
A296
A1
97
A098
VDD9
99
VDD10 100
CK0
101
CK1 102
CK0#
103
CK1#104
VDD11
105
VDD12 106
A10/AP
107
BA1 108
BA0
109
RAS#110
VDD13
111 VDD14 112
WE#
113
S0# 114
CAS#
115
ODT0116
VDD15
117 VDD16 118
A13
119
ODT1120
S1#
121
NC2 122
VDD17
123
VDD18 124
NCTEST
125
VREF_CA 126
VSS27
127
VSS28 128
DQ32
129
DQ36130
DQ33
131
DQ37132
VSS29
133
VSS30 134
DQS#4
135
DM4 136
DQS4
137 VSS31 138
VSS32
139
DQ38140
DQ34
141
DQ39142
DQ35
143 VSS33 144
VSS34
145
DQ44146
DQ40
147
DQ45148
DQ41
149
VSS35 150
VSS36
151
DQS#5 152
DM5
153
DQS5154
VSS37
155
VSS38 156
DQ42
157
DQ46158
DQ43
159
DQ47160
VSS39
161
VSS40 162
DQ48
163 DQ52164
DQ49
165
DQ53166
VSS41
167
VSS42 168
DQS#6
169 DM6 170
DQS6
171
VSS43 172
VSS44
173
DQ54174
DQ50
175
DQ55176
DQ51
177
VSS45 178
VSS46
179
DQ60180
DQ56
181
DQ61182
DQ57
183
VSS47 184
VSS48
185
DQS#7 186
DM7
187
DQS7188
VSS49
189
VSS50 190
DQ58
191
DQ62192
DQ59
193
DQ63194
VSS51
195 VSS52 196
SA0
197
EVENT# 198
VDDSPD
199
SDA 200
SA1
201
SCL 202
VTT1
203
VTT2204
G1
205
G2206
C173
10U_0603_6.3V6M
1
2
C177
0.1U_0402_10V6K
1
2
C180
0.1U_0402_10V6K
1
2
RD11
1K_0402_1%
1
2
CD51
0.1U_0402_10V6K
1
2
+
C141
330U 2V Y D2 LESR9M
1
2
C179
0.1U_0402_10V6K
1
2
C370
22U_0805_6.3V6M
1
2
C167
0.1U_0402_10V6K
1
2
C181
1U_0603_10V4Z
1
2
CD27
0.1U_0402_10V6K
1
2
C183
1U_0603_10V4Z
1
2
RD12
1K_0402_1%
1
2
RD13
1K_0402_1%
1
2
C182
1U_0603_10V4Z
1
2
C184
1U_0603_10V4Z
1
2
C185
2.2U_0603_6.3V4Z
1
2
C186
0.1U_0402_10V6K
1
2
CD48
10U_0603_6.3V6M
@
1
2
C175
10U_0603_6.3V6M
1
2
CD49
10U_0603_6.3V6M
@
1
2
CD28
2.2U_0603_6.3V4Z
1
2
C174
10U_0603_6.3V6M
1
2
RD10
1K_0402_1%
1
2
C168
2.2U_0603_6.3V4Z
1
2
C176
10U_0603_6.3V6M
1
2

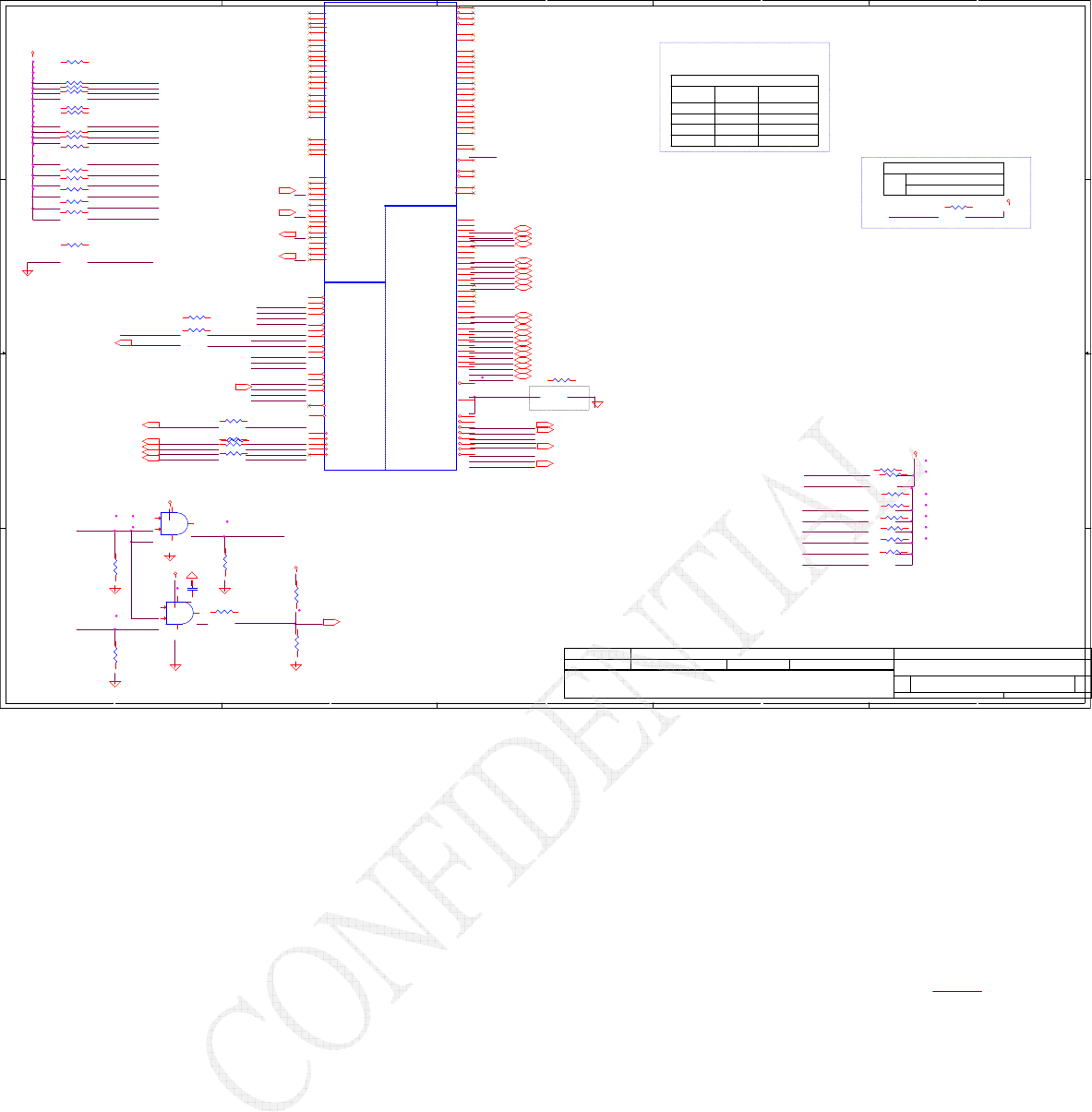

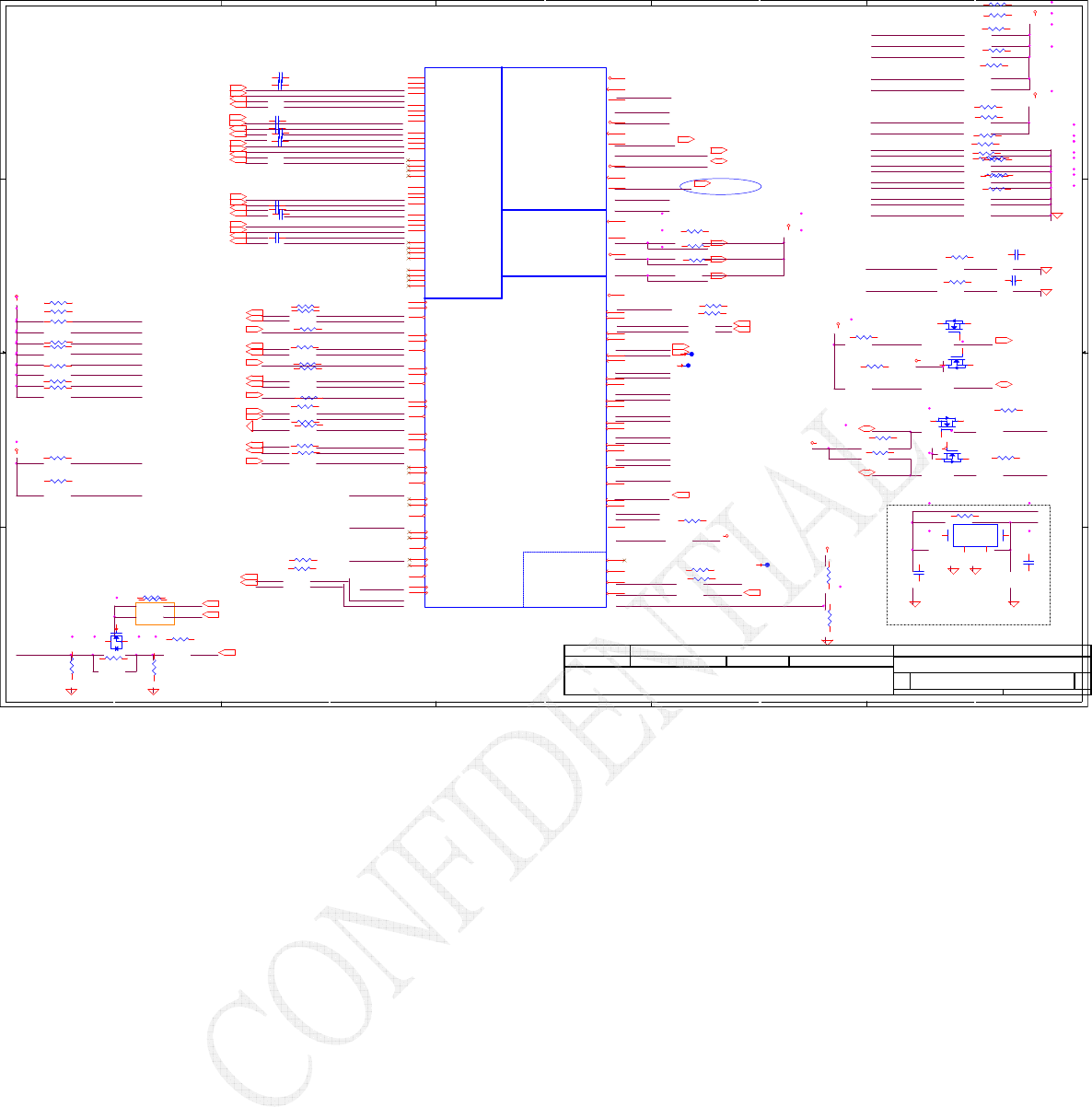

A
A
B
B
C
C
D
D
E
E

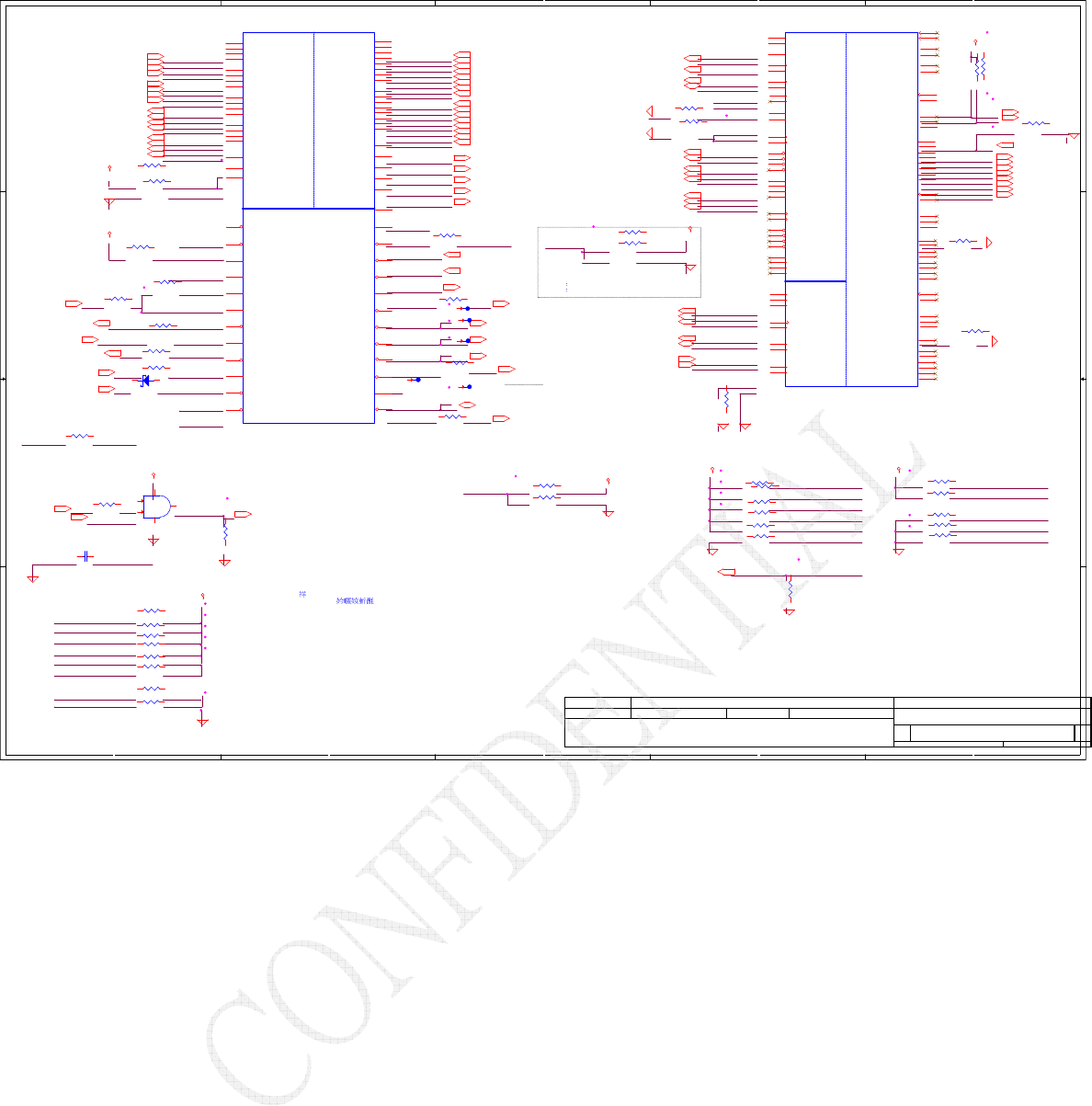

11
2
2
3
3
44
OVERT
GPIO0
GPIO5
GPIO1
GPIO2
GPIO3
GPIO4
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
O
I/O
I
O
I
GPIO I/O USAGE
HPD_AB
PWR_LEVEL
MEM_VREF_CTL
3D Vision
ALERT
GPU Core VID3
LCD_BL_PWM
LCD_VCC or PSI
LCD_BLEN
GPU Core VID1
GPU Core VID2




60mA
O
O
O
O
O
O
I/O
O
O
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
I
I
I
I
O
HPD_C
HPD_D
HPD_E
HPD_F
Reserved
Reserved
30R@100MHz(ESR=0.5)


SM010018510---
SM01000FE00--
SM010007W00--








90mA
GPU Core VID4
GPU Core VID0
GPU Core VID5
MEM_VDD_CTL or PSI
O


termination
RV36 default unmount
PEX_TERMP: used for internal calibration.
LV10 30ohm, ESR=0.05
LV18 180ohm, ESR=0.2
PFH: Pixel-Clock Frequency Hopping Interface.
PFH can be implemented in system software with
NVAPI to reduce interference between graphic
and wireless networking modems.
Refer to SP-04941-001
PCIE:80ohm+_10%
45~50ohm+_10%
PSI: Phase shedding
I2CA/B/C: Master
I2CS: Slaver (for Internal Thermal Sensor)
DG CV42CV44
XTALIN
XTAL_OUTBUFF
XTAL_SSIN
XTALOUT
I2CS_SCL
I2CS_SDA
XTALIN
XTALOUT XTALIN
I2CS_SCL
I2CB_SCL
I2CB_SDA
VGA_LCD_CLK
VGA_LCD_DATA
I2CS_SDA
PEX_TSTCLK_OUT-
PEX_TSTCLK_OUT+
PEX_TREMP
VID_1
VID_2
VID_3
GPS_DOWN#
+PLLVDD
VID_4
GPS_DOWN#
VID_5
VID_2
VID_3
VID_0
VID_4
VID_1
PCIE_CTX_C_GRX_N[0..15]
PCIE_CTX_C_GRX_P[0..15]
PCIE_GTX_C_CRX_P[0..15]
PCIE_GTX_C_CRX_N[0..15]
XTAL_OUTBUFF
XTAL_SSIN
+GPU_PLLVDD
VID_0
VID_5
VGA_CRT_DATA
VGA_CRT_CLK
I2CS_SCL
I2CS_SDA
VGA_CRT_DATA
VGA_CRT_CLK
VGA_LCD_DATA
VGA_LCD_CLK
I2CS_SDA
I2CS_SCL
I2CB_SDA
I2CB_SCL
PCIE_CTX_C_GRX_P1
PCIE_CTX_C_GRX_N1
PCIE_CTX_C_GRX_N9
PCIE_CTX_C_GRX_P9
PCIE_CTX_C_GRX_P2
PCIE_CTX_C_GRX_N2
PCIE_CTX_C_GRX_P10
PCIE_CTX_C_GRX_N10
PCIE_CTX_C_GRX_P3
PCIE_CTX_C_GRX_N3
PCIE_CTX_C_GRX_P11
PCIE_CTX_C_GRX_N11
PCIE_CTX_C_GRX_N4
PCIE_CTX_C_GRX_P4
PCIE_CTX_C_GRX_P12
PCIE_CTX_C_GRX_N12
PCIE_CTX_C_GRX_N5
PCIE_CTX_C_GRX_P5
PCIE_CTX_C_GRX_P8
PCIE_CTX_C_GRX_N8
PCIE_CTX_C_GRX_P13
PCIE_CTX_C_GRX_N13
PCIE_CTX_C_GRX_P6
PCIE_CTX_C_GRX_N6
PCIE_CTX_C_GRX_P14
PCIE_CTX_C_GRX_N14
PCIE_CTX_C_GRX_N7
PCIE_CTX_C_GRX_P7
PCIE_CTX_C_GRX_N15
PCIE_CTX_C_GRX_P15
PCIE_CTX_C_GRX_P0
PCIE_CTX_C_GRX_N0
PCIE_GTX_CRX_P2
PCIE_GTX_CRX_N2
PCIE_GTX_C_CRX_P2
PCIE_GTX_C_CRX_N2
PCIE_GTX_CRX_P5
PCIE_GTX_CRX_N5
PCIE_GTX_C_CRX_P5
PCIE_GTX_C_CRX_N5
PCIE_GTX_CRX_P1
PCIE_GTX_CRX_N1
PCIE_GTX_C_CRX_P1
PCIE_GTX_C_CRX_N1
PCIE_GTX_CRX_P4
PCIE_GTX_CRX_N4
PCIE_GTX_C_CRX_P4
PCIE_GTX_C_CRX_N4
PCIE_GTX_CRX_P8
PCIE_GTX_CRX_N8
PCIE_GTX_C_CRX_P8
PCIE_GTX_C_CRX_N8
PCIE_GTX_CRX_P6
PCIE_GTX_CRX_N6
PCIE_GTX_C_CRX_P6
PCIE_GTX_C_CRX_N6
PCIE_GTX_CRX_P12
PCIE_GTX_CRX_N12
PCIE_GTX_C_CRX_P12
PCIE_GTX_C_CRX_N12
PCIE_GTX_CRX_P7
PCIE_GTX_CRX_N7
PCIE_GTX_C_CRX_P7
PCIE_GTX_C_CRX_N7
PCIE_GTX_CRX_P10
PCIE_GTX_CRX_N10
PCIE_GTX_C_CRX_P10
PCIE_GTX_C_CRX_N10
PCIE_GTX_CRX_P9
PCIE_GTX_CRX_N9
PCIE_GTX_C_CRX_P9
PCIE_GTX_C_CRX_N9
PCIE_GTX_CRX_P14
PCIE_GTX_CRX_N14
PCIE_GTX_C_CRX_P14
PCIE_GTX_C_CRX_N14
PCIE_GTX_CRX_P15
PCIE_GTX_CRX_N15
PCIE_GTX_C_CRX_P15
PCIE_GTX_C_CRX_N15
PCIE_GTX_CRX_P0
PCIE_GTX_CRX_N0
PCIE_GTX_C_CRX_P0
PCIE_GTX_C_CRX_N0
PCIE_GTX_CRX_P13
PCIE_GTX_CRX_N13
PCIE_GTX_C_CRX_P13
PCIE_GTX_C_CRX_N13
PCIE_GTX_CRX_P3
PCIE_GTX_CRX_N3
PCIE_GTX_C_CRX_P3
PCIE_GTX_C_CRX_N3
PCIE_GTX_CRX_N11
PCIE_GTX_CRX_P11
PCIE_GTX_C_CRX_P11
PCIE_GTX_C_CRX_N11
PEG_CLKREQ#<26>
ACIN <27,41,48>
PLTRST_VGA#<28>
GPU_VID3 <57>
GPU_VID4 <57>
GPU_VID5 <57>
GPU_VID1 <57>
GPU_VID2 <57>
GPU_VID0 <57>
PCIE_GTX_C_CRX_P[0..15]<5>
PCIE_GTX_C_CRX_N[0..15]<5>
PCIE_CTX_C_GRX_P[0..15]<5>
PCIE_CTX_C_GRX_N[0..15]<5>
EC_SMB_CK2 <26,41>
EC_SMB_DA2 <26,41>
CLK_PCIE_VGA#<26>
CLK_PCIE_VGA<26>
EC_GPS_DOWN# <41>
PWR_GPS_DOWN# <41,57>
+PLLVDD
+GPU_PLLVDD
+GPU_PLLVDD
+PLLVDD
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+1.05VS_DGPU
+1.05VS_DGPU
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
13 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
13 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
13 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
CV311
4.7U_0402_6.3V6M
OPT@
C27 0.1U_0402_16V7KOPT@
1
2
RV169 0_0402_5%OPT@
12
UV2
TC7SH08FU(TE85L,F)@
IN1 1
IN2 2
G
3
O
4
P5
RV46 2.2K_0402_5%OPT@
RV29 10K_0402_5%OPT@
RV41 2.2K_0402_5%OPT@
C23 0.1U_0402_16V7KOPT@
1
2
RV165 0_0402_5%OPT@
1
2
C16 0.1U_0402_16V7KOPT@
1
2
RV52 10K_0402_5%OPT@
12
C18 0.1U_0402_16V7KOPT@
1
2
RV42 2.2K_0402_5%OPT@
RV38 2.2K_0402_5%OPT@
C17 0.1U_0402_16V7KOPT@
12
RV37 2.49K_0402_1%OPT@
C22 0.1U_0402_16V7KOPT@
1
2
RV35 0_0402_5%@
CV43
22U_0805_6.3V6M
OPT@
C34 0.1U_0402_16V7KOPT@
1
2
CV40
0.1U_0402_16V4Z
OPT@
CV47
10P_0402_50V8J
OPT@
RV17410K_0402_5%
OPT@
1
2
C47 0.1U_0402_16V7KOPT@
1
2
RH172
10K_0402_5%
OPT@
1
2
RV472.2K_0402_5%OPT@
C31 0.1U_0402_16V7KOPT@
12
CV38
0.1U_0402_16V4Z
OPT@
C19 0.1U_0402_16V7KOPT@
12
LV10
BLM18PG330SN1D_0603
OPT@
12
RH168 330K_0402_5%OPT@
R268 0_0402_5%OPT@
1
2
RV55 1M_0402_5%
@
Crystal
YV1
27MHZ_10PF_7V27000050
OPT@
IN
1
OUT 3
GND 2
GND
4
C21 0.1U_0402_16V7KOPT@
1
2
RV162 10K_0402_5%
@
1
2
C226 0.1U_0402_16V7KOPT@
1
2
C48 0.1U_0402_16V7KOPT@
1
2
QV6A
DMN66D0LDW-7_SOT363-6
OPT@
6
1
2
RV170 0_0402_5%OPT@
1
2
QV6B
OPT@
3
4
5
RV40
0_0402_5%
@
C30 0.1U_0402_16V7KOPT@
12
RV17210K_0402_5%
OPT@
1
2
C33 0.1U_0402_16V7KOPT@
1
2
CV44
22U_0805_6.3V6M
OPT@
C26 0.1U_0402_16V7KOPT@
12
C24 0.1U_0402_16V7KOPT@
1
2
C38 0.1U_0402_16V7KOPT@
12
RV43 2.2K_0402_5%OPT@
RV164 10K_0402_5%
OPT@
1
2
C36 0.1U_0402_16V7KOPT@
12
RV167 0_0402_5%OPT@
1
2
R270
0_0402_5%
@
1
2
RV168 0_0402_5%OPT@
12
C213 0.1U_0402_16V7KOPT@
12
C25 0.1U_0402_16V7KOPT@
12
RV48 10K_0402_5%
OPT@
1
2
RV30 10K_0402_5%OPT@
C46 0.1U_0402_16V7KOPT@
1
2
RV166 0_0402_5%OPT@
1
2
PCI EXPRESS
CLK
Part 1 of 7
DACs
I2C
GPIO
UV1A
N13P-GLP-A1 FCBGA 908P GPU
OPT@
PEX_RX0
AN12
PEX_RX0_N
AM12
PEX_RX1
AN14
PEX_RX1_N
AM14
PEX_RX2
AP14
PEX_RX2_N
AP15
PEX_RX3
AN15
PEX_RX3_N
AM15
PEX_RX4
AN17
PEX_RX4_N
AM17
PEX_RX5
AP17
PEX_RX5_N
AP18
PEX_RX6
AN18
PEX_RX6_N
AM18
PEX_RX7
AN20
PEX_RX7_N
AM20
PEX_RX8
AP20
PEX_RX8_N
AP21
PEX_RX9
AN21
PEX_RX9_N
AM21
PEX_RX10
AN23
PEX_RX10_N
AM23
PEX_RX11
AP23
PEX_RX11_N
AP24
PEX_RX12
AN24
PEX_RX12_N
AM24
PEX_RX13
AN26
PEX_RX13_N
AM26
PEX_RX14
AP26
PEX_RX14_N
AP27
PEX_RX15
AN27
PEX_RX15_N
AM27
PEX_TX0
AK14
PEX_TX0_N
AJ14
PEX_TX1
AH14
PEX_TX1_N
AG14
PEX_TX2
AK15
PEX_TX2_N
AJ15
PEX_TX3
AL16
PEX_TX3_N
AK16
PEX_TX4
AK17
PEX_TX4_N
AJ17
PEX_TX5
AH17
PEX_TX5_N
AG17
PEX_TX6
AK18
PEX_TX6_N
AJ18
PEX_TX7
AL19
PEX_TX7_N
AK19
PEX_TX8
AK20
PEX_TX8_N
AJ20
PEX_TX9
AH20
PEX_TX9_N
AG20
PEX_TX10
AK21
PEX_TX10_N
AJ21
PEX_TX11
AL22
PEX_TX11_N
AK22
PEX_TX12
AK23
PEX_TX12_N
AJ23
PEX_TX13
AH23
PEX_TX13_N
AG23
PEX_TX14
AK24
PEX_TX14_N
AJ24
PEX_TX15
AL25
PEX_TX15_N
AK25
PEX_REFCLK
AL13
PEX_REFCLK_N
AK13
PEX_RST_N
AJ12
PEX_TSTCLK_OUT
AJ26
PEX_TSTCLK_OUT_N
AK26
PEX_TERMP
AP29
PEX_CLKREQ_N
AK12
PEX_WAKE_N
AJ11
GPIO0 P6
GPIO1 M3
GPIO2 L6
GPIO3 P5
GPIO4 P7
GPIO5 L7
GPIO6 M7
GPIO7 N8
GPIO8 M1
GPIO9 M2
GPIO10 L1
GPIO11 M5
GPIO12 N3
GPIO13 M4
GPIO14 N4
GPIO15 P2
GPIO16 R8
GPIO17 M6
GPIO18 R1
GPIO19 P3
GPIO20 P4
GPIO21 P1
I2CS_SCL T4
I2CS_SDA T3
I2CC_SCL R2
I2CC_SDA R3
I2CB_SCL R7
I2CB_SDA R6
I2CA_SCL R4
I2CA_SDA R5
DACA_HSYNC AM9
DACA_VSYNC AN9
DACA_RED AK9
DACA_GREEN AL10
DACA_BLUE AL9
DACA_VDD AG10
DACA_VREF AP9
DACA_RSET AP8
PLLVDD AD8
SP_PLLVDD AE8
VID_PLLVDD AD7
XTAL_SSIN H1
XTAL_IN H3
XTAL_OUTBUFF J4
XTAL_OUT H2
RV45 10K_0402_5%OPT@
1
2
C35 0.1U_0402_16V7KOPT@
1
2
C45 0.1U_0402_16V7KOPT@
1
2
RV17510K_0402_5%
@
1
2
C39 0.1U_0402_16V7KOPT@
12
RV161 10K_0402_5%
@
1
2
RV17610K_0402_5%
@
1
2
LV18
BLM18PG181SN1D_2P
OPT@
12
RV159 10K_0402_5%
@
1
2
C116 0.1U_0402_16V7KOPT@
12
C37 0.1U_0402_16V7KOPT@
12
RV17310K_0402_5%
OPT@
1
2
C40 0.1U_0402_16V7KOPT@
12
CV46
10P_0402_50V8J
OPT@
DV6
CH751H-40PT_SOD323-2
@
21
RV442.2K_0402_5%OPT@
RV36 200_0402_1%@
CV310
22U_0805_6.3V6M
OPT@
C20 0.1U_0402_16V7KOPT@
1
2
C28 0.1U_0402_16V7KOPT@
12
R2660_0402_5%
@
1
2
RV163 10K_0402_5%
OPT@
1
2
RV39 2.2K_0402_5%OPT@
CV42
4.7U_0402_6.3V6M
@
RV17110K_0402_5%
OPT@
1
2
CV41
0.1U_0402_16V4Z
OPT@
C32 0.1U_0402_16V7KOPT@
1
2
RV160 10K_0402_5%
@
1
2
C29 0.1U_0402_16V7KOPT@
1
2
R2670_0402_5%
@
1
2
A
A
1
1
VRAM Interface
300mA
CV48 Under GPU
close to ball : H17
66mA35mA
CV49 Under GPU
close to ball : U27
CV50 Under GPU
close to ball : K27
30ohm@100M // ESR=0.01
SM01000EQ00--
SM010031100--
66mA
RV57, RV58, RV59, RV60 change BS from
"OPT@" to "@".--Design Guide. Joyce 1018
FBB_PLL_AVDD Design Guide:
100nF X7R 0402 1pcs per pin under GPU
22uF X5R 0805 1pcs per pin Near GPU
bead--30ohm@100MHz (ESR=0.01ohm) 0603 1pcs Near GPU
FB_CLAMP:
Leave as NC for N13P-PES/-GL/-GLP/-NS1
and N13M-GE1/NS1;
Pull down with a 10K on N13P-GV, N13M-GS,
N13E-GE,N13P-GT/-GS/-LP and N14-Q1/-Q3.
MDA[63..48]
MDA[15..0]
MDA[31..16]
MDA[47..32]
CMDA27
CMDA8
CMDA21
MDA56
MDA62
MDA63
MDA59
MDA61
MDA58
MDA60
MDA45
MDA57
MDA44
MDA40
MDA47
MDA41
MDA46
MDA42
MDA33
MDA35
MDA43
MDA28
MDA38
MDA37
MDA34
MDA39
MDA36
MDA20
MDA23
MDA30
MDA31
MDA32
MDA21
MDA25
MDA22
MDA26
MDA24
MDA29
MDA2
MDA15
MDA13
MDA27
MDA0
MDA18
MDA9
MDA8
MDA12
MDA1
MDA3
MDA16
MDA11
MDA10
MDA5
MDA7
MDA14
MDA19
MDA6
MDA17
MDA4
MDA50
MDA54
MDA55
MDA48
MDA49
MDA52
MDA53
MDA51
CMDA15
CMDA2
CMDA9
CMDA22
CMDA16
CMDA3
CMDA28
CMDA10
CMDA23
CMDA17
CMDA4
CMDA11
CMDA24
CMDA29
CMDA5
CMDA18
CMDA0
CMDA12
CMDA25
CMDA6
CMDA19
CMDA30
CMDA13
CMDA26
CMDA7
CMDA20
CMDA14
CMDA1
+FB_PLLAVDD
MDC0
MDC1
MDC2
MDC56
MDC62
MDC63
MDC59
MDC61
MDC58
MDC60
MDC45
MDC57
MDC44
MDC40
MDC47
MDC41
MDC46
MDC42
MDC33
MDC35
MDC43
MDC28
MDC38
MDC37
MDC34
MDC39
MDC36
MDC20
MDC23
MDC30
MDC31
MDC32
MDC21
MDC25
MDC22
MDC26
MDC24
MDC29
MDC15
MDC13
MDC27
MDC18
MDC9
MDC8
MDC12
MDC3
MDC16
MDC11
MDC10
MDC5
MDC7
MDC14
MDC19
MDC6
MDC17
MDC4
MDC50
MDC54
MDC55
MDC48
MDC49
MDC52
MDC53
MDC51
MDC[63..48]
MDC[15..0]
MDC[31..16]
MDC[47..32]
CMDC27
CMDC8
CMDC21
CMDC15
CMDC2
CMDC9
CMDC22
CMDC16
CMDC3
CMDC28
CMDC10
CMDC23
CMDC17
CMDC4
CMDC11
CMDC24
CMDC29
CMDC5
CMDC18
CMDC0
CMDC12
CMDC25
CMDC6
CMDC19
CMDC30
CMDC13
CMDC26
CMDC7
CMDC20
CMDC14
CMDC1
DQMA0
DQMA1
DQMA2DQMA2
DQMA3
DQMA4DQMA4
DQMA5
DQMA6
DQMA7
DQSA3
DQSA2
DQSA1
DQSA0
DQSA4
DQSA5
DQSA6
DQSA7
DQSA#0
DQSA#1
DQSA#3
DQSA#2
DQSA#4
DQSA#5
DQSA#6
DQSA#7
DQSC#5
DQSC#0
DQSC#1
DQSC#3
DQSC#2
DQSC#4
DQSC#6
DQSC#7
DQMC0
DQMC1
DQMC2
DQMC3
DQMC4
DQMC5
DQMC6
DQMC7
DQSC0
DQSC1
DQSC3
DQSC2
DQSC4
DQSC5
DQSC6
DQSC7
FBA_DEBUG0
FBB_DEBUG0
FBB_DEBUG1
FBA_DEBUG1
+FB_PLLAVDD
MDA[15..0]<18>
MDA[63..48]<19>
MDA[47..32]<19>
MDA[31..16]<18>
CMDA[30..0] <18,19>
MDC[15..0]<20>
MDC[63..48]<21>
MDC[47..32]<21>
MDC[31..16]<20>
CLKC0 <20>
CLKC0# <20>
CLKC1 <21>
CLKC1# <21>
CLKA1 <19>
CLKA1# <19>
CLKA0 <18>
CLKA0# <18>
CMDC[30..0] <20,21>
DQMA[3..0]<18>
DQMA[7..4]<19>
DQSA[3..0]<18>
DQSA[7..4]<19>
DQSA#[3..0]<18>
DQSA#[7..4]<19>
DQSC#[3..0]<20>
DQSC#[7..4]<21>
DQMC[3..0]<20>
DQMC[7..4]<21>
DQSC[3..0]<20>
DQSC[7..4]<21>
+FB_PLLAVDD
+FB_PLLAVDD
+FB_PLLAVDD
+FB_PLLAVDD
+1.05VS_DGPU
+1.5VSDGPU
+1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
14 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
14 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
14 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
RV59 60.4_0402_1%@
1
2
MEMORY INTERFACE
A
Part 2 of 7
UV1B
N13P-GLP-A1 FCBGA 908P GPU
OPT@
FBA_D0
L28
FBA_D1
M29
FBA_D2
L29
FBA_D3
M28
FBA_D4
N31
FBA_D5
P29
FBA_D6
R29
FBA_D7
P28
FBA_D8
J28
FBA_D9
H29
FBA_D10
J29
FBA_D11
H28
FBA_D12
G29
FBA_D13
E31
FBA_D14
E32
FBA_D15
F30
FBA_D16
C34
FBA_D17
D32
FBA_D18
B33
FBA_D19
C33
FBA_D20
F33
FBA_D21
F32
FBA_D22
H33
FBA_D23
H32
FBA_D24
P34
FBA_D25
P32
FBA_D26
P31
FBA_D27
P33
FBA_D28
L31
FBA_D29
L34
FBA_D30
L32
FBA_D31
L33
FBA_D32
AG28
FBA_D33
AF29
FBA_D34
AG29
FBA_D35
AF28
FBA_D36
AD30
FBA_D37
AD29
FBA_D38
AC29
FBA_D39
AD28
FBA_D40
AJ29
FBA_D41
AK29
FBA_D42
AJ30
FBA_D43
AK28
FBA_D44
AM29
FBA_D45
AM31
FBA_D46
AN29
FBA_D47
AM30
FBA_D48
AN31
FBA_D49
AN32
FBA_D50
AP30
FBA_D51
AP32
FBA_D52
AM33
FBA_D53
AL31
FBA_D54
AK33
FBA_D55
AK32
FBA_D56
AD34
FBA_D57
AD32
FBA_D58
AC30
FBA_D59
AD33
FBA_D60
AF31
FBA_D61
AG34
FBA_D62
AG32
FBA_D63
AG33
FBA_CMD3 R34
FBA_CMD8 V28
FBA_CMD2 U29
FBA_CMD21 AA32
FBA_CMD24 Y29
FBA_CMD23 Y28
FBA_CMD26 Y30
FBA_CMD7 U28
FBA_CMD15 Y32
FBA_CMD13 V34
FBA_CMD4 R33
FBA_CMD18 AA28
FBA_CMD29 Y34
FBA_CMD27 AA34
FBA_CMD6 U33
FBA_CMD17 AA29
FBA_CMD19 AC34
FBA_CMD22 AA33
FBA_CMD12 U31
FBA_CMD28 Y31
FBA_CMD10 V30
FBA_CMD25 W31
FBA_CMD9 V29
FBA_CMD1 T31
FBA_CMD11 U34
FBA_CMD0 U30
FBA_CMD5 U32
FBA_DQM0
P30
FBA_DQM1
F31
FBA_DQM2
F34
FBA_DQM3
M32
FBA_DQM4
AD31
FBA_DQM5
AL29
FBA_DQM6
AM32
FBA_DQM7
AF34
FBA_DQS_RN0
M30
FBA_DQS_RN1
H30
FBA_DQS_RN2
E34
FBA_DQS_RN3
M34
FBA_DQS_RN4
AF30
FBA_DQS_RN5
AK31
FBA_DQS_RN6
AM34
FBA_DQS_RN7
AF32
FBA_DQS_WP0
M31
FBA_DQS_WP1
G31
FBA_DQS_WP2
E33
FBA_DQS_WP3
M33
FBA_DQS_WP4
AE31
FBA_DQS_WP5
AK30
FBA_DQS_WP6
AN33
FBA_DQS_WP7
AF33
FBA_CMD16 AA31
FBA_CMD20 AC33
FBA_CMD14 V33
FBA_CMD30 Y33
FBA_CMD31 V31
FBA_CLK0_N R31
FBA_WCK45_N AG31
FBA_CLK0 R30
FBA_WCK67 AJ34
FBA_WCK23 H34
FBA_WCK01_N L30
FBA_WCK01 K31
FBA_WCK67_N AK34
FBA_WCK23_N J34
FBA_CLK1_N AC31
FBA_WCK45 AG30
FBA_CLK1 AB31
FBA_WCKB01 J30
FBA_WCKB01_N J31
FBA_WCKB23 J32
FBA_WCKB23_N J33
FBA_WCKB45 AH31
FBA_WCKB45_N AJ31
FBA_WCKB67 AJ32
FBA_WCKB67_N AJ33
FBA_PLL_AVDD U27
FBA_CMD_RFU0 R32
FBA_CMD_RFU1 AC32
FB_VREF H26
FB_CLAMP E1
FB_DLL_AVDD K27
FBA_DEBUG0 R28
FBA_DEBUG1 AC28
CV51
1U_0402_6.3V6K
OPT@
CV52
22U_0805_6.3V6M
OPT@
1
2
RV152
10K_0402_5%
@
RV60 60.4_0402_1%@
1
2
LV11
MPZ1608S300AT 0603
OPT@
12
CV49
0.1U_0402_16V4Z
OPT@
MEMORY INTERFACE B
Part 3 of 7
UV1C
N13P-GLP-A1 FCBGA 908P GPU
OPT@
FBB_D0
G9
FBB_D1
E9
FBB_D2
G8
FBB_D3
F9
FBB_D4
F11
FBB_D5
G11
FBB_D6
F12
FBB_D7
G12
FBB_D8
G6
FBB_D9
F5
FBB_D10
E6
FBB_D11
F6
FBB_D12
F4
FBB_D13
G4
FBB_D14
E2
FBB_D15
F3
FBB_D16
C2
FBB_D17
D4
FBB_D18
D3
FBB_D19
C1
FBB_D20
B3
FBB_D21
C4
FBB_D22
B5
FBB_D23
C5
FBB_D24
A11
FBB_D25
C11
FBB_D26
D11
FBB_D27
B11
FBB_D28
D8
FBB_D29
A8
FBB_D30
C8
FBB_D31
B8
FBB_D32
F24
FBB_D33
G23
FBB_D34
E24
FBB_D35
G24
FBB_D36
D21
FBB_D37
E21
FBB_D38
G21
FBB_D39
F21
FBB_D40
G27
FBB_D41
D27
FBB_D42
G26
FBB_D43
E27
FBB_D44
E29
FBB_D45
F29
FBB_D46
E30
FBB_D47
D30
FBB_D48
A32
FBB_D49
C31
FBB_D50
C32
FBB_D51
B32
FBB_D52
D29
FBB_D53
A29
FBB_D54
C29
FBB_D55
B29
FBB_D56
B21
FBB_D57
C23
FBB_D58
A21
FBB_D59
C21
FBB_D60
B24
FBB_D61
C24
FBB_D62
B26
FBB_D63
C26
FBB_DQM0
E11
FBB_DQM1
E3
FBB_DQM2
A3
FBB_DQM3
C9
FBB_DQM4
F23
FBB_DQM5
F27
FBB_DQM6
C30
FBB_DQM7
A24
FBB_DQS_WP0
D10
FBB_DQS_WP1
D5
FBB_DQS_WP2
C3
FBB_DQS_WP3
B9
FBB_DQS_WP4
E23
FBB_DQS_WP5
E28
FBB_DQS_WP6
B30
FBB_DQS_WP7
A23
FBB_DQS_RN0
D9
FBB_DQS_RN1
E4
FBB_DQS_RN2
B2
FBB_DQS_RN3
A9
FBB_DQS_RN4
D22
FBB_DQS_RN5
D28
FBB_DQS_RN6
A30
FBB_DQS_RN7
B23
FBB_CMD0 D13
FBB_CMD1 E14
FBB_CMD2 F14
FBB_CMD3 A12
FBB_CMD4 B12
FBB_CMD5 C14
FBB_CMD6 B14
FBB_CMD7 G15
FBB_CMD8 F15
FBB_CMD9 E15
FBB_CMD10 D15
FBB_CMD11 A14
FBB_CMD12 D14
FBB_CMD13 A15
FBB_CMD14 B15
FBB_CMD15 C17
FBB_CMD16 D18
FBB_CMD17 E18
FBB_CMD18 F18
FBB_CMD19 A20
FBB_CMD20 B20
FBB_CMD21 C18
FBB_CMD22 B18
FBB_CMD23 G18
FBB_CMD24 G17
FBB_CMD25 F17
FBB_CMD26 D16
FBB_CMD27 A18
FBB_CMD28 D17
FBB_CMD29 A17
FBB_CMD30 B17
FBB_CMD31 E17
FBB_CMD_RFU0 C12
FBB_CMD_RFU1 C20
FBB_DEBUG0 G14
FBB_DEBUG1 G20
FBB_CLK0 D12
FBB_CLK0_N E12
FBB_CLK1 E20
FBB_CLK1_N F20
FBB_WCK01 F8
FBB_WCK01_N E8
FBB_WCK23 A5
FBB_WCK23_N A6
FBB_WCK45 D24
FBB_WCK45_N D25
FBB_WCK67 B27
FBB_WCK67_N C27
FBB_WCKB01 D6
FBB_WCKB01_N D7
FBB_WCKB23 C6
FBB_WCKB23_N B6
FBB_WCKB45 F26
FBB_WCKB45_N E26
FBB_WCKB67 A26
FBB_WCKB67_N A27
FBB_PLL_AVDD H17
CV50
0.1U_0402_16V4Z
OPT@
RV57 60.4_0402_1%@
1
2
RV58 60.4_0402_1%@
1
2
CV48
0.1U_0402_16V4Z
OPT@
CV53
1U_0402_6.3V6K
OPT@
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
Straps
MULTI LEVEL STRAPS
RV64
PU 45K
RV64
PU 45K
RV64
PU 45K
RV73
PD 45K
RV73
PD 45K
RV73
PD 45K
RV70
PD 30K
RV73
PD 45K
RV64
PU 45K
900 MHz
900 MHz
64M* 16* 8
1GB
64M* 16* 8
1GB
ROM_SIstrap2strap1strap0 ROM_SCLKROM_SO
128M* 16* 8
2GB
128M* 16* 8
2GB
Memory SizeFrenq. strap4strap3GPU
For N13P-GLP strap table
Samsung
SA000047Q00
Memory Config
Samsung
SA00004GS00
Hynix
SA000041S20
Hynix
SA00003YO00
RV77
PD 15K
RV77
PD 20K
RV77
PD 35K
RV77
PD 45K
900 MHz
900 MHz
NC
N13P-GLP
RV74
PU 5K
RV71
PD 15K
X76-
For N13P-PES :
Strap 0 : PU45
Strap 1 : PD35
Strap 2 : PU35
ROM_SCLK : PU15
ROM_SI : PD35
ROM_SO : PD10
DG: RV88 for XOR tree testing. --Joyce 1026
ROM support: 512Kbit or greater, up to 50MHz.
CEC: Place a 10K pull up resistor to 3.3V on
N13P-PES/-GL/-GLP/-NS1 and N13M-NS1
Logical
Strapping Bit3
Physical
strapping pin
ROM_SCLK
ROM_SI
ROM_SO
STRAP0
STRAP1
STRAP2
STRAP3
STRAP4
Logical
Strapping Bit2
Logical
Strapping Bit1
Logical
Strapping Bit0
PCI_DEVID[4] SUB_VENDOR SLOT_CLK_CFG PEX_PLL_EN_TERM
RAM_CFG[3]
FB [1]
USER [3]
3GIO_PAD_CFG_ADR[3]
PCI-DEVID [3]
SOR3_EXPOSED
RESERVED PCIE_SPEED_
CHANGE_GEN3
SMB_ALT_ADDR
3GIO_PAD_CFG_ADR[2] 3GIO_PAD_CFG_ADR[1] 3GIO_PAD_CFG_ADR[0]
RAM_CFG[2] RAM_CFG[1] RAM_CFG[0]
FB [0] VGA_DEVICE
USER [2] USER [1] USER [0]
PCI-DEVID [2] PCI-DEVID [1] PCI-DEVID [0]
SOR2_EXPOSED SOR1_EXPOSED SOR0_EXPOSED
PCIE_MAX_SPEED DP_PLL_VDD33V
Resistor
Values
Pull up
to 3V
Pull down
to GND
5K
10K
15K
20K
25K
30K
35K
45K
1000 0000
1001 0001
1010 0010
1011 0011
1100 0100
1101 0101
1110 0110
1111 0111
SUB_VENDOR
0
1
No VBIOS ROM
BIOS ROM is present (Default)
0
1
FB [1:0]: N13x FB Aperture Size
RESERVED
256 MB (Default)
RESERVED
2
3 RESERVED
USER Straps
1111
others: DG-05587 Page195
EDID is used
3GIO_PAD_CFG
0000--0101 RESERVED
0110 Notebook (default)
0111--1111 RESERVED
PEX_PLL_EN_TERM:
PLL termination setting
0
1 Enable
Disable (Default)
PCIE_MAX_SPEED
0
1
Limited to PCIE GEN 1
PCIE GEN 2/3 capable
RV70
PD 30K
RV70
PD 30K
RV70
PD 30K
RV71
PD 15K
RV71
PD 15K
RV71
PD 15K
RV74
PU 5K
RV74
PU 5K
RV74
PU 5K
NC
NC
NC
NC
NC
NC
NC
ROM_SCLK
ROM_SI
STRAP0
ROM_SO
STRAP2
STRAP1
ROM_SCLK
ROM_CS#
ROM_SO
ROM_SI
JTAG_TDI
JTAG_TDO
JTAG_TRST
JTAG_TMS
JTAG_TCK
STRAP3
STRAP4
STRAP0
STRAP1
STRAP2
MULTI_STRAP_REF0_GND
STRAP3
STRAP4
VCCSENSE_VGA <57>
VSSSENSE_VGA <57>
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
+3VS_DGPU
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
15 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
15 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
15 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
RV87 40.2K_0402_1%OPT@
1
2
RV70
4.99K_0402_1%
@
1
2
TV5
PAD @
RV72
4.99K_0402_1%
@
1
2
RV82 10K_0402_5%OPT@
RV64
45.3K_0402_1%
1
2
Part 4 of 7
LVDS/TMDS
NC
GENERAL
SERIAL
TEST
UV1D
N13P-GLP-A1 FCBGA 908P GPU
OPT@
IFPA_TXC_N
AN6
IFPA_TXC
AM6
NCP8
NCAC6
NCAJ28
NCAJ4
NC AJ5
NCAL11
NCC15
NCD19
NCD20
NC D23
NCD26
NCH31
NCT8
IFPA_TXD0
AP3
IFPA_TXD0_N
AN3
IFPA_TXD1
AN5
IFPA_TXD1_N
AM5
IFPA_TXD2
AL6
IFPA_TXD2_N
AK6
IFPA_TXD3
AJ6
IFPA_TXD3_N
AH6
IFPB_TXC
AJ9
IFPB_TXC_N
AH9
IFPB_TXD4
AP6
IFPB_TXD4_N
AP5
IFPB_TXD5
AM7
IFPB_TXD5_N
AL7
IFPB_TXD6
AN8
IFPB_TXD6_N
AM8
IFPB_TXD7
AK8
IFPB_TXD7_N
AL8
IFPC_L0
AK1
IFPC_L0_N
AJ1
IFPC_L1
AJ3
IFPC_L1_N
AJ2
IFPC_L2
AH3
IFPC_L2_N
AH4
IFPC_L3
AG5
IFPC_L3_N
AG4
IFPD_L0
AM1
IFPD_L0_N
AM2
IFPD_L1
AM3
IFPD_L1_N
AM4
NCV32
IFPD_L2_N
AL4
IFPD_L3_N
AK5
IFPD_L2
AL3
IFPD_L3
AK4
IFPE_L0
AD2
IFPE_L0_N
AD3
IFPE_L1
AD1
IFPE_L1_N
AC1
IFPE_L2
AC2
IFPE_L2_N
AC3
IFPE_L3
AC4
IFPE_L3_N
AC5
IFPF_L0
AE3
IFPF_L0_N
AE4
IFPF_L1
AF4
IFPF_L1_N
AF5
IFPF_L2
AD4
IFPF_L2_N
AD5
IFPF_L3
AG1
IFPF_L3_N
AF1
STRAP0 J2
STRAP1 J7
STRAP2 J6
CECL3
THERMDP K3
THERMDN K4
ROM_CS_N H6
ROM_SI H5
ROM_SO H7
ROM_SCLK H4
IFPF_AUX_I2CZ_SCL
AF3
IFPF_AUX_I2CZ_SDA_N
AF2
IFPE_AUX_I2CY_SCL
AB3
IFPE_AUX_I2CY_SDA_N
AB4
IFPD_AUX_I2CX_SCL
AK3
IFPD_AUX_I2CX_SDA_N
AK2
IFPC_AUX_I2CW_SCL
AG3
IFPC_AUX_I2CW_SDA_N
AG2
VDD_SENSE L4
GND_SENSE L5
BUFRST_N L2
MULTI_STRAP_REF0_GND J1
TESTMODE AK11
JTAG_TCK AM10
JTAG_TDI AM11
JTAG_TDO AP12
JTAG_TMS AP11
JTAG_TRST_N AN11
STRAP3 J5
STRAP4 J3
RV86 10K_0402_5%OPT@
RV77
45.3K_0402_1%
@
1
2
RV65
4.99K_0402_1%
@
1
2
TV3
PAD @
RV83 10K_0402_5%OPT@
RV67
34.8K_0402_1%
@
1
2
RV78
10K_0402_1%
1
2
RV85 10K_0402_5%
OPT@
RV66
4.99K_0402_1%
1
2
RV84 10K_0402_5%
OPT@
RV178 0_0402_5%OPT@
1
2
RV69
4.99K_0402_1%
@
1
2
TV1
PAD @
RV153 10K_0402_5%@
RV76
20K_0402_1%
@
1
2
RV73
45.3K_0402_1%
1
2
RV68
30K_0402_1%
@
1
2
TV4
PAD @
RV71
4.99K_0402_1%
@
1
2
RV177 0_0402_5%OPT@
12
RV79
15K_0402_1%
1
2
RV88 10K_0402_5%@
RV74
10K_0402_1%
@
1
2
TV2
PAD @
RV75
4.99K_0402_1%
@
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
420mA
7200mA
150mA
120mA
3300 mA
CV80,CV198 Under GPU
close to ball
Near GPU
Near GPU
Design guide no define
Under GPU
Near GPU
Near GPU
Near GPU
Design guide no define
210mA
Under GPU
Under GPU
Under GPU
Under GPU
Under GPU
210mA
Capacitor Type Footprint Population Location
1.0uF X6S 0402 4
4.7uF
10uF
22uF
X6S
X5R
X5R
0603
0805
0805
2
4
4
Under GPU
Near GPU
Midway between GPU and Power Supply
Midway between GPU and Power Supply
PEX_IOVVD/Q
Capacitor Type Footprint Population Location
100nF X6S 0402 1
1.0uF
4.7uF X5R
0603
0805
1
1
Under GPU
Near GPU
PEX_PLLVDD
Near GPU
Capacitor Type Footprint Population Location
0.1uF 0402 1
4.7uF 0603 2 Near GPU
PEX_SVDD/PLL_HVDD
X5R
X5R
X5R
Near GPU
50mA
110mA
Under GPU
Under GPU(below 150mils)
Near GPU
220ohm 100MHz, ESR=0.05ohm
300ohm 100MHz, ESR=0.25ohm
Calibration Pin
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
DDR3 GDDR5
40.2ohm
42.2ohm
51.1ohm
40.2ohm
40.2ohm
60.4ohm
LV12 :120ohm@100MHz, ESR=0.18ohm 0603
LV12 stuff a 0ohm resistor instead for
N13E-GE, N13P-GT/-GS/-LP/-GV, N13M-GS,
N14P-Q1/-Q3
FBVDDQ Decouping Design Guide:
0.1uF X7R 0402 8pcs under GPU
1uF X7R 0603 2pcs under GPU
4.7uF X6S 0603 2pcs under GPU
10uF X5R 0805 4pcs Near GPU
PEX_PLL_HVDD:
N13P-GLP/PES :NC
N13P-LP : power.
+VDD33
+PEX_PLLVDD
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
+IFPAB_IOVDD
+IFPEF_IOVDD
+IFPEF_PLLVDD
+IFPAB_PLLVDD
+IFPC_IOVDD
+IFPC_PLLVDD
+IFPD_IOVDD
+IFPD_PLLVDD
FB_VDDQ_SENSE
FB_GND_SENSE
+VDD33
+IFPEF_IOVDD
+IFPC_IOVDD
+IFPC_PLLVDD
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+3VS_DGPU
+3VS_DGPU
+1.05VS_DGPU
+1.05VS_DGPU
+1.05VS_DGPU
+3VS_DGPU
+1.05VS_DGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
16 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
16 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
16 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
CV84
10U_0603_6.3V6M
OPT@
1
2
LV12
BLM18PG121SN1D_0603
OPT@
1
2
CV95
1U_0402_6.3V6K
OPT@
CV206
0.1U_0402_16V4Z
@
1
2
CV96
1U_0402_6.3V6K
OPT@
RV95 10K_0402_5%OPT@
12
RV100 10K_0402_5%OPT@
1
2
CV58
10U_0603_6.3V6M
OPT@
1
2
CV86
10U_0603_6.3V6M
OPT@
1
2
CV87
0.1U_0402_16V4Z
OPT@
RV94 1K_0402_5%@
CV199
1U_0402_6.3V4Z
@
1
2
CV70
1U_0402_6.3V6K
OPT@
RV96 40.2_0402_1%
OPT@
1
2
RV126 10K_0402_5%OPT@
12
CV82
4.7U_0603_6.3V6K
OPT@
CV71
0.1U_0402_16V4Z
OPT@
CV200
0.1U_0402_16V4Z
@
1
2
CV79
0.1U_0402_16V4Z
OPT@
CV77
10U_0603_6.3V6M
OPT@
1
2
Part 5 of 7
POWER
UV1E
N13P-GLP-A1 FCBGA 908P GPU
OPT@
PEX_IOVDDQ_0 AG13
PEX_IOVDDQ_1 AG15
PEX_IOVDDQ_2 AG16
PEX_IOVDDQ_3 AG18
PEX_IOVDDQ_4 AG25
PEX_IOVDDQ_5 AH15
PEX_IOVDDQ_6 AH18
PEX_IOVDDQ_7 AH26
PEX_IOVDDQ_8 AH27
PEX_IOVDDQ_9 AJ27
PEX_IOVDDQ_10 AK27
PEX_IOVDDQ_11 AL27
PEX_IOVDDQ_12 AM28
PEX_IOVDDQ_13 AN28
PEX_IOVDD_0 AG19
PEX_IOVDD_1 AG21
PEX_IOVDD_2 AG22
PEX_IOVDD_3 AG24
PEX_IOVDD_4 AH21
PEX_SVDD_3V3 AG12
VDD33_0 J8
VDD33_1 K8
VDD33_2 L8
VDD33_3 M8
PEX_PLL_HVDD AH12
FBVDDQ_0
AA27
FBVDDQ_1
AA30
FBVDDQ_2
AB27
FBVDDQ_3
AB33
FBVDDQ_4
AC27
FBVDDQ_5
AD27
FBVDDQ_6
AE27
FBVDDQ_7
AF27
FBVDDQ_8
AG27
FBVDDQ_9
B13
FBVDDQ_10
B16
FBVDDQ_11
B19
FBVDDQ_12
E13
FBVDDQ_13
E16
FBVDDQ_14
E19
FBVDDQ_15
H10
FBVDDQ_16
H11
FBVDDQ_17
H12
FBVDDQ_18
H13
FBVDDQ_19
H14
FBVDDQ_20
H15
FBVDDQ_21
H16
FBVDDQ_22
H18
FBVDDQ_23
H19
FBVDDQ_24
H20
FBVDDQ_25
H21
FBVDDQ_26
H22
FBVDDQ_27
H23
FBVDDQ_28
H24
FBVDDQ_29
H8
FBVDDQ_30
H9
FBVDDQ_31
L27
FBVDDQ_32
M27
FBVDDQ_33
N27
FBVDDQ_34
P27
FBVDDQ_35
R27
FBVDDQ_36
T27
FBVDDQ_37
T30
FBVDDQ_38
T33
FBVDDQ_39
V27
FBVDDQ_40
W27
FBVDDQ_41
W30
FBVDDQ_42
W33
FBVDDQ_43
Y27
PEX_IOVDD_5 AH25
PEX_PLLVDD AG26
IFPA_IOVDD AG8
IFPB_IOVDD AG9
IFPAB_PLLVDD AH8
IFPAB_RSET AJ8
IFPC_IOVDD AF6
IFPC_PLLVDD AF7
IFPC_RSET AF8
IFPD_IOVDD AG6
IFPD_PLLVDD AG7
IFPD_RSET AN2
IFPE_IOVDD AC7
IFPEF_PLVDD AB8
IFPEF_RSET AD6
IFPF_IOVDD AC8
FB_VDDQ_SENSE
F1
FB_GND_SENSE
F2
FB_CAL_PD_VDDQ
J27
FB_CAL_PU_GND
H27
FB_CAL_TERM_GND
H25
RV99 1K_0402_5%@
CV66
0.1U_0402_16V4Z
OPT@
CV68
22U_0805_6.3V6M
OPT@
CV198 0.1U_0402_16V4Z
OPT@
RV98 42.2_0402_1%
OPT@
1
2
CV60
22U_0805_6.3V6M
OPT@
CV201
1U_0402_6.3V4Z
@
1
2
CV54
1U_0402_6.3V6K
OPT@
CV75
1U_0402_6.3V6K
OPT@
CV85
10U_0603_6.3V6M
OPT@
1
2
RV102 10K_0402_5%OPT@
12
CV73
0.1U_0402_16V4Z
OPT@
CV202
0.1U_0402_16V4Z
@
1
2
RV97 10K_0402_5%OPT@
12
RV103 1K_0402_5%
@
CV78
22U_0805_6.3V6M
OPT@
CV64
0.1U_0402_16V4Z
OPT@
CV69
4.7U_0603_6.3V6K
OPT@
CV203
4.7U_0603_6.3V6K
@
1
2
CV81
4.7U_0603_6.3V6K
OPT@
CV83
10U_0603_6.3V6M
OPT@
1
2
CV74
1U_0402_6.3V6K
OPT@
CV63
0.1U_0402_16V4Z
OPT@
CV204
0.1U_0402_16V4Z
@
1
2
RV89
0_0603_5%
OPT@
CV59
22U_0805_6.3V6M
OPT@
CV67
10U_0603_6.3V6M
OPT@
1
2
RV92 10K_0402_5%OPT@
1
2
CV55
1U_0402_6.3V6K
OPT@
CV92
0.1U_0402_16V4Z
OPT@
LV7
BLM18PG181SN1D_0603
@
1
2
RV90 1K_0402_5%@
CV90
0.1U_0402_16V4Z
OPT@
RV104 10K_0402_5%OPT@
12
RV93 10_0402_5%
OPT@
1
2
CV215
0.1U_0402_16V4Z
@
1
2
CV97
4.7U_0603_6.3V6K
OPT@
CV72
0.1U_0402_16V4Z
OPT@
LV13
BLM18PG181SN1D_0603
@
1
2
CV65
0.1U_0402_16V4Z
OPT@
RV114 10K_0402_5%OPT@
12
CV88
1U_0402_6.3V6K
OPT@
CV61
4.7U_0603_6.3V6K
OPT@
CV89
4.7U_0603_6.3V6K
OPT@
CV62
1U_0402_6.3V6K
OPT@
CV57
10U_0603_6.3V6M
OPT@
1
2
RV91 10_0402_5%
OPT@
1
2
CV76
4.7U_0603_6.3V6K
OPT@
RV101 51.1_0402_1%
OPT@
1
2
CV205
4.7U_0603_6.3V6K
@
1
2
CV80 0.1U_0402_16V4Z
@
CV91
0.1U_0402_16V4Z
OPT@
CV56
4.7U_0603_6.3V6K
OPT@
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
60A
+VGA_CORE
+VGA_CORE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
17 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
17 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
17 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
POWER
Part 7 of 7
UV1G
N13P-GLP-A1 FCBGA 908P GPU
OPT@
VDD_0
AA12
VDD_1
AA14
VDD_2
AA16
VDD_3
AA19
VDD_4
AA21
VDD_5
AA23
VDD_6
AB13
VDD_7
AB15
VDD_8
AB17
VDD_9
AB18
VDD_10
AB20
VDD_11
AB22
VDD_12
AC12
VDD_13
AC14
VDD_14
AC16
VDD_15
AC19
VDD_16
AC21
VDD_17
AC23
VDD_18
M12
VDD_19
M14
VDD_20
M16
VDD_21
M19
VDD_22
M21
VDD_23
M23
VDD_24
N13
VDD_25
N15
VDD_26
N17
VDD_27
N18
VDD_28
N20
VDD_29
N22
VDD_30
P12
VDD_31
P14
VDD_32
P16
VDD_33
P19
VDD_34
P21
VDD_35
P23
VDD_36
R13
VDD_37
R15
VDD_38
R17
VDD_39
R18
VDD_40
R20
VDD_41
R22
VDD_42
T12
VDD_43
T14
VDD_44
T16
VDD_45
T19
VDD_46
T21
VDD_47
T23
VDD_48
U13
VDD_49
U15
VDD_50
U17
VDD_51
U18
VDD_52
U20
VDD_53
U22
VDD_54
V13
VDD_55
V15
VDD_58 V20
VDD_59 V22
VDD_60 W12
VDD_61 W14
VDD_62 W16
VDD_63 W19
VDD_64 W21
VDD_65 W23
VDD_66 Y13
VDD_67 Y15
VDD_68 Y17
VDD_69 Y18
VDD_70 Y20
VDD_71 Y22
VDD_56 V17
VDD_57 V18
XVDD_1 U1
XVDD_2 U2
XVDD_3 U3
XVDD_4 U4
XVDD_5 U5
XVDD_6 U6
XVDD_7 U7
XVDD_8 U8
XVDD_9 V1
XVDD_10 V2
XVDD_11 V3
XVDD_12 V4
XVDD_13 V5
XVDD_14 V6
XVDD_15 V7
XVDD_16 V8
XVDD_17 W2
XVDD_18 W3
XVDD_19 W4
XVDD_20 W5
XVDD_21 W7
XVDD_22 W8
XVDD_23 Y1
XVDD_24 Y2
XVDD_25 Y3
XVDD_26 Y4
XVDD_27 Y5
XVDD_28 Y6
XVDD_29 Y7
XVDD_30 Y8
XVDD_31 AA1
XVDD_32 AA2
XVDD_33 AA3
XVDD_34 AA4
XVDD_35 AA5
XVDD_36 AA6
XVDD_37 AA7
XVDD_38 AA8
GND
Part 6 of 7
UV1F
N13P-GLP-A1 FCBGA 908P GPU
OPT@
GND_0
A2
GND_1
AA17
GND_2
AA18
GND_3
AA20
GND_4
AA22
GND_5
AB12
GND_6
AB14
GND_7
AB16
GND_8
AB19
GND_9
AB2
GND_10
AB21
GND_11
A33
GND_12
AB23
GND_13
AB28
GND_14
AB30
GND_15
AB32
GND_16
AB5
GND_17
AB7
GND_18
AC13
GND_19
AC15
GND_20
AC17
GND_21
AC18
GND_22
AA13
GND_23
AC20
GND_24
AC22
GND_25
AE2
GND_26
AE28
GND_27
AE30
GND_28
AE32
GND_29
AE33
GND_30
AE5
GND_31
AE7
GND_32
AH10
GND_33
AA15
GND_34
AH13
GND_35
AH16
GND_36
AH19
GND_37
AH2
GND_38
AH22
GND_39
AH24
GND_40
AH28
GND_41
AH29
GND_42
AH30
GND_43
AH32
GND_44
AH33
GND_45
AH5
GND_46
AH7
GND_47
AJ7
GND_48
AK10
GND_49
AK7
GND_50
AL12
GND_51
AL14
GND_52
AL15
GND_53
AL17
GND_54
AL18
GND_55
AL2
GND_56
AL20
GND_57
AL21
GND_58
AL23
GND_59
AL24
GND_60
AL26
GND_61
AL28
GND_62
AL30
GND_63
AL32
GND_64
AL33
GND_65
AL5
GND_66
AM13
GND_67
AM16
GND_68
AM19
GND_69
AM22
GND_70
AM25
GND_71
AN1
GND_72
AN10
GND_73
AN13
GND_74
AN16
GND_75
AN19
GND_76
AN22
GND_77
AN25
GND_78
AN30
GND_79
AN34
GND_80
AN4
GND_81
AN7
GND_82
AP2
GND_83
AP33
GND_84
B1
GND_85
B10
GND_86
B22
GND_87
B25
GND_88
B28
GND_89
B31
GND_90
B34
GND_91
B4
GND_92
B7
GND_93
C10
GND_94
C13
GND_95
C19
GND_96
C22
GND_97
C25
GND_98
C28
GND_99
C7
GND_100 D2
GND_101 D31
GND_102 D33
GND_103 E10
GND_104 E22
GND_105 E25
GND_106 E5
GND_107 E7
GND_108 F28
GND_109 F7
GND_110 G10
GND_111 G13
GND_112 G16
GND_113 G19
GND_114 G2
GND_115 G22
GND_116 G25
GND_117 G28
GND_118 G3
GND_119 G30
GND_120 G32
GND_121 G33
GND_122 G5
GND_123 G7
GND_124 K2
GND_125 K28
GND_126 K30
GND_127 K32
GND_128 K33
GND_129 K5
GND_130 K7
GND_131 M13
GND_132 M15
GND_133 M17
GND_134 M18
GND_135 M20
GND_136 M22
GND_137 N12
GND_138 N14
GND_139 N16
GND_140 N19
GND_141 N2
GND_142 N21
GND_143 N23
GND_144 N28
GND_145 N30
GND_146 N32
GND_147 N33
GND_148 N5
GND_149 N7
GND_150 P13
GND_151 P15
GND_152 P17
GND_153 P18
GND_154 P20
GND_155 P22
GND_156 R12
GND_157 R14
GND_158 R16
GND_159 R19
GND_160 R21
GND_161 R23
GND_162 T13
GND_163 T15
GND_164 T17
GND_165 T18
GND_166 T2
GND_167 T20
GND_168 T22
GND_169 AG11
GND_170 T28
GND_171 T32
GND_172 T5
GND_173 T7
GND_174 U12
GND_175 U14
GND_176 U16
GND_177 U19
GND_178 U21
GND_179 U23
GND_180 V12
GND_181 V14
GND_182 V16
GND_183 V19
GND_184 V21
GND_185 V23
GND_186 W13
GND_187 W15
GND_188 W17
GND_189 W18
GND_190 W20
GND_191 W22
GND_192 W28
GND_193 Y12
GND_194 Y14
GND_195 Y16
GND_196 Y19
GND_197 Y21
GND_198 Y23
GND_199 AH11
GND_OPT C16
GND_OPT W32
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
VRAM DDR3 chips (1GB)
310mA 310mA
64Mx16 DDR3 *8==>1GB
A7
A14
RST
A14
A13
A15
LOW HIGH
CMD22
CMD23
CMD30
CMD24
CMD25
CMD26
CMD27
CMD28
CMD29
CMD15
Mode D
Address
32..63
CMD0
CMD1
CMD2
CMD3
CMD4
CMD5
CMD6
CMD7
CMD8
CMD9
CMD10
CMD11
CMD12
CMD13
CMD14
CMD16
CMD17
CMD18
CMD19
CMD20
CMD21 A8
A11
CAS*
A3
A1
WE*
BA0
A4
BA2
A5
RAS*
A12
A5
BA1
ODT_H
A11
A10
CAS*
WE*
A9
BA0
A6
A12
ODT_L
CKE_H
A7
RAS*
A13
BA2
BA1
A2
A0
A4
A9
A3
A1
CS0_H#
A2
A0
A15
CS0_L#
A10
A8
A6
RST
DDR3
Command Bit Default Pull-down
ODTx 10k
CKEx 10k
RST 10k
CS* No Termination
0..31
Not Available
CKE
NV recommand 0720
Group1
Group3
Group0
Group2
swap 0329
128Mx16 DDR3 *8==>2GB
close to UV3 close to UV4
MDA[63..0]
DQMA[7..0]
DQSA[7..0]
DQSA#[7..0]
CMDA[30..0]
CLKA0#
CLKA0
CMDA2
CMDA3
CMDA5
CMDA18
CMDA19
CLKA0
CLKA0#
+MEM_VREF1
DQMA0
DQSA0
DQSA#0
DQSA3
DQMA3
DQSA#3
+MEM_VREF0
+MEM_VREF1
CMDA5
CMDA3
CMDA5
CMDA11
CMDA8
CMDA7
CMDA29
CMDA14
CMDA28
CMDA9
CMDA25
CMDA24
CMDA21
CMDA4
CMDA20
CMDA10
CMDA22
CMDA6
CMDA23
CMDA12
CMDA27
CMDA26
CMDA3
CMDA2
CMDA13
CMDA15
CMDA30
CMDA0
+MEM_VREF0
ZQ1
ZQ0
CMDA11
CMDA8
CMDA7
CMDA29
CMDA14
CMDA28
CMDA25
CMDA9
CMDA24
CMDA21
CMDA4
CMDA20
CMDA10
CMDA22
CMDA6
CMDA23
CMDA12
CMDA27
CMDA26
CMDA13
CMDA15
CMDA30
CMDA0
CMDA2
CLKA0
CLKA0#
MDA0
MDA3
MDA4
MDA2
MDA5
MDA1
MDA7
MDA6
DQSA1
DQSA2
DQMA1
DQMA2
DQSA#1
DQSA#2
MDA17
MDA23
MDA16
MDA21
MDA19
MDA22
MDA20
MDA18
MDA24
MDA26
MDA27
MDA28
MDA31
MDA29
MDA25
MDA30
MDA9
MDA10
MDA15
MDA14
MDA11
MDA12
MDA8
MDA13
DQSA[7..0]<14,19>
DQSA#[7..0]<14,19>
DQMA[7..0]<14,19>
MDA[63..0]<14,19>
CMDA[30..0]<14,19>
CLKA0#<14>
CLKA0<14>
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
18 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
18 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
18 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
CV126
1U_0402_6.3V6K
OPT@
CV111
0.01U_0402_16V7K
@
1
2
CV109
0.1U_0402_16V4Z
OPT@
1
2
RV106
1.33K_0402_1%
OPT@
CV122
1U_0402_6.3V6K
OPT@
CV127
1U_0402_6.3V6K
OPT@
RV111
243_0402_1%
OPT@
1
2
CV128
1U_0402_6.3V6K
OPT@
CV117
1U_0402_6.3V6K
OPT@
CV123
1U_0402_6.3V6K
OPT@
RV113 10K_0402_5%OPT@
1
2
CV110
0.1U_0402_16V4Z
OPT@
1
2
CV113
0.1U_0402_16V4Z
OPT@
1
2
96-BALL
SDRAM DDR3
UV3
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQE9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3
DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQE8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
CV129
1U_0402_6.3V6K
OPT@
RV110
243_0402_1%
OPT@
1
2
RV118
80.6_0402_1%
@
1
2
RV108
1.33K_0402_1%
OPT@
RV117 10K_0402_5%OPT@
1
2
96-BALL
SDRAM DDR3
UV4
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQE9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3
DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQE8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
CV134
0.1U_0402_16V4Z
OPT@
1
2
CV116
1U_0402_6.3V6K
OPT@
RV109
80.6_0402_1%
@
12
RV105
1.33K_0402_1%
OPT@
CV130
0.1U_0402_16V4Z
OPT@
1
2
CV135
1U_0402_6.3V6K
OPT@
CV136
1U_0402_6.3V6K
OPT@
RV15
160_0402_1%
OPT@
1
2
CV118
0.1U_0402_16V4Z
OPT@
1
2
RV116 10K_0402_5%OPT@
1
2
CV115
1U_0402_6.3V6K
OPT@
CV137
1U_0402_6.3V6K
OPT@
CV112
0.1U_0402_16V4Z
OPT@
1
2
CV124
0.1U_0402_16V4Z
OPT@
1
2
CV119
0.1U_0402_16V4Z
OPT@
1
2
CV138
1U_0402_6.3V6K
OPT@
RV107
1.33K_0402_1%
OPT@
CV125
0.1U_0402_16V4Z
OPT@
1
2
RV112 10K_0402_5%OPT@
1
2
CV120
1U_0402_6.3V6K
OPT@
RV115 10K_0402_5%OPT@
12
CV121
1U_0402_6.3V6K
OPT@
CV114
1U_0402_6.3V6K
OPT@
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
310mA 310mA
64Mx16 DDR3 *8==>1GB
VRAM DDR3 chips (1GB)
Not Available
A7
A14
RST
A14
A13
A15
LOW HIGH
CMD22
CMD23
CMD30
CMD24
CMD25
CMD26
CMD27
CMD28
CMD29
CMD15
Mode D
Address
32..63
CMD0
CMD1
CMD2
CMD3
CMD4
CMD5
CMD6
0..31
CMD7
CMD8
CMD9
CMD10
CMD11
CMD12
CMD13
CMD14
CMD16
CMD17
CMD18
CMD19
CMD20
CMD21 A8
A11
CAS*
A3
A1
WE*
BA0
A4
BA2
A5
RAS*
A12
A5
BA1
ODT_H
A11
A10
CAS*
WE*
A9
BA0
A6
A12
ODT_L
CKE_H
A7
RAS*
A13
BA2
BA1
A2
A0
A4
A9
A3
A1
CS0_H#
A2
A0
A15
CS0_L#
A10
A8
A6
RST
CKE
NV recommand 0720
Group4
Group6Group7
Group5
128Mx16 DDR3 *8==>2GB
close to UV5 close to UV6
DQSA#[7..0]
MDA[63..0]
CMDA[30..0]
DQMA[7..0]
DQSA[7..0]
ZQ2
CLKA1#
CLKA1
+MEM_VREF2
+MEM_VREF3
CLKA1#
CLKA1
ZQ3
CMDA19
CMDA5
CMDA24
CMDA10
CMDA11
CMDA14
CMDA6
CMDA26
CMDA25
CMDA29
CMDA27
CMDA22
CMDA12
CMDA8
CMDA9
CMDA20
CMDA4
CMDA7
CMDA28
CMDA21
CMDA23
CMDA19
CMDA30
CMDA18
CMDA15
CMDA13
CMDA5
CMDA16
+MEM_VREF2
+MEM_VREF3
CMDA24
CMDA10
CMDA11
CMDA14
CMDA6
CMDA25
CMDA29
CMDA22
CMDA8
CMDA9
CMDA20
CMDA4
CMDA7
CMDA28
CMDA21
CMDA23
CMDA26
CMDA27
CMDA12
CMDA30
CMDA18
CMDA15
CMDA13
CMDA16
CLKA1
CLKA1#
DQSA4
DQSA#4
DQMA6
DQSA6
DQSA#6
DQMA4
MDA32
MDA39
MDA38
MDA36
MDA34
MDA37
MDA33
MDA35
MDA49
MDA48
MDA50
MDA55
MDA51
MDA52
MDA53
MDA54
DQMA5
DQSA#5
DQSA5
DQSA7
DQMA7
DQSA#7
MDA58
MDA60
MDA61
MDA62
MDA63
MDA59
MDA56
MDA57
MDA42
MDA46
MDA47
MDA44
MDA40
MDA43
MDA41
MDA45
DQSA#[7..0]<14,18>
DQSA[7..0]<14,18>
MDA[63..0]<14,18>
DQMA[7..0]<14,18>
CMDA[30..0]<14,18>
CLKA1<14>
CLKA1#<14>
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
19 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
19 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
19 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
RV121
1.33K_0402_1%
OPT@
RV124
243_0402_1%
OPT@
1
2
CV141
1U_0402_6.3V6K
OPT@
CV161
1U_0402_6.3V6K
OPT@
CV131
0.1U_0402_16V4Z
OPT@
1
2
CV150
0.1U_0402_16V4Z
OPT@
1
2
CV142
1U_0402_6.3V6K
OPT@
96-BALL
SDRAM DDR3
UV6
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQE9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQE8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
CV162
1U_0402_6.3V6K
OPT@
CV133
0.01U_0402_16V7K
@
1
2
CV143
1U_0402_6.3V6K
OPT@
RV125
80.6_0402_1%
@
1
2
CV163
1U_0402_6.3V6K
OPT@
CV144
0.1U_0402_16V4Z
OPT@
1
2
96-BALL
SDRAM DDR3
UV5
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQE9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQE8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
RV120
1.33K_0402_1%
OPT@
CV132
0.1U_0402_16V4Z
OPT@
1
2
CV151
0.1U_0402_16V4Z
OPT@
1
2
CV164
1U_0402_6.3V6K
OPT@
RV123
243_0402_1%
OPT@
1
2
CV145
0.1U_0402_16V4Z
OPT@
1
2
RV119
1.33K_0402_1%
OPT@
CV152
1U_0402_6.3V6K
OPT@
RV122
1.33K_0402_1%
OPT@
CV146
1U_0402_6.3V6K
OPT@
CV156
1U_0402_6.3V6K
OPT@
CV165
0.1U_0402_16V4Z
OPT@
1
2
CV157
1U_0402_6.3V6K
OPT@
CV147
1U_0402_6.3V6K
OPT@
RV16
160_0402_1%
OPT@
1
2
CV158
1U_0402_6.3V6K
OPT@
CV148
1U_0402_6.3V6K
OPT@
RV127
80.6_0402_1%
@
1
2
CV159
0.1U_0402_16V4Z
OPT@
1
2
CV139
0.1U_0402_16V4Z
OPT@
1
2
CV149
1U_0402_6.3V6K
OPT@
CV160
0.1U_0402_16V4Z
OPT@
1
2
CV140
1U_0402_6.3V6K
OPT@
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
310mA 310mA
64Mx16 DDR3 *8==>1GB
VRAM DDR3 chips (1GB)
10k
DDR3 CKEx
Command Bit Default Pull-down
10k
RST
ODTx
10k
CS* No Termination
Not Available
A7
A14
RST
A14
A13
A15
LOW HIGH
CMD22
CMD23
CMD30
CMD24
CMD25
CMD26
CMD27
CMD28
CMD29
CMD15
Mode D
Address
32..63
CMD0
CMD1
CMD2
CMD3
CMD4
CMD5
CMD6
0..31
CMD7
CMD8
CMD9
CMD10
CMD11
CMD12
CMD13
CMD14
CMD16
CMD17
CMD18
CMD19
CMD20
CMD21 A8
A11
CAS*
A3
A1
WE*
BA0
A4
BA2
A5
RAS*
A12
A5
BA1
ODT_H
A11
A10
CAS*
WE*
A9
BA0
A6
A12
ODT_L
CKE_H
A7
RAS*
A13
BA2
BA1
A2
A0
A4
A9
A3
A1
CS0_H#
A2
A0
A15
CS0_L#
A10
A8
A6
RST
CKE
NV recommand 0720
Group0
Group3
Group1
Group2
swap 0329
128Mx16 DDR3 *8==>2GB
close to UV7 close to UV8
CLKC0#
CLKC0
CMDC[30..0]
MDC[63..0]
DQMC[7..0]
DQSC[7..0]
DQSC#[7..0]
+MEM_VREF4
+MEM_VREF5
CLKC0
DQSC#3
DQSC3
DQMC3
CLKC0
CLKC0#
+MEM_VREF5
DQMC0
DQSC0
DQSC#0
CMDC3
CMDC5
CMDC22
CMDC28
CMDC7
CMDC24
CMDC20
CMDC4
CMDC21
CMDC23
CMDC11
CMDC25
CMDC6
CMDC8
CMDC29
CMDC9
CMDC10
CMDC14
CMDC27
CMDC12
CMDC26
CMDC3
CMDC13
CMDC15
CMDC30
CMDC2
CMDC0
CMDC5
ZQ4
ZQ5
CMDC2
CMDC3
CMDC5
CMDC18
CMDC19
+MEM_VREF4
CLKC0#
CMDC22
CMDC28
CMDC7
CMDC24
CMDC20
CMDC4
CMDC21
CMDC23
CMDC11
CMDC25
CMDC6
CMDC8
CMDC29
CMDC9
CMDC10
CMDC14
CMDC27
CMDC12
CMDC26
CMDC13
CMDC15
CMDC30
CMDC2
CMDC0
MDC7
MDC6
MDC3
MDC2
MDC0
MDC4
MDC5
MDC1
MDC30
MDC25
MDC24
MDC28
MDC26
MDC27
DQSC#2
DQSC#1
DQSC2
DQSC1
DQMC2
DQMC1
MDC21
MDC23
MDC18
MDC20
MDC19
MDC16
MDC22
MDC17
MDC31
MDC29
MDC11
MDC14
MDC15
MDC10
MDC13
MDC12
MDC8
MDC9
DQSC[7..0]<14,21>
DQSC#[7..0]<14,21>
DQMC[7..0]<14,21>
MDC[63..0]<14,21>
CMDC[30..0]<14,21>
CLKC0#<14>
CLKC0<14>
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
20 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
20 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
SCHEMATICS, MB A8581
Custom
20 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
B
CV181
0.1U_0402_16V4Z
OPT@
1
2
RV17
160_0402_1%
OPT@
1
2
CV154
0.1U_0402_16V4Z
OPT@
1
2
CV191
1U_0402_6.3V6K
OPT@
CV173
1U_0402_6.3V6K
OPT@
RV137 10K_0402_5%OPT@
12
CV182
1U_0402_6.3V6K
OPT@
CV174
1U_0402_6.3V6K
OPT@
RV133
243_0402_1%
OPT@
1
2
CV183
1U_0402_6.3V6K
OPT@
CV192
0.1U_0402_16V4Z
OPT@
1
2
CV155
0.01U_0402_16V7K
@
1
2
CV178
1U_0402_6.3V6K
OPT@
CV184
1U_0402_6.3V6K
OPT@
96-BALL
SDRAM DDR3
UV7
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQE9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQE8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
RV138 10K_0402_5%OPT@
1
2
CV185
1U_0402_6.3V6K
OPT@
CV166
0.1U_0402_16V4Z
OPT@
1
2
CV179
1U_0402_6.3V6K
OPT@
RV151
243_0402_1%
OPT@
1
2
CV186
0.1U_0402_16V4Z
OPT@
1
2
CV167
1U_0402_6.3V6K
OPT@
RV139
80.6_0402_1%
@
1
2
CV187
0.1U_0402_16V4Z
OPT@
1
2
RV128
1.33K_0402_1%
OPT@
CV168
1U_0402_6.3V6K
OPT@
RV136 10K_0402_5%OPT@
12
CV180
0.1U_0402_16V4Z
OPT@
1
2
CV169
1U_0402_6.3V6K
OPT@
CV188
1U_0402_6.3V6K
OPT@
RV129
1.33K_0402_1%
OPT@
96-BALL
SDRAM DDR3
UV8
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDDB2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3
DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQE8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDDR1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
CV170
1U_0402_6.3V6K
OPT@
RV134 10K_0402_5%OPT@
1
2
RV135 10K_0402_5%OPT@
12
CV189
1U_0402_6.3V6K
OPT@
RV130
1.33K_0402_1%
OPT@
CV171
0.1U_0402_16V4Z
OPT@
1
2
CV190
1U_0402_6.3V6K
OPT@
RV141
80.6_0402_1%
@
1
2
CV153
0.1U_0402_16V4Z
OPT@
1
2
CV172
0.1U_0402_16V4Z
OPT@
1
2
RV131
1.33K_0402_1%
OPT@
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
310mA 310mA
64Mx16 DDR3 *8==>1GB
VRAM DDR3 chips (1GB)
Not Available
A7
A14
RST
A14
A13
A15
LOW HIGH
CMD22
CMD23
CMD30
CMD24
CMD25
CMD26
CMD27
CMD28
CMD29
CMD15
Mode D
Address
32..63
CMD0
CMD1
CMD2
CMD3
CMD4
CMD5
CMD6
0..31
CMD7
CMD8
CMD9
CMD10
CMD11
CMD12
CMD13
CMD14
CMD16
CMD17
CMD18
CMD19
CMD20
CMD21 A8
A11
CAS*
A3
A1
WE*
BA0
A4
BA2
A5
RAS*
A12
A5
BA1
ODT_H
A11
A10
CAS*
WE*
A9
BA0
A6
A12
ODT_L
CKE_H
A7
RAS*
A13
BA2
BA1
A2
A0
A4
A9
A3
A1
CS0_H#
A2
A0
A15
CS0_L#
A10
A8
A6
RST
CKE
NV recommand 0720
Group4
Group5
Group7
Group6
128Mx16 DDR3 *8==>2GB
close to UV10 close to UV9
DQSC[7..0]
DQSC#[7..0]
MDC[63..0]
CMDC[30..0]
DQMC[7..0]
ZQ6
CLKC1#
CLKC1
+MEM_VREF6
+MEM_VREF7
+MEM_VREF6
+MEM_VREF7
CLKC1#
CLKC1
CMDC19
CMDC5
CMDC5
CMDC27
CMDC29
CMDC22
CMDC6
CMDC4
CMDC23
CMDC24
CMDC7
CMDC11
CMDC26
CMDC14
CMDC20
CMDC25
CMDC12
CMDC10
CMDC28
CMDC9
CMDC21
CMDC8
CMDC30
CMDC18
CMDC19
CMDC15
CMDC16
CMDC13
ZQ7
CLKC1
CLKC1#
CMDC27
CMDC29
CMDC22
CMDC6
CMDC4
CMDC23
CMDC24
CMDC7
CMDC11
CMDC26
CMDC14
CMDC20
CMDC25
CMDC12
CMDC10
CMDC28
CMDC9
CMDC21
CMDC8
CMDC30
CMDC18
CMDC15
CMDC16
CMDC13
DQSC4
DQSC5
DQMC4
DQMC5
DQSC#4
DQSC#5
DQSC7
DQMC7
DQSC#7
DQSC6
DQMC6
DQSC#6
MDC34
MDC33
MDC35
MDC37
MDC32
MDC36
MDC38
MDC39
MDC45
MDC44
MDC46
MDC47
MDC43
MDC41
MDC42
MDC40
MDC54
MDC50
MDC52
MDC49
MDC55
MDC51
MDC53
MDC48
MDC58
MDC62
MDC57
MDC56
MDC60
MDC59
MDC61
MDC63
DQSC#[7..0]<14,20>
DQSC[7..0]<14,20>
MDC[63..0]<14,20>
DQMC[7..0]<14,20>
CMDC[30..0]<14,20>
CLKC1<14>
CLKC1#<14>
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
21 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
21 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
21 60Friday, August 24, 2012
2011/09/23 2012/12/31
Compal Electronics, Inc.
96-BALL
SDRAM DDR3
UV9
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQE9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3
DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
RV146
243_0402_1%
OPT@
1
2
CV221
0.1U_0402_16V4Z
OPT@
1
2
RV142
1.33K_0402_1%
OPT@
CV193
0.1U_0402_16V4Z
OPT@
1
2
RV148
80.6_0402_1%
@
12
RV143
1.33K_0402_1%
OPT@
CV213
1U_0402_6.3V6K
OPT@
RV144
1.33K_0402_1%
OPT@
CV222
0.1U_0402_16V4Z
OPT@
1
2
RV145
1.33K_0402_1%
OPT@
CV194
1U_0402_6.3V6K
OPT@
CV195
1U_0402_6.3V6K
OPT@
CV223
1U_0402_6.3V6K
OPT@
CV214
0.1U_0402_16V4Z
OPT@
1
2
CV196
1U_0402_6.3V6K
OPT@
CV224
1U_0402_6.3V6K
OPT@
CV176
0.1U_0402_16V4Z
OPT@
1
2
RV18
160_0402_1%
OPT@
1
2
CV207
1U_0402_6.3V6K
OPT@
CV225
1U_0402_6.3V6K
OPT@
CV208
0.1U_0402_16V4Z
OPT@
1
2
CV216
0.1U_0402_16V4Z
OPT@
1
2
CV226
1U_0402_6.3V6K
OPT@
CV209
0.1U_0402_16V4Z
OPT@
1
2
RV150
80.6_0402_1%
@
1
2
CV177
0.01U_0402_16V7K
@
1
2
CV217
1U_0402_6.3V6K
OPT@
CV175
0.1U_0402_16V4Z
OPT@
1
2
CV210
1U_0402_6.3V6K
OPT@
CV218
1U_0402_6.3V6K
OPT@
RV147
243_0402_1%
OPT@
1
2
CV227
0.1U_0402_16V4Z
OPT@
1
2
CV219
1U_0402_6.3V6K
OPT@
CV211
1U_0402_6.3V6K
OPT@
96-BALL
SDRAM DDR3
UV10
K4B1G1646E-HC12_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0E3
DQL1F7
DQL2F2
DQL3F8
DQL4H3
DQL5H8
DQL6G2
DQL7H7
VSSQD1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQA1
VDDQA8
VDDQC1
VDDQC9
NC/CS1
L1
NC/CE1
J9
VDDQE9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3
DML
E7
VSSQB1
VSSQB9
VSSQD8
VSSQE2
DQSU
C7
VSSQE8
DQSL
G3
VDDQF1
VSSQF9
VSSQG1
VDDQH2
VDDQH9
VSSQG9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1C3
DQU2C8
DQU3C2
DQU4A7
DQU5A2
DQU6B8
DQU7A3
DQU0D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDDN9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQD2
CV220
1U_0402_6.3V6K
OPT@
CV212
1U_0402_6.3V6K
OPT@

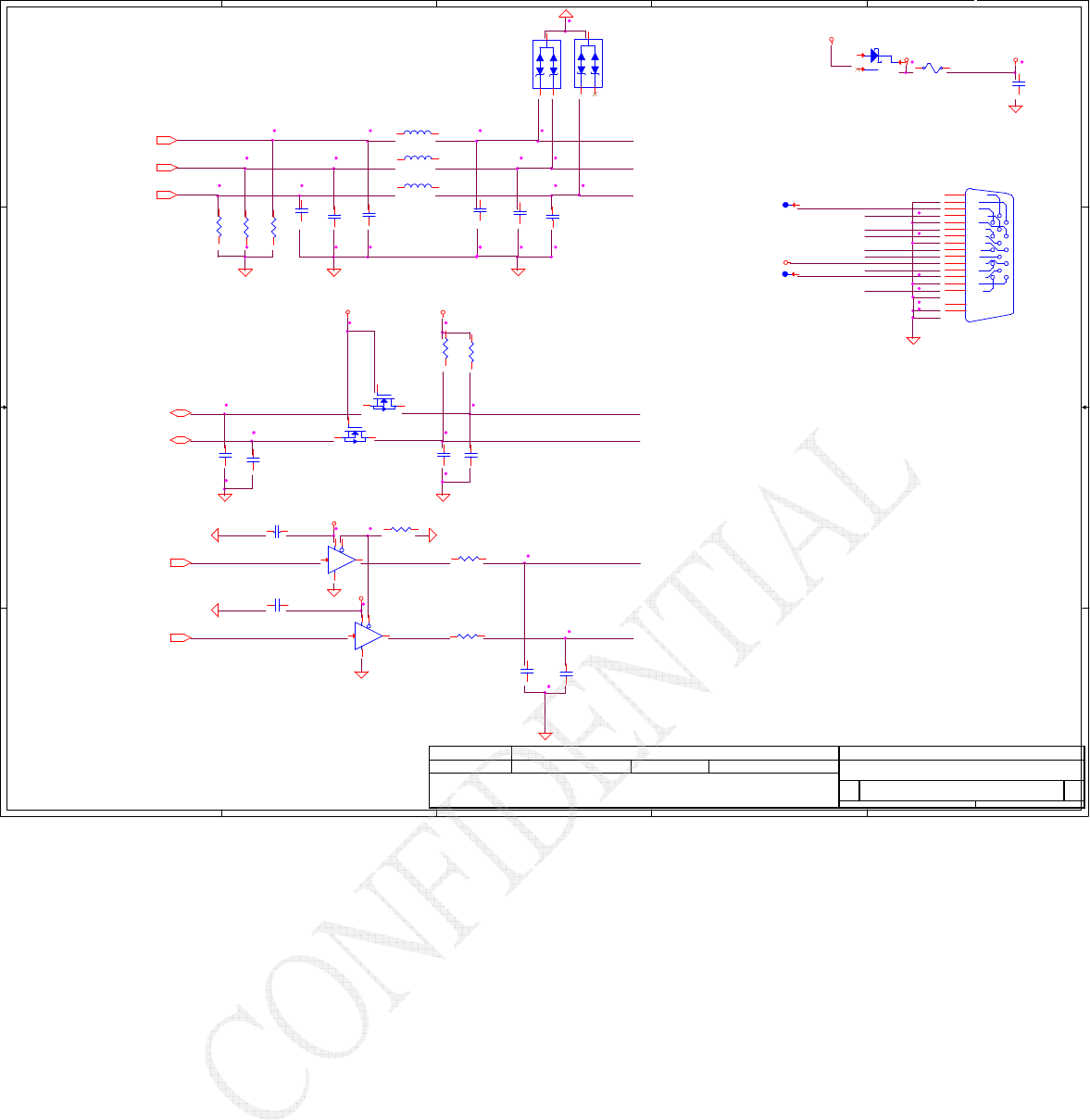

5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA

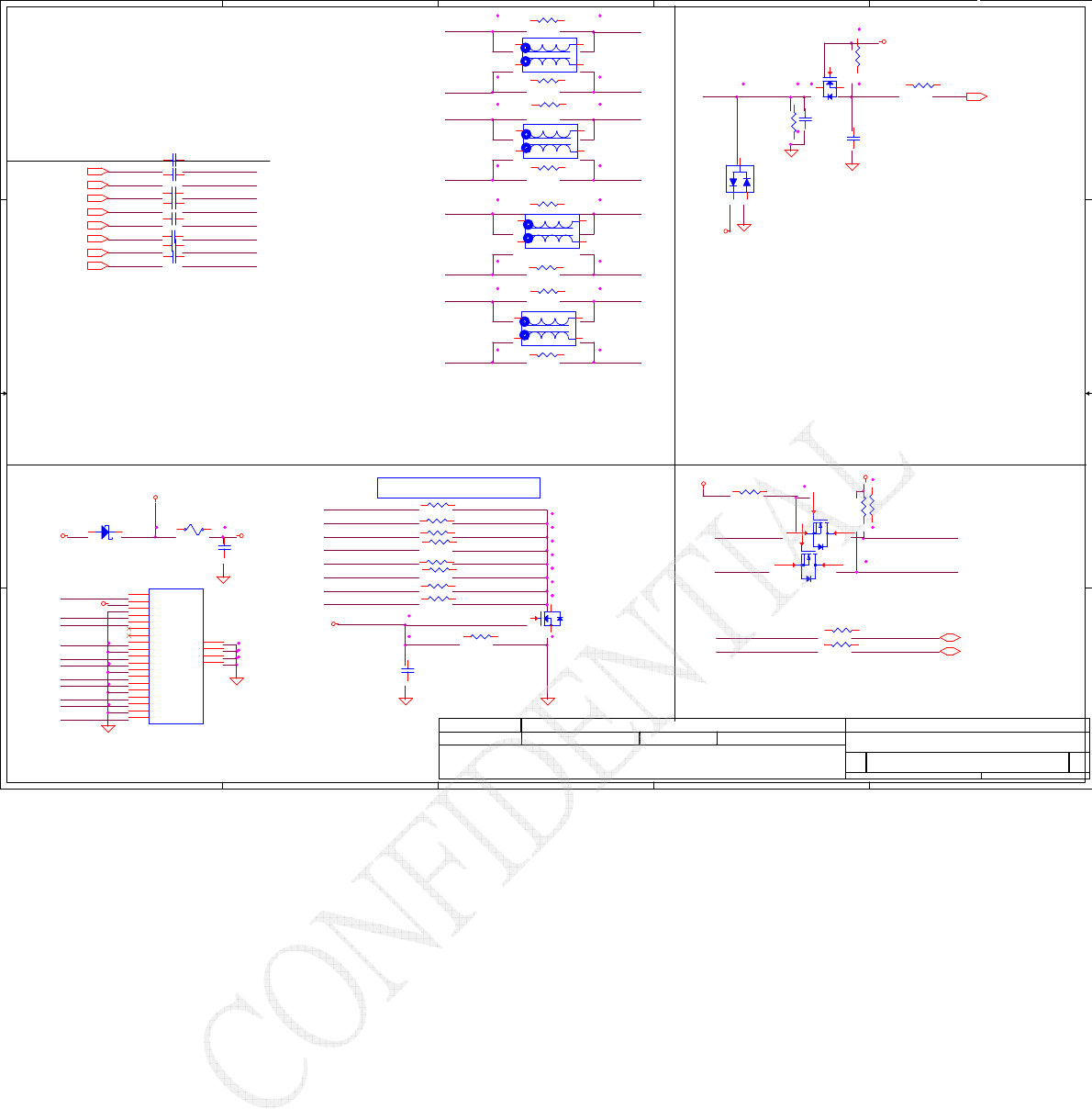

If=1A
40mil
CRT CONNECTOR
40mil
PCH_CRT_DATA CRT_DDC_DAT
CRT_DDC_CK
PCH_CRT_CLK
PCH_CRT_G
PCH_CRT_B
CRT_R_L
CRT_G_L
CRT_B_L
CRT_DDC_CK
CRT_DDC_DAT
CRT_G_L
HSYNC
VSYNC
CRT_B_L
CRT_R_L
VSYNC
HSYNC
PCH_CRT_VSYNC
PCH_CRT_HSYNC D_CRT_HSYNC
D_CRT_VSYNC
PCH_CRT_R
CRT11
CRT12
PCH_CRT_R<27>
PCH_CRT_B<27>
PCH_CRT_G<27>
PCH_CRT_DATA<27>
PCH_CRT_CLK<27>
PCH_CRT_HSYNC<27>
PCH_CRT_VSYNC<27>
+CRT_VCC
+CRT_VCC
+5VS
+CRT_VCC_R
+CRT_VCC
+CRT_VCC
+CRT_VCC
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
22 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
22 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
22 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
C688
10P_0402_50V8J
@
1
2
C685
2.2P_0402_50V8C
1
2
C681
2.2P_0402_50V8C
1
2
C850
33P_0402_50V8K
@
1
2
L22 10_0402_5%
1
2
C690
470P_0402_50V8J
@
1
2
T265 PAD
C689
470P_0402_50V8J
@
1
2
Q157B
2N7002DW-T/R7_SOT363-6
3
5
4
U39
SN74AHCT1G125GW_SOT353-5
A
2
Y4
OE# 1
G
3P5
R678
4.7K_0402_5%
12
T264 PAD
F3
1.1A_6V_MINISMDC110F-2
2
1
C682
2.2P_0402_50V8C
1
2
D29
PESD5V0U2BT_SOT23-3
@
2
3
1
U38
SN74AHCT1G125GW_SOT353-5
A
2Y4
OE# 1
G
3P5
R671
150_0402_1%
1
2
C679
0.1U_0402_16V4Z
1
2
R670
150_0402_1%
1
2
D30
PESD5V0U2BT_SOT23-3
@
2
3
1
C849
33P_0402_50V8K
@
1
2
C686
0.1U_0402_16V4Z
12
C684
2.2P_0402_50V8C
1
2
L21 10_0402_5%
12
R672
150_0402_1%
1
2
L18
NBQ100505T-800Y_0402
12
C687
10P_0402_50V8J
@
1
2
JCRT
SUYIN_070546FR015S293ZR
CONN@
RGND
6
ID0
11
Red
1
GGND
7
SDA
12
Green
2
BGND
8
Hsync
13
Blue
3
+5V
9
Vsync
14
res
4
SGND
10
SCL
15
GND
5
GND
16
GND
17
L20
NBQ100505T-800Y_0402
1
2
R677
4.7K_0402_5%
1
2
C851
0.1U_0402_16V4Z
1
2
L19
NBQ100505T-800Y_0402
12
C680
2.2P_0402_50V8C
1
2
R1436 10K_0402_5%
1
2
C683
2.2P_0402_50V8C
1
2
Q157A
2N7002DW-T/R7_SOT363-6
6
1
2
D58
RB491D_SOT23-3
2
1
3
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA

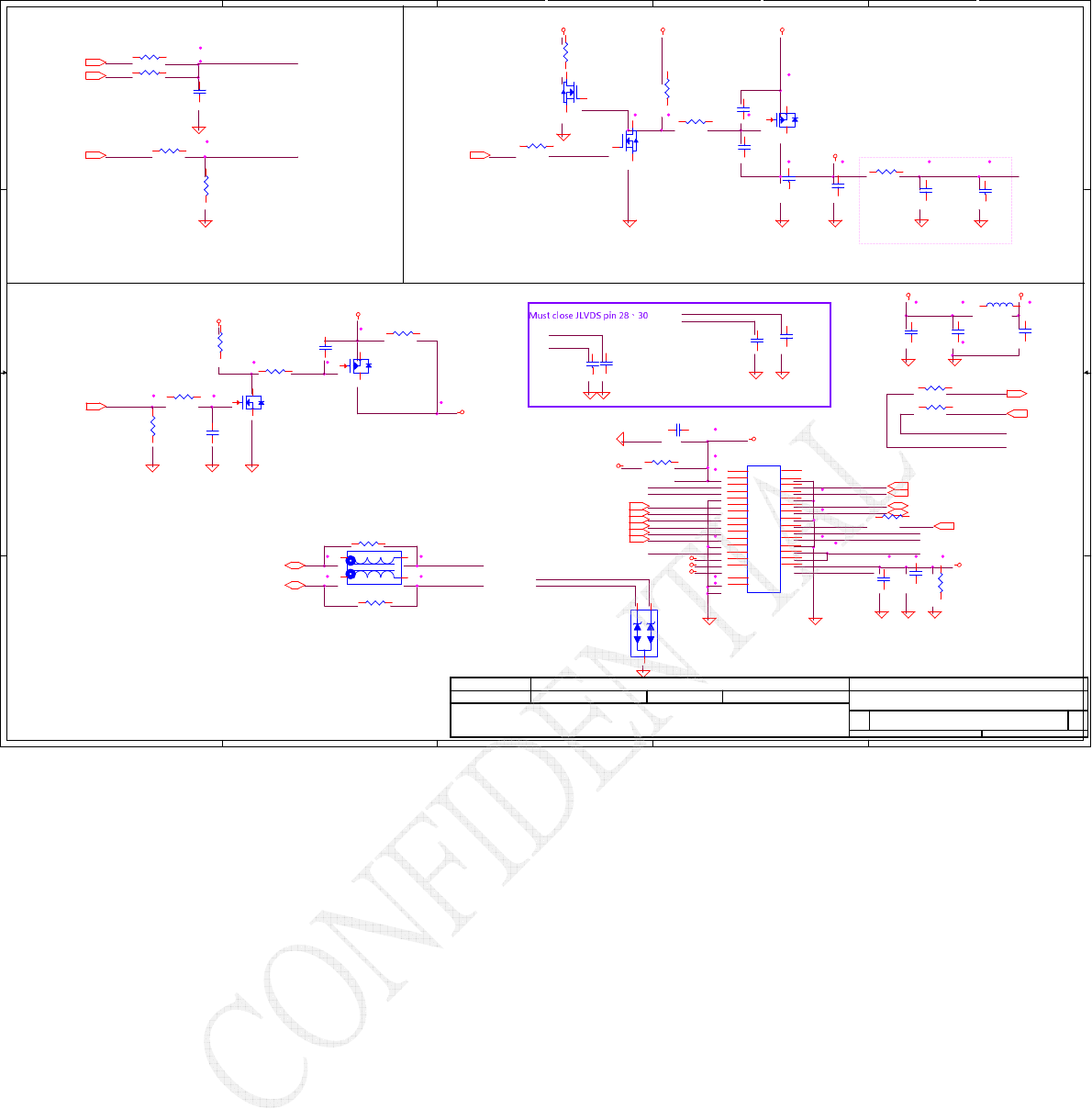

Close to JLVDS1
W=60mils
1.5A
Rated Current MAX:3000mA
W=30mils
Vds=-20V
Id=-3A
Rds=130m ohm
Vgs=-4.5
Vth=-1
LCD/PANEL BD. Conn.
Add on 7/27 for fn+f5 turn off camera.
CE_EN: reserve for special panel,
controlled by PCH--Joyce 0921-2011
W=30mils
W=30mils
BKOFF#
PCH_TXOUT0-
PCH_TXOUT0+
PCH_TXOUT1+
PCH_TXOUT1-
PCH_TXOUT2+
PCH_TXOUT2-
+LCDVDD_R
PCH_TXCLK-
PCH_TXCLK+
+LCDVDD_R
BKOFF#_R
USB20_N10_R
USB20_P10_R
LCD_BL_PWM
DMIC_DATA
DMIC_CLK
DMIC_DATA_R
PCH_EDID_CLK
PCH_EDID_DATA
CE_EN_R CE_EN
LCD_BL_PWM
BKOFF#_R
+LCDVDD_R
DMIC_CLK
DMIC_DATA
DMIC_CLK_R
DMIC_DATA_R
+LCDVDD_R
DMIC_CLK_R
PCH_EDID_DATA
PCH_EDID_CLK
USB20_N10_R
USB20_P10_R
CAMPWR_EN#
CAMPWR_EN
USB20_P10_R
USB20_N10_R
BKOFF#<41>
INVT_PWM<41>
PCH_ENVDD<27>
PCH_BL_PWM<27>
CE_EN <29>
DMIC_CLK <38>
DMIC_DATA <38>
PCH_TXOUT0+<27>
PCH_TXOUT0-<27>
PCH_TXOUT1+<27>
PCH_TXOUT1-<27>
PCH_TXOUT2+<27>
PCH_TXOUT2-<27>
PCH_TXCLK+ <27>
PCH_TXCLK- <27>
PCH_EDID_DATA <27>
PCH_EDID_CLK <27>
CAMPWR_EN<41>
USB20_P10<28>
USB20_N10<28>
+3VS
+LCD_VDD
+3VS
+3VS
+LCD_VDD
+3VS
+LVDS_CAM
+LCD_INV
B+
+LCD_INV
+LCD_INV
+LCD_INV
+LVDS_CAM
+5VS
+5VS
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
23 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
23 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
23 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
R624 47K_0402_5%
TF@
1
2
C908
0.1U_0402_16V7K
1
2
R14410_0402_5% @
1
2
R6 0_0402_5%
1
2
L24
0_0805_5%
1
2
D14
PJDLC05_SOT23-3
@
2
3
1
C758
100P_0402_50V8J
@
1
2
C909
0.1U_0402_16V7K
TF@
1
2
R7 0_0402_5%
1
2
R103
33_0402_5%
1
2
C399
0.1U_0402_16V4Z
@
1
2
C699
0.1U_0402_16V4Z
@
1
2
C671
0.01U_0402_25V7K
1
2
R1440
0_0402_5%
1
2
R1422
10K_0402_5%
TF@
1
2
R1427 0_0603_5%
@1
2
G
D
S
Q61
2N7002_SOT23-3
TF@
2
1
3
C692
68P_0402_50V8J
1
2
C673
0.1U_0402_16V4Z
1
2
R1421
10K_0402_5%
1
2
C319
0.1U_0402_25V4K
1
2
R621
300_0603_5%
1
2
C958
180P_0402_50V8J
1
2
R1401 0_0402_5%
@
1
2
R623 47K_0402_5%
1
2
C400
680P_0402_50V7K
@
1
2
C678
0.1U_0402_16V4Z
1
2
C327
220P_0402_25V8J
@
1
2
Q17B
2N7002DW-T/R7_SOT363-6
3
5
4
R1402 0_0402_5%
@
1
2
C693
4.7U_0805_10V4Z
1
2
C328
220P_0402_25V8J
@1
2
R1428 0_0603_5%
030@
1
2
G
D
S
Q18
AO3413_SOT23
2
13
C760
100P_0402_50V8J
@
1
2
L23
FBMA-L11-201209-221LMA30T_0805
1
2
R1379
0_0402_5%
short@
1
2
G
D
S
Q20
AO3413_SOT23
TF@
2
13
Q17A
2N7002DW-T/R7_SOT363-6
6
1
2
R1191
100K_0402_5%
1
2
R627
100K_0402_5%
1
2
R628
100K_0402_5%
TF@
1
2
JP4
ACES_88242-3001
CONN@
25
25
88
2424
44
21
21
1818
1616
7
7
9
91010
3
3
29
29
23
23
15
15
17
17
5
5
27
27 2626
2020
1414
11
11 1212
66
1
122
19
19
2828
3030
13
13
2222
GND1
31
GND2
32
L4
WCM-2012-900T_0805
@
1
122
33
4
4
R1403 0_0402_5%TF@
1
2
C911
47P_0402_50V8J
12
R183
1K_0402_5%
1
2
C691
0.1U_0402_16V4Z
1
2
C672
4.7U_0805_10V4Z
@
1
2
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
HDMI Connector
40mil
HDMI Source Select
EVT mount chock, DVT mount resistor
EDID SELECT
HOT PLUG1
VGA Video Chanel
Internal Graphic Video Chanel
DISO and OPT Channel
UMAO Channel
if use VGA_HDMI,
R690~R697 should be 499ohm+/-1%.
HDMI_R_DATA HDMI_SDATA
HDMI_SCLK
HDMI_R_CLK
HDMI_CK-
HDMI_R_D0+
HDMI_D2-
HDMI_D1-
HDMI_D0+
HDMI_R_CK+
HDMI_D0-
HDMI_CK+
HDMI_D2+
HDMI_R_D1+
HDMI_R_D2-
HDMI_R_D1-
HDMI_R_D0-
HDMI_R_CK-
HDMI_D1+
HDMI_R_D2+
HDMI_HPD
HDMI_R_D1-
HDMI_R_D1+
HDMI_R_D2+
HDMI_SCLK
HDMI_R_D0+
HDMI_R_D2-
HDMI_R_CK+
HDMI_R_CK-
HDMI_SDATA
HDMI_R_D0-
HDMI_R_CK-
HDMI_R_D2-
HDMI_R_CK+
HDMI_R_D2+
HDMI_R_D0-
HDMI_R_D0+
HDMI_R_D1-
HDMI_R_D1+
HDMI_D2-
HDMI_CK-
HDMI_D0+
HDMI_D1-
HDMI_CK+
HDMI_D0-
HDMI_D2+
HDMI_D1+
HDMI_R_CLK
HDMI_R_DATA
HDMI_HPD
PCH_HDMI_TX2+<27>
PCH_HDMI_TX0-<27>
PCH_HDMI_TXC+<27>
PCH_HDMI_TXC-<27>
PCH_HDMI_TX1-<27>
PCH_HDMI_TX0+<27>
PCH_HDMI_TX1+<27>
PCH_HDMI_TX2-<27>
PCH_HDMI_CLK <27>
PCH_HDMI_DATA <27>
PCH_HDMI_HPD <27>
+HDMI_5V_OUT
+HDMI_5V_OUT
+5VS
+5VS_HDMI
+5VS
+HDMI_5V_OUT
+3VS
+HDMI_5V_OUT
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
24 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
24 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
24 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
C729
0.1U_0402_16V4Z
1
2
R694 680 +-5% 0402
12
L12
WCM-2012-121T_0805
1
1
22
33
4
4
C4350.1U_0402_16V7K
1
2
R691 680 +-5% 0402
1
2
C730
0.1U_0402_16V4Z
@
1
2
JHDMI
LOTES_ABA-HDM-029-P01
CONN@
D2+
1D2_shield
2D2-
3D1+
4
D1_shield
5D1-
6D0+
7D0_shield
8D0-
9
CK+
10CK_shield
11
CK-
12
CEC
13Reserved
14 SCL
15SDA
16
DDC/CEC_GND
17
+5V
18HP_DET
19
GND 20
GND 21
GND 22
GND 23
S
G
D
Q182
BSH111_SOT23-3
2
31
L9
WCM-2012-121T_0805
1
122
33
4
4
R692 680 +-5% 0402
1
2
R573
100K_0402_5%
1
2
R434 0_0402_5%short@
1
2
C4580.1U_0402_16V7K
1
2
R176
0_0402_5%
@
1
2
D53RB161M-20_SOD123-2
2
1
R690 680 +-5% 0402
1
2
BAV99_SOT23-3
D34
2
3
1
R696 680 +-5% 0402
12
L10
WCM-2012-121T_0805
1
1
22
33
4
4
C4020.1U_0402_16V7K
1
2
R178
0_0402_5%
@
12
C266
0.1U_0402_16V4Z
1
2
S
G
D
Q183
BSH111_SOT23-3
2
31
C4570.1U_0402_16V7K
1
2
R697 680 +-5% 0402
12
C250
0.1U_0402_16V4Z
1
2
R173
0_0402_5%
@
12
R164
0_0402_5%
@
12
R1329
2.2K_0402_5%
1
2
G
D
S
Q16
2N7002_SOT23-3
2
13
G
D
S
Q2
2N7002_SOT23-3
2
1
3
R166
0_0402_5%
@
12
C3920.1U_0402_16V7K
1
2
F2
1.1A_6V_MINISMDC110F-2
2
1
R177
0_0402_5%
@
1
2
R1568
1M_0402_5%
1
2
C4360.1U_0402_16V7K
1
2
R695 680 +-5% 0402
1
2
R172
0_0402_5%
@
1
2
C4010.1U_0402_16V7K
1
2
R1328
2.2K_0402_5%
1
2
R436 0_0402_5%short@
1
2
R438 0_0402_5%
short@
12
R693 680 +-5% 0402
1
2
C4330.1U_0402_16V7K
1
2
L11
WCM-2012-121T_0805
1
1
22
33
4
4
R433 0_0402_5%
short@
12
R698 100K_0402_5%
12
R167
0_0402_5%
@
12
5
5
4
4
3
3
2
2
1
1
DD
CC
BB
AA

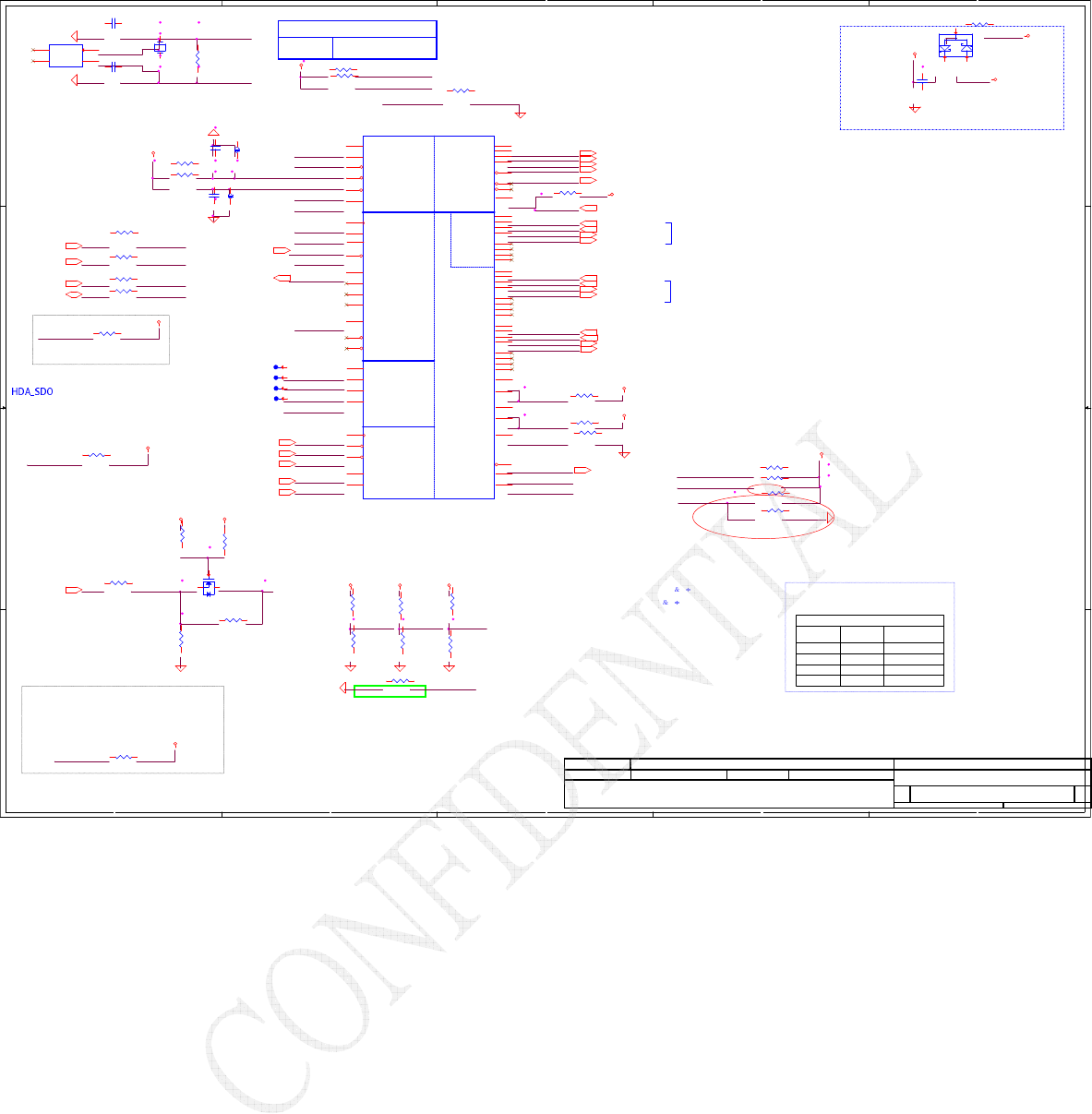

ME CMOS
CMOS
JCMOS & JME1 place near DIMM
HDD
ODD
Compal Electronics, Inc.
far away hot spot
HDA_SYNC
This signal has a weak internal pull-down
On Die PLL VR is supplied by
1.5V when smapled high
1.8V when sampled low
Needs to be pulled High for Chief River platfrom
Intel recommend
ME_EN from EC.
Please place close to RH29 aviod the branch.
E-Sata
Integrated SUS 1.05V VRM Enable
PCH_INTVRMEN High - Enable Internal VRs
(must be always pulled high)
INTVRMEN: check list Rev1.5 P63, P64 error
Intel DPDG Rev1.2 requirement.
ME debug mode , this signal has a weak internal PD
L=>security measures defined in the Flash
Descriptor will be in effect (default)
H=>Flash Descriptor Security will be overridden
*
Low = Disabled
High = Enabled
Place near PCH
W=20mils
W=20mils
LOW=Default
HIGH=No Reboot
*
SATA0GP / GPIO21: Serial ATA 0 General Purpose.
This is an input pin which can be configured as an
interlock switch corresponding to SATA Port 0.
When used as an interlock switch status indication,
this signal should be drive to 0 to indicate
that
the switch is closed and to 1 to indicate that
the switch is open.
If interlock switches are not required,
this pin can be configured as
GPIO21.
SATA1GP/GPIO19: Boot BIOS Strap bit 0 (BBS0)
1
0
Bit 11
(BBS1)
0
Boot BIOS
Destination
1
Reserved
Boot BIOS Strap
1
PCI
SPI1
0
0
*
GPIO51 => BBS_BIT1
GPIO19 => BBS_BIT0
PCH EDS Rev1.5 P99, P98
Bit 10
(BBS0)
LPC
GNT1#/GPIO51: Boot BIOS Strap bit 1 (BBS1)
SATA1GP/GPIO19: Integrated 20K pull up.
MP BOM: Y2-SJ100001K00, C204-18pF, C205-15pF.
another solution: Y2-SJ100004Z00, C204-15pF, C205-15pF.
this is tested OK by DQA, but not add into BOM.
PCH_RTCX1
PCH_RTCRST#
PCH_SRTCRST#
SM_INTRUDER#
PCH_INTVRMEN
PCH_SPKR
PCH_JTAG_TCK
SATA_LED#
PCH_JTAG_TDI
PCH_JTAG_TDO
HDA_SYNC
HDA_RST#
AZ_SDIN0_HD
HDA_SDOUT
PCH_GPIO21
PCH_RTCX2
HDA_BIT_CLK
LPC_AD2
LPC_FRAME#
LPC_AD0
LPC_AD3
LPC_AD1
BBS_BIT0_R
SATA_COMP
RBIAS_SATA3
SATA3_COMP
HDA_BIT_CLK
HDA_RST#
HDA_SDOUT
SATA_LED#
HDA_SYNC
HDA_SDOUT
PCH_SPI_CLK
PCH_SPI_MOSI
PCH_SPI_MISO
PCH_SPI_CS#
BBS_BIT0_R
SATA_PTX_DRX_N0
SATA_PTX_DRX_P0
SATA_PRX_C_DTX_P0
SATA_PRX_C_DTX_N0
SATA_PTX_DRX_N2
SATA_PTX_DRX_P2
SATA_PRX_C_DTX_P2
SATA_PRX_C_DTX_N2
PCH_SPI_CS1#
AZ_SYNC_HD_R
PCH_JTAG_TMS
SATA_PTX_DRX_N4
SATA_PTX_DRX_P4
SATA_PRX_C_DTX_P4
SATA_PRX_C_DTX_N4
PCH_RTCX2
PCH_RTCX1
PCH_INTVRMEN
SM_INTRUDER#
PCH_INTVRMEN
HDA_SYNC
PCH_JTAG_TCK
PCH_JTAG_TMS
PCH_JTAG_TDO
PCH_JTAG_TDI
HDA_SDOUT
PCH_SPKR
PCH_GPIO21
SERIRQ <34,41,44>
LPC_AD0 <34,41,44>
LPC_AD1 <34,41,44>
LPC_AD2 <34,41,44>
LPC_AD3 <34,41,44>
LPC_FRAME# <34,41,44>
SATA_LED# <43>
HDA_SDO<41>
PCH_SPI_MOSI<33>
PCH_SPI_MISO<33>
PCH_SPI_CS#<33>
PCH_SPI_CLK<33>
SATA_PTX_DRX_P0 <34>
SATA_PTX_DRX_N0 <34>
SATA_PRX_C_DTX_P0 <34>
SATA_PRX_C_DTX_N0 <34>
SATA_PTX_DRX_N2 <34>
SATA_PRX_C_DTX_N2 <34>
SATA_PTX_DRX_P2 <34>
SATA_PRX_C_DTX_P2 <34>
AZ_SDOUT_HD<38>
AZ_BITCLK_HD<38>
AZ_SDIN0_HD<38>
AZ_RST_HD#<38>
PCH_SPKR<38>
AZ_SYNC_HD<38>
PCH_SPI_CS1#<33>
SATA_PTX_DRX_N4 <43>
SATA_PRX_C_DTX_N4 <43>
SATA_PTX_DRX_P4 <43>
SATA_PRX_C_DTX_P4 <43>
+RTCVCC
+1.05VS_VCC_SATA
+1.05VS_SATA3
+3VS
+RTCVCC
+3VALW
+3VALW
+3VALW
+CHGRTC
+RTCVCC
+RTCBATT
+3VS
+3VS
+3VALW_PCH
+3VALW_PCH
+3VS
+5VS
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERI NG DRAWING IS THE PR OPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CON TAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
25 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF E NGINEERI NG DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
25 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
25 60Friday, August 24, 2012
2011/09/23 2012/12/31
R190
0_0402_5%
12
JME1
SHORT PADS
@
12
R94
10M_0402_5%
1
2
R99 10K_0402_5%
1
2
C207
1U_0603_10V4Z
R1202 37.4_0402_1%
Y6
32.768KHZ_12.5PF_Q13MC14610002
@
OSC4
OSC1
NC
3
NC
2
R108 33_0402_5%
1
2
R1880_0402_5%
@
1
2
RH42 49.9_0402_1%
12
G
D
S
Q10
BSS138_NL_SOT23-3
2
1
3
R418
1M_0402_5%
1
2
RH39
200_0402_5%
XDP@
1
2
R181 1K_0402_5%
R106 33_0402_5%
12
R101 33_0402_5%
1
2
RH47
100_0402_1%
XDP@
1
2
R1299 1K_0402_5%@
R95
1M_0402_5%
1
2
RTC
IHDA
SATA
LPC
SPI
JTAG
SATA 6G
UPCH1A
PANTHER-POINT_FCBGA989
@
RTCX1
A20
RTCX2
C20
INTVRMEN
C17
INTRUDER#
K22
HDA_BCLK
N34
HDA_SYNC
L34
HDA_RST#
K34
HDA_SDIN0
E34
HDA_SDIN1
G34
HDA_SDIN2
C34
HDA_SDO
A36
SATALED# P3
FWH0 / LAD0 C38
FWH1 / LAD1 A38
FWH2 / LAD2 B37
FWH3 / LAD3 C37
LDRQ1# / GPIO23 K36
FWH4 / LFRAME# D36
LDRQ0# E36
RTCRST#
D20
HDA_SDIN3
A34
HDA_DOCK_EN# / GPIO33
C36
HDA_DOCK_RST# / GPIO13
N32
SRTCRST#
G22
SATA0RXN AM3
SATA0RXP AM1
SATA0TXN AP7
SATA0TXP AP5
SATA1RXN AM10
SATA1RXP AM8
SATA1TXN AP11
SATA1TXP AP10
SATA2RXN AD7
SATA2RXP AD5
SATA2TXN AH5
SATA2TXP AH4
SATA3RXN AB8
SATA3RXP AB10
SATA3TXN AF3
SATA3TXP AF1
SATA4RXN Y7
SATA4RXP Y5
SATA4TXN AD3
SATA4TXP AD1
SATA5RXN Y3
SATA5RXP Y1
SATA5TXN AB3
SATA5TXP AB1
SATAICOMPI Y10
SPI_CLK
T3
SPI_CS0#
Y14
SPI_CS1#
T1
SPI_MOSI
V4
SPI_MISO
U3
SATA0GP / GPIO21 V14
SATA1GP / GPIO19 P1
JTAG_TCK
J3
JTAG_TMS
H7
JTAG_TDI
K5
JTAG_TDO
H1
SERIRQ V5
SPKR
T10
SATAICOMPO Y11
SATA3COMPI AB13
SATA3RCOMPO AB12
SATA3RBIAS AH1
R113 10K_0402_5%
RH38
200_0402_5%
XDP@
1
2
R145 33_0402_5%
12
R96
330K_0402_5%
1
2
R98 20K_0402_5%
JCOMS
SHORT PADS
@
12
R208 4.7K_0402_5%@
1
2
R97 20K_0402_5%
12
RH45
100_0402_1%
XDP@
1
2
T1512 PAD
Y2
32.768KHZ_12.5PF
1
2
RH40
200_0402_5%
XDP@
1
2
R207
10K_0402_5%
1
2
T1513 PAD
RH37 330K_0402_5%@
R182 1K_0402_5%@
R1300 1K_0402_5%
1
2
RH46 750_0402_1%
RH50
51_0402_5%
XDP@
1
2
T1514 PAD
R205 10K_0402_5%
@
C206
1U_0603_10V4Z
C363
0.1U_0402_16V4Z
1
2
RH44
100_0402_1%
XDP@
1
2
R189
0_0402_5%
@
1
2
C204 18P_0402_50V8J
1
2
T1515 PAD
D2
BAS40-04_SOT23-3
1
2
3
C205 15P_0402_50V8J
1
2
R180 0_0402_5%
5
5
4
4
3
3
2
2
1
1
DD
CC
BB
AA

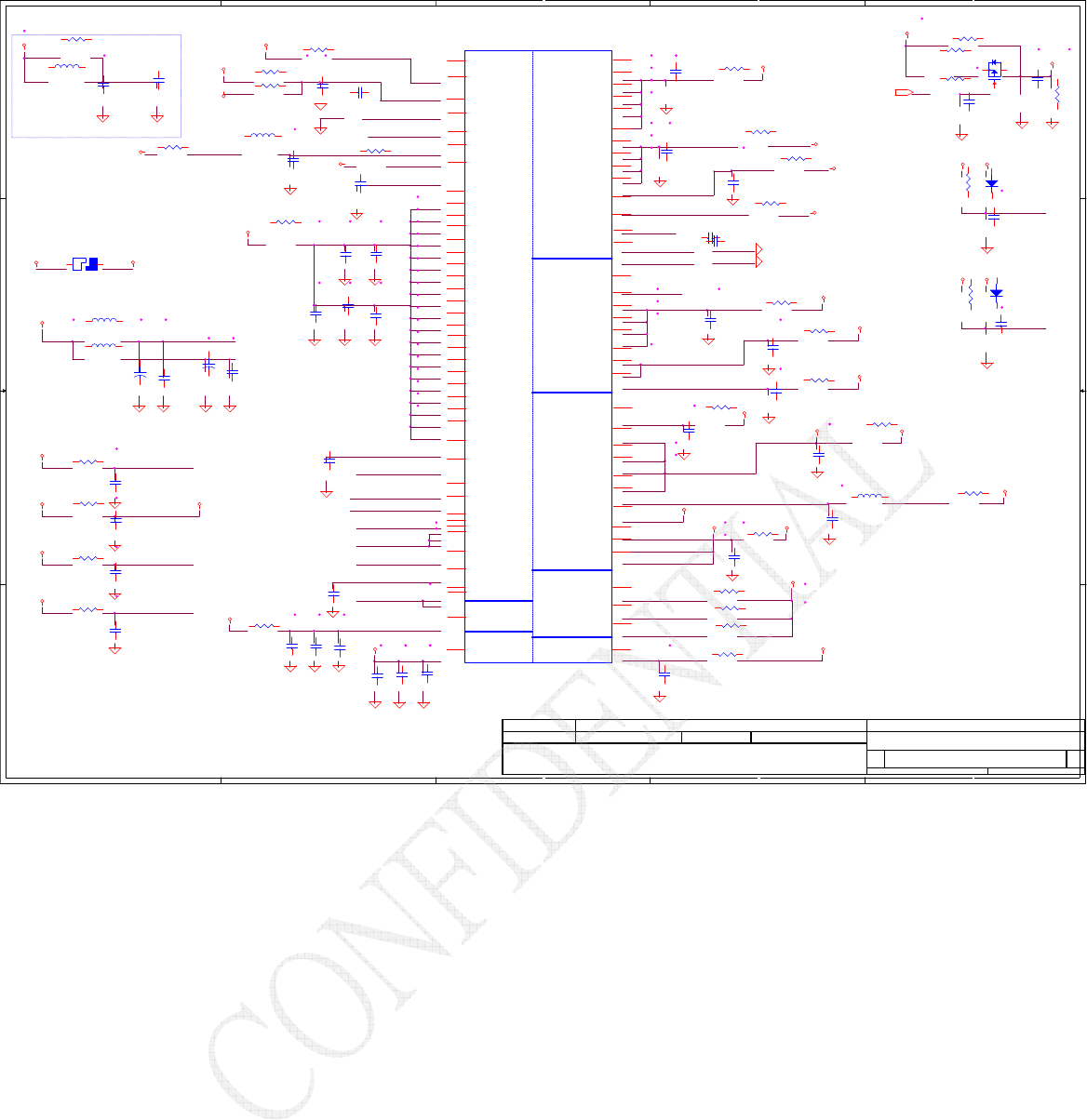

Compal Electronics, Inc.
If use extenal CLK gen, please place close to
CLK gen, else, please place close to PCH
Express Card
WLAN
WWAN
WLAN
Reserve for EMI please close to UPCH1
FROM CLK GEN FOR: 133/100/96/14.318 MHZ
T15, T16 reserve 27M_CLK and 27M_SSC for VGA.
we have crystal at VGA side.
Add RN192,RN193 5/12
Pull high @ VGA side
for safe
add port to EC--Joyce
To EC SM BUS 2
LAN
Express Card
Card Reader
VGA
WWAN
LAN
Card Reader
CLK_PCILOOP
PCH_HOT#
PCIE_PTX_WLANRX_P2
PCIE_PTX_WLANRX_N2
DRAMRST_CNTRL_PCH
PCH_SMLDATA0
PCH_SMLCLK0
PCH_SMBCLK
PCH_SMBDATA
PCH_SMLDATA1
PCH_SMLCLK1
CL_DATA_DMC
CL_CLK_DMC
CL_RST#_DMC
PCH_SMLDATA0
PCH_SMLCLK0
PCH_CLK_DMI#
PCH_CLK_DMI
CLK_14M_PCH
CLKIN_DMI2#
CLK_DOT#
CLK_SATA
CLK_SATA#
PCH_SMBDATA
PCH_SMBCLK
CLKIN_DMI2
CLK_DOT
CLK_14M_PCH
CLK_PCILOOP
PCH_HOT#
DRAMRST_CNTRL_PCH
PCH_GPIO11
CLK_DP#
CLK_DP
PCH_CLK_DMI#
PCH_CLK_DMI
CLKIN_DMI2#
CLKIN_DMI2
CLK_DOT#
CLK_DOT
CLK_SATA#
CLK_SATA
CLK_CPU_DMI
CLK_CPU_DMI#
CLK_14M_PCH
PCH_X2
PCH_X1
PCH_SMLCLK1
PCH_SMLDATA1 EC_SMB_DA2
EC_SMB_CK2
PM_SMBDATA
PCH_SMBCLK
PCH_SMBDATA
PM_SMBCLK
XCLK_RCOMP
CLK_FLEX1
CLK_FLEX2
DGPU_PRSNT#
PCH_GPIO46
CLK_BCLK_ITP
CLK_BCLK_ITP#
PEG_CLKREQ#_R
CLKREQ_WLAN#
CLK_R_WLAN#
CLK_R_WLAN
CLK_R_WWAN#
CLK_R_WWAN
CLKREQ_R_WWAN#
CLK_REQ_CARD#
PCH_GPIO46
CLKREQ_R_WWAN#
CLKREQ_LAN#
PEG_CLKREQ#_R
CLKREQ_WLAN#
PCH_GPIO11
PCIE_PTX_EXPRX_P3
PCIE_PTX_EXPRX_N3
CLK_R_LAN#
CLK_R_LAN
CLKREQ_LAN#
PCH_GPIO44
CLKREQ_EXPCARD#
CLK_R_CARD#
CLK_R_CARD
CLKREQ_EXPCARD#
PCH_GPIO44
PCH_GPIO45
CLK_REQ_CARD#
CLK_CARD#
CLK_CARD
PEG_CLKREQ#_R
CLK_VGA#
CLK_VGA
PCH_GPIO56
PCH_GPIO45
PCH_GPIO56
PCH_X2
PCH_X1
PCIE_PTX_WWANRX_P1
PCIE_PTX_WWANRX_N1
PCIE_PTX_LANRX_P6
PCIE_PTX_LANRX_N6
PCIE_PTX_CARDRX_P5
PCIE_PTX_CARDRX_N5
CLK_RES_ITP#<8>
CLK_RES_ITP<8>
CLK_PCILOOP <28>
PCH_HOT# <41>
PCIE_PTX_C_WLANRX_P2<36>
PCIE_PRX_WLANTX_N2<36>
PCIE_PTX_C_WLANRX_N2<36>
PCIE_PRX_WLANTX_P2<36>
DRAMRST_CNTRL_PCH <7,10>
PCH_SMLDATA0 <42>
PCH_SMLCLK0 <42>
CL_DATA_DMC <36>
CL_CLK_DMC <36>
CL_RST#_DMC <36>
CLK_CPU_DMI <6>
CLK_CPU_DMI# <6>
PM_SMBCLK<11,12,36,39>
PM_SMBDATA<11,12,36,39>
CLK_SIO_48M <44>
DGPU_PWR_EN <28,45,57>
PEG_CLKREQ# <13>
VGA_PWROK <29,45,57>
CLK_WLAN<36>
CLK_WWAN<36>
CLK_WWAN#<36>
CLKREQ_WWAN#<36>
CLKREQ_WLAN#<36>
CLK_WLAN#<36>
EC_SMB_DA2 <13,41>
EC_SMB_CK2 <13,41>
PCIE_PTX_C_EXPRX_P3<39>
PCIE_PRX_C_EXPTX_N3<39>
PCIE_PTX_C_EXPRX_N3<39>
PCIE_PRX_C_EXPTX_P3<39>
CLK_LAN<35,42>
CLK_LAN#<35,42>
CLKREQ_LAN#<35,42>
CLKREQ_EXPCARD#<39>
CLK_PCIE_EXPCARD<39>
CLK_PCIE_EXPCARD#<39>
CLK_PCIE_READER#<37>
CLK_PCIE_READER<37>
CLK_PCIE_VGA# <13>
CLK_PCIE_VGA <13>
PCIE_PTX_C_WWANRX_P1<36>
PCIE_PRX_C_WWANTX_N1<36>
PCIE_PTX_C_WWANRX_N1<36>
PCIE_PRX_C_WWANTX_P1<36>
PCIE_PTX_C_LANRX_P6<35,42>
PCIE_PTX_C_LANRX_N6<35,42>
PCIE_PRX_C_LANTX_N6<35,42>
PCIE_PRX_C_LANTX_P6<35,42>
PCIE_PTX_C_CARDRX_P5<37>
PCIE_PRX_C_CARDTX_N5<37>
PCIE_PTX_C_CARDRX_N5<37>
PCIE_PRX_C_CARDTX_P5<37>
+5VALW_PCH
+3VALW_PCH
+3VALW_PCH
+3VS
+3VS
+3VS
+3VALW_PCH
+1.05VS_VCCDIFFCLKN
+3VALW_PCH
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CU STODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHE ET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
26 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEE T OF ENGINEER ING DRAWIN G IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CU STODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHE ET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
26 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEE T OF ENGINEERING DRAWIN G IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND C ONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CU STODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHE ET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
26 60Friday, August 24, 2012
2011/09/23 2012/12/31
R12094.7K_0402_5%
1
2
R1529 10K_0402_5%
12
R130
2.2K_0402_5%
1
2
R1520 10K_0402_5%
1
2
C404 0.1U_0402_16V7K
12
R269
33_0402_5%
@
1
2
C216 0.1U_0402_16V7K
12
C218 0.1U_0402_16V7K
12
R1533
10K_0402_5%
UMA@
12
RH90 10K_0402_5%
1
2
R1212 0_0402_5%
short@
1
2
R1220 0_0402_5%
short@
12
R1530 10K_0402_5%
1
2
R219 2.2K_0402_5%
@
1
2
C403 0.1U_0402_16V7K
1
2
C367
22P_0402_50V8J
@
1
2
C215 0.1U_0402_16V7K
1
2
R264 0_0402_5%
short@
1
2
R1534
10K_0402_5%
OPT@
1
2
RH91 10K_0402_5%
1
2
RH89 10K_0402_5%
12
RN73
2.2K_0402_5%
@
1
2
R12161M_0402_5%
R265
33_0402_5%
@
1
2
R222 2.2K_0402_5%
@
1
2
R1213 0_0402_5%
short@
12
R255 10K_0402_5%
12
RH92 10K_0402_5%
12
R12084.7K_0402_5%
1
2
C869
10P_0402_50V8J
1
2
RN192 0_0402_5%OPT@
12
R1522 10K_0402_5%
1
2
R1214 0_0402_5%
short@
12
R1224 2.2K_0402_5%
1
2
Q3A
2N7002DW T/R7_SOT-363-6
6
1
2
T14 PAD
@
R1217 10K_0402_5%
1
2
RN72
2.2K_0402_5%
@
1
2
R1229 2.2K_0402_5%
1
2
R223 10K_0402_5%
@
1
2
C368
22P_0402_50V8J
@
1
2
R1226 0_0402_5%
short@
1
2
PCI-E*
CLOCKS
FLEX CLOCKS
SMBUSController
Link
UPCH1B
PANTHER-POINT_FCBGA989
@
PERN1
BG34
PERP1
BJ34
PERN2
BE34
PERP2
BF34
PERN3
BG36
PERP3
BJ36
PERN4
BF36
PERP4
BE36
PERN5
BG37
PERP5
BH37
PERN6
BJ38
PERP6
BG38
PERN7
BG40
PERP7
BJ40
PERN8
BE38
PERP8
BC38
PETN1
AV32
PETP1
AU32
PETN2
BB32
PETP2
AY32
PETN3
AV34
PETP3
AU34
PETN4
AY34
PETP4
BB34
PETN5
AY36
PETP5
BB36
PETN6
AU36
PETP6
AV36
PETN7
AY40
PETP7
BB40
PETN8
AW38
PETP8
AY38
CLKOUT_PCIE0N
Y40
CLKOUT_PCIE0P
Y39
CLKOUT_PCIE1N
AB49
CLKOUT_PCIE1P
AB47
CLKOUT_PCIE2N
AA48
CLKOUT_PCIE2P
AA47
CLKOUT_PCIE3N
Y37
CLKOUT_PCIE3P
Y36
CLKOUT_PCIE4N
Y43
CLKOUT_PCIE4P
Y45
CLKOUT_PCIE5N
V45
CLKOUT_PCIE5P
V46
CLKIN_GND1_N BJ30
CLKIN_GND1_P BG30
CLKIN_DMI_N BF18
CLKIN_DMI_P BE18
CLKIN_DOT_96N G24
CLKIN_DOT_96P E24
CLKIN_SATA_N AK7
CLKIN_SATA_P AK5
XTAL25_IN V47
XTAL25_OUT V49
REFCLK14IN K45
CLKIN_PCILOOPBACK H45
CLKOUT_PEG_A_N AB37
CLKOUT_PEG_A_P AB38
PEG_A_CLKRQ# / GPIO47 M10
PCIECLKRQ0# / GPIO73
J2
PCIECLKRQ1# / GPIO18
M1
PCIECLKRQ2# / GPIO20
V10
PCIECLKRQ3# / GPIO25
A8
PCIECLKRQ4# / GPIO26
L12
PCIECLKRQ5# / GPIO44
L14
CLKOUTFLEX0 / GPIO64 K43
CLKOUTFLEX1 / GPIO65 F47
CLKOUTFLEX2 / GPIO66 H47
CLKOUTFLEX3 / GPIO67 K49
CLKOUT_DMI_N AV22
CLKOUT_DMI_P AU22
PEG_B_CLKRQ# / GPIO56
E6
CLKOUT_PEG_B_P
AB40
CLKOUT_PEG_B_N
AB42
XCLK_RCOMP Y47
CLKOUT_DP_P AM13
CLKOUT_DP_N AM12
CLKOUT_PCIE6N
V40
CLKOUT_PCIE6P
V42
PCIECLKRQ7# / GPIO46
K12
CLKOUT_PCIE7N
V38
CLKOUT_PCIE7P
V37
CLKOUT_ITPXDP_N
AK14
CLKOUT_ITPXDP_P
AK13
SMBALERT# / GPIO11 E12
SMBCLK H14
SMBDATA C9
SML0ALERT# / GPIO60 A12
SML0CLK C8
SML0DATA G12
SML1ALERT# / PCHHOT# / GPIO74 C13
SML1CLK / GPIO58 E14
SML1DATA / GPIO75 M16
CL_CLK1 M7
CL_DATA1 T11
CL_RST1# P10
PCIECLKRQ6# / GPIO45
T13
T13 PAD
@
R257 0_0402_5%
@
1
2
R1532 10K_0402_5%
1
2
RN188 0_0402_5%@
12
Q3B
2N7002DW T/R7_SOT-363-6
3
5
4
R1222 2.2K_0402_5%
1
2
G
D
S
QN4
SSM3K7002F_SC59-3
OPT@
2
13
R1227 0_0402_5%
short@
12
RH78 10K_0402_5%
1
2
R1523 10K_0402_5%
@
12
RH109 0_0402_5%@
R1223 0_0402_5%short@
1
2
Y3
25MHZ_10PF_7V25000014
GND
2
33
1
1
GND
4
R254
0_0402_5%
short@
1
2
RH76 10K_0402_5%
12
C386 0.1U_0402_16V7K
1
2
R258 0_0402_5%
short@
1
2
R1228 0_0402_5%
short@
1
2
R140 0_0402_5%
short@
1
2
Q4A
2N7002DW T/R7_SOT-363-6
6
1
2
C384 0.1U_0402_16V7K
1
2
R1320 10K_0402_5%
12
RN71 0_0402_5%OPT@
1
2
R1521 10K_0402_5%
1
2
R253
0_0402_5%
short@
1
2
R1322 2.2K_0402_5%
1
2
RH183 10K_0402_5%
12
C391 0.1U_0402_16V7K
1
2
R1206
2.2K_0402_5%
1
2
C385 0.1U_0402_16V7K
12
R1527 10K_0402_5%
12
RN193 0_0402_5%
@
12
R1225 0_0402_5%short@
12
R1207 10K_0402_5%
12
R1319 1K_0402_5%
12
RH77 10K_0402_5%
12
RH108 0_0402_5%@
R1221 90.9_0402_1%
12
C225
10P_0402_50V8J
1
2
Q4B
2N7002DW T/R7_SOT-363-6
3
5
4
T15 PAD
@
R1531 10K_0402_5%
1
2
C217 0.1U_0402_16V7K
12
R260 0_0402_5%
short@
1
2
RH79 10K_0402_5%
12
R144 0_0402_5%short@
1
2
5
5
4
4
3
3
2
2
1
1
DD
CC
BB
AA
4mil width and place
within 500mil of the PCH
Can be left NC when IAMT is
not support on the platfrom
HEnable
LDisable
DSWODVREN - On Die DSW VR Enable
*
Compal Electronics, Inc.
Check EC for S3 S4 LED
Pull high at LVDS conn side.
SUSWARN# /SUSPWRDNACK/ GPIO30 (Mobile Only):
Used by Intel@ME as either SUSWARN#
in Deep S4/S5 state supported platforms
or as SUSPWRDNACK in non Deep S4/S5
state supported platforms.
support deep S4/S5:
"SUSWARN#' "SUSPWRDNACK"
non Deep S4/S5: tied "DPWROK"to RSMRST#.
DSWVRMEN: must be always pulled-up to VCCRTC. --PCH EDS
DMI_IRCOMP
PCH_RSMRST#_R
PCH_GPIO72
AC_PRESENT_R
DMI_CRX_PTX_N1
DMI_CRX_PTX_P0
DMI_CRX_PTX_P3
DMI_CTX_PRX_P0
DMI_CRX_PTX_N2
DMI_CRX_PTX_P1
DMI_CTX_PRX_P2
DMI_CTX_PRX_N2
DMI_CTX_PRX_N3
DMI_CTX_PRX_P3
DMI_CRX_PTX_P2
DMI_CTX_PRX_N1
DMI_CRX_PTX_N0
DMI_CTX_PRX_N0
DMI_CTX_PRX_P1
DMI_CRX_PTX_N3
PCH_GPIO72
RI#
SUSACK#
RBIAS_CPY
SYSTEM_PWROK
PM_DRAM_PWRGD
PCH_RSMRST#
PCH_RSMRST#_R
PBTN_OUT#_R
AC_PRESENT_R
DSWODVREN
PCH_RSMRST#_R
PCH_DPWROK
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
H_PM_SYNC
CRT_IREF
SLP_R_A#
RI#
EC_SWI#
PM_PWROK
PM_PWROK
SLP_R_LAN#
SUSWARN#_R
FDI_CTX_PRX_N0
FDI_CTX_PRX_N1
FDI_CTX_PRX_N2
FDI_CTX_PRX_N3
FDI_CTX_PRX_N4
FDI_CTX_PRX_N6
FDI_CTX_PRX_N5
FDI_CTX_PRX_P1
FDI_CTX_PRX_N7
FDI_CTX_PRX_P0
FDI_CTX_PRX_P3
FDI_CTX_PRX_P2
FDI_CTX_PRX_P6
FDI_CTX_PRX_P5
FDI_CTX_PRX_P4
FDI_CTX_PRX_P7
FDI_INT
FDI_FSYNC1
FDI_FSYNC0
FDI_LSYNC1
FDI_LSYNC0
PCH_CRT_DATA
PCH_CRT_CLK
PCH_CRT_HSYNC
PCH_CRT_B
PCH_CRT_G
PCH_CRT_R
CTRL_CLK
CTRL_DATA
LVDS_IBG
PCH_TXOUT1-
PCH_TXOUT2-
PCH_TXOUT0+
PCH_TXOUT2+
PCH_TXOUT0-
PCH_TXOUT1+
PCH_TXCLK-
PCH_TXCLK+
PCH_ENBKL
PCH_EDID_CLK
PCH_EDID_DATA
PCH_CRT_VSYNC
PCH_HDMI_TX2-
PCH_HDMI_TX2+
PCH_HDMI_TX1-
PCH_HDMI_TX0-
PCH_HDMI_TXC-
PCH_HDMI_TX1+
PCH_HDMI_TX0+
PCH_HDMI_TXC+
SYS_RST#
SYSTEM_PWROK
PCH_HDMI_HPD
SUSWARN#_R
EC_SWI#
PM_CLKRUN#
PM_CLKRUN#
SUS_STAT#
SUSCLK
SLP_R_LAN#
PM_PWROK
VGATE
SUSACK# SUSWARN#
DSWODVREN
PCH_ENVDD
PCH_EDID_DATA
PCH_EDID_CLK
CTRL_CLK
CTRL_DATA
PCH_ENBKL
PCH_BL_PWM
PCH_CRT_CLK
PCH_CRT_DATA
PCH_CRT_B
PCH_CRT_G
PCH_CRT_R
DMI_CTX_PRX_N0<5>
DMI_CRX_PTX_N2<5>
DMI_CTX_PRX_N1<5>
DMI_CTX_PRX_N3<5>
DMI_CTX_PRX_N2<5>
DMI_CTX_PRX_P0<5>
DMI_CTX_PRX_P1<5>
DMI_CTX_PRX_P3<5>
DMI_CTX_PRX_P2<5>
DMI_CRX_PTX_N3<5>
DMI_CRX_PTX_N1<5>
DMI_CRX_PTX_N0<5>
DMI_CRX_PTX_P2<5>
DMI_CRX_PTX_P3<5>
DMI_CRX_PTX_P1<5>
DMI_CRX_PTX_P0<5>
PM_DRAM_PWRGD<6>
PCH_RSMRST#<41>
PBTN_OUT#<41>
ACIN<13,41,48>
H_PM_SYNC <6>
PM_SLP_S3# <41>
PM_SLP_S4# <41>
PM_SLP_S5# <41>
VGATE<54>
SYSTEM_PWROK <6>
FDI_CTX_PRX_N0 <5>
FDI_CTX_PRX_N1 <5>
FDI_CTX_PRX_N3 <5>
FDI_CTX_PRX_N2 <5>
FDI_CTX_PRX_N5 <5>
FDI_CTX_PRX_N4 <5>
FDI_CTX_PRX_N7 <5>
FDI_CTX_PRX_N6 <5>
FDI_CTX_PRX_P1 <5>
FDI_CTX_PRX_P0 <5>
FDI_CTX_PRX_P3 <5>
FDI_CTX_PRX_P2 <5>
FDI_CTX_PRX_P4 <5>
FDI_CTX_PRX_P5 <5>
FDI_CTX_PRX_P7 <5>
FDI_CTX_PRX_P6 <5>
FDI_INT <5>
FDI_FSYNC0 <5>
FDI_LSYNC0 <5>
FDI_FSYNC1 <5>
FDI_LSYNC1 <5>
PCH_CRT_CLK<22>
PCH_CRT_DATA<22>
PCH_CRT_R<22>
PCH_CRT_G<22>
PCH_CRT_B<22>
PCH_TXCLK-<23>
PCH_TXCLK+<23>
PCH_TXOUT0-<23>
PCH_TXOUT1-<23>
PCH_TXOUT2-<23>
PCH_TXOUT0+<23>
PCH_TXOUT1+<23>
PCH_TXOUT2+<23>
PCH_ENVDD<23>
PCH_BL_PWM<23>
PCH_EDID_DATA<23>
PCH_EDID_CLK<23>
PCH_CRT_HSYNC<22>
PCH_CRT_VSYNC<22>
PCH_HDMI_TX2- <24>
PCH_HDMI_TX2+ <24>
PCH_HDMI_TX1- <24>
PCH_HDMI_TX1+ <24>
PCH_HDMI_TX0- <24>
PCH_HDMI_TX0+ <24>
PCH_HDMI_TXC- <24>
PCH_HDMI_TXC+ <24>
PCH_HDMI_HPD <24>
PCH_HDMI_CLK <24>
PCH_HDMI_DATA <24>
SUSWARN#<41>
EC_SWI# <35,36,39>
PM_CLKRUN# <34,44>
SUS_STAT# <34>
SUSCLK_R <41>
SLP_A# <41>
SLP_LAN# <41>
PCH_APWROK<41>
PM_PWROK<41>
PCH_ENBKL<41>
+RTCVCC
+3VS
+3VS
+3VS
+3VALW_PCH
+3VS
+3VS +3VS
+1.05VS_PCH
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CU STODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHE ET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRI TTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
27 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PR OPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CU STODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHE ET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRI TTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
27 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF E NGINEERI NG DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CU STODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHE ET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRI TTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
27 60Friday, August 24, 2012
2011/09/23 2012/12/31
R301 2.2K_0402_5%
1
2
RH137 0_0402_5%
short@
R291 0_0402_5%short@
1
2
RH117 0_0402_5%
VPRO@
1
2
R13140_0402_5%
short@
RH113 0_0402_5%
R1256 10K_0402_5%
R1252 10K_0402_5%
RH292 2.2K_0402_5%
1
2
R1235 100K_0402_5%
@
12
R279 10K_0402_5%
R1334
2.2K_0402_5%
1
2
R300
100K_0402_5%
12
RH131 150_0402_1%
12
RH244 2.37K_0402_1%
1
2
RH291 2.2K_0402_5%
1
2
R1438 4.7K_0402_5%
12
R1620 100K_0402_5%
12
R1335
2.2K_0402_5%
1
2
R283
10K_0402_5%
@
12
RH132 150_0402_1%
12
R1243 10K_0402_5%
RH142
100K_0402_5%
@
1
2
RH119 0_0402_5%
short@
1
2
R284
8.2K_0402_5%
1
2
RH133 150_0402_1%
1
2
RH118 0_0402_5%
VPRO@
12
RH135 0_0402_5%
@
1
2
RH120 0_0402_5%
8111E@
R304 2.2K_0402_5%
12
R1257 10K_0402_5%
R1255
10K_0402_5%
1
2
D12
CH751H-40PT_SOD323-2
2
1
R305 2.2K_0402_5%
1
2
R282 10K_0402_5%
@
T18
C953 180P_0402_50V8J@
1
2
T21PAD
R1244 330K_0402_5%
R1250
1K_0402_0.5%
U12
TC7SH08FU(TE85L,F)
IN1
1
IN2
2
G
3
O4
P5
R1251 10K_0402_5%
T20
RH112 750_0402_1%
RH116 0_0402_5%
VPRO@
1
2
R35 10K_0402_5%
DMI
FDI
System Power Management
UPCH1C
PANTHER-POINT_FCBGA989
@
DMI0RXN
BC24
DMI1RXN
BE20
DMI2RXN
BG18
DMI3RXN
BG20
DMI0RXP
BE24
DMI1RXP
BC20
DMI2RXP
BJ18
DMI3RXP
BJ20
DMI0TXN
AW24
DMI1TXN
AW20
DMI2TXN
BB18
DMI3TXN
AV18
DMI0TXP
AY24
DMI1TXP
AY20
DMI2TXP
AY18
DMI3TXP
AU18
DMI_ZCOMP
BJ24
DMI_IRCOMP
BG25
FDI_RXN0 BJ14
FDI_RXN1 AY14
FDI_RXN2 BE14
FDI_RXN3 BH13
FDI_RXN4 BC12
FDI_RXN5 BJ12
FDI_RXN6 BG10
FDI_RXN7 BG9
FDI_RXP0 BG14
FDI_RXP1 BB14
FDI_RXP2 BF14
FDI_RXP3 BG13
FDI_RXP4 BE12
FDI_RXP5 BG12
FDI_RXP6 BJ10
FDI_RXP7 BH9
FDI_FSYNC0 AV12
FDI_FSYNC1 BC10
FDI_LSYNC0 AV14
FDI_LSYNC1 BB10
FDI_INT AW16
PMSYNCH AP14
SLP_SUS# G16
SLP_S3# F4
SLP_S4# H4
SLP_S5# / GPIO63 D10
SYS_RESET#
K3
SYS_PWROK
P12
PWRBTN#
E20
RI#
A10
WAKE# B9
SUS_STAT# / GPIO61 G8
SUSCLK / GPIO62 N14
ACPRESENT / GPIO31
H20
BATLOW# / GPIO72
E10
PWROK
L22
CLKRUN# / GPIO32 N3
SUSWARN#/SUSPWRDNACK/GPIO30
K16
RSMRST#
C21
DRAMPWROK
B13
SLP_LAN# / GPIO29 K14
APWROK
L10
DPWROK E22
DMI2RBIAS
BH21
SLP_A# G10
DSWVRMEN A18
SUSACK#
C12
T22PAD
RH129 330K_0402_5%@
RH127 330K_0402_5%
T19
R302 2.2K_0402_5%
12
RH290 0_0402_5%
short@
1
2
R1236 49.9_0402_1%
R2
0_0402_5%
short@
R1475
100K_0402_5%
@
1
2
LVDS
Digital Display Interface
CRT
UPCH1D
PANTHER-POINT_FCBGA989
@
L_BKLTCTL
P45
L_BKLTEN
J47
L_CTRL_CLK
T45
L_CTRL_DATA
P39
L_DDC_CLK
T40
L_DDC_DATA
K47
L_VDD_EN
M45
LVDSA_CLK#
AK39
LVDSA_CLK
AK40
LVDSA_DATA#0
AN48
LVDSA_DATA#1
AM47
LVDSA_DATA#2
AK47
LVDSA_DATA#3
AJ48
LVDSA_DATA0
AN47
LVDSA_DATA1
AM49
LVDSA_DATA2
AK49
LVDSA_DATA3
AJ47
LVDSB_CLK#
AF40
LVDSB_CLK
AF39
LVDSB_DATA#0
AH45
LVDSB_DATA#1
AH47
LVDSB_DATA#2
AF49
LVDSB_DATA#3
AF45
LVDSB_DATA0
AH43
DDPB_0N AV42
DDPB_1N AV45
LVD_VREFH
AE48
LVD_VREFL
AE47
DDPD_2N BF42
DDPD_3N BJ42
DDPB_2N AU48
DDPB_3N AV47
DDPC_0N AY47
DDPC_1N AY43
DDPC_2N BA47
DDPC_3N BB47
DDPD_0N BB43
DDPD_1N BF44
DDPB_0P AV40
DDPB_1P AV46
DDPD_2P BE42
DDPD_3P BG42
DDPB_2P AU47
DDPB_3P AV49
LVDSB_DATA1
AH49
LVDSB_DATA2
AF47
LVDSB_DATA3
AF43
LVD_IBG
AF37
LVD_VBG
AF36
DDPC_1P AY45
DDPC_0P AY49
DDPC_2P BA48
DDPC_3P BB49
DDPD_0P BB45
DDPD_1P BE44
CRT_BLUE
N48
CRT_DDC_CLK
T39
CRT_DDC_DATA
M40
CRT_GREEN
P49
CRT_HSYNC
M47
CRT_IRTN
T42
CRT_RED
T49
CRT_VSYNC
M49
DAC_IREF
T43
SDVO_CTRLCLK P38
SDVO_CTRLDATA M39
DDPC_CTRLCLK P46
DDPC_CTRLDATA P42
DDPD_CTRLCLK M43
DDPD_CTRLDATA M36
DDPB_AUXN AT49
DDPC_AUXN AP47
DDPD_AUXN AT45
DDPB_AUXP AT47
DDPC_AUXP AP49
DDPD_AUXP AT43
DDPB_HPD AT40
DDPC_HPD AT38
DDPD_HPD BH41
SDVO_TVCLKINP AP45
SDVO_TVCLKINN AP43
SDVO_STALLP AM40
SDVO_STALLN AM42
SDVO_INTP AP40
SDVO_INTN AP39
5
5
4
4
3
3
2
2
1
1
DD
CC
BB
AA
Intel Anti-Theft Techonlogy
*
NV_ALE
High=Endabled
Low=Disable(floating)
Within 500 mils
Compal Electronics, Inc.
USB3.0 Port0
WWAN
BT
Finger Printer
USB30
Int. Camera
DEL RP5, ADD R316,R317,R318 FOR REMOVE
GPIO53 PU---0609
SATA1GP/GPIO19: Boot BIOS Strap bit 0 (BBS0)
1
0
Bit 11
(BBS1)
0
Boot BIOS
Destination
1
Reserved
Boot BIOS Strap
1
PCI
SPI1
0
0
*
GPIO51 => BBS_BIT1
GPIO19 => BBS_BIT0
PCH EDS Rev1.5 P99, P98
Bit 10
(BBS0)
LPC
GNT1#/GPIO51: Boot BIOS Strap bit 1 (BBS1)
USB port 6,7 are disabled on HM76 and HM75.
L-CONN
New Card
USB port with Esata
R-CONN
R-CONN
For USB3.0, Left USB.
For Right power USB port
For USB port with eSATA.
Smart Card
USBRBIAS
PLT_RST#
NV_ALE
NV_ALE
USB20_N9
USB20_P9
USB20_N12
USB20_P12
USB20_P13
USB20_N13
USB20_N0
USB20_P0
USB20_N10
USB20_P10
USB20_P11
USB20_N11
PCH_GPIO9
PCH_GPIO10
CP_PE#
USB_OC2#
USB_OC1#
USB_OC0#
USB_OC2#
USB_OC1#
CP_PE#
PCH_GPIO10
PCH_GPIO9
USB_OC0#
PCH_GPIO51
PCH_GPIO55
DGPU_HOLD_RST#_R
PCH_GPIO53
DGPU_PWR_EN_R
PCH_GPIO52
PCH_GPIO2
PCH_GPIO5
ODD_DA#
PCH_GPIO4
PCI_PIRQD#
PCI_PIRQA#
PCI_PIRQC#
PCI_PIRQB#
DGPU_HOLD_RST#
PLT_RST#
CLK_PCI
BUF_PLT_RST#
CLK_PCI_EC_R
CLK_TPM
CLK_SIO
PLT_RST#
DGPU_HOLD_RST#
BUF_PLT_RST#
DGPU_HOLD_RST#_R
PCH_GPIO51
PCH_GPIO55
PCI_PIRQC#
PCH_GPIO53
PCI_PIRQA#
PCH_GPIO4
PCH_GPIO52
PCH_GPIO2
PCH_GPIO5
DGPU_PWR_EN_R
PCI_PIRQB#
ODD_DA#
PCI_PIRQD#
DGPU_PWR_EN
USB_OC4#
USB_OC3#
USB_OC3#
USB_OC4#
USB20_N1
USB20_P1
USB20_N8
USB20_P8
USB20_N3
USB20_P3
USB20_N4
USB20_P4
USB20_N5
USB20_P5
USB3_RX0_N<40>
USB3_RX0_P<40>
USB3_TX0_N<40>
USB3_TX0_P<40>
USB20_N9 <43>
USB20_P9 <43>
USB20_P12 <36>
USB20_N12 <36>
USB20_P13 <36>
USB20_N13 <36>
USB20_N0 <40>
USB20_P0 <40>
USB20_N10 <23>
USB20_P10 <23>
USB20_P11 <40>
USB20_N11 <40>
CP_PE# <39>
USB_OC0# <40>
ODD_DA#<34>
DGPU_PWR_EN<26,45,57>
CLK_PCILOOP<26>
PLT_RST#<6,34,35,36,37,39,41,42,44>
CLK_PCI_EC<41>
CLK_PCI_TPM<34>
CLK_PCI_SIO<44>
PLTRST_VGA# <13>
USB20_N1 <43>
USB20_P1 <43>
USB20_N8 <39>
USB20_P8 <39>
USB20_N3 <44>
USB20_P3 <44>
USB20_N4 <44>
USB20_P4 <44>
USB_OC1# <44>
USB_OC4# <40,43>
USB20_N5 <39>
USB20_P5 <39>
+1.8VS
+3VALW_PCH
+3VS
+3VS
+3VS_DGPU
+3VS_DGPU
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF E NGINEERI NG DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
28 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEE T OF ENGINEERING DRAWIN G IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
28 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CU STODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
28 60Friday, August 24, 2012
2011/09/23 2012/12/31
R329 8.2K_0402_5%
1
2
R321 8.2K_0402_5%
1
2
R28022_0402_5%
1
2
R316 8.2K_0402_5%
1
2
R151
100K_0402_5%
12
R330 8.2K_0402_5%
1
2
R28122_0402_5%
1
2
R322 8.2K_0402_5%
1
2
RV49
10K_0402_5%
@
1
2
R157
100K_0402_5%
1
2
R413
1K_0402_5%
OPT@
1
2
RH164 1K_0402_5%@
R310 8.2K_0402_5%
1
2
R323 8.2K_0402_5%
1
2
C477
0.1U_0402_16V4Z
OPT@
1
2
R259 0_0402_5%
@
1
2
R311 8.2K_0402_5%
12
R1270 10K_0402_5%
12
R165
100K_0402_5%
OPT@
12
R28622_0402_5%
1
2
R318 8.2K_0402_5%
12
R317 8.2K_0402_5%
12
RSVD
PCI
USB
UPCH1E
PANTHER-POINT_FCBGA989
@
RSVD23 AV5
RSVD1 AY7
RSVD2 AV7
RSVD3 AU3
RSVD4 BG4
RSVD5 AT10
RSVD6 BC8
RSVD7 AU2
RSVD8 AT4
RSVD17 BB5
RSVD18 BB3
RSVD19 BB7
RSVD20 BE8
RSVD21 BD4
RSVD22 BF6
RSVD9 AT3
RSVD10 AT1
RSVD11 AY3
RSVD12 AT5
RSVD13 AV3
RSVD14 AV1
RSVD15 BB1
RSVD16 BA3
RSVD25 AT8
RSVD24 AV10
RSVD26 AY5
RSVD27 BA2
RSVD28 AT12
RSVD29 BF3
PIRQA#
K40
PIRQB#
K38
PIRQC#
H38
PIRQD#
G38
REQ1# / GPIO50
C46
REQ2# / GPIO52
C44
REQ3# / GPIO54
E40
GNT1# / GPIO51
D47
GNT2# / GPIO53
E42
GNT3# / GPIO55
F46
PIRQE# / GPIO2
G42
PIRQF# / GPIO3
G40
PIRQG# / GPIO4
C42
PIRQH# / GPIO5
D44
USBP0N C24
USBP0P A24
USBP1N C25
USBP1P B25
USBP2N C26
USBP2P A26
USBP3N K28
USBP3P H28
USBP4N E28
USBP4P D28
USBP5N C28
USBP5P A28
USBP6N C29
USBP6P B29
USBP7N N28
USBP7P M28
USBP8N L30
USBP8P K30
USBP9N G30
USBP9P E30
USBP10N C30
USBP10P A30
USBP11N L32
USBP11P K32
USBP12N G32
USBP12P E32
USBP13N C32
USBP13P A32
PME#
K10
CLKOUT_PCI0
H49
CLKOUT_PCI1
H43
CLKOUT_PCI2
J48
USBRBIAS# C33
USBRBIAS B33
OC0# / GPIO59 A14
OC1# / GPIO40 K20
OC2# / GPIO41 B17
OC3# / GPIO42 C16
OC4# / GPIO43 L16
OC5# / GPIO9 A16
OC6# / GPIO10 D14
OC7# / GPIO14 C14
CLKOUT_PCI4
H40
CLKOUT_PCI3
K42
PLTRST#
C6
TP1
BG26
TP2
BJ26
TP3
BH25
TP6
AH38
TP7
AH37
TP8
AK43
TP9
AK45
TP16
Y13
TP17
K24
TP18
L24
TP19
AB46
TP20
AB45
TP21
B21
TP22
M20
TP23
AY16
USB3Rn1
BE28
USB3Rn2
BC30
USB3Rn3
BE32
USB3Rn4
BJ32
USB3Rp1
BC28
USB3Rp2
BE30
USB3Rp3
BF32
USB3Rp4
BG32
USB3Tn1
AV26
USB3Tn2
BB26
USB3Tn3
AU28
USB3Tn4
AY30
USB3Tp1
AU26
USB3Tp2
AY26
USB3Tp3
AV28
USB3Tp4
AW30
TP4
BJ16
TP5
BG16
TP15
AM5
TP14
AM4
TP13
AH12
TP12
H3 TP11
N30 TP10
C18
TP24
BG46
R1271 10K_0402_5%
1
2
U20
TC7SH08FU(TE85L,F)
OPT@
IN1
1
IN2
2
G
3
O4
P5
R1308 10K_0402_5%
12
RH165 22.6_0402_1%
R161 0_0402_5%
OPT@
12
U8
TC7SH08FU(TE85L,F)
IN1
1
IN2
2
G
3
O4
P5
R28522_0402_5%
1
2
R1269 10K_0402_5%
12
R324 8.2K_0402_5%
1
2
R261 0_0402_5%OPT@
1
2
R319 8.2K_0402_5%
@
1
2
R1307 10K_0402_5%
12
R1306 10K_0402_5%
@
1
2
R262 0_0402_5%
OPT@
1
2
R327 8.2K_0402_5%
12
R1267 10K_0402_5%
1
2
R127710K_0402_5%
@
1
2
R320 8.2K_0402_5%
1
2
R1268 10K_0402_5%
1
2
5
5
4
4
3
3
2
2
1
1
DD
CC
BB
AA
Compal Electronics, Inc.
PCH_GPIO28 needs to be connected to XDP_FN8
PCH_GPIO35 needs to be connected to XDP_FN9
PCH_GPIO15 needs to be connected to XDP_FN16
Please refer to Huron River Debug Board DG 1.2
INIT3_3V
This signal has weak internal
PU, can't pull low
Weak internal
PU,Do not pull low
Set to Vcc when HIGH
DMI Termination Voltage
NV_CLE Set to Vss when LOW
CLOSE TO THE BRANCHING POINT
KEEP LOW XXMS ACTIVE,
NOT TAKE ACTIVE ON
RISE/FALL EDGE
Can be configured as wake input to allow wakes from
Deep Sleep.
If not used then use 8.2-kΩ to 10-kΩ pull-down to
GND.
*
PCH_GPIO27 (Have internal Pull-High)
High: VCCVRM VR Enable
Low: VCCVRM VR Disable
*
This signal has a weak internal pull up
On-Die PLL Voltage Regulator
L On-Die PLL Voltage Regulator disable
GPIO28
HOn-Die voltage regulator enable
0
1
0
QAQ12 (UMA) 0 0
QAT10 (UMA) 0
1
0
0
QAQ13 (Optimus) 0 1 1
0
1
0
0
1
1
QAQ10 (UMA)
QAQ11 (Optimus)
PROJECT_ID2 PROJECT_ID1 PROJECT_ID0
For TongFang: QAQ10 (UMA) / QAQ11 (Optimus)
For 030: QAQ12 (UMA) / QAQ13 (Optimus)
QAT11 (Optimus)
QAL50/51, PBL22: GPIO24 NC
QAQ12 (vPro) 1
1
0
1 1
1
QAQ13 (vPro)
PCH_THRMTRIP#
PCH_PECI_R
H_THERMTRIP#
NV_CLE
NV_CLE
PCH_GPIO35
WWAN_R_OFF#
PCH_GPIO1
PCH_GPIO22
CR_PE#
GPIO27_WAKE#_R
PCH_GPIO48
PCH_GPIO39
WL_R_OFF#
PCH_GPIO28
CR_WAKE#
ODD_DETECT#
EC_SMI#
PM_LANPHY_ENABLE
EC_SCI#
PCH_GPIO24
PCH_GPIO6
CE_EN
VGA_PWROK_R
PCH_GPIO0
ODD_EN#
GATEA20
ODD_DETECT#
PCH_GPIO0
LID_SW#_R
EC_SMI#
PM_LANPHY_ENABLE
CR_WAKE#
WL_R_OFF#
PCH_GPIO48
PCH_GPIO24
VGA_PWROK_R
PCH_GPIO28
WWAN_R_OFF#
PCH_GPIO22
KB_RST#
CE_EN
PCH_GPIO6
PCH_GPIO1
EC_SCI#
CR_PE#
PCH_GPIO39
GPIO27_WAKE#_R
PCH_GPIO35
WWAN_R_OFF#
PCH_GPIO28PCH_GPIO28PCH_GPIO28PCH_GPIO28
LID_SW#_R
PROJECT_ID1
PROJECT_ID0
PROJECT_ID1
PROJECT_ID0
PROJECT_ID2
PCH_GPIO57
PCH_GPIO57
PROJECT_ID2
PROJECT_ID2
H_PECI <6,41>
H_CPUPWRGD <6>
KB_RST# <41>
H_THERMTRIP# <6>
H_SNB_IVB# <6>
CR_PE#<37>
EC_SMI#<41>
ODD_DETECT#<34>
EC_SCI#<41>
VGA_PWROK<26,45,57>
CE_EN<23>
WL_OFF#<36,41>
WWAN_OFF#<36,41>
PM_LANPHY_ENABLE<42>
CR_WAKE#<37>
ODD_EN# <34>
GATEA20 <41>
LID_SW_OUT#<41>
GPIO27_WAKE#<35,41>
+1.8VS
+3VS
+3VS
+3VALW_PCH
+3VS
+3VS
+3VALW
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
29 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
29 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF E NGINEERI NG DRAWING IS THE PR OPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CON TAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
29 60Friday, August 24, 2012
2011/09/23 2012/12/31
T1933PAD @
T1913PAD @
R325 1K_0402_5%@
12
RH167 0_0402_5%@
12
R33710K_0402_5%
12
R132310K_0402_5%
1
2
R35210K_0402_5%
12
R36510K_0402_5%
@
12
RH170 0_0402_5%short@
1
2
R33810K_0402_5%
12
R1261 390_0402_5%
12
R331 10K_0402_5%
@
12
T1916 PAD@
T1929PAD @
T1931PAD @
R40810K_0402_5%
TF@
1
2
R127810K_0402_5%
1
2
RH1891K_0402_5%
1
2
R35510K_0402_5%
12
R33910K_0402_5%
1
2
R128710K_0402_5%
1
2
R133010K_0402_5%
1
2
T1930 PAD@
R35610K_0402_5%
1
2
T1908 PAD@
R1276 10K_0402_5%@
1
2
R1279 10K_0402_5%
12
R328 10K_0402_5%
@
1
2
RH1590_0402_5% @
12
T1914 PAD@
R1259
10K_0402_5%
1
2
R37010K_0402_5%
UMA@
12
R132510K_0402_5%
1
2
R127510K_0402_5%
@
1
2
R133210K_0402_5%
@
1
2
R6110K_0402_5%
1
2
CPU/MISC
NCTF
GPIO
UPCH1F
PANTHER-POINT_FCBGA989
@
GPIO27
E16
GPIO28
P8
GPIO24
E8
GPIO57
D6
LAN_PHY_PWR_CTRL / GPIO12
C4
VSS_NCTF_1
A4
VSS_NCTF_2
A44
VSS_NCTF_3
A45
VSS_NCTF_4
A46
VSS_NCTF_5
A5
VSS_NCTF_6
A6
VSS_NCTF_7
B3
VSS_NCTF_8
B47
VSS_NCTF_9
BD1
VSS_NCTF_10
BD49
VSS_NCTF_11
BE1
VSS_NCTF_12
BE49
TACH2 / GPIO6
H36
TACH0 / GPIO17
D40
TACH3 / GPIO7
E38
SATA3GP / GPIO37
M5
SATA5GP / GPIO49 / TEMP_ALERT#
V3
SCLOCK / GPIO22
T5
SLOAD / GPIO38
N2
SDATAOUT0 / GPIO39
M3
SDATAOUT1 / GPIO48
V13
PROCPWRGD AY11
RCIN# P5
PECI AU16
THRMTRIP# AY10
GPIO8
C10
BMBUSY# / GPIO0
T7
GPIO15
G2
TACH1 / GPIO1
A42
SATA2GP / GPIO36
V8
INIT3_3V# T14
STP_PCI# / GPIO34
K1
GPIO35
K4
SATA4GP / GPIO16
U2
VSS_NCTF_32 F49
A20GATE P4
TACH4 / GPIO68 C40
TACH6 / GPIO70 C41
TACH7 / GPIO71 A40
TACH5 / GPIO69 B41
VSS_NCTF_17 BH3
VSS_NCTF_18 BH47
VSS_NCTF_19 BJ4
VSS_NCTF_20 BJ44
VSS_NCTF_21 BJ45
VSS_NCTF_22 BJ46
VSS_NCTF_23 BJ5
VSS_NCTF_24 BJ6
VSS_NCTF_25 C2
VSS_NCTF_26 C48
VSS_NCTF_27 D1
VSS_NCTF_28 D49
VSS_NCTF_29 E1
VSS_NCTF_30 E49
VSS_NCTF_31 F1
TS_VSS4 AK10
TS_VSS3 AH10
TS_VSS2 AK11
TS_VSS1 AH8
NC_1 P37
VSS_NCTF_13
BF1
VSS_NCTF_14
BF49
VSS_NCTF_15 BG2
VSS_NCTF_16 BG48
DF_TVS AY1
R127410K_0402_5%
1
2
T1911PAD @
T1927PAD @
T1912 PAD@
R132610K_0402_5%
1
2
R147 0_0402_5%
short@
1
2
R129610K_0402_5%
1
2
R40910K_0402_5%
030@
12
RH171 0_0402_5%
12
T1926 PAD@
R34 200K_0402_5%
12
R128010K_0402_5%
1
2
R33310K_0402_5%
OPT@
12
R128410K_0402_5%
1
2
RH166 0_0402_5%@
1
2
RH187
2.2K_0402_5%
1
2
R128610K_0402_5%
1
2
R36 200K_0402_5%
1
2
R132410K_0402_5%
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
3.3
1.05
1.05
1.05
V_PROC_IO
V5REF
V5REF_Sus
Vcc3_3
VccADAC
VccADPLLA
VccADPLLB
Voltage Rail
VccCore
VccDMI
1.05/1.0
5
3.3
0.002
0.001
0.001
0.178
0.063
0.075
0.075
1.73
0.047
5
Voltage
S0 Iccmax
Current (A)
1.1
1.05VccIO 3.799
1.05VccASW 0.803
3.3VccSPI 0.01
3.3VccDSW 0.001
1.8 0.002VccDFTERM
3.3VccRTC N/A
3.3VccSus3_3
3.3VccSusHDA
0.065
0.01
VccVRM 1.5 0.147
1.05VccCLKDMI
VccALVDS 3.3
1.8VccTX_LVDS 0.04
0.001
0.075
PCH Power Rail Table
Refer to PCH EDS R1.5
Compal Electronics, Inc.
1mA
1300mA
3709mA
10mA
2mA
75mA
1mA
40mA
VccSSC 1.05 0.095
VccDIFFCLKN 1.05 0.050
Intel recommand
VCCVRM==>1.5V FOR MOBILE
0.1uH inductor, 200mA
Place C265 Near BG6 pin
+VCCAPLLEXP
+1.05VS_VCCAPLL_FDI
+VCCAFDI_VRM
+3V_VCCPSPI
+1.05VS_VCCDPLLEXP
+3VS_VCCA3GBG
+1.05VS_VCCDPLL_FDI
+1.05VS_VCC_DMI_CCI
+VCCP_VCCDMI
+VCCAPLLEXP_R
+3VS_VCC3_3_6
+VCCALVDS
+1.05VS_VCC_EXP
+VCCAFDI_VRM
+VCCTX_LVDS
+VCCADAC
+VCCP_VCCDMI
+3VS
+VCCP_VCCDMI
+3VS
+1.8VS
+3VS
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+3VS
+1.5VS
+VCCAFDI_VRM
+1.05VS_PCH
+3VS
+3V_M
+VCCPNAND
+1.8VS
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
30 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
30 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
30 60Friday, August 24, 2012
2011/09/23 2012/12/31
C258
1U_0402_6.3V6K
1
2
R361
0_0805_5%
12
POWER
VCC CORE
DMI
VCCIO
CRTLVDS
FDI
DFT / SPI
HVCMOS
UPCH1G
PANTHER-POINT_FCBGA989
@
VCCCORE[1]
AA23
VCCCORE[2]
AC23
VCCCORE[3]
AD21
VCCCORE[4]
AD23
VCCCORE[5]
AF21
VCCCORE[6]
AF23
VCCCORE[7]
AG21
VCCCORE[8]
AG23
VCCCORE[9]
AG24
VCCCORE[10]
AG26
VCCCORE[11]
AG27
VCCCORE[12]
AG29
VCCCORE[13]
AJ23
VCCCORE[14]
AJ26
VCCCORE[15]
AJ27
VCCDFTERM[4] AJ17
VCCDFTERM[3] AJ16
VCCIO[17]
AN21
VCCIO[18]
AN26
VCCIO[19]
AN27
VCCIO[20]
AP21
VCCIO[23]
AP26
VCCIO[24]
AT24
VCCIO[15]
AN16
VCCIO[16]
AN17
VCCIO[21]
AP23
VCCIO[22]
AP24
VCCADAC U48
VCCTX_LVDS[1] AM37
VCCTX_LVDS[2] AM38
VCCALVDS AK36
VCCVRM[3] AT16
VCCVRM[2]
AP16
VCCAPLLEXP
BJ22
VccAFDIPLL
BG6
VCCIO[28]
AN19
VCCTX_LVDS[4] AP37
VCCTX_LVDS[3] AP36
VSSADAC U47
VSSALVDS AK37
VCCIO[27]
AP17
VCC3_3[6] V33
VCC3_3[7] V34
VCC3_3[3]
BH29
VCCDFTERM[2] AG17
VCCDFTERM[1] AG16
VCCDMI[1] AT20
VCCIO[25]
AN33
VCCIO[26]
AN34
VCCCORE[16]
AJ29
VCCCORE[17]
AJ31
VCCSPI V1
VCCCLKDMI AB36
VCCDMI[2]
AU20
C264
1U_0402_6.3V6K
1
2
C255
1U_0402_6.3V6K
1
2
CH41
10U_0805_6.3V6M
@
1
2
C267
1U_0402_6.3V6K
1
2
C271
0.01U_0402_16V7K
1
2
C269
1U_0402_6.3V6K
1
2
C308
10U_0603_6.3V6M
1
2
R359
0_0805_5%
12
C265
1U_0402_6.3V6K
@
1
2
R364
0_0805_5%
12
C309
0.1U_0402_10V7K
1
2
C246
1U_0402_6.3V6K
1
2
R367
0_0603_5%
@
1
2
R414
0_0805_5%
8111E@
1
2
R423 0_0805_5%
1
2
LH3
1UH_LB2012T1R0M_20%
@
1
2
C245
10U_0603_6.3V6M
1
2
R357 0_0603_5%
1
2
L6
0.1UH_MLF1608DR10KT_10%_1608
1
2
C254
0.1U_0402_10V7K
1
2
R363
0_0805_5%
1
2
PJPH1
PAD-OPEN 3x3m
@
1
2
C310
0.01U_0402_16V7K
1
2
C244
1U_0402_6.3V6K
1
2
C249
10U_0603_6.3V6M
1
2
C247
1U_0402_6.3V6K
1
2
RH210 0_0603_5%
@
C311
22U_0805_6.3V6M
1
2
R362
0_0805_5%
VPRO@
12
R360
0_0805_5%
1
2
C268
1U_0402_6.3V6K
1
2
C270
0.1U_0402_10V7K
1
2
C263
0.1U_0402_10V7K
1
2
C366
0.01U_0402_16V7K
1
2
R366
0_0603_5%
1
2
C262
1U_0402_6.3V6K
1
2
R369
0_0805_5%
1
2
L5
MBK1608221YZF_2P
1
2
C256
10U_0603_6.3V6M
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
Compal Electronics, Inc.
2mA
1mA
1mA
119mA
75mA
75mA
903mA
3mA
10mA
95mA
55mA
DcpSus and DcpSusByp do not require Decoupling.
Stuffing Decoupling Caps may cause voltage
oscillations, when Internal 1.05 Voltage
Regulator is used. By CPET
Stuff C277 will make
voltage leakage
Short J6 When No VPRO
Place C296 Near AK1 pin
+PCH_V5REF_RUN
+PCH_V5REF_SUS
+VCCA_USBSUS
+3V_VCCPSUS
+PCH_VCCDSW
+3VS_VCC_CLKF33
+VCCSUS1
+VCCACLK
+VCCAPLL_CPY_PCH
+VCCRTCEXT
+1.05VS_VCCA_A_DPL
+1.05VS_VCCA_B_DPL
+1.05VS_VCCAUPLL
+VCCPDSW
+3VS_VCC_CLKF33
+VCCAPLL_CPY
+VCCDPLL_CPY
+1.05VM_VCCASW
+VCCAFDI_VRM
+1.05VS_VCCA_A_DPL
+1.05VS_VCCA_B_DPL
+1.05VS_SSCVCC
+1.05VS_VCCDIFFCLKN
+1.05VM_VCCSUS
+VCCDIFFCLK
+VCCSST
+1.05VM_VCCSUS
+V_CPU_IO
+VCCDIFFCLK
+1.05VS_VCCDIFFCLKN
+1.05VS_SSCVCC
+VCCSUSHDA
+VCCME_22
+VCCME_23
+VCCME_21
+1.05VS_VCC_SATA
+VCCSATAPLL
+VCC3_3_2
+3VS_VCCPPCI
+VCCSATAPLL_R
+VCCAFDI_VRM
+1.05VS_SATA3
+3V_VCCPSUS
+3VS_VCCPCORE
+PCH_V5REF_RUN
+PCH_V5REF_SUS
+1.05VS_VCCUSBCORE
+3V_VCCPUSB
+3V_VCCAUBG
PCH_PWR_EN#<45>
+5VALW
+5VALW_PCH
+1.05VS_PCH
+1.05VS_PCH
+3VALW_PCH
+3VALW
+3VS
+1.05VS_PCH
+1.05VS_PCH
+1.05VM_PCH
+1.05VM_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VM_PCH
+1.05VS_PCH
+1.05VS_VCCDIFFCLKN
+1.05VS_PCH
+RTCVCC
+1.05VM_PCH
+3VALW_PCH
+3VS
+1.05VS_PCH
+3VS
+1.05VS_PCH
+1.05VS_PCH
+VCCAFDI_VRM
+1.05VS_SATA3
+1.05VS_VCC_SATA
+3VS
+3VALW_PCH
+3VS
+5VS
+5VALW_PCH +3VALW_PCH
+1.05VS_PCH
+3VALW_PCH
+3VALW_PCH
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
31 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
31 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
31 60Friday, August 24, 2012
2011/09/23 2012/12/31
C298
0.1U_0402_10V7K
1
2
C282
1U_0402_6.3V6K
1
2
J6
PAD-OPEN 2x2m
@
2
1
R398
0_0603_5%
@
1
2
G
D
S
Q14
AO3413_SOT23-3
@
2
1
3
C297
1U_0402_6.3V6K
1
2
C316
1U_0402_6.3V6K
1
2
C279
22U_0805_6.3V6M
1
2
C299
0.1U_0402_10V7K
1
2
R392
0_0603_5%
1
2
C300
1U_0402_6.3V6K
1
2
C280
22U_0805_6.3V6M
1
2
C303
0.1U_0402_10V7K
1
2
R372
0_0805_5%
@
12
R374
0_0603_5%
@
1
2
C283
1U_0402_6.3V4Z
1
2
C292
1U_0402_6.3V6K
1
2
R415
0_0603_5%
@
1
2
R395
0_0603_5%
1
2
R399
0_0603_5%
1
2
R388
20K_0402_5%
@
1
2
C296
10U_0603_6.3V6M
@
1
2
C315
1U_0402_6.3V6K
1
2
C302
0.1U_0402_10V7K
1
2
R391 0_0805_5%
1
2
R416
0_0603_5%
1
2
R382
0_0603_5%
12
R380
0_0603_5%
1
2
C301
4.7U_0603_6.3V6K
1
2
L13
10UH_LB2012T100MR_20%
@
12
C288
1U_0402_6.3V6K
1
2
D5
CH751H-40PT_SOD323-2
2
1
C293
0.1U_0402_10V7K
1
2
C285
0.1U_0402_10V7K
1
2
C304
1U_0402_6.3V6K
1
2
R397 0_0603_5%
1
2
C317
1U_0402_6.3V6K
1
2
R384
0_0603_5%
1
2
R377
100_0402_5%
1
2
C273
10U_0603_6.3V6M
1
2
R378 0_0603_5%
1
2
R390
0_0805_5%
1
2
C305
0.1U_0402_10V7K
1
2
R371
0_0603_5%
1
2
C307
0.1U_0402_16V4Z
1
2
C677
0.1U_0402_16V4Z
@
1
2
C291
0.1U_0402_10V7K
1
2
+
C286
220U_B2_2.5VM_R35
1
2
C294
0.1U_0603_25V7K
1
2
C306
0.1U_0402_10V7K
1
2
L7
10UH_LB2012T100MR_20%
12
C314 1U_0402_6.3V6K
@
12
R376
0_0603_5%
1
2
C313
0.1U_0402_10V7K
1
2
R393 0_0603_5%
1
2
R389
0_0805_5%
@
1
2
R1382
0_0402_5%
@
1
2
L14
10UH_LB2012T100MR_20%
12
R381
100_0402_5%
1
2
C318
1U_0402_6.3V6K
1
2
R375 0_0603_5%
1
2
C278
1U_0402_6.3V6K
1
2
C274
10U_0603_6.3V6M
@
1
2
C281
1U_0402_6.3V6K
1
2
R383 0_0603_5%
1
2
C276
1U_0402_6.3V6K
@
1
2
R394 0_0603_5%
1
2
C290
0.1U_0402_10V7K
1
2
D4
CH751H-40PT_SOD323-2
2
1
R417
0_0603_5%
1
2
R386
0_0805_5%
@
12
C289
1U_0402_6.3V6K
1
2
C287
0.1U_0402_10V7K
1
2
L8
10UH_LB2012T100MR_20%
@
12
R396 0_0603_5%
1
2
POWER
SATA USB
Clock and Miscellaneous
HDA
CPURTC
PCI/GPIO/LPC
MISC
UPCH1J
PANTHER-POINT_FCBGA989
@
DCPSUSBYP
V12
VCCASW[1]
AA19
VCCASW[2]
AA21
VCCASW[3]
AA24
VCCASW[5]
AA27
VCCASW[6]
AA29
VCCSUSHDA P32
VCCSUS3_3[6] P24
VCCIO[34] T26
VCCIO[4] AD17
VCCASW[7]
AA31
VCCASW[8]
AC26
VCCASW[9]
AC27
VCCASW[10]
AC29
VCCASW[11]
AC31
VCCASW[12]
AD29
V5REF P34
VCC3_3[4] T34
VCCRTC
A22
VCCSUS3_3[10] V24
VCCSUS3_3[9] V23
VCCSUS3_3[8] T24
VCCSUS3_3[7] T23
VCCIO[2] AC16
VCCADPLLB
BF47
VCCDIFFCLKN[1]
AF33
V5REF_SUS M26
VCCIO[3] AC17
DCPSUS[1]
T17
VCCSSC
AG33
VCCADPLLA
BD47
VCCVRM[4]
Y49
VCCACLK
AD49
DCPRTC
N16
VCCASW[4]
AA26
VCCDIFFCLKN[2]
AF34
VCCIO[7]
AF17
DCPSST
V16
VCCIO[5] AF13
VCCASW[22] T21
VCCASW[23] V21
VCCASW[21] T19
VCC3_3[1] AA16
VCC3_3[8] W16
VCCSUS3_3[2] N20
VCCSUS3_3[3] N22
VCCSUS3_3[4] P20
VCCSUS3_3[5] P22
VCCIO[29] N26
VCCIO[30] P26
VCCIO[31] P28
VCCIO[32] T27
V_PROC_IO
BJ8
VCCIO[33] T29
VCCDIFFCLKN[3]
AG34
VCCASW[13]
AD31
VCCASW[14]
W21
VCCASW[15]
W23
VCCASW[16]
W24
VCCASW[17]
W26
VCCASW[18]
W29
VCCASW[19]
W31
VCCASW[20]
W33
VCCIO[6] AF14
VCCVRM[1] AF11
VCCIO[12] AH13
VCCIO[13] AH14
VCC3_3[2] AJ2
VCCAPLLSATA AK1
DCPSUS[3]
AL24
VCCIO[14]
AL29
DCPSUS[4] AN23
VCCSUS3_3[1] AN24
VCCAPLLDMI2
BH23
DCPSUS[2]
V19
VCCDSW3_3
T16
VCC3_3[5]
T38
C272
0.1U_0402_10V7K
1
2
R385
0_0603_5%
1
2
L16
10UH_LB2012T100MR_20%
1
2
C284
1U_0603_10V6K
1
2
CH66 0.1U_0402_10V7K
+
C312
220U_B2_2.5VM_R35
1
2
C295
1U_0402_6.3V6K
1
2
R379
0_0805_5%
1
2
R373
0_0603_5%
@
1
2
R387
0_0805_5%
1
2
C277
0.1U_0402_10V7K@
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
32 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
32 60Friday, August 24, 2012
2011/09/23 2012/12/31
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
32 60Friday, August 24, 2012
2011/09/23 2012/12/31
UPCH1I
PANTHER-POINT_FCBGA989
@
VSS[159]
AY4
VSS[160]
AY42
VSS[161]
AY46
VSS[162]
AY8
VSS[163]
B11
VSS[164]
B15
VSS[165]
B19
VSS[166]
B23
VSS[167]
B27
VSS[168]
B31
VSS[169]
B35
VSS[170]
B39
VSS[171]
B7
VSS[173]
BB12
VSS[174]
BB16
VSS[175]
BB20
VSS[176]
BB22
VSS[177]
BB24
VSS[178]
BB28
VSS[179]
BB30
VSS[180]
BB38
VSS[181]
BB4
VSS[182]
BB46
VSS[183]
BC14
VSS[184]
BC18
VSS[185]
BC2
VSS[186]
BC22
VSS[187]
BC26
VSS[188]
BC32
VSS[189]
BC34
VSS[190]
BC36
VSS[191]
BC40
VSS[192]
BC42
VSS[193]
BC48
VSS[194]
BD46
VSS[195]
BD5
VSS[196]
BE22
VSS[197]
BE26
VSS[198]
BE40
VSS[199]
BF10
VSS[200]
BF12
VSS[201]
BF16
VSS[202]
BF20
VSS[203]
BF22
VSS[204]
BF24
VSS[205]
BF26
VSS[206]
BF28
VSS[207]
BD3
VSS[208]
BF30
VSS[209]
BF38
VSS[210]
BF40
VSS[211]
BF8
VSS[212]
BG17
VSS[213]
BG21
VSS[214]
BG33
VSS[215]
BG44
VSS[216]
BG8
VSS[217]
BH11
VSS[218]
BH15
VSS[219]
BH17
VSS[220]
BH19
VSS[222]
BH27
VSS[223]
BH31
VSS[224]
BH33
VSS[225]
BH35
VSS[226]
BH39
VSS[227]
BH43
VSS[228]
BH7
VSS[229]
D3
VSS[230]
D12
VSS[231]
D16
VSS[232]
D18
VSS[233]
D22
VSS[234]
D24
VSS[235]
D26
VSS[236]
D30
VSS[237]
D32
VSS[264] K7
VSS[265] L18
VSS[266] L2
VSS[267] L20
VSS[268] L26
VSS[269] L28
VSS[270] L36
VSS[271] L48
VSS[272] M12
VSS[273] P16
VSS[274] M18
VSS[275] M22
VSS[276] M24
VSS[277] M30
VSS[278] M32
VSS[279] M34
VSS[280] M38
VSS[281] M4
VSS[282] M42
VSS[283] M46
VSS[284] M8
VSS[285] N18
VSS[286] P30
VSS[288] P11
VSS[289] P18
VSS[290] T33
VSS[291] P40
VSS[292] P43
VSS[293] P47
VSS[294] P7
VSS[295] R2
VSS[296] R48
VSS[297] T12
VSS[298] T31
VSS[299] T37
VSS[300] T4
VSS[301] W34
VSS[302] T46
VSS[303] T47
VSS[304] T8
VSS[305] V11
VSS[306] V17
VSS[307] V26
VSS[308] V27
VSS[309] V29
VSS[310] V31
VSS[311] V36
VSS[312] V39
VSS[313] V43
VSS[314] V7
VSS[315] W17
VSS[316] W19
VSS[238]
D34
VSS[239]
D38
VSS[240]
D42
VSS[241]
D8
VSS[242]
E18
VSS[243]
E26
VSS[244]
G18
VSS[245]
G20
VSS[246]
G26
VSS[247]
G28
VSS[248]
G36
VSS[249]
G48
VSS[250]
H12
VSS[251]
H18
VSS[317] W2
VSS[318] W27
VSS[319] W48
VSS[320] Y12
VSS[321] Y38
VSS[322] Y4
VSS[323] Y42
VSS[324] Y46
VSS[325] Y8
VSS[328] BG29
VSS[329] N24
VSS[330] AJ3
VSS[287] N47
VSS[252]
H22
VSS[253]
H24
VSS[254]
H26
VSS[255]
H30
VSS[256]
H32
VSS[257]
H34
VSS[258]
F3
VSS[262] K39
VSS[263] K46
VSS[259] H46
VSS[260] K18
VSS[261] K26
VSS[331] AD47
VSS[333] B43
VSS[334] BE10
VSS[335] BG41
VSS[337] G14
VSS[338] H16
VSS[340] T36
VSS[342] BG22
VSS[343] BG24
VSS[344] C22
VSS[345] AP13
VSS[172]
F45
VSS[221]
H10
VSS[346] M14
VSS[347] AP3
VSS[348] AP1
VSS[349] BE16
VSS[350] BC16
VSS[351] BG28
VSS[352] BJ28
UPCH1H
PANTHER-POINT_FCBGA989
@
VSS[1]
AA17
VSS[2]
AA2
VSS[3]
AA3
VSS[5]
AA34
VSS[6]
AB11
VSS[7]
AB14
VSS[8]
AB39
VSS[9]
AB4
VSS[10]
AB43
VSS[11]
AB5
VSS[12]
AB7
VSS[13]
AC19
VSS[14]
AC2
VSS[15]
AC21
VSS[16]
AC24
VSS[17]
AC33
VSS[18]
AC34
VSS[19]
AC48
VSS[20]
AD10
VSS[21]
AD11
VSS[22]
AD12
VSS[23]
AD13
VSS[24]
AD19
VSS[25]
AD24
VSS[26]
AD26
VSS[27]
AD27
VSS[28]
AD33
VSS[29]
AD34
VSS[30]
AD36
VSS[31]
AD37
VSS[33]
AD39
VSS[34]
AD4
VSS[35]
AD40
VSS[36]
AD42
VSS[37]
AD43
VSS[38]
AD45
VSS[39]
AD46
VSS[43]
AF10
VSS[44]
AF12
VSS[46]
AD16
VSS[47]
AF16
VSS[48]
AF19
VSS[49]
AF24
VSS[50]
AF26
VSS[51]
AF27
VSS[52]
AF29
VSS[53]
AF31
VSS[54]
AF38
VSS[55]
AF4
VSS[56]
AF42
VSS[57]
AF46
VSS[59]
AF7
VSS[60]
AF8
VSS[61]
AG19
VSS[62]
AG2
VSS[63]
AG31
VSS[64]
AG48
VSS[65]
AH11
VSS[66]
AH3
VSS[67]
AH36
VSS[68]
AH39
VSS[69]
AH40
VSS[70]
AH42
VSS[71]
AH46
VSS[72]
AH7
VSS[73]
AJ19
VSS[76]
AJ33
VSS[77]
AJ34
VSS[78]
AK12
VSS[79]
AK3
VSS[80] AK38
VSS[81] AK4
VSS[82] AK42
VSS[83] AK46
VSS[84] AK8
VSS[85] AL16
VSS[86] AL17
VSS[87] AL19
VSS[88] AL2
VSS[89] AL21
VSS[90] AL23
VSS[91] AL26
VSS[92] AL27
VSS[93] AL31
VSS[96] AL48
VSS[97] AM11
VSS[98] AM14
VSS[99] AM36
VSS[100] AM39
VSS[102] AM45
VSS[103] AM46
VSS[104] AM7
VSS[105] AN2
VSS[106] AN29
VSS[107] AN3
VSS[108] AN31
VSS[109] AP12
VSS[110] AP19
VSS[111] AP28
VSS[112] AP30
VSS[113] AP32
VSS[114] AP38
VSS[116] AP42
VSS[117] AP46
VSS[118] AP8
VSS[119] AR2
VSS[120] AR48
VSS[121] AT11
VSS[122] AT13
VSS[123] AT18
VSS[124] AT22
VSS[125] AT26
VSS[126] AT28
VSS[127] AT30
VSS[128] AT32
VSS[131] AT42
VSS[132] AT46
VSS[133] AT7
VSS[134] AU24
VSS[135] AU30
VSS[136] AV16
VSS[137] AV20
VSS[138] AV24
VSS[139] AV30
VSS[140] AV38
VSS[141] AV4
VSS[142] AV43
VSS[143] AV8
VSS[144] AW14
VSS[145] AW18
VSS[146] AW2
VSS[147] AW22
VSS[148] AW26
VSS[149] AW28
VSS[150] AW32
VSS[151] AW34
VSS[152] AW36
VSS[153] AW40
VSS[154] AW48
VSS[155] AV11
VSS[156] AY12
VSS[157] AY22
VSS[158] AY28
VSS[40]
AD8
VSS[42]
AE3
VSS[45]
AD14
VSS[115] AP4
VSS[0]
H5
VSS[58]
AF5
VSS[32]
AD38
VSS[4]
AA33
VSS[74]
AJ21
VSS[75]
AJ24
VSS[41]
AE2
VSS[129] AT34
VSS[130] AT39
VSS[101] AM43
VSS[95] AL34
VSS[94] AL33
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
SBIOS SPI Flash
U59:
Vpro--SA000039A20 8MB
non-Vpro--SA00003K800 4MB
For EMI resuest.
BIOS SPI Flash (2MByte*1) For Win8
P/N: SA000041N00
For EMI resuest.
SBIOS_CLK1
SBIOS_SI1
SBIOS_CLK1
SBIOS_SO1 PCH_SPI_MISO
PCH_SPI_CS1#
PCH_SPI_CLK
PCH_SPI_MOSI
PCH_SPI_MISO_R
PCH_SPI_CS#
PCH_SPI_MISO
PCH_SPI_CLK
PCH_SPI_MOSI
SBIOS_SI
SBIOS_CLK
SBIOS_CLK
PCH_SPI_CS1#<25>
PCH_SPI_CS#<25>
PCH_SPI_MISO <25>
PCH_SPI_CLK<25>
PCH_SPI_MOSI<25>
+3V_M
+3VS
+3V_M
+3VS
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
33 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
33 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
33 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
R420
10_0402_5%
@
1
2
U59
64M W25Q64FVSSIG SOIC 8P SPI ROM
VPRO@
C405
0.1U_0402_16V4Z
C406
0.1U_0402_16V4Z
WIN8@
C409
6P_0402_25V
@
R4927
4.7K_0402_5%
1
2
C413
12P_0402_50V8J
U60
16M MX25L1606EM2I-12G SOP 8P ROM
WIN8@
CS
1
VCC
8
SO2
HOLD
7
GND 4
SI
5
SCLK
6
WP
3
R406
33_0402_5%
WIN8@
1
2
R4928
4.7K_0402_5%
1
2
U59
32M W25Q32BVSSIG
8111E@
CS
1
VCC
8
SO 2
HOLD
7
GND 4
SI
5
SCLK
6
WP
3
R421
0_0603_5%
8111E@
1
2
R404
33_0402_5%
WIN8@
1
2
R419
10_0402_5%
@
1
2
R422
0_0603_5%
VPRO@
1
2
R407 33_0402_5%
WIN8@
1
2
R402 33_0402_5%
1
2
R405
0_0603_5%
8111E@
1
2
R4932
4.7K_0402_5%
WIN8@
12
R401 33_0402_5%
1
2
R403 33_0402_5%
1
2
C420
6P_0402_25V
@
R4933
4.7K_0402_5%
WIN8@
12
C421 12P_0402_50V8J
@
R411
0_0603_5%
VPRO@
1
2
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
1.2A
Place closely JP25 SATA CONN.
SATA HDD Conn.
SATA ODD Conn
Place component's closely ODD CONN.
*0 = 02Eh
Base I/O Address:
TPM 1.2
1 = 04Eh
EMI
TEST: Default: Normal Mode, IN_TPM PD,
WB_TPM NC
4.7K PU: Test Mode
IN_TPM:
WB_TPM:
Default:7EH-7FH
4.7K PD:EEH-EFH
BADD: IN_TPM PD, WB_TPM NC
BOM
IN_TPM:IN_TPM@&TPM@
WB_TPM:WB_TPM@&TPM@
For NON_TPM SKU Reserve
if support physically access
the platform, connect the pin
to 3.3V.
If this feature is not used,
the pin can be left open (it
has an internal pull-down).
IN_TPM:
SERIRQ PU At Page29
WB_TPM:
GPIO_IF, GPX and PP are optional.
Leave them open if not used.
SATA_PRX_DTX_P0
SATA_PRX_DTX_N0
SATA_PTX_C_DRX_P2
SATA_PTX_C_DRX_N2
SATA_PRX_DTX_P2
SATA_PRX_DTX_N2
SATA_PTX_C_DRX_P0
SATA_PTX_C_DRX_N0
ODD_DETECT#_R
+5VS_ODD
ODD_DA#_R
ODD_EN
SUS_STAT#_R
LPC_AD2
LPC_AD1
SERIRQ
LPC_AD3
LPC_AD0
LPC_FRAME#
PLT_RST#
CLK_PCI_TPM
CLK_PCI_TPM
BADD
PM_CLKRUN#_R
TPM_XTALI
TPM_XTALO_R
TPM_TEST1
TPM_XTALI_R
TPM_XTALO
BADD
TPM_TEST1
TPM_XTALO
TPM_XTALI
PP
PM_CLKRUN#_R
SATA_PTX_DRX_P2 <25>
SATA_PTX_DRX_N2 <25>
SATA_PRX_C_DTX_N2 <25>
SATA_PRX_C_DTX_P2 <25>
SATA_PTX_DRX_P0 <25>
SATA_PTX_DRX_N0 <25>
SATA_PRX_C_DTX_N0 <25>
SATA_PRX_C_DTX_P0 <25>
ODD_DA# <28>
ODD_DETECT# <29>
ODD_EN#<29>
+5VS
+5VS_ODD
+5VS_ODD
+5VS
+VSB
+5VS_ODD
+5VS
+3VS_TPM
+3VS_TPM
+3VALW_TPM
+3VS_TPM
+3VS+3VS_TPM
+3VALW +3VALW_TPM
+3VS_TPM
+3VS_TPM
+3VS_TPM
LPC_AD0<25,41,44>
LPC_AD1<25,41,44>
LPC_AD2<25,41,44>
LPC_AD3<25,41,44>
CLK_PCI_TPM<28>
LPC_FRAME#<25,41,44>
PLT_RST#<6,28,35,36,37,39,41,42,44>
SERIRQ<25,41,44>
PM_CLKRUN#<27,44>
SUS_STAT# <27>
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
34 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
34 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
34 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
C512 0.01U_0402_25V7K
12
C425 0.01U_0402_25V7K
1
2
C416
1U_0402_6.3V4Z
@
1
2
C424 0.01U_0402_25V7K
1
2
R659 4.7K_0402_5%
IN_TPM@
12
R773 0_0402_5%
@
1
2
C952
10U_0805_10V4Z
@
1
2
TPM
SLB 9635 TT 1.1
U37
SLB 9635 TT 1.2 TSSOP28P FW REV3.19
IN_TPM@
GND
4
GND
11
GND
18
GND
25
VDD 24
VDD 19
LAD0
26
LAD1
23
LAD2
20
LAD3
17
LCLK
21
LFRAME#
22
LRESET#
16
SERIRQ
27
CLKRUN#
15
PP
7
NC1
NC3
NC12
VDD 10
VSB 5
TESTB1/BADD 9
TEST1 8
GPIO6
XTALO 14
XTALI 13
LPCPD# 28
GPIO2 2
C417
0.1U_0402_16V4Z
1
2
R107
0_0805_5%
1
2
C767
18P_0402_50V8J
IN_TPM@
C414
10U_0805_10V4Z
1
2
X3
32.768KHZ_12.5PF_Q13FC1350000400
IN_TPM@
1
2
C412 0.01U_0402_25V7K
12
R669 10_0402_5%
@
1
2
C389
0.1U_0402_16V4Z
1
2
R49 0_0603_5%
TPM@
1
2
C518 0.01U_0402_25V7K
12
U37
S IC W PCT200AA0WG TSSOP 28P TPM
WB_TPM@
C388
0.1U_0402_16V4Z
1
2
S
G
D
Q55
SI3456BDV-T1-E3 1N TSOP6
@
3
6
2
4
5
1
C387
10U_0805_10V4Z
1
2
R660 4.7K_0402_5%
@
12
C519 0.01U_0402_25V7K
1
2
R663 4.7K_0402_5%
@
12
R668
10M_0402_5%
IN_TPM@
1
2
G
D
S
Q59
SSM3K7002FU_SC70-3
@
2
1
3
C764
0.1U_0402_16V4Z
TPM@
1
2
C765
1U_0402_6.3V4Z
TPM@
1
2
R764
1.5M_0402_5%
@
12
JODD
SUYIN_127382FR013G109ZR_RV
CONN@
GND 13
A+12
A-11
GND10
B-9
B+8
GND 7
DP6
V5 5
V54
MD3
GND 2
GND 1
R728 0_0402_5%
IN_TPM@
1
2
C419
10U_0805_10V4Z
TPM@
1
2
C415
10U_0805_10V4Z
1
2
C766
18P_0402_50V8J
IN_TPM@
R665 4.7K_0402_5%
IN_TPM@
1
2
R7630_0402_5%
short@
1
2
R760
470K_0402_5%
@
1
2
R664 4.7K_0402_5%
WB_TPM@
12
C777
1U_0402_6.3V4Z
TPM@
1
2
CS27
1U_0402_6.3V6K
@
1
2
JHDD
CONN@
GND 1
RX+ 2
RX- 3
GND 4
TX- 5
TX+ 6
GND 7
3.3V 8
3.3V9
3.3V10
GND 11
GND 12
GND 13
5V14
5V15
5V16
GND 17
Reserved 18
GND 19
12V 20
12V 21
12V 22
GND
23
GND
24
R772
0_0402_5%
@
12
C418
0.1U_0402_16V4Z
1
2
R727 4.7K_0402_5%
12
R30 0_0603_5%
TPM@
12
C778
0.1U_0402_16V4Z
TPM@
1
2
C768 15P_0402_50V8J
@
1
2
R7620_0402_5%
short@
1
2
C390
0.1U_0402_16V4Z
1
2
C513 0.01U_0402_25V7K
12
R726 0_0402_5%
@
1
2
R661 0_0402_5%
IN_TPM@
1
2
C818
0.1U_0402_16V4Z
@
1
2
R729 0_0402_5%IN_TPM@
1
2
C410 0.01U_0402_25V7K
1
2
A
A
B
B
C
C
D
D
E
E
11
2
2
3
3
44
Pin14
RTL8105E
NC
1K ohm Pull-high
RTL8111E
Pin15
Pin38
NC
NC 10K ohm PD
60 mils
Close to Pin 21
Close to Pin 3,6,9,13,29,41,45
LAN Conn.
Close to Pin 27,39,12,47,48
Layout Note: LL1 must be
within 200mil to Pin36,
CL13,CL9 must be within
200mil to LL1
CL11 close to pin42
LL1,CL13 will be changed to
2.2uH&4.7uF after EVT test
CL7 close to pin12
Place CL34 colse
to LAN chip
CL23,CL24,CL25 close to pin6,9,41, respectively
Vgs=-4.5V,Id=3A,Rds<97mohm
+3VALW TO +3V_LAN
PWR
Transformer
Crystal
IC function Part
CLKREQ O/D PU at PCH side
LanWake O/D PU at Page31. Used
to reactivate PCIE slot's main
PWR rail and REF CLK
ISOLATEB used to isolate 8111E
from PCIE
SMBDATA and GPO using EFuse
only without ASF function.
Intel check:Better to put 4x 0.1uF bypass cap
near 4 central tap pin of Transformer.
+3V_LAN
CLKREQ_LAN#
+LAN_REGOUT
+LAN_REGOUT
RJ45_MIDI3-
RJ45_MIDI1+
RJ45_MIDI2-
RJ45_MIDI0+
RJ45_MIDI0-
RJ45_MIDI3+
LAN_MDI0-
LAN_MDI2-
RJ45_MIDI2+
RJ45_MIDI1-
LAN_MDI3+
LAN_MDI2+
LAN_MDI0+
LAN_MDI3-
LAN_MDI1+
LAN_MDI1-
RJ45_GND
RJ45_MIDI0-
RJ45_MIDI0+
RJ45_MIDI2+
RJ45_MIDI2-
RJ45_MIDI1-
RJ45_MIDI3+
RJ45_MIDI3-
RJ45_MIDI1+
PCIE_PTX_C_C_RTLANRX_P6
PCIE_PTX_C_C_RTLANRX_N6
ISOLATEB
PCIE_PRX_RTLANTX_P6
PCIE_PRX_RTLANTX_N6
LAN_MDI1+
LAN_MDI1-
LAN_MDI2-
LAN_MDI2+
LAN_MDI3+
LAN_MDI3-
LAN_MDI0-
LAN_MDI0+
CLK_LAN#
ENSWREG
CLK_LAN
ENSWREG
LAN_X2
LAN_X1
LAN_WAKE#
PLT_RST#
RJ45_GND
LAN_GND
10/100_LINK_LED
LAN_LINK#
10/100_LINK_LED
LAN_ACTIVITY#
LAN_LINK#
LAN_TX0+
LAN_TX0-
LAN_TX1+
LAN_TX1-
LAN_TX2+
LAN_TX2-
LAN_TX3+
LAN_TX3-
LAN_MDI2+
LAN_MDI3-
LAN_MDI3+
LAN_MDI0+
LAN_MDI2-
LAN_MDI0-
LAN_MDI1+
LAN_MDI1-
LAN_LINK#
LAN_R_ACTIVITY#
LAN_R_ACTIVITY#
LAN_ACTIVITY#
LAN_X1 LAN_X2
CLKREQ_LAN#
LAN_WAKE#
EC_SWI#<27,36,39>
PLT_RST#<6,28,34,36,37,39,41,42,44>
PCIE_PTX_C_LANRX_P6<26,42>
PCIE_PTX_C_LANRX_N6<26,42>
PCIE_PRX_C_LANTX_N6<26,42>
PCIE_PRX_C_LANTX_P6<26,42>
LAN_TX0+<42>
LAN_TX0-<42>
LAN_TX1+<42>
LAN_TX1-<42>
LAN_TX2+<42>
LAN_TX2-<42>
LAN_TX3+<42>
LAN_TX3-<42>
LAN_ACT_LED#<42>
LAN_1000_LED#<42>
LAN_10/100_ LED#<42>
CLK_LAN#<26,42>
CLK_LAN<26,42>
CLKREQ_LAN#<26,42>
EC_PME#<36,39,41,42>
GPIO27_WAKE#<29,41>
+LAN_EVDD10
+3VS
+3V_LAN
+LAN_VDD10
+LAN_EVDD10
+LAN_VDD10
+LAN_VDD10
+3V_LAN
+3V_LAN
+LAN_VDDREG
+3V_LAN
+LAN_VDD10
+LAN_VDDREG
+LAN_VDD10
+3V_LAN
+3V_LAN
+3V_LAN
+3VALW +3V_LAN
+3V_LAN
+3V_LAN
+3V_M
+3V_M
+3V_LAN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
35 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
35 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
35 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
CL120.1U_0402_16V4Z
8111E@
12
RL23
0_0402_5%
@
CL70.1U_0402_16V4Z 8111E@
1
2
C2003 220P_0402_50V7K
1
2
CL40 1000P_0402_50V7K
1
2
UL5
NS892407 1G
TCT1
1
TD1+
2
TD1-
3
TCT2
4
TD2+
5
TD2-
6
MX2- 19
MX2+ 20
MCT2 21
MX1- 22
MX1+ 23
MCT1 24
TCT3
7
TD3+
8
TD3-
9
TCT4
10
TD4+
11
TD4-
12
MCT3 18
MX3+ 17
MX3- 16
MCT4 15
MX4+ 14
MX4- 13
R1712 510_0402_5%
VPRO@
1
2
R1711 510_0402_5%
VPRO@
1
2
R1709 510_0402_5%
8111E@
1
2
RL37
0_0402_5%
C841
1U_0402_6.3V4Z
8111E@
1
2
CL220.1U_0402_16V4Z 8111E@
12
RL11 75_0402_1%
1
2
RL20 0_0402_5%8111E@
CL28
4.7U_0603_6.3V6K
8111E@
1
2
RL2 10K_0402_5%8111E@
1
2
JLAN1
LIYO_101002-00803-3
CONN@
PR1-
2
PR1+
1
PR2+
3
PR3+
4
PR3-
5
PR2-
6
PR4+
7
PR4-
8
Green LED+
9
Green LED-
10
Yellow LED+
11
Yellow LED-
12
SHLD1 13
SHLD2 14
RL38
0_0402_5%
CL40.1U_0402_16V4Z 8111E@
1
2
CL1 0.1U_0402_16V7K
8111E@
1
2
CL30
4.7U_0603_6.3V6K
1
2
RL8 0_0402_5%8111E@
J35
JUMP_43X79
@
11
2
2
CL42 1000P_0402_50V7K
1
2
RL24 0_0402_5%
8111E@
CL230.1U_0402_16V4Z 8111E@
1
2
CL60.1U_0402_16V4Z 8111E@
12
RL28 0_0402_5%VPRO@
CL36
1000P_1808_3KV7K
1
2
CL31
0.1U_0402_16V4Z
1
2
RL5 2.49K_0402_1%
12
RL21 10K_0402_5%8111E@
1
2
RL9 0_0402_5%@
RL10 0_0402_5%@
CL210.1U_0402_16V4Z 8111E@
12
RL29 0_0402_5%VPRO@
CL29
0.1U_0402_16V4Z
8111E@
1
2
RL2510K_0402_5%
@
1
2
RL6
1K_0402_1%
8111E@
12
RL4
0_0402_5%
8111E@
CL190.1U_0402_16V4Z 8111E@
1
2
CL250.1U_0402_16V4Z 8111E@
12
R1713 510_0402_5%
8111E@
1
2
CL9
0.1U_0402_16V4Z
8111E@
1
2
RL30 0_0402_5%VPRO@
C840
4.7U_0805_10V4Z
@
1
2
CL34
0.1U_0402_25V4K
8111E@
1
2
RL15 75_0402_1%
1
2
CL34
1U_0402_6.3V4Z
VPRO@
CL26
12P_0402_50V8J
8111E@
1
2
CL18
1U_0402_6.3V4Z
8111E@
1
2
RL31 0_0402_5%VPRO@
CL50.1U_0402_16V4Z 8111E@
12
LL30_0603_5%
8111E@
1
2
CL17
0.1U_0402_16V4Z
8111E@
1
2
YL1
25MHZ_10PF_7V25000014
8111E@
GND
2
33
1
1
GND
4
C2002 220P_0402_50V7K
1
2
CL2 0.1U_0402_16V7K
8111E@
12
CL240.1U_0402_16V4Z 8111E@
1
2
DL2
S DIO BAW56W SOT-323
VPRO@
2
3
1
RL32 0_0402_5%VPRO@
CL39 1000P_0402_50V7K
1
2
RL12 75_0402_1%
12
RL3 10K_0402_5%
@
1
2
LL20_0603_5%
8111E@
1
2
RL33 0_0402_5%VPRO@
CL11
0.1U_0402_16V4Z
8111E@
1
2
RL1 10K_0402_5%
8111E@
1
2
CL200.1U_0402_16V4Z 8111E@
1
2
RL7
15K_0402_5%
8111E@
CL41 1000P_0402_50V7K
1
2
RL36 0_0402_5%
VPRO@
RL34 0_0402_5%VPRO@
LL1
2.2UH_1008HC-472EJFS-A_5%_1008
8111E@
1
2
CL100.1U_0402_16V4Z
8111E@
12
RL22 1K_0402_5%
8111E@
1
2
RL13 75_0402_1%
12
CL13
4.7U_0603_6.3V6K
8111E@
1
2
CL27
12P_0402_50V8J
8111E@
1
2
RL35 0_0402_5%VPRO@
UL1
RTL8111E-VL-CGT QFN 48P
8111E@
PERSTB
25
HSOP
22
HSON
23
HSIP
17
HSIN
18
REFCLK_P
19
REFCLK_N
20 NC/MDIP2 7
NC/MDIN2 8
NC/MDIP3 10
NC/MDIN3 11
LED3/EEDO 31
LED1/EESK 37
EECS/SCL 30
LED0 40
MDIN1 5
MDIP1 4
MDIN0 2
MDIP0 1
RSET
46
LANWAKEB
28
ISOLATEB
26
CKXTAL1
43
CKXTAL2
44
AVDD10 3
EVDD10 21
DVDD10 29
DVDD10 41
VDDREG
34
ENSWREG
33
DVDD33 27
DVDD33 39
AVDD33 12
DVDD10 13
AVDD33 42
CLKREQB
16
EEDI/SDA 32
AVDD33 47
AVDD33 48
AVDD10 6
AVDD10 9
AVDD10 45
NC/SMBCLK
14
NC/SMBDATA
15
GPO/SMBALERT
38
GND
24
PGND
49
REGOUT 36
VDDREG
35
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
Slot 1 Half PCIe Mini Card-WLAN & BT3.0
Bluetooth 3.0
WLAN/ WiFi
EMI
Slot 2 Half PCIe Mini Card-G/GPS (FULL Card)
40mil
Up to 150MA, Default 8-10MA
60mil
Peak: 2.75A
Normal: 1.1A
1050mA
Vpro SKU: please delete E51_TXD_R /RXD connection on JMINI1.
BT_PWRON_R
WLAN_WAKE
PLT_RST#
UIM_DATA
+UIM_PWR
UIM_VPP
UIM_CLK
UIM_RST
WWAN_OFF#
MINI_SMBCLK
MINI_SMBDATA
E51_TXD_R
USB20_N12
USB20_P12
UIM_DATA
UIM_VPP
UIM_RST
UIM_CLK
+UIM_PWR
UIM_RST
UIM_CLK
UIM_DATA
PLT_RST#
E51_RXD_R
UIM_VPP
UIM_DATA
PM_SMBDATA
PM_SMBCLK
EC_SWI#
BT_PWRON_R
BT_PWRON
WLAN_WAKE
EC_PME#
WL_OFF# <29,41>
EC_SWI#<27,35,39>
USB20_P13 <28>
USB20_N13 <28>
CLKREQ_WLAN#<26>
CLK_WLAN#<26>
CLK_WLAN<26>
PCIE_PRX_WLANTX_P2<26>
PCIE_PRX_WLANTX_N2<26>
PCIE_PTX_C_WLANRX_N2<26>
PCIE_PTX_C_WLANRX_P2<26>
PLT_RST# <6,28,34,35,37,39,41,42,44>
PM_SMBCLK <11,12,26,39>
PM_SMBDATA <11,12,26,39>
CLKREQ_WW AN#<26>
PCIE_PRX_C_WW ANTX_P1<26>
PCIE_PTX_C_WW ANRX_P1<26>
PCIE_PTX_C_WW ANRX_N1<26>
PCIE_PRX_C_WW ANTX_N1<26>
CLK_WW AN<26>
CLK_WW AN#<26>
E51_RXD<41>
WWAN_OFF# <29,41>
E51_TXD<41>
USB20_N12 <28>
USB20_P12 <28>
LED_WLAN# <43>
CL_CLK_DMC<26>
CL_RST#_DMC<26>
CL_DATA_DMC<26>
BT_PWRON<41>
EC_PME#<35,39,41,42>
+1.5VS
+1.5VS
+3VS_WLAN
+3VS_WLAN
+UIM_PWR
+3VS_FULL
+3VS_FULL +3VS_FULL
+1.5VS
+3VS_FULL
+1.5VS
+3VS_FULL
+3VS
+3VS_FULL
+UIM_PWR
+3VS
+3VS
+3V_M
+3VS
+3VS_WLAN
+3VS_WLAN
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
36 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
36 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
36 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
D19
CM1293-04SO_SOT23-6
@
CH36
Vp 5
CH44
CH2
3
Vn
2
CH1
1
R1375 0_0402_5%short@
12
R702
0_0402_5%@
R14300_0402_5% VPRO@
12
R1432 0_0402_5%
short@
1
2
R830_0603_5%
VPRO@
12
R14310_0402_5% VPRO@
12
C666
0.1U_0402_16V4Z
1
2
R14371K_0402_5%
1
2
C675
0.1U_0402_16V4Z
@
1
2
R638 0_0402_5%short@
12
R1333 0_0402_5%
short@
1
2
R682 0_0402_5%
short@
1
2
JMINI2
ACES_88910-5204
CONN@
3
3
44
5
5
66
7
7
88
9
9
1010
11
11
1212
13
13
1414
15
15
1616
17
17
1818
19
192020
21
21
2222
23
23
2424
25
25
2626
27
27
2828
29
293030
31
313232
33
33
3434
35
353636
37
37
3838
39
394040
41
414242
43
4344 44
45
45
4646
47
474848
49
49
5050
51
515252
1
122
G1
53
G2
54
G3
55
G3
56
C637
4.7U_0805_10V4Z
1
2
C42722P_0402_50V8J
@
1
2
R1380
0_0402_5%
short@
1
2
CM21
0.1U_0402_16V4Z
1
2
C42656P_0402_50V8
@
1
2
R701 0_0402_5%
12
C6651U_0402_6.3V4Z
1
2
CM19
4.7U_0805_10V4Z
1
2
C612
0.1U_0402_16V4Z
1
2
C6640.1U_0402_16V4Z
1
2
C371
0.1U_0402_16V4Z
@
1
2
CM22
4.7U_0805_10V4Z
1
2
C132456P_0402_50V8
@
1
2
C615
0.1U_0402_16V4Z
1
2
CM20
47P_0402_50V8J
1
2
C429 22P_0402_50V8J
@
1
2
C372
0.1U_0402_16V4Z
@
1
2
JSIM
CONN@
VCC1
RST2
CLK3
GND
4
VPP
5
I/O
6
GND
8GND7
R870_0603_5%
8111E@
1
2
R662 0_1206_5%
1
2
C667
0.1U_0402_16V4Z
1
2
C42822P_0402_50V8J
@
1
2
JMINI1
ACES_88910-5204
CONN@
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
GND1
53
22
44
66
88
1010
1212
1414
1616
1818
2020
2222
24 24
2626
2828
3030
3232
3434
3636
38 38
4040
4242
4444
4646
4848
5050
52 52
GND2 54
R1435
0_0402_5%
@
1
2
C373
0.1U_0402_16V4Z
@
1
2
R14340_0402_5% VPRO@
12
CM17
47P_0402_50V8J
1
2
+
C634
150U_B2_6.3VM_R35M
1
2
R42 10K_0402_5%@
1
2
C374
0.1U_0402_16V4Z
@
1
2
R45 10K_0402_5%@
12
R44 10K_0402_5%@
12
C132556P_0402_50V8
@
1
2
CM18
0.1U_0402_16V4Z
1
2
RH122
0_0402_5%@
R683
100K_0402_5%
1
2
RH121 0_0402_5%
12
C382
0.1U_0402_16V4Z
@
1
2
R1433 0_0402_5%short@
12
C381
0.1U_0402_16V4Z
@
1
2
C380
0.1U_0402_16V4Z
@
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA
15mil
7 IN 1 Conn
Close to Chip
Memory Card Power
40mil
40mil
10mil
10mil
40 mil
Strap Pin Definition
Card Detect
IC PWR
External Crystal
40mil
Note:
if use external PWR and change
+3V_MCPWR as control signal, Need BIOS
to change the Setting.
IC Function Part
1394 Conn
Note:
Colay With JMB385; W/1394, mount JMB388;WO/1394, mount JMB385.
CR_PE# and CR_WAKE reserve for D3 mode
C101 should be close to ChipSet for power
source for SDA3.0 3.3/1.8v signaling
APREXT: PCIE reference resistor
8.2Kused in JMB385C;
12Kused in JMB388A
C41,C43,C97 close U4 Pin5.
Pin5 -> 1000pF -> 0.1uF -> 10uF.
C42 close U4 Pin10.
C77 close U4 Pin37.
C52close U4 Pin18.
24.576MHz--main: SJ10000EV00
7mil
7mil
MSCD#
SDCD#
XD_CLE
MC_PWREN#
XRSTN#
XD_RE
XOUT
XD_ALE
XD_SD_MS_D0
XD_SD_MS_D1
XD_SD_MS_D2
XD_SD_MS_D3
SDCD#
SDCMD_MSBS_XDW E#
MSCD#
XDWP_SDW P
XD_CLE
XD_D4
XD_D5
XD_D6
XD_D7
XIN
XDWP_SDW P
XD_RE
XD_RB
XD_ALE
PCIE_PRX_CARDTX_P5
PCIE_PRX_CARDTX_N5
XD_RB
APREXT
XDCE_SDCLK_MSCLK_R
TPA+
CR_PE#_R
SDCMD_MSBS_XDW E#
APW R
TPA-
TPA+
SDCD#
MSCD#
XD_CD#XD_CD#
MC_PWREN#
MC_PWREN#
MC_PWREN#
TPB-
TPBIAS
TPB+
SDCMD_MSBS_XDWE#
XDWP_SDW P
XDCE_SDCLK_MSCLK
SDCMD_MSBS_XDW E#
SDCD#
XDWP_SDW P
XD_SD_MS_D2
XD_SD_MS_D1
XD_SD_MS_D0
XD_SD_MS_D3
XD_D6
XD_D5
XD_D4
XD_D7
XD_SD_MS_D1
XD_SD_MS_D2
XD_SD_MS_D0
XD_SD_MS_D3
XDCE_SDCLK_MSCLK
MSCD#
SDCMD_MSBS_XDW E#
XD_SD_MS_D0
XD_SD_MS_D2
XD_SD_MS_D1
XD_SD_MS_D3
XD_D4
XD_D5
XD_D6
XD_D7
XD_CD#
XD_RB
XD_RE
XDCE_SDCLK_MSCLK
XD_CLE
XD_ALE
SLE3
SLE3
SDCMD_MSBS_XDW E#
SEL2
SEL2
XDWP_SDW P
SEL1
SEL1
TAV33
TAV33
TPA-
TPB+
TPB-
TPBIAS
APREXT
XDCE_SDCLK_MSCLK_R XDCE_SDCLK_MSCLK
XD_CD#_R
XD_CD#_R
XD_CD#
APW R
XIN
XOUT
5IN1_LED#<43>
PLT_RST#<6,28,34,35,36,39,41,42,44>
CR_WAKE#<29>
CR_PE#<29>
CLK_PCIE_READER#<26>
CLK_PCIE_READER<26>
PCIE_PTX_C_CARDRX_N5<26>
PCIE_PTX_C_CARDRX_P5<26>
PCIE_PRX_C_CARDTX_N5<26>
PCIE_PRX_C_CARDTX_P5<26>
+1.8VS_APVDD
+1.8VS_APVDD
+1.8VS_APVDD
+3V_MCVCC
+3VS
+3VS_READER
+3VS_READER
+3VS_READER
+3V_MCVCC
+3VS
+3V_MCVCC
+3V_MCVCC
+3VS_READER
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
37 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
37 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
37 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
R74 0_0402_5%
1
2
G
D
S
Q116
2N7002_SOT23
@
2
1
3
R412 0_0603_5%
389@
1
2
R48 0_0402_5%
@
12
C54
15P_0402_50V8J
388@
1
2
R28
56_0402_5%
388@
1
2
JP6
FOX_UV31413-WR50D-7F~N
CONN@
1
1
2
2
3
3
4
4
GND1
5
GND2
6
R65
0_0402_5%
389@
12
R24 0_0402_5%
@
1
2
R141 100_0402_1%
1
2
R32 56_0402_5%
388@
1
2
C53
0.1U_0402_16V4Z
1
2
R13
1M_0402_5%388@
1
2
C100
0.33U_0603_10V7K
388@
1
2
R17 1K_0402_5%
12
U49
TPS2061DRG4_SO8
@
GND
1
IN
2
FLG5
OUT6
OUT8
IN
3
EN#
4
OUT7
R27
4.99K_0402_1%
388@
1
2
C98
0.1U_0402_16V4Z
1
2
R66
0_0402_5%
389@
1
2
R25 12K_0402_1%
388@
1
2
R20 1K_0402_5%
385@
1
2
C50
0.1U_0402_16V4Z
1
2
L1
WCM-2012-900T_4P
388@
11
44
3
3
2
2
C77
0.1U_0402_16V4Z
1
2
C49
22P_0402_50V8J
@
1
2
R63
0_0402_5%
385@
12
R26
0_0402_5%
@
1
2
R1676
300_0603_5%
@
1
2
D21
PJDLC05C_SOT23-3
@
2
3
1
C101 2.2U_0603_6.3V4Z
1
2
C52
10U_0805_10V4Z
C80 0.1U_0402_16V7K
12
R43 0_0402_5%
@
1
2
C99
0.1U_0402_16V4Z
1
2
R22 1K_0402_5%
1
2
C41
10U_0805_10V4Z
R19 9.1K_0402_5%
385@
1
2
R75 0_0402_5%
385@
12
R23 200K_0402_5%
385@
12
D20
PJDLC05C_SOT23-3
@
2
3
1
R1677 0_0805_5%
12
R46 0_0402_5%
@
1
2
X1
24.576MHZ_12PF_X3G024576FC1H
388@
IN
1
GND
2
OUT3
GND4
C95
220P_0402_50V7K
388@
1
2
D7
DAN202UT106_SC70-3
@
2
3
1
R80 0_0402_5%
385@
1
2
C76 0.1U_0402_16V4Z
1
2
C1961
0.1U_0402_16V4Z
1
2
C73 0.1U_0402_16V4Z
1
2
JREAD
TAITW_R013-P12-HM_NR
CONN@
SD_VCC
13
MS_VCC
22
XD_VCC
43
XD_D0 35
XD_D1 36
XD_D2 37
XD_D3 38
XD_D4 39
XD_D5 40
XD_D6 41
XD_D7 42
XD_CD 26
XD_R/B 27
XD_RE 28
XD_CE 29
XD_CLE 30
XD_ALE 31
XD_WE 32
XD_WP 33
SD_GND 7
SD_GND 15
MS_GND 6
MS_GND 24
XD_GND 34
XD_GND 44
GND45
GND46
MS_DATA0
12
MS_DATA1
11
MS_DATA2
14
MS_DATA3
18
MS_SCLK
20
MS_INS
16
MS_BS
9
SD_WP
2
SD/MMC_DAT0
4
SD/MMC_DAT1
3
SD/MMC_DAT2
25
SD/MMC_DAT3
23
MMC_DATA4
21
MMC_DATA5
17
MMC_DATA6
8
MMC_DATA7
5
SD_CLK
10
SD_CMD
19
SD_CD
1
R40 1K_0402_5%
385@
1
2
C51 0.1U_0402_16V7K
1
2
R21 200K_0402_5%@
12
L2
WCM-2012-900T_4P
388@
11
44
3
3
2
2
U4
JMB388-QGAZ0A QFN 48P CARD READER
388@
C96
0.1U_0402_16V4Z
1
2
C42
0.1U_0402_16V4Z
1
2
R410 0_0603_5%
388@
1
2
R12 10K_0402_5%
12
C97
0.1U_0402_16V4Z
1
2
C1960
0.1U_0402_16V4Z
1
2
R820_0402_5%
1
2
C43
1000P_0402_50V7K
1
2
R29
56_0402_5%
388@
1
2
R71 0_0402_5%
385@
1
2
R33 0_0402_5%
1
2
C54
0_0402_5%
389@
C1959
10U_0805_10V4Z
1
2
R18 1K_0402_5%
385@
1
2
R78 0_0402_5%
1
2
R39 12K_0402_1%
12
R31 1K_0402_5%
385@
1
2
C44
0.1U_0402_16V4Z
1
2
R41 0_0402_5%
@
12
C82
0_0402_5%
389@
C82
15P_0402_50V8J
388@
1
2
D1
CH751H-40PT_SOD323-2
@
2
1
C83
0.1U_0402_16V4Z
1
2
C1962
4.7U_0805_10V4Z
1
2
R11
0_0805_5%
<BOM Structure>
12
JMB389 C
U4
JMB389-QGAZ0C QFN 48P
389@
XRSTN
1
XTEST
2
APCLKN
3
APCLKP
4
APVDD 5
APGND 6
APREXT
7
APRXP
8
APRXN
9
APV18 10
APTXN
11
APTXP
12
CPPE_N
13
NC14
CR1_CD1N/WAKEN
15
CR1_CD0N
16
CR1_PCTLN
17
DV18 18
DV33 19
DV33 20
CR1_LEDN
21
MDIO14 22
MDIO13 23
GND24
MDIO12 25
MDIO11 26
MDIO10 27
MDIO9 28
MDIO8 29
NC30
NC31
NC 32
NC33
NC34
NC35
NC36
DV18 37
NC38
NC 39
MDIO7 40
MDIO6 41
MDIO5 42
MDIO4 43
DV33 44
MDIO3 45
MDIO2 46
MDIO1 47
MDIO0 48
GND49
R38 56_0402_5%
388@
1
2
R3722_0402_5%
385@
1
2
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
Beep sound
Function
Ext. MIC
5.1K
10K
20K
39.2K
SENSE A
5.1K
10K
20K
39.2K
PORT-H (PIN 37)
Sense Pin Impedance
PORT-E (PIN 14, 15)
PORT-F (PIN 16, 17)
SENSE B
PORT-D (PIN 35, 36)
PORT-C (PIN 23, 24)
PORT-B (PIN 21, 22)
PORT-A (PIN 39, 41)
PORT-I (PIN 32, 33)
Codec Signals
place close to chip
35 mA
place close to chip
place close to chip
68 mA
place close to chip
600 mA
AGND
DGND
Ext. Mic/LINE IN
place close to chip
Speaker Connector
placement near Audio Codec
DVT NOT POP RA12, USE JA1
PCI Beep
EC Beep
Ex.MIC JACK
Head Phone JACK
MIC CONN
Headphone out
30MIL/30MIL
Close to Audio Chip
+DVDD_IO
+PVDD2
+PVDD1
+PVDD1
+PVDD2
SPKL-
SPKL+
SPKR-
SPKR+
HP_R
HP_L
AZ_SYNC_HD
AZ_SDIN0_HD_R
AZ_SDOUT_HD
EC_MUTE#
MONO_IN
AC_JDREF
AC_VREF
CPVEE
MIC1_LINE1_R_R
MIC1_LINE1_R_L
MIC1_R
MIC1_L
SPK_L+
SPK_L-
SPK_R+
SPK_R-
SPKL-
SPKL+
SPK_L-
SPKR-
SPKR+
SPK_R-
SPK_L+
SPK_R+
EAPD
MIC1_LINE1_R_L
MIC1_LINE1_R
MIC1_LINE1_L
MIC2_R
MIC2_L
MIC2R_L
MIC2R_R
MIC
MIC_SENSE
NBA_PLUG
SENSE_A
MONO_IN
HP_L_L
HP_R_R
AGND
MIC1_L
MIC1_R
AGND
HP_L
HP_R
MIC1_L_L
MIC1_R_R
MIC
MIC1_LINE1_R_R
DMIC_DATA
DMIC_CLK
NBA_PLUG
MIC_SENSE
AZ_SYNC_HD<25>
AZ_BITCLK_HD <25>
EC_MUTE#<41>
AZ_RST_HD#<25>
EAPD<41>
EC_BEEP#<41>
PCH_SPKR<25>
DMIC_DATA<23>
DMIC_CLK<23>
AZ_SDIN0_HD <25>
AZ_SDOUT_HD <25>
+3VS
+3VS
+3VS_DVDD
+5VS
+AVDD
+5VS
+5VS
+MIC1_VREFO_R
+MIC1_VREFO_L
+MIC1_VREFO_L
+MIC1_VREFO_R
+MIC2_VREFO
+MIC2_VREFO
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
38 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
38 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
38 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
CA15
0.1U_0402_16V4Z
1
2
RA5 75_0402_1%
CA42
1U_0603_10V6K
@
1
2
LA3
FBMA-L11-160808-121LMT_0603
12
CA8
10U_0805_10V4Z
1
2
CA49 0.1U_0603_50V7K
12
RA45
1K_0402_5%
1
2
D10
PACDN042Y3R_SOT23-3
@
2
3
1
RA46
4.7K_0402_5%
1
2
JEMIC
SINGA_2SJ-S351-012
CONN@
1
2
3
4
5
6
CA142.2U_0603_6.3V4Z
1
2
RA12
BLM18PG181SN1D_0603
1
2
RA26
1K_0402_5%
1
2
LA8
FBMA-L11-160808-121LMT_0603
12
CA5
0.1U_0402_16V4Z
1
2
CA7
0.1U_0402_16V4Z
1
2
LA2
FBMA-L11-160808-121LMT_0603
1
2
CA16
2.2U_0603_6.3V4Z
1
2
CA3
10U_0805_10V4Z
1
2
CA19 10U_0805_10V4Z
@
1
2
CA46 10U_0805_10V4Z
@
1
2
RA2
BLM18PG181SN1D_0603
1
2
CA43
10U_0805_10V4Z
1
2
CA4
10U_0805_10V4Z
1
2
CA61
0.1U_0402_16V4Z
1
2
RA15
0_0603_1%
short@
1
2
RA13
0_0603_1%
short@
1
2
RA39
0_0402_5%
@
CA1
0.1U_0402_16V4Z
1
2
CA59
0.1U_0402_16V4Z
@
1
2
CA45
1U_0603_10V6K
@
1
2
LA4
FBMA-L11-160808-121LMT_0603
12
CA60
10U_0805_10V4Z
@
1
2
CA10 4.7U_0603_6.3V6K
12
CA47 0.1U_0603_50V7K
12
CA28
1U_0402_6.3V4Z
12
RA47
1K_0402_5%
1
2
CA58
10U_0805_10V4Z
@
1
2
JMIC
ACES_88231-02001
CONN@
1
1
2
2
GND
3
GND
4
CA9 4.7U_0603_6.3V6K
1
2
CA12 100P_0402_50V8J
1
2
RA43 0_0603_5%
1
2
D9
PACDN042Y3R_SOT23-3
@
2
3
1
DA9
PESD5V0U2BT_SOT23-3
2
3
1
CA56
10U_0805_10V4Z
1
2
CA17
2.2U_0603_6.3V4Z
1
2
CA48 0.1U_0603_50V7K
12
RA3
0_0603_1%
1
2
CA35 10U_0805_10V4Z
1
2
CA6
0.1U_0402_16V4Z
1
2
CA50 0.1U_0603_50V7K
12
RA32 0_0603_5%
1
2
JA1
JUMP_43X39
@
1
122
U143
ALC259-VB5-GR_QFN48_7X7
LINE2_L
14 LINE2_R
15
MIC2_R
17
MIC2_L
16
NC 23
NC24
SENSE_B
18
MONO_OUT
20
JDREF
19
MIC1_L
21 MIC1_R
22
SENSE_A
13
PCBEEP_IN
12
CBN
35
CBP
36
AVSS2 37
RESET#
11
SYNC
10
BITCLK 6
SDATA_OUT 5
SDATA_IN 8
GPIO0/DMIC_DATA
2
GPIO1/DMIC_CLK
3
MIC2_VREFO
29 MIC1_VREFO_R
30
LDO_CAP
28
VREF
27
DVDD 1
DVDD_IO 9
AVDD1 25
AVDD2 38
HPOUT_L 32
PVDD2 46
EAPD
47
NC48
PD#
4
DVSS 7
MIC1_VREFO_L
31
HPOUT_R 33
CPVEE
34
PVSS2 43
SPK_OUT_R- 44
SPK_OUT_R+ 45
SPK_OUT_L+ 40
AVSS1 26
PVSS1 42
PVDD1 39
SPK_OUT_L- 41
THERMAL_PAD 49
DA10
PESD5V0U2BT_SOT23-3
2
3
1
CA51 10U_0805_10V4Z
@
1
2
CA20
0.1U_0402_16V4Z
1
2
RA25
1K_0402_5%
12
RA18 20K_0402_1%
1
2
DA8
PESD5V0U2BT_SOT23-3
2
3
1
CA11
100P_0402_50V8J
@
1
2
CA18
0.1U_0402_16V4Z
1
2
CA2
10U_0805_10V4Z
1
2
CA26
1U_0402_6.3V4Z
12
RA9
47K_0402_5%
12
RA51
4.7K_0402_5%
1
2
RA14
0_0603_1%short@
1
2
CA44
0.1U_0402_16V4Z
1
2
RA6 33_0402_5%
1
2
CA13
100P_0402_50V8J
@
1
2
JSPK
ACES_85204-0400N
CONN@
1
1
2
2
3
3
4
4
RA8
47K_0402_5%
12
CA21
100P_0402_50V8J
@
1
2
RA44
0_0603_1%
short@
1
2
RA16 39.2K_0402_1%
1
2
CA23
10P_0402_50V8J
@
CA39 10U_0805_10V4Z
@
1
2
RA48
4.7K_0402_5%
1
2
RA34
0_0402_5%@
RA4 75_0402_1%
RA11
10K_0402_5%
1
2
CA22
100P_0402_50V8J
@
1
2
CA57
0.1U_0402_16V4Z
1
2
RA10_0603_5%
1
2
JHP
SINGA_2SJ-S351-013
CONN@
1
2
3
4
5
6
RA7
10_0402_5%
@
RA1020K_0402_1%
12
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA
60mils
40mil
40mil
Express Card
(Internal Pull High to AUXIN)
(Internal Pull High to AUXIN)
Imax = 1.35A Imax = 0.75AImax = 0.275A
New Card Socket (Left/TOP)
PWR Switch
Smart Card
Layout note: Close to PIN10
Layout note: Close to PIN15
Layout note: Close to PIN18
Layout note: Close to PIN14
Layout note: Close to PIN4
Layout note: Close to PIN11
Layout note: Close to PIN13
This pin1 define need check
PWRSV_SEL: (Default high)
High: Normal mode,
Low: Power Saving Mode
MP: to solve issue of "Smart Card also show in Device Manager
after plug out it", change US4 from SA000042I00 to SA000042I10.
PERST1#
RCLKEN1
CP_USB#
SYSON
PLT_RST#
CP_PE#
SUSP#
USB20_R_P8
USB20_R_N8
PERST1#
CLKREQ1#
CP_USB#
RCLKEN1
CP_PE#
SC_CLK
EEPWP
SC_XTAL_Out
SC_XTAL_In
SC_SDA
SC_SCL
EEPWP
SCard0C8
SCard0C6
SC_RST
SCard0Fcb
ICCInsertN
SC_XTAL_In
SC_XTAL_Out
SC_SDA
SC_SCL
SC_DATA
USB20_N5_R
USB20_P5_R
USB20_N5_R
USB20_P5_R
SC_DATA_R
USB20_N5
USB20_P5
SC_RST
SCard0C6
SC_CLK
SC_DATA
SCard0Fcb
SCard0C8
ICCInsertN
USB20_R_N8
USB20_R_P8
CLKREQ1#
SYSON<41,45,52>
PLT_RST#<6,28,34,35,36,37,41,42,44>
SUSP#<10,41,45,50,51,52,57>
EC_SWI#<27,35,36>
USB20_P8<28>
USB20_N8<28>
CLK_PCIE_EXPCARD#<26>
CLK_PCIE_EXPCARD<26>
CLKREQ_EXPCARD# <26>
CP_PE#<28>
PM_SMBDATA<11,12,26,36>
PM_SMBCLK<11,12,26,36>
PCIE_PTX_C_EXPRX_N3<26>
PCIE_PTX_C_EXPRX_P3<26>
PCIE_PRX_C_EXPTX_N3<26>
PCIE_PRX_C_EXPTX_P3<26>
USB20_N5<28>
USB20_P5<28>
EC_PME#<35,36,41,42>
+3VS_CARD
+1.5VS_CARD
+1.5VS
+3VS
+3VALW _CARD
+3VALW _PCH
+3VS
+1.5VS
+3VALW _PCH
+3VALW _CARD
+3VS_CARD +1.5VS_CARD
+3VS
+3VALW _CARD
+3VS_CARD
+1.5VS_CARD
+3VS
+5VS
+3V_SC
+5VS
+SC_PWR
+5VS
+5VS
+3V_SC
+1.8V_SC
+3V_SC
+1.8V_SC
+3V_SC
+3V_SC
+3V_SC
+3V_SC
+SC_PWR
+3V_SC
+SC_PWR
+SC_PW R
+3VS
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
39 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
39 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
39 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
RS20 0_0402_5%
SM@
1
2
RS21
10K_0402_5%
@
1
2
R84 0_0402_5%
12
CS23
18P_0402_50V8J
SM@
1
2
C2034
10U_0805_10V4Z
1
2
C2032
0.1U_0402_16V4Z
1
2
CS32
0.1U_0402_10V6K
SM@
1
2
CS24
0.1U_0402_10V6K
SM@
1
2
CS16
18P_0402_50V8J
SM@
1
2
C2035
10U_0805_10V4Z
1
2
R1726
10K_0402_5%
1
2
RS13 470_0402_5%
SM@
1
2
CS17
1U_0402_6.3V4K
SM@
1
2
C2036
10U_0805_10V4Z
1
2
US4
AU9540B55-GBS-GR
SM@
SCard0C8
1
SCard0C6
2
SCard0Fcb
3
SMIO_5VPWR
4
SCard0Rst
5
SCard0Clk
6
SCard0Data
7
DM
8
DP
9
AV33
10
SCPWR0
11
5VGND
12
5VInput
13
V33OUT
14
V18OUT 15
VDD16
VDDP 17
VDDH 18
ICCInsertN 19
P1(6) 20
EEPCLK 21
EEPDATA 22
RESET 23
LEDPWR 24
LEDCRD 25
PWRSV_SEL 26
XI27
XO28
JEXP1
CONN@
GND
1
USB_D-
2
USB_D+
3
CPUSB#
4
RSV
5
RSV
6
SMB_CLK
7
SMB_DATA
8
+1.5V
9
+1.5V
10
WAKE#
11
+3.3VAUX
12
PERST#
13
+3.3V
14
+3.3V
15
CLKREQ#
16
CPPE#
17
REFCLK-
18
REFCLK+
19
GND
20
PERn0
21
PERp0
22
GND
23
PETn0
24
PETp0
25
GND
26
GND
27
GND
28
GND
29
GND
30
C2031
10U_0805_10V4Z
1
2
CS25
0.1U_0402_10V6K
SM@
1
2
CS18
0.1U_0402_10V6K
SM@
1
2
RS18 0_0402_5%
SM@
1
2
R1727
10K_0402_5%
1
2
RS11
47K_0402_5%
@
1
2
US3
AT24C02BN-SH-T_SO8@
A0
1
A1
2
A2
3
GND
4
VCC8
WP7
SCL6
SDA5
U53
NC7SZ32P5X_NL_SC70-5
B
2
A
1Y4
G
3
Vcc5
LS2
WCM2012F2S-900T04_0805
@
11
2
2
3
344
RS14 0_0402_5%
SM@
1
2
G
D
S
Q118
2N7002_SOT23
2
1
3
CS28
0.1U_0402_10V6K
SM@
1
2
CS20
0.1U_0402_10V6K
@
1
2
CS26
1U_0402_6.3V4K
SM@
1
2
CS29
1U_0402_6.3V4K
SM@
1
2
C2027
10U_0805_10V4Z
1
2
CS21
0.1U_0402_10V6K
SM@
1
2
RS15 1M_0402_5%
SM@
12
CS30
1U_0402_6.3V4K
SM@
1
2
C2033
0.1U_0402_16V4Z
1
2
R100
0_0402_5%@
1
2
RS12
4.7K_0402_5%
SM@
1
2
RS16
100K_0402_5%
SM@
1
2
CS31
1U_0402_6.3V4K
SM@
1
2
C2028
0.1U_0402_16V4Z
1
2
YS2
12MHZ_16PF_X5H012000FG1H-X
SM@
1
122
U52
G577NSR91U_TQFN20_4x4
3.3Vin
2
3.3Vin
4
3.3Vout 3
3.3Vout 5
SYSRST#
6
SHDN#
20
STBY#
1
PERST# 8
OC#19
RCLKEN
18
AUX_IN
17
AUX_OUT 15
CPPE#
10
CPUSB#
9
NC 16
GND7
1.5Vin
12
1.5Vin
14
1.5Vout 11
1.5Vout 13
Thermal_Pad 21
RS19
47K_0402_5%
SM@
1
2
RS22
10K_0402_5%
SM@
1
2
L26
WCM-2012-900T_0805
@
1
1
22
33
4
4
RS17
47K_0402_5%
@
1
2
C2029
10U_0805_10V4Z
1
2
JSMART
ACES_88514-104N
CONN@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
GND
11
GND
12
R59 0_0402_5%
1
2
CS22
0.1U_0402_10V6K
SM@
1
2
R102
0_0402_5%
12
C2030
0.1U_0402_16V4Z
1
2
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
For EMC
KEYBOARD CONN.
Break hole CPU
PCB Fiducial Mark PAD
JWLAN VGA
Screw HoleLid SW
Finger Print
Kill Switch
2.5A
W=100mils
Diode added on Finger Print small board
KSI[0..7]
KSO[0..15]
KSO14
KSO2
KSO4
KSO5
KSO0
KSO1
KSO6
KSO13
KSO3
KSO7
KSO8
KSO9
KSO10
KSO11
KSO12
KSO15
KSI7
KSI2
KSI3
KSI4
KSI0
KSI5
KSI6
KSI1
KSO14
KSO15
KSI7
KSO8
KSO9
KSO10
KSO11
KSO12
KSO13
KSO3
KSO4
KSO5
KSO6
KSO7
KSI1
KSI0
KSO0
KSO1
KSO2
KSI6
KSI5
KSI4
KSI3
KSI2
USB20_R_N11
USB20_R_P11
KILL_SW#
USB20_R_P11
USB20_R_N11
USB_OC0#
USB3_TX0_P_C
U3TXDP0_L
U3RXDP0_L
U3TXDN0_L
U3RXDN0_L
USB3_TX0_N_C
USB20_P0_L
USB20_N0_L
USB20_N0
USB20_P0
USB20_P0_L
USB20_N0_L
U3TXDN0_L
U3RXDN0_L
U3RXDP0_L
U3TXDP0_L
U3TXDN0_L
U3RXDN0_L
U3RXDP0_L
U3TXDP0_L
U3TXDP0_L
U3TXDN0_L
USB20_P0_L
USB20_N0_L
U3RXDP0_L
U3RXDN0_L
USB30_GND
USB30_GND
KSI[0..7] <41,43>
KSO[0..15] <41,43>
LID_SW# <41>
KILL_SW# <41>
USB20_N11<28>
USB20_P11<28>
USB_OC0# <28>
USB3_RX0_N<28>
USB3_RX0_P<28>
USB3_TX0_P<28>
USB3_TX0_N<28>
USB20_N0<28>
USB20_P0<28>
SUSP<6,11,43,45>
SYSON#<43,45>
USB_OC4# <28,43>
+3VL
+3VS +3VS_FP
+3VS_FP
+3VS_FP
+3VALW
+3VALW
+3VALW
+5VALW
+USB_VCCB
+USB_VCCB
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
40 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
40 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
40 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
C647
0.1U_0402_16V4Z
1
2
LU2 WCM-2012-121T_0805
1
122
33
4
4
C814 100P_0402_50V8J
@
12
H22
H_3P3
@
1
RU7 0_0402_5%@
CU6
0.1U_0402_16V4Z
JUSB31
SANTA_371394-1
CONN@
SSTX-
8
SSTX+
9
GND10
GND11
VBUS
1
D+
3
D-
2
GND
4
SSRX-
5
SSRX+
6
GND
7
U34
APX9132ATI-TRL_SOT23-3
GND
1
VDD
2
VOUT 3
R159 0_0402_5%
1
2
CU1
4.7U_0805_10V4Z
@
C13
0.1U_0402_16V4Z
@
1
2
LU1 WCM-2012-121T_0805
1
1
22
33
4
4
RU5 0_0402_5%@
FD1
@
1
H30
H_2P3
@
1
C804 100P_0402_50V8J
@
12
C802 100P_0402_50V8J
@
12
H23
H_3P3
@
1
R160 0_0402_5%
12
C808 100P_0402_50V8J
@
12
H7
H_3P0
@
1
H3
H_3P0
@
1
H31
H_2P3
@
1
C811 100P_0402_50V8J
@
12
C813 100P_0402_50V8J
@
12
C807 100P_0402_50V8J
@
1
2
L56
WCM-2012-900T_0805
@
1
122
33
4
4
LU3 WCM-2012-900T_0805
11
2
2
3
344
R91 0_0402_5%@
1
2
H32
H_3P0N
@
1
H24
H_3P3
@
1
C798 100P_0402_50V8J
@
1
2
H19
H_4P5
@
1
RU2
0_0603_5%
C3606
1000P_0402_50V7K
@
D15
PJDLC05_SOT23-3
@
2
3
1
C122
1U_0402_6.3V4Z
1
2
C792 100P_0402_50V8J
@
1
2
FD4
@
1
R580
100K_0402_5%
12
H11
H_4P5
@
1
C128
0.1U_0402_16V4Z
1
2
C803 100P_0402_50V8J
@
1
2
C801 100P_0402_50V8J
@
12
C815 100P_0402_50V8J
@
1
2
C800 100P_0402_50V8J
@
12
H25
H_3P3
@
1
FD2
@
1
H12
H_4P5
@
1
JFP
E&T_6905-F04N-00R
CONN@
1
1
2
2
3
3
4
4
D24
DAN217_SC59
@
2
3
1
H21
H_4P5
@
1
H4
H_3P0
@
1
C790 100P_0402_50V8J
@
12
C796 100P_0402_50V8J
@
12
C799 100P_0402_50V8J
@
1
2
C645
0.1U_0402_16V4Z
1
2
H8
H_3P0
@
1
C810 100P_0402_50V8J
@
12
C812 100P_0402_50V8J
@
1
2
R62 0_0603_5%
12
C793 100P_0402_50V8J
@
1
2
8
7
65
4
3
2
1
9
10
DU1
L15ESDL5V0NA-4 SLP2510P8
4
5
1
6
2
7
3
9
8
SW5
1BS003-1211L_3P
11
22
33
FD3
@
1
CU11
0.1U_0402_16V7K
1
2
CU3
0.1U_0402_16V4Z
C797 100P_0402_50V8J
@
1
2
C795 100P_0402_50V8J
@
12
H33
H_3P0X5P0N
@
1
H9
H_3P0
@
1
H10
H_4P5
@
1
+
CU5
150U_B2_6.3VM_R35M
1
2
H1
H_3P0
@
1
RU27
0_0402_5%
@
1
2
CU12
0.1U_0402_16V7K
12
RU8 0_0402_5%@
CU2
1000P_0402_50V7K
H6
H_3P0
@
1
RU6 0_0402_5%@
CU4
4.7U_0805_10V4Z
RU9 0_0402_5%@
H16
H_3P0
@
1
DU2
YSDA0502C 3P C/A SOT-23
2
3
1
H13
H_4P5
@
1
H2
H_3P0
@
1
H26
H_4P5
@
1
C816 100P_0402_50V8J
@
1
2
C791 100P_0402_50V8J
@
12
RU4 0_0402_5%@
H18
H_3P0
@
1
JKB
ACES_85208-24071
CONN@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
GND1
25
GND2
26
C805 100P_0402_50V8J
@
1
2
UU1
G547E2P11U
FLG5
VIN
3
VOUT 6
GND
1
EN
4
VOUT 7
VIN
2VOUT 8
R90 0_0402_5%
12
R69 0_0603_5%@
12
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA
EMI request
close U43
reserve for ENE_CS board
new added pin --Joyce 0922-2011
new added pin--Joyce 0928-2011
20mil
0V
0.375V
0.168V
0.621V
0.945V
0 0.155V
8.2K+/-5% 0.362V
0 (QAQ10)
Rd Vmin VmaxProject_ID Vtype
1 (QAQ11)
2 (QAQ12)
3 (QAQ13)
0V
0.250V
18K+/-5% 0.503V
33K+/-5% 0.634V 0.819V
56K+/-5%
100K+/-5%
0.958V 1.185V 1.359V
1.838V1.372V 1.650V
--Add net "PWR_GPS_DOWN#" for EC pin27
as power circuit modified --Joyce 0224/2012
To battery & charger
To PCH & VGA
 
  
--Delete net "PWRMOS_TEMP", add net "GREEN_PWR4"for EC pin 76 as power circuit modified --Joyce 0302/2012
--Add net "EC_GPS_DOWN#" to EC pin68
--Joyce 0224/2012
When use EC_PME#, should pull
up to +3VL: if pull up to +3VALW,
the system will auto resume when
plug in AC at DC mode.
4 (12-RM)
5 (13-RM)
CAPS_LED#
LID_SW#
EC_MUTE#
EC_ACIN
INVT_PWM
LID_SW_OUT#
USB_EN#
BATT_TEMPA
CLK_PCI_EC
ECRST#
EC_SMB_CK1
EC_BEEP#
EC_SMB_DA1
LPC_AD1
SERIRQ
KB_RST#
LPC_AD0
GATEA20
LPC_FRAME#
LPC_AD3
LPC_AD2
PLT_RST#
EN_DFAN1
PCH_RSMRST#
BKOFF#
SYSON
VR_ON
TP_DATA
TP_CLK
CLK_PCI_EC
ECRST#
KSO2
KSO4
KSO5
KSO0
KSO1
KSO8
KSO10
KSO12
KSO3
KSO6
KSO9
KSO15
KSO14
KSO13
KSO7
FAN_SPEED
KSO11
KSI5
KSI2
KSI4
KSI0
KSI1
KSI3
CRY1
KSI7
KSI6
EC_SMB_DA2
EC_SMI#
EC_SMB_CK1
EC_SMB_DA1
EC_SMB_CK2
BATT_TEMPA
CRY2
CRY1
TP_CLK
TP_DATA
KSI[0..7]
KSO[0..15]
EC_SMB_CK2
EC_SMB_DA2
EC_ACIN
BATT_FULL_LED#
EC_ACIN
+EC_V18R
SUSP#
ADP_I
E51_TXD
E51_RXD
BKOFF#
PCH_APW ROK
PLT_RST#
SA_PGOOD
PM_SLP_S4#
ON/OFFBTN#
LID_SW#
HDA_SDO
KB_RST#
EC_ON
PM_SLP_S5#
PM_SLP_S3#
VR_HOT#
H_PROCHOT#_EC
SUSWARN#
EC_SCI#
VCIN1_PH
NUM_LED#
Board_ID
WL_OFF_EC#
Board_ID
WL_BT_LED#
PM_SLP_LAN#
SLP_LAN#
PM_SLP_A#
TP_LED#
WWAN_OFF_EC#
PCH_HOT#_R
PCH_HOT#
GREEN_PW R
ECAGND
ECAGND
CRY2
H_PROCHOT#_EC
VCOUT0_PH
VCIN0_PH
PCH_ENBKL
PBTN_OUT#
EAPD
BATT_CHG/LOW_LED#
PWR_ON_LED
KILL_SW#
H_PECI
PCH_PWR_EN_R
PM_PWROK
PWR_USB_EN#
BT_PWRON
TP_ON/OFF#
CAMPWR_EN
Project_ID
Project_ID
EC_SMI#
PCH_HOT#_R
CPU1.5V_S3_GATE
WWAN_OFF_EC#
SLP_A#
EC_PME#
WL_OFF_EC#
VSB_EN_R
EC_MUTE#
WL_OFF_EC#
WWAN_OFF_EC#
PWR_GPS_DOWN_R#
GREEN_PW R4
EC_GPS_DOWN#
EC_GPS_DOWN#
PWR_GPS_DOWN_R#
EC_PME#
VSB_EN
VSB_EN
PCH_PWR_EN_R
VSB_EN_R
EC_PME#
EC_PME#
CAPS_LED# <44>
HDA_SDO <25>
EC_MUTE# <38>
INVT_PWM<23>
LID_SW_OUT# <29>
BATT_FULL_LED# <43>
ACIN <13,27,48>
EC_BEEP# <38>
PCH_RSMRST# <27>
SERIRQ<25,34,44>
GATEA20<29>
LPC_AD2<25,34,44>
LPC_AD1<25,34,44>
LPC_AD0<25,34,44>
LPC_FRAME#<25,34,44>
KB_RST#<29>
LPC_AD3<25,34,44>
PLT_RST#<6,28,34,35,36,37,39,42,44>
BKOFF# <23>
TP_DATA <43>
TP_CLK <43>
VR_ON <54>
SYSON <39,45,52>
EN_DFAN1 <6>
CLK_PCI_EC<28>
EC_SMI#<29>
EC_SMB_DA2<13,26>
EC_SMB_CK2<13,26>
FAN_SPEED<6>
BATT_TEMPA <47>
KSI[0..7]<40,43>
KSO[0..15]<40,43>
SUSP# <10,39,45,50,51,52,57>
E51_TXD<36>
E51_RXD<36>
ADP_I <47,48>
USB_EN# <44>
PCH_APW ROK <27>
SA_PGOOD <53>
PM_SLP_S4# <27>
EC_SMB_DA1<47,48>
EC_SMB_CK1<47,48>
ON/OFFBTN# <43>
SUSCLK_R<27>
LID_SW# <40>
EC_ON <43,49>
PM_SLP_S3#<27>
PM_SLP_S5#<27>
H_PROCHOT# <6,47>
VR_HOT#<54>
SUSWARN#<27>
EC_SCI#<29>
VCIN1_PH <47>
NUM_LED#<44>
WL_OFF# <29,36>
WL_BT_LED#<43>
PM_SLP_LAN#<42,50>
SLP_LAN#<27>
PM_SLP_A# <42>
TP_LED# <43>
WWAN_OFF# <29,36>
PCH_HOT# <26>
H_PROCHOT#_EC<47>
GREEN_PWR<48>
VCOUT0_PH <47,49>
VCIN0_PH <47>
PCH_ENBKL <27>
PBTN_OUT# <27>
EAPD <38>
BATT_CHG/LOW_LED# <43>
PWR_ON_LED <43>
KILL_SW# <40>
H_PECI <6,29>
PCH_PWR_EN<45>
PM_PWROK<27>
PWR_USB_EN# <44>
BT_PWRON <36>
TP_ON/OFF# <43>
CAMPWR_EN <23>
CPU1.5V_S3_GATE <10>
SLP_A#<27>
GREEN_PWR4 <48>
EC_GPS_DOWN# <13>
ECAGND <47>
PWR_GPS_DOWN# <13,57>
EC_PME#<35,36,39,42>
VSB_EN <47>
GPIO27_WAKE#<29,35>
+5VS
+3VS
+3VS
+3VALW
+3VALW _EC +3VL
+EC_VCCA
+3VALW _EC
+3VL
+3VALW
+3VL
+3VALW
+3VL
+3VL
+3VL
+3VALW _EC
+3VALW
+3VALW
+3VL
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
41 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
41 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
41 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Rd
56K_0402_5%
12RM@
Rb
8.2K_0402_5%
Rev02@
R740 4.7K_0402_5%
1
2
C774
1000P_0402_50V7K
1
2
Y5
32.768KHZ_12.5PF_Q13MC14610002
@
OSC4
OSC1
NC
3
NC
2
C773
0.1U_0402_16V4Z
1
2
C784
15P_0402_50V8J
@
1
2
Rd
100K_0402_5%
13RM@
Rb
18K_0402_5%
Rev03@
R1210 10K_0402_5%
1
2
R732 10K_0402_5%
@
1
2
LE1
FBMA-L11-160808-800LMT_0603
1
2
R818 100K_0402_5%@
1
2
R759 2.2K_0402_5%
1
2
D64
CH751H-40PT_SOD323-2
21
G
D
S
Q38
2N7002_SOT23
2
1
3
LE2
FBMA-L11-160808-800LMT_0603
1
2
R1211 10K_0402_5%
1
2
R745
0_0805_5%
Rb
33K_0402_5%
Rev04@
C788 100P_0402_50V8J
1
2
LPC & MISC
Int. K/B
Matrix
SM Bus
GPIO
GPIO
AD Input
PWM Output
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPO
GPI
UE1
KB9012QF A3 LQFP 128P
GATEA20/GPIO00
1
KBRST#/GPIO01
2
SERIRQ
3
LPC_FRAME#
4
LPC_AD3
5
PM_SLP_S3#/GPIO04
6
LPC_AD2
7
LPC_AD1
8
EC_VDD/VCC 9
LPC_AD0
10
GND/GND
11
CLK_PCI_EC
12
PCIRST#/GPIO05
13
PM_SLP_S5#/GPIO07
14
EC_SMI#/GPIO08
15
GPIO0A
16
GPIO0B
17
GPIO0C
18
GPIO0D
19
EC_SCII#/GPIO0E
20
GPIO0F 21
EC_VDD/VCC 22
BEEP#/GPIO10 23
GND/GND
24
EC_INVT_PWM/GPIO11
25
GPIO12 26
ACOFF/GPIO13 27
FAN_SPEED1/GPIO14
28
EC_PME#/GPIO15
29
EC_TX/GPIO16
30
EC_RX/GPIO17
31
PCH_PWROK/GPIO18
32
EC_VDD/VCC 33
SUSP_LED#/GPIO19
34
GND/GND
35
NUM_LED#/GPIO1A
36
EC_RST#
37
GPIO1D
38
KSO0/GPIO20
39
KSO1/GPIO21
40
KSO2/GPIO22
41
KSO3/GPIO23
42
KSO4/GPIO24
43
KSO5/GPIO25
44
KSO6/GPIO26
45
KSO7/GPIO27
46
KSO8/GPIO28
47
KSO9/GPIO29
48
KSO10/GPIO2A
49
KSO11/GPIO2B
50
KSO12/GPIO2C
51
KSO13/GPIO2D
52
KSO14/GPIO2E
53
KSO15/GPIO2F
54
KSI0/GPIO30
55
KSI1/GPIO31
56
KSI2/GPIO32
57
KSI3/GPIO33
58
KSI4/GPIO34
59
KSI5/GPIO35
60
KSI6/GPIO36
61
KSI7/GPIO37
62
BATT_TEMP/GPIO38 63
GPIO39 64
ADP_I/GPIO3A 65
GPIO3B 66
EC_VDD/AVCC 67
DAC_BRIG/GPIO3C 68
AGND/AGND
69
EN_DFAN1/GPIO3D 70
IREF/GPIO3E 71
CHGVADJ/GPIO3F 72
ENBKL/GPIO40 73
PECI_KB930/GPIO41 74
GPIO42 75
IMON/GPIO43 76
EC_SMB_CK1/GPIO44
77
EC_SMB_DA1/GPIO45
78
EC_SMB_CK2/GPIO46
79
EC_SMB_DA2/GPIO47
80
KSO16/GPIO48
81
KSO17/GPIO49
82
EC_MUTE#/GPIO4A 83
USB_EN#/GPIO4B 84
CAP_INT#/GPIO4C 85
EAPD/GPIO4D 86
TP_CLK/GPIO4E 87
TP_DATA/GPIO4F 88
FSTCHG/GPIO50 89
BATT_CHG_LED#/GPIO52 90
CAPS_LED#/GPIO53 91
PWR_LED#/GPIO54 92
BATT_LOW_LED#/GPIO55 93
GND/GND
94
SYSON/GPIO56 95
EC_VDD/VCC 96
CPU1.5V_S3_GATE/GPXIOA00 97
WOL_EN/GPXIOA01 98
HDA_SDO/GPXIOA02 99
EC_RSMRST#/GPXIOA03 100
EC_LID_OUT#/GPXIOA04 101
PROCHOT_IN/GPXIOA05 102
H_PROCHOT#_EC/GPXIOA06 103
VCOUT0_PH/GPXIOA07 104
BKOFF#/GPXIOA08 105
PBTN_OUT#/GPXIOA09 106
PCH_APW ROK/GPXIOA10 107
SA_PGOOD/GPXIOA11 108
VCIN0_PH/GPXIOD00 109
AC_IN/GPXIOD01 110
EC_VDD0 111
EC_ON/GPXIOD02 112
GND0
113
ON/OFF/GPXIOD03 114
LID_SW#/GPXIOD04 115
SUSP#/GPXIOD05 116
GPXIOD06 117
PECI_KB9012/GPXIOD07 118
SPIDI/GPIO5B 119
SPIDO/GPIO5C 120
VR_ON/GPIO57 121
XCLKI/GPIO5D
122
XCLKO/GPIO5E
123
V18R 124
EC_VDD/VCC 125
SPICLK/GPIO58 126
PM_SLP_S4#/GPIO59 127
SPICS#/GPIO5A 128
R7670_0402_5% @
1
2
R724 10K_0402_5%
@
1
2
R749
20M_0603_5%@
1
2
R725 10K_0402_5%
12
R7660_0402_5%
1
2
R752 0_0402_5%
12
C771
0.1U_0402_16V4Z
1
2
R7540_0402_5%
1
2
R731 10K_0402_5%
1
2
Rc 100K_0402_5%
1
2
C794 330P_0402_16V4Z
1
2
R4934 0_0402_5%
R756 2.2K_0402_5%
1
2
Rb
56K_0402_5%
Rev10@
R748 0_0402_5%
1
2
R819 100K_0402_5%
@
1
2
Rd
8.2K_0402_5%
11@
Rd 100K_0402_5%
@
1
2
R768
10K_0402_5%
@
1
2
R741 4.7K_0402_5%
1
2
C787
22P_0402_50V8J
@
1
2
R733 100K_0402_5%
1
2
Rd
0_0402_5%
10@
Ra 100K_0402_5%
1
2
R817 100K_0402_5%
1
2
Rd
18K_0402_5%
12@
C789 0.1U_0402_16V4Z
1
2
R742 330K_0402_5%
@
1
2
R739 47K_0402_5%
1
2
R753 0_0402_5%
short@
1
2
R765 0_0402_5%
@
1
2
Rd
33K_0402_5%
13@
R737
0_0402_5%
1
2
C772
0.1U_0402_16V4Z
1
2
C783 20P_0402_50V8
12
R738
10_0402_5%
@
1
2
Rb 100K_0402_5%VPRO@
1
2
R326
1K_0402_5%
@
1
2
C770
0.1U_0402_16V4Z
1
2
C820 0.1U_0402_16V4Z
@
1
2
R730 10K_0402_5%
@
1
2
C785
15P_0402_50V8J
@
1
2
R747 330K_0402_5%
1
2
C4907
0.1U_0402_16V4Z
R734 0_0402_5%
R761
10K_0402_5%
@
1
2
C776 100P_0402_50V8J
1
2
R757 100K_0402_5%
C782
4.7U_0805_10V4Z
R758 2.2K_0402_5%
1
2
R755 2.2K_0402_5%
12
C775
1000P_0402_50V7K
1
2
R746
0_0805_5% @
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
Place R548, C462, C463 and L29 close to U31
Place C1178 close to pin5
Idc max=330mA
Note:
+1.0V_LAN will work at 0.95V to 1.15V
R1200 Resistor Value:
3.01 kohm for Hanksville-M LOM
2.37 kohm for Hanksville-D LOM
SMBus Device Address 0xC8
Need to verify A3 silicon drive
power before removing C427
KDS crystal vender verify
driving level in A3
+1.0V_LAN POWER OPTIONS
Shared with PCH
1.05V SVR Internal SRV
STUFF: R548
NO STUFF: L29
STUFF: L29
NO STUFF: R548
*
XTALO
LAN_1000_LED#
LAN_10/100_ LED#
REGCTL_PNP10
CLK_LAN_R
CLK_LAN#_R
PCIE_PRX_VLANTX_N6
LAN_TX1-
LAN_TX1+
LAN_TX2+
LAN_TX2-
LAN_TX3-
LAN_TX0-
LAN_TX0+
LAN_TX3+
REGCTL_PNP10
+3.3V_M_OUT
+RSVD_VCC3P3_1
+RSVD_VCC3P3_2
PCIE_PTX_C_C_VLANRX_N6
PCIE_PTX_C_C_VLANRX_P6
LAN_ACT_LED#
CLKREQ_LAN#_R
TP_LAN_JTAG_TDI
PCIE_PRX_VLANTX_P6
TP_LAN_JTAG_TDO
TP_LAN_JTAG_TMS
PCH_SMLCLK0
PCH_SMLDATA0
XTALI
LAN_DISABLE#_R
PLT_RST#
LAN_TEST_EN
RES_BIAS
TP_LAN_JTAG_TCK
PCH_SMLCLK0
PCH_SMLDATA0
CLKREQ_LAN#
PM_SLP_A
PM_SLP_A#
PM_SLP_LAN
PM_SLP_LAN
LAN_X1
LAN_X2
CLKREQ_LAN#<26,35>
PLT_RST#<6,28,34,35,36,37,39,41,44>
PCIE_PRX_C_LANTX_P6<26,35>
PCIE_PRX_C_LANTX_N6<26,35>
PCIE_PTX_C_LANRX_P6<26,35>
PCIE_PTX_C_LANRX_N6<26,35>
PCH_SMLDATA0<26>
PCH_SMLCLK0<26>
PM_LANPHY_ENABLE<29>
LAN_TX0+ <35>
LAN_TX0- <35>
LAN_TX1+ <35>
LAN_TX1- <35>
LAN_TX2+ <35>
LAN_TX2- <35>
LAN_TX3+ <35>
LAN_TX3- <35>
LAN_ACT_LED#<35>
LAN_1000_LED#<35>
LAN_10/100_ LED#<35>
PM_SLP_LAN#<41,50>
PM_SLP_A#<41>
PM_SLP_LAN<45>
CLK_LAN<26,35>
CLK_LAN#<26,35>
EC_PME#<35,36,39,41>
+3V_M
+1.0V_LAN
+1.0V_LAN
+1.0V_LAN
+3V_M
+3V_M
+1.05V_M
+3V_M
+5VALW
+3V_M
+1.05V_M
+1.05VM_PCH
+5VALW
+1.05VM_PCH
+3V_M
+3VALW
+3V_M
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
42 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
42 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
42 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
C495
0.1U_0402_16V7K
@
1
2
R562
3.01K_0402_1%
VPRO@
1
2
C468
0.1U_0402_10V7K~D
VPRO@
1
2
C496
0.01U_0402_25V7K
VPRO@
1
2
C471
0.1U_0402_10V7K~D
VPRO@
1
2
R462
470_0603_5%
VPRO@
12
R442
47K_0402_5%
VPRO@
1
2
R549 10K_0402_5%
@
12
R548
0_0805_5%~D
VPRO@
1
2
G
D
S
Q56
AO3416_SOT23-3
VPRO@
2
1
3
C482 0.1U_0402_10V7K VPRO@
1
2
C1178
22U_0805_6.3V6M~D
VPRO@
1
2
C498
0.01U_0402_25V7K
@
1
2
L29
4.7UH_CBC2012T4R7M_20%~D
@
12
C698
1U_0402_6.3V4Z
VPRO@
1
2
R553 4.7K_0402_1%~D
VPRO@
1
2
G
D
S
Q60
2N7002_SOT23-3
VPRO@
2
1
3
R1230 2.2K_0402_5%@
1
2
C1177
22U_0805_6.3V6M~D
VPRO@
1
2
R560 0_0402_5% VPRO@
1
2
R814
100K_0402_5%
VPRO@
12
Y4
25MHZ_20PF_7V25000016
VPRO@
GND
2
33
1
1
GND
4
R461
470_0603_5%
VPRO@
1
2
C695
1U_0402_6.3V4Z
VPRO@
1
2
C485
33P_0402_50V8J
VPRO@
1
2
R563 0_0402_5% VPRO@
1
2
T142 PAD
G
D
S
Q57
AO3413_SOT23
VPRO@
2
13
R545 10K_0402_5%@
1
2
R556 0_0402_5% VPRO@
12
R1231 2.2K_0402_5%@
1
2
C483
0.1U_0402_16V4Z~D
VPRO@
1
2
R1144 0_0402_5%VPRO@
12
C470
22U_0805_6.3V6M~D
VPRO@
1
2
T143 PAD
R558 0_0402_5% VPRO@
12
G
D
S
Q50
2N7002E-T1-GE3_SOT23-3
VPRO@
2
1
3
C486
0.1U_0402_10V7K~D
VPRO@
1
2
C487
0.1U_0402_16V4Z~D
VPRO@
1
2
C490
1U_0603_10V6K~D
VPRO@
1
2
R557 10K_0402_5%
@
1
2
C494
0.1U_0402_16V4Z~D
VPRO@
1
2
C493
33P_0402_50V8J
VPRO@
1
2
C469 0.1U_0402_10V7K VPRO@
1
2
C488
0.1U_0402_10V7K~D
VPRO@
1
2
Q44B
2N7002DW-T/R7_SOT363-6
3
5
4
PCIE
MDI
SMBUS
JTAG
LED
U31
82579_QFN48_6X6~D
VPRO@
RSVD_VCC3P3_1 1
RSVD_VCC3P3_2 2
LAN_DISABLE_N
3
VDD3P3_OUT 4
VDD3P3_IN 5
RSVD_NC 6
CTRL_1P0 7
VDD1P0_8 8
XTAL_OUT
9
XTAL_IN
10
VDD1P0_11 11
RBIAS
12
MDI_PLUS0 13
MDI_MINUS0 14
VDD3P3_15 15
VDD1P0_16 16
MDI_PLUS1 17
MDI_MINUS1 18
VDD3P3_19 19
MDI_PLUS2 20
MDI_MINUS2 21
VDD1P0_22 22
MDI_PLUS3 23
MDI_MINUS3 24
LED2
25
LED0
26
LED1
27
SMB_CLK
28
VDD3P3_29 29
TEST_EN
30
SMB_DATA
31
JTAG_TDI
32
JTAG_TMS
33
JTAG_TDO
34
JTAG_TCK
35
PE_RST_N
36
VDD1P0_37 37
PETp
38
PETn
39
VDD1P0_40 40
PERp
41
PERn
42
VDD1P0_43 43
PE_CLKP
44
PE_CLKN
45
VDD1P0_46 46
VDD1P0_47 47
CLK_REQ_N
48
VSS_EPAD 49
R564 0_0402_5% VPRO@
12
R561
1K_0402_5%
VPRO@
1
2
R559 0_0402_5%@
R1232 10K_0402_5%@
12
C696
4.7U_0805_10V4Z
@
1
2
Q44A
2N7002DW-T/R7_SOT363-6
6
1
2
R546 10K_0402_5%@
12
C694
4.7U_0805_10V4Z
@
1
2
R555 0_0402_5%VPRO@
12
R554 4.7K_0402_1%~D
VPRO@
1
2
C472
0.1U_0402_10V7K~D
VPRO@
1
2
C497
0.1U_0402_16V7K
VPRO@
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
HDD LED
Power Button/ PWR/B Touch/B Connector
WL&BT LED
BATT CHARGE/FULL LED Vf=2.1V(typ),2.4V(max) for amber
Vf=2.2V(typ),2.4V(max) for green
If=25mA(max)
TOP Side
Bottom Side
RED
YELLOW GREEN
PWR ON LED
W=80mils
Left USB
ESATA
W=40mils
W=40mils
TP_DATA
TP_CLK
RIGHT_BTN#
LEFT_BTN#
RIGHT_BTN#
LEFT_BTN#
ON/OFFBTN#_R
MEDIA_LED#
USB20_N1_R
USB20_P1_R
USB20_P9_R
SATA_PTX_C_DRX_N4
SATA_PTX_C_DRX_P4
SATA_PRX_DTX_P4
SATA_PRX_DTX_N4
TP_ON/OFF#
TP_LED#
PWR_ON_LED#
ON/OFFBTN#_R
KSO0
KSI0
KSI2
KSI6
USB20_N9_R
MEDIA_LED#
RIGHT_BTN#
LEFT_BTN#
PWR_ON_LED#
TP_DATA <41>
TP_CLK <41>
ON/OFFBTN# <41>
USB20_P1<28>
USB20_N1<28>
USB_OC4# <28,40>
SUSP<6,11,40,45>
USB20_P9<28>
USB20_N9<28>
SATA_PRX_C_DTX_N4<25>
SATA_PRX_C_DTX_P4<25>
SATA_PTX_DRX_N4<25>
SATA_PTX_DRX_P4<25>
LED_WLAN# <36>
TP_ON/OFF#<41>
5IN1_LED#<37>
SATA_LED#<25>
SYSON#<40,45>
WL_BT_LED# <41>
BATT_FULL_LED# <41>
BATT_CHG/LOW_LED# <41>
TP_LED# <41>
KSO0 <40,41>
KSI0 <40,41>
KSI2 <40,41>
KSI6 <40,41>
EC_ON<41,49>
51_ON# <44,47>
PWR_ON_LED <41>
+5VS
+5VALW
+3VS
+5VS
+3VALW
+5VALW
+USB_VCCE
+5VALW
+USB_VCCB
+USB_VCCE
+3VS
+5VS
+3VS
+3VS
+3VS
+USB_VCCE
+USB_VCCB
+5VS
+5VALW
+3VL
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
43 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
43 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
43 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
R85 0_0402_5%
1
2
R50_0402_5%
1
2
C2052 0.01U_0402_25V7K
1
2
R155
10K_0402_5%
@
1
2
C4
4.7U_0805_10V4Z
1
2
R210
10K_0402_5%
1
2
Q210B 2N7002DW-T/R7_SOT363-6
3
5
4
D18
PJDLC05C_SOT23-3
2
3
1
R9 0_0402_5%
@
12
Q229A
2N7002DW-T/R7_SOT363-6
61
2
R162 0_0402_5%
12
C759
100P_0402_50V8J
@
1
2
C755
0.1U_0402_16V4Z
12
Q230A
2N7002DW-T/R7_SOT363-6
@
6
1
2
LED2
HT-191UYG5 0603 YELLOW GREEN
21
USB
ESATA
JESATA
FOX_3Q318111-R33C3-7F
CONN@
VBUS
1
D-
2
D+
3
GND
4
GND
5
A+
6
A-
7
GND
8
B-
9
B+
10
GND
11
SHIELD 12
SHIELD 13
SHIELD 14
SHIELD 15
R169
100K_0402_5%
12
C2053 0.01U_0402_25V7K
1
2
R163 0_0402_5%
12
R200 220_0402_5%
1
2
SW8
SW LTL-613NQR1
3
2
1
4
5
6
R1442
0_0402_5%
1
2
Q229B 2N7002DW-T/R7_SOT363-6
3
5
4
L3
WCM-2012-900T_0805
@
1
122
33
4
4
R203 220_0402_5%
1
2
SW7
SW LTL-613NQR1
3
2
1
4
5
6
R211 220_0402_5%
12
G
D
S
Q6
2N7002_SOT23-3
2
1
3
L57
WCM-2012-900T_0805
@
1
122
33
4
4
C757
100P_0402_50V8J
@
1
2
R10 0_0402_5%
1
2
R202 220_0402_5%
1
2
R215 220_0402_5%
12
SW6
SMT1-05-A_4P
3
2
1
4
5
6
D16
PJDLC05C_SOT23-3
2
3
1
R93 0_0402_5%
@
12
B
A
LED5
HT-297USD/UYG 0603 RED/YELLOW GREE
2
1
4
3
JTP
ACES_85201-0605N
CONN@
11
22
33
44
55
66
GND
7GND
8
C2054 0.01U_0402_25V7K
1
2
LED8
LED 19-213A/T1D-CP2Q2HY/3T 0603 WHITE
21
R154
100K_0402_5%
@
12
R204 220_0402_5%
12
R10_0402_5%
12
+
C2
220U_6.3V_M
1
2
C3
0.1U_0402_16V4Z
1
2
C2055 0.01U_0402_25V7K
1
2
JP7
ACES_51524-0080N-001
CONN@
11
22
33
44
55
66
77
88
G1
9
G2
10
D13
PJDLC05_SOT23-3
@
2
3
1
+
C9
220U_6.3V_M
@
1
2
U6
G547E2P11U SOP 8P
FLG
5
VIN
3VOUT 6
GND
1
EN
4
VOUT 7
VIN
2
VOUT 8
Q230B
2N7002DW-T/R7_SOT363-6@
3
5
4
R156
100K_0402_5%
1
2
R152 10K_0603_5%@
1
2
JUSB1
SANTA_360117-1
CONN@
GND
4
GND5
GND6
GND7
GND8
VCC
1
D-
2
D+
3
C7
0.1U_0402_16V4Z
1
2
R4
0_0402_5%
12
R214
10K_0402_5%
1
2
C10
0.1U_0402_16V4Z
1
2
D8
CHN202UPT SC-70
2
3
1
R199
10K_0402_5%
1
2
LED4
HT-191USD 0603 RED
2
1
LED6
HT-191UYG5 0603 YELLOW GREEN
2
1
C14
0.1U_0402_16V4Z
C8
1000P_0402_50V7K
1
2
D11
PJDLC05_SOT23-3
@
2
3
1
R153 10K_0603_5%@
1
2
Q210A
2N7002DW-T/R7_SOT363-6
6
1
2
C11
1000P_0402_50V7K
1
2
G
D
S
Q19
2N7002_SOT23-3
@
2
1
3
C12
0.1U_0402_16V4Z
@
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA
Reserve C292 for SIO_RST# <ESD> 0608
Place closely pin 1Place closely pin 18
Reserve R199,C207,R226,C208 <EMI> 0601
Base Address Selection
mount : 4E unmount : 2E
EMI And ESD
W=60mils
W=80mils
PWR USB
Add CR7,CC1 for EMI test fail issue--0929-2011
change from +3VALW to +3VL
since EC power source changed.
--Joyce 1110
Max 2.5A
LPC_AD0
CLK_SIO_48M
CLK_PCI_SIO
LPC_AD1
LPC_AD3
PM_CLKRUN#
PLT_RST#_R
DTR1#
SERIRQ
RTS1#
CLK_PCI_SIO
DSR1#
CTS1#
TXD1
DCD1#
CLK_SIO_48M
RI1#
RXD1
LPC_FRAME#
SIO_GPIO00
PLT_RST#
LPC_AD3
SERIRQ
LPC_AD0
LPC_FRAME#
LPC_AD2
LPC_AD1
SIO_GPIO00
USB20_P4_R
USB20_N4_R
USB20_N4_R
USB20_P4_R
USB20_N3_R
USB20_P3_R
USB20_P3_R
USB20_N3_R
RI1#
RXD1
TXD1
CAPS_LED#
NUM_LED#
CTS1#
DTR1#
DSR1#
DCD1#
RTS1#
PWR_USB_EN#
PWR_USB_ON#
PWR_USB_ON#
PLT_RST#PLT_RST#PLT_RST#
LPC_AD2
51_ON#
NUM_LED#<41>
CAPS_LED#<41>
PLT_RST# <6,28,34,35,36,37,39,41,42>
USB_OC1# <28>
USB20_P3<28>
USB20_N3<28>
USB20_P4<28>
USB20_N4<28>
PWR_USB_EN# <41>
LPC_AD0<25,34,41>
LPC_AD1<25,34,41>
LPC_AD2<25,34,41>
LPC_AD3<25,34,41>
LPC_FRAME#<25,34,41>
CLK_PCI_SIO<28>
CLK_SIO_48M<26>
PM_CLKRUN#<27,34>
SERIRQ <25,34,41>
USB_EN#<41>
51_ON# <43,47>
+3VS
+3VS
+USB_VCCA
+USB_VCCA
+5VALW
+3VS
+3VALW
+3VL
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
44 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
44 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
44 60Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
CR3 4.7K_0402_5%@
1
2
U7
G547E2P11U
FLG 5
VIN
3VOUT 6
GND
1
EN
4
VOUT 7
VIN
2
VOUT 8
CC1
4.7P_0402_50V8C
1
2
C676
0.1U_0402_16V4Z
@
1
2
R127 0_0402_5%
1
2
JP1
E&T_6916-Q26N-00R
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
G1
25
G2
26
R8
0_0402_5%
1
2
CR10
470_0402_5%
@
12
CR5 4.7K_0402_5%COM@
1
2
CR9
0_0402_5% COM@
1
2
CR1 4.7K_0402_5%@
12
R1381
0_0402_5%
1
2
R137 0_0402_5%
1
2
R582
10K_0402_5%
1
2
CR6 4.7K_0402_5%@
12
CR2 4.7K_0402_5%@
1
2
L53
WCM-2012-900T_0805
@
11
2
2
3
3
44
R148 0_0402_5%
1
2
CU13
KC3820_QFN24
COM@
LCLK
1LFRAME#
2
LAD0
3
LAD1
4
LAD2
5
LAD3
6
LRST# 7
SIRQ# 8
CLKRUN#
9
SIN0 10
SOUT0 11
CTS0/GPIO01 12
RTS0/GPIO02 13
DSR0/GPIO03 14
DTR0/GPIO04 15
DCD0/GPIO05 16
RI0/GPIO06 17
CLKIN
18
SIN1/GPIO07 19
SOUT1/GPIO08 20
GPIO00 21
DFT_EN
22
VCC23
VSS
24
CR8
10_0402_5%
@
1
2
CC4
0.1U_0402_16V7K
@
1
2
D26
BAV70W _SOT323-3
2
3
1
R149 0_0402_5%
1
2
CR7
10_0402_5%
12
C5
0.1U_0402_16V4Z
1
2
R581
10K_0402_5%
@
1
2
CC2
4.7P_0402_50V8C
@
1
2
L54
WCM-2012-900T_0805
@
11
2
2
3
3
44
C6
4.7U_0805_10V4Z
1
2
CC3
0.1U_0402_16V4Z
COM@
1
2
CR4 4.7K_0402_5%@
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA
+1.5V to +1.5VS+5VALW TO +5VS
Vgs=10V,Id=14.5A,Rds=6mohm
FDS6676AS
+3VALW TO +3VS
Vgs=-0V,Id=9A,Rds=18.5mohm
+3VALW TO +3VALW(PCH AUX Power)
+1.5V to +1.5VSDGPU
Vgs=10V,Id=14.5A,Rds=6mohm
+3VS to +3VS_DGPU
+1.05VS_DGPU
Short J1 for PCH VCCSUS3.3
20mil 10mil
40mil
SUSP
RUN_ON
SUSP
SUSP
SUSP
SYSON#
+1.5V_R
+VCCP_R
+0.75VS_R
VGA_PWROK#
DGPU_PWR_EN#
DGPU_PWR_EN#
SYSON#
SUSP
DGPU_PWR_EN#
DGPU_PWR_EN#
DGPU_PWR_EN#
+1.05V_M_R
3V_GATE
PCH_PWR_EN#
PCH_PWR_EN#
PCH_PWR_EN#
SUSP
VGA_PWROK<26,29,57>
DGPU_PWR_EN<26,28,57>
SUSP# <10,39,41,50,51,52,57>
SUSP <6,11,40,43>
SYSON<39,41,52>
PM_SLP_LAN<42>
SYSON#<40,43>
PCH_PWR_EN<41>
PCH_PWR_EN#<31>
RUN_ON_CPU1.5VS3#<6,10>
+VSB
+3VALW +3VS
+VSB
+5VALW
+5VS
+VSB
+1.5V
+1.5VS
+0.75VS
+1.5V
+5VALW
+VSB
+1.5V +1.5VSDGPU
+1.05VS_VCCP
+3VS
+3VS_DGPU
+5VALW
+5VALW
+5VALW
+VGA_CORE
+3VS_DGPU
+1.05VS_PCH
+VSB
+1.05VS_DGPU
+1.05V_M
+3VALW
+VSB
+3VALW _PCH
+5VALW
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
45 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
45 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
45 60
Friday, August 24, 2012
2011/09/23 2011/12/30
Compal Electronics, Inc.
C852
10U_0603_6.3V6M
OPT@
1
2
C845
0.1U_0402_16V7K
1
2
R463
0_0402_5%
Q197B
2N7002KDW 2N SOT-363-6
3
5
4
R440
4.7K_0402_5%
12
C846
0.1U_0402_16V7K
1
2
Q201B
2N7002KDW 2N SOT-363-6
3
5
4
J4
JUMP_43X79
@
1
1
22
R808 200K_0402_5%
OPT@
1
2
Q33
SI4800BDY_SO8
S1
S2
S3
G4
D
8
D
7
D
6
D
5
C481
0.1U_0402_25V6
OPT@
1
2
C833
0.01U_0402_25V7K
1
2
R787
330K_0402_5%
1
2
R460
0_0402_5%
@
Q46A
2N7002KDW 2N SOT-363-6
6
1
2
Q197A
2N7002KDW 2N SOT-363-6
6
1
2
R788
330K_0402_5%
1
2
G
D
S
Q191
2N7002_SOT23-3
OPT@
2
1
3
Q13A
2N7002KDW 2N SOT-363-6
OPT@
6
1
2
Q201A
2N7002KDW 2N SOT-363-6
6
1
2
C853
1U_0603_10V4Z
OPT@
1
2
C839
10U_0603_6.3V6M
1
2
C834
4.7U_0805_10V4Z
1
2
Q225B
2N7002KDW 2N SOT-363-6
OPT@
3
5
4
Q36B
2N7002KDW 2N SOT-363-6
3
5
4
R789
820K_0402_5%
1
2
Q13B
2N7002KDW 2N SOT-363-6
OPT@
3
5
4
C830
4.7U_0805_10V4Z
1
2
Q32
SI4800BDY_SO8
S1
S2
S3
G4
D
8
D
7
D
6
D
5
Q46B
2N7002KDW 2N SOT-363-6
3
4
5
C831
0.022U_0402_25V7K
1
2
C491
0.1U_0402_16V7K
OPT@
1
2
R797
100K_0402_5%
OPT@
1
2
Q37B
2N7002KDW 2N SOT-363-6
3
5
4
R786
220K_0402_5%
1
2
C826
1U_0402_6.3V4Z
1
2
R783
470_0805_5%
1
2
C854
10U_0603_6.3V6M
OPT@
1
2
C836
0.1U_0402_16V7K
1
2
Q43
FDS6676AS_SO8
OPT@
S1
S2
S3
G4
D
8
D
7
D
6
D
5
C492
0.01U_0402_25V7K
@
1
2
R146
100K_0402_5%
OPT@
1
2
Q35B
2N7002KDW 2N SOT-363-6
3
5
4
R1453
100K_0402_5%
1
2
R459
470_0603_5%
OPT@
1
2
J1
JUMP_43X79
@
1
1
22
R785
47K_0402_5%
1
2
C832
4.7U_0805_10V4Z
1
2
R432
820K_0402_5%
@
1
2
R426
47K_0402_5%
OPT@
1
2
R781
470_0805_5%
1
2
C838
1U_0402_6.3V4K
1
2
G
D
S
Q188
2N7002_SOT23-3
OPT@
2
1
3
R796
100K_0402_5%
12
R826
22_0603_5%
1
2
Q34
SI4856ADY_SO8
S1
S2
S3
G4
D
8
D
7
D
6
D
5
R1446
470_0805_5%
1
2
R813
100K_0402_5%
12
R782
470_0805_5%
1
2
Q227A
2N7002KDW 2N SOT-363-6
OPT@
6
1
2
C844
0.1U_0402_16V7K
1
2
Q225A
2N7002KDW 2N SOT-363-6
OPT@
6
1
2
Q35A
2N7002KDW 2N SOT-363-6
6
1
2
C473
4.7U_0805_10V4Z
OPT@
1
2
R804
470_0402_5%
1
2
C828
1U_0402_6.3V4Z
1
2
C827
4.7U_0805_10V4Z
1
2
C835
0.1U_0603_25V7K
1
2
C697
1U_0402_6.3V4Z
OPT@
1
2
Q227B
2N7002KDW 2N SOT-363-6
OPT@
3
4
5
R430
820K_0402_5%
OPT@
1
2
C829
4.7U_0805_10V4Z
1
2
C825 4.7U_0805_10V4Z
1
2
C824
1U_0402_6.3V4Z
1
2
U25
SI7326DN-T1-E3_PAK1212-8
3
5
2
4
1
R435
820K_0402_5%
@
1
2
R429
470_0805_5%
OPT@
1
2
R458
470_0603_5%
OPT@
1
2
C847
0.1U_0402_16V7K
1
2
G
D
S
Q54
AO3413_SOT23
OPT@
2
13
C475
4.7U_0805_10V4Z
OPT@
1
2
Q40
SI4800BDY_SO8
OPT@
S1
S2
S3
G4
D
8
D
7
D
6
D
5
Q198B
2N7002KDW 2N SOT-363-6
3
5
4
C837
10U_0603_6.3V6M
1
2
Q37A
2N7002KDW 2N SOT-363-6
6
1
2
G
D
S
Q49
2N7002E-T1-GE3_SOT23-3
2
1
3
R805
470_0603_5%
OPT@
12
R431
220K_0402_5%
OPT@
1
2
C842
0.1U_0402_16V7K
1
2
R807 200K_0402_5%
1
2
Q198A
2N7002KDW 2N SOT-363-6
6
1
2
Q36A
2N7002KDW 2N SOT-363-6
6
1
2
C848
0.1U_0603_25V7K
OPT@
1
2
C478
1U_0402_6.3V4Z
OPT@
1
2
R1445
470_0805_5%
1
2
R784
47K_0402_5%
12
C843
0.1U_0402_16V7K
1
2
R1447
470_0805_5%
VPRO@
1
2
R441
4.7K_0402_5%
@
12
R70
10K_0402_5%
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
BB
AA
Page 52
+1.5VP: TDC:13A
0.75VS: TDC :2A
RT8207MZQW
B+
Always
DC IN
+3VALWP: TDC:6A
+5VALWP: TDC:4A
RT8205LZQW(2) WQFN
Power block
CHARGER
CC:0A~3.64A
CV:12.6V(6cell)
BQ24725RGRR
SYSON
VR_ON +VCC_CORE
TDC: 36A
NCP6132A
Page 49
Page 48
Input
Switch
Page 54
CPU OTP
Turn Off
Page 47
Page 48
Battery
+1.8VP: TDC:3A
SY8033BDBC SUSP#
Page 50
+VGA_CORE
TDC:23A
ADP3211AMNR2G
Page 57
+1.05VSP: TDC:12A
TPS51212DSCR
Page 51
SUSP#
+GFX_CORE
TDC: 21.5A
NCP6132A
Page 54
+VCCSAP: TDC:5A
TPS51461RGER
Page 53
VR_ON
+1.05VSP_PWRGOOD
Compal Electronics, Inc.
Compal Electronics, Inc.
DGPU_PWR_EN
SUSP#
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
46 60Friday, August 24, 2012
2011/10/31 2012/12/31
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
46 60Friday, August 24, 2012
2011/10/31 2012/12/31
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
46 60Friday, August 24, 2012
2011/10/31 2012/12/31
A
A
B
B
C
C
D
D
1
1
2
2
3
3
4
4
DCIN jack P/N:DC301008L00,
need doble confirm P/N with ME
CPU thermal protection at 93 +-3 degree C
Recovery at 56 +-3 degree C
PH1 under CPU botten side : For KB930 --> Keep PU1 circuit
(Vth = 0.825V)
For KB9012 (Red square) --> Remove PU1 circuit, but keep
PH1, PR1, PR2,PR4,PR7,PR9,PQ1
Must close PBJ1
-+
RTC Battery
SP093MX0000
Change RTC For Cost Down
For KB9012 --> Remove all 51_ON# circuit
ADPIN
VSB_N_003
VSB_N_001
+RTCBATT1
+RTCBATT2
EC_SMDA
EC_SMCA
BATT_B/I
VS_N_001
VS_N_002
N1
TH
OTP_N_003
ADP_OCP_1
ADP_OCP_2
OTP_N_002
SPOK48
EC_SMB_DA1 38,47
BATT_TEMPA 38
EC_SMB_CK1 38,47
51_ON#47,48,50
VCOUT0_PH 38,48
H_PROCHOT#5,38
ADP_I38,47
VCIN0_PH
38
VCIN1_PH
38
H_PROCHOT#_EC38
MAINPOWN 48
ECAGND
41
VSB_EN41
VIN
B+
VL
+VSB
+RTCBATT
+3VL
BATT+
VMB
VIN
VS
BATT+
VL
+3VS
+EC_VCCA
+3VL
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
47 60Friday, August 24, 2012
Compal Electronics, Inc.
2012/12/312011/10/31
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
47 60Friday, August 24, 2012
Compal Electronics, Inc.
2012/12/312011/10/31
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
47 60Friday, August 24, 2012
Compal Electronics, Inc.
2012/12/312011/10/31
4019IE
PC501
0.1U_0603_25V7K @
1
2
PR19
100_0402_1%
12
PC4
100P_0402_50V8J
1
2
PR1
7.87K_0402_1%
UMA@
1
2
OPT@ 309K_0402_1%
PR6
PR2
13.7K_0402_1%
KB9012@
1
2
PBJ1
MAXEL_ML1220T10
1
2
PC5
0.1U_0603_16V7K
@
1
2
PL4
HCB2012KF-121T50_0805
1
2
PR25
560_0603_5%
1
2
PR302
100K_0402_1%@
1
2
PJP1
SINGA_2BA1514-000111F
@
11
22
33
44
77
88
55
66
99
GND
10
GND
11
PR14
100K_0402_1%
@
12
PL1
HCB2012KF-121T50_0805
12
PC8
0.1U_0603_25V7K
1
2
G
D
S
PQ3
2N7002KW 1N SOT323-3
2
1
3
PR16
6.49K_0402_1%
1
2
PU1
G718TM1U_SOT23-8
KB930@
RHYST2 5
OT1
3
OT2
4
GND
2
VCC
1
TMSNS2 6
RHYST1 7
TMSNS1 8
PR9
0_0402_5%
KB9012@
1
2
PR500
0_0402_5%
KB9012@
1
2
PC3
1000P_0402_50V7K
1
2
PL2
HCB2012KF-121T50_0805
1
2
PD1
PJSOT24CW_SOT323-3
2
3
1
PR6
51.1K_0402_1%
KB930@ UMA@
1
2
PC9
0.22U_0603_25V7K
1
2
PR24
560_0603_5%
1
2
PJPDC1
SANTA_322121-1
V+1
GND3
GND4
GND5
GND2
PR20
100K_0402_1%
@
1
2
PR12
1K_0402_1%
1
2
PR501
0_0402_5%
KB9012@
12
PL3
HCB2012KF-121T50_0805
12
PR11
100K_0402_1%
1
2
PD21
LL4148_LL34-2@
1
2
PR303
22K_0402_1%@
12
PR301
68_1206_5%
@
1
2
PR18
100_0402_1%
1
2
PR22
0_0402_5%
1
2
PR300
68_1206_5%@
1
2
PC500
0.22U_0603_25V7K
@
1
2
PR21
100K_0402_1%
@
1
2
PH1
100K_0402_1%_NCP15WF104F03RC
1
2
PC2
100P_0402_50V8J
1
2
PC10
.1U_0402_16V7K
1
2
PR4
100K_0402_1%
1
2
PR23
1K_0402_1%
1
2
PC1
1000P_0402_50V7K
1
2
G
D
S
PQ1
2N7002KW 1N SOT323-3
2
1
3
PR17
1K_0402_1%
1
2
PR13
22K_0402_1%
1
2
PR3
21.5K_0402_1%
KB930@
1
2
PR1
OPT@ 47.5K_0402_1%
PD20
RLS4148_LL34-2
@
12
PR10 0_0402_5%KB930@
1
2
PR15
0_0402_5%
@
1
2
PC7
0.01U_0402_25V7K
1
2
PR5
10K_0402_1%
KB930@
1
2
PD2
PJSOT24CW_SOT323-3
2
3
1
PR8 0_0402_5%@
1
2
PR7
100K_0402_1%
1
2
PC6
1000P_0402_50V7K
1
2
PQ100
TP0610K-T1-E3_SOT23-3 @
2
1
3
PQ2
TP0610K-T1-E3_SOT23-3
2
1
3
A
A
B
B
C
C
D
D
1
1
2
2
33
4
4
for reverse input protection
Min. Typ Max.
H-->L 17.23V
L--> H 17.63V
Vin Dectector
ILIM and external DPM
3.97A
Please locate the RC
Near EC chip
For KB930 --> Keep PR44
For KB9012 (Red square) --> Remove PR44
Keep PR45
BQ24725_BST1
BQ24725_ACDRV
BQ24725_ACN
BQ24725_ACP
BQ24725_BATDRV
BQ24725_BATDRV
BQ24725_CMSRC
BQ24725_LX
CHG_OUT
CSON1
CSOP1
DH_CHG
DL_CHG
BQ24725_VCC1
BQ24725_BATDRV_1
BQ24725_SNUB
BQ24725_ACDET
BQ24725_ILIM
BQ24725_REGN
BQ24725_VCC
BQ24725_PROT
CSON1
CSOP1
BQ24725_PRECHG
SRP
SRN
DH_CHG
DH_CHG1
BQ24725_BST
BQ24725_ACOK
BQ24725_LX
BQ24725_IOUT
BQ24725_VCC1
BQ24725_VCC_EN
BQ24725_VCC2
BQ24725_VCC_EN1
BQ24725_VCC2
GREEN_PWR#
GREEN_LATCH#
GREEN_PWR5
GREEN_PWR1
GREEN_LATCH1
GREEN_PWR2
GREEN_LATCH#
GREEN_PWR3
GREEN_LATCH#
GREEN_PWR4
ADP_I 38,46
EC_SMB_CK1 38,46
EC_SMB_DA1 38,46
ACIN14,20,38
GREEN_PWR41
GREEN_PWR4
41
P3
P2
+3VALW
P1
B+
VIN
+3VALW
VIN
BATT+
VIN
+3VL
+3VL
+3VL
VIN
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF E NGINEERI NG DRAWING IS THE PR OPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CON TAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
4860Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF E NGINEERI NG DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CON TAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
4860Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
48 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
4019IE
PR49
100K_0402_1%
1
2
PR38
0_0402_5%
1
2
PC20
2200P_0402_25V7K
1
2
PC37
0.01U_0402_50V7K
1
2
PR34
4.12K_0603_1%
1
2
PD4
BAS40CW_SOT323-3
1
2
3
G
D
S
PQ11
SSM3K7002FU_SC70-3 @
2
1
3
PQ10
MDV1528URH 1N PDFN33-8
4
5
1
2
3
PL6
4.7UH_ETQP3W4R7W FN_5.5A_20%
12
PQ8
MDS2659URH
4
6
1
2
3
5
7
8
G
D
S
PQ109
SSM3K7002FU_SC70-3
@
2
1
3
PD5
RB751V-40_SOD323-2
1
2
PR40
0.02_1206_1%
1
3
4
2
PU3
BQ24725ARGRR_VQFN20_3P5X3P5
ACN
1
ACP
2
CMSRC
3
ACDRV
4
ACOK
5
ACDET
6
IOUT
7
SDA
8
SCL
9
ILIM
10
BATDRV 11
SRN12
SRP13
GND14
LODRV 15
REGN 16
BTST 17
HIDRV 18
PHASE 19
VCC20
PAD
21
PR42
10_0603_1%
1
2
PR45
1M_0402_1%
1
2
PR35
4.12K_0603_1%
1
2
PR46
10K_0402_1%
12
PC40
@680P_0402_50V7K
1
2
PR32
100K_0402_1%
1
2
PC35
0.1U_0402_25V6
1
2
PC27
0.1U_0402_25V6
1
2
PC30
1U_0603_25V6K
12
PC36
2200P_0402_50V7K
1
2
PR30
@0_0402_5%
1
2
PQ12
AON7406L 1N DFN
4
5
1
2
3
PR57
0_0402_5%
@
12
PR180
0_0402_5%
@
12
PR26
1M_0402_5%
12
PC18
@10U_0805_25V6K
1
2
PC19
@10U_0805_25V6K
1
2
PR37
0_0603_5%
1
2
PC17
10U_0805_25V6K
1
2
PC33
10U_0805_25V6K
1
2
PL5
1UH_VMPI0703AR-1R0M-Z01_11A_20%
1
2
PC14
10U_0805_25V6K
1
2
PC41
0.01U_0402_25V7K
1
2
PC21
0.1U_0402_25V6
1
2
PC22
@820P_0402_25V7
1
2
PC23
0.01U_0402_50V7K
1
2
PR55
47K_0402_1%
@
1
2
PC39
0.1U_0603_16V7K
1
2
PC38
0.1U_0402_25V6
1
2
PC15
10U_0805_25V6K
1
2
PC32
@820P_0402_25V7
1
2
PC43
0.1U_0402_25V6
1
2
PR33
22K_0402_1%
@
12
PR47
133K_0402_1%
1
2
PC24
2200P_0402_50V7K
1
2
PQ6
MDS2659URH
4
6
1
2
3
5
7
8
PC42
0.1U_0402_10V6K
@
1
2
PU6
74LVC1G02_04_SOT353
@
INB
1
INA
2
P5
G
3
O4
PR43
6.8_0603_1%
12
PR44
@10K_0402_1%
12
PR54
10K_0402_5%
@
12
PR27
3M_0402_5%
1
2
PC13
0.1U_0402_25V6
1
2
PR50
154K_0402_1%
1
2
PR53
100_0402_5%
1
2
PR29
@0_0402_5%
1
2
PC26
0.1U_0402_25V6
1
2
PR36
10_1206_1%
1
2
PQ9
TP0610K-T1-E3_SOT23-3
2
1
3
PR58
100K_0402_5%
@
1
2
PC44 .1U_0402_16V7K
1
2
PR178
0_0402_5%
@
1
2
PC34
10U_0805_25V6K
1
2
PR41
@4.7_1206_5%
1
2
PC16
10U_0805_25V6K
1
2
PR48
255K_0402_1%
1
2
PR31
4.12K_0603_1%
1
2
G
D
S
PQ5
2N7002KW 1N SOT323-3
1
2
3
PC31
1U_0603_25V6K
12
PR52
66.5K_0402_1%
1
2
PC29
0.047U_0402_25V7K
12
PR28
0.02_2512_1%
1
3
4
2
PR39
0_0402_5%
1
2
PR56 0_0402_5%@
12
PR51
309K_0402_1%
@
1
2
PR179
10K_0402_5%
@
12
PU4
MC74VHC1G08DFT2G_SC70-5
@
IN1
1
IN2
2
OUT4
VCC5
GND
3
PC45
0.1U_0402_10V7K
@
1
2
PU5
74LVC1G02_04_SOT353
@
INB
1
INA
2
P5
G
3
O4
PQ7
TPCA8057-H_PPAK56-8
4
5
1
2
3
PC25
0.1U_0603_25V7K
1
2
PC28
0.22U_0603_25V7K
1
2
A
A
B
B
C
C
D
D
E
E
11
2
2
3
3
44
(6A,200mils ,Via NO.= 12)
(4A,120mils ,Via NO.= 8)
For KB930 --> Keep PR319, Remove PR74
For KB9012 (Red square) --> Remove PR319
Keep PR74
N_3_5V_001
ENTRIP1
LG_3V
UG_3V
LX_3V
FB_5V
ENTRIP2
BST_5V
LX_5V
BST1_5V
BST1_3V
UG_3V_1
UG_5V_1
BST_3V
SNUB_3V
LG_5V
SNUB_5V
ENTRIP2
ENTRIP1
FB_3V
N_3_5V_002
UG_5V
51125_PW R1
51125_PWR2
SPOK 46
VCOUT0_PH38,46
EC_ON38,39,41
MAINPOWN46
B++
+5VALWP
VL
+3VALWP
B++
51125_PW R
2VREF_51125
B+
+3VLP
+3VLP
2VREF_51125
+5VALW P
+3VALW
+5VALW
+3VALW P
51125_PW R
VL
+CHGRTC
+3VLP+3VL
Vin
BATT+
51125_PWR
B+
VS
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
49 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
49 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
49 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
PR76
0_0402_5%
KB9012@
1
2
PJP3
PAD-OPEN 4x4m
1
2
PR181
0_0402_5%@
12
PR70
@4.7_1206_5%
1
2
PR63
154K_0402_1%
1
2
PC47
0.1U_0402_25V6
1
2
PC64
0.1U_0603_25V7K
1
2
PD8
GLZ27D_LL34-2
1
2
PR62
20K_0402_1%
1
2
PC58
@680P_0402_50V7K
1
2
PC46
1U_0603_16V6K
1
2
G
D
S
PQ17A
SSM6N7002FU_US6
2
6
1
PC50
0.1U_0402_25V6
1
2
PR72
95.3K_0402_1%
1
2
PL7
HCB2012KF-121T50_0805
1
2
PD6
1SS355_SOD323-2
1
2
PC53
10U_0805_6.3V6M
1
2
PQ16
AON7702L_DFN8-5
4
5
1
2
3
PD9
1SS355_SOD323-2
1
2
PC54
0.1U_0402_10V7K
1
2
PD7
1SS355_SOD323-2
1
2
PR59
13.7K_0402_1%
1
2
PL9
4.7UH_ETQP3W4R7W FN_5.5A_20%
1
2
PJP5
PAD-OPEN 2x2m
2
1
PC59
1U_0603_10V6K
1
2
G
D
S
PQ17B
SSM6N7002FU_US6
5
3
4
PR66
2.2_0402_5%
12
PQ18
DRC5115E0L_SOD323-3
2
1
3
PC55
0.1U_0402_10V7K
12
PR61
20K_0402_1%
1
2
PU8
RT8205LZQW(2)_WQFN24_4X4
FB1 2
REF3
VO1 24
ENTRIP1 1
TONSEL 4
FB2 5
SKIPSEL
14
NC
18
VREG5
17
VO2
7
VREG3
8
VIN
16
GND
15
UGATE1 21
BOOT1 22
ENTRIP2 6
PGOOD 23
PHASE1 20
LGATE1 19
EN
13
BOOT2
9
UGATE2
10
PHASE2
11
LGATE2
12
P PAD
25
PC61
4.7U_0805_10V6K
1
2
PR60
30.9K_0402_1%
1
2
PR69
@4.7_1206_5%
1
2
PQ14
MDV1528URH 1N PDFN33-8
4
5
1
2
3
PC51
2200P_0402_50V7K
1
2
PR67
0_0402_5%
1
2
PC48
2200P_0402_50V7K
1
2
PL8
4.7UH_ETQP3W4R7W FN_5.5A_20%
1
2
PJP2
PAD-OPEN 4x4m
1
2
PJP4
PAD-OPEN 2x2m
21
PQ13
MDV1528URH 1N PDFN33-8
4
5
1
2
3
PR65
2.2_0402_5%
1
2
PQ15
AON7406L_DFN8-5
4
5
1
2
3
PR64
137K_0402_1%
1
2
PR71
499K_0402_1%
1
2
PR74
2.2K_0402_1%
1
2
PC49
4.7U_0805_25V6-K
1
2
PR75
100K_0402_5%
1
2
PR77
100_0805_5%
1
2
PC63
4.7U_0603_10V6K
1
2
PR319
100K_0402_1%
@
1
2
PC52
10U_0805_25V6K
1
2
+
PC56
220U_6.3V_M
1
2
PR73
0_0603_5%
1
2
PR320
42.2K_0402_1%
@
1
2
PC62
0.1U_0603_25V7K
1
2
PC60
@680P_0402_50V7K
1
2
+
PC57
220U_6.3V_M
1
2
PR68
0_0402_5%
1
2
A
A
B
B
C
C
D
D
1
1
2
2
3
3
4
4
(3A,120mils ,Via NO.= 6)
(1.3A, 52mils, Via NO.= 3)
<Vo=1.05V> VFB=0.6V
Vo=VFB(1+PR401/PR402)=0.6*(1+7.5K/10K)=1.05V
EN_1.8VSP
FB_1.8VSP
VIN_1.8VSP
LX_1.8VSP
SNUB_1.8VSP
+1.05V_MP_FB
+1.05V_MP_VIN
+1.05V_MP_LX
SNUB_+1.05V_MP
EN_+1.05V_MP
SUSP#9,32,38,44,50,51,56
PM_SLP_LAN#45,46
+1.8VS
+1.8VSP
+1.8VSP
+5VALW
+1.05V_MP
+1.05V_MP
+1.05V_M
+5VALW
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
50 60Friday, August 24, 2012
Compal Electronics, Inc.
2012/12/312011/10/31
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
50 60Friday, August 24, 2012
Compal Electronics, Inc.
2012/12/312011/10/31
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
50 60Friday, August 24, 2012
Compal Electronics, Inc.
2012/12/312011/10/31
4019IE
PL10
HCB1608KF-121T30_0603
1
2
PJP8
PAD-OPEN 3x3m
1
2
PC69
@0.1U_0402_10V7K
1
2
PR86
10K_0402_1%
VPRO@
1
2
PR80 0_0402_5%
1
2
PL11
0.47UH_PCMB042T-R47MN_6A_20%
1
2
PU9
SY8033BDBC_DFN10_3X3
EN
5
PG4
LX3
FB6
SVIN
8
TP
11
LX2
PVIN
10
NC
7
PVIN
9
NC
1
PC71
22U_0805_6.3VAM
VPRO@
1
2
PU10
SY8033BDBC_DFN10_3X3
VPRO@
EN
5
PG4
LX3
FB6
SVIN
8
TP
11
LX2
PVIN
10
NC
7
PVIN
9
NC
1
PR81
@47K_0402_5%
1
2
PR83
4.7_1206_5%
VPRO@
1
2
PL13
0.47UH_PCMB042T-R47MN_6A_20%
VPRO@
12
PC65
22U_0805_6.3VAM
1
2
PR85
100K_0402_1%
VPRO@
12
PL12
HCB1608KF_0603
VPRO@
1
2
PC75
0.1U_0402_10V7K
@
1
2
PC72
68P_0402_50V
VPRO@
1
2
PJP7
PAD-OPEN 3x3m
12
PC73
22U_0805_6.3VAM
VPRO@
1
2
PC68
22U_0805_6.3VAM
1
2
PC76
680P_0603_50V7K
VPRO@
1
2
PR84
7.5K_0402_1%
VPRO@
1
2
PR78
4.7_1206_5%
1
2
PR82
10K_0402_1%
1
2
PR87
300K_0402_5%
@
12
PR79
20K_0402_1%
1
2
PC70
680P_0402_50V7K
1
2
PC66
68P_0402_50V8J
1
2
PC67
22U_0805_6.3VAM
1
2
PC74
22U_0805_6.3VAM
VPRO@
1
2
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
(12A,480mils ,Via NO.= 24)
+1.05VSP_B+
BST_+1.05VSP
UG_+1.05VSP1
VCCIO_SENSE1
LG_+1.05VSP
BST1_+1.05VSP
TRIP_+1.05VSP
EN_+1.05VSP
FB_+1.05VSP
RF_+1.05VSP
SNUB_+1.05VSP
SW_+1.05VSP
+1.05VSP1
+1.05VSP
UG_+1.05VSP
SUSP#9,32,38,44,49,51,56
VCCIO_SENSE 8
+1.05VSP_PWRGOOD44,52
B+
+5VALW
+1.05VSP
+1.05VS_VCCP
+1.05VSP
+3VS
+1.05VS_PCH
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BCustom
51 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BCustom
51 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BCustom
51 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
PR94
470K_0402_1%
1
2
PR97 4.99K_0402_1%
1
2
PQ20
AO4456_SO8
4
7
8
6
5
1
2
3
PR96
@1.2K_0402_1%
1
2
PL15
0.47UH_PCMB063T-R47MS_18A_20%
1
2
PJP10
PAD-OPEN 4x4m
1
2
PC78
2200P_0402_50V7K
1
2
PR92
0_0402_5%
1
2
PR88
10K_0402_5%
1
2
PQ19
MDV1525URH_PDFN33-8-5
4
5
1
2
3
+
PC83
220U_6.3VM_R15
1
2
PR91
2.2_0402_5%
1
2
PR89
84.5K_0402_1%
12
PC85
680P_0402_50V7K
1
2
PC86
@1000P_0402_50V7K
1
2
PC81
0.22U_0402_10V6K
12
PR95
0_0402_5%
1
2
PR90
4.7_0402_5%
12
PL14
HCB1608KF-121T30_0603
1
2
PR93
4.7_1206_5%
1
2
PR99
10K_0402_1%
12
PC80
4.7U_0805_25V6-K
1
2
PC82
1U_0603_10V6K
1
2
PC79
10U_0805_25V6K
1
2
PC77
0.1U_0402_25V6
1
2
PJP9
PAD-OPEN 4x4m
12
PC84
@0.1U_0402_16V7K
1
2
PR98
100_0402_1%
1
2
PU11
TPS51212DSCR_SON10_3X3
EN
3
TRIP
2
V5IN7
DRVH9
SW8
DRVL6
VBST10
TST
5
VFB
4
PGOOD
1
TP11
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
0.75Volt +/- 5%
TDC 0.525A
Peak Current 0.75A
OCP Current 0.9A
Mode Level +0.75VSP VTTREF_1.5V
S5 L off off
S3 L off on
S0 H on on
Note: S3 - sleep ; S5 - power off
(2A,80mils ,Via NO.= 4)
(13A,520mils ,Via NO.= 26)
1.5V_B+
SNUB_+1.5VP
DH_1.5V
SW_1.5V
CS_1.5V
DL_1.5V
BST_1.5V
VDD_1.5V
EN_1.5V
EN_0.75VSP
TON_1.5V
BOOT_1.5V
1.5V_B+
FB_1.5V
VTTREF_1.5V
DH_1.5V_1
SUSP#9,32,38,44,49,50,56
0.75VR_EN44
SYSON32,38,39,44
B+
+1.5VP
+5VALW
+5VALW
+1.5VP
+0.75VSP
+1.5VP
+1.5VP
+0.75VS
+0.75VSP
+1.5V
+1.5VP
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BCustom
52 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BCustom
52 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BCustom
52 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
PC89
10U_0805_25V6K
1
2
PC90
@4.7U_0805_25V6-K
1
2
PR106
10K_0402_1%
1
2
PR110
0_0402_5%
1
2
PR104
5.1_0603_5%
1
2
PC101
@0.1U_0402_10V7K
1
2
PC99
.1U_0402_16V7K
1
2
PL16
HCB1608KF-121T30_0603
12
PC91
0.22U_0402_10V6K
1
2
PQ21
MDV1528URH 1N PDFN33-8
4
5
1
2
3
PC97
0.033U_0402_16V7K
1
2
PC87
0.1U_0402_25V6
1
2
PR103
@4.7_1206_5%
1
2
PR100
2.2_0402_5%
12
PU12
RT8207MZQW_WQFN20_3X3
VTTSNS 2
FB
6
S5
8
PGOOD
10
VDDP
12
PHASE 16
BOOT18
VTTREF 4
PGND
14
VTTGND 1
GND 3
VDDQ5
S3
7
TON
9
VDD
11
CS
13
LGATE
15
UGATE 17
VTT 20
VLDOIN 19
PAD 21
PJP12
PAD-OPEN 4x4m
12
PC98
@680P_0402_50V7K
1
2
PR107
887K_0402_1%
12
PC94
1U_0603_10V6K
12
PR105
10.2K_0402_1%
1
2
PC93
10U_0805_6.3V6M
1
2
PC96
1U_0603_10V6K
1
2
PJP13
PAD-OPEN 3x3m
12
PC88
2200P_0402_50V7K
1
2
PC92
10U_0805_6.3V6M
1
2
PJP11
PAD-OPEN 4x4m
1
2
PR102
18.7K_0402_1%
12
PR108
0_0402_5%
1
2
PC100
@0.1U_0402_10V7K
1
2
+
PC95
220U_6.3VM_R15
1
2
PQ22
AON7702L_DFN8-5
4
5
1
2
3
PR109
@0_0402_5%
1
2
PL17
1UH_VMPI0703AR-1R0M-Z01_11A_20%
1
2
PR101
0_0402_5%
12
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
output voltage adjustable network
VID [0] VID[1] VCCSA Vout
0 0 0.9V
0 1 0.8V
1 0 0.725V
1 1 0.675V
+VCC_SAP
TDC 4.2A
Peak Current 6A
OCP current 7.2A
The 1k PD on the VCCSA VIDs are empty.
These should be stuffed to ensure that
VCCSA VID is 00 prior to VCCIO stability.
(6A,240mils ,Via NO.= 12)
+VCCSA_VREF
+VCCSA_VOUT
+VCCSA_EN
+VCCSA_MODE
+VCCSA_COMP1
+VCCSA_BT_1
+VCCSA_BT
+VCCSA_V5FILT
+VCCSA_SLEW
SNUB_VCCSA
+VCCSA_PHASE
+VCCSA_COMP
+VCCSA_PWR_SRC
SA_PGOOD38
H_VCCSA_VID1 9
H_VCCSA_VID0 9
+1.05VSP_PWRGOOD 44,50
+VCCSA_SENSE 9
+5VALW
+VCCSAP
+5VALW
+3VS
+VCCSAP
+VCCSA
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BC
53 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC . AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BC
53 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEE T OF ENGINEER ING DRAWIN G IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BC
53 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
PR112
100K_0402_5%
1
2
PR111
1K_0402_5%
1
2
PR120
0_0402_5%
1
2
PL19
HCB1608KF-121T30_0603
1
2
PC103
2.2U_0603_10V7K
1
2
PC117
0.01U_0402_25V7K
12
PR117
4.7_1206_5%
1
2
PR118
@33K_0402_5%
1
2
PC110
2200P_0402_50V7K
1
2
PC112
10U_0805_10V6M
12
PR119
100_0402_5%
1
2
PR114
10_0402_1%
1
2
PR121
10K_0402_5%
1
2
PC111
0.1U_0402_25V6
1
2
PJP14
PAD-OPEN 4x4m
1
2
PC105
0.22U_0603_10V7K
1
2
PC108
22U_0805_6.3V6M
1
2
PC116
3300P_0402_50V7K
1
2
PC113
10U_0805_10V6M
12
PC114
1000P_0402_25V8J
1
2
PR116
2.2_0603_5%
12
PR113
1K_0402_5%
1
2
PU13
TPS51461RGER_QFN24_4X4
V5DRV 18
PGND
20 SW11
EN13
SW9
VIN
24
VOUT
5
PGOOD 16
COMP
3
VID014
MODE
6
SW10
SLEW
4
PGND
21
PGND
19
SW8
GND
1
VIN
23
VIN
22
VREF
2
VID115
V5FILT 17
SW7
BST 12
TP25
PL18
0.47UH_PCMB042T-R47MN_6A_20%
12
PC104
@0.1U_0402_10V7K
1
2
PC115
0.22U_0402_10V6K
1
2
PC106
22U_0805_6.3V6M
12
PC107
22U_0805_6.3V6M
1
2
PC109
22U_0805_6.3V6M
12
PR115
0_0402_5%
1
2
PC102
1U_0603_10V6K
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
2P: 21.5K
1P: 15.8K
3P: 1500p
2P: 1200p
2P: 1.65K
1P: 1K
PUT COLSE
TO V_GT
HOT SPOT
PUT COLSE
TO VCORE
Phase 1
Inductor
PUT COLSE
TO VCORE
HOT SPOT
3P: 6.04K
2P: 4.32K
PUT COLSE
TO GT
Inductor
3P: 348
2P: 1.21K
3P: 806
2P: 1K
3P: 3.65K
2P: 9.53K
3P: 22p
2P: 10p
2P: 24K
1P: 24.9K
3P: 23.7K
2P: 24.9K
2P: 36K
1P: 26.1K
3P: 330p
2P: 1000p
FBA and COMPA are short.
CSCOMPA, CSSUMA, DROOPA are short.
DIS only:
All AXG components are @.
Except
PR272 and PR273 are 0ohm.
PC223, PC226, PR202 are 0ohm.
PC220, PC215, PR206 are 0ohm.
LGA, SWA, HGA, BSTA, DIFFA, TRBSTA#, ILIMA, PWMA are float.
CSP1A, CSP2A to +5VS.
Compal Electronics, Inc.
VSPA, VSNA to GND (HW side).
CSREFA, TSNSA, IOUTA to GND.
3P: 73.2K
2P: 41.2K
3P: 2200p
2P: 3300p
3P: 21K
2P: 12.4K
COMP_CPU1
CSP1A
BSTA1_1
FBA3
VR_HOT#
SW2
SW2
CSREF
BST1
CSSUM
BST2_1
CSREF
VR_SVID_DAT1
SW1
IMONIMON
CSP2
CSSUMA
VR_SVID_DAT1
NTC_PH201
VRMP
IMONAIMONA
FBA
FB_CPU1
DIFF_CPU
DROOPA
CSP1
TRBST#
CSP1A
ROSC_CPU
TSENSE
NTC_PH203
BST2
CSP1
CSCOMPA
COMP_CPU
VGATE
TSENSETSENSE
ILIMA
BSTA1
DIFFA
ILIM_CPU
TSENSEA
VR_SVID_ALRT#
VR_SVID_CLK
FBA2
SW1A
CSREFA
VR_ON_CPU
SW1
6132P_VCCP
SW1A
CSP2
TSENSEA
VBOOT
FB_CPU
CSREF
CSCOMP
COMPA
FBA1
COMPA1
BST1_1
6132_VCC
TRBSTA#
DROOP
CSCOMPCSCOMPCSCOMPCSCOMPCSCOMPCSCOMP
DROOP
FB_CPU2
FB_CPU3
CSREFA
CSCOMPA DROOPA
TRBST#
CSP1A
CSREFA
TRBSTA#
LG1 43
HG1 43
VCCSENSE8
VSSSENSE8
VSS_AXG_SENSE9
VCC_AXG_SENSE9
HG1A 43
LG1A 43
VR_SVID_DAT8
VR_SVID_ALRT#8
VR_SVID_CLK8
SW243
SW143
HG2 43
LG2 43
VR_HOT#29
VR_ON29
VGATE14,29
SW1A 43
CSREF 43
CSREFA 43
+5VS
+5VS
+1.05VS_VCCP
+1.05VS_VCCP
+3VS
CPU_B+
+5VS
+5VS
+5VS
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
C
54 60Friday, August 24, 2012
2011/10/31 2012/12/31
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
C
54 60Friday, August 24, 2012
2011/10/31 2012/12/31
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERI NG DRAWING IS THE PR OPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CON TAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
C
54 60Friday, August 24, 2012
2011/10/31 2012/12/31
4019IE
PC139
1000P_0402_50V7K
1
2
PR161
1.21K_0402_1%
1
2
PR154
1K_0402_1%
12
PR132
5.11K_0402_1%
1
2
PR130
165K_0402_1%
1
2
PC146
1000P_0402_50V7K
1
2
PR133
63.4K_0603_1%
12
PR150
75_0402_1%
1
2
PR144
0_0402_5%
1
2
PC134
2.2U_0603_10V7K
1
2
PR128
1K_0402_1%
1
2
PR141
54.9_0402_1%
12
PC132
.1U_0402_16V7K
1
2
PR159
6.98K_0402_1%
1
2
PR123
@10_0402_1%
1
2
PC125
10P_0402_50V8J
12
PR148
0_0402_5%
1
2
PC136
2.2U_0603_10V7K
1
2
PR164
24.9K_0402_1%
12
PC129
1000P_0402_50V7K
1
2
PR147 1K_0402_1%
12
PR153 12.4K_0402_1%
1
2
PC127
0.047U_0402_16V7K
12
PR168
1K_0402_1%
12
PR131
1K_0402_1%
12
PR145
95.3K_0402_1%
12
PR166
75K_0402_1%
12
PR127
75K_0402_1%
12
PR156
49.9_0402_1%
1
2
PC121
330P_0402_50V7K
12
PR125
@1.21K_0402_1%
1
2
PC133
.1U_0402_16V7K
1
2
PR135
15.8K_0402_1%
1
2
PC152
1000P_0402_50V7K
1
2
PH5
220K_0402_5%_ERTJ0EV224J
1
2
PC131
0.22U_0402_10V6K
1
2
PH2
220K_0402_5%_ERTJ0EV224J
1
2
PR136
8.25K_0402_1%
1
2
PR163
169K_0603_1%
12
PC145
680P_0402_50V7K
1
2
PC124
330P_0402_50V7K
1
2
PC138
0.22U_0402_10V6K
1
2
NCP6132AMNR2G_QFN60_7X7
PU14
<BOM Structure>
TSNSA 46
IOUTA 54
EN
4
VRHOT#
11
SDIO
5
ALERT#
6
ROSC
9
SCLK
7
VRDYA
3
CSCOMP
22
CSP3
25 CSREF
24 CSSUM
23
LGA41
TRBSTA# 57
PVCC 36
BST2 40
HG239
SW238
LG237
PGND 35
COMP
18
VSP
14
DROOP
21
FB
17
DIFF
15
CSP1
27
SWA42
HGA43
VSPA 59
DIFFA 58
DROOPA 52
FBA56
COMPA 55
CSREFA 49
CSSUMA 50
CSP2A 48
VRMP
10
VRDY
12
DRVEN
29
VSN
13
LG134
SW133
VSNA 60
ILIMA 53
VCC
1
IOUT
19
HG132
CSP2
26
CSCOMPA 51
TSNS
28
ILIM
20
TRBST#
16
PWM
30
BST1 31
BSTA 44
CSP1A 47
PWMA 45
VDDBP
2
VBOOT
8
PAD61
PC141
10P_0402_50V8J
1
2
PC135
0.22U_0402_10V6K
12
PR155
6.98K_0402_1%
1
2
PH4
100K_0402_1%_TSM0B104F4251RZ
12
PR160
8.25K_0402_1%
1
2
PC144
3300P_0402_50V7K
1
2
PR122 @0_0402_5%
12
PR158
10_0402_1%
1
2
PC148
4700P_0402_25V7K
1
2
PC149
1200P_0402_50V7K
1
2
PR152
41.2K_0402_1%
12
PC147
0.047U_0402_16V7K
1
2
PR140
130_0402_1%
12
PR139
2.2_0603_5%
12
PR137
26.1K_0402_1%
12
PC122
@4700P_0402_25V7K
1
2
PR162
9.53K_0402_1%
12
PC128
1000P_0402_50V7K
12
PR134 6.98K_0402_1%
12
PR138
2_0603_5%
1
2
PH3
100K_0402_1%_TSM0B104F4251RZ
12
PC130
.1U_0402_16V7K
1
2
PR143
2.2_0603_5%
12
PC123
1000P_0402_50V7K
1
2
PC118
@680P_0402_50V7K
12
PC150
.1U_0402_16V7K
1
2
PR157
4.32K_0402_1%
1
2
PR146
10K_0402_1%
12
PR165
169K_0603_1%
1
2
PC151
330P_0402_50V7K
12
PR149
2.2_0603_5%
1
2
PC119
.1U_0402_16V7K
1
2
PR167
165K_0402_1%
12
PR151
10K_0402_5%
1
2
PC142
0.047U_0402_16V7K
1
2
PR126
@10.7K_0402_1%
1
2
PR129
10_0402_1%
12
PC126
3300P_0402_25V7K
12
PC143
1000P_0402_50V7K
1
2
PC120
1200P_0402_50V7K
12
PC137
0.01U_0402_25V7K
1
2
PC140
.1U_0402_16V7K
12
PR124
24.9K_0402_1%
12
PR142
0_0402_5%
12
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
DC 35W CPU
VID1=1.05V
IccMax=53A
Icc_Dyn=43A
Icc_TDC=36A
R_LL=1.9m ohm
OCP~65A
QC 45W CPU
VID1=0.9V
IccMax=94A
Icc_Dyn=66A
Icc_TDC=52A
R_LL=1.9m ohm
OCP~110A
DC 35W GT2
VID1=1.23V
IccMax=33A
Icc_Dyn=20.2A
Icc_TDC=21.5A
R_LL=3.9m ohm
OCP~40A
Compal Electronics, Inc.
PBL22 LA-7391P M/B
CSREF
HG2_1
SW2
SNUB_CPU2
SNUB_CPU1
SW1
SW1A
HG1A_1
SNUB_GFX1
HG1_1
GFX_B+
HG142
SW142
LG142
HG242
SW242
LG242
CSREF 42
HG1A42
SW1A42
LG1A42
CSREFA 42
+VCC_CORE +VCC_CORE
CPU_B+ CPU_B+
CPU_B+
B+
+GFX_CORE
B+
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEE T OF ENGINEER ING DRAWING IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC . AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
C
55 60Friday, August 24, 2012
2011/10/31 2012/12/31
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEE T OF ENGINEER ING DRAWIN G IS THE P ROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
C
55 60Friday, August 24, 2012
2011/10/31 2012/12/31
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
B
SCHEMATICS, MB A8581
C
55 60Friday, August 24, 2012
2011/10/31 2012/12/31
4019IE
PC160
2200P_0402_25V7K
1
2
PC153
@820P_0402_25V7
1
2
PQ23
S TR MDU1516URH 1N POWERDFN56-8
4
5
1
2
3
PR170
0_0603_5%
1
2
PR172
@4.7_1206_5%
1
2
PC168
10U_0805_25V6K
1
2
PC159
0.1U_0402_25V6
1
2
PQ26
S TR MDU1512RH 1N POWERDFN56-8
4
5
1
2
3
PL24
0.36UH 20% FDUM0640J-H-R36M
<BOM Structure>
1
2
PC167
10U_0805_25V6K
1
2
PC166
@680P_0402_50V7K
1
2
PC161
10U_0805_25V6K
1
2
PR175
0_0603_5%
1
2
PL30
HCB2012KF-121T50_0805
1
2
PC154
10U_0805_25V6K
1
2
PC155
10U_0805_25V6K
1
2
PR174
10_0402_1%
1
2
PL23
0.36UH 20% FDUM0640J-H-R36M
<BOM Structure>
12
PR171
@4.7_1206_5%
1
2
PL21
HCB2012KF-121T50_0805
1
2
PL20
HCB2012KF-121T50_0805
1
2
PQ28
S TR MDU1512RH 1N POWERDFN56-8
4
5
1
2
3
PC172
@680P_0402_50V7K
1
2
PC164
2200P_0402_25V7K
1
2
PR177
10_0402_1%
1
2
PR173
10_0402_1%
1
2
PR169
0_0603_5%
12
PQ24
S TR MDU1516URH 1N POWERDFN56-8
4
5
1
2
3
PQ27
S TR MDU1516URH 1N POWERDFN56-8
4
5
1
2
3
PC156
0.1U_0402_25V6
1
2
PC158
10U_0805_25V6K
1
2
PQ25
S TR MDU1512RH 1N POWERDFN56-8
4
5
1
2
3
PC170
2200P_0402_25V7K
1
2
+
PC163
@100U_25V_M
1
2
PR176
@4.7_1206_5%
1
2
+
PC162
100U_25V_M
1
2
PC165
@680P_0402_50V7K
1
2
PC171
@820P_0402_25V7
1
2
PC169
0.1U_0402_25V6
1
2
PC157
@820P_0402_25V7
1
2
PL22
0.36UH 20% FDUM0640J-H-R36M
<BOM Structure>
12
5
5
4
4
3
3
2
2
1
1
D
D
CC
BB
AA
+VCC_CORE
Socket Bottom
Socket Top
5 x 22 µF (0805)
5 x (0805) no-stuff
sites
7 x 22 µF (0805)
2 x (0805) no-stuff
sites
Below is 458544_CRV_PDDG_0.5 Table 5-8.
+GFX_CORE
+1.05VS_VCCP
+VCC_CORE
+VCC_CORE
+VCC_CORE
+1.05VS_VCCP
+GFX_CORE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
56 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
56 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
56 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
PC181
10U_0805_6.3V6M
1
2
PC190
22U_0805_6.3V6M
1
2
PC174
10U_0805_6.3V6M
1
2
PC195
22U_0805_6.3V6M
1
2
PC214
22U_0805_6.3V6M
1
2
PC215
22U_0805_6.3V6M
1
2
PC198
22U_0805_6.3V6M
1
2
PC179
10U_0805_6.3V6M
1
2
PC178
10U_0805_6.3V6M
1
2
PC223
22U_0805_6.3V6M
1
2
+
PC229
330U_D2_2V_Y
1
2
PC192
22U_0805_6.3V6M
1
2
PC193
22U_0805_6.3V6M
1
2
+
PC218
330U_D2_2V_Y
1
2
PC186
22U_0805_6.3V6M
1
2
PC175
10U_0805_6.3V6M
1
2
PC185
22U_0805_6.3V6M
1
2
PC189
22U_0805_6.3V6M
1
2
PC222
22U_0805_6.3V6M
1
2
PC194
22U_0805_6.3V6M
1
2
PC188
22U_0805_6.3V6M
1
2
PC199
22U_0805_6.3V6M
1
2
PC177
10U_0805_6.3V6M
1
2
PC213
22U_0805_6.3V6M
1
2
PC182
10U_0805_6.3V6M
1
2
PC203
22U_0805_6.3V6M
1
2
PC204
22U_0805_6.3V6M
1
2
PC211
22U_0805_6.3V6M
1
2
+
PC228
330U_D2_2V_Y
1
2
+
PC220
330U_D2_2V_Y
1
2
PC183
22U_0805_6.3V6M
1
2
PC217
22U_0805_6.3V6M
1
2
PC210
22U_0805_6.3V6M
1
2
PC226
22U_0805_6.3V6M
1
2
PC176
10U_0805_6.3V6M
1
2
PC221
22U_0805_6.3V6M
1
2
PC196
22U_0805_6.3V6M
1
2
PC206
22U_0805_6.3V6M
1
2
PC208
22U_0805_6.3V6M
1
2
PC225
22U_0805_6.3V6M
1
2
PC212
22U_0805_6.3V6M
1
2
PC209
22U_0805_6.3V6M
1
2
PC205
22U_0805_6.3V6M
1
2
+
PC219
330U_D2_2V_Y
1
2
PC197
22U_0805_6.3V6M
1
2
+
PC216
330U_D2_2V_Y
1
2
+
PC227
470U_D2_2VM_R4.5M
1
2
PC191
22U_0805_6.3V6M
1
2
PC224
22U_0805_6.3V6M
1
2
PC201
22U_0805_6.3V6M
1
2
PC180
10U_0805_6.3V6M
1
2
PC207
22U_0805_6.3V6M
1
2
PC184
22U_0805_6.3V6M
1
2
PC200
22U_0805_6.3V6M
1
2
PC202
22U_0805_6.3V6M
1
2
PC173
10U_0805_6.3V6M
1
2
+
PC230
330U_D2_2V_Y
1
2
PC187
22U_0805_6.3V6M
1
2
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
Connect to input caps
Shortest the
net trace
Avoid high dV/dt
Under VGA Chip
Near VGA Core
Protection at 105 degree C
Recoveyr at 85 degree C
Requlator temperature protection:
GPU Skin temperature protection:
Protection at 105 degree C
Recoveyr at 85 degree C
3211_IREF
3211_RPM
3211_VCC
3211_COMP-1
3211_CSCOMP
3211_FB
3211_RAMP
3211_DRVH
3211_RAMP-1
3211_VCC
3211_RT
3211_CSFB
3211_EN
CPU_BOOST
3211_CSCOMP
3211_DRVL
3211_COMP
CPU_BOOST-1
3211_ILIM
3211_SW
VID0
VID1
VID2
VID3
VID4
VID5
VID6
3211_PWRGD
3211_CSCOMP
DGPU_PWR_EN
<14,16,38>
VCCSENSE_VGA
<23>
VSSSENSE_VGA
<23>
VGA_PWROK<14,17,45>
GPU_VID0 <21>
GPU_VID1 <21>
GPU_VID2 <21>
GPU_VID3 <21>
GPU_VID4 <21>
GPU_VID5 <21>
SUSP#45,53
PWR_GPS_DOWN#<41>
+5VS
+VGA_B+
+5VS
+VGA_CORE
+3VS
B+
+VGA_B+
+VGA_CORE
+VGA_CORE
+3VL
+3VL
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERI NG DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BC
57 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDE NTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BC
57 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS S HEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMP ETENT DIVISI ON OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE IN FORMATION IT CONTAIN S
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMP AL ELECTRONICS , INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
BC
57 60
Friday, August 24, 2012
2011/10/31 2012/12/31
SCHEMATICS, MB A8581
4019IE
PH703
100K_0402_1%_NCP15WF104F03RC
@
1
2
PR195
4.7_1206_5%
1
2
PR186 0_0402_5%OPT@
12
PC249
820P_0402_50V7K
OPT@
1
2
PC250
1000P_0402_50V7K
OPT@
1
2
PC258
4.7U_0603_6.3V6M
OPT@
1
2
PR199
80.6K_0402_1%
OPT@
1
2
PC285
0.1U_0402_10V7K
OPT@
1
2
PC267
4.7U_0603_6.3V6M
OPT@
1
2
PC248
1200P_0402_50V7K
OPT@
1
2
PR185 0_0402_5%OPT@
1
2
PU15
ADP3211AMNR2G_QFN32_5X5
OPT@
GPU
7
PWRGD
1
IMON
2
CLKEN#
3
FBRTN
4
FB
5
COMP
6
ILIM
8
IREF
9
RPM
10
RT
11
RAMP
12
LLINE
13
CSREF
14
CSFB
15
CSCOMP
16
VCC24
BST23
DRVH 22
SW21
PVCC 20
DRVL 19
PGND 18
AGND 17
EN32
VID0 31
VID1 30
VID2 29
VID3 28
VID4 27
VID5 26
VID6 25
AGND 33
PR193
68K_0402_1%
@
1
2
PC271
4.7U_0603_6.3V6M
OPT@
1
2
PR189 0_0402_5%OPT@
12
PR198
4.53K_0402_1%
OPT@
1
2
PR200
200K_0402_1%
OPT@
12
PC270
4.7U_0603_6.3V6M
OPT@
1
2
PU701
G718TM1U_SOT23-8
OPT@
RHYST2 5
OT1
3
OT2
4
GND
2
VCC
1
TMSNS2 6
RHYST1 7
TMSNS1 8
PR743
10.5K_0402_1%
@
1
2
PQ35
MDU1511RH 1N POWERDFN56-8
OPT@
4
1
2
3
5
PC273
4.7U_0603_6.3V6M
OPT@
1
2
PC284
0.1U_0402_10V7K
OPT@
1
2
PQ32 MDU1516URH 1N POWERDFN56-8OPT@
4
5
1
2
3
PR187 0_0402_5%OPT@
12
PC278
4.7U_0603_6.3V6M
OPT@
1
2
PR192
0_0402_5%
OPT@
1
2
PR205
124K_0402_1%
OPT@
1
2
PC716
0.1U_0603_25V7K
OPT@
1
2
PC263
22U_0805_6.3V6M
OPT@
1
2
PC272
4.7U_0603_6.3V6M
OPT@
1
2
PC255
4.7U_0603_6.3V6M
OPT@
1
2
PC261
22U_0805_6.3V6M
OPT@
1
2
PQ33
MDU1516URH 1N POWERDFN56-8
OPT@
4
5
1
2
3
PC235
4.7U_0805_25V6M
OPT@
1
2
PR202
0_0402_5%
OPT@
1
2
PC244
47P_0402_50V8J
OPT@
1
2
PQ34
MDU1511RH 1N POWERDFN56-8
OPT@
4
1
2
3
5
PC281
0.1U_0402_10V7K
OPT@
1
2
PC243
2.2U_0603_10V6K
OPT@
1
2
PC274
4.7U_0603_6.3V6M
OPT@
1
2
PC242
220P_0402_50V7K
OPT@
12
PC265
4.7U_0603_6.3V6M
OPT@
1
2
PR196
1K_0402_1%
OPT@
1
2
PR808
0_0402_5%
@
1
2
PC502
47U_0805_6.3V6M
OPT@
1
2
PC287
0.1U_0402_10V7K
OPT@
1
2
PC239
1U_0805_25V6K
OPT@
1
2
PR206
150K_0603_1%
OPT@
1
2
PL31
HCB2012KF-121T50_0805
OPT@
1
2
PC277
4.7U_0603_6.3V6M
OPT@
1
2
PR183 0_0402_5%OPT@
12
PC283
0.1U_0402_10V7K
OPT@
1
2
PC286
0.1U_0402_10V7K
OPT@
1
2
PC282
0.1U_0402_10V7K
OPT@
1
2
PR809
0_0402_5%
OPT@
1
2
PC236
4.7U_0805_25V6M
OPT@
1
2
PC247
680P_0603_50V7K
1
2
PC251
1000P_0402_50V7K
OPT@
1
2
PC237
2200P_0402_50V7K
OPT@
1
2
+
PC254
470U_D2_2VM_R4.5M
OPT@
1
2
PR209
0_0402_5%
OPT@
1
2
PR741
14.7K_0402_1%
OPT@
1
2
PC234
4700P_0402_25V7K
OPT@
1
2
PC246
470P_0402_50V8J
OPT@
12
PC259
4.7U_0603_6.3V6M
OPT@
1
2
PR201
274K_0402_1%
OPT@
12
+
PC289
470U_D2_2VM_R4.5M
OPT@
1
2
PR184 0_0402_5%OPT@
12
PC276
4.7U_0603_6.3V6M
OPT@
1
2
PR188 0_0402_5%OPT@
1
2
PR203
0_0402_5%
OPT@
12
PR207
1K_0402_1%
OPT@
1
2
+
PC245
470U_D2_2VM_R4.5M
OPT@
1
2
PR194
0_0603_5%
OPT@
12
PC268
4.7U_0603_6.3V6M
OPT@
1
2
PH702
100K_0402_1%_NCP15WF104F03RC
OPT@
12
PR742
10.5K_0402_1%
OPT@
12
+
PC252
470U_D2_2VM_R4.5M
OPT@
1
2
PC264
22U_0805_6.3V6M
OPT@
1
2
PC260
22U_0805_6.3V6M
OPT@
1
2
PC238
0.1U_0402_25V6
OPT@
1
2
PR208
0_0402_5%
@
1
2
PR204
499K_0402_1%
OPT@
1
2
PC269
4.7U_0603_6.3V6M
OPT@
1
2
PR197
20K_0402_1%
OPT@
1
2
+
PC288
470U_D2_2VM_R4.5M
@
1
2
PR744
14.7K_0402_1%
OPT@
1
2
PC280
0.1U_0402_10V7K
OPT@
1
2
PR190
10_0603_1%
OPT@
1
2
PR191 10K_0402_1%
OPT@
1
2
PC241
1000P_0402_50V7K
OPT@
1
2
PC233 100P_0402_50V8J
OPT@
1
2
PC256
4.7U_0603_6.3V6M
OPT@
1
2
PC275
4.7U_0603_6.3V6M
OPT@
1
2
PC257
4.7U_0603_6.3V6M
OPT@
1
2
PC266
4.7U_0603_6.3V6M
OPT@
1
2
PC279
4.7U_0603_6.3V6M
OPT@
1
2
PC240
0.22U_0603_25V7K
OPT@
12
PC262
22U_0805_6.3V6M
OPT@
1
2
PL32
0.22UH_PCMB104T-R22MS_35A_20%
OPT@
12
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
Page 1
Page 1Page 1
Page 1
Solution Description
Solution DescriptionSolution Description
Solution Description Rev.
Rev.
Rev.
Rev.Page#
Page#Page#
Page# Title
TitleTitle
Title
Version Change List ( P. I. R. List )
Version Change List ( P. I. R. List )Version Change List ( P. I. R. List )
Version Change List ( P. I. R. List )
Item
ItemItem
Item Issue Description
Issue DescriptionIssue Description
Issue DescriptionDate
DateDate
Date Request
RequestRequest
Request
Owner
OwnerOwner
Owner
1Page 47
For DVT can't power on and need to disable EC VCIN0_PH
VCIN1_PH pin detect
Reserve PR20 PR21 for DVT can't power on issue
2012/02/24
2012/02/24
2012/02/24
2
3
Page 57
3D mark06&3D mark Vantage score don't meet SPEC need to
support GPS function
Add PC288 PC289 470U_D2_2VM_R4.5M
PC248 1200P_0402_50V7K
PR209 0_0402_5%
Change PC242 to 220P_0402_50V7K
PC246 to 470P_0402_50V8J
PC244 to 47P_0402_50V8J
PR197 to 20K_0402_1%
PR198 to 4.53K_0402_1%
PC249 to 820P_0402_50V7K
PR205 to 124K_0402_1%
PR206 to 150K_0603_1%
Delete PR208 0_0402_5%
Page 57
3D mark06&3D mark Vantage score don't meet SPEC need to
support GPS function
Reserve GPU Skin and Requlator temperature protection circuit
for if temperature over spec issue
Add PC716 SE042104K80 0.1U_0603_25V7K
PR741,PR744 SD034147280 14.7K_0402_1%
PR742 SD034105280 10.5K_0402_1%
PH702 SL200000U00 100K_0402_1%_NCP15WF104F03RC
PVT
PVT
PVT
4
Page 47
2012/02/24 Change PH1 protect action to EC Change PH1 pull high vcc from +3VL to +EC_VACC
Change PH1 GND from normal GND to EC_AGND
5
Page 48
2012/02/27 Update Green power Circuit Delete PU7 74LVC1G17GW TSSOP and change to PQ109 SSM3K7002FU_SC70-3
Add PR10 0_0402_5% to connect GREEN_LATCH#
Reserve PR178 0_0402_5%
2012/03/02
Page 48
6
Update Green power Circuit Connect the Green_PWR4 net to EC GPIO for AC decete for Green power
circuit ACOK will drop once time issue
PVT
PVT
PVT
7
Page 47
2012/03/06 Add one control signal in order to disable B+ to VSB
circuit in AC S5 for LOT6 system little than 0.5W issue Reserve PR22 to add VSB_EN
PVT
8
Page 49
2012/02/24 For DVT SMT PC56, PC57 footprint did not match issue Change PC56,PC57 footprint from D2 to C_6SVPE220MX
PVT
9Page 47
49
2012/03/06 For System can power on immediately after HW shutdown Change PU1.3 output name from EN0 to MAINPOWN
Dis-connect EN0 to PU8.13
Connect MAINPOWN to PQ18.2
10 Page 47
2012/04/23 For EU Erp lot6 fail, need to cut off +VSB when system
at S5 Add PR22, delete PR14,PR15
Pre_MP
11
Page 47
48,50,51
52,53,54
57
2012/04/23 Change to new footprint ChangePR56,PR80,PR92,PR95,PR108,PR110,PR115,PR120,PR142,PR144,PR183,
PR184,PR185,PR186,PR187,PR188,PR189,PR192,PR809 footprint
from R_0402 to R0402_0ohm
Pre_MP
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
58 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
58 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
58 60Friday, August 24, 2012
2011/10/31 2012/12/31
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
QAQ1x HW PIR from EVT to DVT LA-8581P REV:0.1 -> 0.2 <2011.12.05~2012.01.02. >
Change X1 from "SJ100009A00" to "SJ10000EV00"
Item ImpactDateRev. Modify DescriptionChange Cause
0.2 112/05 Sourcer require to change crystal to small size.
2
Page
41
Circuit, Layout, BOM 37
12/21 Circuit, Layout EVT can't power on issue. Change R739 pull up power source from "+3VALW" to "+3VALW_EC".
312/21 Circuit, Layout Vpro require PCIE port1 can't connect to LAN.26,35,42,36 Swap PCH PCIE port1 and port5.
412/21 Circuit, BOM 43 SW7, SW8 part number error. change SW7,SW8 part number to "SN100005G00"
512/21 BOM 27 just reserve pull up resistor for SLP_LAN#. Add @ to R282.
6
712/26 33 Add Vpro & non-Vpro WIN8 BIOS ROM power source selection. Add R421, R422.
12/26 BOM 34 TPM IC FW update from FW3.16 to FW3.19. Change U37 from "SA00000GG40" to "SA00000GG70".
Circuit, BOM
801/05 40, 43 issue: redetect USB HDD when resume from S3. Add @ to RU27, delete @ to R90; add @ to R9, delete @ to R10.BOM
941 Board ID issue Add "Rev02@", "Rev03@","Rev04@","Rev10@" serial Rb to distinguish the boards.
10 01/09 40 LID_SW# will cause system can't power on at DC mode if use +3VALW, not +3VL. Change U34 Pin2 VDD from +3VALW to +3VL if EC use +3VL.Circuit, layout
01/05 BOM
11 01/09 Circuit, layout,BOM 43 PWR ON LED will flash when doing Crisis. Add a pull down resistor R169 100K to PWR_ON_LED; Reserve a 0ohm resistor R93.
12 01/09 Circuit, layout,BOM 36 DVT will build Vpro SKU, delete EC port80 debug signals to WLAN connector. Delete R684, R1336 and the EC port80 debug signals to WLAN connector.
13 01/09 Circuit, layout,BOM No need reserve VGA HDMI connection. Change PCH net "DGPU_HPD_INT#" to PCH_GPIO6;
Delete U13,CV197,RV140,RV149,C430,C378,C455,C377,C376,C434,C456,C432,R432,R435,R443,Q65,R439,R437RV132,L88.
14 01/10 Circuit, layout 37,35,26,42 BIOS prefer LAN connect to PCIE port6 for Vpro. Swap PCIE port5 and port6 connection.
13,15
24
15 01/10 BOM 33, Distinguish with Vpro SKU. Change UPCH1 and U59 BOM Structure to "8111E@" for non-Vpro SKUs.
16 01/11 43 +USB_VCCE no bulk capacitor. Change C2,C7,C8 power source from +USB_VCCB to +USB_VCCE.Circuit, layout
17 01/11 41Circuit, layout power CPU OTP issue, and power modified schematic. Delete net EC pin27 "PWR_GPS_DOWN#" and EC pin 76 "PWRMOS_TEMP", delete R732.
37
35
6
7
8
9
10
Page
Circuit, BOM
28 requirement from Sourcer and buyer. Change RP1, RP3 from row resistor "SD309820180" to single ones "SD028820180"-R320,R321,R322,R323,R324,R327,R329,R330.
BOM DVT board card reader JMB389 can't detect 4IN1 card. Delete R39 BOM structure "388@".
3HDMI HPD signal level is too low for HDMI detection.27 Add "@" to RH142.
4Circuit, layout,BOM 41,13 PVT add GPU GPS feature. Add R266 "@", R267 "@", R268 at Page13, add "@" to DV6.
5
QAQ1x HW PIR from DVT to PVT LA-8581P REV:0.2 -> 0.3 <2012.02.24~2012.03.07. >
Change LL1 from 4.7uH "SHI00004T00" to 2.2uH "SHI0000AA00". CL13 from 22uF "SE000000I10" to 4.7uF "SE107475K80".
Item ImpactDateRev. Modify DescriptionChange Cause
0.3 102/24 LL1 and CL13 change after EVT, DVT schematic missed and used MEMO for change.
2
11
12
02/24
02/24 BOM
02/24
Change net ACIN_BUF to GPS_DOWN#, add net PWR_GPS_DOWN#, EC_GPS_DOWN#, PWRMOS_TEMP.
02/24 Circuit, layout,BOM
02/24 BOM 35 UL5 BOM structure error with vPro SKU. Delete UL5 BOM structure "8111E@".
03/01 Circuit, layout,BOM 35 LAN vendor Realtek suggest:Reserve CLKREQ_LAN# pull up 10Kohm to +3V_LAN. Reserve CLKREQ_LAN# pull up 10Kohm to +3V_LAN: add RL25 and unmount it.
03/01 35 LAN vendor Realtek suggest:Reserve UL1 pin28 "EC_SWI#"pull up 10Kohm to +3V_LAN. Modify reserved resistor RL3 from 100Kohm to 10Kohm.
03/01 Circuit, layout,BOM 35
BOM
LAN vendor Realtek suggest: 6pcs decoupling capacitor for UL1 Pin 12, 27, 39, 42, 47, 48. Add one more piece capacitor CL12 close to UL1.
03/01 Circuit, layout,BOM
Circuit, layout,BOM03/01
41
13
Reserve and add pull up for added net of EC pin27,68. Reserve R732 10Kohm and add R733 100Kohm pull up to +3VS for EC pin27,68, add R734 0ohm for PWR_GPS_DOWN# connect to EC.
power circuit removed net "PWR_MOS_TEMP", added net "GREEN_PWR4".
Reserve a 0ohm resistor R270 for "GPS_DOWN#" to "PWR_GPS_DOWN#".
13 03/02 Circuit, layout 41
Reserve a 0ohm resistor for "GPS_DOWN#" to "PWR_GPS_DOWN#".
Remove net "PWR_MOS_TEMP", add net "GREEN_PWR4" to EC pin 76.
14 03/05 BOM 26 Adjust crystal loading capacitors' value according to matching test result. Change Y3 from SJ10000DJ00 to SJ10000E800, C869 from SE071150J80 to SE071100J80, C225 from SE071120J80 to SE071100J80.
Change YL1 from SJ10000DJ00 to SJ10000E800, CL26 and CL27 from SE071270J80 to SE071120J80.35
Change C54 and C82 from SE071120J80 to SE071150J80; C766,C767 from SE071150J80 to SE071180J80.37,34
13 Change YV1 from SJ10000DK00 to SJ100009700, CV46 and CV47 from SE071180J80 to SE071100J80.
15 03/05 Circuit, layout,BOM 39 Refer to QAL50/51 design for smart card to add pull high to US4 pin26. Add RS22 10Kohm pull up to +3V_SC for US4 Pin26. and change reserved pull down resistor RS21 from 0ohm to 10Kohm.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
59 60Friday, August 24, 2012
2006/02/13 2010/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
59 60Friday, August 24, 2012
2006/02/13 2010/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
59 60Friday, August 24, 2012
2006/02/13 2010/12/31
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
DD
C
C
B
B
AA
28,39
Page
Circuit, BOM
QAQ1x HW PIR from DVT to PVT LA-8581P REV:0.2 -> 0.3 <2012.02.24~2012.03.07. >
Change smart card reader from USB port 2 to port 5.
Item ImpactDateRev. Modify DescriptionChange Cause
0.3 16 smart card device lost at USB 3.0 port.03/05
17 03/06 BOM 31 PCH VCCDSW3_3 change power connection from +3VALW_PCH to +3VALW. Add "@" to R415, delete "@" to R382.
18 03/06 Circuit, layout, BOM 35,36,
39,29
41,45
ErP lot 6 fail, reserve a EC pin VSB_EN to control VSB;
reserve LAN WAKE to EC and PCH GPIO27.
Reserve net GPIO27_WAKE#, EC_PME# for LAN WAKE, reserve net EC_PME# to WLAN, WWAN and PCIE Express card wake.
thus, add R702@, RH122@, RH171, R331@, RL8(8111E@),RL9@, RL10@, R100@, R102, R761@, R767@,R768@.
Reserve net VSB_EN, thus add R765@, R766, R817, R818@, R819@; delete R816@, add @ to R754.
Delete reserved net AOAC_ON (EC pin 38) and DRAMRST_GATE (EC pin 98) and their test point T23,T24.
Use these two pins for new added net VSB_EN_R and EC_PME#
19 03/06 Circuit, layout, BOM 25 Reserve big size crystal Y6 for 32.768KHz. Reserve big size crystal Y6 for 32.768KHz.
20 03/08 BOM 40,43 UU1 SA000047500 was forbidden, change material requirement from buyer. Change UU1 from SA000047500 to SA000033H00; Correct U6 description and value.
21 03/08 BOM 43,44 Change C4,C6 from SE053475Z05 to normal part SE053475Z80. Change C4,C6 from SE053475Z05 to normal part SE053475Z80.
5
6
2BOM 25,34 Change 32.768KHz crystal P/N, and RTC capacitor C204 from 15pF to 18pF. Change Y2, X3 from SJ10000BM00 to SJ100001K00. change C204 from SE071150J80 to SE071180J80.
3BOM 39 to solve issue of "Smart Card also show in Device Manager after plug out it". Change US4 from SA000042I00 to SA000042I10.
25
Page
Circuit, BOM,layout
QAQ1x HW PIR from PVT to Pre-MP LA-8581P REV:0.3 -> 1.0 <2012.04.18~2012.04.25. >
Add 0ohm 0402 resistor R189@ and R190.
Item ImpactDateRev. Modify DescriptionChange Cause
1.0 1Reserve +5VS for MOS Q10 gate of audio sync signal to PCH HDA sync signal.
4
BOM 45,41 For ErP lot6, add +3VALW to +3VALW_PCH DC/DC circuit. Delete @ for U25, Q46, Q49, R813, C837, C839, C838, R804, C836, R807, R754.
04/19
Reserve 820Kohm resistor to GND for +3VALW_PCH and +1.05VS_DGPU DC/DC MOS GATE. Add 820Kohm R432@ and R435@.45Circuit,layout
BOM,layout04/20 cost down: change some 0ohm resistors to short pad. cost down: change some 0ohm resistors to short pad.
7
04/19
04/19
04/19
04/19
04/23 BOM 42 vPro: Intel suggest to change R1232 from 2.2K to 10K. vPro: change R1232@ from 2.2K to 10K.
804/23 42 vPro: Intel suggest to change C470 from 10uF to 22uF.BOM vPro: change C470 from 10uF to 22uF.
904/23 BOM 35 vPro: Intel suggest to change CL34 from 0.1uF to 1uF. vPro: change CL34 from 0.1uF to 1uF. keep CL34 0.1uF for 8111E LAN.
Circuit, BOM,layout04/23 42 vPro: Reserve LAN WAKE to EC. vPro reserve R559@ 0ohm for LAN WAKE connect to EC.
Circuit,layout04/25 35 There is not enough space for LAN GND ESD diodes.
EMI test OK without the two ESD diodes.
Remove DL3@, DL4@.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
60 60Friday, August 24, 2012
2006/02/13 2010/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
60 60Friday, August 24, 2012
2006/02/13 2010/12/31
Compal Electronics, Inc.
Title
Size Document Num ber Rev
Date: Sheet
of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019IE
B
SCHEMATICS, MB A8581
Custom
60 60Friday, August 24, 2012
2006/02/13 2010/12/31
Compal Electronics, Inc.
www.s-manuals.com

Navigation menu
