Intel Shark Bay ULT (Hasswell + Lynx Point-LP)
EA50_HW M/B Schematics Document
REV:1.0
Compal Confidential
2013-04-11
AMD MARS / SUN
Model Name : V5WE2/T2/C2 (EA/EG/BA50_HW)
File Name : LA-9531P
Compal Confidential
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Cover Page
Custom
152Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Cover Page
Custom
152Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Cover Page
Custom
152Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Part Number
Description
V5WE2_PCB
DAZ0VR00100 PCB V5WE2 LA-9531P LS-9531P/9532P
ZZZ
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Processor
Haswell ULT
Intel Haswell ULT
OPI
PCH
Lynx Point - LP
page 04~14
1168pin BGA
BANK 4, 5, 6, 7
204pin DDR3L-SO-DIMM X1
page 16
Dual Channel
BANK 0, 1, 2, 3
204pin DDR3L-SO-DIMM X1
1.35V DDR3L 1333/1600
Memory BUS
page 15
DDI
2.97GT/s
page 28

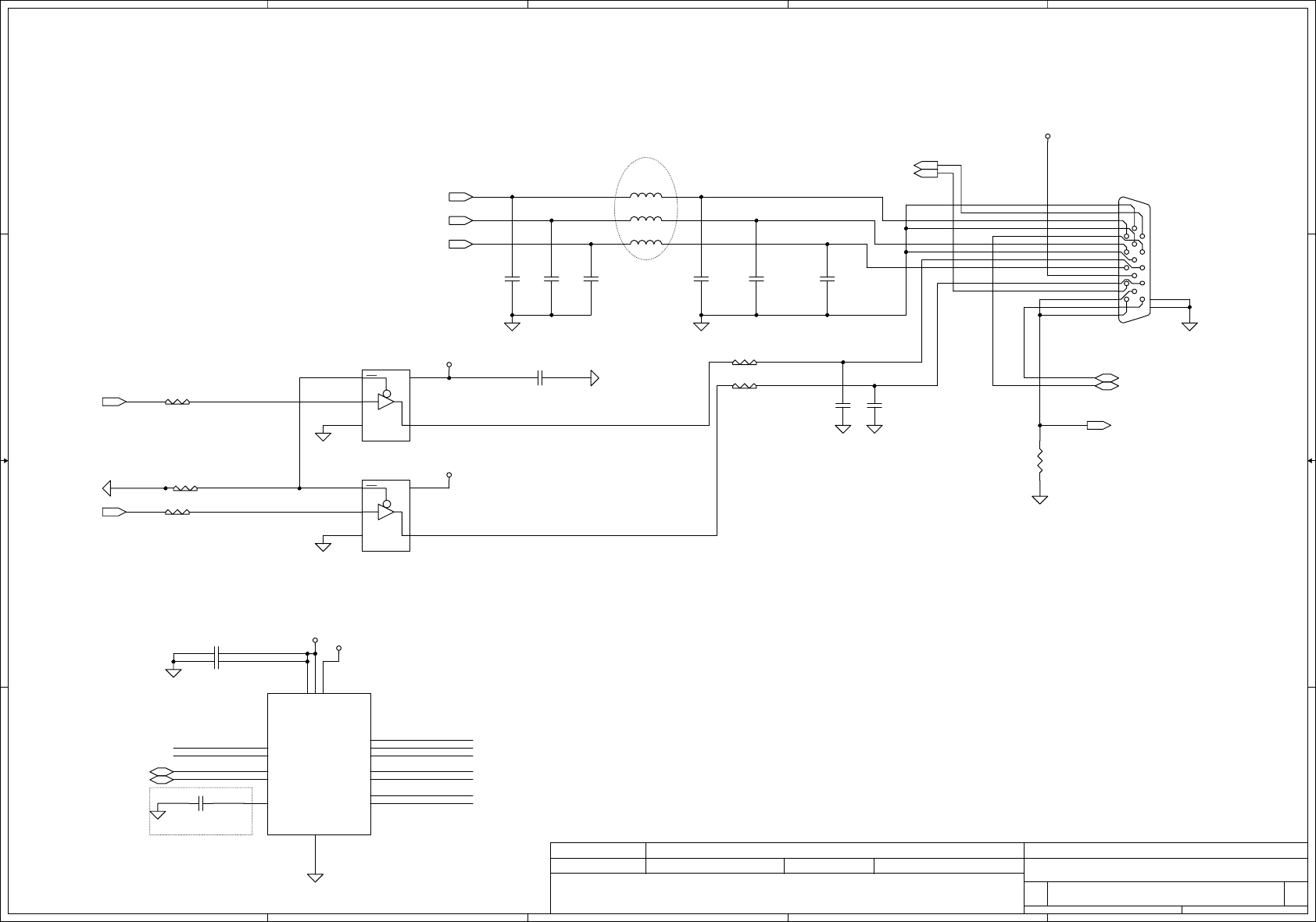

CRT Conn.
page 26
HDMI Conn. eDP Conn.
page 25
page 27
DP to VGA
ITE IT6511FN
DP x 2 lanes HDMI x 4 lanes
2.7GT/s
eDP
(port 1,2)USB/B
USB 2.0
conn x2
page 33
USB port 0 USB port 7
page 36
page 7
SPI
3.3V 24MHz
CMOS
Camera
page 36
USB 3.0
conn x1
ALC3225
48MHz
HDA Codec
HD Audio
page 33 page 25
SPI ROM x2
USBx8
Int. Speaker Combo JackInt. MIC
page 34
EC ROM x1
(reserved)
CLK=24MHz
LPC BUS
Touch Pad Int.KBD
page 34
page 35
ENE
KB9012
page 35
page 32
SATA3.0 SATA3.0
port 2
SATA CDROM
Conn.
page 32
SATA HDD
Conn.
port 0
LAN(GbE)
Boardcom
57786X
page 29
port 4
USB port 4
port 3
MINI Card
WLAN
page 31
Flexible IO
6.0 Gb/s6.0 Gb/s
PCIe 2.0
5GT/s
PCIe 2.0
5GT/s
page 6
RTC CKT.
Power On/Off CKT.
DC/DC Interface CKT.
page 35
Power Circuit DC/DC
page 38
page 39~49
Sub Board
LS-9531P
page 33
PWR/B
LS-9532P
USB/B
page 33
(port 1,2)
PCIe 2.0 x4
5GT/s
page 17~23
port 5
AMD SUN/MARS
with DDR3 x4 or 8
Fan Control
page 36
2 in 1
Card Reader
page 30
(SD)
page 36 page 36
USB
Finger
Print
page 26
(port 5)
USB (port 6)
page 25
Touch
Screen
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Block Diagrams
Custom
252Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Block Diagrams
Custom
252Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Block Diagrams
Custom
252Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
+CPU_CORE
STATE SIGNAL
Full ON
S1(Power On Suspend)
S3 (Suspend to RAM)
S4 (Suspend to Disk)
S5 (Soft OFF)
SLP_S1# SLP_S3# SLP_S4# SLP_S5# +VALW +V +VS Clock
Voltage Rails
VIN
B+
Adapter power supply (19V)
AC or battery power rail for power circuit.
Core voltage for CPU
Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.
ON
ON
ON
ON
ON
ON
ON ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
LOW
LOW LOW LOW LOW
LOWLOWLOW
LOW
LOW
LOW
HIGH HIGH HIGH HIGH
HIGHHIGHHIGH
HIGH
HIGH
HIGH
S1 S3 S5
ON
ON OFF
N/A N/A N/A
N/AN/AN/A
Power Plane Description
OFF
OFFOFF
+VGA_CORE Core voltage for GPU
BATT+ Battery power supply (12.6V) N/A N/A N/A
EC SM Bus1 address
Device
PCH SM Bus address
Device Address
Address Address
EC SM Bus2 address
Device
Smart Battery
0001 011X
ChannelA DIMM0
1001 000x
JDIMM1
On Board Thermal Senser
0100 110x
EC 9012 9012@
Unpop @
CONN@Connector
USB Port(Right 2.0)
USB 2.0 Port 3 External
USB Port
0
1
2
3
4
5
6
7
EHCI1
USB Port Table
BOARD ID Table
Board ID
0
1
2
3
4
5
6
7
PCB Revision
0.1
0.2
BTO Option Table
BTO Item BOM Structure
0.3
0.4
XHCI 1
2
3
PortUSB 3.0
AMD GPU
VGA@
Board ID / SKU ID Table for AD channel
Vcc 3.3V +/- 5%
100K +/- 5%Ra/Rc/Re
Board ID
Rb / Rd / Rf V min
0
1
2
3
0
8.2K +/- 5%
0 V
0.216 V 0.250 V 0.289 V
0.436 V
0.712 V
0.503 V
0.819 V
0.538 V
0.875 V
AD_BID
V typ
AD_BID
V
AD_BID
max
18K +/- 5%
33K +/- 5%
56K +/- 5%
100K +/- 5%
200K +/- 5%
3.300 V
0 V 0 V
4
5
6
7NC
1.036 V
1.453 V 1.650 V 1.759 V
1.935 V
2.500 V
2.200 V
3.300 V
2.341 V
1.185 V 1.264 V
940@EC 932
USB Port(Left 3.0)
USB Port(Right 2.0)
USB Port(Left 3.0)
Mars component
MARS@
+1.8VSDGPU +1.8VSDGPU power rail for GPU ON OFF OFF
OFFOFFON+3VS to +3VSDGPU power rail for GPU+3VSDGPU
ON OFF OFF
+0.675VS +0.675VS power rail for DDR3L terminator
+RTCVCC RTC power
+1.5VS
+3VS
+5VALW
+3VALW +3VALW always on power rail
ONONON
+1.5V power rail for CPU
+0.95VSDGPU +0.95VSDGPU switched power rail for GPU
ON
OFF
ON
ON
ON ON*
OFF
ON ON*
ON OFF OFF
+3VLP B+ to +3VLP power rail for suspend power ON ON
+1.35V power rail for DDR3L ON ON OFF+1.35V
+1.05VS_VTT +1.05V power rail for CPU
ON OFF OFF
ON OFF OFF
+1.5VSDGPU +1.5VSDGPU power rail for GPU ON OFF OFF
ON
+3VALW to +3VS power rail
+5VALWP to +5VALW power rail
+5VS +3VALW to +5VS power rail OFFON OFF
TPM Module TPM@
G-Sensor GSEN@
BL@KB Backlight
128@VRAM x 8pcs
Debug Only DEG@
Mini Card (WLAN+BT)
Camera
0
1001 010x
DIMM1ChannelB JDIMM2
VGA Internal Thermal Senser
0100 000x
0011 000x
G Senser
SUN component
SUN@
Reservec for EMC XEMC@
EMC@EMC Component
X76@VRAM Selection
Micron 4G x 8
Hynix 2G x 4
Hynix 2G x 8
X7601@
X7603@
X7604@
UMA Component
UMA@
eDP to LVDS TL@
V5WE2/T2/C2 EA50@
Reserved BA51@
Assembly Level 45@
Cable for Power 45PWR@
2ROM@2 SPI ROM
1 SPI ROM 1ROM@
0.5
For IOAC
Touch Screen TS@
IOAC@
For EDP panel EDP@
1.0
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Notes List
Custom
352Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Notes List
Custom
352Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Notes List
Custom
352Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

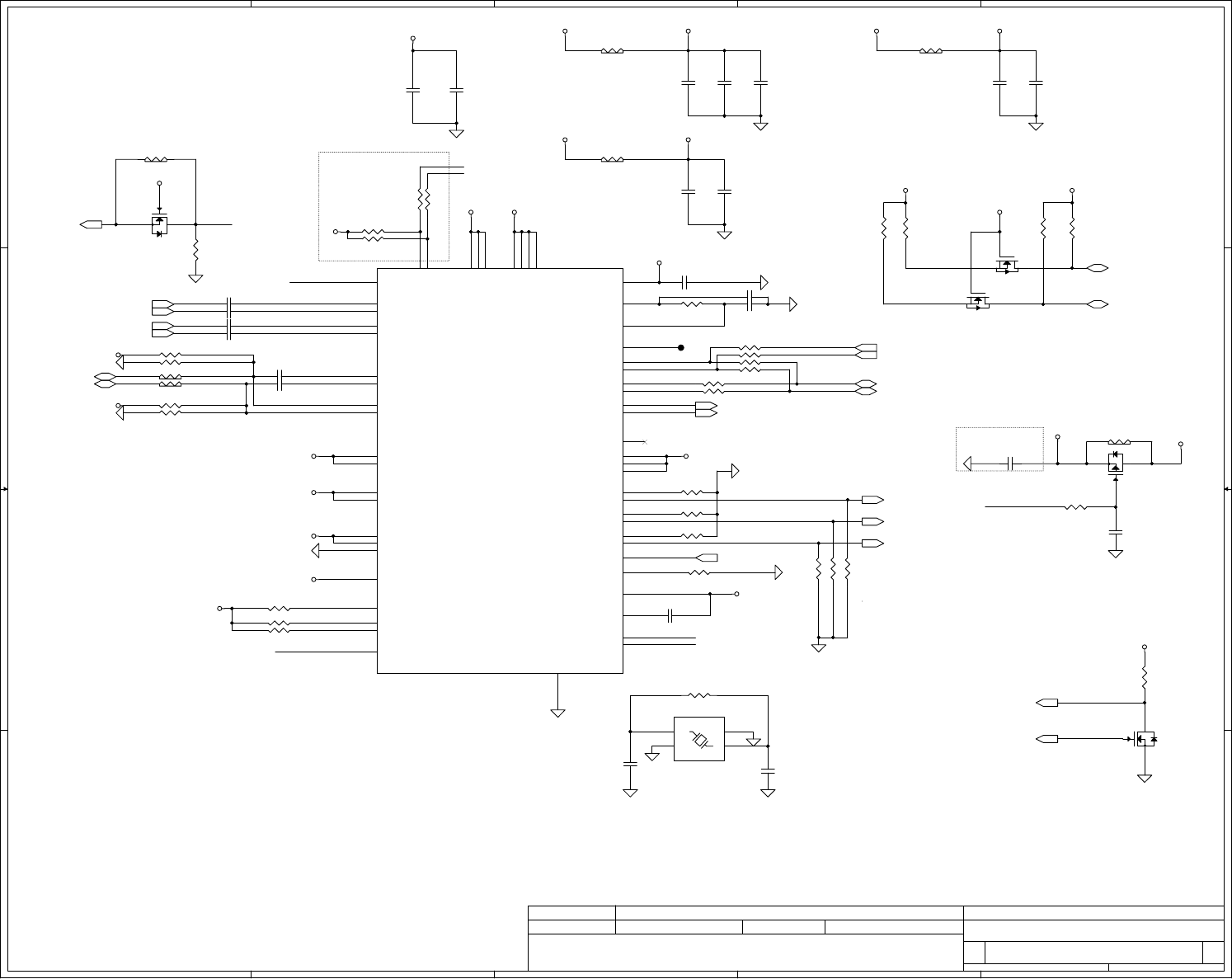

Tracewidth=20mils,Spacing=25mil,Maxlength=100mils
DDR3 Compensation Signals
DP to CRT
HDMI
Reserved for ESD
Reserved for ESD
Reserved for ESD
Reserved for ESD 1120
Close to AV15
EDP_COMP
SM_RCOMP0
SM_RCOMP1
SM_RCOMP2
DIMM_DRAMRST#
DDR_PG_CTRL
H_CPUPWRGD
H_PROCHOT#_R
XDP_PRDY#_R
XDP_PREQ#_R
XDP_TCK_R
XDP_TMS_R
XDP_TRST#_R
XDP_TDI_R
XDP_TDO_R
XDP_BPM#1_R
XDP_BPM#0_R
EDP_DISP_UTIL 25
CPU_DP2_N026 CPU_DP2_P026 CPU_DP2_N126 CPU_DP2_P126 CPU_DP2_N226 CPU_DP2_P226 CPU_DP2_N326 CPU_DP2_P326
EDP_TXP0 25
EDP_TXN0 25
EDP_TXP1 25
EDP_TXN1 25
EDP_AUXP 25
EDP_AUXN 25
H_PECI34
DDR_PG_CTRL15
H_PROCHOT#34,39,40
DIMM_DRAMRST# 15,16
CPU_DP1_N027 CPU_DP1_P027 CPU_DP1_N127 CPU_DP1_P127
+1.05VS_VTT
+VCCIOA_OUT
+1.35V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(1/11) DDI,MSIC,XDP
Custom
452Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(1/11) DDI,MSIC,XDP
Custom
452Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(1/11) DDI,MSIC,XDP
Custom
452Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.

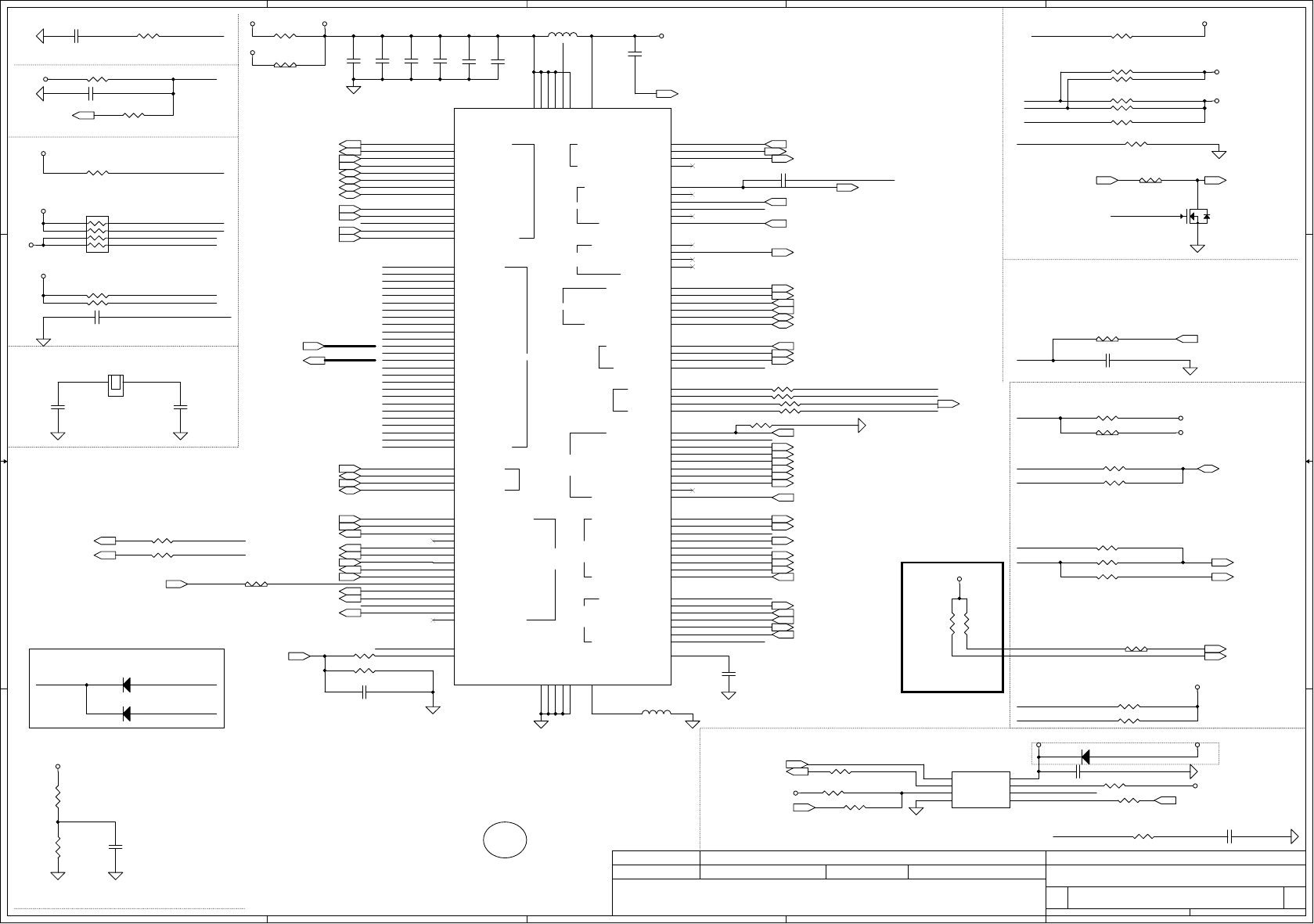

R13 120_0402_1%
1 2
U1
CPU_QEK2_C0
QEK2@
SA00006SJ40
R184
470_0603_5%
12
T152@
T2 @
U1
CPU_SR170_C1
SR170@
SA00006SMB0
T157@
HASWELL_MCP_E
DDI EDP
Rev1p2
1 OF 19
U1A
@
HASWELL-MCP-E-ULT_BGA1168
EDP_DISP_UTIL A43
EDP_RCOMP D20
DDI2_TXP3
B53 DDI2_TXN3
A53 DDI2_TXP2
B50 DDI2_TXN2
C49
DDI2_TXN1
C53
DDI2_TXN0
C51
DDI2_TXP0
C50
DDI2_TXP1
B54
DDI1_TXP3
B57
EDP_AUXN A45
EDP_AUXP B45
EDP_TXP3 B49
EDP_TXN3 A49
EDP_TXP2 C46
EDP_TXN2 C47
EDP_TXP1 B47
EDP_TXN1 A47
EDP_TXN0 C45
EDP_TXP0 B46
DDI1_TXN3
A57 DDI1_TXP2
A55 DDI1_TXN2
B55 DDI1_TXP1
C58 DDI1_TXN1
B58 DDI1_TXP0
C55 DDI1_TXN0
C54
T153@
T158@
U1
CPU_SR16Q_C1
SR16Q@
SA00006SX70
T164@
T159@
T148@
R6 10K_0402_5%
1 2
R1 24.9_0402_1%
1 2
T165@
T161@
T149@
T160@
R11 200_0402_1%
1 2
C95 6.8P_0402_50V8C
XEMC@
1 2
T162@
R8
56_0402_5%
1 2
U1
CPU_QEVG_C0
QEVG@
SA00006SX30
U1
CPU_QEVE_C0
QEVE@
SA00006SM30
R68
62_0402_5%
12
T163@
R41 100_0402_1%
1 2
C96
6.8P_0402_50V8C
XEMC@
1
2
T20 @
C60 6.8P_0402_50V8C
XEMC@
1 2
MISC
JTAG
DDR3
PWR
THERMAL
HASWELL_MCP_E
Rev1p2
2 OF 19
U1B
@
HASWELL-MCP-E-ULT_BGA1168
PREQ K62
PRDY J62
PROC_TCK E60
PROC_TRST E59
PROCHOT
K63
PROCPWRGD
C61
CATERR
K61
PECI
N62
PROC_DETECT
D61
PROC_TMS E61
PROC_TDI F63
PROC_TDO F62
BPM#0 J60
BPM#2 H61
BPM#1 H60
BPM#3 H62
BPM#7 J61
SM_RCOMP0
AU60
SM_RCOMP1
AV60
SM_RCOMP2
AU61
SM_PG_CNTL1
AV61
BPM#6 K60
BPM#5 H63
BPM#4 K59
SM_DRAMRST
AV15
T150@
U1
CPU_QEK4_C0
QEK4@
SA00006NM50
C94 6.8P_0402_50V8C
XEMC@
1 2
T151@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

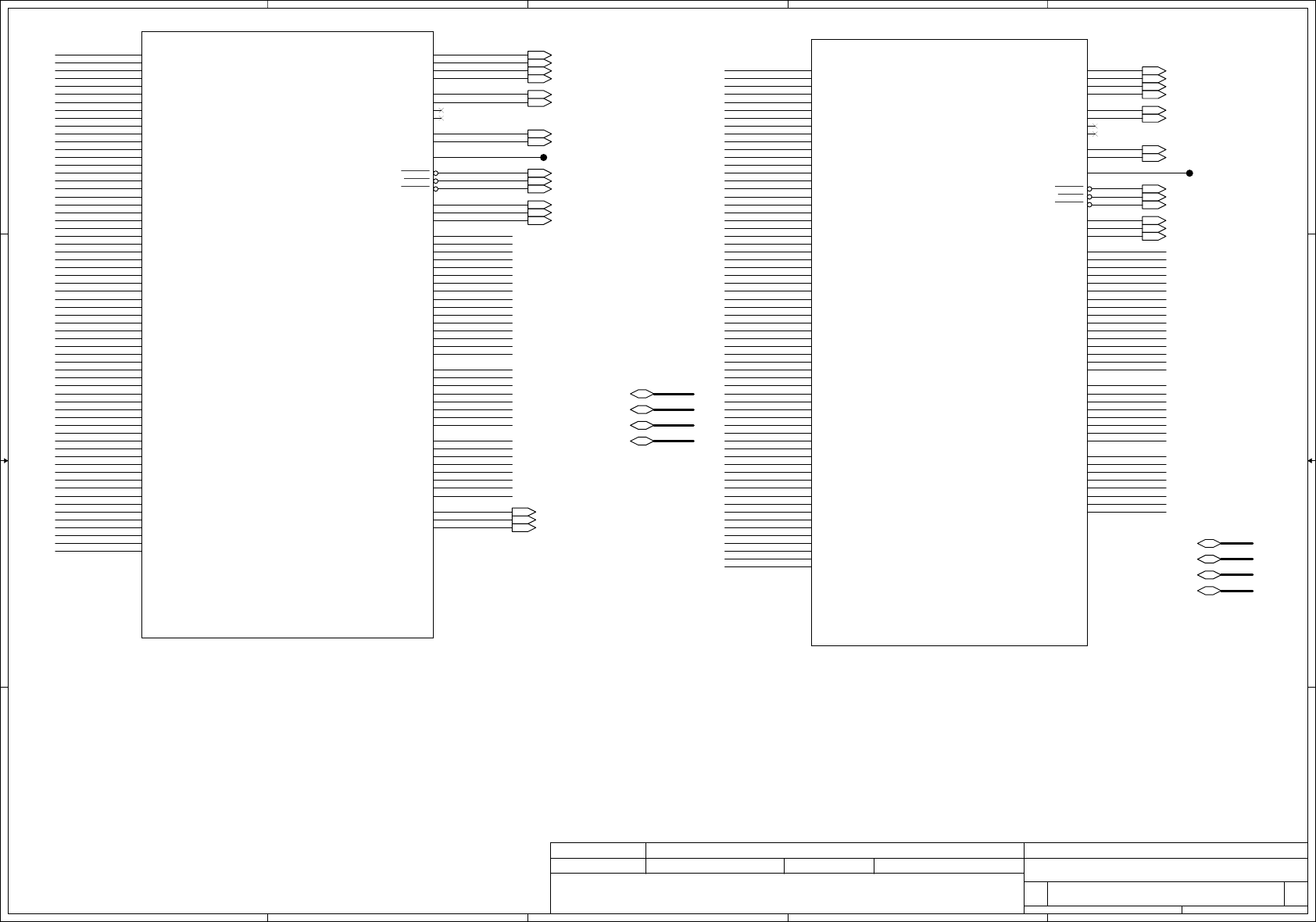

DDR_A_D8
DDR_A_D62
DDR_A_D63
DDR_A_D6
DDR_A_D5
DDR_A_D7
DDR_A_D4
DDR_A_D3
DDR_A_D47
DDR_A_D56
DDR_A_D57
DDR_A_D58
DDR_A_D59
DDR_A_D44
DDR_A_D39
DDR_A_D34
DDR_A_D43
DDR_A_D42
DDR_A_D46
DDR_A_D38
DDR_A_D40
DDR_A_D41
DDR_A_D35
DDR_A_D45
DDR_A_D61
DDR_A_D33
DDR_A_D32
DDR_A_D37
DDR_A_D36
DDR_A_D54
DDR_A_D55
DDR_A_D0
DDR_A_D1
DDR_A_D2
DDR_A_D60
DDR_A_D52
DDR_A_D49
DDR_A_D50
DDR_A_D48
DDR_A_D51
DDR_A_D25
DDR_A_D15
DDR_A_D14
DDR_A_D31
DDR_A_D53
DDR_A_D13
DDR_A_D9
DDR_A_D30
DDR_A_D27
DDR_A_D26
DDR_A_D24
DDR_A_D28
DDR_A_D29
DDR_A_D11
DDR_A_D10
DDR_A_D12
DDR_A_D17
DDR_A_D21
DDR_A_D16
DDR_A_D20
DDR_A_D19
DDR_A_D23
DDR_A_D18
DDR_A_D22
DDRA_ODT0
DDR_A_MA15
DDR_A_MA4
DDR_A_MA5
DDR_A_MA14
DDR_A_MA0
DDR_A_MA6
DDR_A_MA7
DDR_A_MA9
DDR_A_MA3
DDR_A_MA2
DDR_A_MA1
DDR_A_MA10
DDR_A_MA11
DDR_A_MA8
DDR_A_MA13
DDR_A_MA12
DDR_A_DQS#3
DDR_A_DQS#5
DDR_A_DQS#2
DDR_A_DQS#0
DDR_A_DQS#7
DDR_A_DQS#6
DDR_A_DQS#4
DDR_A_DQS#1
DDR_A_DQS2
DDR_A_DQS0
DDR_A_DQS3
DDR_A_DQS4
DDR_A_DQS5
DDR_A_DQS6
DDR_A_DQS1
DDR_A_DQS7
DDR_B_D33
DDR_B_D14
DDR_B_D42
DDR_B_D59
DDR_B_D63
DDR_B_D43
DDR_B_D55
DDR_B_D53
DDR_B_D29
DDR_B_D24
DDR_B_D34
DDR_B_D4
DDR_B_D26
DDR_B_D13
DDR_B_D10
DDR_B_D21
DDR_B_D11
DDR_B_D57
DDR_B_D44
DDR_B_D0
DDR_B_D7
DDR_B_D46
DDR_B_D3
DDR_B_D15
DDR_B_D27
DDR_B_D30
DDR_B_D35
DDR_B_D40
DDR_B_D49
DDR_B_D23
DDR_B_D25
DDR_B_D19
DDR_B_D37
DDR_B_D48
DDR_B_D36
DDR_B_D18
DDR_B_D8
DDR_B_D47
DDR_B_D9
DDR_B_D60
DDR_B_D50
DDR_B_D62
DDR_B_D52
DDR_B_D2
DDR_B_D51
DDR_B_D56
DDR_B_D39
DDR_B_D22
DDR_B_D28
DDR_B_D6
DDR_B_D45
DDR_B_D17
DDR_B_D58
DDR_B_D61
DDR_B_D31
DDR_B_D54
DDR_B_D1
DDR_B_D41
DDR_B_D5
DDR_B_D12
DDR_B_D20
DDR_B_D38
DDR_B_D32
DDR_B_D16
DDR_B_MA15
DDR_B_MA0
DDR_B_MA9
DDR_B_MA7
DDR_B_MA13
DDR_B_MA2
DDR_B_MA4
DDR_B_MA11
DDR_B_MA3
DDR_B_MA5
DDR_B_MA6
DDR_B_MA10
DDR_B_MA8
DDR_B_MA1
DDR_B_MA12
DDR_B_MA14
DDR_B_DQS7
DDR_B_DQS0
DDR_B_DQS1
DDR_B_DQS5
DDR_B_DQS4
DDR_B_DQS3
DDR_B_DQS2
DDR_B_DQS6
DDR_B_DQS#1
DDR_B_DQS#7
DDR_B_DQS#5
DDR_B_DQS#4
DDR_B_DQS#0
DDR_B_DQS#3
DDR_B_DQS#6
DDR_B_DQS#2
DDRB_ODT0
DDR_A_WE# 15
DDR_A_CAS# 15
DDR_A_RAS# 15
DDR_A_BS1 15
DDR_A_BS0 15
DDR_A_BS2 15
DDR_B_RAS# 16
DDR_B_WE# 16
DDR_B_CAS# 16
DDR_B_BS0 16
DDR_B_BS1 16
DDR_B_BS2 16
DDR_A_D[0..63]15
DDR_B_D[0..63]16
DDR_B_MA[0..15]16
DDR_B_DQS[0..7]16
DDR_A_MA[0..15]15
DDR_A_DQS#[0..7]15
DDR_A_DQS[0..7]15
DDR_B_DQS#[0..7]16
SM_DIMM_VREFCA 15
SA_DIMM_VREFDQ 15
SB_DIMM_VREFDQ 16
SA_CLK_DDR0 15
SA_CLK_DDR#0 15
SA_CLK_DDR1 15
SA_CLK_DDR#1 15
DDRA_CKE0_DIMMA 15
DDRA_CKE1_DIMMA 15
DDRA_CS1_DIMMA# 15
DDRA_CS0_DIMMA# 15
SB_CLK_DDR0 16
SB_CLK_DDR#0 16
DDRB_CKE0_DIMMB 16
SB_CLK_DDR1 16
SB_CLK_DDR#1 16
DDRB_CKE1_DIMMB 16
DDRB_CS0_DIMMB# 16
DDRB_CS1_DIMMB# 16
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(2/11) DDRIII
Custom
552Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(2/11) DDRIII
Custom
552Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(2/11) DDRIII
Custom
552Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
DDR CHANNEL B
HASWELL_MCP_E
Rev1p2
4 OF 19
U1D
@
HASWELL-MCP-E-ULT_BGA1168
SB_DQSP4 AV22
SB_DQSP5 AW18
SB_DQSP6 AM21
SB_DQSP3 AM25
SB_DQSP7 AM18
SB_DQSP2 AM28
SB_DQSN7 AN18
SB_DQSP0 AV30
SB_DQSP1 AW26
SB_DQSN6 AN21
SB_DQSN2 AN28
SB_DQSN3 AN25
SB_DQSN4 AW22
SB_DQSN5 AV18
SB_DQSN1 AV26
SB_DQSN0 AW30
SB_MA14 AR46
SB_MA15 AP46
SB_MA13 AK33
SB_MA9 AU46
SB_MA10 AK36
SB_MA11 AV47
SB_MA8 AY47
SB_MA12 AU47
SB_MA4 AR45
SB_MA5 AP45
SB_MA6 AW46
SB_MA3 AR42
SB_MA7 AY46
SB_MA2 AP42
SB_MA0 AP40
SB_MA1 AR40
SB_BA2 AU49
SB_WE AK35
SB_CAS AM33
SB_BA0 AL35
SB_BA1 AM36
SB_RAS AM35
SB_CS#1 AK32
SB_ODT0 AL32
SB_CS#0 AM32
SB_CKE1 AU50
SB_CKE2 AW49
SB_CKE3 AV50
SB_CKE0 AY49
SB_CK#1 AK38
SB_CK1 AL38
SB_CK0 AN38
SB_CK#0 AM38
SB_DQ61
AM20
SB_DQ63
AP18 SB_DQ62
AR18
SB_DQ57
AR20 SB_DQ56
AN20
SB_DQ58
AK18
SB_DQ59
AL18
SB_DQ60
AK20
SB_DQ51
AM22
SB_DQ52
AN22
SB_DQ53
AP21
SB_DQ54
AK21
SB_DQ55
AK22
SB_DQ46
AV17
SB_DQ47
AU17
SB_DQ48
AR21
SB_DQ49
AR22
SB_DQ50
AL21
SB_DQ45
AU19
SB_DQ41
AW19
SB_DQ42
AY17
SB_DQ43
AW17
SB_DQ44
AV19
SB_DQ40
AY19
SB_DQ36
AV23
SB_DQ37
AU23
SB_DQ38
AV21
SB_DQ39
AU21
SB_DQ35
AW21
SB_DQ31
AL25
SB_DQ32
AY23
SB_DQ33
AW23
SB_DQ30
AK25
SB_DQ34
AY21
SB_DQ26
AR25 SB_DQ25
AR26
SB_DQ27
AP25
SB_DQ28
AK26
SB_DQ29
AM26
SB_DQ20
AR29
SB_DQ21
AN29
SB_DQ22
AR28
SB_DQ23
AP28
SB_DQ24
AN26
SB_DQ15
AU25
SB_DQ16
AM29
SB_DQ17
AK29
SB_DQ18
AL28
SB_DQ19
AK28
SB_DQ10
AY25
SB_DQ11
AW25
SB_DQ13
AU27
SB_DQ5
AU31
SB_DQ6
AV29
SB_DQ7
AU29
SB_DQ8
AY27
SB_DQ9
AW27
SB_DQ0
AY31
SB_DQ1
AW31
SB_DQ2
AY29
SB_DQ3
AW29
SB_DQ4
AV31
SB_DQ14
AV25
SB_DQ12
AV27
T5@
DDR CHANNEL A
HASWELL_MCP_E
Rev1p2
3 OF 19
U1C
@
HASWELL-MCP-E-ULT_BGA1168
SA_DQ25
AR55
SA_DQ28
AL55
SA_CLK1 AY36
SA_CLK#1 AW36
SA_CLK0 AV37
SA_CLK#0 AU37
SA_DQ0
AH63
SA_DQ1
AH62
SA_DQ2
AK63
SA_DQ3
AK62
SA_DQ4
AH61
SA_DQ5
AH60
SA_DQ6
AK61
SA_DQ7
AK60
SA_DQ8
AM63
SA_DQ9
AM62
SA_DQ10
AP63
SA_DQ11
AP62
SA_DQ12
AM61
SA_DQ13
AM60
SA_DQ14
AP61
SA_DQ16
AP58
SA_DQ17
AR58
SA_DQ18
AM57
SA_DQ19
AK57
SA_DQ20
AL58
SA_DQ21
AK58
SA_DQ22
AR57
SA_DQ23
AN57
SA_DQ24
AP55
SA_DQ27
AK54 SA_DQ26
AM54
SA_DQ29
AK55
SA_DQ30
AR54
SA_DQ31
AN54
SA_DQ32
AY58
SA_DQ33
AW58
SA_DQ34
AY56
SA_DQ35
AW56
SA_DQ36
AV58
SA_DQ37
AU58
SA_DQ38
AV56
SA_DQ39
AU56
SA_DQ40
AY54
SA_DQ41
AW54
SA_DQ42
AY52
SA_DQ43
AW52
SA_DQ44
AV54
SA_DQ45
AU54
SA_DQ46
AV52
SA_DQ47
AU52
SA_DQ48
AK40
SA_DQ49
AK42
SA_DQ50
AM43
SA_DQ51
AM45
SA_DQ52
AK45
SA_DQ53
AK43
SA_DQ54
AM40
SA_DQ55
AM42
SA_DQ56
AM46
SA_DQ57
AK46
SA_DQ58
AM49
SA_DQ59
AK49
SA_DQ60
AM48
SA_DQ61
AK48
SA_DQ62
AM51
SA_DQ63
AK51
SA_DQ15
AP60
SA_CKE2 AY42
SA_CKE1 AW43
SA_CKE0 AU43
SA_CKE3 AY43
SA_CS#1 AR32
SA_CS#0 AP33
SA_ODT0 AP32
SA_RAS AY34
SA_CAS AU34
SA_WE AW34
SA_BA0 AU35
SA_BA1 AV35
SA_BA2 AY41
SA_MA1 AY37
SA_MA0 AU36
SA_MA2 AR38
SA_MA3 AP36
SA_MA4 AU39
SA_MA5 AR36
SA_MA7 AW39
SA_MA6 AV40
SA_MA9 AU40
SA_MA8 AY39
SA_MA11 AW41
SA_MA12 AU41
SA_MA10 AP35
SA_MA14 AV42
SA_MA13 AR35
SA_MA15 AU42
SA_DQSN0 AJ61
SA_DQSN2 AM58
SA_DQSN1 AN62
SA_DQSN3 AM55
SA_DQSN5 AV53
SA_DQSN4 AV57
SA_DQSN7 AL48
SA_DQSN6 AL43
SA_DQSP1 AN61
SA_DQSP0 AJ62
SA_DQSP4 AW57
SA_DQSP3 AN55
SA_DQSP2 AN58
SA_DQSP6 AL42
SA_DQSP5 AW53
SA_DQSP7 AL49
SM_VREF_CA AP49
SM_VREF_DQ1 AP51
SM_VREF_DQ0 AR51
T4@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HDA for AUDIO
ME CMOS
CMOS
HDD
within500mils
RTCRST close RAM door
H
：
Integrated VRM enable
L
：
Integrated VRM disable
INTVRMEN
*
ME Debug
20mil 20mil
ODD
W=20mils W=20milstrace width 10mil
HDA_BIT_CLK
HDA_SYNC
HDA_RST#
PCH_RTCX2
PCH_RTCX1
SM_INTRUDER#
PCH_INTVRMEN
SATA_RCOMP
PCH_TCK_JTAGX
HDA_BIT_CLK
HDA_SYNC
HDA_RST#
HDA_SDIN0
HDA_SDOUT
PCH_JTAG_RST#
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_JTAG_TMS
PCH_GPIO36
PCH_GPIO35
PCH_SATALED#
PCH_RTCX2
PCH_RTCX1
PCH_SRTCRST#
PCH_RTCRST#
PCH_INTVRMEN
SATA_IREF
PCH_GPIO37
HDA_SDOUT
PCH_JTAG_TCK
+RTCBATT_R
PCH_GPIO34
HDA_BITCLK_AUDIO36 HDA_SYNC_AUDIO36 HDA_RST_AUDIO#36
HDA_SDOUT_AUDIO36
SATA_PRX_DTX_P0 32
SATA_PTX_DRX_N0 32
SATA_PTX_DRX_P0 32
SATA_PRX_DTX_N0 32
PCH_SATALED# 35
HDA_SDO34
HDA_SDIN036
SPI_WP1#_R32,34,7
PCH_GPIO35 9
PCH_GPIO37 9
PCH_GPIO36 9
PCH_GPIO34 9
SATA_PRX_DTX_P1 32
SATA_PTX_DRX_N1 32
SATA_PTX_DRX_P1 32
SATA_PRX_DTX_N1 32
EC_SCI# 34,9
+RTCVCC
+RTCVCC
+RTCVCC
+3VS
+1.05VS_ASATA3PLL
+RTCBATT
+CHGRTC
+RTCVCC
+RTCBATT
+RTCVCC+RTCBATT +CHGRTC
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0

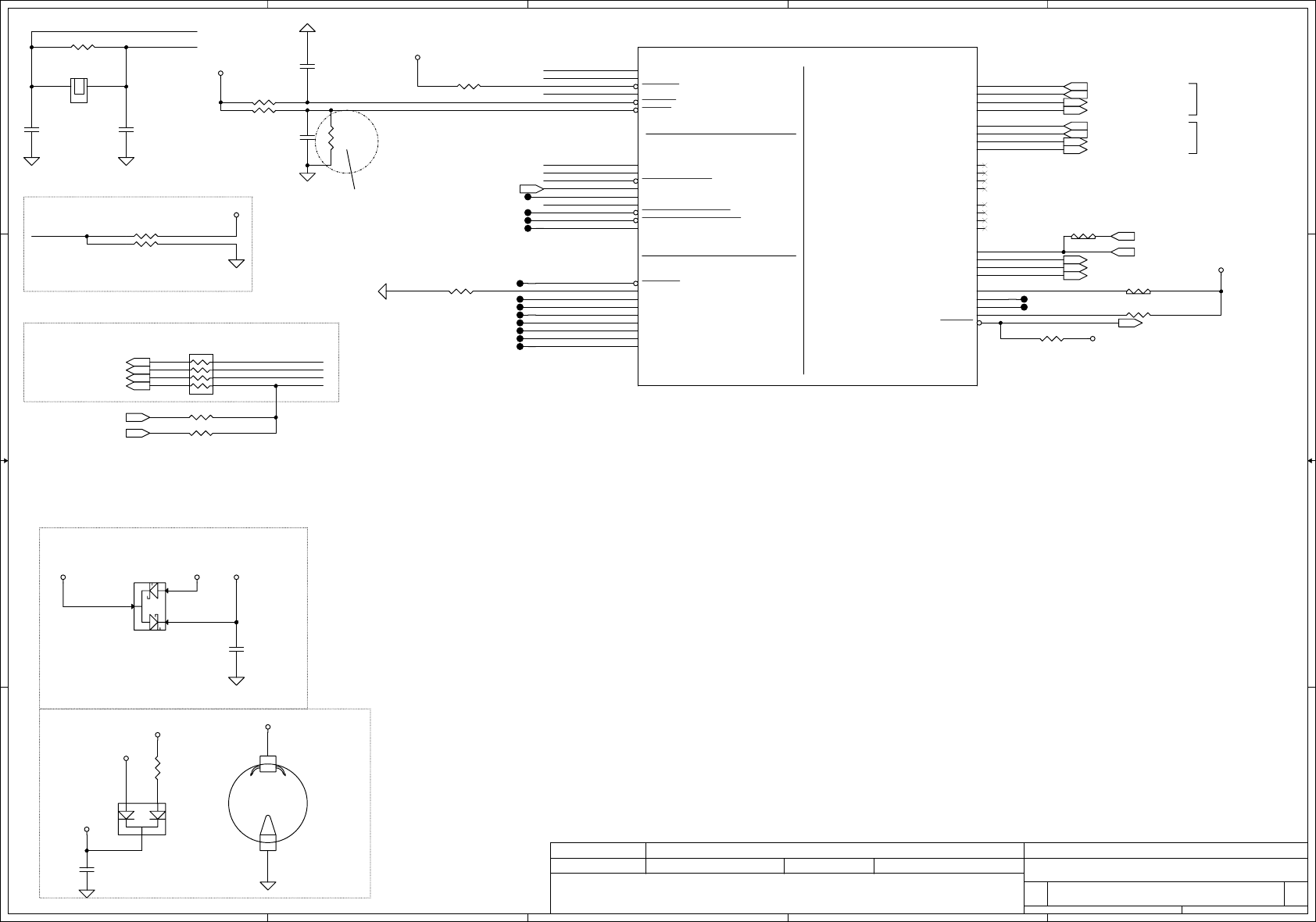

HSW MCP(3/11) RTC,SATA,XDP
Custom
652Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(3/11) RTC,SATA,XDP
Custom
652Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(3/11) RTC,SATA,XDP
Custom
652Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
T21 @
T9 @
R72 1M_0402_5%
1 2
R446
1K_0402_5%
@
1 2
RP14
33_0804_8P4R_5%
EMC@
1 8
2 7
3 6
4 5
T6 @
T14@
C168
0.1U_0402_16V4Z
@
1
2
T22 @
C149
1U_0402_10V6K
1
2
R9751_0402_5% @
1 2
R163 0_0402_5%9012@
1 2
JBATT1
LOTES_AAA-BAT-054-K01
CONN@
SP07000H700
+1
-
2
R73 330K_0402_5%
1 2
C154
15P_0402_50V8J
1
2
T7 @
Y1
32.768KHZ_12.5PF_Q13FC135000040
12
T12 @
R101 10M_0402_5%
1 2
R69
20K_0402_1%
1 2
R2 3.01K_0402_1%
1 2
C150
1U_0402_10V6K
1
2
D23
BAS40-04_SOT23-3
1
2
3
T95 @
D32
CHN202UPT_SC70-3
@
1
2
3
R10
10K_0402_5%
1 2
C153
15P_0402_50V8J
1
2
R937
0_0402_5%
@
1 2
R71
0_0603_5%@
12
T13@
R161
4.7K_0402_5%
940@
1 2
R70
20K_0402_1%
1 2
R74 330K_0402_5%@
1 2
SATAAUDIO
RTC
JTAG
HASWELL_MCP_E
Rev1p2
5 OF 19
U1E
@
HASWELL-MCP-E-ULT_BGA1168
INTVRMEN
AV7
SRTCRST
AV6
RTCRST
AU7
RTCX1
AW5
SATA_RN0/PERN6_L3 J5
SATA_RP0/PERP6_L3 H5
SATA_TN0/PETN6_L3 B15
SATA_TP0/PETP6_L3 A15
SATA_RP1/PERP6_L2 H8
SATA_RN1/PERN6_L2 J8
SATA_TN1/PETN6_L2 A17
SATA_TP1/PETP6_L2 B17
SATA_RP2/PERP6_L1 H6
SATA_RN2/PERN6_L1 J6
SATA_TN2/PETN6_L1 B14
SATA_TP2/PETP6_L1 C15
SATA_RN3/PERN6_L0 F5
SATA_RP3/PERP6_L0 E5
SATA_TN3/PETN6_L0 C17
SATA_TP3/PETP6_L0 D17
SATA0GP/GPIO34 V1
SATA1GP/GPIO35 U1
SATA2GP/GPIO36 V6
SATA3GP/GPIO37 AC1
SATA_IREF A12
SATA_RCOMP C12
INTRUDER
AU6 RTCX2
AY5
JTAGX
AE63
SATALED U3
I2S1_SCLK
AY8
RSVD
AV2
RSVD
AL11
RSVD
AC4
HDA_BCLK/I2S0_SCLK
AW8
HDA_SYNC/I2S0_SFRM
AV11
HDA_RST/I2S_MCLK
AU8
HDA_SDI0/I2S0_RXD
AY10
HDA_SDO/I2S0_TXD
AU11 HDA_SDI1/I2S1_RXD
AU12
HDA_DOCK_EN/I2S1_TXD
AW10
HDA_DOCK_RST/I2S1_SFRM
AV10
PCH_TRST
AU62
PCH_TCK
AE62
PCH_TDI
AD61
PCH_TDO
AE61
PCH_TMS
AD62 RSVD K10
RSVD L11
T8 @
C151
0.1U_0402_16V4Z
1
2
T15 @
R75 0_0603_5%@
1 2
T11 @
T19 @
T10 @
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SPI ROM ( 4MByte )
SPI ROM ( 8MByte )
Reserve for EMI(Near SPI ROM)
PU 2.2K at EC side (+3VS)
SPI ROM ( 8MByte for Chrome)
D29 design for Debug
board flash SPI ROM
(can be short after MP)
WLAN
PCIE LAN
Reserve for EMI(Near SPI ROM)
2ROM is SPI ROM 2M + 4M Byte
XTAL24_OUT
XTAL24_IN XTAL24_IN
XTAL24_OUT
XCLK_BIASREF
CLK_BCLK_ITP#
CLK_BCLK_ITP
CLKOUT_LPC1
LPC_AD2
LPC_FRAME#
LPC_AD0
LPC_AD3
LPC_AD1
SML0CLK
SML0DATA
PCH_GPIO73
SML1CLK
SML1DATA
PCH_GPIO60
PCH_GPIO11
PCH_SPI_CS0#
PCH_SPI_CS1# SML0CLK
SML0DATA
SML1CLK
SML1DATA
PCH_SPI_IO3_1
PCH_SPI_CLK_1
PCH_SPI_CS0#
PCH_SPI_IO2_1
PCH_SPI_CS1#
PCH_SPI_IO2_2 PCH_SPI_IO3_2
PCH_SPI_CLK_2
PCH_SPI_CLK
PCH_SPI_MOSI
PCH_SPI_MISO
PCH_SPI_MISO_2
PCH_SPI_MOSI_2
PCH_SPI_MISO_1
PCH_SPI_MOSI_1
PCH_SPI_CLK_1
VGA_CLKREQ#
CLKOUT_LPC0
PCH_SPI_HOLD1#
PCH_SPI_WP1#
PCH_GPIO18
PCH_GPIO19
PCH_SMBDATA D_CK_SDATA
PCH_SMBCLK D_CK_SCLK
SML1CLK
SML1DATA
PCH_SMBCLK
PCH_SMBDATA
PCH_SPI_CLK_1
PCH_SPI_CS0#
PCH_SPI_MISO_1
PCH_SPI_MOSI_1
PCH_SPI_HOLD1#
PCH_SMBCLK
PCH_SMBDATA
PCH_SPI_WP1#
PCH_SPI_HOLD1#
PCH_SPI_WP1#
PCH_SPI_WP1#
PCH_GPIO23
CLK_PCIE_LAN#
CLK_PCIE_LAN
CLK_PCIE_MINI1#
MINI1_CLKREQ#
CLK_PCIE_MINI1
CLK_PEG_VGA#
CLK_PEG_VGA
VGA_CLKREQ#
PCH_SPI_CLK_2
PCH_SPI_CLK
PCH_SPI_HOLD1#
PCH_SPI_MOSI
PCH_SPI_MISOPCH_SPI_MISO_1
PCH_SPI_IO3_1
PCH_SPI_MOSI_1
PCH_SPI_CLK_1
PCH_SPI_CLK
PCH_SPI_HOLD1#
PCH_SPI_MOSI
PCH_SPI_MISOPCH_SPI_MISO_2
PCH_SPI_IO3_2
PCH_SPI_CLK_2
PCH_SPI_MOSI_2
PCH_SPI_IO2_1
PCH_SPI_IO3_1
CLK_PCI_LPC 34
LPC_AD034,35 LPC_AD134,35 LPC_AD234,35 LPC_AD334,35
LPC_FRAME#34,35
PCH_GPIO11 9
CLK_PCI_TPM 35
D_CK_SDATA 15,16,37
D_CK_SCLK 15,16,37
EC_SMB_DA2 18,24,34
EC_SMB_CK2 18,24,34
PCH_SMBCLK 31
PCH_SMBDATA 31
SPI_WP1#_R32,34,6
SPI_HOLD1#_R32
PCH_SPI_MOSI_1_R32 PCH_SPI_MISO_1_R32
PCH_SPI_CS0#_1_R32 PCH_SPI_CLK_1_R32
LAN_CLKREQ#29
CLK_PCIE_LAN29 CLK_PCIE_LAN#29
CLK_PCIE_MINI1#31 CLK_PCIE_MINI131 MINI1_CLKREQ#31,8
CLK_PEG_VGA17 CLK_PEG_VGA#17
PCH_GPIO239
PCH_GPIO189
PCH_GPIO199
PCH_GPIO73 9
PCH_GPIO60 9
+1.05VS_AXCK_LCPLL
+3VALW_PCH
+BIOS_SPI
+3VS
+3VS
+BIOS_SPI
+3VS
+3VS
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0

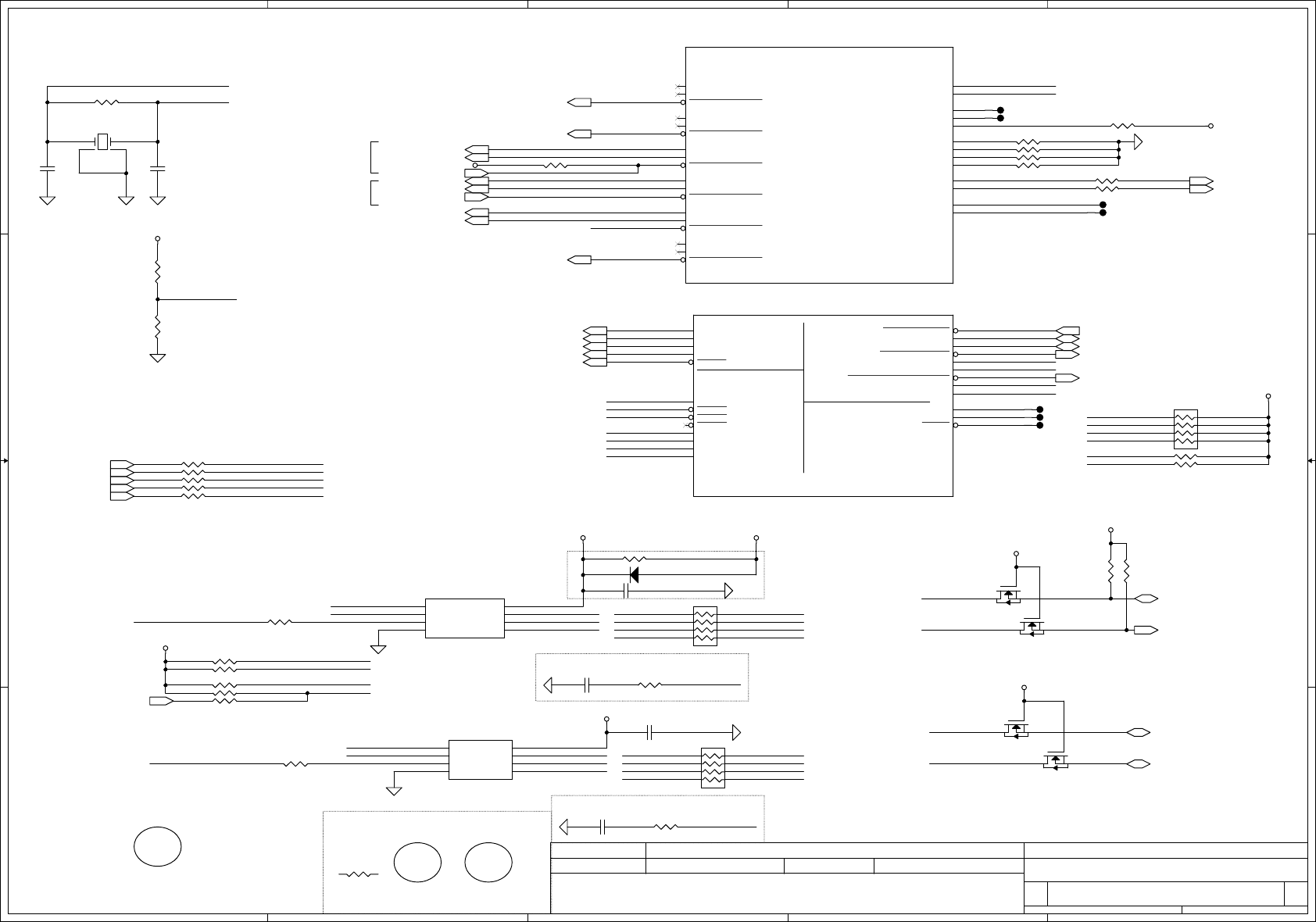

HSW MCP(4/11) CLK,SPI,SMBUS
Custom
752Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(4/11) CLK,SPI,SMBUS
Custom
752Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(4/11) CLK,SPI,SMBUS
Custom
752Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R599 0_0402_5%DEG@
1 2
R141 10K_0402_5%
1 2
RP19
15_0804_8P4R_5%
1ROM@
1 8
2 7
3 6
4 5
T24@
R108
15_0402_5%
1ROM@
12
U6
EN25QH64-104HIP_SO8
1ROM@
CS#
1
DO(IO1)
2
WP#(IO2)
3
GND
4
VCC 8
HOLD#(IO3) 7
CLK 6
DI(IO0) 5
R119
4.7K_0402_5%
1 2
R402 33_0402_5%XEMC@
12
C67 0.1U_0402_16V7K
2ROM@
1 2
T16@
R221
10K_0402_5%
12
R148 10K_0402_5%
1 2
C453
10P_0402_50V8J
XEMC@
1 2
RP8 2.2K_0804_8P4R_5%
1 8
2 7
3 6
4 5
C2
10P_0402_50V8J
12
R216
10K_0402_5%
@
12
R602 0_0402_5%DEG@
1 2
R78 3.01K_0402_1%
1 2
U6
MX25L6406EM2I-12G_SO8
940@
SA00004G600
C66 0.1U_0402_16V7K
1 2
R564 1K_0402_5%940@
1 2
R105 1K_0402_5%1ROM@
1 2
T23@
R106 1K_0402_5%1ROM@
1 2
Y2
24MHZ_12PF_X3G024000DC1H
1
23
4
R603 0_0402_5%DEG@
1 2
R114 2.2K_0402_5%
1 2
R52 10K_0402_5%
1 2
R481M_0402_5%
12
R140 10K_0402_5%
1 2
T183@
R116
4.7K_0402_5%
1 2
Q8A
DMN66D0LDW-7_SOT363-6
6 1
2
R104 33_0402_5%XEMC@
12
T184@
Q7B
DMN66D0LDW-7_SOT363-6
3 4
5
R142 10K_0402_5%
1 2
R604 0_0402_5%DEG@
1 2
R10933_0402_5% 2ROM@
12
R113 2.2K_0402_5%
1 2
R305 0_0402_5%
9012@
1 2
Q8B
DMN66D0LDW-7_SOT363-6
3 4
5
RP20
33_0804_8P4R_5%
2ROM@
1 8
2 7
3 6
4 5
Q7A
DMN66D0LDW-7_SOT363-6
6 1
2
R395 22_0402_5%
TPM@
12
C152
10P_0402_50V8J
XEMC@
1 2
R103 1K_0402_5%2ROM@
1 2
T25@
R102 1K_0402_5%2ROM@
1 2
U7
EN25QH32-104HIP_SO8
2ROM@
CS#
1
DO
2
WP#
3
GND
4
VCC 8
HOLD# 7
CLK 6
DI 5
R572 0_0402_5%DEG@
1 2
21
R108
33_0402_5%
2ROM@
D29 RB751V40_SC76-2940@
1 2
T17@
RP19
33_0804_8P4R_5%
2ROM@
SD309330A80
SPI C-LINK
SMBUS
LPC
HASWELL_MCP_E
Rev1p2
7 OF 19
U1G
@
HASWELL-MCP-E-ULT_BGA1168
LAD0
AU14
LAD1
AW12
LAD2
AY12
LAD3
AW11
LFRAME
AV12
SPI_CS0
Y7 SPI_CLK
AA3
SPI_CS1
Y4
SPI_CS2
AC2
SPI_MOSI
AA2
SPI_MISO
AA4
SPI_IO2
Y6
SPI_IO3
AF1
SMBALERT/GPIO11 AN2
SMBCLK AP2
SML0ALERT/GPIO60 AL2
SMBDATA AH1
SML0CLK AN1
SML0DATA AK1
SML1ALERT/PCHHOT/GPIO73 AU4
SML1DATA/GPIO74 AH3
SML1CLK/GPIO75 AU3
CL_CLK AF2
CL_DATA AD2
CL_RST AF4
HASWELL_MCP_E
CLOCK
SIGNALS
Rev1p2
6 OF 19
U1F
@
HASWELL-MCP-E-ULT_BGA1168
PCIECLKRQ0/GPIO18
U2
CLKOUT_PCIE_N1
B41
CLKOUT_PCIE_P1
A41
PCIECLKRQ1/GPIO19
Y5
CLKOUT_ITPXDP_P A35
CLKOUT_ITPXDP_N B35
CLKOUT_LPC_1 AP15
CLKOUT_LPC_0 AN15
XTAL24_OUT B25
XTAL24_IN A25
PCIECLKRQ5/GPIO23
T2 CLKOUT_PCIE_P5
A37 CLKOUT_PCIE_N5
B37
PCIECLKRQ4/GPIO22
U5
CLKOUT_PCIE_N4
A39
CLKOUT_PCIE_P4
B39
PCIECLKRQ3/GPIO21
N1 CLKOUT_PCIE_P3
C37 CLKOUT_PCIE_N3
B38
PCIECLKRQ2/GPIO20
AD1
CLKOUT_PCIE_N2
C41
CLKOUT_PCIE_P2
B42
CLKOUT_PCIE_P0
C42 CLKOUT_PCIE_N0
C43
DIFFCLK_BIASREF C26
RSVD K21
RSVD M21
TESTLOW_C35 C35
TESTLOW_C34 C34
TESTLOW_AK8 AK8
TESTLOW_AL8 AL8
R390 22_0402_5%
EMC@
12
C3
10P_0402_50V8J
12
U6
EN25QH16-104HIP_SO8
2ROM@
SA00004UG00
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
H
：
Enable(DEFAULT)
L
：
Disable
DSWODVREN - On Die DSW VR Enable
*
1: Port B or C is detected
0: Port B or C is not detected
DDPB_CTRLDATA: Port B Detected
*
(Have internal PD)
DDPC_CTRLDATA: Port C Detected
Reserved
00
00
Project ID GPIO53GPIO54
*
1
1
11
V5WE2/T2
Project_ID0Project_ID1
not support Deep S4,S5 can NC
Note: Deep Sx need use EC GPIO for
ACPRESENT function
Note: EC is +3VL change to @
Reserved
Reserved
SYS_RESET#
PCH_RSMRST#
PCH_GPIO80
DGPU_HOLD_RST#
VGA_ON
SYS_RESET#
SYS_PWROK
PM_APWROK
PCH_PWROK_R
SYS_PWROK_R
PCH_RSMRST#_R
SUSWARN#
PBTN_OUT#_R
PCH_BATLOW#
PLT_RST# LPCPD#
PCH_ACIN
CLKRUN#
SUSCLK
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
PM_SLP_LAN#
DSWODVREN
PLT_RST#
PLT_RST#
DDI2_CTRL_CK
DDI2_CTRL_DATA
SUSACK#SUSWARN#
PCH_PWROK
VGATE_3V SYS_PWROK
PCH_ACIN
Project_ID0
PCH_RSMRST#_R
PCH_GPIO51
G_SEN_INT
Project_ID1
PCH_GPIO55
PCH_PCIE_WAKE#
Project_ID0Project_ID1
G_SEN_INT
PCH_GPIO80
MINI1_CLKREQ#
DEVSLP0
DDI1_AUX_DN
DDI1_AUX_DP
VGATE_3V
PCH_PWROK
EC_SMI#
DGPU_HOLD_RST#
PCH_PWROK_R
XDP_DBRESET#32
PBTN_OUT#34
CPU_EDP_HPD 25
PCH_INV_PWM24,25 ENBKL34 PCH_ENVDD25
ACIN34,39,41
VCCST_PG_EC11,34 PCH_PWROK34
PCH_RSMRST#34
PCH_PCIE_WAKE# 29
SUSCLK 34
PM_SLP_S3# 34
PM_SLP_S4# 34
PM_SLP_S5# 34
PLT_RST_BUF# 29,31
PLTRST_VGA# 17
PLT_RST#34,35
DDI2_CTRL_CK 26
DDI2_CTRL_DATA 26
CPU_HDMI_HPD 26
CPU_DP_HPD 27
CLKRUN# 35
LPCPD# 35
VGA_ON38,9 DDI1_AUX_DN 27
DDI1_AUX_DP 27
MINI1_CLKREQ# 31,7
SUSWARN#9
VGATE11,46
VGATE_3V 34
DEVSLP0 32,9
PCH_GPIO519
DGPU_HOLD_RST#9
PCH_GPIO559
EC_SMI#34
G_SEN_INT37
+3VALW_PCH
+3VALW_PCH
+RTCVCC
+3VS
+3VS
+3VS
+3VS
+3VS
+3VALW_PCH
+3VS
+3VALW_PCH
+3VS+3VS
+3VS
+1.05VS_VTT
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(5/11) PM,GPIO,DDI
Custom
852Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(5/11) PM,GPIO,DDI
Custom
852Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(5/11) PM,GPIO,DDI
Custom
852Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
SYSTEM POWER MANAGEMENT
HASWELL_MCP_E
Rev1p2
8 OF 19
U1H
@
HASWELL-MCP-E-ULT_BGA1168
SUSACK
AK2
PLTRST
AG7
PCH_PWROK
AY7 SYS_PWROK
AG2 SYS_RESET
AC3
APWROK
AB5
RSMRST
AW6
ACPRESENT/GPIO31
AJ8
BATLOW/GPIO72
AN4
PWRBTN
AL7 SUSWARN/SUSPWRDNACK/GPIO30
AV4
SLP_S0
AF3
SLP_WLAN/GPIO29
AM5
DPWROK AV5
DSWVRMEN AW7
WAKE AJ5
SUS_STAT/GPIO61 AG4
CLKRUN/GPIO32 V5
SUSCLK/GPIO62 AE6
SLP_S4 AJ6
SLP_S5/GPIO63 AP5
SLP_S3 AT4
SLP_LAN AJ7
SLP_SUS AP4
SLP_A AL5
R405
@
0_0402_5%
12
R59 0_0402_5%DEG@
1 2
U30
MC74VHC1G08DFT2G_SC70-5
IN1
1
IN2
2
GND
3
OUT 4
VCC 5
R310
10K_0402_5%
@
12
R63 0_0402_5%@
1 2
R403
@
0_0402_5%
12
R110 0_0402_5%@
1 2
R79 0_0402_5%@
1 2
R125 330K_0402_5%@
1 2
R65
0_0402_5%
1 2
U43
MC74VHC1G08DFT2G_SC70-5
@
B
2
A
1Y4
P5
G
3
R207
10K_0402_5%
@
12
R416
100K_0402_5%
12
R214
10K_0402_5%
1 2
R1201K_0402_5%
1 2
T31 @
R227
10K_0402_5%
12
T27@
R205
10K_0402_5%
@
12
D21
RB751V40_SC76-2
@
1 2
R206
0_0402_5%@
1 2
R118
10K_0402_5%
@
1 2
R117 10K_0402_5%
1 2
U37
MC74VHC1G08DFT2G_SC70-5
VGA@
IN1
1
IN2
2
GND
3
OUT 4
VCC 5
R124 330K_0402_5%
1 2
T96@
R271 2.2K_0402_5%
1 2
RP27
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R245
100K_0402_5%
@
12
T29@
R62 0_0402_5%
1 2
R1578.2K_0402_5%
1 2
R61 0_0402_5%@
1 2
T26 @
R204
10K_0402_5%
@
12
R391
VGA@
100K_0402_5%
12
R215
10K_0402_5%
1 2
R208
10K_0402_5%
12
R64 0_0402_5%
12
U17
74AUP1G07GW_TSSOP5
@
GND
3
A
2
NC
1VCC 5
Y4
DISPLAY
GPIO
eDP SIDEBAND
HASWELL_MCP_E
Rev1p2
9 OF 19
U1I
@
HASWELL-MCP-E-ULT_BGA1168
EDP_BKLCTL
B8
DDPB_AUXN C5
DDPC_HPD A8
EDP_HPD D6
DDPB_HPD C8
DDPC_CTRLDATA D11
DDPC_CTRLCLK D9
DDPB_CTRLDATA C9
DDPB_CTRLCLK B9
PIRQA/GPIO77
U6
PIRQB/GPIO78
P4
PIRQC/GPIO79
N4
PIRQD/GPIO80
N2
PME
AD4
GPIO55
U7
GPIO52
L1
GPIO54
L3
GPIO51
R5
GPIO53
L4
EDP_BKLEN
A9
DDPB_AUXP B5
DDPC_AUXP A6
DDPC_AUXN B6
EDP_VDDEN
C6
R156 8.2K_0402_5%
1 2
T28@
T30@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GSPI0_MOSI / GPIO86 : Boot BIOS Strap
1: ENABLED
(Have internal PD)
*0: SPI ROM
1: Intel ME TLS with confidentiality
GPIO15 : TLS Confidentiality
0: Intel ME TLS with no confidentiality
*(Have internal PD)
SDIO_D0 / GPIO66 : Top-Block Swap Override
1: ENABLED
0: DISABLED
*(Have internal PD)
GPIO87
0
1
DIS,Optimus
UMA
DGPU_PRSNT#
1: ENABLED
0: DISABLED
SPKR / GPIO81 : NO REBOOT
*(Have internal PD)
H_THERMTRIP#
SERIRQ
PCH_OPIRCOMP
PCH_GPIO8
PCH_GPIO16
PCH_GPIO59
PCH_GPIO9
PCH_SPKR
PCH_GPIO48
PCH_GPIO14
PCH_GPIO17
PCH_GPIO6
PCH_GPIO7
PCH_GPIO91
PCH_GPIO1
PCH_GPIO2
PCH_GPIO3
PCH_GPIO64
PCH_GPIO65
PCH_GPIO67
EC_IN_RW
PCH_GPIO69
PCH_GPIO92
PCH_GPIO93
PCH_GPIO94
PCH_GPIO0
PCH_GPIO83
PCH_GPIO84
PCH_GPIO85
PCH_GPIO86
DGPU_PRSNT#
PCH_GPIO88
PCH_GPIO89
PCH_GPIO90
PCH_GPIO13
PCH_GPIO24
PCH_GPIO25
PCH_GPIO26
PCH_GPIO27
PCH_GPIO28
PCH_GPIO66
PCH_GPIO38
PCH_GPIO39
PCH_GPIO44
PCH_GPIO46
PCH_GPIO47
PCH_GPIO49
PCH_GPIO50
PCH_GPIO56
PCH_GPIO57
PCH_GPIO58
PCH_GPIO70
PCH_GPIO76
PCH_GPIO4
PCH_GPIO5
EC_LID_OUT#
PCH_GPIO45
PCH_GPIO86
EC_LID_OUT#
PCH_GPIO66
DGPU_PRSNT#
PCH_GPIO71
DEVSLP0
EC_IN_RW
PCH_GPIO69
PCH_GPIO4
PCH_GPIO7
PCH_GPIO1
PCH_GPIO5
PCH_GPIO93
PCH_GPIO94
PCH_GPIO91
PCH_GPIO90
PCH_GPIO38
PCH_GPIO2
PCH_GPIO36
PCH_GPIO19
EC_KBRST#
VGA_ON
PCH_GPIO48
PCH_GPIO34
PCH_GPIO18
PCH_GPIO35
PCH_GPIO16
PCH_GPIO37
PCH_GPIO49
PCH_GPIO6
PCH_GPIO64
PCH_GPIO67
PCH_GPIO65
PCH_GPIO3
PCH_GPIO89
PCH_GPIO84
PCH_GPIO0
PCH_GPIO50
PCH_GPIO76
PCH_GPIO23
PCH_GPIO17
PCH_GPIO70
SUSWARN#
USB_OC3#
PCH_GPIO46
PCH_GPIO44
PCH_GPIO14
PCH_GPIO45
PCH_GPIO24
PCH_GPIO47
PCH_GPIO25
PCH_GPIO27
PCH_GPIO59
PCH_GPIO58
PCH_GPIO57PCH_GPIO56
PCH_SPKR
PCH_GPIO73
PCH_GPIO85
PCH_GPIO39
PCH_GPIO92
PCH_GPIO88
PCH_GPIO11
PCH_GPIO13
PCH_GPIO26
PCH_GPIO8
USB_OC1#
PCH_GPIO9
USB_OC0#
USB_OC2#
PCH_GPIO60
PCH_GPIO28
PCH_GPIO55
SERIRQ
PCH_GPIO51
PCH_GPIO83
PCH_GPIO71
DGPU_HOLD_RST#
PCH_GPIO10
EC_SCI# PCH_GPIO10
SERIRQ 34,35
EC_KBRST# 34
PCH_SPKR36
EC_LID_OUT#34
EC_IN_RW 35
DEVSLP032,8
PCH_GPIO37 6
USB_OC1# 10
USB_OC0# 10,33
PCH_GPIO60 7
USB_OC2# 10
PCH_GPIO18 7
PCH_GPIO35 6
PCH_GPIO34 6
PCH_GPIO36 6
PCH_GPIO19 7
VGA_ON 38,8
SUSWARN# 8
USB_OC3# 10
PCH_GPIO11 7
PCH_GPIO73 7
PCH_GPIO51 8
PCH_GPIO23 7
DGPU_HOLD_RST# 8
PCH_GPIO55 8
EC_SCI#34,6
+3VS
+1.05VS_VTT
+3VS
+3VALW_PCH
+3VS
+3VALW_PCH
+3VALW_PCH
+3VALW_PCH
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(6/11) GPIO,LPIO
Custom
952Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(6/11) GPIO,LPIO
Custom
952Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(6/11) GPIO,LPIO
Custom
952Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
RP24
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP25
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R311
10K_0402_5%
1 2
R247 10K_0402_5%@
1 2
RP37
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP23
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R270 1K_0402_1%@
1 2
R66
0_0402_5%
@
1 2
RP35
10K_0804_8P4R_5%
18 27 36 45
R219
10K_0402_5%
VGA@
1 2
R303
10K_0402_5%
12
RP30
10K_0804_8P4R_5%
18 27 36 45
RP38
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
LPIO
GPIO
CPU/
HASWELL_MCP_E
MISC
Rev1p2
10 OF 19
U1J
@
HASWELL-MCP-E-ULT_BGA1168
GPIO56
AG6
GPIO57
AP1
GPIO27
AN5
GPIO28
AD7
GPIO26
AN3
SDIO_D1/GPIO67 E4
SDIO_D2/GPIO68 C3
SDIO_D3/GPIO69 E2
SDIO_D0/GPIO66 D3
SDIO_CLK/GPIO64 E3
SDIO_CMD/GPIO65 F4
I2C1_SCL/GPIO7 F1
I2C1_SDA/GPIO6 G4
I2C0_SCL/GPIO5 F3
I2C0_SDA/GPIO4 F2
UART1_RST/GPIO2 J3
UART1_CTS/GPIO3 J4
UART1_RXD/GPIO0 K4
UART1_TXD/GPIO1 G2
UART0_CTS/GPIO94 G1
UART0_TXD/GPIO92 K3
UART0_RTS/GPIO93 J2
UART0_RXD/GPIO91 J1
GSPI1_MISO/GPIO89 N7
GSPI_MOSI/GPIO90 K2
GSPI1_CLK/GPIO88 L5
GSPI1_CS/GPIO87 R7
GSPI0_MOSI/GPIO86 L8
GSPI0_CLK/GPIO84 L6
GSPI0_MISO/GPIO85 N6
GSPI0_CS/GPIO83 R6
RCIN/GPIO82 V4
THERMTRIP D60
DEVSLP2/GPIO39
N5
SPKR/GPIO81
V2
DEVSLP1/GPIO38
L2 SDIO_POWER_EN/GPIO70
C4 DEVSLP0/GPIO33
P2
GPIO9
AM3
GPIO10
AM2
GPIO45
AG5
GPIO46
AG3
GPIO14
AH4
GPIO25
AM4
GPIO13
AT3 HSIOPC/GPIO71
Y2 GPIO50
P3 GPIO49
Y3
GPIO47
AB6
GPIO48
U4
GPIO59
AT5
GPIO16
Y1
GPIO17
T3
GPIO15
AD6
GPIO8
AU2
GPIO24
AD5
BMBUSY/GPIO76
P1
GPIO44
AK4
GPIO58
AL4
LAN_PHY_PWR_CTRL/GPIO12
AM7 SERIRQ T4
PCH_OPI_RCOMP AW15
RSVD AF20
RSVD AB21
R248
10K_0402_5%
1 2
R145
49.9_0402_1%
1 2
RP36
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R306
10K_0402_5%
UMA@
12
R301
10K_0402_5%
12
R144
1K_0402_5%
12
RP31
10K_0804_8P4R_5%
18 27 36 45
RP39
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP16
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP28
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R269 1K_0402_1%@
1 2
RP40
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
T106@RP26
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R273 1K_0402_5%
1 2
RP34
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
T32@
RP29
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP32
10K_0804_8P4R_5%
18 27 36 45
R272 1K_0402_1%@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Mini Card(WLAN+BT)
USB2 Port 1
USB2 Port 0 (USB3.0 P0)
Camera
USB2 Port 2
USB3 Port 0
CADnote:
Routesingle‐end50‐ohmsandmax450‐milslength.
Avoidroutingnexttoclockpinsorunderstitchingcapacitors.
Recommendedminimumspacingtoothersignaltracesis15mils
USB3.0 P1
USB3.0 P2
USB3.0 P3 / PCIE P1
USB3.0 P4 / PCIE P2
PCIE LAN
WLAN
Touch Screen
Finger Print
USB20_P4
USB20_N4
USB_OC2#
USB_OC1#
USB_OC3#
USB20_N0
USB20_N2
USB20_N1
USB20_P1
USB20_P2
USBRBIAS
USB20_P7
USB20_P0
USB20_N7
PCIE_RCOMP
PCIE_IREF
PCIE_PTX_DRX_P3
PCIE_PTX_DRX_N3
PCIE_PRX_DTX_N3
PCIE_PRX_DTX_P3
PCIE_PTX_DRX_N4
PCIE_PRX_DTX_P4
PCIE_PTX_DRX_P4
PCIE_PRX_DTX_N4
PEG_GTX_HRX_N0 PEG_GTX_C_HRX_N0
PEG_GTX_HRX_N2 PEG_GTX_C_HRX_N2
PEG_GTX_HRX_N3 PEG_GTX_C_HRX_N3
PEG_GTX_HRX_N1 PEG_GTX_C_HRX_N1
PEG_GTX_HRX_P2
PEG_GTX_HRX_P3 PEG_GTX_C_HRX_P3
PEG_GTX_C_HRX_P2
PEG_GTX_HRX_P1 PEG_GTX_C_HRX_P1
PEG_GTX_HRX_P0 PEG_GTX_C_HRX_P0
PEG_HTX_C_GRX_N0 PEG_HTX_GRX_N0
PEG_HTX_GRX_P0PEG_HTX_C_GRX_P0
PEG_HTX_C_GRX_N1 PEG_HTX_GRX_N1
PEG_HTX_GRX_P1PEG_HTX_C_GRX_P1
PEG_HTX_GRX_N2PEG_HTX_C_GRX_N2
PEG_HTX_C_GRX_P2 PEG_HTX_GRX_P2
PEG_HTX_C_GRX_N3 PEG_HTX_GRX_N3
PEG_HTX_GRX_P3PEG_HTX_C_GRX_P3
USB_OC0#
USB20_N6
USB20_P6
USB20_N5
USB20_P5
USB20_P4 31
USB20_N4 31
USB20_N1 33
USB20_P1 33
USB20_N0 33
USB20_P0 33
USB20_N2 33
USB20_P2 33
USB_OC0# 33,9
USB20_N7 25
USB20_P7 25
PCIE_PRX_DTX_P329
PCIE_PTX_C_DRX_N329
PCIE_PRX_DTX_N329
PCIE_PTX_C_DRX_P329
PCIE_PTX_C_DRX_N431
PCIE_PRX_DTX_P431 PCIE_PRX_DTX_N431
PCIE_PTX_C_DRX_P431
PEG_GTX_HRX_N[0..3] 17
PEG_HTX_C_GRX_P[0..3] 17
PEG_HTX_C_GRX_N[0..3] 17
PEG_GTX_HRX_P[0..3] 17
PCH_USB3_TX0_P 33
PCH_USB3_RX0_P 33
PCH_USB3_TX0_N 33
PCH_USB3_RX0_N 33
USB_OC3# 9
USB_OC1# 9
USB_OC2# 9
USB20_P6 25
USB20_N6 25
USB20_N5 33
USB20_P5 33
+1.05VS_AUSB3PLL
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(7/11) PCIE,USB
Custom
10 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(7/11) PCIE,USB
Custom
10 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(7/11) PCIE,USB
Custom
10 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C76 0.1U_0402_16V7KVGA@
1 2
R155 0_0603_5%@
1 2
C80 0.1U_0402_16V7KVGA@
1 2
C83 0.1U_0402_16V7KVGA@
1 2
PCIe
USB
HASWELL_MCP_E
Rev1p2
11 OF 19
U1K
@
HASWELL-MCP-E-ULT_BGA1168
PETP5_L2
C21
PERP5_L0
E10
PERN5_L1
F8
PETN5_L3
B22
PETP5_L3
A21
PERP3
F11
PETN3
C29
PETN1/USB3TN3
C30
OC3/GPIO43 AV3
OC2/GPIO42 AH2
OC1/GPIO41 AT1
OC0/GPIO40 AL3
PCIE_RCOMP
A27
PCIE_IREF
B27
PERN5_L0
F10
PERN5_L2
H10
PERP5_L2
G10
PETN5_L2
B21
PERP5_L3
F6 PERN5_L3
E6
PETP3
B30
PERN4
F13
PERP4
G13
PETP4
A29 PETN4
B29
PERP1/USB3RP3
F17
PETP1/USB3TP3
C31
PERN2/USB3RN4
F15
PETN2/USB3TN4
B31
PERP2/USB3RP4
G15
USB2N0 AN8
USB2N1 AR7
USB2N2 AR8
USB2P2 AP8
USB2N3 AR10
USB2P3 AT10
USB2N4 AM15
USB2P4 AL15
USB2P6 AN11
USB2N5 AM13
USB2P5 AN13
USB2N6 AP11
USB2P7 AP13
USB2N7 AR13
USB3TN2 B33
USB3TP2 A33
USB3RP2 F18
USB3RN2 E18
USB3TN1 C33
USB3TP1 B34
USB3RP1 H20
USB3RN1 G20
PETP5_L1
A23 PETN5_L1
B23
PERP5_L1
E8
USBRBIAS AJ11
USBRBIAS AJ10
PETP5_L0
C22 PETN5_L0
C23
PERN3
G11
USB2P0 AM8
USB2P1 AT7
PERN1/USB3RN3
G17
PETP2/USB3TP4
A31
RSVD
E15
RSVD
E13
RSVD AN10
RSVD AM10
C85 0.1U_0402_16V7KVGA@
1 2
C160 0.1U_0402_16V7K
1 2
C87 0.1U_0402_16V7KVGA@
1 2
C157 0.1U_0402_16V7K
1 2
C78 0.1U_0402_16V7KVGA@
1 2
C81 0.1U_0402_16V7KVGA@
1 2
T36@
C82 0.1U_0402_16V7KVGA@
1 2
C84 0.1U_0402_16V7KVGA@
1 2
T33 @
C156 0.1U_0402_16V7K
1 2
C90 0.1U_0402_16V7KVGA@
1 2
C612
0.1U_0402_16V4Z
@
1
2
C88 0.1U_0402_16V7KVGA@
1 2
R154 22.6_0402_1%
1 2
T35@
C86 0.1U_0402_16V7KVGA@
1 2
R232 3.01K_0402_1%
1 2
C77 0.1U_0402_16V7KVGA@
1 2
C91 0.1U_0402_16V7KVGA@
1 2
C89 0.1U_0402_16V7KVGA@
1 2
C79 0.1U_0402_16V7KVGA@
1 2
C155 0.1U_0402_16V7K
1 2
T34 @
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VDDQDECOUPLING
+1.35V : 470UF/2V/7343 *2
10UF/6.3V/0603 * 6
2.2UF/6.3V/0402 * 4
Note:0ohmPLACEDCLOSETOCPU
SVID DATA
SVID ALERT
Place the PU
resistors close to CPU
Place the PU
resistors close to CPU
Shark Bay ULT have internal gate for VDDQ
Reserved Only
For ESD
VCCST_PG_EC_R
PCH_VR_EN
CPU_PWR_DEBUG
H_CPU_SVIDCLK
VIDSOUT
H_CPU_SVIDALRT#
VCC_SENSE_R
VCC_SENSE_R
H_CPU_SVIDALRT#
VIDSOUT
CPU_PWR_DEBUG
VCCST_PG_EC_R
VR_READY
VR_SVID_CLK46
VR_ALERT#46
VR_SVID_DATA46
VGATE46,8
VSS_SENSE 46
VCC_SENSE 46
VSS_SENSE_R13
VR_ON46
VCCST_PG_EC34,8
VCCST_PWRGD 34,45
3VS_GATE38
+CPU_CORE
+CPU_CORE
+1.35V_CPU
+CPU_CORE
+VCCIOA_OUT
+1.05VS_VTT
+1.35V_CPU
+CPU_CORE
+1.05VS_VTT
+1.05VS_VTT
+1.05VS_VTT
+1.05VS_VTT
+1.35V +1.35V_CPU
+VCCIO_OUT
+1.05VS_VTT
+3VALW_PCH
+1.05VS_VTT
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(8/11) Power
Custom
11 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(8/11) Power
Custom
11 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(8/11) Power
Custom
11 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C16
10U_0603_6.3V6M
1
2
T140 @
R1650_0402_5% @
1 2
R172
43_0402_1%
12
T42 @
T141 @
R164
0_1206_5%@
12
R177
100_0402_1%
12
C7
1U_0402_6.3V6K
@
1
2
R169
150_0402_1%
@
1 2
T37 @
T142 @
C14
10U_0603_6.3V6M
EMC@
1
2
T143 @
T40 @
T44 @
R173
130_0402_1%
12
T144 @
R1670_0402_5%
1 2
T38 @
C8
2.2U_0402_6.3V6M
@
1
2
R1680_0402_5%
1 2
R174
0_0402_5%
@
12
C17
10U_0603_6.3V6M
1
2
R309
10K_0402_5%
12
C6
22U_0805_6.3V6M
@
1
2
T47 @
R166
0_0402_5%
@
1 2
R170
10K_0402_5%
@
1 2
T145 @
C10
2.2U_0402_6.3V6M
1
2
T45 @
C12
10U_0603_6.3V6M
1
2
J2
JUMP_43X118
@
1 2
T146 @
HSW ULT POWER
HASWELL_MCP_E
Rev1p2
12 OF 19
U1L
@
HASWELL-MCP-E-ULT_BGA1168
VCCST
AE22
VCCST
AE23
VCC
AB57
VCC
AD57
VCC K23
VCC C44
VCC C40
VCC C36
VCC C52
VCC C48
VCC E25
VCC E23
VCC C56
VCC E29
VCC E27
VCC E35
VCC E33
VCC E31
VCC E39
VCC E37
VCC E45
VCC E43
VCC E41
VCC E49
VCC E47
VCC E55
VCC E53
VCC E51
VCC E57
VCC F24
VCC F36
VCC F32
VCC F28
VCC F40
VCC F44
VCC F48
VCC F56
VCC F52
VCC G23
VCC G25
VCC G27
VCC G31
VCC G29
VCC G33
VCC G35
VCC G37
VCC G41
VCC G39
VCC G43
VCC G47
VCC G45
VCC G53
VCC G51
VCC G49
VCC G57
VCC G55
VCC J23
VCC H23
VCC K57
VCC L22
VCC P57
VCC M57
VCC M23
VCC U57
VCC W57
VCC
AG57
VCC
C32 VCC
C28 VCC
C24
RSVD
L59
RSVD
J58
VDDQ
AH26
VDDQ
AJ31
VDDQ
AJ33
VDDQ
AJ37
VDDQ
AN33
VDDQ
AP43
VDDQ
AR48
VIDSCLK
N63
VIDSOUT
L63
VR_EN
F60
RSVD_TP
P60 VSS
P62 PWR_DEBUG
H59 VSS
D63
VR_READY
C59
VCCST_PWRGD
B59
VIDALERT
L62
RSVD
AE59 RSVD
AA23
VCC_SENSE
E63
RSVD
N58
VDDQ
AY50
RSVD_TP
P61
VCCST
AC22
RSVD_TP
N59
RSVD
T59
RSVD
AD60
RSVD
AD59
RSVD
AE60
RSVD
AC59
RSVD
AG58
RSVD
V59 RSVD
U59
RSVD
AA59
RSVD_TP
N61
VDDQ
AY35
VDDQ
AY40
VDDQ
AY44
VCC
F59
RSVD
AC58
RSVD
AB23
RSVD
AD23 VCCIOA_OUT
E20 VCCIO_OUT
A59
C9
2.2U_0402_6.3V6M
1
2
Q5
AO4304L_SO8
@
62
4
1
3
5
7
8
T48 @
T147 @
U16
74AUP1G07GW_TSSOP5
GND
3
A
2
NC
1VCC 5
Y4
R178
0_0402_5%
@
12
T39 @
C5
0.1U_0603_25V7K
@
1
2
C13
10U_0603_6.3V6M
EMC@
1
2
C11
2.2U_0402_6.3V6M
1
2
R235
0_0402_5%
@
12
R171
75_0402_1%
12
R182
0_0402_5%
@
1 2
T98 @
T43 @
T46 @
R422
100K_0402_5%
@
12
T41 @
C167
0.1U_0402_16V7K
@
1 2
C15
10U_0603_6.3V6M
1
2
+
C18
330U_2.5V_M
1
2
R233
100_0402_1%
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

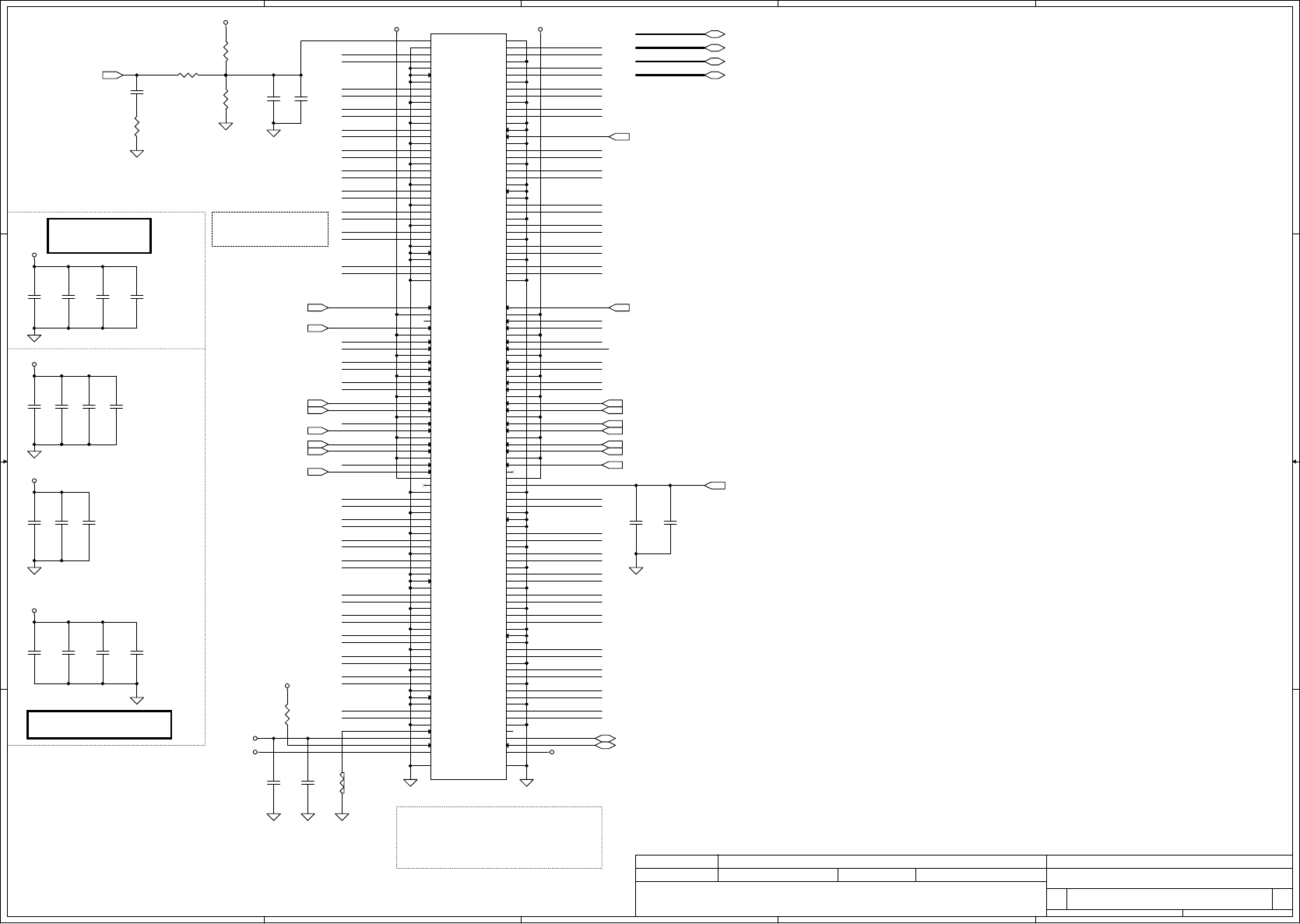

HDA --> 3.3V or 1.5V
I2C --> 1.8V
Near K9 Near L10 Near M9
Near B18
Near B11
Near AA21
Near AC9
Near AH10
Near V8
Near J18
Near A20
Near J17
Near R21
Idc 1.2A Rdc 0.11ohm +/-30%
Idc 1.2A Rdc 0.11ohm +/-30%
Idc 1.2A Rdc 0.11ohm +/-30%
Idc 1.2A Rdc 0.11ohm +/-30%
Idc 1.2A Rdc 0.11ohm +/-30%
+3VALW TO +3VALW(PCH AUX Power)
Short J5 for PCH VCCSUS3.3
Near PJ602
+PCH_VCCDSW
+VCCRTCEXT
+PCH_VCCDSW_R
+3VS
+1.05VS_AUSB3PLL
+1.05VS_ASATA3PLL
+1.05VS_APLLOPI
+1.05VS_VTT
+3VALW_PCH
+1.05VS_AXCK_DCB
+1.05VS_AXCK_LCPLL
+1.05VS_VTT
+1.5VS
+RTCVCC
+3VS
+1.05VS_VTT
+3VS
+1.05VS_VTT
+RTCVCC
+1.05VS_VTT
+3VALW_PCH
+1.05VS_VTT +1.05VS_AXCK_DCB
+1.05VS_AXCK_LCPLL
+1.05VS_VTT +1.05VS_AUSB3PLL
+1.05VS_ASATA3PLL
+1.05VS_APLLOPI
+3VALW_PCH
+1.05VS_VTT
+3VALW_PCH
+3VS
+3VALW +3VALW_PCH
+1.05VS_VTT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(9/11) Power
Custom
12 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(9/11) Power
Custom
12 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(9/11) Power
Custom
12 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C45 1U_0402_6.3V6K
1 2
C36 22U_0805_6.3V6M
1 2
C46 1U_0402_6.3V6K
1 2
C43 1U_0402_6.3V6K@
1 2
C61 100U_1206_6.3V6M
1 2
AXALIA/HDA
VRM/USB2/AZALIA
GPIO/LCC
THERMAL SENSOR
HASWELL_MCP_E
mPHY
OPI
CORE
USB2
LPT LP POWER
USB3
SDIO/PLSS
SUS OSCILLATOR
RTC
SPI
Rev1p2
13 OF 19
U1M
@
HASWELL-MCP-E-ULT_BGA1168
VCCHSIO
K9
VCCHSIO
M9
VCC1_05
N8
VCC1_05
P9
RSVD
Y20
DCPSUS2
AH13
VCCAPLL
W21
DCPSUS3
J13
VCCSUS3_3
AC9
VCCSUS3_3
AA9
VCCUSB3PLL
B18
VCCSATA3PLL
B11
VCCDSW3_3
AH10
VCCSDIO U8
VCCSDIO T9
VCC3_3 K14
VCC3_3 K16
VCCASW AG13
VCCASW AG14
VCCSPI Y8
DCPRTC AE7
VCCRTC AG10
VCCSUS3_3 AH11
VCCCLK
J18
VCCACLKPLL
A20 VCCCLK
K19
VCCCLK
J17
RSVD
M20
VCCCLK
T21 VCCCLK
R21
VCCSUS3_3
AE20
VCCSUS3_3
AE21
VCCAPLL
AA21
VCCASW AG8
VCCASW AF9
VCCASW AE9
VCC1_05 AE8
VCC1_05 H15
VCC1_05 H11
VCC1_05 J11
VCC3_3
W9 VCC3_3
V8
DCPSUS4 AB8
RSVD AC20
VCC1_05 AG16
VCC1_05 AG17
RSVD
V21
RSVD
K18
VCCHSIO
L10
VCC1_05 AF22
DCPSUSBYP AG19
DCPSUSBYP AG20
DCPSUS1 AD10
DCPSUS1 AD8
VCCTS1_5 J15
VCCHDA
AH14
L1
2.2UH_LQM2MPN2R2NG0L_30%
1 2
J5
JUMP_43X39
@
1
122
L5
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C58 0.1U_0402_16V7K
@
12
L4
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C55 0.1U_0402_16V7K
1 2
T116 @
C33 1U_0402_6.3V6K
1 2
R209 0_0402_5%
@
1 2
C30 1U_0402_6.3V6K
1 2
T101 @
C27 10U_0603_6.3V6M
1 2
T103@
C52
1U_0402_6.3V6K
1
2
T105 @
C21
1U_0402_6.3V6K
1
2
+
C408
220U_6.3V_M
1
2
C29
22U_0805_6.3V6M
12
C20
1U_0402_6.3V6K
1
2
R210
0_0805_5%
@
1 2
C51
0.1U_0402_16V7K
@
1
2
C59
0.1U_0402_16V7K
@
12
T100 @ C53 1U_0402_6.3V6K@
1 2
C23 100U_1206_6.3V6M
1 2
C31
1U_0402_6.3V6K
EMC@
1
2
C47 1U_0402_6.3V6K
1 2
C38
1U_0402_6.3V6K
12
T102 @
C24 100U_1206_6.3V6M
1 2
L3
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C32 100U_1206_6.3V6M
1 2
C50
0.1U_0402_16V7K
@
1
2
C56
1U_0402_6.3V6K
12
C57
1U_0402_6.3V6K
12
C22 100U_1206_6.3V6M
1 2
C48 1U_0402_6.3V6K
1 2
C40 10U_0603_6.3V6M
EMC@
1 2
C25 100U_1206_6.3V6M@
1 2
C28
22U_0805_6.3V6M
12
C54 0.1U_0402_16V7K
1 2
C44 1U_0402_6.3V6K
1 2
L2
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C42 1U_0402_6.3V6K
1 2
C49 1U_0402_6.3V6K
1 2
C41
1U_0402_6.3V6K
1 2
C37 1U_0402_6.3V6K
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VSS_SENSE_R 11

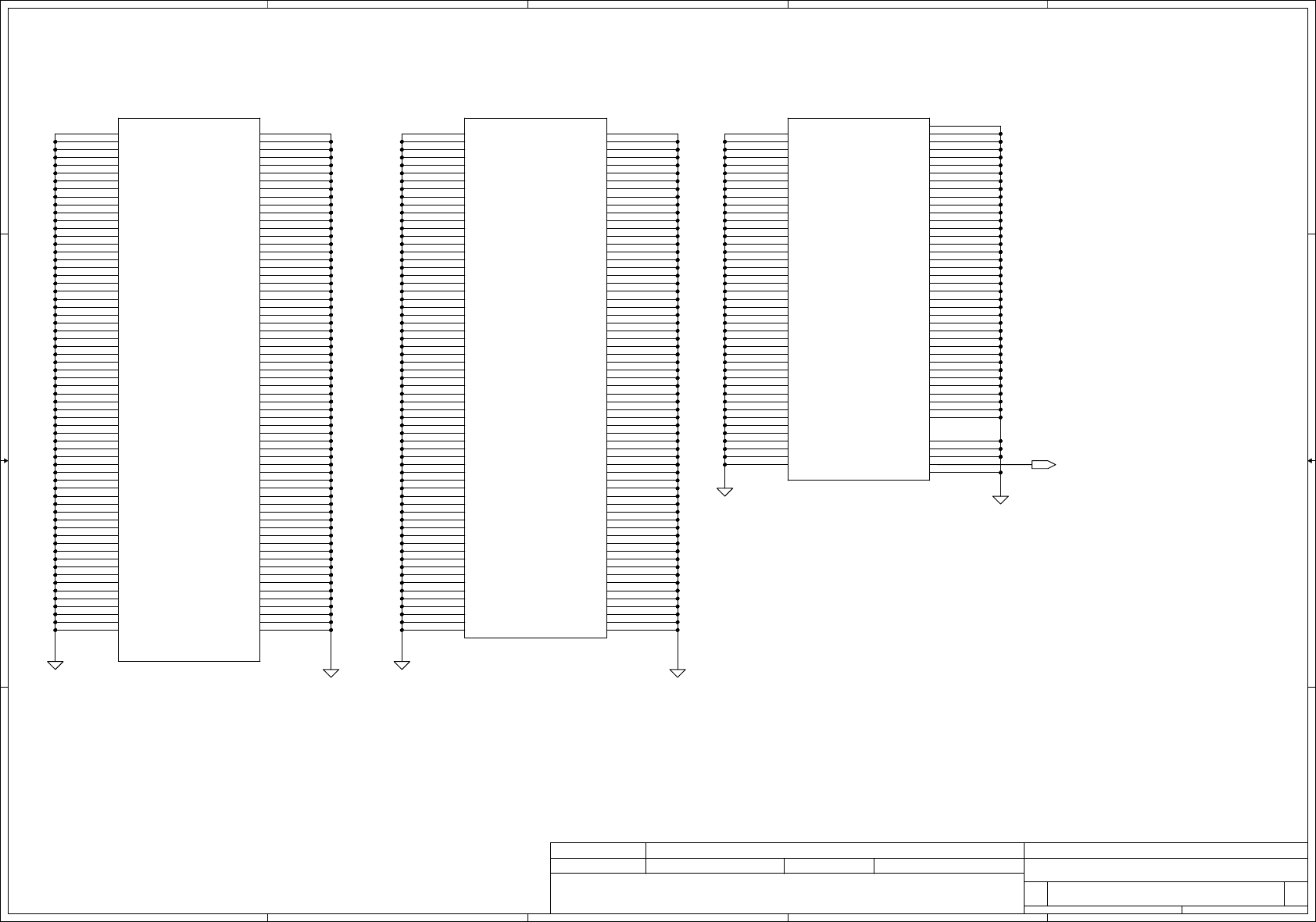

Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(10/11) GND
Custom
13 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(10/11) GND
Custom
13 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(10/11) GND
Custom
13 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
HASWELL_MCP_E
Rev1p2
15 OF 19
U1O
@
HASWELL-MCP-E-ULT_BGA1168
VSS
AU28
VSS C14
VSS C11
VSS AW60
VSS AW40
VSS AW16
VSS AV8
VSS AV59
VSS
AP22
VSS
AV34
VSS D31
VSS D30
VSS D29
VSS D21
VSS D2
VSS D18
VSS D14
VSS D12
VSS C57
VSS C39
VSS C38
VSS C27
VSS C25
VSS C20
VSS C18
VSS B60
VSS B56
VSS B52
VSS B48
VSS B44
VSS B40
VSS B4
VSS B36
VSS B32
VSS B28
VSS B26
VSS B24
VSS B20
VSS AY6
VSS AY59
VSS AY57
VSS AY53
VSS AY51
VSS AY4
VSS AY33
VSS AY30
VSS AY26
VSS AY24
VSS AY22
VSS AY18
VSS AY16
VSS AY11
VSS AW59
VSS AW51
VSS AW50
VSS AW47
VSS AW44
VSS AW42
VSS AW4
VSS AW37
VSS AW35
VSS AW33
VSS AW24
VSS
AV51 VSS
AV49 VSS
AV46 VSS
AV43 VSS
AV41 VSS
AV39 VSS
AV36
VSS
AV14 VSS
AU59 VSS
AU57
VSS
AU53 VSS
AU51
VSS
AU30
VSS
AU26 VSS
AU24 VSS
AU22 VSS
AU20 VSS
AU18 VSS
AU16 VSS
AU1 VSS
AT63 VSS
AT62 VSS
AT61 VSS
AT49 VSS
AT46 VSS
AT43 VSS
AT42 VSS
AT40 VSS
AT37 VSS
AT35 VSS
AT13 VSS
AR52 VSS
AR5 VSS
AR49 VSS
AR43 VSS
AR39 VSS
AR33 VSS
AR31 VSS
AR23 VSS
AR17 VSS
AR15
VSS
AP57 VSS
AP54 VSS
AP52 VSS
AP48 VSS
AP39
VSS
AP31
VSS
AP29 VSS
AP26 VSS
AP23
VSS
AP38
VSS
AP3
VSS
AV55
VSS D23
VSS D25
VSS D27
VSS D26
VSS
AU55
VSS
AU33
VSS
AR11
VSS
AV20
VSS
AV28
VSS
AV33
VSS
AV24
VSS
AV16
HASWELL_MCP_E
Rev1p2
16 OF 19
U1P
@
HASWELL-MCP-E-ULT_BGA1168
VSS
D49
VSS V3
VSS V7
VSS W20
VSS W22
VSS_SENSE E62
VSS V23
VSS AH46
VSS V58
VSS J10
VSS
D33
VSS L7
VSS H57
VSS
D41
VSS
D42
VSS
H13 VSS
G8
VSS
G5 VSS
G3
VSS
G18 VSS
F61 VSS
F58 VSS
F54
VSS
F46
VSS
F26 VSS
F20
VSS
E11 VSS
D8 VSS
D62
VSS
D57 VSS
D55 VSS
D54 VSS
D53 VSS
D51 VSS
D50 VSS
D5
VSS
D47 VSS
D46 VSS
D45 VSS
D43
VSS
D34
VSS
D35
VSS
D37
VSS
D38
VSS
D39
VSS
G6
VSS
G22
VSS
F30
VSS
E17
VSS
F34
VSS
F42
VSS AH16
VSS
F50
VSS
F38
VSS H17
VSS J22
VSS J59
VSS J63
VSS K1
VSS K12
VSS L13
VSS L15
VSS L17
VSS L18
VSS L20
VSS L58
VSS L61
VSS M22
VSS N10
VSS N3
VSS P59
VSS P63
VSS R10
VSS R8
VSS R22
VSS T1
VSS T58
VSS U20
VSS U61
VSS U22
VSS U9
VSS V10
VSS Y10
VSS Y59
VSS Y63
VSS
D59
HASWELL_MCP_E
Rev1p2
14 OF 19
U1N
@
HASWELL-MCP-E-ULT_BGA1168
VSS
AH34
VSS
AH36
VSS AJ39
VSS AJ41
VSS AJ35
VSS AJ47
VSS AJ54
VSS
AF15
VSS
AF18
VSS AP20
VSS AP17
VSS AN7
VSS AN63
VSS AN60
VSS AN52
VSS AN51
VSS AN48
VSS AN46
VSS AN45
VSS AN43
VSS AN42
VSS AN39
VSS AN36
VSS AN35
VSS AN32
VSS AN31
VSS AN17
VSS AM52
VSS AM31
VSS AM23
VSS AM17
VSS AL61
VSS AL60
VSS AL57
VSS AL54
VSS AL52
VSS AL46
VSS AL45
VSS AL40
VSS AL39
VSS AL36
VSS AL33
VSS AL31
VSS AL29
VSS AL26
VSS AL23
VSS AL22
VSS AL20
VSS AL17
VSS AL13
VSS AL10
VSS AK52
VSS AK3
VSS AK23
VSS AJ63
VSS AJ60
VSS AJ58
VSS AJ56
VSS AJ52
VSS AJ50
VSS AJ45
VSS AJ43
VSS
AJ29 VSS
AJ27 VSS
AJ25 VSS
AJ23 VSS
AJ14 VSS
AJ13 VSS
AH57 VSS
AH55 VSS
AH53
VSS
AH42 VSS
AH40
VSS
AH32 VSS
AH30 VSS
AH28 VSS
AH24 VSS
AH22 VSS
AH20 VSS
AH19 VSS
AH17 VSS
AG63 VSS
AG62 VSS
AG61 VSS
AG60 VSS
AG23 VSS
AG21 VSS
AG11 VSS
AG1
VSS
AF17
VSS
AF14 VSS
AF12 VSS
AF11 VSS
AE58 VSS
AE5 VSS
AE10 VSS
AD63 VSS
AD3 VSS
AD21 VSS
AC61 VSS
AB7 VSS
AB22 VSS
AB20 VSS
AB10 VSS
AA58 VSS
AA1 VSS
A56 VSS
A52 VSS
A48 VSS
A44 VSS
A40 VSS
A36 VSS
A32
VSS
A24 VSS
A18 VSS
A14 VSS
A11
VSS
A28
VSS AL51
VSS AM1
VSS AN23
VSS AN40
VSS AN49
VSS AP10
VSS
AH38
VSS
AH51 VSS
AH49 VSS
AH44
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CFG4 1 : Disabled; No Physical Display Port
attached to Embedded Display Port
0 : Enabled; An external Display Port device is
connected to the Embedded Display Port
Display Port Presence Strap
CFG Straps for Processor
0: ENABLED; SET DFX ENABLED BIT
IN DEBUG INTERFACE MSR
1: DISABLED
CFG3
Physical Debug Enable (DFX Privacy)
DC_TEST_AY2_AW2
DC_TEST_AY3_AW3
DC_TEST_AY61_AW61
DC_TEST_AY2_AW2
DC_TEST_AY3_AW3
DC_TEST_AY61_AW61
DC_TEST_AY62_AW62
DC_TEST_AY62_AW62
DC_TEST_A3_B3
DC_TEST_A3_B3
DC_TEST_A61_B61
DC_TEST_A61_B61
DC_TEST_C1_C2
DC_TEST_B62_B63
CFG0
CFG1
CFG2
CFG3
CFG4
CFG5
CFG6
CFG7
CFG8
CFG9
CFG10
CFG11
CFG12
CFG13
CFG14
CFG15
CFG16
CFG17
CFG18
CFG19
CFG_RCOMP
TD_IREF
CFG_RCOMP
OPI_COMP
TD_IREF
CFG4
CFG3
OPI_COMP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(11/11) RSVD
Custom
14 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(11/11) RSVD
Custom
14 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HSW MCP(11/11) RSVD
Custom
14 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
T84@
T182 @
T89@
T53 @
T167 @
T62@
T49 @
T72@
T175 @
HASWELL_MCP_E
Rev1p2
17 OF 19
U1Q
@
HASWELL-MCP-E-ULT_BGA1168
DAISY_CHAIN_NCTF_AW62 AW62
DAISY_CHAIN_NCTF_AW63 AW63
DAISY_CHAIN_NCTF_AW61 AW61
DAISY_CHAIN_NCTF_AW3 AW3
DAISY_CHAIN_NCTF_AW2 AW2
DAISY_CHAIN_NCTF_A62 A62
DAISY_CHAIN_NCTF_AV1 AV1
DAISY_CHAIN_NCTF_AW1 AW1
DAISY_CHAIN_NCTF_A60 A60
DAISY_CHAIN_NCTF_A61 A61
DAISY_CHAIN_NCTF_A4 A4
DAISY_CHAIN_NCTF_A3 A3
DAISY_CHAIN_NCTF_C2
C2 DAISY_CHAIN_NCTF_C1
C1 DAISY_CHAIN_NCTF_B63
B63 DAISY_CHAIN_NCTF_B62
B62
DAISY_CHAIN_NCTF_B2
B2
DAISY_CHAIN_NCTF_B3
B3
DAISY_CHAIN_NCTF_B61
B61
DAISY_CHAIN_NCTF_AY61
AY61
DAISY_CHAIN_NCTF_AY62
AY62
DAISY_CHAIN_NCTF_AY3
AY3
DAISY_CHAIN_NCTF_AY60
AY60
DAISY_CHAIN_NCTF_AY2
AY2
T83@
T80@
T78@T168 @
HASWELL_MCP_E
Rev1p2
18 OF 19
U1R
@
HASWELL-MCP-E-ULT_BGA1168
RSVD AP7
RSVD U10
RSVD AL1
RSVD AM11
RSVD AU10
RSVD AU15
RSVD R23
RSVD N23
RSVD T23
RSVD
J21 RSVD
H22 RSVD
F22
RSVD
D15 RSVD
AV44 RSVD
AU44 RSVD
AT2
RSVD AW14
RSVD AY14
T176 @
T70@
T61@
T52 @
T90 @
T51 @
R225
1K_0402_5%
12
T169 @
T64@
T177 @
T56 @
T57 @
T77@
T66@
T76@
T87@
T170 @
T82@
T88@
T178 @
T71@
T104 @
T74@
R223 49.9_0402_1%
12
R224
1K_0402_1%
@
12
T54 @
T91 @
T171 @
T68@
T179 @
T69@
T93 @
T107 @
T55 @
T60@
R226 8.2K_0402_5%
12
T172 @
R222 49.9_0402_1%
12
T65@
T81@
T85@
T180 @
T108 @
T92 @
T79@
T75@
T63@ T73@
T173 @ T86@
T181 @
T67@
T94 @
T166 @
T50 @
RESERVED
HASWELL_MCP_E
Rev1p2
19 OF 19
U1S
@
HASWELL-MCP-E-ULT_BGA1168
CFG17
AA61 CFG18
U63
CFG7
Y60
CFG11
U60
CFG12
T63
RSVD_TP AU63
RSVD_TP C63
RSVD_TP C62
RSVD_TP L60
RSVD_TP B51
RSVD_TP A51
CFG10
V60 CFG9
V61 CFG8
V62
CFG6
Y61
RSVD
A5
RSVD B43
RSVD N60
RSVD Y22
RSVD W23
RSVD D58
RSVD AV62
RSVD_TP AV63
VSS N21
VSS P22
CFG_RCOMP
V63
CFG19
U62
CFG13
T62
RSVD R20
RSVD P20
PROC_OPI_RCOMP AY15
TD_IREF
B12
RSVD
E1
RSVD
D1
RSVD
J20
RSVD
H18
CFG5
Y62 CFG4
AA60 CFG3
AA63 CFG2
AC63 CFG1
AC62 CFG0
AC60
CFG16
AA62
CFG15
T60 CFG14
T61
T59@
T58@
T174 @
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

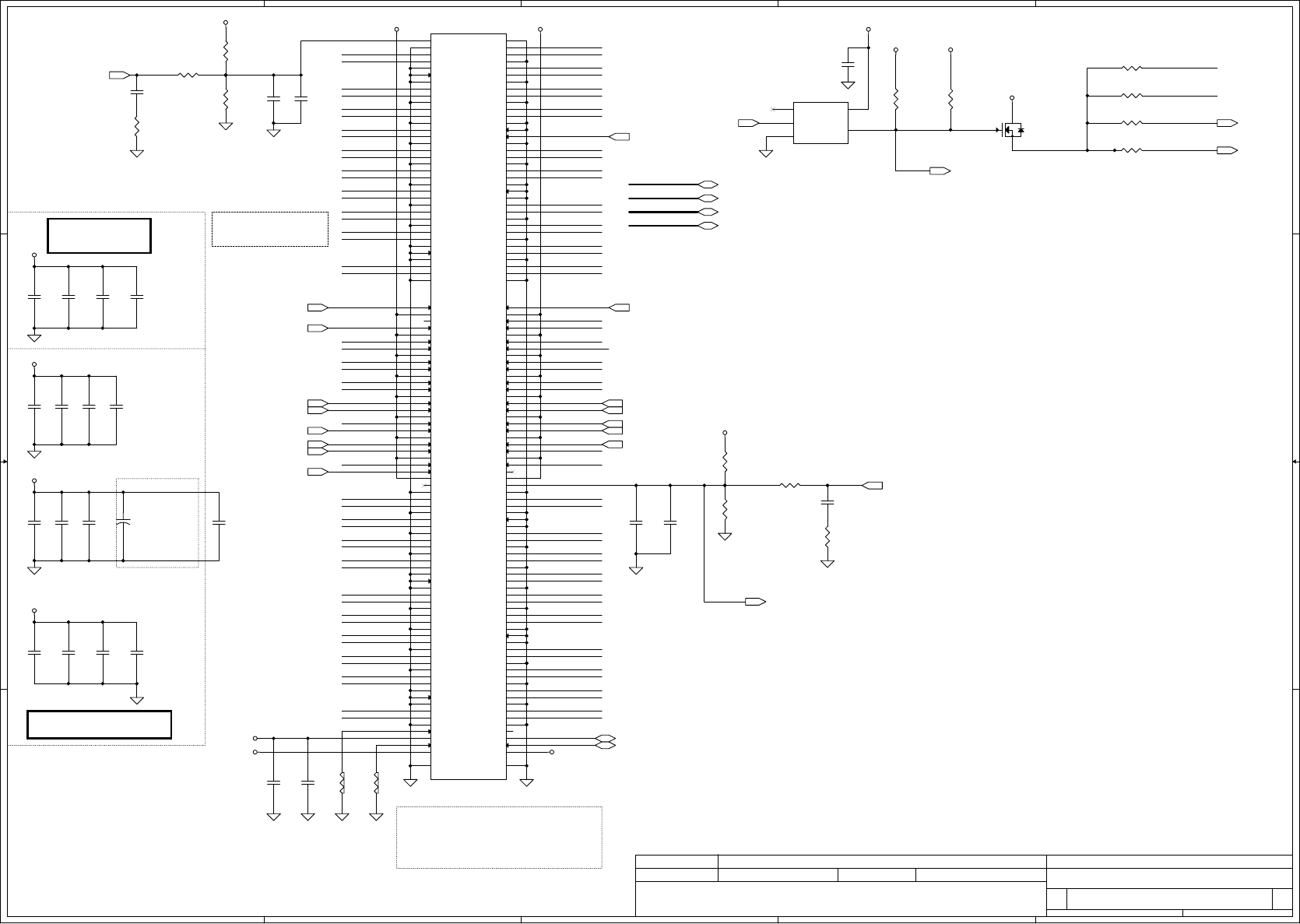

All VREF traces should
have 10 mil trace width
Layout Note:
Place near JDIMM1.203,204
Layout Note:
Place near JDIMM1
<Address: SA1:SA0=00>
DIMM_1 STD H:4mm
Channel A
SF000002Z00
330U 2.5V H4.2
17mohm OSCON
D_CK_SDATA
D_CK_SCLK
+VREF_CA
+V_DDR_REFA
DDRA_CS0_DIMMA#
SA_ODT0
SA_ODT1
SA_CLK_DDR1
SA_CLK_DDR#1
DDR_A_MA2
DDR_A_MA0
DDR_A_MA4
DDR_A_MA6
DDR_A_MA7
DDR_A_MA11
DDR_A_MA14
DDR_A_BS1
DDR_A_RAS#
DDR_A_MA15
DDRA_CKE1_DIMMA
DDR_A_D9
DDR_A_D12
DDR_A_D15
DDR_A_D11
DDR_A_D40
DDR_A_D52
DDR_A_D53
DDR_A_DQS1
DDR_A_DQS6
DDR_A_DQS#1
DDR_A_DQS#6
DIMM_DRAMRST#
DDR_A_D46
DDR_A_D55
DDR_A_D24
DDR_A_D45
DDR_A_D54
DDR_A_D27
DDR_A_D26
DDR_A_D25
DDR_A_D42
DDR_A_D5
DDR_A_D4
DDR_A_D19
DDR_A_D22
DDR_A_D37
DDR_A_D32
DDR_A_D39
DDR_A_D63
DDR_A_D59
DDR_A_D56
DDR_A_DQS2
DDR_A_DQS7
DDR_A_DQS#2
DDR_A_DQS#7
DDR_A_D57
DDR_A_D7
DDR_A_D35
DDR_A_D3
DDR_A_D23
DDR_A_D18
DDR_A_D0
DDR_A_D2
DDR_A_D6
DDR_A_D21
DDR_A_D20
DDR_A_D17
DDR_A_D16
DDR_A_D33
DDR_A_D34
DDR_A_D38
DDR_A_D62
DDR_A_D58
DDR_A_D60
DDR_A_D61
DDR_A_DQS0
DDR_A_DQS4
DDR_A_DQS#0
DDR_A_DQS#4
DDR_A_D36
DDR_A_D1
DDRA_CS1_DIMMA#
DDR_A_MA1
DDR_A_MA3
DDR_A_MA5
DDR_A_MA8
DDR_A_MA9
DDR_A_MA10
DDR_A_MA12
DDR_A_MA13
DDR_A_BS0
DDR_A_BS2
DDR_A_CAS#
DDR_A_WE#
DDRA_CKE0_DIMMA
SA_CLK_DDR0
SA_CLK_DDR#0
DDR_A_D13
DDR_A_D14
DDR_A_D8
DDR_A_D10
DDR_A_D29
DDR_A_D30
DDR_A_D31
DDR_A_D43
DDR_A_D47
DDR_A_D49
DDR_A_D48
DDR_A_DQS3
DDR_A_DQS5
DDR_A_DQS#3
DDR_A_DQS#5
DDR_A_D41
DDR_A_D28
DDR_A_D44
DDR_A_D50
DDR_A_D51
SB_ODT1
SB_ODT0
SA_ODT1
SA_ODT0
M_A_B_DIMM_ODT
D_CK_SDATA 16,37,7
D_CK_SCLK 16,37,7
SA_DIMM_VREFDQ5
DDR_A_D[0..63] 5
DDR_A_DQS[0..7] 5
DDR_A_DQS#[0..7] 5
DDR_A_MA[0..15] 5
DDRA_CS0_DIMMA# 5
SA_CLK_DDR1 5
SA_CLK_DDR#1 5
DDRA_CKE1_DIMMA 5
DIMM_DRAMRST# 16,4
DDR_A_BS1 5
DDR_A_RAS# 5
DDR_A_BS25
DDR_A_CAS#5 DDR_A_WE#5
DDR_A_BS05
DDRA_CS1_DIMMA#5
DDRA_CKE0_DIMMA5
SA_CLK_DDR#05 SA_CLK_DDR05
SM_DIMM_VREFCA 5
DDR_PG_CTRL4
DDR_VTT_PG_CTRL 43
SB_ODT0 16
SB_ODT1 16
+VREF_CA 16
+3VS
+0.675VS
+0.675VS
+0.675VS
+1.35V
+1.35V
+1.35V
+1.35V +1.35V
+1.35V +1.35V
+5VALW
+1.35V
+1.35V
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DDRIII DIMMA
Custom
15 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DDRIII DIMMA
Custom
15 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DDRIII DIMMA
Custom
15 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R295
1.8K_0402_1%
12
R191
100K_0402_5%
1 2
R188
66.5_0402_1%
1 2
R294
24.9_0402_1%
@
12
C124
1U_0402_6.3V6K
1
2
R211
0_0402_5%
@
1 2
R176
24.9_0402_1%
@
12
R212
0_0402_5%
@
1 2
C162
0.022U_0402_25V7K
@
1
2
C111
10U_0603_6.3V6M
1
2
C158
0.022U_0402_25V7K
@
1
2
C119
2.2U_0402_6.3V6M
@
1
2
C126
2.2U_0402_6.3V6M
@
1
2
C115
10U_0603_6.3V6M
1
2
R189
66.5_0402_1%
1 2
C107
1U_0402_6.3V6K
@
1
2
R296
2_0402_1%
1 2
R185
1.8K_0402_1%
12
C113
10U_0603_6.3V6M
1
2
C120
0.1U_0402_16V7K
1
2
C122
1U_0402_6.3V6K
@
1
2
R54
1.8K_0402_1%
12
G
D
S
Q18
LBSS138LT1G_SOT-23-3
2
13
C116
10U_0603_6.3V6M
1
2
R190
66.5_0402_1%
1 2
JDIMM1
TYCO_2-2013022-1
CONN@
SP07000JN10
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
C125
0.1U_0402_16V7K
1
2
C114
10U_0603_6.3V6M
1
2
C108
1U_0402_6.3V6K
1
2
C34
0.1U_0402_16V7K
@
1
2
R187
66.5_0402_1%
1 2
C110
1U_0402_6.3V6K
1
2
C106
0.1U_0402_16V7K
1
2
U45
74AUP1G07GW_TSSOP5
GND
3
A
2
NC
1VCC 5
Y4
C121
1U_0402_6.3V6K
@
1
2
C109
1U_0402_6.3V6K
@
1
2
C117
10U_0603_6.3V6M
EMC@
1
2
+
C118
330U_2.5V_M
@
1
2
R186
100K_0402_5%
@
1 2
R56
1.8K_0402_1%
12
C105
2.2U_0402_6.3V6M
@
1
2
C123
1U_0402_6.3V6K
1
2
C161
10U_0603_6.3V6M
EMC@
1
2
C112
10U_0603_6.3V6M
1
2
R293
2_0402_1%
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
All VREF traces should
have 10 mil trace width
Layout Note:
Place near JDIMM1.203,204
Layout Note:
Place near JDIMM1
<Address: SA1:SA0=10>
DIMM_2 STD H:4mm
Channel B
D_CK_SDATA
D_CK_SCLK
+VREF_CA
+V_DDR_REFB
DDRB_CS0_DIMMB#
SB_ODT0
SB_ODT1
SB_CLK_DDR1
SB_CLK_DDR#1
DDR_B_MA2
DDR_B_MA0
DDR_B_MA4
DDR_B_MA6
DDR_B_MA7
DDR_B_MA11
DDR_B_MA14
DDR_B_BS1
DDR_B_RAS#
DDR_B_MA15
DDRB_CKE1_DIMMB
DDR_B_D12
DDR_B_D9
DDR_B_D13
DDR_B_D15
DDR_B_D44
DDR_B_D61
DDR_B_D60
DDR_B_DQS1
DDR_B_DQS7
DDR_B_DQS#1
DDR_B_DQS#7
DIMM_DRAMRST#
DDR_B_D43
DDR_B_D62
DDR_B_D24
DDR_B_D45
DDR_B_D63
DDR_B_D30
DDR_B_D31
DDR_B_D25
DDR_B_D47
DDR_B_D5
DDR_B_D0
DDR_B_D17
DDR_B_D19
DDR_B_D37
DDR_B_D32
DDR_B_D38
DDR_B_D51
DDR_B_D55
DDR_B_D54
DDR_B_DQS2
DDR_B_DQS6
DDR_B_DQS#2
DDR_B_DQS#6
DDR_B_D50
DDR_B_D6
DDR_B_D34
DDR_B_D2
DDR_B_D18
DDR_B_D16
DDR_B_D4
DDR_B_D3
DDR_B_D7
DDR_B_D21
DDR_B_D20
DDR_B_D22
DDR_B_D23
DDR_B_D33
DDR_B_D35
DDR_B_D39
DDR_B_D52
DDR_B_D49
DDR_B_D48
DDR_B_D53
DDR_B_DQS0
DDR_B_DQS4
DDR_B_DQS#0
DDR_B_DQS#4
DDR_B_D36
DDR_B_D1
DDRB_CS1_DIMMB#
DDR_B_MA1
DDR_B_MA3
DDR_B_MA5
DDR_B_MA8
DDR_B_MA9
DDR_B_MA10
DDR_B_MA12
DDR_B_MA13
DDR_B_BS0
DDR_B_BS2
DDR_B_CAS#
DDR_B_WE#
DDRB_CKE0_DIMMB
SB_CLK_DDR0
SB_CLK_DDR#0
DDR_B_D8
DDR_B_D10
DDR_B_D14
DDR_B_D11
DDR_B_D28
DDR_B_D26
DDR_B_D27
DDR_B_D46
DDR_B_D42
DDR_B_D59
DDR_B_D58
DDR_B_DQS3
DDR_B_DQS5
DDR_B_DQS#3
DDR_B_DQS#5
DDR_B_D41
DDR_B_D29
DDR_B_D40
DDR_B_D57
DDR_B_D56
D_CK_SDATA 15,37,7
D_CK_SCLK 15,37,7
SB_DIMM_VREFDQ5
DDRB_CS0_DIMMB# 5
SB_ODT0 15
SB_ODT1 15
SB_CLK_DDR1 5
SB_CLK_DDR#1 5
DDRB_CKE1_DIMMB 5
DIMM_DRAMRST# 15,4
DDR_B_BS1 5
DDR_B_RAS# 5
DDR_B_BS25
DDR_B_CAS#5 DDR_B_WE#5
DDR_B_BS05
DDRB_CS1_DIMMB#5
DDRB_CKE0_DIMMB5
SB_CLK_DDR#05 SB_CLK_DDR05
DDR_B_D[0..63] 5
DDR_B_DQS[0..7] 5
DDR_B_DQS#[0..7] 5
DDR_B_MA[0..15] 5
+VREF_CA 15
+3VS
+0.675VS
+0.675VS
+0.675VS
+1.35V
+1.35V
+1.35V
+1.35V +1.35V
+1.35V
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DDRIII DIMMB
Custom
16 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DDRIII DIMMB
Custom
16 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DDRIII DIMMB
Custom
16 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R297
2_0402_1%
1 2
C141
2.2U_0402_6.3V6M
@
1
2
C145
1U_0402_6.3V6K
1
2
C129
1U_0402_6.3V6K
@
1
2
C127
2.2U_0402_6.3V6M
@
1
2
C147
0.1U_0402_16V7K
1
2
C134
10U_0603_6.3V6M
1
2
C136
10U_0603_6.3V6M
1
2
C138
10U_0603_6.3V6M
1
2
C144
1U_0402_6.3V6K
@
1
2
C146
1U_0402_6.3V6K
@
1
2
C137
10U_0603_6.3V6M
1
2
C142
0.1U_0402_16V7K
1
2
C128
0.1U_0402_16V7K
1
2
R231
0_0402_5%
@
1 2
R179
24.9_0402_1%
@
12
C133
10U_0603_6.3V6M
1
2
C159
0.022U_0402_25V7K
@
1
2
C132
1U_0402_6.3V6K
1
2
C143
1U_0402_6.3V6K
1
2
C135
10U_0603_6.3V6M
1
2
R57
1.8K_0402_1%
12
C130
1U_0402_6.3V6K
1
2
R213
1.8K_0402_1%
12
JDIMM2
TYCO_2-2013022-1
CONN@
SP07000JN10
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
C131
1U_0402_6.3V6K
@
1
2
R229
10K_0402_5%
1 2
C148
2.2U_0402_6.3V6M
@
1
2
C139
10U_0603_6.3V6M
@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

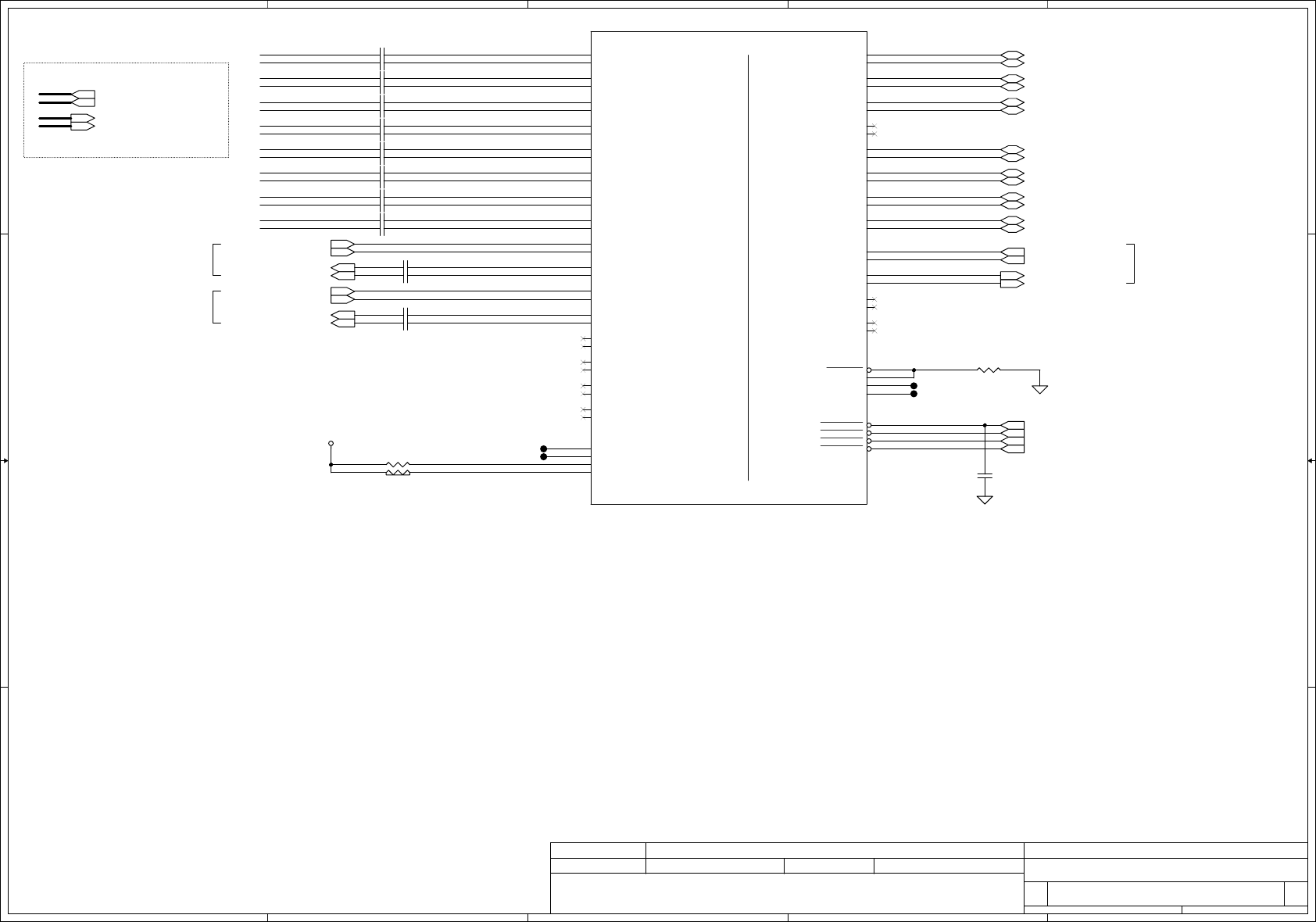

GFX PCIE LANE REVERSAL
3.3-V tolerant
PEG_GTX_HRX_N[0..3]
PEG_GTX_HRX_P[0..3]
PEG_HTX_C_GRX_N[0..3]
PEG_HTX_C_GRX_P[0..3]
PLTRST_VGA#
VGA_PCIE_CALRP
VGA_PCIE_CALRN
PEG_HTX_C_GRX_N0
PEG_HTX_C_GRX_P0
PEG_HTX_C_GRX_N2
PEG_HTX_C_GRX_N1
PEG_HTX_C_GRX_P1
PEG_HTX_C_GRX_P3
PEG_HTX_C_GRX_N3
PEG_HTX_C_GRX_P2
PEG_GTX_HRX_P0
PEG_GTX_HRX_N0
PEG_GTX_HRX_P1
PEG_GTX_HRX_N1
PEG_GTX_HRX_P2
PEG_GTX_HRX_N2
PEG_GTX_HRX_P3
PEG_GTX_HRX_N3
PEG_GTX_HRX_N[0..3] 10
PEG_GTX_HRX_P[0..3] 10
PEG_HTX_C_GRX_P[0..3]10
PEG_HTX_C_GRX_N[0..3]10
CLK_PEG_VGA7 CLK_PEG_VGA#7
PLTRST_VGA#8
+0.95VSDGPU
+0.95VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PCIE
Custom
17 52Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PCIE
Custom
17 52Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PCIE
Custom
17 52Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
LVTMDP
LVDS CONTROL
PART 7 0F 9
U51G
2160842006A0MARSXT_FCBGA962
@
RSVD/DIGON AJ27
TXCAM_DPA3N AR34
TXCAP_DPA3P AP34
TXCBM_DPB3N AL36
TXCBP_DPB3P AK35
TX0M_DPA2N AU35
TX0P_DPA2P AW37
TX1M_DPA1N AU39
TX1P_DPA1P AR37
TX2M_DPA0N AR35
TX2P_DPA0P AP35
NC#AP37 AP37
NC#AN36 AN36
TX3M_DPB2N AK37
TX3P_DPB2P AJ38
TX4M_DPB1N AJ36
TX4P_DPB1P AH35
TX5M_DPB0N AH37
TX5P_DPB0P AG38
NC#AG36 AG36
NC#AF35 AF35
RSVD/VARY_BL AK27
PCI EXPRESS INTERFACE
CLOCK
CALIBRATION
PART 1 0F 9
U51A
2160842006A0MARSXT_FCBGA962
@
TEST_PG
AH16 PCIE_CALR_RX Y29
PCIE_CALR_TX Y30
PCIE_REFCLKN
AA36 PCIE_REFCLKP
AB35
PCIE_RX0N
Y37 PCIE_RX0P
AA38
NC#K37
K37 NC#L38
L38
NC#J36
J36 NC#K35
K35
NC#H37
H37 NC#J38
J38
NC#G36
G36 NC#H35
H35
NC#F37
F37 NC#G38
G38
NC#E37
E37 NC#F35
F35
PCIE_RX1N
W36 PCIE_RX1P
Y35
PCIE_RX2N
V37 PCIE_RX2P
W38
PCIE_RX3N
U36 PCIE_RX3P
V35
PCIE_RX4N
T37 PCIE_RX4P
U38
PCIE_RX5N
R36 PCIE_RX5P
T35
PCIE_RX6N
P37 PCIE_RX6P
R38
PCIE_RX7N
N36 PCIE_RX7P
P35
NC#M37
M37 NC#N38
N38
NC#L36
L36 NC#M35
M35
PERSTB
AA30
PCIE_TX0N Y32
PCIE_TX0P Y33
NC#L32 L32
NC#L33 L33
NC#L29 L29
NC#L30 L30
NC#K32 K32
NC#K33 K33
NC#J32 J32
NC#J33 J33
NC#K29 K29
NC#K30 K30
NC#H32 H32
NC#H33 H33
PCIE_TX1N W32
PCIE_TX1P W33
PCIE_TX2N U32
PCIE_TX2P U33
PCIE_TX3N U29
PCIE_TX3P U30
PCIE_TX4N T32
PCIE_TX4P T33
PCIE_TX5N T29
PCIE_TX5P T30
PCIE_TX6N P32
PCIE_TX6P P33
PCIE_TX7N P29
PCIE_TX7P P30
NC#N32 N32
NC#N33 N33
NC#N29 N29
NC#N30 N30
U51
SUN_XT_M2_962P
SUN@
SA00006G610
R796 1K_0402_1%VGA@
1 2
R794 1.69K_0402_1%VGA@
1 2
U51
MARS_XT_M2_962P
MARS@
SA000061J20
R795 1K_0402_5%
VGA@
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

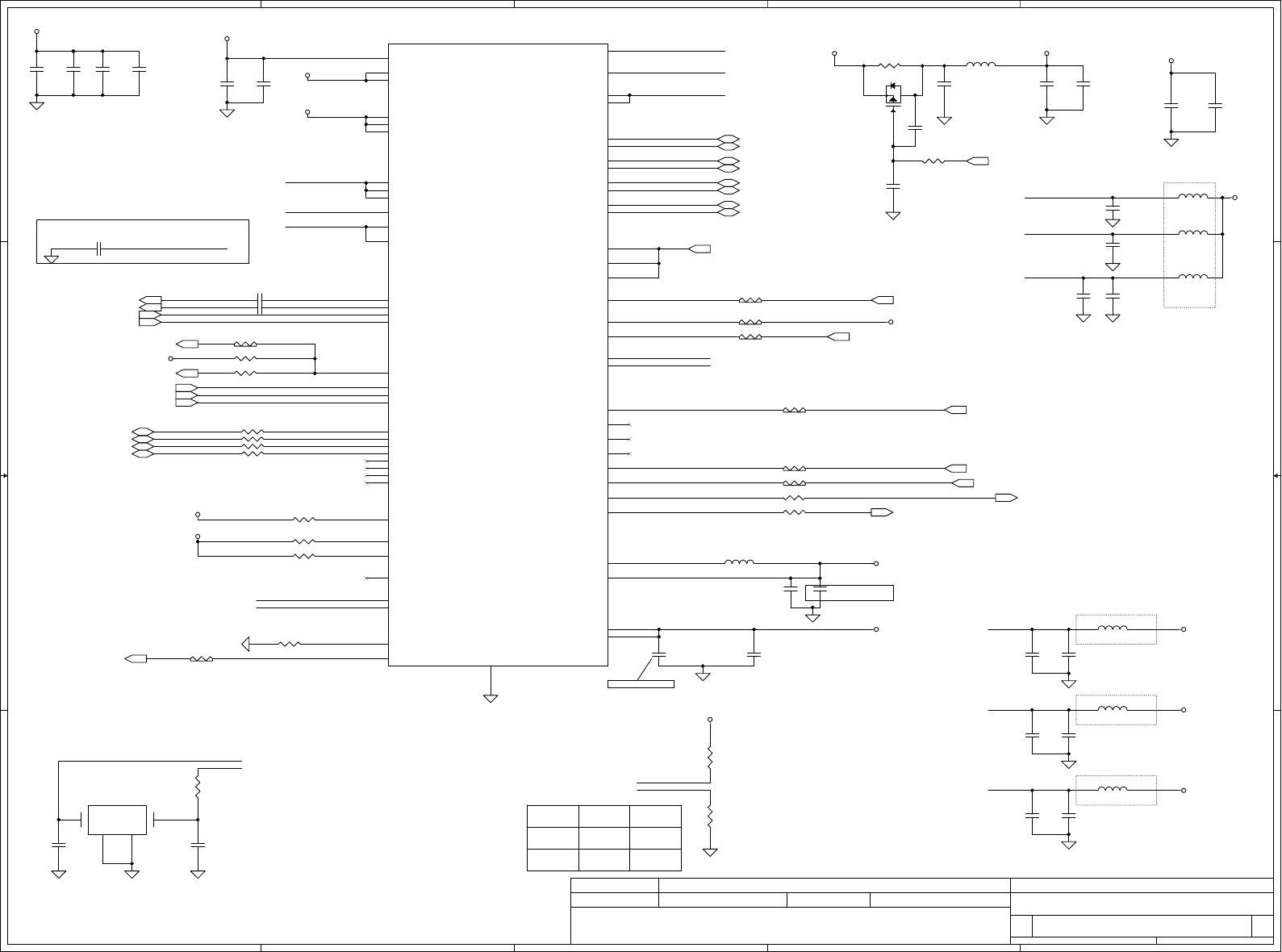

External VGA Thermal Sensor
Crystals must have a max ESR of 80 ohm
Bits[5:1]
xx000
xx001
xx010
xx011
xx100
xx101
xx110
xx111
00xxx
01xxx
10xxx
11xxx
PD(1%) CapPU(1%)
680nF
82nF
10nF
NC
NC 4.75k
8.45k 2.00k
4.53k 2.00k
6.98k 4.99k
4.53k 4.99k
3.24k 5.62k
3.40k 10.0k
4.75k NC
Mars MLPS configuration
130mA
75mA
100mA
SM010030010 200ma
120ohm@100mhz DCR 0.2
70mA
117mA
10mil
10mil
AUD[1:0]:
00 - No audio function
13mA 10mil
VREFG:Use a voltage divider to set
VREFG = 1.80 V / 3 (or 0.60-V nominal).
20mil
Place VREFG divider and cap close to ASIC
Pull high @ VGA side
(GPIO1, 2, 7, 11, 12, 13, 18, 21 is NC at SUN)
(SUN NC)
(SUN NC)
(SUN NC)
(SUN NC)
Slave ID: 0x41
PS_2[1] = 0 : Reserved.
PS_2[2] = 0 : Reserved.
PS_2[3] = 0 : BIOS_ROM_EN :Disable the external BIOS ROM device.
PS_2[4] = 0 : VGA_DIS : 0=VGA controller capacity enabled.
PS_2[5] = 1 : Reserved.
PS_3[1] = x :
PS_3[2] = x : VRAM ID
PS_3[3] = x :
PS_3[4] = 1 : AUD_PORT_CONN_PINSTRAP[1]
PS_3[5] = 1 : AUD_PORT_CONN_PINSTRAP[2]
======= VRAM ID for Mars =======
001 Micron MT41K256M16HA-107G:E x 8
010 Hynix H5TQ2G63DFR-11C x 4
011 Hynix H5TQ2G63DFR-11C x 8
PS0_[1]=1 : same as GPIO_11
PS0_[2]=0 : same as GPIO_12
PS0_[3]=0 : same as GPIO_13
PS0_[4]=1 : Reserved for internal use only. Must be 1
PS0_[5]=1 : AUD_PORT_CONN_PINSTRAP[0]
Since the frame buffer size is 512 MB
the aperture size is set to 256 MB.
100 - 512Kbit M25P05A (ST)
101 - 1Mbit M25P10A (ST)
101 - 2Mbit M25P20 (ST)
101 - 4Mbit M25P40 (ST)
101 - 8Mbit M25P80 (ST)
100 - 512Kbit Pm25LV512 (Chingis)
101 - 1Mbit Pm25LV010 (Chingis)
PS_1[1] = 0 : PCIeR GEN3 is not supported.
PS_1[2] = 0 : Reserved for internal use only
PS_1[3] = 0 : Reserved for internal use only
PS_1[4] = 1 : TX_PWRS_ENB: Full Tx output swing.
PS_1[5] = 1 : TX_DEEMPH_EN: Tx deemphasis enabled.
GPU_THERM_D+ VGA_SMB_DA2
GPU_THERM_D-
VGA_SMB_CK2
THM_ALERT#
EC_SMB_DA2
EC_SMB_CK2
VGA_SMB_DA2
VGA_SMB_CK2
XTALIN
XTALOUT
XO_IN
XO_IN2
SPLL_PVSS
+SPLL_VDDC
+SPLL_PVDD
XTALINXTALOUT
+MPLL_PVDD
+MPLL_PVDD
+SPLL_PVDD
+SPLL_VDDC
SPLL_PVSS
GPIO_19_CTF
+VDD1DI
+AVDD
RSET
AUD_0
AUD_1
JTAG_TCK
JTAG_TMS
JTAG_TDI
JTAG_TRSTB
GPU_THERM_D-
+TSVDD
GPU_THERM_D+
MLPS_EN#
+VGA_VREF
PS_3
PS_2
PS_1
PS_0
VGA_SMB_CK2
VGA_SMB_DA2 VGA_SMB_CK2_R
VGA_SMB_DA2_R
GPU_VID_4
TESTEN
GPU_VID_1
GPU_VID_2
GPU_VID_3
GPU_VID_5
GPU_DPRSLPVR
THM_ALERT#
PS_0
PS_1
PS_2
PS_3
GPU_ACIN_D
GPU_ACIN_D
EC_SMB_CK2 24,34,7
EC_SMB_DA2 24,34,7
GPU_VID_447
GPU_DPRSLPVR47
GPU_VID_147
GPU_VID_247
GPU_VID_347
GPU_VID_547
GPU_ACIN34
+3VSDGPU
+3VSDGPU
+1.8VSDGPU
+0.95VSDGPU
+3VSDGPU
+3VSDGPU
+1.8VSDGPU
+1.8VSDGPU
+1.8VSDGPU
+3VSDGPU
+3VSDGPU
+1.8VSDGPU
+1.8VSDGPU
+3VSDGPU
+VDDC_CT +VDDC_CT+VDDC_CT+VDDC_CT
+3VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_STRAP
Custom
18 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_STRAP
Custom
18 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_STRAP
Custom
18 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R815
10K_0402_5%
X76@
12
R841
51.1_0402_1%
@
12
R7990_0402_5%@
1 2
T138
T136
C834
1U_0402_6.3V6K
@
1
2
R801
4.7K_0402_5%
VGA@
1 2
R809
2K_0402_1%
VGA@
12
L68
0_0603_5%
MARS@ 12
C823
0.1U_0402_16V4Z
@1
2
C832
1U_0402_6.3V6K
VGA@ 1
2
T126
R904
51.1_0402_1%
@
12
T129
R818
4.75K_0402_1%
VGA@
12
T133
R814
5.11K_0402_1%
@12
T134
C825
1U_0402_6.3V6K
VGA@ 1
2
T130
C837
0.1U_0402_16V4Z
@1
2
L64
BLM18AG121SN1D_2P
VGA@ 12
R820 10K_0402_5%
VGA@
1 2
DPA
DPB
DPC
DPD
MUTI GFX
I2C
GENERAL PURPOSE I/O
DAC1
DDC/AUX
THERMAL
DEBUG
BACO
MLPS
PART 2 0F 9
SMBus
U51B
2160842006A0MARSXT_FCBGA962
@
DMINUS
AG29 DPLUS
AF29
NC#AR1
AR1
DBG_CNTL0
AP8
NC#AW8
AW8
NC#AR3
AR3
NC#AR8
AR8
NC#AU8
AU8
DBG_DATA0
AU1
DBG_DATA1
AU3
DBG_DATA10
AV7
DBG_DATA11
AN7
DBG_DATA12
AV9
DBG_DATA13
AT9
DBG_DATA14
AR10
DBG_DATA15
AW10
DBG_DATA16
AU10
DBG_DATA17
AP10
DBG_DATA18
AV11
DBG_DATA19
AT11
DBG_DATA2
AW3
DBG_DATA20
AR12
DBG_DATA21
AW12
DBG_DATA22
AU12
DBG_DATA23
AP12
DBG_DATA3
AP6
DBG_DATA4
AW5
DBG_DATA5
AU5
DBG_DATA6
AR6
DBG_DATA7
AW6
DBG_DATA8
AU6
DBG_DATA9
AT7
GENERICA
AJ19
GENERICB
AK19
GENERICC
AJ20
GENERICD
AK20
GENERICE_HPD4
AJ24
GENERICF_HPD5
AH26
GENERICG_HPD6
AH24
GPIO_0
AH20
GPIO_1
AH18
GPIO_10_ROMSCK
AJ16
GPIO_11
AK16
GPIO_12
AL16
GPIO_13
AM16
GPIO_14_HPD2
AM14
GPIO_15_PWRCNTL_0
AM13
GPIO_16
AK14
GPIO_17_THERMAL_INT
AG30
GPIO_18_HPD3
AN14
GPIO_19_CTF
AM17
GPIO_2
AN16
GPIO_20_PWRCNTL_1
AL13
GPIO_21
AJ14
GPIO_22_ROMCSB
AK13
CLKREQB
AN13
SMBDATA
AH23 SMBCLK
AJ23
GPIO_5_AC_BATT
AH17
GPIO_6_TACH
AJ17
GPIO_7_BLON
AK17
GPIO_8_ROMSO
AJ13
GPIO_9_ROMSI
AH15
GENLK_CLK
AD29
HPD1
AK24
HSYNC AC36
JTAG_TCK
AK23 JTAG_TDI
AN23
JTAG_TDO
AM24 JTAG_TMS
AL24
JTAG_TRSTB
AM23
NC#AK29 AK29
NC#AK30 AK30
GPIO_28_FDO
AK32
TSVDD
AJ32
TSVSS
AJ33
DBG_VREFG
AH13
VSS1DI AC34
GPIO_29
AG32
GPIO_30
AG33
PS_3 AD33
NC#AF33 AF33
AUX1N AL27
AUX1P AM27
AUX2N AM20
AUX2P AN20
AVDD AD34
AVSSQ AE34
BAF37
AVSSN AE38
NC#AC32 AC32
NC#AF32 AF32
DDC1CLK AM26
DDC1DATA AN26
DDC2CLK AM19
DDC2DATA AL19
DDCVGACLK AJ30
DDCVGADATA AJ31
NC#AM30 AM30
NC#AL30 AL30
NC#AM29 AM29
NC#AL29 AL29
NC#AM21 AM21
NC#AN21 AN21
GAE36
NC_SVI2#AD30 AD30
PS_1 AD31
AVSSN AD35
RAD39
CEC_1
AC30
NC_SVI2#AC31 AC31
NC#AA29 AA29
AVSSN AD37
RSET AB34
SCL
AK26
SDA
AJ26
NC#AR24 AR24
NC#AR14 AR14
NC#AT25 AT25
NC#AT15 AT15
NC#AV25 AV25
NC#AV15 AV15
NC#AU26 AU26
NC#AU16 AU16
NC#AR26 AR26
NC#AR16 AR16
NC#AT27 AT27
NC#AT17 AT17
NC#AU30 AU30
NC#AR20 AR20
NC#AV31 AV31
NC#AT21 AT21
NC#AT31 AT31
NC#AV21 AV21
NC#AR32 AR32
NC#AU22 AU22
NC#AU32 AU32
NC#AR22 AR22
NC#AT33 AT33
NC#AT23 AT23
NC#AV23 AV23
NC#AU24 AU24
NC#AT29 AT29
NC#AR30 AR30
NC#AV13 AV13
NC#AU14 AU14
NC#AT19 AT19
NC#AU20 AU20
GENLK_VSYNC
AC29
VDD1DI AC33
PS_2 AG31
VSYNC AC38
NC_SVI2#AD32 AD32
TS_A
AL31
SWAPLOCKA
AJ21
SWAPLOCKB
AK21
PS_0 AM34
NC#V13 V13
NC#U13 U13
PX_EN
AL21
TESTEN
AD28
NC#AG21 AG21
C829
1U_0402_6.3V6K
VGA@ 1
2
T18 @
R821
10K_0402_5%
@
12
R409
100K_0402_5%
VGA@
1 2
Q54B
DMN66D0LDW-7_SOT363-6
VGA@
34
5
T154
T110
T112
T128
R819 10K_0402_5%
@
1 2
T155
T127
T132
R800
4.7K_0402_5%
VGA@
1 2
T123
T122
L66
BLM18AG121SN1D_2P
VGA@ 12
C830
10U_0603_6.3V6M
VGA@ 1
2
R811 249_0402_1%MARS@
1 2
T156
C849
12P_0402_50V8J
VGA@
1
2
L65
BLM18AG121SN1D_2P
VGA@ 12
R813
0_0402_5%
@
1 2
T131
PLLS/XTAL
PART 9 0F 9
U51I
2160842006A0MARSXT_FCBGA962
@
XTALIN AV33
XTALOUT AU34
XO_IN AW34
XO_IN2 AW35
MPLL_PVDD
H7
MPLL_PVDD
H8
SPLL_PVDD
AM10
SPLL_VDDC
AN9
SPLL_PVSS
AN10
CLKTESTA AK10
CLKTESTB AL10
NC_XTAL_PVDD
AF30
NC_XTAL_PVSS
AF31
R817 1K_0402_5%
VGA@ 12 R816
10K_0402_5%
@
12
T114
R898 0_0402_5%
@
1 2
T113
L69 0_0603_5%
@
1 2
R805 499_0402_1%MARS@
1 2
T109
U52
ADM1032ARMZ-2REEL_MSOP8
@
VDD
1
ALERT# 6
THERM#
4GND 5
D+
2
D-
3
SCLK 8
SDATA 7
Crystal
X2
27MHZ_10PF_X3G027000BA1H-U
VGA@
IN 1
OUT
3
GND
2
GND 4
R806 10K_0402_5% @
1 2
R812
10K_0402_5%
X76@
12
C891
0.1U_0402_16V4Z
@1
2
T124
L67
0_0603_5%
MARS@ 12
C848
12P_0402_50V8J
VGA@ 1
2
C827
2200P_0402_50V7K
@
1 2
T115
R798 4.7K_0402_5%
@
1 2
T119
C847
0.01U_0402_16V7K
@
1
2
T121
C826
10U_0603_6.3V6M
VGA@ 1
2
R899 0_0402_5%
@
1 2
C840
0.1U_0402_16V7K
@
1
2
R822
1M_0402_5%
VGA@
12
T118
C841 0.1U_0402_16V4Z
MARS@ 1 2
C833
10U_0603_6.3V6M
VGA@ 1
2
R810 499_0402_1%MARS@
1 2
C84410U_0603_6.3V6M @
12
T125
R823
4.75K_0402_1%
VGA@
12
T137
T111
C843
0.1U_0402_16V7K
@
1
2
Q54A
DMN66D0LDW-7_SOT363-6
VGA@
61
2
T117
C838
1U_0402_6.3V6K
@
1
2
T135
R803 10K_0402_5%@
1 2
C8451U_0402_6.3V6K @
12
R8020_0402_5% @12
R808
8.45K_0402_1%
VGA@
12
C842
0.1U_0402_16V7K
@
1
2
C892
0.1U_0402_16V4Z
@1
2
C835
0.1U_0402_16V4Z
@
1
2
T120
R804 10K_0402_5%
@
1 2
C8460.1U_0402_16V4Z VGA@
12
D22
RB751V40_SC76-2
VGA@
1 2
RP21
10K_0804_8P4R_5%
@
1 8
2 7
3 6
4 5
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

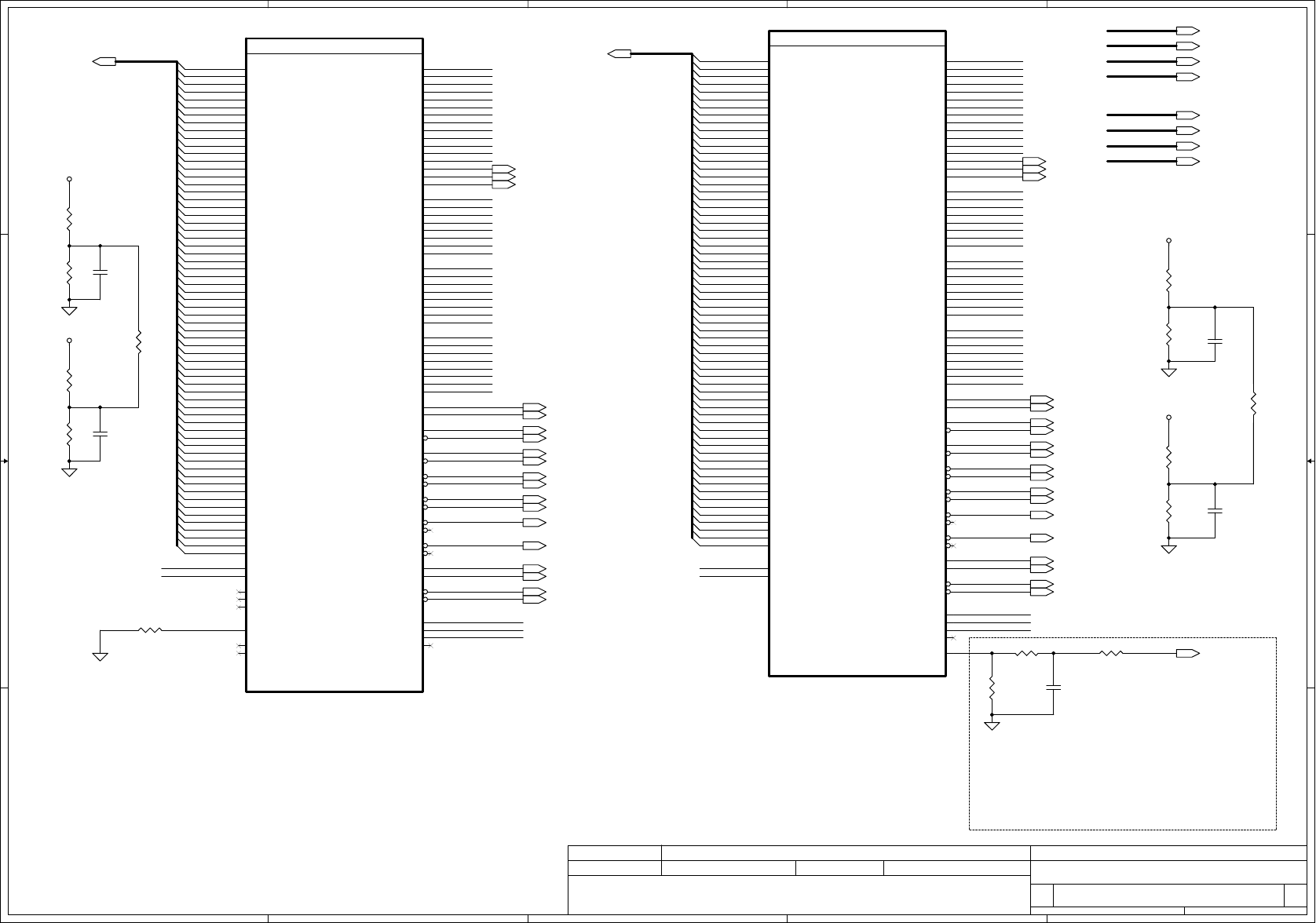

15mil
15mil
15mil
15mil
Place all these components very close
to GPU (Within 25mm) and
keep all component close to
each Other (within5mm) except Rser2
The suggested components are tested on the AMD
reference board only. Customers must measure the slew
on each memory part to ensure that the slew rate meets
the DRAM specification.
(SUN 64 bin on at Channel B)
MVREFDB
MVREFSB
MDB51
MDB15
MDB16
MDB52
MDB17
MDB53
MDB18
MDB54
MDB19
MDB55
MDB20
MDB56
MDB21
MDB57
MDB22
MDB58
MDB23
MDB59
MDB24
MDB60
MDB25
MDB61
MDB26
MDB27
MDB62
MDB28
MDB63
MDB[0..63]
MDB29
MDB30
MDB31
MDB32
MDB0
MDB33
MDB34
MDB35
MDB36
MDB37
MDB1
MDB38
MDB39
MDB2
MDB40
MDB3
MDB41
MDB4
MDB42
MDB5
MDB6
MDB43
MDB7
MDB44
MDB8
MDB45
MDB9
MDB46
MDB10
MDB47
MDB11
MDB48
MDB12
MDB49
MDB13
MDB50
MDB14
MVREFSB
MVREFDB
MDA[0..63]
MDA1
MDA2
MDA3
MDA4
MDA5
MDA6
MDA7
MDA8
MDA9
MDA10
MDA11
MDA12
MDA13
MDA14
MDA15
MDA16
MDA17
MDA18
MDA19
MDA20
MDA21
MDA22
MDA23
MDA24
MDA25
MDA26
MDA27
MDA28
MDA29
MDA30
MDA31
MDA32
MDA33
MDA34
MDA35
MDA36
MDA37
MDA38
MDA39
MDA40
MDA41
MDA42
MDA43
MDA44
MDA45
MDA46
MDA47
MDA48
MDA49
MDA50
MVREFDA
MDA51
MDA52
MDA53
MDA54
MDA55
MDA56
MDA57
MDA58
MDA59
MDA60
MDA61
MDA62
MDA63
MVREFSA
MVREFDA
MVREFSA
MDA0
QSA[0..7]
QSA#3
QSA3
A_BA2
QSA#5
QSA4
QSA#6
QSA5
QSA#7
QSA6
QSA7
A_BA0
MAA0
MAA1
MAA2
MAA3
A_BA1
MAA4
QSA#0
MAA5
MAA6
QSA0
MAA7
MAA8
MAA9
QSA#1
MAA10
MAA11
MAA12
CASA0#
CLKA0
CASA1#
CLKA0#
RASA0#
RASA1#
CLKA1
CLKA1#
ODTA0
ODTA1
CKEA0
CKEA1
WEA0#
WEA1#
CSA1#
CSA0#
ODTB0
ODTB1
MAB12
DQMB#5
B_BA2
CKEB1
CASB0#
DQMB#6
B_BA0
CASB1#
B_BA1
DQMB#7
RASB0#
QSB#1
RASB1#
QSB0
CLKB1
MAB0MAB0
QSB#2
CLKB1#
QSB#3
QSB#4
DQMB#1
QSB1
MAB1
WEB0#
QSB#6
CSB0#
MAB2
QSB2
DQMB#2
QSB#7
MAB3
WEB1#
QSB3
MAB4
DQMB#0
QSB4
MAB5
CSB1#
DQMB#3
QSB5
MAB6
CLKB0
MAB7
QSB6
MAB8
CLKB0#
DQMB#4
QSB7
MAB9
MAB10
QSB#0
MAB11
CKEB0
MAB13
MEM_CALRP0
QSA1
QSA2
QSA#2
QSA#4
MAA13
MAA14
MAA15
QSB#5
MAB14
MAB15
DQMA#0
DQMA#1
DQMA#2
DQMA#3
DQMA#4
DQMA#5
DQMA#6
DQMA#7
MAA[0..15]
MAB[0..15]
DQMA#[0..7]
DQMB#[0..7]
QSB[0..7]
QSA#[0..7]
QSB#[0..7]
MDB[0..63]23
MDA[0..63]22
VRAM_RST# 22,23
QSA[0..7] 22
ODTA0 22
ODTA1 22
CLKA0 22
CLKA0# 22
CLKA1 22
CLKA1# 22
RASA0# 22
RASA1# 22
CASA1# 22
CASA0# 22
CKEA0 22
CKEA1 22
WEA1# 22
WEA0# 22
CSA0# 22
CSA1# 22
ODTB0 23
ODTB1 23
CLKB0 23
CLKB0# 23
CLKB1 23
CLKB1# 23
RASB1# 23
RASB0# 23
CSB1# 23
CASB1# 23
CASB0# 23
CSB0# 23
WEB1# 23
CKEB1 23
CKEB0 23
WEB0# 23
A_BA0 22 B_BA0 23
MAA[0..15] 22
MAB[0..15] 23
B_BA1 23
B_BA2 23
A_BA1 22
A_BA2 22
DQMA#[0..7] 22
DQMB#[0..7] 23
QSB[0..7] 23
QSA#[0..7] 22
QSB#[0..7] 23
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_MEMORY
Custom
19 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_MEMORY
Custom
19 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_MEMORY
Custom
19 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C853
1U_0402_6.3V6K
VGA@
1
2
R824
40.2_0402_1%VGA@
12
R830
100_0402_1%
MARS@
12
R825
40.2_0402_1%
MARS@
12
C850
1U_0402_6.3V6K
MARS@
1
2
C851
1U_0402_6.3V6K
VGA@
1
2
MEMORY INTERFACE A
GDDR5/DDR3
PART 3 0F 9
U51C
2160842006A0MARSXT_FCBGA962
@
DQA0_0
C37
DQA0_1
C35
DQA0_10
C30
DQA0_11
A30
DQA0_12
F28
DQA0_13
C28
DQA0_14
A28
DQA0_15
E28
DQA0_16
D27
DQA0_17
F26
DQA0_18
C26
DQA0_19
A26
DQA0_2
A35
DQA0_20
F24
DQA0_21
C24
DQA0_22
A24
DQA0_23
E24
DQA0_24
C22
DQA0_25
A22
DQA0_26
F22
DQA0_27
D21
DQA0_28
A20
DQA0_29
F20
DQA0_3
E34
DQA0_30
D19
DQA0_31
E18
DQA1_0
C18
DQA1_1
A18
DQA1_2
F18
DQA1_3
D17
DQA1_4
A16
DQA1_5
F16
DQA1_6
D15
DQA1_7
E14
DQA0_4
G32
DQA1_8
F14
DQA1_9
D13
DQA1_10
F12
DQA1_11
A12
DQA1_12
D11
DQA1_13
F10
DQA1_14
A10
DQA1_15
C10
DQA1_16
G13
DQA1_17
H13
DQA0_5
D33
DQA1_18
J13
DQA1_19
H11
DQA1_20
G10
DQA1_21
G8
DQA1_22
K9
DQA1_23
K10
DQA1_24
G9
DQA1_25
A8
DQA1_26
C8
DQA1_27
E8
DQA0_6
F32
DQA1_28
A6
DQA1_29
C6
DQA1_30
E6
DQA1_31
A5
DQA0_7
E32
DQA0_8
D31
DQA0_9
F30
NC#M12
M12
MVREFDA
L18
MVREFSA
L20
NC#L27
L27
NC#N12
N12
NC#AG12
AG12
MEM_CALRP0
M27
NC#AH12
AH12
CASA0B K20
CASA1B K17
CKEA0 K21
CKEA1 J20
CLKA0 H27
CLKA0B G27
CLKA1 J14
CLKA1B H14
CSA0B_0 K24
CSA0B_1 K27
CSA1B_0 M13
CSA1B_1 K16
WCKA0_0/DQMA_0 A32
WCKA0B_0/DQMA_1 C32
WCKA0_1/DQMA_2 D23
WCKA0B_1/DQMA_3 E22
WCKA1_0/DQMA_4 C14
WCKA1B_0/DQMA_5 A14
WCKA1_1/DQMA_6 E10
WCKA1B_1/DQMA_7 D9
MAA0_0/MAA_0 G24
MAA0_1/MAA_1 J23
MAA1_2/MAA_10 L13
MAA1_3/MAA_11 G16
MAA1_4/MAA_12 J16
MAA1_5/MAA_BA2 H16
MAA1_6/MAA_BA0 J17
MAA1_7/MAA_BA1 H17
MAA0_2/MAA_2 H24
MAA0_3/MAA_3 J24
MAA0_4/MAA_4 H26
MAA0_5/MAA_5 J26
MAA0_6/MAA_6 H21
MAA0_7/MAA_7 G21
MAA1_0/MAA_8 H19
MAA1_1/MAA_9 H20
ADBIA0/ODTA0 J21
ADBIA1/ODTA1 G19
RASA0B K23
RASA1B K19
EDCA0_0/QSA_0 C34
EDCA0_1/QSA_1 D29
EDCA0_2/QSA_2 D25
EDCA0_3/QSA_3 E20
EDCA1_0/QSA_4 E16
EDCA1_1/QSA_5 E12
EDCA1_2/QSA_6 J10
EDCA1_3/QSA_7 D7
MAA0_8/MAA_13 H23
MAA1_8/MAA_14 J19
DDBIA0_0/QSA_0B A34
DDBIA0_1/QSA_1B E30
DDBIA0_2/QSA_2B E26
DDBIA0_3/QSA_3B C20
DDBIA1_0/QSA_4B C16
DDBIA1_1/QSA_5B C12
DDBIA1_2/QSA_6B J11
DDBIA1_3/QSA_7B F8
WEA0B K26
WEA1B L15
MAA0_9/MAA_15 M21
MAA1_9/RSVD M20
R835
120_0402_1%
VGA@
1 2
R840
4.99K_0402_1%
VGA@
1 2
R901
0_0402_5%
@
12
R829
40.2_0402_1%VGA@
12
R839
51.1_0402_1%
VGA@
1 2
R826
100_0402_1%
MARS@
12
R831
100_0402_1% VGA@
12
R828
40.2_0402_1%
MARS@
12
C852
1U_0402_6.3V6K
MARS@
1
2
R827
100_0402_1% VGA@
12
R838
10_0402_5%
VGA@
1 2
C854
120P_0402_50V8
VGA@
1
2
MEMORY INTERFACE B
GDDR5/DDR3
PART 4 0F 9
U51D
2160842006A0MARSXT_FCBGA962
@
DQB0_0
C5
DQB0_1
C3
DQB0_10
J4
DQB0_11
K6
DQB0_12
K5
DQB0_13
L4
DQB0_14
M6
DQB0_15
M1
DQB0_16
M3
DQB0_17
M5
DQB0_18
N4
DQB0_19
P6
DQB0_2
E3
DQB0_20
P5
DQB0_21
R4
DQB0_22
T6
DQB0_23
T1
DQB0_24
U4
DQB0_25
V6
DQB0_26
V1
DQB0_27
V3
DQB0_28
Y6
DQB0_29
Y1
DQB0_3
E1
DQB0_30
Y3
DQB0_31
Y5
DQB1_0
AA4
DQB1_1
AB6
DQB1_2
AB1
DQB1_3
AB3
DQB1_4
AD6
DQB1_5
AD1
DQB1_6
AD3
DQB1_7
AD5
DQB0_4
F1
DQB1_8
AF1
DQB1_9
AF3
DQB1_10
AF6
DQB1_11
AG4
DQB1_12
AH5
DQB1_13
AH6
DQB1_14
AJ4
DQB1_15
AK3
DQB1_16
AF8
DQB1_17
AF9
DQB0_5
F3
DQB1_18
AG8
DQB1_19
AG7
DQB1_20
AK9
DQB1_21
AL7
DQB1_22
AM8
DQB1_23
AM7
DQB1_24
AK1
DQB1_25
AL4
DQB1_26
AM6
DQB1_27
AM1
DQB0_6
F5
DQB1_28
AN4
DQB1_29
AP3
DQB1_30
AP1
DQB1_31
AP5
DQB0_7
G4
DQB0_8
H5
DQB0_9
H6
MVREFDB
Y12
MVREFSB
AA12
CASB0B W10
CASB1B AA10
CKEB0 U10
CKEB1 AA11
CLKB0 L9
CLKB0B L8
CLKB1 AD8
CLKB1B AD7
CSB0B_0 P10
CSB0B_1 L10
CSB1B_0 AD10
CSB1B_1 AC10
WCKB0_0/DQMB_0 H3
WCKB0B_0/DQMB_1 H1
WCKB0_1/DQMB_2 T3
WCKB0B_1/DQMB_3 T5
WCKB1_0/DQMB_4 AE4
WCKB1B_0/DQMB_5 AF5
WCKB1_1/DQMB_6 AK6
WCKB1B_1/DQMB_7 AK5
DRAM_RST AH11
MAB0_0/MAB_0 P8
MAB0_1/MAB_1 T9
MAB1_2/MAB_10 AC8
MAB1_3/MAB_11 AC9
MAB1_4/MAB_12 AA7
MAB1_5/BA2 AA8
MAB1_6/BA0 Y8
MAB1_7/BA1 AA9
MAB0_2/MAB_2 P9
MAB0_3/MAB_3 N7
MAB0_4/MAB_4 N8
MAB0_5/MAB_5 N9
MAB0_6/MAB_6 U9
MAB0_7/MAB_7 U8
MAB1_0/MAB_8 Y9
MAB1_1/MAB_9 W9
ADBIB0/ODTB0 T7
ADBIB1/ODTB1 W7
RASB0B T10
RASB1B Y10
EDCB0_0/QSB_0 F6
EDCB0_1/QSB_1 K3
EDCB0_2/QSB_2 P3
EDCB0_3/QSB_3 V5
EDCB1_0/QSB_4 AB5
EDCB1_1/QSB_5 AH1
EDCB1_2/QSB_6 AJ9
EDCB1_3/QSB_7 AM5
DDBIB0_0/QSB_0B G7
DDBIB0_1/QSB_1B K1
DDBIB0_2/QSB_2B P1
DDBIB0_3/QSB_3B W4
DDBIB1_0/QSB_4B AC4
DDBIB1_1/QSB_5B AH3
DDBIB1_2/QSB_6B AJ8
DDBIB1_3/QSB_7B AM3
WEB0B N10
WEB1B AB11
MAB0_8/MAB_13 T8
MAB1_8/MAB_14 W8
MAB0_9/MAB_15 U12
MAB1_9/RSVD V12
R900
0_0402_5%
@
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

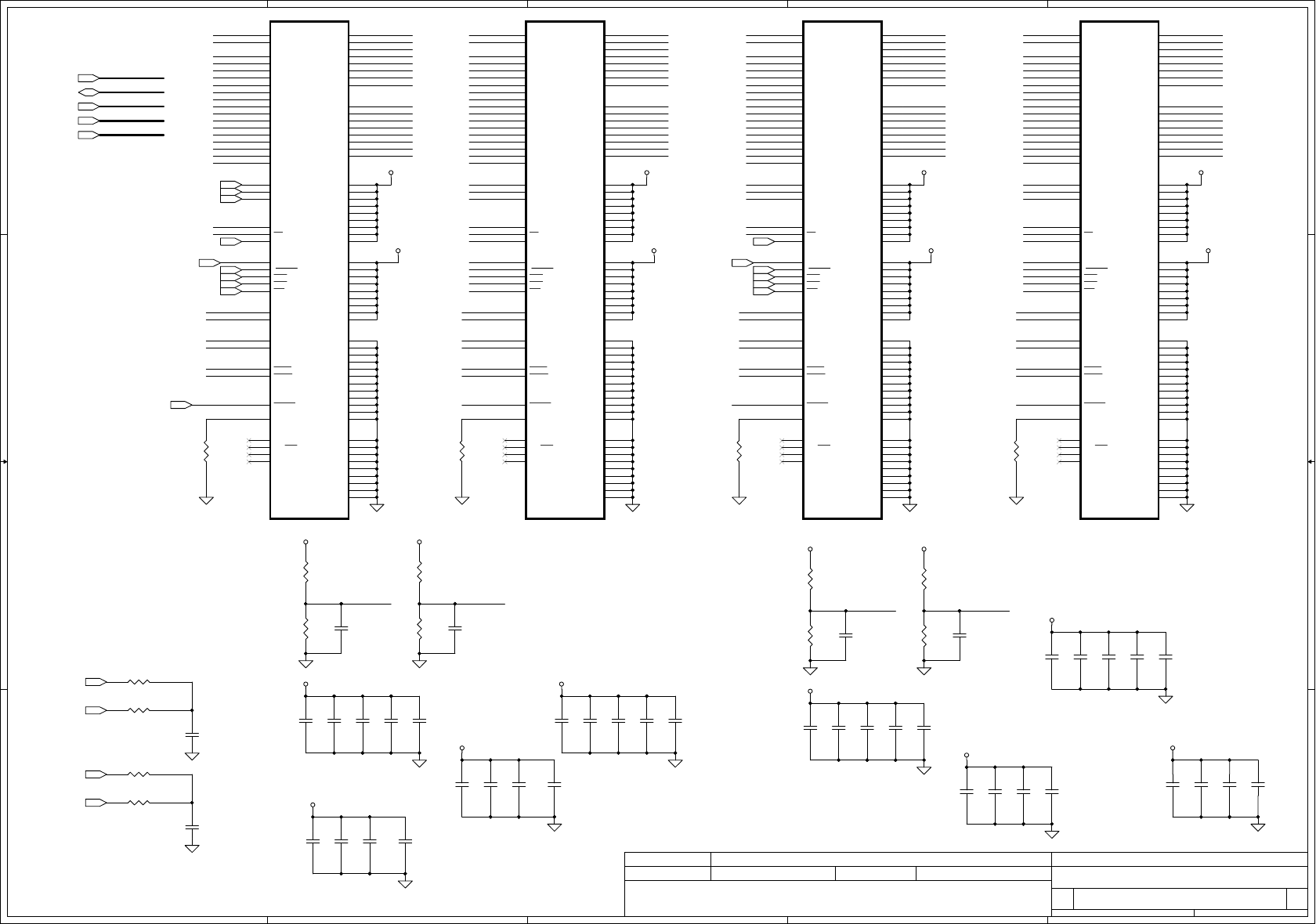

10mil
10mil
20mil
20mil
1.5A
13mA
25mA
30A (TBD)
3.5A (DDR3)
2.5A
20mil
NC For Mars
100mA
360mil
Must always be connected to PCIE_VDDC.
0.95 V for "Mars" and
"Heathrow"/"Chelsea" on both BACO and
non-BACO designs.
300mA
1.4A 60mil
100mil
(SUN NC)
VCC_GPU_SENSE
+VDDC_CT
+VDDR3
VSS_GPU_SENSE
+VDDR4
VCC_GPU_SENSE47
VSS_GPU_SENSE47
+1.5VSDGPU
+1.8VSDGPU
+VGA_CORE
+0.95VSDGPU
+0.95VSDGPU
+VGA_CORE
+VDDC_CT
+1.8VSDGPU
+1.8VSDGPU
+3VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PWR/GND
Custom
20 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PWR/GND
Custom
20 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PWR/GND
Custom
20 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
T139
C883
2.2U_0402_6.3V6M
VGA@
1
2
C858
0.01U_0402_16V7K
VGA@
1
2
C868
0.1U_0402_16V4Z
VGA@
1
2
C866
0.1U_0402_16V4Z
VGA@
1
2
C877
10U_0603_6.3V6M
VGA@
1
2
C884
2.2U_0402_6.3V6M
VGA@
1
2
C867
0.1U_0402_16V4Z
@
1
2
C880
2.2U_0402_6.3V6M
@
1
2
C861
1U_0402_6.3V6K
VGA@
1
2
L72
BLM18AG121SN1D_2P
MARS@
12
C863
10U_0603_6.3V6M
@
1
2
C885
10U_0603_6.3V6M
VGA@
1
2
L70
BLM18AG121SN1D_2P
VGA@
12
C875
1U_0402_6.3V6K
VGA@
1
2
C856
0.01U_0402_16V7K
VGA@
1
2
C860
0.01U_0402_16V7K
VGA@
1
2
C899
0.1U_0402_16V4Z
@
1
2
C864
0.1U_0402_16V4Z
VGA@
1
2
C887
0.1U_0402_16V4Z
@
1
2
C889
1U_0402_6.3V6K
VGA@
1
2
C890
1U_0402_6.3V6K
VGA@
1
2
C907
10U_0603_6.3V6M
MARS@
1
2
C917
0.1U_0402_16V4Z
VGA@
1
2
C898
0.1U_0402_16V4Z
VGA@
1
2
C874
1U_0402_6.3V6K
VGA@
1
2
C886
1U_0402_6.3V6K
VGA@
1
2
C857
0.01U_0402_16V7K
@
1
2
C919
0.1U_0402_16V4Z
VGA@
1
2
C908
1U_0402_6.3V6K
MARS@
1
2
C897
1U_0402_6.3V6K
VGA@
1
2
C918
0.1U_0402_16V4Z
VGA@
1
2
C896
1U_0402_6.3V6K
@
1
2
C881
2.2U_0402_6.3V6M
@
1
2
C873
1U_0402_6.3V6K
VGA@
1
2
C859
0.01U_0402_16V7K
@
1
2
C878
10U_0603_6.3V6M
VGA@
1
2
L71
BLM18AG121SN1D_2P
VGA@
12
R842
0_0402_5%
@
12
CORE
MEM I/O
I/O
LEVEL
TRANSLATION
ISOLATED
CORE I/O
VOLTAGE
SENESE
BACO
PART 5 0F 9
PCIE
DVP
U51E
2160842006A0MARSXT_FCBGA962
@
PCIE_PVDD AB37
PCIE_VDDC G30
PCIE_VDDC R28
PCIE_VDDC T28
PCIE_VDDC U28
PCIE_VDDC G31
PCIE_VDDC H29
PCIE_VDDC H30
PCIE_VDDC J29
PCIE_VDDC J30
PCIE_VDDC L28
PCIE_VDDC M28
PCIE_VDDC N28
NC#AA31 AA31
NC#AA32 AA32
NC#AA33 AA33
NC#AA34 AA34
NC_BIF_VDDC V28
NC_BIF_VDDC W29
NC#W30 W30
NC#Y31 Y31
VDDR1
AC7
VDDR1
G17
VDDR1
G20
VDDR1
G23
VDDR1
G26
VDDR1
G29
VDDR1
H10
VDDR1
J7
VDDR1
J9
VDDR1
K11
VDDR1
K13
VDDR1
AD11
VDDR1
K8
VDDR1
L12
VDDR1
L16
VDDR1
L21
VDDR1
L23
VDDR1
L26
VDDR1
L7
VDDR1
M11
VDDR1
N11
VDDR1
P7
VDDR1
AF7
VDDR1
R11
VDDR1
U11
VDDR1
U7
VDDR1
Y11
VDDR1
Y7
VDDR1
AG10
VDDR1
AJ7
VDDR1
AK8
VDDR1
AL9
VDDR1
G11
VDDR1
G14
VDDR3
AF23
VDDR3
AF24
VDDR3
AG23
VDDR3
AG24
VDDR4
AF13
VDDR4
AF15
VDDR4
AG13
VDDR4
AG15
VDDR4
AD12
VDDR4
AF11
VDDR4
AF12
VDDR4
AG11
VDD_CT
AF26
VDD_CT
AF27
VDD_CT
AG26
VDD_CT
AG27
VDDC AA15
VDDC AB21
VDDC AB23
VDDC AB26
VDDC AB28
VDDCI AC12
VDDCI AC15
VDDC AC17
VDDC AC20
VDDC AC22
VDDC AC24
VDDC AA17
VDDC AC27
VDDCI AD13
VDDCI AD16
VDDC AD18
VDDC AD21
VDDC AD23
VDDC AD26
VDDC AF17
VDDC AF20
VDDC AF22
VDDC AA20
VDDC AG16
VDDC AG18
VDDC AH22
VDDCI M16
VDDCI M18
VDDCI M23
VDDC M26
VDDCI N15
VDDCI N17
VDDC AA22
VDDCI N20
VDDCI N22
VDDC N24
BIF_VDDC N27
VDDCI R13
VDDCI R16
VDDC R18
VDDC R21
VDDC R23
VDDC R26
VDDC AA24
VDDCI T15
VDDC T17
VDDC T20
VDDC T22
VDDC T24
BIF_VDDC T27
VDDC U16
VDDC U18
VDDC U21
VDDC U23
VDDC AA27
VDDC U26
VDDCI V15
VDDC V17
VDDC V20
VDDC V22
VDDC V24
VDDC V27
VDDC Y16
VDDC Y18
VDDC Y21
VDDCI AB13
VDDC Y23
VDDC Y26
VDDC Y28
VDDC AB16
VDDC AB18
VDDCI M15
VDDCI N13
VDDCI R12
VDDCI T12
VDDCI AA13
VDDCI Y13
VDDC AH27
VDDC AH28
FB_VDDC
AF28
FB_VDDCI
AG28
FB_GND
AH29
C882
2.2U_0402_6.3V6M
VGA@
1
2
C869
1U_0402_6.3V6K
VGA@
1
2
C872
1U_0402_6.3V6K
VGA@
1
2
C865
0.1U_0402_16V4Z
@
1
2
C862
1U_0402_6.3V6K
@
1
2
C888
10U_0603_6.3V6M
VGA@
1
2
C876
10U_0603_6.3V6M
VGA@
1
2
C879
10U_0603_6.3V6M
VGA@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
20mil
280mA
237mA
+0.95VSDGPU
+1.8VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PWR/GND
Custom
21 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PWR/GND
Custom
21 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MARS-Pro_PWR/GND
Custom
21 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C927
0.1U_0402_16V4Z
VGA@
1
2
C936
10U_0603_6.3V6M
@
1
2
R845
150_0402_1%
MARS@ 12
C928
1U_0402_6.3V6K
VGA@
1
2
GND
PART 6 0F 9
U51F
2160842006A0MARSXT_FCBGA962
@
PCIE_VSS
AB39
PCIE_VSS
J31
PCIE_VSS
J34
PCIE_VSS
K31
PCIE_VSS
K34
PCIE_VSS
K39
PCIE_VSS
L31
PCIE_VSS
L34
PCIE_VSS
M34
PCIE_VSS
M39
PCIE_VSS
N31
PCIE_VSS
E39
PCIE_VSS
N34
PCIE_VSS
P31
PCIE_VSS
P34
PCIE_VSS
P39
PCIE_VSS
R34
PCIE_VSS
T31
PCIE_VSS
T34
PCIE_VSS
T39
PCIE_VSS
U31
PCIE_VSS
U34
PCIE_VSS
F34
PCIE_VSS
V34
PCIE_VSS
V39
PCIE_VSS
W31
PCIE_VSS
W34
PCIE_VSS
Y34
PCIE_VSS
Y39
PCIE_VSS
F39
PCIE_VSS
G33
PCIE_VSS
G34
PCIE_VSS
H31
PCIE_VSS
H34
PCIE_VSS
H39
VSS_MECH A39
VSS_MECH AW1
VSS_MECH AW39
GND A3
GND AA6
GND F13
GND
F15
GND
F17
GND
F19
GND
F21
GND
F23
GND
F25
GND
F27
GND
F29
GND
F31
GND AB12
GND
F33
GND
F7
GND
F9
GND
G2
GND
G6
GND
H9
GND
J2
GND
J27
GND
J6
GND
J8
GND AB15
GND
K14
GND
K7
GND
L11
GND
L17
GND
L2
GND
L22
GND
L24
GND
L6
GND
M17
GND
M22
GND AB17
GND
M24
GND
N16
GND
N18
GND
N2
GND
N21
GND
N23
GND
N26
GND
N6
GND
R15
GND
R17
GND AB20
GND
R2
GND
R20
GND
R22
GND
R24
GND
R27
GND
R6
GND
T11
GND
T13
GND
T16
GND
T18
GND AB22
GND
T21
GND
T23
GND
T26
GND
U15
GND
U17
GND
U2
GND
U20
GND
U22
GND
U24
GND
U27
GND AB24
GND
U6
GND
V11
GND
V16
GND
V18
GND
V21
GND
V23
GND
V26
GND
W2
GND
W6
GND
Y15
GND AB27
GND
Y17
GND
Y20
GND
Y22
GND
Y24
GND
Y27
GND AC11
GND AC13
GND A37
GND AC16
GND AC18
GND AC2
GND AC21
GND AC23
GND AC26
GND AC28
GND AC6
GND AD15
GND AD17
GND AA16
GND AD20
GND AD22
GND AD24
GND AD27
GND AD9
GND AE2
GND AE6
GND AF10
GND AF16
GND AF18
GND AA18
GND AF21
GND AG17
GND AG2
GND AG20
NC#AG22 AG22
GND AG6
GND AG9
GND AH21
GND AJ10
GND AA2
GND AJ11
GND AJ2
GND AJ28
GND AJ6
GND AK11
GND AK31
GND AK7
GND AL11
GND AL14
GND AL17
GND AA21
GND AL2
GND AL20
GND AL23
GND AL26
GND AL32
GND AL6
GND AL8
GND AM11
GND AM31
GND AA23
GND AM9
GND AN11
GND AN2
GND AN30
GND AN6
GND AN8
GND AP11
GND AP7
GND AP9
GND AR5
GND AA26
GND B11
GND B13
GND B15
GND B17
GND B19
GND B21
GND B23
GND B25
GND B27
GND AA28
GND B29
GND B31
GND B33
GND B7
GND B9
GND C1
GND C39
GND E35
GND E5
GND F11
DP GND
DP_VDDCDP_VDDR
CALIBRATION
PART 8 0F 9
U51H
2160842006A0MARSXT_FCBGA962
@
NC#AU28
AU28
DP_VSSR AV27
DP_VDDC AP31
DP_VDDC AP32
NC#AN24
AN24
NC#AP24
AP24
DP_VSSR AN27
DP_VSSR AP27
DP_VSSR AP28
DP_VSSR AW24
DP_VSSR AW26
NC#AW28
AW28
NC#AV29
AV29
DP_VSSR AR28
DP_VDDC AN33
DP_VDDC AP33
NC#AP25
AP25
NC#AP26
AP26
DP_VSSR AN29
DP_VSSR AP29
DP_VSSR AP30
DP_VSSR AW30
DP_VSSR AW32
NC#AU18
AU18
DP_VSSR AV17
NC#AP13 AP13
NC#AT13 AT13
NC#AP20
AP20
NC#AP21
AP21
DP_VSSR AN17
DP_VSSR AP16
DP_VSSR AP17
DP_VSSR AW14
DP_VSSR AW16
NC#AW18
AW18
NC#AV19
AV19
DP_VSSR AR18
NC#AP14 AP14
NC#AP15 AP15
NC#AP22
AP22
NC#AP23
AP23
DP_VSSR AN19
DP_VSSR AP18
DP_VSSR AP19
DP_VSSR AW20
DP_VSSR AW22
DP_VDDR
AM37
DP_VSSR AN38
DP_VDDC AL33
DP_VDDC AM33
DP_VDDR
AH34
DP_VDDR
AJ34
DP_VSSR AN34
DP_VSSR AP39
DP_VSSR AR39
DP_VSSR AU37
DP_CALR
AM39
DP_VDDR
AL38
DP_VSSR AM35
DP_VDDC AK33
DP_VDDC AK34
DP_VDDR
AF34
DP_VDDR
AG34
DP_VSSR AF39
DP_VSSR AH39
DP_VSSR AK39
DP_VSSR AL34
DP_VDDR
AM32
DP_VSSR AN32
DP_VDDC AN31
C929
10U_0603_6.3V6M
VGA@
1
2
C937
1U_0402_6.3V6K
VGA@
1
2
C938
0.1U_0402_16V4Z
VGA@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
15mil 15mil 15mil 15mil
X76
DQMA#3
QSA#1
QSA#3
QSA3
QSA1
DQMA#1
A_BA0
A_BA1
ODTA0
CLKA0#
WEA0#
CKEA0
RASA0#
CASA0#
CSA0#
CLKA0
MAA11
MAA9
MAA10
MAA8
MAA7
MAA6
MAA3
MAA4
MAA5
MAA1
MAA2
MAA0
VRAM_RST#
VREFCA_A1
VREFDA_Q1
MAA12
A_BA2
MDA[0..63]
MAA6
DQMA#0
MAA11
CASA1#
MAA5
MAA12
MAA4
MAA1
DQMA#7
A_BA0
MAA2
QSA4
MAA1
MAA0
QSA#2
MAA7
QSA#7
VREFDA_Q3
MAA9
MAA7
MAA0
CLKA1#
A_BA2
VREFCA_A3
MAA5
RASA1#
MAA11
MAA4
VRAM_RST#
MAA10
MAA12
QSA7
VRAM_RST#
MAA8
DQMA#4
MAA8
A_BA1
DQMA#2
MAA2
MAA0
ODTA1
VRAM_RST#
ODTA1
MAA4
MAA7
QSA#0
VREFDA_Q3
DQMA#6
QSA6
CKEA1
MAA12
MAA3MAA3
A_BA2
MAA10
MAA1
QSA#4
DQMA#5
QSA#5
VREFDA_Q1
MAA9 MAA9
CLKA1
CSA1#
MAA10
ODTA0
MAA3
MAA2
QSA2
MAA8
QSA#6
MAA11
A_BA1
A_BA0
VREFCA_A1
MAA5
WEA1#
VREFCA_A3
QSA5
MAA6
QSA0
MAA6
MDA18
MDA20
MDA16
MDA19
MDA21
MDA17
MDA22
MDA0
MDA23
MDA4
MDA6
MDA7
MDA2
MDA3
MDA1
MDA5
MDA24
MDA28
MDA29
MDA26
MDA25
MDA30
MDA27
MDA31
MDA13
MDA11
MDA15
MDA9
MDA14
MDA12
MDA10
MDA8
MDA40
MDA35
MDA47
MDA38
MDA32
MDA45
MDA37
MDA46
MDA43
MDA41
MDA34
MDA44
MDA36
MDA33
MDA39
MDA42
MDA63
MDA54
MDA56
MDA55
MDA48
MDA62
MDA57
MDA53
MDA52
MDA58
MDA49
MDA61
MDA60
MDA51
MDA50
MDA59
QSA[0..7]
MAA[0..15]
DQMA#[0..7]
QSA#[0..7]
MAA13 MAA13 MAA13 MAA13
VREFCA_A1 VREFDA_Q1 VREFCA_A3 VREFDA_Q3
CLKA1#
CLKA1CLKA0
CLKA0#
MAA14 MAA14 MAA14
MAA15 MAA15 MAA15 MAA14
MAA15
MDA[0..63]19
VRAM_RST#19,23
CLKA019
CLKA0#19
CLKA119
CLKA1#19
CKEA119
CSA1#19 RASA1#19 CASA1#19 WEA1#19
A_BA019
A_BA219 A_BA119
CKEA019
CSA0#19 RASA0#19 CASA0#19 WEA0#19
MAA[0..15]19
ODTA019 ODTA119
QSA#[0..7]19
QSA[0..7]19
DQMA#[0..7]19
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU +1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU+1.5VSDGPU +1.5VSDGPU
+1.5VSDGPU +1.5VSDGPU +1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
VRAM_DDR3 / Channel A
Custom
22 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
VRAM_DDR3 / Channel A
Custom
22 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
VRAM_DDR3 / Channel A
Custom
22 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C961
1U_0402_6.3V6K
128@
1
2
C971
10U_0603_6.3V6M
128@
1
2
C1030
10U_0603_6.3V6M
128@
1
2
C960
1U_0402_6.3V6K
128@
1
2
R867 40.2_0402_1%
128@
1 2
C969
10U_0603_6.3V6M
128@
1
2
C972
10U_0603_6.3V6M
128@
1
2
96-BALL
SDRAM DDR3
U55
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C959
1U_0402_6.3V6K
128@
1
2
ZZZ1
X7601@
X76402BOL01
4Gbx8 Micron 256M16
C962
1U_0402_6.3V6K
128@
1
2
C1023
10U_0603_6.3V6M
128@
1
2
R848
243_0402_1%
128@
12
C939
0.1U_0402_16V4Z
128@
1
2
C949
1U_0402_6.3V6K
128@
1
2
R847
243_0402_1%
128@
12
C953
1U_0402_6.3V6K
128@
1
2
C1024
10U_0603_6.3V6M
128@
1
2
C951
1U_0402_6.3V6K
128@
1
2
R866 40.2_0402_1%
128@
1 2
C970
10U_0603_6.3V6M
128@
1
2
C958
1U_0402_6.3V6K
128@
1
2
C1025
10U_0603_6.3V6M
128@
1
2
R869 40.2_0402_1%
128@
1 2
R850
4.99K_0402_1%
128@
12
C947
1U_0402_6.3V6K
128@
1
2
C948
1U_0402_6.3V6K
128@
1
2
ZZZ3
X7603@
X76402BOL03
2Gbx4 HYN 128M16
C1026
10U_0603_6.3V6M
128@
1
2
C963
1U_0402_6.3V6K
128@
1
2
C966
1U_0402_6.3V6K
128@
1
2
C952
1U_0402_6.3V6K
128@
1
2
R849
243_0402_1%
128@
12
R862
4.99K_0402_1%
128@
12
R854
4.99K_0402_1%
128@
12
ZZZ4
X7604@
X76402BOL04
2Gbx8 HYN 128M16
R851
4.99K_0402_1%
128@
12
C954
1U_0402_6.3V6K
128@
1
2
R855
4.99K_0402_1%
128@
12
C968
10U_0603_6.3V6M
128@
1
2
C955
1U_0402_6.3V6K
128@
1
2
96-BALL
SDRAM DDR3
U57
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
R868 40.2_0402_1%
128@
1 2
C950
1U_0402_6.3V6K
128@
1
2
C965
1U_0402_6.3V6K
128@
1
2
96-BALL
SDRAM DDR3
U56
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
R846
243_0402_1%
128@
12
R858
4.99K_0402_1%
128@
12
C975
10U_0603_6.3V6M
128@
1
2
C974
10U_0603_6.3V6M
128@
1
2
C1027
10U_0603_6.3V6M
128@
1
2
C940
0.1U_0402_16V4Z
128@
1
2
C395
0.01U_0402_16V7K
128@
1
2
C943
0.1U_0402_16V4Z
128@
1
2
C944
0.1U_0402_16V4Z
128@
1
2
C1028
10U_0603_6.3V6M
128@
1
2
C956
1U_0402_6.3V6K
128@
1
2
R859
4.99K_0402_1%
128@
12
R863
4.99K_0402_1%
128@
12
C973
10U_0603_6.3V6M
128@
1
2
C1029
10U_0603_6.3V6M
128@
1
2
C957
1U_0402_6.3V6K
128@
1
2
C964
1U_0402_6.3V6K
128@
1
2
96-BALL
SDRAM DDR3
U54
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C406
0.01U_0402_16V7K
128@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
DQMB#[0..7]
QSB[0..7]
MAB[0..15]
QSB#[0..7]
MDB[0..63]
DQMB#1
MAB11
MAB12
MAB4
MAB2
MAB1
MAB0
QSB#3
VRAM_RST#
MAB10
DQMB#3
MAB7
QSB#1
MAB3
VREFDB_Q1
MAB9
ODTB0
QSB3
MAB8
VREFCB_A1
MAB5
QSB1
MAB6
QSB#2
DQMB#2
QSB#0
QSB2
QSB0
DQMB#0
MAB8
VRAM_RST#
MAB12
MAB1
VREFCB_A1
VREFDB_Q1
MAB4
MAB7
MAB0
MAB10
MAB3
MAB5
MAB2
MAB9
MAB6
MAB11
QSB#4
DQMB#4
QSB#5
QSB4
QSB5
DQMB#5
ODTB1
MAB8
VRAM_RST#
MAB12
MAB1
VREFDB_Q3
VREFCB_A3
MAB4
MAB7
MAB0
MAB10
MAB3
MAB5
MAB2
MAB9
MAB6
MAB11
QSB#6
DQMB#6
QSB#7
QSB6
QSB7
DQMB#7
MAB8
VRAM_RST#
MAB12
MAB1
VREFCB_A3
VREFDB_Q3
MAB4
MAB7
MAB0
MAB10
MAB3
MAB5
MAB2
MAB9
MAB6
MAB11
MDB12
MDB14
MDB11
MDB8
MDB15
MDB13
MDB10
MDB9
MDB28
MDB24
MDB29
MDB27
MDB31
MDB25
MDB30
MDB26 MDB23
MDB22
MDB16
MDB21
MDB19
MDB20
MDB18
MDB17
MDB1
MDB5
MDB3
MDB7
MDB0
MDB4
MDB2
MDB6
MDB46
MDB41
MDB44
MDB43
MDB45
MDB37
MDB39
MDB32
MDB35
MDB38
MDB33
MDB42
MDB36
MDB34
MDB47
MDB40
MDB51
MDB55
MDB50
MDB57
MDB56
MDB61
MDB52
MDB53
MDB48
MDB60
MDB54
MDB49
MDB58
MDB59
MDB63
MDB62
MAB13 MAB13 MAB13 MAB13
VREFCB_A1 VREFDB_Q1 VREFDB_Q3VREFCB_A3
CLKB1
CLKB1#CLKB1#
CLKB1
CLKB0#
CLKB0 CLKB0
CLKB0#
B_BA0
B_BA1
B_BA2 B_BA2
B_BA0
B_BA1 B_BA2
B_BA0
B_BA1
CKEB0
ODTB0
CSB0#
RASB0#
CASB0#
WEB0#
CKEB1
ODTB1
CSB1#
RASB1#
CASB1#
WEB1#
MAB14 MAB14 MAB14 MAB14
MAB15 MAB15 MAB15 MAB15
CLKB019
CLKB0#19
CLKB119
CLKB1#19
MDB[0..63]19
MAB[0..15]19
VRAM_RST#19,22
CKEB119
B_BA019 B_BA119 B_BA219
CKEB019
CSB0#19
WEB0#19 CASB0#19 RASB0#19 CSB1#19 RASB1#19 CASB1#19 WEB1#19
ODTB019 ODTB119
QSB#[0..7]19
QSB[0..7]19
DQMB#[0..7]19
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU +1.5VSDGPU +1.5VSDGPU +1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU +1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
+1.5VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
VRAM_DDR3 / Channel B
Custom
23 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
VRAM_DDR3 / Channel B
Custom
23 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
VRAM_DDR3 / Channel B
Custom
23 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C1001
1U_0402_6.3V6K
VGA@
1
2
96-BALL
SDRAM DDR3
U60
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C1038
10U_0603_6.3V6M
VGA@
1
2
C985
1U_0402_6.3V6K
VGA@
1
2
R875
4.99K_0402_1%
VGA@
12
C1033
10U_0603_6.3V6M
VGA@
1
2
C988
1U_0402_6.3V6K
VGA@
1
2
C999
1U_0402_6.3V6K
VGA@
1
2
R878
4.99K_0402_1%
VGA@
12
96-BALL
SDRAM DDR3
U59
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
R891 40.2_0402_1%
VGA@
1 2
C978
0.1U_0402_16V4Z
VGA@
1
2
C1034
10U_0603_6.3V6M
VGA@
1
2
C1000
1U_0402_6.3V6K
VGA@
1
2
R872
243_0402_1% VGA@
12
C992
1U_0402_6.3V6K
VGA@
1
2
R893
40.2_0402_1%
VGA@
1 2
C987
1U_0402_6.3V6K
VGA@
1
2
R879
4.99K_0402_1%
VGA@
12
R892
40.2_0402_1%
VGA@
1 2
R870
243_0402_1% VGA@
12
96-BALL
SDRAM DDR3
U61
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C1004
1U_0402_6.3V6K
VGA@
1
2
C994
1U_0402_6.3V6K
VGA@
1
2
R883
4.99K_0402_1%
VGA@
12
C993
1U_0402_6.3V6K
VGA@
1
2
C1005
1U_0402_6.3V6K
VGA@
1
2
C1002
1U_0402_6.3V6K
VGA@
1
2
R873
243_0402_1% VGA@
12
R871
243_0402_1% VGA@
12
C989
1U_0402_6.3V6K
VGA@
1
2
C1007
10U_0603_6.3V6M
VGA@
1
2
C996
1U_0402_6.3V6K
VGA@
1
2
R874
4.99K_0402_1%
VGA@
12
C1013
10U_0603_6.3V6M
VGA@
1
2
C1012
10U_0603_6.3V6M
VGA@
1
2
C977
0.1U_0402_16V4Z
VGA@
1
2
C998
1U_0402_6.3V6K
VGA@
1
2
R887
4.99K_0402_1%
VGA@
12
C991
1U_0402_6.3V6K
VGA@
1
2
C1010
10U_0603_6.3V6M
VGA@
1
2
C981
0.1U_0402_16V4Z
VGA@
1
2
C1006
10U_0603_6.3V6M
VGA@
1
2
96-BALL
SDRAM DDR3
U58
MT41K256M16HA-107G_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C1011
10U_0603_6.3V6M
VGA@
1
2
C1035
10U_0603_6.3V6M
VGA@
1
2
C1008
10U_0603_6.3V6M
VGA@
1
2
C1009
10U_0603_6.3V6M
VGA@
1
2
R890 40.2_0402_1%
VGA@
1 2
C1003
1U_0402_6.3V6K
VGA@
1
2
C410
0.01U_0402_16V7K
VGA@
1
2
C1036
10U_0603_6.3V6M
VGA@
1
2
C409
0.01U_0402_16V7K
VGA@
1
2
C997
1U_0402_6.3V6K
VGA@
1
2
C1031
10U_0603_6.3V6M
VGA@
1
2
C990
1U_0402_6.3V6K
VGA@
1
2
C1037
10U_0603_6.3V6M
VGA@
1
2
C995
1U_0402_6.3V6K
VGA@
1
2
C982
0.1U_0402_16V4Z
VGA@
1
2
C1032
10U_0603_6.3V6M
VGA@
1
2
R882
4.99K_0402_1%
VGA@
12
R886
4.99K_0402_1%
VGA@
12

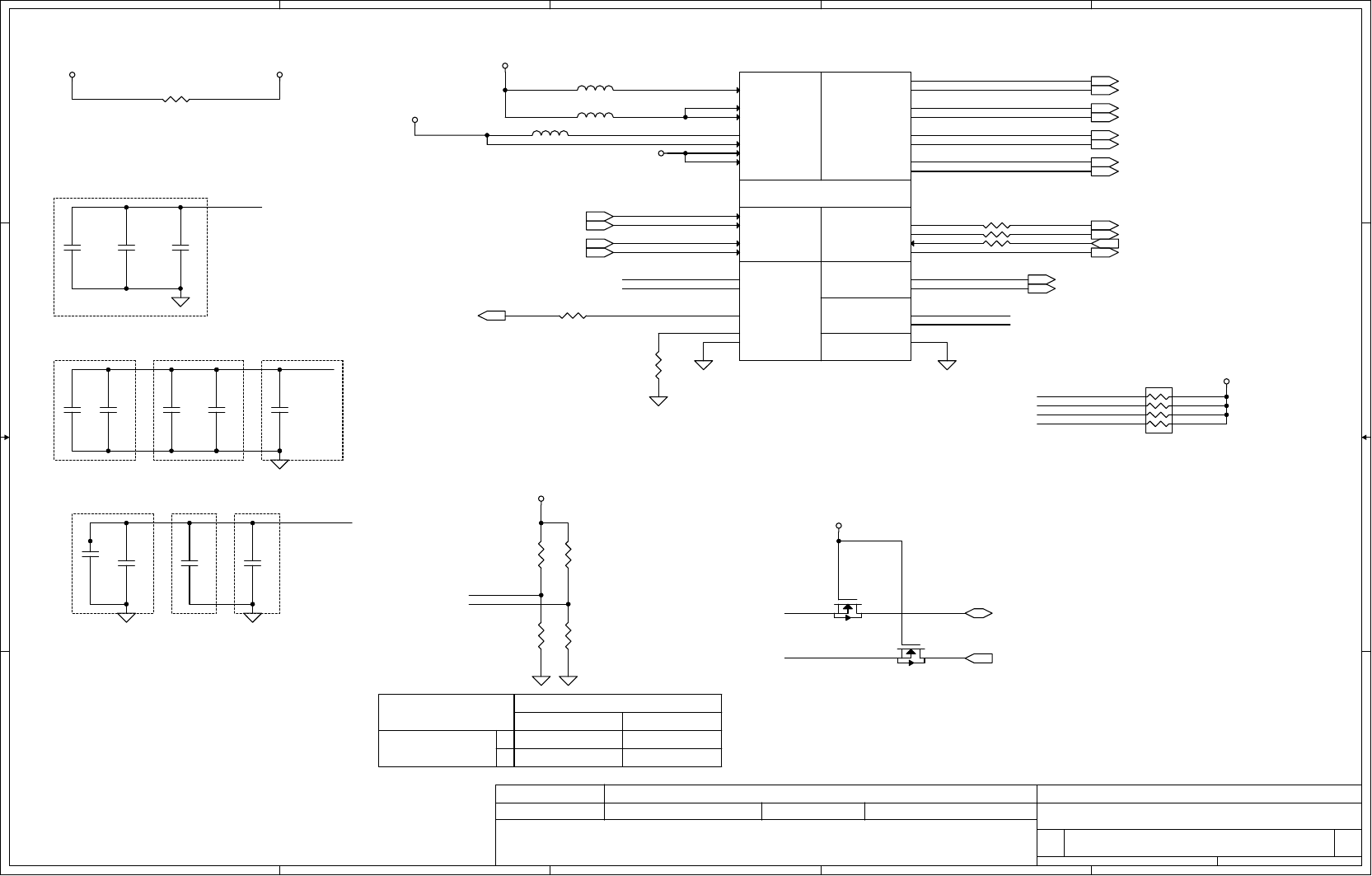

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
60mil
40mil
60mil
60mil
30mil 30mil
Close to Pin3
Close to L64 Close to Pin13
Close to
Pin27
Close to
Pin7
Close to P18
60mil
MODE_CFG0(PIN30)
MODE_CFG1(PIN31) 0
1
01
X
ROMONLYMODE* EEPROMMODE
EPMODE
Close to
L6
use2132Ssymbol
SWR_VDD
DP_V33
I2CC_SCL
I2CC_SDA
+1.2V_TL_OUT
MODE_CFG1
MODE_CFG0
DP_V33
SWR_VDD
+1.2V_TL
CSCL
CSDA
CSCL
CSDA
CSDA
CSCL
TL_HPD
MODE_CFG0
MODE_CFG1
TXOUT1+
TXOUT1-
TXOUT2+
TXOUT2-
TXOUT_CLK+
TXOUT_CLK-
TXOUT0+
TXOUT0-
I2CC_SDA
I2CC_SCL
I2CC_SCL 25
I2CC_SDA 25
TL_BKOFF# 25
TL_INVT_PWM 25
EC_SMB_DA2 18,34,7
EC_SMB_CK2 18,34,7
EDP_AUXP_C_TL25
EDP_TXN0_C_TL25 EDP_TXP0_C_TL25
EDP_AUXN_C_TL25
PCH_INV_PWM 25,8
EDP_HPD25
TL_ENVDD 25
TXOUT1- 25
TXOUT2- 25
TXOUT2+ 25
TXOUT_CLK- 25
TXOUT_CLK+ 25
TXOUT1+ 25
TXOUT0+ 25
TXOUT0- 25
+3VS_TL
+3VS +3VS_TL
+3VS_TL
+3VS_TL
+1.2V_TL
+1.2V_TL
+3VS_TL
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
1.0
LVDS Translator - RTD2132R
B
24 52Tuesday, March 26, 2013
2011/07/08 2015/07/08
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
1.0
LVDS Translator - RTD2132R
B
24 52Tuesday, March 26, 2013
2011/07/08 2015/07/08
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
1.0
LVDS Translator - RTD2132R
B
24 52Tuesday, March 26, 2013
2011/07/08 2015/07/08
C1022
0.1U_0402_16V4Z
TL@
1
2
R928 0_0603_5%TL@ 12
C1020
0.1U_0402_16V4Z
TL@
1
2
C1021
0.1U_0402_16V4Z
TL@
1
2
R948 0_0402_5%TL@
1 2
Q53A
DMN66D0LDW-7_SOT363-6
@
61
2
R946
4.7K_0402_5%
@
1 2
R943
4.7K_0402_5%
@
1 2
C984
10U_0603_6.3V6M
TL@
1
2
C1014
10U_0603_6.3V6M
TL@
1
2
R936
1K_0402_5%
TL@
1 2
C983
0.1U_0402_16V4Z
TL@
1
2
C1019
0.1U_0402_16V4Z
TL@
1
2
L63
HCB2012KF-221T30_0805
TL@ 12
R932 0_0402_5%TL@
1 2
R944
4.7K_0402_5%
TL@
1 2
C1018
0.1U_0402_16V4Z
TL@
1
2
L73
HCB2012KF-221T30_0805
TL@ 12
RTD2132S
LVDS
Power DP-IN
LVDS
EDID
ROM
GPIO
Other
RTD2132R-CG_QFN32_5X5
U50 TL@
Part Number = SA000069200
TXEC- 20
TXE0- 26
DP_V33
3
DP_V12
7
CIICSCL1
9
TXE1- 24
DP_REXT
8
GPIO(PWM OUT) 14
AUX_N
1
TXE2- 22
GPIO(BL_EN) 17
MIICDA1 28
TXE2+ 21
PVCC
18
AUX_P
2
MIICSDA0 30
TXEC+ 19
SWR_LX
12 TXE1+ 23
TXE0+ 25
MIICSCL0 31
MIICSCL1 29
SWR_VCCK
11
GPIO(Panel_VCC) 15
VCCK
27
LANE0P
5
CIICSDA1
10
GPIO(PWM IN) 16
LANE0N
6
GND 33
SWR_VDD
13
HPD
32
DP_GND
4
C1017
0.1U_0402_16V4Z
TL@
1
2
Q53B
DMN66D0LDW-7_SOT363-6
@
34
5
R938
12K_0402_1%
TL@
1 2
C1016
10U_0603_6.3V6M
TL@
1
2
R945
4.7K_0402_5%
TL@
1 2
C986
22U_0805_6.3V6M
TL@
1
2
L6
4.7UH_PG031B-4R7MS_1.1A_20%
TL@ 1 2
C1015
0.1U_0402_16V4Z
TL@
1
2
R934 0_0402_5%TL@
1 2
RP41
TL@
4.7K_8P4R_5%
1 8
2 7
3 6
4 5
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

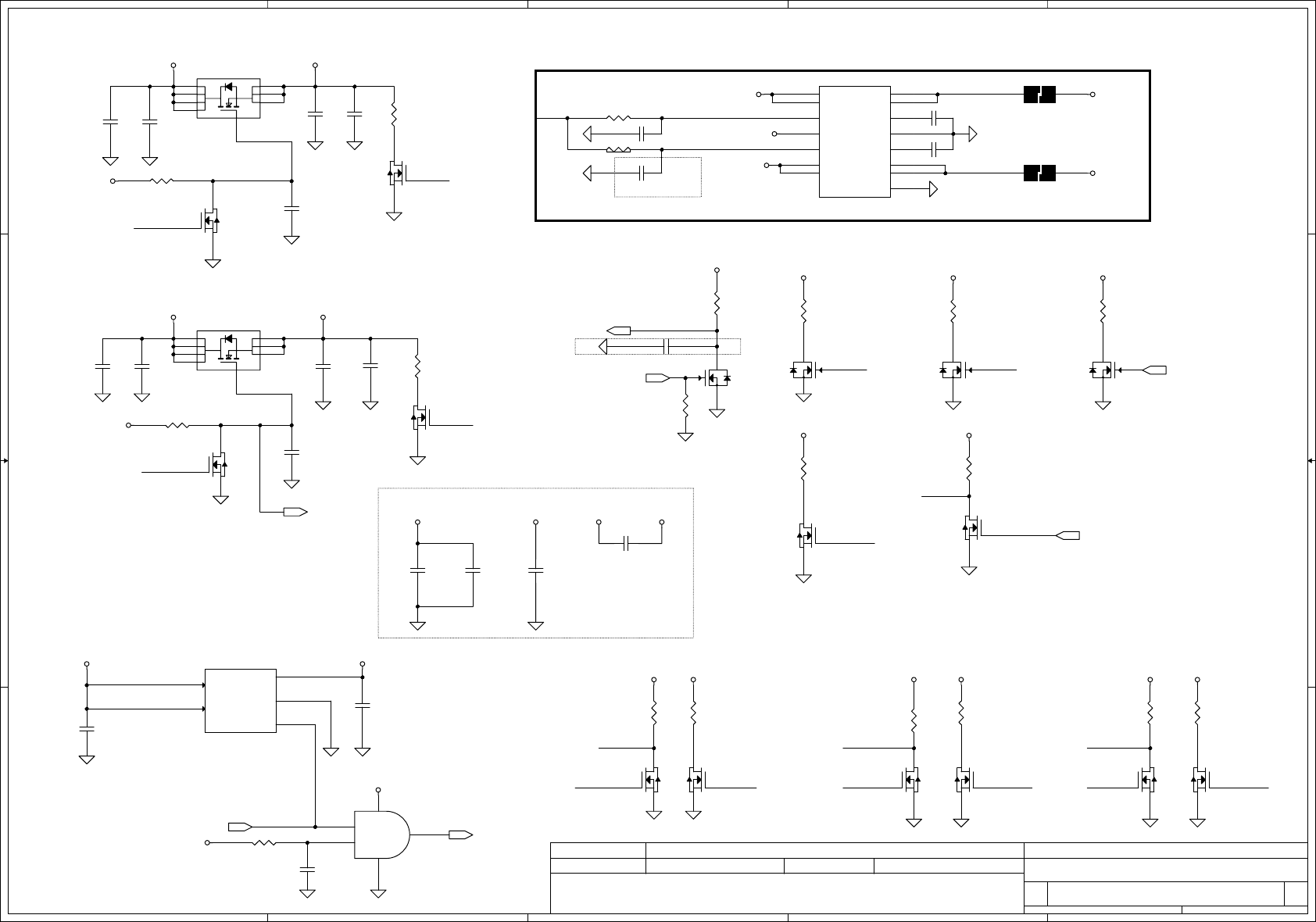

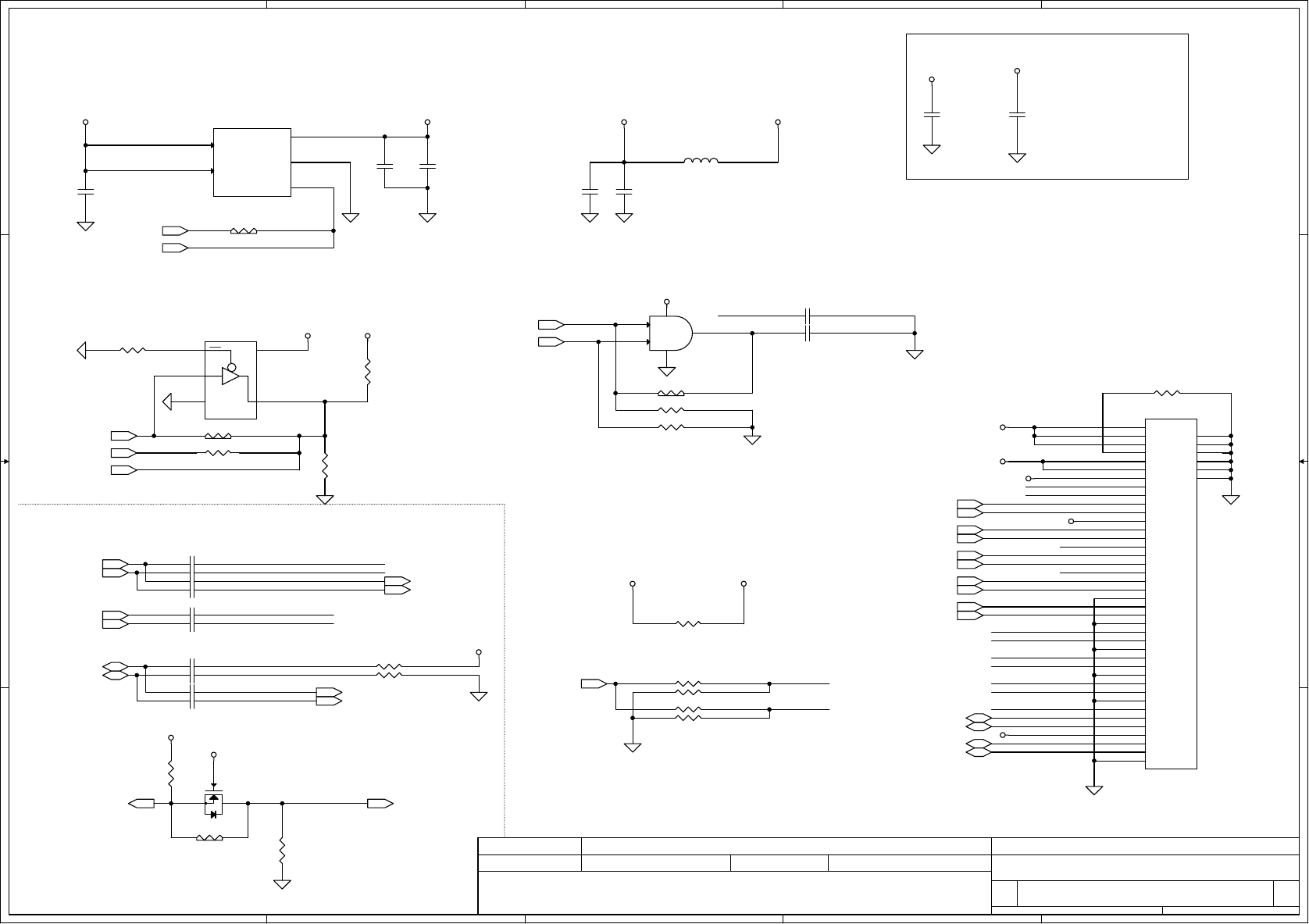

LCD POWER CIRCUIT
SM01000EJ00 3000ma
220ohm@100mhz
DCR 0.04
W=60mils
Place closed to JLVDS1
W=60mils
eDP
W=60mils
LCD/ LED PANEL Conn.
For Camera
W=60mils
W=60mils
Touch Screen
TS_INT_1 for TS one chip solution
TS_INT_2 for TS two chip solution
EDP_AUXP_C
EDP_TXP0_C
EDP_TXN0_C
EDP_TXP1_C
EDP_TXN1_C
EDP_HPD
INVTPWM
EDP_AUXN_C
TL_BKOFF#
BKOFF# DISPOFF#
INVTPWM
INVTPWM
DISPOFF#
TXOUT0+
TXOUT0-
TXOUT1+
TXOUT1-
TXOUT2+
TXOUT2-
TXOUT_CLK+
TXOUT_CLK-
I2CC_SCL
I2CC_SDA
USB20_N7
USB20_P7
EDP_HPD
EDP_TXP0_C
EDP_TXN0_C
EDP_AUXP_C
EDP_AUXN_C
EDP_TXP1_C
EDP_TXN1_C
USB20_N6
USB20_P6
EDP_TXP0_C_TL
EDP_TXN0_C_TL
TS_EN_1
TS_EN_2
TS_EN_1
TS_EN_2
PCH_INV_PWM24,8
EDP_AUXP4
EDP_TXP04 EDP_TXN04
EDP_AUXN4
EDP_TXN14 EDP_TXP14
CPU_EDP_HPD8
EDP_DISP_UTIL4
TL_INVT_PWM24
EDP_AUXN_C_TL 24
EDP_AUXP_C_TL 24
EDP_HPD 24
BKOFF#34
TL_BKOFF#24
TL_ENVDD24
PCH_ENVDD8
USB20_P710 USB20_N710
I2CC_SCL24 I2CC_SDA24
TXOUT0-24 TXOUT0+24
TXOUT1-24 TXOUT1+24
TXOUT2-24 TXOUT2+24
TXOUT_CLK-24 TXOUT_CLK+24
USB20_P610 USB20_N610
EDP_TXN0_C_TL 24
EDP_TXP0_C_TL 24
TS_EN34
+INVPWR_B+ B+
+LCDVDD
+3VS
+3VS
+5VS
+3VS
+LCDVDD+3VS
+3VS +3VS
+3VS
+INVPWR_B+
+LCDVDD
+3VS
+3VS
+5VS_TS
+5VS_TS+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
eDP Connector
Custom
25 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
eDP Connector
Custom
25 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
eDP Connector
Custom
25 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R280 10K_0402_5%@
1 2
R401
1K_0402_5%
@
12
C388 0.1U_0402_16V7KTL@
1 2
R947 0_0402_5%@
1 2
C372 0.1U_0402_16V7KEDP@
1 2
R362
100K_0402_5%
@
1 2
C389 0.1U_0402_16V7KTL@
1 2
C140
1U_0402_6.3V6K
1
2
C367
4.7U_0603_6.3V6K
1
2
R959
100K_0402_5%
@
1 2
U8
G5243T11U_SOT23-5
IN
5
IN
4
OUT 1
EN 3
GND 2
L11
HCB2012KF-221T30_0805
EMC@ 12
C374 0.1U_0402_16V7K
1 2
C375
0.1U_0402_16V4Z
1
2
C368
0.1U_0402_16V4Z
@
1
2
C373 0.1U_0402_16V7K
1 2
R404 0_0402_5%@
1 2
R363 0_0402_5%@
1 2
C365
68P_0402_50V8J
XEMC@
1
2
R364
100K_0402_5%
12
R414 0_0402_5%TS@
1 2
R613 100K_0402_1%@ 12
R393
10K_0402_5%
@
12
U20
M74VHC1GT125DF2G_SC70-5
@
OE
1
IN A
2
GND
3OUT Y 4
Vcc 5
R383
10K_0402_5%
@
12
G
D
S
Q13
L2N7002LT1G_SOT23-3
@
2
13
C369 0.1U_0402_16V7K
EDP@
1 2
C376 0.1U_0402_16V7KTL@1 2
R614 100K_0402_1%@ 12
U22
NC7SZ08P5X_NL_SC70-5
TL@
B
2
A
1Y4
P5
G
3
R424 0_0402_5%@
1 2
C549 220P_0402_50V7K
XEMC@
1 2
C377 0.1U_0402_16V7KTL@
1 2
C419
0.1U_0402_16V4Z
@1
2
C370 0.1U_0402_16V7K
EDP@
1 2
C528 220P_0402_50V7K
XEMC@
1 2
R425 0_0402_5%@
1 2
C364
1000P_0402_50V7K
XEMC@
1
2
C371 0.1U_0402_16V7KEDP@
1 2
R949 0_0402_5%@
1 2
JLVDS1
ACES_50203-04001-001
CONN@
SP010014B00
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
G1 41
G2 42
G3 43
G4 44
G5 45
G6 46
R951 100K_0402_5%TL@
1 2
R81
0_0603_5%
TS@
1 2
R426 0_0402_5%TS@1 2
R406
0_0402_5%
@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
SM070001310 400ma 90ohm@100mhz DCR 0.3

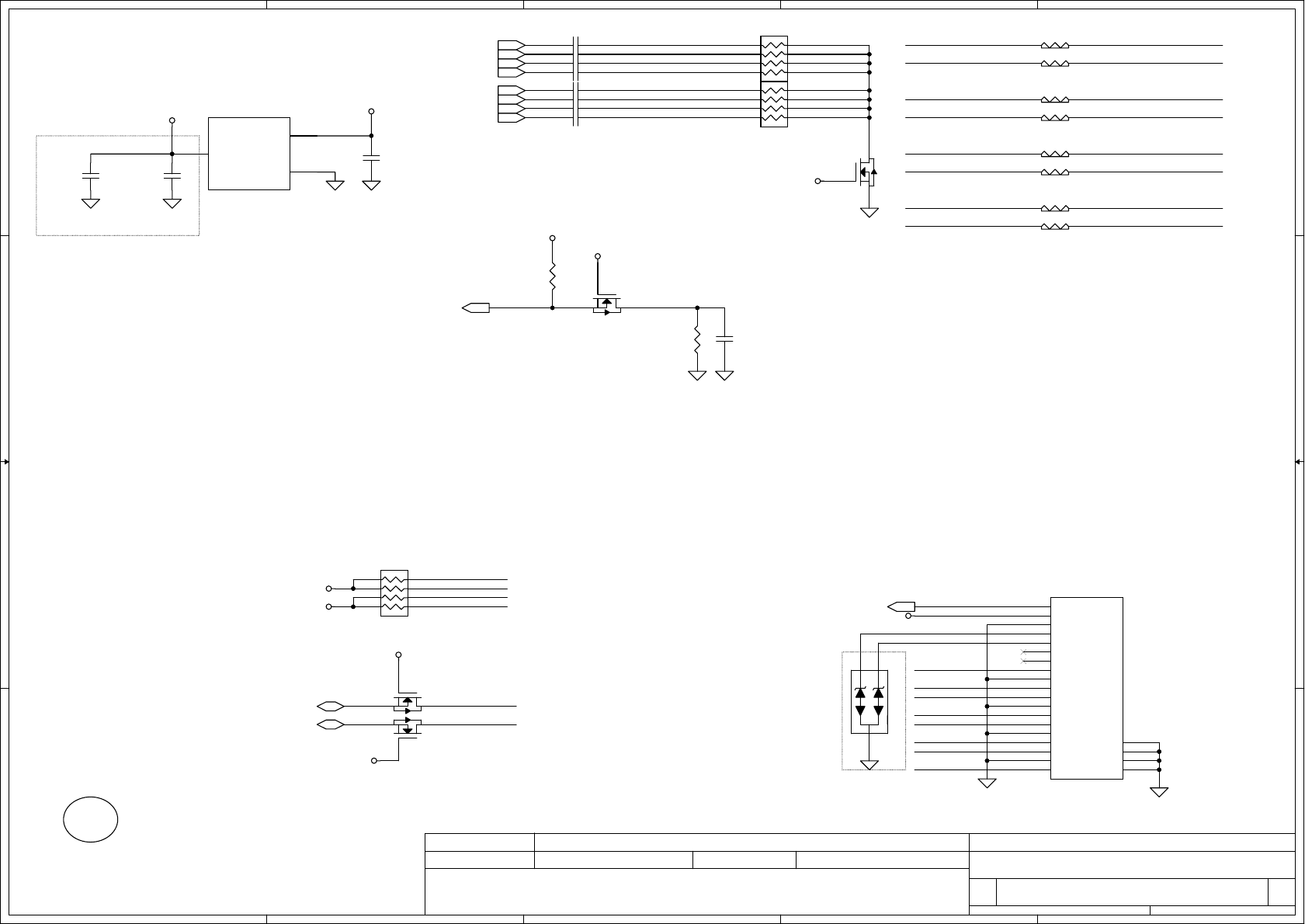

HDMI connector
Place closed to JHDMI1 Reserved for ESD
W=40mils
Reserved for ESD
HDMI_R_D1-
HDMI_R_D2+
HDMI_R_D1+
HDMI_HPD
HDMI_TX0-
HDMI_TX0+
HDMI_CLK-
HDMI_CLK+
HDMI_SDATA
HDMI_R_D2-HDMI_TX2-
HDMI_TX2+
HDMI_R_D0+
HDMI_R_D0-
HDMI_R_CK+
HDMI_R_CK-HDMI_CLK-
HDMI_CLK+
HDMI_TX0-
HDMI_TX0+
HDMI_TX1-
HDMI_TX1+
HDMI_R_CK-
HDMI_R_CK+
HDMI_R_D0+
HDMI_R_D0-
HDMI_R_D1+
HDMI_R_D1-
HDMI_R_D2-
HDMI_R_D2+
HDMI_HPD
HDMI_SCLK
HDMI_SDATA
HDMI_GND
DDI2_CTRL_CK
DDI2_CTRL_DATA
HDMI_SDATA
HDMI_SCLK
HDMI_SCLK
HDMI_TX1-
HDMI_TX1+
HDMI_TX2+
HDMI_TX2-
CPU_DP2_N34 CPU_DP2_P34
CPU_DP2_N24 CPU_DP2_P24
CPU_HDMI_HPD8
DDI2_CTRL_CK8
DDI2_CTRL_DATA8
HDMI_HPD32
CPU_DP2_N14 CPU_DP2_P14 CPU_DP2_N04 CPU_DP2_P04
+3VS
+3VS
+HDMI_5V_OUT
+3VS
+3VS
+3VS
+HDMI_5V_OUT
+3VS
+HDMI_5V_OUT
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HDMI Conn
Custom
26 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HDMI Conn
Custom
26 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HDMI Conn
Custom
26 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R376
1M_0402_5%
12
R372 0_0402_5%XEMC@
1 2
R373 0_0402_5%XEMC@
1 2
U3
AP2330W-7_SC59-3
GND 2
OUT 3
IN
1
Q14A
DMN66D0LDW-7_SOT363-6
61
2
C386 0.1U_0402_16V7K
12
C396
0.1U_0402_16V4Z
EMC@
1
2
C385 0.1U_0402_16V7K
12
Q15B
DMN66D0LDW-7_SOT363-6
34
5
C384 0.1U_0402_16V7K
12
RP18
680_8P4R_5%
1 8
2 7
3 6
4 5
Q14B
DMN66D0LDW-7_SOT363-6
34
5
Q15A
DMN66D0LDW-7_SOT363-6
61
2
JHDMI1
ACON_HMR2U-AK120C
CONN@
DC232002700
D2+
1D2_shield
2D2-
3D1+
4D1_shield
5D1-
6D0+
7D0_shield
8D0-
9CK+
10 CK_shield
11 CK-
12 CEC
13 Reserved
14 SCL
15 SDA
16 DDC/CEC_GND
17 +5V
18 HP_DET
19
GND 20
GND 21
GND 22
GND 23
R370 0_0402_5%XEMC@
1 2
C382 0.1U_0402_16V7K
12
RP17
680_8P4R_5%
1 8
2 7
3 6
4 5
RP15
2.2K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R121
100K_0402_5%
12
R371 0_0402_5%XEMC@
1 2
C381 0.1U_0402_16V7K
12
C398
0.1U_0402_16V4Z
EMC@
1
2
R368 0_0402_5%XEMC@
1 2
R374 0_0402_5%XEMC@
1 2
C378
0.1U_0402_16V4Z
EMC@
1
2
C379 0.1U_0402_16V7K
12
R375 0_0402_5%XEMC@
1 2
R369 0_0402_5%XEMC@
1 2
C380 0.1U_0402_16V7K
12
C387
220P_0402_50V7K
EMC@
1
2
D2
XEMC@
YSLC05CH_SOT23-3
12
3
C383 0.1U_0402_16V7K
12
ZZZ
HDMI_ROYALTY
45@
RO0000003HM
ROYALTY HDMI W/LOGO+HDCP
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
65.5mA
0.293mA
56.95mA
4.2mA 100.5mA
1.52mA
6.158mA
47.3mA
41.6mA
Note: need external PU to 2K ~ 10K
For EMI
Can be remove after MP
MCURSTN
DP_HPD
DP_HPD
CPU_DP1_C_P0
CPU_DP1_C_N0
CPU_DP1_C_P1
CPU_DP1_C_N1
6511_PWR_EN
XTALIN_6511XTALOUT_6511
XTALIN_6511
XTALOUT_6511
CRT_CLK_1
CRT_DATA_1
6511_PWR_EN
6511_PWR_EN#
6511_PWR_EN#
CRT_CLK_1
CRT_DATA_1
ISPSDA_R
ISPSCL_R
CRT_B
CRT_G
CRT_R
DDI1_AUX_C_DP
DDI1_AUX_C_DN
DDI1_AUX_DP_R
DDI1_AUX_DN_R
ISPSDA_R
ISPSCL_R
CPU_DP_HPD8
CPU_DP1_P04 CPU_DP1_N04
CPU_DP1_P14 CPU_DP1_N14
CRT_B 28
CRT_R 28
CRT_G 28
HSYNC 28
VSYNC 28
CRT_CLK 28
CRT_DATA 28
VGADETECT 28
6511_PWR_EN45
6511_PWR_EN#38
DDI1_AUX_DN8 DDI1_AUX_DP8 CRT_CLK_1 28
CRT_DATA_1 28
ISPSCL 28
ISPSDA 28
+3VS_6511
+3VS_6511 +1.8VS_6511 +1.8VS_RXVDD
+1.8VS_RXVDD
+1.8VS_RXVDD
+3VS
+5VS
+1.8VS_6511 +1.8VS_RXVCC
+1.8VS_RXVCC
+1.8VS_RXVCC
+1.8VS_RXVCC
+3VS
+1.8VS_6511 +1.8VS_DAC
+1.8VS_DAC
+1.8VS_DAC
+3VS
+3VS +3VS_6511
+HDMI_5V_OUT
+3VS
+3VS
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
ITE IT6511FN
Custom
27 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
ITE IT6511FN
Custom
27 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
ITE IT6511FN
Custom
27 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C72
0.1U_0402_16V7K
12
R240
4.7K_0402_5%
@
1 2
C472
0.1U_0402_16V4Z
1
2
C74
18P_0402_50V8J
1
2
R400 0_0402_5%@
1 2
C70 0.1U_0402_16V7K
12
R410 22_0402_5%
1 2
R134 10K_0402_5%@
1 2
R201
75_0402_1%
12
Q27B
DMN66D0LDW-7_SOT363-6
34
5
R241
4.7K_0402_5%
@
1 2
R415 0_0402_5%@
1 2
R133
4.7K_0402_5%
1 2
C498
0.1U_0402_16V4Z
1
2
R80
0_0603_5%
@
1 2
R411 22_0402_5%
1 2
C476
4.7U_0603_6.3V6K
1
2
G
D
S
Q24
L2N7002LT1G_SOT23-3
@
2
13
R50 1M_0402_5%@
12
R127
2.2K_0402_5%
12
R194 10K_0402_5%
1 2
L47 0_0603_5%@
1 2
R419
1M_0402_5%
R196 100_0402_1%
1 2
C75
1U_0402_6.3V6K
1
2
R53 37.4_0402_1%
1 2
C68 0.1U_0402_16V7K
12
C411
0.1U_0402_16V7K
@
1
2
R197
75_0402_1%
12
C496 0.1U_0402_16V4Z
1 2
R76 37.4_0402_1%
1 2
R420 100K_0402_5%@
12
R123
2.2K_0402_5%
12
R407
22_0402_5%
12
Crystal
X4
27MHZ_10PF_X3G027000BA1H-U
IN 1
OUT
3
GND
2
GND 4
R51 1M_0402_5%@
12
C614
0.1U_0402_16V4Z
1 2
R230
4.7K_0402_5%
12
C579
0.1U_0402_16V4Z
@
1
2
C65
18P_0402_50V8J
1
2
G
D
S
Q25
DMG2301U-7_SOT23-3
@
2
13
C69 0.1U_0402_16V7K
12
R421 100K_0402_5%@
12
R412 22_0402_5%
@
1 2
C455
10U_0603_6.3V6M
@
1
2
R398 22_0402_5%
12
L48 0_0603_5%@
1 2
R234
4.7K_0402_5%
12
T97@
C500
0.1U_0402_16V4Z
1 2
R413 22_0402_5%
@
1 2
C473
0.1U_0402_16V4Z
@
1
2
C71 0.1U_0402_16V7K
12
IT6511FN
U42
IT6511FN_QFN56_7X7
VSYNC 1
HSYNC 2
RSET 3
COMP 4
VDDA 5
IORP 6
IORN 7
VDDC 8
IOGP 9
IOGN 10
VDDC 11
IOBP 12
IOBN 13
VDDC 14
IVDD 17
OVDD 16
IVDD 15
IVDD 52
MCUVDD 50
DCAUXN
21 DCAUXP
22
RXAUXN
23 RXAUXP
24
MCURSTN 53
PVCC
26
DVDD18
28
DVSS18
36
AVCC
29
RX0P
30
RX0N
31
OVDD 54
RX1P
33
RX1N
34
URDBG 32
VGADETECT 18
PVCC
38
ISPSCL 19
ASPVCC
39
MCUVDDH 51
XTALOUT 40
XTALIN 41
INT#
42
SYSRSTN
43
HPD
44
OVDD 46
VGADDCCLK 27
PCSCL
47 PCSDA
48
IVDD 49
DVDD18
37
ISPSDA 20
OSCOUT 45
VGADDCSDA 25
DDCSCL 55
DDCSDA 56
AVCC
35
GND
57
C457
0.1U_0402_16V4Z
1
2
R397 22_0402_5%
12
R193 10K_0402_5%
1 2
C35
470P_0402_50V7K
EMC@
1 2
R418
4.7K_0402_5%
12
Q27A
DMN66D0LDW-7_SOT363-6
61
2
C519
4.7U_0603_6.3V6K
@
1
2
R396
1K_0402_5%
@
12
R399 0_0402_5%@
1 2
R408
22_0402_5%
12
R584
100K_0402_5%
@
1 2
R147 37.4_0402_1%
1 2
G
D
S
Q52
L2N7002LT1G_SOT23-3
@
2
13
C73
0.1U_0402_16V7K
12
C477
0.1U_0402_16V4Z
1 2
L30 0_0603_5%@
1 2
R199
75_0402_1%
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

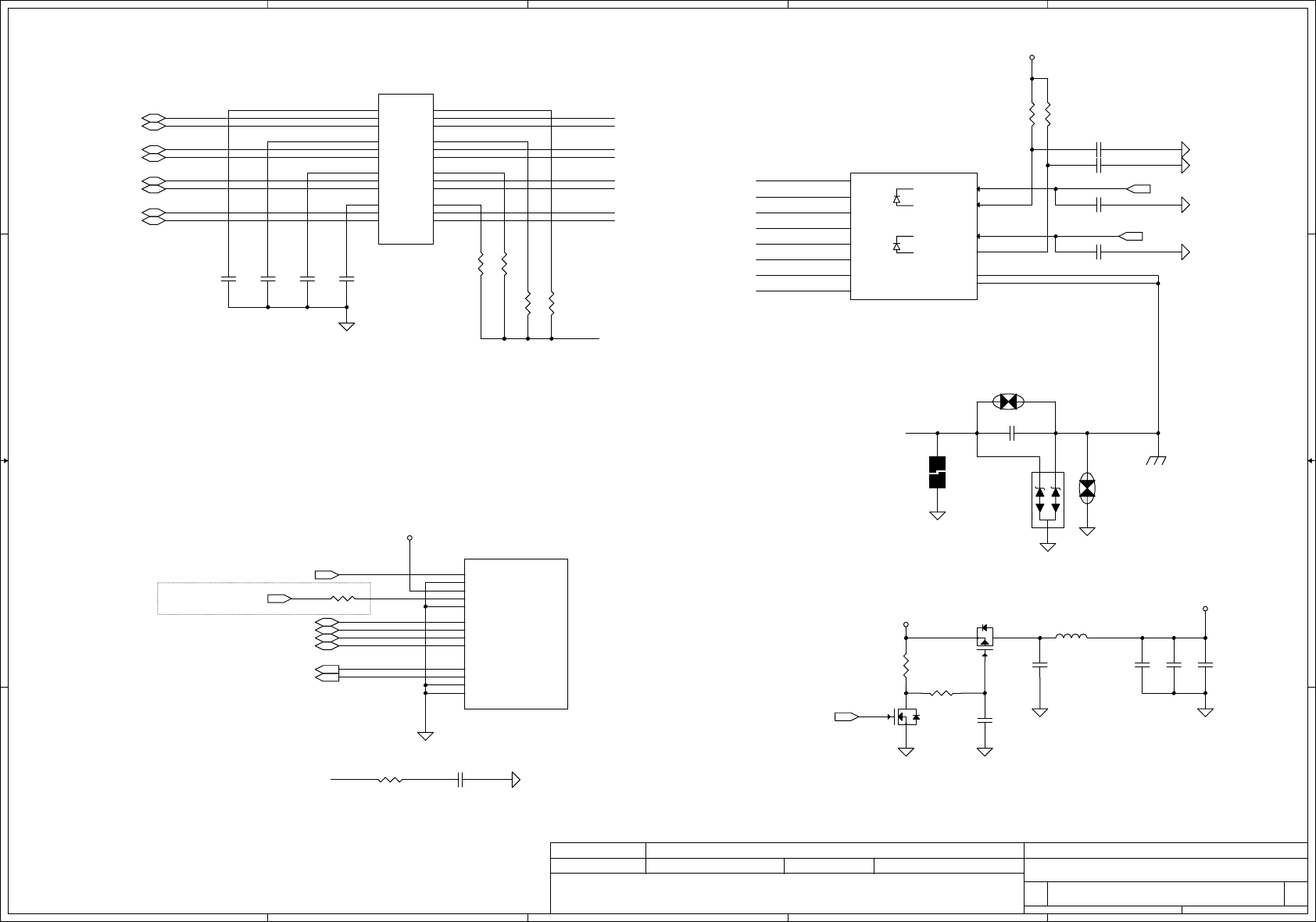

CRT Connector
CRB1.0 use 47ohm@100Mhz Bead
W=40mils
DDC_CLK/DAT reserved PU Resistor
For contact discharge ESD +/-8kV
CRT_HSYNC_2
CRT_VSYNC_2
CRT_R_2
CRT_G_2
CRT_B_2
CRT_HSYNC_1
CRT_VSYNC_1
CRT_VSYNC
CRT_HSYNC
CRT_R_2
CRT_G_2
CRT_B_2VSYNC
HSYNC
CRT_VSYNC_1
CRT_HSYNC_1
CRT_CLK
CRT_DATA
CRT_DATA_1
CRT_CLK_1
HSYNC27
VSYNC27
CRT_R27
CRT_G27
CRT_B27
CRT_CLK 27
CRT_DATA 27
VGADETECT 27
CRT_DATA_127 CRT_CLK_127
ISPSCL27 ISPSDA27
+HDMI_5V_OUT
+HDMI_5V_OUT
+HDMI_5V_OUT
+3VS
+HDMI_5V_OUT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
CRT Connector
Custom
28 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
CRT Connector
Custom
28 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
CRT Connector
Custom
28 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C648
10P_0402_50V8J
1
2
C454
0.1U_0402_16V4Z
@
1 2
R312
0_0402_5%
@
12
U23
M74VHC1GT125DF2G_SC70-5
OE
1
IN A
2
GND
3OUT Y 4
Vcc 5
L45
BLM18BA470SN1D_2P
EMC@
1 2
R175 0_0603_5%XEMC@
1 2
C618
10P_0402_50V8J
1
2
R180 0_0603_5%XEMC@
1 2
R439
0_0402_5%
@
12
C449
10P_0402_50V8J
@
1
2
C611
10P_0402_50V8J
1
2
C448
10P_0402_50V8J
@
1
2
G
G
JCRT1
C-H_13-12201560CP
CONN@
DC060006E00
6
11
1
7
12
2
8
13
3
9
14
4
10
15
5
16
17
C647
10P_0402_50V8J
1
2
R239
0_0402_5%
@
12
R441
0_0402_5%
@
12
C451
0.1U_0402_16V4Z
@
1 2
L46
BLM18BA470SN1D_2P
EMC@
1 2
C4470.1U_0402_16V4Z @
12
C452
0.1U_0402_16V4Z
@
1 2
U24
M74VHC1GT125DF2G_SC70-5
OE
1
IN A
2
GND
3OUT Y 4
Vcc 5
U10
@
CM2009-00QR_QSOP16
VCC_SYNC 1
VCC_VIDEO 2
VIDEO_1 3
VIDEO_2 4
VIDEO_3 5
SYNC_IN1
13
SYNC_OUT1 14
SYNC_IN2
15
SYNC_OUT2 16
DDC_OUT1 9
DDC_IN1
10
DDC_IN2
11
DDC_OUT2 12
GND
6
VCC_DDC 7
BYP
8
C615
10P_0402_50V8J
1
2
L42
BLM18BA470SN1D_2P
EMC@
1 2
C616
10P_0402_50V8J
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

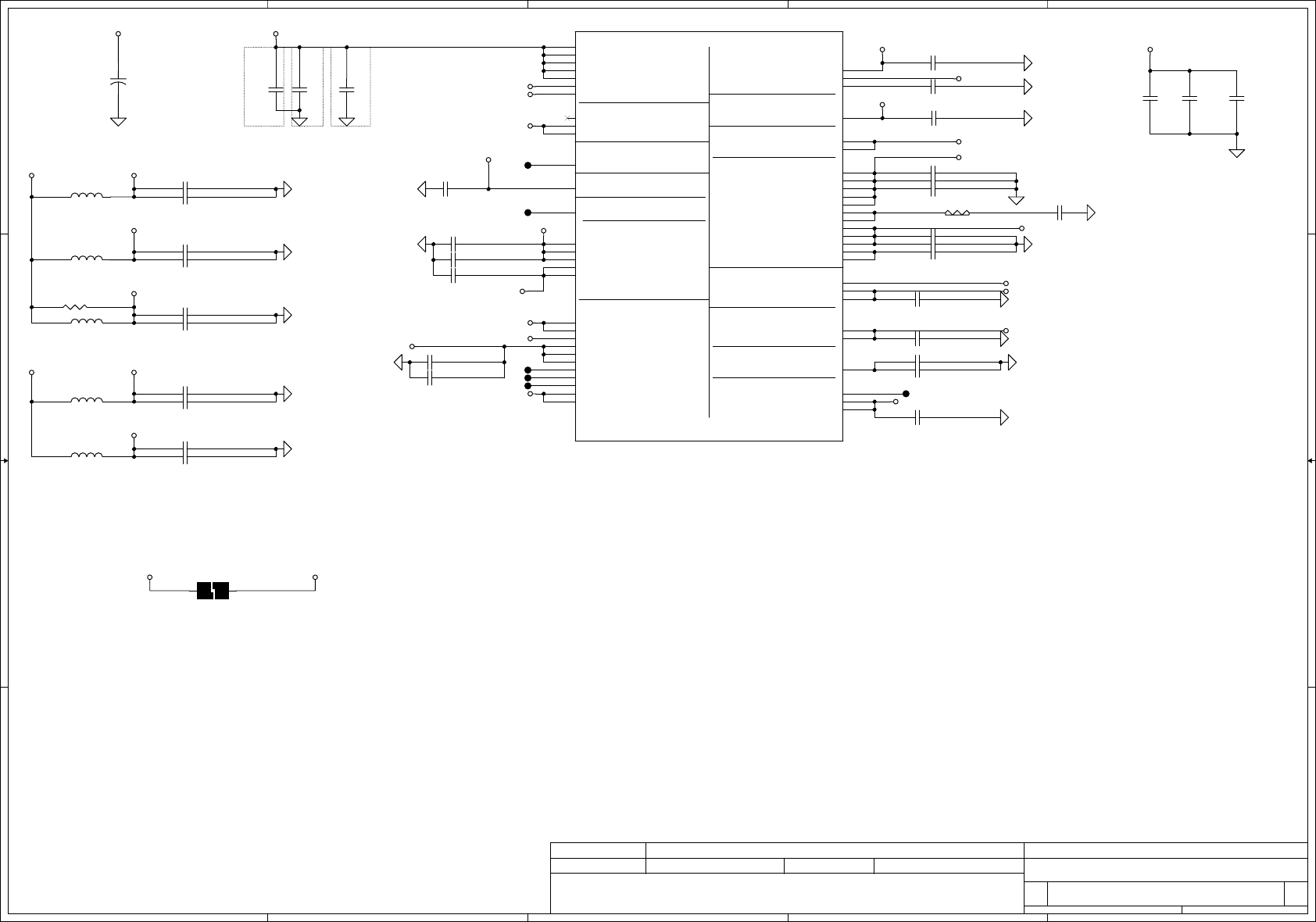

20mil
20mil
20mil
SM010005500 500ma 600ohm@100mhz DCR 0.38
20mil
20mil
20mil
40mil
60mil
15mil
40mil
40mil
PLACE NEXT P14
EMI Request...2010/07/27
For EMI request
R02 modify for ESD
R02 Modify
On chip
AT24C02
SPROM_CLK
(EECLK)
SPROM_DOUT
(EEDATA)
11
01
Reserved for leakage current
LAN_XTALI
LAN_XTALO_R
LAN_XTALO
+LAN_AVDDL
+LAN_GPHYPLLVDDL
+LAN_PCIEPLLVDD
LAN_MIDI2-
+LAN_AVDDL
+LAN_PCIEPLLVDD
+LAN_GPHYPLLVDDL
PCIE_PRX_C_DTX_N3
PCIE_PRX_C_DTX_P3
LAN_PME#
LAN_RDAC
+LAN_BIASVDDH
+LAN_XTALVDDH
+LAN_XTALVDDH
+LAN_BIASVDDH
+LAN_AVDDH
LAN_MIDI3+
LAN_MIDI0-
LAN_MIDI1+
LAN_MIDI2+
SPROM_CLK
SPROM_DOUT
LAN_XTALO_R
LAN_XTALI
+LAN_AVDDH
CR_DATA0_R
CR_DATA1_R
CR_DATA2_R
CR_DATA3_R
CR_DATA0
CR_DATA1
CR_DATA2
CR_DATA3
+VDDO_CR
CR_XD_WE#_SD_DETECT_R
CR_WP#_XD_WP#_R
CR_PWR_EN_R
CR_CLK_XD_RY_BY#_R
CR_CMD_XD_CLE_R
CR_XD_WE#_SD_DETECT
CR_WP#_XD_WP#
CR_PWR_EN
LAN_MIDI3-
LAN_MIDI1-
LAN_MIDI0+
SPROM_DOUT
+VDDO_CR_R
5IN1_LED_R#
SPROM_CLK
PLT_RST_BUF#
+1.2V_LAN_OUT
PCIE_PRX_DTX_N310 PCIE_PRX_DTX_P310
PCIE_PTX_C_DRX_P310 PCIE_PTX_C_DRX_N310
EC_PME#34
PCH_PCIE_WAKE#8
PLT_RST_BUF#31,8 CLK_PCIE_LAN7CLK_PCIE_LAN#7
LAN_MIDI2- 30
LAN_MIDI1- 30
LAN_MIDI3- 30
LAN_MIDI3+ 30
LAN_MIDI2+ 30
LAN_MIDI1+ 30
LAN_MIDI0- 30
LAN_MIDI0+ 30
LAN_LINK# 30
LAN_ACTIVITY# 30
CR_XD_WE#_SD_DETECT 30,32
CR_WP#_XD_WP# 30
CR_PWR_EN 30
5IN1_LED# 35
CR_DATA030 CR_DATA130 CR_DATA230 CR_DATA330
CR_CMD_XD_CLE 30
CR_CLK_XD_RY_BY# 30
LAN_CLKREQ#7
LAN_PWR_EN# 34
+3V_LAN
+3V_LAN
+1.2V_LAN
+1.2V_LAN
+1.2V_LAN
+3V_LAN
+1.2V_LAN
+3V_LAN
+3VS
+1.2V_LAN
+3V_LAN
+1.2V_LAN
+3V_LAN
+3V_LAN
+VDDO_CR
+3VALW
+VDDO_CR
+3V_LAN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Broadcom BCM57786X
Custom
29 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Broadcom BCM57786X
Custom
29 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
Broadcom BCM57786X
Custom
29 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C801
0.1U_0402_16V4Z
1
2
R759
0_0805_5%
@
1 2
C774
0.1U_0402_16V4Z
@1
2
R783
1K_0402_5%
1 2
C820
1U_0402_6.3V6K
EMC@
1
2
C780
0.1U_0402_16V4Z
@1
2
L59
4.7UH_PG031B-4R7MS_1.1A_20%
1 2
R777 4.7K_0402_5%
1 2
L57
BLM18AG601SN1D_2P
1 2
L58
BLM18AG601SN1D_2P
1 2
C795
0.1U_0402_16V4Z
1
2
C790
0.1U_0402_16V4Z
1
2
C785 0.1U_0402_16V4Z
1
2
L62
BLM18AG601SN1D_2P
1 2
R767 0_0402_5%@ 12
C805
4.7U_0603_6.3V6K
1
2
R781
10K_0402_5%
1 2
L61
BLM18AG601SN1D_2P
1 2
C777
4.7U_0603_6.3V6K
1
2
C787 0.1U_0402_16V4Z
1
2
C802
4.7U_0603_6.3V6K
1
2
BCM57786XA1KMLG_QFN68_8X8
U48
AVDDL
51
SR_VDDP 15
TRD1_P 44
AVDDH 42
AVDDH 48
TRD1_N 43
AVDDL
45
TRD2_P 46
VDDO
62
TRD0_N 41
SD_DETECT/XD_WE# 1
TRD3_P 50
TRD3_N 49
VMAIN_PRSNT
58
CR_DATA0
25
AVDDL
39
RDAC
38
BIASVDDH 37
WAKE#
3
SR_VDD 14
SR_LX 16
XTALI
18 XTALO
19
XTALVDDH 17
VDDO_CR
20
VDDO
7
TRD0_P 40
PREST#
11
PCIE_TXD_N
27
SR_VFB 13
PCIE_PLLVDDL
32
PCIE_REFCLK_P
31
PCIE_RXD_P
33
GPHY_PLLVDDL
36
PCIE_REFCLK_N
30
PCIE_PLLVDDL
29
PCIE_RXD_N
34
PCIE_TXD_P
28
TRD2_N 47
VDDC
35
SCLK_SPD1000LED# 66
SPD100LED#_SERIALDO 2
CS#_EECLK 63
TRAFFICLED#_SERIALDI 67
VDDC
61
VDDO
56
CLK_REQ#
12
TEST2
10
TEST1
6
CR_DATA1
24
CR_DATA3
22 CR_DATA2
23
CR_DATA5
53 CR_DATA4
52
CR_DATA6
54
CR_DATA7
55
LOW_PWR
4
GPIO1_LR_OUT 8
GPIO_0 5
SI_EEDATA 64
SO_LINKLED# 65
SR_DISABLE/XD_DETECT# 68
MS_INS#/XD_CE# 59
GPIO2_MEDIA_SENSE/XD_RE# 9
CR_WP#/XD_WP# 57
CR_LED_CR_BUS_PWR/XD_ALE 60
CR_CLK/XD_RY_BY# 21
CR_CMD_XD_CLE 26
GND PLANE
69
L56
BLM18AG601SN1D_2P
1 2
R772 0_0402_5%@ 12
C789
0.1U_0402_16V4Z
@
1
2
C815
0.1U_0402_16V4Z
1
2
R761 0_0603_5%@
1 2
R760 0_0402_5%@ 12
C794
10U_0603_6.3V6M
1
2
R779
200_0402_1%
12
R773 0_0402_5%@ 12
C804
0.1U_0402_16V4Z
1
2
R778 4.7K_0402_5%
1 2
C796
4.7U_0603_6.3V6K
1
2
C800
15P_0402_50V8J
1
2
R776 1K_0402_5%
1 2
L60
BLM18AG601SN1D_2P
1 2
C7880.1U_0402_16V7K 1 2
R784
1K_0402_5%
1 2
C783
4.7U_0603_6.3V6K
1
2
G
D
S
Q6
DMG2301U-7_SOT23-3
2
13
R762 0_0402_5%@ 12
L74
BLM31PG601SN1_2P
EMC@
1 2
R765 0_0402_5%@
1 2
C7910.1U_0402_16V7K 1 2
R769 33_0402_5%EMC@
1 2
C803
0.1U_0402_16V4Z
EMC@
1
2
C793
0.1U_0402_16V4Z
1
2
C786 0.1U_0402_16V4Z
EMC@1 2
C799
15P_0402_50V8J
1
2
C798
4.7U_0603_6.3V6K
1
2
R774 56_0402_5%EMC@
1 2
R896
0_0402_5%
@12
C792
0.1U_0402_16V4Z
1
2
R768 33_0402_5%EMC@
1 2
C784
0.1U_0402_16V4Z
@1
2
C771
4.7U_0603_6.3V6K
1
2
Y6
25MHZ 10PF X3G025000DA1H-X
GND
2
33
1
1
GND
4
R775 22_0402_5%
1 2
C797
0.1U_0402_16V4Z
1
2
R780 1.24K_0402_1%
1 2
R763 0_0402_5%@
1 2
R771 33_0402_5%EMC@
1 2
C773
0.1U_0402_16V4Z
@1
2
R764 4.7K_0402_5%
1 2
C772
0.1U_0402_16V4Z
1
2
R770 33_0402_5%EMC@
1 2
C779
4.7U_0603_6.3V6K
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
BOTHHAND: S X'FORM_ GST5009-E LF LAN, SP050006B10
TIMAG:S X'FORM_ IH-160 LAN , SP050006F00
MHPC:S X'FORM_ NS892403 LAN , SP050008500
Place close to TCT pin
40mil
LAN Connector
40mil
Card Reader Connector
CARD READER_2in1 SP07000TF00
40mil
SM01000LU00 300ma 22ohm@100mhz DCR 0.3
For EMI change to 22 ohm Bead
RJ45_MIDI1-
RJ45_MIDI1+
LAN_MIDI2-
RJ45_MIDI3-
RJ45_MIDI3+
LAN_MIDI0-
RJ45_MIDI2+
RJ45_MIDI2-
LAN_MIDI3+
RJ45_GND
LAN_MIDI3-
LAN_MIDI1+
LAN_MIDI1-
RJ45_MIDI0+
RJ45_MIDI0-
LAN_MIDI2+
LAN_MIDI0+
RJ45_MIDI2-
RJ45_MIDI2+
RJ45_MIDI1+
RJ45_MIDI0-
RJ45_MIDI1-
RJ45_MIDI0+
RJ45_MIDI3-
RJ45_MIDI3+
LANGNDRJ45_GND
CR_CMD_XD_CLE
CR_DATA1
CR_DATA0
CR_DATA2
CR_DATA3
CR_WP#_XD_WP#
CR_XD_WE#_SD_DETECT
LAN_LINK#
LAN_ACTIVITY#
CR_CLK
CR_CLK
LAN_MIDI2-29
LAN_MIDI0-29
LAN_MIDI3-29 LAN_MIDI3+29
LAN_MIDI1-29 LAN_MIDI1+29
LAN_MIDI2+29
LAN_MIDI0+29
CR_DATA029 CR_DATA129 CR_DATA229 CR_DATA329
CR_CMD_XD_CLE29
CR_WP#_XD_WP#29
CR_XD_WE#_SD_DETECT29,32
LAN_LINK# 29
LAN_ACTIVITY# 29
CR_CLK_XD_RY_BY#29
CR_PWR_EN29
+3V_LAN
+XDPWR_SDPWR_MSPWR
+3VALW
+XDPWR_SDPWR_MSPWR
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
LAN Magnetic & RJ45
Custom
30 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
LAN Magnetic & RJ45
Custom
30 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
LAN Magnetic & RJ45
Custom
30 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
J15
JUMP_43X118
@
11
2
2
D39
L30ESDL5V0C3-2
EMC@
2
3
1
C812
0.1U_0402_16V4Z
1
2
R787
1K_0402_5%
12
L75
BLM31PG601SN1_2P
EMC@
1 2
JP2
B88069X9231T203_4P5X3P2-2
XEMC@
12
R782
10K_0402_5%
1 2
R793
10K_0402_5%
12
C821
1U_0402_6.3V6K
EMC@
1
2
R26
22_0402_5%
XEMC@
1 2
G
D
S
Q23
L2N7002LT1G_SOT23-3
2
13
JP1
B88069X9231T203_4P5X3P2-2
XEMC@
12
C26
6.8P_0402_50V8C
XEMC@
1 2
R790
75_0402_1%
12
C810
0.1U_0402_16V4Z
1
2
C813
0.1U_0402_16V4Z
1
2
R788
75_0402_1%
12
C814
10P_0402_50V8J
EMC@
1 2
R791
75_0402_1%
12
G
D
S
Q9
DMG2301U-7_SOT23-3
2
13
C807 220P_0402_50V7K
XEMC@
1 2
R789
75_0402_1%
12
JREAD1
T-SOL_156-1000302601_NR
CONN@
SP07000TF00
VSS
4
CD/DAT3
2
CMD
3
CLK
6VDD
5
CD SW
11
DAT1
9
WP SW
10
DAT0
8
GND SW
13
DAT2
1
VSS
7
GND SW
12
T1
GST5009-E
SP050006B10
TCT1
1
TD1+
2
TD1-
3
TCT2
4
TD2+
5
TD2-
6
TCT3
7
TD3+
8
TD3-
9
TCT4
10
TD4+
11
TD4-
12
MCT1 24
MX1+ 23
MX1- 22
MCT2 21
MX2+ 20
MX2- 19
MCT3 18
MX3+ 17
MX3- 16
MCT4 15
MX4+ 14
MX4- 13
C822
0.1U_0402_16V4Z
1
2
R786
1K_0402_5%
12
C809 68P_0402_50V8J
XEMC@
1 2
C806 220P_0402_50V7K
XEMC@
1 2
C819
0.1U_0402_16V4Z
@
1
2
C808 68P_0402_50V8J
XEMC@
1 2
R897
BLM15BA220SN1D_0402
EMC@
12
C811
0.1U_0402_16V4Z
1
2
C818
0.1U_0402_16V4Z
@
1
2
JRJ45
SANTA_130451-F
CONN@
DC234005300
PR1-
2
PR1+
1
PR2+
3
PR3+
4
PR3-
5
PR2-
6
PR4+
7
PR4-
8
LED_GREEN_B2 12
GND 13
LED_GREEN_B1 11
LED_YELLOW_A2 10
LED_YELLOW_A1 9
GND 14
C817
4.7U_0603_6.3V6K
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
60mil
Mini Card Power Rating
For Wireless LAN
W=60mils
E51TXD_P80DATA_R
E51RXD_P80CLK_R
PLT_RST_BUF#
MINI1_SMBCLK
MINI1_SMBDATA
WL_OFF#
WLAN_PME#
MINI1_CLKREQ#7,8
CLK_PCIE_MINI1#7 CLK_PCIE_MINI17
PCIE_PRX_DTX_P410 PCIE_PRX_DTX_N410
PCIE_PTX_C_DRX_N410 PCIE_PTX_C_DRX_P410
E51RXD_P80CLK34 E51TXD_P80DATA34
PLT_RST_BUF# 29,8
WL_OFF# 34
USB20_N4 10
USB20_P4 10
PCH_SMBDATA 7
PCH_SMBCLK 7
WLAN_PME#34
BT_ON#34
MINI1_LED# 34
WLAN_ON34
+1.5VS_WLAN
+3VS +3VS_WLAN
+3VS_WLAN
+1.5VS_WLAN
+3VS_WLAN
+3VS_WLAN
+1.5VS
+3VS_WLAN
+3VALW +3VS_WLAN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MINI CARD (WLAN)
Custom
31 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MINI CARD (WLAN)
Custom
31 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
MINI CARD (WLAN)
Custom
31 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
U9
G5243T11U_SOT23-5
IOAC@
IN
5
IN
4
OUT 1
EN 3
GND 2
JMINI1
BELLW_80053-1021
CONN@
DC040009P00
31
31 32 32
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
34 34
36 36
38 38
40 40
42 42
44 44
46 46
48 48
50 50
52 52
GND
53 GND 54
R435
0_0402_5%
@
1 2
R432 0_0402_5%@
1 2
R436
0_0402_5%
@
1 2
R438
1K_0402_5%
@
12
C459
0.1U_0402_16V4Z
@
1
2
C165
1U_0402_6.3V6K
IOAC@
1
2
C458
4.7U_0603_6.3V6K
1
2
C460
0.1U_0402_16V4Z
1
2
R423
0_0402_5%
@
1 2
C463
0.1U_0402_16V4Z
@
1
2
R443 100K_0402_5%
1 2
R437
100K_0402_5%
12
J3
JUMP_43X118
@
1 2
R429 4.7K_0402_5%
1 2
G
D
S
Q20
L2N7002LT1G_SOT23-3
@
2
13
J13
JUMP_43X39
@
1
122
R434 0_0402_5%@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
SATA ODD Conn.
80mils
Debug Board
Kill SW
Ctrl (L, 58) C03, R04 (KSI2, KSO3)
Ctrl (R, 64) C01, R04 (KSI0, KSO3)
D (33) C01, R03 (KSI0, KSO2)
F3 (114) C03, R03 (KSI2, KSO2)
Enter (43) C01, R05 (KSI0, KSO4)
Space (61) C03, R05 (KSI2, KSO4)
SATA HDD1 Conn.
CL 4.0 mm SATA HDD1 Conn.
100mils
SATA_PRX_C_DTX_P1
SATA_PRX_C_DTX_N1
SATA_PTX_C_DRX_P1
SATA_PTX_C_DRX_N1
+5VS_ODD
ODD_MD
SATA_PRX_C_DTX_P0
SATA_PRX_C_DTX_N0
SATA_PTX_C_DRX_P0
SATA_PTX_C_DRX_N0
+3VS_HDD
+5VS_HDD
SATA_PTX_DRX_P0
SATA_PTX_DRX_N0
SATA_PRX_DTX_N0
SATA_PRX_DTX_P0
SATA_PTX_C_DRX_P0_1
SATA_PTX_C_DRX_N0_1
SATA_PRX_C_DTX_P0_1
SATA_PRX_C_DTX_N0_1
SATA_PRX_DTX_P16 SATA_PRX_DTX_N16
SATA_PTX_DRX_P16 SATA_PTX_DRX_N16
PCH_SPI_CS0#_1_R7 PCH_SPI_MISO_1_R7
SPI_HOLD1#_R7 EC_SPICLK34
EC_SO_SPI_SI_R134
CR_XD_WE#_SD_DETECT29,30
EC UART_TXD34
HDMI_HPD26
XDP_DBRESET#8 KSI034,35 KSO234,35
EC_SI_SPI_SO_R1 34
PCH_SPI_CLK_1_R 7
PCH_SPI_MOSI_1_R 7
EC_SPICS#/FSEL#_R 34
EC_RST# 34,35
ON/OFFBTN# 33,35
EC UART_RXD 34
REC_MODE_L 34
SPI_WP1#_R 34,6,7
LID_SW# 33,34
KSI2 34,35
KSO3 34,35
KSO4 34,35
SATA_PRX_DTX_P06
SATA_PTX_DRX_N06
SATA_PRX_DTX_N06
SATA_PTX_DRX_P06
DEVSLP08,9
+5VS
+EC_SPI
+3VALW_EC
+BIOS_SPI
+3VALW
+3VS
+5VS
+3VS +5VS
+3VS
+5VS
SPI_WP1#_R 34,6,7
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HDD/ODD/Debug Board
Custom
32 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HDD/ODD/Debug Board
Custom
32 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HDD/ODD/Debug Board
Custom
32 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C420
10U_0603_6.3V6M
12
T185 @
C402 0.01U_0402_16V7K
1 2
R593
0_0805_5%
@
1 2
R569
1K_0402_1%
940@
1 2
C403 0.01U_0402_16V7K
1 2
C405 0.01U_0402_16V7K
1 2
R308
0_0402_5%
@
1 2
C407
0.1U_0402_16V4Z
1
2
C393 0.01U_0402_16V7KEA50@
1 2
R307 0_0402_5%@
1 2
JHDD2
ACES_50406-02071-001
CONN@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
G1
21
G2
22
G3
23
G4
24
JDB1
E&T_1001K-F50C-05R
CONN@
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
22 22
24 24
26 26
28 28
30 30
32 32
34 34
36 36
38 38
40 40
42 42
44 44
46 46
48 48
50 50
G1
51 G2 52
C394 0.01U_0402_16V7KEA50@
1 2
JP5
ACES_87212-02G0
CONN@
1
1
2
2G1 3
G2 4
C391 0.01U_0402_16V7KEA50@
1 2
C536 0.01U_0402_16V7KBA51@
1 2
C404
10U_0603_6.3V6M
12
C392 0.01U_0402_16V7KEA50@
1 2
C401 0.01U_0402_16V7K
1 2
JODD1
SANTA_201902-1_13P-T
LTCX004HZ00
CONN@
GND
1
A+
2
A-
3
GND
4
B-
5
B+
6
GND
7
DP
8
+5V
9
+5V
10
MD
11
GND
12
GND
13 GND 15
GND 14
JHDD1
CONN@
CCM_C127043HR022M27FZR_22P-T
DC231211190
GND
1
A+
2
A-
3
GND
4
B-
5
B+
6
GND
7
V33
8
V33
9
V33
10
GND
11
GND
12
GND
13
V5
14
V5
15
V5
16
GND
17
Reserved
18
GND
19
V12
20
V12
21
V12
22 GND 26
GND 25
GND 24
GND 23
C534 0.01U_0402_16V7KBA51@
1 2
C397
0.1U_0402_16V4Z
1
2
C390
0.1U_0402_16V4Z
@
1
2
C535 0.01U_0402_16V7KBA51@
1 2
R49 0_0805_5%@
1 2
C537 0.01U_0402_16V7KBA51@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
For ESD request
USB3.0 Conn.
W=60mils
SF000002Y00
220U 6.3V OSCON
ESR 17mohm@100Khz
W=100mils
USB/B
(USB Port 1, Port2)
PWR/B Finger Print /B
PCH_USB3_TX0_N_C
U3TXDP0PCH_USB3_TX0_P_C
PCH_USB3_RX0_P U3RXDP0
U3RXDN0
U3RXDP0
U3TXDP0U3TXDP0
U3RXDP0
U3TXDN0
U3RXDN0
U3TXDN0
U3TXDN0
U2DN0_L
U2DP0_L
U3TXDP0
U3TXDN0
U3RXDP0
U3RXDN0
U3RXDN0PCH_USB3_RX0_N
U2DP0_LUSB20_P0
USB20_N0 U2DN0_L
USB20_P2
USB20_N2
USB_EN#
USB20_N1
USB20_P1
LID_SW#
ON/OFFBTN#
PWR_LED#
USB20_N5
USB20_P5
USB_OC0# 10,9
USB_CHARGE_2A#34
USB20_N010
USB20_P010
USB20_P210 USB20_N210
USB20_N110 USB20_P110
LID_SW# 32,34
ON/OFFBTN# 32,35
USB_EN#34
PWR_LED# 35
PCH_USB3_TX0_N10
PCH_USB3_TX0_P10
PCH_USB3_RX0_N10
PCH_USB3_RX0_P10
USB20_N510 USB20_P510
+5VALW +USB3_VCCA
+USB3_VCCA
+5VALW
+3VALW
+3VLP
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
USB3.0 Conn/USB_B/PWR_B
Custom
33 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
USB3.0 Conn/USB_B/PWR_B
Custom
33 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
USB3.0 Conn/USB_B/PWR_B
Custom
33 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R454
0_0402_5%
@
1 2
JUSB2
ACES_88514-01201-071
SP01001BF00
CONN@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
+
C486
220U_6.3V_M
1
2
C487
0.1U_0402_16V4Z
EMC@
1
2
L26
WCM2012F2SF-670T04_0805
XEMC@
11
2
2
3
344
L24
DLW21SN900HQ2L-0805_4P
EMC@
11
2
2
3
344
JFP1
ACES_50504-0040N-001
CONN@
SP01000Z300
1
12
2G1 5
G2 6
3
34
4
U25
SY6288D10CAC_MSOP8
GND
1
IN
2
IN
3
EN/ENB
4OCB 5
OUT 6
OUT 7
OUT 8
JUSB1
OCTEK_USB-09EAAB
DC233008O20
CONN@
VBUS
1
D-
2
D+
3
GND
4
StdA-SSRX-
5
StdA-SSRX+
6
GND-DRAIN
7
StdA-SSTX-
8
StdA-SSTX+
9
GND 10
GND 11
GND 12
GND 13
D38
YSLC05CH_SOT23-3
XEMC@
2
3
1
C483
0.1U_0402_16V4Z
EMC@
1 2
C482 0.1U_0402_16V7K
12
L25
DLW21SN900HQ2L-0805_4P
EMC@
11
2
2
3
344
R458 0_0402_5%@
1 2
8
7
65
4
3
2
1
9
10
D15
L05ESDL5V0NA-4 SLP2510P8
XEMC@
4
5
1
6
2
7
3
9
8
C484 0.1U_0402_16V7K
12
R461 0_0402_5%@
1 2
JPWR1
ACES_88514-00601-071
CONN@
SP010014M00
11
22
33
44
55
66
GND 8
GND 7
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Follow KB930 checking List
20mil
KB932&9012 Co-Layout Item KB932 use 256KB ROM
KB9012 Embedded 128KB ROM
ESD request
Board ID
Ra
Rb
Analog Board ID definition,
Please see page 3.
KB930&9012 Co-Layout Item
Pin 111 is a power source for HW operation of KB9012.
So, power plan will be different between KB930 and KB9012.
Pin74(KB930),Pin118(KB9012) are with different PECI pin location,
so HW must co-layout for it.
Please make sure which EC pin will be connected to PECI circuit.
Pin104 This co-layouted circuit is for power fail function of
KB930 and KB9012.At KB930, PCH_PWROK will be connected to pin 104.
At KB9012,PCH_PWROK will be connected to pin 32,
and VCOUT0_PH will be connected to pin 104.
Latest design guide suggest change to
74LVC1G06.
D28 design for Debug board flash SPI ROM
(can be short after MP)
PU at LAN side
PU will disable PH function
SM010030010 200ma 120ohm@100mhz DCR 0.2
SM010030010 200ma 120ohm@100mhz DCR 0.2
For abnormal shutdown
CLK_PCI_LPC
KSO[0..17]
KSI[0..7]
EC_XCLK0
LPC_AD1
PLT_RST#
SERIRQ
LPC_AD2
LPC_AD3
LPC_AD0
LPC_FRAME#
EC_XCLK1
EC_SMB_CK1
EC_SMI#
EC_SMB_DA1
EC_SCI#
PM_SLP_S5#
PM_SLP_S3#
EC_KBRST#
EC_RST#_R
ECAGND
+EC_VCC
ECAGND
+EC_VCCA
+V18R
EC_SMB_DA2
EC_SI_SPI_SO
EC_SPICLK_R
EC_SPICS#/FSEL#
EC_SO_SPI_SI
EC_SMB_CK2
KSO17
KSI3
KSI1
KSI0
KSI6
KSI7
KSO16
KSI4
KSO15
KSI2
KSI5
KSO4
KSO8
KSO14
KSO13
KSO12
KSO9
KSO1
KSO0
KSO3
KSO6
KSO2
KSO10
KSO11
KSO7
KSO5
E51RXD_P80CLK
E51TXD_P80DATA
FAN_SPEED1
SUSP#
BKOFF#
EC_LID_OUT#
PCH_RSMRST#
GPXIOA07
930_PECI
SYSON
HDA_SDO
EC_MUTE#
ADP_I
AD_BID0
BATT_TEMP
BEEP#
ECAGND
9012_PECI
9012_PCH_PWROK
EC_SPICLK
EC_RST#_R
EC_SMB_CK1
PLT_RST#
EC_XCLK1 EC_XCLK0
AD_BID0
EC_SMB_DA1
EC_SCI#
CLK_PCI_LPC
LID_SW#
EC_MUTE#
H_PROCHOT#_EC
+EC_VCC
KSO1
KSO2
SPI_HOLD#
EC_SI_SPI_SO_R
SPI_WP#
EC_SPICS#/FSEL#_R
EC_SO_SPI_SI_R
EC_SPICLK
930_PECI
9012_PECI
GPXIOA07
9012_PCH_PWROK
PWR_SUSP_LED#
FSTCHG
PWR_LED
H_PROCHOT#_EC
PBTN_OUT#
VCIN0_PH_R
EC_ACIN
EC_ON
ON/OFF
LID_SW#
PM_SLP_S4#
EC_SPOK
VCIN1_PROCHOT
EC_ACIN
BT_ON#
WLAN_ON
ENBKL
VCIN0_PH_R
WL_OFF#
EN_DFAN1
WLAN_PME#
BATT_AMB_LED#
BATT_BLUE_LED#
LAN_PWR_EN#
USB_CHARGE_2A#
VGATE_3V
VCCST_PG_EC
TP_DATA
TP_CLK
GPU_ACIN
EC_WLAN_LED#
EC_ENTERING_RW
EC_ENTERING_RW
EC_SPICS#/FSEL#_R
EC_SI_SPI_SO_R
EC_SO_SPI_SI_R
EC_SPICLK
E51TXD_P80DATA
E51RXD_P80CLK
EC_PME#
EC_SMB_DA2
EC_SMB_CK2
USB_EN#
REC_MODE_L_R
EC_PME#
KBL_EN#
MINI1_LED#
VCCST_PWRGD
EC_SMI#
VCIN1_PROCHOT
TP_DATA
TP_CLK
TS_EN
PCH_RSMRST#EC_SPOK
PCH_PWROK
KSI[0..7]32,35
KSO[0..17]32,35
LPC_FRAME#35,7
LPC_AD235,7
LPC_AD035,7
LPC_AD335,7
LPC_AD135,7
SERIRQ35,9
EC_SMB_DA140,41 EC_SMB_CK140,41
EC_SMI#8
EC_KBRST#9
CLK_PCI_LPC7
EC_SMB_DA218,24,7 EC_SMB_CK218,24,7
EC_SCI#6,9
PLT_RST#35,8
PM_SLP_S3#8 PM_SLP_S5#8
SUSCLK8
FAN_SPEED137
E51RXD_P80CLK31 E51TXD_P80DATA31
SUSP# 38,41,43,44,45
BKOFF# 25
PCH_RSMRST# 8
EC_LID_OUT# 9
SYSON 38,43
EC_MUTE# 36
BEEP# 36
BATT_TEMP 39,40
ADP_I 40,41
H_PROCHOT# 39,4,40
VR_HOT#46
VCIN1_PROCHOT 40
VCIN0_PH 40
PWR_SUSP_LED#35
ENBKL 8
FSTCHG 41
PWR_LED 35
PBTN_OUT# 8
EC_ON 35,42
ON/OFF 35
LID_SW# 32,33
PM_SLP_S4# 8
ACIN 39,41,8
BT_ON# 31
WLAN_ON31
HDA_SDO 6
EC_SPOK40
H_PECI 4
WL_OFF#31
EN_DFAN1 37
WLAN_PME# 31
BATT_AMB_LED# 35
BATT_BLUE_LED# 35
LAN_PWR_EN# 29
USB_CHARGE_2A# 33
VGATE_3V 8
ECAGND 40
PCH_PWROK 8
VCCST_PG_EC11,8
TP_DATA 35
TP_CLK 35
GPU_ACIN 18
EC_WLAN_LED# 35
EC_ENTERING_RW 35
EC_SO_SPI_SI_R1 32
EC_SPICS#/FSEL#_R32
EC_SI_SPI_SO_R132
EC UART_TXD32
EC UART_RXD32
SPI_WP1#_R32,6,7
USB_EN# 33
EC_PME# 29
KBL_EN#35
MINI1_LED# 31
VCCST_PWRGD 11,45
EC_RST#32,35
REC_MODE_L32 MAINPWON 40,42
TS_EN25
H_PROCHOT#_EC 40
+3VALW_EC
+3VS
+3VALW_EC
+3VALW_EC
+3VS
+3VALW_EC
+3VLP
+3VALW
+3VALW_EC
+3VALW_EC
+EC_SPI
+EC_SPI
+EC_SPI
+3VALW_EC
+3VALW_EC
+EC_VCCA
+3VALW
+3VLP
+3VALW_EC
+3VS
+5VS
EC_SPICLK 32
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
EC ENE-KB9012
Custom
34 52Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
EC ENE-KB9012
Custom
34 52Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
EC ENE-KB9012
Custom
34 52Thursday, April 11, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R504 100K_0402_5%
940@
12
R507 47K_0402_5%940@
12
C517
0.1U_0402_16V4Z
@
1
2
R476 100K_0402_5%
1 2
U28
KB932QF-A0_LQFP128
940@
SA000055I00
R494 0_0402_5%
@
1 2
G
D
S
Q50
L2N7002LT1G_SOT23-3
2
13
C514
15P_0402_50V8J @
1
2
R598 0_0402_5%
DEG@
1 2
R499 0_0402_5%
940@
12
R24
0_0805_5%
@
1 2
R601
1K_0402_5%
940@
1 2
X1
32.768KHZ_12.5PF_FC-135
@
12
R591 0_0402_5%DEG@
1 2
C513
15P_0402_50V8J@
1
2
C504
0.1U_0402_16V4Z
@
1
2
R146 49.9_0402_1%
940@
1 2
R691 100K_0402_5%
12
C503
0.1U_0402_16V4Z
1
2
C515
4.7U_0603_6.3V6K
1
2
C505
0.1U_0402_16V4Z
@
1
2
C502
0.1U_0402_16V4Z
1
2
R605 0_0402_5%
DEG@
1 2
R502 0_0402_5%
940@
1 2
R565
0_0402_5% @
12
C520 33P_0402_50V8K
XEMC@
U29
W25X20BVSNIG_SO8
940@
SA00003GM10
/CS
1
DO_IO1
2
DIO_IO0 5
CLK 6
VCC 8
/WP
3
GND
4
/HOLD 7
C512 100P_0402_50V8J
12
R496 43_0402_1%940@
1 2
R158 49.9_0402_1%940@
1 2
R483 4.7K_0402_5%9012@
1 2
R481 10K_0402_5%@
1 2
C508
0.1U_0402_16V4Z
1
2
R488 10K_0402_5%@
1 2
R497 43_0402_1%9012@
1 2
R484 100K_0402_5%@
1 2
R485 4.7K_0402_5%9012@
1 2
C509 0.1U_0402_16V4Z
12
R159 49.9_0402_1%940@
1 2
D26
RB751V40_SC76-2
@
1 2
R606 0_0402_5%
DEG@
1 2
R480 47K_0402_5%
12
LPC & MISC
Int. K/B
Matrix
SM Bus
GPIO
GPIO
AD Input
PWM Output
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPO
GPI
U28
KB9012QF-A3_LQFP128_14X149012@
GATEA20/GPIO00
1
KBRST#/GPIO01
2
SERIRQ
3
LPC_FRAME#
4
LPC_AD3
5
PM_SLP_S3#/GPIO04
6
LPC_AD2
7
LPC_AD1
8
EC_VDD/VCC 9
LPC_AD0
10
GND/GND
11
CLK_PCI_EC
12
PCIRST#/GPIO05
13
PM_SLP_S5#/GPIO07
14
EC_SMI#/GPIO08
15
GPIO0A
16
GPIO0B
17
GPIO0C
18
GPIO0D
19
EC_SCII#/GPIO0E
20
GPIO0F 21
EC_VDD/VCC 22
BEEP#/GPIO10 23
GND/GND
24
EC_INVT_PWM/GPIO11
25
GPIO12 26
ACOFF/GPIO13 27
FAN_SPEED1/GPIO14
28
EC_PME#/GPIO15
29
EC_TX/GPIO16
30
EC_RX/GPIO17
31
PCH_PWROK/GPIO18
32
EC_VDD/VCC 33
SUSP_LED#/GPIO19
34
GND/GND
35
NUM_LED#/GPIO1A
36
EC_RST#
37
GPIO1D
38
KSO0/GPIO20
39
KSO1/GPIO21
40
KSO2/GPIO22
41
KSO3/GPIO23
42
KSO4/GPIO24
43
KSO5/GPIO25
44
KSO6/GPIO26
45
KSO7/GPIO27
46
KSO8/GPIO28
47
KSO9/GPIO29
48
KSO10/GPIO2A
49
KSO11/GPIO2B
50
KSO12/GPIO2C
51
KSO13/GPIO2D
52
KSO14/GPIO2E
53
KSO15/GPIO2F
54
KSI0/GPIO30
55
KSI1/GPIO31
56
KSI2/GPIO32
57
KSI3/GPIO33
58
KSI4/GPIO34
59
KSI5/GPIO35
60
KSI6/GPIO36
61
KSI7/GPIO37
62
BATT_TEMP/GPIO38 63
GPIO39 64
ADP_I/GPIO3A 65
GPIO3B 66
EC_VDD/AVCC 67
DAC_BRIG/GPIO3C 68
AGND/AGND
69
EN_DFAN1/GPIO3D 70
IREF/GPIO3E 71
CHGVADJ/GPIO3F 72
ENBKL/GPIO40 73
PECI_KB930/GPIO41 74
GPIO42 75
IMON/GPIO43 76
EC_SMB_CK1/GPIO44
77
EC_SMB_DA1/GPIO45
78
EC_SMB_CK2/GPIO46
79
EC_SMB_DA2/GPIO47
80
KSO16/GPIO48
81
KSO17/GPIO49
82
EC_MUTE#/GPIO4A 83
USB_EN#/GPIO4B 84
CAP_INT#/GPIO4C 85
EAPD/GPIO4D 86
TP_CLK/GPIO4E 87
TP_DATA/GPIO4F 88
FSTCHG/GPIO50 89
BATT_CHG_LED#/GPIO52 90
CAPS_LED#/GPIO53 91
PWR_LED#/GPIO54 92
BATT_LOW_LED#/GPIO55 93
GND/GND
94
SYSON/GPIO56 95
EC_VDD/VCC 96
CPU1.5V_S3_GATE/GPXIOA00 97
WOL_EN/GPXIOA01 98
HDA_SDO/GPXIOA02 99
EC_RSMRST#/GPXIOA03 100
EC_LID_OUT#/GPXIOA04 101
PROCHOT_IN/GPXIOA05 102
H_PROCHOT#_EC/GPXIOA06 103
VCOUT0_PH/GPXIOA07 104
BKOFF#/GPXIOA08 105
PBTN_OUT#/GPXIOA09 106
PCH_APWROK/GPXIOA10 107
SA_PGOOD/GPXIOA11 108
VCIN0_PH/GPXIOD00 109
AC_IN/GPXIOD01 110
EC_VDD0 111
EC_ON/GPXIOD02 112
GND0
113
ON/OFF/GPXIOD03 114
LID_SW#/GPXIOD04 115
SUSP#/GPXIOD05 116
GPXIOD06 117
PECI_KB9012/GPXIOD07 118
SPIDI/GPIO5B 119
SPIDO/GPIO5C 120
VR_ON/GPIO57 121
XCLKI/GPIO5D
122
XCLKO/GPIO5E
123 V18R 124
EC_VDD/VCC 125
SPICLK/GPIO58 126
PM_SLP_S4#/GPIO59 127
SPICS#/GPIO5A 128
C518 0.1U_0402_16V4Z940@
1 2
R501 0_0402_5%@
1 2
R160 49.9_0402_1%940@
1 2
C507
1000P_0402_50V7K
XEMC@
1
2
R697
10K_0402_5%
@
1 2
R506
100K_0402_5%
12
C511 0.01U_0402_16V7K
XEMC@
1 2
R236
0_0805_5%
@
1 2
R696
10K_0402_5%
@
1 2
RP12
2.2K_0804_8P4R_5%
1 8
2 7
3 6
4 5
C506
1000P_0402_50V7K
XEMC@
1
2
D28 RB751V40_SC76-2940@
1 2
D25
RB751V40_SC76-2
1 2
R479 4.7K_0402_5%940@
1 2
R588 10K_0402_5%@
1 2
R509 0_0402_5%@
1 2
R511
4.7K_0402_5%940@
1 2
R492 10K_0402_5%@
1 2
R477 33_0402_5%
XEMC@
12
R600
0_0402_5%
DEG@
1 2
C510 100P_0402_50V8J
12
R478 4.7K_0402_5%940@
1 2
L31
BLM18AG121SN1D_2P
1 2
R495 0_0402_5%@
1 2
C516 20P_0402_50V8
940@
1 2
R513 0_0402_5%
XEMC@
12
R510 4.7K_0402_5%@
1 2
R503
100K_0402_5%
1 2
L32
BLM18AG121SN1D_2P
1 2
R508 47K_0402_5%940@
12
C501
22P_0402_50V8J
XEMC@
12
R482
0_0402_5%
@
12
R498 0_0402_5%
9012@
12
R500 0_0402_5%
9012@
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
KB Conn.
LED
HDD LED
TOP
ON/OFF BTN
Test Only
KB BackLight Conn.
To TP/B Conn.
100g for Press 100g for Press
TPM Board
12/9 modify pin define
F3 + Power BTN --> Reset EC
KB Conn.
avoid flash issue when
abnormall shutdown
For BCM57786X
KSI1
KSI6
KSI5
KSI7
KSO1
KSO0
KSO2
KSO4
KSO3
KSO5_SW
KSO6
KSO7
KSO8
KSO12
KSO10
KSO13
KSO11
KSO9
KSO15
KSO14
KSI2
KSI0_SW
KSI3
KSI4
KSO16
KSO17
KSO[0..17]
KSI[0..7]
BATT_AMB_LED#
BATT_BLUE_LED#
PWR_SUSP_LED#
PWR_LED#
TP_DATA
TP_CLK
PWR_LED#
MEDIA_LED# EC_WLAN_LED#
ON/OFFBTN#
KBL_EN_R
+5VS_BL
LEFT_BTN# RIGHT_BTN#
PLT_RST#
CLKRUN#
LPC_AD0
SERIRQ
CLK_PCI_TPM
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
LPCPD#_R
LEFT_BTN#
RIGHT_BTN#
KSI0_SW
KSO5_SW KSI0
KSO5
EC_ON
51ON#
F3_BTN
ON/OFF
KSI0_SW KSI0
KSO5
KSO5_SW ON/OFF
ON/OFF
F3_BTN
KSI1
KSI6
KSI5
KSI7
KSO1
KSO0
KSO2
KSO4
KSO3
KSO5_SW
KSO6
KSO7
KSO8
KSO12
KSO10
KSO13
KSO11
KSO9
KSO15
KSO14
KSI2
KSI0_SW
KSI3
KSI4
KSO16
KSO17
LEFT_BTN#
LEFT_BTN#
RIGHT_BTN#
RIGHT_BTN#
KSO[0..17] 32,34
KSI[0..7] 32,34
BATT_AMB_LED#34
BATT_BLUE_LED#34
PWR_SUSP_LED#34
PWR_LED34
5IN1_LED# 29
PCH_SATALED# 6
EC_WLAN_LED#34
PWR_LED# 33
ON/OFF 34
KBL_EN#34
CLKRUN#8 PLT_RST#34,8
LPC_AD2 34,7
LPC_AD3 34,7
LPC_AD0 34,7
SERIRQ 34,9
CLK_PCI_TPM 7
LPC_AD1 34,7
LPC_FRAME# 34,7
ON/OFFBTN#32,33
LPCPD#8
TP_CLK 34
TP_DATA 34
EC_ON34,42
51ON# 39
EC_IN_RW 9
EC_ENTERING_RW 34
EC_RST# 32,34
+3VALW
+3VS
+3VS
+3VS +3VS
+3VALW_EC +3VLP
+5VALW
+5VS
+5VS
+3VALW
+3VS
+3VS
+3VALW_EC
+3VALW_EC
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
KB & TP & TPM Connector & LED
Custom
35 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
KB & TP & TPM Connector & LED
Custom
35 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
KB & TP & TPM Connector & LED
Custom
35 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R451
100K_0402_5%
BL@
1 2
R592
0_0402_5%
@
1 2
R534
100K_0402_5%
9012@
1 2
JTP2
ACES_88514-00601-071
CONN@
SP010014M00
11
22
33
44
55
66
GND 8
GND 7
B
A
LED7
LTST-C295TBKF-CA_AMBER-BLUE
21
43
A
LED8
LTST-C191KFKT-2CA_ORANGE
21
SLG4N059VTR_TDFN8_2X2
U44 940@
VDD
1
EC_RST# 8
BTN_B
4
GND 5
PWR_BTN#
2
BTN_A
3EC_IN_RW 7
EC_ENT_RW 6
PAD 9
R535
100K_0402_5%
12
JTPM1
FOX_QT510166-L010-7H
CONN@
SP020011OA0
22
44
66
88
10 10
12 12
1
1
3
3
5
5
7
7
9
9
11
11
14 14
13
13
16 16
15
15
C663
0.1U_0402_16V4Z
9012@
1 2
NX3L4684TK_MO-229-10_3X3
U41
940@
VCC
11Y1 2
2Y0 7
2Y1 10
1Z
3
2Z
9
1Y0 5
1S 4
GND
6
2S 8
PAD
11
SW4
TJE-532QR5_4P
EA50@
1
2
3
4
5
6
R701 680_0402_5%
1 2
R699 51_0402_5%
1 2
R577 0_0402_5%9012@
1 2
C522
0.1U_0603_25V7K
940@
12
R589
0_0402_5%
940@
1 2
R624
10K_0402_5%
940@
1 2
R700 51_0402_5%
1 2
SW5
TJE-532QR5_4P
EA50@
1
2
3
4
5
6
SW3
TJE-532QR5_4P
@
3
2
1
4
5
6
C523
0.1U_0603_25V7K
940@
12
R585 0_0402_5%9012@
1 2
G
D
S
Q44
DMG2301U-7_SOT23-3
BL@
2
13
G
D
S
Q26
L2N7002LT1G_SOT23-3
@
2
13
R522
100K_0402_5%
940@
1 2
R586
0_0402_5%
940@
1 2
G
D
S
Q17
L2N7002LT1G_SOT23-3
2
13
C551
100P_0402_50V8J
XEMC@
1
2
D24
BAV70W_SOT323-3
2
3
1
R698 680_0402_5%
1 2
C524
0.1U_0603_25V7K
@
1
2
SW6
TJE-532QR5_4P
BA51NFP@
1
2
3
4
5
6
C553
100P_0402_50V8J
XEMC@
1
2
U39
MC74VHC1G08DFT2G_SC70-5
B2
A1
Y
4
P5
G
3
R392
10K_0402_5%
TPM@
12
R740
51_0402_5%
1 2
A
LED4
LTST-C191TBKT-CA_BLUE
2 1
SW7
TJE-532QR5_4P
BA51FP@
1
2
3
4
5
6
R444
0_0402_5%
@
1 2
R632
10K_0402_5%
1 2
SW8
TJE-532QR5_4P
BA51FP@
1
2
3
4
5
6
G
D
S
Q39
L2N7002LT1G_SOT23-3
940@
2
13
JBL1
ACES_50504-0040N-001
CONN@
SP01000Z300
1
12
2G1 5
G2 6
3
34
4
R702 499_0402_1%
1 2
B
A
LED6
LTST-C295TBKF-CA_AMBER-BLUE
21
43
JKB2
E-T_6905-E26N-01R
CONN@
SP01000IJ00
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26 G1 27
G2 28
JKB1
E-T_6905-E26N-01R
CONN@
SP01000IJ00
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26 G1 27
G2 28
SW9
TJE-532QR5_4P
BA51NFP@
1
2
3
4
5
6
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Place next pin27
Place near Pin1, 9
20mil
20mil
HD Audio Codec
10mil
10mil
Place near Pin25, 38
Int. MIC
10mil
10mil
10mil
40mil
Place near Pin46
35mA
68mA 600mA
Int. Speaker Conn.
Combo MIC
15mil 15mil
40mil
Place near Pin41
Internal MIC
Headphone Out
SM010030010 200ma 120ohm@100mhz DCR 0.2
SM01000EJ00 3000ma 220ohm@100mhz DCR 0.04
Place near
codec
4.75V
(output = 300 mA)
40mil 40mil
Place near Pin40
Reserved for ESD
CPVEE MONO_IN
HDA_RST_AUDIO#
HDA_SDIN0_AUDIO
HP_PLUG#_1
MIC2JD_1
SPK_R-
SPKR+
SPKR- SPK_R+
MIC2_C_R
COM_MIC_R MIC2_C_L
COM_MIC
INT_MIC_R
HP_LEFT
HP_RIGHT
SPK_L+
SPKR+
SPKR-
SPKL-
SPKL+
INT_MIC LINE2_C_L
LINE2_C_R
INT_MIC_R
MIC2JD
BEEP#_R
COM_MIC
COM_MIC
HP_PLUG#
HPOUT_R_2HP_RIGHT HPOUT_R_1
HP_LEFT HPOUT_L_1 HPOUT_L_2
HP_PLUG#
COM_MIC
CODEC_VREF
SENSE_A
SPKL-
SPKL+ SPK_L-
+3VS_VDDA
+3VS_DVDD
MIC2JD
MIC2JD_1
HP_PLUG#_1
HP_PLUG#
INT_MIC_R_1
EC_MUTE# 34
HDA_SYNC_AUDIO 6
HDA_SDOUT_AUDIO 6
HDA_RST_AUDIO# 6
HDA_BITCLK_AUDIO 6
HDA_SDIN0 6
BEEP# 34
PCH_SPKR 9
GNDA
+INTMIC_VREFO
GNDA
+INTMIC_VREFO
GND
GND
GNDA
GND
GNDA
+VDDA
+3VS
+MIC2_VREFO
GNDA
+VDDA
GNDA
+5VS
GNDAGND GND GNDA
+MIC2_VREFO
GNDA
+AVDD1_HDA
+PVDD_HDA
GND
GNDA
+VDDA
GND
GNDA
GND
GNDA
GNDA
GNDA
GND
GND GND
GND
GND
GNDA
GNDA
+3VS
GNDA
GNDA
GNDA
+VDDA
GND
GND
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HD Audio Codec ALC3225
Custom
36 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HD Audio Codec ALC3225
Custom
36 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
HD Audio Codec ALC3225
Custom
36 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R549 20K_0402_1%@
12
C558
0.1U_0402_16V4Z
1
2
R540 1K_0402_5%
12
L55
0_0603_5%
@
1 2
L33
HCB2012KF-221T30_0805
12
C770 4.7U_0603_6.3V6K
1 2
C556
100P_0402_50V8J
XEMC@
1
2
C584 10U_0603_6.3V6M
1 2
R528 0_0603_5%XEMC@
1 2
R523
100K_0402_5%
12
J7
JUMP_43X39
@
1
122
C577
2.2U_0402_6.3V6M
1
2
C582
0.1U_0402_16V4Z
@
1
2
C604
0.1U_0402_16V4Z
1
2
R542
22K_0402_5%
1 2
R532 0_0603_5%XEMC@
1 2
R545 39.2K_0402_1%
12
C608
10U_0603_6.3V6M
12
R531
4.7K_0402_5%
1 2
C559
0.1U_0402_16V4Z
@
1
2
C605
10U_0603_6.3V6M
12
L52
0_0603_5%
@
1 2
C769 4.7U_0603_6.3V6K
1 2
R533 0_0603_5%XEMC@
1 2
L51
0_0603_5%
XEMC@
1 2
R546 20K_0402_1%
12
JHP1
SINGA_2SJ3053-100111F
CONN@
DC230009K00
1
3
4
2
5
6 7
R529
47K_0402_5%
@
1 2
L38
0_0603_5%XEMC@
1 2
C571
10U_0603_6.3V6M
1
2
C574 10U_0603_6.3V6M
1 2
C578
10U_0603_6.3V6M
@
1
2
R543
22K_0402_5%
1 2
L36 0_0603_5%XEMC@
1 2
C576
0.1U_0402_16V4Z
@
1
2
C570
2.2U_0402_6.3V6M
1
2
R530
47K_0402_5%
1 2
C554
0.1U_0402_16V4Z
EMC@
1
2
C567
10U_0603_6.3V6M
12
C444
330P_0402_50V7K
XEMC@
1
2
C562
0.1U_0402_16V4Z
@
1
2
G
D
S
Q28
LBSS138LT1G_SOT-23-3
@
2
13
J12
JUMP_43X39
@
1
122
C568 4.7U_0603_6.3V6K
1 2
C555
1U_0402_6.3V6K
12
JSPK1
ACES_88266-04001
CONN@
SP02000K200
1
1
2
2
3
3
4
4G1 5
G2 6
C445
330P_0402_50V7K
XEMC@
1
2
J11
JUMP_43X39
@
1
122
C583 10U_0603_6.3V6M
1 2
R548 0_0402_5%
XEMC@
1 2
J14
JUMP_43X39
@
1
122
R539
2.2K_0402_5%
12
U34
ALC3225-CG_MQFN48_6X6
LINE2_L
24
LINE2_R
23
MIC2_R
18
MIC2_L
17
LINE1_L
22
LINE1_R
21
MIC1_L
19
MIC1_R
20
MIC2_VREFO
29
MIC1_VREFO_L
31
MIC1_VREFO_R
30
SENSE A
13
PCBEEP 12
SPK_OUT_L+ 42
SPK_OUT_L- 43
MONO_OUT 16
RESETB 11
SYNC 10
BCLK 6
SDATA_OUT 5
SDATA_IN 8
GPIO0/DMIC_DATA 2
GPIO1/DMIC_CLK 3
CBP
37
CBN
35
VREF 28
DVDD 1
DVDD_IO 9
AVDD1 26
AVDD2 40
HPOUT_L 32
CPVDD 36
SPDIFO
48
PVDD2 46
DVSS
4
CPVEE
34
HPOUT_R 33
SENSE B
14
LDO1_CAP
27
PD# 47
JDREF
15
AVSS1 25
AVSS2 38
SPK_OUT_R+ 45
SPK_OUT_R- 44
PVDD1 41
LDO3_CAP
7
LDO2_CAP
39
GND
49
L54
0_0603_5%
@
1 2
C564
10U_0603_6.3V6M
1
2
C561
0.1U_0402_16V4Z
1
2
C550
220P_0402_50V7K
XEMC@
1
2
C62 1000P_0402_50V7KEMC@
1 2
C573
22P_0402_50V8J
XEMC@
1 2
D1
AZ5125-02S.R7G_SOT23-3
EMC@
2
3
1
R527 0_0603_5%XEMC@
1 2
D37
AZ5125-02S.R7G_SOT23-3
XEMC@
2
3
1
J6
JUMP_43X118
@
1 2
R726 1K_0402_5%
12
R417
10K_0402_5%
12
C569 4.7U_0603_6.3V6K
1 2
C636
0.1U_0402_16V4Z
1
2
R237 60.4_0603_1%
1 2
JMIC1
ACES_88266-02001
CONN@
SP020008Y00
1
1
2
2
G2
4G1
3
D27
AZ5125-02S.R7G_SOT23-3
XEMC@
2
3
1
C575 2.2U_0402_6.3V6M
1 2
R547
33_0402_5%
1 2
G
D
S
Q31
L2N7002LT1G_SOT23-3
2
13
R238 60.4_0603_1%
1 2
FAN1 Conn
40mil
LIS3DH
SA0 ->0, Address is 0011 000 (0x30h)
SA0 ->1, Address is 0011 001 (0x32h)
+VCC_FAN1
+VCC_FAN1
G_SEN_INT
FAN_SPEED134
EN_DFAN134
G_SEN_INT 8
D_CK_SCLK15,16,7 D_CK_SDATA15,16,7
+5VS
+3VS
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
FAN & Screw Hole & G-Sensor
Custom
37 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
FAN & Screw Hole & G-Sensor
Custom
37 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
FAN & Screw Hole & G-Sensor
Custom
37 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
FD2
FIDUCIAL_C40M80
@
1
H24
H_4P0
@
1
R515
0_0402_5%
@
12
H23
H_2P5X3P5N
@
1
H4
H_3P0
@
1
H10
H_3P0
@
1
C627
4.7U_0603_10V6K
1 2
U31
AP2113AMTR-G1_SO8
EN
1
VIN
2
VOUT
3
VSET
4
GND 8
GND 7
GND 6
GND 5
FD4
FIDUCIAL_C40M80
@
1
R516
10K_0402_5%
12
H27
H_3P7
@
1
U2
LIS3DHTR_LGA16_3X3
GSEN@
Vdd_IO 1
GND 12
INT1 11
Vdd 14
ADC3
13
NC
2
INT2 9
GND 5
SDA/SDI/SDO
6
SDO/SA0
7
CS
8
NC
3
SCLSPC
4
RES 10
ADC2
15 ADC1
16
H14
H_4P0
@
1
C630
1000P_0402_50V7K
XEMC@
1
2
H17
H_3P0
@
1
H9
H_3P0
@
1
H12
H_3P0
@
1
R520 10K_0402_5%GSEN@
1 2
H11
H_3P0
@
1
H5
H_3P0
@
1
FD3
FIDUCIAL_C40M80
@
1
H21
H_3P0
@
1
H20
H_4P0
@
1
H13
H_4P0
@
1
C626
0.1U_0402_16V4Z
@
1
2
C633 10U_0603_6.3V6M
GSEN@
1 2
FD1
FIDUCIAL_C40M80
@
1
C632
4.7U_0603_10V6K
1 2
C631
1000P_0402_50V7K
@
1 2
R519 10K_0402_5%@
1 2
C628 0.1U_0402_16V4Z
GSEN@
1 2
H6
H_3P0
@
1
JFAN1
ACES_88231-03041
CONN@
SP020020710
1
1
2
2
3
3GND 4
GND 5
H3
H_3P0
@
1
H22
H_2P5N
@
1
R518
10K_0402_5%
GSEN@
12
H15
H_4P0
@
1
H16
H_4P0
@
1
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
+5VALW TO +5VS
20mil
20mil
10mil
10mil
+3VALW TO +3VS
Normall Platform (Not support M-STATE and Deep Sleep)
+3VS to +3VSDGPU for GPU
100mil(1.5A)
Reserved
Reserved for ESD
Reserved for ESD
For ESD
SUSP
+5VS_R
+3VS_R
SUSP
5VS_GATE
+1.8VS_6511_R+1.05VS_VTT_R
SUSP
SUSP
SUSP
+0.675VS_R
SUSPSUSP
3VS_ON
5VS_ON
SUSP#
+3VS_OUT
+5VS_OUT
+1.35V_R
SYSON#
3VS_GATE
SYSON#
SYSON
VGA_ON#
+1.8VSDGPU_R
VGA_ON#
+1.5VSDGPU_R
VGA_ON#VGA_ON#
+3VSDGPU_R +0.95VSDGPU_R
VGA_ON#VGA_ON
VGA_ON# +VGA_CORE_R
SUSP#34,41,43,44,45
SUSP43
6511_PWR_EN# 27
3VS_GATE 11
SYSON 34,43
VGA_ON8,9 VGA_ON_R 47
+5VALW
+3VS
+VSB
+5VS
+1.8VS_6511+0.675VS
+VSB
+1.05VS_VTT
+3VALW
+5VALW
+5VALW
+3VALW
+5VALW
+1.35V +5VALW
+3VS +3VSDGPU
+3VS
+5VS
+3VSDGPU
+3VS
+1.8VSDGPU +VGA_CORE +1.5VSDGPU+3VSDGPU +0.95VSDGPU+5VALW
+5VS +3VALW_PCH +CPU_CORE +1.05VS_VTT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DC Interface
Custom
38 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DC Interface
Custom
38 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
DC Interface
Custom
38 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
U38
MC74VHC1G08DFT2G_SC70-5
VGA@
IN1
1
IN2
2
GND
3
OUT 4
VCC 5
C63
0.1U_0402_16V7K
VGA@
1
2
R552
100K_0402_5%
@
1 2
J36
JUMP_43X118
@
1
122
Q45B
DMN66D0LDW-7_SOT363-6
@
34
5
C19 330P_0402_50V7KXEMC@
12
G
D
S
Q38
L2N7002LT1G_SOT23-3
@
2
13
C976
330P_0402_50V7K
12
Q32A
DMN66D0LDW-7_SOT363-6
35V@
61
2
R553
100K_0402_5%
35V@
1 2
C585
4.7U_0603_10V6K
1
2
Q45A
DMN66D0LDW-7_SOT363-6
@
61
2
Q40B
DMN66D0LDW-7_SOT363-6
@
34
5
R926
0_0402_5%
@
12
R558
470_0603_5%
35V@
1 2
R554
100K_0402_5%
@
1 2
R573
470_0603_5%
@
1 2
R927
47K_0402_5%
12
C586
4.7U_0603_10V6K
35V@
1
2
Q40A
DMN66D0LDW-7_SOT363-6
@
61
2
U35
DMN3030LSS-13_SOP8L-8
35V@
36
5
7
82
4
1
R551
470_0603_5%
35V@
1 2
C979
0.1U_0402_16V4Z
EMC@
1 2
Q30B
DMN66D0LDW-7_SOT363-6
35V@
34
5
U33
DMN3030LSS-13_SOP8L-8
35V@
36
5
7
82
4
1
C93
22U_0805_6.3V6M
EMC@
1 2
C980
0.1U_0402_16V4Z
1 2
R555
10K_0402_5%
@
12
G
D
S
Q37
L2N7002LT1G_SOT23-3
@
2
13
R571
47_0603_5%
@
1 2
Q32B
DMN66D0LDW-7_SOT363-6
35V@
34
5
R568
470_0603_5%
@
1 2
G
D
S
Q36
L2N7002LT1G_SOT23-3
@
2
13
R570
47_0603_5%
@
1 2
R574
470_0603_5%
@
1 2
C92
10U_0603_6.3V6M
EMC@
1
2
R567
470_0603_5%
@
1 2
R557
47_0603_5%
@
1 2
R556
100K_0402_5%
@
12
C592
0.1U_0603_25V7K
35V@
1
2
C597
1U_0402_6.3V6K
35V@
1
2
R575
47_0603_5%
@
1 2
R566
470_0603_5%
@
12
C621
4.7U_0603_6.3V6K
VGA@
1
2
Q30A
DMN66D0LDW-7_SOT363-6
35V@
61
2
C598
0.1U_0603_25V7K
35V@
1
2
U11
TPS22966DPUR_SON14_2X3
GND 11
VIN2
6
VBIAS
4
ON2
5
VOUT2 9
VIN2
7
CT1 12
VOUT1 14
VOUT2 8
VOUT1 13
VIN1
2
ON1
3
VIN1
1
CT2 10
GPAD 15
Q41B
DMN66D0LDW-7_SOT363-6
@
34
5
C620
4.7U_0603_6.3V6K
VGA@
1
2
C595
4.7U_0603_6.3V6K
35V@
1
2
Q55B
DMN66D0LDW-7_SOT363-6
@
34
5
C588
1U_0402_10V6K
35V@
1
2
Q41A
DMN66D0LDW-7_SOT363-6
@
61
2
R77
20K_0402_1%
VGA@
1 2
G
D
S
Q29
L2N7002LT1G_SOT23-3
@
2
13
C594
4.7U_0603_6.3V6K
1
2
U12
G5243T11U_SOT23-5
VGA@
IN
5
IN
4
OUT 1
EN 3
GND 2
R559
150K_0402_1%
35V@
12
C39
22U_0805_6.3V6M
EMC@
1
2
Q55A
DMN66D0LDW-7_SOT363-6
@
61
2
C587
4.7U_0603_10V6K
1
2
J37
JUMP_43X118
@
1
122
C596
4.7U_0603_6.3V6K
1
2
C967
330P_0402_50V7K
12
C64
22U_0805_6.3V6M
EMC@
1
2
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
-+
H_PROCHOT#
N1
DC_IN_S1
BATT_TEMP 34,40
H_PROCHOT#34,4,40
ACIN 34,41,8
51ON#35
VIN
+3VALW
+5VS
+CHGRTC
+3VLP
VIN
VS
BATT+
+RTCBATT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
DCIN
Custom
39 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
DCIN
Custom
39 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
DCIN
Custom
39 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PR105
0_0402_5%
@
1 2
PR108
68_1206_5%
@
12
PC108
0.22U_0603_25V7K
930@
12
PC104
1000P_0603_50V7K
EMI@
12
PC102
100P_0603_50V8
EMI@
12
PR104
1.5M_0402_5%
@
12
PJP101
ACES_50305-00441-001_4P
CONN@
1
3
4
GND
GND
2
PU102A
LM393DR_SO8
@
+3
-2
O
1
P8
G
4
PJ101
JUMP_43X39
@
1
122
PBJ101 @
ML1220T13RE
12
PD101
LL4148_LL34-2
@
1 2
G
D
S
PQ101A
DMN66D0LDW-7_SOT363-6
@2
61
PR111
22K_0402_1%
930@
1 2
PR107
1.5M_0402_5%
@
12
PD102
LL4148_LL34-2
@
12
PR110
100K_0402_1%
930@
12
PC107
0.022U_0402_16V7K
@
12
PR106
47K_0402_1%
@
12
PC101
0.1U_0603_25V7K
ESD@
12
PC109
0.1U_0603_25V7K
@
12
PD104
LL4148_LL34-2
930@
12
PQ102
TP0610K-T1-E3_SOT23-3
930@
2
13
G
D
S
PQ101B
DMN66D0LDW-7_SOT363-6
@5
34
PR101
100K_0402_1%
@
12
PR113
560_0603_5%
1 2
PR103
10K_0402_1%
@
12
PR102
47K_0402_1%
@
12
PC105
0.022U_0402_16V7K
@
12
PU102B
LM393DR_SO8
@
+5
-6
O
7
P8
G
4
PR112
560_0603_5%
1 2
PD103
LL4148_LL34-2
@
12
PC106
100P_0402_50V8J
@
12
PL101
HCB2012KF-121T50_0805
EMI@
1 2
PR109
68_1206_5%
@
12
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
Recovery at 56 degree C
CPU thermal protection at 92 degree C ( shutdown )
PH201 under CPU botten side :
For 65W adapter==>action 84W , Recovery 56W
For 90W adapter==>action 117W , Recovery 77W
<45,47>
B value:4250K±1%
65W
90W
Active Recovery
120W
For KB9012
sense 20mΩ
84W,1.2V 56W,1.2V
117W,1.2V 77W,1.2V
56
℃
92
℃
For KB9012
OTP
1.2V, Active
2.255V, Recovery
BATT_S1
TH
EC_SMCK
EC_SMDA
BI
MAINPWON
MAINPWON
SPOK42 H_PROCHOT#34,39,4
ADP_I 34,41
VCIN0_PH 34
VCIN1_PROCHOT 34
MAINPWON34,42
EC_SPOK34
ECAGND34
BATT_TEMP 34,39
EC_SMB_CK1 34,41
EC_SMB_DA1 34,41
H_PROCHOT#_EC 34
B+ +VSBP
VL
+3VLP
+VSBP +VSB
+EC_VCCA
+3VLP
BATT+
+3VLP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
BATTERY CONN / OTP
Custom
40 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
BATTERY CONN / OTP
Custom
40 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
BATTERY CONN / OTP
Custom
40 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PR231
100K_0402_1%
@
12
PR227
1_0402_1%
@
12
G
D
S
PQ203
2N7002KW_SOT323-3
@
2
13
PR204
127K_0402_1%
1 2
PR206
6.49K_0402_1%
12
PC205
0.22U_0603_25V7K
@
12
PR212
22K_0402_1%
@
12
PH201
100K_0402_1%_TSM0B104F4251RZ
12
PR230
10K_0402_1%
@
12
PU201
G718TM1U_SOT23-8
@
VCC
1
GND
2
~OT1
3
~OT2
4RHYST2 5
TMSNS2 6
RHYST1 7
TMSNS1 8
PR225
53.6K_0402_1%
90W@
12
PH202
100K_0402_1%_TSM0B104F4251RZ
@
12
PR228
12.4K_0402_1%
12
PR229
10K_0402_1%
@
12
PR218
23.2K_0402_1%
65W@
PR225
78.7K_0402_1%
65W@
G
D
S
PQ204
2N7002KW_SOT323-3
@
2
13
PR222
10.5K_0402_1%
@
PR218
78.7K_0402_1%
90W@
12
PR208
1K_0402_1%
1 2
PC202
1000P_0402_50V7K
EMI@
12
PJ201
JUMP_43X39
@
1
122
PR220
9.53K_0402_1%
@
12
PL201
HCB2012KF-121T50_0805
EMI@
1 2
PC207
0.1U_0603_25V7K
@
12
PR214
21K_0402_1%
@
12
PR221
1_0402_1%
@
1 2
PR232
47K_0402_1%
@
12
PJP201
SUYIN_200275GR008G13GZR
CONN@
11
33
44
55
66
88
22
77
GND 9
GND 10
PQ202
TP0610K-T1-E3_SOT23-3
@
2
13
PR216
100K_0402_1%
@
12
PR226
0_0402_5%
@
12
PR211
100K_0402_1%
@
12
PR201
100_0402_1%
12
PR202
100_0402_1%
12
PR219
0_0402_5%
@
1 2
PC209
0.1U_0603_25V7K
@
12
PR217
100K_0402_1%
@
12
PU204
G718TM1U_SOT23-8
@
RHYST2 5
OT1
3
OT2
4
GND
2
VCC
1
TMSNS2 6
RHYST1 7
TMSNS1 8
PC208
1U_0402_6.3V6K
@
12
PC206
0.1U_0603_25V7K
@
12
PR213
100K_0402_1%
@
12
PR222
16.2K_0402_1%
@
1 2
PR203
1K_0402_1%
12
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
for reverse input protection
Close EC
Min. Typ Max.
L-->H 17.520V 18.006V 18.504V
H-->L 16.967V 17.593V 18.237V
Vin Detector
ILIM and external DPM
Min. Typ Max.
3.906A 4.006A 4.108A
100ppm
4x4x2
BQ24735_ACDRV
BQ24735_ACN
BQ24735_ACP
BQ24735_BATDRV
BQ24735_BATDRV
BQ24735_CMSRC
BQ24735_LX
BQ24735_LX CHG
CSON1
CSOP1
DH_CHG
DH_CHG
DL_CHG
ACDET
ACOK
CSON1
CSOP1
SRP
SRN
DH_CHG-1
BQ24735_BST
ADP_I 34,40
EC_SMB_CK1 34,40
EC_SMB_DA1 34,40
ACIN34,39,8
SUSP#34,38,43,44,45
FSTCHG34
P2P1 B+VIN
+3VALW
VIN
BATT+
VIN
ACDET
CHG_B+
+3VLP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
CHARGER
Custom
41 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
CHARGER
Custom
41 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
CHARGER
Custom
41 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PR324
64.9K_0402_1%
12
PR317
316K_0402_1%
12
PC305
0.1U_0402_25V6
@EMI@
12
PC318
10U_0603_25V6M
12
PR323
100K_0402_1%
1 2
PC314
0.1U_0402_25V6
12
PR312
0.01_1206_1%
1
3
4
2
PR303
0.02_1206_1%
1
3
4
2
PR315
6.8_0603_5%
1 2
PR310
0_0603_5%
12
PR302
1M_0402_5%
1 2
PC315
10U_0603_25V6M
12
PC301
2200P_0402_50V7K
12
PC311
0.1U_0603_25V7K
12
PC316
680P_0402_50V7K
@EMI@
12
PQ304
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PR320
100K_0402_1%
12
PL302
10UH_FDSD0630-H-100M-P3_3.8A_20%
1 2
PR305
1_0402_1%
@
12
PC317
0.1U_0402_25V6
12
PQ305
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
G
D
S
PQ301
2N7002KW_SOT323-3
1
2
3
PR316
100K_0402_1%
1 2
PC308
0.01U_0402_50V7K
12
PR304
1_0402_1%
@
12
PC324
100P_0402_50V8J
12
PC312
1U_0603_25V6K
1 2
PC321
0.1U_0603_25V7K
12
PR321
2M_0402_1%
12
PR309
10_1206_1%
12
PR314
10_0603_5%
1 2
PL301
1.2UH_PNS40201R2YAF_3A_30%
EMI@
1 2
PQ307
PDTC115EU_SOT323-3
2
13
PR306
4.12K_0603_1%
1 2
PR301
3M_0402_5%
1 2
PR308
4.12K_0603_1%
12
PR322
422K_0402_1%
12
PC302
0.1U_0402_25V6
12
PC326
2200P_0402_50V7K
12
PC307
2200P_0402_50V7K
EMI@
12
PC313
1U_0603_25V6K
1 2
PR311
0_0603_5%
1 2
PU301
BQ24735RGRR_QFN20_3P5X3P5
ACN
1
ACP
2
CMSRC
3
ACDRV
4
ACOK
5
ACDET
6
IOUT
7
SDA
8
SCL
9
ILIM
10
BATDRV 11
SRN 12
SRP 13
GND 14
LODRV 15
REGN 16
BTST 17
HIDRV 18
PHASE 19
VCC 20
PAD
21
PR307
4.12K_0603_1%
12
PQ303
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PC303
10U_0603_25V6M
12
PD303
RB751V-40_SOD323-2
12
PC322
0.01U_0402_25V7K
12
PR325
0_0402_5%
@
1 2
PC309
0.1U_0402_25V6
12
G
D
S
PQ308
2N7002KW_SOT323-3
2
13
PC325
0.1U_0402_25V6
@
12
PC304
10U_0603_25V6M
12
PQ302
AON6414AL_DFN8-5
4
5
1
2
3
PC310
0.047U_0402_25V7K
1 2
PQ306
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PR313
4.7_1206_5%
@EMI@
12
PR318
2M_0402_1%
12
PD302
BAS40CW_SOT323-3
12
3
PC306
0.1U_0402_25V6
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
3VALW/5VALW
Vout is 4.998V~5.202V
TDC=8A
TDC=8A
Vout is 3.234V~3.366V
5V LDO 150mA~300mA
EN1 and EN2 dont't floating
3.3V LDO 150mA~300mA
EN1 and EN2 dont't floating
3V_SN
3V5V_EN
BST_3V
LX_3V
3V5V_EN
BST-1_3V
3V_VIN
BST_5V
3V5V_EN
5V_SN
VCC_3.3V
LX_5V
BST-1_5V
5V_VIN
3V_EN_R
FB-1_5VFB_5V
ENLDO_3V5V
ENLDO_3V5V
FB-1_3V
FB_3V
SPOK
SPOK40
+3VLP
+3VALWP
B+
+3VALWP +3VALW
B+
VL
+5VALWP
+5VALW+5VALWP
B+
+3VALWP
EC_ON34,35
MAINPWON34,40
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
42 52
Tuesday, March 26, 2013
2012/07/10
Compal Electronics, Inc.
2013/07/10
Custom
V5WE2 M/B LA-9532P Schematic
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
42 52
Tuesday, March 26, 2013
2012/07/10
Compal Electronics, Inc.
2013/07/10
Custom
V5WE2 M/B LA-9532P Schematic
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
42 52
Tuesday, March 26, 2013
2012/07/10
Compal Electronics, Inc.
2013/07/10
Custom
V5WE2 M/B LA-9532P Schematic
PR404
0_0603_5%
1 2
PR413
0_0402_5%
@
1 2
PL403
1UH_FDSD0630-H-1R0M-P3_11A_20%
1 2
PC407
10U_0805_25V6K
@
12
PC414
22U_0805_6.3V6M
12
PC409
2200P_0402_50V7K
EMI@
12
PU401
SY8208BQNC_QFN10_3X3
LX 10
IN
7
OUT 4
PG
2LDO 5
IN
8
GND
9
EN1 1
BS 6
EN2 3
PR406
1M_0402_1%
12
PC401
0.1U_0603_25V7K
1 2
PR402
0_0402_5%
@
1 2
PC424
680P_0603_50V7K
@EMI@ 12 PC426
4.7U_0603_6.3V6K
@
12
PL402
1UH_FDSD0630-H-1R0M-P3_11A_20%
1 2
PJ401
JUMP_43X118
@
1
122
PL401
HCB2012KF-121T50_0805
EMI@
1 2
PR407
2.2K_0402_5%
1 2
PR408
4.7_1206_5%
@EMI@ 12
PR401
499K_0402_1%
1 2
PR409
4.7_1206_5%
@EMI@ 12
PC411
22U_0805_6.3V6M
12
PC428 0.01U_0402_25V7K
1 2
PR415
0_0402_5%
@
1 2
PR416
100K_0402_1%
12
PC413
22U_0805_6.3V6M
12
PC427
6800P_0402_25V7K
1 2
PC404 0.1U_0603_25V7K
1 2
PC421
4.7U_0603_6.3V6K
12
PC419
4.7U_0603_6.3V6K
@
12 PC420
4.7U_0603_6.3V6K
12
PU402
SY8208CQNC_QFN10_3X3
LX 10
IN
8
LDO 7
PG
2
EN2 3
OUT 4
VCC
5
GND
9
EN1 1
BS 6
PR412
1K_0402_1%
1 2
PC412
22U_0805_6.3V6M
12
PR410
1K_0402_1%
1 2
PR405
150K_0402_1%
12
PC415
22U_0805_6.3V6M
12
PL404
HCB2012KF-121T50_0805
EMI@
1 2
PC406
10U_0805_25V6K
12
PC425
4.7U_0603_6.3V6K
@
12
PC403
0.1U_0402_25V6
@EMI@
12
PC423
680P_0603_50V7K
@EMI@ 12
PR403 0_0603_5%
1 2
PC408
10U_0805_25V6K
12
PR414 1K_0402_1%
1 2
PC405
10U_0805_25V6K
@
12
PC416
22U_0805_6.3V6M
12
PC417
22U_0805_6.3V6M
12
PC418
22U_0805_6.3V6M
12
PC402
0.1U_0402_25V6
@EMI@
12
PC410
2200P_0402_50V7K
EMI@
12
PC422
4.7U_0603_6.3V6K
12
PJ402
JUMP_43X118
@
1
122
PR411
0_0402_5%
@
12
A
A
1 1
Rds=4.2mΩ(Typ)
5.0mΩ(Max)
Note:Use VCCSA SEL to switch High & Low Level for VID[1]
FB=0.75V
To GND = 1.5V
To VDD = 1.8V
Note: S3 - sleep ; S5 - power off
STATE S3 S5 1.35VP VTT_REFP 0.675VSP
S0
S3
S4/S5
Hi Hi
HiLo
Lo Lo
On
On
On
On
On
Off
(Hi-Z)
Off
(Discharge)
Off
(Discharge)
Off
(Discharge)
靠近
Output Cap PAD
+1.35VP
Ipeak = max{ 0.7*Ibudget, 1st +2nd max loading}
Ipeak = max{ 12.34*0.7 , 4.2+8.14 }
Ipeak=12.34A ; 1.2Ipeak=14.808A ;Imax=8.638A
1/2Delta I=0.7353A (F=300K Hz)
PR504=(1.2Ipeak-1/2Delta I) *Rds(on)(max)*1.2/9uA=8.45Kohm
choose PR504=8.45Kohm (for safety >1.2Ipeak)
Rds(on)=5.0m ohm(max) ; Rds(on)=4.2m ohm(typical)
Ilimit_min=(8.366K*9uA)/(5.0m*1.2)=15.058A
Ilimit_max=(8.535K*11uA)/(4.2m*1.2)=22.352A
Iocp=Ilimit+1/2Delta I=15.79A~23.09A
Iocp(min)>1.2Ipeak
2012/9/6
OVP=110% 115% 120%
6.6x7.3x3.8 TAI-TECH
FB=0.799V
DCR:8.5mΩ
+0.95VSDGPUP
Ipeak=4.28A ; 1.2Ipeak=5.136A ;Imax=2.996A
F=131904/(PR534^0.9492)=1000KHz, PR534=169KΩ
BST_1.35V BST_1.35V-1
LX_1.35V
1.35V_B+
S3_1.35V
S5_1.35V
PGOOD_1.35V
LG_1.35V
UG_1.35V
1.35V_B+
SUSP
LX_0.95V
SNUB_0.95V
0.95V_VIN
SUSP#
3
4,38,41,44,45
SYSON34,38
SUSP38
VGA_PG44,45,47
DDR_VTT_PG_CTRL15
+1.35VP
B+
+5VALW
+3VALW
+1.35VP
+VTT_REFP
+0.675VSP
+1.35VP
+1.35V+1.35VP
+0.675VS+0.675VSP
+3VALW
+0.95VSDGPUP
+0.95VSDGPU
+0.95VSDGPUP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
1.35VP/0.675VSP/0.95VSDGPUP
Custom
43 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
1.35VP/0.675VSP/0.95VSDGPUP
Custom
43 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
1.35VP/0.675VSP/0.95VSDGPUP
Custom
43 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC531
0.22U_0603_10V7K
VGA@
12
PC538
22U_0805_6.3V6M
VGA@
12
PJ505
JUMP_43X118
@
1
122
PC501
10U_0805_25V6K
12
PC509
1U_0603_10V6K
12
PR508
887K_0402_1%
12
PC507
680P_0402_50V7K
ESD@
12
+
PC506
330U_2.5V_M
1
2
PL507
HCB2012KF-121T50_0805
EMI@
12
PC540
22P_0402_50V8J
VGA@
12
PC504
0.1U_0603_25V7K
12
PL506
1UH_PCMB063T-1R0MS_12A_20%
VGA@
1 2
PR534
169K_0402_1%
VGA@
12
PR533
4.7_0402_1%
@EMI@
12
PJ504
JUMP_43X118
@
1
122
PQ502
MDV1525URH_PDFN33-8-5
4
5
1
2
3
PC539
680P_0402_50V7K
@EMI@
12
PR537
18K_0402_1%
VGA@
12
PC533
22U_0805_6.3V6M
@
12
PC521
0.1U_0402_25V6
ESD@
12
PR532
0_0402_5%
VGA@
1 2
PC512
0.1U_0402_25V6
@
12
PC508
0.033U_0402_16V7K
12
PR504
8.45K_0402_1%
12
PC537
22U_0805_6.3V6M
VGA@
12
PR513
0_0402_5%
@
1 2
PC505
10U_0805_25V6K
12
PR536
100K_0402_1%
VGA@
12
PJ503
JUMP_43X39
@
11
2
2
PL505
HCB2012KF-121T50_0805
VGA@EMI@
1 2
PC503
2200P_0402_50V7K
EMI@
12
PJ506
JUMP_43X79
@
1
122
PQ503
S TR MDU1512RH 1N POWERDFN56-8
4
5
1
2
3
PJ511
JUMP_43X118
@
1
122
PR535
19.1K_0402_1%
VGA@
12
PU504
TPS54618
VGA@
SS/TR 9
GND
3
GND
4
VIN
2
VIN
1
PH 10
PH 11
PH 12
AGND
5
VSENSE
6
COMP
7
RT/CLK
8BOOT 13
PWRGD 14
EN 15
VIN 16
PWRPD
17
PC541
3300P_0402_50V7K
VGA@
12
PR509
8.06K_0402_1%
12
PR506
10K_0402_1%
@
12
PC534
22U_0805_6.3V6M
VGA@
12
PC511
0.1U_0402_25V6
@
12
PL501
S COIL 1.5UH 20% TMPB0604M-1R5MN-Z01 11A
1 2
PR507
0_0402_5%
@
1 2
PR503
4.7_1206_5%
ESD@
12
PU501
RT8207MZQW_WQFN20_3X3
VTTSNS
2
FB
6
S5
8
PGOOD
10
VDDP 12
PHASE 16
BOOT 18
VTTREF
4
PGND 14
VTTGND
1
GND
3
VDDQ
5
S3
7
TON
9
VDD 11
CS 13
LGATE 15
UGATE 17
VTT 20
VLDOIN 19
PAD
21
PC542
2200P_0402_50V7K
VGA@
12
PC510
1U_0603_10V6K
12
G
D
S
PQ501
2N7002KW_SOT323-3
@
2
13
PC535
22U_0805_6.3V6M
VGA@
12
PC536
22U_0805_6.3V6M
VGA@
12
PR502
2.2_0603_5%
12
PR510
10K_0402_1%
12
PR505
5.1_0603_5%
12
PC502
10U_0805_25V6K
12
PR501
680K_0402_1%
@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Rds=13.5mΩ(Typ)
16.5mΩ(Max)
FB=0.704V
VFB= 0.704V
Vo=VFB*(1+11.5K/10K)= 1.5V
Freq=290KHz(typ)
Cesr= 15m ohm
Ipeak= 4.7A Imax= 3.29A Iocp=5.64A
Iocp= 5.72A~6.43A
V5WE2 M/B LA-9531P Schematic
+1.5VSP/+1.5VSDGPUP
Note:Iload(max)=3A
FB=0.8V
Resistance(KΩ) Frequency(KHz)
470
200
100
39
290
340
380
430
Ien=10uA, Vth=0.3V, notice
the res. and pull high
voltage from HW
1.5VSG_B+
BST_1.5VSG
DL_1.5VSG
DH_1.5VSG
SW_1.5VSG
TRIP_1.5VSG
FB_1.5VSG
RF_1.5VSG
+1.5VSP_ON
FB_1.5VSP
SUSP#34,38,41,43,45
VGA_PG43,45,47
B+
+1.5VSDGPUP
+5VALW
+3VS
+1.5VSP
+1.5VSDGPU+1.5VSDGPUP
+1.5VS+1.5VSP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1Custom
44 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1Custom
44 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1Custom
44 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PJ510
JUMP_43X118
@
1
122
PC516
2200P_0402_50V7K
VGA@EMI@
12
PR519
20K_0402_1%
12
PR512
56.2K_0402_1%
VGA@
12
PC517
10U_0603_25V6M
VGA@
12
PC519
0.1U_0402_25V6
@EMI@
12
PR516
10K_0402_1%
VGA@
12
PC515
1U_0603_10V6K
VGA@
12
PC522
680P_0402_50V7K
VGA@EMI@
12
PL504
HCB2012KF-121T50_0805
VGA@EMI@
12
PR514
470K_0402_1%
VGA@
12
PL502
4.7UH_PCMB063T-4R7MS_5.5A_20%
VGA@
1 2
PC527
0.1U_0402_25V6
@
12
PR517
2.2_0603_1%
VGA@
1 2
PR523
0_0402_5%
@
1 2
PR515
11.5K_0402_1%
VGA@
12
PJ508
JUMP_43X39
@
1
122
PC528
4.7U_0603_6.3V6K
12
PC514
0.1U_0603_25V7K
VGA@
1 2
PR522
22K_0402_5%
@
12
PU503
APL5930KAI-TRG_SO8
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PC518
10U_0603_25V6M
@
12
PU502
TPS51212DSCR_SON10_3X3
VGA@
EN
3
TRIP
2
V5IN 7
DRVH 9
SW 8
DRVL 6
VBST 10
TST
5
VFB
4
PGOOD
1
TP 11
+
PC523
330U_2.5V_M
VGA@
1
2
PC525
22U_0805_6.3V6M
@
12
PQ504
SIS412DN-T1-GE3_POWERPAK8-5
VGA@
4
5
1
2
3
PC529
0.022U_0402_16V7K
12
PC526
1U_0402_6.3V6K
@
12
PC524
22U_0805_6.3V6M
12
PQ505
SI7716ADN-T1-GE3_POWERPAK8-5
VGA@
4
5
1
2
3
PR518
4.7_1206_5%
VGA@EMI@
12
PR521
22.6K_0402_1%
12
PJ509
JUMP_43X118
@
1
122
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Note:Iload(max)=3A
Ien=10uA, Vth=0.3V, notice
the res. and pull high
voltage from HW
FB=0.8V
Note:Iload(max)=3A
Ien=10uA, Vth=0.3V, notice
the res. and pull high
voltage from HW
FB=0.8V
VFB=0.6V
+1.05VSP Ipeak=5.36A ; Imax=3.752A ; 1.2Ipeak=6.432
Delta I=0.xxxxA=>1/2Delta I=0.xxxxA,F= 800K Hz(typ)
+1.8VS_6511_ON
FB_1.8VS_6511
FB_1.8VSDGPU
BST_+1.05VSP
SW_+1.05VSP
FB_+1.05VSP
EN_+1.05VSP
6511_PWR_EN27
VGA_PG43,44,47
+1.05VSP +1.05VS_VTT
+3VS
+1.8VS_6511
+1.8VSDGPU
+3VS
B+
+3VS
+1.05VSP
+3VALW
+3VS
SUSP# 34,38,41,43,44
VCCST_PWRGD11,34
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+1.05VSP/+1.8VSDGPU/+1.8VS_6511
Custom
45 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+1.05VSP/+1.8VSDGPU/+1.8VS_6511
Custom
45 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+1.05VSP/+1.8VSDGPU/+1.8VS_6511
Custom
45 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC605
0.1U_0603_25V7K
1 2
PR619
1M_0402_1%
12
PU602
APL5930KAI-TRG_SO8
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PC621
22U_0805_6.3V6M
VGA@
12
PR611
15.8K_0402_1%
12
PC617
1U_0402_6.3V6K
@
12
PR603
1K_0402_1%
12
PR618
10K_0402_1%
12
PC607
680P_0402_50V7K
@EMI@
12
PR604
4.7_0805_5%
@EMI@
12
PR613
10K_0402_1%
@
1 2
PC610
4.7U_0603_6.3V6K
12
PJ603
JUMP_43X118
@
1
122
PC626
22U_0805_6.3V6M
12
PR614
20K_0402_1%
VGA@
12
PC611
0.022U_0402_16V7K
12
PC606
0.1U_0402_25V6
1 2
PC623
10U_0805_25V6K
12
PR605
100K_0402_1%
12
PR607
1M_0402_1%
@
1 2
PC613
22U_0805_6.3V6M
@
12
PU603
APL5930KAI-TRG_SO8
VGA@
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PC625
22U_0805_6.3V6M
12
PJ602
JUMP_43X118
@
1
122
PC624
22U_0805_6.3V6M
12
PC620
0.022U_0402_16V7K
VGA@
12
PC629
22U_0805_6.3V6M
@
12
PC628
22U_0805_6.3V6M
12
PC601
4.7U_0603_6.3V6K
12
PR617
22K_0402_5%
@
12
PR602
0_0603_5%
1 2
PC614
0.1U_0402_25V6
@
12
PC608
4.7U_0603_6.3V6K
12
PC627
22U_0805_6.3V6M
12
PC622
22U_0805_6.3V6M
@
12
PC604
10U_0805_25V6K
12
PC615
1U_0402_6.3V6K
@
12
PU601
SY8208DQNC_QFN10_3X3
IN
8
BYP 7
PG
2
ILMT
3
LX 10
FB 4
LDO 5
GND
9
EN 1
BS 6
PR609
20K_0402_1%
12
PC612
22U_0805_6.3V6M
12
PR616
15.8K_0402_1%
VGA@
12
PR610
0_0402_5%
@
1 2
PC618
4.7U_0603_6.3V6K
VGA@
12
PR612
22K_0402_5%
@
12
PC603
2200P_0402_50V7K
EMI@
12
PL601
0.68UH_PCMC063T-R68MN_15.5A_20%
1 2
PC602
0.1U_0402_25V6
@EMI@
12
PR608
127K_0402_1%
12
PC616
0.1U_0402_25V6
@
12
PC609
4700P_0402_25V7K
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VIN
Maximum current: 32A
MAX current
Thermal current
Dynamic current
Over current level
Switching frequency
Boot voltage
DC Load- line
27A
10A
32A
2m Ohm
1.7V
600KHz
45A
12V-20V
DCR:0.82mΩ±5%
B value:3435K
Close to PWR IC
B value:4250K
Use X7R is better or far away inductor.
Close choke.
Close MOS.
Consider use 0603 for inrush power.
CSN1
CSP1
CSN1
DROOP
COMP
V5A
VDD
PWM1
SKIP#
VBAT
THERM
SLEWA OCP-I
B-RAMP
F-IMAX
51622_VREF
PWM1 CPU_PHASE1
CPU_BOOT1
O-USR
CSP1
51622_VREF
SKIP#
CSP1-1
VFB
GFB
CPU_BOOT1-1
VGATE 11,8
VR_ON 11
VR_ALERT# 11
VR_SVID_DATA 11
VR_SVID_CLK 11
VR_HOT# 34
VCC_SENSE11
VSS_SENSE11
+CPU_CORE
CPU_B+
+3VS
+5VS
+5VS
+3VS
CPU_B+
B+
+1.05VS_VTT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+CPU_CORE
Custom
46 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+CPU_CORE
Custom
46 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+CPU_CORE
Custom
46 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PR719 0_0402_5%@
1 2
PR716
24.9K_0402_1%
1 2
PH702
10K_0402_1%_TSM0A103F34D1RZ
1 2
PR725
2K_0402_1%
@
1 2
PR721 0_0402_5%@
1 2
PR731
130_0402_1%
12
PU702
CSD97374CQ4M_SON8_3P5X4P5
PGND1 3
VDD 2
SKIP# 1
VSW 4
PWM
8
VIN
5
BOOT
7
BOOT_R
6
PGND2
9
PR726
10K_0402_1%
12
PR729
54.9_0402_1%
12
PC709
10U_0805_25V6K
@
12
PR724
0_0402_5%
@
12
PC711
0.1U_0402_25V6
1 2
PC704
2200P_0402_50V7K
EMI@
12
PR708
10K_0402_1%
12
PR704
8.87K_0402_1%
12
PR709
392K_0402_1%
1 2
PC714
680P_0402_50V7K
EMI@
12
PC744
0.33U_0402_10V6K
12
PR730
75_0402_1%
@
12
PU701
TPS51622RSM_QFN32_4X4~D
SLEWA 15
VBAT 16
THERM 14
GFB
23
PU3
21
COMP
26
VCLK
31
V5A
28
DROOP
25
ALERT#
32
VFB
24
N/C
22
PAD
33
GND
29
PGOOD 3
VR_HOT#
30
VREF
27
VDIO 1
VDD 2
N/C 4
PWM2 5
PWM1 6
SKIP# 7
VR_ON 8
IMON 13
OCP-I 12
B-RAMP 11
F-IMAX 10
O-USR 9
CSP2
20
CSP1
17
CSN2
19
CSN1
18
PR703
274K_0402_1%
12
PR722 0_0402_5%@
1 2
PR727
3.48K_0402_1%
12
PR715
2.21K_0402_1%
12
PR728
10K_0402_1%
1 2
PC749
1000P_0402_50V7K
EMI@
12
PC743
1500P_0402_50V7K
12
PL701
HCB2012KF-121T50_0805
EMI@
12
PC747
0.1U_0402_25V6
12
PR718 0_0402_5%@
12
PR712
39K_0402_1%
12
PC712
0.082U_0402_16V7K
1 2
PC741
0.1U_0402_25V6
12
PH705
100K_0402_1%_TSM0B104F4251RZ
12
PC703
10U_0805_25V6K
12
+
PC706
68U_25V_M_R0.36
1
2
PR706
39K_0402_1%
12
PC705
0.1U_0402_25V6
@EMI@
12
PL702
0.22UH_PCMB104T-R22MS_35A_20%
1
3
4
2
PR710
56K_0402_1%
1 2
PC748
4700P_0402_25V7K
1 2
PR734
10K_0402_1%
12
PR701 2.2_0603_5%
12
PC746
1U_0402_6.3V6K
12
PR713
10K_0402_1%
1 2
PR705
150K_0402_1%
12
PC745
2.2U_0402_6.3V6M
12
PR717
3.01K_0402_1%
1 2
PC701 0.1U_0603_25V7K
1 2
PC702
10U_0805_25V6K
12
PR714
4.7_1206_5%
EMI@
12
PR732
22_0603_5%
12
PC740
1U_0603_10V6K
12
PR707
392K_0402_1%
12
PR702
100K_0402_1%
@
12
PR711
10K_0402_1%
@
1 2
PC742
100P_0402_50V8J
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VGA_CORE
Freq.=400KHz
Imax=27.00A
Ipeak=40.50A
Iocp=49.00A
LL= disable
Cesr= xx mOHM
DCR: 0.97mΩ±5%
DCR: 0.97mΩ±5%
AMD
MARS XT 0.9V
VGA Chipset
0
Default
Voltage
1
VID5 VID4 VID0
10 00
VID1
0
VID2VID3VID6
Layout Note:
Place near Phase1 Choke
7x7x4
7x7x4
BOOT1_1_VGA
V2N_VGA
BOOT2_VGA BOOT2_2_VGA
PHASE1_VGA
LGATE1_VGA
UGATE1_VGA
PHASE2_VGA
V1N_VGA
LGATE2_VGA V1N_VGA
V2N_VGA
UGATE2_VGA
BOOT1_VGA
GPU_VID_1
GPU_VID_2
GPU_VID_3
GPU_VID_4
GPU_VID_5
UGATE1-1_VGA
UGATE2-1_VGA
GPU_DPRSLPVR18
VCC_GPU_SENSE20
VSS_GPU_SENSE20
GPU_VID_1
18
GPU_VID_2
18
GPU_VID_3
18
GPU_VID_4
18
GPU_VID_5
18
VGA_PG43,44,45
VGA_ON_R38
+VGA_B+
B+
+5VS
+VGA_B+
+3VS
+5VS
+VGA_B+
+VGA_CORE
+VGA_CORE
VSUM-_VGA
+VGA_CORE
VSUM-_VGA
ISEN2_VGA
VSUM-_VGA
ISEN2_VGA
VSUM+_VGA
ISEN1_VGA
ISEN1_VGA
VSUM+_VGA
VSUM+_VGA
VSUM-_VGA
+5VS
+3VSDGPU
+3VSDGPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+GPU_COREP
C
47 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+GPU_COREP
C
47 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
+GPU_COREP
C
47 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC801
0.1U_0603_25V7K
@EMI@
12
PC826
1000P_0402_50V7K
VGA@
1 2
PR816
499_0402_1%
VGA@
1 2
PL802
S COIL 0.22UH 20% FDUE0640-H-R22M=P3 25A
VGA@
1 2
PR839
10K_0402_1%
@
12
PR838
10K_0402_1%
VGA@
12
PR844
10K_0402_1%
@
12
PC803
10U_0805_25V6K
VGA@
12
PL804
S COIL 0.22UH 20% FDUE0640-H-R22M=P3 25A
VGA@
1 2
PC819
10U_0603_25V6M
VGA@
12
PC808
1U_0603_10V6K
VGA@
1 2
PR835
10_0402_5%
VGA@
1 2
PR831
10K_0402_1%
VGA@
12
PC809
33P_0402_50V8J
@
1 2
PR803
1_0402_1%
@
1 2
PR808
1_0402_1%
VGA@
12
PR823
10_0402_5%
VGA@
1 2
PC817
1U_0603_10V6K
VGA@
12
PR828
11K_0402_1%
VGA@
12
PR836
953_0402_1%
VGA@
1 2
PQ801
MDU1516URH_POWERDFN56-8-5
VGA@
4
5
1
2
3
PR807
10K_0402_1%
VGA@
12
PC829
0.1U_0402_25V6
VGA@
12
PC807
680P_0402_50V7K
VGA@EMI@
12
PR830
3.65K_0402_1%
VGA@
12
PC805
0.1U_0402_25V6
@
12
PC812
470P_0402_50V7K
VGA@
1 2
PR820
324K_0402_1%
VGA@
1 2
PR817
0_0402_5%
@
12
PR801
0_0402_5%
@
1 2
PR815
5.9K_0402_1%
VGA@
12
PC825
330P_0402_50V7K
@
12
PR833
10K_0402_1%
VGA@
1 2
PR814
10K_0402_1%
VGA@
12
PC814
150P_0402_50V8J
VGA@
1 2
PC822
330P_0402_50V7K
VGA@
12
PR842
10K_0402_1%
VGA@
12
PR845
10K_0402_1%
VGA@
12
PR837
10K_0402_1%
@
12
PL801
HCB2012KF-121T50_0805
VGA@EMI@
12
PC816
0.22U_0402_10V4Z
VGA@
12
PR811
47K_0402_1%
VGA@
12
PC828
680P_0402_50V7K
VGA@EMI@
12
PC827
0.01U_0402_25V7K
@
12
PR840
10K_0402_1%
VGA@
12
PR843
10K_0402_1%
VGA@
12
PR832
1_0402_1%
VGA@
12
PC811
1000P_0402_50V7K
VGA@
12
PC821
0.22U_0603_10V7K
VGA@
1 2
PC823
0.22U_0603_16V7K
VGA@
12
PR805
4.7_1206_5%
VGA@EMI@
12
PC806
0.22U_0603_10V7K
VGA@
1 2
PR841
10K_0402_1%
@
12
PR813
0_0402_5%
@
12
PR824
2.2_0603_5%
VGA@
12
PQ804
MDU1511RH_POWERDFN56-8-5
VGA@
4
5
1
2
3
PR848
2.2_0603_5%
VGA@
1 2
PR809
10K_0402_1%
VGA@
1 2
PC813
47P_0402_50V8J
VGA@
1 2
PC802
2200P_0402_50V7K
VGA@EMI@
12
PR806
3.65K_0402_1%
VGA@
12
PR847
2.2_0603_5%
VGA@
1 2
PU801
ISL62883CHRTZ-T_TQFN40_5X5
VGA@
PGOOD
1
PSI#
2
RBIAS
3
VR_TT#
4
NTC
5
VW
6
COMP
7
FB
8
VIN
17
ISEN1
11
VSEN
12
RTN
13
ISUM-
14
ISUM+
15
VDD
16
VSSP1 22
LGATE1 23
PWM3 24
VCCP 25
LGATE2 26
VSSP2 27
PHASE2 28
UGATE2 29
VID0 31
VID1 32
VID2 33
VID3 34
VID5 36
VID6 37
VR_ON 38
ISEN3
9
ISEN2
10
IMON
18
BOOT1
19
UGATE1
20
AGND
41
PHASE1 21
BOOT2 30
DPRSLPVR 39
CLK_EN# 40
VID4 35
PC815
0.22U_0402_10V4Z
VGA@
12
PC804
10U_0805_25V6K
VGA@
12
PR827
82.5_0402_5%
@
12
PC818
0.22U_0603_25V7K
VGA@
12
PQ802
MDU1511RH_POWERDFN56-8-5
VGA@
4
5
1
2
3
PR846
10K_0402_1%
@
12
PH801
10K_0402_1%_TSM0A103F34D1RZ
VGA@
12
PR802
2.2_0603_5%
VGA@
12
PL803
HCB2012KF-121T50_0805
VGA@EMI@
12
PR810
100K_0402_1%
VGA@
1 2
PC820
10U_0603_25V6M
VGA@
12
PR819
0_0402_5%
@
12
PR829
4.7_1206_5%
VGA@EMI@
12
PR821
1_0402_1%
VGA@
12
PR818
3.57K_0402_1%
VGA@
1 2
PC824
0.1U_0603_25V7K
@
12
PR804
0_0402_5%
@
12
PR826
2.61K_0402_1%
VGA@
12
PR812
0_0402_5%
@
12
PQ803
MDU1516URH_POWERDFN56-8-5
VGA@
4
5
1
2
3
PC810
1U_0603_10V6K
VGA@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
For BOT side
For TOP side
PWR Rule
CPU DCLL=1.5m ohm dedign 330uF/9m *0, 22uF *30
22u *25, @*7
+CPU_CORE
+CPU_CORE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
CPU_CORE_CAP
Custom
48 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
CPU_CORE_CAP
Custom
48 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
CPU_CORE_CAP
Custom
48 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC927
22U_0805_6.3V6M
12
PC951
22U_0805_6.3V6M
1
2
PC924
22U_0805_6.3V6M
12
PC906
22U_0805_6.3V6M
@
12
PC952
22U_0805_6.3V6M
1
2
PC903
22U_0805_6.3V6M
12
PC953
22U_0805_6.3V6M
1
2
PC939
22U_0805_6.3V6M
1
2
PC949
22U_0805_6.3V6M
@
1
2
PC950
22U_0805_6.3V6M
1
2
PC935
22U_0805_6.3V6M
@
1
2
PC956
22U_0805_6.3V6M
1
2
PC904
22U_0805_6.3V6M
12
PC955
22U_0805_6.3V6M
1
2
PC937
22U_0805_6.3V6M
1
2
PC926
22U_0805_6.3V6M
12
PC925
22U_0805_6.3V6M
12
PC940
22U_0805_6.3V6M
1
2
PC921
22U_0805_6.3V6M
@
12
PC923
22U_0805_6.3V6M
@
12
PC922
22U_0805_6.3V6M
@
12
PC936
22U_0805_6.3V6M
1
2
PC938
22U_0805_6.3V6M
1
2
PC909
22U_0805_6.3V6M
12
PC902
22U_0805_6.3V6M
12
PC905
22U_0805_6.3V6M
12
PC941
22U_0805_6.3V6M
1
2
PC908
22U_0805_6.3V6M
@
12
PC907
22U_0805_6.3V6M
12
PC954
22U_0805_6.3V6M
1
2
PC934
22U_0805_6.3V6M
1
2
PC920
22U_0805_6.3V6M
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
AMD MARS
GPU_CORE
560uF*2+330uF*1
10uF*8+2.2uF*16
AMD MARS
meet ripple
22uF*5+10uF*11
+VGA_CORE
+VGA_CORE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
VGA_CORE CAP
Custom
49 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
VGA_CORE CAP
Custom
49 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
VGA_CORE CAP
Custom
49 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC1007
10U_0402_6.3V6M
VGA@
12
+
PC1027
330U_D2_2.5VY_R9M
@
1
2
PC1020
2.2U_0402_6.3V6M
VGA@
12
PC1034
10U_0402_6.3V6M
VGA@
12
PC1043
22U_0805_6.3V6M
VGA@
12
PC1004
2.2U_0402_6.3V6M
VGA@
12
+
PC1025
560U_2.5V_M
VGA@
1
2
PC1013
2.2U_0402_6.3V6M
VGA@
12
PC1032
10U_0402_6.3V6M
VGA@
12
PC1041
22U_0805_6.3V6M
VGA@
12
PC1003
10U_0402_6.3V6M
VGA@
12
PC1023
10U_0402_6.3V6M
VGA@
12
PC1008
2.2U_0402_6.3V6M
VGA@
12
PC1030
2.2U_0402_6.3V6M
VGA@
12
PC1028
10U_0402_6.3V6M
VGA@
12
PC1039
22U_0805_6.3V6M
VGA@
12
PC1006
2.2U_0402_6.3V6M
VGA@
12
PC1010
2.2U_0402_6.3V6M
VGA@
12
PC1014
10U_0402_6.3V6M
VGA@
12
PC1011
10U_0402_6.3V6M
VGA@
12
PC1021
2.2U_0402_6.3V6M
VGA@
12
PC1016
2.2U_0402_6.3V6M
VGA@
12
PC1022
10U_0402_6.3V6M
VGA@
12
PC1012
10U_0402_6.3V6M
VGA@
12
PC1037
10U_0402_6.3V6M
VGA@
12
PC1035
2.2U_0402_6.3V6M
VGA@
12
PC1033
10U_0402_6.3V6M
VGA@
12
PC1042
22U_0805_6.3V6M
VGA@
12
PC1018
10U_0402_6.3V6M
VGA@
12
PC1024
2.2U_0402_6.3V6M
VGA@
12
PC1005
10U_0402_6.3V6M
VGA@
12
PC1019
2.2U_0402_6.3V6M
VGA@
12
PC1015
2.2U_0402_6.3V6M
VGA@
12
PC1040
22U_0805_6.3V6M
VGA@
12
PC1001
2.2U_0402_6.3V6M
VGA@
12
PC1002
10U_0402_6.3V6M
VGA@
12
PC1009
10U_0402_6.3V6M
VGA@
12
PC1031
2.2U_0402_6.3V6M
VGA@
12
PC1029
10U_0402_6.3V6M
VGA@
12
PC1038
10U_0402_6.3V6M
VGA@
12
PC1036
10U_0402_6.3V6M
VGA@
12
PC1017
2.2U_0402_6.3V6M
VGA@
12
+
PC1026
560U_2.5V_M
VGA@
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Version change list (P.I.R. List) Page 1 of 2
for PWR
Reason for change Rev. PG# Modify List Date PhaseFixed IssueItem
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
11/06 DVT
Tune VGA sequence
PR801 change to 20K
Add PC805, PR814
Delete PR615, PC619, PR511, PC513, PR530,
PR531, PC530
VGATune VGA sequence
Un-pop PR112, PR113
Module Design change 3/5V solution
Module Design
DVT11/13
Change RTC type to non-charge
DVT11/13
39
3/5V
DVT11/20
39 Delete PR112, PR113, PBJ101Check no need keep with HW
EMI request
DVT11/20
Add PR518, PC522, PR714, PC714, PR829, PC828,
PR806, PC807, PC749
Change PR701 to 2.2
EMI request EMI confirm remove
EMI
EMI Delete PL102, PC103, PC101, PL202, PC201 and PL703
DVT11/26
Costdown Change PL402, PL403 from 5x5x3 to 7x7x3
12/13 DVT2
42
SY8208B/C update 42 Add PR411, PR413
12/22 DVT2
+1.05V ripple close
upper and mean too low Adjust output voltage and add Cff
DVT212/22
45 Add PC609 into 4700P
Change PR608 from 133K to 127K
VGA_CORE can't disable Modify VR_ON to VGA_ON_R net 47 Change PR801 from 20K to 0
Reserve PC805
DVT201/04
46Improve CPU transient character
DVT201/09
Change PR709 from 150K to 390K, PR732 from 10 to 22,
PC745 from 1U to 2.2U, PC711 from 0.082U to 0.1U
12
Improve CPU transient character 48 Unpop PC902
DVT201/09
Tune sequence 42 Change PC428 from 4700p to 10n,
PC427 from 0.047u to 6.8n
PVT02/04
Recovery at PVT phase
0 ohm reduce Change PR801,PR507,PR513,PR523 to R-pad
PVT02/22
49To meet MARS/AMD ripple SPEC Add PC1028~PC1043
PVT02/22
42 Add PR416Provide 3/5V PG signal to EC
PVT02/22
EMI request 47Modify H-Gate resistor Change PR847, PR848 from 0 to 2.2
PVT02/25
18
ESD request 39 Add PC101 into 0.1uF
PVT02/26
ESD request
19
43 Add PC521, PR503, PC507
PVT02/26
20
40
PVT03/05
Add PR204Use HW to control VCIN1 function
21
ME issue Shrink component to reduce Z height Change PC303,PC304,PC315,PC318,PC517,
PC819,PC820 from 0805 to 0603
PVT203/26
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
PIR (PWR)
Custom
50 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
PIR (PWR)
Custom
50 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.1
PIR (PWR)
Custom
50 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
A --> B1 Change List
1107A-------------------
1. Page04, Move R25 to JXDP1.60
Update U1 option component for CPU
2. Page6,8, Change EC_SMI from GPIO77 to GPIO34
Delete R445
3. Page07, Change Y2 to X3G024000DC1H(SJ10000CS00)
4. Page08, U17, U43, R310 change to @
Mount R65
R310.1 change to +3VS
5. Change all 932@ to 940@
R161, D29, R564, U6, R569, C522, C523, C552, D36, Q39, R522,R586, R589, R607,
R610, R624, R693, U41, U44, C516, C518, D28, R146, R158, R159, R160, R496, R499,
R504, R507, R508, R511, R601, U28, U29
6. Page11, R169 change to XDP@
7. Page12, add C414 and change PCH_PWR_EN to PCH_PWR_EN#
delete Q33, R561, R563
8. Page16, delete R58, R298, R300, C163, R299, R302
9. Page17, Add option component (U51) for SUN_XT
10. Page19, Add R900, R901 with BOM structure @
11. Page24, delete R405, U20, R362, R401, C164
Change U8 to G5243AT11U(SA000028Y10)
12. Page25, delete R367, D7, F1, D8, D19
13. Page26, change L47, L48 to BLM18AG121SN1D(SM010030010)
14. Page27, Delete D31, F2, C450
15. Page28, Delete R781, D23, R782, R785, U49, C803
16. Page29, Delete R792
change T1 to GST5009-E (SP050006B10)
17. Page30, delete R414, C166
R438, Q20 change to @
Change U9 to G5243AT11U(SA000028Y10) with BOM@
18. Page31, delete R595, R587, Q34, R597, R596, R562
19. Page32, Change U25 to SY6288D10CAC_MSOP8(SA00004KB10)
Change JUSB1 to OCTEK_USB-09EAAB(DC233008O20)
Delete R472, R469, R460, R462, C635, U46, R459, R463, R464
20. Page33, Mount R503
Change R506 to 8.2K
Change R509 to R_Short with BOM @
Delete R491, R493, D20
21. Page34, add R535 (100K_0402)
Mount R632
21. Page35, L51 change to BLM18AG121SN1D(SM010030010)
Change JMIC1 to ACES_88266-02001(SP020008Y00)
Delete R143, R668, R162, R181, C719, R671
23. Page37, delete R424, C169
Change U12 to G5243AT11U(SA000028Y10)
24. Page43, SW1 change BOM Structure to @
1015A-------------------
1. Modify BOM Structure/Function Field for EMC@(45.1)
Page06, RP14
Page07, RP19, R390
Page24, L11
Page25, R368, R369, R370, R371, R372, R373, R374, R375
Page27, L42, L45, L46,R175, R180
Page28, R774
Page29, R897, C814, D39
Page32, L24, L25, R458, R461
Page35, R527, R528, R532, R533, L36, L38, D1, C62
2. Modify BOM Structure/Function Field for XEMC@(45.1)
Page04, C63, C64, C96, C97, C98, C94, C95, C60, C92, C93, C35
Page07, R104, C152, R402, C453
Page08, C39
Page24, C528, C549, C364, C365, D6
Page25, D2, L13, L14, L15, L16
Page28, C792, C786
Page29, R26, C26, C806, C807, C808, C809, JP1, JP2, D38
Page31, C408, C398
Page32, D15, D16, D4, C487, R453,R455, R456, R457, L26
Page33, R477, C501, R513, C520, C506, C507, C511
Page34, C551, C553, D25, D30, D34
Page35, R548, C573, R671, C719, C556, C550, C444, C445, D27, D37, D26, R544, C572
Page36, C630
3. Modify Function Field to 45.1 only (BOM Structure is same as before)
Page04, R27, R28, R29, R30, R31
Page07, RP20
Page33, R160
Page35, R143, L51
4. Display BOM structure and Value of U1 (CPU)
5. Display BOM structure of R0402_0OHM-NEW and R0603_0OHM-NEW (R Short Pad show BOM Structure @)
6. Page08, Update note of GPIO66
1203A-------------------
1.Page11, R169 change to @
2.Page36, Mound R417 (Cancel AMIC@)
3.Page18, R898, R899, R409, D22 change BOM Structure to VGA@
4.Page34, R485, R483 change to 9012@
R479, R478 change to 940@
5.Page35, C663, SW4, SW5 change to 9012@
6.Page19, Delete R1035, X7601/X7603/X7604
7.Page17, R1006 change to VGA@
8.Page09, R306 add BOM structure UMA@
9.Page06, C153, C154 change to 15P_0402
10. Page18, C848, C849 change to 12P_0402
11.Page07, C2, C3 change to 10P_0402
1129A-------------------
1.Page32, JODD1.11 Reserve a TestPoint for DFT
2.Page29, Pop C779, C783
3.Page17, Update U51 BOM Structure for BOM Select
4.Page04, Add QDJC@ BOM Structure for U1
1128A-------------------
1.Page18, Add D22 to prevent GPU_ACIN leakage
2.Broadcom recommend modify(Add componment Function Field is 45.1)
Page29, Add C803 0.1uF to U48.20(VDDO_CR),
Page29, Add L74(BLM31PG601SN1) between Q6.1 and +3V_LAN
Add C820 (1uF) to Q6.1
Page30, Add L75(BLM31PG601SN1) between Q9.1 and
+XDPWR_SDPWR_MSPWR
Add C820 (1uF) to Q9.1
3.Page18, Change L69 to R_Short
4.Page20, Change L72 to BLM18AG121SN1D (the same to L71)
5.SW confirmed function
Page08, unpop R245,d21 (ACPRESENT tp PCH no need)
Page36, unpop R529 (EC_BEEP no need)
6.Default EC_SCI# to GPIO34
Page06, Pop R937
Page09, Unpop R66
7.Reserve DGPU_HOLD_RST# direct to PLTRST_VGA# path
Page08, Add R405 0ohm connect DGPU_HOLD_RST# and PLTRST_VGA#
8.Page35, Chagne R702 to 680ohm (ME confirm)
9.Page35, Delete SW1 (debug) for Layout convenience
10.Page24,Change L6 to (4.7uH_SH00000GS00) same as Q5WV8
11.Page29,Change RP22 to R768,R769,R770.R771 for SD 3.0 EMI
1127A-------------------
1.Page24, Change U50.11 connect from L6.2 to L6.1
2.Page34, Change R502 from R_short to 940@ 0ohm
3.Page36, Change R237,R238 to 60 Ohm(Codec vendor recommend)
4.Page09, Add R67 for EC_SCI# -> GPIO 10 option
1126A-------------------
1.Page36, Delete D26 (ESD Confirm)
2.EMI part Schematics modify(EMI confirm1123)
Page26, Change R368,R369,R370,R371,R372,R373,R374,R375 to 0403
R_short
Page28, Change R175,R180 to 0603 R_short
Page36, Change L36,L38,L51,R527,R528,R532,R533 to 0603 R_short
Page32, Delete C408,C398
Page33, Delete R453,R455,R456,R457
3.Page38, Change 3/5 VS circut BOM Structer to 35V@
4.Page32, Modfiy JHDD1 to LTCX004LGA0 (S H-CONN CCM
C127043HR022M27FZR 22P H3.05 HDD)
Modfiy JODD1 to LTCX004HZ00 (S H-CONN SANTA 20190X-X 13P
H3.6 ODD)
1123A-------------------
1.Delete +3VALW to +3VALW_PCH MOS Circuit:
Page12, Delete C589,C414,R77,Q10,C590,C591
Page34, Delete U28.16 PCH_PWR_EN# off page
2.Page12, Unpop R210 ,Pop L3 and C22 for +1.05VS_VTT high ripple
3.Unpop and Componment reduce-----------------------------
Page16, Delete C824,C828,C831,C836,C839 for unpop reduce.
Page20, Delete C870,C871,C923,C922,C921,C920 for unpop reduce.
Page27, Change R399,L30,L47 TO R_Short
Delete C456,C637,C474,C497,C580,C581
Pop R80 and unpop R396,Q25,C411,R584,Q52
Page28, Delete C606,C646,C607
Change R239 to R_short
Page29, Delete C775,C776,C778,C781,C782
Page31, Delete C461,C462
Change R423 to R_short
Page32, Delete C161
Change R308 to R_short
Page34, Change R495 to R_short
Page36, Chagne L55,L54,L52 to R_short
4.Page24, SWAP RP41.1,RP41.2
5.Page27, Change R123,R127 Pull high to +HDMI_5V_OUT
1122A-------------------
1. Page22, Add X7603@ for VRAM 2Gb*4 HYN 128M16
Add X7604@ for VRAM 2Gb*8 HYN 128M16
1121A-------------------
1. Page06, Add R937 for EC_SCI# Path to GPIO34
2. Page09, RP28.5 connect to GPIO34
1120A-------------------
1. Page06, Delete chargeable RTC circuit
Change ODD to SATA port1
Page32, Modify ODD SATA netname to SATA port 1 .
2. Page29, +1.2V_LAN_OUT add 680P for EMI
3. Page37, Modify H21 from 2P5 to 3P0
4. Page38, Add 2 jump for power cousumption measure
J36(+3VS),J37(+5VS)
5. Delete XDP port and related circuit
Page04, Delete C63,C64,C96,C97,C98,R20,R21,R22,R23,R27~R31
Delete R3,R86,R87,R88,R89,R90,R91,R4,C92,C93
Delete R5,R14,R15,R16,R7,R19,R25,C35,JXDP1
Page07, Delete R66,R67
6. ESD DVT Modify:
Page08, Delete C39
Page24, Delete D6
Page28, Delete D7,D18
Page30, Delete D38
Page33, Delete D16
Page35, Delete D25,D30,D34
Page36, Delete D26,R544,C572
Page37, Delete ESD TP JUMPs:
J10,J20,J17,J21,J16,J19,J18
J22,J24,J28,J25,J29,J23,J27
J26,J30,J31,J33,J32,J34,J35
Page29, C786 change to EMC@
Page04, Add C96 to DIMM_DRAMRST#
Page33, C487 change to EMC@ and 0.1uf
Delete D4
Page26, C378 change to EMC@
C387 change to EMC@
1119A-------------------
1. Page06, Add a nochargeable RTC battery.
2. Page15, Add R191 for DDR_VTT_PG_CTRL pull high +5VS option.
3. Add page24, Reserve eDP to LVDS translator (RTD2132R)
Add bom structure TL@(translate) and EDP@(eDP mode)
4. Page25, Add R947 for ENVDD option.
Add connect TL_INVT_PW to INVTPWM
Add connect RTD2132R TL_HPD to EDP_HPD
Modify JLVDS1 pin net name fo Co-Lay eDP & LVDS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
PIR-HW1
Custom
51 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
PIR-HW1
Custom
51 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
PIR-HW1
Custom
51 52Tuesday, March 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
B1 --> B2 Change List
0114----------------------------
1.Page03, Add U1 with QDJA@
2.Page30, R897 change to SM01000LU00
3.Page24, L63,L73 change to SM01000EJ00
4.Page25, L11 change to SM01000EJ00
5.Page36, L33 change to SM01000EJ00
6.Page31, U9, C165 with IOAC@
0110----------------------------
1.Page32, Delete R312,R313,R314,R315
Add C392,C393,C391,C394 with EA50@
2.Page27, Add C35
3.Page38, Delete Q45,R570,R571
0108----------------------------
1. Page33, R458, R461 change to R0402_0OHM-NEW
Add JFP1
2. Page26, Delete L13, L14, L15, L16
3. Page29, Delete C792, C99
4. Page31, Delete J4
5. Page10,25 change Touch screen port from USB port 5 to port6.
6. Page25,34 change net name of TS_INT to TS_EN
7. Page10 add USB port 5 for Finger Print
8. Page38, Add C19
9. Page26, Add C396, C398
10.Page36, Mount C554
11.Page38, Mount C979
12.Page35, Reserved SW6,SW7,SW8,SW9
13.Page32, Add C534, C535, C536, C537 for JHDD2 with BA51@
change C391,C392,C393,C394 to R312,R313,R314,R315
Update Power schematics
0107----------------------------
1. Page06, R937 change to R0402_0OHM-NEW
R75 change to R0603_0OHM-NEW
2. Page07, R108 change to 15_0402_5% with 1ROM@
RP19 change to 15_0804_8P4R_5% with 1ROM@
Add R105, R106 with 1ROM@ for PCH_SPI_IO2_1, PCH_SPI_IO3_1
Change R102, R103, R109, U7, C67, PR20 to 2ROM@
3. Page08, R62, R65 change to 0402_0OHM-NEW
4. Page10, Change Touch Screen USB port frum Port3 to Port5.
R155 change to R0603_0OHM-NEW
5. Page24, Change Q53 to @
6. Page25, R947,R363,R949 change to R0402_0OHM-NEW
Add C376,C377,C388,C389 with TL@
Add R414, R426
Add R424, R425 with @
7. Page27, R80 change to R0603_0OHM-NEW
L48 change to R0603_0OHM-NEW
8. Page29, C99 change to XEMC@
R774 change to 56_0402_5%
9. Page32, R49, R593 change to R0805_0OHM-NEW
9. Page34, R236 change to R0805_0OHM-NEW
10. Page38, R926 change to R0402_0OHM-NEW
0103----------------------------
1.Page35, R698,R701 change to 680 ohm
R702 change to 499 ohm
2.Page18, Un-mount C847
3.Page38, Add U38, R77, C63
Update Power Schematics
1228----------------------------
1. Page25, Add USB20_P3/N3 on JLVDS1.35/36
Add R81
2. Page35, Delete JTP1, R609, R610, C552, R693, R607, R608, D36
3. Page34, change Q50 to L2N7002LT1G_SOT23-3
change R506 to 18K_0402_5%
0306---------------------
1.Page27, Mount R410, R411
Change R240, R241 with @
Change R418 to 4.7K
0304---------------------
1.Page20, Mount C872, C873, C874, C889, C917, C918, C919
2.Page25, change C371,C372, C369, C370 with EDP@
3.Page33, Change L24, L25 to SM070001E00
0301---------------------
1.Page08, change R62,R65 to 0 ohm
2.Page12, Add C408
3.Page34, Add D25
Reserved D26
0227---------------------
1.Page29, Del R766
2.Page32, change JDB1 to E-T_1001K-F50C-05R_50P-S
0226B--------------------
Modify for ESD
1.Page11, Mount C13,C14 (10U_0603)
1.Page12, Change C40 to 10U_0603
Mount C31 (1U_0402)
3.Page15, Mount C117 (10U_0603)
Add C161 10U_0603
4.Page33, Mount C483 with 0.1U
Reserved D3 with XEMC@
5.Page38, Add C39, C64,C92,C93 22U_0805
Update power schematics
0226--------------------
1.Page12, Del T99
2.Page27, Mount R204,R241, R407,R408
Change R412,R413 with @
3.Page28, Add R312 with @
4.Page34, Del R590 (Add offpage for H_PROCHOT#_EC)
Del R505
Update Power Schematics
0221--------------------
1.Page18, R898, R899 change to R0402_0OHM-NEW
2.Page25, Add TS@ for R81, R414, R426
0219--------------------
1.Page08,34,37 G_SEN_INT connecto to PCH_GPIO80
Change U2.4, U2.6 to D_CK_SCLK/D_CK_SDATA
2.Page29, Reserved C815
3.Page22, Add C1024, C1025, C1026, C1023, C1027, C1028, C1029, C1030 with 128@
4.Page23, Add C1031, C1032, C1033, C1034, C1038, C1036, C1037, C1035 with VGA@
5.Page38, Reserved R556, R574, Q55, R557, R575, Q41, R570, R571, Q45
0218--------------------
1.Page06, Update Y1 CIS Symbol
Add D23, C151
Change R446, D32, C168 to @
2.Page18, Change C823, C827, U52, R798 with @
2.Page29, Add R781, C792
3.Page30, Add R782 and Mount C822
2.Page34, Change R506 to 33K
B2 --> C Change List C --> Pre-MP Change List
0411---------------------
1. Change U51 PN to R3 (SA00006G610, SA000061J20)
2. Page06, unmount R446, C168, D32
Mount D23, C151
0329---------------------
1.Page04, Add SR16Q@ and SR170@ for U1
2.Page06, Change C151, D23 with @
Mount R446, D32, C168
0326---------------------
1.Page1, Change PCB PN to DA60000XL10
2.Page29, Mount C815
Update Power Schematics
0321---------------------
1.Page8, G_SEN_INT change from GPIO80 to GPIO52.
2.Page34, change R506 to 100K_0402_5%
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
PIR-HW1
Custom
52 52Friday, April 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
PIR-HW1
Custom
52 52Friday, April 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
1.0
PIR-HW1
Custom
52 52Friday, April 26, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
www.s-manuals.com

Navigation menu
