Intel Shark Bay ULT (Hasswell + Lynx PointLP)
EA50 UMA M/B Schematics Document
REV:1.0
Compal Confidential
2013-04-18
Model Name : V5WE2/T2 (EA/EG)
File Name : LA-9532P
Compal Confidential
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Cover Page
Custom
142Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Cover Page
Custom
142Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Cover Page
Custom
142Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Part Number
Description
V5WE2_PCB
DAZ0VR00200 PCB V5WE2 LA-9532P LS-9531P/9532P/9533P
ZZZ
ZZZ1
HDMI_ROYALTY
45@
RO0000003HM
ROYALTY HDMI W/LOGO+HDCP
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Processor
Haswell ULT
Intel Haswell ULT
OPI
PCH
Lynx Point - LP
page 04~14
1168pin BGA
BANK 4, 5, 6, 7
204pin DDR3L-SO-DIMM X1
page 16
Dual Channel
BANK 0, 1, 2, 3
204pin DDR3L-SO-DIMM X1
1.35V DDR3L 1333/1600
Memory BUS
page 15
DDI
2.97GT/s
page 21
CRT Conn.
page 19
HDMI Conn.
page 20
DP to VGA
ITE IT6511FN
DP x 2 lanes HDMI x 4 lanes
2.7GT/s
eDP
(port 1,2)USB/B
USB 2.0
conn x2
page 26
USB port 0 USB port 7
page 29
page 07
SPI
3.3V 24MHz
CMOS
Camera
page 29
USB 3.0
conn x1
ALC3225
48MHz
HDA Codec
HD Audio
page 26 page 18
SPI ROM x2
page 29
USBx8
Int. Speaker Combo Jack
page 29
Int. MIC
page 27
EC ROM x1
(KB932)
CLK=24MHz
LPC BUS
Touch Pad Int.KBD
page 27
page 28
ENE
KB9012/KB932
page 28
page 25
SATA3.0 SATA3.0
port 1
SATA CDROM
Conn.
page 25
SATA HDD
Conn.
port 0
LAN(GbE)
Boardcom
57786
page 22
port 4
USB port 8
port 3
MINI Card
WLAN
page 24
Flexible IO
6.0 Gb/s6.0 Gb/s
PCIe 2.0
5GT/s
PCIe 2.0
5GT/s
page 06
RTC CKT.
Power On/Off CKT.
DC/DC Interface CKT.
page 28
Power Circuit DC/DC
page 31
page 32~40
Sub Board
LS-9531P
page 26
PWR/B
LS-9532P
USB/B
page 26
(port 1,2)
Fan Control
page 30
2 in 1
Card Reader
page 23
(SD/MMC)
LS-9533P
BATT/B
page 33
eDP & LVDS
Co-lay Conn.
page 18
page 17
eDP to LVDS
RTD2132R
USB port 6
Touch
Module
page 18
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Block Diagrams
Custom
242Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Block Diagrams
Custom
242Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Block Diagrams
Custom
242Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
+CPU_CORE
STATE SIGNAL
Full ON
S1(Power On Suspend)
S3 (Suspend to RAM)
S4 (Suspend to Disk)
S5 (Soft OFF)
SLP_S1# SLP_S3# SLP_S4# SLP_S5# +VALW +V +VS Clock
Voltage Rails
VIN
B+
Adapter power supply (19V)
AC or battery power rail for power circuit.
Core voltage for CPU
Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.
ON
ON
ON
ON
ON
ON
ON ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
LOW
LOW LOW LOW LOW
LOWLOWLOW
LOW
LOW
LOW
HIGH HIGH HIGH HIGH
HIGHHIGHHIGH
HIGH
HIGH
HIGH
S1 S3 S5
ON
N/A N/A N/A
N/AN/AN/A
Power Plane Description
OFFOFF
BATT+ Battery power supply (12.6V) N/A N/A N/A
EC SM Bus1 address
Device
PCH SM Bus address
Device Address
Address Address
EC SM Bus2 address
Device
Smart Battery
0001 011X b
ChannelA DIMM0
A0 1010 000X
JDIMM1(SPD)
On Board Thermal Senser
1001_101xb
EC9012 9012@
XDP@
CONN@Connector
USB Port(Right 2.0)
USB 2.0 USB 1.1 Port 3 External
USB Port
Camera
0
1
2
3
4
5
6
7
UHCI0
UHCI1
UHCI2
UHCI3
EHCI1
USB Port Table
BOARD ID Table
Board ID
0
1
2
3
4
5
6
7
PCB Revision
0.1
0.2
BTO Option Table
BTO Item BOM Structure
0.3
1.0
XHCI
1
2
3
4
PortUSB 3.0
Mini Card(WLAN)
Board ID / SKU ID Table for AD channel
Vcc 3.3V +/- 5%
100K +/- 5%Ra/Rc/Re
Board ID
Rb / Rd / Rf V min
0
1
2
3
0
8.2K +/- 5%
0 V
0.216 V 0.250 V 0.289 V
0.436 V
0.712 V
0.503 V
0.819 V
0.538 V
0.875 V
AD_BID
V typ
AD_BID
V
AD_BID
max
18K +/- 5%
33K +/- 5%
56K +/- 5%
100K +/- 5%
200K +/- 5%
3.300 V
0 V 0 V
4
5
6
7NC
1.036 V
1.453 V 1.650 V 1.759 V
1.935 V
2.500 V
2.200 V
3.300 V
2.341 V
1.185 V 1.264 V
940@
USB Port(Left 3.0)
USB Port(Right 2.0)
USB Port(Left 3.0)
VGA@
ON OFF OFF
+0.675VS +0.675VSP to +0.675VS switched power rail for DDR terminator
+RTCVCC RTC power
+1.5VS
+1.8VS +3VS to 1.8V switched power rail to CPU
+3VS
+5VALW
+3VALW +3VALW always on power rail
+VSB +VSBP to +VSB always on power rail for sequence control ON ON*
ONON
ON
ON
OFF
+1.5V to +1.5VS switched power rail
ON
OFF
ON
ON
ON
ON ON*
OFF
OFF
ON ON*
+3VLP B+ to +3VLP power rail for suspend power ON ON
+1.35VP to +1.35V power rail for DDRIIIL ON ON OFF+1.35V
ON OFF OFF
ON
+3VALW to +3VS power rail
+5VALWP to +5VALW power rail
+5VS +5VALW to +5VS switched power rail OFFON OFF
DEG@
TPM@
BL@
GSEN@
DebugOnly
EC940
TPMCircuit
XDP(DebugPort)
G‐Sensor
KBBacklight
GPU_Select
DA60000XR00 : PCB 0VR LA-9532P REV0 M/B
EVT BOM config
PCB P/N
DVT BOM config
PVT BOM config
9012@;AMIC@;CHR@;BL@;EMC@;AOAC@
+1.05VS_VTT OFFON OFF+1.05VSP to +1.05VS_VTT switched power rail for cpu
EMC@MECrequirement
XEMC@MECrequirementunpop11/1DelXDP@
BOM config
SMT MB A9532 V5WE2 UMA I7 QDA7 HDMI
4319LWBOL01
43 Level Description
43 level BOM table
eDPtoLVDS TL@
eDPmode EDP@
9012@;BL@;EMC@;EDP@(L01~L04)
Unpop @
reserve3,5VMOS 35V@
4319LWBOL02
4319LWBOL03
4319LWBOL04
4319LWBOL05
SMT MB A9532 V5WE2 UMA I5 QDJB HDMI
SMT MB A9532 V5WE2 UMA I5 QDJ7 HDMI
SMT MB A9532 V5WE2 UMA I5 QDJ9 HDMI
SMT MB A9532 V5WE2 UMA I5 QDJB LVDS HDMI
9012@;BL@;EMC@;TL@(L05)
9012@;EMC@;EDP@;1ROM@;IOAC@ 1ROM@
2ROM@
BIOS8MSolution
BIOS4+2MSolution
Touch Screen
4319LWBOL06
SMT MB A9532 V5WE2 UMA WO/CPU HDMI
IOACFunction IOAC@
0.4
TS@TouchscreenFunction
4319LWBOL07
4319LWBOL08
4319LWBOL09
SMT MB A9532 V5WE2 UMA I5 QEA4 HDMI
SMT MB A9532 V5WE2 UMA I5-4200 HDMI
SMT MB A9532 V5WE2 UMA I3-4010 HDMI
PreMP BOM config
9012@;EMC@;EDP@;1ROM@;IOAC@
4319LWBOL10
SMT MB A9532 V5WE2 UMA I5-4250 HDMI
4319LWBOL21
4319LWBOL22
SMT MB A9532 V5WC2 UMA I5-4200 HDMI
SMT MB A9532 V5WC2 UMA I3-4010 HDMI
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Notes List
Custom
342Friday, April 12, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Notes List
Custom
342Friday, April 12, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Notes List
Custom
342Friday, April 12, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.

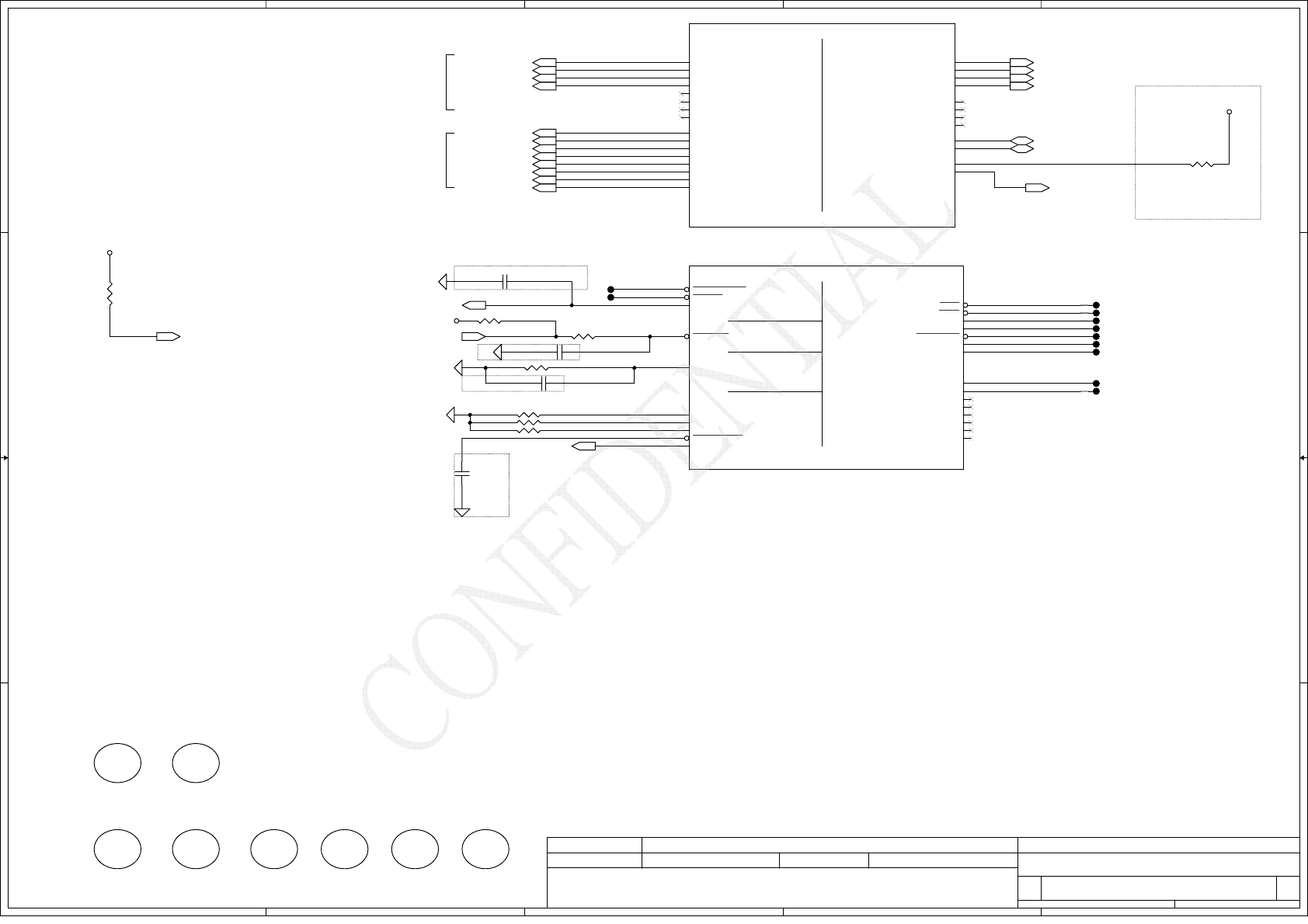

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Tracewidth=20mils
Spacing=25mil
Maxlength=100mils
DP to CRT
HDMI
Reserved for ESD
DDR3 Compensation Signals
Reserved for ESD
Reserved for ESD
Reserved for ESD
EDP_COMP
SM_RCOMP0
SM_RCOMP1
SM_RCOMP2
DIMM_DRAMRST#
DDR_PG_CTRL
XDP_OBS0
XDP_OBS1
XDP_TDI
XDP_TDO
H_CPUPWRGD
H_PROCHOT#_R XDP_TMS
XDP_TRST#
XDP_PREQ#
XDP_TCK
XDP_PRDY#
EDP_DISP_UTIL 18
CPU_DP2_N019 CPU_DP2_P019 CPU_DP2_N119 CPU_DP2_P119 CPU_DP2_N219 CPU_DP2_P219 CPU_DP2_N319 CPU_DP2_P319
EDP_TXP0 18
EDP_TXN0 18
EDP_TXP1 18
EDP_TXN1 18
EDP_AUXP 18
EDP_AUXN 18
H_PECI27
DDR_PG_CTRL15
H_PROCHOT#27,32,33
DIMM_DRAMRST# 15,16
CPU_DP1_N020 CPU_DP1_P020 CPU_DP1_N120 CPU_DP1_P120
+1.05VS_VTT
+VCCIOA_OUT
+1.35V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(1/11) DDI,MSIC,XDP
Custom
442Friday, April 12, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(1/11) DDI,MSIC,XDP
Custom
442Friday, April 12, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(1/11) DDI,MSIC,XDP
Custom
442Friday, April 12, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R1
24.9_0402_1%
1 2
U1
CPU_QDJB_B1
QDJB@
SA000067060
T2 @
HASWELL_MCP_E
DDI EDP
Rev1p2
1 OF 19
U1A
HASWELL-MCP-E-ULT_BGA1168
EDP_DISP_UTIL A43
EDP_RCOMP D20
DDI2_TXP3
B53 DDI2_TXN3
A53 DDI2_TXP2
B50 DDI2_TXN2
C49
DDI2_TXN1
C53
DDI2_TXN0
C51
DDI2_TXP0
C50
DDI2_TXP1
B54
DDI1_TXP3
B57
EDP_AUXN A45
EDP_AUXP B45
EDP_TXP3 B49
EDP_TXN3 A49
EDP_TXP2 C46
EDP_TXN2 C47
EDP_TXP1 B47
EDP_TXN1 A47
EDP_TXN0 C45
EDP_TXP0 B46
DDI1_TXN3
A57 DDI1_TXP2
A55 DDI1_TXN2
B55 DDI1_TXP1
C58 DDI1_TXN1
B58 DDI1_TXP0
C55 DDI1_TXN0
C54
C60 6.8P_0402_50V8C
XEMC@
1 2
R13 120_0402_1%
1 2
T157@
R6 10K_0402_5%
1 2
T158@
U1
CPU_QDJ7_B1
QDJ7@
SA000067H50
C95 6.8P_0402_50V8C
XEMC@
1 2
T159@
R11 200_0402_1%
1 2
T161@
C94 6.8P_0402_50V8C
XEMC@
1 2
R8
56_0402_5%
1 2
T160@
R68
62_0402_5%
12
U1
CPU_QEVE _C0
QEVE@
SA00006SM30
R41 100_0402_1%
1 2
T162@
U1
CPU_QEVG_C0
QEVG@
SA00006SX30
T163@
T20 @
C993
6.8P_0402_50V8C
XEMC@
1
2
T164@ T165@
U1
CPU_SR170 _C1
SR170@
SA00006SMB0
R184
470_0603_5%
12
MISC
JTAG
DDR3
PWR
THERMAL
HASWELL_MCP_E
Rev1p2
2 OF 19
U1B
HASWELL-MCP-E-ULT_BGA1168
PREQ K62
PRDY J62
PROC_TCK E60
PROC_TRST E59
PROCHOT
K63
PROCPWRGD
C61
CATERR
K61
PECI
N62
PROC_DETECT
D61
PROC_TMS E61
PROC_TDI F63
PROC_TDO F62
BPM#0 J60
BPM#2 H61
BPM#1 H60
BPM#3 H62
BPM#7 J61
SM_RCOMP0
AU60
SM_RCOMP1
AV60
SM_RCOMP2
AU61
SM_PG_CNTL1
AV61
BPM#6 K60
BPM#5 H63
BPM#4 K59
SM_DRAMRST
AV15
U1
CPU_QDJ6_B1
QDJ6@
SA00006FY20
U1
CPU_SR16Q _C1
SR16Q@
SA00006SX70
U1
CPU_QDJ9_B1
QDJ9@
SA00006G120

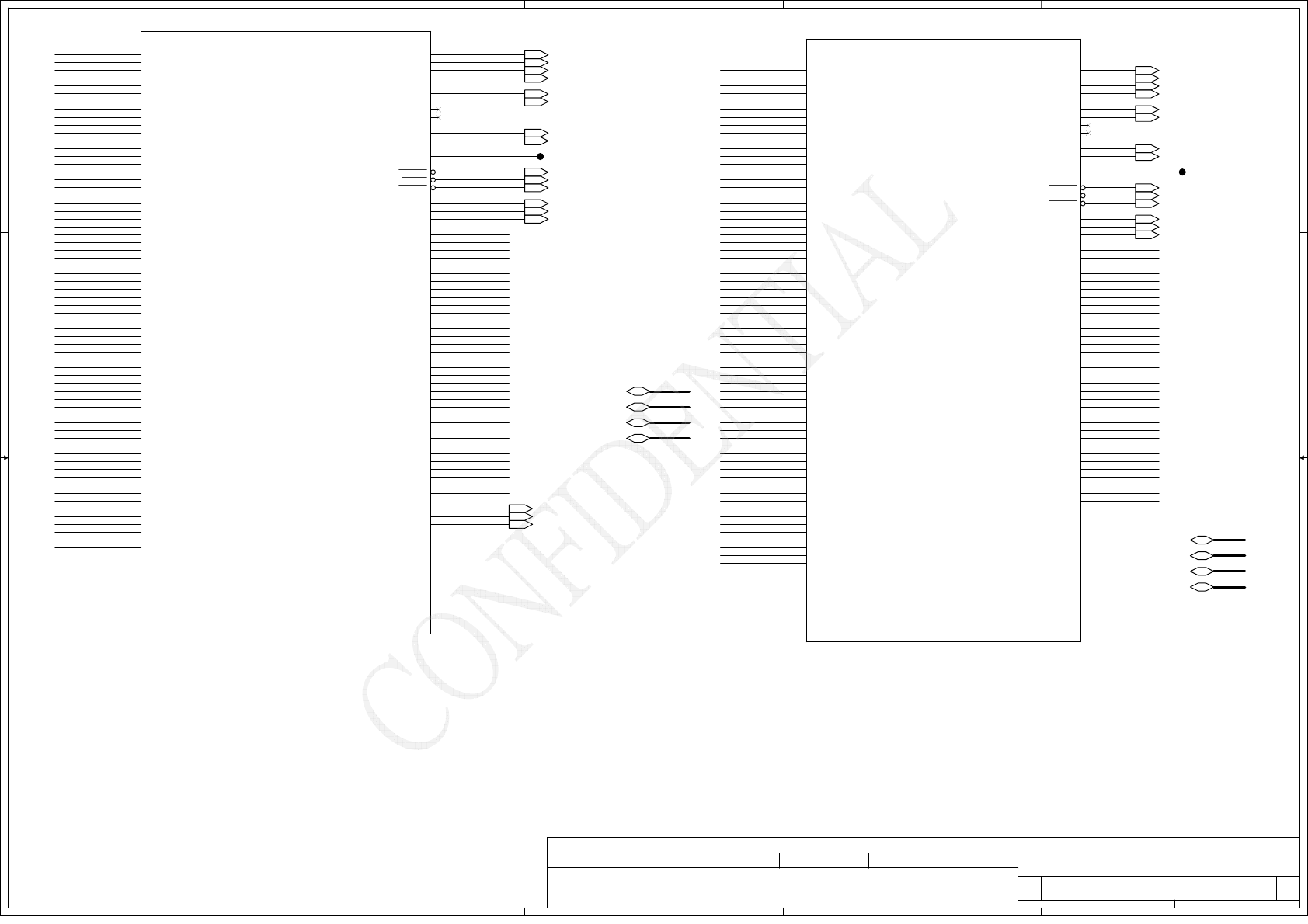

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DDR_A_D8
DDR_A_D62
DDR_A_D63
DDR_A_D6
DDR_A_D5
DDR_A_D7
DDR_A_D4
DDR_A_D3
DDR_A_D47
DDR_A_D56
DDR_A_D57
DDR_A_D58
DDR_A_D59
DDR_A_D44
DDR_A_D39
DDR_A_D34
DDR_A_D43
DDR_A_D42
DDR_A_D46
DDR_A_D38
DDR_A_D40
DDR_A_D41
DDR_A_D35
DDR_A_D45
DDR_A_D61
DDR_A_D33
DDR_A_D32
DDR_A_D37
DDR_A_D36
DDR_A_D54
DDR_A_D55
DDR_A_D0
DDR_A_D1
DDR_A_D2
DDR_A_D60
DDR_A_D52
DDR_A_D49
DDR_A_D50
DDR_A_D48
DDR_A_D51
DDR_A_D25
DDR_A_D15
DDR_A_D14
DDR_A_D31
DDR_A_D53
DDR_A_D13
DDR_A_D9
DDR_A_D30
DDR_A_D27
DDR_A_D26
DDR_A_D24
DDR_A_D28
DDR_A_D29
DDR_A_D11
DDR_A_D10
DDR_A_D12
DDR_A_D17
DDR_A_D21
DDR_A_D16
DDR_A_D20
DDR_A_D19
DDR_A_D23
DDR_A_D18
DDR_A_D22
DDRA_ODT0
DDR_A_MA15
DDR_A_MA4
DDR_A_MA5
DDR_A_MA14
DDR_A_MA0
DDR_A_MA6
DDR_A_MA7
DDR_A_MA9
DDR_A_MA3
DDR_A_MA2
DDR_A_MA1
DDR_A_MA10
DDR_A_MA11
DDR_A_MA8
DDR_A_MA13
DDR_A_MA12
DDR_A_DQS#3
DDR_A_DQS#5
DDR_A_DQS#2
DDR_A_DQS#0
DDR_A_DQS#7
DDR_A_DQS#6
DDR_A_DQS#4
DDR_A_DQS#1
DDR_A_DQS2
DDR_A_DQS0
DDR_A_DQS3
DDR_A_DQS4
DDR_A_DQS5
DDR_A_DQS6
DDR_A_DQS1
DDR_A_DQS7
DDR_B_D33
DDR_B_D14
DDR_B_D42
DDR_B_D59
DDR_B_D63
DDR_B_D43
DDR_B_D55
DDR_B_D53
DDR_B_D29
DDR_B_D24
DDR_B_D34
DDR_B_D4
DDR_B_D26
DDR_B_D13
DDR_B_D10
DDR_B_D21
DDR_B_D11
DDR_B_D57
DDR_B_D44
DDR_B_D0
DDR_B_D7
DDR_B_D46
DDR_B_D3
DDR_B_D15
DDR_B_D27
DDR_B_D30
DDR_B_D35
DDR_B_D40
DDR_B_D49
DDR_B_D23
DDR_B_D25
DDR_B_D19
DDR_B_D37
DDR_B_D48
DDR_B_D36
DDR_B_D18
DDR_B_D8
DDR_B_D47
DDR_B_D9
DDR_B_D60
DDR_B_D50
DDR_B_D62
DDR_B_D52
DDR_B_D2
DDR_B_D51
DDR_B_D56
DDR_B_D39
DDR_B_D22
DDR_B_D28
DDR_B_D6
DDR_B_D45
DDR_B_D17
DDR_B_D58
DDR_B_D61
DDR_B_D31
DDR_B_D54
DDR_B_D1
DDR_B_D41
DDR_B_D5
DDR_B_D12
DDR_B_D20
DDR_B_D38
DDR_B_D32
DDR_B_D16
DDR_B_MA15
DDR_B_MA0
DDR_B_MA9
DDR_B_MA7
DDR_B_MA13
DDR_B_MA2
DDR_B_MA4
DDR_B_MA11
DDR_B_MA3
DDR_B_MA5
DDR_B_MA6
DDR_B_MA10
DDR_B_MA8
DDR_B_MA1
DDR_B_MA12
DDR_B_MA14
DDR_B_DQS7
DDR_B_DQS0
DDR_B_DQS1
DDR_B_DQS5
DDR_B_DQS4
DDR_B_DQS3
DDR_B_DQS2
DDR_B_DQS6
DDR_B_DQS#1
DDR_B_DQS#7
DDR_B_DQS#5
DDR_B_DQS#4
DDR_B_DQS#0
DDR_B_DQS#3
DDR_B_DQS#6
DDR_B_DQS#2
DDRB_ODT0
DDR_A_WE# 15
DDR_A_CAS# 15
DDR_A_RAS# 15
DDR_A_BS1 15
DDR_A_BS0 15
DDR_A_BS2 15
DDR_B_RAS# 16
DDR_B_WE# 16
DDR_B_CAS# 16
DDR_B_BS0 16
DDR_B_BS1 16
DDR_B_BS2 16
DDR_A_D[0..63]15
DDR_B_D[0..63]16
DDR_B_MA[0..15]16
DDR_B_DQS[0..7]16
DDR_A_MA[0..15]15
DDR_A_DQS#[0..7]15
DDR_A_DQS[0..7]15
DDR_B_DQS#[0..7]16
SM_DIMM_VREFCA 15,16
SA_DIMM_VREFDQ 15
SB_DIMM_VREFDQ 16
SA_CLK_DDR0 15
SA_CLK_DDR#0 15
SA_CLK_DDR1 15
SA_CLK_DDR#1 15
DDRA_CKE0_DIMMA 15
DDRA_CKE1_DIMMA 15
DDRA_CS1_DIMMA# 15
DDRA_CS0_DIMMA# 15
SB_CLK_DDR0 16
SB_CLK_DDR#0 16
DDRB_CKE0_DIMMB 16
SB_CLK_DDR1 16
SB_CLK_DDR#1 16
DDRB_CKE1_DIMMB 16
DDRB_CS0_DIMMB# 16
DDRB_CS1_DIMMB# 16
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(2/11) DDRIII
Custom
542Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(2/11) DDRIII
Custom
542Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(2/11) DDRIII
Custom
542Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
DDR CHANNEL B
HASWELL_MCP_E
Rev1p2
4 OF 19
U1D
HASWELL-MCP-E-ULT_BGA1168
SB_DQSP4 AV22
SB_DQSP5 AW18
SB_DQSP6 AM21
SB_DQSP3 AM25
SB_DQSP7 AM18
SB_DQSP2 AM28
SB_DQSN7 AN18
SB_DQSP0 AV30
SB_DQSP1 AW26
SB_DQSN6 AN21
SB_DQSN2 AN28
SB_DQSN3 AN25
SB_DQSN4 AW22
SB_DQSN5 AV18
SB_DQSN1 AV26
SB_DQSN0 AW30
SB_MA14 AR46
SB_MA15 AP46
SB_MA13 AK33
SB_MA9 AU46
SB_MA10 AK36
SB_MA11 AV47
SB_MA8 AY47
SB_MA12 AU47
SB_MA4 AR45
SB_MA5 AP45
SB_MA6 AW46
SB_MA3 AR42
SB_MA7 AY46
SB_MA2 AP42
SB_MA0 AP40
SB_MA1 AR40
SB_BA2 AU49
SB_WE AK35
SB_CAS AM33
SB_BA0 AL35
SB_BA1 AM36
SB_RAS AM35
SB_CS#1 AK32
SB_ODT0 AL32
SB_CS#0 AM32
SB_CKE1 AU50
SB_CKE2 AW49
SB_CKE3 AV50
SB_CKE0 AY49
SB_CK#1 AK38
SB_CK1 AL38
SB_CK0 AN38
SB_CK#0 AM38
SB_DQ61
AM20
SB_DQ63
AP18 SB_DQ62
AR18
SB_DQ57
AR20 SB_DQ56
AN20
SB_DQ58
AK18
SB_DQ59
AL18
SB_DQ60
AK20
SB_DQ51
AM22
SB_DQ52
AN22
SB_DQ53
AP21
SB_DQ54
AK21
SB_DQ55
AK22
SB_DQ46
AV17
SB_DQ47
AU17
SB_DQ48
AR21
SB_DQ49
AR22
SB_DQ50
AL21
SB_DQ45
AU19
SB_DQ41
AW19
SB_DQ42
AY17
SB_DQ43
AW17
SB_DQ44
AV19
SB_DQ40
AY19
SB_DQ36
AV23
SB_DQ37
AU23
SB_DQ38
AV21
SB_DQ39
AU21
SB_DQ35
AW21
SB_DQ31
AL25
SB_DQ32
AY23
SB_DQ33
AW23
SB_DQ30
AK25
SB_DQ34
AY21
SB_DQ26
AR25 SB_DQ25
AR26
SB_DQ27
AP25
SB_DQ28
AK26
SB_DQ29
AM26
SB_DQ20
AR29
SB_DQ21
AN29
SB_DQ22
AR28
SB_DQ23
AP28
SB_DQ24
AN26
SB_DQ15
AU25
SB_DQ16
AM29
SB_DQ17
AK29
SB_DQ18
AL28
SB_DQ19
AK28
SB_DQ10
AY25
SB_DQ11
AW25
SB_DQ13
AU27
SB_DQ5
AU31
SB_DQ6
AV29
SB_DQ7
AU29
SB_DQ8
AY27
SB_DQ9
AW27
SB_DQ0
AY31
SB_DQ1
AW31
SB_DQ2
AY29
SB_DQ3
AW29
SB_DQ4
AV31
SB_DQ14
AV25
SB_DQ12
AV27
T5@
DDR CHANNEL A
HASWELL_MCP_E
Rev1p2
3 OF 19
U1C
HASWELL-MCP-E-ULT_BGA1168
SA_DQ25
AR55
SA_DQ28
AL55
SA_CLK1 AY36
SA_CLK#1 AW36
SA_CLK0 AV37
SA_CLK#0 AU37
SA_DQ0
AH63
SA_DQ1
AH62
SA_DQ2
AK63
SA_DQ3
AK62
SA_DQ4
AH61
SA_DQ5
AH60
SA_DQ6
AK61
SA_DQ7
AK60
SA_DQ8
AM63
SA_DQ9
AM62
SA_DQ10
AP63
SA_DQ11
AP62
SA_DQ12
AM61
SA_DQ13
AM60
SA_DQ14
AP61
SA_DQ16
AP58
SA_DQ17
AR58
SA_DQ18
AM57
SA_DQ19
AK57
SA_DQ20
AL58
SA_DQ21
AK58
SA_DQ22
AR57
SA_DQ23
AN57
SA_DQ24
AP55
SA_DQ27
AK54 SA_DQ26
AM54
SA_DQ29
AK55
SA_DQ30
AR54
SA_DQ31
AN54
SA_DQ32
AY58
SA_DQ33
AW58
SA_DQ34
AY56
SA_DQ35
AW56
SA_DQ36
AV58
SA_DQ37
AU58
SA_DQ38
AV56
SA_DQ39
AU56
SA_DQ40
AY54
SA_DQ41
AW54
SA_DQ42
AY52
SA_DQ43
AW52
SA_DQ44
AV54
SA_DQ45
AU54
SA_DQ46
AV52
SA_DQ47
AU52
SA_DQ48
AK40
SA_DQ49
AK42
SA_DQ50
AM43
SA_DQ51
AM45
SA_DQ52
AK45
SA_DQ53
AK43
SA_DQ54
AM40
SA_DQ55
AM42
SA_DQ56
AM46
SA_DQ57
AK46
SA_DQ58
AM49
SA_DQ59
AK49
SA_DQ60
AM48
SA_DQ61
AK48
SA_DQ62
AM51
SA_DQ63
AK51
SA_DQ15
AP60
SA_CKE2 AY42
SA_CKE1 AW43
SA_CKE0 AU43
SA_CKE3 AY43
SA_CS#1 AR32
SA_CS#0 AP33
SA_ODT0 AP32
SA_RAS AY34
SA_CAS AU34
SA_WE AW34
SA_BA0 AU35
SA_BA1 AV35
SA_BA2 AY41
SA_MA1 AY37
SA_MA0 AU36
SA_MA2 AR38
SA_MA3 AP36
SA_MA4 AU39
SA_MA5 AR36
SA_MA7 AW39
SA_MA6 AV40
SA_MA9 AU40
SA_MA8 AY39
SA_MA11 AW41
SA_MA12 AU41
SA_MA10 AP35
SA_MA14 AV42
SA_MA13 AR35
SA_MA15 AU42
SA_DQSN0 AJ61
SA_DQSN2 AM58
SA_DQSN1 AN62
SA_DQSN3 AM55
SA_DQSN5 AV53
SA_DQSN4 AV57
SA_DQSN7 AL48
SA_DQSN6 AL43
SA_DQSP1 AN61
SA_DQSP0 AJ62
SA_DQSP4 AW57
SA_DQSP3 AN55
SA_DQSP2 AN58
SA_DQSP6 AL42
SA_DQSP5 AW53
SA_DQSP7 AL49
SM_VREF_CA AP49
SM_VREF_DQ1 AP51
SM_VREF_DQ0 AR51
T4@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

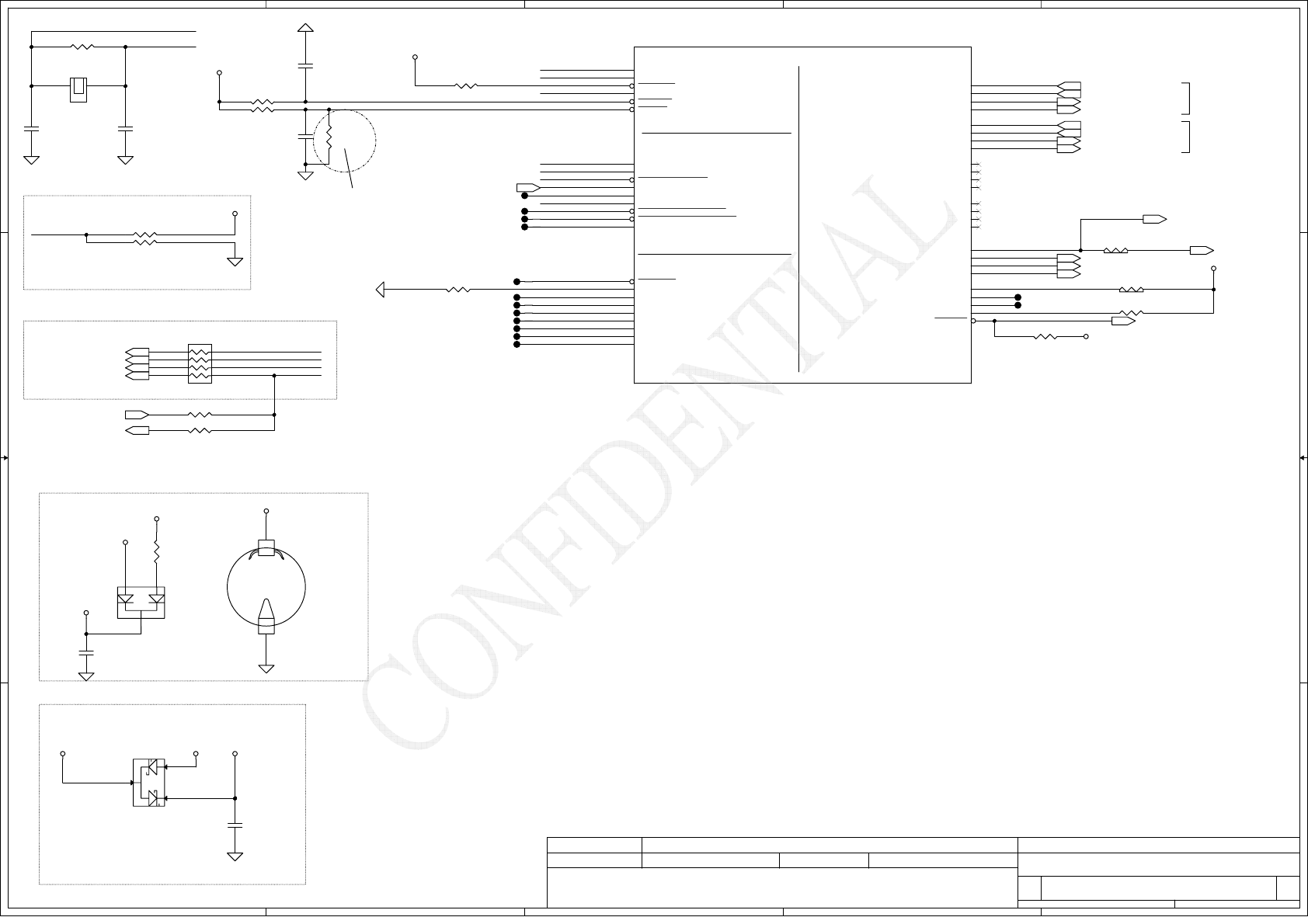

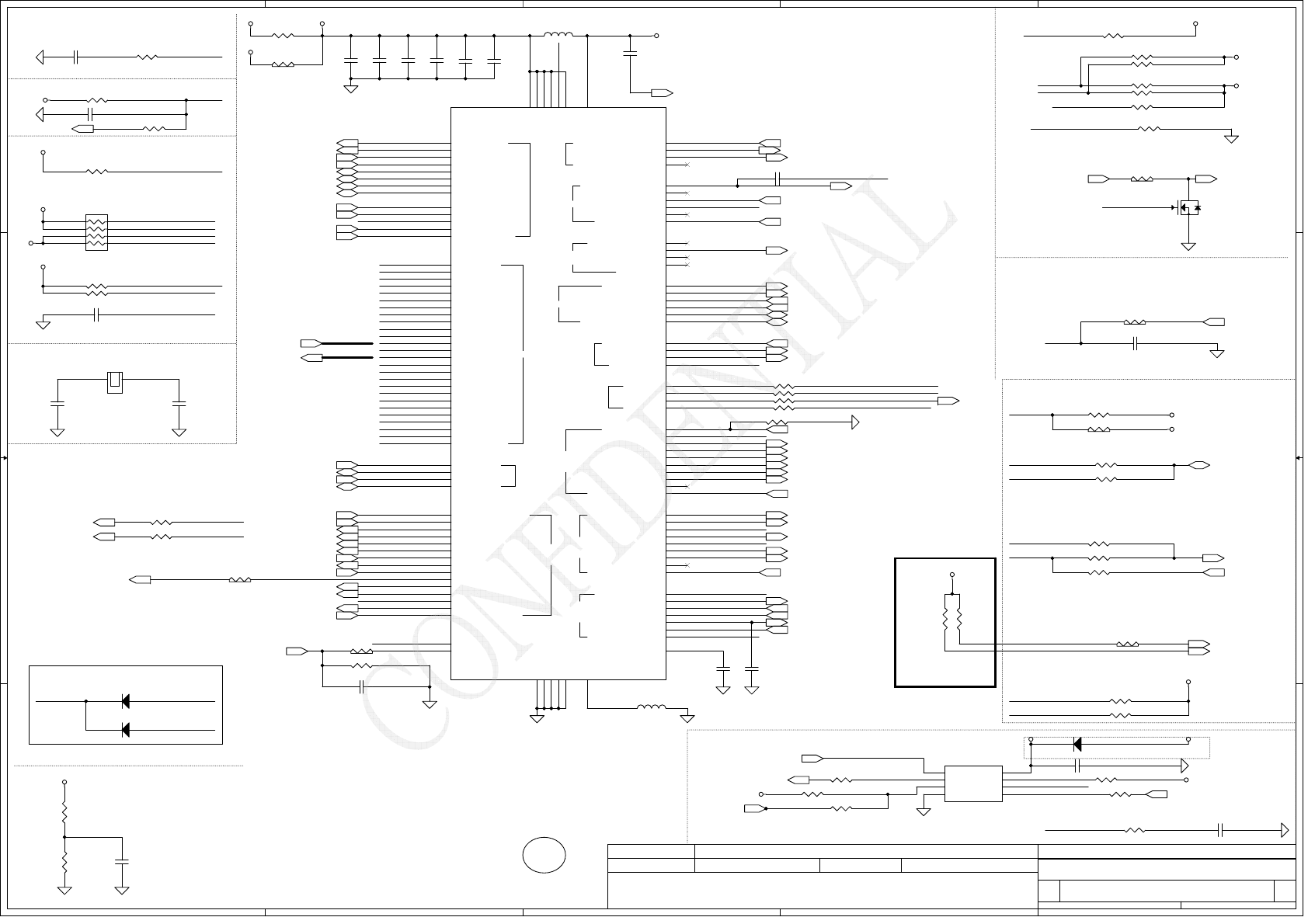

HDA for AUDIO
ME CMOS
CMOS
HDD
within500mils
RTCRST close RAM door
H
：
Integrated VRM enable
L
：
Integrated VRM disable
INTVRMEN
*
ME Debug
trace width 10mil W=20milsW=20mils
ODD
20mil 20mil
Reserve only
HDA_BIT_CLK
HDA_SYNC
HDA_RST#
PCH_RTCX2
PCH_RTCX1
SM_INTRUDER#
PCH_INTVRMEN
SATA_RCOMP
PCH_TCK_JTAGX
HDA_BIT_CLK
HDA_SYNC
HDA_RST#
HDA_SDIN0
HDA_SDOUT
PCH_JTAG_RST#
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_JTAG_TMS
PCH_GPIO36
PCH_GPIO35
PCH_SATALED#
PCH_RTCX2
PCH_RTCX1
PCH_SRTCRST#
PCH_RTCRST#
PCH_INTVRMEN
SATA_IREF
GPIO34_SCI#
PCH_GPIO37
HDA_SDOUT
PCH_JTAG_TCK
+RTCBATT_R
HDA_BITCLK_AUDIO29 HDA_SYNC_AUDIO29 HDA_RST_AUDIO#29 HDA_SDOUT_AUDIO29
SATA_PRX_DTX_P0 25
SATA_PTX_DRX_N0 25
SATA_PTX_DRX_P0 25
SATA_PRX_DTX_N0 25
PCH_SATALED# 28
HDA_SDO27
HDA_SDIN029
SPI_WP1#_R25,27,7
PCH_GPIO36 9
PCH_GPIO37 9
PCH_GPIO35 9 EC_SCI# 27,9
SATA_PRX_DTX_P1 25
SATA_PTX_DRX_N1 25
SATA_PTX_DRX_P1 25
SATA_PRX_DTX_N1 25
GPIO34_SCI# 9
+RTCVCC
+RTCVCC
+RTCVCC
+3VS
+1.05VS_ASATA3PLL
+CHGRTC+RTCBATT +RTCVCC
+RTCBATT1
+CHGRTC
+RTCVCC
+RTCBATT1
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(3/11) RTC,SATA,XDP
Custom
642Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(3/11) RTC,SATA,XDP
Custom
642Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(3/11) RTC,SATA,XDP
Custom
642Thursday, April 18, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C154
18P_0402_50V8J
1
2
T21 @
C151
0.1U_0402_16V4Z
1
2
T9 @
R937
0_0402_5%@
1 2
R72 1M_0402_5%
1 2
R69
20K_0402_1%
1 2
T6 @
T14@
T22 @
C149
1U_0402_10V6K
1
2
R70
20K_0402_1%
1 2
R9751_0402_5% @
1 2
R163 0_0402_5%9012@
1 2
R73 330K_0402_5%
1 2
Y1
32.768KHZ_12.5PF_Q13FC
1 2
T7 @
T12 @
R101 10M_0402_5%
1 2
R2 3.01K_0402_1%
1 2
C150
1U_0402_10V6K
1
2
T95 @
R10
10K_0402_5%
1 2
R446
1K_0402_5%
@
1 2
R71
0_0603_5%@
12
T13@
C168
0.1U_0402_16V4Z
@
1
2
JBATT1
LOTES_AAA-BAT-054-K01
CONN@
SP07000H700
+1
-
2
R74 330K_0402_5%@
1 2
SATAAUDIO
RTC
JTAG
HASWELL_MCP_E
Rev1p2
5 OF 19
U1E
HASWELL-MCP-E-ULT_BGA1168
INTVRMEN
AV7
SRTCRST
AV6
RTCRST
AU7
RTCX1
AW5
SATA_RN0/PERN6_L3 J5
SATA_RP0/PERP6_L3 H5
SATA_TN0/PETN6_L3 B15
SATA_TP0/PETP6_L3 A15
SATA_RP1/PERP6_L2 H8
SATA_RN1/PERN6_L2 J8
SATA_TN1/PETN6_L2 A17
SATA_TP1/PETP6_L2 B17
SATA_RP2/PERP6_L1 H6
SATA_RN2/PERN6_L1 J6
SATA_TN2/PETN6_L1 B14
SATA_TP2/PETP6_L1 C15
SATA_RN3/PERN6_L0 F5
SATA_RP3/PERP6_L0 E5
SATA_TN3/PETN6_L0 C17
SATA_TP3/PETP6_L0 D17
SATA0GP/GPIO34 V1
SATA1GP/GPIO35 U1
SATA2GP/GPIO36 V6
SATA3GP/GPIO37 AC1
SATA_IREF A12
SATA_RCOMP C12
INTRUDER
AU6 RTCX2
AY5
JTAGX
AE63
SATALED U3
I2S1_SCLK
AY8
RSVD
AV2
RSVD
AL11
RSVD
AC4
HDA_BCLK/I2S0_SCLK
AW8
HDA_SYNC/I2S0_SFRM
AV11
HDA_RST/I2S_MCLK
AU8
HDA_SDI0/I2S0_RXD
AY10
HDA_SDO/I2S0_TXD
AU11 HDA_SDI1/I2S1_RXD
AU12
HDA_DOCK_EN/I2S1_TXD
AW10
HDA_DOCK_RST/I2S1_SFRM
AV10
PCH_TRST
AU62
PCH_TCK
AE62
PCH_TDI
AD61
PCH_TDO
AE61
PCH_TMS
AD62 RSVD K10
RSVD L11
T8 @
RP14
33_0804_8P4R_5%
EMC@
1 8
2 7
3 6
4 5
T15 @
D22
BAS40-04_SOT23-3
1
2
3
T11 @
T19 @
R161 4.7K_0402_5%940@
1 2
D32
CHN202UPT_SC70-3
@
1
2
3
C153
18P_0402_50V8J
1
2
T10 @
R75 0_0603_5%@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SPI ROM ( 2MByte )
SPI ROM ( 4MByte )
Reserve for EMI(Near SPI ROM)
Reserve for EMI(Near SPI ROM)
PU 2.2K at EC side (+3VS)
SPI ROM
( 8MByte for Chrome)
D29 design for Debug
board flash SPI ROM
(can be short after MP)
WLAN
PCIE LAN
NOTE:R106&RP19value
1ROMsolutionuse15ohm
2ROMsolutionuse33ohm
XTAL24_OUT
XTAL24_IN
XTAL24_IN
XTAL24_OUT
XCLK_BIASREF
CLKOUT_LPC1
LPC_AD2
LPC_FRAME#
LPC_AD0
LPC_AD3
LPC_AD1
PCH_SPI_CLK
SML0CLK SML0DATA
PCH_GPIO73
SML1CLK
SML1DATA
PCH_GPIO60
PCH_SMBCLK
PCH_SMBDATA
PCH_GPIO11
PCH_SPI_CS0#
PCH_SPI_CS1#
SML1CLK
SML1DATA
SML1CLK
PCH_SPI_IO3_1
PCH_SPI_CLK_1
PCH_SPI_CS0#
PCH_SPI_CS1#
PCH_SPI_IO2_2 PCH_SPI_IO3_2
PCH_SPI_CLK_2
PCH_SMBDATA
D_CK_SCLK
D_CK_SDATA
PCH_SMBCLK
PCH_SPI_MOSI
PCH_SPI_MISO
PCH_SPI_MISO_2
PCH_SPI_MOSI_2
PCH_SPI_MISO_1
PCH_SPI_MOSI_1
PCH_SPI_CLK_2
PCH_SPI_CLK_1
CLKOUT_LPC0
PCH_SPI_WP1#
PCH_GPIO18
PCH_GPIO19
PCH_GPIO23
PCH_SPI_CLK_1
PCH_SPI_CS0#
PCH_SPI_MISO_1
PCH_SPI_MOSI_1
PCH_SPI_HOLD1#
PCH_SPI_HOLD1#
PCH_SPI_WP1#
PCH_SPI_WP1#
PCH_SPI_WP1#
PCH_SPI_HOLD1#
PCH_GPIO22
CLK_PCIE_LAN#
CLK_PCIE_LAN
CLK_PCIE_MINI1#
CLK_PCIE_MINI1
PCH_GPIO22
SML1DATA
PCH_SPI_MISO_1
SML0CLK
SML0DATA
PCH_SMBDATA
PCH_SMBCLK
PCH_SPI_CLK
PCH_SPI_MISO
PCH_SPI_HOLD1#
PCH_SPI_MOSI
PCH_SPI_CLK_1
PCH_SPI_IO3_1
PCH_SPI_MOSI_1
PCH_SPI_CLK
PCH_SPI_MISOPCH_SPI_MISO_2
PCH_SPI_IO3_2
PCH_SPI_CLK_2
PCH_SPI_MOSI_2 PCH_SPI_MOSI
PCH_SPI_HOLD1#
CLK_BCLK_ITP#
CLK_BCLK_ITP
PCH_SPI_IO2_1
PCH_SPI_IO2_1
PCH_SPI_IO3_1
CLK_PCI_LPC 27
LPC_AD027,28 LPC_AD127,28 LPC_AD227,28 LPC_AD327,28
LPC_FRAME#27,28
D_CK_SDATA 15,16
D_CK_SCLK 15,16
EC_SMB_DA2 27,30
EC_SMB_CK2 27,30
PCH_GPIO11 9
CLK_PCI_TPM 28
PCH_SMBCLK 24
PCH_SMBDATA 24
SPI_HOLD1#_R25
PCH_SPI_MOSI_1_R25 PCH_SPI_MISO_1_R25
PCH_SPI_CS0#_1_R25 PCH_SPI_CLK_1_R25
SPI_WP1#_R25,27,6
LAN_CLKREQ#22
CLK_PCIE_LAN22 CLK_PCIE_LAN#22
CLK_PCIE_MINI1#24 CLK_PCIE_MINI124 MINI1_CLKREQ#24,8
PCH_GPIO199
PCH_GPIO189
PCH_GPIO239
PCH_GPIO73 9
PCH_GPIO60 9
+1.05VS_AXCK_LCPLL
+3VS
+3VS
+3VS
+3VS
+3VS
+3VS
+3VALW_PCH
+3VS+BIOS_SPI
+BIOS_SPI
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(4/11) CLK,SPI,SMBUS
Custom
742Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(4/11) CLK,SPI,SMBUS
Custom
742Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(4/11) CLK,SPI,SMBUS
Custom
742Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Q7A
DMN66D0LDW-7_SOT363-6
6 1
2
R602 0_0402_5%DEG@
1 2
R141 10K_0402_5%
1 2
R106 1K_0402_5%1ROM@
1 2
T24@
R105 1K_0402_5%1ROM@
1 2
R599 0_0402_5%DEG@
1 2
RP8 2.2K_0804_8P4R_5%
1 8
2 7
3 6
4 5
C67
0.1U_0402_16V7K
2ROM@
1 2
Q7B
DMN66D0LDW-7_SOT363-6
3 4
5
T16@
RP19
33_8P4R_5%
2ROM@
1 8
2 7
3 6
4 5
Q8A
DMN66D0LDW-7_SOT363-6
6 1
2
R148 10K_0402_5%
1 2
R108
33_0402_5%
2ROM@
12
U6
EN25QH64-104HIP SO8
1ROM@
SA00006MK00
D29 RB751V40_SC76-2940@
1 2
R603 0_0402_5%DEG@
1 2
R78 3.01K_0402_1%
1 2
C66 0.1U_0402_16V7K
1 2
R119
4.7K_0402_5%
1 2
RP19
15_8P4R_5%
1ROM@
SD300001P00
R564 1K_0402_5%940@
1 2
T23@
R116
4.7K_0402_5%
1 2
R305 0_0402_5%
9012@
1 2
R604 0_0402_5%DEG@
1 2
Q8B
DMN66D0LDW-7_SOT363-6
3 4
5
R114 2.2K_0402_5%
1 2
R481M_0402_5%
12
R140 10K_0402_5%
1 2
R103 1K_0402_5%2ROM@
1 2
R104 33_0402_5%XEMC@
12
R216 10K_0402_5%
1 2
R142 10K_0402_5%
1 2
R102 1K_0402_5%2ROM@
1 2
R113 2.2K_0402_5%
1 2
21R108
15_0402_5%
1ROM@
U6
EN25QH16-104HIP_SO8
2ROM@
CS#
1
DO(IO1)
2
WP#(IO2)
3
GND
4
VCC 8
HOLD#(IO3) 7
CLK 6
DI(IO0) 5
U6
MX25L6406EM2I-12G_SO8
940@
SA00004G600
Y2
24MHZ_12PF_X3G024000DC1H
1
23
4
R395 22_0402_5%
TPM@
12
R52 10K_0402_5%
1 2
C152
10P_0402_50V8J
XEMC@
1 2
T25@
U7
EN25QH32-104HIP_SO8
2ROM@
CS#
1
DO
2
WP#
3
GND
4
VCC 8
HOLD# 7
CLK 6
DI 5
C2
12P_0402_50V8J
1
2
R402 33_0402_5%XEMC@
12
C3
12P_0402_50V8J
1
2
T183@
R572 0_0402_5%DEG@
1 2
T17@
C453
10P_0402_50V8J
XEMC@
1 2
SPI C-LINK
SMBUS
LPC
HASWELL_MCP_E
Rev1p2
7 OF 19
U1G
HASWELL-MCP-E-ULT_BGA1168
LAD0
AU14
LAD1
AW12
LAD2
AY12
LAD3
AW11
LFRAME
AV12
SPI_CS0
Y7 SPI_CLK
AA3
SPI_CS1
Y4
SPI_CS2
AC2
SPI_MOSI
AA2
SPI_MISO
AA4
SPI_IO2
Y6
SPI_IO3
AF1
SMBALERT/GPIO11 AN2
SMBCLK AP2
SML0ALERT/GPIO60 AL2
SMBDATA AH1
SML0CLK AN1
SML0DATA AK1
SML1ALERT/PCHHOT/GPIO73 AU4
SML1DATA/GPIO74 AH3
SML1CLK/GPIO75 AU3
CL_CLK AF2
CL_DATA AD2
CL_RST AF4
HASWELL_MCP_E
CLOCK
SIGNALS
Rev1p2
6 OF 19
U1F
HASWELL-MCP-E-ULT_BGA1168
PCIECLKRQ0/GPIO18
U2
CLKOUT_PCIE_N1
B41
CLKOUT_PCIE_P1
A41
PCIECLKRQ1/GPIO19
Y5
CLKOUT_ITPXDP_P A35
CLKOUT_ITPXDP_N B35
CLKOUT_LPC_1 AP15
CLKOUT_LPC_0 AN15
XTAL24_OUT B25
XTAL24_IN A25
PCIECLKRQ5/GPIO23
T2 CLKOUT_PCIE_P5
A37 CLKOUT_PCIE_N5
B37
PCIECLKRQ4/GPIO22
U5
CLKOUT_PCIE_N4
A39
CLKOUT_PCIE_P4
B39
PCIECLKRQ3/GPIO21
N1 CLKOUT_PCIE_P3
C37 CLKOUT_PCIE_N3
B38
PCIECLKRQ2/GPIO20
AD1
CLKOUT_PCIE_N2
C41
CLKOUT_PCIE_P2
B42
CLKOUT_PCIE_P0
C42 CLKOUT_PCIE_N0
C43
DIFFCLK_BIASREF C26
RSVD K21
RSVD M21
TESTLOW_C35 C35
TESTLOW_C34 C34
TESTLOW_AK8 AK8
TESTLOW_AL8 AL8
R390 22_0402_5%
EMC@
12
RP20
33_8P4R_5%
2ROM@
1 8
2 7
3 6
4 5
T184@
R109
33_0402_5%
2ROM@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
H
：
Enable(DEFAULT)
L
：
Disable
DSWODVREN - On Die DSW VR Enable
*
not support Deep S4,S5 can NC
1: Port B or C is detected
0: Port B or C is not detected
DDPB_CTRLDATA: Port B Detected
*
(Have internal PD)
DDPC_CTRLDATA: Port C Detected
PU at Page 4 (double PU)
Note: EC is +3VL change to @
Reserved
00
00
Project ID GPIO53GPIO54
*
1
1
11
V5WE2/T2
Project_ID0Project_ID1
Reserved
Reserved
PBTN_OUT#_R
PCH_RSMRST#
EC_SMI#
PCH_GPIO79
PCH_GPIO78
SYS_RESET#
PM_APWROK
PCH_PWROK_R
SYS_PWROK_R
PCH_RSMRST#_R
SUSWARN#
PBTN_OUT#_R
PCH_BATLOW#
PLT_RST# LPCPD#
PCH_ACIN
CLKRUN#
SUSCLK
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
PM_SLP_LAN#
DSWODVREN
PLT_RST#
DDI2_CTRL_CK
DDI2_CTRL_DATA
SUSACK#SUSWARN#
PCH_PWROK SYS_PWROK
PCH_ACIN
PCH_RSMRST#_R
PCH_GPIO51
PCH_GPIO52
PCH_PCIE_WAKE#
Project_ID0Project_ID1
Project_ID1
Project_ID0
VGATE_3V
VGATE_3V PCH_PWROK
PCH_GPIO52
PCH_GPIO80
MINI1_CLKREQ#
DEVSLP0
PCH_GPIO80
PCH_GPIO55
PCH_PWROK_RPM_APWROK
SYS_RESET#
SYS_PWROK
PBTN_OUT#27
CPU_EDP_HPD 18
PCH_INV_PWM17,18 ENBKL27
ACIN27,32,34
VCCST_PG_EC11,27 PCH_PWROK27
PCH_RSMRST#27
SUSWARN#9
SUSCLK 27
PM_SLP_S3# 27
PM_SLP_S4# 27
PM_SLP_S5# 27
PLT_RST_BUF# 22,24
PLT_RST#27,28
DDI2_CTRL_CK 19
DDI2_CTRL_DATA 19
CPU_HDMI_HPD 19
CPU_DP_HPD 20
CLKRUN# 28
LPCPD# 28
EC_SMI#27 DDI1_AUX_DN 20
DDI1_AUX_DP 20
PCH_ENVDD18
VGATE_3V 27
VGATE11,39
MINI1_CLKREQ# 24,7
DEVSLP0 25,9
PCH_GPIO519
PCH_GPIO789 PCH_GPIO799
PCH_GPIO559
XDP_DBRESET#25
+3VALW_PCH
+3VALW_PCH
+RTCVCC
+3VS
+3VS
+3VS
+3VALW_PCH
+3VS
+3VALW_PCH
+3VS
+3VS+3VS
+1.05VS_VTT
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(5/11) PM,GPIO,DDI
Custom
842Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(5/11) PM,GPIO,DDI
Custom
842Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(5/11) PM,GPIO,DDI
Custom
842Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.

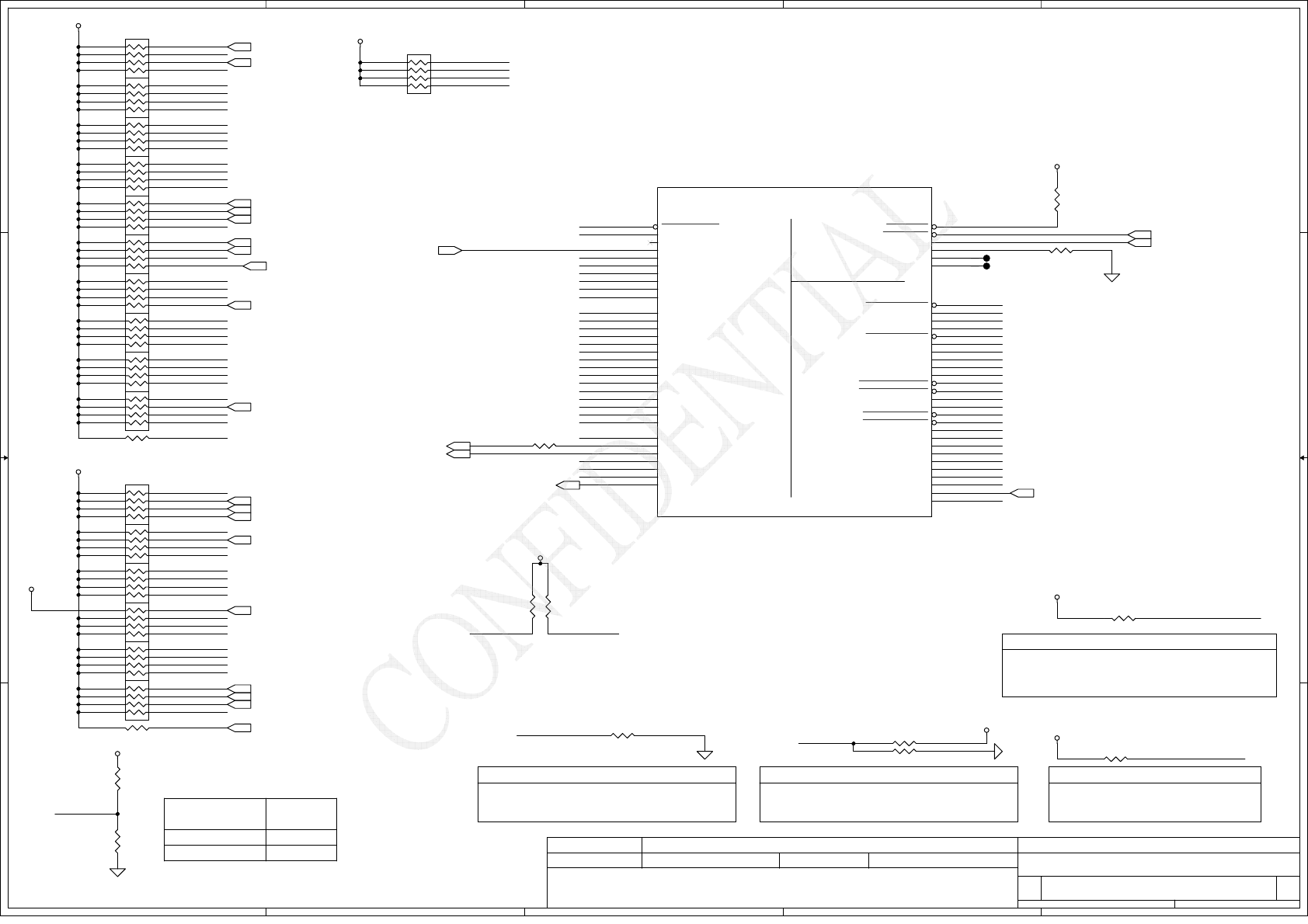

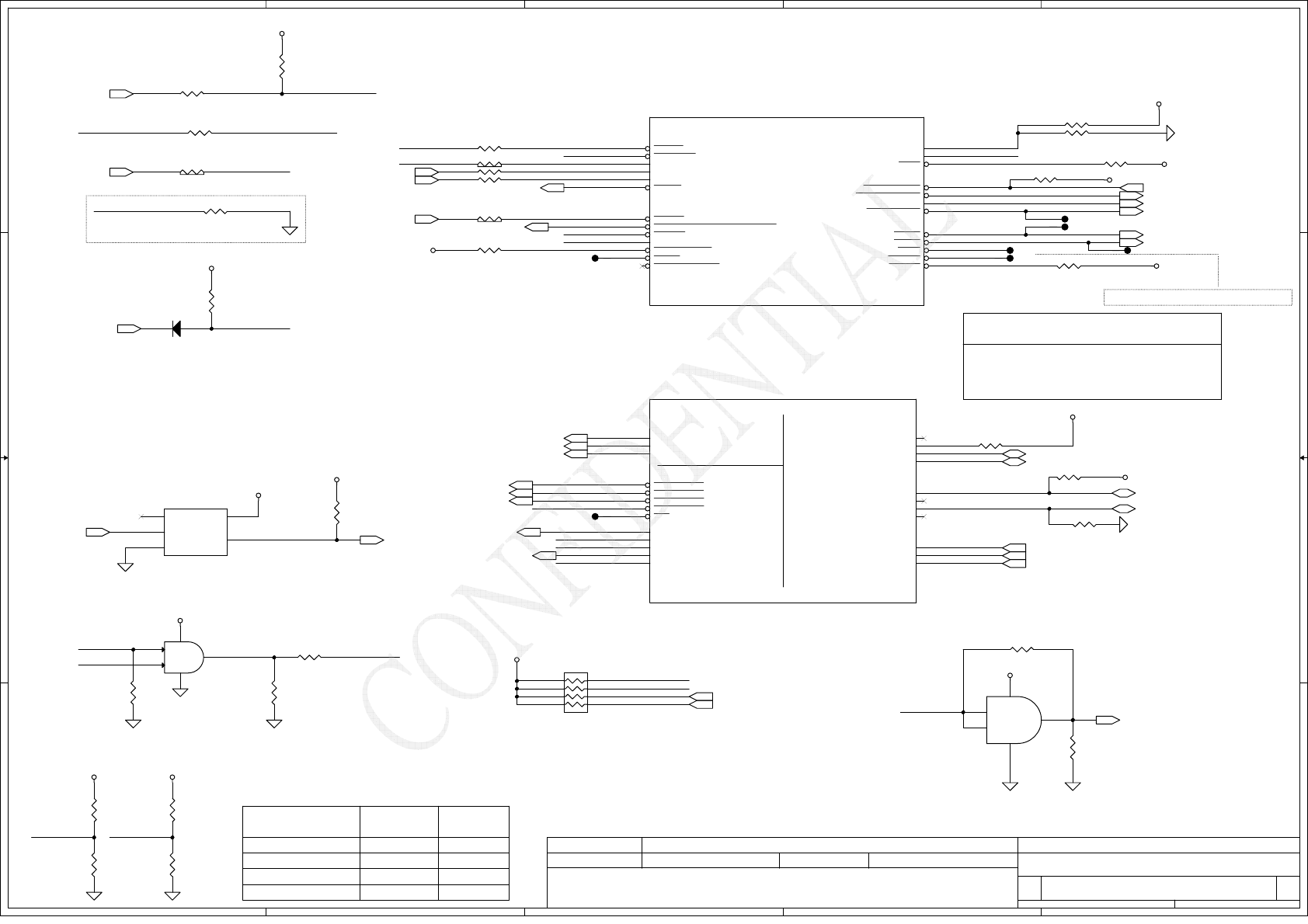

SYSTEM POWER MANAGEMENT
HASWELL_MCP_E
Rev1p2
8 OF 19
U1H
HASWELL-MCP-E-ULT_BGA1168
SUSACK
AK2
PLTRST
AG7
PCH_PWROK
AY7 SYS_PWROK
AG2 SYS_RESET
AC3
APWROK
AB5
RSMRST
AW6
ACPRESENT/GPIO31
AJ8
BATLOW/GPIO72
AN4
PWRBTN
AL7 SUSWARN/SUSPWRDNACK/GPIO30
AV4
SLP_S0
AF3
SLP_WLAN/GPIO29
AM5
DPWROK AV5
DSWVRMEN AW7
WAKE AJ5
SUS_STAT/GPIO61 AG4
CLKRUN/GPIO32 V5
SUSCLK/GPIO62 AE6
SLP_S4 AJ6
SLP_S5/GPIO63 AP5
SLP_S3 AT4
SLP_LAN AJ7
SLP_SUS AP4
SLP_A AL5
R227
10K_0402_5%
12
R62 0_0402_5%
1 2
U30
MC74VHC1G08DFT2G_SC70-5
IN1
1
IN2
2
GND
3
OUT 4
VCC 5
R214
10K_0402_5%
1 2
R204
10K_0402_5% @
12
R63 0_0402_5%@
1 2
R403
@
0_0402_5%
12
R205
10K_0402_5% @
12
R117 10K_0402_5%
1 2
R215
10K_0402_5%
1 2
R125 330K_0402_5%@
1 2
R420
100K_0402_5%
@
1 2
U43
MC74VHC1G08DFT2G_SC70-5
@
B
2
A
1Y4
P5
G
3
R245
100K_0402_5% @
12
R207
10K_0402_5%
@
12
R416
100K_0402_5%
12
R65
0_0402_5%
1 2
T31 @
R421
100K_0402_5%
@
1 2
T27@
D21
RB751V40_SC76-2
@
1 2
R206
0_0402_5%@
1 2
R118 10K_0402_5%@
1 2
R124 330K_0402_5%
1 2
R271 2.2K_0402_5%
1 2
R59 0_0402_5%DEG@
1 2
T29@
R1578.2K_0402_5%
1 2
T26 @
R1201K_0402_1%
1 2
R110
0_0402_5% @
1 2
U17
74AUP1G07GW_TSSOP5
@
GND
3
A
2
NC
1VCC 5
Y4
RP27
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R208
10K_0402_5% @
12
R61 0_0402_5%@
1 2
DISPLAY
GPIO
eDP SIDEBAND
HASWELL_MCP_E
Rev1p2
9 OF 19
U1I
HASWELL-MCP-E-ULT_BGA1168
EDP_BKLCTL
B8
DDPB_AUXN C5
DDPC_HPD A8
EDP_HPD D6
DDPB_HPD C8
DDPC_CTRLDATA D11
DDPC_CTRLCLK D9
DDPB_CTRLDATA C9
DDPB_CTRLCLK B9
PIRQA/GPIO77
U6
PIRQB/GPIO78
P4
PIRQC/GPIO79
N4
PIRQD/GPIO80
N2
PME
AD4
GPIO55
U7
GPIO52
L1
GPIO54
L3
GPIO51
R5
GPIO53
L4
EDP_BKLEN
A9
DDPB_AUXP B5
DDPC_AUXP A6
DDPC_AUXN B6
EDP_VDDEN
C6
R156 8.2K_0402_5%
1 2
T30@
T28@
R64 0_0402_5%
1 2
R310
10K_0402_5% @
12
T96@
R79 0_0402_5%@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SDIO_D0 / GPIO66 : Top-Block Swap Override
1: ENABLED
0: DISABLED
*(Have internal PU)
1: Intel ME TLS with confidentiality
GPIO15 : TLS Confidentiality
0: Intel ME TLS with no confidentiality
*(Have internal PD)
1: ENABLED
0: DISABLED
SPKR / GPIO81 : NO REBOOT
*(Have internal PD)
GSPI0_MOSI / GPIO86 : Boot BIOS Strap
1: ENABLED
(Have internal PL)
*0: SPI ROM
GPIO87
0
1
DIS,Optimus
UMA
DGPU_PRSNT#
H_THERMTRIP#
SERIRQ
PCH_OPIRCOMP
PCH_GPIO8
PCH_GPIO59
PCH_GPIO45
PCH_GPIO9
PCH_SPKR
PCH_GPIO48
PCH_GPIO14
PCH_GPIO17
PCH_GPIO6
PCH_GPIO7
PCH_GPIO91
PCH_GPIO1
PCH_GPIO2
PCH_GPIO3
PCH_GPIO64
PCH_GPIO65
PCH_GPIO67
EC_IN_RW
PCH_GPIO69
PCH_GPIO92
PCH_GPIO93
PCH_GPIO94
PCH_GPIO0
PCH_GPIO84
PCH_GPIO85
PCH_GPIO86
PCH_GPIO88
PCH_GPIO89
PCH_GPIO90
PCH_GPIO13
PCH_GPIO24
PCH_GPIO25
PCH_GPIO26
PCH_GPIO27
PCH_GPIO28
PCH_GPIO66
PCH_GPIO66
PCH_GPIO38
PCH_GPIO39
PCH_GPIO44
PCH_GPIO46
PCH_GPIO47
PCH_GPIO49
PCH_GPIO50
PCH_GPIO58
PCH_GPIO70
PCH_GPIO76
PCH_GPIO4
PCH_GPIO5
PCH_GPIO57PCH_GPIO56
PCH_GPIO56
PCH_GPIO57
EC_LID_OUT# PCH_GPIO16
EC_LID_OUT#
DGPU_PRSNT#
PCH_GPIO71
DEVSLP0
PCH_SPKR
PCH_GPIO86
DGPU_PRSNT#
PCH_GPIO70
PCH_GPIO55
SERIRQ
PCH_GPIO51
PCH_GPIO85
PCH_GPIO39
PCH_GPIO92
PCH_GPIO88
EC_IN_RW
PCH_GPIO69
PCH_GPIO4
PCH_GPIO7
PCH_GPIO1
PCH_GPIO5
PCH_GPIO93
PCH_GPIO94
PCH_GPIO91
PCH_GPIO90
PCH_GPIO38
PCH_GPIO2
PCH_GPIO36
PCH_GPIO19
EC_KBRST#
PCH_GPIO78
PCH_GPIO48
PCH_GPIO18
PCH_GPIO35
PCH_GPIO16
PCH_GPIO37
PCH_GPIO49
PCH_GPIO6
PCH_GPIO64
PCH_GPIO67
PCH_GPIO65
PCH_GPIO3
PCH_GPIO89
PCH_GPIO84
PCH_GPIO0
PCH_GPIO50
PCH_GPIO76
PCH_GPIO23
PCH_GPIO17
PCH_GPIO73
PCH_GPIO46
PCH_GPIO44
PCH_GPIO14
PCH_GPIO45
PCH_GPIO24
PCH_GPIO47
PCH_GPIO25
PCH_GPIO27
PCH_GPIO59
PCH_GPIO58
PCH_GPIO11
PCH_GPIO13
PCH_GPIO26
PCH_GPIO8
USB_OC1#
PCH_GPIO9
USB_OC0#
USB_OC2#
PCH_GPIO60
PCH_GPIO28
SUSWARN#
USB_OC3#
PCH_GPIO71
PCH_GPIO79
PCH_GPIO83
PCH_GPIO83
GPIO10_SCI#
GPIO34_SCI#
EC_SCI# GPIO10_SCI#
SERIRQ 27,28
EC_KBRST# 27
PCH_SPKR29
EC_LID_OUT#27
EC_IN_RW 28
DEVSLP025,8
PCH_GPIO37 6
PCH_GPIO18 7
PCH_GPIO35 6
PCH_GPIO36 6
PCH_GPIO19 7
PCH_GPIO78 8
PCH_GPIO51 8
PCH_GPIO23 7
USB_OC2# 10
USB_OC1# 10
USB_OC0# 10,26
PCH_GPIO60 7
SUSWARN# 8
USB_OC3# 10
PCH_GPIO11 7
PCH_GPIO73 7
PCH_GPIO55 8
PCH_GPIO79 8
GPIO34_SCI# 6
EC_SCI#27,6
+1.05VS_VTT
+3VALW_PCH
+3VS
+3VS
+3VS
+3VS
+3VS
+3VALW_PCH
+3VALW_PCH
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(6/11) GPIO,LPIO
Custom
942Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(6/11) GPIO,LPIO
Custom
942Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(6/11) GPIO,LPIO
Custom
942Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R269 1K_0402_1%@
1 2
R272 1K_0402_1%@
1 2
RP38
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP28
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP32
10K_0804_8P4R_5%
18 27 36 45
RP16
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP39
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP24
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R311
10K_0402_5%
1 2
LPIO
GPIO
CPU/
HASWELL_MCP_E
MISC
Rev1p2
10 OF 19
U1J
HASWELL-MCP-E-ULT_BGA1168
GPIO56
AG6
GPIO57
AP1
GPIO27
AN5
GPIO28
AD7
GPIO26
AN3
SDIO_D1/GPIO67 E4
SDIO_D2/GPIO68 C3
SDIO_D3/GPIO69 E2
SDIO_D0/GPIO66 D3
SDIO_CLK/GPIO64 E3
SDIO_CMD/GPIO65 F4
I2C1_SCL/GPIO7 F1
I2C1_SDA/GPIO6 G4
I2C0_SCL/GPIO5 F3
I2C0_SDA/GPIO4 F2
UART1_RST/GPIO2 J3
UART1_CTS/GPIO3 J4
UART1_RXD/GPIO0 K4
UART1_TXD/GPIO1 G2
UART0_CTS/GPIO94 G1
UART0_TXD/GPIO92 K3
UART0_RTS/GPIO93 J2
UART0_RXD/GPIO91 J1
GSPI1_MISO/GPIO89 N7
GSPI_MOSI/GPIO90 K2
GSPI1_CLK/GPIO88 L5
GSPI1_CS/GPIO87 R7
GSPI0_MOSI/GPIO86 L8
GSPI0_CLK/GPIO84 L6
GSPI0_MISO/GPIO85 N6
GSPI0_CS/GPIO83 R6
RCIN/GPIO82 V4
THERMTRIP D60
DEVSLP2/GPIO39
N5
SPKR/GPIO81
V2
DEVSLP1/GPIO38
L2 SDIO_POWER_EN/GPIO70
C4 DEVSLP0/GPIO33
P2
GPIO9
AM3
GPIO10
AM2
GPIO45
AG5
GPIO46
AG3
GPIO14
AH4
GPIO25
AM4
GPIO13
AT3 HSIOPC/GPIO71
Y2 GPIO50
P3 GPIO49
Y3
GPIO47
AB6
GPIO48
U4
GPIO59
AT5
GPIO16
Y1
GPIO17
T3
GPIO15
AD6
GPIO8
AU2
GPIO24
AD5
BMBUSY/GPIO76
P1
GPIO44
AK4
GPIO58
AL4
LAN_PHY_PWR_CTRL/GPIO12
AM7 SERIRQ T4
PCH_OPI_RCOMP AW15
RSVD AF20
RSVD AB21
R219
10K_0402_5%
VGA@
1 2
R270 1K_0402_1%@
1 2
R145
49.9_0402_1%
1 2
RP40
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP29
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP36
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R144
1K_0402_5%
12
R303
10K_0402_5%
12
R247 10K_0402_5%@
1 2
R301
10K_0402_5%
12
RP25
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
RP34
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R306
10K_0402_5%
12
R273 1K_0402_5%
1 2
RP30
10K_0804_8P4R_5%
18 27 36 45
RP35
10K_0804_8P4R_5%
18 27 36 45
RP26
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R248
10K_0402_5%
1 2
T106@
RP23
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
T32@
RP31
10K_0804_8P4R_5%
18 27 36 45
RP37
10K_0804_8P4R_5%
1 8
2 7
3 6
4 5
R939
0_0402_5%
@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Mini Card(WLAN+BT)
USB2 Port 1
USB2 Port 0 (USB3.0 P0)
Camera
USB2 Port 2
USB3 Port 0
CADnote:
Routesingle‐end50‐ohmsandmax450‐milslength.
Avoidroutingnexttoclockpinsorunderstitchingcapacitors.
Recommendedminimumspacingtoothersignaltracesis15mils
USB3.0 P1
USB3.0 P2
USB3.0 P3 / PCIE P1
USB3.0 P4 / PCIE P2
PCIE LAN
WLAN
Tracewidth=15mils
Spacing=12mil
Maxlength=500mils
Touch Module
USB20_P4
USB20_N4
USB_OC2#
USB_OC1#
USB20_N0
USB20_N2
USB20_N1
USB20_P1
USB20_P2
USBRBIAS
USB20_P7
USB20_P0
USB20_N7
PCIE_RCOMP
PCIE_IREF
PCIE_PTX_DRX_P3
PCIE_PTX_DRX_N3
PCIE_PRX_DTX_N3
PCIE_PRX_DTX_P3
PCIE_PTX_DRX_N4
PCIE_PRX_DTX_P4
PCIE_PTX_DRX_P4
PCIE_PRX_DTX_N4
USB_OC0#
USB_OC3#
USB20_N6
USB20_P6
USB20_P4 24
USB20_N4 24
USB20_N1 26
USB20_P1 26
USB20_N0 26
USB20_P0 26
USB20_N2 26
USB20_P2 26
USB_OC0# 26,9
USB20_N7 18
USB20_P7 18
PCIE_PRX_DTX_P322
PCIE_PTX_C_DRX_N322
PCIE_PRX_DTX_N322
PCIE_PTX_C_DRX_P322
PCIE_PTX_C_DRX_N424
PCIE_PRX_DTX_P424 PCIE_PRX_DTX_N424
PCIE_PTX_C_DRX_P424
PCH_USB3_TX0_P 26
PCH_USB3_RX0_P 26
PCH_USB3_TX0_N 26
PCH_USB3_RX0_N 26
USB_OC1# 9
USB_OC2# 9
USB_OC3# 9
USB20_P6 18
USB20_N6 18
+1.05VS_AUSB3PLL
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(7/11) PCIE,USB
Custom
10 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(7/11) PCIE,USB
Custom
10 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(7/11) PCIE,USB
Custom
10 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PCIe
USB
HASWELL_MCP_E
Rev1p2
11 OF 19
U1K
HASWELL-MCP-E-ULT_BGA1168
PETP5_L2
C21
PERP5_L0
E10
PERN5_L1
F8
PETN5_L3
B22
PETP5_L3
A21
PERP3
F11
PETN3
C29
PETN1/USB3TN3
C30
OC3/GPIO43 AV3
OC2/GPIO42 AH2
OC1/GPIO41 AT1
OC0/GPIO40 AL3
PCIE_RCOMP
A27
PCIE_IREF
B27
PERN5_L0
F10
PERN5_L2
H10
PERP5_L2
G10
PETN5_L2
B21
PERP5_L3
F6 PERN5_L3
E6
PETP3
B30
PERN4
F13
PERP4
G13
PETP4
A29 PETN4
B29
PERP1/USB3RP3
F17
PETP1/USB3TP3
C31
PERN2/USB3RN4
F15
PETN2/USB3TN4
B31
PERP2/USB3RP4
G15
USB2N0 AN8
USB2N1 AR7
USB2N2 AR8
USB2P2 AP8
USB2N3 AR10
USB2P3 AT10
USB2N4 AM15
USB2P4 AL15
USB2P6 AN11
USB2N5 AM13
USB2P5 AN13
USB2N6 AP11
USB2P7 AP13
USB2N7 AR13
USB3TN2 B33
USB3TP2 A33
USB3RP2 F18
USB3RN2 E18
USB3TN1 C33
USB3TP1 B34
USB3RP1 H20
USB3RN1 G20
PETP5_L1
A23 PETN5_L1
B23
PERP5_L1
E8
USBRBIAS AJ11
USBRBIAS AJ10
PETP5_L0
C22 PETN5_L0
C23
PERN3
G11
USB2P0 AM8
USB2P1 AT7
PERN1/USB3RN3
G17
PETP2/USB3TP4
A31
RSVD
E15
RSVD
E13
RSVD AN10
RSVD AM10
C160 0.1U_0402_16V7K
1 2
C157 0.1U_0402_16V7K
1 2
T36@
T33 @
C156 0.1U_0402_16V7K
1 2
R154 22.6_0402_1%
1 2
T35@
R232 3.01K_0402_1%
1 2
R155 0_0603_5%@
1 2
C155 0.1U_0402_16V7K
1 2
T34 @
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
330UF/2.5V/3528
VDDQDECOUPLING
+1.35V : 470UF/2V/7343 *2
10UF/6.3V/0603 * 6
2.2UF/6.3V/0402 * 4
Note:0ohmPLACEDCLOSETOCPU
SVID DATA
SVID ALERT
Place the PU
resistors close to CPU
Place the PU
resistors close to CPU
Shark Bay ULT have internal gate for VDDQ
VCCST_PG_EC_R
PCH_VR_EN
VR_READY
H_CPU_SVIDCLK
VIDSOUT
H_CPU_SVIDALRT#
VCC_SENSE_R
VCC_SENSE_R
H_CPU_SVIDALRT#
VIDSOUT
CPU_PWR_DEBUG
VCCST_PG_EC_R CPU_PWR_DEBUG
VR_SVID_CLK39
VR_ALERT#39
VR_SVID_DATA39
VGATE39,8
VSS_SENSE 39
VCC_SENSE 39
VSS_SENSE_R13
VR_ON39
VCCST_PG_EC27,8
VCCST_PWRGD 27,38
3VS_GATE31
+CPU_CORE
+CPU_CORE
+1.35V_CPU
+CPU_CORE
+VCCIOA_OUT
+1.05VS_VTT
+1.35V_CPU
+CPU_CORE
+1.05VS_VTT
+1.05VS_VTT
+1.05VS_VTT +1.05VS_VTT
+VCCIO_OUT
+1.05VS_VTT
+3VALW_PCH
+1.05VS_VTT
+3VS
+1.35V +1.35V_CPU
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(8/11) Power
Custom
11 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(8/11) Power
Custom
11 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(8/11) Power
Custom
11 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
T115 @
C16
10U_0603_6.3V6M
1
2
U16
74AUP1G07GW_TSSOP5
GND
3
A
2
NC
1VCC 5
Y4
R172
43_0402_1%
12
C167
0.1U_0402_16V7K
@
1 2
T42 @
R164 0_1206_5%
@
12
T117 @
R177
100_0402_1%
12
R169
150_0402_1%
XDP@
1 2
T37 @
C14
10U_0603_6.3V6M
EMC@
1
2
T40 @
T44 @
T98 @
R309
10K_0402_5%
12
R1650_0402_5% @
1 2
T38 @
+
C18
330U_2.5V_M
1
2
R182
0_0402_5%
@
1 2
C8
2.2U_0402_6.3V6M
@
1
2
R1680_0402_5%
1 2
C17
10U_0603_6.3V6M
1
2
T109 @
C6
22U_0805_6.3V6M
@
1
2
T47 @
T110 @
J2
JUMP_43X118
@
1 2
R422
100K_0402_5%
@
12
R166
0_0402_5%
@
1 2
C10
2.2U_0402_6.3V6M
1
2
T45 @
R1670_0402_5%
1 2
C12
10U_0603_6.3V6M
1
2
T111 @
R173
130_0402_1%
12
HSW ULT POWER
HASWELL_MCP_E
Rev1p2
12 OF 19
U1L
HASWELL-MCP-E-ULT_BGA1168
VCCST
AE22
VCCST
AE23
VCC
AB57
VCC
AD57
VCC K23
VCC C44
VCC C40
VCC C36
VCC C52
VCC C48
VCC E25
VCC E23
VCC C56
VCC E29
VCC E27
VCC E35
VCC E33
VCC E31
VCC E39
VCC E37
VCC E45
VCC E43
VCC E41
VCC E49
VCC E47
VCC E55
VCC E53
VCC E51
VCC E57
VCC F24
VCC F36
VCC F32
VCC F28
VCC F40
VCC F44
VCC F48
VCC F56
VCC F52
VCC G23
VCC G25
VCC G27
VCC G31
VCC G29
VCC G33
VCC G35
VCC G37
VCC G41
VCC G39
VCC G43
VCC G47
VCC G45
VCC G53
VCC G51
VCC G49
VCC G57
VCC G55
VCC J23
VCC H23
VCC K57
VCC L22
VCC P57
VCC M57
VCC M23
VCC U57
VCC W57
VCC
AG57
VCC
C32 VCC
C28 VCC
C24
RSVD
L59
RSVD
J58
VDDQ
AH26
VDDQ
AJ31
VDDQ
AJ33
VDDQ
AJ37
VDDQ
AN33
VDDQ
AP43
VDDQ
AR48
VIDSCLK
N63
VIDSOUT
L63
VR_EN
F60
RSVD_TP
P60 VSS
P62 PWR_DEBUG
H59 VSS
D63
VR_READY
C59
VCCST_PWRGD
B59
VIDALERT
L62
RSVD
AE59 RSVD
AA23
VCC_SENSE
E63
RSVD
N58
VDDQ
AY50
RSVD_TP
P61
VCCST
AC22
RSVD_TP
N59
RSVD
T59
RSVD
AD60
RSVD
AD59
RSVD
AE60
RSVD
AC59
RSVD
AG58
RSVD
V59 RSVD
U59
RSVD
AA59
RSVD_TP
N61
VDDQ
AY35
VDDQ
AY40
VDDQ
AY44
VCC
F59
RSVD
AC58
RSVD
AB23
RSVD
AD23 VCCIOA_OUT
E20 VCCIO_OUT
A59
C9
2.2U_0402_6.3V6M
1
2
R171
75_0402_1%
12
T48 @
T112 @
Q5
AO4304L_SO8
@
62
4
1
3
5
7
8
T39 @
C13
10U_0603_6.3V6M
EMC@
1
2
R174
0_0402_5%
@
12
C11
2.2U_0402_6.3V6M
1
2
T113 @
R178
0_0402_5%
@
12
C7
10U_0603_6.3V6M
EMC@
1
2
T43 @
T46 @
C5
0.1U_0603_25V7K
@
1
2
R235
0_0402_5%
@
12
T41 @
T114 @
C15
10U_0603_6.3V6M
1
2
R233
100_0402_1%
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

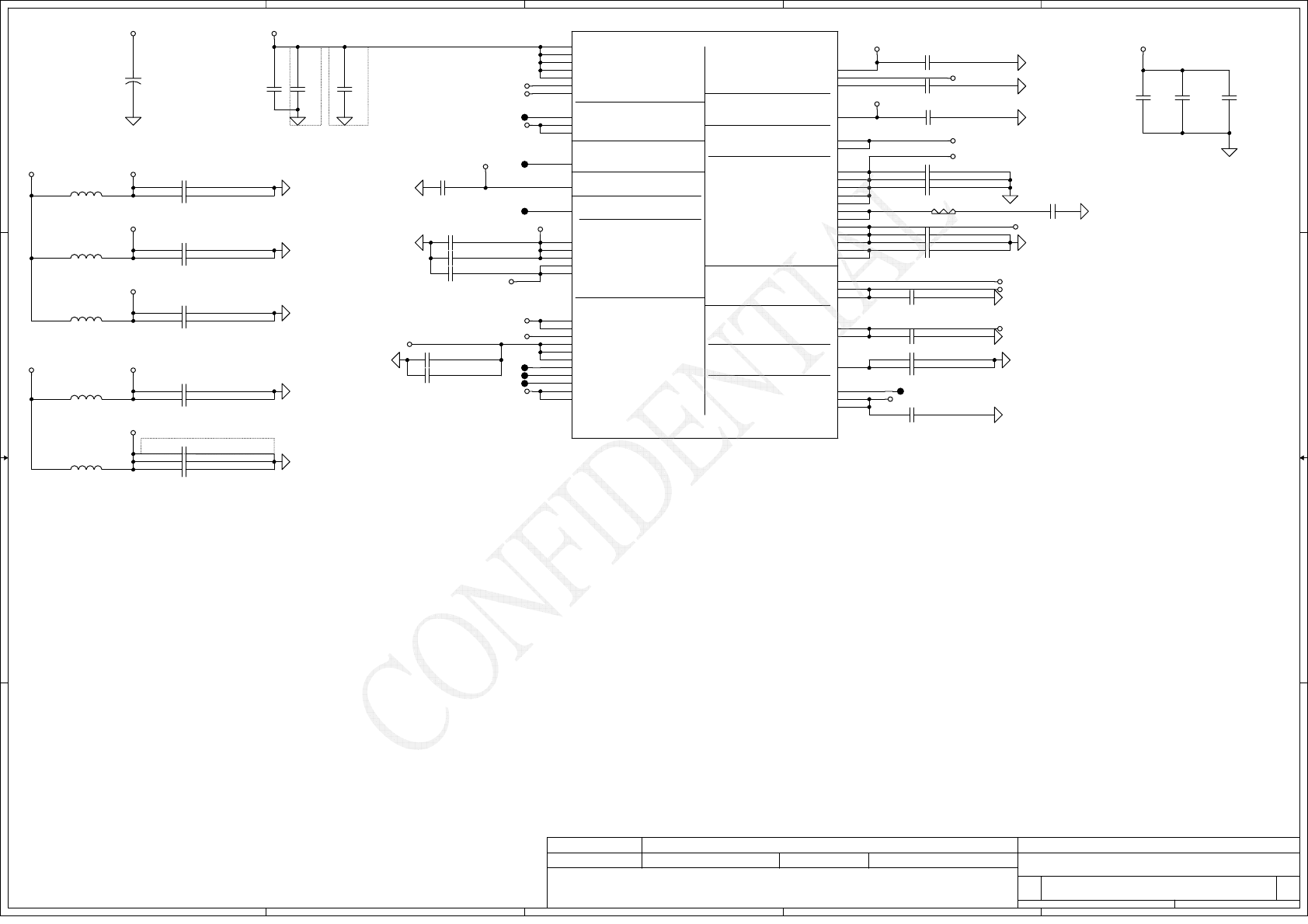

HDA --> 3.3V or 1.5V
I2C --> 1.8V
Near PJ602 Near L10 Near M9
Near B18
Near B11
Near AA21
Near AC9
Near AH10
Near V8
Near J18
Near A20
Near J17
Near R21
Idc 1.2A Rdc 0.11ohm +/-30%
Idc 1.2A Rdc 0.11ohm +/-30%
Idc 1.2A Rdc 0.11ohm +/-30%
Idc 1.2A Rdc 0.11ohm +/-30%
reserve on PVT
+PCH_VCCDSW
+VCCRTCEXT
+PCH_VCCDSW_R
+3VS
+1.05VS_AUSB3PLL
+1.05VS_ASATA3PLL
+1.05VS_APLLOPI
+1.05VS_VTT
+3VALW_PCH
+1.05VS_AXCK_DCB
+1.05VS_AXCK_LCPLL
+1.05VS_VTT
+1.5VS
+RTCVCC
+3VS
+1.05VS_VTT
+3VS
+1.05VS_VTT
+RTCVCC
+1.05VS_VTT
+3VALW_PCH
+1.05VS_VTT +1.05VS_AXCK_DCB
+1.05VS_AXCK_LCPLL
+1.05VS_VTT +1.05VS_AUSB3PLL
+1.05VS_ASATA3PLL
+1.05VS_APLLOPI
+3VALW_PCH
+1.05VS_VTT
+3VALW_PCH
+3VS
+1.05VS_VTT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(9/11) Power
Custom
12 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(9/11) Power
Custom
12 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(9/11) Power
Custom
12 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C999 1U_0402_6.3V6K
1 2
C45 1U_0402_6.3V6K
1 2
C36 22U_0805_6.3V6M
1 2
C46 1U_0402_6.3V6K
1 2
C43 1U_0402_6.3V6K@
1 2
C61 100U_1206_6.3V6M
1 2
AXALIA/HDA
VRM/USB2/AZALIA
GPIO/LCC
THERMAL SENSOR
HASWELL_MCP_E
mPHY
OPI
CORE
USB2
LPT LP POWER
USB3
SDIO/PLSS
SUS OSCILLATOR
RTC
SPI
Rev1p2
13 OF 19
U1M
HASWELL-MCP-E-ULT_BGA1168
VCCHSIO
K9
VCCHSIO
M9
VCC1_05
N8
VCC1_05
P9
RSVD
Y20
DCPSUS2
AH13
VCCAPLL
W21
DCPSUS3
J13
VCCSUS3_3
AC9
VCCSUS3_3
AA9
VCCUSB3PLL
B18
VCCSATA3PLL
B11
VCCDSW3_3
AH10
VCCSDIO U8
VCCSDIO T9
VCC3_3 K14
VCC3_3 K16
VCCASW AG13
VCCASW AG14
VCCSPI Y8
DCPRTC AE7
VCCRTC AG10
VCCSUS3_3 AH11
VCCCLK
J18
VCCACLKPLL
A20 VCCCLK
K19
VCCCLK
J17
RSVD
M20
VCCCLK
T21 VCCCLK
R21
VCCSUS3_3
AE20
VCCSUS3_3
AE21
VCCAPLL
AA21
VCCASW AG8
VCCASW AF9
VCCASW AE9
VCC1_05 AE8
VCC1_05 H15
VCC1_05 H11
VCC1_05 J11
VCC3_3
W9 VCC3_3
V8
DCPSUS4 AB8
RSVD AC20
VCC1_05 AG16
VCC1_05 AG17
RSVD
V21
RSVD
K18
VCCHSIO
L10
VCC1_05 AF22
DCPSUSBYP AG19
DCPSUSBYP AG20
DCPSUS1 AD10
DCPSUS1 AD8
VCCTS1_5 J15
VCCHDA
AH14
L1
2.2UH_LQM2MPN2R2NG0L_30%
1 2
L2
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C55 0.1U_0402_16V7K
1 2
T116 @
C33 1U_0402_6.3V6K
1 2
C30 1U_0402_6.3V6K
1 2
T101 @
C27 10U_0603_6.3V6M
1 2
T103@
L3
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C52
1U_0402_6.3V6K
1
2
R209 0_0402_5%
@
1 2
T99 @
T105 @
C21
1U_0402_6.3V6K
1
2
C29
22U_0805_6.3V6M
12
L4
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C20
1U_0402_6.3V6K
1
2
C59
0.1U_0402_16V7K
EMC@
12
C40 10U_0603_6.3V6M
EMC@
1 2
T100 @
L5
2.2UH_LQM2MPN2R2NG0L_30%
1 2
C53 1U_0402_6.3V6K@
1 2
C23 100U_1206_6.3V6M
1 2
C31
1U_0402_6.3V6K
EMC@
1
2
C47 1U_0402_6.3V6K
1 2
C38
1U_0402_6.3V6K
12
+
C998
220U_6.3V_M
1
2
T102 @
C24 100U_1206_6.3V6M
1 2
C32 100U_1206_6.3V6M
1 2
C50
0.1U_0402_16V7K
@
1
2
C54 0.1U_0402_16V7K
1 2
C56
1U_0402_6.3V6K
12
C57
1U_0402_6.3V6K
12
C58 0.1U_0402_16V7K
@
12
C51
0.1U_0402_16V7K
@
1
2
C22 100U_1206_6.3V6M
1 2
C48 1U_0402_6.3V6K
1 2
C25 100U_1206_6.3V6M@
1 2
C28
22U_0805_6.3V6M
12
C44 1U_0402_6.3V6K
1 2
C42 1U_0402_6.3V6K
1 2
C49 1U_0402_6.3V6K
1 2
C41
1U_0402_6.3V6K
1 2
C37 1U_0402_6.3V6K
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VSS_SENSE_R 11
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(10/11) GND
Custom
13 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(10/11) GND
Custom
13 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(10/11) GND
Custom
13 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.

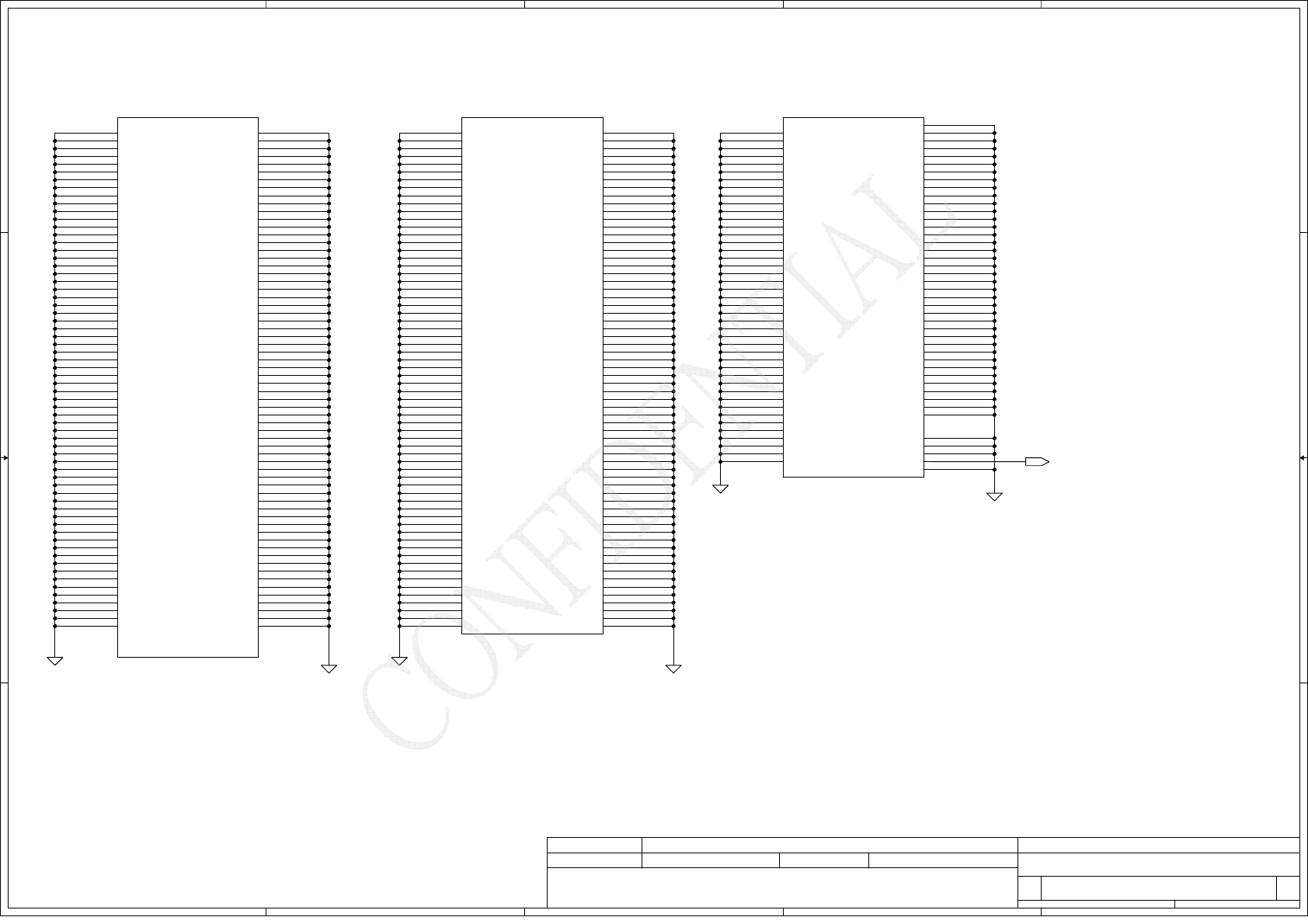

HASWELL_MCP_E
Rev1p2
15 OF 19
U1O
HASWELL-MCP-E-ULT_BGA1168
VSS
AU28
VSS C14
VSS C11
VSS AW60
VSS AW40
VSS AW16
VSS AV8
VSS AV59
VSS
AP22
VSS
AV34
VSS D31
VSS D30
VSS D29
VSS D21
VSS D2
VSS D18
VSS D14
VSS D12
VSS C57
VSS C39
VSS C38
VSS C27
VSS C25
VSS C20
VSS C18
VSS B60
VSS B56
VSS B52
VSS B48
VSS B44
VSS B40
VSS B4
VSS B36
VSS B32
VSS B28
VSS B26
VSS B24
VSS B20
VSS AY6
VSS AY59
VSS AY57
VSS AY53
VSS AY51
VSS AY4
VSS AY33
VSS AY30
VSS AY26
VSS AY24
VSS AY22
VSS AY18
VSS AY16
VSS AY11
VSS AW59
VSS AW51
VSS AW50
VSS AW47
VSS AW44
VSS AW42
VSS AW4
VSS AW37
VSS AW35
VSS AW33
VSS AW24
VSS
AV51 VSS
AV49 VSS
AV46 VSS
AV43 VSS
AV41 VSS
AV39 VSS
AV36
VSS
AV14 VSS
AU59 VSS
AU57
VSS
AU53 VSS
AU51
VSS
AU30
VSS
AU26 VSS
AU24 VSS
AU22 VSS
AU20 VSS
AU18 VSS
AU16 VSS
AU1 VSS
AT63 VSS
AT62 VSS
AT61 VSS
AT49 VSS
AT46 VSS
AT43 VSS
AT42 VSS
AT40 VSS
AT37 VSS
AT35 VSS
AT13 VSS
AR52 VSS
AR5 VSS
AR49 VSS
AR43 VSS
AR39 VSS
AR33 VSS
AR31 VSS
AR23 VSS
AR17 VSS
AR15
VSS
AP57 VSS
AP54 VSS
AP52 VSS
AP48 VSS
AP39
VSS
AP31
VSS
AP29 VSS
AP26 VSS
AP23
VSS
AP38
VSS
AP3
VSS
AV55
VSS D23
VSS D25
VSS D27
VSS D26
VSS
AU55
VSS
AU33
VSS
AR11
VSS
AV20
VSS
AV28
VSS
AV33
VSS
AV24
VSS
AV16
HASWELL_MCP_E
Rev1p2
16 OF 19
U1P
HASWELL-MCP-E-ULT_BGA1168
VSS
D49
VSS V3
VSS V7
VSS W20
VSS W22
VSS_SENSE E62
VSS V23
VSS AH46
VSS V58
VSS J10
VSS
D33
VSS L7
VSS H57
VSS
D41
VSS
D42
VSS
H13 VSS
G8
VSS
G5 VSS
G3
VSS
G18 VSS
F61 VSS
F58 VSS
F54
VSS
F46
VSS
F26 VSS
F20
VSS
E11 VSS
D8 VSS
D62
VSS
D57 VSS
D55 VSS
D54 VSS
D53 VSS
D51 VSS
D50 VSS
D5
VSS
D47 VSS
D46 VSS
D45 VSS
D43
VSS
D34
VSS
D35
VSS
D37
VSS
D38
VSS
D39
VSS
G6
VSS
G22
VSS
F30
VSS
E17
VSS
F34
VSS
F42
VSS AH16
VSS
F50
VSS
F38
VSS H17
VSS J22
VSS J59
VSS J63
VSS K1
VSS K12
VSS L13
VSS L15
VSS L17
VSS L18
VSS L20
VSS L58
VSS L61
VSS M22
VSS N10
VSS N3
VSS P59
VSS P63
VSS R10
VSS R8
VSS R22
VSS T1
VSS T58
VSS U20
VSS U61
VSS U22
VSS U9
VSS V10
VSS Y10
VSS Y59
VSS Y63
VSS
D59
HASWELL_MCP_E
Rev1p2
14 OF 19
U1N
HASWELL-MCP-E-ULT_BGA1168
VSS
AH34
VSS
AH36
VSS AJ39
VSS AJ41
VSS AJ35
VSS AJ47
VSS AJ54
VSS
AF15
VSS
AF18
VSS AP20
VSS AP17
VSS AN7
VSS AN63
VSS AN60
VSS AN52
VSS AN51
VSS AN48
VSS AN46
VSS AN45
VSS AN43
VSS AN42
VSS AN39
VSS AN36
VSS AN35
VSS AN32
VSS AN31
VSS AN17
VSS AM52
VSS AM31
VSS AM23
VSS AM17
VSS AL61
VSS AL60
VSS AL57
VSS AL54
VSS AL52
VSS AL46
VSS AL45
VSS AL40
VSS AL39
VSS AL36
VSS AL33
VSS AL31
VSS AL29
VSS AL26
VSS AL23
VSS AL22
VSS AL20
VSS AL17
VSS AL13
VSS AL10
VSS AK52
VSS AK3
VSS AK23
VSS AJ63
VSS AJ60
VSS AJ58
VSS AJ56
VSS AJ52
VSS AJ50
VSS AJ45
VSS AJ43
VSS
AJ29 VSS
AJ27 VSS
AJ25 VSS
AJ23 VSS
AJ14 VSS
AJ13 VSS
AH57 VSS
AH55 VSS
AH53
VSS
AH42 VSS
AH40
VSS
AH32 VSS
AH30 VSS
AH28 VSS
AH24 VSS
AH22 VSS
AH20 VSS
AH19 VSS
AH17 VSS
AG63 VSS
AG62 VSS
AG61 VSS
AG60 VSS
AG23 VSS
AG21 VSS
AG11 VSS
AG1
VSS
AF17
VSS
AF14 VSS
AF12 VSS
AF11 VSS
AE58 VSS
AE5 VSS
AE10 VSS
AD63 VSS
AD3 VSS
AD21 VSS
AC61 VSS
AB7 VSS
AB22 VSS
AB20 VSS
AB10 VSS
AA58 VSS
AA1 VSS
A56 VSS
A52 VSS
A48 VSS
A44 VSS
A40 VSS
A36 VSS
A32
VSS
A24 VSS
A18 VSS
A14 VSS
A11
VSS
A28
VSS AL51
VSS AM1
VSS AN23
VSS AN40
VSS AN49
VSS AP10
VSS
AH38
VSS
AH51 VSS
AH49 VSS
AH44
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

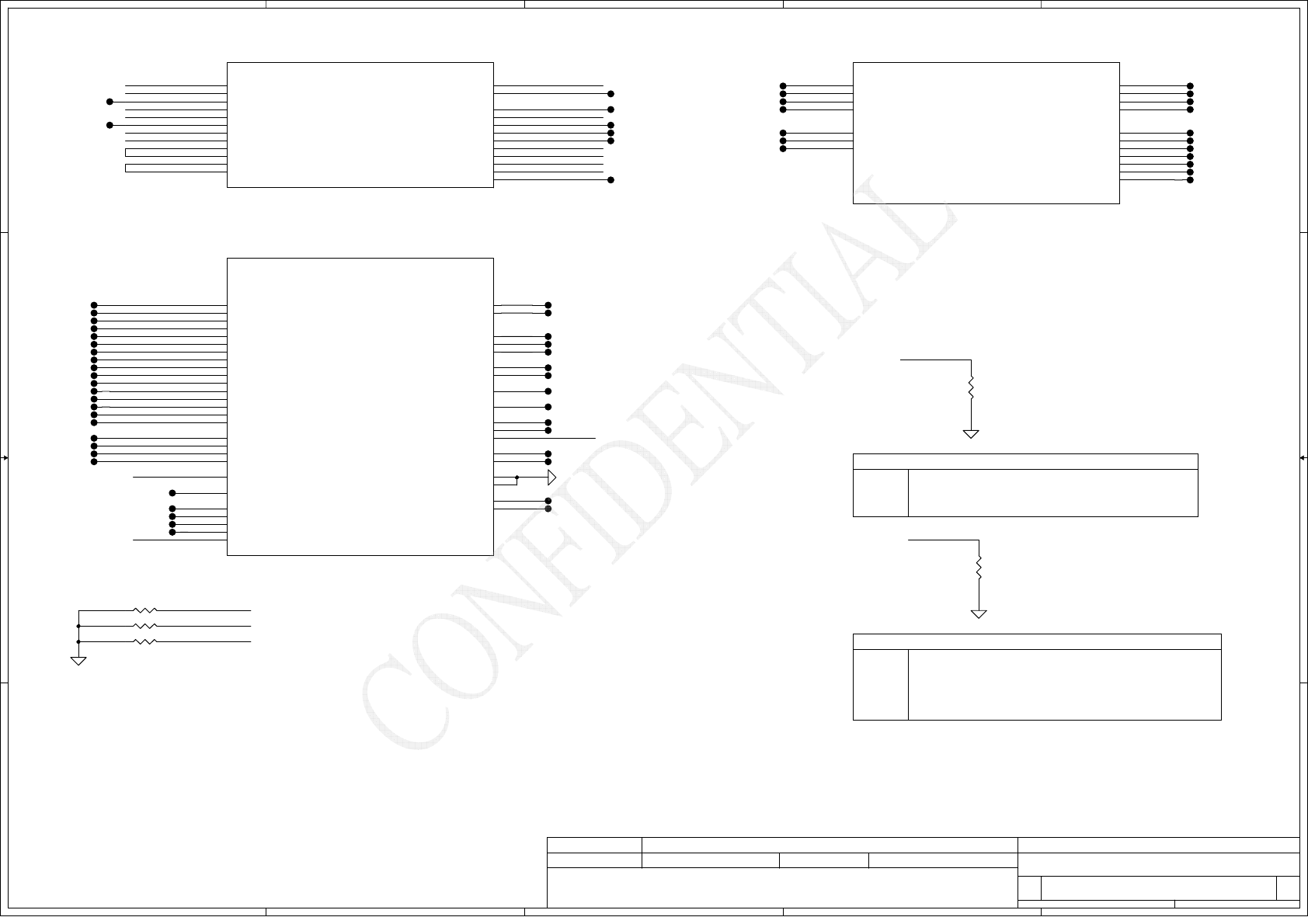

CFG4 1 : Disabled; No Physical Display Port
attached to Embedded Display Port
0 : Enabled; An external Display Port device is
connected to the Embedded Display Port
Display Port Presence Strap
CFG Straps for Processor
0: ENABLED; SET DFX ENABLED BIT
IN DEBUG INTERFACE MSR
1: DISABLED
CFG3
Physical Debug Enable (DFX Privacy)
DC_TEST_AY2_AW2
DC_TEST_AY3_AW3
DC_TEST_AY61_AW61
DC_TEST_AY2_AW2
DC_TEST_AY3_AW3
DC_TEST_AY61_AW61
DC_TEST_AY62_AW62
DC_TEST_AY62_AW62
DC_TEST_A3_B3
DC_TEST_A3_B3
DC_TEST_A61_B61
DC_TEST_A61_B61
DC_TEST_C1_C2
DC_TEST_B62_B63
CFG0
CFG1
CFG2
CFG3
CFG4
CFG5
CFG6
CFG7
CFG8
CFG9
CFG10
CFG11
CFG12
CFG13
CFG14
CFG15
CFG16
CFG17
CFG18
CFG19
CFG_RCOMP
TD_IREF
CFG_RCOMP
OPI_COMP
TD_IREF
CFG4
CFG3
OPI_COMP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(11/11) RSVD
Custom
14 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(11/11) RSVD
Custom
14 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HSW MCP(11/11) RSVD
Custom
14 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
T84@
T171 @
T89@
T53 @
T172 @
T62@
T49 @
T72@
HASWELL_MCP_E
Rev1p2
17 OF 19
U1Q
HASWELL-MCP-E-ULT_BGA1168
DAISY_CHAIN_NCTF_AW62 AW62
DAISY_CHAIN_NCTF_AW63 AW63
DAISY_CHAIN_NCTF_AW61 AW61
DAISY_CHAIN_NCTF_AW3 AW3
DAISY_CHAIN_NCTF_AW2 AW2
DAISY_CHAIN_NCTF_A62 A62
DAISY_CHAIN_NCTF_AV1 AV1
DAISY_CHAIN_NCTF_AW1 AW1
DAISY_CHAIN_NCTF_A60 A60
DAISY_CHAIN_NCTF_A61 A61
DAISY_CHAIN_NCTF_A4 A4
DAISY_CHAIN_NCTF_A3 A3
DAISY_CHAIN_NCTF_C2
C2 DAISY_CHAIN_NCTF_C1
C1 DAISY_CHAIN_NCTF_B63
B63 DAISY_CHAIN_NCTF_B62
B62
DAISY_CHAIN_NCTF_B2
B2
DAISY_CHAIN_NCTF_B3
B3
DAISY_CHAIN_NCTF_B61
B61
DAISY_CHAIN_NCTF_AY61
AY61
DAISY_CHAIN_NCTF_AY62
AY62
DAISY_CHAIN_NCTF_AY3
AY3
DAISY_CHAIN_NCTF_AY60
AY60
DAISY_CHAIN_NCTF_AY2
AY2
T173 @
T83@
T80@
T78@
HASWELL_MCP_E
Rev1p2
18 OF 19
U1R
HASWELL-MCP-E-ULT_BGA1168
RSVD AP7
RSVD U10
RSVD AL1
RSVD AM11
RSVD AU10
RSVD AU15
RSVD R23
RSVD N23
RSVD T23
RSVD
J21 RSVD
H22 RSVD
F22
RSVD
D15 RSVD
AV44 RSVD
AU44 RSVD
AT2
RSVD AW14
RSVD AY14
T174 @
T70@
T61@
T52 @
T175 @
T90 @
T51 @ T64@
T176 @
T56 @
T57 @
T77@
T177 @
T66@
T76@
T87@
T104 @
T82@
T88@
T178 @
T71@
T107 @
T74@
R223 49.9_0402_1%
12
T179 @
R224
1K_0402_1%
@
12
T54 @
T91 @
T108 @
T68@ T69@
T180 @
T93 @
T166 @
T55 @
T60@
T181 @
R226 8.2K_0402_5%
12
R222 49.9_0402_1%
12
T65@
T167 @
T81@
T85@
T182 @
T92 @
T79@
T168 @
T75@
T63@ T73@
T169 @
T86@
T67@
T94 @
R225
1K_0402_1%
12
T50 @
RESERVED
HASWELL_MCP_E
Rev1p2
19 OF 19
U1S
HASWELL-MCP-E-ULT_BGA1168
CFG17
AA61 CFG18
U63
CFG7
Y60
CFG11
U60
CFG12
T63
RSVD_TP AU63
RSVD_TP C63
RSVD_TP C62
RSVD_TP L60
RSVD_TP B51
RSVD_TP A51
CFG10
V60 CFG9
V61 CFG8
V62
CFG6
Y61
RSVD
A5
RSVD B43
RSVD N60
RSVD Y22
RSVD W23
RSVD D58
RSVD AV62
RSVD_TP AV63
VSS N21
VSS P22
CFG_RCOMP
V63
CFG19
U62
CFG13
T62
RSVD R20
RSVD P20
PROC_OPI_RCOMP AY15
TD_IREF
B12
RSVD
E1
RSVD
D1
RSVD
J20
RSVD
H18
CFG5
Y62 CFG4
AA60 CFG3
AA63 CFG2
AC63 CFG1
AC62 CFG0
AC60
CFG16
AA62
CFG15
T60 CFG14
T61
T170 @
T59@
T58@
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

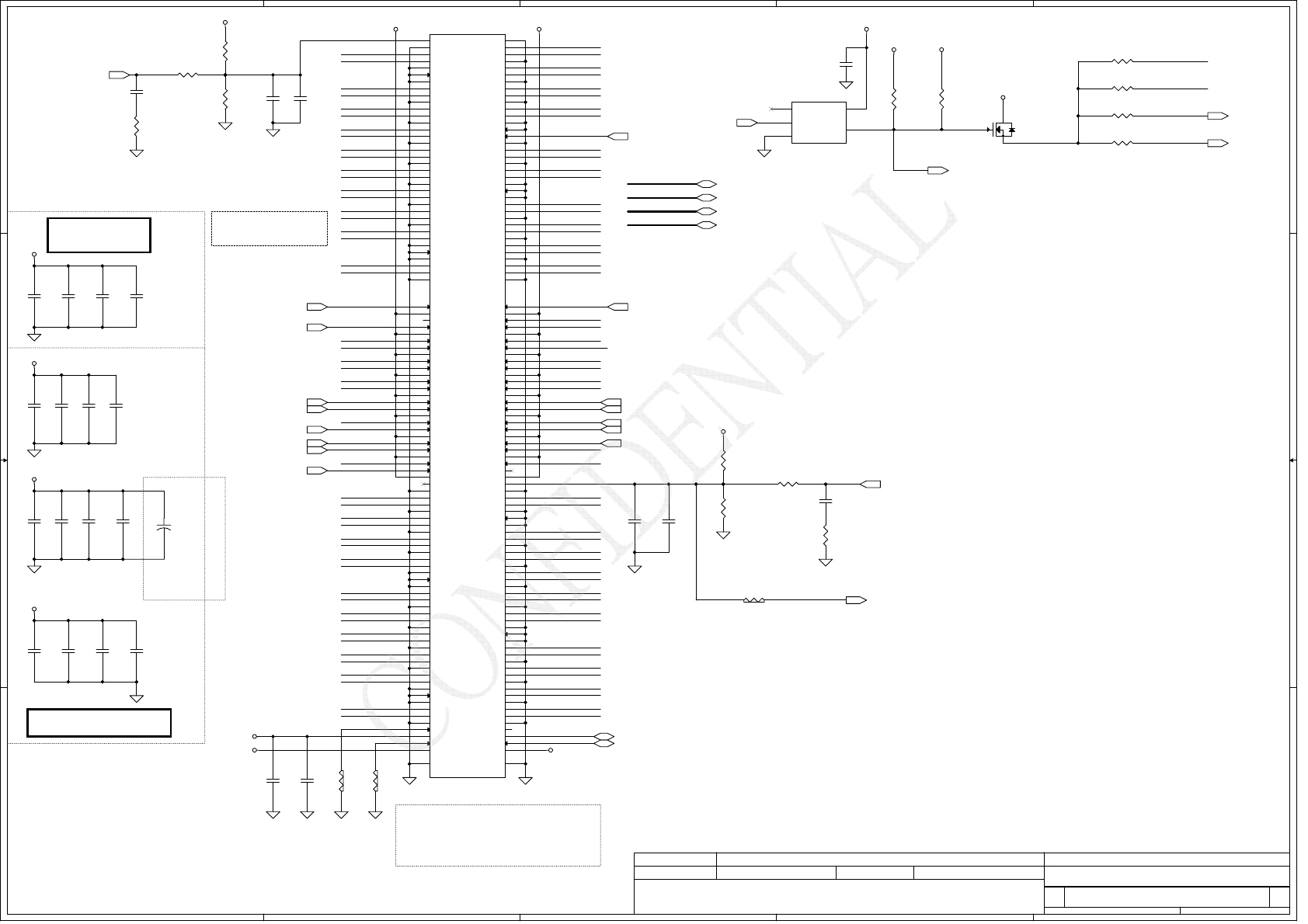

All VREF traces should
have 10 mil trace width
Layout Note:
Place near JDIMM1.203,204
Layout Note:
Place near JDIMM1
<Address: SA1:SA0=00>
DIMM_1 STD H:4mm
Channel A
SF000002Z00
330U 2.5V H4.2
17mohm OSCON
D_CK_SDATA
D_CK_SCLK
+VREF_CA
+V_DDR_REFA
DDRA_CS0_DIMMA#
SA_ODT0
SA_ODT1
SA_CLK_DDR1
SA_CLK_DDR#1
DDR_A_MA2
DDR_A_MA0
DDR_A_MA4
DDR_A_MA6
DDR_A_MA7
DDR_A_MA11
DDR_A_MA14
DDR_A_BS1
DDR_A_RAS#
DDR_A_MA15
DDRA_CKE1_DIMMA
DDR_A_D9
DDR_A_D12
DDR_A_D15
DDR_A_D11
DDR_A_D40
DDR_A_D52
DDR_A_D53
DDR_A_DQS1
DDR_A_DQS6
DDR_A_DQS#1
DDR_A_DQS#6
DIMM_DRAMRST#
DDR_A_D46
DDR_A_D55
DDR_A_D24
DDR_A_D45
DDR_A_D54
DDR_A_D27
DDR_A_D26
DDR_A_D25
DDR_A_D42
DDR_A_D5
DDR_A_D4
DDR_A_D19
DDR_A_D22
DDR_A_D37
DDR_A_D32
DDR_A_D39
DDR_A_D63
DDR_A_D59
DDR_A_D56
DDR_A_DQS2
DDR_A_DQS7
DDR_A_DQS#2
DDR_A_DQS#7
DDR_A_D57
DDR_A_D7
DDR_A_D35
DDR_A_D3
DDR_A_D23
DDR_A_D18
DDR_A_D0
DDR_A_D2
DDR_A_D6
DDR_A_D21
DDR_A_D20
DDR_A_D17
DDR_A_D16
DDR_A_D33
DDR_A_D34
DDR_A_D38
DDR_A_D62
DDR_A_D58
DDR_A_D60
DDR_A_D61
DDR_A_DQS0
DDR_A_DQS4
DDR_A_DQS#0
DDR_A_DQS#4
DDR_A_D36
DDR_A_D1
DDRA_CS1_DIMMA#
DDR_A_MA1
DDR_A_MA3
DDR_A_MA5
DDR_A_MA8
DDR_A_MA9
DDR_A_MA10
DDR_A_MA12
DDR_A_MA13
DDR_A_BS0
DDR_A_BS2
DDR_A_CAS#
DDR_A_WE#
DDRA_CKE0_DIMMA
SA_CLK_DDR0
SA_CLK_DDR#0
DDR_A_D13
DDR_A_D14
DDR_A_D8
DDR_A_D10
DDR_A_D29
DDR_A_D30
DDR_A_D31
DDR_A_D43
DDR_A_D47
DDR_A_D49
DDR_A_D48
DDR_A_DQS3
DDR_A_DQS5
DDR_A_DQS#3
DDR_A_DQS#5
DDR_A_D41
DDR_A_D28
DDR_A_D44
DDR_A_D50
DDR_A_D51
SB_ODT1
SB_ODT0
SA_ODT1
SA_ODT0
M_A_B_DIMM_ODT
D_CK_SDATA 16,7
D_CK_SCLK 16,7
SA_DIMM_VREFDQ5
DDR_A_D[0..63] 5
DDR_A_DQS[0..7] 5
DDR_A_DQS#[0..7] 5
DDR_A_MA[0..15] 5
DDRA_CS0_DIMMA# 5
SA_CLK_DDR1 5
SA_CLK_DDR#1 5
DDRA_CKE1_DIMMA 5
DIMM_DRAMRST# 16,4
DDR_A_BS1 5
DDR_A_RAS# 5
DDR_A_BS25
DDR_A_CAS#5 DDR_A_WE#5
DDR_A_BS05
DDRA_CS1_DIMMA#5
DDRA_CKE0_DIMMA5
SA_CLK_DDR#05 SA_CLK_DDR05
SM_DIMM_VREFCA 16,5
DDR_PG_CTRL4
DDR_VTT_PG_CTRL 36
SB_ODT0 16
SB_ODT1 16
+VREF_CB 16
+3VS
+0.675VS
+0.675VS
+0.675VS
+1.35V
+1.35V
+1.35V
+1.35V +1.35V
+1.35V +1.35V
+5VALW
+1.35V
+1.35V
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DDRIII DIMMA
Custom
15 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DDRIII DIMMA
Custom
15 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DDRIII DIMMA
Custom
15 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C122
1U_0402_6.3V6K
@
1
2
C158
0.022U_0402_25V7K
@
1
2
C110
1U_0402_6.3V6K
1
2
R295
1.8K_0402_1%
12
+
C118
330U_2.5V_M
@
1
2
R54
1.8K_0402_1%
12
C119
2.2U_0402_6.3V6M
@
1
2
C106
0.1U_0402_16V7K
1
2
R212
0_0402_5%
@
1 2
R56
1.8K_0402_1%
12
R302
0_0402_5%
@
1 2
R188
66.5_0402_1%
1 2
G
D
S
Q18
LBSS138LT1G_SOT-23-3
2
13
R211
0_0402_5%
@
1 2
C126
2.2U_0402_6.3V6M
@
1
2
R294
24.9_0402_1%
@
12
U45
74AUP1G07GW_TSSOP5
GND
3
A
2
NC
1VCC 5
Y4
C34
0.1U_0402_16V7K
@
1
2
R189
66.5_0402_1%
1 2
C116
10U_0603_6.3V6M
1
2
C115
10U_0603_6.3V6M
1
2
R190
66.5_0402_1%
1 2
C124
1U_0402_6.3V6K
1
2
C105
2.2U_0402_6.3V6M
@
1
2
C121
1U_0402_6.3V6K
@
1
2
R187
66.5_0402_1%
1 2
JDIMM1
TYCO_2-2013022-1
CONN@
SP07000JN10
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
C107
1U_0402_6.3V6K
@
1
2
C123
1U_0402_6.3V6K
1
2
R296
2_0402_1%
1 2
C164
10U_0603_6.3V6M
EMC@
1
2
R186
100K_0402_5%
@
1 2
C112
10U_0603_6.3V6M
1
2
C125
0.1U_0402_16V7K
1
2
R185
1.8K_0402_1%
12
R176
24.9_0402_1% @
12
R293
2_0402_1%
1 2
C114
10U_0603_6.3V6M
1
2
C113
10U_0603_6.3V6M
1
2
R191
100K_0402_5%
1 2
C162
0.022U_0402_25V7K
@
1
2
C108
1U_0402_6.3V6K
1
2
C109
1U_0402_6.3V6K
@
1
2
C120
0.1U_0402_16V7K
1
2
C111
10U_0603_6.3V6M
1
2
C117
10U_0603_6.3V6M
EMC@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

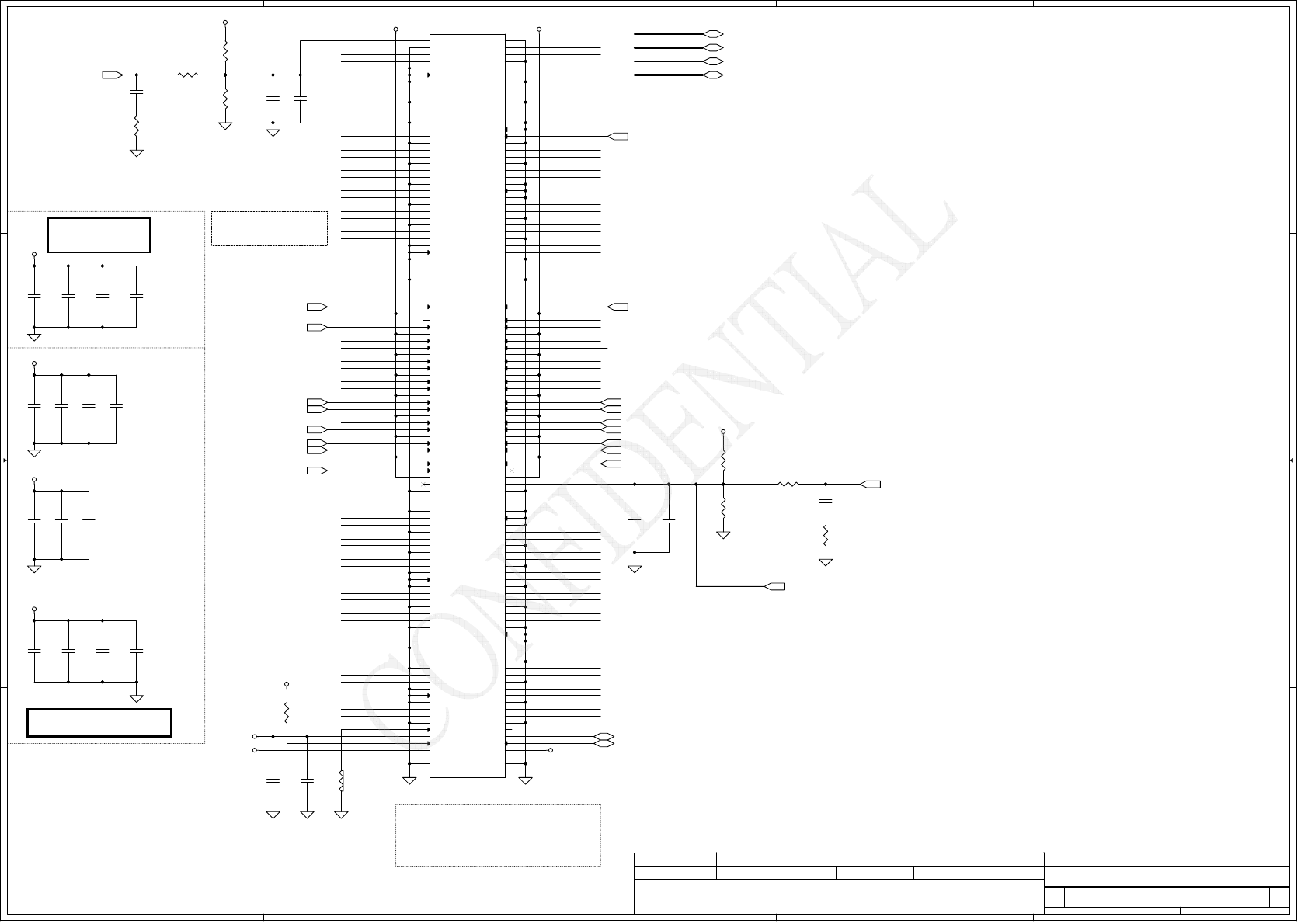

All VREF traces should
have 10 mil trace width
Layout Note:
Place near JDIMM1.203,204
Layout Note:
Place near JDIMM1
<Address: SA1:SA0=10>
DIMM_2 STD H:4mm
Channel B
D_CK_SDATA
D_CK_SCLK
+VREF_CB
+V_DDR_REFB
DDRB_CS0_DIMMB#
SB_ODT0
SB_ODT1
SB_CLK_DDR1
SB_CLK_DDR#1
DDR_B_MA2
DDR_B_MA0
DDR_B_MA4
DDR_B_MA6
DDR_B_MA7
DDR_B_MA11
DDR_B_MA14
DDR_B_BS1
DDR_B_RAS#
DDR_B_MA15
DDRB_CKE1_DIMMB
DDR_B_D12
DDR_B_D9
DDR_B_D13
DDR_B_D15
DDR_B_D44
DDR_B_D61
DDR_B_D60
DDR_B_DQS1
DDR_B_DQS7
DDR_B_DQS#1
DDR_B_DQS#7
DIMM_DRAMRST#
DDR_B_D43
DDR_B_D62
DDR_B_D24
DDR_B_D45
DDR_B_D63
DDR_B_D30
DDR_B_D31
DDR_B_D25
DDR_B_D47
DDR_B_D5
DDR_B_D0
DDR_B_D17
DDR_B_D19
DDR_B_D37
DDR_B_D32
DDR_B_D38
DDR_B_D51
DDR_B_D55
DDR_B_D54
DDR_B_DQS2
DDR_B_DQS6
DDR_B_DQS#2
DDR_B_DQS#6
DDR_B_D50
DDR_B_D6
DDR_B_D34
DDR_B_D2
DDR_B_D18
DDR_B_D16
DDR_B_D4
DDR_B_D3
DDR_B_D7
DDR_B_D21
DDR_B_D20
DDR_B_D22
DDR_B_D23
DDR_B_D33
DDR_B_D35
DDR_B_D39
DDR_B_D52
DDR_B_D49
DDR_B_D48
DDR_B_D53
DDR_B_DQS0
DDR_B_DQS4
DDR_B_DQS#0
DDR_B_DQS#4
DDR_B_D36
DDR_B_D1
DDRB_CS1_DIMMB#
DDR_B_MA1
DDR_B_MA3
DDR_B_MA5
DDR_B_MA8
DDR_B_MA9
DDR_B_MA10
DDR_B_MA12
DDR_B_MA13
DDR_B_BS0
DDR_B_BS2
DDR_B_CAS#
DDR_B_WE#
DDRB_CKE0_DIMMB
SB_CLK_DDR0
SB_CLK_DDR#0
DDR_B_D8
DDR_B_D10
DDR_B_D14
DDR_B_D11
DDR_B_D28
DDR_B_D26
DDR_B_D27
DDR_B_D46
DDR_B_D42
DDR_B_D59
DDR_B_D58
DDR_B_DQS3
DDR_B_DQS5
DDR_B_DQS#3
DDR_B_DQS#5
DDR_B_D41
DDR_B_D29
DDR_B_D40
DDR_B_D57
DDR_B_D56
D_CK_SDATA 15,7
D_CK_SCLK 15,7
SB_DIMM_VREFDQ5
DDRB_CS0_DIMMB# 5
SB_ODT0 15
SB_ODT1 15
SB_CLK_DDR1 5
SB_CLK_DDR#1 5
DDRB_CKE1_DIMMB 5
DIMM_DRAMRST# 15,4
DDR_B_BS1 5
DDR_B_RAS# 5
DDR_B_BS25
DDR_B_CAS#5 DDR_B_WE#5
DDR_B_BS05
DDRB_CS1_DIMMB#5
DDRB_CKE0_DIMMB5
SB_CLK_DDR#05 SB_CLK_DDR05
DDR_B_D[0..63] 5
DDR_B_DQS[0..7] 5
DDR_B_DQS#[0..7] 5
DDR_B_MA[0..15] 5
SM_DIMM_VREFCA 15,5
+VREF_CB 15
+3VS
+0.675VS
+0.675VS
+0.675VS
+1.35V
+1.35V
+1.35V
+1.35V +1.35V
+1.35V
+3VS
+1.35V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.2
DDRIII DIMMB
Custom
16 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.2
DDRIII DIMMB
Custom
16 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9531P Schematic
0.2
DDRIII DIMMB
Custom
16 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R298
1.8K_0402_1%
@
12
C136
10U_0603_6.3V6M
1
2
R213
1.8K_0402_1%
12
C133
10U_0603_6.3V6M
1
2
C138
10U_0603_6.3V6M
1
2
JDIMM2
TYCO_2-2013022-1
CONN@
SP07000JN10
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
C159
0.022U_0402_25V7K
@
1
2
C144
1U_0402_6.3V6K
@
1
2
R297
2_0402_1%
1 2
C132
1U_0402_6.3V6K
1
2
C163
0.022U_0402_25V7K
@
1
2
C146
1U_0402_6.3V6K
@
1
2
C141
2.2U_0402_6.3V6M
@
1
2
R231
0_0402_5%
@
1 2
C143
1U_0402_6.3V6K
1
2
C131
1U_0402_6.3V6K
@
1
2
C137
10U_0603_6.3V6M
1
2
C145
1U_0402_6.3V6K
1
2
C135
10U_0603_6.3V6M
1
2
R229
10K_0402_5%
1 2
C142
0.1U_0402_16V7K
1
2
C129
1U_0402_6.3V6K
@
1
2
R299
24.9_0402_1%
@
12
C148
2.2U_0402_6.3V6M
@
1
2
R58
1.8K_0402_1%
@
12
C127
2.2U_0402_6.3V6M
@
1
2
R300
0_0402_5%
@
1 2
R57
1.8K_0402_1%
12
C128
0.1U_0402_16V7K
1
2
C147
0.1U_0402_16V7K
1
2
C130
1U_0402_6.3V6K
1
2
C139
10U_0603_6.3V6M
@
1
2
R179
24.9_0402_1% @
12
C134
10U_0603_6.3V6M
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

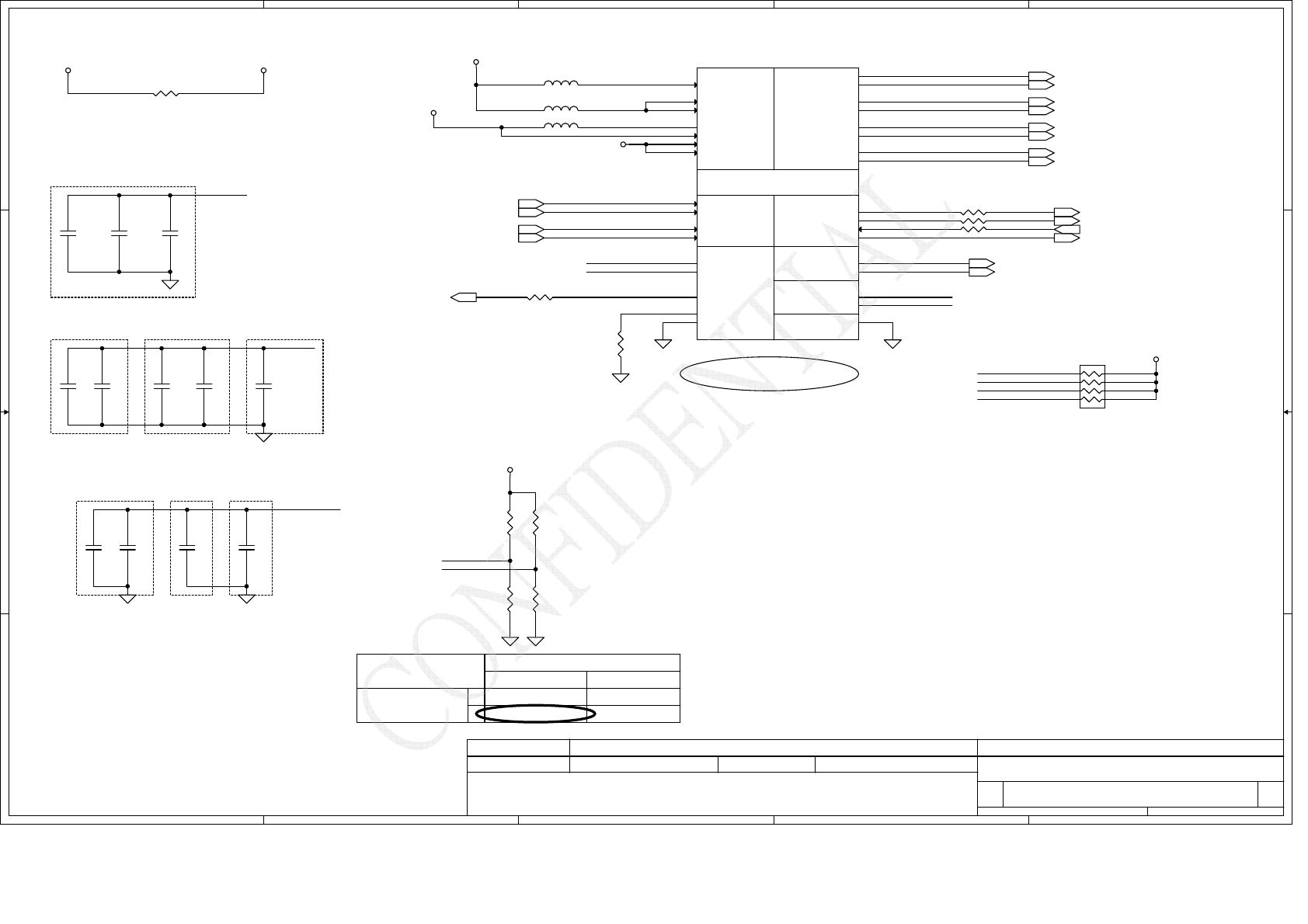

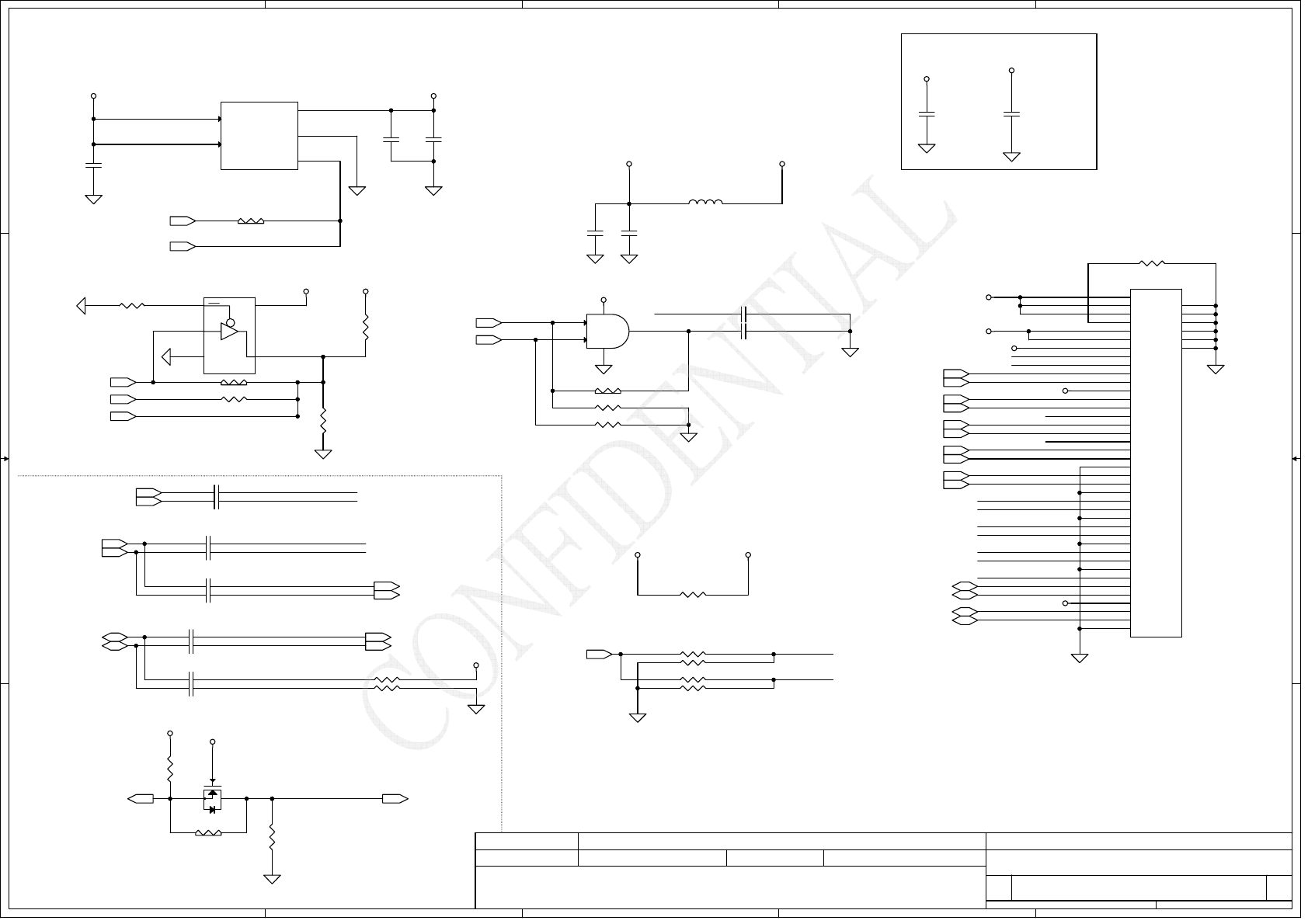

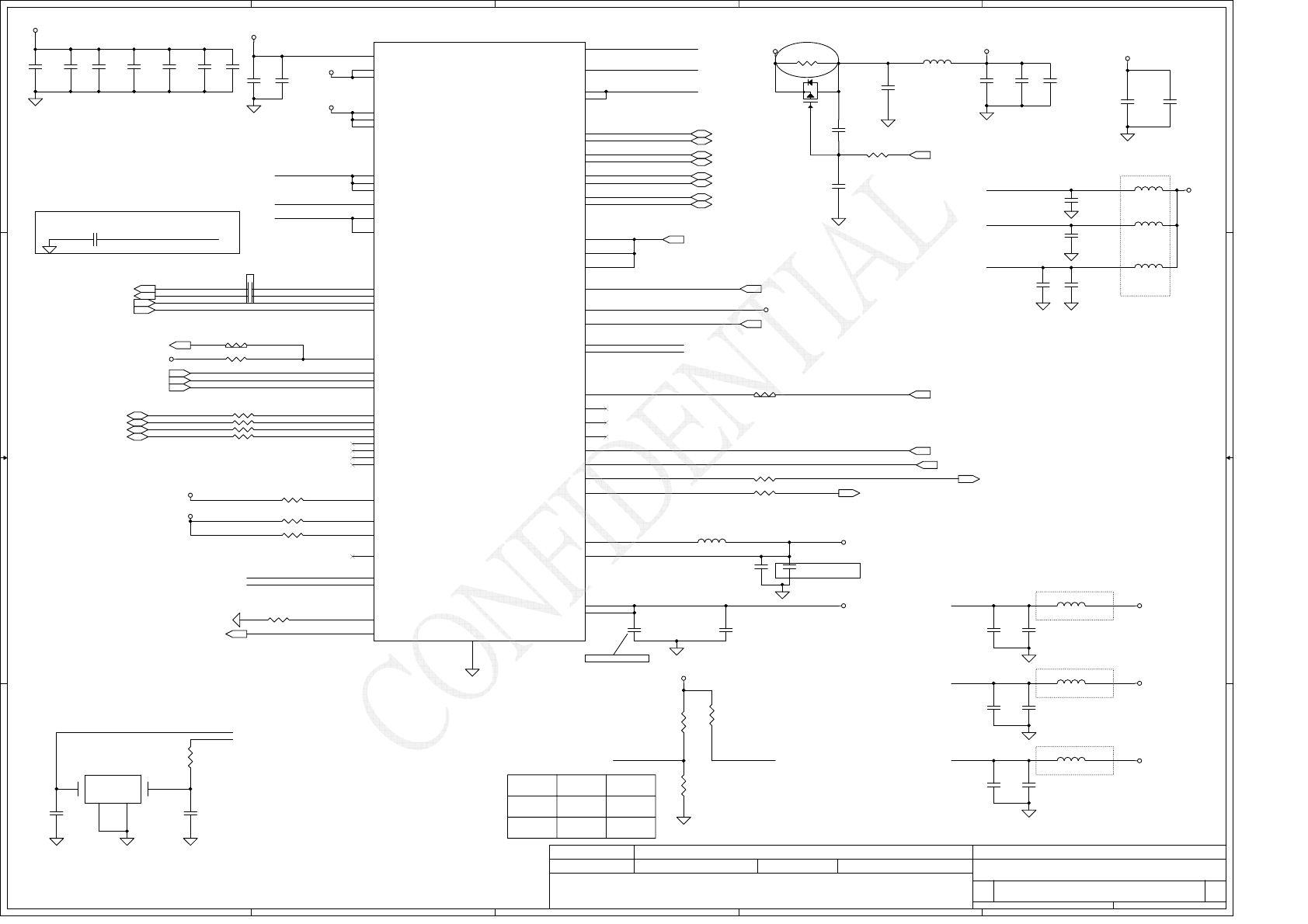

60mil
40mil
60mil
60mil
30mil 30mil
Close to Pin3
Close to L64 Close to Pin13
Close to
Pin27
Close to
Pin7
Close to P18
60mil
MODE_CFG0(PIN30)
MODE_CFG1(PIN31) 0
1
01
X
ROMONLYMODE EEPROMMODE
EPMODE
Close to
L6
use2132Ssymbol
SWR_VDD
DP_V33
TL_INVTPWM
I2CC_SCL
I2CC_SDA
+1.2V_TL_OUT
MODE_CFG1
MODE_CFG0
DP_V33
SWR_VDD
+1.2V_TL
CSCL
CSDA
I2CC_SDA
I2CC_SCL
TL_HPD
MODE_CFG0
MODE_CFG1
TXOUT1+
TXOUT1-
TXOUT2+
TXOUT2-
TXOUT_CLK+
TXOUT_CLK-
TXOUT0+
TXOUT0-
CSCL
CSDA
I2CC_SCL 18
I2CC_SDA 18
TL_BKOFF# 18
INVTPWM 18
EDP_AUXP_C_TL18
EDP_TXN0_C_TL18 EDP_TXP0_C_TL18
EDP_AUXN_C_TL18
PCH_INV_PWM 18,8
EDP_HPD18
TL_ENVDD 18
TXOUT1- 18
TXOUT2- 18
TXOUT2+ 18
TXOUT_CLK- 18
TXOUT_CLK+ 18
TXOUT1+ 18
TXOUT0+ 18
TXOUT0- 18
+3VS_TL
+3VS +3VS_TL
+3VS_TL
+1.2V_TL
+1.2V_TL
+3VS_TL
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
LVDS Translator - RTD2132R
B
17 42Monday, April 08, 2013
2011/07/08 2015/07/08
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
LVDS Translator - RTD2132R
B
17 42Monday, April 08, 2013
2011/07/08 2015/07/08
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
LVDS Translator - RTD2132R
B
17 42Monday, April 08, 2013
2011/07/08 2015/07/08
R943
4.7K_0402_5%
@
1 2
R936
1K_0402_5%
TL@
1 2
C983
0.1U_0402_16V4Z
TL@
1
2
C992
0.1U_0402_16V4Z
TL@
1
2
C986
22U_0805_6.3V6M
TL@
1
2
C990
0.1U_0402_16V4Z
TL@
1
2
C988
0.1U_0402_16V4Z
TL@
1
2
L6
4.7UH_PG031B-4R7MS_1.1A_20%
TL@ 1 2
C987
0.1U_0402_16V4Z
TL@
1
2
L63
HCB2012KF-221T30 0805
TL@ 12
R944
4.7K_0402_5%
TL@
1 2
R938
12K_0402_1%
TL@
1 2
R945
4.7K_0402_5%
TL@
1 2
R934 0_0402_5%
TL@
1 2
R928 0_0603_5%TL@ 12
R948 0_0402_5%
TL@
1 2
L64
HCB2012KF-221T30 0805
TL@ 12
C982
0.1U_0402_16V4Z
TL@
1
2
C981
10U_0603_6.3V6M
TL@
1
2
RP41
TL@
4.7K_8P4R_5%
1 8
2 7
3 6
4 5
R946
4.7K_0402_5%
@
1 2
RTD2132S
LVDS
Power DP-IN
LVDS
EDID
ROM
GPIO
Other
RTD2132R-CG_QFN32_5X5
U50 TL@
Part Number = SA000069200
TXEC- 20
TXE0- 26
DP_V33
3
DP_V12
7
CIICSCL1
9
TXE1- 24
DP_REXT
8
GPIO(PWM OUT) 14
AUX_N
1
TXE2- 22
GPIO(BL_EN) 17
MIICDA1 28
TXE2+ 21
PVCC
18
AUX_P
2
MIICSDA0 30
TXEC+ 19
SWR_LX
12 TXE1+ 23
TXE0+ 25
MIICSCL0 31
MIICSCL1 29
SWR_VCCK
11
GPIO(Panel_VCC) 15
VCCK
27
LANE0P
5
CIICSDA1
10
GPIO(PWM IN) 16
LANE0N
6
GND 33
SWR_VDD
13
HPD
32
DP_GND
4
C989
10U_0603_6.3V6M
TL@
1
2
C991
0.1U_0402_16V4Z
TL@
1
2
C984
10U_0603_6.3V6M
TL@
1
2
C985
0.1U_0402_16V4Z
TL@
1
2
R932 0_0402_5%
TL@
1 2

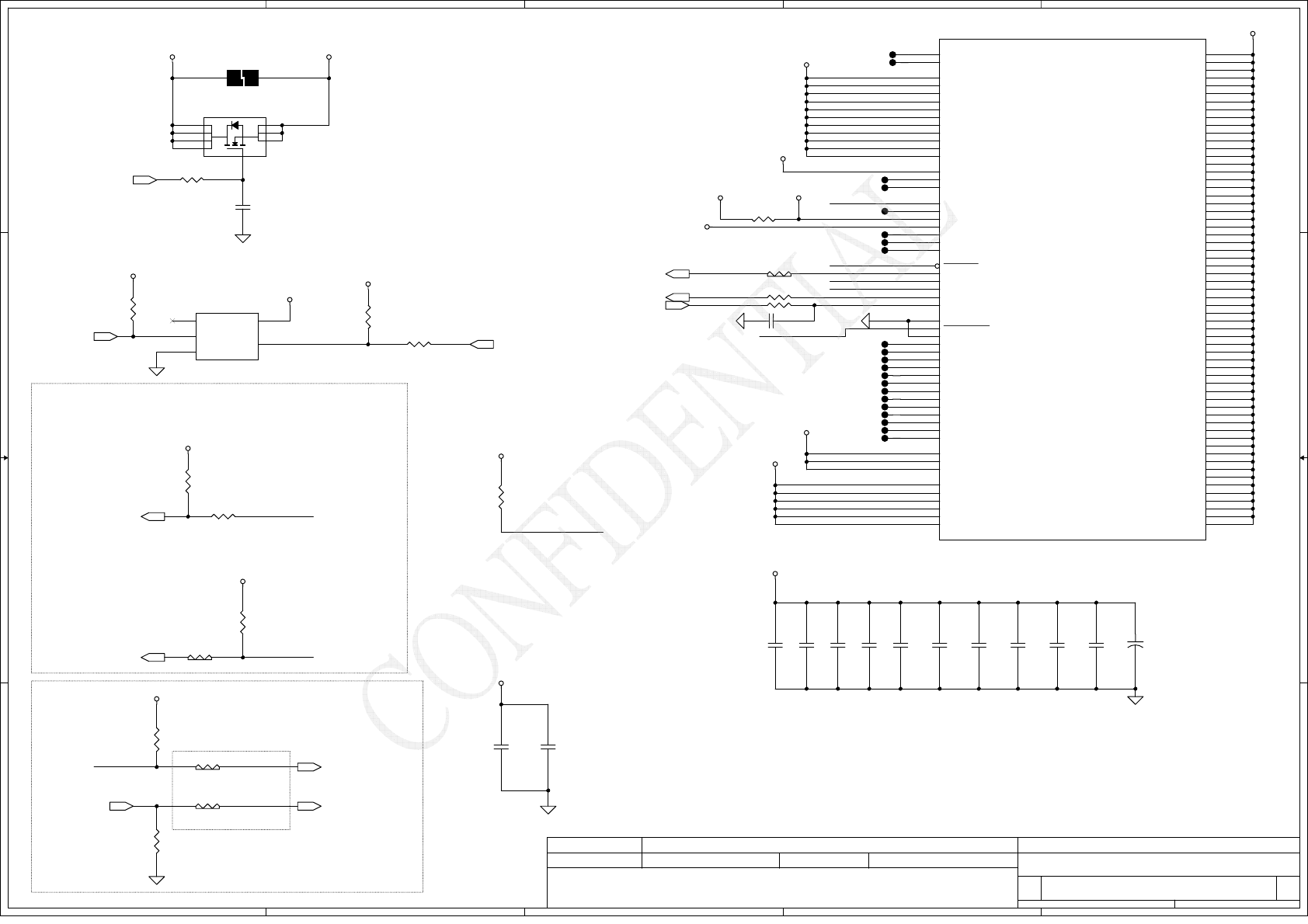

A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

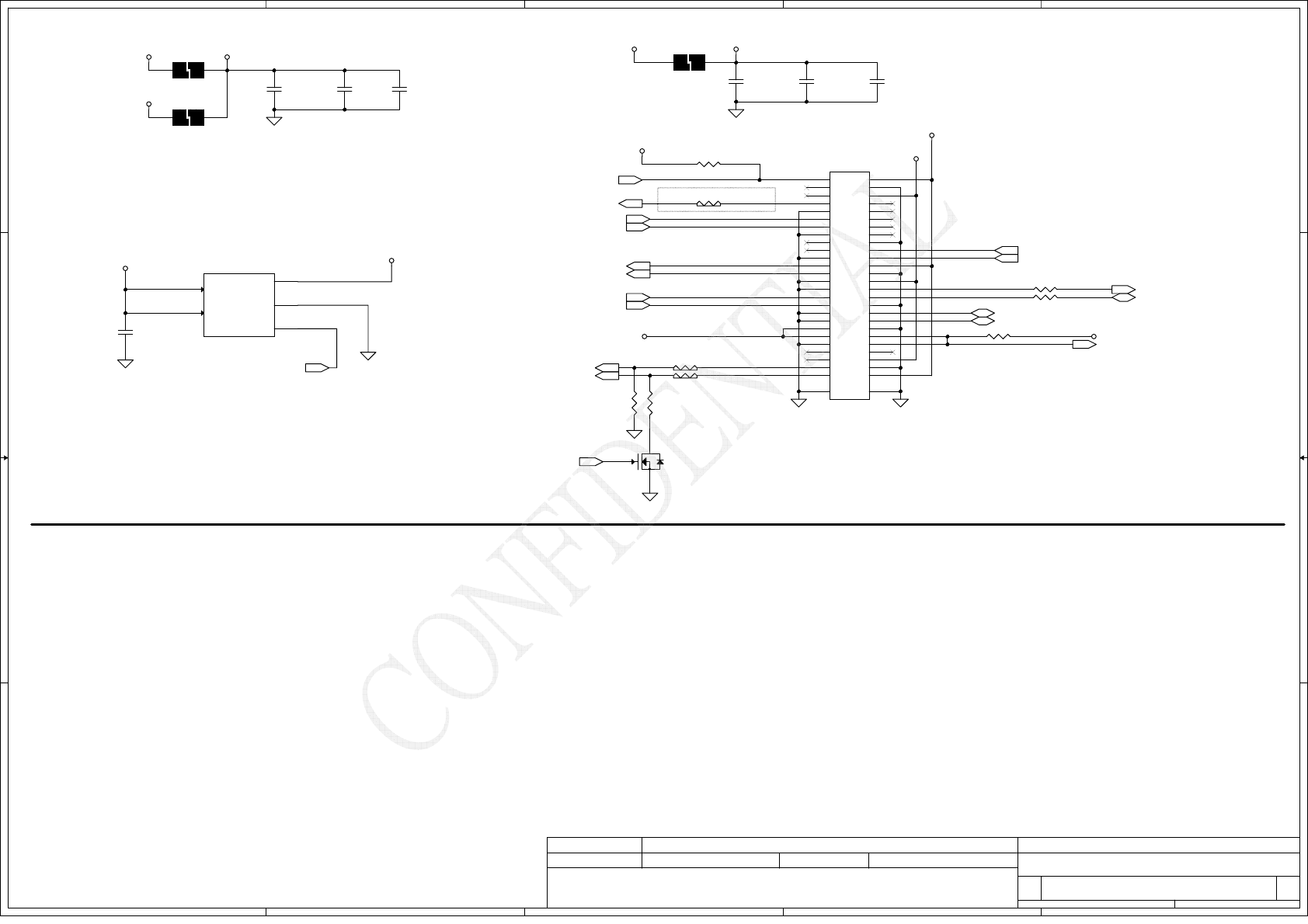

LCD POWER CIRCUIT
SM010014520 3000ma
220ohm@100mhz
DCR 0.04
W=60mils
LCD/ LED PANEL Conn.
Place closed to JLVDS1
W=60mils
eDP
For Camera
W=60mils
W=60mils
W=60mils
Touch Module
TS_INT_1 for TS one chip solution
TS_INT_2 for TS two chip solution
INVTPWM
EDP_TXP0_C
EDP_TXN0_C
EDP_TXP1_C
EDP_TXN1_C
EDP_HPD
INVTPWM
INVTPWM
DISPOFF#
TXOUT0+
TXOUT0-
TXOUT1+
TXOUT1-
TXOUT2+
TXOUT2-
TXOUT_CLK+
TXOUT_CLK-
I2CC_SCL
I2CC_SDA
USB20_N7
USB20_P7
EDP_HPD
EDP_TXP0_C
EDP_TXN0_C
EDP_AUXP_C
EDP_AUXN_C
EDP_TXP1_C
EDP_TXN1_C
TL_BKOFF#
BKOFF# DISPOFF#
USB20_N6
USB20_P6
EDP_AUXP_C
EDP_AUXN_C
EDP_AUXP_C_TL
EDP_AUXN_C_TL
EDP_TXP0_C_TL
EDP_TXN0_C_TL
TS_EN_1
TS_EN_2
TS_EN_1
TS_EN_2
PCH_INV_PWM17,8
EDP_AUXP4
EDP_TXP04 EDP_TXN04
EDP_AUXN4
EDP_TXN14 EDP_TXP14
CPU_EDP_HPD8
EDP_DISP_UTIL4
TL_ENVDD17
PCH_ENVDD8
INVTPWM17
EDP_HPD 17
USB20_P710 USB20_N710
I2CC_SCL17 I2CC_SDA17
TXOUT0-17 TXOUT0+17
TXOUT1-17 TXOUT1+17
TXOUT2-17 TXOUT2+17
TXOUT_CLK-17 TXOUT_CLK+17
BKOFF#27
TL_BKOFF#17
USB20_P610 USB20_N610
EDP_AUXN_C_TL 17
EDP_AUXP_C_TL 17
EDP_TXN0_C_TL 17
EDP_TXP0_C_TL 17
TS_EN27
+3VS
+INVPWR_B+ B+
+LCDVDD
+3VS
+3VS
+5VS
+3VS
+INVPWR_B+
+LCDVDD
+3VS +LCDVDD
+3VS
+3VS
+3VS
+5VS_TS
+3VS
+5VS_TS+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
eDP Connector
Custom
18 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
eDP Connector
Custom
18 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
eDP Connector
Custom
18 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
U22
NC7SZ08P5X_NL_SC70-5
TL@
B
2
A
1Y4
P5
G
3
R426 0_0402_5%TS@
1 2
R959
100K_0402_5%
@
1 2
C372 0.1U_0402_16V7K
EDP@
1 2
C367
4.7U_0603_6.3V6K
1
2
U20
M74VHC1GT125DF2G_SC70-5
@
OE
1
IN A
2
GND
3OUT Y 4
Vcc 5
R406
0_0402_5%
@
1 2
R613 100K_0402_1%@ 12
C528 220P_0402_50V7K
XEMC@
1 2
R280 10K_0402_5%@
1 2
L11
HCB2012KF-221T30 0805
EMC@
12
C368
0.1U_0402_16V4Z
@
1
2
C374 0.1U_0402_16V7K
1 2
C375
0.1U_0402_16V4Z
1
2
R614 100K_0402_1%@ 12
R949 0_0402_5%@
1 2
R951 100K_0402_5%TL@
1 2
C373 0.1U_0402_16V7K1 2
R404 0_0402_5%@
1 2
C365
68P_0402_50V8J
XEMC@
1
2
C364
1000P_0402_50V7K
XEMC@ 1
2
R364
100K_0402_5%
12
R393
10K_0402_5%
@
12
R947 0_0402_5%
@
1 2
C549 220P_0402_50V7K
XEMC@
1 2
R383
10K_0402_5%
@
12
G
D
S
Q13
L2N7002LT1G_SOT23-3
@
2
13
C369 0.1U_0402_16V7K
TL@
1 2
R81
0_0603_5%
TS@
1 2
R401
1K_0402_5%
@
12
R414 0_0402_5%TS@
1 2
U8
G5243T11U_SOT23-5
IN
5
IN
4
OUT 1
EN 3
GND 2
C140
1U_0402_6.3V6K
1
2
R363 0_0402_5%
@
1 2
R362 100K_0402_5%
@
1 2
C370 0.1U_0402_16V7K
TL@
1 2
C419
0.1U_0402_16V4Z
@1
2
C376 0.1U_0402_16V7K
EDP@
1 2
R424 0_0402_5%@
1 2
C388 0.1U_0402_16V7K
TL@
1 2
C371 0.1U_0402_16V7K
EDP@
1 2
C377 0.1U_0402_16V7K
EDP@
1 2 R425 0_0402_5%@
1 2
C389 0.1U_0402_16V7K
TL@
1 2
JLVDS1
ACES_50203-04001-001
CONN@
SP010014B00
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
G1 41
G2 42
G3 43
G4 44
G5 45
G6 46
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
SM070001310 400ma 90ohm@100mhz DCR 0.3

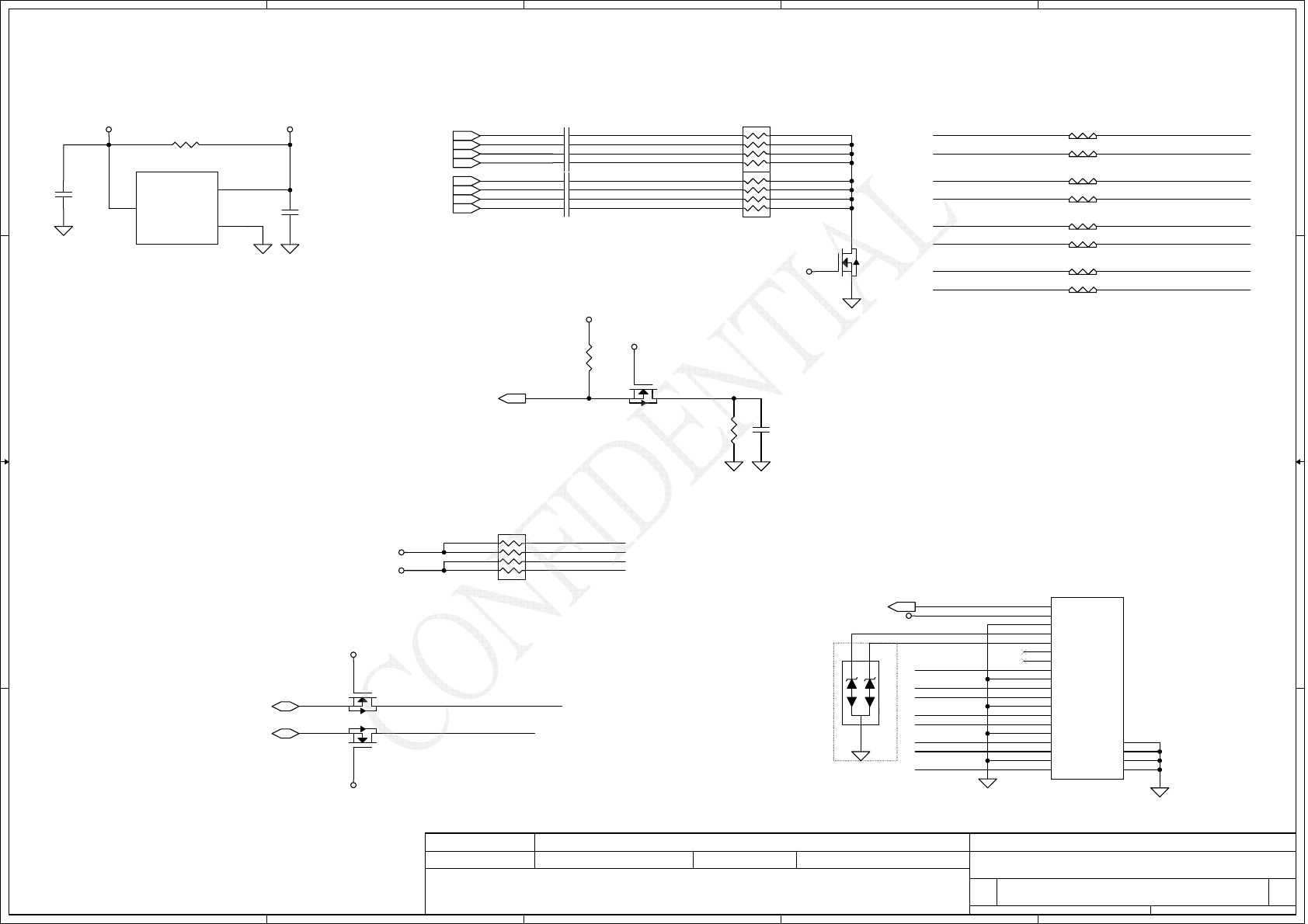

HDMI connector
Reserved for ESD
W=40mils
HDMI_HPD
HDMI_TX0-
HDMI_TX0+
HDMI_CLK-
HDMI_CLK+
HDMI_SDATA
HDMI_SCLK
HDMI_R_CK-
HDMI_R_CK+
HDMI_R_D0+
HDMI_R_D0-
HDMI_R_D1+
HDMI_R_D1-
HDMI_R_D2-
HDMI_R_D2+
HDMI_HPD
HDMI_SCLK
HDMI_SDATA
DDI2_CTRL_CK
DDI2_CTRL_DATA
HDMI_SDATA
HDMI_SCLK
HDMI_R_CK+
HDMI_GND
HDMI_CLK-
HDMI_TX0-
HDMI_TX1-
HDMI_TX2-
HDMI_TX2+
HDMI_TX1+
HDMI_TX0+
HDMI_CLK+
HDMI_R_D2-
HDMI_R_D2+
HDMI_R_D1-
HDMI_R_D0+
HDMI_R_D1+
HDMI_R_D0-
HDMI_R_CK-HDMI_TX1-
HDMI_TX1+
HDMI_TX2+
HDMI_TX2-
CPU_DP2_N34 CPU_DP2_P34
CPU_DP2_N24 CPU_DP2_P24
CPU_HDMI_HPD8
DDI2_CTRL_CK8
DDI2_CTRL_DATA8
HDMI_HPD25
CPU_DP2_N14 CPU_DP2_P14 CPU_DP2_N04 CPU_DP2_P04
+3VS
+HDMI_5V_OUT
+3VS
+HDMI_5V_OUT
+3VS
+3VS
+HDMI_5V_OUT
+3VS
+5VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDMI Conn
Custom
19 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDMI Conn
Custom
19 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDMI Conn
Custom
19 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R376
1M_0402_5%
12
R367
0_0603_5%
@
1 2
R369 0_0402_5%@
12
R374 0_0402_5%@
12
C382 0.1U_0402_16V7K
12
Q14B
DMN66D0LDW-7_SOT363-6
34
5
Q14A
DMN66D0LDW-7_SOT363-6
61
2
RP17
680_8P4R_5%
1 8
2 7
3 6
4 5
C386 0.1U_0402_16V7K
12
RP18
680_8P4R_5%
1 8
2 7
3 6
4 5
R370 0_0402_5%@
12
C385 0.1U_0402_16V7K
12
R375 0_0402_5%@
12
C384 0.1U_0402_16V7K
12
D2
XEMC@
YSLC05CH_SOT23-3
12
3
JHDMI1
ACON_HMR2U-AK120C
CONN@
DC232002700
D2+
1D2_shield
2D2-
3D1+
4D1_shield
5D1-
6D0+
7D0_shield
8D0-
9CK+
10 CK_shield
11 CK-
12 CEC
13 Reserved
14 SCL
15 SDA
16 DDC/CEC_GND
17 +5V
18 HP_DET
19
GND 20
GND 21
GND 22
GND 23
C380 0.1U_0402_16V7K
12
R371 0_0402_5%@
12
C378
0.1U_0402_16V4Z
EMC@
1
2
C379 0.1U_0402_16V7K
12
U52
AP2330W-7_SC59-3
GND 2
OUT 3
IN
1
R372 0_0402_5%@
12
R368 0_0402_5%@
12
R121
100K_0402_5%
12
Q15B
DMN66D0LDW-7_SOT363-6
34
5
C396
0.1U_0402_16V4Z
EMC@
1
2
Q15A
DMN66D0LDW-7_SOT363-6
61
2
C387
220P_0402_50V7K
EMC@
1
2
R373 0_0402_5%@
12
RP15
2.2K_0804_8P4R_5%
1 8
2 7
3 6
4 5
C383 0.1U_0402_16V7K
12
C381 0.1U_0402_16V7K
12

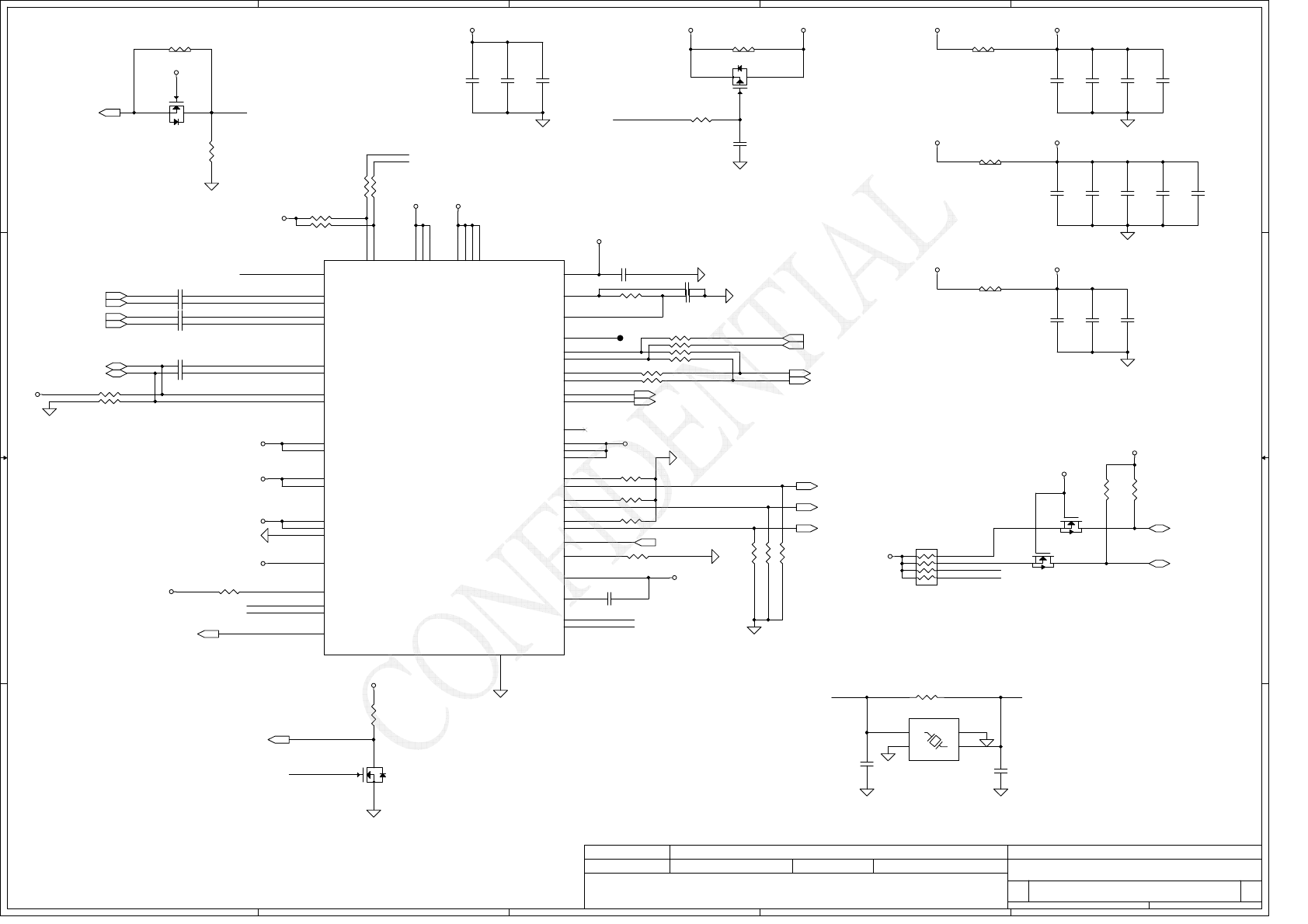

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Rated current 500mA, DC 0.1ohm
Rated current 500mA, DC 0.1ohm
Rated current 500mA, DC 0.1ohm
MCURSTN
DP_HPD
DP_HPD
CPU_DP1_C_P0
CPU_DP1_C_N0
CPU_DP1_C_P1
CPU_DP1_C_N1
DDI1_AUX_C_DP
DDI1_AUX_C_DN
PCSCL
PCSDA
6511_PWR_EN
XTALIN_6511XTALOUT_6511
XTALIN_6511
XTALOUT_6511
CRT_B
CRT_G
CRT_R
CRT_CLK_1
CRT_DATA_1
CRT_CLK_1
6511_PWR_EN#
6511_PWR_EN#
6511_PWR_EN
ISPSDA_R
ISPSCL_R
ISPSCL_R
ISPSDA_R
CRT_DATA_1
PCSCL
PCSDA
CPU_DP_HPD8
CPU_DP1_P04 CPU_DP1_N04
CPU_DP1_P14 CPU_DP1_N14
DDI1_AUX_DP8 DDI1_AUX_DN8
CRT_B 21
CRT_R 21
CRT_G 21
HSYNC 21
VSYNC 21
CRT_CLK 21
CRT_DATA 21
VGADETECT 21
6511_PWR_EN38
CRT_CLK_1 21
CRT_DATA_1 21
ISPSCL 21
ISPSDA 21
6511_PWR_EN#31
+3VS_6511
+3VS_6511
+1.8VS_RXVDD
+1.8VS_RXVDD
+1.8VS_RXVDD
+5VS
+3VS
+1.8VS_RXVCC
+1.8VS_RXVCC
+1.8VS_RXVCC
+1.8VS_RXVCC
+3VS
+1.8VS_DAC
+1.8VS_DAC
+1.8VS_DAC
+3VS
+3VS
+3VS
+3VS +3VS_6511
+1.8VS
+1.8VS
+1.8VS
+3VS
+3VS
+HDMI_5V_OUT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
ITE IT6511FN
Custom
20 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
ITE IT6511FN
Custom
20 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
ITE IT6511FN
Custom
20 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C472
0.1U_0402_16V4Z
1
2
R201
75_0402_1% 12
R134 10K_0402_5%@
1 2
R412 22_0402_5%
@
1 2
C637
0.1U_0402_16V4Z
@1
2
C68 0.1U_0402_16V7K
12
Q27B
DMN66D0LDW-7_SOT363-6
34
5
R241
4.7K_0402_5%
@
1 2
R396
1K_0402_5%
@12
C498
0.1U_0402_16V4Z
1
2
R397 22_0402_5%
1 2
R133
4.7K_0402_5%
1 2
C476
4.7U_0603_6.3V6K
1
2
C69 0.1U_0402_16V7K
12
G
D
S
Q24
L2N7002LT1G_SOT23-3
@
2
13
C474
0.1U_0402_16V4Z
@1
2
R127
2.2K_0402_5%
12
R398 22_0402_5%
1 2
C70 0.1U_0402_16V7K
12
R413 22_0402_5%
@
1 2
R419
1M_0402_5%
R196 100_0402_1%
1 2
C75
1U_0402_6.3V6K
1
2
C71 0.1U_0402_16V7K
12
C614
0.1U_0402_16V7K
12
R53 37.4_0402_1%
1 2
C580
0.1U_0402_16V4Z
@1
2
RP42
4.7K_8P4R_5%
1 8
2 7
3 6
4 5
C411
0.1U_0402_16V7K
@
1
2
C496 0.1U_0402_16V4Z
1 2
R76 37.4_0402_1%
1 2
R511M_0402_5% @ 12
R123
2.2K_0402_5%
12
C497
0.1U_0402_16V4Z
@1
2
C581
0.1U_0402_16V4Z
@1
2
R407
22_0402_5%
12
R80 0_0603_5%@
1 2
G
D
S
Q52
L2N7002LT1G_SOT23-3
@
2
13
Crystal
X4
27MHZ_10PF_X3G027000BA1H-U
IN 1
OUT
3
GND
2
GND 4
R411 22_0402_5%
1 2
R418
4.7K_0402_5%
12
L30 0_0603_5%@
1 2
C579
0.1U_0402_16V4Z
@1
2
C65
18P_0402_50V8J
1
2
R410 22_0402_5%
1 2
L48 0_0603_5%
@
1 2
R584
100K_0402_5%@
1 2
C72 0.1U_0402_16V7K
12
L47 0_0603_5%@
1 2
R501M_0402_5% @ 12
C455
10U_0603_6.3V6M
@1
2
C74
15P_0402_50V8J
1
2
C500
0.1U_0402_16V4Z
1 2
T97@
C473
0.1U_0402_16V4Z
@1
2
IT6511FN
U42
IT6511FN_QFN56_7X7
VSYNC 1
HSYNC 2
RSET 3
COMP 4
VDDA 5
IORP 6
IORN 7
VDDC 8
IOGP 9
IOGN 10
VDDC 11
IOBP 12
IOBN 13
VDDC 14
IVDD 17
OVDD 16
IVDD 15
IVDD 52
MCUVDD 50
DCAUXN
21 DCAUXP
22
RXAUXN
23 RXAUXP
24
MCURSTN 53
PVCC
26
DVDD18
28
DVSS18
36
AVCC
29
RX0P
30
RX0N
31
OVDD 54
RX1P
33
RX1N
34
URDBG 32
VGADETECT 18
PVCC
38
ISPSCL 19
ASPVCC
39
MCUVDDH 51
XTALOUT 40
XTALIN 41
INT#
42
SYSRSTN
43
HPD
44
OVDD 46
VGADDCCLK 27
PCSCL
47 PCSDA
48
IVDD 49
DVDD18
37
ISPSDA 20
OSCOUT 45
VGADDCSDA 25
DDCSCL 55
DDCSDA 56
AVCC
35
GND
57
C457
0.1U_0402_16V4Z
1
2
C519
4.7U_0603_6.3V6K
@1
2
Q27A
DMN66D0LDW-7_SOT363-6
61
2
R408
22_0402_5%
12
R197
75_0402_1% 12
C456
0.1U_0402_16V4Z
@1
2
R147 37.4_0402_1%
1 2
R199
75_0402_1% 12
G
D
S
Q25
DMG2301U-7_SOT23-3
@
2
13
C73 0.1U_0402_16V7K
12
R399
0_0402_5%
@12
C477
0.1U_0402_16V4Z
1 2
R240
4.7K_0402_5%
@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
W=40mils

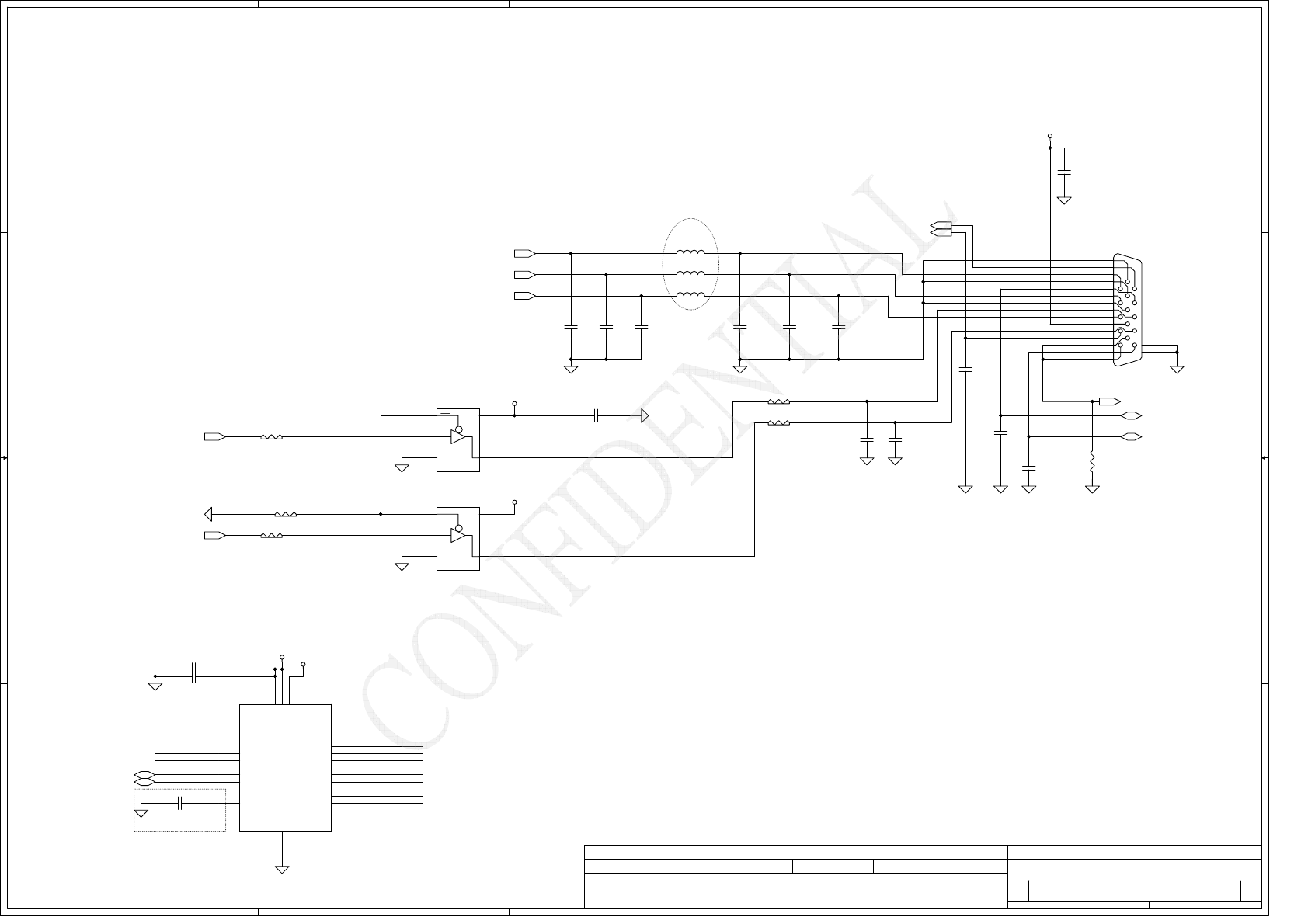

CRT Connector
CRB1.0 use 47ohm@100Mhz Bead
DDC_CLK/DAT reserved PU Resistor
For contact discharge ESD +/-8kV
CRT_HSYNC_2
CRT_VSYNC_2
CRT_R_2
CRT_G_2
CRT_B_2
CRT_HSYNC_1
CRT_VSYNC_1
CRT_VSYNC
CRT_HSYNC
CRT_R_2
CRT_G_2
CRT_B_2VSYNC
HSYNC
CRT_VSYNC_1
CRT_HSYNC_1
CRT_CLK
CRT_DATA
CRT_DATA_1
CRT_CLK_1
HSYNC20
VSYNC20
CRT_R20
CRT_G20
CRT_B20
CRT_CLK 20
CRT_DATA 20
VGADETECT 20
CRT_DATA_120 CRT_CLK_120
ISPSDA20 ISPSCL20
+3VS
+HDMI_5V_OUT
+HDMI_5V_OUT
+HDMI_5V_OUT
+HDMI_5V_OUT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CRT Connector
Custom
21 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CRT Connector
Custom
21 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CRT Connector
Custom
21 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
G
G
JCRT1
C-H_13-12201560CP
CONN@
DC060006E00
6
11
1
7
12
2
8
13
3
9
14
4
10
15
5
16
17
R439
0_0402_5%
@12
C452
0.1U_0402_16V4Z@
1 2
C648
10P_0402_50V8J
1
2
U23
M74VHC1GT125DF2G_SC70-5
OE
1
IN A
2
GND
3OUT Y 4
Vcc 5
L45
BLM18BA470SN1D_2P
EMC@
1 2
R441
0_0402_5%
@12
C646
68P_0402_50V8J
@1
2
U10
@
CM2009-00QR_QSOP16
VCC_SYNC 1
VCC_VIDEO 2
VIDEO_1 3
VIDEO_2 4
VIDEO_3 5
SYNC_IN1
13
SYNC_OUT1 14
SYNC_IN2
15
SYNC_OUT2 16
DDC_OUT1 9
DDC_IN1
10
DDC_IN2
11
DDC_OUT2 12
GND
6
VCC_DDC 7
BYP
8
R898
0_0402_5%
@
1 2
R239
0_0402_5%
@12
C618
10P_0402_50V8J
1
2
C454
0.1U_0402_16V4Z
@
1 2
C449
10P_0402_50V8J
@
1
2
C611
10P_0402_50V8J
1
2
C448
10P_0402_50V8J
@1
2
R175 0_0603_5%@
1 2
C647
10P_0402_50V8J
1
2
R180 0_0603_5%@
1 2
L46
BLM18BA470SN1D_2P
EMC@
1 2
C607
68P_0402_50V8J
@1
2
C4470.1U_0402_16V4Z
@12
C450
0.1U_0402_16V4Z
@1
2
U24
M74VHC1GT125DF2G_SC70-5
OE
1
IN A
2
GND
3OUT Y 4
Vcc 5
C615
10P_0402_50V8J
1
2
C451
0.1U_0402_16V4Z
@
1 2
L42
BLM18BA470SN1D_2P
EMC@
1 2
C616
10P_0402_50V8J
1
2
C606
100P_0402_50V8J
@1
2

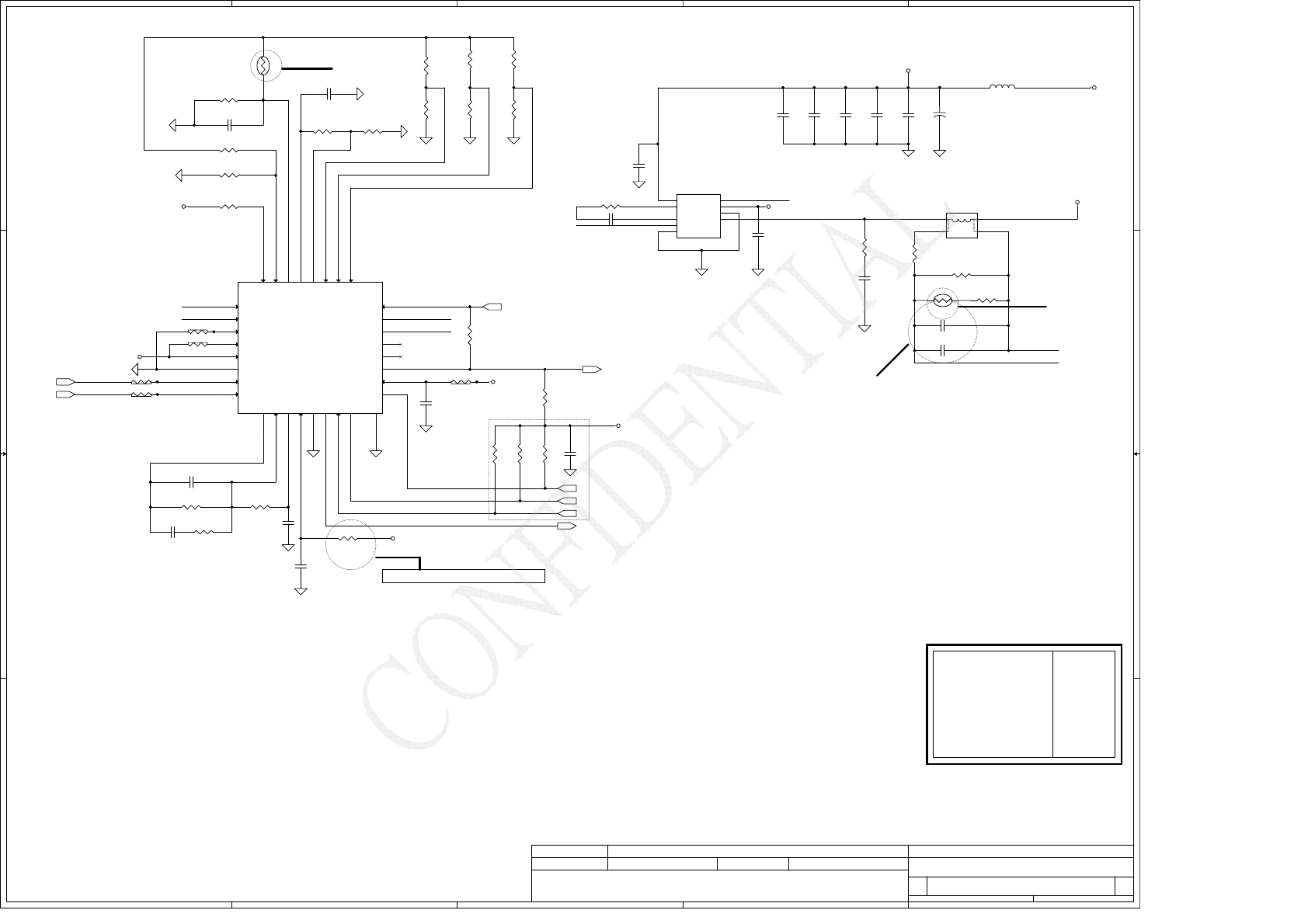

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
20mil
20mil
20mil
SM010005500 500ma 600ohm@100mhz DCR 0.38
20mil
20mil
20mil
40mil
60mil
15mil
40mil
40mil
PLACE NEXT P14
EMI Request...2010/07/27
For EMI request
R02 modify for ESD
R02 Modify
R02 Modify
R03 modify
On chip
AT24C02
SPROM_CLK
(EECLK)
SPROM_DOUT
(EEDATA)
11
01
Reserved for leakage current
LAN_XTALI
LAN_XTALO_R
LAN_XTALO
+LAN_AVDDL
+LAN_GPHYPLLVDDL
+LAN_PCIEPLLVDD
LAN_MIDI2-
+LAN_AVDDL
+LAN_PCIEPLLVDD
+LAN_GPHYPLLVDDL
PCIE_PRX_C_DTX_N3
PCIE_PRX_C_DTX_P3
LAN_PME#
LAN_RDAC
+LAN_BIASVDDH
+LAN_XTALVDDH
+LAN_XTALVDDH
+LAN_BIASVDDH
+LAN_AVDDH
LAN_MIDI3+
LAN_MIDI0-
LAN_MIDI1+
LAN_MIDI2+
SPROM_CLK
SPROM_DOUT
LAN_XTALO_R
LAN_XTALI
+LAN_AVDDH
CR_DATA0_R
CR_DATA1_R
CR_DATA2_R
CR_DATA3_R
CR_XD_WE#_SD_DETECT_R
CR_CLK_XD_RY_BY#_R
CR_CMD_XD_CLE_R
CR_XD_WE#_SD_DETECT
CR_WP#_XD_WP#
CR_PWR_EN
LAN_MIDI3-
LAN_MIDI1-
LAN_MIDI0+
SPROM_DOUT SPROM_CLK
PLT_RST_BUF#
CR_DATA0
CR_DATA1
CR_DATA2
CR_DATA3
LAN_PME#
+1.2V_LAN_OUT+1.2V_LAN_OUT
PCIE_PRX_DTX_N310 PCIE_PRX_DTX_P310
PCIE_PTX_C_DRX_P310 PCIE_PTX_C_DRX_N310
EC_PME#27
PLT_RST_BUF#24,8 CLK_PCIE_LAN7 CLK_PCIE_LAN#7
LAN_MIDI2- 23
LAN_MIDI1- 23
LAN_MIDI3- 23
LAN_MIDI3+ 23
LAN_MIDI2+ 23
LAN_MIDI1+ 23
LAN_MIDI0- 23
LAN_MIDI0+ 23
LAN_LINK# 23
LAN_ACTIVITY# 23
CR_XD_WE#_SD_DETECT 23,25
CR_WP#_XD_WP# 23
CR_PWR_EN 23
5IN1_LED# 28
CR_CMD_XD_CLE 23
CR_CLK_XD_RY_BY# 23
LAN_CLKREQ#7
CR_DATA023 CR_DATA123 CR_DATA223 CR_DATA323
LAN_PWR_EN# 27
+3V_LAN
+3V_LAN
+1.2V_LAN
+1.2V_LAN
+1.2V_LAN
+3V_LAN
+1.2V_LAN
+3V_LAN
+3VS
+1.2V_LAN
+3V_LAN
+1.2V_LAN
+3V_LAN
+3V_LAN
+VDDO_CR
+3VALW +3V_LAN
+VDDO_CR
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Broadcom BCM57785
Custom
22 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Broadcom BCM57785
Custom
22 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
Broadcom BCM57785
Custom
22 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C801
0.1U_0402_16V4Z
1
2
C464
0.1U_0402_16V4Z
1
2
R771 33_0402_5%EMC@
1 2
R759
0_0805_5%
@
1 2
C788.1U_0402_16V7K 1 2
R783
1K_0402_5%
1 2
C774
0.1U_0402_16V4Z
@
1
2
L59
4.7UH_PG031B-4R7MS_1.1A_20%
1 2
R777 4.7K_0402_5%
1 2
C780
0.1U_0402_16V4Z
@1
2
L57
BLM18AG601SN1D_2P
1 2
L58
BLM18AG601SN1D_2P
1 2
R763 0_0402_5%@
1 2
C795
0.1U_0402_16V4Z
1
2
C790
0.1U_0402_16V4Z
1
2
L62
BLM18AG601SN1D_2P
1 2
C785 0.1U_0402_16V4Z
1
2
C805
4.7U_0603_6.3V6K
1
2
C802
4.7U_0603_6.3V6K
1
2
C787 0.1U_0402_16V4Z
1
2
C777
4.7U_0603_6.3V6K
1
2
L61
BLM18AG601SN1D_2P
1 2
C779
4.7U_0603_6.3V6K
1
2
R767 0_0402_5%@ 12
L56
BLM18AG601SN1D_2P
1 2
C789
0.1U_0402_16V4Z
@1
2
C803
0.1U_0402_16V4Z
EMC@
1
2
C465
0.1U_0402_16V4Z
1
2
C794
10U_0603_6.3V6M
1
2
R779
200_0402_1%
12
C804
0.1U_0402_16V4Z
1
2
R778 4.7K_0402_5%
1 2
C796
4.7U_0603_6.3V6K
1
2
C778
0.1U_0402_16V4Z
@
1
2
C800
15P_0402_50V8J
1
2
L65
BLM31PG601SN1_2P
EMC@
1 2
R774 56_0402_5%
EMC@
1 2
R776 1K_0402_5%
1 2
L60
BLM18AG601SN1D_2P
1 2
C783
4.7U_0603_6.3V6K
1
2
R784
1K_0402_5%
1 2
G
D
S
Q6
DMG2301U-7_SOT23-3
2
13
C793
0.1U_0402_16V4Z
1
2
C775
0.1U_0402_16V4Z
@
1
2
C786 0.1U_0402_16V4Z
EMC@
1 2
C791.1U_0402_16V7K 1 2
C798
4.7U_0603_6.3V6K
1
2
C799
15P_0402_50V8J
1
2
R242
10K_0402_5%
1 2
R769 33_0402_5%EMC@
1 2
C784
0.1U_0402_16V4Z
@1
2
Y6
25MHZ 10PF X3G025000DA1H-X
GND
2
33
1
1
GND
4
C771
4.7U_0603_6.3V6K
1
2
R775 22_0402_5%
EMC@
1 2
C797
0.1U_0402_16V4Z
1
2
BCM57786XA1KMLG_QFN68_8X8
U48
AVDDL
51
SR_VDDP 15
TRD1_P 44
AVDDH 42
AVDDH 48
TRD1_N 43
AVDDL
45
TRD2_P 46
VDDO
62
TRD0_N 41
SD_DETECT/XD_WE# 1
TRD3_P 50
TRD3_N 49
VMAIN_PRSNT
58
CR_DATA0
25
AVDDL
39
RDAC
38
BIASVDDH 37
WAKE#
3
SR_VDD 14
SR_LX 16
XTALI
18 XTALO
19
XTALVDDH 17
VDDO_CR
20
VDDO
7
TRD0_P 40
PREST#
11
PCIE_TXD_N
27
SR_VFB 13
PCIE_PLLVDDL
32
PCIE_REFCLK_P
31
PCIE_RXD_P
33
GPHY_PLLVDDL
36
PCIE_REFCLK_N
30
PCIE_PLLVDDL
29
PCIE_RXD_N
34
PCIE_TXD_P
28
TRD2_N 47
VDDC
35
SCLK_SPD1000LED# 66
SPD100LED#_SERIALDO 2
CS#_EECLK 63
TRAFFICLED#_SERIALDI 67
VDDC
61
VDDO
56
CLK_REQ#
12
TEST2
10
TEST1
6
CR_DATA1
24
CR_DATA3
22 CR_DATA2
23
CR_DATA5
53 CR_DATA4
52
CR_DATA6
54
CR_DATA7
55
LOW_PWR
4
GPIO1_LR_OUT 8
GPIO_0 5
SI_EEDATA 64
SO_LINKLED# 65
SR_DISABLE/XD_DETECT# 68
MS_INS#/XD_CE# 59
GPIO2_MEDIA_SENSE/XD_RE# 9
CR_WP#/XD_WP# 57
CR_LED_CR_BUS_PWR/XD_ALE 60
CR_CLK/XD_RY_BY# 21
CR_CMD_XD_CLE 26
GND PLANE
69
R782
1K_0402_5%
@
1 2
R780 1.24K_0402_1%
1 2
R768 33_0402_5%EMC@
1 2
C773
0.1U_0402_16V4Z
@
1
2
R764 4.7K_0402_5%
1 2
C772
0.1U_0402_16V4Z
1
2
C782
1U_0402_6.3V6K
EMC@
1
2
R770 33_0402_5%EMC@
1 2
C776
0.1U_0402_16V4Z
@1
2
C781
0.1U_0402_16V4Z
@
1
2

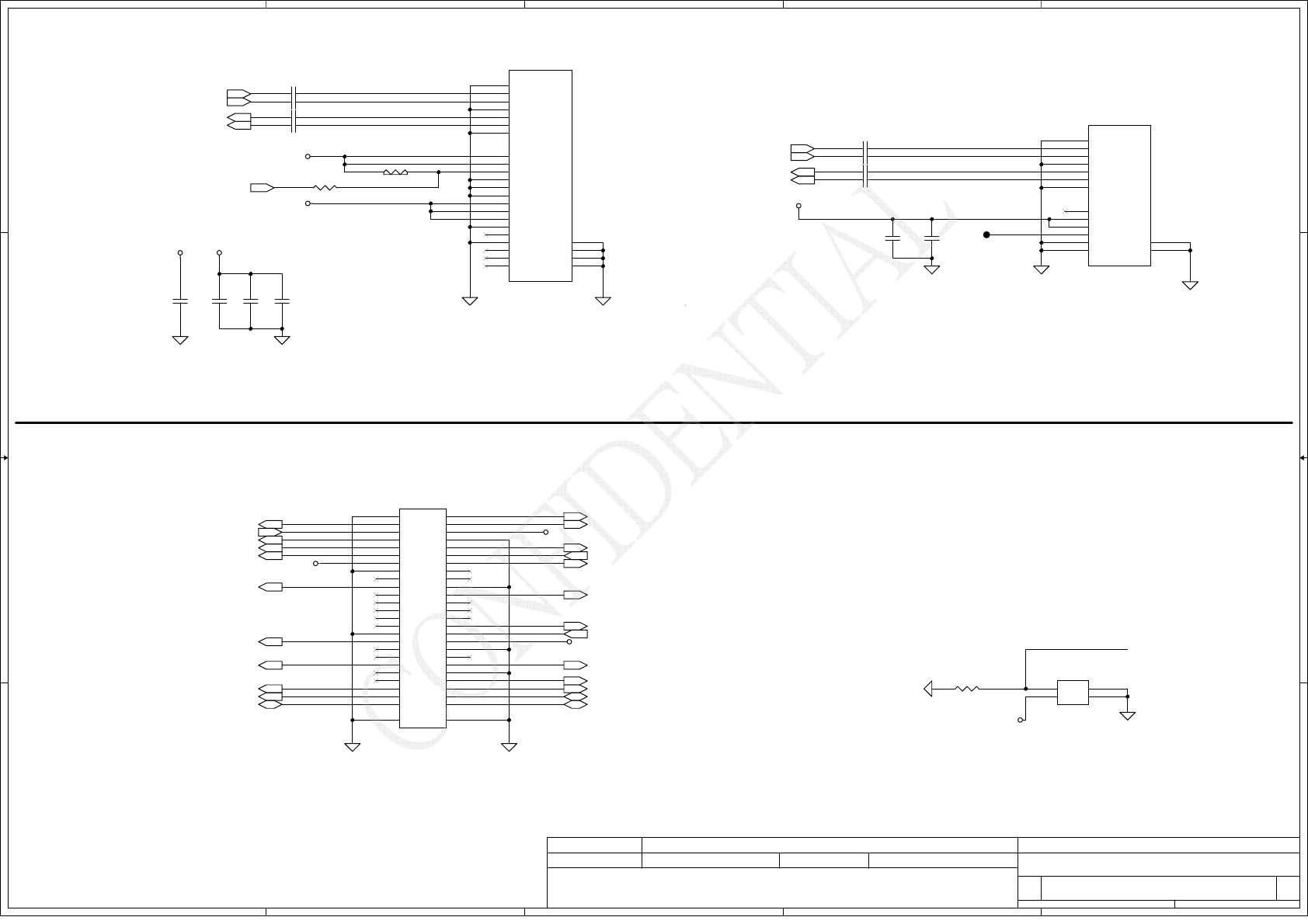

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
BOTHHAND: S X'FORM_ GST5009-E LF LAN, SP050006B10
TIMAG:S X'FORM_ IH-160 LAN , SP050006F00
Place close to TCT pin
40mil

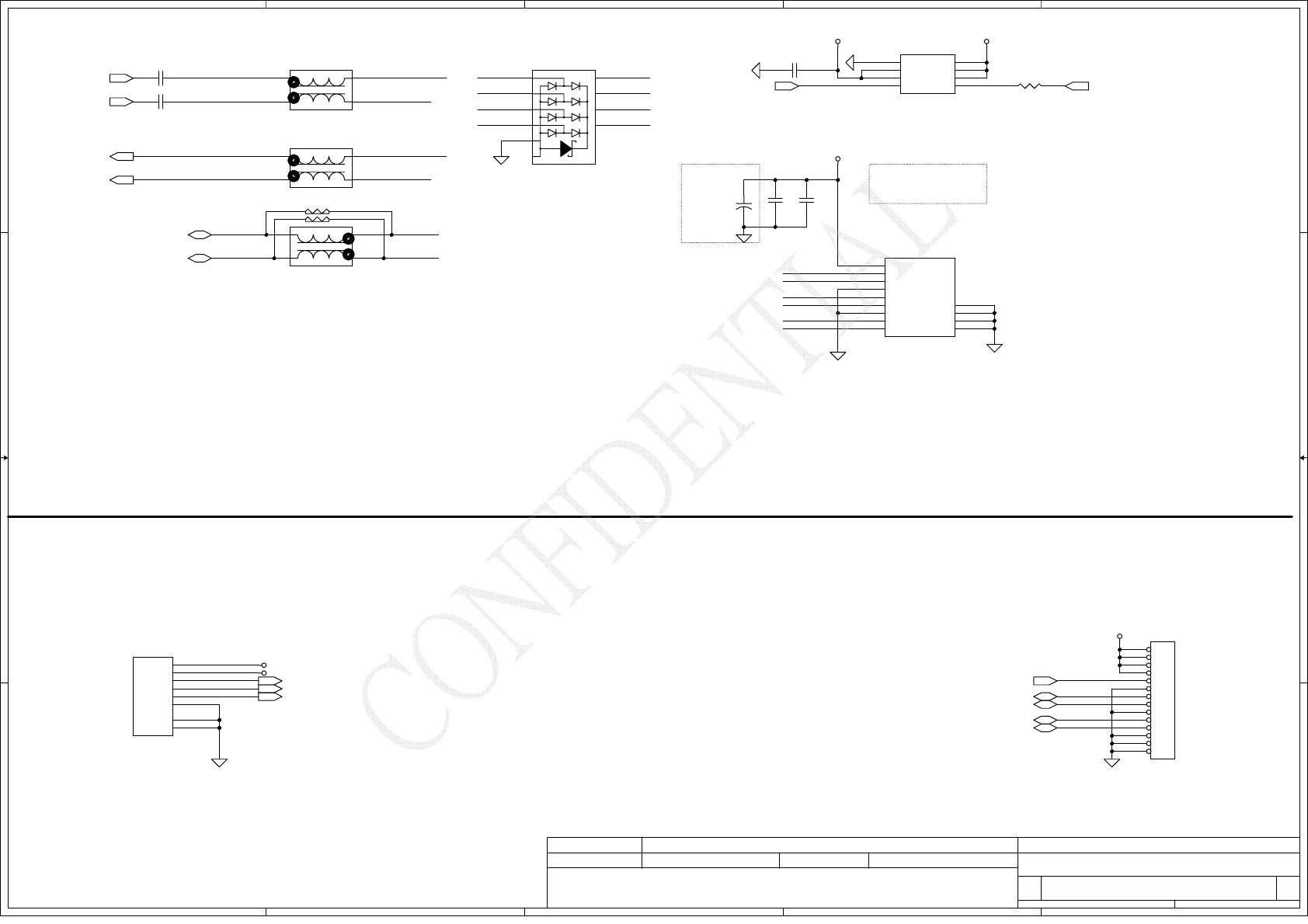

LAN Connector
40mil
Card Reader Connector
40mil
CARD READER_2in1 SP07000TF00
SM01000LU00nothavecreatesymbol.
Use(MURATABLM15AG102SN1D0402)
RJ45_MIDI1-
RJ45_MIDI1+
LAN_MIDI2-
RJ45_MIDI3-
RJ45_MIDI3+
LAN_MIDI0-
RJ45_MIDI2+
RJ45_MIDI2-
LAN_MIDI3+
RJ45_GND
LAN_MIDI3-
LAN_MIDI1+
LAN_MIDI1-
RJ45_MIDI0+
RJ45_MIDI0-
LAN_MIDI2+
LAN_MIDI0+
RJ45_MIDI2-
RJ45_MIDI2+
RJ45_MIDI1+
RJ45_MIDI0-
RJ45_MIDI1-
RJ45_MIDI0+
RJ45_MIDI3-
RJ45_MIDI3+
LANGNDRJ45_GND
CR_CMD_XD_CLE
CR_DATA1
CR_DATA0
CR_DATA2
CR_DATA3
CR_WP#_XD_WP#
CR_XD_WE#_SD_DETECT
LAN_LINK#
LAN_ACTIVITY#
CR_CLK
CR_CLK
LAN_MIDI2-22
LAN_MIDI0-22
LAN_MIDI3-22 LAN_MIDI3+22
LAN_MIDI1-22 LAN_MIDI1+22
LAN_MIDI2+22
LAN_MIDI0+22
CR_DATA022 CR_DATA122 CR_DATA222 CR_DATA322
CR_CMD_XD_CLE22
CR_PWR_EN22
CR_WP#_XD_WP#22
CR_XD_WE#_SD_DETECT22,25
LAN_LINK# 22
LAN_ACTIVITY# 22
CR_CLK_XD_RY_BY#22
+3VALW +XDPWR_SDPWR_MSPWR
+3V_LAN
+XDPWR_SDPWR_MSPWR
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2

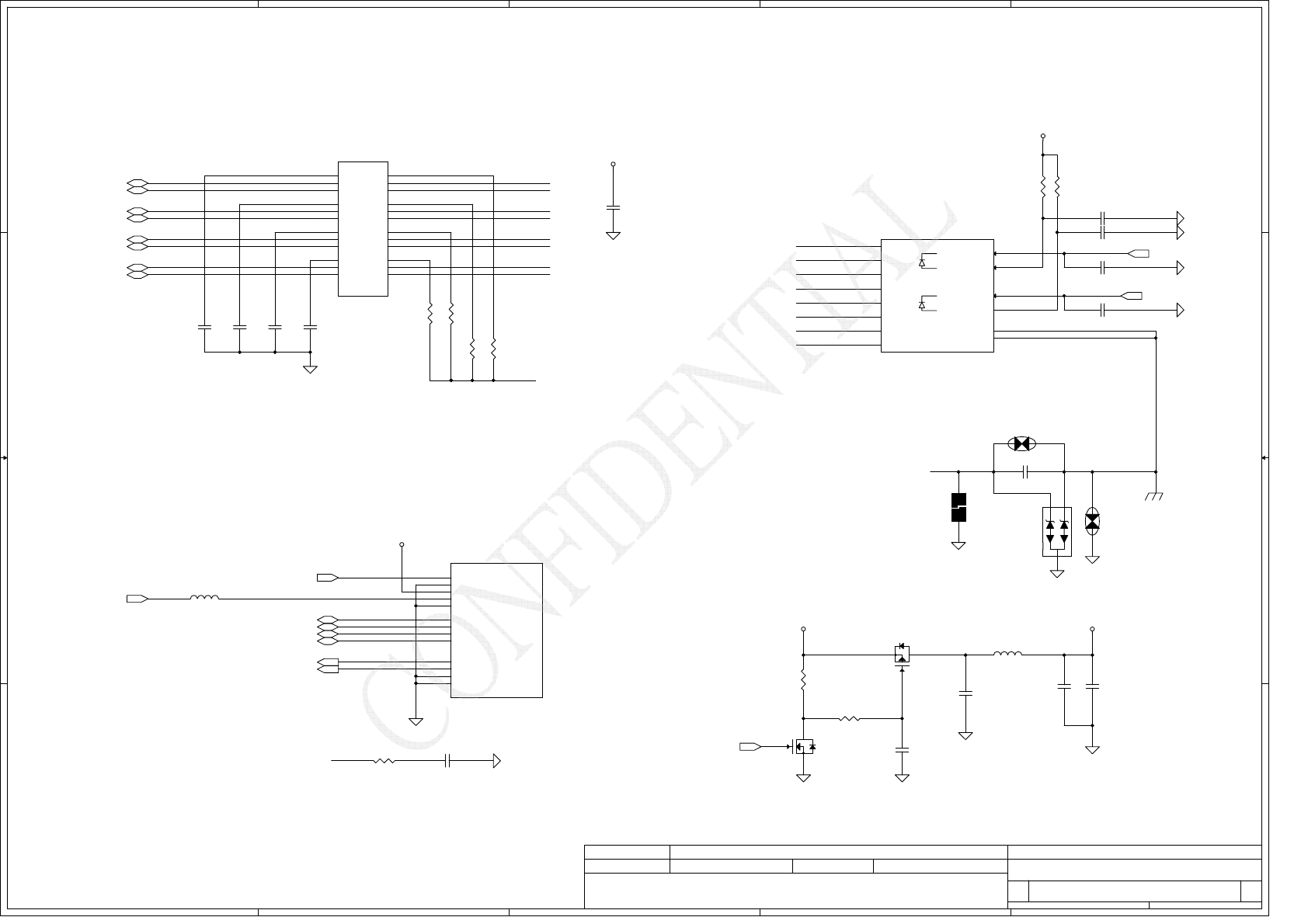

LAN Magnetic & RJ45
Custom
23 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
LAN Magnetic & RJ45
Custom
23 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
LAN Magnetic & RJ45
Custom
23 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R791
75_0402_1%
12
J15
JUMP_43X118
@
11
2
2
D39
L30ESDL5V0C3-2
EMC@
2
3
1
C812
0.1U_0402_16V4Z
EMC@
1
2
R787
1K_0402_5%
12
G
D
S
Q23
L2N7002LT1G_SOT23-3
2
13
JP2
B88069X9231T203_4P5X3P2-2
XEMC@
12
C395
0.1U_0402_16V4Z
EMC@ 1
2
R26
22_0402_5%
XEMC@
1 2
C819
1U_0402_6.3V6K
EMC@
1
2
JP1
B88069X9231T203_4P5X3P2-2
XEMC@
12
R794
10K_0402_5%
1 2
C26
6.8P_0402_50V8C
XEMC@
1 2
C810
0.1U_0402_16V4Z
EMC@
1
2
L66
BLM31PG601SN1_2P
EMC@
1 2
C813
0.1U_0402_16V4Z
EMC@
1
2
C814
10P_0402_50V8J
EMC@1 2
G
D
S
Q9
DMG2301U-7_SOT23-3
2
13
R897 EMC@
BLM15BA220SN1D 0402
1 2
C807 220P_0402_50V7K
XEMC@
1 2
C822
0.1U_0402_16V7K
1
2
C818
0.1U_0402_16V4Z
@
1
2
JREAD1
T-SOL_156-1000302601_NR
CONN@
SP07000TF00
VSS
4
CD/DAT3
2
CMD
3
CLK
6VDD
5
CD SW
11
DAT1
9
WP SW
10
DAT0
8
GND SW
13
DAT2
1
VSS
7
GND SW
12 R793
10K_0402_5%
12
T1
GST5009-E
SP050006B10
TCT1
1
TD1+
2
TD1-
3
TCT2
4
TD2+
5
TD2-
6
TCT3
7
TD3+
8
TD3-
9
TCT4
10
TD4+
11
TD4-
12
MCT1 24
MX1+ 23
MX1- 22
MCT2 21
MX2+ 20
MX2- 19
MCT3 18
MX3+ 17
MX3- 16
MCT4 15
MX4+ 14
MX4- 13
R786
1K_0402_5%
12
R788
75_0402_1%
12
C809 68P_0402_50V8J
XEMC@
1 2
C806 220P_0402_50V7K
XEMC@
1 2
C808 68P_0402_50V8J
XEMC@
1 2
R789
75_0402_1%
12
C811
0.1U_0402_16V4Z
EMC@
1
2
R790
75_0402_1%
12
C817
4.7U_0603_6.3V6K
1
2
JRJ45
SANTA_130451-F
CONN@
DC234005300
PR1-
2
PR1+
1
PR2+
3
PR3+
4
PR3-
5
PR2-
6
PR4+
7
PR4-
8
LED_GREEN_B2 12
GND 13
LED_GREEN_B1 11
LED_YELLOW_A2 10
LED_YELLOW_A1 9
GND 14
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
60mil
Mini Card Power Rating
For Wireless LAN
W=60mils
For DVT2 verify IOAC function
E51TXD_P80DATA_R
E51RXD_P80CLK_R
PLT_RST_BUF#
MINI1_SMBCLK
MINI1_SMBDATA
WL_OFF#
MINI1_CLKREQ#7,8
CLK_PCIE_MINI1#7 CLK_PCIE_MINI17
PCIE_PRX_DTX_P410 PCIE_PRX_DTX_N410
PCIE_PTX_C_DRX_N410 PCIE_PTX_C_DRX_P410
E51RXD_P80CLK27 E51TXD_P80DATA27
PLT_RST_BUF# 22,8
WL_OFF# 27
USB20_N4 10
USB20_P4 10
PCH_SMBDATA 7
PCH_SMBCLK 7
WLAN_PME#27
BT_ON#27
MINI1_LED# 27
WLAN_ON27
+3VALW
+1.5VS_WLAN
+3VS +3VS_WLAN
+3VS_WLAN
+1.5VS_WLAN
+3VS_WLAN
+3VS_WLAN
+1.5VS
+3VS_WLAN
+3VALW +3VS_WLAN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
MINI CARD (WLAN)
Custom
24 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
MINI CARD (WLAN)
Custom
24 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
MINI CARD (WLAN)
Custom
24 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
JMINI1
BELLW_80053-1021
CONN@
DC040009P00
31
31 32 32
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
34 34
36 36
38 38
40 40
42 42
44 44
46 46
48 48
50 50
52 52
GND
53 GND 54
R432 0_0402_5%@
1 2
C462
0.1U_0402_16V4Z
@
1
2
C459
0.1U_0402_16V4Z
@
1
2
R438
1K_0402_5%
@
12
C461
4.7U_0603_6.3V6K
@
1
2
C460
0.1U_0402_16V4Z
1
2
C458
4.7U_0603_6.3V6K
1
2
U9
G5243T11U_SOT23-5
IOAC@
IN
5
IN
4
OUT 1
EN 3
GND 2
C463
0.1U_0402_16V4Z
@
1
2
R437
100K_0402_5%
12
R443 100K_0402_5%
1 2
R435
0_0402_5%
@
1 2
J3
JUMP_43X118
@
1 2
R436
0_0402_5%
@
1 2
R429
4.7K_0402_5%
1 2
G
D
S
Q20
L2N7002LT1G_SOT23-3
@
2
13
J13
JUMP_43X39
@
1
122
R423 0_0402_5%@
1 2
R434 0_0402_5%@
1 2
J4
JUMP_43X118
@
1 2
C165
1U_0402_6.3V6K
IOAC@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
SATA HDD1 Conn.
100mils
SATA ODD Conn.
80mils
Debug Board
Kill SW
SATA_PTX_C_DRX_P0
SATA_PTX_C_DRX_N0
SATA_PRX_C_DTX_N0
SATA_PRX_C_DTX_P0
SATA_PRX_C_DTX_P1
SATA_PRX_C_DTX_N1
SATA_PTX_C_DRX_P1
SATA_PTX_C_DRX_N1
+3VS_HDD
SPI_WP1#_R
ODD_MD
SATA_PRX_DTX_P06 SATA_PRX_DTX_N06
SATA_PTX_DRX_N06 SATA_PTX_DRX_P06
SATA_PRX_DTX_P16 SATA_PRX_DTX_N16
SATA_PTX_DRX_P16 SATA_PTX_DRX_N16
PCH_SPI_CS0#_1_R7 PCH_SPI_MISO_1_R7
SPI_HOLD1#_R7 EC_SPICLK27
EC_SO_SPI_SI_R127
CR_XD_WE#_SD_DETECT22,23
EC UART_TXD27
HDMI_HPD19
XDP_DBRESET#8
EC_SI_SPI_SO_R1 27
PCH_SPI_CLK_1_R 7
PCH_SPI_MOSI_1_R 7
EC_SPICS#/FSEL#_R 27
EC_RST# 27,28
ON/OFFBTN# 26,28
EC UART_RXD 27
REC_MODE_L 27
SPI_WP1#_R 27,6,7
LID_SW# 26,27
DEVSLP08,9
KSI2 27,28
KSO3 27,28
KSO4 27,28
KSI027,28 KSO227,28
+3VS +5VS
+3VS
+5VS
+5VS
+EC_SPI
+3VALW_EC
+BIOS_SPI
+3VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDD/ODD/USB3.0 Conn
Custom
25 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDD/ODD/USB3.0 Conn
Custom
25 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDD/ODD/USB3.0 Conn
Custom
25 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
C405 0.01U_0402_16V7K
1 2
C394 0.01U_0402_16V7K
1 2
R569
1K_0402_1%
940@
1 2
C420
10U_0603_6.3V6M
12
R307 0_0402_5%@
1 2
C401 0.01U_0402_16V7K
1 2
C393 0.01U_0402_16V7K
1 2
C397
0.1U_0402_16V4Z
1
2
C402 0.01U_0402_16V7K
1 2
T185@
JHDD1
CONN@
CCM_C127043HR022M27FZR_22P-T
DC231211190
GND
1
A+
2
A-
3
GND
4
B-
5
B+
6
GND
7
V33
8
V33
9
V33
10
GND
11
GND
12
GND
13
V5
14
V5
15
V5
16
GND
17
Reserved
18
GND
19
V12
20
V12
21
V12
22 GND 26
GND 25
GND 24
GND 23
C392 0.01U_0402_16V7K
1 2
C403 0.01U_0402_16V7K
1 2
JP5
ACES_87212-02G0
CONN@
1
1
2
2G1 3
G2 4
JODD1
SANTA_201902-1_13P-T
LTCX004HZ00
CONN@
GND
1
A+
2
A-
3
GND
4
B-
5
B+
6
GND
7
DP
8
+5V
9
+5V
10
MD
11
GND
12
GND
13 GND 15
GND 14
C407
0.1U_0402_16V4Z
1
2
C391 0.01U_0402_16V7K
1 2
C404
10U_0603_6.3V6M
12
R308
0_0402_5% @
12
JDB1
E&T_1001K-F50C-05R
CONN@
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
22 22
24 24
26 26
28 28
30 30
32 32
34 34
36 36
38 38
40 40
42 42
44 44
46 46
48 48
50 50
G1
51 G2 52
C161
1U_0402_10V6K
@
1
2
C390
0.1U_0402_16V4Z
@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
For ESD request
USB3.0 Conn.
W=60mils
SF000002Y00
220U 6.3V OSCON
ESR 17mohm@100Khz
SM070000S80 WCM2012F2SF-670T04 67ohm
W=100mils
USB/B
(USB Port 1, Port2)
PWR/B
PCH_USB3_RX0_N
PCH_USB3_RX0_P
U3RXDN0
U3RXDP0
U3TXDP0U3TXDP0
U3RXDP0
U3TXDN0
U3RXDN0
U3TXDN0
U3TXDP0
U3RXDP0
USB20_N0_L
U3RXDN0
USB20_P2
USB20_N2
USB20_N1
USB20_P1
LID_SW#
ON/OFFBTN#
USB_EN#
PWR_LED#
U3TXDN0
PCH_USB3_TX0_P_C
PCH_USB3_TX0_N_C
USB20_N0
USB20_P0 USB20_P0_L
USB20_P0_L
USB20_N0_L
U3TXDN0
U3TXDP0
U3RXDP0
U3RXDN0
USB_OC0# 10,9
USB_CHARGE_2A#27
USB20_P210 USB20_N210
USB20_N110 USB20_P110
LID_SW# 25,27
ON/OFFBTN# 25,28
USB_EN#27
PWR_LED# 28
PCH_USB3_RX0_N10
PCH_USB3_RX0_P10
PCH_USB3_TX0_N10
PCH_USB3_TX0_P10
USB20_N010
USB20_P010
+5VALW +USB3_VCCA
+USB3_VCCA
+5VALW
+3VALW
+3VLP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDD/ODD/USB3.0 Conn
Custom
26 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDD/ODD/USB3.0 Conn
Custom
26 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HDD/ODD/USB3.0 Conn
Custom
26 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R454
0_0402_5%
@
1 2
JUSB2
ACES_88514-01201-071
SP01001BF00
CONN@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
+
C486
220U_6.3V_M
1
2
C994
0.1U_0402_16V4Z
EMC@
1
2
R458 0_0402_5%@
1 2
R461 0_0402_5%@
1 2
U25
SY6288D10CAC_MSOP8
GND
1
IN
2
IN
3
EN/ENB
4OCB 5
OUT 6
OUT 7
OUT 8
L26
WCM2012F2SF-670T04_0805
XEMC@
11
2
2
3
344
C484 0.1U_0402_16V7K
12
C483
0.1U_0402_16V7K
EMC@
1 2
JUSB1
OCTEK_USB-09EAAB
DC233008O20
CONN@
VBUS
1
D-
2
D+
3
GND
4
StdA-SSRX-
5
StdA-SSRX+
6
GND-DRAIN
7
StdA-SSTX-
8
StdA-SSTX+
9
GND 10
GND 11
GND 12
GND 13
C482 0.1U_0402_16V7K
12
8
7
65
4
3
2
1
9
10
D15
L05ESDL5V0NA-4 SLP2510P8
XEMC@
4
5
1
6
2
7
3
9
8
L24
DLW21SN900HQ2L-0805_4P
EMC@
1
122
33
4
4
C487
1000P_0402_50V7K
XEMC@
1
2
L25
DLW21SN900HQ2L-0805_4P
EMC@
1
122
33
4
4
JPWR1
ACES_88514-00601-071
CONN@
SP010014M00
11
22
33
44
55
66
GND 8
GND 7
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Follow KB930 checking List
20mil
KB932&9012 Co-Layout Item KB932 use 256KB ROM
KB9012 Embedded 128KB ROM
ESD request
Board ID
Ra
Rb
Analog Board ID definition,
Please see page 3.
KB930&9012 Co-Layout Item
Pin 111 is a power source for HW operation of KB9012.
So, power plan will be different between KB930 and KB9012.
Pin74(KB930),Pin118(KB9012) are with different PECI pin location,
so HW must co-layout for it.
Please make sure which EC pin will be connected to PECI circuit.
Pin104 This co-layouted circuit is for power fail function of
KB930 and KB9012.At KB930, PCH_PWROK will be connected to pin 104.
At KB9012,PCH_PWROK will be connected to pin 32,
and VCOUT0_PH will be connected to pin 104.
Latest design guide suggest change to
74LVC1G06.
PU at LAN side
(PU at Hall Sensor)
D28 design for Debug board flash SPI ROM
(can be short after MP)
For abnormal shutdown
CLK_PCI_LPC
KSO[0..17]
KSI[0..7]
EC_XCLK0
LPC_AD1
PLT_RST#
SERIRQ
LPC_AD2
LPC_AD3
LPC_AD0
LPC_FRAME#
EC_XCLK1
EC_SMB_CK1
EC_SMI#
EC_SMB_DA1
EC_SCI#
PM_SLP_S5#
PM_SLP_S3#
EC_KBRST#
EC_RST#_R
ECAGND
+EC_VCC
ECAGND
+EC_VCCA
+V18R
EC_SMB_DA2
EC_SI_SPI_SO
EC_SPICLK_R
EC_SO_SPI_SI
EC_SMB_CK2
KSO17
KSI3
KSI1
KSI0
KSI6
KSI7
KSO16
KSI4
KSO15
KSI2
KSI5
KSO4
KSO8
KSO14
KSO13
KSO12
KSO9
KSO1
KSO0
KSO3
KSO6
KSO2
KSO10
KSO11
KSO7
KSO5
E51RXD_P80CLK
E51TXD_P80DATA
FAN_SPEED1
BKOFF#
EC_LID_OUT#
PCH_RSMRST#
GPXIOA07
930_PECI
SYSON
HDA_SDO
EC_MUTE#
ADP_I
AD_BID0
BATT_TEMP
BEEP#
ECAGND
9012_PECI
9012_PCH_PWROK
EC_SPICLK
EC_PME#
EC_RST#_R
PLT_RST#
EC_XCLK1 EC_XCLK0
AD_BID0
EC_SCI#
CLK_PCI_LPC
LID_SW#
EC_MUTE#
H_PROCHOT#_EC
+EC_VCC
KSO1
KSO2
SPI_HOLD#
EC_SPICS#/FSEL#_R
EC_SPICLK
930_PECI
9012_PECI
GPXIOA07
9012_PCH_PWROK
PWR_SUSP_LED#
FSTCHG
PWR_LED
H_PROCHOT#_EC
PBTN_OUT#
VCIN0_PH_R
EC_ACIN
EC_ON
ON/OFF
LID_SW#
PM_SLP_S4#
EC_SPOK
VCIN1_PROCHOT
EC_ACIN
BT_ON#
WLAN_ON
ENBKL
VCIN0_PH_R
WL_OFF#
EN_DFAN1
WLAN_PME#
BATT_AMB_LED#
BATT_BLUE_LED#
LAN_PWR_EN#
USB_CHARGE_2A#
PCH_PWR_EN
TP_DATA
TP_CLK
EC_WLAN_LED#
E51TXD_P80DATA
E51RXD_P80CLK
EC_SO_SPI_SI_R
SPI_WP1#_R
SPI_WP#
EC_ENTERING_RW
EC_ENTERING_RW
EC_SI_SPI_SO_R
EC_SO_SPI_SI_R
EC_SPICLK
EC_SI_SPI_SO_R
EC_SMB_DA2
EC_SMB_CK2
EC_SPICS#/FSEL# EC_SPICS#/FSEL#_R
MINI1_LED#
USB_EN#
KBL_EN#
REC_MODE_L_R
EC_PME#
VCCST_PG_EC
VGATE_3V
EC_SMI#
EC_SMB_CK1
EC_SMB_DA1
TP_CLK
TP_DATA
TS_EN
VCCST_PWRGD
SUSP#
G_SEN_INT
EC_SPOK
PCH_PWROK
PCH_RSMRST#
KSI[0..7]25,28
KSO[0..17]25,28
LPC_FRAME#28,7
LPC_AD228,7
LPC_AD028,7
LPC_AD328,7
LPC_AD128,7
SERIRQ28,9
EC_SMB_DA133,34 EC_SMB_CK133,34
EC_SMI#8
EC_KBRST#9
CLK_PCI_LPC7
EC_SMB_DA230,7 EC_SMB_CK230,7
EC_SCI#6,9
PLT_RST#28,8
PM_SLP_S3#8 PM_SLP_S5#8
SUSCLK8
FAN_SPEED130
E51RXD_P80CLK24 E51TXD_P80DATA24
SUSP# 31,34,36,37,38
BKOFF# 18
PCH_RSMRST# 8
EC_LID_OUT# 9
SYSON 31,36
EC_MUTE# 29
BEEP# 29
BATT_TEMP 32,33
ADP_I 33,34
H_PROCHOT# 32,33,4
VR_HOT#39
MAINPWON 33,35
VCIN1_PROCHOT 33
VCIN0_PH 33
PWR_SUSP_LED#28
ENBKL 8
FSTCHG 34
PWR_LED 28
PBTN_OUT# 8
EC_ON 28,35
ON/OFF 28
LID_SW# 25,26
PM_SLP_S4# 8
ACIN 32,34,8
BT_ON# 24
WLAN_ON24
HDA_SDO 6
EC_SPOK33
H_PECI 4
WL_OFF#24
EN_DFAN1 30
WLAN_PME# 24
BATT_AMB_LED# 28
BATT_BLUE_LED# 28
LAN_PWR_EN# 22
USB_CHARGE_2A# 26
ECAGND 33
PCH_PWROK 8
TP_DATA 28
TP_CLK 28
EC_WLAN_LED# 28
EC UART_TXD25
EC UART_RXD25
EC_SO_SPI_SI_R1 25
EC_SPICS#/FSEL#_R25
EC_SI_SPI_SO_R125
EC_ENTERING_RW 28
EC_RST#25,28
SPI_WP1#_R25,6,7
PCH_PWR_EN31
MINI1_LED# 24
USB_EN# 26
KBL_EN#28
EC_PME# 22
VCCST_PG_EC11,8
VCCST_PWRGD 11,38
VGATE_3V 8
TS_EN18
G_SEN_INT30
H_PROCHOT#_EC 33
+3VALW_EC
+3VS
+3VALW_EC
+3VALW_EC
+3VS
+3VALW_EC
+3VLP
+3VALW
+3VALW_EC
+3VALW_EC
+EC_SPI
+EC_SPI
+3VALW_EC
+EC_VCCA
+3VALW
+3VLP
+3VALW_EC+EC_SPI
+3VS
+3VALW_EC
+5VS
EC_SPICLK 25
REC_MODE_L25
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
EC ENE-KB9012
Custom
27 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
EC ENE-KB9012
Custom
27 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
EC ENE-KB9012
Custom
27 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R504 100K_0402_5%
940@
12
R507 47K_0402_5%940@
12
R484 100K_0402_5%@
1 2
C517
0.1U_0402_16V4Z
@
1
2
R591 0_0402_5%DEG@
1 2
R476 100K_0402_5%
1 2
R485 4.7K_0402_5%
1 2
R494 0_0402_5%
@
1 2
R482
0_0402_5%
@
12
R509
0_0402_5%
@
12
C514
15P_0402_50V8J @
1
2
L31
BLM18AG121SN1D_2P
1 2
R499 0_0402_5%
940@
12
R24
0_0805_5%
@
1 2
X1
32.768KHZ_12.5PF_FC-135
@
12
C513
15P_0402_50V8J@
1
2
C504
0.1U_0402_16V4Z
@
1
2
R691 100K_0402_5%
12
C503
0.1U_0402_16V4Z
1
2
C515
4.7U_0603_6.3V6K
1
2
R598 0_0402_5%
DEG@
1 2
C505
0.1U_0402_16V4Z
@
1
2
C502
0.1U_0402_16V4Z
1
2
R506
56K_0402_5%
12
C520 33P_0402_50V8K
XEMC@
C512 100P_0402_50V8J
EMC@
12
R496 43_0402_1%940@
1 2
R481 10K_0402_5%@
1 2
R495 0_0402_5%@
12
C508
0.1U_0402_16V4Z
1
2
R158 49.9_0402_1%940@
1 2
L32
BLM18AG121SN1D_2P
1 2
R488 10K_0402_5%@
1 2
R497 43_0402_1%9012@
1 2
D26
RB751V40_SC76-2
@
1 2
R502 0_0402_5%
@
1 2
R159 49.9_0402_1%940@
1 2
R480 47K_0402_5%
12
R565
0_0402_5% @
12
LPC & MISC
Int. K/B
Matrix
SM Bus
GPIO
GPIO
AD Input
PWM Output
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPO
GPI
U28
KB9012QF-A3_LQFP128_14X149012@
GATEA20/GPIO00
1
KBRST#/GPIO01
2
SERIRQ
3
LPC_FRAME#
4
LPC_AD3
5
PM_SLP_S3#/GPIO04
6
LPC_AD2
7
LPC_AD1
8
EC_VDD/VCC 9
LPC_AD0
10
GND/GND
11
CLK_PCI_EC
12
PCIRST#/GPIO05
13
PM_SLP_S5#/GPIO07
14
EC_SMI#/GPIO08
15
GPIO0A
16
GPIO0B
17
GPIO0C
18
GPIO0D
19
EC_SCII#/GPIO0E
20
GPIO0F 21
EC_VDD/VCC 22
BEEP#/GPIO10 23
GND/GND
24
EC_INVT_PWM/GPIO11
25
GPIO12 26
ACOFF/GPIO13 27
FAN_SPEED1/GPIO14
28
EC_PME#/GPIO15
29
EC_TX/GPIO16
30
EC_RX/GPIO17
31
PCH_PWROK/GPIO18
32
EC_VDD/VCC 33
SUSP_LED#/GPIO19
34
GND/GND
35
NUM_LED#/GPIO1A
36
EC_RST#
37
GPIO1D
38
KSO0/GPIO20
39
KSO1/GPIO21
40
KSO2/GPIO22
41
KSO3/GPIO23
42
KSO4/GPIO24
43
KSO5/GPIO25
44
KSO6/GPIO26
45
KSO7/GPIO27
46
KSO8/GPIO28
47
KSO9/GPIO29
48
KSO10/GPIO2A
49
KSO11/GPIO2B
50
KSO12/GPIO2C
51
KSO13/GPIO2D
52
KSO14/GPIO2E
53
KSO15/GPIO2F
54
KSI0/GPIO30
55
KSI1/GPIO31
56
KSI2/GPIO32
57
KSI3/GPIO33
58
KSI4/GPIO34
59
KSI5/GPIO35
60
KSI6/GPIO36
61
KSI7/GPIO37
62
BATT_TEMP/GPIO38 63
GPIO39 64
ADP_I/GPIO3A 65
GPIO3B 66
EC_VDD/AVCC 67
DAC_BRIG/GPIO3C 68
AGND/AGND
69
EN_DFAN1/GPIO3D 70
IREF/GPIO3E 71
CHGVADJ/GPIO3F 72
ENBKL/GPIO40 73
PECI_KB930/GPIO41 74
GPIO42 75
IMON/GPIO43 76
EC_SMB_CK1/GPIO44
77
EC_SMB_DA1/GPIO45
78
EC_SMB_CK2/GPIO46
79
EC_SMB_DA2/GPIO47
80
KSO16/GPIO48
81
KSO17/GPIO49
82
EC_MUTE#/GPIO4A 83
USB_EN#/GPIO4B 84
CAP_INT#/GPIO4C 85
EAPD/GPIO4D 86
TP_CLK/GPIO4E 87
TP_DATA/GPIO4F 88
FSTCHG/GPIO50 89
BATT_CHG_LED#/GPIO52 90
CAPS_LED#/GPIO53 91
PWR_LED#/GPIO54 92
BATT_LOW_LED#/GPIO55 93
GND/GND
94
SYSON/GPIO56 95
EC_VDD/VCC 96
CPU1.5V_S3_GATE/GPXIOA00 97
WOL_EN/GPXIOA01 98
HDA_SDO/GPXIOA02 99
EC_RSMRST#/GPXIOA03 100
EC_LID_OUT#/GPXIOA04 101
PROCHOT_IN/GPXIOA05 102
H_PROCHOT#_EC/GPXIOA06 103
VCOUT0_PH/GPXIOA07 104
BKOFF#/GPXIOA08 105
PBTN_OUT#/GPXIOA09 106
PCH_APWROK/GPXIOA10 107
SA_PGOOD/GPXIOA11 108
VCIN0_PH/GPXIOD00 109
AC_IN/GPXIOD01 110
EC_VDD0 111
EC_ON/GPXIOD02 112
GND0
113
ON/OFF/GPXIOD03 114
LID_SW#/GPXIOD04 115
SUSP#/GPXIOD05 116
GPXIOD06 117
PECI_KB9012/GPXIOD07 118
SPIDI/GPIO5B 119
SPIDO/GPIO5C 120
VR_ON/GPIO57 121
XCLKI/GPIO5D
122
XCLKO/GPIO5E
123 V18R 124
EC_VDD/VCC 125
SPICLK/GPIO58 126
PM_SLP_S4#/GPIO59 127
SPICS#/GPIO5A 128
C518 0.1U_0402_16V4Z940@
1 2
R601 1K_0402_5%
940@
1 2
C507
1000P_0402_50V7K
XEMC@
1
2
R697
10K_0402_5%
@
1 2
R600
0_0402_5%
DEG@
1 2
R236 0_0805_5%
@
12
C511 0.01U_0402_16V7K
XEMC@
1 2
G
D
S
Q50
L2N7002LT1G_SOT23-3
2
13
R160 49.9_0402_1%940@
1 2
R696
10K_0402_5%
@
1 2
R146 49.9_0402_1%
940@
1 2
D28 RB751V40_SC76-2940@
1 2
C509 0.1U_0402_16V7K
12
C506
1000P_0402_50V7K
XEMC@
1
2
R605 0_0402_5%
DEG@
1 2
D25
RB751V40_SC76-2
1 2
U28
KB932QF-A0_LQFP128
940@
SA000055I00
R479 4.7K_0402_5%@
1 2
R511
4.7K_0402_5%940@
1 2
R492 10K_0402_5%@
1 2
R606 0_0402_5%
DEG@
1 2
R477 33_0402_5%
XEMC@
12
C510 100P_0402_50V8J
12
R478 4.7K_0402_5%@
1 2
C516 20P_0402_50V8
940@
1 2
R513 0_0402_5%XEMC@
12
R510 4.7K_0402_5%@
1 2
RP12
2.2K_0804_8P4R_5%
1 8
2 7
3 6
4 5
U29
W25X20BVSNIG_SO8
940@
SA00003GM10
/CS
1
DO_IO1
2
DIO_IO0 5
CLK 6
VCC 8
/WP
3
GND
4
/HOLD 7
R483 4.7K_0402_5%
1 2
R503
100K_0402_5%
1 2
R508 47K_0402_5%940@
12
C501
22P_0402_50V8J
XEMC@
12
R501 0_0402_5%@
1 2
C398
0.1U_0402_16V4Z
XEMC@
1
2
R498 0_0402_5%
9012@
12
R588 10K_0402_5%@
1 2
R500 0_0402_5%
9012@
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

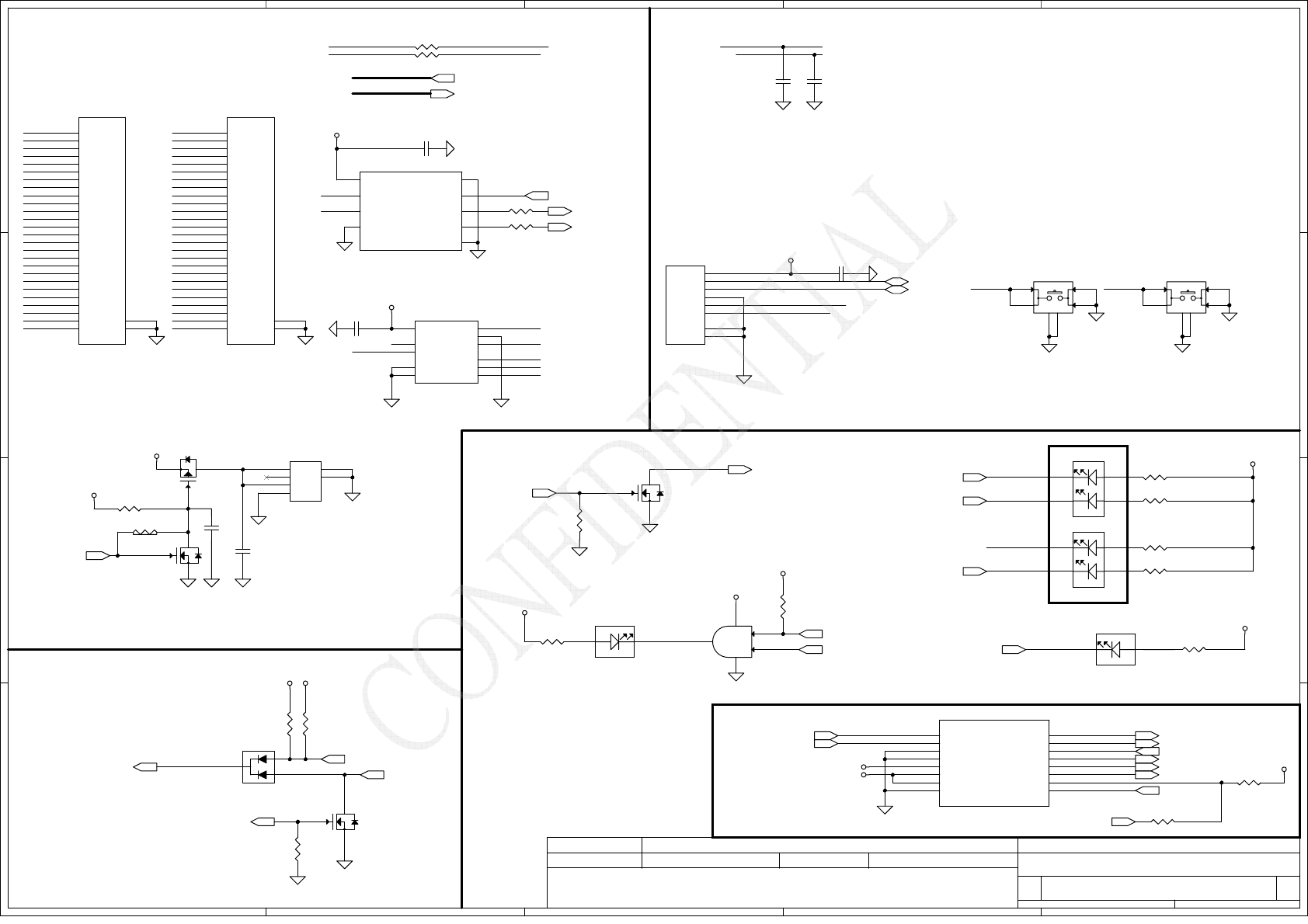

KB Conn.
LED
HDD LED
ON/OFF BTN
To TP/B Conn.
100g for Press 100g for Press
TPM Board
12/9 modify pin define
F3 + Power BTN --> Reset EC
KB BackLight Conn.
Need check CIS Symbol
KSI1
KSI6
KSI5
KSI7
KSO1
KSO0
KSO2
KSO4
KSO3
KSO5_SW
KSO6
KSO7
KSO8
KSO12
KSO10
KSO13
KSO11
KSO9
KSO15
KSO14
KSI2
KSI0_SW
KSI3
KSI4
KSO16
KSO17
BATT_AMB_LED#
BATT_BLUE_LED#
PWR_SUSP_LED#
PWR_LED#
TP_DATA
PWR_LED#
MEDIA_LED# EC_WLAN_LED#
LEFT_BTN# RIGHT_BTN#
PLT_RST#
CLKRUN#
LPC_AD0
SERIRQ
CLK_PCI_TPM
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
LPCPD#_R
TP_CLK
TP_DATA
LEFT_BTN#
RIGHT_BTN#
F3_BTN
ON/OFF
KSI0_SW KSI0
KSO5
KSO5_SW ON/OFF
ON/OFF
F3_BTN
EC_ON
51ON#
ON/OFFBTN#
KBL_EN_R
+5VS_BL
KSI0_SW
KSO5_SW KSI0
KSO5
KSO[0..17]
KSI[0..7]
KSI1
KSI6
KSI5
KSI7
KSO1
KSO0
KSO2
KSO4
KSO3
KSO5_SW
KSO6
KSO7
KSO8
KSO12
KSO10
KSO13
KSO11
KSO9
KSO15
KSO14
KSI2
KSI0_SW
KSI3
KSI4
KSO16
KSO17
TP_CLK
BATT_AMB_LED#27
BATT_BLUE_LED#27
PWR_SUSP_LED#27
PWR_LED27
5IN1_LED# 22
PCH_SATALED# 6 EC_WLAN_LED#27
PWR_LED# 26
ON/OFF 27
CLKRUN#8 PLT_RST#27,8
LPC_AD2 27,7
LPC_AD3 27,7
LPC_AD0 27,7
SERIRQ 27,9
CLK_PCI_TPM 7
LPC_AD1 27,7
LPC_FRAME# 27,7
LPCPD#8
TP_CLK 27
TP_DATA 27
EC_IN_RW 9
EC_ENTERING_RW 27
EC_RST# 25,27
EC_ON27,35
51ON# 32
ON/OFFBTN#25,26
KSO[0..17] 25,27
KSI[0..7] 25,27
KBL_EN#27
+3VALW
+3VS
+3VS
+3VS
+3VS
+3VALW_EC +3VLP
+5VS
+3VALW
+3VS
+3VS
+3VALW_EC
+3VALW_EC
+5VALW
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
KB & TP & TPM Connector & LED
Custom
28 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
KB & TP & TPM Connector & LED
Custom
28 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
KB & TP & TPM Connector & LED
Custom
28 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
A
LED4
LTST-C191TBKT-CA_BLUE
2 1
R534
100K_0402_5%
9012@
1 2
NX3L4684TK_MO-229-10_3X3
U41
940@
VCC
11Y1 2
2Y0 7
2Y1 10
1Z
3
2Z
9
1Y0 5
1S 4
GND
6
2S 8
PAD
11
JTP2
ACES_88514-00601-071
CONN@
SP010014M00
11
22
33
44
55
66
GND 8
GND 7
R589 0_0402_5%
940@
1 2
JTPM1
FOX_QT510166-L010-7H
CONN@
SP020011OA0
22
44
66
88
10 10
12 12
1
1
3
3
5
5
7
7
9
9
11
11
14 14
13
13
16 16
15
15
C663
0.1U_0402_16V4Z
1 2
R740
51_0402_5%
1 2
B
A
LED7
LTST-C295TBKF-CA_AMBER-BLUE
21
43
C525
0.1U_0603_25V7K
@
1
2
G
D
S
Q44
DMG2301U-7_SOT23-3
BL@
2
13
C523
0.1U_0603_25V7K
940@
12
R586 0_0402_5%
940@
1 2
R702 499_0402_1%
1 2
C522
0.1U_0603_25V7K
940@
1 2
R522
100K_0402_5%
940@
1 2
R592
0_0402_5%
@
1 2
G
D
S
Q26
L2N7002LT1G_SOT23-3
@
2
13
G
D
S
Q17
L2N7002LT1G_SOT23-3
2
13
R624
10K_0402_5%
940@
1 2
C551
100P_0402_50V8J
XEMC@
1
2
D24
BAV70W_SOT323-3
2
3
1
JKB2
E-T_6905-E26N-01R
CONN@
SP01000IJ00
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26 G1 27
G2 28
C553
100P_0402_50V8J
XEMC@
1
2
U39
MC74VHC1G08DFT2G_SC70-5
B2
A1
Y
4
P5
G
3
R392
10K_0402_5%
TPM@
12
A
LED8
LTST-C191KFKT-2CA_ORANGE
21
R701 680_0402_5%
1 2
B
A
LED6
LTST-C295TBKF-CA_AMBER-BLUE
21
43
R444
0_0402_5%
@
1 2
R698 680_0402_5%
1 2
JBL1
ACES_50504-0040N-001
CONN@
SP01000Z300
1
12
2G1 5
G2 6
3
34
4
C524
0.1U_0603_25V7K
@
1
2
R699 51_0402_5%
1 2
R632
10K_0402_5%
1 2
R577 0_0402_5%9012@
1 2
SW5
TJE-532QR5_4P
1
2
3
4
5
6
G
D
S
Q39
L2N7002LT1G_SOT23-3
940@
2
13
R451
100K_0402_5%
BL@
1 2
R700 51_0402_5%
1 2
R452
100K_0402_5%
1 2
JKB1
E-T_6905-E26N-01R
CONN@
SP01000IJ00
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26 G1 27
G2 28
SW4
TJE-532QR5_4P
1
2
3
4
5
6
R585 0_0402_5%9012@
1 2
SLG4N059VTR_TDFN8_2X2
U44 940@
VDD
1
EC_RST# 8
BTN_B
4
GND 5
PWR_BTN#
2
BTN_A
3EC_IN_RW 7
EC_ENT_RW 6
PAD 9
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

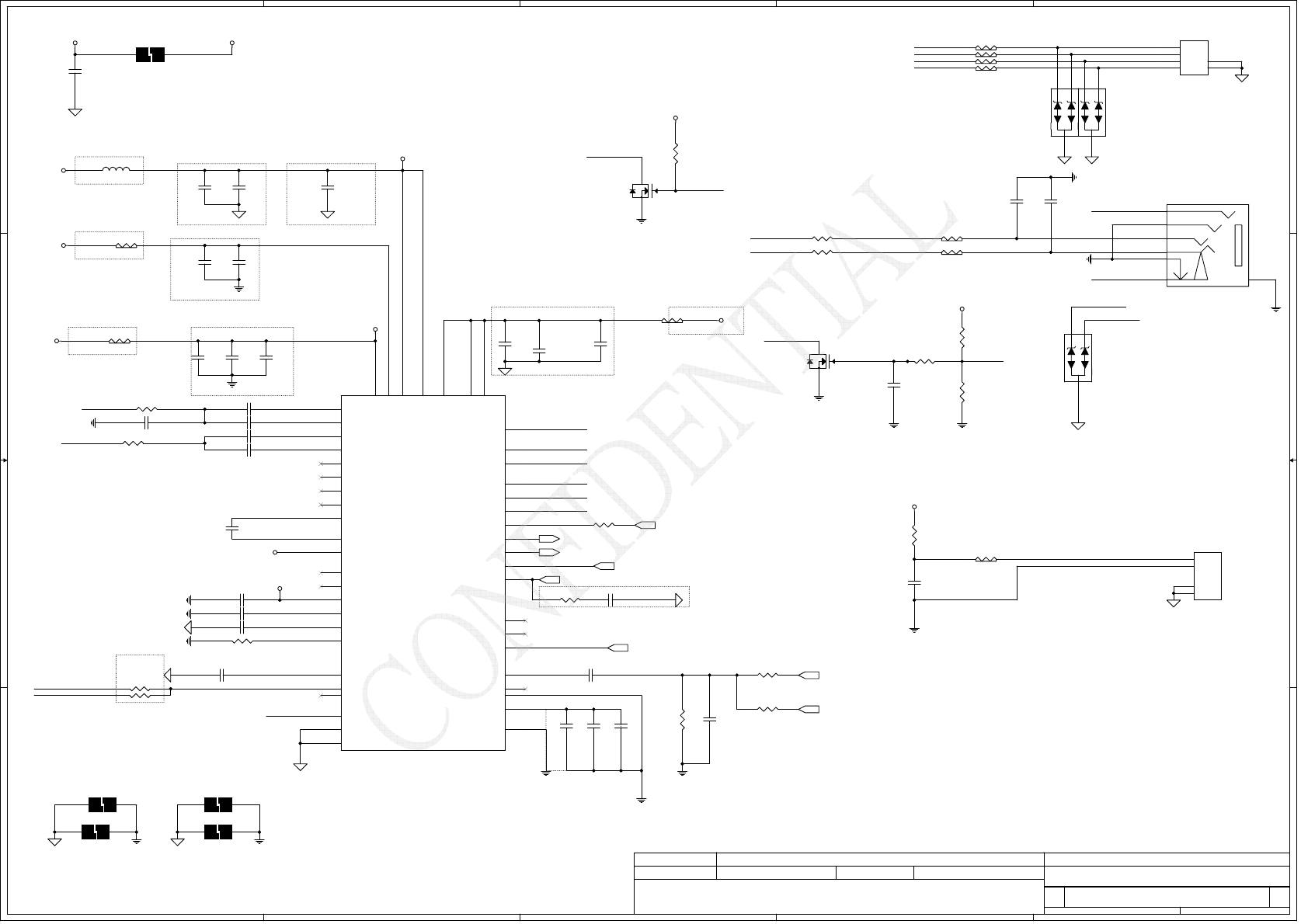

Place next pin27
Place near Pin1, 9
SM010030010 200ma 120ohm@100mhz DCR 0.2
For EMI
20mil
20mil
HD Audio Codec
10mil
10mil
Place near Pin25, 38
Int. MIC
10mil
10mil
10mil
40mil
Place near Pin46
35mA
68mA 600mA
Int. Speaker Conn.
Combo MIC
15mil
For EMI
15mil
SM010004010 300ma 70ohm@100mhz DCR 0.3
40mil
Place near Pin41
Internal MIC
Headphone Out
SM010030010 200ma 120ohm@100mhz DCR 0.2
SM010014520 3000ma 220ohm@100mhz DCR 0.04
Place near
codec
4.75V
(output = 300 mA)
40mil 40mil
Place near Pin40
CPVEE MONO_IN
HDA_RST_AUDIO#
HDA_SDIN0_AUDIO
HP_PLUG#_1
MIC2JD_1
SPK_R-
SPKR+
SPKR- SPK_R+
MIC2_C_R
COM_MIC_R MIC2_C_L
COM_MIC
INT_MIC_R
HP_LEFT
HP_RIGHT
SPK_L+
SPKR+
SPKR-
SPKL-
SPKL+
INT_MIC LINE2_C_L
LINE2_C_R
INT_MIC_R
BEEP#_R
COM_MIC
COM_MIC
HP_PLUG#
HPOUT_R_2HP_RIGHT HPOUT_R_1
HP_LEFT HPOUT_L_1 HPOUT_L_2
HP_PLUG#
COM_MIC
CODEC_VREF
SENSE_A
SPKL-
SPKL+ SPK_L-
+3VS_VDDA
+3VS_DVDD
MIC2JD
MIC2JD_1
HP_PLUG#_1
HP_PLUG#
INT_MIC_R_1
MIC2JD
EC_MUTE# 27
HDA_SYNC_AUDIO 6
HDA_SDOUT_AUDIO 6
HDA_RST_AUDIO# 6
HDA_BITCLK_AUDIO 6
HDA_SDIN0 6
BEEP# 27
PCH_SPKR 9
GNDA
+INTMIC_VREFO
GNDA
+INTMIC_VREFO
GND
GND
GNDA
GND
GNDA
+VDDA
+3VS
+MIC2_VREFO
GNDA
+VDDA
GNDA
+5VS
GNDAGND GND GNDA
+MIC2_VREFO
GNDA
+AVDD1_HDA
+PVDD_HDA
GND
GNDA
+VDDA
GND
GNDA
GND
GNDA
GNDA
GNDA
GND
GND GND
GND
GND
GNDA
GNDA
+3VS
GNDA
GNDA
GNDA
+VDDA
GND
GND
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HD Audio Codec ALC3225
Custom
29 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HD Audio Codec ALC3225
Custom
29 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
HD Audio Codec ALC3225
Custom
29 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
R549 20K_0402_1%@
12
C558
0.1U_0402_16V4Z
1
2
R540 1K_0402_5%
12
JHP1
SINGA_2SJ3053-100111F
CONN@
DC230009K00
1
3
4
2
5
6 7
L33
HCB2012KF-221T30 0805
12
C770 1U_0603_6.3V6M
1 2
C556
100P_0402_50V8J
XEMC@
1
2
C584 10U_0603_6.3V6M
1 2
L54
0_0603_5% @
1 2
J7
JUMP_43X39
@
1
122
C577
2.2U_0402_6.3V6M
1
2
C582
0.1U_0402_16V4Z
@
1
2
C604
0.1U_0402_16V4Z
1
2
R542
22K_0402_5%
1 2
R545 39.2K_0402_1%
12
C608
10U_0603_6.3V6M
12
L52
0_0603_5% @
1 2
R531
4.7K_0402_5%
1 2
C559
0.1U_0402_16V4Z
@
1
2
C605
10U_0603_6.3V6M
12
C769 1U_0603_6.3V6M
1 2
C636
0.1U_0402_16V4Z
1
2
L36
0_0603_5%@
1 2
R546 20K_0402_1%
12
R529
47K_0402_5%
@
1 2
C571
10U_0603_6.3V6M
1
2
C574 10U_0603_6.3V6M
1 2
C578
10U_0603_6.3V6M
@
1
2
R543
22K_0402_5%
1 2
R527 0_0603_5%@
1 2
L38
0_0603_5%@
1 2
C576
0.1U_0402_16V4Z
@
1
2
C570
2.2U_0402_6.3V6M
1
2
JMIC1
SP020008Y00
CONN@
ACES_88266-02001_2P
1
1
2
2
G2
4G1
3
R530
47K_0402_5%
1 2
R528 0_0603_5%@
1 2
C554
0.1U_0402_16V4Z EMC@
1
2
C567
10U_0603_6.3V6M
12
C444
330P_0402_50V7K
XEMC@
1
2
C562
0.1U_0402_16V4Z
@
1
2
G
D
S
Q28
LBSS138LT1G_SOT-23-3
@
2
13
J12
JUMP_43X39
@
1
122
C568 2.2U_0603_6.3V6M~N
1 2
C555
1U_0402_6.3V6K
12
R532 0_0603_5%@
1 2
JSPK1
ACES_88266-04001
CONN@
SP02000K200
1
1
2
2
3
3
4
4G1 5
G2 6
C445
330P_0402_50V7K
XEMC@
1
2
J11
JUMP_43X39
@
1
122
C583 10U_0603_6.3V6M
1 2
R548 0_0402_5%
XEMC@
1 2
J14
JUMP_43X39
@
1
122
R539
2.2K_0402_5%
12
U34
ALC3225-CG_MQFN48_6X6
LINE2_L
24
LINE2_R
23
MIC2_R
18
MIC2_L
17
LINE1_L
22
LINE1_R
21
MIC1_L
19
MIC1_R
20
MIC2_VREFO
29
MIC1_VREFO_L
31
MIC1_VREFO_R
30
SENSE A
13
PCBEEP 12
SPK_OUT_L+ 42
SPK_OUT_L- 43
MONO_OUT 16
RESETB 11
SYNC 10
BCLK 6
SDATA_OUT 5
SDATA_IN 8
GPIO0/DMIC_DATA 2
GPIO1/DMIC_CLK 3
CBP
37
CBN
35
VREF 28
DVDD 1
DVDD_IO 9
AVDD1 26
AVDD2 40
HPOUT_L 32
CPVDD 36
SPDIFO
48
PVDD2 46
DVSS
4
CPVEE
34
HPOUT_R 33
SENSE B
14
LDO1_CAP
27
PD# 47
JDREF
15
AVSS1 25
AVSS2 38
SPK_OUT_R+ 45
SPK_OUT_R- 44
PVDD1 41
LDO3_CAP
7
LDO2_CAP
39
GND
49
R533 0_0603_5%@
1 2
G
D
S
Q31
L2N7002LT1G_SOT23-3
2
13
C564
10U_0603_6.3V6M
1
2
C561
0.1U_0402_16V4Z
1
2
R238 60.4_0603_1%
1 2
C550
220P_0402_50V7K
XEMC@
1
2
C62 1000P_0402_50V7KEMC@
1 2
C573
22P_0402_50V8J
XEMC@
1 2
D1
AZ5125-02S.R7G_SOT23-3
EMC@
2
3
1
D37
AZ5125-02S.R7G_SOT23-3
XEMC@
2
3
1
J6
JUMP_43X118
@
1 2
R726 1K_0402_5%
12
R417
10K_0402_5%
12
C569 2.2U_0603_6.3V6M~N
1 2
R237 60.4_0603_1%
1 2
D27
AZ5125-02S.R7G_SOT23-3
XEMC@
2
3
1
R523
100K_0402_5%
12
C575 2.2U_0402_6.3V6M
1 2
R547
33_0402_5%
1 2
L51 0_0603_5%
@
1 2
L55
0_0603_5% @
1 2

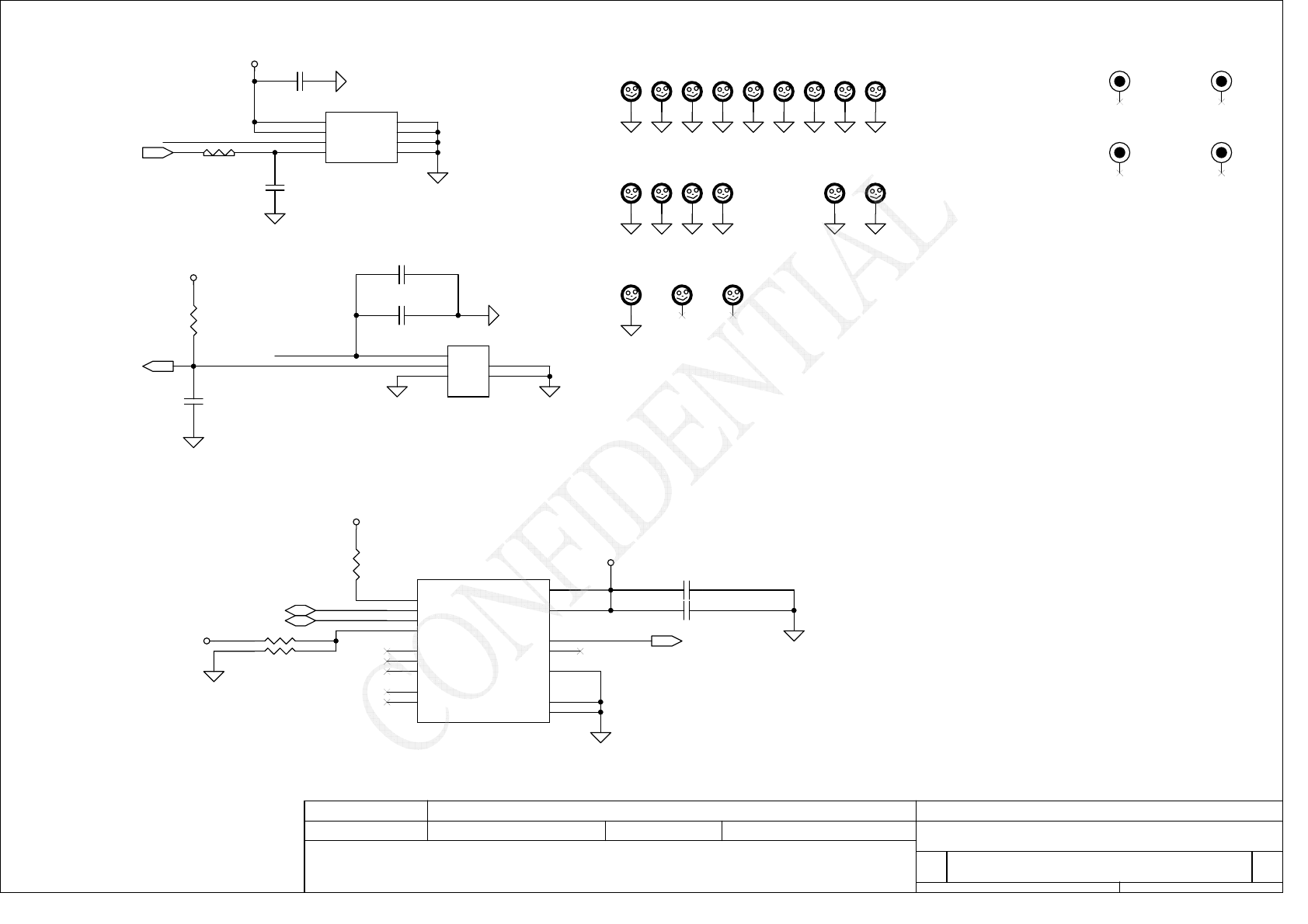

FAN1 Conn
40mil
LIS3DH
SA0 ->0, Address is 0011 000 (0x30h)
SA0 ->1, Address is 0011 001 (0x32h)
+VCC_FAN1
+VCC_FAN1
G_SEN_INT
FAN_SPEED127
EN_DFAN127
G_SEN_INT 27
EC_SMB_CK227,7 EC_SMB_DA227,7
+5VS
+3VS
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
FAN & Screw Hole & G-Sensor
Custom
30 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
FAN & Screw Hole & G-Sensor
Custom
30 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
FAN & Screw Hole & G-Sensor
Custom
30 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
FD2
FIDUCIAL_C40M80
@
1
C627
4.7U_0603_10V6K
1 2
H22
H_2P5N
@
1
H5
H_3P0
@
1
H23
H_2P5X3P5N
@
1
U31
AP2113AMTR-G1_SO8
EN
1
VIN
2
VOUT
3
VSET
4
GND 8
GND 7
GND 6
GND 5
FD4
FIDUCIAL_C40M80
@
1
R516
10K_0402_5%
12
H24
H_4P0
@
1
C632
4.7U_0603_10V6K
1 2
U2
LIS3DHTR_LGA16_3X3
GSEN@
Vdd_IO 1
GND 12
INT1 11
Vdd 14
ADC3
13
NC
2
INT2 9
GND 5
SDA/SDI/SDO
6
SDO/SA0
7
CS
8
NC
3
SCLSPC
4
RES 10
ADC2
15 ADC1
16
H11
H_3P0
@
1
C630
1000P_0402_50V7K
XEMC@
1
2
H13
H_4P0
@
1
R520 10K_0402_5%GSEN@
1 2
H16
H_3P2
@
1
H10
H_3P0
@
1
H20
H_3P2
@
1
H6
H_3P0
@
1
FD3
FIDUCIAL_C40M80
@
1
H14
H_4P0
@
1
H12
H_3P0
@
1
C626
0.1U_0402_16V4Z
@
1
2
C633 10U_0603_6.3V6M
GSEN@
1 2
FD1
FIDUCIAL_C40M80
@
1
H3
H_3P0
@
1
C631
1000P_0402_50V7K
@
1 2
R519 10K_0402_5%@
1 2
R515
0_0402_5%
@
12
H15
H_4P0
@
1
C628 0.1U_0402_16V4Z
GSEN@
1 2
JFAN1
ACES_88231-03041
CONN@
SP020020710
1
1
2
2
3
3GND 4
GND 5
H21
H_3P0
@
1
H4
H_3P0
@
1
H17
H_3P0
@
1
R518
10K_0402_5%
GSEN@
12
H9
H_3P0
@
1
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

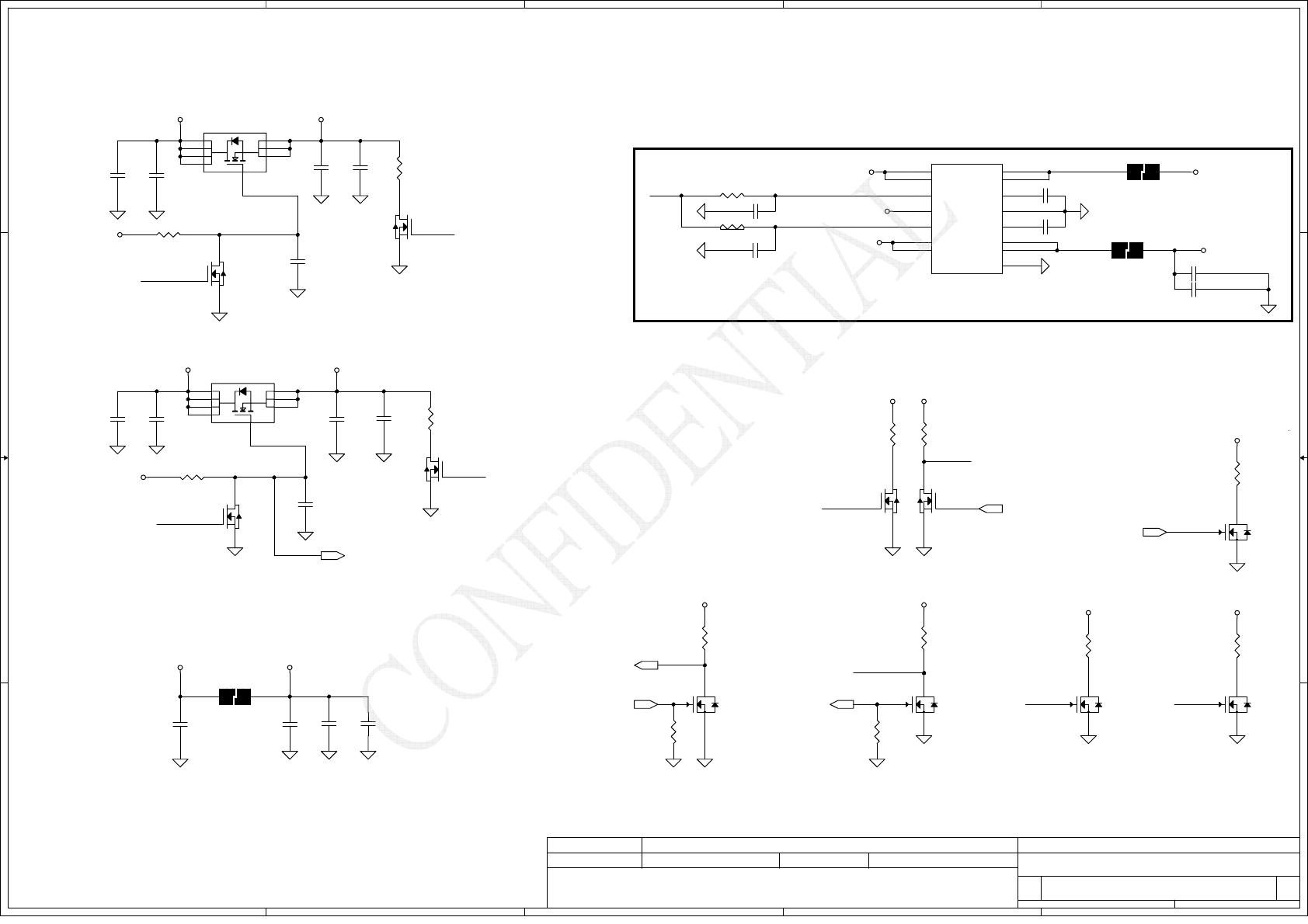

+5VALW TO +5VS
20mil
20mil
10mil
10mil
+3VALW TO +3VS
Normall Platform (Not support M-STATE and Deep Sleep)
40mil
20mil
+3VALW TO +3VALW(PCH AUX Power)
Short J5 for PCH VCCSUS3.3
Reserved
SUSP
+5VS_R
+3VS_R
SUSP
5VS_GATE
+1.05VS_VTT_R
SUSP
SUSP
SUSP +0.675VS_R
SUSPSUSP
PCH_PWR_EN#
3VS_ONSUSP#
5VS_ON
+1.8VS_R
SYSON#
+1.35V_R
SYSON#
3VS_GATE
SUSP#27,34,36,37,38
SUSP36
PCH_PWR_EN27
6511_PWR_EN#20
SYSON 27,36
3VS_GATE 11
+5VALW
+3VS
+VSB
+5VS
+0.675VS
+VSB
+1.05VS_VTT
+3VALW
+5VALW
+3VALW +3VALW_PCH
+5VALW
+5VALW
+3VALW
+5VALW
+1.8VS
+1.35V +5VALW
+3VS
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DC Interface
Custom
31 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DC Interface
Custom
31 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DC Interface
Custom
31 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
G
D
S
Q29
L2N7002LT1G_SOT23-3
35V@
2
13
C976
330P_0402_50V7K
12
C590
4.7U_0603_6.3V6K
@
1
2
R552
100K_0402_5%
35V@
1 2
R926 0_0402_5%
@
1 2
G
D
S
Q38
L2N7002LT1G_SOT23-3
35V@
2
13
Q40A
DMN66D0LDW-7_SOT363-6
35V@
1
2
6
Q32A
DMN66D0LDW-7_SOT363-6
35V@
61
2
C589
4.7U_0603_6.3V6K
@
1
2
R927 47K_0402_5%
12
C585
4.7U_0603_10V6K
1
2
C995 22U_0805_6.3V6M
EMC@
1 2
R558
470_0603_5%
35V@
1 2
C586
4.7U_0603_10V6K
35V@
1
2
R551
470_0603_5%
35V@
1 2
U35
DMN3030LSS-13_SOP8L-8
35V@
36
5
7
82
4
1
J36
JUMP_43X118
@
1
122
Q30B
DMN66D0LDW-7_SOT363-6
35V@
34
5
C979 0.1U_0402_16V4Z
@
1 2
U33
DMN3030LSS-13_SOP8L-8
35V@
36
5
7
82
4
1
C997
10U_0603_6.3V6M
EMC@
1
2
J37
JUMP_43X118
@
1
122
R555
10K_0402_5%
35V@
12
G
D
S
Q37
L2N7002LT1G_SOT23-3
35V@
2
13
Q32B
DMN66D0LDW-7_SOT363-6 35V@
34
5
C996 22U_0805_6.3V6M
EMC@
1 2
R573
470_0603_5%
35V@
1 2
G
D
S
Q36
L2N7002LT1G_SOT23-3
35V@
2
13
R567
470_0603_5%
35V@
1 2
C592
0.1U_0603_25V7K
35V@
1
2
C597
1U_0402_6.3V6K
35V@
1
2
C980 0.1U_0402_16V7K
12
Q30A
DMN66D0LDW-7_SOT363-6 35V@
61
2
C598
0.1U_0603_25V7K
35V@
1
2
C595
4.7U_0603_6.3V6K
35V@
1
2
R561
100K_0402_5%
35V@
1 2
R553
100K_0402_1%
35V@
12
C588
1U_0402_10V6K
35V@
1
2
J5
JUMP_43X79
@
1
122
C594
4.7U_0603_6.3V6K
1
2
R563
100K_0402_5%
35V@
12
R559
150K_0402_1%
35V@
12
Q40B
DMN66D0LDW-7_SOT363-6
35V@
4
5
3
R568
470_0603_5%
35V@
1 2
C967
330P_0402_50V7K
12
R554
100K_0402_5%
35V@
1 2
C591
1U_0402_6.3V6K
@
12
R566
22_0603_5%
35V@
12
U11
TPS22966DPUR_SON14_2X3
GND 11
VIN2
6
VBIAS
4
ON2
5
VOUT2 9
VIN2
7
CT1 12
VOUT1 14
VOUT2 8
VOUT1 13
VIN1
2
ON1
3
VIN1
1
CT2 10
GPAD 15
C587
4.7U_0603_10V6K
1
2
C596
4.7U_0603_6.3V6K
1
2
G
D
S
Q33
2N7002K_SOT23-3
35V@
2
13
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
-+

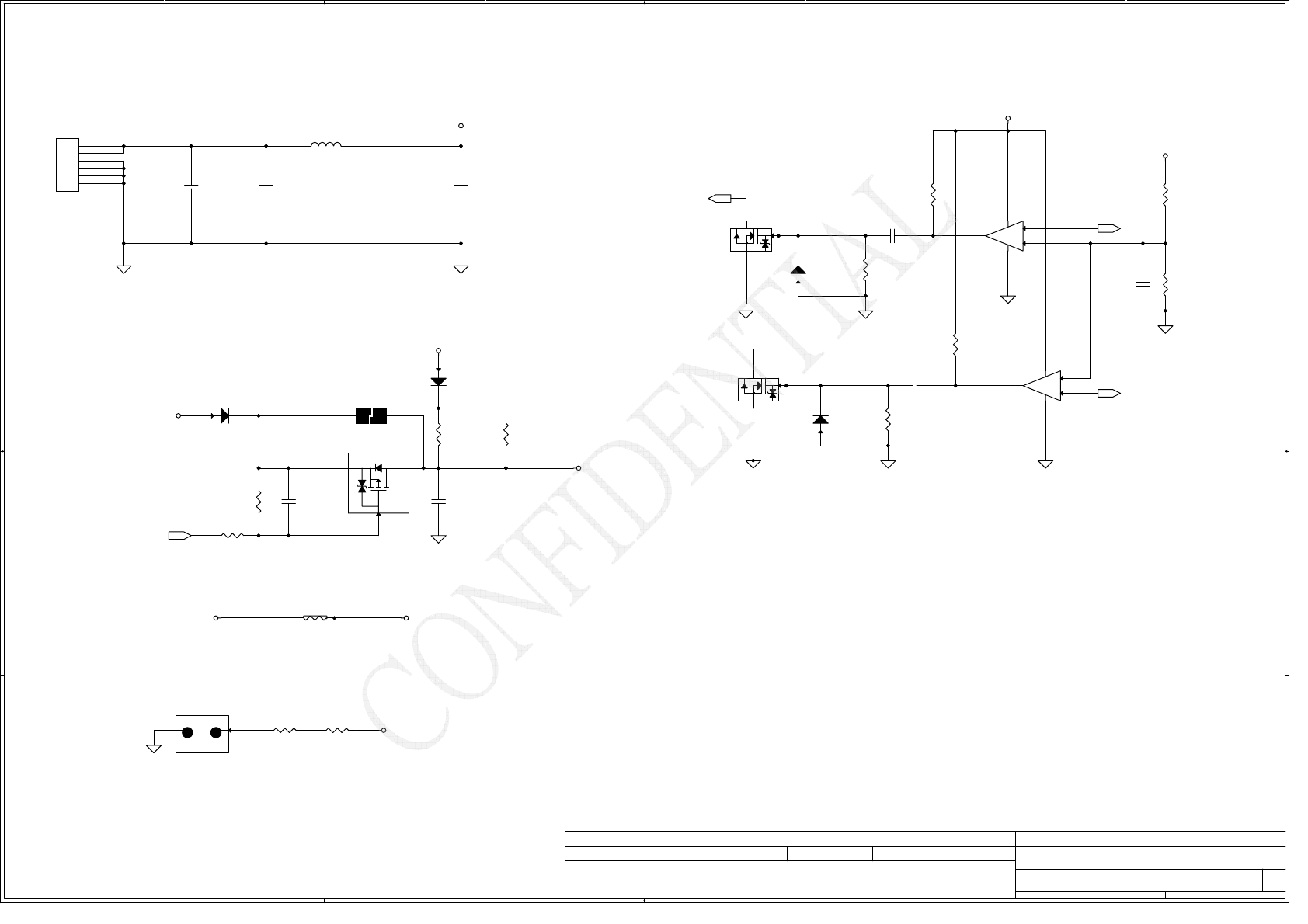

H_PROCHOT#
N1
DC_IN_S1
BATT_TEMP 27,33
H_PROCHOT#27,33,4
ACIN 27,34,8
51ON#28
VIN
+3VALW
+5VS
+CHGRTC
+3VLP
VIN
VS
BATT+
+RTCBATT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DCIN
Custom
32 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DCIN
Custom
32 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
DCIN
Custom
32 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PQ102
TP0610K-T1-E3_SOT23-3
930@
2
13
PL101
HCB2012KF-121T50_0805
EMI@
1 2
G
D
S
PQ101B
DMN66D0LDW-7_SOT363-6
@5
34
PU102B
LM393DR_SO8
@
+5
-6
O
7
P8
G
4
PC104
1000P_0603_50V7K
EMI@
12
PR102
47K_0402_1%
@
12
PR110
100K_0402_1%
930@
12
PR103
10K_0402_1%
@
12
PD104
LL4148_LL34-2
930@
12
PC102
100P_0603_50V8
EMI@
12
PJP101
ACES_50305-00441-001_4P
CONN@
1
3
4
GND
GND
2
PC105
0.022U_0402_16V7K
@
12
PR111
22K_0402_1%
930@
1 2
PR107
1.5M_0402_5%
@
12
G
D
S
PQ101A
DMN66D0LDW-7_SOT363-6
@2
61
PC101
0.1U_0603_25V7K
ESD@
12
PC106
100P_0402_50V8J
@
12
PC108
0.22U_0603_25V7K
930@
12
PR106
47K_0402_1%
@
12
PR105
0_0402_5%
@
1 2
PR113
560_0603_5%
1 2
PD103
LL4148_LL34-2
@
12
PR109
68_1206_5%
@
12
PBJ101 @
ML1220T13RE
12
PR104
1.5M_0402_5%
@
12
PC109
0.1U_0603_25V7K
@
12
PJ101
JUMP_43X39
@
1
122
PU102A
LM393DR_SO8
@
+3
-2
O
1
P8
G
4
PR112
560_0603_5%
1 2
PR108
68_1206_5%
@
12
PD102
LL4148_LL34-2
@
12
PD101
LL4148_LL34-2
@
1 2
PC107
0.022U_0402_16V7K
@
12
PR101
100K_0402_1%
@
12
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4

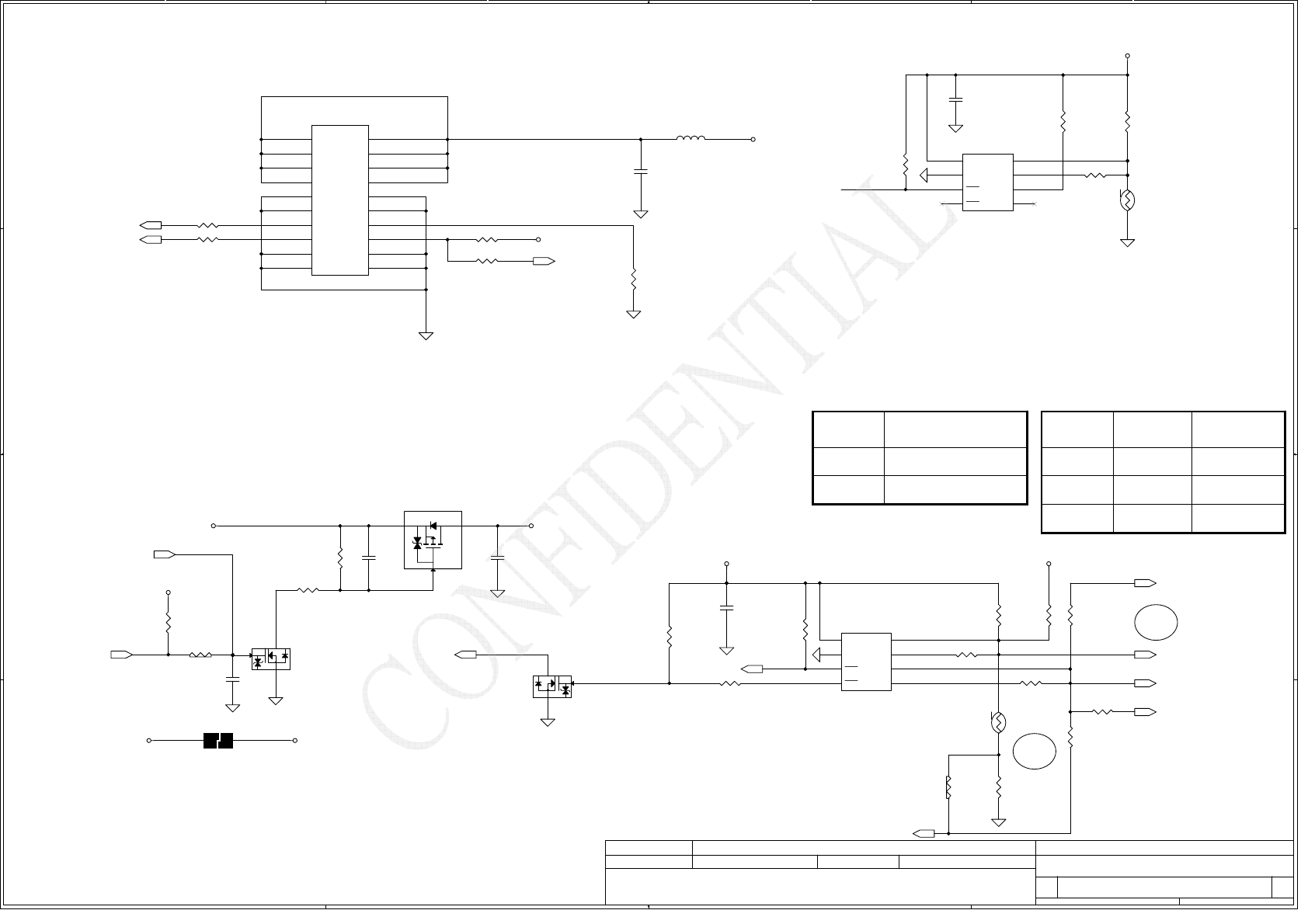

Recovery at 56 degree C
CPU thermal protection at 92 degree C ( shutdown )
PH201 under CPU botten side :
For 65W adapter==>action 70W , Recovery 54W
For 90W adapter==>action 97W , Recovery 75W
<45,47>
B value:4250K±1%
RecoveryActive
90W
65W
120W
For KB9012
sense 20mΩ
84W,1.2V 56W,0.793V
77W,0.791V117W,1.2V
92
℃
56
℃
For KB9012
OTP
2.255V, Recovery
1.2V, Active
BATT_S1
TH
EC_SMCK
EC_SMDA
BI
MAINPWON
MAINPWON
SPOK35 H_PROCHOT#27,32,4
ADP_I 27,34
VCIN0_PH 27
VCIN1_PROCHOT 27
MAINPWON27,35
EC_SPOK27
ECAGND27
BATT_TEMP 27,32
EC_SMB_CK127,34
EC_SMB_DA127,34
H_PROCHOT#_EC 27
B+ +VSBP
VL
+3VLP
+VSBP +VSB
+EC_VCCA
+3VLP
BATT+
+3VLP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
BATTERY CONN / OTP
Custom
33 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
BATTERY CONN / OTP
Custom
33 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
BATTERY CONN / OTP
Custom
33 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PR213
100K_0402_1%
@
12
PR229
10K_0402_1%
@
12
PR201 100_0402_1%
12
PR226
0_0402_5%
@
12
PR225
10K_0402_1%
12
PU204
G718TM1U_SOT23-8
@
RHYST2 5
OT1
3
OT2
4
GND
2
VCC
1
TMSNS2 6
RHYST1 7
TMSNS1 8
PR216
100K_0402_1%
@
12
PR204
127K_0402_1%
@
1 2
PR232
47K_0402_1%
@
12
PR208
1K_0402_1%
1 2
G
D
S
PQ203
2N7002KW_SOT323-3
@
2
13
PR230
10K_0402_1%
@
12
PC205
0.22U_0603_25V7K
@
12
PR227
1_0402_1%
@
12
PL201
HCB2012KF-121T50_0805
EMI@
1 2
PR212
22K_0402_1%
@
12
PR222
16.2K_0402_1%
@
1 2
PR202 100_0402_1%
12
PJP201
WAFER SUYIN 200109MS020G209ZR 20P P2
CONN@
22
66
88
10 10
12 12
16 16
18 18
44
14 14
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
20 20
19
19
PR231
100K_0402_1%
@
12
PJ201
JUMP_43X39
@
1
122
PR219
0_0402_5%
@
1 2
PR218
10.5K_0402_1%
90W@
12
PR222
10.5K_0402_1%
@
PR218
4.87K_0402_1%
65W@
PC207
0.1U_0603_25V7K
@
12
PU201
G718TM1U_SOT23-8
@
VCC
1
GND
2
~OT1
3
~OT2
4RHYST2 5
TMSNS2 6
RHYST1 7
TMSNS1 8
PR214
21K_0402_1%
@
12
PR206
6.49K_0402_1%
12
PC206
0.1U_0603_25V7K
@
12
PR221
1_0402_1%
@
1 2
PR217
100K_0402_1%
@
12
PR228
12.4K_0402_1%
12
PR220
9.53K_0402_1%
@
12
PC209
0.1U_0603_25V7K
@
12
PH202
100K_0402_1%_NCP15WF104F03RC
@
12
PH201
100K_0402_1%_NCP15WF104F03RC
12
PC202
1000P_0402_50V7K
EMI@
12
PQ202
TP0610K-T1-E3_SOT23-3
@
2
13
PR203
1K_0402_1%
12
G
D
S
PQ204
2N7002KW_SOT323-3
@
2
13
PC208
1U_0402_6.3V6K
@
12
PR211
100K_0402_1%
@
12
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4

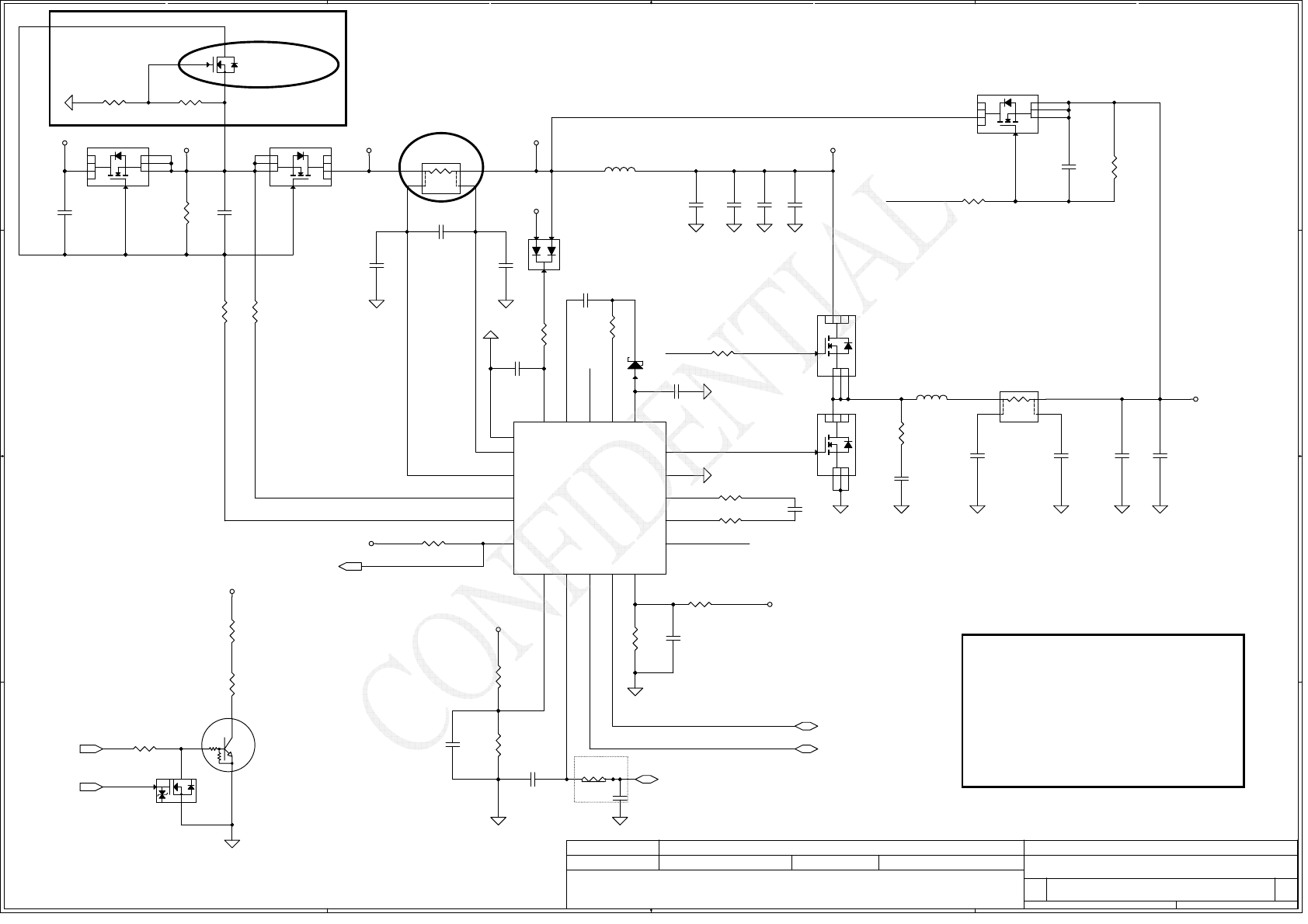

for reverse input protection
Close EC
Min. Typ Max.
L-->H 17.520V 18.006V 18.504V
H-->L 16.967V 17.593V 18.237V
Vin Dectector
ILIM and external DPM
Min. Typ Max.
3.906A 4.006A 4.108A
100ppm
4x4x2
BQ24735_ACDRV
BQ24735_ACN
BQ24735_ACP
BQ24735_BATDRV
BQ24735_BATDRV
BQ24735_CMSRC
BQ24735_LX
BQ24735_LX CHG
CSON1
CSOP1
DH_CHG
DH_CHG
DL_CHG
ACDET
ACOK
CSON1
CSOP1
SRP
SRN
DH_CHG-1
BQ24735_BST
ADP_I 27,33
EC_SMB_CK1 27,33
EC_SMB_DA1 27,33
ACIN27,32,8
SUSP#
7
,31,36,37,38
FSTCHG27
P2P1 B+VIN
+3VALW
VIN
BATT+
VIN
ACDET
CHG_B+
+3VLP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CHARGER
Custom
34 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CHARGER
Custom
34 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CHARGER
Custom
34 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PD303
RB751V-40_SOD323-2
12
PC326
2200P_0402_50V7K
12
PQ306
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PC312
1U_0603_25V6K
1 2
PC315
10U_0805_25V6K
12
PC325
0.1U_0402_16V7K
@
12
PR312
0.01_1206_1%
1
3
4
2
PC303
10U_0805_25V6K
12
PD302
BAS40CW_SOT323-3
12
3
PC318
10U_0805_25V6K
12
PR311
0_0603_5%
1 2
PC316
680P_0402_50V7K
EMI@
12
PR314
10_0603_5%
1 2
PR322
422K_0402_1%
12
PC306
0.1U_0402_25V6
1 2
PR302
1M_0402_5%
1 2
PC308
0.01U_0402_50V7K
12
PQ304
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PQ303
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PC307
2200P_0402_50V7K
EMI@
12
PQ305
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PC317
0.1U_0402_25V6
12
PL301
1.2UH_PNS40201R2YAF_3A_30%
EMI@
1 2
PQ307
PDTC115EU_SOT323-3
2
13
PC301
2200P_0402_50V7K
12
PC314
0.1U_0402_25V6
12
G
D
S
PQ301
2N7002KW_SOT323-3
1
2
3
PC304
10U_0805_25V6K
12
PR324
64.9K_0402_1%
12
PR323
100K_0402_1%
1 2
PC313
1U_0603_25V6K
1 2
PR317
316K_0402_1%
12
PR325
0_0402_5%
@
1 2
PR301
3M_0402_5%
1 2
PR313
4.7_1206_5%
EMI@
12
PR304
1_0402_1%
@
12
PC305
0.1U_0402_25V6
@EMI@
12
PC321
0.1U_0603_25V7K
12
PC310
0.047U_0402_25V7K
1 2
PC324
100P_0402_50V8J
12
PC322
0.01U_0402_25V7K
12
PR318
2M_0402_1%
12
G
D
S
PQ308
2N7002KW_SOT323-3
2
13
PR315
6.8_0603_5%
1 2
PQ302
AON6414AL_DFN8-5
4
5
1
2
3
PR321
2M_0402_1%
12
PR308
4.12K_0603_1%
12
PR307
4.12K_0603_1%
12
PC309
0.1U_0402_25V6
12
PL302
10UH_FDSD0630-H-100M-P3_3.8A_20%
1 2
PR309
10_1206_1%
12
PR316
100K_0402_1%
1 2
PC311
0.1U_0603_25V7K
12
PR305
1_0402_1%
@
12
PU301
BQ24735RGRR_QFN20_3P5X3P5
ACN
1
ACP
2
CMSRC
3
ACDRV
4
ACOK
5
ACDET
6
IOUT
7
SDA
8
SCL
9
ILIM
10
BATDRV 11
SRN 12
SRP 13
GND 14
LODRV 15
REGN 16
BTST 17
HIDRV 18
PHASE 19
VCC 20
PAD
21
PC302
0.1U_0402_25V6
12
PR303
0.02_1206_1%
1
3
4
2
PR310
0_0603_5%
12
PR320
100K_0402_1%
12
PR306
4.12K_0603_1%
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
3VALW/5VALW
Vout is 4.998V~5.202V
TDC=8A
TDC=8A
Vout is 3.234V~3.366V
5V LDO 150mA~300mA
EN1 and EN2 dont't floating
3.3V LDO 150mA~300mA
EN1 and EN2 dont't floating
3V_SN
3V5V_EN
BST_3V
LX_3V
3V5V_EN
BST-1_3V
3V_VIN
5V_VIN
BST_5V
3V5V_EN
5V_SN
VCC_3.3V
LX_5V
BST-1_5V
ENLDO_3V5V
3V_EN_R
ENLDO_3V5V
FB-1_5VFB_5V
FB_3V
FB-1_3V
SPOK
SPOK33
+3VLP
+3VALWP
B+
+3VALWP +3VALW
B+
VL
+5VALWP
+5VALW+5VALWP
B+
+3VALWP
EC_ON27,28
MAINPWON27,33
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.2
35 42
Monday, April 08, 2013
2012/07/10
Compal Electronics, Inc.
2013/07/10
Custom
V5WE2 M/B LA-9532P Schematic
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.2
35 42
Monday, April 08, 2013
2012/07/10
Compal Electronics, Inc.
2013/07/10
Custom
V5WE2 M/B LA-9532P Schematic
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.2
35 42
Monday, April 08, 2013
2012/07/10
Compal Electronics, Inc.
2013/07/10
Custom
V5WE2 M/B LA-9532P Schematic
PC405
10U_0805_25V6K
@
12
PR415
0_0402_5%
@
1 2
PR416
100K_0402_1%
12
PC427
6800P_0402_25V7K
1 2
PC411
22U_0805_6.3V6M
12
PC422
4.7U_0603_6.3V6K
12
PC413
22U_0805_6.3V6M
12
PC410
2200P_0402_50V7K
EMI@
12
PR404
0_0603_5%
1 2
PR402
0_0402_5%
@
1 2
PC423
680P_0603_50V7K
@EMI@ 12
PR410
1K_0402_1%
1 2
PC428 0.01U_0402_25V7K
1 2
PC417
22U_0805_6.3V6M
12
PL404
HCB2012KF-121T50_0805
EMI@
1 2
PC416
22U_0805_6.3V6M
12
PL401
HCB2012KF-121T50_0805
EMI@
1 2
PR405
150K_0402_1%
12
PC401
0.1U_0603_25V7K
1 2
PC402
0.1U_0402_25V6
@EMI@
12
PC404 0.1U_0603_25V7K
1 2
PR412
1K_0402_1%
1 2
PL402
1UH_FDSD0630-H-1R0M-P3_11A_20%
1 2
PC406
10U_0805_25V6K
12
PR413
0_0402_5%
@
1 2
PR408
4.7_1206_5%
@EMI@ 12
PC414
22U_0805_6.3V6M
12
PJ401
JUMP_43X118
@
1
122
PC408
10U_0805_25V6K
12
PC412
22U_0805_6.3V6M
12
PJ402
JUMP_43X118
@
1
122
PC418
22U_0805_6.3V6M
12
PL403
1UH_FDSD0630-H-1R0M-P3_11A_20%
1 2
PR409
4.7_1206_5%
@EMI@ 12
PC421
4.7U_0603_6.3V6K
12
PC424
680P_0603_50V7K
@EMI@ 12
PR414 1K_0402_1%
1 2
PC407
10U_0805_25V6K
@
12
PC426
4.7U_0603_6.3V6K
@
12
PC420
4.7U_0603_6.3V6K
12
PR411
0_0402_5%
@
12
PR403 0_0603_5%
1 2
PC415
22U_0805_6.3V6M
12
PC425
4.7U_0603_6.3V6K
@
12
PR407
2.2K_0402_5%
1 2
PC403
0.1U_0402_25V6
@EMI@
12
PU401
SY8208BQNC_QFN10_3X3
LX 10
IN
7
OUT 4
PG
2LDO 5
IN
8
GND
9
EN1 1
BS 6
EN2 3
PR406
1M_0402_1%
12
PU402
SY8208CQNC_QFN10_3X3
LX 10
IN
8
LDO 7
PG
2
EN2 3
OUT 4
VCC
5
GND
9
EN1 1
BS 6
PC419
4.7U_0603_6.3V6K
@
12
PR401
499K_0402_1%
1 2
PC409
2200P_0402_50V7K
EMI@
12
A
A
1 1
Rds=4.2mΩ(Typ)
5.0mΩ(Max)
Note:Use VCCSA SEL to switch High & Low Level for VID[1]
FB=0.75V
To GND = 1.5V
To VDD = 1.8V
Note: S3 - sleep ; S5 - power off
STATE S3 S5 1.35VP VTT_REFP 0.675VSP
S0
S3
S4/S5
Hi Hi
HiLo
Lo Lo
On
On
On
On
On
Off
(Hi-Z)
Off
(Discharge)
Off
(Discharge)
Off
(Discharge)
靠近
Output Cap PAD
+1.35VP
Ipeak = max{ 0.7*Ibudget, 1st +2nd max loading}
Ipeak = max{ 12.34*0.7 , 4.2+8.14 }
Ipeak=12.34A ; 1.2Ipeak=14.808A ;Imax=8.638A
1/2Delta I=0.7353A (F=300K Hz)
PR504=(1.2Ipeak-1/2Delta I) *Rds(on)(max)*1.2/9uA=8.45Kohm
choose PR504=8.45Kohm (for safety >1.2Ipeak)
Rds(on)=5.0m ohm(max) ; Rds(on)=4.2m ohm(typical)
Ilimit_min=(8.366K*9uA)/(5.0m*1.2)=15.058A
Ilimit_max=(8.535K*11uA)/(4.2m*1.2)=22.352A
Iocp=Ilimit+1/2Delta I=15.79A~23.09A
Iocp(min)>1.2Ipeak
2011/9/19
OVP=110% 115% 120%
6.6x7.3x3.8 TAI-TECH
DCR:8.5mΩ
BST_1.35V BST_1.35V-1
LX_1.35V
1.35V_B+
S3_1.35V
S5_1.35V
PGOOD_1.35V
LG_1.35V
UG_1.35V
1.35V_B+
SUSP
SUSP#
7
,31,34,37,38
SYSON27,31
SUSP31
DDR_VTT_PG_CTRL15
+1.35VP
B+
+5VALW
+3VALW
+1.35VP
+VTT_REFP
+0.675VSP
+1.35VP
+1.35V+1.35VP
+0.675VS+0.675VSP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
1.35VP/0.675VSP
Custom
36 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
1.35VP/0.675VSP
Custom
36 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
1.35VP/0.675VSP
Custom
36 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC510
1U_0603_10V6K
12
PL501
S COIL 1.5UH 20% TMPB0604M-1R5MN-Z01 11A
1 2
PC512
0.1U_0402_16V7K
@
12
+
PC506
330U_2.5V_M
1
2
PC507
680P_0402_50V7K
ESD@
12
PR510
10K_0402_1%
12
PQ503
S TR MDU1512RH 1N POWERDFN56-8
4
5
1
2
3
PR502
2.2_0603_5%
12
PJ506
JUMP_43X79
@
1
122
PC508
0.033U_0402_16V7K
12
PJ505
JUMP_43X118
@
1
122
PU501
RT8207MZQW_WQFN20_3X3
VTTSNS
2
FB
6
S5
8
PGOOD
10
VDDP 12
PHASE 16
BOOT 18
VTTREF
4
PGND 14
VTTGND
1
GND
3
VDDQ
5
S3
7
TON
9
VDD 11
CS 13
LGATE 15
UGATE 17
VTT 20
VLDOIN 19
PAD
21
PC501
10U_0805_25V6K
12
PR513
0_0402_5%
@
1 2
PC503
2200P_0402_50V7K
EMI@
12
PC509
1U_0603_10V6K
12
PR506
10K_0402_1%
@
12
PR507
0_0402_5%
@
1 2
G
D
S
PQ501
2N7002KW_SOT323-3
@
2
13
PC504
0.1U_0603_25V7K
12
PJ504
JUMP_43X118
@
1
122
PJ503
JUMP_43X79
@
11
2
2
PC502
10U_0805_25V6K
12
PR509
8.06K_0402_1%
12
PR503
4.7_1206_5%
ESD@
12
PL507
HCB2012KF-121T50_0805
EMI@
12
PQ502
MDV1525URH_PDFN33-8-5
4
5
1
2
3
PC511
0.1U_0402_16V7K
@
12
PR508
887K_0402_1%
12
PR504
8.45K_0402_1%
12
PC505
10U_0805_25V6K
12
PR505
5.1_0603_5%
12
PC521
0.1U_0402_25V6
ESD@
12
PR501
680K_0402_1%
@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
V5WE2 M/B LA-9531P Schematic
+1.5VSP
Note:Iload(max)=3A
Ien=10uA, Vth=0.3V, notice
the res. and pull high
voltage from HW
FB=0.8V
+1.5VSP_ON
FB_1.5VSP
SUSP#27,31,34,36,38
+1.5VS+1.5VSP
+3VS
+1.5VSP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.2Custom
37 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.2Custom
37 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.2Custom
37 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC527
0.1U_0402_16V7K
12
PC525
22U_0805_6.3V6M
@
12
PC529
0.022U_0402_16V7K
12
PR521
22.6K_0402_1%
12
PR519
20K_0402_1%
12
PC526
1U_0402_6.3V6K
@
12
PR523
0_0402_5%
@
1 2
PR522
22K_0402_5%
@
12
PU503
APL5930KAI-TRG_SO8
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PJ508
JUMP_43X39
@
1
122
PC528
4.7U_0603_6.3V6K
12
PC524
22U_0805_6.3V6M
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Note:Iload(max)=3A
Ien=10uA, Vth=0.3V, notice
the res. and pull high
voltage from HW
FB=0.8V
VFB=0.6V
+1.05VSP Ipeak=5.36A ; Imax=3.752A ; 1.2Ipeak=6.432
Delta I=0.xxxxA=>1/2Delta I=0.xxxxA,F= 800K Hz(typ)
+1.8VSP_ON
FB_1.8VSP
BST_+1.05VSP
SW_+1.05VSP
FB_+1.05VSP
EN_+1.05VSP
6511_PWR_EN20
+1.05VSP +1.05VS_VTT
+3VS
+1.8VS
B+
+1.05VSP
+3VS
+3VALW
+3VS
SUSP# 27,31,34,36,37
VCCST_PWRGD11,27
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
+1.05VSP/1.8VSP
Custom
38 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
+1.05VSP/1.8VSP
Custom
38 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
+1.05VSP/1.8VSP
Custom
38 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PR611
15.8K_0402_1%
12
PC626
22U_0805_6.3V6M
12
PJ602
JUMP_43X118
@
1
122
PR610
0_0402_5%
@
1 2
PU601
SY8208DQNC_QFN10_3X3
IN
8
BYP 7
PG
2
ILMT
3
LX 10
FB 4
LDO 5
GND
9
EN 1
BS 6
PR618
10K_0402_1%
12
PC604
10U_0805_25V6K
12
PC611
0.022U_0402_16V7K
12
PR603
1K_0402_1%
12
PC616
0.1U_0402_16V7K
@
12
PC612
22U_0805_6.3V6M
12
PR613
10K_0402_1%
@
1 2
PC615
1U_0402_6.3V6K
@
12
PU602
APL5930KAI-TRG_SO8
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PR608
127K_0402_1%
12
PR602
0_0603_5%
1 2
PC624
22U_0805_6.3V6M
12
PC606
0.1U_0402_16V7K
1 2
PC623
10U_0805_25V6K
12
PC627
22U_0805_6.3V6M
12
PC614
0.1U_0402_16V7K
@
12
PC605
0.1U_0603_25V7K
1 2
PR607
1M_0402_1%
@
1 2
PC602
0.1U_0402_25V6
@EMI@
12
PR612
22K_0402_5%
@
12
PR619
1M_0402_1%
12
PR609
20K_0402_1%
12
PC610
4.7U_0603_6.3V6K
12
PC607
680P_0402_50V7K
@EMI@
12
PC625
22U_0805_6.3V6M
12
PC629
22U_0805_6.3V6M
@
12
PC601
4.7U_0603_6.3V6K
12
PC608
4.7U_0603_6.3V6K
12
PL601
0.68UH_PCMC063T-R68MN_15.5A_20%
1 2
PJ603
JUMP_43X118
@
1
122
PR605
100K_0402_1%
12
PC609
4700P_0402_25V7K
12
PC603
2200P_0402_50V7K
EMI@
12
PC628
22U_0805_6.3V6M
12
PR604
4.7_0805_5%
@EMI@
12
PC613
22U_0805_6.3V6M
@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VIN
Maximum current: 32A
MAX current
Thermal current
Dynamic current
Over current level
Switching frequency
Boot voltage
DC Load- line
27A
10A
32A
2m Ohm
1.7V
600KHz
45A
12V-20V
DCR:0.82mΩ±5%
B value:3435K
Close to PWR IC
B value:4250K
Use X7R is better or far away inductor.
Consider use 0603 for inrush power.
Close MOS.
Close choke.
CSN1
CSP1
CSN1
DROOP
COMP
V5A
VDD
PWM1
SKIP#
VBAT
THERM
SLEWA OCP-I
B-RAMP
F-IMAX
51622_VREF
O-USR
CSP1
51622_VREF
CSP1-1
VFB
GFB
CPU_BOOT1-1 CPU_PHASE1
CPU_BOOT1 SKIP#
PWM1
VGATE 11,8
VR_ON 11
VR_ALERT# 11
VR_SVID_DATA 11
VR_SVID_CLK 11
VR_HOT# 27
VCC_SENSE11
VSS_SENSE11
+CPU_CORE
CPU_B+
+3VS
+5VS
+3VS
CPU_B+
B+
+1.05VS_VTT
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
+CPU_CORE
Custom
39 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
+CPU_CORE
Custom
39 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
+CPU_CORE
Custom
39 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PR701 2.2_0603_5%
12
PR724
0_0402_5%
@
12
PR711
10K_0402_1%
@
1 2
PR714
4.7_1206_5%
EMI@
12
PC711
0.082U_0402_16V7K
1 2
PR702
100K_0402_1%
@
12
PL701
HCB2012KF-121T50_0805
EMI@
12
PR709
392K_0402_1%
1 2
PC704
2200P_0402_50V7K
EMI@
12
PH702
10K_0402_1%_TSM0A103F34D1RZ
1 2
PC712
0.082U_0402_16V7K
1 2
PC702
10U_0805_25V6K
12
PC709
10U_0805_25V6K
@
12
PC747
0.1U_0402_25V6
12
PR725
2K_0402_1%
@
1 2
PC701 0.1U_0603_25V7K
1 2
PR718 0_0402_5%@
12
PC743
1500P_0402_50V7K
12
PL702
0.22UH_PCMB104T-R22MS_35A_20%
1
3
4
2
PR722 0_0402_5%@
1 2
PR729
54.9_0402_1%
12
+
PC706
68U_25V_M_R0.36
1
2
PR707
150K_0402_1%
12
PC746
1U_0402_6.3V6K
12
PC740
1U_0603_10V6K
12
PR731
130_0402_1%
12
PR703
270K_0402_1%
12
PR704
8.87K_0402_1%
12
PU702
CSD97374CQ4M_SON8_3P5X4P5
PGND1 3
VDD 2
SKIP# 1
VSW 4
PWM
8
VIN
5
BOOT
7
BOOT_R
6
PGND2
9
PC745
1U_0402_6.3V6K
12
PR706
39K_0402_1%
12
PR715
2.21K_0402_1%
12
PC748
4700P_0402_25V7K
1 2
PR728
10K_0402_1%
1 2
PR717
3.01K_0402_1%
1 2
PR721 0_0402_5%@
1 2
PR730
75_0402_1%
@
12
PR710
56K_0402_1%
1 2
PC742
100P_0402_50V8J
12
PR705
150K_0402_1%
12
PC744
0.33U_0402_10V6K
12
PR716
24.9K_0402_1%
1 2
PR712
39K_0402_1%
12
PR713
10K_0402_1%
1 2
PH705
100K_0402_1%_TSM0B104F4251RZ
12
PR708
10K_0402_1%
12
PU701
TPS51622RSM_QFN32_4X4~D
SLEWA 15
VBAT 16
THERM 14
GFB
23
PU3
21
COMP
26
VCLK
31
V5A
28
DROOP
25
ALERT#
32
VFB
24
N/C
22
PAD
33
GND
29
PGOOD 3
VR_HOT#
30
VREF
27
VDIO 1
VDD 2
N/C 4
PWM2 5
PWM1 6
SKIP# 7
VR_ON 8
IMON 13
OCP-I 12
B-RAMP 11
F-IMAX 10
O-USR 9
CSP2
20
CSP1
17
CSN2
19
CSN1
18
PC741
0.1U_0402_16V7K
12
PR734
10K_0402_1%
12
PR726
10K_0402_1%
12
PC705
0.1U_0402_25V6
@EMI@
12
PR719 0_0402_5%@
1 2
PR727
3.48K_0402_1%
12
PR732
10_0603_5%
12
PC714
680P_0402_50V7K
EMI@
12
PC703
10U_0805_25V6K
12
PC749
1000P_0402_50V7K
EMI@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
For BOT side
For TOP side
PWR Rule
CPU DCLL=1.5m ohm dedign 330uF/9m *0, 22uF *30
22u *27, @*5
+CPU_CORE
+CPU_CORE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CPU_CORE_CAP
Custom
40 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CPU_CORE_CAP
Custom
40 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
CPU_CORE_CAP
Custom
40 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
PC953
22U_0805_6.3V6M
1
2
PC926
22U_0805_6.3V6M
@
12
PC920
22U_0805_6.3V6M
12
PC940
22U_0805_6.3V6M
1
2
PC907
22U_0805_6.3V6M
12
PC903
22U_0805_6.3V6M
12
PC934
22U_0805_6.3V6M
1
2
PC951
22U_0805_6.3V6M
1
2
PC938
22U_0805_6.3V6M
1
2
PC904
22U_0805_6.3V6M
12
PC923
22U_0805_6.3V6M
12
PC905
22U_0805_6.3V6M
12
PC954
22U_0805_6.3V6M
1
2
PC922
22U_0805_6.3V6M
12
PC935
22U_0805_6.3V6M
1
2
PC941
22U_0805_6.3V6M
1
2
PC924
22U_0805_6.3V6M
12
PC908
22U_0805_6.3V6M
12
PC936
22U_0805_6.3V6M
1
2
PC927
22U_0805_6.3V6M
12
PC939
22U_0805_6.3V6M
1
2
PC950
22U_0805_6.3V6M
@
1
2
PC909
22U_0805_6.3V6M
12
PC937
22U_0805_6.3V6M
@
1
2
PC906
22U_0805_6.3V6M
@
12
PC921
22U_0805_6.3V6M
12
PC952
22U_0805_6.3V6M
1
2
PC955
22U_0805_6.3V6M
1
2
PC902
22U_0805_6.3V6M
12
PC925
22U_0805_6.3V6M
12
PC949
22U_0805_6.3V6M
@
1
2
PC956
22U_0805_6.3V6M
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
PIR-HW
Custom
41 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
PIR-HW
Custom
41 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
PIR-HW
Custom
41 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Version change list (P.I.R. List) Page 1 of 2
for PWR
Reason for change Rev. PG# Modify List Date PhaseFixed IssueItem
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
TPS51622 update to ES2.1
EMI request
Compensation modify
Cut-in EMI solution
31 Un-pop PR112, PR113
EMI
EMI request EMI confirm remove EMI
Delete PL102, PC103, PC101, PL202, PC201 and PL703
11/13
11/16
11/26
DVT
DVT
DVT
Module Design
Module Design change 3/5V solution
Change RTC type to non-charge
DVT11/13
3/5V
39 Change PR701 to 2.2, PR703 to 270K, PR727 to 3.48K
Un-pop PC742
11/20 DVT
Add PR313, PC316, PR714, PC714, PC749
Costdown
DVT212/13
Change PL402, PL403 from 5x5x3 to 7x7x335
SY8208B/C update 35 Add PR411, PR413
DVT212/22
+1.05V ripple close
upper and mean too low Adjust output voltage and add Cff 36
DVT212/22
Add PC609 into 4700P
Change PR608 from 133K to 127K
Unpop PC926
DVT201/09
40Improve CPU transient character
35Tune sequence Change PC428 from 4700p to 10n,
PC427 from 0.047u to 6.8n
PVT02/04
0 ohm reduce Change PR507,PR513,PR523 to R-pad
PVT02/22
PVT
Add PR41635Provide 3/5V PG signal to EC
02/22
12
13
32ESD request
PVT02/26
Add PC101 into 0.1uF
ESD request 36 Add PC521, PR503, PC507
02/26 PVT
14
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
PIR (PWR)
Custom
42 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
PIR (PWR)
Custom
42 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V5WE2 M/B LA-9532P Schematic
0.2
PIR (PWR)
Custom
42 42Monday, April 08, 2013
2012/07/10 2013/07/10
Compal Electronics, Inc.
www.s-manuals.com

Navigation menu
