Intel Ivy/Sandy Bridge SFF BGA 1023p Processor
/Panther Point 989p PCH
/ DDR3L Memory Down *8
V1JB1 UMA M/B Schematics Document
REV:2.0
Compal Confidential
2013-03-26
Compal Project Name : V1JB1
File Name : LA-A041P
Compal Confidential
Model Name : SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
2.0
Cover Page
Custom
1 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
2.0
Cover Page
Custom
1 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
2.0
Cover Page
Custom
1 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

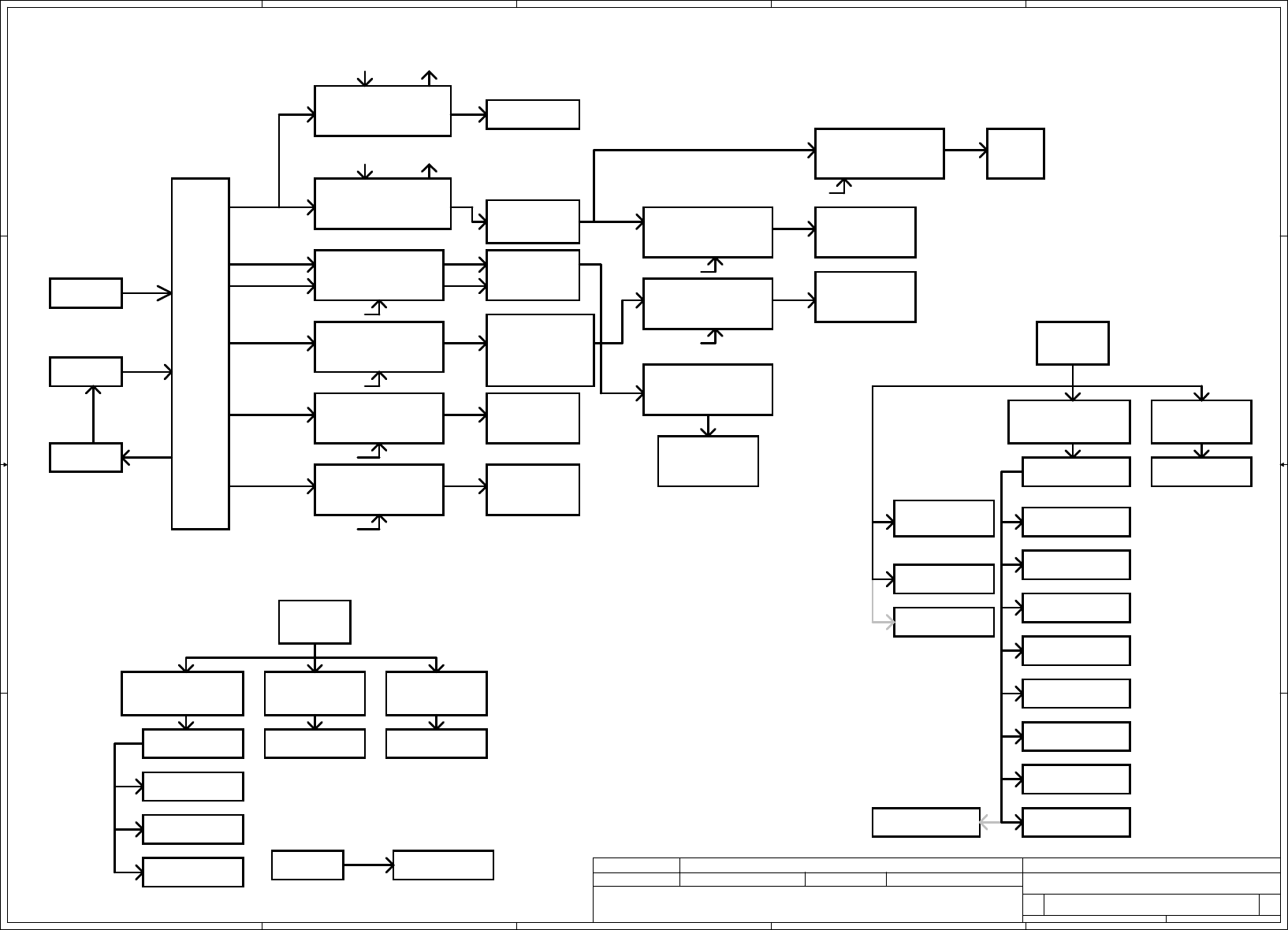

SPI ROM
(ME-2MB)
USBx14
page 13~21
eDP Conn.
page 22
eDP
989pin BGA
120MHz
Camera2
JCMOS2(REAR)
page 33
USB port 11
USB20 port 1
USB30 port 2
page 27
Ext. USB3.0
JUSB1
RTC CKT.
page 13
Power On/Off CKT.
DC/DC Interface CKT.
Power Circuit DC/DC
page 29
page 34
page 35~46
page 30
ALS
CM3218
DDRIII-ON BOARD
page 11,12
Int. Speaker Phone Jack
COM_MIC
page 33
Int. MIC
Digital MIC
ALC271X-VB6
HDA Codec
page 28
SPI ROM
(BIOS+EC)
(4MB)
page 28
ITE
IT 8518
page 26
TPM
SLB9655
33MHz
LPC BUS
mSATA Module
page 25
port 0,1
100MHz
100MHz
port 1
SATA x 6 (GEN1 1.5GT/S ,GEN2 3GT/S)
WLAN
On Board WLAN/BT
MD222
PCI-Express x 8 (PCIE2.0 5GT/s)
page 24
SMLink
SMLink1
page 30
Sensor Hub
STM32F
USB Port 0
page 30
ACCEL with
E-COMPASS
LSM303D
page 30
GYRO
L3GD20TR
Touch Screen
JEDP1
page 22
USB port 3
DDRIII-ON BOARD
Dual Channel
1.35V DDR3L 1333
Memory BUS(DDR3L)
Camera1
JCMOS1(FRONT)
page 27
USB port 10
page 23
HDMI Conn.
TMDS
100MHz 100MHz
1GB/s x4
DMI x4FDI x8
page 13
SPI
3.3V 24MHz
2.7GT/s
Processor
Ivy Bridge ULV
3.3V 48MHz
Fan (PWM)
Intel
PCH
HD Audio
page 34
page 4~10
Panther Point-M
BGA1023
Intel
I2C1
page 36, 37
Battery
Charger IC
FSPI
SMBUS1
SMBUS2
page 11
Thermal Sensor
HSPI
USB port 8
page 24
BT - On
Board WLAN
USB port 2
page 31
3G Module
MU736
SUB/B
port 2
Card Reader
Realtek RTS5209
page 32
Sub/Board
Sub/Board
Sub/Board
Sub/Board
PROX SENSOR
STM8T143
Sub/Board
Connect to EC
WLAN Frequency :
802.11b/g/n : 2.412 ~ 2.4835 GHz
802.11a/n : 5.15 ~ 5. 85GHz
BT Frequency :
2.402~2.480 GHz
WWAN:
WCDMA/HSDPA/HSUPA/HSPA+:
850 MHz/900 MHz/1700 MHz(AWS)/1900 MHz/2100 MHz
GPRS/EDGE:
850 MHz/900 MHz/1800 MHz/1900 MHz
GPS: L1
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1

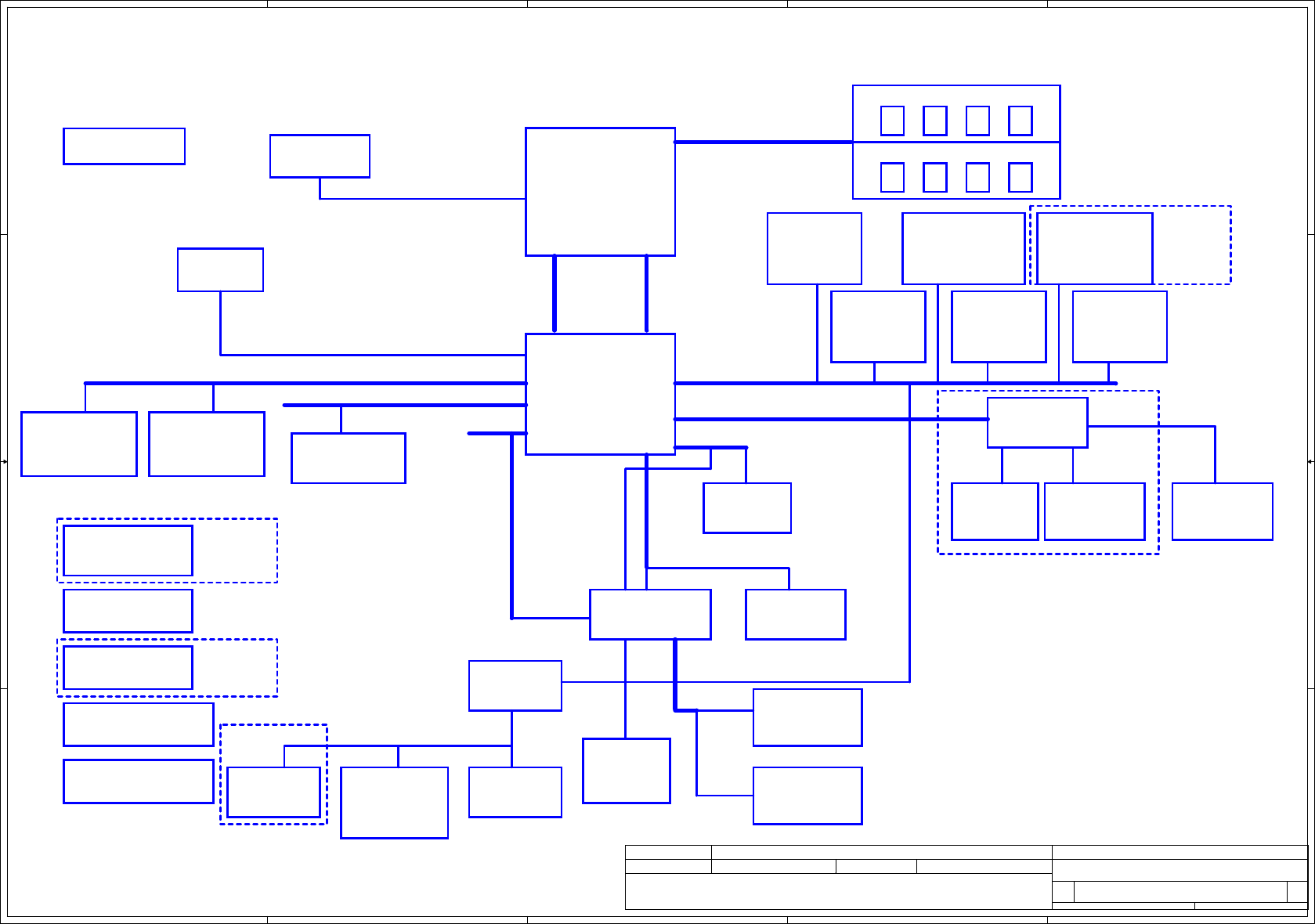

Block Diagrams
Custom
2 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Block Diagrams
Custom
2 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Block Diagrams
Custom
2 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
USB 2.0 USB 1.1 Port 2 External
USB Port
Camera(Front)
0
1
2
3
4
5
6
7
8
9
10
11
12
13
UHCI0
UHCI1
UHCI2
UHCI3
UHCI4
UHCI5
UHCI6
EHCI1
EHCI2

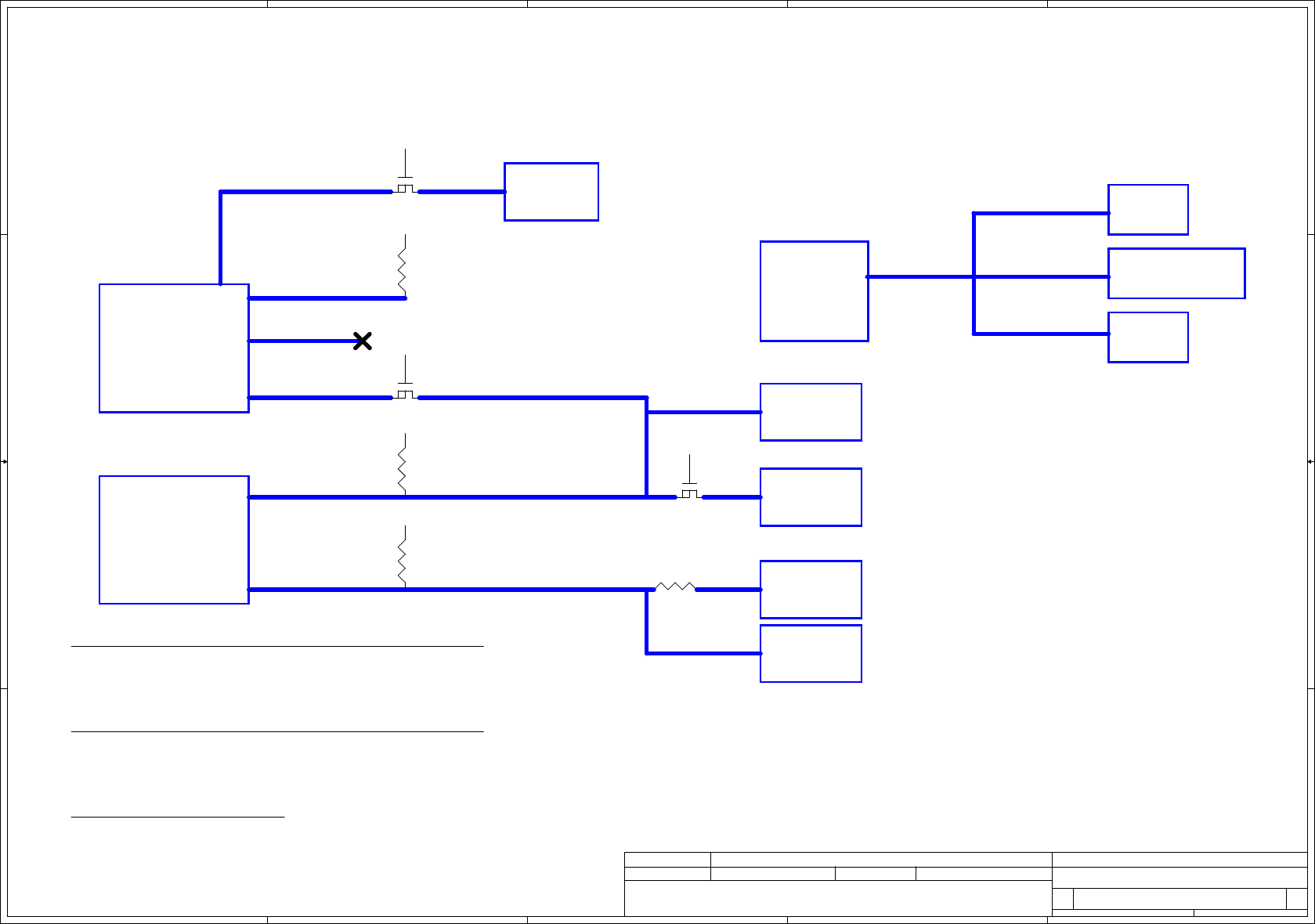

USB Port Table
Board ID / SKU ID Table for AD channel
+0.675VS +0.675VSP to +0.675VS switched power rail for DDR3L terminator
+RTCVCC RTC power
+1.35VS
+1.8VS (+5VALW or +3VALW) to 1.8VS switched power rail for PCH
+3VS
+5VALW
+3VALW +3VALWP to +3VALW always on power rail
+VSB +VSBP to +VSB always on power rail for sequence control ON ON*
ONON
ON
ON
BOARD ID Table
OFF
+1.35V to +1.35VS switched power rail
+CPU_CORE
STATE SIGNAL
Full ON
S1(Power On Suspend)
S3 (Suspend to RAM)
S4 (Suspend to Disk)
S5 (Soft OFF)
SLP_S1# SLP_S3# SLP_S4# SLP_S5# +VALW +V +VS Clock
Vcc 3.3V +/- 5%
100K +/- 5%Ra/Rc/Re
Board ID
Rb / Rd / Rf V min
0
1
2
3
0
8.2K +/- 5%
0 V
0.216 V 0.250 V 0.289 V
0.436 V
0.712 V
0.503 V
0.819 V
0.538 V
0.875 V
AD_BID
V typ
AD_BID
V
AD_BID
max
18K +/- 5%
33K +/- 5%
56K +/- 5%
100K +/- 5%
200K +/- 5%
3.300 V
0 V 0 V
4
5
6
7NC
1.036 V
1.453 V 1.650 V 1.759 V
1.935 V
2.500 V
2.200 V
3.300 V
2.341 V
1.185 V 1.264 V
Board ID
0
1
2
3
4
5
6
7
PCB Revision
0.1
Voltage Rails
VIN
B+
+1.05VS_VTT
Adapter power supply (19V)
AC or battery power rail for power circuit.
Core voltage for CPU
+1.05VS_VTTP to +1.05VS_VTT switched power rail for CPU
ON
OFF
ON
Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.
ON
ON
ON ON*
OFF
OFF
0.2
BTO Option Table
Unpop
BTO Item BOM Structure
ON
ON
ON
ON
ON
ON
ON ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
LOW
LOW LOW LOW LOW
LOWLOWLOW
LOW
LOW
LOW
HIGH HIGH HIGH HIGH
HIGHHIGHHIGH
HIGH
HIGH
HIGH
ON ON*
+VCCSUS3_3 +3VALW to +VCCSUS3_3 power rail for PCH ON ON
S1
+V5REF_SUS
S3 S5
ON
ON ON
N/A N/A N/A
N/AN/AN/A
Power Plane Description
OFF
+1.35VP to +1.35V power rail for DDR3L
0.3
On Board DRAM
OFF
@
Debug Port(Reserve)
+1.35V
ON OFF OFF+1.05VS_PCH +1.05VS_VTT to +1.05VS_PCH power for PCH
ON OFF OFF
ON OFF OFF
+VGFX_CORE Core voltage for UMA graphic ON OFF OFF
BATT+ Battery power supply (12.6V) N/A N/A N/A
ON*
+3VALW to +3VS power rail
+5VALWP to +5VALW always on power rail
+5VALW to +V5REF_SUS power rail for PCH
+5VS +5VALW to +5VS switched power rail OFFON OFF
ON*
X76@
UMA UMA@
eDP@eDP
CONN@Connector
BOM Config
EC SM Bus1 address
Device
PCH SM Bus address
Device Address
Address Address
EC SM Bus2 address
Device
Smart Battery
0001 011X b
ChannelA
ChannelB
A0
A4
1010 000X
1010 010X
Ext. USB Connector
DDR3@
DDR3L@
IVB@
HM77@
DDR3
DDR3L
CPU
PCH
+1.5VS +1.5VSP to +1.5VS power rail for PCH
ON OFF OFF
ON ON OFF
ON OFF OFF
Normal S3
Deep S3
S3@
DS3@
TPM TPM@
Sensor Hub ST - STM32F103RCY6TR
PCH(USB P3)
ALS Capella - CM3218
Sensor Hub
Connect to
Sensor Hub
Function
Gyroscope
Accel+E-Compass
ST - L3GD20TR
ST - LSM303DLHCTR
Sensor Hub
Sensors List
Device
Touch Screen
Camera(Rear)
BlueTooth(WLAN Module)
Sensor Hub
D1 1101 000X b
Gyroscope
Sensor HUB SM Bus address
Device Address
33 0011 001X b
E-compass + G sensor
ALS sensor
0010 000X b21
D3 1101 001X b
1.0
LID@Hall Sensor
Dual Channel DDR 128@
Foxconn MD222
Lite-On MD222
FOXMD222@
LIONMD222@
3G Module - MU736/ME906
Note :
ST-STM8T143AU62TTRC06Prox
EC
EMC@For EMI/RF(Pop)
For EMI/RF(Unpop) XEMC@
Non TPM SKU WOTPM@
Sensor(Intel F/W) INTEL@
Sensor(ST F/W) ST@
3G@3G SKU
3GEMC@3G SKU(EMC part)
2.0*
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Notes List
Custom
3 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Notes List
Custom
3 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Notes List
Custom
3 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
PEG_ICOMPI and RCOMPO signals should be shorted and routed
with - max length = 500 mils - typical impedance = 43 mohms
PEG_ICOMPO signals should be routed with - max length = 500 mils-
typical impedance = 14.5 mohms
eDP_COMPIO and ICOMPO signals
should be shorted near balls and
routed with typical impedance
<25 mohms
should not be left floating
,even if disable eDP function...
CPU P/N:
1.I3-3217 SA00005L5C0:S IC AV8063801058401 SR0N9 L1 1.8G ABO!
2.I5-3317 SA00005K6B0:S IC AV8063801058002 SR0N8 L1 1.7G ABO!
3.I3-2365 SA000051H60:S IC AV8062701047904 SR0CV J1 1.4G ABO!
Add eDP circuit
UMA only=>PEG NC
W=4mil,S=15mil,L=500mil
W=12mil,S=15mil,L=500mil
G1,W=12mil,S=15mil,L=500mil
G3,W=4mil,S=15mil,L=500mil
G4,W=4mil,S=15mil,L=500mil
SAGE 3G PVT
For DFB demand
EDP_COMP
PEG_COMP
EDP_HPD#
EDP_HPD#
UCPU1_A11
UCPU1_B22
UCPU1_A19
UCPU1_B14
UCPU1_B10
UCPU1_B6
DMI_CTX_PRX_P015
DMI_CRX_PTX_P015
DMI_CTX_PRX_N115
DMI_CRX_PTX_N115
DMI_CTX_PRX_P315
DMI_CRX_PTX_P315
DMI_CTX_PRX_P215
DMI_CTX_PRX_N015
DMI_CRX_PTX_N315
DMI_CRX_PTX_P215
DMI_CTX_PRX_N315
DMI_CTX_PRX_P115
DMI_CRX_PTX_N015
DMI_CRX_PTX_N215
DMI_CRX_PTX_P115
DMI_CTX_PRX_N215
FDI_CTX_PRX_N015
FDI_CTX_PRX_N115
FDI_CTX_PRX_N215
FDI_CTX_PRX_N315
FDI_CTX_PRX_N415
FDI_CTX_PRX_N515
FDI_CTX_PRX_N615
FDI_CTX_PRX_N715
FDI_CTX_PRX_P015
FDI_CTX_PRX_P115
FDI_CTX_PRX_P215
FDI_CTX_PRX_P315
FDI_CTX_PRX_P415
FDI_CTX_PRX_P515
FDI_CTX_PRX_P615
FDI_CTX_PRX_P715
FDI_FSYNC015
FDI_FSYNC115
FDI_INT15
FDI_LSYNC015
FDI_LSYNC115
EDP_HPD#22
EDP_TXP022
EDP_TXP122
EDP_TXN122
EDP_TXN022
EDP_AUXN22
EDP_AUXP22
+1.05VS_VTT
+1.05VS_VTT
+1.05VS_VTT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1

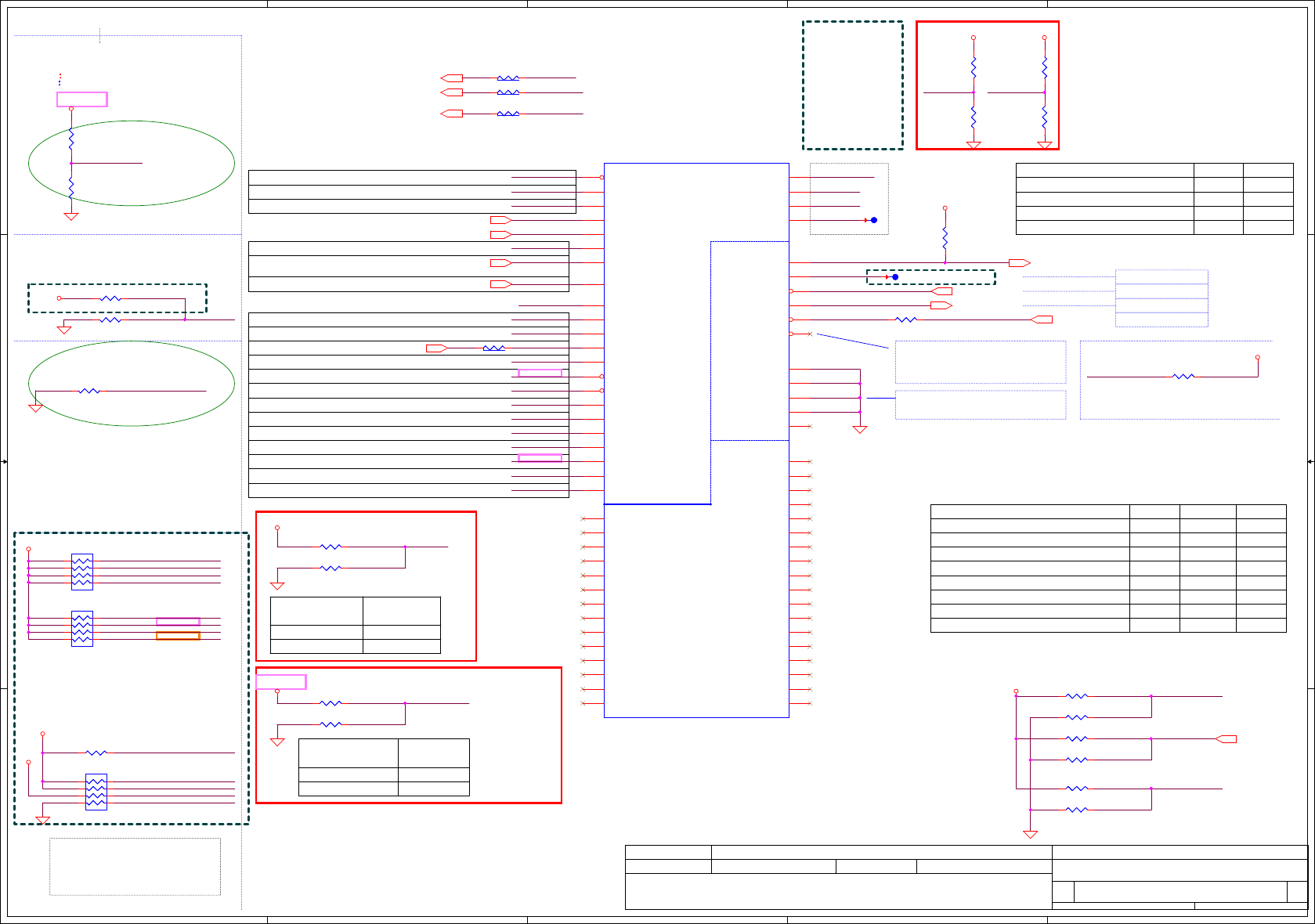

PROCESSOR(1/7) DMI,FDI,PEG
Custom
4 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(1/7) DMI,FDI,PEG
Custom
4 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(1/7) DMI,FDI,PEG
Custom
4 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
T27 PAD@T27 PAD@
T26 PAD@T26 PAD@
T34 PAD@T34 PAD@
R809
1K_0402_5%eDP@
R809
1K_0402_5%eDP@
12
T39 PAD@T39 PAD@
R532
24.9_0402_1%
R532
24.9_0402_1%
12
PCI EXPRESS -- GRAPHICS
DMI Intel(R) FDI eDP
UCPU1A
IVY-BRIDGE_BGA1023
IVB@
PCI EXPRESS -- GRAPHICS
DMI Intel(R) FDI eDP
UCPU1A
IVY-BRIDGE_BGA1023
IVB@
DMI_RX#[0]
M2
DMI_RX#[1]
P6
DMI_RX#[2]
P1
DMI_RX#[3]
P10
DMI_RX[0]
N3
DMI_RX[1]
P7
DMI_RX[2]
P3
DMI_RX[3]
P11
DMI_TX#[0]
K1
DMI_TX#[1]
M8
DMI_TX#[2]
N4
DMI_TX#[3]
R2
DMI_TX[0]
K3
DMI_TX[1]
M7
DMI_TX[3]
T3 DMI_TX[2]
P4
FDI0_TX#[0]
U7
FDI0_TX#[1]
W11
FDI0_TX#[2]
W1
FDI0_TX#[3]
AA6
FDI1_TX#[0]
W6
FDI1_TX#[1]
V4
FDI1_TX#[2]
Y2
FDI1_TX#[3]
AC9
FDI0_TX[0]
U6
FDI0_TX[1]
W10
FDI0_TX[2]
W3
FDI0_TX[3]
AA7
FDI1_TX[0]
W7
FDI1_TX[1]
T4
FDI1_TX[2]
AA3
FDI1_TX[3]
AC8
FDI0_FSYNC
AA11
FDI1_FSYNC
AC12
FDI_INT
U11
FDI0_LSYNC
AA10
FDI1_LSYNC
AG8
PEG_ICOMPI G3
PEG_ICOMPO G1
PEG_RCOMPO G4
PEG_RX#[0] H22
PEG_RX#[1] J21
PEG_RX#[2] B22
PEG_RX#[3] D21
PEG_RX#[4] A19
PEG_RX#[5] D17
PEG_RX#[6] B14
PEG_RX#[7] D13
PEG_RX#[8] A11
PEG_RX#[9] B10
PEG_RX#[10] G8
PEG_RX#[11] A8
PEG_RX#[12] B6
PEG_RX#[13] H8
PEG_RX#[14] E5
PEG_RX#[15] K7
PEG_RX[0] K22
PEG_RX[1] K19
PEG_RX[2] C21
PEG_RX[3] D19
PEG_RX[4] C19
PEG_RX[5] D16
PEG_RX[6] C13
PEG_RX[7] D12
PEG_RX[8] C11
PEG_RX[9] C9
PEG_RX[10] F8
PEG_RX[11] C8
PEG_RX[12] C5
PEG_RX[13] H6
PEG_RX[14] F6
PEG_RX[15] K6
PEG_TX#[0] G22
PEG_TX#[1] C23
PEG_TX#[2] D23
PEG_TX#[3] F21
PEG_TX#[4] H19
PEG_TX#[5] C17
PEG_TX#[6] K15
PEG_TX#[7] F17
PEG_TX#[8] F14
PEG_TX#[9] A15
PEG_TX#[10] J14
PEG_TX#[11] H13
PEG_TX#[12] M10
PEG_TX#[13] F10
PEG_TX#[14] D9
PEG_TX#[15] J4
PEG_TX[0] F22
PEG_TX[1] A23
PEG_TX[2] D24
PEG_TX[3] E21
PEG_TX[4] G19
PEG_TX[5] B18
PEG_TX[6] K17
PEG_TX[7] G17
PEG_TX[8] E14
PEG_TX[9] C15
PEG_TX[10] K13
PEG_TX[11] G13
PEG_TX[12] K10
PEG_TX[13] G10
PEG_TX[14] D8
PEG_TX[15] K4
eDP_AUX
AF4 eDP_AUX#
AG4
eDP_TX[0]
AC1
eDP_TX[1]
AA4
eDP_TX[2]
AE10
eDP_TX[3]
AE6
eDP_COMPIO
AF3
eDP_HPD#
AG11 eDP_ICOMPO
AD2
eDP_TX#[0]
AC3
eDP_TX#[1]
AC4
eDP_TX#[2]
AE11
eDP_TX#[3]
AE7
T25 PAD@T25 PAD@
R118
24.9_0402_1%
R118
24.9_0402_1%
12
T22 PAD@T22 PAD@
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

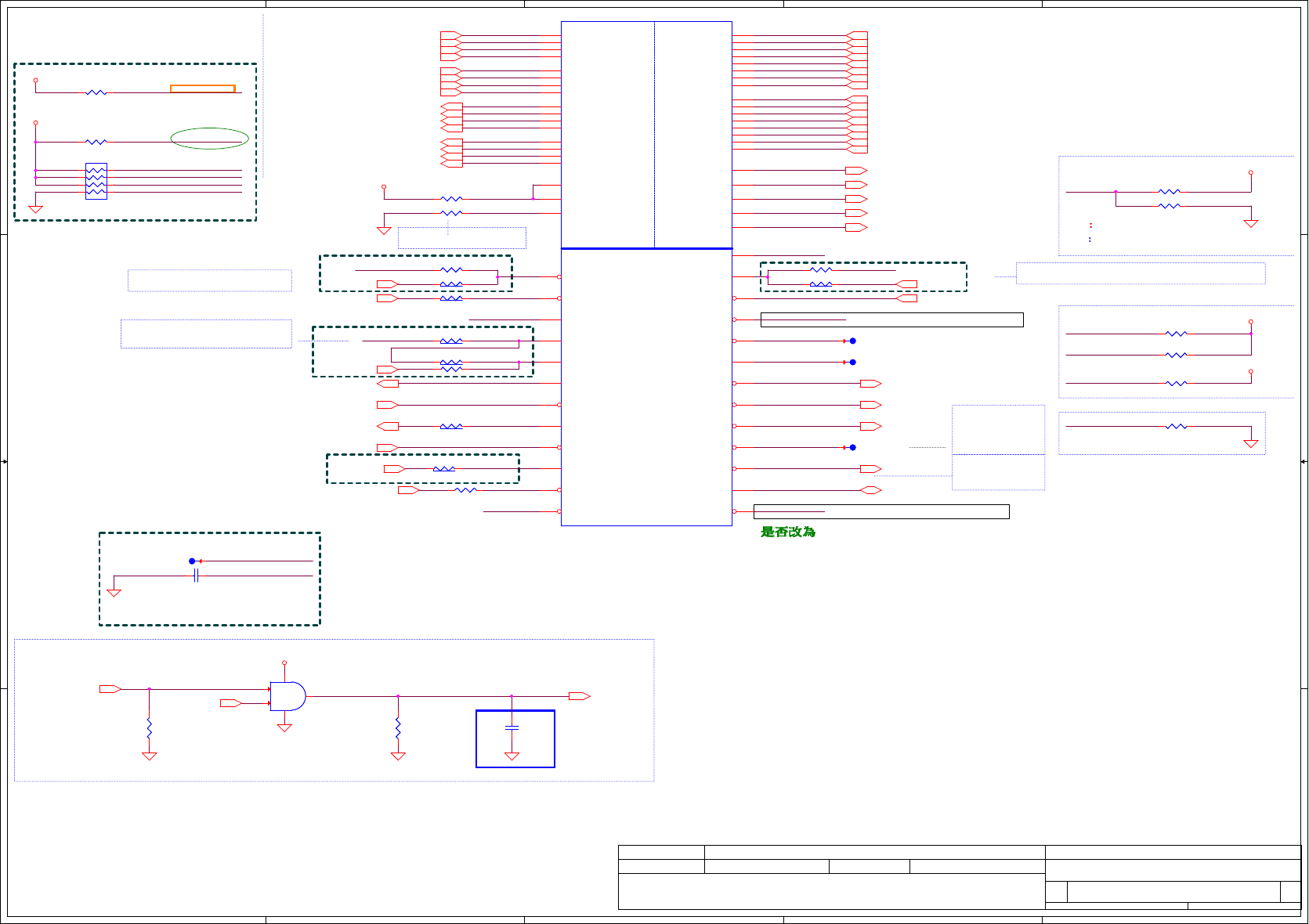

Buffered reset to CPU
Follow DG 1.2 & CRB1.0 Use open drain MOS:
+1.05VS_VTT PH pop 75ohm
series resister pop 43ohm
CRB1.0 PH 1K +3VS
Check list 1.0 PH 5K +3VS
Check list 1.2 PH 10K +3VS
Debug port DG1.1-1.2 50~5K ohm
Checklist1.0 P.64 Processor Graphis Disable Guide
DIS only SKU or UMA eDP disable
DPLL_REF_SSCLK PD 1K_5% to GND
DPLL_REF_SSCLK# PH 1K_5% to +1.05VS_VTT
XBOX
CPU
RESET#: ok CPU reset
DDR3 Compensation Signals
Trace:10mil ,Spacing:13mil, Max.Length:500mil
PROC_SELECT#
Future platforms,PH VCPLL and connect to PCH DF_TVS
PCH->CPU
UNCOREPWRGOOD: CORE OK
SM_DRAMPWROK:DRAM power ok
RESET#: ok CPU reset
For EMI
Processor Pullups follow CRB1.0
SM_DRAMPWROK:DRAM power ok
UNCOREPWRGOOD: CPU_CORE OK
Follow DG 1.2 & CRB1.0
Follow DG 1.2 & CRB1.0
Use open drain MOS:
+1.35VS PH pop 200ohm
series resister pop 130ohm
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
XDP_TDI
XDP_TDO
BUF_CPU_RST#
XDP_DBRESET#
BUFO_CPU_RST#
XDP_DBRESET#
H_CPUPWRGD_R
H_CATERR#
CLK_CPU_DPLL#
CLK_CPU_DPLL
XDP_TCK
XDP_TMS
XDP_TRST#
SM_RCOMP1
SM_RCOMP2
SM_RCOMP0
H_CPUPWRGD
H_PROCHOT#_RH_PROCHOT#
H_CPUPWRGD
PM_DRAM_PWRGD_R
BUF_CPU_RST#
SM_DRAMRST#
CLK_CPU_DPLL#
CLK_CPU_DPLL
H_PECI
PM_SYS_PWRGD_BUF PM_DRAM_PWRGD_R
H_CPUPWRGD18
CLK_CPU_DPLL# 14
CLK_CPU_DPLL 14
H_THRMTRIP#18
H_SNB_IVB#17
H_PROCHOT#28,36
CLK_CPU_DMI# 14
CLK_CPU_DMI 14
XDP_DBRESET# 15
H_PM_SYNC15
SM_DRAMRST# 6H_PECI28
PLT_RST#17,26,28,31,32
PM_DRAM_PWRGD15
SYS_PWROK15
VR_ON28,42
+1.05VS_VTT
+3VS
+1.05VS_VTT
+1.05VS_VTT
+3VS
+1.35VS
+3VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1

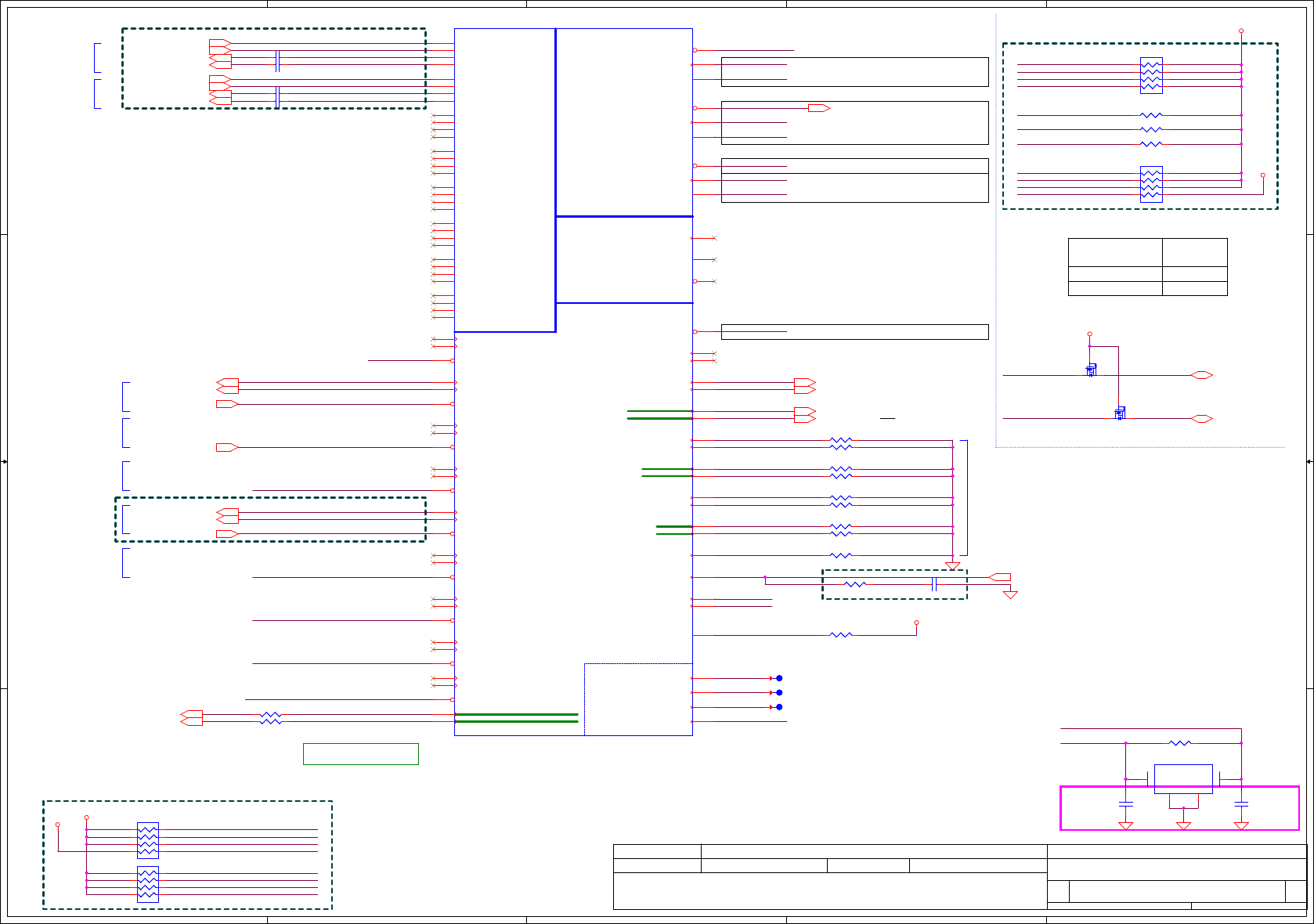

PROCESSOR(2/7) PM,XDP,CLK
Custom
5 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(2/7) PM,XDP,CLK
Custom
5 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(2/7) PM,XDP,CLK
Custom
5 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
CLOCKS
MISC THERMAL PWR MANAGEMENT
DDR3
MISC
JTAG & BPM
UCPU1B
IVY-BRIDGE_BGA1023
IVB@
CLOCKS
MISC THERMAL PWR MANAGEMENT
DDR3
MISC
JTAG & BPM
UCPU1B
IVY-BRIDGE_BGA1023
IVB@
SM_RCOMP[1] BE43
SM_RCOMP[2] BG43
SM_DRAMRST# AT30
SM_RCOMP[0] BF44
BCLK# H2
BCLK J3
DPLL_REF_CLK# AG1
DPLL_REF_CLK AG3
CATERR#
C49
PECI
A48
PROCHOT#
C45
THERMTRIP#
D45
SM_DRAMPWROK
BE45
RESET#
D44
PRDY# N53
PREQ# N55
TCK L56
TMS L55
TRST# J58
TDI M60
TDO L59
DBR# K58
BPM#[0] G58
BPM#[1] E55
BPM#[2] E59
BPM#[3] G55
BPM#[4] G59
BPM#[5] H60
BPM#[6] J59
BPM#[7] J61
PM_SYNC
C48
PROC_DETECT#
C57
PROC_SELECT#
F49
UNCOREPWRGOOD
B46
U15
SN74LVC1G07DCKR_SC70-5
U15
SN74LVC1G07DCKR_SC70-5
NC
1
A
2
G
3
Y4
P5
R117 1K_0402_5%@R117 1K_0402_5%@12
R223 10K_0402_5%R223 10K_0402_5%
12
R81 0_0402_5%@R81 0_0402_5%@
1 2
R226
75_0402_5%
R226
75_0402_5%
12
U5
MC74VHC1G09DFT2G_SC70-5
U5
MC74VHC1G09DFT2G_SC70-5
B
2
A
1Y4
P5
G
3
R220 62_0402_5%R220 62_0402_5%
12
T4PAD@T4PAD@
T3PAD@T3PAD@
R82 0_0402_5%@R82 0_0402_5%@
1 2
R227
43_0402_1%
R227
43_0402_1%
1 2
T6PAD@T6PAD@
R216
56_0402_5%
R216
56_0402_5%
1 2
C784 0.1U_0201_10V6K
@
C784 0.1U_0201_10V6K
@
12
C101
0.1U_0402_16V4Z
C101
0.1U_0402_16V4Z
1
2
T5PAD@T5PAD@
R88
200_0402_5%
R88
200_0402_5%
12
R569 1K_0402_5%R569 1K_0402_5%
12
R149 140_0402_1%R149 140_0402_1%
12
C396
0.1U_0402_16V4Z
C396
0.1U_0402_16V4Z
1
2
T1 PAD
@
T1 PAD
@
R486 25.5_0402_1%R486 25.5_0402_1%
12
T2PAD@T2PAD@
R97 130_0402_5%R97 130_0402_5%
1 2
R80 0_0402_5%
@
R80 0_0402_5%
@
1 2
R484 200_0402_1%R484 200_0402_1%
12
R116 1K_0402_5%@R116 1K_0402_5%@12
C102
100P_0402_50V8J
XEMC@C102
100P_0402_50V8J
XEMC@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
CPU DIMM reset
S0
DRAMRST_CNTRL_PCH hgih ,MOS ON
SM_DRAMRST# HIGH,DDR3 DRAMRST# HIGH
Dimm not reset
S3
DRAMRST_CNTRL_PCH Low ,MOS OFF
SM_DRAMRST# Low,DDR3 DRAMRST# HIGH
Dimm not reset
S4,S5
DRAMRST_CNTRL_PCH Low ,MOS OFF
SM_DRAMRST# Low,DDR3 DRAMRST# Low
Dimm reset
Follow CRB1.0
Address 0~13:For 128*16
Address 0~14:For 256*16
Address 0~15:For 512*16
SAGE 3G
SAGE 3G DVT
SAGE 3G PVT SAGE 3G PVT
DDR_A_D63
DDR_A_D62
DDR_A_D8
DDR_A_D3
DDR_A_D4
DDR_A_D7
DDR_A_D5
DDR_A_D6
DDR_A_D59
DDR_A_D58
DDR_A_D57
DDR_A_D56
DDR_A_D47
DDR_A_D46
DDR_A_D42
DDR_A_D43
DDR_A_D34
DDR_A_D39
DDR_A_D44
DDR_A_D45
DDR_A_D35
DDR_A_D41
DDR_A_D40
DDR_A_D38
DDR_A_D36
DDR_A_D37
DDR_A_D32
DDR_A_D33
DDR_A_D61
DDR_A_D60
DDR_A_D2
DDR_A_D1
DDR_A_D0
DDR_A_D55
DDR_A_D54
DDR_A_D51
DDR_A_D48
DDR_A_D50
DDR_A_D49
DDR_A_D52
DDR_A_D53
DDR_A_D31
DDR_A_D14
DDR_A_D15
DDR_A_D25
DDR_A_D24
DDR_A_D26
DDR_A_D27
DDR_A_D30
DDR_A_D9
DDR_A_D13
DDR_A_D12
DDR_A_D10
DDR_A_D11
DDR_A_D29
DDR_A_D28
DDR_A_D19
DDR_A_D20
DDR_A_D16
DDR_A_D21
DDR_A_D17
DDR_A_D22
DDR_A_D18
DDR_A_D23
DDR_A_MA0
DDR_A_MA14
DDR_A_MA5
DDR_A_MA4
DDR_A_MA1
DDR_A_MA2
DDR_A_MA3
DDR_A_MA9
DDR_A_MA7
DDR_A_MA6
DDR_A_MA12
DDR_A_MA13
DDR_A_MA8
DDR_A_MA11
DDR_A_MA10
DIMM_DRAMRST#_RSM_DRAMRST#
DDR_A_CLK1
DDR_A_CLK1#
DDR_A_DQS#7
DDR_A_DQS#0
DDR_A_DQS#2
DDR_A_DQS#5
DDR_A_DQS#3
DDR_A_DQS#1
DDR_A_DQS#4
DDR_A_DQS#6
DDR_A_DQS0
DDR_A_DQS2
DDR_A_DQS1
DDR_A_DQS6
DDR_A_DQS5
DDR_A_DQS4
DDR_A_DQS3
DDR_A_DQS7
DDR_A_MA15
DDR_B_D33
DDR_B_D14
DDR_B_D42
DDR_B_D59
DDR_B_D63
DDR_B_D43
DDR_B_D55
DDR_B_D53
DDR_B_D29
DDR_B_D24
DDR_B_D34
DDR_B_D4
DDR_B_D26
DDR_B_D13
DDR_B_D10
DDR_B_D21
DDR_B_D11
DDR_B_D57
DDR_B_D44
DDR_B_D0
DDR_B_D7
DDR_B_D46
DDR_B_D3
DDR_B_D15
DDR_B_D27
DDR_B_D30
DDR_B_D35
DDR_B_D40
DDR_B_D49
DDR_B_D23
DDR_B_D25
DDR_B_D19
DDR_B_D37
DDR_B_D48
DDR_B_D36
DDR_B_D18
DDR_B_D8
DDR_B_D47
DDR_B_D9
DDR_B_D60
DDR_B_D50
DDR_B_D62
DDR_B_D52
DDR_B_D2
DDR_B_D51
DDR_B_D56
DDR_B_D39
DDR_B_D22
DDR_B_D28
DDR_B_D6
DDR_B_D45
DDR_B_D17
DDR_B_D58
DDR_B_D61
DDR_B_D31
DDR_B_D54
DDR_B_D1
DDR_B_D41
DDR_B_D5
DDR_B_D12
DDR_B_D20
DDR_B_D38
DDR_B_D32
DDR_B_D16
DDR_B_DQS#1
DDR_B_DQS#7
DDR_B_DQS#5
DDR_B_DQS#4
DDR_B_DQS#0
DDR_B_DQS#3
DDR_B_DQS#6
DDR_B_DQS#2
DDR_B_MA0
DDR_B_MA9
DDR_B_MA7
DDR_B_MA13
DDR_B_MA2
DDR_B_MA4
DDR_B_MA11
DDR_B_MA3
DDR_B_MA5
DDR_B_MA6
DDR_B_MA10
DDR_B_MA8
DDR_B_MA1
DDR_B_MA12
DDR_B_MA14
DDR_B_DQS7
DDR_B_DQS0
DDR_B_DQS1
DDR_B_DQS5
DDR_B_DQS4
DDR_B_DQS3
DDR_B_DQS2
DDR_B_DQS6
DDR_B_CLK1
DDR_B_CLK1#
DDR_B_MA15
DDR_A_D[0..63]11
DDR_A_BS011
DDR_A_BS111
DDR_A_BS211
DDR_A_WE#11
DDR_A_RAS#11
DDR_A_CAS#11
DIMM_DRAMRST# 11,12
SM_DRAMRST#5
DDR_A_MA[0..15] 11
DDR_A_CLK0 11
DDR_A_CLK0# 11
DDR_A_CKE0 11
DDR_A_CS0# 11
DDR_A_ODT0 11
DDR_A_DQS#[0..7] 11
DDR_A_DQS[0..7] 11
DDR_B_BS012
DDR_B_BS112
DDR_B_BS212
DDR_B_D[0..63]12
DDR_B_WE#12
DDR_B_RAS#12
DDR_B_CAS#12
DDR_B_DQS#[0..7] 12
DDR_B_DQS[0..7] 12
DDR_B_CS0# 12
DDR_B_ODT0 12
DDR_B_MA[0..15] 12
DDR_B_CLK0 12
DDR_B_CLK0# 12
DDR_B_CKE0 12
DRAMRST_CNTRL_PCH14
DRAMRST_CNTRL_EC28
DDR_A_CS1# 11
DDR_A_ODT1 11
DDR_A_CKE1 11
DDR_B_CS1# 12
DDR_B_ODT1 12
DDR_B_CKE1 12
+1.35V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1

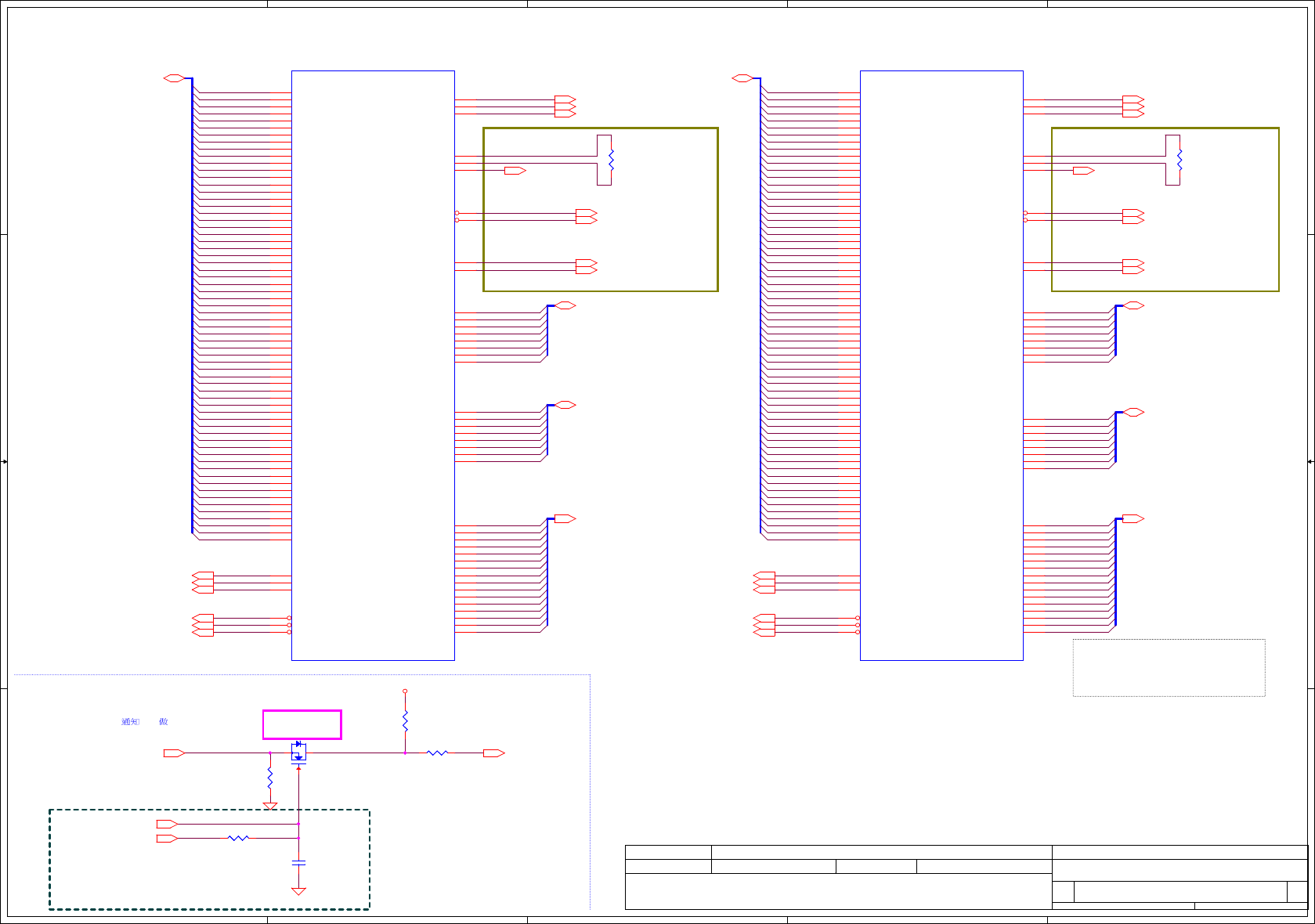

PROCESSOR(3/7) DDRIII
Custom
6 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(3/7) DDRIII
Custom
6 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(3/7) DDRIII
Custom
6 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R413 0_0402_5%DS3@R413 0_0402_5%DS3@
1 2
R63
1K_0402_5%
R63
1K_0402_5%
1 2
R263
75_0402_1%
R263
75_0402_1%
12
R264
75_0402_1%
R264
75_0402_1%
12
R79
4.99K_0402_1%
R79
4.99K_0402_1%
1 2
C78
.047U_0402_16V7K
C78
.047U_0402_16V7K
1
2
R66
1K_0402_5%
R66
1K_0402_5%
12
DDR SYSTEM MEMORY B
UCPU1D
IVY-BRIDGE_BGA1023
IVB@
DDR SYSTEM MEMORY B
UCPU1D
IVY-BRIDGE_BGA1023
IVB@
SB_CK[0] BA34
SB_CK[1] BA36
SB_CK#[0] AY34
SB_CK#[1] BB36
SB_CKE[0] AR22
SB_CKE[1] BF27
SB_ODT[0] AT43
SB_ODT[1] BG47
SB_DQS[4] BE51
SB_DQS#[4] BG51
SB_DQS[5] BA61
SB_DQS#[5] BA59
SB_DQS[6] AR59
SB_DQS#[6] AT60
SB_DQS[7] AK61
SB_DQS#[7] AK59
SB_DQS[0] AM2
SB_DQS#[0] AL3
SB_DQS[1] AV1
SB_DQS#[1] AV3
SB_DQS[2] BE11
SB_DQS#[2] BG11
SB_DQS[3] BD18
SB_DQS#[3] BD17
SB_MA[0] BF32
SB_MA[1] BE33
SB_MA[2] BD33
SB_MA[3] AU30
SB_MA[4] BD30
SB_MA[5] AV30
SB_MA[6] BG30
SB_MA[7] BD29
SB_MA[8] BE30
SB_MA[9] BE28
SB_MA[10] BD43
SB_MA[11] AT28
SB_MA[12] AV28
SB_MA[13] BD46
SB_MA[14] AT26
SB_MA[15] AU22
SB_DQ[0]
AL4
SB_DQ[1]
AL1
SB_DQ[2]
AN3
SB_DQ[3]
AR4
SB_DQ[4]
AK4
SB_DQ[5]
AK3
SB_DQ[6]
AN4
SB_DQ[7]
AR1
SB_DQ[8]
AU4
SB_DQ[9]
AT2
SB_DQ[10]
AV4
SB_DQ[11]
BA4
SB_DQ[12]
AU3
SB_DQ[13]
AR3
SB_DQ[14]
AY2
SB_DQ[15]
BA3
SB_DQ[16]
BE9
SB_DQ[17]
BD9
SB_DQ[18]
BD13
SB_DQ[19]
BF12
SB_DQ[20]
BF8
SB_DQ[21]
BD10
SB_DQ[22]
BD14
SB_DQ[23]
BE13
SB_DQ[24]
BF16
SB_DQ[25]
BE17
SB_DQ[26]
BE18
SB_DQ[27]
BE21
SB_DQ[28]
BE14
SB_DQ[29]
BG14
SB_DQ[30]
BG18
SB_DQ[31]
BF19
SB_DQ[32]
BD50
SB_DQ[33]
BF48
SB_DQ[34]
BD53
SB_DQ[35]
BF52
SB_DQ[36]
BD49
SB_DQ[37]
BE49
SB_DQ[38]
BD54
SB_DQ[39]
BE53
SB_DQ[40]
BF56
SB_DQ[41]
BE57
SB_DQ[42]
BC59
SB_DQ[43]
AY60
SB_DQ[44]
BE54
SB_DQ[45]
BG54
SB_DQ[46]
BA58
SB_DQ[47]
AW59
SB_DQ[48]
AW58
SB_DQ[49]
AU58
SB_DQ[50]
AN61
SB_DQ[51]
AN59
SB_DQ[52]
AU59
SB_DQ[53]
AU61
SB_DQ[54]
AN58
SB_DQ[55]
AR58
SB_DQ[56]
AK58
SB_DQ[57]
AL58
SB_DQ[58]
AG58
SB_DQ[59]
AG59
SB_DQ[60]
AM60
SB_DQ[61]
AL59
SB_DQ[62]
AF61
SB_DQ[63]
AH60
SB_CS#[0] BE41
SB_CS#[1] BE47
SB_CAS#
AV43
SB_RAS#
BF40
SB_WE#
BD45
SB_BS[0]
BG39
SB_BS[1]
BD42
SB_BS[2]
AT22
DDR SYSTEM MEMORY A
UCPU1C
IVY-BRIDGE_BGA1023
IVB@
DDR SYSTEM MEMORY A
UCPU1C
IVY-BRIDGE_BGA1023
IVB@
SA_CK[0] AU36
SA_CK[1] AT40
SA_CK#[0] AV36
SA_CK#[1] AU40
SA_CKE[0] AY26
SA_CKE[1] BB26
SA_CS#[0] BB40
SA_CS#[1] BC41
SA_ODT[0] AY40
SA_ODT[1] BA41
SA_DQS[0] AJ11
SA_DQS#[0] AL11
SA_DQS[1] AR10
SA_DQS#[1] AR8
SA_DQS[2] AY11
SA_DQS#[2] AV11
SA_DQS[3] AU17
SA_DQS[4] AW45
SA_DQS#[4] AV45
SA_DQS[5] AV51
SA_DQS#[5] AY51
SA_DQS[6] AT56
SA_DQS#[6] AT55
SA_DQS[7] AK54
SA_DQS#[7] AK55
SA_MA[0] BG35
SA_MA[1] BB34
SA_MA[2] BE35
SA_MA[3] BD35
SA_MA[4] AT34
SA_MA[5] AU34
SA_MA[6] BB32
SA_MA[7] AT32
SA_MA[8] AY32
SA_MA[9] AV32
SA_MA[10] BE37
SA_MA[11] BA30
SA_MA[12] BC30
SA_MA[13] AW41
SA_MA[14] AY28
SA_MA[15] AU26
SA_DQ[0]
AG6
SA_DQ[1]
AJ6
SA_DQ[2]
AP11
SA_DQ[3]
AL6
SA_DQ[4]
AJ10
SA_DQ[5]
AJ8
SA_DQ[6]
AL8
SA_DQ[7]
AL7
SA_DQ[8]
AR11
SA_DQ[9]
AP6
SA_DQ[10]
AU6
SA_DQ[11]
AV9
SA_DQ[12]
AR6
SA_DQ[13]
AP8
SA_DQ[14]
AT13
SA_DQ[15]
AU13
SA_DQ[16]
BC7
SA_DQ[17]
BB7
SA_DQ[18]
BA13
SA_DQ[19]
BB11
SA_DQ[20]
BA7
SA_DQ[21]
BA9
SA_DQ[22]
BB9
SA_DQ[23]
AY13
SA_DQ[24]
AV14
SA_DQ[25]
AR14
SA_DQ[26]
AY17
SA_DQ[27]
AR19
SA_DQ[28]
BA14
SA_DQ[29]
AU14
SA_DQ[30]
BB14
SA_DQ[31]
BB17
SA_DQ[32]
BA45
SA_DQ[33]
AR43
SA_DQ[34]
AW48
SA_DQ[35]
BC48
SA_DQ[36]
BC45
SA_DQ[37]
AR45
SA_DQ[38]
AT48
SA_DQ[39]
AY48
SA_DQ[40]
BA49
SA_DQ[41]
AV49
SA_DQ[42]
BB51
SA_DQ[43]
AY53
SA_DQ[44]
BB49
SA_DQ[45]
AU49
SA_DQ[46]
BA53
SA_DQ[47]
BB55
SA_DQ[48]
BA55
SA_DQ[49]
AV56
SA_DQ[50]
AP50
SA_DQ[51]
AP53
SA_DQ[52]
AV54
SA_DQ[53]
AT54
SA_DQ[54]
AP56
SA_DQ[55]
AP52
SA_DQ[56]
AN57
SA_DQ[57]
AN53
SA_DQ[58]
AG56
SA_DQ[59]
AG53
SA_DQ[60]
AN55
SA_DQ[61]
AN52
SA_DQ[62]
AG55
SA_DQ[63]
AK56
SA_CAS#
BE39
SA_RAS#
BD39
SA_WE#
AT41
SA_BS[0]
BD37
SA_BS[1]
BF36
SA_BS[2]
BA28
SA_DQS#[3] AT17
G
D
S
Q6
BSS138_NL_SOT23-3
G
D
S
Q6
BSS138_NL_SOT23-3
2
13
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
These pins are for solder joint
reliability and non-critical to
function. For BGA only.
10: 2x8 PCI Express
PCIE Port Bifurcation Straps
CFG[6:5]
11: (Default) 1x16 PCI Express
CFG7
PEG DEFER TRAINING
0: PEG Wait for BIOS for training
1: (Default) PEG Train immediately following
xxRESETB de assertion
CFG4
eDP enable
0:Enable
1:Disable
CFG Straps for Processor
01: Reserved
00: 1x8,2x4 PCI Express
PEG Static Lane Reversal - CFG2 is for the 16x
CFG2
0:Lane Reversed
1: Normal Operation; Lane # definition matches
socket pin map definition
*
*
*
CRB1.0 P.12
Default "1",EDS R1.0 P.88
VAXG_VAL_SENSE
VSSAXG_VAL_SENSE
VAXG_VAL_SENSE
VCC_VAL_SENSE
VSS_VAL_SENSE
CFG2
CFG0
CFG4
CFG5
CFG6
CFG7
VSSAXG_VAL_SENSE
VCC_VAL_SENSE
VSS_VAL_SENSE
DC_TEST_C4_D3
DC_TEST_A59_C59
DC_TEST_A61_C61
DC_TEST_BE59_BE61
DC_TEST_BG59_BG61
DC_TEST_BE3_BG3
DC_TEST_BE1_BG1
CFG4
CFG6
CFG5
CFG2
CFG7
CLK_RES_ITP 14
CLK_RES_ITP# 14
+VGFX_CORE
+CPU_CORE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(4/7) RSVD,CFG
Custom
7 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(4/7) RSVD,CFG
Custom
7 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(4/7) RSVD,CFG
Custom
7 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R811
49.9_0402_1%
@
R811
49.9_0402_1%
@
1 2
T72 PAD @T72 PAD @
R810
49.9_0402_1%
@
R810
49.9_0402_1%
@
1 2
R812
49.9_0402_1%
@
R812
49.9_0402_1%
@
1 2
R224
1K_0402_1%@
R224
1K_0402_1%@
12
R204
1K_0402_1%
eDP@
R204
1K_0402_1%
eDP@
12
RESERVED
UCPU1E
IVY-BRIDGE_BGA1023
IVB@
RESERVED
UCPU1E
IVY-BRIDGE_BGA1023
IVB@
CFG[0]
B50
CFG[1]
C51
CFG[2]
B54
CFG[3]
D53
CFG[4]
A51
CFG[5]
C53
CFG[6]
C55
CFG[7]
H49
CFG[8]
A55
CFG[9]
H51
CFG[10]
K49
CFG[11]
K53
CFG[12]
F53
CFG[13]
G53
CFG[14]
L51
CFG[15]
F51
CFG[16]
D52
CFG[17]
L53
DC_TEST_A4 A4
DC_TEST_A58 A58
DC_TEST_A59 A59
DC_TEST_A61 A61
DC_TEST_BD1 BD1
DC_TEST_BD61 BD61
DC_TEST_BE1 BE1
DC_TEST_BE3 BE3
DC_TEST_BE59 BE59
DC_TEST_BE61 BE61
DC_TEST_BG1 BG1
DC_TEST_BG3 BG3
DC_TEST_BG4 BG4
DC_TEST_BG58 BG58
DC_TEST_BG59 BG59
DC_TEST_BG61 BG61
DC_TEST_C4 C4
DC_TEST_C59 C59
DC_TEST_C61 C61
DC_TEST_D1 D1
DC_TEST_D3 D3
DC_TEST_D61 D61
VCC_VAL_SENSE
H43
VSS_VAL_SENSE
K43
VAXG_VAL_SENSE
H45
VSSAXG_VAL_SENSE
K45
VCC_DIE_SENSE
F48
RSVD41 AH2
RSVD42 AG13
RSVD43 AM14
RSVD44 AM15
RSVD8
BA19
RSVD9
AV19
RSVD10
AT21
RSVD11
BB21
RSVD12
BB19
RSVD13
AY21
RSVD14
BA22
RSVD15
AY22
RSVD16
AU19
RSVD17
AU21
RSVD18
BD21
RSVD19
BD22
RSVD20
BD25
RSVD21
BD26
RSVD22
BG22
RSVD23
BE22
RSVD24
BG26
RSVD25
BE26
RSVD26
BF23
RSVD27
BE24
RSVD45 N50
RSVD30 N42
RSVD31 L42
RSVD32 L45
RSVD33 L47
RSVD34 M13
RSVD35 M14
RSVD36 U14
RSVD37 W14
RSVD38 P13
RSVD39 AT49
RSVD40 K24
RSVD6
H48
RSVD7
K48
BCLK_ITP N59
BCLK_ITP# N58
R234
1K_0402_1%
R234
1K_0402_1%
12
R230
1K_0402_1% @
R230
1K_0402_1% @
12
R813
49.9_0402_1%
@
R813
49.9_0402_1%
@
1 2
T56 PAD @T56 PAD @
R228
1K_0402_1%@
R228
1K_0402_1%@
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

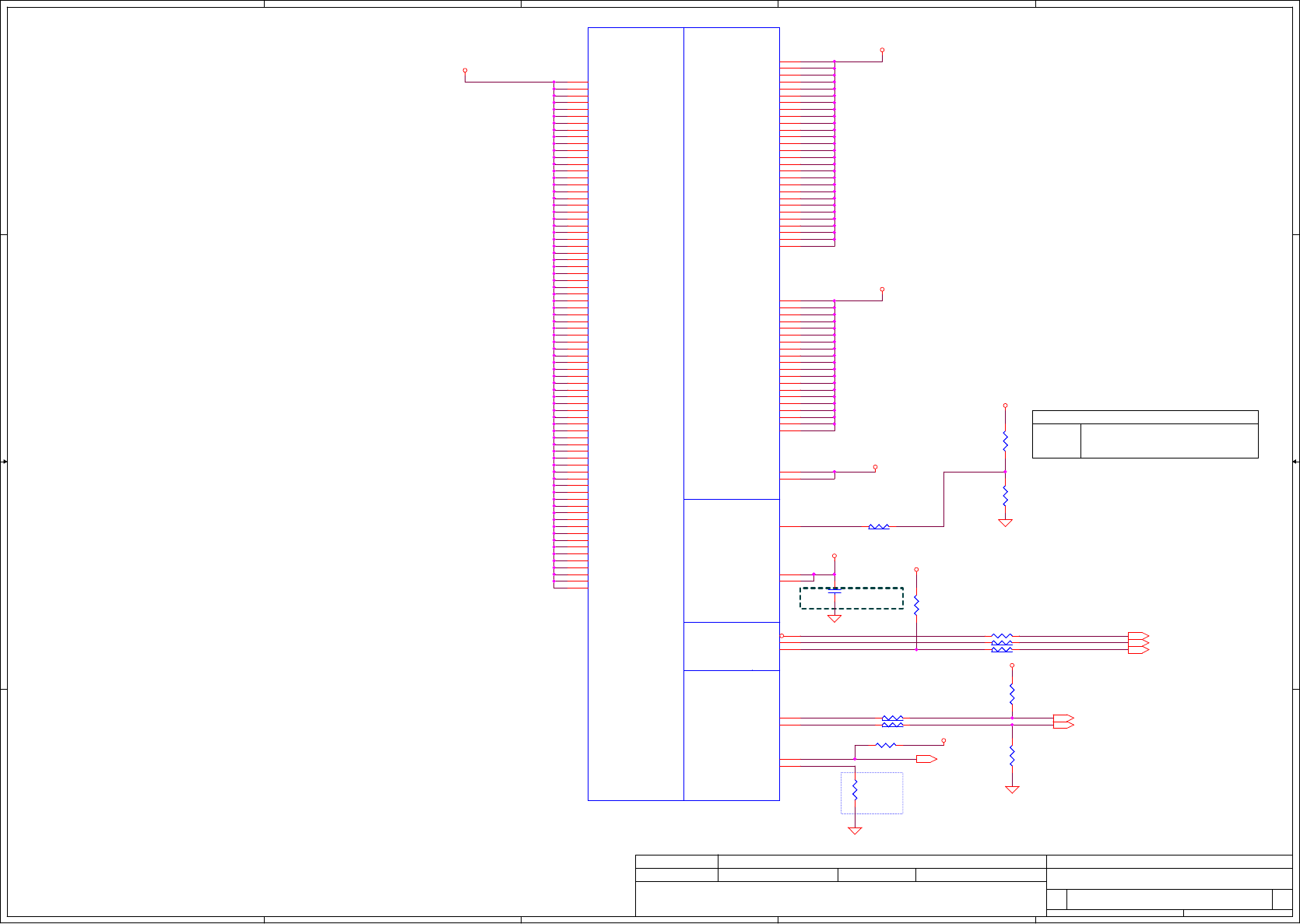

8.5A
Should change to connect from
power cirucit & layout differential
with VCCIO_SENSE.
ULV SC/DC 33A
Place the PU,PD
resistors close to CPU
*
A19
VCCIO_SEL For 2012 CPU support
0: +1.0VS_VTT
1 : +1.05VS_VTT
INTEL Recommend VCC
3*330uF,12*22uF(0805),16*2.2uF(0402)
PD0.9
INTEL Recommend VCCIO
PD 0.9
330uF 1+1
10uF (0603) *5
1uF (0201) *16
330uF 1
10uF (0603) *5
1uF (0201) *10
Check List R1.5
VIDALERT#:75ohm ±5% pull-up to VCCIO close to IMVP7
VIDSCLK: 55ohm ±5% pull-up to VCCIO close to IMVP7
VIDSOUT: 130ohm ±5% pull-up to VCCIO close to CPU
130ohm ±5% pull-up to VCCIO close to IMVP7
Check List R1.5
VCCSENSE:100ohm ±1% pull-up to VCC near processor.
VSSSENSE:100ohm ±1% pull-down to GND near processor.
SAGE 3G
VSSIO_SENSE
VSSSENSE_R
VCCSENSE_R
H_CPU_SVIDALRT#
H_CPU_SVIDCLK
VCCIO_SEL_R
VCCIO_SEL
VCCIO_SENSE
H_CPU_SVIDDAT
VCCSENSE 42
VSSSENSE 42
VR_SVID_ALRT# 42
VR_SVID_CLK 42
VR_SVID_DAT 42
VCCIO_SENSE 40
+CPU_CORE
+1.05VS_VTT
+1.05VS_VTT
+CPU_CORE
+1.05VS_VTT
+3VALW
+1.05VS_VTT
+1.05VS_VTT
+1.05VS_VTT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(5/7) PWR,BYPASS
Custom
8 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(5/7) PWR,BYPASS
Custom
8 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(5/7) PWR,BYPASS
Custom
8 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R577 0_0402_5%@R577 0_0402_5%@
1 2
R588
100_0402_1%
R588
100_0402_1%
12
R578 0_0402_5%@R578 0_0402_5%@
1 2
R576 43_0402_1%R576 43_0402_1%
1 2
R582
0_0402_5%@
R582
0_0402_5%@
1 2
R574
130_0402_5%
R574
130_0402_5%
12
R105
10_0402_5%
R105
10_0402_5%
12
R589
100_0402_1%
R589
100_0402_1%
12
R520
10K_0402_5% @
R520
10K_0402_5% @
12
POWER
CORE SUPPLY
PEG IO AND DDR IO
SENSE LINES SVID QUIET
RAILS
UCPU1F
IVY-BRIDGE_BGA1023
IVB@
POWER
CORE SUPPLY
PEG IO AND DDR IO
SENSE LINES SVID QUIET
RAILS
UCPU1F
IVY-BRIDGE_BGA1023
IVB@
VCC_SENSE F43
VSS_SENSE G43
VIDALERT# A44
VIDSCLK B43
VIDSOUT C44
VSS_SENSE_VCCIO AN17
VCC[1]
A26
VCC[2]
A29
VCC[3]
A31
VCC[4]
A34
VCC[5]
A35
VCC[6]
A38
VCC[7]
A39
VCC[8]
A42
VCC[9]
C26
VCC[10]
C27
VCC[11]
C32
VCC[12]
C34
VCC[13]
C37
VCC[14]
C39
VCC[15]
C42
VCC[16]
D27
VCC[17]
D32
VCC[18]
D34
VCC[19]
D37
VCC[20]
D39
VCC[21]
D42
VCC[22]
E26
VCC[23]
E28
VCC[24]
E32
VCC[25]
E34
VCC[26]
E37
VCC[27]
E38
VCC[28]
F25
VCC[29]
F26
VCC[30]
F28
VCC[31]
F32
VCC[32]
F34
VCC[33]
F37
VCC[34]
F38
VCC[35]
F42
VCC[36]
G42
VCC[37]
H25
VCC[38]
H26
VCC[39]
H28
VCC[40]
H29
VCC[41]
H32
VCC[42]
H34
VCC[43]
H35
VCC[44]
H37
VCC[45]
H38
VCC[46]
H40
VCC[47]
J25
VCC[48]
J26
VCC[49]
J28
VCC[50]
J29
VCC[51]
J32
VCC[52]
J34
VCC[53]
J35
VCC[54]
J37
VCC[55]
J38
VCC[56]
J40
VCC[57]
J42
VCC[58]
K26
VCC[59]
K27
VCC[60]
K29
VCC[61]
K32
VCC[62]
K34
VCC[63]
K35
VCC[64]
K37
VCC[66]
K39
VCC[67]
K42
VCC[68]
L25
VCC[69]
L28
VCC[70]
L33
VCC[71]
L36
VCC[72]
L40
VCC[73]
N26
VCC[74]
N30
VCC[75]
N34
VCC[76]
N38
VCCIO[1] AF46
VCCIO[3] AG48
VCCIO[4] AG50
VCCIO[5] AG51
VCCIO[6] AJ17
VCCIO[7] AJ21
VCCIO[8] AJ25
VCCIO[9] AJ43
VCCIO[10] AJ47
VCCIO[11] AK50
VCCIO[12] AK51
VCCIO[13] AL14
VCCIO[14] AL15
VCCIO[15] AL16
VCCIO[16] AL20
VCCIO[17] AL22
VCCIO[18] AL26
VCCIO[19] AL45
VCCIO[20] AL48
VCCIO[21] AM16
VCCIO[22] AM17
VCCIO[23] AM21
VCCIO[24] AM43
VCCIO[25] AM47
VCCIO[26] AN20
VCCIO[27] AN42
VCCIO[28] AN45
VCCIO[29] AN48
VCCIO[30] AA14
VCCIO[31] AA15
VCCIO[32] AB17
VCCIO[33] AB20
VCCIO[34] AC13
VCCIO[35] AD16
VCCIO[36] AD18
VCCIO[37] AD21
VCCIO[38] AE14
VCCIO[39] AE15
VCCIO[40] AF16
VCCIO[41] AF18
VCCIO[42] AF20
VCCIO[43] AG15
VCCIO[44] AG16
VCCIO[45] AG17
VCCIO[46] AG20
VCCIO[47] AG21
VCCIO[48] AJ14
VCCIO[49] AJ15
VCCIO50 W16
VCCIO51 W17
VCCPQE[1] AM25
VCCPQE[2] AN22
VCCIO_SENSE AN16
VCCIO_SEL BC22
C951
1U_0402_6.3V6K
C951
1U_0402_6.3V6K
1
2
R107 10_0402_5%R107 10_0402_5%
1 2
R579 0_0402_5%@R579 0_0402_5%@
1 2
R521
10K_0402_5%
R521
10K_0402_5%
1 2
R581 0_0402_5%@R581 0_0402_5%@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
ULV SC/DC GT1: 18A
GT2: 33A
INTEL Recommend VCCPLL
1*330uF,2*1uF(0402)
PD 0.9
VCCSA_VID
For 2012 future CPU
VCCSA voltage select
5A
6A
CPU EDS1.3 P.93
VCCSA_VID0 Must PD
1.2A
1
SNB IVB
0
0
0 X1
1 1
V
V V
V
V
VX
Vout
0.9V
0.8V
0.725V
VCCSA
VID0
0.675V
VID1
0
INTEL Recommend VAXG
2*330uF,5*22uF(0805),6*10uF(0603),6*1uF(0402)
PD 0.9
INTEL Recommend VDDQ
1*330uF,8*10uF(0603) ,10*1uF(0402)
PD0.9
INTEL Recommend VCCSA
1*330uF,5*10uF(0603) ,5*1uF(0402)
PD0.9
+V_SM_VREF should
have 20 mil trace width
Place BOT OUT Conn
Short for +1.35VS to +1.35V_CPU_VDDQ
SA_DIMM_VREFDQ
SB_DIMM_VREFDQ
For Future CPU M3 support,
Sandey bridge not support M3,
Check list1.0 & CRB say can NC
ULV
0.85V V
V
V
V
Check List R1.5
VCCAXG_SENSE:100ohm ±5% pull-up to VCC near processor.
VSSAXG_SENSE:100ohm ±5% pull-down to GND near processor.
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
VCCSA_SENSE
H_VCCSA_VID0
H_VCCSA_VID1
+V_SM_VREF
SA_DIMM_VREFDQ
SB_DIMM_VREFDQ
+1.8VS_VCCPLL
+VCCSA
VCC_AXG_SENSE42
VSS_AXG_SENSE42
H_VCCSA_VID1 41
H_VCCSA_VID0 41
+VGFX_CORE
+VCCSA
+1.8VS
+1.35VS
+1.35VS
+1.35VS
+VGFX_CORE
+1.35VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(6/7) PWR
Custom
9 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(6/7) PWR
Custom
9 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(6/7) PWR
Custom
9 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R69
1K_0402_1%
@
R69
1K_0402_1%
@
12
C985
1U_0402_6.3V6K
C985
1U_0402_6.3V6K
1
2
C1181
1U_0402_6.3V6K
C1181
1U_0402_6.3V6K
1
2
J16
JUMP_43X39
@J16
JUMP_43X39
@
1
122
C1179
1U_0402_6.3V6K
C1179
1U_0402_6.3V6K
1
2
T55 PAD
@T55 PAD
@
C998
10U_0603_6.3V6M
C998
10U_0603_6.3V6M
12
C1180
1U_0402_6.3V6K
C1180
1U_0402_6.3V6K
1
2
C990
10U_0603_6.3V6M
C990
10U_0603_6.3V6M
12
C999
10U_0603_6.3V6M
@
C999
10U_0603_6.3V6M
@
12
C997
10U_0603_6.3V6M
C997
10U_0603_6.3V6M
12
R381
100_0402_5%
R381
100_0402_5%
1 2
R396
100_0402_5%
R396
100_0402_5%
1 2
C970
10U_0603_6.3V6M
@
C970
10U_0603_6.3V6M
@
12
C996
10U_0603_6.3V6M
C996
10U_0603_6.3V6M
12
C584
1U_0402_6.3V6K
C584
1U_0402_6.3V6K
1
2
C987
10U_0603_6.3V6M
C987
10U_0603_6.3V6M
12
R500
0_0805_5%
@
R500
0_0805_5%
@
1 2
R534
1K_0402_1%
R534
1K_0402_1%
12
C583
1U_0402_6.3V6K
C583
1U_0402_6.3V6K
1
2
R540
1K_0402_1%
R540
1K_0402_1%
12
C977
1U_0402_6.3V6K
C977
1U_0402_6.3V6K
1
2
C995
10U_0603_6.3V6M
C995
10U_0603_6.3V6M
12
C647
0.1U_0402_16V4Z
C647
0.1U_0402_16V4Z
1
2
C978
1U_0402_6.3V6K
C978
1U_0402_6.3V6K
1
2
+
C599
330U_B2_2VM_R15M
SGA00004700
+
C599
330U_B2_2VM_R15M
SGA00004700
1
2
C979
1U_0402_6.3V6K
C979
1U_0402_6.3V6K
1
2
R129
0_0402_5%
@
R129
0_0402_5%
@
12
+
C606
220U_B2_2.5VM_R15M
SGA00004I00
+
C606
220U_B2_2.5VM_R15M
SGA00004I00
1
2
C989
10U_0603_6.3V6M
@
C989
10U_0603_6.3V6M
@
12
R68
1K_0402_1%
@
R68
1K_0402_1%
@
12
POWER
GRAPHICS
DDR3 - 1.5V RAILS
1.8V RAIL
SENSE
LINES
SA RAIL
SENSE LINES
QUIET RAILS
VREF
VCCSA VID
lines
UCPU1G
IVY-BRIDGE_BGA1023
IVB@
POWER
GRAPHICS
DDR3 - 1.5V RAILS
1.8V RAIL
SENSE
LINES
SA RAIL
SENSE LINES
QUIET RAILS
VREF
VCCSA VID
lines
UCPU1G
IVY-BRIDGE_BGA1023
IVB@
SM_VREF AY43
VAXG[1]
AA46
VAXG[2]
AB47
VAXG[3]
AB50
VAXG[4]
AB51
VAXG[5]
AB52
VAXG[6]
AB53
VAXG[7]
AB55
VAXG[8]
AB56
VAXG[9]
AB58
VAXG[10]
AB59
VAXG[11]
AC61
VAXG[12]
AD47
VAXG[13]
AD48
VAXG[14]
AD50
VAXG[15]
AD51
VAXG[16]
AD52
VAXG[17]
AD53
VAXG[18]
AD55
VAXG[19]
AD56
VAXG[20]
AD58
VAXG[21]
AD59
VAXG[22]
AE46
VAXG[23]
N45
VAXG[24]
P47
VAXG[25]
P48
VAXG[26]
P50
VAXG[27]
P51
VAXG[28]
P52
VAXG[29]
P53
VAXG[30]
P55
VAXG[31]
P56
VAXG[32]
P61
VAXG[33]
T48
VAXG[34]
T58
VAXG[35]
T59
VAXG[36]
T61
VAXG[37]
U46
VAXG[38]
V47
VAXG[39]
V48
VAXG[40]
V50
VAXG[41]
V51
VAXG[42]
V52
VAXG[43]
V53
VAXG[44]
V55
VAXG[45]
V56
VAXG[46]
V58
VAXG[47]
V59
VAXG[48]
W50
VAXG[49]
W51
VAXG[50]
W52
VAXG[51]
W53
VAXG[52]
W55
VAXG[53]
W56
VAXG[54]
W61
VDDQ[11] AM40
VDDQ[12] AN30
VDDQ[13] AN34
VDDQ[14] AN38
VDDQ[15] AR26
VDDQ[1] AJ28
VDDQ[2] AJ33
VDDQ[3] AJ36
VDDQ[4] AJ40
VDDQ[5] AL30
VDDQ[6] AL34
VDDQ[7] AL38
VDDQ[8] AL42
VDDQ[9] AM33
VDDQ[10] AM36
VCCPLL[1]
BB3
VCCPLL[2]
BC1
VCCSA_SENSE U10
VCCSA_VID[1] D49
VAXG[55]
Y48
VAXG[56]
Y61
VCCPLL[3]
BC4
VAXG_SENSE
F45
VSSAXG_SENSE
G45
VCCSA[1]
L17
VCCSA[10]
R21
VCCSA[12]
V16
VCCSA[13]
V17
VCCSA[14]
V18
VCCSA[4]
N20
VCCSA[5]
N22
VCCSA[6]
P17
VCCSA[9]
R18
VDDQ[16] AR28
VDDQ[17] AR30
VDDQ[18] AR32
VDDQ[19] AR34
VDDQ[20] AR36
VDDQ[21] AR40
VDDQ[22] AV41
VDDQ[23] AW26
VDDQ[24] BA40
VDDQ[25] BB28
VDDQ[26] BG33
VCCSA[11]
U15
VCCSA[15]
V21
VCCSA[16]
W20
VCCSA[2]
L21
VCCSA[3]
N16
VCCDQ[1] AM28
VCCDQ[2] AN26
VCCSA[7]
P20
VCCSA[8]
R16
VDDQ_SENSE BC43
VSS_SENSE_VDDQ BA43
VCCSA_VID[0] D48
SA_DIMM_VREFDQ BE7
SB_DIMM_VREFDQ BG7
+
C607
330U_B2_2VM_R15M
SGA00004700
+
C607
330U_B2_2VM_R15M
SGA00004700
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

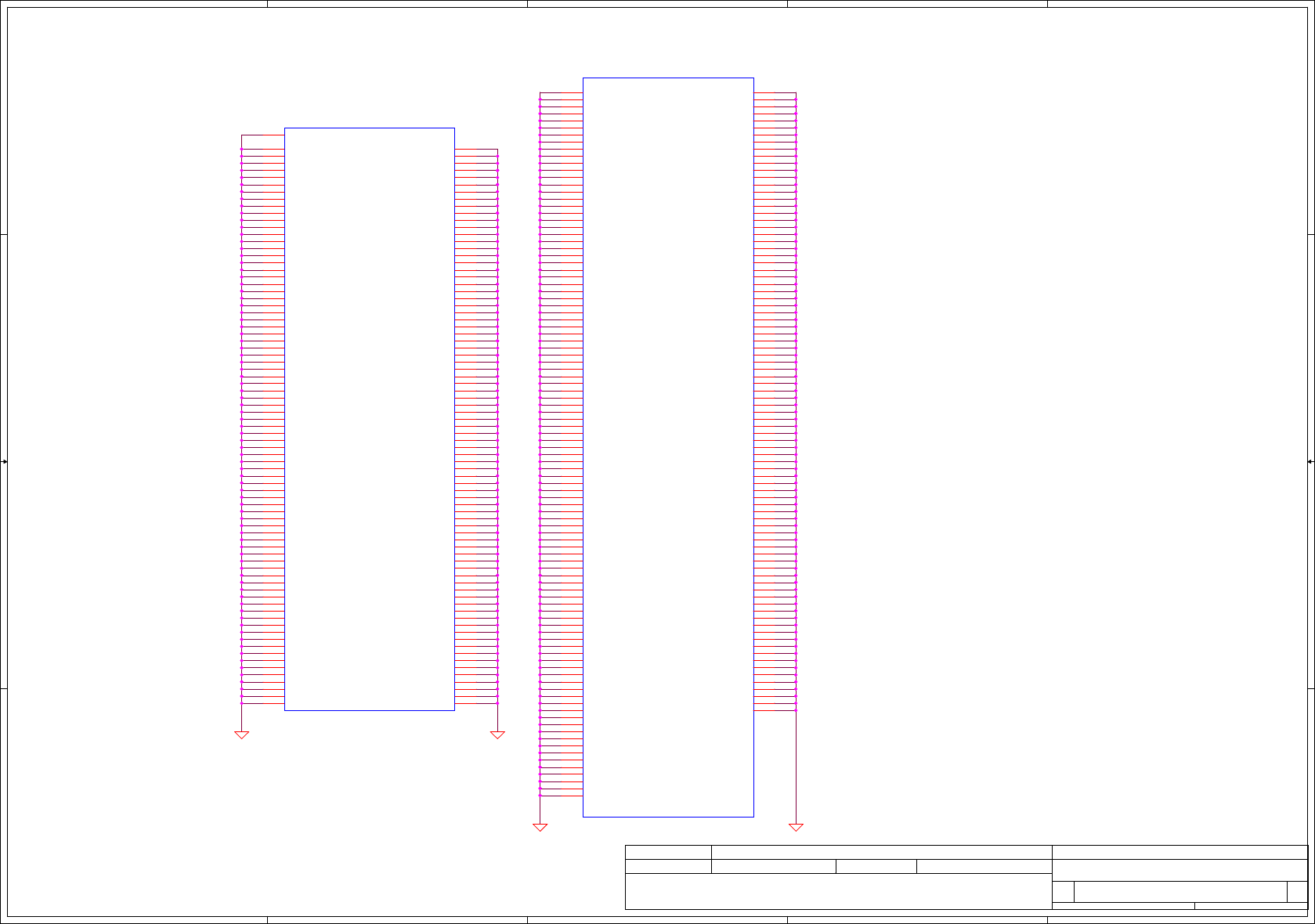

CR CheckList Rev1.5
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(7/7) VSS
Custom
10 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(7/7) VSS
Custom
10 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PROCESSOR(7/7) VSS
Custom
10 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.

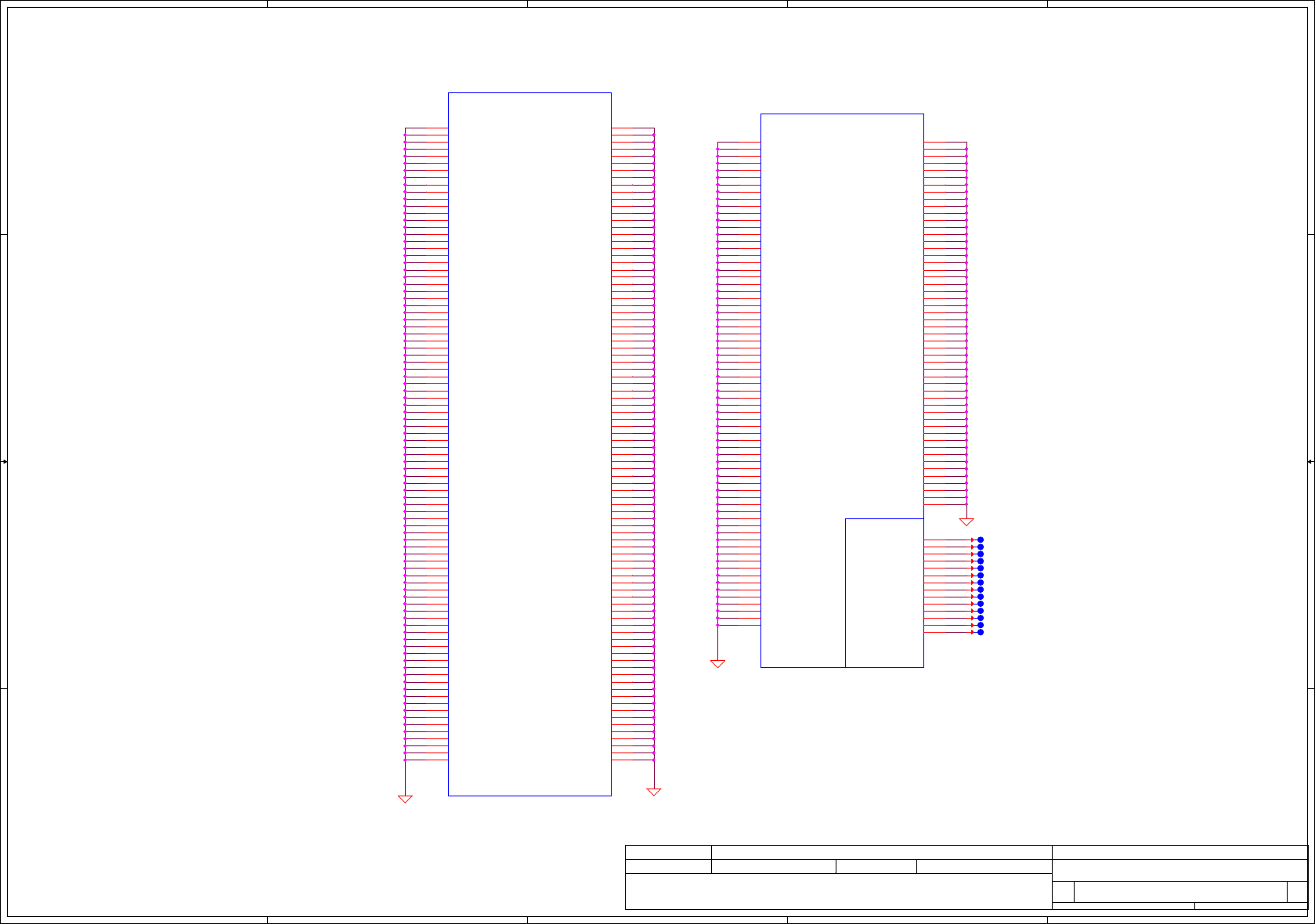

T58PAD@T58PAD@
T63PAD@T63PAD@
T59PAD@T59PAD@
T64PAD@T64PAD@
T68PAD@T68PAD@
VSS
NCTF
UCPU1I
IVY-BRIDGE_BGA1023
IVB@
VSS
NCTF
UCPU1I
IVY-BRIDGE_BGA1023
IVB@
VSS[181]
BG17
VSS[182]
BG21
VSS[183]
BG24
VSS[184]
BG28
VSS[185]
BG37
VSS[186]
BG41
VSS[187]
BG45
VSS[188]
BG49
VSS[189]
BG53
VSS[190]
BG9
VSS[191]
C29
VSS[192]
C35
VSS[193]
C40
VSS[194]
D10
VSS[195]
D14
VSS[196]
D18
VSS[197]
D22
VSS[198]
D26
VSS[199]
D29
VSS[200]
D35
VSS[201]
D4
VSS[202]
D40
VSS[203]
D43
VSS[204]
D46
VSS[205]
D50
VSS[206]
D54
VSS[207]
D58
VSS[208]
D6
VSS[209]
E25
VSS[210]
E29
VSS[211]
E3
VSS[212]
E35
VSS[213]
E40
VSS[214]
F13
VSS[215]
F15
VSS[216]
F19
VSS[217]
F29
VSS[218]
F35
VSS[219]
F40
VSS[220]
F55
VSS[221]
G51
VSS[222]
G6
VSS[223]
G61
VSS[224]
H10
VSS[225]
H14
VSS[226]
H17
VSS[227]
H21
VSS[228]
H4
VSS[229]
H53
VSS[230]
H58
VSS[231]
J1
VSS[232]
J49
VSS[233]
J55
VSS[234]
K11
VSS[235]
K21
VSS[236]
K51
VSS[237]
K8
VSS[238]
L16
VSS[239]
L20
VSS[240]
L22
VSS[241]
L26
VSS[242]
L30
VSS[243]
L34
VSS[244]
L38
VSS[245]
L43
VSS[246]
L48
VSS[268] P14
VSS[269] P16
VSS[270] P18
VSS[271] P21
VSS[272] P58
VSS[273] P59
VSS[274] P9
VSS[275] R17
VSS[276] R20
VSS[277] R4
VSS[278] R46
VSS[279] T1
VSS[280] T47
VSS[281] T50
VSS[282] T51
VSS[283] T52
VSS[284] T53
VSS[285] T55
VSS[286] T56
VSS[287] U13
VSS[288] U8
VSS[289] V20
VSS[290] V61
VSS_NCTF_1 A5
VSS_NCTF_2 A57
VSS_NCTF_3 BC61
VSS_NCTF_4 BD3
VSS_NCTF_5 BD59
VSS_NCTF_6 BE4
VSS_NCTF_7 BE58
VSS_NCTF_8 BG5
VSS_NCTF_9 BG57
VSS_NCTF_10 C3
VSS_NCTF_11 C58
VSS_NCTF_12 D59
VSS_NCTF_13 E1
VSS_NCTF_14 E61
VSS[250] M4
VSS[251] M58
VSS[252] M6
VSS[253] N1
VSS[254] N17
VSS[255] N21
VSS[256] N25
VSS[257] N28
VSS[258] N33
VSS[259] N36
VSS[260] N40
VSS[261] N43
VSS[262] N47
VSS[263] N48
VSS[264] N51
VSS[265] N52
VSS[266] N56
VSS[267] N61
VSS[247]
L61
VSS[248]
M11
VSS[291] W13
VSS[292] W15
VSS[293] W18
VSS[294] W21
VSS[295] W46
VSS[296] W8
VSS[297] Y4
VSS[298] Y47
VSS[299] Y58
VSS[300] Y59
VSS[249]
M15
VSS[301] G48
T60PAD@T60PAD@
T69PAD@T69PAD@
T65PAD@T65PAD@
T70PAD@T70PAD@
T61PAD@T61PAD@
T71PAD@T71PAD@
T66PAD@T66PAD@
T67PAD@T67PAD@
T62PAD@T62PAD@
VSS
UCPU1H
IVY-BRIDGE_BGA1023
IVB@
VSS
UCPU1H
IVY-BRIDGE_BGA1023
IVB@
VSS[1]
A13
VSS[2]
A17
VSS[3]
A21
VSS[4]
A25
VSS[5]
A28
VSS[6]
A33
VSS[7]
A37
VSS[8]
A40
VSS[9]
A45
VSS[10]
A49
VSS[11]
A53
VSS[12]
A9
VSS[13]
AA1
VSS[14]
AA13
VSS[15]
AA50
VSS[16]
AA51
VSS[17]
AA52
VSS[18]
AA53
VSS[19]
AA55
VSS[20]
AA56
VSS[21]
AA8
VSS[22]
AB16
VSS[23]
AB18
VSS[24]
AB21
VSS[25]
AB48
VSS[26]
AB61
VSS[27]
AC10
VSS[28]
AC14
VSS[29]
AC46
VSS[30]
AC6
VSS[31]
AD17
VSS[32]
AD20
VSS[33]
AD4
VSS[34]
AD61
VSS[35]
AE13
VSS[36]
AE8
VSS[37]
AF1
VSS[38]
AF17
VSS[39]
AF21
VSS[40]
AF47
VSS[41]
AF48
VSS[42]
AF50
VSS[43]
AF51
VSS[44]
AF52
VSS[45]
AF53
VSS[46]
AF55
VSS[47]
AF56
VSS[48]
AF58
VSS[49]
AF59
VSS[50]
AG10
VSS[51]
AG14
VSS[52]
AG18
VSS[53]
AG47
VSS[54]
AG52
VSS[55]
AG61
VSS[56]
AG7
VSS[57]
AH4
VSS[58]
AH58
VSS[59]
AJ13
VSS[60]
AJ16
VSS[61]
AJ20
VSS[62]
AJ22
VSS[63]
AJ26
VSS[64]
AJ30
VSS[65]
AJ34
VSS[66]
AJ38
VSS[67]
AJ42
VSS[68]
AJ45
VSS[69]
AJ48
VSS[70]
AJ7
VSS[71]
AK1
VSS[72]
AK52
VSS[73]
AL10
VSS[74]
AL13
VSS[75]
AL17
VSS[76]
AL21
VSS[77]
AL25
VSS[78]
AL28
VSS[79]
AL33
VSS[80]
AL36
VSS[81]
AL40
VSS[82]
AL43
VSS[83]
AL47
VSS[84]
AL61
VSS[85]
AM13
VSS[86]
AM20
VSS[87]
AM22
VSS[88]
AM26
VSS[89]
AM30
VSS[90]
AM34
VSS[91] AM38
VSS[92] AM4
VSS[93] AM42
VSS[94] AM45
VSS[95] AM48
VSS[96] AM58
VSS[97] AN1
VSS[98] AN21
VSS[99] AN25
VSS[100] AN28
VSS[101] AN33
VSS[102] AN36
VSS[103] AN40
VSS[104] AN43
VSS[105] AN47
VSS[106] AN50
VSS[107] AN54
VSS[108] AP10
VSS[109] AP51
VSS[110] AP55
VSS[111] AP7
VSS[112] AR13
VSS[113] AR17
VSS[114] AR21
VSS[115] AR41
VSS[116] AR48
VSS[117] AR61
VSS[118] AR7
VSS[119] AT14
VSS[120] AT19
VSS[121] AT36
VSS[122] AT4
VSS[123] AT45
VSS[124] AT52
VSS[125] AT58
VSS[126] AU1
VSS[127] AU11
VSS[128] AU28
VSS[129] AU32
VSS[130] AU51
VSS[131] AU7
VSS[132] AV17
VSS[133] AV21
VSS[134] AV22
VSS[135] AV34
VSS[136] AV40
VSS[137] AV48
VSS[138] AV55
VSS[139] AW13
VSS[140] AW43
VSS[141] AW61
VSS[142] AW7
VSS[143] AY14
VSS[144] AY19
VSS[145] AY30
VSS[146] AY36
VSS[147] AY4
VSS[148] AY41
VSS[149] AY45
VSS[150] AY49
VSS[151] AY55
VSS[152] AY58
VSS[153] AY9
VSS[154] BA1
VSS[155] BA11
VSS[156] BA17
VSS[157] BA21
VSS[158] BA26
VSS[159] BA32
VSS[160] BA48
VSS[161] BA51
VSS[162] BB53
VSS[163] BC13
VSS[164] BC5
VSS[165] BC57
VSS[166] BD12
VSS[167] BD16
VSS[168] BD19
VSS[169] BD23
VSS[170] BD27
VSS[171] BD32
VSS[172] BD36
VSS[173] BD40
VSS[174] BD44
VSS[175] BD48
VSS[176] BD52
VSS[177] BD56
VSS[178] BD8
VSS[179] BE5
VSS[180] BG13
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

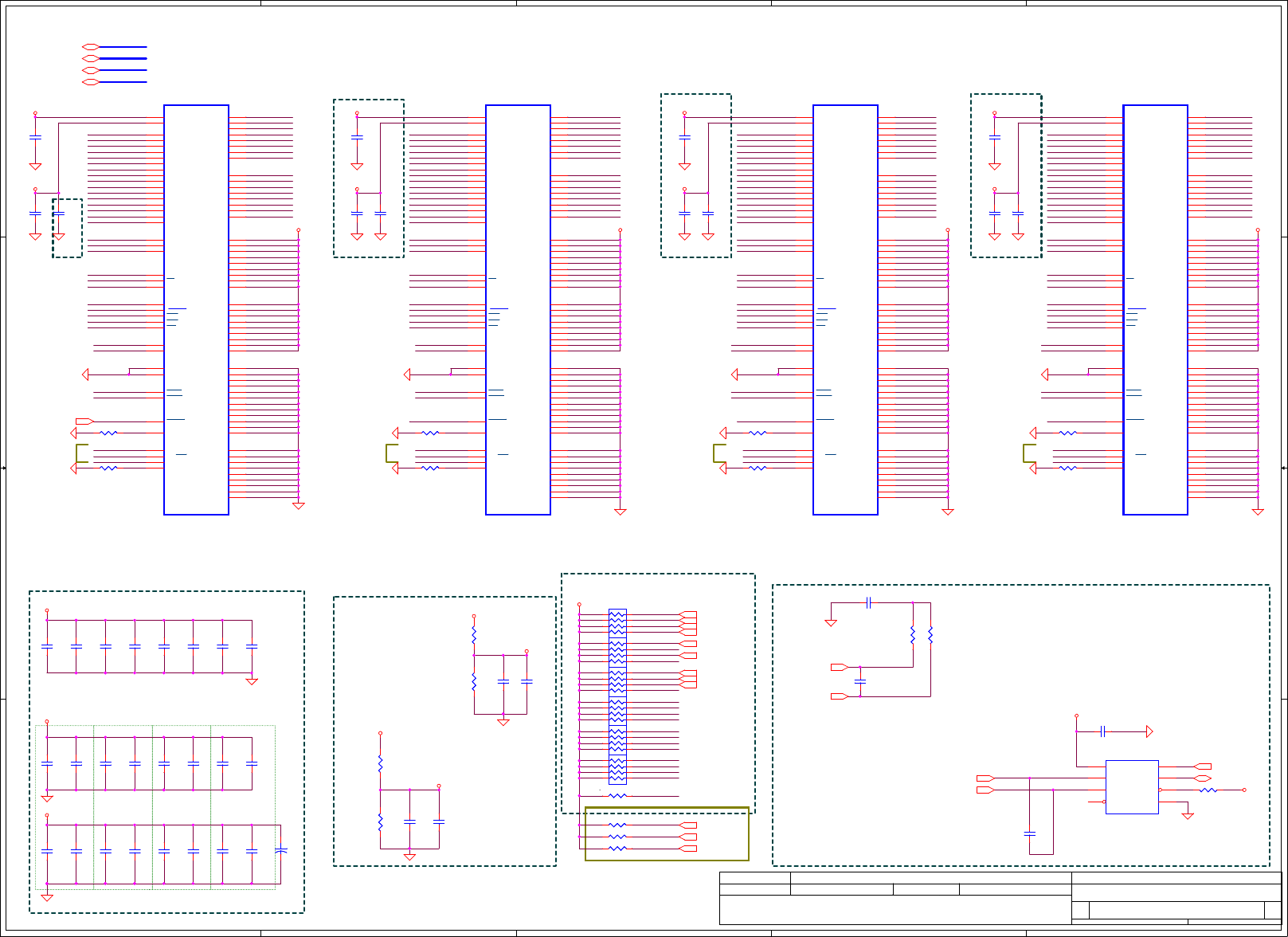

Layout Note:
Place near each memory part
SA00003PU00
S IC W83L771AWG-2 TSSOP 8P SENSOR
External DDR Thermal Sensor
DDR3 CLK Termination
1.CAD Note: Cterm= 1.8pF should be kept
near feeding point of first SDRAM
2.CAD Note: Rtt= 30.1ohms, Ctt= 0.1uF
should be kept within 600mils from last SDRAM
END topology
Channel A
DDR3 CTL/ADD Termination
near U56 near U57 near U58 near U59
SAGE 3GSAGE 3G SAGE 3G SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G SAGE 3G
SAGE 3G PVT
SAGE 3G PVTSAGE 3G PVT SAGE 3G PVT SAGE 3G PVT
DDR_A_MA14
DDR_A_CS0#
DIMM_DRAMRST#
DDR_A_WE#
DDR_A_CAS#
DDR_A_RAS#
DDR_A_BS0
DDR_A_BS2
DDR_A_BS1
DDR_A_MA1
DDR_A_MA12
DDR_A_MA10
DDR_A_MA9
DDR_A_MA8
DDR_A_MA5
DDR_A_MA3
DDR_A_MA6
DDR_A_MA4
DDR_A_MA0
DDR_A_MA2
DDR_A_MA13
DDR_A_MA11
DDR_A_MA7
DDR_A_CLK0
DDR_A_ODT0
DDR_A_CKE0
DDR_A_CLK0#
DDR_A_MA14
DIMM_DRAMRST#
DDR_A_CS0#
DDR_A_BS0
DDR_A_RAS#
DDR_A_CAS#
DDR_A_WE#
DDR_A_BS2
DDR_A_MA10
DDR_A_MA12
DDR_A_MA1
DDR_A_BS1
DDR_A_MA9
DDR_A_MA4
DDR_A_MA6
DDR_A_MA3
DDR_A_MA5
DDR_A_MA8
DDR_A_MA0
DDR_A_MA7
DDR_A_MA11
DDR_A_MA13
DDR_A_MA2
DDR_A_CLK0
DDR_A_CKE0
DDR_A_ODT0
DDR_A_CLK0#
DDR_A_MA14
DDR_A_CS0#
DIMM_DRAMRST#
DDR_A_WE#
DDR_A_CAS#
DDR_A_RAS#
DDR_A_BS0
DDR_A_BS2
DDR_A_BS1
DDR_A_MA1
DDR_A_MA12
DDR_A_MA10
DDR_A_MA9
DDR_A_MA8
DDR_A_MA5
DDR_A_MA3
DDR_A_MA6
DDR_A_MA4
DDR_A_MA0
DDR_A_MA2
DDR_A_MA13
DDR_A_MA11
DDR_A_MA7
DDR_A_DQS3
DDR_A_DQS#3
DDR_A_DQS7
DDR_A_DQS#7
DDR_A_D[0..63]
DDR_A_MA[0..15]
DDR_A_DQS#[0..7]
DDR_A_DQS[0..7]
DDR_A_DQS2
DDR_A_DQS#2
DDR_A_DQS#0
DDR_A_DQS0
DDR_A_DQS1
DDR_A_DQS#1
DDR_A_DQS#5
DDR_A_DQS5
DDR_A_CLK0
DDR_A_ODT0
DDR_A_CKE0
DDR_A_CLK0#
DDR_A_DQS4
DDR_A_DQS#4
DDR_A_MA14
DIMM_DRAMRST#
DDR_A_DQS6
DDR_A_DQS#6
DDR_A_CS0#
DDR_A_BS0
DDR_A_RAS#
DDR_A_CAS#
DDR_A_WE#
DDR_A_BS2
DDR_A_MA10
DDR_A_MA12
DDR_A_MA1
DDR_A_BS1
DDR_A_MA9
DDR_A_MA4
DDR_A_MA6
DDR_A_MA3
DDR_A_MA5
DDR_A_MA8
DDR_A_MA0
DDR_A_MA7
DDR_A_MA11
DDR_A_MA13
DDR_A_MA2
DDR_A_CLK0
DDR_A_CKE0
DDR_A_ODT0
DDR_A_CLK0#
DDR_A_MA15 DDR_A_MA15 DDR_A_MA15 DDR_A_MA15
DDR_A_D3
DDR_A_D4
DDR_A_D5
DDR_A_D6
DDR_A_D2
DDR_A_D0
DDR_A_D7
DDR_A_D1
DDR_A_D15
DDR_A_D14
DDR_A_D8
DDR_A_D11
DDR_A_D10
DDR_A_D12
DDR_A_D13
DDR_A_D9
DDR_A_D25
DDR_A_D24
DDR_A_D26
DDR_A_D27
DDR_A_D30
DDR_A_D29
DDR_A_D28
DDR_A_D31
DDR_A_D21
DDR_A_D17
DDR_A_D22
DDR_A_D18
DDR_A_D19
DDR_A_D23
DDR_A_D20
DDR_A_D16
DDR_A_D38
DDR_A_D32
DDR_A_D37
DDR_A_D34
DDR_A_D33
DDR_A_D36
DDR_A_D42
DDR_A_D47
DDR_A_D41
DDR_A_D46
DDR_A_D40
DDR_A_D45
DDR_A_D44
DDR_A_D43
DDR_A_D51
DDR_A_D53
DDR_A_D48
DDR_A_D50
DDR_A_D55
DDR_A_D54
DDR_A_D49
DDR_A_D52
DDR_A_D59
DDR_A_D58
DDR_A_D56
DDR_A_D60
DDR_A_D63
DDR_A_D62
DDR_A_D39
DDR_A_D35
DDR_A_D57
DDR_A_D61
TM_D+
TM_D-
DDR_A_RAS#
DDR_A_CAS#
DDR_A_ODT0
DDR_A_CKE0
DDR_A_MA10
DDR_A_WE#
DDR_A_CS0#
DDR_A_MA15
DDR_A_BS0
DDR_A_BS1
DDR_A_BS2
DDR_A_MA12
DDR_A_MA1
DDR_A_MA0
DDR_A_MA3
DDR_A_MA4
DDR_A_MA2
DDR_A_MA11
DDR_A_MA5
DDR_A_MA6
DDR_A_MA9
DDR_A_MA13
DDR_A_MA14
DDR_A_MA8
DDR_A_MA7
DDR_A_CKE1
DDR_A_CS1#
DDR_A_ODT1
DDR_A_CS1#
DDR_A_CKE1
DDR_A_ODT1
DDR_A_CS1#
DDR_A_CKE1
DDR_A_ODT1
DDR_A_CS1#
DDR_A_CKE1
DDR_A_ODT1
DDR_A_CS1#
DDR_A_CKE1
DDR_A_ODT1
EC_SMB_CK2 14,28
EC_SMB_DA2 14,28
DDR_A_CLK0#6
DDR_A_CLK06
DDR_A_D[0..63]6
DDR_A_DQS#[0..7]6
DDR_A_DQS[0..7]6
DDR_A_MA[0..15]6
DIMM_DRAMRST#12,6
TM_D+33
TM_D-33
DDR_A_RAS# 6
DDR_A_CAS# 6
DDR_A_ODT0 6
DDR_A_CKE0 6
DDR_A_WE# 6
DDR_A_CS0# 6
DDR_A_BS0 6
DDR_A_BS1 6
DDR_A_BS2 6
DDR_A_CKE1 6
DDR_A_CS1# 6
DDR_A_ODT1 6
+0.675VS
+1.35V
+1.35V
+VREFDQ_A
+1.35V
+VREFCA_A
+1.35V
+3VS
+3VS
+1.35V
+VREFCA_A
+VREFDQ_A
+1.35V+1.35V +1.35V
+VREFCA_A
+VREFDQ_A
+VREFCA_A
+VREFDQ_A
+VREFCA_A
+VREFDQ_A
+0.675VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DDRIII DIMMA
Custom
11 52Wednesday, March 13, 2013
2011/06/24 2012/07/12
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DDRIII DIMMA
Custom
11 52Wednesday, March 13, 2013
2011/06/24 2012/07/12
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DDRIII DIMMA
Custom
11 52Wednesday, March 13, 2013
2011/06/24 2012/07/12
Compal Electronics, Inc.

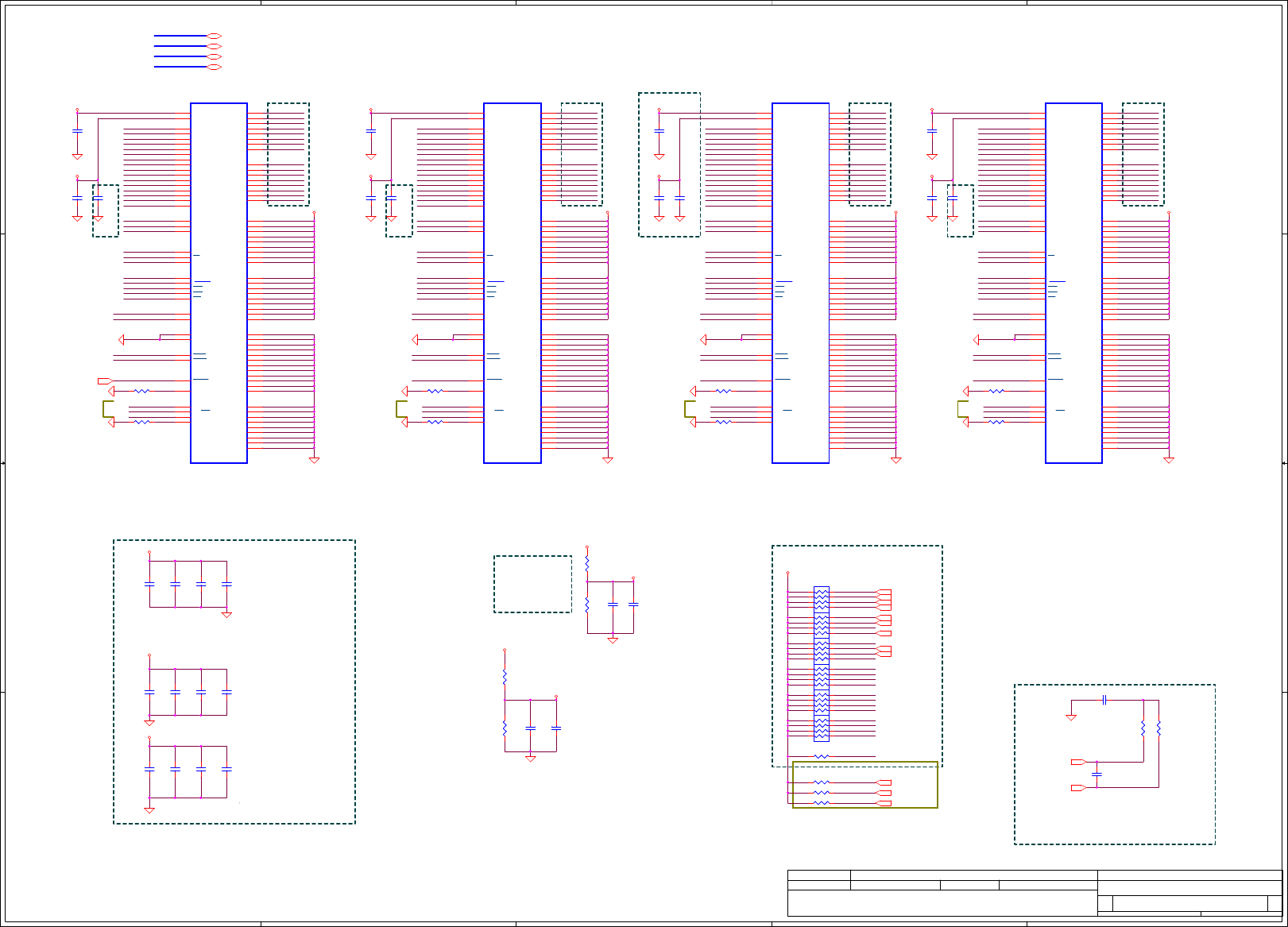

C1465
10U_0603_6.3V6M
C1465
10U_0603_6.3V6M
12
C1459
1U_0402_6.3V6K
C1459
1U_0402_6.3V6K
12
96-BALL
SDRAM DDR3
U56
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U56
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C1478
1U_0402_6.3V6K
C1478
1U_0402_6.3V6K
12
R999
240_0402_1%
R999
240_0402_1%
1 2
C1461
1U_0402_6.3V6K
C1461
1U_0402_6.3V6K
12
C97
0.1U_0402_16V4Z
C97
0.1U_0402_16V4Z
1 2
C1254
0.1U_0402_16V4Z
C1254
0.1U_0402_16V4Z
1
2
C1479
10U_0603_6.3V6M
C1479
10U_0603_6.3V6M
12
C1481
0.1U_0402_16V4Z
C1481
0.1U_0402_16V4Z
1
2
R1102
30.1_0402_1%
R1102
30.1_0402_1%
12
C1460
1U_0402_6.3V6K
C1460
1U_0402_6.3V6K
12
C1263
2.2U_0603_6.3V6K
@
C1263
2.2U_0603_6.3V6K
@
12
R336 36_0201_1%R336 36_0201_1%
1 2
R1104
1K_0402_1%
R1104
1K_0402_1%
12
R998
240_0402_1%
R998
240_0402_1%
1 2
R1103
30.1_0402_1%
R1103
30.1_0402_1%
12
C1468
1U_0402_6.3V6K
C1468
1U_0402_6.3V6K
12
C1462
1U_0402_6.3V6K
C1462
1U_0402_6.3V6K
12
C1255
0.1U_0402_16V4Z
C1255
0.1U_0402_16V4Z
1
2
RP33
36_8P4R_5%
RP33
36_8P4R_5%
1 8
2 7
3 6
4 5
C1469
10U_0603_6.3V6M
C1469
10U_0603_6.3V6M
12
RP34
36_8P4R_5%
RP34
36_8P4R_5%
1 8
2 7
3 6
4 5
R1107
1K_0402_1%
R1107
1K_0402_1%
12
RP32
36_8P4R_5%
RP32
36_8P4R_5%
1 8
2 7
3 6
4 5
C1467
1U_0402_6.3V6K
C1467
1U_0402_6.3V6K
12
C233
2200P_0402_50V7K
C233
2200P_0402_50V7K
1
2
C1480
2.2U_0603_6.3V6K
C1480
2.2U_0603_6.3V6K
12
C1470
1U_0402_6.3V6K
C1470
1U_0402_6.3V6K
12
C1257
0.1U_0402_16V4Z
C1257
0.1U_0402_16V4Z
1
2
RP30
36_8P4R_5%
RP30
36_8P4R_5%
1 8
2 7
3 6
4 5
R1108
1K_0402_1%
R1108
1K_0402_1%
12
U4
W83L771AWG-2 TSSOP8P
SA00003PU00
U4
W83L771AWG-2 TSSOP8P
SA00003PU00
VDD
1
ALERT# 6
THERM#
4GND 5
D+
2
D-
3
SCLK 8
SDATA 7
R997
240_0402_1%
R997
240_0402_1%
1 2
C1471
1U_0402_6.3V6K
C1471
1U_0402_6.3V6K
12
96-BALL
SDRAM DDR3
U59
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U59
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C1262
0.1U_0402_16V4Z
C1262
0.1U_0402_16V4Z
1
2
R335 36_0201_1%R335 36_0201_1%
1 2
96-BALL
SDRAM DDR3
U57
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U57
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
RP31
36_8P4R_5%
RP31
36_8P4R_5%
1 8
2 7
3 6
4 5
C1482
2.2U_0603_6.3V6K
C1482
2.2U_0603_6.3V6K
12
C1253
0.1U_0402_16V4Z
C1253
0.1U_0402_16V4Z
1
2
C1457
1.8P_0402_50V8
<BOM Structure>
C1457
1.8P_0402_50V8
<BOM Structure>
1
2
RP35
36_8P4R_5%
RP35
36_8P4R_5%
1 8
2 7
3 6
4 5
R994
240_0402_1%
R994
240_0402_1%
1 2
C1472
10U_0603_6.3V6M
C1472
10U_0603_6.3V6M
12
R995
240_0402_1%
R995
240_0402_1%
1 2
C1258
2.2U_0603_6.3V6K
@
C1258
2.2U_0603_6.3V6K
@
12
C1473
10U_0603_6.3V6M
C1473
10U_0603_6.3V6M
12
R1106
1K_0402_1%
R1106
1K_0402_1%
12
C1466
1U_0402_6.3V6K
C1466
1U_0402_6.3V6K
12
C1260
0.1U_0402_16V4Z
C1260
0.1U_0402_16V4Z
1
2
C1512
1U_0402_6.3V6K
C1512
1U_0402_6.3V6K
12
R992
240_0402_1%
R992
240_0402_1%
1 2
C1483
0.1U_0402_16V4Z
C1483
0.1U_0402_16V4Z
1
2
C1261
2.2U_0603_6.3V6K
@
C1261
2.2U_0603_6.3V6K
@
12
R996
240_0402_1%
R996
240_0402_1%
1 2
C1474
10U_0603_6.3V6M
C1474
10U_0603_6.3V6M
12
R332 36_0201_1%R332 36_0201_1%
1 2
C1256
0.1U_0402_16V4Z
C1256
0.1U_0402_16V4Z
1
2
C1252
0.1U_0402_16V4Z
C1252
0.1U_0402_16V4Z
1
2
R546 10K_0402_5%R546 10K_0402_5%
1 2
C1511
1U_0402_6.3V6K
C1511
1U_0402_6.3V6K
12
C1475
10U_0603_6.3V6M
C1475
10U_0603_6.3V6M
12
C1259
2.2U_0603_6.3V6K
@
C1259
2.2U_0603_6.3V6K
@
12
R993
240_0402_1%
R993
240_0402_1%
1 2
C1458
0.1U_0402_16V4Z
C1458
0.1U_0402_16V4Z
1 2
C1463
10U_0603_6.3V6M
C1463
10U_0603_6.3V6M
12
C1513
1U_0402_6.3V6K
C1513
1U_0402_6.3V6K
12
C1476
1U_0402_6.3V6K
C1476
1U_0402_6.3V6K
12
R333 36_0201_1%R333 36_0201_1%
1 2
+
C1464
330U_D2_2V_Y
+
C1464
330U_D2_2V_Y
12
C1514
1U_0402_6.3V6K
C1514
1U_0402_6.3V6K
12
C1477
1U_0402_6.3V6K
C1477
1U_0402_6.3V6K
12
96-BALL
SDRAM DDR3
U58
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U58
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Layout Note:
Place near each memory part
Channel B
DDR3 CLK Termination
1.CAD Note: Cterm= 1.8pF should be kept
near feeding point of first SDRAM
2.CAD Note: Rtt= 30.1ohms, Ctt= 0.1uF
should be kept within 600mils from last SDRAM
END topology
DDR3 CTL/ADD Termination
SAGE 3GSAGE 3GSAGE 3GSAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G SAGE 3G SAGE 3G SAGE 3G
SAGE 3G PVT SAGE 3G PVT SAGE 3G PVT SAGE 3G PVT
SAGE 3G PVT
DDR_B_CS0#
DDR_B_ODT0 DDR_B_ODT0
DDR_B_CS0#
DDR_B_RAS#
DDR_B_WE#
DDR_B_CAS#
DDR_B_CLK0
DDR_B_CKE0
DDR_B_CLK0#
DDR_B_CLK0
DDR_B_CKE0
DDR_B_CLK0#
DDR_B_MA4
DDR_B_MA6
DDR_B_DQS5
DDR_B_MA11
DDR_B_MA14
DIMM_DRAMRST#
DDR_B_MA0
DDR_B_MA7
DDR_B_DQS#5
DDR_B_BS1
DDR_B_DQS#0
DDR_B_DQS0
DDR_B_MA2
DIMM_DRAMRST#
DDR_B_DQS#3
DDR_B_DQS3
DDR_B_MA14
DDR_B_MA11
DDR_B_MA6
DDR_B_MA4
DDR_B_BS1
DDR_B_MA7
DDR_B_MA0
DDR_B_RAS#
DDR_B_MA2
DDR_B_ODT0
DDR_B_CS0#
DDR_B_MA8
DDR_B_BS2
DDR_B_MA3
DDR_B_MA5
DDR_B_MA9
DDR_B_MA12
DDR_B_BS0
DDR_B_MA10
DDR_B_MA1
DDR_B_MA13
DDR_B_MA4
DDR_B_MA6
DDR_B_MA11
DDR_B_MA14
DIMM_DRAMRST#
DDR_B_RAS#
DDR_B_MA0
DDR_B_MA7
DDR_B_BS1
DDR_B_MA2
DDR_B_CLK0
DDR_B_CKE0
DDR_B_CLK0#
DDR_B_MA8
DDR_B_BS2
DDR_B_MA3
DDR_B_MA5
DDR_B_MA9
DDR_B_MA12
DDR_B_BS0
DDR_B_MA10
DDR_B_MA1
DDR_B_MA13
DDR_B_CAS#
DDR_B_WE#
DDR_B_MA6
DDR_B_MA4
DDR_B_MA7
DDR_B_MA0
DDR_B_RAS#
DIMM_DRAMRST#
DDR_B_MA14
DDR_B_MA11
DDR_B_BS1
DDR_B_MA2
DDR_B_BS2
DDR_B_MA8
DDR_B_BS0
DDR_B_MA12
DDR_B_MA9
DDR_B_MA5
DDR_B_MA3
DDR_B_WE#
DDR_B_CAS#
DDR_B_MA13
DDR_B_MA1
DDR_B_MA10
DDR_B_DQS#4
DDR_B_DQS4
DDR_B_MA8
DDR_B_MA5
DDR_B_MA3
DDR_B_BS2
DDR_B_MA1
DDR_B_MA10
DDR_B_BS0
DDR_B_MA12
DDR_B_MA9
DDR_B_WE#
DDR_B_CAS#
DDR_B_MA13
DDR_B_DQS#1
DDR_B_DQS1
DDR_B_DQS#2
DDR_B_DQS2
DDR_B_ODT0
DDR_B_CS0#
DDR_B_CLK0
DDR_B_CKE0
DDR_B_CLK0#
DDR_B_MA15 DDR_B_MA15 DDR_B_MA15 DDR_B_MA15
DDR_B_DQS7
DDR_B_DQS6
DDR_B_DQS#6
DDR_B_DQS#7
DDR_B_D55
DDR_B_D49
DDR_B_D52
DDR_B_D51
DDR_B_D53
DDR_B_D50
DDR_B_D48
DDR_B_D54
DDR_B_D5
DDR_B_D3
DDR_B_D0
DDR_B_D1
DDR_B_D6
DDR_B_D4
DDR_B_D7
DDR_B_D2
DDR_B_D23
DDR_B_D16
DDR_B_D21
DDR_B_D22
DDR_B_D18
DDR_B_D17
DDR_B_D19
DDR_B_D20
DDR_B_D34
DDR_B_D33
DDR_B_D36
DDR_B_D38
DDR_B_D39
DDR_B_D37
DDR_B_D35
DDR_B_D32
DDR_B_D14
DDR_B_D12
DDR_B_D8
DDR_B_D11
DDR_B_D15
DDR_B_D13
DDR_B_D9
DDR_B_D10
DDR_B_D24
DDR_B_D31
DDR_B_D26
DDR_B_D29
DDR_B_D25
DDR_B_D30
DDR_B_D27
DDR_B_D28
DDR_B_D40
DDR_B_D47
DDR_B_D45
DDR_B_D46
DDR_B_D41
DDR_B_D43
DDR_B_D44
DDR_B_D42
DDR_B_D58
DDR_B_D57
DDR_B_D56
DDR_B_D59
DDR_B_D63
DDR_B_D60
DDR_B_D61
DDR_B_D62
DDR_B_MA8
DDR_B_MA9
DDR_B_MA5
DDR_B_MA13
DDR_B_MA0
DDR_B_MA4
DDR_B_MA11
DDR_B_MA14
DDR_B_BS1
DDR_B_MA15
DDR_B_CS0#
DDR_B_ODT0
DDR_B_CKE0
DDR_B_RAS#
DDR_B_CAS#
DDR_B_BS0
DDR_B_MA10
DDR_B_WE#
DDR_B_BS2
DDR_B_MA7
DDR_B_MA6
DDR_B_MA1
DDR_B_MA3
DDR_B_MA12
DDR_B_MA2
DDR_B_CKE1
DDR_B_CS1#
DDR_B_ODT1
DDR_B_CS1#
DDR_B_CKE1
DDR_B_ODT1
DDR_B_CS1#
DDR_B_CKE1
DDR_B_ODT1
DDR_B_CS1#
DDR_B_CKE1
DDR_B_ODT1
DDR_B_CS1#
DDR_B_CKE1
DDR_B_ODT1
DDR_B_MA[0..15] 6
DDR_B_DQS#[0..7] 6
DDR_B_DQS[0..7] 6
DDR_B_D[0..63] 6
DIMM_DRAMRST#11,6
DDR_B_CLK0#6
DDR_B_CLK06
DDR_B_ODT0 6
DDR_B_CKE0 6
DDR_B_RAS# 6
DDR_B_CAS# 6
DDR_B_BS0 6
DDR_B_WE# 6
DDR_B_BS2 6
DDR_B_CS0# 6
DDR_B_BS1 6
DDR_B_CKE1 6
DDR_B_CS1# 6
DDR_B_ODT1 6
+1.35V+1.35V
+VREFDQ_B
+VREFCA_B+VREFCA_B
+VREFDQ_B
+VREFCA_B
+VREFDQ_B+VREFDQ_B
+VREFCA_B
+1.35V +1.35V
+0.675VS
+1.35V
+1.35V
+0.675VS
+VREFCA_B
+1.35V
+VREFDQ_B
+1.35V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DDRIII DIMMB
Custom
12 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DDRIII DIMMB
Custom
12 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DDRIII DIMMB
Custom
12 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
C1291
2.2U_0603_6.3V6K
@
C1291
2.2U_0603_6.3V6K
@
12
R1012
240_0402_1%
128@
R1012
240_0402_1%
128@
1 2
C1508
0.1U_0402_16V4Z
128@
C1508
0.1U_0402_16V4Z
128@
1
2
C1490
10U_0603_6.3V6M
@
C1490
10U_0603_6.3V6M
@
12
R1119
1K_0402_1%
128@
R1119
1K_0402_1%
128@
12
96-BALL
SDRAM DDR3
U61
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U61
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
R1009
240_0402_1%
128@
R1009
240_0402_1%
128@
1 2
C1300
0.1U_0402_16V4Z
128@
C1300
0.1U_0402_16V4Z
128@
1
2
C1488
1U_0402_6.3V6K
@
C1488
1U_0402_6.3V6K
@
12
RP38
36_8P4R_5%128@
RP38
36_8P4R_5%128@
1 8
2 7
3 6
4 5
C1292
2.2U_0603_6.3V6K
@
C1292
2.2U_0603_6.3V6K
@
12
C1298
0.1U_0402_16V4Z
128@
C1298
0.1U_0402_16V4Z
128@
1
2
96-BALL
SDRAM DDR3
U62
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U62
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
R1005
240_0402_1%
128@R1005
240_0402_1%
128@
1 2
C1293
2.2U_0603_6.3V6K
@
C1293
2.2U_0603_6.3V6K
@
12
C1296
0.1U_0402_16V4Z
128@
C1296
0.1U_0402_16V4Z
128@
1
2
R1120
1K_0402_1%
128@
R1120
1K_0402_1%
128@
12
R1007
240_0402_1%
128@R1007
240_0402_1%
128@
1 2
C1507
2.2U_0603_6.3V6K
128@
C1507
2.2U_0603_6.3V6K
128@
12
RP39
36_8P4R_5%128@
RP39
36_8P4R_5%128@
1 8
2 7
3 6
4 5
R1117
30.1_0402_1%
128@
R1117
30.1_0402_1%
128@
12
C1496
10U_0603_6.3V6M
@
C1496
10U_0603_6.3V6M
@
12
R1118
30.1_0402_1%
128@
R1118
30.1_0402_1%
128@
12
96-BALL
SDRAM DDR3
U63
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U63
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
R1123
1K_0402_1%
128@
R1123
1K_0402_1%
128@
12
C1497
1U_0402_6.3V6K
@
C1497
1U_0402_6.3V6K
@
12
C1297
0.1U_0402_16V4Z
128@
C1297
0.1U_0402_16V4Z
128@
1
2
R339 36_0201_1%
128@
R339 36_0201_1%
128@
1 2
RP40
36_8P4R_5%128@
RP40
36_8P4R_5%128@
1 8
2 7
3 6
4 5
R1006
240_0402_1%
128@R1006
240_0402_1%
128@
1 2
R390 36_0201_1%
128@
R390 36_0201_1%
128@
1 2
R1010
240_0402_1%
128@
R1010
240_0402_1%
128@
1 2
C1500
10U_0603_6.3V6M
@
C1500
10U_0603_6.3V6M
@
12
C1301
0.1U_0402_16V4Z
128@
C1301
0.1U_0402_16V4Z
128@
1
2
RP41
36_8P4R_5%128@
RP41
36_8P4R_5%128@
1 8
2 7
3 6
4 5
96-BALL
SDRAM DDR3
U60
H5TQ2G63BFR-11C_FBGA96
X76@
96-BALL
SDRAM DDR3
U60
H5TQ2G63BFR-11C_FBGA96
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C1505
1.8P_0402_50V8
128@
C1505
1.8P_0402_50V8
128@
1
2
R1008
240_0402_1%
128@R1008
240_0402_1%
128@
1 2
C1498
1U_0402_6.3V6K
@
C1498
1U_0402_6.3V6K
@
12
C1504
1U_0402_6.3V6K
@
C1504
1U_0402_6.3V6K
@
12
R340 36_0201_1%
128@
R340 36_0201_1%
128@
1 2
C1510
0.1U_0402_16V4Z
128@
C1510
0.1U_0402_16V4Z
128@
1
2
C1501
1U_0402_6.3V6K
@
C1501
1U_0402_6.3V6K
@
12
R1121
1K_0402_1%
128@
R1121
1K_0402_1%
128@
12
C1503
1U_0402_6.3V6K
@
C1503
1U_0402_6.3V6K
@
12
R342 36_0201_1%
128@
R342 36_0201_1%
128@
1 2
RP37
36_8P4R_5%128@
RP37
36_8P4R_5%128@
1 8
2 7
3 6
4 5
C1502
1U_0402_6.3V6K
@
C1502
1U_0402_6.3V6K
@
12
C1302
2.2U_0603_6.3V6K
@
C1302
2.2U_0603_6.3V6K
@
12
C1295
0.1U_0402_16V4Z
128@
C1295
0.1U_0402_16V4Z
128@
1
2
C1485
10U_0603_6.3V6M
@
C1485
10U_0603_6.3V6M
@
12
C1509
2.2U_0603_6.3V6K
128@
C1509
2.2U_0603_6.3V6K
128@
12
R1011
240_0402_1%
128@
R1011
240_0402_1%
128@
1 2
C1506
0.1U_0402_16V4Z
128@ C1506
0.1U_0402_16V4Z
128@
1 2
RP36
36_8P4R_5%128@
RP36
36_8P4R_5%128@
1 8
2 7
3 6
4 5
C1299
0.1U_0402_16V4Z
128@
C1299
0.1U_0402_16V4Z
128@
1
2
C1487
1U_0402_6.3V6K
@
C1487
1U_0402_6.3V6K
@
12
C1294
0.1U_0402_16V4Z
128@
C1294
0.1U_0402_16V4Z
128@
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

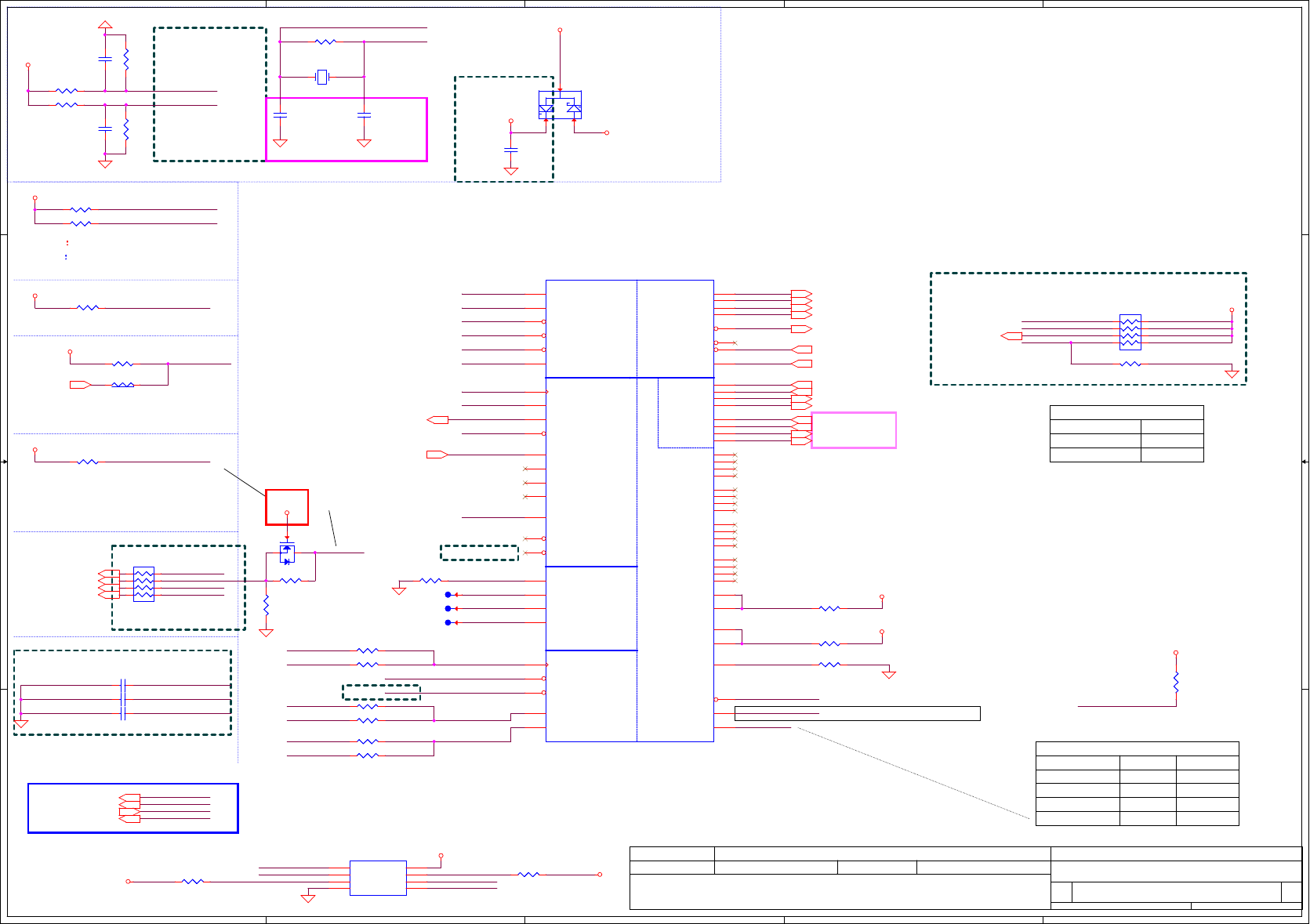

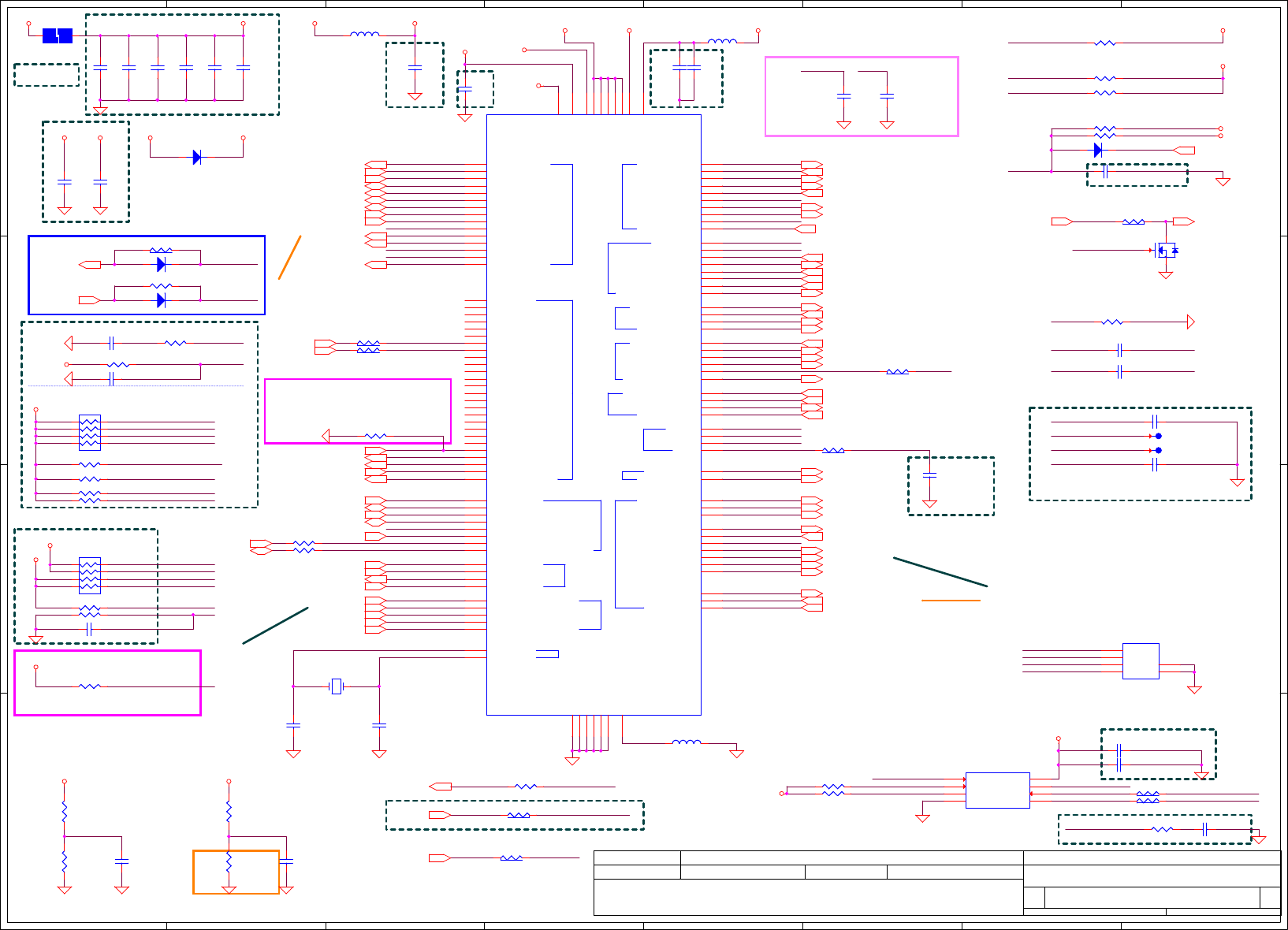

H Integrated VRM enable
L Integrated VRM disable
INTVRMEN
*
LOW= Disable (Default internal PD)
HIGH= Enable ( No Reboot)Disable TCO timer system reboot feature
*
*
Low = Disabled (Default)
This signal has a weak internal pull-down
On Die PLL VR Select is supplied by
*
(INTVRMEN should always be pull high.)
Prevent back drive issue.
ME debug mode,this signal has a weak internal PD
HDA_SDO
Boot BIOS
GPIO19
0
1
GPIO51
Boot BIOS Strap
0 0
1
0
SPI
-
Reserved
LPC
1 1
GPIO19 has internal Pull up
High = Enabled [Flash Descriptor Security Overide]
1.5V when smapled high
1.8V when sampled low
Needs to be pulled High for Huron River platfrom
*
No use PH 10K +3VS
GPIO21
0
1
Switchable
Non SG
*
Switchable Graph
Debug Port DG 1.2 PH 4.7K +3VS
RTC Battery:Chargeable
CRB:10K ohm
Check List 1.0:8.2K ohm
20MIL
2MB=16Mb
HSPI to EC
SAGE 3G
SAGE 3G
R561, R568 put on TOP
SAGE 3G
Reserve for RF / Close to PCH
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G DVT
PCH_RTCX1
PCH_RTCRST#
PCH_SRTCRST#
SM_INTRUDER#
PCH_INTVRMEN
SM_INTRUDER#
PCH_SPKR
PCH_SPI_CLK
PCH_JTAG_TCK
PCH_SATALED#
PCH_JTAG_TMS
PCH_JTAG_TDI
PCH_JTAG_TDO
HDA_SYNC_PCH
HDA_RST_PCH#
HDA_SDIN0
HDA_SDOUT_PCH
PCH_GPIO21
PCH_RTCX2
HDA_BITCLK_PCH
LPC_AD2
LPC_FRAME#
LPC_AD0
LPC_AD3
LPC_AD1
SERIRQ
PCH_GPIO19
SATA_COMP
RBIAS_SATA3
SATA3_COMP
PCH_INTVRMEN
PCH_SPKR
HDA_SDOUT_PCH
HDA_SYNC_PCH
HDA_SYNC_PCH_R
PCH_SPI_CLK_1
PCH_SPI_CS0#
HDA_SYNC_PCH
SERIRQ
PCH_GPIO19
PCH_SPI_CS1#
PCH_SPI_CLK_0
PCH_RTCX2
PCH_RTCX1
PCH_GPIO23
SPI_HOLD0#
PCH_SPI_CLK_0
PCH_SPI_MOSI_0
SPI_WP0#
PCH_SPI_MISO_0
PCH_SPI_CS0#
PCH_SPI_CS1#
PCH_SPI_CLK_1
PCH_SPI_MISO_1
PCH_SPI_MOSI_1
PCH_SRTCRST#
PCH_RTCRST#
HDA_RST_PCH#
HDA_SDOUT_PCH
HDA_BITCLK_PCH
PCH_SATALED#
PCH_GPIO20
PCH_GPIO21
PCH_SPI_CLK_1
PCH_SPI_CLK_0
HDA_BITCLK_AUDIO
PCH_SPI_MOSI_1
PCH_SPI_MISO_0
PCH_SPI_MOSI
PCH_SPI_MISO
PCH_SPI_MOSI_0
PCH_SPI_MISO_1
PCH_SPKR33
HDA_SDIN033
SERIRQ 26,28
LPC_AD0 26,28
LPC_AD1 26,28
LPC_AD2 26,28
LPC_AD3 26,28
LPC_FRAME# 26,28
HDA_SYNC_AUDIO33
HDA_SDO28
PCH_GPIO23 18
SATA_PRX_DTX_P0 25
SATA_PTX_DRX_N0 25
SATA_PTX_DRX_P0 25
SATA_PRX_DTX_N0 25
SATA_PRX_DTX_P1 25
SATA_PTX_DRX_N1 25
SATA_PTX_DRX_P1 25
SATA_PRX_DTX_N1 25
PCH_SPI_CS1#28
PCH_SPI_CLK_128
PCH_SPI_MISO_128
PCH_SPI_MOSI_128
HDA_BITCLK_AUDIO33
HDA_RST_AUDIO#33
HDA_SDOUT_AUDIO33
PCH_GPIO2014
+RTCVCC
+1.05VS_PCH
+1.05VS_PCH
+3VS
+VCCSUS3_3
+VCCSUS3_3
+3VS
+3VS
+5VS
+CHGRTC
+RTCBATT
+RTCVCC
+RTCVCC
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (1/8) SATA,HDA,SPI, LPC, XDP
Custom
13 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (1/8) SATA,HDA,SPI, LPC, XDP
Custom
13 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (1/8) SATA,HDA,SPI, LPC, XDP
Custom
13 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R389
37.4_0402_1%
R389
37.4_0402_1%
1 2
T75 PAD @T75 PAD @
R322
1K_0402_5%
@R322
1K_0402_5%
@
12
C757
15P_0402_50V8J
C757
15P_0402_50V8J
1
2
R468
1M_0402_5%
<BOM Structure>
R468
1M_0402_5%
<BOM Structure>
12
R302
0_0402_5%@
R302
0_0402_5%@
1 2
R704 33_0402_5%R704 33_0402_5%
12
C516
1U_0402_6.3V6K
C516
1U_0402_6.3V6K
1
2
C197
0.1U_0402_16V4Z
C197
0.1U_0402_16V4Z
1
2
R328 1K_0402_5%R328 1K_0402_5%
12
RP11
33_8P4R_5%
RP11
33_8P4R_5%
18
27
36
45
R388
49.9_0402_1%
R388
49.9_0402_1%
1 2
C1041.8P_0402_50V8XEMC@ C1041.8P_0402_50V8XEMC@
12
G
D
S
Q20
BSS138W-7-F_SOT323
G
D
S
Q20
BSS138W-7-F_SOT323
2
13
R701 3.3K_0402_5%R701 3.3K_0402_5%
12
R674
4.7K_0402_5%
R674
4.7K_0402_5%
12
R738 33_0402_5%R738 33_0402_5%
12
RTCIHDA
SATA
LPC
SPI JTAG
SATA 6G
U37A
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
RTCIHDA
SATA
LPC
SPI JTAG
SATA 6G
U37A
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
RTCX1
A20
RTCX2
C20
INTVRMEN
C17
INTRUDER#
K22
HDA_BCLK
N34
HDA_SYNC
L34
HDA_RST#
K34
HDA_SDIN0
E34
HDA_SDIN1
G34
HDA_SDIN2
C34
HDA_SDO
A36
SATALED# P3
FWH0 / LAD0 C38
FWH1 / LAD1 A38
FWH2 / LAD2 B37
FWH3 / LAD3 C37
LDRQ1# / GPIO23 K36
FWH4 / LFRAME# D36
LDRQ0# E36
RTCRST#
D20
HDA_SDIN3
A34
HDA_DOCK_EN# / GPIO33
C36
HDA_DOCK_RST# / GPIO13
N32
SRTCRST#
G22
SATA0RXN AM3
SATA0RXP AM1
SATA0TXN AP7
SATA0TXP AP5
SATA1RXN AM10
SATA1RXP AM8
SATA1TXN AP11
SATA1TXP AP10
SATA2RXN AD7
SATA2RXP AD5
SATA2TXN AH5
SATA2TXP AH4
SATA3RXN AB8
SATA3RXP AB10
SATA3TXN AF3
SATA3TXP AF1
SATA4RXN Y7
SATA4RXP Y5
SATA4TXN AD3
SATA4TXP AD1
SATA5RXN Y3
SATA5RXP Y1
SATA5TXN AB3
SATA5TXP AB1
SATAICOMPI Y10
SPI_CLK
T3
SPI_CS0#
Y14
SPI_CS1#
T1
SPI_MOSI
V4
SPI_MISO
U3
SATA0GP / GPIO21 V14
SATA1GP / GPIO19 P1
JTAG_TCK
J3
JTAG_TMS
H7
JTAG_TDI
K5
JTAG_TDO
H1
SERIRQ V5
SPKR
T10
SATAICOMPO Y11
SATA3COMPI AB13
SATA3RCOMPO AB12
SATA3RBIAS AH1
R320
0_0402_5%
@
R320
0_0402_5%
@
12
R568
0_0603_5%
@
R568
0_0603_5%
@
12
R672
51_0402_5%
R672
51_0402_5%
12
R737 33_0402_5%R737 33_0402_5%
12
R561
0_0603_5%
@
R561
0_0603_5%
@
12
R353 1M_0402_5%R353 1M_0402_5%
1 2
R736 33_0402_5%R736 33_0402_5%
12
U42
W25Q16CVSSIG_SO8
SA00003FO10
U42
W25Q16CVSSIG_SO8
SA00003FO10
CS#
1
SO
2
WP#
3
GND
4
VCC 8
HOLD# 7
SCLK 6
SI 5
R405 1K_0402_5%
@
R405 1K_0402_5%
@
1 2
C502
1U_0402_6.3V6K
C502
1U_0402_6.3V6K
1
2
T57 PAD @T57 PAD @
RP28 10K_8P4R_5%RP28 10K_8P4R_5%
1 8
2 7
3 6
4 5
R650 750_0402_1%R650 750_0402_1%
1 2
R739 33_0402_5%R739 33_0402_5%
12
R703 3.3K_0402_5%R703 3.3K_0402_5%
1 2
R688 10K_0402_5%
@
R688 10K_0402_5%
@
12
R338 20K_0402_5%R338 20K_0402_5%
1 2
C1051.8P_0402_50V8XEMC@ C1051.8P_0402_50V8XEMC@
12
X1
32.768KHZ_12.5PF_1TJF125DP1A000D
SJ100004Z00
X1
32.768KHZ_12.5PF_1TJF125DP1A000D
SJ100004Z00
12
C756
15P_0402_50V8J
C756
15P_0402_50V8J
1
2
R337 20K_0402_5%R337 20K_0402_5%
1 2
T73 PAD @T73 PAD @
R347 330K_0402_5%R347 330K_0402_5%
1 2
C1031.8P_0402_50V8XEMC@ C1031.8P_0402_50V8XEMC@
12
D5
BAS40-04_SOT23-3
D5
BAS40-04_SOT23-3
1
2
3
R638 10M_0402_5%R638 10M_0402_5%
1 2
R734 33_0402_5%R734 33_0402_5%
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Reserve for EMI please close to PCH
120MHz for eDP.
Mini Card 1
(On Board WLAN)
Pull up at EC side.
For DDR,EC
Pull down 10K ohm
for using internal Clock
No use PH 10K +3VALW
No use PH 10K +3VALW
S3 reduse
No use PH 10K +3VALWS3 reduse
No use PH 10K +3VALW
PH 2.2K +3VALW
PH 2.2K +3VALW
No use PH 10K +3VS
No use PH 10K +3VALW
No use PH 10K +3VS
No use PH 10K +3VALW
No use PH 10K +3VALW
CLKIN_GND1_N
CLKIN_GND1_P
AK14:CLKOUT_ITPXDP_N
AK13:CLKOUT_ITPXDP_P
No use PH 10K +3VALW
No use PH 10K +3VALW
No use PH 10K +3VALW
Mini Card 1
On Board WLAN
Card Reader
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
GPIO67
0
1
DIS,Optimus
UMA
DGPU_PRSNT#
SAGE 3G
SAGE 3G DVT
PCH_SMBCLK
PCH_SMBDATA
XTAL25_IN
XTAL25_OUT
PCH_SML1CLK
PCH_SML1DATA
XCLK_RCOMP
CLK_CPU_DMI
CLK_CPU_DMI#
PCH_GPIO46
MINI1_CLKREQ#
PCH_GPIO45
XTAL25_OUT
XTAL25_IN
DRAMRST_CNTRL_PCH
CLK_FLEX2
PCH_SML1CLK
PCH_SML1DATA
EC_SMB_CK2
EC_SMB_DA2
CLKIN_GND1#
CLKIN_GND1
PCH_GPIO25
PEG_CLKREQ#
PCH_GPIO73
PCH_GPIO47
PCH_SMBCLK
PCH_GPIO20
PCH_GPIO74
CLK_BUF_CPU_DMI#
CLK_BUF_CPU_DMI
CLK_BUF_DREF_96M
CLK_BUF_DREF_96M#
CLK_BUF_PCIE_SATA
CLK_BUF_PCIE_SATA#
CLK_BUF_ICH_14M
CLK_PCI_LPBACK
CLK_FLEX1
DGPU_PRSNT#
CLK_CPU_DPLL
CLK_CPU_DPLL#
CLK_FLEX0
SMB_ALERT#
PCH_GPIO44
CARD_CLKREQ#
PCH_SML0CLK
PCH_SML0DATA
CLK_BCLK_ITP#
CLK_BCLK_ITP
PCIE_PTX_DRX_N1
PCIE_PRX_DTX_P1
PCIE_PRX_DTX_N1
PCIE_PTX_DRX_P1
PCIE_PTX_DRX_N2
PCIE_PRX_DTX_P2
PCIE_PTX_DRX_P2
PCIE_PRX_DTX_N2
PCH_SMBDATA
PCH_SML0CLK
PCH_SML0DATA
DRAMRST_CNTRL_PCH
PCH_GPIO47
PCH_SML1CLK
PCH_SML1DATA
PCH_GPIO74
SMB_ALERT#
PCH_GPIO46
PCH_GPIO45
PCH_GPIO44
PCH_GPIO73
PCH_GPIO25
CARD_CLKREQ#
PEG_CLKREQ#
MINI1_CLKREQ#
DGPU_PRSNT#
CLK_CPU_DMI# 5
CLK_CPU_DMI 5
CLK_PCIE_MINI1#24
CLK_PCIE_MINI124
MINI1_CLKREQ#24
CLK_PCI_LPBACK 17
DRAMRST_CNTRL_PCH 6
EC_SMB_CK2 11,28
EC_SMB_DA2 11,28
CLK_CPU_DPLL# 5
CLK_CPU_DPLL 5
CLK_RES_ITP#7
CLK_RES_ITP7
PCIE_PRX_DTX_N124
PCIE_PRX_DTX_P124
PCIE_PTX_C_DRX_N124
PCIE_PTX_C_DRX_P124
CLK_PCIE_CARD#32
CLK_PCIE_CARD32
CARD_CLKREQ#32
PCIE_PRX_DTX_N232
PCIE_PRX_DTX_P232
PCIE_PTX_C_DRX_N232
PCIE_PTX_C_DRX_P232
PCH_GPIO2013
+1.05VS_PCH
+3VS
+VCCSUS3_3
+VCCSUS3_3
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (2/8) PCIE, SMBUS, CLK
Custom
14 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (2/8) PCIE, SMBUS, CLK
Custom
14 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (2/8) PCIE, SMBUS, CLK
Custom
14 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
T52 PAD
@T52 PAD
@
R293 33_0402_5%
XEMC@
R293 33_0402_5%
XEMC@
12
R330 10K_0402_5%R330 10K_0402_5%
1 2
R331 10K_0402_5%R331 10K_0402_5%
1 2
RP21 10K_8P4R_5%RP21 10K_8P4R_5%
1 8
2 7
3 6
4 5
R387 10K_0402_5%R387 10K_0402_5%
1 2
RP23
10K_8P4R_5%
RP23
10K_8P4R_5%
1 8
2 7
3 6
4 5
R611 1M_0402_5%R611 1M_0402_5%
1 2
R357 10K_0402_5%R357 10K_0402_5%
1 2
R345 10K_0402_5%R345 10K_0402_5%
1 2
G
S
D
Q22B
DMN66D0LDW-7_SOT363-6
G
S
D
Q22B
DMN66D0LDW-7_SOT363-6
6 1
2
R648 1K_0402_5%R648 1K_0402_5%
1 2
R292 10K_0402_5%R292 10K_0402_5%
1 2
S
GD
Q22A
DMN66D0LDW-7_SOT363-6
S
GD
Q22A
DMN66D0LDW-7_SOT363-6
5
3 4
RP22 10K_8P4R_5%RP22 10K_8P4R_5%
1 8
2 7
3 6
4 5
T21 PAD
@T21 PAD
@
Y1
25MHZ_10PF_7V25000014
Y1
25MHZ_10PF_7V25000014
GND
2
3
311
GND
4
R375 2.2K_0402_5%R375 2.2K_0402_5%
1 2
C745
12P_0402_50V8J
C745
12P_0402_50V8J
1
2
T53 PAD
@T53 PAD
@
C573 0.1U_0402_16V7KC573 0.1U_0402_16V7K
1 2
R369 2.2K_0402_5%R369 2.2K_0402_5%
1 2
C744
12P_0402_50V8J
C744
12P_0402_50V8J
1
2
RP18
2.2K_8P4R_5%
RP18
2.2K_8P4R_5%
1 8
2 7
3 6
4 5
C572 0.1U_0402_16V7KC572 0.1U_0402_16V7K
1 2
R1134 0_0201_5%@R1134 0_0201_5%@
12
R346 10K_0402_5%R346 10K_0402_5%
1 2
R393 10K_0402_5%R393 10K_0402_5%
1 2
C574 0.1U_0402_16V7KC574 0.1U_0402_16V7K
1 2
R289
90.9_0402_1%
R289
90.9_0402_1%
1 2
C575 0.1U_0402_16V7KC575 0.1U_0402_16V7K
1 2
R358 10K_0402_5%R358 10K_0402_5%
1 2
C421 22P_0402_50V8J
XEMC@
C421 22P_0402_50V8J
XEMC@
1 2
R1135 0_0201_5%@R1135 0_0201_5%@
12
PCI-E*
CLOCKS
FLEX CLOCKS
SMBUSController
Link
U37B
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
PCI-E*
CLOCKS
FLEX CLOCKS
SMBUSController
Link
U37B
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
PERN1
BG34
PERP1
BJ34
PERN2
BE34
PERP2
BF34
PERN3
BG36
PERP3
BJ36
PERN4
BF36
PERP4
BE36
PERN5
BG37
PERP5
BH37
PERN6
BJ38
PERP6
BG38
PERN7
BG40
PERP7
BJ40
PERN8
BE38
PERP8
BC38
PETN1
AV32
PETP1
AU32
PETN2
BB32
PETP2
AY32
PETN3
AV34
PETP3
AU34
PETN4
AY34
PETP4
BB34
PETN5
AY36
PETP5
BB36
PETN6
AU36
PETP6
AV36
PETN7
AY40
PETP7
BB40
PETN8
AW 38
PETP8
AY38
CLKOUT_PCIE0N
Y40
CLKOUT_PCIE0P
Y39
CLKOUT_PCIE1N
AB49
CLKOUT_PCIE1P
AB47
CLKOUT_PCIE2N
AA48
CLKOUT_PCIE2P
AA47
CLKOUT_PCIE3N
Y37
CLKOUT_PCIE3P
Y36
CLKOUT_PCIE4N
Y43
CLKOUT_PCIE4P
Y45
CLKOUT_PCIE5N
V45
CLKOUT_PCIE5P
V46
CLKIN_DMI2_N BJ30
CLKIN_DMI2_P BG30
CLKIN_DMI_N BF18
CLKIN_DMI_P BE18
CLKIN_DOT_96N G24
CLKIN_DOT_96P E24
CLKIN_SATA_N / CKSSCD_N AK7
CLKIN_SATA_P / CKSSCD_P AK5
XTAL25_IN V47
XTAL25_OUT V49
REFCLK14IN K45
CLKIN_PCILOOPBACK H45
CLKOUT_PEG_A_N AB37
CLKOUT_PEG_A_P AB38
PEG_A_CLKRQ# / GPIO47 M10
PCIECLKRQ0# / GPIO73
J2
PCIECLKRQ1# / GPIO18
M1
PCIECLKRQ2# / GPIO20
V10
PCIECLKRQ3# / GPIO25
A8
PCIECLKRQ4# / GPIO26
L12
PCIECLKRQ5# / GPIO44
L14
CLKOUTFLEX0 / GPIO64 K43
CLKOUTFLEX1 / GPIO65 F47
CLKOUTFLEX2 / GPIO66 H47
CLKOUTFLEX3 / GPIO67 K49
CLKOUT_DMI_N AV22
CLKOUT_DMI_P AU22
PEG_B_CLKRQ# / GPIO56
E6
CLKOUT_PEG_B_P
AB40 CLKOUT_PEG_B_N
AB42
XCLK_RCOMP Y47
CLKOUT_DP_P / CLKOUT_BCLK1_P AM13
CLKOUT_DP_N / CLKOUT_BCLK1_N AM12
CLKOUT_PCIE6N
V40
CLKOUT_PCIE6P
V42
PCIECLKRQ7# / GPIO46
K12
CLKOUT_PCIE7N
V38
CLKOUT_PCIE7P
V37
CLKOUT_BCLK0_N / CLKOUT_PCIE8N
AK14
CLKOUT_BCLK0_P / CLKOUT_PCIE8P
AK13
SMBALERT# / GPIO11 E12
SMBCLK H14
SMBDATA C9
SML0ALERT# / GPIO60 A12
SML0CLK C8
SML0DATA G12
SML1ALERT# / PCHHOT# / GPIO74 C13
SML1CLK / GPIO58 E14
SML1DATA / GPIO75 M16
CL_CLK1 M7
CL_DATA1 T11
CL_RST1# P10
PCIECLKRQ6# / GPIO45
T13
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
4mil width and place
within 500mil of the PCH
Can be left NC
when IAMT is not
support on the
platfrom
*
not support AMT APWROK can mux
with PWROK (check list1.0 P.40)
L Disable
Must always PH at +RTCVCC
DSWODVREN - On Die DSW VR Enable
H Enable internal DSW +1.05VS
ALL power OK
tell PCH all power ok
but cpu core
not support
Deep S4,S5 can NC
PCH EDS1.2 P.74
not support Deep S4,S5 mux
with SUS_PWR_DN_ACK
not support Deep S4,S5 DPWROK mux with RSMRST#
check list1.0 P.42
No use PH 10K +3VS
No use PH 10K +3VALW
No use PH 10K +3VALW
Ring Indicator CRB1.0 PH 10K +3VALW
CRB=>1k ohm
Follow Check List R1.5
NC
CR CHKLST Rev2.0
For EMI
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
DMI_IRCOMP
DMI_CRX_PTX_N1
DMI_CRX_PTX_P0
DMI_CRX_PTX_P3
DMI_CTX_PRX_P0
DMI_CRX_PTX_N2
DMI_CRX_PTX_P1
DMI_CTX_PRX_P2
DMI_CTX_PRX_N2
DMI_CTX_PRX_N3
DMI_CTX_PRX_P3
DMI_CRX_PTX_P2
DMI_CTX_PRX_N1
DMI_CRX_PTX_N0
DMI_CTX_PRX_N0
DMI_CTX_PRX_P1
DMI_CRX_PTX_N3
FDI_INT
FDI_FSYNC0
FDI_FSYNC1
FDI_LSYNC1
FDI_LSYNC0
FDI_CTX_PRX_N0
FDI_CTX_PRX_N1
FDI_CTX_PRX_N2
FDI_CTX_PRX_N3
FDI_CTX_PRX_N4
FDI_CTX_PRX_N5
FDI_CTX_PRX_N6
FDI_CTX_PRX_N7
FDI_CTX_PRX_P0
FDI_CTX_PRX_P1
FDI_CTX_PRX_P2
FDI_CTX_PRX_P3
FDI_CTX_PRX_P4
FDI_CTX_PRX_P6
FDI_CTX_PRX_P7
FDI_CTX_PRX_P5
PCH_GPIO72
RI#
DMI2RBIAS
PM_DRAM_PWRGD
PCH_RSMRST#
PBTN_OUT#
PCH_ACIN
DSWODVREN
PCH_PCIE_WAKE#
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
SUS_STAT#
H_PM_SYNC
PCH_GPIO29
XDP_DBRESET#_R
PCH_PCIE_WAKE#
DSWODVREN
CLKRUN#
SYS_PWROK
PCH_PWROK
PCH_GPIO29
SYS_PWROK
APWROK
SLP_A#
SUSCLK
PCH_GPIO30
PCH_GPIO30
SLP_SUS#
PCH_RSMRST#
DPWROK
CLKRUN#
DPWROK
PM_DRAM_PWRGD
XDP_DBRESET#
PCH_PWROK_R
RI#
PCH_RSMRST#
PCH_ACIN
PM_DRAM_PWRGD
PCH_GPIO72
PCH_GPIO30
DMI_CTX_PRX_N04
DMI_CRX_PTX_N24
DMI_CTX_PRX_N14
DMI_CTX_PRX_N34
DMI_CTX_PRX_N24
DMI_CTX_PRX_P04
DMI_CTX_PRX_P14
DMI_CTX_PRX_P34
DMI_CTX_PRX_P24
DMI_CRX_PTX_N34
DMI_CRX_PTX_N14
DMI_CRX_PTX_N04
DMI_CRX_PTX_P24
DMI_CRX_PTX_P34
DMI_CRX_PTX_P14
DMI_CRX_PTX_P04
FDI_CTX_PRX_N0 4
FDI_CTX_PRX_N1 4
FDI_CTX_PRX_N2 4
FDI_CTX_PRX_N3 4
FDI_CTX_PRX_N4 4
FDI_CTX_PRX_N5 4
FDI_CTX_PRX_N6 4
FDI_CTX_PRX_N7 4
FDI_CTX_PRX_P0 4
FDI_CTX_PRX_P1 4
FDI_CTX_PRX_P2 4
FDI_CTX_PRX_P3 4
FDI_CTX_PRX_P4 4
FDI_CTX_PRX_P5 4
FDI_CTX_PRX_P6 4
FDI_CTX_PRX_P7 4
FDI_FSYNC1 4
FDI_LSYNC0 4
FDI_FSYNC0 4
FDI_INT 4
FDI_LSYNC1 4
XDP_DBRESET#5
PM_DRAM_PWRGD5
PCH_RSMRST#28
PBTN_OUT#28
PCH_PCIE_WAKE# 24
H_PM_SYNC 5
PM_SLP_S3# 28
PM_SLP_S4# 28
PM_SLP_S5# 28
PCH_PWROK28
VGATE42
SYS_PWROK 5
SUSACK#28
SLP_SUS# 28
DPWROK 28
PCH_BATLOW#28
SUSWARN#28
SA_PGOOD28,41
ACPRESENT28
+1.05VS_PCH
+RTCVCC
+VCCSUS3_3
+3VS
+3VS
+3VLP
+VCCSUS3_3
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (3/8) DMI,FDI,PM
Custom
15 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (3/8) DMI,FDI,PM
Custom
15 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (3/8) DMI,FDI,PM
Custom
15 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
RP24 10K_8P4R_5%RP24 10K_8P4R_5%
1 8
2 7
3 6
4 5
R341 100K_0402_5%R341 100K_0402_5%
12
R360 330K_0402_5%@R360 330K_0402_5%@12
R426
0_0402_5%
S3@R426
0_0402_5%
S3@
1 2
R421
0_0402_5%
@R421
0_0402_5%
@
1 2
R502 0_0402_5%
@
R502 0_0402_5%
@
1 2
R361 330K_0402_5%R361 330K_0402_5%
12
DMI
FDI
System Power Management
U37C
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
DMI
FDI
System Power Management
U37C
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
DMI0RXN
BC24
DMI1RXN
BE20
DMI2RXN
BG18
DMI3RXN
BG20
DMI0RXP
BE24
DMI1RXP
BC20
DMI2RXP
BJ18
DMI3RXP
BJ20
DMI0TXN
AW24
DMI1TXN
AW20
DMI2TXN
BB18
DMI3TXN
AV18
DMI0TXP
AY24
DMI1TXP
AY20
DMI2TXP
AY18
DMI3TXP
AU18
DMI_ZCOMP
BJ24
DMI_IRCOMP
BG25
FDI_RXN0 BJ14
FDI_RXN1 AY14
FDI_RXN2 BE14
FDI_RXN3 BH13
FDI_RXN4 BC12
FDI_RXN5 BJ12
FDI_RXN6 BG10
FDI_RXN7 BG9
FDI_RXP0 BG14
FDI_RXP1 BB14
FDI_RXP2 BF14
FDI_RXP3 BG13
FDI_RXP4 BE12
FDI_RXP5 BG12
FDI_RXP6 BJ10
FDI_RXP7 BH9
FDI_FSYNC0 AV12
FDI_FSYNC1 BC10
FDI_LSYNC0 AV14
FDI_LSYNC1 BB10
FDI_INT AW16
PMSYNCH AP14
SLP_SUS# G16
SLP_S3# F4
SLP_S4# H4
SLP_S5# / GPIO63 D10
SYS_RESET#
K3
SYS_PWROK
P12
PWRBTN#
E20
RI#
A10
WAKE# B9
SUS_STAT# / GPIO61 G8
SUSCLK / GPIO62 N14
ACPRESENT / GPIO31
H20
BATLOW# / GPIO72
E10
PWROK
L22
CLKRUN# / GPIO32 N3
SUSWARN# / SUS_PWR_DN_ACK / GPIO30
K16
RSMRST#
C21
DRAMPWROK
B13
SLP_LAN# / GPIO29 K14
APWROK
L10
DPWROK E22
DMI2RBIAS
BH21
SLP_A# G10
DSWVRMEN A18
SUSACK#
C12
R4870_0402_5% @R4870_0402_5% @
1 2
T16PAD@T16PAD@
R395 10K_0402_5%@R395 10K_0402_5%@
1 2
T18 PAD
@
T18 PAD
@
R653 8.2K_0402_5%R653 8.2K_0402_5%
1 2
R412 0_0402_5%
@
R412 0_0402_5%
@
1 2
R661 0_0402_5%
@
R661 0_0402_5%
@
1 2
C603
.047U_0402_16V7K
@
C603
.047U_0402_16V7K
@
1
2
R681
10K_0402_5%
R681
10K_0402_5%
12
R625 49.9_0402_1%R625 49.9_0402_1%
1 2
R372 0_0402_5%
@
R372 0_0402_5%
@
1 2
R667 100K_0402_5%R667 100K_0402_5%
1 2
R680
10K_0402_5%
R680
10K_0402_5%
12
T19 PAD
@
T19 PAD
@
R4930_0402_5% @R4930_0402_5% @
1 2
T51 PAD
@
T51 PAD
@
R656 10K_0402_5%R656 10K_0402_5%
1 2
U39
MC74VHC1G08DFT2G_SC70-5
U39
MC74VHC1G08DFT2G_SC70-5
B
2
A
1Y4
P5
G
3
R373 200_0402_5%R373 200_0402_5%
12
R632 750_0402_1%R632 750_0402_1%
1 2
R409 0_0402_5%
S3@
R409 0_0402_5%
S3@
1 2
R456
0_0402_5%
@
R456
0_0402_5%
@
1 2
R382 0_0402_5%
@
R382 0_0402_5%
@
1 2
C7530.1U_0201_10V6K
XEMC@
C7530.1U_0201_10V6K
XEMC@
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
LVDS disable:
DATA/Clock/Control can NC
VCC_TX_LVDS,VCCA_LVDS connected to GND
CRT disable:
DATA/Clock/Control can NC
DAC_IREF still need PD
VCCADAC connected to +3VS
SDVO_CTRLDATA strap pull high
at level shift page
HDMI D2
HDMI D1
HDMI D0
HDMI CLK
UMA Panel Backlight ON/OFF
PD 100K
at EC side
For CRT diable
=>Change 1K 0.5% to 5%
Delete LVDS function
PCH_DPB_N3
PCH_DPB_P0
PCH_DPB_P1
PCH_DPB_N2
PCH_DPB_P3
PCH_DPB_N1
PCH_DPB_P2
PCH_DPB_N0
PCH_DPB_HPD
SDVO_SDATA
SDVO_SCLK
CRT_IREF
IGPU_BKLT_EN
IGPU_BKLT_ENENBKL
SDVO_SCLK 23
SDVO_SDATA 23
PCH_DPB_HPD 23
PCH_ENVDD22
INVTPWM44
PCH_DPB_N1 23
PCH_DPB_N3 23
PCH_DPB_P1 23
PCH_DPB_P3 23
PCH_DPB_N0 23
PCH_DPB_P0 23
PCH_DPB_N2 23
PCH_DPB_P2 23
ENBKL28
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (4/9) LVDS,CRT,DP,HDMI
Custom
16 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (4/9) LVDS,CRT,DP,HDMI
Custom
16 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (4/9) LVDS,CRT,DP,HDMI
Custom
16 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R307
1K_0402_5%
R307
1K_0402_5%
12
R612 0_0402_5%@R612 0_0402_5%@
12
LVDS
Digital Display Interface
CRT
U37D
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
LVDS
Digital Display Interface
CRT
U37D
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
L_BKLTCTL
P45
L_BKLTEN
J47
L_CTRL_CLK
T45
L_CTRL_DATA
P39
L_DDC_CLK
T40
L_DDC_DATA
K47
L_VDD_EN
M45
LVDSA_CLK#
AK39
LVDSA_CLK
AK40
LVDSA_DATA#0
AN48
LVDSA_DATA#1
AM47
LVDSA_DATA#2
AK47
LVDSA_DATA#3
AJ48
LVDSA_DATA0
AN47
LVDSA_DATA1
AM49
LVDSA_DATA2
AK49
LVDSA_DATA3
AJ47
LVDSB_CLK#
AF40
LVDSB_CLK
AF39
LVDSB_DATA#0
AH45
LVDSB_DATA#1
AH47
LVDSB_DATA#2
AF49
LVDSB_DATA#3
AF45
LVDSB_DATA0
AH43
DDPB_0N AV42
DDPB_1N AV45
LVD_VREFH
AE48
LVD_VREFL
AE47
DDPD_2N BF42
DDPD_3N BJ42
DDPB_2N AU48
DDPB_3N AV47
DDPC_0N AY47
DDPC_1N AY43
DDPC_2N BA47
DDPC_3N BB47
DDPD_0N BB43
DDPD_1N BF44
DDPB_0P AV40
DDPB_1P AV46
DDPD_2P BE42
DDPD_3P BG42
DDPB_2P AU47
DDPB_3P AV49
LVDSB_DATA1
AH49
LVDSB_DATA2
AF47
LVDSB_DATA3
AF43
LVD_IBG
AF37
LVD_VBG
AF36
DDPC_1P AY45
DDPC_0P AY49
DDPC_2P BA48
DDPC_3P BB49
DDPD_0P BB45
DDPD_1P BE44
CRT_BLUE
N48
CRT_DDC_CLK
T39
CRT_DDC_DATA
M40
CRT_GREEN
P49
CRT_HSYNC
M47
CRT_IRTN
T42
CRT_RED
T49
CRT_VSYNC
M49
DAC_IREF
T43
SDVO_CTRLCLK P38
SDVO_CTRLDATA M39
DDPC_CTRLCLK P46
DDPC_CTRLDATA P42
DDPD_CTRLCLK M43
DDPD_CTRLDATA M36
DDPB_AUXN AT49
DDPC_AUXN AP47
DDPD_AUXN AT45
DDPB_AUXP AT47
DDPC_AUXP AP49
DDPD_AUXP AT43
DDPB_HPD AT40
DDPC_HPD AT38
DDPD_HPD BH41
SDVO_TVCLKINP AP45
SDVO_TVCLKINN AP43
SDVO_STALLP AM40
SDVO_STALLN AM42
SDVO_INTP AP40
SDVO_INTN AP39
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Sensor Hub
Within 500 mils
CMOS Camera
Bluetooth
Debug Port
Bit11
GNT1#/
GPIO51
Internal
PH
Boot BIOS Strap
Bit10
0 1
Boot BIOS
Destination
Reserved
PCI
SPI
LPC
USB Connector
Some PCH config not support USB port 6 & 7.
EHCI 1
EHCI 2
GPIO strap function
PH(Internal PH), GPIO PH +3VS
Only GPIO
function
GPIO strap function
GPIO PH +3VS, GPIO PH +3VS
PCI Interrupt Requests
GPIO51GPIO19
*
1
1 1
0
00
+3VS GND
Set to Vcc when HIGH
DMI,FDI Termination Voltage
DF_TVS Set to Vss when LOW
DG1.2 CRB1.0 PH 2.2K series 1K
For 2012 support
CLOSE TO THE BRANCHING POINT
BE28:USB3Rn1
BC30:USB3Rn2
BE32:USB3Rn3
BJ32:USB3Rn4
BC28:USB3Rp1
BE30:USB3Rp2
BF32:USB3Rp3
BG32:USB3Rp4
AV26:USB3Tn1
BB26:USB3Tn2
AU28:USB3Tn3
AY30:USB3Tn4
AU26:USB3Tp1
AY26:USB3Tp2
AV28:USB3Tp3
AW30:USB3Tp4
CMOS Camera
Touch Screen
Sideband signal for Touch screen
Ball AY1 : DF_TVS
USB3.0
SAGE 3G
SAGE 3G
Reserve for RF / Close to PCH
3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G R10
USBRBIAS
PLT_RST#
PLT_RST#
PCI_PIRQA#
PCI_PIRQD#
PCI_PIRQC#
PCI_PIRQB#
ODD_DA#
PCH_GPIO4
PCH_GPIO52
CLK_PCI0
CLK_PCI1
CLK_PCI2
CLK_PCI3
CLK_PCI4
USB20_P0
USB20_N0
USB_OC7#
USB_OC4#
USB_OC5#
USB_OC6#
USB_OC3#
USB_OC1#
USB_OC0#
USB_OC2#
PCH_GPIO53
DF_TVS
CLK_PCI_LPBACK
CLK_PCI_LPC
USB20_N10
USB20_P10
USB20_N1_R
USB20_P1_R
DGPU_PWR_EN
DGPU_HOLD_RST#
DGPU_HOLD_RST#
PCH_GPIO53
PCH_GPIO5
PCH_GPIO52
DGPU_PWR_EN
PCH_GPIO5
PCI_PIRQC#
PCI_PIRQB#
PCI_PIRQA#
PCI_PIRQD#
PCH_GPIO4
ODD_DA#
PCH_GPIO51
PCH_GPIO55
PCH_GPIO55
PCH_GPIO51
USB20_N9
USB20_P9
USB_OC0#
USB_OC1#
PCH_GPIO2
PCH_GPIO2
USB20_N1
USB20_P1
USB20_N11
USB20_P11
USB20_N4
USB20_P4
USB20_N8
USB20_P8
PCH_GPIO4
CLK_PCI_TXM
PCH_USB3_RX2_P
PCH_USB3_TX2_N
PCH_USB3_RX2_N
PCH_USB3_TX2_P USB20_N3
USB20_P3
USB20_N2
USB20_P2
PLT_RST#
USB_OC2#
USB_OC7#
USB_OC5#
USB_OC4#
USB_OC3#
USB_OC6#
CLK_PCI_TXM
CLK_PCI_LPBACK
CLK_PCI_LPC
USB20_N0 30
USB20_P0 30
CLK_PCI_LPBACK14
CLK_PCI_LPC28
USB20_N10 27
USB20_P10 27
PLT_RST_BUF# 24
USB_OC0# 27
H_SNB_IVB# 5
USB20_N1 27
USB20_P1 27
USB20_N11 33
USB20_P11 33
USB20_P8 24
USB20_N8 24
TS_INT#22
CLK_PCI_TXM26
PCH_USB3_RX2_P27
PCH_USB3_TX2_N27
PCH_USB3_RX2_N27
PCH_USB3_TX2_P27
IRST_RST#28
USB20_P3 22
USB20_N3 22
USB20_N2 31
USB20_P2 31
PLT_RST#26,28,31,32,5
+3VS
+3VS
+3VS
+1.8VS
+VCCSUS3_3
+VCCSUS3_3
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (5/9) PCI, USB, NVRAM
Custom
17 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (5/9) PCI, USB, NVRAM
Custom
17 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (5/9) PCI, USB, NVRAM
Custom
17 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
RSVD
NVRAM
PCI
USB
U37E
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
RSVD
NVRAM
PCI
USB
U37E
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
NV_ALE AV5
NV_CE#0 AY7
NV_CE#1 AV7
NV_CE#2 AU3
NV_CE#3 BG4
NV_CLE AY1
NV_DQS0 AT10
NV_DQS1 BC8
NV_DQ0 / NV_IO0 AU2
NV_DQ1 / NV_IO1 AT4
NV_DQ10 / NV_IO10 BB5
NV_DQ11 / NV_IO11 BB3
NV_DQ12 / NV_IO12 BB7
NV_DQ13 / NV_IO13 BE8
NV_DQ14 / NV_IO14 BD4
NV_DQ15 / NV_IO15 BF6
NV_DQ2 / NV_IO2 AT3
NV_DQ3 / NV_IO3 AT1
NV_DQ4 / NV_IO4 AY3
NV_DQ5 / NV_IO5 AT5
NV_DQ6 / NV_IO6 AV3
NV_DQ7 / NV_IO7 AV1
NV_DQ8 / NV_IO8 BB1
NV_DQ9 / NV_IO9 BA3
NV_RB# AT8
NV_RCOMP AV10
NV_RE#_WRB0 AY5
NV_RE#_WRB1 BA2
NV_WE#_CK0 AT12
NV_WE#_CK1 BF3
PIRQA#
K40
PIRQB#
K38
PIRQC#
H38
PIRQD#
G38
REQ1# / GPIO50
C46
REQ2# / GPIO52
C44
REQ3# / GPIO54
E40
GNT1# / GPIO51
D47
GNT2# / GPIO53
E42
GNT3# / GPIO55
F46
PIRQE# / GPIO2
G42
PIRQF# / GPIO3
G40
PIRQG# / GPIO4
C42
PIRQH# / GPIO5
D44
USBP0N C24
USBP0P A24
USBP1N C25
USBP1P B25
USBP2N C26
USBP2P A26
USBP3N K28
USBP3P H28
USBP4N E28
USBP4P D28
USBP5N C28
USBP5P A28
USBP6N C29
USBP6P B29
USBP7N N28
USBP7P M28
USBP8N L30
USBP8P K30
USBP9N G30
USBP9P E30
USBP10N C30
USBP10P A30
USBP11N L32
USBP11P K32
USBP12N G32
USBP12P E32
USBP13N C32
USBP13P A32
PME#
K10
CLKOUT_PCI0
H49
CLKOUT_PCI1
H43
CLKOUT_PCI2
J48
USBRBIAS# C33
USBRBIAS B33
OC0# / GPIO59 A14
OC1# / GPIO40 K20
OC2# / GPIO41 B17
OC3# / GPIO42 C16
OC4# / GPIO43 L16
OC5# / GPIO9 A16
OC6# / GPIO10 D14
OC7# / GPIO14 C14
CLKOUT_PCI4
H40 CLKOUT_PCI3
K42
PLTRST#
C6
TP1
BG26
TP2
BJ26
TP3
BH25
TP6
AH38
TP7
AH37
TP8
AK43
TP9
AK45
TP16
Y13
TP17
K24
TP18
L24
TP19
AB46
TP20
AB45
TP21
B21
TP22
M20
TP23
AY16
TP25
BE28
TP26
BC30
TP27
BE32
TP28
BJ32
TP29
BC28
TP30
BE30
TP31
BF32
TP32
BG32
TP33
AV26
TP34
BB26
TP35
AU28
TP36
AY30
TP37
AU26
TP38
AY26
TP39
AV28
TP40
AW30
TP4
BJ16
TP5
BG16
TP15
AM5 TP14
AM4 TP13
AH12 TP12
H3 TP11
N30 TP10
C18
TP24
BG46
R620 22.6_0402_1%R620 22.6_0402_1%
1 2
T7PAD @T7PAD @
R651
2.2K_0402_5%
R651
2.2K_0402_5%
12
R713 0_0402_5%@R713 0_0402_5%@
1 2
R376
100K_0402_5%
R376
100K_0402_5%
12
C1061.8P_0402_50V8XEMC@ C1061.8P_0402_50V8XEMC@ 12
R654 1K_0402_5%R654 1K_0402_5%
12
T13PAD @T13PAD @
C1071.8P_0402_50V8XEMC@ C1071.8P_0402_50V8XEMC@ 12
C1081.8P_0402_50V8XEMC@ C1081.8P_0402_50V8XEMC@ 12
U26
MC74VHC1G08DFT2G_SC70-5
U26
MC74VHC1G08DFT2G_SC70-5
B
2
A
1Y4
P5
G
3
RP12
10K_8P4R_5%
RP12
10K_8P4R_5%
1 8
2 7
3 6
4 5
RP43
22_8P4R_5%
RP43
22_8P4R_5%
18
27
36
45
RP8
10K_8P4R_5%
RP8
10K_8P4R_5%
1 8
2 7
3 6
4 5
R714 0_0402_5%@R714 0_0402_5%@
1 2
C1214 1U_0402_6.3V6KC1214 1U_0402_6.3V6K
1 2
R310 8.2K_0402_5%R310 8.2K_0402_5%
1 2
R715 0_0402_5%@R715 0_0402_5%@
1 2
RP14
10K_8P4R_5%
RP14
10K_8P4R_5%
1 8
2 7
3 6
4 5
R267 10K_0402_5%R267 10K_0402_5%
1 2
T8PAD @T8PAD @
RP9
10K_8P4R_5%
RP9
10K_8P4R_5%
1 8
2 7
3 6
4 5
RP15
10K_8P4R_5%
RP15
10K_8P4R_5%
1 8
2 7
3 6
4 5
T15 PAD@T15 PAD@
T17 PAD@T17 PAD@
R710 0_0402_5%@R710 0_0402_5%@
1 2
R463
0_0402_5%
@
R463
0_0402_5%
@12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
*
This signal has a weak internal pull up
On-Die PLL Voltage Regulator
L On-Die PLL Voltage Regulator disable
GPIO28
H On-Die PLL voltage regulator enable
INIT3_3V
This signal has weak internal
PU, can't pull low,leave NC
PCH_GPIO27 (Have internal Pull-High)
TS_VSS1~4
PD to GND
PECI CPU-EC
Check list1.0 P.59
CTRL+ALT+DEL
non CPU power ok
130c shut sown
HDA_SYNC PH(PLL =+1.5VS)
Deep S4,S5 wake event signal
RTC alarm,Power BTN,GPIO27
GPIO24 Unmultiplexed
NOTE: GPIO24 configuration
register bits are not cleared by
CF9h reset event.
CRB1.0 PH10K to +3VALW
No use can NC(+3VS power plane)
No use PH 10K +3VS
No use PH 10K +3VALW
No use PD 10K to GND
No use PH 10K +3VS
Can't PH
CRB1.0 PH 10K +3VALW
Can't PH
No use PH 10K +3VS
SATA5GP&TEMP_ALERT# CRB PH 10K +3VS
No use PH +3VALW
No use PH +3VS
No use PH +3VALW
No use PH 10K +3VS
No use PH 10K +3VS
No use PH 10K +3VS
No use PH 10K +3VS
No use PH 10K +3VS
GPIO38
0
1
*
Muxless
nonMuxless
OPTIMUS_EN#
Optimus(L)/ non optimus(H)
SATA2GP/GPIO36,SATA3GP/GPIO37
1.Used as for Mechanical Presence detect -
Use a weak external pull-up (150K-200k Ohms) to Vcc3_3
or use 10K external pull-up that is enabled only
after PLTRST# de-assertion.
2.Used as GP Input (Pin HW default) -
Ensure GPI is not driven high during strap sampling window
3.Unused as GPIO or SATA*GP -
Use 8.2K-10K pull-down to ground.
Debug Port DG 1.2 PH 4.7K +3VALW_PCH
GPIO36/GPIO37 is Strap functionality
that requires internal pull down to be sampled at rising PWROK.
When uses as SATA2GP/SATA3GP for mechanical presence detect
-use a external pull up 150K-200K ohm to Vcc3_3
When used as GP input
-ensure GPI is not driven high during strap sampling window
When Unused as GPIO or SATA*GP
-use 8.2K-10K pull-down
check list page 47
GPIO24
0
1
DDR3L(V1JV1)
*
DDR3
PCH_GPIO24
EC LID SW OUT
No use PH +3VALW
Define Q5LJ1(DDR3) or V1JV1(DDR3L)
SAGE 3G
SW base on TPM table to detect HW TPM status
1
1
x
0
0
0
Infineon TPM SLB9655
x
TPM Status GPIO70
0
GPIO69
1
1
HW, SW without support TPM
SAGE 3G
SAGE 3G
SAGE 3G
0
0
0
0
1
1
0
GPIO22GPIO23GPIO39
0
0
0 1 1
Hynix Mono 512MB*8(Ch A,B)
Elpida Mono 512MB*4(Ch A)
Hynix Mono 512MB*4(Ch A)
Elpida Mono 512MB*8(Ch A,B)
1
Elpida Mono 512MB*4(Ch A) 0 0
1 0 1
1
Elpida Mono 512MB*8(Ch A,B) 1 0
1 1 1
DDR3L-1600
DDR3L-1600
DDR3L-1600
DDR3L-1600
DDR3L-1333
DDR3L-1333
DDR3L-1333
DDR3L-1333
SA000059110 / ELPIDA DDR3L-1333
SA00005FV10 / HYNIX DDR3L-1333
SA00005HT80 / ELPIDA DDR3L-1600
PCH_THRMTRIP#_R
EC_SCI#
PCH_GPIO39
PCH_GPIO49
PCH_GPIO28
PCH_GPIO34
PCH_PECI_R
PCH_GPIO71
EC_KBRST#
H_THRMTRIP#
EC_SMI#
DGPU_PWROK
DGPU_HPD_INT#
PCH_GPIO1
WWAN_OFF#
OPTIMUS_EN#
PCH_GPIO27
PCH_GPIO35
PCH_GPIO57
PCH_GPIO48
PCH_GPIO24
PCH_GPIO22
PCH_GPIO12
WWAN_OFF#
PCH_GPIO27
DGPU_PWROK
ODD_DETECT#
PCH_GPIO69
PCH_GPIO70
PCH_GPIO68
MSATA_DET#
PCH_GPIO0
OPTIMUS_EN#
PCH_GPIO28
OPTIMUS_EN#
PCH_GPIO69 PCH_GPIO70
PCH_GPIO24
PCH_GPIO23
PCH_GPIO39
PCH_GPIO22
PCH_GPIO0
PCH_GPIO68
EC_LID_OUT#
PCH_GPIO35
PCH_GPIO68
PCH_GPIO1
PCH_GPIO1
DGPU_HPD_INT#
MSATA_DET#
PCH_GPIO34
PCH_GPIO48
PCH_GPIO49
PCH_GPIO12
PCH_GPIO57
EC_LID_OUT#
EC_KBRST#
ODD_DETECT#
GATEA20 28
EC_SCI#28
H_CPUPWRGD 5
EC_KBRST# 28
H_THRMTRIP# 5
EC_SMI#28
PCH_GPIO23 13
EC_LID_OUT#28
MSATA_DET#25
EC_DS3_WAKE#28
HUB_DFU_EN#30
HUB_PWRGATE30
RAID0_DET25
+3VS
+3VS
+3VS
+3VS
+3VS +3VS
+VCCSUS3_3
+3VS
+VCCSUS3_3
+3VLP
+VCCSUS3_3
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (6/9) GPIO, CPU, MISC
Custom
18 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (6/9) GPIO, CPU, MISC
Custom
18 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (6/9) GPIO, CPU, MISC
Custom
18 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
RP29
10K_8P4R_5%
RP29
10K_8P4R_5%
1 8
2 7
3 6
4 5
R619
10K_0402_5%
R619
10K_0402_5%
1 2
R385 390_0402_5%R385 390_0402_5%
1 2
R506 100K_0402_5%DS3@R506 100K_0402_5%DS3@
1 2
R274 10K_0402_5%X76@R274 10K_0402_5%X76@
1 2
R275 10K_0402_5%X76@R275 10K_0402_5%X76@
1 2
R2490_0402_5%
@
R2490_0402_5%
@
1 2
R278 10K_0402_5%X76@R278 10K_0402_5%X76@
1 2
R279 10K_0402_5%X76@R279 10K_0402_5%X76@
1 2
R281 10K_0402_5%X76@R281 10K_0402_5%X76@
1 2
R391 1K_0402_5%R391 1K_0402_5%
1 2
R282 10K_0402_5%X76@R282 10K_0402_5%X76@
1 2
R2560_0402_5%
@
R2560_0402_5%
@
1 2
R617
10K_0402_5%
TPM@
R617
10K_0402_5%
TPM@
12
R364 10K_0402_5%R364 10K_0402_5%
1 2
RP17
10K_8P4R_5%
RP17
10K_8P4R_5%
1 8
2 7
3 6
4 5
R430 10K_0402_5%
@
R430 10K_0402_5%
@
1 2
R595 0_0402_5%
@
R595 0_0402_5%
@
1 2
R621
10K_0402_5%
WOTPM@
R621
10K_0402_5%
WOTPM@
1 2
R429 10K_0402_5%
UMA@
R429 10K_0402_5%
UMA@
1 2
R422
4.7K_0402_5%
R422
4.7K_0402_5%
12
R457 10K_0402_5%
DDR3L@
R457 10K_0402_5%
DDR3L@
1 2
R417
1K_0402_5%
@
R417
1K_0402_5%
@
1 2
R458 10K_0402_5%
DDR3@
R458 10K_0402_5%
DDR3@
1 2
T46 PAD@T46 PAD@
CPU/MISC
NCTF
GPIO
U37F
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
CPU/MISC
NCTF
GPIO
U37F
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
GPIO27
E16
GPIO28
P8
GPIO24 / MEM_LED
E8
GPIO57
D6
LAN_PHY_PWR_CTRL / GPIO12
C4
VSS_NCTF_1
A4
VSS_NCTF_2
A44
VSS_NCTF_3
A45
VSS_NCTF_4
A46
VSS_NCTF_5
A5
VSS_NCTF_6
A6
VSS_NCTF_7
B3
VSS_NCTF_8
B47
VSS_NCTF_9
BD1
VSS_NCTF_10
BD49
VSS_NCTF_11
BE1
VSS_NCTF_12
BE49
TACH2 / GPIO6
H36
TACH0 / GPIO17
D40
TACH3 / GPIO7
E38
SATA3GP / GPIO37
M5
SATA5GP / GPIO49
V3
SCLOCK / GPIO22
T5
SLOAD / GPIO38
N2
SDATAOUT0 / GPIO39
M3
SDATAOUT1 / GPIO48
V13
PROCPWRGD AY11
RCIN# P5
PECI AU16
THRMTRIP# AY10
GPIO8
C10
BMBUSY# / GPIO0
T7
GPIO15
G2
TACH1 / GPIO1
A42
SATA2GP / GPIO36
V8
INIT3_3V# T14
STP_PCI# / GPIO34
K1
GPIO35
K4
SATA4GP / GPIO16
U2
VSS_NCTF_32 F49
A20GATE P4
TACH4 / GPIO68 C40
TACH6 / GPIO70 C41
TACH7 / GPIO71 A40
TACH5 / GPIO69 B41
VSS_NCTF_17 BH3
VSS_NCTF_18 BH47
VSS_NCTF_19 BJ4
VSS_NCTF_20 BJ44
VSS_NCTF_21 BJ45
VSS_NCTF_22 BJ46
VSS_NCTF_23 BJ5
VSS_NCTF_24 BJ6
VSS_NCTF_25 C2
VSS_NCTF_26 C48
VSS_NCTF_27 D1
VSS_NCTF_28 D49
VSS_NCTF_29 E1
VSS_NCTF_30 E49
VSS_NCTF_31 F1
NC_4 AK10
NC_3 AH10
NC_2 AK11
NC_1 AH8
NC_5 P37
VSS_NCTF_13
BF1
VSS_NCTF_14
BF49
VSS_NCTF_15 BG2
VSS_NCTF_16 BG48
T45 PAD@T45 PAD@
RP16
10K_8P4R_5%
RP16
10K_8P4R_5%
1 8
2 7
3 6
4 5
R419
10K_0402_5%
R419
10K_0402_5%
1 2
R2580_0402_5%
@
R2580_0402_5%
@
1 2
R362 10K_0402_5%@R362 10K_0402_5%@
1 2
R616
10K_0402_5%
@R616
10K_0402_5%
@
12
R324 10K_0402_5%R324 10K_0402_5%
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
1.05
V_PROC_IO
V5REF
V5REF_Sus
Vcc3_3
VccADAC
VccADPLLA
VccADPLLB
Voltage Rail
VccCore
VccDMI
1.05
5
3.3
0.001
0.266
0.001
0.08
1.3
0.042
5
Voltage
S0 Iccmax
Current(A)
VccIO 2.925
VccASW 1.01
VccSPI 0.02
VccDSW 0.003
1.8 0.19VccpNAND
VccRTC 6 uA
VccSus3_3
3.3 / 1.5VccSusHDA
0.266
0.01
VccVRM 1.8 / 1.5 0.16
VccCLKDMI
VccALVDS
VccTX_LVDS 0.06
0.001
0.02

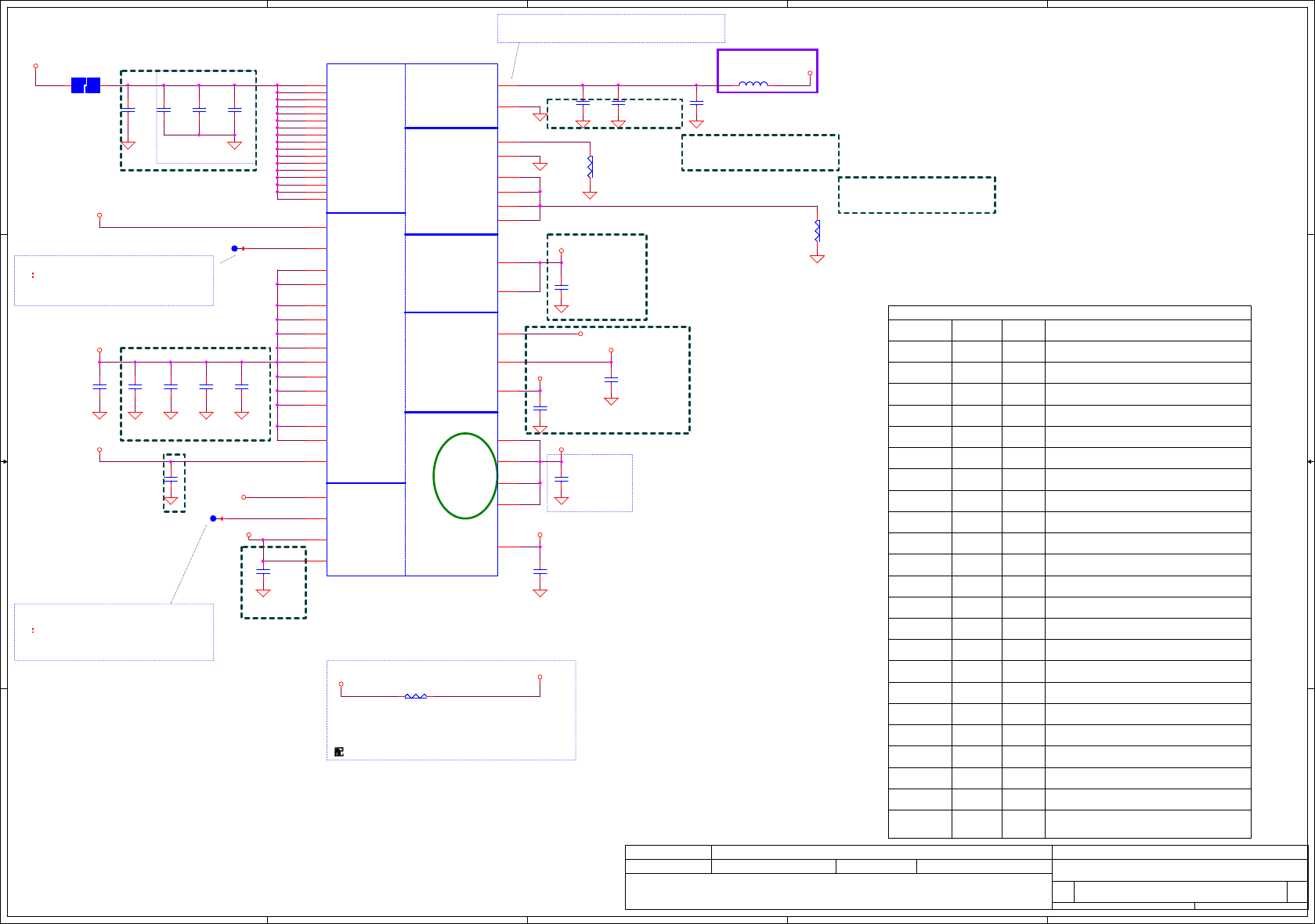

PCH Power Rail Table
VCCVRM = 160mA detal waiting for newest spec
VccSSC 0.095
VccDIFFCLKN 0.055
VCCVRM==>1.5V FOR MOBILE
VCCVRM==>1.8V FOR DESKTOP
PPT:1700mA
CPT:1300mA
PPT:63mA
CPT:1mA
1mA
40mA
PPT:3711mA
CPT:3709mA
PPT:47mA
CPT:42mA
2mA
10mA
228mA
Thermal Senser share with VCCADAC power rail
so can't remove this power
HDA_SYNC PH(PLL =+1.5VS)
VccDFTERM should PH +1.8VS or +3VS
For SPI control logi
Core Well I/O Buffer
DMI buffer logic
Internal PLL and VRM(+1.5VS)
I/O Buffer Voltage
I/O Buffer Voltage
1.8 V Internal PLL and VRMs (1.8 V for
Desktop)
Processor I/F
PCH Core Well Reference Voltage
Suspend Well Reference Voltag
Display DAC Analog Power. This power is
supplied by the core well.
Display PLL A power
Display PLL B power
Internal Logic Voltage
DMI Buffer Voltage
Core Well I/O buffers
1.05 V Supply for Intel R Management
Engine and Integrated LAN
3.3 V Supply for SPI Controller Logic
3.3v supply for Deep S4/S5 well
1.8V power supply for DF_TVS
Battery Voltage
Suspend Well I/O Buffer Voltage
High Definition Audio Controller Suspend
Voltage
DMI Clock Buffer Voltage
Spread Modulators Power Supply
Differential Clock Buffers Power Supply
Analog power supply for LVDS (Mobile
Only)
Analog power supply for LVDS (Mobile
Only)
place
near AT20
VCCFDIPLL,VCCAPLLEXP,VCCAPLLDMI2
,VCCAPLLSATA
On-Die PLL Voltage Regulator
H On-Die PLL voltage regulator enable
VCCFDIPLL,VCCAPLLEXP,VCCAPLLDMI2
,VCCAPLLSATA
On-Die PLL Voltage Regulator
H On-Die PLL voltage regulator enable
3.3
1.05
1.05
1.05
1.05
1.05
3.3
3.3
3.3
3.3
1.05
1.05
1.05
3.3
1.8
0.001
0.001
0.08
Place Near AA23
Place Near AN16,AN21,AN33
Place Near
BH29
Place Near U48
Place Near V33
Trace 20mil
Near
AU20
place
near AG16
place
near AB36
Trace 20mil
VCCPNAND change to VccDFTERM
PPT:167mA
CPT:175mA
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G R10
+VCCAPLLEXP
+1.05VS_PCH +VCCADAC
+VCCA_LVDS
+1.05VS_VCCAPLL_FDI
+VCCTX_LVDS
+VCCAFDI_VRM
+1.5VS
+1.05VS_VCCPP
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+3VS
+1.8VS
+3VS
+3VS
+3VS
+1.05VS_PCH
+1.05VS_PCH
+VCCAFDI_VRM
+VCCAFDI_VRM
+VCCAFDI_VRM
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (7/9) PWR
Custom
19 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (7/9) PWR
Custom
19 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (7/9) PWR
Custom
19 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
T33PAD @T33PAD @
C749
0.1U_0402_16V7K
C749
0.1U_0402_16V7K
1
2
L23
HCB1608KF-221T2_2P
L23
HCB1608KF-221T2_2P
12
C505
1U_0402_6.3V6K
C505
1U_0402_6.3V6K
1
2
POWER
VCC CORE
DMI
VCCIO
CRTLVDS
FDI
NAND / SPI HVCMOS
U37G
COUGARPOINT_FCBGA989~D
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!
SA00005AGI0
HM77@
POWER
VCC CORE
DMI
VCCIO
CRTLVDS
FDI
NAND / SPI HVCMOS
U37G
COUGARPOINT_FCBGA989~D
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!
SA00005AGI0
HM77@
VCCCORE[1]
AA23
VCCCORE[2]
AC23
VCCCORE[3]
AD21
VCCCORE[4]
AD23
VCCCORE[5]
AF21
VCCCORE[6]
AF23
VCCCORE[7]
AG21
VCCCORE[8]
AG23
VCCCORE[9]
AG24
VCCCORE[10]
AG26
VCCCORE[11]
AG27
VCCCORE[12]
AG29
VCCCORE[13]
AJ23
VCCCORE[14]
AJ26
VCCCORE[15]
AJ27
VCCPNAND[4] AJ17
VCCPNAND[3] AJ16
VCCIO[17]
AN21
VCCIO[18]
AN26
VCCIO[19]
AN27
VCCIO[20]
AP21
VCCIO[23]
AP26
VCCIO[24]
AT24
VCCIO[15]
AN16
VCCIO[16]
AN17
VCCIO[21]
AP23
VCCIO[22]
AP24
VCCADAC U48
VCCTX_LVDS[1] AM37
VCCTX_LVDS[2] AM38
VCCALVDS AK36
VCCVRM[3] AT16
VCCVRM[2]
AP16
VCCAPLLEXP
BJ22
VCCFDIPLL
BG6
VCCIO[28]
AN19 VCCTX_LVDS[4] AP37
VCCTX_LVDS[3] AP36
VSSADAC U47
VSSALVDS AK37
VCCIO[27]
AP17
VCC3_3[6] V33
VCC3_3[7] V34
VCC3_3[3]
BH29 VCCPNAND[2] AG17
VCCPNAND[1] AG16
VCCDMI[1] AT20
VCCIO[25]
AN33
VCCIO[26]
AN34
VCCCORE[16]
AJ29
VCCCORE[17]
AJ31
VCCSPI V1
VCCIO[1] AB36
VCCDMI[2]
AU20
R270
0_0402_5%
@R270
0_0402_5%
@
12
R280
0_0402_5%
@R280
0_0402_5%
@
12
T14PAD
@
T14PAD
@
C420
0.1U_0402_16V7K
C420
0.1U_0402_16V7K
1
2
C474
1U_0402_6.3V6K
C474
1U_0402_6.3V6K
1
2
C449
0.1U_0402_16V7K
C449
0.1U_0402_16V7K
1
2
C523
0.1U_0201_10V6K
C523
0.1U_0201_10V6K
1
2
C480
1U_0402_6.3V6K
C480
1U_0402_6.3V6K
1
2
C491
1U_0402_6.3V6K
C491
1U_0402_6.3V6K
1
2
C543
10U_0603_6.3V6M
C543
10U_0603_6.3V6M
1
2
J3
PAD-OPEN 4x4m
@J3
PAD-OPEN 4x4m
@
12
C754
10U_0603_6.3V6M
@
C754
10U_0603_6.3V6M
@
12
C517
1U_0402_6.3V6K
C517
1U_0402_6.3V6K
1
2
C492
1U_0402_6.3V6K
@
C492
1U_0402_6.3V6K
@
1
2
C477
1U_0402_6.3V6K
C477
1U_0402_6.3V6K
1
2
C418
10U_0603_6.3V6M
C418
10U_0603_6.3V6M
1
2
C486
1U_0402_6.3V6K
@
C486
1U_0402_6.3V6K
@
1
2
C496
1U_0402_6.3V6K
C496
1U_0402_6.3V6K
1
2
C770
1U_0402_6.3V6K
C770
1U_0402_6.3V6K
1
2
C519
1U_0402_6.3V6K
C519
1U_0402_6.3V6K
1
2
C419
0.01U_0402_16V7K
C419
0.01U_0402_16V7K
1
2
R394 0_0402_5%@R394 0_0402_5%@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

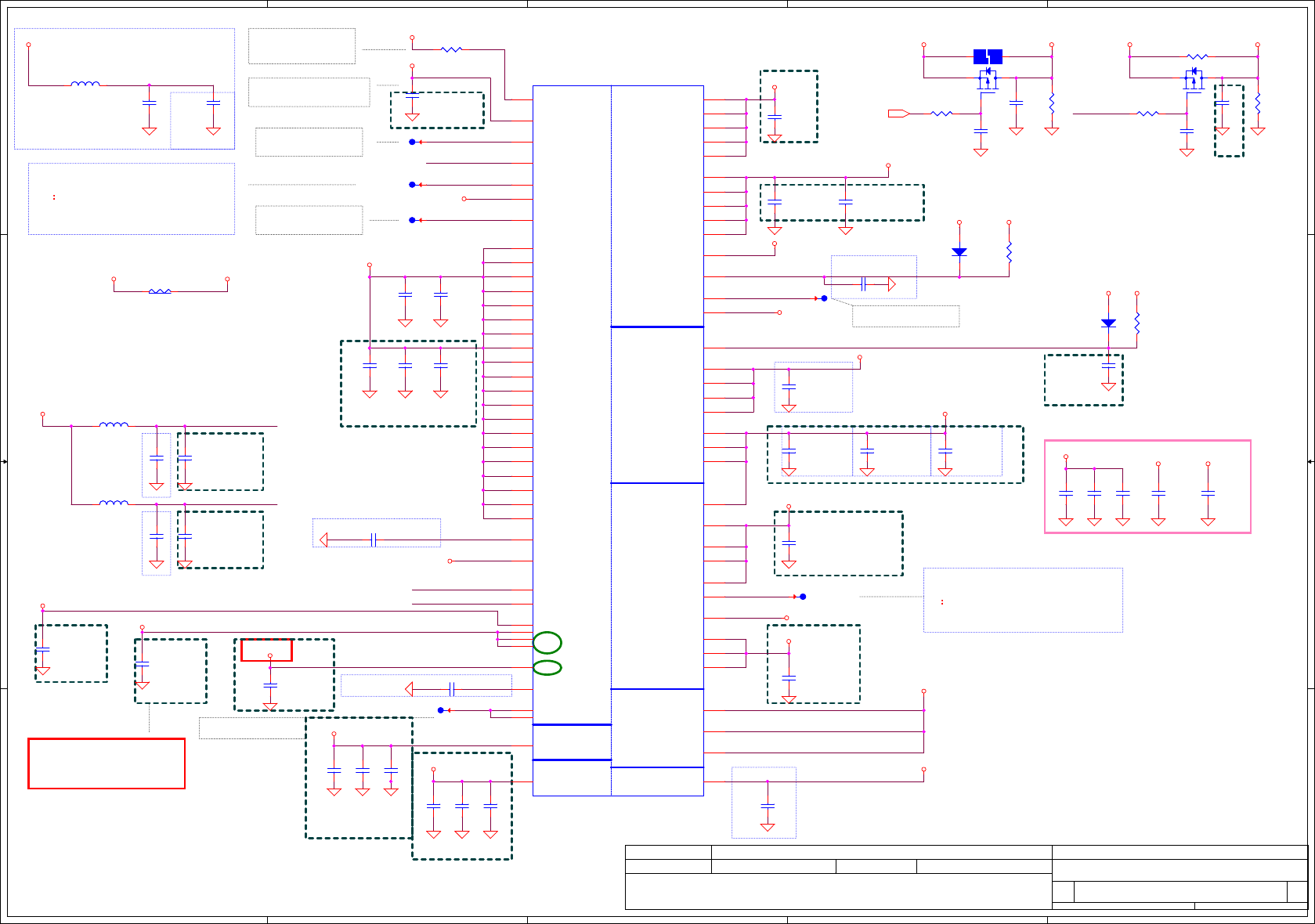

1mA
1mA
903mA
1mA
PPT:80mA
CPT:75mA
55mA
95mA
1mA
10mA Need +3VALW and 0.1U close PCH
Near P32
Place near
AA16,W16
Place near
T34
Place near
AJ2
Not support Deep S4,S5
connect to +3VALW
suppied by internal
1.05V VR must NC
+1.05V analog
internal clock PLL
Can NC
Place
near BJ8
Near P24Near T23VCCFDIPLL,VCCAPLLEXP,VCCAPLLDMI2
,VCCAPLLSATA
GPIO28
On-Die PLL Voltage Regulator
H On-Die PLL voltage regulator enable
suppied by internal
1.05V VR Must NC
VCCFDIPLL,VCCAPLLEXP,VCCAPLLDMI2
,VCCAPLLSATA
GPIO28
On-Die PLL Voltage Regulator
H On-Die PLL voltage regulator enable
Place
near AF33,
AF34,AG34
Place
near AF17
isolation between SSC (AG33)
and DIFFCLKN(AF33,AF34,AG34)
18mil width(DIFFCLKN)
10mil (SSC)
Near T16
Near T38
Near AA19
Near N16
Near BD47
Near BF47
Near V16
Near A22
Near AC16
Near AH13,AH14,AF13
Near N20 Near P34
Near N26
Near M26
Place
near AG33
suppied by internal
1.05V VR Must NC
suppied by internal
1.05V VR must NC
VCCIO[8,9,11] change to VccDIFFCLKN
VCCIO[10] change to VccSSC
Deep S3
PPT:126mA
CPT:119mA
For Deep S3 turn off +V5REF_SUS,+VCCSUS3_3
10mil20mil
(RF requirement)
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
+1.05VS_VCCA_A_DPL
+1.05VS_VCCA_B_DPL
+VCCA_USBSUS
+3VS_VCC_CLKF33
+3VS_VCC_CLKF33
+VCCSUS1
+VCCACLK
+VCCRTCEXT
+VCCSST
+1.05VS_VCCA_A_DPL
+1.05VS_VCCA_B_DPL
+VCCSATAPLL
+VCCAPLL_CPY_PCH
+PCH_VCCDSW
+1.05VM_VCCSUS
+PCH_V5REF_RUN
+PCH_V5REF_SUS
PCH_PWR_EN#
PCH_PWR_EN#34
+1.05VS_PCH
+VCCSUS3_3
+1.05VS_PCH
+3VS
+1.05VS_PCH
+VCCSUS3_3
+1.05VS_PCH
+VCCSUS3_3
+VCCDSW3_3
+3VS
+1.05VS_PCH
+RTCVCC
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+1.05VS_PCH
+VCCSUS3_3 +V5REF_SUS
+3VS +5VS
+1.05VS_PCH
+1.05VS_PCH
+VCCSUS3_3
+1.05VS_PCH
+V5REF_SUS
+5VALW
+VCCSUS3_3
+3VALW
+VCCAFDI_VRM
+VCCAFDI_VRM
+3VLP +VCCDSW3_3
+VCCSUS3_3
+1.05VS_PCH +PCH_V5REF_SUS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (8/9) PWR
Custom
20 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (8/9) PWR
Custom
20 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (8/9) PWR
Custom
20 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
C817
0.1U_0201_10V6K
C817
0.1U_0201_10V6K
1
2
T10PAD
@
T10PAD
@
C495
0.1U_0402_16V7K
C495
0.1U_0402_16V7K
1
2
L49
10UH_LB2012T100MR_20%
L49
10UH_LB2012T100MR_20%
1 2
C524
1U_0402_6.3V6K
C524
1U_0402_6.3V6K
1
2
C518
1U_0402_6.3V6K
@
C518
1U_0402_6.3V6K
@
1
2
C511
18P_0201_50V8J
XEMC@
C511
18P_0201_50V8J
XEMC@
1
2
C819
0.01U_0402_16V7K
DS3@
C819
0.01U_0402_16V7K
DS3@
1
2
C426
1U_0402_6.3V6K
C426
1U_0402_6.3V6K
1
2
T11
PAD @
T11
PAD @
C482
1U_0402_6.3V6K
C482
1U_0402_6.3V6K
1
2
C525
18P_0201_50V8J
XEMC@
C525
18P_0201_50V8J
XEMC@
1
2
C490
0.1U_0402_16V7K
C490
0.1U_0402_16V7K
1
2
R755
20K_0402_5%
R755
20K_0402_5%
12
R756
2.2K_0402_5%
DS3@
R756
2.2K_0402_5%
DS3@
1 2
C484
0.1U_0402_16V4Z
C484
0.1U_0402_16V4Z
1 2
R752
20K_0402_5%
R752
20K_0402_5%
12
L54
10UH_LB2012T100MR_20%
L54
10UH_LB2012T100MR_20%
1 2
C497
0.1U_0402_16V7K
C497
0.1U_0402_16V7K
1
2
C512
18P_0201_50V8J
XEMC@
C512
18P_0201_50V8J
XEMC@
1
2
C440
1U_0402_6.3V6K
C440
1U_0402_6.3V6K
1
2
C471
0.1U_0402_16V7K
@C471
0.1U_0402_16V7K
@
1
2
C771
0.1U_0402_16V7K
@C771
0.1U_0402_16V7K
@
1
2
T9PAD @T9PAD @
C476
1U_0402_6.3V6K
C476
1U_0402_6.3V6K
1
2
R273
0_0402_5%
@R273
0_0402_5%
@
1 2
C752
22U_0805_6.3V6M
C752
22U_0805_6.3V6M
1
2
C751
22U_0805_6.3V6M
C751
22U_0805_6.3V6M
1
2
C514
18P_0201_50V8J
XEMC@
C514
18P_0201_50V8J
XEMC@
1
2
C544
4.7U_0603_6.3V6K
C544
4.7U_0603_6.3V6K
1
2
C537
0.1U_0402_16V7K
C537
0.1U_0402_16V7K
1
2
C513
1U_0402_6.3V6K
C513
1U_0402_6.3V6K
1
2
C494
0.1U_0402_16V7K
C494
0.1U_0402_16V7K
1
2
Q68
AP2301GN-HF_SOT23-3 DS3@
Q68
AP2301GN-HF_SOT23-3 DS3@
2
3 1
T48 PAD@T48 PAD@
C493
1U_0402_6.3V6K
C493
1U_0402_6.3V6K
1
2
C520
0.1U_0402_16V7K
C520
0.1U_0402_16V7K
1
2
R276 0_0402_5%@R276 0_0402_5%@
1 2
POWER
SATA USB
Clock and Miscellaneous
HDA
CPURTC
PCI/GPIO/LPCMISC
U37J
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
POWER
SATA USB
Clock and Miscellaneous
HDA
CPURTC
PCI/GPIO/LPCMISC
U37J
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
DCPSUSBYP
V12
VCCASW[1]
AA19
VCCASW[2]
AA21
VCCASW[3]
AA24
VCCASW[5]
AA27
VCCASW[6]
AA29
VCCSUSHDA P32
VCCSUS3_3[6] P24
VCCIO[34] T26
VCCIO[4] AD17
VCCASW[7]
AA31
VCCASW[8]
AC26
VCCASW[9]
AC27
VCCASW[10]
AC29
VCCASW[11]
AC31
VCCASW[12]
AD29
V5REF P34
VCC3_3[4] T34
VCCRTC
A22
VCCSUS3_3[10] V24
VCCSUS3_3[9] V23
VCCSUS3_3[8] T24
VCCSUS3_3[7] T23
VCCIO[2] AC16
VCCADPLLB
BF47
VCCIO[8]
AF33
V5REF_SUS M26
VCCIO[3] AC17
DCPSUS[1]
T17
VCCIO[10]
AG33
VCCADPLLA
BD47
VCCVRM[4]
Y49
VCCACLK
AD49
DCPRTC
N16
VCCASW[4]
AA26
VCCIO[9]
AF34
VCCIO[7]
AF17
DCPSST
V16
VCCIO[5] AF13
VCCASW[22] T21
VCCASW[23] V21
VCCASW[21] T19
VCC3_3[1] AA16
VCC3_3[8] W16
VCCSUS3_3[2] N20
VCCSUS3_3[3] N22
VCCSUS3_3[4] P20
VCCSUS3_3[5] P22
VCCIO[29] N26
VCCIO[30] P26
VCCIO[31] P28
VCCIO[32] T27
V_PROC_IO
BJ8
VCCIO[33] T29
VCCIO[11]
AG34
VCCASW[13]
AD31
VCCASW[14]
W21
VCCASW[15]
W23
VCCASW[16]
W24
VCCASW[17]
W26
VCCASW[18]
W29
VCCASW[19]
W31
VCCASW[20]
W33
VCCIO[6] AF14
VCCVRM[1] AF11
VCCIO[12] AH13
VCCIO[13] AH14
VCC3_3[2] AJ2
VCCAPLLSATA AK1
DCPSUS[3]
AL24
VCCIO[14]
AL29
DCPSUS[4] AN23
VCCSUS3_3[1] AN24
VCCAPLLDMI2
BH23
DCPSUS[2]
V19
VCCDSW3_3
T16
VCC3_3[5]
T38
D16
RB751V-40_SOD323-2
D16
RB751V-40_SOD323-2
21
C470
1U_0402_10V6K
C470
1U_0402_10V6K
1
2
C533
1U_0402_6.3V6K
C533
1U_0402_6.3V6K
1
2
C547
22U_0805_6.3V6M
C547
22U_0805_6.3V6M
1
2
R334
100_0402_5%
R334
100_0402_5%
12
C465
10U_0603_6.3V6M
C465
10U_0603_6.3V6M
1
2
R751 0_0402_5%
S3@
R751 0_0402_5%
S3@
1 2
D14
RB751V-40_SOD323-2
D14
RB751V-40_SOD323-2
21
C501
0.1U_0201_10V6K
C501
0.1U_0201_10V6K
1
2
C522
0.1U_0402_16V7K
C522
0.1U_0402_16V7K
1
2
C473
0.1U_0201_10V6K
C473
0.1U_0201_10V6K
1
2
L26
10UH_LB2012T100MR_20%
L26
10UH_LB2012T100MR_20%
1 2
Q64
AP2301GN-HF_SOT23-3 DS3@
Q64
AP2301GN-HF_SOT23-3 DS3@
2
3 1
C429
1U_0402_6.3V6K
C429
1U_0402_6.3V6K
1
2
C820
0.01U_0402_16V7K
DS3@
C820
0.01U_0402_16V7K
DS3@
1
2
C478
1U_0402_6.3V6K
C478
1U_0402_6.3V6K
1
2
C541
0.1U_0201_10V6K
C541
0.1U_0201_10V6K
1
2
T12PAD @T12PAD @
C552
22U_0805_6.3V6M
C552
22U_0805_6.3V6M
1
2
T32PAD @T32PAD @
R757
1K_0402_5%
DS3@
R757
1K_0402_5%
DS3@
1 2
J13
JUMP_43X39
@J13
JUMP_43X39
@
1
122
C468
1U_0402_6.3V6K
C468
1U_0402_6.3V6K
1
2
C526 0.1U_0201_10V6KC526 0.1U_0201_10V6K
12
C467
1U_0402_6.3V6K
C467
1U_0402_6.3V6K
1
2
R321
100_0402_5%
R321
100_0402_5%
12
C816
0.1U_0402_16V7K
C816
0.1U_0402_16V7K
1
2
C515
18P_0201_50V8J
XEMC@
C515
18P_0201_50V8J
XEMC@
1
2
C521 0.1U_0201_10V6KC521 0.1U_0201_10V6K
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (9/9) VSS
Custom
21 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (9/9) VSS
Custom
21 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
PCH (9/9) VSS
Custom
21 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
U37I
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
U37I
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
VSS[159]
AY4
VSS[160]
AY42
VSS[161]
AY46
VSS[162]
AY8
VSS[163]
B11
VSS[164]
B15
VSS[165]
B19
VSS[166]
B23
VSS[167]
B27
VSS[168]
B31
VSS[169]
B35
VSS[170]
B39
VSS[171]
B7
VSS[173]
BB12
VSS[174]
BB16
VSS[175]
BB20
VSS[176]
BB22
VSS[177]
BB24
VSS[178]
BB28
VSS[179]
BB30
VSS[180]
BB38
VSS[181]
BB4
VSS[182]
BB46
VSS[183]
BC14
VSS[184]
BC18
VSS[185]
BC2
VSS[186]
BC22
VSS[187]
BC26
VSS[188]
BC32
VSS[189]
BC34
VSS[190]
BC36
VSS[191]
BC40
VSS[192]
BC42
VSS[193]
BC48
VSS[194]
BD46
VSS[195]
BD5
VSS[196]
BE22
VSS[197]
BE26
VSS[198]
BE40
VSS[199]
BF10
VSS[200]
BF12
VSS[201]
BF16
VSS[202]
BF20
VSS[203]
BF22
VSS[204]
BF24
VSS[205]
BF26
VSS[206]
BF28
VSS[207]
BD3
VSS[208]
BF30
VSS[209]
BF38
VSS[210]
BF40
VSS[211]
BF8
VSS[212]
BG17
VSS[213]
BG21
VSS[214]
BG33
VSS[215]
BG44
VSS[216]
BG8
VSS[217]
BH11
VSS[218]
BH15
VSS[219]
BH17
VSS[220]
BH19
VSS[222]
BH27
VSS[223]
BH31
VSS[224]
BH33
VSS[225]
BH35
VSS[226]
BH39
VSS[227]
BH43
VSS[228]
BH7
VSS[229]
D3
VSS[230]
D12
VSS[231]
D16
VSS[232]
D18
VSS[233]
D22
VSS[234]
D24
VSS[235]
D26
VSS[236]
D30
VSS[237]
D32
VSS[264] K7
VSS[265] L18
VSS[266] L2
VSS[267] L20
VSS[268] L26
VSS[269] L28
VSS[270] L36
VSS[271] L48
VSS[272] M12
VSS[273] P16
VSS[274] M18
VSS[275] M22
VSS[276] M24
VSS[277] M30
VSS[278] M32
VSS[279] M34
VSS[280] M38
VSS[281] M4
VSS[282] M42
VSS[283] M46
VSS[284] M8
VSS[285] N18
VSS[286] P30
VSS[288] P11
VSS[289] P18
VSS[290] T33
VSS[291] P40
VSS[292] P43
VSS[293] P47
VSS[294] P7
VSS[295] R2
VSS[296] R48
VSS[297] T12
VSS[298] T31
VSS[299] T37
VSS[300] T4
VSS[301] W34
VSS[302] T46
VSS[303] T47
VSS[304] T8
VSS[305] V11
VSS[306] V17
VSS[307] V26
VSS[308] V27
VSS[309] V29
VSS[310] V31
VSS[311] V36
VSS[312] V39
VSS[313] V43
VSS[314] V7
VSS[315] W17
VSS[316] W19
VSS[238]
D34
VSS[239]
D38
VSS[240]
D42
VSS[241]
D8
VSS[242]
E18
VSS[243]
E26
VSS[244]
G18
VSS[245]
G20
VSS[246]
G26
VSS[247]
G28
VSS[248]
G36
VSS[249]
G48
VSS[250]
H12
VSS[251]
H18
VSS[317] W2
VSS[318] W27
VSS[319] W48
VSS[320] Y12
VSS[321] Y38
VSS[322] Y4
VSS[323] Y42
VSS[324] Y46
VSS[325] Y8
VSS[328] BG29
VSS[329] N24
VSS[330] AJ3
VSS[287] N47
VSS[252]
H22
VSS[253]
H24
VSS[254]
H26
VSS[255]
H30
VSS[256]
H32
VSS[257]
H34
VSS[258]
F3
VSS[262] K39
VSS[263] K46
VSS[259] H46
VSS[260] K18
VSS[261] K26
VSS[331] AD47
VSS[333] B43
VSS[334] BE10
VSS[335] BG41
VSS[337] G14
VSS[338] H16
VSS[340] T36
VSS[342] BG22
VSS[343] BG24
VSS[344] C22
VSS[345] AP13
VSS[172]
F45
VSS[221]
H10
VSS[346] M14
VSS[347] AP3
VSS[348] AP1
VSS[349] BE16
VSS[350] BC16
VSS[351] BG28
VSS[352] BJ28
U37H
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
U37H
COUGARPOINT_FCBGA989~D
HM77@
S IC BD82HM77 SLJ8C C1 BGA 989P PCH ABO!SA00005AGI0
VSS[1]
AA17
VSS[2]
AA2
VSS[3]
AA3
VSS[5]
AA34
VSS[6]
AB11
VSS[7]
AB14
VSS[8]
AB39
VSS[9]
AB4
VSS[10]
AB43
VSS[11]
AB5
VSS[12]
AB7
VSS[13]
AC19
VSS[14]
AC2
VSS[15]
AC21
VSS[16]
AC24
VSS[17]
AC33
VSS[18]
AC34
VSS[19]
AC48
VSS[20]
AD10
VSS[21]
AD11
VSS[22]
AD12
VSS[23]
AD13
VSS[24]
AD19
VSS[25]
AD24
VSS[26]
AD26
VSS[27]
AD27
VSS[28]
AD33
VSS[29]
AD34
VSS[30]
AD36
VSS[31]
AD37
VSS[33]
AD39
VSS[34]
AD4
VSS[35]
AD40
VSS[36]
AD42
VSS[37]
AD43
VSS[38]
AD45
VSS[39]
AD46
VSS[43]
AF10
VSS[44]
AF12
VSS[46]
AD16
VSS[47]
AF16
VSS[48]
AF19
VSS[49]
AF24
VSS[50]
AF26
VSS[51]
AF27
VSS[52]
AF29
VSS[53]
AF31
VSS[54]
AF38
VSS[55]
AF4
VSS[56]
AF42
VSS[57]
AF46
VSS[59]
AF7
VSS[60]
AF8
VSS[61]
AG19
VSS[62]
AG2
VSS[63]
AG31
VSS[64]
AG48
VSS[65]
AH11
VSS[66]
AH3
VSS[67]
AH36
VSS[68]
AH39
VSS[69]
AH40
VSS[70]
AH42
VSS[71]
AH46
VSS[72]
AH7
VSS[73]
AJ19
VSS[76]
AJ33
VSS[77]
AJ34
VSS[78]
AK12
VSS[79]
AK3
VSS[80] AK38
VSS[81] AK4
VSS[82] AK42
VSS[83] AK46
VSS[84] AK8
VSS[85] AL16
VSS[86] AL17
VSS[87] AL19
VSS[88] AL2
VSS[89] AL21
VSS[90] AL23
VSS[91] AL26
VSS[92] AL27
VSS[93] AL31
VSS[96] AL48
VSS[97] AM11
VSS[98] AM14
VSS[99] AM36
VSS[100] AM39
VSS[102] AM45
VSS[103] AM46
VSS[104] AM7
VSS[105] AN2
VSS[106] AN29
VSS[107] AN3
VSS[108] AN31
VSS[109] AP12
VSS[110] AP19
VSS[111] AP28
VSS[112] AP30
VSS[113] AP32
VSS[114] AP38
VSS[116] AP42
VSS[117] AP46
VSS[118] AP8
VSS[119] AR2
VSS[120] AR48
VSS[121] AT11
VSS[122] AT13
VSS[123] AT18
VSS[124] AT22
VSS[125] AT26
VSS[126] AT28
VSS[127] AT30
VSS[128] AT32
VSS[131] AT42
VSS[132] AT46
VSS[133] AT7
VSS[134] AU24
VSS[135] AU30
VSS[136] AV16
VSS[137] AV20
VSS[138] AV24
VSS[139] AV30
VSS[140] AV38
VSS[141] AV4
VSS[142] AV43
VSS[143] AV8
VSS[144] AW14
VSS[145] AW18
VSS[146] AW2
VSS[147] AW22
VSS[148] AW26
VSS[149] AW28
VSS[150] AW32
VSS[151] AW34
VSS[152] AW36
VSS[153] AW40
VSS[154] AW48
VSS[155] AV11
VSS[156] AY12
VSS[157] AY22
VSS[158] AY28
VSS[40]
AD8
VSS[42]
AE3
VSS[45]
AD14
VSS[115] AP4
VSS[0]
H5
VSS[58]
AF5
VSS[32]
AD38
VSS[4]
AA33
VSS[74]
AJ21
VSS[75]
AJ24
VSS[41]
AE2
VSS[129] AT34
VSS[130] AT39
VSS[101] AM43
VSS[95] AL34
VSS[94] AL33
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

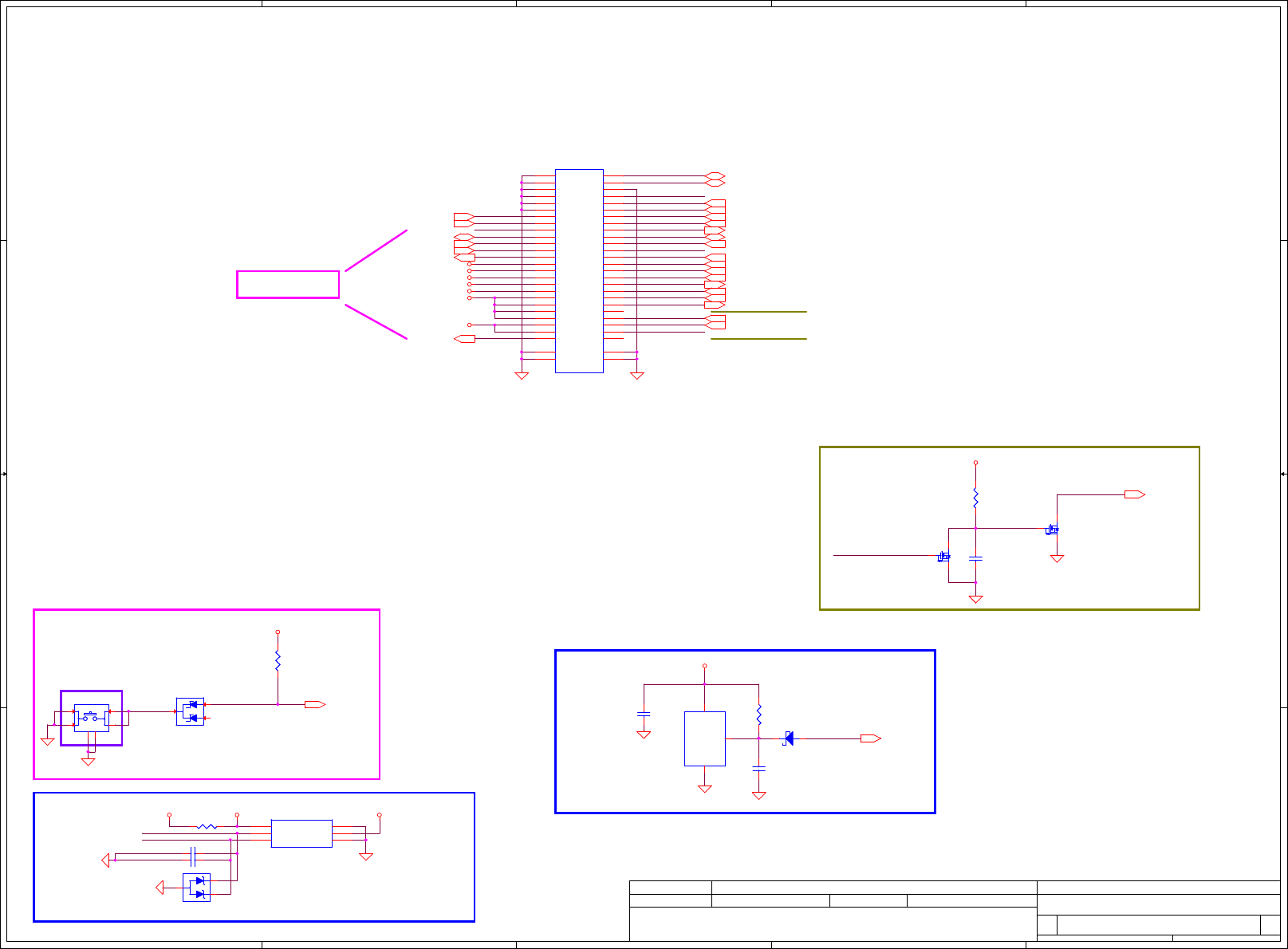

Panel POWER CIRCUIT
eDP PANEL Conn.
W=40mils
SM010014520 3000ma
220ohm@100mhz
DCR 0.04
W=40mils
JEDP1
I-PEX_20455-030E-12_30P-T
60mils
10mil
SAGE 3G
W=60mils
W=60mils
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G PVT
EDP_HPD
EDP_AUXP_C
EDP_AUXN_C
EDP_TXN0_C
EDP_TXP0_C
EDP_TXN1_C
EDP_TXP1_C
EDP_HPD
USB20_P3
USB20_N3
FB244
FB344
FB444
FB144
EDP_AUXP4
EDP_AUXN4
EDP_TXP04
EDP_TXN04
EDP_TXN14
EDP_TXP14
USB20_P317
USB20_N317
TS_INT#17
EDP_HPD#4
PCH_ENVDD 16
+INVPWR_B+
+LG_VOUT +INVPWR_B+
+LCDVDD
+5V_TS
+3VS
+5V_TS
+5VS
+LCDVDD
+LCDVDD
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
LVDS Connector
Custom
22 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
LVDS Connector
Custom
22 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
LVDS Connector
Custom
22 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R465 0_0402_5%
@
R465 0_0402_5%
@
12
C9130.1U_0402_16V7K eDP@ C9130.1U_0402_16V7K eDP@
1 2
C489
1U_0402_6.3V6K
C489
1U_0402_6.3V6K
1
2
C10
0.1U_0402_16V4Z
C10
0.1U_0402_16V4Z
1
2
C9120.1U_0402_16V7K eDP@ C9120.1U_0402_16V7K eDP@
1 2
L1
FBMA-L11-201209-221LMA30T_0805
L1
FBMA-L11-201209-221LMA30T_0805
12
C9100.1U_0402_16V7K eDP@ C9100.1U_0402_16V7K eDP@
1 2
R480
100K_0402_5%
eDP@
R480
100K_0402_5%
eDP@
12
C9110.1U_0402_16V7K eDP@ C9110.1U_0402_16V7K eDP@
1 2
C542
0.1U_0402_16V4Z
@
C542
0.1U_0402_16V4Z
@
1
2
R186
0_0402_5%
@
R186
0_0402_5%
@
1 2
C9140.1U_0402_16V7K eDP@ C9140.1U_0402_16V7K eDP@
1 2
C7
68P_0402_50V8J
C7
68P_0402_50V8J
1
2
D15
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
D15
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
2
3
1
G
D
S
Q29
DMN65D8LW-7_SOT323-3
eDP@
SB00000UO00
G
D
S
Q29
DMN65D8LW-7_SOT323-3
eDP@
SB00000UO00
2
13
C9150.1U_0402_16V7K eDP@ C9150.1U_0402_16V7K eDP@
1 2
C562
4.7U_0603_6.3V6K
C562
4.7U_0603_6.3V6K
1
2
U2007
G5243T11U_SOT23-5
SA000028Y00
U2007
G5243T11U_SOT23-5
SA000028Y00
IN
5
IN
4
OUT 1
EN 3
GND 2
JEDP1
I-PEX_20455-030E-12
CONN@
JEDP1
I-PEX_20455-030E-12
CONN@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
G1 31
G2 32
G3 33
G4 34
J18
JUMP_43X39
@J18
JUMP_43X39
@
1
122
C11
680P_0402_50V7K
C11
680P_0402_50V7K
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

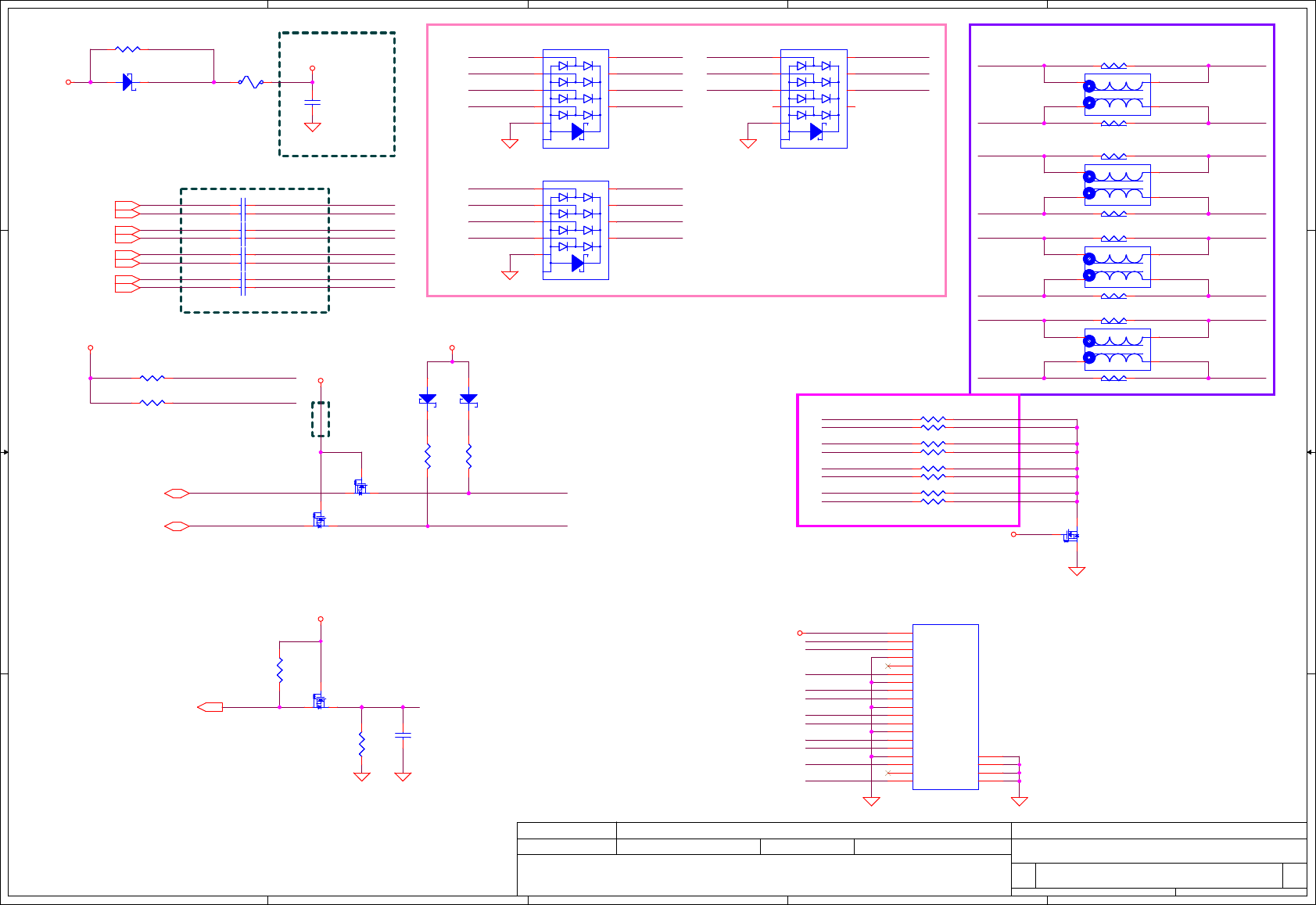

Micro HDMI connector
PCB Footrpint : E-T_0733K-S19M-00R_19P-T-S
W=40mils
Pull high at connector side
Place closed to JHDMI1
SM070001310 400ma 90ohm@100mhz DCR 0.3
SC300002800
S DIO(BR) TVWDF1004AD0 DFN ESD
SAGE 3G
SAGE 3G
SAGE 3G DVT
SD034499080
S RES 1/16W 499 +-1% 0402
SAGE 3G R10
HDMI_TX0-
HDMI_TX0+
HDMI_CLK-
HDMI_CLK+
HDMI_TX1-
HDMI_TX1+
HDMI_TX2+
HDMI_TX2-
HDMI_SDATA
HDMI_SCLKSDVO_SCLK
SDVO_SDATA
HDMI_HPDHDMI_HPD
HDMI_SCLK
HDMI_SDATA
HDMI_HPD
HDMI_SCLK
HDMI_SDATA
HDMI_HPD
HDMI_R_CK+HDMI_R_CK+
HDMI_R_CK- HDMI_R_CK-
HDMI_R_D2-
HDMI_R_D2+
HDMI_R_D2-
HDMI_R_D2+
HDMI_R_CK+
HDMI_R_CK-
HDMI_R_D2-
HDMI_R_D2+HDMI_TX2+
HDMI_TX2-
HDMI_CLK+
HDMI_CLK-
+HDMI_5V
HDMI_R_D1+
HDMI_R_D1-
HDMI_R_D1+
HDMI_R_D1-
HDMI_R_D0-
HDMI_R_D0+
HDMI_R_D0-
HDMI_R_D0+
HDMI_R_D1-
HDMI_R_D1+
HDMI_TX1-
HDMI_TX1+
HDMI_TX0-
HDMI_TX0+
HDMI_R_D0-
HDMI_R_D0+
HDMI_HPD
HDMI_SCLK
HDMI_SDATA
HDMI_R_CK-
HDMI_R_D2-
HDMI_R_D1-
HDMI_R_D1+
HDMI_R_D0-
HDMI_R_D0+
HDMI_R_CK+
HDMI_R_D2+
SDVO_SDATA
SDVO_SCLK
HDMI_GND
HDMI_TX0-
HDMI_TX0+
HDMI_CLK-
HDMI_CLK+
HDMI_TX1-
HDMI_TX1+
HDMI_TX2+
HDMI_TX2-
PCH_DPB_N316
PCH_DPB_P316
PCH_DPB_N216
PCH_DPB_P216
PCH_DPB_N116
PCH_DPB_P116
PCH_DPB_N016
PCH_DPB_P016
SDVO_SCLK16
SDVO_SDATA16
PCH_DPB_HPD16
+3VS
+HDMI_5V_OUT
+HDMI_5V_OUT
+3VS
+3VS
+5VS
+HDMI_5V_OUT
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
HDMI Connector
Custom
23 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
HDMI Connector
Custom
23 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
HDMI Connector
Custom
23 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R583 499_0402_1%R583 499_0402_1%
1 2
D10
RB491D-YS_SOT23-3
D10
RB491D-YS_SOT23-3
2 1
C280 0.1U_0402_16V7KC280 0.1U_0402_16V7K
12
S
G
D
Q16A
DMN66D0LDW-7_SOT363-6
S
G
D
Q16A
DMN66D0LDW-7_SOT363-6
5
34
L36
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
L36
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
1
122
33
4
4
C281 0.1U_0402_16V7KC281 0.1U_0402_16V7K
12
R584 0_0402_5%@R584 0_0402_5%@
1 2
F1
1.1A_6VDC_FUSE
F1
1.1A_6VDC_FUSE
21
R594 499_0402_1%R594 499_0402_1%
1 2
8
7
65
4
3
2
1
9
10
D3
TVWDF1004AD0_DFN
XEMC@
8
7
65
4
3
2
1
9
10
D3
TVWDF1004AD0_DFN
XEMC@
4
5
1
6
2
7
3
9
8
R585 0_0402_5%@R585 0_0402_5%@
1 2
JHDMI1
E&T_0733K-S19M-00R
E-T_0733K-S19M-00R_19P-T
CONN@
JHDMI1
E&T_0733K-S19M-00R
E-T_0733K-S19M-00R_19P-T
CONN@
HP_DET
1Utility
2D2+
3D2_shield
4D2-
5D1+
6D1_shield
7D1-
8D0+
9D0_shield
10 D0-
11 CK+
12 CK_shield
13 CK-
14 CEC
15 DDC/CEC_GND
16 SCL
17 SDA
18 +5V
19
GND 20
GND 21
GND 22
GND 23
L40
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
L40
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
1
122
33
4
4
R591 0_0402_5%@R591 0_0402_5%@
1 2
L38
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
L38
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
1
122
33
4
4
D11
RB751V-40_SOD323-2
D11
RB751V-40_SOD323-2
21
G
S
D
Q16B
DMN66D0LDW-7_SOT363-6
G
S
D
Q16B
DMN66D0LDW-7_SOT363-6
61
2
S
G
D
Q14A
DMN66D0LDW-7_SOT363-6
S
G
D
Q14A
DMN66D0LDW-7_SOT363-6
5
34
G
S
D
Q14B
DMN66D0LDW-7_SOT363-6
G
S
D
Q14B
DMN66D0LDW-7_SOT363-6
61
2
D12
RB751V-40_SOD323-2
D12
RB751V-40_SOD323-2
21
R575 0_0402_5%@R575 0_0402_5%@
1 2
R198
1M_0402_5%
R198
1M_0402_5%
12
R571 0_0402_5%@R571 0_0402_5%@
1 2
C345
0.1U_0402_16V4Z
C345
0.1U_0402_16V4Z
1
2
R592 499_0402_1%R592 499_0402_1%
1 2
R219
100K_0402_5%
R219
100K_0402_5%
12
R590 499_0402_1%R590 499_0402_1%
1 2
C282 0.1U_0402_16V7KC282 0.1U_0402_16V7K
12
8
7
65
4
3
2
1
9
10
D13
TVWDF1004AD0_DFN
XEMC@
8
7
65
4
3
2
1
9
10
D13
TVWDF1004AD0_DFN
XEMC@
4
5
1
6
2
7
3
9
8
R564 499_0402_1%R564 499_0402_1%
1 2
C283 0.1U_0402_16V7KC283 0.1U_0402_16V7K
12
R250 2.2K_0402_5%R250 2.2K_0402_5%
1 2
R586 0_0402_5%@R586 0_0402_5%@
1 2
R257
2.2K_0402_5%
R257
2.2K_0402_5%
1 2
R587 499_0402_1%R587 499_0402_1%
1 2
C286 0.1U_0402_16V7KC286 0.1U_0402_16V7K
12
R253 2.2K_0402_5%R253 2.2K_0402_5%
1 2
R255
2.2K_0402_5%
R255
2.2K_0402_5%
1 2
8
7
65
4
3
2
1
9
10
D7
TVWDF1004AD0_DFN
XEMC@
8
7
65
4
3
2
1
9
10
D7
TVWDF1004AD0_DFN
XEMC@
4
5
1
6
2
7
3
9
8
C285 0.1U_0402_16V7KC285 0.1U_0402_16V7K
12
R573 499_0402_1%R573 499_0402_1%
1 2
C287 0.1U_0402_16V7KC287 0.1U_0402_16V7K
12
R593 0_0402_5%@R593 0_0402_5%@
1 2
C284 0.1U_0402_16V7KC284 0.1U_0402_16V7K
12
R570 499_0402_1%R570 499_0402_1%
1 2
R565 0_0402_5%@R565 0_0402_5%@
1 2
R242
0_0603_5%
@R242
0_0603_5%
@
1 2
C324
100P_0402_50V8J
C324
100P_0402_50V8J
1
2
L39
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
L39
DLW21SN900HQ2L_0805
XEMC@
SM070001E00
1
122
33
4
4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

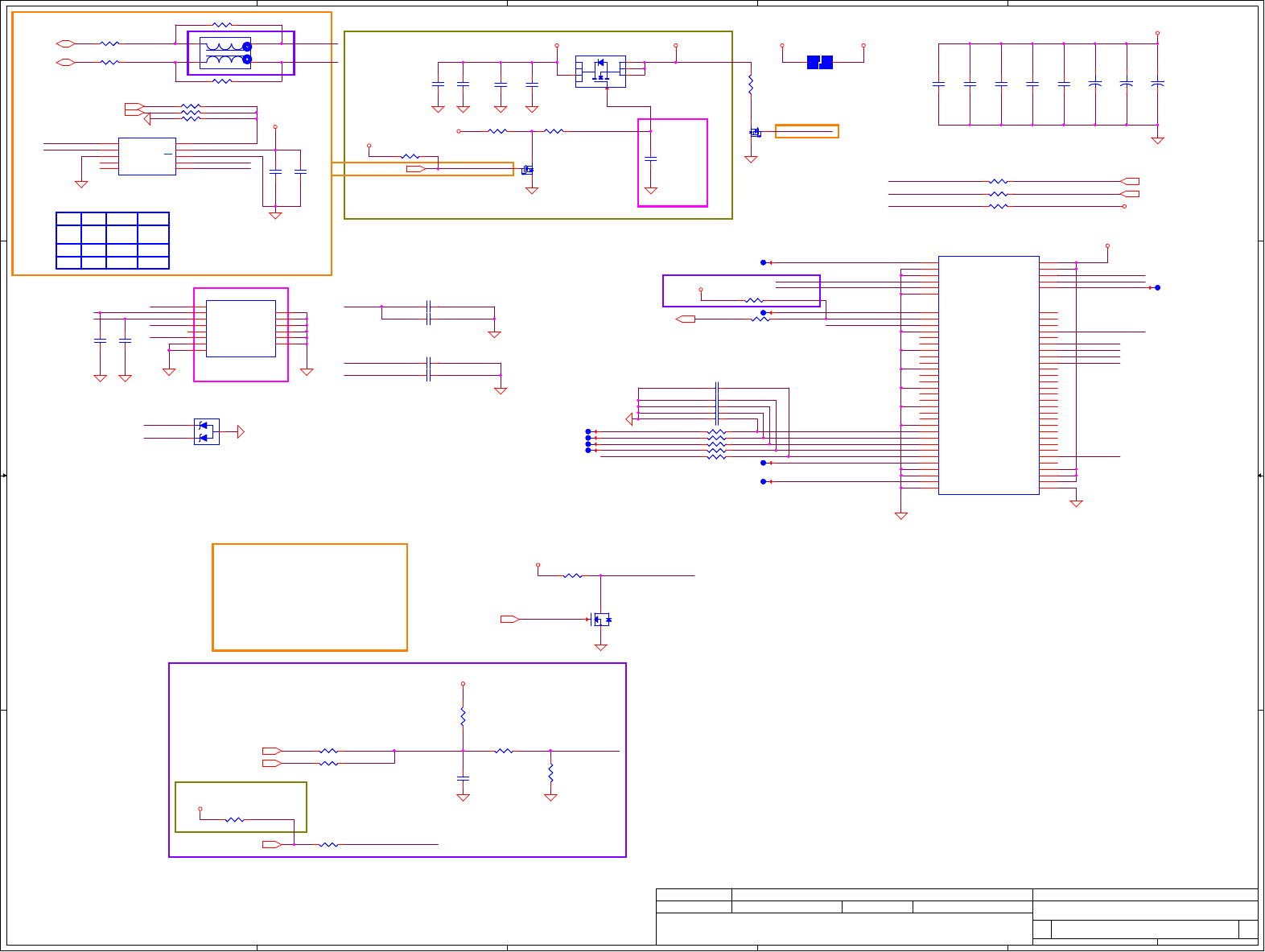

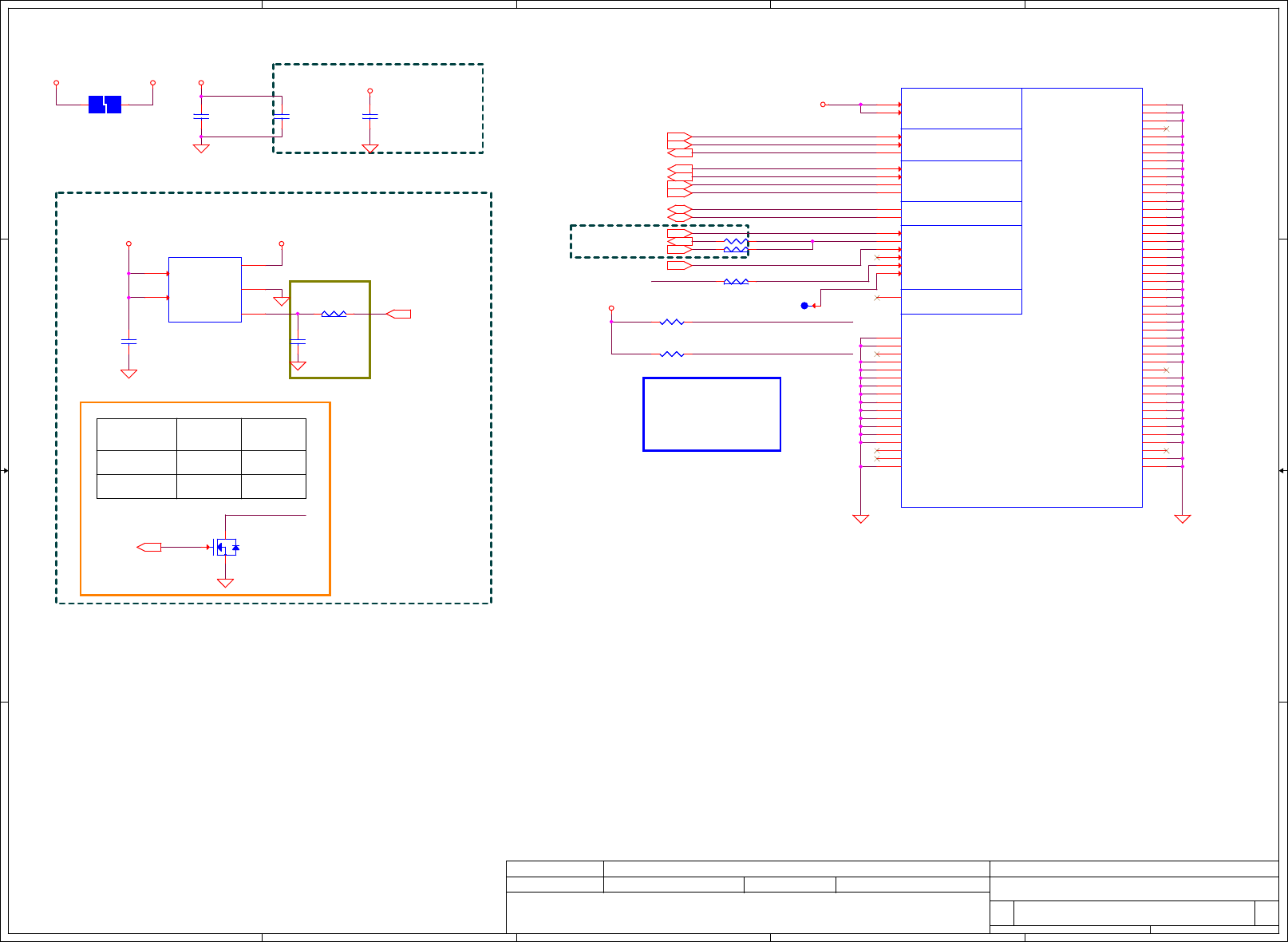

60mil Mini Card Power Rating
For Wireless LAN
Enable Disable
L H
H L
BT BT
BT_CTRL
BT_ON#
Support ISCT
Without Support ISCT
A4,D12,F5,F9,F10,G5
-> GND at MD225
-> NC at MD222
SAGE 3G
40mil(1A)
SAGE 3G
SAGE 3G
SAGE 3G PVT
BT_CTRL_RBT_CTRL
BT_CTRL
PCH_PCIE_W AKE#_R
BT_LED
PCH_PCIE_W AKE#_R
MINI1_CLKREQ#
PLT_RST_BUF#17
USB20_N817
USB20_P817
MINI1_CLKREQ#14
PCH_PCIE_W AKE#15
WL_OFF#28
CLK_PCIE_MINI1#14
CLK_PCIE_MINI114
PCIE_PRX_DTX_P114
PCIE_PRX_DTX_N114
PCIE_PTX_C_DRX_N114
PCIE_PTX_C_DRX_P114
BT_ON#28
EC_PCIE_WAKE#28,31
AOAC_ON 28
+3VS_WLAN
+3VS_WLAN
+3VS_WLAN+3VS +3VS_WLAN
+3VS_WLAN
+3VALW +3VS_WLAN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
On Board WLAN
Custom
24 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
On Board WLAN
Custom
24 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
On Board WLAN
Custom
24 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R427 10K_0402_5%R427 10K_0402_5%
1 2
T74 PAD @T74PAD @
R490 0_0402_5%@R490 0_0402_5%@
1 2
J10
JUMP_43X79
@
J10
JUMP_43X79
@
1 2
R702 0_0402_5%@R702 0_0402_5%@
1 2
Control
Power
USB signal
Clock
PCIE signal
GND
U1
T77H281.01_81P
PK29S003M00
FOXMD222@
Control
Power
USB signal
Clock
PCIE signal
GND
U1
T77H281.01_81P
PK29S003M00
FOXMD222@
WIFI_DISABLE
G6
WIFI_LED
G7
PERN0
L6
PERP0
L7
PETN0
L8
PETP0
L9
BT_DISABLE
E12
BT_LED
G8
USB_D+
G9
USB_D-
G10
PERST_L
D1
WAKE_L
E1
CLKREQ_L
F1
REFCLK-
L4
REFCLK+
L5
NC
F4
3V3
F12
3.3VAUX
G4 GND[18] A1
GND[19] A2
GND[20] A3
GND[21] A4
GND[22] A5
GND[23] A6
GND[24] A7
GND[25] A8
GND[26] A9
GND[27] A10
GND[28] A11
GND[29] A12
GND[30] B1
GND[31] B2
GND[32] B11
GND[33] B12
GND[34] C1
GND[35] C4
GND[36] C5
GND[37] C6
GND[38] C7
GND[39] C8
GND[40] C9
GND[41] C10
GND[42] C12
GND[43] D3
GND[61] F5
GND[60] F3
GND[59] E10
GND[58] E9
GND[57] E8
GND[56] E7
GND[55] E6
GND[54] E5
GND[53] E4
GND[52] E3
GND[51] D12
GND[50] D10
GND[49] D9
GND[48] D8
GND[47] D7
GND[46] D6
GND[45] D5
GND[44] D4
GND[62] F6
GND[63] F7
GND[17]
F8 GND[16]
F9 GND[15]
F10
GND[1]
G1
GND[2]
G3
GND[3]
G5
GND[4]
G12
GND[5]
H1
GND[6]
H2
GND[7]
H11
GND[8]
H12
GND[9]
L1
GND[10]
L2
GND[11]
L3
GND[12]
L10
GND[13]
L11
GND[14]
L12
C2109
1U_0402_6.3V6K
C2109
1U_0402_6.3V6K
1
2
C403
4.7U_0603_6.3V6K
C403
4.7U_0603_6.3V6K
1
2
R464 10K_0402_5%@R464 10K_0402_5%@
1 2
C735
0.1U_0402_16V4Z
C735
0.1U_0402_16V4Z
1
2
C539
0.1U_0402_16V4Z
@
C539
0.1U_0402_16V4Z
@
1
2
R491 0_0402_5%@R491 0_0402_5%@
1 2
C387
0.1U_0402_16V4Z
@
C387
0.1U_0402_16V4Z
@
1
2
R185
0_0402_5%
@
R185
0_0402_5%
@
1 2
U2008
G5243T11U_SOT23-5
SA000028Y00
U2008
G5243T11U_SOT23-5
SA000028Y00
IN
5
IN
4
OUT 1
EN 3
GND 2
G
D
S
Q62
2N7002KW_SOT323-3
G
D
S
Q62
2N7002KW_SOT323-3
2
13
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

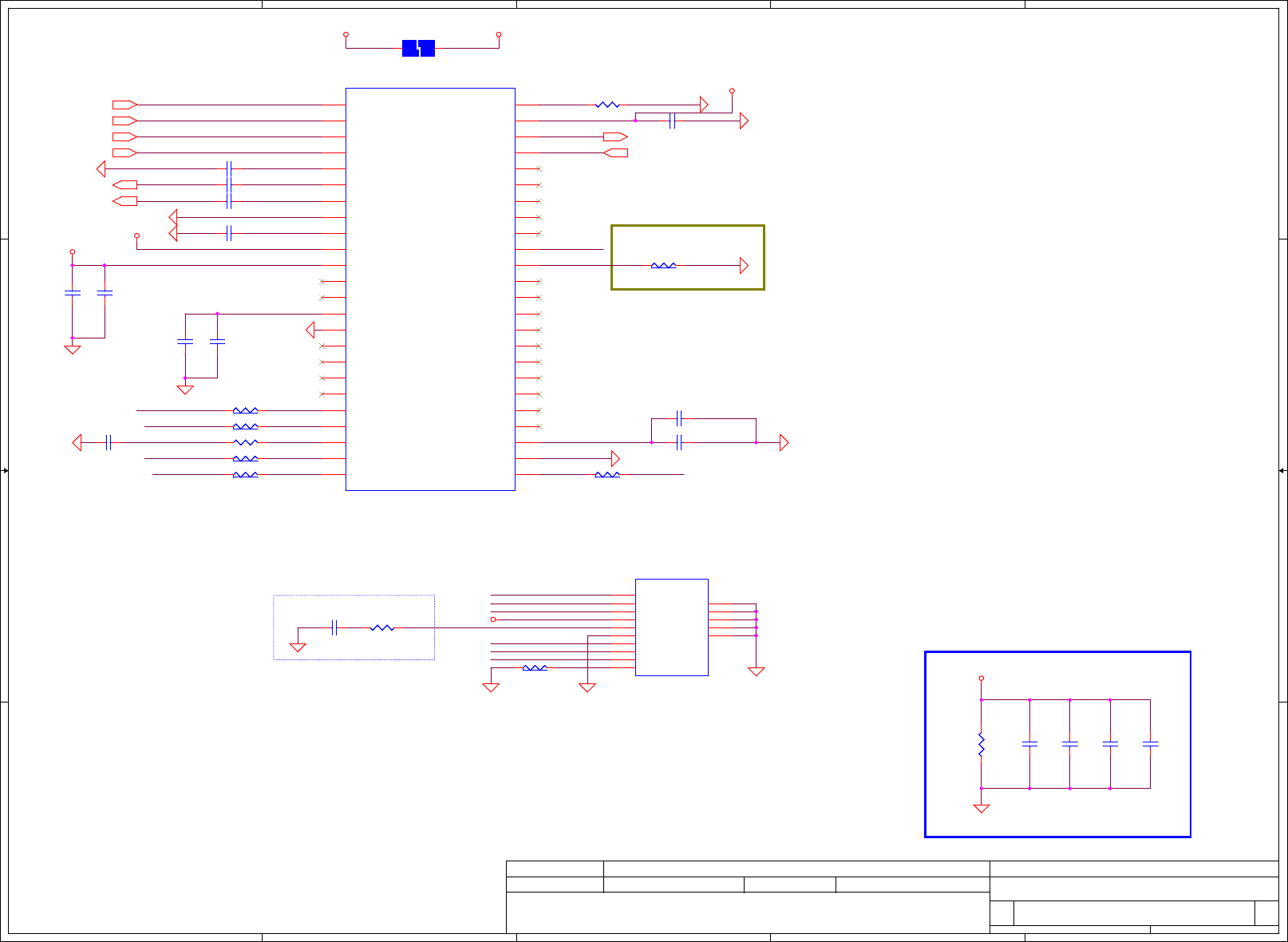

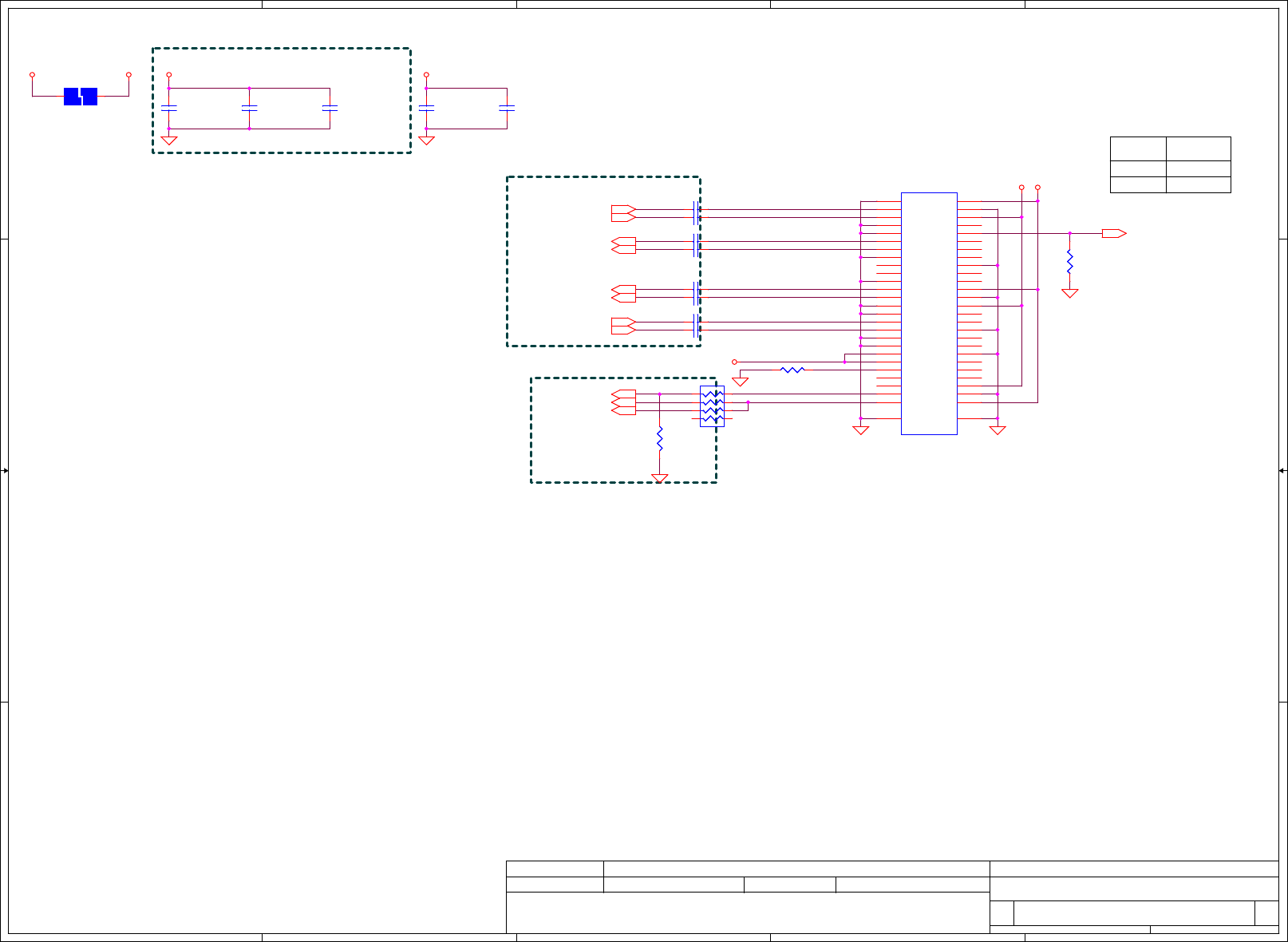

60mil
For mSATA
20mil
Function
Port0,1
Port0
RAID0_DET
L
H
JMINI1
SP07000LL00
ACES_51700-0520W-001_52P
From DG=>Change to 0.01u
SAGE 3G
SAGE 3G
SATA_PTX_C_DRX_N1
SATA_PTX_C_DRX_P1
SATA_PRX_C_DTX_P1
SATA_PRX_C_DTX_N1
SATA_PTX_C_DRX_N0
SATA_PTX_C_DRX_P0
SATA_PRX_C_DTX_P0
SATA_PRX_C_DTX_N0
E51TXD_P80DATA_R
E51RXD_P80CLK_R
SATA_PTX_DRX_P113
SATA_PTX_DRX_N113
SATA_PRX_DTX_P113
SATA_PRX_DTX_N113
SATA_PTX_DRX_P013
SATA_PTX_DRX_N013
SATA_PRX_DTX_P013
SATA_PRX_DTX_N013
E51RXD_P80CLK28
E51TXD_P80DATA28
RAID0_DET 18
MSATA_DET#18
+3VS_FULL +1.5VS+3VS +3VS_FULL
+3VS_FULL
+3VS_FULL+1.5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
mSATA HDD Connector
Custom
25 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
mSATA HDD Connector
Custom
25 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
mSATA HDD Connector
Custom
25 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
C624 0.01U_0402_16V7KC624 0.01U_0402_16V7K
1 2
C442
0.1U_0402_16V4Z
C442
0.1U_0402_16V4Z
1
2
C626 0.01U_0402_16V7K@C626 0.01U_0402_16V7K@
1 2
C441
0.1U_0402_16V4Z
C441
0.1U_0402_16V4Z
1
2
C475
0.1U_0402_16V4Z
C475
0.1U_0402_16V4Z
1
2
JMINI1
ACES_51700-0520W-001
CONN@
JMINI1
ACES_51700-0520W-001
CONN@
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
GND1
53
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
22 22
24 24
26 26
28 28
30 30
32 32
34 34
36 36
38 38
40 40
42 42
44 44
46 46
48 48
50 50
52 52
GND2 54
C628 0.01U_0402_16V7K@C628 0.01U_0402_16V7K@
1 2
R329
100K_0402_5%
R329
100K_0402_5%
12
C466
0.1U_0402_16V4Z
C466
0.1U_0402_16V4Z
1
2
C621 0.01U_0402_16V7KC621 0.01U_0402_16V7K
1 2
C455
4.7U_0603_6.3V6K
C455
4.7U_0603_6.3V6K
1
2
R476 0_0402_5%@R476 0_0402_5%@
1 2
J8
JUMP_43X79
@
J8
JUMP_43X79
@
1 2
C623 0.01U_0402_16V7KC623 0.01U_0402_16V7K
1 2
C625 0.01U_0402_16V7K@C625 0.01U_0402_16V7K@
1 2
C622 0.01U_0402_16V7KC622 0.01U_0402_16V7K
1 2
R300
100K_0402_5%
R300
100K_0402_5%
12
C627 0.01U_0402_16V7K@C627 0.01U_0402_16V7K@
1 2
RP42 1K_8P4R_5%RP42 1K_8P4R_5%
18
27
36
45
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

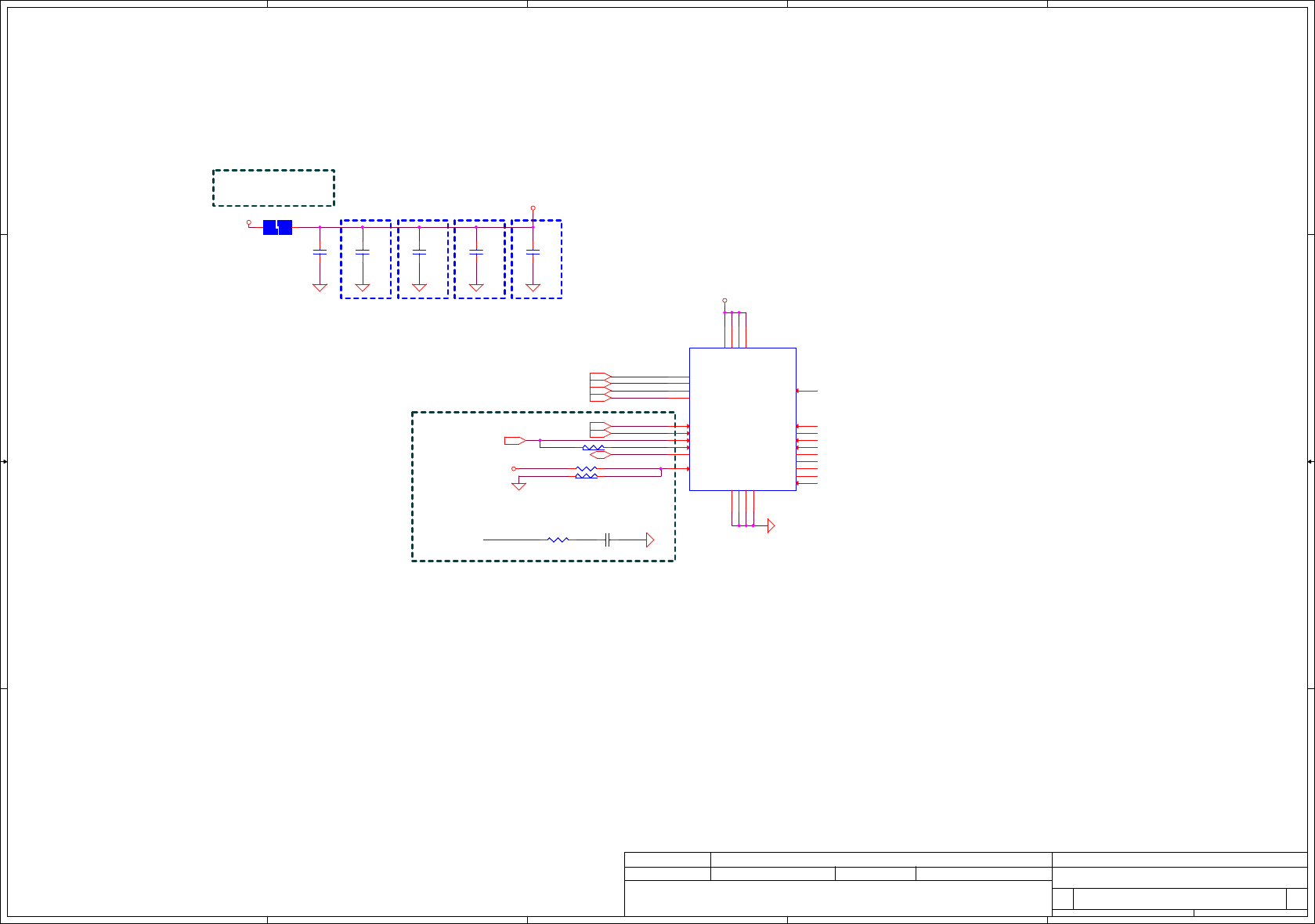

TPM - Infineon
SA00005XH40
S IC SLB9655TT1.2 FW4.31 TSSOP 28P TPM
near pin10near pin5 near pin19 near pin24
TPM
10mil
SAGE 3G
SAGE 3G
PLT_RST#
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
CLK_PCI_TXM
LPC_FRAME#
SERIRQ
CLK_PCI_TXM
TPM_PP
PLT_RST#17,28,31,32,5
LPC_AD013,28
LPC_AD113,28
LPC_AD213,28
LPC_AD313,28
LPC_FRAME#13,28
CLK_PCI_TXM17
SERIRQ13,28
+3V_TPM
+3VS
+3V_TPM
+3V_TPM
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
TPM Infineon-SLB9655
Custom
26 52Wednesday, March 13, 2013
2010/11/1 2011/11/1
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
TPM Infineon-SLB9655
Custom
26 52Wednesday, March 13, 2013
2010/11/1 2011/11/1
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
TPM Infineon-SLB9655
Custom
26 52Wednesday, March 13, 2013
2010/11/1 2011/11/1
Compal Electronics, Inc.
R9670_0402_5% @R9670_0402_5% @
1 2
R966 0_0402_5%@R966 0_0402_5%@
1 2
C1
10U_0603_6.3V6M
@C1
10U_0603_6.3V6M
@
12
TPM
SLB 9655 TT 1.2
U7
SLB9655TT1.2_TSSOP28
TPM@
SA00005XH40
TPM
SLB 9655 TT 1.2
U7
SLB9655TT1.2_TSSOP28
TPM@
SA00005XH40
GND
4
GND
11
GND
18
GND
25
VDD 24
VDD 19
LAD0
26
LAD1
23
LAD2
20
LAD3
17
LCLK
21
LFRAME#
22
LRESET#
16
SERIRQ
27
NC 15
PP
7NC 1
NC 3
NC 12
VDD 10
VDD 5
LRESET#
9
NC 8
GPIO 6
NC 14
NC 13
NC 28
NC 2
J15
JUMP_43X39
@J15
JUMP_43X39
@
1
122
R9880_0402_5% @R9880_0402_5% @
1 2
C534
0.1U_0402_16V4Z
TPM@C534
0.1U_0402_16V4Z
TPM@
1
2
C536
0.1U_0402_16V4Z
TPM@C536
0.1U_0402_16V4Z
TPM@
1
2
C538
0.1U_0402_16V4Z
TPM@C538
0.1U_0402_16V4Z
TPM@
1
2
R716
33_0402_5%
XEMC@
R716
33_0402_5%
XEMC@
1 2
C535
0.1U_0402_16V4Z
TPM@C535
0.1U_0402_16V4Z
TPM@
1
2
C724
22P_0402_50V8J
XEMC@
C724
22P_0402_50V8J
XEMC@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
For ESD request
CAMERA1
JCMOS2.5 to GND
(Shielding GND as SED's requirement)
JCMOS1
SP010013W00
ACES_88460-00601-P01_6P
S H-CONN ACES 88460-00601-P01 6P P0.8
JUSB1
E-T_6120K-S09N-00R_9P-T
USB3.0 Conn.
W=80mils
SGA00001E00
S POLY C 150U 6.3V M B2LESR45M PSL H1.9
SC300002800
S DIO(BR) TVWDF1004AD0 DFN ESD
SAGE 3G
SAGE 3G
For USB2.0 ESD request
Resister overlap with L52
SAGE 3G
Reserve for RF
SAGE 3G
SAGE 3G
SAGE 3G R10
SAGE 3G R10
U2DP0
U2DN0
U3TXDP2
U3TXDN2
U3RXDP2
U3RXDN2
U3TXDP2
U3TXDN2
U3RXDN2U3RXDN2
U3TXDN2
U3RXDP2
U3TXDP2
U3RXDP2
U3TXDP2
U3TXDN2
PCH_USB3_TX2_P_C
PCH_USB3_TX2_N_C
U3RXDP2
U3RXDN2PCH_USB3_RX2_N
PCH_USB3_RX2_P
U2DN0
U2DP0
U2DN0
U2DP0
USB_EN#28 USB_OC0# 17
USB20_N1017
USB20_P1017
PCH_USB3_TX2_P17
PCH_USB3_TX2_N17
PCH_USB3_RX2_N17
PCH_USB3_RX2_P17
USB20_P117
USB20_N117
+USB3_VCCA+5VALW
+3VS
+USB3_VCCA
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
USB3.0
Custom
27 52Tuesday, March 26, 2013
2011/06/24 2012/06/13
V1JB1 M/B LA-A041P Schematic
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
USB3.0
Custom
27 52Tuesday, March 26, 2013
2011/06/24 2012/06/13
V1JB1 M/B LA-A041P Schematic
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
USB3.0
Custom
27 52Tuesday, March 26, 2013
2011/06/24 2012/06/13
V1JB1 M/B LA-A041P Schematic
R10 0_0402_5%@R10 0_0402_5%@
1 2
8
7
65
4
3
2
1
9
10
D35
TVW DF1004AD0_DFN
XEMC@
SC300002800
8
7
65
4
3
2
1
9
10
D35
TVW DF1004AD0_DFN
XEMC@
SC300002800
4
5
1
6
2
7
3
9
8
C112
1.8P_0402_50V8
XEMC@
C112
1.8P_0402_50V8
XEMC@
1
2
L4 DLW21SN900HQ2L_0805
SM070001E00
EMC@
L4 DLW21SN900HQ2L_0805
SM070001E00
EMC@
11
2
2
3
344
+
C394
150U_B2_6.3VM_R35M
SGA00002N80
+
C394
150U_B2_6.3VM_R35M
SGA00002N80
1
2
U17
AP2301MPG-13_MSOP8
U17
AP2301MPG-13_MSOP8
FLG 5
VIN
3VOUT 6
GND
1
EN
4
VOUT 7
VIN
2VOUT 8
EPAD
9
C422 0.1U_0402_16V7KC422 0.1U_0402_16V7K
12
C393
470P_0402_50V7K
C393
470P_0402_50V7K
1
2
C443
0.1U_0201_10V6K
@
C443
0.1U_0201_10V6K
@
1
2
D24
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
D24
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
2
3
1
C432
0.01U_0402_16V7K
@C432
0.01U_0402_16V7K
@
1 2
D17
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
D17
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
2
3
1
C424 0.1U_0402_16V7KC424 0.1U_0402_16V7K
12
JCMOS1
ACES_88460-00601-P01
CONN@
JCMOS1
ACES_88460-00601-P01
CONN@
1
1
2
2
3
3
G1 7
G2 8
4
4
5
5
6
6
R9 0_0402_5%@R9 0_0402_5%@
1 2
R11 0_0402_5%@R11 0_0402_5%@
1 2
R12 0_0402_5%@R12 0_0402_5%@
1 2
C109
1.8P_0402_50V8
XEMC@
C109
1.8P_0402_50V8
XEMC@
1
2
C110
1.8P_0402_50V8
XEMC@
C110
1.8P_0402_50V8
XEMC@
1
2
JUSB1
E&T_6120K-S09N-00R
CONN@
E-T_6120K-S09N-00R_9P-T
JUSB1
E&T_6120K-S09N-00R
CONN@
E-T_6120K-S09N-00R_9P-T
SSTX-
8
SSTX+
9
GND 10
GND 12
VBUS
1
D-
2
D+
3
GND
4
SSRX-
5
SSRX+
6
GND
7
GND 11
GND 13
R314
0_0402_5%
@
R314
0_0402_5%
@
1 2
L3 DLW21SN900HQ2L_0805
SM070001E00
EMC@
L3 DLW21SN900HQ2L_0805
SM070001E00
EMC@
11
2
2
3
344
R691 0_0402_5%
@
R691 0_0402_5%
@
1 2
C111
1.8P_0402_50V8
XEMC@
C111
1.8P_0402_50V8
XEMC@
1
2
R689 0_0402_5%
@
R689 0_0402_5%
@
1 2
L52 DLW21SN900HQ2L_0805
SM070001E00
EMC@
L52 DLW21SN900HQ2L_0805
SM070001E00
EMC@
11
2
2
3
344
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
Rb Rb
12mil
XTAL
EC SMI/SCI default PH
4MB=32Mb
For EMI
SAGE 3G
SAGE 3G
ESD request
SAGE 3G
Reserve for RF / Close to EC
SAGE 3G
Reserve for RF
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G R20
SAGE 3G
SAGE 3G
Project ID
Ra
Analog Project ID definition
Board ID
Ra
Analog Board ID definition,
Please see page 3.
SAGE 3G DVT
IO/B_DET = 1 -> IO/B connected.
IO/B_DET = 0 -> IO/B disconnected.
SAGE 3G DVT
SAGE 3G R20
SAGE 3G DVT
SAGE 3G R20
USB_EN#_R
EC_PECI
AD_PID0 AD_BID0
SUSACK#
PCH_RSMRST#
EC_ACIN
BI_DET
PM_SLP_S3#
PM_SLP_S4#
EC_SMI#_R
FAN_SPEED1
EC_3G_USB_ON
ON/OFF
H_PROCHOT#_EC
ACPRESENT
EC_PECI
GATEA20
EC_KBRST#
LPC_AD1
LPC_AD2
LPC_AD3
LPC_AD0
CLK_PCI_LPC
LPC_FRAME#
SERIRQ
EC_SCI#_R
+EC_AVCC
ECAGND
ECAGND
+3VALW_EC
FAN_PWM
BEEP#
AD_PID0
AD_BID0
CHG_TEMP
ADP_I
USB_EN#_R
ENBKL
SUSWARN#
SLP_SUS#
WL_OFF#
EC_SMB_CK1
EC_SMB_DA1
EC_SMB_DA2
EC_SMB_CK2
EC_3G_PWR_EN#
AOAC_ON
EC_MUTE#
PLT_RST#_R
EC_RST#
EC_SPICLK
EC_SPICS#/FSEL#
EC_SPICLK_R
BKOFF#
EC_MUTE#
FAN_PWMFAN_SPEED1
EC_ACIN
VR_HOT#
H_PROCHOT#_EC
EC_PCIE_WAKE#
BATT_TEMP
BATT_TEMP ECAGND
ON/OFF_R
EAPD
EC_ON
DRAMRST_CNTRL_EC
VOL_UP#_R
VOL_DOWN#_R
SA_PGOOD
SYSON
SUSP#
DPWROK
HDA_SDO
E51RXD_P80CLK
E51TXD_P80DATA
PWR_LED#
BATT_AMB_LED#
EC_DS3_WAKE#
PBTN_OUT#
BT_ON#
EC_CK32KE
EC_CK32K
PCH_SPI_CS1#
PCH_SPI_CLK_1
PCH_SPI_MISO_1
PCH_SPI_MOSI_1
EC_SO_SPI_SI
EC_SI_SPI_SO
PCH_BATLOW#
MAINPWON_L
3G_OFF#
GPS_OFF#
EC_RST#
CLK_PCI_LPC
EC_LID_OUT#
EC_SMB_CK3
EC_SMB_DA3
PCH_PWR_EN
PM_SLP_S5#
EC_SMI#_R
EC_SCI#_R
EC_SPICS#/FSEL#
SPI_WP#
SPI_HOLD#
EC_SI_SPI_SO
EC_SO_SPI_SI_R
EC_SI_SPI_SO_R
EC_SO_SPI_SI
VR_ON
IRST_RST#
POUT
PROX_DET_EC
LID_SW#
BKOFF#
CHG_TEMP ECAGND
PLT_RST#
EC_ON
PCH_PWROK
SYSON
EC_SMB_CK3
EC_SMB_DA3
E51RXD_P80CLK
E51TXD_P80DATA
ON/OFF
PLT_RST# PLT_RST#_R
IRST_RST#
EC_SMB_DA3
EC_SMB_CK3
EC_SMI#
VOL_UP#_R
VOL_DOWN#_R
HOME_KEY
EC_PCIE_WAKE#
EC_SMB_DA2
EC_SMB_CK2
PLT_RST#
EC_SCI#
EC_SMB_CK1
EC_SMB_DA1
EC_SPICLK_R
EC_SPICLK_R
LID_SW#
ENBKL
EC_3G_RST#
EC_3G_ON_OFF#
IO/B_DET
D_LOCK
H_PECI5
SUSACK# 15
PCH_RSMRST#15
BI_DET 33
PM_SLP_S3#15
PM_SLP_S4#15
FAN_SPEED1 29
ON/OFF33
ACPRESENT 15
GATEA2018
EC_KBRST#18
LPC_AD213,26
LPC_AD013,26
LPC_AD313,26
LPC_AD113,26
CLK_PCI_LPC17
LPC_FRAME#13,26
SERIRQ13,26
FAN_PWM 29
BEEP# 33
ADP_I 36,37
ENBKL 16
SUSWARN# 15
SLP_SUS# 15
WL_OFF# 24
EC_SMB_DA136,37
EC_SMB_CK136,37
EC_SMB_CK211,14
EC_SMB_DA211,14
AOAC_ON 24
EC_MUTE# 33
ACIN 34,37
H_PROCHOT# 36,5
VR_HOT#42
EC_PCIE_WAKE# 24,31
BATT_TEMP 36
EAPD 33
EC_ON38
DRAMRST_CNTRL_EC6
PCH_PWROK15
SA_PGOOD 15,41
SYSON 34,39
SUSP# 34,39,40,41
DPWROK 15
HDA_SDO 13
E51RXD_P80CLK 25
E51TXD_P80DATA 25
PWR_LED# 33
BATT_AMB_LED# 33
EC_DS3_WAKE# 18
PBTN_OUT# 15
BT_ON# 24
PCH_SPI_CS1# 13
PCH_SPI_CLK_1 13
PCH_SPI_MOSI_1 13
PCH_SPI_MISO_1 13
PCH_BATLOW# 15
EC_LID_OUT# 18
PCH_PWR_EN31,34
PM_SLP_S5#15
EC_SMI#18
EC_SCI#18
HOME_KEY33
D_LOCK33
CHG_TEMP 36
VR_ON 42,5
LID_SW#33
BKOFF#44
IRST_RST# 17
VOL_UP#33
VOL_DOWN#33
MAINPWON_L36
EC_RST#33
PLT_RST#17,26,31,32,5
USB_EN#27
EC_3G_PWR_EN#31
3G_OFF#31
EC_3G_USB_ON 31
GPS_OFF# 31
POUT 33
PROX_DET_EC 31
EC_3G_RST#31
EC_3G_ON_OFF#31
IO/B_DET33
+3VS
+EC_VBAT
+EC_VCCPLL
+3VALW_EC
+3VALW_EC +3VALW_EC
+3VS
+3VALW
+VCORE_EC
+EC_VBAT +3VS
+3VALW_EC
+3VALW_EC
+3VALW_EC
+EC_VCCPLL+3VALW_EC
+RTCVCC +EC_VBAT +3VLP
+3VLP
+3VALW_EC
+3VS
+3VALW_EC
+3VALW_EC +3VALW_EC
+3VALW
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
EC ITE-IT8518
Custom
28 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
EC ITE-IT8518
Custom
28 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
EC ITE-IT8518
Custom
28 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R711
0_0402_5%
@
R711
0_0402_5%
@
1 2
R951 0_0402_5%@R951 0_0402_5%@12
RP25
100K_8P4R_5%
RP25
100K_8P4R_5%
1 8
2 7
3 6
4 5
C766 0.1U_0201_10V6K
XEMC@
C766 0.1U_0201_10V6K
XEMC@
1 2
R940
0_0402_5%
@
R940
0_0402_5%
@12
R705 0_0402_5%@R705 0_0402_5%@
1 2
C1486
1.8P_0402_50V8
XEMC@
C1486
1.8P_0402_50V8
XEMC@
1
2
R934 10K_0402_5%@R934 10K_0402_5%@
1 2
L58
FBMA-L11-160808-800LMT_0603
L58
FBMA-L11-160808-800LMT_0603
1 2
C764 0.1U_0402_16V4Z
EMC@
C764 0.1U_0402_16V4Z
EMC@
1 2
C1216
0.1U_0402_16V4Z
C1216
0.1U_0402_16V4Z
1
2
T24 PAD @T24 PAD @
R928 10K_0402_5%@R928 10K_0402_5%@12
C1209 0.01U_0402_16V7K
EMC@
C1209 0.01U_0402_16V7K
EMC@
1 2
R962 10K_0402_5%R962 10K_0402_5%
1 2
R692 0_0402_5%@R692 0_0402_5%@
1 2
C1208 100P_0402_50V8JC1208 100P_0402_50V8J
12
L57
FBMA-L11-160808-800LMT_0603
L57
FBMA-L11-160808-800LMT_0603
12
C759
10P_0402_50V8J
C759
10P_0402_50V8J
1
2
C722 0.1U_0402_16V4ZC722 0.1U_0402_16V4Z
1 2
R949 100K_0402_5%R949 100K_0402_5%
1 2
C1212
0.1U_0402_16V4Z
C1212
0.1U_0402_16V4Z
1
2
R960
56K_0402_5%
R960
56K_0402_5%
1 2
R95843_0402_1% R95843_0402_1%
12
C727
33P_0402_50V8K
XEMC@ C727
33P_0402_50V8K
XEMC@
R455
56K_0402_5%@
R455
56K_0402_5%@
12
C1198
0.1U_0402_16V4Z
C1198
0.1U_0402_16V4Z
1
2
R936 200K_0402_5%R936 200K_0402_5%
12
D37 RB751V-40_SOD323-2D37 RB751V-40_SOD323-2
2 1
R953 2.2K_0402_5%@R953 2.2K_0402_5%@
1 2
R946 10K_0402_5%R946 10K_0402_5%
1 2
C451
0.1U_0201_10V6K
XEMC@
C451
0.1U_0201_10V6K
XEMC@ 1
2
C1200
0.1U_0402_16V4Z
C1200
0.1U_0402_16V4Z
1
2
C1199
0.1U_0402_16V4Z
C1199
0.1U_0402_16V4Z
1
2
R954 2.2K_0402_5%@R954 2.2K_0402_5%@
1 2
G
D
S
Q60
2N7002KW_SOT323-3
G
D
S
Q60
2N7002KW_SOT323-3
2
13
R6980_0402_5% @R6980_0402_5% @12
D58 RB751V-40_SOD323-2D58 RB751V-40_SOD323-2
2 1
X3
32.768KHZ_12.5PF_1TJF125DP1A000D
SJ100004Z00
X3
32.768KHZ_12.5PF_1TJF125DP1A000D
SJ100004Z00
12
C1201
0.1U_0402_16V4Z
C1201
0.1U_0402_16V4Z
1
2
C528 1U_0402_6.3V6KC528 1U_0402_6.3V6K
12
R724
0_0402_5%
@
R724
0_0402_5%
@
1 2
R948 100K_0402_5%R948 100K_0402_5%
12
C723 47P_0402_50V8J
XEMC@
C723 47P_0402_50V8J
XEMC@
1 2
LPC
Int. K/B
Matrix
SM Bus
GPIO
ADC
PWM
DAC
PS2
EXTERNAL SERIAL FLASH
SPI Flash ROM
UART
Clock
GPIO
WAKE UP
U53
IT8518VG-HX_VFBGA128
LPC
Int. K/B
Matrix
SM Bus
GPIO
ADC
PWM
DAC
PS2
EXTERNAL SERIAL FLASH
SPI Flash ROM
UART
Clock
GPIO
WAKE UP
U53
IT8518VG-HX_VFBGA128
LPCRST#/WUI4/GPD2
M4
CK32KE/GPJ7
G1
KBRST#/GPB6
H4
SERIRQ/GPM6
G2
TACH1A/TMA1/GPD7 M12
LAD3/GPM3
H2
LAD2/GPM2
J1
VCC/VCC J5
LAD0/GPM0
K1
VSS/GND
E5
LFRAME#/GPM5
H1
LAD1/GPM1
J2
KSO11/ERR#
N13
KSO12/SLCT
M13
KSO13
L12
KSO14
L13
KSO15
K12
KSO16/SMOSI/GPC3
K13
WRST#
L1
ADC1/GPI1 G13
ADC2/GPI2 G12
VSS/GND
F4
KSO17/SMISO/GPC5
J10
ADC3/GPI3 F9
ADC4/WUI28/GPI4 F13
KSI0/STB#
J12
KSI1/AFD#
J13
KSI2/INIT#
J9
KSI3/SLIN#
H12
KSI4
H9
KSI5
H10
KSI6
H13
LPCCLK/GPM4
K2
ECSMI#/GPD4
L2
PWM0/GPA0 M5
PWM1/GPA1 N5
PWM2/GPA2 M6
PWM3/GPA3 N6
PWM4/GPA4 K6
PWM5/GPA5 J6
PWM6/SSCK/GPA6 M7
GINT/CTS0#/GPD5
N7
PWM7/RIG1#/GPA7 K7
RTS1#/WUI5/GPE5
N8
KSO0/PD0
M8
KSO1/PD1
J7
KSO2/PD2
N9
KSO3/PD3
M9
KSO4/PD4
K8
KSO5/PD5
J8
PWUREQ#/BBO/SMCLK2ALT/GPC7
M2
LPCPD#/WUI6/GPE6
M1
RI1#/WUI0/GPD0
N1
L80HLAT/BAO/WUI24/GPE0
N2
L80LLAT/WUI7/GPE7
M3
RI2#/WUI1/GPD1
N3
ECSCI#/GPD3
N4
ADC5/DCD1#/WUI29/GPI5 F10
ADC6/DSR1#/WUI30/GPI6 F12
ADC7/CTS1#/WUI31/GPI7 E13
TACH2/GPJ0 E12
AVCC E9
DAC3/TACH1B/GPJ3 C13
AVSS/AGND
E10
DAC4/DCD0#/GPJ4 B13
DAC5/RIG0#/GPJ5 C12
EGAD/WUI25/GPE1 A13
HMISO/GPH5/ID5 A8
HMOSI/GPH6/ID6 B7
GPJ1 D13
DAC2/TACH0B/GPJ2 D12
KSO8/ACK#
N11
KSO9/BUSY
K9
KSO10/PE
N12
TACH0A/GPD6 M11
KSO6/PD6
N10
KSO7/PD7
M10
EGCS#/WUI26/GPE2 A12
EGCLK/WUI27/GPE3 B12
PS2CLK0/TMB0/GPF0 A11
PS2DAT0/TMB1/GPF1 B11
PS2CLK1/DTR0#/GPF2 A10
PS2DAT1/RTS0#/GPF3 B10
SSCE0#/GPG2 E7
FSCE# A7
FMOSI B6
FMISO A6
DSR0#/GPG6 D6
VSS/GND
G4
FSCK B5
VSTBY/VCC K4
PS2CLK2/WUI20/GPF4 D9
PS2DAT2/WUI21/GPF5 B9
RXD/SIN0/GPB0 A4
TXD/SOUT0/GPB1 A3
SMCLK0/GPB3
B4
SMDAT0/GPB4
A2
RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7
A1
SMCLK1/GPC1
B3
SMDAT1/GPC2
B2
SMCLK2/PECI/WUI22/GPF6
B1
SMDAT2/PECIRQT#/WUI23/GPF7
C1
CLKRUN#/WUI16/GPH0/ID0
D8
GPC0 D1
VSTBY/VCC K10
TMRI0/WUI2/GPC4 C2
VSS/GND
G5
TMA0/GPB2 D2
TMRI1/WUI3/GPC6 E1
PWRSW/GPE4
E2
GA20/GPB5
F1
CK32K/GPJ6
F2
WUI18/SOUT1/GPH2/SMDAT3/ID2
D7 SSCE1#/GPG0 E6
KSI7
G9
ADC0/GPI0 G10
VSTBY/VCC D5
HSCE#/WUI19/GPH3/ID3 A9
DTR1#/SBUSY/GPG1/ID7 A5
HSCK/GPH4/ID4 B8
VSS/GND
F5
VSS/GND
H5
VSTBY/VCC D4
VSTBY/VCC D10
VSTBY/VCC E4
VCORE/VCC K5
VBAT/VCC J4
WUI17/SIN1/SMCLK3/GPH1/ID1
E8
R933
33_0402_5%
XEMC@ R933
33_0402_5%
XEMC@
12
U40
W25Q32BVSSIG_SO8
SA00003K800
U40
W25Q32BVSSIG_SO8
SA00003K800
CS#
1
SO 2
WP#
3
GND
4SI 5
SCLK 6
HOLD#
7
VCC 8
C1207 100P_0402_50V8JC1207 100P_0402_50V8J
12
R725
0_0402_5%
@
R725
0_0402_5%
@
1 2
C1206 100P_0402_50V8JC1206 100P_0402_50V8J
12
D40 RB751V-40_SOD323-2@D40 RB751V-40_SOD323-2@
2 1
R726 0_0402_5%
@
R726 0_0402_5%
@
1 2
J11
JUMP_43X39
@J11
JUMP_43X39
@
1
122
C1204
0.1U_0402_16V4Z
C1204
0.1U_0402_16V4Z
1
2
C758
10P_0402_50V8J
C758
10P_0402_50V8J
1
2
R695
0_0402_5%
XEMC@ R695
0_0402_5%
XEMC@
1 2
JEC2
ACES_50208-0040N-001
SP01000Q810
ACES_50208-0040N-001_4P
CONN@
JEC2
ACES_50208-0040N-001
SP01000Q810
ACES_50208-0040N-001_4P
CONN@
3
3
G2 6
1
1
2
2
G1 5
4
4
C1210
0.1U_0402_16V4Z
C1210
0.1U_0402_16V4Z
1
2
R697 0_0402_5%@R697 0_0402_5%@
1 2
C1213
0.1U_0402_16V4Z
C1213
0.1U_0402_16V4Z
1
2
R719 0_0402_5%R719 0_0402_5%
1 2
R694 4.7K_0402_5%R694 4.7K_0402_5%
1 2
D48 RB751V-40_SOD323-2D48 RB751V-40_SOD323-2
2 1
C1205
22P_0402_50V8J
XEMC@ C1205
22P_0402_50V8J
XEMC@
12
C1202
1000P_0402_50V7K
C1202
1000P_0402_50V7K
1
2
R950 100K_0402_5%R950 100K_0402_5%
12
R758 1K_0402_5%@R758 1K_0402_5%@
1 2
R938 100K_0402_5%R938 100K_0402_5%
12
R709 0_0402_5%R709 0_0402_5%
1 2
R690 4.7K_0402_5%R690 4.7K_0402_5%
1 2
R708 0_0402_5%@R708 0_0402_5%@
1 2
C1211
0.1U_0402_16V4Z
C1211
0.1U_0402_16V4Z
1
2
C450
0.1U_0201_10V6K
XEMC@
C450
0.1U_0201_10V6K
XEMC@
1
2
R943 100K_0402_5%@R943 100K_0402_5%@
1 2
R454
100K_0402_5%
R454
100K_0402_5%
1 2
C1219
0.1U_0402_16V4Z
C1219
0.1U_0402_16V4Z
1
2
L56
FBMA-L11-160808-800LMT_0603
L56
FBMA-L11-160808-800LMT_0603
12
C1217
0.1U_0402_16V4Z
C1217
0.1U_0402_16V4Z
1
2
C1203
0.1U_0402_16V4Z
C1203
0.1U_0402_16V4Z
1
2
RP27
2.2K_8P4R_5%
RP27
2.2K_8P4R_5%
1 8
2 7
3 6
4 5
T20 PAD @T20 PAD @
R935 200K_0402_5%@R935 200K_0402_5%@12
R957
100K_0402_5%
R957
100K_0402_5%
1 2
R952 100K_0402_5%R952 100K_0402_5%
1 2
FAN Conn
20mil
mSATA Stand-OffThermal module
JFAN1 conn
SP01000Q810
ACES_50208-0040N-001_4P
S H-CONN ACES 50208-0040N-001 4P P.8
SAGE 3G
3G Stand-Off
SAGE 3G DVT
FAN_SPEED1
FAN_PWM
FAN_SPEED128
FAN_PWM28
+5VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
FAN,Screw Hole
Custom
29 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
FAN,Screw Hole
Custom
29 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
FAN,Screw Hole
Custom
29 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
H15
H_2P5
@
H15
H_2P5
@
1
CLIP38
ICSRC6510-015SFR_1P
CLIP38
ICSRC6510-015SFR_1P
1
CLIP20
ICSRC6510-015SFR_1P
CLIP20
ICSRC6510-015SFR_1P
1
C579
1000P_0402_50V7K
C579
1000P_0402_50V7K
1
2
CLIP35
ICSRC6510-015SFR_1P
CLIP35
ICSRC6510-015SFR_1P
1
CLIP3
ICSRC6510-015SFR_1P
CLIP3
ICSRC6510-015SFR_1P
1
CLIP27
ICSRC6510-015SFR_1P
CLIP27
ICSRC6510-015SFR_1P
1
CLIP40
ICSRC6510-015SFR_1P
CLIP40
ICSRC6510-015SFR_1P
1
CLIP11
ICSRC6510-015SFR_1P
CLIP11
ICSRC6510-015SFR_1P
1
J17
JUMP_43X39
@J17
JUMP_43X39
@
1
122
CLIP36
ICSRC6510-015SFR_1P
CLIP36
ICSRC6510-015SFR_1P
1
H16
H_2P5
@
H16
H_2P5
@
1
C587
1000P_0402_50V7K
C587
1000P_0402_50V7K
1 2
C585
10U_0805_25V6K
C585
10U_0805_25V6K
1 2
FD4
@
FIDUCIAL_C40M80
FD4
@
FIDUCIAL_C40M80
1
CLIP39
ICSRC6510-015SFR_1P
CLIP39
ICSRC6510-015SFR_1P
1
CLIP12
ICSRC6510-015SFR_1P
CLIP12
ICSRC6510-015SFR_1P
1
JFAN1
ACES_50208-0040N-001
SP01000Q810
ACES_50208-0040N-001_4P
CONN@
JFAN1
ACES_50208-0040N-001
SP01000Q810
ACES_50208-0040N-001_4P
CONN@
3
3
G2 6
1
1
2
2
G1 5
4
4
CLIP37
ICSRC6510-015SFR_1P
CLIP37
ICSRC6510-015SFR_1P
1
R489
10K_0402_5%
R489
10K_0402_5%
12
CLIP28
ICSRC6510-015SFR_1P
CLIP28
ICSRC6510-015SFR_1P
1
H7
H_3P0
@
H7
H_3P0
@
1
CLIP4
ICSRC6510-015SFR_1P
CLIP4
ICSRC6510-015SFR_1P
1
FD2
@
FIDUCIAL_C40M80
FD2
@
FIDUCIAL_C40M80
1
CLIP13
ICSRC6510-015SFR_1P
CLIP13
ICSRC6510-015SFR_1P
1
CLIP29
ICSRC6510-015SFR_1P
CLIP29
ICSRC6510-015SFR_1P
1
CLIP5
ICSRC6510-015SFR_1P
CLIP5
ICSRC6510-015SFR_1P
1
FD1
@
FIDUCIAL_C40M80
FD1
@
FIDUCIAL_C40M80
1
CLIP30
ICSRC6510-015SFR_1P
CLIP30
ICSRC6510-015SFR_1P
1
CLIP6
ICSRC6510-015SFR_1P
CLIP6
ICSRC6510-015SFR_1P
1
FD3
@
FIDUCIAL_C40M80
FD3
@
FIDUCIAL_C40M80
1
CLIP21
ICSRC6510-015SFR_1P
CLIP21
ICSRC6510-015SFR_1P
1
H19
H_3P2
@
H19
H_3P2
@
1
CLIP14
ICSRC6510-015SFR_1P
CLIP14
ICSRC6510-015SFR_1P
1
CLIP7
ICSRC6510-015SFR_1P
CLIP7
ICSRC6510-015SFR_1P
1
CLIP22
ICSRC6510-015SFR_1P
CLIP22
ICSRC6510-015SFR_1P
1
H11
H_2P5
@
H11
H_2P5
@
1
CLIP15
ICSRC6510-015SFR_1P
CLIP15
ICSRC6510-015SFR_1P
1
CLIP45
ICSRC6510-015SFR_1P
CLIP45
ICSRC6510-015SFR_1P
1
H20
H_2P5
@
H20
H_2P5
@
1
H6
H_4P0x3P0
@
H6
H_4P0x3P0
@
1
CLIP23
ICSRC6510-015SFR_1P
CLIP23
ICSRC6510-015SFR_1P
1
CLIP16
ICSRC6510-015SFR_1P
CLIP16
ICSRC6510-015SFR_1P
1
CLIP31
ICSRC6510-015SFR_1P
CLIP31
ICSRC6510-015SFR_1P
1
CLIP46
ICSRC6510-015SFR_1P
CLIP46
ICSRC6510-015SFR_1P
1
H12
H_2P5
@
H12
H_2P5
@
1
CLIP8
ICSRC6510-015SFR_1P
CLIP8
ICSRC6510-015SFR_1P
1
H5
H_3P2
@
H5
H_3P2
@
1
H3
H_4P2
@
H3
H_4P2
@
1
CLIP32
ICSRC6510-015SFR_1P
CLIP32
ICSRC6510-015SFR_1P
1
CLIP47
ICSRC6510-015SFR_1P
CLIP47
ICSRC6510-015SFR_1P
1
CLIP17
ICSRC6510-015SFR_1P
CLIP17
ICSRC6510-015SFR_1P
1
CLIP44
ICSRC6510-015SFR_1P
CLIP44
ICSRC6510-015SFR_1P
1
H4
H_4P2
@
H4
H_4P2
@
1
CLIP33
ICSRC6510-015SFR_1P
CLIP33
ICSRC6510-015SFR_1P
1
CLIP24
ICSRC6510-015SFR_1P
CLIP24
ICSRC6510-015SFR_1P
1
CLIP48
ICSRC6510-015SFR_1P
CLIP48
ICSRC6510-015SFR_1P
1
CLIP10
ICSRC6510-015SFR_1P
CLIP10
ICSRC6510-015SFR_1P
1
CLIP42
ICSRC6510-015SFR_1P
CLIP42
ICSRC6510-015SFR_1P
1
CLIP9
ICSRC6510-015SFR_1P
CLIP9
ICSRC6510-015SFR_1P
1
CLIP41
ICSRC6510-015SFR_1P
CLIP41
ICSRC6510-015SFR_1P
1
CLIP25
ICSRC6510-015SFR_1P
CLIP25
ICSRC6510-015SFR_1P
1
CLIP43
ICSRC6510-015SFR_1P
CLIP43
ICSRC6510-015SFR_1P
1
CLIP2
ICSRC6510-015SFR_1P
CLIP2
ICSRC6510-015SFR_1P
1
H2
H_4P2
@
H2
H_4P2
@
1
CLIP18
ICSRC6510-015SFR_1P
CLIP18
ICSRC6510-015SFR_1P
1
CLIP49
ICSRC6510-015SFR_1P
CLIP49
ICSRC6510-015SFR_1P
1
CLIP26
ICSRC6510-015SFR_1P
CLIP26
ICSRC6510-015SFR_1P
1
CLIP1
ICSRC6510-015SFR_1P
CLIP1
ICSRC6510-015SFR_1P
1
CLIP19
ICSRC6510-015SFR_1P
CLIP19
ICSRC6510-015SFR_1P
1
H1
H_4P2
@
H1
H_4P2
@
1
CLIP34
ICSRC6510-015SFR_1P
CLIP34
ICSRC6510-015SFR_1P
1
GYRO
SA00005HQ00
L3GD20TR
CS : 1 -> I2C mode
0 -> SPI mode
TO Sensor
(HUB Host)
To PCH GPIO35
SAGE 3G
ACCEL+E-COMPASS
Resister overlap with L68
Sensor Hub
ST design Co-lay
BOM control
(303I, 303m, 303n)=(PA1, PA2, PA3)= 1,0,0
(4200I, 4200m, 4200n)=(PA4, PA5, PA6)= 1,1,0
For Sensor Orientation Setting
ST design Co-lay
HUB_BOOT0
BOM control
ST design Co-lay
To PCH GPIO68
ST design Co-lay
BOM control
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G
SAGE 3G PVT
SAGE 3G R10
GYRO_SA0
GYRO_INT
GYRO_DRDY
GYRO_SA0
HUB_RST#
HUB_DBG_PB3
HUB_DBG_PA14
HUB_DBG_PA13
HUB_DBG_PA15
HUB_DBG_PB4
I2C_1_SCL_SENSOR
I2C_1_SDA_SENSOR
USB20_P1_HUB
HUB_BOOT0
HUB_BOOT1
HUB_DBG_PB4
HUB_DBG_PB3
HUB_DBG_PA13
HUB_DBG_PA15
HUB_DBG_PA14
HUB_XCLKOUT
HUB_XCLKIN
USB20_P1_HUB
USB20_N1_HUB
HUB_RST#
I2C_1_SDA_SENSOR
I2C_1_SCL_SENSOR
HUB_BOOT0
HUB_PA8
HUB_PA10
HUB_PA9
HUB_BOOT1
HUB_DFU_EN#_R
HUB_RST#
HUB_DBG_PB3
HUB_DBG_PB4
HUB_DBG_PA15
HUB_32_OUT
HUB_32_IN
HUB_PA6
HUB_PA0
HUB_PA1
HUB_PA2
HUB_PA5
HUB_DBG_PA13
HUB_DBG_PA14
ACCEL_INT1
I2C_1_SDA_SENSOR
I2C_1_SCL_SENSOR
MAG_DRDY ACCEL_INT2
USB20_P1_HUB
USB20_N1_HUB
HUB_32_IN
HUB_32_OUT
HUB_XCLKOUT
HUB_XCLKIN
HUB_RST#
HUB_PA4HUB_PA1 HUB_PA5 HUB_PA6HUB_PA2 HUB_PA3
HUB_PA3
HUB_PA4
ACCEL_INT2
GYRO_DRDY
ACCEL_INT1
ALS_INT
GYRO_INT
MAG_DRDY
ACCEL_INT1
ACCEL_INT2
HUB_PB0
HUB_PB1
HUB_BOOT1
HUB_DBG_PB3
GYRO_INT
GYRO_DRDY
HUB_PB15ALS_INT
MAG_DRDY HUB_DFU_EN#_R
HUB_PA10 USB20_P1_HUB
HUB_PB0
HUB_PB1
HUB_PB15
I2C_1_SCL_SENSOR
I2C_1_SDA_SENSOR
HUB_PB13
I2C_1_SDA_SENSOR33
I2C_1_SCL_SENSOR33
HUB_PWRGATE 18
USB20_P017
USB20_N017
ALS_INT33
HUB_DFU_EN#18
+3V_SEN
+3V_SEN
+3V_SEN
+3V_SEN
+3V_SEN
+3V_SEN
+3VLP
+3V_SEN
+3V_SEN
+3V_SEN
+3VLP+3VALW
+3VALW
+3V_SEN
+3V_SEN
+3V_SEN
+3V_SEN
+3V_SEN
+3V_SEN+3V_SEN+3V_SEN+3V_SEN+3V_SEN+3V_SEN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SENSOR
C
30 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SENSOR
C
30 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SENSOR
C
30 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Q69
AP2301GN-HF_SOT23-3
Q69
AP2301GN-HF_SOT23-3
2
3 1
C509
1U_0402_6.3V6K
C509
1U_0402_6.3V6K
1
2
R477 0_0402_5%INTEL@R477 0_0402_5%INTEL@
1 2
C530
0.1U_0402_16V7K
C530
0.1U_0402_16V7K
1
2
R596
10K_0402_5%
ST@
R596
10K_0402_5%
ST@
12
R481 100K_0402_5%
INTEL@
R481 100K_0402_5%
INTEL@
1 2
R1109 1.5K_0402_1%INTEL@R1109 1.5K_0402_1%INTEL@
1 2
C456 0.1U_0402_16V7KC456 0.1U_0402_16V7K
1 2
R1346 0_0402_5%ST@R1346 0_0402_5%ST@
1 2
C506
0.1U_0402_16V7K
C506
0.1U_0402_16V7K
1
2
R494 0_0402_5%INTEL@R494 0_0402_5%INTEL@
1 2
R606
10K_0402_5%
ST@
R606
10K_0402_5%
ST@
12
R478 0_0402_5%INTEL@R478 0_0402_5%INTEL@
1 2
G
D
S
Q83
2N7002K_SOT23-3
G
D
S
Q83
2N7002K_SOT23-3
2
13
R580
10K_0402_5%
ST@
R580
10K_0402_5%
ST@
12
R473 10K_0402_5%INTEL@R473 10K_0402_5%INTEL@
1 2
C481
0.1U_0402_16V7K
C481
0.1U_0402_16V7K
1
2
C510
10U_0603_6.3V6M
C510
10U_0603_6.3V6M
1
2
R1323 0_0402_5%INTEL@R1323 0_0402_5%INTEL@
1 2
R1347 0_0402_5%ST@R1347 0_0402_5%ST@
1 2
U140
STM32F103RCY6TR_WLCSP64
SA00005P210
S IC STM32F103RCY6TRC16 WLCSP MCU V1JV1
U140
STM32F103RCY6TR_WLCSP64
SA00005P210
S IC STM32F103RCY6TRC16 WLCSP MCU V1JV1
VDD_3 A8
VSS_3
A7
BOOT0 A6
PB5
A5
PB3
A4
PD2 A3
PC10 A2
VDD_2 A1
PC14 B8
PC15 B7
PB9
B6
PB6
B5
PB4
B4
PC11 B3
PA14
B2
BYPASS/VSS_2
B1
PC13 C8
NRST C7
Vbat C6
PB7
C5
PC12 C4
PA15
C3
PA12
C2 PA11
C1
OSC_IN D8
OSC_OUT D7
PC2 D6
PB8
D5
PA13
D4
PA10
D3 PA9
D2 PC9 D1
PC0 E8
VSSA
E7
PA1
E6
PA5
E5
PA8
E4 PC8 E3
PC7 E2
PC6 E1
PC1 F8
Vref+ F7
PA0-WKUP
F6
VSS_4
F5
PB1
F4
PB11
F3
PB14
F2
PB15
F1
VDDA G8
PA3
G7
VDD_4 G6
PA6
G5
PA7
G4
PB10
G3
PB12
G2
PB13
G1
PA2
H8
PA4
H7 PC4 H6
PC5 H5
PB0
H4
PB2
H3
VSS_1
H2 VDD_1 H1
R597
10K_0402_5%
@
R597
10K_0402_5%
@
12
C1269
10U_0603_6.3V6M
C1269
10U_0603_6.3V6M
1
2
Y3
12MHZ_12PF_X1H012000DC1H-HX
ST@Y3
12MHZ_12PF_X1H012000DC1H-HX
ST@ JHDB1
ACES_85201-1005N
CONN@
SP01000H400
JHDB1
ACES_85201-1005N
CONN@
SP01000H400
11
22
33
44
55
66
77
88
99
10 10
GND 11
GND 12
R497 0_0402_5%@R497 0_0402_5%@
1 2
R479 0_0402_5%INTEL@R479 0_0402_5%INTEL@
1 2
R598
10K_0402_5%
@
R598
10K_0402_5%
@
12
C508
0.1U_0402_16V7K
C508
0.1U_0402_16V7K
1
2
R240 100K_0402_5%
INTEL@
R240 100K_0402_5%
INTEL@
1 2
2 1C760 15P_0402_50V8J
ST@
2 1C760 15P_0402_50V8J
ST@
C760
18P_0402_50V8J
INTEL@
C760
18P_0402_50V8J
INTEL@
1
2
C630 0.01U_0402_16V7KC630 0.01U_0402_16V7K
1 2
R1342
0_0402_5%
ST@R1342
0_0402_5%
ST@
1 2
L68
DLW21SN900HQ2L_0805
SM070001E00
@
L68
DLW21SN900HQ2L_0805
SM070001E00
@
11
2
2
3
344
R1319 0_0402_5%INTEL@R1319 0_0402_5%INTEL@
1 2
2 1C761 15P_0402_50V8J
ST@
2 1C761 15P_0402_50V8J
ST@
R599
10K_0402_5%
@
R599
10K_0402_5%
@
12
C485
0.1U_0402_16V7K
C485
0.1U_0402_16V7K
1
2
C761
18P_0402_50V8J
INTEL@
C761
18P_0402_50V8J
INTEL@
1
2
C503
0.1U_0402_16V7K
C503
0.1U_0402_16V7K
1
2
R1343
0_0402_5%
ST@R1343
0_0402_5%
ST@
1 2
RP26 10K_8P4R_5%
INTEL@
RP26 10K_8P4R_5%
INTEL@
1 8
2 7
3 6
4 5
R1331
100K_0402_5%
R1331
100K_0402_5%
1 2
R600
10K_0402_5%
ST@
R600
10K_0402_5%
ST@
12
R1322 0_0402_5%@R1322 0_0402_5%@
1 2
R707 0_0402_5%@R707 0_0402_5%@
1 2
C1288
0.22U_0402_10V6K
C1288
0.22U_0402_10V6K
1
2
T31PAD@T31PAD@
R488 0_0402_5%INTEL@R488 0_0402_5%INTEL@
1 2
Y3 8MHZ_12PF_FSX5M-8.000000M12FAO
INTEL@
Y3 8MHZ_12PF_FSX5M-8.000000M12FAO
INTEL@
34
21
R601
10K_0402_5%
@
R601
10K_0402_5%
@
12
R469
1M_0402_5%
R469
1M_0402_5%
12
R706 0_0402_5%@R706 0_0402_5%@
1 2
C1290
4.7U_0603_6.3V6K
C1290
4.7U_0603_6.3V6K
12
R466 2.2K_0402_1%R466 2.2K_0402_1%
1 2
R492 0_0402_5%INTEL@R492 0_0402_5%INTEL@
1 2
R1320
0_0402_5%
@
R1320
0_0402_5%
@
12
2 1R1319 20K_0402_5%
ST@
2 1R1319 20K_0402_5%
ST@
R602
10K_0402_5%
ST@
R602
10K_0402_5%
ST@
12
R1329
0.1U_0402_16V7K
R1329
0.1U_0402_16V7K
1
2
C487 0.1U_0402_16V7KC487 0.1U_0402_16V7K
1 2
R1110 1.5K_0402_1%
ST@
R1110 1.5K_0402_1%
ST@
1 2
X4
32.768KHZ_12.5PF_1TJF125DP1A000D
SJ100004Z00
INTEL@
X4
32.768KHZ_12.5PF_1TJF125DP1A000D
SJ100004Z00
INTEL@
12
R1326 0_0402_5%ST@R1326 0_0402_5%ST@
1 2
R524 0_0402_5%ST@R524 0_0402_5%ST@
1 2
R1344
0_0402_5%
ST@R1344
0_0402_5%
ST@
1 2
R1330 0_0402_5%INTEL@R1330 0_0402_5%INTEL@
1 2
R603
10K_0402_5%
@
R603
10K_0402_5%
@
12
R453 2.2K_0402_1%R453 2.2K_0402_1%
1 2
C483 0.1U_0402_16V7KC483 0.1U_0402_16V7K
1 2
U143
L3GD20TR_LGA16_4X4
U143
L3GD20TR_LGA16_4X4
VDD_IO
1
SCL/SPC
2
SDA/SDI/SDO
3
SDO/SA0
4
CS
5
DRDY/INT2
6
INT1
7
RES_0
8
RES_1 9
RES_2 10
RES_3 11
RES_4 12
GND 13
RES_5 14
RES_6 15
VDD 16
R1328
1M_0402_5%
@
R1328
1M_0402_5%
@
12
C504
0.1U_0402_16V7K
C504
0.1U_0402_16V7K
1
2
R459
100K_0402_5%
ST@
R459
100K_0402_5%
ST@
12
R1345
0_0402_5%
ST@R1345
0_0402_5%
ST@
1 2
C763
18P_0402_50V8J
INTEL@
C763
18P_0402_50V8J
INTEL@
1
2
R607
10K_0402_5%
@
R607
10K_0402_5%
@
12
U141
LSM303DLHCTR_LGA14_3X5
U141
LSM303DLHCTR_LGA14_3X5
Vdd_IO
1
SCL 2
SDA 3
INT2 4
INT1 5
C1
6
GND
7
Reserved
8
Reserved
9
Reserved
10
Reserved
11
SETP
12
SETC
13
Vdd 14
C507
0.1U_0402_16V7K
C507
0.1U_0402_16V7K
1
2
C762
18P_0402_50V8J
INTEL@
C762
18P_0402_50V8J
INTEL@
1
2
R496 0_0402_5%INTEL@R496 0_0402_5%INTEL@
1 2
R495 0_0402_5%@R495 0_0402_5%@
1 2
C531
1U_0402_6.3V6K
C531
1U_0402_6.3V6K
1
2
R605
10K_0402_5%
ST@
R605
10K_0402_5%
ST@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Resister overlap with L53
Rds=13.5mΩ(Typ)
16.5mΩ(Max)
+3VALW to +3VS_WWAN
10mil
20mil
3G Module Connector (NGFF)
240mil 240mil
For Tunable Antenna
Connect to EC
SAGE 3G DVT
SAGE 3G DVT
SAGE 3G PVT
SEL nOE Y+ Y-
X H Hi-Z Hi-Z
L L M+ M-
H L D+ D-
USB SW truth table
SAGE 3G R20
SAGE 3G R20
SAGE 3G R20
SAGE 3G PVT
SAGE 3G R10
SAGE 3G R10
SAGE 3G R10
SAGE 3G R20
EC_3G_PWR_EN#3VS_WWAN_GATE
EC_3G_PWR_EN#
3G_CONFIG0
WAKE_OUT_WWAN
BODYSAR_DET#
ANT_TUNE_3
ANT_TUNE_2
ANT_TUNE_1
ANT_TUNE_0
ANT_TUNE_3_AP
ANT_TUNE_2_AP
ANT_TUNE_1_AP
ANT_TUNE_0_AP
3G_CONFIG1
3G_RESET# 3G_RESET#_R
3G_CONFIG2
3G_CONFIG3
USB20_P2_R
USB20_N2_R WWAN_LED#
PWR_ON_OFF#
W_DISABLE#
SIM_DET
SIM_RST
SIM_CLK
SIM_IO
SIM_PWR
GPS_DISABLE#
PROX_DET_EC
SIM_PWR
SIM_CLK
SIM_RST
GPS_DISABLE# GPS_OFF#
PWR_ON_OFF#
W_DISABLE# 3G_OFF#
3G_RESET#
BODYSAR_DET#
PWR_ON_OFF#
SIM_DET
SIM_IO
SIM_CLK
SIM_RST
SIM_PWR
SIM_DET
SIM_RST
USB20_P2_SW
USB20_N2_SW
EC_3G_USB_ON_R
USB20_N2_SW
USB20_P2_R
USB20_N2_R
USB20_P2
USB20_N2
USB20_P2_SW
EC_PCIE_WAKE#24,28
EC_3G_PWR_EN#28
PROX_DET_EC28
GPS_OFF# 28
3G_OFF# 28
EC_3G_RST#28
PLT_RST#17,26,28,32,5
EC_3G_ON_OFF#28
USB20_P217
USB20_N217
PCH_PWR_EN28,34
EC_3G_USB_ON28
+3VS_WWAN
+3VALW
+VSB
+3VS_WWAN
+3VS +3VS_WWAN
+3VS_WWAN
+3VALW
+1.8VS
+3VS_WWAN
+3VS_WWAN
+3VS_WWAN
+3VALW_EC
+3VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
3G/GPS HUAWEI MU736
C
31 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
3G/GPS HUAWEI MU736
C
31 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
3G/GPS HUAWEI MU736
C
31 52Tuesday, March 26, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
T44 PAD@T44 PAD@
T38PAD @T38PAD @
+
C608
220U_B2_2.5VM_R15M
3G@
+
C608
220U_B2_2.5VM_R15M
3G@
1
2
R727 0_0402_5%
XEMC@
R727 0_0402_5%
XEMC@
1 2
U23
SI7716ADN-T1-GE3_POWERPAK8-5
3G@
U23
SI7716ADN-T1-GE3_POWERPAK8-5
3G@
4
5
1
2
3
G
D
S
Q94
2N7002KW_SOT323-3
3G@
G
D
S
Q94
2N7002KW_SOT323-3
3G@
2
13
L53 DLW21SN900HQ2L_0805
SM070001E00
3GEMC@
L53 DLW21SN900HQ2L_0805
SM070001E00
3GEMC@
11
2
2
3
344
C550
22U_0805_6.3V6M
3G@
C550
22U_0805_6.3V6M
3G@
1
2
R712 0_0402_5%
XEMC@
R712 0_0402_5%
XEMC@
1 2
C553
0.1U_0402_16V4Z
XEMC@C553
0.1U_0402_16V4Z
XEMC@
1
2
R505
10K_0402_5%
@
R505
10K_0402_5%
@
12
R451 100K_0402_5%@R451 100K_0402_5%@
1 2
C404
33P_0402_50V8K
XEMC@C404
33P_0402_50V8K
XEMC@
1
2
R6400_0402_5% @R6400_0402_5% @
1 2
C402
33P_0402_50V8K
XEMC@C402
33P_0402_50V8K
XEMC@
1
2
R501
10K_0402_5%
3G@
R501
10K_0402_5%
3G@
1 2
C397
33P_0402_50V8K
3G@
C397
33P_0402_50V8K
3G@
1
2
R311
8.2K_0402_5%
@
R311
8.2K_0402_5%
@
1 2
+
C609
220U_B2_2.5VM_R15M
3G@
+
C609
220U_B2_2.5VM_R15M
3G@
1
2
U24
PI3USB102ZLEX_TQFN10_1P6X1P3
3G@ SA000036200
U24
PI3USB102ZLEX_TQFN10_1P6X1P3
3G@ SA000036200
Y+
1
Y-
2
GND
3
M-
4
M+
5D- 6
D+ 7
OE 8
Vdd 9
SEL 10
R499 100K_0402_5%3G@R499 100K_0402_5%3G@
1 2
R637
33_0402_5%
3G@
R637
33_0402_5%
3G@
12
R6390_0402_5% @R6390_0402_5% @
1 2
C548
0.1U_0603_25V7K
3G@
C548
0.1U_0603_25V7K
3G@
1
2
T28PAD @T28PAD @
C551
1U_0402_6.3V6K
3G@
C551
1U_0402_6.3V6K
3G@
1
2
C545
4.7U_0603_6.3V6K
3G@C545
4.7U_0603_6.3V6K
3G@
1
2
R6420_0402_5% @R6420_0402_5% @
1 2
C395
470P_0402_50V7K
3G@
C395
470P_0402_50V7K
3G@
1
2
+
C610
220U_B2_2.5VM_R15M
3G@
+
C610
220U_B2_2.5VM_R15M
3G@
1
2
R6410_0402_5% @R6410_0402_5% @
1 2
R6440_0402_5% 3G@ R6440_0402_5% 3G@
1 2
T29PAD @T29PAD @
T30PAD @T30PAD @
D25
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
D25
TVNST52302AB0_SOT523-3
XEMC@
SCA00001W00
2
3
1
R730 0_0402_5%
@
R730 0_0402_5%
@
1 2
C546
4.7U_0603_6.3V6K
3G@C546
4.7U_0603_6.3V6K
3G@
1
2
C398 33P_0402_50V8K
3G@
C398 33P_0402_50V8K
3G@
1 2
C540
0.1U_0402_16V4Z
3G@
C540
0.1U_0402_16V4Z
3G@
1
2
R1136 0_0201_5%@R1136 0_0201_5%@
12
R504
100K_0402_5%
@
R504
100K_0402_5%
@
1 2
JSIM1
MOLEX_503960-0694
CONN@
MOLEX_503960-0694_8P-T
JSIM1
MOLEX_503960-0694
CONN@
MOLEX_503960-0694_8P-T
GND
7Vcc
6Vpp
5
GND
8
I/O
2
GND 11
GND 10
GND 9
GND 14
GND 12
SIM Card Detect
3
CLK
1
RST
4
GND 13
R731 0_0402_5%
@
R731 0_0402_5%
@
1 2
T23PAD @T23PAD @
R6430_0402_5% @R6430_0402_5% @
1 2
R482
200_0603_5%
3G@
R482
200_0603_5%
3G@
1 2
C400 33P_0402_50V8K
3G@
C400 33P_0402_50V8K
3G@
1 2
C824
330P_0402_50V7K
3G@
C824
330P_0402_50V7K
3G@
1
2
R1137 0_0201_5%@R1137 0_0201_5%@
12
C631
0.01U_0402_16V7K
3G@
C631
0.01U_0402_16V7K
3G@
1
2
R485
10K_0402_5%@
R485
10K_0402_5%@
1 2
C826330P_0402_50V7K @C826330P_0402_50V7K @
12
G
S
D
Q93B
DMN66D0LDW-7_SOT363-6
3G@
G
S
D
Q93B
DMN66D0LDW-7_SOT363-6
3G@
61
2
C399 33P_0402_50V8K
3G@
C399 33P_0402_50V8K
3G@
1 2
C488
0.1U_0402_16V7K
3G@
C488
0.1U_0402_16V7K
3G@
1
2
R645 0_0402_5%3G@R645 0_0402_5%3G@
1 2
C40133P_0402_50V8K 3G@C40133P_0402_50V8K 3G@
12
J3G1
BELLW_80149-3223_67P
BELLW_80149-3223_67P-T
CONN@
J3G1
BELLW_80149-3223_67P
BELLW_80149-3223_67P-T
CONN@
NC
27
NC
29
Ground
31
NC
33
NC
35
Ground
37
NC
39
NC
41
Ground
43
NC
45
NC
47
Ground
49
ANTCTL0
51
ANTCTL1
53
3.3V 2
3.3V 4
Power_On_Off 6
W_DISABLE# 8
LED# 10
Reserved 12
Reserved 14
Reserved 16
GPS_DISABLE# 18
Reserved 20
UIM-RESET 22
UIM-CLK 24
UIM-DATA 26
UIM-PWR 28
NC 30
Reserved 32
Reserved 34
Reserved 36
Reserved 38
Reserved 40
NC 42
NC 44
NC 46
NC 48
NC 50
Reserved 52
Reserved 54
ANTCTL2
55
ANTCTL3
57
Reset#
59
CONFIG_1
61
Ground
63
Ground
65
CONFIG_2
67
GND
69
Reserved 56
SIM_DET 58
NC 60
3.3V 62
3.3V 64
3.3V 66
GND 68
CONFIG_3
1
Ground
3
Ground
5
USB_D+
7
USB_D-
9
Ground
11
CONFIG_0
13
Wake_On_WWAN#
15
BODYSAR_N
17
Ground
19
NC
21
NC
23
Ground
25
C825330P_0402_50V7K @C825330P_0402_50V7K @
12
R728 0_0402_5%@R728 0_0402_5%@
1 2
T36PAD @TPC32 T36PAD @TPC32
C827330P_0402_50V7K @C827330P_0402_50V7K @
12
R729 0_0402_5%3G@R729 0_0402_5%3G@
1 2
R260
100K_0402_5%
@
R260
100K_0402_5%
@
12
C549 1U_0402_6.3V6K
3G@
C549 1U_0402_6.3V6K
3G@
1 2
R1138 0_0201_5%
@
R1138 0_0201_5%
@
12
R483
47K_0402_5%
3G@
R483
47K_0402_5%
3G@
12
R1333 100K_0402_5%3G@R1333 100K_0402_5%3G@
1 2
T35PAD @TPC32 T35PAD @TPC32
C828330P_0402_50V7K @C828330P_0402_50V7K @
12
S
G
D
Q93A
DMN66D0LDW-7_SOT363-6
3G@
S
G
D
Q93A
DMN66D0LDW-7_SOT363-6
3G@
5
34
T37PAD @T37PAD @
C407
0.1U_0402_16V4Z
@
C407
0.1U_0402_16V4Z
@
1
2
J12
JUMP_43X118
@J12
JUMP_43X118
@
1
122
R655 0_0402_5%3G@R655 0_0402_5%3G@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
40 mils40 mils
Close to connector
Card Reader
20 mils
40 mils
40 mils
40 mils
20 mils
20 mils
20 mils
10 mils
Reserve for EMI
please close to JREAD1
SAGE 3G PVT
DV33_18
PLT_RST#
SP15_SDW P_XDD7
SD_CD#
CLK_PCIE_CARD#
PCIE_PTX_C_DRX_N2
CLK_PCIE_CARD
PCIE_PTX_C_DRX_P2
SD_CLK_R SD_CLK
SD_CMDSD_CMD_R
SD_D1_R SD_D1
SD_D0_R SD_D0
SD_D3SD_D3_R
RREF
CARD_CLKREQ#
PCIE_PRX_C_DTX_P2PCIE_PRX_DTX_P2
DV12
AV12
PCIE_PRX_C_DTX_N2PCIE_PRX_DTX_N2
SD_D2 SD_D2_R
DV12_S
SD_CLK_R
SD_D2_R
SD_D3_R
SD_CMD_R
SD_D0_R
SD_D1_R
SD_CD#
PCIE_PTX_C_DRX_P214
PCIE_PTX_C_DRX_N214
PCIE_PRX_DTX_P214
PCIE_PRX_DTX_N214
CARD_CLKREQ# 14
PLT_RST# 17,26,28,31,5
CLK_PCIE_CARD14
CLK_PCIE_CARD#14
+3VS +3VS_CARD
+3VS_CARD
+ODR_PW R
+3VS_CARD
+ODR_PW R
+ODR_PW R
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Card Reader RTS5209
Custom
32 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Card Reader RTS5209
Custom
32 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Card Reader RTS5209
Custom
32 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
R1579
33_0402_5%
XEMC@
R1579
33_0402_5%
XEMC@
1 2
C1522 0.1U_0402_10V7KC1522 0.1U_0402_10V7K
1 2
C1528 4.7U_0603_6.3V6KC1528 4.7U_0603_6.3V6K
1 2
R1572 6.2K_0603_1%R1572 6.2K_0603_1%
12
C1530 0.1U_0402_10V7K@C1530 0.1U_0402_10V7K@
1 2
C1534
0.1U_0402_10V7K
@
C1534
0.1U_0402_10V7K
@
1
2
C1531
6P_0402_50V8D
XEMC@
C1531
6P_0402_50V8D
XEMC@
12
R1576 0_0402_5%
@
R1576 0_0402_5%
@
1 2
C1523 0.1U_0402_10V7KC1523 0.1U_0402_10V7K
1 2
C1533
10U_0603_6.3V6M
C1533
10U_0603_6.3V6M
1
2
C1524
10U_0603_6.3V6M
C1524
10U_0603_6.3V6M
1
2
JREAD1
PROCO_879S-N010-03A0
SP07000US00
S SOCKET PROCONN 879S-N010-03A0 10P M-SD
PROCO_879S-N010-03A0_10P
CONN@
JREAD1
PROCO_879S-N010-03A0
SP07000US00
S SOCKET PROCONN 879S-N010-03A0 10P M-SD
PROCO_879S-N010-03A0_10P
CONN@
SWITCH TERM CD
9DAT1
8DAT0
7VSS
6CLK
5VDD
4CMD
3CD/DAT3
2DAT2
1
DET TERM (GND)
10
G1 11
G2 12
G3 13
G4 14
G5 15
R1577 0_0402_5%
@
R1577 0_0402_5%
@
1 2
R1575 10_0402_5%R1575 10_0402_5%
1 2
C1527
0.1U_0402_10V7K
C1527
0.1U_0402_10V7K
1
2
R720 0_0402_5%@R720 0_0402_5%@
1 2
C1529
5P_0402_50V8C
@
C1529
5P_0402_50V8C
@
1 2
J14
JUMP_43X39
@J14
JUMP_43X39
@
1
122
R1578 0_0402_5%
@
R1578 0_0402_5%
@
1 2
C1535
0.1U_0402_10V7K
@
C1535
0.1U_0402_10V7K
@
1
2
C1525
0.1U_0402_10V7K
@
C1525
0.1U_0402_10V7K
@
1
2
R1581 0_0402_5%
@
R1581 0_0402_5%
@
1 2
C1521 4.7U_0603_6.3V6KC1521 4.7U_0603_6.3V6K
1 2
U145
RTS5209-GR_LQFP48_7X7
U145
RTS5209-GR_LQFP48_7X7
SD_D2 25
SP5 28
SP6 29
SP7 30
SP8 31
SP9 32
SP10 33
SP11 34
SP12 35
SP13 36
GND 26
DV12_S 27
HSIP
1
HSIN
2
REFCLKP
3
REFCLKN
4
AV12
5
HSOP
6
HSON
7
GND
8
DV12
9
Card1_3V3
10
3V3_IN
11
Card2_3V3
12
XD_CD#
13
DV33_18
14
GND
15
SP1
16
SP2
17
SP3
18
SP4
19
SD_D1
20
SD_D0
21
SD_CLK
22
SD_CMD
23
SD_D3
24
SP14 37
SP15 38
SD_CD# 39
MS_INS# 40
GPIO/EEDI 41
EESK 42
EECS 43
EEDO 44
PERST# 45
CLK_REQ# 46
3V3_IN 47
RREF 48
C1532
0.1U_0402_10V7K
@
C1532
0.1U_0402_10V7K
@
1
2
R1580
100K_0402_5%
@
R1580
100K_0402_5%
@
12
C1526
4.7U_0603_6.3V6K
@C1526
4.7U_0603_6.3V6K
@
1
2
R1573 0_0402_5%
@
R1573 0_0402_5%
@
1 2
C1520 0.1U_0402_10V7KC1520 0.1U_0402_10V7K
12
R1574 0_0402_5%
@
R1574 0_0402_5%
@
1 2
C1519 0.1U_0402_10V7KC1519 0.1U_0402_10V7K
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Digital MIC
SCA00001W00
SW5 -Reserve for Debug
ON/OFF BTN
LID Switch
SAGE 3G DVT
SAGE 3G DVT
SAGE 3G PVT
SAGE 3G PVT
SAGE 3G PVT
SAGE 3G R10
DMIC_CLK
DMIC_DATA
ON/OFFBTN#
ON/OFF
LID_SW#
USB20_P11
USB20_N11
ALS_INT
PWR_LED#
POUT
BI
BI_DET
BI_GATE
BATT_AMB_LED#
PCH_SPKR
HOME_KEY
VOL_UP#
VOL_DOWN#
D_LOCK
ON/OFFBTN#
TM_D+
TM_D-
IO/B_DET
DMIC_CLK
HDA_BITCLK_AUDIO
HDA_SDIN0
HDA_SYNC_AUDIO
HDA_RST_AUDIO#
HDA_SDOUT_AUDIO
I2C_1_SDA_SENSOR
I2C_1_SCL_SENSOR
EAPD
BEEP#
EC_MUTE#
DMIC_DATA
BI_GATE
LID_SW# 28
USB20_N11 17
USB20_P11 17
TM_D-11
TM_D+11
D_LOCK28
PCH_SPKR 13
VOL_UP#28
VOL_DOWN#28
HOME_KEY28
POUT 28
PWR_LED# 28
BATT_AMB_LED# 28
ALS_INT 30
BI_DET 28
BI 36
HDA_BITCLK_AUDIO 13
HDA_SDIN0 13
HDA_SYNC_AUDIO 13
HDA_SDOUT_AUDIO 13
HDA_RST_AUDIO# 13
I2C_1_SCL_SENSOR 30
I2C_1_SDA_SENSOR 30
EAPD 28
BEEP# 28
EC_MUTE# 28
IO/B_DET28
ON/OFF 28
EC_RST# 28
+3VS_DMIC
+3VLP
+3VALW
+3VS
+5VS
+RTCVCC
+RTCBATT_R
+3VS_WWAN
+3V_SEN
+3VLP
+3VS +3VS_DMIC
+3VLP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
IO Board ( Audio / WIN / RST/ LED )
Custom
33 52Thursday, March 14, 2013
2010/11/1 2011/11/1
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
IO Board ( Audio / WIN / RST/ LED )
Custom
33 52Thursday, March 14, 2013
2010/11/1 2011/11/1
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
IO Board ( Audio / WIN / RST/ LED )
Custom
33 52Thursday, March 14, 2013
2010/11/1 2011/11/1
Compal Electronics, Inc.
D55
TVNST52302AB0_SOT523-3
XEMC@
D55
TVNST52302AB0_SOT523-3
XEMC@
2
3
1
SW5
SMT1-05-A_4P
@SW5
SMT1-05-A_4P
@
3
2
1
4
5
6
JIO1
PANAS_AXK8L50124BG
PANAS_AXK8L50124BG_50P-T
CONN@
JIO1
PANAS_AXK8L50124BG
PANAS_AXK8L50124BG_50P-T
CONN@
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
37
37 38 38
14 14
16 16
18 18
20 20
13
13
15
15
17
17
19
19
22 22
24 24
26 26
28 28
30 30
32 32
34 34
36 36
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
39
39
41
41
43
43
45
45
47
47
49
49
40 40
42 42
44 44
46 46
48 48
50 50
GND
51 GND 52
GND
53 GND 54
MIC2
SPM0423HD4H-WB-2_6P
MIC2
SPM0423HD4H-WB-2_6P
GND 1
LEFT/RIGHT 2
GND 3
CLOCK
4DATA
5VDD
6
U9
S IC AH180WG-7 SC-59 3P SENSOR SW
LID@
U9
S IC AH180WG-7 SC-59 3P SENSOR SW
LID@
VDD 2
OUTPUT 3
GND
1
D21
BAV70W_SOT323-3
D21
BAV70W_SOT323-3
2
3
1
R658
0_0402_5%
R658
0_0402_5%
1 2
D6
RB751V-40_SOD323-2
LID@
D6
RB751V-40_SOD323-2
LID@
21
R13
47K_0402_5%
LID@
R13
47K_0402_5%
LID@
12
C22220P_0402_50V7K
XEMC@
C22220P_0402_50V7K
XEMC@
1 2
R147
100K_0402_5%
R147
100K_0402_5%
1 2
C13
0.1U_0402_16V4Z
LID@
C13
0.1U_0402_16V4Z
LID@
1
2
G
S
D
Q80B
DMN66D0LDW-7_SOT363-6
G
S
D
Q80B
DMN66D0LDW-7_SOT363-6
61
2
C23220P_0402_50V7K
XEMC@
C23220P_0402_50V7K
XEMC@
1 2
C15
10P_0402_50V8J
LID@
C15
10P_0402_50V8J
LID@
1
2
S
G
D
Q80A
DMN66D0LDW-7_SOT363-6
S
G
D
Q80A
DMN66D0LDW-7_SOT363-6
5
34
R348
10K_0402_5%
R348
10K_0402_5%
1 2
C346
0.1U_0402_16V4Z
C346
0.1U_0402_16V4Z
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
10mil
+1.35V to +1.35VS
20mil
Rds=2.6mΩ(Typ)
3.2mΩ(Max)
Rds=13.5mΩ(Typ)
16.5mΩ(Max)
Rds=13.5mΩ(Typ)
16.5mΩ(Max)
+3VALW to +3VS
10mil
10mil
+5VALW to +5VS
20mil
20mil
SAGE 3G
For RF Requirement (Cross Moat)
SAGE 3G
SAGE 3G
SUSP SUSPSUSPSYSON#
ACIN
1.35VS_GATE SUSP
SUSP
SUSP
3VS_GATE
SUSP
5VS_GATE
SUSP
SUSP
SYSON
SUSP
SYSON#
SUSP#
SYSON28,39
PCH_PWR_EN28,31
PCH_PWR_EN#20
ACIN28,37
SUSP#28,39,40,41
SUSP39
+1.8VS+0.675VS +1.05VS_VTT+1.35V
+5VALW
+5VALW
+3VS
+VSB
+5VS
+3VALW
+1.35V +1.35VS
+VSB
+VSB
+5VALW
+5VS
+3VALW +3VALW
+3VS
+1.35V
+1.05VS_VCCPP
+5VS
+3VS
+5VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DC Interface
Custom
34 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DC Interface
Custom
34 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
DC Interface
Custom
34 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
S
G
D
Q15A
DMN66D0LDW-7_SOT363-6
S
G
D
Q15A
DMN66D0LDW-7_SOT363-6
5
34
C463
.1U_0603_25V7K
C463
.1U_0603_25V7K
1
2
C472
4.7U_0603_10V6K
@
C472
4.7U_0603_10V6K
@
1
2
C725 47P_0402_50V8J
XEMC@
C725 47P_0402_50V8J
XEMC@
1 2
U12
SI7716ADN-T1-GE3_POWERPAK8-5
U12
SI7716ADN-T1-GE3_POWERPAK8-5
4
5
1
2
3
C732 47P_0402_50V8J
XEMC@
C732 47P_0402_50V8J
XEMC@
1 2
G
D
S
Q24
2N7002KW_SOT323-3
@
G
D
S
Q24
2N7002KW_SOT323-3
@
2
13
R268
510K_0402_5%
@
R268
510K_0402_5%
@
12
R29
470_0603_5%
R29
470_0603_5%
1 2
C499
.1U_0603_25V7K
C499
.1U_0603_25V7K
1
2
C731 47P_0402_50V8J
XEMC@
C731 47P_0402_50V8J
XEMC@
1 2
R365
470_0603_5%
@R365
470_0603_5%
@
1 2
C464
4.7U_0603_10V6K
C464
4.7U_0603_10V6K
1
2
R366
22_0603_5%
R366
22_0603_5%
12
R245
470_0603_5%
R245
470_0603_5%
1 2
U22
SI7716ADN-T1-GE3_POWERPAK8-5
U22
SI7716ADN-T1-GE3_POWERPAK8-5
4
5
1
2
3
C339
4.7U_0603_6.3V6K
@
C339
4.7U_0603_6.3V6K
@
1
2
G
D
S
Q5
2N7002KW_SOT323-3
G
D
S
Q5
2N7002KW_SOT323-3
2
13
C726 47P_0402_50V8J
XEMC@
C726 47P_0402_50V8J
XEMC@
1 2
G
S
D
Q59B
DMN66D0LDW-7_SOT363-6
G
S
D
Q59B
DMN66D0LDW-7_SOT363-6
61
2
C461
4.7U_0603_6.3V6K
C461
4.7U_0603_6.3V6K
1
2
C738 47P_0402_50V8J
XEMC@
C738 47P_0402_50V8J
XEMC@
1 2
G
D
S
Q23
2N7002KW_SOT323-3
G
D
S
Q23
2N7002KW_SOT323-3
2
13
C728 47P_0402_50V8J
XEMC@
C728 47P_0402_50V8J
XEMC@
1 2
C458
1U_0402_6.3V6K
C458
1U_0402_6.3V6K
1
2
R437
20K_0402_5%
R437
20K_0402_5%
12 R633 0_0402_5%R633 0_0402_5%
12
G
D
S
Q26
2N7002KW_SOT323-3
G
D
S
Q26
2N7002KW_SOT323-3
2
13
G
D
S
Q34
2N7002KW_SOT323-3
G
D
S
Q34
2N7002KW_SOT323-3
2
13
C380
.1U_0603_25V7K
C380
.1U_0603_25V7K
1
2
R636 10K_0402_5%R636 10K_0402_5%
12
C733 47P_0402_50V8J
XEMC@
C733 47P_0402_50V8J
XEMC@
1 2
C737 47P_0402_50V8J
XEMC@
C737 47P_0402_50V8J
XEMC@
1 2
C729 47P_0402_50V8J
XEMC@
C729 47P_0402_50V8J
XEMC@
1 2
C459
4.7U_0603_6.3V6K
C459
4.7U_0603_6.3V6K
1
2
C378
4.7U_0603_6.3V6K
C378
4.7U_0603_6.3V6K
1
2
R508
470_0603_5%
R508
470_0603_5%
1 2
S
G
D
Q19A
DMN66D0LDW-7_SOT363-6
S
G
D
Q19A
DMN66D0LDW-7_SOT363-6
5
34
C460
4.7U_0603_6.3V6K
@
C460
4.7U_0603_6.3V6K
@
1
2
C734 47P_0402_50V8J
XEMC@
C734 47P_0402_50V8J
XEMC@
1 2
R450
100K_0402_5%
R450
100K_0402_5%
12
R635 0_0402_5%R635 0_0402_5%
12
C375
4.7U_0603_6.3V6K
@
C375
4.7U_0603_6.3V6K
@
1
2
G
S
D
Q19B
DMN66D0LDW-7_SOT363-6
G
S
D
Q19B
DMN66D0LDW-7_SOT363-6
61
2
G
D
S
Q21
2N7002KW_SOT323-3
@
G
D
S
Q21
2N7002KW_SOT323-3
@
2
13
R449
100K_0402_5%
R449
100K_0402_5%
1 2
RP45
100K_8P4R_5%
RP45
100K_8P4R_5%
18
27
36
45
S
G
D
Q59A
DMN66D0LDW-7_SOT363-6
S
G
D
Q59A
DMN66D0LDW-7_SOT363-6
5
34
R368
47K_0402_5%
R368
47K_0402_5%
12
C469
1U_0603_10V6K
C469
1U_0603_10V6K
1
2
C736 47P_0402_50V8J
XEMC@
C736 47P_0402_50V8J
XEMC@
1 2
C498
4.7U_0603_10V6K
C498
4.7U_0603_10V6K
1
2
U21
SI7716ADN-T1-GE3_POWERPAK8-5
U21
SI7716ADN-T1-GE3_POWERPAK8-5
4
5
1
2
3
S
G
D
Q25A
DMN66D0LDW-7_SOT363-6
S
G
D
Q25A
DMN66D0LDW-7_SOT363-6
5
34
R436
470_0603_5%
R436
470_0603_5%
1 2
R269
33K_0402_5%
R269
33K_0402_5%
12
C338
1U_0402_6.3V6K
@
C338
1U_0402_6.3V6K
@
1
2
G
S
D
Q15B
DMN66D0LDW-7_SOT363-6
G
S
D
Q15B
DMN66D0LDW-7_SOT363-6
61
2
G
S
D
Q25B
DMN66D0LDW-7_SOT363-6
G
S
D
Q25B
DMN66D0LDW-7_SOT363-6
61
2
C730 47P_0402_50V8J
XEMC@
C730 47P_0402_50V8J
XEMC@
1 2
R440
470_0603_5%
R440
470_0603_5%
1 2
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
DC_IN_S1
ADAPDET 37
+3VLP
+CHGRTC
VIN
+RTCBATT+RTCBATT_R
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
DCIN/PRECHARGE
Custom
35 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
DCIN/PRECHARGE
Custom
35 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
DCIN/PRECHARGE
Custom
35 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PR103
560_0603_5%
PR103
560_0603_5%
1 2
PR101
0_0402_5%
@PR101
0_0402_5%
@
1 2
PR102
560_0603_5%
PR102
560_0603_5%
1 2
PC104
1000P_0603_50V7K
PC104
1000P_0603_50V7K
12
PC102
100P_0603_50V8
PC102
100P_0603_50V8
12
PC101
1000P_0603_50V7K
PC101
1000P_0603_50V7K
12
PL102
HCB2012KF-121T50_0805
PL102
HCB2012KF-121T50_0805
1 2
PL101
HCB2012KF-121T50_0805
PL101
HCB2012KF-121T50_0805
1 2
PC103
100P_0603_50V8
PC103
100P_0603_50V8
12
PJP101
ACES_88266-05001
CONN@
PJP101
ACES_88266-05001
CONN@
GND2 7
GND1 6
11
22
33
44
55
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
PH11 near
PH2 near charger
CPU thermal protection at 92 degree C
PH9 under CPU botten side :
EC pin
TH
EC_SMCA
EC_SMDA
BI+
BATT_S1
H_PROCHOT#
H_PROCHOT#
MAINPWON
SPOK38
BATT_TEMP 28
EC_SMB_CK1 28,37
EC_SMB_DA1 28,37
CHG_TEMP28
MAINPWON38
H_PROCHOT#28,5
ADP_I28,37
MAINPWON_L28
BI 33
B+ +VSBP
VL
+3VALWP
BATT+
+3VLP
+VSBP +VSB
+3VLP +3VALW
+3VLP +3VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
BATTERY CONN / OTP
Custom
36 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
BATTERY CONN / OTP
Custom
36 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
BATTERY CONN / OTP
Custom
36 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PR207
1K_0402_5%
PR207
1K_0402_5%
12
PC208
1U_0402_6.3V6K
PC208
1U_0402_6.3V6K
12
G
D
S
PQ202A
DMN66D0LDW-7_SOT363-6
@
G
D
S
PQ202A
DMN66D0LDW-7_SOT363-6
@
2
61
PC205
0.22U_0603_25V7K
@
PC205
0.22U_0603_25V7K
@
12
PC204
0.1U_0603_25V7K
PC204
0.1U_0603_25V7K
12
PC206
.1U_0603_25V7K
PC206
.1U_0603_25V7K
12
G
D
S
PQ202B
DMN66D0LDW-7_SOT363-6
@
G
D
S
PQ202B
DMN66D0LDW-7_SOT363-6
@
5
34
PR211
9.53K_0402_1%
@PR211
9.53K_0402_1%
@
12
PC203
0.01U_0402_25V7K
PC203
0.01U_0402_25V7K
12
PR212
0_0402_5%
@PR212
0_0402_5%
@
1 2
PJP201
ACES_88231-08001
CONN@
PJP201
ACES_88231-08001
CONN@
11
22
33
44
55
66
77
88
GND1 9
GND2 10
PU202
G718TM1U_SOT23-8
PU202
G718TM1U_SOT23-8
VCC
1
GND
2
~OT1
3
~OT2
4RHYST2 5
TMSNS2 6
RHYST1 7
TMSNS1 8
PJ202
JUMP_43X39
@PJ202
JUMP_43X39
@
1
122
PR223
9.53K_0402_1%
PR223
9.53K_0402_1%
12
PR216
0_0402_5%
@PR216
0_0402_5%
@
1 2
G
D
S
PQ204
2N7002KW_SOT323-3
G
D
S
PQ204
2N7002KW_SOT323-3
2
13
PR204
100_0402_1%
PR204
100_0402_1%
12
PR220@
100K_0402_1%
PR220@
100K_0402_1%
12
PR217
0_0402_5%
@PR217
0_0402_5%
@
12
PR203
0_0402_5%
@PR203
0_0402_5%
@
12
PR222
100K_0402_1%
PR222
100K_0402_1%
12
PR202
0_0402_5%
@PR202
0_0402_5%
@
1 2
PR215 1K_0402_1%PR215 1K_0402_1%
1 2
PR218
21K_0402_1%
PR218
21K_0402_1%
12
PH201
100K_0402_1%_NCP15WF104F03RC
@
PH201
100K_0402_1%_NCP15WF104F03RC
@
12
PH202
100K_0402_1%_NCP15WF104F03RC
PH202
100K_0402_1%_NCP15WF104F03RC
12
PR206
@
100K_0402_1%
PR206
@
100K_0402_1%
12
PR213
6.49K_0402_1%
PR213
6.49K_0402_1%
12
G
D
S
PQ203
2N7002KW_SOT323-3
G
D
S
PQ203
2N7002KW_SOT323-3
2
13
PC201
1000P_0402_50V7K
PC201
1000P_0402_50V7K
12
PQ201
TP0610K-T1-E3_SOT23-3
PQ201
TP0610K-T1-E3_SOT23-3
2
13
PR221
3.92K_0402_1%
PR221
3.92K_0402_1%
12
PR219
100K_0402_1%
PR219
100K_0402_1%
12
PC202
.1U_0402_16V7K
@
PC202
.1U_0402_16V7K
@
12
PR227
100K_0402_1%
PR227
100K_0402_1%
12
PJ201
JUMP_43X39
@PJ201
JUMP_43X39
@
1
122
PR201
100_0402_1%
PR201
100_0402_1%
12
PC207
1000P_0402_50V7K
PC207
1000P_0402_50V7K
12
PR214
10.5K_0402_1%
@PR214
10.5K_0402_1%
@
1 2
PR229
33K_0402_1%
PR229
33K_0402_1%
12
PR225
22K_0402_1%
PR225
22K_0402_1%
12
PR224
0_0402_5%@
PR224
0_0402_5%@
1 2
PR226
39K_0402_1%
PR226
39K_0402_1%
1 2
PR205
21K_0402_1%
@PR205
21K_0402_1%
@
12
PR209
3.92K_0402_1%
PR209
3.92K_0402_1%
12
PR228
1K_0402_5%
PR228
1K_0402_5%
1 2
PU201
G718TM1U_SOT23-8
@
PU201
G718TM1U_SOT23-8
@
VCC
1
GND
2
~OT1
3
~OT2
4RHYST2 5
TMSNS2 6
RHYST1 7
TMSNS1 8
PH203
100K_0402_1%_NCP15WF104F03RC
PH203
100K_0402_1%_NCP15WF104F03RC
12
PL202
HCB2012KF-121T50_0805
PL202
HCB2012KF-121T50_0805
1 2
PL201
HCB2012KF-121T50_0805
PL201
HCB2012KF-121T50_0805
1 2
PR210
6.49K_0402_1%
@PR210
6.49K_0402_1%
@
12
PR208@
100K_0402_1%
PR208@
100K_0402_1%
12
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
for reverse input protection
Close EC
Min. Typ Max.
VIN 17.26V 19.06V 22.66V
ACDET 2.4V 2.65V 3.15 V
Vin Dectector
ILIM and external DPM
Min. Typ Max.
3.906A 3.966A 4.027A
100ppm
BQ24725_ACDRV
BQ24725_ACN
BQ24725_ACP
BQ24725_BATDRV
BQ24725_BATDRV
BQ24725_CMSRC
BQ24725_LX
BQ24725_LX CHG
CSON1
CSOP1
DH_CHG
DH_CHG
DL_CHG
ACDET
ACOK
BQ24725_BST
CSON1
CSOP1SRP
SRN
DH_CHG-1
ADP_I 28,36
EC_SMB_CK1 28,36
EC_SMB_DA1 28,36
ACIN28,34
ADAPDET35
P2P1
B+
VIN
+3VLP
VIN
BATT+
VIN
CHG_B+
+3VLP
+3VALW
VIN VIN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CHARGER
Custom
37 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CHARGER
Custom
37 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CHARGER
Custom
37 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PL302
4.7UH_PCMC063T-4R7MN_5.5A_20%
PL302
4.7UH_PCMC063T-4R7MN_5.5A_20%
1 2
PC315
10U_0805_25V6K
PC315
10U_0805_25V6K
12
PC304
10U_0805_25V6K
PC304
10U_0805_25V6K
12
PQ306
SIS412DN-T1-GE3_POWERPAK8-5
PQ306
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PC306
2200P_0402_50V7K
PC306
2200P_0402_50V7K
12
PQ305
SIS412DN-T1-GE3_POWERPAK8-5
PQ305
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PC320
680P_0402_50V7K
PC320
680P_0402_50V7K
12
PR310
2.2_0603_5%
PR310
2.2_0603_5%
12
PR303
0.02_1206_1%
PR303
0.02_1206_1%
1
3
4
2
PR302
3M_0402_5%
PR302
3M_0402_5%
1 2
PC309
0.1U_0402_25V6
PC309
0.1U_0402_25V6
12
PC313
1U_0603_25V6K
PC313
1U_0603_25V6K
1 2
PC308
0.01U_0402_50V7K
PC308
0.01U_0402_50V7K
12
PR317
316K_0402_1%
@PR317
316K_0402_1%
@
1 2
PC321
0.1U_0603_25V7K
PC321
0.1U_0603_25V7K
12
PR323
100K_0402_5%
PR323
100K_0402_5%
12
PQ303
SIS412DN-T1-GE3_POWERPAK8-5
PQ303
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PR312
0.01_1206_1%
PR312
0.01_1206_1%
1
3
4
2
PR314
10_0603_5%
PR314
10_0603_5%
1 2
PR321
100K_0402_5%
PR321
100K_0402_5%
12
PD301
BAS40CW_SOT323-3
PD301
BAS40CW_SOT323-3
1
2
3
PR311
2.2_0603_5%
PR311
2.2_0603_5%
1 2
PR306
4.12K_0603_1%
PR306
4.12K_0603_1%
1 2
PC326
68P_0402_50V8J
RF@ PC326
68P_0402_50V8J
RF@
12
PC305
0.1U_0402_25V6
@
PC305
0.1U_0402_25V6
@
12
PC316
0.1U_0402_25V6
PC316
0.1U_0402_25V6
12
PC312
1U_0603_25V6K
PC312
1U_0603_25V6K
1 2
PR318
316K_0402_1%
PR318
316K_0402_1%
1 2
PR319
100K_0402_1%
PR319
100K_0402_1%
12
G
D
S
PQ307
2N7002KW_SOT323-3
G
D
S
PQ307
2N7002KW_SOT323-3
2
13
PC319
0.01U_0402_50V7K
@
PC319
0.01U_0402_50V7K
@
12
PR304
0_0402_5%
@
PR304
0_0402_5%
@
12
PR309
10_1206_1%
PR309
10_1206_1%
12
PR316
100K_0402_1%
PR316
100K_0402_1%
1 2
PJ301
JUMP_43X79
PJ301
JUMP_43X79
1
122
PC325
0.1U_0402_16V7K
@PC325
0.1U_0402_16V7K
@
12
PC324
100P_0402_50V8J
PC324
100P_0402_50V8J
12
PC323
0.22U_0402_16V7K
PC323
0.22U_0402_16V7K
12
PC311
0.1U_0603_25V7K
PC311
0.1U_0603_25V7K
12
PC327
68P_0402_50V8J
RF@ PC327
68P_0402_50V8J
RF@
12
PC302
0.1U_0402_25V6
PC302
0.1U_0402_25V6
12
PR322
66.5K_0402_1%
PR322
66.5K_0402_1%
12
PC322
0.01U_0402_25V7K
PC322
0.01U_0402_25V7K
12
PD302
RB751V-40_SOD323-2
PD302
RB751V-40_SOD323-2
12
PQ302
SIS412DN-T1-GE3_POWERPAK8-5
PQ302
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PC328
0.1U_0402_25V6
RF@ PC328
0.1U_0402_25V6
RF@
1 2
PC318
2200P_0402_50V7K
@
PC318
2200P_0402_50V7K
@
12
PR301
1M_0402_5%
PR301
1M_0402_5%
1 2
G
D
S
PQ301
2N7002KW_SOT323-3
G
D
S
PQ301
2N7002KW_SOT323-3
2
13
PC301
2200P_0402_50V7K
PC301
2200P_0402_50V7K
12
PR307
4.12K_0603_1%
PR307
4.12K_0603_1%
12
PR320
422K_0402_1%
PR320
422K_0402_1%
12
PR313
4.7_1206_5%
PR313
4.7_1206_5%
12
PR305
0_0402_5%
@
PR305
0_0402_5%
@
12
PR325
100K_0402_5%
PR325
100K_0402_5%
12
PR315
6.8_0603_5%
PR315
6.8_0603_5%
1 2
PC303
10U_0805_25V6K
PC303
10U_0805_25V6K
12
PC307
0.1U_0402_25V6
PC307
0.1U_0402_25V6
1 2
PC317
0.1U_0402_25V6
PC317
0.1U_0402_25V6
12
PQ304
SIS412DN-T1-GE3_POWERPAK8-5
PQ304
SIS412DN-T1-GE3_POWERPAK8-5
4
5
1
2
3
PU301
BQ24725A_VQFN20_3P5X3P5
PU301
BQ24725A_VQFN20_3P5X3P5
ACN
1
ACP
2
CMSRC
3
ACDRV
4
ACOK
5
ACDET
6
IOUT
7
SDA
8
SCL
9
ILIM
10
BATDRV 11
SRN 12
SRP 13
GND 14
LODRV 15
REGN 16
BTST 17
HIDRV 18
PHASE 19
VCC 20
PAD
21
PQ308
PDTC115EU_SOT323-3
PQ308
PDTC115EU_SOT323-3
2
13
PR324
0_0402_5%
@PR324
0_0402_5%
@
1 2
PR308
4.12K_0603_1%
PR308
4.12K_0603_1%
12
PC314
10U_0805_25V6K
PC314
10U_0805_25V6K
12
PC310
0.047U_0402_25V7K
PC310
0.047U_0402_25V7K
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
5*5*3 NW00
5*5*3 NW00
For EC use +3VALW,
mark "@" if use +3VLP
ENM
BST_3V_1BST_3V
LX_3V
LX_5V
BST_5V BST_5V_1
ENM
ENM
FB_5V
FB_3V
ENLDO_3V5V
MAINPWON36
EC_ON28
B+
+3VALWP
+3VALWP +3VALW
+5VALWP +5VALW
B+
B+
VL
+3VLP
+5VALWP
SPOK36
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
3VALW/5VALW
Custom
38 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
3VALW/5VALW
Custom
38 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
3VALW/5VALW
Custom
38 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PR409
0_0402_5%
@PR409
0_0402_5%
@
1 2
PR402
499K_0402_1%
PR402
499K_0402_1%
12
PC424
68P_0402_50V8J
RF@ PC424
68P_0402_50V8J
RF@
12
PC410
4.7U_0603_6.3V6K
PC410
4.7U_0603_6.3V6K
12
PL403
HCB2012KF-121T50_0805
PL403
HCB2012KF-121T50_0805
1 2
PD401 SBR2U30P1-7_POWERDI123-2@PD401 SBR2U30P1-7_POWERDI123-2@
1 2
PC415
10U_0805_25V6K
PC415
10U_0805_25V6K
12
PC429
0.01U_0402_25V4Z
PC429
0.01U_0402_25V4Z
1 2
PC413
2200P_0402_50V7K
PC413
2200P_0402_50V7K
12
PC416
0.1U_0603_25V7K
PC416
0.1U_0603_25V7K
1 2
PC425
2200P_0402_50V7K
RF@ PC425
2200P_0402_50V7K
RF@
12
PR410
1K_0402_5%
PR410
1K_0402_5%
1 2
PC401
0.1U_0603_25V7K
@
PC401
0.1U_0603_25V7K
@
12
PR406
4.7_1206_5%
PR406
4.7_1206_5%
12
PR403
150K_0402_1%
PR403
150K_0402_1%
12
PC403
2200P_0402_50V7K
PC403
2200P_0402_50V7K
12
PU402
SY8208CQNC_QFN10_3X3
PU402
SY8208CQNC_QFN10_3X3
LX 10
IN
8
LDO 7
PG
2
EN2 3
OUT 4
VCC
5
GND
9
EN1 1
BS 6
PR411
402K_0402_1%
@PR411
402K_0402_1%
@
12
PC414
0.1U_0603_25V7K
@
PC414
0.1U_0603_25V7K
@
12
PC421
4.7U_0603_6.3V6K
PC421
4.7U_0603_6.3V6K
12
PC409
22U_0805_6.3VAM
PC409
22U_0805_6.3VAM
12
PR404
4.7_1206_5%
PR404
4.7_1206_5%
12
PC418
22U_0805_6.3VAM
PC418
22U_0805_6.3VAM
12
PC407
22U_0805_6.3VAM
PC407
22U_0805_6.3VAM
12
PC419
22U_0805_6.3VAM
PC419
22U_0805_6.3VAM
12
PR407
0_0402_5%
@PR407
0_0402_5%
@
1 2
PC422
680P_0402_50V7K
PC422
680P_0402_50V7K
12
PU401
SY8208BQNC_QFN10_3X3
PU401
SY8208BQNC_QFN10_3X3
LX 10
IN
7
OUT 4
PG
2LDO 5
IN
8
GND
9
EN1 1
BS 6
EN2 3
PR405
2.2_0603_5%
PR405
2.2_0603_5%
1 2
PC423
4.7U_0603_6.3V6K
PC423
4.7U_0603_6.3V6K
12
PC426
0.1U_0603_25V7K
RF@ PC426
0.1U_0603_25V7K
RF@
12
PC420
22U_0805_6.3VAM
PC420
22U_0805_6.3VAM
12
PL401
HCB2012KF-121T50_0805
PL401
HCB2012KF-121T50_0805
1 2
PR401
2.2_0603_5%
PR401
2.2_0603_5%
1 2
PJ402
JUMP_43X118
@PJ402
JUMP_43X118
@
1
122
PR414
1K_0402_5%
PR414
1K_0402_5%
1 2
PC412
10U_0805_25V6K
PC412
10U_0805_25V6K
12
PC406
1U_0603_25V6K
PC406
1U_0603_25V6K
12
PC428
6800P_0402_25V7K
PC428
6800P_0402_25V7K
1 2
PC411
680P_0402_50V7K
PC411
680P_0402_50V7K
12
PC405
10U_0805_25V6K
PC405
10U_0805_25V6K
12
PR408
2.2K_0402_5%
PR408
2.2K_0402_5%
1 2
PC402
0.1U_0603_25V7K
PC402
0.1U_0603_25V7K
1 2
PL404
1UH_PCMB053T-1R0MS_7A_20%
PL404
1UH_PCMB053T-1R0MS_7A_20%
12
PJ401
JUMP_43X118
@PJ401
JUMP_43X118
@
1
122
PC417
4.7U_0603_6.3V6K
PC417
4.7U_0603_6.3V6K
12
PC427
68P_0402_50V8J
RF@ PC427
68P_0402_50V8J
RF@
12
PC408
22U_0805_6.3VAM
PC408
22U_0805_6.3VAM
12
PL402
1UH_PCMB053T-1R0MS_7A_20%
PL402
1UH_PCMB053T-1R0MS_7A_20%
1 2
PC404
10U_0805_25V6K
PC404
10U_0805_25V6K
12
A
A
1 1
FB=0.75V
To GND = 1.5V
To VDD = 1.35V
Note: S3 - sleep ; S5 - power off
STATE S3 S5 1.35VP VTT_REFP 0.675VSP
S0
S3
S4/S5
Hi Hi
HiLo
Lo Lo
On
On
On
On
On
Off
(Hi-Z)
Off
(Discharge)
Off
(Discharge)
Off
(Discharge)
Output Cap PAD
Ipeak=12.2A ; Imax=8.54A ;Iocp=14.64A
Delta I=3.23=>1/2Delta I=1.62A (F=285K Hz)
Rds(on)=14m ohm(max) ; Rds(on)=11.5m ohm(typical)
Ilimit_min=(18.7K*10uA)/(14m)=13.36A
Ilimit_max=(18.7K*10uA)/(11.5m)=16.26A
Iocp=Ilimit+1/2Delta I =14.97~17.88A
prevent the switching
too fast to short through
OVP=110%~120%
Rds=11.5mΩ(Typ)
14mΩ(Max)
2012/08/01
BST_1.35V-1
1.35V_B+
LX_1.35V
UG_1.35V
BST_1.35V
1.35V_B+
S3_1.35V
S5_1.35V
PGOOD_1.35V
LG_1.35V
SUSP
SUSP#28,34,40,41
SYSON28,34
SUSP34
+1.35VP
B+
+5VALW
+3VALW
+1.35VP
+VTT_REFP
+0.675VSP
+1.35VP
+1.35VP +1.35V
+0.675VSP +0.675VS
+1.35VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
1.5VP/0.75VSP/1.8VSP
Custom
39 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
1.5VP/0.75VSP/1.8VSP
Custom
39 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
1.5VP/0.75VSP/1.8VSP
Custom
39 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PR501
887K_0402_1%
PR501
887K_0402_1%
12
PJ506
JUMP_43X79
@PJ506
JUMP_43X79
@
1
122
PC509
680P_0402_50V7K
PC509
680P_0402_50V7K
12
PR507
680K_0402_1%
PR507
680K_0402_1%
1 2
PR502
2.2_0603_5%
PR502
2.2_0603_5%
1 2
PR504
18.7K_0402_1%
PR504
18.7K_0402_1%
12
PJ503
JUMP_43X39
@PJ503
JUMP_43X39
@
11
2
2
PU501
RT8207MZQW_WQFN20_3X3
PU501
RT8207MZQW_WQFN20_3X3
VTTSNS
2
FB
6
S5
8
PGOOD
10
VDDP 12
PHASE 16
BOOT 18
VTTREF
4
PGND 14
VTTGND
1
GND
3
VDDQ
5
S3
7
TON
9
VDD 11
CS 13
LGATE 15
UGATE 17
VTT 20
VLDOIN 19
PAD
21
PJ507
JUMP_43X39
@PJ507
JUMP_43X39
@
11
2
2
PR510
5.76K_0402_1%
PR510
5.76K_0402_1%
12
PR509
4.64K_0402_1%
DDR3L@ PR509
4.64K_0402_1%
DDR3L@
12
PR506
10K_0402_5%
@
PR506
10K_0402_5%
@
12
PC505
0.1U_0603_25V7K
PC505
0.1U_0603_25V7K
1 2
PR503
4.7_1206_5%
PR503
4.7_1206_5%
12
PC506
10U_0805_25V6K
PC506
10U_0805_25V6K
12
PQ502
MDV1525URH_PDFN33-8-5
PQ502
MDV1525URH_PDFN33-8-5
4
5
1
2
3
PC514
0.1U_0402_16V7K
@PC514
0.1U_0402_16V7K
@
12
PL502
1.5UH_MMD-06CZ-1R5M-V1_9A_20%
PL502
1.5UH_MMD-06CZ-1R5M-V1_9A_20%
1 2
PC504
0.1U_0402_25V6
@PC504
0.1U_0402_25V6
@
12
PC516
68P_0402_50V8J
RF@ PC516
68P_0402_50V8J
RF@
12
PR505
5.1_0603_5%
PR505
5.1_0603_5%
12
PR508
0_0402_5%
@PR508
0_0402_5%
@
1 2
PC515
68P_0402_50V8J
RF@ PC515
68P_0402_50V8J
RF@
12
PC510
0.033U_0402_16V7K
PC510
0.033U_0402_16V7K
12
PC513
0.1U_0402_16V4Z
PC513
0.1U_0402_16V4Z
1
2
PQ501
MDV1528URH_PDFN33-8-5
PQ501
MDV1528URH_PDFN33-8-5
4
5
1
2
3
PC501
2200P_0402_50V7K
PC501
2200P_0402_50V7K
12
PC503
4.7U_0805_25V6-K
PC503
4.7U_0805_25V6-K
12
PJ504
JUMP_43X118
@PJ504
JUMP_43X118
@
1
122
PC502
4.7U_0805_25V6-K
PC502
4.7U_0805_25V6-K
12
PC512
1U_0603_10V6K
PC512
1U_0603_10V6K
12
PC511
1U_0603_10V6K
PC511
1U_0603_10V6K
12
G
D
S
PQ503
2N7002KW_SOT323-3
G
D
S
PQ503
2N7002KW_SOT323-3
2
13
PJ501
JUMP_43X118
@PJ501
JUMP_43X118
@
1
122
PC507
10U_0805_25V6K
PC507
10U_0805_25V6K
12
+
PC508
330U_D2_2V_Y
+
PC508
330U_D2_2V_Y
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
7*7*3 5K80
VFB=0.6V
BST_+1.05VSP
SW_+1.05VSP
FB_+1.05VSP
EN_+1.05VSP
VCCPPWRGOOD41
VCCIO_SENSE 8
+1.05VS_VTT
+1.05VS_VCCPP
+3VS
+1.05VS_VCCPP
B+
+3VS
+3VALW
SUSP# 28,34,39,41
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
1.05VS_VTTP
Custom
40 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
1.05VS_VTTP
Custom
40 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
1.05VS_VTTP
Custom
40 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PC615
4.7U_0603_6.3V6K
PC615
4.7U_0603_6.3V6K
12
PC609
22U_0805_6.3V6M
PC609
22U_0805_6.3V6M
12
PC606
10U_0805_25V6K
PC606
10U_0805_25V6K
12
PC614
680P_0402_50V7K
PC614
680P_0402_50V7K
12
PC617
220P_0402_50V8J
PC617
220P_0402_50V8J
12
PC605
10U_0805_25V6K
PC605
10U_0805_25V6K
12
PR602
330K_0402_1%
PR602
330K_0402_1%
12
PC619
68P_0402_50V8J
RF@ PC619
68P_0402_50V8J
RF@
12
PL602
0.68UH_PCMC063T-R68MN_15.5A_20%
PL602
0.68UH_PCMC063T-R68MN_15.5A_20%
1 2
PC620
2200P_0402_50V7K
RF@ PC620
2200P_0402_50V7K
RF@
12
PC613
0.1U_0402_16V7K
@PC613
0.1U_0402_16V7K
@
12
PC604
2200P_0402_50V7K
PC604
2200P_0402_50V7K
12
PC621
68P_0402_50V8J
RF@ PC621
68P_0402_50V8J
RF@
12
PU601
SY8208DQNC_QFN10_3X3
PU601
SY8208DQNC_QFN10_3X3
IN
8
BYP 7
PG
2
ILMT
3
LX 10
FB 4
LDO 5
GND
9
EN 1
BS 6
PR610
1.2K_0402_1%@
PR610
1.2K_0402_1%@
12
PC602
0.1U_0402_16V7K
@PC602
0.1U_0402_16V7K
@
1 2
PC608
22U_0805_6.3V6M
PC608
22U_0805_6.3V6M
12
PC618
68P_0402_50V8J
RF@ PC618
68P_0402_50V8J
RF@
12
PC616
4.7U_0603_6.3V6K
PC616
4.7U_0603_6.3V6K
12
PC612
22U_0805_6.3V6M
@
PC612
22U_0805_6.3V6M
@
12
PR604
10K_0402_1%
@PR604
10K_0402_1%
@
1 2
PC622
.1U_0402_16V7K
PC622
.1U_0402_16V7K
12
PR606
1M_0402_1%
PR606
1M_0402_1%
12
PC603
0.1U_0402_25V6
@PC603
0.1U_0402_25V6
@
12
PR607
100K_0402_1%
PR607
100K_0402_1%
12
PC601
0.1U_0603_25V7K
PC601
0.1U_0603_25V7K
1 2
PR605
4.7_0805_5%
PR605
4.7_0805_5%
12
PL601
HCB2012KF-121T50_0805
PL601
HCB2012KF-121T50_0805
1 2
PJ601
JUMP_43X118
@PJ601
JUMP_43X118
@
1
122
PR601
0_0603_5%
PR601
0_0603_5%
1 2
PC610
22U_0805_6.3V6M
PC610
22U_0805_6.3V6M
12
PR603
1M_0402_1%
@PR603
1M_0402_1%
@
1 2
PC611
22U_0805_6.3V6M
PC611
22U_0805_6.3V6M
12
PR609
133K_0402_1%
PR609
133K_0402_1%
12
PR608
10K_0402_1%
PR608
10K_0402_1%
12
PR611
100_0402_1%
PR611
100_0402_1%
1 2
PC607
22U_0805_6.3V6M
PC607
22U_0805_6.3V6M
12
PC623
1000P_0402_50V7K@
PC623
1000P_0402_50V7K@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
output voltage adjustable network
VID [0] VID[1] VCCSA Vout
0 0 0.9V
0 1 0.85V
1 0 0.775V
1 1 0.75V
0.9V
Note:Iload(max)=3A
Ien=10uA, Vth=0.3V, notice
the res. and pull high
voltage from HW
FB=0.8V
Note:Iload(max)=3A
FB=0.6V
Note:Iload(max)=2.5A
Rup
Rdown
Vout=0.6V* (1+Rup/Rdown)
+VCCSA_PWRGD
+1.5VSP_ON FB_1.5VSP
SUSP#
FB_1.8V
LX_1.8V
+1.8VSP_ON
SA_PGOOD15,28
H_VCCSA_VID1 9
H_VCCSA_VID0 9
VCCPPWRGOOD40
SUSP#28,34,39,40
+VCCSAP
+3VS
+VCCSA+VCCSAP
+5VALW
+1.05VS_VTT
+1.5VS+1.5VSP
+3VS
+1.5VSP
+1.8VSP +1.8VS
+3VALW
+1.8VSP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
VCC_SAP
Custom
41 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
VCC_SAP
Custom
41 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
VCC_SAP
Custom
41 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PC710
22U_0805_6.3V6M
PC710
22U_0805_6.3V6M
1 2
PC709
2200P_0402_50V7K
PC709
2200P_0402_50V7K
12
PC714
0.1U_0402_16V7K
@PC714
0.1U_0402_16V7K
@
12
PC715
4.7U_0603_6.3V6K
PC715
4.7U_0603_6.3V6K
12
PJ705
JUMP_43X39
@PJ705
JUMP_43X39
@
1
122
PU702
APL5930KAI-TRG_SO8
PU702
APL5930KAI-TRG_SO8
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PC708
22U_0805_6.3V6M
PC708
22U_0805_6.3V6M
1 2
PC717
22U_0805_6.3V6M
@
PC717
22U_0805_6.3V6M
@
12
PC724
680P_0402_50V7K
PC724
680P_0402_50V7K
12
PJ701
JUMP_43X39
@PJ701
JUMP_43X39
@
1
122
PL701
1UH_PH041H-1R0MS_3.8A_20%
PL701
1UH_PH041H-1R0MS_3.8A_20%
1 2
PC720
68P_0402_50V8J
PC720
68P_0402_50V8J
12
PJ704
JUMP_43X79
@PJ704
JUMP_43X79
@
1
122
PU701
G978F11U_SO8
PU701
G978F11U_SO8
Vo 3
D1 2
VIN
5
POK
7
VPP
6
VEN/MODE
8
Vo 4
D0 1
GND
9
PR701
100K_0402_5%
PR701
100K_0402_5%
12
PR712
4.7_0603_5%
PR712
4.7_0603_5%
12
PU703
SY8003DFC_DFN8_2X2
PU703
SY8003DFC_DFN8_2X2
NC 5
IN
3
PGND
4
PG
2
FB
1
LX 6
EN 7
SGND 8
PGND 9
PR715
22.6K_0402_1%
PR715
22.6K_0402_1%
12
PR714
22K_0402_5%
@PR714
22K_0402_5%
@
12
PC711
1U_0603_6.3V6M
PC711
1U_0603_6.3V6M
1 2
PR702
1K_0402_5%
PR702
1K_0402_5%
12
PR716
10K_0402_1%
PR716
10K_0402_1%
12
PC726
68P_0402_50V8J
RF@ PC726
68P_0402_50V8J
RF@
12
PC719
22U_0805_6.3VAM
PC719
22U_0805_6.3VAM
12
PC705
22U_0805_6.3V6M
PC705
22U_0805_6.3V6M
1 2
PC716
0.022U_0402_16V7K
PC716
0.022U_0402_16V7K
12
PC725
68P_0402_50V8J
RF@ PC725
68P_0402_50V8J
RF@
1 2
PR711
1_0402_1%
PR711
1_0402_1%
1 2
PR705
0_0402_5%
@PR705
0_0402_5%
@
1 2
PR713
20K_0402_1%
PR713
20K_0402_1%
12
PJ703
JUMP_43X39
@PJ703
JUMP_43X39
@
1
122
PR707
0_0402_5%
@PR707
0_0402_5%
@
1 2
PC704
22U_0805_6.3V6M
PC704
22U_0805_6.3V6M
12
PC701
22U_0805_6.3V6M
PC701
22U_0805_6.3V6M
12
PC703
0.1U_0603_25V7K
@PC703
0.1U_0603_25V7K
@
1 2
PC728
68P_0402_50V8J
RF@ PC728
68P_0402_50V8J
RF@
12
PC727
68P_0402_50V8J
RF@ PC727
68P_0402_50V8J
RF@
12
PC702
2200P_0402_50V7K
PC702
2200P_0402_50V7K
1
2
PR710
20K_0402_1%
PR710
20K_0402_1%
12
PR709
1M_0402_5%
PR709
1M_0402_5%
12
PC706
0.1U_0402_16V7K
@
PC706
0.1U_0402_16V7K
@
12
PC721
0.1U_0402_16V7K
PC721
0.1U_0402_16V7K
12
PC707
22U_0805_6.3V6M
PC707
22U_0805_6.3V6M
1 2
PC722
22U_0805_6.3VAM
PC722
22U_0805_6.3VAM
12
PC718
22U_0805_6.3V6M
PC718
22U_0805_6.3V6M
12
PR704
0_0402_5%
@PR704
0_0402_5%
@
1 2
PC713
1U_0402_6.3V6K
@PC713
1U_0402_6.3V6K
@
12
PC712
1U_0603_6.3V6M
PC712
1U_0603_6.3V6M
1 2
PC723
22U_0805_6.3VAM
PC723
22U_0805_6.3VAM
12
PR706
1K_0402_5%
PR706
1K_0402_5%
12
PR703
0_0402_5%
@PR703
0_0402_5%
@
1 2
PJ702
JUMP_43X79
@PJ702
JUMP_43X79
@
1
122
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
For17 W 1+1
CPU_CORE LL= -2.9mΩ, OCP ~40A
GFX_CORE LL= -3.9mΩ, OCP ~34A
Close Phase 1 choke
OVP=VID +(120mV~ 200mV)
42via
56via
SAGE 3G
SAGE 3G
BOOT1
PHASE1
ALERT#
UGATE1
LGATE1
SDA
UGATEG1
PHASEG
BOOTG
LGATEG
VSUMG-
VSUM+
NTCG
SCLK
VSUM-
VSUMG+
VSUMG-
VSUMG+
VSUM-
LGATE1
UGATE1
CPU_B+
BOOT1
VSUM+
PHASE1
PHASEG
BOOTG
LGATEG
UGATEG1 UGATEG1-1
UGATE1-1
VR_SVID_DAT8
VR_SVID_ALRT#8
VR_SVID_CLK8
VR_ON28,5
VGATE 15
VR_HOT#28
VCCSENSE8
VSSSENSE8
VSS_AXG_SENSE9
VCC_AXG_SENSE9
+5VS
+CPU_CORE
+3VS
+1.05VS_VTT
+3VS
+VGFX_CORE
+5VS
CPU_B+
+VGFX_CORE
+CPU_CORE
B+
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CPU_CORE/VGFX_CORE
Custom
42 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CPU_CORE/VGFX_CORE
Custom
42 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CPU_CORE/VGFX_CORE
Custom
42 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
PR846
10_0402_1%
@PR846
10_0402_1%
@
12
PC826
0.1U_0402_25V6
@PC826
0.1U_0402_25V6
@
12
PR845
130K_0402_1%
PR845
130K_0402_1%
12
PR806
649_0402_1%
PR806
649_0402_1%
1 2
PR831 1.91K_0402_1%PR831 1.91K_0402_1%
12
PR827
54.9_0402_1%
PR827
54.9_0402_1%
1 2
ISL95833HRTZ-T_TQFN32_4X4
PU801
ISL95833HRTZ-T_TQFN32_4X4
PU801
NTCG
1
VR_ON
2
SCLK
3
ALERT#
4
SDA
5
VR_HOT#
6
NTC
7
ISEN2
8
ISEN1
9
ISUMP
10
ISUMN
11
RTN
12
FB
13
COMP
14
PGOOD
15
BOOT1
16
UGATE1 17
PHASE1 18
LGATE1 19
PW M2 20
VDD 21
VCCP 22
LGATEG 23
PHASEG 24
UGATEG 25
BOOTG 26
PGOODG 27
COMPG 28
FBG 29
RTNG 30
ISUMNG 31
ISUMPG 32
PAD 33
PC838
330P_0402_50V7K
@PC838
330P_0402_50V7K
@
12
PC843
2200P_0402_50V7K
RF@ PC843
2200P_0402_50V7K
RF@
12
PC828
470P_0402_50V7K
PC828
470P_0402_50V7K
12
PC830
470P_0402_50V7K
PC830
470P_0402_50V7K
12
PR813
2.2_0603_5%
PR813
2.2_0603_5%
12
PR803
10_0402_1%
@PR803
10_0402_1%
@
12
PC806
2200P_0402_50V7K
PC806
2200P_0402_50V7K
1 2
PC813
10U_0805_25V6K
PC813
10U_0805_25V6K
12
PC835
150P_0402_50V8J
PC835
150P_0402_50V8J
12
PR802 10_0402_1%@PR802 10_0402_1%@
12
+
PC841
33U_D2_25VM_R60M
+
PC841
33U_D2_25VM_R60M
1
2
PL803
0.24UH_FDUE0630J-H-R24M-P3_22A_20%
PL803
0.24UH_FDUE0630J-H-R24M-P3_22A_20%
1 2
PC837
0.1U_0402_16V7K
PC837
0.1U_0402_16V7K
12
PC801
0.1U_0402_16V7K
PC801
0.1U_0402_16V7K
12
PR814
4.7_1206_5%
PR814
4.7_1206_5%
12
PC832
56P_0402_50V8
PC832
56P_0402_50V8
12
PR807
1.65K_0402_1%
PR807
1.65K_0402_1%
12
PR819
3.83K_0402_1%
PR819
3.83K_0402_1%
1 2
PC839
330P_0402_50V7K
@
PC839
330P_0402_50V7K
@
12
PC802
1000P_0402_50V7K
@PC802
1000P_0402_50V7K
@
12
PR826
75_0402_5%
PR826
75_0402_5%
1 2
PC809
0.01UF_0402_25V7K
PC809
0.01UF_0402_25V7K
1 2
PR830
27.4K_0402_1%
PR830
27.4K_0402_1%
12
PR843
1_0402_5%
PR843
1_0402_5%
12
PL802
HCB2012KF-121T50_0805
PL802
HCB2012KF-121T50_0805
1 2
PR820 0_0402_5%
@PR820 0_0402_5%
@
1 2
PC836
680P_0402_50V7K
PC836
680P_0402_50V7K
12
PR821 0_0402_5%@PR821 0_0402_5%@
1 2
PR840
2.2_0603_5%
PR840
2.2_0603_5%
12
PL801
HCB2012KF-121T50_0805
PL801
HCB2012KF-121T50_0805
1 2
PC823
10U_0805_25V6K
PC823
10U_0805_25V6K
12
PC844
68P_0402_50V8J
RF@ PC844
68P_0402_50V8J
RF@
12
PC804
68P_0402_50V8J
PC804
68P_0402_50V8J
12
PR825
130_0402_1%
PR825
130_0402_1%
1 2
PR808
280_0402_1%
PR808
280_0402_1%
12
PC819
1U_0603_10V6K
PC819
1U_0603_10V6K
12
PC822
10U_0805_25V6K
PC822
10U_0805_25V6K
12
PC808
0.1U_0603_25V7K
PC808
0.1U_0603_25V7K
1 2
PR842
3.65K_0603_1%
PR842
3.65K_0603_1%
12
PR844
1.91K_0402_1%
PR844
1.91K_0402_1%
12
PR804
499_0402_1%
PR804
499_0402_1%
12
PR835
2.61K_0402_1%
PR835
2.61K_0402_1%
12
PH803
470K_0402_5%_ TSM0B474J4702RE
PH803
470K_0402_5%_ TSM0B474J4702RE
12
PC840
0.01UF_0402_25V7K
PC840
0.01UF_0402_25V7K
12
PR829
0_0402_5%
@PR829
0_0402_5%
@
1 2
PR834
42.2K_0402_1%
PR834
42.2K_0402_1%
12
PC820
0.1U_0402_16V7K
@PC820
0.1U_0402_16V7K
@
12
PR809
11K_0402_1%
PR809
11K_0402_1%
1 2
PR822
1_0603_5%
PR822
1_0603_5%
12
PC817
1U_0603_10V6K
PC817
1U_0603_10V6K
12
PR810
24.9K_0402_1%
PR810
24.9K_0402_1%
12
PR837
499_0402_1%
PR837
499_0402_1%
12
PR838 11K_0402_1%PR838 11K_0402_1%
12
PR836
511_0402_1%
PR836
511_0402_1%
1 2
PR816
1_0402_5%
PR816
1_0402_5%
12
PH802
470K_0402_5%_ TSM0B474J4702RE
PH802
470K_0402_5%_ TSM0B474J4702RE
12
PR833
2K_0402_1%
PR833
2K_0402_1%
12
PR801
2.61K_0402_1%
PR801
2.61K_0402_1%
1 2
PC807
150P_0402_50V8J
PC807
150P_0402_50V8J
12
PR812
1.91K_0402_1%
PR812
1.91K_0402_1%
12
PC818
47P_0402_50V8J
@PC818
47P_0402_50V8J
@
12
PR823 0_0402_5%@PR823 0_0402_5%@
1 2
PQ801
MDV1525URH_PDFN33-8-5
PQ801
MDV1525URH_PDFN33-8-5
4
5
1
2
3
PR817
27.4K_0402_1%
PR817
27.4K_0402_1%
12
PC829
0.01UF_0402_25V7K
@PC829
0.01UF_0402_25V7K
@
12
PC842
0.1U_0402_25V6
RF@ PC842
0.1U_0402_25V6
RF@
12
PR832
0_0603_5%
PR832
0_0603_5%
1 2
PC845
68P_0402_50V8J
RF@ PC845
68P_0402_50V8J
RF@
12
PR841
4.7_1206_5%
PR841
4.7_1206_5%
12
PC814
10U_0805_25V6K
PC814
10U_0805_25V6K
12
PQ803
MDV1525URH_PDFN33-8-5
PQ803
MDV1525URH_PDFN33-8-5
4
5
1
2
3
PR847
10_0402_1%
@PR847
10_0402_1%
@
12
PR805
137K_0402_1%
PR805
137K_0402_1%
12
PC815
0.22U_0603_16V7K
PC815
0.22U_0603_16V7K
1 2
PR818 0_0402_5%@PR818 0_0402_5%@
1 2
PC834
0.22U_0603_16V7K
PC834
0.22U_0603_16V7K
1 2
PH801
10K_0402_1%_ERTJ0EG103FA
PH801
10K_0402_1%_ERTJ0EG103FA
1 2
PR828
3.83K_0402_1%
PR828
3.83K_0402_1%
12
PR839
649_0402_1%
PR839
649_0402_1%
12
PC833
0.1U_0603_25V7K
PC833
0.1U_0603_25V7K
1 2
PC812
1000P_0402_50V7K
@PC812
1000P_0402_50V7K
@
12
PC827
2200P_0402_50V7K
PC827
2200P_0402_50V7K
12
PQ802
MDU1511RH_POWERDFN56-8-5
PQ802
MDU1511RH_POWERDFN56-8-5
4
5
1
2
3
PH804
10K_0402_1%_ERTJ0EG103FA
PH804
10K_0402_1%_ERTJ0EG103FA
12
PC803
0.01UF_0402_25V7K
PC803
0.01UF_0402_25V7K
1 2
PC831
6800P_0402_25V7K
PC831
6800P_0402_25V7K
12
PR824
0_0402_5%
@
PR824
0_0402_5%
@
1 2
PR815
3.65K_0603_1%
PR815
3.65K_0603_1%
1 2
PC805
470P_0402_50V7K
PC805
470P_0402_50V7K
12
PQ804
MDU1511RH_POWERDFN56-8-5
PQ804
MDU1511RH_POWERDFN56-8-5
4
5
1
2
3
PC816
680P_0402_50V7K
PC816
680P_0402_50V7K
12
PR811
0_0603_5%
PR811
0_0603_5%
1 2
PL804
0.24UH_FDUE0630J-H-R24M-P3_22A_20%
PL804
0.24UH_FDUE0630J-H-R24M-P3_22A_20%
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Can connect to GND if motherboard only
supports external graphics and if GFX VR is not
stuffed in a common motherboard design,
VAXG can be left floating in a common
motherboard design (Gfx VR keeps VAXG from
floating) if the VR is stuffed
Vaxg
For BOT side
For TOP side
ESR=9m ohm
ESR=9m ohm
PWR Rule 17W@ULV(CR BGA1023_GT2) CPU2.9m GFx3.9m
CPU 330uF/9m *3, 22uF(0805) *12, 2.2uF(0402)*16
GFX 330uF/9m*2, 22uF(0805)*6, 10uF(0603)*6, 1uF(0402)*11
1.05V 330uF*2,10uF(0603)*10,1uF(0402)*26
ESR=9m ohm
+CPU_CORE
+CPU_CORE
+VGFX_CORE
+1.05VS_VTT
+CPU_CORE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CPU_CORE_CAP
Custom
43 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CPU_CORE_CAP
Custom
43 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
CPU_CORE_CAP
Custom
43 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
SAGE 3G
+
PC942
330U_D2_2V_Y
+
PC942
330U_D2_2V_Y
1
2
PC967
1U_0402_6.3V6K
PC967
1U_0402_6.3V6K
12
PC901
1U_0402_6.3V6K
PC901
1U_0402_6.3V6K
12
PC906
2.2U_0402_6.3V6M
PC906
2.2U_0402_6.3V6M
12
PC954
22U_0805_6.3V6M
PC954
22U_0805_6.3V6M
1
2
PC914
1U_0402_6.3V6K
PC914
1U_0402_6.3V6K
12
PC963
1U_0402_6.3V6K
PC963
1U_0402_6.3V6K
12
PC922
2.2U_0402_6.3V6M
PC922
2.2U_0402_6.3V6M
12
PC956
1U_0402_6.3V6K
PC956
1U_0402_6.3V6K
12
PC944
22U_0805_6.3V6M
PC944
22U_0805_6.3V6M
1
2
PC976
1U_0402_6.3V6K
PC976
1U_0402_6.3V6K
12
+
PC971
330U_D2_2V_Y
+
PC971
330U_D2_2V_Y
1
2
PC981
1U_0402_6.3V6K
PC981
1U_0402_6.3V6K
12
PC910
1U_0402_6.3V6K
PC910
1U_0402_6.3V6K
12
PC945
22U_0805_6.3V6M
PC945
22U_0805_6.3V6M
1
2
PC935
22U_0805_6.3V6M
PC935
22U_0805_6.3V6M
1
2
PC939
22U_0805_6.3V6M
PC939
22U_0805_6.3V6M
1
2
PC903
2.2U_0402_6.3V6M
PC903
2.2U_0402_6.3V6M
12
PC951
22U_0805_6.3V6M
PC951
22U_0805_6.3V6M
1
2
PC980
1U_0402_6.3V6K
PC980
1U_0402_6.3V6K
12
PC912
1U_0402_6.3V6K
PC912
1U_0402_6.3V6K
12
PC940
22U_0805_6.3V6M
@
PC940
22U_0805_6.3V6M
@
1
2
PC950
22U_0805_6.3V6M
PC950
22U_0805_6.3V6M
1
2
PC979
1U_0402_6.3V6K
PC979
1U_0402_6.3V6K
12
PC983
1U_0402_6.3V6K
PC983
1U_0402_6.3V6K
12
PC973
1U_0402_6.3V6K
PC973
1U_0402_6.3V6K
12
PC902
2.2U_0402_6.3V6M
PC902
2.2U_0402_6.3V6M
12
PC988
10U_0603_6.3V6M
PC988
10U_0603_6.3V6M
12
PC949
22U_0805_6.3V6M
PC949
22U_0805_6.3V6M
1
2
PC964
1U_0402_6.3V6K
PC964
1U_0402_6.3V6K
12
PC904
2.2U_0402_6.3V6M
PC904
2.2U_0402_6.3V6M
12
PC930
10U_0603_6.3V6M
PC930
10U_0603_6.3V6M
12
PC989
10U_0603_6.3V6M
PC989
10U_0603_6.3V6M
12
PC993
10U_0603_6.3V6M
PC993
10U_0603_6.3V6M
12
PC927
2.2U_0402_6.3V6M
PC927
2.2U_0402_6.3V6M
12
PC952
22U_0805_6.3V6M
PC952
22U_0805_6.3V6M
1
2
+
PC970
330U_D2_2V_Y
+
PC970
330U_D2_2V_Y
1
2
PC943
22U_0805_6.3V6M
PC943
22U_0805_6.3V6M
1
2
PC920
2.2U_0402_6.3V6M
PC920
2.2U_0402_6.3V6M
12
PC917
1U_0402_6.3V6K
PC917
1U_0402_6.3V6K
12
PC924
2.2U_0402_6.3V6M
PC924
2.2U_0402_6.3V6M
12
PC923
2.2U_0402_6.3V6M
PC923
2.2U_0402_6.3V6M
12
PC934
22U_0805_6.3V6M
PC934
22U_0805_6.3V6M
1
2
PC905
2.2U_0402_6.3V6M
PC905
2.2U_0402_6.3V6M
12
PC908
2.2U_0402_6.3V6M
PC908
2.2U_0402_6.3V6M
12
PC972
1U_0402_6.3V6K
PC972
1U_0402_6.3V6K
12
PC948
22U_0805_6.3V6M
PC948
22U_0805_6.3V6M
1
2
PC957
1U_0402_6.3V6K
PC957
1U_0402_6.3V6K
12
PC986
10U_0603_6.3V6M
PC986
10U_0603_6.3V6M
12
PC926
2.2U_0402_6.3V6M
PC926
2.2U_0402_6.3V6M
12
PC992
10U_0603_6.3V6M
PC992
10U_0603_6.3V6M
12
+
PC969
330U_D2_2V_Y
+
PC969
330U_D2_2V_Y
1
2
+
PC941
330U_D2_2V_Y
+
PC941
330U_D2_2V_Y
1
2
PC946
22U_0805_6.3V6M
PC946
22U_0805_6.3V6M
1
2
PC919
1U_0402_6.3V6K
PC919
1U_0402_6.3V6K
12
PC931
10U_0603_6.3V6M
PC931
10U_0603_6.3V6M
12
PC911
1U_0402_6.3V6K
PC911
1U_0402_6.3V6K
12
PC916
1U_0402_6.3V6K
PC916
1U_0402_6.3V6K
12
PC984
1U_0402_6.3V6K
PC984
1U_0402_6.3V6K
12
PC965
1U_0402_6.3V6K
PC965
1U_0402_6.3V6K
12
PC958
1U_0402_6.3V6K
PC958
1U_0402_6.3V6K
12
PC921
2.2U_0402_6.3V6M
PC921
2.2U_0402_6.3V6M
12
PC978
1U_0402_6.3V6K
PC978
1U_0402_6.3V6K
12
PC966
1U_0402_6.3V6K
PC966
1U_0402_6.3V6K
12
PC961
1U_0402_6.3V6K
PC961
1U_0402_6.3V6K
12
+
PC995
330U_D2_2V_Y
+
PC995
330U_D2_2V_Y
1
2
PC915
1U_0402_6.3V6K
PC915
1U_0402_6.3V6K
12
PC959
1U_0402_6.3V6K
PC959
1U_0402_6.3V6K
12
PC938
22U_0805_6.3V6M
PC938
22U_0805_6.3V6M
1
2
PC977
1U_0402_6.3V6K
PC977
1U_0402_6.3V6K
12
PC925
2.2U_0402_6.3V6M
PC925
2.2U_0402_6.3V6M
12
PC955
22U_0805_6.3V6M
@
PC955
22U_0805_6.3V6M
@
1
2
PC985
10U_0603_6.3V6M
PC985
10U_0603_6.3V6M
12
PC907
2.2U_0402_6.3V6M
PC907
2.2U_0402_6.3V6M
12
PC982
1U_0402_6.3V6K
PC982
1U_0402_6.3V6K
12
PC990
10U_0603_6.3V6M
PC990
10U_0603_6.3V6M
12
PC918
1U_0402_6.3V6K
PC918
1U_0402_6.3V6K
12
PC937
22U_0805_6.3V6M
PC937
22U_0805_6.3V6M
1
2
PC936
22U_0805_6.3V6M
PC936
22U_0805_6.3V6M
1
2
PC960
1U_0402_6.3V6K
PC960
1U_0402_6.3V6K
12
PC968
1U_0402_6.3V6K
PC968
1U_0402_6.3V6K
12
PC913
1U_0402_6.3V6K
PC913
1U_0402_6.3V6K
12
PC991
10U_0603_6.3V6M
PC991
10U_0603_6.3V6M
12
PC928
10U_0603_6.3V6M
PC928
10U_0603_6.3V6M
12
PC947
22U_0805_6.3V6M
PC947
22U_0805_6.3V6M
1
2
PC929
10U_0603_6.3V6M
PC929
10U_0603_6.3V6M
12
PC909
2.2U_0402_6.3V6M
PC909
2.2U_0402_6.3V6M
12
PC962
1U_0402_6.3V6K
PC962
1U_0402_6.3V6K
12
PC994
10U_0603_6.3V6M
PC994
10U_0603_6.3V6M
12
PC974
1U_0402_6.3V6K
PC974
1U_0402_6.3V6K
12
PC987
10U_0603_6.3V6M
PC987
10U_0603_6.3V6M
12
PC933
10U_0603_6.3V6M
PC933
10U_0603_6.3V6M
12
PC953
22U_0805_6.3V6M
PC953
22U_0805_6.3V6M
1
2
PC932
10U_0603_6.3V6M
PC932
10U_0603_6.3V6M
12
PC975
1U_0402_6.3V6K
PC975
1U_0402_6.3V6K
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LED Converter
SAGE 3G
VOUT
EN
SW
EN
SW
DCTRL
VOUT
GND GND_SIGNAL
DCTRL
INVTPWM16
BKOFF#28
FB4 22
FB3 22
FB2 22
FB1 22
B+
+LG_VOUT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
0.1
44 52
Wednesday, March 13, 2013
2011/06/13
Compal Electronics, Inc.
2012/06/13
Custom
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
0.1
44 52
Wednesday, March 13, 2013
2011/06/13
Compal Electronics, Inc.
2012/06/13
Custom
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
0.1
44 52
Wednesday, March 13, 2013
2011/06/13
Compal Electronics, Inc.
2012/06/13
Custom
PR1404
10K_0402_1%
PR1404
10K_0402_1%
1 2
PC1409
100P_0402_50V8J
PC1409
100P_0402_50V8J
12
PL1401
4.7UH_PCMC063T-4R7MN_5.5A_20%
PL1401
4.7UH_PCMC063T-4R7MN_5.5A_20%
1 2
PC1410
100P_0402_50V8J
@PC1410
100P_0402_50V8J
@
12
PC1402
2.2U_1206_50V7K
@PC1402
2.2U_1206_50V7K
@
12
PC1405
100P_0402_50V8J
PC1405
100P_0402_50V8J
12
PD1402
SBR3U40P1-7_POWERDI123-2
PD1402
SBR3U40P1-7_POWERDI123-2
2 1
PD1401
LL4148_LL34-2
PD1401
LL4148_LL34-2
12
PC1406
2.2U_1206_50V7K
PC1406
2.2U_1206_50V7K
12
PR1403
0_0603_5%
PR1403
0_0603_5%
1 2
PC1408
2.2U_1206_50V7K
PC1408
2.2U_1206_50V7K
12
PU1401
TPS61181ARTER_QFN16_3X3
PU1401
TPS61181ARTER_QFN16_3X3
VBAT
3
VO
4
IFB5 13
IFB4 12
PGND
1
SW
2
FAULT 16
EN 15
IFB6 14
DCTRL 11
GND 10
IFB2
8
ISET
5
CIN
6
IFB1
7
IFB3 9
TPAD 17
PC1411
1U_0805_50V7K
PC1411
1U_0805_50V7K
12
PR1401
10_1206_1%
PR1401
10_1206_1%
12
PR1407
10K_0402_1%
PR1407
10K_0402_1%
1 2
PR1405
51_1206_5%
PR1405
51_1206_5%
1 2
G
D
S
PQ1401
P5103EMG_SOT23-3
G
D
S
PQ1401
P5103EMG_SOT23-3
2
13
PC1401
S CER CAP 220P 50V J NPO 0603
PC1401
S CER CAP 220P 50V J NPO 0603
12
PR1406
1M_0402_1%
PR1406
1M_0402_1%
12
PC1407
2.2U_1206_50V7K
PC1407
2.2U_1206_50V7K
12
PC1403
0.1U_0603_50V7K
PC1403
0.1U_0603_50V7K
12
PR1409
62K_0402_1%
PR1409
62K_0402_1%
12
PJ1401
PAD-OPEN1x1m
@PJ1401
PAD-OPEN1x1m
@
1 2
PC1414
0.1U_0402_10V7K
PC1414
0.1U_0402_10V7K
12
PC1412
100P_0402_50V8J
@PC1412
100P_0402_50V8J
@
12
PC1404
0.1U_0603_50V7K
PC1404
0.1U_0603_50V7K
12
PR1402
100K_0402_5%
PR1402
100K_0402_5%
1 2
PR1408
1M_0402_1%
PR1408
1M_0402_1%
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Version change list (P.I.R. List) Page 1of 2
for PWR
Reason for change Rev. PG# Modify List Date PhaseFixed IssueItem
1
2
3
4
7
Design Change of IC Application.
Add @PR410.@PR414 to SD028100180(S RES 1/16W 1K +-5% 0402)
Add @PC429 to SE075472K80(S CER CAP 4700P 25V K X7R 0402)
Add @PC428 to SE075472K80(S CER CAP 0.047U 25V K X7R 0402)
Add PR412.@PR413.PR415 to SD028000080(S RES 1/16W 0 +-5% 0402)
0.2 38 2012/12/13 DVTDesign Change.
Design Change of IC Application.
Delete PC1413.
0.2 44 2012/12/13 DVTDesign Change.
Design Change of DC Jack Application.
Add PR325 to SD028000080(S RES 1/16W 0 +-5% 0402)
Add PR321.PR323 to SD028100380(S RES 1/16W 100K +-5% 0402)
Add PQ307 to SB201440000(S TR PDTA144EU PNP SOT323)
Add PQ308 to SB301150200(S TR PDTC115EU NPN SOT323)
Add Adapter Detection Circuit. 0.2 35
37 2012/12/13 DVT
Design Change of IC Application.
Change PC831 to SE075682K80(S CER CAP 6800P 25V K X7R 0402)
Change PC832 to SE071560J80(S CER CAP 56P 50V J NPO 0402)
0.2 42 2012/12/24 DVT
Design Change.
Change PL1401 to SH000006J80
(S COIL 4.7UH +-20% PCMC063T-4R7MN 5.5A)
0.2 44 2012/12/24 DVTFactory lack of material.Change Component Part Number.
5
Change PC841 to SGA00007I00
(S POLY C 33U 25V M D2 ESR60M TQC H1.9)
0.2 42 2012/12/26 DVTFactory lack of material.Change Component Part Number.
6
Change PD1402 to SCS00005Y00
(S SCH DIO SBR3U40P1-7 POWERDI123-2)
0.2 44 2012/12/26 DVTX1 Code.Change Component Part Number.
Delete PR412.PR413.PR415.
0.3 38 2012/01/29 PVT
8
Change @PR410.@PR414.@PC428.@PC429
to PR410.PR414.PC428.PC429.
0.3 38 2012/01/29 PVT
9
Design Change of IC Application.Design Change.
Change PC428 to SE075682K80(S CER CAP 6800P 25V K X7R 0402)
Change PC429 to SE072103Z80(S CER CAP .01U 25V Z Y5V 0402)
0.3 38Design Change of IC Application.
10
2013/02/22 PVTDesign Change.
Design Change of IC Application.Design Change.
Change PQ307 to SB000009Q80(S TR 2N7002KW 1N SOT323-3)
Add PR325 to SD028100380(S RES 1/16W 100K +-5% 0402)
0.4 37Design Change of Adapter Detection.
11
2013/02/23 Pre MPDesign Change.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
PIR (PWR)
Custom
45 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
EG51_HX M/B LA-9491P Schematics
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
PIR (PWR)
Custom
45 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
EG51_HX M/B LA-9491P Schematics
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
PIR (PWR)
Custom
45 52
2011/06/24 Date of EOP
Compal Electronics, Inc.
EG51_HX M/B LA-9491P Schematics
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
BATTERY
B+
ADAPTER
CHARGER
ISL95833HRTZ-T_4X4
PU801 +CPU_CORE
Page 42TQFN32
+VGFX_CORE
RT8207MZQW_3X3
SYSON
PU501
VIN = +3VS
+1.35V
Page 39WQFN20
+0.675VS
SUSP#
APL5930KAI-TRG
PU702
SO8
+1.5VS
SUSP#
VCCPPWRGOOD
Page 41
SY8003DFC_2X2
PU703
DFN8 Page 41
SUSP#
SY8208CQNC_3X3
PU402
QFN10 Page 38
+1.8VS
SY8208DQNC_3X3
VIN = B+
PU601 +1.05VS_VCCP
(+1.05VS_VTT)
(+1.05VS_PCH)
QFN10 Page 40
SUSP#
SY8208BQNC_3X3
PU401
QFN10 Page 38
VIN = +1.05VS_VTT
LDO = +3VLP
+5VALW
+3VALW
EC_ON
MAINPWON (VIN)
G978F11U
PU701
SO8 Page 41
+VCCSA
VR_ON
(VGATE)
TPS61181ARTER_3X3
PU1401
+LG_VOUT
(+INVPWR_B+)
Page 44QFN16
BKOFF#
VIN = B+
VIN = +5VS
(VCCPPWRGOOD)
(SA_PGOOD)
VIN = B+
VIN = +5VALW
VIN = B+
LDO = VL
(+VCCDSW3_3 = +3VLP)
POWERPAK8-5 Page 34
SI7716ADN-T1-GE3
U12
+1.35VS
SUSP
VIN = +3VALW
+3VS_WWAN
Page 31
Page 34POWERPAK8-5
U21
SI7716ADN-T1-GE3
+3VS
+3V_TPM
+3VS_FULL
+3VS (MIC)
+3V_SEN
HUB_PWRGATE @SENSOR
+3VS (CAMERA)
AUDIO CODEC
Page 30
TPM
CAMERA
mSATA
Page 27,33
Page 26
Page 25
Page 33
PCH_ENVDD @LCD
Page 22
+LCDVDD
Q68
AP2301GN-HF
Page 20SOT23-3
PCH_PWR_EN#
+VCCSUS3_3
+3VALW (LED
& LID)
Page 33
Page 24
+3VS_WLAN
LED & LID
AOAC_ON @WIFI
SUSP
+3VALW
Page 31
+3VS_WWAN
+3VLP
Page 28
+3VALW_EC
EC
+5VALW
POWERPAK8-5 Page 34
AP2301GN-HF
Q64
PCH_PWR_EN#
SOT23-3 Page 20
+V5REF_SUS
SUSP
+5VS
SI7716ADN-T1-GE3
U22
AP2301MPG-13
U17
+USB3_VCCA
USB_EN#
AUDIO CODEC
MSO8
JIO1
(Audio)
+5VS (FAN)
FAN
Page 33
Page 29
Page 27
+HDMI_5V_OUT
HDMI
Page 23
WIFI (w/o IOAC)
+3VS_WLAN
Page 24 Page 32
+3VS_CARD
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
POWER TREE
Custom
46 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
POWER TREE
Custom
46 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
POWER TREE
Custom
46 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Battery_IN
VIN
Adapter IN
BATT+
AC
Switch
MosFET
Switch
MosFET
Charger
B+
KBC
GPG2
PCH
VCC
SLP_SUS#
DPWROK
EC_ON
GPE0 DPWROK
+3VLP
SLP_SUS#
GPI7
GPH0
PCH_PWR_EN
GPB7 PCH_RSMRST# RSMRST#
PCH_PWR_EN# KBC
KBC
VI
VI
+5VALW
+3VALW
+VCCSUS3_3
VO
VO +V5REF_SUS
-1
-2
-2
-3
-4
-5
-6
-8
-10
-11
DC
-3
-2
2
PWRBTN#
PBTN_OUT#
GPJ1
1
GPE4
PWR BTN
ON/OFF
SLP_S4# SLP_S3#
GPD1
GPD0
PM_SLP_S4#
PM_SLP_S3#
3
4
GPE2
GPE1
SUSP#
SYSON
5
6
SYSON
KBC
KBC
VDD/VDDP
VI
+5VALW
+5VALW
+5VS
VO
5
EN
EN
EN_S5
EN
PHASE
+1.05VS_VCCP
(+1.05VS_VTT)
(+1.05VS_PCH)
VCCPPWRGOOD
VTT
B+
SUSP#
6
EN_S3
KBC SW
+1.35V
PGOOD
+0.675VS
SUSP#
6
EN
+1.35V
VLDOIN
+VSB
SUSP
KBC
VI
+3VALW
+3VS
VOEN
SUSP
KBC
VI
+1.35V
+1.35VS
VOEN
SUSP
7
KBC
VI
+3VALW
+1.8VS
VOEN
SUSP#
6
KBC
VI
+3VS
+1.5VS
VOEN
SUSP#
6
KBC
VI
+1.05VS_VTT
VO
EN
VCCPPWRGOOD
8
PGOOD
+VCCSA
SA_PGOOD
+VSB
7
+VSB
7
KBC
VDD/VCCP
+5VS
PHASE1
VR_ON
PGOOD
+CPU_CORE
+VGFX_CORE
VGATE
PHASEG
B+
GPD5 APWROK
PWROK
PCH_PWROK
11
CPU
UNCOREPWRGOOD
SM_DRAMPWROK
SVID
AND Gate
P
+3VALW
Y
A
PM_DRAM_PWRGD_R
SYS_PWROK
PM_DRAM_PWRGD
SYS_PWROK
DRAMPWROK
12
8
B
PROCPWRGD H_CPUPWRGD
13
VR_ON
10
SVID
SVID_CLK/DATA/ALERT#
14
15
AND Gate
P
+3VS
YAB
PLTRST# PLT_RST#
Buffer
P
+3VS
A
NC
YBUF_CPU_RST# RESET#
17
9
SA_PGOOD
9
GPJ3
GPF1
VR_ON
10
16
VIN
3V LDO
EN LX
+3VLP
SW2
SPOK
PGOOD
+3VALWP
EC_ON (S5 enable)
-7
-9
-8
-1
VIN
5V
LX
VL
LDO
EN
PGOOD
+5VALWP
SW2
-8
-7
EC_ON (S5 enable)
-9
-1
B+
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
POWER TREE
Custom
47 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
POWER TREE
Custom
47 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
POWER TREE
Custom
47 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
V1JV1 CLOCK MAP
PCH
Panther Point-M
Intel
CLK_CPU_DPLL
CLK_CPU_DPLL#
CPU
Ivy Bridge
CLK_CPU_DMI
CLK_CPU_DMI#
CLKOUT_DMI_P
CLKOUT_DMI_N
CLKOUT_DP_P
CLKOUT_DP_N
120MHz
100MHz
CLKIN_PCILOOPBACK
CLK_PCI0
CLKOUT_PCIE1P
CLKOUT_PCIE1N
CLK_PCIE_MINI1
CLK_PCIE_MINI1#
WLAN
MD222
CLKOUT_PCIE4P
CLKOUT_PCIE4N
CLK_PCI_LPBACK
22 Ohm
CLKOUT_PCI0
CLK_PCI2
22 Ohm
CLKOUT_PCI2
CLK_PCI1
22 Ohm
CLKOUT_PCI1
33MHz
33MHz
33MHz
TPM
SLB9655
EC
IT8518
CLK_PCI_TXM
CLK_PCI_LPC
33 Ohm
33 Ohm
XTAL
32.768K Hz
XTAL
25M Hz
RTCX1
RTCX2
XTAL25_IN
XTAL25_OUT
SPI_CLK
100MHz
PCH_SPI_CLK
2MB
SPI ROM
CLK_PCI_LPCPCH_SPI_CLK_1
PCH_SPI_CLK_0
HSCK
4MB
SPI ROM
EC_SPICLK FSCK
XTAL
32.768K Hz
CLKOUT_PCIE7P
CLKOUT_PCIE7N
33 Ohm
HDA_BITCLK_PCH
24MHz
Audio
Codec
AL271X
HDA_BITCLK_AUDIO
CK32K
CK32KE
LPCCLK
CLK_PCIE_CARD
CLK_PCIE_CARD#
Card
Reader
RTS5209
100MHz
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
CLOCK MAP
Custom
48 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
CLOCK MAP
Custom
48 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
CLOCK MAP
Custom
48 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
PCH_SMBCLK
PCH_SMBDATA
ThunderBolt
Cactus - Ridge
SMBUS Block Diagram
PCH
Panther Point-M
Intel
PCH_SML0CLK
PCH_SML0DATA
PCH_SML1CLK
PCH_SML1DATA
ST
Sensor HUB
(USB interface)
+3VS
DDR
Thermal sensor
+3VS_LC
EC_SMB_CK2
EC_SMB_DA2
TB_SMB_CK
TB_SMB_DA
EC
+3VS
ST
Gyroscope
ST
G-sensor+E-compass
I2C_1_SCL_SENSOR
I2C_1_SDA_SENSOR
I2C_SCL_GYRO
I2C_SDA_GYRO
I2C_SCL_ACCEL
I2C_SDA_ACCEL
Capella
Light sensor
I2C_SCL_ALS
I2C_SDA_ALS
EC_SMB_CK2
EC_SMB_DA2
EC_SMB_CK1
EC_SMB_DA1
+3VALW_EC
Battery
EC_SMCA
EC_SMDA
DCIN / charge
SDVO_SCLK
SDVO_SDATA
HDMI
Connector
+3VS
HDMI_SCLK
HDMI_SDATA
XX XXXX XXXX b
ST sensor HUB
EC SM Bus1 address
Device
PCH SM Bus address
Device Address
Address Address
EC SM Bus2 address
Device
Smart Battery
XXXX XXXX b
PCH SM Bus address(Link 1)
99
0010 100X b(CIO P1)
Thunderbolt
DDR Thermal sensor
1001 101X b
29
AddressDevice
XX
0001 001X b
DCIN / Charge
13
D1 1101 000X b
Gyroscope
Sensor HUB SM Bus address
Device Address
33 0011 001X b
E-compass + G sensor
ALS sensor
0010 000X b21
D3 1101 001X b
0010 101X b(CIO P2)2B
2D 0010 110X b(CIO P3)
0010 111X b(CIO P4)2F
ITE 8518
+VCCSUS3_3
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SMBUS Block Diagrams
Custom
49 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SMBUS Block Diagrams
Custom
49 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SMBUS Block Diagrams
Custom
49 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
V1JB1 SYSTEM Diagram
SYSTEM MB
FPC between MB & IO Board
IO BOARD
JIO1
WIN BUTTON BOARD
SWITCH BOARD
ON/OFF BTN
VOL UP/DOWN BTN
POWER LED (BLUE/AMB)
Audio Codec
Rear Camera
ALS
RTC Battery
Window Home Key
Reset BTN
Prox Sensor
FFC between IO/B & SW/B
( FFC x 2 )
Wire between IO/B & WIN/B
JSW1,JSW2
JIO1
JSW1,JSW2
JWIN1
JWIN1
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SYSTEM MAP
Custom
50 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SYSTEM MAP
Custom
50 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
SYSTEM MAP
Custom
50 52Wednesday, March 13, 2013
2011/06/24 2012/06/02
Compal Electronics, Inc.
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Page 1
Page 1P age 1
Page 1
So lution D escription
So lution D escriptionSo lution D escription
So lution D escription Rev .
R ev.R ev.
R ev .P a ge #
P a ge #P a g e#
P a ge # T itle
TitleT itle
Title
V ersion C hange L ist ( P . I. R . L ist )
V ersion C hange L ist ( P . I. R . L ist )V ersion C hange L ist ( P . I. R . L ist )
V ersion C hange L ist ( P . I. R . L ist )
Item
ItemItem
Item Issue D escrip tion
Issue D escrip tionIssu e D escription
Issue D escrip tionD ate
D ateD ate
D ate R equ est
R equ estR eq uest
R equ est
O w n er
O w n erO w n er
O w n er
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
EE P.I.R
Custom
51 52Tuesday, March 26, 2013
2011/06/13 2012/06/13
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
EE P.I.R
Custom
51 52Tuesday, March 26, 2013
2011/06/13 2012/06/13
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
EE P.I.R
Custom
51 52Tuesday, March 26, 2013
2011/06/13 2012/06/13
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
CPU
PCB
LA-A041P MB Rev1: DAA0006P010
LA-A041P MB Rev0: DAA0006P000
WLAN/BT Module
SAGE 3G
LA-A041P MB Rev2: DAA0006P020
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Option Component
Custom
52 52Thursday, March 14, 2013
2011/06/24 2012/07/12
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Option Component
Custom
52 52Thursday, March 14, 2013
2011/06/24 2012/07/12
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
V1JB1 M/B LA-A041P Schematic
0.1
Option Component
Custom
52 52Thursday, March 14, 2013
2011/06/24 2012/07/12
Compal Electronics, Inc.
U1
WCBN3501A W/BT MD222
LIONMD222@
PK29S004B00
S_W/L_MOD WCBN3501A W/BT MD222 ABO!
U1
WCBN3501A W/BT MD222
LIONMD222@
PK29S004B00
S_W/L_MOD WCBN3501A W/BT MD222 ABO!
ZZZ1
LA-A041P REV2
DAA0006P020
ZZZ1
LA-A041P REV2
DAA0006P020
UCPU1
AV8063801058002 SR0N8 L1 1.7G ABO!
I53317@
SA00005K6B0
S IC AV8063801058002 SR0N8 L1 1.7G ABO!
UCPU1
AV8063801058002 SR0N8 L1 1.7G ABO!
I53317@
SA00005K6B0
S IC AV8063801058002 SR0N8 L1 1.7G ABO!
UCPU1
AV8062701313000 SR0U3 J1 1.4G ABO!
I32365M@
SA00005UH40
S IC AV8062701313000 SR0U3 J1 1.4G ABO!
UCPU1
AV8062701313000 SR0U3 J1 1.4G ABO!
I32365M@
SA00005UH40
S IC AV8062701313000 SR0U3 J1 1.4G ABO!
UCPU1
AV8063801058401 SR0N9 L1 1.8G ABO!
I33217@
SA00005L5C0
S IC AV8063801058401 SR0N9 L1 1.8G ABO!
UCPU1
AV8063801058401 SR0N9 L1 1.8G ABO!
I33217@
SA00005L5C0
S IC AV8063801058401 SR0N9 L1 1.8G ABO!
UCPU1
AV8062701313100 SR0U4 J1 1.5G ABO!
I32375M@
SA00006ED50
S IC AV8062701313100 SR0U4 J1 1.5G ABO!
UCPU1
AV8062701313100 SR0U4 J1 1.5G ABO!
I32375M@
SA00006ED50
S IC AV8062701313100 SR0U4 J1 1.5G ABO!
UCPU1
AV8063801129900 SR0XL L1 1.8G ABO!
I53337@
SA00006D860
S IC AV8063801129900 SR0XL L1 1.8G ABO!
UCPU1
AV8063801129900 SR0XL L1 1.8G ABO!
I53337@
SA00006D860
S IC AV8063801129900 SR0XL L1 1.8G ABO!
UCPU1
AV8063801119500 SR0XF L1 1.9G ABO!
I33227@
SA00006D990
S IC AV8063801119500 SR0XF L1 1.9G ABO!
UCPU1
AV8063801119500 SR0XF L1 1.9G ABO!
I33227@
SA00006D990
S IC AV8063801119500 SR0XF L1 1.9G ABO!
