D D

C C

B B

A A

ZEJ00

LA-A791P

Schematics Document

2013-05-27

REV:0.2

Compal Confidential

for GLONASS

0605 Change P/N for ZEJ00

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Cover Page

Custom

1 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Cover Page

Custom

1 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Cover Page

Custom

1 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

ZZZ1

HDMI

RO0000003HM

45@

ZZZ1

HDMI

RO0000003HM

45@

ZZZ

PCB

PCB 125 LA-A791P REV0 M/B 3

DA60012D000

DAZ@

ZZZ

PCB

PCB 125 LA-A791P REV0 M/B 3

DA60012D000

DAZ@

S4

FRAME

EC0MV000200

@

S4

FRAME

EC0MV000200

@

S1

FRAME

EC0MV000200

@

S1

FRAME

EC0MV000200

@

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

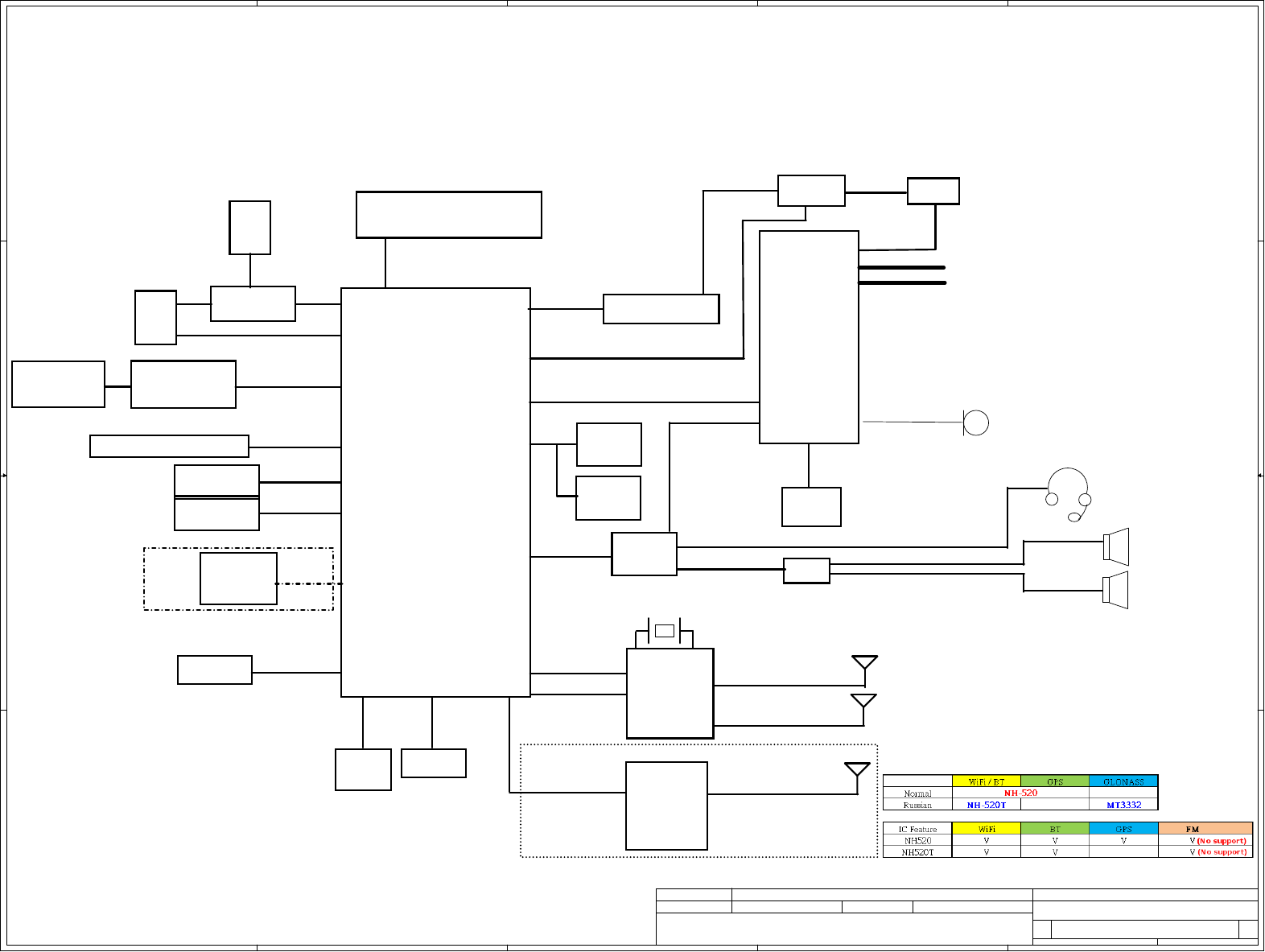

ZEJ00 block diagram

LVDS

PCM, UART3, EINT

MSDC3

CONN.

NH520T/NH520*

WIFI

BT4.0

GPS*

External Memory Interface

I2C, EINT

USB 2.0

KCOL & KROW

Touch Sensor

Board

micro USB,OGT

Front Camera YUV,I2C

PWM

RGB

I2C,

EINT

Battery Input

Speaker

MT8193

MT6320

PMIC

AUDIO

LDO OUTPUT

BUCK OUTPUT

CHARGER

Battery

LDO Output

BUCK Output

I2S, SPI, EINT, I2C

Button (Power on/reset)

eMMC

8G/16G

MSDC0 MSDC1

UART2

micro SD

UART4

JTAG

MT8389W/MT8125

Cortex-A7

1.2GHz Quad-Core

Debug Port

DDR3L 1GB (4Gb X16 *2 Pcs)

UART1

LCM

26MHz

MIC

HP R/L

WIFI/BT

GPS

switching

Charger

I2C

SIM Card

BSI

P Sensor

GPIO

P4,P5

P6

P14

P7

P7

P9

P10

P11

P12

P23~P25

P13

P15

P16

P17

P17

P18

P22 P22

combo JACK

I2C, EINT

Gyro+ G

sensor

MPU 6050

Max. support VRAM size : 2GB.

P21

MT3332

GLONASS

UART1, EINT GPS

Russian Sku

CONN.

S7300B +

P14

5M Camera

P10

Audio S/W

AMP

Speaker R

Speaker L

HDMI

CONN.

P7

HDMI

MIPI,I2C

Vibrator CONN

D MIC

P8

HP+MIC jack

P12

P12 P16

P Sensor

Conn

GPIO POUT

P8

P8

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Block Diagram

C

2 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Block Diagram

C

2 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Block Diagram

C

2 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Voltage Rails

VPROC_PMU VPROC switching output

VTCXO_1_PMU

VCAMA_PMU

VSRAM_PMU

VDD28_6583

VGP2_PMU

VEMC_3V3_PMU

VMCH_PMU

VGP5_PMU

LDO output for TCXO

LDO output for camaera analog

LDO output used for 1.2V SRAM

LDO output used for 2.8V IO

LDO output for eMMC&P-sensor

LDO output for SD card

LDO output for Touch panel

0.75 ~ 1.3

2.8V

2.8V

1.2V

2.8V

3.3V

LDO output for camaera 1.8V 1.8V

3.3V

2.8V

IDLE Sleep mode

VCORE_PMU

MT6320 Power Plane

VCORE switching output

Function Power Level

0.75 ~ 1.3 ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

OFF

Low voltage

Gating by SW

Low voltage

Low voltage

Gating by SW

Gating by SW

Gating by SW

Gating by SW

Gating by SW

Address(7 bit)

0xD1

ReadWrite

0x68

Device Address(8bit)

Gyro (MPU-6050)

Touch screen (S7300B)

G-sensor (MPU-6050)

0xD0

0x21 0x43Camera 0.3M

Camera 5M

0x42

I2C address

Function

3G only

Name

3G@

WIFI ONLY

DAZ@

WIFI_ONLY@

PCB

BOM structure

DDR3VCCIO LDO output for DDR3L 1.35V ON Gating by SW

Gating by SW

VDD18_6583 LDO output used for 1.8V IO 1.8V ON Gating by SW

EMC@ for EMC request

VRF18_PMU LDO output for RF_MT6167 1.8V ON Gating by SW

Charger

MB_ID0

Main board ID

MB_ID1

0

0

0

0

1

1

1 1

EVT

DVT

PVT

MP

NH520@

NH520_EMC@

GLONASS@

AW-NH520

MT3332

GPS EMC

0x68 0xD0 0xD1

0x20 0x40 0x41

PMIC

Battery 0x55 0xAA 0xAB

0x36 0x6C 0x6D

0x6B 0xD6 0xD7

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Notes List

Custom

3 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Notes List

Custom

3 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Notes List

Custom

3 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

5

5

4

4

3

3

2

2

1

1

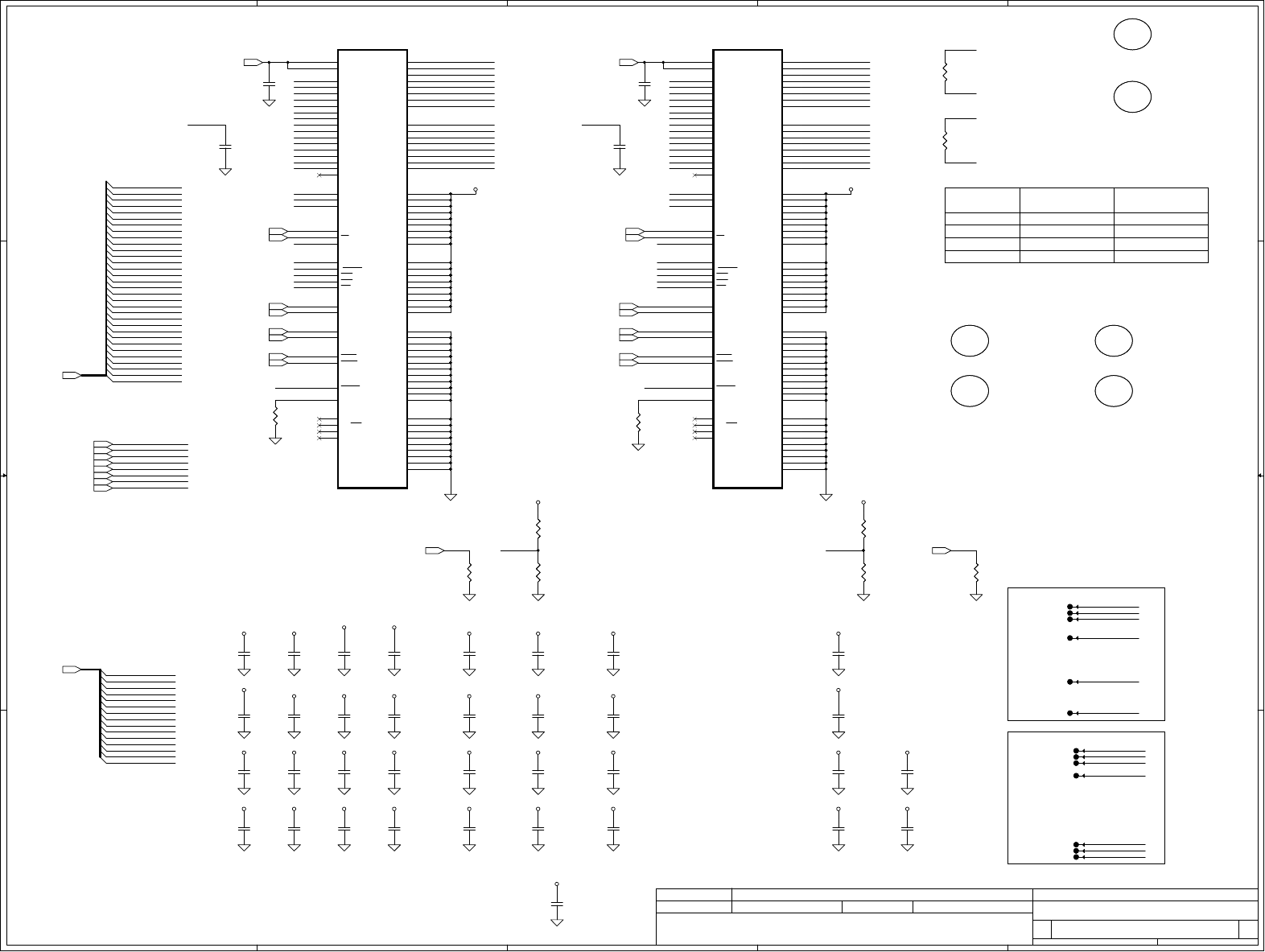

D D

C C

B B

A A

1.8V IO for DDR

1.2V IO for DDR2

1.5V IO for DDR3

1.35V IO for DDR3L : Default

8125 footprint

8125 footprint

0704 ADD C1687 C1686 FOR RF

DVDD_GPU

DVDD

DVDD_SRAM

DVDD_DVFS

DVDD_SRAM

DVDD_GPU

DVDD

DVDD_DVFS

DVDD <23>

DVDD_DVFS <23>

DVDD_GPU_R <23>

GND_DVDD_DVFS <23>

DVDD_SRAM <23>

VDD18_6583

VA_PMU

VDD18_6583

VTCXO_1_PMU

VDD18_6583

VDD18_6583

VDD18_6583

VUSB_PMU

VUSB_PMU

VSIM1_PMU

VEMC_1V8_PMU

VCORE_PMU

VSRAM_PMU

DDR3VCCIO

VM_PMU

VPROC_PMU

VGPU_PMU

VDD18_6583

VDD18_6583

VDD18_6583

VDD18_6583

VDD28_6583

VMC_PMU

VDD18_6583

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

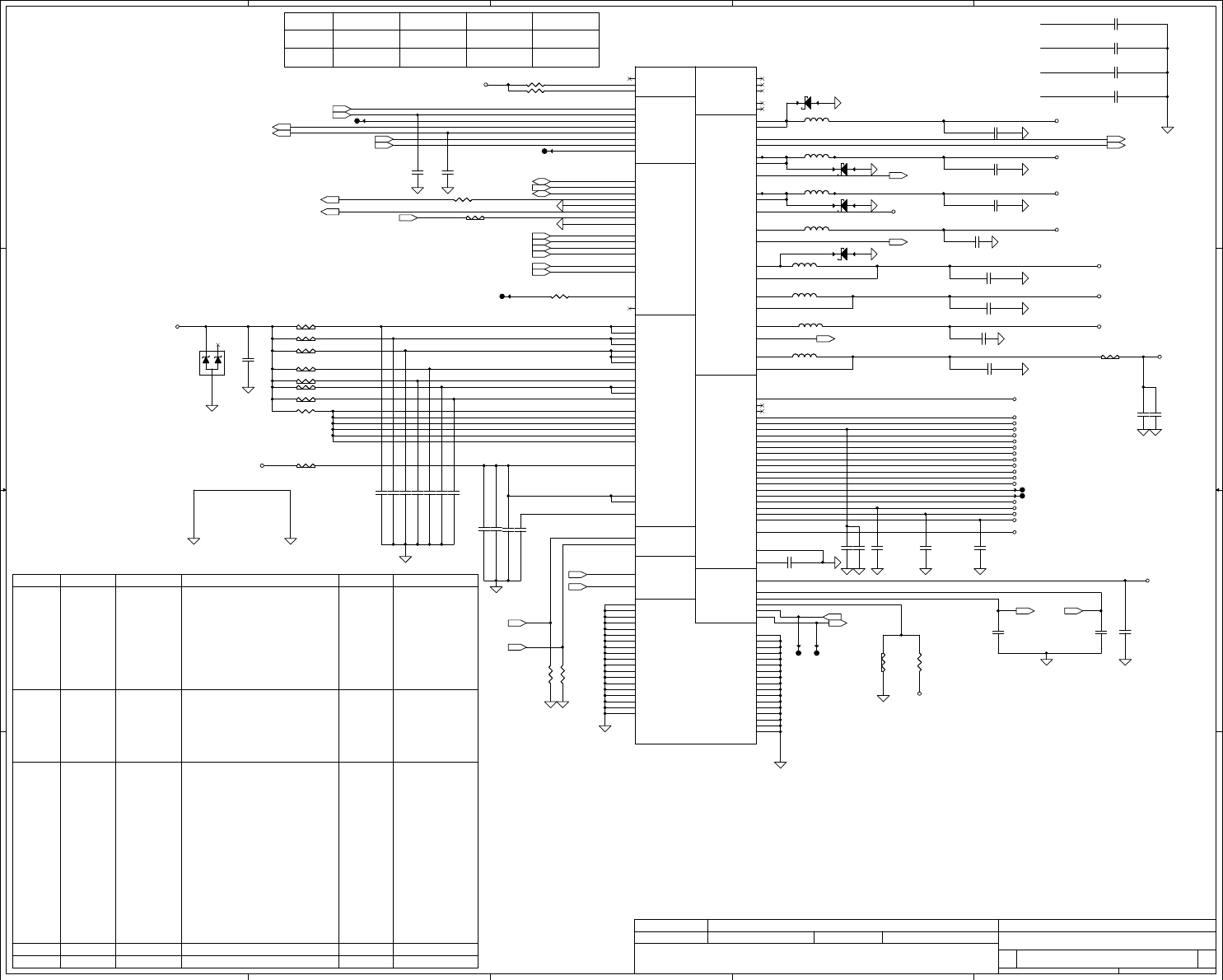

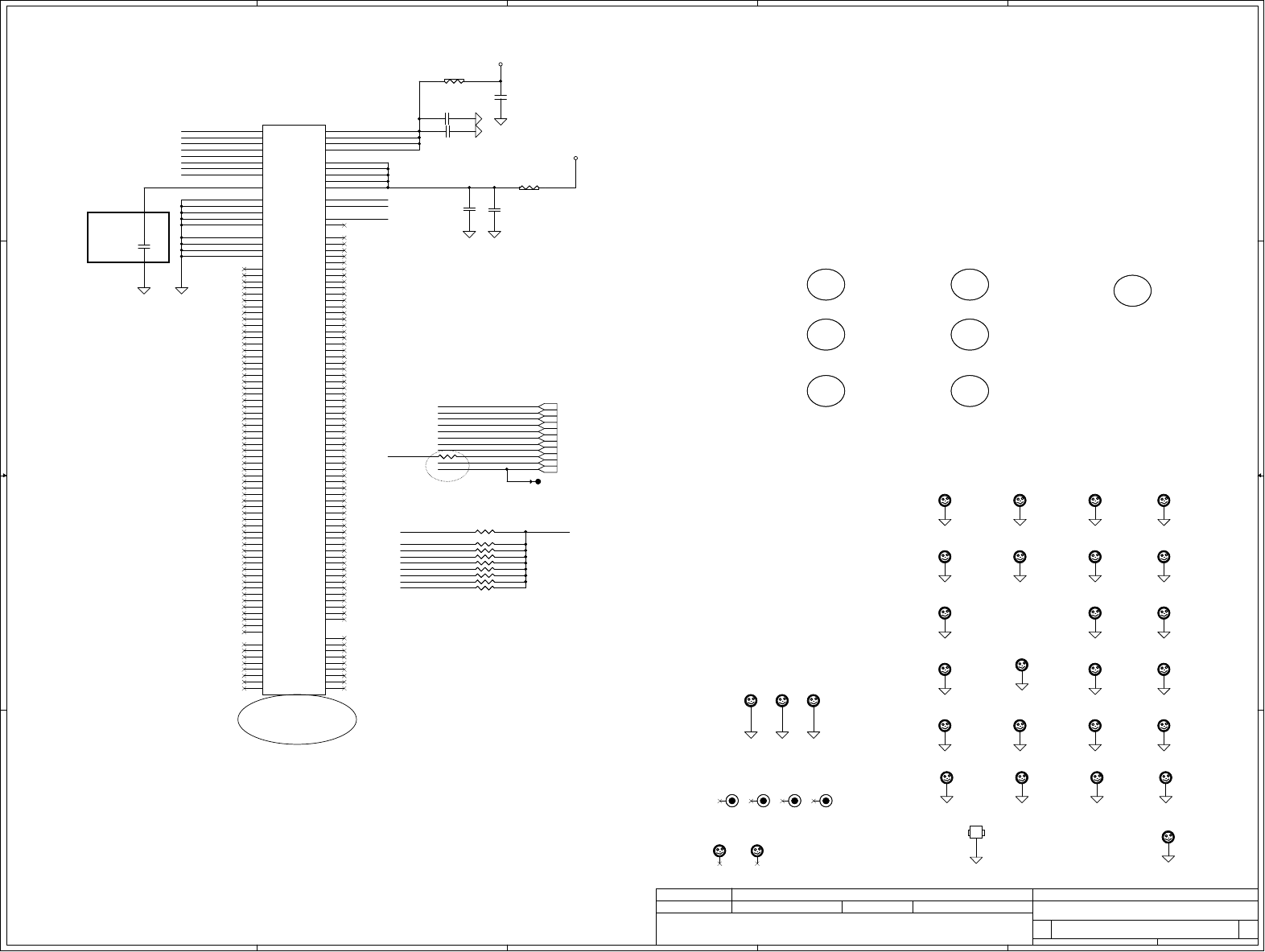

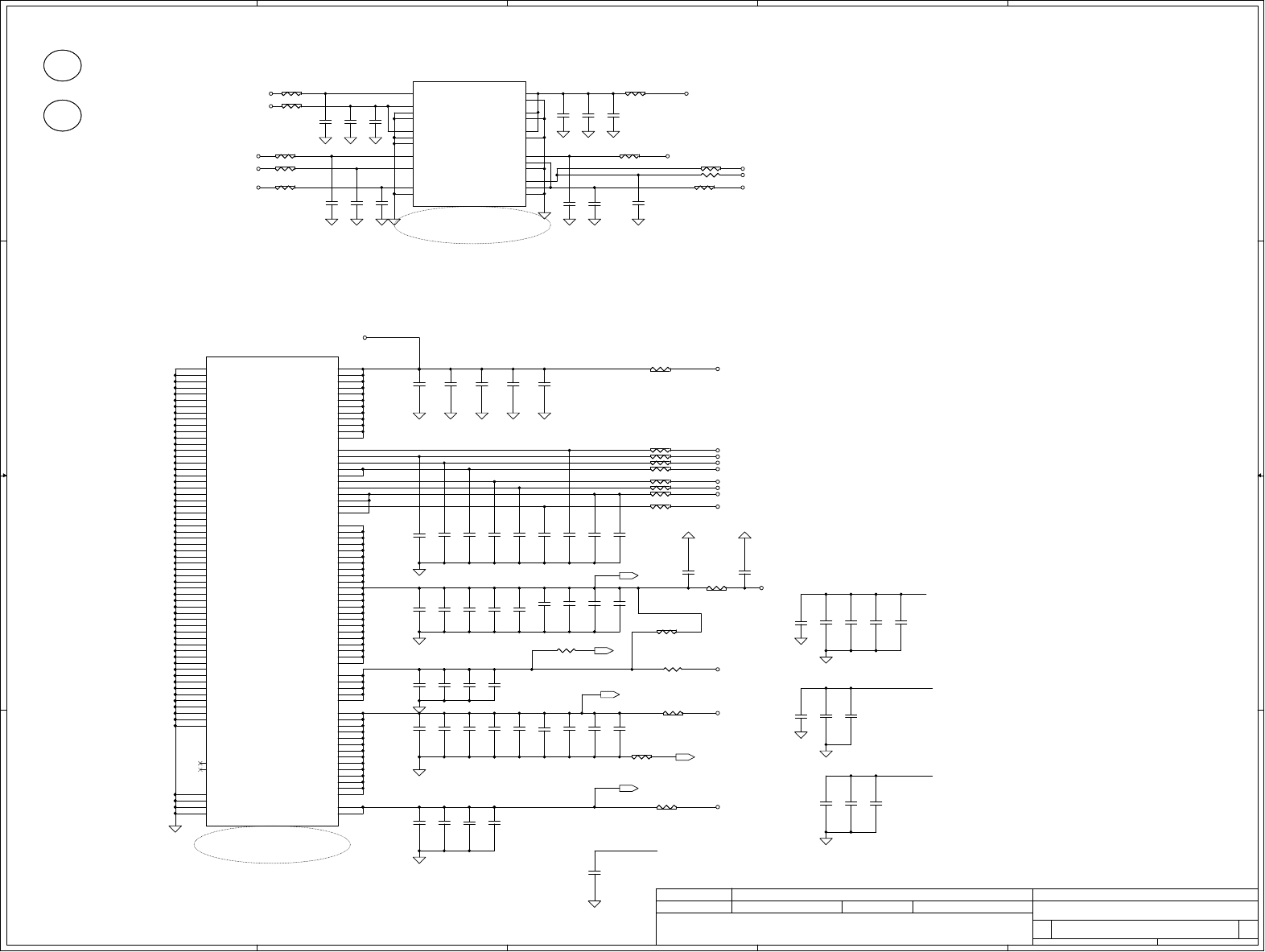

MT8377 - Power

C

4 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

MT8377 - Power

C

4 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

MT8377 - Power

C

4 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

R1651

0_0603_5% -35mil

R1651

0_0603_5% -35mil

1 2

C434

1U_0402_6.3V6K

C434

1U_0402_6.3V6K

1

2

R1632

0_0402_5% -22mil

R1632

0_0402_5% -22mil

1 2

C1664

0.1U 10V +-10% X7R 0402

C1664

0.1U 10V +-10% X7R 0402

1

2

R16410_0402_5% -22mil R16410_0402_5% -22mil

1 2

C1663

0.1U 10V +-10% X7R 0402

C1663

0.1U 10V +-10% X7R 0402

1

2

C1678

0.1U 10V X7R 0402_NC

@

C1678

0.1U 10V X7R 0402_NC

@

1

2

C1637

0.1U 10V +-10% X7R 0402

C1637

0.1U 10V +-10% X7R 0402

1

2

R1650

0_0805_5%

R1650

0_0805_5%

1 2

C1640

1U_0402_6.3V6K

C1640

1U_0402_6.3V6K

1

2

R16450_0402_5% -22mil R16450_0402_5% -22mil

1 2

C1660

0.1U 10V +-10% X7R 0402

C1660

0.1U 10V +-10% X7R 0402

1

2

MT8389E1_PCDDR3

U201F

@

MT8389E1_PCDDR3

U201F

@

AVDD18_AP

AJ12

AVSS18_AP

AD12

DVDD18_MD

AG17

DVDD18_MIPIIO H1

DVDD18_MIPIRX L7

DVDD18_MIPITX T3

DVSS18_MIPIIO K6

DVSS18_MIPIRX M6

DVSS18_MIPITX T2

AVDD18_MD

AH14

AVSS18_MD

AD16

AVSS18_MD

AE17

AVSS18_AP

AE13

AVDD18_MEMPLL

M16

AVSS18_MEMPLL

M15

DVDD18_PLLGP

AJ11

AVDD28_DAC

AH19

AVDD33_USB_P1 AF29

AVDD18_USB_P1 AC26

AVSS33_USB_P1 AE28

AVDD33_USB_P0 AB28

AVDD18_USB_P0 AD27

AVSS33_USB_P0 AB26

C1681

12P_0402_50V8

EMC@

C1681

12P_0402_50V8

EMC@

1

2

R1635

0_0402_5% -22mil

R1635

0_0402_5% -22mil

1 2

C1647

0.1U 10V +-10% X7R 0402

C1647

0.1U 10V +-10% X7R 0402

1

2

C1618

0.1U 10V +-10% X7R 0402

C1618

0.1U 10V +-10% X7R 0402

1

2

C1609

0.1U 10V +-10% X7R 0402

C1609

0.1U 10V +-10% X7R 0402

1

2

C454

10U_0402_6.3V6M

C454

10U_0402_6.3V6M

1

2

U201

S IC MT8389WK/A 1.2G FCCSP 515P CPU

SA00006SG00

3G@

U201

S IC MT8389WK/A 1.2G FCCSP 515P CPU

SA00006SG00

3G@

C1644

0.1U 10V +-10% X7R 0402

C1644

0.1U 10V +-10% X7R 0402

1

2

R16430_0402_5% -22mil R16430_0402_5% -22mil

1 2

C1662

0.1U 10V +-10% X7R 0402

C1662

0.1U 10V +-10% X7R 0402

1

2

C450

10U_0402_6.3V6M

C450

10U_0402_6.3V6M

1

2

C1675

0.1U 10V X7R 0402_NC

@

C1675

0.1U 10V X7R 0402_NC

@

1

2

R1657 0_0402_5%

@

R1657 0_0402_5%

@

1 2

C1656

0.1U 10V +-10% X7R 0402

C1656

0.1U 10V +-10% X7R 0402

1

2

C1674

12P_0402_50V8

EMC@

C1674

12P_0402_50V8

EMC@

1

2

R16580_0402_5% -22mil R16580_0402_5% -22mil

1 2

MT8389E1_PCDDR3

U201B

@

MT8389E1_PCDDR3

U201B

@

DVDD18_EMI H10

DVDD18_EMI H19

DVDD18_EMI H20

DVDD18_EMI J10

DVDD18_EMI J11

DVDD18_EMI J17

DVDD18_EMI J18

DVDD18_EMI J19

DVDD18_EMI J20

DVDD18_EMI K13

DVDD18_EMI K15

DVDD18_EMI K20

GND

C5

GND

C8

GND

C21

GND

C24

GND

D7

GND

D9

GND

D11

GND

D18

GND

D20

GND

D22

GND

J6

GND

J14

GND

K10

GND

K11

GND

K12

GND

K16

GND

K17

GND

K18

GND

L24

GND

P11

GND

P12

GND

P13

GND

P14

GND

P15

GND

P16

GND

R10

GND

R11

GND

R13

GND

R14

GND

R16

GND

R18

GND

R20

GND

T8

GND

T9

GND

T11

GND

T13

GND

T14

GND

T16

GND

T18

GND

T20

GND

U8

GND

U11

GND

U16

GND

U18

GND

V6

GND

V7

GND

V8

GND

V11

GND

V16

GND

V18

GND

V19

DVDD33_MC1 U1

DVDD33_MC2 Y1

DVDD28_BPI AE25

DVDD28_BSI AG23

DVDD18_BSI AJ22

DVDD18_NML1 J29

DVDD28_NML2 Y24

DVDD18_NML3 AF1

DVDD18_NML4 F1

DVDD_DVFS R12

DVDD_DVFS R15

DVDD_DVFS T12

DVDD_DVFS T15

DVDD_DVFS U12

DVDD_DVFS U13

DVDD_DVFS U14

DVDD_DVFS U15

DVDD_DVFS V12

DVDD_DVFS V13

DVDD_DVFS V14

DVDD_DVFS V15

DVDD_DVFS W12

DVDD_DVFS W15

DVDD_SRAM W13

DVDD_SRAM W14

NC

A1

NC

A29

NC

AJ1

NC

AJ29

DVDD18_MC12 W8

GND

W11

GND

W16

GND

W19

GND

W24

GND

AA6

GND

AD20

GND

AD24

DVDD_GPU T10

DVDD_GPU U9

DVDD_GPU U10

DVDD_GPU V9

DVDD_GPU V10

DVDD N10

DVDD N11

DVDD N12

DVDD N13

DVDD N14

DVDD N15

DVDD N16

DVDD N17

DVDD P10

DVDD P17

DVDD P18

DVDD P19

DVDD P20

DVDD R17

DVDD R19

DVDD T17

DVDD T19

DVDD U17

DVDD U19

DVDD U20

DVDD V17

DVDD V20

DVDD W20

DVDD18_MC0 R24

GND_VPROC_FB

AD11 VPROC_FB

AB11

R1639

0_0805_5%

R1639

0_0805_5%

1 2

C1667

0.1U 10V +-10% X7R 0402

C1667

0.1U 10V +-10% X7R 0402

1

2

C1655

0.1U 10V +-10% X7R 0402

C1655

0.1U 10V +-10% X7R 0402

1

2

R1637

0_0402_5% -22mil

R1637

0_0402_5% -22mil

1 2

R1629 0_0402_5% -22milR1629 0_0402_5% -22mil

1 2

C1676

0.1U 10V X7R 0402_NC

@

C1676

0.1U 10V X7R 0402_NC

@

1

2

U201

S IC MT8389WK/A 1.2G FCCSP 515P CPU

SA00006S510

WIFI_ONLY@

U201

S IC MT8389WK/A 1.2G FCCSP 515P CPU

SA00006S510

WIFI_ONLY@

R16590_0402_5% -22mil R16590_0402_5% -22mil

1 2

C1683

12P_0402_50V8

EMC@

C1683

12P_0402_50V8

EMC@

1

2

C1648

0.1U 10V +-10% X7R 0402

C1648

0.1U 10V +-10% X7R 0402

1

2

C1756

33P 50V J NPO 0402

EMC@

C1756

33P 50V J NPO 0402

EMC@

1

2

R1628

0_0402_5% -22mil

R1628

0_0402_5% -22mil

1 2

C453

10U_0402_6.3V6M

C453

10U_0402_6.3V6M

1

2

C451

22UF 6.3V M X5R 0805 H1.25

C451

22UF 6.3V M X5R 0805 H1.25

C1687

12P_0402_50V8

EMC@

C1687

12P_0402_50V8

EMC@

1

2

C1677

0.1U 10V X7R 0402_NC

@

C1677

0.1U 10V X7R 0402_NC

@

1

2

C1645

0.1U 10V +-10% X7R 0402

C1645

0.1U 10V +-10% X7R 0402

1

2

C1680

0.1U 10V X7R 0402_NC

@

C1680

0.1U 10V X7R 0402_NC

@

1

2

R16440_0402_5% -22mil R16440_0402_5% -22mil

1 2

R1633

0_0402_5% -22mil

R1633

0_0402_5% -22mil

1 2

C1673

0.1U 10V +-10% X7R 0402

C1673

0.1U 10V +-10% X7R 0402

1

2

R1655

0_0402_5% -22mil

R1655

0_0402_5% -22mil

1 2

C1621

0.1U 10V +-10% X7R 0402

C1621

0.1U 10V +-10% X7R 0402

1

2

C1661

0.1U 10V +-10% X7R 0402

C1661

0.1U 10V +-10% X7R 0402

1

2

C436

1U_0402_6.3V6K

C436

1U_0402_6.3V6K

1

2

R1652

0_0402_5% -22mil

R1652

0_0402_5% -22mil

1 2

C1670

0.1U 10V +-10% X7R 0402

C1670

0.1U 10V +-10% X7R 0402

1

2

C1651

0.1U 10V +-10% X7R 0402

C1651

0.1U 10V +-10% X7R 0402

1

2

R1653 0_0402_5% @R1653 0_0402_5% @

1 2

R1660

0_0402_5% -22mil

R1660

0_0402_5% -22mil

1 2

R1648

0_0805_5%

R1648

0_0805_5%

1 2

C1639

0.1U 10V +-10% X7R 0402

C1639

0.1U 10V +-10% X7R 0402

1

2

C1650

0.1U 10V +-10% X7R 0402

C1650

0.1U 10V +-10% X7R 0402

1

2

C1607

0.1U 10V +-10% X7R 0402

C1607

0.1U 10V +-10% X7R 0402

1

2

C446

1U_0402_6.3V6K

C446

1U_0402_6.3V6K

1

2

C1682

0.1U 10V X7R 0402_NC

@

C1682

0.1U 10V X7R 0402_NC

@

1

2

C431

1U_0402_6.3V6K

C431

1U_0402_6.3V6K

1

2

C1643

0.1U 10V +-10% X7R 0402

C1643

0.1U 10V +-10% X7R 0402

1

2

C1654

0.1U 10V +-10% X7R 0402

C1654

0.1U 10V +-10% X7R 0402

1

2

C1649

0.1U 10V +-10% X7R 0402

C1649

0.1U 10V +-10% X7R 0402

1

2

C1679

12P_0402_50V8

EMC@

C1679

12P_0402_50V8

EMC@

1

2

C457

22UF 6.3V M X5R 0805 H1.25

C457

22UF 6.3V M X5R 0805 H1.25

C1658

0.1U 10V +-10% X7R 0402

C1658

0.1U 10V +-10% X7R 0402

1

2

R1636

0_0402_5% -22mil

R1636

0_0402_5% -22mil

1 2

C1686

12P_0402_50V8

EMC@

C1686

12P_0402_50V8

EMC@

1

2

C1646

0.1U 10V +-10% X7R 0402

C1646

0.1U 10V +-10% X7R 0402

1

2

C1641

1U_0402_6.3V6K

C1641

1U_0402_6.3V6K

1

2

C448

10U_0402_6.3V6M

C448

10U_0402_6.3V6M

1

2

C1642

0.1U 10V +-10% X7R 0402

C1642

0.1U 10V +-10% X7R 0402

1

2

C1665

2.2U_0402_6.3VM

C1665

2.2U_0402_6.3VM

1

2

C1610

0.1U 10V +-10% X7R 0402

C1610

0.1U 10V +-10% X7R 0402

1

2

C1638

0.1U 10V +-10% X7R 0402

C1638

0.1U 10V +-10% X7R 0402

1

2

C1671

0.1U 10V +-10% X7R 0402

C1671

0.1U 10V +-10% X7R 0402

1

2

C1608

0.1U 10V +-10% X7R 0402

C1608

0.1U 10V +-10% X7R 0402

1

2

C455

10U_0402_6.3V6M

C455

10U_0402_6.3V6M

1

2

R1649 0_0603_5%

@

R1649 0_0603_5%

@

1 2

R16540_0402_5% -22mil R16540_0402_5% -22mil

1 2

C1757

33P 50V J NPO 0402

EMC@

C1757

33P 50V J NPO 0402

EMC@

1

2

C447

1U_0402_6.3V6K

C447

1U_0402_6.3V6K

1

2

C1653

0.1U 10V +-10% X7R 0402

C1653

0.1U 10V +-10% X7R 0402

1

2

C1659

0.1U 10V +-10% X7R 0402

C1659

0.1U 10V +-10% X7R 0402

1

2

C1657

0.1U 10V +-10% X7R 0402

C1657

0.1U 10V +-10% X7R 0402

1

2

C1652

0.1U 10V +-10% X7R 0402

C1652

0.1U 10V +-10% X7R 0402

1

2

R16400_0402_5% -22mil R16400_0402_5% -22mil

1 2

C449

10U_0402_6.3V6M

C449

10U_0402_6.3V6M

1

2

R1627

0_0402_5% -22mil

R1627

0_0402_5% -22mil

1 2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Close to MT6583

MIPI function only

MODE4/6 : MD1/2_GPS_SYNC

Close to MT6583

90 Ohm

differential

Close to MT6583

<TESTMODE>

Connect to VIO18 : Enter Test Mode

Connect to GND : Normal mode

<FSOURCE_P>

Connect to VGP6 (2v0) : w/i EFUSE program

Connect to GND : w/o EFUSE program

Power by CAM_IO

Power by CTP

I2S :

I2C0 : CTP

I2C1 : Sub Camera

I2C2 :

I2C3 : G/GYRO sensor

I2C4 (PMIC) : Charger IC

I2C5 (PMIC) :

I2C6 (PMIC) :

UART1: Debug/MT3332

UART2:

UART3: MT6628

UART4: Debug

MSDC0 : eMMC

MSDC1 : SD Card

MSDC2 : GPIO (2.8V)

MSDC3 : MT6628

EINT0 : Gyro-Sensor

EINT1 : SIM

EINT2 : G-Sensor

EINT3 : PMU MT6320

EINT5 : CTP

EINT6 : MT3332

EINT8 : MT6628 BGF

EINT9 : MT6628 WiFi

EINT10 : HEADSET

5/10

8125 footprint

8125 footprint

8125 footprint

8125 footprint

Reserve

0509 Change

0509 Change

AH4 NEED CHANGE

MB_ID0 Change from AH4 to R25

LTE_RESET GPS_OFF#LTE_ON_OFF#

05/20 Change GPIO from SOC to PMIC

0521 DEL X602

add GPIO PIN for GPIO_SW LED_Signal_EN 0522

5/22 gpio change for SW

5/22 add LED_Signal EN gpio pin for panel

5/23 ADD FOR RF

0530 Update u201 pcb footprint for layout nc -p

0531 Change BOM for MTK

0603 ADD PULL HIGH

0605 Change bom structure

0730 change bom structure for MTK recommend

ADD C79 FOR EMI 8/1

Add TP1378 0808

EVREF

EA1 0

EA1 1

EA1 2

EA1 3

EA1 4

ED2 4

ED2 3

ED2 2

ED2 1

ED2 9

ED2 8

ED2 7

ED2 6

ED2 5

ED3 1

ED3 0

ED1

ED2

ED3

ED1 2

ED1 4

ED1 5

ED0

ED1 0

ED1 3

ED1 1

ED9

ED4

ED5

ED6

ED1 7

ED1 6

ED8

ED7

ED2 0

ED1 9

ED1 8

EA6

EA7

EA8

EA0

EA2

EA3

EA4

EA5

EA1

EA9

MIPI _V RT

USB_ VR T

USB1 1_ DP

USB1 1_ DM

UTXD 1

URXD 1

SYSC LK 1

EVREF

SCL 2

SDA 2

SDA 2

SCL 2

GPI O_ 1

GPI O_ 2

MB_I D0 MB_I D1 GP IO _0 GPI O_1 GPI O_2

GPI O_ 0

MB_I D1

UTXD 4

URXD 4

URXD 2

UTXD 2

MB_I D0

GPI O_ CTP _R ST

EINT _C TP

DCO C_ Flag

BSI -A_ CK

BSI -A_ EN

BSI -A_ DAT 2

BSI -A_ DAT 1

BSI -A_ DAT 0

VM0

VM1

SCL 3<12 ,5>

SDA 3<12 ,5>

SDA 1<10 ,5>

SCL 1<10 ,5>

SDA 0<14 ,5>

SCL 0<14 ,5>

BPI 1_ BUS1

BPI 1_ BUS0

BPI 1_ BUS2

BPI 1_ BUS4

WG _G GE_ PA _VR AMP

EVR EF<6>

ED[0 ..31 ]<6>

EA[0 ..14 ]<6 >

RCS 0_ R <6>

RCS 1_ R <6>

/EW R <6>

/ERA S <6>

/ECA S <6>

ECK E <6>

EDQ M0 <6>

EDQ M1 <6>

EDQ M2 <6>

EDQ M3 <6>

EDQ S0 <6 >

EDQ S1 <6 >

EDQ S2 <6 >

EDQ S3 <6 >

/EDQ S0 <6 >

/EDQ S1 <6 >

/EDQ S2 <6 >

/EDQ S3 <6 >

EDC LK <6 >

EDC LK _B <6 >

EDC LK 1 <6>

EDC LK 1_B < 6>

EBA 2<6>

EBA 1<6>

EBA 0<6>

DPI _V SYNC <7 >

DPI _P CLK < 7>

DPI _D E <7>

DPI _HS YNC <7>

DPI _R 0 <7>

DPI _R 3 <7>

DPI _R 2 <7>

DPI _R 1 <7>

DPI _R 4 <7>

DPI _R 7 <7>

DPI _R 6 <7>

DPI _R 5 <7>

DPI _G 0 <7>

DPI _G 3 <7>

DPI _G 2 <7>

DPI _G 1 <7>

DPI _G 4 <7>

DPI _G 7 <7>

DPI _G 6 <7>

DPI _G 5 <7>

DPI _B 0 <7>

DPI _B 3 <7>

DPI _B 2 <7>

DPI _B 1 <7>

DPI _B 4 <7>

DPI _B 7 <7>

DPI _B 6 <7>

DPI _B 5 <7>

CMMCL K <10 >

CMPC LK <1 0>

CMDA T9<10 >

CMHRE F<10 >

CMVR EF<1 0>

CMDA T8<10 >

CMDA T7<10 >

CMDA T6<10 >

CMDA T5<10 >

CMDA T2<10 >

CMDA T3<10 >

CMDA T4<10 >

URXD 4<1 1>

UTXD 3<9 >

URXD 3<9>

UTXD 4<11 >

URXD 1<2 1>

UTXD 1<21 >

SCL 0 <14 ,5>

SDA 0 <14 ,5>

SCL 1 <10 ,5>

SDA 1 <10 ,5>

SCL 3 <12 ,5>

SDA 3 <12 ,5>

GPI O_ SUB_ CMP DN <1 0>

SYSR ST _B <1 1,15 ,23 ,7>

SRC LK ENAI < 9>

SRC LK ENA2 < 23>

PW RA P_S PI 0_MO <23>

PW RA P_S PI 0_CSN <23>

PW RA P_S PI 0_CLK <23>

PW RA P_S PI 0_MI <23>

PW RA P_E VE NT <23 >

DAC _C LK <2 4>

ADC _C LK <2 4>

ADC _W S <2 4>

ADC _D AT_ IN <2 4>

DAC _W S <2 4>

DAC _D AT_ OUT <2 4>

SIM1 _S CLK < 24>

SIM1 _S IO <2 4>

SIM1 _S RST < 24>

EINT _6 628 _B GF <9 >

EINT _6 628 _W IFI <9>

EINT _HP <8 >

EINT _P MU <23 >

EINT _C TP <1 4>

GPI O_ CTP _R ST <1 4>

GPI O_ 662 8_ GPS _S YNC <9>

LCD _P WM < 7>

eMMC_ RST <13>

eMMC_ CMD <1 3>

eMMC_ CLK <13>

eMMC_ DAT0 <13>

eMMC_ DAT1 <13>

eMMC_ DAT2 <13>

eMMC_ DAT3 <13>

eMMC_ DAT4 <13>

eMMC_ DAT5 <13>

eMMC_ DAT6 <13>

eMMC_ DAT7 <13>

MC1I NSI <1 7>

MC1C M <17 >

MC1C K <17 >

MC1D A0 <1 7>

MC1D A1 <1 7>

MC1D A2 <1 7>

MC1D A3 <1 7>

GPI O_ 662 8_ GPS _L NA_E N<9>

LCM_ ST BY_2 V8

LCM_ RS T_2 V8

GPI O_ 662 8_ PMU_E N<9>

MC3D A3< 9>

MC3D A0< 9>

MC3D A1< 9>

MC3D A2< 9>

MC3C LK< 9>

MC3C MD<9>

DAI CL K<9>

DAI PC MOUT<9>

DAI SYNC<9>

DAI PC MIN<9>

DAI RS T<9>

CHD_ DP<23 >

CHD_ DM<23 >

USB1 1_ DP_ P<18 >

USB1 1_ DM_N<18>

USB_ DP<17 >

USB_ DM<17>

USB_ ID<1 7>

WA TC HDOG _B<23 >

MCU_J TC K<1 1>

MCU_J TD O<11>

MCU_J TR ST_ B<11 >

MCU_J TD I<11 >

MCU_J RT CK<11 >

MCU_J TMS<1 1>

BPI 1_ BUS8

BPI 1_ BUS9

BPI 1_ BUS7

BPI 1_ BUS1 0

DPI 1_ CK <7 >

ERE SE T_<6>

LCM_ BL _EN < 7>

LED _E N <7>

POUT _1<8>

CHG_ TE MP <22>

RTC 32 K1V 8<23 ,7>

CLK 1_ BB_ R2<7>

SRC LK ENA <2 3,7>

SRC VO LTE N <23 ,7>

BPI 1_ BUS1 3

BPI 1_ BUS1 1

BPI 1_ BUS1 2

TX_ QP

TX_ QN

TX_ IP

TX_ IN

RX_ IP

RX_ IN

RX_ QP

RX_ QN

RXD _B BIP

RXD _B BIN

RXD _B BQP

RXD _B BQN

MT83 89 _GP IO _GP S_ EN <2 1>

MT83 89 _GP IO _FR AME _SYNC <21>

MT83 89 _EI NT_ MT33 32 <2 1>

GNSS _HRST <21>

CAB C_ ENAB LE 0

CAB C_ ENAB LE 1

UTXD 2<11 >

URXD 2<1 1>

SDA 2 <7>

SCL 2 <7>

MT81 93 _INT < 7>

I2S 0_ DAT _O UT<7>

I2S 0_ CK<7>

I2S 0_ WS<7>

I2S 0_ DAT _I N

CMPD N <10 >

CMRS T <10 >

RCP<10>

RCN<10>

RDP 0<1 0>

RDN0<10 >

RDP 1<1 0>

RDN1<10 >

GPI O_ HDMI_ PO WE R_ EN <7 >

EINT _G Y <12 >

LED _S ignal_E N <7>

GPI O_ SW 1 <12 >

DDR 3V CCI O

VBUS

VGP 2_ PMU

VDD 18 _65 83

VDD 18 _65 83

VDD 18 _65 83

VDD 18 _65 83 V DD1 8_ 6583 V DD 18_ 65 83 VD D1 8_6 58 3 VDD1 8_658 3

VDD 18 _65 83

Title

Size Doc ume nt Numbe r Rev

Date: Shee t of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADESECRET INFORMATION. THIS SHEETMAYNOT BETRANSFEREDFROMTHECUSTODY OF THECOMPETENTDIVISIONOF R&D

DEPARTMENTEXCEPTAS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHERTHIS SHEET NORTHEINFORMATIONIT CONTAINS

MAY BEUSEDBY ORDISCLOSED TOANYTHIRDPARTYWITHOUTPRIORWRITTENCONSENTOF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

MT8377 - Baseband

D

5 28Thursd ay, Augus t 08 , 201 3

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Doc ume nt Numbe r Rev

Date: Shee t of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADESECRET INFORMATION. THIS SHEETMAYNOT BETRANSFEREDFROMTHECUSTODY OF THECOMPETENTDIVISIONOF R&D

DEPARTMENTEXCEPTAS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHERTHIS SHEET NORTHEINFORMATIONIT CONTAINS

MAY BEUSEDBY ORDISCLOSED TOANYTHIRDPARTYWITHOUTPRIORWRITTENCONSENTOF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

MT8377 - Baseband

D

5 28Thursd ay, Augus t 08 , 201 3

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Doc ume nt Numbe r Rev

Date: Shee t of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADESECRET INFORMATION. THIS SHEETMAYNOT BETRANSFEREDFROMTHECUSTODY OF THECOMPETENTDIVISIONOF R&D

DEPARTMENTEXCEPTAS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHERTHIS SHEET NORTHEINFORMATIONIT CONTAINS

MAY BEUSEDBY ORDISCLOSED TOANYTHIRDPARTYWITHOUTPRIORWRITTENCONSENTOF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

MT8377 - Baseband

D

5 28Thursd ay, Augus t 08 , 201 3

Compal Electronics, Inc.

2013/11/032012/11/03

R15 20

10K _0 201 _5 %

GLO NAS S@

R15 20

10K _0 201 _5 %

GLO NAS S@

1 2

R21 1

8.06 K +-1 % 0402

R21 1

8.06 K +-1 % 0402

12

VDD28_NML2

VDD28_NML2

VDD28_NML2

DVDD33_MC2 DVDD33_MC1

MT83 89 E1_ PC DDR 3

U201 C

@

VDD28_NML2

VDD28_NML2

VDD28_NML2

DVDD33_MC2 DVDD33_MC1

MT83 89 E1_ PC DDR 3

U201 C

@

LSCE0B AJ3

LSCE1B AJ5

LSCK AG4

LSDA AH3

FSOURCE_P

D24

SYSRSTB R29

CLK26M2

AJ14

TESTMODE

L25

RTC32K_CK

P25

WATCHDOG

R28

REFN

AH13 REFP

AH12

CLK26M1

AJ19

LSA0 AE6

LRSTB AH6

LPCE0B AH4

LPCE1B AF6

LPTE AH7

DISP_PWM AE7

UTXD4 Y28

URXD4 W25

SCL0 AF9

SDA3 V28

SPI1_CSN AJ6

SPI1_MO AF5

SPI1_MI AH5

SPI1_CLK AG5

PWM1 W27

PWM2 AA29

PWM3 AA26

PWM4 AA28

EXT_CLK_EN AJ21

SRCLKENAI E 5

SRCLKENA P26

SRCLKENA2 A F22

SRCVOLTEN P29

PWRAP_SPI0_CSN L29

PWRAP_SPI0_CLK M29

PWRAP_SPI0_MI M26

PWRAP_SPI0_MO M28

PWRAP_EVENT L28

ADC_CLK K25

ADC_WS K26

ADC_DAT_IN K28

DAC_CLK M27

DAC_WS L26

DAC_DAT_OUT L27

SIM1_SCLK N25

SIM1_SIO M25

SIM1_SRST P28

SIM2_SCLK M24

SIM2_SIO N24

SIM2_SRST N28

EINT0 T28

EINT1 T27

EINT2 T26

EINT3 R27

EINT4 R25

EINT5 AE8

EINT6 AH8

EINT7 AG8

EINT8 AJ8

EINT9 AF8

EINT10_AUXIN2 AD10

EINT11_AUXIN3 AE10

EINT16_AUXIN4 AF10

AUX_XP

AF12

AUX_XM

AE11

AUX_YP

AE12

AUX_YM

AG12

AUXIN0

AH11

AUXIN1

AH10

JTCK

U24

JTDO

U28

JTRST_B

T25

JTDI

U29

JRTCK

U25

JTMS

V26

USB_VRT

AD28

USB_VBUS

AE27

USB_DP_P0

AC27

USB_DM_P0

AB27

IDDIG

R26

USB_DP_P1

AE29

USB_DM_P1

AD29

CHD_DP_P0

AB25

CHD_DM_P0

AA25

MRG_I2S_PCM_CLK

B2

MRG_I2S_PCM_RX

C2

MRG_I2S_PCM_SYNC

C3

MRG_I2S_PCM_TX

E2

DAI_RSTB

E1

I2S_CLK

AG9

I2S_WS

AH9

I2S_DATA_IN

AJ9

I2S_DATA_OUT

AD8

MSDC3_DAT3

D3

MSDC3_DAT2

D4

MSDC3_DAT1

B4

MSDC3_DAT0

A4

MSDC3_CLK

C4

MSDC3_CMD

D5

MSDC2_DAT3

W5

MSDC2_DAT2

W2

MSDC2_DAT1

Y4

MSDC2_DAT0

V4

MSDC2_CLK

W3

MSDC2_CMD

W4

MSDC1_DAT3

T5

MSDC1_DAT2

V2

MSDC1_DAT1

T4

MSDC1_DAT0

V1

MSDC1_CLK

U2

MSDC1_CMD

U5

MSDC0_DAT7

D26

MSDC0_DAT6

B27

MSDC0_DAT5

A27

MSDC0_DAT4

A25

MSDC0_DAT3

D25

MSDC0_DAT2

B25

MSDC0_DAT1

C26

MSDC0_DAT0

B26

MSDC0_CLK

C27

MSDC0_CMD

A28

MSDC0_RSTB

E25

UTXD1 Y27

URXD1 Y26

UCTS1 Y29

URTS1 Y25

UTXD2 V24

URXD2 W26

UCTS2 V25

URTS2 W28

UTXD3 F4

URXD3 B3

SDA0 AE9

SCL1 D2

SDA1 C1

SDA2 B1

SCL2 A2

SCL3 V29

MSDC2_SDWPI

V5

MSDC2_INSI

Y3

MSDC1_SDWPI

U6

MSDC1_INSI

Y2

DVDD28_BSI

DVDD28_BPI

MT83 89 E1_ PC DDR 3

U201 A

@

DVDD28_BSI

DVDD28_BPI

MT83 89 E1_ PC DDR 3

U201 A

@

BPI1_BUS2 AJ27

BPI1_BUS3 AH28

BPI1_BUS4 AF27

BPI1_BUS5 AG28

BPI1_BUS6 AF26

BPI1_BUS7 AJ25

BPI1_BUS0 AJ24

BPI1_BUS1 AG26

UL_I_P1

AF18

UL_I_N1

AF17

UL_Q_P1

AF19

UL_Q_N1

AF20

BPI1_BUS8 AG27

BPI1_BUS9 AH26

BPI1_BUS10 AH24

BPI1_BUS11 AF24

BPI1_BUS12 AJ28

BPI1_BUS13 AH25

BPI1_BUS16 AE26

BPI1_BUS17 AH27

BPI1_BUS18 AE24

UL_I_P2

AG13

UL_I_N2

AG14

UL_Q_P2

AF14

UL_Q_N2

AF13

DL_I_P1

AJ16

DL_I_N1

AH16

DL_Q_P1

AH18

DL_Q_N1

AH17

DL_I_P2

AG15

DL_I_N2

AG16

DL_Q_P2

AF15

DL_Q_N2

AF16 VM0 AF28

VM1 AH29

BSI1A_CS0 AE20

BSI1A_CLK AH22

BSI1A_DATA0 AH21

BSI1A_DATA1 AE21

BSI1A_DATA2 AG22

VBIAS

AG18

APC1

AG20

APC2

AG19

TXBPI1

AH20

BSI1B_CS0 AE23

BSI1B_CLK AF23

BSI1B_DATA AE22

BSI1C_CLK

AF21

BSI1C_DATA

AH23

TP1 39 0PAD@ TP1 39 0PAD@

R21 0

4.7K_0402_5%

R21 0

4.7K_0402_5%

12

C17 54

18P _0 402 _5 0V8J

EMC@

C17 54

18P _0 402 _5 0V8J

EMC@

1

2

TP1 359P AD @TP 1359 PAD @

R17 66 0 _04 02R17 66 0_04 02

12

R22 1

1M_0 40 2_1 %

R22 1

1M_0 40 2_1 %

1 2

R15 27

100 K_ 020 1_ 5%

@

R15 27

100 K_ 020 1_ 5%

@

1 2

TP1 37 8PAD@ TP 13 78PA D@

R63 6

0_0402_5%

EMC@

R63 6

0_0402_5%

EMC@

1 2

R15 26

100 K_ 020 1_ 5%

@

R15 26

100 K_ 020 1_ 5%

@

1 2

R22 2

4.99 M +-1% 0402

R22 2

4.99 M +-1% 0402

1 2

R15 21

10K _0 201 _5 %

NH520 @

R15 21

10K _0 201 _5 %

NH520 @

1 2

TP1 366P AD @TP 1366 PAD @

C17 36

33P 50 V J NP O 0402

@ C17 36

33P 50 V J NP O 0402

@

1

2

R22 0

4.7K_0402_5%

R22 0

4.7K_0402_5%

12

R20 9

8.06 K +-1 % 0402

R20 9

8.06 K +-1 % 0402

12

TP1 35 7PA D @TP 13 57P AD @

R15 28

100 K_ 020 1_ 5%

@

R15 28

100 K_ 020 1_ 5%

@

1 2

C21 3

1U 10 V K X5R 0402

C21 3

1U 10 V K X5R 0402

2 1

TP1 369P AD @TP 1369 PAD @

R21 2

4.7K_0402_5%

R21 2

4.7K_0402_5%

12

R15 29

100 K_ 020 1_ 5%

@

R15 29

100 K_ 020 1_ 5%

@

1 2

C20 7

1U 10 V K X5R 0402

C20 7

1U 10 V K X5R 0402

2 1

R15 22

100 K_ 020 1_ 5%

@

R15 22

100 K_ 020 1_ 5%

@

1 2

C16 11

12P_0402_50V8

EMC@

C16 11

12P_0402_50V8

EMC@

1

2

C20 5

0.1U 1 0V +-10% X7 R 0402

C20 5

0.1U 1 0V +-10% X7 R 0402

1

2

R17 65 0 _04 02R17 65 0 _04 02

12

TP1 35 8PAD@ TP 13 58PA D@

R15 23

100 K_ 020 1_ 5%

@

R15 23

100 K_ 020 1_ 5%

@

1 2

TP1 37 4PAD@ TP1 37 4PAD@

R20 7

4.7K_0402_5%

R20 7

4.7K_0402_5%

12

R21 9

4.7K_0402_5%

R21 9

4.7K_0402_5%

12

R20 3

1.5K _0 402 _1 %

R20 3

1.5K _0 402 _1 %

12

R20 8

4.7K_0402_5%

R20 8

4.7K_0402_5%

12

R18 69

10K _0 402 _5 %

@R18 69

10K _0 402 _5 %

@

1 2

C20 6

0.1U 10V +-10% X7R 0402

C20 6

0.1U 10V +-10% X7R 0402

1

2

TP1 37 0PAD@ TP1 37 0PAD@

C79

0.1U 1 0V +-10% X7 R 0402

EMC@

C79

0.1U 1 0V +-10% X7 R 0402

EMC@

1

2

R63 4 0_ 040 2_ 5%

EMC@

R63 4 0_ 040 2_ 5%

EMC@

1 2

TP1 36 2PAD@ TP1 36 2PAD@

TP1 37 1PAD@ TP1 37 1PAD@

R15 24

100 K_ 020 1_ 5%

@

R15 24

100 K_ 020 1_ 5%

@

1 2

R18 72

10K _0 402 _5 %

@ R18 72

10K _0 402 _5 %

@

1 2

MT83 89 E1_ PC DDR 3

U201E

@

MT83 89 E1_ PC DDR 3

U201E

@

DPIVSYN C AD1

DPICK AJ2

DPIDE AF4

DPIHSYNC AC2

DPIR0 AE5

DPIR1 AG3

DPIR2 AB2

DPIR3 AD5

DPIR4 AF2

DPIR5 AD2

DPIR6 AC4

DPIR7 AG2

DPIG0 AC1

DPIG1 AB5

DPIG2 AH1

DPIG3 AD3

DPIG4 AD6

DPIG5 AA5

DPIG6 AH2

DPIG7 AA2

DPIB0 AC3

DPIB1 AC5

DPIB2 AG1

DPIB3 AB4

DPIB4 Y5

DPIB5 AE2

DPIB6 AD4

DPIB7 AA1

CMFLASH G2

CMMCLK G3

CMRST H2

CMPCLK G4

CMPDN F2

VRT

R6

TCN

R7 TCP

P8

TDN0

P3

TDN1

R4

TDN2

R2

TDP0

R3

RCP_B

J4

RCN_B

H4

RDP0_B

J3

RDN0_B

H3

RDP1_B

J2

RDN1_B

J1

TDP1

P4

TDP2

R1

RCP

M4

RCN

N4

RDP0

L1

RDN0

M1

RDP1

N3

RDN1

M3

RDP2

M2

RDN2

N2

RDP3

P2

RDN3

P1

RCP_A

L4

RCN_A

K4

RDP0_A

L3

RDN0_A

K3

RDP1_A

K2

RDN1_A

L2

TDP3

P7

TDN3

P6

U201 D

MT83 89 E1_ PC DDR 3

@

U201 D

MT83 89 E1_ PC DDR 3

@

RDQ19

D6 RDQ20

D10 RDQ21

B7 RDQ22

C10 RDQ23

D8 RDQ24

C6 RDQ25

A12 RDQ26

A5 RDQ27

B11 RDQ28

B5 RDQ29

B12 RDQ30

C7 RDQ31

C11

RDQ18

A9

RDQ17

B8

RDQ16

B9

RDQ15

C23

RDQ14

B17

RDQ13

A24

RDQ12

B18

RDQ11

C22

RDQ10

D19

RDQ9

B24

RDQ8

A17

RDQ7

B20

RDQ6

C20

RDQ5

D21

RDQ4

C19

RDQ3

B21

RDQ2

D23

RDQ1

A20

RDQ0

B22

RDQS0 F23

RDQS1 E20

RDQS2 E6

RDQS3 F9

VREF

H14

VREF

H18

RWE_ E16

RCS_ F12

RCS1_ E14

RRAS_ C14

RCAS_ B15

RCKE E13

RDQM0 A21

RDQM1 C18

RDQM2 A8

RDQM3 C9

RDQS0_ E23

RDQS1_ F20

RDQS2_ F6

RDQS3_ E9

RCLK0 H16

RCLK0_ H15

NLD15 G25

NLD14 D28

NLD13 F28

NLD12 F25

NLD11 E26

NLD10 H25

NLD9 J28

NLD8 E28

NLD7 C29

NLD6 G28

NLD5 H28

NLD4 B28

NLD3 G27

NLD2 H27

NLD1 G26

NLD0 C28

NRNB B29

NCLE D27

NALE H26

NWEB F29

NREB J25

NCEB0 E29

NCEB1 H29

TP_MEMPLL N19

TN_MEMPLL N18

REXTDN E15

RBA2

C15

RBA1

C12

RBA0

B14

RA14

D12

RA13

D17

RA12

B13

RA11

F16

RA10

D14

RA9

F17

RA8

F18

RA7

C17

RA6

E18

RA5

C16

RA4

A13

RA3

A15

RA2

D13

RA1

E12

RA0

E11

DDR3RSTB

E17

RCLK1 H12

RCLK1_ H13

R21 7

4.7K_0402_5%

R21 7

4.7K_0402_5%

12

TP1 36 1PAD@ TP1 36 1PAD@

R20 4

68 + -1% 0 40 2

@

R20 4

68 + -1% 0 40 2

@

12

TP1 36 0PAD@ TP1 36 0PAD@

R20 1

5.11 K +-1 % 0402

R20 1

5.11 K +-1 % 0402

12

R15 25

100 K_ 020 1_ 5%

@

R15 25

100 K_ 020 1_ 5%

@

1 2

TP1 37 2PAD@ TP1 37 2PAD@

R21 8

4.7K_0402_5%

R21 8

4.7K_0402_5%

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

U6 Test Point

U5 Test Point

DDR3L DDR3L

X76521BOL01

Vendor

NANYA-1G

X76521BOL02HYNIX-1G

X76 level

NAN 256Mx16@

HYN 256Mx16@

NANYA-1G

HYNIX-1G

BOM structure

0605 Change bom X76 Part number

0606 DEL 4 PCS TEST POINT

/ERAS

EVREF

/ECAS

RODT2_RRCS0_R RODT1_R

ED21

EA11

ED12

ED14

ED16

ED1

EA12

EA13

EA14

ED11

ED25

ED8

ED27

ED26

ED2

ED7

ED6

ED21

ED20

ED13

ED17

ED30

ED5

ED0

ED23

ED15

ED29

ED10

ED19

ED31

ED28

ED3

ED24

ED4

ED22

ED18

ED9

EA6

EA7

EA8

EA0

EA9

EA2

EA3

EA4

EA1

EA5

/EWR

ED30

ED31

EBA0

EDCLK

EDCLK_B

RCS1_R

EBA1

/ECAS

ED15

EA9

/EWR

/ERAS

EDCLK1

EDCLK1_B

EA10

EA12

EA2

EA0

EA13

EA9

EA4

EA3

EA5

EA8

EA11

EA7

EA1

EA10

EA6

EA14

ED3

ED6

ED7

ED1

ED4

ED5

ED2

ED0

ED8

ED13

ED14

ED11

ED15

ED10

ED9

ED12

EVREF

ERESET_

EBA1

EBA0

EBA2

RCS0_R

/ECAS

RODT1_R

/ERAS

/EWR

ECKE

ED26

ED31

ED28

ED27

ED30

ED25

ED29

ED24

ED19

ED23

ED20

ED21

ED22

ED17

ED16

ED18

EA12

EA2

EA0

EA13

EA9

EA4

EA3

EA5

EA8

EA11

EA7

EA1

EA10

EA6

EA14

EBA1

EBA0

EBA2

EVREF

EVREF

ECKE

ERESET_

RODT2_R

RCS1_R

/ERAS

/ECAS

/EWR

ED[0..31]<5>

EA[0..14]<5>

EBA2<5>

/ERAS<5>

/ECAS<5>

EBA1<5>

/EWR<5>

ECKE<5>

EBA0<5>

ERESET_<5>

RCS0_R<5> RCS1_R<5>

EVREF<5,6>

EDQS1<5>

/EDQS1<5>

EDQS0<5>

/EDQS0<5>

EDQM1<5>

EDQM0<5>

EDCLK<5>

EDCLK_B<5>

EVREF<5,6>

EDCLK1<5>

EDCLK1_B<5>

EDQS3<5>

/EDQS3<5>

EDQS2<5>

/EDQS2<5>

EDQM3<5>

EDQM2<5>

DDR3VCCIODDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIODDR3VCCIO

DDR3VCCIODDR3VCCIO DDR3VCCIODDR3VCCIO

DDR3VCCIODDR3VCCIO DDR3VCCIODDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIODDR3VCCIO DDR3VCCIO DDR3VCCIO

DDR3VCCIO DDR3VCCIO DDR3VCCIO

DDR3VCCIO DDR3VCCIO DDR3VCCIO

DDR3VCCIO DDR3VCCIO DDR3VCCIO

DDR3VCCIO

DDR3VCCIO

DDR3VCCIO DDR3VCCIO

DDR3VCCIO

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Memory (DDR3)

C

6 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Memory (DDR3)

C

6 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Memory (DDR3)

C

6 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

ZZZ

DDR3L

ALT. GROUP PARTS NANYA 1G ZEJ00

X76521BOL01

NAN 256Mx16@

ZZZ

DDR3L

ALT. GROUP PARTS NANYA 1G ZEJ00

X76521BOL01

NAN 256Mx16@

C1632

2.2U_0402_6.3VM

C1632

2.2U_0402_6.3VM

1

2

C59

0.1U 6.3V K X5R 0201

C59

0.1U 6.3V K X5R 0201

1

2

C69

0.1U 10V +-10% X7R 0402

C69

0.1U 10V +-10% X7R 0402

1

2

C74

0.1U 6.3V K X5R 0201

C74

0.1U 6.3V K X5R 0201

1

2

C1631

2.2U_0402_6.3VM

C1631

2.2U_0402_6.3VM

1

2

C78

0.1U 10V +-10% X7R 0402

C78

0.1U 10V +-10% X7R 0402

1

2

96-BALL

SDRAM DDR3

U6

H5TC4G63MFR-PBA 96P

@

96-BALL

SDRAM DDR3

U6

H5TC4G63MFR-PBA 96P

@

WE

L3

RAS

J3

CAS

K3

CS/CS0

L2

CKE/CKE0

K9

CK

J7

CK

K7

DQSU

B7

BA0

M2

BA1

N8

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10/AP

L7

A11

R7

DQL0 E3

DQL1 F7

DQL2 F2

DQL3 F8

DQL4 H3

DQL5 H8

DQL6 G2

DQL7 H7

VSSQ D1

VSS A9

VSS E1

VSS B3

NC/ODT1

J1

VDD B2

VDD D9

VDDQ A1

VDDQ A8

VDDQ C1

VDDQ C9

NC/CS1

L1

NC/CE1

J9

VDDQ E9

ZQ/ZQ0

L8

RESET

T2

DQSL

F3

DMU

D3 DML

E7

VSSQ B1

VSSQ B9

VSSQ D8

VSSQ E2

DQSU

C7

VSSQ E8

DQSL

G3

VDDQ F1

VSSQ F9

VSSQ G1

VDDQ H2

VDDQ H9

VSSQ G9

VREFCA

M8

VSS G8

VDD G7

ODT/ODT0

K1

A0

N3

A1

P7

VDD K2

A12

N7

VSS J2

VDD K8

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DQU0 D7

A13

T3

A14

T7

A15/BA3

M7

BA2

M3

VREFDQ

H1

NCZQ1

L9

VDD N1

VDD N9

VDD R1

VDD R9

VSS J8

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VDDQ D2

C72

0.1U 6.3V K X5R 0201

C72

0.1U 6.3V K X5R 0201

1

2

ZZZ

DDR3L

ALT. GROUP PARTS HYNIX 1G ZEJ00

X76521BOL02

HYN 256Mx16@

ZZZ

DDR3L

ALT. GROUP PARTS HYNIX 1G ZEJ00

X76521BOL02

HYN 256Mx16@

C54

0.1U 6.3V K X5R 0201

C54

0.1U 6.3V K X5R 0201

1

2

C62

0.1U 6.3V K X5R 0201

C62

0.1U 6.3V K X5R 0201

1

2

C75

0.1U 6.3V K X5R 0201

C75

0.1U 6.3V K X5R 0201

1

2

R70

1K_0402_1%

@

R70

1K_0402_1%

@

12

C1619

2.2U_0402_6.3VM

C1619

2.2U_0402_6.3VM

1

2

TP02 PAD @TP02 PAD @

TP34 PAD @TP34 PAD @

C65

0.1U 10V +-10% X7R 0402

C65

0.1U 10V +-10% X7R 0402

1

2

R75

0_0201_5%

@R75

0_0201_5%

@

12

C1634

2.2U_0402_6.3VM

C1634

2.2U_0402_6.3VM

1

2

TP18 PAD @TP18 PAD @

C1620

2.2U_0402_6.3VM

C1620

2.2U_0402_6.3VM

1

2

TP19 PAD @TP19 PAD @

R77

1K_0402_1%

@

R77

1K_0402_1%

@

12

C1633

2.2U_0402_6.3VM

C1633

2.2U_0402_6.3VM

1

2

C68

0.1U 6.3V K X5R 0201

C68

0.1U 6.3V K X5R 0201

1

2

TP35 PAD @TP35 PAD @

TP03 PAD @TP03 PAD @

C1617

2.2U_0402_6.3VM

C1617

2.2U_0402_6.3VM

1

2

C71

0.1U 10V +-10% X7R 0402

C71

0.1U 10V +-10% X7R 0402

1

2

TP20 PAD @TP20 PAD @

R525

100_0201_5%

R525

100_0201_5%

1 2

R76

1K_0201_1%

R76

1K_0201_1%

12

C1626

2.2U_0402_6.3VM

C1626

2.2U_0402_6.3VM

1

2

TP36 PAD @TP36 PAD @

C1669

2.2U_0402_6.3VM

C1669

2.2U_0402_6.3VM

1

2

C1636

2.2U_0402_6.3VM

C1636

2.2U_0402_6.3VM

1

2

C66

0.1U 6.3V K X5R 0201

C66

0.1U 6.3V K X5R 0201

1

2

C57

0.1U 6.3V K X5R 0201

C57

0.1U 6.3V K X5R 0201

1

2

TP21 PAD @TP21 PAD @

C1627

2.2U_0402_6.3VM

C1627

2.2U_0402_6.3VM

1

2

C1635

2.2U_0402_6.3VM

C1635

2.2U_0402_6.3VM

1

2

C63

0.1U 10V +-10% X7R 0402

C63

0.1U 10V +-10% X7R 0402

1

2

C77

0.1U 6.3V K X5R 0201

C77

0.1U 6.3V K X5R 0201

1

2

R72

1K_0201_1%

R72

1K_0201_1%

12

C1668

2.2U_0402_6.3VM

C1668

2.2U_0402_6.3VM

1

2

C73

0.1U 10V +-10% X7R 0402

C73

0.1U 10V +-10% X7R 0402

1

2

C61

0.1U 6.3V K X5R 0201

C61

0.1U 6.3V K X5R 0201

1

2

R73

1K_0201_1%

@ R73

1K_0201_1%

@

12

TP13 PAD @TP13 PAD @

C67

0.1U 10V +-10% X7R 0402

C67

0.1U 10V +-10% X7R 0402

1

2

U5

256M16/1600 H5TC4G63AFR-PBA

SA00005AV50

@

U5

256M16/1600 H5TC4G63AFR-PBA

SA00005AV50

@

C70

0.1U 6.3V K X5R 0201

C70

0.1U 6.3V K X5R 0201

1

2

C76

0.1U 6.3V K X5R 0201

C76

0.1U 6.3V K X5R 0201

1

2

C1630

2.2U_0402_6.3VM

C1630

2.2U_0402_6.3VM

1

2

TP06 PAD @TP06 PAD @

96-BALL

SDRAM DDR3

U5

H5TC4G63MFR-PBA 96P

@

96-BALL

SDRAM DDR3

U5

H5TC4G63MFR-PBA 96P

@

WE

L3

RAS

J3

CAS

K3

CS/CS0

L2

CKE/CKE0

K9

CK

J7

CK

K7

DQSU

B7

BA0

M2

BA1

N8

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10/AP

L7

A11

R7

DQL0 E3

DQL1 F7

DQL2 F2

DQL3 F8

DQL4 H3

DQL5 H8

DQL6 G2

DQL7 H7

VSSQ D1

VSS A9

VSS E1

VSS B3

NC/ODT1

J1

VDD B2

VDD D9

VDDQ A1

VDDQ A8

VDDQ C1

VDDQ C9

NC/CS1

L1

NC/CE1

J9

VDDQ E9

ZQ/ZQ0

L8

RESET

T2

DQSL

F3

DMU

D3 DML

E7

VSSQ B1

VSSQ B9

VSSQ D8

VSSQ E2

DQSU

C7

VSSQ E8

DQSL

G3

VDDQ F1

VSSQ F9

VSSQ G1

VDDQ H2

VDDQ H9

VSSQ G9

VREFCA

M8

VSS G8

VDD G7

ODT/ODT0

K1

A0

N3

A1

P7

VDD K2

A12

N7

VSS J2

VDD K8

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DQU0 D7

A13

T3

A14

T7

A15/BA3

M7

BA2

M3

VREFDQ

H1

NCZQ1

L9

VDD N1

VDD N9

VDD R1

VDD R9

VSS J8

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VDDQ D2

C58

0.1U 10V +-10% X7R 0402

C58

0.1U 10V +-10% X7R 0402

1

2

U6

256M16/1600 H5TC4G63AFR-PBA

SA00005AV50

@

U6

256M16/1600 H5TC4G63AFR-PBA

SA00005AV50

@

R71

240_0201_1%

R71

240_0201_1%

12

C1629

2.2U_0402_6.3VM

C1629

2.2U_0402_6.3VM

1

2

TP23 PAD @TP23 PAD @

C64

0.1U 6.3V K X5R 0201

C64

0.1U 6.3V K X5R 0201

1

2

R526

100_0201_5%

R526

100_0201_5%

1 2

U5

256M16 NT5CC256M16BP-DI

SA00006UM10

@

U5

256M16 NT5CC256M16BP-DI

SA00006UM10

@

R65

240_0201_1%

R65

240_0201_1%

12

C56

0.1U 10V +-10% X7R 0402

C56

0.1U 10V +-10% X7R 0402

1

2

TP01 PAD @TP01 PAD @

U6

256M16 NT5CC256M16BP-DI

SA00006UM10

@

U6

256M16 NT5CC256M16BP-DI

SA00006UM10

@

C60

0.1U 6.3V K X5R 0201

C60

0.1U 6.3V K X5R 0201

1

2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

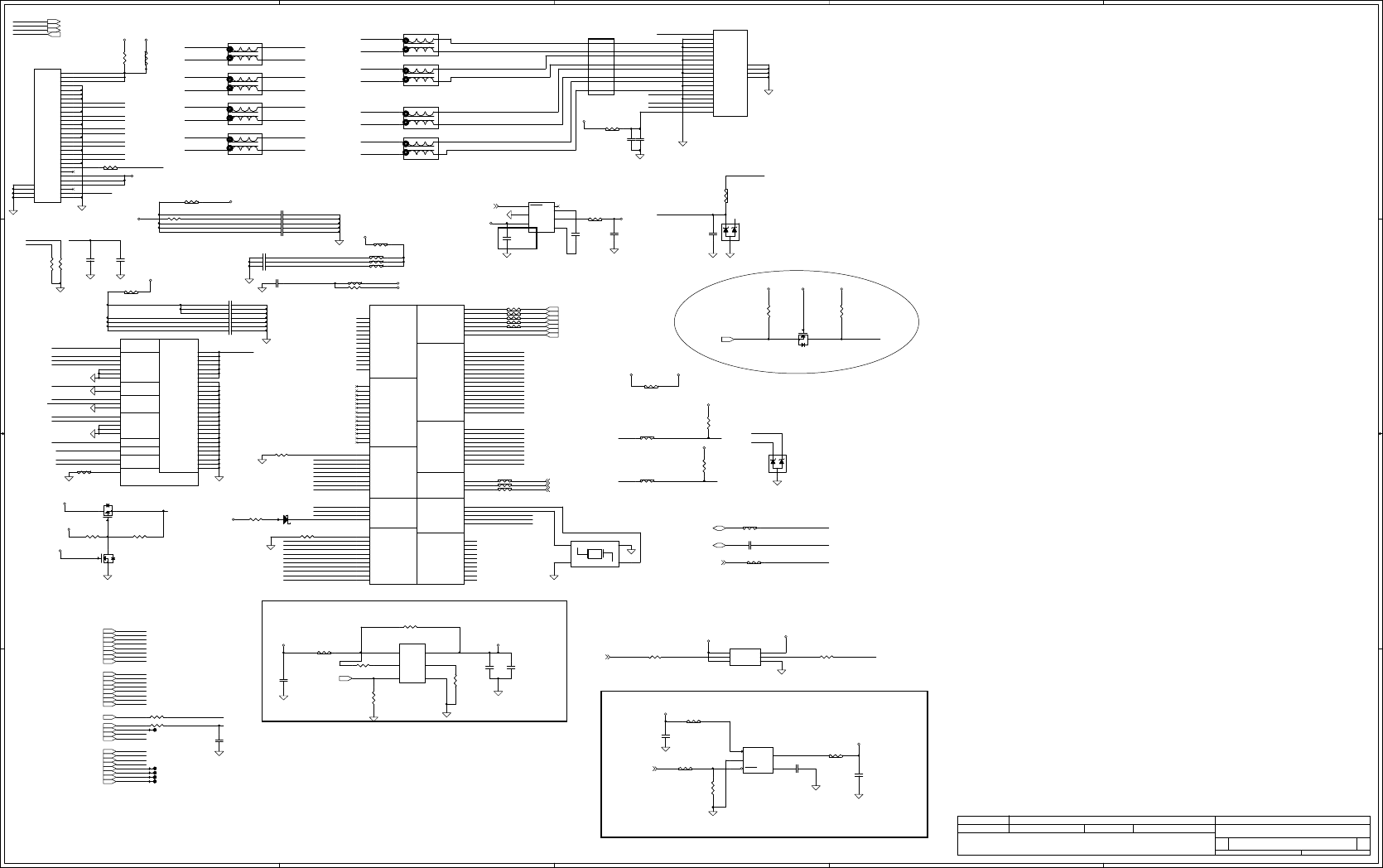

VGP6_PMU for LCM 3.3V

No Through Hole !

100 ohm - Impedance

Differential Signal !

need check vcom 0513

need check GPIO_HDMI_POWER_EN

16V rating

NEED CHECK LCM_EL_EN

NEED CHECK DEL OR NOT?

0521 Change R to 0201

0521 Change P to 0201

0521 Change P to 0201

0521 Change P to 0201

W=60mils

3.3V

Backlight

05/20 ADD R1754

0521 ADD

5/22 ADD backlight circuit

5/22 ADD 3.3v circuit

5/22 ADD L for RF require

5/24 swap for layout

5/23 ADD FOR RF

0526 Change net name

0526 Change net name

0527 ADD GND FOR Dummy pin

0527 ADD R5229 FOR power consumption measure

0530 add R5230 and NC R5221 FOR MTK

0530 Update u1 pcb footprint for layout nc -p

DEL R FOR Layout 0521

0604 Change U8.3 to U8.4

0605 Change Q26 QL1 P/N FOR LOAD BOM

0605 Change R5218 P/N FOR LOAD BOM

0605 Change U21 PN for LOAD BOM

0605 ADD C1685 DEL R1685

0605 DEL U8 FOR LOAD BOM

0605 DEL R5224

0604 Change D815 for ME

0606 update R1638 TO @

0613 update R1638

0627 update u8 and ADD R1656 R1663

0704 change C1616 and c1685

0704 Change C2650 FOR ME

0704 Change U8

0730 change R5227 bom structure

for MTK recommend

MT81 93 _CL KB UF_2

HTPL G

MT81 93 _AV DD 28

HDMI_ SDDDC _S D

DDC _S C

MT81 93 _DV DD IO1 8_ DPI

MT81 93 _DV DD IO1 8_ 2

MT81 93 _DV DD IO1 8_ 1

HDMI_ HPD

DPI 1_ CLK

HDMI_ DA T2_ M_C

MT81 93 _CL KB UF_3

HDMI_ VC C

HDMI_ SD

HDMI_ SC

HDMI_ CE C

LCM_ VD D

HDMI_ DA T2_ P_ C

HDMI_ DA T0_ M_C

HDMI_ DA T1_ M_C

HDMI_ DA T1_ P_ C

HDMI_ DA T0_ P_ C

HDMI_ CK _M_C

HDMI_ CK _P_ C

MT81 93 _CL KB UF_1

HTPLG

HDMI_ DA T2_ P

HDMI_ DA T2_ M

HDMI_ DA T1_ P

HDMI_ DA T1_ M

HDMI_ DA T0_ P

HDMI_ DA T0_ M

HDMI_ CK _P

HDMI_ CK _M

HDMI_ DA T1_ M

HDMI_ DA T1_ P

HDMI_ DA T2_ M

HDMI_ DA T2_ P

HDMI_ DA T0_ P

HDMI_ CK _M

HDMI_ CK _P

HDMI_ DA T0_ M

MT81 93 _CL KB UF_1

MT81 93 _CL KB UF_3

MT81 93 _CL KB UF_2

DPI _G 0

DPI _B 2

DPI _B 3

DPI _B 0

DPI _G 3

DPI _B 5

DPI _B 6

DPI _G 1

DPI _G 2

DPI _B 4

DPI _B 7

DPI _B 1

RGB _C K

DPI _V SYNC

DPI _HS YNC

DPI _R 4

DPI _R 5

DPI _R 2

DPI _R 3

DPI _R 7

DPI _R 0

DPI _R 1

DPI _R 6

DPI 1_ CLK

DDC _S D

DDC _S C

HDMI_ HPD

HDMI_ CE C

LCM_ RI N0+

LCM_ RI N2+

LCM_ RI N2-

LCM_ RI N3+

LCM_ RI N1+

LCM_ RI N1-

LCM_ CL KIN-

LCM_ RI N3-

LCM_ CL KIN+

LCM_ RI N0-

MT81 93 _AV DD 28

MT81 93 _DV DD IO1 8_ DPI

VAS T_ PMU_R

3.3V _R

VAS T_ PMU_R

3.3V _R

3.3V _R

MT81 93 _DV DD IO1 8_ 2

MT81 93 _DV DD IO1 8_ 1

VAS T_ PMU_R

MT81 93 _AV DD 33_ HDMI

VAS T_ PMU_R

3.3V _R

VAS T_ PMU_R

LCM_ RI N0+_ C

LCM_ RI N0-_C

LCM_ RI N1-_C

LCM_ RI N1+_ C

LCM_ RI N2-_C

LCM_ RI N2+_ C

LCM_ CL KIN+ _C

LCM_ CL KIN-_ C

LCM_ VD D

LED _I D2

LED _I D1

LED _I D2

LED _I D1

LCD _P WM_ R

LED _S ignal_E N_R

HDMI_ SD

HDMI_ SC

VAS T_ PMU_R

MT81 93 _AV DD 33_ HDMI

3.3V _R

LCM_ RI N0-_C

LCM_ RI N0+_ C

LCM_ RI N1-_C

LCM_ RI N1+_ C

LCM_ RI N2-_C

LCM_ RI N2+_ C

LCM_ CL KIN-_ C

LCM_ CL KIN+ _C

LCM_ RI N0-

LCM_ RI N0+

LCM_ RI N1-

LCM_ RI N1+

LCM_ RI N2-

LCM_ RI N2+

LCM_ CL KIN-

LCM_ CL KIN+

LED _S ignal_E N_R

RGB _C K

MT81 93 _AV DD 33_ HDMI

LCD _P WM_ R

HDMI_ SC

CLK 1_ BB_ R2<5>

CLK 2_ WC N_R<9 >

LCM_ DI MO_R

CAB C_ ENAB LE 0 <5>

CAB C_ ENAB LE 1 <5>

LVD S_ SHUTD OW N_N

SRC LK ENA <2 3,5>

SRC VO LTE N <23 ,5>

SYSR ST _B <1 1,15 ,23 ,5>

MT81 93 _INT < 5>

RTC 32 K1V 8 <23 ,5>

SCL 2 <5>

SDA 2 <5>

DPI _B 1<5>

DPI _B 0<5>

DPI _B 3<5>

DPI _B 2<5>

DPI _B 4<5>

DPI _B 6<5>

DPI _B 5<5>

DPI _B 7<5>

DPI _R 0<5>

DPI _R 1<5>

DPI _R 6<5>

DPI _R 4<5>

DPI _R 2<5>

DPI _R 3<5>

DPI _R 7<5>

DPI _R 5<5>

DPI _HS YNC<5>

DPI _P CLK<5 >

DPI _V SYNC<5 >

DPI _D E<5>

DPI 1_ CK<5>

DPI _G 1<5 >

DPI _G 6<5 >

DPI _G 4<5 >

DPI _G 3<5 >

DPI _G 7<5 >

DPI _G 5<5 >

DPI _G 0<5 >

DPI _G 2<5 >

LCM_ BL _EN<5>

VTC XO _2_ PMU

VTC XO _1_ PMU

5V_ DD C

5V_ DD C

VEMC _3 V3_ PMU

VDD 18 _65 83

3.3V

5V_ DD C

3.3V

VDD 18 _65 83

3.3V

VGP 1_ PMU

+LE DVD D

VDD 18 _65 83

LCM_ VD D

VBA T

5V_ DD C

3.3V

VBA T

VCD _V DD

VAS T_ PMU

3.3V

3.3V

VCD _V DD

VBA T +LE DV DD

VDD 18 _65 83

VDD 18 _65 83 L CM_V DD

SYSC LK _PMU<2 4>

I2S 0_ DAT _O UT <5>

I2S 0_ CK <5 >

I2S 0_ WS <5>

LCD _P WM<5>

GPI O_ HDMI_ PO WE R_ EN<5>

LED _E N<5>

LED _S ignal_E N<5>

Title

Size Doc ume nt Numbe r Rev

Date: Shee t of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADESECRET INFORMATION. THIS SHEETMAYNOT BETRANSFEREDFROMTHECUSTODY OF THECOMPETENTDIVISIONOF R&D

DEPARTMENTEXCEPTAS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHERTHIS SHEET NORTHEINFORMATIONIT CONTAINS

MAY BEUSEDBY ORDISCLOSED TOANYTHIRDPARTYWITHOUTPRIORWRITTENCONSENTOF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

LCD

D

7 23Thursd ay, Augus t 08 , 201 3

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Doc ume nt Numbe r Rev

Date: Shee t of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADESECRET INFORMATION. THIS SHEETMAYNOT BETRANSFEREDFROMTHECUSTODY OF THECOMPETENTDIVISIONOF R&D

DEPARTMENTEXCEPTAS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHERTHIS SHEET NORTHEINFORMATIONIT CONTAINS

MAY BEUSEDBY ORDISCLOSED TOANYTHIRDPARTYWITHOUTPRIORWRITTENCONSENTOF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

LCD

D

7 23Thursd ay, Augus t 08 , 201 3

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Doc ume nt Numbe r Rev

Date: Shee t of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADESECRET INFORMATION. THIS SHEETMAYNOT BETRANSFEREDFROMTHECUSTODY OF THECOMPETENTDIVISIONOF R&D

DEPARTMENTEXCEPTAS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHERTHIS SHEET NORTHEINFORMATIONIT CONTAINS

MAY BEUSEDBY ORDISCLOSED TOANYTHIRDPARTYWITHOUTPRIORWRITTENCONSENTOF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

LCD

D

7 23Thursd ay, Augus t 08 , 201 3

Compal Electronics, Inc.

2013/11/032012/11/03

JP1

CONN@

JP1

CONN@

HP_DET

1

Utility

2

D2+

3

D2_Shield

4

D2-

5

D1+

6

D1_Shield

7

D1-

8

D0+

9

D0_Shield

10

D0-

11

CK+

12

CK_Shield

13

CK-

14

CEC

15

DDC/CEC_GND

16

SCL

17

SDA

18

+5V

19

GND0 20

GND1 21

GND2 22

GND3 23

L35 02 D LP1 1T B800UL 2L_4P

EMC@

L35 02 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

C17 48

33P 50 V J NP O 0402

@ C17 48

33P 50 V J NP O 0402

@

1

2

C42 25

10U_ 06 03_ 25 V6M

C42 25

10U_ 06 03_ 25 V6M

12

R51 77

1.8K +-1% 0402

R51 77

1.8K +-1% 0402

12

C42 35 0 .1U_0 40 2_1 6V 4ZC42 35 0 .1U_0 40 2_1 6V 4Z

12

R52 22 0 _02 01 _5%R52 22 0 _02 01 _5%

1 2

R51 71 0 _02 01 _5%R51 71 0 _02 01 _5%

1 2

U21

NCT3 70 5U-33 _S OT2 3-5

U21

NCT3 70 5U-33 _S OT2 3-5

IN

1

GND

2

SHDN

3

OUT 5

SET 4

R52 30

47K +-5% 04 02

R52 30

47K +-5% 04 02

1 2

U403 0U403 0

GND

2

SHDN

1

VOUT

3

C+ 4

VIN 5

C- 6

TP 7

X60 5

26MHZ _7 .3PF _T Z16 89 A

X60 5

26MHZ _7 .3PF _T Z16 89 A

IN 1

GND

2

OUT

3GND 4

C42 38 0 .1U_0 40 2_1 6V 4ZC42 38 0 .1U_0 40 2_1 6V 4Z

12

R16 38

100 K_ 040 2_ 5%

R16 38

100 K_ 040 2_ 5%

12

R52 28 0 _04 02R52 28 0 _04 02

1 2

R52 23 0 _02 01 _5%R52 23 0 _02 01 _5%

1 2

R51 73 0 _02 01 _5%R51 73 0 _02 01 _5%

1 2

L35 04 D LP1 1T B800UL 2L_4P

EMC@

L35 04 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

U87

SN74 AV C1T 45 DCK R_ SC7 0-6

SA0 00 029 A0 0

U87

SN74 AV C1T 45 DCK R_ SC7 0-6

SA0 00 029 A0 0

VCCA

1

GND 2

A

3B4

DIR

5

VCCB 6

L35 05 D LP1 1T B800UL 2L_4P

EMC@

L35 05 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

C42 29

0.1U_ 04 02_ 25 V4Z

C42 29

0.1U_ 04 02_ 25 V4Z

1

2

R52 27 1 00_ 02 01_5%

@

R52 27 1 00_ 02 01_5%

@

1 2

C26 50

10U_0603_25V6M

C26 50

10U_0603_25V6M

12

R51 92

0_0 40 2_5 % -2 2mil

R51 92

0_0 40 2_5 % -2 2mil

1 2

R51 93 0 _04 02R51 93 0 _04 02

12

JP8JP8

G1

31

G2

32

G3

33

G4

34

11

22

33

44

55

66

77

88

99

10 10

11 11

12 12

13 13

14 14

15 15

16 16

17 17

18 18

19 19

20 20

21 21

22 22

23 23

24 24

25 25

26 26

27 27

28 28

29 29

30 30

C42 39 0 .1U_0 40 2_1 6V 4ZC42 39 0 .1U_0 40 2_1 6V 4Z

12

R51 74 0 _02 01 _5%R51 74 0 _02 01 _5%

1 2

R51 47 0 _02 01 _5%EMC@R5 147 0_0 201_5 %EMC @

1 2

C42 30 0 .1U_0 40 2_2 5V 4ZC42 30 0 .1U_0 40 2_2 5V 4Z

1 2

L35 06 D LP1 1T B800UL 2L_4P

EMC@

L35 06 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

R52 19

0_0 20 1_5 %

R52 19

0_0 20 1_5 %

1 2

R51 91 0 _04 02R51 91 0 _04 02

12

D81 2

TVNS T5 230 2A B0 S OT 523

@

D81 2

TVNS T5 230 2A B0 S OT 523

@

2

3

1

D81 5

RB5 51 V-30 _S OD3 23 -2

D81 5

RB5 51 V-30 _S OD3 23 -2

12

R16 62 0 _06 03 _5%

@

R16 62 0 _06 03 _5%

@

1 2

C42 36 0 .1U_0 40 2_1 6V 4ZC42 36 0 .1U_0 40 2_1 6V 4Z

12

R51 72

0_0201_5%

R51 72

0_0201_5%

1 2

G

D

S

QL1

BSS 13 8W -7-F _SO T3 23-3

G

D

S

QL1

BSS 13 8W -7-F _SO T3 23-3

2

13

C42 27

1U 6.3 V K X5R 0402

C42 27

1U 6.3 V K X5R 0402

1

2

R51 97 0 _04 02R51 97 0 _04 02

12

L35 07 D LP1 1T B800UL 2L_4P

EMC@

L35 07 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

R16 56 1 00K _0 402_5 %@R 1656 10 0K_04 02 _5%@

12

R51 75 0 _02 01 _5%R51 75 0 _02 01 _5%

1 2

C42 40 0 .1U_0 40 2_1 6V 4ZC42 40 0 .1U_0 40 2_1 6V 4Z

12

C16 85

330 0P _04 02 _50V7 K

C16 85

330 0P _04 02 _50V7 K

12

R51 31

0_0 40 2_5 %

@R51 31

0_0 40 2_5 %

@

1 2

TP1 39 7PAD@ TP1 397PA D@

R38 7

0_0603_5%

R38 7

0_0603_5%

1 2

C42 44 0 .1U_0 40 2_1 6V 4ZC42 44 0 .1U_0 40 2_1 6V 4Z

12

R51 90 0 _04 02R51 90 0 _04 02

12

R52 26 0 _02 01 _5%R52 26 0 _02 01 _5%

1 2

G

D

S

Q2 BS S1 38W -7 -F_S OT 323-3

G

D

S

Q2 BS S1 38W -7 -F_S OT 323-3

2

13

L35 08 D LP1 1T B800UL 2L_4P

EMC@

L35 08 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

C42 33

0.1U_ 04 02_ 25 V4Z

C42 33

0.1U_ 04 02_ 25 V4Z

1 2

TP1 39 5PAD@ TP1 395PA D@

C16 15

2.2U_ 06 03_ 10 V6K

C16 15

2.2U_ 06 03_ 10 V6K

12

D81 4

TVNS T5 230 2A B0 S OT 523

@

D81 4

TVNS T5 230 2A B0 S OT 523

@

2

3

1

R51 76 0 _02 01 _5%

@

R51 76 0 _02 01 _5%

@

12

R51 87 0 _04 02R51 87 0 _04 02

12

C42 41 0 .1U_0 40 2_1 6V 4ZC42 41 0 .1U_0 40 2_1 6V 4Z

12

R51 82

0_0201_5%

R51 82

0_0201_5%

1 2

R52 25

27K +-1% 04 02

R52 25

27K +-1% 04 02

1 2

R51 69 0 _02 01 _5%R51 69 0 _02 01 _5%

1 2

R21 4

100 K_ 040 2_ 5%

R21 4

100 K_ 040 2_ 5%

12

R51 45 0 _04 02 _5%EMC@R51 45 0 _0402 _5%EMC@

1 2

R51 79

10K_0402_5%

R51 79

10K_0402_5%

12

TP1 39 4PAD@ TP1 394PA D@

C42 48

100 0P _04 02 _50V7 K

C42 48

100 0P _04 02 _50V7 K

12

R51 65

0_0402_5% -22mil

R51 65

0_0402_5% -22mil

12

R51 32

0_0 40 2_5 % -2 2mil

R51 32

0_0 40 2_5 % -2 2mil

1 2

C42 42 0 .1U_0 40 2_1 6V 4ZC42 42 0 .1U_0 40 2_1 6V 4Z

12

R51 62

0_0402

R51 62

0_0402

1 2

R17 56

10K _0 402 _5 %

R17 56

10K _0 402 _5 %

1 2

C605

1U_0402_6.3V6K

C605

1U_0402_6.3V6K

1

2

TP1 30 0PAD@ TP1 300PA D@

C17 55

18P _0 402 _5 0V8J

EMC@

C17 55

18P _0 402 _5 0V8J

EMC@

1

2

R52 18 2 .49K _0 402 _1 %R52 18 2 .49K _0 402 _1 %

1 2

R16 42 0 _04 02 _5%

@

R16 42 0 _04 02 _5%

@

1 2

C42 24

0.1U_ 04 02_ 25 V4Z

C42 24

0.1U_ 04 02_ 25 V4Z

1

2

R51 50

0_0 40 2_5 % -2 2mil

R51 50

0_0 40 2_5 % -2 2mil

1 2

R51 94 0 _04 02 _5%

@

R51 94 0 _04 02 _5%

@

1 2

C42 32 0 .1U_0 40 2_2 5V 4ZC42 32 0 .1U_0 40 2_2 5V 4Z

1 2

C42 34 0 .1U_0 40 2_1 6V 4ZC42 34 0 .1U_0 40 2_1 6V 4Z

12

power domain

MT8193

U1B

power domain

MT8193

U1B

DVDDIO33_18_NFI

A3

AVDD33_HDMI

C1

AVSS12_HDMI

F4

AVSS12_HDMI

H3

AVDD12_HDMI_C

K3

AVSS12_HDMI

K4

AVDD12_HDMI_D

L1

AVSS28

M4 AVDD28

L2

AVDD33_PLLGP

P2

AVSS12_VPLL

N3 AVDD12_VPLL

R1

AVSS12_LVDSA

N6

AVDD33_LVDSA

R10

AVDD12_LVDSA

R2

DVDDIO33_DGO

R11

DVDDIO18_33_DPI

J12

DVDDIO18_33

A8

DVDDIO18_33

A13

DVDD12_1 E4

DVDD12_2 E8

DVSS12 G5

DVSS12 G6

DVDD12_2 E7

DVSS12 G7

DVDD12_2 F8

DVDD12_2 G8

DVDD12_3 H10

DVDD12_4 J9

DVSS12 G9

DVSS12 G12

DVSS12 F5

DVSS12 H7

DVSS12 H8

DVSS12 H9

DVSS12 H11

DVSS12 H12

DVSS12 J6

DVSS12 J7

DVSS12 J8

DVSS12 J11

DVSS12 K6

DVSS12 K7

DVSS12 K8

DVSS12 K9

DVSS12 B7

AVSS12_LVDSA

M8

EFUSE

N13

AVSS12_LVDSA

M7

DVSS12 P10

U8

G52 7A TP1 U_T SOT 23 -6

U8

G52 7A TP1 U_T SOT 23 -6

OUT 1

EN(/EN)

4

SET 5

IN

6

GND 2

FLAG

3

MT8193

BGA-150

NFI_NAND

HDMI

(analog)

DCXO

LVDS RGB

NFI_CPU

control

DPI0

DPI1

HDMI

(digital)

I2S

U1A

MT8193

BGA-150

NFI_NAND

HDMI

(analog)

DCXO

LVDS RGB

NFI_CPU

control

DPI0

DPI1

HDMI

(digital)

I2S

U1A

NFCEN

B3

NFD7

A2

NFD6

B2

NFD5

A1

NFD4

B1

NFD3

C2

NFD1

C3

NFD0

D5

HDMI_EXT_RES

D1

CLK_M

F2

CLK_P

F1

CH0_M

F3

CH0_P

G3

CH1_M

H1

CH1_P

H2

CH2_M

H4

CH2_P

J4

XTALI N1

XTALO N2

CLKBUF3 M3

AO1N

N4

AO1P

N5

AO2N

P6

AO2P

R6

AOCK0N

N7

AOCK0P

N8

AO3N

R8

AO3P

P8

G0 L10

B4 M10

B3 N10

B2 L11

B1 P11

B0 R13

VCLK N11

HSYNC P13

VSYNC N12

CEC

P14

DPI1D1 J14

NFD2

D4

DPI1D2 J15

DPI1D3 K13

DPI1D4 L15

DPI1D5 L14

DPI1D6 M14

DPI1D7 N14

I2S_BCK M12

I2S_LRCK L13

I2S_DATA L12

DPI1CK N15

HTPLG

P15

HDMISD

R14

HDMISCK

R15

NFREN

C4 NFWEN

A5 NFALE

B5 NFCLE

C5 NFRBN

B6

CK_SEL C8

EN_BB D6

NLD0

B9

NLD1

D9

NLD2

B10

NLD5

D10

NLD6

B11

NLD7

D11

NREB

A11

NRNB

B13

NWEB

D12

NALE

B12

NCLE

C12

SCL E11

SDA E12

DPI0D0 A14

DPI0D1 C13

DPI0D2 B14

RESET_N D8

INT D7

RTC_32K_CK A7

NLD3

C9

NLD4

A10

CLKBUF2 L5

AO0P

R4

DPI1D0 J13

DPI0CK H15

DPI0HSYNC G13

DPI0VSYNC H 14

DPI0D11 F13

DPI0D10 G14

DPI0D9 E14

DPI0D8 E15

DPI0D7 E13

DPI0D6 C14

DPI0D5 A15

DPI0D4 B15

CLKBUF1 L4

TP_VPLL

P3

AO0N

P4

B5 K11

DPI0D3 D13

R51 54

0_0 40 2

R51 54

0_0 40 2

12

R52 29

0_0 40 2

R52 29

0_0 40 2

1 2

R16 46

100 K_ 040 2_ 5%

R16 46

100 K_ 040 2_ 5%

12

R52 21

47K +-5% 04 02

@

R52 21

47K +-5% 04 02

@

1 2

C16 16 4 .7U_0 60 3_6 .3V 6KC16 16 4 .7U_0 60 3_6 .3V 6K

12

C42 45 0 .1U_0 40 2_1 6V 4ZC42 45 0 .1U_0 40 2_1 6V 4Z

12

R41 5

0_0402_5%

@

R41 5

0_0402_5%

@

12

C26 51

0.1U_0402_25V6

C26 51

0.1U_0402_25V6

1

2

G

D

S

Q26 A O3 413 _S OT2 3-3

<BO M Structure >

G

D

S

Q26 A O3 413 _S OT2 3-3

<BO M Structure >

2

1 3

R20 5 33 _04 02 _5%R205 33 _0 402 _5 %

1 2

L35 01 D LP1 1T B800UL 2L_4P

EMC@

L35 01 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

TP1 39 3PAD@ TP1 393PA D@

C42 31 0 .1U_0 40 2_2 5V 4ZC42 31 0 .1U_0 40 2_2 5V 4Z

1 2

C42 19

1U 6.3V K X5R 0402

C42 19

1U 6.3V K X5R 0402

1

2

C42 43 0 .1U_0 40 2_1 6V 4ZC42 43 0 .1U_0 40 2_1 6V 4Z

12

C42 37 0 .1U_0 40 2_1 6V 4ZC42 37 0 .1U_0 40 2_1 6V 4Z

12

R51 78

0_0 40 2_5 % -2 2mil

R51 78

0_0 40 2_5 % -2 2mil

1 2

C42 26

1U 6.3 V K X5R 0402

C42 26

1U 6.3 V K X5R 0402

1

2

L35 03 D LP1 1T B800UL 2L_4P

EMC@

L35 03 D LP1 1T B800UL 2L_4P

EMC@

1 2

34

R52 05

0_0603_5% -35mil

R52 05

0_0603_5% -35mil

1 2

R51 70

1.8K +-1% 0402

R51 70

1.8K +-1% 0402

12

R52 20 0 _02 01 _5%R52 20 0 _02 01 _5%

1 2

R16 63

30K_0402_1%

R16 63

30K_0402_1%

12

R15 1 1K _04 02 _1%R151 1K_0 40 2_1 %

1 2

R51 83

10K _0 402 _5 %

R51 83

10K _0 402 _5 %

1 2

C4228

1U_0603_10V6K

C4228

1U_0603_10V6K

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

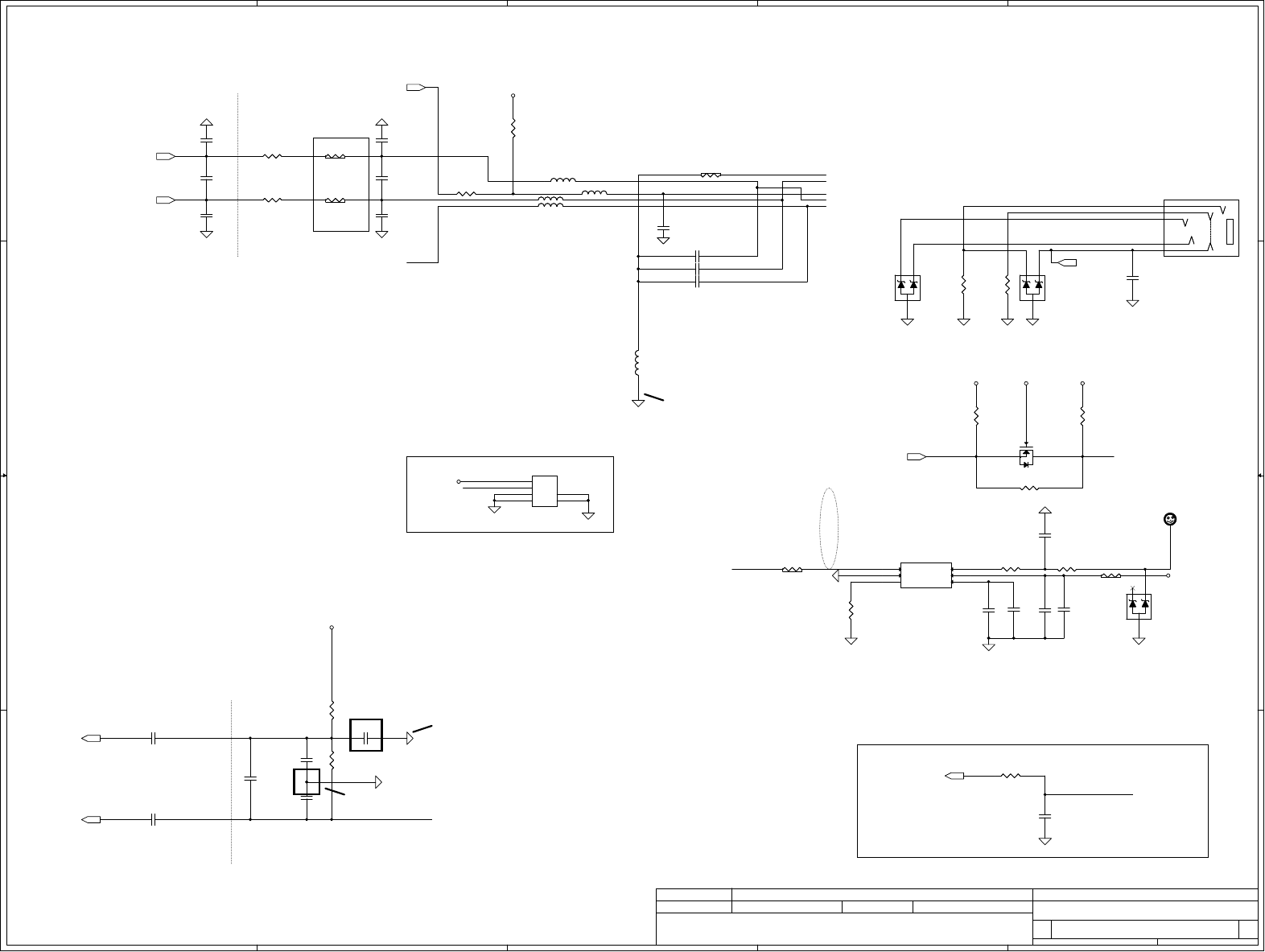

Earphone MICPHONE

GND of C1709(10uF) and headset

should tie together and single via

to GND plane

tie together and single via to GND plane

Close to BB Close to MIC

Close to JP2

releate to MIC Detect

Single via to GND plane

Microphone: 6k~13k Ohm

TV: 75 Ohm

Earphone RECEIVER

close to IC close to connector

Pull high R move to MB

P-SENSOR CNN

need check POUT

05/20 ADD R1754

05/20 ADD R1755

0528 add d3 for EMI

0603 ADD R8

0605 DEL PAD and H1 GND

0605 Update JP2 PCB Footprint

0605 Change P/N FOR LOAD BOM

0606 update H1 PCB Footprint

0704 add c6 for EMI

ADD C55 FOR EMI 0807

HP_MIC

HP_MIC

AU_VIN1_N1

AUDJACK_R

AUDJACK_GND

ADDJACK_DET_R

AUDJACK_GND_R

HP_MP3R

HP_MP3L

AUDJACK_L

HP_MIC

AUDJACK_MIC

AUDJACK_L

AUDJACK_GND_R

AUDJACK_MIC

POUT_RPOUT

CTRL

+3VS_P

P_VREG

POUT

POUT

CAP

AUDJACK_R

ADDJACK_DET_R

AU_VIN1_N<24>

AU_VIN1_P<24>

ACCDET<24>

AU_HPL_R<12>

AU_HPR_R<12>

EINT_HP<5>

POUT_1<5>

VDD18_6583

MICBIAS1

VDD18_6583

VDD18_6583

VEMC_3V3_PMU

VEMC_3V3_PMU

VEMC_3V3_PMU

ADDJACK_DET_R <12>

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Audio,I/O,Audio board Conn.

C

8 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Audio,I/O,Audio board Conn.

C

8 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Audio,I/O,Audio board Conn.

C

8 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

D3

TVNST52302AB0 SOT523

LTE@

D3

TVNST52302AB0 SOT523

LTE@

2

3

1

G

D

S

Q1 BSS138W-7-F_SOT323-3

@

G

D

S

Q1 BSS138W-7-F_SOT323-3

@

2

13

C6 680P_0402_50V7K

EMC@

C6 680P_0402_50V7K

EMC@

1

2

C1703

33P 50V J NPO 0402

C1703

33P 50V J NPO 0402

1

2

R1690

470K_0402_5%

R1690

470K_0402_5%

12

JP16

ACES_88460-0401

ME@

JP16

ACES_88460-0401

ME@

1

1

2

2

3

3

4

4G1 5

G2 6

D2

TVNST52302AB0 SOT523

EMC@

D2

TVNST52302AB0 SOT523

EMC@

2

3

1

C4

100P_0402_50V8J

LTE@

C4

100P_0402_50V8J

LTE@

1

2

C1700

33P 50V J NPO 0402

C1700

33P 50V J NPO 0402

1

2

C1701

100P_0402_50V8J

C1701

100P_0402_50V8J

1

2

C17061000P_0402_50V7K EMC@C17061000P_0402_50V7K EMC@

1 2

C5

1U_0402_6.3V4Z

LTE@

C5

1U_0402_6.3V4Z

LTE@

1

2

R1755

10K_0402_5%

LTE@

R1755

10K_0402_5%

LTE@

1 2

R1692

0_0603_5% -35mil

R1692

0_0603_5% -35mil

12

U2

IQS1280000EBTSR TSOT23 6P

LTE@

U2

IQS1280000EBTSR TSOT23 6P

LTE@

CTRL

3VSS

2

VREG 4

CX 6

OUT

1

VDDHI 5

R7

0_0402

R7

0_0402

12

C1704

33P 50V J NPO 0402

C1704

33P 50V J NPO 0402

1

2

R1696

0_0603_5% -35mil

R1696

0_0603_5% -35mil

12

C2

100P_0402_50V8J

LTE@

C2

100P_0402_50V8J

LTE@

1

2

JP2

CONN@

JP2

CONN@

1

4

3

5

2

R1694

47K +-5% 0402

R1694

47K +-5% 0402

1 2

C1708

0.1U 10V +-10% X7R 0402

C1708

0.1U 10V +-10% X7R 0402

1 2

C1709

10U_0603_6.3V6M

C1709

10U_0603_6.3V6M

1 2

C1712

33P 50V J NPO 0402

C1712

33P 50V J NPO 0402

1

2

R1701

1K_0402_1%

R1701

1K_0402_1%

12

C1699

33P 50V J NPO 0402

C1699

33P 50V J NPO 0402

1

2

C3

1U_0402_6.3V4Z

LTE@

C3

1U_0402_6.3V4Z

LTE@

1

2

R1

0_0402_5%

@

R1

0_0402_5%

@

1 2

L843

EMC@ FBMA-L11-160808-700LMT_2P

L843

EMC@ FBMA-L11-160808-700LMT_2P

1 2

C55

0.1U 6.3V K X5R 0201

EMC@

C55

0.1U 6.3V K X5R 0201

EMC@

1

2

C17051000P_0402_50V7K EMC@C17051000P_0402_50V7K EMC@

1 2

H1

HOLEA

@

H1

HOLEA

@

1

C1702

100P_0402_50V8J

C1702

100P_0402_50V8J

1

2

R1700

1.5K_0402_1%

R1700

1.5K_0402_1%

1 2

R5

470_0402_5%

LTE@R5

470_0402_5%

LTE@

12

L844

EMC@ FBMA-L11-160808-700LMT_2P

L844

EMC@ FBMA-L11-160808-700LMT_2P

1 2

C1711

100P_0402_50V8J

C1711

100P_0402_50V8J

1

2

R1754

10K_0402_5%

@

R1754

10K_0402_5%

@

1 2

C1710

33P 50V J NPO 0402

C1710

33P 50V J NPO 0402

1

2

C1714

0.1U_0402_25V4Z

@C1714

0.1U_0402_25V4Z

@

1

2

D1

TVNST52302AB0 SOT523

EMC@

D1

TVNST52302AB0 SOT523

EMC@

2

3

1

R8

0_0402_5%

LTE@

R8

0_0402_5%

LTE@

12

R1699

1K_0402_1%

R1699

1K_0402_1%

1 2

L845

EMC@

FBMA-L11-160808-700LMT_2PL845

EMC@

FBMA-L11-160808-700LMT_2P

1 2

C1

2P_0402_50V8C

LTE@ C1

2P_0402_50V8C

LTE@

1

2

L846

EMC@

FBMA-L11-160808-700LMT_2PL846

EMC@

FBMA-L11-160808-700LMT_2P

1 2

R213

100K_0402_5% @

R213

100K_0402_5% @

12

C1713

0.1U 10V +-10% X7R 0402

C1713

0.1U 10V +-10% X7R 0402

1 2

R1695

33_0402_5%

R1695

33_0402_5%

12

R1693 0_0402_5% -22milR1693 0_0402_5% -22mil

1 2

L847

EMC@

FBMA-L11-160808-700LMT_2P

L847

EMC@

FBMA-L11-160808-700LMT_2P

1 2

R2

0_0402_5%

@

R2

0_0402_5%

@

1 2

R1691

33_0402_5%

R1691

33_0402_5%

12

R4

0_0402

R4

0_0402

12

R6

0_0402_5%

LTE@

R6

0_0402_5%

LTE@

12

C17071000P_0402_50V7K EMC@C17071000P_0402_50V7K EMC@

1 2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

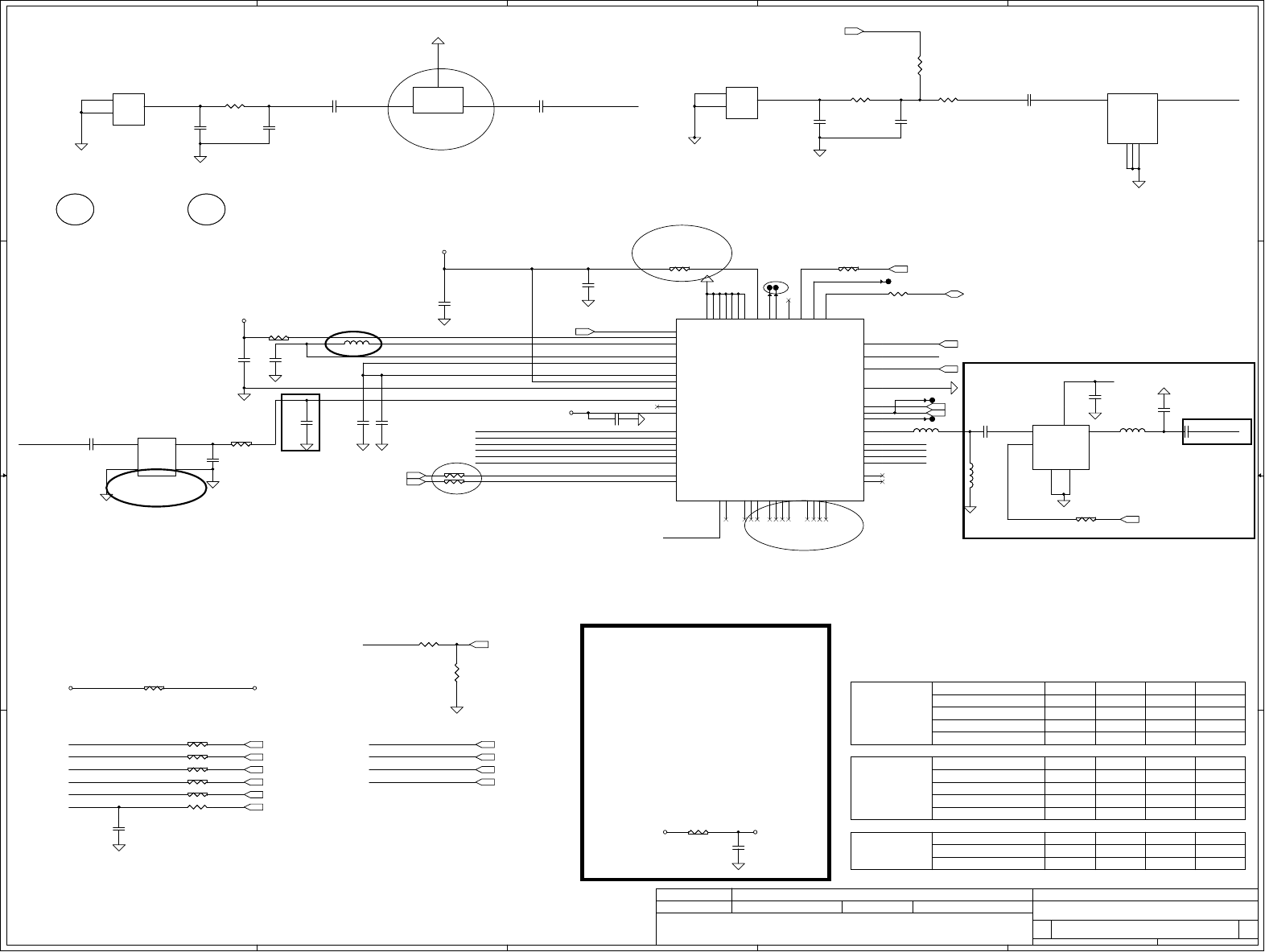

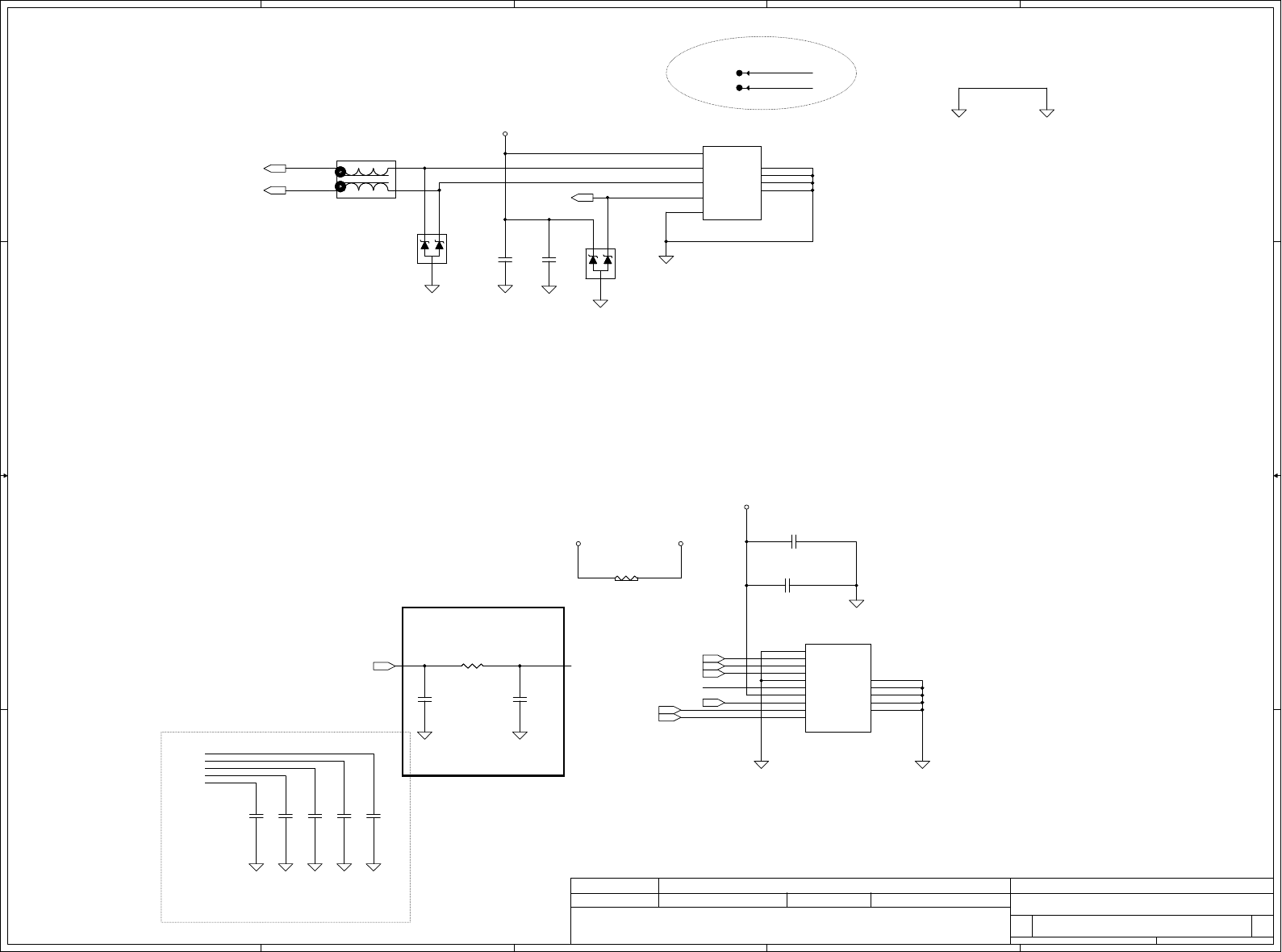

50 Ohm50 Ohm50 Ohm

clock setting

2.8V TCXO or OSC

1.8V TCXO or OSC

XTAL

external clock mode

XTEST EEDI ANTSEL_3

1

1

1

1

0

0

0

0

0

0

0

0

Default

WIFI host

interface

WIFI :SDIO1

WIFI :SDIO2

WIFI :SPI

WIFI :reserved

XTEST ANTSEL_2

1

1

1

1

0

0

0

0

0

0

0

0

Default

ANTSEL_1

BT/common host

interface UART1

SDIO2

XTEST ANTSEL_0

1

0

0

0 Default

SYNC -----> BPI_BUS8

Close to MT6620

Close to U824

50 Ohm

IF GPS have to pass AGPS IOT, recommend to

reserve an external GPS LNA between U824

pin3 and U822 pin39

50 Ohm50 Ohm

50 Ohm 50 Ohm

Add offpage.1102.

AW-NH520

change to SH00000RT00

change to SJ000004W00

Compal footptint

50 Ohm

05/20 add R1705 and R1706 for RF require

5/23 ADD FOR RF

0530 ADD FOR WIFI Vendor0530 ADD FOR WIFI Vendor

0530 ADD R1714 AND R1720 FOR RF

0530 UPDATE U819 FOR RF

0530 DEL TEST POINT FOR RF

0604 UPDATE U819 FOR RF

0605 Change bom structure

0613 change R1704 bom structure

R1704 Change bom structure to EMC@

OSC_IN_6620

LXB_6620

VBAT_6620

ALL_INT_B

OSC_EN_6620

RTCCLK_O

PCM1CLK_6620

PCM1SYNC_6620

PCM1OUT_6620

PCM1IN_6620

OSC_IN_6620 PCM1SYNC_6620

PCM1IN_6620

PCM1OUT_6620

PCM1CLK_6620

SD1_CLK_6620

SD1_DAT1_6620

GPS_RFGPS_RF

SD1_DAT0_6620

SD1_CMD_6620

SD1_DAT3_6620

SD1_DAT2_6620

WIFI_BT_ANT

SD1_DAT1_6620

SD1_DAT2_6620

SD1_DAT3_6620

SD1_CMD_6620

SD1_DAT0_6620

WIFI_BT_ANT

TLDO

OSC_EN_6620

TLDO

GPS_RF

SD1_CLK_6620

MC3CMD <5>

MC3DA2 <5>

MC3DA1 <5>

MC3DA0 <5>

MC3CLK <5>

MC3DA3 <5> DAISYNC <5>

DAIPCMIN <5>

DAIPCMOUT <5>

DAICLK <5>

EINT_6628_BGF <5>

EINT_6628_WIFI <5>

GPIO_6628_GPS_LNA_EN <5>

RTC32K2V8 <21,23>

DAIRST <5>

GPIO_6628_PMU_EN<5>

GPIO_6628_GPS_SYNC <5>

SRCLKENAI <5>

CLK2_WCN_R <7>

GLONASS_RF<21>

UTXD3<5>

URXD3<5>

VBAT

VRTC_6620

VRTC_6620

VRTC

VDD18_6583 MT6620_1V8

MT6620_1V8

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

BT, FM, GPS, WiFi (MT6628)

C

9 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

BT, FM, GPS, WiFi (MT6628)

C

9 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

BT, FM, GPS, WiFi (MT6628)

C

9 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

R17110_0201_5%

EMC@

R17110_0201_5%

EMC@

1 2

R1707

0_0603_5% -35mil

R1707

0_0603_5% -35mil

1 2

TP1381PAD@ TP1381PAD@

R1713

0_0402

R1713

0_0402

1 2

C1719

0.1U_0402_10V7K

@

C1719

0.1U_0402_10V7K

@

1

2

C1716

18P_0402_50V8J

EMC@

C1716

18P_0402_50V8J

EMC@

1 2

TP1391PAD@ TP1391PAD@

U819

RFBPF2012080AM0T62_3P

EMC@

U819

RFBPF2012080AM0T62_3P

EMC@

IN 1

GND 2

OUT

3

R17220_0201_5% R17220_0201_5%

1 2

C1734

470P 50V J NPO 0402

NH520_EMC@

C1734

470P 50V J NPO 0402

NH520_EMC@

12

JP4_GPS

CONN@

IPEX_20279-001E-01

JP4_GPS

CONN@

IPEX_20279-001E-01

SIG 1

GND1

2

GND2

3

C1726

.033U 16V K X7R 0402

NH520_EMC@C1726

.033U 16V K X7R 0402

NH520_EMC@

1

2

TP1385

PAD

@

TP1385

PAD

@

R1715 0_0402_5% -22milR1715 0_0402_5% -22mil

1 2

U820

SAFEB1G57KB0F00R14_5

NH520_EMC@U820

SAFEB1G57KB0F00R14_5

NH520_EMC@

Input 1

GND

2GND

3

Output

4

GND

5

R17190_0201_5% R17190_0201_5%

1 2

R17170_0201_5% R17170_0201_5%

1 2

C1730

4.7U_0603_6.3V6K

C1730

4.7U_0603_6.3V6K

1

2

C1724

4.7U_0603_6.3V6K

C1724

4.7U_0603_6.3V6K

1

2

JP3_WLAN

CONN@

IPEX_20279-001E-01

JP3_WLAN

CONN@

IPEX_20279-001E-01

SIG 1

GND1

2

GND2

3

TP1384

PAD

@

TP1384

PAD

@

R1714

0_0402

R1714

0_0402

1 2

C1727

33P_0402_50V8J

@ C1727

33P_0402_50V8J

@

1 2

C1731

0.1U_0402_10V7K

C1731

0.1U_0402_10V7K

1

2

C1723

0.1U_0402_10V7K

C1723

0.1U_0402_10V7K

1

2

R1710

0_0402

R1710

0_0402

1 2

C1725

4.7U_0603_6.3V6K

C1725

4.7U_0603_6.3V6K

1

2

R1703

0_0402_5%

EMC@

R1703

0_0402_5%

EMC@

1 2

C1735

1U_0402_6.3V6K

NH520@ C1735

1U_0402_6.3V6K

NH520@

1

2

C1737

2.2U_0603_10V6K

C1737

2.2U_0603_10V6K

12

R6350_0402_5%

GLONASS@

R6350_0402_5%

GLONASS@

12

C1720

0.1U_0402_10V7K

@

C1720

0.1U_0402_10V7K

@

1

2

R1709

6.8NH +-5% LQG15HS6N8J02D 0402

NH520_EMC@R1709

6.8NH +-5% LQG15HS6N8J02D 0402

NH520_EMC@

1 2

C1749

33P 50V J NPO 0402

@ C1749

33P 50V J NPO 0402

@

1

2

R1704

0_0402_5%

EMC@

R1704

0_0402_5%

EMC@

1 2

TP1380PAD@ TP1380PAD@

U822

AW-NH520(MT6228)

PK29S004M00

NH520@

U822

AW-NH520(MT6228)

PK29S004M00

NH520@

L849

5.6NH_LQG15HS5N6S02D_5%

NH520_EMC@

L849

5.6NH_LQG15HS5N6S02D_5%

NH520_EMC@

1 2

R1708

0_0402

R1708

0_0402

1 2

C1718

0.1U_0402_10V7K

@

C1718

0.1U_0402_10V7K

@

1

2

R1712

0_0402

R1712

0_0402

1 2

R1705

0_0402_5%

GLONASS@

R1705

0_0402_5%

GLONASS@

1 2

C1722

0.1U_0402_10V7K

EMC@ C1722

0.1U_0402_10V7K

EMC@

1

2

R1868

10K_0402_5%

R1868

10K_0402_5%

1 2

C1729

1U_0402_6.3V6K

NH520@

C1729

1U_0402_6.3V6K

NH520@

1

2

R1706

0_0402_5%

NH520_EMC@

R1706

0_0402_5%

NH520_EMC@

1 2

R17210_0201_5% R17210_0201_5%

1 2

R17180_0201_5% R17180_0201_5%

1 2

C1733

33P_0402_50V8J

NH520_EMC@

C1733

33P_0402_50V8J

NH520_EMC@

1 2

U824

BGU7005_XSON6_1P45X1

NH520_EMC@

U824

BGU7005_XSON6_1P45X1

NH520_EMC@

GND

1

GND

2

RF_IN 3

Vcc 4

ENABLE

5

RF_OUT

6

R1723

0_0402_5% -22mil

R1723

0_0402_5% -22mil

12

U823

26MHZ_10PF_7L26002009

NH520@

U823

26MHZ_10PF_7L26002009

NH520@

GND

2

Vcc 4

GND 1

OUT

3

R1716

0_0201_5%

@

R1716

0_0201_5%

@

1 2

R1720

0_0402

R1720

0_0402

1 2

L850

6.8NH +-5% LQG15HS6N8J02D 0402

@

L850

6.8NH +-5% LQG15HS6N8J02D 0402

@

12

L848 2.2UH_LQM2HPN2R2MJ0L_1A_20%

EMC@

L848 2.2UH_LQM2HPN2R2MJ0L_1A_20%

EMC@

1 2

C1717

18P_0402_50V8J

NH520_EMC@

C1717

18P_0402_50V8J

NH520_EMC@

1 2

C1715

18P_0402_50V8J

EMC@

C1715

18P_0402_50V8J

EMC@

1 2

C1732

1000P_0402_50V7K

NH520@

C1732

1000P_0402_50V7K

NH520@

12

MT6620 module

U822

AW-NH520

AWAVE_AW-NH520_60P

@

MT6620 module

U822

AW-NH520

AWAVE_AW-NH520_60P

@

PMU_EN

4

VBAT

14

LXB

11

BUCKOUT

12

WF_PA_LDOOUT

8

WF_PA_VDD

7

DVDDIO18

9

GND_SMPS

13

TCXO_LDO

36

DVDDIO28

41

VRTC

32

SD1_DAT1

20

SD1_DAT2

17

SD1_DAT3

21

SD1_CMD

19

SD1_CLK

18

SD1_DAT0

16

UART1_URXD

23

UART1_UTXD

22

WiFi_ANT

53

BT_ANT

51

RF_I_CAL 38

FM_TX_OUT

29

FM_RX_N

30

FM_RX_P

31

FM_AUIN_R

27

FM_AUIN_L

26

FM_AUOUT_R

24

FM_AUOUT_L

25

I2S_DATA_IN

43

I2S_DATA_OUT

46

I2S_CLK

44

I2S_WS

45

PCM1CLK 47

PCM1OUT 48

PCM1IN 49

PCM1SYNC 50

ALL_INT_B 55

WIFI_INT_B 10

BGF_INT_B 2

FSOURCE 54

GPS_SYNC 42

OSC_EN 3

SYSRST_B 1

OSC_IN 35

RTCCLK_O 33

RTCCLK 34

EEDI 40

ANTSEL2 5

ANTSEL3 6

GPS_ANT_P 39

DVDDIO_SD1 15

GND 28

AUX_REF 37

GND 52

GND 56

GND 57

GND 58

GND 59

GND 60

U822

AW-NH520T(MT6628T)

PK29S004R00

GLONASS@

U822

AW-NH520T(MT6628T)

PK29S004R00

GLONASS@

C1728

1U_0402_6.3V6K

C1728

1U_0402_6.3V6K

12

C1721

0.1U_0402_10V7K

@

C1721

0.1U_0402_10V7K

@

1

2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

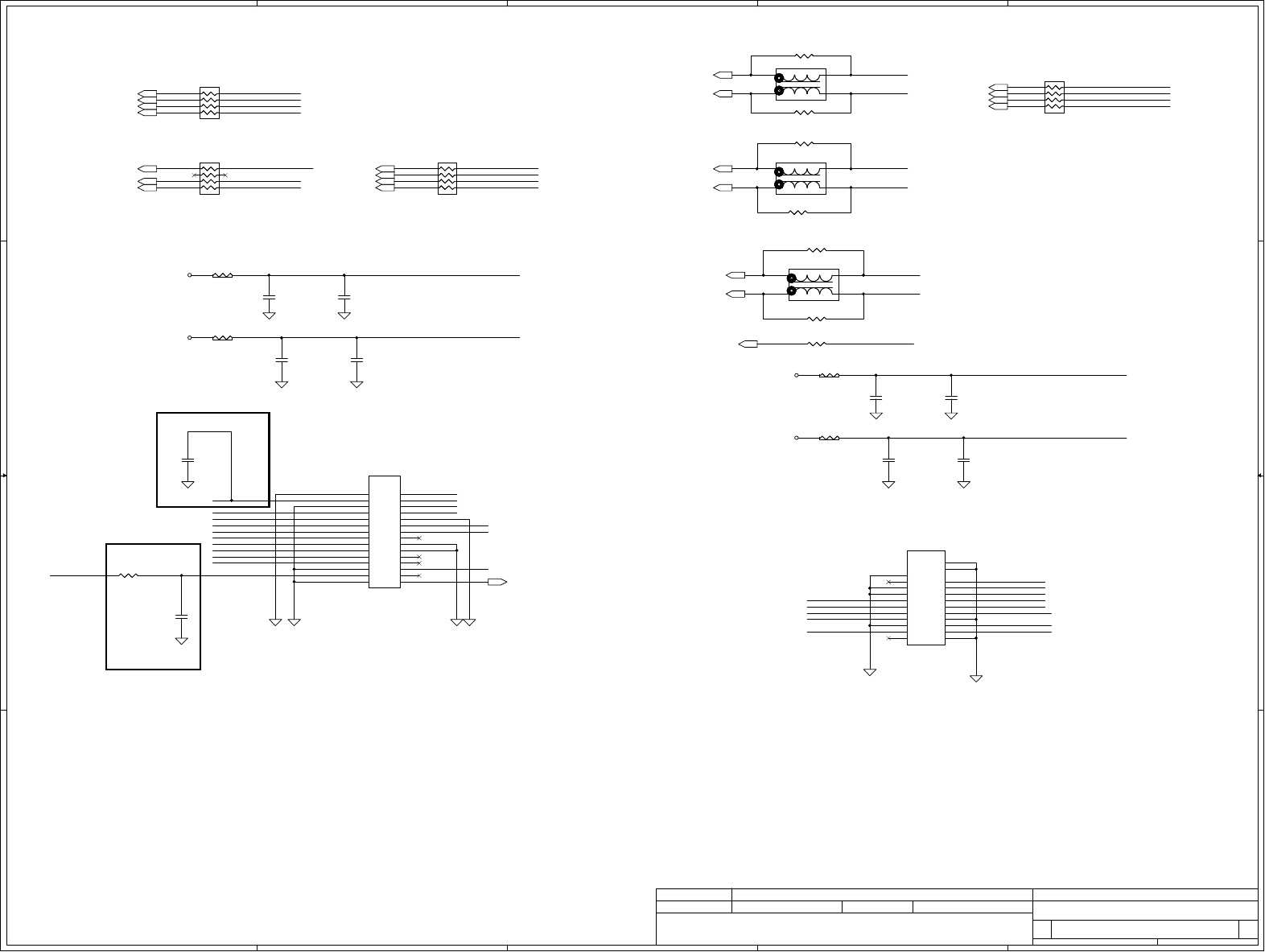

2V8

1V8

Sub Camera

0.3M connector

EMI

Acer reserve

SP020015H00

2V8

1V8

Sub Camera

05/20 Change C1745 from 0603 to 0805

05/20 DEL EM12

05/20 SWAP FOR Layout

0521 Change P1 for ME

0527 change to G1 Camera

0528 PIN6 Shout to gnd

0531 Change L1 L2 L3 R1731 FOR MTK

SENSOR_SCL

SUB_DAT9

SUB_DAT8

SUB_DAT7

SUB_DAT3

SUB_DAT2

SUB_DAT4

SUB_DAT5

SUB_DAT6

SENSOR_MCLKSENSOR_MCLK

SUB_PCLK

DOVDD1.8V_CAM

DOVDD1.8V_CAM

SENSOR_SDA

AVDD2.8V_CAM

AVDD2.8V_CAM

SUB_HREF

SUB_VREF

AVDD2.8V_CAM

DOVDD1.8V_CAM

SUB_PCLK_RSUB_PCLK_R

SENSOR_MCLKSENSOR_MCLK

SUB_DAT8

SUB_VREF

SUB_DAT6

SUB_DAT9

SUB_DAT5

SUB_DAT4

SUB_DAT7

SUB_HREF

SUB_DAT2

SUB_DAT3

AVDD2.8V_CAM_5M

DOVDD1.8V_CAM_5M

GPIO_MAIN_CMRST

GPIO_MAIN_CMPDN

SENSOR_SDA

GPIO_MAIN_CMPDN

MIPI_D1_N

MIPI_D0_N

MIPI_CLK_P

SENSOR_SCL

SENSOR_SDA

SUB_PCLK

AVDD2.8V_CAM_5M

DOVDD1.8V_CAM_5M

SENSOR_MCLK

GPIO_MAIN_CMRST

SENSOR_SCL

MIPI_D1_P

MIPI_D0_P

MIPI_CLK_N

MIPI_D1_P

MIPI_D0_N

MIPI_D0_P

MIPI_D1_N

MIPI_CLK_P

MIPI_CLK_N

SENSOR_MCLK

GPIO_SUB_CMPDN <5>

CMDAT8<5>

CMVREF<5>

CMDAT6<5>

CMDAT9<5>

CMDAT5<5>

CMDAT4<5>

CMDAT7<5>

CMHREF<5>

CMDAT2<5>

CMDAT3<5>

CMPDN<5>

CMRST<5>

SCL1<5>

SDA1<5>

CMPCLK<5>

RDP1<5>

RDN0<5>

RDP0<5>

RDN1<5>

RCP<5>

RCN<5>

CMMCLK<5>

VCAMA_PMU

VGP2_PMU

VGP2_PMU

VCAMA_PMU

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Camera

C

10 23Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Camera

C

10 23Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Camera

C

10 23Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

C1740

2.2U_0603_10V6K

@

C1740

2.2U_0603_10V6K

@

1 2

R17330_0402_5%

EMC@

R17330_0402_5%

EMC@

12

R17360_0402_5%

EMC@

R17360_0402_5%

EMC@

12

JP7

CONN@

JP7

CONN@

1

122

3

344

5

566

7

788

9

910 10

11

11 12 12

13

13 14 14

15

15 16 16

17

17 18 18

19

19 20 20

21

21 GND 22

GND 23

R17310_0402_5%

EMC@

R17310_0402_5%

EMC@

12

L1

CMMI21T-900Y-N_4P

@

L1

CMMI21T-900Y-N_4P

@

1

122

33

4

4

EMI4

0 +-5% 8P4R 0804

EMC@

EMI4

0 +-5% 8P4R 0804

EMC@

1 8

2 7

3 6

4 5

EMI1

0 +-5% 8P4R 0804

EMC@

EMI1

0 +-5% 8P4R 0804

EMC@

1 8

2 7

3 6

4 5

C1745

47U_0805_6.3V6M

@

C1745

47U_0805_6.3V6M

@

1

2

R17370_0402_5%

EMC@

R17370_0402_5%

EMC@

12

EMI3

0 +-5% 8P4R 0804

EMC@

EMI3

0 +-5% 8P4R 0804

EMC@

1 8

2 7

3 6

4 5

C1747

0.1U_0402_16V4Z

C1747

0.1U_0402_16V4Z

1 2

L2

CMMI21T-900Y-N_4P

@

L2

CMMI21T-900Y-N_4P

@

1

122

33

4

4

C1739

0.1U_0402_16V4Z

C1739

0.1U_0402_16V4Z

1 2

C1738

2.2U_0603_10V6K

@

C1738

2.2U_0603_10V6K

@

1 2

C1743

22P_0402_50V8J

@

C1743

22P_0402_50V8J

@

1

2

L3

CMMI21T-900Y-N_4P

@

L3

CMMI21T-900Y-N_4P

@

1

122

33

4

4

R1726

0_0402_5%

EMC@

R1726

0_0402_5%

EMC@

1 2

C1746

0.1U_0402_16V4Z

C1746

0.1U_0402_16V4Z

1 2

C1741

0.1U_0402_16V4Z

C1741

0.1U_0402_16V4Z

1 2

R1724

0_0402_5% -22mil

R1724

0_0402_5% -22mil

12

R1725

0_0402_5% -22mil

R1725

0_0402_5% -22mil

12

C1744

2.2U_0603_10V6K

@

C1744

2.2U_0603_10V6K

@

1 2

R17340_0402_5%

EMC@

R17340_0402_5%

EMC@

12

JP5

CONN@

JP5

CONN@

1

122

3

344

5

566

7

788

9

910 10

11

11 12 12

13

13 14 14

15

15 16 16

17

17 18 18

19

19 20 20

21

21 22 22

23

23 24 24

25

25 26 26

27

27 28 28

29

29 30 30

R17350_0402_5%

EMC@

R17350_0402_5%

EMC@

12

EMI10

0 +-5% 8P4R 0804

EMC@

EMI10

0 +-5% 8P4R 0804

EMC@

1 8

2 7

3 6

4 5

R1727

0_0402_5% -22mil

R1727

0_0402_5% -22mil

12

R17320_0402_5%

EMC@

R17320_0402_5%

EMC@

12

C1742

22P_0402_50V8J

@ C1742

22P_0402_50V8J

@

1

2

R5256

0_0402_5% -22mil

R5256

0_0402_5% -22mil

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

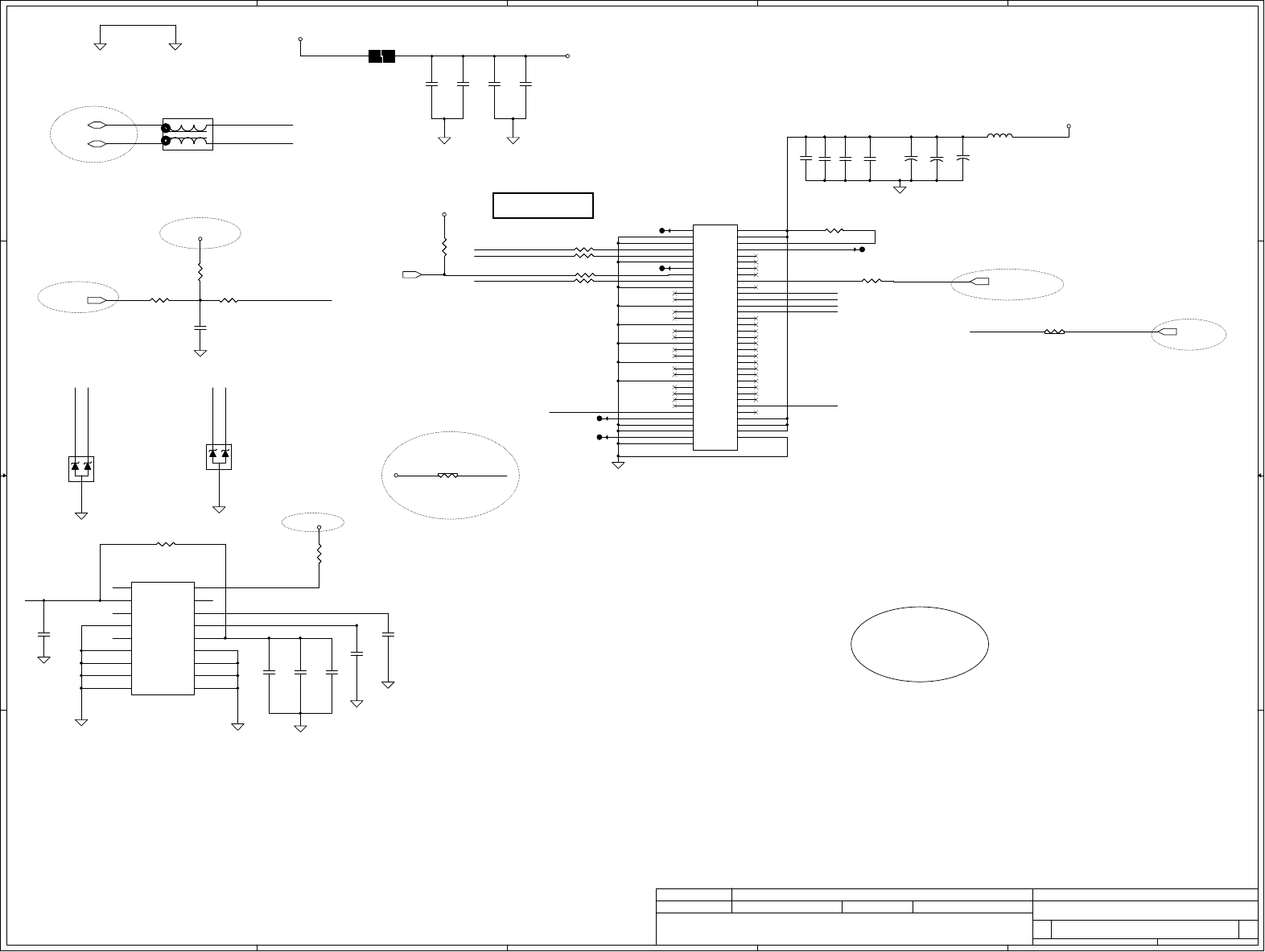

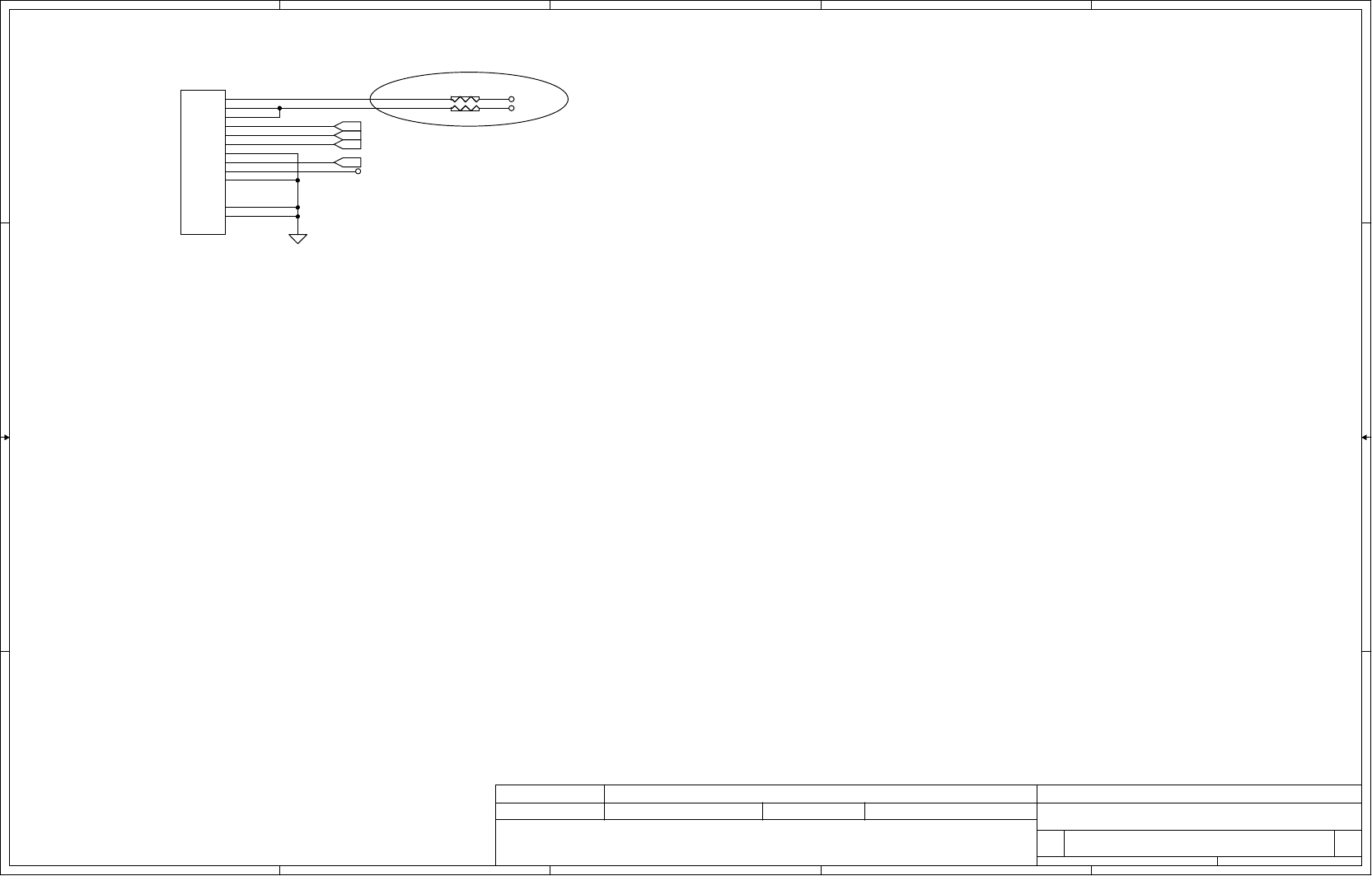

Common Debug

UTXD2 <5>

MCU_JTCK <5>

MCU_JRTCK <5>

MCU_JTDO <5>

URXD2 <5>

MCU_JTDI <5>

MCU_JTMS <5>

MCU_JTRST_B <5>URXD4<5>

UTXD4<5>

KCOL0<15,24>

PWRKEY<15,23>

KROW0<15,24>

SYSRST_B<15,23,5,7>

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

SD Card,Debug,USB

B

11 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

SD Card,Debug,USB

B

11 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

SD Card,Debug,USB

B

11 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

R1728

0_0402_5% -22mil

R1728

0_0402_5% -22mil

1 2

JP6

PANAS_AXT440124

CONN@

JP6

PANAS_AXT440124

CONN@

22

44

66

88

10 10

12 12

14 14

16 16

18 18

20 20

22 22

24 24

26 26

28 28

30 30

32 32

34 34

36 36

38 38

40 40

1

1

3

3

5

5

7

7

9

9

11

11

13

13

15

15

17

17

19

19

21

21

23

23

25

25

27

27

29

29

31

31

33

33

35

35

37

37

39

39

G

41 G

42 G

43 G

44

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

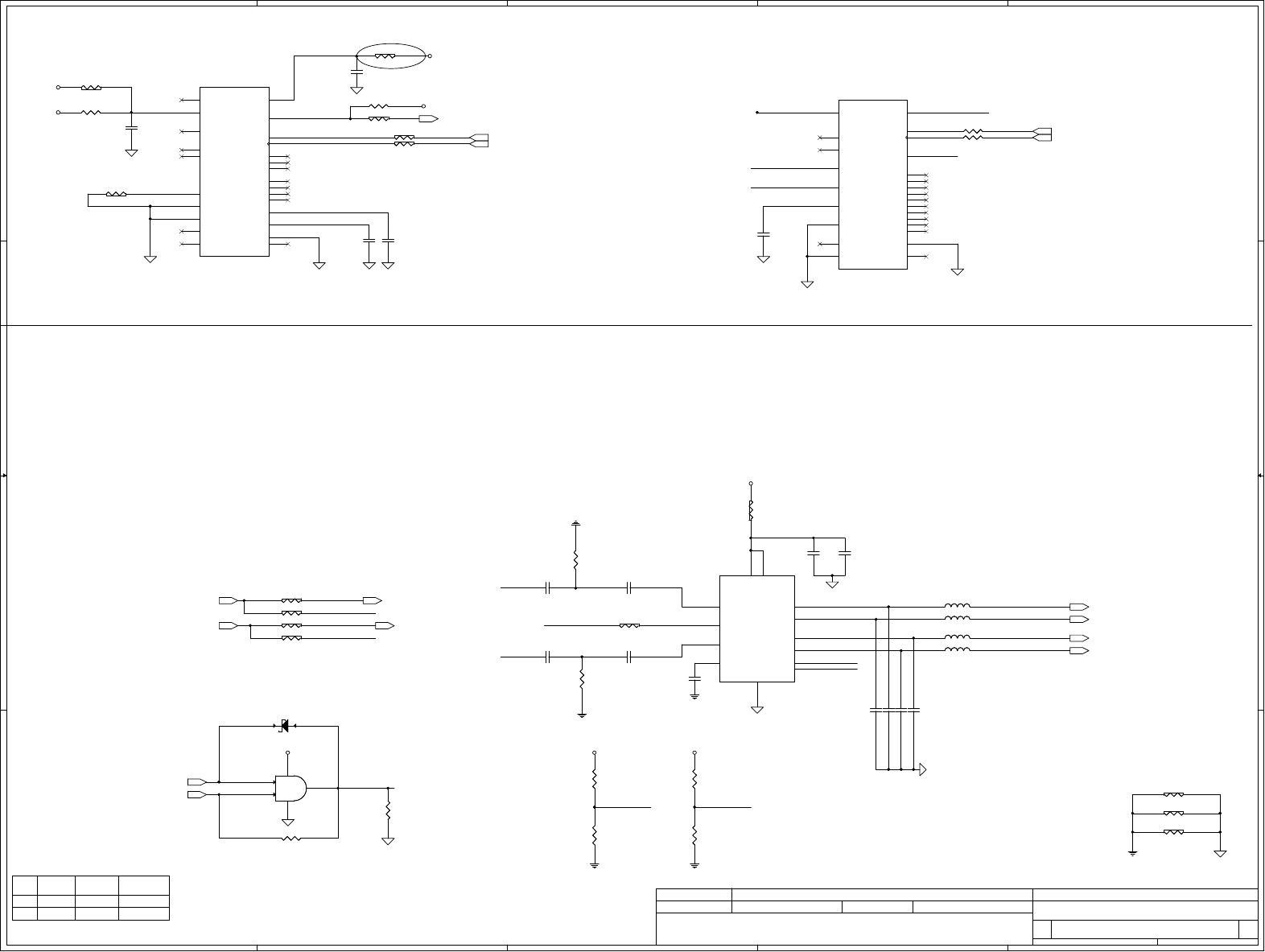

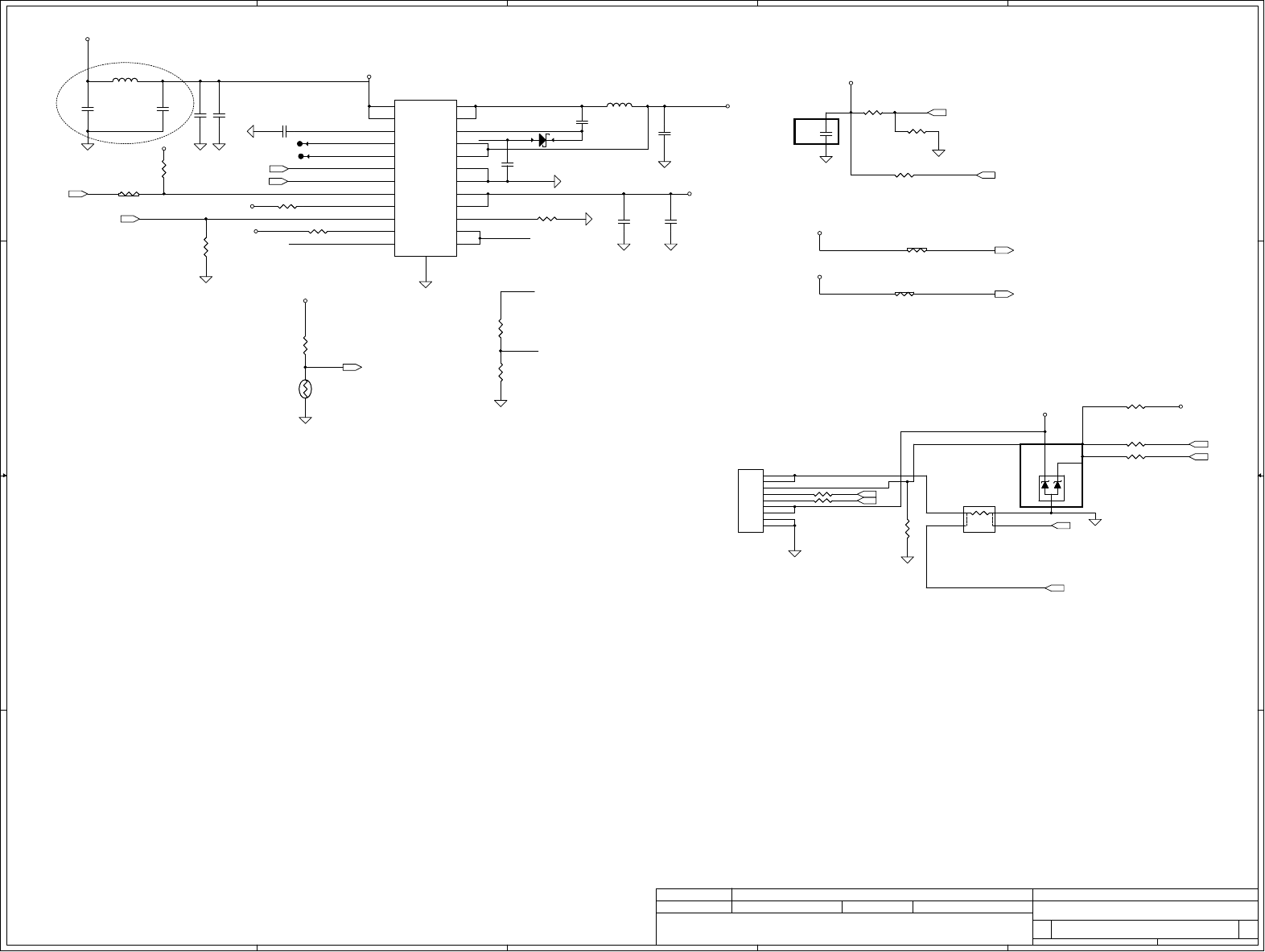

HP

IN

L

H

NC to COM

COM to NC

NO to COM

COM to NO

ON

ONOFF

OFF

SPKER

NEED PULL UP??

5V

AMP.

0513 change

05/20 Change GND symbol

05/20 Change L and C from p16 to p12

05/20 Change DGND to AGND

05/20 Change DGND to AGND 05/20 Change DGND to AGND

05/20 Change C1418 from 4.7u to 10u

0521 ADD CPIO_sW

0521 DEL 100K PULL DOWN

Change net name SW_DET 5/22

5/22 add gpio pin for control

5/23 ADD R for COST DOWN SW

0526 swap p9 and p10

0529 2.85V earlier than 1.8V

0530 DEL R4909 R4911

0531 Change BOM FOR U146 and R442~445

0529 2.85V earlier than 1.8V

6/20 Update

MPU-6515

8/2 ADD

ADD D312 08/02

GYRO_AD0

I2C_GYRO_SCL

I2C_GYRO_SDA

AMP_GAIN2

SW_DET ADDJACK_DET

+VDD_SPKR

AMP_GAIN1

AMP_GAIN2AMP_GAIN1

+VDD_GYRO18

SPK_L+

SPK_L-

SPK_R+

SPK_R- SPKR_RIGHT#

SPKR_RIGHT

SPKR_LEFT#

SPKR_LEFT

AU_SPK1N_R

AU_HPR_R

AU_SPK1P_R

+VDD_GYRO33

+VDD_GYRO33+VDD_GYRO18

+VDD_GYRO18

GYRO_AD0

GYRO_INT

GYRO_INT

SW_DET

AU_SPK1P_R

AU_SPK1N_R

AU_HPL_R

AU_HPR

AU_HPL

SCL3 <12,5>

SDA3 <12,5>

EINT_GY <5>

SPKR_RIGHT# <16>

SPKR_RIGHT <16>

SPKR_LEFT# <16>

SPKR_LEFT <16>

SCL3 <12,5>

SDA3 <12,5>

AU_HPL<24>

AU_HPR<24>

AU_HPL_R <8>

AU_HPR_R <8>

VDD18_6583

VDD18_6583

VBAT

+VDD_SPKR+VDD_SPKR

VDD28_6583

VEMC_1V8_PMU

VEMC_3V3_PMU

ADDJACK_DET_R<8>

GPIO_SW1<5>

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

C

12 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Sensors

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

C

12 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Sensors

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

C

12 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Sensors

R1241

0_0402_5%

R1241

0_0402_5%

12

L851

FBMA-L11-160808-700LMT_2P

EMC@L851

FBMA-L11-160808-700LMT_2P

EMC@

1 2

C1420

0.1U_0402_10V7K

C1420

0.1U_0402_10V7K

1 2

U3

SN74AUP1T08DCKR_SC70-5@

U3

SN74AUP1T08DCKR_SC70-5@

IN1

1

IN2

2

G

3

O4

P5

C4175

2.2U_0402_10V6M

C4175

2.2U_0402_10V6M

1

2

R4907

10K_0402_5%

@

R4907

10K_0402_5%

@

1 2

C1416

0.1U_0402_10V7K

C1416

0.1U_0402_10V7K

1 2

L859

FBMA-L11-160808-700LMT_2P

EMC@L859

FBMA-L11-160808-700LMT_2P

EMC@

1 2

R4903

0_0402_5% -22mil

R4903

0_0402_5% -22mil

1 2

C1419 3300P_0402_50V7K

C1419 3300P_0402_50V7K

1 2

R4914 0_0402_5%

@

R4914 0_0402_5%

@

1 2

C4172

0.1U_0402_10V7K

C4172

0.1U_0402_10V7K

1

2

L860

FBMA-L11-160808-700LMT_2P

EMC@L860

FBMA-L11-160808-700LMT_2P

EMC@

1 2

R445 0_0402_5%R445 0_0402_5%

1 2

C1415 3300P_0402_50V7KC1415 3300P_0402_50V7K

1 2

D312 RB521CM-30TR2

@

D312 RB521CM-30TR2

@

21

R4913 0_0402_5%R4913 0_0402_5%

1 2

R4902

0_0402_5%

R4902

0_0402_5%

1 2

U4029

MPU-6050_QFN24_4X4

U4029

MPU-6050_QFN24_4X4

CLKIN

1

AUX_DA

6

AUX_CL

7

VLOGIC

8

AD0

9

NC 2

RESV/CCS#

3

NC 4

NC 5

RESV/DRDY

14

CAD1

15

NC 16

CAD0

17

VDD 13

REGOUT 10

FSYNC

11

INT 12

CPOUT 20

RESV3 22

SCL 23

SDA 24

GND 18

RESV1 19

RESV2 21

GND PAD 25

R1266

1K_0402_1%

R1266

1K_0402_1%

12

R443 0_0402_5%R443 0_0402_5%

1 2

U143

ALC105-GR_DFN12_3X3

U143

ALC105-GR_DFN12_3X3

INPUT-R

9

PD#

7

INPUT-L

10

BYPASS

8

PVDD1 3

PVDD2 4

OUT-RN 5

OUT-RP 6

OUT-LN 2

OUT-LP 1

G1 11

G2 12

GND

13

R1277

1K_0402_1%

R1277

1K_0402_1%

12

R437

0_0402

R437

0_0402

12

U4032

MPU-6515_QFN24_3X3

@

U4032

MPU-6515_QFN24_3X3

@

NC1 1

NC6 6

AUX_CL

7

VDDIO

8

AD0 / SDO

9

NC2 2

NC3 3

NC4 4

NC5 5

NC14 14

NC15 15

NC16 16

NC17 17

VDD 13

REGOUT

10

FSYNC

11

INT 12

RESV2

20

nCS

22

SCL / SCLK 23

SDA / SDI 24

GND 18

RESV1

19

AUX_DA

21

GND PAD 25

R447

0_0402_5%

@

R447

0_0402_5%

@

1 2

R4918

0_0402_5% -22mil

R4918

0_0402_5% -22mil

1 2

L852

FBMA-L11-160808-700LMT_2P

EMC@L852

FBMA-L11-160808-700LMT_2P

EMC@

1 2

C4176

0.1U_0402_10V7K

C4176

0.1U_0402_10V7K

1

2

R1269

2K_0402_1%

R1269

2K_0402_1%

1 2

C1418

10U_0603_25V6M

C1418

10U_0603_25V6M

12

C1768

33P 50V J NPO 0402

EMC@

C1768

33P 50V J NPO 0402

EMC@

1

2

R4912 0_0402_5%R4912 0_0402_5%

1 2

R436

0_0402

R436

0_0402

12

C4171

0.01UF_0402_25V7K

C4171

0.01UF_0402_25V7K

12

R1270

2K_0402_1%

R1270

2K_0402_1%

1 2

C1767

33P 50V J NPO 0402

EMC@C1767

33P 50V J NPO 0402

EMC@

1

2

C1772

33P 50V J NPO 0402

EMC@

C1772

33P 50V J NPO 0402

EMC@

1

2

C1417

0.1U_0402_10V7K

C1417

0.1U_0402_10V7K

1

2

C1292

2.2U_0603_6.3V6K

C1292

2.2U_0603_6.3V6K

12

R4908 0_0402_5%R4908 0_0402_5%

1 2

C4177

0.1U_0402_10V7K@

C4177

0.1U_0402_10V7K@

1

2

R444 0_0402_5%R444 0_0402_5%

1 2

C1773

33P 50V J NPO 0402

EMC@C1773

33P 50V J NPO 0402

EMC@

1

2

R1281

1K_0402_1%

@

R1281

1K_0402_1%

@

12

R442 0_0402_5%R442 0_0402_5%

1 2

R1268

1K_0402_1%

@

R1268

1K_0402_1%

@

12

R446

0_0402_5%

R446

0_0402_5%

1 2

R439

0_0402

R439

0_0402

12

R1267 0_0402_5%R1267 0_0402_5%

1 2

R4915 0_0402_5%@R4915 0_0402_5%@

1 2

R4901

0_0402_5%

@

R4901

0_0402_5%

@

1 2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

169 ball eMMC

Close to

Memory

SCREW HOLE

Compal footptint

MTK advise to use 27ohm

0524 Change H6 H7 for ME

0524 ADD CLIP FOR ME

0528 Update clip for ME

0530 del S2 FOR EMI

0605 ADD CLIP25

eMMC_DAT6

eMMC_DAT0

eMMC_DAT7

eMMC_DAT1

eMMC_DAT2

eMMC_DAT3

eMMC_DAT4

eMMC_DAT5

eMMC_DAT5

eMMC_DAT4

eMMC_DAT3

eMMC_DAT2

eMMC_DAT1

eMMC_DAT0

eMMC_CLK

eMMC_CMD

eMMC_RST

eMMC_DAT7

eMMC_DAT6

eMMC_RST

eMMC_CMD

eMMC_CLK_R

eMMC_VCC

eMMC_VCCQ

eMMC_DAT6

eMMC_DAT0

eMMC_DAT7

eMMC_DAT1

eMMC_DAT2

eMMC_DAT3

eMMC_DAT4

eMMC_DAT5

EMMC_VDDI

eMMC_CLK_R

eMMC_CMD

eMMC_VCCQ

eMMC_DAT7 <5>

eMMC_DAT6 <5>

eMMC_DAT5 <5>

eMMC_DAT4 <5>

eMMC_DAT3 <5>

eMMC_DAT2 <5>

eMMC_DAT1 <5>

eMMC_DAT0 <5>

eMMC_CLK <5>

eMMC_CMD <5>

eMMC_RST <5>

VEMC_1V8_PMU

VEMC_3V3_PMU

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

eMMC, SCREW HOLE

C

13 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

eMMC, SCREW HOLE

C

13 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

eMMC, SCREW HOLE

C

13 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

C544 4.7U_0603_6.3V6K

@

C544 4.7U_0603_6.3V6K

@

12

R534

10K_0201_1%

R534

10K_0201_1%

1 2

CLIP17

EMIST_SUL-0815A1_1P

CLIP17

EMIST_SUL-0815A1_1P

1

FD2FD2

1

C1751

18P_0402_50V8J

EMC@

C1751

18P_0402_50V8J

EMC@

1

2

CLIP1

EMIST_SUL-0815A1_1P

CLIP1

EMIST_SUL-0815A1_1P

1

FD4FD4

1

R530 47K_0201_5%R530 47K_0201_5%

1 2

R532 47K_0402_5%R532 47K_0402_5%

1 2

FD3FD3

1

CLIP18

EMIST_SUL-0815A1_1P

CLIP18

EMIST_SUL-0815A1_1P

1

CLIP11

EMIST_SUL-0815A1_1P

CLIP11

EMIST_SUL-0815A1_1P

1

U502

Kingston 16G KE4CN4K6A

SA00006MG30

KIN 16GB@

U502

Kingston 16G KE4CN4K6A

SA00006MG30

KIN 16GB@

C555 0.1U_0402_16V7KC555 0.1U_0402_16V7K

1 2

CLIP8

EMIST_SUL-0815A1_1P

CLIP8

EMIST_SUL-0815A1_1P

1

CLIP19

EMIST_SUL-0815A1_1P

CLIP19

EMIST_SUL-0815A1_1P

1

CLIP14

EMIST_SUL-0815A1_1P

CLIP14

EMIST_SUL-0815A1_1P

1

CLIP5

EMIST_SUL-0815A1_1P

CLIP5

EMIST_SUL-0815A1_1P

1

U502

Samsung KLM8G1WE4A-A001

SA00006VE10

SAM 8GB@

U502

Samsung KLM8G1WE4A-A001

SA00006VE10

SAM 8GB@

CLIP12

EMIST_SUL-0815A1_1P

CLIP12

EMIST_SUL-0815A1_1P

1

CLIP20

EMIST_SUL-0815A1_1P

CLIP20

EMIST_SUL-0815A1_1P

1

U502

Samsung KLMAG2WE4A-A001

SA00006Z610

SAM 16GB@

U502

Samsung KLMAG2WE4A-A001

SA00006Z610

SAM 16GB@

R536 47K_0402_5%R536 47K_0402_5%

1 2

U502

169 ball eMMC

SDIN4E2-16G-T_TFBGA_169P-P

@

U502

169 ball eMMC

SDIN4E2-16G-T_TFBGA_169P-P

@

DAT0

H3

DAT1

H4

DAT2

H5

DAT3

J2

DAT4

J3

DAT5

J4

DAT6

J5

DAT7

J6

VDDI

K2

VSSQ

K4

VCCQ K6

VCC M6

VSS

M7

VCC N5

VSS

P5

VSS

R10

VCC T10

RST# / NC U5

VSS

U8

VCC U9

VCCQ W4

CMD W5

CLK W6

VSSQ

Y2

VCCQ Y4

VSSQ

Y5

VCCQ AA3

VSSQ

AA4

VCCQ AA5

VSSQ

AA6 A1 INDEX / NC L4

NC

A4

NC

A6

NC

A9

NC

A11

NC

B2

NC

B13

NC

D1

NC

D14

NC

H1

NC

H2

RFU H6

RFU H7

NC

H8

NC

H9

NC

H10

NC

H11

NC

H12

NC

H13

NC

H14

NC

J1

NC

J7

NC

J8

NC

J9

NC

J10

NC

J11

NC

J12

NC

J13

NC

J14

NC

K1

NC

K3

RFU K5

NC K7

NC K8

NC K9

NC K10

NC K11

NC K12

NC K13

NC K14

NC L1

NC L2

NC L3

NC L12

NC L13

NC L14

NC M1

NC M2

NC M3

RFU M5

RFU M8

RFU M9

RFU M10

NC M12

NC M13

NC M14

NC N1

NC N2

NC N3

RFU N10

NC N12

NC N13

NC N14

NC P1

NC P2

RFU P3

RFU

P10

NC P12

NC P13

NC P14

NC

R1

NC

R2

NC

R3

RFU

R5

NC

R12

NC

R13

NC

R14

NC T1

NC T2

NC T3

RFU

T5

NC T12

NC T13

NC T14

NC

U1

NC

U2

NC

U3

RFU

U6 RFU

U7 RFU

U10

NC

U12

NC

U13

NC

U14

NC V1

NC V2

NC V3

NC V12

NC V13

NC V14

NC

W1

NC

W2

NC

W3

NC

W7

NC

W8

NC

W9

NC

W10

NC

W11

NC

W12

NC

W13

NC

W14

NC Y1

NC Y3

NC Y6

NC Y7

NC Y8

NC Y9

NC Y10

NC Y11

NC Y12

NC Y13

NC Y14

NC

AA1

NC

AA2

RFU

AA7

NC

AA8

NC

AA9

RFU

AA10

NC

AA11

NC

AA12

NC

AA13

NC

AA14

NC AE1

NC AG2

NC AH4

NC AH6

NC AH9

NC AH11

NC AG13

NC AE14

H4

HOLEA

H4

HOLEA

1

CLIP2

EMIST_SUL-0815A1_1P

CLIP2

EMIST_SUL-0815A1_1P

1

CLIP13

EMIST_SUL-0815A1_1P

CLIP13

EMIST_SUL-0815A1_1P

1

CLIP21

EMIST_SUL-0815A1_1P

CLIP21

EMIST_SUL-0815A1_1P

1

U502

Kingston 8G KE4CN3K6A

SA00006MF30

KIN 8GB@

U502

Kingston 8G KE4CN3K6A

SA00006MF30

KIN 8GB@

H3

HOLEA

H3

HOLEA

1

H7

H_1P7X2P2N

H7

H_1P7X2P2N

1

U502

KLM8G2FE3B-B001

SA00005KM10

EMMC_SAM_8GB@

U502

KLM8G2FE3B-B001

SA00005KM10

EMMC_SAM_8GB@

H2

HOLEA

H2

HOLEA

1

R531 47K_0402_5%R531 47K_0402_5%

1 2

CLIP22

EMIST_SUL-0815A1_1P

CLIP22

EMIST_SUL-0815A1_1P

1

CLIP6

EMIST_SUL-0815A1_1P

CLIP6

EMIST_SUL-0815A1_1P

1

U502

HYNIX 8G H26M42002GMR

SA00006PW10

HYN 8GB@

U502

HYNIX 8G H26M42002GMR

SA00006PW10

HYN 8GB@

CLIP15

EMIST_SUL-0815A1_1P

CLIP15

EMIST_SUL-0815A1_1P

1

R529 47K_0402_5%R529 47K_0402_5%

1 2

CLIP25

EMIST_SUL-0815A1_1P

CLIP25

EMIST_SUL-0815A1_1P

1

H6

H_1P7N

H6

H_1P7N

1

U502

HYNIX 16G H26M52002EQR

SA00006VJ10

HYN 16GB@

U502

HYNIX 16G H26M52002EQR

SA00006VJ10

HYN 16GB@

CLIP3

EMIST_SUL-0815A1_1P

CLIP3

EMIST_SUL-0815A1_1P

1

C508

4.7U_0603_6.3V6K

@

C508

4.7U_0603_6.3V6K

@

1

2

CLIP24

EMIST_SUL-0815A1_1P

CLIP24

EMIST_SUL-0815A1_1P

1

R546

0_0402_5% -22mil

R546

0_0402_5% -22mil

1 2

CLIP16

EMIST_SUL-0815A1_1P

CLIP16

EMIST_SUL-0815A1_1P

1

R528 47K_0402_5%R528 47K_0402_5%

1 2

R527 47K_0402_5%R527 47K_0402_5%

1 2

CLIP23

EMIST_SUL-0815A1_1P

CLIP23

EMIST_SUL-0815A1_1P

1

R543

0_0402_5% -22mil

R543

0_0402_5% -22mil

12

R535

27_0201_1%

EMC@

R535

27_0201_1%

EMC@

1 2

S3

TP @

S3

TP @

1

CLIP7

EMIST_SUL-0815A1_1P

CLIP7

EMIST_SUL-0815A1_1P

1

TP1389PAD@ TP1389PAD@

C543

0.1U_0402_16V7K

C543

0.1U_0402_16V7K

1

2

R533 47K_0402_5%R533 47K_0402_5%

1 2

CLIP9

EMIST_SUL-0815A1_1P

CLIP9

EMIST_SUL-0815A1_1P

1

C430

1U_0201_6.3V6K

C430

1U_0201_6.3V6K

1

2

FD1FD1

1

CLIP4

EMIST_SUL-0815A1_1P

CLIP4

EMIST_SUL-0815A1_1P

1

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Change PIN FOR JP10 0522

0530 Change pin for small board

0530 del R/C for small board

0603 Update

SCL0

SDA0 SCL0 <5>

SDA0 <5>

GPIO_CTP_RST <5>

EINT_CTP <5>

VIBR_PMU

VBAT

VGP5_PMU

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Touch Panel

B

14 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Touch Panel

B

14 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Touch Panel

B

14 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

JP10

ACES_50506-01041-P01

ME@

JP10

ACES_50506-01041-P01

ME@

44

33

22

11

66

55

GND1 11

GND2 12

77

88

99

10 10

R5134

0_0402_5% -22mil

R5134

0_0402_5% -22mil

12

R5135

0_0402_5% -22mil

R5135

0_0402_5% -22mil

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

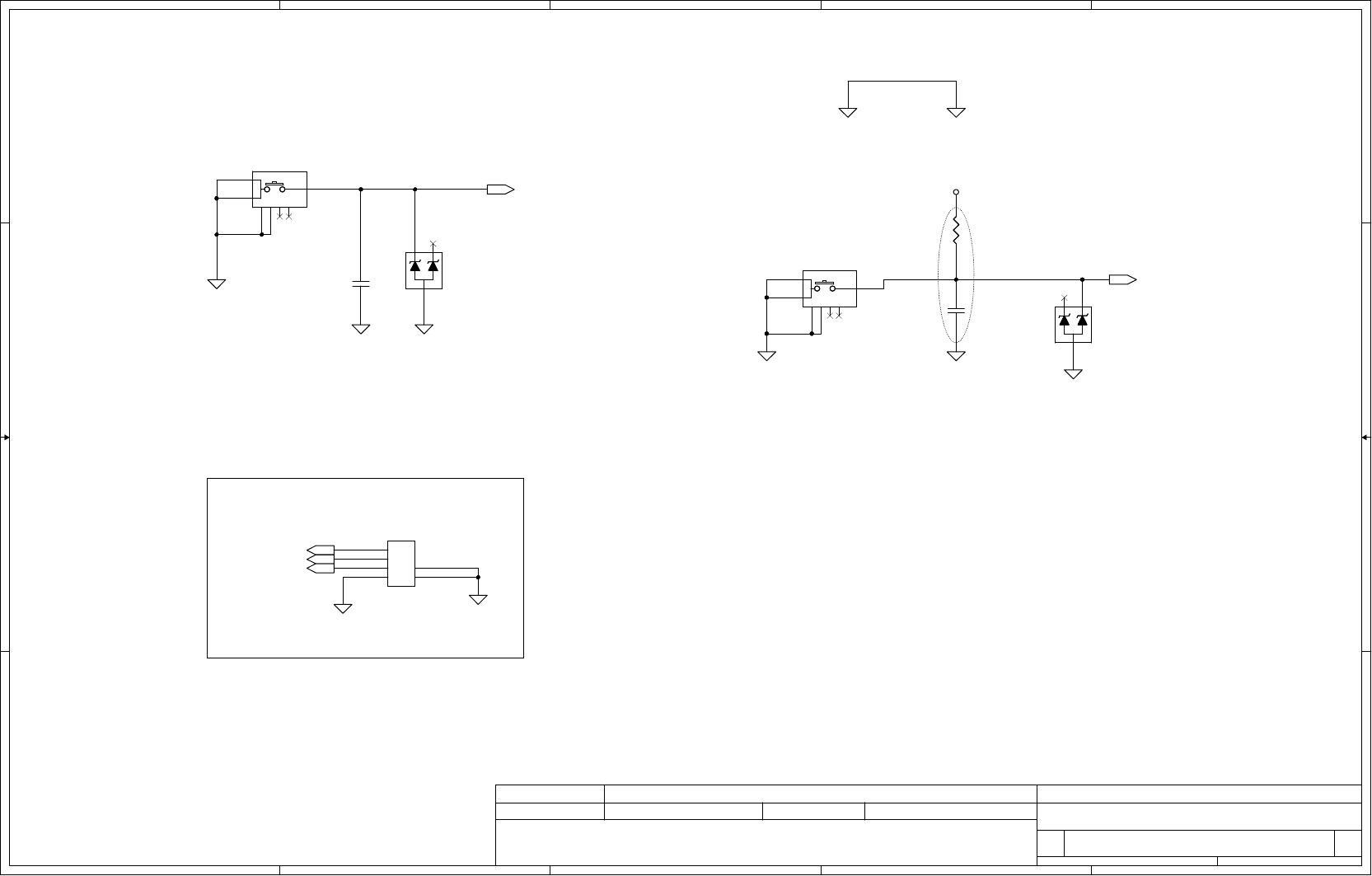

RESET

Power-on Button

MTK comment don't pull up R on PWRKEY.1101. MTK GNDCompal GND

MTK advise don't need

SWITCH BOARD

0704 add D806 for EMI

PWRKEY <11,23>

SYSRST_B <11,23,5,7>

KCOL0<11,24>

KROW0<11,24>

KCOL1<24>

VDD18_6583

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Button

B

15 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Button

B

15 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Button

B

15 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

D806

TVNST52302AB0 SOT523

EMC@

D806

TVNST52302AB0 SOT523

EMC@

2

3

1

D805

TVNST52302AB0 SOT523

EMC@

D805

TVNST52302AB0 SOT523

EMC@

2

3

1

R1753

10K_0402_5%

@

R1753

10K_0402_5%

@

1 2

SW2SW2

2

1

3

5

4

6

7

JP13

ACES_51512-0040N-P01

CONN@

JP13

ACES_51512-0040N-P01

CONN@

1

1

2

2

3

3

4

4G1 5

G2 6

SW1SW1

2

1

3

5

4

6

7

C1759

1U_0402_10V6K@

C1759

1U_0402_10V6K@

1

2

C1758

1U_0402_10V6K

C1758

1U_0402_10V6K

1

2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

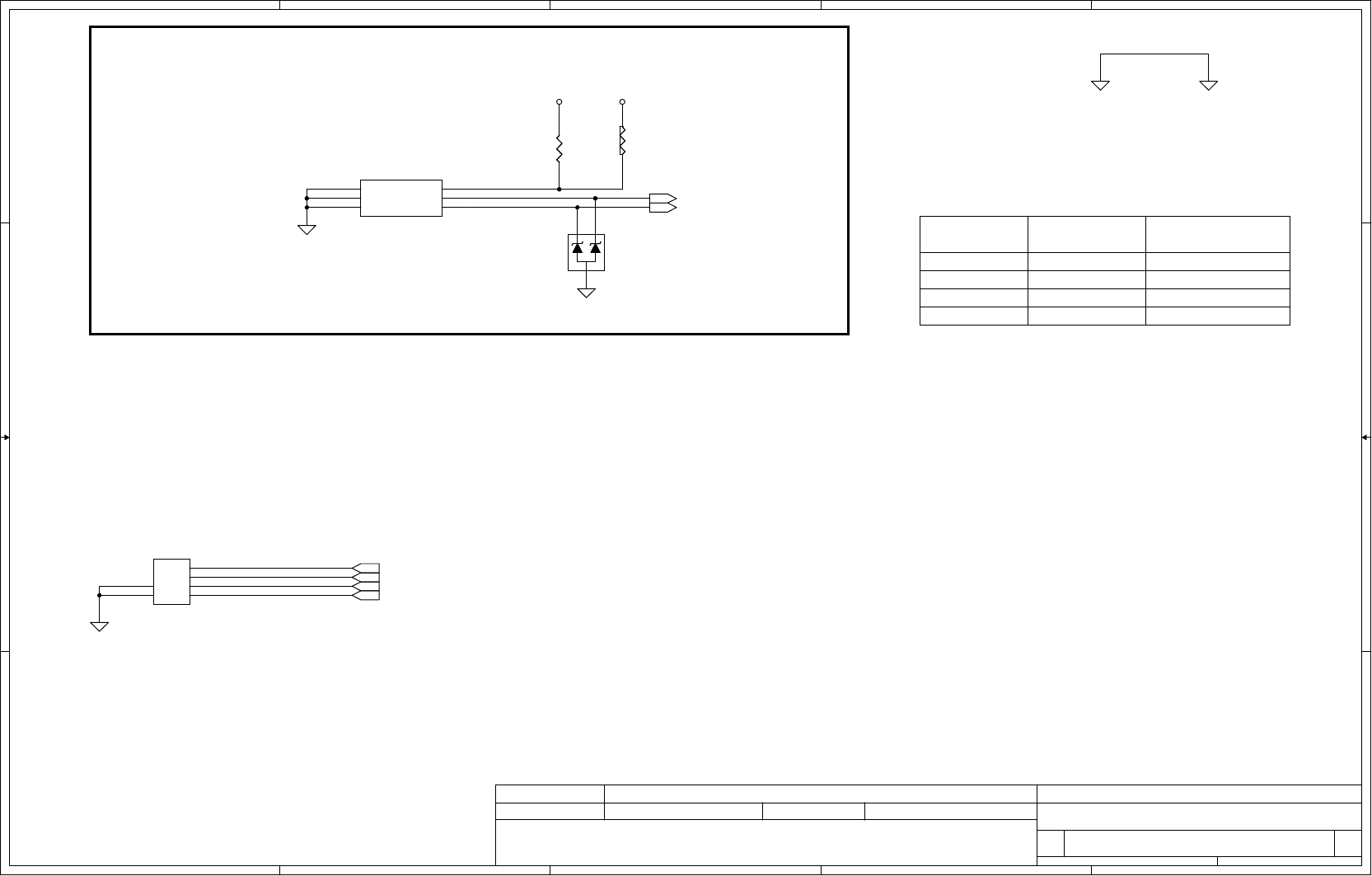

MTK GNDCompal GND

SPAKER

Vibrator

Digital MIC Conn.

AU_VIN0_P

AU_VIN0_N

DM_CLK

DM_DATAR

05/20 Update MIC1 PCB Footprint

0527 change local netname

0531 Change for MTK Check list

0605 Change BOM Structure

AU_VIN0_N

AU_VIN0_P AU_VIN0_N <24>

AU_VIN0_P <24>

SPKR_LEFT# <12>

SPKR_LEFT <12>

SPKR_RIGHT# <12>

SPKR_RIGHT <12>

VDD18_6583 MICBIAS0

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Connector(MIC/SPK/HP)

B

16 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Connector(MIC/SPK/HP)

B

16 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Connector(MIC/SPK/HP)

B

16 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

D57

TVNST52302AB0 SOT523

EMC@

D57

TVNST52302AB0 SOT523

EMC@

2

3

1

R1729

0_0402_5% @

R1729

0_0402_5% @

1 2

R1730

0_0402_5% -22mil

R1730

0_0402_5% -22mil

1 2

MIC1

SPM0423HD4H-WB-2_6P

MIC1

SPM0423HD4H-WB-2_6P

GND

1

LEFT/RIGHT

2

GND

3CLOCK 4

DATA 5

VDD 6

JP9

ACES_88266-04001

ME@

JP9

ACES_88266-04001

ME@

11

22

33

44

G1

5

G2

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SD card

MTK GNDCompal GND

EMI SW:

H: Card remove

L: Card insert

IDPULLUP pin is replaced by 1.2V power source.

If mini-A connector insert => CID < 0V => Low

If mini-B connector insert => CID > 1.2V => High

Micro-USB

for RF request

close U201 side

FOR RF request

0527 ADD C4270 FOR USB OTG

0527 change 10u

0530 add D7FOR MTK

SD_CLK

SD_CLK

USB_DM_R

USB_DP_R

MC1DA0

MC1DA3

MC1DA2

MC1DA1

MC1CM

USB_DM_R

USB_DP_R

MC1CM<5>

MC1DA0<5>

MC1DA1<5>

MC1DA2<5>

MC1DA3<5>

MC1INSI<5>

MC1CK<5>

USB_DM<5>

USB_DP<5>

USB_ID<5>

VSD

VMCH_PMU VSD

VIN

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Connector-2(SD card/G-se)

Custom

17 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

Connector-2(SD card/G-se)

Custom

17 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Connector-2(SD card/G-se)

Custom

17 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

C9

10P_0201_50V8J

@

C9

10P_0201_50V8J

@

1

2

R1761

0_0603_5% -35mil

R1761

0_0603_5% -35mil

1 2

TP1365PAD @TP1365PAD @

C1770

4.7U_0603_6.3V6K

C1770

4.7U_0603_6.3V6K

12

C1684

12P_0402_50V8

EMC@

C1684

12P_0402_50V8

EMC@

1 2

C10

10P_0201_50V8J

@

C10

10P_0201_50V8J

@

1

2

C1771

12P_0402_50V8

@

C1771

12P_0402_50V8

@

1

2

C1905

10P 50V J NPO 0402

@

C1905

10P 50V J NPO 0402

@

1

2

C1769

1U_0402_6.3V6K

C1769

1U_0402_6.3V6K

1

2

R1762

0_0402_5%

EMC@R1762

0_0402_5%

EMC@

1 2

C13

10P_0201_50V8J

@

C13

10P_0201_50V8J

@

1

2

C11

10P_0201_50V8J

@

C11

10P_0201_50V8J

@

1

2

D809

TVNST52302AB0 SOT523

EMC@ D809

TVNST52302AB0 SOT523

EMC@

2

3

1

C12

10P_0201_50V8J

@

C12

10P_0201_50V8J

@

1

2

JP11

ACON_MUE41-531200

CONN@

JP11

ACON_MUE41-531200

CONN@

VBUS

1

USB-

2

USB+

3

ID

4

GND

5

GND 6

GND 7

GND 8

GND 9

JP12

CONN@

PROCO_879S-N010-03A0

JP12

CONN@

PROCO_879S-N010-03A0

SWITCH TERM CD

9

DAT1

8

DAT0

7

VSS

6

CLK

5

VDD

4

CMD

3

CD/DAT3

2

DAT2

1

DET TERM (GND)

10

G1 11

G2 12

G3 13

G4 14

G5 15

L853

OCE2012120YZF_4P

EMC@

L853

OCE2012120YZF_4P

EMC@

1 2

34

D7

TVNST52302AB0 SOT523

EMC@

D7

TVNST52302AB0 SOT523

EMC@

2

3

1

TP1364PAD @TP1364PAD @

C4270

10U_0603_25V6M

C4270

10U_0603_25V6M

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

MTK GND

Compal GND

Config 0 define = NC

3G

close to module

Ferrite bead

Config 1,2,3 define =GND

1008 Intel Review update

1.8V GPIO

3.3V GPIO

1.8V GPIO

SCA00001W00 SCA00001W00

Change D4 for LAYOUT 5/22

5/22 chang bom structure to @ for RF

0524 change c4264 c4265 for RF

GPS_OFF# LTE_ON_OFF# Reset pin VIH=1.24V

0527 change

0527 del mos

0528 add GND for PIN8

0604 add C4271 FOR RF

0605 Change bom structure

ADD R5271 AND R5272 FOR WAKE UP 07/30

LTE_DISABLE

USIM_RST

USIM_DATA

USIM_CLK

USIM_DETECT

USIM_VCC

USB_LTE_N

BodySAR_N

USB2_3G_DN_R

USB_LTE_P USB2_3G_DP_R

LTE_RESET_N

GPS_DISABLE#

LTE_ON_OFF_N#

LTE_RESET_N

LTE_ON_OFF_N#

USIM_DETECT

USIM_CLK

USIM_RST

USIM_DATA

USIM_PWR

USIM_DETECT

USIM_DATA

USIM_CLK

USIM_RST

USIM_VCC

USB_LTE_P

USB_LTE_N

LTE_RESET<24>

LTE_ON_OFF# <24>

GPS_OFF# <24>

USB11_DP_P<5>

USB11_DM_N<5>

Wake_ON<24>

+VBATA_MODEM

+VBATA_MODEM

VBAT

VDD18_6583

VDD18_6583

USIM_PWR

VDD18_6583

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

SIM

C

18 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

SIM

C

18 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

SIM

C

18 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

R5270

1M_0402_1%

LTE@

R5270

1M_0402_1%

LTE@

1 2

R5273

10K_0201_5% LTE@

R5273

10K_0201_5% LTE@

1 2

L857 BLM18PG121SN1D_0603

LTE@

L857 BLM18PG121SN1D_0603

LTE@

1 2

R5264 0_0201_5%

LTE@

R5264 0_0201_5%

LTE@

1 2

C4253

4.7U_0402_6.3V6M

LTE@

C4253

4.7U_0402_6.3V6M

LTE@

1

2

C4262 4.7U_0402_6.3V6M

LTE@

C4262 4.7U_0402_6.3V6M

LTE@

1

2

R52620_0201_5%

LTE@

R52620_0201_5%

LTE@

12

C4255

4.7U_0402_6.3V6M

LTE@

C4255

4.7U_0402_6.3V6M

LTE@

1

2

L858

WCM-2012HS-900T_0805

LTE@

L858

WCM-2012HS-900T_0805

LTE@

1

122

33

4

4

C4254

68P_0402_50V8J

LTE@

C4254

68P_0402_50V8J

LTE@

1

2

PJ1

JUMP_43X79

@

PJ1

JUMP_43X79

@

11

2

2

C4261 0.1U_0402_10V7K

LTE@

C4261 0.1U_0402_10V7K

LTE@

1

2

TP1407PAD

@

TP1407PAD

@

R5294

100K_0201_5%

@R5294

100K_0201_5%

@

1 2

C4268

33P_0201_25V8J

LTE@

C4268

33P_0201_25V8J

LTE@

1

2

DM2

TVNST52302AB0_SOT523-3

LTE@DM2

TVNST52302AB0_SOT523-3

LTE@

2

3

1

+

C4271

100U_A1_6.3V_R70M

LTE@

+

C4271

100U_A1_6.3V_R70M

LTE@

1

2

JSIM

T-SOL_159-1000302602

LTE@

JSIM

T-SOL_159-1000302602

LTE@

DETECT 1

NC

2

NC 3

I/O

4

CLK 5

VPP

6

RST 7

GND

8

VCC 9

NC

10

GND 11

GND

12

GND 13

GND

14

GND 15

GND

16

GND 17

GND

18

R5260

0_0201_5%

R5260

0_0201_5%

12

C4258

0.1U_0201_10V6K

LTE@

C4258

0.1U_0201_10V6K

LTE@

1

2

J3G1

BELLW_80149-1721

LTE@

J3G1

BELLW_80149-1721

LTE@

1

122

3

344

5

566

7

788

9

910 10

11

11 12 12

13

13 14 14

15

15 16 16

17

17 18 18

19

19 20 20

21

21 22 22

23

23 24 24

25

25 26 26

27

27 28 28

29

29 30 30

31

31 32 32

33

33 34 34

35

35 36 36

37

37 38 38

39

39 40 40

41

41 42 42

43

43 44 44

45

45 46 46

47

47 48 48

49

49 50 50

51

51 52 52

53

53 54 54

55

55 56 56

57

57 58 58

59

59 60 60

61

61 62 62

63

63 64 64

65

65 66 66

67

67 GND1 68

GND2

69

C4266

33P_0201_25V8J

LTE@

C4266

33P_0201_25V8J

LTE@

1

2

TP1401 PAD@ TP1401 PAD@

R5268

0_0201_5%

LTE@

R5268

0_0201_5%

LTE@

12

C4269

33P_0201_25V8J

LTE@

C4269

33P_0201_25V8J

LTE@

1

2

C4267

33P_0201_25V8J

LTE@

C4267

33P_0201_25V8J

LTE@

1

2

+

C4265

100U_A1_6.3V_R70M

LTE@

+

C4265

100U_A1_6.3V_R70M

LTE@

1

2

TP1419PAD @TP1419PAD @

TP1402PAD @TP1402PAD @

TP1417PAD @TP1417PAD @

R52650_0201_5% LTE@ R52650_0201_5% LTE@

12

R5261 R_0201@R5261 R_0201@

1 2

C4263 10U_0402_6.3V6M

LTE@

C4263 10U_0402_6.3V6M

LTE@

1

2

R5269 10K_0201_5%

LTE@

R5269 10K_0201_5%

LTE@

1 2

C4252

33P 50V J NPO 0402

LTE@

C4252

33P 50V J NPO 0402

LTE@

1

2

C4260 100P_0402_50V8J

LTE@

C4260 100P_0402_50V8J

LTE@

1

2

C4259

4.7U_0402_6.3V6M

LTE@

C4259

4.7U_0402_6.3V6M

LTE@

12

C4257

0.1U_0402_10V7K LTE@

C4257

0.1U_0402_10V7K LTE@

1

2

R5266

0_0201_5%

R5266

0_0201_5%

1 2

R5272 4.7K_0201_5%

@

R5272 4.7K_0201_5%

@

12

DM1

TVNST52302AB0_SOT523-3

LTE@DM1

TVNST52302AB0_SOT523-3

LTE@

2

3

1

R52670_0201_5%

LTE@

R52670_0201_5%

LTE@

12

R5271

0_0201_5% LTE@

R5271

0_0201_5% LTE@

12

+

C4264

100U_A1_6.3V_R70M

LTE@

+

C4264

100U_A1_6.3V_R70M

LTE@

1

2

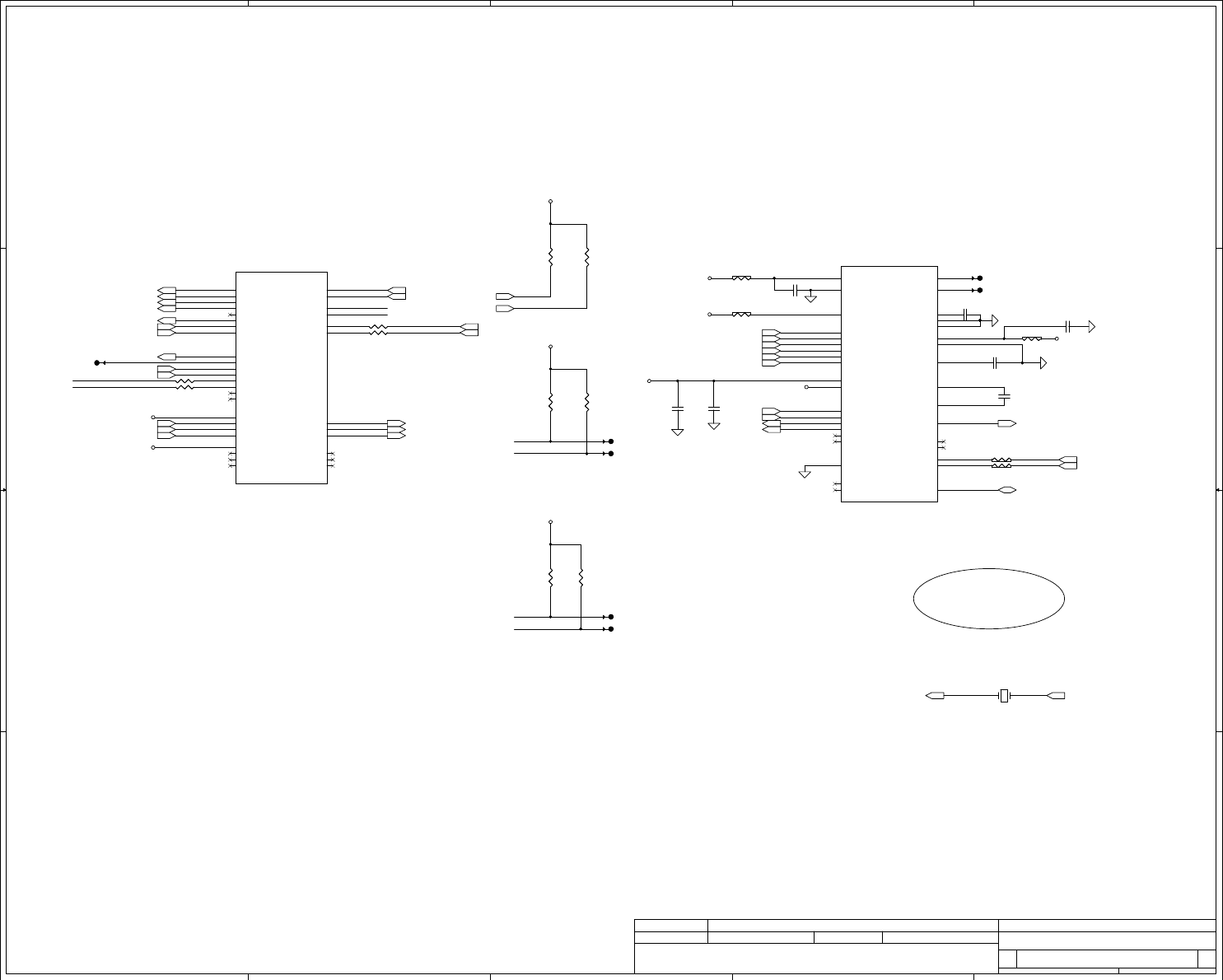

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

Title

Size Document Num ber Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

RF_TX_ASM

Custom

19 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Num ber Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

RF_TX_ASM

Custom

19 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Num ber Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

RF_TX_ASM

Custom

19 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

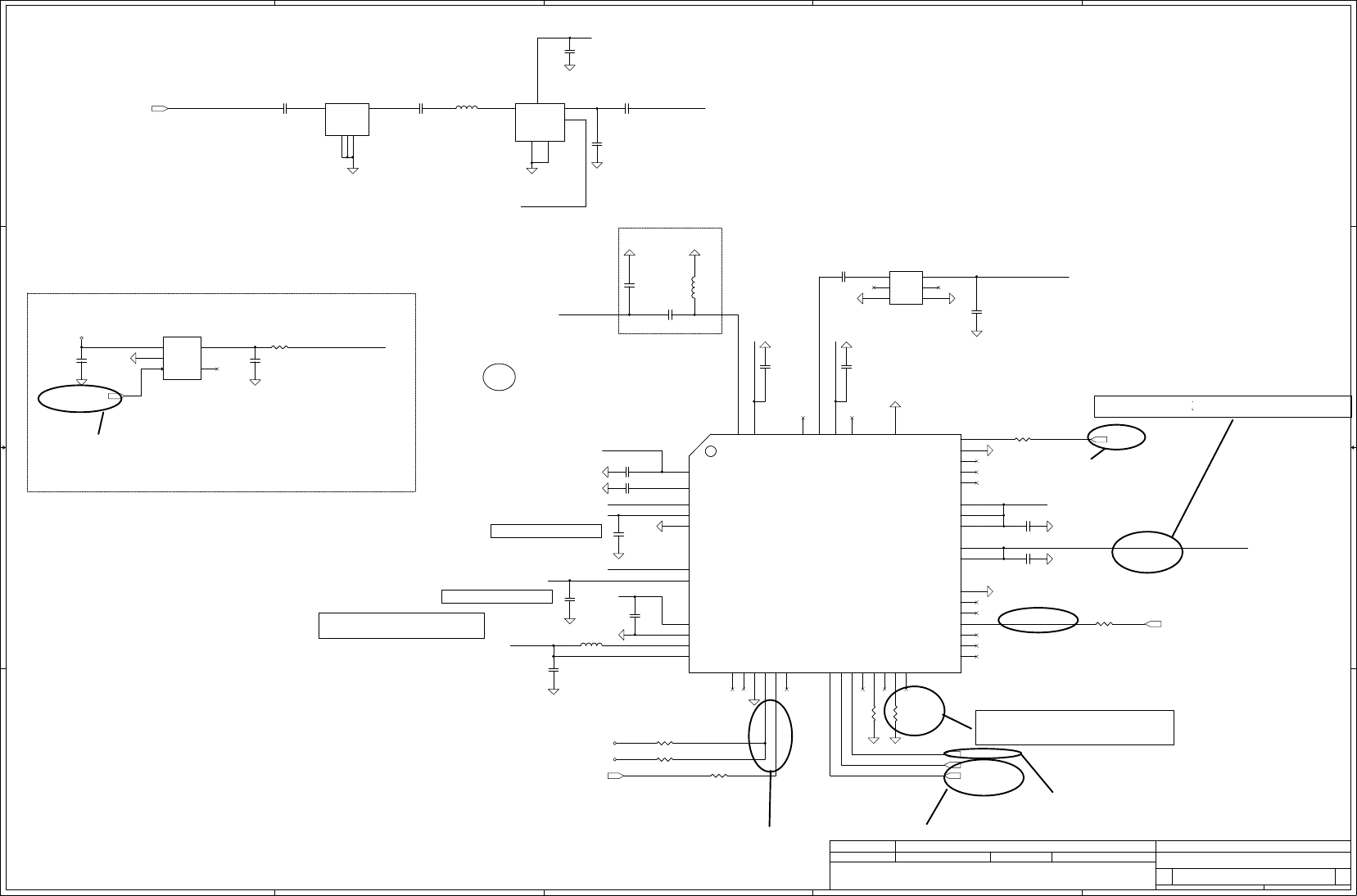

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

RF_TX_ASM

Custom

20 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

RF_TX_ASM

Custom

20 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

RF_TX_ASM

Custom

20 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

3.3V LDO

U1906 without output high-speed discharge function, then

tdrop-down (2.7V-to-0.5V) > 50ms.

Please use MTK qualified LDOs, such as Torex XC6215/XC6221.

Connect to Host GPIO Pin

C1891 is close to pin11

C1893 is close to pin11

pin14 connet to C1894 GND net first,

then connect to reference GND

Connect GNSS_HOST_VRTC to always alive voltage source, and keep the

voltage swing of GNSS_HOST_32K RTC clock same as GNSS_HOST_VRTC.

Connect to HOST UART (TX/RX) interface

As EINT to Host

Reference Frequency Selection

16.368MHZ TCXO : R1864 = NC , PIN_41 = NC

26MHZ TCXO : R1864 = 10K , PIN_41 = NC

26MHZ XTAL : R1864 = 10K , PIN_41 contact 10K

Reserved for improving GNSS Hot-Start performance.

2.8V IO : U1907 pin30 42 need change to GNSS_VTLDO

1.8V IO : U1907 pin30 42 (IO voltage is SMPS_1V8)

1.8V / 2.8V IO Voltage Selection

Reserved for GPS HRST from host,

connect to Host (MT62xx) GPIO pin

MT3332 on-chip LNA

Matching

RTC Voltage (2.8V)

50 Ohm

05/20 del JP15 R1857 C1878 C1879 for RF require

GNSS_VGNSS_MAIN

GNSS_VREF

GNSS_VTCXO_SW

GNSS_VTLDO

GNSS_DCV_1V8

GNSS_CORE_1V1

GNSS_VGNSS_MAIN

GNSS_DCVGNSS_DCV_1V8

GNSS_HOST_32K

RTC32K2V8

GNSS_FRAME_SYNC

GNSS_CORE_1V1

GPS_RFIN

MT3332_GPS_RF

GNSS_DCV_1V8

GNSS_VTCXO_SW

GNSS_DCV_1V8

MT3332_GPS_RF

GNSS_VTCXO_SW

GNSS_VTCXO_SW

GNSS_VGNSS_MAIN

GNSS_DCV_1V8

AVDDRTC

MT8389_GPIO_GPS_EN<5>

URXD1 <5>

UTXD1 <5>

MT8389_EINT_MT3332 <5>

MT8389_GPIO_FRAME_SYNC <5>

GNSS_HRST <5>

RTC32K2V8<23,9>

GLONASS_RF<9>

VBAT

VRTC

VDD28_6583

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

MT3332

Custom

21 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

MT3332

Custom

21 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

MT3332

Custom

21 28Thursday, August 08, 2013

2012/11/09 2014/11/09

Compal Electronics, Inc.

U1914

GLONASS@

26MHZ_10PF_1XXB26000CTP

U1914

GLONASS@

26MHZ_10PF_1XXB26000CTP

GND

3NC 1

VCC 6

OUT

4

NC 2

NC

5

C1876

1000P_0201_16V7K

GLONASS@

C1876

1000P_0201_16V7K

GLONASS@

12

C1888

1U_0201_6.3V6M

GLONASS@

C1888

1U_0201_6.3V6M

GLONASS@

12

C1894

4.7U_0402_6.3V6M

GLONASS@

C1894

4.7U_0402_6.3V6M

GLONASS@

1

2

R1871 0_0402_5%

@

R1871 0_0402_5%

@

1 2

C1882

C_0201

@

C1882

C_0201

@

1

2

L854

5.6NH_LQG15HS5N6S02D_5%

GLONASS@

L854

5.6NH_LQG15HS5N6S02D_5%

GLONASS@

1 2

R1863

R_0201

@

R1863

R_0201

@

12

C1902

4700P_0201_6.3V6K

GLONASS@

C1902

4700P_0201_6.3V6K

GLONASS@

1

2

C1887

4700P_0201_6.3V6K

GLONASS@

C1887

4700P_0201_6.3V6K

GLONASS@

1

2

C1881

1000P_0201_16V7K

GLONASS@

C1881

1000P_0201_16V7K

GLONASS@

1 2

C1886

4.7U_0402_6.3V6M

GLONASS@

C1886

4.7U_0402_6.3V6M

GLONASS@

1

2

R1859 0_0402_5%

GLONASS@

R1859 0_0402_5%

GLONASS@

1 2

C1893

1U_0201_6.3V6M

GLONASS@

C1893

1U_0201_6.3V6M

GLONASS@

1

2

L856 1UH_LQM2MPN1R0NG0L_30%

GLONASS@

L856 1UH_LQM2MPN1R0NG0L_30%

GLONASS@

1 2

C1895

4.7U_0402_6.3V6M

GLONASS@

C1895

4.7U_0402_6.3V6M

GLONASS@

1

2

R1864

10K_0201_1%

GLONASS@

R1864

10K_0201_1%

GLONASS@

12

R1862

R_0201

@

R1862

R_0201

@

1 2

U1907

S IC MT3332N QFN 48P GPS

SA00006M400

GLONASS@

U1907

S IC MT3332N QFN 48P GPS

SA00006M400

GLONASS@

R1867 0_0402_5%

GLONASS@

R1867 0_0402_5%

GLONASS@

1 2

C1877

18P_0201_50V8J

GLONASS@

C1877

18P_0201_50V8J

GLONASS@

1 2

C1892 0.1U 6.3V K X5R 0201

GLONASS@

C1892 0.1U 6.3V K X5R 0201

GLONASS@

1 2

C1889

1U_0201_6.3V6M

GLONASS@C1889

1U_0201_6.3V6M

GLONASS@

12

C1880

1U_0201_6.3V6K

@

C1880

1U_0201_6.3V6K

@

1

2

U1913

BGU7005_XSON6_1P45X1

GLONASS@

U1913

BGU7005_XSON6_1P45X1

GLONASS@

GND

1

GND

2

RF_IN

3

Vcc 4

ENABLE 5

RF_OUT 6

C1891

1U_0201_6.3V6M

GLONASS@

C1891

1U_0201_6.3V6M

GLONASS@

1

2

C1885

4.7U_0402_6.3V6M

GLONASS@

C1885

4.7U_0402_6.3V6M

GLONASS@

1

2

C1875

18P_0201_50V8J

GLONASS@

C1875

18P_0201_50V8J

GLONASS@

1 2

MT3332

QFN-48pins

U1907

MT3332 QFN (48 Pins, 0.4mm pitch)

MT3332N_QFN48_6X6

@

MT3332

QFN-48pins

U1907

MT3332 QFN (48 Pins, 0.4mm pitch)

MT3332N_QFN48_6X6

@

RF_IN 48

AVDD18_CM 4

OSC 5

T1N 3

AVDD43_VBAT

9

VREF

7

AVDD_TCXO_SW

10

AVSS43_MISC

8

AVDD11_CLDO

13

AVDD43_DCV

16

AVSS43_DCV

14

32K_OUT

23

FORCE_ON

22

AVDD43_RTC

19

AVDD11_RTC

18

XIN

21

XOUT

20

IF[2]/EINT0/GIO12 44

DVDD28_IO1 30

DVDD11_CORE1 6

GND 29

JRCK/GIO10 34

JDO/GIO9 39

IF[1]/JDI/GIO8/SYNC 33

TX0/H_SO/I2C_DA

37

RX0/H_SI/I2C_CK

35

TX1/GIO1/TXIND

25

JRST_/GIO11/H_SCS 38

IF[0]/JMS/GIO7/PPS 40

IF_CLK/JCK/GIO6 26

IF[3]/EINT1/GIO13 45

XTEST 46

HRST_B 47

RX1/GIO0/H_SCK

27

TX2/GIO3/F_SO

28

RX2/GIO2/F_SI/EE_SDA

32

SCK1/GIO4/F_SCK/EE_SC L

31

SCS1#/GIO5/F_SCS

41

AVDD18_RXFE 1

AVDD28_CLDO

12

DCV_FB

17

AVDD28_TLDO

11

DCV

15

T1P 2

DVDD11_CORE2 24

DVDD28_IO2 42

EINT2/GIO14 36

DVDD11_CORE3 43

MAIN_GND 49

C1883

1.2P_0201_50V8C

GLONASS@

C1883

1.2P_0201_50V8C

GLONASS@

1 2

C1884

1U_0201_6.3V6K

GLONASS@

C1884

1U_0201_6.3V6K

GLONASS@

1

2

U1912

SAFFB1G58KA0F0AR14_5P

GLONASS@

U1912

SAFFB1G58KA0F0AR14_5P

GLONASS@

Input

1Output 4

GND

2

GND

3

GND

5

L855

3.3NH_LQG15HS3N3S02D_300MA_.3NH

GLONASS@

L855

3.3NH_LQG15HS3N3S02D_300MA_.3NH

GLONASS@

1 2

C1890 2.2U_0402_10V6M

GLONASS@

C1890 2.2U_0402_10V6M

GLONASS@

1 2

U1915

XC6215B332MR-G_SOT-25-5

GLONASS@

U1915

XC6215B332MR-G_SOT-25-5

GLONASS@

VIN

1

VSS

2

EN

3NC 4

VOUT 5

R1870 0_0402_5%

GLONASS@

R1870 0_0402_5%

GLONASS@

1 2

R1860 R_0201@R1860 R_0201@

1 2

C1874

0.033U_0201_6.3V

GLONASS@

C1874

0.033U_0201_6.3V

GLONASS@

1

2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Charger

Add BAT CONN.1102.

Compal Part

Rfg

40mil

40mil

BATTERY CONNECTOR

80mil

OVP: 12V

25V rating

VCDT rating: 1.268V

4mil

80mil

4mil

B value:3370K±1%

close USB connector

FGN_IC

BAT_NTC

FGN

CHARGER_INT1

BQ24196_REGN

CHARGER_PMID

BATT_TEMP

BQ24196_REGN

BATT_TEMP

CHARGER_SW

BQ24196_REGN

EINT_CHG_STAT<24>

GPIO_CHG_EN<24>

SCL4<24>

SDA4<24>

VCDT <23>

CHR_LDO <23>

ISENSE <23>

BATSNS <23>

BATON <23>

TREF <23>

FGP_IC <23>

FGN_IC <23>

CHG_TEMP <5>

SDA6 <24>

SCL6 <24>

VBAT_SUPPLY

VBAT_SUPPLY

VBAT

VIN

VBAT

VBAT_SUPPLY

VBUS

VDD18_6583

VDD18_6583

VA_PMU

VBAT

VBUS

VIN

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Charger

C

22 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Charger

C

22 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

Charger

C

22 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

TP1367TP1367

PC28

1U_0402_10V6K

PC28

1U_0402_10V6K

12

PC26

4.7U_0603_6.3V6K

PC26

4.7U_0603_6.3V6K

12

PC24

2.2U_0603_6.3V6K

PC24

2.2U_0603_6.3V6K

12

PC143

100P_0402_50V8J

PC143

100P_0402_50V8J

12

PR31

270_0201_1%

PR31

270_0201_1%

1 2

PR32 0_0402_5%

@

PR32 0_0402_5%

@

12

PR33 0_0402_5%

@

PR33 0_0402_5%

@

12

R1823

3.3K_0402_1%

R1823

3.3K_0402_1%

12

R1837

1K_0402_1%

R1837

1K_0402_1%

1 2

PC144

10P_0402_50V8J

PC144

10P_0402_50V8J

12

PC20

1U_0603_16V6K

PC20

1U_0603_16V6K

12

PC25

2.2U_0603_6.3V6K

PC25

2.2U_0603_6.3V6K

12

TP1398TP1398

R1822

39K_0402_1%

R1822

39K_0402_1%

1 2

R384

39K_0402_1%

R384

39K_0402_1%

1 2

PR51

15K_0402_1%

PR51

15K_0402_1%

12

R1838

24K_0402_1%

@R1838

24K_0402_1%

@

1 2

PD11

RB551VM-30TE-17 SOD-323

@

PD11

RB551VM-30TE-17 SOD-323

@

2 1

R1829 0_0402_5%

@

R1829 0_0402_5%

@

1 2

PR36

10K_0201_1%

PR36

10K_0201_1%

1 2

PR39

10K_0201_1%

PR39

10K_0201_1%

1 2

PL5

HCB2012KF-221T30_2P

PL5

HCB2012KF-221T30_2P

1 2

D810

TVNST52302AB0 SOT523

@D810

TVNST52302AB0 SOT523

@

2

3

1

PH1

10K_0402_1%_TSM0A103F34D1RZ

PH1

10K_0402_1%_TSM0A103F34D1RZ

12

PR50

10K_0201_1%

@ PR50

10K_0201_1%

@

12

PR38 10K_0201_1%PR38 10K_0201_1%

12

R1840

0.02_1206_1%

R1840

0.02_1206_1%

1

3

4

2

PU3

BQ24196RGER_QFN24_4X4

PU3

BQ24196RGER_QFN24_4X4

PGND_1 17

PGND_2 18

BAT_1 13

SW2 20

STAT

4

/PG

3

PSEL

2

BAT_2 14

VBUS_2

24

ILIM 10

VBUS_1

1

SYS_2 16

SCL

5

SDA

6

TS2 12

/CE

9

REGN

22

PMID

23

SYS_1 15

TS1 11

SW1 19

INT

7

BTST 21

OTG

8

THERMAL PAD

25

R1821

330K_0402_1%

R1821

330K_0402_1%

1 2

PR49

10K_0201_1%

PR49

10K_0201_1%

12

PC31

10U_0603_10V6M

PC31

10U_0603_10V6M

1 2

PR37 10K_0201_1%PR37 10K_0201_1%

12

PR30 0_0201_5%@ PR30 0_0201_5%@

12

PL4

2.2UH_PH041H-2R2MS_3A_20%

PL4

2.2UH_PH041H-2R2MS_3A_20%

1 2

JP14

ACES_50496-00701-001

@

JP14

ACES_50496-00701-001

@

11

33

44

55

66

GND 8

GND 9

22

77

PC142

0.047U_0402_16V7K

PC142

0.047U_0402_16V7K

1 2

C1828

1U_0603_25V6K

C1828

1U_0603_25V6K

12

PR48

10K_0201_1%

PR48

10K_0201_1%

12

PC21

10U_0603_10V6M

@

PC21

10U_0603_10V6M

@

12

R1826 0_0402_5%

@

R1826 0_0402_5%

@

1 2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PMIC LPDDR2/1.2V DDR3U/1.25V

VMSEL2

VMSEL1

DDR3/1.5VDDR3L/1.35V

L L HH

L H HL

VCAMA

MDSYS

Cap Value (uF)

RTC Block

VCAM_IO

CPU

VCAM_AF

MDSYS/Infra

VSIM1

VM

Application

VSIM2

Memory

CTP/CMMB

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

CTP/CMMB

3GPA

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

VGP1

VEMC_3V3

VGP3

VGP2

40

VSRAM 600

VPA

0.7~1.25 (DC/DC)

1.2/1.25/1.35/1.5

0.5~3.4 (100mV/step)

1.5/1.8/2.5/2.8

VPROC

Buck

Symbol

VCORE

VRF18

VRF18_2

VIO18

VRF28_1

Digital

LDO

Analog

LDO

Vout (V)

0.7~1.25 (DC/DC)

1.825

1.825

1.05~1.25 (50mV/step)

1

10

4.7

0.7~1.25 (DC/DC)

Iout (mA)

450

450

600

4.7

10

30

VM

1200

3.0/3.3

VUSB

42

2.2

10

2.2+2.2

1

3.0/3.3VMCH

VMC 1.8/3.3

3.3

4.7

1

2.2

2.2

1

4.7

0.9/1.0/1.1/1.2

VGP5

1.8

2.2

2.2

2.2

2.2

1

2000

200

VAST

VIO28

1

1

1

1

1

VTCXO_2

VCAMA

RTC

Vibrator

VRF28_2

1

1

2.85

1100

600

800

200

300

200

800

200

400

40

200

2.8

1.8/2.8

VGP4

2.8

VTCXO_1

1.8/2.85 200

CTP/CMMB

1st RF

400

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

eMMC

2nd RF

GPU OD

200

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

Vibrator

200

200

1.2/1.3/1.5/1.8/2.5/2.8/3.0/3.3

VGP6

IO App.

200

200

VSIM1

MT6168

200

200

2.8

VSIM2

T-Card

VEMC_1V8

T-Card

200VIBR

eMMC (Core)

VRTC

VCAMD

VA

2

MDSYS

1~22

MDSYS

1.8/2.5 100

General

GND_DCDC

VBAT

GND_DCDC

VCORE_PMU

VPROC_PMU

VM_PMU

VPA_PMU

VRF18_1_SW VRF18_PMU

VIO18_SW

VRF18_2_SW VGPU_PMU

VSRAM_SW

VPROC_SW

VCORE_SW

VM_SW

VPA_SW

GND_DCDC

VPROC_SW

VPA_SW

VCORE_SW

VM_SW

VSRAM_PMU

BATON<22>

TREF<22>

SRCLKENA2<5>

WATCHDOG_B<5>

PWRAP_SPI0_MI<5>

PWRAP_SPI0_CLK<5>

PWRAP_SPI0_CSN<5>

PWRAP_SPI0_MO<5>

EINT_PMU<5>

PWRAP_EVENT<5>

FGP_IC<22>

FGN_IC<22>

CHD_DM<5>

CHD_DP<5>

DVDD_DVFS <4>

GND_DVDD_DVFS <4>

RTC32K1V8 <5,7>

32K_OUT<24>

VCDT<22>

CHR_LDO<22>

ISENSE<22>

BATSNS<22>

PWRKEY<11,15>

SYSRST_B<11,15,5,7>

RTC32K2V8 <21,9> 32K_IN<24>

DVDD_SRAM <4>

DVDD <4>

DVDD_GPU_R <4>

SRCLKENA<5,7>

SRCVOLTEN<5,7>

VA_PMU

VTCXO_1_PMU

VCAMA_PMU

VDD28_6583

VUSB_PMU

VMC_PMU

VRTC

VDD18_6583

VBAT

VDD18_6583

VRTC

VCORE_PMU

VPROC_PMU

VM_PMU

VPA_PMU

VRF18_PMU

VGPU_PMU

VSRAM_PMU

VSIM2_PMU

VIBR_PMU

VGP5_PMU

VGP6_PMU

VMCH_PMU

VEMC_3V3_PMU

VEMC_1V8_PMU

VGP2_PMU

VSIM1_PMU

DDR3VCCIO

VDD18_6583

VAST_PMU

VTCXO_2_PMU

VGP1_PMU

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

MT6329 PMIC

Custom

23 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

MT6329 PMIC

Custom

23 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

ZEJ00 -LA-A791P

0.2

MT6329 PMIC

Custom

23 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

R324

0_0402_5%

@ R324

0_0402_5%

@

1 2

C3072.2U_0402_6.3V6M C3072.2U_0402_6.3V6M

12

R326

0_0402_5%@

R326

0_0402_5%@

1 2

C343 4.7U_0603_6.3V6KC343 4.7U_0603_6.3V6K

12

C340

1U_0402_6.3V6K

C340

1U_0402_6.3V6K

1 2

C3044.7U_0603_6.3V6K C3044.7U_0603_6.3V6K

12

R322

0_0402_5%

@ R322

0_0402_5%

@

1 2

C335 4.7U_0603_6.3V6KC335 4.7U_0603_6.3V6K

12

C638 1000P_0402_50V7K3G@ C638 1000P_0402_50V7K3G@

1 2

C318

1U_0402_10V6K

C318

1U_0402_10V6K

1 2

C336 4.7U_0603_6.3V6KC336 4.7U_0603_6.3V6K

12

C3062.2U_0402_6.3V6M C3062.2U_0402_6.3V6M

12

C635 1000P_0402_50V7KC635 1000P_0402_50V7K

1 2

TP320TP320

C317

1U_0402_10V6K

@

C317

1U_0402_10V6K

@

1 2

R328 0_0402_5%R328 0_0402_5%

1 2

R338

0_0402_5%

@

R338

0_0402_5%

@

1 2

R331 4.7K_0402_1%R331 4.7K_0402_1%

12

C346

1U_0402_6.3V6K

@C346

1U_0402_6.3V6K

@

1 2

D310 RB521CM-30TR2D310 RB521CM-30TR2

21

C333 4.7U_0603_6.3V6KC333 4.7U_0603_6.3V6K

12

L307

2.2UH_PHI25201B-2R2MS_20%

@L307

2.2UH_PHI25201B-2R2MS_20%

@

1 2

C3014.7U_0603_6.3V6K C3014.7U_0603_6.3V6K

12

L304 1UH_VLS252010ET-1R0N_30%L304 1UH_VLS252010ET-1R0N_30%

1 2

C3034.7U_0603_6.3V6K C3034.7U_0603_6.3V6K

12

L303 0.68UH_VLS252010ET-R68N_30%L303 0.68UH_VLS252010ET-R68N_30%

1 2

R329

0_0402_5%

R329

0_0402_5%

1 2

C338 4.7U_0603_6.3V6K3G@C338 4.7U_0603_6.3V6K3G@

1 2

PR41

0_0402_5%

@ PR41

0_0402_5%

@

1 2

L302 0.68UH_VLS252010ET-R68N_30%L302 0.68UH_VLS252010ET-R68N_30%

1 2

L301 0.68UH_VLS252010ET-R68N_30%L301 0.68UH_VLS252010ET-R68N_30%

1 2

R325

0_0402_5%

@ R325

0_0402_5%

@

1 2

DRIVER

BUCK OUTPUT

LDO OUTPUT

CHARGER

CONTROL SIGNAL

VBAT INPUT

GAS GAUGE

BC 1.1

MT6320GA-A_TFBGA_216P

U301A

DRIVER

BUCK OUTPUT

LDO OUTPUT

CHARGER

CONTROL SIGNAL

VBAT INPUT

GAS GAUGE

BC 1.1

MT6320GA-A_TFBGA_216P

U301A

VCDT

W17

VDRV

K15

ISENSE

W15

BATSNS

W16

BATON

V16

TREF

U15

PCH_DET

J16

SRCVOLTEN

A4

PWRKEY

G15

PMU_TESTMODE

T16

RESETB

G13

SYSRSTB

A3

FSOURCE

C9

SPI_CLK

A7

SPI_CSN

B7

SPI_MOSI

B6

SPI_MISO

D5

WRAP_EVENT

B8

SRCLKEN_MD2

A2

INT

C3

HOMEKEY

B3

VBAT_VPROC

A13

VBAT_VPROC

A14

VBAT_VCORE

A11

VBAT_VCORE

A12

VBAT_VM

A17

VBAT_VM

A18

DVDD18_IO

A6

DVDD18_DIG

B1

CS_P

V17

CS_N

U17

CHG_DP

V18

CHG_DM

U18

GND_VPROC

E10

GND_VPROC

F10

GND_LDO A1

GND_VREF V14

VREF V15

ISINK0 C17

ISINK1 C18

ISINK2 B18

VPROC B13

VPROC B14

VPROC_FB E13

VCORE B11

VCORE B12

VCORE_FB D14

VM A15

VM A16

VM_FB C15

VSRAM B10

VPA H2

VPA_FB D2

VRF18_1 E2

VRF18_FB E3

VRF18_2 F2

VRF18_2_FB E4

VA T17

VRF28_2 P17

VTCXO_1 R15

VCAMA P14

VAST T14

VIO28 H18

VUSB L18

VMC L17

VMCH L13

VEMC_3V3 K12

VGP1 L15

VGP3 M16

VGP2 L16

VGP4 N16

VGP5 D16

VGP6 F15

VSIM1 G16

VSIM2 G17

VEMC_1V8 E18

VIBR M15

KPLED E14

FLASH D15

VIO18 G2

VIO18_FB F4

VRF28_1 R16

VTCXO_2 N15

AVDD33_RTC V2

PWM

C1

VMSEL1

C2

VMSEL2

B2

SRCLKEN_PERI

C4

PMU_EN

H13

DVDD18_IO

M1

VBAT_VSRAM

A10 VBAT_VM

B16

VBAT_LDOS1

P18

VBAT_LDOS2

N18

VBAT_LDOS3

K18

VBAT_LDOS4

D18

VBAT_LDOS5

H17

VBAT_LDOS6

G18

VBAT_VPA

G1

VBAT_VRF18

D1

VBAT_VRF18_2

E1

VBAT_VIO18

F1

GND_VPROC_FB F13

RTC_GPIO U3

RTC_32K1V8 A9

GND_VCORE

F9

GND_VCORE

G9

GND_VPROC

J10

GND_VPROC

K10

GND_VM

E11

GND_VM

F11

GND_VM

J11

GND_VM

K11

GND_VSRAM

F8

GND_VPA

J6

GND_VPA

K8

GND_VRF18

H8

GND_VRF18_2

H7

GND_VIO18

H5

GND_VIO18

J8

GND_LDO L10

GND_VCORE

J9

GND_VCORE

K9 GND_LDO L11

GND_LDO L8

GND_LDO L9

GND_LDO M10

GND_IO E6

GND_IO M6

GND_DIG F6

GND_DRV E15

GND_LDO M11

GND_LDO M8

GND_LDO M9

GND_LDO P11

GND_LDO T8

GND_LDO V6

GND_LDO W 18

AVDD28_CHRLDO

U16

AVDD18_LDO

T18

VSRAM_FB D13

XIN W 1

XOUT V1

RTC_XOSC32_ENB U2

C3052.2U_0402_6.3V6M C3052.2U_0402_6.3V6M

12

D302

TVNST52302AB0 SOT523

D302

TVNST52302AB0 SOT523

2

3

1

R321

0_0402_5%

@

R321

0_0402_5%

@

1 2

D311 RB521CM-30TR23G@ D311 RB521CM-30TR23G@

21

R1855

0_0402_5%@

R1855

0_0402_5%@

12

C324 22P_0402_50V8JC324 22P_0402_50V8J

1 2

R323

0_0402_5%

@ R323

0_0402_5%

@

1 2

C342 4.7U_0603_6.3V6K@C342 4.7U_0603_6.3V6K@

12

TP1377TP1377

C345

1U_0402_6.3V6K

@C345

1U_0402_6.3V6K

@

1 2

TP1368TP1368

C316

1U_0402_10V6K

C316

1U_0402_10V6K

1 2

R316 1K_0402_1%R316 1K_0402_1%

12

C328 1U_0402_6.3V6KC328 1U_0402_6.3V6K

1 2

C1752

18P_0402_50V8J

RF@

C1752

18P_0402_50V8J

RF@

1

2

C341

22U_0603_6.3V6M

C341

22U_0603_6.3V6M

12

D308 RB521CM-30TR2

D308 RB521CM-30TR2

21

R315 1K_0402_1%@R315 1K_0402_1%@

12

R330 4.7K_0402_1%@R330 4.7K_0402_1%@

12

C3120.1U_0402_25V6 C3120.1U_0402_25V6

12

TP1375TP1375

C646 1000P_0402_50V7KC646 1000P_0402_50V7K

1 2

PR40

0_0402_5%

@PR40

0_0402_5%

@

1 2

C647 1000P_0402_50V7KC647 1000P_0402_50V7K

1 2

C344

1U_0402_6.3V6K

@C344

1U_0402_6.3V6K

@

1 2

C1750

18P_0402_50V8J

RF@

C1750

18P_0402_50V8J

RF@

1

2

C3151U_0402_6.3V6K C3151U_0402_6.3V6K

1 2

C3024.7U_0603_6.3V6K C3024.7U_0603_6.3V6K

12

L305 2.2UH_PHI25201B-2R2MS_20%3G@ L305 2.2UH_PHI25201B-2R2MS_20%3G@

1 2

R339

0_0402_5%@

R339

0_0402_5%@

1 2

C3130.1U_0402_25V6 C3130.1U_0402_25V6

12

R314 0_0402_5%

@

R314 0_0402_5%

@

12

C337 2.2U_0603_10V7K3G@ C337 2.2U_0603_10V7K3G@

1 2

TP1376TP1376

C319 22P_0402_50V8JC319 22P_0402_50V8J

1 2

TP1379TP1379

C3141U_0402_6.3V6K C3141U_0402_6.3V6K

1 2

TP321TP321

L306

2.2UH_PHI25201B-2R2MS_20%

3G@ L306

2.2UH_PHI25201B-2R2MS_20%

3G@

1 2

L308

2.2UH_PHI25201B-2R2MS_20%

L308

2.2UH_PHI25201B-2R2MS_20%

1 2

C334 4.7U_0603_6.3V6KC334 4.7U_0603_6.3V6K

12

R327

0_0402_5%@

R327

0_0402_5%@

1 2

D309 RB521CM-30TR2D309 RB521CM-30TR2

21

C320

1U_0402_6.3V6K

C320

1U_0402_6.3V6K

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PMIC

Digital Audio

Change 0510

0521 DEL X604

0528 Update for power

0528 Update for power

0702 ADD

0801 ADD

ADD R317 R318 for power 08/02

SCL5

SDA5

SCL6

SDA6

AU_FLYP

AU_FLYN

SCL5

SDA5

SCL6

SDA6

SCL6

SDA6

BAT_ID

GPIO_CHG_EN<22>

SIM1_SCLK<5>

SIM1_SIO<5>

SIM1_SRST<5>

EINT_CHG_STAT<22>

SCL4 <22,24>

SDA4 <22,24> SCL4<22,24>

SDA4<22,24>

ADC_DAT_IN<5>

ADC_CLK<5>

ADC_WS<5>

DAC_DAT_OUT<5>

DAC_CLK<5>

DAC_WS<5>

AU_VIN0_P<16>

AU_VIN0_N<16>

32K_IN <23>

32K_OUT<23>

KCOL0<11,15>

KCOL1<15>

KROW0<11,15>

SIM1_DATA

SIM1_CLK

SIM1_RST

AU_VIN1_N<8>

AU_VIN1_P<8> ACCDET <8>

SYSCLK_PMU <7>

LTE_RESET<18>

LTE_ON_OFF#<18>

GPS_OFF#<18>

SCL6 <22>

SDA6 <22>

AU_HPL <12>

AU_HPR <12>

Wake_ON<18>

VSIM2_PMU

VSIM1_PMU

VDD18_6583

VDD18_6583

VDD18_6583

VBAT

VBAT

MICBIAS0

VDD18_6583

MICBIAS1

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

ZEJ00 -LA-A791P

MT6329 PMIC

Custom

24 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

ZEJ00 -LA-A791P

MT6329 PMIC

Custom

24 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

ZEJ00 -LA-A791P

0.2

MT6329 PMIC

Custom

24 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

C442

1U_0402_10V6K

C442

1U_0402_10V6K

1 2

R416

0_0402_5%

@

R416

0_0402_5%

@

12

TP328TP328

MT6320GA-A_TFBGA_216P

U301C

@

MT6320GA-A_TFBGA_216P

U301C

@

VBAT_SPK

W4

GND_SPK

U4

VBAT_AUD

W10

ADC_DAT

B9

ADC_CK

D7

ADC_WS

F7

DAC_DAT

C6

DAC_CK

D6

DAC_WS

C7

AU_MICBIAS0

V13

AU_MICBIAS1

W13

AU_VIN0_P

R12

AU_VIN0_N

T12

AU_VIN1_P

V12

AU_VIN1_N

V11

AU_VIN2_P

U12

AU_VIN2_N

U11

AU_REFN

V7

SPK_N W2

SPK_P W3

AVSS12N_AUD V5

AU_FLYP W 9

AVDD28_AUD R11

AVSS28_AUD T11

AVDD18_AUD P8

AVSS18_AUD R8

CLK_26M R10

AU_FMINL

W7

AU_FMINR

W6

AU_FLYN U9

ACCDET U13

HSN U8

HSP T9

HPR T7

HPL V8

AVSS28_AUD W12

R302 4.7K_0201_5%R302 4.7K_0201_5%

12

C323 2.2U_0402_6.3V6MC323 2.2U_0402_6.3V6M

1 2

R317 0_0201_5%@ R317 0_0201_5%@

12

TP1363PAD@ TP1363PAD@

TP326TP326

C1753

18P_0402_50V8J

EMC@

C1753

18P_0402_50V8J

EMC@

1

2

R320 0_0201_5%

@

R320 0_0201_5%

@

12

C327

1U_0402_10V6K

C327

1U_0402_10V6K

1 2

R311 0_0402_5% -22milR311 0_0402_5% -22mil

1 2

R306 100K_0201_5%R306 100K_0201_5%

12

C325 1U_0402_10V6KC325 1U_0402_10V6K

12

R417

0_0402_5% @

R417

0_0402_5% @

12

TP1373PAD@ TP1373PAD@

X301

32.768KHZ_12.5P_1TJF125DP1A000D

X301

32.768KHZ_12.5P_1TJF125DP1A000D

1 2

R301 4.7K_0201_5%R301 4.7K_0201_5%

12

R313

0_0402_5% -22mil

R313

0_0402_5% -22mil

1 2

R305 100K_0201_5%R305 100K_0201_5%

12

R318 0_0201_5%

@

R318 0_0201_5%

@

12

MT6320GA-A_TFBGA_216P

U301B

@

MT6320GA-A_TFBGA_216P

U301B

@

KP_COL0

U1

KP_COL1

R2

KP_COL2

T1

KP_COL3

T2

KP_COL4

R4

KP_COL5

N5

KP_COL6

P4

KP_COL7

P5

SIM2_AP_SCLK

E7

SIM2_AP_SIO

M2

SIM2_AP_SRST

B5

SIM1_AP_SCLK

D8

SIM1_AP_SIO

M3

SIM1_AP_SRST

B4

KP_ROW 0

N2

KP_ROW 1

N1

KP_ROW 2

R1

KP_ROW 3

R3

KP_ROW 4

T3

KP_ROW 5

M4

KP_ROW 6

M5

KP_ROW 7

P2

SDA_1 L6

SCL_2 L4

SDA_2 L5

SIMLS1_SCLK J3

SIMLS1_SIO L3

SIMLS1_SRST J2

SIMLS2_SCLK K2

SIMLS2_SIO L2

SIMLS2_SRST L1

SCL_0 K5

SDA_0 K4

SCL_1 K6

DVDD_VSIMLS1

J1

DVDD_VSIMLS2

H1

TP327TP327

R303 4.7K_0201_5%

@

R303 4.7K_0201_5%

@

12

C322 2.2U_0402_6.3V6MC322 2.2U_0402_6.3V6M

1 2

R304 4.7K_0201_5%

@

R304 4.7K_0201_5%

@

12

C326 2.2U_0402_6.3V6MC326 2.2U_0402_6.3V6M

1 2

R319 0_0201_5%

@

R319 0_0201_5%

@

12

R312 0_0402_5% -22mil

R312 0_0402_5% -22mil

1 2

TP324TP324

TP325TP325

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

LED Backlight Driver

Custom

25 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

LED Backlight Driver

Custom

25 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

LED Backlight Driver

Custom

25 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

VBAT

BQ24196

Charger

VBAT_SUPPLY 2710mAh

Battery 1S1P

5V Adapter

U5/U6 DDR3L

1.35

VDDQ

VDD

1.35

VIO18

VM

VSRAM

VCORE

VPA

VRF18-2

VRF18-1

VEMC_1V8

VEMC_3V3

VIO28

VAST

VBAT_LDOS1

VGP1

LDOs

VGP2

VPROC

MT6320

BUCK

VTCXO_1

VRF28_2

VRF28_1

VA

VUSB

VMCH

VMC

VCAMA

VTCXO_2

VBUS

VBAT_VM

VIO18

VBAT_VCORE

VBAT_VSRAM

VBAT_VRF18-2

VBAT_VPA

VBAT_VRF18-1

VBAT_VPROC

R1650

VPROC_PMU

VCORE_PMU

VSRAM_PMU

VM_PMU

VDD18_6583

VRF18_PMU

VGPU_PMU

VPA_PMU

R1648

R1651

600 mA

2000 mA

1200 mA

450 mA

450 mA

600 mA

U201 MT8389

DVDD0.7~1.25 (DC/DC)

DVDD_GPU

DVDD_DVFS

DVDD_SRAM

0.7~1.25 (DC/DC)

1.825 /

1.05~1.25 (50mV/step)

0.7~1.25 (DC/DC)

1.8

DVDD18_PLLGP

DVDD18_MD

AVDD18_MEMPLL

DVDD18_MIPITX

DVDD18_MIPIRX

DVDD18_MIPIIO

AVDD18_USB_P0

AVDD18_USB_P1

DVDD28_BPI

DVDD28_BSI

DVDD18_NML1

DVDD28_NML3

DVDD28_NML2

DVDD18_MC12

DVDD18_NML4

ADVDD18_MD

1.8/2.5 ADVDD18_AP

2.8 ADVDD28_DAC

ADVDD33_USB_P03.3

ADVDD33_USB_P13.3

1.35

DVDD18_MC0

DVDD18_EMI

1.2/1.3/1.5/1.8/2.5

/2.8/3.0/3.3

1.8/3.3 DVDD33_MC1

DVDD33_MC23.3V

R1655

R1632

R1636

R1637

R1627

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8/2.5

R1645

R1643

R1658

R1659

R1644

R1629

DVDD18_BSI1.8

VGP3

VGP4

VGP5

VGP6

VSIM1

VSIM2

VIBR

VRTC

VBAT_LDOS2

VBAT_LDOS3

VBAT_LDOS4

VBAT_LDOS5

VBAT_LDOS6

VA_PMU

VRF28_1_PMU

VRF28_2_PMU

VTCXO_1_PMU

VTCXO_2_PMU

VCAMA_PMU

VAST_PMU

VDD28_6583

VUSB_PMU

VMC_PMU

VMCH_PMU

VEMC_1V8_PMU

VEMC_3V3_PMU

VGP1_PMU

VGP2_PMU

VGP5_PMU

VGP6_PMU

VSIM1_PMU

VSIM2_PMU

VIBR_PMU

VRTC

100 mA

200 mA

200 mA

40 mA

40 mA

200 mA

300 mA

400 mA

200 mA

200 mA

800 mA

800 mA

200 mA

400 mA

200 mA

200 mA

2 mA

200 mA

200 mA

200 mA

200 mA

200 mA

200 mA

R1633

R1635

R1628

R1652

R1639

R1654

R1640

R1641

600 mA

1100 mA

U502 EMMC

VCCQ

3.3

1.8

VCC

R546

R543

MTK8193U1

3.3

AVDD12

AVDD33

1.2

1.8 DVDDIO18

R5205

R1683

WLANU822

1.8

DVDDIO_SD1

DVDDIO18

2.8

2.8 VRTC

VBAT

R1723

R1720

R1707

LTE NGFF Card

USIM VCC

(+VBATA_MODEM) PJ1

R5260

CAM(5M/3M)

JP5/JP7

AVDD2.8

DVDD1.8 1.2/1.3/1.5/1.8

/2.5/2.8/3.0/3.3 R1725/R5256

R1724/R1727

1.5/1.8/2.5/2.8

JP8 LCD

LCD

Backlight

JP10

VDDTX

Touch Board

VDD1,.8

3.3

U8 G5243T

3.3

3.2~4.2

U4029

VLOGIC

G-Sensor+GYRO

VDD

1.8

2.8

JP12 SD

VDD 3.3 R1761

Vibrator

VCC

JP10

2.8 R1760

R1766

VDD

U1( )

3.3

P-Sensor

VCC

JSIM1

3.3

JP1 HDMI

VDD 5V

R4902

R4901

AU_MICBIAS0

AMP

MT6320

VBAT_AUD

VBAT_SPK

VBAT

R311

R312

AU_MICBIAS1 MICBIAS1

JP8 Audio jack

VDD

R1715

0

0

PWR Key

2

3

4

1

5

5

6

7

8

9

10

10

10

11

11

12

VDD

U2()

3.3

P-Sensor

3M 5M

3M 5M

U21 RP11N33

U4030 G5910 LDO 1.8

LDO R5178

U143 AMP

VDD 5V

U146 HP SWITCH

VDD 3.3

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

POWER TREE

A1

26 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

POWER TREE

A1

26 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

0.2

POWER TREE

A1

26 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DVT-Phase

2013/7/8

Add C1752,C1750 for RF request

change PD11 reserve

change PC31 0805 to 0603 for ME request.

PVT_Phase

2013/8/6

PR30, R339, R321, R322, R323, R324, R325, R326,

R327,R338, R1855, R329 change short pad.

PR31 change 270 ohm. setting input current limit 1.8A

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

POWER PIR

Custom

27 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

POWER PIR

Custom

27 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

@+02''6

0.2

POWER PIR

Custom

27 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

P4 ADD C1757 C1756 C1686 C1687 FOR RF requirement.

P5 ADD C1611 C1754 FOR RF requirement.

P6 DEL Test point for RF -- TP04 TP05 TP07 TP08 TP09 TP10 TP11 TP12 TP1374 TP14 TP15 TP16 TP17 TP24 TP26 TP27 TP28 TP31 TP32 TP33

P7 ADD C1755 FOR RF requirement.

Change U8 /C2650 Package for ME requirement.

P8 ADD C6 for EMI/ESD requirement.

P12 ADD MPU-6515(U4032)/C4177/R4915/R4914 FOR reserve MPU-6515

P13 ADD C1751 FOR RF requirement.

P15 ADD D806 FOR SW2 (ESD requirement.)

P17 ADD C1684 FOR RF requirement.

P23 ADD C1750 C1752 FOR RF requirement.

P24 ADD C1753 FOR RF requirement.

Q1 Q2 QL1 Change BOM from SB000002X00 to SB00000S700

C1890 C4175 Change PN From SE00000V600 to SE00000V680

P5 DEL R1872 ADN R1869

P7 Change R5227 BOM Structure to @

P8 ADD C55 FOR EMI ESD

P18 ADD R5271 AND R5272 FOR WAKE UP

P5 ADD TP1378

P12 ADD D312 R1269 R1270 C1416 C1420 FOR Audio

P15 Change SW1 SW2 PCB Footprint

C TEST

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

HW PIR

Custom

28 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P

HW PIR

Custom

28 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

ZEJ00 -LA-A791P



HW PIR

Custom

28 28Thursday, August 08, 2013

Compal Electronics, Inc.

2013/11/032012/11/03

www.s-manuals.com
