Table of Contents

Safety, Warnings, and Power Requirements 4

Hardware 5

Setup 6 - 20

Program Settings 21-24

Bonus Suggestions and Ticket suggestions

Error Codes 25

Quick Troubleshooting tips 26

Ball Gate Repairs 27-30

Control Panel Repairs 31

Clown Reset Shelf Repair 32

Spares 33-35

Warranty 36

Rev G 8/29/2014

You can get this game at www.magic-play.eu

4

SAFETY AND WARNINGS BEFORE YOU BEGIN

WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAIL-

URE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A

GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO

THE ELECTRONICS.

NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY.

DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE SAME

REASON AS GIVEN ABOVE. USING AN IMPROPERLY GROUNDED GAME COULD VOID YOUR WAR-

RANTY.

HAVE A QUALIFIED ELECTRICIAN CHECK YOUR A.C. RECEPTACLE TO BE SURE THE GROUND IS

FUNCTIONING PROPERLY.

THIS GAME IS DESIGNED TO DISSIPATE STATIC ELECTRICITY THROUGH THE GROUNDING PLANE

OF THE GAME. IF THE A.C. GROUND DOES NOT WORK, THE GAME COULD DISCHARGE STATIC

ELECTRICITY THROUGH THE GAME CIRCUITRY, WHICH COULD CAUSE DAMAGE.

THE POWER SUPPLY IS NOT VOLTAGE ADJUSTABLE. TO OPERATE THE GAME AT VOLTAGES OTH-

ER THAN THOSE IT WAS DESIGNED FOR. PLEASE CONTACT OUR SERVICE DEPARTMENT FOR

VOLTAGE CONVERSION INFORMATION.

WARNING

DO NOT remove any of the components on the main board (e.g. compact flash and eproms) while

the game is powered on. This may cause permanent damage to the parts and the main board. Re-

moving any main board component part while powered on will void the warranty.

ALWAYS REMOVE POWER TO THE GAME, BEFORE ATTEMPTING ANY SERVICE,

UNLESS NEEDED FOR SPECIFIC TESTING. FAILURE TO OBSERVE THIS PRECAUTION

COULD RESULT IN SERIOUS INJURY TO YOURSELF OR OTHERS.

THIS GAME IS NOT SUITABLE FOR INSTALLATION IN AN AREA WHERE A WATER JET COULD BE

USED.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or men-

tal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety. Children should be supervised to

ensure that they do not play with the appliance.

AC Power Information

The games main fuse is accessed through the back of the game at the power mod. Above the

power cord is a small panel that contains the main fuse.

The value of the fuse for 120 volt users is 2.5 AMPS at 250Volt type slow blow.

The value of the fuse for 230 users is 2.5 AMPS at 250Volt type slow blow.

You can get this game at www.magic-play.eu

5

** STOP **

Before you begin to assemble your game locate the parts box and

ensure all parts are present.

If any parts are missing please contact ICE Service at (716) 759-0360 Mon-Fri 9am to 6pm Eastern Standard.

You can get this game at www.magic-play.eu

6

Step 2:

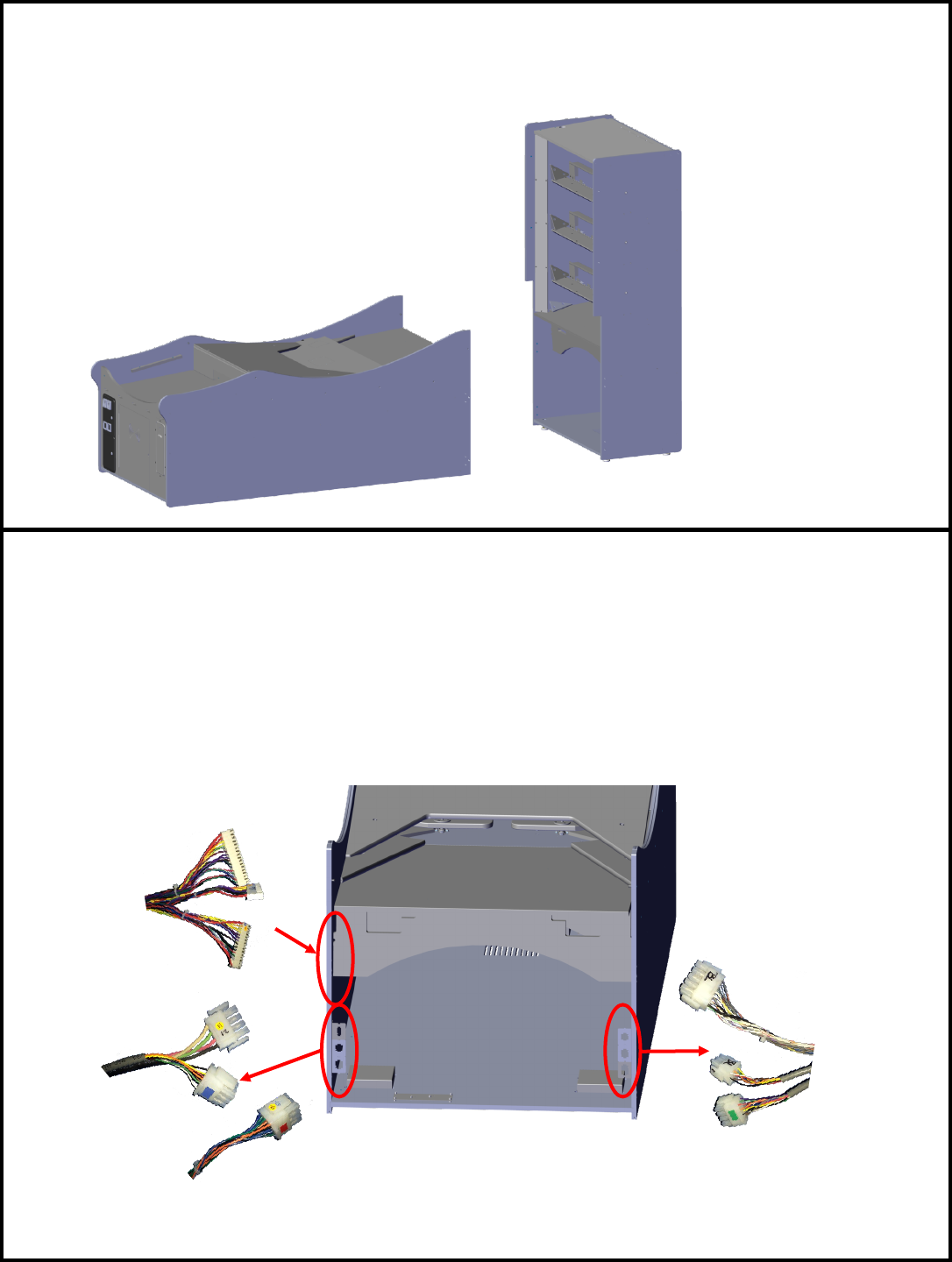

Before sliding the two halves together, you need to plug in the wire harnesses. There are three sets of wire

harnesses. The right side of the cabinet has three cables, two of which are colored coded. Blue goes in the

middle plug, red to the boom. The le side has one color plug, green, which goes in the middle. Above

that are three connectors on a small circuit board labeled, J4, J5, and J6.

Step 1:

Posion the front cabinet and the back cabinet leaving room to connect the wire harnesses.

You can get this game at www.magic-play.eu

7

Step 3:

Slide the two halves together and lock the cabinets using the included large Allen wrench tool.

Lock the cabinet on both sides.

Step 4:

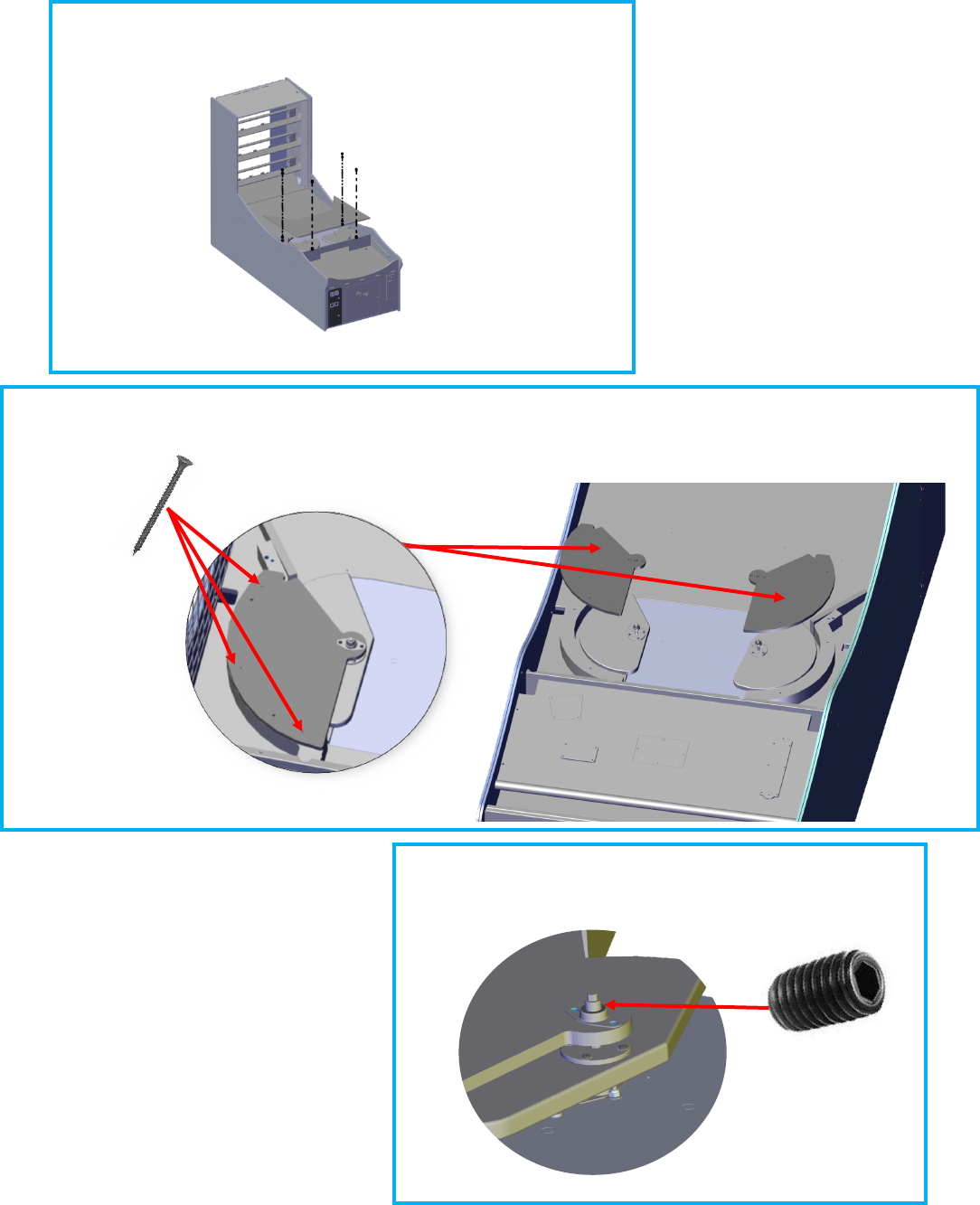

Remove the ball gate cover using an Allen wrench. The long 4” bolts go in the back while the 1¼” bolts go in

the front. Set hardware and wood cover aside.

¼-20 x 4 ¼-20 x 1 1/4

Lock the upper

latches rst, then

the boom latches.

You can get this game at www.magic-play.eu

8

Step 5:

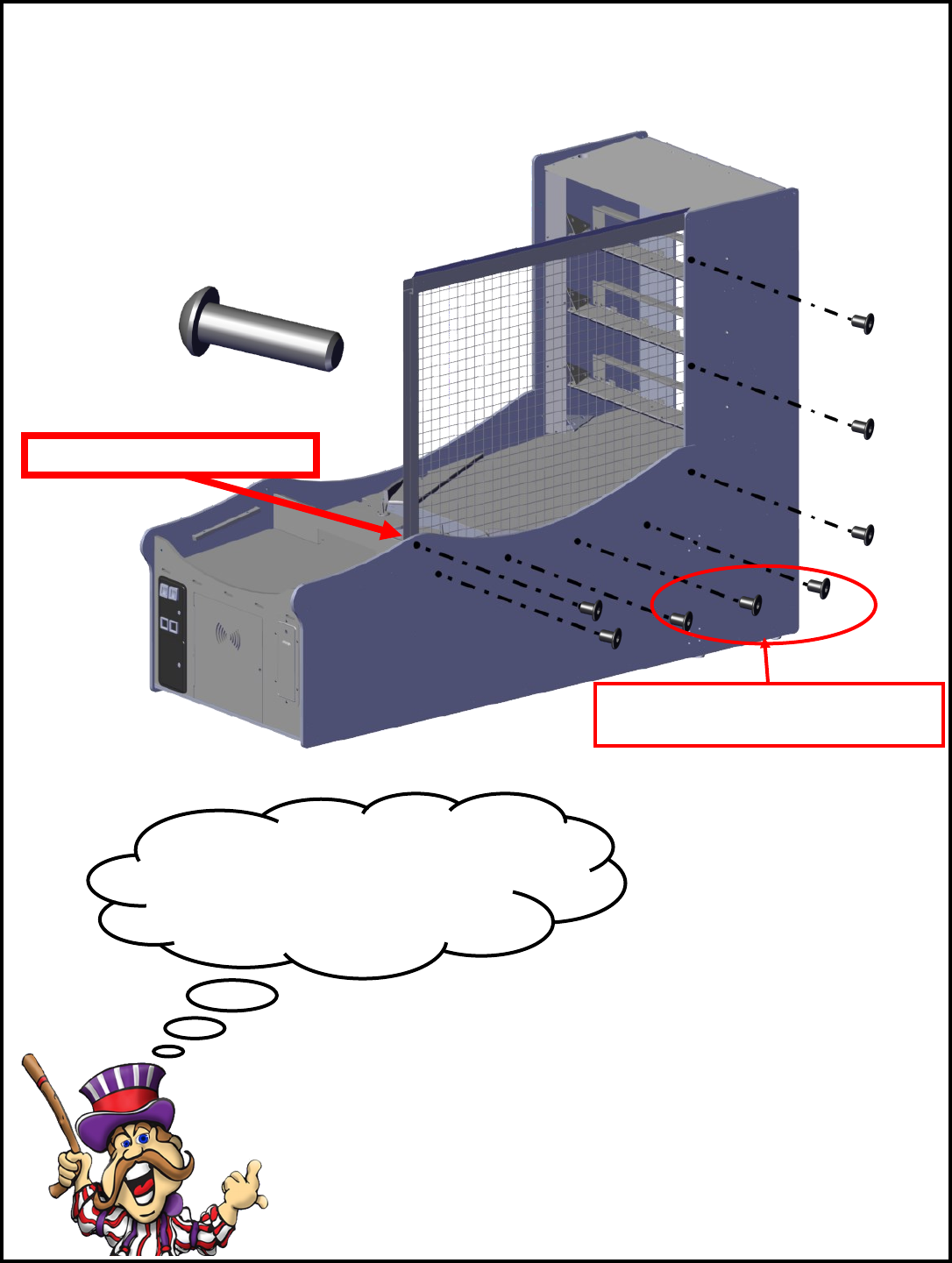

Aach the right cage using ¼-20 x Joint Connectors on the outside and ¼-20 7/8” (AA6799) bolts on the in-

side. There locaons are shown below. The front top bolt is 5/8, not 7/8. See note below!!

Repeat for the le cage.

Note: These three are accessed from inside

the cabinet and are oponal.

Do not ghten any bolts unl all of the bolts

are in. Start with the bolt labeled #1 and then

do #2. This will ensure good alignment as you

go. BE CAREFUL OF YOUR FINGERS!

#1

1/4-20x5/8 PC60601 bolt here only!

#2

You can get this game at www.magic-play.eu

9

Step 6:

Posion the upper brace and aach to the cage sides as shown. Use a ¼-20 7/8” (AA6799) bolt to aach the

upper brace to the cage.

Step 4:

Reaach the ball gate cover using an Allen wrench. The long 4” bolts go in the back while the 1¼” bolts go in

the front. Set hardware and wood cover aside.

¼-20 x 4 ¼-20 x 1 1/4

Start at the front of the cabinet

rst. Then install the longer bolts

in the back. Do not ghten any

bolts unl all are started.

You can get this game at www.magic-play.eu

10

Step 7:

The long braces aach to the back of the cabinet. The short braces aach to the front of the cabinet. Use ¼-

20 7/8 (AA6799) bolts to aach arms to cabinet. See below for aaching the cheat sensor to the center.

** Cauon: Support Arms can swing and cause injury when not fully aached. **

Short brace

Long brace

**Note ** Aach the upper braces rst using

1/4-20 x 1 1/2” bolt and 1/4-20 keep nut.

Then side the bracket for the cheat sensor on

the bolt and aach with another 1/4-20 kep

nut. The wire harness aaches to the upper

brace with a e wrap, down the right side to

the front of the cage, down the cage front

and into the wire access hole shown in step

9b. It connects to the main board shown.

Front

You can get this game at www.magic-play.eu

11

Tilt the top of the bonus marquee

forward when installing.

Step 9

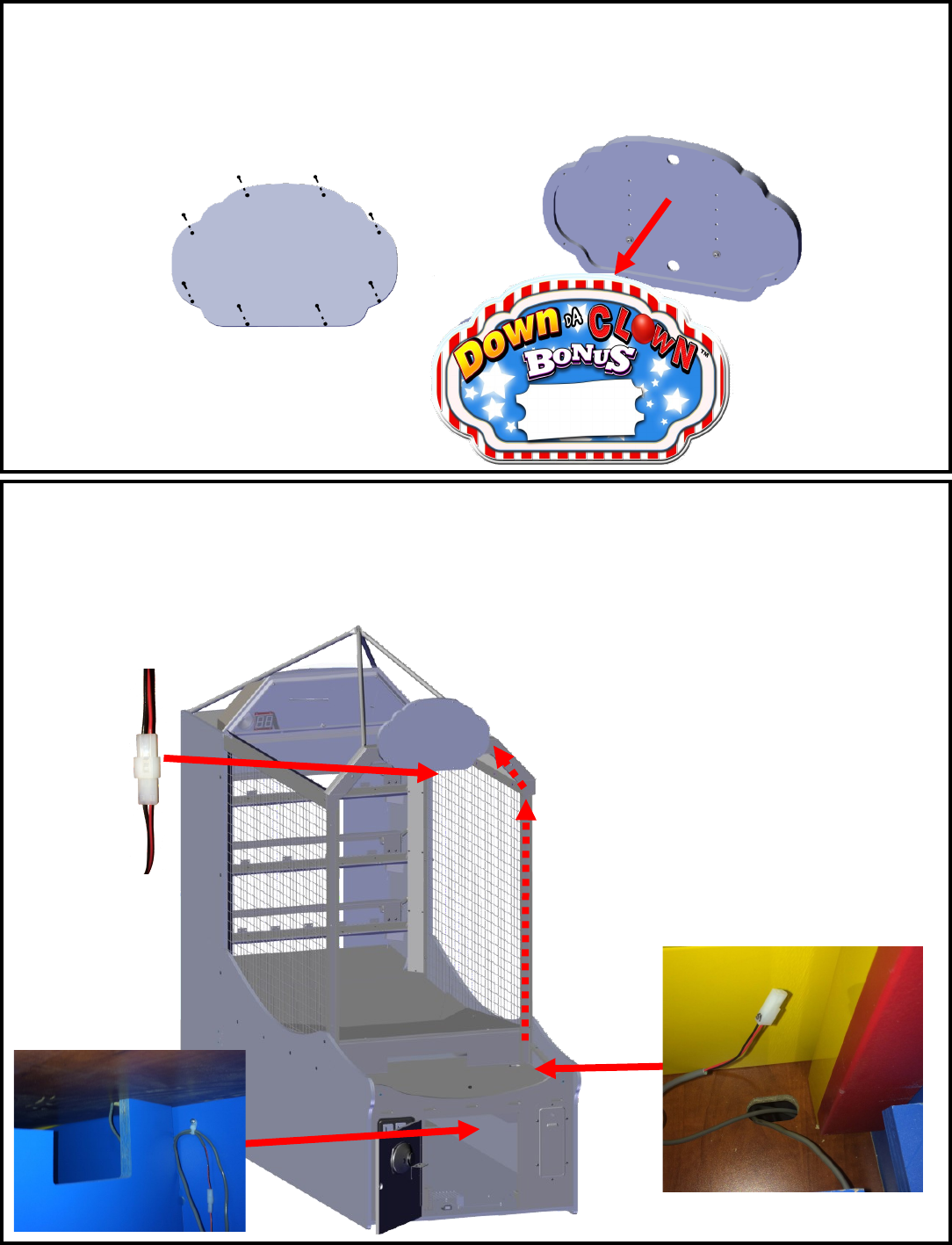

Posion the canopy onto the top of the cabinet. Li the side slightly on the canopy to expose the mounng

ap with pre made holes. Front of cabinet has reinforced holes for front mount. Use the self tap screws to

aach the canopy to the cabinet. Do not screw through the outside of the canopy!

Step 8:

Aach the bonus sign to the top of the cabinet using four ¼-20 1 7/8 (AA6799) bolts and washers as shown.

Plug the sign harness through the back. Aach the two harness on the right and one on the le.

You can get this game at www.magic-play.eu

12

Step 11:

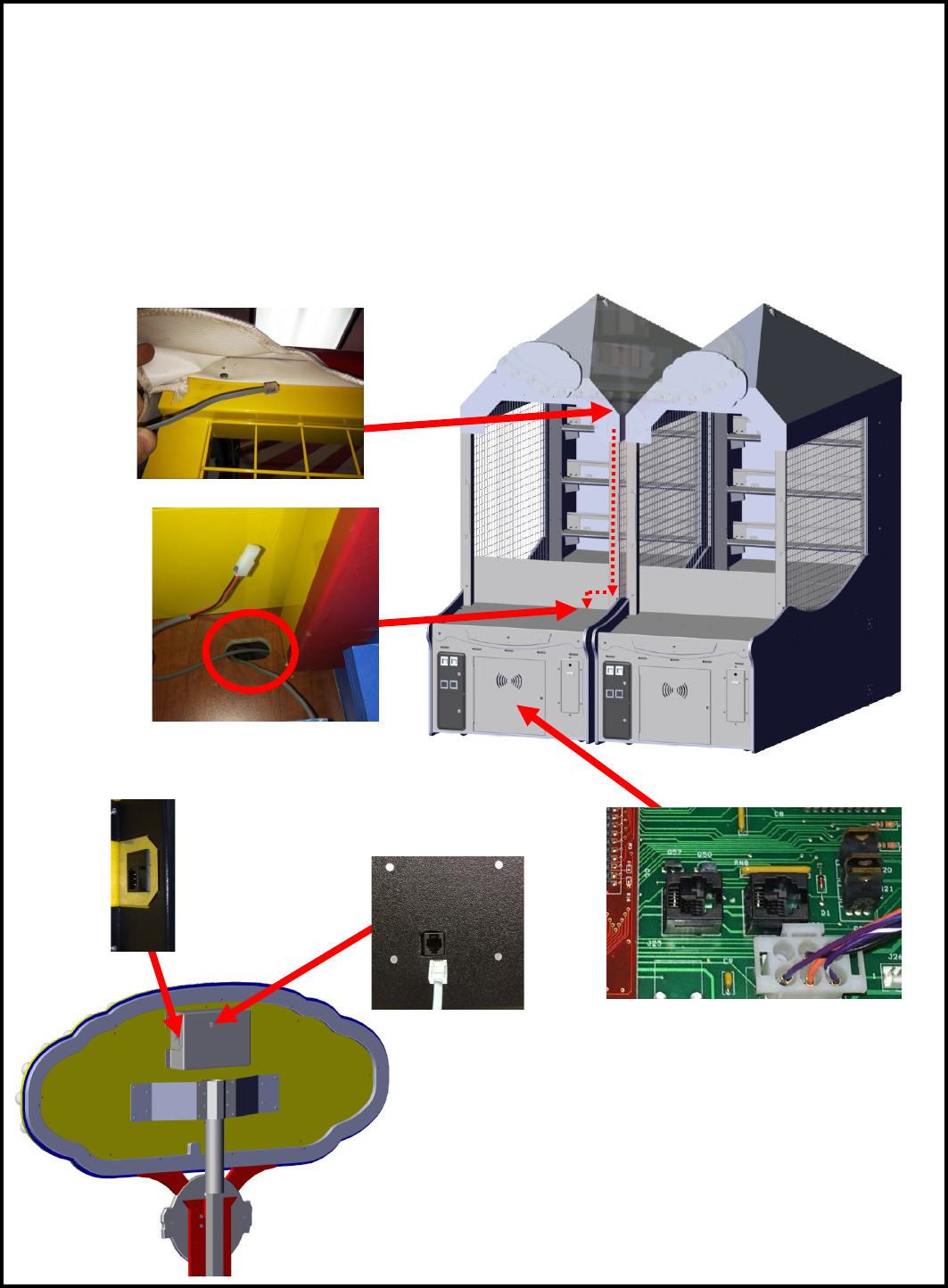

Located inside the cabinet you will nd the cable aached to the upper side of the cabinet. Remove the

bolts holding the control panel so you can slide the panel to expose the access hole that the marquee wire

will travel through. Route the wire through the cage and up to the sign. Aach with wire es.

Step 10: **STOP ** if installing two games with Mega Marquee skip to step 13

If you are going to use the Mega bonus sign do not install this sign. Otherwise, remove the eight screws

holding the sign together that are on the front of the sign (graphic side). Put the sign and hardware aside.

You can get this game at www.magic-play.eu

13

Step 12 :

Connect the wire harness before aaching the sign. Use two ¼-20 (PC60614) kep nuts to aach the sign to

the upper support bar. The bolts are already present. Reaach the sign with the hardware you put aside.

Install only in the boom hole.

Step 13:

Aach the le and right plasc front covers using 1/4-20 3” AA60636 bolts. Do not install any bolts at the

boom. Do not over ghten. The rebound guard aaches there. See step 14 if installing two games togeth-

er. Do not install the plasc front cover on the sides that will be together.

You can get this game at www.magic-play.eu

14

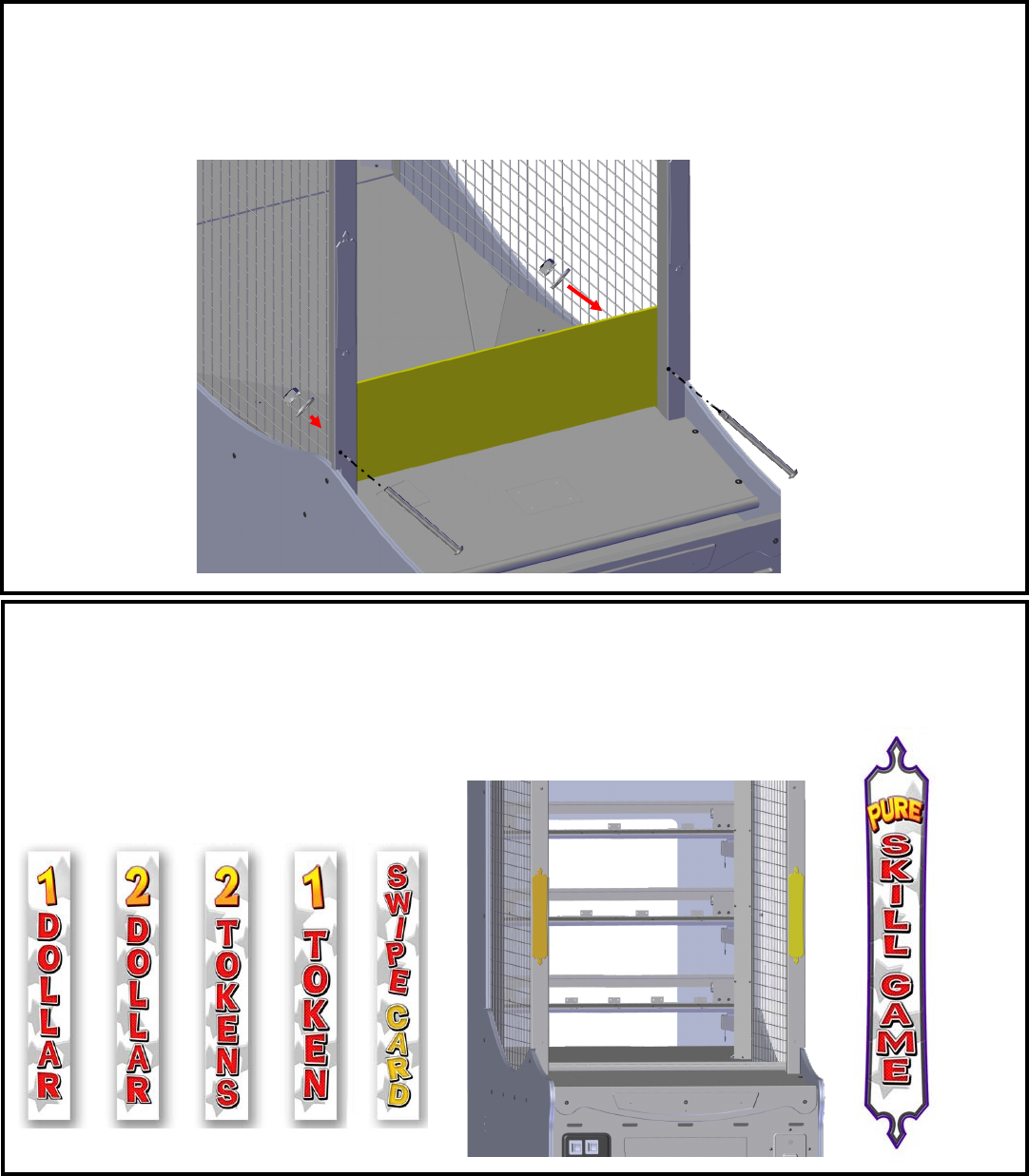

Step 14

Aach the rebound guard from the back of the cages. The ¼-20 3½” (AA6369) bolts go through the front

and the washers plus kep nuts in the back. Do not install at this me if you are joining two cabinets together

and installing a Mega marquee.

Step 15

Aach on the right side of the game the plaque that states “pure skill game” using square bit screws and

aach your choice of coinage on the le side of the game using square bit screws.

NOTE: Do not install plaques on the sides that will be joined together at this me.

You can get this game at www.magic-play.eu

15

Step 16

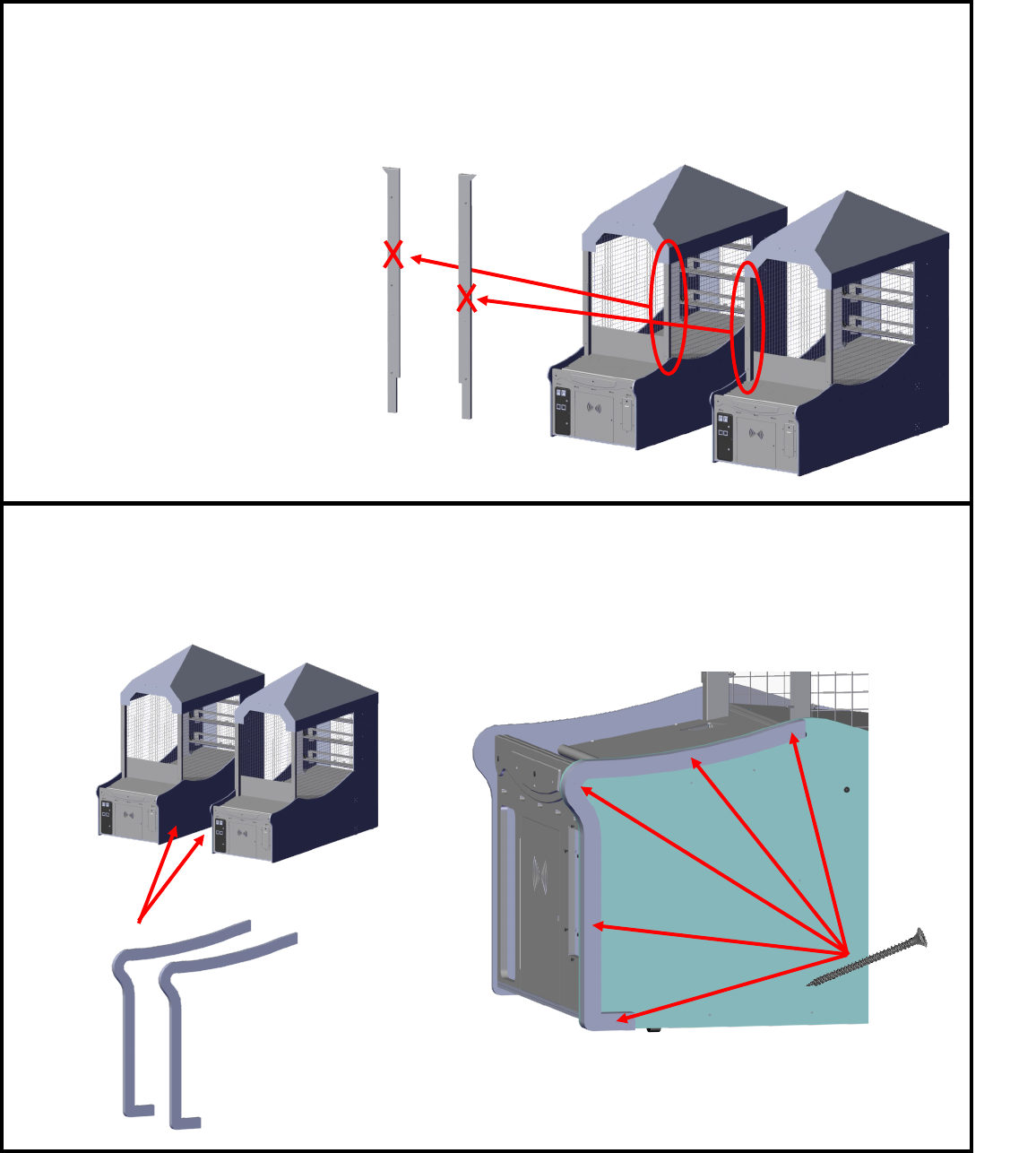

Posion the two games together. You should only have the plasc front covers installed on the outer sides

of the cabinet. The inner plasc front sides will not be used.

Step 17

Install the cabinet spacers on the insides of the two cabinets using 1½” drywall screws. Mounng holes are

predrilled in the spacers.

You can get this game at www.magic-play.eu

16

Step 18

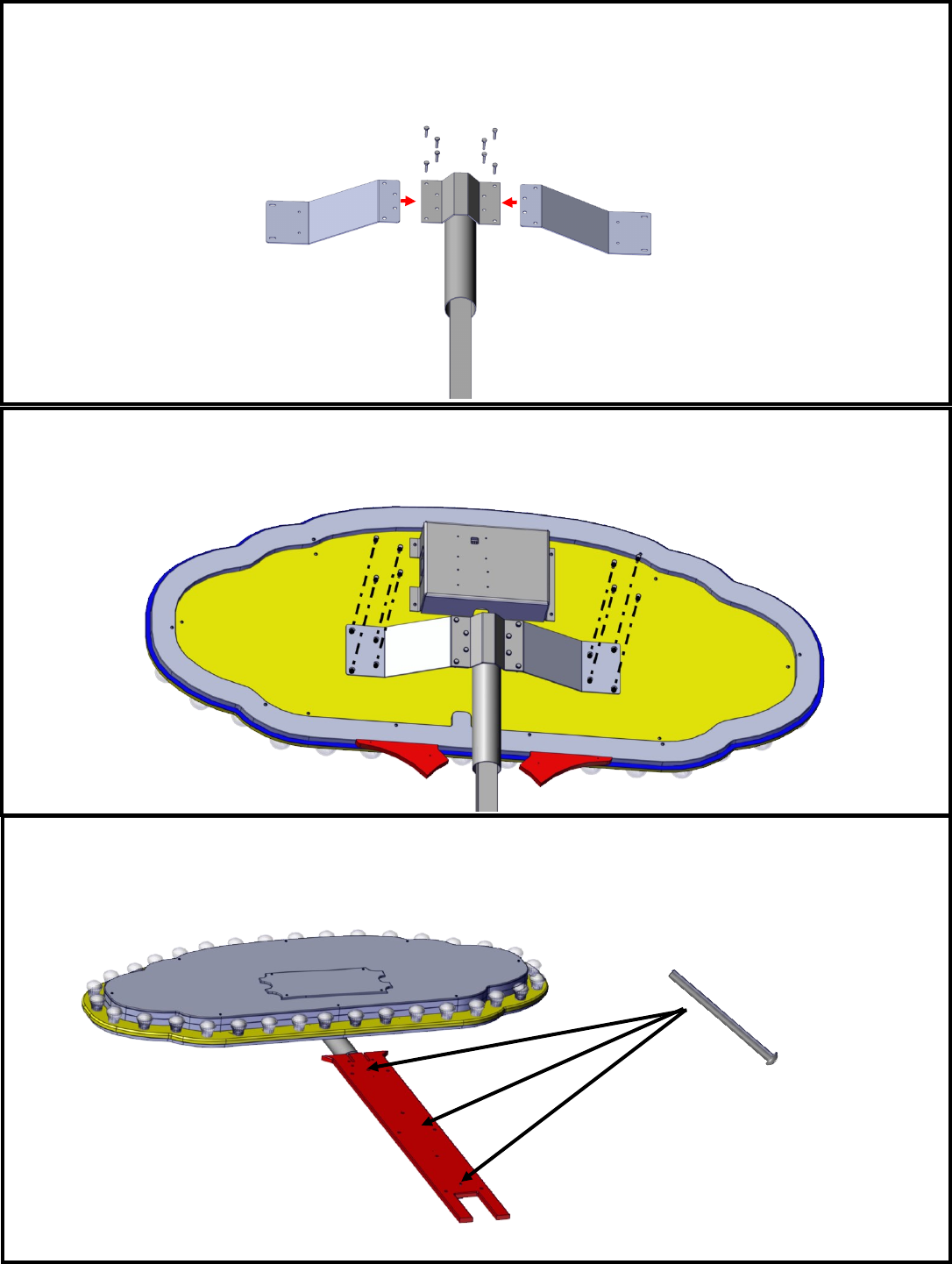

If you pole has the extended support wings removed, locate the 8 1/4-20 x 1“ (6049) bolts from the parts bin

and aach the extended wing supports shown below.

Step 19

Posion the center pole onto of the marquee and aach with 8 1/4-20x1” (6049) bolts.

Step 20

Aach the large red center plasc to the center pole using 6211 Allen bolts.

You can get this game at www.magic-play.eu

17

Step 21:

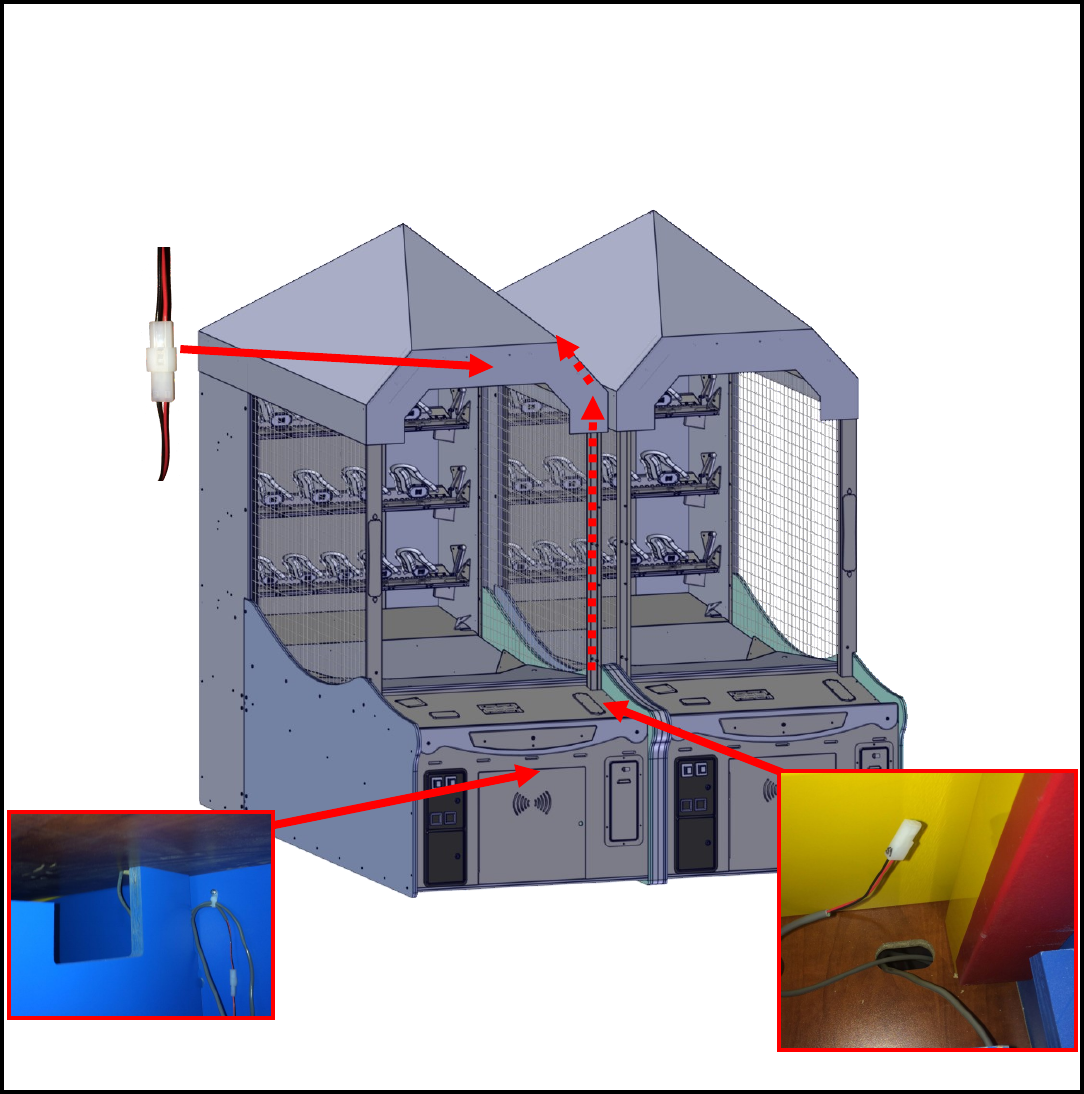

Located inside the cabinet you will nd the cable aached to the upper side of the cabinet. Remove the

bolts holding the control panel so you can slide the panel to expose the access hole that the marquee wire

will travel through. Route the wire through the cage and up to the sign. Aach with wire es. This power

harness is for step 26. You should also run the phone cord at this me. It will be needed in the nal step.

You can get this game at www.magic-play.eu

18

Step 22

Slide the two cabinets together, lt the Mega Marquee back a lile, and insert the boom of the Mega

Marquee into the cabinet slots as shown.

Step 23

Insert the canopy aps into the top slots of the marquee. Aach the marquee to the cabinet cages using ¼-

20x2¾” bolts. Aach the rebound guards at this me. See step 11 for instrucons.

You can get this game at www.magic-play.eu

19

Step 25

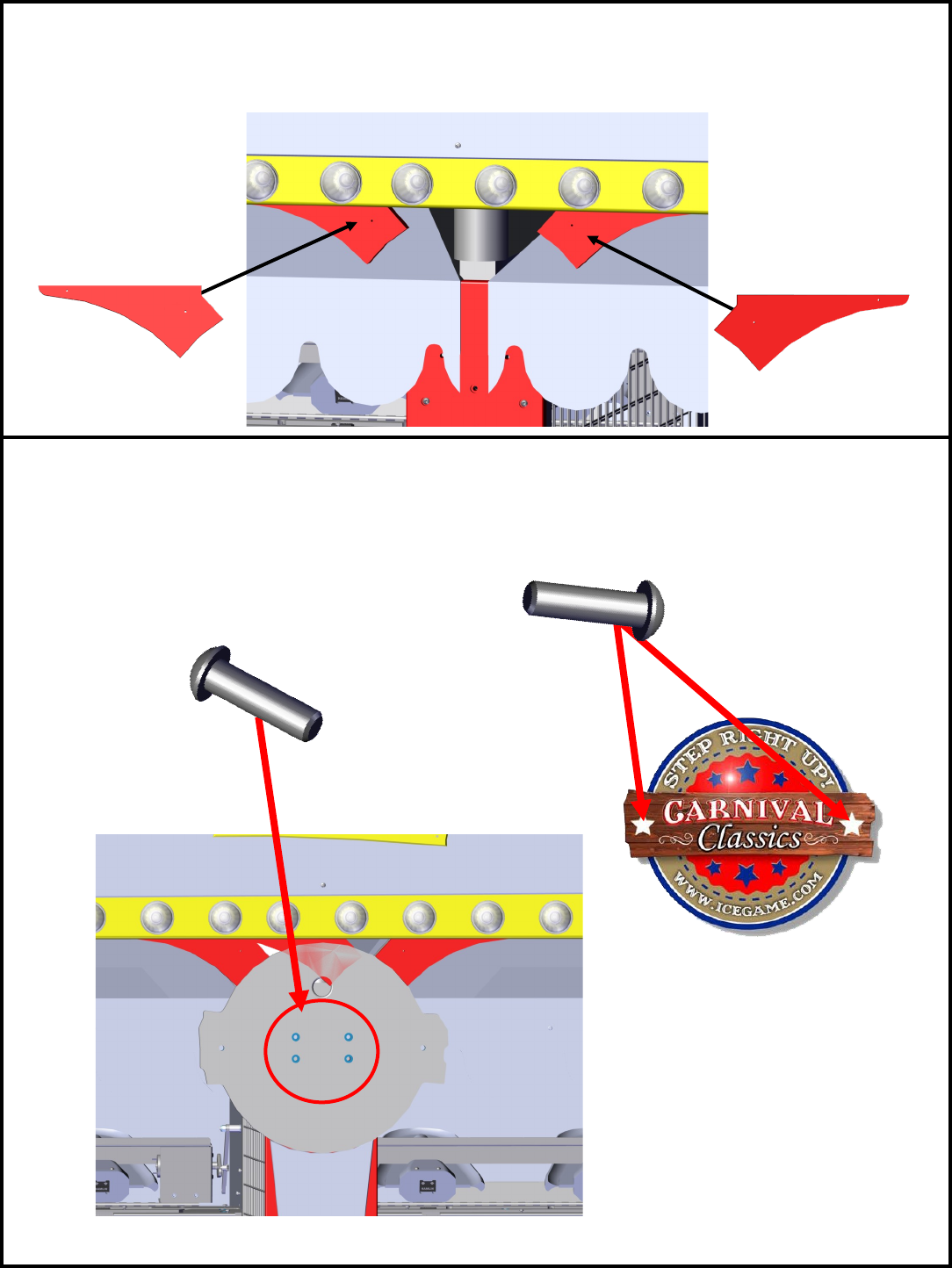

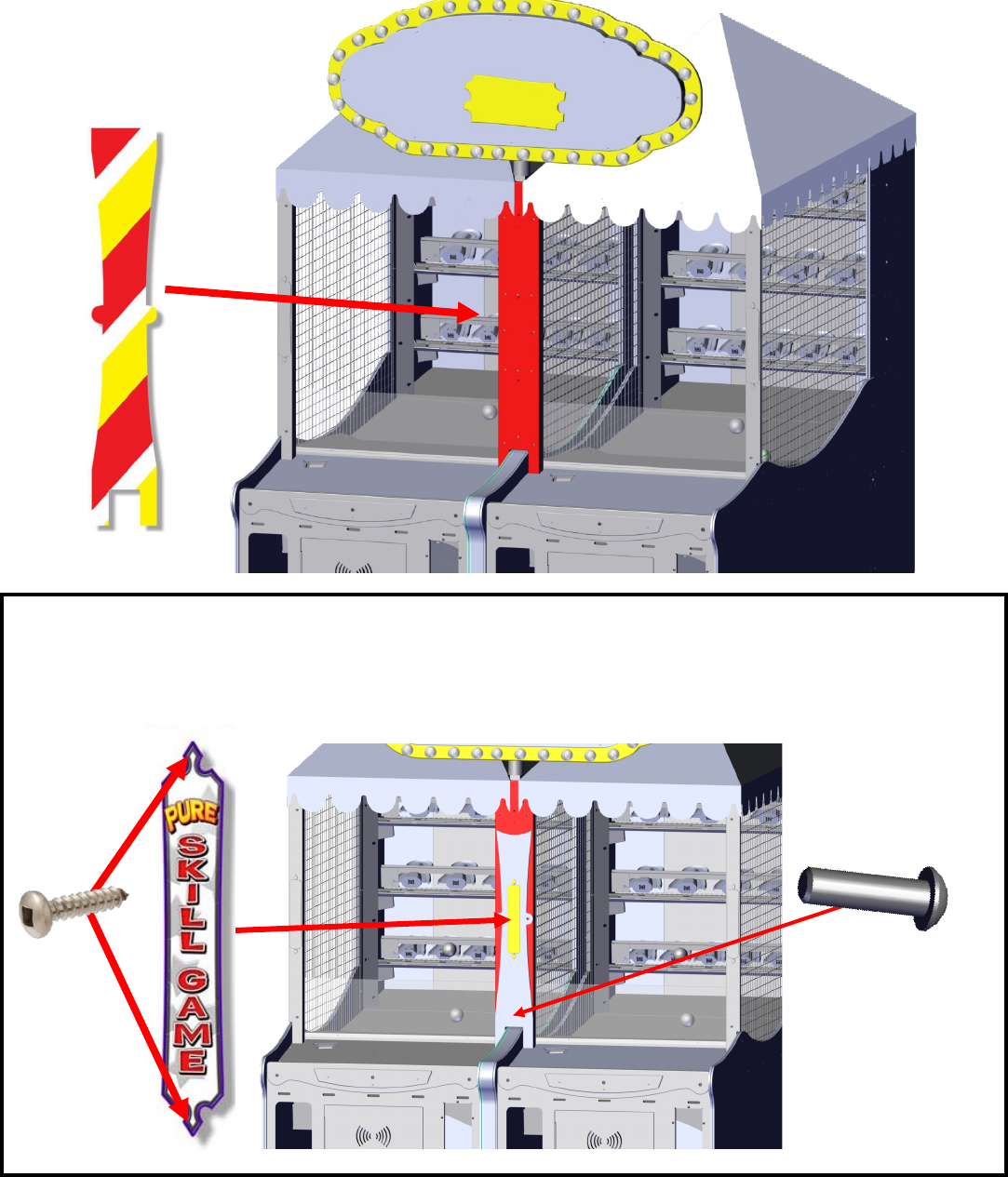

Aach the Front trim and “Pure Skill Plaque” using provided square screws.

Step 24

Aach the center graphic using 8-32 1” (AA6177) screws.

You can get this game at www.magic-play.eu

20

Step 27

Remove the graphic front by rst removing the two ¼-20 1¼” (6211) bolts on either side of the stars. Aach

the sign using 4 ¼-20x1¼” kep nuts.

Step 26

Aach the small red plasc trim pieces with one 1¼” screw through the front.

You can get this game at www.magic-play.eu

21

Final Step:

Aach the data cable at the back of the Marquee. Tuck the cable under the canopy on the le side of the

game and down the front side of the cage. Do not run it down on the right cabinet. There is no wire ac-

cess hole. It will be necessary to remove the front screw if aached. It will be easier to slide the control

panel out of the way by removing the mounng bolts. This will allow easier access to the wire access hole.

See Step 9b. On the main board are two phone style connectors. You can plug in either of them. Now run

the AC cord from the back of the marquee to a wall outlet.

A/C Cord

Data

You can get this game at www.magic-play.eu

22

Game controls and Meters

Located on the center door is the operators control panel. There

you can quickly adjust the volume of the game by pressing the “UP”

and “DOWN” push buons. You can view how many coin pulses the

has seen and how many ckets it had paid out.

To adjust the game’s programming, press the “PROG” buon to en-

ter programming. The “SELECT” push buon will cycle through the

dierent opons. Pushing the “UP” push buon will increase the

opons’ value while pressing the “DOWN” push buon will decrease

the opons’ value.

It is recommended to use our suggesve sengs when conguring

your game. Please review the next few pages before determining

your sengs.

You can get this game at www.magic-play.eu

23

Programming Opons for Down Da Clown Seconds Display Blank

Opon Default Min Max Inc Short Descripon

0 Game Volume 5 0 7 1 Game Volume

This opon adjusts the general game sounds.

1 Music Volume 3 0 7 1 Music Volume

This opon adjusts the music in the game and aract mode.

2 Coin 1 1 0 10 1 Cost of Game

How many pulses to start your game.

3 Coin 2 1 0 10 1 # of Coin 1’s

This pulse is equal to the cost of the game. Use as a mulplier for credits.

4 DBV 4 0 10 1 # of Coin 1’s

This pulse is equal to the cost of the game. Use as a mulplier for credits.

5 Aract Time 0 0 90 1 Aract me

This opons determines how much me to be idle between its aract me.

6 Red Seconds 3 1 10 1 Seconds between Red lite Aempts

During the game you can determine how much me to wait before lighng a clown red for the double point feature.

7 Bonus Score 500 10 999 10 Bonus Target Score

How much a player must score before achieving the bonus cloud.

8 Bonus Tickets 100 0 999 25 Bonus Ticket Value

How many ckets you win when you win the bonus cloud.

9 Game Time 20 10 30 1 Time for Game Play

How long the game lasts.

10 Not Used.

11 Not Used.

Opons connued on next page…..

Opon Number

Value

You can get this game at www.magic-play.eu

24

12 Red Zone Tickets 1 0 20 1 JFP Tickets

Sets the amount of ckets to win when 0 to 40 points are scored. See Score chart below. Also is used for giving ckets

just for playing.

13 Orange Tickets 2 1 250 1 Tickets for Zone

Sets the amount of ckets to win when 50-90 points are scored. See Score chart below.

14 Yellow Tickets 3 1 250 1 Tickets for Zone

Sets the amount of ckets to win when 100-190 points are scored. See Score chart below.

15 Green Tickets 4 1 250 1 Tickets for Zone

Sets the amount of ckets to win when 200-290 points are scored. See Score chart below.

16 Blue Tickets 5 1 250 1 Tickets for Zone

Sets the amount of ckets to win when 300-390 points are scored. See Score chart below.

17 Indigo Tickets 10 1 250 1 Tickets for Zone

Sets the amount of ckets to win when 400-490 points are scored. See Score chart below.

18 Ticket Mulplier 1 0 2 1 0 = Just for Fun

1 = 1 cket = 1 cket

2 = 2 ckets = 1 cket

This allows you to either turn o ckets and play for a score, pay out normal, or pay 1/2 the amount of ckets owed.

19 Lockup 0 0 1 1 0 = Normal Tilt

1 = Lock the game up

20 Fixed Ticket Override 0 0 100 1 0 = Normal

Seng a value will result in the game only paying that amount when played.

21 Factory Reset 0 0 1 1 Factory Reset

Resets your values back to their lower sengs. You will then need to recongure to your sengs.

OPTION 12

OPTION 13

OPTION 14

OPTION 15

OPTION 16

OPTION 17

OPTION 8

OPTION 7

.25¢ Game

Suggesve Values

.50¢ Game

Suggesve Values

$1.00 Game

Suggesve Values

You can get this game at www.magic-play.eu

25

You can get this game at www.magic-play.eu

26

Error Codes for Down Da Clown

Error 1 Ticket Error

Soluon:

Rell Tickets!

Error 2 CF Error ; Compact ash error

Soluon:

Reseat Flash card or replace.

Error 3 Ball Gate Error

Soluon:

Check for proper ball gate operaon. See secon “Ball Gate Assembly”

Error 4 Top Motor/Switch Error ; Top Row switch not seen.

Soluon:

Check Clown Reset Bracket sensor. See secon “Clown Reset Bracket Sensor”

Error 5 Middle Motor/Switch Error ; Middle Row switch not seen.

Soluon:

Check Clown Reset Bracket sensor. See secon “Clown Reset Bracket Sensor”

Error 6 Boom Motor/Switch Error ; Boom Row switch not seen.

Soluon:

Check Clown Reset Bracket sensor. See secon “Clown Reset Bracket Sensor”

To enter Error display mode, please press the UP push buon located on the

lower center door when in aract. To exit this mode, repress the UP push buon .

You can get this game at www.magic-play.eu

27

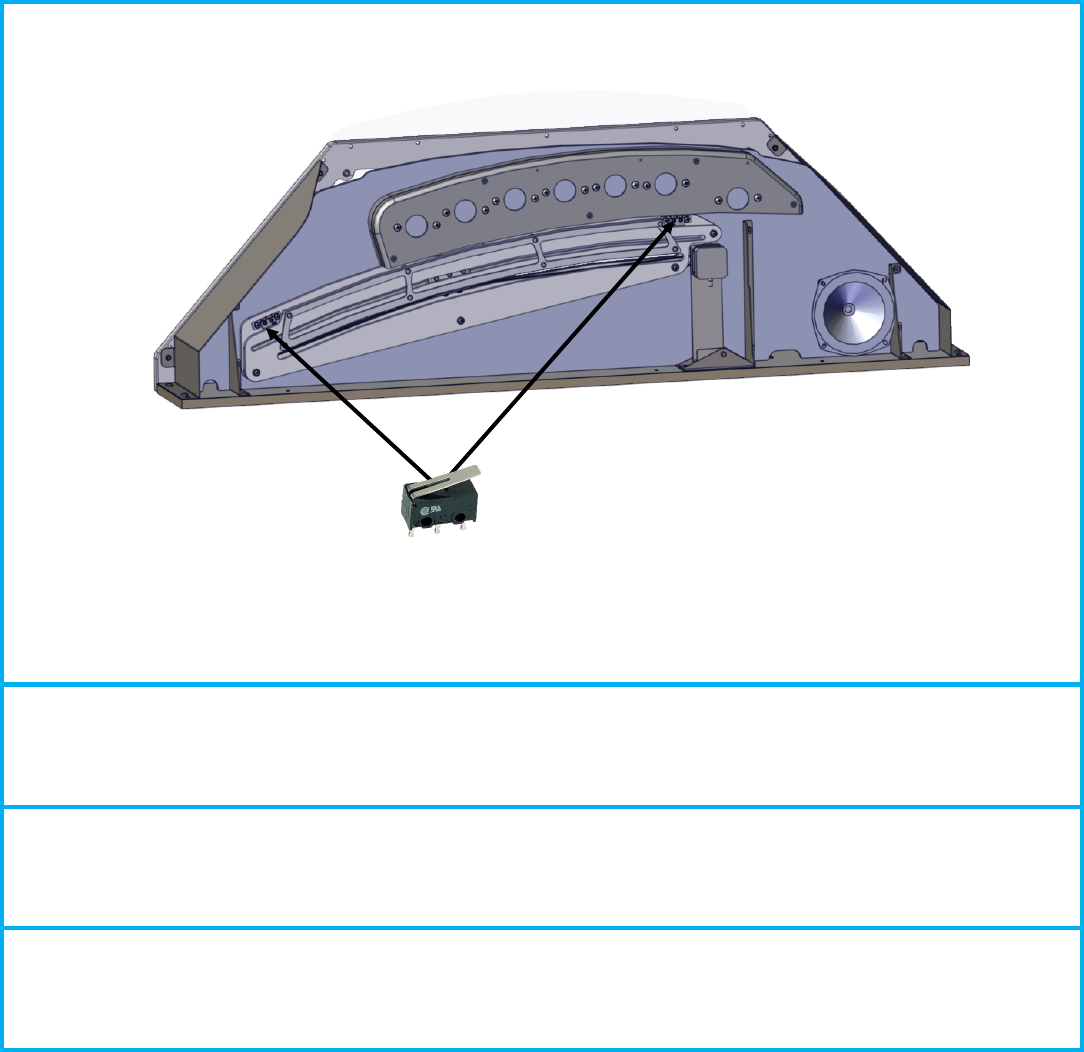

Cannon Failure - Clown doesn't travel out of the cannon.

If during power on if the home switch is not made, the clown will not exit the cannon. Ensure both the home switch and end of

travel switch are funconing properly.

Quick Check list:

1) Check home switch has no voltage on it when homes (clown inside the cannon). Use J16, pin 2 on the main board. Use pin 8

for ground.

2) Check for +5 on End of travel switch when in home posion. Use J16, pin 7.

Mega Sign Shows 111

Phone Cord not plugged in or no communicaon to main board.

Canopy peak doesn't line up

Long canopy support bars are installed in the front. Reverse support bars (short to the front).

No display on Upper Bonus Marquee

Check connecons at the le of cabinet.

You can get this game at www.magic-play.eu

28

Step 2: Ball-gate Removal

Remove three woodscrews on each side as shown below. Remove these screws on both sides.

Step 1: Ball-gate Removal

Remove the wood panel ball gate cover as shown.

The cages, canopy, support bars, and rebound have been removed for clarity.

Ball-gate Assembly

Step 3: Ball-gate Removal

Loosen the 5/64 Allen set screw. Li the ball defectors

You can get this game at www.magic-play.eu

29

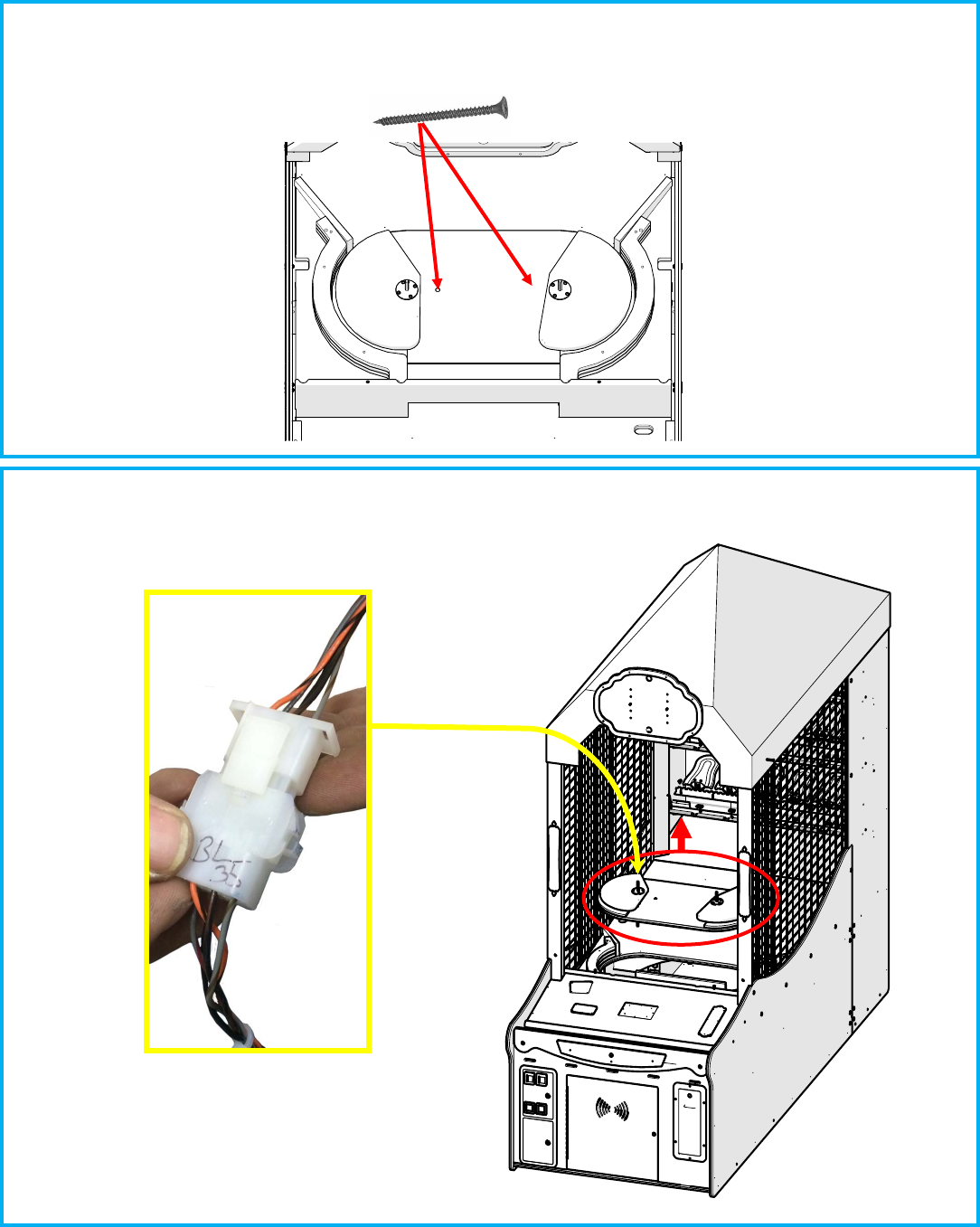

Step 5: Ball-gate Removal

Li the ball gate straight up and unplug the wire harness before liing the ball gate assembly out.

Step 4: Ball-gate Removal

There are two black wood screws that hold the ball gate assembly to the cabinet. They are shown below. Remove them.

You can get this game at www.magic-play.eu

30

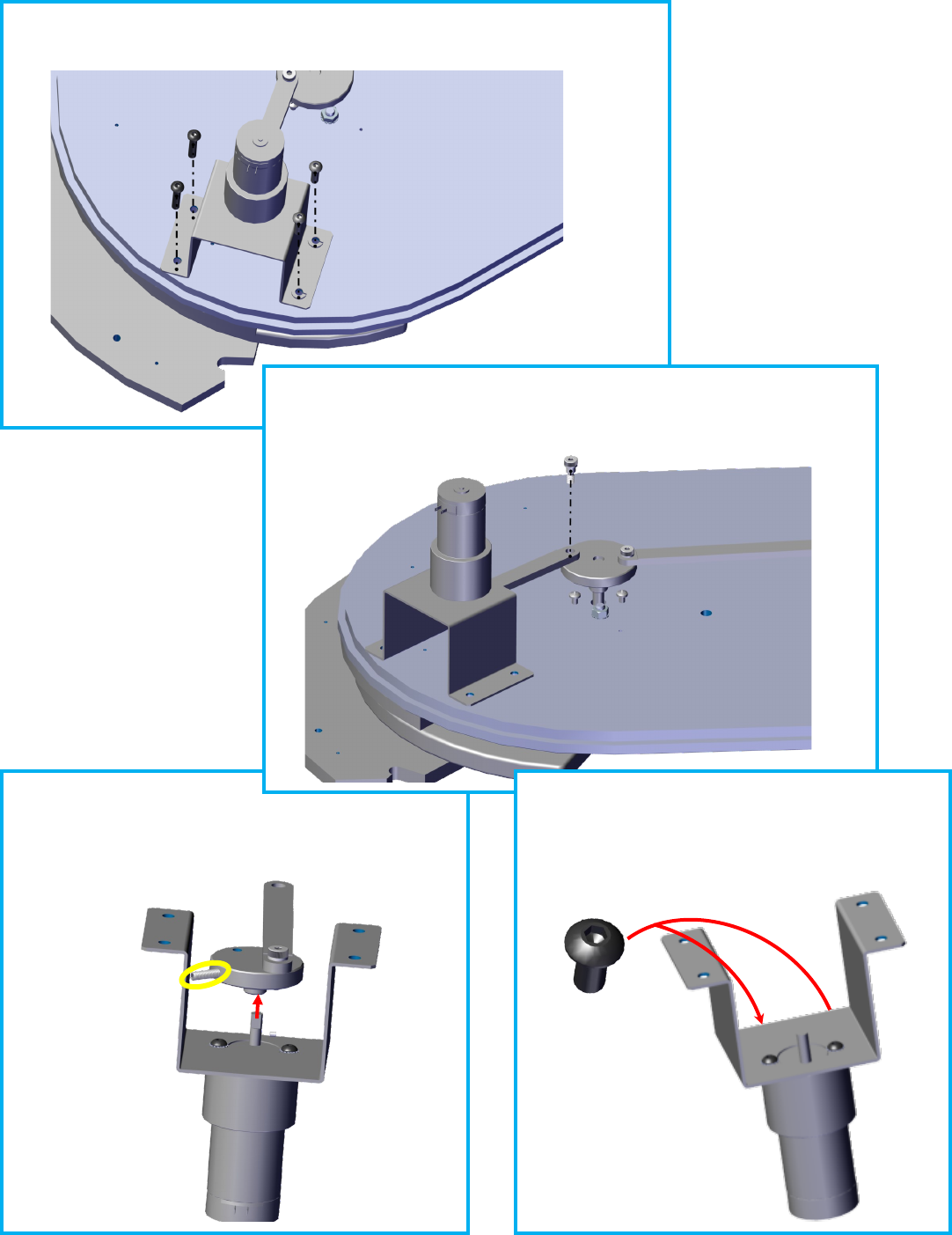

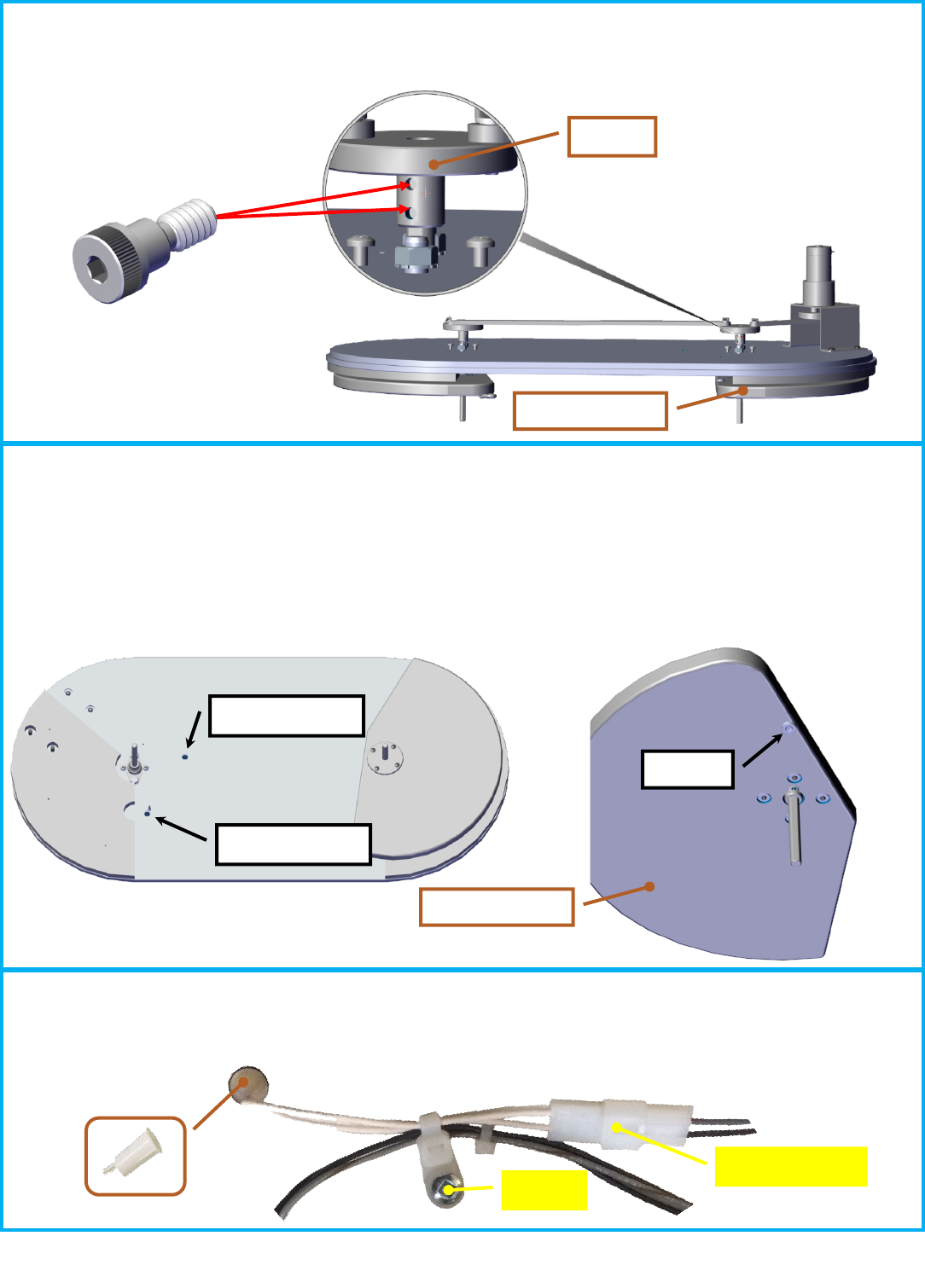

Step 1: Motor Removal (REMOVE BALLGATE ASSEMBLY BEFORE PROCEEDING)

Flip the ballgate assembly over and remove the four Allen screws and lock washers shown.

Step 3: Motor Removal

Loosen the grub screw that holds the motor cam sha to the

motor. This grub screw also has Locte applied to it and could

be dicult to loosen. Li the cam sha o.

Step 2: Motor Removal

Removal the Screw that holds motor sha to the ball deector sha. This screw

has Locte applied to it and could be dicult to remove.

Step 4: Motor Removal

Remove the two screws that hold the motor to the motor

mount.

You can get this game at www.magic-play.eu

31

Ball-gate sensors Operaon

There are two magnec sensors located under the primary ball gate assembly. The primary ball gate assembly has a magnec

aached underneath so that when the assembly rotates it will pass over one of the two sensors. When the ball gate assembly

moves counter clock-wise, it will pass over the sensor for the closed posion and stop the assembly. When the ball gate assembly

rotates clock-wise, it will pass over the sensor for the open posion and stop the assembly. Using a volt meter, when the magnet

passes over either of the sensors, that sensor will have no voltage present. When the magnet is not over the sensor it should read

+5 volt of DC power. With the power o on the game, the sensor is normally open.

** WARNING ** Never manually move the Primary Ball Gate assembly as damage will occur to the motor gearbox assembly below.

Ball-gate sensors Access

Remove the two screws that hold the gate cam to the Primary Ball gate assembly. Slide the Primary Ball gate assembly out.

Gate closed Sensor

Gate open Sensor

Magnecs

Gate Cam

Primary Ball Gate

Sensor

Tie-Wrap

Two pin connector

Ball-gate sensors Removal

To remove a sensor, disconnect the two pin connector. Then unscrew the e-wrap and push the sensor out. To install a replace-

ment sensor, insert the connector from the top through the hole and push rmly down. Aach the wire harness and re-install the

wire e.

You can get this game at www.magic-play.eu

32

Control Panel: Small and Large Display Removal

To access the two display boards remove the bolts marked with

the x. Li the control panel and unplug the 5 pin Molex plug.

Remove the control panel and ip over.

2

Remove plasc standos.

1

Large Display:

Remove protecve cover.

1

Small Display:

Remove protecve cover.

2

Remove plasc standos

3

Disconnect Wire harness and remove.

Disconnect harnesses and remove.

3

You can get this game at www.magic-play.eu

33

Clown Reset Bracket Sensor

The Clown reset bracket assembly will stand clowns back up aer being knocked down. During game play and when the enre row

is knocked down, the reset bracket assembly’s motor will acvate causing the bracket to push the clowns up. Upon one complete

turn the bracket will return to its starng posion. A magnet sensor is used to tell the game where the bracket is. If the sensor is

not working the bracket assembly will run one more me and me out.

If the sensor that detects that the clown has been knocked down fails then the Reset Bracket will run on that row every 30 seconds

during its aract mode.

Sensor

Home Posion Sensor Replacement

Unplug the two pin sensor harness aached to the bracket. Cut the connector o. Push old sensor out of plasc. Insert new

sensor into plasc bracket. Aach connector and plug in. Order part E02907BLX.

1 2 3

You can get this game at www.magic-play.eu

34

AA5001A8X ASY COIN DOOR O/U BLACK W/ DUAL

AA5008 TICKET DOOR

AA5014 LOCK (7/8 CAMLOCK) ,45

AA7137 DECAL (COIN)

AA7138 DECAL (TICKET)

AR2007 SPEAKER (ROHS) (6X9) U694 W/ .

BL1006 HINGE (TARGET TOP)

BL1007 HINGE (TARGET MIDDLE)

BL1008 HINGE (TARGET BOTTOM)

BL1010-P300 CAGE SIDE (LEFT)

BL1011-P300 CAGE SIDE (RIGHT)

BL1013-P300 CAGE CONNECTOR

BL1019-P300 DEFLECTOR (LED / BALL)

BL1030-P300 TENT POLE (REAR)

BL1033-P300 TENT POLE (FRONT)

BL1042-P802 BRACKET (TARGET RESET)

BL1045-300 BRACKET (FRONT SHELF SUPPORT)

BL1048 CAM (TARGET)

BL1053 BRASS GROMMET

BL1056 LINKAGE (TARGET)

BL1059-P802 BRACKET (LED MOUNT SHELF TOP)

BL1062-P802 BRACKET (LED MOUNT SHELF MIDDLE)

BL1063-P802 BRACKET (LED MOUNT SHELF BOTTOM)

BL1075 MOTOR ARM

BL1078 CHARACTER MOUNT

BL1079-P700 FLYING CHARACTER

BL1080 CHARACTER MOVING BLOCK

BL1081 TRACK STANDOFF

BL1082 IDLER PULLY

BL1083 MOTOR ARM PIVOT

BL1085-P700 BRACKET (CANNON)

BL1086 SPRING

BL1332X ASY, CHEAT SENSOR

BL2007X ASY (POWER MOD 2.5 AMP)

BL2032X PCBA (DISPLAY 2 DIGIT)

BL2034X PCBA (I/O)

BL2036X PCBA (RESISTOR BOARD)

BL2050HX HARNESS (MAIN)

BL2060LX HARNESS (DC POWER)

BL2080ELX HARNESS (SCORE DISPLAY)

BL2080LX HARNESS (BONUS SCORE DISPLAY)

BL2081EMX HARNESS (CLOWN SENSOR EXTENSION)

BL2081HX HARNESS (CLOWN SENSOR)

BL2082LX HARNESS (BALL GATE/ZERO COUNT)

BL2083LX HARNESS (BALL GATE MOTOR/SENSOR)

BL2084EMX HARNESS (SHELF MOTORS EXTENSION)

BL2084HX HARNESS (SHELF MOTORS)

BL2085HX HARNESS (BONUS DISPLAY/LED)

BL2085ILX HARNESS (BONUS DISPLAY/LED INTER

BL2087ELX HARNESS (CLOWN RGB LED EXTENSION

Spare Parts List

You can get this game at www.magic-play.eu

35

BL2087HX HARNESS (CLOWN RGB LEDS)

BL2088ILX HARNESS (STEPPER MOTOR INTERFACE

BL2088LX HARNESS (STEPPER MOTOR)

BL2089ELX HARNESS (CHEAT EXTENSION)

BL2089ILX HARNESS (CHEAT INTERFACE)

BL2091ELX HARNESS (BONUS LED EXTENSION)

BL2091LX HARNESS (BONUS LED)

BL3002 DISPLAY COVER (LARGE)

BL3006 BALL GATE FENCE (SECONDARY)

BL3007 BALL GATE FENCE (PRIMARY)

BL3010 CAGE FACE (LEFT)

BL3011 CAGE FACE (RIGHT)

BL3013 REBOUND GUARD

BL3018 TARGET BASE (BOTTOM)

BL3019 TARGET BASE (MIDDLE)

BL3020 TARGET BASE (TOP)

BL3023 VACUUM CAP

BL3025 VACUUM CAP

BL3040 BALL DIVERTER (LEFT)

BL3041 BALL DIVERTER (RIGHT)

BL3097X ASY (BALL GATE)

BL4001 BELT MATERIAL

BL4010X TARGET (LARGE) FULL ASY

BL4011X TARGET (MEDIUM) FULL ASY

BL4012X TARGET (SMALL) FULL ASY

BL4015 CARPET (DOOR FRAME)

BL4016 CARPET (REAR DOOR)

BL7009 DECAL (REBOUND GUARD)

BL7016 INSERT (1 DOLLAR)

BL7017 INSERT (2 DOLLAR)

BL7018 INSERT (2 TOKENS)

BL7020 PLAQUE (SKILL GAME)

BL7022 CLOWN SHELF (TOP)

BL7023 CLOWN SHELF MIDDLE

BL7024 CLOWN SHELF BOTTOM

BL7027 BONUS MARQUEE BACK

BL7028 DECAL (CARNIE MARQUEE)

BL7029 BONUS MARQUEE FRONT

BL7030 MARQUEE

BL7032 DECAL (CANNON MARQUEE)

BL7032M CANNON GRAPHIC BACKING

BL7038 PLAQUE FRONT CABINET

BL7043 DECAL (MARQUEE TICKET 250)

BL7044 DECAL (MARQUEE TICKET 500)

BL7046 INSERT (SWIPE CARD)

BL7055 DECAL (FRONT CABINET CLOWN)

BL7056 DECAL (TICKET DOOR)

BL7057 DECAL (ICE LOGO)

BL7064 PLAQUE INSERT (CNTL PANEL 250)

BL7065 PLAQUE INSERT (CNTL PANEL 500)

BL7072 SCORE INSERT ($1)

BL7073 SCORE INSERT (50 CENTS)

You can get this game at www.magic-play.eu

36

BL7075 SCORE INSERT ($2.00)

BL7080 DECAL (PACKAGE LABEL)

BL7081 DECAL (PARTS BOX)

BL7082 DECAL (SMALL PARTS)

BL7083 DECAL (PLAQUE PACKAGE)

BL7084 DECAL (PARTS BOX COVER)

BL7086 DECAL (CONTROL PANEL)

BL7087 PLAQUE (CONTROL PANEL BONUS)

BL7088 PLAQUE (CONTROL PANEL SCORE CHAR

CB2232X PCBA (DISPLAY)

CG2012BLX ASY (SENSOR)

E00668 LED PCBA WHITE

E00672 LED PCBA GREEN

E00724BLX ASY (144 RGB LED STRIP)

E00732 LED PCBA RED 500-00065-01

E00788BLAX ASY (WHITE 87 LED TAPE STRIP)

E00788BLBX ASY (WHITE 12 LED TAPE STRIP)

E00788BLX ASY (WHITE 30 LED TAPE STRIP)

E00838BLX ASY (5V RGB LED)

E00847 LED PCBA BLUE

E00848 LED PCBA YELLOW

E02907BLX ASY (LIMIT SWITCH)

E08422BLX ASY (MOTOR HOME SWITCH)

E2034X PCBA (ARM 7 BRAIN BOARD)

FB2008X ASY (TARGET MOTOR)

FP2007 SPEAKER (4/4 OHM ROUND) .18

HD1052 CASTER (3 SWIVEL) PSQ3001ZN-3

HH5005 TICKET DISPENSER (ENTROPY)

IA2010 POWER SUPPLY +12VDC 10A (ROHS)

MA3006 T MOLDING (25/32 YELLOW) 105-2

MJ2063LX HARNESS (MAIN AC)

MJ2068LX HARNESS (POWER SUPPLY AC)

MJ3335 FINGER GUARD

ML2032X PCBA (DISPLAY) RED LED DIGITS

ML3024 BALL RED 2.8" (MEDIUM/SOFT)

RR2011X ASY (STEPPER MOTOR)

UC2010 POWER SUPPLY (PS-1)

You can get this game at www.magic-play.eu

37

WARRANTY POLICY

I.C.E. Inc warrants all components in new machines to be free of defects in materials and workmanship for the

period listed below:

■ 180 days on Main PCB’s, Computers & Motors

■ 1 year on all LCD monitor panels

■ 90 days on all other electronic and mechanical components

■ 30 days on all I.C.E. repairs and parts purchases

I.C.E. Inc shall not be obligated to furnish a warranty request under the following conditions:

■ Equipment or parts have failed through normal wear and tear

■ Equipment has been subjected to unwarranted stress, abuse or neglect

■ Equipment has been damaged as a result of arbitrary repair/modification

Products will only be covered under warranty by obtaining an I.C.E. authorized RMA #. To obtain an RMA #

please provide I.C.E. tech support with the game serial # or original I.C.E. invoice # and a detailed description

of the failure or fault symptoms.

I.C.E. Inc will assume no liability whatsoever for costs associated with labor or travel time to replace defective

parts. All defective warranty covered components will be replaced with new or factory refurbished compo-

nents equal to OEM specifications.

I.C.E. Inc will cover domestic UPS ground, or comparable shipping costs during the warranty period. Interna-

tional or expedited shipments are available for an additional charge. To obtain credit defective parts must be

returned to I.C.E. Inc, at the customer’s expense, within 30 days. After 30 days a 15% re-stocking fee will ap-

ply to all returns.

ICE distributors are independent, privately owned and operated. In their judgment, they may sell parts and/or

accessories other than those manufactured by I.C.E. Inc. We cannot be responsible for the quality, suitability

or safety of any non-I.C.E. part or modification (including labor) that is performed by such a distributor.

Innovative Concepts in Entertainment

10123 Main St.

Clarence, NY 14031

Phone #: (716) - 759 – 0360

Fax #: (716) – 759 – 0884

www.icegame.com

You can get this game at www.magic-play.eu
