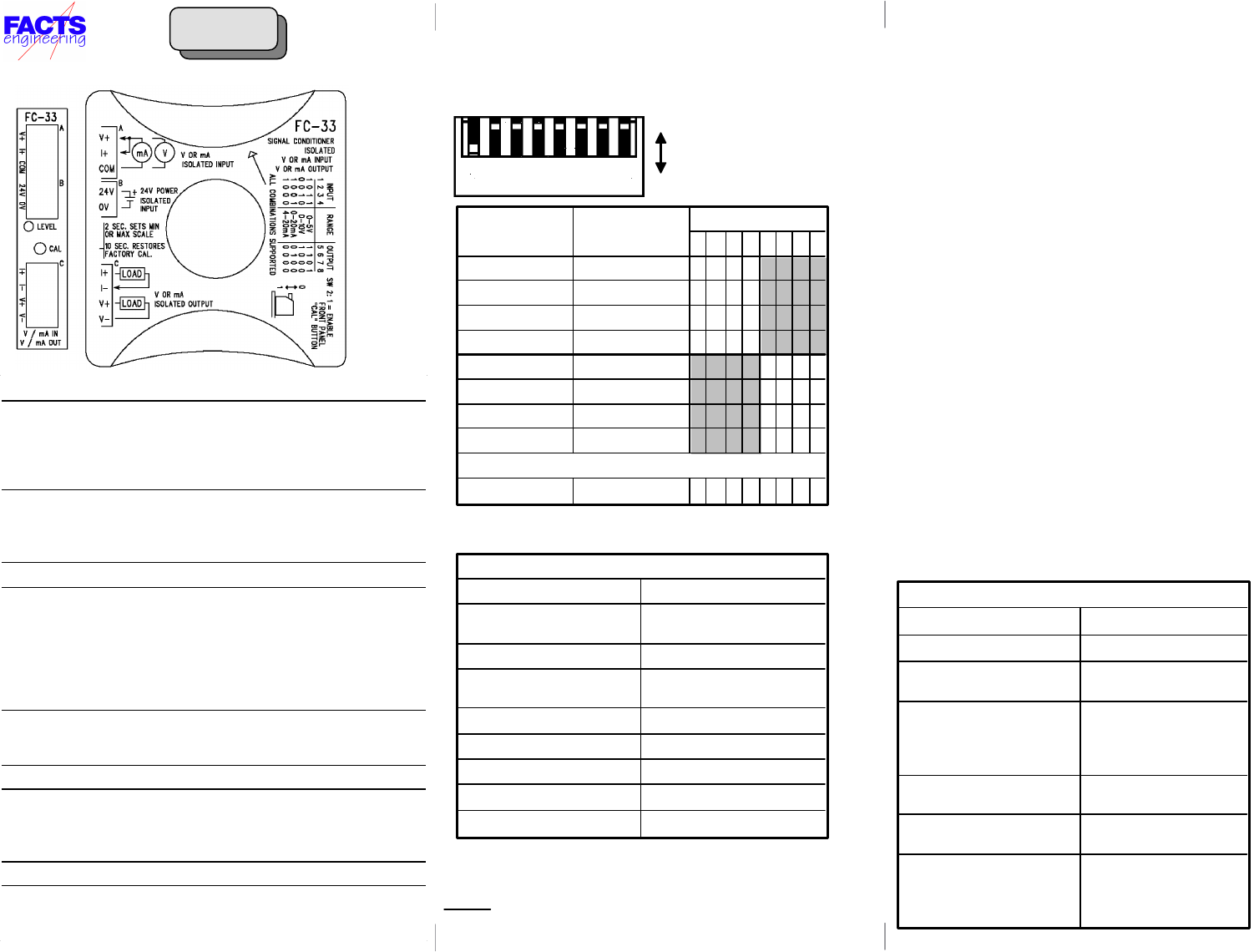

Description

The FC-33 is a DIN rail mount, selectable input / output signal conditioner

with 1500VDC isolation between input and output and1500VDC isolation

from 24 volt power and input / output. The field configurable input/output

types allow a wide ranging capability for 0 - 5V, 0 - 10V , 0 - 20mA ,

4 - 20mA .

The FC-33 has user selectable factory-calibration, but also has OFFSET

(zero) and SPAN (full scale) adjustments of the input signal.

The OFFSET (zero) has an adjustment range of 0 to 25% of full scale

input, the SPAN (full scale) has an adjustment of 80 to 102%

Application

The FC-33 field configurable isolated input/output signal conditioner is

useful in eliminating ground loops and interfacing sensors to ourPLC

analog input modules. The FC-33 has 3 way isolation, this feature solves

many types of configuration problems. For example, the signal

conditioner can be configured for sinking input andsourcing output. It

also allows signal translation from current input to voltage output or

voltage input to current output.

This feature would be useful when you have limited type and number

of channels in your system design, i.e. 8 channels of 4-20mA , 7 which

are used and one transmitter that is 0 - 10V .

LEVEL LED

This LED is a powerful tool when setting up the signal conditioner.

During normal operation the LED will blink at a proportional rate to the

selected input signal level. When performing field calibration the LED is

used for indication of the internal calibration process.

CAL - Pushbutton

Thispushbutton along with various switch settings, allows you to

calibrate the signal conditioner for your application or restore factory

default calibration.

DC Selectable Input, Isolated Signal Conditioner

FC-33Input Selection

The signal conditioner can be configured for either DC milliamps or

DC volts. Input and Output signal types are 0 - 5V, 0 - 10V, 0 - 20mA ,

4 - 20mA .

Adjustments

The FC-33 has built-in self-calibration, but also has

OFFSET (zero) and SPAN (full scale) adjustments of the

input signal. If your application requires, different

span or offset (i.e. 3.6mA offset and

adjust accordingly.

Application adjustments

Calibrating the input signal level -

1. Select the signal range (i.e. 4 - 20mA ).

2. Connect 24 volt power to the signal conditioner.

3. Connect the minimum input signal level.

4. Turn Switch2 ON, press and hold the CAL

pushbutton until the LEVEL LED comes ON steady

(approx. 3 seconds), then release immediately. If the

pushbutton is NOT released while the Level LED is ON

steady, the signal conditioner will return to factory

calibration.

5. Repeat above sequence for maximum input signal.

6. Turn Switch 2 OFF.

To return to factory calibration-

1. Turn switch2 ON, press and hold the CAL

pushbutton until the LEVEL LED comes ON steady and

then starts flashing (approx. 10 seconds), then release

the pushbutton. The unit has now been returned to

factory calibration.

2. Turn Switch2 OFF.

Input Ranges Output Ranges

Switch Position

1 2 3 4 5 6 7 8

0 - 5V 1 0 1 1

0 - 10V 0 0 1 0

0 - 20mA 1 0 0 1

*4 -20mA 1 0 0 0

0 - 5V 1 1 0 1

0 - 10V 1 0 0 0

0 - 20mA 0 1 0 0

4 - 20mA 0 0 0 0

Factory Default Settings

4 - 20mA 4 - 20mA 1 0 0 0 0 0 0 0

Specifications

Input Ranges 0-5V, 0-10V , 0-20mA, 4-20mA

Input impedance250Ω ±0.1% current input

200KΩ /400KΩ Voltage Input

Output Ranges 0-5V, 0-10V , 0-20mA, 4-20mA

Load Impedance 2KΩ minimum, voltage output

0Ω minimum, current output

Maximum Load / Current550Ω @24V sink/source

Sample Duration Time10mS

Filter Characteristic -3dB @ 3Hz , -6dB/octave

Linearity Error0.05%FSO maximum

Stability0.05%FSO maximum

General Specifications

Accuracy vs. Temperature± 0.005% / °C (50ppm/°C)

Input Power24VDC±10% @ 50mA

Recommended Fuse0.032ALittelfuse Series

217 current inputs

Isolation1500VDC input - output

1500VDC power - input

1500VDC power - output

* applied for 1 second

Maximum Inaccuracy of output

(Includes offset,span,linearity)

0.05%FSO @ 25°C

0.25%FSO @ 0 - 60°C

Output Current21mA maximum

(for mA output)

Approx. fieldcal. range 0 - 25%

(0 - 1.5V / 5V mode)

80% - 102%

(4 - 5.1V / 5V mode)

1 2 3 4 5 6 7 8

0

1

example:

4 - 20mA input

4 - 20mA output

Note: All data 0° - 60° C except where specified.

1Internal Analog convertor resolution is 12 - bit.

CAUTION: PRODUCT MAY BE DAMAGED IF CURRENT OUTPUT (I+/I-)

AND VOLTAGE OUTPUT(V+/V-) ARE BOTH CONNECTED TO LOADS.

DO NOT TIE THE I+ TERMINAL TO THE V- TERMINAL.

* Must connect jumper from V+ to I+ for current input.

19.6mA span)

you can

Voltage

Transmitter

Module

Supply

Module

Supply

− +

Module

Supply

−+

+

−

− +

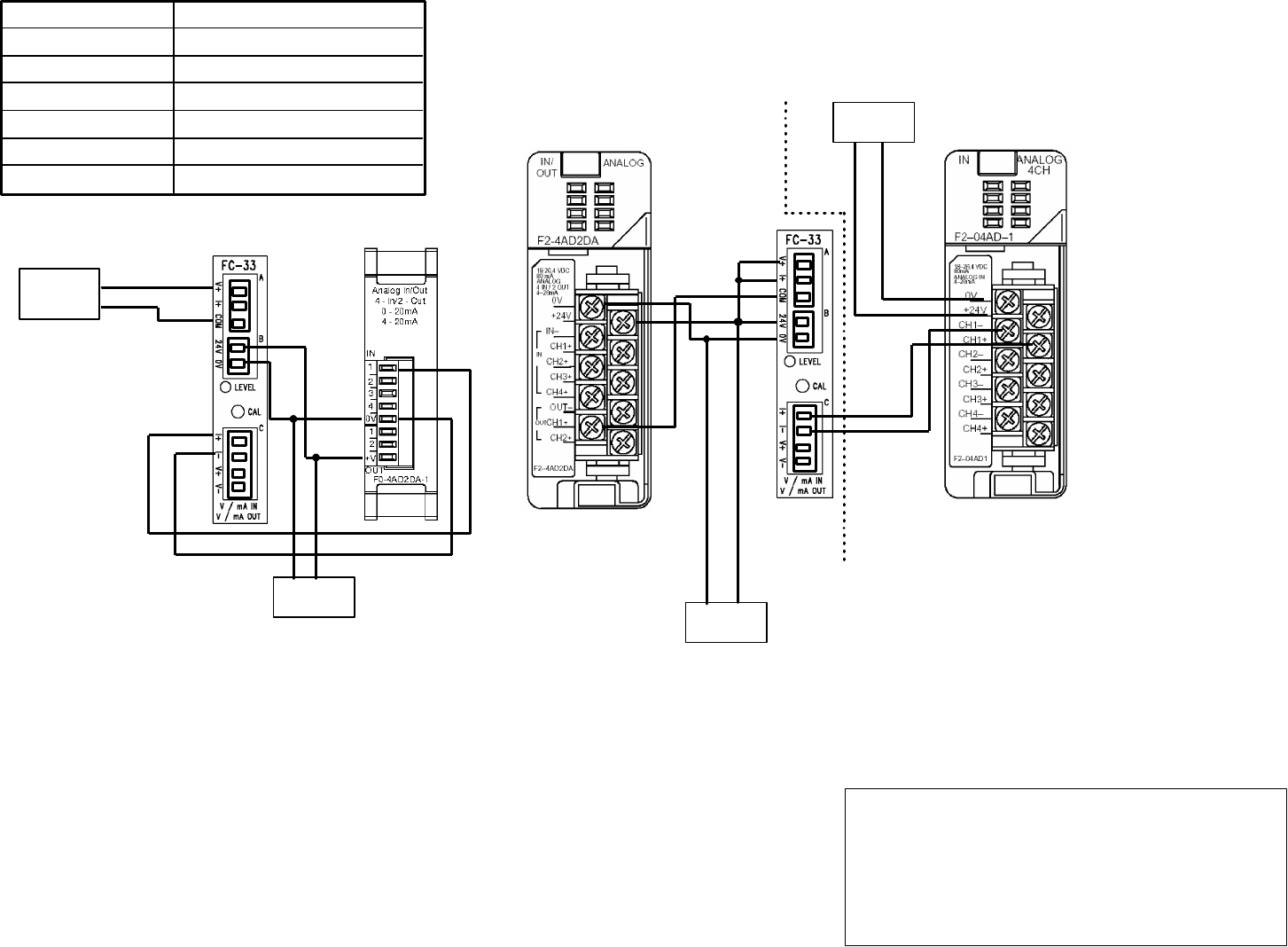

4 - 20 mA Sinking Output to Isolated 4-20 mA Sinking Input (example)

Voltage Input and Current Output (example)

Operating Temperature 0 to 60° C (32 to 140°F)

Storage Temperature -20 to 70°C (-4 to 158°F)

Relative Humidity 5 to 90% (non-condensing)

Environmental air No corrosive gases permitted

Vibration MIL STD 810C 514.2

Shock MIL STD 810C 516.2

Noise Immunity NEMA ICS3-304

Rev. 121112

Typical Connection -

ISOLATION

THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS

A, B, C AND D OR NON-HAZARDOUS LOCATIONS ONLY.

WARNING – EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS

MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2 / ZONE 2.

WARNING – EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT

UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO

BE NON-HAZARDOUS.
