UltraPly™ TPO Roof Systems

Code Approval Guide


2 | P a g e
M a y   24th,   2 0 1 8
You must verify the included assemblies in the charts below with the associated Firm’s (UL, FM, etc.).  Not all the
information included in the RoofNav assemblies will be listed in the charts below.

You must verify that all assemblies meet Firestone Building Products warranty requirements with the associated
regions technical team.

Table of Contents
Firestone V-Force Vapor Barrier System........................................................................................................ 5
Firestone Fully Adhered Systems................................................................................................................... 6
Firestone Fully Adhered Systems with UltraPly TPO SA membrane .............................................................. 6
Firestone Fully Adhered Systems with UltraPly TPO XR ................................................................................ 6
Firestone Mechanically Attached Systems ..................................................................................................... 7
UL Internal Fire Ratings ..................................................................................................................................... 8
UL Roof Deck Constructions and “P” Assemblies .......................................................................................... 8
Factory Mutual General Information................................................................................................................... 9
Ground Roughness Definitions ...................................................................................................................... 9
General Notations ........................................................................................................................................ 10

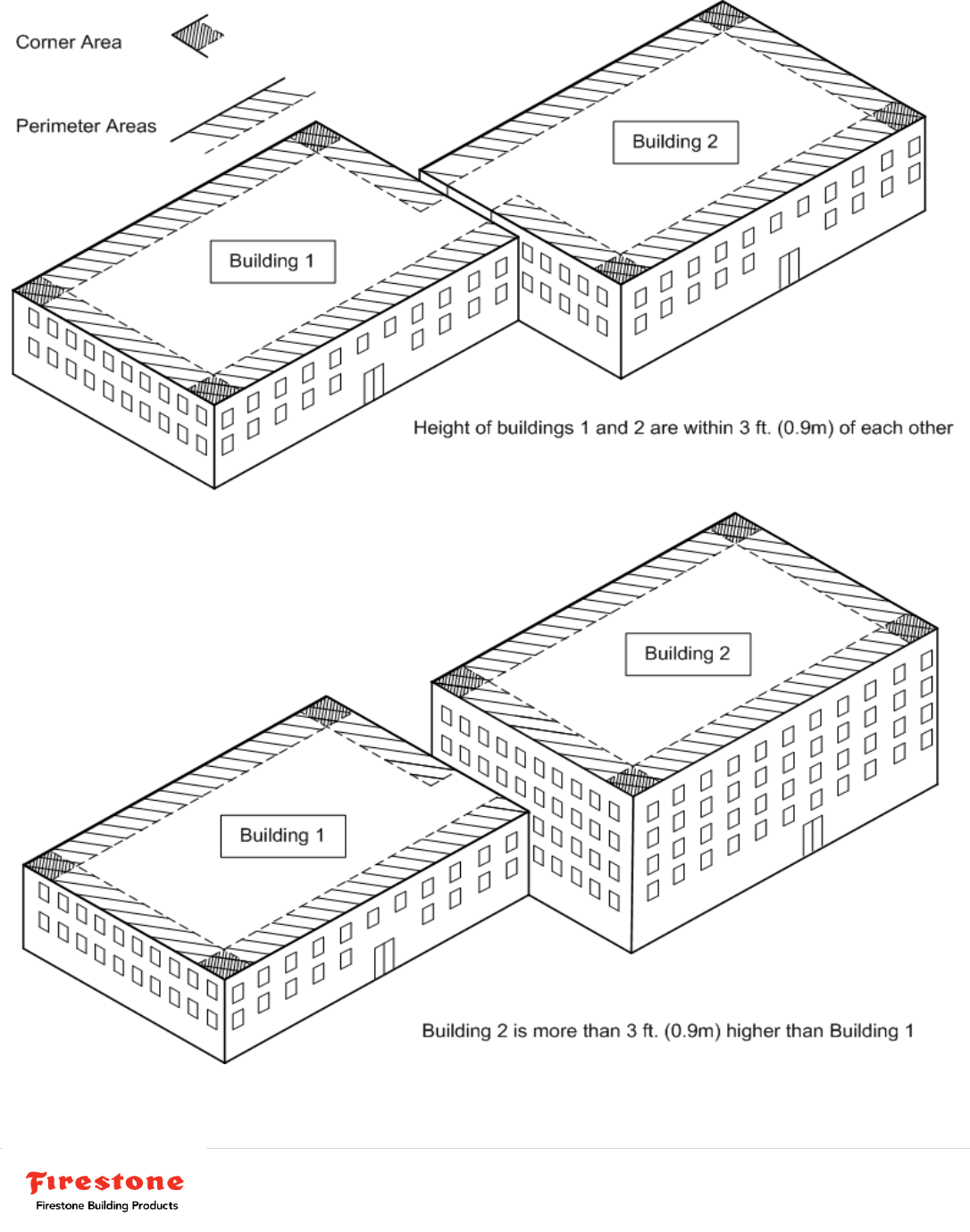

Field/Corner/Perimeter Definitions ............................................................................................................... 11
Perimeter and Corner Treatment of Adjoining BuildingsPrescriptive Enhancement Options: Perimeter and
Corner .......................................................................................................................................................... 12
Firestone Fully Adhered Uplift Ratings – V-Force Vapor Barrier System ......................................................... 23
Firestone Fully Adhered Uplift Ratings – SBS Vapor Barrier System ............................................................... 24
New Construction, Concrete Deck, Adhesively Attached Insulation, With Cover Board ................................ 24
Firestone Fully Adhered Uplift Ratings ............................................................................................................. 24
New Construction, Concrete Deck, Adhesively Attached Insulation, Without Cover Board ........................... 24
New Construction, Concrete Deck, Adhesively Attached Insulation, With Cover Board ................................ 25
New Construction, Cementitious Wood Fiber Deck, Adhesively Attached Insulation, With Cover Board ...... 27
New Construction, Steel or Concrete, Mechanically Attached Insulation without Cover Board ..................... 27
New Construction, Steel or Concrete, Insulation and/or Mechanically Attached Cover Board ...................... 29
New Construction, Steel Deck, Mechanically Attached Insulation, Without Cover Board .............................. 32
New Construction, Concrete Deck, Mechanically Attached Insulation, Without Cover Board ....................... 33
New Construction, Steel Deck, Mechanically Attached Insulation, Adhesively Attached Insulation .............. 33
New Construction, Concrete Deck, Mechanically Attached Insulation, Adhesively Attached Insulation ........ 34
New Construction, Steel Deck, Insulation with Mechanically Attached Cover Board .................................... 35
New Construction, Concrete Deck, Insulation with Mechanically Attached Cover Board .............................. 35
New Construction, Steel or Concrete Deck, Insulation without Cover Board, UltraPly XR membrane .......... 35
New Construction, Steel or Concrete Deck, Insulation with Cover Board, UltraPly XR membrane ............... 36
New Construction, Concrete Deck, Adhered Cover Board Only, UltraPly XR membrane ............................. 39
New Construction, Concrete Deck, UltraPly XR membrane ......................................................................... 39
New Construction, Concrete, Vapor Barrier, Adhesively Attached Insulation, UltraPly XR membrane ......... 39
New Construction, Lightweight Insulated Concrete, UltraPly XR membrane ................................................ 40


3 | P a g e
M a y   24th,   2 0 1 8
Re-Cover Construction, Lightweight Insulating Concrete over Steel, Nailed Base Sheet with Adhesively
Attached Insulation and Cover Board ........................................................................................................... 40
New Construction, Lightweight Insulating Concrete over Structural Concrete, with Adhesively Attached
Insulation and Cover Board .......................................................................................................................... 40
Re-Cover Construction, Gypsum Deck, Adhesively Attached Insulation, Without Cover Board .................... 40
Re-Roof Construction, Gypsum Deck, Adhesively Attached Insulation, With Cover Board ........................... 41
Re-Roof Construction, Gypsum Deck, Adhesively Attached Insulation, With Cover Board ........................... 41
Firestone Re-cover over Treated Wood Deck .................................................................................................. 42
Adhered Membrane ..................................................................................................................................... 42
Firestone Mechanically Attached Systems Uplift Ratings – Standard UltraPly membrane ............................... 42
New Construction, Steel, Mechanically Attached Insulation, Single Weld..................................................... 42
New Construction, Steel, Insulation with Cover Board, Single Weld ............................................................. 44
New Construction, Concrete, Insulation with Cover Board, Single Weld ...................................................... 46
Recover, Metal Building, Insulation with Cover Board .................................................................................. 46
Recover, Metal Building, Insulation without Cover Board ............................................................................. 48
Recover, Metal Building, Flute Filler with Cover Board ................................................................................. 48
Recover, Steel Deck, UltraPly TPO XR membrane, Single Weld ................................................................. 48
Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld System ................................................. 49
Invisiweld System, Induction Welded ........................................................................................................... 49
Recover, Metal Building, Invisiweld System, Induction Welded .................................................................... 53
Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld- S System ............................................ 53
Invisiweld-S System, Induction Welded ........................................................................................................ 53
Firestone Re-cover over Treated Wood Deck .................................................................................................. 53
InvisiWeld Attached Membrane .................................................................................................................... 53



4 | P a g e

M a y 24th, 2 0 1 8

Underwriters Laboratories (UL) External Fire Ratings

All regional building codes and most local building code officials require that roofing systems meet minimum performance

requirements when exposed to external fire sources. The accepted method for measuring external fire resistance is ASTM

E-108. This test standard, and closely related standards such as Underwriters Laboratories UL-790 and Uniform Building

Code 15-2, is used to determine the ability of a roof system to hinder the horizontal spread or vertical penetration of an

external fire source. In accordance with these standards, all classified roof covering assemblies fall into one of the three

following categories.

• CLASS A: Includes roof coverings which are effective against severe fire exposures

• CLASS B: Includes roof coverings which are effective against moderate fire exposures

• CLASS C: Includes roof coverings which are effective against light fire exposures

Noncombustible Roof Decks (NC): Steel, Concrete, Poured Gypsum – require testing for horizontal spread of flame.

Combustible Roof Decks (C): Wood, Plywood, Tectum – require testing for both horizontal spread and vertical penetration

of flame.

The following information has been referenced from the UL Online Certification Directory document:

TGFU.GuideInfo

Certified gypsum wallboard, any thickness, may be included in any roofing system without adversely affecting the

certification. Insulations may be attached to the deck with fasteners, hot mopping asphalt or certified adhesive.

Certified insulated systems may be installed over existing certified insulated systems when:

1) the new system is certified for use with the existing roof insulation type (glass fiber, perlite, wood fiber, foamed plastic,

etc.)

2) the total thickness of insulation in both systems does not exceed the maximum specified for the new system being

applied.

MAINTENANCE AND REPAIR SYSTEMS

These roofing systems are composed of various types of roofing applications which are specifically limited for installation

(recover) over existing roofing systems as specified. These systems may not meet certification requirements without being

used over existing systems. Recovering may also be accomplished with certified new construction roofing systems where

compatibility has been determined by test, by empirical data or by known performance properties of similar materials to the

test methods. The following guidelines are provided to assist Authorities Having Jurisdiction in determining the suitability of

a new construction roofing system as a recover system.

Noncombustible Deck Construction:

1. Insulated roof systems may be utilized over any type of existing roof system and maintain its new construction rating

when the roof deck is noncombustible.

2. Insulated multiple-layered hot mopped, cold application or modified bitumen membrane new construction systems

with a base ply of Type G1 or Type G2 may be used over any existing roof system and maintain its new construction

rating when the roof deck is noncombustible. The insulation may be omitted from the recover system.

3. Uninsulated multiple-layered hot mopped, cold application or modified bitumen membrane new construction

systems with a base ply of Type G1 or Type G2 may be used over any existing uninsulated roof system and maintain

its new construction rating when the roof deck is noncombustible.

Combustible Deck Construction:

1. Insulated roof systems certified for use over combustible deck can be used over any type of existing roof system

and maintain its new construction rating.

2. Insulated roof systems certified for use over noncombustible deck may be used over any type of Class A, B or C

existing roof systems. The resultant Class will be the lesser rating of the existing system or the new construction

(recover) system.

3. Uninsulated multiple-layered hot mopped, cold application or modified bitumen membrane new construction

systems with a base ply of Type G1 or Type G2 may be used over any existing uninsulated roof system and maintain

its new construction rating.

5 | P a g e

M a y 24th, 2 0 1 8

The class of roof covering required by each regional building code depends upon many factors, including the use and

location of the building and the type of construction. The local building authority should always be consulted as to what the

roofing assembly classification will need to be for each roofing project.

It should be noted that these classifications apply to roofing assemblies, and NOT the roofing membrane. A roofing

membrane that is classified as part of a Class A assembly when installed over a particular insulation may not qualify as part

of a Class A assembly with another insulation.

The “UL Item Number” in the following listings has been added as a service to those who have the UL Building Materials

Directory. It identifies the UL listing from which our Code Approval Guide listing derives (e.g., “A,FA,23” means Class A,

Fully Adhered, item number 23; “B,MA,04” means Class B, Mechanically Attached, item number 04, etc.).

General Notations

• PLEASE NOTE: Not all UL-rated assemblies that use Firestone roofing products are eligible for the Firestone Red

Shield, Red Shield Medallion, or Platinum Warranty. The Firestone standards, guidelines, and specifications

regarding roofing system components and attachment for the warranty desired must be followed.

• If a discrepancy occurs between this guide and UL Certifications, the published information located in the UL

Certifications Directory at www.ul.com should be adhered to and utilized.

• Noncombustible decks Classifications are acceptable for use over combustible (15/32ʺ minimum plywood) decks

when .5ʺ gypsum board or .25ʺ DensDeck® are used directly over the deck with all joints staggered 6ʺ minimum

from plywood joints.

• The below stated assemblies may not be suitable for a Firestone Warranty. Prior to installation, contact a Firestone

Representative for approval of assembly for warranty purposes.

• ISOGARD HG Insulation is an acceptable alterative to all insulations in the following Classifications except where

DensDeck is stated.

• **Water Based Bonding Adhesive –P (WBBA-P) is an equivalent to Water Based Bonding Adhesive-R (WBBA-R)

(no longer available**)

• ISOGARD GL™ is trademarked.

NOTE: The UL assemblies listed below can be found on the UL Online Certification Direct report TGFU.R9516. You can

click on the report number previously listed to open a hyperlink to the report.

Firestone V-Force Vapor Barrier System

Adhesive:

UltraPly Bonding Adhesive, Single-Ply LVOC Bonding Adhesive or Water Based Bonding Adhesive S

Construction:

Classification:

New or Tear-off

See Note 1 Below

Assembly

Number

Deck

Vapor

Barrier

Roofing System

Maximum

Slope

Class, Type

(See

NOTE)

“V-Force”,

self

adhered

Any Insulated UL Classified modified bitumen system, BUR

system, EPDM, or TPO membrane system. Insulation may be

adhered with Firestone "I.S.O. Twin Pack", “I.S.O.Stick" or

"I.S.O. Spray S".

See NOTE

A/B/C,

Mechanically

Attached or

Fully Adhered

1A.

C–

15/32

“V-Force”,

self

adhered

Insulation (Optional): Firestone ISOGARD GL – Any Thickness

Barrier Board: 1” min. ISOGARD CG

Roofing System: Any Insulated UL Classified modified bitumen

system, BUR system, or CPE, CSM, CSPE, EPDM, NBP, PIB,

PVC, TPO or TRE membrane system. Insulation may be

adhered or mechanically attached with Firestone "I.S.O. Twin

Pack™", "I.S.O. Twin Pack™ Green", "I.S.O.Stick™" or "I.S.O.

Spray™ R"

See NOTE

A/B/C,

Mechanically

Attached or

Fully Adhered

1B.

C-

15/32

“V-Force”,

self

adhered

Insulation (Optional): Firestone ISOGARD GL – Any Thickness

Barrier Board: ½ʺ thick DensDeck, DensDeck Prime Roofing

System: Any Insulated UL Classified modified bitumen system,

BUR system, or CPE, CSM, CSPE, EPDM, NBP, PIB, PVC,

TPO or TRE membrane system. Insulation may be adhered or

mechanically attached with Firestone "I.S.O. Twin Pack™",

"I.S.O. Twin Pack Green", "I.S.O.Stick™" or "I.S.O. Spray™ R"

See NOTE

A/B/C,

Mechanically

Attached or

Fully Adhered

NOTE: Classification (A, B or C) and maximum incline will be the same as that for the currently Classified insulated system, currently limited to a

noncombustible deck.

6 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Systems

Membrane:

Adhesive:

Construction:

Classification:

UltraPly TPO (45,60 or 80 mil), UltraPly Platinum (80 mil)

UltraPly Bonding Adhesive, Single-Ply LVOC Bonding Adhesive or Water Based Bonding Adhesive S

New, Retrofit or Tear-off

Class A

Assembly

Number

Deck

Type

Insulation Assembly

Insulation

Minimum

Thickness

Maximum

Slope

Membrane

Class, Type

143.

Insulation (Optional): Firestone ISOGARD GL

Any

¼ʺ

UltraPly

TPO

A, Fully

Adhered

88.

Barrier Board: DensDeck (Prime)

Insulation (Optional): Any UL Classified, any

thickness

½ʺ

Any

2½ʺ

UltraPly

TPO

A, Fully

Adhered

144.

Lightweight Insulated (LWIC) or Structural

Concrete

Any

2½ʺ

UltraPly

TPO

A, Fully

Adhered

125.

Insulation: Any UL Classified, any thickness

mechanically attached

Cover Board: Oriented Strand Board (OSB)

Any

7/16ʺ

1¼ʺ

UltraPly

TPO

A, Fully

Adhered

123.

Slip Sheet: 2 layers VersaShield® FB-1S

Insulation: Firestone ISOGARD GL,

mechanically attached

---

Any

½ʺ

UltraPly

TPO

A, Fully

Adhered

160.

Insulation: Any Classified Poly I.S.O., any

thickness

Cover Board: Firestone ISOGARD CG or

Firestone ISOGARD HD

Any

½ʺ

¼ʺ

UltraPly

TPO

A, Fully

Adhered

163.

Insulation: Firestone ISOGARD GL

Insulation: Firestone ISOGARD CG or

Firestone ISOGARD HD

Any

½ʺ

¼ʺ

UltraPly

TPO

A, Fully

Adhered

166/167.

C/NC

Insulation: Firestone ISOGARD GL

Barrier Board: DensDeck (Prime)

Any

2ʺ

UltraPly

TPO

A, Fully

Adhered

Firestone Fully Adhered Systems with UltraPly TPO SA membrane

Membrane:

UltraPly TPO SA (45 or 60 mil)

Adhesive:

Self Adhered

Construction:

Classification:

New, Retrofit or Tear-off

Class A

Assembly

Number

Deck

Type

Insulation Assembly

Insulation

Minimum

Thickness

Maximum

Slope

NOTE

Class,

Type

182.

NC/C

Insulation (Optional): Any UL Classified any

thickness

Barrier Board: DensDeck

Any

¼ʺ

2ʺ

A, Fully

Adhered

184.

NC/C*

Insulation (Optional): ISOGARD CG

Any

¼ʺ

*DensDeck,

¼ʺ, required

A, Fully

Adhered

183.

NC/C*

Insulation: Firestone ISOGARD GL

Any

¼ʺ

*DensDeck,

¼ʺ, required

A, Fully

Adhered

Firestone Fully Adhered Systems with UltraPly TPO XR

Membrane:

UltraPly TPO XR 100 (45 mil), UltraPly TPO XR 115 (60 mil) or UltraPly TPO XR 135 (80 mil)

Adhesive:

XR Bonding Adhesive @ 90 sqft/gal

Construction:

New, Retrofit or Tear-off

Classification:

Class A

Assembly

Number

Deck

Type

Insulation Assembly

Insulation

Minimum

Thickness

Maximum

Slope

Class,

Type

140.

Insulation (Optional): Any UL Classified any thickness

Cover Board: G-P Gypsum DensDeck or DensDeck Prime

Any

¼ʺ

1ʺ

A, Fully

Adhered

141.

Any Classified LWIC

2ʺ coverage

over internal

insulation

(if installed)

1ʺ

A, Fully

Adhered

7 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Systems with UltraPly TPO XR

Membrane:

UltraPly TPO XR 100 (45 mil), UltraPly TPO XR 115 (60 mil) or UltraPly TPO XR 135 (80 mil)

Adhesive:

Hot asphalt

Construction:

New, Retrofit or Tear-off

Classification:

Class A

Deck

Type

Insulation Assembly

Insulation

Minimum

Thickness

Maximum

Slope

Class, Type

None

---

1ʺ

A, Fully Adhered

C/NC

Insulation (Optional): Firestone

ISOGARD™ GL

Barrier Board: DensDeck or DensDeck

Prime

Any

¼ʺ

1ʺ

A, Fully Adhered

Firestone Fully Adhered Systems with UltraPly TPO XR

Membrane:

UltraPly TPO XR 100 (45 mil), UltraPly TPO XR 115 (60 mil)

Adhesive:

Firestone I.S.O. Spray or Firestone XR Stick Adhesive

Construction:

New, Retrofit or Tear-off

Classification:

Class A

Deck

Type

Insulation Assembly

Insulation

Minimum

Thickness

Maximum

Slope

NOTE

Class,

Type

Insulation (Optional): Firestone ISOGARD

GL, ISOGARD CG, or ISOGARD HD

Any

¼ʺ

*DensDeck, ¼ʺ

A, Fully

Adhered

Structural Concrete or Lightweight

Concrete decks only

---

¼ʺ / ½ʺ

*DensDeck, ¼ʺ

A, Fully

Adhered

C/NC

Insulation (Optional): Any UL Classified any

thickness

Barrier Board: DensDeck

Any

¼ʺ

½ʺ

A, Fully

Adhered

Firestone Mechanically Attached Systems

Membrane:

UltraPly TPO (45,60 or 80 mil), UltraPly Platinum (80 mil)

Construction:

Classification:

New, Retrofit or Tear-off

Class A

Assembly

Number

Deck

Type

Insulation Assembly

Insulation

Minimum

Thickness

Maximum

Slope

Membrane

Class,

Type

58.

C/NC

Insulation (Optional): Any UL Classified any

thickness

Cover Board: DensDeck

Any

¼ʺ

4ʺ

UltraPly

TPO

Mechanically

Attached

58A

---

N/A

4ʺ

UltraPly

TPO

Mechanically

Attached

57.

Insulation (Optional): Any UL Classified any

thickness

Cover Board: Glass fiber, wood fiber, or perlite

Any

½ʺ

UltraPly

TPO

Mechanically

Attached

76.

C/NC

Two layers of “VersaShield Underlayment” or

“VersaShield FB-2S

---

1ʺ

UltraPly

TPO

Mechanically

Attached

56.

Insulation: Firestone ISOGARD GL

Any

½ʺ

UltraPly

TPO

Mechanically

Attached

63.

C/NC

Two or more layers of Atlas "FR 50",

mechanically fastened

---

½ʺ

UltraPly

TPO

Mechanically

Attached

91.

Insulation (Optional): Any UL Classified any

thickness

Insulation (Required): Firestone ISOGARD CG

Any

½ʺ

1ʺ

UltraPly

TPO

Mechanically

Attached

8 | P a g e

M a y 24th, 2 0 1 8

UL Internal Fire Ratings

To determine the resistance of a building to internal sources of fire, Underwriters Laboratories has conducted extensive

testing and classification of wall, floor/ceiling and roof/ceiling assemblies. UL classified assemblies are rated according to

the time in hours the assembly will contain a fire and still maintain structural integrity. Testing is conducted in accordance

with UL Standard 263 (ASTM E-119), which is recognized by all major building codes.

Roof/Ceiling Assemblies are listed in the UL Fire Resistance Directory - Vol. 1 under the prefix “P” and are classified by

hourly fire rating according to the type of protection used to contain a fire:

Assembly

Protection Used

P000 – P099

Concealed grid suspended ceiling

P200 – P299

Exposed grid suspended ceiling

P400 – P499

Metal lathe (plaster) ceiling

P500 – P599

Gypsum board ceiling

P600 – P699

Miscellaneous fireproofing

P700 – P799

Spray-Applied Resistive Material

P800 – P899

Spray-Applied Resistive Material

P900 – P999

Unprotected concrete or composite decks

It should be noted that the roof membrane forms only a small part of the total roof/ceiling assembly. For a structure to

qualify for a “P” Assembly or Roof Deck Construction, all materials used to construct the assembly (including roof decking,

ceiling materials, light fixtures, duct work and structural support members) must be UL classified and installed as described

in the appropriate UL Directories.

The insulations listed with each of the following “P” Assemblies are not, in most cases, the only UL accepted insulations for

that assembly. Consult the UL Fire Resistance Directory - Vol. 1 for “P” Assembly information and the UL Roofing Materials

and Systems Directory for Roof Deck Construction information, or call Firestone Technical Services for additional accepted

insulations.

UL has indicated on page 8 of the 2008 Fire Resistance Directory - Vol. 1 that "Class A, B or C roof coverings consisting of

hot mopped or cold applied bituminous materials or a roof covering material classified under 'Roofing Membranes' (CHCI)

may be applied directly to the concrete or wood surface of floor designs being used as roofs without a reduction of fire

resistance ratings." They further state on page 8 that "Roof insulation is to be carefully controlled relative to manufacturer,

type and thickness as specified. Less than the specified thickness could result in higher temperatures on the roof covering

while a greater thickness of insulation could cause earlier structural failure. Classified polystyrene insulation, with a density

of 5 pcf or less, may be placed on concrete floors or structural concrete roofs without reducing the assembly rating. When

polyisocyanurate insulation is used over concrete in D 900 Series Designs, the unrestrained beam rating shall be increased

by a minimum of ½ hour."

Roof Deck Constructions are listed in the UL Roofing Materials and Systems Directory and are rated according to the

interior flame spread of the assembly as compared to the flame spread of a typical built-up roof installed over a metal deck

(UL 1256). Roof Deck Constructions may also be classified according to wind uplift performance. The fire rating of a UL

Roof Deck Construction is similar to the Factory Mutual Class I internal fire (calorimeter) rating and they are deemed

equivalent by the Model Building Code Agencies.

UL Roof Deck Constructions and “P” Assemblies

Deck Constructions (Tested in accordance to UL 1256)

Firestone UltraPly TPO 96/120 roofing systems are classified for use in the following Deck Construction:

1, 2, 9, 14, 120, 123, 158, 200, 219, 237, 260, 276, 289, 292, 325, 374, 411, 412, 413, 419, 421, 440, 441, 444, 457, and

458. Consult Roof Deck Constructions (TGKX) in the UL Roofing Materials and Systems Directory, your regional technical

coordinator or the Firestone Codes Department for an acceptable insulation for use in these constructions.

“P” Assemblies (Designs)

Firestone TPO 96/120 roofing systems are classified for use in the following hourly roof / ceiling designs. Ballasted,

adhered or mechanically attached systems with or without optional wood fiber or mineral board insulation for use

in Design numbers:

P215, P216, P225, P227, P230, P231, P242, P246, P251, P259, P405, P406, P407, P410, P508, P510, P511,P512,P51

3, P514, P519, P701, P708, P709, P710, P711, P712, P717, P718, P719, P720, P722, P723, P725, P726, P727, P728,P

729, P730, P731, P732, P733, P734, P735, P737, P738, P739, P801, P810, P811, P815, P819, P822, P824, P825, P826,

P827,P902, P903, P904, P905, P906, P907, P908, P909, P910, P911, P912, P913, P914, P915, P916, P917, P919, P92

0, P921, P922,P923, P925, P926, P927, P928, P929, P930, P931

Consult Fire Resistance Ratings (BXUV) in the UL Fire Resistance Directory, your regional technical coordinator or the

Firestone Codes Department for an acceptable insulation, thickness and additional requirements.

9 | P a g e

M a y 24th, 2 0 1 8

NOTE: The accepted insulation must be used in a UL Class A, B or C rated roofing assembly. UL acceptable system (e.g.,

adhering EPDM to Perlite or Fiberglass) listed for "P" design may not be approved for installation and warranty by Firestone.

Contact Firestone Specifications and/or your Firestone Regional Technical Coordinator concerning acceptance.

Factory Mutual General Information

Factory Mutual Class 1 Approvals cover a wide range of testing of roofing products, including tests for fire resistance,

corrosion resistance, fuel contribution and hail damage, Factory Mutual Approvals are known best for the uplift resistance,

1-60, 1-90, etc. afforded by an FM Approved roofing assembly:

• FM 1-60 assemblies have been tested to withstand 60 psf air pressure applied for a period of one minute as well

as one minute at the 30 and 45 psf levels.

• FM 1-90 assemblies have been tested to withstand 90 psf air pressure applied for a period of one minute as well

as one minute at the 30, 45, 60 and 75 psf levels.

• Higher uplift ratings are possible based on the deck type and its attachment, fastener density and row spacing

where applicable.

When Factory Mutual 1-60 or 1-90 uplift ratings are specified, additional insulation attachment and reduced perimeter and

corner batten (in-seam plate or batten for Reinforced Systems) spacing will/may be required. Consult the current edition of

Factory Mutual Loss Prevention Data Sheets 1-28 and 1-29 for instructions for determining the required corner and

perimeter dimensions and reduced spacing and increased fastener densities.

Ground Roughness Definitions

The descriptions below are based on information in ASCE 7. While information on this subject in the body of that standard

is relatively brief, the designer must read the considerable additional information provided in the related commentary section

of that document, particularly when then exposure is not obvious.

For Exposure Category B to be used:

A. The exposing terrain should include urban and suburban areas, wooded areas, or other terrain with numerous

closely spaced obstructions having the size of single-family dwellings or larger.

B. Use of this exposure category should be limited to those areas for which the above terrain prevails in all directions

for a distance of at least 2600′ (800 m) or 20 times the height of the building or other structure, whichever is greater.

C. Limited openings in this terrain, such as small parking lots, roads, road intersections, playing fields,

underdeveloped lots, and tree clearings can be tolerated. For openings that exceed 600′ (180 m) in total length

measured radially from the building and 165′ [50 m] in width, use surface roughness exposure C.

D. For buildings whose height is less than or equal to 30′ (9.1 m), the prevailing exposure B distance may be reduced

to 1500′ (460 m).

E. In cases where the difference between exposures B and C is not obvious, use exposure C.

Exposure Category C

NOTE: In cases where the difference between exposure B and C is not obvious, use exposure C.

For Exposure Category C to be used:

A. The exposing terrain should be open with scattered obstructions having heights generally less than 30′ (9 m), such

as flat, open country and grasslands, and in all cases where exposures B and D do not apply.

B. This also includes where surface roughness exposure B terrain is interrupted by clearings (parking lots, wide roads,

road intersections, playing fields, underdeveloped lots, tree clearings, etc.) of greater than 600′ (180 m) in total

length measured radially from the building and exceeding 165′ (50 m) in width.

Exposure Category D

NOTE: Some examples of D exposures include inland waterways, the Great Lakes, and coastal areas. See fig. 3.2.2.3 in

FM Global LPDA 1-28 for examples of Exposure D requirements. For Exposure Category D to be used in determining the

design wind pressure, all the following must be met:

A. The terrain upwind of the structure must be flat, unobstructed areas or water surfaces including smooth mud flats,

salt flats, and unbroken ice and is present in the upwind direction for a distance greater than approximately 5000′

(1500 m) or 20 times the building height, and

B. The building must be within the greater of 600′ (180 m) or 20 times the building or structure height from the terrain

(see Fig. 3.2.2.3), even if the terrain between the building and the terrain described in A. above would otherwise

be considered Category B or C.

10 | P a g e

M a y 24th, 2 0 1 8

Ballasted Systems

Factory Mutual tests and rates only fully adhered and mechanically attached systems; Factory Mutual does accept the use

of Ballasted Roof Systems on a job-to-job basis for FM insured clients. According to Mr. Edward J. Ward, Construction

Standards Manager for Factory Mutual Research, “... the Factory Mutual system windstorm loss experience has been

extremely favorable for Single-Ply ballasted roof systems. When these roofs are installed in accordance with (Factory

Mutual) Loss Prevention Data Sheet 1-29, they are equally acceptable to Factory Mutual approved roofs.”

General Notations

PLEASE NOTE: Not all FM-rated assemblies that use Firestone roofing products are eligible for the Firestone Red

Shield, Red Shield Medallion, or Platinum Warranty. The Firestone standards, guidelines, and specifications

regarding roofing system components and attachment for the warranty desired must be followed.

RoofNav® assemblies are summarized in the following tables; however, an assembly search should be conducted to

confirm the attachment rates and requirements set for in the approval number. In all occasions, should a discrepancy occur

between this guide and RoofNav, the published information located in the approval at www.roofnav.com should be adhered

and utilized.

Additionally, please be aware that the following assemblies typically are in reference to the field of the roof rating and

attachment. Please refer to FM Global Loss Prevention Data Sheet 1-28 and 1-29 to determine the requirements for

additional fastening requirements in the perimeter and corner.

In all cases, when the project is Factory Mutual insured, please consult the FM agent assigned to the review of the project

to ensure compliance.

The below stated assemblies may not be suitable for a Firestone Warranty. Prior to installation, contact a Firestone

Representative for approval of assembly for warranty purposes.

It is acceptable to use multiple layers of FM Approved insulation, mechanically secured through all layers, provided all

the following are true:

• All layers are the same insulation;

• The total insulation thickness is not greater than the maximum FM Approved thickness of the insulation;

• The mechanical fastening and wind uplift rating are per the FM Approval of the top layer; and,

• The roof cover/insulation/fastener combination is FM Approved.

**Water Based Bonding Adhesive-P (WBBA-P) is the equivalent to Water Based Bonding Adhesive-S (WBBA-S)**

11 | P a g e

M a y 24th, 2 0 1 8

Field/Corner/Perimeter Definitions

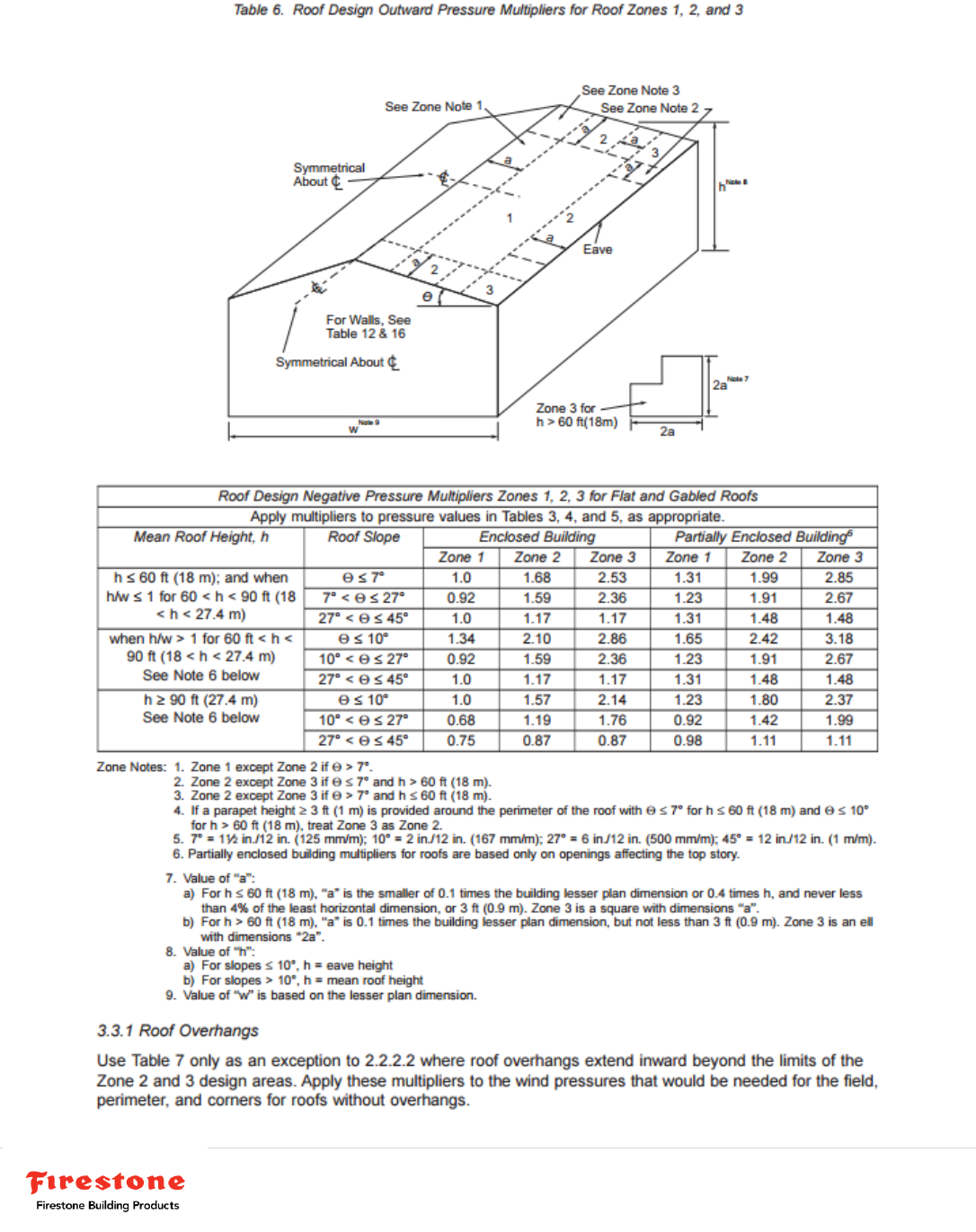

The following diagram is direct form the FM Global Property Lost Prevention Data Sheet 1-28.

This outlines how to calculate your perimeter and corner areas based on the building size and relative conditions.

12 | P a g e

M a y 24th, 2 0 1 8

Perimeter and Corner Treatment of Adjoining Buildings

13 | P a g e

M a y 24th, 2 0 1 8

Prescriptive Enhancement Options: Perimeter and Corner

For all deck types, where roof covers are adhered to some combination of mechanically fastened insulation, cover board,

or thermal barriers, prescriptive enhancements may be used for securement of the perimeter and corner areas, if one of the

conditions below applies:

• The building is in a non-hurricane prone region where the design wind speed does not exceed 90 mph and the roof

height does not exceed 75 ft (23 m). Note the roof height is limited to 30 ft (9.1 m) if the building is located in surface

roughness exposure D (see DS 1-28) and the building is partially enclosed.

• The recommended field of roof rating needed per DS 1-28 does not exceed Class 1-75 (3.6 kPa).

• The building is located in a non-hurricane prone area and the recommended field of the roof rating per Datasheet

1-28 does not exceed Class 1-90.

For any of the three conditions above, increase the number of fasteners per board over the FM Approved field of the roof

spacing by the following:

• 50% minimum in the roof perimeter, but at least one fastener per 2 ft². (1 per 0.19 m²). It is not necessary to install

fasteners closer than one per 1 ft² (1 per 0.09 m²).

• One fastener per 1 ft² (1 per 0.09 m²) in corner areas.

• Round up to the next whole number of fasteners, if necessary.

14 | P a g e

M a y 24th, 2 0 1 8

You must verify the included assemblies in the charts below with the associated Firm’s (UL, FM, etc.).

Not all the information included in the RoofNav assemblies will be listed in the charts below.

You must verify that all assemblies meet Firestone Building Products warranty requirements with the

associated regions technical team.

NOTE: You must verify if any portion of the assembly needs primer. Most self adhering materials require

primer to be used.

Firestone Fully Adhered UltraPly TPO direct to ISOGARD GL – Mechanically Attached – Steel Deck

Uplift

Deck

Type

Vapor

Barrier/Thermal

Barrier

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-75

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene or

V-Force SA over

¼ʺ DensDeck

1ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 12 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

Water Based

Bonding SA –

Self Adhered

319480-0-0

1-90

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene or

V-Force SA over

¼ʺ DensDeck

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 8 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400255-0-0

1-120

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene or

V-Force SA over

¼ʺ DensDeck

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 18 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400214-0-0

1-135

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene or

V-Force SA over

¼ʺ DensDeck

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 16 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400278-0-0

1-150

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene or

V-Force SA over

¼ʺ DensDeck

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 20 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400276-0-0

1-165

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene or

V-Force SA over

¼ʺ DensDeck

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 24 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400692-0-0

1-180

IF: 1

EF: A

Slope: ¼ʺ

Steel:

20-18-ga.

72ʺ span

33 ksi

Optional:

4/6 mil.

Polyethylene or

V-Force SA over

¼ʺ DensDeck

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 24 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400275-0-0

22-ga.

69ʺ span

33 ksi

15 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered UltraPly TPO direct to a Cover Board & Insulation Mech. Attached – Steel Deck

Uplift

Deck

Type

Vapor Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover

Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ

DensDeck/Securock

Insulation:

1.5ʺ-12ʺ Thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 10 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

Water Based

Bonding

112787-0-0

1-60

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ Securock

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 10 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO SA

SA – Self Adhered

400815-0-0

1-75

IF: 1

EF: A

Slope:

½ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ

Structodek HD®

Insulation:

1ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 12 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

Water Based

Bonding

2063-0-0

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ¼ʺ DensDeck/

½ʺ Securock

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 12 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

209896-0-0

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD HD

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 12 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

233370-0-0

1-105

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ¼ʺ DensDeck

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 18 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

SA – Self Adhered

394344-0-0

1-120

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD HD

Insulation:

1.5ʺ- 4ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 24 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

290589-0-0

1-135

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ DensDeck

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

Min. 18 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

SA – Self Adhered

395478-0-0

16 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered UltraPly TPO direct to a Cover Board & Insulation Mech. Attached – Steel Deck

Uplift

Deck

Type

Vapor Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-150

IF: 1

EF: A

Slope: 2.5ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ DensDeck

Prime/Securock

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

Min. 24 HD

fasteners per 4' x 8'

boards

Insulation:

Loose Laid

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

200412-0-0

1-150

IF: 1

EF: A

Slope: ½ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. 7/16ʺ OSB

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

Min. 16 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

77830-0-0

1-165

IF: 1

EF: A

Slope: 2.5ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ DensDeck

Prime/Securock

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

Min. 32 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly TPO

UltraPly TPO SA

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

328645-0-0

1-165

IF: 1

EF: A

Slope: ½ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. 7/16ʺ OSB

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

Min. 32 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

328834-0-0

1-210

IF: 1

EF: A

Slope: 2.5ʺ

Steel:

20-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ DensDeck

Prime/Securock

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

Min. 32 HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly TPO

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

200414-0-0

22-ga.

33 ksi

64ʺ span

1-255

IF: 1

EF: A

Slope: 2.5ʺ

Steel:

22-18-ga.

80 ksi

72ʺ span

N/A

Cover Board:

Min. ½ʺ DensDeck

Prime

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Cover Board:

Min. 32 HD

fasteners per 4' x 8'

boards

Insulation:

Loose Laid

45-80 mil.

UltraPly TPO

Single-Ply LVOC

(1168)

388009-0-0

1-300

IF: 1

EF: A

Slope: ½ʺ

Steel:

22-18-ga.

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. 7/16ʺ OSB

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board: Min.

32 HD fasteners

per 4' x 8' boards

Insulation:

Loose Laid

45-80 mil.

UltraPly TPO

EZ TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

171664-0-0

17 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered UltraPly TPO direct to an Adhered Cover Board & Mech. Attached Insulation – Steel Deck

Uplift

Deck

Type

Vapor

Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membra

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-75

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA

over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD HD

Insulation:

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

12ʺ o.c. bead

I.S.O. FIX

I.S.O. Spray

Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

Min. 8 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

387410-0-0

1-90

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA

over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD HD

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

12ʺ o.c. bead

I.S.O. Spray

Twin Pack

Insulation:

Min. 16 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

233373-0-0

1-90

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

¼ʺ minimum

DensDeck

Prime

Securock

Cover Board:

½ʺ ISOGARD HD

Insulation:

2.2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board:

12ʺ o.c. bead

I.S.O. Spray R

Twin Pack

Insulation:

Min. 8 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400915-0-0

1-90

IF: 1

EF: A

Slope: 2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA

over

¼” DensDeck

Cover Board:

Min. ¼ʺ thick

DensDeck Prime/

Securock

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

12ʺ o.c. bead

I.S.O. Spray R

Twin Pack

Insulation:

Min. 16 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

400885-0-0

1-90

IF: 1

EF: A

Slope: 2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Optional:

¼ʺ minimum

DensDeck

Prime

Securock

Cover Board:

Min. ½ʺ thick

DensDeck Prime/

Securock

Insulation:

2.2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

12ʺ o.c. bead

I.S.O. Spray R

Twin Pack

Insulation:

Min. 8 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

384613-0-0

1-165

IF: 1

EF: A

Slope: ¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA

over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD HD

Insulation:

2ʺ-8ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

6ʺ o.c. bead

I.S.O. Fix

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

Min. 20 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

342142-0-0

18 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered UltraPly TPO direct to an Adhered Cover Board & Mech. Attached Insulation – Steel Deck

Uplift

Deck

Type

Vapor Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-165

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD

Insulation:

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

4ʺ o.c. bead

I.S.O. Fix

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

Min. 32 HD

Fasteners per 4' x

8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self

Adhered

328437-0-0

1-165

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ thick

DensDeck

Prime/ Securock

Insulation:

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

4ʺ o.c. bead

I.S.O. Fix

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

Min. 32 HD

Fasteners per

4' x 8' board s

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self

Adhered

328781-0-0

1-180

IF: 1

EF: A

Slope:

¼ʺ

Steel:

20-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD

Insulation:

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

4ʺ o.c. bead

I.S.O. Fix

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

Min. 32 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self

Adhered

320446-0-0

22-18 ga

80 ksi

72ʺ span

1-210

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

20-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

Min. ½ʺ thick

DensDeck

Prime/ Securock

Insulation:

2ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

4ʺ o.c. bead

I.S.O. Fix

Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

Min. 32 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

320420-0-0

22-18-ga.

80 ksi

72ʺ span

1-270

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-18 ga

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD

Insulation:

2ʺ-8ʺ thick

ISOGARD GL

Tapered I.S.O.

Cover Board:

4ʺ o.c. bead

I.S.O. Fix

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

Min. 32 HD

Fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self

Adhered

342147-0-0

19 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered UltraPly TPO, adhered Cover Board and/or Insulation – V-Force over MA DensDeck –

Steel Deck

Uplift

Deck

Type

Vapor

Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

¼ʺ

22-16-ga.

33 ksi

72ʺ span

V-Force

Primer

Min. ¼ʺ DensDeck

Min. ½ʺ Securock

Min. 8 HD

fasteners per

4' x 8' boards

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Insulation:

12ʺ o.c. bead

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin

Jet

45-80 mil.

UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

(1168)

UltraPly Bonding

SA – Self Adhered

294762-0-0

1-90

IF: 1

EF: A

Slope:

2.5ʺ

22-16-ga.

33 ksi

72ʺ span

V-Force

Primer

Min.¼ʺ DensDeck

Min. ½ʺ Securock

Min. 8 HD

fasteners per

4' x 8' boards

Cover Board:

¼ʺ min.

DensDeck Prime/

Securock

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Cover Board &

Insulation:

12ʺ o.c. bead

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin

Jet

60-80 mil.

UltraPly

TPO

Single-Ply LVOC

(1168)

307312-0-0

Firestone Mechanically Attached UltraPly TPO – Steel Deck

Uplift

Deck

Type

Vapor

Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope:

¾ʺ

20-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

10' sheets

Row Spacing: 114ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

170476-0-0

22-ga.

33 ksi

60ʺ span

22-ga.

80 ksi

72ʺ span

1-60

IF: 1

EF: A

Slope:

1ʺ

20-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

10' sheets

Row Spacing: 114ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

266089-0-0

22-ga.

33 ksi

60ʺ span

22-ga.

80 ksi

72ʺ span

1-60

IF: 1

EF: A

Slope:

¾ʺ

18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

12' sheets

Row Spacing: 142ʺ

Fastener spacing:

6ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

Firestone HD

Fasteners and

Batten Strip (M)

335428-0-0

20-ga.

33 ksi

60ʺ span

22-ga.

33 ksi

48ʺ span

20-ga.

80 ksi

72ʺ span

22-ga.

80 ksi

72ʺ span

20 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached UltraPly TPO – Steel Deck

Uplift

Deck

Type

Vapor

Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope:

5ʺ

20-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Cover Board:

¼ʺ min. thick

DensDeck, Prime or

Securock

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

10' sheets

Row Spacing: 114ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates or

Firestone HD

Fasteners and

Batten Strip (M)

264245-0-0

22-ga.

33 ksi

60ʺ span

22-ga.

80 ksi

72ʺ span

1-75

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

1.5ʺ-4ʺ ISOGARD

HD Composite

Insulation (Optional):

1.5ʺ-9.5ʺ

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

8' sheets

Row Spacing: 90ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

339042-0-0

1-75

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Insulation:

(2) 1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

1.5ʺ-8ʺ ISOGARD

HD Composite

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

8' sheets

Row Spacing: 90ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

338538-0-0

1-75

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

60-80 mil.

UltraPly TPO

Sheet Size:

10' sheets

Row Spacing: 114ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

375098-0-0

1-75

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force

over

¼ʺ DensDeck

(possible primer)

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

60-80 mil.

UltraPly TPO

Sheet Size:

10' sheets

Row Spacing: 114ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

381672-0-0

21 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached UltraPly TPO – Steel Deck

Uplift

Deck

Type

Vapor Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-75

IF: 1

EF: A

Slope:

1¾ʺ

22-18-ga.

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force

over

¼ʺ DensDeck

(possible primer)

Cover Board:

½ʺ Structodek HD

½ʺ FiberTop B

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

1.5ʺ -12ʺ thick

60-80 mil.

UltraPly

TPO

Sheet Size:

10' sheets

Row Spacing: 114ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

381629-0-0

1-90

IF: 1

EF: A

Slope:

¾ʺ

22-18-ga.

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

Sheet Size:

8' sheets

Row Spacing: 90ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

76897-0-0

1-90

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ -12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

1.5ʺ-4ʺ ISOGARD

HD Composite

Insulation

(Optional):

1.5ʺ-9.5ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

Sheet Size: 78ʺ

Row Spacing: 72ʺ

Fastener Spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

338363-0-0

1-90

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

Sheet Size:

12' sheets

Row Spacing: 71ʺ

Fastener spacing:

12ʺ o.c.

*Intermediate

Batten Rows

Firestone HD

Fasteners and

Batten Strip (M/P)

343386-0-0

1-90

IF: 1

EF: A

Slope:

¾ʺ

18-19-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly

TPO

Sheet Size:

10' sheets

Row Spacing:

114ʺ

Fastener spacing:

6ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

166431-0-0

20-ga.

33 ksi

48ʺ span

20-ga.

80 ksi

72ʺ span

22-ga.

80 ksi

72ʺ span

22 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached UltraPly TPO – Steel Deck

Uplift

Deck

Type

Vapor

Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

¾ʺ

22-18-ga.

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

8' sheets

Row Spacing: 90ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

*WIDE WELD*

76731-0-0

1-90

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

80 ksi

72” span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

8' sheets

Row Spacing: 90ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

266129-0-0

1-90

IF: 1

EF: A

Slope:

1ʺ

22-16-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

10' sheets

Row Spacing: 72ʺ

Fastener spacing:

12ʺ o.c.

RMA Strip w/

Firestone HD

Fasteners and HD

Seam Plates

382087-0-0

1-105

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

60-80 mil.

UltraPly TPO

Sheet Size:

5' sheets

Row Spacing: 54ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

382086-0-0

1-105

IF: 1

EF: A

Slope:

¾ʺ

18-ga.

33 ksi

54ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force or

BASEGARD SA

over

¼ʺ DensDeck

(possible primer)

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

10' sheets

Row Spacing: 114ʺ

Fastener spacing:

6ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

3081-0-0

20-18-ga.

80 ksi

72ʺ span

22-ga.

80 ksi

60ʺ span

1-105

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

80 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

1.5ʺ-12ʺ thick

ISOGARD HD

Composite

Min. 5 HD

fasteners per

4' x 8' boards

45-80 mil.

UltraPly TPO

Sheet Size:

8' sheets

Row Spacing: 90ʺ

Fastener spacing:

6ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

364311-0-0

23 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached UltraPly TPO – Steel Deck

Uplift

Deck

Type

Vapor

Barrier/

Thermal

Barrier

Cover Board

/Insulation

Cover Board/

Insulation

Attachment

Membrane

Options

Membrane

Attachment

RoofNav

Assembly

Number

1-105

IF: 1

EF: A

Slope:

1ʺ

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

(possible primer)

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

60-80 mil.

UltraPly TPO

Sheet Size:

60' sheets

Row Spacing: 54ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

381676-0-0

1-105

IF: 1

EF: A

Slope:

1¾ʺ

22-18-ga.

33 ksi

72ʺ span

Optional:

4/6 mil.

Polyethylene

V-Force SA over

¼ʺ DensDeck

(possible primer)

Cover Board:

½ʺ Structodek HD

½ʺ FiberTop B

Insulation:

1.5ʺ-12ʺ thick

ISOGARD GL

Tapered I.S.O.

ISOGARD CG

Min. 5 HD

fasteners per

4' x 8' boards

60-80 mil.

UltraPly TPO

Sheet Size:

60' sheets

Row Spacing: 54ʺ

Fastener spacing:

12ʺ o.c.

Firestone HD

Fasteners and HD

Seam Plates

381634-0-0

Firestone Fully Adhered Uplift Ratings – V-Force Vapor Barrier System

Uplift

Deck Type

Thermal Barrier

& Attachment

Vapor Barrier

System

Insulation Assembly

Membrane

Options

RoofNav

Number

1-90

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

(New or

recover)

DensDeck/Securock,

¼ʺ min. 8 HD or

Concrete Drive

fasteners and plates

per 4' x 8' boards

Primed thermal

barrier with V-

Force

ISOGARD GL,

1.5ʺ min., 4' x 4' boards,

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

UltraPly TPO:

Single-Ply LVOC

S.P. LVOC 1168

UltraPly Bonding

UltraPly TPO SA

294593-0-0

1-90

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

DensDeck, ¼ʺ min.

Securock ½ʺ min.

8 HD or Concrete

Drive fasteners and

plates per 4' x 8'

boards

Primed thermal

barrier with V-

Force

2 Layers - ISOGARD GL

(Flat or Tapered),

1.5ʺ min., 4' x 4' boards,

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

UltraPly TPO

Single-Ply LVOC

S.P. LVOC 1168

UltraPly Bonding

UltraPly TPO SA

294633-0-0

1-525

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

None

Primed

substrate with

V-Force

Cover Board:

ISOGARD HD, ½ʺ min.,

4' x 4' board, adhered with

I.S.O.Stick, I.S.O. Spray

or Twin Pack at 12ʺ o.c.

Insulation:

2 Layers - ISOGARD GL,

1.5ʺ min., 4' x 4' boards,

adhered with I.S.O.Stick,

I.S.O. Spray or Twin Pack

at 12ʺ o.c.

UltraPly TPO, FA

with Single-Ply

LVOC or UltraPly

Bonding Adhesive

UltraPly TPO SA

295461-0-0

1-525

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

None

Primed

substrate with

V-Force

Insulation:

ISOGARD GL, 1.5ʺ min.,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

UltraPly TPO:

Single-Ply LVOC

S.P. LVOC 1168

UltraPly Bonding

294948-0-0

24 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings – V-Force Vapor Barrier System

Uplift

Deck Type

Thermal Barrier

& Attachment

Vapor Barrier

System

Insulation Assembly

Membrane

Options

RoofNav

Number

1-525

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

None

Primed

substrate with

V-Force

Insulation:

2 Layers ISOGARD GL,

1.5ʺ min., 4' x 4' boards,

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

UltraPly TPO:

Single-Ply LVOC

S.P. LVOC 1168

UltraPly Bonding

294949-0-0

1-495

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

None

Primed

substrate with

V-Force

Cover Board:

DensDeck Prime or

Securock ¼ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ min.,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

UltraPly TPO:

Single-Ply LVOC

S.P. LVOC 1168

UltraPly Bonding

UltraPly TPO SA

295522-0-0

Firestone Fully Adhered Uplift Ratings – SBS Vapor Barrier System

New Construction, Concrete Deck, Adhesively Attached Insulation, With Cover Board

Uplift

Deck

Type

Vapor

Retarder/

Primer

Insulation and

Attachment

Cover Board

and Attachment

Cover Board

and Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-465

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500

psi

Min. 2ʺ thick

SBS Glass

Torch Base

SBS Poly

Torch Base

SBS Smooth

Primer:

Concrete

Primer,

Asphaltic

Tapered

ISOGARD GL,

1.5ʺ min., 12ʺ o.c.

beads of Twin

Pack Adhesive

Cover Board:

¼ʺ min.

DensDeck,

DensDeck Prime,

or Securock,

4' x 4' boards, 12ʺ

o.c. beads of

I.S.O. Spray or

Twin Pack

Adhesive

Cover

Board/Insulation:

12ʺ o.c. beads

I.S.O. Spray R

Twin Pack

UltraPly

TPO

UltraPly

Bonding

Adhesive

Single-Ply

LVOC

Bonding

Adhesive

233200-0-0

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete Deck, Adhesively Attached Insulation, Without Cover Board

Uplift

Deck Type

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-555

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation (2 Layers):

ISOGARD GL(Taper),

1ʺ (.5ʺ) min.,

ISOGARD GL, 1ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Spray R

.045 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

304517-0-0

1-330

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Twin Pack

Adhesive

.060 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

223517-0-0

1-360

IF: NC

EF: A

Slope: ¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered with full

application:

I.S.O. Spray

.045 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

80684-0-0

25 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete Deck, Adhesively Attached Insulation, Without Cover Board

Uplift

Deck Type

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-360

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ

4' x 4' boards

Adhered with full

application:

Hot Asphalt

.060 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

245813-0-0

1-480

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ

4' x 4' boards

Adhered at 8ʺ o.c.:

I.S.O. Twin Pack

Adhesive

.045 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

223518-0-0

1-540

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Primed:

Asphaltic

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered at

12ʺ o.c.:

I.S.O.Stick

Adhesive

.045 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

228481-0-0

1-570

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered at 4ʺ o.c.:

I.S.O. Twin Pack

Adhesive

.045 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

223523-0-0

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete Deck, Adhesively Attached Insulation, With Cover Board

Uplift

Deck Type

Cover Board and

Insulation

Cover Board

and Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-120

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Primer:

Asphaltic

Cover Board:

¼ʺ min. DensDeck (Prime)

or Securock

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O.Stick Adhesive

.045 mil. min.

UltraPly

membrane

Single-Ply LVOC

Bonding

UltraPly Bonding

Adhesive

228479-0-0

1-270

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

½ʺ ISOGARD HD

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

.045 mil. min.

UltraPly

membrane

Water Based

Bonding Adhesive

233376-0-0

1-255

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

¼ʺ min. DensDeck Prime

or Securock

Insulation:

ISOGARD GL (ISOGARD

CG), ½ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

.045 mil. min.

UltraPly TPO

Ultraply TPO SA

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Self Adhered

223524-0-0

26 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete Deck, Adhesively Attached Insulation, With Cover Board

Uplift

Deck Type

Cover Board and

Insulation

Cover Board and

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

V-Force (req.):

Self Adhered

Primer:

Asphaltic

Thermal (opt.):

DensDeck,

¼ʺ min.

Cover Board:

¼ʺ min. DensDeck Prime

Insulation (Top):

Tapered ISOGARD GL,

ISOGARD CG, ½ʺ-4ʺ,

4' x 4' board

Insulation (Bottom):

ISOGARD GL 1.5ʺ-8ʺ

Cover Board and

Top Insulation

Adhered at 12ʺ o.c.:

I.S.O. Fix II

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

Bottom Insulation:

Min. 16 HD

fasteners per 4' x 8'

boards

Thermal:

Loose Laid

.045 mil. min.

UltraPly TPO

Ultraply TPO SA

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Water Based P

Self Adhered

346005-0-0

1-255

IF: NC

EF: A

Slope:

2.5”

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

¼ʺ min.

DensDeck Prime

Insulation:

ISOGARD GL,

ISOGARD CG, ½ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

.045 mil. min.

UltraPly TPO

Ultraply TPO SA

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Self Adhered

223524-0-0

1-270

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

½ʺ ISOGARD HD

Insulation:

ISOGARD GL, 1.5ʺ-

36ʺ, 4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

.045 mil. min.

UltraPly TPO

Water Based

Bonding Adhesive

233376-0-0

1-270

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

½ʺ ISOGARD HD

Insulation:

ISOGARD GL, 1.5ʺ-

36ʺ, 4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O.Stick/Twin Jet

.045 mil. min.

UltraPly TPO

Water Based

Bonding Adhesive

233380-0-0

1-375

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

¼ʺ DensDeck Prime

or Securock

Insulation:

ISOGARD GL, 1.5ʺ-

36ʺ, 4' x 4' boards

Adhered at 8ʺ o.c.:

I.S.O.Stick/Twin Jet

.045 mil. min.

UltraPly TPO

Ultraply TPO SA

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Self Adhered

223525-0-0

1-390

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

¼ʺ DensDeck Prime

or Securock

Insulation:

ISOGARD GL, 1.5ʺ-

36ʺ, 4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Twin Pack

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

113754-0-0

1-390

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Primer:

Asphaltic

Cover Board:

¼ʺ DensDeck Prime

Or Securock

Insulation:

ISOGARD GL, 1.5ʺ-

36ʺ, 4' x 4' boards

I.S.O. Spray, full

application

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

135967-0-0

1-390

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

¼ʺ DensDeck Prime

or Securock

Insulation:

ISOGARD GL, 1.5ʺ-

36ʺ, 4' x 4' boards

Asphalt Attached,

full application

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

245811-0-0

27 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete Deck, Adhesively Attached Insulation, With Cover Board

Uplift

Deck Type

Cover Board and

Insulation

Cover Board and

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-495

IF: NC

EF: A

Slope:

½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Primer:

Asphaltic

Cover Board:

APA Rated OSB,

7/16ʺ min.,

4' x 4' boards

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O.Stick/Twin Jet

.045 mil. min.

UltraPly TPO

Ultraply TPO SA

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Self Adhered

228464-0-0

1-600

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

½ʺ ISOGARD HD

Insulation:

ISOGARD GL, 1.5ʺ-36ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O.Stick/Twin Jet

.045 mil. min.

UltraPly TPO

Ultraply TPO SA

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Self Adhered

233379-0-0

Firestone Fully Adhered Uplift Ratings

New Construction, Cementitious Wood Fiber Deck, Adhesively Attached Insulation, With Cover Board

Uplift

Deck Type

(Vapor Retarder)

Cover Board and

Insulation

Cover Board and

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Cementitious Wood

Fiber - Tectum

Plank

Min. thick: 2ʺ

Max. span: 36ʺ

Cover Board:

¼ʺ DensDeck Prime

or Securock

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ,

4' x 4' boards

Adhered at 12ʺ o.c.:

I.S.O. Fix Adhesive

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Water Based P

112012-0-0

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete, Mechanically Attached Insulation without Cover Board

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL,

1.5ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Attached with

12 AP or HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Water Based P

2113-0-0

1-90

IF:NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 PSI

Min. 2ʺ thick

Insulation:

ISOGARD GL,

2ʺ-12ʺ thick,

4' x 8' boards

Optional:

V-Force (SA) w/Primer

SBS Torch

Attached with

12 HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Water Based P

2106-0-0

28 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete, Mechanically Attached Insulation without Cover Board

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL,

2ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Attached with

8 AP or HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

191607-0-0

1-120

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL,

2ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Attached with

18 AP or HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

127787-0-0

1-180

IF: 1

EF: A

Slope:

¼ʺ

Steel (WR):

20-18-ga. WR

33 ksi

72ʺ span

Insulation:

ISOGARD GL,

1.5ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Attached with

24 AP or HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

233194-0-0

22-18-ga.

80 ksi

72ʺ span

1-120

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL,

2ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

or V-Force (SA)

or SBS Torch

Attached with

20 Concrete

Drive or HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Water Based

Bonding Adhesive

296301-0-0

1-150

IF: 1

EF: A

Slope:

¼ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL,

2ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Attached with

20 AP or HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

233195-0-0

1-225

IF: 1

EF: A

Slope:

¼ʺ

Steel (WR):

18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL,

2ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Attached with

32 AP or HD

fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

228346-0-0

22-18-ga.

80 ksi

72ʺ span

29 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete, Insulation and/or Mechanically Attached Cover Board

Uplift

Deck Type

(Vapor

Retarder/Therma

l Barrier)

Cover Board/

Insulation

Cover Board

and Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-75

IF: 1

EF: A

Slope:

½ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

½ʺ min.

Structodek HD

Fiberboard HD

Insulation:

ISOGARD GL,

2ʺ-12ʺ thick,

4' x 8' boards

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

12 AP or HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Water Based P

2063-0-0

1-75

IF: NC

EF: A

Slope:

¾ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

½ʺ min.

Structodek HD

Fiberboard HD

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Cover Board:

12 HD fasteners

per 4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Water Based P

2061-0-0

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ¼ʺ min.

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

16 AP or HD

fasteners per

4' x 8' board

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Water Based P

112795-0-0

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ¼ʺ min.

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

12 AP or HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Ultraply TPO SA

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Water Based P

Self Adhered

209896-0-0

1-90

IF: NC

EF: A

Slope:

2.5ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

DensDeck, ¼ʺ min.

Securock, ¼ʺ min.

Insulation:

ISOGARD GL,

1ʺ-12ʺ

Cover Board:

18 AP or HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Water Based P

2064-0-0

30 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete, Insulation and/or Mechanically Attached Cover Board

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Cover Board/

Insulation

Cover Board

and Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-150

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ½ʺ min.

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

24 AP or HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Ultraply TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Self Adhered

200412-0-0

1-210

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ½ʺ min.

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

32 AP or HD

fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

200414-0-0

22-ga.

33 ksi

64ʺ span

22-18-ga.

80 ksi

72ʺ span

1-90

IF: 1

EF: A

Slope:

½ʺ

Steel:

20-18-ga.

33 ksi

72ʺ span

Cover Board:

APA Rated OSB

7/16ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

12 HD ISOGARD

HG Fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Water Based P

Self Adhered

136153-0-0

1-105

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Cover Board:

APA Rated OSB

7/16ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

20 HD ISOGARD

HG Fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Ultraply TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Water Based P

Self Adhered

136151-0-0

1-150

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Cover Board:

APA Rated OSB

7/16ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

16 HD ISOGARD

HG Fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Ultraply TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Self Adhered

77830-0-0

31 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete, Insulation and/or Mechanically Attached Cover Board

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Cover Board/

Insulation

Cover Board

and Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-300

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

22-18-ga.

80 ksi

72ʺ span

Cover Board:

APA Rated OSB

7/16ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Cover Board:

32 HD ISOGARD

HG Fasteners per

4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

171664-0-0

1-90

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

20-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD HG, 2ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Insulation:

12 HD ISOGARD

HG Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Ultraply TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Water Based P

Self Adhered

136363-0-0

1-105

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD HG, 2ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Insulation:

20 HD ISOGARD

HG Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Ultraply TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Water Based P

Self Adhered

136362-0-0

1-165

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD HG, 1.5ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Insulation:

32 HD ISOGARD

HG Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

328832-0-0

1-300

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

18-ga.

33 ksi

70ʺ span

Insulation:

ISOGARD HG, 1.5ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Insulation:

32 HD ISOGARD

HG Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

171662-0-0

20-ga.

33 ksi

60ʺ span

22-18-ga.

80 ksi

72ʺ span

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

ISOGARD HD, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

12 HD or AP

Fasteners per 4' x 8'

boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO

Ultraply TPO

Single-Ply LVOC

Bonding

Single-Ply LVOC

Bonding 1168

UltraPly Bonding

Adhesive

Self Adhered

233370-0-0

32 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete, Insulation and/or Mechanically Attached Cover Board

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Cover Board/

Insulation

Cover Board

and Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

ISOGARD HD, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

Insulation:

16 HD or AP

Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Ultraply TPO

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

Self Adhered

233373-0-0

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck Prime,

¼ʺ min.

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Cover Board:

Adhered at 12ʺ o.c.:

I.S.O. Twin Pack

Insulation:

8 HD or AP Fasteners

per 4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

Water Based P

388285-0-0

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck,

DensDeck Prime,

Securock

¼ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Cover Board:

Adhered at 12ʺ o.c.:

I.S.O. Spray R

I.S.O. Twin Pack

Insulation:

16 HD or AP

Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

233196-0-0

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation (Top):

ISOGARD GL,

1.5ʺ-4ʺ

Insulation (Bottom):

ISOGARD GL,

1.5ʺ-4ʺ

Insulation (Top):

Adhered at 12ʺ o.c.:

I.S.O. Twin Pack

Insulation (Bottom):

16 HD or AP

Fasteners per 4' x 8'

boards

.045 mil. min.

UltraPly TPO

Single-Ply

LVOC Bonding

Single-Ply

LVOC Bonding

1168

UltraPly

Bonding

Adhesive

230423-0-0

Firestone Fully Adhered Uplift Ratings – UltraPly TPO SA membrane

New Construction, Steel Deck, Mechanically Attached Insulation, Without Cover Board

Uplift

Deck Type

Insulation

Insulation Attachment

Membrane

RoofNav

Number

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼” DensDeck

Insulation:

8 HD or AP Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

373219-0-0

1-120

IF: 1

EF: A

Slope:

¼ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼” DensDeck

Insulation:

18 HD or AP Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

373217-0-0

1-165

IF: 1

EF: A

Slope:

¼ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Insulation:

24 HD or AP Fasteners per

4' x 8' boards

.045 mil. min.

UltraPly TPO

373246-0-0

33 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings – UltraPly TPO SA membrane

New Construction, Concrete Deck, Mechanically Attached Insulation, Without Cover Board

Uplift

Deck Type

Insulation

Insulation Attachment

Membrane

RoofNav

Number

1-90

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 1.25ʺ-12ʺ

Optional:

V-Force (SA)

Primer or

SBS Torch

Insulation:

12 Concrete Drive or HP

Fasteners per 4' x 8' boards

.045 mil. min.

UltraPly TPO

373390-0-0

1-150

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 2ʺ-4ʺ

Optional:

ISOGARD GL, ½ʺ-12ʺ

Or V-Force (SA)

Primer or

SBS Torch

Insulation:

20 Concrete Drive or HP

Fasteners per 4' x 8' boards

.045 mil. min.

UltraPly TPO

373397-0-0

1-300

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation (Top):

ISOGARD GL, 2ʺ-4ʺ

Optional (Bottom):

ISOGARD GL, ½ʺ-12ʺ

Optional:

V-Force (SA)

Primer

SBS Torch

Insulation:

32 Concrete Drive or HP

Fasteners per 4' x 8' boards

.045 mil. min.

UltraPly TPO

373398-0-0

Firestone Fully Adhered Uplift Ratings – UltraPly TPO SA membrane

New Construction, Steel Deck, Mechanically Attached Insulation, Adhesively Attached Insulation

Uplift

Deck Type

Insulation

Insulation Attachment

Membrane

RoofNav

Number

1-60

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Insulation (Top):

ISOGARD GL, 1.5ʺ-8ʺ

Insulation (Bottom):

ISOGARD GL, 1.5ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

(Top) Adhered at 12ʺ o.c.:

I.S.O. Fix

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin Jet

(Bottom):

12 AP or HD fasteners and plates

per 4' x 8' boards

Optional Vapor/Thermal:

Loose Laid

.045 mil. min.

UltraPly TPO

373224-0-0

1-75

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation (Top):

ISOGARD GL, 1.5ʺ-8ʺ

Insulation (Bottom):

ISOGARD GL, 2ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

(Top) Adhered at 12ʺ o.c.:

I.S.O. Fix

I.S.O. Spray R

Twin Pack

I.S.O.Stick/Twin Jet

(Bottom):

8 AP or HD fasteners and plates

per 4' x 8' boards

Optional Vapor/Thermal:

Loose Laid

.045 mil. min.

UltraPly TPO

373230-0-0

34 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings – UltraPly TPO SA membrane

New Construction, Steel Deck, Mechanically Attached Insulation, Adhesively Attached Insulation

Uplift

Deck Type

Insulation

Insulation Attachment

Membrane

RoofNav

Number

1-90

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation (Top):

ISOGARD GL, 1.5ʺ-4ʺ

Insulation (Bottom):

ISOGARD GL, 2.25ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

(Top) Adhered at 12ʺ o.c.:

I.S.O. Fix

Twin Pack

I.S.O.Stick/Twin Jet

(Bottom):

8 AP or HD fasteners and plates

per 4' x 8' boards

Optional Vapor/Thermal:

Loose Laid

.045 mil. min.

UltraPly TPO

373236-0-0

1-150

IF: 1

EF: A

Slope:

¼ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Insulation (Top):

ISOGARD GL, ¼ʺ

Insulation (Bottom):

ISOGARD GL, 1.5ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

(Top)

Adhered at 12ʺ o.c.:

Twin Pack

(Bottom):

20 AP or HD fasteners and plates

per 4' x 8' boards

Optional Vapor/Thermal:

Loose Laid

.045 mil. min.

UltraPly TPO

373245-0-0

Firestone Fully Adhered Uplift Ratings – UltraPly TPO SA membrane

New Construction, Concrete Deck, Mechanically Attached Insulation, Adhesively Attached Insulation

Uplift

Deck Type

Insulation

Insulation Attachment

Membrane

RoofNav

Number

1-90

IF: NC

EF: A

Slope:

¼”

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

Firestone ISOGARD GL,

1.5ʺ-4ʺ thick

Insulation (Bottom):

ISOGARD GL, 2.25ʺ-8ʺ

Optional:

V-Force

SBS Torch

(Top):

Adhered at 12ʺ o.c.:

I.S.O. Fix

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

(Bottom):

8 HD fasteners and plates

per 4' x 8' boards

Optional:

Self Adhered

or Torched

.045 mil. min.

UltraPly TPO

373371-0-0

1-255

IF: NC

EF: A

Slope:

¼”

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

Firestone ISOGARD GL,

1ʺ-4ʺ Thick

Insulation (Bottom):

ISOGARD GL, 2ʺ-8ʺ

Optional:

V-Force

SBS Torch

(Top):

Adhered at 4ʺ o.c.:

I.S.O. Fix

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

(Bottom):

32 HD or Concrete Drive

fasteners and plates 4' x 8' boards

Optional:

Self Adhered

or Torched

.045 mil. min.

UltraPly TPO

373389-0-0

35 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings – UltraPly TPO SA membrane

New Construction, Steel Deck, Insulation with Mechanically Attached Cover Board

Uplift

Deck Type

Cover

Board/Insulation

Cover Board/Insulation

Attachment

Membrane

RoofNav

Number

1-90

IF: 1

EF: A

Slope:

2.5

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ¼ʺ min.

or Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Cover Board:

12 HD or AP fasteners per

4' x 8' boards

Insulation:

Loose Laid

Optional:

Loose Laid

V-Force – Self Adhered

.045 mil. min.

UltraPly TPO

AS or

Ultraply TPO

(SP LVOC, SP

LVOC 1168,

UltraPly, WB P)

271664-0-0

1-90

IF: 1

EF: A

Slope:

2.5

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

ISOGARD HD, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

12 HD or AP fasteners per

4' x 8' boards

Insulation:

Loose Laid

Optional:

Loose Laid

V-Force – Self Adhered

.045 mil. min.

UltraPly TPO

Ultraply TPO

(SP LVOC, SP

LVOC 1168,

UltraPly)

233370-0-0

Firestone Fully Adhered Uplift Ratings – UltraPly TPO SA membrane

New Construction, Concrete Deck, Insulation with Mechanically Attached Cover Board

Uplift

Deck Type

Cover Board/Insulation

Cover Board/

Insulation Attachment

Membrane

RoofNav

Number

1-90

IF: NC

EF: A

Slope:

¼ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

ISOGARD HD, 1ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-4ʺ

Cover Board:

18 Concrete Drive or HD

fasteners per 4' x 8' boards

Insulation:

Loose Laid

.045 mil. min.

UltraPly TPO AS

Ultraply TPO

(SP LVOC, SP

LVOC 1168,

UltraPly, WB P)

290613-0-0

1-90

IF: NC

EF: A

Slope:

¼ʺ

Concrete

Optional:

V-Force and DensDeck

or Polyethylene

Cover Board:

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

8 Concrete Drive or HD

fasteners per 4' x 8' boards

Insulation:

Loose Laid

Optional:

Loose Laid

V-Force – Self Adhered

045 mil. min.

UltraPly TPO SA

Ultraply TPO

(SP LVOC, SP

LVOC 1168,

UltraPly, WB P)

372640-0-0

Firestone Fully Adhered Uplift Ratings – UltraPly XR 100 and XR 115 membrane

New Construction, Steel or Concrete Deck, Insulation without Cover Board, UltraPly XR membrane

Uplift

Deck Type

Insulation

Insulation Attachment

Membrane

and

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

½ʺ

Steel:

22-1-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-4ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Insulation:

16 HD or AP fasteners

per 4' x 8' boards

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR:

100, 115 or 135

12ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

289254-0-0

36 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings – UltraPly XR 100 and XR 115 membrane

New Construction, Steel or Concrete Deck, Insulation without Cover Board, UltraPly XR membrane

Uplift

Deck Type

Insulation

Insulation Attachment

Membrane

and

Attachment

RoofNav

Assembly

Number

1-90

IF: NC

EF: A

Slope:

½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

V-Force (SA)

SBS Torch

Insulation:

16 Concrete Drive or HD

fasteners per 4' x 8' boards

Optional:

V-Force – Self Adhered

SBS Torch - Torched

UltraPly XR

100, 115 or 135

12ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

289250-0-0

1-165

IF: 1

EF: A

Slope:

½ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Insulation:

20 HD or AP fasteners per

4' x 8' boards

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100, 115 or 135

6ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

292119-0-0

1-165

IF: NC

EF: A

Slope:

½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

V-Force (SA)

SBS Torch

Insulation:

20 Concrete Drive or HD

fasteners per 4' x 8' boards

Optional:

V-Force – Self Adhered

SBS Torch - Torched

UltraPly XR

100, 115 or 135

6ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

289292-0-0

1-285

IF: NC

EF: A

Slope:

½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

V-Force (SA)

SBS Torch

Insulation:

32 Concrete Drive or HD

fasteners per 4' x 8' boards

Optional:

V-Force – Self Adhered

SBS Torch - Torched

UltraPly XR

100, 115 or 135

4ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

289295-0-0

1-285

IF: 1

EF: A

Slope:

½ʺ

Steel:

18-ga.,33 ksi

72ʺ span

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

or V-Force (SA) over

¼ʺ DensDeck

Insulation:

32 HD or AP fasteners per

4' x 8' boards

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100, 115 or 135

4ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

292137-0-0

22-18-ga.

80 ksi

72ʺ span

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete Deck, Insulation with Cover Board, UltraPly XR membrane

Uplift

Deck Type

Cover Board/

Insulation

Cover Board/

Insulation Attachment

Membrane

and

Attachment

RoofNav

Assembly

Number

1-75

IF: 1

EF: A

Slope:

1ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ¼ʺ min.

or Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene or

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

15 HD or AP fasteners per

4' x 8' boards

Insulation:

Loose Laid

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100 or 115

Full Coverage:

Water Based

Bonding

Adhesive

243485-0-0

1-90

IF: 1

EF: A

Slope:

4ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ¼ʺ min.

or Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

Or V-Force (SA) over

¼ʺ DensDeck

Cover Board:

12 HD or AP fasteners per

4' x 8' boards Insulation:

Loose Laid

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100 or 115

Full Coverage:

XR Bonding

Adhesive

243482-0-0

37 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete Deck, Insulation with Cover Board, UltraPly XR membrane

Uplift

Deck Type

Cover Board/

Insulation

Cover Board/

Insulation Attachment

Membrane

and

Attachment

RoofNav

Assembly

Number

1-90

IF: NC

EF: A

Slope:

2ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

DensDeck, ¼ʺ min.

or Securock, ¼ʺ min.

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

V-Force (SA) or

SBS Torch

Cover Board:

16 Concrete Drive or HD fasteners

per 4' x 8' boards

Insulation:

Loose Laid

Optional:

V-Force – Self Adhered or

SBS Torch - Torched

UltraPly XR

100, 115 or 135

12ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

292001-0-0

1-90

IF: 1

EF: A

Slope:

½ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

ISOGARD HD, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene or

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

15 HD or AP fasteners per

4' x 8' boards

Insulation:

Loose Laid

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100, 115 or 135

12ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

320509-0-0

1-90

IF: 1

EF: A

Slope:

½ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Cover Board:

APA Rated OSB, 7/16ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene or

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

16 HD or AP fasteners per

4' x 8' boards

Insulation: Loose Laid

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100, 115 or 135

12ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

291981-0-0

1-90

IF: NC

EF: A

Slope:

½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

APA Rated OSB, 7/16ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

V-Force (SA) or

SBS Torch

Cover Board:

16 Concrete Drive or HD fasteners

per 4' x 8' boards

Insulation:

Loose Laid

Optional:

V-Force – Self Adhered or

SBS Torch - Torched

UltraPly XR

100, 115 or 135

12ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

289274-0-0

1-120

IF: NC

EF: A

Slope:

2ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

DensDeck, ½ʺ min. or

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

V-Force (SA)

SBS Torch

Cover Board:

4' x 4' boards attached

w/ 6ʺ o.c. beads:

I.S.O. Fix

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

20 Concrete Drive or HD fasteners

per 4' x 8' board

Optional:

V-Force – Self Adhered or

SBS Torch - Torched

UltraPly XR

100, 115 or 135

6ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

289300-0-0

38 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Fully Adhered Uplift Ratings

New Construction, Steel or Concrete Deck, Insulation with Cover Board, UltraPly XR membrane

Uplift

Deck Type

Cover Board/

Insulation

Cover Board/

Insulation Attachment

Membrane

and

Attachment

RoofNav

Assembly

Number

1-120

IF: 1

EF: A

Slope:

2ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Cover Board:

DensDeck, ½ʺ min.

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

4' x 4' boards attached

w/6ʺ o.c. beads

I.S.O. Fix

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

20 HD or AP fasteners per

4' x 8' board

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100, 115 or

135

6” o.c. ribbons:

I.S.O. Spray R

XR Stick

292145-0-0

1-165

IF: 1

EF: A

Slope:

½ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Cover Board:

ISOGARD HD, ½ʺ min.

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

4-6 mil. Polyethylene

V-Force (SA) over

¼ʺ DensDeck

Cover Board:

4' x 4' boards attached

w/6ʺ o.c. beads

I.S.O. Fix

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

20 HD or AP fasteners per

4' x 8' boards

Optional:

Poly - Loose Laid

V-Force – Self Adhered

DD – Loose Laid

UltraPly XR

100, 115 or

135

6ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

320536-0-0

1-165

IF:NC

EF: A

Slope:

½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

ISOGARD HD, ½ʺ min.

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

V-Force (SA)

SBS Torch

Cover Board:

4' x 4' boards attached

w/6ʺ o.c. beads

I.S.O. Fix

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

20 Concrete Drive or HD

fasteners per 4' x 8' boards

Optional:

V-Force – Self Adhered or

SBS Torch - Torched

UltraPly XR

100, 115 or

135

6ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

320464-0-0

1-255

IF:NC

EF: A

Slope:

2ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Cover Board:

DensDeck, ½ʺ min.

Securock, ½ʺ min.

Insulation:

ISOGARD GL, 2ʺ-12ʺ

Optional:

V-Force (SA)

SBS Torch

Cover Board:

4' x 4' boards attached

w/6ʺ o.c. beads

I.S.O. Fix

I.S.O. Spray R

I.S.O. Twin Pack

I.S.O.Stick/Twin Jet

Insulation:

32 Concrete Drive or HD

fasteners per 4' x 8' board

Optional:

V-Force – Self Adhered or

SBS Torch - Torched

UltraPly XR

100, 115 or

135

4ʺ o.c. ribbons:

I.S.O. Spray R

XR Stick

289296-0-0

39 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete Deck, Adhered Cover Board Only, UltraPly XR membrane

Uplift

Deck Type

Cover Board/

Insulation

Cover Board/

Insulation Attachment

Membrane and

Attachment

RoofNav

Assembly

Number

1-465

IF:NC

EF: A

Slope: 4ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

DensDeck, ¼ʺ min.

Securock, ¼ʺ min.

Insulation:

Full Coverage, Hot Asphalt,

4' x 4' boards

UltraPly XR

100, 115 or 135

Full Coverage:

XR Bonding Adhesive

243447-0-0

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete Deck, UltraPly XR membrane

Uplift

Deck Type

Membrane

Attachment

RoofNav

Assembly

Number

1-720

IF:NC

EF: A

Slope: 4ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

UltraPly TPO XR 115 or 135

Full Coverage:

XR Bonding Adhesive

242966-0-0

1-945

IF:NC

EF: A

Slope: 2ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

UltraPly TPO XR 100, 115, or 135

Full Coverage:

I.S.O. Spray

293219-0-0

1-975

IF:NC

EF: A

Slope: 1ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

UltraPly TPO XR 115 or 135

Full Coverage:

Hot Asphalt

243438-0-0

Firestone Fully Adhered Uplift Ratings

New Construction, Concrete, Vapor Barrier, Adhesively Attached Insulation, UltraPly XR membrane

Uplift

Deck Type,

Vapor Barrier

Cover Board/

Insulation

Cover Board/

Insulation Attachment

Membrane and

Attachment

RoofNav

Assembly

Number

1-345

IF:NC

EF: A

Slope: ½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Vapor Barrier

(Required):

MB Base, SBS

Poly Base, SBS

Premium Base

SBS Smooth or

Type IV or VI

Insulation:

ISOGARD HD, ½ʺ

thick, 4' x 4' boards

Insulation:

4' x 4' boards 12ʺ o.c. beads

Firestone I.S.O. Fix

I.S.O. Spray

I.S.O. Twin Pack

I.S.O.Stick

UltraPly TPO XR 100,

115, 135

Full Coverage:

I.S.O. Spray

XR Stick

292419-0-0

1-345

IF:NC

EF: A

Slope: ½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Insulation:

DensDeck, ¼ʺ min.

Securock, ¼ʺ min.

Insulation:

4' x 4' boards, 12ʺ o.c. beads

Firestone I.S.O. Fix

I.S.O. Spray

I.S.O. Twin Pack

I.S.O.Stick

UltraPly TPO XR 100,

115, 135

Full Coverage:

I.S.O. Spray

XR Stick

292418-0-0

40 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings

New Construction, Lightweight Insulated Concrete, UltraPly XR membrane

Uplift

Deck Type

Lightweight

Manufacturer

Membrane

Attachment

RoofNav

Assembly

Number

1-420

IF:NC

EF: A

Slope: ½ʺ

Concrete:

Min. 2,500 psi

Min. 2ʺ thick

Range II Elastizell

Lightweight Insulating

Concrete

2ʺ min. thick.

UltraPly TPO XR 100 or 115

membrane

Full Coverage:

XR Bonding Adhesive

244665-0-

244657

1-180

IF:NC

EF: A

Slope: ½ʺ

Concrete:

Min. 2,500 PSI

Min. 2ʺ thick

Celcore MF Cellular

Concrete with Celcore

HS Rheology

Modifying Admixture

(min 340 psi)

2ʺ min. thick.

UltraPly TPO XR 100 or 115

membrane

Full Coverage:

XR Bonding Adhesive

244648-0-

244646

Firestone Fully Adhered Uplift Ratings

Re-Cover Construction, Lightweight Insulating Concrete over Steel, Nailed Base Sheet with Adhesively Attached

Insulation and Cover Board

Uplift

Deck

Type

Cover Board / Insulation

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF:1

EF: A

Slope:

2.5ʺ

LWIC over

Steel

(Re-Cover)

Base

Sheet:

Channel

Venting

Base

MB Base

SBS Base

(Various)

Cover Board (4' x 4' boards):

DensDeck, ¼ʺ min.

Securock, ¼ʺ min.

Insulation (4' x 4' boards):

ISOGARD GL,

1ʺ-8ʺ thick

Tapered I.S.O., 1ʺ-8” thick

(ISOGARD CG)

Insulation:

4' x 4' boards, 12” o.c.

beads

I.S.O. Fix II

I.S.O. Twin Pack

I.S.O.Stick

Base Sheet:

Two Piece Impact Nail,

Seams –

35.4ʺ Rows, 7ʺ o.c.

2 Field Rows –

11.75ʺ o.c. staggered

.045 mil.

min. UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

1168

UltraPly Bonding

WBBA P

Self Adhered

327092-0-0

Firestone Fully Adhered Uplift Ratings

New Construction, Lightweight Insulating Concrete over Structural Concrete, with Adhesively Attached

Insulation and Cover Board

Uplift

Deck Type

Cover Board / Insulation

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-375

IF:NC

EF: A

Slope:

2.5ʺ

Celcore LWIC

over Structural

Concrete

Min. 2,500 psi

Min. 2ʺ thick

Cover Board (4' x 4' boards):

DensDeck, ¼ʺ min.

Securock, ¼ʺ min.

Insulation (4' x 4' boards):

ISOGARD GL,

1ʺ-12ʺ thick

Tapered I.S.O., 1ʺ-8ʺ thick

(ISOGARD CG)

Insulation:

4' x 4' boards,

12ʺ o.c. beads

I.S.O.Stick

.045 mil.

min. UltraPly

TPO

UltraPly

TPO SA

Single-Ply LVOC

1168

UltraPly Bonding

Self Adhered

339642-0-

339279

Firestone Fully Adhered Uplift Ratings

Re-Cover Construction, Gypsum Deck, Adhesively Attached Insulation, Without Cover Board

Uplift

Deck

Type

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF:1

EF: A

Slope:

¼ʺ

Gypsum

(Re-Cover)

Insulation (4' x 4' boards):

ISOGARD GL, 1ʺ-12ʺ thick

Tapered I.S.O., 1ʺ-12ʺ thick

½ʺ ISOGARD HD

Insulation:

4' x 4' boards,

12ʺ o.c. beads

I.S.O. Twin Pack

.045 mil. min.

UltraPly TPO

UltraPly TPO SA

Single-Ply

LVOC

UltraPly

Bonding

Self Adhered

319860-0-0

41 | P a g e

M a y 24th, 2 0 1 8

Firestone Fully Adhered Uplift Ratings

Re-Roof Construction, Gypsum Deck, Adhesively Attached Insulation, With Cover Board

Uplift

Deck Type

Cover Board / Insulation

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Gypsum

(Re-Roof)

(All layers 4' x 4' boards)

Cover Board:

DensDeck, ¼ʺ min.,

Securock, ¼ʺ min.

Second Layer Insulation:

ISOGARD GL, 1.5ʺ-8ʺ thick,

Tapered I.S.O., 1.5ʺ-8ʺ thick

Base Layer Insulation:

ISOGARD GL, 1.5ʺ-4ʺ thick,

Tapered I.S.O., 1.5ʺ-4ʺ thick

12ʺ o.c. beads:

Twin Pack

Adhesive

UltraPly

TPO

membrane

Water Basted

UltraPly

Single-Ply

LVOC

Single-Ply

LVOC (1168)

113387-0-0

1-90

IF: 1

EF: A

Slope:

¼ʺ

Gypsum

(Re-Roof)

(All layers 4' x 4' boards)

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ thick,

or Tapered I.S.O., 1.5ʺ-12ʺ thick,

4' x 4' boards

12ʺ o.c. beads:

Twin Pack

Adhesive

UltraPly

TPO

membrane

Water Basted

UltraPly

Single-Ply

LVOC

Single-Ply

LVOC (1168)

113389-0-0

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Gypsum

(All layers 4' x 4' boards)

Cover Board:

DensDeck, ¼ʺ min.,

Securock, ¼ʺ min.

Insulation:

ISOGARD GL, 1.5ʺ-8ʺ thick,

Tapered I.S.O., 1.5ʺ-8ʺ thick

12ʺ o.c. beads:

I.S.O.Stick

UltraPly

TPO

membrane

Water Basted

UltraPly

Single-Ply

LVOC

Single-Ply

LVOC (1168)

115286-0-0

Firestone Fully Adhered Uplift Ratings

Re-Roof Construction, Gypsum Deck, Adhesively Attached Insulation, With Cover Board

Uplift

Deck

Type

Insulation

Attachment

Cover

Board

Cover Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Gypsum

(Re-Roof)

None

¼ʺ minimum,

4' x 4' boards:

DensDeck

Securock

12ʺ o.c. beads:

Twin Pack

UltraPly TPO

membrane

UltraPly

Water Based

Bonding

Adhesive P

Single-Ply

LVOC

Single-Ply

LVOC (1168)

113400-0-0

1-90

IF: 1

EF: A

Slope:

2.5ʺ

Gypsum

(Re-Roof)

ISOGARD

GL, .5ʺ-12ʺ,

4' x 4' boards

12ʺ o.c. beads

of I.S.O.Stick

Adhesive

¼ʺ minimum,

4' x 4' boards:

DensDeck

Prime

12ʺ o.c. beads:

I.S.O.Stick

UltraPly TPO

membrane

UltraPly

Water Based

Bonding

Adhesive P

Single-Ply

LVOC

Single-Ply

LVOC (1168

115286-0-0

42 | P a g e

M a y 24th, 2 0 1 8

Firestone Re-cover over Treated Wood Deck

Adhered Membrane

Uplift

Deck

Type

Insulation

Cover

Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-75

IF: 1

EF: A

Slope: ¼ʺ

Treated

Wood

ISOGARD GL

½ʺ-1ʺ thick

None

12 AP

fasteners

Plates per

4' x 8' boards

UltraPly TPO

membrane,

Single weld

UltraPly or Single-

Ply LVOC Bonding

Adhesive

129268-0-0

1-75

IF: 1

EF: A

Slope: ¼ʺ

Treated

Wood

ISOGARD GL

½ʺ-1ʺ thick

None

12 AP

fasteners

Plates per

4' x 8' boards

UltraPly TPO SA

membrane,

Single weld

None

374222-0-0

1-90

IF: 1

EF: A

Slope: ¼ʺ

Treated

Wood

ISOGARD GL

Min. 1ʺ thick

None

16 AP

fasteners

Plates per

4' x 8' boards

UltraPly TPO

membrane,

Single weld

UltraPly or Single-

Ply LVOC Bonding

Adhesive

326804-0-0

1-90

IF: 1

EF: A

Slope: ¼ʺ

Treated

Wood

ISOGARD GL

½ʺ-1ʺ thick

None

16 AP

fasteners

Plates per

4' x 8' boards

UltraPly TPO SA

membrane,

Single weld

None

374236-0-0

Firestone Mechanically Attached Systems Uplift Ratings – Standard UltraPly membrane

New Construction, Steel, Mechanically Attached Insulation, Single Weld

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Insulation and Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope: ¾ʺ

Steel

22-18-ga.

80 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Pre-securement – min. 5/board

Optional:

4-6 mil. Polyethylene

V-Force (SA) or BASEGARD SA

over ¼ʺ DensDeck

UltraPly TPO

membrane, 10'

sheet

12ʺ o.c. HD

fastener and HD or

Barbed Seam

Plate, Single weld

3080-0-0

1-60

IF: 1

EF: A

Slope: ¾ʺ

Steel:

20-16-ga., 33 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Pre-securement – min. 5/board

Optional:

4-6 mil. Polyethylene

V-Force (SA) or BASEGARD SA

over ¼ʺ DensDeck

UltraPly TPO

membrane, 10'

sheet

12ʺ o.c. HD

fastener and HD

Seam Plate, Single

weld

170476-0-0

22-ga., 33 ksi

60ʺ span

22-ga., 80 ksi

72ʺ span

Optional:

V-Force or

BASEGARD SA and

DensDeck or

Polyethylene

1-90

IF: 1

EF: A

Slope: ¾ʺ

Steel:

22-18-ga., 80 ksi

72ʺ span

Optional:

V-Force or

BASEGARD SA and

DensDeck or

Polyethylene

ISOGARD GL, 1.5ʺ-12ʺ,

Preliminary Securement or

ISOGARD GL (Tapered) 1.5ʺ-4ʺ

UltraPly TPO

membrane, 10'

sheet

12ʺ o.c. HD+

fastener and HD+

Seam Plate, Single

weld

76911-0-0

43 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings – Standard UltraPly membrane

New Construction, Steel, Mechanically Attached Insulation, Single Weld

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Insulation and Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope: ¾ʺ

Steel:

18-16-ga., 33 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Pre-securement – min. 5/board

Optional:

4-6 mil. Polyethylene

V-Force (SA) or BASEGARD SA

over ¼ʺ DensDeck

UltraPly TPO

membrane,

10' sheets

6ʺ o.c. HD fastener and

HD or Barbed Seam Plate,

Single weld

166431-0-0

20-ga., 33 ksi

48ʺ span

20-ga., 80 ksi

72ʺ span

22-ga., 80 ksi

72ʺ span

1-90

IF: 1

EF: A

Slope: ¾ʺ

Steel:

20-16-ga., 33 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Pre-securement – min. 5/board

Optional:

4-6 mil. Polyethylene

V-Force (SA) or BASEGARD SA

over ¼ʺ DensDeck

UltraPly TPO

membrane, 8'

sheets

12ʺ o.c. HD+ fastener

and HD+ Seam Plate,

Single weld

213747-0-0

22-ga., 33 ksi

48ʺ span

22-ga., 80 ksi

72ʺ span

1-105

IF: 1

EF: A

Slope: ¾ʺ

Steel (WR):

18-ga., 33 ksi

54ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Pre-securement – min. 5/board

Optional:

4-6 mil. Polyethylene

V-Force (SA) or BASEGARD SA

over ¼ʺ DensDeck

UltraPly TPO

membrane,

10' sheets

6ʺ o.c. HD fastener

and HD or Barbed Seam

Plate, Single weld

3081-0-0

20-16-ga., 80 ksi

72ʺ span

22-ga., 80 ksi

60ʺ span

1-105

IF: 1

EF: A

Slope: ¾ʺ

Steel (WR):

20-18-ga., 33 ksi

72ʺ span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Pre-securement – min. 5/board

Optional:

4-6 mil. Polyethylene

V-Force (SA) or BASEGARD SA

over ¼ʺ DensDeck

UltraPly TPO

membrane,

6'-6ʺ sheets

6ʺ o.c. HD fastener and

HD Plate, Single weld

3074-0-0

22-ga., 33 ksi

66ʺ span

22-ga., 80 ksi

72ʺ span

1-105

IF: 1

EF: A

Slope: 1ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation (Top):

ISOGARD GL, 1.5ʺ-4ʺ,

Preliminary Securement.

Insulation (Bottom):

ISOGARD GL, 1.5ʺ-8ʺ

Optional:

4-6 mil. Polyethylene

UltraPly TPO

membrane, 8'

sheets

6ʺ o.c. HD+ fastener

and HD+ Seam Plate,

Single weld

(The roof cover is secured

with stress plates and

fasteners placed in the

side laps (spaced 90ʺ [2.9

m] o.c.) and an

intermediate batten placed

centered in the field of the

roof cover.)

343455-0-0

1-105

IF: 1

EF: A

Slope: 1ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation (Top):

ISOGARD GL, 1.5ʺ-4ʺ

Preliminary Securement.

Insulation (Bottom):

ISOGARD GL, 1.5ʺ-8ʺ

Optional:

4-6 mil. Polyethylene

UltraPly TPO

120

membrane,

10' sheets

6ʺ o.c. HD+ fastener

and HD+ Seam Plate,

Single weld

(The roof cover is secured

with stress plates and

fasteners placed in the

side laps (spaced 114ʺ

[2.9 m] o.c.) and an

intermediate batten placed

centered in the field of the

roof cover.)

343459-0-0

44 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings – Standard UltraPly membrane

New Construction, Steel, Mechanically Attached Insulation, Single Weld

Uplift

Deck Type (Vapor

Retarder/Thermal

Barrier)

Insulation and Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-105

IF: 1

EF: A

Slope: 1ʺ

Steel:

22-18-ga.

33 ksi,

72ʺ o.c. span

Insulation (Top) Required:

ISOGARD GL, 1.5ʺ-4ʺ

Insulation (Bottom) Optional:

ISOGARD GL, 1.5ʺ-8ʺ

Optional:

4-6 mil. Polyethylene

UltraPly TPO

10' sheets

w/intermediate

attachment.

See note.

114ʺ row spacing at 6ʺ o.c.

spacing, HD Fasteners,

Single Weld

NOTE: Additional

intermediate Batten

Securement required at

57ʺ o.c. row spacing at 6ʺ

o.c. fasteners spacing.

343409-0-0

Firestone Mechanically Attached Systems Uplift Ratings

New Construction, Steel, Insulation with Cover Board, Single Weld

Uplift

Deck Type

Insulation and

Attachment

Cover Board and

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope: 5ʺ

Steel:

20-16-ga., 33 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Attachment:

Preliminary Securement

Cover Board:

¼ʺ min.,

DensDeck

DensDeck Prime

Securock

UltraPly TPO

membrane, 10'

sheet

12ʺ o.c. HD fastener and

HD Seam Plate or

UltraPly TPO Barbed

Seam Plate, Single weld

264245-0-0

22-ga., 33 ksi,

60ʺ o.c. span

22-ga., 80 ksi,

72ʺ o.c. span

1-60

IF: 1

EF: A

Slope: 1ʺ

Steel:

20-16-ga., 33 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Attachment:

Preliminary Securement

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼ʺDensDeck

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary

Securement

UltraPly TPO

membrane, 10'

sheet

114ʺ row spacing, 12ʺ

o.c.

HD fastener and HD

Seam Plate,

Single weld

266089-0-0

22-ga., 33 ksi,

60ʺ o.c. span

22-ga., 80 ksi,

72ʺ o.c. span

1-75

IF: 1

EF: A

Slope: 5ʺ

Steel:

22-18-ga.

80 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Attachment:

Common Fastened

Optional:

4-6 mil. Polyethylene

V-Force (SA)

over ¼ʺ DensDeck

Cover Board:

¼ʺ min.

DensDeck

DensDeck Prime

Securock

Attachment:

Preliminary

Securement

UltraPly TPO

membrane, 10'

sheets

114ʺ row spacing, 12ʺ

o.c.

HD fastener and HD

Seam Plate, Single weld

381449-0-0

1-75

IF: 1

EF: A

Slope:

1.75ʺ

Steel:

22-18-ga.,

80 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Attachment:

Common Fastened

Optional:

4-6 mil. Polyethylene

V-Force (SA)

over ¼ʺ DensDeck

Cover Board:

½ʺ min.

Structodek HD

FiberTop B

Attachment:

Preliminary

Securement

UltraPly

TPO

membrane,

10' sheets

12ʺ o.c. HD fastener and

HD Seam Plate, Single

weld

381629-0-0

45 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings

New Construction, Steel, Insulation with Cover Board, Single Weld

Uplift

Deck Type

Insulation and

Attachment

Cover Board

and

Attachment

Membrane

Membrane Attachment

RoofNav

Assembly

Number

1-75

IF: 1

EF: A

Slope: 1ʺ

Steel:

22-18-ga.,

80 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Attachment:

Common Fastened

Optional:

4-6 mil. Polyethylene

or V-Force (SA)

over ¼ʺ DensDeck

Cover Board:

½ʺ min.

Structodek HD

FiberTop B

Attachment:

Preliminary

Securement

UltraPly TPO

membrane,

10' sheets

12ʺ o.c. HD fastener and

HD Seam Plate, Single

weld

381672-0-0

1-75

IF: 1

EF: A

Slope: 5ʺ

Steel:

22-18-ga.,

33 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 3ʺ-12ʺ

Attachment:

Preliminary

Securement

Optional:

4-6 mil. Polyethylene

Cover Board:

¼ʺ min.

DensDeck

Securock

Attachment:

Preliminary

Securement

UltraPly TPO

membrane,

8' sheets

12ʺ o.c. HD fastener and

HD Seam Plate, Single

weld

339004-0-0

1-75

IF: 1

EF: A

Slope: 1ʺ

Steel:

22-18-ga.,

33 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 3ʺ-12ʺ

Attachment:

Preliminary

Securement

Optional:

4-6 mil. Polyethylene

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary

Securement

UltraPly TPO

membrane,

8' sheets

12ʺ o.c. HD fastener and

HD Seam Plate, Single

weld

338538-0-0

1-90

IF: 1

EF: A

Slope: 5ʺ

Steel:

22-18-ga.

33 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Attachment:

Preliminary Securement

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

Cover Board:

¼ʺ min.

DensDeck

Securock

Attachment:

Preliminary

Securement

UltraPly TPO

membrane,

6'-6ʺ sheets

6ʺ o.c. HD fastener and HD

Seam Plate or UltraPly

TPO Barbed Seam Plate,

Single weld

339174-0-0

1-90

IF: 1

EF: A

Slope: 1ʺ

Steel:

22-18-ga.

33 ksi,

72ʺ o.c. span

Insulation:

ISOGARD GL, 1.5ʺ-12ʺ

Attachment:

Preliminary Securement

Optional:

4-6 mil. Polyethylene

or V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary

Securement

UltraPly TPO

membrane,

6'-6ʺ sheet

12ʺ o.c. HD fastener and

HD Seam Plate, Single

weld

339172-0-0

1-105

IF: 1

EF: A

Slope: 5ʺ

Steel (WR):

22-18-ga.

33 ksi,

72ʺ o.c. span

Insulation:

Optional Top Layer:

ISOGARD GL, 1.5ʺ-4ʺ

Required Bottom

Layer: ISOGARD GL,

1.5ʺ-8ʺ

Attachment:

Preliminary

Securement

Optional:

4-6 mil. Polyethylene

Cover Board:

¼ʺ min.

DensDeck

Securock

Attachment:

Preliminary

Securement

UltraPly TPO

membrane,

10' sheets

6ʺ o.c. HD fastener and HD

Seam Plate, Single weld

(UltraPly TPO MF - Lap

Securement 114" OC-6" –

w/Intermediate Batten

Securement (57" OC - 6")

343411-0-0

46 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings

New Construction, Steel, Insulation with Cover Board, Single Weld

Uplift

Deck Type

Insulation and

Attachment

Cover Board

and Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-105

IF: 1

EF: A

Slope:

1ʺ

Steel (WR):

22-18-ga.

33 ksi,

72ʺ o.c. span

Insulation:

Optional Top Layer:

ISOGARD GL, 1.5ʺ-4ʺ

Required Bottom

Layer: ISOGARD GL,

1.5ʺ-8ʺ

Attachment:

Preliminary

Securement

Optional:

4-6 mil. Polyethylene

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary

Securement

UltraPly TPO

membrane,10'

sheets

6ʺ o.c. HD fastener

and HD Seam Plate,

Single weld

(The roof cover is

secured with stress

plates and fasteners

placed in the side laps

spaced 114ʺ [2.9 m] o.c.

w/intermediate batten

placed centered in the

field of the roof cover.

343408-0-0

Firestone Mechanically Attached Systems Uplift Ratings

New Construction, Concrete, Insulation with Cover Board, Single Weld

Uplift

Deck

Type

Insulation and

Attachment

Cover Board and

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: NC

EF: A

Slope: 5ʺ

Concrete:

2,500 psi

Min. 2ʺ

thick

Insulation:

ISOGARD GL,

1.5ʺ-12ʺ

Attachment:

Preliminary

Securement

Cover Board:

¼ʺ min.

DensDeck

Securock

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

10' sheet

12ʺ o.c. HD fastener and

HD Seam Plate or

UltraPly TPO Barbed

Seam Plate, Single weld

269751-0-0

1-60

IF: NC

EF: A

Slope: 1ʺ

Concrete:

2,500 psi

Min. 2ʺ

thick

Insulation:

ISOGARD GL,

1.5ʺ-12ʺ

Attachment:

Preliminary

Securement

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

10' sheet

12ʺ o.c. HD fastener and

HD Seam Plate or

UltraPly TPO Barbed

Seam Plate, Single weld

269750-0-0

1-75

IF: NC

EF: A

Slope: 5ʺ

Concrete:

2,500 psi

Min. 2ʺ

thick

Insulation:

ISOGARD GL,

1.5ʺ-12ʺ

Attachment:

Preliminary

Securement

Cover Board:

¼ʺ min.

DensDeck

Securock

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

10' sheet

6ʺ o.c. HD fastener and

HD Seam Plate or

UltraPly TPO Barbed

Seam Plate, Single weld

269742-0-0

1-75

IF: NC

EF: A

Slope: 1ʺ

Concrete:

2,500 psi

Min. 2ʺ

thick

Insulation:

ISOGARD GL,

1.5ʺ-12ʺ

Attachment:

Preliminary

Securement

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

10' sheet

6ʺ o.c. HD fastener and

HD Seam Plate or

UltraPly TPO Barbed

Seam Plate, Single weld

269741-0-0

Firestone Mechanically Attached Systems Uplift Ratings

Recover, Metal Building, Insulation with Cover Board

Uplift

Deck Type

Flute Filler

Insulation

and

Attachment

Cover Board

and

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope:

1ʺ

Standing/ Lap

Seam Roof

(Insulated)

ISOGARD GL,

1ʺ min.

ISOGARD GL

.5ʺ-1ʺ thick

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary

Securement

UltraPly TPO

membrane, 10'

sheet

12ʺ o.c. with

Firestone Purlin

Fasteners and

HD Seam

Plates, Single

Weld

305074-0-0

47 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings

Recover, Metal Building, Insulation with Cover Board

Uplift

Deck Type

Flute

Filler

Insulation

and

Attachment

Cover Board and

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope:

5ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD

GL, 1ʺ min.

ISOGARD GL

.5ʺ-1ʺ thick

Cover Board:

¼ʺ min.

DensDeck

Securock

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

10' sheet

12” o.c. with

Firestone Purlin

Fasteners and HD

Seam Plates,

Single Weld

305080-0-0

1-60

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD

GL, 1ʺ min.

ISOGARD GL

.5ʺ-1ʺ thick

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

6'-6ʺ sheet

12ʺ o.c. with

Firestone Purlin

Fasteners and

Metal Batten Strip,

Wide Weld

305058-0-0

1-60

IF: 1

EF: A

Slope:

5ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD

GL, 1ʺ min.

ISOGARD GL

.5ʺ-1ʺ thick

Cover Board:

¼ʺ min.

DensDeck

DensDeck Prime

Securock

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

6'-6ʺ sheet

12” o.c. with

Firestone Purlin

Fasteners and

Metal Batten Strip,

Wide Weld

305060-0-0

1-90

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD

GL, 1ʺ min.

ISOGARD GL

.5ʺ-1ʺ thick

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

8' sheet

12ʺ o.c. with

Firestone Purlin

Fasteners and HD

Seam Plates,

Single Weld

305221-0-0

1-105

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD

GL, 1ʺ min.

ISOGARD GL

1ʺ-12ʺ thick

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary Securement

UltraPly TPO

membrane,

12'-4ʺ sheet

6” o.c. with

Firestone Purlin

Fasteners and HD

Seam Plates,

Single Weld

265291-0-0

1-105

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Uninsulated)

ISOGARD

GL 1ʺ min.

ISOGARD GL

1ʺ-12ʺ thick

Cover Board:

¼ʺ min.

DensDeck

DensDeck Prime

Securock

Attachment:

Preliminary Attachment

UltraPly TPO

membrane,

6ʺ o.c. with

Firestone Purlin

Fasteners and HD

Seam Plates,

Single Weld

265296-0-0

1-105

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD

GL 1ʺ min.

ISOGARD GL

.5ʺ-1ʺ thick

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

Attachment:

Preliminary Attachment

UltraPly TPO

membrane

142ʺ Row Spacing,

6ʺ o.c. with

Firestone Purlin

Fasteners and HD

Seam Plates,

Single Weld

305233-0-0

1-105

IF: 1

EF: A

Slope:

5ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD

GL, 1ʺ min.

ISOGARD GL

.5ʺ-1ʺ thick

DensDeck, DensDeck

Prime or Securock, ¼ʺ

min. Preliminary

Attachment

UltraPly TPO

membrane

142ʺ Row Spacing,

6” o.c. with

Firestone Purlin

Fasteners and HD

Seam Plates,

Single Weld

305237-0-0

1-105

IF: 1

EF: A

Slope:

5ʺ

Standing/

Lap Seam

Roof

(Uninsulated)

None

DensDeck or

Securock

¼ʺ min.

DensDeck, DensDeck

Prime or Securock

¼” min.

Preliminary Attachment

UltraPly TPO

membrane

142ʺ Row Spacing,

6” o.c. with

Firestone Purlin

Fasteners and HD

Seam Plates,

Single Weld

283990-0-0

48 | P a g e

M a y 24th, 2 0 1 8

Firestone Mechanically Attached Systems Uplift Ratings

Recover, Metal Building, Insulation without Cover Board

Uplift

Deck Type

Flute Filler

Insulation and

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD GL,

1ʺ, loose laid

ISOGARD GL, .5ʺ-1ʺ

thick, pre-

securement,

minimum 5 fasteners

per 4' x 8' board

UltraPly TPO

membrane

114ʺ Row Spacing, 12ʺ

o.c. with Firestone

Purlin Fasteners and

HD Seam Plates, Single

Weld

305068-0-0

1-90

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD GL,

1ʺ, loose laid

ISOGARD GL, .5ʺ-1ʺ

thick, pre-

securement,

minimum 5 fasteners

per 4' x 8' board

UltraPly TPO

membrane

90ʺ Row Spacing, 12ʺ

o.c. with Firestone

Purlin Fasteners and

HD Seam Plates, Single

Weld

305219-0-0

Firestone Mechanically Attached Systems – Invisiweld System Uplift Ratings

Recover, Metal Building, Flute Filler with Cover Board

Uplift

Deck Type

Flute Filler

Cover Board and

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope:

1ʺ

Standing/

Lap Seam

Roof

(Insulated)

ISOGARD GL

½ʺ ISOGARD HD

½ʺ Structodek HD

Preliminary

Attachment

UltraPly TPO

membrane

60ʺ Row Spacing, 12ʺ

o.c. with Firestone

Purlin Fasteners and

Invisiweld Plates, Single

Weld

273139-0-0

Firestone Mechanically Attached Systems Uplift Ratings – UltraPly XR 100 and XR 115

Recover, Steel Deck, UltraPly TPO XR membrane, Single Weld

Uplift

Deck Type

Membrane

Membrane Attachment

RoofNav

Assembly

Number

1-60

IF: 1

EF: A

Slope: ½ʺ

Steel:

any thickness/class,

Recover

UltraPly TPO XR 100, 115, 135

membrane, 10' sheet

12ʺ o.c. HD fastener and HD Seam

Plate, Single weld

242937-0-0

1-90

IF: 1

EF: A

Slope: ½ʺ

Steel:

80 ksi

Recover

UltraPly TPO XR 100, 115, 135

membrane, 10' sheet

12ʺ o.c. HD+ fastener and HD+ Seam

Plate, Single weld

242946-0-0

1-90

IF: 1

EF: A

Slope: ½ʺ

Steel:

any thickness/class,

Recover

UltraPly TPO XR 100, 115, 135

membrane, 10' sheet

6ʺ o.c. HD fastener and HD+ Seam

Plate, Single weld

242950-0-0

1-135

IF: 1

EF: A

Slope: ½ʺ

Steel:

any thickness/class,

Recover

UltraPly TPO XR 100, 115, 135

membrane, 10' sheet

6ʺ o.c. HD+ fastener and HD+ Seam

Plate, Single weld

242951-0-0

Firestone Mechanically Attached Systems Uplift Ratings

Recover, Concrete Deck, UltraPly TPO XR membrane, Single Weld

Uplift

Deck Type

Membrane

Membrane Attachment

RoofNav

Assembly

Number

1-60

IF: NC

EF: A

Slope: ½ʺ

Concrete:

Recover

UltraPly TPO XR 100, 115, 135

membrane, 10' sheet

12ʺ o.c. HD fastener and HD Seam

Plate, Single weld

242935-0-0

1-90

IF: NC

EF: A

Slope: ½ʺ

Concrete:

Recover

UltraPly TPO XR 100, 115, 135

membrane, 10' sheet

6ʺ o.c. HD fastener and HD Seam

Plate, Single weld

242949-0-0

49 | P a g e

M a y 24th, 2 0 1 8

Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld System

Invisiweld System, Induction Welded

Uplift

Deck

Type

Insulation and

Attachment

Cover

Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope: ¾ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

None

6 HD fasteners

and Invisiweld

Plates per

4' x 8' boards

UltraPly

TPO

membrane,

Single weld

Invisiweld

System

250651-0-0

1-90

IF: 1

EF: A

Slope: ¾ʺ

Steel:

22-16-ga.

33 ksi,

72ʺ span

Insulation:

ISOGARD GL

1.5ʺ-12ʺ thick

4' x 8' boards

Thermal Barrier:

DensDeck

¼ʺ thick

4' x 8' boards

None

6 HD fasteners

and Invisiweld

Plates per

4' x 8' boards

UltraPly

TPO

membrane,

Single weld

Invisiweld

System

399280-0-0

Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld System

Invisiweld System, Induction Welded

Uplift

Deck Type

Insulation and

Attachment

Cover Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope: 1ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

6 HD

fasteners and

Invisiweld

Plates per

4' x 8' boards

UltraPly

TPO

membrane,

Single weld

Invisiweld

System

277978-0-0

1-90

IF: 1

EF: A

Slope: 5ʺ

Steel:

22-16-ga.

33 ksi

72ʺ span

Insulation:

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

Cover Board:

¼ʺ min.

DensDeck

Securock

6 HD

fasteners and

Invisiweld

Plates per

4' x 8' boards

UltraPly

TPO

membrane,

Single weld

Invisiweld

System

277977-0-0

1-90

IF: NC

EF: A

Slope: ¾ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL

1.5ʺ-12ʺ thick

None

6 HD or

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' boards

UltraPly

TPO

membrane,

Single weld

Invisiweld

System

250819-0-0

1-90

IF: NC

EF: A

Slope: 1ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

6 HD or

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' boards

UltraPly

TPO

membrane,

Single weld

Invisiweld

System

251817-0-0

50 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld System

Invisiweld System, Induction Welded

Uplift

Deck Type

Insulation and

Attachment

Cover Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: NC

EF: A

Slope: 5ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

¼ʺ DensDeck

¼ʺ DensDeck Prime

¼ʺ Securock

6 HD or

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

251833-0-0

1-120

IF: 1

EF: A

Slope: ¾ʺ

Steel:

22-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

None

24ʺ rows

spacing

24ʺ on center

Invisiweld

Plates and

HD Fasteners

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254071-0-0

1-120

IF: 1

EF: A

Slope: 1ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

or V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

Cover Board:

4' x 8' boards

½ʺ ISOGARD HD

½ʺ Structodek HD

24ʺ rows

spacing

24ʺ on center

Invisiweld

Plates and

HD Fasteners

UltraPly TPO

membrane,

Single weld

Invisiweld

System

278052-0-0

1-120

IF: 1

EF: A

Slope: 5ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

or V-Force (SA) or

BASEGARD SA

over ¼” DensDeck

Cover Board:

4' x 8' boards

¼ʺ DensDeck

¼ʺ DensDeck Prime

¼ʺ Securock

24ʺ rows

spacing

24ʺ on center

Invisiweld

Plates and

HD Fasteners

UltraPly TPO

membrane,

Single weld

Invisiweld

System

278051-0-0

1-120

IF: NC

EF: A

Slope: ¾ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

None

8 HD or

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254075-0-0

1-120

IF: NC

EF: A

Slope: 1ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

½ʺ ISOGARD HD

½ʺ Structodek HD

8 HD or

Concrete Drive

fasteners

and Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254076-0-0

1-120

IF: NC

EF: A

Slope: 5ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

4' x 8' boards

¼ʺ DensDeck

¼ʺ DensDeck Prime

¼ʺ Securock

8 HD or

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254078-0-0

51 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld System

Invisiweld System, Induction Welded

Uplift

Deck Type

Insulation and

Attachment

Cover Board

Attachment

Membrane

Attachment

RoofNav

Assembl

y Number

1-150

IF: 1

EF: A

Slope: ¾ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

None

12 HD

fasteners and

Invisiweld

Plates per

4’x8’ board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

253954-0-0

1-150

IF: 1

EF: A

Slope: 1ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼” DensDeck

Cover Board:

4' x 8' boards

½ʺ ISOGARD HD

½ʺ Structodek HD

12 HD

fasteners and

Invisiweld

Plates per

4’x8’ board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254053-0-0

1-150

IF: 1

EF: A

Slope: 5ʺ

Steel (WR):

22-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil. Polyethylene

V-Force (SA) or

BASEGARD SA

over ¼” DensDeck

Cover Board:

4' x 8' boards

¼ʺ DensDeck

¼ʺ DensDeck Prime

¼ʺ Securock

12 HD

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254055-0-0

1-150

IF: NC

EF: A

Slope:

¾ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

None

12 HD or

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254056-0-0

1-150

IF: NC

EF: A

Slope:

1ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

4' x 8' boards

½ʺ ISOGARD HD

½ʺ Structodek HD

12 HD

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254057-0-0

1-150

IF: NC

EF: A

Slope:

5ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

4' x 8' boards

¼ʺ DensDeck

¼ʺ DensDeck Prime

¼ʺ Securock

12 HD Concrete

Drive fasteners

and Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254059-0-0

52 | P a g e

M a y 24th, 2 0 1 8

Continued

Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld System

Invisiweld System, Induction Welded

Uplift

Deck Type

Insulation and

Attachment

Cover Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-210

IF: 1

EF: A

Slope:

¾ʺ

Steel (WR):

20-18-ga.

33 ksi,

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil.

Polyethylene or

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

Cover Board:

4' x 8' boards

½ʺ ISOGARD HD

½ʺ Structodek HD

24ʺ rows

spacing

12ʺ on center

Invisiweld

Plates and

HD Fasteners

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254090-0-0

22-ga.

33 ksi

64ʺ span

22-18-ga.

80 ksi

72ʺ span

1-210

IF: 1

EF: A

Slope:

1ʺ

Steel (WR):

20-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil.

Polyethylene or

V-Force (SA) or

BASEGARD SA

over ¼ʺ DensDeck

Cover Board:

4' x 8' boards

½ʺ ISOGARD HD

½ʺ-1ʺ Structodek HD

24ʺ rows

spacing

12ʺ on center

Invisiweld

Plates and

HD Fasteners

UltraPly TPO

membrane,

Single weld

Invisiweld

System

278067-0-0

22-ga.

33 ksi

64ʺ span

22-18-ga.

80 ksi

72ʺ span

1-210

IF: 1

EF: A

Slope:

5ʺ

Steel (WR):

20-18-ga.

33 ksi

72ʺ span

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Optional:

4-6 mil.

Polyethylene or

V-Force (SA) or

BASEGARD SA

over ¼” DensDeck

Cover Board:

4' x 8' boards

¼ʺ DensDeck

¼ʺ Securock

24ʺ rows

spacing

12ʺ on center

Invisiweld

Plates and

HD Fasteners

UltraPly TPO

membrane,

Single weld

Invisiweld

System

278066-0-0

22-ga.

33 ksi

64ʺ span

22-18-ga.

80 ksi

72ʺ span

1-210

IF: NC

EF: A

Slope:

¾ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

None

16 HD or

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254112-0-0

1-210

IF: NC

EF: A

Slope:

1ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

4' x 8' boards

ISOGARD HD ½ʺ or

Structodek HD ½ʺ-1ʺ

16 HD

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254115-0-0

1-210

IF: NC

EF: A

Slope:

5ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards

ISOGARD GL

1.5ʺ-12ʺ thick

Cover Board:

4' x 8' boards

¼ʺ DensDeck

¼ʺ DensDeck Prime

¼ʺ Securock

16 HD

Concrete

Drive

fasteners and

Invisiweld

Plates per

4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld

System

254119-0-0

53 | P a g e

M a y 24th, 2 0 1 8

Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld System

Recover, Metal Building, Invisiweld System, Induction Welded

Uplift

Deck

Type

Flute Filler

Insulation

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope:

1ʺ

Steel:

Standing

Seam

Insulated

ISOGARD GL,

½ʺ thick

ISOGARD GL, ½ʺ thick,

5 HD fasteners and

Insulation Plates per 4' x

8' board

12ʺ on center

Purlin fastener

and Invisiweld

Plate, 60” row

spacing

UltraPly TPO

membrane,

Single weld

Induction

Welded

273140-0-0

1-105

IF: 1

EF: A

Slope:

¾ʺ

Steel:

Standing

Seam

ISOGARD GL,

1.5ʺ-8ʺ thick

ISOGARD GL, 1.5ʺ-4ʺ

thick, 5 HD fasteners and

Insulation Plates per 4' x

8' board

6ʺ on center

Purlin fastener

and Invisiweld

Plate, 120ʺ row

spacing

UltraPly TPO

membrane,

Single weld

Induction

Welded

253893-0-0

1-105

IF: 1

EF: A

Slope:

¾ʺ

Steel:

Standing

Seam

ISOGARD GL,

1ʺ-4ʺ thick

ISOGARD HD, ½ʺ or

Structodek HD ½ʺ-1ʺ

thick

Preliminary Attachment

6ʺ on center

Purlin fastener

and Invisiweld

Plate, 120ʺ row

spacing

UltraPly TPO

membrane,

Single weld

Induction

Welded

253890-0-0

1-105

IF: 1

EF: A

Slope:

1¾ʺ

Steel:

Standing

Seam

ISOGARD GL,

1ʺ-4ʺ thick

OSB, ⅜ʺ– ½ʺ thick, 5 HD

fasteners and Insulation

Plates per 4' x 8' board

6ʺ on center

Purlin fastener

and Invisiweld

Plate, 120ʺ row

spacing

UltraPly TPO

membrane,

Single weld

Induction

Welded

253897-0-0

1-105

IF: 1

EF: A

Slope:

5ʺ

Steel:

Standing

Seam

ISOGARD GL,

1ʺ-12ʺ thick

DensDeck/DensDeck

Prime, or Securock,

¼ʺ min., 5 HD fasteners

and Insulation Plates

per 4' x 8' board

6ʺ on center

Purlin fastener

and Invisiweld

Plate, 120ʺ row

spacing

UltraPly TPO

membrane,

Single weld

Induction

Welded

253900-0-0

Firestone Mechanically Attached Systems Uplift Ratings – Invisiweld- S System

Invisiweld-S System, Induction Welded

Uplift

Deck Type

Insulation

Cover

Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-150

IF: NC

EF: A

Slope:

¾ʺ

Concrete:

2500 psi

Min. 2ʺ thick

Insulation:

4' x 8' boards,

ISOGARD GL 1.5ʺ-12ʺ

thick

None

10 HD or Concrete

Drive fasteners and

Invisiweld-S Plates

per 4' x 8' board

UltraPly TPO

membrane,

Single weld

Invisiweld-S

System

382976-0-0

1-150

Steel Deck (WR):

22-18 ga.

33 ksi.

72ʺ span

Required:

ISOGARD GL 1.5ʺ-12ʺ

thick

Optional:

4-6 mil. Poly or V-Force

SA over DensDeck

None

10 HD fasteners and

Invisiweld-S Plates

per 4' x 8' board

UltraPly TPO

membrane,

Single Weld

Invisiweld-S

System

382977-0-0

Firestone Re-cover over Treated Wood Deck

InvisiWeld Attached Membrane

Uplift

Deck

Type

Insulation

Cover Board

Attachment

Membrane

Attachment

RoofNav

Assembly

Number

1-90

IF: 1

EF: A

Slope: ¾ʺ

Treated

Wood

(Re-cover)

ISOGARD GL

½ʺ-1ʺ thick

None

6 AP fasteners and

Invisiweld Plates per

4' x 8' board

.045 mil. min.

UltraPly TPO

InvisiWeld

System

250823-0-0

1-90

IF: 1

EF: A

Slope: 1ʺ

Treated

Wood

ISOGARD GL

½ʺ min. thick

½ʺ ISOGARD HD

or Structodek HD

Fiberboard

6 AP fasteners and

Invisiweld Plates per

4' x 8' board

.045 mil. min.

UltraPly TPO

InvisiWeld

System

251855-0-0

54 | P a g e

M a y 24th, 2 0 1 8

Factory Mutual Ballast Guidelines

Stone Ballast

ASTM D448 — Standard Size No. 3 for Coarse Aggregate (nominal 1-2ʺ [25 to 50 mm] diameter). This standard permits

amounts (by weight percent) to pass through the square sieve openings as shown in Table 6.

Table 6. Gradation for No. 3 Stone

Size

Number

Nominal Size in. (mm)

Sieve Opening in. (mm)

2½ (63)

2 (50)

1½ (38)

1 (25)

¾ (19)

½ (13)

1 to 2 (25 - 50)

100

90 to 100

35 to 70

0 to 15

0 to 5

Aggregate Surfacing for BUR

ASTM D1863 — Mineral Aggregate Used on Built-Up Roofs gives gradation and moisture content for aggregate surfacing

as noted in Table 7.

Table 7. Gradation for Gravel for BURs

Sieve

Amounts finer than sieve specified (mass %)

Size 6

Size 67

Size 7

25 mm

100

---

19 mm

90 to 100

100

12.5 mm

20 to 55

---

90 to 100

9.5 mm

0 to 15

20 to 55

40 to 70

4.75 mm

0 to 5

0 to 10

0 to 15

2.36 mm

---

0 to 5

The moisture content limit for stone is £2 percent and £5 percent for slag. The dust content limit for stone and slag is greater

than or equal to 2 percent.

Firestone Building Products Ultraply Tpo Code Approval Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
