Product Data Sheet
February 2015
IP2045, Rev EA
Mobrey Ultrasonic
MSP422, MSP400RH, and MSP900GH Level Transmitters
Non-contacting measurement with no
moving parts
Integral LCD and push-buttons as standard for
on-site programming
Continuous measurement of level or
distance-to-surface.
Volume or open channel flow calculations for
the Mobrey MSP400RH and MSP900GH
Two integral signal relays for the
Mobrey MSP400RH
Easy to install and configure
Rugged metal or plastic housing.
PVDF wetted material
Two-wire direct current loop-powered
2
Mobrey MSP422, MSP400RH and MSP900GH February 2015
www.emersonprocess.com
Overview of the Mobrey MSP422/400RH/900GH
Measurement principle
The Mobrey MSP Series is a liquid level transmitter based on
ultrasonic technology that is suitable for many liquid
applications.
Ultrasonic pulse signals are transmitted and reflected from the
liquid surface. The transmitter ‘listens’ for reflected signals
(echoes) and measures the time-delay between transmitting
and receiving. The distance to the liquid surface is automatically
calculated using the computed time-delay.
An integral temperature sensor continuously measures the air
temperature around the transmitter. It then computes the
speed of sound in air, automatically compensating the Distance
for temperature effects. The MSP400RH and MSP900GH have a
Remote Temperature Sensor option.
The distance measurement can be sent through the 4–20 mA or
HART® output.
Features and benefits
Eliminates problems experienced with contacting
instrumentation
Simple set-up and operation
Minimal maintenance after installed
Low cost of installation and commissioning
Process downtime minimized
Non-contacting measurement with no moving parts
Two integral signal relays
Corrosion resistant PVDF wetted material
Two-wire 24 V direct current loop-powered
M20 x 1.5 conduit entries, single or dual depending on model
Operating range to 36 ft. (11 m)
Measures liquid height, distance to liquid, volume, or flow in
open channels
Simple push button programming
Built-in LCD display
Automatic temperature compensation
Contents
Overview of the Mobrey MSP422/400RH/900GH . . . . . . page 2
Mobrey MSP422 Level Transmitter . . . . . . . . . . . . . . . . . . . page 4
Mobrey MSP400RH Level Transmitter . . . . . . . . . . . . . . . . page 4
Mobrey MSP900GH Level Transmitter . . . . . . . . . . . . . . . . page 4
MSP Series Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

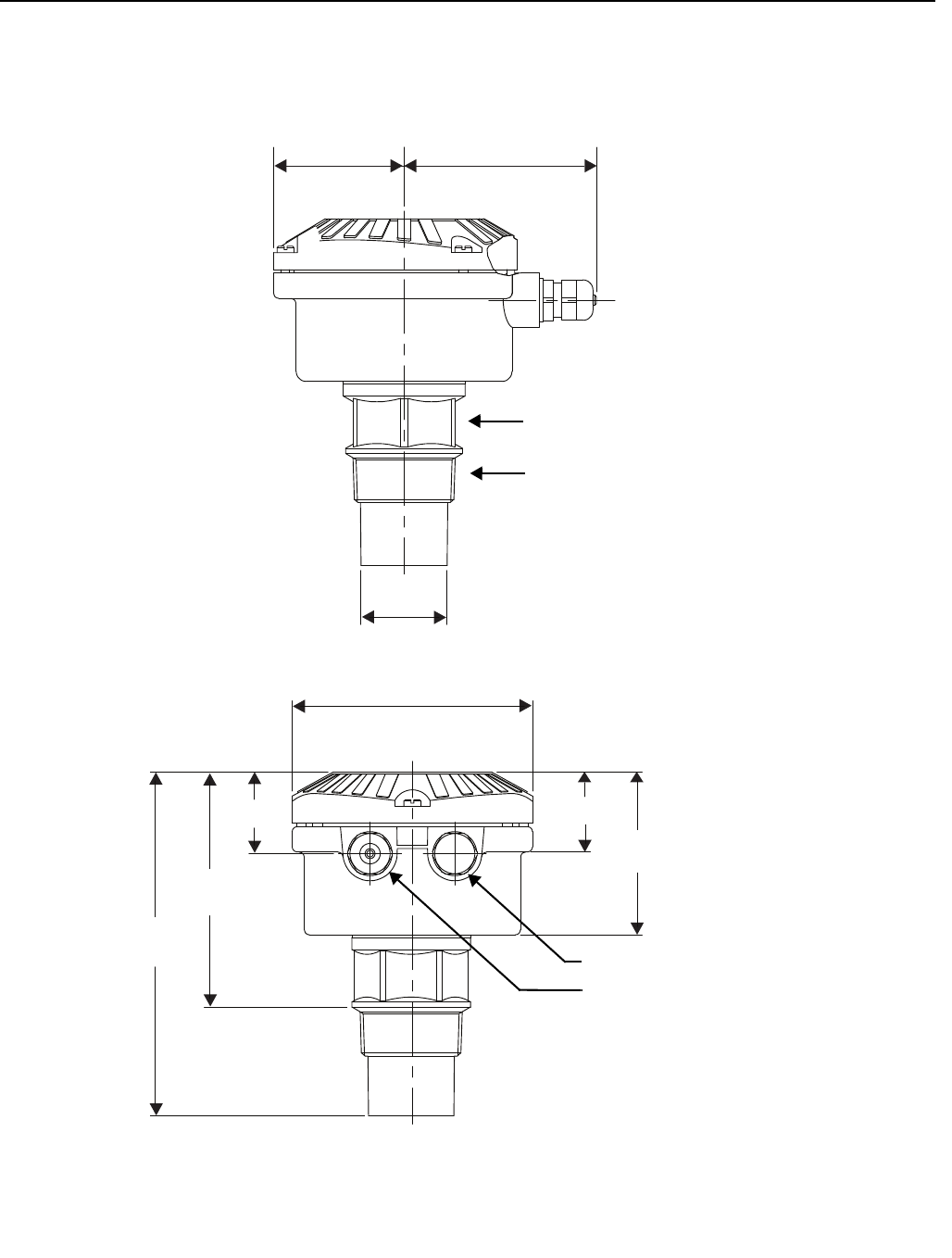

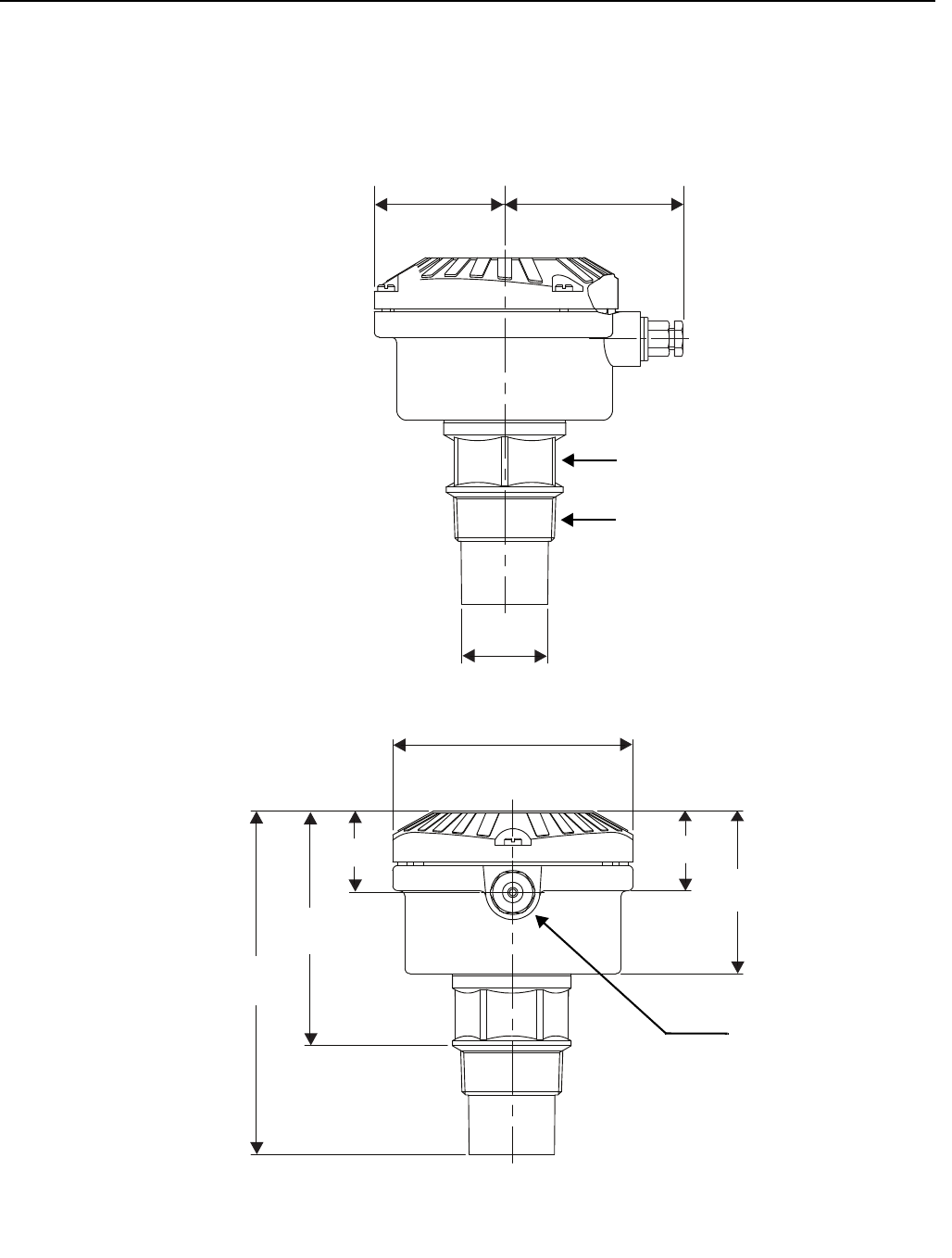

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Mobrey MSP422
Mobrey MSP400RH
Mobrey MSP900GH
3
Mobrey MSP422, MSP400RH and MSP900GH
February 2015
www.emersonprocess.com
Special features
Advanced software features
Learn routine (false echo registration)
The transmitter can learn to ignore up to four false echoes
caused by the pulse signal reflecting off obstructions, until
the actual level is seen.
Empty tank mapping
When a tank is empty, the transmitter can learn to ignore up
to four false echoes, without the need for user interaction.
Present depth
The bottom reference can be automatically set using a known
user-entered depth.
Set as empty
When the tank is empty, the bottom reference can be
automatically reset to the measured distance.
Distance offset
The distance to the surface can be adjusted by a user-entered
positive or negative offset value.
Level offset
The level can be adjusted by a user-entered positive or
negative offset value
Bottom blanking
The transmitter can be set to ignore an area of the tank
bottom to avoid false echoes from obstructions.
Applications
Storage tank levels, open channel flow, effluent pits,
reservoir level, buffer tanks, and more
Choosing the right model
Each MSP Series transmitter has been designed for a specific
purpose, as shown in the table here:
Transmitter Purpose Model Range
Simple level measurement MSP422
MSP400RH
26-ft. (8 m)
36-ft. (11 m)
Level measurement and local relays MSP400RH 36-ft. (11 m)
Level measurement in hazardous
areas
MSP900GH 36-ft. (11 m)
Open channel flow or volume
measurement
MSP400RH
MSP900GH
36-ft. (11 m)
36-ft. (11 m)

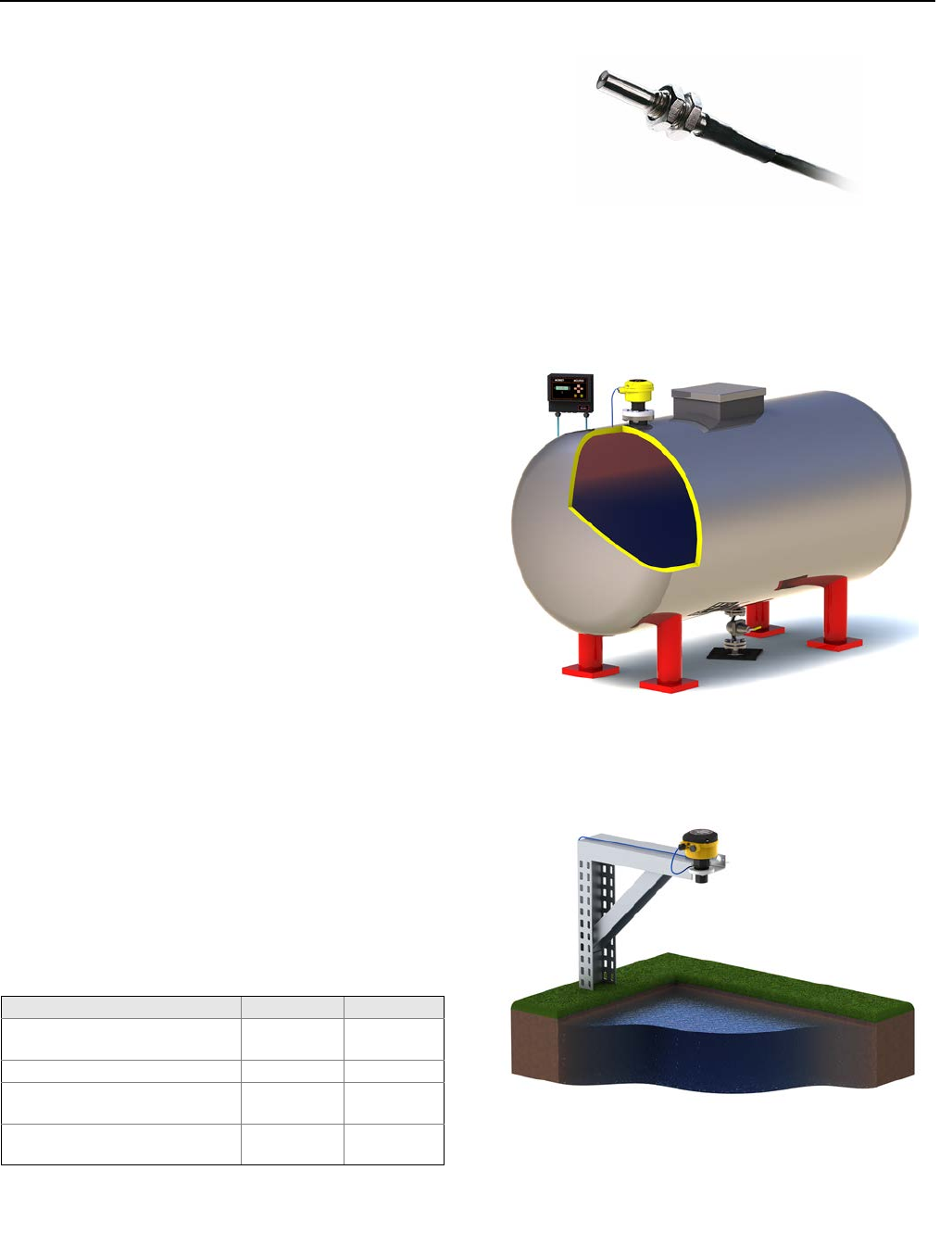

Remote Temperature Sensor Option
(For MSP400RH and MSP900GH)
Level Measurement with a Mobrey MSP400RH Transmitter
and a Mobrey MCU900 Series Control Unit
Open Channel Flow Measurement with
a Mobrey MSP900GH Transmitter
4
Mobrey MSP422, MSP400RH and MSP900GH February 2015
www.emersonprocess.com

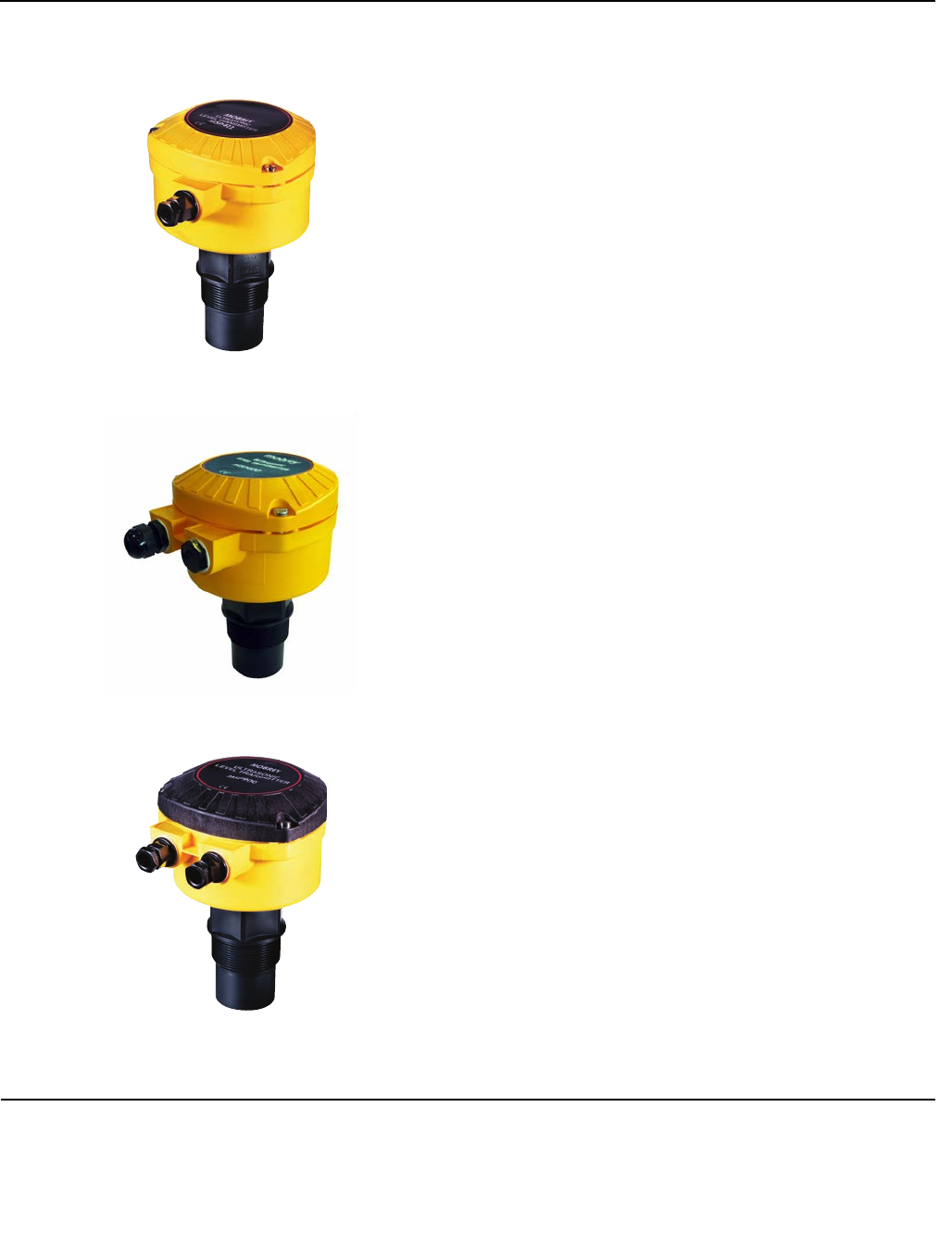

Mobrey MSP422 Level Transmitter
Mobrey MSP400RH Level Transmitter
Mobrey MSP900GH Level Transmitter
MSP Series Accessories
Table 1. MSP422 ordering information
Model Product Description
MSP422 Ultrasonic Level Transmitter 4–20mA
Process Connection
N2(1)
(1) Choosing this option implies US (Imperial) units of measurement are required for the default configuration. The configuration can be changed on-site.
2-in. NPT thread
B2(2)
(2) Choosing this option implies Metric units of measurement are required for the default configuration. The configuration can be changed on-site.
2-in. BSPT thread
Wetted Material
8PVDF
Typical Model Number: MSP422 - B2 8
Table 2. MSP400RH ordering information
Model Product Description
MSP400R Ultrasonic Level Transmitter with 2 integral relays
Signal Output
H4–20 mA with HART communication
Process Connection
N2(1)
(1) Choosing this option implies US (Imperial) units of measurement are required for the default configuration. Configuration can be changed on-site.
2-in. NPT thread
B2(2)
(2) Choosing this option implies Metric units of measurement are required for the default configuration. Configuration can be changed on-site.
2-in. BSPT thread
Wetted Material
8PVDF
Typical Model Number: MSP400R H - B2 8
Table 3. MSP900GH ordering information
Model Product Description
MSP900G Ultrasonic Level Transmitter for hazardous areas
Signal Output
H4–20 mA with HART communication
Process Connection and Approval
A2-in. BSPT thread, PVDF wetside, and ATEX approved Intrinsically Safe
Typical Model Number: MSP900G H - A
Table 4. MSP Series accessories ordering information
Accessories
MSP-FLG5 2-in. BSPT to PN16 DN50, PVC Flange
MSP-BRK3(1)
(1) See “Dimensional Drawings” on page 9.

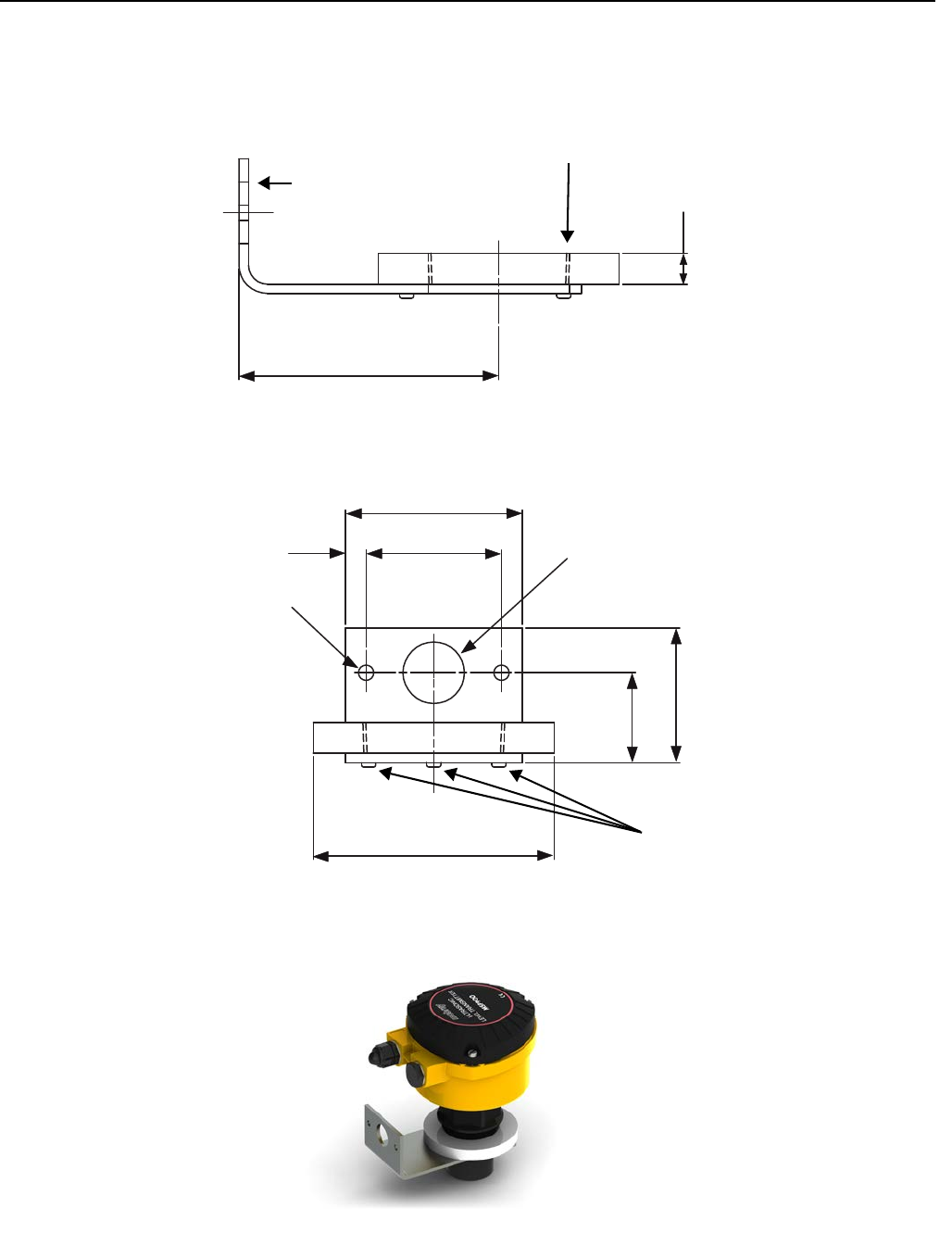

2-in. NPT Mounting Bracket
MSP-BRK2(1) 2-in. BSPT Mounting Bracket
MSP-RTP Remote Temperature Sensor (Mobrey MSP400RH and Mobrey MSP900GH only)
5
Mobrey MSP422, MSP400RH and MSP900GH
February 2015
www.emersonprocess.com
Specifications
General
Products
Mobrey MSP422 Ultrasonic Transmitter:
Level and Distance measurement
Mobrey MSP400RH Ultrasonic Transmitter:
Level, Distance, Content (Volume), and Flow measurement,
with two integral signal relays
Mobrey MSP900GH Ultrasonic Transmitter:
Level, Distance, Content (Volume), and Flow measurement for
hazardous locations
Measurement principle
Ultrasonic, time-of-flight
Measuring performance
Measurement range
Mobrey MSP422: 1 to 26 ft. (0,3 to 8 m)
Mobrey MSP400RH: 1 to 36 ft. (0,3 to 11 m)
Mobrey MSP900GH: 1 to 36 ft. (0,3 to 11 m)
Blanking distance (dead zone)
12 in. (0,3 m)
Level resolution
Better than 0.06 in. (1 mm)
Level accuracy under reference conditions(1)
MSP422:
± 0.2 in. (5 mm) for < 3.3 ft. (1 m),
± 0.5% of measured distance for > 3.3 ft. (1 m)
MSP400RH and MSP900GH:
± 0.1 in. (2,5 mm) < 3.3 ft (1 m),
± 0.25% of measured distance for > 3.3 ft. (1 m)
Update interval
Display: 500 ms
Current Output: 200 ms
Display and configuration
Integral display
4/5 digit display for live measurement, and for configuration
purposes
Output units
For Level or distance-to-surface: m, ft, in, or none
For Contents: l, m3, gal, ft3, or none
For Flow:
l/s, l/m, m3/hr, gal/s, gal/m, ft3/m (cfm), ft3/hr, or none
Output variables
MSP422: Level or distance-to-surface
MSP400RH:
Level (or distance-to-surface), Content (Volume), and Flow
MSP900GH:
Level (or distance-to-surface), Content (Volume), and Flow
Configuration tools
Standard integral push-buttons with LCD
Field Communicator
Mobrey MCU900 Series Universal Control Unit
Electrical
Power supply
Loop-powered (two-wire)
Mobrey MSP422: 12 to 30 Vdc
Mobrey MSP400RH: 12 to 40 Vdc
Mobrey MSP900GH:
12 to 40 Vdc (non-hazardous area),
12 to 30 Vdc (hazardous area)
Earthing
None required
Current output
MSP422: Analog 4–20 mA
MSP400RH and MSP900GH: Analog 4–20 mA, HART
Signal on alarm
Low = 3.6 mA. High = 21 mA
Saturation levels
Low = 3.8 mA. High = 20.5 mA
Relay output (MSP400RH)
Two integral signal relays, SPST rated 1A @ 30 Vdc (inductive) and
2A @ 30 Vdc (resistive)
(1) Temperature: 68 °F (20 °C), Pressure: 1013 mbar (atmospheric pressure), Relative Humidity: 50%, calm and stable water surface.
6
Mobrey MSP422, MSP400RH and MSP900GH February 2015
www.emersonprocess.com
Electrical parameters (MSP900GH)
Ui = 30 V, li = 120 mA, Pi = 0,82 W, Li = 108
H, Ci = 0 nF
Cable entry
Two M20 x 1.5 conduit entries for cable glands
Output cabling
Single twisted-pair and shielded,
min. 0,22 mm2 (24 AWG),
max. 1,5 mm2 (15 AWG)
Physical specifications
Materials selection
Emerson provides a variety of product with various product
options and configurations including materials of
construction that can be expected to perform well in a wide
range of applications. The product information presented is
intended as a guide for the purchaser to make an appropriate
selection for the application. It is the purchaser’s sole
responsibility to make a careful analysis of all process
parameters (such as all chemical components, temperature,
pressure, flow rate, abrasives, contaminants, etc.), when
specifying product, materials, options and components for
the particular application. Emerson Process Management is
not in a position to evaluate or guarantee the compatibility of
the process fluid or other process parameters with the
product, options, configuration or materials of construction
selected.
Materials used in construction
Wet-side material
PVDF
Body and cover material
Glass-filled nylon
Cover seal
Silicone rubber
Cover screws
316 Stainless Steel
Transducer body seal
EPDM
Mechanical
Mounting thread size
2-in. NPT, or 2-in. BSP. Optional flange accessories available
Weight of transmitter
MSP422: 2.0 lb (0,9 kg)
MSP400RH: 2.2 lb (1,0 kg)
MSP900GH: 3.1 lb (1,4 kg)
Measuring
Temperature compensation(1)
MSP422: Automatic Integral temperature compensation
MSP400RH: Automatic Integral temperature compensation.
Optional remote temperature sensor for dynamic
temperature compensation
MSP900GH: Automatic Integral temperature compensation.
Optional remote temperature sensor for dynamic
temperature compensation
Environment
Ambient temperature(2)
MSP422:
–4 to 158 °F (–20 to 70 °C)
MSP400RH:
–40 to 158 °F (–40 to 70 °C)
MSP900GH:
–40 to 140 °F (–40 to 60 °C)
Process temperature
MSP422:
–4 to 158 °F (–20 to 70 °C)
MSP400RH and MSP900GH:
–22 to 158 °F (–30 to 70 °C)
Process pressure:
–4 to 44 psi (–0,25 to 3,0 bar)
Ingress protection
IP 66/67 (when using supplied cable gland/blanking plug)
Electromagnetic compatibility
EN61326 (Class B)
Certifications
CE-mark, FM, ATEX (dependent on order code)
(1) See Table 4 on page 4 for optional accessories.
(2) See page 8 onwards for approval temperature ranges.
7
Mobrey MSP422, MSP400RH and MSP900GH
February 2015
www.emersonprocess.com

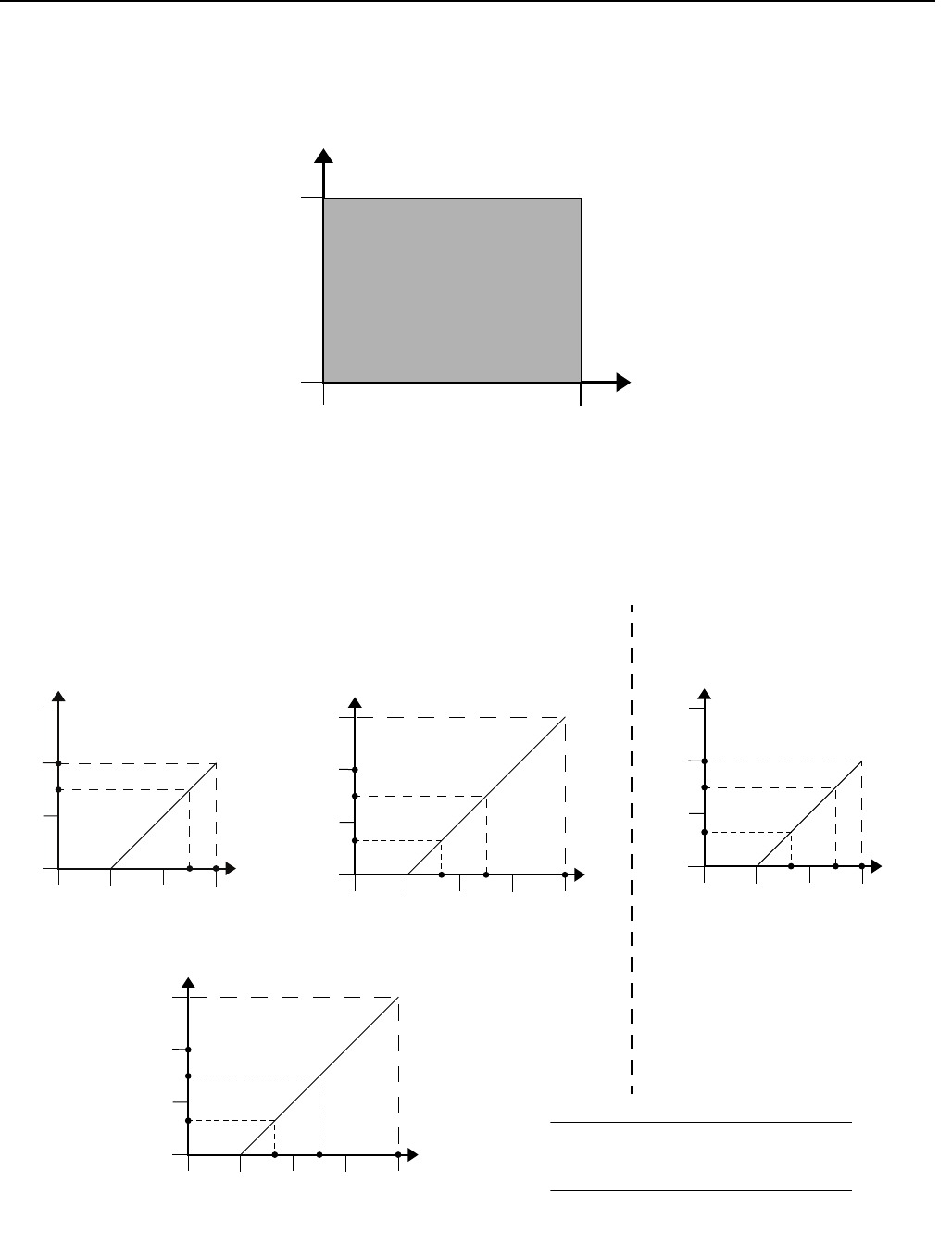

Temperature and pressure ratings
The process temperature/pressure rating depends on the design of the transmitter in combination with the flange materials.
Load limitations
A Field Communicator requires a minimum load resistance of 250 Ohm within the loop in order to function properly. Communication
with Mobrey MCU900 Series Control Unit does not require additional resistance. The maximum load resistance can be determined
from these diagrams:
Pressure
psi (bar)
158 °F
(70 °C)
–4 °F (–20 °C) for MSP422
–22 °F (–30 °C) for others
–4 psi
(–0,25 bar)
44 psi
(3 bar)
OPERATING RANGE
The final rating may be limited
by flange selection
Temperature
°F (°C)
Process Temperature And Pressure Diagram For Mobrey MSP422, MSP400RH and MSP900GH
U (V)
R (Ohms)
0
Non-Intrinsically Safe Installations Intrinsically Safe Installations
R (Ohms)
R (Ohms)
U (V)
U (V)
12
12 30
40
30
1244
800
400
12 20
24
533
Mobrey MSP422
Mobrey MSP900GH
0
1244
800
400
0
20 30
20
1244
800
400
0
Mobrey MSP900GH
250
250
533
533
0
24
24
18
18
Note
R = Maximum Load Resistance
U = External Power Supply Voltage
R (Ohms)
U (V)
12 30
20
1244
800
400
0
0
250 533
24
18
Mobrey MSP400RH
40
8
Mobrey MSP422, MSP400RH and MSP900GH February 2015
www.emersonprocess.com
Product Certifications
Approved manufacturing locations
Rosemount Measurement Limited
– Slough, United Kingdom
European directive information
The EC declaration of conformity certificate may be obtained by
contacting your local sales office.
ATEX directive (94/9/EC)
The MSP900GH complies with the ATEX directive
Pressure equipment directive (PED) (97/23/EC)
The MSP Series is outside the scope of the PED directive
Electro magnetic compatibility (EMC) directive
EN 61326-1:2006, EN 61326-2.3:2006
CE-mark
MSP422 (EMC)
MSP400RH (EMC)
MSP900GH (EMC, ATEX)
Ordinary locations certification
(Mobrey MSP422 and MSP400RH only)
American certification
Factory Mutual (FM) ordinary locations approval
Project ID: 3015615
The transmitter has been examined and tested to determine
that the design meets basic electrical, mechanical, and fire
protection requirements by FM, a nationally recognized testing
laboratory (NRTL) as accredited by the Federal Occupational
Safety and Health Administration (OSHA).
Hazardous locations certification
(Mobrey MSP900GH only)
European certification
ATEX intrinsically safe approval
Certificate number: SIRA 02ATEX2405X
ATEX intrinsic safety (Mobrey MSP900GH only)
II 1 G
Ex ia IIC T6 Ga (Ta –40 to 55 °C)
Ex ia IIC T4 Ga (Ta –40 to 60 °C)
Ui = 30 V, li = 120 mA, Pi = 0.82 W, Li = 108 H, Ci = 0 F
Special conditions for safe use
1. All transmitter models have external plastic parts, which could
present a risk of ignition due to electrostatic charge build-up.
They shall not be directly installed in any process where its
enclosure might be charged by the rapid flow of non-conductive
media.
2. All transmitter models shall only be cleaned with a damp cloth.
3. When the transmitter housing uses aluminum alloy in its
construction, this presents a risk of ignition due to impact and
shall be taken into consideration on installation and use.
9
Mobrey MSP422, MSP400RH and MSP900GH
February 2015
www.emersonprocess.com
Dimensional Drawings
Threaded mounting (MSP422)
Note: Dimensions are in inches (mm).
2-in. Thread
2.36 (60) A/F Hexagon
M20 x 1.5
Cable Entry
MSP422
3 (77)
8
(202.5)
Ø2
(Ø51)
5.6 (142)
1.9 (48) 1.9 (47)
4.5 (113.5)
5.5
(138.5)
3.8
(96)
10
Mobrey MSP422, MSP400RH and MSP900GH February 2015
www.emersonprocess.com
Threaded mounting (MSP400RH/MSP900GH)
Note: Dimensions are in inches (mm).
3 (77)
8
(202.5)
Ø2
(Ø51)
2-in. NPT/BSPT Thread
2.36 (60) A/F Hexagon
Two M20 x 1.5 Cable Entries
One Fitted With Cable Gland;
The Other Plugged
5.6 (142)
1.9 (48) 1.9 (47)
4.5 (113.5)
5.5
(138.5)
3.8
(96)
11
Mobrey MSP422, MSP400RH and MSP900GH
February 2015
www.emersonprocess.com
2-in. NPT/BSPT bracket kits
0.51
(13)
4.33
(110)
2.95
(75)
0.35
(9)
Ø1.02
(Ø26)
0.26 (6,5)
TYP
.
2.26
(57)
4.02
(102)
2.24
(57)
1.5
(38)
Note: Dimensions are in inches (mm).
SIDE VIEW
END VIEW
ACTUAL VIEW WITH
TRANSMITTER MOUNTED
2-in. NPT/BSPT
Threaded PVC Disc
No. 4X 13 Long Self Tap
Screw (3 Positions)
Carbon Steel (Zinc Plated)
Stainless Steel Bracket
Note: The combined weight of
bracket and disc is 16 oz. (0,5 kg).
Mobrey MSP422, MSP400RH and MSP900GH
IP2045, Rev EA
Product Data Sheet
February 2015
Standard Terms and Conditions of Sale can be found at www.rosemount.com\terms_of_sale
The Emerson logo is a trade mark and service mark of Emerson Electric Co.
Mobrey and the Mobrey logotype are registered trademarks of Rosemount Measurement Ltd.
Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
HART is a registered trademark of the HART Communication Foundation.
All other marks are the property of their respective owners.
© 2015 Rosemount Measurement Ltd. All rights reserved.
Emerson Process Management
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN 55317, USA
T (USA) 1 800 999 9307
T (International) +1 952 906 8888
F +1 952 906 8889
Emerson Process Management
Rosemount Measurement Ltd.
158 Edinburgh Avenue
Slough, Berks, SL1 4UE, UK
Tel: +44 (0)1753 756600
Fax: +44 (0)1753 823589
www.emersonprocess.com

Navigation menu
