Not for
Reproduction
Parts
Rev. Date: 11/01/11
IS2000Z Series
Zero-Turn Riding Mower
Manual
5101930
5375 North Main Street
Munnsville, NY 13409 USA
800-933-6175
Briggs and Stratton Power Products Group, LLC.
TP 400-7423-AC-2Z-F
Models: Descri
p
tion:
5900810 26HP Kawasaki Liquid Cooled w/ 61" Mower Deck & ROPS (IS2000ZKAV2661)
5900811 30HP Briggs & Stratton w/ 61" Mower Deck & ROPS (IS2000ZB3061)
5900814 30HP Briggs & Stratton w/ 61" Mower Deck (IS2000ZBV30/61 AUS/NZ)
5900816 30HP Briggs & Stratton w/ 61" Mower Deck & ROPS (IS2000ZB3061 CAL)
5900968 30HP Briggs & Stratton w/ 61" Mower Deck & ROPS (IS2000ZB3061)
5900980 30HP Briggs & Stratton w/ 61" Mower Deck & ROPS ANSI-EXP (IS2000ZB3061 ANSI EXP)
5900879 26HP Kawasaki w/ 61" Mower Deck & ROPS (IS2000ZKAV2661)
5900939 26HP Kawasaki w/ 52" Mower Deck & ROPS ANSI-EXP (IS2000ZKAV2652 ANSI EXP)
5900945 26HP Kawasaki w/ 52" Mower Deck & ROPS (IS2000ZKAV2652)
5900807 34HP Kawasaki w/ 61" Mower Deck & ROPS (IS2000ZKAV3461SS)
5900838 27HP Kohler w/ 52" Mower Deck & ROPS (IS2000ZK2752)
5900840 25HP Kawasaki w/ 52" Mower Deck & ROPS (IS2000ZKAV2552)
5900839 25HP Kawasaki w/ 52" Mower Deck & ROPS (IS2000ZKAV25/52 AUS/NZ)
5900809 25HP Kawasaki w/ 61" Mower Deck & ROPS (IS2000ZKAV2561)
5900815 25HP Kawasaki w/ 61" Mower Deck & ROPS (IS2000ZKAV2561 CAL)
5900808 27HP Kawasaki w/ 61" Mower Deck & ROPS (IS2000ZKAV2761)
AC
Revision
Not for
Reproduction
Not for
Reproduction
Table Of Content
s

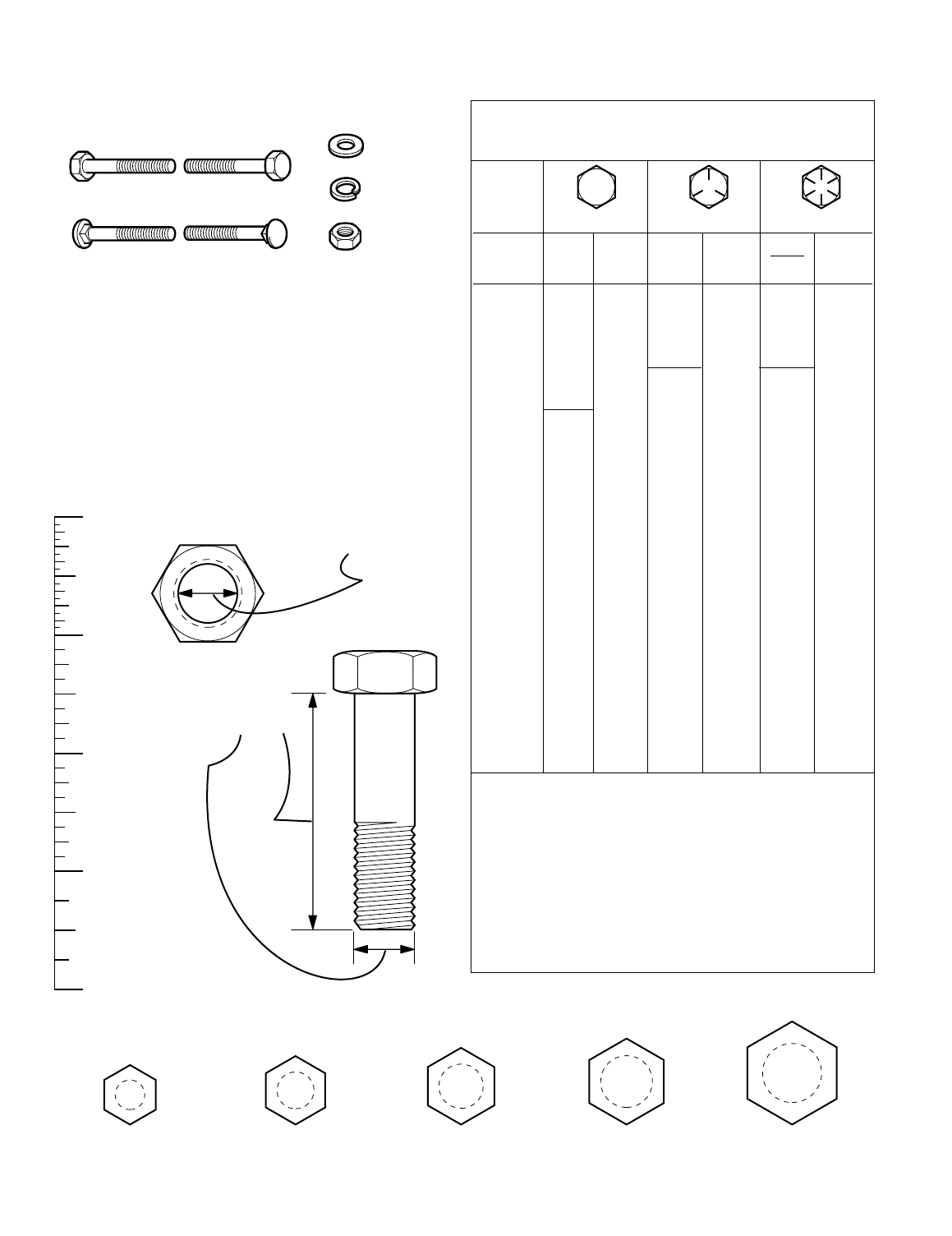

Tor
q
ue S
p
ecification Chart ............................................................................................. Inside Back Cover
MODEL COMPONENTS PAGE
Main Frame & Front Sus
p
ension Grou
p
............................................................................................................................
.
4
Rear Bumper, Roll Bar & Seat Belt Group ......................................................................................................................... 6
Seat, Mount & Floor Group ................................................................................................................................................ 8
Fuel Suppl
y
Hose & Tank Replacement Parts Group ........................................................................................................ 10

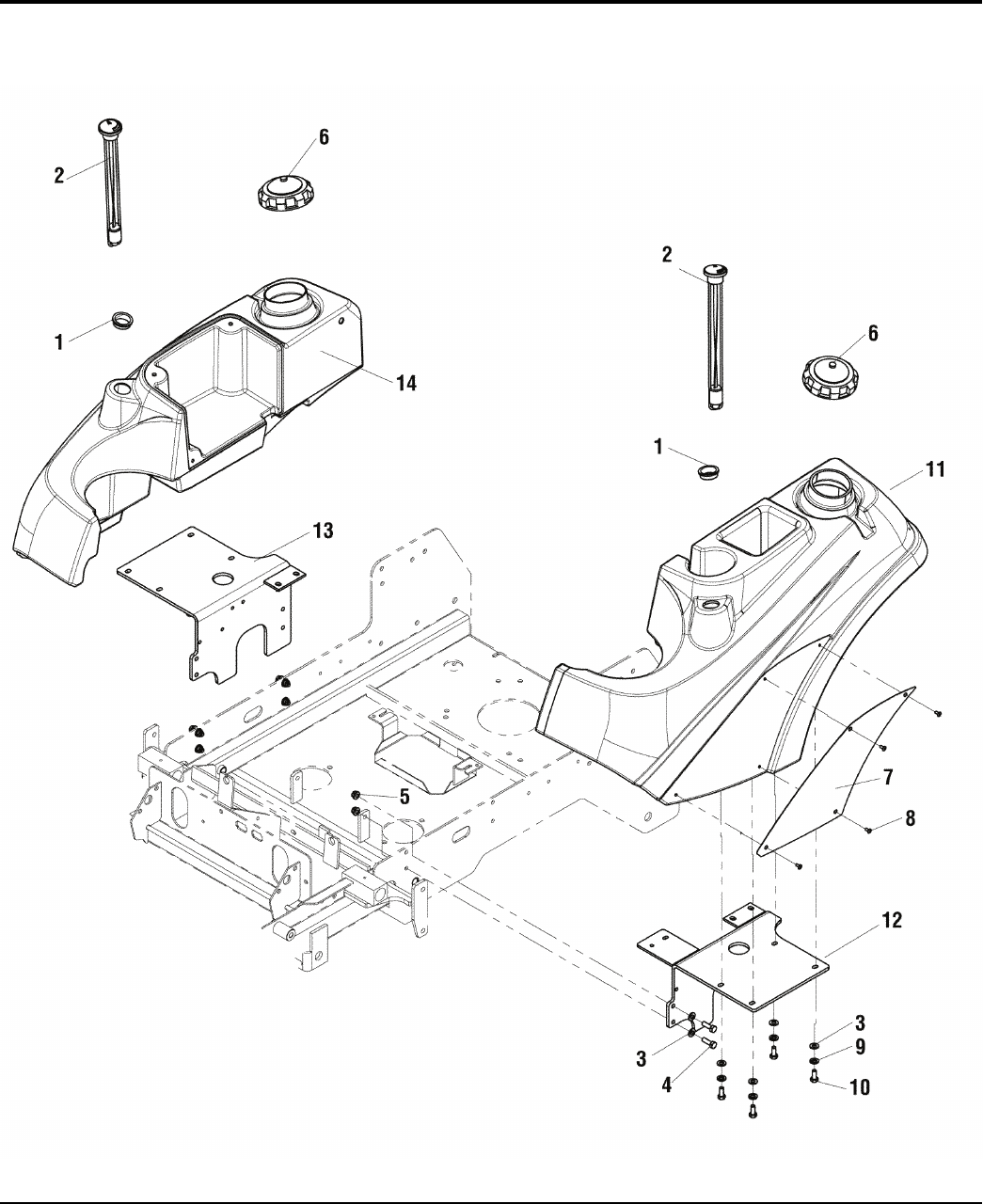

Fuel Tank & Mount Grou
p
.................................................................................................................................................
.
12
Instrument Control Panel Group - Liquid Cooled Models ................................................................................................... 14
Instrument Control Panel Group - Air Cooled Models ........................................................................................................ 16

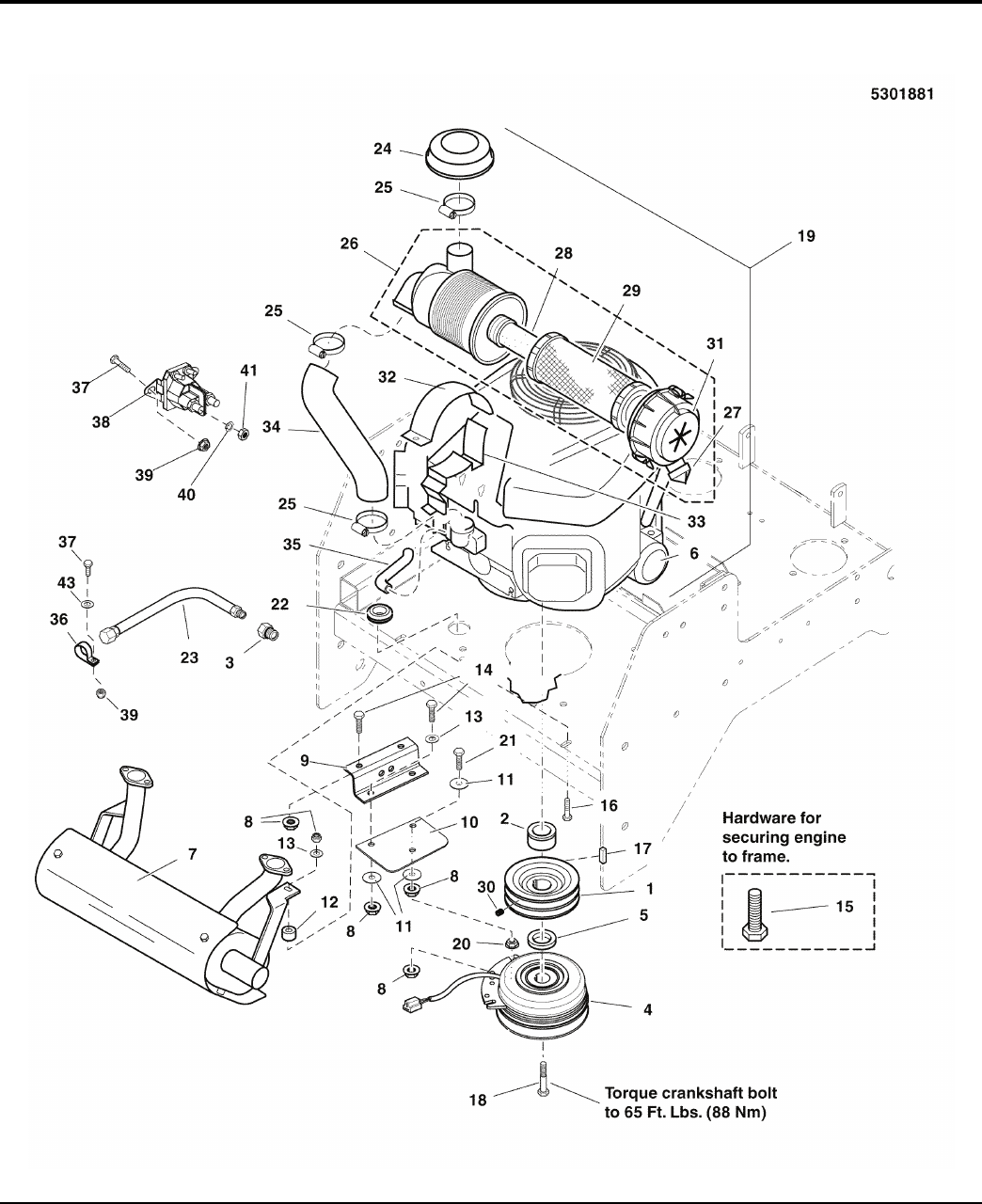

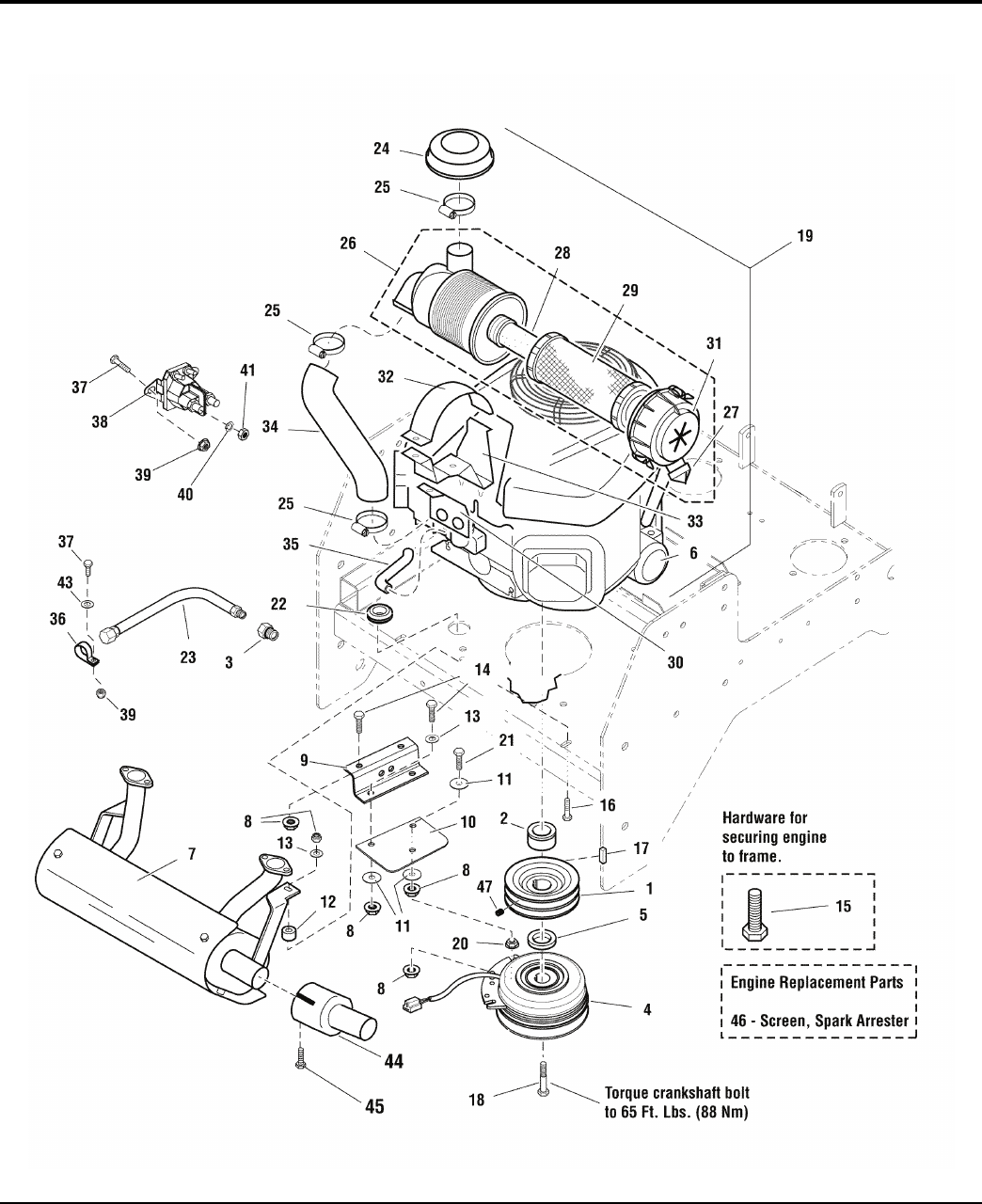

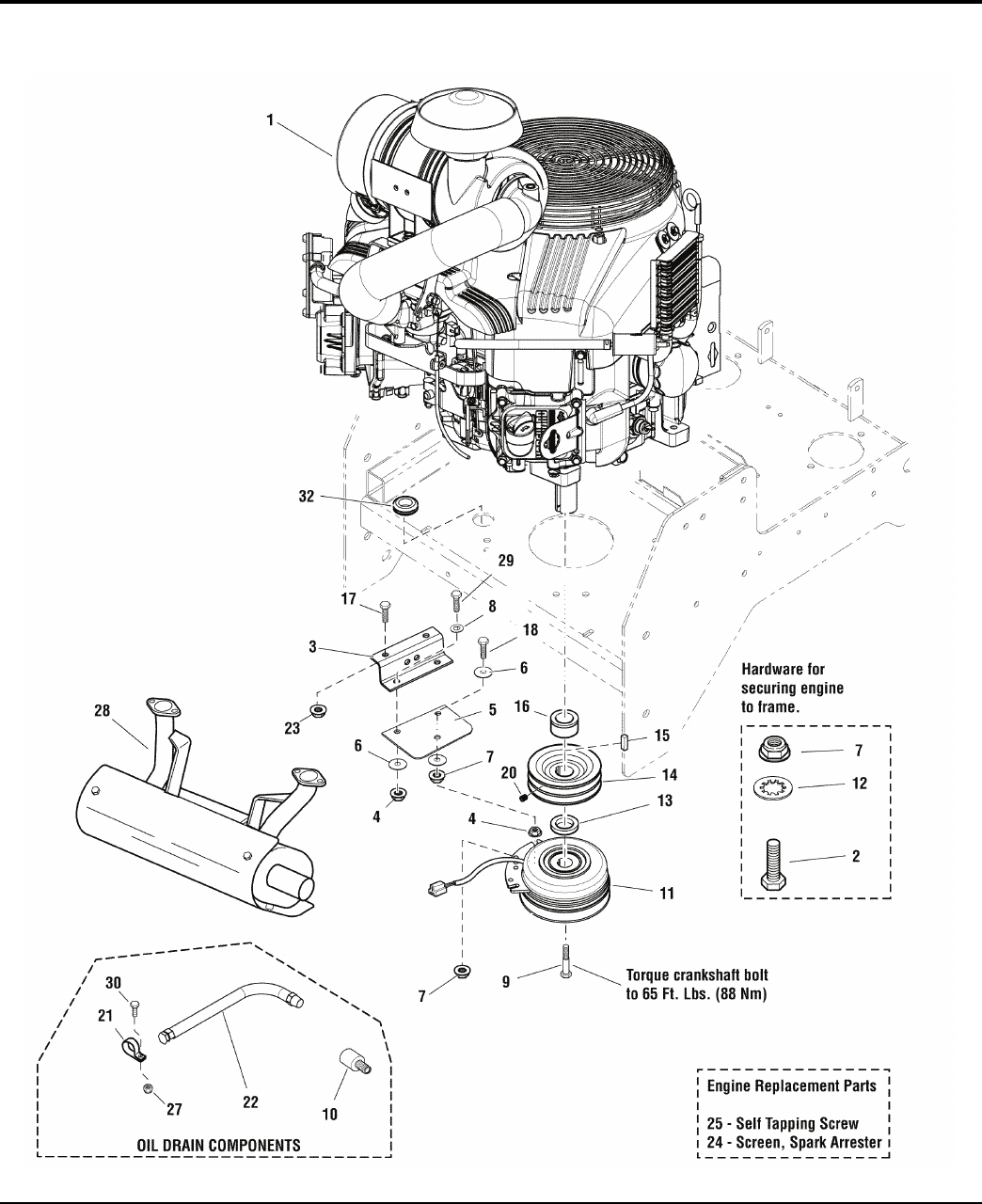

En
g

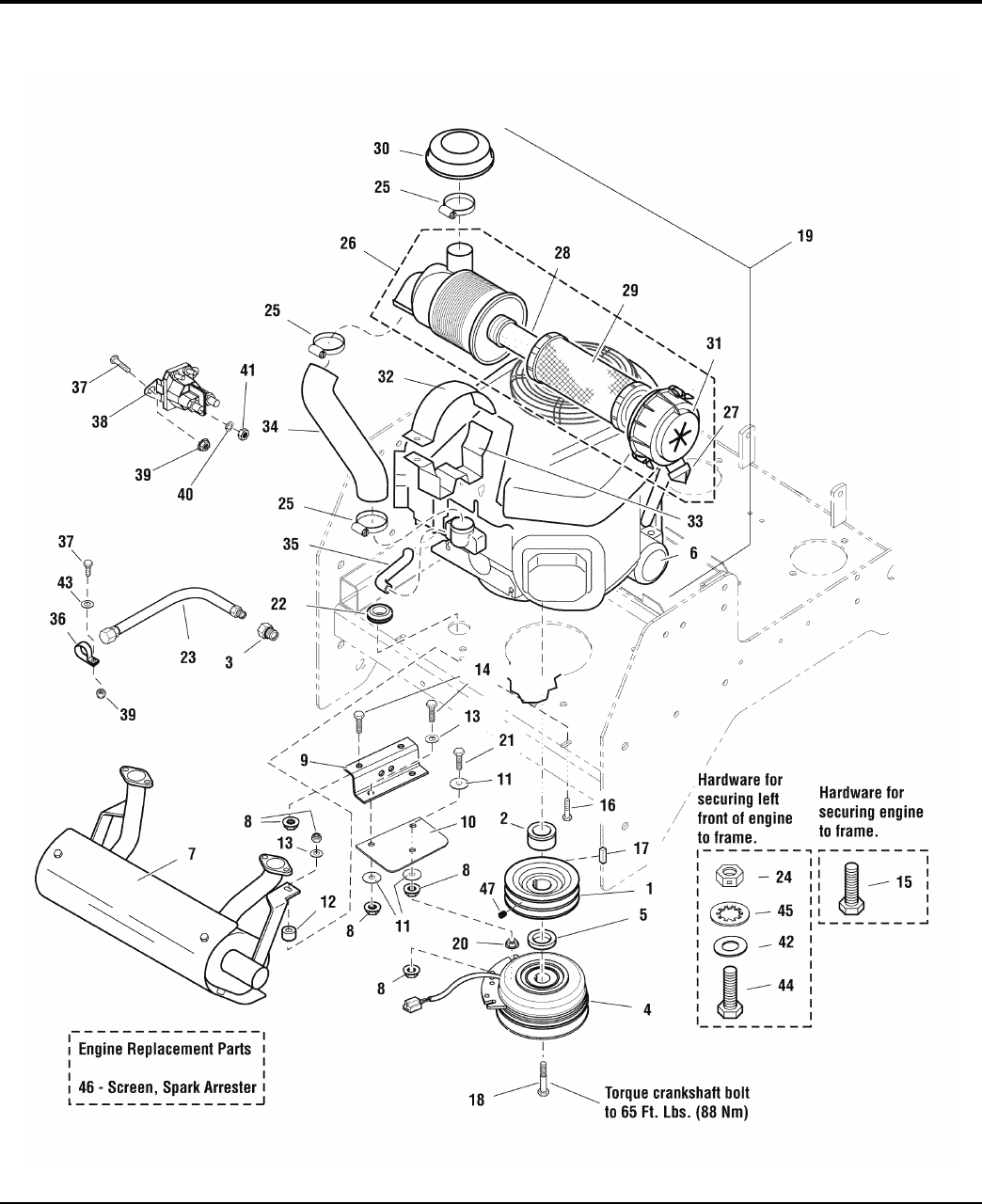

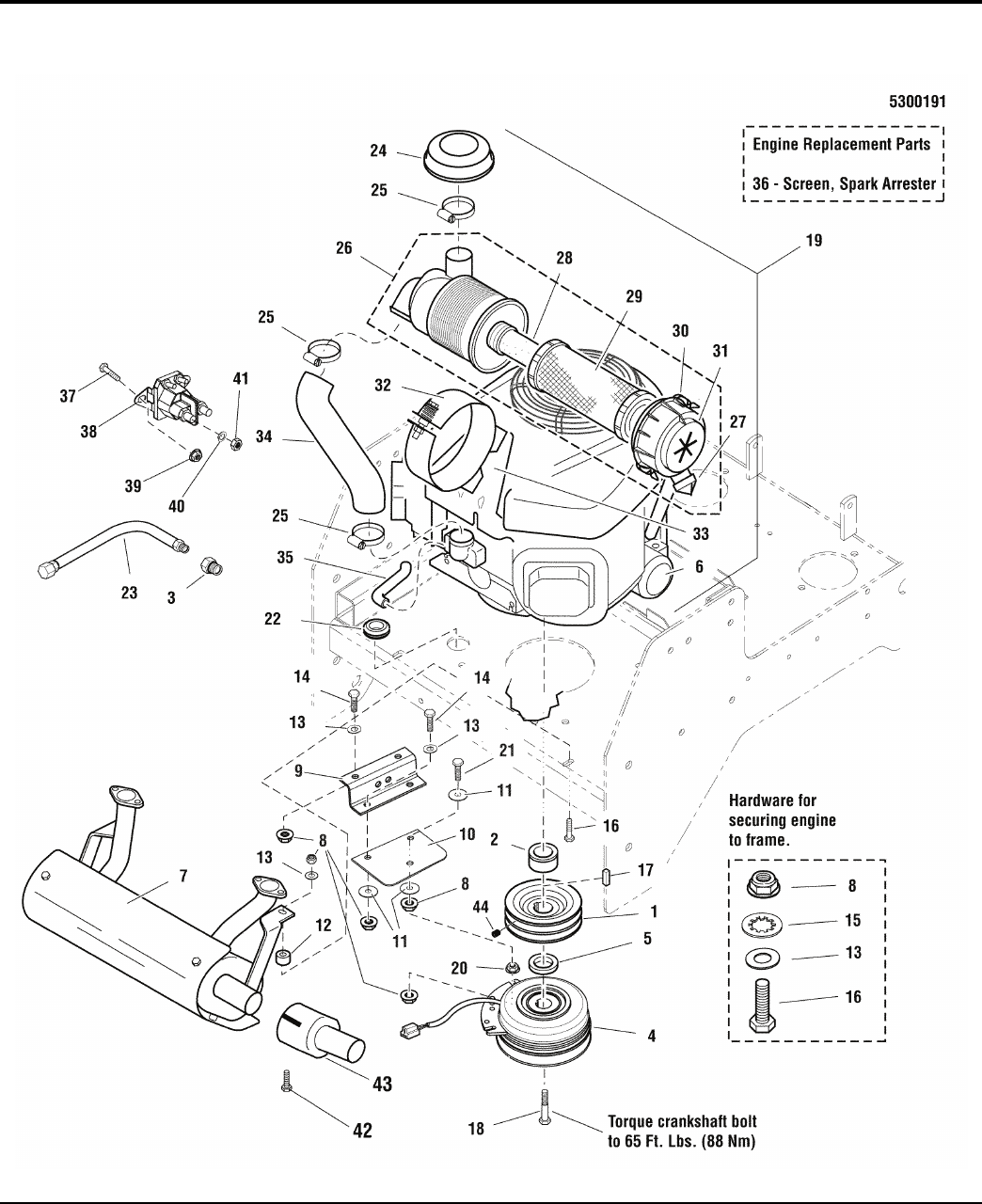

ine & PTO Group - 30HP Bri
gg
s & Stratton ................................................................................................................. 18

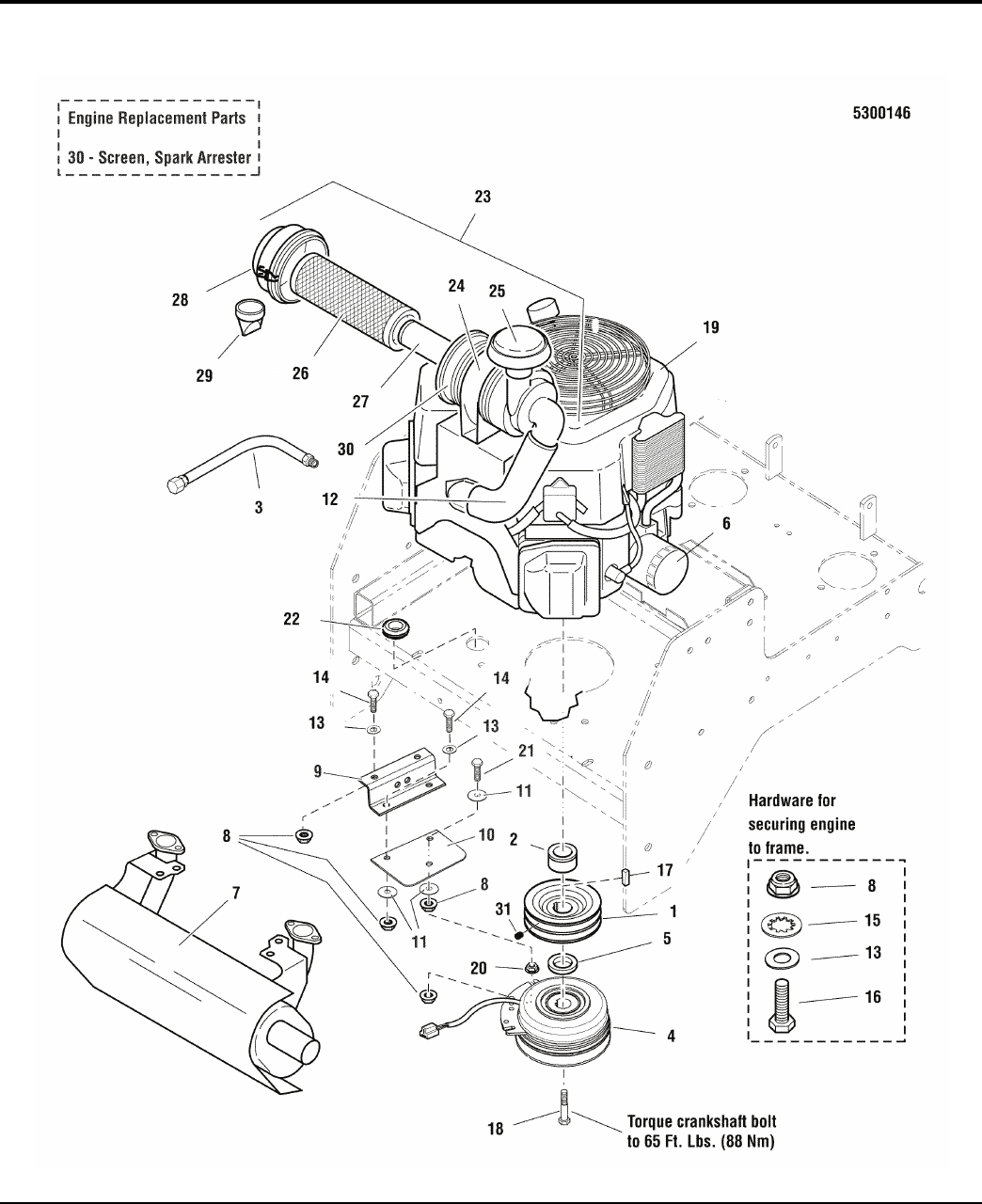

En
g
ine & PTO Grou
p
- 27HP Kawasaki ............................................................................................................................. 20
En
g
ine & PTO Group - 34HP Kawasaki ............................................................................................................................. 24
En
g
ine & PTO Group - 27HP Kohler .................................................................................................................................
.
28
En
g
ine & PTO Group - 25HP Kawasaki ............................................................................................................................. 30
En
g
ine & PTO Grou
p

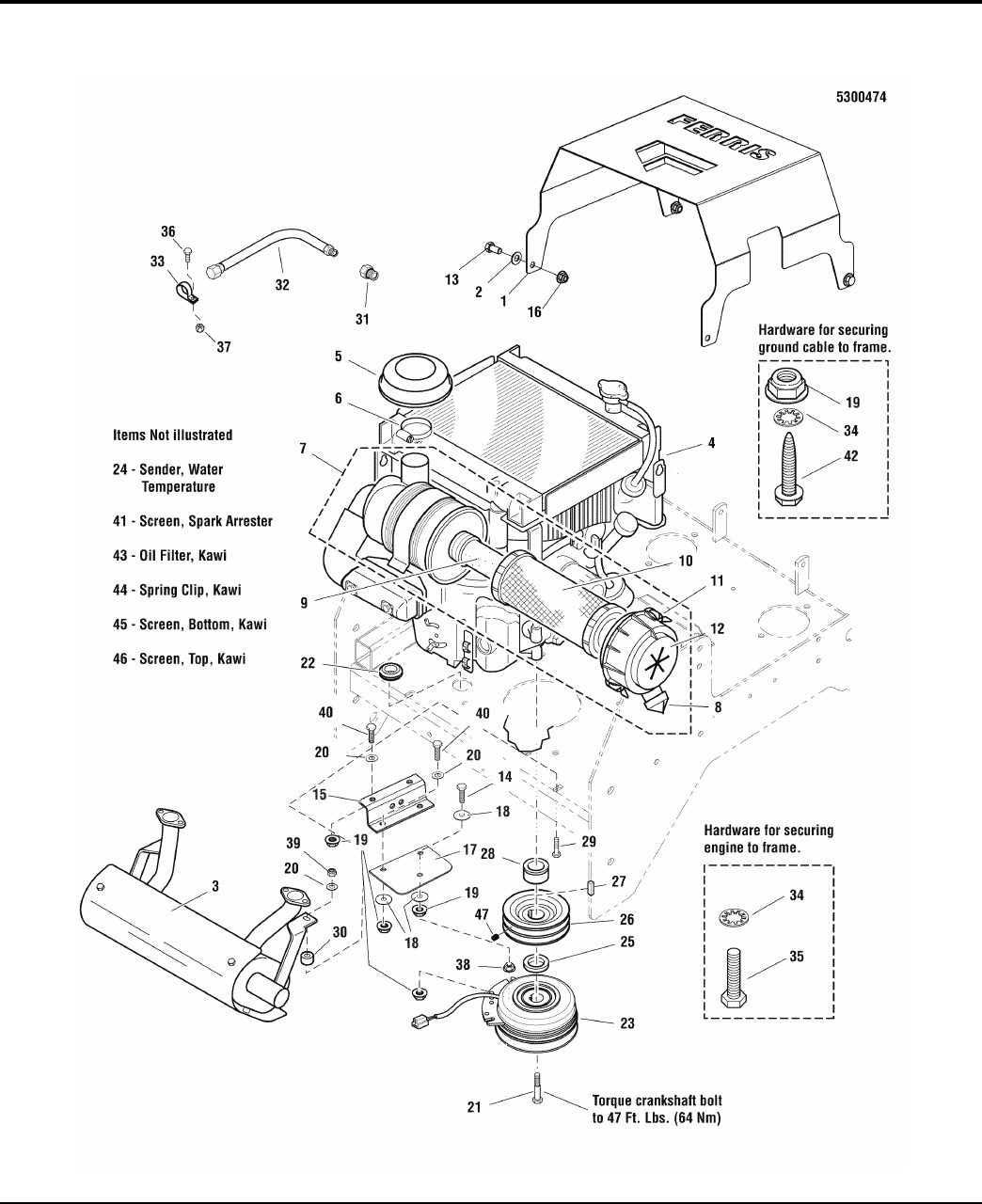

- 26HP Kawasaki Li
q
uid Cooled ...................................................................................................... 34
En
g
ine & PTO Group - 26HP Kawasaki Air Cooled ........................................................................................................... 38
Pump Drive Group ............................................................................................................................................................. 42

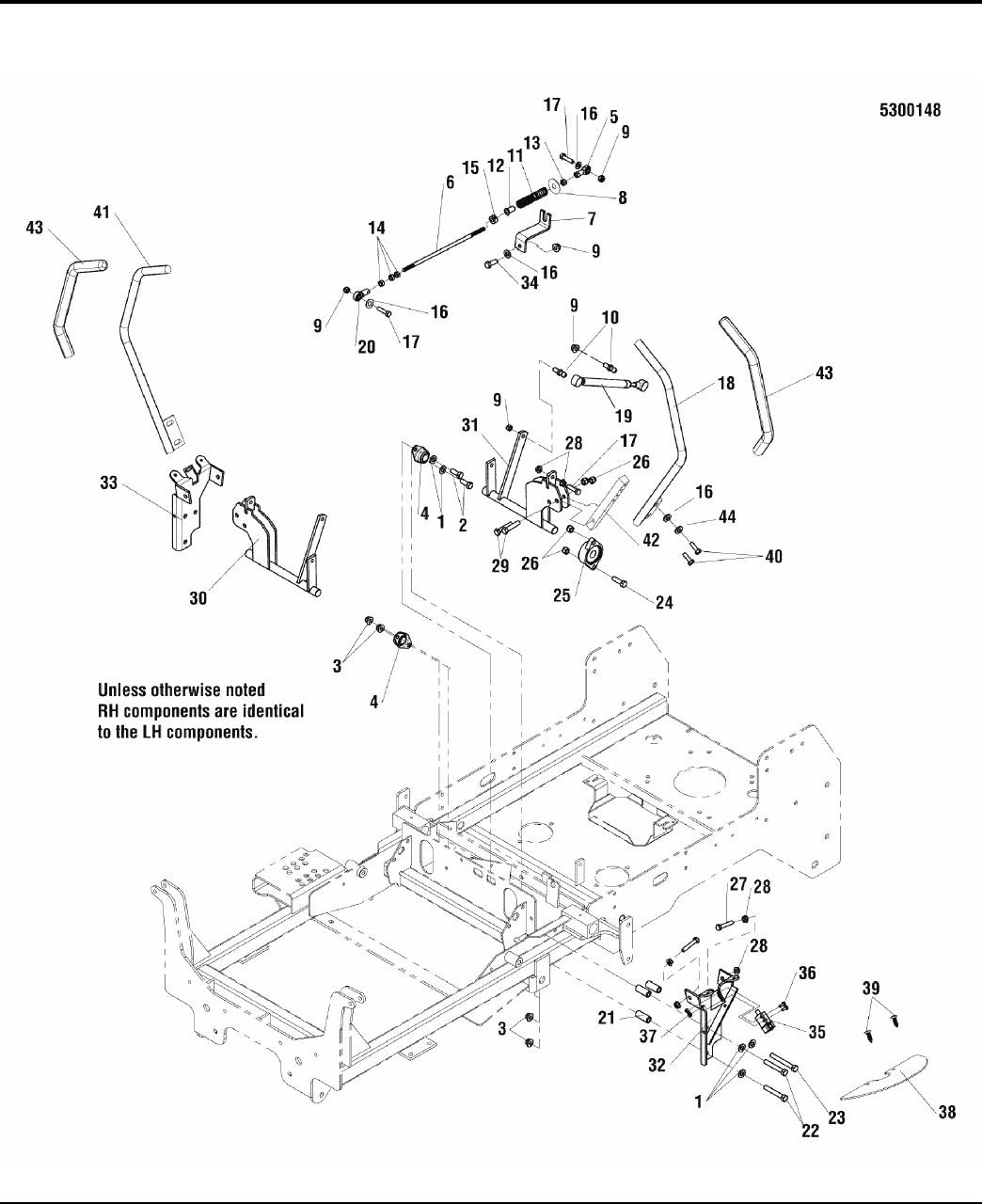

Motion Control Grou
p
........................................................................................................................................................
.
44

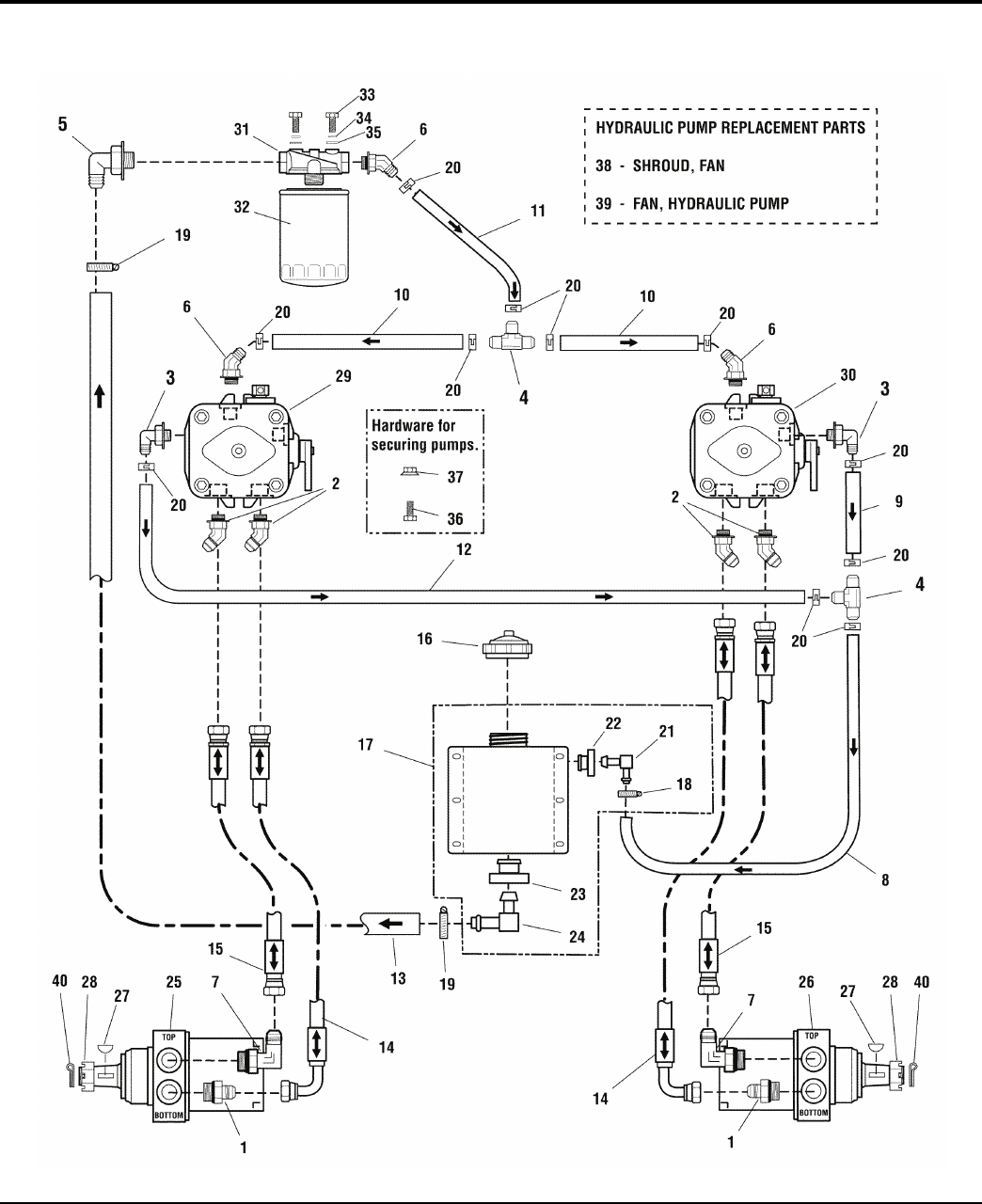

H
y

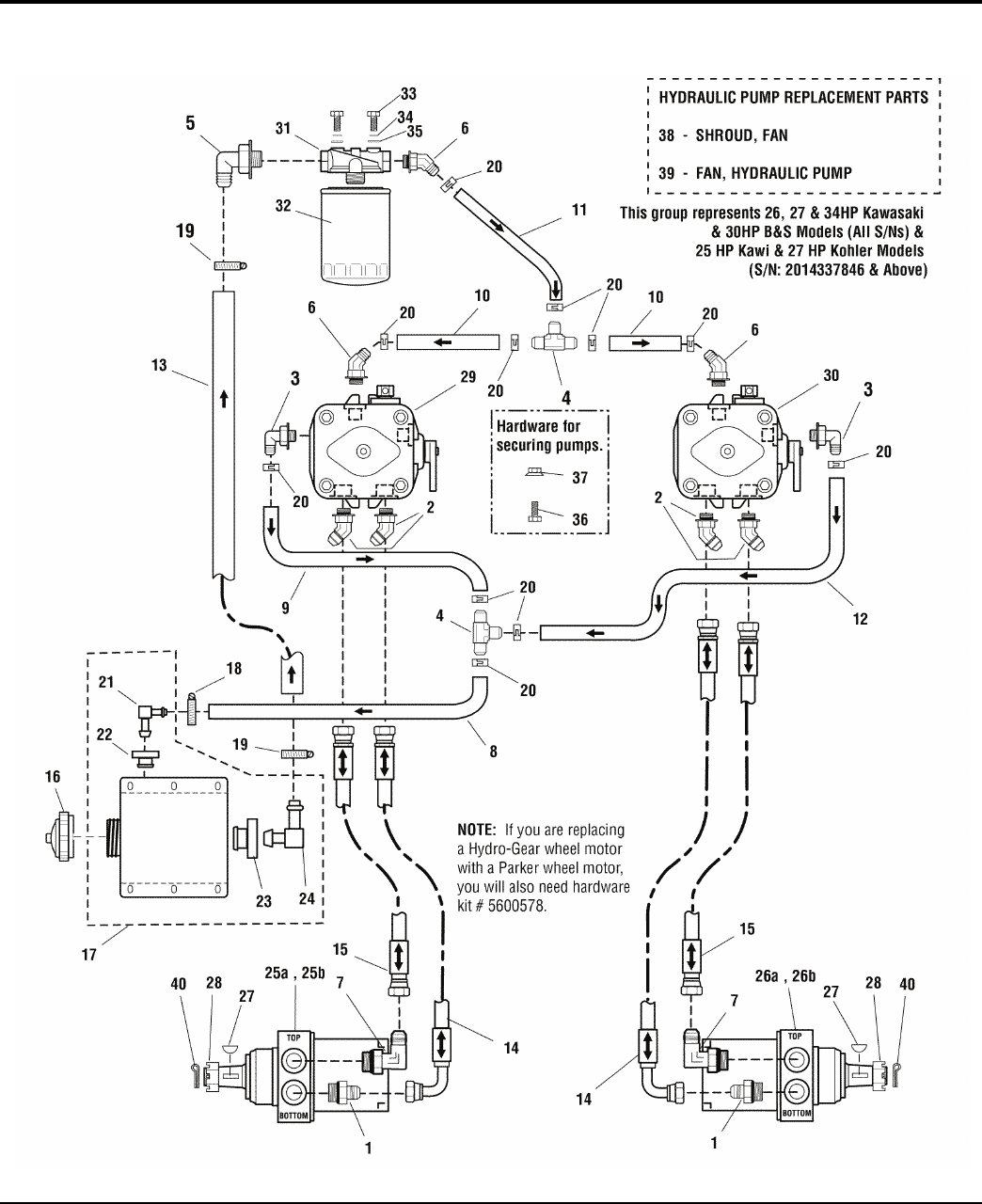

draulic Group ................................................................................................................................................................. 48
H
draulic Mount Group ...................................................................................................................................................... 52
H
y
draulic Group - 25HP Kawasaki & 27HP Kohler Models
(
S/N: 2014337845 & Below
)
.................................................. 54

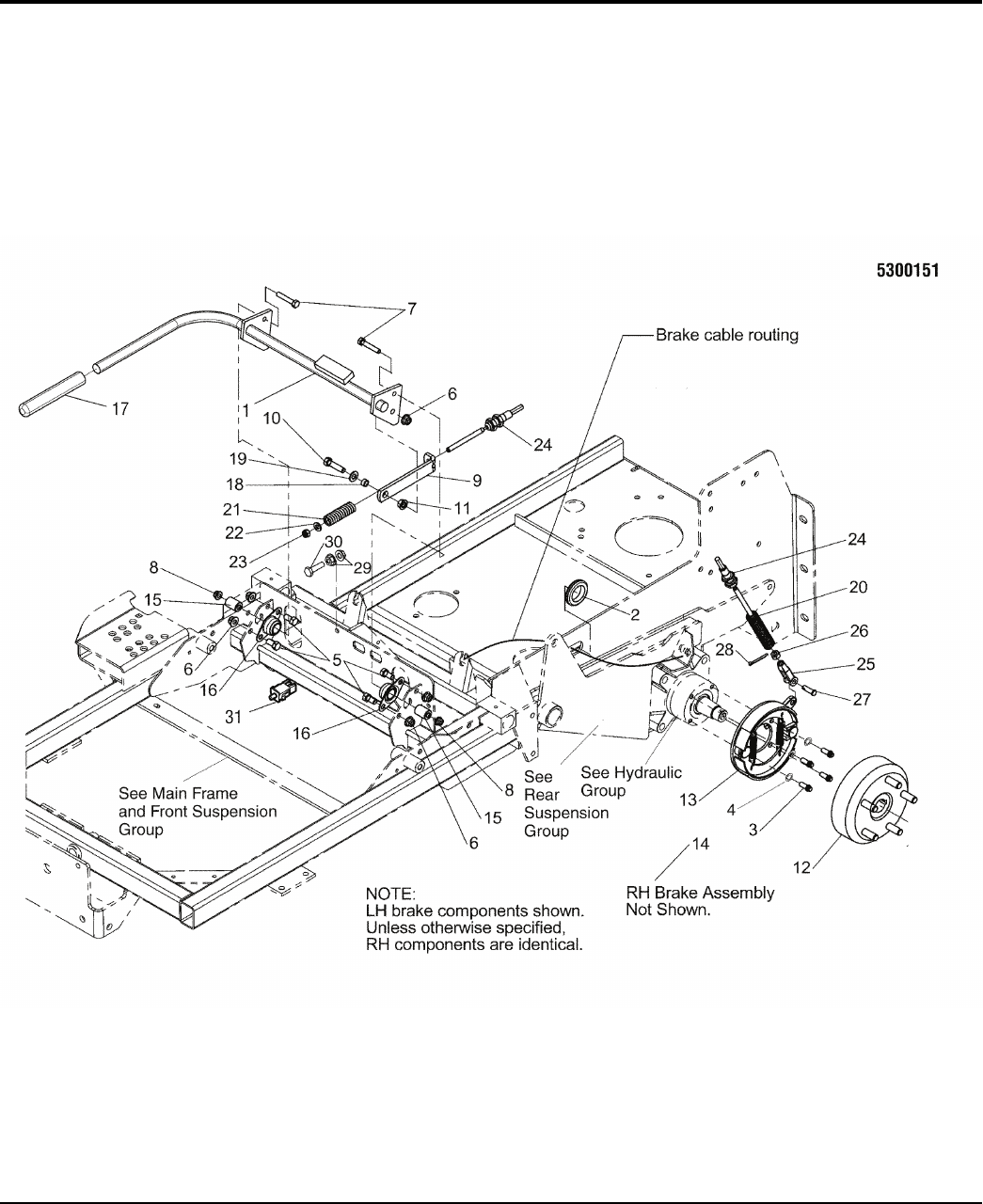

Parkin
g
Brake Grou
p
.........................................................................................................................................................
.
56
Rear Suspension Group ....................................................................................................................................................
.
58

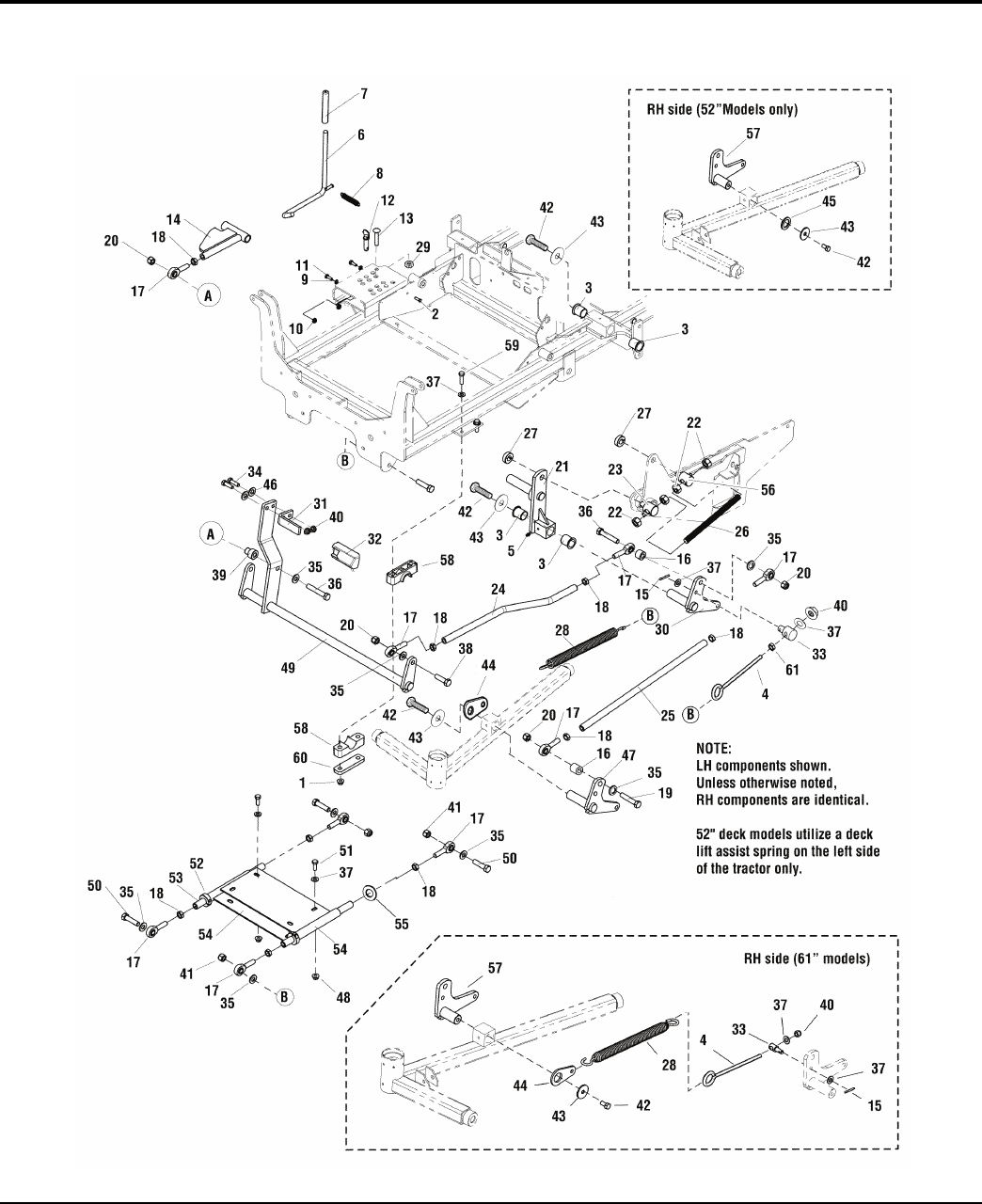

Deck Lift Group - All 52" Models & 61" Models S/N: 2014341047 & Below ....................................................................... 60
Deck Lift Group - 61" Models S/N: 2014341048 & Above .................................................................................................. 64

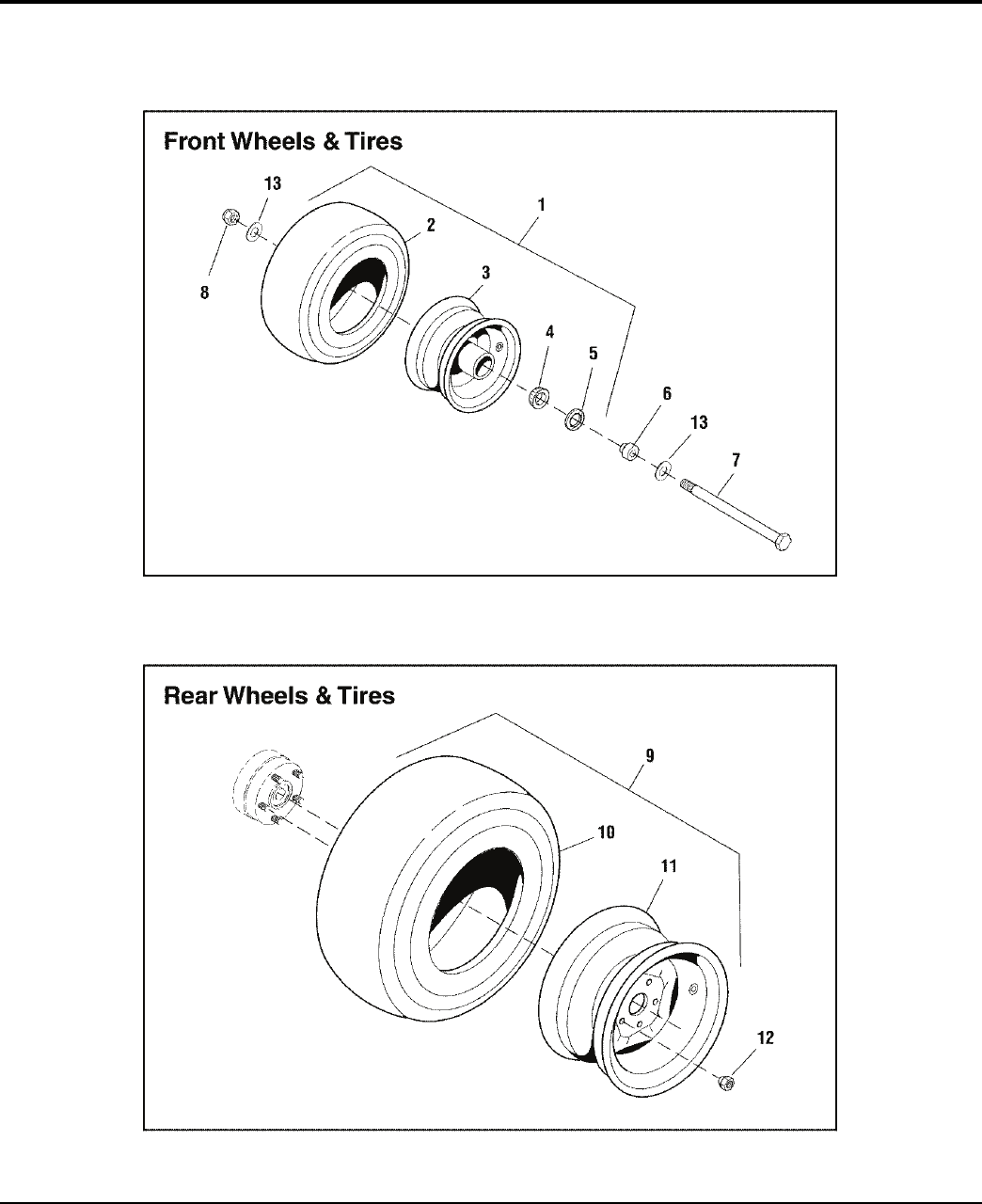

Wheel & Tire Grou
p
........................................................................................................................................................... 68

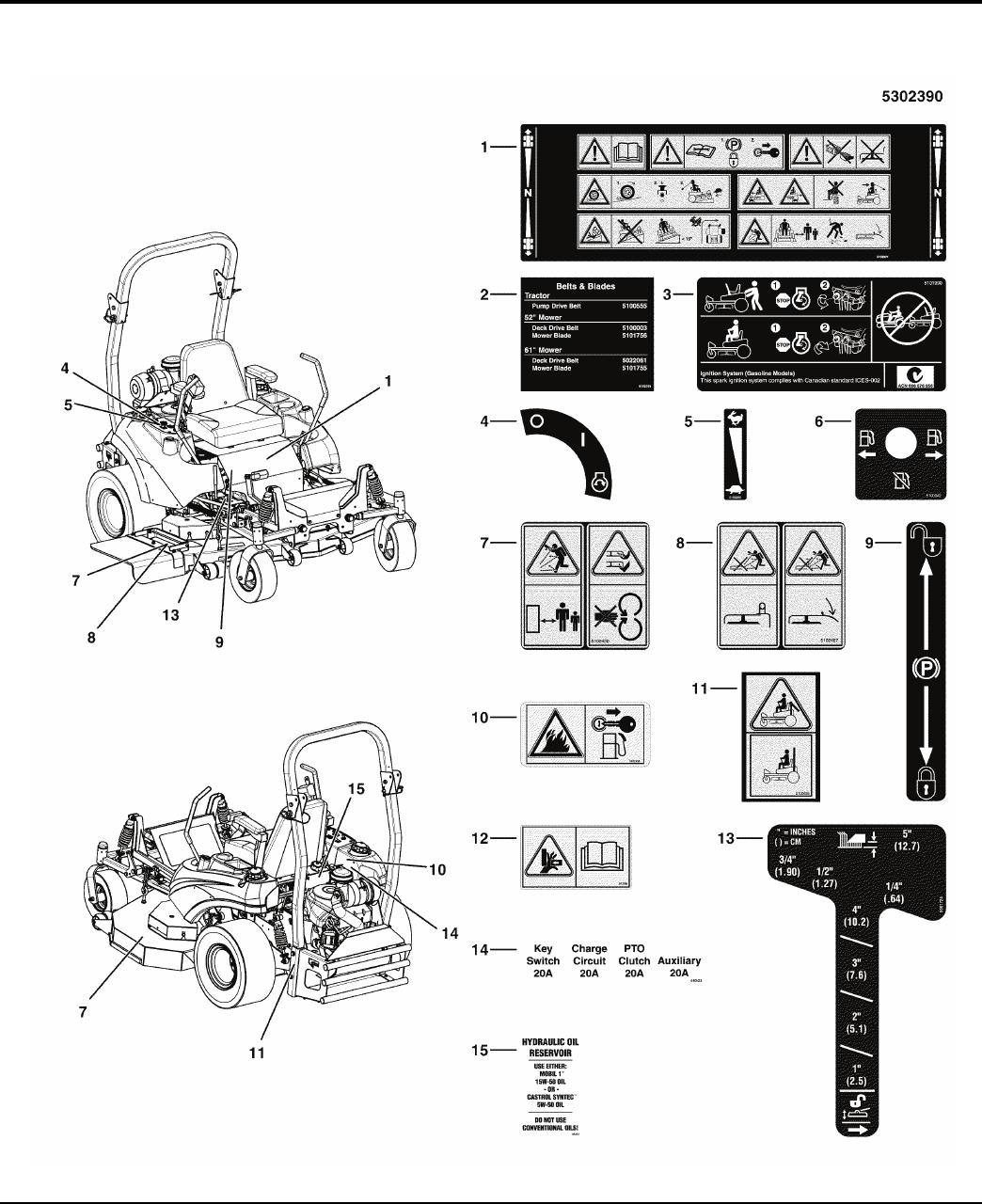

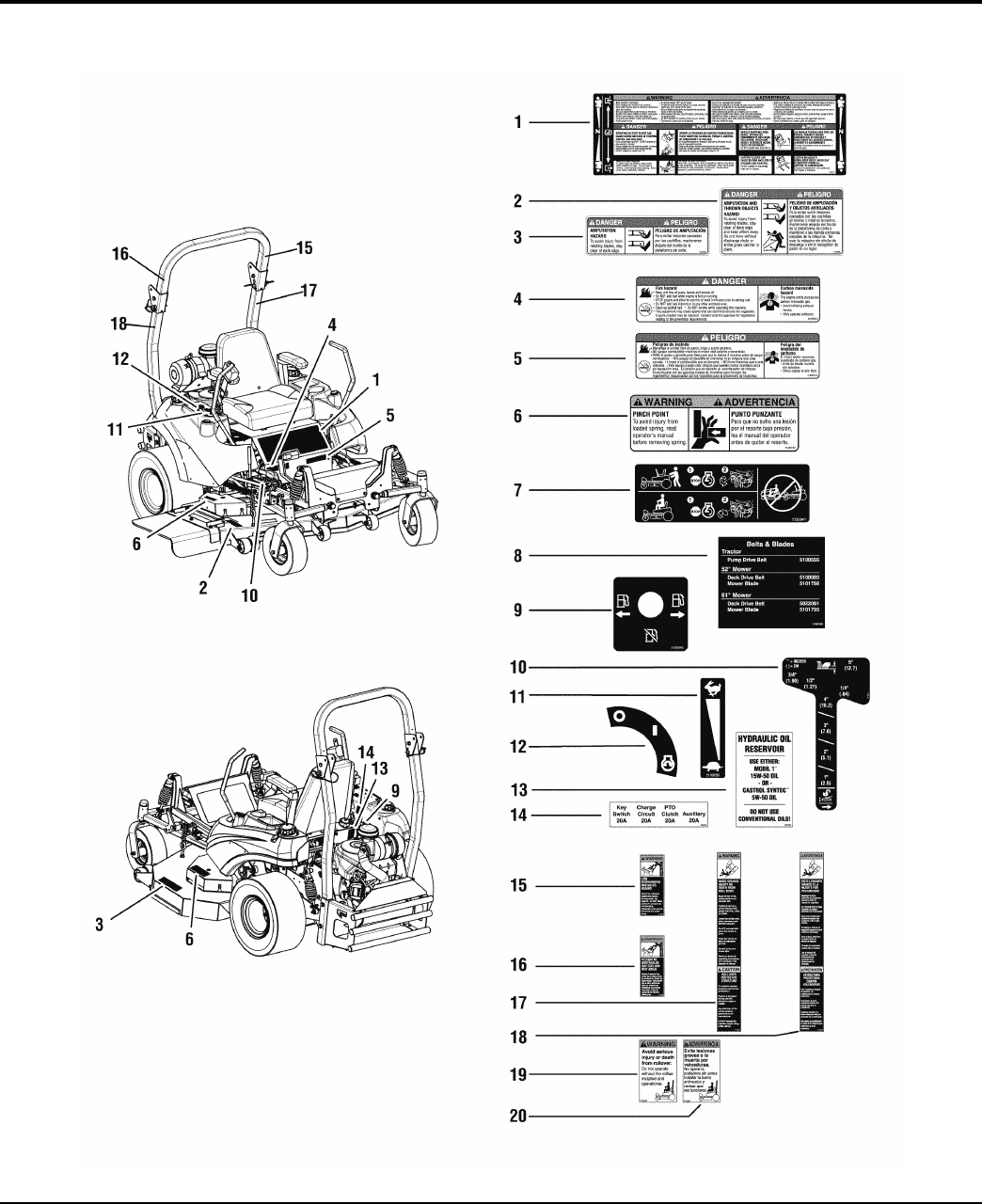

Decals - Safet
y
& Operation ..............................................................................................................................................
.
70
Decals - Safet
y
& Operation
(
Export Models
)
.................................................................................................................... 72

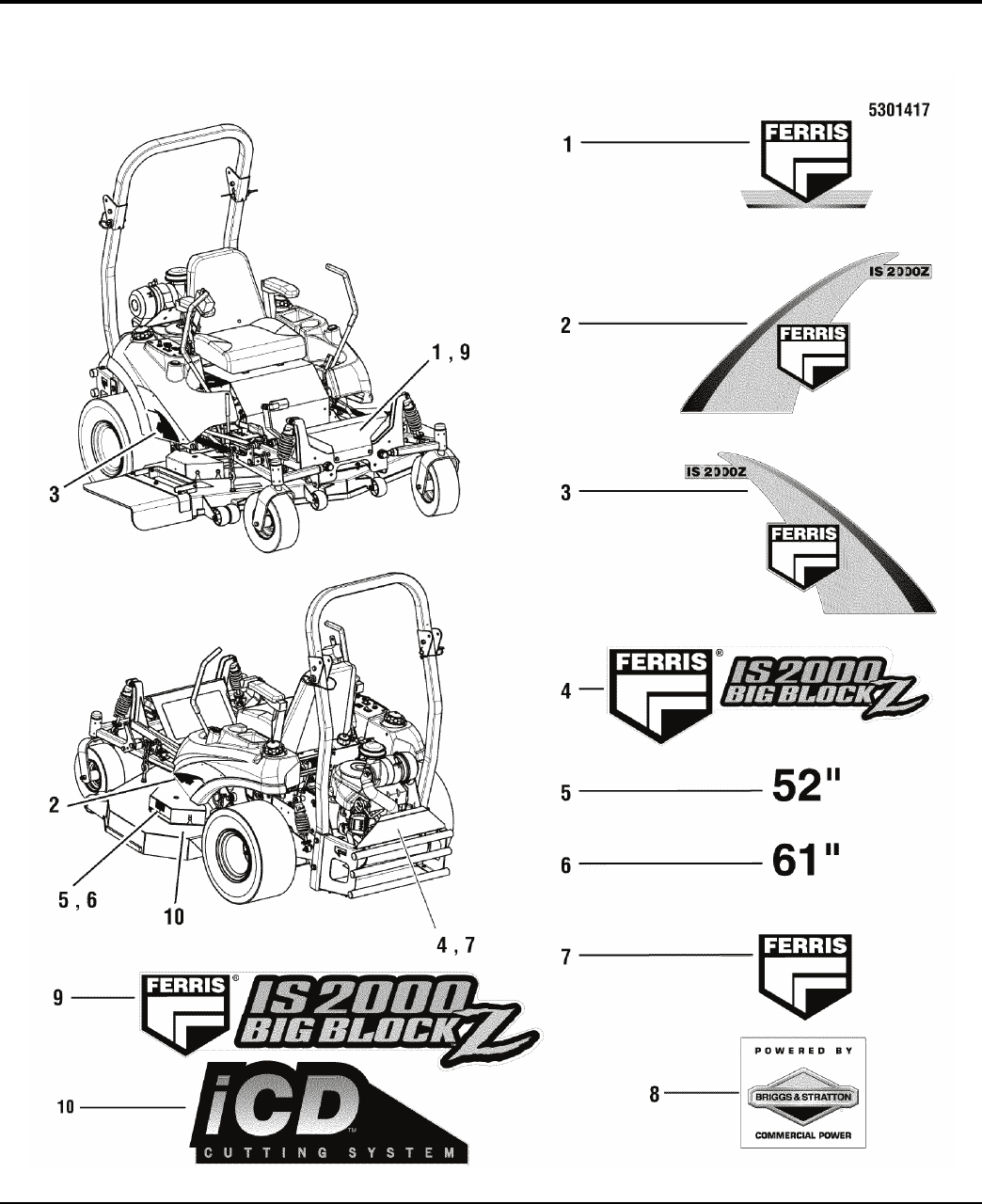

Decals - Brand & Model ..................................................................................................................................................... 74

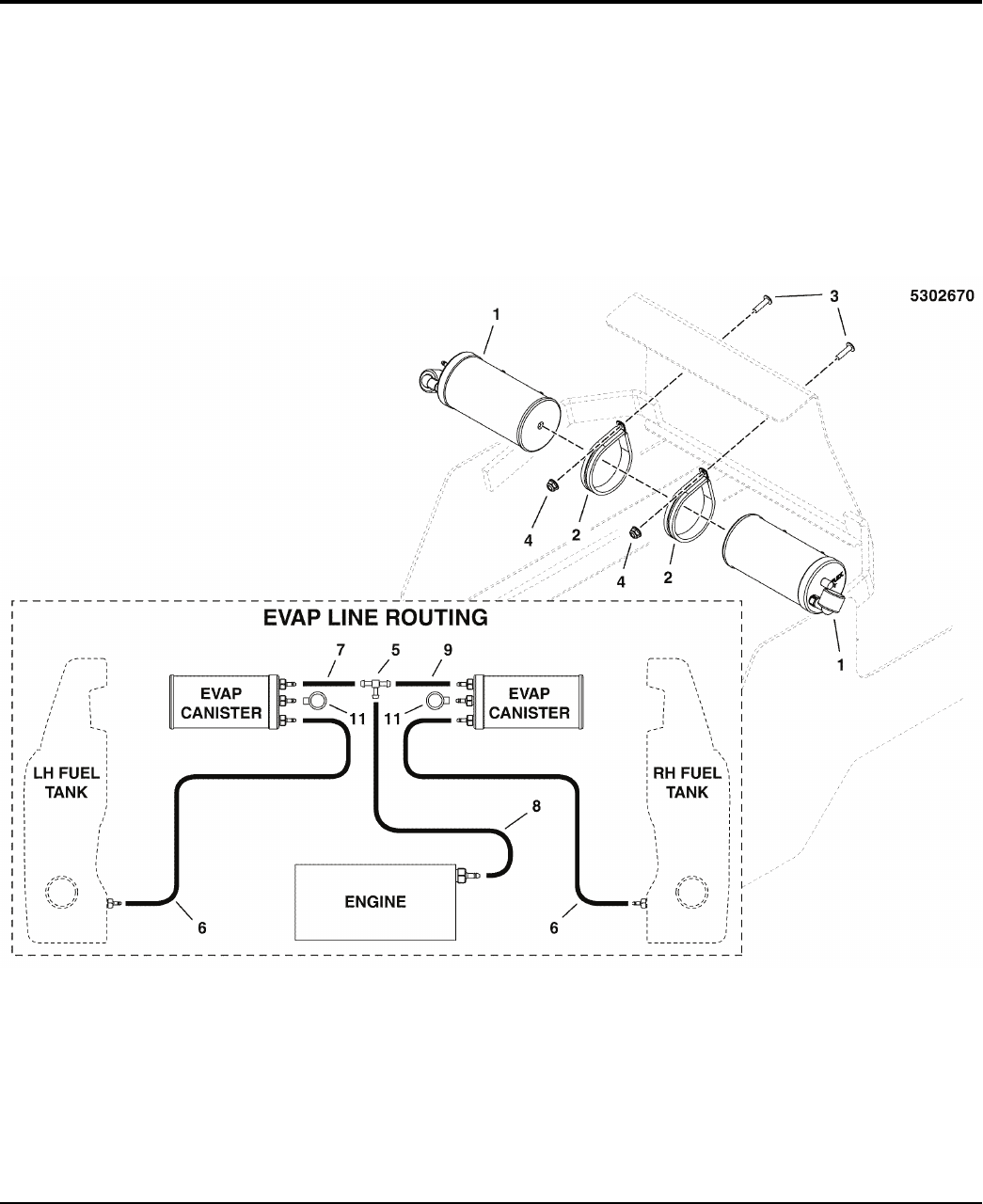

Evap Canister Group .........................................................................................................................................................
.
76

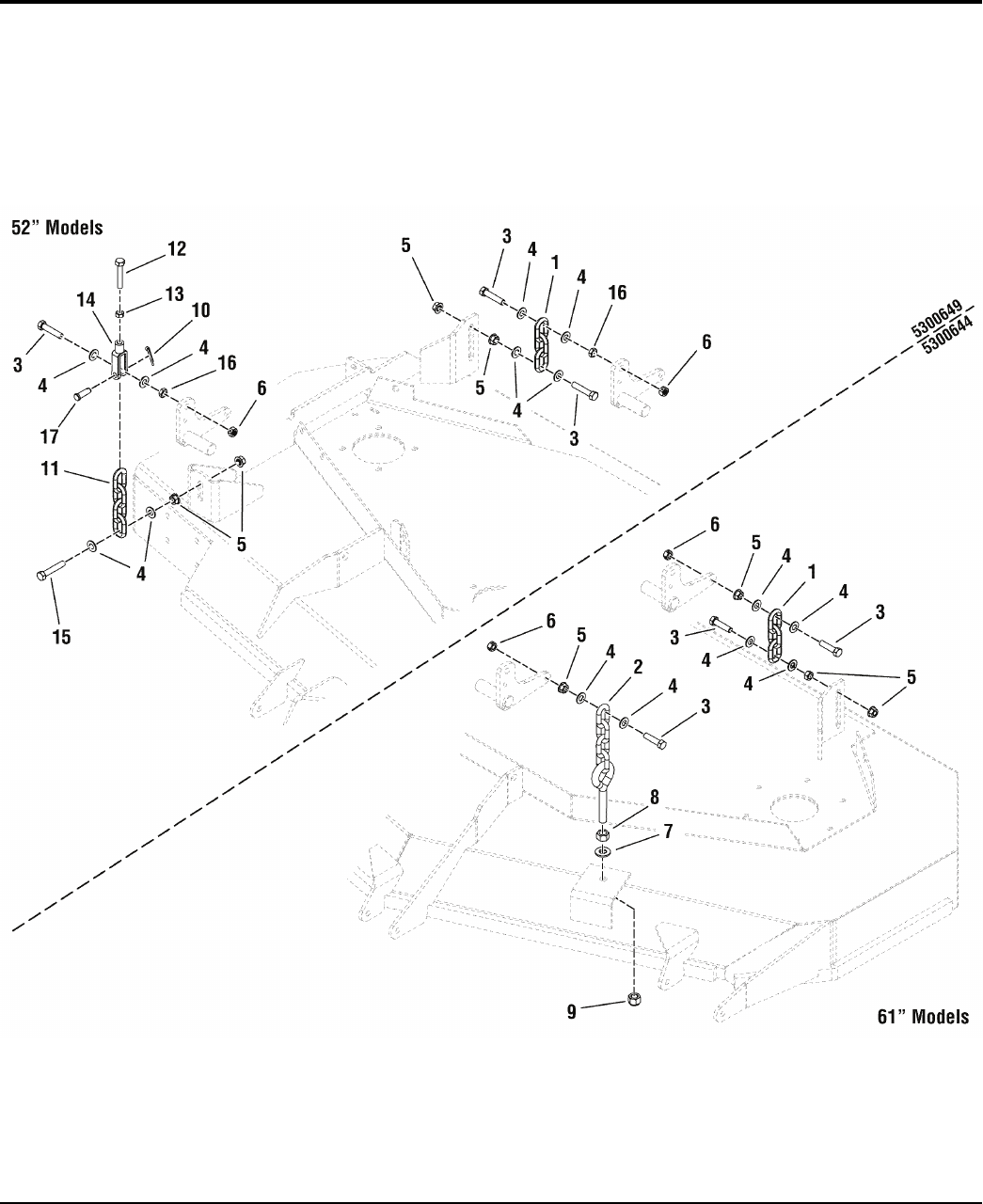

52" & 61" Mower Deck - Han
g
er Chains ............................................................................................................................ 78

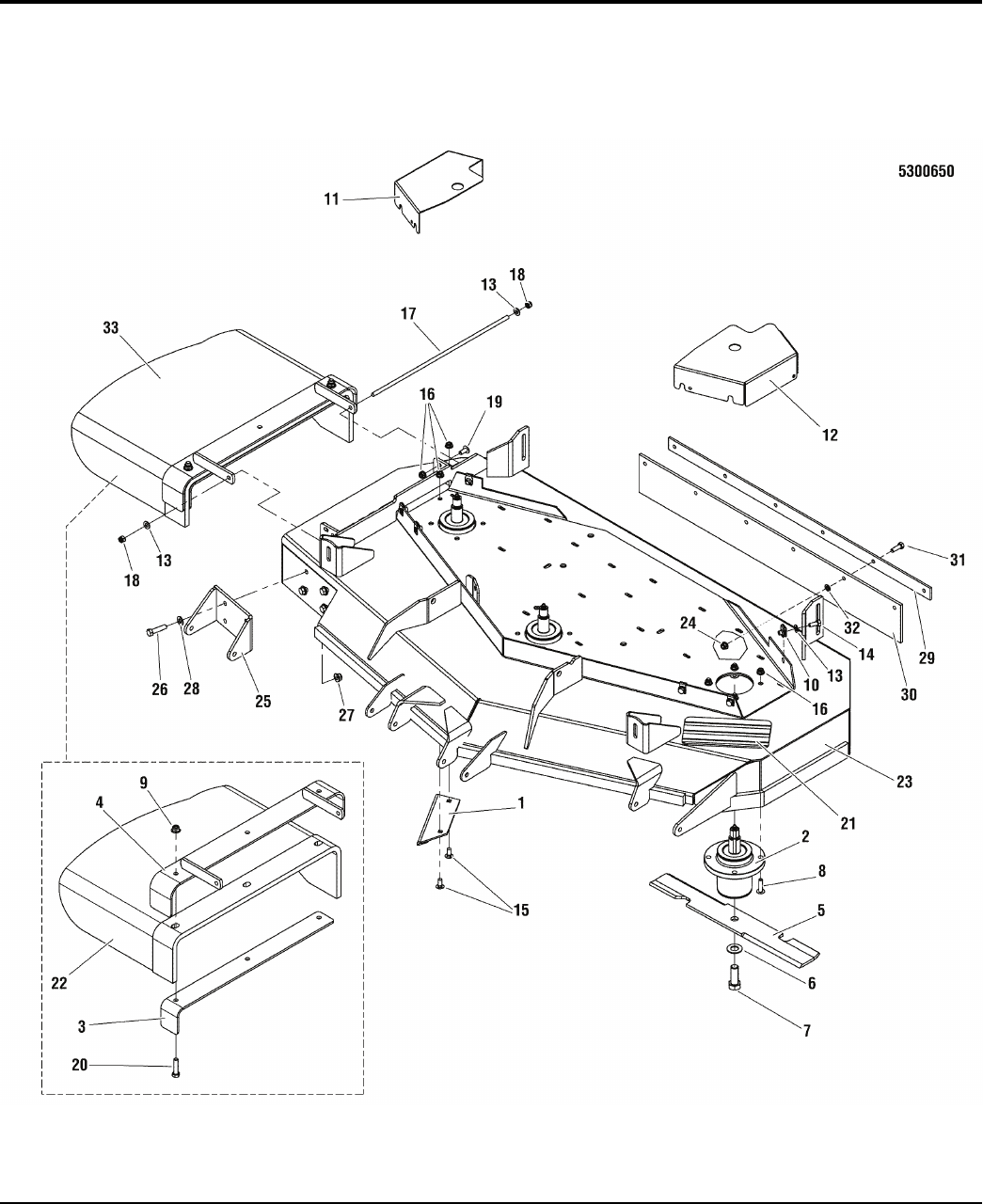

61" Mower Deck Group - Housin
g
, Covers, Spindles & Blades ......................................................................................... 80

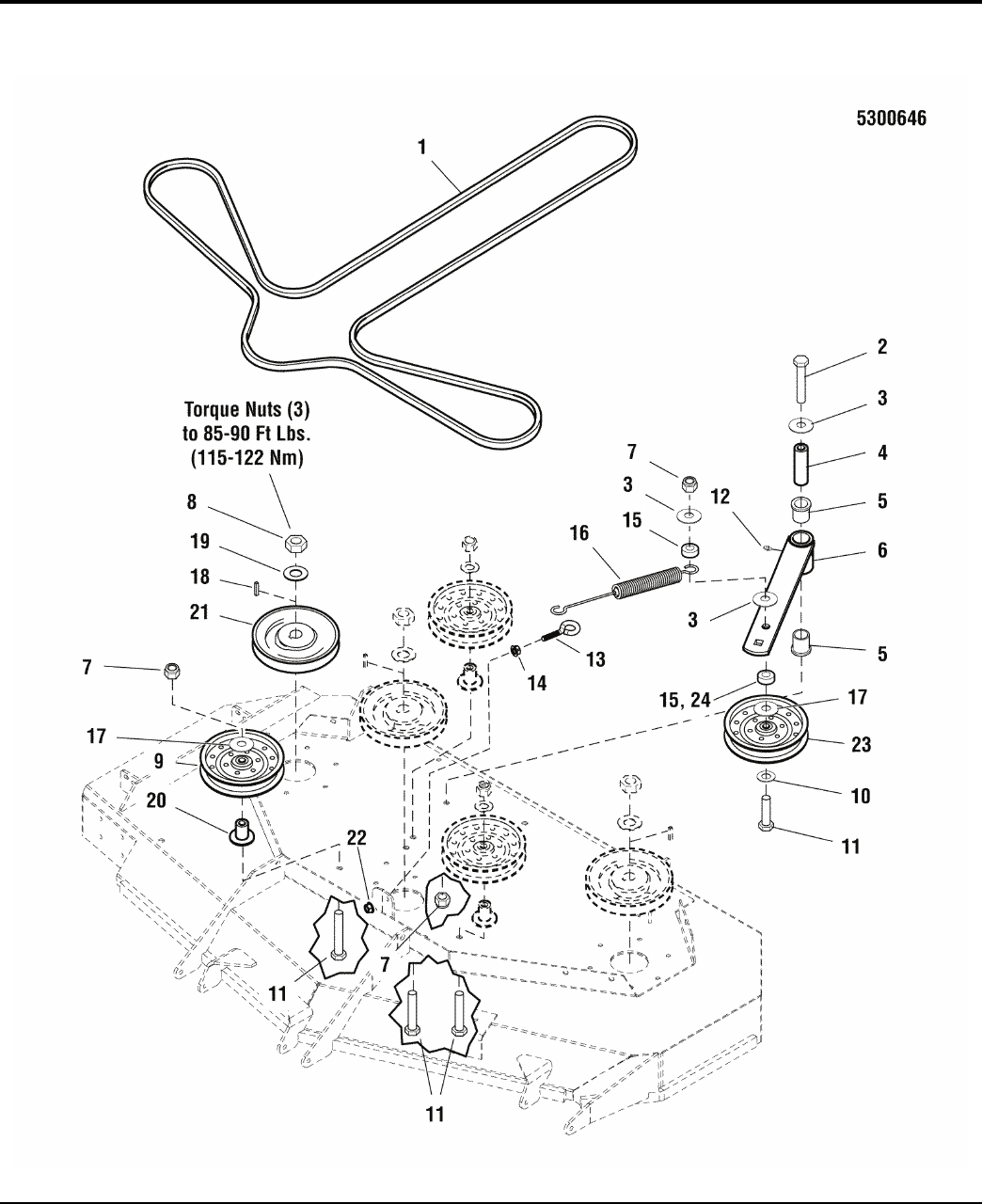

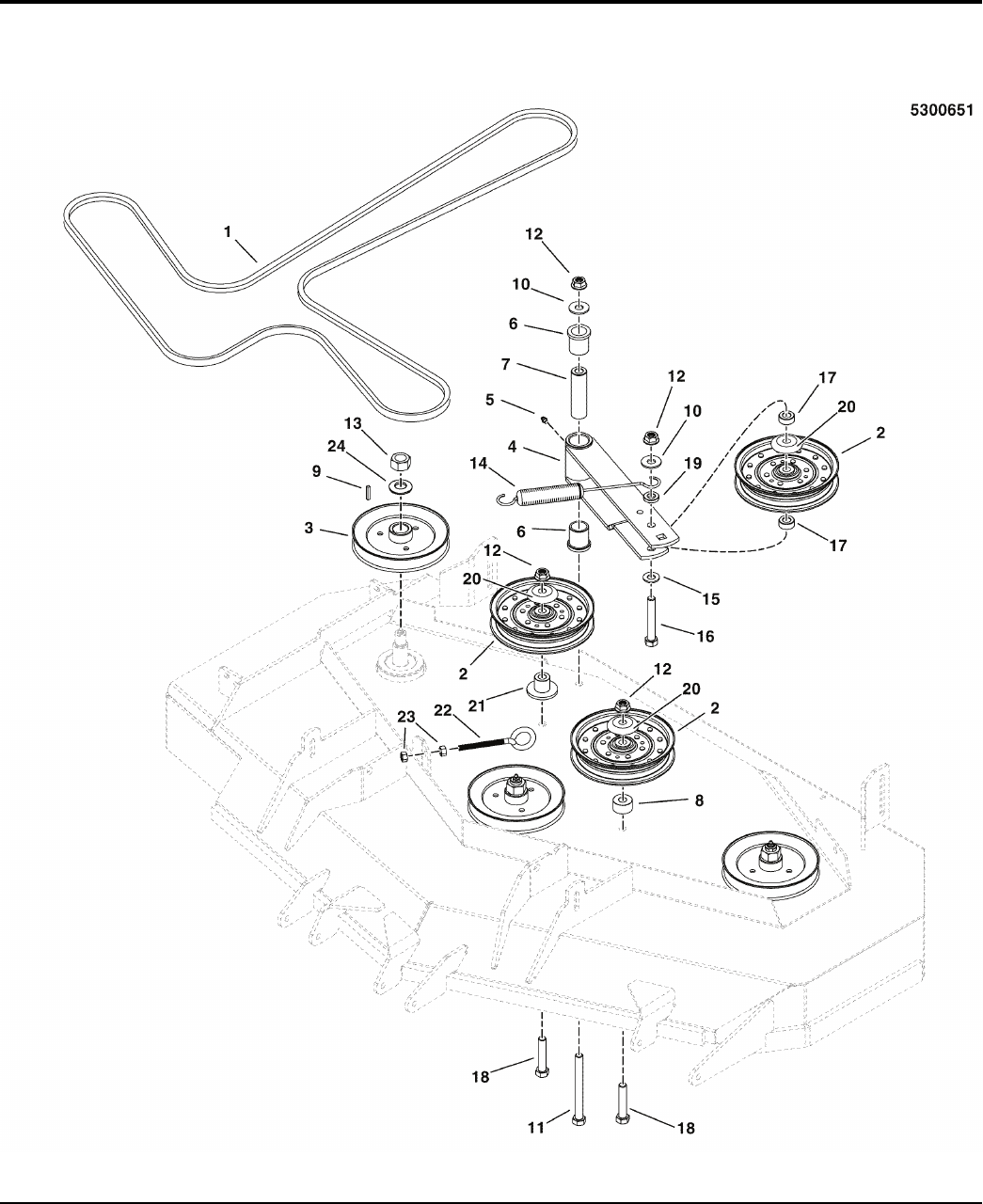

61" Mower Deck - Pulle
y
s, Belts & Idler Arm ..................................................................................................................... 82
52" & 61" Mower Deck - Rollers & Casters ........................................................................................................................ 84
52" Mower Deck - Housin
g
, Covers, Spindles & Blades ....................................................................................................86
52" Mower Deck - Pulle
y
s, Belts & Idler Arm ..................................................................................................................... 88

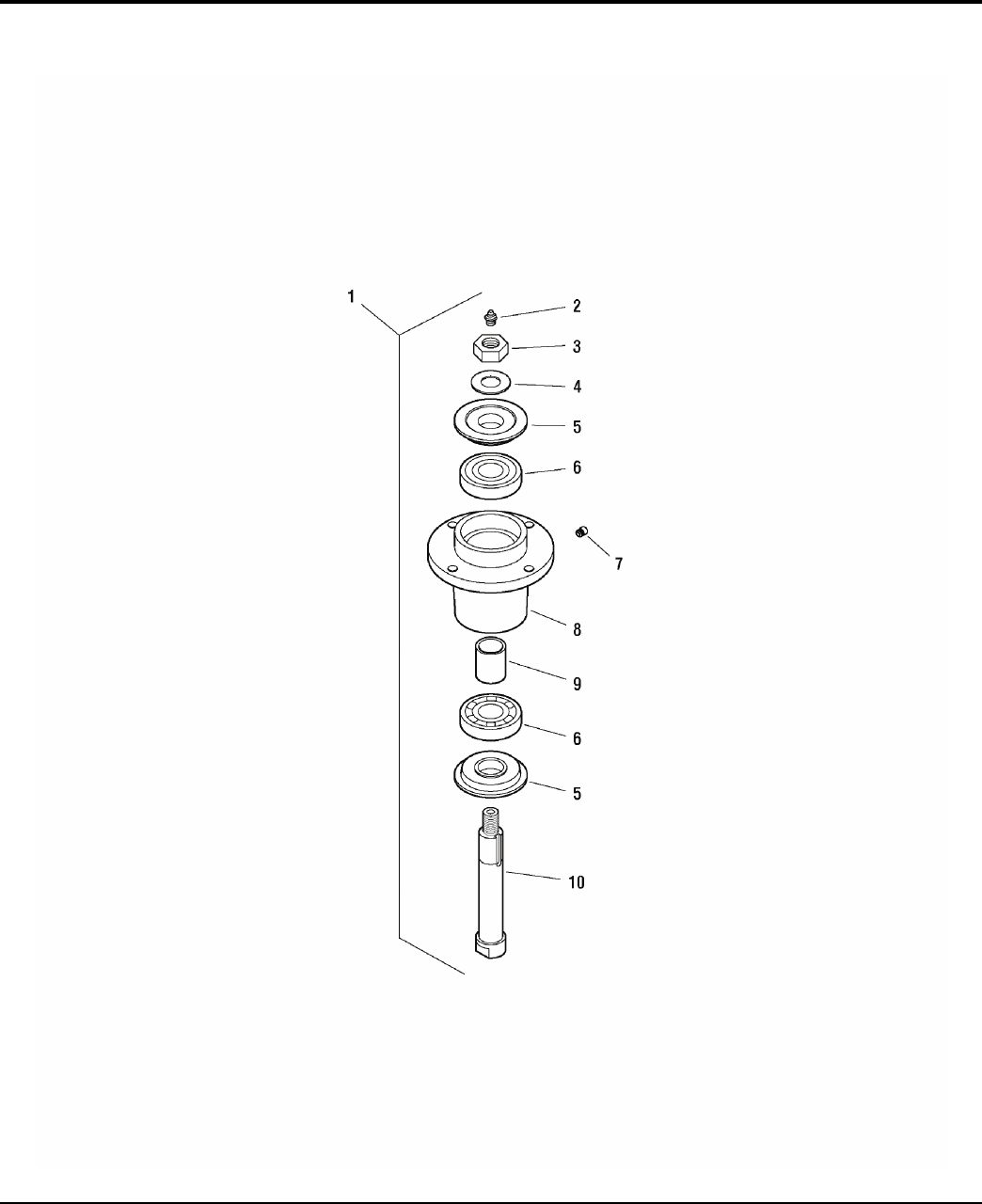

S
p
indle Service Parts
(
5061095
)
.......................................................................................................................................
.
90

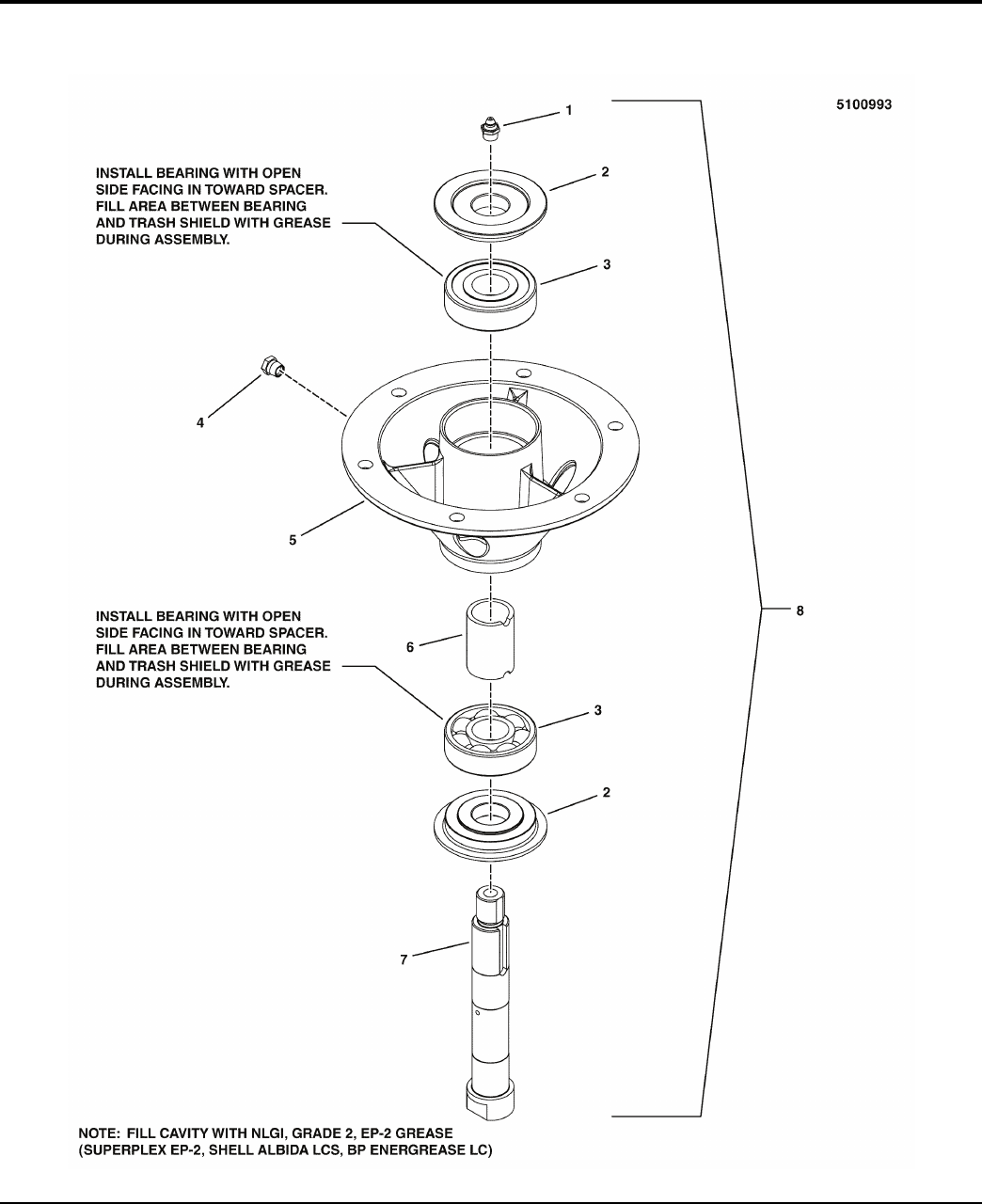

Spindle Service Parts
(
5100993
)
.......................................................................................................................................
.
92

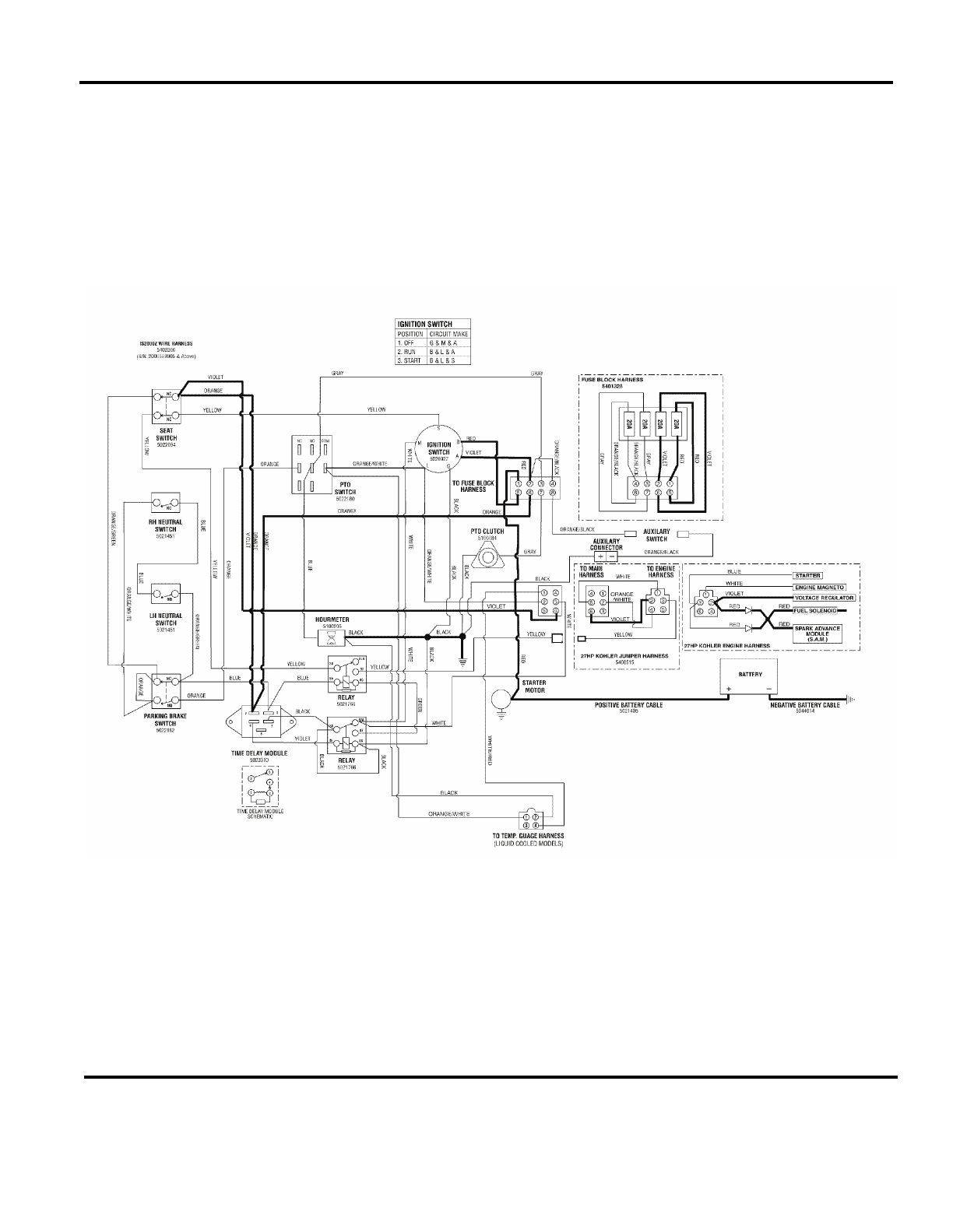

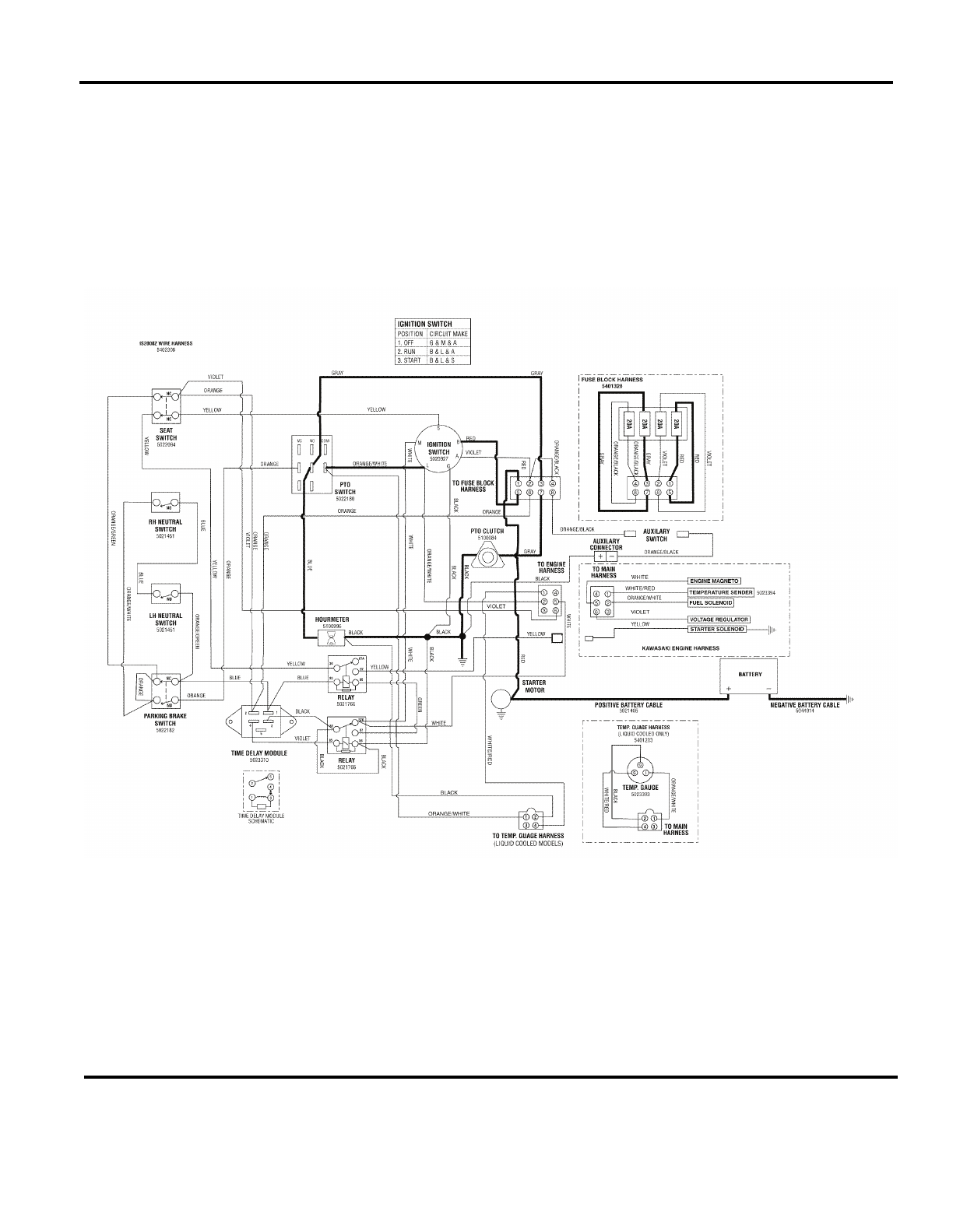

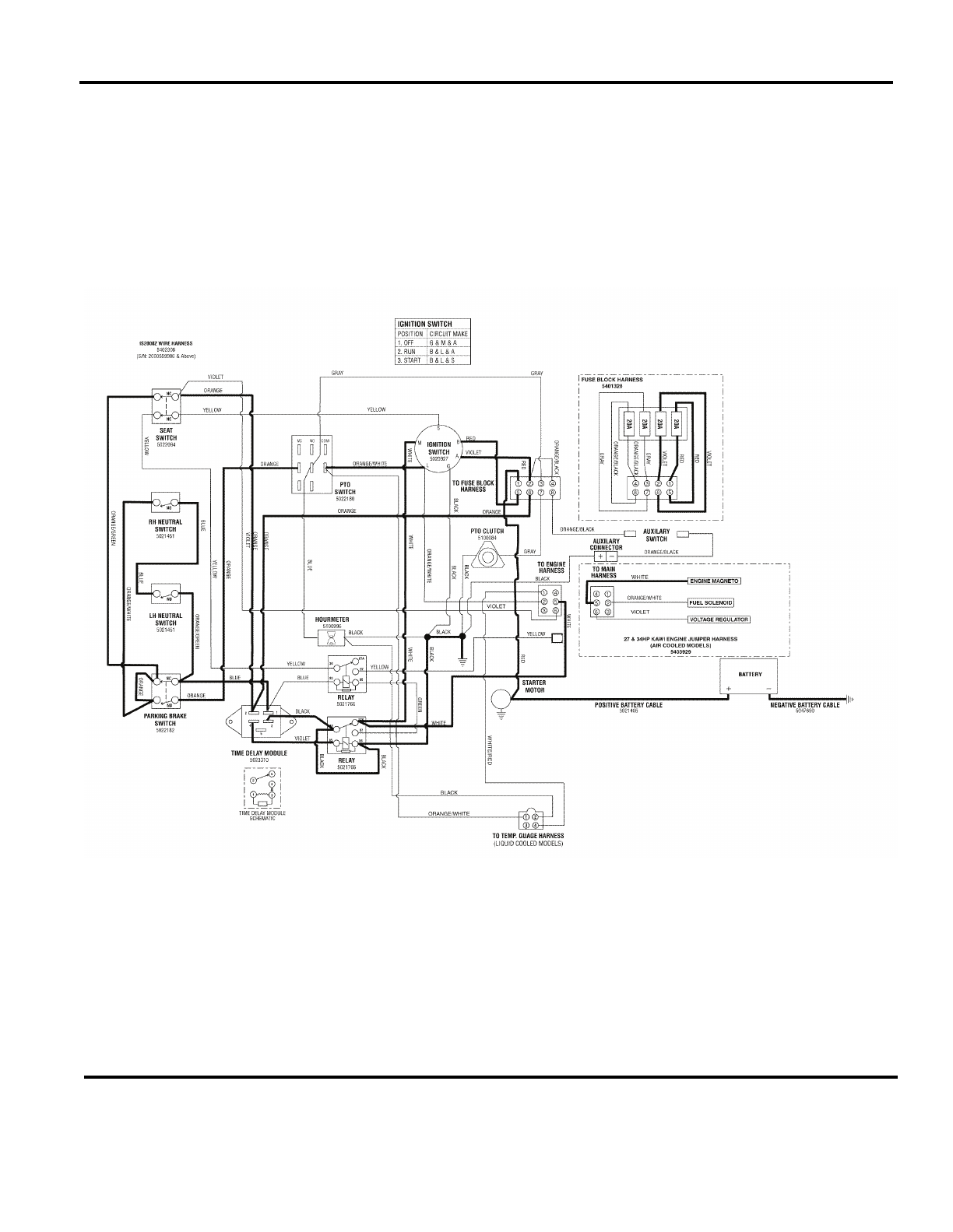

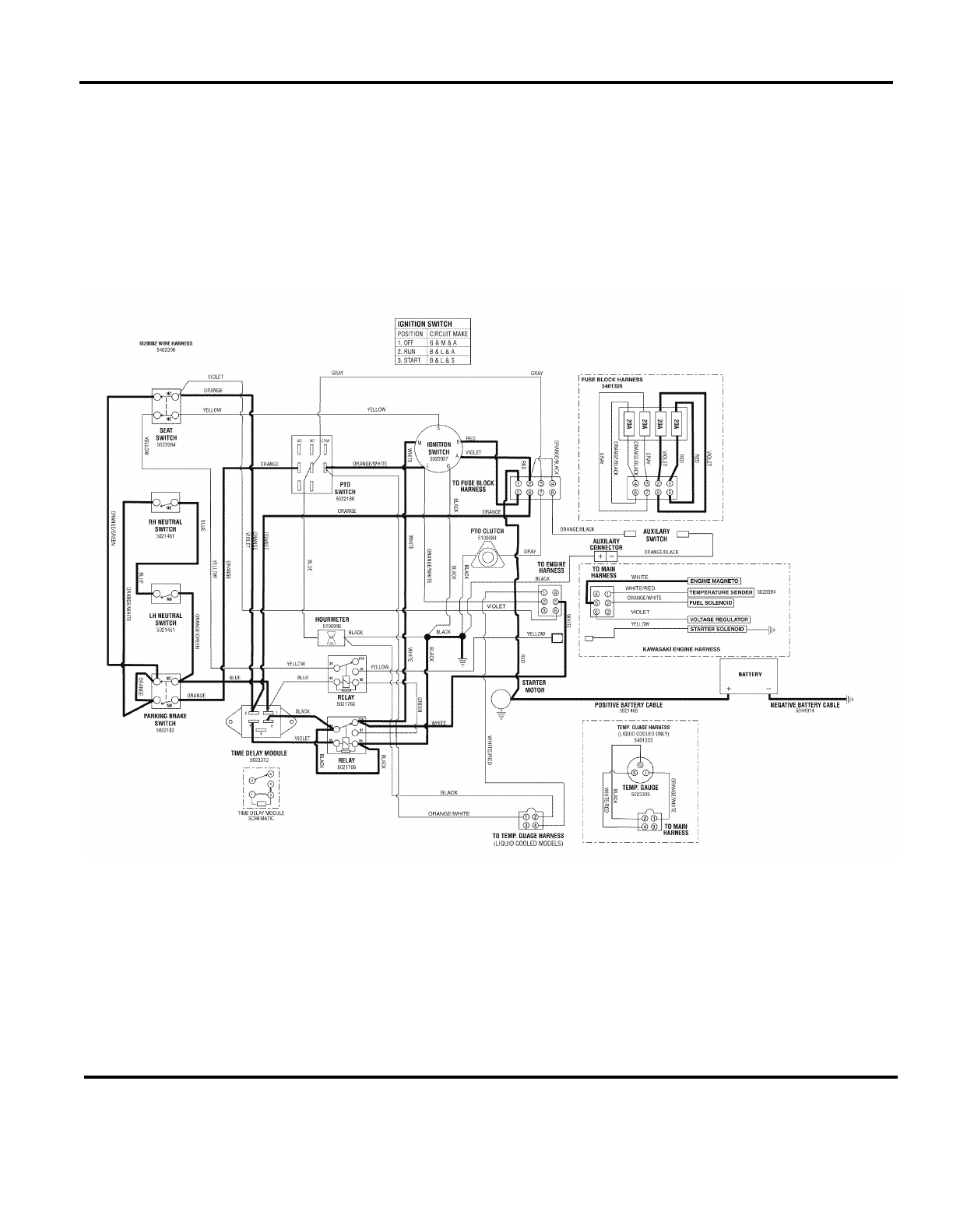

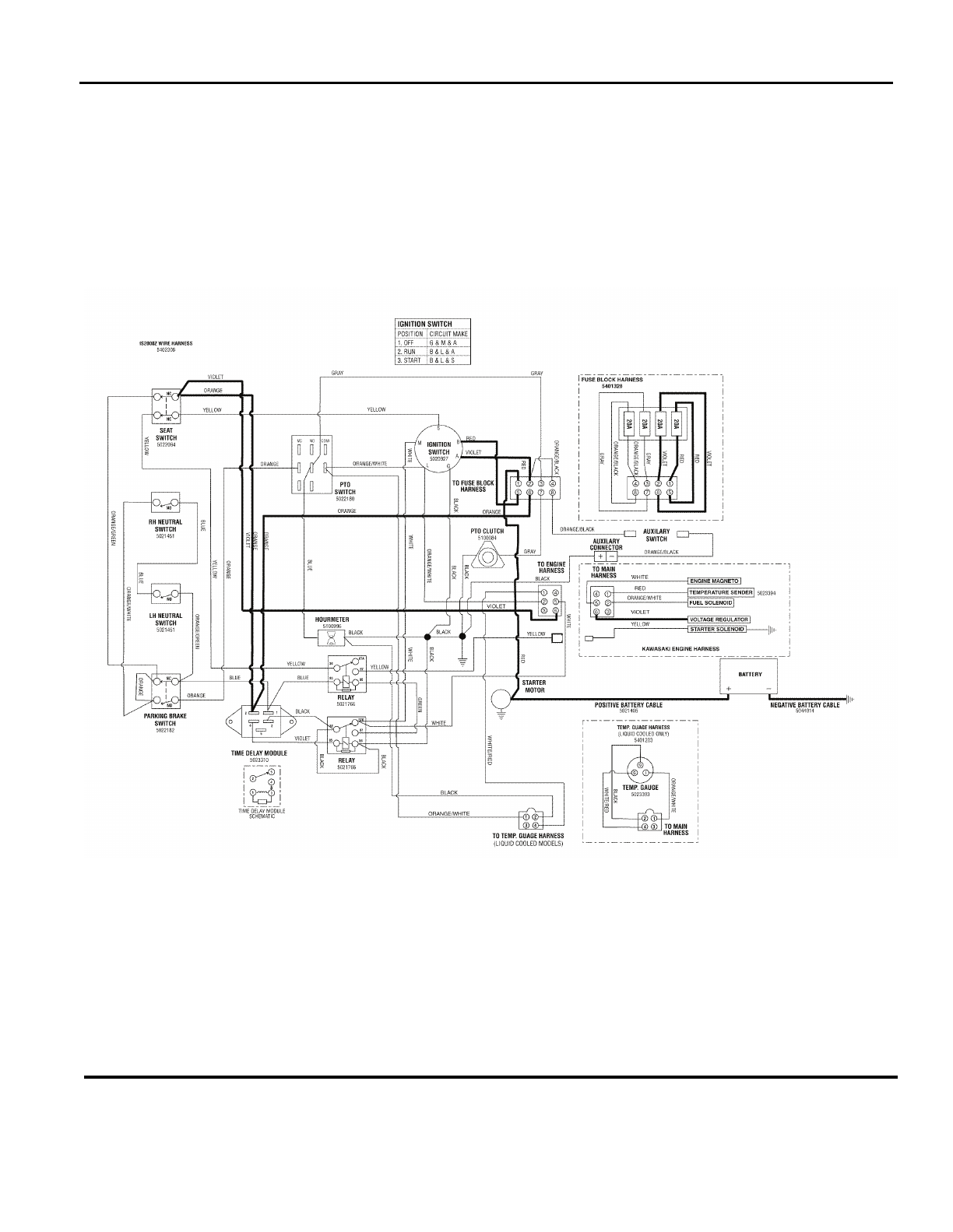

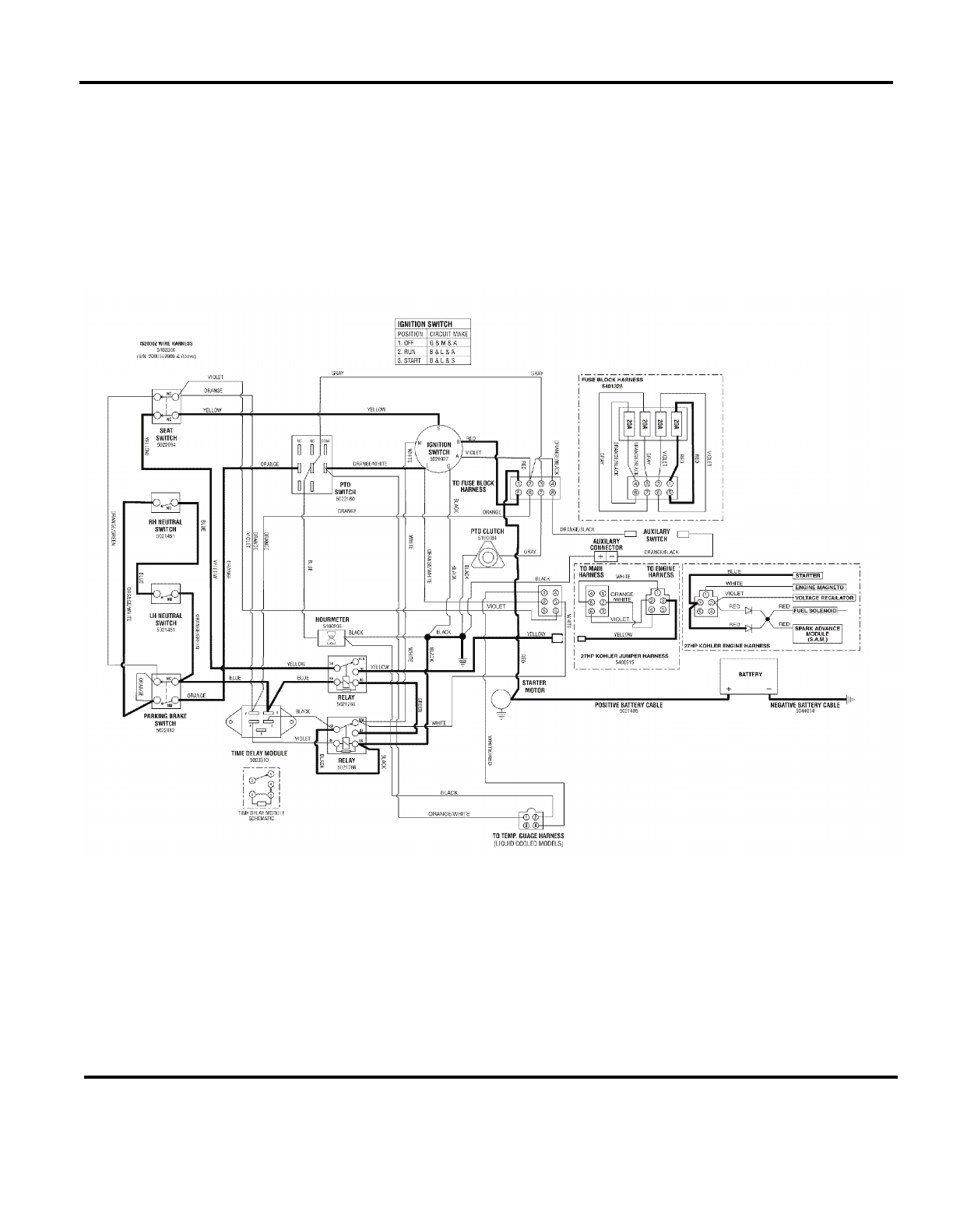

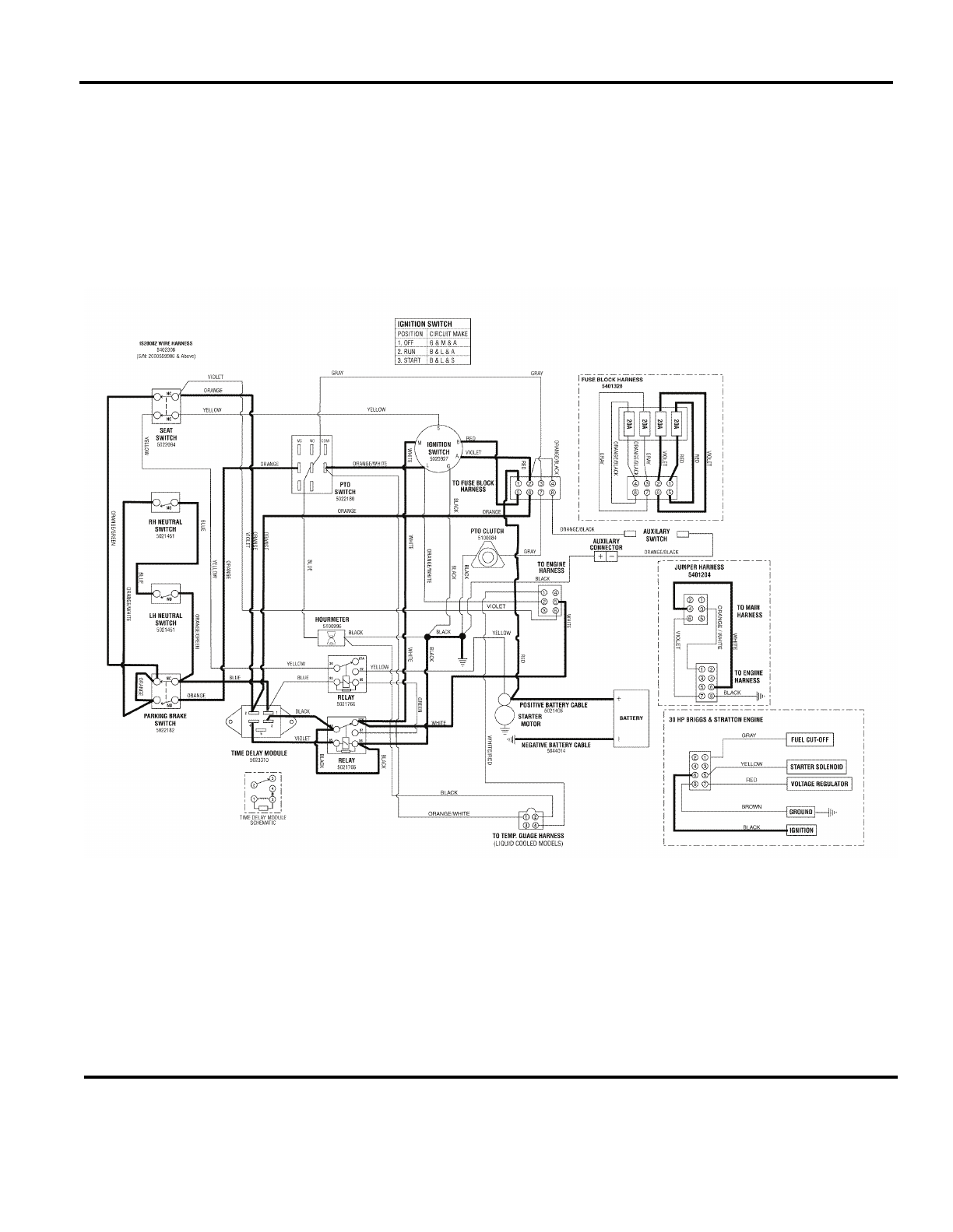

Electrical Schematics - 26HP Kawasaki LC ....................................................................................................................... 94-97

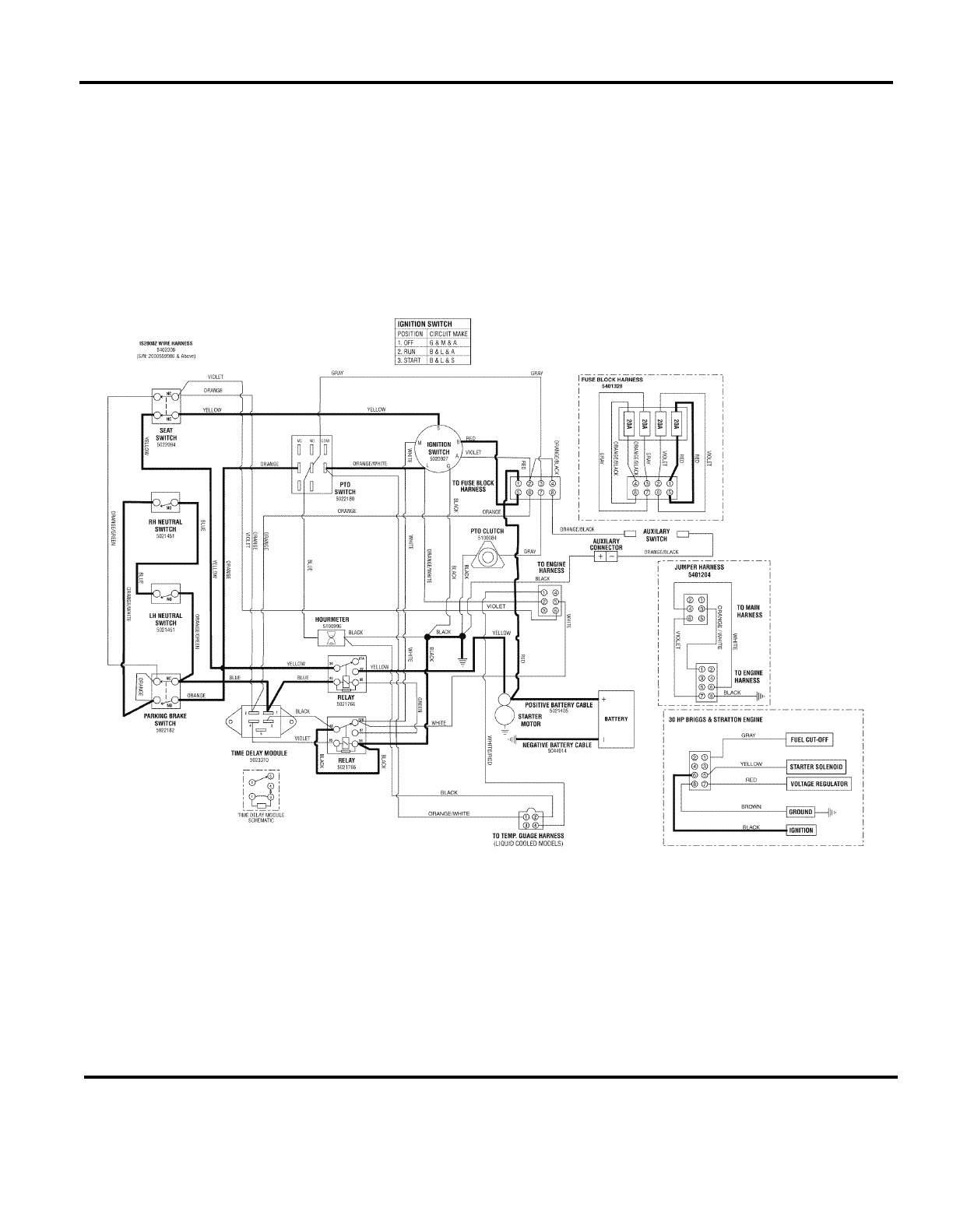

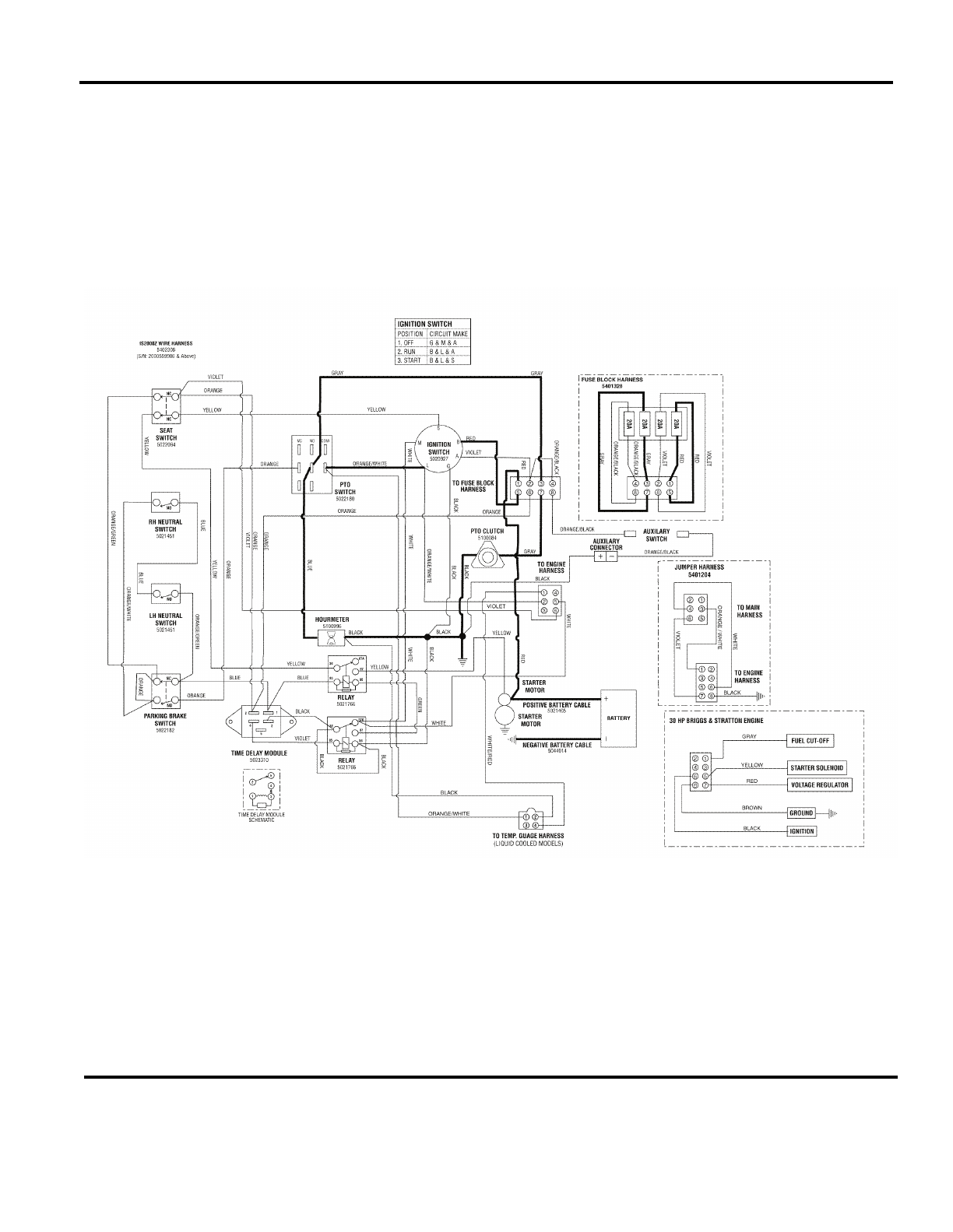

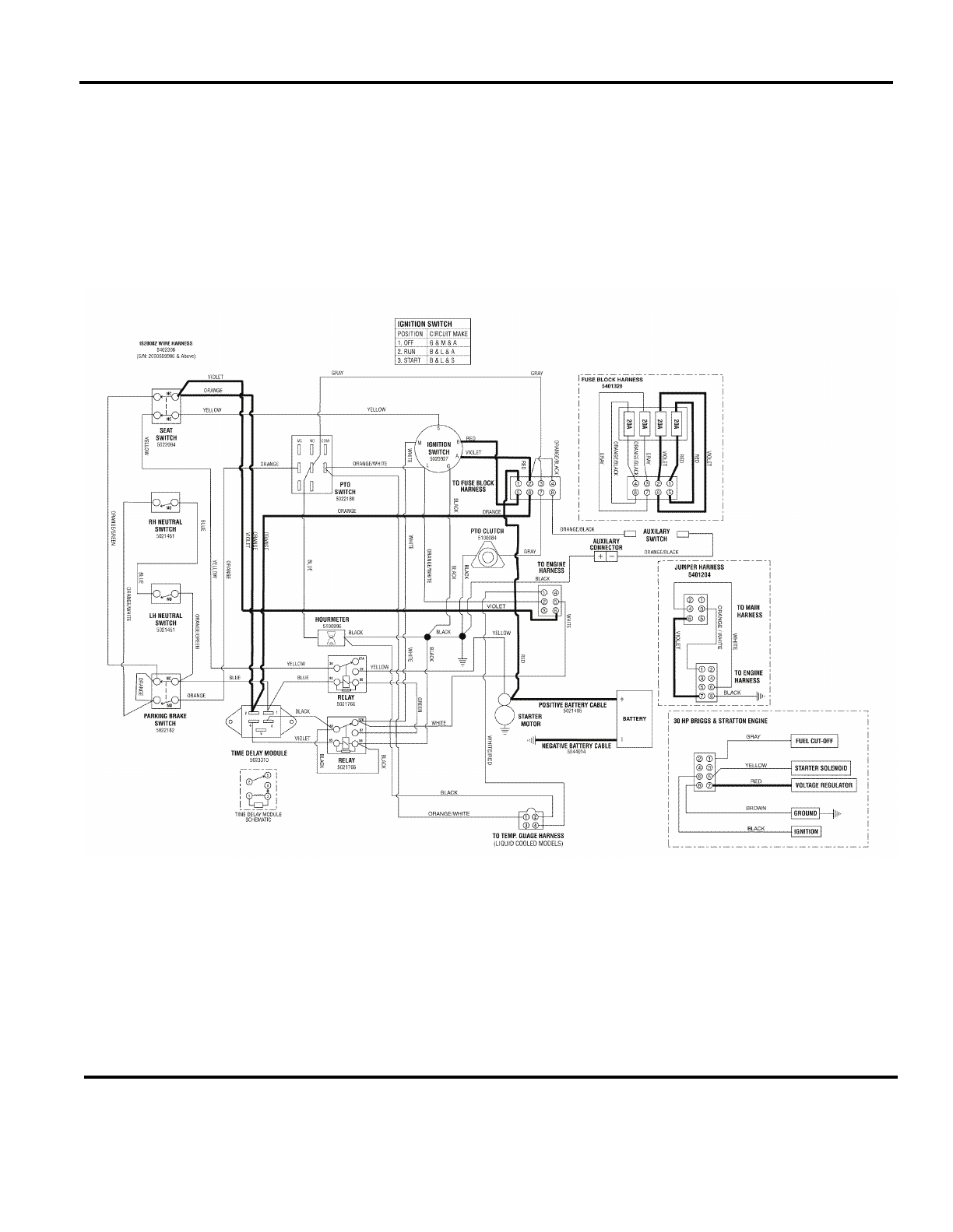

Electrical Schematics - 30HP Bri
gg
s & Stratton ................................................................................................................. 98-101

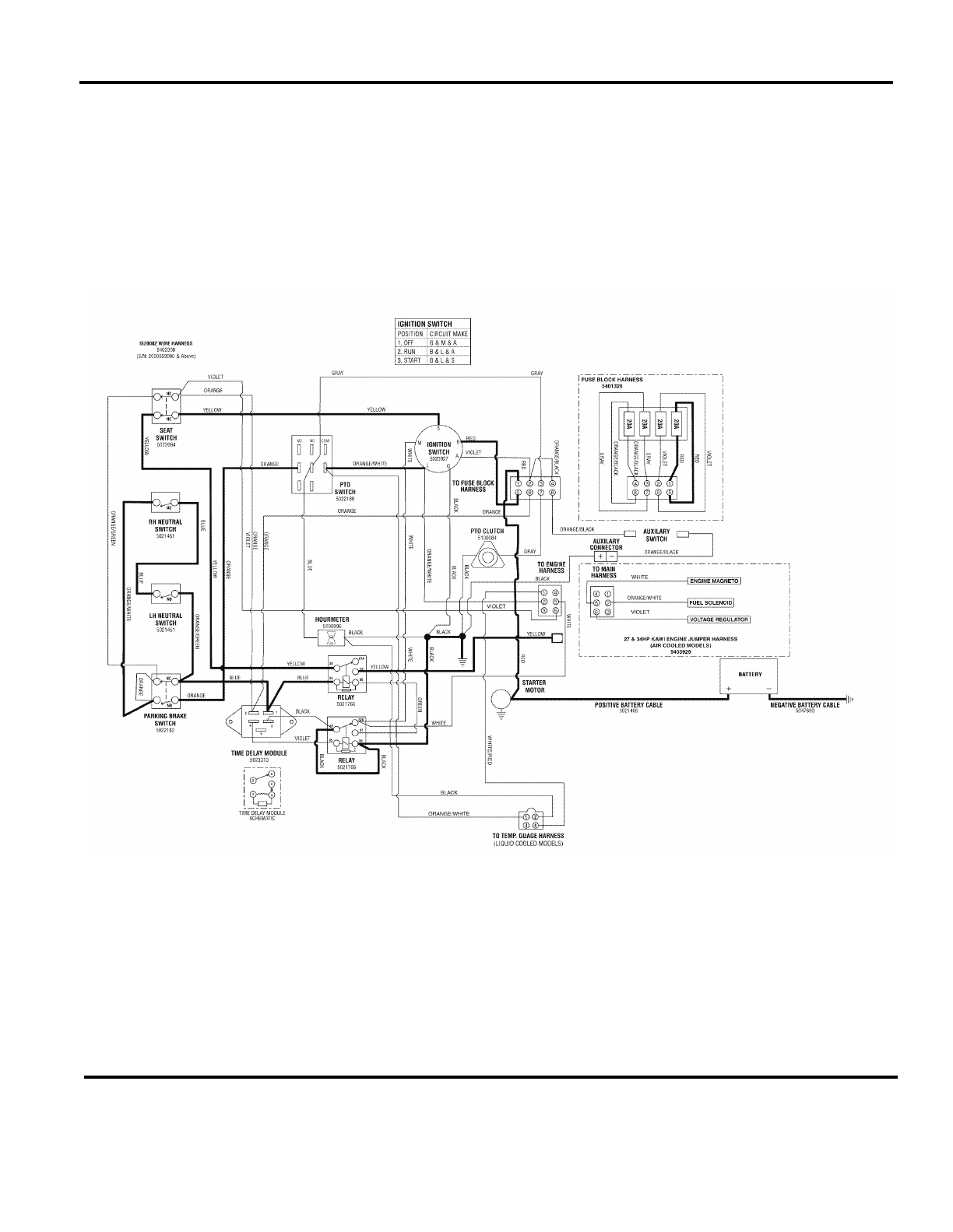

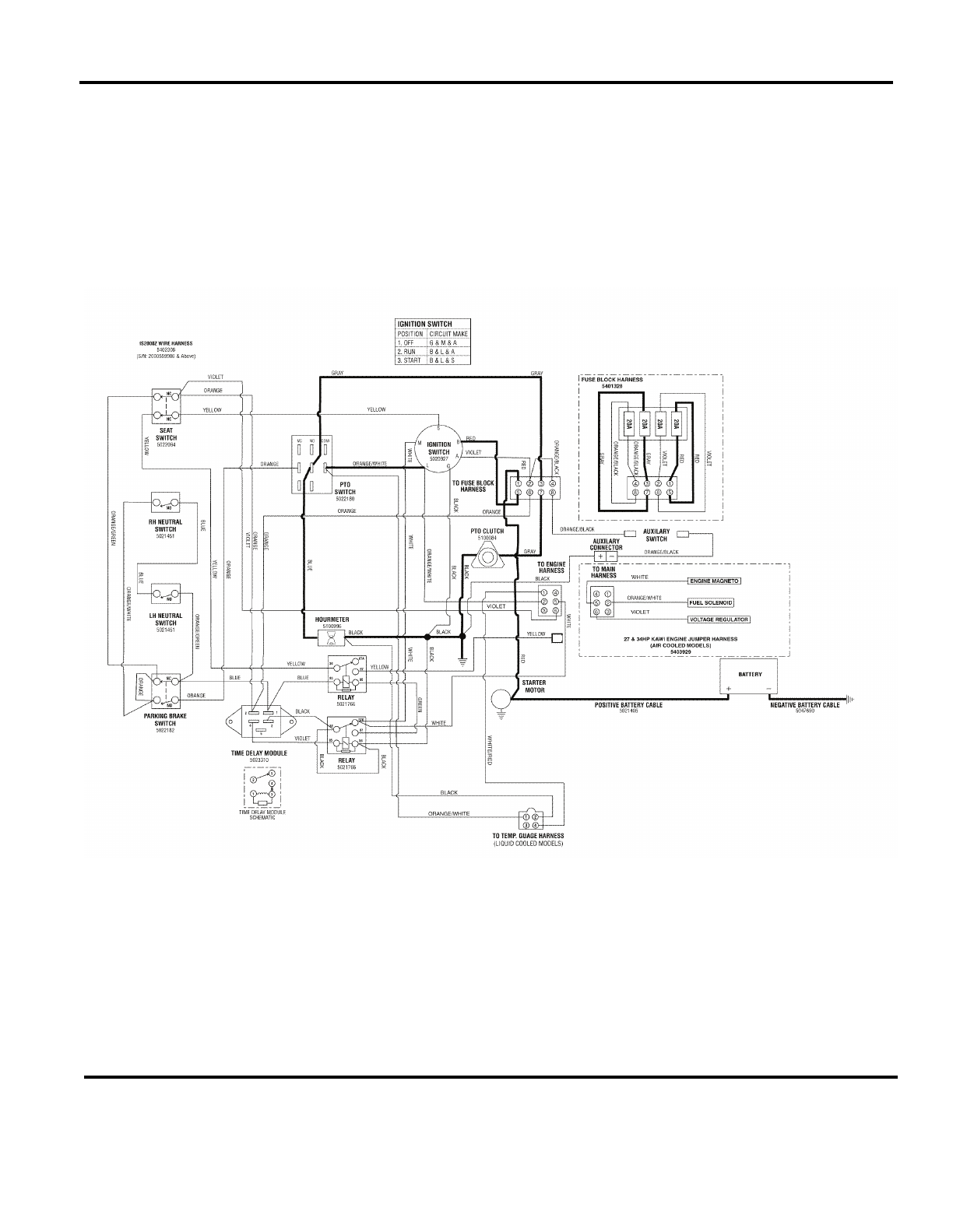

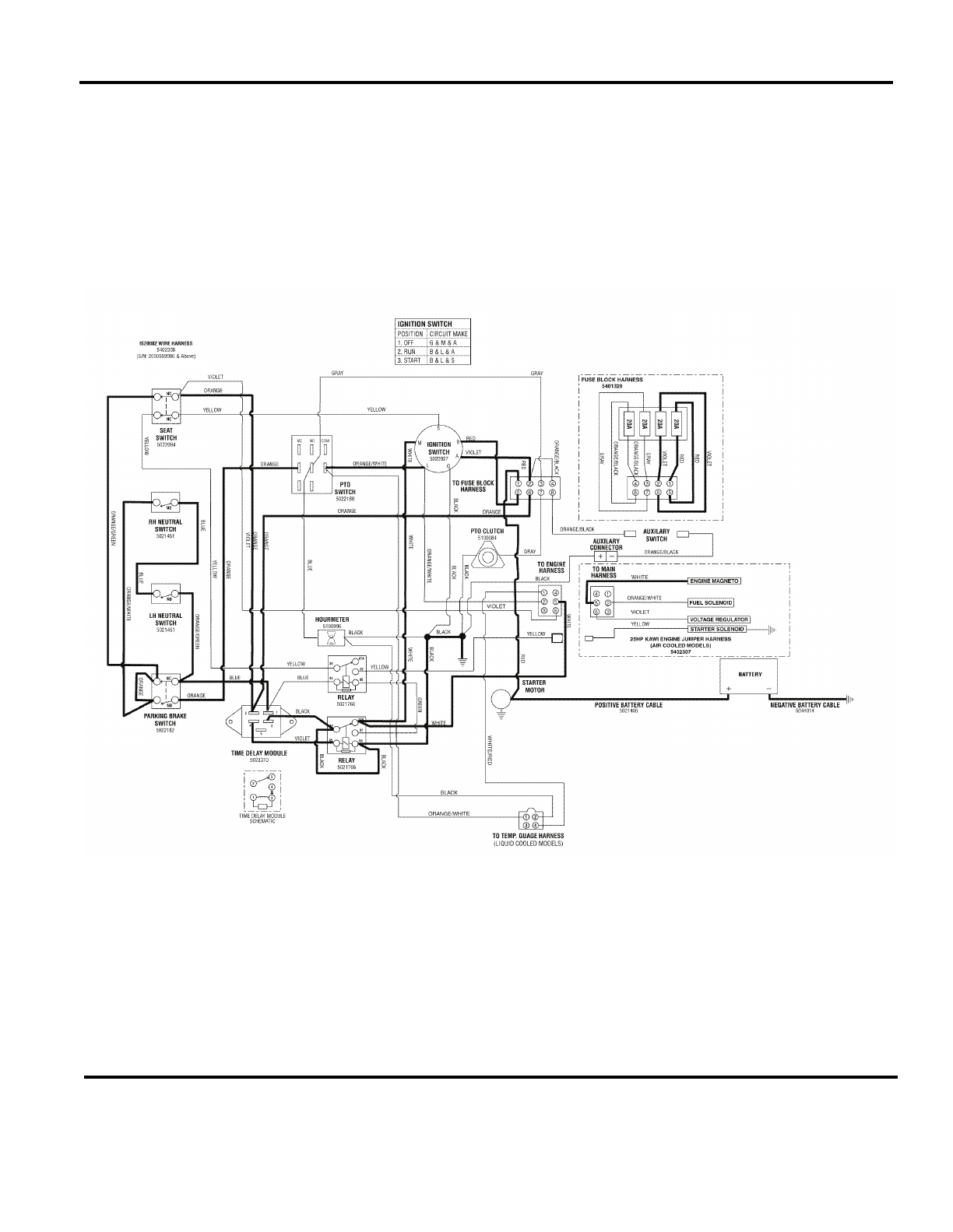

Electrical Schematics - Kawasaki ......................................................................................................................................
.
102-105

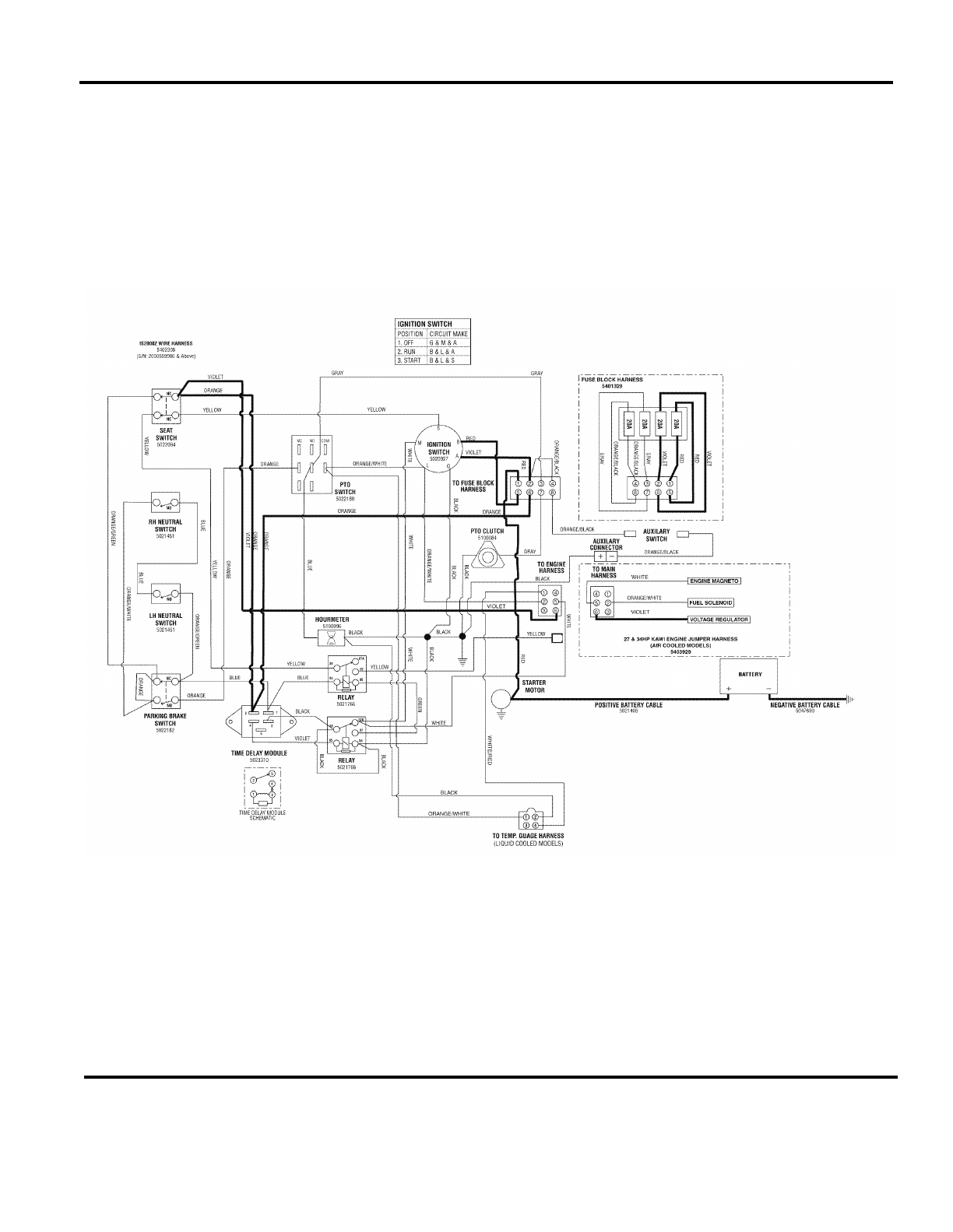

Electrical Schematics - 25HP Kawasaki ............................................................................................................................
.
106-109

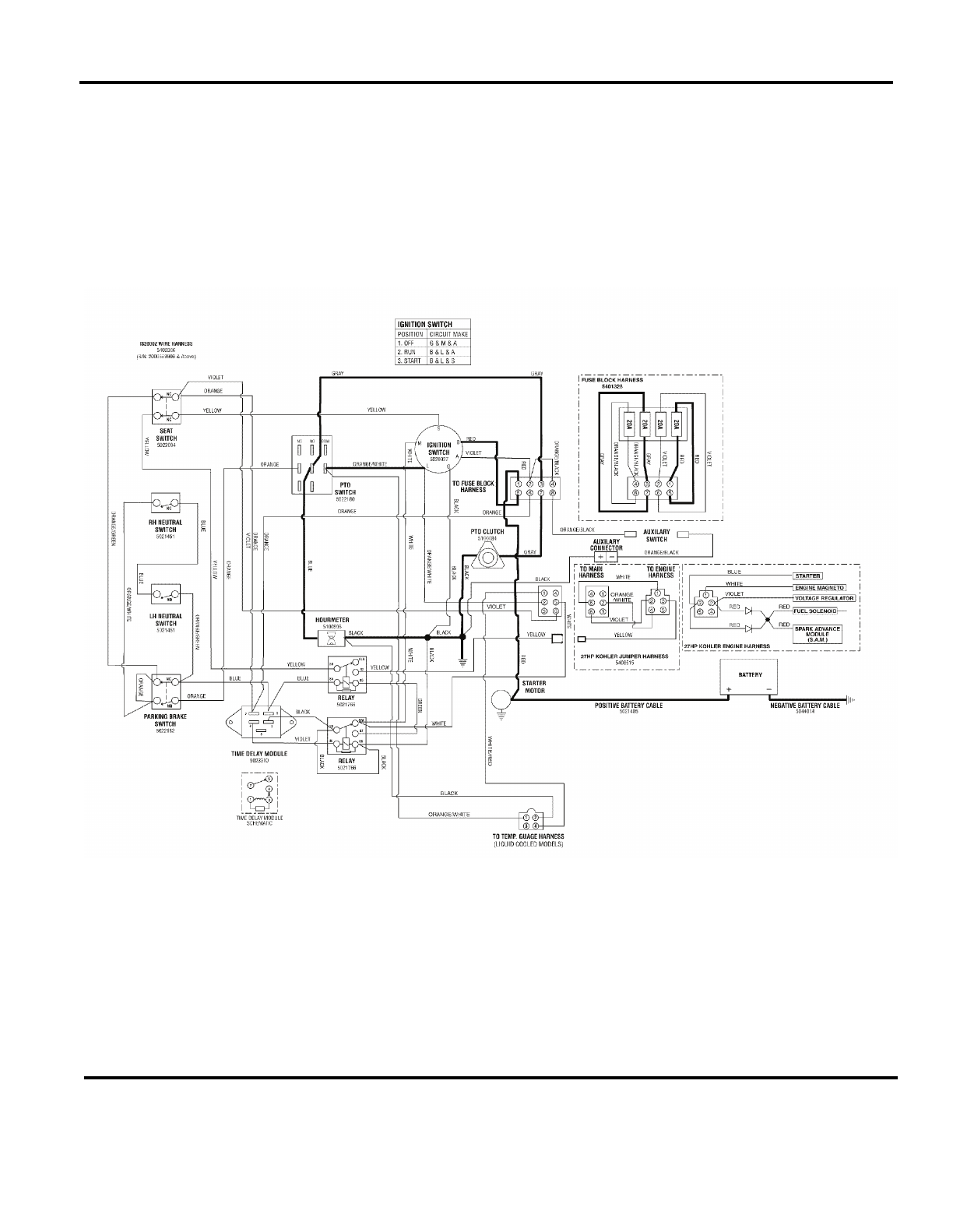

Electrical Schematics - 27HP Kohler .................................................................................................................................
.
110-113
Not for
Reproduction
Main Frame & Front Suspension Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 4 © Copyright Briggs and Stratton. All Rights Reserved.
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900817
(
IS2000ZK2761
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900815
(
IS2000ZKAV2561 CAL
)
5900945
(
IS2000ZKAV2652
)
5900879
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Main Frame & Front Suspension Group
Footnotes
1 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT
2 5402208B 2 WELD, CASTER YOKE - RED
3 5023356 4 BUSHING, 1.00X1.13X.75, PLA (Qty: 2 per suspension arm)
4 5402215B 1 WELD, FRONT A-ARM - RH -RED
5 5020883 4 BEARING CUP
6 5402214B 1 WELD, FRONT A-ARM - LH -RED
7a 5407041B 1 WELD, MAIN FRAME, IS2000/COBALT - RED (S/N: 2014341048 & Above)
7b 5404097B 1 WELD, MAIN FRAME, IS2000/COBALT - RED (S/N: 2014341047 & Below)
8 5025093 4 NUT, HEX JAM, 3/4-16
9 5046093 2 SPACER, .75 X 1.50 X 1.00
10 5022039 4 BALL JOINT, 3/4-16 MALE
11 5047461 4 SPACER, .76 X 1.00 X .25
12 5025265X28 2 BOLT, 3/4-16 X 3-1/2" YZ GD5
13 5025284 4 NUT, 3/4-16 HEX NYLON LOCK
14 5025156 4 WASHER 3/8" SAE
15 5025013X16 2 BOLT, 3/8-16 X 2" GD5 YZ
16 5025013X18 2 BOLT, 3/8-16 X 2-1/4" GD5 YZ
17 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE
18 5023436 2 SHOCK ABSORBER
19 5025265X24 2 BOLT, 3/4-16 X 3" YZ GD5
20 5046011 2 SPACER, .76 X 1.00 X .50
21 5021072 2 SEAL, GREASE
22 5020884 4 BEARING, TAPPERD ROLLER, 1"
23 5025160 4 WASHER, 3/4" SAE
24 5100882 2 CAP, CASTER SPINDLE, LOW PROFILE
25 5025448 2 NUT, 3/4-16, HEX JAM NYLON LOCK
26 5025449 4 BELLEVILLE WASHER, 1.500 X .755
27 5020020 2 GREASE FITTING, 1/4-28 45 DEGREE
28 5025457 2 BOLT, 1/4-28 X 1/2, GD5 YZ
29 1722009 1 STRAP-BLACK RUBB
The above parts group applies to the following Mfg. Nos.:
2011 5 © Copyright Briggs and Stratton. All Rights Reserved.
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900817
(
IS2000ZK2761
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900815
(
IS2000ZKAV2561 CAL
)
5900945
(
IS2000ZKAV2652
)
5900879
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Rear Bumper, Roll Bar & Seat Belt Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 6 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900840
(
IS2000ZKAV2552
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900808
(
IS2000ZKAV2761
)
5900879
(
IS2000ZKAV2661
)
5900816
(
IS2000ZB3061 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900945
(
IS2000ZKAV2652
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Rear Bumper, Roll Bar & Seat Belt Group
Footnotes
1 5023484 6 PLUG, PANEL, 1.25 BLACK
2 5409141B 1 PLATE, HEAT SHIELD
3 5025155 4 WASHER, 5/16" SAE
4 5025011X6 4 BOLT, 5/16-18 X 3/4" GRD5
5 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE
6 5025156 2 WASHER, 3/8 SAE
7 5025013X8 2 BOLT, 3/8-16 X 1 GD5 YZ
8 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
9a 5400681B 1 PLATE, CARB PROTECTOR - RED
9b 5401953B 1 PLATE, CARB PROTECTOR - RED (Liquid Cooled Models)
10 5409140B 1 WELD, BUMPER
11 5100079 2 PIN, HITCH, BLACK W/ PLASTIC LANYARD
12 5100377 1 ROLL BAR HARDWARE BAG (Includes hitch pin.)
13 5025158 4 WASHER, 1/2" SAE
14 5025017X26 4 BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, YZ
15 5025396 7 NUT, 1/2-13 HEX NYLOCK FLANGE
16 5100190 1 ROPS COMPLETE IN BOX, IS2000
17 5401044A 1 EXTENSION, SEAT BELT - BLK
18 5100267 3 SCREW, 1/2 - 13 X 1.00 SCHS
19 5101226 1 RETRACTOR, SEAT BELT (FOR SUSPENSION SEAT)
20 5100139 1 SEAT BELT, RETACTING - ASSM (FOR NON-SUSPENSION SEAT)
21 - 1 ROLL BAR TOP LOOP (See drawing note.)
22 - 1 ROLL BAR POST, RH (See drawing note.)
23 - 1 ROLL BAR POST, LH (See drawing note.)
24 5100383 2 RUBBER BUMPER
25 - 2 *BOLT
26 - 2 *NUT
27 5100545 2 RUBBER WASHER
28 5101223 1 SUPER SLEEVE BUCKLE, SEAT BELT (FOR SUSPENSION SEAT)
(Not serviced. For replacement hardware, you must purchase complete Roll Bar kit.)
The above parts group applies to the following Mfg. Nos.:
2011 7 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900840
(
IS2000ZKAV2552
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900808
(
IS2000ZKAV2761
)
5900879
(
IS2000ZKAV2661
)
5900816
(
IS2000ZB3061 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900945
(
IS2000ZKAV2652
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Seat, Mount & Floor Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 8 © Copyright Briggs and Stratton. All Rights Reserved.
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900811
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
5900838
(
IS2000ZK2752
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900815
(
IS2000ZKAV2561 CAL
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Seat, Mount & Floor Group
Footnotes
1 5025155 4 WASHER, 5/16" SAE
2 5025011X8 4 BOLT, 5/16-18 X 1" GD5 YZ
3 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE
4 5100643 2 BLOCK, DECK LIFT SUPPORT
5 5025154 4 WASHER, 1/4" SAE
6 5025010X10 4 BOLT, 1/4-20 X 1-1/4" GD5
7 5025391 4 NUT, 1/4-20 HEX NYLOCK FLANGE
8 5101013 1 SAFETY WALK, 11.50 X 15.00
9 5101011 1 SAFETY WALK, 8.00 X 15.00
10 5404137B 1 PLATE, FLOOR, IS2000 - RED
11b 5022031 1 SEAT, GRAY (S/N: 2014582798 & BELOW - 28HP MODELS & BELOW)
11a 5103004 1 SEAT, LOW (S/N: 2014582799 & ABOVE - 28HP MODELS & BELOW)
12 5600300 1 SEAT PLATE W/ DECALS, IS2000Z (INCLUDES DECALS)
13 5022094 1 SWITCH PLUNGER N.C. / N.C.
14 5025179X6 2 SCREW, #10-24 X 1/2" RD PHILLIPS
15 5025029 2 NUT, #10-24 HEX
16 5025326 1 WASHER, .39 X 2.00 X X .14
17 5025010X12 2 BOLT, 1/4-20 X1 1/2"
18 5046586 1 SPACER, .38 X .50 X 5.06
19 5025013X48 1 BOLT, 3/8-16 X 6" GD5 YZ
20 5100356 1 SPRING, .688 ID X .130 WIRE DIA 4.25
21 5025156 5 WASHER 3/8" SAE
22 5401940B 1 WELD, SEAT SUPPORT - RED
23 5022612 2 BUMPER, RUBBER 5/16-18
24 5025127 2 NUT, 5/16-18 HEX SM. SERR. FLG.
25 5025013X44 2 BOLT, 3/8-16 X 5-1/2" GD5 YZ
26 5025394 5 NUT, 3/8-16 HEX NYLOCK FLANGE
27 5023358 1 VALVE, FUEL, STR. OUTLET
28 5401162B 1 MOUNT, FUEL SELECTOR SWITCH - RED
29 5025013X8 2 BOLT, 3/8-16 X 1" GD5 YZ
30 5100381 2 CLAMP, 1/2" HOSE, DOUBLE, PLASTIC
31 5025013X10 2 BOLT, 3/8-16 X 1-1/4" GD5 YZ
32 5100652 1 SPRING, EXTENSION, 4" (SV) (NON-SUSPENSION SEAT)
33 5102760X2 1 CUSHION, SEAT BOTTOM (SV) (NON-SUSPENSION SEAT)
34 5102760X1 1 CUSHION, SEAT BACK (SV) (NON-SUSPENSION SEAT)
35 5102760X3 1 ARM REST (SV) (NON-SUSPENSION SEAT)
36 5102760X4 1 SLIDE RAILS (SET OF TWO) (SV) (NON-SUSPENSION SEAT)
37 5101214 1 SEAT, SUSP TYPE (30HP MODELS & ABOVE)
38 5101214X1 1 KIT, ARM REST, SET OF TWO, S/S (SV) (SUSPENSION SEAT)
39 5101214X2 1 CUSHION, BACK, S/S (SV) (SUSPENSION SEAT)
40 5101214X3 1 CUSHION, SEAT, S/S (SV) (SUSPENSION SEAT)
41 5101214X4 1 KIT, ADJUSTER, S/S (SV) (SUSPENSION SEAT)
The above parts group applies to the following Mfg. Nos.:
2011 9 © Copyright Briggs and Stratton. All Rights Reserved.
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900811
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
5900838
(
IS2000ZK2752
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900815
(
IS2000ZKAV2561 CAL
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Fuel Supply Hose & Tank Replacement Parts Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 10 © Copyright Briggs and Stratton. All Rights Reserved.
5900968
(
IS2000ZB3061
)
5900815
(
IS2000ZKAV2561 CAL
)
5900838
(
IS2000ZK2752
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900810
(
IS2000ZKAV2661
)
5900808
(
IS2000ZKAV2761
)
5900840
(
IS2000ZKAV2552
)
5900816
(
IS2000ZB3061 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900809
(
IS2000ZKAV2561
)
5900811
(
IS2000ZB3061
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Fuel Supply Hose & Tank Replacement Parts Group
Footnotes
1 5023358 1 VALVE, FUEL, STR. OUTLET
2 5020835 6 CLAMP, HOSE, EXTERNAL, 1/2 - RED
3 5050831X35 1 HOSE, 1/4" FUEL, 35.00"
4 5050831X45 1 HOSE, 1/4" FUEL, 45.00" (25 HP Kawasaki & 30HP Briggs & Stratton Models)
5 5050831X16 1 HOSE, 1/4" FUEL, 16.00" (27 HP Kohler Models)
6 5050831X10 1 HOSE, 1/4" FUEL, 10.00"
7 - 2 SEE REF # 10
8 5600050 2 KIT, BUSHING, FUEL
9 - 4 SEE REF # 10
10 5101144 2 HOSE ASSEMBLY
11 - 2 SEE REF # 10
12 5300047 2 ASSM, FUEL HOSE, 26" (Includes clamps & filter)
13 5050831X12 1 HOSE, 1/4" FUEL, 12.00 (26 HP Kawasaki Liquid Cooled Models)
14 5021199 1 CABLE TIE-PUSH MOUNT (25 HP Kawasaki & 30 HP Briggs & Stratton Models)
15 5050831X37 1 HOSE, 1/4" FUEL, 37.00" (26HP Kawasaki Air Cooled Models)
16 5022922 1 CLAMP, #4 HOSE, STAINLESS (26HP Kawasaki Models)
17 5021178X3 1 FUEL FILTER (SV)
The above parts group applies to the following Mfg. Nos.:
2011 11 © Copyright Briggs and Stratton. All Rights Reserved.
5900968
(
IS2000ZB3061
)
5900815
(
IS2000ZKAV2561 CAL
)
5900838
(
IS2000ZK2752
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900810
(
IS2000ZKAV2661
)
5900808
(
IS2000ZKAV2761
)
5900840
(
IS2000ZKAV2552
)
5900816
(
IS2000ZB3061 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900809
(
IS2000ZKAV2561
)
5900811
(
IS2000ZB3061
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Fuel Tank & Mount Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 12 © Copyright Briggs and Stratton. All Rights Reserved.
5900840
(
IS2000ZKAV2552
)
5900816
(
IS2000ZB3061 CAL
)
5900838
(
IS2000ZK2752
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900817
(
IS2000ZK2761
)
5900879
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900815
(
IS2000ZKAV2561 CAL
)
5900809
(
IS2000ZKAV2561
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Fuel Tank & Mount Group
Footnotes
1 5022917x1 2 GROMMET, FUEL GUAGE
2 5022917 2 GAUGE, FUEL 12"
3 5025155 12 WASHER, 5/16" SAE
4 5025011X8 8 BOLT, 5/16-18 X 1" GD5 YZ
5 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE
6a 5103005 2 FUEL CAP, 3-1/2", MANAGED VENT OUT, 12" (S/N: 2014923026 & ABOVE)
6b 5101651 2 CAP, FUEL TANK, 3-1/2" NECK (S/N: 2014923025 & BELOW)
7 5401095B 2 BADGE, IS2000 - IS3000 - RED
8 5025386 8 SCREW, #10-24 X 3/8" ALLEN BHBZ
9 5025170 8 WASHER, 5/16" LOCK
10 5025011X6 8 BOLT, 5/16-18 X 3/4" GRD5
11a 5102975 1 TANK, FUEL, IS2000 & IS3100 - LH (S/N: 2014923026 & ABOVE)
11b 5100176 1 TANK, FUEL, IS2000 / 3000Z - LH (S/N: 2014923025 & BELOW)
12 5408898B 1 WELD, TANK MOUNT - LH - RED
13 5408901B 1 WELD, TANK MOUNT - RH - RED
14a 5102974 1 TANK, FUEL, IS2000 & IS3100 - RH (S/N: 2014923026 & ABOVE)
14b 5100175 1 TANK, FUEL IS2000 / 3000Z - RH (S/N: 2014923025 & BELOW)
The above parts group applies to the following Mfg. Nos.:
2011 13 © Copyright Briggs and Stratton. All Rights Reserved.
5900840
(
IS2000ZKAV2552
)
5900816
(
IS2000ZB3061 CAL
)
5900838
(
IS2000ZK2752
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900817
(
IS2000ZK2761
)
5900879
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900815
(
IS2000ZKAV2561 CAL
)
5900809
(
IS2000ZKAV2561
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Instrument Control Panel Group - Liquid Cooled Models
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 14 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Instrument Control Panel Group - Liquid Cooled Models
Footnotes
1 5021603 4 FUSE, ATO 20 AMP
2 5021518 1 FUSE, BLOCK
3 5022805 1 COVER, VINYL FUSEBLOCK
4 5025299X4 3 SCREW, 1/4-20 X 1/2" ALLEN BH
5 5020927 1 SWITCH, IGNITION, 6 POST
6 5022180 1 SWITCH, BLADE ENGAGEMENT
7 5022222 1 RING, SWITCH RETAINER
8 5102417 1 HOUR METER
9 5046501 1 CABLE, CHOKE CONTROL, 47"
10 5025271 4 NUT, #10-24 HEN NYLON LOCK
11 5025179X6 2 SCREW, #10-24 X 3/4"
12 5022269 1 O-RING, 7/8" ID X 1/16"
13 1709188 1 PLUG, .820X1.44 HOLE, BLACK PLASTIC
14 5101073 1 CABLE, THROTTLE, 42"
15 5025035 1 NUT, 3/8 - 24 HEX
16 5025270X16 2 SCREW, #10-24 X 2" ROUND PHILLIPS
17 5046360X1 1 KNOB, THROTTLE CONTROL (SV)
18 5023393 1 GUAGE, WATER TEMPERATURE
19 5403401A 1 PANEL, CONTROL, IS2000Z LC
20 5101537 1 LEVER, THROTTLE CONTROL, HEAVY DUTY
The above parts group applies to the following Mfg. Nos.:
2011 15 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Instrument Control Panel Group - Air Cooled Models
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 16 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900811
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900879
(
IS2000ZKAV2661
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900817
(
IS2000ZK2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Instrument Control Panel Group - Air Cooled Models
Footnotes
1 5021603 4 FUSE, ATO 20 AMP
2 5021518 1 FUSE, BLOCK
3 5022805 1 COVER, VINYL FUSEBLOCK
4 5025299X4 3 SCREW, 1/4-20 X 1/2" ALLEN BH
5 5020927 1 SWITCH, IGNITION, 6 POST
6 5022180 1 SWITCH, BLADE ENGAGEMENT
7 5022222 1 RING, SWITCH RETAINER
8 5102417 1 HOUR METER
9 5046501 1 CABLE, CHOKE CONTROL, 47" (25HP & 27HP Kawasaki Models)
10 5025271 2 NUT, #10-24 HEN NYLON LOCK
11 5025179X6 2 SCREW, #10-24 X 3/4"
12 5403400A 1 PANEL, CONTROL, IS2000Z
13 1709188 1 PLUG, .820X1.44 HOLE, BLACK PLASTIC
14 5101076 1 CABLE, THROTTLE, 47" (27HP Kohler Models)
15 5025035 1 NUT, 3/8 - 24 HEX
16 5025270X16 2 SCREW, #10-24 X 2" ROUND PHILLIPS
17 5025271 2 NUT, #10-24 HEX NYLON LOCK
18 5061533 1 CABLE, CHOKE CONTROL, 60" (SHORT BODY) (27HP Kohler Models)
19 5101072 1 CABLE, THROTTLE, 52" (34HP Kawasaki Models)
20 5022269 1 O-RING, 7/8" ID X 1/16"
21 5047779 1 CABLE, CHOKE CONTROL, 51" (Z) (30HP Briggs & Stratton & 34HP Kawasaki
Models)
22 5101537 1 LEVER, THROTTLE CONTROL, HEAVY DUTY
23 5101073 1 CABLE, THROTTLE, 42" (25HP & 27HP Kawasaki & 30HP Briggs & Stratton
Models)
24 5046360X1 1 KNOB, THROTTLE CONTROL (SV)
25 5061763 2 SPACER, .20 X .38 X 1.25
The above parts group applies to the following Mfg. Nos.:
2011 17 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900811
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900879
(
IS2000ZKAV2661
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900817
(
IS2000ZK2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 30HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 18 © Copyright Briggs and Stratton. All Rights Reserved.
5900816
(
IS2000ZB3061 CAL
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
5900811
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 30HP Briggs & Stratton
Footnotes
1 * -- 1 * ENGINE, 30HP B&S, VERTICAL SHAFT
2 5025011X14 4 BOLT, 5/16-18 X 1-3/4" GD5 YZ
3 5046416A 1 ANCHOR, CLUTCH - BLK
4 5025139 1 NUT, 5/16-18 HEX SERRATED FLANGE, LARGE
5 5043636 1 CLUTCH ANCHOR PAD
6 5025165 4 WASHER-3/8 FENDER
7 5025392 6 NUT, 5/16-18 HEX NYLOCK FLANGE
8 5025155 2 WASHER, 5/16" SAE
9 5102864 1 BOLT, CRANKSHAFT, 7/16" X 2-1/2
10 5100366 1 METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
11 5100875 1 CLUTCH, WARNER,# 5218-158
12 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
13 5044062 1 SPACER, 1.13 X 1.75 X .50
14 5100874 1 PULLEY, 5.25 OD X 1.126 ID
15 5050407X8 1 KEY, 1/4" SQ. X 1.00
16 5101554 1 SPACER, 1.13 X 1.75 X 1.090, BLACK ZINC
17 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
18 5025055X18 1 BOLT, 5/16-18 X 2-1/4 GD5 TFL, ZN
19 5101492 1 TIE WRAP, 24" LONG (Not Shown)
20 5025531 1 SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
21 5021500 1 CLAMP, VINYL
22 5048681 1 HOSE, OIL DRAIN
23 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
24 842859 1 SCREEN, ARRESTER (Not shown)
25 5025470 1 SCREW, SELF-TAP,#8-32 X 3/8,WASH HEX, CZ (Not shown)
26 842921 1 FILTER, OIL, BRIGGS & STRATTON (Not shown)
27 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE
28 843906X1 1 MUFFLER, EXHAUST ASSY
29 5025011X8 2 BOLT, 5/16-16 X 1" GD5 YZ
30 5025010X8 1 BOLT, 1/4-20 X 1", GD5 (Not shown)
31 841238 1 ELEMENT, AIR CLEANER, SECONDARY (Not shown)
32 5021379 1 GROMMET, 7/8" (Not shown)
33 809907 1 CAP, A/C RAIN (Not shown)
34 809218 1 AIR CLEANER ASSEMBLY, COMPLETE (Not shown)
35 841237 1 ELEMENT, AIR CLEANER, PRIMARY (Not shown)
* For engine replacement parts see you local Briggs & Stratton dealer
The above parts group applies to the following Mfg. Nos.:
2011 19 © Copyright Briggs and Stratton. All Rights Reserved.
5900816
(
IS2000ZB3061 CAL
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
5900811
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 27HP Kawasaki
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 20 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 27HP Kawasaki
Footnotes
1 5047075 1 PULLEY, CRANKSHAFT (DOUBLE A)
2 5047033 1 SPACER, 1.13 X 1.75 X 1.03
3 5022234 1 ADAPTER, OIL DRAIN
4 5100084 1 CLUTCH,5218-134, WARNER
5 5100456 1 SPACER, 1.13 X 1.75 X .38
6 5021334X1 1 OIL FILTER (49065-2078)
7 5101124 1 MUFFLER, 27 HP KAWASAKI
8 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
9 5046416A 1 ANCHOR, CLUTCH - BLK
10 5043636 1 CLUTCH ANCHOR PAD
11 5044617 4 WASHER, .34 X 1.25 X 10 GA
12 5046446 2 SPACER, .39 X 1.00 X .80
13 5025155 4 WASHER, 5/16 SAE
14 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
15 5025532 3 BOLT, HEX FLG, SER GD5 3/8-16 X 1-1/4, PATCH
16 5025011X14 2 BOLT, 5/16-18 X 1-3/4 GD5 YZ
17 5050407X8 1 KEY, 1/4 SQ. X 1.00
18 5102864 1 BOLT, CRANKSHAFT, 7/16"X2-1/2
19 - 1 ENGINE, 27HP, KAWASAKI (Includes Ref Nos. 24 - 35)
20 5025139 1 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
21 5025055X18 1 BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
22 5021379 1 GROMMET, 7/8
23 5048681 1 HOSE, OIL DRAIN
24a 5102126X7 1 RAIN COVER (SV) (S/N: 2013946880 & Above)
24b 5101538 1 RAIN COVER (SV) (S/N: 2013946879 & Below)
25a 5023146 3 CLAMP (SV) (S/N: 2013946880 & Above)
25b 5101539 3 CLAMP (SV) (S/N: 2013946879 & Below)
26a 5102126X1 1 AIR FILTER ASSEMBLY (SV) (S/N: 2013946880 & Above)
26b 5101540 1 AIR FILTER ASSEMBLY (SV) (S/N: 2013946879 & Below)
27a 5102126X8 1 RUBBER, Dust Valve (SV) (S/N: 2013946880 & Above)
27b 5101541 1 RUBBER, Dust Valve (SV) (S/N: 2013946879 & Below)
28a 5102126X4 1 AIR FILTER, SECONDARY (SV) (S/N: 2013946880 & Above)
28b 5101542 1 AIR FILTER, SECONDARY (SV) (S/N: 2013946879 & Below)
29a 5102126X3 1 AIR FILTER, PRIMARY (SV) (S/N: 2013946880 & Above)
29b 5101543 1 AIR FILTER, PRIMARY (SV) (S/N: 2013946879 & Below)
30 5101547 2 BRACKET PLATE, SUPPORT (SV)
31a 5102126X2 1 CAP END, FILTER CASE (SV) (S/N: 2013946880 & Above)
31b 5101544 1 CAP END, FILTER CASE (SV) (S/N: 2013946879 & Below)
32a 5102126X5 1 CASE BRACKET (SV) (S/N: 2013946880 & Above)
32b 5101545 1 BRACKET PLATE, UPPER (SV) (S/N: 2013946879 & Below)
33a 5102126X6 1 CASE BRACKET (SV) (S/N: 2013946880 & Above)
The above parts group applies to the following Mfg. Nos.:
2011 21 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 27HP Kawasaki
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 22 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 27HP Kawasaki
Footnotes
33b 5101546 1 BRACKET PLATE, LOWER (SV) (S/N: 2013946879 & Below)
34a 5102126X9 1 AIR INLET TUBE (SV) (S/N: 2013946880 & Above)
34b 5101548 1 AIR INLET TUBE (SV) (S/N: 2013946879 & Below)
35a 5102126X10 1 BREATHER TUBE (SV) (S/N: 2013946880 & Above)
35b 5101549 1 BREATHER TUBE (SV) (S/N: 2013946879 & Below)
36 5021500 1 CLAMP, VINYL INSULATED
37 5025010X6 3 BOLT, 1/4-20 X 3/4 GD5 YZ
38 1724815 1 SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
39 5025126 3 NUT, 1/4-20 HEX SERRATED FLANGE
40 5023217 2 WASHER, Light Lock, 5/16
41 5023216 2 NUT, Hex Jam, 5/16-24
42 5101492 1 TIE WRAP, 24" LONG (Not Shown)
43 5025154 1 WASHER, 1/4 SAE
44 5100969 1 EXTENSION, TAILPIPE, 3"
45 5025470 2 SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
46 5101641 1 SCREEN, SPARK ARRESTER (Not Shown)
47 5025531 1 SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
The above parts group applies to the following Mfg. Nos.:
2011 23 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 34HP Kawasaki
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 24 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 34HP Kawasaki
Footnotes
1 5047075 1 PULLEY, CRANKSHAFT (DOUBLE A)
2 5047033 1 SPACER, 1.13 X 1.75 X 1.03
3 5022234 1 ADAPTER, OIL DRAIN
4 5100084 1 CLUTCH,5218-134, WARNER
5 5100456 1 SPACER, 1.13 X 1.75 X .38
6 5021334X1 1 OIL FILTER (49065-2078)
7 5101336 1 MUFFLER, 34 HP KAWASAKI
8 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
9 5046416A 1 ANCHOR, CLUTCH - BLK
10 5043636 1 CLUTCH ANCHOR PAD
11 5044617 4 WASHER, .34 X 1.25 X 10 GA
12 5046446 2 SPACER, .39 X 1.00 X .80
13 5025155 4 WASHER, 5/16 SAE
14 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
15 5025532 3 BOLT, HEX FLG, SER GD5 3/8-16 X 1-1/4, PATCH
16 5025011X14 2 BOLT, 5/16-18 X 1-3/4 GD5 YZ
17 5050407X8 1 KEY, 1/4 SQ. X 1.00
18 5045289 1 BOLT, CRANKSHAFT, 7/16"X2-1/2
19 - 1 ENGINE, 34HP, KAWASAKI (Includes Ref Nos. 25 - 35)
20 5025139 1 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
21 5025055X18 1 BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
22 5021379 1 GROMMET, 7/8
23 5048681 1 HOSE, OIL DRAIN
24 5025100 1 NUT, 3/8-16 HEX SIDE LOCK
25a 5023146 3 CLAMP (SV) (S/N: & 2014450902 Above)
25b 5101539 3 CLAMP (SV) (S/N: & 2014450901 Below)
26a 5102126X1 1 AIR FILTER ASSEMBLY (SV) (S/N: & 2014450902 Above)
26b 5101540 1 AIR FILTER ASSEMBLY (SV) (S/N: & 2014450901 Below)
27a 5102126X8 1 RUBBER, Dust Valve (SV) (S/N: & 2014450902 Above)
27b 5101541 1 RUBBER, Dust Valve (SV) (S/N: & 2014450901 Below)
28a 5102126X4 1 AIR FILTER, SECONDARY (SV) (S/N: & 2014450902 Above)
28b 5101542 1 AIR FILTER, SECONDARY (SV) (S/N: & 2014450901 Below)
29a 5102126X3 1 AIR FILTER, PRIMARY (SV) (S/N: & 2014450902 Above)
29b 5101543 1 AIR FILTER, PRIMARY (SV) (S/N: & 2014450901 Below)
30a 5102126X7 1 RAIN COVER (SV) (S/N: & 2014450902 Above)
30b 5101538 1 RAIN COVER (SV) (S/N: & 2014450901 Below)
31a 5102126X2 1 FILTER CASE (SV) (S/N: & 2014450902 Above)
31b 5101544 1 CAP END, FILTER CASE (SV) (S/N: & 2014450901 Below)
32a 5102126X5 1 CASE BRACKET (SV) (S/N: & 2014450902 Above)
32b 5101545 1 BRACKET PLATE, UPPER 27, 34 & 37 (SV) (S/N: & 2014450901 Below)
33a 5102126X6 1 CASE BRACKET (SV) (S/N: & 2014450902 Above)
The above parts group applies to the following Mfg. Nos.:
2011 25 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 34HP Kawasaki
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 26 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 34HP Kawasaki
Footnotes
33b 5101550 1 BRACKET PLATE, LOWER 34 & 37 (SV) (S/N: & 2014450901 Below)
34a 5102126X9 1 AIR INLET TUBE (SV) (S/N: & 2014450902 Above)
34b 5101551 1 AIR INLET TUBE (SV) (S/N: & 2014450901 Below)
35a 5102126X10 1 BREATHER TUBE (SV) (S/N: & 2014450902 Above)
35b 5101552 1 BREATHER TUBE (SV) (S/N: & 2014450901 Below)
36 5021500 1 CLAMP, VINYL INSULATED
37 5025010X6 3 BOLT, 1/4-20 X 3/4 GD5 YZ
38 1724815 1 SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
39 5025126 3 NUT, 1/4-20 HEX SERRATED FLANGE
40 5023217 2 WASHER, Light Lock, 5/16
41 5023216 2 NUT, Hex Jam, 5/16-24
42 5025156 1 WASHER, 3/8 SAE
43 5025154 1 WASHER, 1/4 SAE
44 5025058X18 1 BOLT, 3/8-16 X 2-1/4 GD5 TFL
45 5025480 1 WASHER, 3/8" ID, INTERNAL TOOTH
46 5101641 1 SCREEN, SPARK ARRESTER (Not Shown)
47 5025531 1 SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
48 5101492 1 TIE WRAP, 24" LONG (Not Shown)
The above parts group applies to the following Mfg. Nos.:
2011 27 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 27HP Kohler
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 28 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 27HP Kohler
Footnotes
1 5047075 1 PULLEY CRANKSHAFT (DOUBLE A)
2 5047033 1 SPACER, 1.13 X 1.75 X 1.03
3 5048681 1 HOSE, OIL DRAIN
4 5100084 1 CLUTCH, WARNER, #I-5218-134
5 5044062 1 SPACER, 1.13 X 1.75 X .50
6 5021144X1 1 OIL FILTER (12 050 01)
7 5101275 1 MUFFLER
8 5025392 10 NUT, 5/16-18 HEX NYLOCK FLANGE
9 5046416A 1 ANCHOR, CLUTCH - BLK
10 5043636 1 CLUTCH ANCHOR PAD
11 5044617 3 WASHER, CLUTCH ANCHOR
12 5022892X9 1 INLET HOSE (25 326 53-S)
13 5025155 8 WASHER, 5/16" SAE
14 5025011X8 4 BOLT, 5/16-18 X 1" GD5 YZ
15 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
16 5025011X14 4 BOLT, 5/16-18 X 1-3/4" GD5
17 5050407X8 1 KEY, 1/4" SQ. X 1
18 5102864 1 BOLT, CRANKSHAFT 7/16 X 2 1/2
19 - 1 ENGINE, 27HP KOHLER, VERTICAL
20 5025139 1 NUT 5/16-18 HEX SERRATED FLANGE (LARGE)
21 5025055X18 1 BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
22 5021379 1 GROMMET, 7/8
23 5022892X4 1 KIT, 5.5" HD AIR CLEANER (24 743 22-S) (Includes Ref Nos. 24 - 30.)
24 5022892X8 1 HOUSING MOUNT BRACKET (25 126 02-S)
25 5022892X3 1 RAIN COVER
26 5022892X1 1 PRIMARY PAPER ELEMENT
27 5022892X2 1 SECONDARY ELEMENT
28 5022892X5 1 END CAP (25 096 06-S)
29 5022892X6 1 DUST VALVE (24 462 07-S)
30 5101641 1 SCREEN, SPARK ARRESTER (Not Shown)
31 5025531 1 SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
The above parts group applies to the following Mfg. Nos.:
2011 29 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 25HP Kawasaki
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 30 © Copyright Briggs and Stratton. All Rights Reserved.
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900840
(
IS2000ZKAV2552
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 25HP Kawasaki
Footnotes
1 5047075 1 PULLEY CRANKSHAFT (DOUBLE A)
2 5047033 1 SPACER, 1.13 X 1.75 X 1.03
3 5022234 1 ADAPTER, OIL DRAIN
4 5100084 1 CLUTCH, WARNER, #I-5218-134
5 5100456 1 SPACER, 1.13 X 1.75 X .375
6 5021334X1 1 OIL FILTER (49065-2078)
7 5100975 1 MUFFLER, KAWI 21-25 HP
8 5025392 12 NUT, 5/16-18 HEX NYLOCK FLANGE
9 5046416A 1 ANCHOR, CLUTCH - BLK
10 5043636 1 CLUTCH ANCHOR PAD
11 5044617 3 WASHER, CLUTCH ANCHOR
12 5046446 2 SPACER, .39 X 1.00 X .80
13 5025155 10 WASHER, 5/16" SAE
14 5025011X8 4 BOLT, 5/16-18 X 1" GD5 YZ
15 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
16 5025011X14 6 BOLT, 5/16-18 X 1-3/4" GD5
17 5050407X8 1 KEY, 1/4" SQ. X 1
18 5102865 1 BOLT, CRANKSHAFT 7/16 X 2 3/4
19 - 1 ENGINE, 25HP KAWASAKI
20 5025139 1 NUT 5/16-18 HEX SERRATED FLANGE (LARGE)
21 5025055X18 1 BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
22 5021379 1 GROMMET, 7/8
23 5048681 1 HOSE, OIL DRAIN
24 5023143 1 RAIN COVER
25 5023146 3 CLAMP
26 5023139 1 AIR FILTER ASSEMBLY (Includes Ref Nos. 27 - 31)
27 5023144 1 RUBBER, Dust Valve
28 5023140 1 AIR FILTER, SECONDARY
29 5023141 1 AIR FILTER, PRIMARY
30 5023147 2 CLAMP, CAP
31 5023138 1 CAP END, FILTER CASE
32 5023145 1 CASE, BRACKET, COMPLETE
33 5023142 1 BRACKET PLATE
34 5023149 1 AIR INLET TUBE
35 5023148 1 BREATHER TUBE
36 5101641 1 SCREEN, SPARK ARRESTER (Not Shown)
37 5025010X6 2 BOLT, 1/4-20 X 3/4" GD5 YZ
38 1724815 1 SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
39 5025126 2 NUT, 1/4-20 HEX SERRATED FLANGE
40 5023217 2 WASHER, Light Lock, 5/16
41 5023216 2 NUT, Hex Jam, 5/16-24
The above parts group applies to the following Mfg. Nos.:
2011 31 © Copyright Briggs and Stratton. All Rights Reserved.
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900840
(
IS2000ZKAV2552
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 25HP Kawasaki
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 32 © Copyright Briggs and Stratton. All Rights Reserved.
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900840
(
IS2000ZKAV2552
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 25HP Kawasaki
Footnotes
42 5100969 1 EXTENSION, TAILPIPE, 3"
43 5025470 2 SCREW, SELF-TAP, #8-32 X 3/8. WASH HEX, CZ
44 5025531 1 SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
45 5101492 1 TIE WRAP, 24" LONG (Not Shown)
The above parts group applies to the following Mfg. Nos.:
2011 33 © Copyright Briggs and Stratton. All Rights Reserved.
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900840
(
IS2000ZKAV2552
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 26HP Kawasaki Liquid Cooled
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 34 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 26HP Kawasaki Liquid Cooled
Footnotes
1 5401138B 1 GUARD, RADIATOR SCREEN PROTECTOR - RED
2 5025156 4 WASHER 3/8" SAE
3 5061314 1 MUFFLER, 26 HP KAWASAKI LC
4 - 1 ENGINE, 26 HP KAWASAKI, LC
5 5023143 1 RAIN CAP
6 5023146 3 CLAMP
7 5023139 1 AIR FILTER ASSEMBLY, COMPLETE
8 5023144 1 RUBBER, Dust Valve
9 5023140 1 AIR FILTER, SECONDARY
10 5023141 1 AIR FILTER, PRIMARY
11 5023147 2 CLAMP, CAP
12 5023138 1 CAP, FILTER CASE
13 5025013X8 4 BOLT, 3/8-16 X 1" GD5
14 5025055X18 1 BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
15 5046416A 1 ANCHOR, CLUTCH - BLK
16 5025394 8 NUT, 3/8-16 HEX NYLOCK FLANGE
17 5043636 1 CLUTCH ANCHOR PAD
18 5044617 4 WASHER, .34 X 1.25 X 10 GA
19 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE
20 5025155 4 WASHER, 5/16" SAE
21 5102855 1 BOLT, CRANKSHAFT, M10 X 65MM
22 5021379 1 GROMMET, 7/8
23 5100084 1 CLUTCH, WARNER, #I-5218-134
24 5023394 1 SENDER, WATER TEMPERATURE (Not shown.)
25 5100456 1 SPACER, 1.13 X 1.75 X .375
26 5047075 1 PULLEY, CRANKSHAFT (DOUBLE A)
27 5050407X8 1 KEY, 1/4" SQ. X 1"
28 5047033 1 SPACER, 1.13 X 1.75 X 1.03
29 5025011X14 2 BOLT, 5/16-18 X 1-3/4" GD5
30 5046446 2 SPACER, .39 X 1.00 X .80
31 5022234 1 ADAPTER, OIL DRAIN
32 5048681 2 HOSE, OIL DRAIN
33 5021500 1 CLAMP, VINYL
34 5025188 5 WASHER, 5/16" INT. TOOTH LOCK
35 5025237X25 4 BOLT, M8-1.25 X 25MM GD8.8
36 5025010X8 1 BOLT,1/4-20 X 1" GD5
37 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE
38 5025139 1 NUT 5/16-18 HEX SERRATED FLANGE (LARGE)
39 5025057 4 NUT 5/16-18 HEX NYLON LOCK
40 5025011X8 2 BOLT, 5/16-18 X 1" GD5 YZ
41 5101641 1 SCREEN, SPARK ARRESTER (Not shown)
The above parts group applies to the following Mfg. Nos.:
2011 35 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 26HP Kawasaki Liquid Cooled
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 36 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 26HP Kawasaki Liquid Cooled
Footnotes
42 5025059X8 1 BOLT, 5/16-18 X 1" , SELF-TAPPING
43 5023396X1 1 OIL FILTER, KAWI # 49065-2086 (Not shown)
44 - 1 SPRING CLIP, KAWI # 42144-2346 (Not shown)
45 - 1 SCREEN, BOTTOM, KAWI # 11053-2104-9H (Not shown)
46 - 1 SCREEN, TOP, BUBBLE, KAWI # 14037-2146-9H (Not shown)
47 5025531 1 SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
48 5101492 1 TIE WRAP, 24" LONG (Not Shown)
The above parts group applies to the following Mfg. Nos.:
2011 37 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 26HP Kawasaki Air Cooled
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 38 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 26HP Kawasaki Air Cooled
Footnotes
1 5047075 1 PULLEY, CRANKSHAFT (DOUBLE A)
2 5047033 1 SPACER, 1.13 X 1.75 X 1.03
3 5022234 1 ADAPTER, OIL DRAIN
4 5100084 1 CLUTCH,5218-134, WARNER
5 5100456 1 SPACER, 1.13 X 1.75 X .38
6 5102278X1 1 FILTER, OIL, 22, 24 & 26 HP, KAWASAKI
7 5102127 1 MUFFLER, 26HP KAWASAKI, FX730V
8 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
9 5046416A 1 ANCHOR, CLUTCH - BLK
10 5043636 1 CLUTCH ANCHOR PAD
11 5044617 4 WASHER, .34 X 1.25 X 10 GA
12 5046446 2 SPACER, .39 X 1.00 X .80
13 5025155 4 WASHER, 5/16 SAE
14 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
15 5025532 3 BOLT, HEX FLG, SER GD5 3/8-16 X 1-1/4, PATCH
16 5025011X14 2 BOLT, 5/16-18 X 1-3/4 GD5 YZ
17 5050407X8 1 KEY, 1/4 SQ. X 1.00
18 5102864 1 BOLT, CRANKSHAFT, 7/16"X2-1/2
19 - 1 ENGINE, 26HP, KAWASAKI (FX730V) (Includes Ref Nos. 24 - 29 & 31 - 35)
20 5025139 1 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
21 5025055X18 1 BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
22 5021379 1 GROMMET, 7/8
23 5048681 1 HOSE, OIL DRAIN
24 5102126X7 1 RAIN CAP, AIR FILTER, 22,24&26HP, KAWASAKI (SV)
25 5023146 3 CLAMP (SV)
26 5102126X1 1 AIR FILTER ASSEMBLY, 22,24&26HP KAWASAKI (SV)
27 5102126X8 1 RUBBER, Dust Valve, 22,24&26HP KAWASAKI (SV)
28 5102126X4 1 AIR FILTER, SECONDARY, 22, 24&26HP KAWASAKI (SV)
29 5102126X3 1 AIR FILTER, PRIMARY,22,24&26HP, KAWASAKI (SV)
30 5025531 1 SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
31 5102126X2 1 CAP END, FILTER CASE, 22,24&26HP, KAWASAKI (SV)
32 5102126X5 1 BRACKET PLATE, UPPER, 22,24&26HP KAWASAKI (SV)
33 5102126X6 1 BRACKET PLATE, LOWER, 22,24&26HP KAWASAKI (SV)
34 5102126X9 1 AIR INLET TUBE, 22,24&26HP KAWASAKI (SV)
35 5102126X10 1 BREATHER TUBE, 22,24&26HP KAWASAKI (SV)
36 5021500 1 CLAMP, VINYL INSULATED
37 5025010X6 3 BOLT, 1/4-20 X 3/4 GD5 YZ
38 1724815 1 SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
39 5025126 3 NUT, 1/4-20 HEX SERRATED FLANGE
40 5023217 2 WASHER, Light Lock, 5/16
41 5023216 2 NUT, Hex Jam, 5/16-24
The above parts group applies to the following Mfg. Nos.:
2011 39 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Engine & PTO Group - 26HP Kawasaki Air Cooled
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 40 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group - 26HP Kawasaki Air Cooled
Footnotes
42 5101492 1 TIE WRAP, 24" LONG (Not Shown)
43 5025154 1 WASHER, 1/4 SAE
The above parts group applies to the following Mfg. Nos.:
2011 41 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction

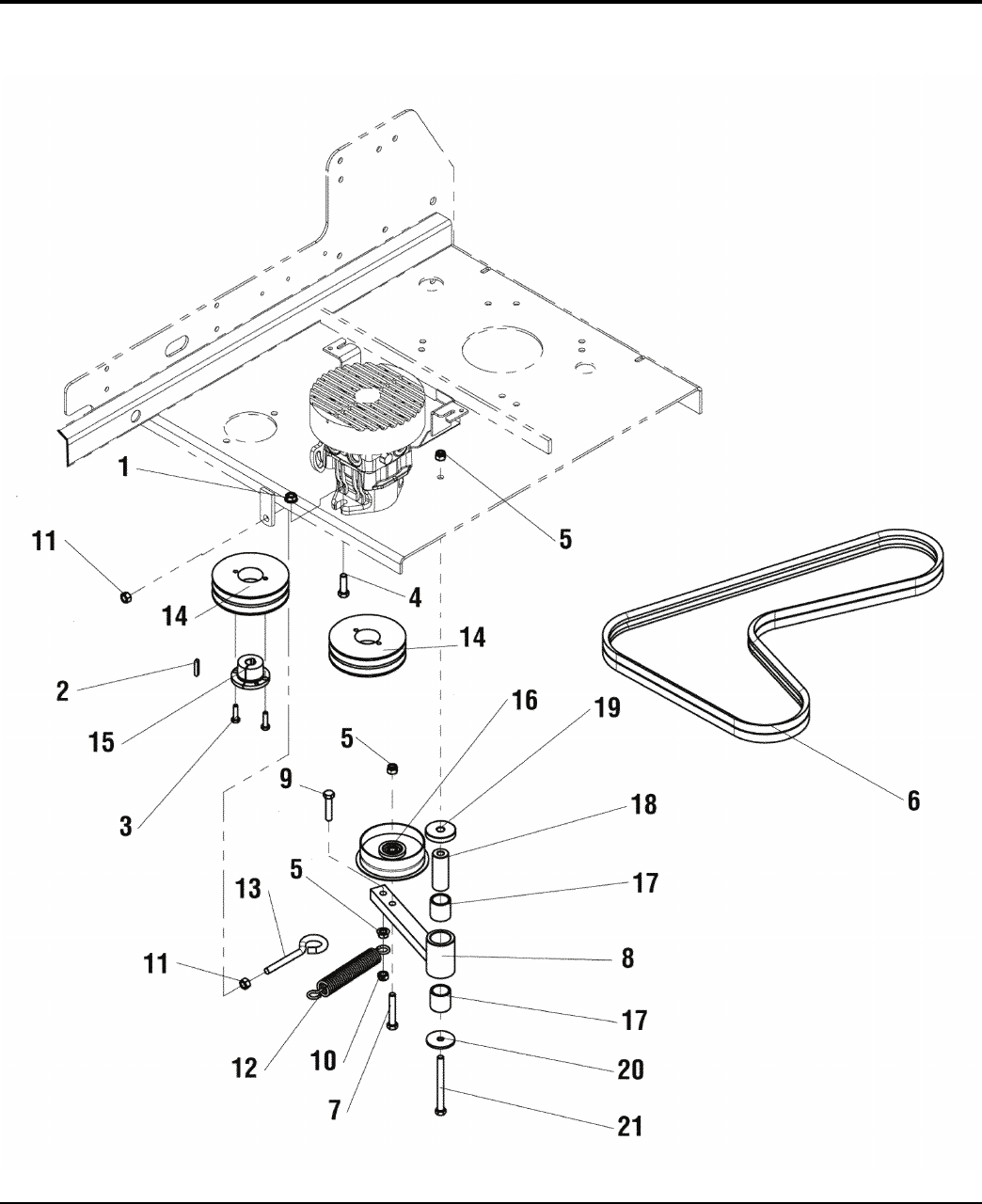

Pump Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 42 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900809
(
IS2000ZKAV2561
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900810
(
IS2000ZKAV2661
)
5900815
(
IS2000ZKAV2561 CAL
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900817
(
IS2000ZK2761
)
5900816
(
IS2000ZB3061 CAL
)
5900945
(
IS2000ZKAV2652
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900811
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Pump Drive Group
Footnotes
1 5025128 4 NUT, 3/8-16 HEX SERRATED FLANGE
2 5023254 2 KEY, 5MM SQ W/ RADIUS
3 5025010X8 4 BOLT, 1/4-20 X 1" GD5
4 5025013X10 4 BOLT, 3/8-16 X 1-1/4" GD5
5 5025394 3 NUT, 3/8-16 HEX NYLOCK FLANGE
6 5100555 1 BELT, # 41-1299, BANDED
7 5025013X18 1 BOLT, 3/8-16 X 2-1/4" GD5 YZ
8 5046430A 1 WELD, ARM, PUMP DRIVE IDLER - BLK
9 5025013X14 1 BOLT, 3/8-16 X 1-3/4" GD5
10 5025100 1 NUT, 3/8-16 HEX SIDE LOCK
11 5025034 2 NUT, 3/8-16 HEX
12 5022847 1 SPRING, EXTENSION, SWIVEL END
13 5021812 1 EYE BOLT, 3/8-16 X 6", 1" EYE
14 5022586 2 PULLEY, PUMP DRIVE
15 5022587 2 BUSHING, TAPERED HUB
16 5022621 1 PULLEY, IDLER, SINGLE FLANGE
17 5022157 2 BUSHING, BRASS, 1.25 X 1 X 1.25
18 5102004 1 SPACER, .39 X 1.00 X 2.55, SS
19 5045475 1 SPACER, .45 X 1.88 X .38
20 5025305 1 WASHER, .41 X 1.75 X .14
21 5025013X32 1 BOLT, 3/8-16 X 4" GD5
The above parts group applies to the following Mfg. Nos.:
2011 43 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900809
(
IS2000ZKAV2561
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900810
(
IS2000ZKAV2661
)
5900815
(
IS2000ZKAV2561 CAL
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900817
(
IS2000ZK2761
)
5900816
(
IS2000ZB3061 CAL
)
5900945
(
IS2000ZKAV2652
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900811
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Motion Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 44 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900809
(
IS2000ZKAV2561
)
5900945
(
IS2000ZKAV2652
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Motion Control Group
Footnotes
1 5025156 8 WASHER 3/8" SAE
2 5025013X8 2 BOLT,3/8-16 X 1" GD5 YZ
3 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE
4 5021098 2 BEARING, BRONZE FLANGE 3/4"
5 5022628 2 BALL JOINT, 5/16-24, LH FEMALE
6 5046420 2 ROD, HYDRO LINKAGE
7 5400653B 2 MOUNT, REVERSE RETURN - RED
8 5025424 2 WASHER, 3/8 X 1" X 1/16, NYLON F/W
9 5025392 10 NUT, 5/16-18 HEX NYLON FLANGE
10 5101307 4 10MM BALL STUD, 5/16-18 X 3/4
11 5022645 2 SPRING, REVERSE RETURN
12 5023260 2 BUSHING, NYLON
13 5023212 2 NUT, 5/16 HEX LH
14 5025033 6 NUT, HEX 5/16-24
15 5020047 2 COLLAR, 5/16" SET
16 5025155 10 WASHER, 5/16" SAE
17 5025011X10 6 BOLT, 5/16-18 X 1-1/4" GD5 YZ
18 5400636B 1 WELD, HANDLE MOTION CONTROL LH - RED
19 5100940 2 DAMPENER, CONTROL
20 5021146 2 BALL JOINT, 5/16-24, FEMALE
21 5048264 6 SPACER, .63 X .39 X 1.50
22 5025013X20 4 BOLT, 3/8-16 X 2-1/2" GD5 YZ
23 5025013X24 2 BOLT, 3/8-16 X 3" GD5 YZ
24 5025013X10 2 BOLT, 3/8-16 X 1-1/4" GD5
25 5021499 2 BEARING, FLANGE
26 5025096 8 NUT, 3/8-16 HEX NYLON LOCK
27 5025055X14 4 BOLT, 5/16-18 X 1-3/4" GD5 TFL
28 5025139 12 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
29 5025013X14 4 BOLT, 3/8-16 X 1-3/4" GD5
30 5403620B 1 WELD, CONTROL SHAFT - RH - RED
31 5403619B 1 WELD, CONTROL SHAFT - LH - RED
32 5400820B 1 WELD, NEUTRAL LOCK, LH - RED
33 5400824B 1 WELD, NEUTRAL LOCK, RH - RED
34 5025011X8 2 BOLT, 5/16-18 X 1" GD5 YZ
35 5021451 2 SWITCH, PLUNGER, N.O.
36 5025179X4 4 SCREW, #10-24 X 1/2" ROUND SLOTTED
37 5025029 4 NUT, #10-24 HEX
38 5401248 2 GUARD, RUBBER MOTION CONTROLS
39 5025431 4 PUSH RIVET (TREE TYPE) BLACK
40 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
41 5400637B 1 WELD, HANDLE MOTION CONTROL RH - RED
The above parts group applies to the following Mfg. Nos.:
2011 45 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900809
(
IS2000ZKAV2561
)
5900945
(
IS2000ZKAV2652
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Motion Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 46 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900809
(
IS2000ZKAV2561
)
5900945
(
IS2000ZKAV2652
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Motion Control Group
Footnotes
42 5047004A 2 MOUNT, CONTROL ARM - BLK
43 5022068 2 GRIP, FOAM, 3/4" ID, 16" LONG
44 5025170 4 WASHER, 5/16 LOCK YZ
The above parts group applies to the following Mfg. Nos.:
2011 47 © Copyright Briggs and Stratton. All Rights Reserved.
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900809
(
IS2000ZKAV2561
)
5900945
(
IS2000ZKAV2652
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Hydraulic Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 48 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Hydraulic Group
Footnotes
1 5022634 2 ADAPTER, HYD.
2 5023338 4 FITTING, #8 JIC - #8 O-RING, 45 DEG.
3 5023267 2 ADAPTER, 90 DEG, 9/16-3/8 BARB
4 5022920 2 FITTING, TEE, 1/2 HOSE
5 5023346 1 ADAPTER, 90 DEG, 9/16-5/8 BARB
6 5023461 3 ADAPTER, 45 DEG, 9/16-3/8 BARB
7 5023276 2 FITTING, #10 ORING-#8 JIC, 90D
8 5050860X22 1 HOSE, 3/8" PUSH-LOCK, 22.00"
9 5050860X6P5 1 HOSE, 3/8" PUSH-LOCK, 6.50"
10 5050860X6 2 HOSE, 3/8" PUSH-LOCK, 6.00"
11 5050860X8 1 HOSE, 3/8" PUSH-LOCK, 8.00"
12 5050860X23 1 HOSE, 3/8" PUSH-LOCK, 23.00"
13 5050933X23P5 1 HOSE, 5/8" PUSH-LOCK, 23.50"
14 5102098 2 HOSE ASSEMBLY, 26.50"
15 5102099 2 HOSE ASSEMBLY, 22.50"
16 5100017 1 CAP, HYDRAULIC
17 5061712 1 TANK, HYDRAULIC, ASSEMBLY (Includes Ref. Nos 21,22,23, and 24)
18 5022922 1 CLAMP, #4 HOSE, STAINLESS
19 5021164 2 CLAMP, #10 HOSE, STAINLESS
20 5023268 11 CLAMP, HOSE
21 5023118 1 FITTING, ELBOW, 3/8"
22 5600050 1 KIT, GROMMET
23 5023121 1 GROMMET
24 5023119 1 FITTING, ELBOW, 5/8"
25a 5102682 1 *WHEEL MOTOR, LH, 14.5 CUBIC INCH (S/N: 2014450934 & ABOVE)
25b 5100407 1 WHEEL MOTOR, 15IN3/REV - LH (S/N: 2014450933 & BELOW)
26a 5102681 1 *WHEEL MOTOR, RH, 14.5 CUBIC INCH (S/N: 2014450934 & ABOVE)
26b 5100410 1 WHEEL MOTOR, 15IN3/REV - RH (S/N: 2014450933 & BELOW)
27 5022042X2 2 KEY
28 5022042X3 2 NUT, CASTLE, 1-20
29 5102174 1 PUMP, HYD, 12CC - LH, PK-3HBQ-FV1F-XXXX
30 5102175 1 PUMP, HYD, 12CC - RH, PK-3KBQ-FV1F-XXXX
31 5023096 1 FILTER HEAD, HYDRAULIC
32 1719168 1 FILTER, OIL
33 5025010X6 2 BOLT, 1/4"-20 X 3/4" GD5 YZ
34 5025154 2 WASHER, 1/4" SAE
35 5025169 2 WASHER, 1/4" LOCK
36 5025013X10 4 BOLT, 3/8-16 X 1-1/4" GD5
37 5025128 4 NUT, 3/8-16 HEX SERRATED FLANGE
38 5100162 2 SHROUD, FAN
39 5022571X1 2 FAN, HYD. PUMP
*When installing this wheel motor on older units, you will need hardware kit # 5600578.
The above parts group applies to the following Mfg. Nos.:
2011 49 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Hydraulic Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 50 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Hydraulic Group
Footnotes
40 5025203X16 2 PIN, COTTER, 1/8' X 2"
*When installing this wheel motor on older units, you will need hardware kit # 5600578.
The above parts group applies to the following Mfg. Nos.:
2011 51 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900879
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Hydraulic Mount Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 52 © Copyright Briggs and Stratton. All Rights Reserved.
5900879
(
IS2000ZKAV2661
)
5900808
(
IS2000ZKAV2761
)
5900809
(
IS2000ZKAV2561
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900840
(
IS2000ZKAV2552
)
5900838
(
IS2000ZK2752
)
5900968
(
IS2000ZB3061
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900810
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900817
(
IS2000ZK2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Hydraulic Mount Group
Footnotes
1 - 1 TANK, HYDRAULIC, ASSEMBLY (See Hydraulic Group)
2 5025013X12 4 BOLT, 3/8-16 X 1-1/2" GD5 YZ
3 5025391 4 NUT, 1/4-20 HEX NYLOCK FLANGE
4 5025154 4 WASHER, 1/4" SAE
5 5025010X8 1 BOLT, 1/4-20 X 1" GD5
6 5025156 6 WASHER 3/8" SAE
7 5025013X10 2 BOLT, 3/8-16 X 1-1/4" GD5
8 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE
9 5061746B 2 BRACKET, HYDRAULIC TANK
10 5400654B 1 WELD, HYD TANK MOUNT - RED
11 - 1 CAP, HYDRAULIC (See Hydraulic Group)
12 5401952B 2 BAR, STABILIZER, SIDE - RED
13 5401955B 1 BAR, STABILIZER, CENTER - RED (Non-Evap Canister Equipped Models)
13 5408215B 1 BRACKET, CANISTER MOUNT, IS2000 - RED (Evap Canister Equipped Models)
14 5401954B 1 PLATE, HYDRAULIC TANK MOUNT - RED
15 5021500 2 CLAMP, VINYL INSULATED
16 5401736B 1 BRACKET, HOSE - RED
17 5025010X6 4 BOLT, 1/4-20 X 3/4" GD5
The above parts group applies to the following Mfg. Nos.:
2011 53 © Copyright Briggs and Stratton. All Rights Reserved.
5900879
(
IS2000ZKAV2661
)
5900808
(
IS2000ZKAV2761
)
5900809
(
IS2000ZKAV2561
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900840
(
IS2000ZKAV2552
)
5900838
(
IS2000ZK2752
)
5900968
(
IS2000ZB3061
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900810
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900817
(
IS2000ZK2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Hydraulic Group - 25HP Kawasaki & 27HP Kohler Models (S/N: 2014337845 & Below)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 54 © Copyright Briggs and Stratton. All Rights Reserved.
5900840
(
IS2000ZKAV2552
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900809
(
IS2000ZKAV2561
)
5900815
(
IS2000ZKAV2561 CAL
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Hydraulic Group - 25HP Kawasaki & 27HP Kohler Models (S/N: 2014337845 & Below)
Footnotes
1 5022634 2 ADAPTER, HYDRAULIC
2 5023338 4 FITTING, #8 JIC - #8 O-RING 45DEG.
3 5023267 2 ADAPTER, 90 DEG. 9/16 - 3/8 BARB
4 5022920 2 FITTING, TEE, 1/2" HOSE
5 5023346 1 ADAPTER, 90 DEG. 9/16 - 5/8 BARB
6 5023461 3 ADAPTER, 45, 9/16 - 3/8 BARB
7 5023276 2 FITTING, #10 ORING-#8 JIC, 90D
8 5050860X16 1 HOSE, 3/8" PUSH-LOCK, 16.00"
9 5050860X6P5 1 HOSE, 3/8" PUSH-LOCK, 6.50"
10 5050860X6 2 HOSE, 3/8" PUSH-LOCK, 6.00"
11 5050860X8 1 HOSE, 3/8" PUSH-LOCK, 8.00"
12 5050860X23 1 HOSE, 3/8" PUSH-LOCK, 23.00"
13 5050933X25 1 HOSE, 5/8" PUSH-LOCK, 25.00"
14 5102098 2 HOSE ASSEMBLY, 26.50"
15 5102099 2 HOSE ASSEMBLY, 22.50"
16 5100017 1 CAP, HYDRAULIC
17 5061712 1 TANK, HYDRAULIC, ASSEMBLY (Includes Ref. Nos 21,22,23, and 24)
18 5022922 1 CLAMP, #4 HOSE, STAINLESS
19 5021164 2 CLAMP, #10 HOSE, STAINLESS
20 5023268 11 CLAMP, HOSE
21 5023118 1 FITTING, ELBOW, 3/8"
22 5600050 1 KIT, GROMMET
23 5023121 1 GROMMET
24 5023119 1 FITTING, ELBOW, 5/8"
25 5100407 1 WHEEL MOTOR, 15IN3/REV - LH
26 5100410 1 WHEEL MOTOR, 15IN3/REV - RH
27 5022042X2 2 KEY
28 5022042X3 2 NUT, CASTLE, 1-20
29 5102174 1 PUMP, HYD, 12CC - LH, PK-3HBQ-FV1F-XXXX
30 5102175 1 PUMP, HYD, 12CC - RH, PK-3KBQ-FV1F-XXXX
31 5023096 1 FILTER HEAD, HYDRAULIC
32 1719168 1 FILTER, OIL
33 5025010X6 2 BOLT, 1/4"-20 X 3/4" GD5 YZ
34 5025154 2 WASHER, 1/4" SAE
35 5025169 2 WASHER, 1/4" LOCK
36 5025013X10 4 BOLT, 3/8-16 X 1-1/4" GD5
37 5025128 4 NUT, 3/8-16 HEX SERRATED FLANGE
38 5100162 2 SHROUD, FAN
39 5022571X1 2 FAN, HYD. PUMP
40 5025203X16 2 PIN, COTTER, 1/8" X 2"
The above parts group applies to the following Mfg. Nos.:
2011 55 © Copyright Briggs and Stratton. All Rights Reserved.
5900840
(
IS2000ZKAV2552
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900809
(
IS2000ZKAV2561
)
5900815
(
IS2000ZKAV2561 CAL
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Parking Brake Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 56 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900838
(
IS2000ZK2752
)
5900879
(
IS2000ZKAV2661
)
5900810
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900807
(
IS2000ZKAV3461SS
)
5900945
(
IS2000ZKAV2652
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Parking Brake Group
Footnotes
1 5403948B 1 WELD, BRAKE SHAFT - RED
2 5021397 2 GROMMET, 1-1/4"
3 5023490 8 BOLT, 5/16-18 X 3/4 12PT FLANGE - PATCH
4 5025170 8 WASHER, 5/16" LOCK
5 5025013X6 4 BOLT, 3/8-16 X 3/4"
6 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE
7 5025011X14 2 BOLT, 5/16-18 X 1-3/4" GD5 YZ
8 5025392 2 NUT, 5/16-18 Hex Nylock Flange
9 5047084B 2 LINK, BRAKE LOCK
10 5025013X12 2 BOLT, 3/8-16 X 1-1/2" GD5 YZ
11 5025128 2 NUT, 3/8-16 HEX SERRATED FLANGE
12a 5102896 2 BRAKE DRUM, 6", 5 BOLT, KNOTT (S/N: 2015208612 & Above)
12b 5023368 2 DRUM,1-1/4TAPER,5 BOLT (S/N: 2015208611 & Below)
13a 5102897 1 BRAKE SHOE ASM, LH, KNOTT (S/N: 2015208612 & Above)
13b 5023500 1 BRAKE ASSEMBLY, LH (S/N: 2015208611 & Below)
14a 5102898 1 BRAKE SHOE ASM, RH, KNOTT (Not Shown - S/N: 2015208612 & Above)
14b 5023501 1 BRAKE ASSEMBLY, RH (Not Shown - S/N: 2015208611 & Below)
15 5042134 2 SPACER, .32 X .75 X 1.06
16 5021098 2 BEARING, BRONZE FLANGE, 3/4
17 5101038 1 GRIP, FOAM, 3/4 ID X 6 X .187
18 5041930 2 SPACER, .38 X .50 X .27
19 5025156 2 WASHER, 3/8" SAE
20 5023320 2 SPRING, COMPRESSION
21 5048719 2 SPRING, COMPRESSION
22 5025155 4 WASHER, 5/16" SAE
23 5025045 2 NUT, 5/16-24 HEX NYLON LOCK
24 5100115 2 CABLE, PARKING BRAKE IS2000
25 5023323 2 CLEVIS, 5/16-24, STEEL, CLEAR ZINC
26 5025033 2 NUT, 5/16-24 HEX
27 5025213X8 2 CLEVIS PIN, 5/16" X 1"
28 5025211 2 PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
29 5025139 2 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
30 5025011X10 1 BOLT, 5/16-18 X 1-1/4"GD5 YZ
31 5022182 1 SWITCH, PLUNGER, NO/NC SNAP-IN
The above parts group applies to the following Mfg. Nos.:
2011 57 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900838
(
IS2000ZK2752
)
5900879
(
IS2000ZKAV2661
)
5900810
(
IS2000ZKAV2661
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900807
(
IS2000ZKAV3461SS
)
5900945
(
IS2000ZKAV2652
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Rear Suspension Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 58 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900815
(
IS2000ZKAV2561 CAL
)
5900840
(
IS2000ZKAV2552
)
5900810
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900811
(
IS2000ZB3061
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Rear Suspension Group
Footnotes
1 5021541 4 BUSHING, FLANGE
2 5600187 1 KIT, TIE BAR - 52" MODELS ONLY (S/N: 2012944026 & Above)
3 5061339 2 SPACER, .52 X 1.00 X 3.42
4 5025440 2 WASHER, 1/2 GD9 YZ
5 5025488X52 2 BOLT, 1/2-13 X 6-1/2 GD8, YZ
6 5025056 2 NUT, 1/2-13 HEX NYLON LOCK
7a 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT (61" Models)
7b 5020020 2 FITTING, GREASE, 45 DEGREE (52" Models)
8a 5102689 8 SPACER, .53 X 1.25 X 1.00, STEP, YZ
8b 5061670 8 SPACER, .53 X 1.00 X 1.00 (61" Models) (S/N: 2014450933 & Below)
8c 5047027 8 SPACER, .51 X .75 X .56 (52" Models) (S/N: 2014776922 & Below)
9a 5025017X28 8 BOLT, 1/2-13 X 3-1/2" GD5 (61" Models) (S/N: 2014450933 & Below)
9b 5025553 8 BOLT, 1/2-13 X 3.5, DRI-LOC PATCH (All Models) (S/N: 2014450934 & Above)
10 5061751B 2 PLATE, FRAME SUPPORT
11 5046860 2 SPACER, .39 X 1.00 X .50
12 5025394 24 NUT, 3/8-16 HEX NYLOCK FLANGE
13 5025165 6 WASHER, 3/8" FENDER
14 5025293 20 WASHER, 3/8 GD.9 FLAT
15 5025013X24 2 BOLT, 3/8-16 X 3" GD5 YZ (61" Model Use Qty. 1)
16 5025013X18 2 BOLT, 3/8-16 X 2-1/4" GD5 YZ
17 5025013X8 8 BOLT, 3/8-16 X 1" GD5
18 5100896 2 SPACER, .390 X 1.00 X 1.00 - YZ
19 5023436 2 COIL - OVER SHOCK ASSEMBLY
20a 5401166B 1 WELD, MOTOR MOUNT, LH (61" Models)
20b 5401356B 1 WELD, MOTOR MOUNT - LH - RED (52" Models)
21a 5401165B 1 WELD, MOTOR MOUNT, RH (61" Models)
21b 5401357B 1 WELD, MOTOR MOUNT - RH - RED (52" Models)
22 5400648B 2 SUPPORT, SWING ARM
23 5025303 2 SCREW, 5/16-18 X 1 FLAT HD SC (52" Models)
24 5400065 2 SPACER, .34 X 1.54 X .25 UHMW (52" Models)
25 5025392 2 NUT, 5/16-18 HEX NYLOCK FLANGE (52" Models)
26a 5025396 8 NUT, 1/2-13 NEX NYLOCK FLANGE (S/N: 2014450933 & Below)
26b 5025330 8 NUT, 1/2-13 SQUARE (S/N: 2014450934 & Above)
27 5025013X10 12 BOLT, 3/8-16 X 1-1/4 GD5
28 5404051B 1 WELD, TIE BAR - RED 61" MODELS ONLY
29 5025013X28 1 BOLT, 3/8-16 X 3-1/2" GD5 YZ (61" Models)
The above parts group applies to the following Mfg. Nos.:
2011 59 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900815
(
IS2000ZKAV2561 CAL
)
5900840
(
IS2000ZKAV2552
)
5900810
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900811
(
IS2000ZB3061
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Deck Lift Group - All 52" Models & 61" Models S/N: 2014341047 & Below
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 60 © Copyright Briggs and Stratton. All Rights Reserved.
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900838
(
IS2000ZK2752
)
5900840
(
IS2000ZKAV2552
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Deck Lift Group - All 52" Models & 61" Models S/N: 2014341047 & Below
Footnotes
1 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE
2 5025212X7 1 PIN, CLEVIS, 1/4" x 7/8"
3 5023343 8 BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
4 5021811 1 EYEBOLT, 3/2-16 X 8", 1" EYE (61" Model Qty. 2)
5 5020095 4 GREASE FITTING, 1/4-28 STRAIGHT
6 5400719B 1 WELD, ROD DECK LIFT - RED
7 5021880 1 GRIP, FOAM
8 5020639 1 SPRING, EXTENSION
9 5025154 2 WASHER, 1/4" SAE
10 5025126 2 NUT, 1/4-20 HEX SERR. FLANGE
11 5025010X6 2 BOLT, 1/4-20 X 3/4" GD5 YZ
12 5023498 1 PIN, HITCH, 1/2 X 2.00 OAL, YP
13 5025146X16 1 BOLT, 3/8-16 X 2", CARRIAGE
14 5400769B 1 WELD, DECK ADJUST LINK - RED
15 5025203X6 1 PIN, COTTER, 1/8" X 3/4 (61" Model Qty. 2)
16 5045178 4 SPACER, .52 X 1.00 X .75
17 5022434 13 BALL JOINT, 1/2-20, MALE
18 5025089 13 NUT, 1/2-20 HEX JAM
19 5025017X22 2 BOLT, 1/2-13 X 2-3/4" GD5
20 5025056 7 NUT, 1/2-13 HEX NYLON LOCK
21a 5401664B 1 WELD, REAR LIFT - LH - RED
21b 5401665B 1 WELD, REAR LIFT - RH - RED (Not Shown)
22 5025040 8 NUT, 5/8-11 HEX
23 5045447 2 PIVOT, SPRING ROD
24 5100149 2 ROD, DECK LIFT BENT
25 5100148 2 ROD, DECK LIFT, OUTER
26 5100247 2 ROD, 5/8-11 X 9.00
27 5020441 4 COLLAR, 5/8" SPLIT
28 5023355 1 SPRING, DECK LIFT ASSIST (61" Model Qty. 2)
29 5025100 1 NUT, 3/8-16 HEX SIDE LOCK
30a 5401671B 1 WELD, PIVOT DECK LIFT - LEFT - RED
30b 5401672B 1 WELD, PIVOT DECK LIFT - RIGHT - RED (Not Shown)
31 5061569B 1 PEDAL, FOOT
32 1715834 1 RUBBER, FOOT PEDAL
33 5100380 1 ADJUSTER, DECK HANGER (61" Model Qty. 2)
34 5025013X10 2 BOLT, 3/8-16 X 1-1/4" GD5
35 5025440 11 WASHER, 1/2" SAE
36 5025017X28 3 BOLT, 1/2-13 X 3-1/2" GD5
37 5025156 9 WASHER 3/8" SAE (61" Model Qty. 10)
38 5025017X14 2 BOLT, 1/2-13 X 1-3/4 GD5 YZ
39 5047103 1 ADAPTER, CASTER AXLE
The above parts group applies to the following Mfg. Nos.:
2011 61 © Copyright Briggs and Stratton. All Rights Reserved.
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900838
(
IS2000ZK2752
)
5900840
(
IS2000ZKAV2552
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Deck Lift Group - All 52" Models & 61" Models S/N: 2014341047 & Below
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 62 © Copyright Briggs and Stratton. All Rights Reserved.
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900838
(
IS2000ZK2752
)
5900840
(
IS2000ZKAV2552
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Deck Lift Group - All 52" Models & 61" Models S/N: 2014341047 & Below
Footnotes
40 5025096 3 NUT, 3/8"-16 HEX NYLON LOCK (61" Model Qty. 4)
41 5025098 4 NUT, 1/2-20 HEX NYLON LOCK
42 5100548 6 WASHER, .390 X 1.50 X .109, YZ
43 5025443 6 BOLT, 3/8-16 x 3/4, GD5, YZ WITH PATCH
44a 5401645B 1 MOUNT, SPRING DECK LIFT - RED (52" Model Only)
44b 5401645B 2 MOUNT, SPRING DECK LIFT - RED (61" Model Only)
45 5020929 1 SHIM, 1.0 X 1.5 X .125 (52" Model Only)
46 5025293 2 WASHER, 3/8" GR9 FLAT
47 5401661B 1 WELD, PIVOT DECK LIFT - LH - RED
48 5025128 4 NUT, 3/8-16 HEX SERRATED FLANGE
49 5404307B 1 WELD, DECK LIFT SHAFT - RED
50 5025018X14 4 BOLT, 1/2-20 X 1-3/4" GD5 YZ
51 5025013X8 4 BOLT, 3/8-16 X 1" GD5 YZ
52 5010114 2 COLLAR, 3/4" SPLIT
53 5100155 2 SHAFT, DECK STABILIZER
54 5400647B 2 WELD, DECK STABILIZER - RED
55 5025158 2 WASHER, 1/2" SAE
56a 5045856 2 PIVOT, SPRING ROD (52" Model Only)
56b 5045447 2 PIVOT, SPRING ROD (61" Model Only)
57 5401662B 1 WELD, PIVOT DECK LIFT - RH - RED
58 5100634 4 PIVOT BLOCK, PLASTIC
59 5025013X22 4 BOLT, 3/8-16 X 2-3/4 GD5 YZ
60 5403925A 2 PLATE, PIVOT BLOCK SUPPORT - BLK
61 5025034 2 NUT, 3/8-16 HEX
The above parts group applies to the following Mfg. Nos.:
2011 63 © Copyright Briggs and Stratton. All Rights Reserved.
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900945
(
IS2000ZKAV2652
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900838
(
IS2000ZK2752
)
5900840
(
IS2000ZKAV2552
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction

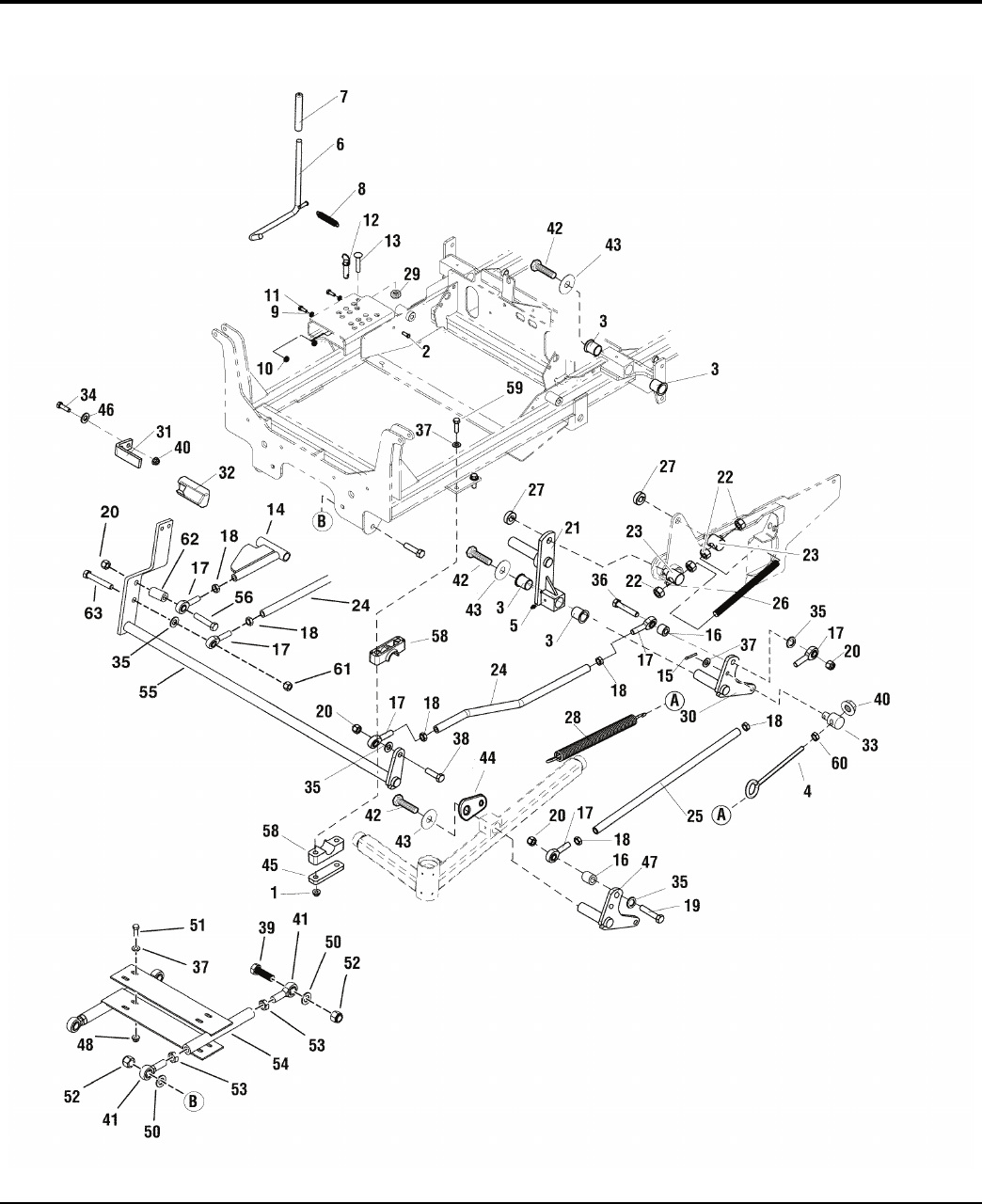

Deck Lift Group - 61" Models S/N: 2014341048 & Above
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 64 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900968
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Deck Lift Group - 61" Models S/N: 2014341048 & Above
Footnotes
1 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE
2 5025212X7 1 PIN, CLEVIS, 1/4" x 7/8"
3 5023343 8 BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
4 5021811 2 EYEBOLT, 3/2-16 X 8", 1" EYE
5 5020095 4 GREASE FITTING, 1/4-28 STRAIGHT
6 5400719B 1 WELD, ROD DECK LIFT - RED
7 5021880 1 GRIP, FOAM
8 5020639 1 SPRING, EXTENSION
9 5025154 2 WASHER, 1/4" SAE
10 5025126 2 NUT, 1/4-20 HEX SERR. FLANGE
11 5025010X6 2 BOLT, 1/4-20 X 3/4" GD5 YZ
12 5023498 1 PIN, HITCH, 1/2 X 2.00 OAL, YP
13 5025146X16 1 BOLT, 3/8-16 X 2", CARRIAGE
14 5400769B 1 WELD, DECK ADJUST LINK - RED
15 5025203X6 2 PIN, COTTER, 1/8" X 3/4
16 5045178 4 SPACER, .52 X 1.00 X .75
17 5022434 9 BALL JOINT, 1/2-20, MALE
18 5025089 9 NUT, 1/2-20 HEX JAM
19 5025017X22 2 BOLT, 1/2-13 X 2-3/4" GD5
20 5025056 7 NUT, 1/2-13 HEX NYLON LOCK
21a 5401664B 1 WELD, REAR LIFT - LH - RED
21b 5401665B 1 WELD, REAR LIFT - RH - RED (NOT SHOWN)
22 5025040 8 NUT, 5/8-11 HEX
23 5045447 4 PIVOT, SPRING ROD
24 5100149 2 ROD, DECK LIFT BENT
25 5100148 2 ROD, DECK LIFT, OUTER
26 5100247 2 ROD, 5/8-11 X 9.00
27 5020441 4 COLLAR, 5/8" SPLIT
28 5023355 2 SPRING, DECK LIFT ASSIST
29 5025100 1 NUT, 3/8-16 HEX SIDE LOCK
30a 5401671B 1 WELD, PIVOT DECK LIFT - LEFT - RED
30b 5401672B 1 WELD, PIVOT DECK LIFT - RIGHT - RED (NOT SHOWN)
31 5061569B 1 PEDAL, FOOT
32 1715834 1 RUBBER, FOOT PEDAL
33 5100380 2 ADJUSTER, DECK HANGER
34 5025013X10 2 BOLT, 3/8-16 X 1-1/4" GD5
35 5025440 7 WASHER, 1/2" SAE
36 5025017X28 2 BOLT, 1/2-13 X 3-1/2" GD5
37 5025156 8 WASHER 3/8" SAE
38 5025017X14 2 BOLT, 1/2-13 X 1-3/4 GD5 YZ
39 5025265X20 4 BOLT, 3/4-16 X 2-1/2 YZ GD5
The above parts group applies to the following Mfg. Nos.:
2011 65 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900968
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Deck Lift Group - 61" Models S/N: 2014341048 & Above
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 66 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900968
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Deck Lift Group - 61" Models S/N: 2014341048 & Above
Footnotes
40 5025096 4 NUT, 3/8"-16 HEX NYLON LOCK
41 5022039 4 BALL JOINT, 3/4-16, MALE
42 5100548 6 WASHER, .390 X 1.50 X .109, YZ
43 5025443 6 BOLT, 3/8-16 x 3/4, GD5, YZ WITH PATCH
44 5401645B 2 MOUNT, SPRING DECK LIFT - RED
45 5403925A 2 PLATE, PIVOT BLOCK SUPPORT - BLK
46 5025293 2 WASHER, 3/8" GR9 FLAT
47 5401661B 1 WELD, PIVOT DECK LIFT - LH - RED
48 5025128 4 NUT, 3/8-16 HEX SERRATED FLANGE
49 5404307B 1 WELD, DECK LIFT SHAFT - RED
50 5025160 4 WASHER, 3/4 SAE
51 5025013X8 4 BOLT, 3/8-16 X 1" GD5 YZ
52 5025284 4 NUT, 3/4-16 HEX NYLON LOCK
53 5025093 4 NUT, 3/4-16 HEX JAM
54 5406832B 2 WELD, DECK STABILIZER
55 5406837B 1 WELD, DECK LIFT SHAFT - RED
56 5025017X32 1 BOLT, 1/2-13 X 4" GD5
57 5401662B 1 WELD, PIVOT DECK LIFT - RH - RED
58 5100634 4 PIVOT BLOCK, PLASTIC
59 5025013X22 4 BOLT, 3/8-16 X 2-3/4 GD5 YZ
60 5025034 2 NUT, 3/8-16 HEX
61 5025332 1 NUT, 1/2-13 HEX SIDE LOCK
62 5045176 1 SPACER, .52 X 1.00 X 1.75
63 5025017X16 1 BOLT, 1/2-13 X 2" GD5
The above parts group applies to the following Mfg. Nos.:
2011 67 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900968
(
IS2000ZB3061
)
5900808
(
IS2000ZKAV2761
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Wheel & Tire Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 68 © Copyright Briggs and Stratton. All Rights Reserved.
5900968
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900945
(
IS2000ZKAV2652
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900811
(
IS2000ZB3061
)
5900879
(
IS2000ZKAV2661
)
5900817
(
IS2000ZK2761
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
5900807
(
IS2000ZKAV3461SS
)
5900815
(
IS2000ZKAV2561 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Wheel & Tire Group
Footnotes
1a 5022631S 2 TIRE, CASTER, 13 X 5.00-6 (Includes Ref No. 2 - 5 & 14)
1b 5023280 2 * FLAT-FREE TIRE ASSEMBLY, 13 x 5.0 - 6 (Includes Ref No. 4 & 5)
2 5022029X1 2 TIRE, 13 x 5.0 - 6
3 5022631SX1 2 WHEEL ASSEMBLY, for 13 x 5.0 - 6 Tire, Complete (Includes Ref No. 4 & 5)
4 5022631SX2 4 BEARING, Tapered Roller (2 per tire)
5 5022631SX3 4 GREASE SEAL (2 per tire)
6 5047103 4 ADAPTER, CASTER AXLE (2 per tire)
7 5025017X64 2 BOLT, 1/2-13 X 8" GD5 YZ
8 5025396 2 NUT, 1/2-13 HEX NYLOCK FLANGE
9a 5100006 2 TIRE ASSM, 22 X 10.00-10 (52" model only. Includes Ref. Nos 10 and 11.)
9b 5023369 2 TIRE ASSM, 22 X 11.00-10 (61" model only. Includes Ref. Nos 10 and 11.)
10a 5100006X1 2 TIRE, 22 X 10.0 -10 (52" model only.)
10b 5023369X2 2 TIRE, 22 X 11.0 - 10 (61" model only.)
11 5023369X1 2 RIM-10X7-5-4.5 SOLID
12 5020601 10 NUT, 1/2-20, FOR WHEEL BOLT SILVER
13 5025158 4 WASHER, 1/2" SAE
14 5022631SX4 2 BEARING, RACE (SV) (Not Shown)
*Optional solid urethane tire assembly. Wheel is not servicable.
The above parts group applies to the following Mfg. Nos.:
2011 69 © Copyright Briggs and Stratton. All Rights Reserved.
5900968
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900945
(
IS2000ZKAV2652
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900811
(
IS2000ZB3061
)
5900879
(
IS2000ZKAV2661
)
5900817
(
IS2000ZK2761
)
5900816
(
IS2000ZB3061 CAL
)
5900808
(
IS2000ZKAV2761
)
5900807
(
IS2000ZKAV3461SS
)
5900815
(
IS2000ZKAV2561 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900809
(
IS2000ZKAV2561
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Decals - Safety & Operation
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 70 © Copyright Briggs and Stratton. All Rights Reserved.
5900811
(
IS2000ZB3061
)
5900968
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900807
(
IS2000ZKAV3461SS
)
5900945
(
IS2000ZKAV2652
)
5900816
(
IS2000ZB3061 CAL
)
5900879
(
IS2000ZKAV2661
)
5900808
(
IS2000ZKAV2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Decals - Safety & Operation
Footnotes
1 5100097 1 DECAL, MAIN SAFETY
2 5101292 1 DECAL, DANGER, MOWER DISCHARGE
3 5100088 1 DECAL, DANGER, MOWER
4 5100708 1 DECAL, DANGER, FIRE
5 5100709 1 DECAL, DANGER, FIRE (SP)
6 5100134 2 DECAL, WARNING, PINCH POINT
7 1725941 1 DECAL, CZT HYDRO RELEASE (Located under seat.)
8 5102165 1 DECAL, BELTS & BLADES, IS2000Z (Located under seat.)
9 5100342 1 DECAL, FUEL VALVE
10 5061724 1 DECAL, HEIGHT OF CUT
11 5100280 1 DECAL, THROTTLE CONTROL
12 5048970 1 DECAL, IGNITION SWITCH
13 5048454 1 DECAL, OIL RESERVOIR
14 5046503 1 DECAL, FUSE LOCATION
15 5100405 1 DECAL, WARNING
16 5100406 1 DECAL, WARNING (SP)
17 5100403 1 DECAL, WARNING
18 5100404 1 DECAL, WARNING (SP)
19 5100683 1 DECAL, WARNING, ROLL BAR (Located behind LH Roll bar post.)
20 5100684 1 DECAL, WARNING, ROLL BAR (SP) (Located behind RH Roll bar post.)
The above parts group applies to the following Mfg. Nos.:
2011 71 © Copyright Briggs and Stratton. All Rights Reserved.
5900811
(
IS2000ZB3061
)
5900968
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900807
(
IS2000ZKAV3461SS
)
5900945
(
IS2000ZKAV2652
)
5900816
(
IS2000ZB3061 CAL
)
5900879
(
IS2000ZKAV2661
)
5900808
(
IS2000ZKAV2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900838
(
IS2000ZK2752
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Decals - Safety & Operation (Export Models)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 72 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Decals - Safety & Operation (Export Models)
Footnotes
1 5102627 1 DECAL, MAIN SAFETY, ANSI CE
2 5102165 1 DECAL, BELT AND BLADE, IS2000Z (Located Under Seat)
3 5101990 1 DECAL, CZT HYRDO RELEASE (Located Under Seat)
4 5048970 1 DECAL, IGNITION SWITCH
5 5100280 1 DECAL, THROTTLE CONTROL
6 5100342 1 DECAL, FUEL VALVE
7 5102420 2 DECAL, DANGER, MOWER DECK, ANSI EXP
8 5102457 1 DECAL, DANGER DISCHARGE ANSI EXPORT
9 5102628 1 DECAL, PARKING BRAKE SYMBOLS
10 5102456 1 DECAL, FIRE ANSI EXPORT
11 5100685 2 DECAL, WARNING, ROLL BAR, CE
12 5061246 1 DECAL, PINCH POINT, CE
13 5061724 1 DECAL, HEIGHT CITATION
14 5046503 1 DECAL, FUSE LOCATION
15 5048454 1 DECAL, OIL RESEVOIR
The above parts group applies to the following Mfg. Nos.:
2011 73 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Decals - Brand & Model
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 74 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900810
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Decals - Brand & Model
Footnotes
1 5100340 1 DECAL, FERRIS, FRONT, 6.75 X 4.25
2 5100336 1 DECAL, BADGE, IS2000Z, LH
3 5100337 1 DECAL, BADGE, IS2000Z, RH
4 5101128 1 DECAL, 2000, BIG BLOCK, REAR (Briggs & Stratton Vanguard Models)
5 5022812 1 DECAL, 52 (52" Models)
6 5022813 1 DECAL, 61" (61" Models)
7 5100369 1 DECAL, FERRIS LOGO, 5-3/8"
8 276636 1 LABEL, BRIGGS & STRATTON LOGO (Briggs & Stratton Vanguard Models)
9 5101127 1 DECAL, 2000, BIG BLOCK, FRONT (Briggs & Stratton Vanguard Models)
10 5102210 1 DECAL, iCD CUTTING SYSTEM
The above parts group applies to the following Mfg. Nos.:
2011 75 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900808
(
IS2000ZKAV2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900879
(
IS2000ZKAV2661
)
5900838
(
IS2000ZK2752
)
5900810
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900811
(
IS2000ZB3061
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900840
(
IS2000ZKAV2552
)
5900807
(
IS2000ZKAV3461SS
)
5900980
(
IS2000ZB3061 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Evap Canister Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 76 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Evap Canister Group
Footnotes
1 313036 2 CNSTR, CARB, 6 GAL
2 5103055 4 CLAMP, 3" ID, CUSHIONED, STAINLESS
3 5025299X6 4 BOLT, 1/4-20 X 3/4, ALLEN BUTTON HD, YZ
4 5025391 4 NUT, 1/4-20 HEX NYLOCK FLANGE
5 5103062 1 FITTING, 3/16" TEE, BARB TYPE, HDPE
6 7700552X10P5 2 HOSE, VAPOR, 5MM ID, 10.50 LG
7 7700552X11 1 HOSE, VAPOR, 5MM ID, 11.00 LG
8a 7700552X32 1 HOSE, VAPOR, 5MM ID, 32.00 LG (Kawasaki Models)
8b 7700552X15 1 HOSE, VAPOR, 5MM ID, 15.00 LG (Briggs & Stratton Models)
9 7700552X21P5 1 HOSE, VAPOR, 5MM ID, 21.50 LG
10 -- 1 DECAL, EPA CERT, ZTRS (Located on frame near Serial Tag)
11 1752800 2 DUST FILTER, CANISTER
The above parts group applies to the following Mfg. Nos.:
2011 77 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900968
(
IS2000ZB3061
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
52" & 61" Mower Deck - Hanger Chains
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 78 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900838
(
IS2000ZK2752
)
5900810
(
IS2000ZKAV2661
)
5900840
(
IS2000ZKAV2552
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900808
(
IS2000ZKAV2761
)
5900968
(
IS2000ZB3061
)
5900807
(
IS2000ZKAV3461SS
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900817
(
IS2000ZK2761
)
5900945
(
IS2000ZKAV2652
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
52" & 61" Mower Deck - Hanger Chains
Footnotes
1 5050878X3 2 CHAIN, 5/16 GD30, 3 LINKS
2 5045026 2 HANGER, FRONT DECK - 4 LINK
3 5025013X14 6 BOLT, 3/8-16 X 1-3/4 GD5
4 5025156 12 WASHER, 3/8 SAE (Qty: 12 - 61" Models; Qty: 16 - 52" Models)
5 5025128 8 NUT, 3/8-16 HEX SERRATED FLANGE
6 5025100 4 NUT, 3/8-16 HEX SIDE LOCK
7 5025158 2 WASHER, 1/2 SAE
8 5025038 2 NUT, 1/2-13 HEX
9 5025396 2 NUT, 1/2-13 HEX NYLOCK FLANGE
10 5025203X6 2 PIN, COTTER, 1/8 X 3/4
11 5050878X4 2 CHAIN, 5/16" GD30, 4 LINKS
12 5025055X16 2 BOLT, 5/16-18 X 2 GD5 TFL
13 5025032 2 NUT, 5/16-18 HEX
14 5100375 2 CLEVIS, 5/16-18, 3/8 PIN HOLE
15 5025013X16 2 BOLT, 3/8-16 X 2 GD5 YZ
16 5025084 2 NUT, 3/8-16 HEX JAM
17 5025214X9 2 PIN, CLEVIS, 3/8 X 1-1/8
The above parts group applies to the following Mfg. Nos.:
2011 79 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900838
(
IS2000ZK2752
)
5900810
(
IS2000ZKAV2661
)
5900840
(
IS2000ZKAV2552
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900808
(
IS2000ZKAV2761
)
5900968
(
IS2000ZB3061
)
5900807
(
IS2000ZKAV3461SS
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900817
(
IS2000ZK2761
)
5900945
(
IS2000ZKAV2652
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
61" Mower Deck Group - Housing, Covers, Spindles & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 80 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900879
(
IS2000ZKAV2661
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900808
(
IS2000ZKAV2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900811
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
61" Mower Deck Group - Housing, Covers, Spindles & Blades
Footnotes
1a 5600432 1 DECK SHELL W/DECALS, 61" SIDE DISCHARGE (S/N: 2014341048 & Above)
1b 5600291 1 DECK SHELL W/DECALS, 61" SIDE DISCHARGE (S/N: 2014341047 & Below)
2 5600289 1 KIT, DISCHARGE CHUTE 61" (Includes Ref No. 3 - 7)
3 5404834 1 CHUTE, DISCHARGE, RUBBER, 61/72"
4 5404716B 1 WELD, FRAME, CHUTE, 61 - RED
5 5404718A 1 SUPPORT, DISCHARGE CHUTE - BLK
6 5025394 25 NUT, 3/8-16 HEX NYLOCK FLANGE
7 5025390X8 18 BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
8 5025045 2 NUT, 5/16-24 HEX NYLON LOCK
9 5061300 1 ROD MOUNT, CHUTE 61"
10 5400791B 1 GUARD, 61", RH - RED
11 5405484B 1 GUARD, 61" - LH - RED
12 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
13 5025411 1 BOLT, 5/16-18 X 3/4" FLANGE
14 5025477 3 WASHER, 5/8" GRADE 8, YZ
15 5022308 6 BODY CLIP, 5/16-18 X 1/2" DEEP
16 5025292 6 WASHER, 5/16" GD.9 FLAT
17 5025011X6 6 BOLT, 5/16-18 X 3/4" GD5
18 5100993 3 ASSM, SPINDLE, CAST IRON
19 5025013X12 7 BOLT, 3/8-16 X 1 1/2"
20 5101755S 1 BLADE, 21" SET OF THREE (Set of three blades).
21 5025320X14 3 BOLT, 5/8-11 X 1-3/4" GD8
22 5025145X6 2 BOLT, 5/16-18 X 3/4, CARRIAGE
23 5401344A 1 PLATE, DEFLECTOR - BLK
24 5101005 1 SAFETY WALK, 9.75 X 6.00
25 5408810B 1 PLATE, BRACKET, ANTI SCALP - RED
26 5025156 4 WASHER, 3/8 SAE
27 5102036 1 FLAP, STRIPER, 61 DECK
28 5405322A 1 PLATE, SUPPORT - BLK
29 5025011X8 6 BOLT, 5/16-18 X 1" GD5
30 5025498 2 5/16 PUSH-ON NUT RETAINER, STL, CZ
The above parts group applies to the following Mfg. Nos.:
2011 81 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900816
(
IS2000ZB3061 CAL
)
5900807
(
IS2000ZKAV3461SS
)
5900968
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900879
(
IS2000ZKAV2661
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900808
(
IS2000ZKAV2761
)
5900815
(
IS2000ZKAV2561 CAL
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900809
(
IS2000ZKAV2561
)
5900811
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
61" Mower Deck - Pulleys, Belts & Idler Arm
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 82 © Copyright Briggs and Stratton. All Rights Reserved.
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900879
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900815
(
IS2000ZKAV2561 CAL
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
61" Mower Deck - Pulleys, Belts & Idler Arm
Footnotes
1 5103391 1 BELT, 5V-SEC, 175.90, LG ARAMID, WRPD
2 5025017X36 1 BOLT, 1/2-13 X 4-1/2" GD5
3 5025150 3 WASHER, 1/2" USSZ
4 5045022 1 SPACER, .52 X 1.00 X 3.50
5 5021541 2 BUSHING, FLANGE
6a 5600459 1 IDLER ARM ASSM (Serial No. 201484330 & Above)
6b 5045106A 1 ASSM, IDLER ARM - BLK - 5401621A (SV) (Serial No. 201484329 & Below)
7 5025396 5 NUT, 1/2-13 HEX NYLOCK FLANGE
8 5025405 3 NUT, 3/4-16 HEX
9 5600184 3 KIT, PULLEY & SHIELD
10 5025440 4 WASHER, 1/2" GD9 YZ
11 5025017X24 4 BOLT, 1/2-13 X 3" GD5
12 5020095 1 GREASE FITTING, 1/4-28 STRAIGHT
13a 5021812 1 EYE BOLT, 3/8-16 X 6, 3.0 THREAD (Serial No. 201484330 & Above)
13b 5025417 1 EYE BOLT, 3/8-16 X 1-1/2 (Serial No. 201484329 & Below)
14 5025084 1 NUT, 3/8-16 HEX JAM
15 5044609 2 SPACER, .52 X 1.00 X .38
16 5023340 1 SPRING, EXTENSION, SWIVEL END
17 5101103 4 SHIELD, PULLEY BEARING
18 5050407X10 3 KEY, 1/4" SQ. X 1-1/4
19 5025406 3 WASHER, 3/4" BELLEVILLE
20 5046434A 3 WELD, MOUNT, IDLER - BLK
21 5100700 3 PULLEY, 6.93 EOD X 25MM, SPLIT
22 5025394 1 NUT, 3/8-16 HEX NYLOCK FLANGE
23a 5102678 1 PULLEY, DEEP V-IDLER, 6.25"OD X 1/2"ID (Serial No. 201484330 & Above)
23b 5600184 1 KIT, PULLEY & SHIELD (SV) (Serial No. 201484329 & Below)
24 5101162 1 SPACER, .52 X 1.00 X .56, CZ (Serial No. 201484330 & Above)
The above parts group applies to the following Mfg. Nos.:
2011 83 © Copyright Briggs and Stratton. All Rights Reserved.
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900817
(
IS2000ZK2761
)
5900808
(
IS2000ZKAV2761
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900879
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900968
(
IS2000ZB3061
)
5900816
(
IS2000ZB3061 CAL
)
5900815
(
IS2000ZKAV2561 CAL
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
52" & 61" Mower Deck - Rollers & Casters
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 84 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900808
(
IS2000ZKAV2761
)
5900838
(
IS2000ZK2752
)
5900817
(
IS2000ZK2761
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900840
(
IS2000ZKAV2552
)
5900811
(
IS2000ZB3061
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
52" & 61" Mower Deck - Rollers & Casters
Footnotes
1 1714760 6 GAUGE WHEEL
2 5025440 6 WASHER, 1/2" GD9 YZ (61" Models Only)
2 5025158 6 WASHER, 1/2 SAE (52" Models Only)
3 5046586 2 SPACER, .38 X .50 X 5.06
4 5025100 4 NUT, 3/8-16 HEX SIDE LOCK
5 5025013X24 2 BOLT, 3/8-16 X 3" GD5
6 5025156 4 WASHER 3/8" SAE
7 5041931 4 SPACER, .38 X .50 X 1.25
8 5047027 2 SPACER, .51 X .75 X .56
9 5025013X48 2 BOLT, 3/8-16 X 6" GR5 YZ
The above parts group applies to the following Mfg. Nos.:
2011 85 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900807
(
IS2000ZKAV3461SS
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900808
(
IS2000ZKAV2761
)
5900838
(
IS2000ZK2752
)
5900817
(
IS2000ZK2761
)
5900980
(
IS2000ZB3061 ANSI EXP
)
5900810
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900840
(
IS2000ZKAV2552
)
5900811
(
IS2000ZB3061
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900968
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
52" Mower Deck - Housing, Covers, Spindles & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 86 © Copyright Briggs and Stratton. All Rights Reserved.
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900838
(
IS2000ZK2752
)
5900945
(
IS2000ZKAV2652
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
52" Mower Deck - Housing, Covers, Spindles & Blades
Footnotes
1 5405557A 1 PLATE, DEFLECTOR, 52" - BLK
2 5061095 3 ASSM, SPINDLE, LOW PROFILE
3 5402360A 1 SUPPORT, DISCHARGE CHUTE - BLK
4 5061293B 1 WELD, FRAME, CHUTE, 61 - RED
5 5101756S 3 BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)
6 5025477 3 WASHER, 5/8 GRADE 8, YZ
7 5025320X14 3 BOLT, 5/8-11 X 1-3/4 GD8
8 5023156 12 BOLT, 5/16-18 X 1 1/4 FLANGE
9 5025394 3 NUT, 3/8-16 HEX NYLOCK FLANGE
10 5022308 6 BODY CLIP, 5/16-18-7GA MATERIAL
11 5405604B 1 GUARD, 52" DECK, IS2000, RH - RED
12 5401605B 1 GUARD, 52" DECK, IS2000 - LH - RED
13 5025155 8 WASHER, 5/16 SAE
14 5025011X6 6 BOLT, 5/16-18 X 3/4 GD5
15 5025145X6 2 BOLT, 5/16-18 X 3/4, CARRIAGE
16 5025392 15 NUT, 5/16-18 HEX NYLOCK FLANGE
17 5061300 1 ROD MOUNT, CHUTE 61"
18 5025045 2 NUT, 5/16-24 HEX NYLON LOCK
19 5025411 1 BOLT, 5/16-18 X 3/4 FLANGE
20 5025013X12 3 BOLT, 3/8-16 X 1-1/2 GD5 YZ
21 5101004 1 SAFETY WALK, 4.00 X 7.50
22 5402403 1 CHUTE, DISCHARGE, BEND, RUBBER
23 5600335 1 DECK SHELL W/ DECALS, 52-SD - RED
24 5025392 6 NUT, 5/16-18 HEX NYLOCK FLANGE
25 5408810B 1 PLATE, BRACKET, ANTI SCALP - RED
26 5025013X12 4 BOLT, 3/8-16 X 1-1/2 GD5 YZ
27 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE
28 5025156 4 WASHER, 3/8 SAE
29 5405238A 1 PLATE, SUPPORT - BLK
30 5102015 1 FLAP, STRIPER, 52 DECK
31 5025011X8 6 BOLT, 5/16-18 X 1 GD5 YZ
32 5025498 2 5/16 PUSH-ON NUT RETAINER, STL, CZ
33 5600086 1 KIT, DISCHARGE CHUTE - RED
The above parts group applies to the following Mfg. Nos.:
2011 87 © Copyright Briggs and Stratton. All Rights Reserved.
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900838
(
IS2000ZK2752
)
5900945
(
IS2000ZKAV2652
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
52" Mower Deck - Pulleys, Belts & Idler Arm
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 88 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900945
(
IS2000ZKAV2652
)
5900840
(
IS2000ZKAV2552
)
5900838
(
IS2000ZK2752
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
52" Mower Deck - Pulleys, Belts & Idler Arm
Footnotes
1 5103395 1 BELT, 5V-SEC, 163.40EL, LG ARAMID, WRPD
2 5102831 3 PULLEY, IDLER, 6-3/4"
3 5101351 3 PULLEY, 5.926 OVER BALL
4 5403134A 1 WELD, IDLER ARM - BLK
5 5020095 1 GREASE FITTING, 1/4-28 STRAIGHT
6 5021541 2 BUSHING, FLANGE
7 5045022 1 SPACER, .52 X 1.00 X 3.50
8 5047142 1 SPACER, .52 X 1.25 X .70, CZ
9 5050407X10 3 KEY, 1/4 SQ X 1-1/4
10 5025150 2 WASHER, 1/2 USS
11 5025017X40 1 BOLT-1/2-13 X 5 GD5 YZ
12 5025396 4 NUT, 1/2-13 HEX NYLOCK FLANGE
13 5025405 3 NUT, 3/4-16 HEX
14 5023340 1 SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
15 5025158 1 WASHER, 1/2 SAE
16 5025017X26 1 BOLT, 1/2-13 X 3-1/4 GD5 YZ
17 5045023 2 SPACER, .52 X 1.00 X .44, CZ
18 5025017X20 2 BOLT, 1/2-13 X 2-1/2 GD5 YZ
19 5100520 1 SPACER, .52 X 1.00 X .22, CZ
20 5101103 3 SHIELD, PULLEY BEARING
21 5046434A 1 WELD, MOUNT, IDLER - BLK
22 5021812 1 EYE BOLT, 3/8-16 X 6, 3.0 THREAD
23 5025034 2 NUT, 3/8-16 HEX
The above parts group applies to the following Mfg. Nos.:
2011 89 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900945
(
IS2000ZKAV2652
)
5900840
(
IS2000ZKAV2552
)
5900838
(
IS2000ZK2752
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Spindle Service Parts (5061095)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 90 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Spindle Service Parts (5061095)
Footnotes
1 5061095 3 ASSM, SPINDLE, LOW PROFILE (Includes Ref No. 2 - 10)
2 5023329 3 GREASE FITTING
3 5025405 3 NUT, 3/4-16 HEX
4 5025406 3 WASHER, 3/4" BELLEVILLE
5 5049793 6 TRASH SHIELD
6 5023330 6 BEARING
7 5023296 3 RELIEF VALVE
8 5061097 3 SPINDLE HOUSING
9 5061099 3 SPACER, 1.00 x 1.25 x 1.75
10 5061098 3 SPINDLE SHAFT
The above parts group applies to the following Mfg. Nos.:
2011 91 © Copyright Briggs and Stratton. All Rights Reserved.
5900939
(
IS2000ZKAV2652 ANSI EXP
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
5900945
(
IS2000ZKAV2652
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Spindle Service Parts (5100993)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
2011 92 © Copyright Briggs and Stratton. All Rights Reserved.
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900808
(
IS2000ZKAV2761
)
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Spindle Service Parts (5100993)
Footnotes
1 5023329 1 FITTING
2 5049793 2 SHIELD, TRASH
3 5023330 2 BEARING, .98 X 2.44 X .67
4 5023296 1 FITTING, RELIEF, 1-5 PSI
5 5101048 1 HOUSING, SPINDLE, BOTTOM MOUNT SM
6 5061099 1 SPACER
7 5061098 1 SHAFT, SPINDLE
8 5100993 1 SPINDLE ASSM, CAST IRON 8.0-6 BOLT (Includes Ref No. 1 - 7)
The above parts group applies to the following Mfg. Nos.:
2011 93 © Copyright Briggs and Stratton. All Rights Reserved.
5900815
(
IS2000ZKAV2561 CAL
)
5900879
(
IS2000ZKAV2661
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
5900817
(
IS2000ZK2761
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900811
(
IS2000ZB3061
)
5900810
(
IS2000ZKAV2661
)
5900809
(
IS2000ZKAV2561
)
5900808
(
IS2000ZKAV2761
)
5900807
(
IS2000ZKAV3461SS
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Charging Circuit - 26HP Kawasaki LC
278eswc1
The above parts group applies to the following Mfg. Nos.:
2011 94 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Cranking Circuit - 26HP Kawasaki LC
278eswr1
The above parts group applies to the following Mfg. Nos.:
2011 95 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Ignition Grounding Circuit/Operator Presence - 26HP Kawasaki LC
278eswi1
The above parts group applies to the following Mfg. Nos.:
2011 96 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - PTO Clutch Circuit - 26HP Kawasaki LC
278eswp1
The above parts group applies to the following Mfg. Nos.:
2011 97 © Copyright Briggs and Stratton. All Rights Reserved.
5900810
(
IS2000ZKAV2661
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Charging Circuit - 30HP Briggs & Stratton
278esbc0
The above parts group applies to the following Mfg. Nos.:
2011 98 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Cranking Circuit - 30HP Briggs & Stratton
278esbr0
The above parts group applies to the following Mfg. Nos.:
2011 99 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Ignition Grounding Circuit/Operator Presence - 30HP Briggs &
Stratto
n
278esbi0
The above parts group applies to the following Mfg. Nos.:
2011 100 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - PTO Clutch Circuit - 30HP Briggs & Stratton
278esbp0
The above parts group applies to the following Mfg. Nos.:
2011 101 © Copyright Briggs and Stratton. All Rights Reserved.
5900980
(
IS2000ZB3061 ANSI EXP
)
5900811
(
IS2000ZB3061
)
5900814
(
IS2000ZBV30/61 AUS/NZ
)
5900816
(
IS2000ZB3061 CAL
)
5900968
(
IS2000ZB3061
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Charging Circuit - Kawasaki
278eswc3
The above parts group applies to the following Mfg. Nos.:
2011 102 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900808
(
IS2000ZKAV2761
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Cranking Circuit - Kawasaki
278eswr3
The above parts group applies to the following Mfg. Nos.:
2011 103 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900808
(
IS2000ZKAV2761
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Ignition Grounding Circuit/Operator Presence - Kawasaki
278eswi3
The above parts group applies to the following Mfg. Nos.:
2011 104 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900808
(
IS2000ZKAV2761
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - PTO Clutch Circuit - Kawasaki
278eswp3
The above parts group applies to the following Mfg. Nos.:
2011 105 © Copyright Briggs and Stratton. All Rights Reserved.
5900807
(
IS2000ZKAV3461SS
)
5900808
(
IS2000ZKAV2761
)
5900879
(
IS2000ZKAV2661
)
5900945
(
IS2000ZKAV2652
)
5900939
(
IS2000ZKAV2652 ANSI EXP
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Charging Circuit - 25HP Kawasaki
423eswc2
The above parts group applies to the following Mfg. Nos.:
2011 106 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Cranking Circuit - 25HP Kawasaki
423eswr2
The above parts group applies to the following Mfg. Nos.:
2011 107 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Ignition Grounding Circuit/Operator Presence - 25HP Kawasaki
423eswi2
The above parts group applies to the following Mfg. Nos.:
2011 108 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - PTO Clutch Circuit - 25HP Kawasaki
423eswp2
The above parts group applies to the following Mfg. Nos.:
2011 109 © Copyright Briggs and Stratton. All Rights Reserved.
5900809
(
IS2000ZKAV2561
)
5900813
(
IS2000ZKAV25/61 AUS/NZ
)
5900815
(
IS2000ZKAV2561 CAL
)
5900839
(
IS2000ZKAV25/52 AUS/NZ
)
5900840
(
IS2000ZKAV2552
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Charging Circuit - 27HP Kohler
423eskc1
The above parts group applies to the following Mfg. Nos.:
2011 110 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Cranking Circuit - 27HP Kohler
423eskr1
The above parts group applies to the following Mfg. Nos.:
2011 111 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - Ignition Grounding Circuit/Operator Presence - 27HP Kohler
423eski1
The above parts group applies to the following Mfg. Nos.:
2011 112 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Electrical Schematic - PTO Clutch Circuit - 27HP Kohler
423eskp1
The above parts group applies to the following Mfg. Nos.:
2011 113 © Copyright Briggs and Stratton. All Rights Reserved.
5900817
(
IS2000ZK2761
)
5900838
(
IS2000ZK2752
)
TP 400-7423-AC-2Z-F
Not for
Reproduction
Notes
Not for
Reproduction
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of
in/lbs in/lbs
in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
19
2.1
30
3.4
41
4.6
8-36
20
2.3
31
3.5
43
4.9
10-24
27
3.1
43
4.9
60
6.8
10-32
31
3.5
49
5.5
68
7.7
1/4-20
66
7.6 810.9 12 16.3
1/4-28
76
8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside
Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
DIA.
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
Wrench & Fastener Size Guide
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
, meaning the
inside diameter
is 1/2 inch; if a
second number is present it represent the
threads per inch
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
Nominal size
, or
body diameter
is 1/2 inch; the
second number represents the
threads per inch
(16 in this
example, and the final number is the
body length
of the
bolt or screw (in this example 2 inches long).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
1
1/4 3/4
1/2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Not for
Reproduction
www.ferrisindustries.com
© Copyright Briggs and Stratton Corporation
All Rights Reserved. Printed In USA.
2011
5375 North Main Street
Munnsville, NY 13409 USA
800-933-6175
Briggs and Stratton Power Products Group, LLC.
IS2000Z Series
Zero-Turn Riding Mower
IT IS THE POLICY OF BRIGGS STRATTON TO IMPROVE ITS PRODUCTS WHENEVER IT
IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE
CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY
OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED
Parts
Manual

Navigation menu
