LEDEEN DiM Series Electric Actuator

Electric actuation for valve automation in hazardous locations

LEDEEN

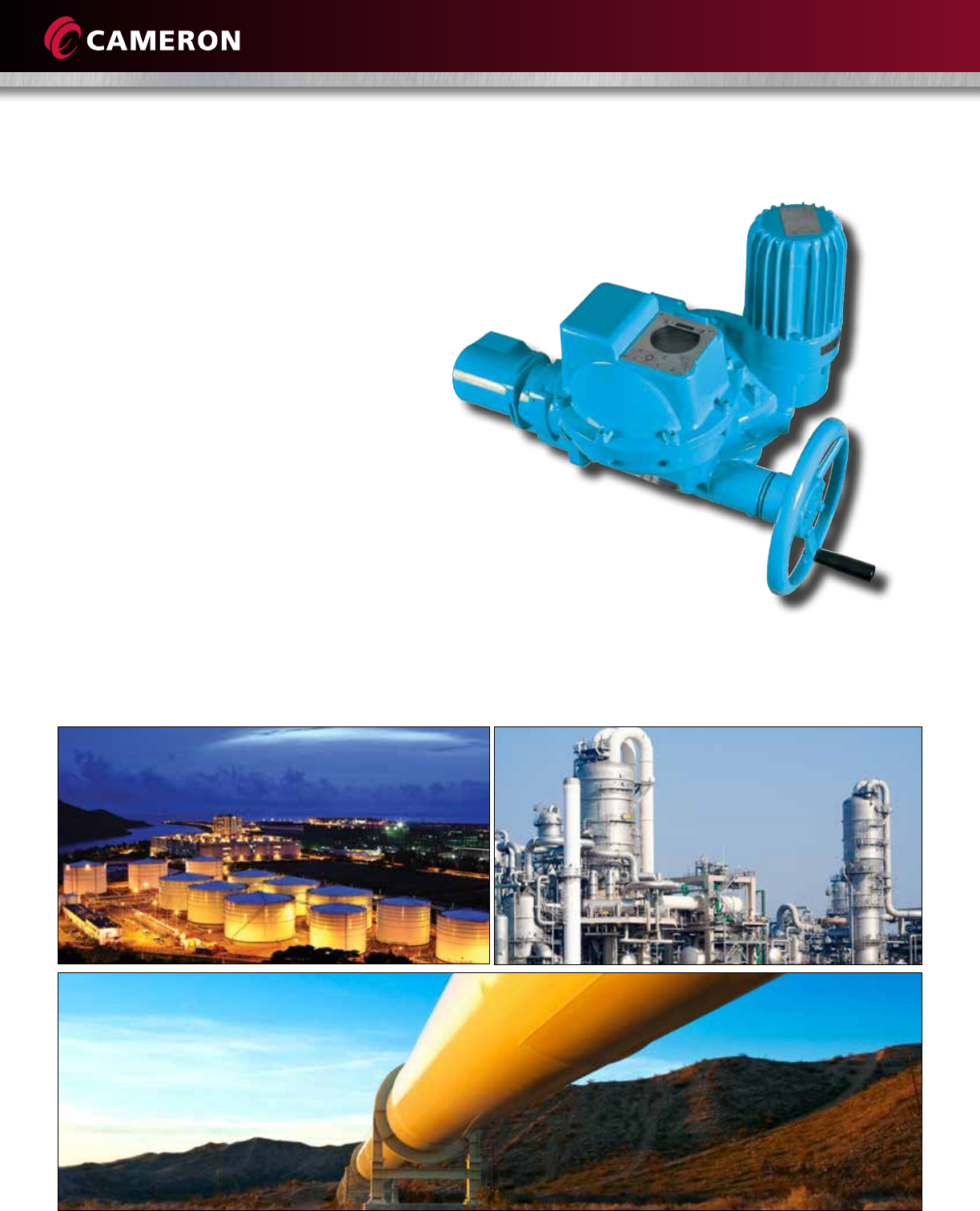

LEDEEN DiM Series Electric Actuator

BENEFITS

• Developed and built for use in the oil and gas

industry, based on ﬁeld-proven technology

• Partial-turn, multi-turn, and linear conﬁgurations

available for use with any valve type

• Easy system integration with open communication

interfaces

• Reduced-maintenance design

• Constant self-monitoring for reduced errors

TYPICAL APPLICATION

For on/off or modulating control of any multi-turn, partial

turn, or linear valve in oil and gas applications.

LEDEEN

Enclosed Motor

• Sturdy asynchronous design

• Special coil layout for improved safety at startup

• Totally enclosed, not ventilated (TENV) motor

according to Protection Class IP68

• Integrated temperature monitoring

Handwheel

• Operation at any time without changeover

mechanism

• Safe stop during motor operation

• Redundant to motor operation

• Easily adaptable (extension, square end, etc.)

Transmission

• Low-wear, planetary gearbox for long life

• Safe startup across all temperatures

• Flexible mounting position

• No routine lubrication maintenance required

• Sturdy metal casing

• High-speed range for closing time adjustment

Controls/Sensors

• Quick, non-intrusive settings

• Graphic LCD with clear, easy-to-read information

• Reliable, durable position measurement by an

absolute value encoder

• Only one enclosed electric compartment

• Electronic compartment protected against

condensate by heating

• Data backup and documentation with PC

interface

Electrical Connection

• Plug-and-play connector for power and

control lines

• Cable entries according to international

preface standards (M, NPT, G, etc.)

• Adjustable solutions for bus systems

Valve Connection

• Connections available for all types of valves

• Easily interchangeable

• Connections according to international standards

STANDARD PRODUCT CHARACTERISTICS

SERIES TYPE TEMPERATURE RANGE EXPLOSION-PROOF ATEX

DiM NT -25º C to 60º C (-13º F to 140º F)

Directive 94/9/EC-

EN 60079-0:2012,

EN 60079-1:2007,

EN 60079-7:2007,

EN 60079-31:2014

Marking: II 2 G Ex d e IIC T4

or Ex d e IIB T3

DiM LT -55º C to 40º C (-67º F to 104º F)

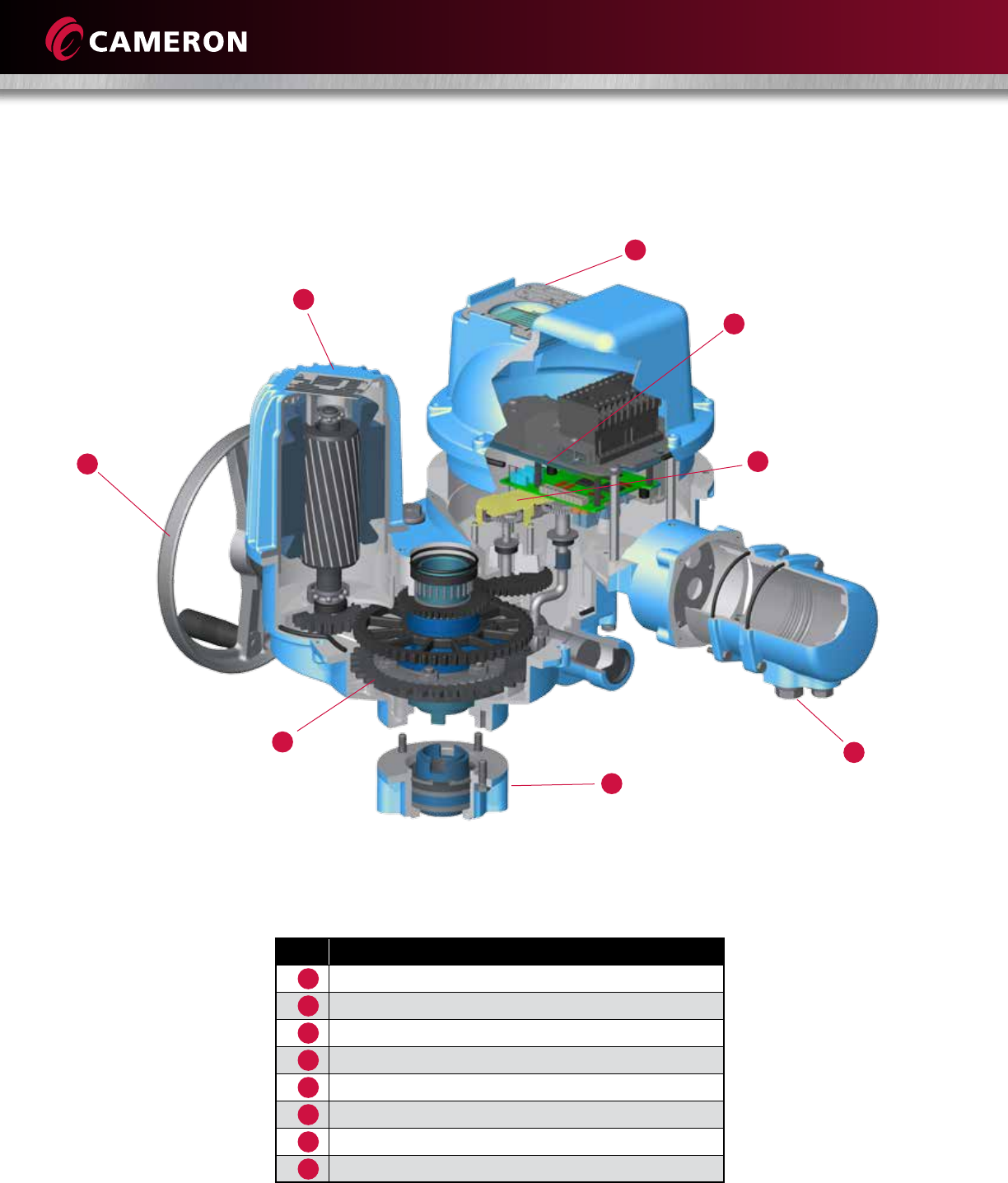

STANDARD FEATURES

Item Description

Redundant planetary gear design

Handwheel for emergency operation

TENV motor

Local control station

Control unit

Sensors (torque, position, and motor protection)

Plug-and-play connectors

Output drive valve adaption

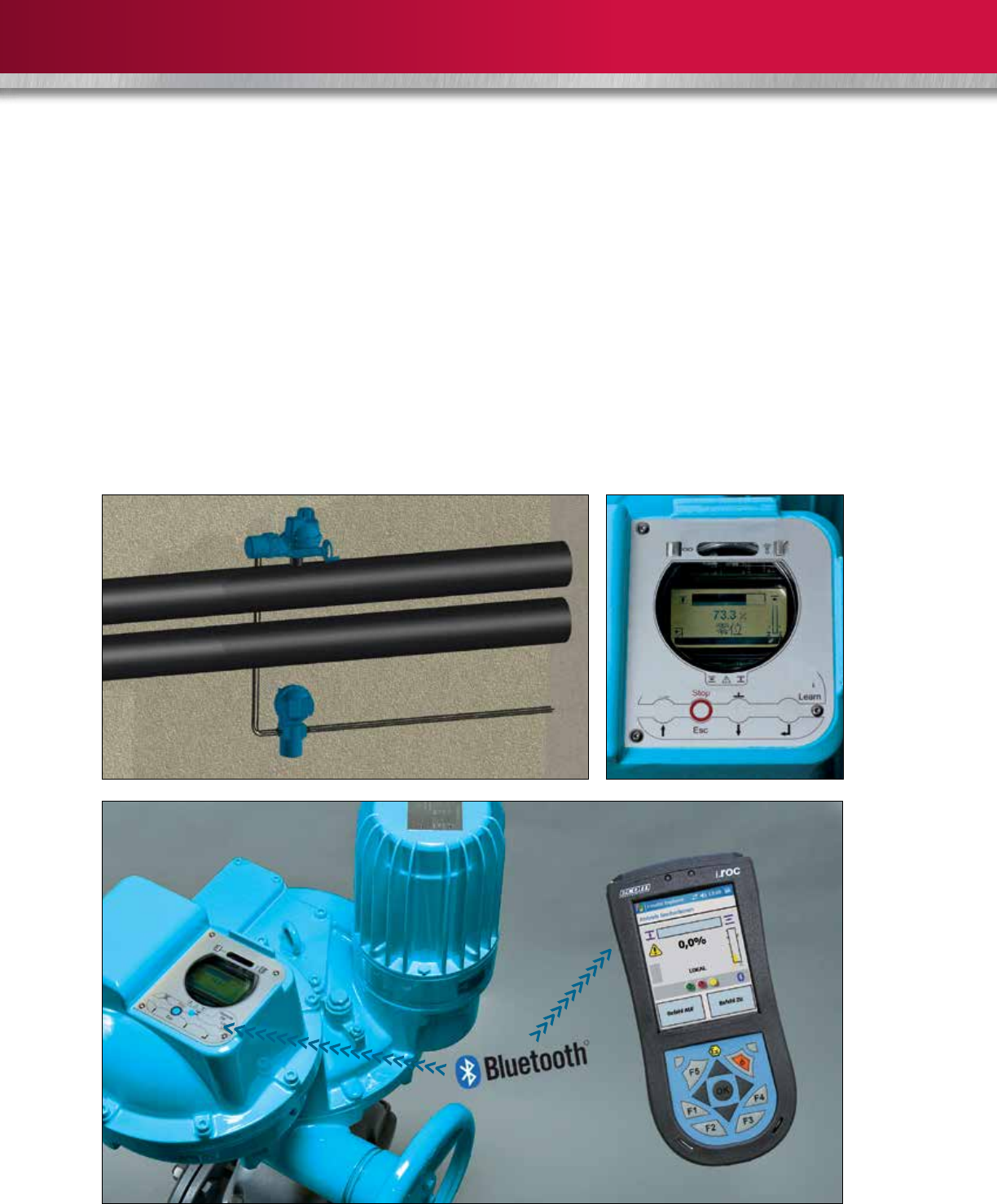

BASIC DESIGN

All local controls can be set via sturdy push buttons or the magnetic pen system. If the actuator is not directly

accessible, it can be controlled and programmed via a Bluetooth device such as a PDA, including software upgrades

and ﬁrmware updates. It also is possible to permanently place the control unit separated from the actuator itself for

further independence.

• Large, multilingual backlit graphic display with clear text and icons instead of codes or numbers

(no handbook to interpret the codes required)

• Simple, non-intrusive setting

• Firmware updates, diagnoses, and maintenance functions

• Separation of the control unit from the actuator is relatively effortless

• Handling is simpliﬁed due to big, sturdy push buttons or magnetic pen systems

LEDEEN®

LEDEEN

CONTROLS

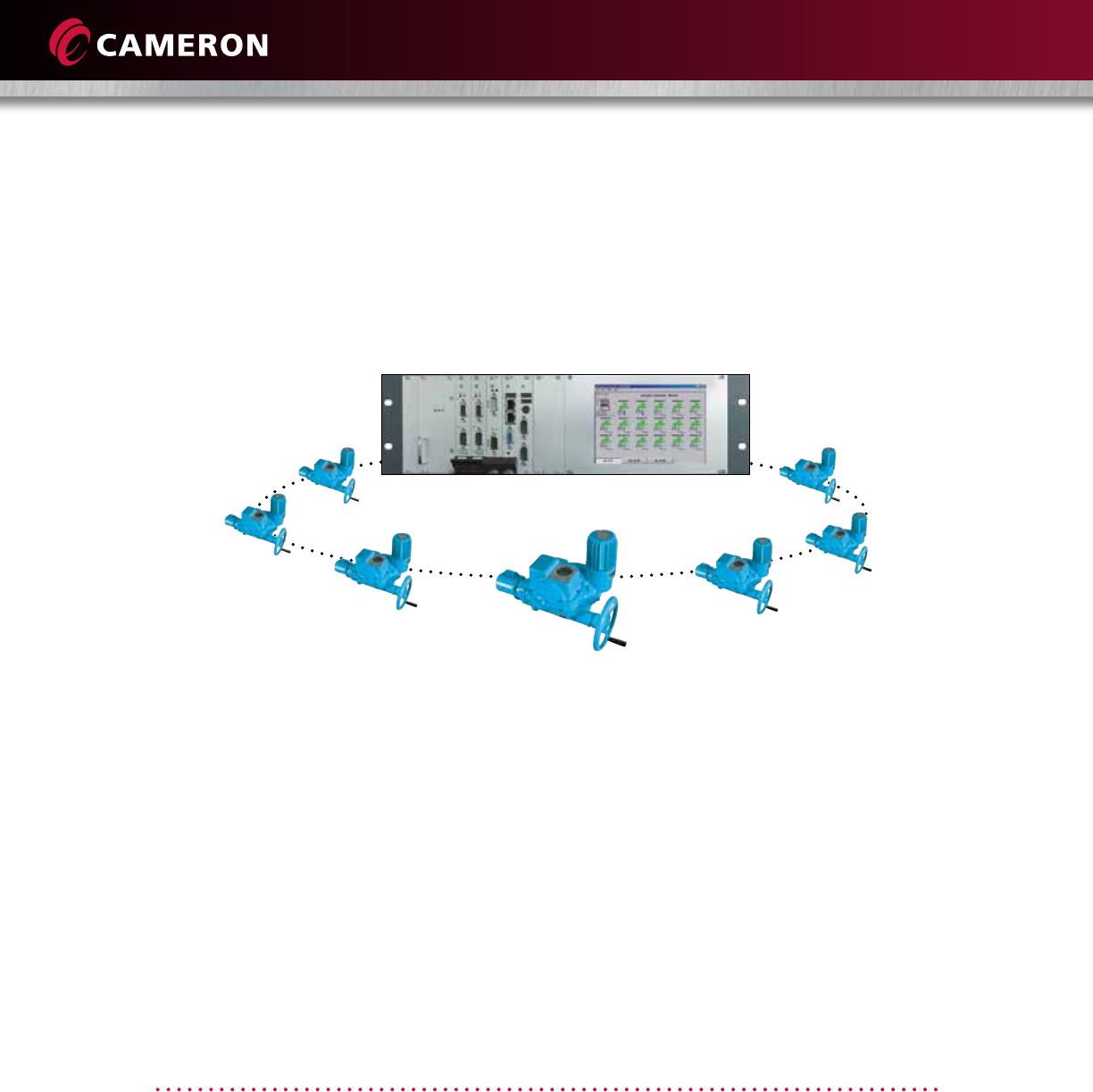

SIMA MASTER STATION

System Integration

Cameron’s SIMA master station solution integrates

ﬁeld devices, like actuators, into an automation

environment and supports a variety of protocols

such as PROFIBUS DP and Modbus RTU.

Data Concentrator

In addition to the essential feedback information,

Cameron’s LEDEEN® DiM series electric actuators

provide a wide variety of data that can be used by

the SIMA master station to quickly and easily

diagnose the system with reduced stressing.

Commissioning Tool

SIMA also functions as a standalone automation

system, allowing the actuator to be operated and

commissioned autonomously from a higher

automation system. Actuator and communication

parameter settings can be performed and tested.

Redundant Security

To allow for enhanced safety operations, the SIMA

master station has been designed as a highly

redundant unit with both the master unit and the

cables being redundant in case of a failure.

The integration of the LEDEEN electric actuators into a control system is possible via a multitude of ﬁeldbus connections or via

a free-conﬁgurable, hard-wired interface. All ﬁeldbus devices can be delivered with the common redundancies, to help

enhance system safety and reliability.

LEDEEN®

PROFIBUS®

DP V0 -V1 -V2

PROFISAFE®

Modbus® RTU Loop DeviceNet™

FOUNDATION™ ﬁeldbus

HART protocol

LEDEEN electric actuators can be integrated into various bus topologies, including:

SYSTEM INTEGRATION

120 ADiM

25 Ex F10

D400/50

Type of Current Voltage/Frequency

D – Three-phase current

W – Single-phase current

G – Direct current

Output Flange Size

F07, F10, F14, F16 –

DIN EN ISO 5210

G0, G1/G2, G3 –

DIN 3210

Output form

A – Stem nut

B, B1, B2 – Plug bush

B3, B4, E – Bore

C – Claw coupling

D –Shaft end

Model Number

DiM

Actuator Size

30, 59, 60, 120, 249,

250, 500, 1000, 2000

Output Speed

5, 10, 16, 25, 32,

40, 50, 80, 120, and 160

Version

TECHNICAL DATA

For additional technical data such as torque

charts, dimensional drawings, etc., refer to the

LEDEEN DiM series actuators technical data

packages or contact LEDEEN@c-a-m.com.

The below multi-turn model number designation may not include all aspects. Functional Safety and SIL Functional Safety

options are available as well. For critical applications, LEDEEN electric actuators can be equipped with emergency shutdown

(ESD) and/or safe-stop functions.

Note: All references herein to “explosion-proof” are per ATEX directives 94/9/ECEN 60079-0:2012, EN 60079-1:2007, EN 60079-7:2007, EN 60079-31:2014.

MODEL NUMBER DESIGNATION

HSE Policy Statement

At Cameron, we are committed ethically, financially and personally to a

working environment where no one gets hurt and nothing gets harmed.

3250 Briarpark Drive, Suite 300

Houston, TX 77042

USA

Toll Free 1 800 323 9160

Via Gandini 4

27058 Voghera, PV

Italy

Tel 39 0383 343311

Learn more about LEDEEN actuators at:

www.c-a-m.com/LEDEEN or

email LEDEEN@c-a-m.com

www.c-a-m.com/valveautomation or

email valveautomation@c-a-m.com
