PanARGA

A Python Tool for Pan Antibiotic Resistance Genome Analysis

Yichen He

December 14, 2018

2

Contents
1. Introduction .................................................................................................... 3
2. What can PanARGA do ................................................................................ 3
3. Installation ...................................................................................................... 3
[1] Install Python3 v3.6+ for Win/Mac/Linux ............................................. 3
[2] Install Python3 accessory packages: ...................................................... 3
[3] Install blast v2.7.1+ for Win/Mac/Linux ............................................... 4
4. Modules of PanARGA ................................................................................... 4
[1] Preprocessing module .................................................................................. 4
[2] Gene identification modules ..................................................................... 4
[3] Analysis modules.......................................................................................... 4
5. Input files ....................................................................................................... 5
[1] Sequence files: ............................................................................................. 5
[2] Setting file ................................................................................................... 6
[3] Phenotype file: ............................................................................................. 7
[4] Annotation csv files: ................................................................................... 8
6. Usage and output files ................................................................................ 9
[1] Before running .............................................................................................. 9
[2] Running PanARGA ........................................................................................ 9
[3] Output files ................................................................................................. 12



1. Introduction

PanARGA is a platform independent Python3 tool used to analyze pan-

antibiotic resistance genome characteristics for multiple genomes. It

accepts various format of sequence files as input files. The identification

of antibiotic resistance genes is mainly based on the Comprehensive

Antibiotic Resistance Database (CARD) and ResFinder database.

2. What can PanARGA do

1) Antibiotic resistance genes (ARGs) identification

2) Pan-antibiotic resistance genome feature analysis

3) Classifying and counting for identified ARGs

4) Analysis of ARGs associated with given antibiotics

3. Installation

[1] Install Python3 v3.6+ for Win/Mac/Linux

(https://www.python.org/)

[2] Install Python3 accessory packages:

For PanARGA, several Python3 packages are required. Therefore, PIP,

(https://pypi.org/project/pip/) the PyPA tool for installing and managing

Python packages, is recommended to install firstly if you don’t have other

packages management tools. For details of pip documentations, please see

https://pip.pypa.io/en/stable/.

The packages required:

a) Biopython v1.7+ (https://biopython.org/)

b) NumPy v1.15+ (http://www.numpy.org/)

c) Pandas v0.23+ (http://pandas.pydata.org/)

d) SciPy v1.1+ (https://www.scipy.org/)

e) Matplotlib v3.0+ (https://matplotlib.org/)

f) Seaborn v0.9+ (http://seaborn.pydata.org/)

If you choose pip to install these packages, use “pip install XXX” for

each module to install in command line interface. For example, to install

Biopython module, try:

You can view all packages and their versions by:

pip install biopython

pip list

[3] Install blast v2.7.1+ for Win/Mac/Linux

Blast+ is available at https://blast.ncbi.nlm.nih.gov/Blast.cgi, you need

to modify the directory of where you install blast. For example, if the

blastn, blastp and makeblastdb programs are in C:/blast+/bin, please

change the directory of “blast+” in “settings.txt” like:

4. Modules of PanARGA

[1] Preprocessing module

1) CDSex.py: extracts coding sequences from GenBank files (only for files

with a “.gb” extension), forming both protein and nucleotide fasta files

(files with a “.faa” and a “.fna” extension).

[2] Gene identification modules

#these modules accept sequence files as input files

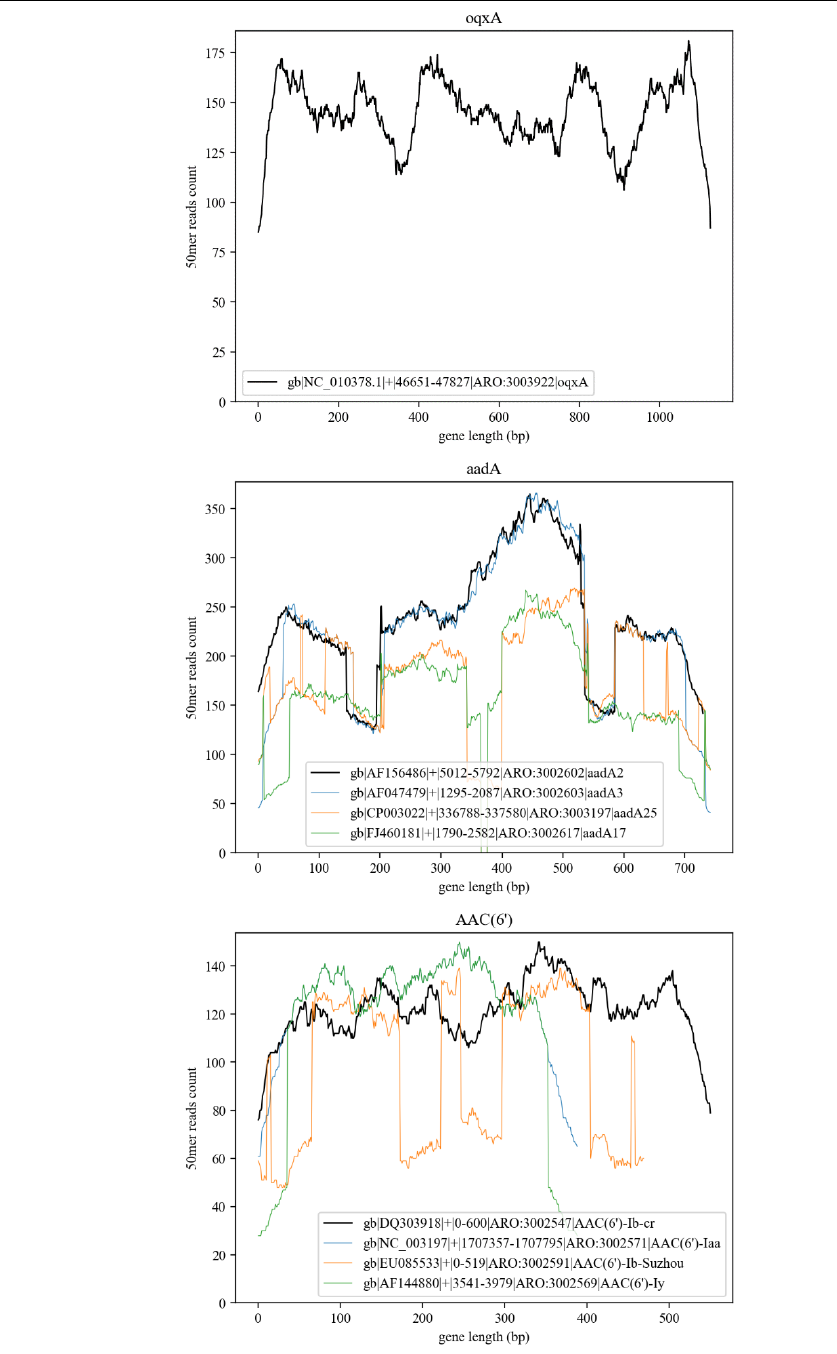

1) ArKmer.py/ResKmer.py: find resistance genes from raw reads FASTQ

files (files with a “.fastq” extension).

2) ArBlastn.py/ResBlastn.py: find resistance genes from nucleotide

sequence FASTA nucleic acid files (files with a “.fna” extension)

3) ArBlastp.py/ResBlastp.py: find resistance genes from protein sequence

FASTA amino acid files (files with a “.faa” extension)

[3] Analysis modules

#these modules accept annotation csv files genetated by “gene

identification modules” as input files.

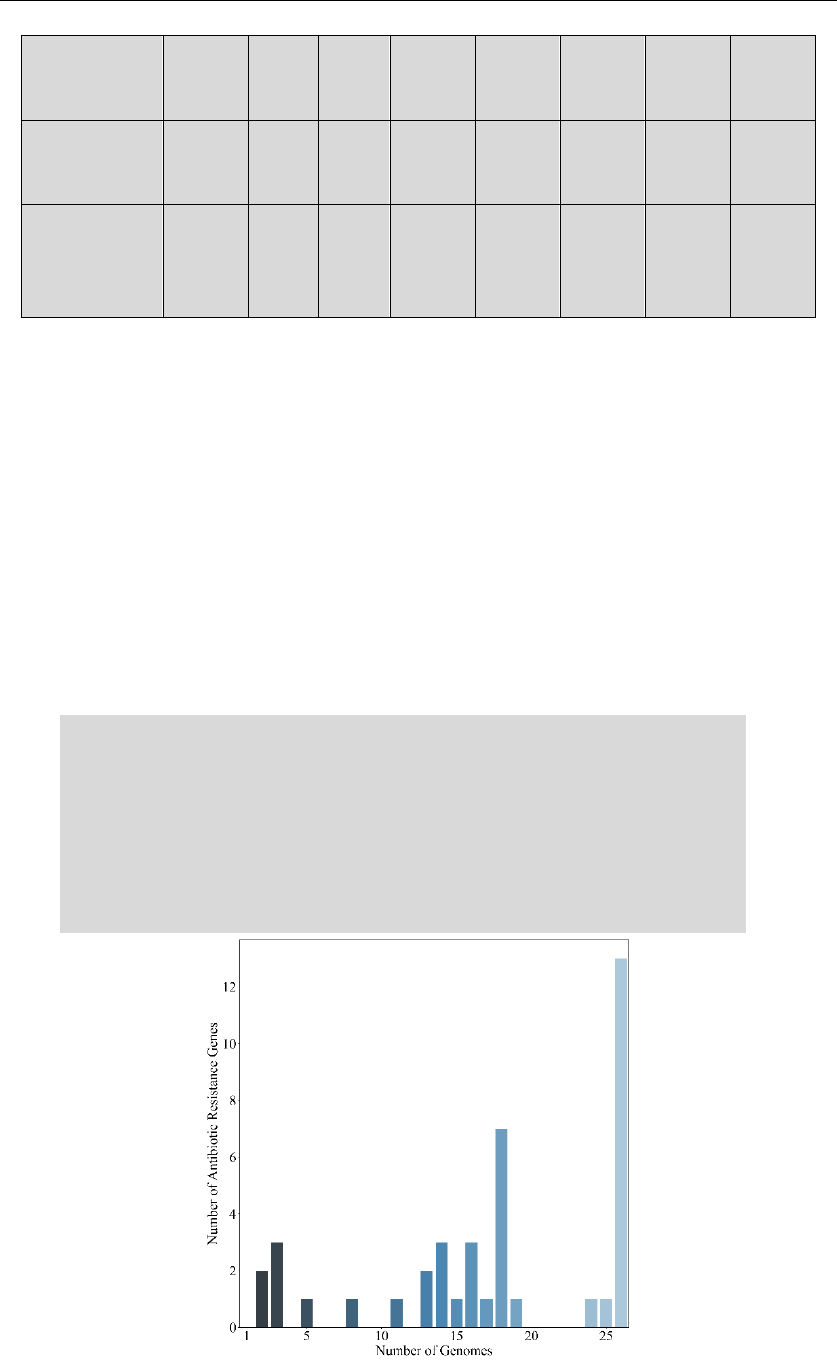

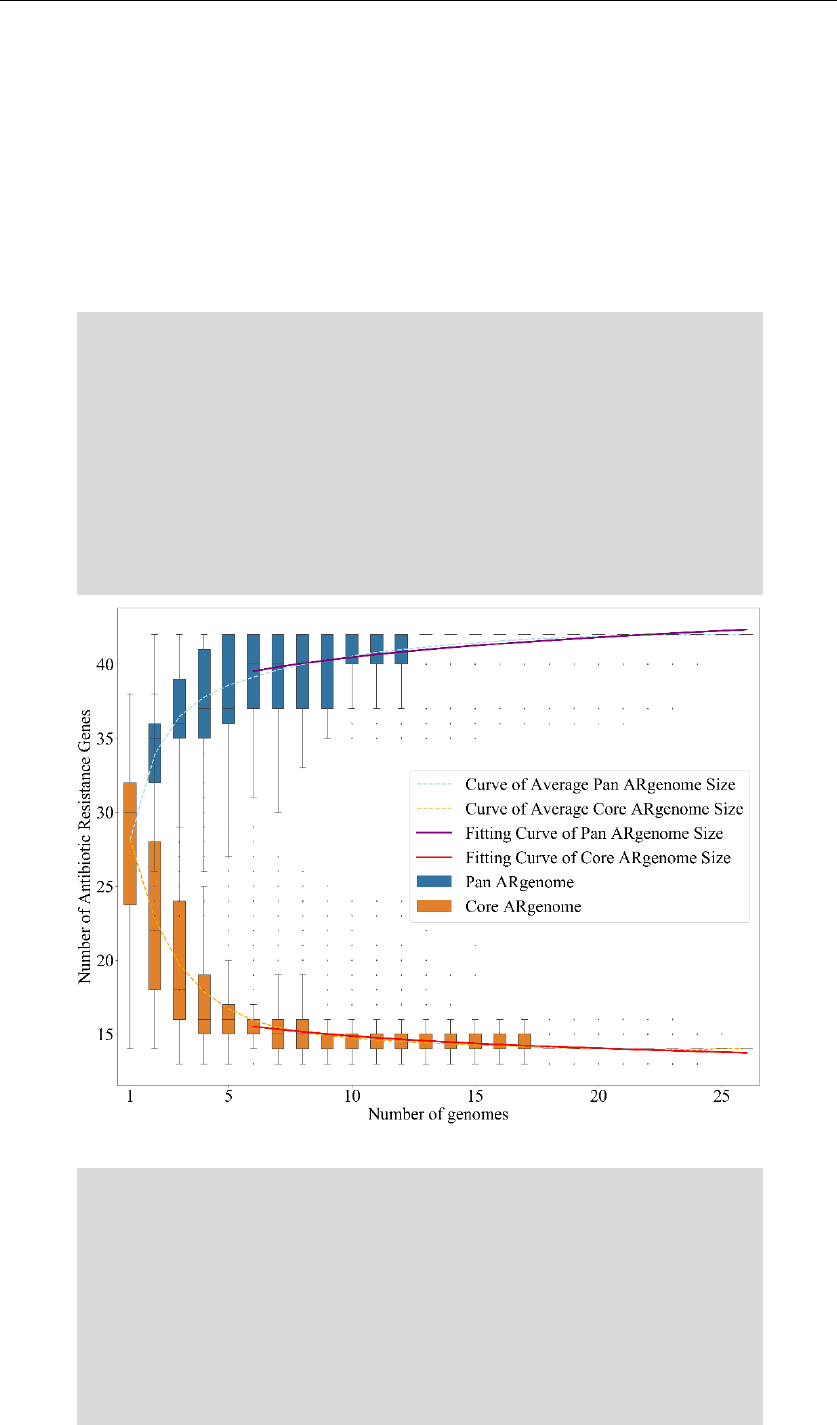

1) Pangenome.py: analyze pan-ARgenome features, including analysis of

ARGs distribution and pan-ARgenome curve fitting.

2) PanAccess.py: classification and statistical analysis for all ARGs

3) ArMatrix.py/ResMatrix.py: analyze associated ARGs for each kind of

antibiotics which are given in the input file “ar_phenotype.csv” or

“res_phenotype.csv” for different database.

[blast+=C:/blast+/bin/] #please use “/” to separate the directory

Note: Module named with a prefix of “Ar” (example: ArKmer) refers to

analyzing based on CARD database, and named with a prefix of “Res” (example:

ResKmer) refers to analyzing based on ResFinder database.

Abbreviations: pan-ARgenome (pan-antibiotic resistance genome)

ARGs (antibiotic resistance genes)

5. Input files

[1] Sequence files:

1) raw reads sequence: FASTQ files (example: A.fastq)

a) single-end reads, the filenames should end with “.fastq”

(If one of the input files is “A.fastq”, the output filename of this

genome will be written with a prefix “A”)

b) pair-end reads, the filenames end with “.1.fastq” and “.2.fastq”

(The input filenames of strain A should be “A.1.fastq” and

“A.2.fastq”, the output filename of this genome will be written

with a prefix “A”)

Data format (a unit of a fastq file contains four lines):

2) protein sequence: FASTA amino acid files (example: A.faa)

(If one of the input files is “A.faa”, the output filename of this genome

will be written with a prefix “A”)

Data format (a unit of a fasta amino acid file):

3) nucleotide sequence: FASTA nucleic acid files (example: A.fna)

(If one of the input files is “A.fna”, the output filename of this genome

will be written with a prefix “A”)

Data format (a unit of a fasta nuleic acid file):

4) GenBank annotation files (example: A.gb)

(If one of the input files is “A.gb”, the output filename of this genome

will be written with a prefix “A”)

Data format (a unit of a GenBank file):

@READ_ID

GATTTGGGGTTCAAAGCAGTATCGATCAAATAGTAAATCCATTTGTTCAACTCACAGTT

+ READ_INFO

!''*((((***+))%%%++)(%%%%).1***-+*''))**55CCF>>>>>>CCCCCCC6

>PROTEIN_ID

MKAYFIAILTLFTCIATVVRAQQMSELENRIDSLLNGKKATVGIAVWTDKGDMLRYNDH

>NUCLEOTIDE_ID

GATTTGGGGTTCAAAGCAGTATCGATCAAATAGTAAATCCATTTGTTCAACTCACAGTT

[2] Setting file

The setting file in PanARGA package (/PanARGA/settings.txt) is used

to set parameters for individual modules.

1) Settings for identification modules

a) blast+ directory (e.g. [blast+=C:/blast+/bin])

b) blast identity threshold (e.g. [identity=95])

c) blast coverage=query length/subject length

(e.g. [query_coverage=0.80])

d) k value for kmer analysis (e.g. [k=25])

#k value must be an odd number

e) number of kernels for kmer analysis (e.g. [kernel=2])

f) depth of k bp length reads (e.g. [depth=20])

#only time repeats higher than depth will be calculated

g) threshold of score of area under curve (e.g. [area_score=100])

2) Settings for analysis modules

Graph parameters:

#different graphs have individual parameters

a) length of the graph (e.g. [page_length=15])

b) width of the graph (e.g. [page_width=15])

c) dots per inch (DPI) of the graph (e.g. [dpi=200])

d) the font type (e.g. [font_type=Times New Roman])

e) the font size (e.g. [font_size=20])

f) the size of dots in graph (e.g. [dot_size=30])

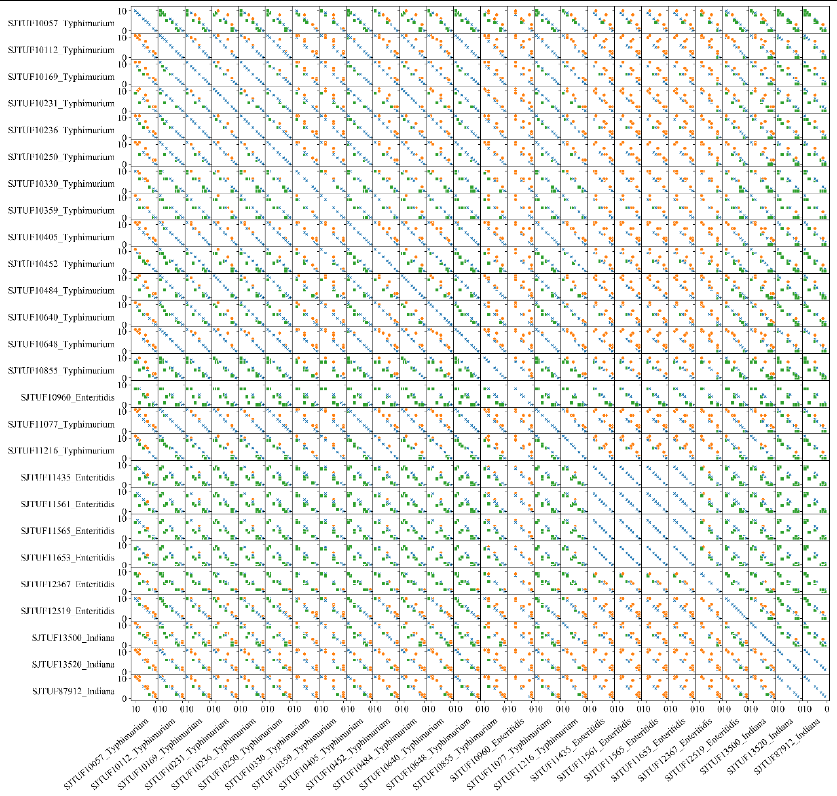

#only for the correlation matrix graph

g) the font size of labels of genomes (e.g. [genomelabel_fsize=auto])

#because the number of genomes may change, “auto” can change the

font size of labels of genomes according to genome amounts, and you

can also use an itegre to modify the parameter.

gene complement(<1..102)

/locus_tag="DXN26_00005"

CDS complement(<1..102)

/locus_tag="DXN26_00005"

/inference="COORDINATES: similar to AA

sequence:RefSeq:NP_460822.1"

/product="phage virulence factor"

/protein_id="PRJNA484101:DXN26_00005"

/translation="MKHVKSVFLAMVLILPSSLYPALTIAADSQDHKK"

Pangenome parameters:

h) fitting coverage of pan-ARgenome curve (e.g. [fit_coverage=0.8])

#only the use-specified portion will be fitted, because some models

exhibit better fitting performance for latter part of the curve.

i) fitting model of the curve (e.g. [fit_model=False])

#three models are provided: power_law (power law model), polyfit

(polynomial model), pangp (a model used by tool “PanGP”).

j) fitting order of polynomial model (e.g. [fit_order=6])

# the highest order of the polynomial model

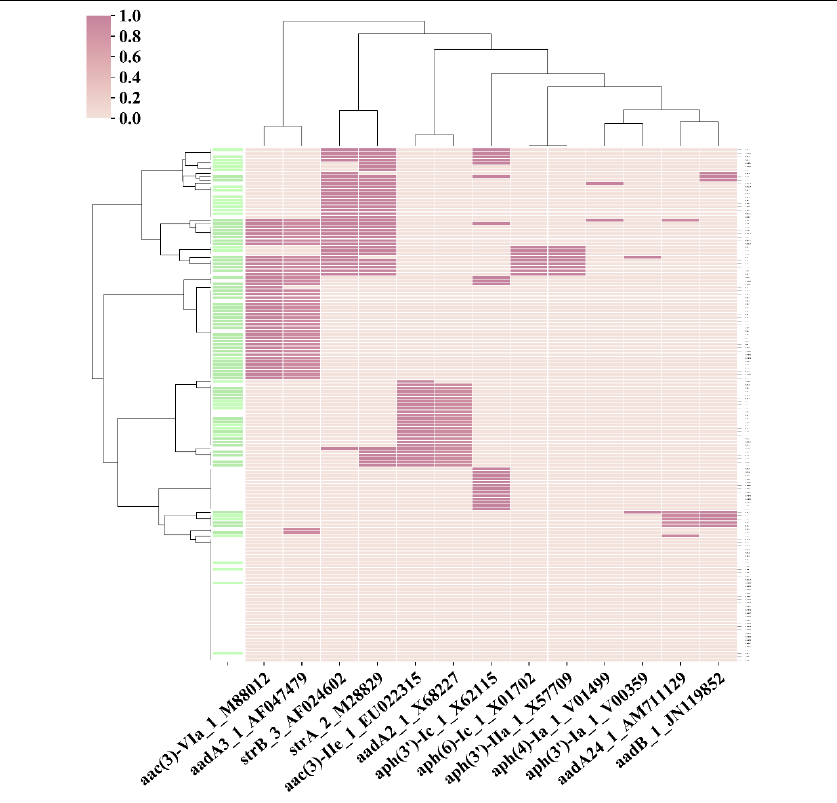

Cluster graph parameters:

k) cluster for data in each row (e.g. [row_cluster=True])

#if “True”, cluster each row; if “False”, no clustering

l) cluster for data in each column (e.g. [column_cluster=True])

#if “True”, cluster each column; if “False”, no clustering

m) cluster method (e.g. [cluster_method=average])

#the method of cluster, please see:

https://docs.scipy.org/doc/scipy/reference/generated/scipy.clust

er.hierarchy.linkage.html

Phenotype analysis parameters:

n) the name of column (e.g. [column_name=allele])

#if “allele”, clustering for each antibiotic associated genes is based

on gene allele; if “detail”, it is based on each gene.

o) whether to show phenotype (e.g. [show_phenotype=False])

#require “res_phenotype.csv” or “ar_phenotype.csv” as an input file.

#if “True”, phenotype will be shown in the front of the first column;

if “False”, it will not be shown.

[3] Phenotype file:

This file is needed when you want to show associated ARGs for each

kind of antibiotics given in this file.

And if you want to show your experimental results of antibiotic

phenotypic traits together with their associated ARGs, more information

needs to be added. See below for details.

1) “ar_phenotype.csv” is needed if you want to analyze based on the CARD

database. An example file is given in PanARGA package. The first row

of the input file list all the antibiotics in the database. You can only

remain the antibiotics you want to analyze and then copy the file to the

directory of your sequence files.

An example of “ar_phenotype.csv”:

(if open the file using a text document, each item is separated by a

comma “,”; if using Microsoft Excel, each item will in an individual cell):

Using a text document:

Using Excel:

#name

glycopeptide antibiotic

fluoroquinolone antibiotic

tetracycline antibiotic

penam

If you want to add phenotypic traits, just write down the number of

antibiotics which the strain is resistant to for each kind. If a cell is left

blank, PanARGA will recognize it as value “0”. An example:

Using a text document:

Using Excel:

#name

glycopeptide antibiotic

fluoroquinolone antibiotic

tetracycline antibiotic

penam

2) “res_phenotype.csv” is needed if you want to analyze based on the

ResFinder database. The main differences are different drug classes.

Modification method of it is similar to “ar_phenoty.csv”.

[4] Annotation csv files:

These files are output files of “gene identification modules”, which are

name with a suffix “_ar.csv”, and they are also input files of “analysis

modules”.

For example, if you input a genome file “A.fasta”, and use “gene

identification module-ArBlastn.py, an output file named “A_ar.csv” will be

generated, and it is the input file for three analysis modules.

#name,glycopeptide antibiotic,fluoroquinolone antibiotic, tetracycline antibiotic,penam

A,1,,0,2

B,0,1,,3

C,,1,1,2

Please note that the proper input file is used for each module!

6. Usage and output files

[1] Before running

1) All sequence files should be put in the same folder.

2) If you want to analyze associate genes and their antibiotic phenotypic

traits, “ar_phenotype.csv” or “res_phenotype.csv” is also needed to be put

in the same folder with sequence files. Please see “5. Input files-[3]

Phenotype file” for more details.

3) Modify the settings. Especially for blast directory. Please see “5. Input

files-[2] Setting file” for more details.

[2] Running PanARGA

1) Move to the installation directory. e.g.:

2) Run PanARGA

And then it will print:

cd C:/PanARGA/

python PanARGA.py

Note:

1) For one run, only files with the same extension will be analyzed. For

example, if “.gb” files and “.fna” files are in one folder simultaneously, and

you choose “G1-1” to analyze them, only the “.gb” files will be analyzed and

“.fna” files will be ignored.

2) If you have different type of input files, and want to analyze for all of

them, please select corresponding “gene identification modules” to

generate all annotation csv files. And after processing all the input

sequence files, select “analysis modules” to analyze all the annotation csv

files (all the annotation files should also be put in the same folder).

==================================================================

============Pan Antibiotic Resistance Genome Analyzer=============

==================================================================

If you choose one of RUN ALL MODULES,

you don't need to RUN SEPARATE MODULE;

If you just want to run one module in all modules,

please see RUN SEPARATE MODULE

------------------------------------------------------------------

==================================================================

RUN ALL MODULES:

------------------------------------------------------------------

# Raw reads as input files (files with a ".fastq" extension):

------------------------------------------------------------------

[R1] analysis with CARD nucleotide database

[R2] analysis with ResFinder nucleotide database

------------------------------------------------------------------

# Genbank files as input files (files with a ".gb" extension):

------------------------------------------------------------------

[G1-1] analysis with CARD nucleotide database

[G1-2] analysis with CARD protein database

[G2-1] analysis with ResFinder nucleotide database

[G2-2] analysis with ResFinder protein database

------------------------------------------------------------------

# Nucleotide seq as input files (files with a ".fna" extension):

------------------------------------------------------------------

[N1] analysis with CARD nucleotide database

[N2] analysis with ResFinder nucleotide database

------------------------------------------------------------------

# Protein seq as input files (files with a ".faa" extension):

------------------------------------------------------------------

[P1] analysis with CARD protein database

[P2] analysis with ResFinder protein database

------------------------------------------------------------------

==================================================================

RUN SEPARATE MODULE:

------------------------------------------------------------------

# Preprocessing module:

------------------------------------------------------------------

[a] "CDSex.py": extract coding sequence from genbank files;

form both protein and nucleotide fasta files;

------------------------------------------------------------------

# Gene identification modules:

------------------------------------------------------------------

## Modules using CARD database------------------------------------

[b-1] "ArKmer.py": find resistance genes from raw reads;

[b-2] "ArBlastn.py": find resistance genes from ".fna" files;

[b-3] "ArBlastp.py": find resistance genes from ".faa" files;

3) run all modules

If you choose to run all modules, for example, there are dozens of

GenBank annotation files in C:/data/, and you want to analyze them based

on ResFinder nucleotide database, just type “G2-1” after “Your choice:”,

like:

And then type the directory of input files:

All the annotation results and analysis output files will be generated in

the input directory C:/data/.

4) run separate module

If you choose to run just one module, for example, to identify ARGs

from dozens of raw reads files in C:/data/, and you want to analyze them

based on CARD nucleotide databases, just type “b-1” after “Your choice:”,

like:

Your choice: G2-1

please input the genebank files directory: C:/data/

## Modules using ResFinder database-------------------------------

[c-1] "ResKmer.py": find resistance genes from raw reads;

[c-2] "ResBlastn.py": find resistance genes from ".fna" files;

[c-3] "ResBlastn.py": find resistance genes from ".fna" files;

------------------------------------------------------------------

# Analysis modules:

# Input files of Analysis modules are annotation files (files

# with "_ar.csv" suffixes) formed by gene identification modules

------------------------------------------------------------------

[d] "Pangenome.py": pan-antibiotic resistance genome analysis

(mainly analyze for pan-genome features)

[e] "PanAccess.py": pan & accessory anti-resis genome analysis

(mainly classify and statistical analysis for ARGs)

## Module using CARD database-------------------------------------

[f-1] "ArMatrix.py": analysis associated genes for each kind of

antibiotics in CARD database

## Module using ResFinder database--------------------------------

[f-2] "ResMatrix.py": analysis associated ARGs for each kind of

antibiotics in ResFinder database

==================================================================

Your choice: b-1

And then type the directory of input files:

Only the annotation csv files will be generated in the same folder

C:/data, and for further analysis, for example, to study pan-ARgenome

features, just run PanARGA again and type “d” after “Your choice:”, like:

And then type the directory of annotation csv files:

The pangenome output files will be generated in C:/data/pangenome/.

[3] Output files

1) Outputs of gene identification modules.

a) ArKmer/ResKmer:

Input: C:/data/A.fastq or C:/data/A.1.fastq+C:/data/A.2.fastq

Output_1: C:/data/kmer/A_25mer_countVSar_nucl.csv

or C:/data/kmer/A_25mer_countVSres_nucl.csv

“25” in “A_25mer_count” is the k value in the setting file, all the

genes in the database beyond the threshold would be given in the file,

including the gene name, the score (area under the curve of the

corresponding gene in Output_2) and the coverage. The table below

shows a part of the output file (Using CARD database).

A_25mer_countVSar_nucl.csv

#gene_name

area_score

coverage

gb|AM261837|+|73-865|ARO:3002619|aadA22

97763

100.00%

gb|AF047479|+|1295-2087|ARO:3002603|aadA3

118409

100.00%

gb|DQ677333|+|0-780|ARO:3002621|aadA24

106672

100.00%

Output_2: C:/data/kmer/A/ar_nucl_ 25/***(allele name).png

“25” in “ar_nucl_25” is the k value in the setting file, and for each

possible gene allele in Output_1, a kmer count graph will be drawn. In

each allele, if the number of genes exceeds four, only the four genes

with higher scores will be drawn, and the highest one will be drawn in

black thickening line. The picture below shows several typical examples

(allele of oqxA, aadA and aac(6’)).

please input the fastq files directory: C:/data/

Your choice: d

please input the annotation csv files directory: C:/data/

***(allele name).png

Output_3: C:/data/A_ar.csv

This is the final output file. Only one gene in each allele with highest

score and coverage will be present in the final annotation file. Together

with information in CARD/ResFinder database, the final elements for

each gene in the annotation file includes: gene_num (the gene name

formed by panARGA), gene_name (the gene name in database),

coverage, area_score, ARO_num (the ARO accession in CARD),

accession num (the accession of related gene in NCBI), ar_gene_allele

(allele of the gene), drug_class (the kind of antibiotics the gene

conferring according to the database) and ar_machanism (the

mechanism of the gene recorded in the database). Note that only CARD

has information of AR0_num and ar_mechanism. The table below shows

a part of the annotation csv file.

A_ar.csv

#gene_

num

gene_na

cove

rage

area_sc

ore

ARO_num

accessio

n_num

ar_gene

_allele

drug_class

ar_mechanism

A_AMR

gene_0

OXA-1

100

113192

ARO:3001

396

JN420

336.1

OXA

cephalosporin;

penam

antibiotic

inactivation

A_AMR

gene_1

APH(3')

-Ia

99.4

7849

68005

ARO:3002

641

BX6640

15.1

APH(3')

aminoglycosid

e antibiotic

antibiotic

inactivation

A_AMR

gene_2

AAC(3)-

100

90553

ARO:3002

539

DQ2413

80.1

AAC(3)

aminoglycosid

e antibiotic

antibiotic

inactivation

b) ArBlastn/ResBlastn

Input: C:/data/A.fna

Output_1: C:/data/AVSar_nucl.xls or C:/data/AVSres_nucl.xls

The output of blast+ using command “blastn -query A.fna -db

ar_nucl/res_nucl -out AVSar_nucl/res_nucl.xls -outfmt “6 std slen” -

evalue 1e-20 -perc_identity identity (in the setting file)”.

Output_2: C:/data/arg/A_ar.fna

The sequence of ARGs identified from the input files will be written

into a new fasta nucleic acid file. The below shows part of the file.

>A_AMRgene_1_from_Scaffold32 [oqxA|identity:100.000|ARO:3003922|

NC_010378.1|position:1-1176]

TCAGTTAAGGGTGGCGCTG……CCAGGTTTTTTGCAGGCTCAT

>A_AMRgene_2_from_ Scaffold45 [AAC(6')-Ib-cr|identity:100.000|ARO:3002547|

DQ303918|position:1-555]

GTGACCAACAGCAACGATT……GAACACGCAGTGATGCCTAA

Output_3: C:/data/A_ar.csv

A similar annotation csv file to kmer output_3. The differences are

replacing “coverage” with “identity” and “area_score” with “e_value”. In

order to locate the gene in the scaffolds, the origin of the gene

together with start and end positions are added to the annotation file.

The table below shows a part of the annotation csv file.

A_ar.csv

#gene_num

gene_

name

ident

ity

e_val

ARO_

num

access

ion_nu

ar_ge

ne_all

ele

drug_

class

ar_me

chanis

origin

start

end

A_AMRgen

e_1_from_

Scaffold32

oqxA

100

ARO:

3003

922

NC_0

10378

oqxA

fluoro

quinol

one…

antibi

otic

efflux

Scaff

old32

1176

A_AMRgen

e_2_from_

Scaffold45

AAC(

6')-

Ib-cr

100

ARO:

3002

547

DQ30

3918

AAC(

6')

Fluoro

quinol

one…

antibi

otic

inacti

vation

Scaff

old45

555

c) ArBlastp/ResBlastp

Input: C:/data/A.faa

Output_1: C:/data/AVSar_prot.xls or C:/data/AVSres_prot.xls

The output of blast+ using command “blastp -query A.faa -db

ar_prot/res_prot -out AVSar_prot/res_prot.xls -outfmt “6 std slen”

-evalue 1e-20 -num_alignments 6”.

Output_2: C:/data/arg/A_ar.faa

The sequence of ARGs identified from the input files will be written

into a new fasta amino acid file. The below shows part of the file.

Output_3: C:/data/A_ar.csv

A similar annotation csv file to kmer output_3. The differences are

replacing “coverage” with “identity” and “area_score” with “e_value”.

Because there is no need to intercept amino acid sequences, so the

origin, start and end positions are not added comparing with

Ar/ResBlastn results, the original name of protein will remain. The

table below shows a part of the annotation csv file.

>Protein_id1 [oqxA|identity:100.000|ARO:3003922|YP_001693237.1]

MSLQKTWGNIHLTALGAMM……GMPVNAKTVAMTSSATLN

>Protein_id2 [AAC(6')-Ib-cr|identity:99.457|ARO:3002547|ABC17627.1]

MTNSNDSVTLRLMTEHDLAM……AVYMVQTRQAFERTRSDA

A_ar.csv

#gene_num

gene_

name

ident

ity

e_val

ARO_

num

access

ion_nu

ar_ge

ne_all

ele

drug_

class

ar_me

chanis

Protein_id1

oqxA

100

ARO:3

00392

YP_00

16932

37.1

oqxA

fluoro

quinolo

ne…

antibi

otic

efflux

Protein_id2

AAC(6

')-Ib-

100

ARO:3

00254

ABC17

627.1

AAC(6

Fluoro

quinolo

ne…

antibi

otic

inactiv

ation

2) Outputs of analysis modules

a) Pangenome

Input: A batch of annotation csv files

(C:/data/A_ar.csv+B_ar.csv+C_ar.csv+……)

Output_1: C:/data/pangenome/ 4_ar_distribution.txt

& C:/data/pangenome/ 4_ar_distribution.png

Count the number of occurrences of each gene allele in each genome.

For example, the alleles behind number “26” refers to the allele which

has appeared in 26 genomes.


2 rmtB,QepA

3 rpoB,mphA,Mrx

…

25 ramR

26 parC,parE,soxR,soxS,MdtK,mdsC,mdsB,mdsA,golS,gyrA,gyrB,sdiA

Output_2: C:/data/pangenome/5_pangenome.txt

& C:/data/pangenome/5_pangenome.png

& C:/data/pangenome/5_pangenome _fitmodel.txt

Count the pan genome size and core genome size for antibiotic gene

alleles. It traverses all combinations of given genomes and form a text

document. A boxplot is drawn according to the data and the model in

the setting file is applied for curve fitting. The final model together

with R^2 value is also written into a text document.


Genome_Number Pan_Genome_Size Core_Genome_Size

1 30 30

1 34 34

1 31 31

… … …

25 41 14

25 41 15

26 41 14

Power Law Model of PanGenome:

P=(36.331034418648684)*x^(0.0469962382291344)

(R^2=0.9534322181666640470632029231)

Power Law Model of CoreGenome:

C=(18.021585517236634)*x^(-0.08327794834525747)

(R^2=0.9211436740795695974874930157)

b) PanAccess

Input: A batch of annotation csv files

(C:/data/A_ar.csv+B_ar.csv+C_ar.csv+……)

Output_1: C:/data/analysis/1_class_summary.csv

& C:/data/analysis/1_mech_summary.csv

& C:/data/analysis/1_class_summary.png

& C:/data/analysis/1_ar_cluster.png

& C:/data/analysis/1_ar_corr.png

Analyze all the ARGs for all genomes, and classify them into

different drug classes and mechanism classes. A stacked bar graph, a

cluster map and a comparison graph are drawn according to summary of

drug classes.

1_class_summary.csv

name

aminocoumar

in antibiotic

aminoglycosid

e antibiotic

carbapenem

cephalosporin

…

#Each number in the cell represent the number of antibiotic

associated ARGs in each genome.

1_mech_summary.csv

name

antibiotic

efflux

antibiotic

inactivation

antibiotic

target

alteration

antibiotic

target

replacement

…

#Each number in the cell represent the number of of ARGs

related to each kind of antibiotic resistance mechanisms in each

genome.

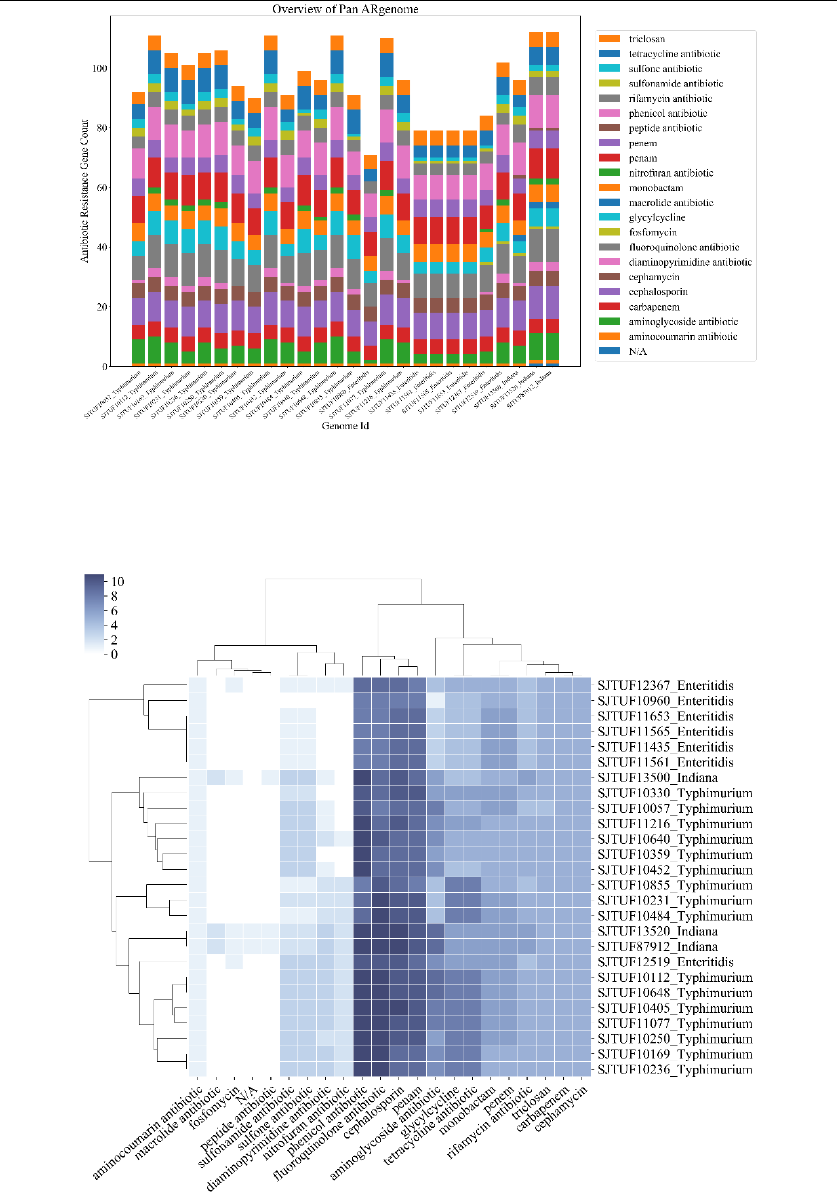

#A stacked bar graph based on 1_class_summary.csv. Different colors

represent different kind of antibiotics


#A cluster map based on 1_class_summary.csv. The darker the color, the

more the number of related genes


#A comparison matrix graph based on 1_class_summary.csv. Each

subgraph represents a comparison of resistance genes in two genomes.

Each dot represents an antibiotic, and dots in orange means the number

of associated ARGs of the antibiotic in the genome in y axis is higher

than that in x axis, while blue means equal and green mean lower.

Output_2: C:/data/A_ar_accessory.csv

& C:/data/analysis/2_accessory_class_summary.csv

& C:/data/analysis/2_accessory_class_summary.png

& C:/data/analysis/2_accessory_ar_cluster.png

& C:/data/analysis/2_accessory_ar_corr.png

The output_2 is similar to output_1, and the difference is that the

data used is accessory ARgenome instead of pan-ARgenome.

A_ar_accessory.csv is the annotation file that excludes all core ARGs

from A_ar.csv, and their elements are all the same.

d) ArMatrix/ResMatrix

Input: A batch of annotation csv files

(C:/data/A_ar.csv+B_ar.csv+C_ar.csv+……)

& “C:/data/ar_phenotype.csv” or “C:/data/res_phenotype.csv”

Output: C:/data/analysis/3_***_matrix.csv

& C:/data/analysis/3_***_matrix.png

“***” is the name of antibiotics given in the first row of

“ar_phenotype.csv” or “res_phenotype.csv”. For example, if one of the

antibiotics given is “aminoglycoside antibiotic”, the output name will be

“3_aminoglycoside antibiotic_matrix”. The details are shown below:

3_aminoglycoside antibiotic_matrix.csv

name

AAC(6')

aadA

AAC(3)

APH(4)

APH(3'')

APH(6)

APH(3')

rmtB

PHE

NOT

YPE

0.9974

0.99871

0.99751

0.99881

N/A

0.99621

0.99871

0.99751

0.99881

0.99386

N/A

#Genes or alleles (according to settings [column_name=detali] or

[column_name=allele]) in the first row are all genes or alleles identified

from all genomes, which are related to the given antibiotic. The number

in each cell is the identity or coverage of the gene in annotation files.

3_aminoglycoside antibiotic_matrix.png

#A cluster map based on the matrix file above ([column_name=allele]).

3_aminoglycoside antibiotic_matrix.png

#A cluster map for another hundreds of genomes using setting

[column_name=details]. The phenotypic triats information are

added (see “Input files for more details”), so a green column is

drawn to represent antibiotic resistance phenotype.

Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
