PB-9108

Revised 10/08

18 0, 185, 18 6 AN D 38 0 SER I E S

DRIVE AXLE PARTS FOR

SINGLE AXLES AND TANDEM AXLES

HOW TO USE THIS CATALOG

yThere are 11 basic carriers covered in this catalog:

3200-C-1381 3200-K-1753 3200-S-1839

3200-U-1399 3200-W-1791 3200-A-1899

3200-M-1625 3200-J-1804 3200-L-1910

3200-J-1752 3200-M-1833

Major assembly differences in a carrier are indicated by the different assembly level numbers in front

of the base carrier number, for example, A1-3200-J-1804 and A4-3200-J-1804.

NOTE: The carriers listed in this catalog do not include yokes. A yoke is a major assembly difference, so,

a carrier sold with a yoke has a different assembly level number than the same carrier without the yoke.

yThe charts for carriers, output shafts, and housings include the following information:

yAn expoded view of each assembly, keyed to the parts list.

yA description of each part.

yParts that are sold as assemblies that include other parts.

yWhich carriers or axle models the part is used on.

yThe quantity of the part used on the carrier or axle.

yThe part number of each part.

yWhether the part is available in a kit.

yCarrier parts:

Determine which chart and figure (1 or 2) applies to your carrier by using the following sources of information.

yIdentification tag installed on the carrier.

yAxle Models-Carriers-Features Chart.

yPictures and descriptions of the carriers inside the front cover and at the beginning of Chart 1 and Chart 2.

yOutput (thru) shafts:

This chart covers the output shafts for the forward axles of all tandems. Note that the output shaft assembly

or its components are only sold as separate items. The output shaft is not included with the purchase of a carrier

or housing.

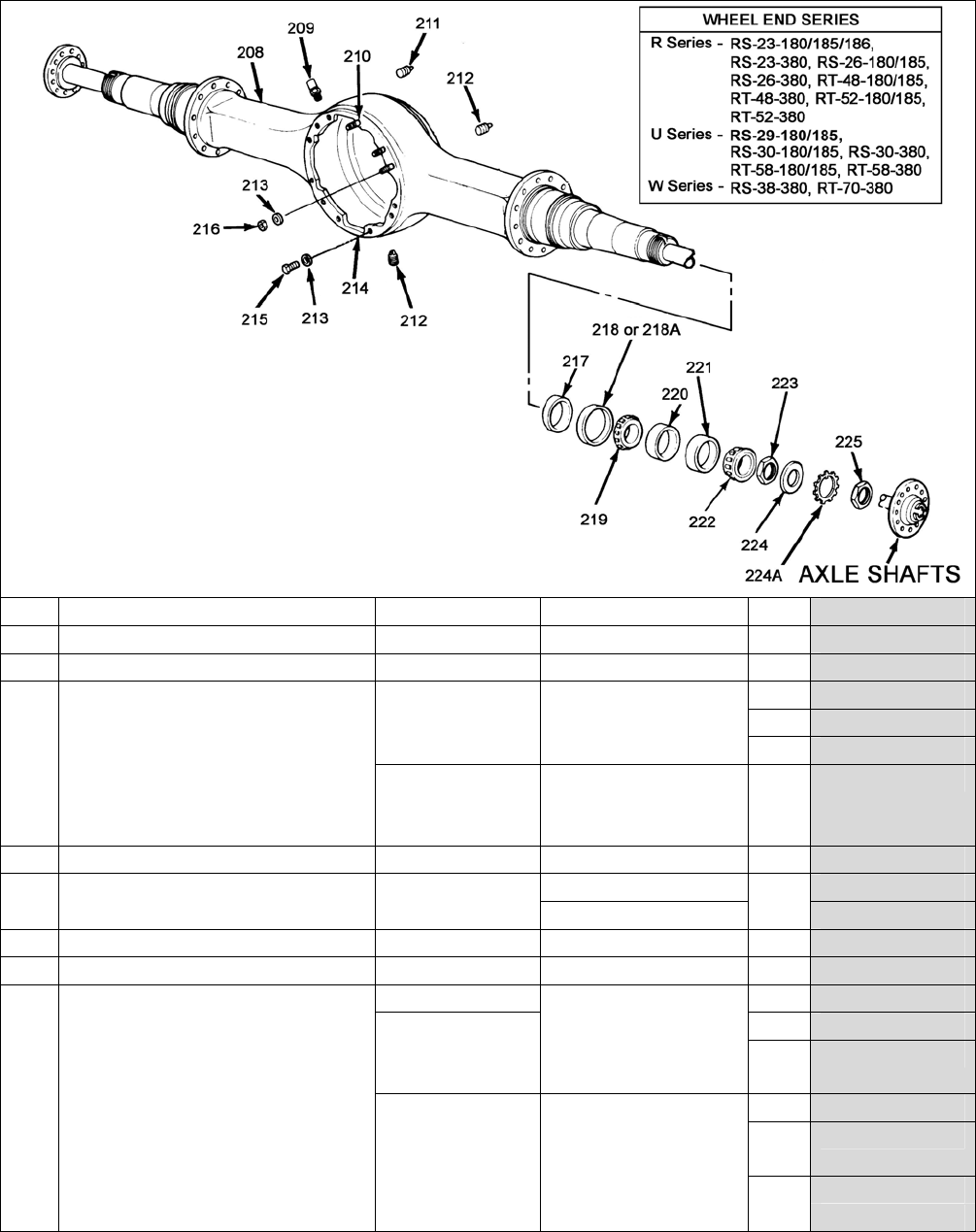

yHousing Assemblies and Wheel End Parts:

This chart covers the housing assemblies and wheel end parts for all axles. The parts are listed according to

axle models that are used on 180 and 380 series axles.

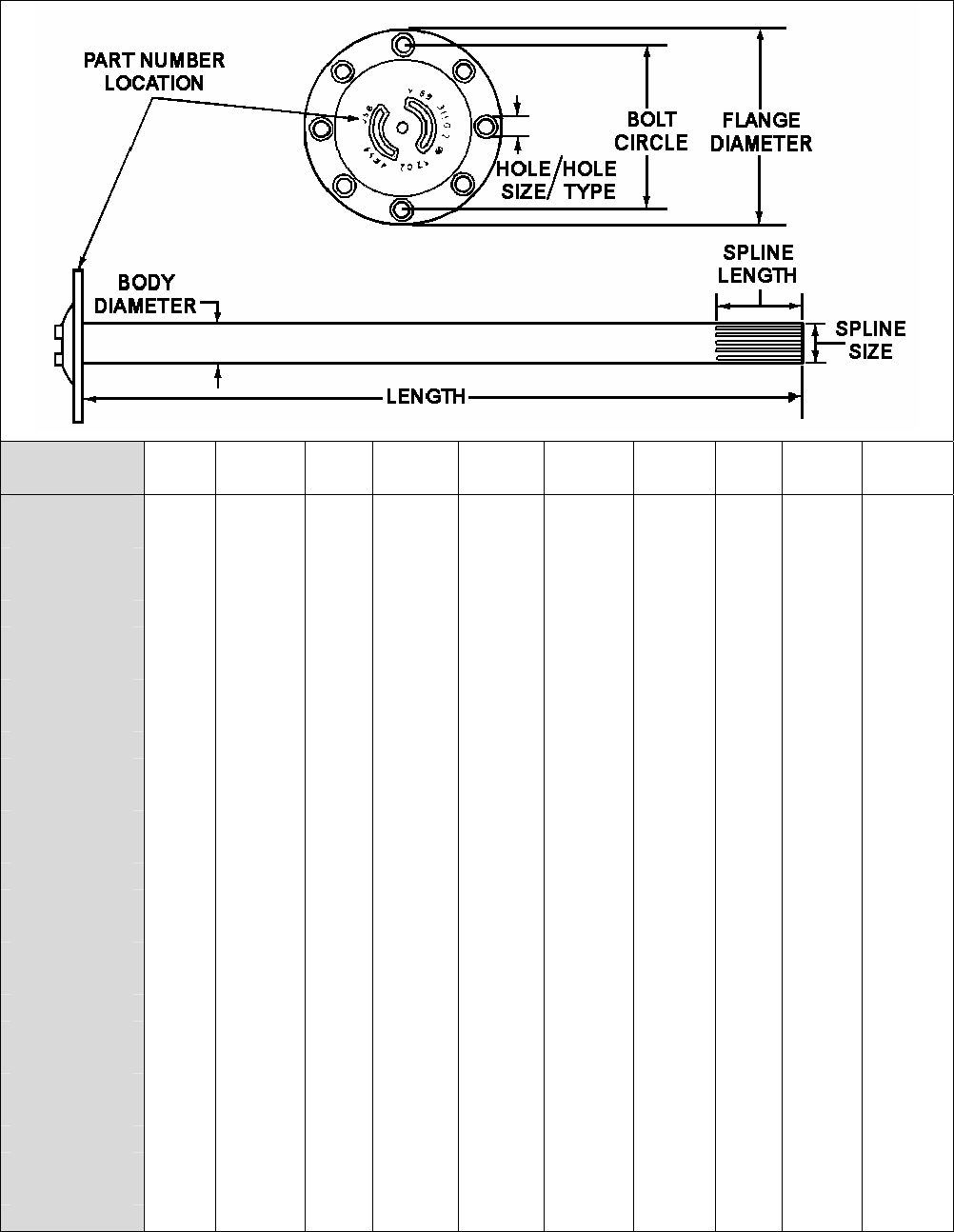

yAxle shafts:

The axle shafts are grouped in sets (L.H. and R.H.) according to the axle models they are used on. Many axle

shafts are used on more than one axle model. The axle shafts are also listed by part number with dimensions.

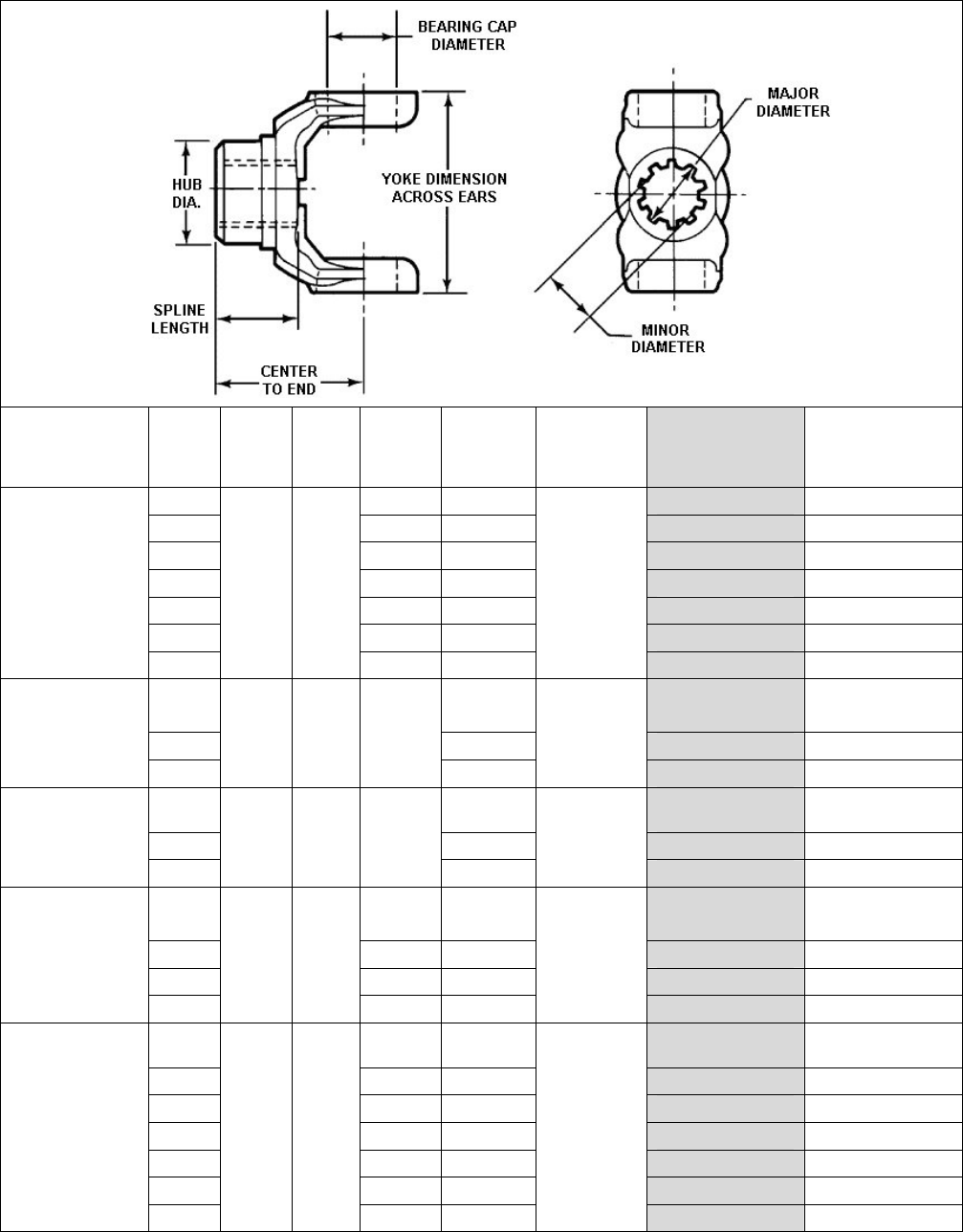

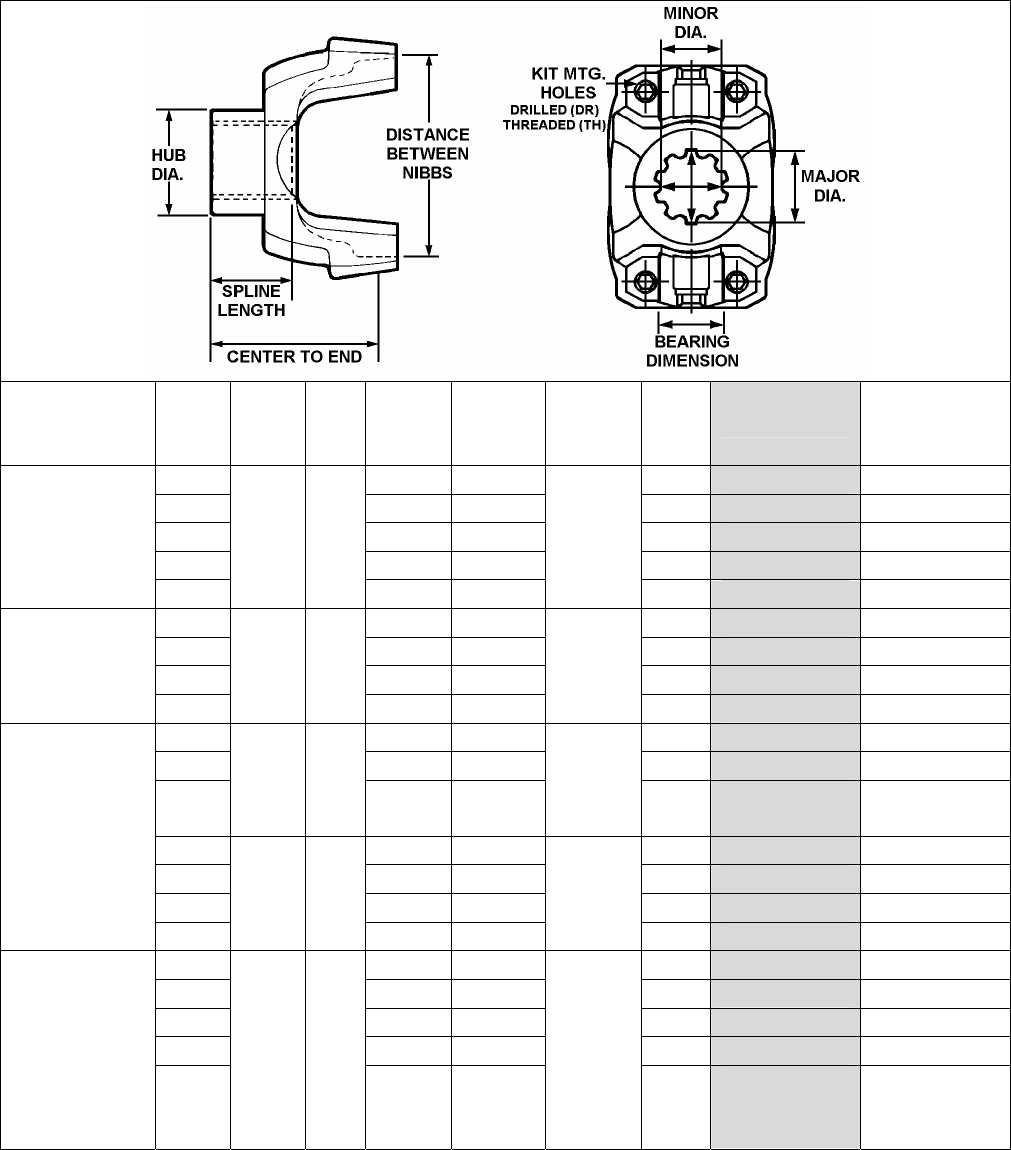

yYokes and Flanges:

There are four charts that cover full round bearing yokes, wing bearing yokes, Easy Service yokes and flanges.

Each chart lists the yokes or flanges used on each model, the yokes and flanges are listed by dimensions.

yKits:

The first chart in this section lists all the kits available for each model axle and carrier. Following that chart,

the kits are organized in numerical order.

yNumerical Parts Index:

This section lists every part number along with the page(s) on which the part is listed.

STANDARD CARRIER SUPERCESSION LIST

ORIGINAL REPLACEMENT ORIGINAL REPLACEMENT

PART NUMBER PART NUMBER PART NUMBER PART NUMBER

A54-3200-U-1399 A1-3200-A-1899 A-3200-K-1753 A-3200-J-1752

A61-3200-U-1399 A1-3200-J-1804 A1-3200-K-1753 A1-3200-J-1752

A42-3200-M-1625 A84-3200-M-1833 A1-3200-W-1791 A1-3200-A-1899

A53-3200-M-1625 A58-3200-M-1833 A11-3200-M-1833 A73-3200-M-1833

A58-3200-M-1625 A73-3200-M-1833 A13-3200-M-1833 A74-3200-M-1833

A59-3200-M-1625 A12-3200-M-1833 A15-3200-M-1833 A76-3200-M-1833

A60-3200-M-1625 A74-3200-M-1833 A48-3200-M-1833 A84-3200-M-1833

A63-3200-M-1625 A76-3200-M-1833 A1-3200-J-1804 A1-3200-J-1752

A66-3200-M-1625 A17-3200-M-1833 A1-3200-M-1899 A-3200-J-1752

A83-3200-M-1625 A36-3200-M-1833 B5-3200-A-1899 A-3200-K-1753

B8-3200-M-1625 A97-3200-M-1833 B8-3200-A-1899 A1-3200-K-1753

The part number supercessions listed here reflect product improvements made in several key areas.

Several of these product improvements are non-interchangeable at the component level, in these

cases kits have been developed to ease your transition to the new designs.

The rear-rear and single axle carriers with main diff. lock now have a screw-in type shifter.

The forward-rear carriers with pump now have an internal pump that is also used on the

145 and 160 family axles.

The forward-rear carriers also now have a screw-in type I.A.D. lock shift cylinder.

Rear Drive Axles

Model Numbers and Designations

Axle models are identified by a letter and number system.

The letters and numbers give important information about the

specific axle model.

The first seven positions of the designation identify a basic axle

model, while the second group of letters and numbers identify

particular specifications.

RR 20 1 8 0 N C Q F 123

NOTE 1: NOTE 2, FOR TRIDEM AXLES ONLY:

If a complete axle designation is not required, use the first seven positions For a Tridem Drive Axle Set (RZ), the

of the model designation to identify the basic axle model. number in the sixth position designates

EXAMPLES OF BASIC AXLE MODELS: the carrier in the first axle. The number

RS 17 140 - Single Rear Drive, 17,000 lb., Single Speed, 15" Ring Gear, in the seventh position designates the

140 Carrier Model. carriers in the second and third axles.

RT 48 380 - Tandem Drive Axle Set, 48,000 lb., Helical Double Reduction,

19.62" Ring Gear, 380 Carrier Model. NOTE 3:

RZ 60 164 - Tridem Drive Axle Set, 60,000 lb., Single Speed, Includes a Some axle designations or

150 Series Forward Rear or First Axle and a 145 Series specifications do not have a hub

Tandem Axle Set as the Second and Third Axles. type code.

Axle Design Variation

Indicates axle design level or

variation, (e.g., RS 23 161 has a

thicker wall housing than the RS

23 160). For information see the

Bill of Material for that specific

axle model. (Also see Tridem

xle Note 2 below.)

Carrier Type

Carrier size. Larger numbers

indicate a higher GCW rated

carrier: i.e., larger ring gear, etc.

(Also see Tridem Axle Note 2

below.)

Nominal Axle Load Rating (GAWR):

In thousands of pounds. Individual forward

and rear axles of a tandem set (D, N, P, R)

are rated as single axles. A tandem set (T) is

rated as the combination of the two axles and

a tridem set (Z) as the combination of the

three axles.

Brake Type

C - Dura-Master® Air Disc Brake

D - RDA Stopmaster® Wedge Brake

(Dual Air Chambers)

E - RDH Stopmaster® Wedge Brake

(Dual Hydraulic Cylinders)

F - RSH Stopmaster® Wedge Brake

(Single Hydraulic Cylinder)

L - QPlus® Cam Brake

N - None

P - Cam-Master® "P" Series Cam Brake

Q - Cam-Master® "Q" Series Cam Brake

S - RSA Stopmaster® Wedge Brake

(Single Air Chamber)

T - Cam-Master® "T" Series Cam Brake

W - Cam-Master® "W" Series Cam Brake

Manufacturing Location

- Australia

B - Brazil (Braseixos)

C - India

D - Mexico (Dirona)

E - Europe (C.V.C.)

M - Europe (Maudsley)

N - U.S.A.

Gearing Type

1 - Single Speed

2 - Two Speed

3 - Helical Double Reduction

4 - Salisbury Single Speed

5 - Planetary Double Reduction

6 - Hub Reduction

Main Differential Nest Type

B - Special Differential

C - Driver Controlled Differential Lock

F - Standard Differential

H - High Traction® Differential

N - NoSPIN® Differential

Axle Type

C - Single Rear Drive Axle, Coach

D - Forward-Rear Axle of a Drive Tandem

with Inter-Axle Differential

N - Forward-Rear Axle of a Drive Tandem or

Tridem without Inter-Axle Differential

P - Forward-Rear Axle of a Drive Tandem

with Inter-Axle Differential and Pump

R - Rear-Rear Axle of a Drive Tandem

S - Single Rear Drive Axle

T - Tandem Drive Axle Set

Z - Tridem Drive Axle Set

Axle Specification Number

Identifies specific customer axle

configurations (variations from the original

axle design). For information about the

variation, see the Bill of Material for that

specific axle model.

Hub Type (See Note 3)

- Aluminum

F - Ferrous

N - None

AXLE MODELS - CARRIERS - FEATURES

180/185/186 Series Single Reduction Axles

380 Series Double Reduction Axles

CARRIER

INTER- MAIN NO PARTS

AXLE DIFF. SPIN® OIL CHART

AXLE MODELS CARRIERS DIFF. LOCK DIFF. PUMP NUMBER

RS-23-180/185/186 Single Axles A1-3200-J-1752 (1) 2

RS-26-180/185 (single reduction) A-3200-J-1752 (1) X 2

RS-30-180/185

RS-23-380 Single Axles A17-3200-M-1833 1

RS-26-380 (double reduction)

RS-30-380 2.35 - 46 axle spline

RS-38-380 Single Axles A58-3200-M-1833 X 1

(double reduction) A12-3200-M-1833 1

2.56 - 50 axle spline

RT-48-180/185 Forward RP-24-180/185 A84-3200-M-1833 X X X 1

RT-52-180/185 RP-26-180/185 A74-3200-M-1833 X X 1

RT-58-180/185 RP-29-180/185

Rear RR-24-180 A1-3200-J-1752 (1) 2

RR-26-180/185 A-3200-J-1752 (1) X 2

RR-29-180/185

RT-48-380 Forward RP-24-380 A76-3200-M-1833 X X 1

RT-52-380 2.35-46T RP-26-380

RT-58-380 RP-29-380

Rear RR-24-380 A17-3200-M-1833 1

2.35-46T RR-26-380

RR-29-380 A36-3200-M-1833 X 1

RT-70-380 Forward RP-35-380 A73-3200-M-1833 X X 1

2.56-50T

RN-35-380 A97-3200-M-1833 1

Rear RR-35-380 A58-3200-M-1833 X 1

2.56-50T A12-3200-M-1833 1

NOTE: All carriers are less yoke.

®NoSPIN is a registered trademark of Tractech, a division of Dyneer Corp.

(1) These are 185/186 carriers and require KIT 4744 (carrier to axle housing fasteners) if replacing an 1804 or 1899

carrier with the 1752 or 1753 carrier.

TABLE OF CONTENTS

FORWARD CARRIERS OF ALL TANDEM AXLES & REAR CARRIERS OF

380 SERIES (DOUBLE REDUCTION) AXLES..........................................1

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES & REARS OF

180/185/186 SERIES TANDEM AXLES .................................................... 8

OUTPUT (THRU) SHAFT ASSEMBLY PARTS......................................................16

HOUSING ASSEMBLY PARTS..............................................................................17

AXLE SHAFT SETS FOR 180/185/186/380 SERIES AXLES................................19

AXLE SHAFTS ....................................................................................................... 21

ROUND BEARING TYPE YOKES .......................................................................... 24

EASY SERVICE (STRAP) TYPE YOKES...............................................................25

WING BEARING TYPE YOKES.............................................................................. 26

COMPANION FLANGES.........................................................................................27

AXLE MODEL TO CARRIER KIT CROSS REFERENCE...................................... 28

SERVICE KITS ........................................................................................................ 32

NUMERICAL PARTS LISTING............................................................................... 53

CHART 1

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 SERIES (DOUBLE-REDUCTION) AXLES

(Use with Figures 1 and 1A)

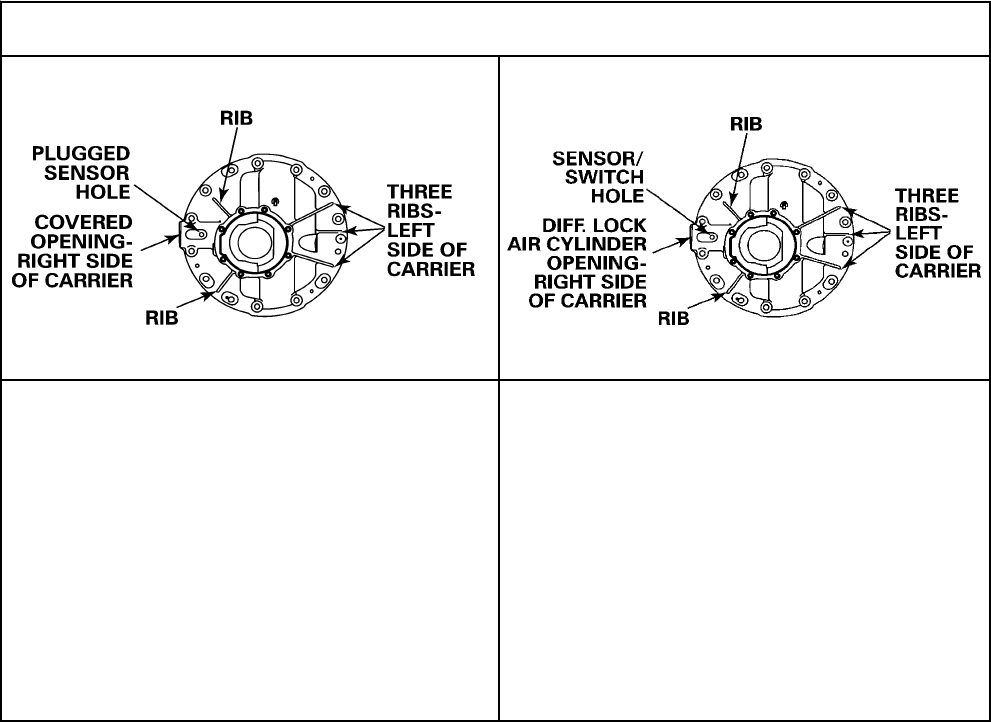

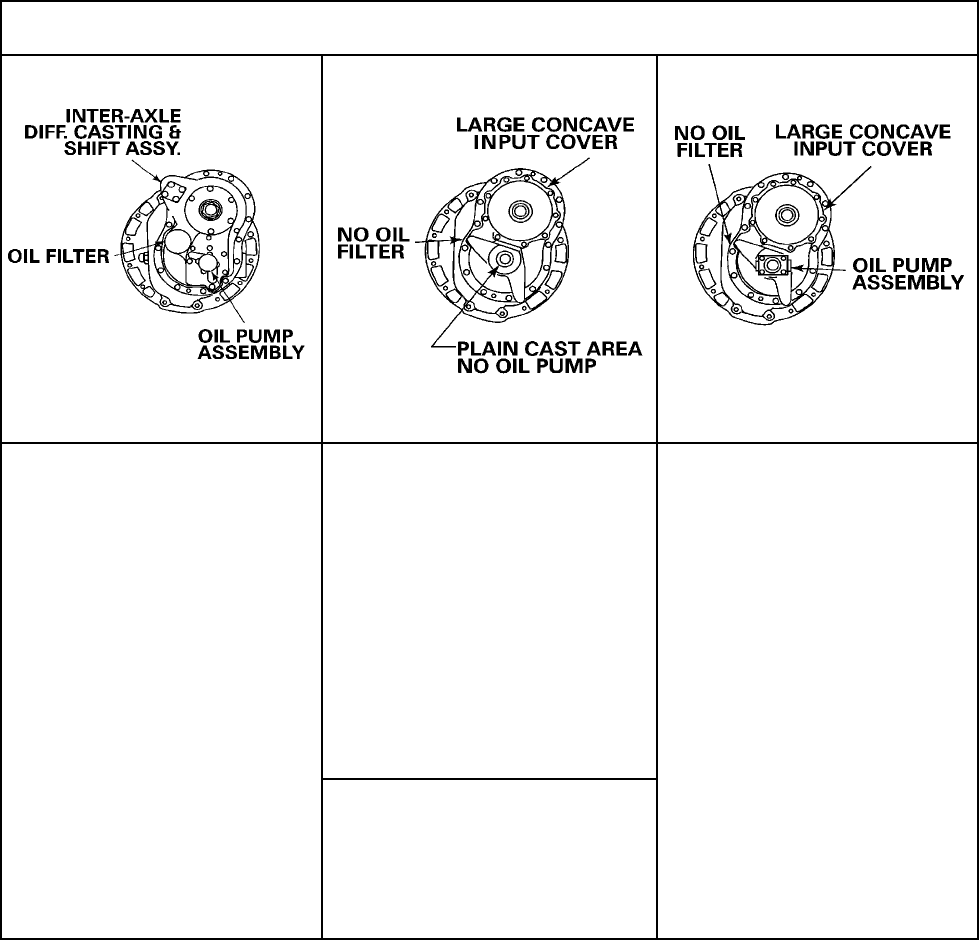

VISUAL IDENTIFICATION OF CARRIERS

FORWARD CARRIER WITH FORWARD CARRIER WITHOUT REAR CARRIER

IAD AND OIL PUMP IAD OR OIL PUMP WITH OIL PUMP

A42-3200-M-1625 A59-3200-M-1625 A83-3200-M-1625

A58-3200-M-1625 A66-3200-M-1625 A36-3200-M-1833

A60-3200-M-1625 B8-3200-M-1625

A63-3200-M-1625 B24-3200-M-1625

A11-3200-M-1833 A12-3200-M-1833

A13-3200-M-1833 A13-3200-M-1833

A15-3200-M-1833 A31-3200-M-1833

A73-3200-M-1833 REAR CARRIER

A74-3200-M-1833 WITHOUT OIL PUMP

A76-3200-M-1833 A53-3200-M-1625

A84-3200-M-1833 A58-3200-M-1833

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 SERIES (DOUBLE-REDUCTION) AXLES

(1) Update kit

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

NOTE: ITEMS 1-42 ARE COMMON TO FWD 180 & 380 AND REAR 380

1 Capscrew - lock plate All 4 S-256A-2

2 Washer - lock plate All 4 1229-E-1669

3 Lock Plate - adjusting ring All 2 1220-S-1085

RH 2214-M-91 4 Adjusting rings - differential bearing

All 1

2214-K-89

RH - current 52618P

RH - old style

KIT 4446 (1)

5 Cups - differential bearing

LH All

KIT 4445 (1)

RH - current 52387P

RH - old style

KIT 4446 (1)

6 Cones - differential bearing

LH All

KIT 4445 (1)

7 Nut - main differential case All 12 1227-M-1339

8 Washer - main differential case All 12 1229-W-1557

9 Nut - gear to differential case Incl. in KIT 2342 All 16 1227-N-1340

10 Washer - gear to differential case All 16 1229-U-1555

11 Bolt - gear to differential case All 16 15-X-1700

Sgl. reduction 3.73

Sgl. reduction 4.10

Sgl. reduction 4.30

Dbl. reduction 5.52

Dbl. reduction 6.07

Dbl. reduction 6.37

A-3235-T-1944 12, 7, 8,

Case assembly -

main differential

Sgl. reduction 4.56

Sgl. reduction 4.89

Sgl. reduction 5.29

Sgl. reduction 5.38

Sgl. reduction 6.14

Sgl. reduction 6.83

Sgl. reduction 7.17

Dbl. reduction 6.75

Dbl. reduction 7.24

Dbl. reduction 7.83

Dbl. reduction 7.96

Dbl. reduction 9.14

Dbl. reduction 10.12

Dbl. reduction 10.62

All 1

A-3235-U-1945

All others A6-3235-T-1944 Sgl. reduction 3.73

Sgl. reduction 4.10

Sgl. reduction 4.30

Dbl. reduction 5.52

Dbl. reduction 6.07

Dbl. reduction 6.37

RT-70-380

2-1/2" -50 spline

A7-3235-T-1944

All others A6-3235-U-1945

12, 7, 8,

14, 15,

16, 17,

18, 19

Case & nest assy -

main differential

Sgl. reduction 4.56

Sgl. reduction 4.89

Sgl. reduction 5.29

Sgl. reduction 5.38

Sgl. reduction 6.14

Sgl. reduction 6.83

Sgl. reduction 7.17

Dbl. reduction 6.75

Dbl. reduction 7.24

Dbl. reduction 7.83

Dbl. reduction 7.96

Dbl. reduction 9.14

Dbl. reduction 10.12

Dbl. reduction 10.62

RT-70-380

2-1/2" -50 spline

A7-3235-U-1945

All others A5-3235-T-1944 12, 7, 8,

15A, 19

Case & NoSPIN

assy - main

differential

Sgl. reduction 3.73

Sgl. reduction 4.10

Sgl. reduction 4.30

Dbl. reduction 5.52

Dbl. reduction 6.07

Dbl. reduction 6.37

RT-70-380

2-1/2" -50 spline

A3-3235-T-1944

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 SERIES (DOUBLE-REDUCTION) AXLES

(2) Plain half in diff. case changed from 3235-U-1971 to 3235-C-2395.

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

All others A5-3235-U-1945 12, 7, 8,

15A, 19

Case & NoSPIN

assy - main

differential

Sgl. reduction 4.56

Sgl. reduction 4.89

Sgl. reduction 5.29

Sgl. reduction 5.38

Sgl. reduction 6.14

Sgl. reduction 6.83

Sgl. reduction 7.17

Dbl. reduction 6.75

Dbl. reduction 7.24

Dbl. reduction 7.83

Dbl. reduction 7.96

Dbl. reduction 9.14

Dbl. reduction 10.12

Dbl. reduction 10.62

RT-70-380

2-1/2" -50 spline

A3-3235-U-1945

Sgl. reduction 3.73 Dbl. reduction 5.52 B-40352-4

Sgl. reduction 4.10 Dbl. reduction 6.07 B-40354-4

Sgl. reduction 4.30 Dbl. reduction 6.37 B-40356-4

Sgl. reduction 4.56 Dbl. reduction 6.75 B-40358-4

Sgl. reduction 4.89 Dbl. reduction 7.24 B-40360-4

Sgl. reduction 5.29 Dbl. reduction 7.83 B-40312-4

Sgl. reduction 5.38 Dbl. reduction 7.96 B-40362-4

Sgl. reduction 6.14 Dbl. reduction 9.14 B-40364-4

Sgl. reduction 6.83 Dbl. reduction 10.12 B-40366-4

13, 42 Drive gear, pinion

& nut assembly

Sgl. reduction 7.17 Dbl. reduction 10.62

All 1

B-40368-4

14 Thrust washer - side gear All 2 1229-L-3002

2.35" -46 spline 2234-C-1069 15 Side gear - differential

2.56" -50 spline

2234-G-1229

2.35" -46 spline A-3230-E-1045 15A NoSPIN assembly

2.56" -50 spline

A-3230-N-1028

16 Thrust washer - differential pinion All 4 1229-D-992

17 Gear - differential pinion All 4 2233-T-1112

18 Spider (cross) - differential All 1 3278-Q-381

Long 8 15-X-1699 19 Bolt - main differential case

Short

Pre 4/02

4 15-X-1698

After 4/02 12 15-X-1699 (2)

One pc. bearing assy. A2-3200-M-1833 20, 29,

Differential carrier & cap assembly

Two pc. bearing assy.

All 1

A2-3200-M-1625

21 Dowel - helical gear cover to carrier All 2 1246-M-455

22 Plug - oil filter All 1 P-112

23 Screen assembly - oil filter All 1 A-1199-Z-3328

24 Capscrew - carrier to housing Ref. only - not incl. with 9 S-21016-2

25 Washer - carrier to housing carrier. See housing 14 1229-U-1503

26 Nut - carrier to housing stud section for exploded

view of housing.

5 N-110-1

27 Nut - thrust screw jam All 1 1227-D-472

28 Screw - drive gear thrust All 1 15-X-1167

29 Washer - differential bearing cap All 4 1229-M-1625

30 Capscrew - differential bearing cap All 4 S-11440-2

All other ratios 1229-L-1624 One piece bearing

Sgl. reduction 6.83

Sgl. reduction 7.17

Dbl. reduction 10.12

Dbl. reduction 10.62

1229-K-1623

31 Snap ring - spigot

bearing

Two piece bearing

1229-T-4076

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 SERIES (DOUBLE-REDUCTION) AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

All other ratios 1228-S-1267 Current design one

piece bearing Sgl. reduction 6.83

Sgl. reduction 7.17

Dbl. reduction 10.12

Dbl. reduction 10.62

1228-A-261

All other ratios A5-1228-R-1266

32, 31 Bearing - drive

pinion spigot (inner

& outer race plus

snap ring) Old design two pc.

brg. Incl. Item 31

(1229-T-4076 snap

ring).

Sgl. reduction 6.83

Sgl. reduction 7.17

Dbl. reduction 10.12

Dbl. reduction 10.62

A4-1228-R-1266

33 Cones - drive pinion inner & outer bearing All 2 78250AC

34 Cups - drive pinion inner & outer bearing All 2 78551

.326" /8.28mm 2203-U-7899

.327" /8.31mm 2203-V-7900

.328" /8.31mm 2203-W-7901

.329" /8.33mm 2203-X-7902

.330" /8.38mm 2203-Y-7903

.331" /8.41mm 2203-Z-7904

.332" /8.43mm 2203-A-7905

.338" /8.59mm 2203-B-7906

.345" /8.76mm 2203-C-7907

.352" /8.94mm 2203-D-7908

35 Spacers - pinion

bearing

.359" /9.12mm

Incl. in KITS 1554,

RP180 1625, RP380 &

RR380

All Use 2

req.

2203-E-7909

.003" /.075mm 2203-Z-6604

.005" /.125mm 2203-A-6605

36 Shims - pinion

bearing cage

.010" /.254mm

Incl. in KITS 2432,

RP180 1625, RP380 &

RR830

All Use

req. 2203-B-6606

37, 34 Pinion bearing cage & cups assembly All 1 A-3226-Z-598

38 Washer - pinion bearing cage All 9 1229-C-1511

39 Capscrew - pinion bearing cage All 9 10-X-1669

RP-xx-180 carriers 3892-J-4014 forward-rear

RP-xx-380 carriers 3892-B-4708

forward-rear

.756 overdrive

RP-180/380 3892-S-4023

40 Gear - helical driven

single axles & rear-rear

double reduction

RR & RS-xx-380

3892-D-4710

41 Washer - drive pinion All 1 1229-K-2429

42 Nut - drive pinion Incl. in KITS RR380,

RP380 & RP180 1625

All 1 1227-P-900

NOTE: ITEMS 43-98 ARE USED ONLY IN FWD. CARRIERS WITH IAD & WITH OIL PUMP (180 & 380)

43 Cup - rear side gear bearing Incl. in KITS RR380, All 1 JM-515610

44 Cone - rear side gear bearing RP380 & RP180 1625 All 1 JM-515649

45 Side gear - inter-axle differential rear All 1 2234-F-890

46, 47,

48, 49

Case assembly - inter-axle differential All 1 A1-3235-X-1532

46, 47,

48, 49,

50, 51,

Case & nest assembly - inter-axle

differential

All 1

A-3235-X-1532

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 SERIES (DOUBLE-REDUCTION) AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

47 Bolt - inter-axle differential case All 8 S-2626-2

48 Washer - inter-axle differential case All 16 1229-K-1597

49 Nut - inter-axle differential case All 8 NL-26-1

50 Thrust washer - inter-axle pinion Incl. in KITS 2421, 2422, All 4 1229-Q-2929

51 Gear - inter-axle pinion RP180 1625 & RP380 All 4 2233-K-245

52 Spider (cross) - inter-axle differential All 1 3278-N-300

RP-xx-180 carriers 3892-W-4963 53 Helical drive & forward side gear forward-rear

RP-xx-380 carriers

3892-Y-4965

forward-rear

.756 overdrive

RP-180/380 3892-M-5213

54 Thrust washer - helical drive gear Incl. in KITS 2421, 2422,

RP180 1625 & RP380

All 1 1229-L-2742

All after 11/93 A1-3297-N-1288 55 Input shaft, nut, ball & pin assembly

All prior to 11/93

A1-3297-K-115

All after 11/93 Not used 56 Roll pin - shift fork

All prior to 11/93

KIT 2268

All after 11/93 3296-Q-1187 57 Shift fork - inter-axle differential

All prior to 11/93

3296-L-90

58 Clutch collar - inter-axle differential All 1 3107-P-16

59 Adjusting screw - shift shaft All 1 S-2812-2

60 Jam nut - adjusting screw All 1 N-68-1

61 Cone - input shaft bearing Incl. in KITS 4440, All 1 HM-813844

62 Cup - input shaft bearing RP180 1625 & RP380 All 1 HM-813810

Incl. in KIT 1573 & 2432 All prior to 11/93 2203-C-6607 .003" /.076mm

Incl. in KIT 2885 & 2886 All after 11/93 2203-K-9241

Incl. in KIT 1573 & 2432 All prior to 11/93 2203-D-6608 .005" /.127mm

Incl. in KIT 2885 & 2886 All after 11/93 2203-L-9242

Incl. in KIT 1573 & 2432 All prior to 11/93 2203-E-6609

63 Shims - input shaft

bearing cage

.010" /.254mm

Incl. in KIT 2885 & 2886 All after 11/93

Use

req.

2203-M-9243

All after 11/93 A-3226-H-1126 64, 62 Bearing cage & cup assembly - input

All prior to 11/93

A-3226-J-790

All after to 11/93 1 2297-U-5273 64A Pressure relief valve - oil

All prior to 11/93 0 Not used

All after 11/93 1 2258-Z-1118 64B Spring - oil pressure relief valve

All prior to 11/93 0 Not used

11/93 thru 5/97 1 1229-F-4062 64C Washer - plug

All prior to 11/93 &

after 5/97

0 Not used

64D Pressure relief plug 11/93 thru 5/97 1 1250-N-1080

All prior to 11/93 &

after 5/97

0 Not used

65 Washer - input bearing cage All after 11/93 7 1229-C-1511

All prior to 11/93 6 1229-C-1511

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 (DOUBLE-REDUCTION) AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

All after 11/93 7 S-2814-A2 66 Capscrew - input bearing cage

All prior to 11/93 6 10-X-1669

67 Oil seal - input bearing cage RP-180/380 1 A1-205-X2728

68 Deflector - input yoke Available separately or All 1 See Yoke Charts

69 Yoke & deflector assembly - input as an assembly. All 1 starting on page 24

70 Washer - input yoke & shaft All 1 1229-N-1730

71 Nut - input yoke & shaft Incl. in KITS RP180

1625 & RP380

All 1 1227-D-940

Direct drive (1:1) &

Reduction (1.48:1)

3266-M-1313

Overdrive (.756:1)

All after 11/93

3266-Q-1317

Updates to current

design direct drive (1:1)

& Reduction (1.48:1)

KIT 2678

72 Cover assembly - helical gear

Updates to current

design overdrive (.756:1)

All prior to 11/93

KIT 2679

73 Washer - gear cover to carrier All 14 1229-C-1511

74 Capscrew - gear cover to carrier All 14 S-2812-2

75 Spring - shift shaft return All 1 2258-U-411

All after 11/93 2244-K-1025 76 Shift shaft - inter-axle differential

All prior to 11/93

2297-X-2494

All after 11/93 A2-3261-Q-1057 77 Shift assembly - inter-axle differential air

All prior to 11/93

KIT 2266

All after 11/93 0 Not used 78 Capscrew - air shift assembly

All prior to 11/93 4 10-X-1334

All after 11/93 0 Not used 79 Capscrew - filter shield

All prior to 11/93 2 S-256P-2

All after 11/93 0 Not used 80 Washer - filter shield

All prior to 11/93 2 1229-E-1669

All after 11/93 3280-Z-8398 81 Shield - oil filter

All prior to 11/93

A-3280-F-8430

All after 11/93 3280-V-8394 82 Filter - oil

All prior to 11/93

3280-V-5040

Long 1 S-2616-2

Short

All prior to 11/93

S-2610-2

83 Capscrew - oil pump

All after 11/93

MS-208045-1

All after 11/93 6 1229-E-1669 84 Washer - oil pump

All prior to 11/93 7 1229-K-1597

All after 11/93 A-3303-P-1030 85 Oil pump assembly forward-rear

All prior to 11/93

A1-3303-L-12

All after 11/93 2 5-X-1034 85A O-ring - pump assembly

All prior to 11/93 0 Not used

86 Gear - pump driven All after 11/93 0 Not used

All prior to 11/93 1 3892-V-4936

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 SERIES (DOUBLE-REDUCTION) AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

All after 11/93 0 Not used 87 Capscrew - filter adapter

All prior to 11/93 2 S-2510-2

All after 11/93 0 Not used 88 Washer - filter adapter

All prior to 11/93 2 1229-E-1669

All after 11/93 2297-Z-5278 89 Adapter - oil filter

All prior to 11/93

2297-E-2293

All after 11/93 0 Not used 90 Plug - gear cover

All prior to 11/93 1 P-16

All after 11/93 0 Not used 91 O-ring - oil tube to gear cover

All prior to 11/93 1 3780-R-382

All after 11/93 A-2297-D-5334 92 Tube - gear cover oil

All prior to 11/93

3196-B-28

All after 11/93 0 Not used 93 Pin - oil restriction (not shown)

All prior to 11/93 1 1246-Q-615

All after 11/93 0 Not used 94 Nut - pump idler shaft

All prior to 11/93 1 NL-210-1

All after 11/93 0 Not used 95 Bearing assembly - pump idler gear

All prior to 11/93 1 A-1228-Z-572

All after 11/93 0 Not used 96 Shaft - pump idler gear

All prior to 11/93 1 2297-L-5420

All after 11/93 0 Not used 97 Gear - pump idler drive

All prior to 11/93 1 3892-W-4937

All after 11/93 0 Not used 98 Washer - pump idler shaft

All prior to 11/93 1 1829-J-738

NOTE: ITEMS 99-115 ARE USED ONLY IN FWD. CARRIERS W/O IAD OR OIL PUMP AND IN THE REAR

CARRIER OF 380 SERIES (DOUBLE REDUCTION) AXLES

forward-rear RN-xx-380 carriers A-3297-M-117 99, 115 Input shaft & nut assembly

rear-rear RR-xx-380 carriers

A-3297-S-97

Inner 29685 100 Cones - input shaft

bearing Outer

All 1

496

Inner 29620 101 Cups - input shaft

bearing Outer

All 1

493

102 Oil scoop - helical gear cover All 1 3221-H-8

103, 101,

102

Cover assembly - helical gear All except rear-rear

with pump

1 A1-3266-B-834

103, 101,

102, 116,

117, 118,

119, 120,

127, 128,

129

Cover assembly - helical gear RR-xx-380 carrier

(rear-rear) with oil

pump

1 A-3266-L-792

104 Washer - gear cover to carrier All 14 1229-C-1511

FORWARD CARRIERS OF ALL TANDEM AXLES

REAR CARRIERS OF 380 SERIES (DOUBLE-REDUCTION) AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

105 Capscrew - gear cover to carrier All 14 S-2812-2

.326" /8.28mm 2203-U-7899

.327" /8.31mm 2203-V-7900

.328" /8.33mm 2203-X-7902

.329" /8.36mm 2203-W-7901

.330" /8.38mm 2203-Y-7903

.331" /8.41mm 2203-Z-7904

.332" /8.43mm 2203-A-7905

.338" /8.59mm 2203-B-7906

.345" /8.76mm 2203-C-7907

.352" /8.94mm 2203-D-7908

106 Spacers - input

shaft bearing

.359" /9.12mm

Incl. in KIT 1554 All Use 2

req.

2203-E-7909

107 Gear - helical drive All 1 3892-F-4712

forward-rear RN-180/380 carriers A-3266-Y-831 108 Cover - input

rear-rear RR-xx-380 carriers

A-3266-P-1446

109 Washer - input cover All 9 1229-K-1597

110 Capscrew - input cover All 9 S-2610-2

forward-rear RN-180/380 carriers A1-1205-X-2728 111 Oil seal - input cover

rear-rear RR-xx-380 carriers

R945008

112 Deflector - input yoke Available separately or All 1 See Yoke Charts

113 Yoke & deflector assembly - input as an assembly. All 1 starting on page 24

forward-rear RN-180/380 carriers 1229-N-1730 114 Washer - input yoke & shaft

rear-rear RR-xx-380 carriers

1229-T-1736

forward-rear RN-180/380 carriers 1227-D-940 115 Nut - input yoke & shaft

rear-rear RR-xx-380 carriers

1227-J-946

NOTE: ITEMS 116-129 ARE OIL PUMP COMPONENTS THAT ARE ONLY USED IN REAR CARRIERS

116 Tube - finished steel 11.88" long 3/8" OD x .032" wall 1 3196-U-21

117 Hose clamp 4 2257-S-1033

118 Hose 3/8" x 2" 1 2296-F-1098

119 Tube - finished steel .94" radius 3/8" OD x .032" wall 1 2296-B-106

120 O-ring 1 9680368

121 Button - pump drive 1 2297-C-3799

122 Washer - oil pump bolt 11/32" ID x 5/8" OD 3 1229-E-1669

123 Bolt - oil pump 5/16" dia. x 2.24" long 3 S-2518-2

124 Bolt - oil pump 3/8" dia. x 2.25" long 1 S-2616-2

125 Washer - oil pump bolt 13/32" ID x 13/16" OD 1 1229-B-1666

126 Oil pump assembly rear carriers only 1 A-3303-M-13

127 Tube - finished steel .125" radius 7/16" OD x .032" wall 1 3196-T-20

128 Hose - 7/16" x 2" 1 2296-G-1099

129 Tube - finished steel 2" long 7/16" OD x .032" wall 1 2296-A-105

CHART 2

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES AND

REARS OF 180/185/186 SERIES TANDEM AXLES

(Use with Figure 2)

VISUAL IDENTIFICATION OF CARRIERS

REAR CARRIER WITHOUT DIFF. LOCK REAR CARRIER WITH DIFF. LOCK

A5-3200-C-1381 (ALUMINUM) A6-3200-C-1381 (ALUMINUM)

A61-3200-U-1399 (MALLEABLE) A54-3200-U-1399 (MALLEABLE)

A1-3200-K-1752 * A1-3200-W-1791

A1-3200-K-1753 A-3200-J-1752 *

A1-3200-J-1804 A-3200-K-1753

A7-3200-J-1804 A1-3200-A-1899

A6-3200-S-1839 * B5-3200-A-1899 (185/186 only)

B8-3200-A-1899 (185/186 only) B1-3200-L-1910 *

* These carriers are equipped with a thrust screw.

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES &

REARS OF 180/185/186 SERIES TANDEM AXLES

(3) Timken part no. 9278

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

130 Nut - drive pinion Incl. in KIT 2826 All 1 40-X-1233

130A Washer - pinion nut All 1 1229-N-1730

131 Input yoke assembly & deflector All 1 See Yoke Charts

starting on page 24

132 Deflector - input yoke All 1 3264-P-172

133 Oil seal - pinion bearing cage assy. Incl. in KIT 4435 All 1 A-1205-Q-2591

134 Cone - drive pinion outer bearing All 1 H-715334

135 Cup - drive pinion outer bearing All 1 H-715311

1381 41-X-1043 136 Capscrew - pinion bearing cage

All others

MS-212045-1

1899 1229-D-4632 137 Washer - pinion bearing cage

All others

MWA-512

1752 & 1753 A-3226-V-1010 138, 135,

141

Pinion bearing cage assembly

All except 1752 & 1753

A-3226-B-860

.003" /.075mm 2803-Y-2755

.005" /.125mm 2803-Z-2756

.008" /.200mm 2803-A-2757

139 Shims - pinion

bearing cage

.020" /.500mm

Incl. in KIT 1592 All Use

req.

2803-B-2758

.250" /6.35mm 2803-D-2500

.251" /6.38mm 2803-E-2501

.252" /6.40mm 2803-F-2502

.254" /6.45mm 2803-N-2510

.256" /6.50mm 2803-H-2504

.260" /6.60mm 2803-J-2506

.261" /6.63mm 2803-K-2507

.262" /6.65mm 2803-L-2508

.263" /6.68mm 2803-M-2509

140 Spacers - pinion

bearing

.264" /6.70mm

Incl. in KIT 1593 All Use

2 as

req.

2803-P-2512

141 Cup - drive pinion inner bearing Incl. in KIT 4435 All 1 9220

142 Cone - drive pinion inner bearing All 1 1228-V-594 (3)

2.93 ratio B-41592-1

3.07 ratio B-41806-1

3.21 ratio B-41026-3

3.42 ratio B-41004-3

3.58 ratio B-41030-3

3.73 ratio B-41016-3

3.91 ratio B-41006-3

4.10 ratio B-41018-3

143, 130 Drive gear, pinion &

nut assembly

4.30 ratio

Use KIT 2608 bolt kit

with these gearsets.

All 180/185/186 series

rear-rear carriers

(except 3.73-4.30 ratios

in 1752 & 1753 carriers)

Use

1 as

req.

B-41014-3

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES &

REARS OF 180/185/186 SERIES TANDEM AXLES

(4) With set screw.

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

143, 130 Drive gear, pinion & 4.56 ratio Use KIT 2608 bolt kit All 180/185/186 series Use B-41008-3

4.89 ratio B-41034-3

5.13 ratio B-41010-3

5.38 ratio B-41028-3

5.63 ratio B-41032-3

5.86 ratio B-41012-3

6.14 ratio B-41036-3

6.43 ratio B-41024-4

6.83 ratio B-41022-1

7.17 ratio B-41020-1

7.40 ratio B-41002-1

nut assembly

7.83 ratio

with these gearsets. rear-rear carriers 1 as

req.

B-41650-1

3.07 ratio B-41806-1

3.73 ratio A-40636-1

3.91 ratio A-40638-1

4.10 ratio A-40632-1

143 &

130

Drive gear, pinion &

nut assembly

4.30 ratio

1752 & 1753 Use

1 as

req.

A-40634-1

6.83, 7.17, 7.40 &

7.83 ratios only

1228-A-261 144 Bearing - drive pinion spigot

All other ratios

All 1

1228-S-1267

6.83, 7.17, 7.40 &

7.83 ratios only

1229-K-1623 144A Snap ring - drive pinion spigot bearing

All other ratios

1229-L-1624

1381 41-X-1020 145 Screw - thrust

1752, 1839, 1910

15-X-1167

1381 40-X-1015 146 Nut - thrust screw jam

1752, 1839, 1910

1227-D-472

Aluminum A2-3200-C-1381

Less diff. lock

(3.07-4.30 ratios)

KIT 2732

Less diff. lock

(4.56-7.40 ratios)

Malleable

(original design)

KIT 2732A

Malleable less

diff. lock

A2-3200-J-1804

Malleable with

diff. lock

180 & early 185/186

series

A2-3200-A-1899S

A2-3200-J-1752 (4) Malleable with or

without diff. lock

Current 185/186 series

A2-3200-K-1753

With diff. lock

(3.07-4.30 ratios)

KIT 2731

147 Differential carrier & cap assembly

With diff. lock

(4.56-7.40 ratios)

Malleable

(original design)

KIT 2731A

148 Washer - differential bearing cap All 4 42-X-1024

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES &

REARS OF 180/185/186 SERIES TANDEM AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

Aluminum carriers 41-X-1037 149 Capscrew - differential bearing cap

Malleable carriers

41-X-1018

Magnetic 45-X-1008 150 Plug

Plain

All Use

1 as

req.

45-X-1003

Left hand 1752 & 1753 2214-W-1011

Left hand (small)

1804, 1899

2214-G-1125

Left hand (small)

original design

All exc. 1752 & 1753

2214-S-279

Right hand 1752 & 1753 2214-X-1012

Right hand (large)

1804, 1899

2214-S-1137

151 Adjusting ring

Right hand (large)

original design

All exc. 1752 & 1753

2214-Q-277

Cotter pin - adjusting ring left hand All exc. 1752 & 1753 1199-R-2176 152

Locking pin - adjusting ring

1752 & 1753

43-X-1015

153 Lock - adjusting ring right hand All 1 1220-K-89

Locking pin - adjusting ring 1752 & 1753 43-X-1015 153A

Locking pin - adjusting ring right hand

1899

1246-P-1134

154 Washer - adjusting ring lock All 2 MWA-508

155 Capscrew - adjusting ring lock All 2 MS-208020-1

156 Cover - special carrier 1 3266-M-897

156A Plug 1899 1 1250-U-1217

157 Washer - cover Items 156 thru 160 for 4 MWA-506

158 Capscrew - cover 1381 & 1399 carriers 4 41-X-1080

159 Plug - special carrier capscrew without differential lock 1 41-X-1022

160 Washer - plug 1 1229-U-1503

1381, 1399, 1539,

1752 & 1753 only

JHM-720210 LH

All others KIT 2744

1381, 1399, 1539,

1752 & 1753 only

64700

161 Cups - differential

bearing

All others

JM-822010

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES &

REARS OF 180/185/186 SERIES TANDEM AXLES

(5) Can use 1229-W-1557 or MWA-516.

(6) Some 1399 carriers require KIT 2601 for chamfered ring gear mounting holes.

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

161A Adhesive - bearing cap Not shown. 2 tubes

5cc each. (One tube

per bearing.)

All 1 2297-T-4180

1381, 1399, 1539,

1752 & 1753 only

JHM-720249 LH

All others KIT 2744

1381, 1399, 1539,

1752 & 1753 only

64450

162 Cones - differential

bearing

All others

JM-822049

163 Nut - differential case to gear All 16 40-X-1182

1899 1229-W-1557 164 Washer - plug

All others

1229-U-1503 (5)

Used in KIT 1594 All others (6) 41-X-1358 165 Bolt - differential case to gear

Used in KIT 2608 1753, 1804, 1899

41-X-1334

1752 & 1753 with or

without diff. lock

(2.35" -46 spline)

A1-3235-Y-2339 2.93, 3.07, 3.21, 3.42,

3.58 ratios

1752 & 1753 with or

without diff. lock

(2.56" -50 spline)

A2-3235-Y-2339

1381 & 1399 A5-3235-F-1618

1791 & 1899 with diff.

lock (2.35" -46 spline)

A3-3235-K-2143

1791 & 1899 with diff.

lock (2.56" -50 spline)

A7-3235-K-2143

1804 less diff. lock

(2.35" -46 spline)

A2-3235-K-2143

2.93, 3.08, 3.21, 3.42,

3.58, 3.91, 4.10, 4.30

ratios

1804 less diff. lock

(2.56" -50 spline)

A5-3235-K-2143

1752 & 1753 with or

without diff. lock

(2.35" -46 spline)

A1-3235-U-2335

166, 167,

168, 169,

170, 171,

172,

172A,

173

Differential case & nest assembly

3.73, 3.91, 4.10, 4.30

ratios

1752 & 1753 with or

without diff. lock

(2.56" -50 spline)

A2-3235-U-2335

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES &

REARS OF 180/185/186 SERIES TANDEM AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

166, 167, Differential case & nest assembly 4.56, 4.89, 5.13, 5.38, 1381 & 1399 1 A3-3235-H-1620

1752 & 1753 with or

without diff. lock

(2.35" -46 spline)

A1-3235-W-2337

1752 & 1753 with or

without diff. lock

(2.56" -50 spline)

A2-3235-W-2337

1791 & 1899 with diff.

lock (2.35" -46 spline)

A2-3235-M-2145

1791 & 1899 with diff.

lock (2.56" -50 spline)

A7-3235-M-2145

1804 less diff. lock

(2.35" -46 spline)

A3-3235-M-2145

168, 169,

170, 171,

172,

172A,

173

5.63, 5.86, 6.14, 6.43,

6.83, 7.17, 7.40, 7.83

ratios

1804 less diff. lock

(2.56" -50 spline)

A5-3235-M-2145

2.93, 3.07, 3.21, 3.42,

3.58 ratios

1752 & 1753 with or

without diff. lock

A-3235-Y-2339

1381 & 1399 A-3235-F-1618

1791 & 1899 with diff.

lock

A1-3235-K-2143

2.93, 3.08, 3.21, 3.42,

3.58, 3.91, 4.10, 4.30

ratios

1804 less diff. lock A-3235-K-2143

3.73, 3.91, 4.10, 4.30

ratios

1752 & 1753 with or

without diff. lock

A-3235-U-2335

1381 & 1399 A-3235-H-1620

1752 & 1753 with or

without diff. lock

A-3235-W-2337

1791 & 1899 with diff.

lock

A-3235-M-2145

166, 172,

172A,

173

Differential case assembly

4.56, 4.89, 5.13, 5.38,

5.63, 5.86, 6.14, 6.43,

6.83, 7.17, 7.40, 7.83

ratios

1804 less diff. lock

A1-3235-M-2145

1381 & 1399 A6-3235-F-1618 2.93, 3.08, 3.21, 3.42,

3.58, 3.91, 4.10, 4.30

ratios

1804 less diff. lock

(2.35" -46 spline)

A4-3235-K-2143

1381 & 1399 A5-3235-H-1620

1804 less diff. lock

(2.35" -46 spline)

A4-3235-M-2145

166, 172,

172A,

173,

173A

Differential case & NoSPIN assembly

4.56, 4.89, 5.13, 5.38,

5.63, 5.86, 6.14, 6.43,

6.83, 7.17, 7.40, 7.83

ratios 1804 less diff. lock

(2.56" -50 spline)

A6-3235-M-2145

167 Thrust washer - side gear All 2 1229-L-3002

Incl. in KIT 2318 2.35" -46 spline 2 2234-C-1069 168 Side gear - differential

Incl. in KIT 2373 2.56" -50 spline 1 2234-P-1004

169 Thrust washer - differential pinion All 4 1229-K-3001

170 Gear - differential pinion All 4 2233-M-1001

171 Spider - differential All 1 3278-W-335

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES &

REARS OF 180/185/186 SERIES TANDEM AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

172 Capscrew - differential case All others 12 41-X-1275

4 41-X-1109 Thru-bolt design

8 41-X-1275

172A Thread locking liquid Use on Item 172 All 1 2297-C-7049

172B Nut 1899 4 40-X-1182

1899 16 1229-W-1557 173 Washer

All others 12 1229-U-1503

2.35" -46 spline A-3230-C-1043 173A NoSPIN Assembly

2.56" -50 spline

A-3230-A-1041

NOTE: ITEMS 174-194 ARE FOR CARRIERS WITH DIFFERENTIAL LOCK

1752 & 1753 3107-A-1041 2.35" -46 spline

All others 3107-L-1104

2.37" -46 spline 1381 & 1399 3107-Z-78

1752 & 1753 3107-V-1010

174 Shift collar

2.56" -50 spline

All others

3107-N-1106

1381, 1399, 1791 3296-N-1184

1752 & 1753 3296-A-1197

175 Shift fork One pc. style

1899

3296-D-1174

Used with 3 pc. style

fork (3296-V-178)

1381 & 1399 2 43-X-1007 176 Pin - shift fork

All others 0

Not used

1899 2258-N-1262 177 Spring - shift shaft

All others

2258-L-714

1752 & 1753 2244-Z-52

1899 2244-V-1114

178 Shift shaft

All others

2244-Y-51

1899 0 Not used 179 Pin - shift shaft

All others 1 43-X-1006

1752, 1753 & 1899 0 Not used 180 Washer - piston

All others 1 42-X-1027

1899 3261-A-1067 181 Tube - air cylinder

All others

3196-F-32

1899 2230-T-1190 182 Piston

All others

2230-N-170

1899 5-X-1198 183 O-ring

All others

5-X-1153

1899 0 Not used 184 Gasket - cylinder cover

All others 1 2208-H-944

1899 41-X-1368 185 Capscrew - manual engaging

(shipping)

All others

41-X-1333

185A O-ring 1899 1 5-X-521

1899 0 See Item 181 186 Cover cylinder

All others 1 3266-F-1020

CARRIERS FOR 180/185/186 SERIES SINGLE AXLES &

REARS OF 180/185/186 SERIES TANDEM AXLES

ITEM DESCRIPTION REMARKS CARRIER QTY PART NUMBER

1899 0 Not used 187 Capscrew - cylinder cover

All others 4 41-X-1364

1899 0 Not used 188 Washer - cylinder cover

All others 4 MWA-506

1899 0 Not used 189 Gasket - plug

All others 1 2208-L-1000

1899 0 Not used 190 Plug - cylinder cover

All others 1 MS-210016-1

191 Switch - sensor All 1 3237-W-1167

191A Washer - sensor switch 1752 & 1753 2 1229-U-1503

1752, 1753 & 1899 0 Not used 192 Nut - sensor switch

All others 1 1227-P-1056

193 Adaptor - cylinder cover Converts old metric

covers to use

American standard

threads.

No longer available

194 Gasket - adapter Only used with

Item 193

1 2208-L-1000

194A Cover - cylinder hole For carriers with DCDL 1 3266-M-897

194B Capscrew - cylinder hole cover bolt holes, but less 4 41-X-1080

194C Washer - cylinder hole cover DCDL 4 MWA-516

OUTPUT (THRU) SHAFT ASSEMBLY PARTS

ITEM DESCRIPTION REMARKS

AXLE

MODEL QTY PART NUMBER

195, 196, 198,

201, 202, 203,

204, 205, 206,

207

Output (thru) shaft, bearing cage and

seal assembly

All 1

A1-3226-Q-901

196 Shaft - output (thru) All 1 3297-W-75

197 Silastic gasket material (not shown) Use as gasket for Item 198 All 1 2297-A-7021

198 Bearing cage & inner cup assembly Includes one piece of Item 201 All 1 A-3226-Q-901

199 Washer - output bearing cage All 6 1229-E-1513

All others S-2711-2 200 Capscrew - output bearing cage

RT-70-380

S-2710-2

201 Cups - inner & outer output bearing All 2 382A

202 Cones - inner & outer output bearing All 2 385A

1229-L-2430

1229-M-2431

1229-N-2432

1229-P-2434

1229-Q-2435

1229-R-2436

1229-S-2437

1229-T-2438

203 Snap ring (spacer) output bearing Incl. in KIT 1536 All Use

1 as

req.

1229-U-2439

204 Snap ring spacer - output bearing yoke All 1 1229-T-3062

205 Oil seal assembly All 1 A-1205-C-1927

206 Washer - output yoke and shaft All 1 1229-T-1736

207 Nut - output yoke and shaft All 1 1227-J-946

209A Breather assembly – housing All 1 A-1199-W-4053

HOUSING ASSEMBLY PARTS

ITEM DESCRIPTION REMARKS AXLE OR WHEEL END QTY PART NUMBER

208 Axle housing assembly All 1 As specified

209 Breather assembly - housing All 1 A-1199-R-4048

2 4-X-1051

2 SN-1036-1

All others Total of five studs required

1 SN-1020-1

210 Stud - housing to carrier

Single and tandem

rears of 180/185/186

series axles

4-X-1929

211 Plug - heat indicator All 1 P-28S

Magnetic 1250-E-473 212 Plug - oil fill & drain

Standard

P-212

213 Washer - carrier to housing All 14 1229-W-1557

214 Silastic gasket material All 1 2297-A-7021

All others 9 10-X-1595

4 10-X-1596

215 Capscrew - carrier to housing

Single and tandem

rears of 180/185/186

series axles

Incl. in KIT 2673

6 10-X-1601

Single Incl. in KIT 4744 4 10-X-1595

RS/RR185/186

using 1752 or

2 10-X-1597

4 10-X-1599

1753 carriers

HOUSING ASSEMBLY PARTS

(7) Includes 1 tanged washer and 1 lockwasher.

ITEM DESCRIPTION REMARKS AXLE OR WHEEL END QTY PART NUMBER

All others 5 N-110-1 216 Nut - carrier to housing

Single and tandem

rears of 180/185/186

series axles

4 N-110-1

R 1199-B-1666

U 1244-U-879

217 Wiper - housing spindle oil seal Optional item. Use

with standard oil seal

2245-E-31

U A-1205-Z-1820 218 Oil seal assembly inner Standard oil seal, use

with Item 217 W

A-1205-S-1657

218A Oil seal assembly Unitized oil seal

(wiper built in)

R 2 A-1205-R-2410

R 598A 219 Cone - inner wheel bearing

U & W

782

R 592A 220 Cup - inner wheel bearing

U & W

772

R 572

U 742

221 Cup - outer wheel bearing

6535

R 580

U 749

222 Cone - outer wheel bearing

6580

R & U 1227-W-517 223 Nut - inner wheel bearing adjuster

1227-A-547

R & U 1229-F-4634S (7) 224 Lockwasher - adjuster nut

1229-V-48

224A Washer - tanged lock R & U 2 1229-F-4634S (7)

R & U 1227-R-330 225 Nut - outer wheel bearing (jam)

1227-F-448

LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND

RS-23-180/185/186 Single Axle RR-26-180/185 Rear of RT-52-18X Tandem

3202-W-7745 3202-H-8666 3202-H-9004 3202-N-9400

3202-W-7745 3202-Y-8111 3202-G-9393 3202-B-8816

3202-X-9098 3202-W-9097 3202-G-9393 3202-G-9003

3202-W-9149 3202-V-9148

3202-W-9149 3202-G-9159 RS-26-180/185 Single Axle

3202-K-9267 3202-L-9372 3202-J-9344 3202-L-9346

3202-E-9391 3202-F-9392 3202-J-9344 3202-J-9552

3202-E-9391 3202-S-6779 3202-L-9346 3202-J-9344

3202-K-9579 3202-M-9581 3202-G-9393 3202-B-8816

3202-K-9579 3202-L-9580 3202-G-9393 3202-G-9003

3202-W-9643 3202-Y-9645 3202-N-9400 3202-H-9004

3202-Q-9403 3202-H-9004

RS-23-380 Single Axle

3202-H-6768 3202-W-7745 RS-26-181 Single Axle

3202-S-6779 3202-R-6778 3202-S-6779 3202-R-6778

3202-G-9497 3202-K-9501

RP-26-380 Forward of RT-52-380 Tandem

RP-24-180/185 Forward of RT-48-180 Tandem 3202-S-6779 3202-R-6778

3202-H-6768 3202-W-7745

3202-S-6779 3202-R-6778 RR-26-380 Rear of RT-52-380 Tandem

3202-F-9496 3202-E-9495 3202-S-6779 3202-R-6778

Rear of RT-48-180 Tandem RS-26-380 Single Axle

3202-Y-9125 3202-C-9129 3202-H-6768 3202-W-7745

3202-Y-9125 3202-J-9396 3202-S-6779 3202-R-6778

3202-J-9344 3202-L-9346

3202-J-9344 3202-J-9552 RP-29-180/185 Forward of RT-58-180 Tandem

3202-L-9346 3202-J-9344 3202-X-8110 3202-H-6768

3202-G-9393 3202-B-8816 3202-K-9501 3202-Z-8112

3202-G-9393 3202-G-9003 3202-L-9502 3202-G-9003

3202-L-9554 3202-X-8110

RP-24-380 Front of RT-48-380 Tandem

3202-S-6779 3202-R-6778 RR-29-180/185 Rear of RT-58-180 Tandem

3202-S-6779 3202-W-9409

RR-24-380 Rear of RT-48-380 Tandem 3202-J-9370 3202-N-9374

3202-S-6779 3202-R-6778 3202-J-9370 3202-L-9372

3202-E-9391 3202-T-9458

RP-26-180/185 Front of RT-52-18X Tandem 3202-E-9391 3202-R-9456

3202-S-6779 3202-R-6778

3202-G-9497 3202-K-9501 RN-29-380 Forward of RT-58-380 Tandem

(less inter-axle diff.)

3202-L-9502 3202-G-9003

AXLE SHAFT SETS FOR 180/185/186/380 SERIES AXLES

LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND

RP-29-380 Forward of RT-58-380 Tandem RP-35-380 Forward of RT-70-380 Tandem

3202-X-8110 3202-H-6768 3202-L-7734 3202-M-7735

3202-K-9501 3202-Z-8112 3202-M-7787 3202-N-7788

3202-L-9502 3202-G-9003 3202-C-7803 3202-D-7804

3202-L-9554 3202-X-8110 3202-P-9142 3202-Q-9143

3202-P-9246 3202-Q-9247

RR-29-380 Rear of RT-58-380 Tandem 3202-R-9248 3202-S-9249

3202-X-8110 3202-H-6768

3202-K-9501 3202-Z-8112 RR-35-380 Rear of RT-70-380 Tandem

3202-L-9502 3202-G-9003 3202-L-7734 3202-M-7735

3202-M-7787 3202-N-7788

RS-30-180/185 Single Axle 3202-C-7803 3202-D-7804

3202-S-6779 3202-W-9409 3202-P-9142 3202-Q-9143

3202-S-6779 3202-Y-9411 3202-P-9246 3202-Q-9247

3202-J-9370 3202-N-9374 3202-R-9248 3202-S-9249

3202-J-9370 3202-L-9372

3202-E-9391 3202-T-9458 RS-38-380 Single Axle

3202-E-9391 3202-R-9456 3202-P-9142 3202-Q-9143

RS-30-181 Single Axle

3202-X-8110 3202-H-6768

3202-K-9501 3202-Z-8112

RS-30-380 Single Axle

3202-X-8110 3202-H-6768

3202-K-9501 3202-Z-8112

3202-L-9502 3202-G-9003

RP-35-180 Forward of RT-70-180 Tandem

3202-L-7734 3202-M-7735

3202-M-7787 3202-N-7788

RR-35-180 Rear of RT-70-180 Tandem

3202-D-9806 3202-C-9805

3206-U-1477 3206-T-1476

RN-35-380 Forward of RT-70-380 Tandem

(less inter-axle diff.)

3202-M-7787 3202-N-7788

3202-P-9142 3202-Q-9143

3202-R-9248 3202-S-9249

AXLE SHAFT SETS FOR 180/185/186/380 SERIES AXLES (cont.)

AXLE SHAFTS

PART NUMBER

BODY

DIA. LENGTH

LUBE

HOLE

SPLINE

SIZE

SPLINE

LENGTH

FLANGE

DIA.

NO. OF

HOLES

HOLE

SIZE

BOLT

CIRCLE

HOLE

TYPE

3202-J-9344 2.25" 36.57" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-Y-9125 2.25" 36.57" No 2.35" -46 3.03" 8.38" 8 .78" 7.00" Straight

3202-G-9393 2.25" 37.31" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-E-9391 2.25" 37.78" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-W-9643 2.25" 37.78" Yes 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-W-9149 2.25" 37.78" No 2.35" -46 3.03" 8.38" 8 .78" 7.00" Straight

3202-K-9579 2.25" 38.56" No 2.35" -46 3.03" 8.38" 8 .64" 7.00" Straight

3202-W-7745 2.25" 38.56" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-X-9098 2.25" 38.56" Yes 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-E-9495 2.25" 38.56" No 2.35" -46 3.03" 8.38" 8 .78" 7.00" Straight

3202-J-9370 2.25" 38.75" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-R-6778 2.25" 39.22" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3206-U-1477 2.25" 39.61" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-Z-8112 2.25" 39.96" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-H-9004 2.25" 40.31" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-F-9496 2.25" 41.03" No 2.35" -46 3.03" 8.38" 8 .78" 7.00" Straight

3202-H-6768 2.25" 41.06" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-K-9267 2.25" 41.37" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-M-7735 2.38" 41.71" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-S-6779 2.25" 41.72" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-G-9159 2.25" 41.72" No 2.35" -46 3.03" 8.38" 8 .78" 7.00" Straight

3202-Q-9143 2.25" 41.74" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-F-9392 2.25" 41.85" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-Y-9645 2.25" 41.85" Yes 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-V-9148 2.25" 41.85" No 2.35" -46 9.14" 8.38" 8 .78" 7.00" Straight

3202-K-9501 2.25" 42.30" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-L-9580 2.25" 42.56" No 2.35" -46 3.03" 8.38" 8 .64" 7.00" Straight

3202-Y-8111 2.25" 42.56" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

AXLE SHAFTS

PART NUMBER

BODY

DIA. LENGTH

LUBE

HOLE

SPLINE

SIZE

SPLINE

LENGTH

FLANGE

DIA.

NO. OF

HOLES

HOLE

SIZE

BOLT

CIRCLE

HOLE

TYPE

3202-M-9581 2.25" 42.72" No 2.35" -46 9.14" 8.38" 8 .64" 7.00" Straight

3202-H-8666 2.25" 42.72" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-W-9097 2.25" 42.72" Yes 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-J-9552 2.25" 43.01" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-J-9396 2.25" 43.01" No 2.35" -46 3.03" 8.38" 8 .78" 7.00" Straight

3202-L-9346 2.25" 43.07" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-C-9129 2.25" 43.07" No 2.35" -46 9.14" 8.38" 8 .78" 7.00" Straight

3202-X-8110 2.25" 43.40" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-G-9003 2.25" 43.80" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-B-8816 2.25" 43.93" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-L-7734 2.38" 44.18" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-P-9142 2.38" 44.21" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-R-9456 2.25" 44.37" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-T-9458 2.25" 44.45" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-G-9497 2.25" 44.77" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-L-9372 2.25" 45.34" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-N-9374 2.25" 45.42" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-M-9269 2.25" 45.53" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-D-7804 2.25" 45.84" Yes 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-S-9249 2.25" 45.84" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-L-9554 2.25" 45.90" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3206-T-1476 2.25" 46.28" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-L-9502 2.25" 46.30" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-N-9400 2.25" 46.74" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

3202-Q-9403 2.25" 46.90" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-C-7803 2.38" 48.31" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-R-9248 2.38" 48.31" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-W-9409 2.25" 48.31" No 2.35" -46 3.03" 8.38" 8 .73" 7.00" Taper

AXLE SHAFTS

PART NUMBER

BODY

DIA. LENGTH

LUBE

HOLE

SPLINE

SIZE

SPLINE

LENGTH

FLANGE

DIA.

NO. OF

HOLES

HOLE

SIZE

BOLT

CIRCLE

HOLE

TYPE

3202-Y-9411 2.25" 48.39" No 2.35" -46 9.14" 8.38" 8 .73" 7.00" Taper

3202-D-9806 2.25" 51.63" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-N-7788 2.38" 53.72" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-Q-9247 2.38" 53.74" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-M-7787 2.38" 56.18" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-P-9246 2.38" 56.21" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

3202-C-9805 2.25" 58.27" Yes 2.55" -50 3.15" 8.50" 8 .73" 7.25" Taper

XpresswayPlus.ArvinMeritor.com

Don't forget about using XpresswayPlus for:

Ordering parts online

Order status

Reference Library

Price and availability

The Company Store

Invoice Lookup

Literature

Parts Catalog

Dealer/Distributor locator

Online e-mail or phone numbers for Customer Service, Information Services,

Marketing, Catalog, and eSupport

XpresswayPlus is easy to use, can reduce phone calls, and save you valuable time.

ROUND BEARING TYPE YOKES

Axle Model

(Location)

Center

to End

Spline

Length

Hub

Dia.

Bearing

Dia.

Across

Ears

Spline Size

Dia.-No.

Teeth Part Number

Production Part

Number

Single Axle 5.50" 2.88" 3.25" 1.88" 5.31" 2.38" -46 16NYS38-11A A-3260-Y-1143

Input 5.94" 1.94" 6.09" 17N-4-5961X A1-3260-S-357

RS-23-180 5.94" 1.94" 6.09" 17N-4-6961X A-3260-S-357

RS-26-180 6.19" 1.94" 6.09" 17NYS38-17A2 A2-3260-W-75

RS-30-180 6.93" 1.94" 6.09" 17N-4-7851X A-3260-N-1314

5.63" 1.94" 7.00" 176N-4-861X A-3260-R-356

5.69" 1.94" 7.55" 18N-4-3581X A2-3260-U-73

Single Axle Input

RS-23-380 5.16" 2.31" 3.00" 1.94" 6.09" 2.00" -39

17NYS32-100A2 A2-3260-G-1645

RS-26-380 6.25" 6.09" 17NYS32-99A3 ---

RS-38-380 5.19" 7.55" 18NYS32-12A2 A2-3260-L-116

Fwd. Axle Input

RT-48-180 5.94" 2.88" 3.25" 1.94" 6.09" 2.38" -46 17N-4-5961X A1-3260-S-357

RT-52-180 5.63" 7.00" 176NYS38-13A1 A1-3260-R-356

RT-58-180 5.69" 7.55" 18N-4-3221X A-3260-U-73

RT-48-380

RT-52-380 5.54" 2.31" 3.00" 1.88" 5.31" 2.00" -39

16N-4-6271 3260-G-111

RT-58-380 6.25" 1.94" 6.09" 17NYS32-99 ---

RT-70-380 5.16" 1.94" 6.09" 17NYS32-100A A3260-G-1645

Fwd. Axle Output 5.19" 1.94" 7.55" 18N-4-3371 3260-L-116

Rear Axle Input

RT-48-180 5.50" 2.88" 3.25" 1.88" 5.31" 2.38" -46 16NYS38-11A A-3260-Y-1143

RT-52-180 5.94" 1.94" 6.09" 17N-4-5961X A1-3260-S-357

RT-58-180 5.94" 1.94" 6.09" 17N-4-6961X A-3260-S-357

RT-52-380 6.19" 1.94" 6.09" 17NYS38-17A2 A2-3260-W-75

RT-48-380 6.93" 1.94" 6.09" 17N-4-7851X A-3260-N-1314

RS-58-380 5.63" 1.94" 7.00" 176N-4-861X A-3260-R-356

RT-70-380 5.69" 1.94" 7.55" 18N-4-3581X A2-3260-U-73

EASY SERVICE (STRAP) TYPE YOKES

Axle Model

(Location)

Center

to End

Spline

Length

Hub

Dia.

Bearing

Dia.

Distance

Between

Nibbs

Spline

Size Dia.-

No. Teeth

Hole

Type Part Number

Production Part

Number

Single Axle 5.50" 2.88" 3.25" 1.88" 5.31" 2.38" -46 TH 16TYS38-11A A-3260-M-1235

Input 5.94" 1.94" 6.19" TH 17N-4-6961-1X A-3260-B-1302

RS-23-180 6.93" 1.94" 6.19" TH 17TYS38-70A A-3260-R-1682

RS-26-180 5.63" 1.94" 7.09" TH 176N-4-861-1X A-3260-Q-1265

RS-30-180 5.69" 1.94" 7.63" TH 18N-4-3581-1X A-3260-K-1259

Single Axle Input 5.54" 2.31" 3.00" 1.88" 5.31" 2.00" -39 TH 16N-4-6271-1 3260-F-1280

RS-23-380 5.16" 1.94" 6.19" TH 17TYS32-68A2 A2-3260-R-1292

RS-26-380 5.19" 1.94" 7.09" TH 176TYS32-3A2 A2-3260-S-1267

RS-38-380 5.19" 1.94" 7.63" TH 18TYS32-12A2 A2-3260-N-1262

Fwd. Axle Input 5.94" 2.88" 3.25" 1.94" 6.19" 2.38" -46 TH 17TYS38-53A1 A1-3260-B-1302

RT-48-480 5.63" 1.94" 7.09" TH 176TYS38-13A1 A1-3260-Q-1265

RT-52-180

RT-58-180

5.69" 1.94" 7.63" TH

18N-4-3221-1X A1-3260-K-1259

RT-52-380 5.54" 2.31" 3.00" 1.88" 5.31" 2.00" -39 TH 16N-4-6271-1 3260-F-1280

RT-58-380 5.16" 1.94" 6.19" TH 17N-4-7621-1 3260-R-1292

RT-70-380 6.25" 1.94" 6.19" TH 17TYS32-99 ---

Fwd. Axle Output 5.19" 1.94" 7.63" TH 18N-4-3381-1X A-3260-N-1262

Rear Axle Input 5.50" 2.88" 3.25" 1.88" 5.31" 2.38" -46 TH 16TYS38-11A A-3260-M-1235

RT-48-180 5.94" 1.94" 6.19" TH 17N-4-6961-1X A-3260-B-1302

RT-52-180 6.93" 1.94" 6.19" TH 17TYS38-70A A-3260-R-1682

RT-58-180 5.63" 1.94" 7.09" TH 176N-4-861-1X A-3260-Q-1265

RT-52-380

RT-58-380

RT-70-380

5.69" 1.94" 7.63" TH 18N-4-3581-1X A-3260-K-1259

WING BEARING TYPE YOKES

Axle Model

(Location)

Face

End

Spline

Length

Hub

Dia.

Slot

Width

Pilot

Dia.

Spline

Size Dia.-

No. Teeth

Hole

Type Part Number

Production Part

Number

4.63"

.63"

8.13"

82NYS38-28A

A-3260-D-1148

Single Axle Input

RS-23-180

RS-26-180

RS-30-180

4.19"

2.88"

3.25"

8.25"

2.38" -46

TH 92NYS38-52A2 A2-3260-Q-95

Single Axle Input

RS-23-380

RS-26-380

RS-38-380

3.88" 2.31" 3.00" .63" 8.13" 2.00" -39 TH 82NYS32-74A2 A2-3260-M-117

4.19" 2.88" 3.25" .63" 8.25" 2.38" -46 TH 92NYS38-52A A-3260-Q-95 Fwd. Axle Input

RT-48-180

RT-52-180

RT-58-180

RT-48-380

RT-52-380

RT-58-380

RT-70-380

Fwd. Axle Output 3.88" 2.31" 3.00" .63" 8.13" 2.00" -39 TH 82NYS32-74 3260-M-117

4.63"

.63"

8.13"

82NYS38-28A

A-3260-D-1148

Rear Axle Input

RT-48-180

RT-52-180

RT-58-180

RT-48-380

RT-52-380

RT-58-380

RT-70-380

4.19"

2.88"

3.25"

8.25"

2.38" -46

TH 92NYS38-52A2 A2-3260-Q-95

COMPANION FLANGES

Axle Model

(Location)

Face

End

Hub

Dia.

Spline

Length

Pilot Dia.

M=Male

F=Female

Flange

O.D.

Hole

Dia.

Bolt

Circle

Dia.

Spline

Size Dia.-

No. Teeth Part Number

Production

Part Number

3.56" F-7.75" 8.00" .44" 7.25" 5WCS38-12A2 A2-3260-U-151 Single Axle

Input

RS-23-180

RS-26-180

RS-30-180

3.64"

3.25" 2.88"

F-7.75" 8.00" .44" 7.25"

2.38"-46

5WCS38-24A A-3260-D-1252

AXLE MODEL TO CARRIER TO KIT CROSS REFERENCE

AXLE BASE KIT

MODEL CARRIER NUMBER KIT DESCRIPTION

RS-23-180 Single Axle 3200-C-1381 KIT 1592 Pinion bearing cage shims

RS-23-185 3200-U-1399 KIT 1593 Pinion bearing spacer kit

RS-23-186 KIT 2318 Main differential nest with spider 2.35-46 spline

RS-30-180 KIT 2341 Main differential nest without spider 2.35-46 spline

RS-30-185 KIT 2363 Main differential lock kit

KIT 2373 Main differential nest with spider 2.56-50 spline

KIT 2374 Main differential nest without spider 2.56-50 spline

KIT 4435 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4436 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT RS23180 Major overhaul kit

3200-W-1791 KIT 1592 Pinion bearing cage shims

3200-A-1899 KIT 1593 Pinion bearing spacer kit

KIT 2318 Main differential nest with spider 2.35-46 spline

KIT 2341 Main differential nest without spider 2.35-46 spline

KIT 2373 Main differential nest with spider 2.56-50 spline

KIT 2374 Main differential nest without spider 2.56-50 spline

KIT 2630 Main differential lock kit (except 1899 carrier)

KIT 2699 Main differential lock kit (1899 carrier)

KIT 4437 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4438 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

A2-3200-A-1899S Carrier update

KIT RS23180A Major overhaul kit

3200-J-1804 KIT 1592 Pinion bearing cage shims

KIT 1593 Pinion bearing spacer kit

KIT 2318 Main differential nest with spider 2.35-46 spline

KIT 2341 Main differential nest without spider 2.35-46 spline

KIT 2373 Main differential nest with spider 2.56-50 spline

KIT 2374 Main differential nest without spider 2.56-50 spline

KIT 4437 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4438 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT RS23180A Major overhaul kit

3200-J-1752 KIT 1592 Pinion bearing cage shims

3200-K-1753 KIT 1593 Pinion bearing spacer kit

KIT 2318 Main differential nest with spider 2.35-46 spline

KIT 2341 Main differential nest without spider 2.35-46 spline

KIT 2373 Main differential nest with spider 2.56-50 spline

KIT 2374 Main differential nest without spider 2.56-50 spline

KIT 2791 Complete diff. lock retro-fit kit

KIT 2792 Major diff. lock repair kit

KIT 2793 Minor diff. lock repair kit

KIT 4459 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4460 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT RR26185 1752 Overhaul kit 2.35-46 spline. Ratios 2.93-6.43

KIT RR26185A 1752 Overhaul kit 2.35-46 spline. Ratios 6.83-7.83

AXLE MODEL TO CARRIER TO KIT CROSS REFERENCE

AXLE BASE KIT

MODEL CARRIER NUMBER KIT DESCRIPTION

RT-48-180 RP-24-180 3200-M-1625 KIT 1554 Pinion bearing spacer kit

RT-52-180 RP-26-180 KIT 2421 IAD nest without case, with spider

RT-52-185 RP-26-185 KIT 2432 Bearing cage shim kit (pre 11-93)

RT-58-180 RP-29-180 KIT 2436 Main differential nest with spider 2.35-46 spline

RT-58-185 RP-29-185 KIT 2484 Helical gear kit

KIT 2490 IAD nest without case, without spider

KIT 2678 Helical gear cover update

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4440 Bearing kit all ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RP180 1625 Major overhaul kit

3200-M-1833 KIT 1554 Pinion bearing spacer kit

KIT 2421 IAD nest without case, with spider

KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2436 Main differential nest with spider 2.35-46 spline

KIT 2484 Helical gear kit

KIT 2490 IAD nest without case, without spider

KIT 2678 Helical gear cover update

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4441 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4442 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RP180 1833 Major overhaul kit

RR-24-180 3200-C-1381 KIT 1592 Pinion bearing cage shims

RR-26-180 3200-U-1399 KIT 1593 Pinion bearing spacer kit

RR-26-185 KIT 2318 Main differential nest with spider 2.35-46 spline

RR-29-180 KIT 2341 Main differential nest without spider 2.35-46 spline

RR-29-185 KIT 2363 Main differential lock kit

KIT 4435 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4436 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT RS23180 Major overhaul kit

3200-W-1791 KIT 1592 Pinion bearing cage shims

3200-A-1899 KIT 1593 Pinion bearing spacer kit

KIT 2318 Main differential nest with spider 2.35-46 spline

KIT 2341 Main differential nest without spider 2.35-46 spline

KIT 2630 Main differential lock kit (except 1899 carrier)

KIT 2699 Main differential lock kit (1899 carrier)

KIT 4437 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4438 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

A2-3200-A-1899S Carrier update

KIT RS23180A Major overhaul kit

3200-J-1804 KIT 1592 Pinion bearing cage shims

KIT 1593 Pinion bearing spacer kit

KIT 2318 Main differential nest with spider 2.35-46 spline

KIT 2341 Main differential nest without spider 2.35-46 spline

KIT 2373 Main differential nest with spider 2.56-50 spline

KIT 2374 Main differential nest without spider 2.56-50 spline

KIT 4437 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4438 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT RS23180A Major overhaul kit

AXLE MODEL TO CARRIER TO KIT CROSS REFERENCE

AXLE BASE KIT

MODEL CARRIER NUMBER KIT DESCRIPTION

RT-48-180 RR-24-180 3200-J-1752 KIT 1592 Pinion bearing cage shims

RT-52-180 RR-26-180 3200-K-1753 KIT 1593 Pinion bearing spacer kit

RT-52-185 RR-26-185 KIT 2318 Main differential nest with spider 2.35-46 spline

RT-58-180 RR-29-180 KIT 2341 Main differential nest without spider 2.35-46 spline

RT-58-185 RR-29-185 KIT 2373 Main differential nest with spider 2.56-50 spline

(cont) (cont) KIT 2374 Main differential nest without spider 2.56-50 spline

KIT 2791 Complete diff. lock retro-fit kit

KIT 2792 Major diff. lock repair kit

KIT 2793 Minor diff. lock repair kit

KIT 4459 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4460 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT RR26185 1752 Overhaul kit 2.35-46 spline. Ratios 2.93-6.43

KIT RR26185A 1752 Overhaul kit 2.35-46 spline. Ratios 6.83-7.83

RT-48-380 RP-24-380 3200-M-1625 KIT 1554 Pinion bearing spacer kit

RT-52-380 RP-26-380 KIT 2422 IAD nest without case, with spider

RT-58-380 RP-29-380 KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2436 Main differential nest with spider 2.35-46 spline

KIT 2491 IAD nest without case, without spider

KIT 2678 Helical gear cover update

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4440 Bearing kit all ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RP380 Major overhaul kit

MPS 3355 Helical gear kit

3200-M-1833 KIT 1554 Pinion bearing spacer kit

KIT 2422 IAD nest without case, with spider

KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2436 Main differential nest with spider 2.35-46 spline

KIT 2491 IAD nest without case, without spider

KIT 2678 Helical gear cover update

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4441 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4442 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RP380A Major overhaul kit

MPS 3355 Helical gear kit

3200-M-1625 KIT 1554 Pinion bearing spacer kit

KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2436 Main differential nest with spider 2.35-46 spline

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4450 Bearing kit all ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RR380 Major overhaul kit

AXLE MODEL TO CARRIER TO KIT CROSS REFERENCE

AXLE BASE KIT

MODEL CARRIER NUMBER KIT DESCRIPTION

RT-48-380 RR-24-380 3200-M-1833 KIT 1554 Pinion bearing spacer kit

RT-52-380 RR-26-380 KIT 2432 Bearing cage shim kit (pre 11-93)

RT-58-380 KIT 2436 Main differential nest with spider 2.35-46 spline

(cont) KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4443 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4444 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RR380A Major overhaul kit

RT-70-380 RP-35-380 3200-M-1625 KIT 1554 Pinion bearing spacer kit

KIT 2422 IAD nest without case, with spider

KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2437 Main differential nest with spider 2.56-50 spline

KIT 2491 IAD nest without case, without spider

KIT 2678 Helical gear cover update

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4440 Bearing kit all ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RP35380 Major overhaul kit

MPS 3355 Helical gear kit

3200-M-1833 KIT 1554 Pinion bearing spacer kit

KIT 2422 IAD nest without case, with spider

KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2437 Main differential nest with spider 2.56-50 spline

KIT 2491 IAD nest without case, without spider

KIT 2678 Helical gear cover update

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4441 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4442 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RP35380A Major overhaul kit

MPS 3355 Helical gear kit

3200-M-1625 KIT 1554 Pinion bearing spacer kit

KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2437 Main differential nest with spider 2.56-50 spline

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4450 Bearing kit all ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RR35380 Major overhaul kit

3200-M-1833 KIT 1554 Pinion bearing spacer kit

KIT 2432 Bearing cage shim kit (pre 11-93)

KIT 2437 Main differential nest with spider 2.56-50 spline

KIT 2885 Bearing cage shim kit (post 11-93)

KIT 4443 Bearing kit all except 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4444 Bearing kit, 6.83, 7.17, 7.40 & 7.83 ratios

KIT 4445 Bearing update kit - L.H.

KIT 4446 Bearing update kit - R.H.

KIT RR35380A Major overhaul kit

SERVICE KITS

A2-3200-A-1899S

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A2-3200-A-1899 1 Carrier and cap assy.

2 A3261-A-1067 1 Housing - shift cylinder

3 2230-T-1190 1 Piston

4 5-X-521 1 O-ring

5 41-X-1368 1 Caging bolt

6 2244-Z-1222 1 Push rod

7 3296-D-1174 1 Fork - shift

8 2258-N-1262 1 Spring

9 2206-L-1156 1 Fitting - elbow

Malleable with screw-in diff. lock

KIT 1536

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1229-L-2430 2 Snap ring - .088” thick

2 1229-M-2431 2 Snap ring - .091” thick

3 1229-N-2432 2 Snap ring - .094” thick

4 1229-P-2434 2 Snap ring - .097” thick

5 1229-Q-2435 2 Snap ring - .100” thick

6 1229-R-2436 2 Snap ring - .103” thick

7 1229-S-2437 2 Snap ring - .106” thick

8 1229-T-2438 2 Snap ring - .109” thick

9 1229-U-2439 2 Snap ring - .112” thick

Output shaft snap ring kit

KIT 1554

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2203-U-7899 2 Spacer - .326” thick

2 2203-V-7900 2 Spacer - .327” thick

3 2203-W-7901 2 Spacer - .328” thick

4 2203-X-7902 2 Spacer - .329” thick

5 2203-Y-7903 2 Spacer - .330” thick

6 2203-Z-7904 2 Spacer - .331” thick

7 2203-A-7905 2 Spacer - .332” thick

8 2203-B-7906 2 Spacer - .338” thick

9 2203-C-7907 2 Spacer - .345” thick

10 2203-D-7908 2 Spacer - .352” thick

11 2203-E-7909 2 Spacer - .359” thick

Pinion bearing spacer kit.

KIT 1592

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2803-Y-2755 4 Shim - .002 inch/.050 mm thick

2 2803-Z-2756 2 Shim - .005 inch/.125 mm thick

3 2803-A-2757 4 Shim - .008 inch/.200 mm thick

4 2803-B-2758 1 Shim - .020 inch/.500 mm thick

All

SERVICE KITS

KIT 1593

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2803-D-2500 2 Spacer - .250 inch/6.35 mm thick

2 2803-E-2501 2 Spacer - .251 inch/6.38 mm thick

3 2803-F-2502 2 Spacer - .252 inch/6.40 mm thick

4 2803-N-2510 2 Spacer - .253 inch/6.43 mm thick

5 2803-G-2503 2 Spacer - .254 inch/6.45 mm thick

6 2803-H-2504 2 Spacer - .256 inch/6.50 mm thick

7 2803-J-2506 2 Spacer - .260 inch/6.60 mm thick

8 2803-K-2507 2 Spacer - .261 inch/6.63 mm thick

9 2803-L-2508 2 Spacer - .262 inch/6.65 mm thick

10 2803-M-2509 2 Spacer - .263 inch/6.68 mm thick

Pinion bearing spacers

KIT 1594

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 40-X-1182 16 Nut - lock

2 41-X-1358 16 Capscrew

3 1229-U-1503 16 Washer

3200-C-1381, 3200-U-1399,

Gear to case bolt kit to be used with gearsets without

counter bores in the ring gear bolt hole area only.

KIT 2318

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2233-M-1001 4 Pinion - diff.

2 2234-C-1069 2 Side gear - diff. (2.36 in.-46 spline)

3 3278-W-335 1 Spider (differential cross)

4 1229-L-3002 2 Washer - side gear thrust

5 1229-K-3001 4 Washer - diff. pinion

Main diff. kit with spider., All

KIT 2341

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1229-L-3002 2 Washer - side gear thrust

2 2234-C-1069 2 Side gear - diff. (2.36 in.-46 spline)

3 2233-M-1001 4 Pinion - diff.

4 1229-K-3001 4 Washer - diff. pinion

All, Main diff. kit less spider.

SERVICE KITS

KIT 2342

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1227-N-1340 16 Nut

2 1229-U-1555 16 Washer

3 15-X-1700 16 Bolt

3200-M-1833, Gear to case bolt kit.

KIT 2363

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1227-P-1056 1 Nut - sensor adjusting

2 2257-M-1235 1 Clip - sensor/switch

3 3107-Z-78 1 Shift collar

4 3237-W-1167 1 Sensor - switch assembly

5 3296-N-1184 1 Shift fork

6 KIT 2282 1 Diff. lock kit

3200-C-1381 & 3200-U-1399

KIT 2373

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1229-K-3001 4 Washer - diff. pinion

2 1229-L-3002 2 Washer - side gear thrust

3 2233-M-1001 4 Pinion - diff.

4 2234-P-1004 2 Side gear - diff. (2.56 in.-50 spline)

5 3278-W-335 1 Spider (differential cross)

3200-C-1381, 3200-U-1399,

3200-K-1753, 3200-Q-1791,

3200-J-1804, 3200-A-1899,

Main diff. kit with spider

KIT 2374

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1229-K-3001 4 Washer - diff. pinion

2 1229-L-3002 2 Washer - side gear thrust

3 2233-M-1001 4 Pinion - diff.

4 2234-P-1004 2 Side gear - diff. (2.56 in.-50 spline)

3200-C-1381, 3200-U-1399,

3200-K-1753, 3200-Q-1791,

3200-J-1804, 3200-A-1899,

Main diff. kit less spider

KIT 2421

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2233-K-245 4 Pinion - diff.

2 2234-F-890 1 Side gear (2.00 in.-39 spline)

3 3892-W-4963 1 Side gear - helical gear

4 3278-N-300 1 Spider (differential cross)

5 1229-L-2742 1 Washer - side gear thrust

6 1229-Q-2929 4 Washer - pinion thrust

IAD nest with spider, 3200-M-1833,

3200-M-1625

SERVICE KITS

KIT 2422

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2233-K-245 4 Pinion - diff.

2 2234-F-890 1 Side gear (2.00 in.-39 spline)

3 3892-Y-4965 1 Side gear - helical gear

4 3278-N-300 1 Spider (differential cross)

5 1229-L-2742 1 Washer - side gear thrust

6 1229-Q-2929 4 Washer - pinion thrust

IAD nest with spider, 3200-M-1625,

3200-M-1833

KIT 2432

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2203-C-6607 1 Shim - .003” thick

2 2203-D-6608 1 Shim - .005” thick

3 2203-E-6609 4 Shim - .010” thick

4 2203-Z-6604 3 Shim - .003” thick

5 2203-A-6605 4 Shim - .005” thick

6 2203-B-6606 1 Shim - .010” thick

3200-M-1625, 3200-M-1833. Pre 11/93. See

KIT 2885 for post 11/93.

KIT 2436

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2234-C-1069 2 Side gear - diff. (2.36 in.-46 spline)

2 1229-L-3002 2 Washer - side gear thrust

3 3278-Q-381 1 Spider - differential

4 2233-T-1112 4 Pinion - differential

5 1229-D-992 4 Washer - differential pinion thrust

3200-M-1625, 3200-M-1833,

With diff. spider

KIT 2437

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2234-G-1229 2 Side gear (2.56 in.-50 spline)

2 1229-L-3002 2 Washer - side gear thrust

3 3278-Q-381 1 Spider - differential

4 2233-T-1112 4 Pinion - differential

5 1229-D-992 4 Washer - differential pinion thrust

3200-M-1625, 3200-M-1833,

With diff. spider

KIT 2484

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 3892-W-4963 1 Side gear - helical gear

2 3892-J-4014 1 Helical gear - drive pinion

3200-M-1625, 3200-M-1833

SERVICE KITS

KIT 2490

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2233-K-245 4 Pinion - diff.

2 2234-F-890 1 Side gear (2.00 in.-39 spline)

3 3892-W-4963 1 Side gear - helical gear

4 1229-L-2742 1 Washer - side gear thrust

5 1229-Q-2929 4 Washer - pinion thrust

IAD nest less spider, 3200-M-1625,

3200-M-1833

KIT 2491

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2233-K-245 4 Pinion - diff.

2 2234-F-890 1 Side gear (2.00 in.-39 spline)

3 3892-Y-4965 1 Side gear - helical gear

4 1229-L-2742 1 Washer - side gear thrust

5 1229-Q-2929 4 Washer - pinion thrust

3200-M-1625, 3200-M-1833,

IAD nest less spider

KIT 2608

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 40-X-1182 16 Nut - lock

2 41-X-1334 16 Capscrew

3 1229-U-1503 16 Washer

3200-C-1381, 3200-U-1399,

3200-W-1791, 3200-J-1804,

Gear to case bolt kit to be used with gearsets with

counter bores in the ring gear bolt hole area only.

XpresswayPlus.ArvinMeritor.com

Don't forget about using XpresswayPlus for:

Ordering parts online

Order status

Reference Library

Price and availability

The Company Store

Invoice Lookup

Literature

Parts Catalog

Dealer/Distributor locator

Online e-mail or phone numbers for Customer Service, Information Services,

Marketing, Catalog, and eSupport

XpresswayPlus is easy to use, can reduce phone calls, and save you valuable time.

SERVICE KITS

KIT 2630

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 3266-F-1020 1 Cover

2 MWA-506 4 Washer

3 2208-L-1000 1 Gasket

4 MS-210016-1 1 Capscrew

5 41-X-1364 4 Capscrew - cylinder cover

6 2208-H-944 1 Gasket

7 3196-F-32 1 Tube - air cylinder

8 5-X-1153 1 O-ring

9 2230-N-170 1 Piston

10 42-X-1027 1 Washer

11 2244-Y-51 1 Shift shaft

12 2258-L-714 1 Spring

13 43-X-1007 1 Pin - shift fork

14 41-X-1333 1 Capscrew

15 2257-N-40 1 Tie Strap

16 3296-N-1184 1 Shift fork

17 3107-L-1104 1 Shift collar

18 3237-W-1167 1 Sensor - switch assembly

19 1227-P-1056 1 Nut - sensor adjusting

20 2257-M-1235 1 Clip - sensor/switch

21 43-X-1006 1 Pin - shift shaft

3200-W-1791, All bolt on style air cylinder cover

except 3200-J-1752 & 3200-K-1753.

KIT 2638

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 40-X-1233 1 Nut - lock

2 1229-W-4521 1 Washer

M45 x 1.5 nut thread.

SERVICE KITS

KIT 2678

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A-3303-P-1030 1 Oil pump assy.

2 1229-E-1669 6 Washer - flat

3 MS-208045-1 6 Capscrew

4 2297-Z-5278 1 Adaptor - filter

5 3280-V-8394 1 Oil filter

6 3280-Z-8398 1 Filter - shield

7 A-3297-N-1288 1 Shaft - input assembly

8 A-3226-H-1126 1 Cage - bearing input

9 S-2814A-2 6 Capscrew

10 1229-C-1511 6 Washer - flat

11 3266-M-1313 1 Cover - helical gear

12 A-2297-D-5334 1 Screen filter

13 5-X-1034 1 O-ring

14 5-X-1343 1 O-ring

15 2258-Z-1118 1 Spring

16 2297-U-5273 1 Valve - relief

17 3296-Q-1187 1 Fork - shift

18 2244-Y-1221 1 Shaft - shif

19 A4-3261-Q-1057 1 I.A.D. shift cylinder assy.

20 2203-K-9241 1 Shim - .003 thick

21 2203-L-9242 1 Shim - .005 thick

22 2203-M-9243 4 Shim - .010 thick

23 HM-813844 1 Cone - bearing

24 A1-1205-X-2728 1 Oil seal assembly

25 1227-D-940 1 Nut - input

3200-M-1625, 3200-M-1833,

Updates to current design pump.

SERVICE KITS

KIT 2679

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A-3303-P-1030 1 Oil pump assy.

2 1229-E-1669 6 Washer - flat

3 MS-208045-1 6 Capscrew

4 2297-Z-5278 1 Adaptor - filter

5 3280-V-8394 1 Oil filter

6 3280-Z-8398 1 Filter - shield

7 A-3297-N-1288 1 Shaft - input assembly

8 A-3226-H-1126 1 Cage - bearing input

9 S-2814A-2 7 Capscrew

10 1229-C-1511 7 Washer - flat

11 3266-Q-1317 1 Helical Gear Cover

12 A-2297-D-5334 1 Screen filter

13 5-X-1343 1 O-ring

14 5-X-1034 1 O-ring

15 2258-Z-1118 1 Spring

16 2297-U-5273 1 Valve - relief

17 3296-Q-1187 1 Fork - shift

18 2244-Y-1221 1 Shaft - shif

19 A4-3261-Q-1057 1 I.A.D. shift cylinder assy.

20 A1-1205-X-2728 1 Seal Assembly

21 1227-D-940 1 Nut - input

22 HM-813844 1 Cone – bearing

23 2203-K-9241 1 Shim - .003 thick

24 2203-L-9242 1 Shim - .005 thick

25 2203-M-9243 4 Shim - .010 thick

3200-M-1625, 3200-M-1833

Updates to current design 380.

KIT 2699

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2244-Z-1222 1 Push rod

2 2257-M-1235 1 Clip - sensor/switch

3 2258-N-1262 1 Spring

4 3107-L-1104 1 Shift collar

5 3237-W-1167 1 Sensor - switch assembly

6 A-3261-A-1067 1 Housing – shift cylinder

7 3296-D-1174 1 Fork – shift

8 41-X-1368 1 Caging bolt

9 5-X-521 1 O-ring

Screw-in style air cylinder cover.

SERVICE KITS

KIT 2731

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A2-3200-A-1899S 1 Carrier retrofit

2 A-1-3235-K-2143 1 Differential case assy.

3 NP-022042 1 Cup - bearing

4 NP-579116 1 Cone - bearing

5 JM-822010 1 Cup - bearing

6 JM-822049 1 Cone - bearing

7 2214-G-1125 1 Adjusting ring - bearing

8 2214-S-1137 1 Adjusting ring - bearing

With diff. lock (2.93-4.30 ratios), 3200-U-1399,

3200-W-1791

KIT 2731A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A2-3200-A-1899S 1 Carrier retrofit

2 A-3235-M-2145 1 Differential case assy.

3 NP-022042 1 Cup - bearing

4 NP-579116 1 Cone - bearing

5 JM-822010 1 Cup - bearing

6 JM-822049 1 Cone - bearing

7 2214-G-1125 1 Adjusting ring - bearing

8 2214-S-1137 1 Adjusting ring - bearing

With diff. lock (4.56-7.83 ratios), 3200-U-1399,

3200-W-1791

KIT 2732

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A2-3200-J-1804 1 Carrier & cap assembly

2 A-3235-K-2143 1 Differential case assy.

3 NP-022042 1 Cup - bearing

4 NP-579116 1 Cone - bearing

5 JM-822010 1 Cup - bearing

6 JM-822049 1 Cone - bearing

7 2214-G-1125 1 Adjusting ring - bearing

8 2214-S-1137 1 Adjusting ring - bearing

Less diff.lock (2.93-4.30 ratrios), 3200-U-1399,

3200-W-1791

KIT 2732A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A2-3200-J-1804 1 Carrier & cap assembly

2 A-1-3235-M-2145 1 Differential case assy.

3 NP-022042 1 Cup - bearing

4 NP-579116 1 Cone - bearing

5 JM-822010 1 Cup - bearing

6 JM-822049 1 Cone - bearing

7 2214-G-1125 1 Adjusting ring - bearing

8 2214-S-1137 1 Adjusting ring - bearing

Less diff. lock (4.56-7.83 ratios), 3200-U-1399,

3200-W-1791

SERVICE KITS

KIT 2744

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 NP-022042 1 Cup - bearing

2 NP-579116 1 Cone - bearing

3200-C-1381, 3200-U-1399, 3200-W-1791,

3200-J-1804, 3200-A-1899, 3200-A-1899,

3200-J-1752, 3200-K-1753

KIT 2791

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1229-U-1503 2 Washer

2 2208-H-944 1 Gasket

3 2208-L-1000 1 Gasket

4 2230-N-170 1 Piston

5 2244-Z-52 1 Shifter shaft

6 2258-L-714 1 Spring

7 3107-A-1041 1 Collar

8 3196-F-32 1 Tube - air cylinder

9 3237-W-1167 1 Sensor - switch assembly

10 3266-F-1020 1 Cover

11 3296-A-1197 1 Shift fork

12 41-X-1364 4 Capscrew

13 41-X-1333 1 Capscrew

14 43-X-1006 1 Pin - shift shaft

15 5-X-1153 1 O-ring

16 MS-210016-1 1 Capscrew

17 MWA-506 4 Washer

3200-J-1752, 3200-K-1753,

Diff. lock retrofit kit with bolt-on style air cyl. cover for

2.35 in.-46 spline collar.

(For complete retrofit, must change passenger side

axle shaft with an extended splined axle shaft for

DCDL. See pages 21-23 for axle shaft listings.)

KIT 2791A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 3266-F-1020 1 Cover

2 3296-A-1197 1 Shift fork

3 3107-V-1010 1 Collar

4 2244-Z-52 1 Shifter shaft

5 3196-F-32 1 Tube - air cylinder

6 2230-N-170 1 Piston

7 43-X-1006 1 Pin - shift shaft

8 2258-L-714 1 Spring

9 5-X-1153 1 O-ring

10 2208-H-944 1 Gasket

11 MWA-506 4 Washer

12 41-X-1364 4 Capscrew

13 2208-L-1000 1 Gasket

14 MS-210016-1 1 Capscrew

15 41-X-1333 1 Capscrew

16 3237-W-1167 1 Sensor - switch assembly

17 1229-U-1503 2 Washer

3200-J-1752, 3200-K-1753.

Diff. lock retrofit kit with bolt-on style air cyl. cover for

2.56 in.-50 spline collar.

(For complete retrofit, must change passenger side

axle shaft with an extended splined axle shaft for

DCDL. See pages 21-23 for axle shaft listings.)

SERVICE KITS

KIT 2792

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2208-H-944 1 Gasket

2 2208-L-1000 1 Gasket

3 2230-N-170 1 Piston

4 2244-Z-52 1 Shifter shaft

5 2258-L-714 1 Spring

6 3196-F-32 1 Tube - air cylinder

7 3266-F-1020 1 Cover

8 41-X-1094 4 Capscrew

9 41-X-1333 1 Capscrew

10 43-X-1006 1 Pin - shift shaft

11 5-X-1153 1 O-ring

12 MS-210016-1 1 Capscrew

13 MWA-506 4 Washer

3200-J-1752, 3200-K-1753,

Major diff. lock repair kit.

KIT 2793

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2208-H-944 1 Gasket

2 2208-L-1000 1 Gasket

3 2230-N-170 1 Piston

4 2258-L-714 1 Spring

5 43-X-1006 1 Pin - shift shaft

6 5-X-1153 1 O-ring

3200-J-1752, 3200-K-1753,

Minor diff. lock repair kit.

KIT 2885

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2203-K-9241 1 Shim - .003” thick

2 2203-L-9242 1 Shim - .005” thick

3 2203-M-9243 4 Shim - .010” thick

4 2203-Z-6604 4 Shim - .003” thick

5 2203-A-6605 4 Shim - .005” thick

6 2203-B-6606 1 Shim - .010” thick

Post 11/93. See KIT 2432 for pre 11/93.

KIT 2886

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 2203-K-9241 3 Shim - .003” thick

2 2203-L-9242 3 Shim - .005” thick

3 2203-M-9243 4 Shim - .010” thick

Post 11/93.

SERVICE KITS

KIT 4435

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 H-715334 1 Cone - drive pinion outer bearing

2 H-715311 1 Cup - drive pinion outer bearing

3 1228-V-594 1 Cone - drive pinion inner bearing

4 9220 1 Cup - drive pinion inner bearing

5 JHM-720210 1 Cup - diff. bearing L.H.

6 JHM-720249 1 Cone - diff. bearing L.H.

7 1228-S-1267 1 Spigot bearing

8 A1-1205-A-2731 1 Oil seal assembly

9 64700 1 Cup - diff. bearing R.H.

10 64450 1 Cone - diff. bearing R.H.

3200-C-1381, 3200-U-1399,

All ratios except 6.83, 7.17, 7.40 & 7.83

KIT 4436

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 H-715334 1 Cone - drive pinion outer bearing

2 H-715311 1 Cup - drive pinion outer bearing

3 1228-V-594 1 Cone - drive pinion inner bearing

4 9220 1 Cup - drive pinion inner bearing

5 JHM-720210 1 Cup - diff. bearing L.H.

6 JHM-720249 1 Cone - diff. bearing L.H.

7 1228-A-261 1 Spigot bearing

8 A1-1205-A-2731 1 Oil seal assembly

9 64700 1 Cup - diff. bearing R.H.

10 64450 1 Cone - diff. bearing R.H.

6.83, 7.17, 7.40 & 7.83 ratios only, 3200-C-1381,

3200-U-1399

KIT 4437

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 H-715334 1 Cone - drive pinion outer bearing

2 H-715311 1 Cup - drive pinion outer bearing

3 1228-V-594 1 Cone - drive pinion inner bearing

4 9220 1 Cup - drive pinion inner bearing

5 NP-022042 1 Cup - bearing

6 NP-579116 1 Cone - bearing

7 1228-S-1267 1 Spigot bearing

8 A1-1205-A-2731 1 Oil seal assembly

9 JM-822010 1 Cup - bearing

10 JM-822049 1 Cone - bearing

All ratios except 6.83, 7.17, 7.40 & 7.83,

3200-W-1791, 3200-A-1899, 3200-J-1804,

3200-S-1839

SERVICE KITS

KIT 4438

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 H-715334 1 Cone - drive pinion outer bearing

2 H-715311 1 Cup - drive pinion outer bearing

3 1228-V-594 1 Cone - drive pinion inner bearing

4 9220 1 Cup - drive pinion inner bearing

5 NP-022042 1 Cup - bearing

6 NP-579116 1 Cone - bearing

7 1228-A-261 1 Spigot bearing

8 A1-1205-A-2731 1 Oil seal assembly

9 JM-822010 1 Cup - bearing

10 JM-822049 1 Cone - bearing

6.83, 7.17, 7.40 & 7.83 ratios only, 3200-W-1791,

3200-A-1899, 3200-J-1804, 3200-S-1839

KIT 4440

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A-1228-R-1266 1 Race - pinion bearing outer (spigot)

2 78551 2 Cup - pinion bearing inner and outer

3 78250AC 2 Cone - pinion bearing inner and outer

4 52387P 1 Cone - diff. bearing L.H.

5 52618P 1 Cup - diff bearing L.H.

6 NP-928171 1 Cone - diff. bearing R.H.

7 NP-718759 1 Cup - diff. bearing R.H.

8 A-1228-Z-572 1 Bearing - pump idler gear

9 382AK 2 Cup - bearing

10 385AK 2 Cone - bearing

11 A-1205-C-1927 1 Oil seal assembly

12 1229-T-4076 1 Snap ring

13 A1-1205-X-2728 1 Oil seal assembly

14 JM-515610 1 Cup - rear side gear bearing

15 JM-515649 1 Cone - rear side gear bearing

16 HM-813810 1 Cup - bearing

17 HM-813844 1 Cone - bearing

18 1221-R-1006 1 Cup - bearing

19 1221-S-1007 1 Cone - bearing

3200-M-1625

SERVICE KITS

KIT 4441

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1229-L-1624 1 Snap ring

2 78551 2 Cup - pinion bearing inner and outer

3 78250AC 2 Cone - pinion bearing inner and outer

4 52387P 1 Cone - diff. bearing L.H.

5 52618P 1 Cup - diff bearing L.H.

6 NP-718759 1 Cup - diff. bearing R.H.

7 NP-928171 1 Cone - diff. bearing R.H.

8 A-1228-Z-572 1 Bearing - pump idler gear

9 382A 2 Cup - bearing

10 385A 2 Cone - bearing

11 A-1205-C-1927 1 Oil seal assembly

12 1228-S-1267 1 Spigot bearing

13 A1-1205-X-2728 1 Oil seal assembly

14 JM-515610 1 Cup - rear side gear bearing

15 JM-515649 1 Cone - rear side gear bearing

16 HM-813810 1 Cup - bearing

17 HM-813844 1 Cone - bearing

3200-M-1833

All ratios except 6.83, 7.17, 7.40 & 7.83

For rear-rear 380s (which are less IAD) use

KIT 4443.

KIT 4442

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1228-A-261 1 Spigot bearing

2 1229-K-1623 1 Snap ring

3 78551 2 Cup - pinion bearing inner and outer

4 78250AC 2 Cone - pinion bearing inner and outer

5 52387P 1 Cone - diff. bearing L.H.

6 52618P 1 Cup - diff bearing L.H.

7 NP-718759 1 Cup - diff. bearing R.H.

8 NP-928171 1 Cone - diff. bearing R.H.

9 A-1228-Z-572 1 Bearing - pump idler gear

10 382A 2 Cup - bearing

11 385A 2 Cone - bearing

12 A-1205-C-1927 1 Oil seal assembly

13 A1-1205-X-2728 1 Oil seal assembly

14 JM-515610 1 Cup - rear side gear bearing

15 JM-515649 1 Cone - rear side gear bearing

16 HM-813810 1 Cup - bearing

17 HM-813844 1 Cone - bearing

3200-M-1833

6.83, 7.17, 7.40 & 7.83 ratios only.

For rear-rear 380s (which are less IAD) use

KIT 4444.

SERVICE KITS

KIT 4443

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1228-S-1267 1 Spigot bearing

2 78551 2 Cup - pinion bearing inner and outer

3 78250AC 2 Cone - pinion bearing inner and outer

4 52387P 1 Cone - diff. bearing L.H.

5 52618P 1 Cup - diff bearing L.H.

6 NP-718759 1 Cup - diff. bearing R.H.

7 NP-928171 1 Cone - diff. bearing R.H.

8 R945008 1 Oil seal assembly

9 29620 1 Cup - input shaft inner bearing

10 29685 1 Cone - input shaft inner bearing

11 493 1 Cup - input shaft outer bearing

12 496 1 Cone - input shaft outer bearing

13 1229-L-1624 1 Snap ring

3200-M-1833

All less Inter-axle and less pump except ratios 6.83,

7.17, 7.40 & 7.83

KIT 4444

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1228-A-261 1 Spigot bearing

2 78551 2 Cup - pinion bearing inner and outer

3 78250AC 2 Cone - pinion bearing inner and outer

4 52387P 1 Cone - diff. bearing L.H.

5 52618P 1 Cup - diff bearing L.H.

6 NP-718759 1 Cup - diff. bearing R.H.

7 NP-928171 1 Cone - diff. bearing R.H.

8 R945008 1 Oil seal assembly

9 29620 1 Cup - input shaft inner bearing

10 29685 1 Cone - input shaft inner bearing

11 493 1 Cup - input shaft outer bearing

12 496 1 Cone - input shaft outer bearing

13 1229-K-1623 1 Snap ring

3200-M-1833

All less Inter-axle and less pump for 6.83, 7.17, 7.40

& 7.83 ratios only

KIT 4445

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 NP-718759 1 Cup - diff. bearing L.H.

2 NP-928171 1 Cone - diff. bearing L.H.

3200-M-1625, 3200-M-1833,

Diff. bearing upgrade L.H.

KIT 4446

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 52387P 1 Cone - diff. bearing R.H.

2 52618P 1 Cup - diff bearing R.H.

3200-M-1625, 3200-M-1833,

Diff. bearing upgrade R.H.

SERVICE KITS

KIT 4450

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 78551 2 Cup - pinion bearing inner and outer

2 78250AC 2 Cone - pinion bearing inner and outer

3 52387P 1 Cone - diff. bearing L.H.

4 52618P 1 Cup - diff bearing L.H.

5 NP-928171 1 Cone - diff. bearing R.H.

6 NP-718759 1 Cup - diff. bearing R.H.

7 29620 1 Cup - input shaft inner bearing

8 493 1 Cup - input shaft outer bearing

9 29685 1 Cone - input shaft inner bearing

10 496 1 Cone - input shaft outer bearing

11 1221-R-1006 1 Cup - bearing

12 R945008 1 Oil seal assembly

13 A5-1228-R-1266 1 Roller bearing assembly

3200-M-1625, All less I.A.D. and less pump.

KIT 4459

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A1-1205-A-2731 1 Oil seal assembly

2 H-715334 1 Cone - drive pinion outer bearing

3 H-715311 1 Cup - drive pinion outer bearing

4 1228-V-594 1 Cone - drive pinion inner bearing

5 9220 1 Cup - drive pinion inner bearing

6 64700 1 Cup - diff. bearing R.H.

7 64450 1 Cone - diff. bearing R.H.

8 1228-S-1267 1 Spigot bearing

9 JHM-720249 1 Cone - diff. bearing L.H.

10 JHM-720210 1 Cup - diff. bearing L.H.

3200-J-1752, 3200-K-1753,

All ratios except 6.83, 7.17, 7.40 and 7.83

KIT 4460

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 A1-1205-A-2731 1 Oil seal assembly

2 H-715334 1 Cone - drive pinion outer bearing

3 H-715311 1 Cup - drive pinion outer bearing

4 1228-V-594 1 Cone - drive pinion inner bearing

5 9220 1 Cup - drive pinion inner bearing

6 64700 1 Cup - diff. bearing R.H.

7 64450 1 Cone - diff. bearing R.H.

8 1228-A-261 1 Spigot bearing

9 JHM-720249 1 Cone - diff. bearing L.H.

10 JHM-720210 1 Cup - diff. bearing L.H.

3200-J-1752, 3200-K-1753,

6.83, 7.17, 7.40 and 7.83 ratios only.

SERVICE KITS

KIT 4744

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 10-X-1595 4 Bolt

2 10-X-1597 2 Blot

3 10-X-1599 4 Bolt

4 1229-W-1557 14 Washer

5 4-X-1445 4 Stud

6 N-110-1 4 Nut

3200-K-1753, 3200-J-1752,

Carrier to axle housing bolt kit

KIT RP180 1625

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2436 1 Main differential kit

2 KIT 1554 1 Spacer kit

3 KIT 2432 1 Shim kit

4 KIT 2421 1 I.A.D. kit

5 KIT 1536 1 Shim kit

6 KIT 4440 1 Bearing and seal kit

7 1227-D-940 1 Nut - input

8 1227-J-946 1 Nut - output shaft

9 1227-P-900 1 Nut - pinion

3200-M-1625, Forward carrier with I.A.D. and main

differential.

KIT RP180 1833

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 1227-P-900 1 Nut - pinion

2 1228-A-261 1 Spigot bearing

3 1229-K-1623 1 Snap ring

4 1227-D-940 1 Nut - input

5 1227-J-946 1 Nut - output shaft

6 KIT 2432 1 Shim kit

7 KIT 2421 1 I.A.D. kit

8 KIT 1536 1 Shim kit

9 KIT 1554 1 Spacer kit

10 KIT 2436 1 Main differential kit

11 KIT 2886 1 Shim kit

12 KIT 4441 1 Bearing and seal kit

3200-M-1833, Forward carrier with I.A.D. and main

differential.

KIT RP35380

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 1554 1 Spacer kit

2 KIT 2432 1 Shim kit

3 KIT 1536 1 Shim kit

4 1227-P-900 1 Nut - pinion

5 1227-D-940 1 Nut - input

6 1227-J-946 1 Nut - output shaft

3200-M-1625, Forward carrier with I.A.D. and main

differential.

SERVICE KITS

KIT RP35380A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2437 1 Main differential kit

2 KIT 1554 1 Spacer kit

3 KIT 2432 1 Shim kit

4 KIT 2422 1 I.A.D. kit

5 KIT 1536 1 Shim kit

6 1227-P-900 1 Nut - pinion

7 1227-D-940 1 Nut - input

8 1227-J-946 1 Nut - output shaft

9 KIT 4441 1 Bearing and seal kit

10 1228-A-261 1 Spigot bearing

11 1229-K-1623 1 Snap ring

3200-M-1833, Forward carrier with I.A.D. and main

differential.

12 KIT 2886 1 Shim kit

KIT RP380

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2436 1 Main differential kit

2 KIT 1554 1 Spacer kit

3 KIT 2432 1 Shim kit

4 KIT 2422 1 I.A.D. kit

5 KIT 1536 1 Shim kit

6 1227-P-900 1 Nut - pinion

7 1227-D-940 1 Nut - input

8 1227-J-946 1 Nut - output shaft

9 KIT 4440 1 Bearing and seal kit

3200-M-1625, For all double reduction front units

with pump and I.A.D. except 70,000 lb. capacity

tandems.

KIT RP380A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2436 1 Main differential kit

2 KIT 1554 1 Spacer kit

3 KIT 2432 1 Shim kit

4 KIT 2422 1 I.A.D. kit

5 KIT 1536 1 Shim kit

6 KIT 2886 1 Shim kit

7 1227-P-900 1 Nut - pinion

8 1227-D-940 1 Nut - input

9 1227-J-946 1 Nut - output shaft

10 KIT 4441 1 Bearing and seal kit

11 1228-A-261 1 Spigot bearing

12 1229-K-1623 1 Snap ring

3200-M-1833, For all double reduction front units

with pump and I.A.D. except 70,000 lb. capacity

tandems.

SERVICE KITS

KIT RR26185-1752

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 1592 1 Shim kit

2 KIT 1593 1 Spacer kit

3 KIT 2318 1 Main diff. kit with spider

4 KIT 4459 1 Bearing and seal kit

2.35-46 spline. 3200-J-1752, 3200-K-1753.

Ratios 2.93-6.43

KIT RR26185A-1752

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 1592 1 Shim kit

2 KIT 1593 1 Spacer kit

3 KIT 2318 1 Main diff. kit with spider

4 KIT 4460 1 Bearing and seal kit

2.35-46 spline. 3200-J-1752, 3200-K-1753.

Ratios 6.83-7.83

KIT RR35380

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2437 1 Main differential kit

2 KIT 1554 1 Spacer kit

3 KIT 2432 1 Shim kit

4 1227-P-900 1 Nut - pinion

5 1227-J-946 1 Nut - output shaft

6 KIT 4450 1 Bearing and seal kit

3200-M-1625

KIT RR35380A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2437 1 Main differential kit

2 KIT 1554 1 Spacer kit

3 KIT 2432 1 Shim kit

4 1227-P-900 1 Nut - pinion

5 1227-J-946 1 Nut - output shaft

6 KIT 4443 1 Bearing and seal kit

7 1228-A-261 1 Spigot bearing

8 1229-K-1623 1 Snap ring

3200-M-1833

9 KIT 2886 1 Shim kit

KIT RR380

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2436 1 Main differential kit

2 KIT 1554 1 Spacer kit

3 KIT 2432 1 Shim kit

4 1227-P-900 1 Nut - pinion

5 1227-J-946 1 Nut - output shaft

6 KIT 4450 1 Bearing and seal kit

3200-M-1625

KIT RR380A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 1554 1 Spacer kit

2 KIT 2432 1 Shim kit

3 KIT 2886 1 Shim kit

4 1227-J-946 1 Nut - output shaft

5 1227-P-900 1 Nut - pinion

6 1228-A-261 1 Spigot bearing

7 KIT 2436 1 Main differential kit

8 KIT 4443 1 Bearing and seal kit

3200-M-1833

KIT RS23180

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 2318 1 Main diff. kit with spider

2 KIT 1592 1 Shim kit

3 KIT 1593 1 Spacer kit

4 KIT 4435 1 Bearing and seal kit

3200-C-1381, 3200-U-1399

KIT RS23180A

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 KIT 1592 1 Shim kit

2 KIT 1593 1 Spacer kit

3 KIT 2318 1 Main diff. kit with spider

4 KIT 4437 1 Bearing and seal kit

3200-W-1791, 3200-A-1899, 3200-J-1804

MPS 3355

ITEM PART NUMBER QTY. DESCRIPTION REMARKS

1 3892-Y-4965 1 Side gear - helical gear

2 3892-B-4708 1 Helical gear - drive pinion

3200-M-1625, 3200-M-1833

XpresswayPlus.ArvinMeritor.com

Don't forget about using XpresswayPlus for:

yOrdering parts online

yOrder status yReference Library

yPrice and availability yThe Company Store

yInvoice Lookup yLiterature

yParts Catalog yDealer/Distributor locator

yOnline e-mail or phone numbers for Customer Service, Information Services,

Marketing, Catalog, and eSupport

WHAT YOU NEED: WHERE TO LOOK:

ACCOUNT CHANGE CUSTOMER SERVICE

AFTERMARKET & PRODUCTION ASSEMBLIES CATALOG

APPLICATION INFORMATION CATALOG

BILL-OF-LADING NUMBER ORDER STATUS

BILL-OF-MATERIAL CATALOG

BULLETINS REFERENCE LIBRARY

CONTACT NAMES & NUMBERS CUSTOMER SERVICE

FIELD SUPPORT REPRESENTATIVES CUSTOMER SERVICE

INVOICE (VIEW & PRINT) ORDER STATUS

NEWSLETTER REFERENCE LIBRARY

ORDER DETAILS ORDER STATUS

ORDER HISTORY FILE ORDER STATUS

ORDER MERCHANDISE COMPANY STORE

ORDER SUBMIT CREATE NEW ORDER

ORDER SUBMIT - STOCK UPLOAD (MULTIPLE LINES) CREATE NEW ORDER

PART DETAILS CATALOG

PART IMAGES CATALOG

PART NUMBER COMPARISON CATALOG

PARTS BOOKS REFERENCE LIBRARY

PASSWORD CHANGE CUSTOMER SERVICE

PRICE (LIST) CATALOG

PRICE (NET) & AVAILABILITY PRICE & AVAILABILITY

PRODUCT BROCHURES REFERENCE LIBRARY

PRODUCT UPDATES REFERENCE LIBRARY

PROOF-OF-DELIVERY ORDER STATUS

REQUEST-FOR-QUOTATION (FOR MERITOR BRAND) PRICE REQUEST

SALES LITERATURE REFERENCE LIBRARY

SEND QUESTIONS, COMMENTS, ISSUES CONTACT US

SHIPPER NUMBER ORDER STATUS

TECH TIPS REFERENCE LIBRARY

TRACKING NUMBER ORDER STATUS

WARRANTY INFORMATION REFERENCE LIBRARY

WHERE-USED INFORMATION CATALOG

XpresswayPlus is easy to use, can reduce phone calls, and save you valuable time.

NUMERICAL PARTS LISTING

PART NUMBER PAGE

4-X-1051 17

4-X-1929 17

5-X-521 14

5-X-1034 5

5-X-1153 14

5-X-1198 14

10-X-1334 5

10-X-1595

10-X-1596

10-X-1597 17

10-X-1599

10-X-1601

10-X-1669 3, 5

15-X-1167 2, 10

15-X-1698 2

15-X-1699 2

15-X-1700 1

40-X-1015 10

40-X-1182 12, 14

40-X-1233 9

41-X-1018 11

41-X-1020 10

41-X-1022 11

41-X-1037 11

41-X-1043 9

41-X-1080 11, 15

41-X-1109 14

41-X-1275 14

41-X-1333 14

41-X-1334 12

41-X-1358 12

41-X-1364 15

41-X-1368 14

42-X-1024 10

42-X-1027 14

43-X-1006 14

43-X-1007 14

43-X-1015 11

45-X-1003 11

45-X-1008 11

A2-3260-N-1262 25

1199-B-1666 18

1199-R-2176 11

A-1199-Z-3328 2

A-1199-R-1048 17

A-1199-W-4053 16

PART NUMBER PAGE

A-1205-S-1657 18

A-1205-Z-1820 18

A-1205-C-1927 16

A-1205-R-2410 18

A-1205-Q-2591 9

A1-1205-X-2728 5, 7

1220-K-89 11

1220-S-1085 1

1227-R-330 18

1227-F-448 18

1227-D-472 2, 10

1227-W-517 18

1227-A-547 18

1227-P-900 3

1227-D-940 5, 7

1227-J-946 7, 16

1227-P-1056 15

1227-M-1339 1

1227-N-1340 1

1228-A-261 3, 10

A-1228-Z-572 6

1228-V-594 9

A4-1228-R-1266 3

A5-1228-R-1266 3

1228-S-1267 3, 10

1229-V-48 18

1229-D-992 2

1229-U-1503 2, 11, 12, 14, 15

1229-C-1511 3, 4, 6

1229-E-1513 16

1229-U-1555 1

1229-W-1557 1, 12, 14, 17

1229-K-1597 4, 5, 7

1229-K-1623 2, 10

1229-L-1624 2, 10

1229-M-1625 2

1229-B-1666 7

1229-E-1669 1, 5, 6, 7

1229-N-1730 5, 7, 9

1229-T-1736 7, 16

1229-K-2429 3

1229-L-2430 16

1229-M-2431 16

1229-N-2432 16

1229-P-2434 16

1229-Q-2435 16

PART NUMBER PAGE

1229-R-2436 16

1229-S-2437 16

1229-T-2438 16

1229-U-2439 16

1229-L-2742 4

1229-Q-2929 4

1229-K-3001 13

1229-L-3002 2, 13

1229-T-3062 16

1229-F-4062 4

1229-T-4076 2

1229-D-4632 9

1229-F-4634S 18

1244-U-879 18

1246-M-455 2

1246-Q-615 6

1246-P-1134 11

1250-E-473 17

1250-N-1080 4

1250-U-1217 11

1829-J-738 6

2203-Z-6604 3

2203-A-6605 3

2203-B-6606 3

2203-C-6607 4

2203-D-6608 4

2203-E-6609 4

2203-U-7899 3, 7

2203-V-7900 3, 7

2203-W-7901 3, 7

2203-X-7902 3, 7

2203-Y-7903 3, 7

2203-Z-7904 3, 7

2203-A-7905 3, 7

2203-B-7906 3, 7

2203-C-7907 3, 7

2203-D-7908 3, 7

2203-E-7909 3, 7

2203-K-9241 4

2203-L-9242 4

2203-M-9243 4

2208-H-944 14

2208-L-1000 15

2214-K-89 1

2214-M-91 1

2214-Q-277 11

NUMERICAL PARTS LISTING

PART NUMBER PAGE

2214-S-279 11

2214-W-1011 11

2214-X-1012 11

2214-G-1125 11

2214-S-1137 11

2230-N-170 14

2230-T-1190 14

2233-K-245 4

2233-M-1001 13

2233-T-1112 2

2234-F-890 3

2234-P-1004 13

2234-C-1069 2, 13

2234-G-1229 2

2244-Y-51 14

2244-Z-52 14

2244-K-1025 5

2244-V-1114 14

2245-E-31 18

2257-S-1033 7

2258-U-411 5

2258-L-714 14

2258-Z-1118 4

2258-N-1262 14

2296-A-105 7

2296-B-106 7

2296-F-1098 7

2296-G-1099 7

2297-E-2293 6

2297-X-2494 5

2297-C-3799 7

2297-T-4180 12

2297-U-5273 4

2297-Z-5278 6

A-2297-D-5334 6

2297-L-5420 6

2297-A-7021 16, 17

2297-C-7049 14

2803-D-2500 9

2803-E-2501 9

2803-F-2502 9

2803-H-2504 9

2803-J-2506 9

2803-K-2507 9

2803-L-2508 9

2803-M-2509 9

2803-N-2510 9

PART NUMBER PAGE

2803-P-2512 9

2803-Y-2755 9

2803-Z-2756 9

2803-A-2757 9

2803-B-2758 9

3107-P-16 4

3107-Z-78 14

3107-V-1010 14

3107-A-1041 14

3107-L-1104 14

3107-N-1106 14

3196-T-20 7

3196-U-21 7

3196-B-28 6

3196-F-32 14

A2-3200-C-1381 10

A2-3200-M-1625 2

A2-3200-J-1752 10

A2-3200-K-1753 10

A2-3200-J-1804 10

A2-3200-M-1833 2

A2-3200-A-1899S 10, 32

3202-H-6768 21

3202-R-6778 21

3202-S-6779 21

3202-L-7734 22

3202-M-7735 21

3202-W-7745 21

3202-M-7787 23

3202-N-7788 23

3202-C-7803 22

3202-D-7804 22

3202-X-8110 22

3202-Y-8111 21

3202-Z-8112 21

3202-H-8666 22

3202-B-8816 22

3202-G-9003 22

3202-H-9004 21

3202-W-9097 22

3202-X-9098 21

3202-Y-9125 21

3202-C-9129 22

3202-P-9142 22

3202-Q-9143 21

3202-V-9148 21

3202-W-9149 21

PART NUMBER PAGE

3202-G-9159 21

3202-P-9246 23

3202-Q-9247 23

3202-R-9248 22

3202-S-9249 22

3202-K-9267 21

3202-M-9269 22

3202-J-9344 21

3202-L-9346 22

3202-J-9370 21

3202-L-9372 22

3202-N-9374 22

3202-E-9391 21

3202-F-9392 21

3202-G-9393 21

3202-J-9396 22

3202-N-9400 22

3202-Q-9403 22

3202-W-9409 22

3202-Y-9411 23

3202-R-9456 22

3202-T-9458 22

3202-E-9495 21

3202-F-9496 21

3202-G-9497 22

3202-K-9501 21

3202-L-9502 22

3202-J-9552 22

3202-L-9554 22

3202-K-9579 21

3202-L-9580 21

3202-M-9581 22

3202-W-9643 21

3202-Y-9645 21

3202-C-9805 23

3202-D-9806 23

3206-T-1476 22

3206-U-1477 21

3221-H-8 6

A-3226-Z-598 3

A-3226-J-790 4

A-3226-B-860 9

A-3226-Q-901 16

A1-3226-Q-901 16

A-3226-V-1010 9

A-3226-H-1126 4

A-3230-N-1028 2

NUMERICAL PARTS LISTING

PART NUMBER PAGE

A-3230-A-1041 14

A-3230-C-1043 14

A-3230-E-1045 2

A-3235-X-1532 3

A1-3235-X-1532 3

A-3235-F-1618 13

A5-3235-F-1618 12

A6-3235-F-1618 13

A-3235-H-1620 13

A3-3235-H-1620 13

A5-3235-H-1620 13

A-3235-T-1944 1

A3-3235-T-1944 1

A5-3235-T-1944 1

A6-3235-T-1944 1

A7-3235-T-1944 1

A-3235-U-1945 1

A3-3235-U-1945 2

A5-3235-U-1945 2

A6-3235-U-1945 1

A7-3235-U-1945 1

A-3235-K-2143 13

A1-3235-K-2143 13

A2-3235-K-2143 12

A3-3235-K-2143 12

A4-3235-K-2143 13

A5-3235-K-2143 12

A7-3235-K-2143 12

A-3235-M-2145 13

A1-3235-M-2145 13

A2-3235-M-2145 13

A3-3235-M-2145 13

A4-3235-M-2145 13

A5-3235-M-2145 13

A6-3235-M-2145 13

A7-3235-M-2145 13

A-3235-U-2335 13

A1-3235-U-2335 12

A2-3235-U-2335 12

A-3235-W-2337 13

A1-3235-W-2337 13

A2-3235-W-2337 13

A-3235-Y-2339 13

A1-3235-Y-2339 12

A2-3235-Y-2339 12

3237-W-1167 15

PART NUMBER PAGE

A-3260-U-73 24

A2-3260-U-73 24

A2-3260-W-75 24

A-3260-Q-95 26

A2-3260-Q-95 26

3260-G-111 24

3260-L-116 24

A2-3260-L-116 24

3260-M-117 26

A2-3260-M-117 26

A2-3260-U-151 27

A-3260-R-356 24

A1-3260-R-356 24

A-3260-S-357 24

A1-3260-S-357 24

A-3260-Y-1143 24

A-3260-D-1148 26

A-3260-M-1235 25

A-3260-D-1252 27

A-3260-K-1259 25

A1-3260-K-1259 25

A-3260-N-1262 25

A-3260-Q-1265 25

A1-3260-Q-1265 25

A2-3260-S-1267 25

3260-F-1280 25

3260-R-1292 25

A2-3260-R-1292 25

A-3260-B-1302 25

A1-3260-B-1302 25

A-3260-N-1314 24

A-3260-G-1645 24

A2-3260-G-1645 24

A-3260-R-1682 25

A2-3261-Q-1057 5

3261-A-1067 14

3264-P-172 9

A-3266-L-792 6

A-3266-Y-831 7

A1-3266-B-834 6

3266-M-897 11, 15

3266-F-1020 14

3266-M-1313 5

3266-Q-1317 5

A-3266-P-1446 7

3278-N-300 4

PART NUMBER PAGE

3278-W-335 13

3278-Q-381 2

3280-V-5040 5

3280-V-8394 5

3280-Z-8398 5

A-3280-F-8430 5

3296-L-90 4

3296-D-1174 14

3296-N-1184 14

3296-Q-1187 4

3296-A-1197 14

3297-W-75 16

A-3297-S-97 6

A1-3297-K-115 4

A-3297-M-117 6

A1-3297-N-1288 4

A1-3303-L-12 5

A-3303-M-13 7

A-3303-P-1030 5

3780-R-382 6

3892-J-4014 3

3892-S-4023 3

3892-B-4708 3

3892-D-4710 3

3892-F-4712 7

3892-V-4936 5

3892-W-4937 6

3892-W-4963 4

3892-Y-4965 4

3892-M-5213 4

382A 16

385A 16

493 6

496 6

572 18

580 18

592A 18

598A 18

742 18

749 18

772 18

782 18

6535 18

6580 18

9220 9

29620 6

NUMERICAL PARTS LISTING

PART NUMBER PAGE

29685 6

52387P 1

52618P 1

64450 12

64700 11

78250AC 3

78551 3

9680368 7

16N-4-6271 24

16N-4-6271-1 25

16NYS38-11A 24

16TYS38-11A 25

176N-4-861-1X 25

176N-4-861X 24

176NYS38-13A1 24

176TYS32-3A2 25

176TYS38-13A1 25

17N-4-5961X 24

17N-4-6961-1X 25

17N-4-6961X 24

17N-4-7621-1 25

17N-4-7851X 24

17NYS32-99 24

17NYS32-99A3 24

17NYS32-100A 24

17NYS32-100A2 24

17NYS38-17A2 24

17TYS32-68A2 25

17TYS32-99 25

17TYS38-70A 25

17TYS38-53A1 25

18N-4-3221-1X 25

18N-4-3221X 24

18N-4-3371 24

18N-4-3381-1X 25

18N-4-3581-1X 25

18N-4-3581X 24

18NYS32-12A2 24

18TYS32-12A2 25

5WCS38-12A2 27

5WCS38-24A 27

82NYS32-74 26

82NYS32-74A2 26

82NYS38-28A 26

92NYS38-52A 26

92NYS38-52A2 26

PART NUMBER PAGE

A-40632-1 10

A-40634-1 10

A-40636-1 10

A-40638-1 10

B-40312-4 2

B-40352-4 2

B-40354-4 2

B-40356-4 2

B-40358-4 2

B-40360-4 2

B-40362-4 2

B-40364-4 2

B-40366-4 2

B-40368-4 2

B-41002-1 10

B-41004-3 9

B-41006-3 9

B-41008-3 10

B-41010-3 10

B-41012-3 10

B-41014-3 9

B-41016-3 9

B-41018-3 9

B-41020-1 10

B-41022-1 10

B-41024-4 10

B-41026-3 9

B-41028-3 10

B-41030-3 9

B-41032-3 10

B-41034-3 10

B-41036-3 10

B-41592-1 9

B-41650-1 10

B-41806-1 9, 10

H-715311 9

H-715334 9

HM-813810 4

HM-813844 4

JHM-720210 11

JHM-720249 12

JM-515610 3

JM-515649 3

JM-822010 11

JM-822049 12

KIT 1536 32

PART NUMBER PAGE

KIT 1554 32

KIT 1592 32

KIT 1593 33

KIT 1594 33

KIT 2266 5

KIT 2268 4

KIT 2318 33

KIT 2341 33

KIT 2342 34

KIT 2363 34

KIT 2373 34

KIT 2374 34

KIT 2421 34

KIT 2422 35

KIT 2432 35

KIT 2436 35

KIT 2437 35

KIT 2484 35

KIT 2490 36

KIT 2491 36

KIT 2608 36

KIT 2630 37

KIT 2638 9, 37

KIT 2678 5, 38

KIT 2679 5, 39

KIT 2699 39

KIT 2731 10, 40

KIT 2731A 10, 40

KIT 2732 10, 40

KIT 2732A 10, 40

KIT 2744 11, 12, 41

KIT 2791 41

KIT 2791A 41

KIT 2792 42

KIT 2793 42

KIT 2885 42

KIT 2886 42

KIT 4435 43

KIT 4436 43

KIT 4437 43

KIT 4438 44

KIT 4440 44

KIT 4441 45

KIT 4442 45

KIT 4443 46

KIT 4444 46

NUMERICAL PARTS LISTING

PART NUMBER PAGE

KIT 4445 1, 46

KIT 4446 1, 46

KIT 4450 47

KIT 4459 47

KIT 4460 47

KIT 4744 48

KIT RP180 1625 48

KIT RP180 1833 48

KIT RP35380 48

KIT RP35380A 49

KIT RP380 49

KIT RP380A 49

KIT RR26185-1752 50

KIT RR26185A-1752 50

KIT RR35380 50

KIT RR35380A 50

KIT RR380 50

KIT RR380A 51

KIT RS23180 51

KIT RS23180A 51

MPS 3355 51

MS-208020-1 11

MS-208045-1 5

MS-210016-1 15

MS-212045-1 9

MWA-506 11, 15

MWA-508 11

MWA-512 9

MWA-516 15

N-68-1 4

N-110-1 2, 18

NL-26-1 4

NL-210-1 6

P-16 6

P-28S 17

P-112 2

P-212 17

R945008 7

S-256A-2 1

S-256P-2 5

S-2510-2 6

S-2518-2 7

S-2610-2 5, 7

S-2616-2 5, 7

S-2626-2 4

S-2710-2 16

PART NUMBER PAGE

S-2711-2 16

S-2812-2 4, 5, 7

S-2814-A2 5

S-11440-2 2

S-21016-2 2

SN-1020-1 17

SN-1036-1 17

NOTES

Maintenance Manual No. 5E for

carriers of forward tandem axles.

Maintenance Manual No. 5 for carriers of

180, 185 or 186 Series single axles and

180, 185 or 186 Series rear tandem axles.

Maintenance Manula No. 6C for carriers of 380 Series single axles

and 380 Series rear tandem axles.

MAINTENANCE INFORMATION

NOTES

We warrant all new parts for one year from date of shipment to the buyer against defective material or

workmanship (but not against damage caused by accident, abuse or improper installation, maintenance

or repair) when such parts are used on vehicles the specifications of which have been approved by our

Engineering Department.

As the exclusive remedy under this warranty, we will, at our option, repair or replace such parts free of

charge, or take back the nonconforming parts and refund the monies paid by buyer for such parts, if

found on examination by us to be nonconforming and if any necessary return charges are prepaid.

If it is necessary to return any parts under this warranty, buyer agrees not to make any deduction on

account thereof from remittances on current accounts while claims are in the process of disposition.

Any expense incurred without our consent for repairs or replacement will not be allowed.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS,

EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE. IN NO EVENT SHALL SELLER

BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

Only genuine ArvinMeritor replacement parts are covered by this aftermarket parts warranty.

ARVINMERITOR AFTERMARKET PARTS WARRANTY

Litho in USA

Revised 10/08

PB-9108 (13028/05060)

Information contained in this publication was in eect at

the time the publication was approved for printing and is

subject to change without notice or liability. ArvinMeritor

reserves the right to revise the information presented or

discontinue the production of parts at any time.

Distributed by:

Meritor Heavy Vehicle Systems, LLC

7975 Dixie Highway

Florence, Kentucky 41042 USA

888-725-9355

www.arvinmeritor.com

XpresswayPlus.arvinmeritor.com

PB-9108

Revised 10/08

186 Series Meritor 180 185 380 Drive Axle Parts For Single And Tandem Axles

Navigation menu

Versions of this User Manual:

Views

Navigation
