CCoommmmeerrcciiaall && IInndduussttrriiaall
AApppplliieedd PPrroodduucctt LLiinnee
75-137.5
May, 2004
HHeeaattiinngg
VVeennttiillaattiinngg
CCoooolliinngg
MMaakkee--UUpp AAiirr
2
MODINE COMMERCIAL & INDUSTRIAL APPLIED PRODUCT LINE
Modine has always been the industry
standard in the commercial and industrial
comfort-heating market. With the Modine
product line, you can solve your application
needs with duct furnaces and direct-fired or
indirect-fired make-up air systems, with
heating capacities up to 7,862,000 Btu/hr.
Available in indoor and outdoor configurations,
air-handling capacities are as high as
60,000 CFM.
Modine sales representatives are
experienced specialists in the engineering,
selection and application of Modine commercial
and industrial heating and ventilating
equipment. Located near you, these
representatives can help you satisfy your
comfort needs and indoor air-quality
requirements. Contact your Modine product
source for assistance in providing top-quality,
high-efficiency Indoor Air Solutions.
3

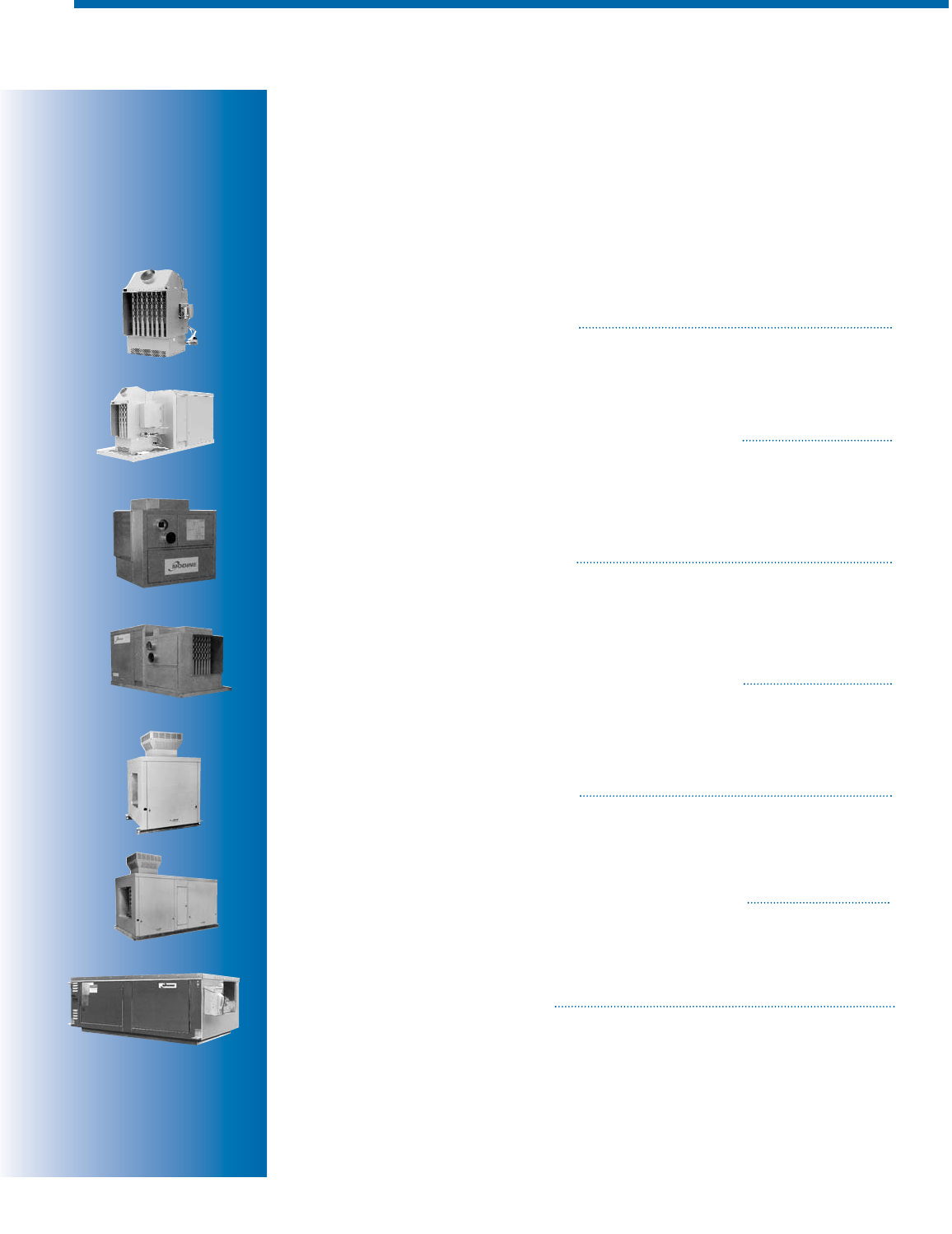

CONTENTS PAGE
Indoor Gas-Fired Duct Furnaces
Heating and/or Make-up Air Units 4
Indoor Gas-Fired System Units
Heating, Cooling, Ventilating, and Make-Up Air Units 5
WeatherHawkTM Weatherproof Gas-Fired Duct Furnace
Heating and/or Make-Up Air Units 8
WeatherHawkTM Weatherproof Gas-Fired System Units
Heating, Cooling, Ventilating, and Make-Up Air Units 9
Direct-Fired Make-Up Air Units 10
Indoor Gas-Fired Separated Combustion Duct Furnace
Heating and/or Make-up Air Units 6
Indoor Gas-Fired Separated Combustion System Units
Heating, Cooling, Ventilating, and Make-Up Air Units 7
4

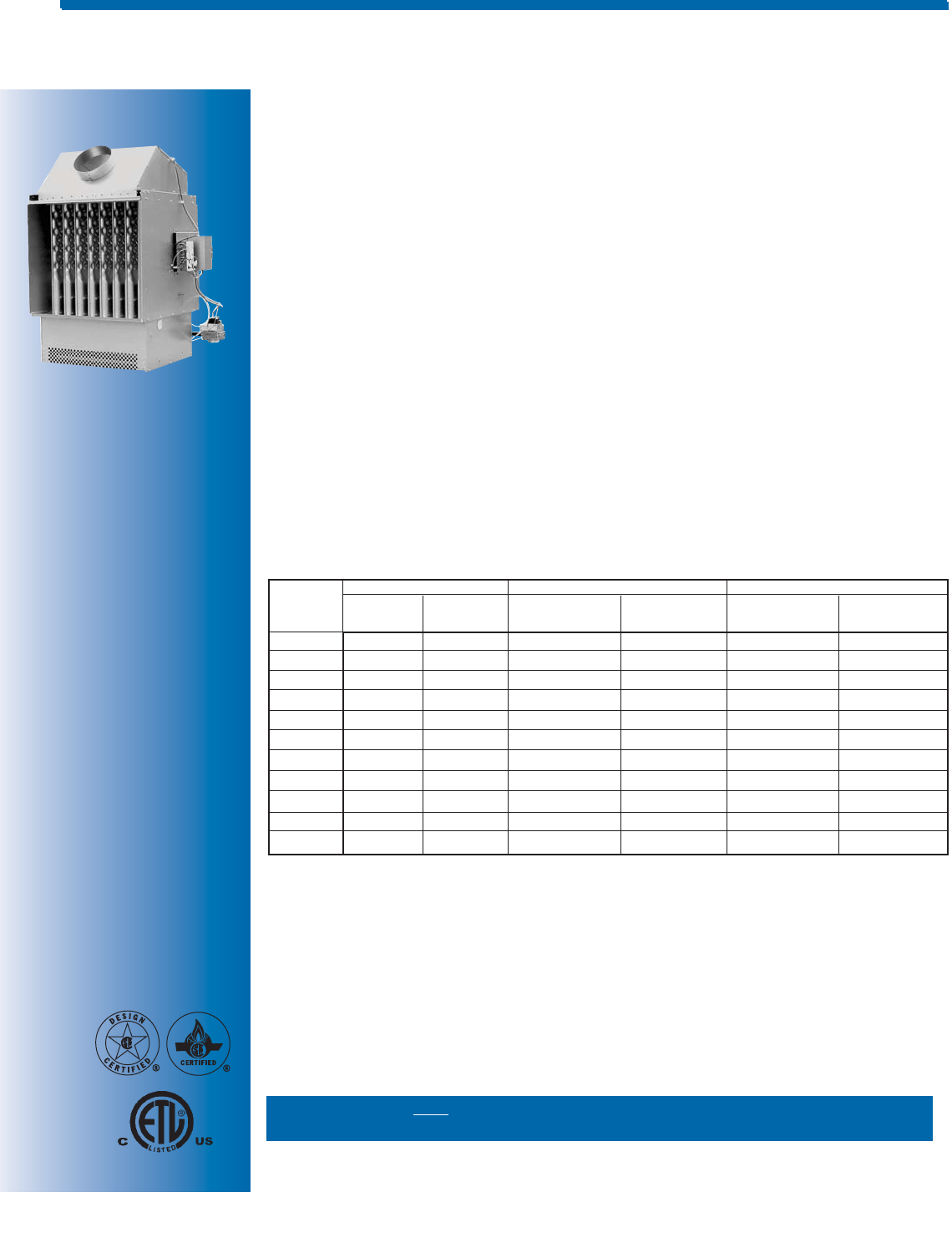

MODEL DFG
INDOOR GAS-FIRED GRAVITY VENTED DUCT FURNACE
HEATING AND/OR MAKE-UP AIR UNITS
•Low Initial Cost •Applications Cover Heating and/or Make-Up Air •75,000 to 400,000 Btu/Hr Input Capacity
•Low Maintenance •Easy to Service
Request Catalog 5-173 For Complete Technical Information and Specifications.
The Modine indoor gravity vented duct furnace was designed for use with a building’s
heating, heating/cooling and make-up air systems. Modine gravity vented duct furnaces
are specifically designed for lost cost installations. Available in 11 model sizes, the unit
covers a wide variety of applications. They have input ranges from 75,000 to 400,000
Btu/Hr and can operate on either natural or propane gas. The airflow direction can be
specified when ordering the unit. The duct furnace is certified for location either upstream
or downstream from cooling coils and has a drain pan that allows connection to a
condensate drain line.
Standard Features:
•C.S.A. certification – bearing C.S.A. logos
•ETL certification
•All units a minimum of 80% thermally efficient
•20 gauge aluminized steel cabinet
•Certified to 3.0" W.C. external static pressure
Optional Features:
•409 stainless steel heat exchanger and burner
•409 stainless steel drip pan
•Two-stage, mechanical modulation, and electronic modulation controls for either natural or
propane gas
•Building management compatible gas controls for modulation control using 0 - 10 Vdc or 4 - 20
mA input
•High and/or low gas pressure switches
Performance Data ➀➁
Btu/Hr Low Temperature High Temperature
Model Temperature Rise Temperature Rise
No. Input Output Range (°F) CFM Range Range (°F) CFM Range
DFG 75 75,000 60,000 20 - 60 926 - 2,778 20 - 100 556 - 2,778
DFG100 100,000 80,000 20 - 60 1,235 - 3,704 20 - 100 741 - 3,704
DFG125 125,000 100,000 20 - 60 1,543 - 4,630 20 - 100 926 - 4,630
DFG150 150,000 120,000 20 - 60 1,852 - 5,556 20 - 100 1,111 - 5,556
DFG175 175,000 140,000 20 - 60 2,160 - 6,481 20 - 100 1,296 - 6,481
DFG200 200,000 160,000 20 - 60 2,469 - 7,407 20 - 100 1,481 - 7,407
DFG225 225,000 180,000 20 - 60 2,778 - 8,333 20 - 100 1,667 - 8,333
DFG250 250,000 200,000 20 - 60 3,086 - 9,259 20 - 100 1,852 - 9,259
DFG300 300,000 240,000 20 - 60 3,704 - 11,111 20 - 100 2,222 - 11,111
DFG350 350,000 280,000 20 - 60 4,321 - 12,963 23 - 100 2,593 - 11,111
DFG400 400,000 320,000 20 - 60 4,938 - 14,815 27 - 100 2,963 - 11,111
➀ Ratings are shown for elevations up to 2,000 feet.
➁Units approved for use in California by CEC.
DO NOT LOCATE ANY GAS-FIRED UNIT IN AREAS WITH CHLORINATED,
HALOGENATED OR ACIDIC VAPORS IN ATMOSPHERE.
5

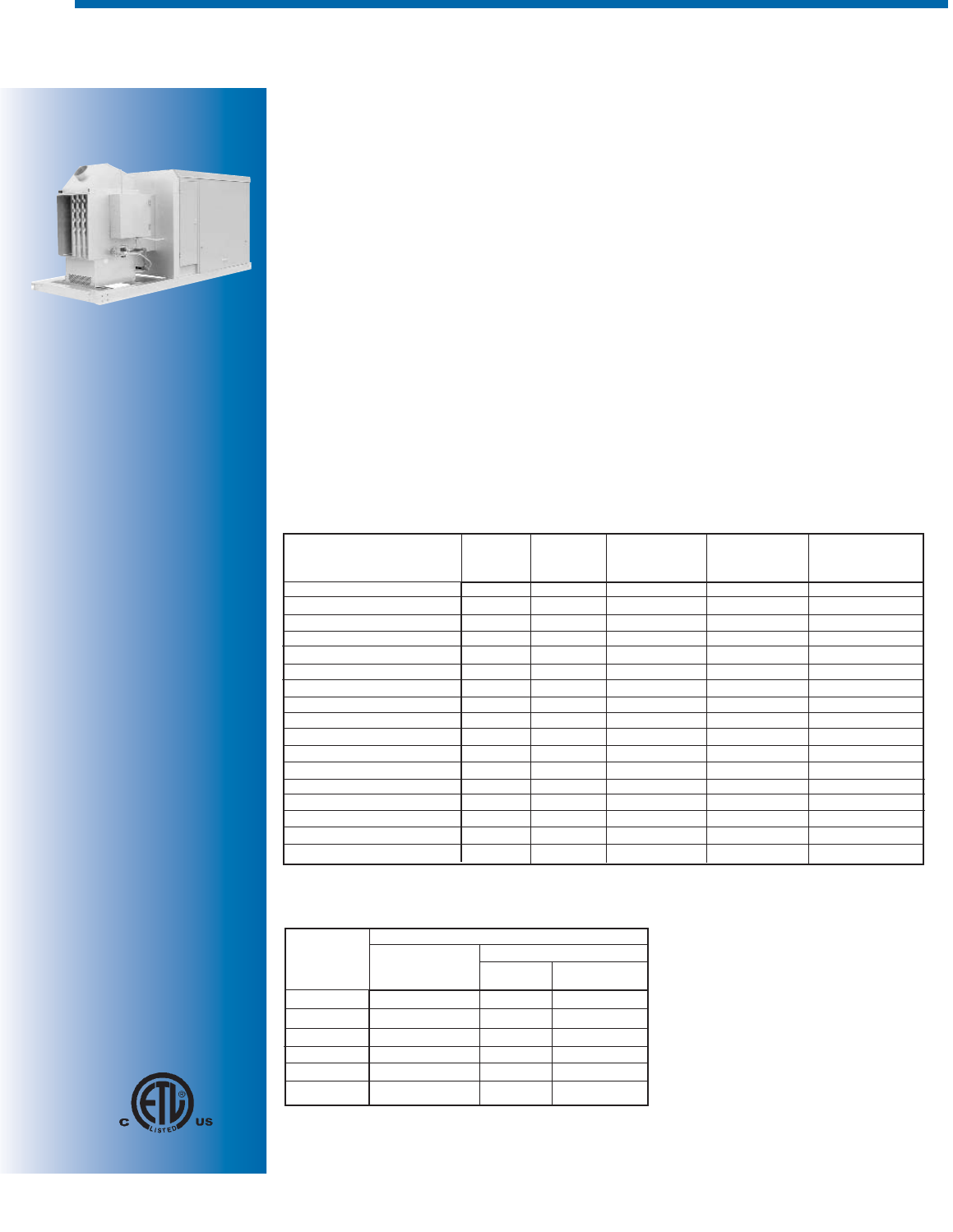

MODEL DBG
INDOOR GAS-FIRED GRAVITY VENTED SYSTEM UNITS
HEATING, COOLING, VENTILATING, AND MAKE-UP AIR UNITS
Request Catalog 5-173 For Complete Technical Information and Specifications.
The Modine indoor gravity vented duct furnace with blower and/or cooling sections was
designed for use with a building’s heating, heating/ventilating/cooling and make-up air
systems. Modine gravity vented duct furnaces are specifically designed for low cost
installations. Available in 17 model sizes, the unit covers a wide variety of applications.
They have input ranges from 75,000 to 1,200,000 Btu/Hr and can operate on either
natural or propane gas. The airflow ranges from 556 to 14,500 CFM and the airflow
direction can be specified when ordering the unit. The unit can be provided with a cooling
coil section with either a factory installed DX or chilled water cooling coil or the coil can be
provided by others.
Standard Features:
•ETL certification of the entire system unit
•18 gauge insulated aluminized steel blower cabinet with a baked-on polyester powder
paint finish on exterior casing parts
•Blower performance up to 3.0" W.C. external static pressure
Optional Features:
•DX or chilled water section with factory installed cooling coil
•Double wall construction for blower and/or cooling cabinet
•Dead-front disconnect switches
•Two position, modulating, building pressure sensing, three position, building
management (0 - 10 Vdc or 4 - 20 mA input) damper actuators
•Blower and motor vibration isolation
•Applications Cover Heating-Only, Heating/Ventilating, Cooling, and/or Make-Up Air •75,000 to 1,200,000
Btu/Hr Input Capacity •Large Selection of Blower Fan/Drive and Motor Combination Available •Easy to
Service
Performance Data
Total Static
Model Btu/Hr Btu/Hr Temperature CFM Pressure Range
No. Input Output Rise Range (°F) Range (Inches w.c.)
DBG/DCG75 75,000 60,000 20 - 100 556 - 2,778 0 - 3.0
DBG/DCG100 100,000 80,000 20 - 100 741 - 3,704 0 - 3.0
DBG/DCG125 125,000 100,000 20 - 100 926 - 4,630 0 - 3.0
DBG/DCG150 150,000 120,000 20 - 100 1,111 - 5,556 0 - 3.0
DBG/DCG175 175,000 140,000 23 - 100 1,296 - 5,556 0 - 3.0
DBG/DCG200 200,000 160,000 23 - 100 1,481 - 6,500 0 - 3.0
DBG/DCG225 225,000 180,000 26 - 100 1,667 - 6,500 0 - 3.0
DBG/DCG250 250,000 200,000 20 - 100 1,852 - 9,259 0 - 3.0
DBG/DCG300 300,000 240,000 20 - 100 2,222 - 11,111 0 - 3.0
DBG/DCG350 350,000 280,000 22 - 100 2,593 - 12,000 0 - 3.0
DBG/DCG400 400,000 320,000 25 - 100 2,963 - 12,000 0 - 3.0
DBG/DCG500 500,000 400,000 40 - 120 3,086 - 9,259 0 - 3.0
DBG/DCG600 600,000 480,000 40 - 120 3,704 - 11,111 0 - 3.0
DBG/DCG700 700,000 560,000 40 - 120 4,321 - 12,963 0 - 3.0
DBG/DCG800 800,000 640,000 41 - 120 4,938 - 14,500 0 - 3.0
DBG/DCG840 1,050,000 840,000 60 - 120 6,481 - 12,963 0 - 3.0
DBG/DCG900 1,200,000 960,000 63 - 120 7,407 - 14,500 0 - 3.0
Cooling Coil Performance Data
Cooling Coil
Max. Cooling Tons ➁
Chilled Water
Model No. Maximum CFM DX Coil➂Coil➂
75 1,891 9.38 10.56
100/125 2,206 11.43 12.62
150/175 2,521 13.42 14.77
200/225 3,352 18.12 19.28
250/300 3,724 20.24 21.33
350/400 5,214 27.26 29.25
Ratings are shown for elevations up to 2000 feet.
➀
➁1 Ton = 12,000 Btu/Hr
➂Based on 95°F entering dry bulb, 75°F entering wet bulb
➀
➀
6

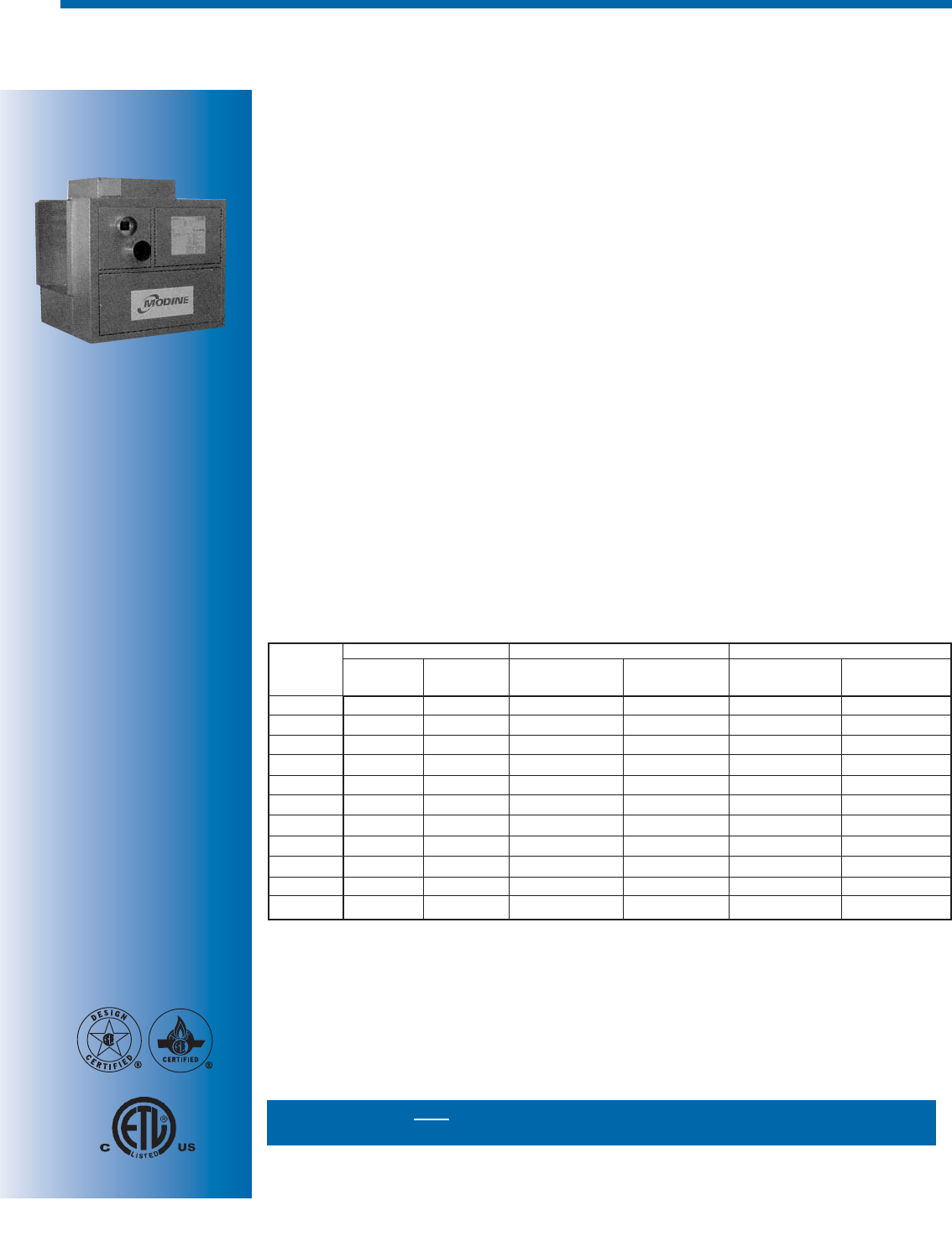

INDOOR GAS-FIRED SEPARATED COMBUSTION DUCT FURNACE
HEATING AND/OR MAKE-UP AIR UNITS
•Low Initial Cost •Applications Cover Heating and/or Make-Up Air •75,000 to 400,000 Btu/Hr Input Capacity
•Low Maintenance •Easy to Service
MODEL DFS
Request Catalog 5-173 For Complete Technical Information and Specifications.
The Modine indoor separated combustion duct furnace was designed for use with a
building’s heating, heating/cooling and make-up air systems. Modine separated
combustion duct furnaces are specifically designed for buildings with hostile atmospheric
conditions, such as high humidity or negative pressures. Available in 11 power exhausted
model sizes, the unit covers a wide variety of applications. They have input ranges from
75,000 to 400,000 Btu/Hr and can operate on either natural or propane gas. The airflow
direction can be specified when ordering the unit. The duct furnace is certified for location
either upstream or downstream from cooling coils and has a drain pan that allows
connection to a condensate drain line.
Standard Features:
•C.S.A. certification – bearing C.S.A. logos
•ETL certification
•All units a minimum of 80% thermally efficient
•20 gauge aluminized steel cabinet
•Certified to 3.0" W.C. external static pressure
•Separate electrical, venting, and gas control access with fully gasketed doors
Optional Features:
•409 stainless steel heat exchanger and burner
•409 stainless steel drip pan
•Two-stage, mechanical modulation, and electronic modulation controls for either natural
or propane gas
•Building management compatible gas controls for modulation control using 0 - 10 Vdc or
4 - 20 mA input
•High and/or low gas pressure switches
Performance Data ➀➁
Btu/Hr Low Temperature High Temperature
Model Temperature Rise Temperature Rise
No. Input Output Range (°F) CFM Range Range (°F) CFM Range
DFS 75 75,000 60,000 20 - 60 926 - 2,778 20 - 100 556 - 2,778
DFS100 100,000 80,000 20 - 60 1,235 - 3,704 20 - 100 741 - 3,704
DFS125 125,000 100,000 20 - 60 1,543 - 4,630 20 - 100 926 - 4,630
DFS150 150,000 120,000 20 - 60 1,852 - 5,556 20 - 100 1,111 - 5,556
DFS175 175,000 140,000 20 - 60 2,160 - 6,481 20 - 100 1,296 - 6,481
DFS200 200,000 160,000 20 - 60 2,469 - 7,407 20 - 100 1,481 - 7,407
DFS225 225,000 180,000 20 - 60 2,778 - 8,333 20 - 100 1,667 - 8,333
DFS250 250,000 200,000 20 - 60 3,086 - 9,259 20 - 100 1,852 - 9,259
DFS300 300,000 240,000 20 - 60 3,704 - 11,111 20 - 100 2,222 - 11,111
DFS350 350,000 280,000 20 - 60 4,321 - 12,963 23 - 100 2,593 - 11,111
DFS400 400,000 320,000 20 - 60 4,938 - 14,815 27 - 100 2,963 - 11,111
➀ Ratings are shown for elevations up to 2,000 feet.
➁Units approved for use in California by CEC.
DO NOT LOCATE ANY GAS-FIRED UNIT IN AREAS WITH CHLORINATED,
HALOGENATED OR ACIDIC VAPORS IN ATMOSPHERE.
7

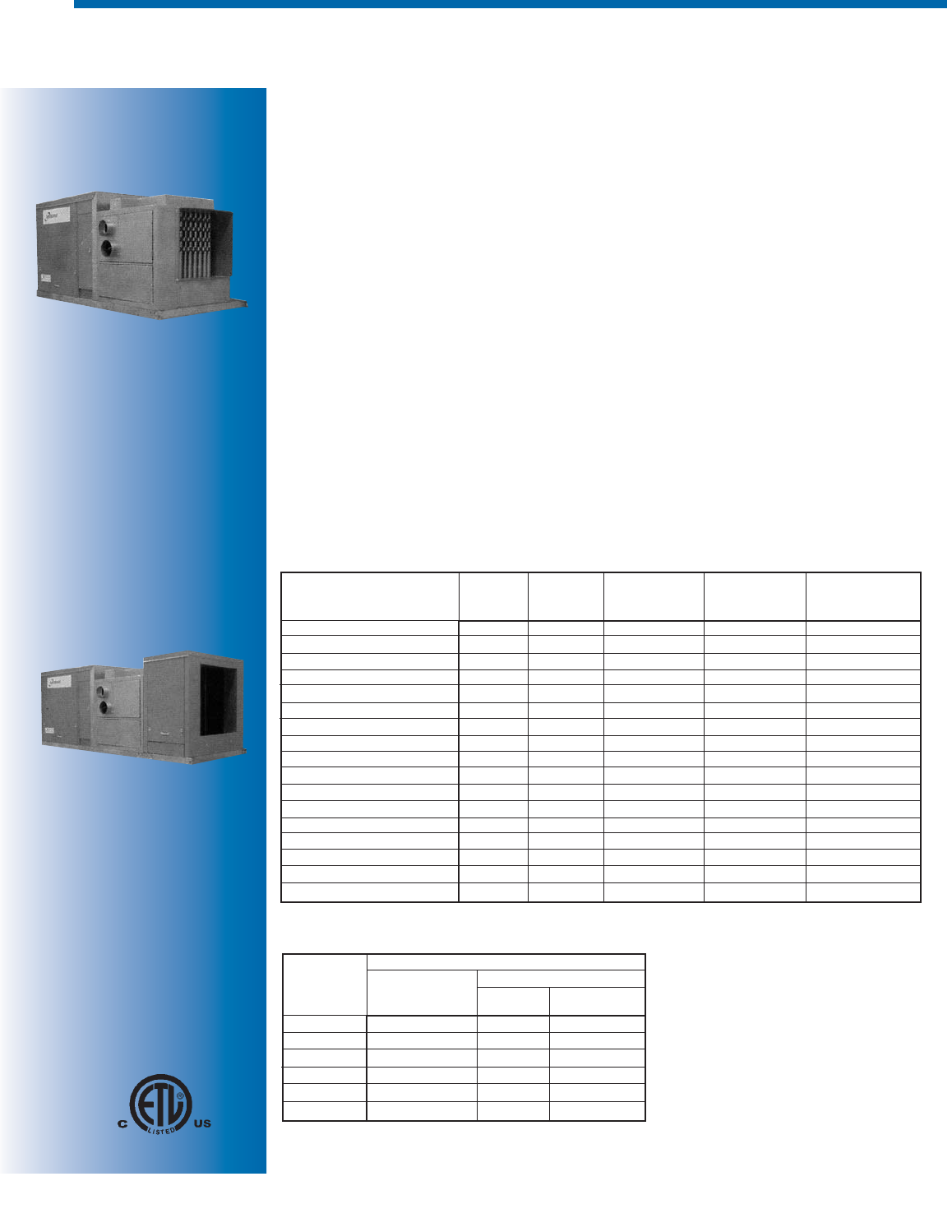

INDOOR GAS-FIRED SEPARATED COMBUSTION SYSTEM UNITS
HEATING, COOLING, VENTILATING, AND MAKE-UP AIR UNITS
MODEL DBS
MODEL DCS
Request Catalog 5-173 For Complete Technical Information and Specifications.
The Modine indoor separated combustion duct furnace with blower and/or cooling sections
was designed for use with a building’s heating, heating/ventilating/cooling and make-up air
systems. Modine separated combustion duct furnaces are specifically designed for
buildings with hostile atmospheric conditions, such as high humidity or negative pressures.
Available in 17 power exhausted model sizes, the unit covers a wide variety of
applications. They have input ranges from 75,000 to 1,200,000 Btu/Hr and can operate on
either natural or propane gas. The airflow ranges from 556 to 14,500 CFM and the airflow
direction can be specified when ordering the unit. The unit can be provided with a cooling
coil section with either a factory installed DX or chilled water cooling coil or the coil can be
provided by others.
Standard Features:
•ETL certification of the entire system unit
•18 gauge insulated aluminized steel blower cabinet with a baked-on polyester powder
paint finish on exterior casing parts
•Blower performance up to 3.0" W.C. external static pressure
•Separate electrical, venting, and gas control access with fully gasketed doors
Optional Features:
•DX or chilled water section with factory installed cooling coil
•Double wall construction for blower and/or cooling cabinet
•Dead-front disconnect switches
•Two position, modulating, building pressure sensing, three position, building
management (0 - 10 Vdc or 4 - 20 mA input) damper actuators
•Blower and motor vibration isolation
•Applications Cover Heating-Only, Heating/Ventilating, Cooling, and/or Make-Up Air •75,000 to 1,200,000
Btu/Hr Input Capacity •Large Selection of Blower Fan/Drive and Motor Combination Available •Easy to
Service
Performance Data
Total Static
Model Btu/Hr Btu/Hr Temperature CFM Pressure Range
No. Input Output Rise Range (°F) Range (Inches w.c.)
DBS/DCS75 75,000 60,000 20 - 100 556 - 2,778 0 - 3.0
DBS/DCS100 100,000 80,000 20 - 100 741 - 3,704 0 - 3.0
DBS/DCS125 125,000 100,000 20 - 100 926 - 4,630 0 - 3.0
DBS/DCS150 150,000 120,000 20 - 100 1,111 - 5,556 0 - 3.0
DBS/DCS175 175,000 140,000 23 - 100 1,296 - 5,556 0 - 3.0
DBS/DCS200 200,000 160,000 23 - 100 1,481 - 6,500 0 - 3.0
DBS/DCS225 225,000 180,000 26 - 100 1,667 - 6,500 0 - 3.0
DBS/DCS250 250,000 200,000 20 - 100 1,852 - 9,259 0 - 3.0
DBS/DCS300 300,000 240,000 20 - 100 2,222 - 11,111 0 - 3.0
DBS/DCS350 350,000 280,000 22 - 100 2,593 - 12,000 0 - 3.0
DBS/DCS400 400,000 320,000 25 - 100 2,963 - 12,000 0 - 3.0
DBS/DCS500 500,000 400,000 40 - 120 3,086 - 9,259 0 - 3.0
DBS/DCS600 600,000 480,000 40 - 120 3,704 - 11,111 0 - 3.0
DBS/DCS700 700,000 560,000 40 - 120 4,321 - 12,963 0 - 3.0
DBS/DCS800 800,000 640,000 41 - 120 4,938 - 14,500 0 - 3.0
DBS/DCS840 1,050,000 840,000 60 - 120 6,481 - 12,963 0 - 3.0
DBS/DCS900 1,200,000 960,000 63 - 120 7,407 - 14,500 0 - 3.0
Cooling Coil Performance Data
Cooling Coil
Max. Cooling Tons ➁
Chilled Water
Model No. Maximum CFM DX Coil➂Coil➂
75 1,891 9.38 10.56
100/125 2,206 11.43 12.62
150/175 2,521 13.42 14.77
200/225 3,352 18.12 19.28
250/300 3,724 20.24 21.33
350/400 5,214 27.26 29.25
Ratings are shown for elevations up to 2000 feet.
➀
➁1 Ton = 12,000 Btu/Hr
➂Based on 95°F entering dry bulb, 75°F entering wet bulb
➀
➀

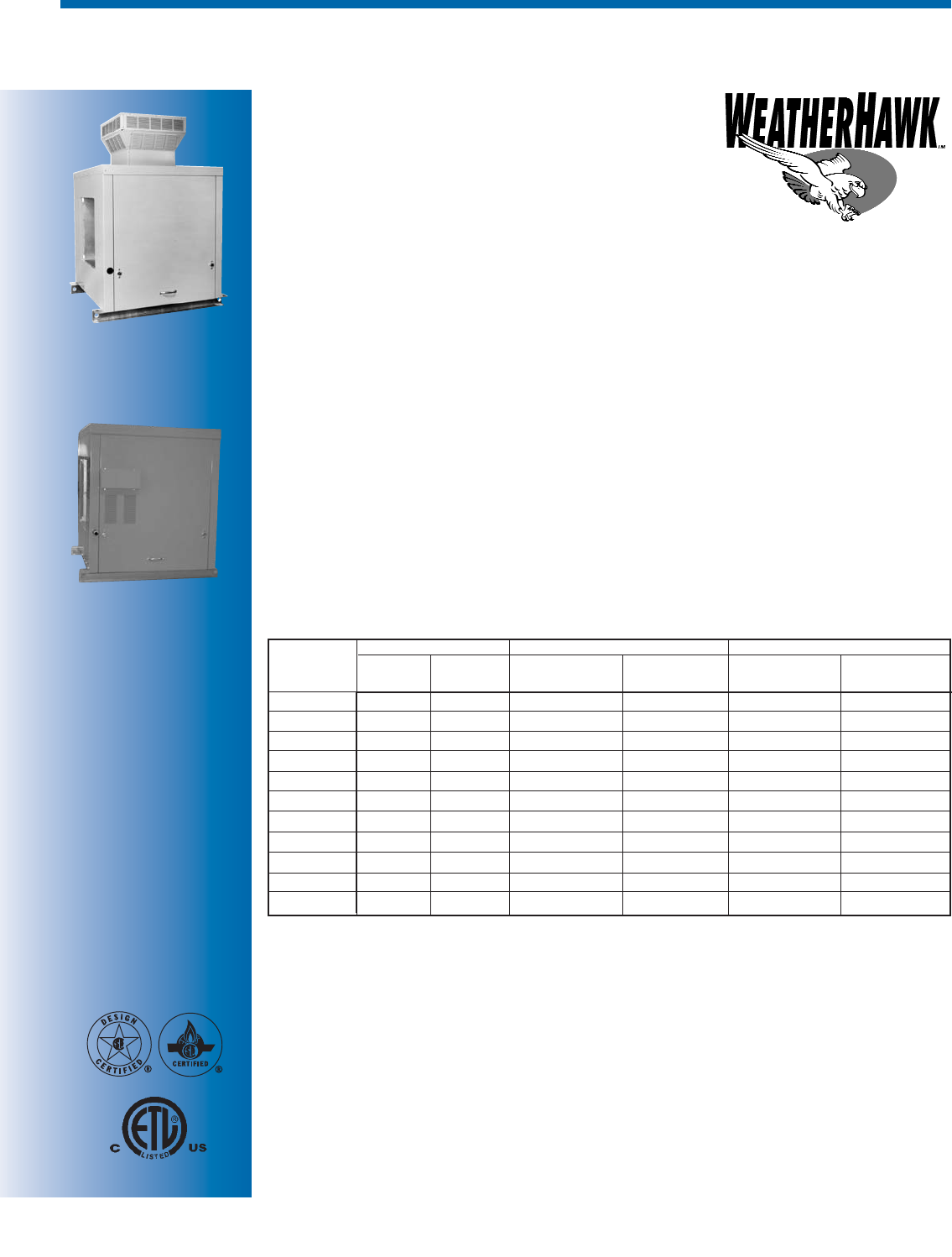

WEATHERHAWKTM WEATHERPROOF GAS-FIRED DUCT-FURNACE
HEATING AND/OR MAKE-UP AIR UNITS
Request Catalog 5-173 For Complete Technical Information and Specifications.
The Modine WeatherHawk weatherproof duct furnace was
designed for use with a building’s heating, heating/cooling
and make-up air systems. Available in 11 gravity or power
vented model sizes, the unit covers a wide variety of
applications. They have input ranges from 75,000 to
400,000 Btu/Hr and can operate on either natural or
propane gas. The airflow direction can be specified when
ordering the unit. The duct furnace is certified for location
either upstream or downstream from cooling coils and has
holes to drain any condensate that may form onto the roof.
Standard Features:
•C.S.A. certification – bearing C.S.A. logos
•ETL certification
•All units a minimum of 80% thermal efficient
•18 gauge aluminized steel cabinet with a baked-on polyester powder paint finish on
exterior casing parts
•Certified to 3.0” W.C. external static pressure
Optional Features:
•409 stainless steel heat exchanger and burner
•409 stainless steel drip pan
•Two-stage, mechanical modulation, and electronic modulation controls for either natural
or propane gas.
•Building management compatible gas controls for modulation control using 0 - 10 Vdc or
4 - 20 mA input
•High and/or low gas pressure switches
•Low Initial Cost •Applications Cover Heating and/or Make-Up Air •75,000 to 400,000 Btu/Hr Input Capacity
•Low Maintenance •Easy to Service
8
Performance Data ➀ ➁
Btu/Hr Low Temperature High Temperature
Model Temperature Rise Temperature Rise
No. Input Output Range (°F) CFM Range Range (°F) CFM Range
HFG/HFP75 75,000 60,000 20 - 60 926 - 2,778 20 - 100 556 - 2,778
HFG/HFP100 100,000 80,000 20 - 60 1,235 - 3,704 20 - 100 741 - 3,704
HFG/HFP125 125,000 100,000 20 - 60 1,543 - 4,630 20 - 100 926 - 4,630
HFG/HFP150 150,000 120,000 20 - 60 1,852 - 5,556 20 - 100 1,111 - 5,556
HFG/HFP175 175,000 140,000 20 - 60 2,160 - 6,481 20 - 100 1,296 - 6,481
HFG/HFP200 200,000 160,000 20 - 60 2,469 - 7,407 20 - 100 1,481 - 7,407
HFG/HFP225 225,000 180,000 20 - 60 2,778 - 8,333 20 - 100 1,667 - 8,333
HFG/HFP250 250,000 200,000 20 - 60 3,086 - 9,259 20 - 100 1,852 - 9,259
HFG/HFP300 300,000 240,000 20 - 60 3,704 - 11,111 20 - 100 2,222 - 11,111
HFG/HFP350 350,000 280,000 20 - 60 4,321 - 12,963 23 - 100 2,593 - 11,111
HFG/HFP400 400,000 320,000 20 - 60 4,938 - 14,815 27 - 100 2,963 - 11,111
➀ Ratings are shown for elevations up to 2,000 feet.
➁Units approved for use in California by CEC.
MODEL HFG
MODEL HFP

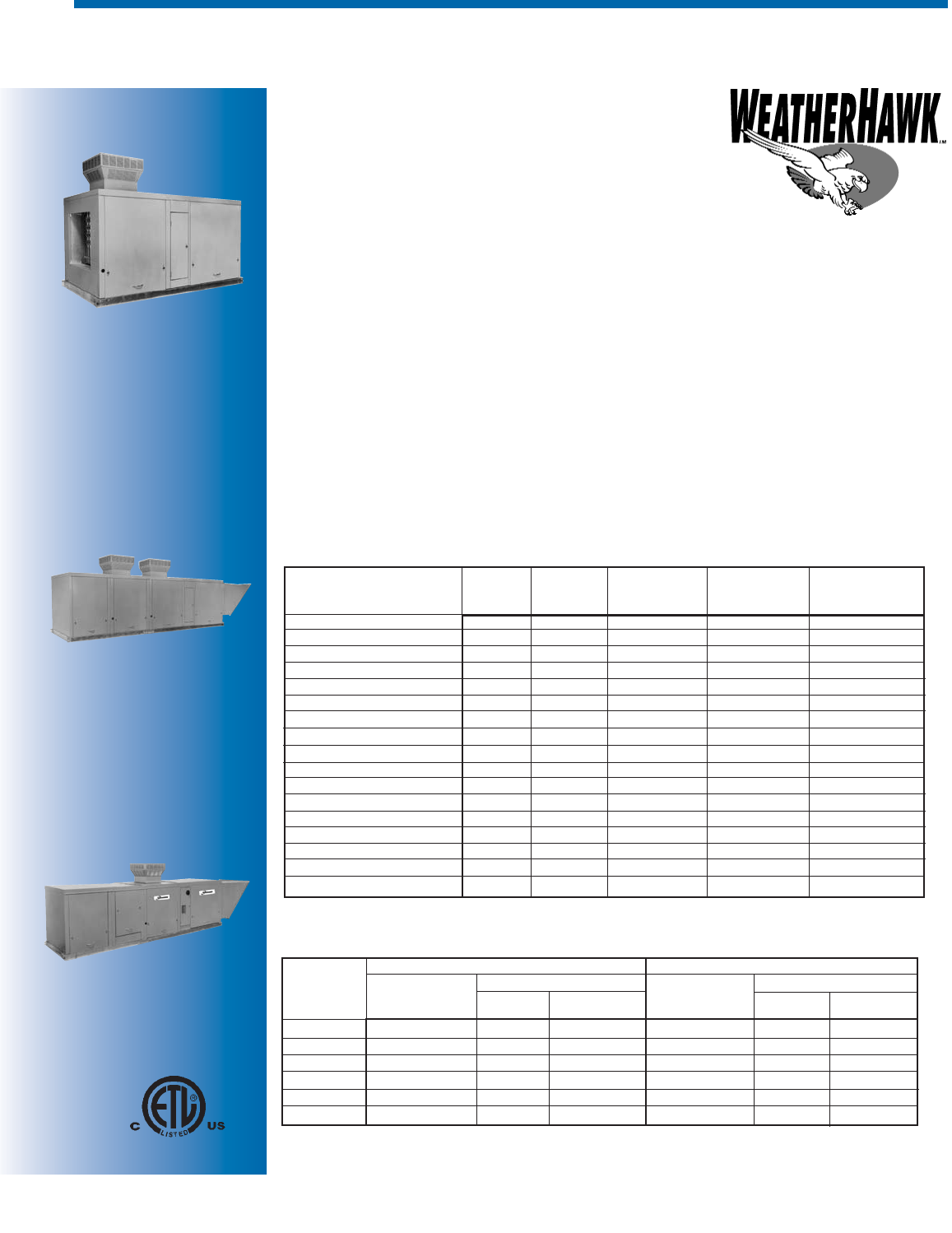

WEATHERHAWKTM WEATHERPROOF GAS-FIRED SYSTEM UNITS
HEATING, COOLING, VENTILATING, AND MAKE-UP AIR UNITS
Request Catalog 5-173 For Complete Technical Information and Specifications.
The Modine weatherproof duct furnace with blower, cooling,
and/or downturn plenum sections was designed for use with
a building’s heating, heating/ventilating/cooling and make-up
air systems. Available in 17 gravity or power vented model
sizes, the unit covers a wide variety of applications. They
have input ranges from 75,000 to 1,200,000 Btu/Hr and can
operate on either natural or propane gas.The airflow ranges
from 556 to 14,500 CFM and the airflow direction can be
specified when ordering the unit. The unit can be provided with a cooling coil section with
either a factory installed DX or chilled water cooling coil or the coil can be provided by others.
Standard Features:
•ETL certification of the entire system unit
•18 gauge insulated aluminized steel cabinet with a baked-on polyester powder paint
finish on exterior casing parts
•Blower performance up to 3.0” W.C. external static pressure
•Side or bottom (through a roof curb) gas and electrical connection access
Optional Features:
•DX or chilled water section with factory installed cooling coil.
•Double wall construction for blower, cooling cabinet, and/or downturn plenum sections
•Dead-front disconnect switches
•Two position, modulating, building pressure sensing, three position, building management
(0 - 10 Vdc or 4 - 20 mA input) damper actuators
•Blower and motor vibration isolation
•Applications Cover Heating-Only, Heating/Ventilating, Cooling, and/or Make-Up Air •75,000 to 1,200,000 Btu/Hr
Input Capacity •Large Selection of Blower Fan/Drive and Motor Combination Available •Easy to Service
9
Performance Data
Total Static
Model Btu/Hr Btu/Hr Temperature CFM Pressure Range
No. ➀Input ➁Output ➁ Rise Range (°F) Range (Inches w.c.)
HBG/HCG/HDG/HPG75 75,000 60,000 20 - 100 556 - 2,778 0 - 3.0
HBG/HCG/HDG/HPG100 100,000 80,000 20 - 100 741 - 3,704 0 - 3.0
HBG/HCG/HDG/HPG125 125,000 100,000 20 - 100 926 - 4,630 0 - 3.0
HBG/HCG/HDG/HPG150 150,000 120,000 20 - 100 1,111 - 4,630 0 - 3.0
HBG/HCG/HDG/HPG175 175,000 140,000 23 - 100 1,296 - 5,556 0 - 3.0
HBG/HCG/HDG/HPG200 200,000 160,000 23 - 100 1,481 - 6,500 0 - 3.0
HBG/HCG/HDG/HPG225 225,000 180,000 26 - 100 1,667 - 6,500 0 - 3.0
HBG/HCG/HDG/HPG250 250,000 200,000 20 - 100 1,852 - 9,259 0 - 3.0
HBG/HCG/HDG/HPG300 300,000 240,000 20 - 100 2,222 - 11,111 0 - 3.0
HBG/HCG/HDG/HPG350 350,000 280,000 22 - 100 2,593 - 12,000 0 - 3.0
HBG/HCG/HDG/HPG400 400,000 320,000 25 - 100 2,963 - 12,000 0 - 3.0
HBG/HCG/HDG/HPG500 500,000 400,000 40 - 120 3,086 - 9,259 0 - 3.0
HBG/HCG/HDG/HPG600 600,000 480,000 40 - 120 3,704 - 11,111 0 - 3.0
HBG/HCG/HDG/HPG700 700,000 560,000 40 - 120 4,321 - 12,963 0 - 3.0
HBG/HCG/HDG/HPG800 800,000 640,000 41 - 120 4,938 - 14,500 0 - 3.0
HBG/HCG/HDG/HPG840 1,050,000 840,000 60 - 120 6,481 - 12,963 0 - 3.0
HBG/HCG/HDG/HPG960 1,200,000 960,000 63 - 120 7,401 - 14,500 0 - 3.0
Cooling Coil and Evaporative Cooling Performance Data
Cooling Coil Evaporative Cooling
Max. Cooling Tons ➂Btu/Hr
Chilled Water
Model No. Maximum CFM
Coil➃Maximum CFM Min. Max.
75 1,891 9.38 10.56 2,750 9,968 52,272
100/125 2,206 11.43 12.62 4,000 13,125 54,432
150/175 2,521 13.42 14.77 5,200 19,198 70,762
200/225 3,352 18.12 19.28 6,000 24,952 81,648
250/300 3,724 20.24 21.33 10,400 37,916 141,523
350/400 5,214 27.26 29.25 11,050 44,247 150,368
➀ For power exhausted units, the "G” in the model number is replaced with a "P"
➁ Ratings are shown for elevations up to 2,000 feet.
➂1 Ton = 12,000 Btu/Hr
➃Based on 95°F entering dry bulb, 75°F entering wet bulb
MODEL HPG
MODEL HBG
DX Coil➃
MODEL HDG
10

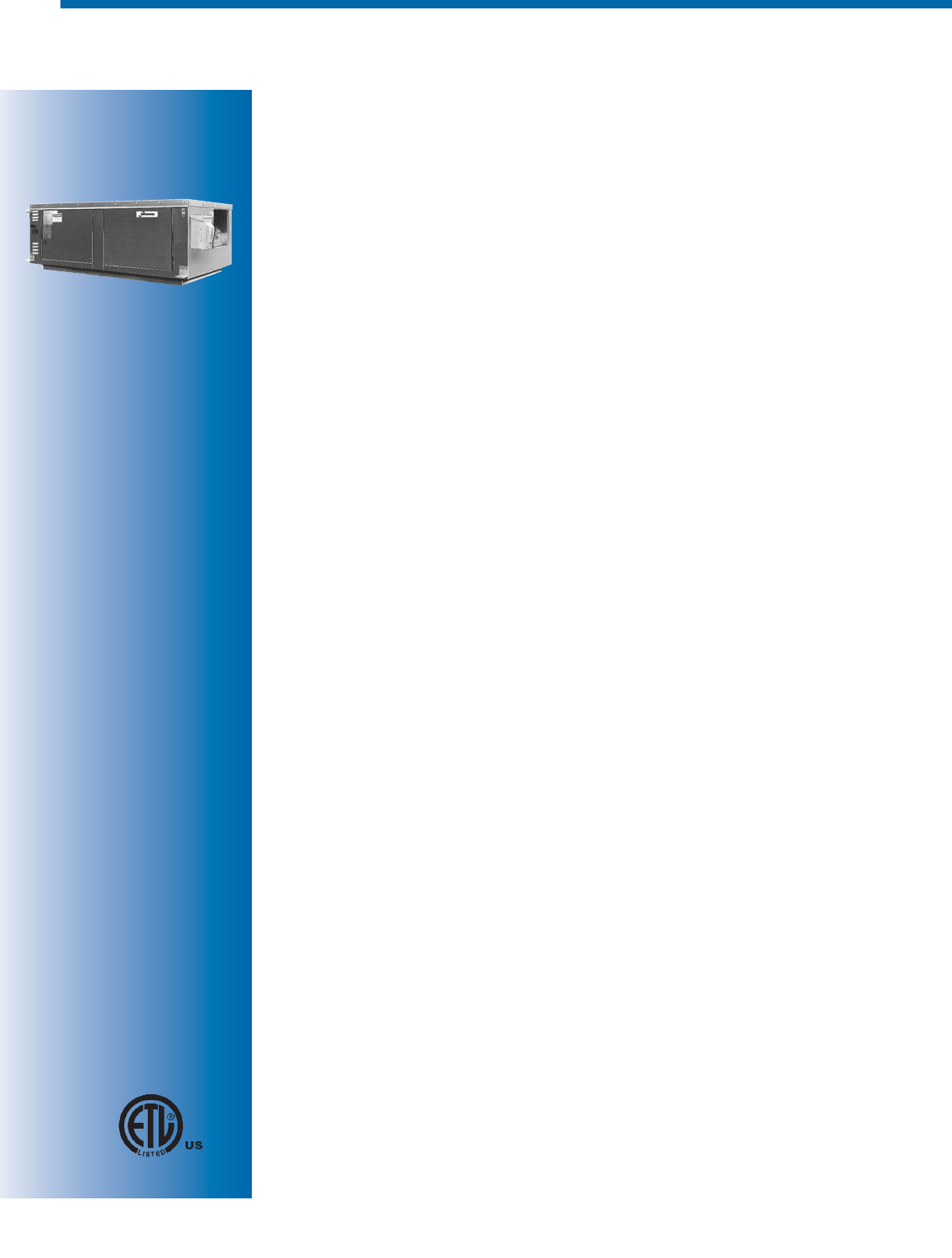

DIRECT-FIRED MAKE-UP AIR UNITS
Request Catalog 5-160 For Complete Technical Information and Specifications.
Modine has developed the best in direct-fired, make-up-air units - the MDB (Single and Two
Speed 100% Make-Up Air) and MRB (Fresh and Return Air). These units are designed to
provide an economical and efficient means of supplying tempered make-up air to a space
or building. Available in eight airflow configurations, the units cover a wide variety of
applications.
Standard Features:
•100% thermal efficiency (92% sensible) results in lower fuel bills.
•Units are designed for indoor or outdoor mounting, providing flexibility in applications or
design, as well as simplifying installation.
•Natural or propane gas manifolds are factory-assembled to provide flexible fuel options
and to reduce field-installation, start-up costs and problems.
•Factory-wired electrical panel with numbered terminals significantly reduces start-up delays.
•100% factory flame-testing eliminates the majority of field start-up problems caused by
defective controls.
•Weatherproof roof with drip ledge provides protection from water being drawn into the
unit from the roof.
•18-gauge galvanized steel casing provides high corrosion protection for long life.
•Adjustable drives through 10 HP simplify air balancing and eliminates the need to
change drives.
•Four access doors provide maximum access for easy adjustments and service.
•22:1 firing rate turndown for optimum temperature control.
Optional Features:
•V-bank filter section
•Inlet hood
•Inlet damper
•Discharge damper
•Evaporative cooling
•IRI and FM manifold arrangements
•Discharge air temperature control, space temperature control, or building management
(0-10 Vdc or 4-20 mA input) control
•High and low gas pressure switches
•Internal blower and motor vibration isolation
•Acrylic paint finish on exterior casing parts
•ETL Certified •Btu/Hr Outputs from 42,000 to 7,862,000 •CFM Ranges from 1,600 to 60,000
•100% Make-Up Air and Recirculating Configurations • 100% Thermal Efficiency • Designed for Indoor
or Outdoor Mounting •Factory-Assembled Natural or Propane Gas Manifolds
MODEL MDB/MRB
DIRECT-FIRED MAKE-UP AIR UNITS
11
Request Catalog 5-160 For Complete Technical Information and Specifications.
Performance Data
➀CFM, Btu/Hr capacities & Temperature Rise vary depending on unit configuration and certification.
The Maximum Temperature Rise for propane gas is 85°F.
MDB/MRB110
MDB/MRB112
MDB/MRB115
MDB/MRB118
MDB/MRB120
MDB/MRB122
MDB/MRB125
MDB/MRB127
MDB/MRB130
MDB/MRB215
MDB/MRB218
MDB/MRB220
MDB/MRB222
MDB/MRB225
MDB/MRB230
1,600-3,300
2,000-4,700
3,000-6,500
3,500-10,000
6,000-13,500
8,000-16,500
10,000-21,500
12,000-26,000
14,000-30,000
9,000-13,000
12,500-18,500
18,000-27,000
25,000-33,000
30,000-46,000
44,000-60,000
432,400
615,800
851,700
1,310,300
1,769,000
2,162,100
2,817,300
3,406,900
3,931,100
1,703,400
2,424,200
3,538,000
4,324,200
6,027,700
7,862,200
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
0-2.8”
0-3.0”
0-2.6”
0-3.0”
0-3.0”
0-3.0”
0-3.0”
0-2.5”
0-2.7”
0-2.3”
0-3.0”
0-3.0”
0-3.0”
0-3.0”
0-2.7”
3/4-3
3/4-5
1-5
1 1/2-10
2-15
3-20
3-20
3-20
5-25
5-10
5-20
7 1/2-25
15-30
15-40
20-50
Model Maximum Maximum
Natural Gas Total Static Horsepower
No.
CFM Range
SCFM ➀Output Temperature Pressure Range
(Btu/Hr) ➀Rise ( F) ➀Range (" W.C.)
Evaporative Cooling Option
Apparent Cooling Capacities - based on EAT of 85°F dry bulb and 65°F wet bulb ➁
➁The term “apparent cooling” is used because the cooling capacity will vary based on the entering air dry-bulb and
wet-bulb temperatures, as well as the CFM through the unit.
➂Available with CelDek or GlasDek media
Model 12" Media Cooling
No CFM Range Capacity Range (Btu/Hr)
Min. Max. Min. Max.
MDB/MRB110
MDB/MRB112
MDB/MRB115
MDB/MRB118
MDB/MRB120
MDB/MRB122
MDB/MRB125
MDB/MRB127
MDB/MRB130
MDB/MRB215
MDB/MRB218
MDB/MRB220
MDB/MRB222
MDB/MRB225
MDB/MRB230
1,600
2,000
3,000
3,500
6,000
8,000
10,000
12,000
14,000
9,000
12,500
18,000
25,000
30,000
44,000
3,300
4,700
6,500
10,000
13,500
16,500
21,500
26,000
30,000
13,000
18,500
27,000
33,000
46,000
60,000
33,178
40,608
61,560
71,064
121,824
158,976
199,800
239,760
276,696
176,904
243,000
353,808
486,000
589,680
855,360
65,578
91,876
127,764
193,320
263,898
318,978
417,960
505,440
576,720
254,124
355,644
524,880
634,392
894,240
1,153,440
➂
Products from Modine are designed to provide indoor air-comfort solutions
for commercial, institutional and industrial applications. Whatever your heating,
ventilating and cooling requirements, Modine has the product to satisfy your
needs, including:
•Gas-fired unit heaters
•Gas-fired duct furnaces
•Gas-fired high-intensity infrared heaters
•Gas-fired low-intensity infrared heaters
•Steam/hot water unit heaters
•Steam/hot water cabinet unit heaters
•Steam/hot water commercial fin tube radiation
•Oil-fired unit heaters
•Electric unit heaters
•Indoor gravity vented single and multiple duct furnace make-up air units
•Indoor separated combustion single and multiple duct furnace make-up air units
•Outdoor single and multiple duct furnace make-up air units
•Direct-fired make-up air units
With burner capacities up to 7,862,000 Btu/hr and air-handling capacities
as high as 60,000 CFM, Modine products are compatible with every fuel
type, including:
•Natural or Propane Gas •Steam/Hot Water •Oil •Electric
Specific catalogs and computer-generated heat-loss calculations are available
for each product. Catalogs 75-136 and 75-137 provide details on all Modine
HVAC equipment.
CCoommmmeerrcciiaall HHVVAACC&&RR DDiivviissiioonn
MMooddiinnee MMaannuuffaaccttuurriinngg CCoommppaannyy
1500 DeKoven Avenue
Racine, Wisconsin 53403-2552
Phone: 1.800.828.4328 (HEAT)
Fax: 262.636.1665
www.modine.com
© Modine Manufacturing Company
2004 C5/04 - 20M Litho in USA
The Modine brand has been the
industry standard since Arthur B.
Modine invented and patented the
first lightweight, suspended hydronic
unit heater in 1923. No other
manufacturer can provide the
combined application flexibility,
technical expertise and fast delivery
found at Modine. Consult your local
Modine distributor for help in solving
your indoor air problems.
Distributed By:
