NUFLOTM
MC-III™ WP

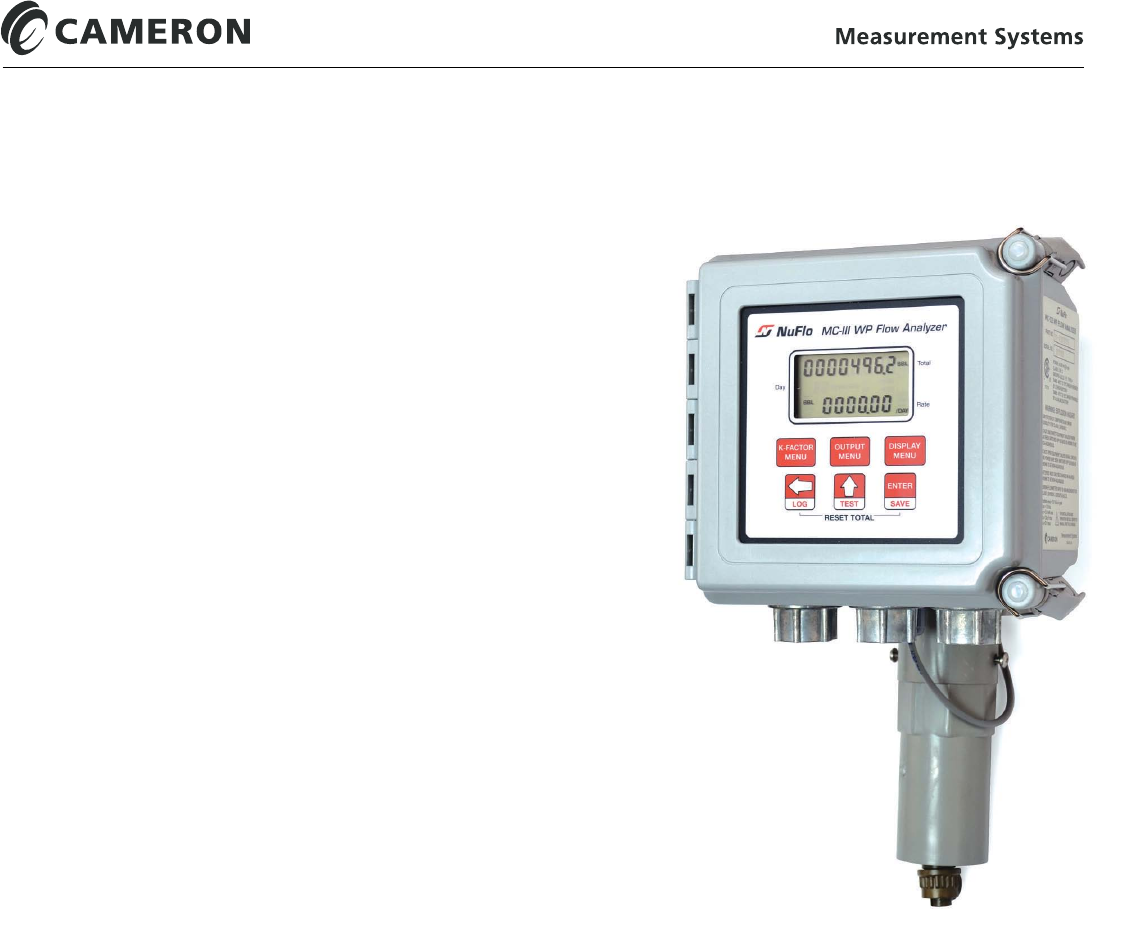

Flow Analyzer
User Manual
Manual No. 9A-50165009, Rev. 03
Important Safety Information
Symbols Used in this Manual
This symbol identies information about practices or circumstances that can lead to per-
sonal injury or death, property damage, or economic loss.
Terms Used in this Manual
Caution: Indicates actions or procedures which if not performed correctly may lead to person-
al injury or incorrect function of the instrument or connected equipment.
Important: Indicates actions or procedures which may affect instrument operation or may lead
to an instrument response which is not planned.
Symbols Marked on Equipment
Attention! Refer to manual Protective (earth) ground
Technical Support Contact Information
Cameron
Measurement Systems Division
14450 John F. Kennedy Blvd.
Houston, TX 77032
Phone: 1-800-654-3760; 281-582-9500
Fax: 281-582-9599
NuFlo and MC-III are trademarks of Cameron International Corporation (“Cameron”).
Modbus is a registered trademark of the Modbus Organization, Inc.
Windows is a registered trademark of Microsoft Corporation.
Acrobat Reader is a registered trademark of Adobe Systems Incorporated.
© 2013 Cameron International Corporation (“Cameron”). All information contained in this publication is
condential and proprietary property of Cameron. Any reproduction or use of these instructions, drawings,
or photographs without the express written permission of an ofcer of Cameron is forbidden.
All Rights Reserved.
Printed in the United States of America.
Manual No. 9A-50165009, Rev. 03
August 2013
i
MC-III™ WP Flow Analyzer Table of Contents
Contents
Section 1—Introduction ................................................................................................................................... 1
Operation ............................................................................................................................................................ 1
Key Product Features ........................................................................................................................................ 4
LCD Display ................................................................................................................................................. 4
Keypad ......................................................................................................................................................... 5
Interface Software ........................................................................................................................................ 6
Power Supply ............................................................................................................................................... 6
Multipoint Linearization ................................................................................................................................ 7
Gas Volume Correction ................................................................................................................................ 7
Input Options ................................................................................................................................................ 7
Output Options ............................................................................................................................................. 7
Flow Log Archival ........................................................................................................................................ 7
Event Log Archival ...................................................................................................................................... 7
Password-Protected Security ....................................................................................................................... 7
Commonly Used Functions ................................................................................................................................ 8
Reading Totals ............................................................................................................................................. 8
Saving Totals to Memory .............................................................................................................................. 8
Resetting the Total ....................................................................................................................................... 8
Viewing Daily and Hourly Logs .................................................................................................................... 8
Saving and Uploading Conguration Files ................................................................................................... 9
Exporting Log Data ...................................................................................................................................... 9
Saving Log Data in a Report ........................................................................................................................ 9
Section 2—Installation ....................................................................................................................................11
Direct-Mount Installation ....................................................................................................................................11
Remote-Mount Installation on Vertical Pipe...................................................................................................... 14
Remote-Mount Installation on Horizontal Pipe ................................................................................................. 15
Field Wiring Connections ................................................................................................................................. 17
Internal Power Supply ................................................................................................................................ 18
External Power Supply .............................................................................................................................. 18
Input Wiring ...................................................................................................................................................... 20
Turbine Flowmeter (TFM) Input ................................................................................................................. 20
Pulse Input ................................................................................................................................................. 20
Remote Reset Input ................................................................................................................................... 21
Output Wiring.................................................................................................................................................... 22
Pulse Output ............................................................................................................................................. 22
Analog (4-20 mA) Rate Output ................................................................................................................. 22
Flowmeter Frequency Output .................................................................................................................... 23
RS-485 Output ........................................................................................................................................... 24
Section 3—Conguration and Operation via Keypad ................................................................................. 27
Entering a Calibration Factor ........................................................................................................................... 28
Entering a Calculated Divisor ........................................................................................................................... 29
Setting Input Type and Sensitivity .................................................................................................................... 30
Conguring the Total Display ............................................................................................................................ 31
Conguring the Rate Display ............................................................................................................................ 32

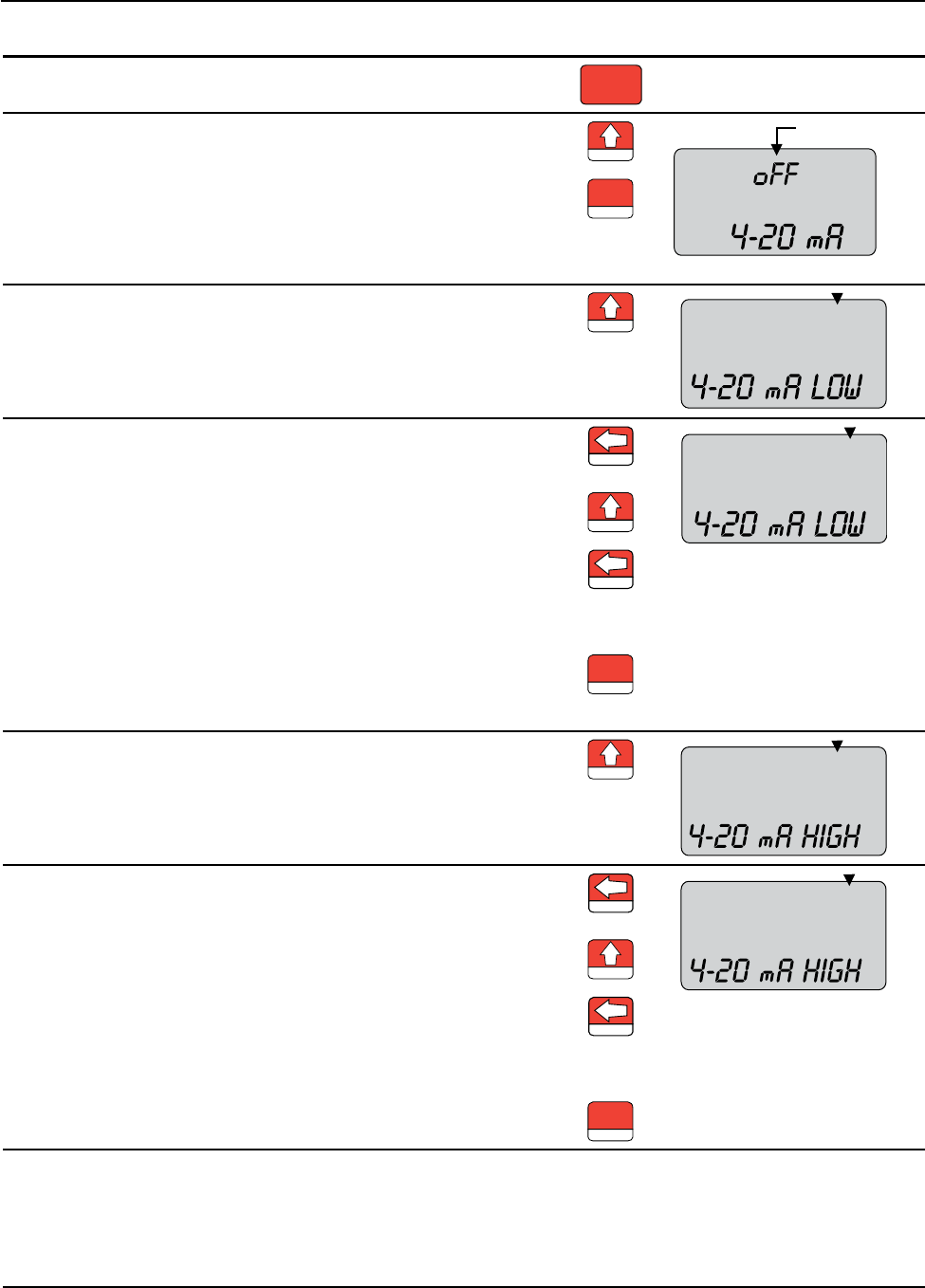

Conguring the 4-20 mA Rate Output .............................................................................................................. 33
Conguring the Pulse Output ........................................................................................................................... 36
Entering the Slave Address .............................................................................................................................. 37
Entering the Baud Rate .................................................................................................................................... 37
ii
Table of Contents MC-III™ WP Flow Analyzer
Section 4—Conguration and Operation via Software ............................................................................... 39
Installing the Software ...................................................................................................................................... 39
Accessing Help ................................................................................................................................................. 39
Connecting to the Software .............................................................................................................................. 40
Automating Functions on Software Startup ............................................................................................... 41
Changing Autorun Settings ........................................................................................................................ 42
Express Connect Option ............................................................................................................................ 42
Changing the Communications Port .......................................................................................................... 43
Software Connection in Multi-Device Network ........................................................................................... 43
Setting Log Download Preferences .................................................................................................................. 45

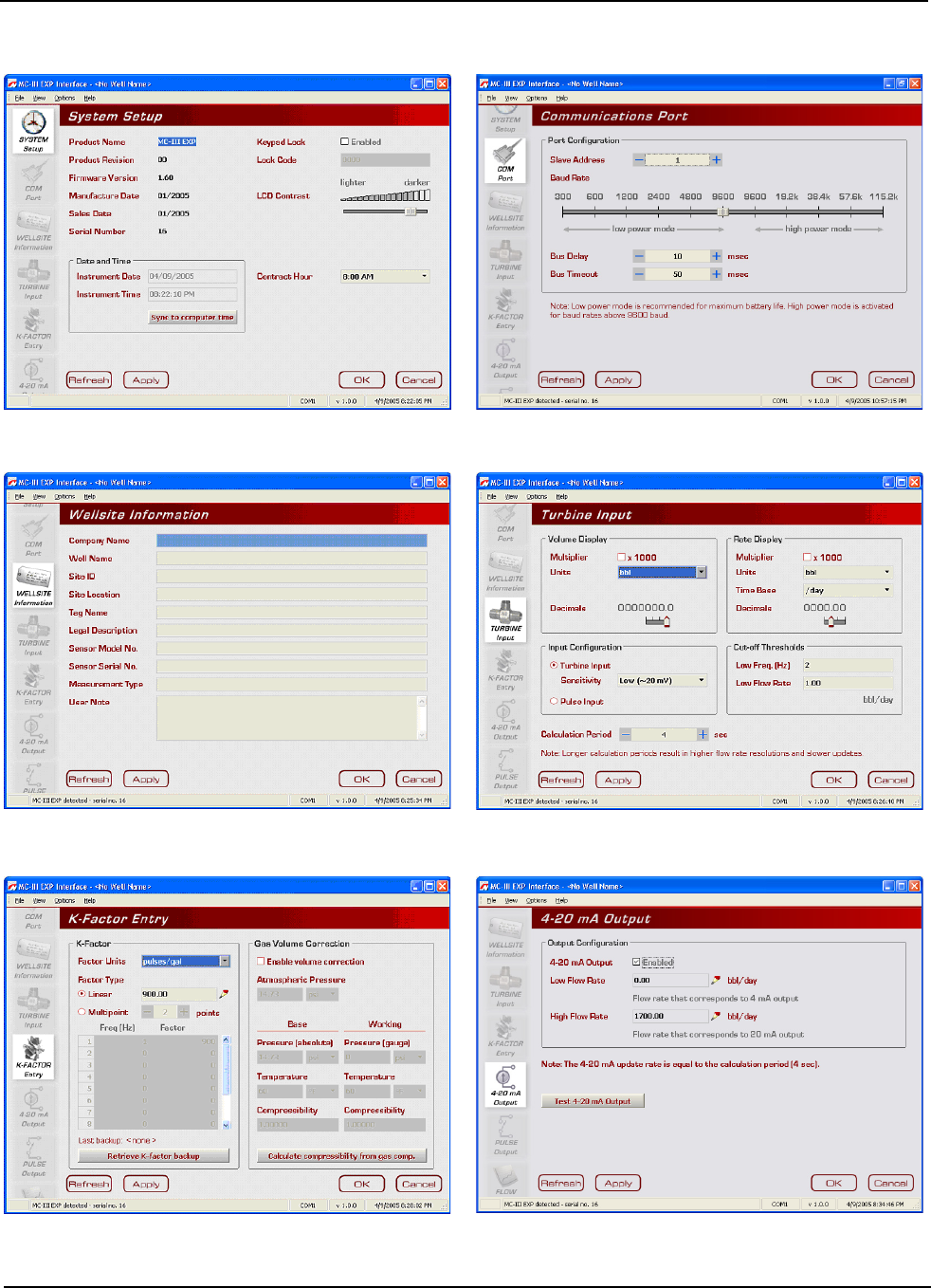

Conguring the MC-III WP ................................................................................................................................ 46
Conguration Wizard ................................................................................................................................. 48
MC-III Main Screen .................................................................................................................................... 50
Buttons and Tools....................................................................................................................................... 51
System Setup ................................................................................................................................................... 54
Time/Date Synchronization ....................................................................................................................... 54
Contract Hour ............................................................................................................................................. 54
LCD Contrast Adjustment .......................................................................................................................... 54
Security Setup ............................................................................................................................................ 55
Firmware Version Number ......................................................................................................................... 55
Serial Number ............................................................................................................................................ 55
Communications Port ....................................................................................................................................... 56
Slave Address ............................................................................................................................................ 56
Baud Rate ................................................................................................................................................. 56
Bus Delay ................................................................................................................................................... 57
Bus Timeout ............................................................................................................................................... 57
Software Communication Options ............................................................................................................. 57
Wellsite Information .......................................................................................................................................... 58
Turbine Input .................................................................................................................................................... 59
Volume Display .......................................................................................................................................... 59
Rate Display ............................................................................................................................................... 59
Input Type/Sensitivity Conguration ........................................................................................................... 60
Cut-Off Thresholds ..................................................................................................................................... 60
Calculation Period ...................................................................................................................................... 60
K-Factor Entry .................................................................................................................................................. 61
K-Factor Units ............................................................................................................................................ 61
K-Factor Type............................................................................................................................................. 61
K-Factor Backup ........................................................................................................................................ 62
Gas Volume Correction (Supercompressibility Calculation) ...................................................................... 63
4-20 mA Output ................................................................................................................................................ 65
Enabling 4-20 mA Output .......................................................................................................................... 67
4-20 mA Output Testing.............................................................................................................................. 67
Pulse Output ..................................................................................................................................................... 69
Conguring Pulse Output ........................................................................................................................... 69
Pulse Output Testing .................................................................................................................................. 70
Saving and Uploading Conguration Files ....................................................................................................... 71
Saving a Conguration File ........................................................................................................................ 71

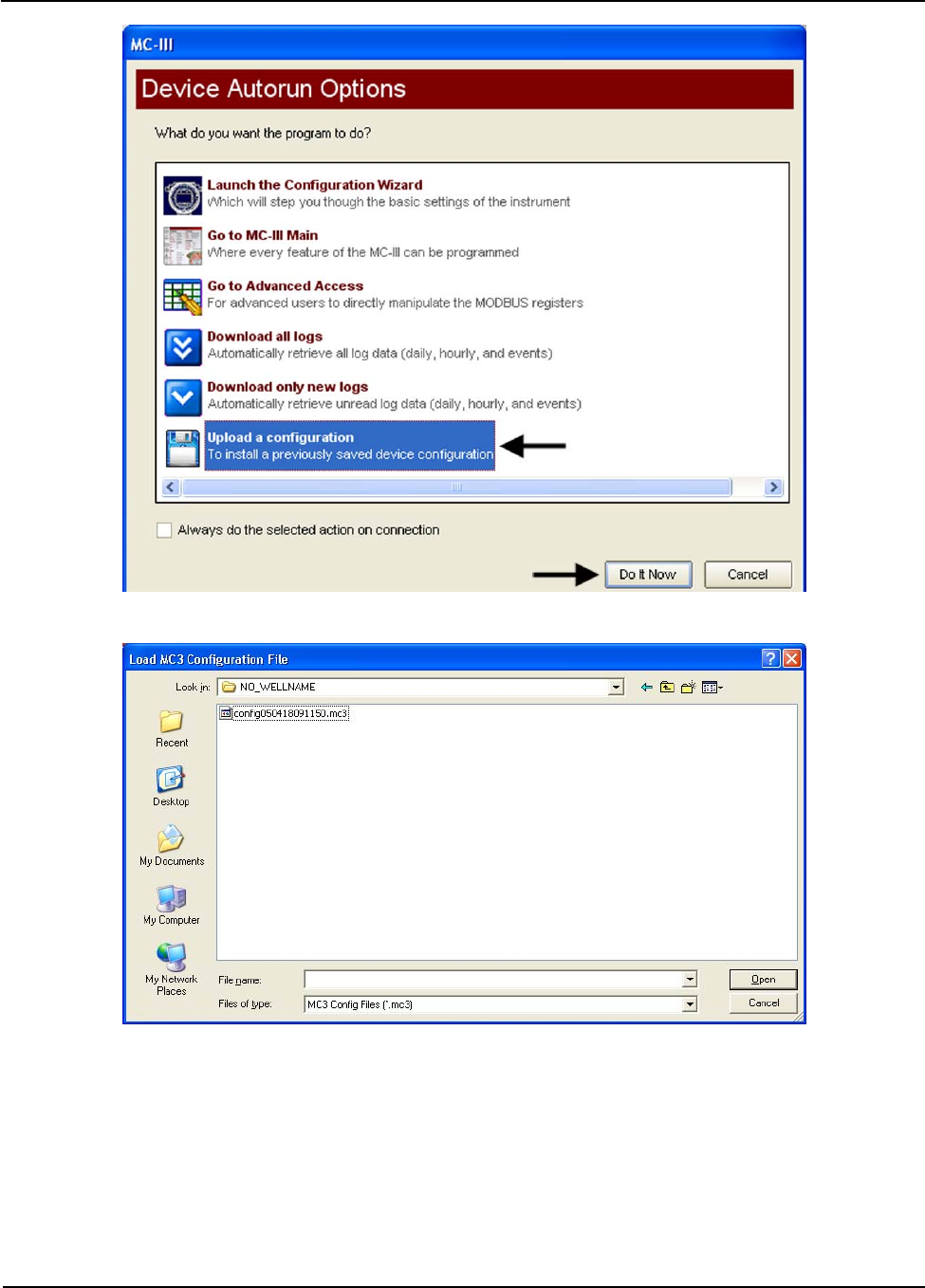

Uploading a Conguration File ................................................................................................................... 72
Advanced Access ............................................................................................................................................ 74
Section 5—Flow Logs and Event Logs ........................................................................................................ 75
Auto-Save Log Formats.................................................................................................................................... 76
Log Directory and Filenames............................................................................................................................ 76
Flow Archive ..................................................................................................................................................... 77
iii
MC-III™ WP Flow Analyzer Table of Contents
Downloading Flow Logs ............................................................................................................................. 77

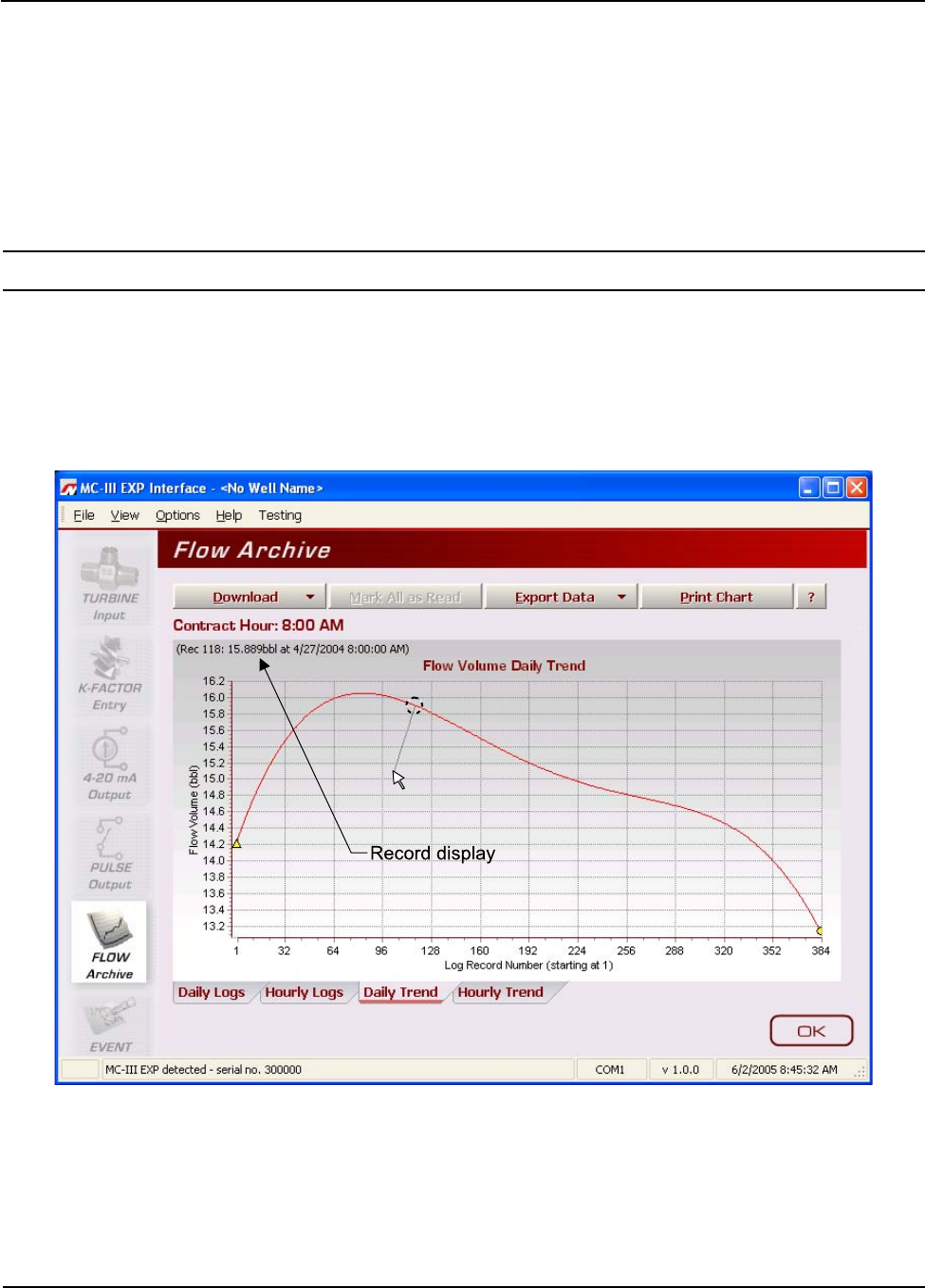

Viewing Trend Charts ................................................................................................................................. 79
Printing/Saving a Report ............................................................................................................................ 79
Viewing a Saved Report............................................................................................................................. 81
Exporting Flow Logs ................................................................................................................................. 83
Event Archive.................................................................................................................................................... 84
Downloading Event Logs ........................................................................................................................... 85
Printing/Saving a Report ............................................................................................................................ 86
Exporting Event Logs ................................................................................................................................ 86
Section 6 - MC-III WP Maintenance ............................................................................................................... 89
Lithium Battery Replacement ........................................................................................................................... 89

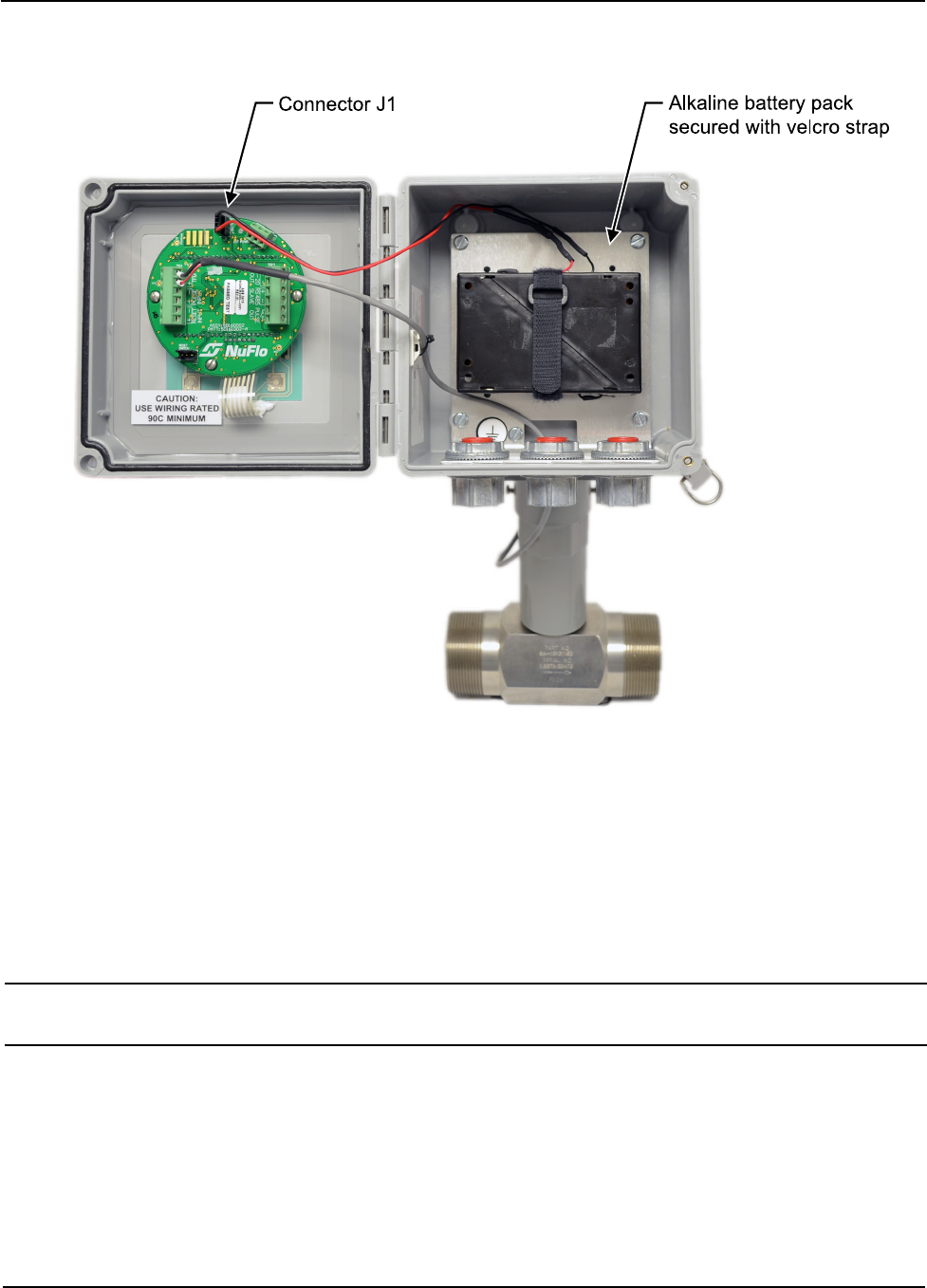

Alkaline Battery Replacement .......................................................................................................................... 90
Circuit Assembly Replacement ......................................................................................................................... 92
Keypad Replacement ....................................................................................................................................... 94
Firmware Update .............................................................................................................................................. 95
Optional Parts List ............................................................................................................................................ 97
Recommended Magnetic Pickups .................................................................................................................... 97
Appendix A—Software Program Options ...................................................................................................A-1
General Options ..............................................................................................................................................A-1
Autorun Options...............................................................................................................................................A-2
Communications Options ................................................................................................................................A-3
Express Connect Option ...........................................................................................................................A-3
Auto-Negotiate Option ..............................................................................................................................A-4
Enable Auto-Negotiated Baud Rate Option ..............................................................................................A-4
Request-to-Send (RTS) Line Option .........................................................................................................A-4
Enable Modbus Address Support for Firmware Versions 1.06 through 1.08 ............................................A-4
Timing Parameters ....................................................................................................................................A-4
Downloading Options ......................................................................................................................................A-5
Advanced Options ...........................................................................................................................................A-6
Clear EEPROM .........................................................................................................................................A-6
Automatic Data Logging ............................................................................................................................A-6
Appendix B—Lithium Battery Information ..................................................................................................B-1
Lithium Battery Disposal .................................................................................................................................B-1
Transportation Information ..............................................................................................................................B-1
Material Safety Data Sheet..............................................................................................................................B-1
Appendix C—Communications Protocol ....................................................................................................C-1
Introduction ......................................................................................................................................................C-1
Supported Commands.....................................................................................................................................C-1
Data Types ......................................................................................................................................................C-1
Registers ........................................................................................................................................................C-2
System Conguration ................................................................................................................................C-3
Product Code (register 1000) ....................................................................................................................C-4
Firmware/Register Table Version Numbers (registers 1001, 1002) ..........................................................C-4
Manufacture Date/Sales Date (registers 1003, 1004) ...............................................................................C-4
Slave Address (register 1009) ...................................................................................................................C-4
Baud Rate (register 1010) .........................................................................................................................C-4
Real Time ..................................................................................................................................................C-4
Input Conguration ....................................................................................................................................C-5
Output Conguration .................................................................................................................................C-8
iv
Table of Contents MC-III™ WP Flow Analyzer
Holding Registers (16-bit Mode) ...............................................................................................................C-9
Holding Registers (16-bit Mode)—Least Signicant Word First ..............................................................C-11
Base Units/Congured Units ...................................................................................................................C-11
Conversion Factors .................................................................................................................................C-11
Polling Registers .....................................................................................................................................C-12
Pointer/Daily/Event Pointer (registers 17001 through 17006) .................................................................C-12
Real Date (registers 17007, 17008) ........................................................................................................C-12
Real Time (registers 17009, 17010) ........................................................................................................C-12
Totals ......................................................................................................................................................C-12
Pulse Output Pulses (register 17077) .....................................................................................................C-12
Analog Output Current (register 17079) ..................................................................................................C-12
Calculated K-Factor (register 17081) ......................................................................................................C-12
Control Register ......................................................................................................................................C-15
Wellsite Parameters ................................................................................................................................C-15
Log Data .................................................................................................................................................C-15
Enron Registers ......................................................................................................................................C-16
Enron Hourly/Daily Record Format .........................................................................................................C-16
Enron Event Record Format ...................................................................................................................C-17
Reset Status ...........................................................................................................................................C-17
Log Capacity ...........................................................................................................................................C-17
1
MC-III™ WP Flow Analyzer Section 1
Section 1—Introduction
The NuFlo™ MC-III™ WP Flow Analyzer (Figure 1.1) packs a full spectrum of gas and liquid measurement
functionality, high-speed performance, and log archive and retrieval capabilities in an easy-to-use
weatherproof totalizer. Commonly used operations can be accessed from the six-button keypad on the front
of the instrument or from the dynamic interface software, allowing you to calibrate and congure the unit
quickly and easily.
Operation
The MC-III WP calculates and displays instantaneous ow
rates and accumulated totals based on a turbine owmeter
input signal. The MC-III’s microprocessor circuitry counts
the pulses generated by a companion owmeter, converts
that data into volume and rate values in accordance with
calibration settings, and displays the totalized data on a
two-line liquid crystal display (LCD). The eight-digit top
readout indicates total ow volume; the six-digit bottom
readout indicates ow rate.
With the press of a single key, totals are saved to
nonvolatile memory, minimizing the risk of data loss even
if a power outage occurs.
Up to 384 daily logs, 768 hourly logs, and 345 event logs
can be archived and accessed quickly on demand.
Offering a variety of user-congurable display options,
input and output options, RS-485 Modbus® compatibility,
ow logging, and turbine owmeter linearization, the
MC-III WP is one of the most versatile totalizers on the
market. For specications, see Table 1.1, page 2.

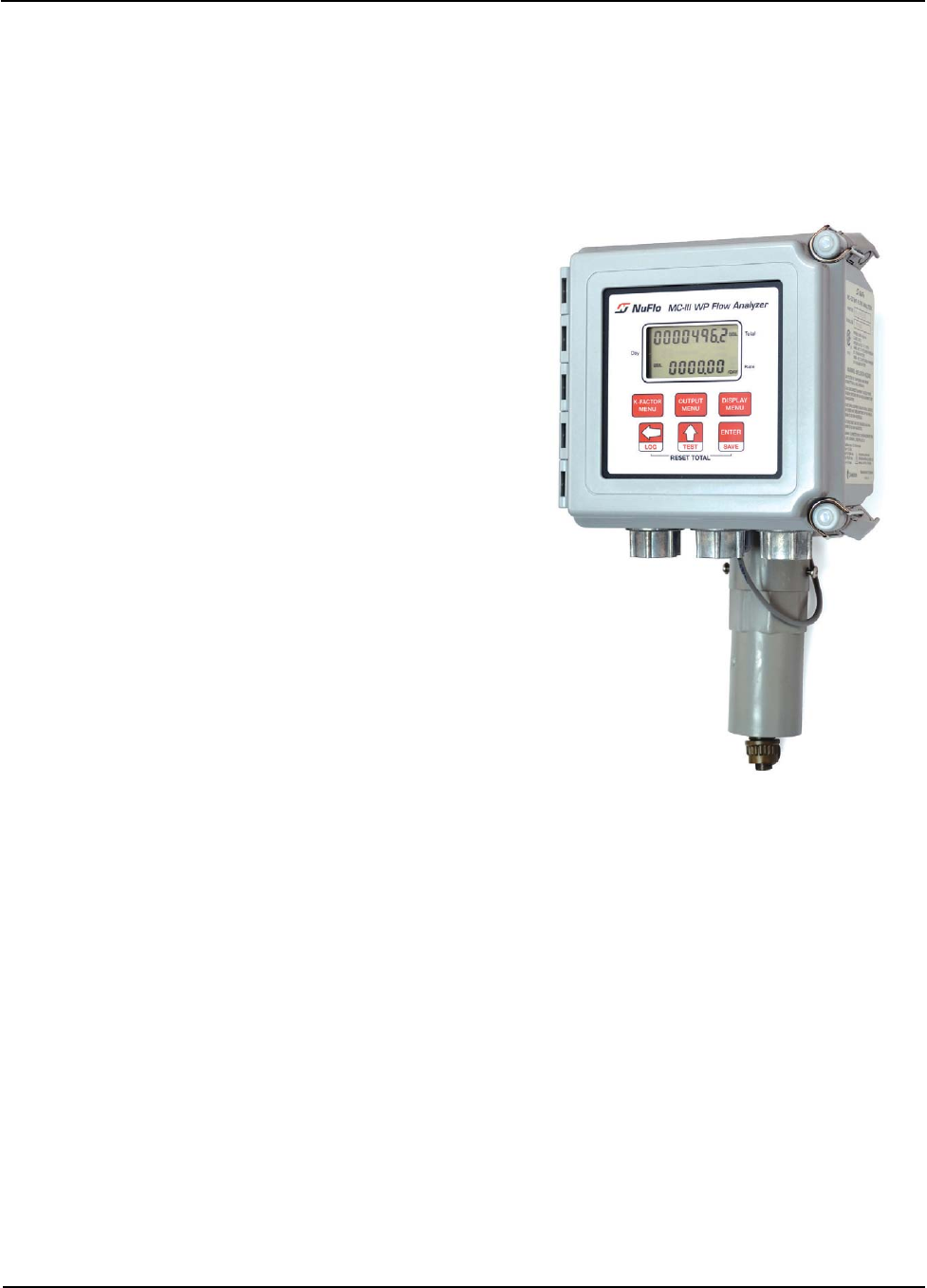

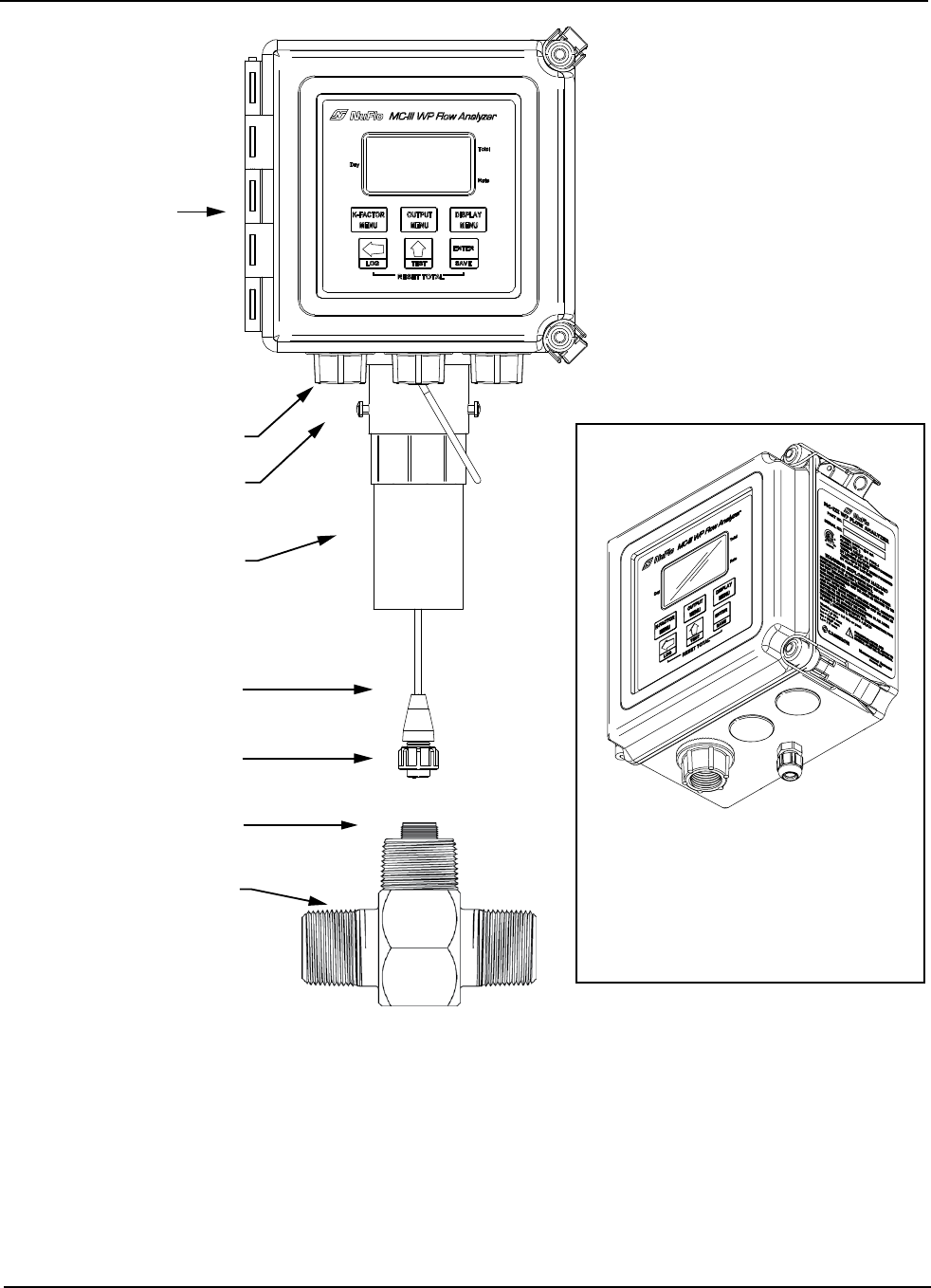

Figure 1.1—MC-III WP Flow Analyzer
2
Section 1 MC-III™ WP Flow Analyzer
Table 1.1—MC-III WP Specications
Hazardous Location
Certication
CSA-approved for US and Canada
Class I, Div. 2, Groups A, B, C, and D
Rated for Internal Pollution Degree 2
CSA/UL Type 4 Enclosure (Ingress Protection)
T5 Temperature Class
System Power Internal power supply
• 3.6 VDC, D-size lithium battery (2-year typical life)
• alkaline battery holder containing 3 D-size batteries
External power supply (6 to 30 VDC at 6 mA) with internal battery backup
(reverse polarity protected)

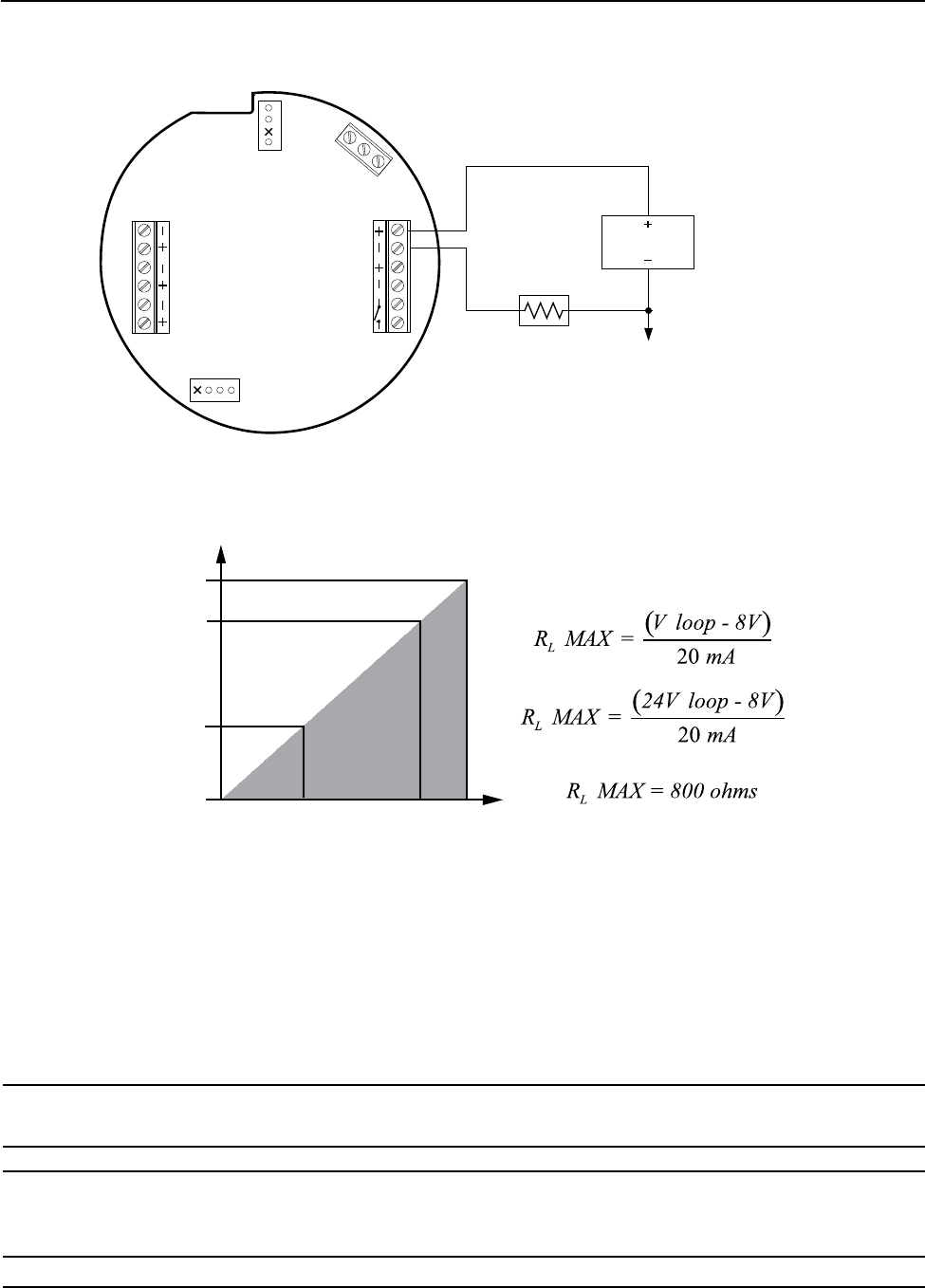

Loop-powered (4-20 mA) with internal battery backup
(reverse polarity protected)
Loop power: 8 to 30 VDC
Load resistance: 1100 ohms @ 30 VDC
200 ohms @ 12 VDC
Operating Temperature Lithium-Powered: -40°C to 70°C (-40°F to 158°F)
Alkaline-Powered: -18°C to 55°C (0°F to 130°F)
LCD contrast is reduced below -20°C (-4°F)
Environmental Humidity: 0 to 90% non-condensing
Altitude: Up to 2000 m, maximum
Enclosure Molded berglass polyester, Lexan® polycarbonate viewing window

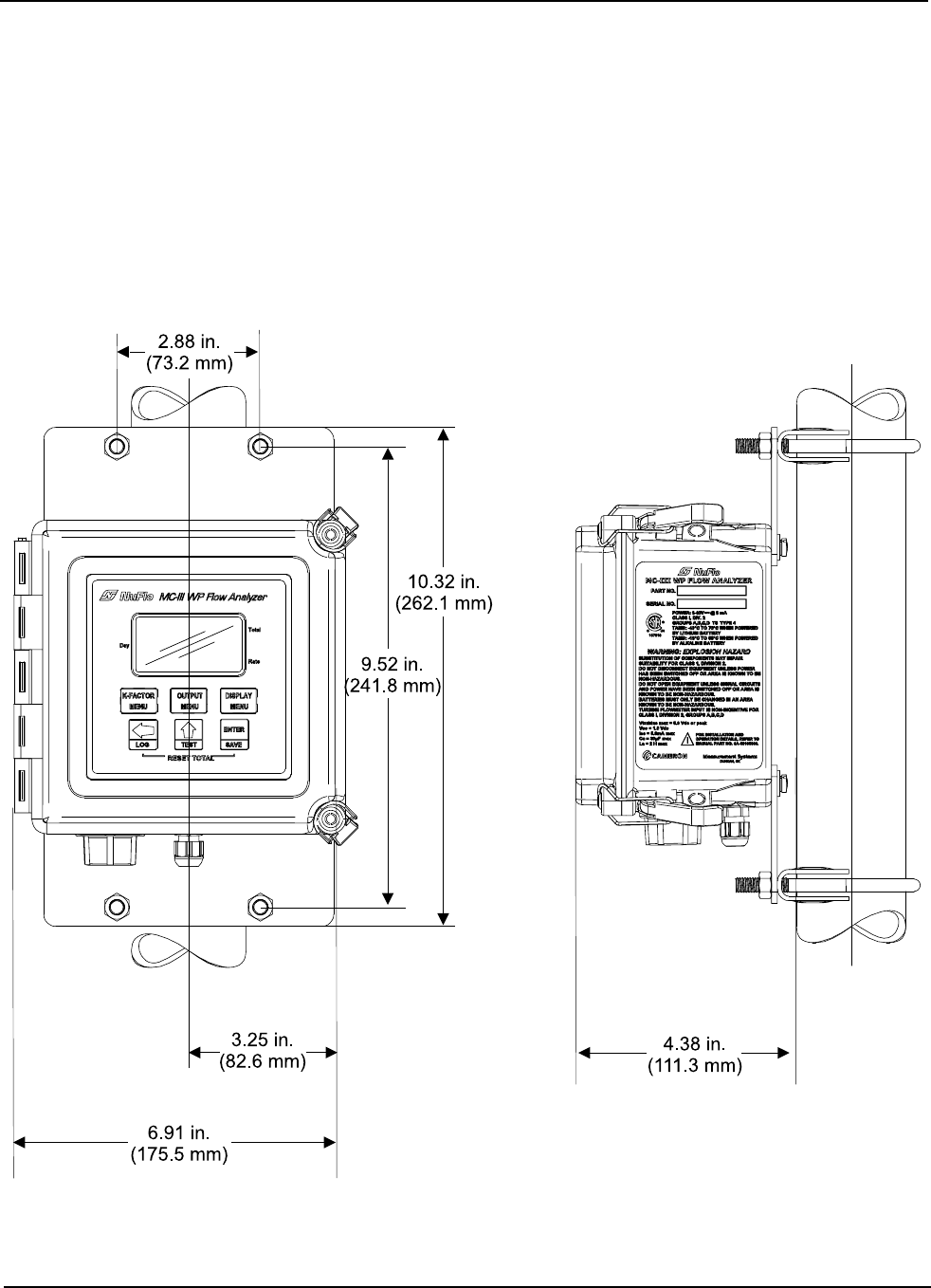

6.91 in. wide × 6.5 in. tall × 4.25 in. deep
LCD Display 8-digit Total (volume) display (7-segment characters)
6-digit Rate display (11-segment characters for easy-to-read prompts)
0.3” character height
Adjustable contrast and update period
User-selectable units of measurement (Total):
• Preprogrammed units: BBL, GAL, LIT, M3, CF, SCF, any unit x 1000
• User-dened units
User-selectable units of measurement (Rate):
• Preprogrammed units: BBL, GAL, LIT, M3, CF, SCF (per DAY, HR,
MIN, SEC), any unit x 1000 (per DAY, HR, MIN, SEC)
• User-dened units
Keypad 6-key membrane switch
Communications/
Archive Retrieval
RS-485 Modbus® communications with transfer speeds up to 115.2K (allows
full download in less than 1 minute)
Logging 384 daily logs
768 hourly logs
345 event logs
3
MC-III™ WP Flow Analyzer Section 1
Table 1.1—MC-III WP Specications
Inputs Turbine Meter Input
Congurable sensitivity adjustment via front panel
Sensitivity adjustment range: 20 mV P-P to 40 mV P-P
Frequency range: 0 to 3500 Hz
Remote Reset Input
Optically-isolated input
3.0 to 30 VDC
Pulse duration > 3 seconds to reset
Pulse Input
Optically-isolated input
3.0 to 30 VDC
Outputs Analog Output
4-20 mA, loop-powered (two-wire)
16-bit resolution
Accuracy: 0.1% of full scale @ 25°C, 50 PPM/°C temperature drift
Loop power: 8.0 to 30 VDC
Zero and full-scale engineering values congurable from front panel
RS-485 Communications
Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 and up
to 115.2K
Volumetric Pulse Output
Solid-state relay
Output rating: 60 mA max. @ 30 VDC, on-state drop = 1.4 VDC @ 50 mA,
0.25 VDC @ 10 mA
Congurable pulse width (duration): 10 to 60,000 ms
Amp & Square (Flowmeter Frequency) Output
Open-drain transistor output of turbine meter input signal
Output rating: 50 mA @ 30 VDC, on-state drop = 0.3 VDC @ 50 mA,
0.1 VDC @ 10 mA
(Analog output and amp & square outputs cannot be used simultaneously.)
Modbus®RTU mode Modbus® supports 16-bit and 32-bit holding registers. For more
information, see Appendix C.
Enron Modbus®Flow log parameters (time stamp, period total, period run time, and supply
voltage) and download method are Enron-compatible.
System Requirements Operating System - Windows 2000 or later (Windows XP recommended)
Computer/Processor - 1 GHz or faster Pentium-compatible CPU
Memory - 128 MB of RAM
Hard Disk Space - 21 MB for program les, 30 MB for Adobe Reader,
adequate space for data les
Drive - CD-ROM for install
Display - 800 x 600 (SVGA), 16-bit (thousands of colors) color display or
greater
Browser - Internet Explorer 4 or later
Internet Connection - for web links, tech support
Communications Port - physical or virtual RS-232 compatible serial port
4
Section 1 MC-III™ WP Flow Analyzer
EXPLOSION HAZARD—SUBSTITUTION OF COMPONENTS AND/OR THE USE OF EQUIP-
MENT IN A MANNER OTHER THAN THAT SPECIFIED BY CAMERON MAY IMPAIR SUIT-
ABILITY FOR CLASS I, DIVISION 2. CAMERON BEARS NO LEGAL RESPONSIBILITY FOR
THE PERFORMANCE OF A PRODUCT THAT HAS BEEN SERVICED OR REPAIRED WITH
PARTS THAT ARE NOT AUTHORIZED BY CAMERON.
DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR
AREA IS KNOWN TO BE NON-HAZARDOUS.
DO NOT OPEN EQUIPMENT UNLESS SIGNAL CIRCUITS AND POWER HAVE BEEN
SWITCHED OFF OR AREA IS KNOWN TO BE NON-HAZARDOUS.
BATTERIES MUST ONLY BE CHANGED IN AN AREA KNOWN TO BE NON-HAZARDOUS.
STATIC HAZARD. DO NOT CLEAN OR RUB ENCLOSURE UNLESS AREA IS KNOWN TO
BE NON-HAZARDOUS.
Key Product Features
This section presents an overview of key features of the MC-III WP. Many of these features are discussed in
more detail in Sections 3 and 4 (conguration procedures) and Section 5 (ow log archival).
Key features discussed here include:
• LCD display
• keypad
• interface software
• power supply
• calibration options
• input options
• output options
• ow log archival
• password-protected security
LCD Display
The liquid crystal display (Figure 1.2, page 5) provides a simultaneous indication of accumulated total (top
readout) and ow rate (bottom readout). The eight-digit total display uses 7-segment characters to form
numbers and letters, which results in a combination of uppercase and lowercase letters. The six-digit ow rate
display uses 11-segment characters to form numbers and letters for improved readability. When the keypad is
used to calibrate the MC-III WP, the name of the menu option selected appears in the lower (rate) display, and
settings are entered in the top (total) display.
Flow volume can be measured in barrels, gallons, liters, cubic meters, cubic feet, standard cubic feet or other
user-dened units. A multiplication factor is also available for indicating ow volume in terms of 1,000 units.
The unit of measure for the Total readout and the decimal point position are selected by the operator during
calibration. If a user-dened unit is used, none of the preprogrammed volume units will be visible on the
display during operation.
Flow rate can be measured in a wide variety of preprogrammed units, or other user-dened units. The ow
5
MC-III™ WP Flow Analyzer Section 1
rate unit of measure is selected in two steps: (1) a volume unit is chosen and (2) a time-base unit (per day, per
hour, per minute, or per second) is chosen. Users can choose any combination of preprogrammed volume and
time units in establishing the ow rate engineering unit (for example, gallons per hour, gallons per day, or
gallons per minute). Also, the volume unit used for the ow rate can be different from the volume unit used to
read Total volume. The unit of measure for the Rate readout and the decimal point position are selected by the
operator during calibration.
The daily index (Day) display is a two-digit number for selecting a daily archive log for viewing. The number
shown here represents the number of days that have passed since the log was saved. For example, an entry of
01 would yield yesterday’s log. An entry of 05 would yield the log generated 5 days ago. Up to 99 consecutive

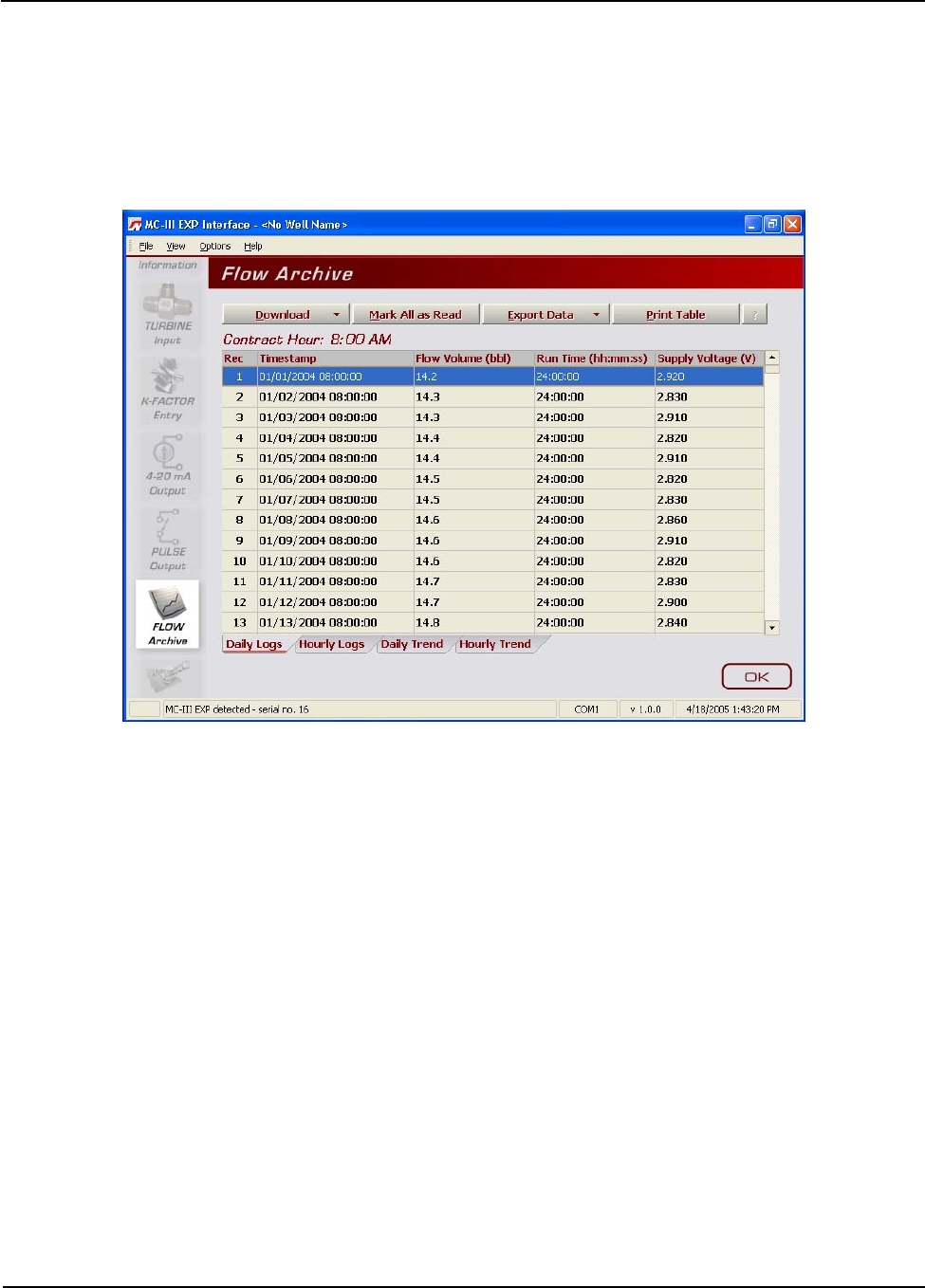

daily logs can be viewed using the keypad. In addition, up to 384 daily logs, 768 hourly logs, and 345 event
logs can be viewed through the interface software.
The LCD contrast can be adjusted with the interface software (see Section 4).

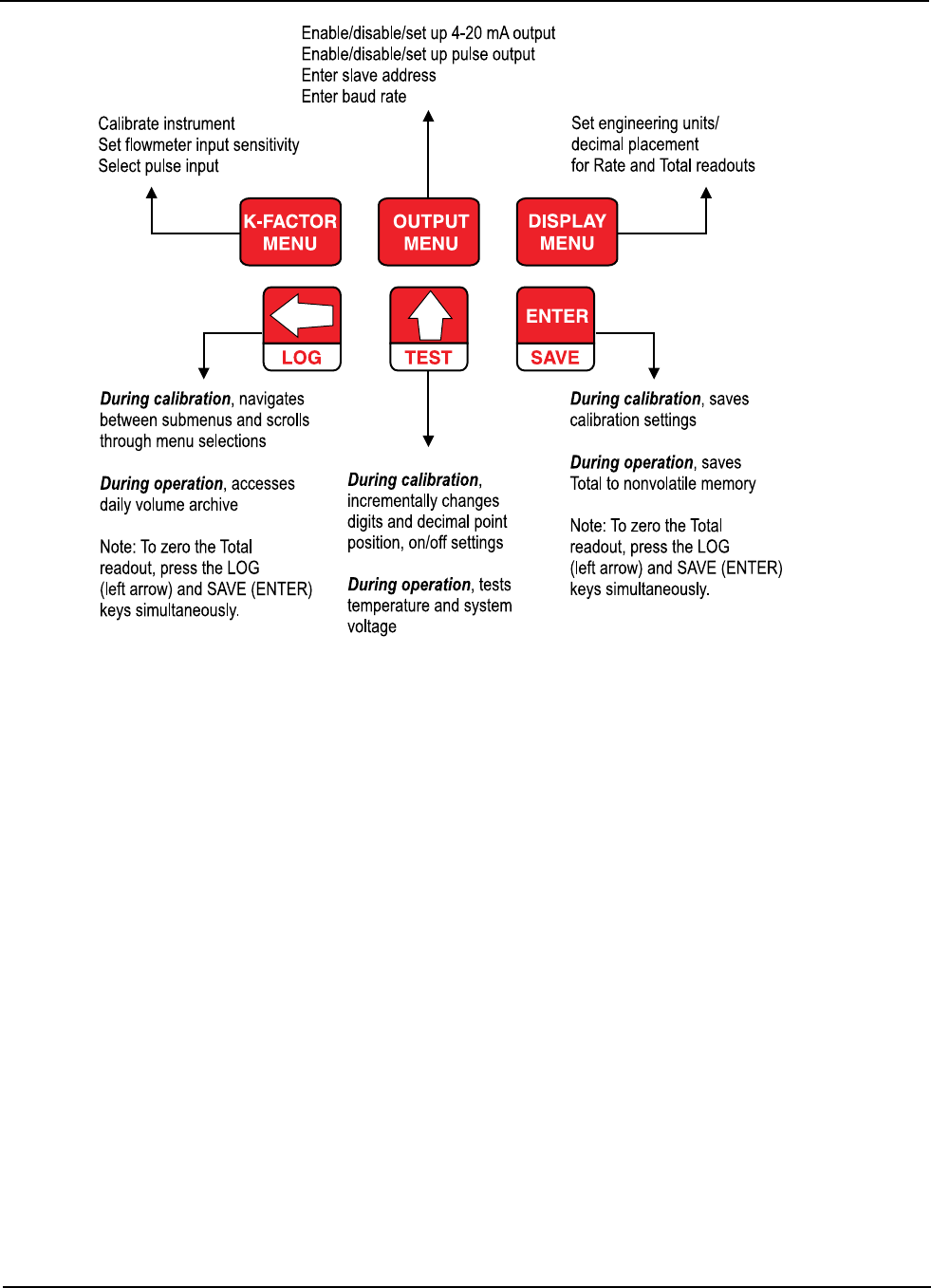

Keypad
The six-button keypad allows users to perform a basic conguration of the instrument. Figure 1.3, page
6, summarizes the functions that can be accessed with each button. Most parameters can be congured in
seconds by selecting one of the three menu keys (K-Factor, Output, or Display), navigating settings with the
arrow buttons, and saving the selections with the Enter key.

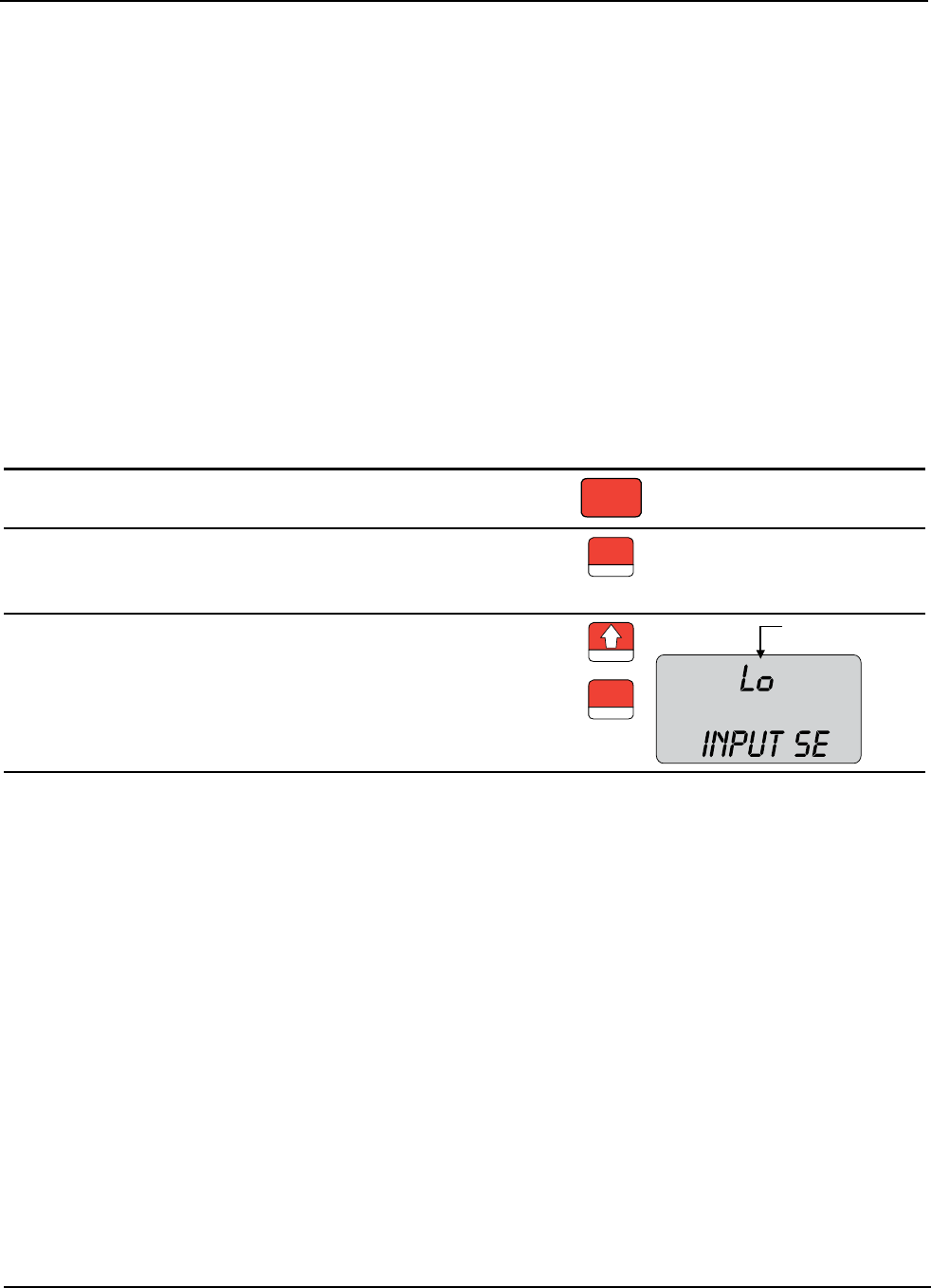

Section 3 contains procedures for conguring the MC-III WP using the keypad. Icons of the six buttons
provide a pictorial reference to help guide users through each step of conguration.
Important: Some conguration parameters are accessible only through the interface software. See
Section 4 for instructions on conguring the instrument using the software.
00000000
000000
M3
BBL
GAL
LIT
M3
BBL
GAL
LIT
/SEC
/MIN
/HR
/DAY
CF
CF
X1000
X1000
STANDARD
00
Day
Total
Rate
Figure 1.2—LCD display showing location of the Total, Rate, and daily index (Day) displays. Only the units of
measurement selected for displaying total and rate will be visible during normal operation.
6
Section 1 MC-III™ WP Flow Analyzer
Figure 1.3—MC-III WP keypad functions

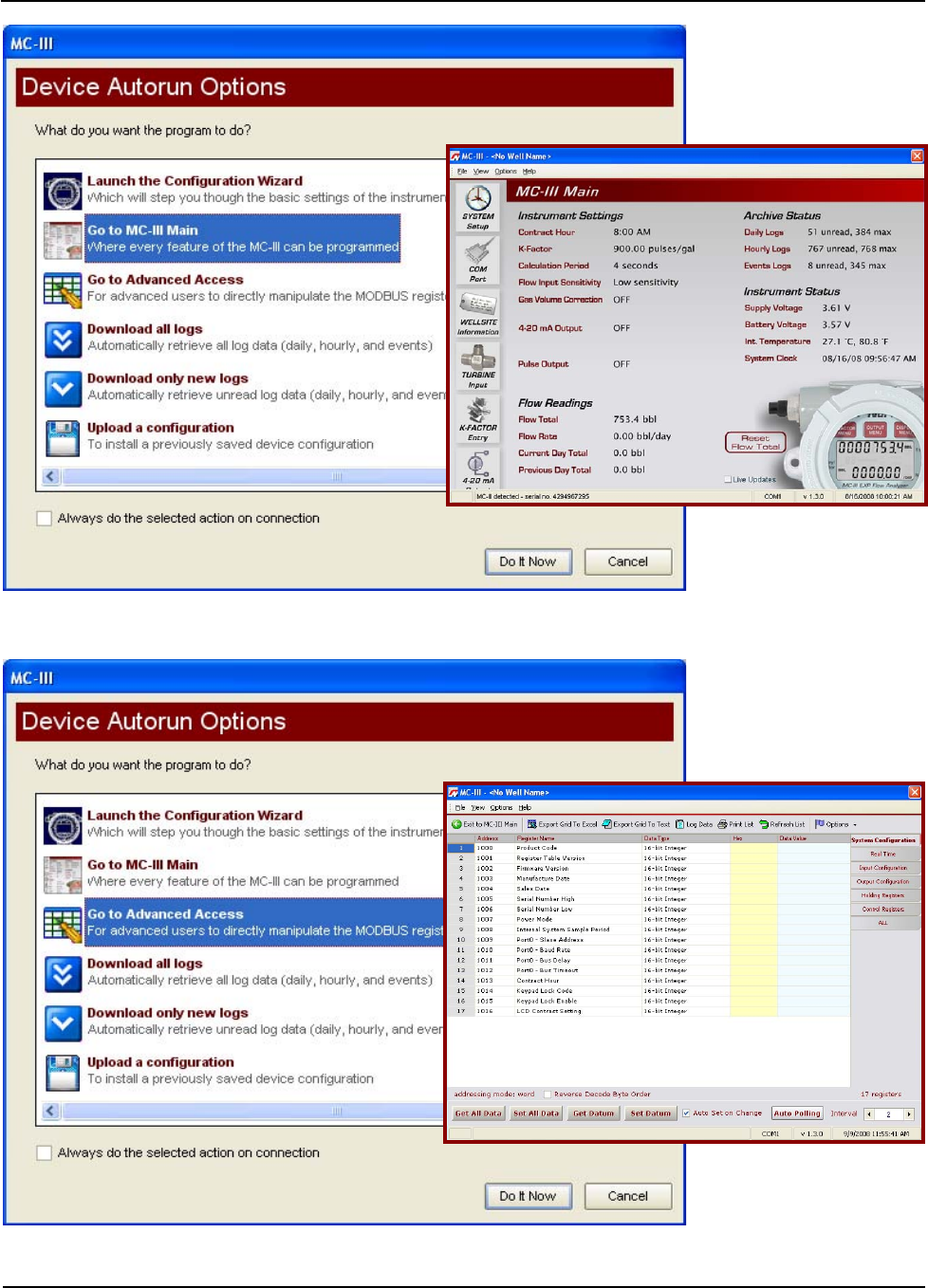

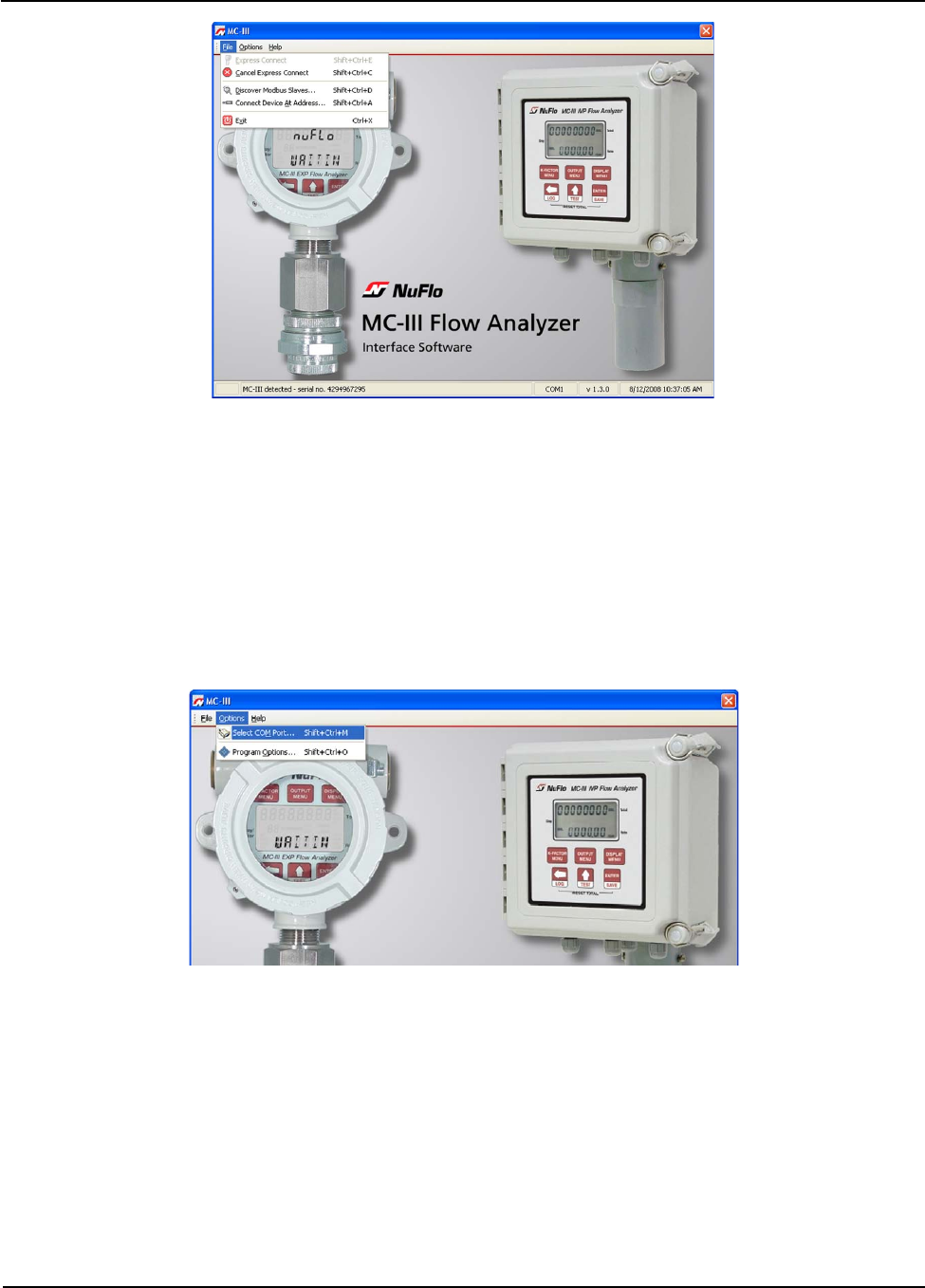

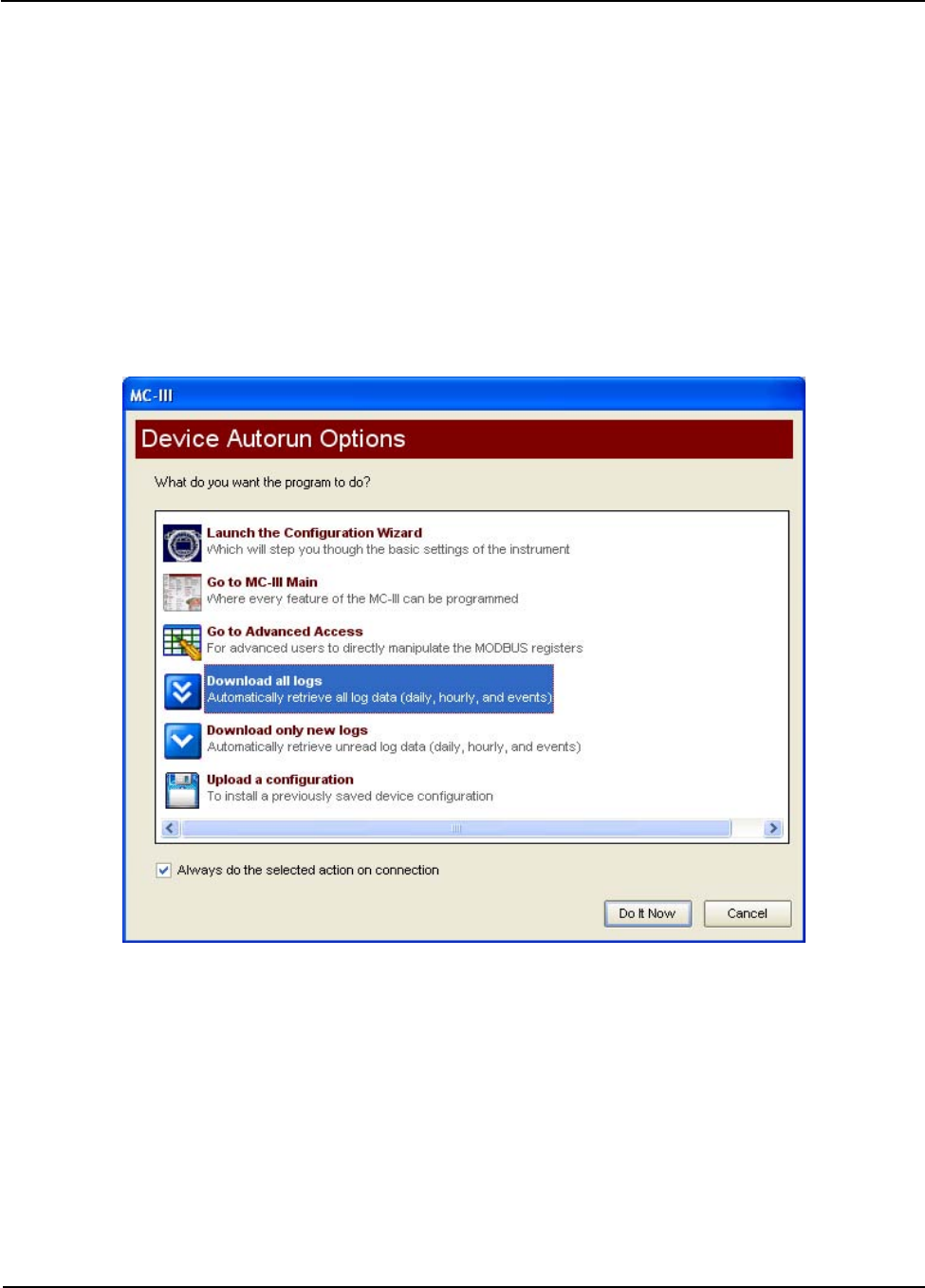

Interface Software
Developed within the familiar Windows environment, the MC-III interface software is an intuitive and
easy-to-use application that provides access to all controls for setting up and operating the instrument. The
interface tailors the controls to the user’s needs, providing three options for conguring the instrument:
• a “Conguration Wizard,” which steps through the most common conguration tasks
• individual conguration menus for accessing specic settings

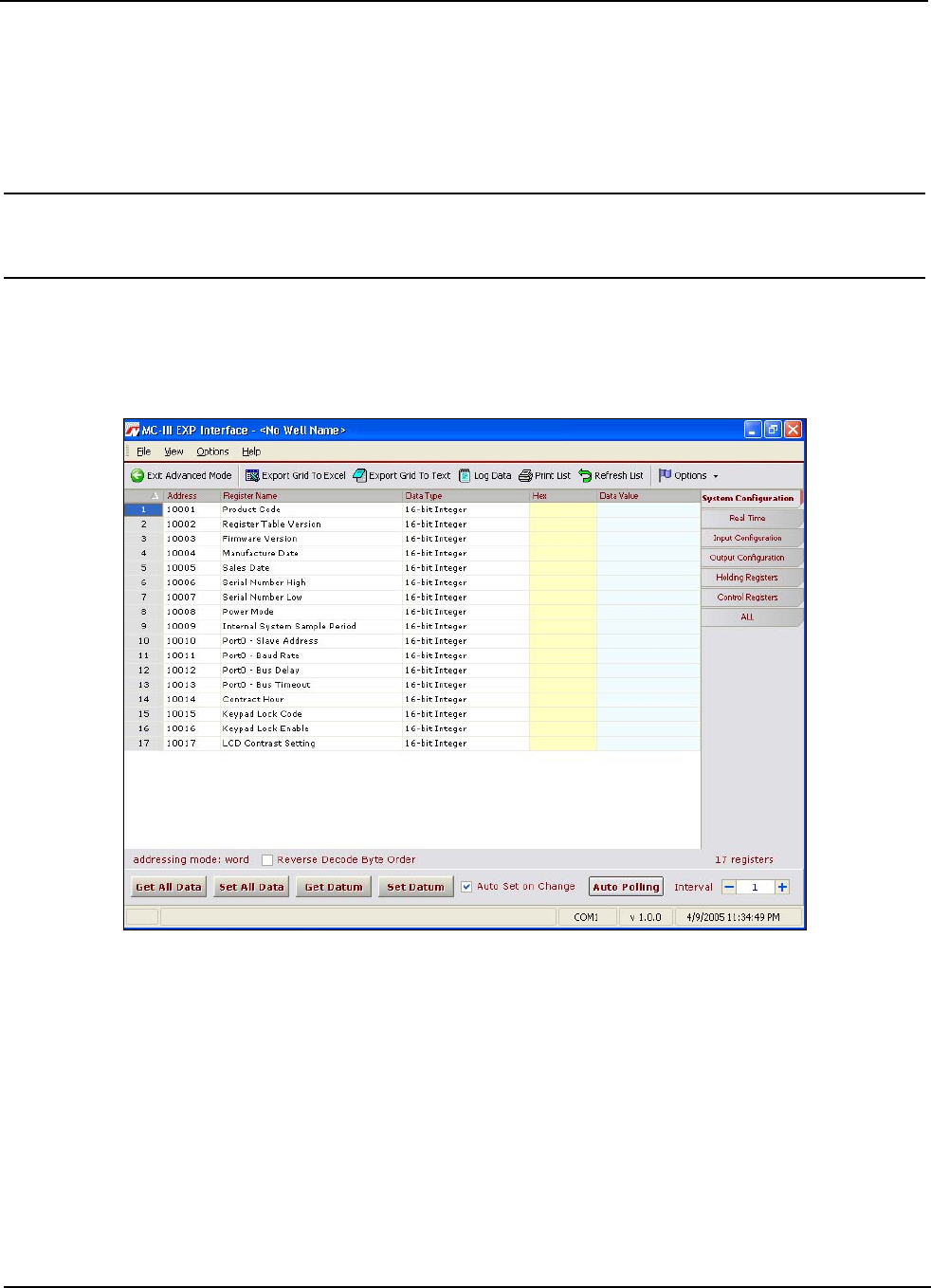

• an advanced menu that gives host programmers access to Modbus® registers
For instructions on installing the interface software and entering conguration parameters via the interface
software, see Section 4.
Power Supply

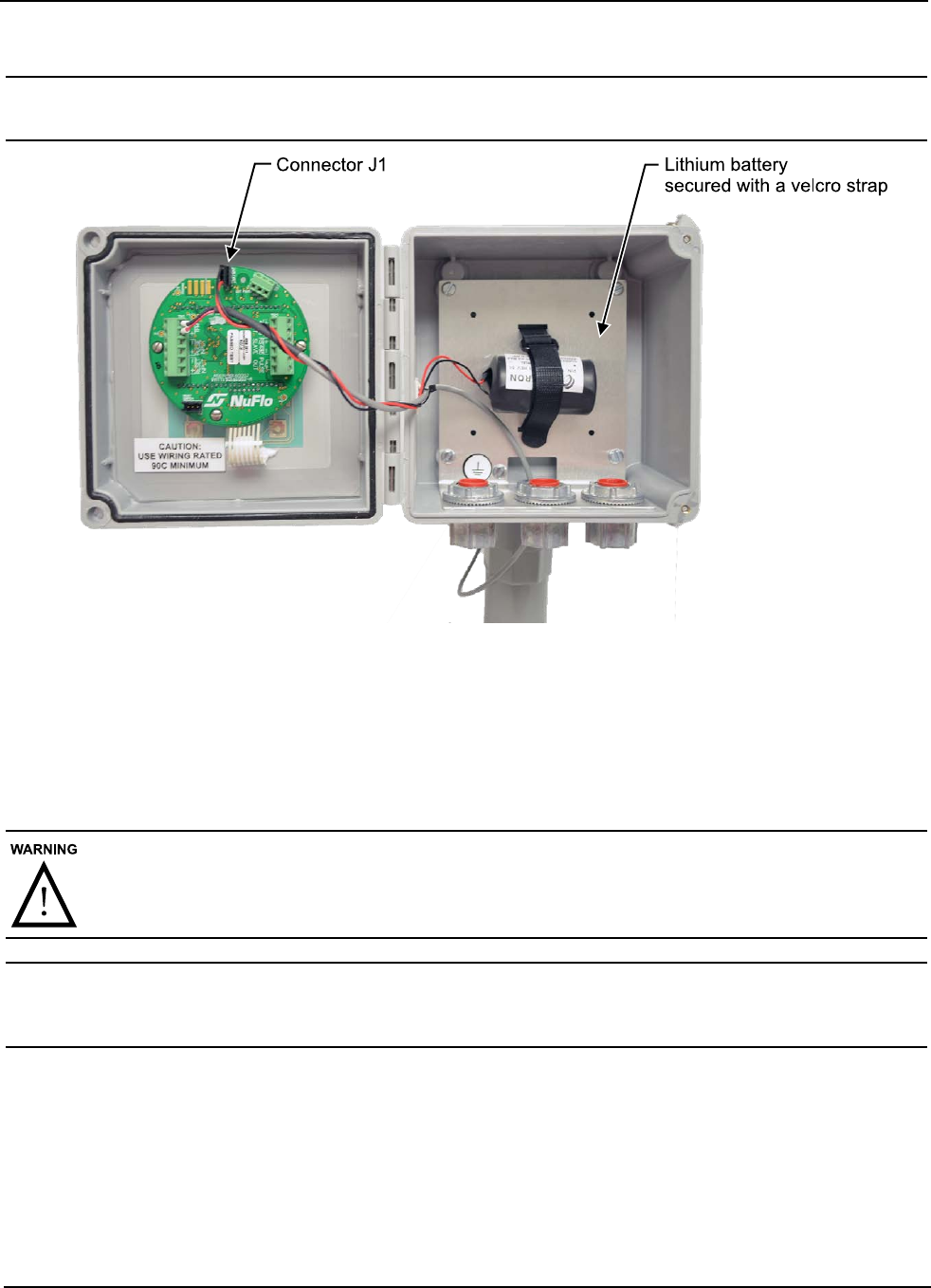

The MC-III WP is shipped with either a lithium battery or a battery holder containing three D-size alkaline
batteries. Alternately, the MC-III WP may be powered by an external power source; in this case, the lithium
battery or alkaline batteries provide a backup power supply, signicantly extending battery service life.
Low-power microprocessor technology enables the MC-III WP to operate approximately 2 years on a single
lithium battery.
External Power Supply. The device will automatically switch to battery power when external power is
lost. The external power supply must be an approved ELV source, insulated from the AC main by double/
reinforced insulation per CSA C22.2 No. 61010-1-04 / UL61010-1 – 2nd Edition.

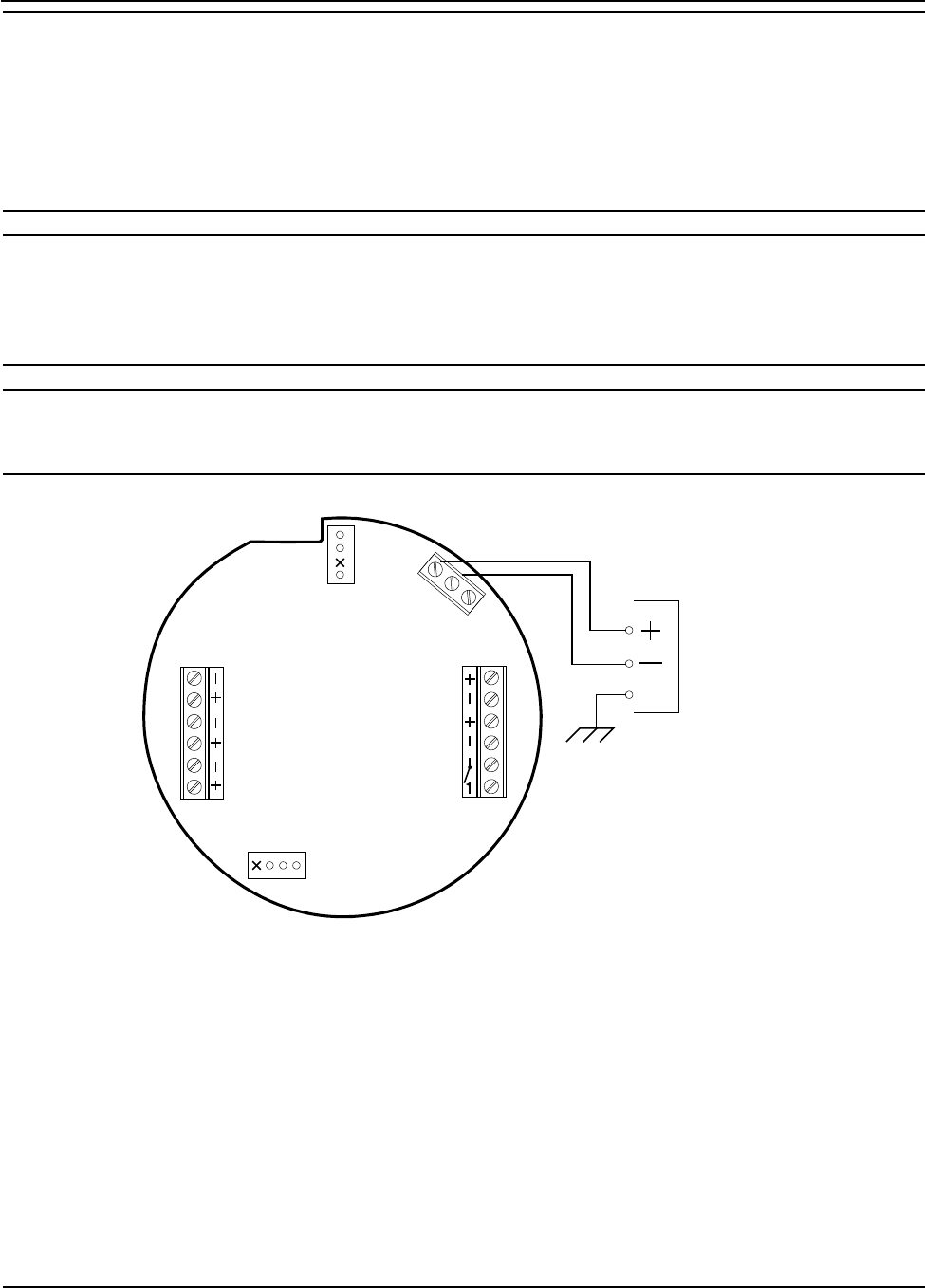

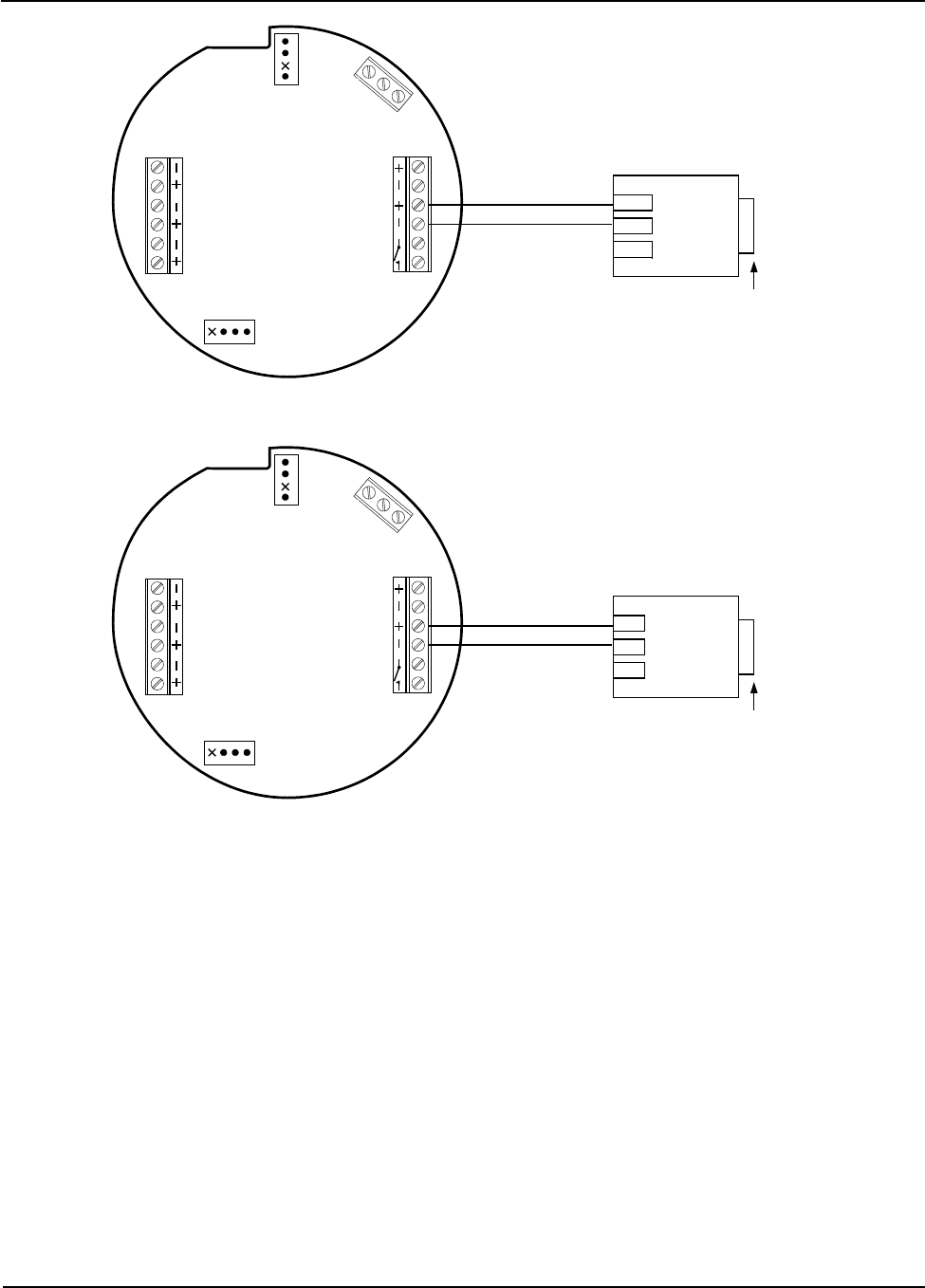

Wiring diagrams for connecting an external power supply are provided in Section 2.
7
MC-III™ WP Flow Analyzer Section 1
Multipoint Linearization

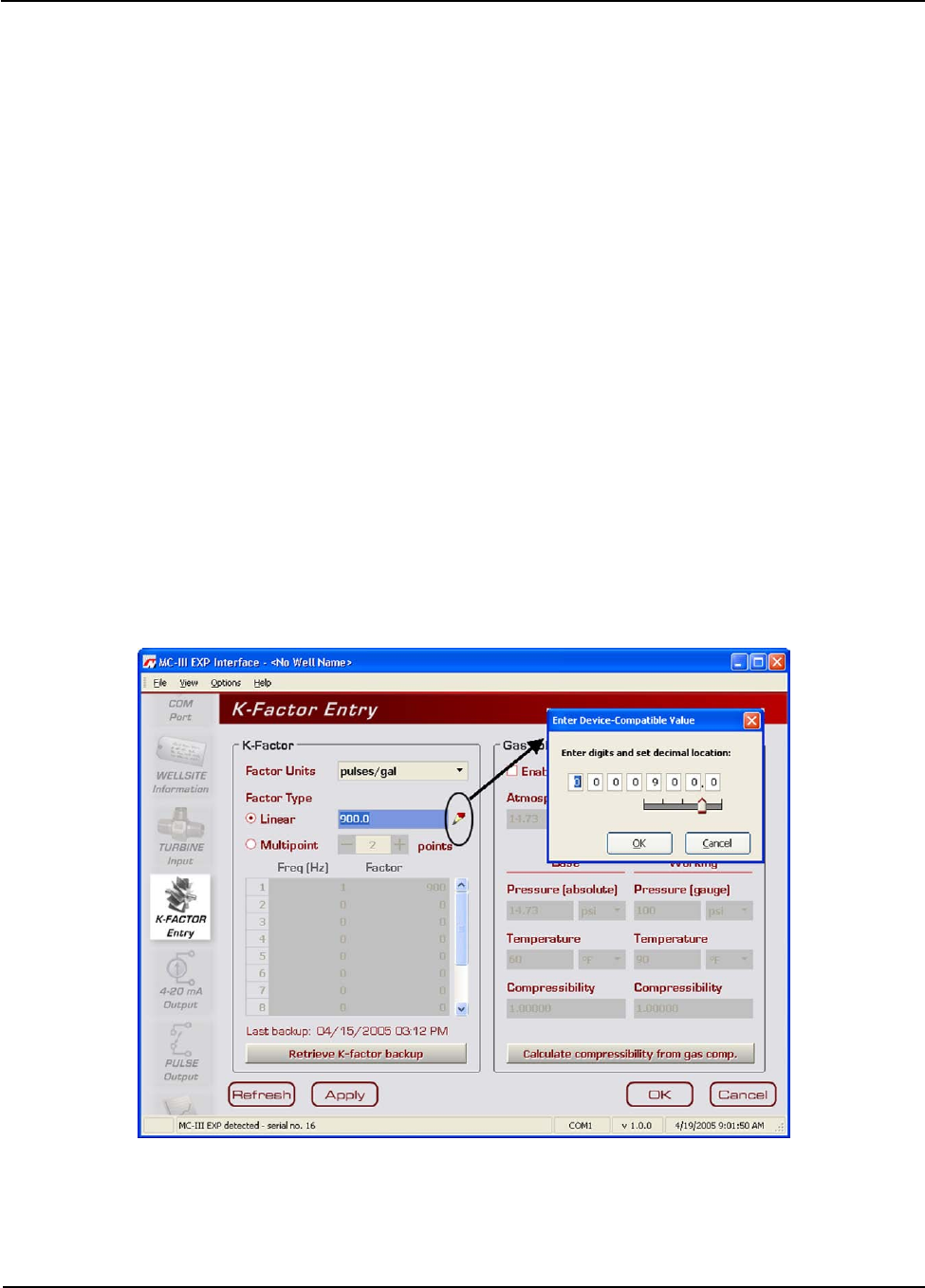

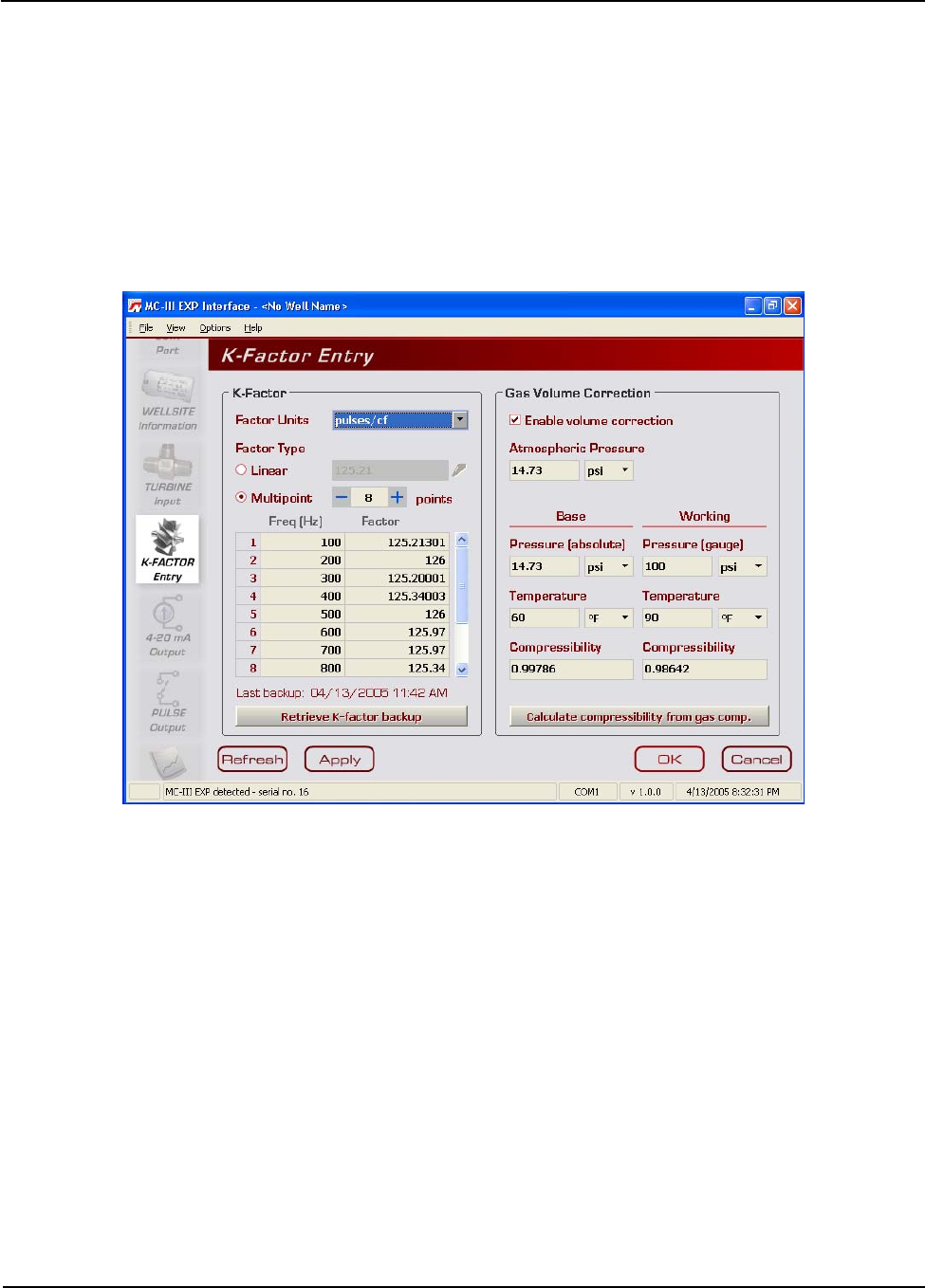

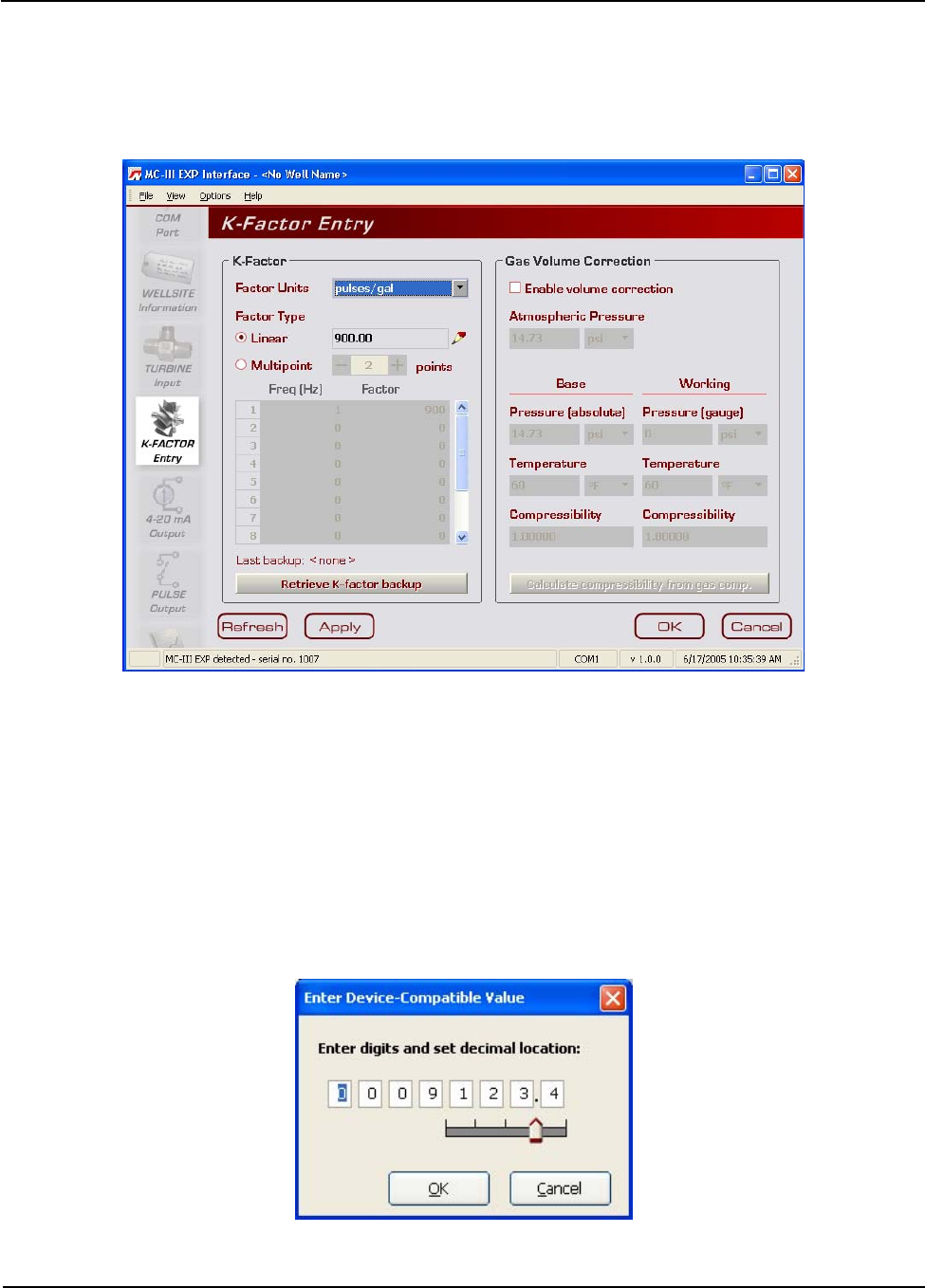

The MC-III interface software supports up to 12 calibration points in addition to single-point calibration based

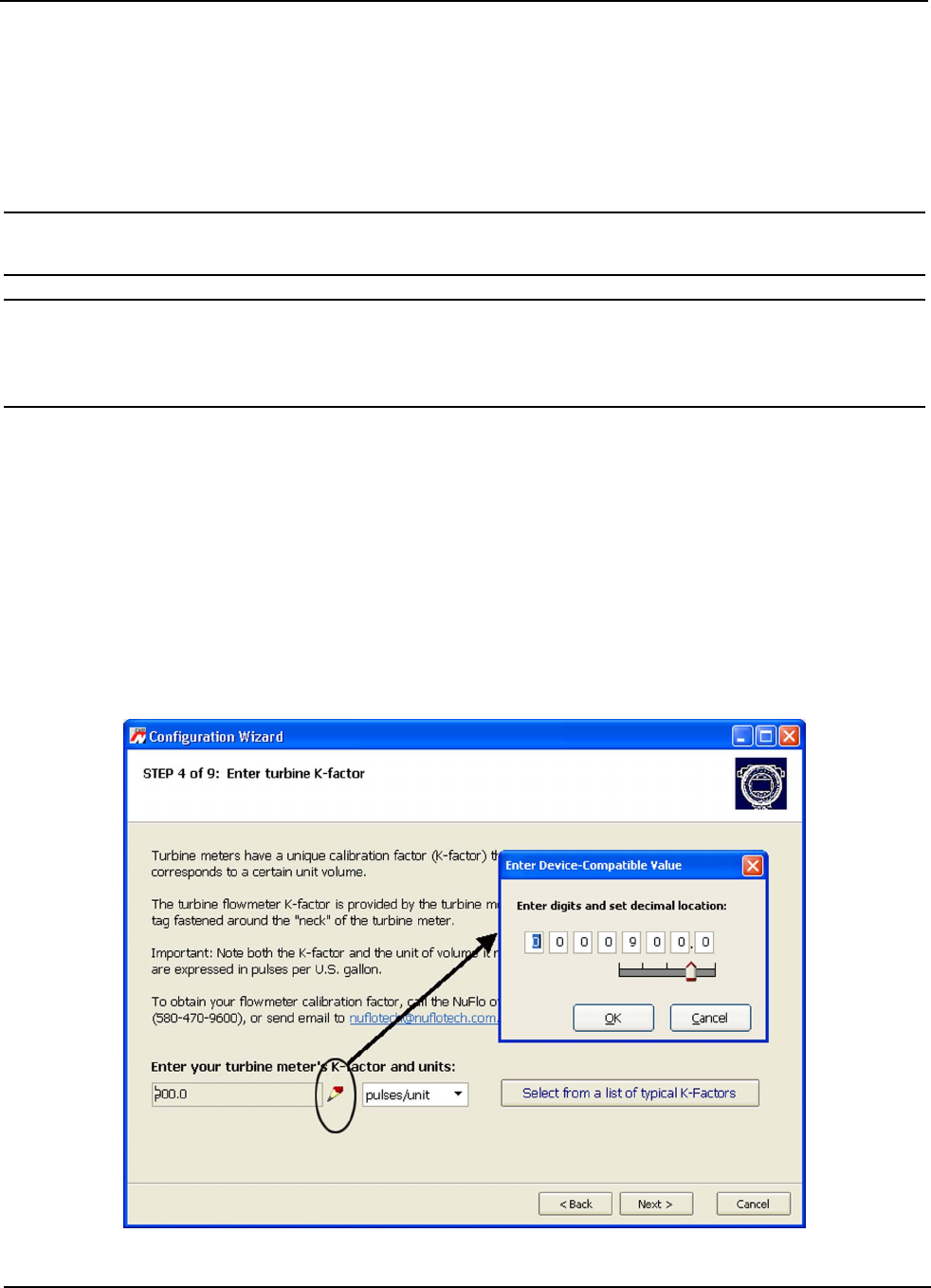

on the K-factor provided with the turbine owmeter. See K-Factor Type, page 61, for more information.

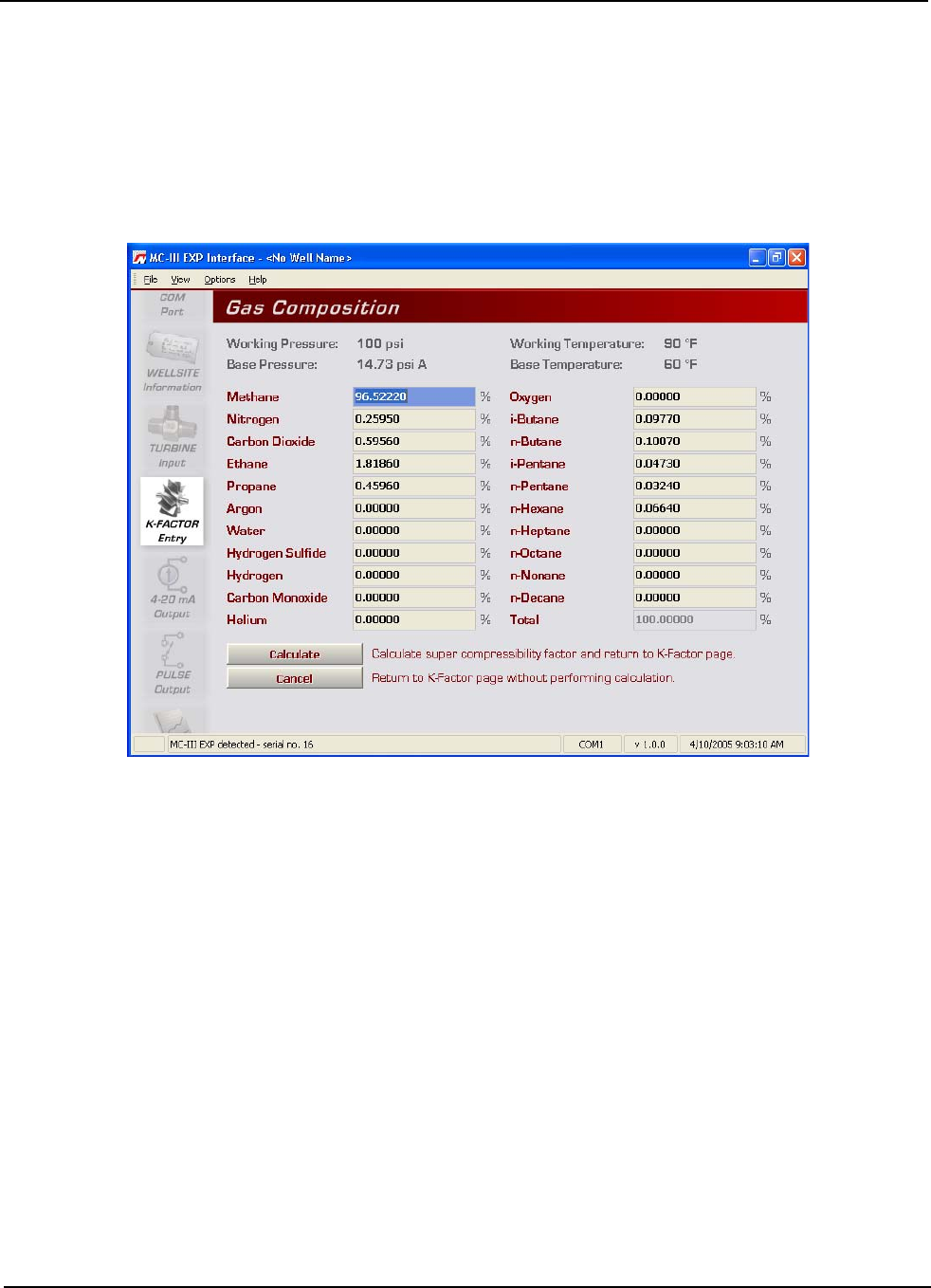

Gas Volume Correction
Gas turbine meters are calibrated in actual cubic feet (ACF), and measure gas in actual cubic feet. In some
applications, a user may benet from referencing gas measurements back to standard conditions by measuring
in terms of standard cubic feet (SCF). The MC-III WP makes this process quick and easy, by using xed
average values for the owing gas temperature and owing gas pressure. See Gas Volume Correction, page
63, for more information.
Input Options
The owmeter signal can be obtained from a magnetic pickup or a pre-amplier device. The sensitivity of
the owmeter input may be adjusted with the instrument keypad or the interface software. See Section 2 for
wiring diagrams. See Sections 3 and 4 for conguration procedures.
Output Options
The MC-III WP standard circuitry provides:

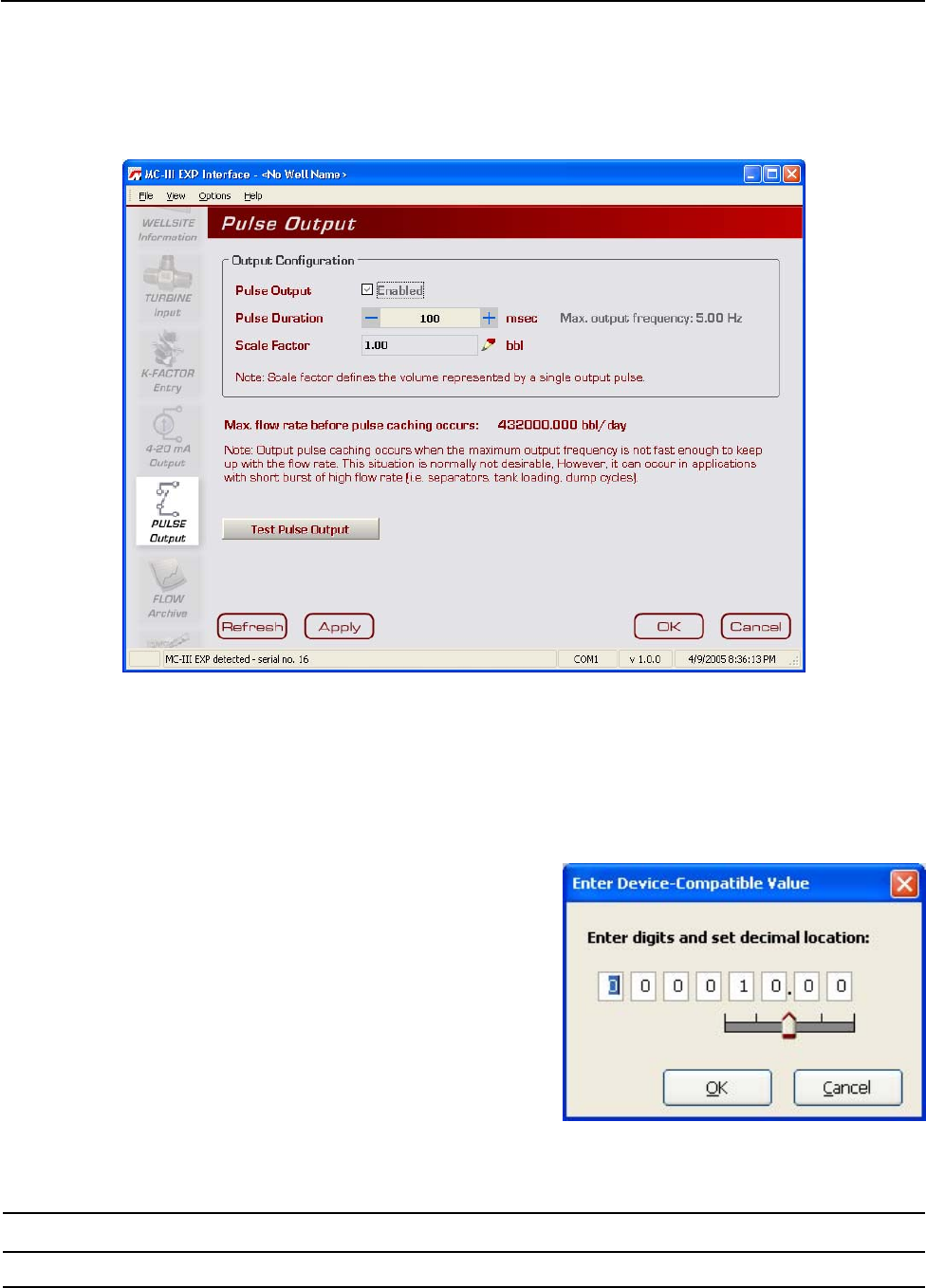

• a scaled pulse output representing an increment in volume for each pulse

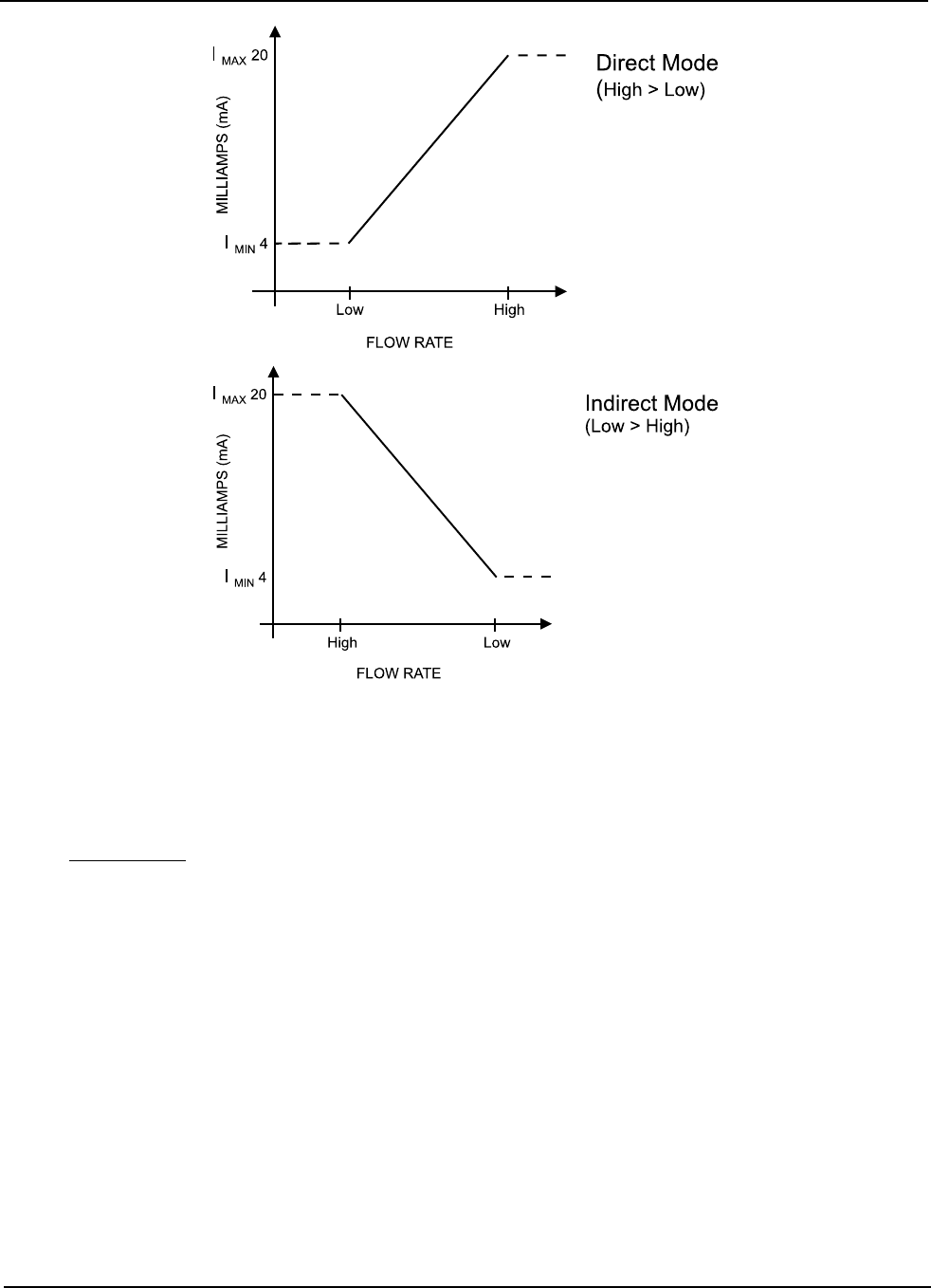

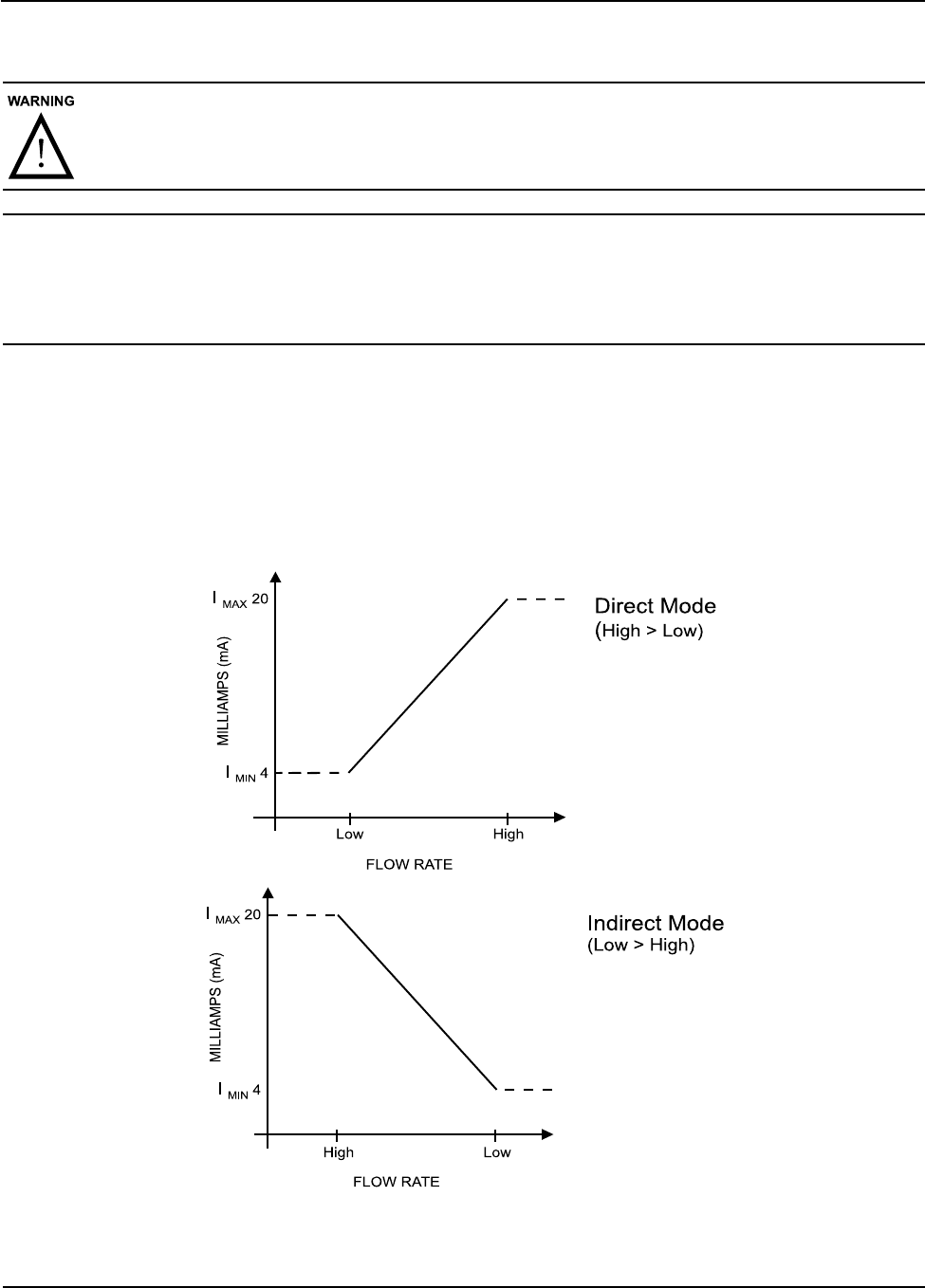

• a loop-powered 4-20 mA output representing the ow rate
• a owmeter frequency output for use with remote equipment to derive ow rate and volume
• an RS-485 output for communication with interface software or other telemetry equipment
When the 4-20 mA rate output feature is used, the MC-III WP is powered by the current loop, and the lithium
battery or alkaline batteries are used as a backup supply.
The pulse output and 4-20 mA output features should be turned off when not required for reduced current

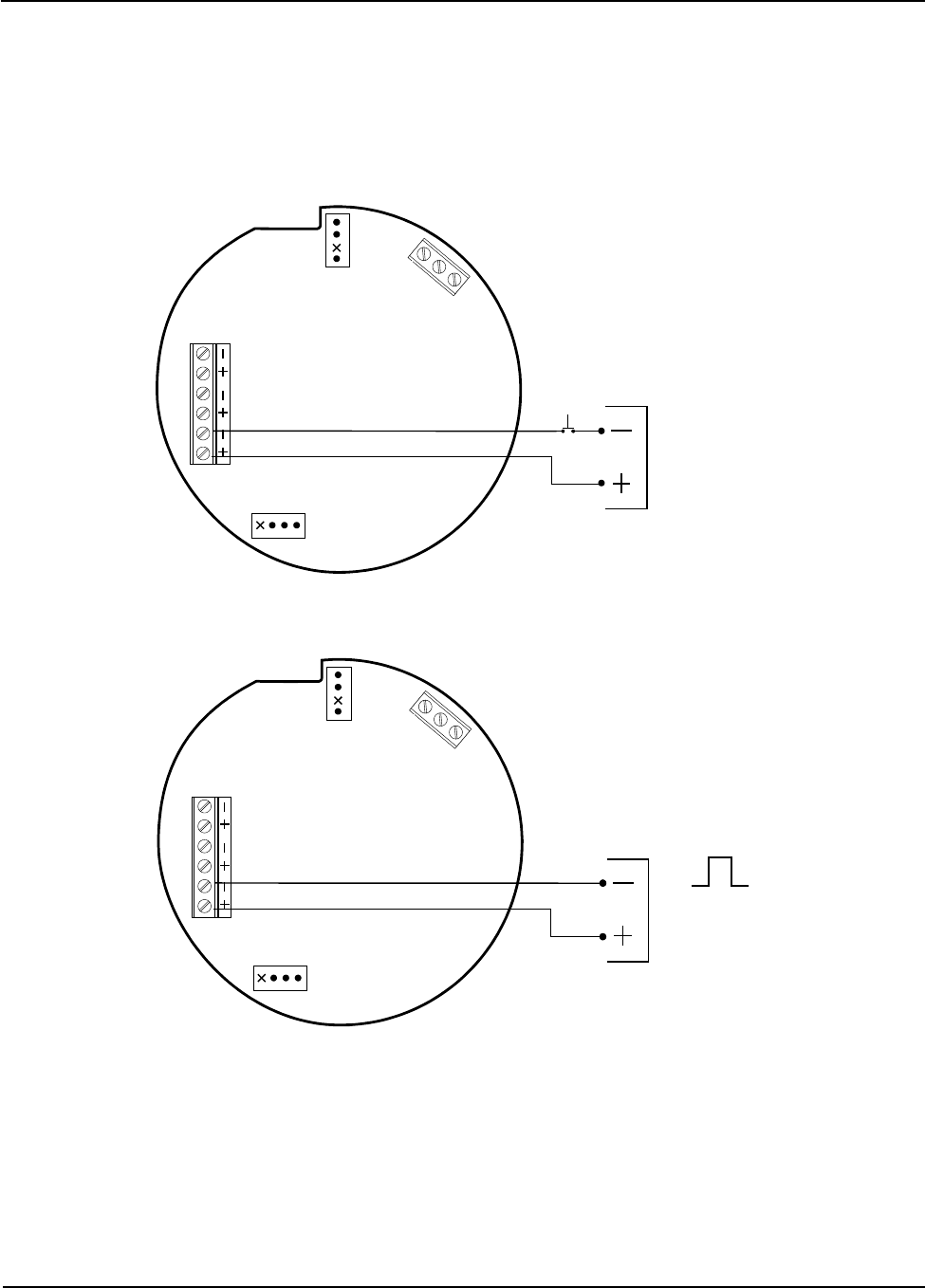

consumption. See Section 2 for wiring diagrams. See Sections 3 and 4 for conguration procedures.
Flow Log Archival
The MC-III WP saves up to 384 daily logs and 768 hourly logs in nonvolatile memory. By connecting with
the interface software, users can download the logs for viewing and/or printing in tabular format or in a trend
chart.
Users can also export daily and hourly logs to a spreadsheet. For more information, see Section 5.
Event Log Archival
The MC-III WP saves up to 345 user event logs. Event logs are generated to track user changes such as
K-factor changes, input setting changes, power-on reset and “watch-dog” reset, ow cut-off and frequency
cut-off.

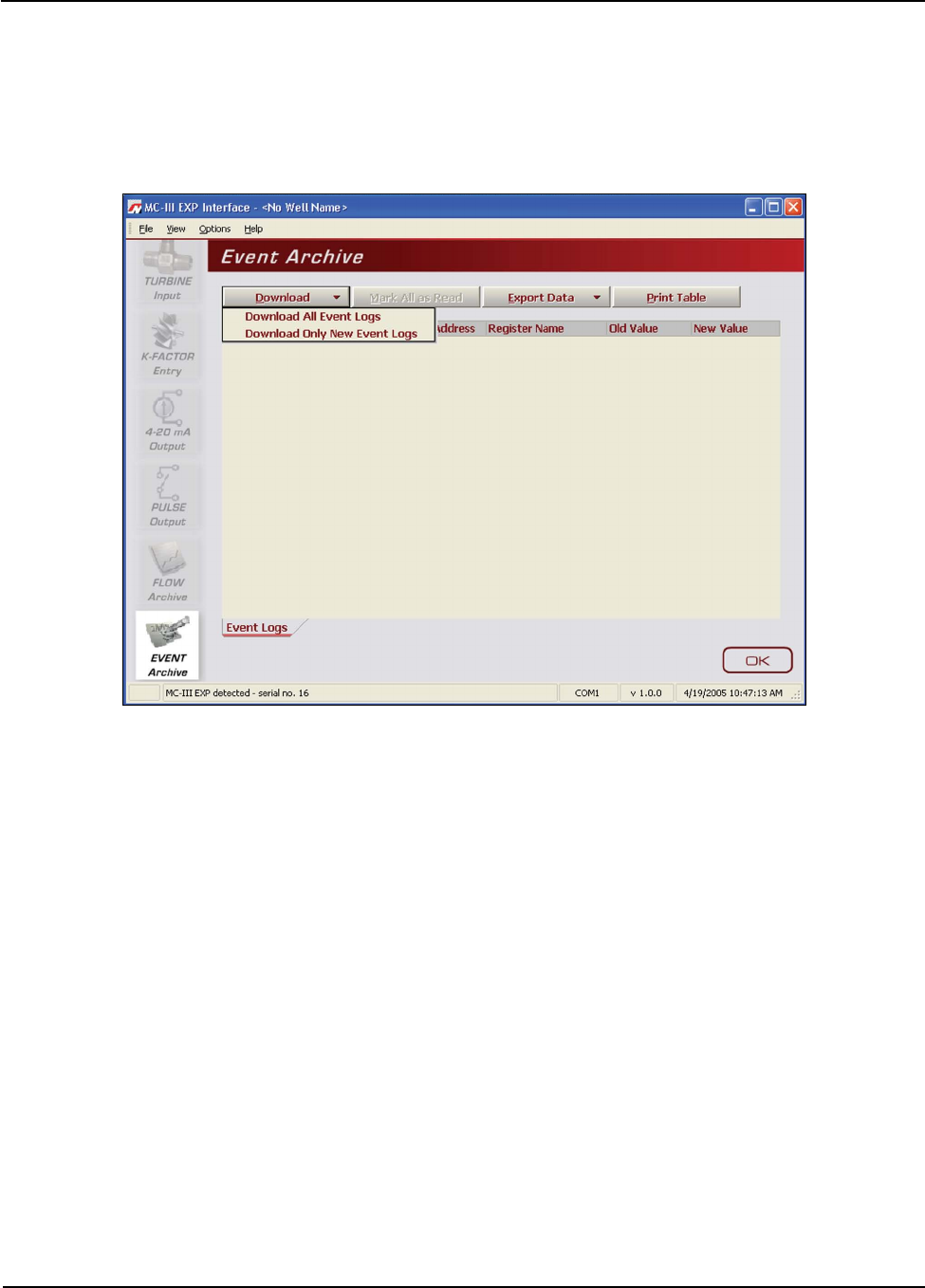

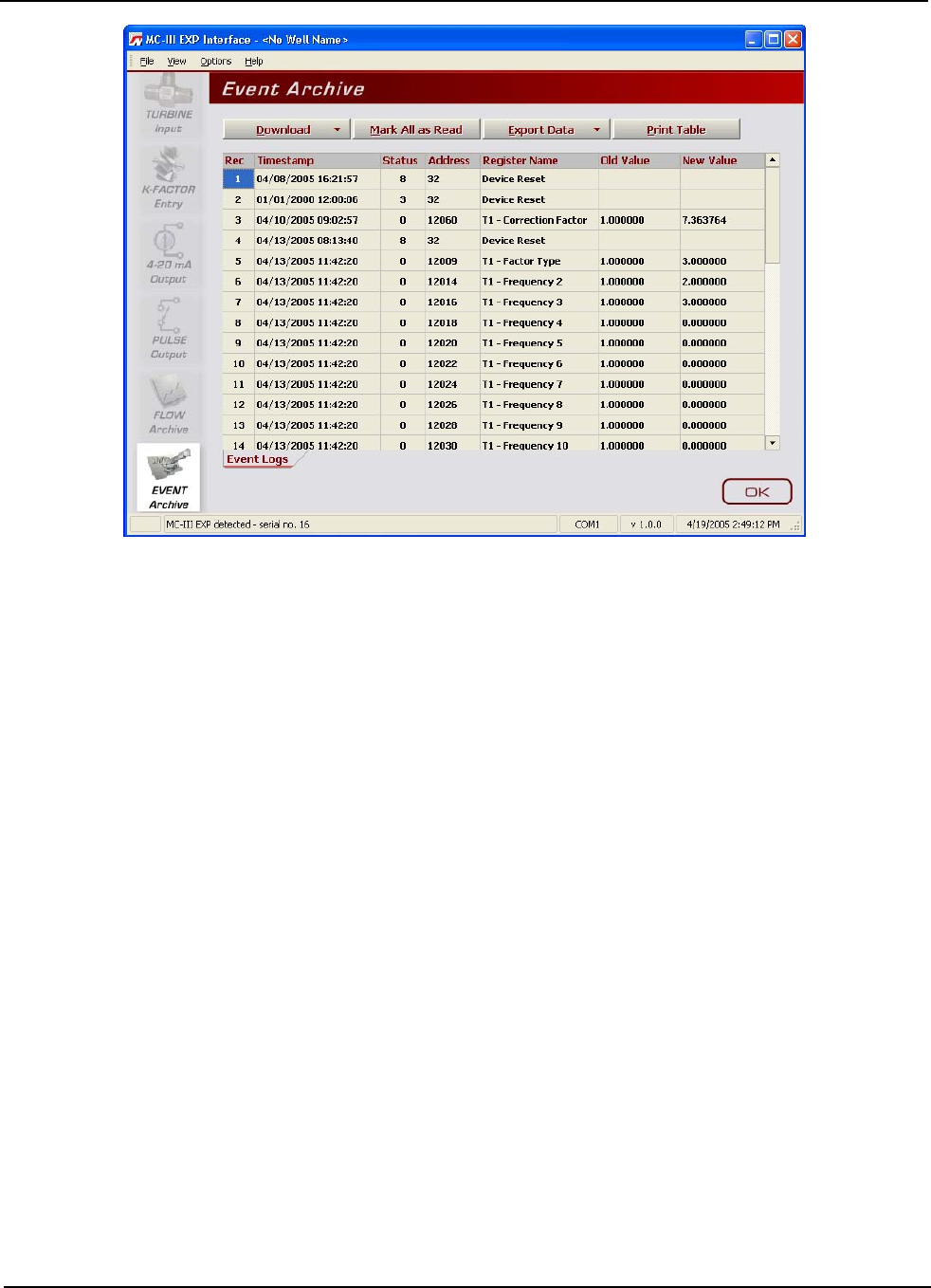

By connecting with the interface software, users can download the logs for viewing and/or printing in tabular
format. In addition to showing old and new values, each event log is time-stamped, and includes the register
associated with the change. For more information, see Section 5.
Password-Protected Security
A keypad security access code prevents unauthorized personnel from altering the calibration or accumulated
volume data in the instrument. The security feature may be disabled if this protection is not required.
8
Section 1 MC-III™ WP Flow Analyzer
Password-protected security access is enabled using the interface software. When this feature is enabled,
the user will be prompted for a password when attempting to enter any menu from the keypad. For more
information, see Security Setup, page 55.
Commonly Used Functions
While the functions of the MC-III WP are too numerous to mention, some of the most commonly used
functions are detailed in this section. They include:
• reading the rate and accumulated total
• saving totals to memory
• resetting the total
• viewing daily and hourly logs
• saving and uploading conguration les
• exporting log data to spreadsheet
• saving log data in a report
Reading Totals
Current totals can be viewed from the LCD on the front of the MC-III WP or from the interface software
(MC-III Main screen). The software calculates the ow total and updates the LCD display every 4 seconds, by
default. The user can adjust the calculation period with the interface software. See Calculation Period, page
60, for more information.
Saving Totals to Memory
Hourly and daily totals are automatically saved to nonvolatile memory. A user may also save an accumulated
total at any time by opening the enclosure and pressing ENTER (SAVE) on the keypad. In the event of a
power failure, the last saved total will be displayed on the LCD when power is restored.
Important: Always save the accumulated total before replacing batteries.
Resetting the Total
Totals can be reset to zero using the keypad, the interface software, or a pulse from an external device.
• To reset the total with the keypad, press LEFT ARROW (LOG) and ENTER (SAVE) keys simultaneously.

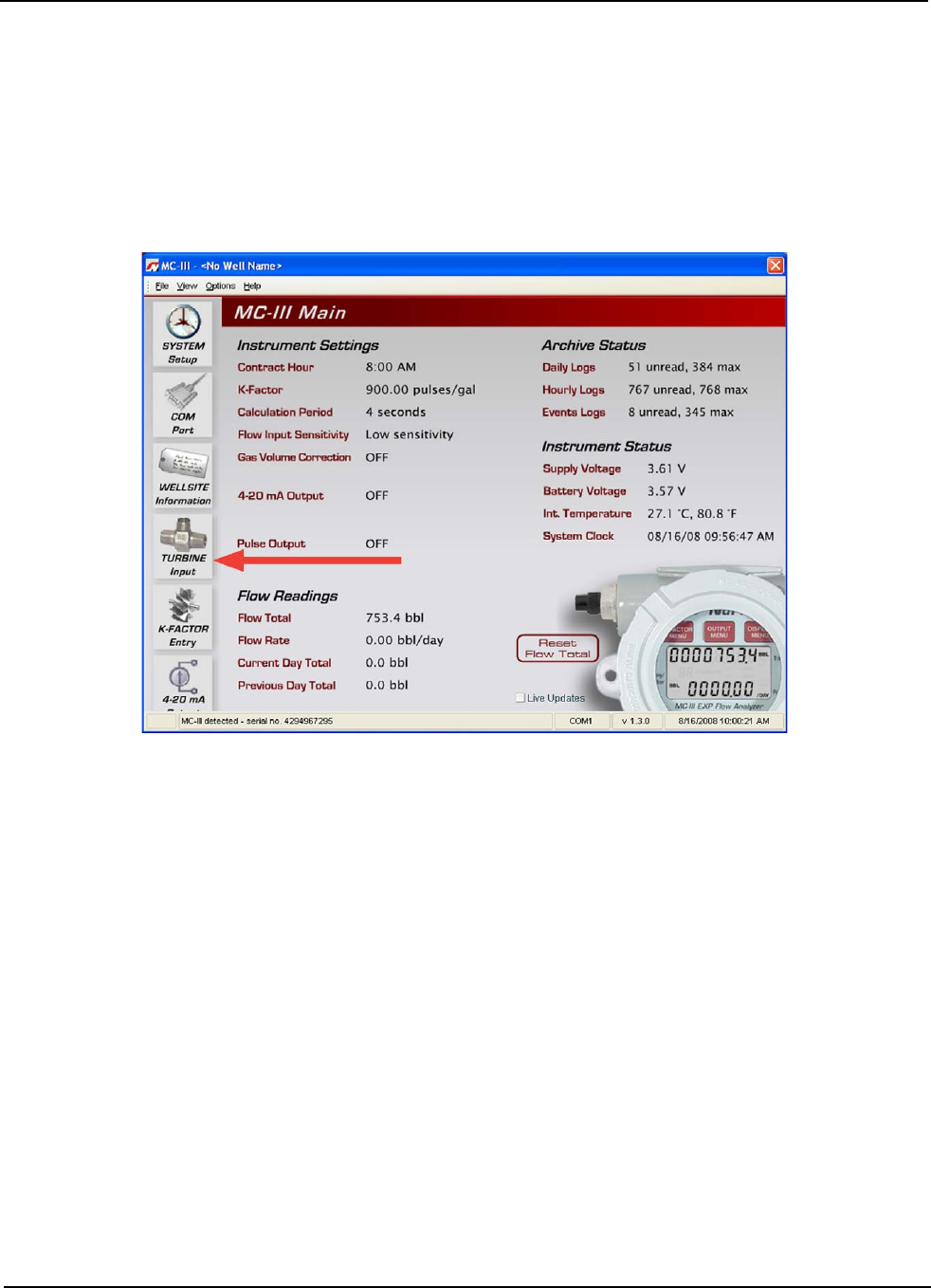

• To reset the total with the interface software, double-click the MC-III icon on the computer desktop and
wait for the software to connect to the instrument; then select MC-III Main from the Device Autorun Op-
tions screen, and click on the “Reset Flow Total” button in the lower right corner of the Main screen.

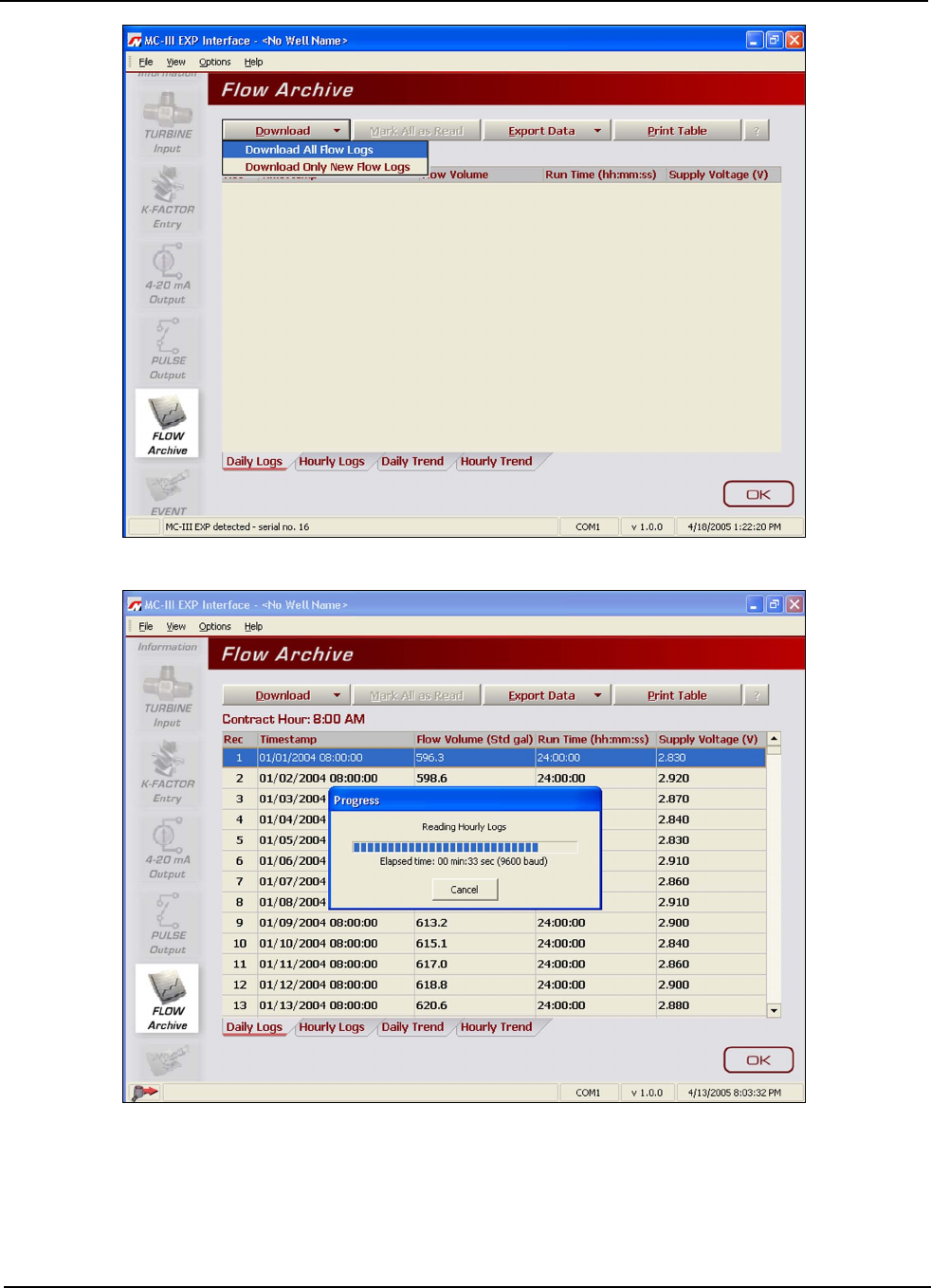

Viewing Daily and Hourly Logs
Each day, as the user-dened contract hour passes, a daily ow total is saved to nonvolatile memory. Hourly
logs are also automatically saved. A total of 384 daily logs and 768 hourly logs are accessible for viewing and
exporting using the interface software. See Section 5 for details.
Up to 99 daily ow log totals can be viewed from the LCD. Hourly ow log totals are accessible only through
the interface software.
9
MC-III™ WP Flow Analyzer Section 1

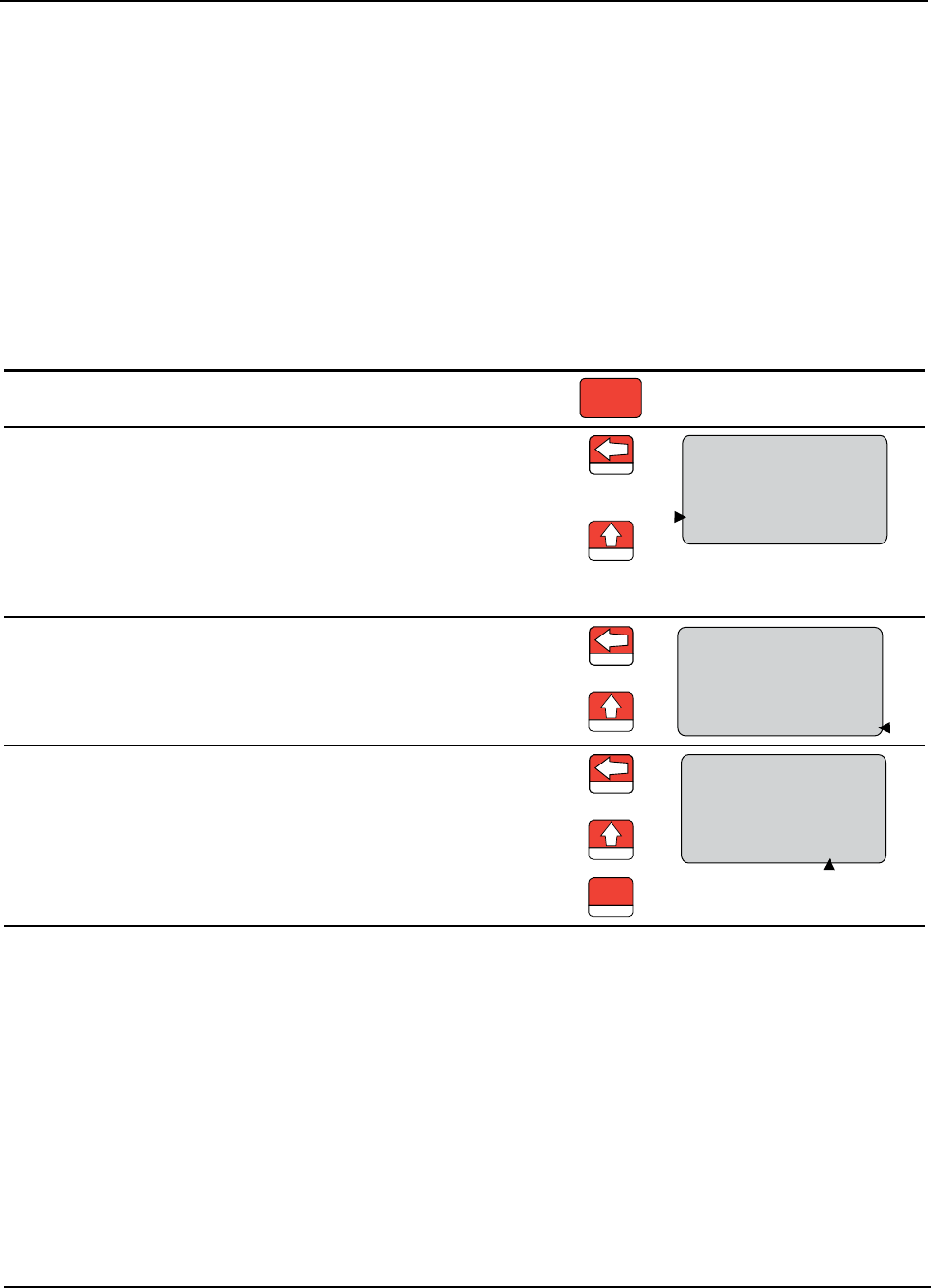

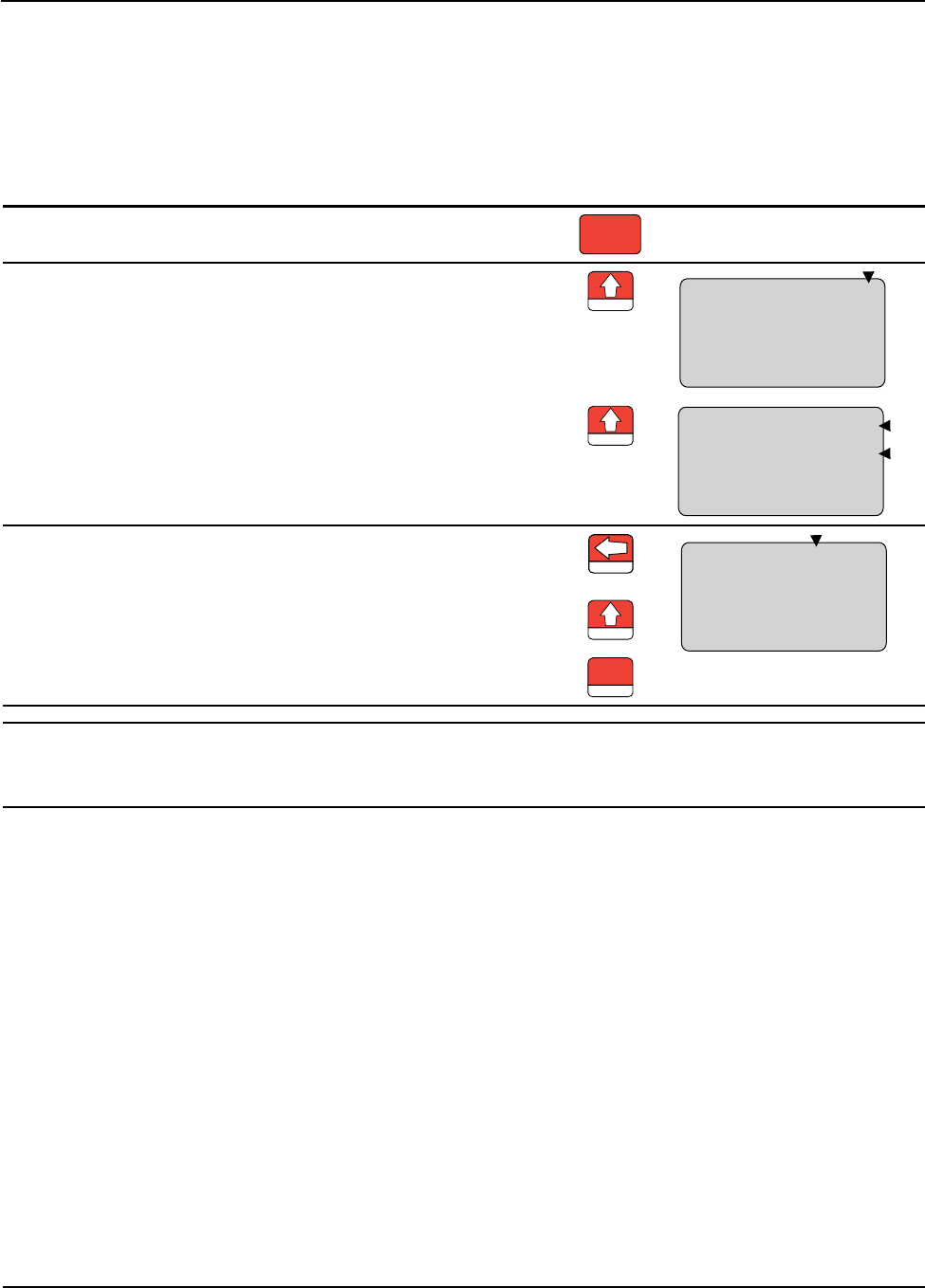

To view daily ow totals from the LCD, perform the following steps:
1. Press the LEFT ARROW (LOG) key on the keypad. The words “Daily Volume Archive” will scroll across
the bottom of the LCD and the day index will display “01.” The daily ow total recorded at the last con-
tract hour will appear at the top of the LCD.
The index number represents the number of days previous to the current date. For example, yesterday’s
totals are read by entering an index of “01”; totals from two days previous are read by entering “02.”
2. Press UP ARROW (TEST) to increment the index (01, 02, 03...); press LEFT ARROW (LOG) to decre-
ment the index (01, 99, 98...).
3. Press Enter (Save) to exit the Daily Volume Archive menu. (After 2 minutes of inactivity, the Daily Vol-
ume Archive menu will time out and the total readout will be restored automatically.)

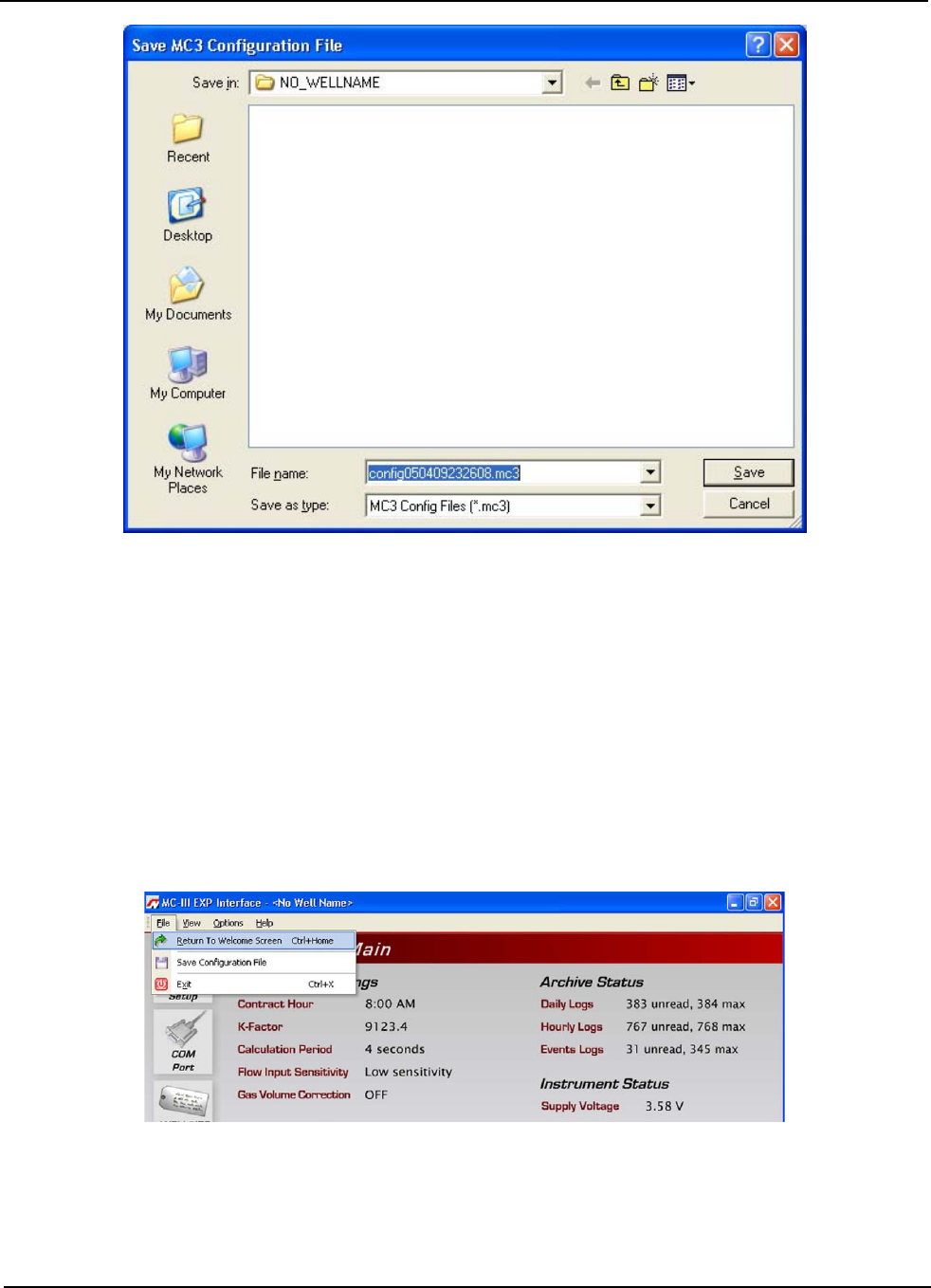

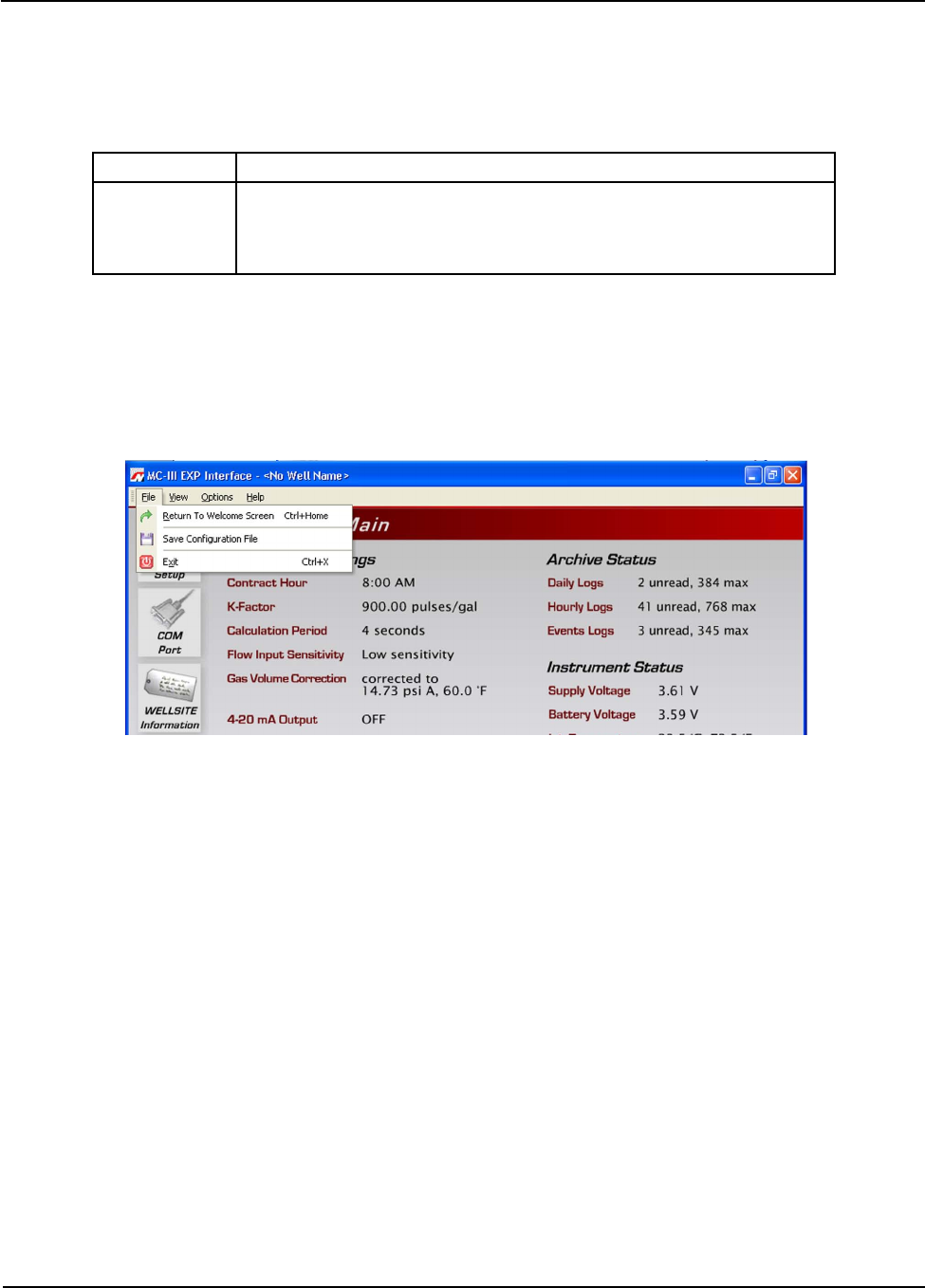

Saving and Uploading Conguration Files
The MC-III interface software allows users to save an unlimited number of conguration les to their
computer. In the event that a conguration setting gets changed unintentionally or a user simply wants to
restore the settings he used previously, the user can upload the conguration le and resume operation within
minutes. The upload function also allows a conguration le to be loaded quickly into multiple devices. The
default directory for saving conguration les is C:\NuFlo log data\MC-III. However, MC-III WP users can
specify a different location, if desired.
For complete information, see Saving and Uploading Conguration Files, page 71.

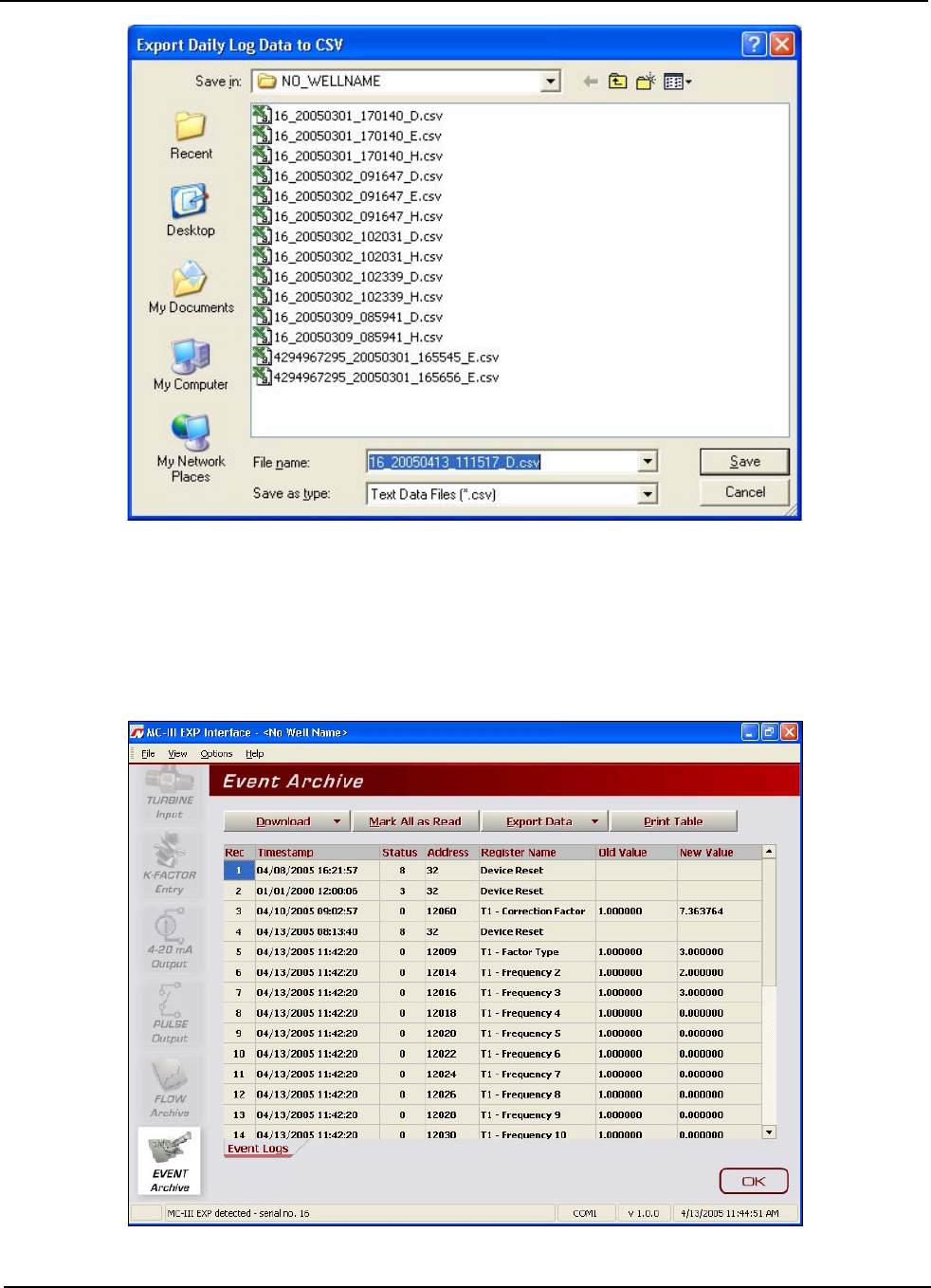

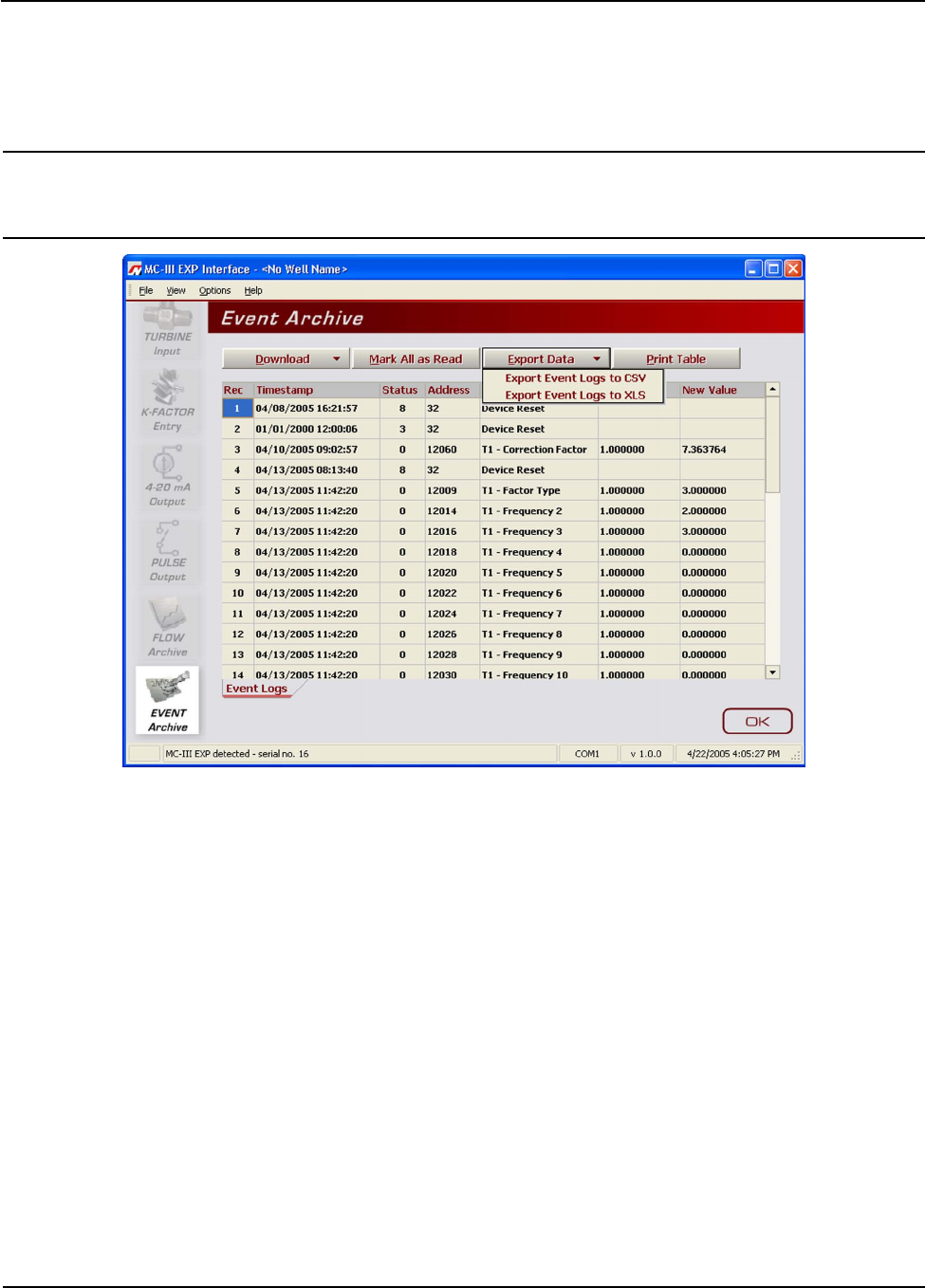

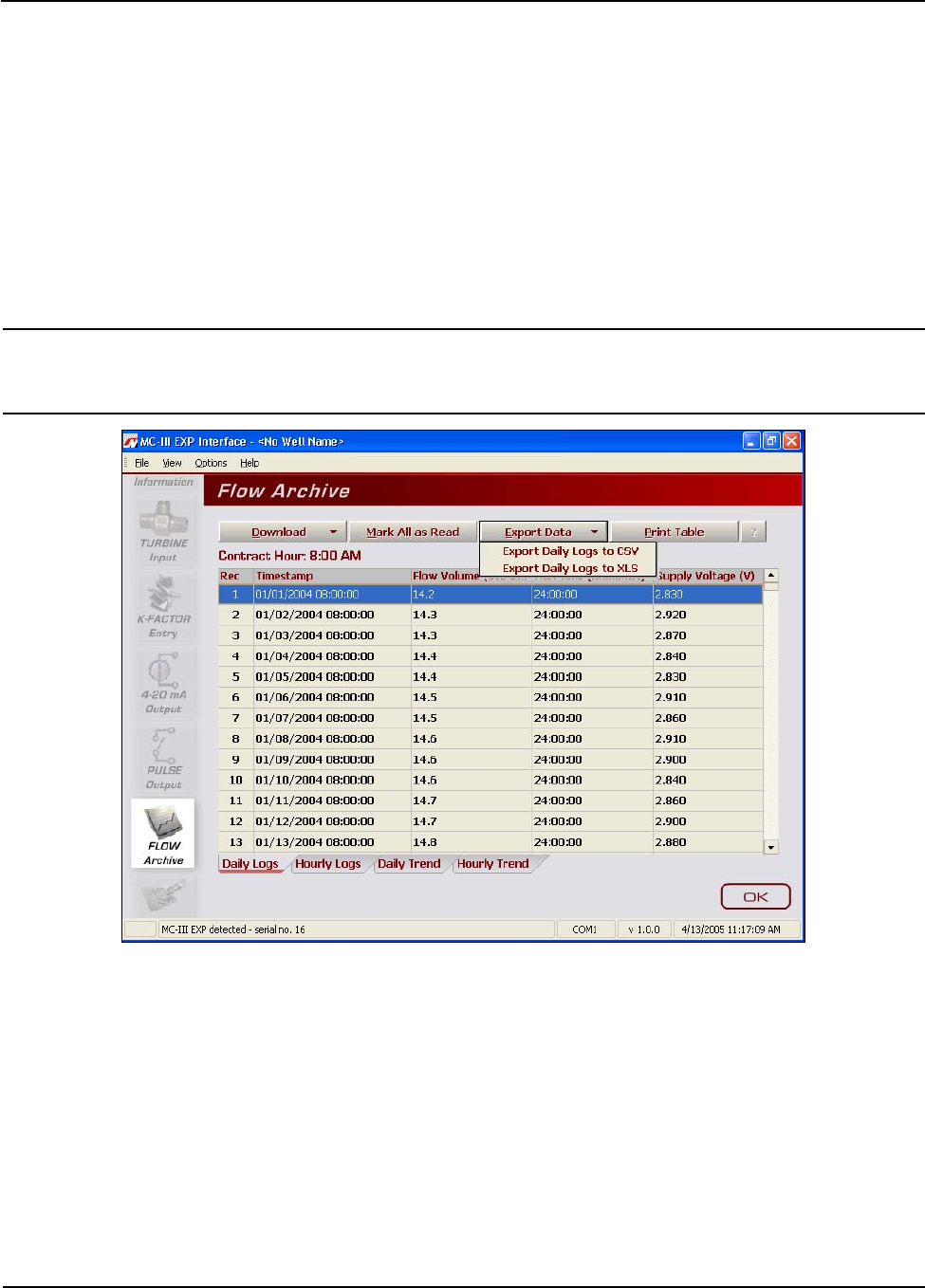

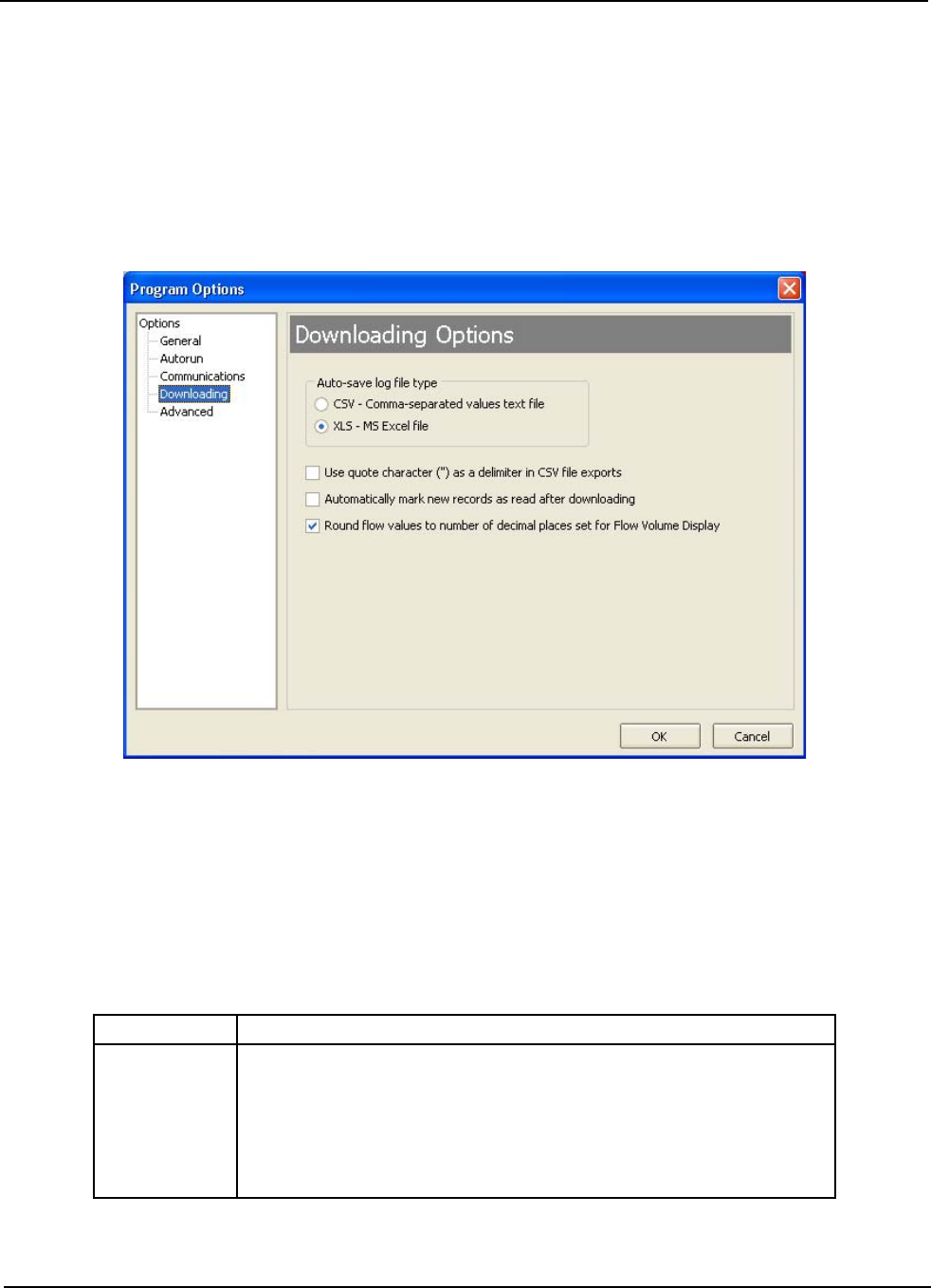

Exporting Log Data

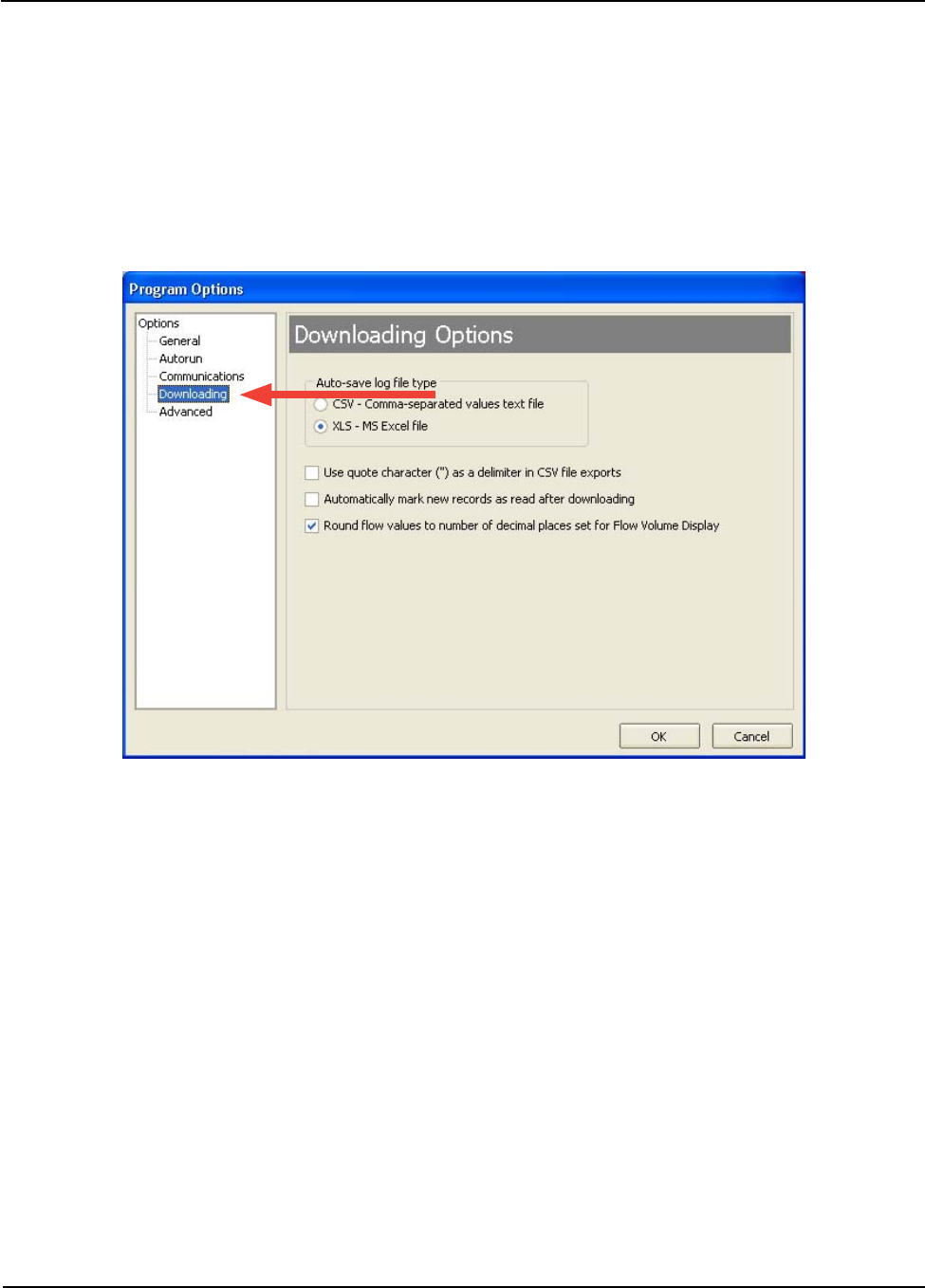

Flow logs and event logs can be directly exported to an .xls or .csv le. For complete information, see
Exporting Flow Logs, page 83, and Exporting Event Logs, page 86. The default directory for exported logs is
C:\NuFlo log data\MC-III. However, MC-III WP users can specify a different location, if desired.

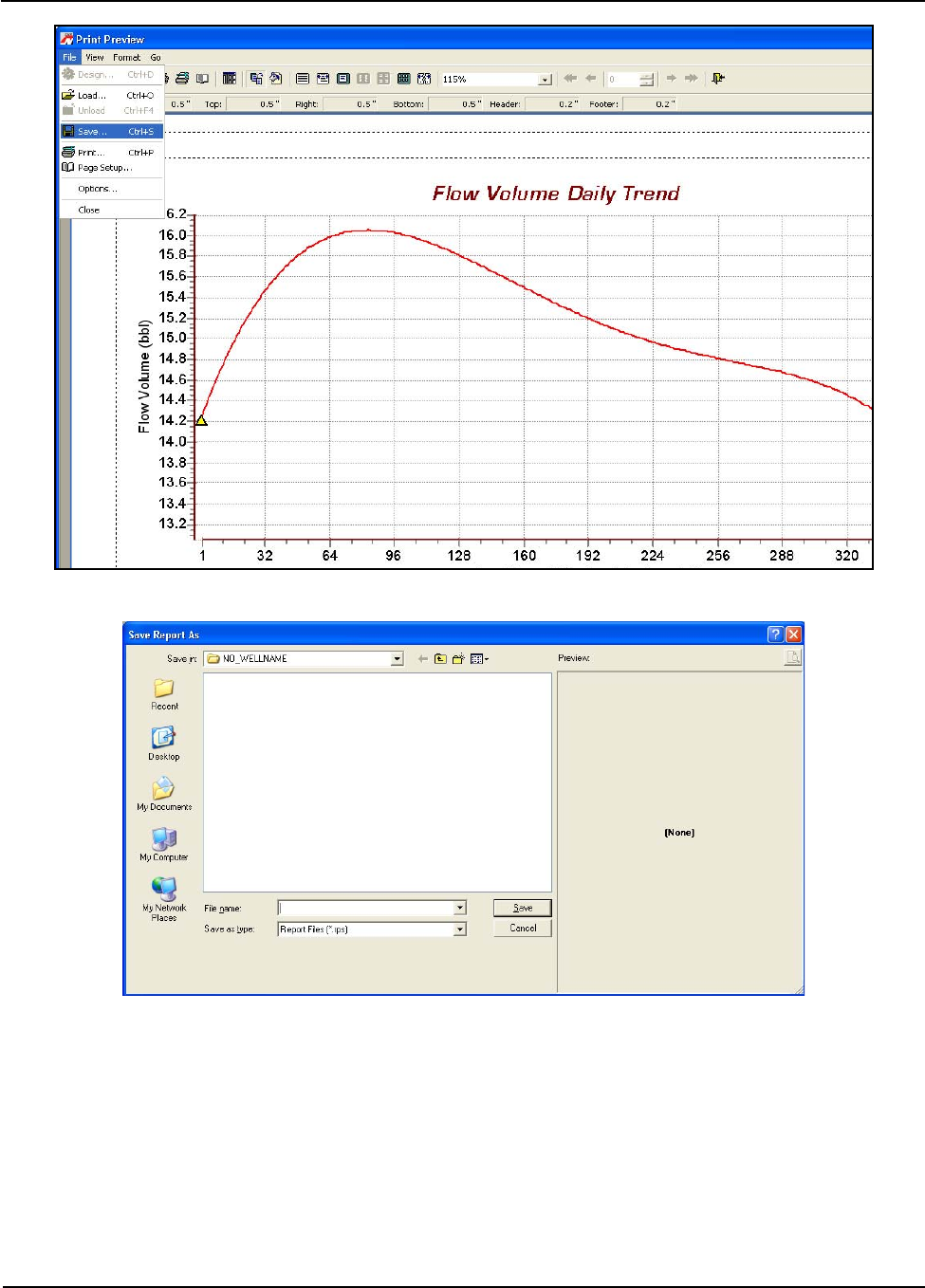

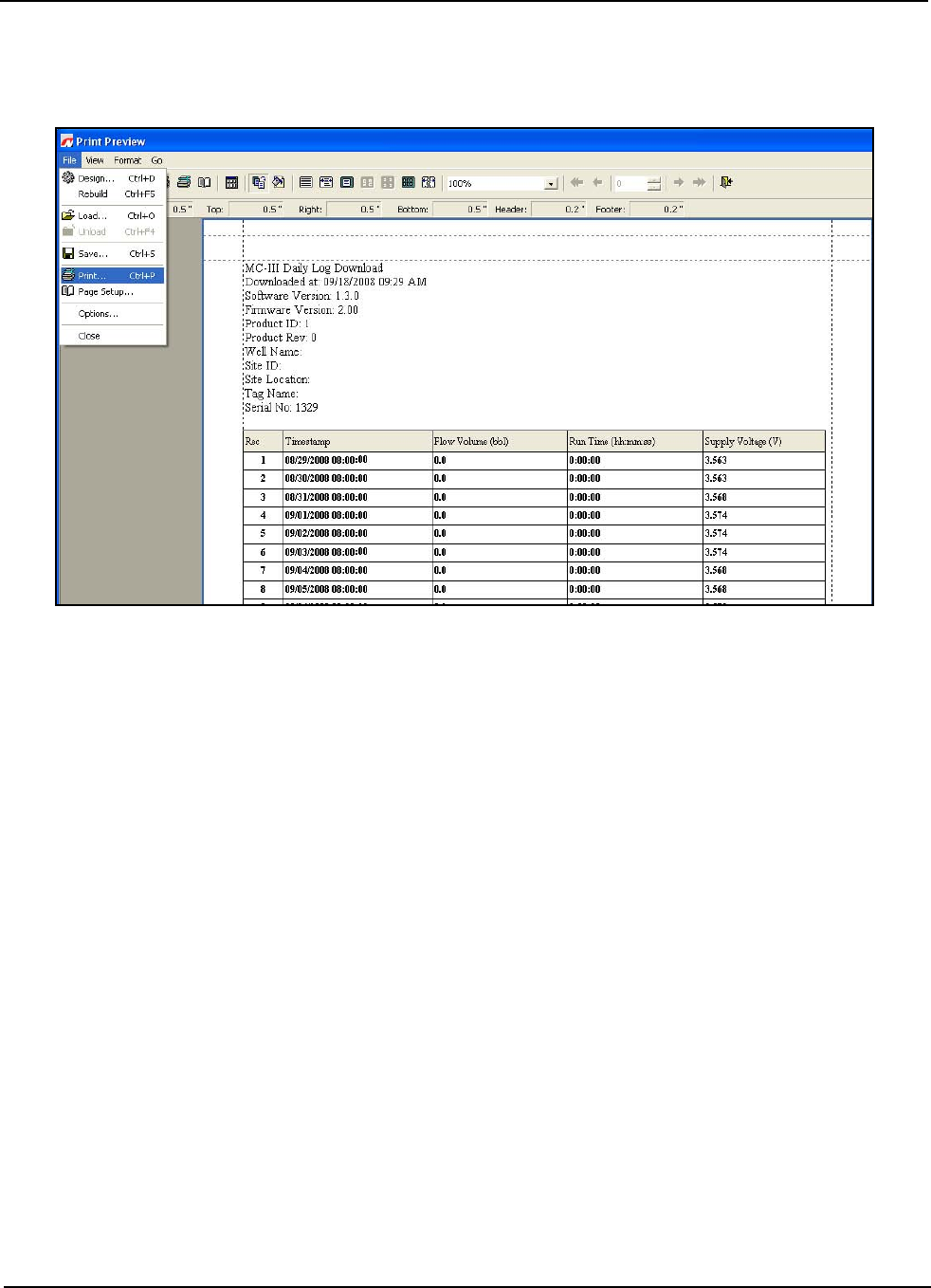

Saving Log Data in a Report
Flow logs can be saved in a report format that can be loaded back into the software for viewing or printing at
a later time. For complete information, see Printing/Saving a Report, page 79. The default directory for log
reports is C:\NuFlo log data\MC-III\<WELL NAME>. However, MC-III WP users can specify a different
location, if desired.
10
Section 1 MC-III™ WP Flow Analyzer
11
MC-III™ WP Flow Analyzer Section 2
Section 2—Installation
The MC-III™ WP is fully assembled at the time of shipment and ready for mounting to a owmeter.
Instruments for direct-mount installation include an enclosure attached to a threaded mount (Figure 2.1, page
12). Remote-mount instruments come with mounting brackets and bolts for attaching the instrument to a
vertical or horizontal pipe.
The MC-III™ WP is CSA-approved for Class I, Div. 2, Groups A, B, C, and D for use in hazardous locations.
Important: Before installing the MC-III™ WP, read the Important Safety Information section on the
inside cover of this manual.
Preparation
Before attempting to install the MC-III WP, make sure the owmeter and magnetic pickup are installed as
follows:
1. Install the turbine owmeter in the ow line.
2. Lightly grease the threads on both ends of the magnetic pickup, taking care to keep grease off of the con-
nector contacts. If the connector is plastic, apply grease only to the end that threads into the meter.
3. Install the magnetic pickup in the owmeter.
4. After the owmeter and magnetic pickup are installed in the ow line, mount the MC-III WP ow ana-
lyzer as described below.
Direct-Mount Installation
To install the MC-III WP on a turbine owmeter, perform the following steps. Dimensions are provided in
Figure 2.2, page 13.
1. Position the MC-III WP above the owmeter.
2. Plug the MC-III WP cable connector into the magnetic pickup and hand-tighten the knurled nut on the
connector.
3. Screw the MC-III WP mount onto the owmeter threads surrounding the magnetic pickup.
4. With the display facing the desired direction, tighten the two screws on either side of the mount to prevent
horizontal shifting.
With the display oriented vertically in the desired direction, tighten the two hex-head bolts on either side of
the top section of the mount to prevent vertical shifting.
12
Section 2 MC-III™ WP Flow Analyzer
Weatherproof
enclosure
Conduit hub
(1 supplied; capacity for 3)
Turbine flowmeter
Two-piece swivel
mount (included
with direct-mount
instruments only)
Screws for locking
horizontal position
of instrument (2 typ.)
Cable connector
Cable assembly
Magnetic pickup
Figure 2.1—MC-III WP to owmeter connection
The MC-III WP ships with one
conduit hub and two plugs. Plugs
can be removed as required to
accommodate up to two additional
customer-supplied conduit hubs.
13
MC-III™ WP Flow Analyzer Section 2
Figure 2.2—Typical mount dimensions in inches (millimeters) for direct-mount installation
14
Section 2 MC-III™ WP Flow Analyzer
Remote-Mount Installation on Vertical Pipe
The remote-mount MC-III WP Flow Analyzer is assembled at the factory for mounting on a vertical pipe. To
install the MC-III WP on a vertical pipe, perform the following steps. Dimensions are provided in Figure 2.3.
1. Place the “U” bolts around the vertical pipe section and through the mounting plate.
2. Fasten the mounting plate with the lock washers and nuts supplied with the “U” bolts.
3. Install the signal cable through the rear cable connector at the bottom of the enclosure.
4. Route the cable to the owmeter and install as shown in the owmeter user manual.
Figure 2.3—Typical mount dimensions in inches (millimeters) for remote-mount installation on vertical pipe
15
MC-III™ WP Flow Analyzer Section 2
Remote-Mount Installation on Horizontal Pipe
The remote-mount MC-III WP Flow Analyzer is assembled at the factory for mounting on a vertical pipe.
To install the MC-III WP on a horizontal pipe, the brackets must be removed and reattached in a different
position. To make the adjustment, perform the following steps. Dimensions are provided in Figure 2.5, page
16.
1. Place the enclosure on its face and remove the four screws securing the brackets. Remove the brackets
and set aside the eight spacer at washers (two at each screw hole). Retain the screws and washers for
use in steps 2 and 3. Note the two sets of mounting holes in the bracket. The screws are positioned in the
holes nearest the center of the bracket (as appropriate for vertical mounting) when the instrument leaves
the factory (Figure 2.4).
2. Dry-t the brackets with the mounting holes in the enclosure so that a bracket extends to the right and left
of the enclosure (as opposed to top and bottom). Using the washers that were removed in step 1, place
two washers inside each screw hole inset in the enclosure and position the brackets on top of the washers
so that the enclosure screw holes align with the outer holes of the bracket.
3. Insert the screws that were removed in step 1 in the outer holes of the bracket and tighten with a screw-
driver (Figure 2.4).
4. Place the “U” bolts around the horizontal pipe section and through the mounting plate.
5. Fasten the mounting plate with the lock washers and nuts supplied with the “U” bolts.
6. Install the signal cable through the rear cable connector at the bottom of the enclosure.
7. Route the cable to the owmeter and install as shown in the owmeter user manual.

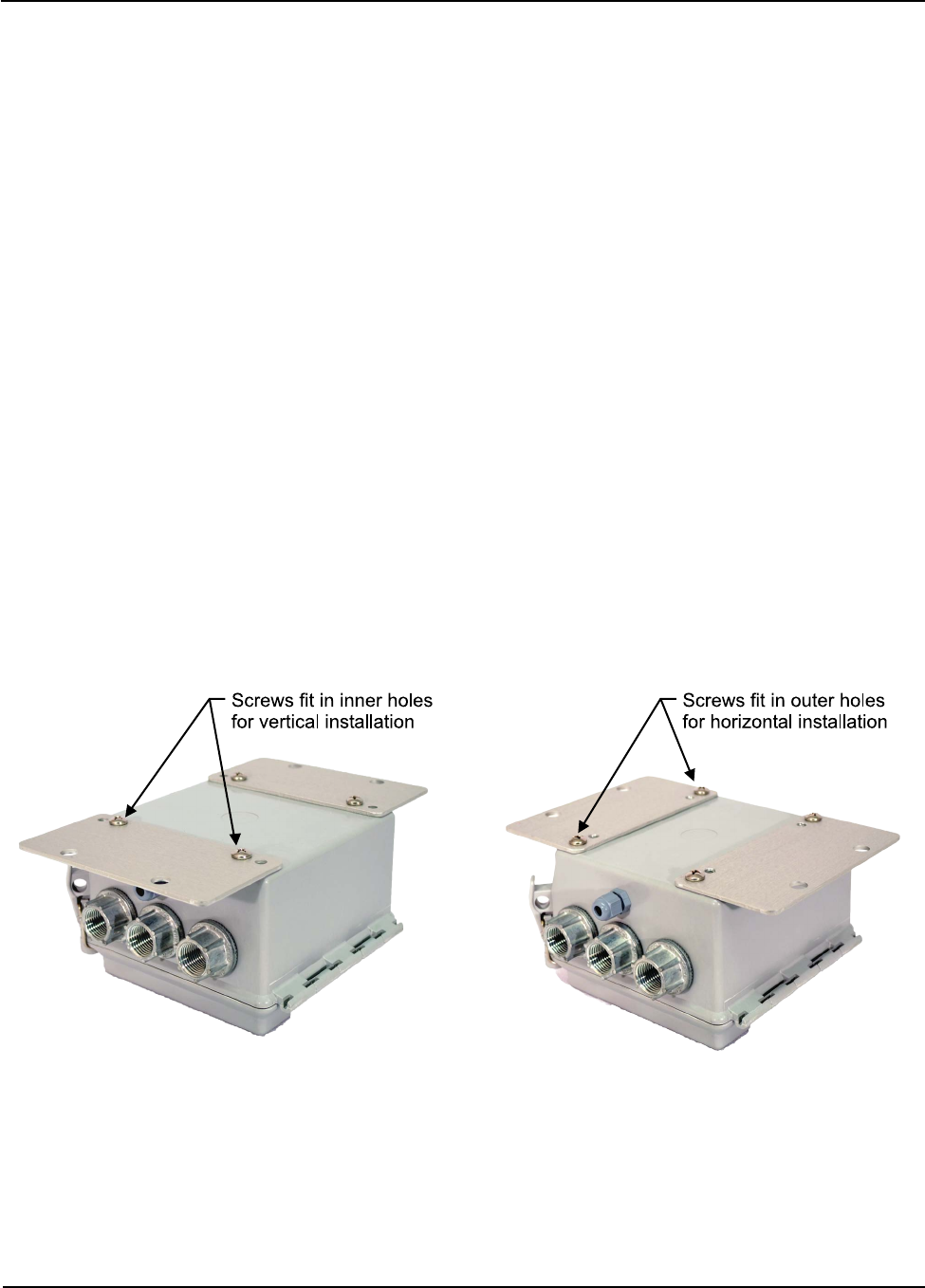

Figure 2.4—Conversion of brackets for mounting instrument to horizontal pipe
16
Section 2 MC-III™ WP Flow Analyzer
Figure 2.5—Typical mount dimensions in inches (millimeters) for remote-mount installation on horizontal pipe
17
MC-III™ WP Flow Analyzer Section 2
Field Wiring Connections
All eld wiring enters the MC-III WP through the bottom of the enclosure and connects to the circuit
assembly inside the enclosure door. Wiring is routed through up to three conduit hubs (one hub is provided
with the unit and two additional entrances are plugged but available for use with customer-supplied hubs). A
rear cord connector is used for the magnetic pickup from the turbine meter.
Hazardous Area Precautions
Do not attempt to install the battery or connect eld wiring unless the area has been de-
classied or is known to be non-hazardous.
Wiring Procedure
Caution: All eld wiring must conform to the National Electric Code, NFPA 70, Article 501-4(b) for
installations within the United States or as specied in Section 18-156 of the Canadian
Electrical Code for installations within Canada. Local wiring ordinances may also apply.
All eld wiring must have a wire range of 22 to 14 AWG and terminal block screws must
be tightened to a minimum torque of 5 to 7 in-lbs. to secure the wiring within the terminal
block. Only personnel who are experienced with eld wiring should perform these proce-
dures.
The instrument must be grounded with a protective earth grounding conductor in accor-
dance with national and local electrical codes. See step 3 of the wiring procedure below.
To wire the MC-III WP for operation, complete the following eld connections:

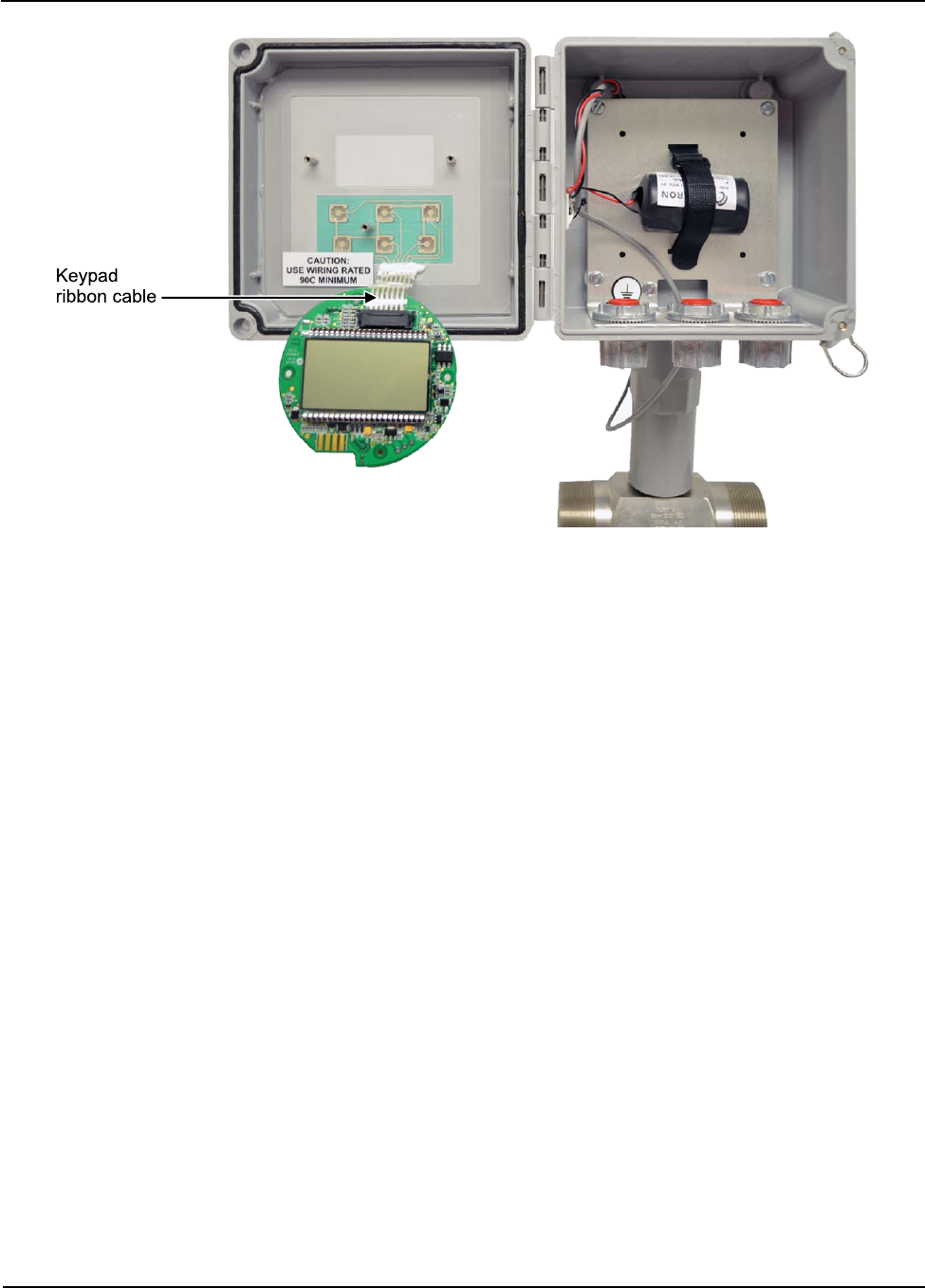

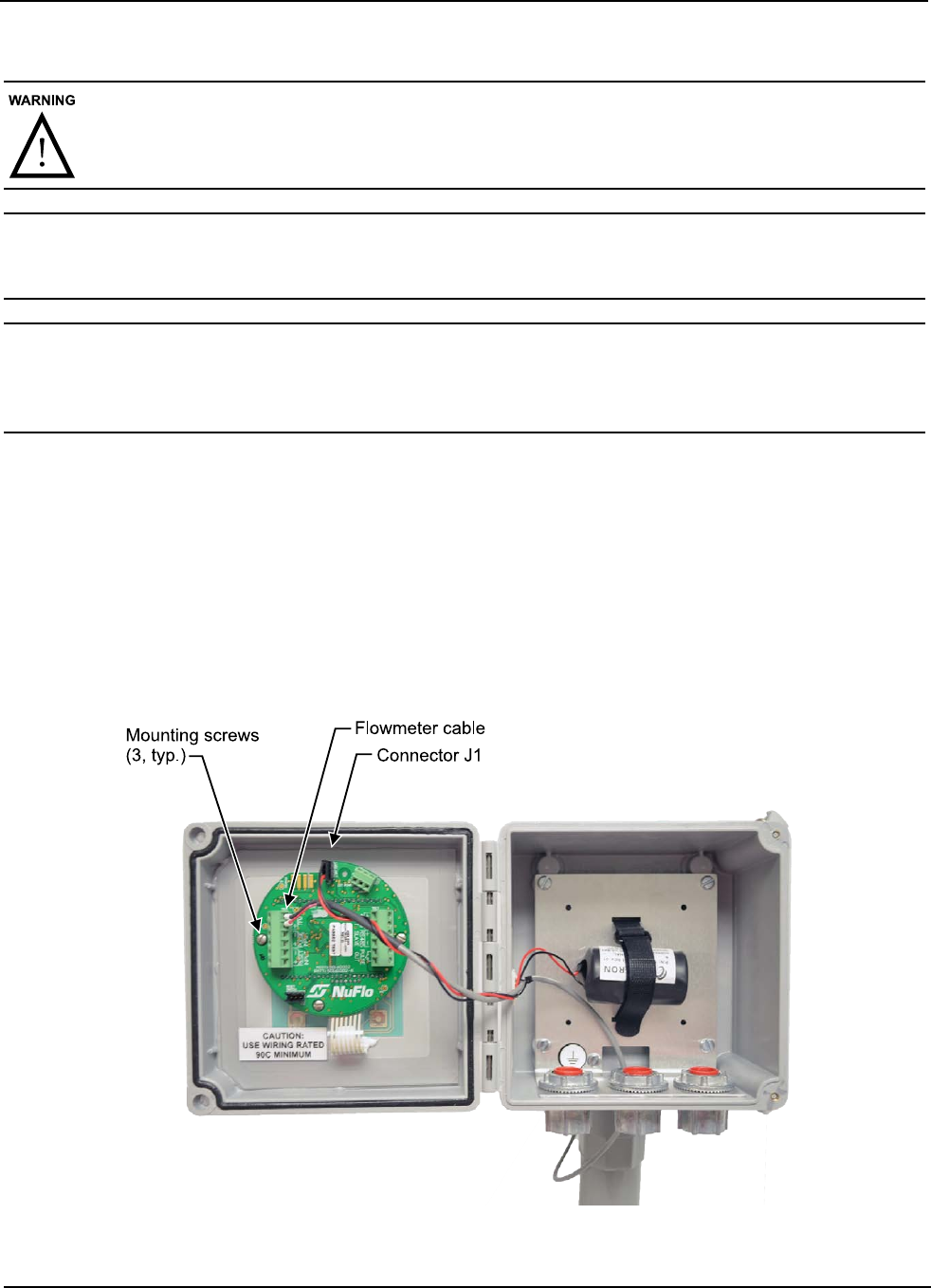

1. Unlatch the door of the enclosure to access the circuit assembly mounted inside the door.
2. Connect the lithium battery or alkaline battery holder to the J1 connector on the circuit assembly.
3. Connect a ground wire to the internal ground connection screw located inside the enclosure. The screw
is identied with the ground symbol, as shown in Figure 2.6, page 18. For DC-powered installations,
route the protective earth grounding conductor into the enclosure with the incoming power conductors.
4. Connect wiring for external power, if appropriate. See Figure 2.7, page 19.
5. Connect the owmeter or pulse input wiring to terminal block TB1. See Figure 2.8 and 2.9, page 20.
6. Connect wiring for the remote reset input to terminal block TB1, if appropriate. See Figure 2.10 and 2.11,
page 21.
7. Connect wiring for output signals, if appropriate. See Figure 2.12 through 2.17, pages page 22 through
page 25.
8. Recalibrate the MC-III WP (if necessary).
9. If external and internal power supplies were removed, reset the clock to ensure that the time stamps in the
log data are accurate. The clock is reset using the MC-III interface software. See Time/Date Synchroniza-
tion, page 54.
10. Replace the enclosure cover by threading it onto the enclosure in a clockwise direction.
18
Section 2 MC-III™ WP Flow Analyzer

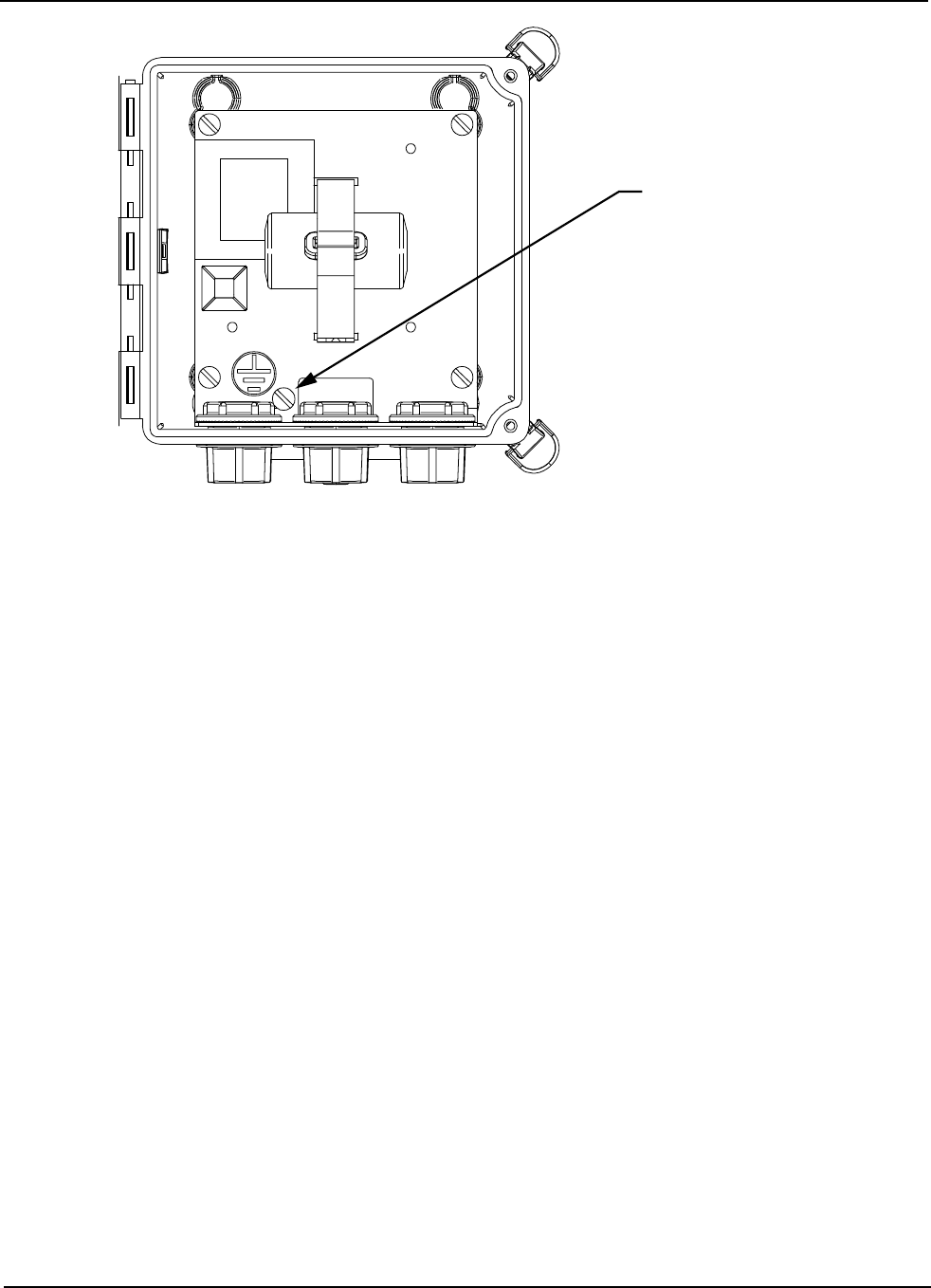

Ground screw
Figure 2.6—Ground connection screw (enclosure shown with door removed)
Power Supply Wiring
Internal Power Supply
The MC-III WP is shipped with either of two internal power supplies:
• a 3.6-V lithium battery
• alkaline battery holder containing three D-size batteries
Low-power microprocessor technology enables the MC-III WP analyzer to operate approximately 2 years on
a single lithium battery. The lithium battery is strongly recommended for use in extreme temperatures (below
-20°C).
Users can power the instrument from an external power supply or a 4-20 mA current loop, and use the lithium
or alkaline battery as a backup power supply. The use of an alternate power source extends battery life and
helps ensure that timekeeping and volume accumulation will not be interrupted during a power failure.
External Power Supply
The MC-III WP can be connected to a remote power supply by a two-conductor cable (Figure 2.7, page
19). The power supply and cable must be capable of supplying 6 to 30 VDC @ 10 mA. This capability is
available only if the 4-20 mA rate output is not used.
External Power Supply. The device will automatically switch to battery power when external power is
lost. The external power supply must be an approved ELV source, insulated from the AC main by double/
reinforced insulation per CSA C22.2 No. 61010-1-04 / UL61010-1 – 2nd Edition.
19
MC-III™ WP Flow Analyzer Section 2
Important: In all applications using an external DC power supply, a protective over-current device
rated at a 0.5A maximum (such as a circuit breaker or fuse) must be connected to the
positive supply line of the DC power supply in the safe area. A recommended protec-
tive device is a 0.5-A ceramic fuse, such as the Bussman GDS-500mA or the Littelfuse
216.500.
A disconnect switch must also be included in the safe area within easy reach of the oper-
ator, and clearly marked as the “disconnect” for the safe area external DC power supply.
Caution: The instrument must be grounded with a protective earth grounding conductor in ac-
cordance with national and local electrical codes. To ground the instrument, connect a
ground wire to the internal ground connection screw located inside the enclosure (Figure
2.7). For DC-powered installations, route the protective earth grounding conductor into
the enclosure with the incoming power conductors.
Caution: When using the amp & square output with the external power supply, make sure the
power supplies for both features share a common negative (-) terminal or that they are
totally isolated from each other, since both share a common negative (-) connection.
TB3
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
EXT POWER
TB2
RS485
SLAVE
4-20
OUT
PULSE
OUT
6-30 VDC
POWER
SUPPLY
6 to 30
VDC
J1
J2
RESET
SWITCH
BATTERY
GROUND SCREW
Figure 2.7—External power supply wiring
20
Section 2 MC-III™ WP Flow Analyzer
Input Wiring
If installing the MC-III WP in a hazardous area, do not attempt to install input wiring un-
less the area has been declassied or is known to be non-hazardous.
Turbine Flowmeter (TFM) Input
The TFM input provides the turbine owmeter input signal generated by a magnetic pickup, enabling the
MC-III WP to calculate and display instantaneous ow rates and accumulated totals.
6-30 VDC
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
TURBINE
MAGNETIC PICKUP
J1
J2
RESET
SWITCH
BATTERY
A
B
Figure 2.8—Flowmeter input wiring
Pulse Input
The pulse input provides an optically isolated input in systems where a preamplier is inserted between the
sensor and the MC-III WP.
TB3
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
EXT POWER
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
PULSE INPUT
3 TO 30 VDC
Figure 2.9—Pulse input wiring
Vturbine max = 5.0 Vdc or peak
Voc = 1.0 Vdc
Isc = 5.0 mA max
Ca = 30 µF max
La = 2 H max
For a list of recommended pickup
adapters, see the parts list on page
97.
21
MC-III™ WP Flow Analyzer Section 2
Remote Reset Input
The remote reset input allows the operator to reset the accumulated volume on the MC-III WP to zero without
opening the enclosure. This input is optically isolated. The input is shown connected in two ways, with a
power supply and switch in a remote location (Figure 2.10), and with a pulse generator in a remote location
(Figure 2.11).
The reset input or reset pulse must be active for 3 seconds to clear the total.
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
POWER SUPPLY
3 to 30 VDC

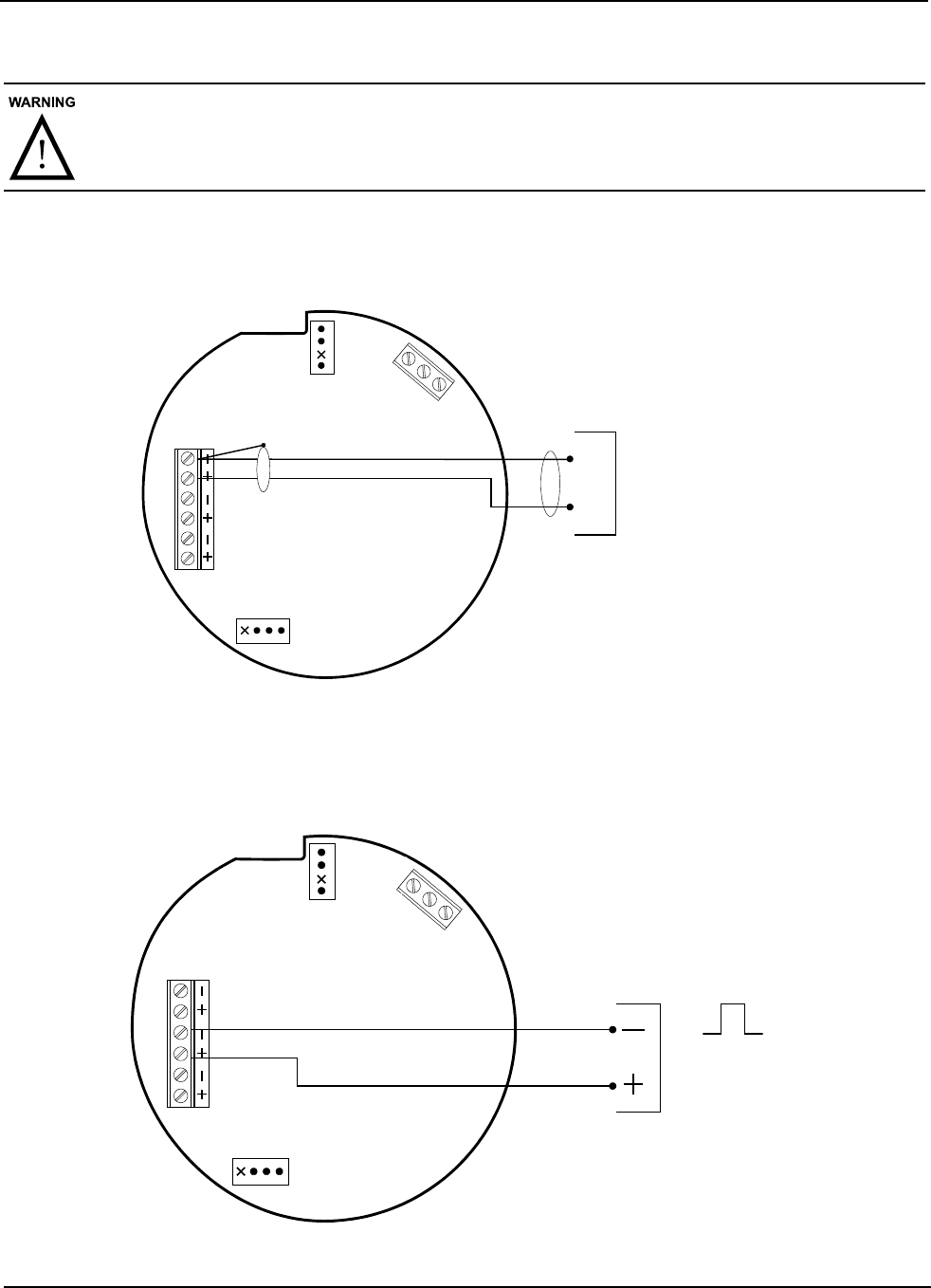

Figure 2.10—Reset input wiring (switch/power supply)
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
RESET PULSE
3 TO 30 VDC
Figure 2.11—Reset input wiring (pulse)
22
Section 2 MC-III™ WP Flow Analyzer
Output Wiring
If installing the MC-III WP in a hazardous area, do not attempt to install output wiring un-
less the area has been declassied or is known to be non-hazardous.
The MC-III WP supports four outputs: pulse output, 4 to 20 mA output, owmeter frequency (amp & square)
output, and RS-485 output. Wiring diagrams for each feature are provided below.
Pulse Output
The pulse output is a solid-state relay. Each pulse represents a user-dened volume. Because the circuit is
isolated, it can be used in conjunction with any other feature on the MC-III WP. A two-conductor cable from
the MC-III WP to the remote location is required. The maximum current rating of the pulse output circuit is
60 mA at 30 VDC.
For information on conguring the pulse output with the keypad, see page 36. For information on conguring
the pulse output with the interface software, see page 69.
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
TB2
RS485
SLAVE
4-20
OUT
PULSE
OUT
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
Leave this
end of shield
disconnected.
POWER SUPPLY
5 to 50 VDC
*
Resistor may be included in pulse readout
device. Size the resistor to limit the current
to 60 mA.
*
PULSE READOUT
DEVICE

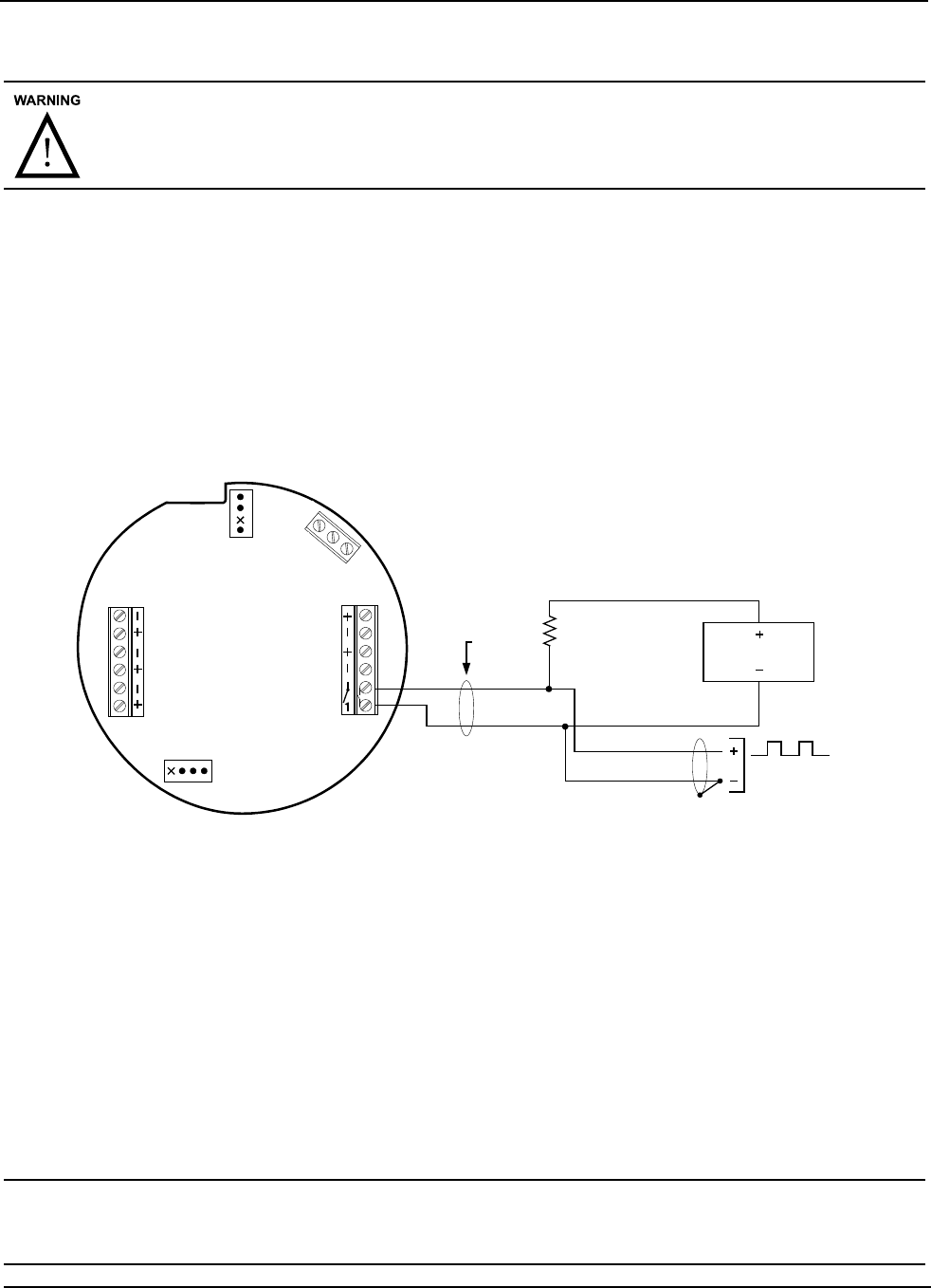

Figure 2.12—Pulse output wiring
Analog (4-20 mA) Rate Output
The 4-20 mA rate output provides a linear current output that represents ow rate. This output requires a two-
conductor cable connected to an 8 to 30 VDC power supply (voltage required is dependent on loop resistance)
and a current readout device located in the remote location. The 4-20 mA rate output current loop also
powers the MC-III WP. The internal battery (lithium or alkaline) provides a power supply backup to maintain
timekeeping accuracy and to continue accumulating volume in the event that the 4-20 mA current loop fails.
Figure 2.13, page 23, shows the minimum required voltage to power the instrument for a given loop
resistance. In addition, the mathematical relationship between loop voltage and load resistance is given. For
example, if a power supply voltage of 24 volts is available to power the current loop, the maximum load
resistance would be 800 ohms.
Caution: The 4-20 mA rate output and the owmeter frequency output circuits are not isolated
from each other and cannot be used simultaneously. When the 4-20 mA output option is
used, do not connect external power to TB3.
23
MC-III™ WP Flow Analyzer Section 2
For information on conguring the 4-20 mA rate output with the keypad, see page 33. For information on
conguring the 4-20 mA rate output with the interface software, see page 65.
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
TB2
RS485
SLAVE
4-20
OUT
PULSE
OUT
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
POWER SUPPLY
8 to 30 VDC
LOAD
Resistor may be
included in readout
device.
4-20 mA and
flowmeter frequency
(amp & square)
cannot be used
simultaneously.
*
*
1100
800
200
0
LOAD RESISTANCE (OHMS)
8 12 24 30
LOOP SUPPLY VOLTAGE (VDC)
OPERATING
REGION
Figure 2.13—4-20 mA rate output wiring
Flowmeter Frequency Output
The owmeter frequency (amp & square) output provides an open drain transistor output at the turbine meter
frequency, which may be used to provide ow rate and/or total information to peripheral equipment. The
output requires a two-conductor cable from the MC-III WP to the remote frequency readout device requiring
50 mA or less and a 5 to 30 VDC power supply (Figure 2.14, page 24).
Caution: The owmeter frequency output and 4-20 mA rate output are not isolated from each other
and cannot be used simultaneously.
Caution: When using the owmeter frequency output and powering the device from an
external power supply, make sure both power supplies share a common negative (-)
terminal or are totally isolated from each other.
24
Section 2 MC-III™ WP Flow Analyzer
The owmeter frequency output terminals on the MC-III WP circuit assembly are labeled A & S to represent
“amp & square” output.
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
TB2
RS485
SLAVE
4-20
OUT
PULSE
OUT
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
Leave this
end of shield
disconnected.
POWER SUPPLY
5 to 30 VDC
FREQUENCY
READOUT DEVICE
*
Resistor may be included in frequency
readout device. Size the resistor to limit
the current to 50 mA.
4-20 mA and flowmeter frequency
(amp & square) cannot be used
simultaneously.
*

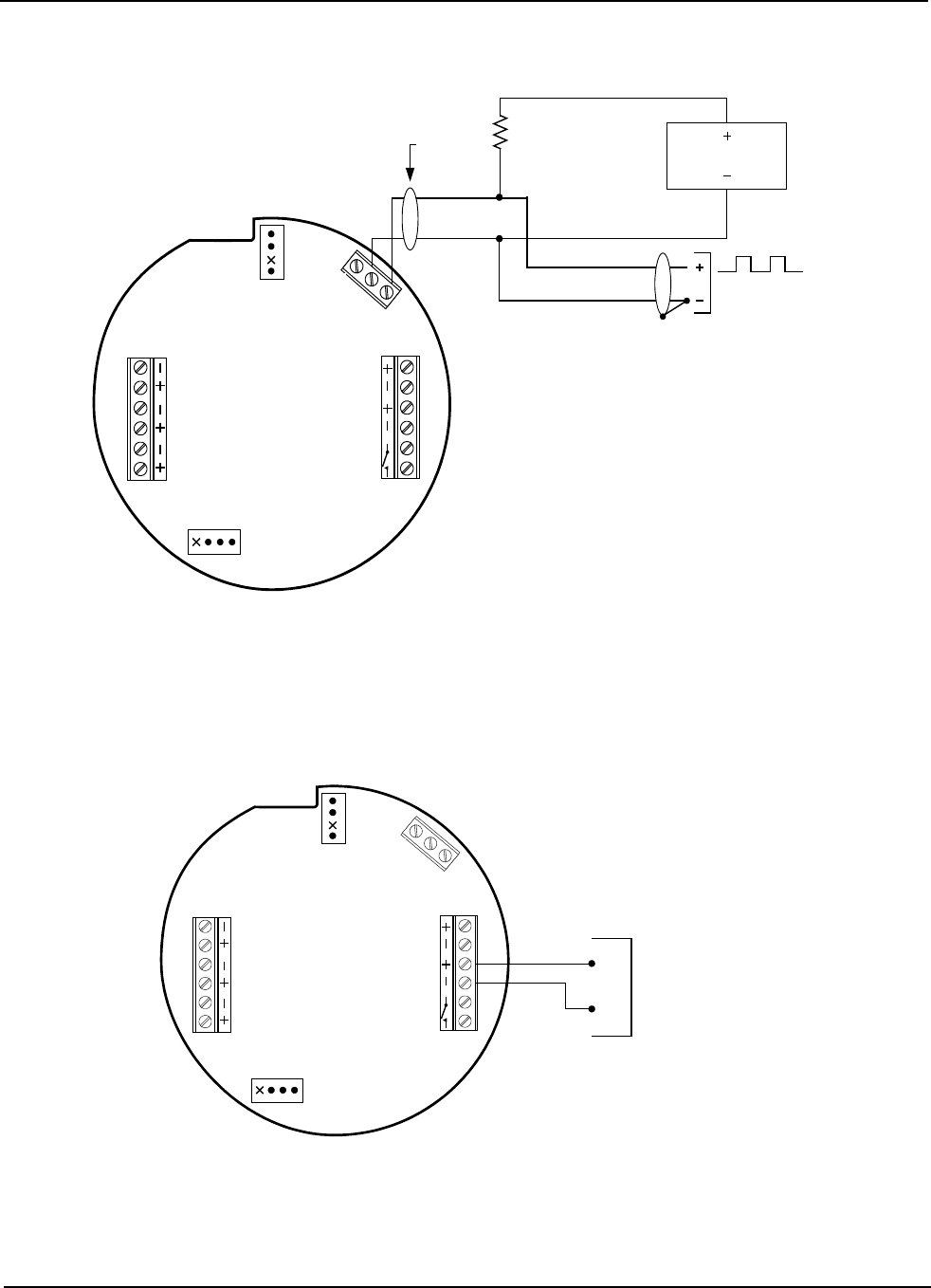

Figure 2.14—Flowmeter frequency (amp & square) output wiring
RS-485 Output
The RS-485 output is required for communication with the interface software. Wiring diagrams are provided
for a permanent connection (Figure 2.16), as well as for temporary laptop connections using an RS-485 to RS-
232 converter (Figure 2.16 and 2.17, page 25).
A
B
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
TB2
RS485
SLAVE
4-20
OUT
PULSE
OUT
6-30 VDC
RS-485
Communications
J1
J2
RESET
SWITCH
BATTERY
Figure 2.15—RS-485 output (permanent connection)
25
MC-III™ WP Flow Analyzer Section 2
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
TB2
RS485
SLAVE
4-20
OUT
PULSE
OUT
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
TD(B)
TD(A)
GND
RS-232
9 - PIN
CONNECTOR
Part No. 101283116
TX+
TX-
Figure 2.16—RS-485 output (connection to laptop with 9-pin converter)
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB3
EXT POWER
TB2
RS485
SLAVE
4-20
OUT
PULSE
OUT
6-30 VDC
J1
J2
RESET
SWITCH
BATTERY
B
A
GND
RS-232
25 - PIN
CONNECTOR
Part No. 100025195
TX
+
TX-
Figure 2.17—RS-485 output (connection to laptop with 25-pin converter)
26
Section 2 MC-III™ WP Flow Analyzer
27
MC-III™ WP Flow Analyzer Section 3
Section 3—Conguration and Operation via Keypad
Calibration of the MC-III™ WP is a simple matter of entering necessary parameters into the instrument.
The process for calibrating the MC-III WP depends on how the instrument will be used. The keypad can
be used to calibrate the MC-III WP for liquid or gas measurement using preprogrammed units, or for liquid
measurement using a calculated divisor. When preprogrammed units are used, the MC-III WP automatically
calculates the divisor for volume calculation and the rate multiplier for ow rate calculation, making
calibration quick and easy.
Important: For compensated gas measurement, or gas or liquid measurement requiring multipoint
(2- to 12-point) linearization, calibration must be performed with the software user inter-
face (see Section 4).
The following parameters can be congured using the six-button keypad on the front of the instrument:
• calibration factor and unit
• units of measurement for Total and Rate displays
• decimal position for Total and Rate displays
• input type and sensitivity level
• 4-20 mA output
• pulse output scale factor
• slave address
• baud rate
28
Section 3 MC-III™ WP Flow Analyzer
Entering a Calibration Factor
When the volume is to be expressed in barrels (BBL), gallons (GAL), liters (LIT), cubic meters (M3), or cubic
feet (CF), and the ow rate is to be expressed in barrels, gallons, liters, cubic meters or cubic feet per day, per
hour, per minute, or per second, the MC-III WP calculates the divisor automatically; only the turbine meter
calibration factor is required.
When the volume is to be expressed in a unit other than the preprogrammed units listed above, a calculated
divisor must be entered at the K-Factor prompt. See Entering a Calculated Divisor, page 29.

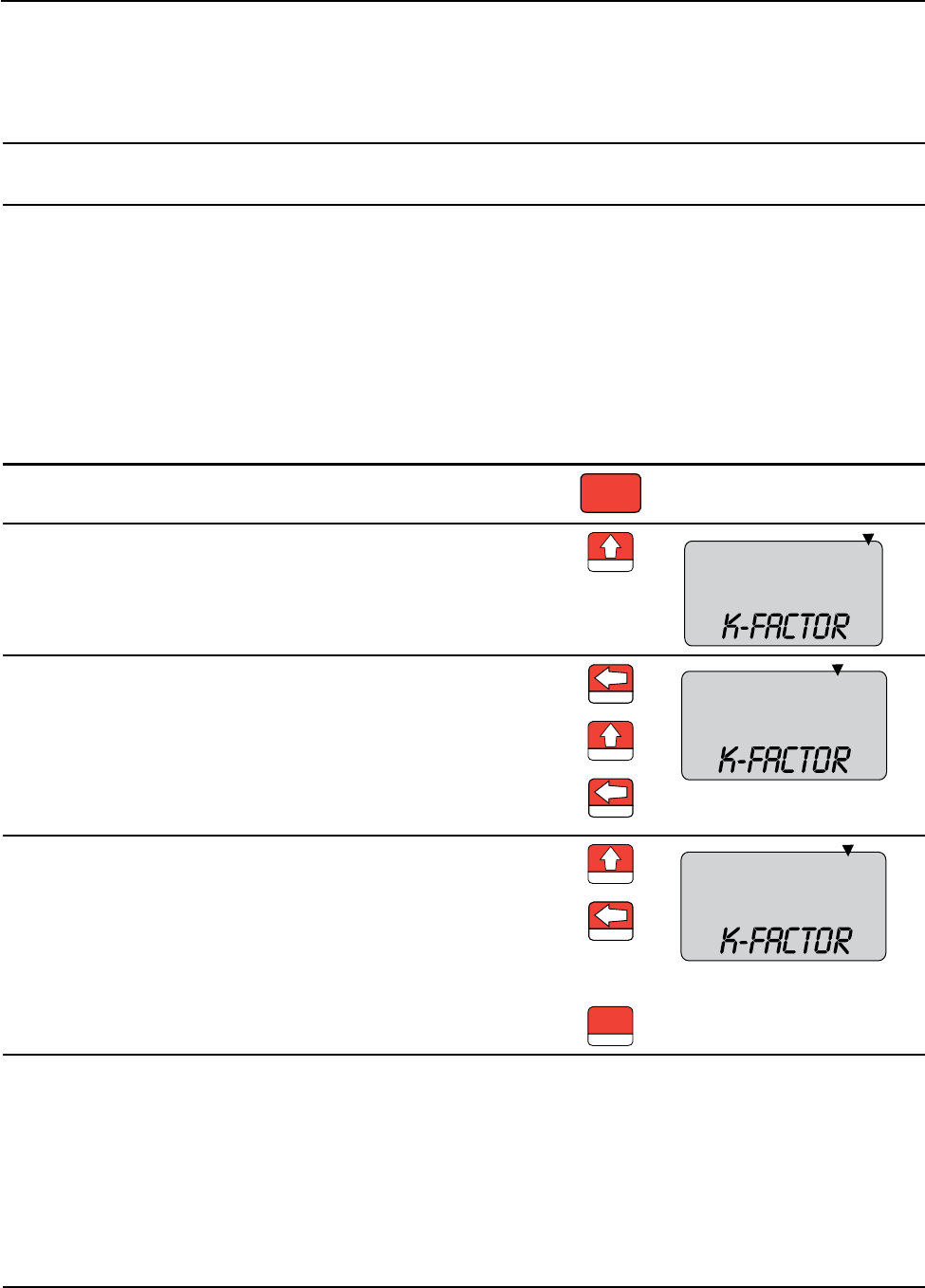

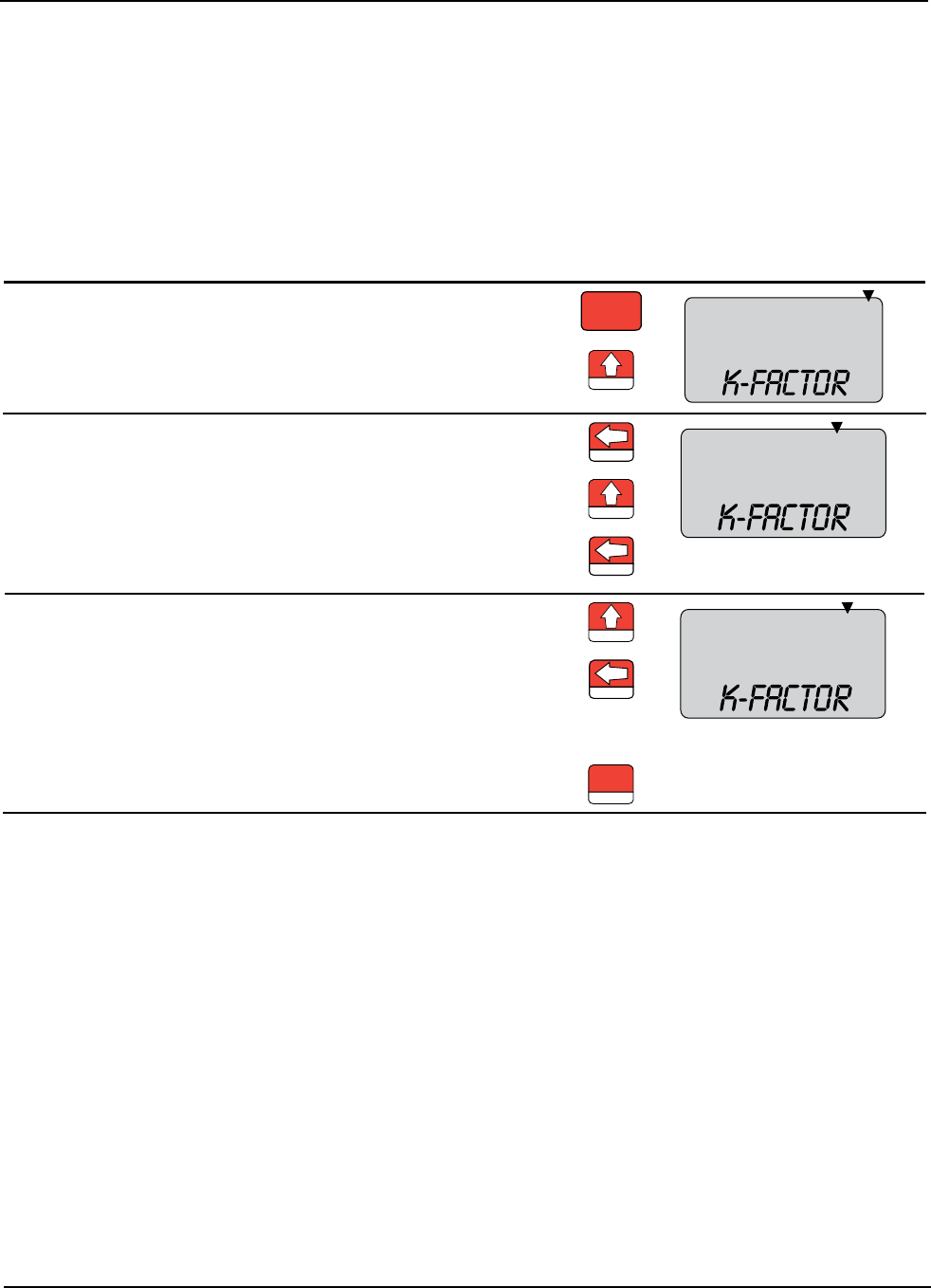

To Enter a Calibration Factor:
Enter the K-Factor menu. Press K-FACTOR MENU. K-FACTOR
MENU
00000000
M
3
BBL
GAL
LIT
CF
CF
X1000
X1000
Select the unit of measure associated
with the calibration factor (typically,
pulses per gallon).
Press UP ARROW until the correct
unit is displayed. TEST
Enter the decimal point position for
the calibration factor.
Press LEFT ARROW to select the
decimal point. LOG
00000000 M
3
BBL
GAL
LIT
CF
CF
X1000
X1000
.
Press UP ARROW to change the
position of the decimal point. TEST
Press LEFT ARROW to save the
decimal point position and proceed
with entering a calibration factor.
LOG
Enter the calibration factor, starting
with the last digit and entering digits
right to left.
Press UP ARROW until the last digit
of the calibration factor is displayed. TEST
00000000 M
3
BBL
GAL
LIT
CF
CF
X1000
X1000
Press LEFT ARROW to select the
next digit to the left.
Repeat using UP and LEFT arrows to
enter all remaining digits.
LOG
Press ENTER.
SAVE
ENTER
The Input Sensitivity menu will appear following the entry of the calibration factor. See Setting Input Type
and Sensitivity, page 30, for the input sensitivity conguration procedure.
29
MC-III™ WP Flow Analyzer Section 3
Entering a Calculated Divisor
When registering the volume in units other than cubic meters, cubic feet, barrels, gallons, or liters, a
calculated divisor must be entered in the K-Factor menu instead of the turbine meter calibration factor.
Important: When a calculated divisor is used, the units for both the volume display and the volume
portion of the ow rate display should be set to USER (no units visible on the display).
The divisor and divisor decimal point must be determined, then entered in the K-Factor menu.
The formula for calculating the divisor is:
Divisor = FC × CON
Where:
FC = meter factor in pulses per gallon (P/G)
CON = the conversion factor for number of gallons per unit volume of desired measure
To Enter a Calculated Divisor:
Enter the K-Factor menu. Press K-FACTOR MENU. K-FACTOR
MENU
Select no unit of measure. Press UP ARROW until no unit is
displayed (as shown). TEST
00000000
M3
BBL
GAL
LIT
CF
CF
X1000
X1000
Enter the decimal point position for the
calculated divisor.
Press LEFT ARROW to select the
decimal point. LOG
00000000 M
3
BBL
GAL
LIT
CF
CF
X1000
X1000
.
Press UP ARROW to change the
position of the decimal point. TEST
Press LEFT ARROW to save the
decimal point position and proceed
with entering a calculated divisor.
LOG
Enter the calculated divisor, starting
with the last digit and entering digits
right to left.
Press UP ARROW until the last digit
of the calculated divisor is displayed. TEST
00000000 M
3
BBL
GAL
LIT
CF
CF
X1000
X1000
Press LEFT ARROW to select the
next digit to the left.
Repeat using UP and LEFT arrows to
enter all remaining digits.
LOG
Press ENTER.
SAVE
ENTER
The Input Sensitivity menu prompt will appear immediately following the entry of the calibration factor. See
Setting Input Type and Sensitivity, page 30, for the input sensitivity conguration procedure.
30
Section 3 MC-III™ WP Flow Analyzer
Setting Input Type and Sensitivity
The owmeter signal can be obtained from a magnetic pickup or a pre-amplier device.
The input sensitivity of the MC-III WP is measured in millivolts (mV) peak-to-peak. This is the threshold
value at which the circuitry responds to a signal. If the input signal is less than this value, the MC-III WP will
not count the electrical pulses as a valid turbine meter signal. If the input signal is equal to or greater than this
value, the electrical pulses received at the input will be counted. Care must be taken to ensure that the input
sensitivity is high enough to reject any electrical noise on the signal line, but not so high that owmeter pulses
are missed. The input sensitivity of the MC-III WP may be set to low, medium, or high when the input will be
provided by a turbine owmeter.
If the input will be provided in the form of a pulse from a pre-amplier or other device (rather than directly
from a turbine owmeter), the “Pulse In” (pulse input) setting in the Input Sensitivity menu should be
selected.
See Section 2 for input wiring diagrams.
To Set Input Type and Sensitivity:
Enter the K-Factor menu. Press K-FACTOR MENU. K-FACTOR
MENU
Locate the input sensitivity setting. Press ENTER, repeatedly if
necessary, to bypass calibration
factor. “INPUT SENSITIVITY” will
scroll across the bottom display.
SAVE
ENTER
If the input is the turbine meter, select
a sensitivity setting: low, medium, or
high.
If the input is provided by a different
device, such as a pre-amplier, select
“Pulse in” (for pulse input).
Press UP ARROW to select a
sensitivity setting. TEST
Select low, medium,
high, or Pulse In
Press ENTER. ”SAVING” will appear
in the bottom display. SAVE
ENTER
31
MC-III™ WP Flow Analyzer Section 3
Conguring the Total Display
The Total display can be congured for measuring volume in any of ve preprogrammed units, any
preprogrammed unit times 1,000, or a user-dened unit.
Users can specify a decimal point position, ranging from 0.1 to 0.0001 of a unit.
To Congure the Total Display:
Enter the Display menu. Press DISPLAY MENU.
DISPLAY
MENU
Select the unit of measure in which
volume will be displayed.
Press UP ARROW until the correct
unit is displayed.
Note—If a calculated divisor was
entered, select user-dened (no units
visible).
TEST
00000000
M3
BBL
GAL
LIT
M3
BBL
GAL
LIT
/SEC
/MIN
/HR
/DAY
CF
CF
X1000
X1000
STANDARD
To read the volume in terms of
thousands of units (ex. 1.0 = 1,000
bbl), continue pressing UP ARROW
until both the unit of choice and the
X1000 option are displayed.
TEST
00000000
000000
M3
BBL
GAL
LIT
M3
BBL
GAL
LIT
/SEC
/MIN
/HR
/DAY
CF
CF
X1000
X1000
STANDARD
Enter the decimal point position. Press LEFT ARROW three times,
or until the decimal point in the Total
display begins blinking.
LOG
00000000
000000
M3
BBL
GAL
LIT
M3
BBL
GAL
LIT
/SEC
/MIN
/HR
/DAY
CF
CF
X1000
X1000
STANDARD
.
Press UP ARROW to change the
position of the decimal point. TEST
Press ENTER. ”SAVING” will appear
in the bottom display. SAVE
ENTER
Important: Before enabling or disabling the “× 1000” unit option for displaying ow totals, clear the
total display to zero. If the total is not cleared, the accumulated total displayed will repre-
sent a combination of two different units and will not provide an accurate ow reading.
32
Section 3 MC-III™ WP Flow Analyzer
Conguring the Rate Display
The Rate display comprises two parts: a volume unit and a time-base unit. The volume portion of the Rate
display can be congured in one of ve preprogrammed engineering units or in a user-dened unit (for
use with a calculated divisor). To display the volume portion in multiples of 1,000 units, continue scrolling
through the volume unit options until the ×1000 entry is displayed, along with the appropriate unit of
measure.
The time-base portion of the Rate display can be congured in one of four preprogrammed engineering units:
per day, per hour, per minute, or per second.
Users can specify a decimal point position, ranging from no decimal up to 0.001 of a unit.
To Congure the Rate Display:
Enter the Display menu. Press DISPLAY MENU.
DISPLAY
MENU
Enter the volume factor used to
express ow rate (Ex.: bbl in bbl/day).
Press LEFT ARROW. The volume
unit of measure in the bottom portion
of the LCD window should begin
blinking.
LOG
00000000
000000
M3
BBL
GAL
LIT
M3
BBL
GAL
LIT
/SEC
/MIN
/HR
/DAY
CF
CF
X1000
X1000
STANDARD
Press UP ARROW until the desired
volume unit of measure is displayed.
Note—If a calculated divisor was
entered, select user-dened (no units
visible).
TEST
Enter the time-base factor used to
express ow rate (Ex. /day in bbl/day).
Press LEFT ARROW. The time-base
factor in the bottom portion of the
LCD window should begin blinking.
LOG
00000000
000000
M3
BBL
GAL
LIT
M3
BBL
GAL
LIT
/SEC
/MIN
/HR
/DAY
CF
CF
X1000
X1000
STANDARD
Press UP ARROW until the desired
time-base factor is displayed. TEST
Enter the decimal point position. Press LEFT ARROW twice, or until
the decimal point in the Rate display
begins blinking.
LOG
00000000
000000
M3
BBL
GAL
LIT
M3
BBL
GAL
LIT
/SEC
/MIN
/HR
/DAY
CF
CF
X1000
X1000
STANDARD
.
Press UP ARROW to change the
position of the decimal point. TEST
Press ENTER. ”SAVING” will appear
in the bottom display. SAVE
ENTER
33
MC-III™ WP Flow Analyzer Section 3
Conguring the 4-20 mA Rate Output
Do not make or break any connections on the 4-20 mA current loop unless the area is
known to be non-hazardous.
Caution: Before performing any 4-20 mA conguration, ensure that all peripheral equipment con-
nected to the 4-20 mA current loop is either disconnected or disabled. Conguring and
testing the 4-20 mA output feature on the MC-III WP with the peripheral equipment in
operation may cause false alarms or erroneous operation of the peripheral device or as-
sociated equipment.
The MC-III WP has a 4-20 mA output feature that represents ow rate. Zero and full-scale values can be
congured to represent any ow rate range within the range of the owmeter.
The low (or zero) setting is the ow rate value that will produce a 4-mA output. The high (or full-scale)
setting is the ow rate value that will produce a 20-mA output. Typically, the high value is greater than the
low value; this scenario is dened as “direct mode” in Figure 3.1.
Alternatively, users may congure the 4-mA and 20-mA outputs to have an inverse relationship, such that the
high value is less than the low value. This scenario is dened as “indirect mode” in Figure 3.1.

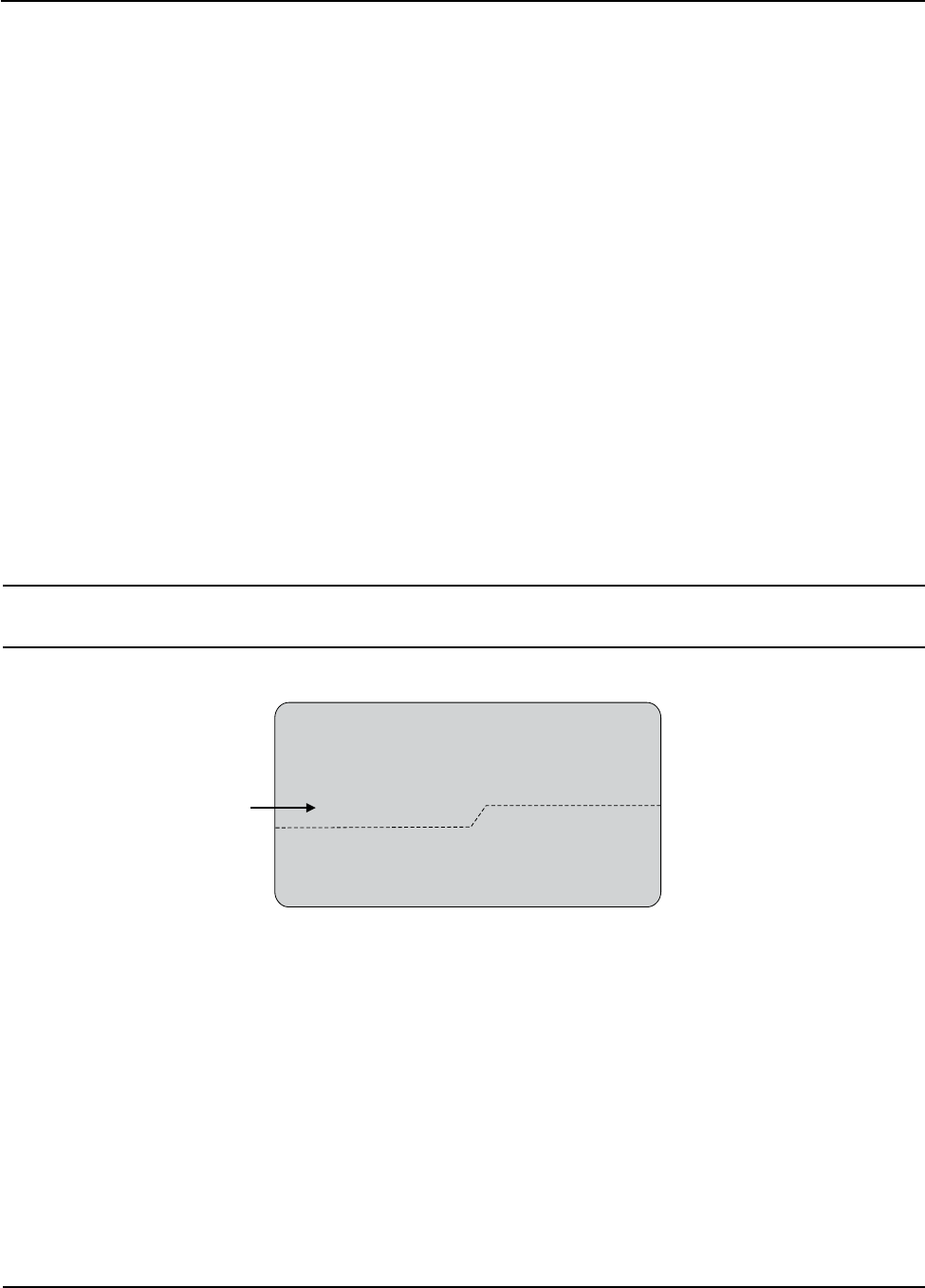

Figure 3.1—Two options for conguring a 4-20 mA output
34
Section 3 MC-III™ WP Flow Analyzer
See Section 2 for instructions on installing and wiring the 4-20 mA rate output.
Flow rates in-between the minimum and maximum rate setpoints will result in an output of current between
4 mA and 20 mA according to the following calculation:
= × − +
[ ] [ ]
MAX MIN
OUT CURR MIN
I I
I RATE Low I
High Low
−
−
Where:
IOUT = output current
IMAX = maximum current output (20 mA)
IMIN = minimum current output (4 mA)
High = programmed ow rate that produces a 20-mA output
Low = programmed ow rate that produces a 4-mA output
RATECURR= ow rate
35
MC-III™ WP Flow Analyzer Section 3
To Congure the 4-20 mA Output:
Enter the Output menu. Press OUTPUT MENU.
OUTPUT
MENU
Enable or disable the 4-20 mA output. Press UP ARROW to toggle output to
“on” or “off”. TEST
Toggles between
“off” and “on”
Press ENTER. If the 4-20 mA output
is enabled, the LCD will display the
“Low” ow rate and the decimal point
in the numeric display will begin
blinking.
SAVE
ENTER
Enter the decimal point position for the
“Low” ow rate. The words “4-20 mA
LOW” should appear at the bottom of
the LCD.
Press UP ARROW to change the
position of the decimal point. TEST
00000000
/MIN
CF
.
Enter the “Low” (4-mA) ow rate.
Digits are entered from right to left.
Press LEFT ARROW until the
rightmost digit in the top display
begins blinking.
LOG
00000000
/MIN
CF
Press UP ARROW to change the
digit. TEST
Press LEFT ARROW to select the
next digit to the left.
Continue pressing UP ARROW and
LEFT ARROW alternately to enter all
remaining digits.
LOG
Press ENTER. The LCD will display
the “High” ow rate and the decimal
point in the numeric display will begin
blinking.
SAVE
ENTER
Enter the decimal point position for the
“High” ow rate. The words “4-20 mA
HIGH” should appear at the bottom of
the LCD.
Press UP ARROW to change the
position of the decimal point. TEST
00000000
/MIN
CF
.
Enter the “High” (20-mA) ow rate.
Digits are entered from right to left.
Press LEFT ARROW until the
rightmost digit in the top display
begins blinking.
LOG
00000000
/MIN
CF
Press UP ARROW to change the
digit. TEST
Press LEFT ARROW to select the
next digit to the left.
Continue pressing UP ARROW and
LEFT ARROW alternately to enter all
remaining digits.
LOG
Press ENTER.
SAVE
ENTER
The Pulse Output menu prompt will appear immediately following the entry of 4-20 mA parameters. See
Conguring the Pulse Output, page 36, for the pulse output conguration procedure.
36
Section 3 MC-III™ WP Flow Analyzer
Conguring the Pulse Output
The pulse output feature of the MC-III WP is typically disabled to reduce current consumption. When the
pulse output is not needed, Cameron recommends that this feature be disabled.
If the pulse output feature is required, the user will be prompted to enter a pulse output scale factor, which is
the volume increment that will cause a pulse output to occur.
If the pulse output is congured via interface software instead of via the keypad Output menu, the user can
also specify a pulse length (pulse width), which determines the length of each output pulse in milliseconds
(ms). This parameter is congurable only with the interface software. See Section 4 for more information.
See Section 2 for instructions on installation and eld wiring of the pulse output feature.

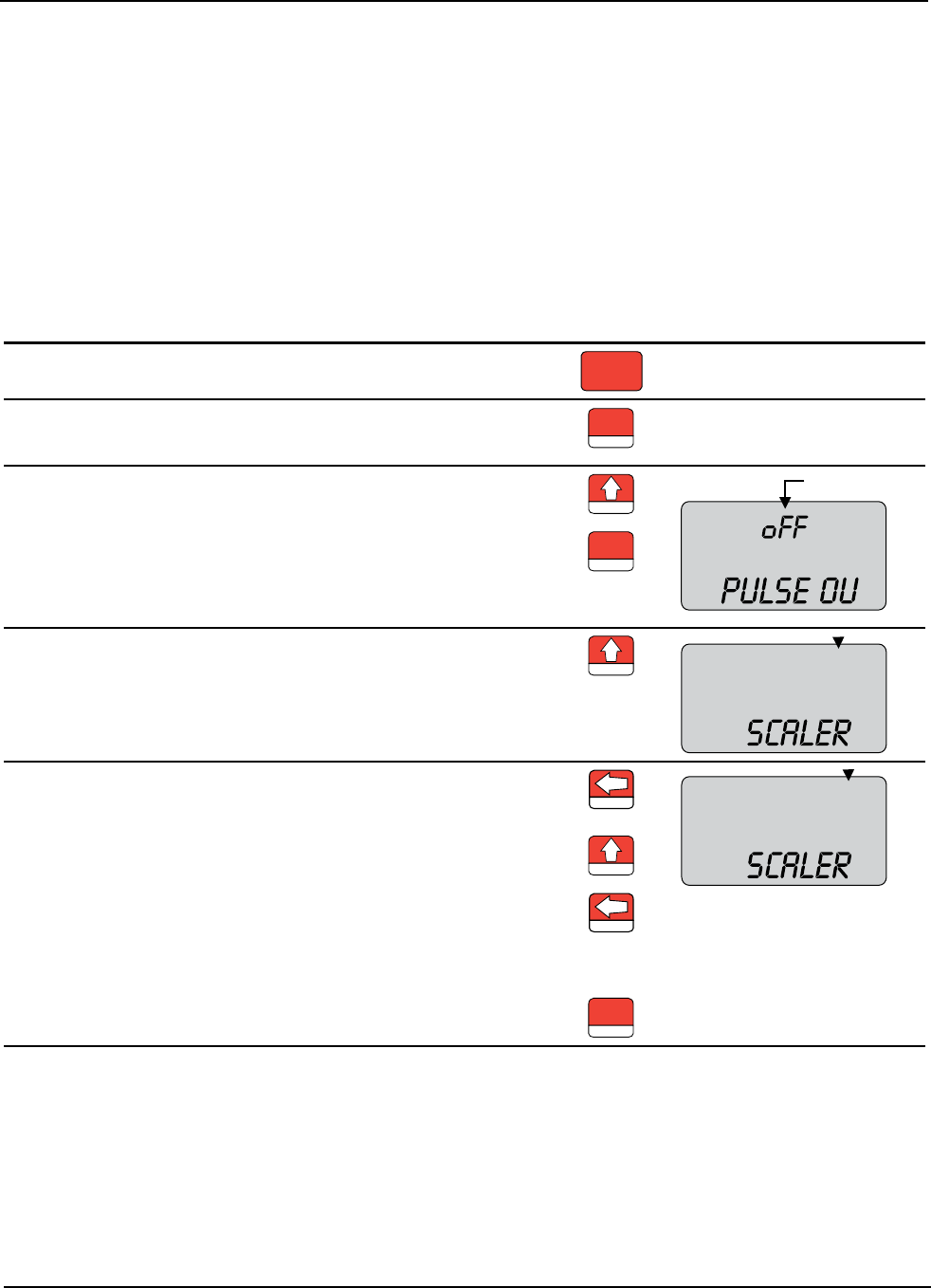

To Congure the Pulse Output:
Enter the Output menu. Press OUTPUT MENU.
OUTPUT
MENU
Locate the Pulse Output setting. Press ENTER repeatedly until the
words “Pulse Output” appear in the
lower display.
SAVE
ENTER
Enable or disable the pulse output. Press UP ARROW to toggle output to
“on” or “off”. TEST
Toggles between
“off” and “on”
Press ENTER. If the pulse output is
enabled, the LCD will display “Pulse
Output Scaler” and the decimal point
in the numeric display will begin
blinking.
SAVE
ENTER
Enter the decimal point position for the
output scale factor.
Press UP ARROW to change the
position of the decimal point. TEST
00000000 M
3
BBL
GAL
LIT
CF X1000
...
.
Enter the pulse output scale factor.
Digits are entered from right to left.
Press LEFT ARROW until the
rightmost digit in the top display
begins blinking.
LOG
00000000 M
3
BBL
GAL
LIT
CF X1000
...
Press UP ARROW to change the
digit. TEST
Press LEFT ARROW to select the
next digit to the left.
Repeat using UP and LEFT arrows to
enter all remaining digits.
LOG
Press ENTER.
SAVE
ENTER
The Slave Address menu prompt will appear immediately following the entry of pulse output parameters. See
Entering the Slave Address, page 37, for information on entering the slave address.
37
MC-III™ WP Flow Analyzer Section 3
Entering the Slave Address
The slave address is a setting used in Modbus® communications. It is a number that ranges from 1 to 65535,
excluding 252 to 255 and 64764. If the Modbus® request message contains the matching address, the
device will respond to the request. In network arrangements, the device must have a unique slave address.
For more information about Modbus® communications, refer to the protocol manual section. If Modbus®
communications are not used, leave the slave address at the factory setting (1).

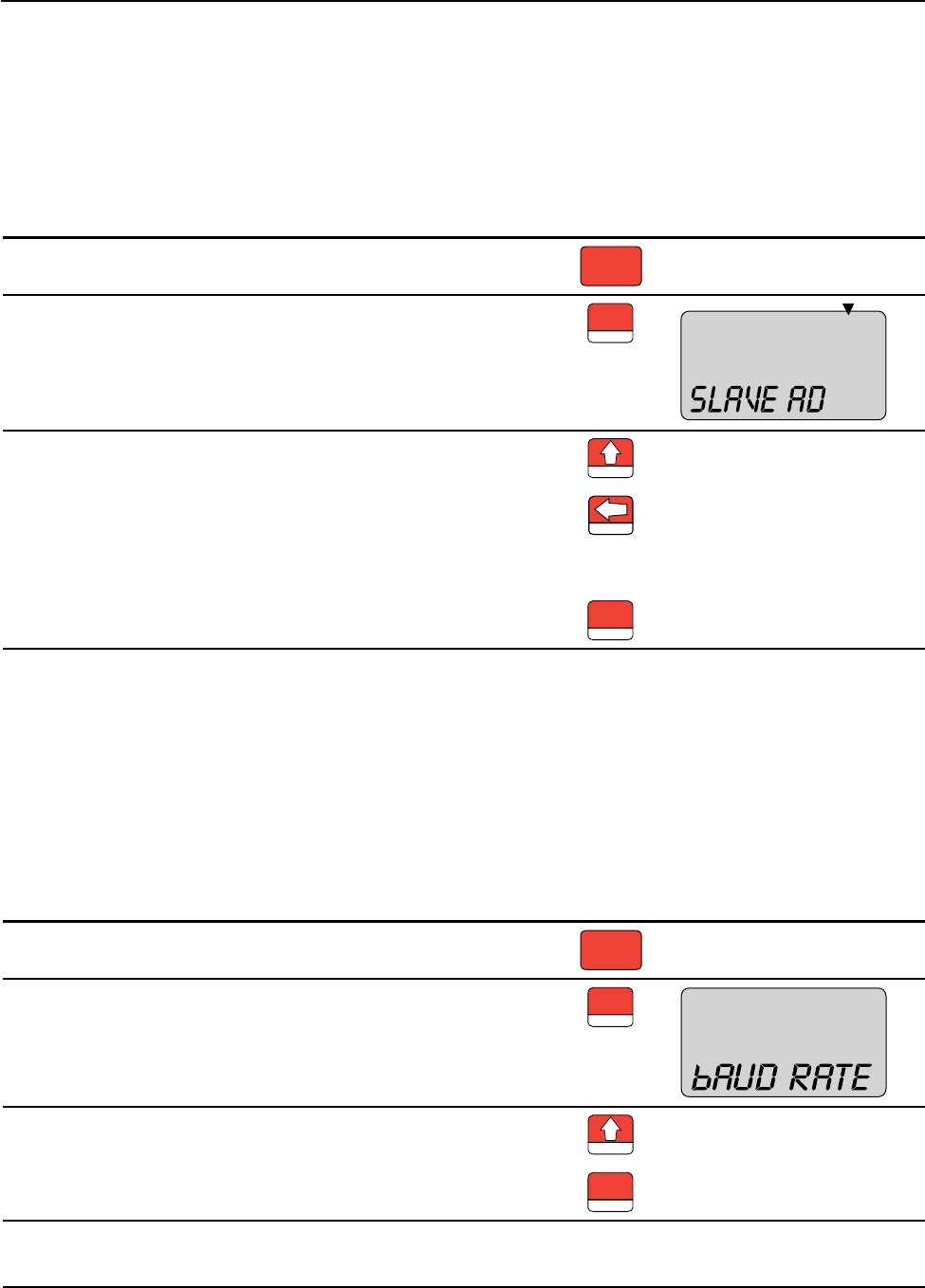

To Enter Slave Address:
Enter the Output menu. Press OUTPUT MENU.
OUTPUT
MENU
00000000
...
00000000
...
00000000
...
00000000
...
Locate the Slave Address setting. Press ENTER repeatedly until the
words “Slave Address” appear in the
lower display.
SAVE
ENTER
00000000
...
The rightmost digit in the top display
will begin blinking.
Enter the Slave Address.
(range: 1 to 65535, excluding 252 to
255 and 64764)
Press UP ARROW until the correct
digit is displayed. TEST
Then press LEFT ARROW to select
the next digit to the left.
Repeat using UP and LEFT arrows to
enter all remaining digits.
LOG
Press ENTER.
SAVE
ENTER
The Baud Rate menu prompt will appear immediately following the entry of the slave address. See Entering
the Baud Rate below for the baud rate entry procedure.
Entering the Baud Rate
The baud rate is the number of bits per second that are on the serial port. This setting must match the setting
of the master device polling the MC-III WP or the serial port. This only applies to the Modbus® communica-
tions; if Modbus® communications are not used, leave the baud rate at the factory setting (9600).
To Enter the Baud Rate:
Enter the Output menu. Press OUTPUT MENU.
OUTPUT
MENU
Locate the Baud Rate setting. Press ENTER repeatedly until the
words “Baud Rate” appear in the
lower display.
SAVE
ENTER
115200
Enter the baud rate. Press UP ARROW until the correct
baud rate is displayed. TEST
Press ENTER. ”SAVING” will appear
in the bottom display. SAVE
ENTER
38
Section 3 MC-III™ WP Flow Analyzer
39
MC-III™ WP Flow Analyzer Section 4
Section 4—Conguration and Operation via Software
The MC-III™ interface software provides easy access to all conguration parameters and is the quickest way
to congure the device. Instead of navigating keypad menus, users enter conguration parameters with their
computer keyboard.
While basic parameters can be congured with the keypad (see Section 3), the interface software is the
only means of accessing every congurable parameter. For example, multipoint calibration for liquid or
gas measurement and gas volume correction parameters for measuring gas in standard cubic feet must be
congured via the interface software.
Table 4.1, page 49, provides a quick reference for determining whether a congurable parameter is accessible
through both the keypad menu and the interface software, or only through the interface software.
Installing the Software
The MC-III interface software is stored on a CD that is shipped with each instrument, and it installs directly
onto a PC or laptop. To install the interface software on a computer, perform the following steps:
1. Place the MC-III CD in your CD-ROM drive.
2. The MC-III install screen will load automatically.
3. Click on “Next” to initiate the installation, and follow the instructions on the screen. An MC-III icon
(Figure 4.1) will appear on the desktop of the user’s PC or laptop when installation is complete.
To access the interface software, click on the MC-III icon on your desktop or go the Start menu and select
Programs>NuFlo>MC-III>MC-III.
Figure 4.1—MC-III desktop icon
Accessing Help
The Help menu, accessible from the task bar at the top of the Welcome screen (Figure 4.2, page 40), provides
access to documentation designed to assist the user in installing, conguring, and operating the MC-III WP
ow analyzer. This documentation includes:
• a “read me” le for general reference (includes contact information for technical assistance)
• an electronic copy of the user manual
• an electronic copy of the quick-start guide for installing and conguring the MC-III WP
• a COM troubleshooting guide for addressing communications errors (this guide will automatically display
on screen when a communication error is detected)
The manuals can also be downloaded from Cameron’s Measurement Systems Division website,
www.c-a-m.com/o.
40
Section 4 MC-III™ WP Flow Analyzer
Connecting to the Software
Important: Before attempting to load the interface software, verify that the MC-III WP is connected
to a computer with an RS-485 to RS-232 converter (see Optional Parts List, page 97). See
Section 2 for RS-485 output wiring diagrams (Figures 2.16 through 2.18, pages 24 and 25).
Once the software is installed, the program will automatically launch with the click of the NuFlo MC-III icon
on the desktop.
To connect to the MC-III software, perform the following steps:
1. Click on the NuFlo MC-III icon on the desktop, or select Start>Programs>NuFlo>MC-III>MC-III. The
Welcome screen (Figure 4.2) will appear and a Select COM Port window will prompt the user to select a
communications port be used for connecting with the MC-III WP (Figure 4.2).
2. Select a communications port from the dropdown list and click “OK.” The software will attempt to con-
nect with the MC-III WP (via an RS-485 to RS-232 converter). This automatic launch feature is referred
to as an “express connect.”
3. If the internal time and date programmed into the instrument differs from the time and date displayed on
the computer by more than 60 seconds, the software will prompt the user to synchronize the instrument
time/date to match the computer time/date (Figure 4.3, page 41). This ensures that the instrument displays
correct time, regardless of time zone differences.
Figure 4.2—Select COM Port window
41
MC-III™ WP Flow Analyzer Section 4

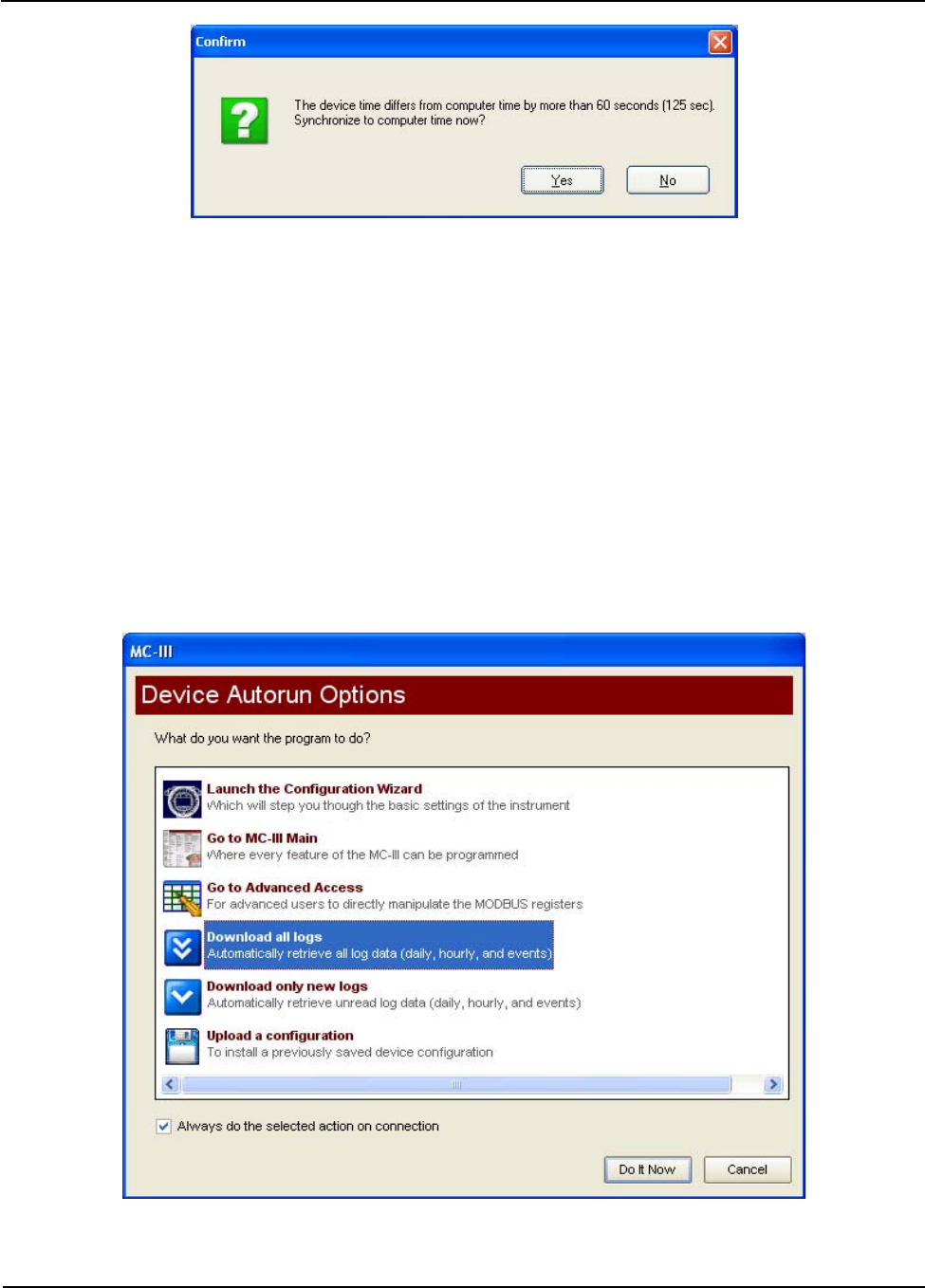

Figure 4.3—Prompt for authorizing time and date synchronization
The time difference setting used to generate a synchronize prompt is user-congurable. For more information,
see General Options, page A-1.
Automating Functions on Software Startup
When the software connects with the instrument, the Device Autorun Options screen appears (Figure 4.4).
From this screen, users can congure the instrument, download logs, or upload previously saved conguration
settings.
A checkbox at the bottom of the Device Autorun Options screen allows the user to bypass the Device Autorun
Options screen and perform a selected function each time the software connects to the instrument.
Example: To download all logs on connection, select Download all logs from the Device Autorun Options
screen and check the “Always do...” checkbox. Each time the software computer connects to the instrument,
the software will bypass the Device Autorun Options screen, open the Flow Archive screen, and download all
logs. See Section 5 for more information on ow logs.
Figure 4.4—Device Autorun Options screen
42
Section 4 MC-III™ WP Flow Analyzer

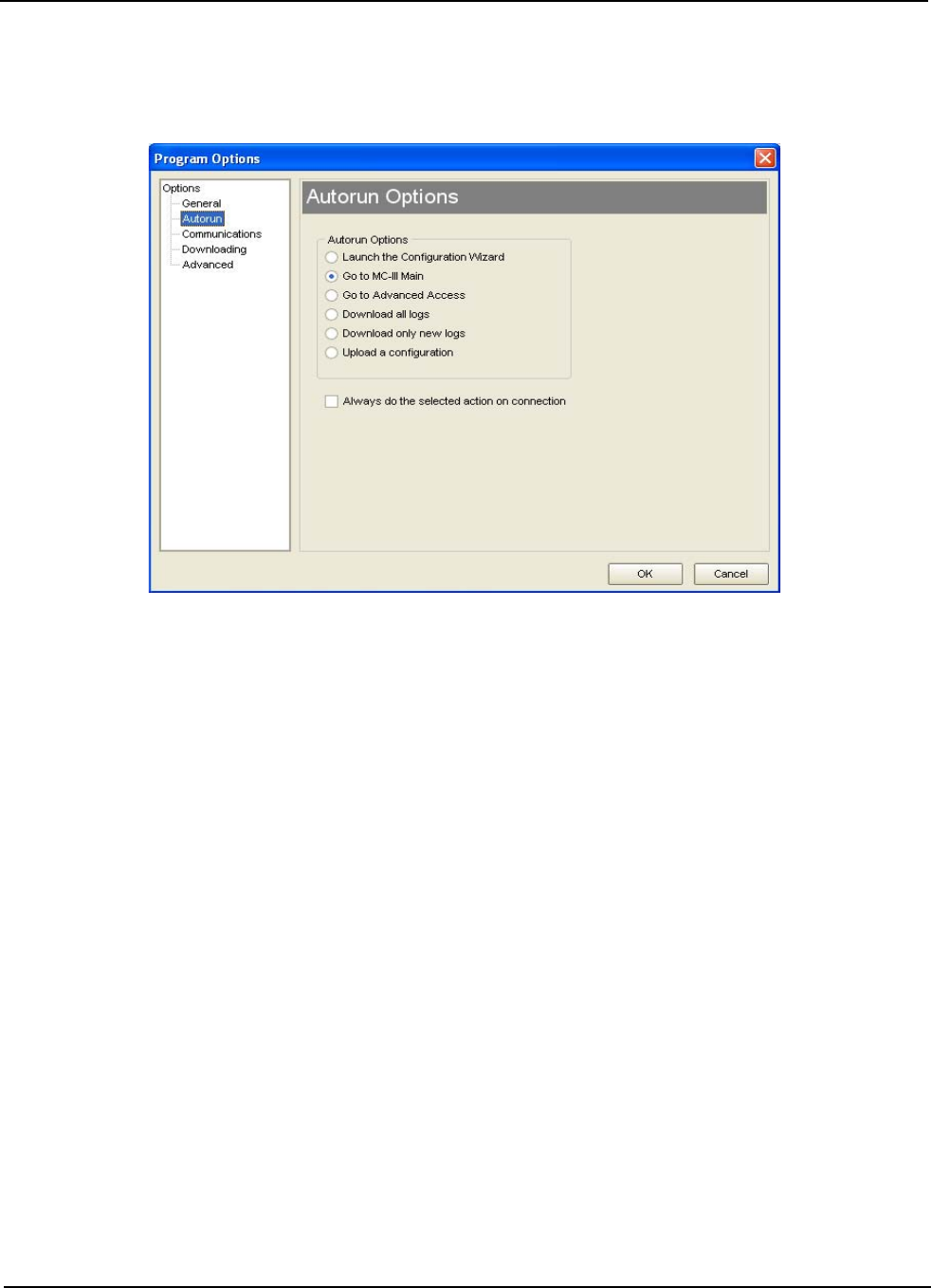

Changing Autorun Settings
To change an autorun setting —that is, to initiate an autorun action, to terminate an autorun action, or to
change to a different autorun action—without exiting to the Welcome screen, choose Options/Program
Options from the menu bar and select Autorun from the dropdown list (Figure 4.5).
Figure 4.5—Options/Program Options screen for changing autorun settings

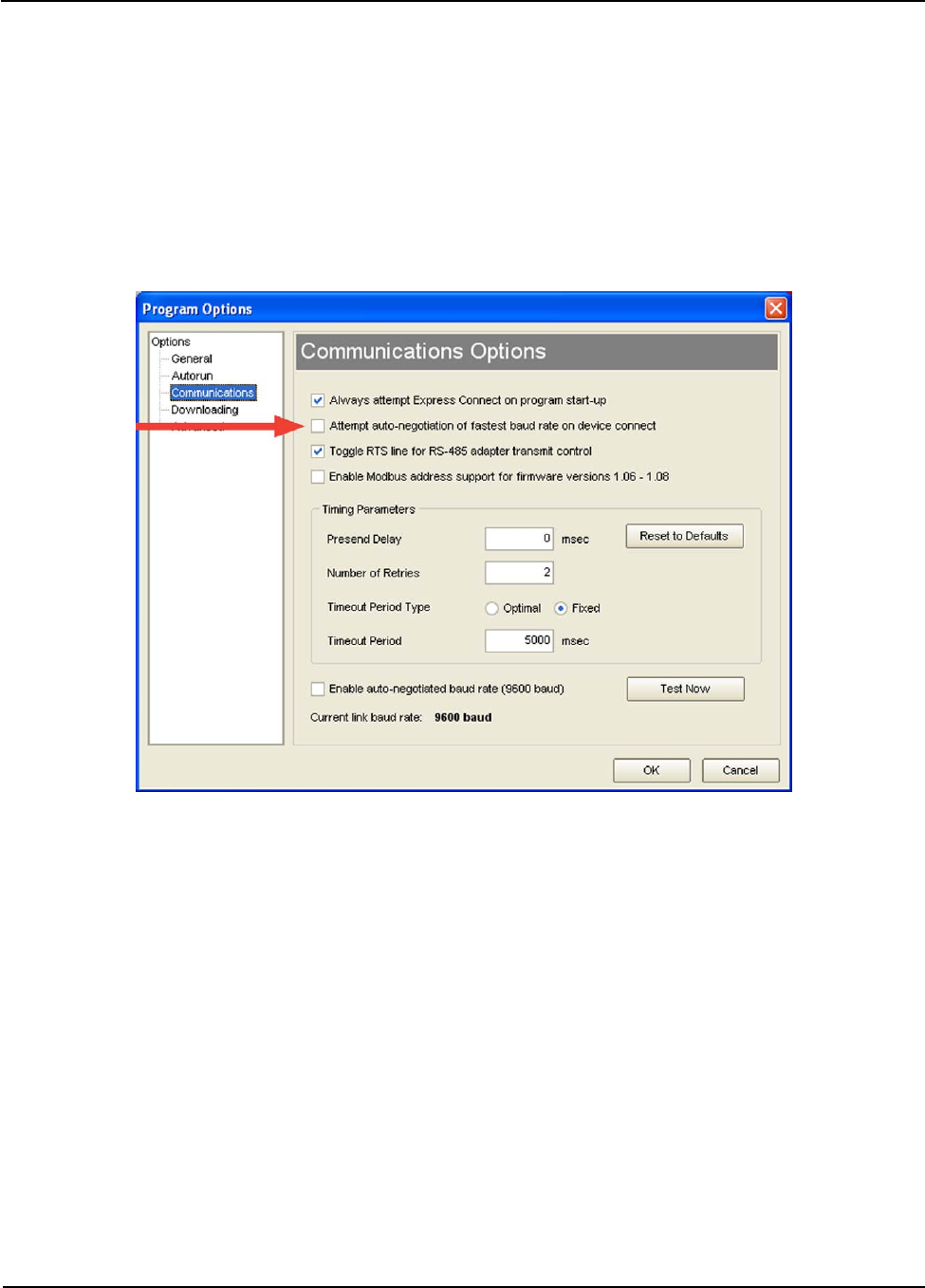

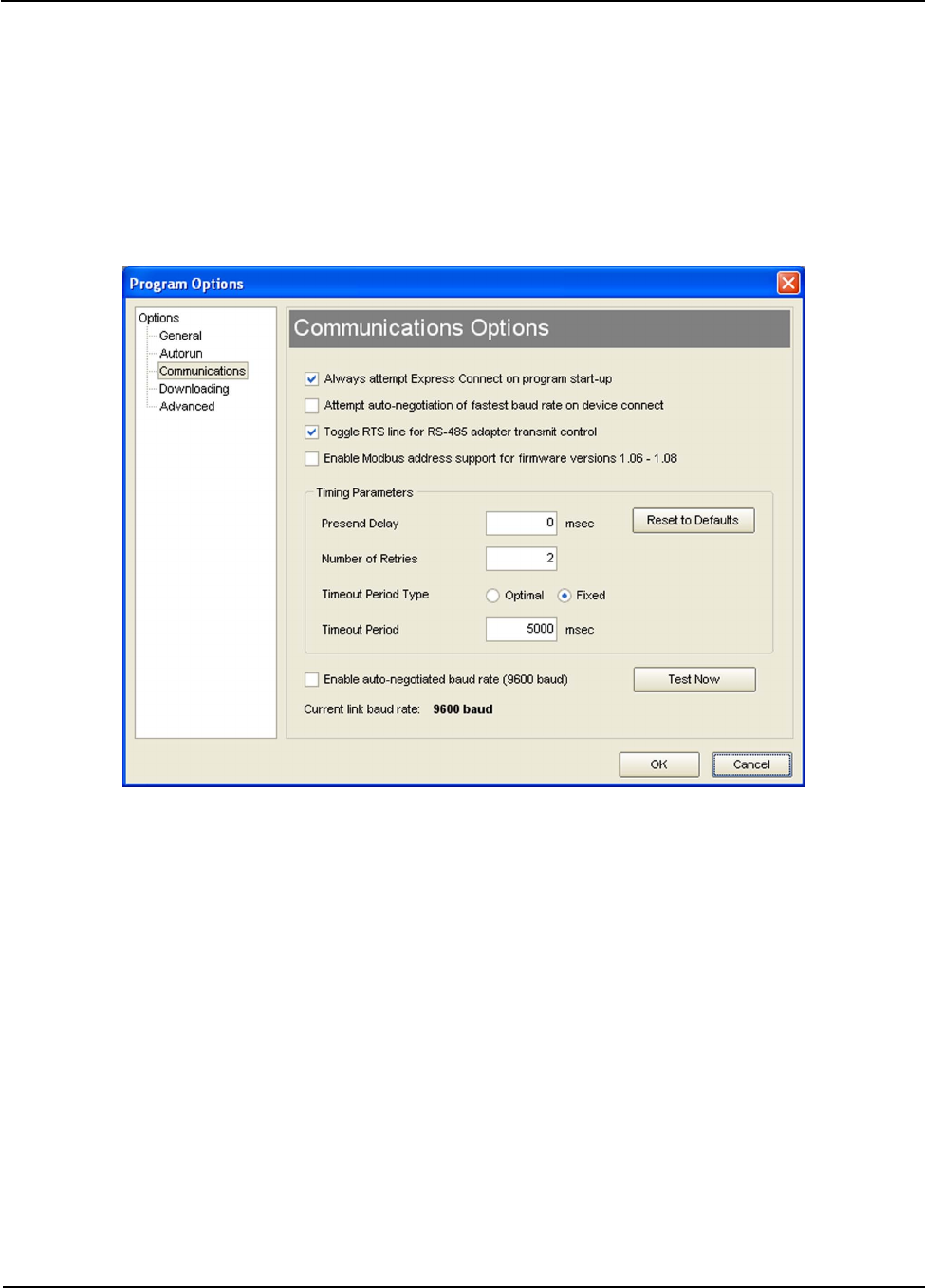

Express Connect Option
By default, the MC-III interface software automatically attempts to connect to the instrument when a user
clicks on the desktop application icon. For more information on disabling the “express connect” feature and
changing communications options, see Appendix A.
Canceling Express Connect
To temporarily cancel the “express connect” function without exiting the software program, click in the LCD
area of the device on the Welcome screen or choose File>Cancel Express Connect from the menu bar (Figure
4.6, page 43). The software will stop all attempts to connect to the device. The “express connect” function
will be restored when the user exits the program and attempts to re-open the software.
43
MC-III™ WP Flow Analyzer Section 4
Figure 4.6—Cancel Express Connect option
To reattempt a connection to the device after canceling the “express connect” function, click the LCD on the
Welcome screen again, or choose File>Express Connect from the menu bar.
Changing the Communications Port
The computer will attempt to connect to the MC-III WP via the port that the user selects the rst time
he connects to the instrument. However, if a network dictates that the computer connect through another
communications port (actual or virtual), the user must specify the appropriate COM port. To change the COM
port setting, click on Options>Select COM Port (Figure 4.7), and select the appropriate COM port from the
list of ports detected.
Figure 4.7—COM port selection menu
Software Connection in Multi-Device Network
In most cases, the automatic launch (or “express connect”) feature is a convenient time-saver. However, if
multiple devices are daisy-chained together in a network, this feature can interfere with the user’s ability to
connect to a specic device. The software allows the user to temporarily disable the “express connect” feature
and query the system for all connected devices. From the resulting list of devices, the user can then connect to
the appropriate slave address.
To select a device from a network of instruments, perform the following:
1. From the Welcome screen, choose File>Cancel Express Connect (Figure 4.6).
44
Section 4 MC-III™ WP Flow Analyzer
2. Click File>Discover Modbus® Slaves.
3. Enter a range of addresses you want to search (Figure 4.8).
4. Enter the baud rate established for network communications.
5. Adjust the time-out setting, if necessary.
6. Click “Search.” The software will scan all addresses specied and display all instruments connected.
7. Click on the appropriate address to connect to a device.
Important: In daisy-chain congurations, verify that each device has a unique slave address.

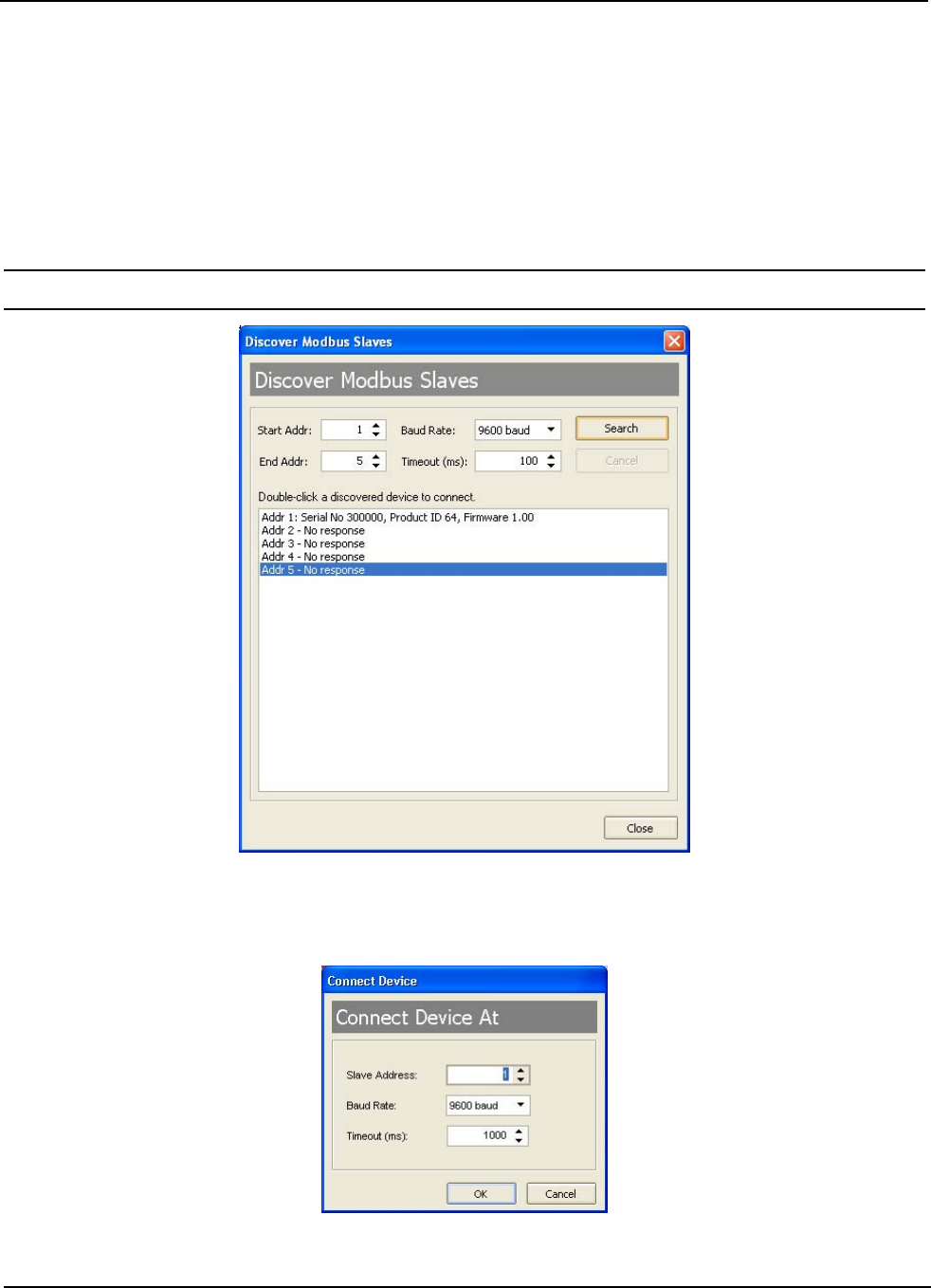

Figure 4.8—Automatic detection of all connected devices
A user who knows the address of a specic device may also connect to it by clicking File>Connect Device at
Address (Figure 4.9).
Figure 4.9—Slave address selection screen
45
MC-III™ WP Flow Analyzer Section 4
Setting Log Download Preferences
The MC-III WP automatically saves daily ow logs on the contract hour, and hourly ow logs around the
clock. The instrument also automatically creates an event record each time a user change is made. After
downloading these logs from the instrument, the instrument saves the data in a le. By default, the logs are
saved as .csv les.
The le format of the auto-save ow log and event log les is user-congurable. Users can congure the
software to download the auto-save ow and event logs as Excel (.xls) les by selecting Options>Program
Options>Downloading from the menu bar (Figure 4.10).
Figure 4.10—Log le type selection
46
Section 4 MC-III™ WP Flow Analyzer
Conguring the MC-III WP
The MC-III WP offers three methods for conguring parameters:
• The “Conguration Wizard” (Figure 4.11) condenses the conguration process into nine easy-to-follow
steps (compensated gas measurement and multipoint linearization are not supported in the wizard).
• The MC-III Main screen (Figure 4.12, page 47) gives users complete access to all conguration param-
eters.
• The Advanced screen (Figure 4.13, page 47) provides access to Modbus® registers that can be modied to
change conguration parameters (recommended only for system congurators and host programmers).
If the desired conguration settings have been saved previously, the conguration le can also be uploaded,
eliminating the need to re-input conguration data. See Saving and Uploading Conguration Files, page 71,
for details.
Figure 4.11—Conguration Wizard (for novice users)
47
MC-III™ WP Flow Analyzer Section 4
Figure 4.12—MC-III Main conguration option for complete access to congurable parameters
Figure 4.13—Advanced Access conguration option for system congurators and host programmers
48
Section 4 MC-III™ WP Flow Analyzer
Conguration Wizard
The Conguration Wizard is ideal for rst-time users who want to perform a basic calibration for liquid or gas
measurement. By following the instructions on nine screens, even a rst-time user can successfully congure
the MC-III WP.
See Table 4.1, page 49, for a list of settings that are congurable with the keypad, the software Conguration
Wizard, and the software MC-III Main Screen.
Important: The Conguration Wizard does not allow multipoint calibration or gas volume
correction. To select these parameters, the user must access the MC-III Main screen.
Caution: Do not use the Conguration Wizard to change individual settings. When the Congura-
tion Wizard is used, system default settings are restored before the new settings entered
in the Calibration Wizard are written to the program. Previous conguration settings are
saved automatically in C:\NuFlo log data\MC-III\Cong Backup Files.
Using the Pencil Tool
The data entry elds in the Conguration Wizard are highly intuitive, and most can be completed by clicking
in the eld and entering new data or selecting a checkbox. For data elds that require the user to enter a value,
such as a K-factor, and designate a decimal position, a pencil icon provides a link to a data-entry window.
To enter a new value, click on the pencil icon (Figure 4.14). A new window will appear, allowing the user
to enter a new value, and designate the appropriate decimal position using a slide bar. This method ensures
that the decimal point setting and data-entry resolution displayed in the software and on the instrument LCD
correlate.
This tool is used to enter the calibration factor, ow rates for 4-20 mA output, and the scale factor for pulse
output.
Figure 4.14—Pencil tool icon and data-entry window
49
MC-III™ WP Flow Analyzer Section 4
Table 4.1—Menus for Conguring Parameters
Congurable Parameter Instrument
Keypad
Conguration
Wizard
Menu Screen
(accessed from
MC-III Main)
For
information,
see page …
Well Name — Step 1 Wellsite
Information
58
LCD Contrast — — System Setup 54
Security Setup — — System Setup 55
Contract Hour — Step 2 System Setup 54
Volume Display (units,
decimal location)
Yes Step 5 Turbine Input 59
Rate Display (units, decimal
location)
Yes Step 5 Turbine Input 59
Input Type Yes Step 3 Turbine Input 60
Input Sensitivity Yes — Turbine Input 60
Input Cut-off Thresholds — — Turbine Input 60
Calculation Period (seconds) — — Turbine Input 60
K-Factor Yes Step 4 K-Factor Entry 61
Multipoint K-Factor — — K-Factor Entry 62
Gas Volume Correction — — K-Factor Entry 63
4-20 mA Output Yes Step 6 4-20 mA Output 65
Pulse Output Yes Step 7 Pulse Output 69
Slave Address Yes Step 8 COM Port 56
Baud Rate Yes Step 8 COM Port 56
Bus Delay — — COM Port 57
Bus Timeout — — COM Port 57
50
Section 4 MC-III™ WP Flow Analyzer
MC-III Main Screen
The MC-III Main menu screen (Figure 4.15) is the conguration hub of the MC-III WP. From the Main
screen, users can
• review all current instrument settings and ow readings
• check the log archive and instrument status
• access all submenus for changing congurable parameters
• reset the total to zero
Figure 4.15—MC-III Main screen provides direct access to all menu functions using the scrolling menu bar at
the left side of the screen.
Data Display and Updates
Each time the software polls the instrument, a small icon appears briey in the lower left corner of the screen.
If the “Live Updates” checkbox in the lower right corner of the screen is checked, the instrument settings and
the LCD displays will automatically update with each poll.
“Live Updates” Checkbox
The “Live Updates” option is enabled by default. However, in the event that slow communication speeds are
used or the system times out frequently, the user can uncheck the “Live Updates” checkbox and periodically
query the system by clicking on the LCD graphic on the Main screen.
Reset Flow Total Button
The ow total can be reset to zero at any time by clicking on the “Reset Flow Total” button.
Scroll Bar
A scroll bar at the left side of the screen (Figure 4.15) gives the user easy access to any of seven conguration
menus and two log archive screens (see pages 52 and 53). Using these menus, the user can change all
congurable parameters of the instrument. Once the instrument has been congured, the Main screen access
should always be used for changing individual parameters while retaining all other conguration settings.
51
MC-III™ WP Flow Analyzer Section 4
Buttons and Tools
Apply and OK Buttons
Changing parameters on a submenu screen involves selecting the proper screen from the scroll bar, selecting
information from dropdown menus or entering data in data elds, and saving the data using the “Apply” or
“OK” button. “Apply” allows the user to apply the changes without leaving the submenu screen. “OK” allows
the user to apply the changes and returns the user to the Main screen.
Refresh and Cancel Buttons
To update the display of settings on any submenu screen by forcing a reread of congured parameters, press
the “Refresh” button. The “Refresh” button clears any entry that has not been applied, therefore, pressing
“Refresh” is also a convenient way to erase an incorrect entry. A “Cancel” button allows the user to close out
of a submenu screen without saving new settings and returns the user to the Main screen.
Pencil Tool for Data Entry
The data-entry elds in the MC-III Main sub-menu screens are highly intuitive, and most can be completed
by clicking in the eld and entering new data, or selecting a checkbox. For data elds that require the user to
enter a value, such as a K-factor, and designate a decimal position, a pencil icon provides a link to a data-entry
window.

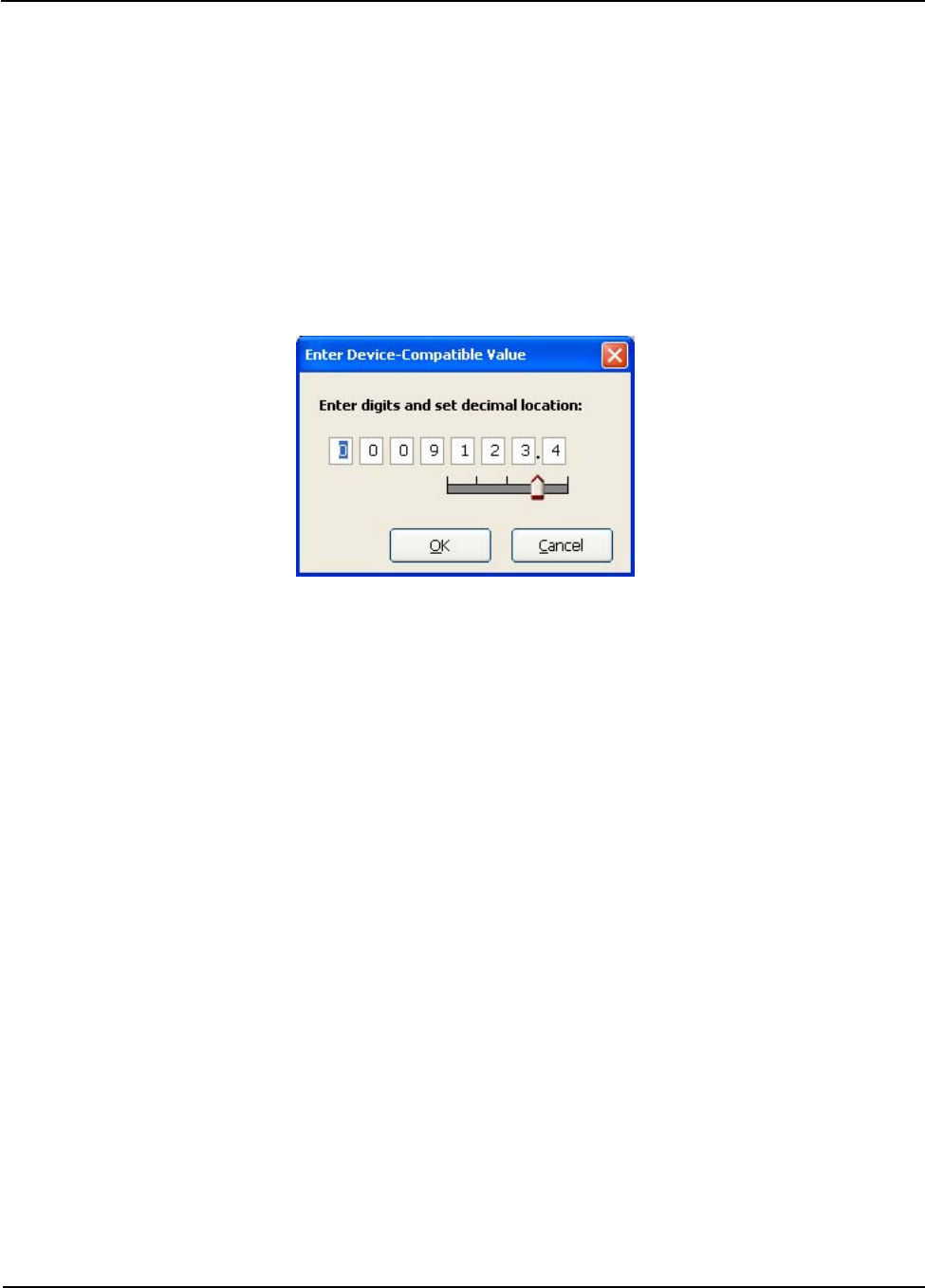

To enter a new value, click on the pencil icon (Figure 4.16). A new window will appear, allowing you to enter
a new value, and designate the appropriate decimal position using a slide bar. This method ensures that the
decimal point setting and data-entry resolution displayed in the software and on the instrument LCD correlate.
This tool is used to enter the calibration factor, ow rates for 4-20 mA output, and the scale factor for pulse
output.
Figure 4.16—Pencil tool icon and data-entry window
52
Section 4 MC-III™ WP Flow Analyzer
Conguration Submenus (MC-III Main)

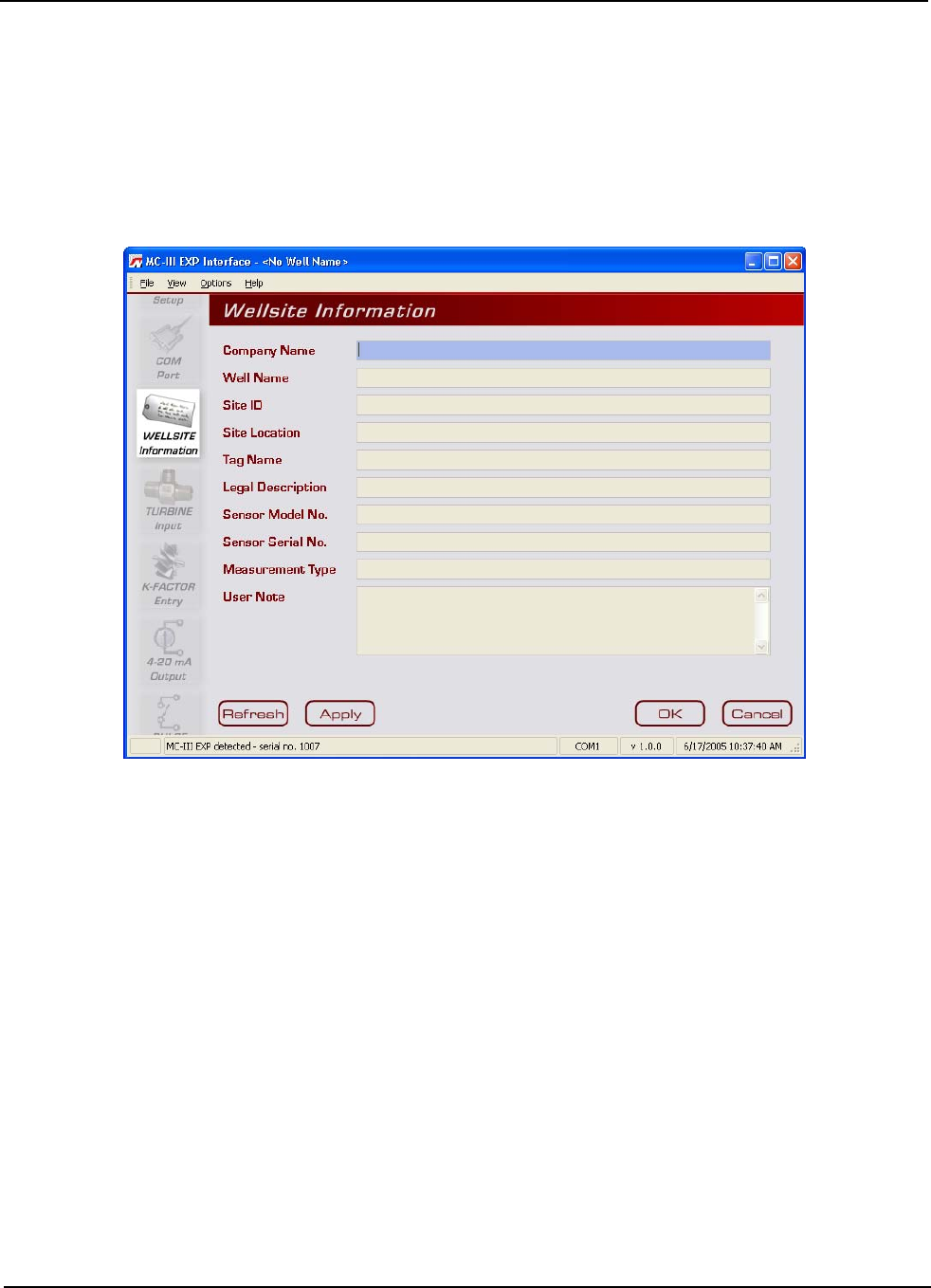

Wellsite Information
System Setup Communications Port

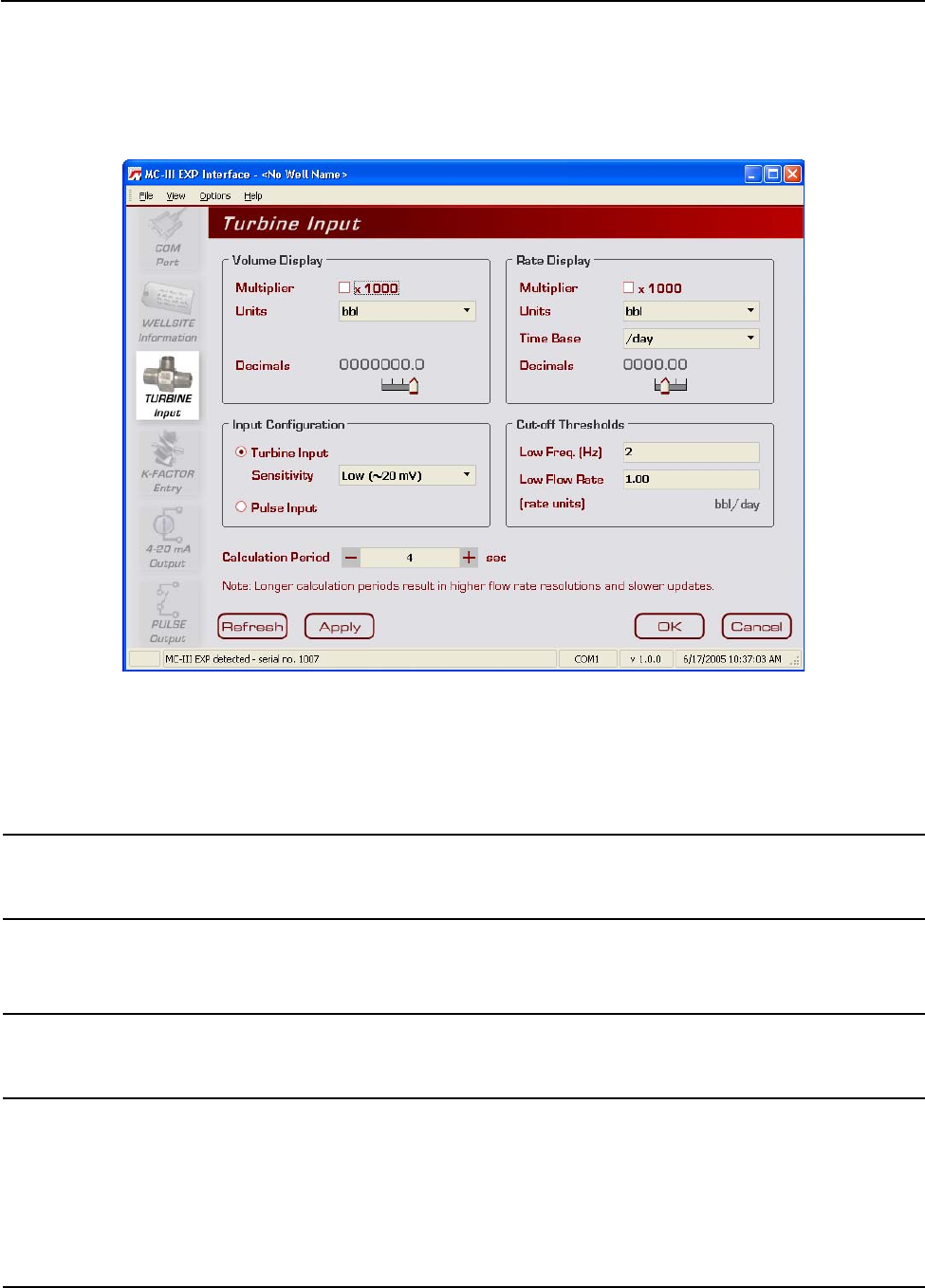

Turbine Input
K-Factor Entry 4-20 mA Output
53
MC-III™ WP Flow Analyzer Section 4

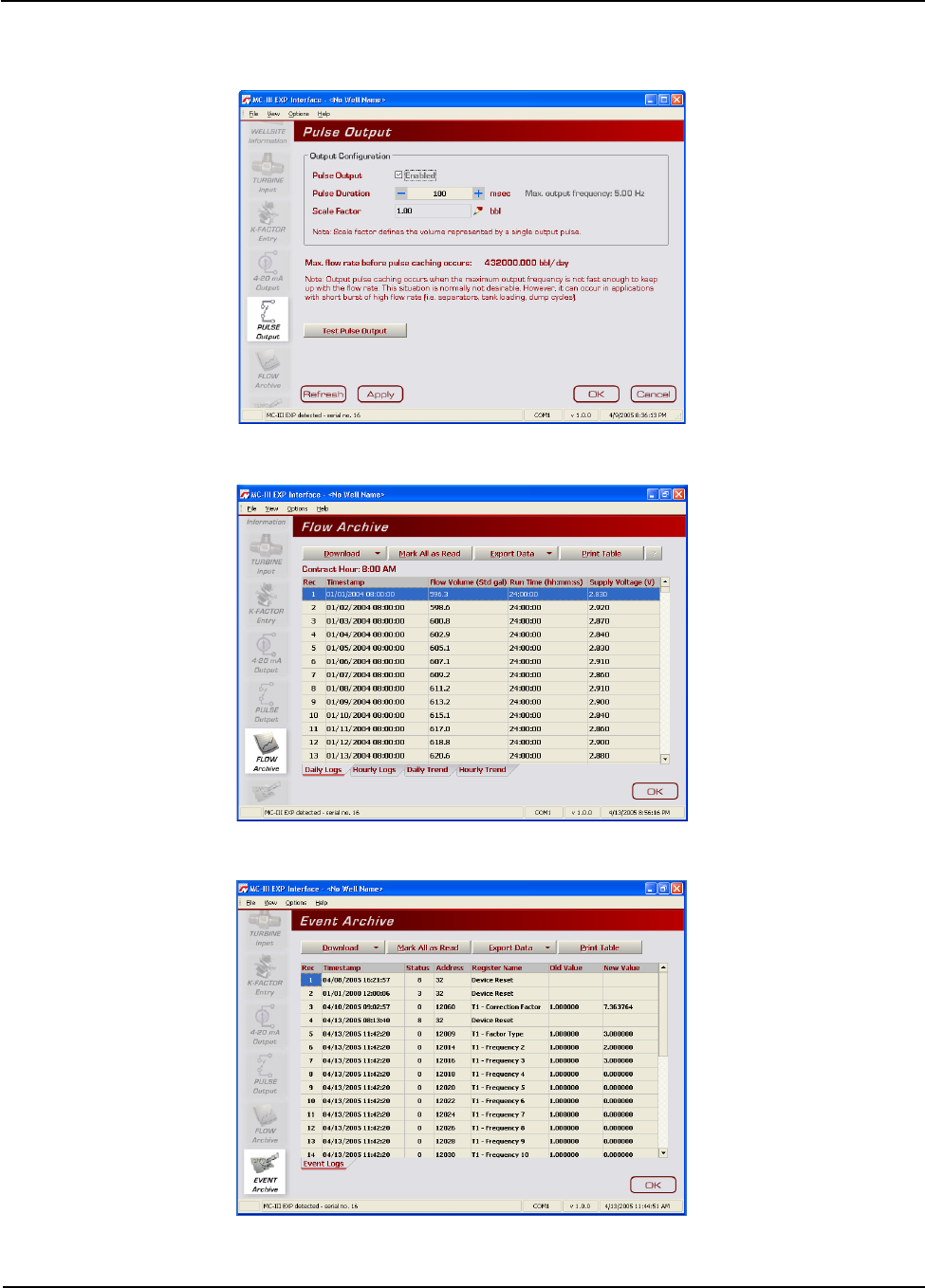

Conguration Submenus (cont’d)
Pulse Output
Flow Archive
Event Archive
54
Section 4 MC-III™ WP Flow Analyzer

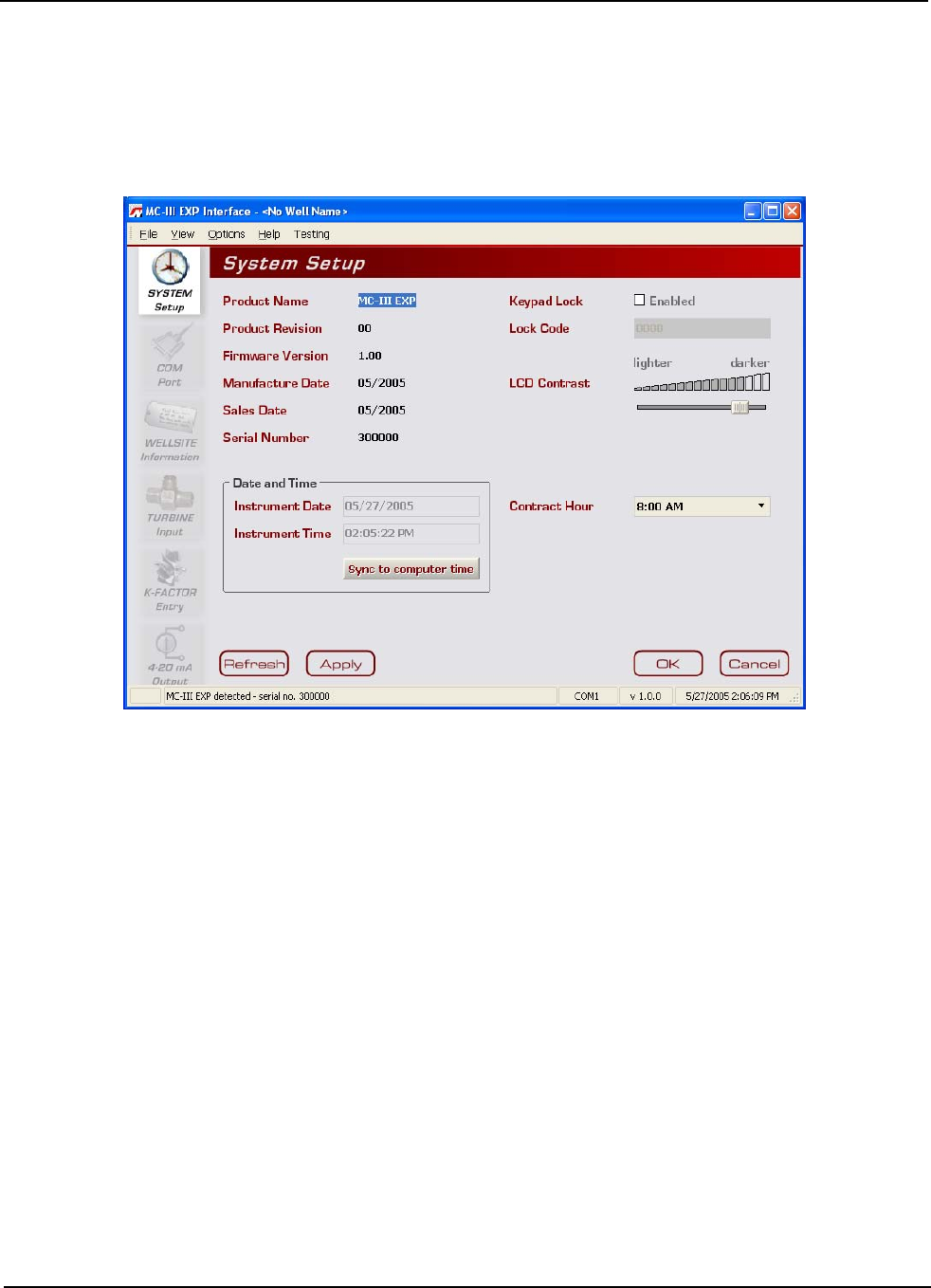

System Setup
The rst of the submenus on the Main screen scroll bar—System Setup—allows users to adjust time/date,
set the desired contract hour, enable or disable the password-protected security option, and adjust the LCD
contrast.
Figure 4.17—System Setup screen
Time/Date Synchronization
The MC-III WP includes a real-time clock for timekeeping and log time stamps. Upon connecting with the
instrument, the interface software prompts the user to synchronize the instrument time and date with the
time and date displayed on the computer if the time difference exceeds 60 seconds. To change the clock
synchronization threshold to a value other than 60 seconds, see General Options, page A-1.
A user can synchronize the instrument and computer clocks at any time by clicking the “Sync to Computer
Time” button on the System Setup screen.
Contract Hour
Hourly ow totals are logged in the archive on the hour. The contract hour determines the exact time when
the daily ow total is logged. The contract hour is easily adjusted by selecting the appropriate hour from the
dropdown list on the System Setup screen.
LCD Contrast Adjustment
LCD contrast is temperature-dependent and may require adjustment for optimum readout visibility. A slide
bar allows users to quickly adjust the contrast of the LCD.
55
MC-III™ WP Flow Analyzer Section 4
Security Setup
Setting a keypad security code will prevent unauthorized personnel from altering calibration data or resetting
totals, and the security function is recommended to preserve data integrity of the system. The MC-III WP’s
keypad security feature is disabled at the factory.
To enable the security protection, check the “Keypad Lock” checkbox on the System Setup screen, and enter
a four-digit lock code in the eld below the checkbox. (Do not use “0000.”) The security feature will be
activated the next time a user attempts to access the keypad.
Firmware Version Number
As rmware is upgraded, rmware version numbers change. The rmware version number shown may assist
technical support personnel in troubleshooting an operational issue.
Serial Number
The serial number of your MC-III WP can be used to track the history of your unit to include warranty status.
56
Section 4 MC-III™ WP Flow Analyzer

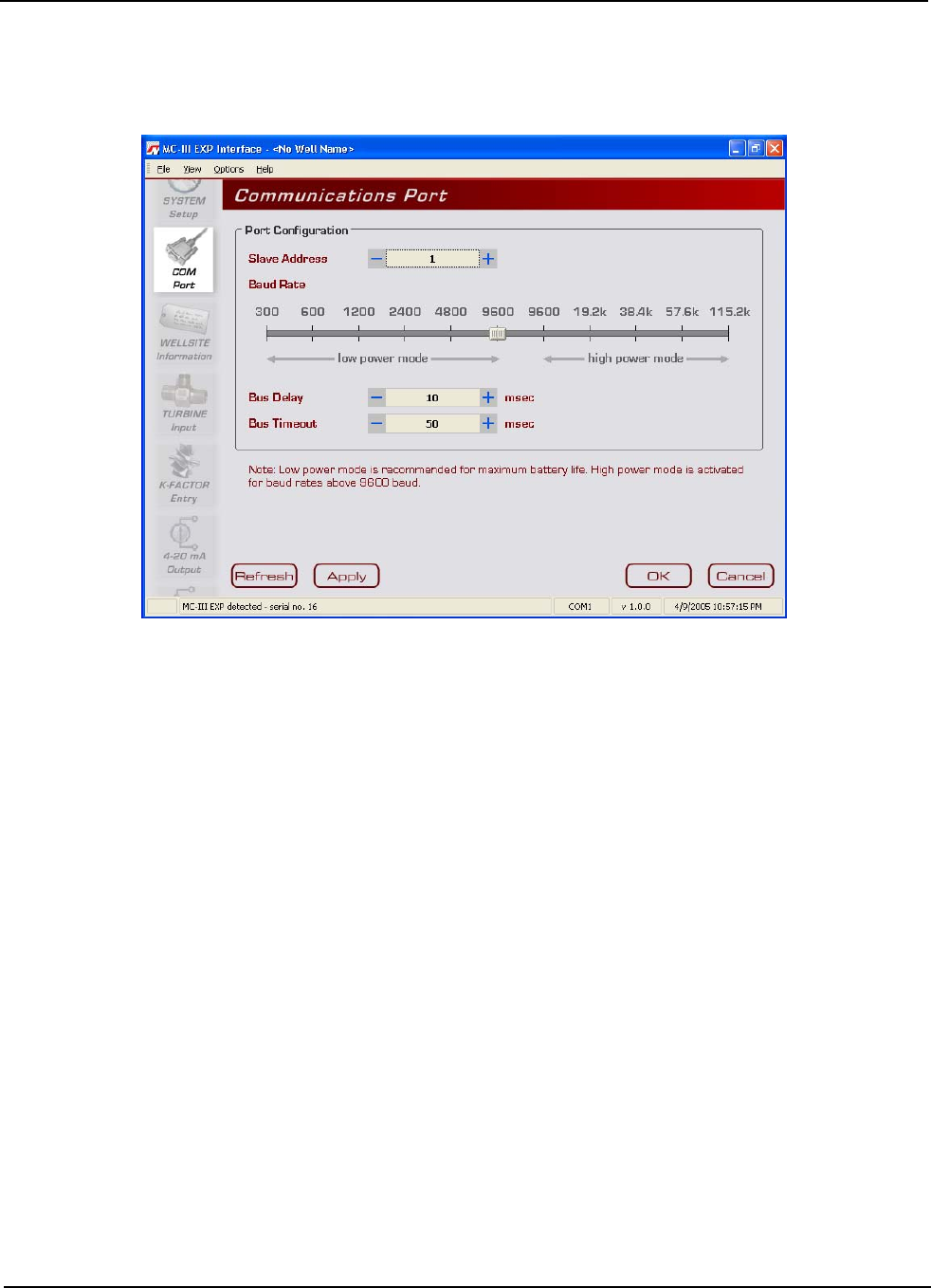

Communications Port
The Communications Port screen (Figure 4.18) allows users to change the settings that are required for
Modbus® communication.
Figure 4.18—Communications Port screen
Slave Address
The slave address allows the MC-III WP to communicate with other devices via Modbus®. It is a number
that ranges from 1 to 65535, excluding 252 to 255 and 64764. If a Modbus® request message contains the
matching slave address, the device will respond to the request. In network arrangements, the slave device
must have a unique address. For more information about Modbus® communications, refer to the protocol
manual section.
To change the slave address, select a number using the “plus” and “minus” buttons on the screen, or using the
page-up and page-down keys on your computer keyboard. If Modbus® communication is not used, leave the
slave address at the factory setting (1).
Baud Rate
The baud rate is the number of bits per second that are on the serial port. Baud rates supported by the MC-III
WP range from 300 to 115.2K. This setting must match the setting of the master device polling the MC-III
WP or the serial port. This only applies to the Modbus® communications; if Modbus® is not used, set the baud
rate to 9600.
To change the baud rate, slide the selector bar to the appropriate setting. The default setting is 9600 baud.
Note that the 9600 baud rate is available in both the low-power and high-power modes. When the instrument
is powered by batteries alone, the low-power mode is recommended.
Auto-Negotiate Option
When connected devices are capable of switching baud rates automatically or when devices are directly
connected to an MC-III WP, a user may congure the MC-III interface to automatically negotiate the fastest
57
MC-III™ WP Flow Analyzer Section 4
baud rate during device connection. This “negotiated” baud rate does not replace the congured baud rate,
but rather provides a temporary boost of baud rate while the computer is connected to the device for faster
downloads. After the software disconnects, the device reverts to the congured baud rate.
By default, this function is disabled. To enable automatic baud rate negotiation on device connect, choose
Options/Program Options from the menu bar, select Communications from the dropdown options list, check
the “Attempt auto-negotiation...” checkbox, and click “OK” (Figure 4.19). To initiate an immediate search
for the fastest baud rate without exiting tto the Welcome screen, check the “Enable auto-negotiated baud
rate” checkbox, click the “Test Now” button to the right of the checkbox, and click “Yes” at the prompt in the
Conrm dialog box. See also Auto-Negotiate Option, page A-4.
Figure 4.19—Communications Options screen
Bus Delay
Bus delay is the amount of time (in milliseconds) that passes before the MC-III WP attempts to take control of
the RS-485 bus and transmit a message back to the requesting device. The MC-III WP responds very quickly
to incoming Modbus® requests—in some cases, too quickly. A congurable delay allows the user to control
this response time. A setting of 10 ms is normally sufcient, but may require adjustment when the MC-III WP
is communicating with a radio or other end device that responds more slowly.
Bus Timeout
Bus timeout is the amount of time (in milliseconds) that must pass to cause the MC-III WP to reset its internal
Modbus® message handler. The default value of 50 ms is normally sufcient.
Software Communication Options
The default timing parameters in the MC-III WP support communication with most radios and Modbus®
devices. However, if the MC-III WP is used with a device that has a very slow response time, it may be
necessary to adjust the timing parameters to enhance performance. For information about these parameters,
see Appendix A, Software Program Options.
58
Section 4 MC-III™ WP Flow Analyzer
Wellsite Information
The Wellsite Information screen (Figure 4.20) allows users to enter information that distinguishes the wellsite,
such as company name, well name, and site location. While most of the elds on this screen are optional, a
well name should be assigned.
The well name (limited to 20 characters in length) will also serve as the name of the folder where ow logs
generated by the MC-III WP software will be archived. If a well name is not entered on this screen, logs will
be saved in a folder titled “NO_WELLNAME.”
Figure 4.20—Wellsite Information screen
59
MC-III™ WP Flow Analyzer Section 4
Turbine Input
The Turbine Input screen (Figure 4.21) allows users to congure the displays for volume and rate, select the
type of input to be used (turbine input or pulse input), determine cut-off thresholds for measuring ow, and
determine the display update frequency.
Figure 4.21—Turbine Input screen
Volume Display
The Volume display can be congured to display totals in one of ve preprogrammed engineering units or in a
user-dened unit (for use with a calculated divisor).
Important: If volume is to be measured in user-dened units, the K-Factor unit must also be
entered as “pulses per unit.” For more information, see Entering a Calculated Divisor, page
29.
To display the volume in multiples of 1,000 units, check the “Multiplier” checkbox. Users can specify
decimal point position, from 0.1 to 0.0001 of a unit, using the slide bar on the Turbine Input screen.
Important: Before enabling or disabling the “× 1000” unit option for displaying ow totals, clear the
total display to zero. If the total is not cleared, the accumulated total displayed will repre-
sent a combination of two different units and will not provide an accurate ow reading.
Rate Display
The Rate display comprises two parts: a volume unit and a time-base unit. The volume portion of the Rate
display can be congured in one of ve preprogrammed engineering units or in a user-dened unit (for use
with a calculated divisor).
To display the volume portion in multiples of 1,000 units, check the “Multiplier” checkbox.
60
Section 4 MC-III™ WP Flow Analyzer
The time-base portion of the Rate display can be congured in one of four preprogrammed engineering units:
per day, per hour, per minute, or per second. Users can specify decimal point position, from no decimal up to
0.001 of a unit, using the slide bar on the Turbine Input screen.
Important: If the volume portion of the Rate display is to be measured in user-dened units, the
K-Factor unit must also be entered as “pulses per unit.” For more information, see
Entering a Calculated Divisor, page 29.
Input Type/Sensitivity Conguration
The MC-III WP accepts either a turbine input or a pulse input. When the turbine input is selected, the user can
also specify one of three sensitivity levels (low, medium, or high) to help minimize noise interference in the
signal reception. A “low” sensitivity setting will detect a signal of approximately 20 mV peak-to-peak, while a
“high” sensitivity setting will detect only signals that exceed 40 mV, peak-to-peak.
When a pulse input is selected, no sensitivity setting is required.
Cut-Off Thresholds
Periods of very low or interrupted ow can lead to inaccuracies in indicated ow totals. To help prevent these
inaccuracies, the user can establish cut-off thresholds to determine the minimum frequency and/or ow rate at
which a signal will be recorded.
The ow rate cut-off is a setpoint for the accumulation of ow time in the hourly and daily records, and can
be applied to either a turbine input or pulse input.
The frequency cut-off is reserved for the turbine input only. When the low-frequency cut-off is congured, the
MC-III WP will ignore inputs that are less than the user-entered value.
Calculation Period
The ow calculation period is the number of seconds that are allowed for calculating the ow condition. This
setting is easily adjusted with the “plus” and “minus” buttons on the screen, or the page-up and page-down
keys on your computer keyboard. Increasing this setting value results in ow rates with greater resolution.
This setting is also the time allowed for processing of display updates.
61
MC-III™ WP Flow Analyzer Section 4
K-Factor Entry
The K-Factor Entry screen (Figure 4.22) allows users to calibrate the MC-III WP using a single calibration
factor from a turbine owmeter or multipoint linearization. Users can also congure the MC-III WP to
compensate for the effect of pressure, temperature, and compressibility on gas volume measurements.
Figure 4.22—K-Factor Entry screen
K-Factor Units
K-Factor entry consists of selecting the K-Factor unit and type (linear or multipoint). In selecting the unit,
users can choose from ve preprogrammed units (pulses per gallon, barrel, cubic meter, cubic foot, or liter). If
a calculated divisor is to be used, “pulses per unit” should be selected.
K-Factor Type
For linear calibration, the user need only select the Linear checkbox and enter the K-factor of the turbine
meter. To enter the K-factor value, click on the pencil icon to open a data-entry window (Figure 4.23). Enter
the digits, left to right, and adjust the slide bar to move the decimal point to the proper position.
Figure 4.23—Data-entry screen for linear K-factor
62
Section 4 MC-III™ WP Flow Analyzer
For multipoint calibration, the user selects the Multipoint checkbox, and then enters the number of calibration
points he desires using the “plus” and “minus” buttons on the screen or the page-up and page-down keys on
a computer keyboard. Up to 12 calibration points may be entered. Frequency and factor data-entry elds are
automatically activated for the number of calibration points selected. The user can then enter the appropriate
data for each point.
K-Factor Backup
Each time a calibration factor is entered or changed, the software prompts the user to copy the previous
settings to backup memory (Figure 4.24). In the event that an error is made while entering conguration
parameters, the user can restore the last saved set of conguration settings to the instrument.

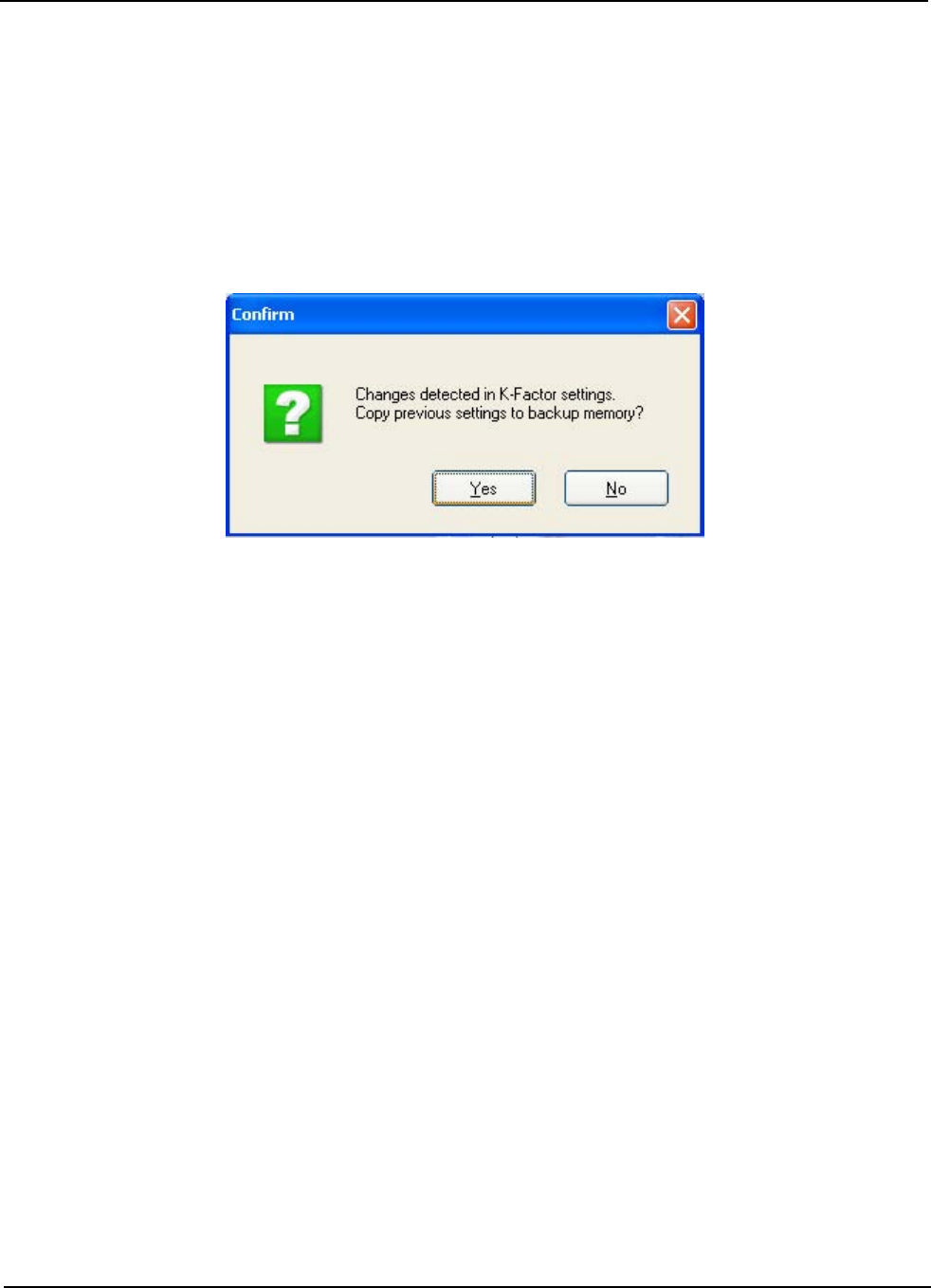

Figure 4.24—Prompt to copy previous calibration settings to backup
Select “yes” to save the previous calibration factor to memory. The date and time of this backup is displayed
next to the “Retrieve K-Factor Backup” button on the K-Factor Entry screen. Only the last saved backup can
be retrieved.
To retrieve the last saved K-Factor backup, perform the following steps:
1. Press the “Retrieve K-Factor Backup” button. A conrmation screen will appear with a prompt to proceed
or terminate the retrieval.
2. Press “yes” to retrieve the last backup.
3. Click “OK” or “Apply” to save the retrieved settings to the conguration le. Because the retrieval of
these settings represents a change to the current K-Factor settings, you will again be prompted to copy the
previous settings to backup.
63
MC-III™ WP Flow Analyzer Section 4
Gas Volume Correction (Supercompressibility Calculation)
Gas turbine meters are calibrated in actual cubic feet (ACF), and measure gas in actual cubic feet. In some
applications, a user may benet from referencing gas measurements back to standard conditions by measuring
in terms of standard cubic feet (SCF). The MC-III WP makes this process quick and easy, by using xed
average values for the owing gas temperature and owing gas pressure.
By default, this option is disabled.
To access this feature, check the “Enable volume correction” checkbox in the Gas Correction section of the
K-Factor screen. The “STANDARD” annunciator on the LCD will illuminate, and all other Gas Volume
Correction data elds will be activated (Figure 4.25).
Figure 4.25—Gas volume correction settings on K-Factor Entry screen
Atmospheric pressure is set at 14.73 psia by default, but can be adjusted to local conditions.
To compensate the gas measurement to standard conditions, complete the following steps:
1. Enter the atmospheric pressure.
2. Enter the base pressure and unit. The base pressure is the pressure to which the gas will be compensated
(typically, 14.73 psia).
3. Enter the base temperature and unit. The base temperature is the temperature to which the gas will be
compensated (typically, 60°F).
4. Enter the working pressure and unit. The working pressure is the user-entered pressure that represents the
average working (owing) pressure.
5. Enter the working temperature and unit. The working temperature is the user-entered temperature that
represents the average working (owing) temperature.
64
Section 4 MC-III™ WP Flow Analyzer
6. Enter a known compressibility factor, or press “Calculate compressibility from gas comp.” to view a
selection of gas compositions (Figure 4.26).
• To automatically calculate the compressibility factor, enter the gas composition and click on
“Calculate.” The software will calculate owing gas compressibility in accordance with the
AGA-8 detail method.
• The K-Factor Entry screen will reappear, and the calculated super-compressibility factor will be
displayed.
Figure 4.26—Gas Composition screen
65
MC-III™ WP Flow Analyzer Section 4
4-20 mA Output
Do not make or break any connections on the 4-20 mA current loop unless the area is
known to be non-hazardous.
Caution: Before performing any 4-20 mA calibration, ensure that all peripheral equipment con-
nected to the 4-20 mA current loop is either disconnected or disabled. Calibrating and
testing the 4-20 mA output feature on the MC-III WP with the peripheral equipment in
operation may cause false alarms or erroneous operation of the peripheral device or as-
sociated equipment.
The 4-20 mA Output screen (Figure 4.27) allows users to congure the MC-III WP to provide a 4-20 mA
output representing ow rate. Zero and full-scale values can be congured to represent any ow rate range

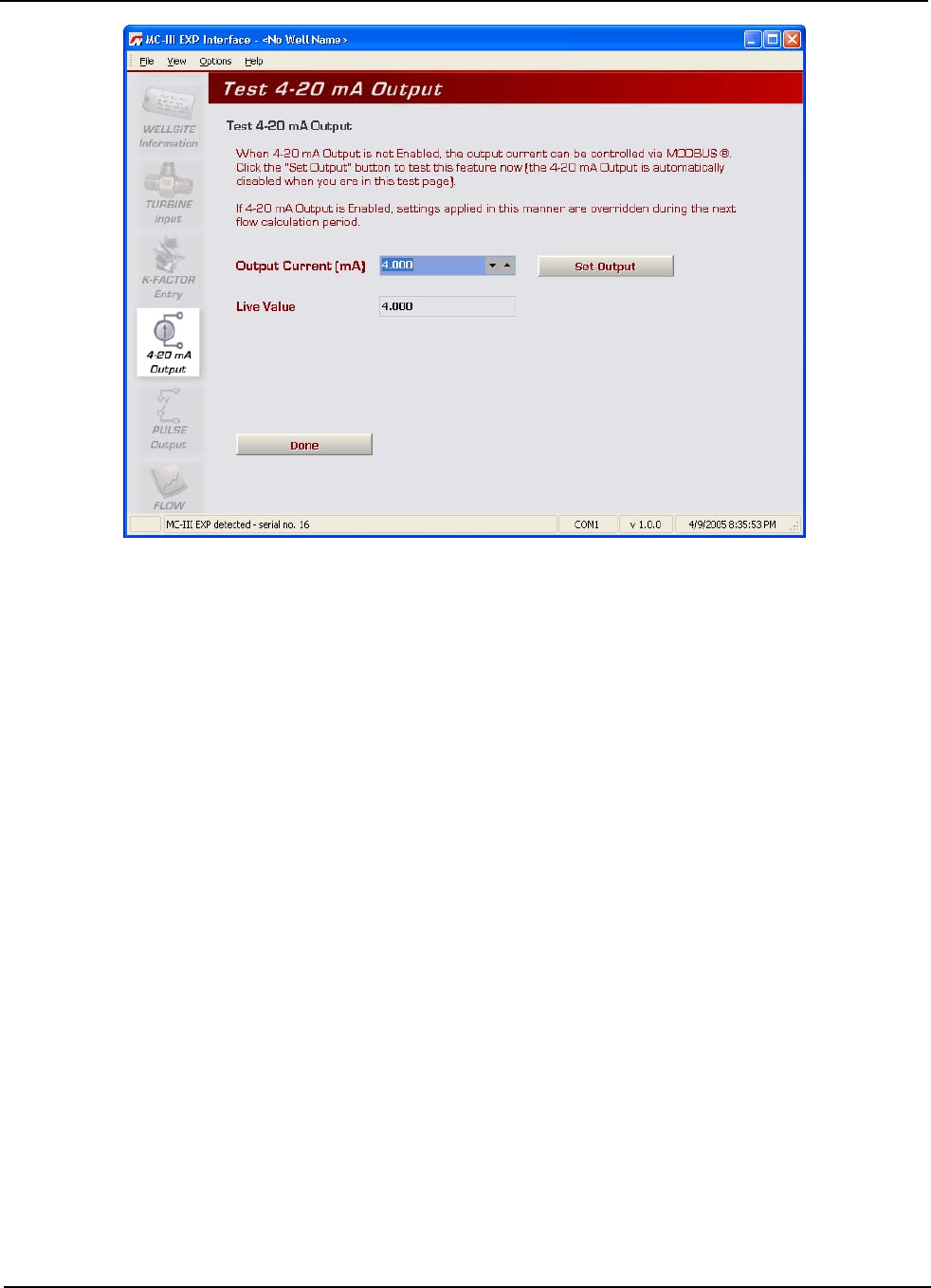

within the range of the owmeter. A test mode function is also included, allowing a user to calibrate and/or
verify the output received by an end device.
Figure 4.27—4-20 mA Output screen
The low (or zero) setting is the ow rate value that will produce a 4-mA output. The high (or full-scale)
setting is the ow rate value that will produce a 20-mA output. Typically, the high value is greater than the
low value; this scenario is dened as “direct mode” in Figure 4.28, page 66.
Alternatively, users may congure the 4-mA and 20-mA outputs to have an inverse relationship, such that the
high value is less than the low value. This scenario is dened as “indirect mode” in Figure 4.28, page 66.
66
Section 4 MC-III™ WP Flow Analyzer
Figure 4.28—Two options for conguring a 4-20 mA output
Flow rates in-between the minimum and maximum rate setpoints will result in an output of current between
4 mA and 20 mA according to the following calculation:
= × − +
[ ] [ ]
MAX MIN
OUT CURR MIN
I I
I RATE Low I
High Low
−
−
Where:
IOUT = output current
IMAX = maximum current output (20 mA)
IMIN = minimum current output (4 mA)
High = programmed ow rate that produces a 20-mA output
Low = programmed ow rate that produces a 4-mA output
RATECURR= ow rate
67
MC-III™ WP Flow Analyzer Section 4
Enabling 4-20 mA Output
By default, the 4-20 mA output option is disabled. To enable this feature, perform the following steps:
1. Check the “Enable” checkbox.
2. Click on the pencil icon next to the Low Flow Rate eld to launch a data-entry window (Figure 4.29) and
enter the “low” or “zero” ow rate value that will produce a 4-mA output. Adjust the decimal position,
if necessary, using the slide bar. A ow rate less than or equal to this minimum setpoint will result in an
output of 4 mA.
3. Click on the pencil icon next to the High Flow Rate eld and enter the “high” or “full-scale” ow rate
value that will produce a 20-mA output. Adjust the decimal position, if necessary, using the slide bar. A
ow rate equal to or greater than this maximum setpoint will result in an output of 20 mA.
Figure 4.29—Data-entry screen for 4-20 mA low and high values
4-20 mA Output Testing
The MC-III software allows users to test the 4-20 mA output by entering an output current value and reading
the live value generated in response.
To use the test mode, press the “Test 4-20 mA Output” button at the bottom of the 4-20 mA Output screen.
The test page will appear (Figure 4.30, page 68), and the 4-20 mA Output option will be temporarily disabled.
To test the output, enter a value in the Output Current (mA) eld, and press “Set Output.”
68
Section 4 MC-III™ WP Flow Analyzer
Figure 4.30—4-20 mA output test screen
69
MC-III™ WP Flow Analyzer Section 4
Pulse Output
The Pulse Output screen (Figure 4.31) allows users to congure the MC-III WP to provide a pulse output
representing increments in volume. A test mode function is also included, allowing a user to calibrate and/or
verify the output received by an end device.
Figure 4.31—Pulse Output screen
Conguring Pulse Output
By default, the pulse output option is disabled to reduce current consumption. To conserve power, do not
enable this feature unless it will be used.
To enable the pulse output option, perform the following steps:
1. Check the “Enable” checkbox.
2. Enter the pulse duration value using the “plus” and “minus”
buttons on the screen, or the page-up and page-down keys
on a computer keyboard. The pulse length (pulse width)
determines the length of each output pulse in milliseconds
(ms).
3. Click on the pencil icon next to the scale eld to open a
data-entry window (Figure 4.32), and enter the scale factor.
Adjust the decimal position, if necessary, using the slide bar.
The scale factor sets the volume increment that will cause a
pulse output to occur. The unit for this factor is determined
by the unit set for the volume display.
Figure 4.32—Data-entry screen for pulse
output scale factor
Note: The scale factor can be any number; it is not limited to powers of 10 (1, 10, 100, etc.).
70
Section 4 MC-III™ WP Flow Analyzer
In applications where high ow rates may occur for extended periods, pulses can be lost due to the
instrument’s inability to register the ow rate at the maximum output frequency. To avoid the loss of pulses,
users can raise the scale factor or shorten the pulse duration. The software calculates the maximum ow
rate that can be reached before pulse caching is likely to occur, and displays the information on the Pulse
Output screen. In applications where short bursts of high ow rates are common (separators, tank loading,
dump cycles, etc.), the displayed ow rate can exceed the maximum ow rate for short periods without
compromising the accuracy of the total represented by the pulse output.
Pulse Output Testing
The MC-III software allows users to test the pulse output by writing a value to the pulse accumulator. Such
tests can aid in troubleshooting problems with hardware compatibility, threshold settings, and pulse duration
settings.
To use the test mode, press the “Test Pulse Output” button at the bottom of the Pulse Output screen. The test
page will appear (Figure 4.33), and the Pulse Output option will be temporarily disabled.
To test the output, enter a value in the Pulse Count eld, and press “Set Output.” The value in the Live Value
eld will decrement to zero in accordance with the programmed pulse duration.

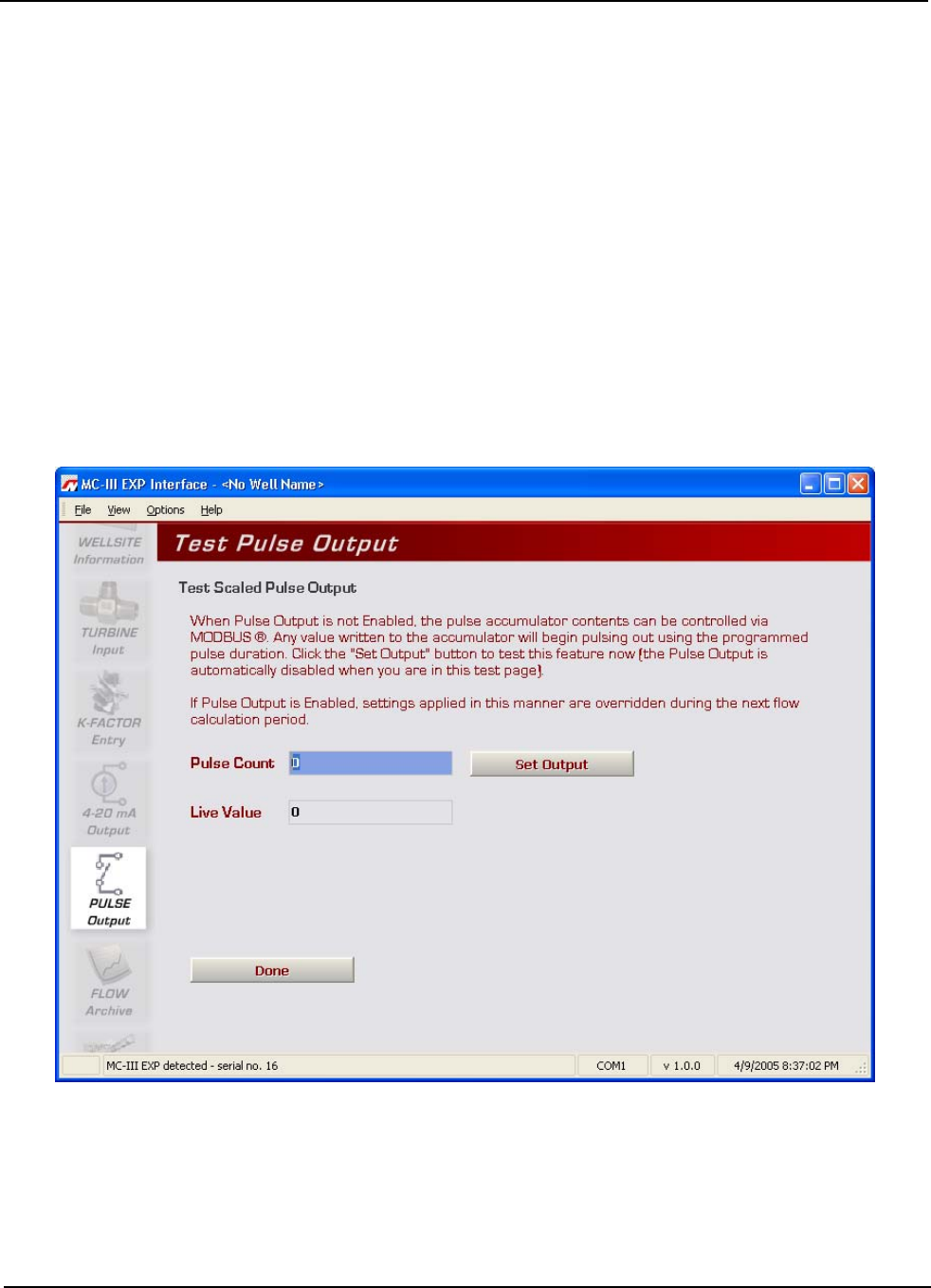

Figure 4.33—Pulse output test screen
71
MC-III™ WP Flow Analyzer Section 4
Saving and Uploading Conguration Files
The MC-III software allows a user to save conguration settings in a le that is stored on the user’s computer
and can be uploaded to the MC-III WP as needed. Conguration les are easily identied by the .mc3
extension. The default lename begins with “cong” and uses the following structure:
File Format Filename Structure
.mc3 “cong”<date (YYMMDD)> <time (hhmmss)>.mc3
Example: cong050209133922.mc3 is a conguration le that was
downloaded on February 9, 2005 at 1:39:22 p.m.
Saving a Conguration File
To save current conguration settings for future reference, perform the following steps:
1. Select File>Save Conguration File (Figure 4.34). A “Save MC3 Conguration File” screen will appear,
prompting the user to save the le to the computer hard drive. The default directory is C:\NuFlo log data\
MC-III\<WELL NAME>, however the user can specify a new location, if desired.
Figure 4.34—File dropdown menu allows user to save a conguration le
2. Click “Save.” An “Information” window will appear to conrm that the le has been saved.
The “wellname” folder will bear the well name that appears on the Wellsite Information screen. If no well
name is entered on this screen, the folder will be named “NO_WELLNAME” (Figure 4.35, page 72).
72
Section 4 MC-III™ WP Flow Analyzer
Figure 4.35—Default directory for conguration les
Uploading a Conguration File
To upload a conguration le, perform the following steps:
1. From the Main screen, select File>Return to Welcome Screen (Figure 4.36).
2. Click on the LCD to connect to the MC-III WP.
3. Click “Upload a conguration” (Figure 4.37, page 73) and click “Do It Now.” A “Load MC3 Congura-
tion File” window will appear (Figure 4.38, page 73), displaying the contents of the conguration folder.
4. Click on the appropriate well name folder, select the conguration le of your choice, and click “Open.”
A “Progress” window will appear momentarily, followed by an “Information” window conrming the
upload.
Figure 4.36—File dropdown menu allows user to return to the Welcome screen
73
MC-III™ WP Flow Analyzer Section 4
Figure 4.37—Upload a Conguration option
Figure 4.38—Default directory for conguration les
74
Section 4 MC-III™ WP Flow Analyzer
Advanced Access
System congurators and host programmers can also access the software through the Advanced Access menu
(Figure 4.39). This option provides access to the Modbus® registers for the MC-III WP. A series of tabs on
the right side of the screen (real time, input conguration, output conguration...) allows the user to view a
specic group of registers, or to view all registers in one list.
Important: The Advanced Access option is not required for the routine operation of the MC-III WP,
and novice users should not access this portion of the software unless instructed to do
so by Cameron technical support personnel.

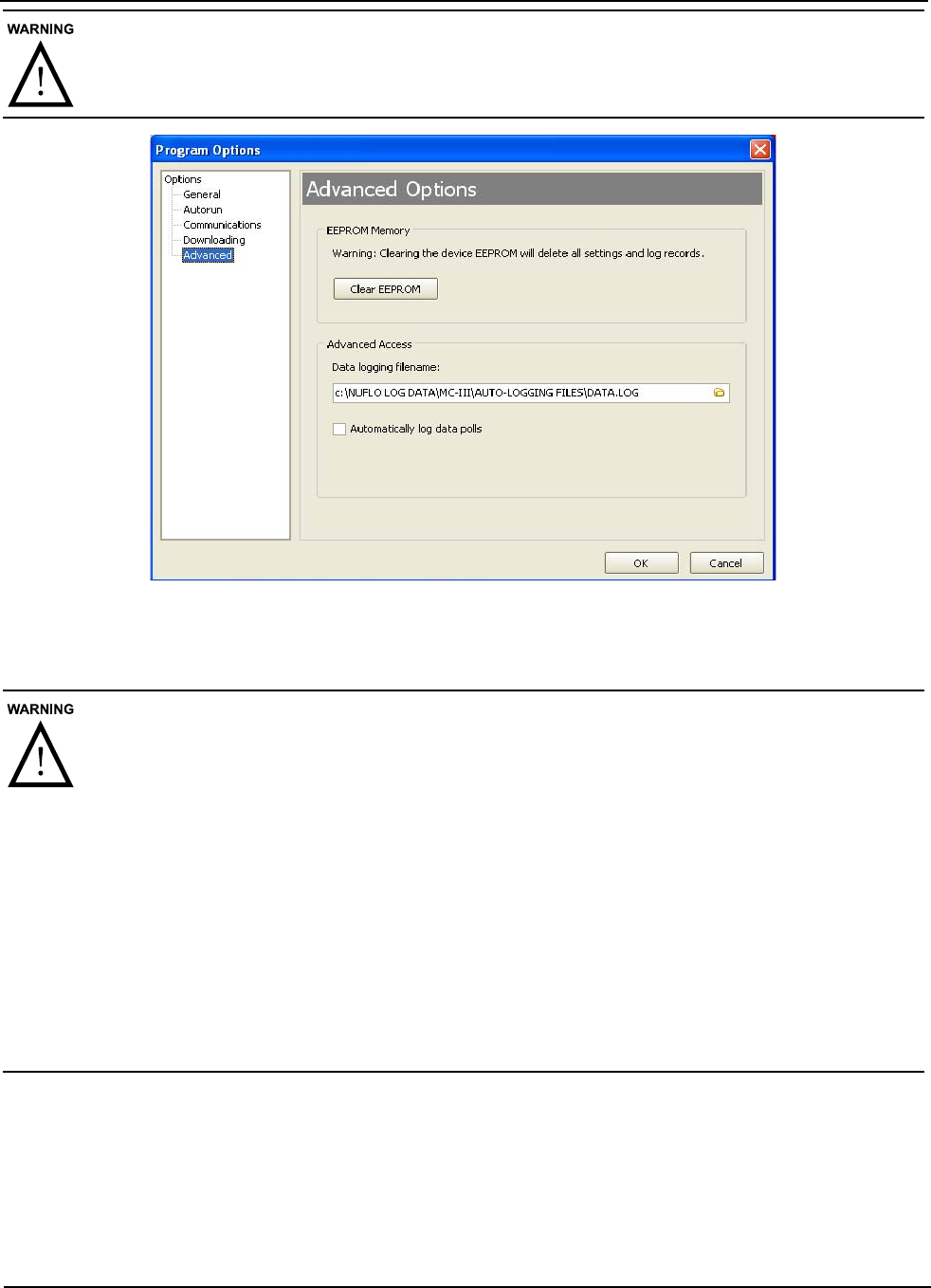

Data retrieved from the MC-III WP while in Advanced access mode can be logged to a le by enabling the
“Automatically log data polls” checkbox on the Advanced Options screen. The le will include values that are
retrieved from the instrument when the user clicks the “Get All Data” button or enables “Auto Polling” on the
Advanced Access screen. See also Automatic Data Logging, page A-6.
Figure 4.39—Advanced Access screen
75
MC-III™ WP Flow Analyzer Section 5
Section 5—Flow Logs and Event Logs
The MC-III™ WP’s ow archive expands the user’s ability to track ow volume over time by allowing the
user to view ow data in tabular and trend formats, to save or print log data in reports, and to export log data
into a spreadsheet. Additionally, an event archive allows users to identify changes to conguration parameters
and other settings for troubleshooting operational issues.
A user can download logs from the Flow Archive and Event Archive screens as needed, or congure the
software to automatically download the logs upon connection with the instrument. See Automating Functions
on Software Startup, page 41, for more information.
When the “download all logs” or “download only new logs” option is selected from the Device Autorun
Options menu and the “Always do...” checkbox is checked, the software will download both ow logs and
event logs each time the software connects to the MC-III WP (Figure 5.1).
Figure 5.1—Device Autorun Options screen allows automated log downloads with every connection
76
Section 5 MC-III™ WP Flow Analyzer
Auto-Save Log Formats
The MC-III WP automatically saves daily ow logs on the contract hour, and saves hourly ow logs around
the clock. The instrument also automatically saves an event log each time a user change is made. After
downloading these logs from the instrument, the software saves the data in a le. By default, the logs are
saved as .csv les.
The le format of the auto-save ow log and event log les is user-congurable. To save logs in Excel (.xls)
format, click Options>Program Options in the task bar, select Downloading from the dropdown options list,
and check the “XLS-MS Excel File” checkbox (Figure 5.2).
Figure 5.2—Log download options
Log Directory and Filenames
Auto-save log les are saved in C:\NuFlo log data\MC-III\<WELL NAME>. The “wellname” folder will bear
the well name that appears on the Wellsite Information screen. If no well name is entered on this screen, the
folder will be named “NO_WELLNAME.”
Log lenames incorporate the serial number of the MC-III WP, the date, the time, and a capital letter
indicating the log type, as shown below.
File Format Filename Structure
.xls or .csv <Serial number>_<date (YYYYMMDD)>_<time (hhmmss)>_<log
type indicator> where the log type indicator is
“H” for hourly, “D” for daily, or “E” for event
Example: 16_20050302_102031_H.xls is an hourly log le from the
MC-III WP serial number 16 that was downloaded on March 2, 2005
at 10:20:31 AM.
77
MC-III™ WP Flow Analyzer Section 5
Flow Archive
The MC-III WP automatically saves daily ow logs on the contract hour, and hourly ow logs. The Flow
Archive screen (Figure 5.3) allows users to download, view, and print trend charts, and export daily and
hourly logs. On the Flow Archive screen, users can view up to 384 daily logs and 768 hourly logs in tabular
format (note the Daily Logs and Hourly Logs tabs at the bottom of the screen), or in a trend chart (see Daily
Trend and Hourly Trend tabs).
Figure 5.3—Flow Archive screen
Downloading Flow Logs
To download ow logs, click the “Download” button on the Flow Archive screen, and select either Download
All Flow Logs or Download Only New Flow Logs (Figure 5.4, page 78). (Download Only New Flow Logs
will display only ow logs that have been created since the last download was performed.) Tabular views of
the archive record (Figure 5.5, page 78) include a time stamp showing the exact time each log was recorded,
as well as ow volume, run time, and supply voltage. Trend views (Figure 5.6, page 79) show the ow
volume and time stamp only.
78
Section 5 MC-III™ WP Flow Analyzer
Figure 5.4—Menu for downloading ow logs from the Flow Archive screen
Figure 5.5—Downloaded ow logs (tabular view)
79
MC-III™ WP Flow Analyzer Section 5
Viewing Trend Charts
In the daily and hourly trend views, ow volumes are charted on a grid, with ow record numbers forming
the horizontal axis, and ow volumes shown on the vertical axis. A graphical line dened by two yellow
endpoints represents the range of archived logs available for viewing. A yellow triangle marks the rst record,
and a yellow circle marks the nal record. The arrowhead cursor is paired with a dotted circle. As the user
drags the cursor across the chart, the circle’s position corresponds with the record displayed at the top of the
screen (Figure 5.6). The circle’s snap function allows the user to pinpoint transitional points within the trend
display; the greater the zoom, the more precise the navigation.
Important: The interactive cursor cannot be turned off.
• To zoom in, left-click and drag the mouse to the right and down.
• To zoom out, drag the mouse up and to the left.
• To reposition the chart within the viewing window, right-click the chart and move the mouse slowly in
any direction.
• To exit the page and return to the Main screen, press OK.
Figure 5.6—Flow Archive screen, trend view
Printing/Saving a Report
A ow log can be printed and/or saved as a table (Figure 5.7, page 80) or a trend chart (Figure 5.8, page 81).
To print a log, select the appropriate tab at the bottom of the Flow Archive screen, and press the “Print”
button in the upper right corner of the Flow Archive screen. (If the display is tabular, the button will read
80
Section 5 MC-III™ WP Flow Analyzer
“Print Table”; if the display is a chart, the button will read “Print Chart.”) A Print Preview screen will appear,
displaying the image to be printed.
To print the report, select File>Print from the task bar (Figure 5.7).
Figure 5.7—Print preview, tabular view
To save the report, perform the following steps:
1. Select File>Save from the task bar (Figure 5.8, page 81). A “Save Report As” window will open (Figure
5.9).
2. Enter a lename. The lename extension will be .rps.
3. Click “Save.” By default, log archive reports are saved in C:\NuFlo log data\MC-III\<WELL NAME>,
however the user can specify a new location, if desired. The “wellname” folder will bear the well name
that appears on the Wellsite Information screen. If no well name is entered on this screen, the folder will
be named “NO_WELLNAME.”
81
MC-III™ WP Flow Analyzer Section 5
Figure 5.8—Print preview, trend view
Figure 5.9—Save Report As screen
Viewing a Saved Report
To view a saved report, perform the following steps:
1. From the Flow Archive screen, click “Print Table” (or “Print Chart” for trend chart views) in the upper
right corner of the screen.
2. Select File>Load from the task bar at the top of the page (Figure 5.10, page 82). A Load Report window
will open (Figure 5.11, page 82).
82
Section 5 MC-III™ WP Flow Analyzer
3. Click on the report you wish to view. A preview of the report will appear in the right portion of the win-
dow.
4. Click “Open.”
Figure 5.10—Menu for loading a saved report
Figure 5.11—Load Report screen for viewing saved ow log reports
83
MC-III™ WP Flow Analyzer Section 5
Exporting Flow Logs
Flow logs can be directly exported to an .xls or .csv le for ease in viewing and distributing. To export a le,
perform the following steps:
1. Click the “Export Data” button near the top of the Flow Archive screen and select the .xls or .csv format
(Figure 5.12).
2. When the “Export Daily (or Hourly) Log Data...” window appears, click “Save.” By default, exported
logs are saved in C:\NuFlo log data\MC-III\<WELL NAME>, however the user can specify a new loca-
tion, if desired (Figure 5.13, page 84). The “wellname” folder will bear the well name that appears on
the Wellsite Information screen. If no well name is entered on this screen, the folder will be named “NO_
WELLNAME.”
Important: Users can also specify the le format to be used for all auto-save logs (.csv or .xls). To
change the auto-save format, follow the procedure described in Downloading Options,
page A-5.
Figure 5.12—Dropdown menu for exporting log data
84
Section 5 MC-III™ WP Flow Analyzer
Figure 5.13—Default directory for exported log les
Event Archive
The Event Archive screen (Figure 5.14) allows users to download, view, export, and print up to 345 user event
logs. Event logs are generated to track user changes such as K-Factor changes, input setting changes, power-
on and “watch-dog” resets, and the ow and frequency cut-off settings.
Figure 5.14—Event Archive screen
85
MC-III™ WP Flow Analyzer Section 5
Downloading Event Logs
To download event logs, click the “Download” button on the Flow Archive screen, and select either
Download All Event Logs or Download Only New Event Logs, (Figure 5.15). (Download Only New Event
Logs will display only ow logs that have been created since the last download was performed.) Tabular
views of the archive record (Figure 5.16, page 86) include a time stamp showing the exact time each log was
recorded, as well as the name of the register changed, and the old and new values assigned to that register.
Figure 5.15—Menu for downloading event logs from Event Archive screen
86
Section 5 MC-III™ WP Flow Analyzer
Figure 5.16—Downloaded event logs
Printing/Saving a Report
To print an event log, press the “Print Table” button in the upper right corner of the Event Archive screen. A
Print Preview screen will appear, displaying the image to be printed.
To print the report, select File>Print from the task bar.
To save the report, perform the following steps:
1. Select File>Save from the task bar. A “Save Report As” window will open.
2. Enter a lename. The lename extension will be .rps.
3. Click “Save.” By default, log archive reports are saved in C:\NuFlo log data\MC-III\<WELL NAME>,
however the user can specify a new location, if desired.The “wellname” folder will bear the well name
that appears on the Wellsite Information screen. If no well name is entered on this screen, the folder will
be named “NO_WELLNAME.”
The procedure for printing and saving an event log report is nearly identical to the procedure for printing and
saving a ow log report. See the ow log screen captures, pages 80 through 82, for reference.
Exporting Event Logs
Event logs can be directly exported to an .xls or .csv le for ease in viewing and distributing. To export a le,
perform the following steps:
1. Click the “Export Data” button near the top of the Event Archive screen and select the .xls or .csv format
(Figure 5.17, page 87).
87
MC-III™ WP Flow Analyzer Section 5
2. When the “Export Event Logs...” window appears, click “Save.” By default, exported logs are saved in
C:\NuFlo log data\MC-III\<WELL NAME>, however the user can specify a new location, if desired. The
“wellname” folder will bear the well name that appears on the Wellsite Information screen. If no well
name is entered on this screen, the folder will be named “NO_WELLNAME.”
Important: Users can also specify the le format to be used for all auto-save logs (.csv or .xls). To
change the auto-save format, follow the procedure described in Downloading Options,
page A-5.
Figure 5.17—Dropdown menu for exporting log data
88
Section 5 MC-III™ WP Flow Analyzer
89
MC-III™ WP Flow Analyzer Section 6
Section 6 - MC-III WP Maintenance
The MC-III™ WP is designed to provide many years of service with minimal maintenance. Batteries require
periodic replacement, and battery life depends on whether battery power is the primary or secondary power
source.
All conguration settings are stored in nonvolatile memory; therefore, conguration settings will not be lost
in the event of battery failure.
The circuit assembly or keypad may also require replacement over the life of the instrument. Procedures are
provided in this section.
Lithium Battery Replacement
The MC-III WP uses a lithium battery with a life expectancy of approximately 2 years. Due to the at
discharge characteristics of the lithium battery, it is difcult to determine how much life remains in a battery
at any given time. To preserve conguration and accumulated volume data, replace the battery at 2-year
intervals.
Do not attempt the replacement of the lithium battery unless the area has been declassi-
ed or is known to be non-hazardous.
The lithium battery that powers the MC-III WP is a sealed unit; however, should a lithium
battery develop a leak, toxic fumes could escape upon opening the enclosure. Ensure
that the instrument is in a well-ventilated area before opening the enclosure to avoid
breathing fumes trapped inside the enclosure. Exercise caution in handling and dispos-
ing of spent or damaged batteries. See additional information on lithium batteries in
Appendix B of this manual.
Important: Press the ENTER/SAVE key on the keypad before replacing the lithium battery to save
the accumulated total to nonvolatile memory. Once the battery is replaced and power is
restored to the unit, the last saved accumulated total will be displayed in the LCD.
The lithium battery is secured inside the enclosure by a velcro strap and connected to the circuit assembly via
connector J1.
To replace the lithium battery in the MC-III WP, perform the following steps:
1. Open the door of the enclosure to access the lithium battery.
2. Loosen the velcro strap, disconnect the battery from the connector J1 on the circuit assembly, and remove
the battery from the enclosure (Figure 6.1, page 90). Send the depleted battery to a fully permitted Treat-
ment, Storage and Disposal Facility (TSDF) or to a permitted recycling/reclamation facility, as required
by federal regulations (see Appendix B).
3. Install the new battery in the enclosure in the same position as the original battery, and secure the velcro
strap tightly around the battery.
4. Connect the replacement battery to the J1 connector on the circuit assembly.
90
Section 6 MC-III™ WP Flow Analyzer
5. Close the door of the enclosure and secure the latches.
Important: The interruption of power to the MC-III WP will cause the internal clock time to be inaccu-
rate. Reset the time via the interactive software. See Time/Date Synchronization, page 54.
Figure 6.1—Lithium battery replacement
Alkaline Battery Replacement
The alkaline battery powered instrument features a battery holder containing three D-size alkaline batteries.
The batteries will require periodic replacement. The dimming of the LCD may be an indicator that battery
power is diminishing, and the batteries should be replaced.
Do not attempt the replacement of the alkaline batteries unless the area has been declas-
sied or is known to be non-hazardous.
Important: Press the ENTER/SAVE key on the keypad before replacing the alkaline batteries to save
the accumulated total to nonvolatile memory. Once the batteries are replaced and power
is restored to the unit, the last saved accumulated total will be displayed in the LCD.
The alkaline batteries and battery holder are secured inside the MC-III WP enclosure by a velcro strap and the
battery holder is connected to the circuit assembly via connector J1.
To replace the alkaline batteries, perform the following steps:
1. Open the door of the enclosure to access the alkaline battery holder.
2. Loosen the velcro strap and disconnect the battery holder from connector J1 on the circuit assembly.
91
MC-III™ WP Flow Analyzer Section 6
3. Remove the spent batteries from the holder (Figure 6.2) and dispose of them in accordance with local
regulations.
Figure 6.2—Alkaline battery replacement
4. Install three new alkaline batteries in the battery holder, observing polarity, position the holder in the
enclosure so that the batteries rest against the back plate and secure the velcro strap to hold the batteries
tightly in place.
5. Reconnect the battery holder to connector J1 on the circuit assembly.
6. Close the door of the enclosure and secure the latches.
Important: The interruption of power to the MC-III WP will cause the internal clock time to be inaccu-
rate. Reset the time via the interactive software. See Time/Date Synchronization, page 54.
92
Section 6 MC-III™ WP Flow Analyzer
Circuit Assembly Replacement
Do not attempt the replacement of the circuit assembly unless the area has been declas-
sied or is known to be non-hazardous.
Important: Static electricity can damage a circuit board. Handle new boards only by their edges,
and use proper anti-static techniques (such as wearing anti-static wrist strap or touching
metal to establish an earth ground) prior to handling a board.
Important: If possible, record the accumulated total and all conguration settings before replacing
the circuit board. This information can be recorded by hand or captured by saving a con-
guration le that can be reloaded into the unit after the circuit board is replaced. (See
Saving and Uploading Conguration Files, page 71.)
To replace the circuit assembly, perform the following steps:
1. Open the door of the enclosure to access the circuit board mounted inside the door.
2. Record the locations of all cable connections to the circuit assembly.
3. Using a small standard blade screwdriver, remove all wiring from terminal blocks TB1, TB2, and TB3,
ensuring that all wiring that is connected to powered circuits is insulated with tape.
4. Unplug the battery cable from connector J1 on the circuit assembly.
5. Using a small Phillips screwdriver, remove the three screws from the circuit assembly (Figure 6.3).
Figure 6.3—Removal of circuit assembly
93
MC-III™ WP Flow Analyzer Section 6

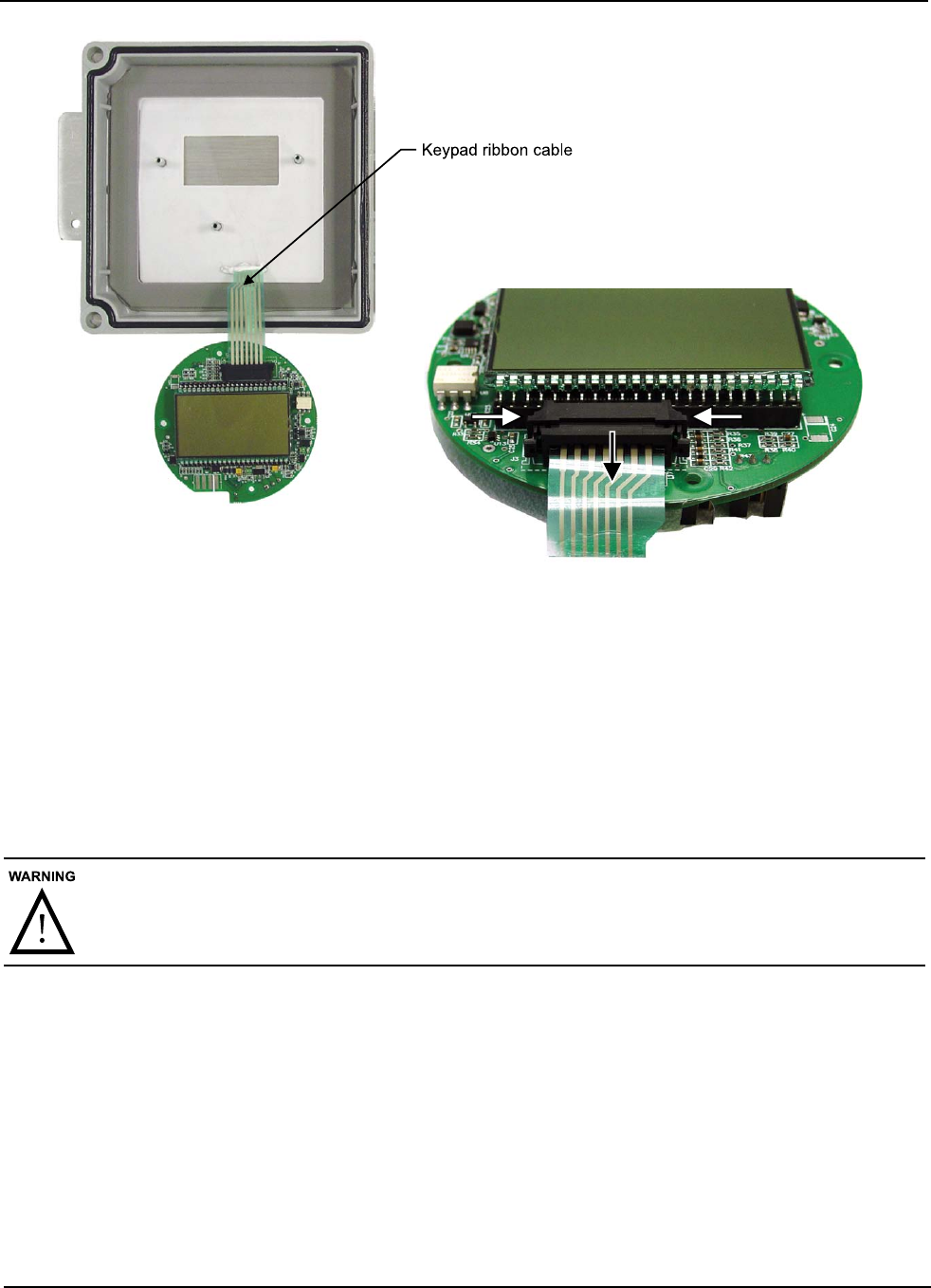

Figure 6.4—Keypad ribbon cable connection
6. Vertically ip the circuit board over to view the opposite side of the board where the LCD is mounted.
The keypad ribbon cable will remain attached to the circuit board (Figure 6.4).
7. From the LCD side of the circuit assembly, disconnect the keypad ribbon cable from connector J3 as fol-
lows:
a. Grasp the black clip between a thumb and forenger (see white arrows in Figure 6.5, page 94).
b. Squeeze both sides of the clip and gently pull to release the clip from the plastic connector that holds
it in place. DO NOT PULL on the ribbon cable. When the black plastic clip is properly disengaged,
the cable will release freely.
8. Remove the original circuit assembly from the enclosure.
9. Remove the new circuit assembly from any packaging and connect the ribbon cable of the keypad to con-
nector J3 on the LCD side of the circuit assembly as follows:
a. Insert the end of the ribbon cable into the plastic clip.
b. While holding the ribbon cable in place, press the black plastic clip into the connector until it snaps.
10. Reconnect the battery cable to connector J1 on the circuit assembly.
11. Center the circuit assembly over the three standoffs on the inside of the enclosure door and secure with
the three screws removed in step 5.
12. Reconnect all wiring to terminal blocks TB1, TB2 and TB3.
94
Section 6 MC-III™ WP Flow Analyzer
Figure 6.5—To release the ribbon cable from the connector, press in on the side tabs of the connector (white
arrows) and gently pull forward (black arrow).
13. Close the door and secure the latches on the enclosure.
14. Recalibrate the MC-III WP.
15. Restore power to the peripheral circuitry.
Keypad Replacement
Do not attempt the replacement of the keypad unless the area has been declassied or is
known to be non-hazardous.
The keypad is attached to the circuit board by a ribbon cable that passes from the kepad through a slot in the
door and plugs into the LCD side of the circuit board. A silicone rubber sealant is applied to the slot to prevent
leakage. Replacement of the keypad requires the operator to remove the old keypad and remove the sealant
before installing the new keypad.
To replace the keypad assembly, perform the following steps:
1. Using a small Phillips screwdriver, remove the three screws from the circuit assembly (Figure 6.3, page
92).
2. Vertically ip the circuit board over to view the opposite side of the board where the LCD is mounted.
The keypad ribbon cable will remain attached to the circuit board (Figure 6.5).
95
MC-III™ WP Flow Analyzer Section 6
3. From the LCD side of the circuit assembly, disconnect the keypad ribbon cable from connector J3 as fol-
lows:
a. Grasp the black clip between a thumb and forenger (see white arrows in Figure 6.5, page 94).
b. Squeeze both sides of the clip and gently pull to release the clip from the plastic connector that holds
it in place. DO NOT PULL on the ribbon cable. When the black plastic clip is properly disengaged,
the cable will release freely.
4. With a sharp instument, remove the sealant from the slot in the door to free the ribbon cable and to pro-
vide a clean surface for installing the new keypad.
5. Using a sharp instrument, lift one corner of the keypad and peel it from the front of the enclosure. Discard
the keypad and the attached ribbon cable.
6. Clean the viewing window with rubbing alcohol and allow it to dry.
7. Remove the backing paper from the new keypad.
8. Insert the ribbon cable of the new keypad through the slot in the door of the enclosure.
9. Center the keypad in the viewing window of the door and press it into place. Apply light pressure to the
entire surface of the keypad to ensure proper adhesion.
10. Apply an electronic-grade sealant (Dow Corning 738 electrical sealant or equivalent) to the slot around
the ribbon cable to prevent leakage. Allow it to dry.
Caution: Never use an acetic acid-based adhesive to seal the ribbon cable slot. Gases released by
such products can damage electronics.
11. Connect the keypad ribbon cable to connector J3 on the LCD side of the circuit assembly as follows:
a. Insert the end of the ribbon cable into the plastic clip.
b. While holding the ribbon cable in place, press the black plastic clip into the connector until it snaps.
12. Reconnect the circuit assembly to the standoffs inside the door using the three screws that were removed
from the circuit board in step 1.
13. Close the door and secure the latches on the enclosure.
Firmware Update
Do not attempt the installation of new rmware unless the area has been declassied or
is known to be non-hazardous.
Before installing new rmware or moving the instrument to a new site, it is recommended that the user
clear the EEPROM, which will erase all conguration settings and log data. To clear the EEPROM, choose
Options/Program Options from the menu bar, select Advanced from the dropdown options list, and click on
the “Clear EEPROM” button (Figure 6.6, page 96).
Technical assistance is typically required for upgrading rmware. Contact Cameron’s Measurement Systems
Division to arrange for an upgrade.
96
Section 6 MC-III™ WP Flow Analyzer
Clicking the “Clear EEPROM” button will delete all conguration settings and log records
in the MC-III WP memory.
Figure 6.6—EEPROM clearing and automatic data log option
Spare Parts List
EXPLOSION HAZARD—SUBSTITUTION OF COMPONENTS AND/OR THE USE OF EQUIP-
MENT IN A MANNER OTHER THAN THAT SPECIFIED BY CAMERON MAY IMPAIR SUIT-
ABILITY FOR CLASS I, DIVISION 2. CAMERON BEARS NO LEGAL RESPONSIBILITY FOR
THE PERFORMANCE OF A PRODUCT THAT HAS BEEN SERVICED OR REPAIRED WITH
PARTS THAT ARE NOT AUTHORIZED BY CAMERON.
DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR
AREA IS KNOWN TO BE NON-HAZARDOUS.
DO NOT OPEN EQUIPMENT UNLESS SIGNAL CIRCUITS AND POWER HAVE BEEN
SWITCHED OFF OR AREA IS KNOWN TO BE NON-HAZARDOUS.
BATTERIES MUST ONLY BE CHANGED IN AN AREA KNOWN TO BE NON-HAZARDOUS.
STATIC HAZARD. DO NOT CLEAN OR RUB ENCLOSURE UNLESS AREA IS KNOWN TO
BE NON-HAZARDOUS.
97
MC-III™ WP Flow Analyzer Section 6
Quantity Part Number Description
19A-50160002 Circuit Assembly
19A-90017003 Cable Assembly, MC Series Totalizers, 2-pin
Molded Connector, Direct-Mount, 28-in.
19A-100005117 Cable Assembly, Flowmeter, Remote-Mount,
10-ft, with Weatherproof Adapter
19A-100005111 Battery - Lithium, 3.6 V
19A-50099003 Battery Holder, with 3 Alkaline “D” Batteries
19A-100002605 Desiccant Packet
19A-50074001 Assembly, Installation Software CD and CD
Pocket Folder
19A-50165009 Manual, User, MC-III WP
19A-50165010 Manual, Quick-Start, MC-III WP
2 9A-50006000 Bracket, Direct-Mount, MC-III WP
19A-99011007 Strap, Battery, Velcro, 5/8 in. x 14.5 in.
19A-50166004 Assembly, Switchplate, MC-III WP
Optional Parts List
Quantity Part Number Description
19A-101283116 Converter, RS-485 to RS-232, 9-Pin, with 10-ft
Cable
19A-100025195 Converter, RS-485 to RS-232, 25-Pin
19A-0112-9015T Converter, RS-485 to RS-232, Serial Port
Powered, DB9 Connector on Both Ends
12296650-01 Converter, RS-485 to USB, with 20-ft Cable
Recommended Magnetic Pickups
Quantity Part Number Description
12295367-01 Pickup, Magnetic, for use with NuFlo liquid
turbine meters 3/4” or smaller, -67°F to 225°F
(-55°C to 107°C)
19A-100002077 Pickup, Magnetic, for use with NuFlo liquid
turbine meters 7/8” or larger, -67°F to 250°F
(-55°C to 121°C)
19A-100002076 Pickup, Magnetic, for use with NuFlo liquid
turbine meters 7/8” or larger, -67°F to 450°F
(-55°C to 232°C)
19A-100003518 Pickup, Magnetic, for use with NuFlo 2” gas
turbine meters, 0°F to 225°F (-18°C to 107°C)
98
Section 6 MC-III™ WP Flow Analyzer
A-1
MC-III™ WP Flow Analyzer Appendix A
Appendix A—Software Program Options
In addition to the standard conguration and ow log menus, the MC-III™ interface software includes a
Program Options menu that allows users to customize the way the software functions, handles log data, and
communicates.
To access the Program Options menu, select Options in the menu bar; Program Options is the last entry in the
dropdown list (Figure A.1).
Figure A.1—Program Options menu location
General Options
The General Options screen allows a user to change the threshold setting used to generate a user prompt for
synchronizing the internal clock with the time displayed on the user’s computer.
The MC-III WP includes a real-time clock for timekeeping and log time stamps, and the internal time and date
is preset at the factory. However, if the factory-set time and date are inaccurate for the user (for example, if
the user is in a different time zone), the program will automatically detect the difference between the device’s
internal time and the date and the time/date displayed on the user’s personal computer and prompt the user to
authorize time and date synchronization.
By default, the MC-III WP prompts a user to synchronize the clock display if the time difference is 60
seconds or more. To change the time difference required to generate a “synchronize” prompt, enter a new
threshold value (seconds) in the General Options screen (Figure A.2, page A-2) and click “OK.”
A-2
Appendix A MC-III™ WP Flow Analyzer
Figure A.2—Threshold setting for internal clock synchronization
Autorun Options
When the software connects with the MC-III WP, the Device Autorun Options screen appears, prompting the
user to select any of six actions, including navigating to one of three conguration screens, downloading ow
and event logs, and uploading a conguration le. A checkbox at the bottom of the screen allows the user to
automate the selected function each time the software connects to the instrument.
The Autorun Options screen in the Program Options menu (Figure A.3) allows a user to terminate all autorun
functions, or change the autorun selection.
Figure A.3—Menu for changing autorun option selection
A-3
MC-III™ WP Flow Analyzer Appendix A
To change an autorun setting —that is, to initiate an autorun action, to terminate an autorun action, or to
change to a different autorun action at the next connection—select Autorun from the Program Options menu
(Figure A.3, page A-2), select the appropriate checkboxes, and click “OK.” Verify that the “Always do...”
checkbox is checked if the selected function is to be automated upon each software connection.
Communications Options
The Communications Options screen (Figure A.4) allows users to customize communication parameters for
optimizing performance, depending on the communication path.
Figure A.4—Menu for changing communication parameters
Express Connect Option
By default, the interface software automatically attempts to connect to the instrument when a user clicks on
the desktop application icon. This feature is controlled by the “Always attempt Express Connect on program
startup” checkbox setting in the Communications Option screen (Figure A.4).
When multiple devices are daisy-chained together in a network, the “express connect” function can interfere
with the user’s ability to connect to a specic device. To disable the Express Connect function, deselect the
“Always attempt...” checkbox and click “OK.” The software will now attempt to connect with the instrument
only when the user clicks on the LCD image on the Welcome screen or selects File>Express Connect. For
more information, see Software Connection in Multi-Device Network, page 43.
To cancel the “express connect” function without disabling the autorun option, the user can toggle between
connect/disconnect by clicking in the LCD area of the device on the Welcome screen.
A-4
Appendix A MC-III™ WP Flow Analyzer
Auto-Negotiate Option
When connected devices are capable of switching baud rates automatically or when devices are directly
connected to an MC-III WP, a user may congure the MC-III interface to automatically negotiate the fastest
baud rate during device connection. This “negotiated” baud rate does not replace the congured baud rate,
but rather provides a temporary boost of baud rate while the computer is connected to the device for faster
downloads. After the software disconnects, the device reverts to the congured baud rate.
By default, this function is disabled. To enable automatic baud rate negotiation on device connect, check the
“Attempt auto-negotiation….” check box in the Communications Option screen (Figure A.4, page A-3) and
click “OK”. To initiate an immediate search for the fastest baud rate without exiting to the Welcome screen,
check the “Enable auto-negotiated baud rate” checkbox, click the “Test Now” button to the right of the
checkbox, and click “Yes” at the prompt in the Conrm dialog box.
Enable Auto-Negotiated Baud Rate Option
The “Enable auto-negotiated…” checkbox enables usage of the baud rate that has been automatically selected
or “negotiated” by the software, either upon connection with the instrument or when the “Test Now” button
was last clicked. See also Auto-Negotiate Option above.
Request-to-Send (RTS) Line Option
Some RS-485 to RS-232 converter modules require a request-to-send (RTS) line for switching between a
“receive” and “transmit” state. This checkbox allows the software to toggle this line, ensuring that incoming
data will be readily transmitted and that the converter will not stall in a “receive” mode after a period of
inactivity. By default, this option is enabled. To disable the option, deselect the checkbox and click “OK.”
Enable Modbus Address Support for Firmware Versions 1.06 through 1.08
Operators with MC-III units programmed with rmware versions 1.06 through 1.08 must check the checkbox
labeled “Enable Modbus Address Support for Firmware Versions 1.06 through 1.08” to ensure seamless
Modbus communication with their units. Operators using any other rmware version with the MC-III should
leave the checkbox unchecked.
Timing Parameters
Presend Delay
On the Communications Options screen, a user can enter a presend delay (milliseconds) to help ensure a
successful connection between the computer and the MC-III when the instrument is networked with a
radio
or other low-speed device. The computer transmits a request to send, which turns the device on, and then waits
the specied length of time before attempting to transmit data. By default, this parameter is set to zero.
Number of Retries
By default, the computer will make two attempts to connect to the MC-III WP before providing an error
message. In situations where timeouts are anticipated—for example, due to a slow-speed computer—the
user can increase the length of time allowed for a connection by inputting a larger number in the Number of
Retries eld.
Timeout Period Type
A user can select an “optimal” timeout, which is based on the response time of the MC-III WP to various
requests for data at all baud rates during extensive testing, or a xed timeout determined by the user. By
default, the “optimal” period type is enabled. When a communication error occurs, the “optimal” timeout
allows the software to respond much faster than the more conservative xed timeout. The optimal setting
is recommended when the software is connecting directly to the instrument. The xed timeout type is
A-5
MC-III™ WP Flow Analyzer Appendix A
recommended when data is being transmitted through a radio or other network device (serial to TCP/IP) and
there are recognizable delays in the communication system.
Timeout Period
When a xed timeout period type is selected, the user enters the timeout period value (in milliseconds) in the
Timeout Period eld. When an “optimal” timeout period type is selected, the user can use this eld to enter
a percentage by which the “optimal” timeout period is extended. This extension can be advantageous when
connecting to a slow computer.
Downloading Options
The MC-III WP automatically saves daily ow logs on the contract hour, and hourly ow logs around the
clock. The instrument also automatically saves an event log each time a user change is made. By default, the
logs are saved as .csv les.
The Downloading Options screen allows a user to change the format of the auto-save ow logs and event logs
to Excel (.xls) les. To save the logs in .xls format, check the “XLS-MS Excel File” checkbox (Figure A.5).
Additional checkboxes allow for changes in the appearance of downloaded log data.
Users can also export ow data to a .csv or .xls le as needed. For complete information, see Exporting Flow
Logs, page 83.
Figure A.5—Menu for changing the auto-save log le format
A-6
Appendix A MC-III™ WP Flow Analyzer
Advanced Options
Clear EEPROM
The Clear EEPROM function will erase all conguration settings and log data. This task is typically
performed when updating to a new rmware version or before moving the instrument to a new site. To clear
the memory, click on the “Clear EEPROM” button (Figure A.6).
Technical assistance is typically required for upgrading rmware. Contact Cameron’s Measurement Systems
Division to arrange for an upgrade.
Clicking the “Clear EEPROM” button will delete all conguration settings and log records
in the MC-III WP memory.
Figure A.6—Menu for clearing EEPROMs and enabling automatic data logs
Automatic Data Logging
Data retrieved from the MC-III WP while in Advanced access mode can be logged to a le by enabling
the “Automatically log data polls” checkbox on the Advanced Options screen. To specify the lename and
location of the le, click the folder icon on the right of the Data logging lename eld. The le will include
values that are retrieved from the instrument when the user clicks the “Get All Data” button or enables “Auto
Polling” on the Advanced Access screen. See also Advanced Access, page 74.
B-1
MC-III™ WP Flow Analyzer Appendix B
Appendix B—Lithium Battery Information
Lithium Battery Disposal
Once a lithium battery is removed from a device and/or is destined for disposal, it is classied as solid waste
under EPA guidelines. Depleted lithium batteries are also considered to be hazardous waste because they meet
the denition of Reactivity, as per 40 CFR 261.23(a)(2), (3) and (5). This document describes how the lithium
reacts violently with water, forms potentially explosive mixtures with water, and when exposed to certain pH
conditions, generates toxic cyanide or sulde gases.
Federal law requires that depleted lithium batteries be sent to a fully permitted Treatment, Storage and
Disposal Facility (TSDF) or to a permitted recycling/reclamation facility.
Important: Do not ship lithium batteries to Cameron. Cameron facilities are not permitted recycling/
reclamation facilities.
Caution: Proling and waste characterization procedures must be followed prior to shipping a
lithium battery to a disposal site. It is the shipper’s responsibility to comply with all ap-
plicable federal transportation regulations (see below).
Transportation Information
Warning: The MC-III WP™ Flow Analyzer contains lithium batteries. The internal component
(thionyl chloride) is hazardous under the criteria of the Federal OHSA Hazard Communi-
cation Standard 29 CFR 1920.1200. Before shipping a lithium battery or equipment con-
taining a lithium battery, verify that the packaging and labeling conforms with the latest
version of all applicable regulations.
The transport of the lithium batteries is regulated by the United Nations, “Model Regulations on Transport of
Dangerous Goods,” (special provisions 188, 230, and 310), latest revision.
Within the US the lithium batteries and cells are subject to shipping requirements under Part 49 of the Code
of Federal Regulations (49 CFR, Parts 171, 172, 173, and 175) of the US Hazardous Materials Regulations
(HMR), latest revision.
Shipping of lithium batteries in aircraft is regulated by the International Civil Aviation Organization (ICAO)
and the International Air Transport Association (IATA) requirements in Special Provisions A45, A88 and A99,
latest revision.
Shipping of lithium batteries on sea is regulated the International Maritime Dangerous Goods (IMDG)
requirements in special provisions 188, 230 and 310, latest revision.
Shipping of lithium batteries on road and rail is regulated by requirements in special provisions 188, 230 and
310, latest revision.
Material Safety Data Sheet
For a link to the current MSDS for the lithium batteries used to power the MC-III WP Flow Analyzer, see the
Cameron website: www.c-a-m.com/o.
B-2
Appendix B MC-III™ WP Flow Analyzer
C-1
MC-III™ WP Flow Analyzer Appendix C
Appendix C—Communications Protocol
Firmware Version 2.03
Register Table Version 1
Introduction
The communications protocol for the MC-III is in accordance with Modicon, Inc. RTU Mode Modbus® as
described in Modicon Modbus Protocol Reference Guide, PI-MBUS-300 Rev. J, June 1996. All registers are
implemented as 4X or holding registers. Reading of registers is implemented via function code 03H (Read
Holding Registers). Writing to registers is implemented via function code 10H (Preset Multiple Registers).
The instrument provides Enron Modbus® compliant downloads for hourly, daily and event records. For details
on Enron Modbus®, refer to Specications and Requirements for an Electronic Flow Measurement Remote
Terminal Unit for Enron Corp., Dec. 5, 1994.
Supported Commands
The Modbus® functions supported by the MC-III are as follows:
Function Code
(Hex)
Description
03 Read Holding Registers
05 Preset Boolean
(for Enron event record acknowledgement)
10 Preset Multiple Registers
For the read holding and preset multiple registers, the instrument supports the full 250 bytes of data in a
message. This corresponds to 125 registers in 16-bit holding register size and 62 registers in 32-bit holding
register size.
Data Types
Various data types are implemented in the MC-III. The following table lists the formats and the numbers of
bytes and registers associated with each type.
Data Type Byte Count Register Count
Floating Point (FP) 42
Floating Point (FP32) 4 1
Unsigned Word (U16) 2 1
Packed ASCII (PA) 2 1
The Floating Point (FP) type follows the IEEE-754 format and consists of 32 bits contained in two registers.
It is utilized for parameters and values that are not integers. For example, Instantaneous Flow Rate is a
parameter that is a oating-point data type. It can be interpreted by reading two registers, starting with register
17014.
C-2
Appendix C MC-III™ WP Flow Analyzer
The Floating Point-32 bit (FP32) data type follows the IEEE-754 format and consists of 32 bits contained in a
single register.
The standard word ordering for multiple register data types, such as oating-point numbers or long integers, is
for the most signicant word to appear rst in the message. For master devices requiring the least signicant
word to appear last, a subset of registers is provided on page C-11.
The Unsigned Word (U16) type is used for 16-bit integers and ts into one register.
The Packed ASCII (PA) type contains two bytes that are two unsigned characters. Generally, multiple Packed
ASCII types are arranged consecutively for implementing strings. For example, the device’s well name is a
string of 10 unsigned characters that is implemented as 5 Packed ASCII registers. Here is an example of a
well name that contains the string, “Test Well 413.”
Register Hexadecimal # ASCII Characters
210 54 65 Te
211 73 74 St
212 20 57 <SPACE>W
213 65 6C el
214 6C 20 l<SPACE>
215 34 31 41
216 33 FF 3<UNUSED>
Unused characters at the end of each string will report 0xFF hexadecimal.
Registers
Each register has an Access type: read-only or read-write, as described below.
Access Type Description
Read Only (RO) Register can only be read.
Read/Write (R/W) Register can be read and written.
The registers are grouped into Modbus® map blocks based on function. The MC-III contains the following
map functions.
Function Starting Register
System Conguration 1000
Real Time 1200
Input Conguration 2000
Output Conguration 4000
Holding Register (16-bit) 8000 and 17001
Holding Register (32-bit) 7000
Control Registers 70
Wellsite Parameters 200
C-3
MC-III™ WP Flow Analyzer Appendix C
Note All registers cited in this document refer to the address of the register that appears in the actual Mod-
bus® message. For example, register 17001 has an address of 0x4268 Hexadecimal in the message.
Note Two sets of 16-bit holding registers are provided (starting at 17001 and 8000). The “8000” set should
be used with master devices that require the holding registers to be in the range of 40000 to 49999.
System Conguration
Register
(Decimal)
Register
(Hex) Description Data
Type Access Default
1000 03E8 Product Code U16 RO 64
1001 03E9 Register Table Version Number U16 RO 1
1002 03E
Firmware Version Number
(Version = register value divided by 100)
(Example: 100 = Version 1.00)
U16 RO
1003 03EB Manufacture Date (MMYY) U16 RO
1004 03EC Sales Date (MMYY) U16 RO
1005 03ED Serial Number 1 U16 RO
1006 03EE Serial Number 2 U16 RO
1007 03EF
Power Mode
0 = High Power
1 = Low Power
U16 R/W 1
1008 03F0
Internal System Sample Rate
Number of seconds to measure temperature
and battery voltage
U16 R/W 3600
1009 03F1 Slave Address
[1-65535, not including 252-255 or 64764] U16 R/W 1
1010 03F2
Baud Rate
Low Power High Power
0 - 300 5 - 9600
1 - 600 6 - 19200
2 - 1200 7 - 38400
3 - 2400 8 - 57600
4 - 4800 10 - 115200
5 - 9600
U16 R/W 5
1011 03F3
Bus Delay – mS of delay before transmitting
data
(Delay = register value multiplied by 10 mS)
U16 R/W 1
(10 ms)
1012 03F4
Bus Timeout – mS of delay before resetting
Modbus®
(Timeout = register value multiplied by 10 mS)
U16 R/W 5
(50 mS)
1013 03F5 Contract Hour
[0-23] U16 R/W 8
1014 03F6 Lock Code
[0001-9999] U16 R/W 0
C-4
Appendix C MC-III™ WP Flow Analyzer
System Conguration
Register
(Decimal)
Register
(Hex) Description Data
Type Access Default
1015 03F7
Lock Code Enable
0 - Disabled
1 - Enabled
U16 R/W 0
1016 03F8 LCD Contrast
[0-31] U16 R/W 6
Product Code (register 1000)
The Product Code is a read-only parameter used for identication. This parameter is set at the factory and it
will always read 0x40 hexadecimal (64 decimal).
Firmware/Register Table Version Numbers (registers 1001, 1002)
The Firmware Version and Register Table Version numbers are unsigned 16-bit integers. These parameters are
set at the factory and are read-only. To determine the rmware version number, read the appropriate register
and divide the value read by 100. The general format for rmware version numbers is A.BC. For example, the
rmware register number is read as 0xA7 hexadecimal. This represents 167 and a rmware version of 1.67.
Manufacture Date/Sales Date (registers 1003, 1004)
These parameters are set at the factory and are read-only. These registers are formatted as MMYY. For
example, a value of 0905 represents the date September 2005.
Slave Address (register 1009)
The Modbus® slave address is an unsigned word (U16) data type that has a range of values from 1 to 65535,
not including 252 through 255 or 64764. The slave address is congured from a laptop or via the keypad and
is stored in nonvolatile memory.
Important All MC-III devices will respond to addresses 252 through 255 and 64764, and the
response will always be at a baud rate of 9600 baud. For this reason, addresses 252
through 255 and 64764 are reserved and should never be used.
When the slave address is written, the response message will be at the current address. After the response
message is transmitted, the MC-III will change to the new slave address.
Baud Rate (register 1010)
The baud rate is an unsigned word (U16) data type that sets the data rate on the serial port. When the baud rate
is written, the response message will be at the current baud rate. After the response message is transmitted, the
MC-III will change to the new baud rate.
Real Time
Register
(Decimal)
Register
(Hex) Description Data
Type Access
1200 04B0 Year
(Real Year = register value plus 2000) U16 R/W
1201 04B1 Month [1-12] U16 R/W
1202 04B2 Day [1-31] U16 R/W
C-5
MC-III™ WP Flow Analyzer Appendix C
1203 04B3 Hour [0-23] U16 R/W
1204 04B4 Minute [0-59] U16 R/W
1205 04B5 Second [0-59] U16 R/W
This block of registers is used to set the instrument’s internal clock. To set the time, it is recommended that all
registers be written in one message.
The time and date can also be read in the holding register groups as oating-point data.
Input Conguration
Register
(Decimal)
Register
(Hex) Description Data
Type Access Default
2000 07D0
Volume Units
Units
0 = No Units
1 = Gallons
2 = Barrels
3 = Cubic Meters
4 = Cubic Feet
5 = Liters
Units × 1000
16 = No Units
17 = Gallons
18 = Barrels
19 = Cubic Meters
20 = Cubic Feet
21 = Liters U16 R/W 2
Standard Units
32 = No Units
33 = Gallons
34 = Barrels
35 = Cubic Meters
36 = Cubic Feet
37 = Liters
Std. Units × 1000
48 = No Units
49 = Gallons
50 = Barrels
51 = Cubic Meters
52 = Cubic Feet
53 = Liters
2001 07D1
Volume Decimal Point Location
1 = Tenths
2 = Hundredths
3 = Thousandths
4 = Ten Thousandths
U16 R/W 1
C-6
Appendix C MC-III™ WP Flow Analyzer
Input Conguration
Register
(Decimal)
Register
(Hex) Description Data
Type Access Default
2002 07D2
Rate Volume Units
Units
0 = No Units
1 = Gallons
2 = Barrels
3 = Cubic Meters
4 = Cubic Feet
5 = Liters
Units × 1000
16 = No Units
17 = Gallons
18 = Barrels
19 = Cubic Meters
20 = Cubic Feet
21 = Liters U16 R/W 2
Standard Units
32 = No Units
33 = Gallons
34 = Barrels
35 = Cubic Meters
36 = Cubic Feet
37 = Liters
Std. Units × 1000
48 = No Units
49 = Gallons
50 = Barrels
51 = Cubic Meters
52 = Cubic Feet
53 = Liters
2003 07D3
Rate Time Base
0 = Second
1 = Minute
2 = Hour
3 = Day
U16 R/W 3
2004 07D4
Rate Decimal Point Location
0 = No digits to the right of the decimal point
1 = Tenths
2 = Hundredths
3 = Thousandths
U16 R/W 2
2005 07D5 Calculation Period
(sec) U16 R/W 4
2006 07D6
Turbine Meter Input Conguration
0 = Pulse Input
1 = TFM - LOW
2 = TFM - MED
3 = TFM - HIGH
U16 R/W 1
2007 07D7 Low Frequency Cut-Off Threshold
(Hz) U16 2
2008 07D8
Factor Type
1 = 1-Point K-Factor
2 = 2-Point K-Factor
…
12 = 12-Point K-Factor
U16 R/W 1
C-7
MC-III™ WP Flow Analyzer Appendix C
Input Conguration
Register
(Decimal)
Register
(Hex) Description Data
Type Access Default
2009 07D9
Factor Units
0 = No Units
1 = Gallons
2 = Liters
3 = Barrels
4 = Cubic Feet
5 = Cubic Meters
U16 R/W 1
2010 07DA
Factor Decimal Point Location
0 = No digits to the right of the decimal point
1 = Tenths
2 = Hundredths
3 = Thousandths
4 = Ten Thousandths
U16 R/W 2
2011 07DB Calibration Frequency [1] (Hz)* FP R/W 1.00
2013 07DD Calibration Frequency [2] (Hz)* FP R/W 1.00
2015 07DF Calibration Frequency [3] (Hz)* FP R/W 1.00
2017 07E1 Calibration Frequency [4] (Hz)* FP R/W 1.00
2019 07E3 Calibration Frequency [5] (Hz)* FP R/W 1.00
2021 07E5 Calibration Frequency [6] (Hz)* FP R/W 1.00
2023 07E7 Calibration Frequency [7] (Hz)* FP R/W 1.00
2025 07E9 Calibration Frequency [8] (Hz)* FP R/W 1.00
2027 07EB Calibration Frequency [9] (Hz)* FP R/W 1.00
2029 07ED Calibration Frequency [10] (Hz)* FP R/W 1.00
2031 07EF Calibration Frequency [11] (Hz)* FP R/W 1.00
2033 07F1 Calibration Frequency [12] (Hz)* FP R/W 1.00
2035 07F3 Calibration Factor [1]*
(pulses per congured factor unit) FP R/W 900.00
2037 07F5 Calibration Factor [2]*
(pulses per congured factor unit) FP R/W 1.00
2039 07F7 Calibration Factor [3]*
(pulses per congured factor unit) FP R/W 1.00
2041 07F9 Calibration Factor [4]*
(pulses per congured factor unit) FP R/W 1.00
2043 07FB Calibration Factor [5]*
(pulses per congured factor unit) FP R/W 1.00
2045 07FD Calibration Factor [6]*
(pulses per congured factor unit) FP R/W 1.00
2047 07FF Calibration Factor [7]*
(pulses per congured factor unit) FP R/W 1.00
2049 0801 Calibration Factor [8]*
(pulses per congured factor unit) FP R/W 1.00
C-8
Appendix C MC-III™ WP Flow Analyzer
Input Conguration
Register
(Decimal)
Register
(Hex) Description Data
Type Access Default
2051 0803 Calibration Factor [9]*
(pulses per congured factor unit) FP R/W 1.00
2053 0805 Calibration Factor [10]*
(pulses per congured factor unit) FP R/W 1.00
2055 0807 Calibration Factor [11]*
(pulses per congured factor unit) FP R/W 1.00
2057 0809 Calibration Factor [12]*
(pulses per congured factor unit) FP R/W 1.00
2059 080B Standard Measurement Correction Factor
(to be congured by software only) FP RO 1.00
2061 080D Low Flow Rate Cut-Off Threshold
(in terms of congured ow rate units) FP R/W 1.00
*Calibration frequencies and calibration factors are associated in pairs—i.e., Calibration Frequency [1] and
Calibration Factor [1]— and must be sorted in ascending order, based on calibration frequency values, prior
to writing the values to the instrument. Therefore, Calibration Frequency [1] should be the smallest of all
calibration frequencies.
Output Conguration
Register
(Decimal)
Register
(Hex) Description Data
Type Access Default
4000 0FA0
Pulse Output Source
0 = Test Mode/Disabled
1 = Enabled
U16 R/W 0
4001 0FA1 Pulse Output Duration
(time is register value multiplied by 10 ms) U16 R/W 10
(100 mS)
4002 0FA2 Pulse Output Decimal Point Location U16 R/W 2
4003 0FA3 Pulse Output Scale Factor
(in terms of congured volume units) FP R/W 1.00
4005 0FA5
Analog Output Source
0 = Test Mode/Disabled
1 = Enabled
U16 R/W 0
4006 0FA6 Analog Output Decimal Point Location U16 R/W 2
4007 0FA7 Analog Output Low Value
(in terms of congured ow rate units) FP R/W 0.00
4009 0FA9 Analog Output High Value
(in terms of congured ow rate units) FP R/W 1700.00
Important Two sets of 16-bit holding registers are provided (starting at 17001 and 8000). The “8000”
set displayed in parentheses in the table on page C-9 should be used with master
devices that require the holding registers to be in the range of 40000 to 49999.
C-9
MC-III™ WP Flow Analyzer Appendix C
Holding Registers (16-bit Mode)
Register
(Decimal)
Register
(Hex) Description Data
Type Access
17001
(8000)
4269
(1F40)
Hourly Pointer
[1 to 768] FP RO
17003
(8002)
426B
(1F42)
Daily Pointer
[1 to 384] FP RO
17005
(8004)
426D
(1F44)
Event Counter
[1 to 345] FP RO
17007
(8006)
426F
(1F46)
Real Date
(MM/DD/YY) FP RO
17009
(8008)
4271
(1F48)
Real Time
(HH:MM:SS) FP RO
17011
(8010)
4273
(1F4A)
Grand Total
(in terms of congured volume units) FP RO
17013
(8012)
4275
(1F4C)
Instantaneous Flow Rate
(in terms of congured ow rate units) FP RO
17015
(8014)
4277
(1F4E)
Daily Total
(in terms of congured volume units) FP RO
17017
(8016)
4279
(1F50)
Daily Run Time
(seconds) FP RO
17019
(8018)
427B
(1F52)
Hourly Total
(in terms of congured volume units) FP RO
17021
(8020)
427D
(1F54)
Hourly Run Time
(seconds) FP RO
17023
(8022)
427F
(1F56)
Polling Total
(in terms of congured volume units) FP RO
17025
(8024)
4281
(1F58)
Polling Run Time
(seconds) FP RO
17027
(8026)
4283
(1F5A)
Previous Day Total
(in terms of congured volume units) FP RO
17029
(8028)
4285
(1F5C)
Previous Day Run Time
(seconds) FP RO
17031
(8030)
4287
(1F5E)
Previous Hour Total
(in terms of congured volume units) FP RO
17033
(8032)
4289
(1F60)
Previous Hour Run Time
(seconds) FP RO
17035
(8034)
428B
(1F62)
Previous Polling Total
(in terms of congured volume units) FP RO
17037
(8036)
428D
(1F64)
Previous Polling Run Time
(seconds) FP RO
17039
(8038)
428F
(1F66)
Polling Index
[0-65535] FP RO
17041
(8040)
4291
(1F68)
Internal Temperature
(°C) FP RO
C-10
Appendix C MC-III™ WP Flow Analyzer
Holding Registers (16-bit Mode)
Register
(Decimal)
Register
(Hex) Description Data
Type Access
17043
(8042)
4293
(1F6A)
Supply Voltage
(VDC) FP RO
17045
(8044)
4295
(1F6C)
Battery Voltage
(VDC) FP RO
17047
(8046)
4297
(1F6E)
Grand Total
(base unit) FP RO
17049
(8048)
4299
(1F70)
Instantaneous Flow Rate
(base unit) FP RO
17051
(8050)
429B
(1F72)
Daily Total
(base unit) FP RO
17053
(8052)
429D
(1F74)
Daily Run Time
(seconds) FP RO
17055
(8054)
429F
(1F76)
Hourly Total
(base unit) FP RO
17057
(8056)
42A1
(1F78)
Hourly Run Time
(seconds) FP RO
17059
(8058)
42A3
(1F7A)
Polling Total
(base unit) FP RO
17061
(8060)
42A5
(1F7C)
Polling Run Time
(seconds) FP RO
17063
(8062)
42A7
(1F7E)
Previous Day
(base unit) FP RO
17065
(8064)
42A9
(1F80)
Previous Day Run Time
(seconds) FP RO
17067
(8066)
42AB
(1F82)
Previous Hour
(base unit) FP RO
17069
(8068)
42AD
(1F84)
Previous Hour Run Time
(seconds) FP RO
17071
(8070)
42AF
(1F86)
Previous Polling Total
(base unit) FP RO
17073
(8072)
42B1
(1F88)
Previous Polling Run Time
(seconds) FP RO
17075
(8074)
42B3
(1F8A)
Polling Index
[0-65535] FP RO
17077
(8076)
42B5
(1F8C) Pulse Output Pulses FP R/W
17079
(8078)
42B7
(1F8E) Analog Output Current FP R/W
17081
(8080)
42B9
(1F90)
Calculated K-Factor
(in terms of congured factor unit) FP R/W
C-11
MC-III™ WP Flow Analyzer Appendix C
Note: The registers below should be used with master devices that require the oating point numbers to
be presented with the least signicant word rst. Their counterparts with oating point numbers in
reverse word order—registers 17011, 17013, 17027 and 17015—are listed in the previous table.
Holding Registers (16-bit Mode)—Least Signicant Word First
Register
(Decimal)
Register
(Hex) Description Data
Type Access
550 226 Grand Total
(in terms of congured volume units) FP RO
552 228 Instantaneous Flow Rate
(in terms of congured ow rate units) FP RO
554 22A Daily Total
(in terms of congured volume units) FP RO
556 22C Previous Day Total
(in terms of congured volume units) FP RO
Base Units/Congured Units
The holding register area provides two blocks of registers. The rst block is based on the congured units
of measurement. The congured volume units will follow the settings in the Volume Unit register (2000).
The congured rate units will follow the settings in the Rate Volume units (2002) and the Time-Base register
(2003).
For example, if the settings for the volume unit is 2 (BBL), all of the total parameters such as Grand Total
(17011), Daily Total (17015), etc. will be in terms of barrels. The values in these registers will change if the
user changes the units of measurement that appear on the LCD.
The second block is in terms of base units. These register values are independent of the congured volume
units in the Volume Unit, Rate Volume Unit, and Time-Base registers. For base units, the time base is always
measured in seconds, and the volume and rate volume units are measured in gallons. If the standard correction
factor has been enabled, the volume unit is standard gallons. The standard gallon is calculated as the gallon
measurement times the Standard Measurement Correction factor (2059). If the x1000 unit is enabled, the
volume unit is gallons times 1000.
Conversion Factors
For base units, the volume unit and rate volume unit is measured in gallons.To convert gallons to another unit
of measure, use the conversion factors listed in the table below. For example, to convert gallons to barrels,
multiply gallons times 0.02380952381.
To Convert From Gallons To... Multiply By...
No units 1.00000000000
Barrels 0.02380952381
Cubic meters 0.00378541178
Cubic feet 0.13368055556
Liters 3.78541178400
C-12
Appendix C MC-III™ WP Flow Analyzer
Polling Registers
The MC-III device stores the volume accumulated since the last polling sequence in a set of polling registers
(17023). In addition, the instrument monitors the number of seconds of ow time in each polling interval
(17025). There is also an index to the number of polls requested (17039).
The polling sequence is started by writing to the Control Register. Writing the Control Register 1 (70) with
a value of 20000 decimal transfers the polling total (17023) and polling run time (17025), to the previous
polling total (17035) and previous polling run time (17037) registers, increments the polling index (17039)
register and resets the polling total and polling run time registers.
Pointer/Daily/Event Pointer (registers 17001 through 17006)
These registers provide an index of the last record that was stored in the log data. These values start at 1 and
increment with each newly created log. When the maximum number of records is reached, the pointer resets
at 1 and starts incrementing again.
Real Date (registers 17007, 17008)
This register is a oating-point representation of the date, formatted as MMDDYY. For example, a value of
91005 represents a date of September 10, 2005.
Real Time (registers 17009, 17010)
This register is a oating-point representation of time, formatted as HH:MM:SS. For example, a value of
180205 represents a time of 6:02:05 PM.
Totals
The instrument provides Grand Total (17011), Daily Total (17015), Hourly Total (17019) and a Polling Total
(17023). It also provides Previous Day Total (17027), Previous Hour Total (17031), and Previous Polling
Total (17035). These totals are available in terms of congured units and base units. Refer to Base Units/
Congured Units, page C-11, for details.
Pulse Output Pulses (register 17077)
When the pulse output is enabled (see Pulse Output Source, register 4000), this register indicates the
current number of output pulses to be sent to the output relay, based on the congured duration. In a typical
application, this register will generally indicate a small number, then quickly count down to zero. In a
situation where pulses are being cached, the pulses register will indicate a large value. When the pulse output
is disabled, a user can use this register to write a desired number of pulses to be output, for use in testing end
devices. Users can also perform this output test from the software Pulse Output conguration screen. For
details, see Pulse Output Testing, page 70.
Analog Output Current (register 17079)
When the analog output is enabled (see Analog Output Source, register 4005), this register indicates the
calculated output current based on the low and high values and the instantaneous ow rate. When the analog
output is disabled, a user can use this register to write a desired output current for use in testing end devices.
Users can also perform this output test from the software 4-20 mA Output conguration screen. For details,
see 4-20 mA Output Testing, page 67.
Calculated K-Factor (register 17081)
This register represents the K-factor that was used for the most recent calculation interval. This number
is calculated based on the factor type (register 2008), the instantaneous frequency from the owmeter,
C-13
MC-III™ WP Flow Analyzer Appendix C
calibration frequencies (registers 2011 through 2033), and calibration factors (registers 2035 through 2057).
The unit of measurement for this register is pulses per congured factor unit. Once the K-factor is calculated
based on frequency and K-factor points, this value is multiplied by 1000 if the user chooses to read the
volume in units x 1000, and it is divided by the Standard Measurement Correction Factor (register 2059).
Holding Registers (32-bit Mode)
Register
(Decimal)
Register
(Hex) Description Data
Type Access
7000 1B58 Hourly Pointer
[1 to 768] FP32 RO
7001 1B59 Daily Pointer
[1 to 384] FP32 RO
7002 1B5A Event Counter
[1 to 345] FP32 RO
7003 1B5B Real Date
(MM/DD/YY) FP32 RO
7004 1B5C Real Time
(HH:MM:SS) FP32 RO
7005 1B5D Grand Total
(in terms of congured volume units) FP32 RO
7006 1B5E Instantaneous Flow Rate
(in terms of congured ow rate units) FP32 RO
7007 1B5F Daily Total
(in terms of congured volume units) FP32 RO
7008 1B60 Daily Run Time
(seconds) FP32 RO
7009 1B61 Hourly Total
(in terms of congured volume units) FP32 RO
7010 1B62 Hourly Run Time
(seconds) FP32 RO
7011 1B63 Polling Total
(in terms of congured volume units) FP32 RO
7012 1B64 Polling Run Time
(seconds) FP32 RO
7013 1B65 Previous Day Total
(in terms of congured volume units) FP32 RO
7014 1B66 Previous Day Run Time
(seconds) FP32 RO
7015 1B67 Previous Hour Total
(in terms of congured volume units) FP32 RO
7016 1B68 Previous Hour Run Time
(seconds) FP32 RO
7017 1B69 Previous Polling Total
(in terms of congured volume units) FP32 RO
7018 1B6A Previous Polling Run Time
(seconds) FP32 RO
C-14
Appendix C MC-III™ WP Flow Analyzer
Holding Registers (32-bit Mode)
Register
(Decimal)
Register
(Hex) Description Data
Type Access
7019 1B6B Polling Index
[0-65535] FP32 RO
7020 1B6C Internal Temp
(°C) FP32 RO
7021 1B6D Supply Voltage
(VDC) FP32 RO
7022 1B6E Battery Voltage
(VDC) FP32 RO
7023 1B6F Grand Total
(base unit) FP32 RO
7024 1B70 Instantaneous Flow Rate
(base unit) FP32 RO
7025 1B71 Daily Total
(base unit) FP32 RO
7026 1B72 Daily Run Time
(seconds) FP32 RO
7027 1B73 Hourly Total
(base unit) FP32 RO
7028 1B74 Hourly Run Time
(seconds) FP32 RO
7029 1B75 Polling Total
(base unit) FP32 RO
7030 1B76 Polling Run Time
(seconds) FP32 RO
7031 1B77 Previous Day
(base unit) FP32 RO
7032 1B78 Previous Day Run Time
(seconds) FP32 RO
7033 1B79 Previous Hour
(base unit) FP32 RO
7034 1B7A Previous Hour Run Time
(seconds) FP32 RO
7035 1B7B Previous Polling Total
(base unit) FP32 RO
7036 1B7C Previous Polling Run Time
(seconds) FP32 RO
7037 1B7D Polling Index
[0-65535] FP32 RO
7038 1B7E Pulse Output Pulses FP32 R/W
7039 1B7F Analog Output Current FP32 R/W
7040 1B80 Calculated K-Factor
(in terms of congured factor unit) FP32 RO
C-15
MC-III™ WP Flow Analyzer Appendix C
Control Register
Register
(Decimal)
Register
(Hex) Description Data
Type Access
70 0046 Control Register #1 U16 R/W
The Control register allows specic functions to be implemented via the communication port. The following
table shows the value to be written to the control register to implement the desired function.
Code Function
20000
Transfers the polling total and polling run time
to the previous polling total and previous polling
run time registers, increments the polling index
register, and resets the polling total and polling run
time registers.
30000 Resets grand total
40000 Loads factory defaults
40040 Creates processor reset
Wellsite Parameters
Register
(Decimal)
Register
(Hex) Description Data
Type Access
200 00C8 Company Name [20 characters] PA RO
210 00D2 Well Name [20 characters] PA RO
220 00DC Site Location [20 characters] PA RO
300 012C Site ID [20 characters] PA RO
310 0136 Tag Name [10 characters] PA RO
315 013B Legal Description [34 characters] PA RO
400 0190 Sensor Model Number [20 characters] PA RO
410 019A Sensor Serial Number [20 characters] PA RO
420 01A4 Measurement Type [20 characters] PA RO
500 01F4 User Note [64 characters] PA RO
These registers provide access to the ASCII characters that are used in the Wellsite Information screen of the
software. These registers are read-only; if these parameters need to be changed, the user must use the interface
software program.
Log Data
The MC-III provides Enron Modbus® compliant downloads. For detailed instructions on downloading hourly,
daily and event data, refer to Specications and Requirements for an Electronic Flow Measurement Remote
Terminal Unit for Enron Corp. If an Enron host is not available or is too cumbersome to implement, the Enron
records are individually addressed in another Modbus® map. Contact Cameron technical support for details.
C-16
Appendix C MC-III™ WP Flow Analyzer
The following registers are used for hourly, daily and event log registers. Hourly and daily records comprise
ve values (registers). See the Hourly/Daily Record Format table. Note that event records are downloaded
one at a time.
Enron Registers
Register
(Decimal)
Register
(Hex) Description Data Type Access
32 0020 Enron Modbus® Event Log Register
Refer to Enron
Event Record
Format
RO
700 02BC Enron Modbus® Hourly Log
Refer to Enron
Hourly/Daily
Record Format
RO
701 02BD Enron Modbus® Daily Log
Refer to Enron
Hourly/Daily
Record Format
RO
7000 1B58 Hourly Pointer
[1 to 768] FP32 RO
7001 1B59 Daily Pointer
[1 to 384] FP32 RO
7002 1B5A Event Counter
[1 to 345] FP32 RO
Enron Hourly/Daily Record Format
Parameter Data Type
Date
(MMDDYY) FP32
Time
(HH:MM:SS) FP32
Total
(base units) FP32
Flow Time
(number of seconds of ow) FP32
Supply Voltage
(VDC) FP32
C-17
MC-III™ WP Flow Analyzer Appendix C
Enron Event Record Format
Parameter Data Type
Status U16
Address U16
Time
(HH:MM:SS) FP32
Date
(MMDDYY) FP32
As-Found FP32
As-Left FP32
The Event Log status is a 16-bit value used to indicate the reset source in the event log. The following table
indicates the reset status.
Reset Status
Status Code Value
Normal 0
Power-On Reset 3
Watch-Dog 8
Software Reset 16
Flash Memory Error 32
Log Capacity
Log Type Capacity
Hourly Logs 768
Daily Logs 384
Event Logs 345
C-18
Appendix C MC-III™ WP Flow Analyzer
