OmniSwitch AOS Release 8 Transceivers Guide

User Manual:

Open the PDF directly: View PDF PDF.
Page Count: 52

Part No. 060416-10 Rev. A
September 2016
OmniSwitch AOS Release 8
Transceivers Guide
enterprise.alcatel-lucent.com
This user guide contains transceiver specifications and compatibility information for the
OmniSwitch AOS Release 8 and supported platforms. The information described in this guide is
subject to change without notice.
Attention: Use of any transceivers other than those part numbers listed in the Compatibility Matri-
ces is prohibited. Failure to comply with these matrices is not guaranteed for proper performance
and may result in voiding the warranty for the affected platforms.
enterprise.alcatel-lucent.com Alcatel-Lucent and the Alcatel-Lucent Enterprise logo are trademarks of
Alcatel-Lucent. To view other trademarks used by affiliated companies of ALE Holding, visit: enter-
prise.alcatel-lucent.com/trademarks. All other trademarks are the property of their respective owners. The
information presented is subject to change without notice. Neither ALE Holding nor any of its affiliates
assumes any responsibility for inaccuracies contained herein. (2016)
Service & Support Contact Information
North America: 800-995-2696
Latin America: 877-919-9526
EMEA: +800 00200100 (Toll Free) or +1(650)385-2193
Asia Pacific: +65 6240 8484
Web: support.esd.alcatel-lucent.com
Email: ebg_global_supportcenter@al-enterprise.com
OmniSwitch AOS Release 8 Transceivers Guide September 2016 iii
Contents
About This Guide ........................................................................................................... v
Supported Platforms ........................................................................................................... v
Who Should Read this Manual? ........................................................................................ vi
When Should I Read this Manual? .................................................................................... vi
What is Not in this Manual? .............................................................................................. vi
How is the Information Organized? .................................................................................. vi
Documentation Roadmap .................................................................................................vii
Related Documentation ..................................................................................................... ix
Technical Support ..............................................................................................................x
Chapter 1 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) ..........................................1-1
In This Chapter ................................................................................................................1-1
SFP MSA Specification ..................................................................................................1-2

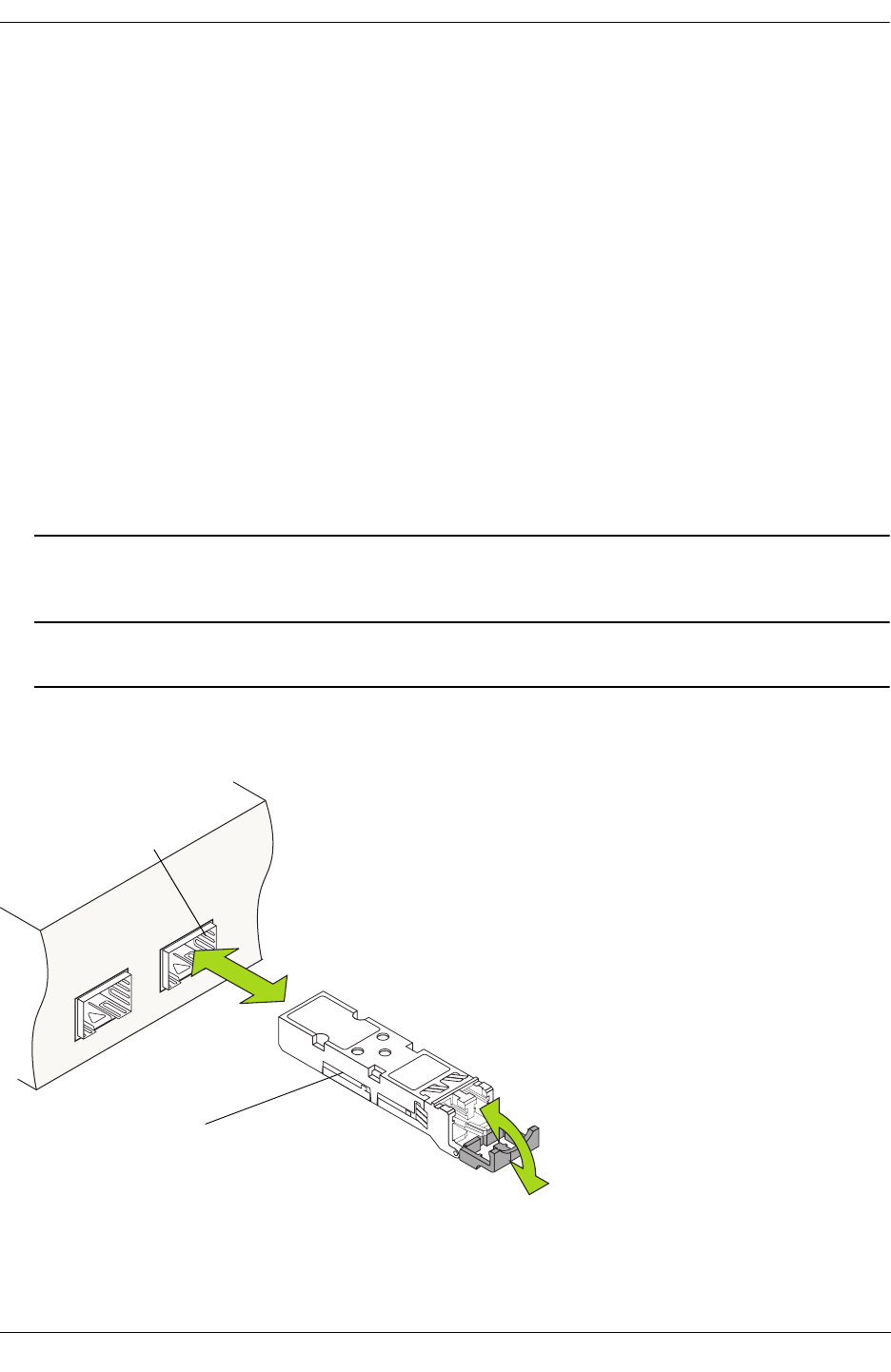

Transceiver Installation and Removal .............................................................................1-3
40-Gigabit Fiber Optic Cables ........................................................................................1-6

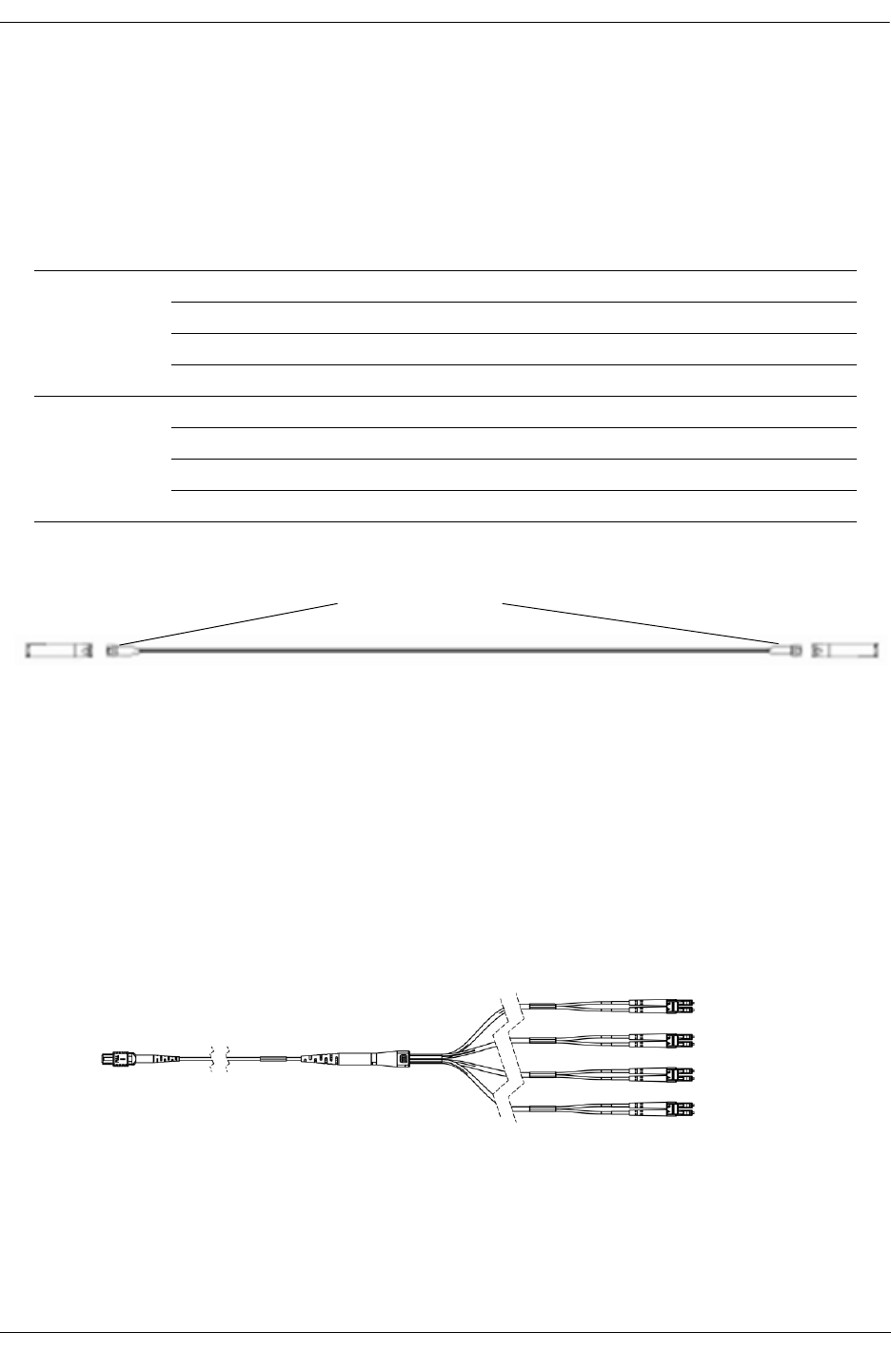

QSFP to QSFP 40G Fiber Optic Cable ....................................................................1-6
QSFP to SFP+ Splitter Fiber Optic Cable ................................................................1-6
Gigabit Ethernet Transceivers .........................................................................................1-7
Dual Speed Ethernet Transceivers ................................................................................1-13
100 FX Ethernet Transceivers .......................................................................................1-15
10-Gigabit SFP+ Transceivers ......................................................................................1-19
40-Gigabit QSFP+ Transceivers ...................................................................................1-23
Fibre Channel Transceivers ...........................................................................................1-27
Industrial Transceivers ..................................................................................................1-28
Chapter 2 Transceiver Compatibility Matrix .........................................................................1-33
In This Chapter ..............................................................................................................1-33
OmniSwitch 10K Compatibility ...................................................................................1-34
OmniSwitch 6900 Compatibility ..................................................................................1-36
OmniSwitch 6860 Compatibility ..................................................................................1-38
OmniSwitch 6865 Compatibility ..................................................................................1-40
OmniSwitch 9900 Compatibility ..................................................................................1-41
Contents
OmniSwitch AOS Release 8 Transceivers Guide September 2016 iv
OmniSwitch AOS Release 8 Tranceivers Guide September 2016 page v
About This Guide
This OmniSwitch AOS Release 8 Transceivers Guide provides specifications and compatibility informa-
tion for the supported OmniSwitch transceivers for all OmniSwitch AOS Release 8 products.
Supported Platforms
This information in this guide applies to the following products:
•OmniSwitch 10K
•OmniSwitch 6900
•OmniSwitch 6860(E)
•OmniSwitch 6865
•OmniSwitch 9900
Unsupported Platforms
The information in this guide does not apply to the following products:
•All other platforms
About This Guide Who Should Read this Manual?
OmniSwitch AOS Release 8 Tranceivers Guide September 2016 page vi
Who Should Read this Manual?
The audience for this user guide is network administrators and IT support personnel who need to provide
network connectivity using SFP, SFP+, and QSFP+ transceivers.
When Should I Read this Manual?
Read this guide as soon as you are ready to integrate your OmniSwitch into your network and you are
ready to provide connectivity using the supported transceivers. You should have already stepped through
the first login procedures and read the brief software overviews in the appropriate OmniSwitch Hardware
Guide.
This guide includes information about the supported OmniSwitch transceivers.
•SFP/SFP+/QSFP+ specifications
•SFP/SFP+/QSFP+ compatibility information
What is Not in this Manual?
Procedures for switch management methods, such as CLI, web-based (WebView or OmniVista) or SNMP,
are outside the scope of this guide.
For information on WebView and SNMP switch management methods consult the OmniSwitch Switch
Management Guide. Information on using WebView and OmniVista can be found in the context-sensitive
on-line help available with those network management applications.
This guide is designed to provide transceiver specification and compatibility information only and is not
intended as a reference for any CLI commands or configuration information. Refer to the Documentation
Roadmap for a list of available user guides.
How is the Information Organized?
Chapters in this guide are broken down by transceiver type.
Specification Information. Each transceiver has an associated table providing individual specifications
for all supported transceivers.
Compatibility Information. A compatibility chart is provided for each transceiver specifying which
modules or switch the transceiver is supported on.
About This Guide Documentation Roadmap
OmniSwitch AOS Release 8 Tranceivers Guide September 2016 page vii
Documentation Roadmap
The OmniSwitch user documentation suite was designed to supply you with information at several critical
junctures of the configuration process.The following section outlines a roadmap of the manuals that will
help you at each stage of the configuration process. Under each stage, we point you to the manual or
manuals that will be most helpful to you.
Stage 1: Using the Switch for the First Time
Pertinent Documentation: OmniSwitch Hardware Users Guide
Release Notes
This guide provides all the information you need to get your switch up and running the first time. It
provides information on unpacking the switch, rack mounting the switch, installing NI modules, unlocking
access control, setting the switch’s IP address, and setting up a password. It also includes succinct
overview information on fundamental aspects of the switch, such as hardware LEDs, the software
directory structure, CLI conventions, and web-based management.
At this time you should also familiarize yourself with the Release Notes that accompanied your switch.
This document includes important information on feature limitations that are not included in other user
guides.
Stage 2: Gaining Familiarity with Basic Switch Functions
Pertinent Documentation: OmniSwitch Hardware Users Guide
OmniSwitch AOS Release 8 Switch Management Guide
Once you have your switch up and running, you will want to begin investigating basic aspects of its
hardware and software. Information about switch hardware is provided in the OmniSwitch 10K Hardware
Guide. This guide provide specifications, illustrations, and descriptions of all hardware components, such
as chassis, power supplies, Chassis Management Modules (CMMs), Network Interface (NI) modules, and
cooling fans. It also includes steps for common procedures, such as removing and installing switch
components.
This guide is the primary users guide for the basic software features on a single switch. This guide
contains information on the switch directory structure, basic file and directory utilities, switch access
security, SNMP, and web-based management. It is recommended that you read this guide before
connecting your switch to the network.
Stage 3: Integrating the Switch Into a Network
Pertinent Documentation: OmniSwitch AOS Release 8 Network Configuration Guide
OmniSwitch AOS Release 8 Advanced Routing Configuration Guide
OmniSwitch AOS Release 8 Data Center Switching Guide
When you are ready to connect your switch to the network, you will need to learn how the OmniSwitch
implements fundamental software features, such as 802.1Q, VLANs, Spanning Tree, and network routing
protocols. The Network Configuration Guide contains overview information, procedures, and examples on
how standard networking technologies are configured on the OmniSwitch.
The Advanced Routing Guide includes configuration information for networks using advanced routing
technologies (OSPF and BGP) and multicast routing protocols (DVMRP and PIM-SM).
The Data Center Switching Guide includes configuration information for data center networks using
virtualization technologies (SPBM and UNP) and Data Center Bridging protocols (PFC, ETC, and
DCBX).
About This Guide Documentation Roadmap
OmniSwitch AOS Release 8 Tranceivers Guide September 2016 page viii
Anytime
The OmniSwitch AOS Release 8 CLI Reference Guide contains comprehensive information on all CLI
commands supported by the switch. This guide includes syntax, default, usage, example, related CLI
command, and CLI-to-MIB variable mapping information for all CLI commands supported by the switch.
This guide can be consulted anytime during the configuration process to find detailed and specific
information on each CLI command.
About This Guide Related Documentation
OmniSwitch AOS Release 8 Tranceivers Guide September 2016 page ix
Related Documentation
The following are the titles and descriptions of all the OmniSwitch user manuals:
•OmniSwitch 10K/9900/6900/6860/6865 Hardware Users Guides
Describes the hardware and software procedures for getting an OmniSwitch up and running as well as
complete technical specifications and procedures for all OmniSwitch chassis, power supplies, fans, and
Network Interface (NI) modules.
•OmniSwitch AOS Release 8 CLI Reference Guide
Complete reference to all CLI commands supported on the OmniSwitch. Includes syntax definitions,
default values, examples, usage guidelines and CLI-to-MIB variable mappings.
•OmniSwitch AOS Release 8 Switch Management Guide
Includes procedures for readying an individual switch for integration into a network. Topics include
the software directory architecture, image rollback protections, authenticated switch access, managing
switch files, system configuration, using SNMP, and using web management software (WebView).
•OmniSwitch AOS Release 8 Network Configuration Guide
Includes network configuration procedures and descriptive information on all the major software
features and protocols included in the base software package. Chapters cover Layer 2 information
(Ethernet and VLAN configuration), Layer 3 information (routing protocols, such as RIP and IPX),
security options (authenticated VLANs), Quality of Service (QoS), link aggregation, and server load
balancing.
•OmniSwitch AOS Release 8 Advanced Routing Configuration Guide
Includes network configuration procedures and descriptive information on all the software features and
protocols included in the advanced routing software package. Chapters cover multicast routing
(DVMRP and PIM-SM), Open Shortest Path First (OSPF), and Border Gateway Protocol (BGP).
•OmniSwitch AOS Release 8 Data Center Switching Guide
Includes and introduction to the OmniSwitch data center switching architecture as well as network
configuration procedures and descriptive information on all the software features and protocols that
support this architecture. Chapters cover Shortest Path Bridging MAC (SPBM), Data Center Bridging
(DCB) protocols, Virtual Network Profile (vNP), and the Edge Virtual Bridging (EVB) protocol.
•OmniSwitch AOS Release 8 Transceivers Guide
Includes transceiver specifications and product compatibility information.
•Technical Tips, Field Notices
Includes information published by Alcatel’s Customer Support group.
•Release Notes
Includes critical Open Problem Reports, feature exceptions, and other important information on the
features supported in the current release and any limitations to their support.
About This Guide Technical Support
OmniSwitch AOS Release 8 Tranceivers Guide September 2016 page x
Technical Support
An Alcatel-Lucent service agreement brings your company the assurance of 7x24 no-excuses technical
support. You’ll also receive regular software updates to maintain and maximize your Alcatel-Lucent
product’s features and functionality and on-site hardware replacement through our global network of
highly qualified service delivery partners.
With 24-hour access to Alcatel-Lucent Enterprise Service and Support web page, you’ll be able to view
and update any case (open or closed) that you have reported to Alcatel-Lucent Enterprise technical
support, open a new case or access helpful release notes, technical bulletins, and manuals.
Access additional information on Alcatel-Lucent Enterprise Programs:
Web: support.esd.alcatel-lucent.com
Phone: 1-800-995-2696
Email: ebg_global_supportcenter@al-enterprise.com
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-1
1 Small Form-Factor
Pluggables (SFP/SFP+/QSFP+)
OmniSwitch Series switches use both copper-based and fiber-based optical Small Form Factor Pluggable
transceivers. These transceivers are fully hot-swappable and are available for both short-reach and long-
reach applications. Copper-based and fiber-based optical transceivers can be mixed on the same module.
In This Chapter
This chapter describes the technical specifications for all the OmniSwitch supported transceivers. For
additional details about OmniSwitch modules, see the appropriate OmniSwitch Hardware Guide.
Transceiver specifications in this chapter include:
•SFP MSA Specifications. See “SFP MSA Specification” on page 1-2.
•Transceiver Installation. See “Transceiver Installation and Removal” on page 1-3.
•40-Gigabit Fiber Optic Cable Overview. See “40-Gigabit Fiber Optic Cables” on page 1-6.
•Gigabit Ethernet Transceivers. See “Gigabit Ethernet Transceivers” on page 1-7.
•Dual Speed Ethernet Transceivers. See “Dual Speed Ethernet Transceivers” on page 1-13.
•100-FX Ethernet Transceivers. See “100 FX Ethernet Transceivers” on page 1-15.
•10-Gigabit SFP+ Transceivers. See “10-Gigabit SFP+ Transceivers” on page 1-19.
•40-Gigabit QSFP+ Transceivers. See “40-Gigabit QSFP+ Transceivers” on page 1-23.
•40-Gigabit QSFP+ Transceivers. See “Industrial Transceivers” on page 1-28.
•Fibre Channel Transceivers. See “Fibre Channel Transceivers” on page 1-27.
•For a transceiver compatibility matrix, see “Transceiver Compatibility Matrix” on page 2-33.
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP MSA Specification
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-2
SFP MSA Specification
The Small Form-Factor Pluggable (SFP) MSA (Multi Source Agreement) is a specification for a common
interface for optical modular transceivers. The SFP connector consists of a 20-pin receptacle and an SFP
housing cage. The connector provides the interface for the hot pluggable SFP module. Each SFP module
contains a serial interface to provide identification information that describes the SFP capabilities, stand
interfaces, manufacturer and other information.
For information on installing SFPs, refer to the documentation included with the transceiver.

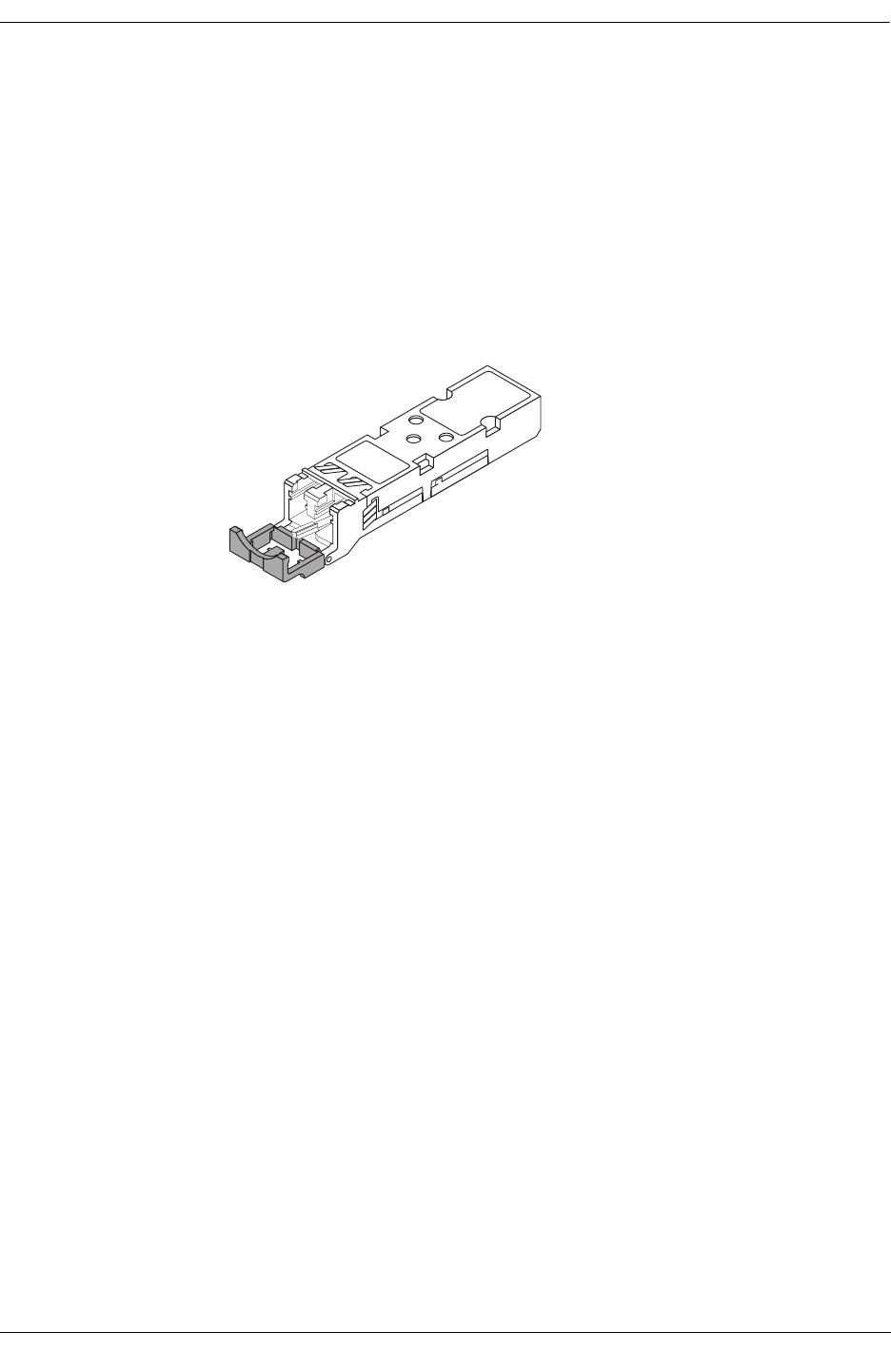

Small Form Factor Pluggable (SFP)
This diagram is a representation
only; the physical appearance of the
actual module may vary slightly.
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Transceiver Installation and Removal
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-3
Transceiver Installation and Removal
Follow the instructions below for the appropriate transceiver type.
ESD Caution: Before handling the module, you must discharge all static electricity on your person to
avoid Electrostatic Discharge (ESD) damage. If using a wrist strap, ensure that the wrist strap touches
your skin. Attach the other end of the strap to the chassis. If your chassis provides a grounding lug, this
can be used. Refer to your hardware user guide for details.
If using a wrist strap, ensure that the wrist strap touches your skin. Attach the other end of the strap to the
chassis. If your chassis provides a grounding lug, this can be used. Refer to your hardware user guide for
details.
Dust Exposure: To reduce the risk of dust exposure and physical damage, be sure to replace the protec-
tive rubber cover (provided) when the SFP is not in use.
Eye Safety: SFP transceivers are international Class 1 laser products and are eye-safe devices when oper-
ated within the limits of manufacturers’ specifications. Operating SFP transceivers in a manner inconsis-
tent with intended usage and specification may result in hazardous radiation exposure.
Note: After removing a transceiver, wait for a minimum of 5 seconds before re-inserting any transceiver
into the same port. This allows sufficient time for software to detect the removal of the transceiver.
Note: Never force the transceiver in or out of the transceiver slot.
SFP - Hinged
To remove, you must first open the SFP’s hinged face to approximately ninety
degrees. Then, grasp the hinged face and carefully pull the SFP straight out of
the slot.
When inserting a SFP, be sure that the hinged face is closed. Slide the SFP
straight into the slot until the module clicks firmly into place.
SFP Module
Interface Slot
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Transceiver Installation and Removal
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-4
SFP - Bail Wire
SFP - Ejector Button
To install, align the transceiver with the transceiver slot on the
NI module, as shown. Be sure that the bail wire delatch is in the
up, or closed position. Slide the transceiver straight into the slot
until the module clicks firmly into place.
SFP Transceiver
Network Interface (NI)
Module
To remove, you must first pull down on the bail
wire delatch. Grip the wire delatch while it is in this
open position and carefully pull the transceiver
straight out of the slot.
Bail Wire Delatch
Transceiver Slot
(Shown in open “removal” posi-
tion; when inserting, bail
delatch must be closed.)
To install, align the transceiver with the
transceiver slot on the NI module, as
shown. Carefully slide the transceiver
back until it clicks into place; this is an
indication that the connectors are firmly
seated.
SFP Transceiver
Network Interface (NI) Module
To remove, use the ejector tool (provided
with each switch chassis) to push the trans-
ceiver’s ejector button. The ejector button is
located just below the transceiver port; refer
to the diagram for more information. The
transceiver will disengage from the connec-
tors and eject slightly. Once disengaged, use
the clip end of the ejector tool to carefully
pull the transceiver straight out and away
from the NI module.
Dust Cover
Ejector
Transceiver Slot
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Transceiver Installation and Removal
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-5
QSFP+ - Removal
To install, align the transceiver with the
transceiver slot on the NI module, as
shown. Carefully slide the transceiver
back until it clicks into place; this is an
indication that the connectors are firmly
seated.
QSFP+ Transceiver
Network Interface (NI) Module
To remove, use the rubber or metal ejector
handle and pull transceiver straight out and
away from the NI module.
Note: Never force the transceiver in or out of
the transceiver slot. Transceiver Slot
Handle
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit Fiber Optic Cables
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-6
40-Gigabit Fiber Optic Cables
QSFP to QSFP 40G Fiber Optic Cable
To directly connect two Omniswitches with a 40G transceiver, an MPO trunk cable can be used. The cable
can have 8 or 12 fibers, however, the 40G standard only uses 8 fibers. The cable should be a Type-B
crossover cable. This type of cable should be used with the QSFP-40G-SR transceiver.
Example Type B - MPO Cable Connection
QSFP to SFP+ Splitter Fiber Optic Cable
To connect a 40G transceiver to four 10G transceivers an MTP-LC splitter cable can be used. The MPO-
LC cable has eight fibers that connect the 40G MPO connector to four 10G LC connectors. This type of
cable should be used with the QSFP-4X10G-SR transceiver. The LC connectors can be manually
rearranged to meet the necessary transmit/receive requirements.
Example MPO/LC Splitter Cable
Fiber12345-89101112
Type A
MPO1 Tx1 Tx2 Tx3 Tx4 N/A Rx4 Rx3 Rx2 Rx1
MPO2 Rx1 Rx2 Rx3 Rx4 N/A Tx4 Tx3 Tx2 Tx1
Fiber12345-89101112
Type B
Fiber12345-89101112
MPO1 Rx1 Rx2 Rx3 Rx4 N/A Tx4 Tx3 Tx2 Tx1
MPO2 Tx1 Tx2 Tx3 Tx4 N/A Rx4 Rx3 Rx2 Rx1
Fiber12111095-84321
QSFP QSFP
MPO Connectors
LC/SFP4
LC/SFP2
LC/SFP3
LC/SFP1
MPO
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-7
Gigabit Ethernet Transceivers
SFP-GIG-SX
Gigabit SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, SFP MSA
Connections Supported 1000Base-SX
Fiber Type MMF
Wavelength 850 nm
Optical Power Output -9.0 to -2.5 dBm
Receiver Sensitivity -17 dBm
Transmission Distance ~300 m on 62.5/125µm
~550 m on 50/125µm
Operating Temperature -20 ºC to 85ºC
Digital Diagnostic Monitoring Supported (Alcatel-Lucent branded transceivers only)
SFP-GIG-LX
Gigabit SFP Optical Transceiver.
Connector types LC
Standards supported 802.3z, SFP MSA
Connections supported 1000Base-LX
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -9.5 to -3 dBm
Receiver Sensitivity -14.5 dBm
Transmission Distance 10 km
Operating Temperature -40 ºC to 85 ºC / 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported (Alcatel-Lucent branded transceivers only)
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-8
SFP-GIG-LH40
Gigabit SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, SFP MSA
Connections Supported 1000Base-LH40r
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output 0 to +5 dBm
Receiver Sensitivity -22 dBm
Transmission Distance ~40 km
Operating Temperature -10 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
SFP-GIG-LH70
Gigabit SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, SFP MSA
Connections Supported 1000Base-LH70
Fiber Type SMF
Wavelength 1550 nm
Optical Power Output 0 to +5 dBm
Receiver Sensitivity -22 dBm
Transmission Distance ~70 km
Operating Temperature -10 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-9
SFP-GIG-CWD
Coarse Wavelength Division Multiplexing (CWDM) is an optical transceiver supporting single-mode fiber
over various wavelengths. CWDMs are hot-pluggable and are available for long-reach applications.
Connector Type LC
Standards Supported 802.3z, SFP MSA
Connections Supported 1000Base-LX
Fiber Type SMF
Wavelength 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610
Optical Power Output -2 to +3 dBm
Receiver Sensitivity -24 dBm
Transmission Distances ~62 km
Operating Temperature -5 ºC to 70 ºC
Digital Diagnostic Monitoring Not Supported
SFP-GIG-T
Gigabit SFP Copper Transceiver.
Connector Type RJ-45
Standards Supported 802.3z, SFP MSA
Connections supported 10/100/1000Base-T
Cable Type CAT5, CAT5e, CAT6
Transmission Distance 100 m
Digital Diagnostic Monitoring Not Supported
SFP-GIG-EXTND
Gigabit SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3, SFP MSA
Connections Supported -
Fiber Type MMF
Wavelength 1310 nm
Saturation Power 0 dBm
Transmission Distance ~2 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-10
SFP-GIG-BX-D
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX10
Fiber Type SMF
Wavelength Transmit: 1490 nm
Receive: 1310 nm
Average Power Output -9 to -3 dBm
Receiver Sensitivity -19.5 dBm
Transmission Distance ~10 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-GIG-BX-U
SFP-GIG-BX-U
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX10
Fiber Type SMF
Wavelength Transmit: 1310 nm
Receive: 1490 nm
Average Power Output -9 to -3 dBm
Receiver Sensitivity -19.5 dBm
Transmission Distance ~10 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-GIG-BX-D
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-11
SFP-GIG-BX-D20
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX20
Fiber Type SMF
Wavelength Transmit: 1490 nm
Receive: 1310 nm
Average Power Output -8 to -3 dBm
Receiver Sensitivity -23 dBm
Transmission Distance ~20 km
Operating Temperature -5 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-GIG-BX-U20
SFP-GIG-BX-U20
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX20
Fiber Type SMF
Wavelength Transmit: 130 nm
Receive: 1490 nm
Average Power Output -8 to -3 dBm
Receiver Sensitivity -23 dBm
Transmission Distance ~20 km
Operating Temperature -5 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-GIG-BX-D20
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-12
SFP-GIG-BX-D40
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX40
Fiber Type SMF
Wavelength Transmit: 1490 nm
Receive: 1310 nm
Average Power Output -2 to +3 dBm
Receiver Sensitivity -23 dBm
Transmission Distance ~40 km
Operating Temperature -5 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-GIG-BX-U40
SFP-GIG-BX-U40
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX20
Fiber Type SMF
Wavelength Transmit: 1310 nm
Receive: 1490 nm
Average Power Output -2 to +3 dBm
Receiver Sensitivity -23 dBm
Transmission Distance ~40 km
Operating Temperature -5 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-GIG-BX-D40
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Dual Speed Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-13
Dual Speed Ethernet Transceivers
SFP-DUAL-MM
Dual speed Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, 802.3ah, SFP MSA
Connections Supported 100Base-FX, 1000Base-LX
Fiber Type MMF
Wavelength 1310 nm
Average Power Output 100Base-FX: -20 to -14 dBm
1000Base-LX: -11.5 to -3 dBm
Receiver Sensitivity 100Base-FX: -28 dBm
1000Base-LX: -22 dBm
Transmission Distance 550 m at 1000 Mbps
2 km at 100 Mbps
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Not Supported
SFP-DUAL-SM10
Dual speed Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, 802.3ah, SFP MSA
Connections Supported 100Base-FX, 1000Base-LX
Fiber Type SMF
Wavelength 1310 nm
Average Power Output 100Base-FX: -15 to -8 dBm
1000Base-LX: -9.5 to -3 dBm
Receiver Sensitivity 100Base-FX: -28 dBm
1000Base-LX: -22 dBm
Transmission Distance ~10 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Not Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Dual Speed Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-14
SFP-DUAL-BX-D
Dual speed Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, 802.3ah, SFP MSA
Connections Supported 1000BASE-BX10-D
Fiber Type SMF
Wavelength Transmit: 1550 nm
Receive: 1310 nm
Average Power Output -9 to -3 dBm
Receiver Sensitivity -18.7 dBm
Transmission Distance ~10 km
Operating Temperature -5 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
SFP-DUAL-BX-U
Dual speed Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, 802.3ah, SFP MSA
Connections Supported 1000BASE-BX10-U
Fiber Type SMF
Wavelength Transmit: 1310 nm
Receive: 1550 nm
Average Power Output -9 to -3 dBm
Receiver Sensitivity -18.7 dBm
Transmission Distance ~10 km
Operating Temperature -5 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 100 FX Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-15
100 FX Ethernet Transceivers
SFP-100-BX20LT
Bi-Directional SFP Optical Transceiver.
Connector Type SC
Standards Supported 802.3ah, SFP MSA, ITU-T G.983
Connections Supported 100Base-BX
Fiber Type SMF
Wavelength Transmit: 1550 nm
Receive: 1310 nm
Average Power Output -14 to -8 dBm
Receiver Sensitivity -32 dBm
Transmission Distance ~20 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-100-BX20NU
SFP-100-BX20NU
Bi-Directional SFP Optical Transceiver.
Connector Type SC
Standards Supported 802.3ah, SFP MSA, ITU-T G.983
Connections Supported 100Base-BX
Fiber Type SMF
Wavelength Transmit: 1310 nm
Receive: 1550 nm
Average Power Output -14 to -8 dBm
Receiver Sensitivity -32 dBm
Transmission Distance ~20 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-100-BX20LT
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 100 FX Ethernet Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-16
SFP-100-BXLC-D
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA, ITU-T G.983
Connections Supported 100Base-BX
Fiber Type SMF
Wavelength Transmit: 1550 nm
Receive: 1310 nm
Average Power Output -14 to -8 dBm
Receiver Sensitivity -32 dBm
Transmission Distance ~20 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-100-BXLC-U
SFP-100-BXLC-U
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA, ITU-T G.983
Connections Supported 100Base-BX
Fiber Type SMF
Wavelength Transmit: 1310 nm
Receive: 1550 nm
Average Power Output -14 to -8 dBm
Receiver Sensitivity -32 dBm
Transmission Distance ~20 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with SFP-100-BXLC-D
Small Form-Factor Pluggables (SFP/SFP+/QSFP+)
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-17
SFP-100-LC-MM
SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3u, SFP MSA
Connections supported 100Base-FX
Fiber Type MMF
Wavelength 1310 nm
Optical Power Output -19 to -14 dBm on 62.5/125µm
-22 to 14 dBm on 50/125µm
Transmission Distance ~2 km on 62.5/125µm
~2 km on 50/125µm
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Not Supported
SFP-100-LC-SM15
SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3u, SFP MSA
Connections Supported 100Base-FX
Fiber Type SMF
Wavelength (nm) 1310 nm
Optical Power Output -15 to -8 dBm
Receiver Sensitivity -34 dBm
Transmission Distance ~15 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Not Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+)
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-18
.
SFP-100-LC-SM40
SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3u, SFP MSA
Connections Supported 100Base-FX
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -15 to -8 dBm
Receiver Sensitivity -34 dBm
Transmission Distances ~40 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Not Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 10-Gigabit SFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-19
10-Gigabit SFP+ Transceivers
SFP-10G-SR
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3 Clause 52
Connections supported 10GBase-SR
Fiber Type MMF
Wavelength 850 nm
Optical Power Output -7.3 to -3.0 dBm
Receiver Sensitivity -11.1 dBm
Transmission Distance ~ 300 m
Operating Temperature -5 ºC to 70ºC
Maximum Power Consumption 1 W
Digital Diagnostic Monitoring Supported
SFP-10G-LR
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3 Clause 52
Connections supported 10GBase-LR
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -8.2 to 0.5 dBm
Receiver Sensitivity -10.3 dBm
Transmission Distance ~ 10 km
Operating Temperature -5 ºC to 70ºC
Maximum Power Consumption 1 W
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 10-Gigabit SFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-20
SFP-10G-ER
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3ae
Connections supported 10GBase-E
Fiber Type SMF
Wavelength 1550 nm
Optical Power Output -4.7 to 4.0 dBm
Receiver Sensitivity -14.1 dBm
Transmission Distance ~ 40 km
Operating Temperature -5 ºC to 70 ºC
Maximum Power Consumption 1.5 W
Digital Diagnostic Monitoring Supported
SFP-10G-LRM
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3aq
Connections supported 10GBase-LRM
Fiber Type MMF
Wavelength 1310 nm
Optical Power Output -4.5 to 1.5dBm
Receiver Sensitivity -6.5 dBm
Transmission Distance ~ 220 m
Operating Temperature -5 ºC to 70ºC
Maximum Power Consumption 1 Watt
Digital Diagnostic Monitoring Supported
SFP-10G-ZR
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3ae
Connections supported 10GBase-ZR
Fiber Type SMF
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 10-Gigabit SFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-21
1. Check for availability of additional supported lengths.
Wavelength 1550 nm
Optical Power Output 0 to +5 dBm
Receiver Sensitivity -20 dBm
Transmission Distance ~ 80 km
Operating Temperature -5 ºC to 70 ºC
Maximum Power Consumption 1.2 W
Digital Diagnostic Monitoring Supported
SFP-10G-C
10-Gigabit SFP+ Direct Attach Copper Cable.
Connector Type Direct Attached Copper
Standards Supported 802.3ae, SFF-8431
Cable Length 1m, 3m, 7m1
Wire Gauge 24AWG
Bend Radius 1.25 in.
Digital Diagnostic Monitoring Not Supported
SFP-10G-24DWD80
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3ae
Connections supported 10GBase-ZR
Fiber Type SMF
Wavelength 1558.17 nm
Optical Power Output 0 to 5dBm
Receiver Sensitivity -23 dBm
Transmission Distance ~ 80 km
Operating Temperature -5ºC to 70ºC
Maximum Power Consumption 1.2 Watt
Digital Diagnostic Monitoring Supported
SFP-10G-ZR
10-Gigabit SFP+ Optical Transceiver.
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 10-Gigabit SFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-22
SFP-10G-GIG-SR
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3-2005
Connections supported 10GBase-SR/SW, 1000Base-SX
Fiber Type MMF
Wavelength 850 nm
Optical Power Output -5 to -1 @ 10G
-9.5 to -1dBm @ 1G
Receiver Sensitivity -11.1 dBm @ 10G
-17 dBm @ 1G
Transmission Distance OM1: ~33m @ 10G, ~275m @ 1G
OM2: ~82m @ 10G, ~550m @ 1G
OM3: ~300m @ 10G, ~550m @ 1G
Operating Temperature 0ºC to 70ºC
Maximum Power Consumption <1.0 Watt
Digital Diagnostic Monitoring Supported
SFP-10G-GIG-LR
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3-2005
Connections supported 10GBase-LR/LW, 1000Base-LX
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -8.2 to +5 dBm @ 10G
-11 to -3 dBm @ 1G
Receiver Sensitivity -12.6 dBm @ 10G
-19 dBm @ 1G
Transmission Distance ~10 km
Operating Temperature -5ºC to 70ºC
Maximum Power Consumption <1.0 Watt
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit QSFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-23
40-Gigabit QSFP+ Transceivers
CAUTION - CLASS 1M LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS.
1. Supports the DDM parameters of Voltage (V), Temperature (T), Current (mA) and Input (dBm). If the
threshold values of the transceiver are ‘0’ then NS will be displayed in the DDM output display.
QSFP-40G-SR
Four channel 40-Gigabit QSFP+ Optical Transceiver.
Connector Type MPO
Standards Supported 802.3ba, QSFP+ MSA
Connections supported 40GBase-SR4
Fiber Type MMF
Wavelength 850 nm
Optical Power Output -7.6 to +2.4 dBm
Receiver Sensitivity -5.4 dBm
Transmission Distance OM3 - ~ 100 m
OM4 - ~150 m
Operating Temperature 0 ºC to 70ºC
Maximum Power Consumption 1.5 W
Digital Diagnostic Monitoring Supported1
QSFP-40G-LR
Four channel 40-Gigabit QSFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3ba, QSFP+ MSA
Connections supported 40GBase-LR4
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -7.0 to +2.3 dBm
Receiver Sensitivity -11.5 dBm
Transmission Distance 10 km
Operating Temperature 0 ºC to 70ºC
Maximum Power Consumption < 3.5 W
Digital Diagnostic Monitoring Supported1
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit QSFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-24
1. Check for availability of lengths.
2. The QSFP-40G-C7 (7m) cable has been verified for proper operation when connected between OmniS-
witch products. When connecting this cable between an OmniSwitch and other vendors’ equipment, it’s
recommended to verify proper operation prior to network deployment.
QSFP-40G-C
Four channel 40-Gigabit QSFP+ Direct Attach Copper Cable
Connector Type Direct Attached Copper
Standards Supported 802.3ba, QSFP+ MSA
Cable Length 1m, 3m, 7m1,2
Wire Gauge 26AWG
Bend Radius 1.69 in.
Digital Diagnostic Monitoring Not Supported
QSFP-4X10G-SR
Four channel 40-Gigabit QSFP+ Optical Transceiver. Connects a single 40G QSFP+ port to four 10G SFP+
ports
Connector Type MPO
Standards Supported 802.3ba, 802.3ae, QSFP+ MSA
Connections supported 40GBase-SR4, 10GBase-SR
Fiber Type MMF
Wavelength 850 nm
Optical Power Output -7.5 to +0.5 dBm
Receiver Sensitivity -7.5 dBm (SRS)
Transmission Distance OM3 - ~ 300 m
OM4 - ~400 m
Operating Temperature 0 ºC to 70ºC
Maximum Power Consumption 1.5 W
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit QSFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-25
QSFP-4X10G-C
Four channel 40-Gigabit QSFP+ Direct Attached Copper Splitter Cable. Connects a single 40G QSFP+ port to
four 10G SFP+ ports
Connector Type Direct Attached Copper Splitter Cable
Cable Length 1m, 3m, 5m
Digital Diagnostic Monitoring Not Supported
QSFP-40G-AOC20M
Description Four channel 40-Gigabit QSFP+ active optical cable
Connector Type Direct attached
Standards Supported 802.3ba, QSFP+ MSA
Connections supported 40GBase-SR4
Cable Length 20 m
Bend Radius 45 mm
Operating Temperature 0 ºC to 70ºC
Maximum Power Consumption < 1.3 W
Digital Diagnostics Monitoring Supported
OS6860-CBL-100
Description 20-Gigabit QSFP+ direct attached copper transceiver.
Connector Type Direct Attached Copper
Standards Supported 802.3ba, QSFP+ MSA
Cable Length 1m
Wire Gauge 26AWG
Bend Radius 1.69 in.
Digital Diagnostics Monitoring Not Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit QSFP+ Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-26
OS6860-CBL-300
Description 20-Gigabit QSFP+ direct attached copper transceiver.
Connector Type Direct Attached Copper
Standards Supported 802.3ba, QSFP+ MSA
Cable Length 3m
Wire Gauge 26AWG
Bend Radius 1.69 in.
Digital Diagnostics Monitoring Not Supported
OS6860-CBL-40
Description 20-Gigabit QSFP+ direct attached copper transceiver.
Connector Type Direct Attached Copper
Standards Supported 802.3ba, QSFP+ MSA
Cable Length 40cm
Wire Gauge 26AWG
Bend Radius 1.69 in.
Digital Diagnostics Monitoring Not Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Fibre Channel Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-27
Fibre Channel Transceivers
1. Distances based on FC-PI-4 specification.
SFP-FC-SR
Triple-speed SFP+ Fibre Channel optical transceiver.
Connector Type LC
Standards Supported FC-PI-4
Connections supported Auto-sensing 2G, 4G, 8G
Fiber Type MMF
Wavelength 850 nm
Average Optical Power Output -8.2 dBm
Transmission Distance1OM3: ~150m @ 8Gbps, 310m @ 4Gbps, 500m @ 2Gbps
OM1: ~21m @ 8Gbps, 70m @ 4Gbps, 150m @ 2Gbps
Operating Temperature 0 ºC to 85ºC
Maximum Power Consumption 3.3 V
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Industrial Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-28
Industrial Transceivers
iSFP-GIG-SX
Gigabit SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, SFP MSA
Connections Supported 1000Base-SX
Fiber Type MMF
Wavelength 850 nm
Optical Power Output -9.0 to -2.5 dBm
Receiver Sensitivity -18 dBm
Transmission Distance ~300 m on 62.5/125µm
~500 m on 50/125µm
Operating Temperature -40ºC to 85ºC
Digital Diagnostic Monitoring Supported
iSFP-GIG-LX
Gigabit SFP Optical Transceiver.
Connector types LC
Standards supported 802.3z, SFP MSA
Connections supported 1000Base-LX
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -9.5 to -3 dBm
Receiver Sensitivity -14.5 dBm
Transmission Distance 10 km
Operating Temperature -40 ºC to 85 ºC / 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported (Alcatel-Lucent branded transceivers only)
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Industrial Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-29
iSFP-GIG-LH40
Gigabit SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, SFP MSA
Connections Supported 1000Base-LH40
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -2 to +3 dBm
Receiver Sensitivity -23 dBm
Transmission Distance ~40 km
Operating Temperature -40 ºC to 85 ºC
Digital Diagnostic Monitoring Supported
iSFP-GIG-LH70
Gigabit SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3z, SFP MSA
Connections Supported 1000Base-LH70
Fiber Type SMF
Wavelength 1550 nm
Optical Power Output 0 to +5 dBm
Receiver Sensitivity -22 dBm
Transmission Distance ~70 km
Operating Temperature -10 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Industrial Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-30
iSFP-GIG-T
Gigabit SFP Copper Transceiver.
Connector Type RJ-45
Standards Supported 802.3z, SFP MSA
Connections supported 10/100/1000Base-T
Cable Type CAT5, CAT5e, CAT6
Transmission Distance 100 m
Digital Diagnostic Monitoring Not Supported
iSFP-GIG-BX-D
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX10
Fiber Type SMF
Wavelength Transmit: 1490 nm
Receive: 1310 nm
Average Power Output -9 to -3 dBm
Receiver Sensitivity -19.5 dBm
Transmission Distance ~10 km
Operating Temperature -40 ºC to 85 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with iSFP-GIG-BX-U
iSFP-GIG-BX-U
Bi-Directional SFP Optical Transceiver.
Connector Type LC
Standards Supported 802.3ah, SFP MSA
Connections Supported 1000Base-BX10
Fiber Type SMF
Wavelength Transmit: 1310 nm
Receive: 1490 nm
Average Power Output -9 to -3 dBm
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Industrial Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-31
Receiver Sensitivity -19.5 dBm
Transmission Distance ~10 km
Operating Temperature 0 ºC to 70 ºC
Digital Diagnostic Monitoring Supported
Notes Designed for use with iSFP-GIG-BX-D
iSFP-10G-SR
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3 Clause 52
Connections supported 10GBase-SR
Fiber Type MMF
Wavelength 850 nm
Optical Power Output -7.3 to -3.0 dBm
Receiver Sensitivity -11.1 dBm
Transmission Distance ~ 300 m
Operating Temperature -5 ºC to 70ºC
Maximum Power Consumption 1 W
Digital Diagnostic Monitoring Supported
iSFP-10G-LR
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3 Clause 52
Connections supported 10GBase-LR
Fiber Type SMF
Wavelength 1310 nm
Optical Power Output -8.2 to 0.5 dBm
Receiver Sensitivity -10.3 dBm
Transmission Distance ~ 10 km
Operating Temperature -5 ºC to 70ºC
Maximum Power Consumption 1 W
Digital Diagnostic Monitoring Supported
iSFP-GIG-BX-U
Bi-Directional SFP Optical Transceiver.
Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Industrial Transceivers
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 1-32
1. Check for availability of lengths.
iSFP-10G-ER
10-Gigabit SFP+ Optical Transceiver.
Connector Type LC
Standards Supported 802.3ae
Connections supported 10GBase-E
Fiber Type SMF
Wavelength 1550 nm
Optical Power Output -4.7 to 4.0 dBm
Receiver Sensitivity -14.1 dBm
Transmission Distance ~ 40 km
Operating Temperature -5 ºC to 70 ºC
Maximum Power Consumption 1.5 W
Digital Diagnostic Monitoring Supported
iSFP-10G-C
10-Gigabit SFP+ Direct Attach Copper Cable.
Connector Type Direct Attached Copper
Standards Supported 802.3ae, SFF-8431
Cable Length 1m, 3m, 7m1
Wire Gauge 24AWG
Bend Radius 1.25 in.
Digital Diagnostic Monitoring Not Supported
Transceiver Compatibility Matrix In This Chapter
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-33
2 Transceiver Compatibility
Matrix
In This Chapter
The following sections document the transceiver configurations and minimum release required for support
on the OmniSwitch.
Compatibility specifications in this chapter include:
•OmniSwitch 10K . See “OmniSwitch 10K Compatibility” on page 2-34
•OmniSwitch 6900 . See “OmniSwitch 6900 Compatibility” on page 2-36
•OmniSwitch 6860. See “OmniSwitch 6860 Compatibility” on page 2-38
•OmniSwitch 6865. See “OmniSwitch 6865 Compatibility” on page 2-40
•OmniSwitch 9900. See “OmniSwitch 9900 Compatibility” on page 2-41
Note: For transceivers supporting Digital Diagnostics Monitoring there may be a slight variance between
actual and reported values for both the transmit and receive side depending on the transceiver.
Transceiver Compatibility Matrix OmniSwitch 10K Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-34
OmniSwitch 10K Compatibility
The following table shows the available transceivers and minimum release required for support:
Transceiver OS10K-
GNI-U48
OS10K-XNI
U32/U16
OS10K-QNI
U4/U8
SFP-GIG-SX 7.1.1 7.1.1 Not Supported
SFP-GIG-LX 7.1.1 7.1.1 Not Supported
SFP-GIG-LH40 7.1.1 7.1.1 Not Supported
SFP-GIG-LH70 7.1.1 7.1.1 Not Supported
SFP-GIG-CWD 7.1.1 7.1.1 Not Supported
SFP-GIG-T 7.1.1 7.1.11Not Supported
SFP-GIG-EXTND 7.1.1 7.1.1 Not Supported
SFP-GIG-BX-D 7.1.1 7.1.1 Not Supported
SFP-GIG-BX-U 7.1.1 7.1.1 Not Supported
SFP-GIG-BX-D20 Not Supported Not Supported Not Supported
SFP-GIG-BX-U20 Not Supported Not Supported Not Supported
SFP-GIG-BX-D40 Not Supported Not Supported Not Supported
SFP-GIG-BX-U40 Not Supported Not Supported Not Supported
SFP-DUAL-MM Not Supported Not Supported Not Supported
SFP-DUAL-SM10 Not Supported Not Supported Not Supported
SFP-DUAL-BX-D Not Supported Not Supported Not Supported
SFP-DUAL-BX-U Not Supported Not Supported Not Supported
SFP-100-BX20LT 7.1.1 Not Supported Not Supported
SFP-100-BX20NU 7.1.1 Not Supported Not Supported
SFP-100-BXLC-D 7.1.1 Not Supported Not Supported
SFP-100-BXLC-U 7.1.1 Not Supported Not Supported
SFP-100-LC-MM 7.1.1 Not Supported Not Supported
SFP-100-LC-SM15 7.1.1 Not Supported Not Supported
SFP-100-LC-SM40 7.1.1 Not Supported Not Supported
SFP-10G-SR Not Supported 7.1.1 Not Supported
SFP-10G-LR Not Supported 7.1.1 Not Supported
SFP-10G-ER Not Supported 7.1.1 Not Supported
SFP-10G-LRM Not Supported 7.1.1 Not Supported
SFP-10G-ZR Not Supported 7.3.4 Not Supported
Transceiver Compatibility Matrix OmniSwitch 10K Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-35
1. Only supports 1000-Mbits when used on OS10K-XNI-U32.
SFP-10G-C Not Supported 7.1.1 Not Supported
SFP-10G-24DWD80 Not Supported 7.3.1 Not Supported
SFP-10G-GIG-SR Not Supported 7.3.1 Not Supported
SFP-10G-GIG-LR Not Supported Not Supported Not Supported
SFP-FC-SR Not Supported Not supported Not Supported
QSFP-40G-SR Not Supported Not Supported 7.3.1.R01
QSFP-40G-LR Not Supported Not Supported 7.3.1.R01
QSFP-40G-C Not Supported Not Supported 7.3.1.R01
QSFP-4X10G-SR Not Supported Not Supported Not Supported
QSFP-4X10G-C Not Supported Not Supported Not Supported
QSFP-40G-AOC20M Not Supported Not Supported Not Supported
Transceiver OS10K-
GNI-U48
OS10K-XNI
U32/U16
OS10K-QNI
U4/U8
Transceiver Compatibility Matrix OmniSwitch 6900 Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-36
OmniSwitch 6900 Compatibility
The following table shows the available transceivers and minimum release required for support:
Transceiver OS6900-
X20/X40
OS6900-Q32 OS6900-X72 XNI-U4/U12 HNI-U6 QNI-U3 XNI-U12E
SFP-GIG-SX 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1.R02 N/S 7.3.3
SFP-GIG-LX 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1.R02 N/S 7.3.3
SFP-GIG-LH40 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1.R02 N/S 7.3.3
SFP-GIG-LH70 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1.R02 N/S 7.3.3
SFP-GIG-CWD N/S N/S N/S N/S N/S N/S N/S
SFP-GIG-T 7.2.11N/S 7.3.4.R0217.2.11N/S N/S 7.3.31
SFP-GIG-EXTND 7.2.1 N/S 7.3.4.R02 7.2.1 N/S N/S 7.3.3
SFP-GIG-BX-D 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1 N/S 7.3.3
SFP-GIG-BX-U 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1 N/S 7.3.3
SFP-GIG-BX-D20 Not Supported
SFP-GIG-BX-U20 Not Supported
SFP-GIG-BX-D40 Not Supported
SFP-GIG-BX-U40 Not Supported
SFP-DUAL-MM Not Supported
SFP-DUAL-SM10 Not Supported
SFP-DUAL-BX-D Not Supported
SFP-DUAL-BX-U Not Supported
SFP-100-BX20LT Not Supported
SFP-100-BX20NU Not Supported
SFP-100-BXLC-D Not Supported
SFP-100-BXLC-U Not Supported
SFP-100-LC-MM Not Supported
SFP-100-LC-SM15 Not Supported
SFP-100-LC-SM40 Not Supported
SFP-10G-SR 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1 N/S 7.3.3
SFP-10G-LR 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1 N/S 7.3.3
SFP-10G-ER 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1 N/S 7.3.3
SFP-10G-LRM 7.2.1 N/S N/S 7.2.1 7.2.1 N/S 7.3.3
SFP-10G-ZR 7.3.4 N/S 7.3.4.R02 7.3.4 7.3.4 N/S 7.3.4
Transceiver Compatibility Matrix OmniSwitch 6900 Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-37
1. Only supports 1G.
SFP-10G-C 7.2.1 N/S 7.3.4.R02 7.2.1 7.2.1 N/S 7.3.3
SFP-10G-
24DWD80
7.3.1 N/S 7.3.4.R02 7.3.1 7.3.1 N/S 7.3.3
SFP-10G-GIG-SR 7.3.1 N/S 7.3.4.R02 7.3.1 7.3.1 N/S 7.3.3
SFP-10G-GIG-LR Not Supported
SFP-FC-SR N/S N/S N/S N/S N/S N/S 7.3.3
QSFP-40G-SR N/S 7.3.4 7.3.4.R02 N/S 7.2.1.R02 7.2.1.R02 N/S
QSFP-40G-LR N/S 7.3.4 7.3.4.R02 N/S 7.3.1.R01 7.3.1.R01 N/S
QSFP-40G-C N/S 7.3.4 7.3.4.R02 N/S 7.2.1.R02 7.2.1.R02 N/S
QSFP-4X10G-SR N/S 7.3.4 7.3.4.R02 N/S N/S N/S N/S
QSFP-4X10G-C N/S 7.3.4 7.3.4.R02 N/S N/S N/S N/S
QSFP-40G-AOC-
20M
N/S
Transceiver OS6900-
X20/X40
OS6900-Q32 OS6900-X72 XNI-U4/U12 HNI-U6 QNI-U3 XNI-U12E
Transceiver Compatibility Matrix OmniSwitch 6860 Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-38
OmniSwitch 6860 Compatibility
The following table shows the available transceivers and minimum release required for support:
Transceiver OS6860/6860E
(Excluding U28)
OS6860E-U28
SFP-GIG-SX 8.1.1 8.1.1
SFP-GIG-LX 8.1.1 8.1.1
SFP-GIG-LH40 8.1.1 8.1.1
SFP-GIG-LH70 8.1.1 8.1.1
SFP-GIG-CWD 8.1.1 8.1.1
SFP-GIG-T18.1.1 8.1.1
SFP-GIG-EXTND 8.1.1 8.1.1
SFP-GIG-BX-D 8.1.1 8.1.1
SFP-GIG-BX-U 8.1.1 8.1.1
SFP-GIG-BX-D20 8.1.1 8.1.1
SFP-GIG-BX-U20 8.1.1 8.1.1
SFP-GIG-BX-D40 8.1.1 8.1.1
SFP-GIG-BX-U40 8.1.1 8.1.1
SFP-DUAL-MM 2N/S 8.1.1
SFP-DUAL-SM10 2N/S 8.1.1
SFP-DUAL-BX-D 2N/S 8.1.1
SFP-DUAL-BX-U 2N/S 8.1.1
SFP-100-BX20LT N/S N/S
SFP-100-BX20NU N/S N/S
SFP-100-BXLC-D 2N/S 8.1.1
SFP-100-BXLC-U 2 N/S 8.1.1
SFP-100-LC-MM 2N/S 8.1.1
SFP-100-LC-SM15 2 N/S 8.1.1
SFP-100-LC-SM40 2 N/S 8.1.1
SFP-10G-SR 8.1.1 8.1.1
SFP-10G-LR 8.1.1 8.1.1
SFP-10G-ER 8.1.1 8.1.1
SFP-10G-LRM 8.1.1 8.1.1
SFP-10G-ZR 8.2.1 8.2.1
SFP-10G-C 8.1.1 8.1.1
SFP-10G-24DWD80 N/S N/S
SFP-10G-GIG-SR38.1.1 8.1.1
Transceiver Compatibility Matrix OmniSwitch 6860 Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-39
1. OS6860E-U28 user ports (1 - 28) support 10/100/1000. All 6860 uplink ports support 1Gbps only with
this transceiver. If manually setting the user port speed to 10M the transceiver must first be inserted before
setting the speed.
2. Supported on OS6860E-U28 1G SFP user ports (1 - 28) only.
3. Not supported on OS6860E-U28 1G SFP user ports (1-28).
4. Supported for 20-Gigabit VFL connections only.
SFP-10G-GIG-LR38.2.1 8.2.1
SFP-FC-SR N/S N/S
QSFP-40G-SR48.1.1 8.1.1
QSFP-40G-LR N/S N/S
QSFP-40G-C N/S N/S
QSFP-4X10G-SR N/S N/S
QSFP-4X10G-C N/S N/S
QSFP-40G-AOC20M 8.2.1 8.2.1
OS6860-CBL-1004 8.1.1 8.1.1
OS6860-CBL-30048.1.1 8.1.1
OS6860-CBL-4048.1.1 8.1.1
Transceiver OS6860/6860E
(Excluding U28)
OS6860E-U28
Transceiver Compatibility Matrix OmniSwitch 6865 Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-40
OmniSwitch 6865 Compatibility
The following table shows the available transceivers and minimum release required for support:
Transceiver OS6865-P16X
iSFP-GIG-SX 8.3.1
iSFP-GIG-LX 8.3.1
iSFP-GIG-LH40 8.3.1
iSFP-GIG-LH70 8.3.1
iSFP-GIG-T 8.3.1
iSFP-GIG-BX-D 8.3.1
iSFP-GIG-BX-U 8.3.1
iSFP-10G-SR 8.3.1
iSFP-10G-LR 8.3.1
iSFP-10G-ER 8.3.1
iSFP-10G-C 8.3.1
Transceiver Compatibility Matrix OmniSwitch 9900 Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-41
OmniSwitch 9900 Compatibility
The following table shows the available transceivers and minimum release required for support:
Transceiver OS99-CMM OS99-XNI-U48
SFP-GIG-SX Not Supported 8.3.1
SFP-GIG-LX Not Supported 8.3.1
SFP-GIG-LH40 Not Supported 8.3.1
SFP-GIG-LH70 Not Supported 8.3.1
SFP-GIG-CWD Not Supported Not Supported
SFP-GIG-T Not Supported 8.3.11
SFP-GIG-EXTND Not Supported 8.3.1
SFP-GIG-BX-D Not Supported 8.3.1
SFP-GIG-BX-U Not Supported 8.3.1
SFP-GIG-BX-D20 Not Supported Not Supported
SFP-GIG-BX-U20 Not Supported Not Supported
SFP-GIG-BX-D40 Not Supported Not Supported
SFP-GIG-BX-U40 Not Supported Not Supported
SFP-DUAL-MM Not Supported Not Supported
SFP-DUAL-SM10 Not Supported Not Supported
SFP-DUAL-BX-D Not Supported Not Supported
SFP-DUAL-BX-U Not Supported Not Supported
SFP-100-BX20LT Not Supported Not Supported
SFP-100-BX20NU Not Supported Not Supported
SFP-100-BXLC-D Not Supported Not Supported
SFP-100-BXLC-U Not Supported Not Supported
SFP-100-LC-MM Not Supported Not Supported
SFP-100-LC-SM15 Not Supported Not Supported
SFP-100-LC-SM40 Not Supported Not Supported
SFP-10G-SR Not Supported 8.3.1
SFP-10G-LR Not Supported 8.3.1
SFP-10G-ER Not Supported 8.3.1
SFP-10G-LRM Not Supported 8.3.1
SFP-10G-ZR Not Supported 8.3.1
SFP-10G-C Not Supported 8.3.1
SFP-10G-24DWD80 Not Supported 8.3.1
SFP-10G-GIG-SR Not Supported 8.3.1
SFP-10G-GIG-LR Not Supported 8.3.1
Transceiver Compatibility Matrix OmniSwitch 9900 Compatibility
OmniSwitch AOS Release 8 Transceivers Guide September 2016 page 2-42
1. Only supports 1G.
SFP-FC-SR Not Supported Not Supported
QSFP-40G-SR Not Supported Not Supported
QSFP-40G-LR Not Supported Not Supported
QSFP-40G-C Not Supported Not Supported
QSFP-4X10G-SR Not Supported Not Supported
QSFP-4X10G-C Not Supported Not Supported
QSFP-40G-AOC20M Not Supported Not Supported
Transceiver OS99-CMM OS99-XNI-U48
