P2-550 CPU
Document Name Edition/Revision Date
P2-550-DS 1st Ed. Rev B 3/29/2017
Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide.
The P2-550 is a full-featured,
high-performance CPU for use
with the Productivity2000 system.
CPU Specifications ...................................1
CPU Front and Bottom Panels .................2
CPU Installation Procedure .......................2
Battery Installation Procedure ...................3
Micro SD Specifications ............................3
RS-232 Port Specifications .......................4
RS-485 Port Specifications .......................4
Ethernet Port Specifications ......................5
Remote I/O Port Specifications .................5
USB In Port Specifications ........................5
Front Panel OLED Message Display ........6
Front Panel OLED Display Monitoring
and Configuration ......................................7
Warning .....................................................8
CPU Status Indicators ...............................8
CPU Run/Stop Switch Specifications ........8
General Specifications ..............................8
Hot Swap Information ................................8
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
CPU Specifications
User Memory 50MB (Includes program, data and documentation)
Memory Type Flash and Battery Backed RAM
Retentive Memory 500kB
Scan Time 500µs (3K Boolean, 240 I/O)
Display
OLED, 4x10 characters, 8 control buttons;
OLED characters are 5x7 with a dot pitch of 0.45 mm;
2.25 mm x 3.15 mm
Communications;
5 Integrated Ports
USB IN: Programming, Monitoring, Debug, Firmware
ETHERNET: (10/100Mbps Ethernet) Programming,
Monitoring, Debug, Firmware, Email SMTP Client,
Modbus TCP Client (32 Servers) and Server (16 Clients),
EtherNet/IP Scanner (32 Adapters) and Adapter
(4 scanners) with 8 connections per device.
REMOTE I/O: 16 GS-EDRV100 (GS Drives),
8 Remote Base Groups
RS-232: (RJ12, 1200-115.2k Baud) ASCII, Modbus
RS-485: Removable Terminal Included, (1200-115.2k
Baud) ASCII, Modbus RTU.
Data Logging/Project
Transfer Micro SD card slot
Hardware Limits
of System
9 Base Groups: 1 Local (P2-550) + 8 Remote (P2-RS)
4,320 Hardware I/O points (All 32 point modules)
16 GS Series Drives as Remote I/O
Instruction Types
Application Functions
Array Functions
Counters/Timers
Communications
Data Handling
Drum Sequencers
Math Functions
PID
Program Control
String Functions
System Functions
Contacts
Coils
Real Time Clock
Accuracy
±5s per day typical at 25°C
±15s per day maximum at 60°C
2Tech Support 770-844-4200
www.productivity2000.com
CPU Installation Procedure
Step One:
Unlock both locking tabs
Step Two:
Seat CPU on support
platform and push
towards base until circuit
board is fully engaged
into connector

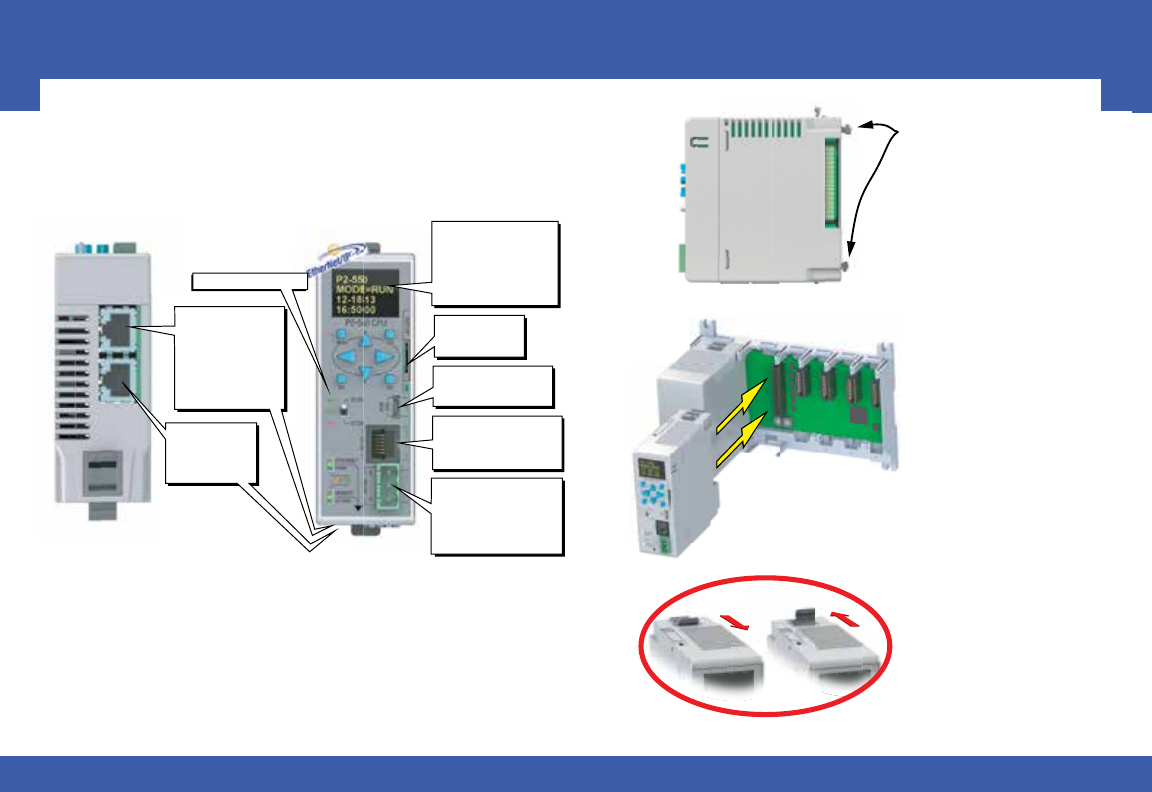

CPU Front and Bottom Panels
Micro SD CARD
- Data Logger
- Project Transfer
Micro USB 2.0 (Type B)
- Programming
- Online monitoring
RS-485 Serial Port
(TB Style)
- Modbus/ASCII
(master peripheral device
or multiple slave devices)
using the same protocol
RS-232 Serial Port (RJ12)
- Modbus/ASCII
(master or slave)
peripheral device
CPU Status Indicators
OLED
- 4 x 10 character
- 8 control buttons
- User defined messages
- User adjustable settings
- System errors /
information
10/100 MB
Ethernet Port
- Programming
- Online monitoring
- Email (SMTP client)
- EtherNet/IP Scanner
and Adapter
- Modbus TCP Client
and Server
Local Ethernet
Network
- GS Series drives
- 8 Remote Base
Groups
Step Three:
Snap retaining tab into
the locked position.
Unlocked
ked
Unlock
Locked
3
Sales 800-633-0405 www.productivity2000.com

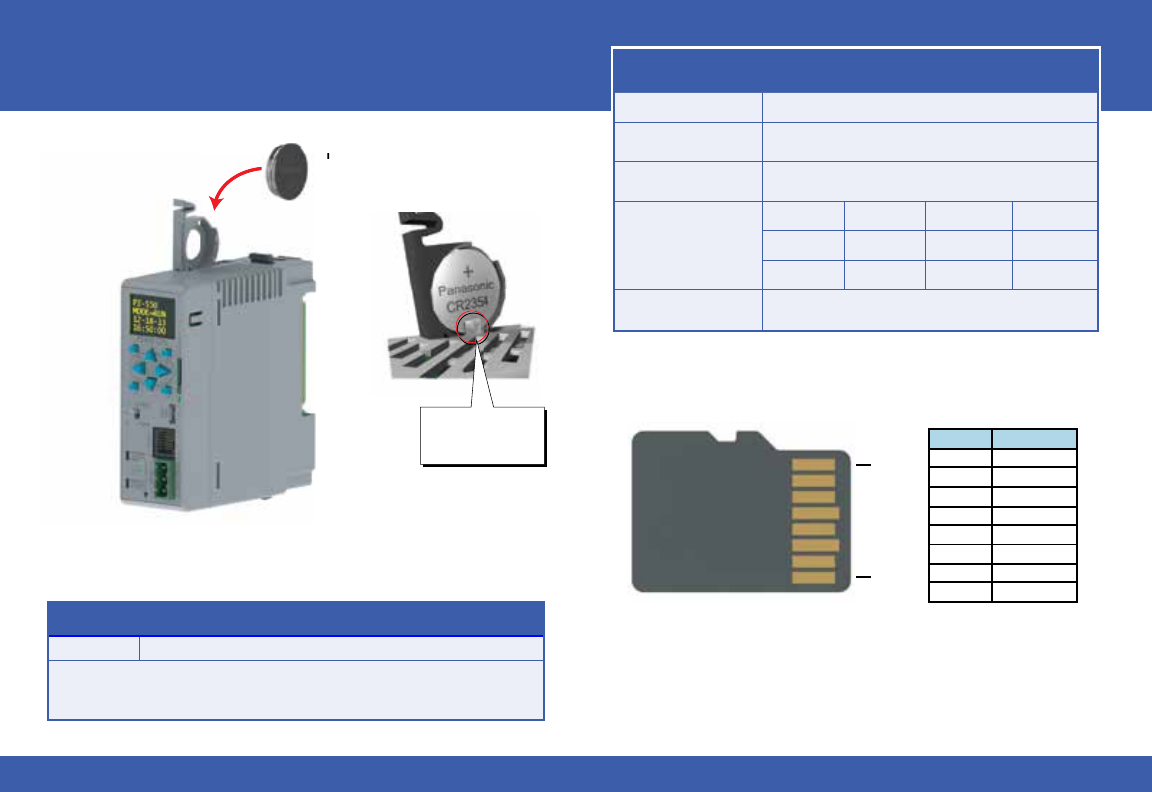

Battery Installation Procedure
+
-
Step One:
Press spring lock
and swing battery
compartment
away from
CPU.
Step Two:
Insert battery and
close compartment.
Take care to
insert battery
behind metal tab.
Battery (Optional)
D2-BAT-1 Coin type, 3.0 V Lithium battery, 560mA, battery number CR2354
Note: Although not needed for program backup, an uninstalled battery is included
with the P2-550. Install this battery if you want the CPU to retain the Time and
Date along with any Tagname values that you have set up as retentive.
Micro SD Specifications
Port Name MICRO SD
Description Standard Micro SD socket for data logging or program
transfer
Maximum Card
Capacity 32GB
Transfer Rate
(ADATA microSDHC
Class 4 memory card)
Mbps Minimum Typical Maximum
Read 14.3 14.4 14.6
Write 4.8 4.9 5.1
Port Status LED Green LED is illuminated when card is inserted/
detected
1
8
Pi
nS
D
1
2
3
4
5
6
7
8
DAT2
CD/DAT3
CMD
VDD
CLK
VSS
DAT0
DAT1
Note: Card not included with unit.
4Tech Support 770-844-4200
www.productivity2000.com

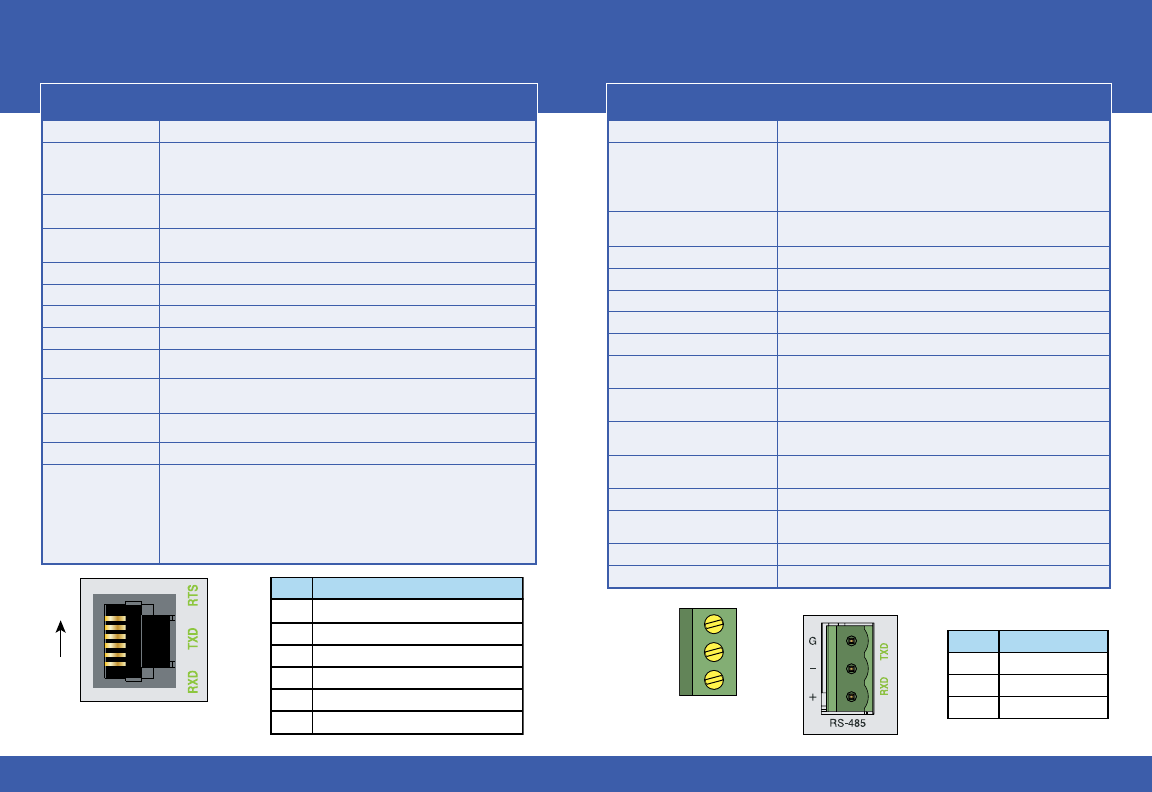

6-pin RJ12 Female
Modular Connector
6
1
6 GND Logic Ground
5 RTS RS-232 Output
4 TXD RS-232 Output
3 RXD RS-232 Input
2 +5V 210mA Maximum
1 GND Logic Ground
Pin # Signal
Pin # Signal
G GND
– TXD-/RXD-
+ TXD+/RXD+
Port Specifications
Removable connector included.
Spare connectors available
(part no. P3-RS485CON).
RS-232 Specifications
Port Name RS-232
Description
Non-isolated RS-232 DTE port connects the CPU as a
Modbus/ASCII master or slave to a peripheral device. Includes
ESD and built-in surge protection
Data Rates Selectable,1200, 2400, 4800, 9600, 19200, 33600, 38400,
57600, and 115200
+5V Cable Power
Source
210 mA maximum at 5V, ± 5%. Reverse polarity and
overload protected
TXD RS-232 Transmit output
RXD RS-232 Receive input
RTS Handshaking output for modem control
GND Logic ground
Maximum Output
Load (TXD/RTS) 3kΩ, 1000 pf
Minimum Output
Voltage Swing ±5V
Output Short
Circuit Protection ±15mA
Port Status LED Green LED is illuminated when active for TXD, RXD and RTS
Cable Options
EA-MG-PGM-CBL
D2-DSCBL
USB-RS232 with D2-DSCBL
FA-CABKIT
FA-ISOCON for converting RS-232 to isolated RS-485
RS-485 Port Specifications
Port Name RS-485
Description
Non-isolated RS-485 port connects the CPU as a
Modbus/ASCII master or slave to a peripheral device.
Includes ESD/EFT protection and automatic echo
cancellation when transmitter is active
Data Rates Selectable, 1200, 2400, 4800, 9600, 19200, 33600,
38400, 57600, and 115200
TXD+/RXD+ RS-485 transceiver high
TXD-/RXD- RS-485 transceiver low
GND Logic ground
Input Impedance 19kΩ
Maximum Load 50 transceivers, 19 kΩ each, 60 Ω termination
Output Short Circuit
Protection ±250mA, thermal shut-down protection
Electrostatic Discharge
Protection ±8KV per IEC1000-4-2
Electrical Fast Transient
Protection ±2KV per IEC1000-4-4
Minimum Differential
Output Voltage 1.5 V with 60Ω load
Fail Safe Inputs Logic high input state if inputs are unconnected
Maximum Common Mode
Voltage -7.5 V to 12.5
Port Status LED Green LED illuminated when active for TXD and RXD
Cable Options Recommend L19827-XXX from AutomationDirect.com
5
Sales 800-633-0405 www.productivity2000.com

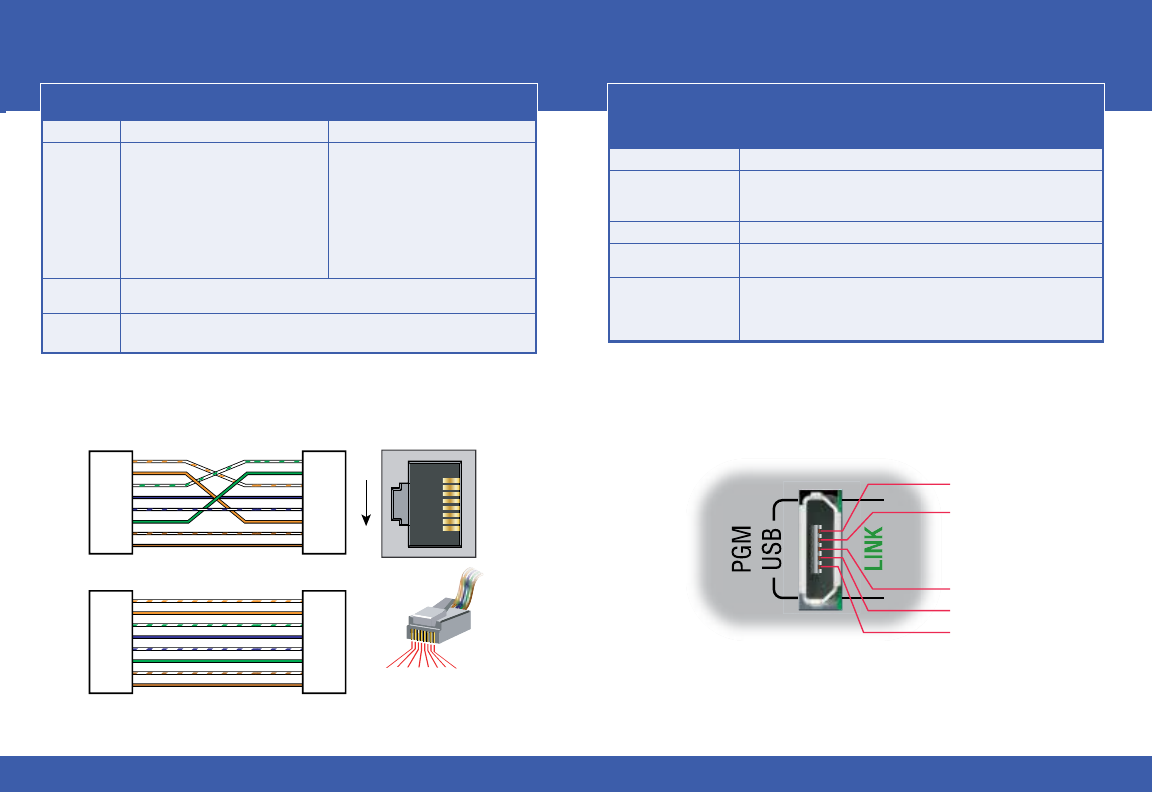

1 2 3 4 5 6 7 8
8-pin RJ45 Connector
(8P8C)
TD+
TD–
RD+
RD–
1
2
3
4
5
6
7
8
TD+
TD–
RD+
RD–
1
2
3
4
5
6
7
8
TD+
TD–
RD+
RD–
1
2
3
4
5
6
7
8
TD+
TD–
RD+
RD–
1
2
3
4
5
6
7
8
RJ45 RJ45
RJ45 RJ45
OR/WHT
OR
GRN/WHT
BLU
BLU/WHT
GRN
BRN/WHT
BRN
OR/WHT
OR
GRN/WHT
BLU
BLU/WHT
GRN
BRN/WHT
BRN
OR/WHT
OR
GRN/WHT
BLU
BLU/WHT
GRN
BRN/WHT
BRN
GRN/WHT
GRN
OR/WHT
BLU
BLU/WHT
OR
BRN/WHT
BRN
Patch (Straight-through) Cable
Crossover Cable
1
8
10/BASE-T/100BASE-TX
Port Specifications
Micro USB Type B Slave Input
Specifications
Port Name MICRO USB
Description
Standard Micro USB Slave input for programming and
online monitoring, with built-in surge protection. Not
compatible with older full speed USB devices.
Transfer Rate 480Mbps
Port Status LED Green LED is illuminated when LINK is established to
programming software.
Cables
USB Type A to Micro USB Type B:
6ft. cable part # USB-CBL-AMICB6
15ft. cable part # USB-CBL-AMICB15
Ethernet Specifications
Port Name ETHERNET REMOTE I/O
Description
Standard transformer isolated
Ethernet port with built-in surge
protection for programming,
online monitoring, Email (SMTP
client), Modbus/TCP client/server
connections (fixed IP or DHCP)
and Ethernet/IP Scanner/
Apapter connections.
Standard transformer isolated
Ethernet port with built-in surge
protection for connection to 16
GS Series Drives and 8 Remote
Base Groups.
Transfer
Rate 10 Mbps (Orange LED) and 100 Mbps (Green LED) (auto-crossover)
Port Status
LED
LED is solid when network LINK is established. LED flashes when
port is active (ACT).
1 VBUS
2 D-
3 D+
4 ID
5 GND
6Tech Support 770-844-4200
www.productivity2000.com

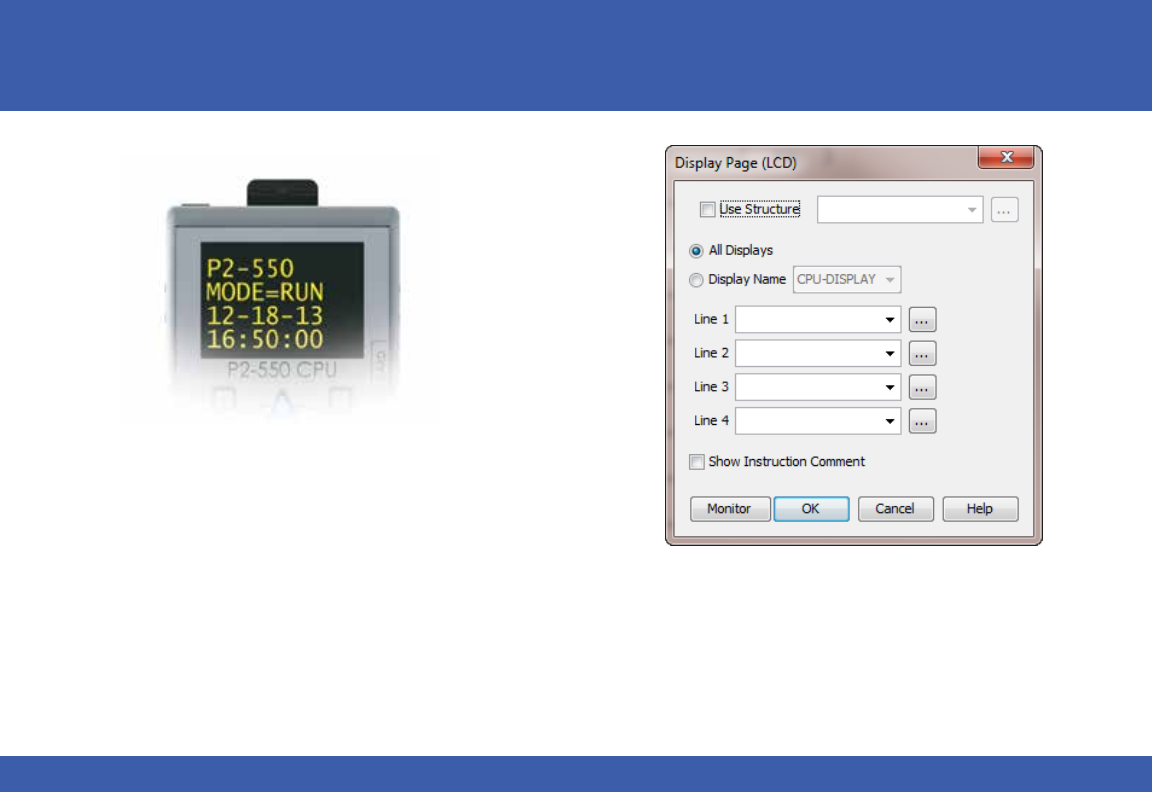

Front Panel OLED Message Display
The CPU incorporates a 4 line x 10 character OLED for
system errors and information or for displaying user-
defined messages.
OLED characters are 7x12 with a dot pitch of 0.245 mm;
1.72 mm x 2.94 mm.
OLED control buttons located beneath the display allow
the user to navigate through a menu and arrow buttons
allow for configuration of time and date settings.
Note: There is a built in time-out for the OLED of 4 hours.
Only a button press or power up will turn it back on.
For user-defined messages, the display is configured
using the Productivity2000 Programming Software. An
OLED Page instruction allows the user to program text
into user-defined tags and display the messages based
on the ladder execution.
Sales 800-633-0405 7
www.productivity2000.com
CPU Installation Procedure Front Panel OLED Display Monitoring and Configuration
TIMEFORMAT
*HH-MM:SS
HH-MM US
HH-MM AS
DATEFORMAT
*MM-DD-YY
DD-MM-YY
YY-MM-DD
MENU
>M1PACINFO
>M2SYS CFG
>M3MONITOR
M4:DATE
>CHG DATE
>CHG TIME
>CHGFORMAT
M7:OLEDSET
>KEY TEST
>BEEP
M8:uSD DRV
>SAVE->PEN
>LOAD->PAC
>REMOVE
M4:FORMAT
>DATE
>TIME
M3:MONITOR
>USER DATA
>I/O DATA
>M4CALENDA
>M5ERRHIST
>M6PWR UP
>M7LCD SET
>M5ERRHIST
>M6PWR UP
>M7LCD SET
>M8uSD DRV
M1:PACINFO
TYPE
P3-550
MODE=STOP
M2:SYS CFG
GRP: 00
BASE: 01
SLOT: 01
M1:FIRMREV
LCD: 1.4
CPU:
1.0.5.15
M1:LADDER
MEMORY
50% USED
M4:DATE
MM-DD-YY
07-26-06
M6:PWR UP
MONITOR
M6:PWR UP
<MONITOR
SET:
-YES -NO
M5:ERRHIST
E00:E08002
E01:E08002
E01:E08002
25JUL06
15:45:30
ib file
M7:KEYTEST
INPUT:
DOWN
M7:BEEP
-LOW -OFF
-MED
-HIGH
M8:uSD DRV
WRITE PEN
PROGRESS:
ERR -1
M4:TIME
HH:MM:SS
14:34:46
Hold MENU button to display menu options.
Use down arrow key to scroll through options.
M1:IP ADR
###.###.##
#.###
M1:MAC ADR
##:##:##:
##:##:##
M8:uSD DRV
SAVE
COMPLETE
PRESS ESC
M8:uSD DRV
SWITCH CPU
TO STOP OR
PRESS ESC
M8:uSD DRV
WRITE PAC
PROGRESS:
ERR -3003
M8:uSD DRV
LOAD PAC
COMPLETE
M8:uSD DRV
REMOVE
PEN DRIVE
NOW
P2-550
MODE= RUN
12-18-13
11:28:02
Press SEL
button to select
a menu option.
With YES selected,
OLED will go directly to
M3: MONITOR display
upon power up.
Automation
Direct.com
8006330405
Boot Up
Step 1.)
Step 2.)
Step 3.)
Step 4.)
CBCD16 SWRW STRAIS32
SBR US16 S32 SSTRAOS32
SBRWBCD32DIAIF32
SWR
S16
F32DOAOF32
Data Type Monitor
Steps For Using Monitor Menu
Select User Data or I/O Data and
press ENT
Select Data Type and Press ENT
Press ENT to Edit System ID, or when
finished press ENT
Press SEL to monitor the value
OLED Control Buttons
Menu Button Access the OLED menu
ESC Button Returns to the previous screen
SEL Button Selects the desired menu option
ENT Button Starts the selected process
Directional
Arrows
Moves the cursor around the
4 Row x 10 Column OLED
8Tech Support 770-844-4200
www.productivity2000.com

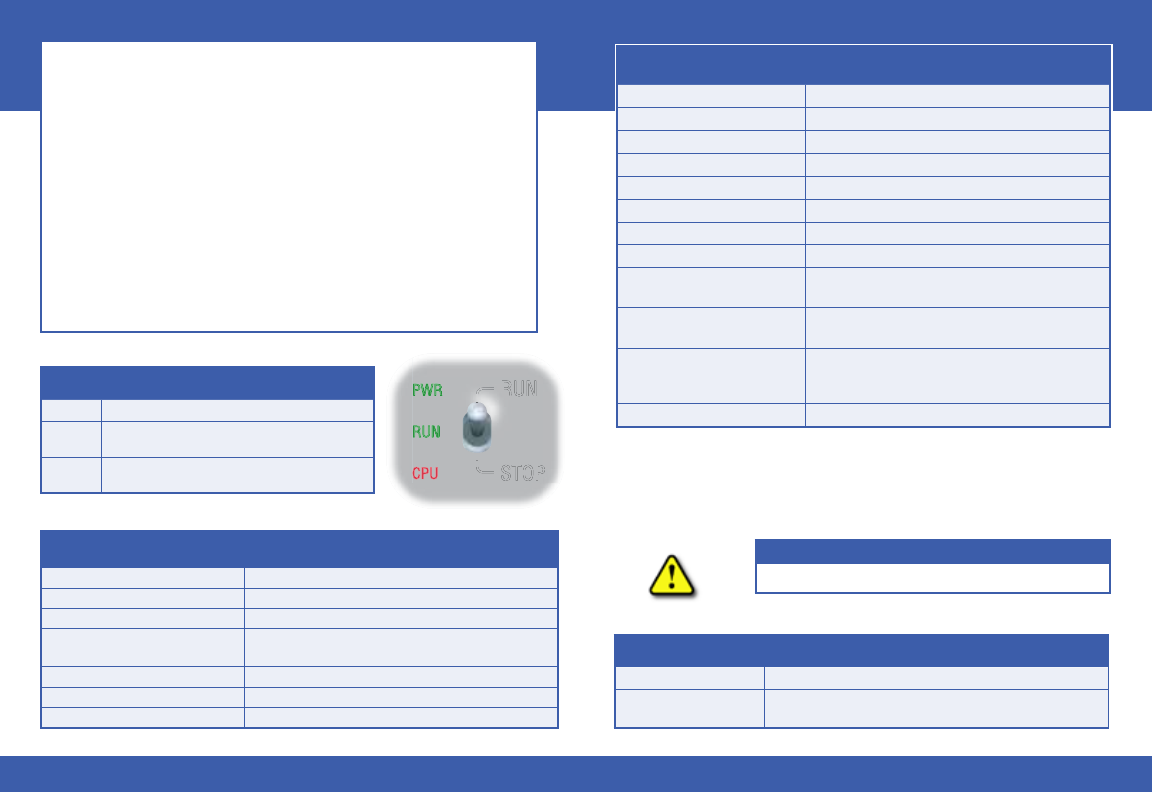

CPU Run/Stop Switch Specifications
RUN position Executes user program, run-time edits possible
STOP position Does not execute user program, normal program load
position
WARNING: To minimize the risk of potential safety problems, you should follow all
applicable local and national codes that regulate the installation and operation of
your equipment. These codes vary from area to area and it is your responsibility to
determine which codes should be followed, and to verify that the equipment, instal-
lation, and operation are in compliance with the latest revision of these codes.
Equipment damage or serious injury to personnel can result from the
failure to follow all applicable codes and standards. We do not guarantee
the products described in this publication are suitable for your particular
application, nor do we assume any responsibility for your product design,
installation, or operation.
If you have any questions concerning the installation or operation of this
equipment, or if you need additional information, please call Technical Support at
770-844-4200.
This publication is based on information that was available at the time it was
printed. At AutomationDirect.com® we constantly strive to improve our products
and services, so we reserve the right to make changes to the products and/or pub-
lications at any time without notice and without any obligation. This publication may
also discuss features that may not be available in certain revisions of the product.
Hot-Swapping Information
Note: This device cannot be Hot Swapped.
IMPORTANT!
CPU Status Indicators
PWR Green LED is illuminated when power is ON
RUN Green LED is illuminated when CPU is in
RUN mode
CPU Red LED is illuminated during power ON
reset, power down, or watch-dog time-out.
*Meets EMC and Safety requirements. See the D.O.C. for details.
General Specifications
Operating Temperature 0° to 60°C (32° to 140°F)
Storage Temperature -20° to 70°C (-4° to 158°F)
Humidity 5 to 95% (non-condensing)
Environmental Air No corrosive gases permitted
Vibration IEC60068-2-6 (Test Fc)
Shock IEC60068-2-27 (Test Ea)
Heat Dissipation 3.81 W
Enclosure Type Open Equipment
Agency Approvals UL508 file E139594, Canada & USA
CE (EN61131-2*)
Module Location Controller slot in the local base in a
Productivity2000 System
EU Directive
See the “EU Directive” topic in the Productivity
Suite Help File. Information can also be obtained
at: www.productivity2000.com
Weight 158g (5.6 oz)
Removable Terminal Block Specifications
Part Number P3-RS485CON
Number of Positions 3 Screw Terminals
Pitch 5mm
Wire Range 28-12 AWG Solid Conductor
30-12 AWG Stranded Conductor
Screw Driver Width 1/8 inch (3.175 mm) Maximum
Screw Size M2.5
Screw Torque 4.5 lb·in (0.51 N·m)
