Quanta R53 Schematics. Www.s Manuals.com. R1a Schematics
User Manual: Motherboard Quanta R53 AMD Comal UMA/Muxless - Schematics. Free.
Open the PDF directly: View PDF
.
Page Count: 45
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53

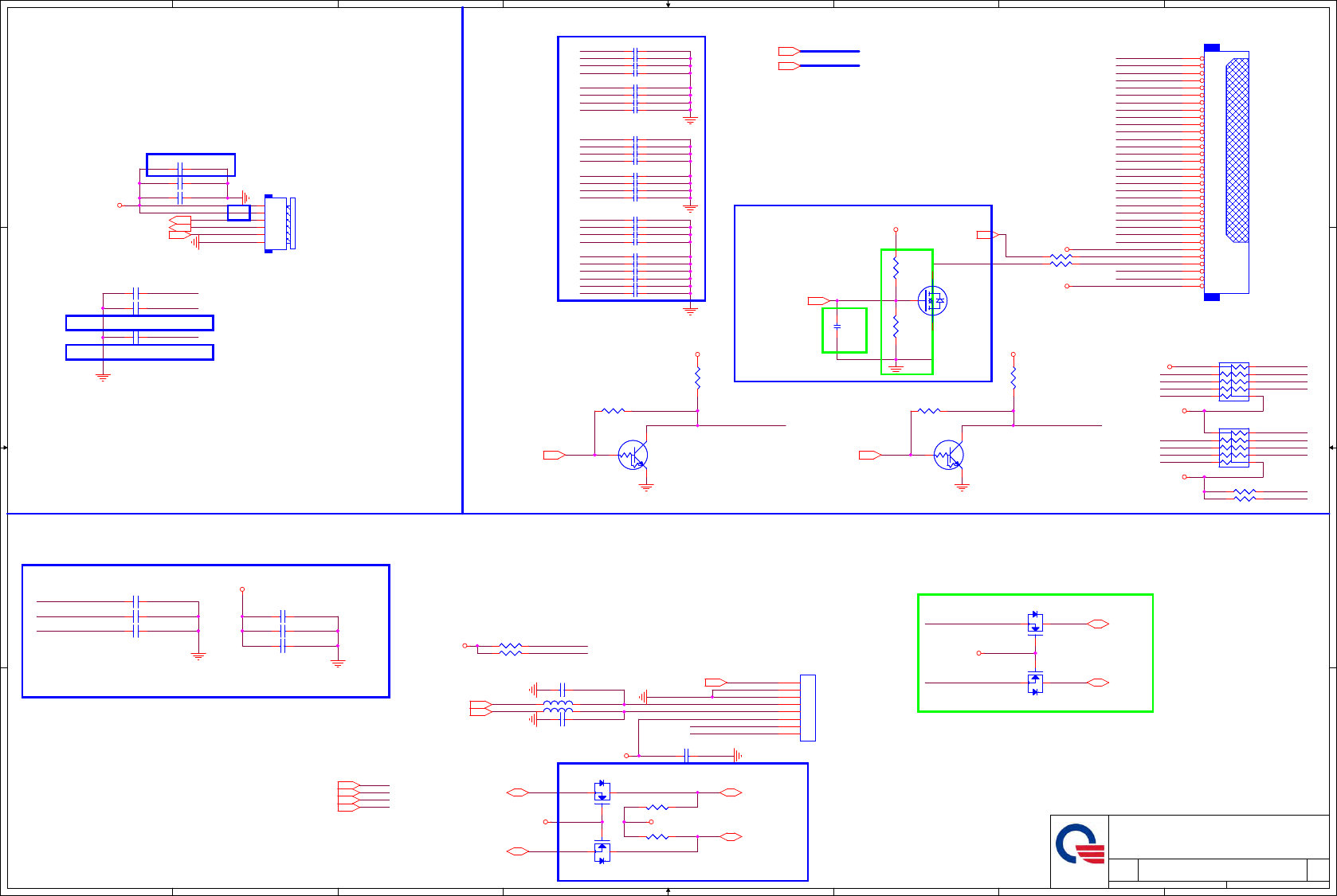

BLOCK EE DIAGRAM
1A
Custom
1 44Tuesday, November 22, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
BLOCK EE DIAGRAM
1A
Custom
1 44Tuesday, November 22, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
BLOCK EE DIAGRAM
1A
Custom
1 44Tuesday, November 22, 2011
PORT2
PORT8
PG.13
PG.12
PG.33
PG.27
IDT92HD87
PG.27
PG.23PG.28
USB2.0
Ports X 1
ANX3110
DP Port 0
PG.11 PG.23
PG.24
PG.25
PG.21,22
PG.14~20
PG.28
PG.28
HDMI
ATI
KBC
DDR3
Channel B

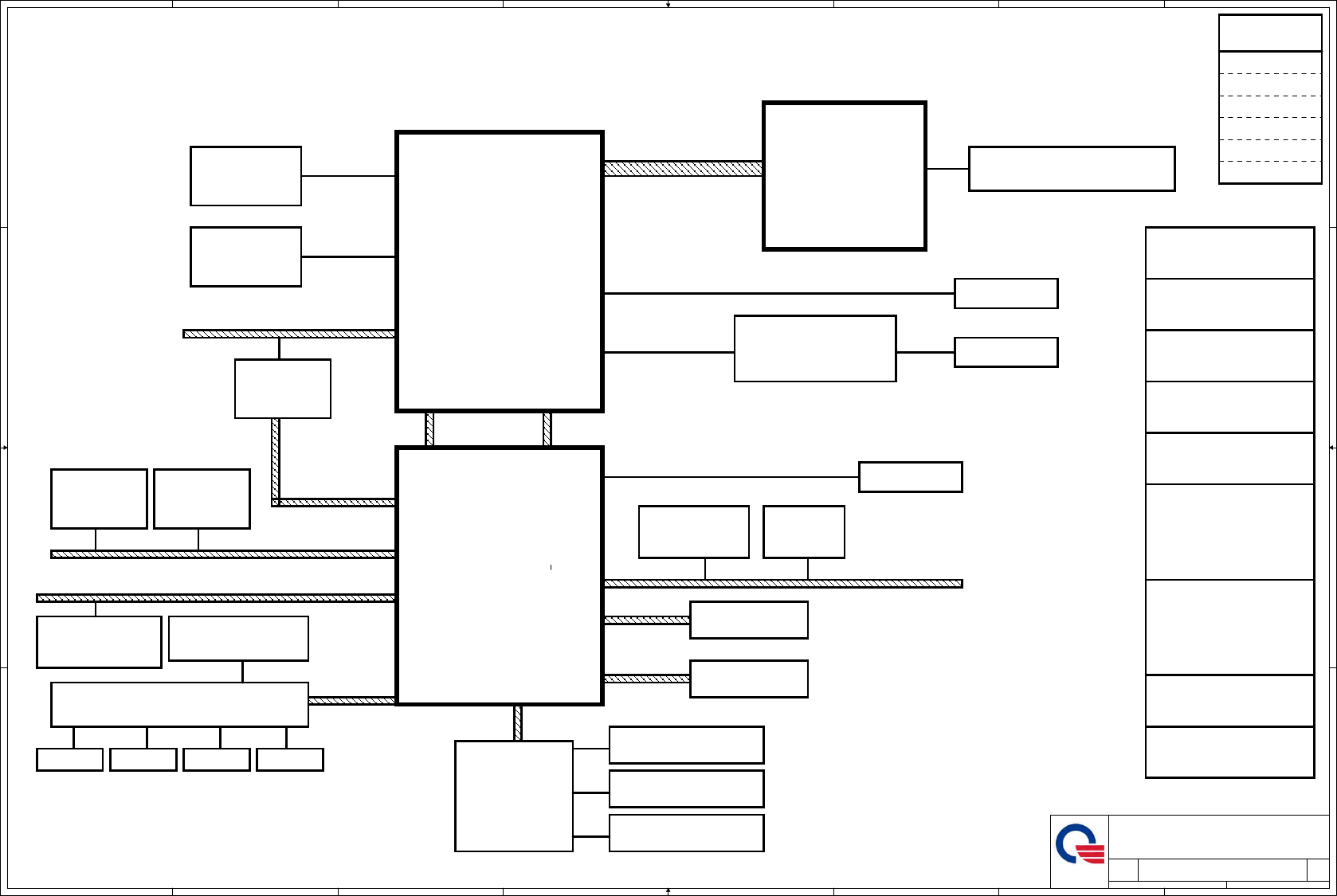

R53 AMD Comal UMA/Muxless SYSTEM DIAGRAM
Hudson M2/M3
SODIMM1
24.5mm X 24.5mm
UMI
AMD
KB TP ROM FAN
SODIMM2 Trinity APU
AMD FCH
656pin FCBGA
TDP 35W
TDP 4.7W
Max. 4GB
Max. 4GB
DDR3
Channel A
35mm X 35mm
LPC
FS1r2 socket 722 pin uPGA
CODEC
AUDIO
Webcam
HP/MIC
Speaker
Analog MIC
USB 2.0
THAMES XT
CRT
LVDS
29mm X 29mm
TDP 25W
DDR3 900MHz
VRAM
128x16x8,64bit
PCI-E x 8 ( 0 ~ 7 )
CRT
LVDS
PORT0
PG.2~5
PG.6~10
PG.31
PG.31
SATA1
ODD
HDD
SATA0
LAN0
LAN1
PG.29
PG.32
PCI-E x 1
BT COMBO
USB 2.0
LAN
10/100
WLAN
RTL8105E
Azalia
LAN0
PG.26
Card reader
10/100
RTS5229-GRT
DP to LVDS
Translator
DP Port 2
DP Port 1 PG.38
+1.1V/+1.1VS5
PG.36
+3V/+5V
PG.35
+VCC_CORE
+1.2V/+2.5V
PG.36
Charger
PG.41
PG.34
PG.42
Discharger
+VDDNB_CORE
PG.39
+1.5VSUS
+1.0V_VGA
+1.8V_VGA
PG.43,44
GND
IN1
BOT
Stackup
TOP
IN2
VCC
+VGACore
+1.5V_VGA
+3V_VGA
Accelerometer
USB 3.0
PG.28
USB3.0 combo
Ports X 2
PORT11,12
ITE8518
PCI-E x 2
PG.32
SMBUS
EE M1
TOP
M1
USB 2.0
PORT1,2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
UMI_TXP0_C
UMI_TXP1_C
UMI_TXP2_C
UMI_TXP3_C
UMI_TXN0_C
UMI_TXN1_C
UMI_TXN2_C
UMI_TXN3_C
UMI_TXP0
UMI_TXN0
P_ZVSSP_ZVDDP
UMI_TXP1
UMI_TXN1
UMI_TXP2
UMI_TXN2
UMI_TXP3
UMI_TXN3
CPU_SVC
APU_PWRGD
CPU_SVD
SVC
SVD
CPU_PWRGD_SVID_REG
APU_TRST#
APU_DBREQ#
APU_TCK
APU_TMS
APU_TDI
APU_TRST#
APU_PWROK_BUF
APU_RST# APU_RST_L_BUF
APU_PWRGD
APU_PWROK_BUF
APU_DBREQ#
APU_TCK
APU_TDO
APU_TMS
APU_DBRDY
APU_TDI
CPU_LDT_RST_HTPA#
APU_RST_L_BUF
APU_TEST19
APU_TEST18
PCIE_TXP0_C
PCIE_TXN0_CPCIE_RXN0_WLAN
PCIE_RXP0_WLAN
PEG_TXN7_C
PEG_TXP2_C
PEG_TXP3_C
PEG_TXP1
PEG_TXN1
PEG_TXP2
PEG_TXN2
PEG_TXP3
PEG_TXN3
PEG_TXP4
PEG_TXN4
PEG_TXP5
PEG_TXN5
PEG_TXP0
PEG_TXP6
PEG_TXN6
PEG_TXP7
PEG_TXN7
PEG_TXN0
PEG_TXP4_C
PEG_TXN1_C
PEG_TXP0_C
PEG_TXP1_C
PEG_TXN0_C
PEG_TXP5_C
PEG_TXP6_C
PEG_TXP7_C
PEG_TXN2_C
PEG_TXN3_C
PEG_TXN4_C
PEG_TXN5_C
PEG_TXN6_CPEG_RXN6
PEG_RXP6
PEG_RXN7
PEG_RXP7
PEG_RXN1
PEG_RXP1
PEG_RXN5
PEG_RXP5
PEG_RXN3
PEG_RXN0
PEG_RXP3
PEG_RXP0
PEG_RXN2
PEG_RXP2
PEG_RXN4
PEG_RXP4
UMI_TXP0 7
UMI_TXN0 7
UMI_RXP07 UMI_RXN07
UMI_RXN17 UMI_RXP17
UMI_RXP27 UMI_RXN27
UMI_RXN37 UMI_RXP37
UMI_TXN1 7
UMI_TXP1 7
UMI_TXP2 7
UMI_TXN2 7
UMI_TXN3 7
UMI_TXP3 7
APU_RST#4,7
CPU_SVC 38
SVC4
SVD4
APU_PWRGD4,7 CPU_PWRGD_SVID_REG 38
APU_TRST#4
CPU_SVD 38
APU_PWRGD4,7
APU_TEST194
APU_TCK4 APU_TMS4 APU_TDI4
APU_TDO4
APU_DBRDY4 APU_DBREQ#4
APU_TEST184
PCIE_TXN0_WLAN 32
PCIE_TXP0_WALN 32
PCIE_RXN0_WLAN32 PCIE_RXP0_WLAN32
PEG_TXN1 14
PEG_TXP1 14
PEG_TXN2 14
PEG_TXP2 14
PEG_TXP3 14
PEG_TXN3 14
PEG_TXN4 14
PEG_TXP4 14
PEG_TXP0 14
PEG_TXN0 14
PEG_TXP5 14
PEG_TXN5 14
PEG_TXN6 14
PEG_TXP6 14
PEG_TXN7 14
PEG_TXP7 14
PEG_RXP214 PEG_RXN214
PEG_RXP114 PEG_RXN114
PEG_RXP414 PEG_RXN414
PEG_RXP614 PEG_RXN614
PEG_RXN714 PEG_RXP714
PEG_RXN014 PEG_RXP014
PEG_RXN314 PEG_RXP314
PEG_RXP514 PEG_RXN514
+1.5VSUS
+1.5V
+1.5V
+1.5VSUS
+3V
+1.5VSUS
+1.2V_VDDP

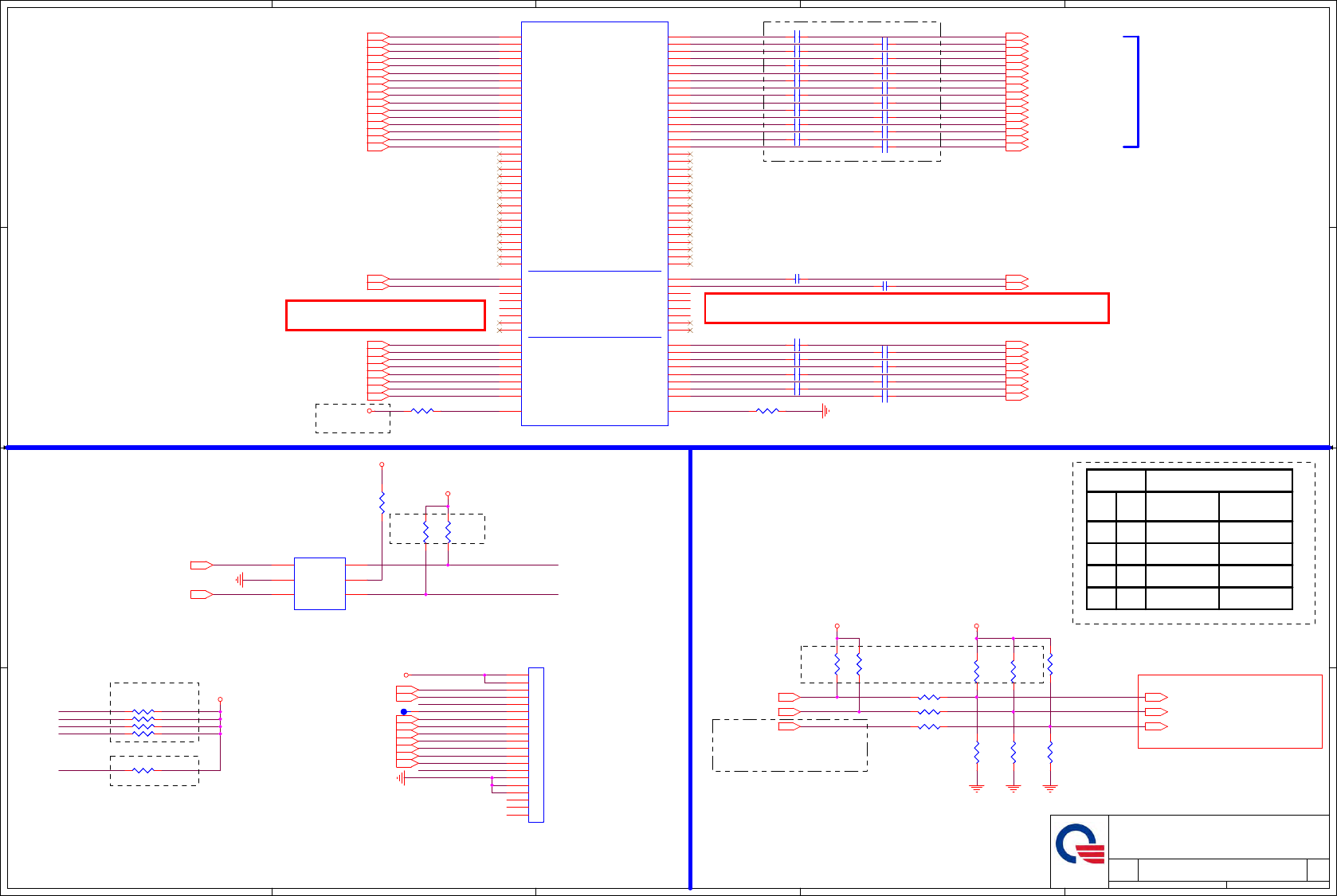

Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53

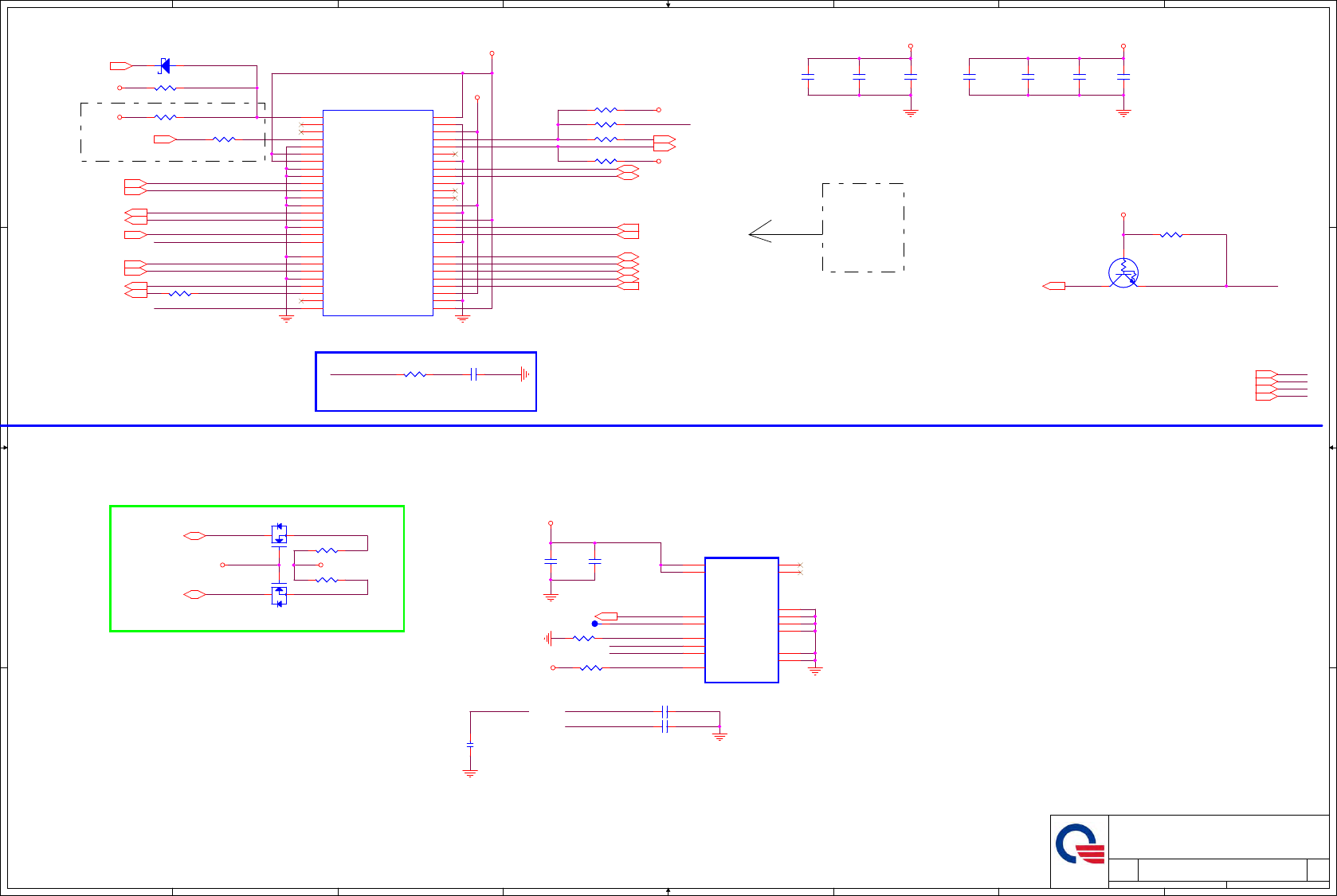

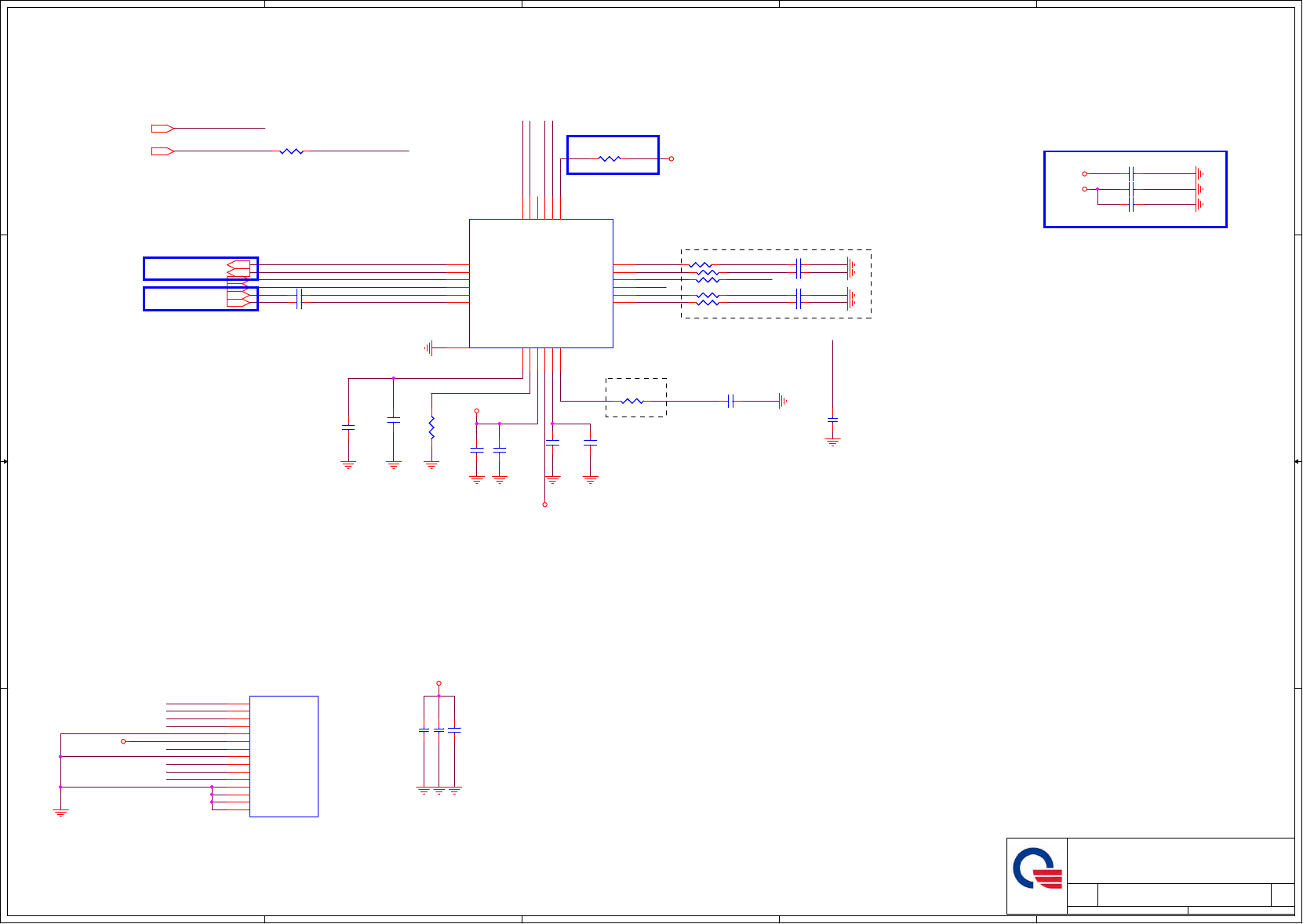

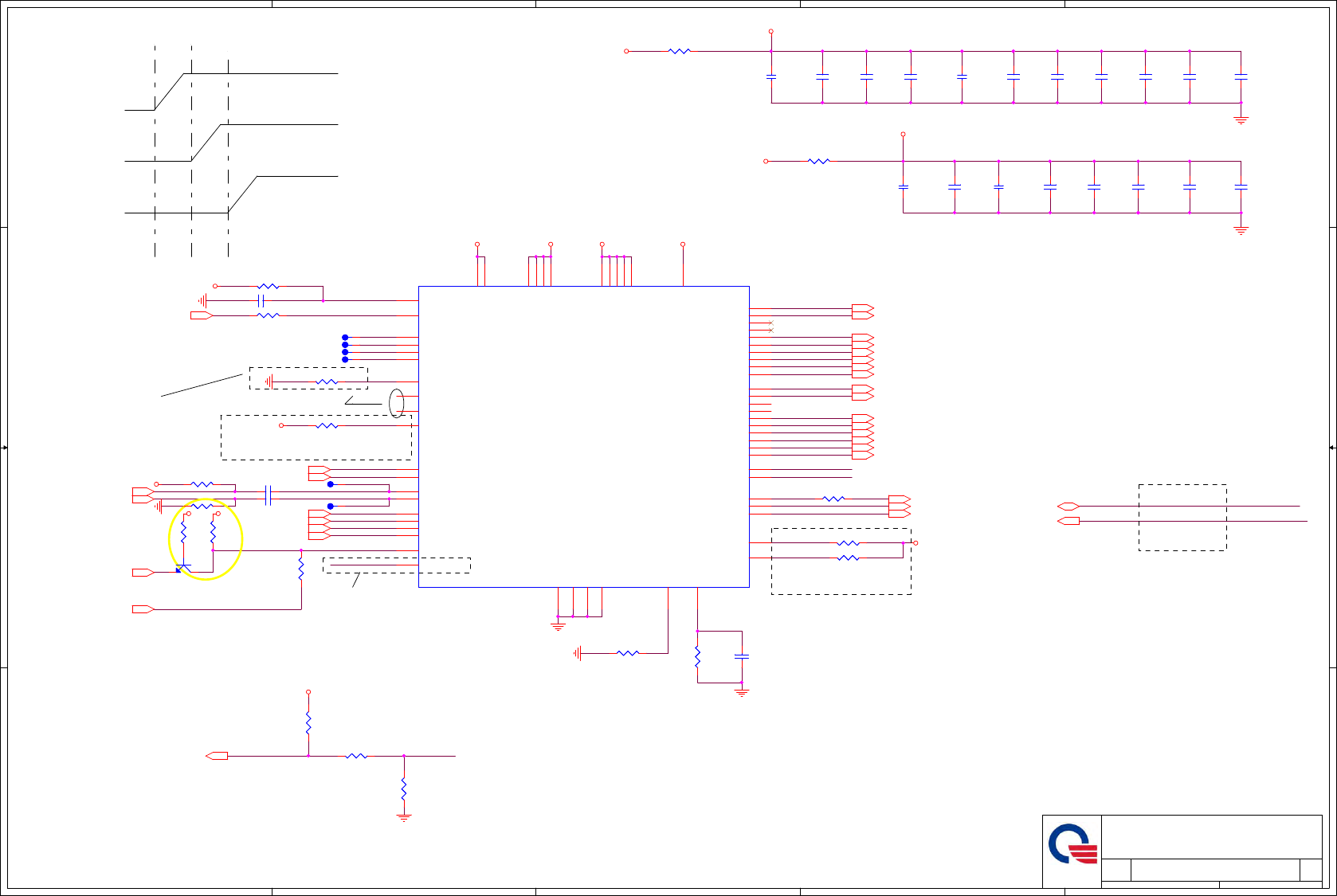

Llano PCIE/UMI/GPP
1A
2 44Monday, November 14, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano PCIE/UMI/GPP
1A
2 44Monday, November 14, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano PCIE/UMI/GPP
1A
2 44Monday, November 14, 2011
Custom
02
for normal operation
open Ra , Rb,Rc
Note:
To override VID,Remove Rd, Re, Rf, install Rc
set VID via SVC & SVD option RES.
VID Override Circuit
close to HDT
debug HEADER
HDT+ Connector for Debug only
SVC SVD
BOOT VOLTAGE
VFIX_+VDD
=VCC/GND
VFIX_+VDD
=OPEN
0
0
0
0
1
1
1
1
1.1 1.1
1.0 1.2
0.9 1.0
0.8 0.8
Ra Rb Rc
Rd
Re
Rf
TO PCIE-LAN
TO WLAN
TO PCIE CARD READER
TO WLAN
APU_PWRGD have pull up 300ohm
to +1.5V on page 4
4/19 For Comal.
4/19 For Comal.
4/19 For Comal.
4/19 For Comal.
Wait for power
Move from APU to PCH
Move from APU to PCH
PEG X 8
UMA can remove
C750 0.1U/10V_4C750 0.1U/10V_4
C156 0.1U/10V_4C156 0.1U/10V_4 C164 0.1U/10V_4C164 0.1U/10V_4
R227
*1K/F_4
R227
*1K/F_4
C731 0.1U/10V_4C731 0.1U/10V_4
R226 0_4R226 0_4
R340 196/F_6R340 196/F_6
R240
*220/F_4
R240
*220/F_4
C727 0.1U/10V_4C727 0.1U/10V_4
R208 1K/F_4R208 1K/F_4
R213 1K/F_4R213 1K/F_4
C777 0.1U/10V_4C777 0.1U/10V_4
C208 0.1U/10V_4C208 0.1U/10V_4
U18
74LVC2G07
U18
74LVC2G07
A1
1
GND
2
A2
3
Y1 6
VCC 5
Y2 4
C736 0.1U/10V_4C736 0.1U/10V_4
C725 0.1U/10V_4C725 0.1U/10V_4
R242
*1K_4
R242
*1K_4
R244
1K/F_4
R244
1K/F_4
C773 0.1U/10V_4C773 0.1U/10V_4
R335
*220/F_4
R335
*220/F_4
R225 0_4R225 0_4
J5
*HDT CONN
88511-2001-20p-l
J5
*HDT CONN
88511-2001-20p-l
1
4
5
6
7
8
9
10
11
12
2
3
13
14
15
16
17
18
19
20
R250
*0_4/S
R250
*0_4/S
C177 0.1U/10V_4C177 0.1U/10V_4
C217 0.1U/10V_4C217 0.1U/10V_4
C726 0.1U/10V_4C726 0.1U/10V_4
R239
*1K_4
R239
*1K_4
C238 0.1U/10V_4C238 0.1U/10V_4
R243
1K/F_4
R243
1K/F_4
C770 0.1U/10V_4C770 0.1U/10V_4
R338 0_4R338 0_4
C193 0.1U/10V_4C193 0.1U/10V_4
R339 196/F_6R339 196/F_6
C782 0.1U/10V_4C782 0.1U/10V_4
R336
*2.2K_4
R336
*2.2K_4
R207 1K/F_4R207 1K/F_4
C224 0.1U/10V_4C224 0.1U/10V_4
C167 0.1U/10V_4C167 0.1U/10V_4
R224
*1K/F_4
R224
*1K/F_4
C738 0.1U/10V_4C738 0.1U/10V_4
C723 0.1U/10V_4C723 0.1U/10V_4

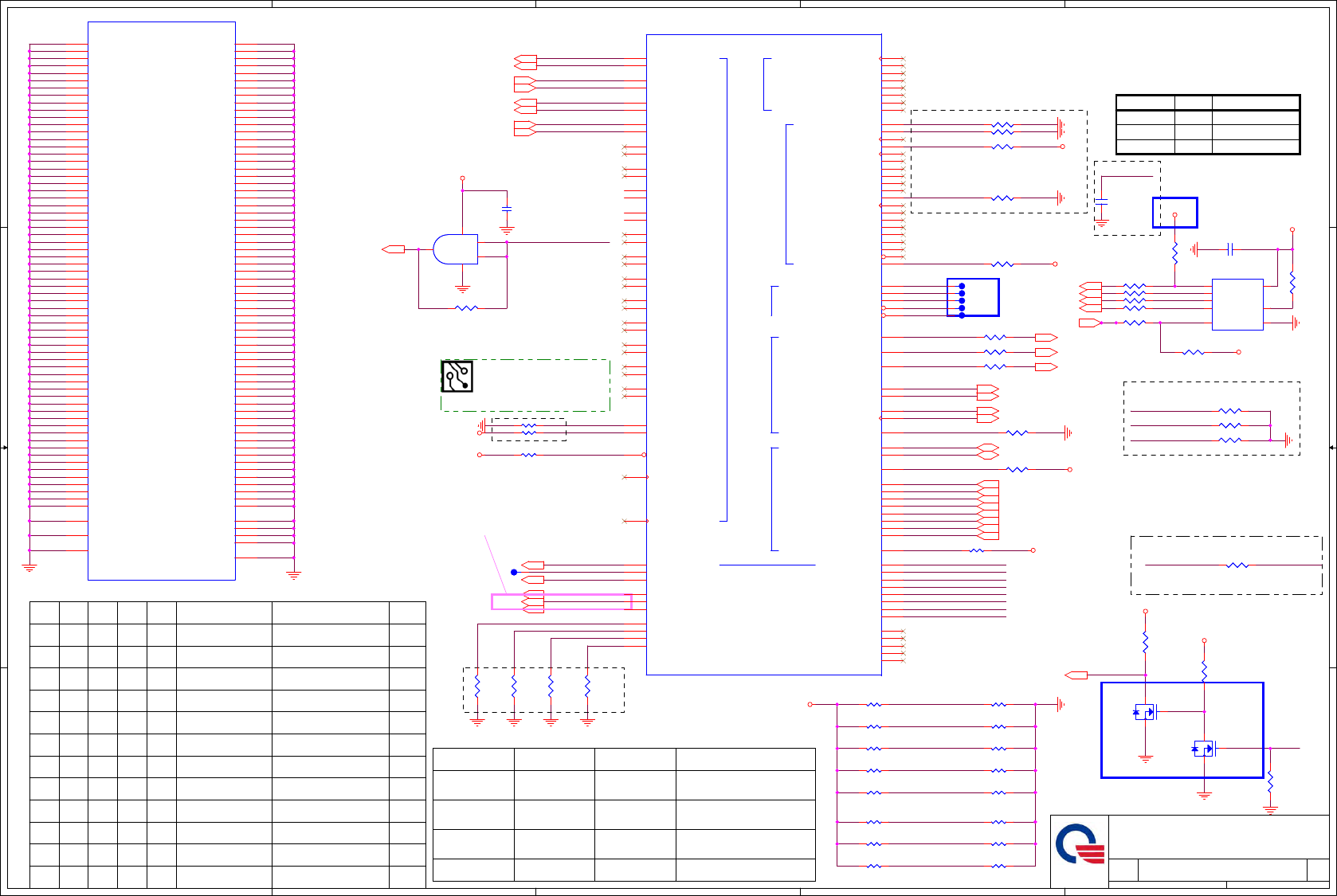

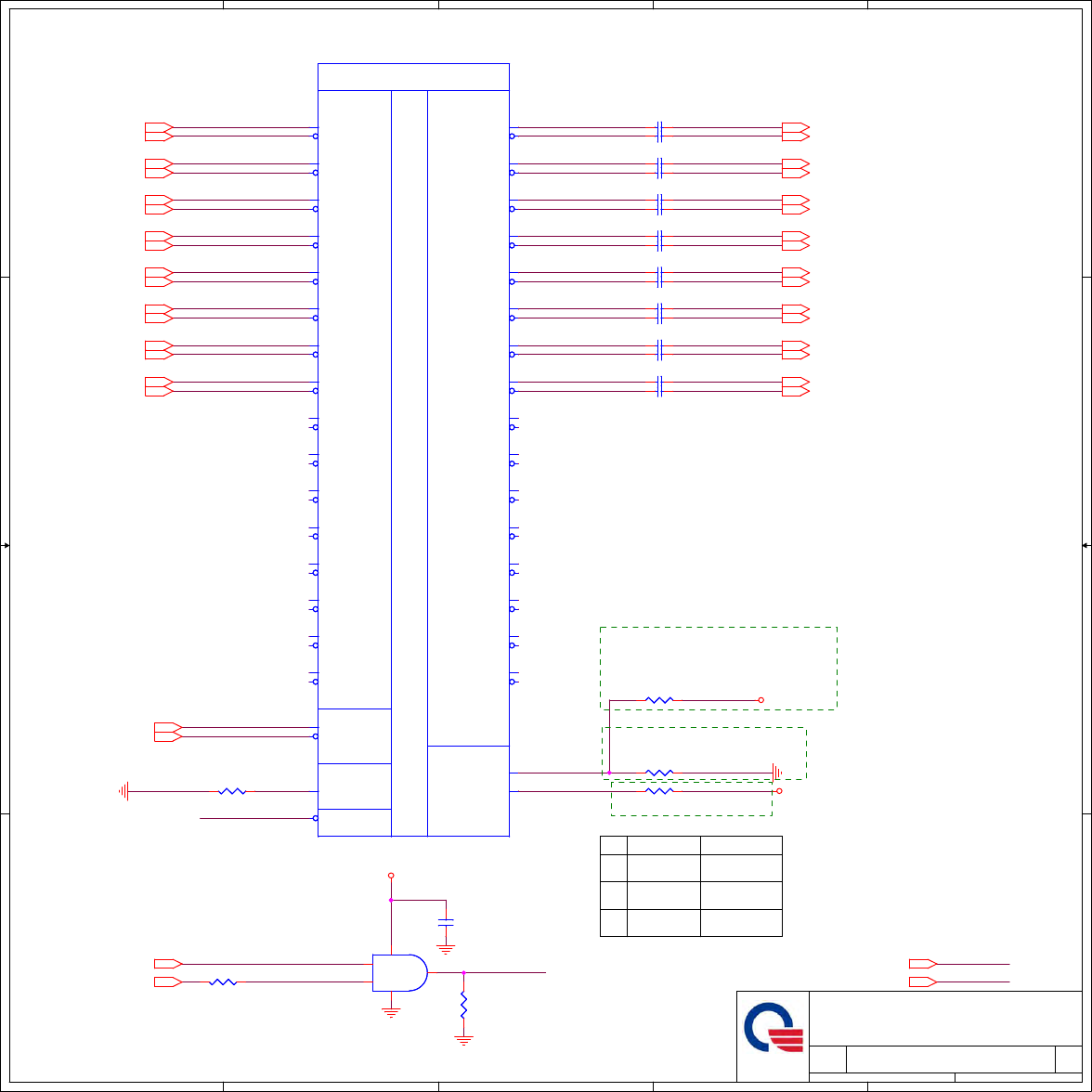

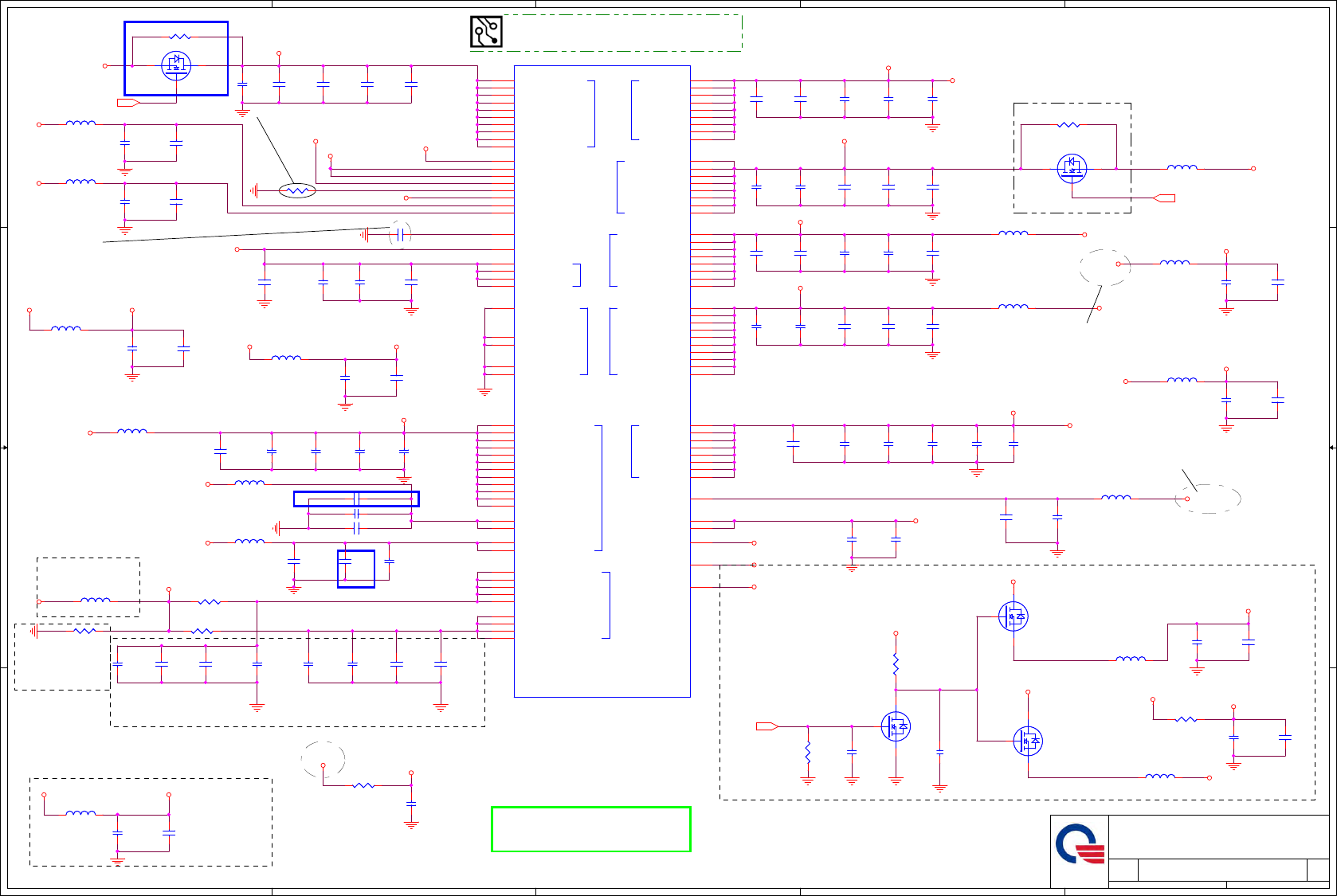

UMI-LINK GPP GRAPHICS
PCI EXPRESS
Trinity APU
U25F
UMI-LINK GPP GRAPHICS
PCI EXPRESS
Trinity APU
U25F
P_ZVDDP
AG11
P_UMI_RXN3
AE9 P_UMI_RXP3
AE8 P_UMI_RXN2
AF8 P_UMI_RXP2
AF7 P_UMI_RXN1
AG5 P_UMI_RXP1
AG6 P_UMI_RXN0
AG9 P_UMI_RXP0
AG8
P_GPP_RXN3
AC6 P_GPP_RXP3
AC5 P_GPP_RXN2
AC8 P_GPP_RXP2
AC9 P_GPP_RXN1
AD7 P_GPP_RXP1
AD8 P_GPP_RXN0
AE6 P_GPP_RXP0
AE5
P_GFX_RXN15
M7 P_GFX_RXP15
M8 P_GFX_RXN14
N6 P_GFX_RXP14
N5 P_GFX_RXN13
N8 P_GFX_RXP13
N9 P_GFX_RXN12
P7 P_GFX_RXP12
P8 P_GFX_RXN11
R6 P_GFX_RXP11
R5 P_GFX_RXN10
R8 P_GFX_RXP10
R9 P_GFX_RXN9
T7 P_GFX_RXP9
T8 P_GFX_RXN8
U6 P_GFX_RXP8
U5 P_GFX_RXN7
U8 P_GFX_RXP7
U9 P_GFX_RXN6
V7 P_GFX_RXP6
V8 P_GFX_RXN5
W6 P_GFX_RXP5
W5 P_GFX_RXN4
W8 P_GFX_RXP4
W9 P_GFX_RXN3
Y7 P_GFX_RXP3
Y8 P_GFX_RXN2
AA6 P_GFX_RXP2
AA5 P_GFX_RXN1
AA8 P_GFX_RXP1
AA9 P_GFX_RXN0
AB7 P_GFX_RXP0
AB8
P_ZVSS AH11
P_UMI_TXN3 AE3
P_UMI_TXP3 AE2
P_UMI_TXN2 AF2
P_UMI_TXP2 AF1
P_UMI_TXN1 AF5
P_UMI_TXP1 AF4
P_UMI_TXN0 AG3
P_UMI_TXP0 AG2
P_GPP_TXN3 AB4
P_GPP_TXP3 AB5
P_GPP_TXN2 AC2
P_GPP_TXP2 AC3
P_GPP_TXN1 AD1
P_GPP_TXP1 AD2
P_GPP_TXN0 AD4
P_GPP_TXP0 AD5
P_GFX_TXN15 M1
P_GFX_TXP15 M2
P_GFX_TXN14 M4
P_GFX_TXP14 M5
P_GFX_TXN13 N2
P_GFX_TXP13 N3
P_GFX_TXN12 P1
P_GFX_TXP12 P2
P_GFX_TXN11 P4
P_GFX_TXP11 P5
P_GFX_TXN10 R2
P_GFX_TXP10 R3
P_GFX_TXN9 T1
P_GFX_TXP9 T2
P_GFX_TXN8 T4
P_GFX_TXP8 T5
P_GFX_TXN7 U2
P_GFX_TXP7 U3
P_GFX_TXN6 V1
P_GFX_TXP6 V2
P_GFX_TXN5 V4
P_GFX_TXP5 V5
P_GFX_TXN4 W2
P_GFX_TXP4 W3
P_GFX_TXN3 Y1
P_GFX_TXP3 Y2
P_GFX_TXN2 Y4
P_GFX_TXP2 Y5
P_GFX_TXN1 AA2
P_GFX_TXP1 AA3
P_GFX_TXN0 AB1
P_GFX_TXP0 AB2
R241
*220/F_4
R241
*220/F_4
C729 0.1U/10V_4C729 0.1U/10V_4
C746 0.1U/10V_4C746 0.1U/10V_4
C185 0.1U/10V_4C185 0.1U/10V_4
C787 0.1U/10V_4C787 0.1U/10V_4
R209 1K/F_4R209 1K/F_4
C776 0.1U/10V_4C776 0.1U/10V_4
TP38TP38
R212 1K/F_4R212 1K/F_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

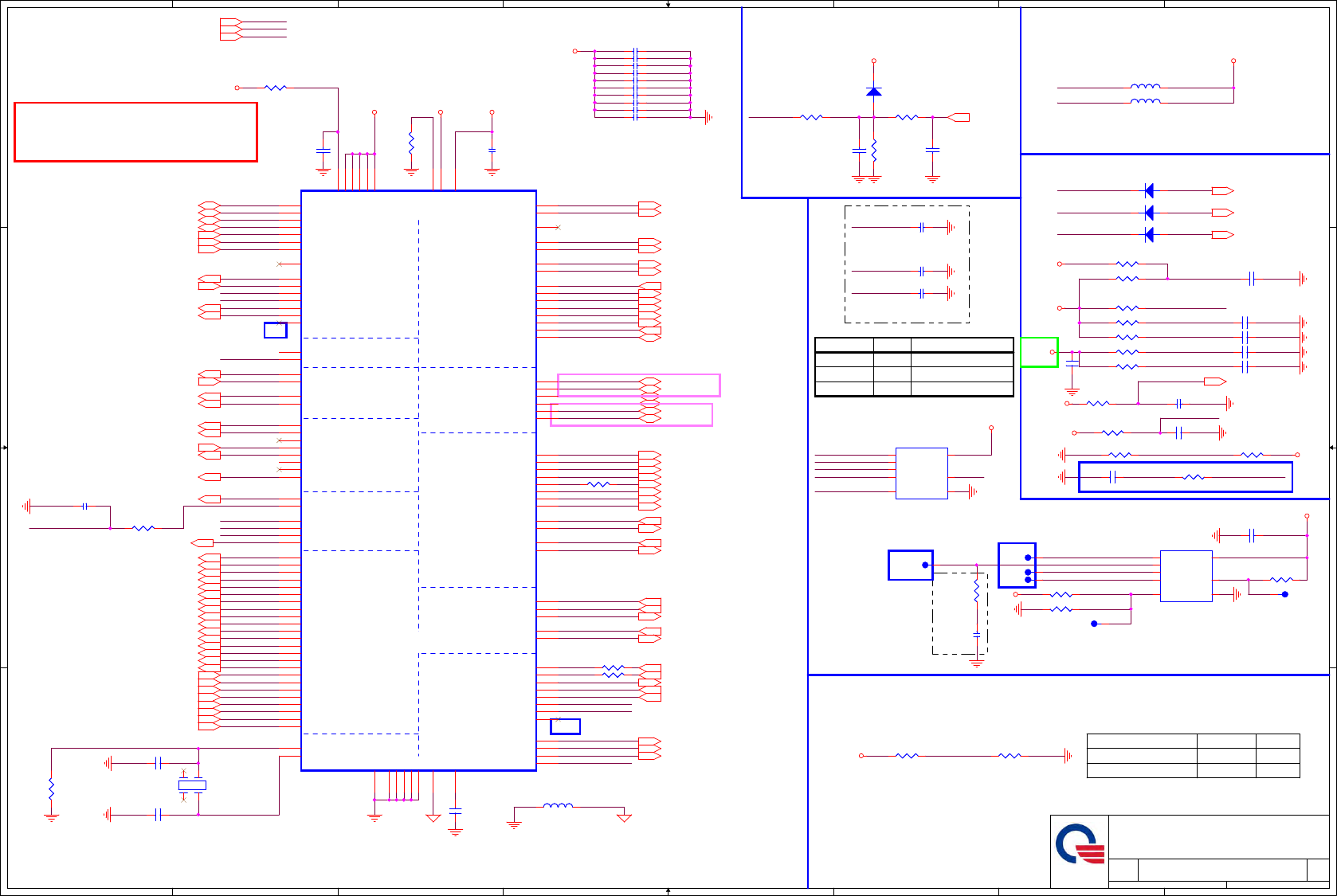

M_A_DQ36
M_A_DQ16
M_A_DQ19
M_A_DQ21
M_A_DQ20
M_A_DQ1
M_A_DQ23
M_A_DQ24
M_A_DQ26
M_A_DQ25
M_A_DQ27
M_A_DQ22
M_A_DQ31
M_A_DQ33
M_A_DQ35
M_A_DQ34
M_A_DQ29
M_A_DQ3
M_A_DQ2
M_A_DQ37
M_A_DQ39
M_A_DQ38
M_A_DQ40
M_A_DQ42
M_A_DQ41
M_A_DQ5
M_A_DQ4
M_A_DQ44
M_A_DQ46
M_A_DQ45
M_A_DQ47
M_A_DQ49
M_A_DQ48
M_A_DQ43
M_A_DQ7
M_A_DQ6
M_A_DQ8
M_A_DQ12
M_A_DQ14
M_A_DQ13
M_A_DQ51
M_A_DQ53
M_A_DQ52
M_A_DQ55
M_A_DQ54
M_A_DQ50
M_A_DQ0
M_A_DQ57
M_A_DQ59
M_A_DQ58
M_A_DQ61
M_A_DQ60
M_A_DQ63
M_A_DQ62
M_A_DQ56
M_A_DQ32
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ15
M_A_DQ17
M_A_DQ18
M_A_DQ28
M_A_DQ30
M_B_DQ36
M_B_DQ17
M_B_DQ16
M_B_DQ19
M_B_DQ18
M_B_DQ21
M_B_DQ20
M_B_DQ1
M_B_DQ23
M_B_DQ24
M_B_DQ26
M_B_DQ25
M_B_DQ28
M_B_DQ27
M_B_DQ22
M_B_DQ30
M_B_DQ31
M_B_DQ33
M_B_DQ35
M_B_DQ34
M_B_DQ29
M_B_DQ3
M_B_DQ2
M_B_DQ37
M_B_DQ39
M_B_DQ38
M_B_DQ40
M_B_DQ42
M_B_DQ41
M_B_DQ5
M_B_DQ4
M_B_DQ44
M_B_DQ46
M_B_DQ45
M_B_DQ47
M_B_DQ49
M_B_DQ48
M_B_DQ43
M_B_DQ7
M_B_DQ6
M_B_DQ8
M_B_DQ10
M_B_DQ9
M_B_DQ12
M_B_DQ11
M_B_DQ14
M_B_DQ13
M_B_DQ51
M_B_DQ53
M_B_DQ52
M_B_DQ55
M_B_DQ54
M_B_DQ50
M_B_DQ0
M_B_DQ57
M_B_DQ59
M_B_DQ58
M_B_DQ61
M_B_DQ60
M_B_DQ63
M_B_DQ62
M_B_DQ56
M_B_DQ32
M_B_DQ15M_A_BS#0
M_A_BS#2
M_A_BS#1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM0
M_A_DM1
M_A_DM7
M_A_A9
M_A_A15
M_A_A2
M_A_A3
M_A_A4
M_A_A1
M_A_A10
M_A_A5
M_A_A11
M_A_A6
M_A_A12
M_A_A0
M_A_A7
M_A_A13
M_A_A8
M_A_A14
M_B_BS#0
M_B_BS#2
M_B_BS#1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM0
M_B_DM1
M_B_DM7
M_B_A9
M_B_A15
M_B_A2
M_B_A3
M_B_A4
M_B_A1
M_B_A10
M_B_A5
M_B_A11
M_B_A6
M_B_A12
M_B_A0
M_B_A7
M_B_A13
M_B_A8
M_B_A14
+M_ZVDDIO
+MEMVREF_CPU
+MEMVREF +MEMVREF_CPU
M_A_DQSP012
M_A_DQSP112
M_A_DQSP212
M_A_DQSP312
M_A_DQSP412
M_A_DQSP512
M_A_DQSP612
M_A_DQSP712
M_A_DQSN012
M_A_DQSN112
M_A_DQSN212
M_A_DQSN312
M_A_DQSN412
M_A_DQSN512
M_A_DQSN612
M_A_DQSN712
M_A_CKE012 M_A_CKE112
M_A_ODT012 M_A_ODT112
M_A_CS#012 M_A_CS#112
M_A_RAS#12
M_A_RST#12
M_A_CAS#12 M_A_WE#12
M_A_EVENT#12
M_A_CLKP012 M_A_CLKN012 M_A_CLKP112 M_A_CLKN112
M_B_DQSP013
M_B_DQSP113
M_B_DQSP213
M_B_DQSP313
M_B_DQSP413
M_B_DQSP513
M_B_DQSP613
M_B_DQSP713
M_B_DQSN013
M_B_DQSN113
M_B_DQSN213
M_B_DQSN313
M_B_DQSN413
M_B_DQSN513
M_B_DQSN613
M_B_DQSN713
M_B_CLKP013 M_B_CLKN013 M_B_CLKP113 M_B_CLKN113
M_B_RAS#13
M_B_ODT013 M_B_ODT113
M_B_CAS#13
M_B_RST#13
M_B_WE#13
M_B_EVENT#13
M_B_CKE013 M_B_CKE113
M_B_CS#013 M_B_CS#113
M_A_DQ[0..63] 12 M_B_DQ[0..63] 13
M_A_DM[7..0]12
M_A_BS#[2..0]12
M_A_A[15:0]12 M_B_A[15:0]13
M_B_BS#[2..0]13
M_B_DM[7..0]13
DDR_VTTREF 12,13,40
+MEMVREF_CPU
+1.5VSUS
+1.5VSUS
+1.5VSUS
+3VS5
+1.5VSUS

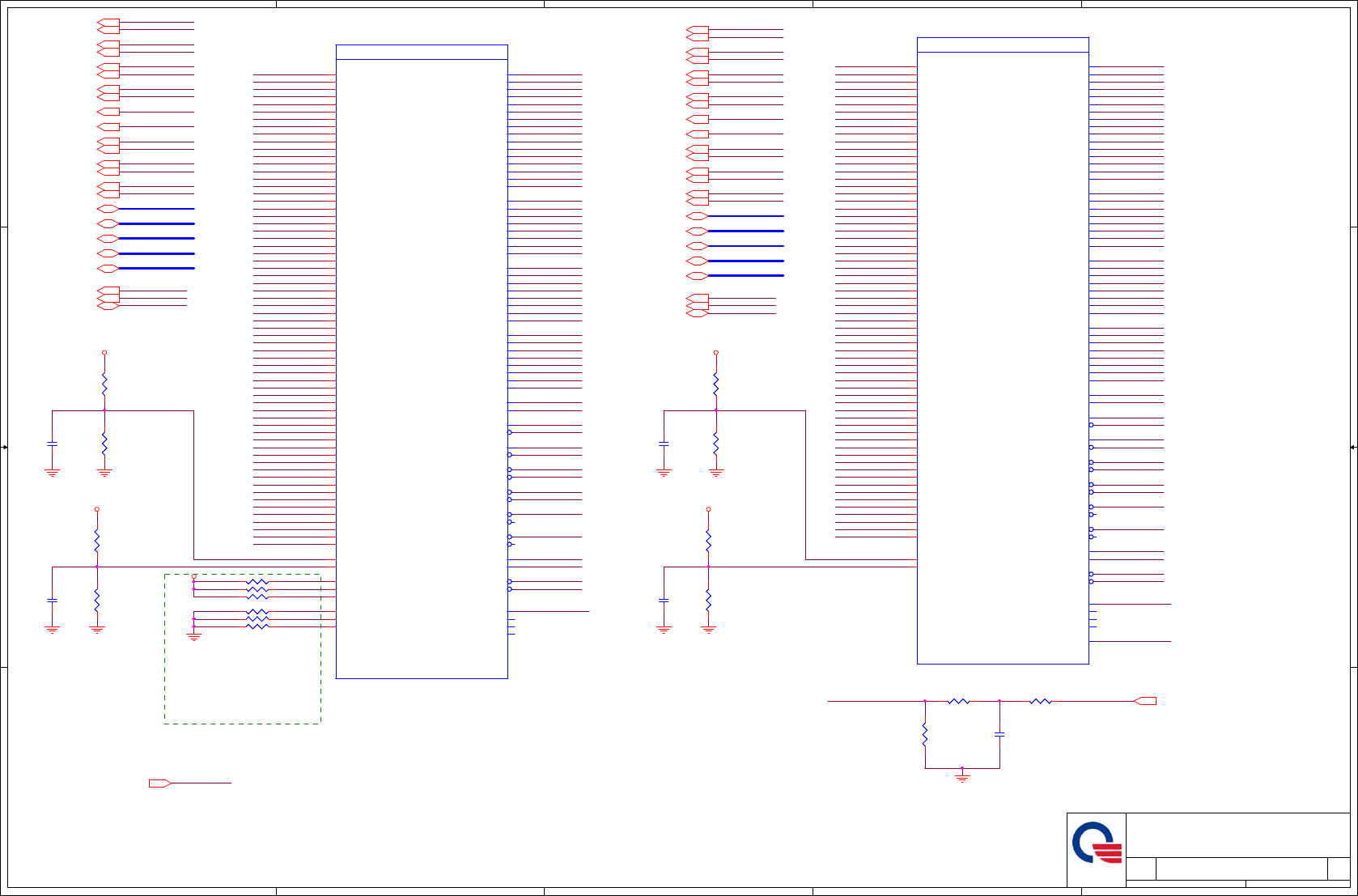

Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano DDR3 MEM I/F
1A
3 44Monday, November 14, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano DDR3 MEM I/F
1A
3 44Monday, November 14, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano DDR3 MEM I/F
1A
3 44Monday, November 14, 2011
Custom
Place close to APU within 1" Soldermask openings for all bottom side vias/TPs under FS1
03
Reserved for AMD suggest
Reserved
4/19 For Comal.

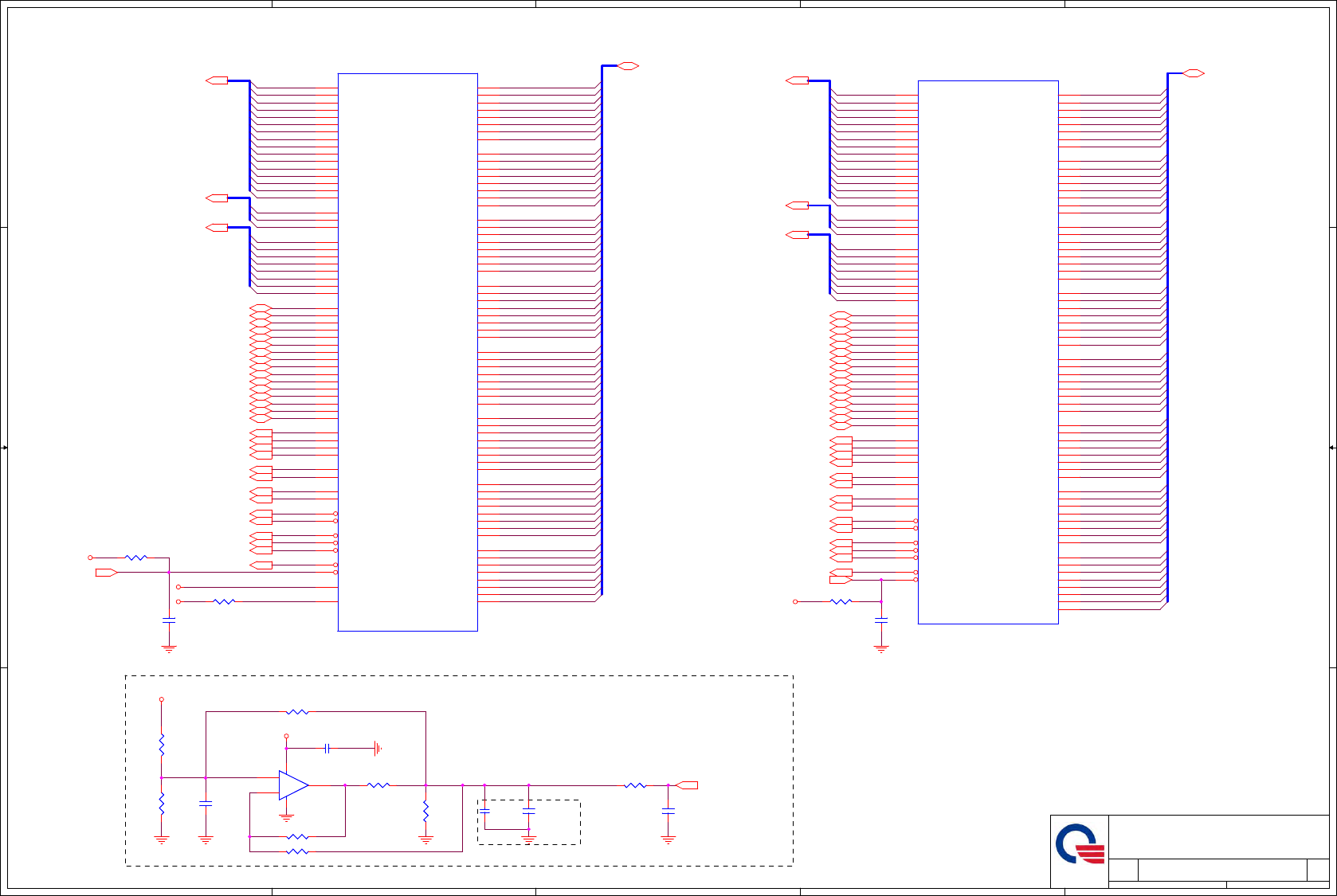

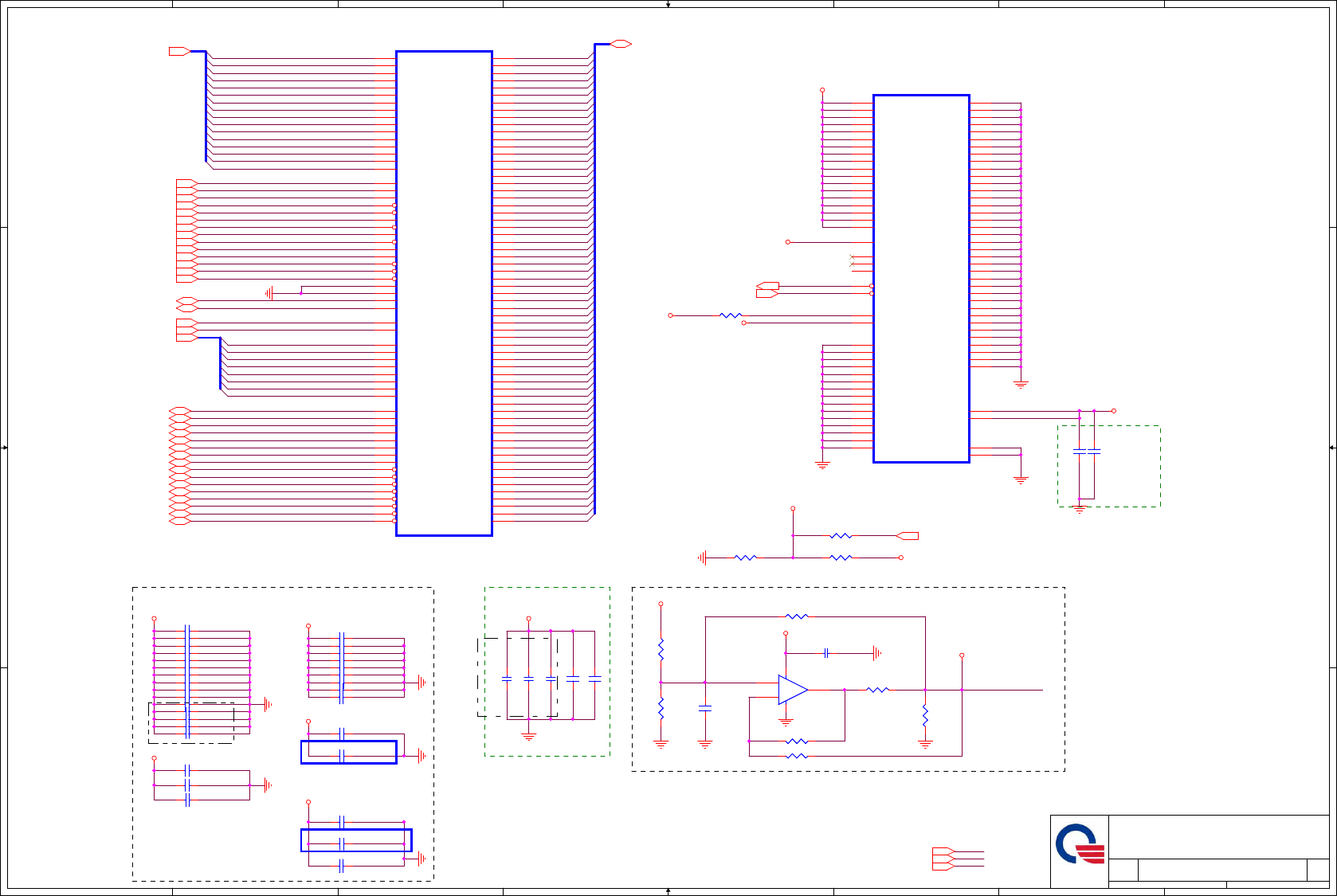

MEMORY CHANNEL A
Trinity APU
U25A
MEMORY CHANNEL A
Trinity APU
U25A
M_ZVDDIO
W21
M_VREF
W20
MA_EVENT_L
T24 MA_RESET_L
H25
MA_WE_L
W23 MA_CAS_L
W24 MA_RAS_L
V21
MA_CS_L1
AA26 MA_CS_L0
V22
MA_ODT1
AA27 MA_ODT0
Y25
MA_CKE1
H27 MA_CKE0
H28
MA_CLK_L1
R24 MA_CLK_H1
R23 MA_CLK_L0
T22 MA_CLK_H0
T21
MA_DQS_L7
AA15 MA_DQS_H7
AA14 MA_DQS_L6
AA18 MA_DQS_H6
AB18 MA_DQS_L5
AA22 MA_DQS_H5
AB22 MA_DQS_L4
AD26 MA_DQS_H4
AE26 MA_DQS_L3
E26 MA_DQS_H3
E27 MA_DQS_L2
H21 MA_DQS_H2
J21 MA_DQS_L1
H18 MA_DQS_H1
G18 MA_DQS_L0
H14 MA_DQS_H0
G14
MA_DM7
AC15 MA_DM6
AD19 MA_DM5
AC23 MA_DM4
AD27 MA_DM3
F25 MA_DM2
E21 MA_DM1
J17 MA_DM0
E14
MA_BANK2
L23 MA_BANK1
U21 MA_BANK0
U24
MA_ADD15
L20 MA_ADD14
L21 MA_ADD13
AA25 MA_ADD12
L24 MA_ADD11
M22 MA_ADD10
U23 MA_ADD9
M21 MA_ADD8
N21 MA_ADD7
N20 MA_ADD6
N23 MA_ADD5
N24 MA_ADD4
P21 MA_ADD3
P22 MA_ADD2
R21
MA_ADD0
U20
MA_DATA63 Y13
MA_DATA62 AB14
MA_DATA61 AB16
MA_DATA60 Y17
MA_DATA59 AC13
MA_DATA58 AA13
MA_DATA57 Y15
MA_DATA56 AA16
MA_DATA55 AD17
MA_DATA54 AD18
MA_DATA53 Y19
MA_DATA52 AB20
MA_DATA51 AA17
MA_DATA50 AC17
MA_DATA49 AC19
MA_DATA48 AA19
MA_DATA47 AC21
MA_DATA46 AA21
MA_DATA45 AD24
MA_DATA44 AB24
MA_DATA43 AA20
MA_DATA42 Y21
MA_DATA41 AA23
MA_DATA40 Y23
MA_DATA39 AC25
MA_DATA38 AB26
MA_DATA37 AD28
MA_DATA36 AE28
MA_DATA35 AA24
MA_DATA34 AD25
MA_DATA33 AC27
MA_DATA32 AB28
MA_DATA31 F27
MA_DATA30 E28
MA_DATA29 H24
MA_DATA28 F23
MA_DATA27 G26
MA_DATA26 G27
MA_DATA25 E25
MA_DATA24 G24
MA_DATA23 H22
MA_DATA22 G22
MA_DATA21 E20
MA_DATA20 G20
MA_DATA19 H23
MA_DATA18 J23
MA_DATA17 F21
MA_DATA16 H20
MA_DATA15 F19
MA_DATA14 H19
MA_DATA13 H16
MA_DATA12 G16
MA_DATA11 J19
MA_DATA10 E19
MA_DATA9 F17
MA_DATA8 H17
MA_DATA7 E15
MA_DATA6 F15
MA_DATA5 F13
MA_DATA4 H13
MA_DATA3 J15
MA_DATA2 H15
MA_DATA1 J13
MA_DATA0 E13
MA_ADD1
R20
R84 *0_4R84 *0_4
C137
220P/50V_4
C137
220P/50V_4
C184
0.1U/10V_4
C184
0.1U/10V_4
R117
*10K/F_4
R117
*10K/F_4
R108 *0_4R108 *0_4
R162 1K/F_4R162 1K/F_4
R165 1K/F_4R165 1K/F_4R155 39.2/F_4R155 39.2/F_4
C135
220P/50V_4
C135
220P/50V_4
R109 *10_4R109 *10_4
1 2
R111
1K/F_4
R111
1K/F_4
R103 *0_4R103 *0_4
C140
220P/50V_4
C140
220P/50V_4
+
-
U11
*OPA343NA/3K
+
-
U11
*OPA343NA/3K
3
41
52
C142 *0.1U/10V_4C142 *0.1U/10V_4
R110 0_4R110 0_4

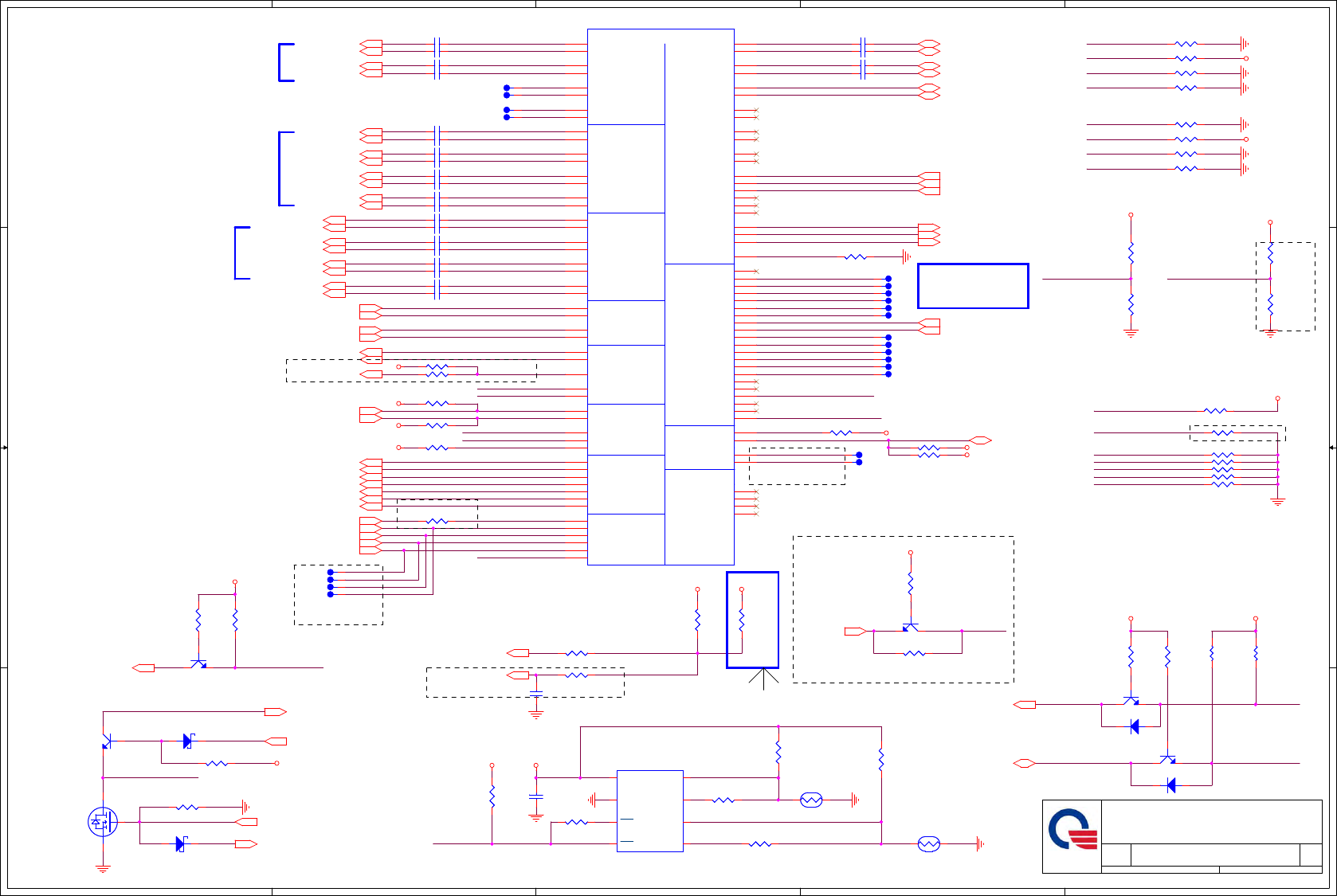

MEMORY CHANNEL B
Trinity APU
U25B
MEMORY CHANNEL B
Trinity APU
U25B
MB_EVENT_L
T25 MB_RESET_L
J25
MB_WE_L
V28 MB_CAS_L
V27 MB_RAS_L
V24
MB_CS_L1
Y27 MB_CS_L0
V25
MB_ODT1
Y28 MB_ODT0
W27
MB_CKE1
J27 MB_CKE0
J26
MB_CLK_L1
P28 MB_CLK_H1
P27 MB_CLK_L0
R27 MB_CLK_H0
R26
MB_DQS_L7
AG14 MB_DQS_H7
AH14 MB_DQS_L6
AG18 MB_DQS_H6
AG17 MB_DQS_L5
AF21 MB_DQS_H5
AG21 MB_DQS_L4
AG25 MB_DQS_H4
AG24 MB_DQS_L3
A26 MB_DQS_H3
B26 MB_DQS_L2
D22 MB_DQS_H2
E22 MB_DQS_L1
D18 MB_DQS_H1
E18 MB_DQS_L0
B15 MB_DQS_H0
C15
MB_DM7
AD14 MB_DM6
AH18 MB_DM5
AG22 MB_DM4
AF25 MB_DM3
C25 MB_DM2
A22 MB_DM1
A18 MB_DM0
D14
MB_BANK2
K28 MB_BANK1
T28 MB_BANK0
U27
MB_ADD15
K24 MB_ADD14
K25 MB_ADD13
W26 MB_ADD12
K27 MB_ADD11
L27 MB_ADD10
U26 MB_ADD9
L26 MB_ADD8
M25 MB_ADD7
M24 MB_ADD6
M27 MB_ADD5
M28 MB_ADD4
N26 MB_ADD3
N27 MB_ADD2
P25 MB_ADD1
P24 MB_ADD0
T27
MB_DATA63 AF13
MB_DATA62 AE14
MB_DATA61 AF15
MB_DATA60 AG16
MB_DATA59 AD13
MB_DATA58 AG13
MB_DATA57 AD15
MB_DATA56 AG15
MB_DATA55 AD16
MB_DATA54 AF17
MB_DATA53 AG19
MB_DATA52 AG20
MB_DATA51 AH16
MB_DATA50 AE16
MB_DATA49 AE18
MB_DATA48 AF19
MB_DATA47 AD20
MB_DATA46 AD21
MB_DATA45 AD22
MB_DATA44 AD23
MB_DATA43 AH20
MB_DATA42 AE20
MB_DATA41 AH22
MB_DATA40 AE22
MB_DATA39 AE24
MB_DATA38 AH24
MB_DATA37 AF27
MB_DATA36 AG27
MB_DATA35 AG23
MB_DATA34 AF23
MB_DATA33 AH26
MB_DATA32 AG26
MB_DATA31 C27
MB_DATA30 D26
MB_DATA29 D24
MB_DATA28 B24
MB_DATA27 D28
MB_DATA26 B27
MB_DATA25 B25
MB_DATA24 E24
MB_DATA23 B23
MB_DATA22 E23
MB_DATA21 B21
MB_DATA20 D20
MB_DATA19 A24
MB_DATA18 C23
MB_DATA17 B22
MB_DATA16 C21
MB_DATA15 C19
MB_DATA14 B19
MB_DATA13 B17
MB_DATA12 E17
MB_DATA11 A20
MB_DATA10 B20
MB_DATA9 B18
MB_DATA8 C17
MB_DATA7 A16
MB_DATA6 B16
MB_DATA5 C13
MB_DATA4 B13
MB_DATA3 E16
MB_DATA2 D16
MB_DATA1 B14
MB_DATA0 A14
R112
1K/F_4
R112
1K/F_4
C183
1000P/50V_4
C183
1000P/50V_4
C151
*0.47U/6.3V_4
C151
*0.47U/6.3V_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DP_AUX_ZVSS
APU_TEST9
APU_TEST10
APU_TEST14_BP0
APU_TEST15_BP1
APU_TEST16_BP2
APU_TEST17_BP3
APU_TEST25_H
APU_TEST25_L
APU_TEST28_H
APU_TEST28_L
M_TEST
APU_TEST35
CLK_APU_P
CLK_APU_N
CLK_DP_N
CLK_DP_P
SVC
SVD
APU_THERMTRIP#
APU_PROCHOT#
CPU_THERMDA
CPU_THERMDC
APU_TEST19
APU_TEST18
APU_TEST20_SCANCLK2
APU_TEST24_SCANCLK1
APU_TEST9
APU_TEST18
APU_TEST19
APU_TEST20_SCANCLK2
APU_TEST24_SCANCLK1
APU_DBREQ#
APU_TDI
APU_DBRDY
APU_TDO
APU_ALERT
APU_SID
APU_SIC
APU_THERMTRIP#
INT_eDP_AUXN_C
INT_eDP_AUXP_C
INT_eDP_TXP0_C
INT_eDP_TXN0_C
INT_eDP_TXN1_C
INT_eDP_TXP1_C
APU_DP_TXN2_C
APU_DP_TXP0_C
APU_DP_TXP1_C
APU_DP_TXN3_C
APU_DP_TXN0_C
APU_DP_TXP3_C
APU_DP_TXN1_C
APU_DP_TXP2_C
APU_DP_AUXN_C
APU_DP_AUXP_C
APU_TEST25_H
APU_TEST25_L
APU_TCK
APU_TMS
APU_TRST#
APU_TEST35M_TEST
MBCLK2
MBDATA2
APU_SIC
VSS_SENSE
APU_BLEN
APU_DIGON
CPU_VDDNB_RUN_FB_H
CPU_VDD0_RUN_FB_H
VDDP_FB_H
HDMI_HPD_Q
INT_eDP_AUXN
INT_eDP_AUXP
APU_DP_AUXN_C
APU_DP_AUXP_C
INT_HDMI_AUXP
INT_HDMI_AUXN
APU_RST#
APU_PWRGD
APU_SID
VDDIO_FB_H
DMAACTIVE_L
VDDP_FB_H
FCH_LVDS_HPD
FCH_VGA_HPD
APU_PROCHOT#
INT_eDP_AUXN_C
INT_eDP_AUXP_C
APU_DP_AUXN
APU_DP_AUXP
ECPWROK
SMBALERT#
SMBALERT#
3920_RST#
FS1R2
APU_SVT_R
PEG_HDMI_TXDN1
PEG_HDMI_TXDP1
PEG_HDMI_TXDN0
PEG_HDMI_TXDP0
PEG_HDMI_TXCP
PEG_HDMI_TXDN2
PEG_HDMI_TXDP2
PEG_HDMI_TXCN
C_TX1_HDMI-
C_TX1_HDMI+
C_TX0_HDMI+
C_TX0_HDMI-
C_TX2_HDMI+
C_TX2_HDMI-
C_TXC_HDMI-
C_TXC_HDMI+
APU_PROCHOT#
APU_TDI2
APU_TCK2 APU_TMS2 APU_TRST#2
APU_DBREQ#2 APU_DBRDY2
APU_TDO2
CLK_APU_N7 CLK_APU_P7
CLK_DP_N7 CLK_DP_P7
FCH_THERMTRIP#6
INT_eDP_AUXN 11
INT_eDP_AUXP 11
INT_eDP_TXP011 INT_eDP_TXN011
APU_DP_AUXP 8
APU_DP_AUXN 8
MBDATA232,33
MBCLK232,33
DMAACTIVE_L 7
APU_BLPWM 11
CPU_VDDNB_RUN_FB_H38
CPU_VDD0_RUN_FB_H38 VDDIO_FB_H40
VDDP_FB_H37 CPU_VDD0_RUN_FB_L38
APU_DP_TXP18 APU_DP_TXN18
APU_DP_TXP08 APU_DP_TXN08
APU_DP_TXP28 APU_DP_TXN28
APU_DP_TXP38 APU_DP_TXN38
INT_eDP_TXP111 INT_eDP_TXN111
APU_BLEN 23
APU_DIGON 23
SVC2 SVD2
INT_HDMI_AUXP 25
INT_HDMI_AUXN 25
APU_TEST19 2
APU_TEST18 2
HDMI_HPD_Q 25
APU_RST#2,7 APU_PWRGD2,7
FCH_PROCHOT#7
FCH_VGA_HPD 8
FCH_LVDS_HPD 11
H_PROCHOT#33
HWPG 23,33,35,36,37,40
VGA_ALERT 15
ECPWROK 10,18,33
3920_RST# 33
CPU_SVT38
C_TX1_HDMI-25 C_TX1_HDMI+25
C_TX0_HDMI+25 C_TX0_HDMI-25
C_TXC_HDMI+25
C_TX2_HDMI+25 C_TX2_HDMI-25
C_TXC_HDMI-25
VRHOT38
+1.5V
+3VS5
+1.5VSUS
+1.5VSUS
+1.2V
+1.5VSUS
+1.5VSUS
+1.5VSUS+1.5VSUS
+1.5V
+1.5V
+5VPCU+3VPCU
+3V
+3V
+3V
+1.5V
+1.5VSUS
+1.5V
+1.5V
+1.5VSUS
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano Display/Misc
1A
4 44Monday, November 14, 2011
R23
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano Display/Misc
1A
4 44Monday, November 14, 2011
R23
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano Display/Misc
1A
4 44Monday, November 14, 2011
R23
LVDS
04
DP0 output to
eDP to LVDS converter
DP1 output to Hudson-M2
for VGA translator interface
HDMI
TEST35 PU FOR INTERNAL
TEST35 PD FOR CUSTOMER
M_TEST CONNECTION TBD
VGA
Note: CLK_APU_HCLKP/N is 100MHZ SSC
Note: CLK_DP_NSSCP/N is 100MHZ non-SSC
APU_PROCHOT#
input or output
Low
CPU
P - STATE
AMD internal test only
Place caps with APU < 1 inch
route PCIE as 85ohm +/- 10%
To AMD HDT
When 100K-NTC 100 C=6.164K
Thermal Trip = 120 C
over 120 degree C= Low
Display port power 1.5V min 1.2v max : 1.65v
Display port power 1.5V min 1.2v max : 1.65v
DMAACTIVE_L controls
entry and exit from the
sleep and power states
FS1R1 signals is for detect CPU TYPE and protect it.
FS1R1 CPU this pin is N.C
FS1R2 CPU this pin is LOW
can remove it at MP
THERMTRIP# shutdown temperature 125
Cto EC reserve only
ADD VGA TEMP_ FAIL function is active Hi
Thermal
SI
PV change to short-pad
4/19 For Comal.
7/8 For Comal.
4/19 For Comal.
4/19 For Comal,
close to APU.
note --HDMI P&N can not swap
DP2 output to
HDMI connector
4/19 HDMI change to DP2 for Comal.
4/19 For Comal.
4/19 For Comal.
Add R49 for verify this solution
reserve for leakage current verify
SI,AMD no concern
so remove TP10,
TP17,TP18,TP16,TP23
SI , PU SUS power
meet AMD design
C437 0.1U/10V_4C437 0.1U/10V_4
C352 0.1U/10V_4C352 0.1U/10V_4
R76 1K/F_4R76 1K/F_4
C345 0.1U/10V_4C345 0.1U/10V_4
Q29
MMBT3904-7-F
Q29
MMBT3904-7-F
2
13
TP85TP85
R346 300/_4R346 300/_4 R178 *0_4R178 *0_4
R83 510_4R83 510_4
TP5TP5
D9 *RB501V-40D9 *RB501V-40
2 1
R102 10K/F_4R102 10K/F_4
TP26TP26
C379 0.1U/10V_4C379 0.1U/10V_4
R345 1K/F_4R345 1K/F_4
C430 0.1U/10V_4C430 0.1U/10V_4
R188 1K/F_4R188 1K/F_4
C111
*1U/6.3V_4
C111
*1U/6.3V_4
1 2
R59
*11.5K/F_4
R59
*11.5K/F_4
TP36TP36
C445 0.1U/10V_4C445 0.1U/10V_4
R91
1K/F_4
R91
1K/F_4
Q30
MMBT3904-7-F
Q30
MMBT3904-7-F
2
13
R191 *100K/F_4R191 *100K/F_4
D8 RB501V-40
D8 RB501V-40
2 1
C781 0.1U/10V_4C781 0.1U/10V_4
R93 *0_4/SR93 *0_4/S
R67 *100K_6 NTCR67 *100K_6 NTC
12
R192 1.8K_4R192 1.8K_4
R200 100K/F_4R200 100K/F_4
C350 0.1U/10V_4C350 0.1U/10V_4
R190 *100K/F_4R190 *100K/F_4
Q9
MMBT3904-7-F
Q9
MMBT3904-7-F
2
1 3
R54
*10K/F_4
R54
*10K/F_4
C449 0.1U/10V_4C449 0.1U/10V_4
R49 0_4R49 0_4
DISPLAY
PORT 1
ANALOG/DISPLAY/MISC
SENSE
RSVD
JTAG CTRL SER. CLK
TEST DISPLAY PORT
MISC.
DISPLAY
PORT 0
DISPLAY
PORT 2
Trinity APU
U25C
DISPLAY
PORT 1
ANALOG/DISPLAY/MISC
SENSE
RSVD
JTAG CTRL SER. CLK
TEST DISPLAY PORT
MISC.
DISPLAY
PORT 0
DISPLAY
PORT 2
Trinity APU
U25C
VDDR_SENSE
B5 VDD_SENSE
C4 VDDIO_SENSE
A5 VDDNB_SENSE
A4 VDDP_SENSE
C5 VSS_SENSE
B4
RSVD_3 Y12
RSVD_2 AA10
RSVD_1 Y10
DBREQ_L
H9 DBRDY
G9 TRST_L
F9 TMS
G10 TCK
F10 TDO
J10 TDI
H10
ALERT_L
AF12 THERMTRIP_L
AE12 PROCHOT_L
AC10
PWROK
AB12 RESET_L
AF10
SID
AH12 SIC
AG12
SVD
A3 SVC
B3
DISP_CLKIN_L
AA11 DISP_CLKIN_H
AB11
CLKIN_L
AD11 CLKIN_H
AE11
DP1_TXN3
F1 DP1_TXP3
F2
DP1_TXN2
G2 DP1_TXP2
G3
DP1_TXN1
H1 DP1_TXP1
H2
DP1_TXN0
H4 DP1_TXP0
H5
DP0_TXN3
J2 DP0_TXP3
J3
DP0_TXN2
K1 DP0_TXP2
K2
DP0_TXN1
K4 DP0_TXP1
K5
DP0_TXN0
L2 DP0_TXP0
L3
TEST5 R18
TEST4 P18
DMAACTIVE_L AC12
FS1R2 W10
TEST35 AA12
TEST32_L N19
TEST32_H T19
TEST31 K22
TEST30_L R19
TEST30_H P19
TEST28_L M10
TEST28_H L10
TEST25_L AD10
TEST25_H AE10
TEST24 H12
RSVD_4 K21
TEST20 J12
TEST19 G12
TEST18 F12
TEST17 J11
TEST16 H11
TEST15 G11
TEST14 F11
TEST10 N18
TEST9 M18
TEST6 AD12
DP_AUX_ZVSS C1
DP_VARY_BL A6
DP_DIGON B6
DP_BLON C6
DP5_HPD G7
DP4_HPD F7
DP3_HPD E7
DP2_HPD D7
DP1_HPD E3
DP0_HPD D3
DP5_AUXN G6
DP5_AUXP G5
DP4_AUXN F6
DP4_AUXP F5
DP3_AUXN E6
DP3_AUXP E5
DP2_AUXN D6
DP2_AUXP D5
DP1_AUXN E2
DP1_AUXP E1
DP0_AUXN D2
DP0_AUXP D1
DP2_TXP0
L9
DP2_TXN0
L8
DP2_TXP1
L5
DP2_TXN1
L6
DP2_TXP2
K8
DP2_TXN2
K7
DP2_TXP3
J6
DP2_TXN3
J5
SVT
C3
TP25TP25
TP6TP6
TP84TP84
TP35TP35
R75 *1K/F_4R75 *1K/F_4
R95 0_4R95 0_4
TP29TP29
R401 150/F_4R401 150/F_4
R65
*11.5K/F_4
R65
*11.5K/F_4
R55
10K/F_4
R55
10K/F_4
R81 510_4R81 510_4
R182
*39.2/F_4
R182
*39.2/F_4
R206 100K/F_4R206 100K/F_4
R183 1K/F_4R183 1K/F_4
C769 0.1U/10V_4C769 0.1U/10V_4 C423 0.1U/10V_4C423 0.1U/10V_4
Q11
*MMBT3904-7-F
Q11
*MMBT3904-7-F
2
1 3
R211 1K/F_4R211 1K/F_4
C401 0.1U/10V_4C401 0.1U/10V_4
D14RB501V-40 D14RB501V-40
21
R88
1K/F_4
R88
1K/F_4
D15RB501V-40 D15RB501V-40
21
TP28TP28 R184
39.2/F_4
R184
39.2/F_4
R56 *0_4/SR56 *0_4/S
TP86TP86
C152
220P/50V_4
C152
220P/50V_4
TP33TP33
C453 0.1U/10V_4C453 0.1U/10V_4
TP87TP87
C450 0.1U/10V_4C450 0.1U/10V_4
R187
301/_4
R187
301/_4
R57 *8.87K/F_4R57 *8.87K/F_4
R43 10K/F_4R43 10K/F_4
TP19TP19
R342
1K/F_4
R342
1K/F_4
TP32TP32
TP27TP27
R343
2K/F_4
R343
2K/F_4
TP20TP20
U8
*G718
U8
*G718
GND
2
OT2
4
VCC
1
RHYST2 5
TMSNS2 6
OT1
3
RHYST1 7
TMSNS1 8
R412 *1K/F_4R412 *1K/F_4
R341
2K/F_4
R341
2K/F_4
TP31TP31
R66 *100K_6 NTCR66 *100K_6 NTC
12
C778 0.1U/10V_4C778 0.1U/10V_4
TP34TP34
TP24TP24
R79 301/_4R79 301/_4
R77
10K/F_4
R77
10K/F_4
C385 0.1U/10V_4C385 0.1U/10V_4
R64 *8.87K/F_4R64 *8.87K/F_4
R189 1.8K_4R189 1.8K_4
C771 0.1U/10V_4C771 0.1U/10V_4
C463 0.1U/10V_4C463 0.1U/10V_4
R344
1K/F_4
R344
1K/F_4
R92
*1K/F_4
R92
*1K/F_4
R210 1K/F_4R210 1K/F_4
R186
*301/_4
R186
*301/_4
Q14
MMBT3904-7-F
Q14
MMBT3904-7-F
2
13
C325 0.1U/10V_4C325 0.1U/10V_4
C342 0.1U/10V_4C342 0.1U/10V_4
Q10
*ME2N7002E
Q10
*ME2N7002E
3
2
1
R197 *0_4/SR197 *0_4/S
R214 1.8K_4R214 1.8K_4
C441 0.1U/10V_4C441 0.1U/10V_4
C418 0.1U/10V_4C418 0.1U/10V_4
TP88TP88
C443 0.1U/10V_4C443 0.1U/10V_4
C454 0.1U/10V_4C454 0.1U/10V_4
R42 *10K/F_4R42 *10K/F_4
TP30TP30
R413 0_4R413 0_4
R199 1.8K_4R199 1.8K_4

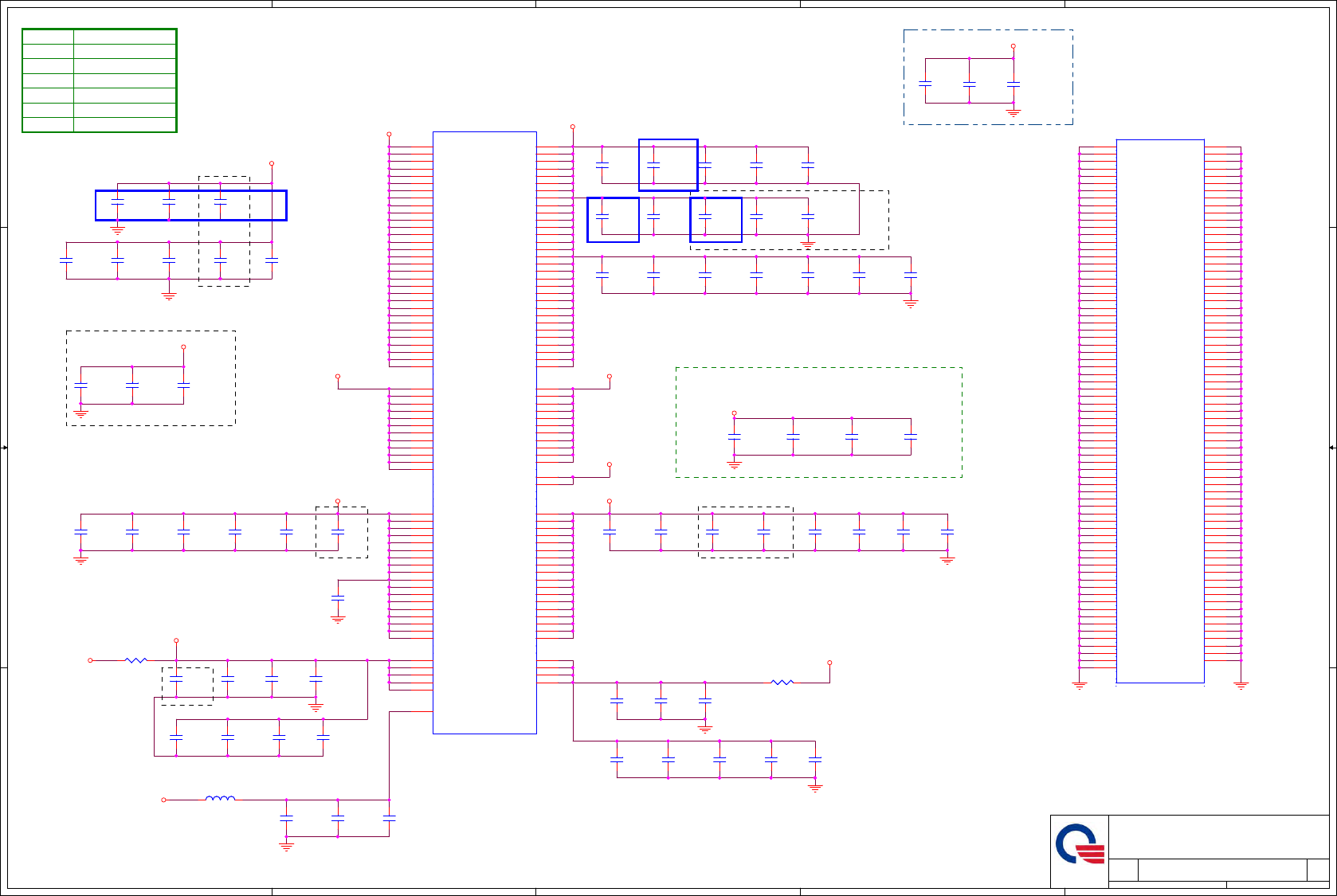

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+1.2V_VDDR_B
+2.5V_VDDA
+1.2V_VDDP
+VCC_CORE +VCC_CORE
+VDDNB_CORE +VDDNB_CORE
+1.5VSUS
+VCC_CORE
+VDDNB_CORE
+VDDNB_CAP
+VDDNB_CAP
+1.5VSUS
+1.2V
+1.2V
+1.5VSUS
+2.5V
+1.2V_VDDP
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano POWER/GND
1A
5 44Friday, November 11, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano POWER/GND
1A
5 44Friday, November 11, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Llano POWER/GND
1A
5 44Friday, November 11, 2011
Custom
PIN NAME
VOLTAGE
VDD
??
APU POWER TABLE
+VDDNB_CORE
+2.5V
VDDIO
+1.2VVDDP
VDDR +1.2V
VDDA
+1.5V
+1.1V
NET NAME
+VCC_CORE
VDDNB
+1.5VSUS
+1.2V_VDDP
+1.2V_VDDR
+2.5V_VDDA
05
Across VDDIO and VSS split
DECOUPLING between PROCESSOR and DIMMs
25A
Maximum IDDNBspike 33A
EMI suggestion
36A
Maximum IDDspike 50A
4/19 For Comal.
4/19 For Comal.
4/19 For Comal.
4/19 For Comal.
If the VSS plane is cut to create a VDDIO plane,
ceramic capacitors are connected across
the VDDIO and VSS plane split as follows
VDDR = 3.3A ( Up to DDR3-1333 @ 1.5V )
4/19 For Comal.
4/19 For Comal.
2.8A Up to DDR3-1333 @ 1.50V VDDIO
VDDP = 5A
VDDA= 0.75A
SI , change to 22u for improve
+VDDNB_CORE transient
SI , change to 22u for
AMD ACE dynamic test,
C207
0.22U/10V_4
C207
0.22U/10V_4
C452
22U/6.3VS_8
C452
22U/6.3VS_8
C674
10U/6.3V_8
C674
10U/6.3V_8
C255
0.22U/10V_4
C255
0.22U/10V_4
C203
0.22U/10V_4
C203
0.22U/10V_4
C234
180P/50V_4
C234
180P/50V_4
C676
10U/6.3V_8
C676
10U/6.3V_8
C675
1000P/50V_4
C675
1000P/50V_4
C467
180P/50V_4
C467
180P/50V_4
C380
22U/6.3VS_8
C380
22U/6.3VS_8
C250
22U/6.3V_8
C250
22U/6.3V_8
Trinity APU
U25E
Trinity APU
U25E
VSS_72
J8 VSS_71
H7 VSS_70
G8 VSS_69
F24 VSS_67
K16 VSS_68
A13 VSS_66
A17 VSS_65
Y9 VSS_64
Y22 VSS_63
Y20 VSS_62
Y11 VSS_61
W7 VSS_60
W4 VSS_59
W16 VSS_58
V9 VSS_57
V19 VSS_56
AF11 VSS_55
M11 VSS_54
L7 VSS_53
L19 VSS_52
AC11 VSS_51
K9 VSS_50
K14 VSS_49
K11 VSS_48
J7 VSS_47
J4 VSS_46
J24 VSS_45
J22 VSS_44
G4 VSS_43
G25 VSS_42
G23 VSS_41
G21 VSS_40
G19 VSS_39
G17 VSS_38
G15 VSS_37
G13 VSS_36
F28 VSS_35
F26 VSS_34
F22 VSS_33
F20 VSS_32
F18 VSS_31
F16 VSS_30
F14 VSS_29
E9 VSS_28
E4 VSS_27
D27 VSS_26
D25 VSS_25
D23 VSS_24
D19 VSS_23
D17 VSS_22
D15 VSS_21
D13 VSS_20
C28 VSS_19
C26 VSS_18
C24 VSS_17
C22 VSS_16
C20 VSS_15
C2 VSS_14
C16 VSS_13
C14 VSS_12
B7 VSS_11
AH25 VSS_10
AH23 VSS_9
AF24 VSS_8
AE21 VSS_7
AC22 VSS_6
AB17 VSS_5
A15 VSS_4
W18 VSS_3
R7 VSS_2
L4 VSS_1
J20
VSS_145 W 12
VSS_144 K18
VSS_143 E8
VSS_142 C7
VSS_141 P11
VSS_140 W 14
VSS_139 D21
VSS_138 C18
VSS_137 P9
VSS_136 AH21
VSS_135 AH19
VSS_134 AH17
VSS_133 AH15
VSS_132 AH13
VSS_131 AG7
VSS_130 AG4
VSS_129 AF9
VSS_128 AF28
VSS_127 AF26
VSS_126 AF22
VSS_125 AF20
VSS_124 AF18
VSS_123 AF16
VSS_122 AF14
VSS_121 AE7
VSS_120 AE4
VSS_119 AE27
VSS_118 AE25
VSS_117 AE23
VSS_116 AE19
VSS_115 V11
VSS_114 U7
VSS_113 U4
VSS_112 U18
VSS_111 U10
VSS_110 T9
VSS_109 T11
VSS_108 R4
VSS_107 R10
VSS_106 N7
VSS_105 N4
VSS_104 N10
VSS_103 M9
VSS_102 AE17
VSS_101 AE15
VSS_100 AE13
VSS_99 AD9
VSS_98 AC7
VSS_97 AC4
VSS_96 AC28
VSS_95 AC26
VSS_94 AC24
VSS_93 AC20
VSS_92 AC18
VSS_91 AC16
VSS_90 AC14
VSS_89 AB9
VSS_88 AB27
VSS_87 AB25
VSS_86 AB23
VSS_85 AB21
VSS_84 AB19
VSS_83 AB15
VSS_82 AB13
VSS_81 AA7
VSS_80 AA4
VSS_79 A7
VSS_78 A25
VSS_77 A23
VSS_76 A21
VSS_75 A19
C216
0.22U/10V_4
C216
0.22U/10V_4
C229
22U/6.3V_8
C229
22U/6.3V_8
C679
10U/6.3V_8
C679
10U/6.3V_8
C465
0.22U/10V_4
C465
0.22U/10V_4
C684
0.22U/6.3V_4
C684
0.22U/6.3V_4
R334 *0_8/SR334 *0_8/S
C226
3300P/50V_4
C226
3300P/50V_4
C821
22U/6.3VS_8
C821
22U/6.3VS_8
C285
0.22U/10V_4
C285
0.22U/10V_4
C190
180P/50V_4
C190
180P/50V_4
C818
22U/6.3VS_8
C818
22U/6.3VS_8
C408
0.22U/10V_4
C408
0.22U/10V_4 C307
0.22U/10V_4
C307
0.22U/10V_4
C681
180P/50V_4
C681
180P/50V_4
C271
22U/6.3V_8
C271
22U/6.3V_8 C260
22U/6.3V_8
C260
22U/6.3V_8
C259
22U/6.3VS_8
C259
22U/6.3VS_8
C346
22U/6.3VS_8
C346
22U/6.3VS_8
Trinity APU
U25D
Trinity APU
U25D
VDDA
AB10
VDDP
AH7 VDDP
AH3 VDDP
AH4 VDDP
AH5 VDDP
AH6
VDDIO_18
AA28 VDDIO_17
P26 VDDIO_16
P23 VDDIO_15
P20 VDDIO_14
N28 VDDIO_13
N25 VDDIO_12
N22 VDDIO_11
M26 VDDIO_10
M23 VDDIO_9
M20 VDDIO_8
L28 VDDIO_7
L25 VDDIO_6
L22 VDDIO_5
K26 VDDIO_4
K23 VDDIO_3
J28 VDDIO_2
K20 VDDIO_1
H26
VDDNB_8
A8 VDDNB_7
A10 VDDNB_6
A9 VDDNB_5
C9 VDDNB_4
B12 VDDNB_3
B8 VDDNB_2
D10 VDDNB_1
C8
VDD_31
M19 VDD_30
H3 VDD_29
K10 VDD_28
P3 VDD_27
R1 VDD_26
AC1 VDD_25
AB6 VDD_24
AA1 VDD_23
Y14 VDD_22
T18 VDD_21
W1 VDD_20
V6 VDD_19
L18 VDD_18
F3 VDD_17
V3 VDD_16
V18 VDD_15
V10 VDD_14
K6 VDD_13
M3 VDD_12
K17 VDD_11
K3 VDD_10
K19 VDD_9
J9 VDD_8
J18 VDD_7
J16 VDD_6
P10 VDD_5
P6 VDD_4
J14 VDD_3
J1 VDD_2
H6 VDD_1
F8
VDDR AH10
VDDR AH9
VDDR AH8
VDDR AG10
VDDIO_36 G28
VDDIO_35 Y24
VDDIO_34 W 28
VDDIO_33 W 25
VDDIO_32 W 22
VDDIO_31 V26
VDDIO_30 V23
VDDIO_29 V20
VDDIO_28 R22
VDDIO_27 R25
VDDIO_26 R28
VDDIO_25 T20
VDDIO_24 Y26
VDDIO_23 U28
VDDIO_22 U25
VDDIO_21 U22
VDDIO_20 T26
VDDIO_19 T23
VDDNB_16 D8
VDDNB_15 D9
VDDNB_14 C12
VDDNB_13 C11
VDDNB_12
C10 VDDNB_11
E11 VDDNB_10
E10 VDDNB_9
A11
VDD_63 L11
VDD_62 AF3
VDD_61 AF6
VDD_60 F4
VDD_59 D4
VDD_58 Y3
VDD_57 Y18
VDD_56 Y16
VDD_55 U1
VDD_54 U19
VDD_53 T6
VDD_52 T3
VDD_51 N1
VDD_50 N11
VDD_49 M6
VDD_48 Y6
VDD_47 L1
VDD_46 AE1
VDD_45 AD6
VDD_44 AD3
VDD_43 AB3
VDD_42 W 19
VDD_41 W 17
VDD_40 W 15
VDD_39 W 13
VDD_38 W 11
VDD_37 U11
VDD_36 G1
VDD_35 H8
VDD_34 T10
VDD_33 R11
VDDNB_17 D12
VDDNB_18 D11
VDDNB_19 B11
VDDNB_20 A12
VDDNB_21 B10
VDDNB_22 E12
VDDNB_23 B9
VDDNB_CAP K13
VDDNB_CAP K12
C669
22U/6.3V_8
C669
22U/6.3V_8
C266
22U/6.3VS_8
C266
22U/6.3VS_8
C671
10U/6.3V_8
C671
10U/6.3V_8
C304
0.01U/25V_4
C304
0.01U/25V_4
C195
180P/50V_4
C195
180P/50V_4
C192
22U/6.3VS_8
C192
22U/6.3VS_8
C468
180P/50V_4
C468
180P/50V_4
C398
4.7U/6.3V_6
C398
4.7U/6.3V_6
C466
180P/50V_4
C466
180P/50V_4
C397
180P/50V_4
C397
180P/50V_4
C683
0.22U/6.3V_4
C683
0.22U/6.3V_4
C96
470P/50V_4
C96
470P/50V_4
C290
0.01U/25V_4
C290
0.01U/25V_4
C97
*470P/50V_4
C97
*470P/50V_4
C707
22U/6.3VS_8
C707
22U/6.3VS_8
C338
0.22U/10V_4
C338
0.22U/10V_4
C306
0.22U/10V_4
C306
0.22U/10V_4
C403
22U/6.3VS_8
C403
22U/6.3VS_8 C323
4.7U/6.3V_6
C323
4.7U/6.3V_6
C286
22U/6.3V_8
C286
22U/6.3V_8
C293
0.01U/25V_4
C293
0.01U/25V_4
C98
*470P/50V_4
C98
*470P/50V_4
C678
180P/50V_4
C678
180P/50V_4
C685
180P/50V_4
C685
180P/50V_4
C210
4.7U/6.3V_6
C210
4.7U/6.3V_6
R333 *0_8/SR333 *0_8/S
C194
0.22U/10V_4
C194
0.22U/10V_4 C275
180P/50V_4
C275
180P/50V_4
C204
4.7U/6.3V_6
C204
4.7U/6.3V_6
C267
22U/6.3VS_8
C267
22U/6.3VS_8
C399
22U/6.3VS_8
C399
22U/6.3VS_8
C242
0.22U/10V_4
C242
0.22U/10V_4 C402
22U/6.3VS_8
C402
22U/6.3VS_8
C349
0.22U/10V_4
C349
0.22U/10V_4
C239
180P/50V_4
C239
180P/50V_4
C680
0.22U/6.3V_4
C680
0.22U/6.3V_4
C673
10U/6.3V_8
C673
10U/6.3V_8
C400
0.22U/10V_4
C400
0.22U/10V_4
C682
180P/50V_4
C682
180P/50V_4
C310
4.7U/6.3V_6
C310
4.7U/6.3V_6
C715
22U/6.3VS_8
C715
22U/6.3VS_8
L17
PBY160808T-221Y-N(220,2A)
L17
PBY160808T-221Y-N(220,2A)
C689
10U/6.3V_8
C689
10U/6.3V_8
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

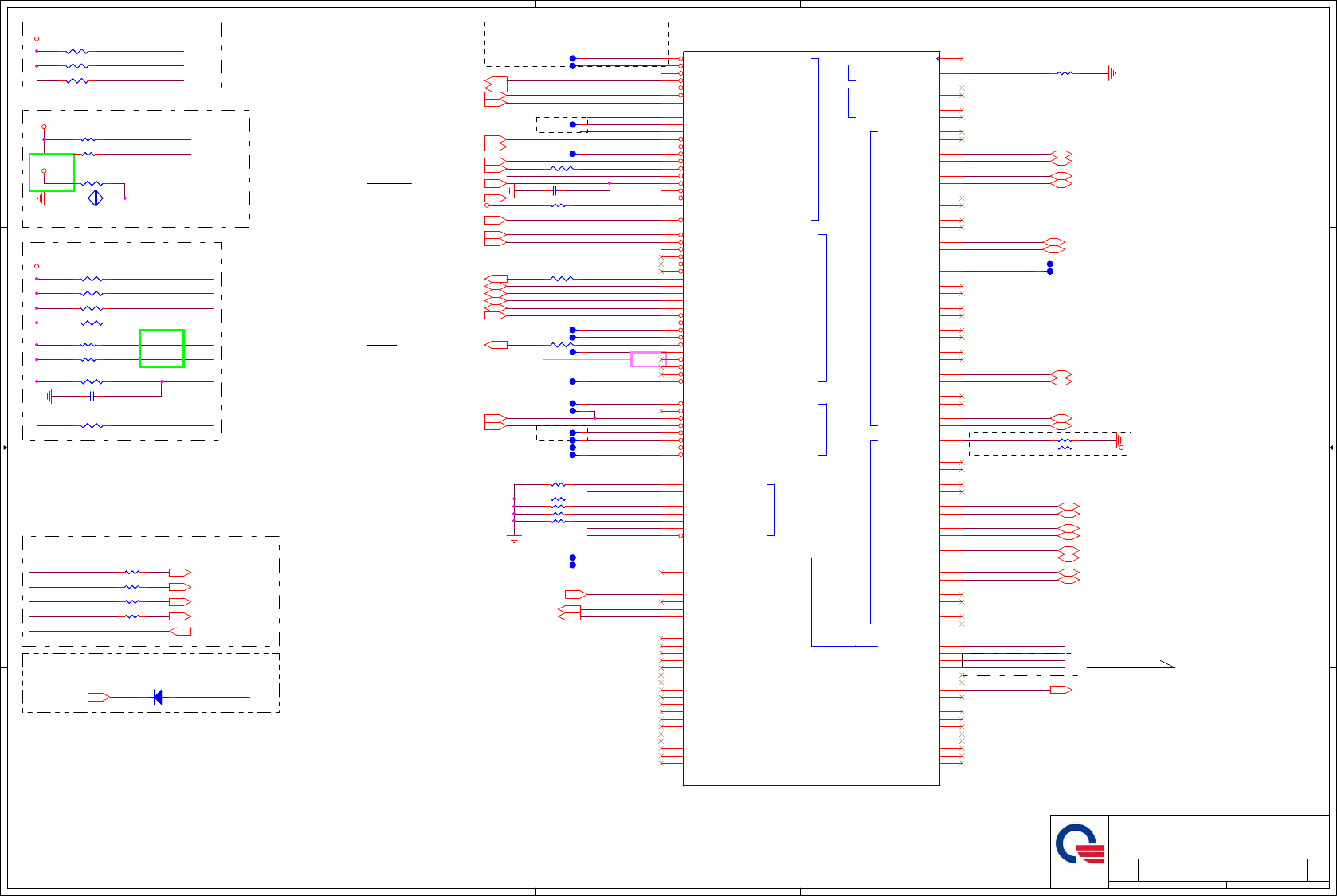

USB_RCOMP_SB
USBSS_CALRP
USBSS_CALRN
SCL2
SCL3
SDA3
EC_PWM2
SDA2
ACZ_RST#_R
ACZ_SYNC_R
ACZ_SDOUT_R
ACZ_BCLK_R
ACZ_SDIN1
ACZ_SDIN3_R
ACZ_SDIN2_R
ACZ_RST#_R
ACZ_SDOUT_R
ACZ_SYNC_R
ACZ_BCLK_R
FCH_JTAG_TCK
FCH_JTAG_TDI
FCH_JTAG_RST#
CGDAT_SMB
SCL1
SDA1
SDA1
SCL1
FCH_PWRGD
DNBSWON#
SUSB#
SUSC#
FCH_TEST0
FCH_TEST1
SYS_RST#
SIO_EXT_SMI#
FCH_TEST2
EC_A20GATE
FCH_TEST0
FCH_TEST1
FCH_TEST2
ACZ_SDIN0
FCH_THERMTRIP#
RI#
VGA_PD
ODD_DA#_FCH
ACZ_SDIN0
SMARTVOLT2
LLB#
GBE_LED0
EC_RCIN#
DNBSWON#
CGCLK_SMB
CGDAT_SMB
SYS_RST#
PCIE_RST2#
CGCLK_SMB
RSMRST#
SCL2
SDA2
FCH_PME#
GEVENT5#
CLKREQ1#
PCIE_LAN_CLKREQ#
PCIE_CARD_CLKREQ#
PCIE_MINI_CLKREQ#
CLKREQ1#
FCH_GPIO66SCL3
SDA3
WD_PWRGD
FCH_THERMTRIP#
PCIE_WAKE#
ODD_PLUGIN#
USBP7-
USBP7+
USBP6-
USBP6+
USBP5+
USBP5-
BT_COMBO_OFF#
VGA_ON_SB
VGA_RSTB
ACZ_SYNC_AUDIO 27
ACZ_RST#_AUDIO 27
BIT_CLK_AUDIO 27
ACZ_SDOUT_AUDIO 27
CGDAT_SMB12,13
EC_RCIN#33
SUSC#33 SUSB#33
FCH_THERMTRIP#4
FCH_PWRGD10
SIO_EXT_SMI#33
EC_A20GATE33
PCIE_WAKE#29,32
EC_PWM2 10
VGA_POWER_DOWN9
ACZ_SDIN0 27
CGCLK_SMB12,13
DNBSWON#33
RSMRST#33
USBP0- 28
USBP0+ 28
ODD_DA#_FCH31
SIO_EXT_SCI#33
VGA_REQ44
PCIE_LAN_CLKREQ#29
PCIE_CARD_CLKREQ#26
PCIE_MINI_CLKREQ#32
ACZ_SPKR27
ODD_PLUGIN#31
USBP2- 23
USBP2+ 23
USBP8+ 32
USBP8- 32
USBP12- 28
USBP12+ 28
USBP11+ 28
USBP11- 28
BT_COMBO_OFF#32
VGA_ON_SB33 VGA_RSTB14
USB30_RX1+ 28
USB30_RX1- 28
USB30_TX1- 28
USB30_TX1+ 28
USB30_RX2- 28
USB30_RX2+ 28
USB30_TX2- 28
USB30_TX2+ 28
SCL130 SDA130
+3VS5
+3VS5
+3V
+3V
+FCH_VDD_11_SSUSB_S
+3VS5
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 GPIO/USB/AZ/RGMII
1A
Friday, November 11, 2011 6 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 GPIO/USB/AZ/RGMII
1A
Friday, November 11, 2011 6 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 GPIO/USB/AZ/RGMII
1A
Friday, November 11, 2011 6 44
Custom
HD audio
interface is
+3V_S5 voltage
To Azalia
NC,no install by default
No need for GPIO200
This pin is used to
power down VGA DAC
regulators when CRT
no connected
06
Right side USB 2.0 Connector
SCL3 of a TSI-capable APU's
thermal bus,Pulled up to
APU_VDDIO. Resistor value
verified in the relevant APU
design guide.
SYS_RST# internal
10K pull up
For Zero ODD
to DDR3 SMBUS
USB 3.0 Not Implemented: left unconnected.
LLB# Not Implemented ,left unconnected.
CLK_REQ# already
internal pull up 8.2K
Pure UMA can remove
CLK_REQ2# internal pull Hi 8.2K to +3V
CLK_REQ3# internal pull Hi 8.2K to +3V
CLK_REQ4# internal pull Hi 8.2K to +3V
GEVENT16# internal pull Hi 8.2K to +3VS5
GEVENT15# internal pull Hi 8.2K to +3VS5
PCIE_WAKE# no need to pull
Hi resistor from check list
GEVENT5# internal pull Hi 8.2K to +3VS5
GEVENT23# internal pull Hi 8.2K to +3V
GEVENT0# internal pull Hi 8.2K to +3V
GEVENT1# internal pull Hi 8.2K to +3V
remove PCIE_RST2# from AMD recommend
SI
4/19 For Comal.
4/19 For Comal.
Camera USB
WLAN Min-Card
Left side USB Combo 3.0/2.0.
Left side USB Combo 3.0/2.0.
Remove Card EECS function form Vendor mail
SI2 , HP request Image sensor
SMBUS reserve to FCH
SI2 , change power rail
from +3V to +3VS5
TP101TP101
R467 *10K/F_4R467 *10K/F_4
R476 *10K/F_4R476 *10K/F_4
R479 33_4R479 33_4
TP98TP98
USB
3.0
EMBEDDED
CTRL
USB
MISC
USB
1.1
USB
OC
HD
AUDIO
GPIO ACPI / WAKE UP
EVENTS
HUDSON-M3
Part 4 of 5
USB
2.0
Hudson-M2-A13
U34A
USB
3.0
EMBEDDED
CTRL
USB
MISC
USB
1.1
USB
OC
HD
AUDIO
GPIO ACPI / WAKE UP
EVENTS
HUDSON-M3
Part 4 of 5
USB
2.0
Hudson-M2-A13
U34A
KSO_17/XDB3/GPIO226
D17 KSO_16/XDB2/GPIO225
A24 KSO_15/XDB1/GPIO224
B17 KSO_14/XDB0/GPIO223
B19 KSO_13/GPIO222
C18 KSO_12/GPIO221
A18 KSO_11/GPIO220
D19 KSO_10/GPIO219
K18 KSO_9/GPIO218
B21 KSO_8/GPIO217
G18 KSO_7/GPIO216
H18 KSO_6/GPIO215
J18 KSO_5/GPIO214
A20 KSO_4/GPIO213
E18 KSO_3/GPIO212
A22 KSO_2/GPIO211
F20 KSO_1/GPIO210
E20 KSO_0/GPIO209
F21
PS2M_CLK/GPIO192
C22 PS2M_DAT/GPIO191
D23 PS2KB_CLK/GPIO190
C20 PS2KB_DAT/GPIO189
D21
SPI_CS2#/GBE_STAT2/GPIO166
J21 PS2_CLK/CEC/SCL4/GPIO188
J19 PS2_DAT/SDA4/GPIO187
K19
AZ_RST#
AE4 AZ_SYNC
AD6 AZ_SDIN3/GPIO170
Y1 AZ_SDIN2/GPIO169
Y3 AZ_SDIN1/GPIO168
Y5 AZ_SDIN0/GPIO167
AA2 AZ_SDOUT
AB1 AZ_BITCLK
AB3
USB_OC0#/SPI_TPM_CS#/TRST#/GEVENT12#
T8 USB_OC1#/TDI/GEVENT13#
J7 USB_OC2#/TCK/GEVENT14#
P5 USB_OC3#/AC_PRES/TDO/GEVENT15#
F5 USB_OC4#/IR_RX0/GEVENT16#
P6 USB_OC5#/IR_TX0/GEVENT17#
T1 USB_OC6#/IR_TX1/GEVENT6#
R8 BLINK/USB_OC7#/GEVENT18#
M7
CLK_REQG#/GPIO65/OSCIN/IDLEEXIT#
AF25 GBE_STAT0/GEVENT11#
AA8 GBE_LED2/GEVENT10#
V10 SPI_HOLD#/GBE_LED1/GEVENT9#
Y6 GBE_LED0/GPIO183
W8 DDR3_RST#/GEVENT7#/VGA_PD
V8 SMARTVOLT2/SHUTDOWN#/GPIO51
AG26 IR_LED#/LLB#/GPIO184
J2 CLK_REQ1#/FANOUT4/GPIO61
AG22 CLK_REQ2#/FANIN4/GPIO62
AG25 SDA1/GPIO228
R7 SCL1/GPIO227
T7 SDA0/GPIO47
AD25 SCL0/GPIO43
AD26 SPKR/GPIO66
AF24 SATA_IS5#/FANIN3/GPIO59
AG18 SATA_IS4#/FANOUT3/GPIO55
AH17 CLK_REQ0#/SATA_IS3#/GPIO60
AF22 SMARTVOLT1/SATA_IS2#/GPIO50
AE26 CLK_REQ3#/SATA_IS1#/GPIO63
AE24 CLK_REQ4#/SATA_IS0#/GPIO64
AG24
RSMRST#
U2
WD_PWRGD
AF19 THRMTRIP#/SMBALERT#/GEVENT2#
R10 IR_RX1/GEVENT20#
V7 WAKE#/GEVENT8#
K1 SYS_RESET#/GEVENT19#
U4 LPC_PD#/GEVENT5#
T5 LPC_SMI#/GEVENT23#
C26 PME#/GEVENT3#
R9 KBRST#/GEVENT1#
AG19 GA20IN/GEVENT0#
AE22 TEST2
V9 TEST1/TMS
T10 TEST0
T9
PWR_GOOD
N7 PWR_BTN#
J4 SLP_S5#
W2 SLP_S3#
T3 SPI_CS3#/GBE_STAT1/GEVENT21#
W7 RI#/GEVENT22#
R2
KSI_7/GPIO208 F18
KSI_6/GPIO207 C24
KSI_5/GPIO206 B23
KSI_4/GPIO205 E24
KSI_3/GPIO204 F24
KSI_2/GPIO203 F22
KSI_1/GPIO202 K22
KSI_0/GPIO201 K21
EC_PW M3/EC_TIMER3/GPIO200 H21
EC_PW M2/EC_TIMER2/WOL_EN/GPIO199 J22
EC_PW M1/EC_TIMER1/GPIO198 H22
EC_PW M0/EC_TIMER0/GPIO197 E22
SDA3_LV/GPIO196 G21
SCL3_LV/GPIO195 G22
SDA2/GPIO194 G19
SCL2/GPIO193 H19
USB_SS_RX0N K15
USB_SS_RX0P J15
USB_SS_TX0N H16
USB_SS_TX0P J16
USB_SS_RX1N G13
USB_SS_RX1P H13
USB_SS_TX1N G15
USB_SS_TX1P F15
USB_SS_RX2N F14
USB_SS_RX2P E14
USB_SS_TX2N B15
USB_SS_TX2P D15
USB_SS_RX3N A12
USB_SS_RX3P C12
USB_SS_TX3N C14
USB_SS_TX3P A14
USBSS_CALRN A16
USBSS_CALRP C16
USB_HSD0N E3
USB_HSD0P E1
USB_HSD1N C3
USB_HSD1P C1
USB_HSD2N A5
USB_HSD2P C5
USB_HSD3N A6
USB_HSD3P C6
USB_HSD4N E8
USB_HSD4P F8
USB_HSD5N C8
USB_HSD5P A8
USB_HSD6N G9
USB_HSD6P H9
USB_HSD7N A10
USB_HSD7P C10
USB_HSD8N F10
USB_HSD8P E10
USB_HSD9N D11
USB_HSD9P B11
USB_HSD10N K13
USB_HSD10P K12
USB_HSD11N F12
USB_HSD11P G12
USB_HSD12N J12
USB_HSD12P K10
USB_HSD13N G10
USB_HSD13P H10
USB_FSD0N H5
USB_FSD0P/GPIO185 H6
USB_FSD1N H3
USB_FSD1P/GPIO186 H1
USB_RCOMP B9
USBCLK/14M_25M_48M_OSC G8
PCIE_RST2#/GEVENT4#
AB6
R287 2.2K_4R287 2.2K_4
TP93TP93
R447 *0_4/SR447 *0_4/S
R481 33_4R481 33_4
C879 *100P/50V_4C879 *100P/50V_4
TP59TP59
R463 *2.2K_4R463 *2.2K_4
R296 2.2K_4R296 2.2K_4
R495 1K/F_4R495 1K/F_4
R454 33_4R454 33_4
TP48TP48
TP45TP45
C582 *0.01U/25V_4C582 *0.01U/25V_4
TP97TP97
TP95TP95
R494 11.8K/F_6R494 11.8K/F_6
R290 2.2K_4R290 2.2K_4
TP64TP64
R464 2.2K_4R464 2.2K_4
TP51TP51
R469 *2.2K_4R469 *2.2K_4
R450 33_4R450 33_4
TP99TP99 R496 1K/F_4R496 1K/F_4
TP63TP63
R468 *1K_4R468 *1K_4
TP46TP46
R484 *10K/F_4R484 *10K/F_4
TP94TP94
R284 *4.7K_4R284 *4.7K_4
R272 10K/F_4R272 10K/F_4
R295 2.2K_4R295 2.2K_4
R298 10K/F_4R298 10K/F_4
R283 0_4R283 0_4
TP104TP104
R466 *10K/F_4R466 *10K/F_4
R465 2.2K_4R465 2.2K_4 TP49TP49
TP50TP50
D10 RB501V-40D10 RB501V-40
21
R286 10K/F_4R286 10K/F_4
TP60TP60
R301 10K/F_4R301 10K/F_4
J6
*SOLDERJUMPER-2
J6
*SOLDERJUMPER-2
1 2
R470 *10K/F_4R470 *10K/F_4
R505 *0_4/SR505 *0_4/S
R462 *2.2K_4R462 *2.2K_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

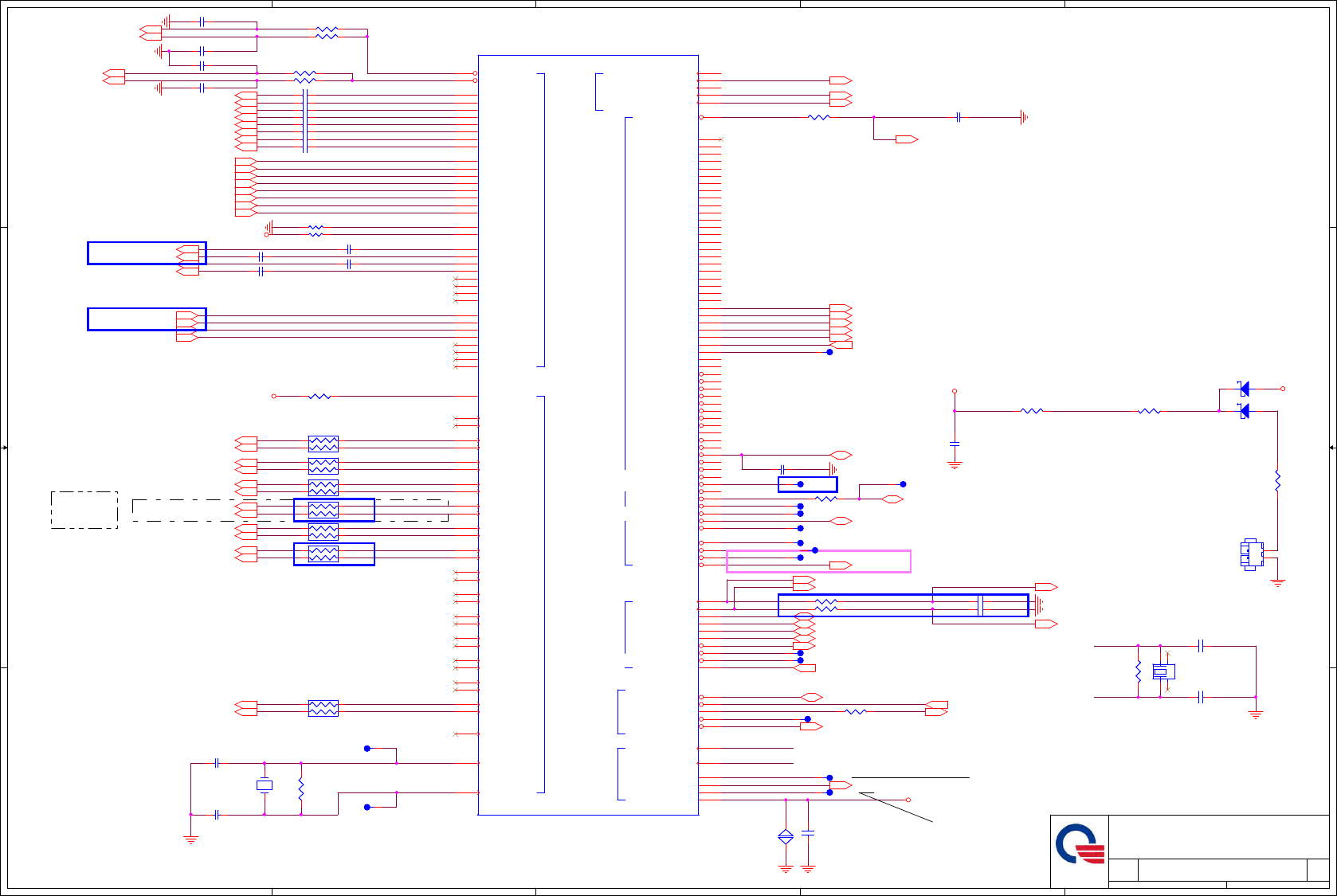

PCI_CLK1
PCI_CLK3
PCI_CLK4
PCIRST#_L
UMI_RXP2_C
SERIRQ
CLK_DP_FCH_N
LAD0
32K_X1
A_RST#
UMI_RXN2_C
UMI_RXP3_C
25M_X1
LAD2
LFRAME#
32K_X2
PCI_AD27
PCIE_CALRN_FCH
25M_X2
APU_PWRGD_R
LAD1
PCIE_CALRP_FCH
LDRQ#1
UMI_RXP1_C
CLK_VGA_FCH_N
PCI_AD25
UMI_RXN3_C
UMI_RXN1_C
CLK_APU_FCH_P
CLK_APU_FCH_N
UMI_RXP0_C
UMI_RXN0_C
CLK_CALRN_FCH
CLK_VGA_FCH_P
32K_X2
CLK_DP_FCH_P
PCI_AD26
32K_X1
CLKRUN#
LAD3
FCH_PROCHOT#
HUDSON_MEMHOT#_R
PCI_AD24
DMAACTIVE_L
+3V_RTC
PCI_AD23
APU_RST#
S5_CORE_EN
LDRQ#0
APU_STOP#
CLK_ANX_FCH_N
CLK_ANX_FCH_P
LPC_CLK0
LPC_CLK1
+VCCRTC_2
+3VRTC_1 +3VRTC
CLK_WLAN_FCH_N
CLK_WLAN_FCH_P
KBC_RST#
INTRUDER_ALERT#
CLK_PCIE_CARDP_FCH
CLK_PCIE_CARDN_FCH
CLK_PCIE_LANN_FCH
CLK_PCIE_LANP_FCH
CLK_RTC
PCIE_RST#
TRAVIS_EN#
FCH_GPIO44
PCIE_RXP1_LAN
PCIE_RXN1_LAN
PCIE_TXP1_C
PCIE_TXN1_C
ACCEL_INT
+BAT
PCIE_TXP0_CARD_C
PCIE_TXN0_CARD_C
PCIE_RXN0_CARD
PCIE_RXP0_CARD
GPU_RST#14
UMI_RXP02 UMI_RXN02
UMI_TXP02 UMI_TXN02
CLK_APU_P4 CLK_APU_N4
CLK_VGA_P14 CLK_VGA_N14
PCI_CLK1 10
PCI_CLK3 10
PCI_CLK4 10
PCI_AD23 10
PCI_AD24 10
PCI_AD25 10
PCI_AD26 10
PCI_AD27 10
LFRAME# 32,33
APU_RST# 2,4
APU_PWRGD 2,4
SERIRQ 33
FCH_PROCHOT# 4
DMAACTIVE_L 4
LAD0 32,33
LAD1 32,33
LAD2 32,33
LAD3 32,33
CLKRUN# 33
MINI_PCIE_RST#32
CLK_DP_P4 CLK_DP_N4
UMI_RXN12 UMI_RXP12
UMI_RXP22 UMI_RXN22
UMI_RXN32 UMI_RXP32
UMI_TXN12 UMI_TXP12
UMI_TXP22 UMI_TXN22
UMI_TXN32 UMI_TXP32
CLK_ANX_P11 CLK_ANX_N11
CLK_33_DEBUG 32
CLK_33M_KBC 33
LPC_CLK0 10
LPC_CLK1 10
CLK_WLAN_P32 CLK_WLAN_N32
SPI_WP 8
CLK_PCIE_CARD_P26 CLK_PCIE_CARD_N26
CLK_PCIE_LANP29 CLK_PCIE_LANN29
KBC_RST# 33
CLK_RTC 10
CARD_PCIE_RST#26
LAN_PCIE_RST#11,29
PCI_SERR# 33
PCIE_RXN1_LAN29 PCIE_RXP1_LAN29
PCIE_TXP1_LAN29 PCIE_TXN1_LAN29
ACCEL_INT 32
DGPU_PWROK 18,33,42,43,44
PCIE_TXP0_CARD26 PCIE_TXN0_CARD26
PCIE_RXN0_CARD26 PCIE_RXP0_CARD26
+1.1V_CKVDD
+3V_RTC
+1.1V_PCIE_VDDR
+3VPCU
+3V_RTC
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 ACPI/PCI/CLOCK
1A
Monday, November 14, 2011 7 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 ACPI/PCI/CLOCK
1A
Monday, November 14, 2011 7 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 ACPI/PCI/CLOCK
1A
Monday, November 14, 2011 7 44
Custom
20MIL
USE GROUND GUARD FOR 32K_X1 AND 32K_X2
S5_CORE_EN is necessary to connect enable
pin of +3VPCU/+5VPCU regulator for S5+
mode implementation
07
INTRUDER_ALERT# Left not connected
(FCH has 50-kohm internal pull-up to
VBAT).
Note: CLK_APU_HCLKP/N is 100MHZ SSC
Note: CLK_DP_NSSCP/N is 100MHZ non-SSC
Note: CLK_PCIE_TRAVISP/N is 100MHZ non-SSC
Note: CLK_PCIE_VGAP/N is 100MHZ SSC
Note: CLK_FCH_SRCP/N is 100MHZ SSC
Note: GPP_CLK(0:8)P/N is 100MHZ SSC capable
Place these PICE AC
coupling cap close to FCH
20MIL
20MIL
20MIL20MIL
20MIL
LDT_STP# let is NC from schematic recommend
FCH PROCHOT#--- (input 0.8V threshold )
When it isasserted, it can generate SCI or
SMI to OS/BIOS
PV change to short-pad
Pure UMA
can remove
Add G-sensor signal
SI , PCIE port change
from port 2 to port 0
SI , AMD request
test point
SI , change to 22Ω & 47Ω
for Rise/Fall time issue
SI , change for EMI
SI2 , change R497 value
from 220 ohm to 120 ohm
RP9 0X2RP9 0X2
2
41
3
TP67TP67
C8970.1U/10V_4 C8970.1U/10V_4
C873 150P/50V_4C873 150P/50V_4
R492 *0_4R492 *0_4
C568
0.1U/10V_4
C568
0.1U/10V_4
Y9
25MHZ
Y9
25MHZ
R483 33_4R483 33_4
C890 15P/50V_4C890 15P/50V_4
C874 150P/50V_4C874 150P/50V_4
C877 18P/50V_4C877 18P/50V_4
C892 27P/50V_4
C892 27P/50V_4
R307 *0_4/SR307 *0_4/S
C905 0.1U/10V_4C905 0.1U/10V_4 R478 33_4R478 33_4
R482 33_4R482 33_4
G6
*SHORT_ PAD1
G6
*SHORT_ PAD1
12
TP105TP105
C899 0.1U/10V_4C899 0.1U/10V_4
TP106TP106
TP42TP42
C900 0.1U/10V_4C900 0.1U/10V_4
TP65TP65
TP103TP103
C6490.1U/10V_4 C6490.1U/10V_4
TP44TP44
C875 150P/50V_4C875 150P/50V_4
Y8
32.768KHZ
Y8
32.768KHZ
4 1
23
C644 0.1U/10V_4C644 0.1U/10V_4
C895 0.1U/10V_4C895 0.1U/10V_4
C661
1U/6.3V_4
C661
1U/6.3V_4
R316 2K/F_4R316 2K/F_4
R480 33_4R480 33_4
C896 0.1U/10V_4C896 0.1U/10V_4
RP12 47X2RP12 47X2
2
41
3
C8980.1U/10V_4 C8980.1U/10V_4
R497 BLM15BD121SN1D(120,300MA)R497 BLM15BD121SN1D(120,300MA)
R306 2K/F_4R306 2K/F_4
R499
1M/F_4
R499
1M/F_4
CN26
88266-020L
CN26
88266-020L
1
2
R453 33_4R453 33_4
TP52TP52
RP8 0X2RP8 0X2
2
41
3
R325 499/F_4R325 499/F_4
C904 0.1U/10V_4C904 0.1U/10V_4
C891 27P/50V_4
C891 27P/50V_4
APU
CLOCK
GENERATOR
PCI
CLKS
S5
PLUS LPC
PCI
INTERFACE
HUDSON-M3
Part 1 of 5
PCI EXPRESS
INTERFACES
Hudson-M2-A13
U34E
APU
CLOCK
GENERATOR
PCI
CLKS
S5
PLUS LPC
PCI
INTERFACE
HUDSON-M3
Part 1 of 5
PCI EXPRESS
INTERFACES
Hudson-M2-A13
U34E
25M_X2
C33
25M_X1
C31
14M_25M_48M_OSC
J26
GPP_CLK8N
R27 GPP_CLK8P
N27
GPP_CLK7N
R24 GPP_CLK7P
R23
GPP_CLK6N
N26 GPP_CLK6P
N25
GPP_CLK5N
M26 GPP_CLK5P
M27
GPP_CLK4N
M24 GPP_CLK4P
M23
GPP_CLK3N
E31 GPP_CLK3P
E33
GPP_CLK2N
F31 GPP_CLK2P
F33
GPP_CLK1N
K26 GPP_CLK1P
J27
GPP_CLK0N
H28 GPP_CLK0P
H27
SLT_GFX_CLKN
K29 SLT_GFX_CLKP
J30
APU_CLKN
T23 APU_CLKP
T24
DISP2_CLKN
H31 DISP2_CLKP
H33
DISP_CLKN
T26 DISP_CLKP
R26
PCIE_RCLKN
G28 PCIE_RCLKP
G30
CLK_CALRN
F27
GPP_RX3N
W23 GPP_RX3P
W24 GPP_RX2N
W26 GPP_RX2P
V26 GPP_RX1N
V27 GPP_RX1P
W27 GPP_RX0N
AA26 GPP_RX0P
AA27
GPP_TX3N
AA23 GPP_TX3P
AA24 GPP_TX2N
AB27 GPP_TX2P
AB26 GPP_TX1N
W32 GPP_TX1P
W30 GPP_TX0N
V31 GPP_TX0P
V33
PCIE_CALRN
AF31 PCIE_CALRP
AF29
UMI_RX3N
Y29 UMI_RX3P
Y28 UMI_RX2N
Y31 UMI_RX2P
Y33 UMI_RX1N
AB29 UMI_RX1P
AB28 UMI_RX0N
AB31 UMI_RX0P
AB33
UMI_TX3P
AC30 UMI_TX2N
AD29 UMI_TX2P
AD28 UMI_TX1N
AD31 UMI_TX1P
AD33 UMI_TX0N
AE32 UMI_TX0P
AE30
A_RST#
AD5 PCIE_RST#
AE2
VDDBT_RTC_G E6
INTRUDER_ALERT# F3
RTCCLK F1
S5_CORE_EN H7
32K_X2 G4
32K_X1 G2
APU_RST# F26
LDT_STP# G26
APU_PG E26
PROCHOT# E28
DMA_ACTIVE# G25
SERIRQ/GPIO48 AE19
LDRQ1#/CLK_REQ6#/GPIO49 AE27
LDRQ0# B27
LFRAME# A31
LAD3 A29
LAD2 A26
LAD1 C28
LAD0 D27
LPCCLK1 D25
LPCCLK0 B25
INTH#/GPIO35 AD18
INTG#/GPIO34 AC16
INTF#/GPIO33 AE18
INTE#/GPIO32 AF18
LOCK# AH9
CLKRUN# AD19
GNT3#/CLK_REQ7#/GPIO46 AK17
GNT2#/SD_LED/GPO45 AD21
GNT1#/GPO44 AD13
GNT0# AD16
REQ3#/CLK_REQ5#/GPIO42 AM17
REQ1#/GPIO40 AG13
REQ0# AG15
SERR# AH8
PERR# AM9
STOP# AH1
PAR AE10
TRDY# AF10
IRDY# AL10
DEVSEL# AK9
FRAME# AG10
CBE3# AD12
CBE2# AN10
CBE1# AJ8
CBE0# AN3
AD31/GPIO31 AE16
AD30/GPIO30 AC15
AD29/GPIO29 AD15
AD28/GPIO28 AH14
AD27/GPIO27 AH13
AD26/GPIO26 AF13
AD25/GPIO25 AE13
AD24/GPIO24 AC12
AD23/GPIO23 AE12
AD22/GPIO22 AG12
AD21/GPIO21 AN12
AD20/GPIO20 AK11
AD19/GPIO19 AL12
AD18/GPIO18 AJ10
AD17/GPIO17 AM11
AD16/GPIO16 AG9
AD15/GPIO15 AN8
AD14/GPIO14 AK7
AD13/GPIO13 AJ6
AD12/GPIO12 AM7
AD11/GPIO11 AL3
AD10/GPIO10 AL8
AD9/GPIO9 AJ1
AD8/GPIO8 AN6
AD7/GPIO7 AN5
AD6/GPIO6 AL1
AD5/GPIO5 AJ5
AD4/GPIO4 AH3
AD3/GPIO3 AL6
AD2/GPIO2 AG4
AD1/GPIO1 AL5
AD0/GPIO0 AJ3
PCIRST# AB5
PCICLK4/14M_OSC/GPO39 AF6
PCICLK3/GPO38 AG2
PCICLK2/GPO37 AF5
PCICLK1/GPO36 AF1
PCICLK0 AF3
REQ2#/CLK_REQ8#/GPIO41 AF15
UMI_TX3N
AC32
TP57TP57
RP7 0X2RP7 0X2
2
41
3
R312 590/F_4R312 590/F_4
RP10 0X2RP10 0X2
2
41
3
D12
RB500V-40
D12
RB500V-40
21
C882 18P/50V_4C882 18P/50V_4
C643 0.1U/10V_4C643 0.1U/10V_4
TP66TP66
R323
1K/F_4
R323
1K/F_4
TP62TP62
R498 33_4R498 33_4
C884 100P/50V_4C884 100P/50V_4
D11
RB500V-40
D11
RB500V-40
21
TP58TP58
C6480.1U/10V_4 C6480.1U/10V_4
RP11 22X2RP11 22X2
2
41
3
RP13 0X2RP13 0X2
2
41
3
C872 *150P/50V_4C872 *150P/50V_4
R458
20M_4
R458
20M_4
C876 150P/50V_4C876 150P/50V_4
TP109TP109
C889 15P/50V_4C889 15P/50V_4
TP61TP61
TP108TP108
R324 10_4R324 10_4
TP107TP107
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

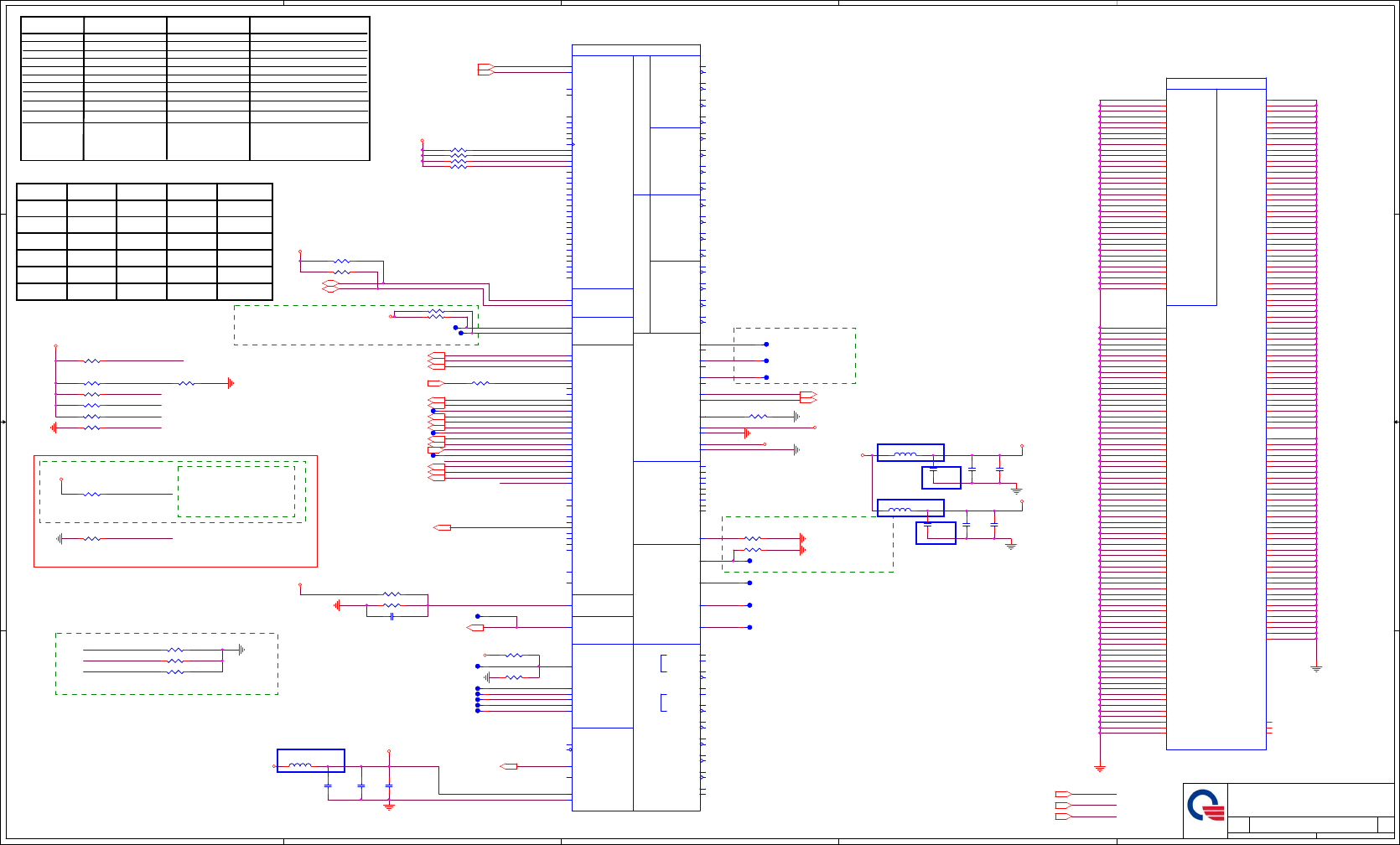

SATA_TXP0
SATA_TXP1
SATA_TXN1
SATA_TXN0
SATA_CALRN
SATA_CALRP VGA_DAC_REST
AUXCAL
FCH_CRT_R
FCH_CRT_G
FCH_CRT_B
FCH_CRT_G
FCH_CRT_B
FCH_CRT_R
SPI_SI
SPI_SO
SPI_CLK
SPI_CS0#
TEMPIN0
FCH_SPI_WP
TEMPIN3
TEMPIN1
TEMPIN2
GBE_COL
GBE_CRS
GBE_RXERR
GBE_PHY_INTR
GBE_MDIO
VGA_HPD
FCH_VGA_HPD
VGA_HPD
SB_SATA_LED#
BT_OFF#
RF_OFF#
ODD_PWR
BT_COMBO_EN#
LCD_BK
BOARD_ID3
BOARD_ID2
BOARD_ID1
BOARD_ID0
BOARD_ID4
BOARD_ID0
BOARD_ID2
BOARD_ID1
BOARD_ID3
BOARD_ID4
SB_SATA_LED#
SIDE_PORT_ID0
SIDE_PORT_ID1
SIDE_PORT_ID2
SIDE_PORT_ID1
SIDE_PORT_ID0
SIDE_PORT_ID2
SPI_SO
SPI_SI
SPI_CLK
SPI_CLK
SPI_CS0#
FCH_VGA_HPD VGA_HPD
SATA_TXP031 SATA_TXN031
SATA_RXN031 SATA_RXP031
SATA_RXN131 SATA_RXP131
SATA_TXN131 SATA_TXP131
FCH_CRT_HSYNC 24
FCH_CRT_VSYNC 24
FCH_DDCDAT 24
FCH_DDCCLK 24
APU_DP_TXP0 4
APU_DP_TXN0 4
APU_DP_TXP1 4
APU_DP_TXN1 4
APU_DP_TXP2 4
APU_DP_TXN2 4
APU_DP_TXP3 4
APU_DP_TXN3 4
APU_DP_AUXP 4
APU_DP_AUXN 4
FCH_VGA_HPD4
FCH_CRT_RED 24
FCH_CRT_GRE 24
FCH_CRT_BLU 24
RF_OFF#32
BT_COMBO_EN#32
ODD_PWR31
LCD_BK23
SATA_LED#28
SPI_WP7
EC_BIOS_WR#33 EC_BIOS_RD#33
EC_BIOS_CS#33 EC_BIOS_SPI_CLK_I33
ACC_LED#28
+1.1V_AVDD_SATA
+FCH_VDDAN_33_DAC_R
+FCH_VDDAN_11_MLDAC
+3VS5
+3VS5
+5V
+3V
+3VS5
+3V
+3V
+3VS5
+3V
+3V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 SATA/HWM/SPI
1A
Friday, November 11, 2011 8 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 SATA/HWM/SPI
1A
Friday, November 11, 2011 8 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 SATA/HWM/SPI
1A
Friday, November 11, 2011 8 44
Custom
SATA HDD
SATA ODD
PLACE SATA AC COUPLING
CAPS CLOSE TO HUDSON-M2/M3
PLACE SATA_CAL RES VERY
CLOSE TO BALL OF
HUDSON-M2/M3
R place close to PCH
08
Integrated Clock Mode:
Leave unconnected.
VGA Hot-plug
1
1
1
1
0
UMA
0
0 1
SG / Muxless
11
11
12
0 0 0 0 1
0 0 1 0 1
9
10
0
0
0
0
0
0
0
0
0
0
ID0ID1ID2ID3
000
0 0 1
1
1 1
00
0
1
1 1
1
0
1
0
0
ID4 CONFIG 31- Level BOM Item
1
2
3
4
5
6
0
0
1
1
0
1
0
0
7
8
1
1
10-KΩ 5% pull-up to +3VS5
or 10-KΩ 5% pull-down
Voltage Monitor Not Implemented
SIDE_PORT_ID0SIDE_PORT_ID1
0
1
0
0
1
0 1 1
Samsung
Hynix
no supprot side port
SIDE_PORT_ID2
0
0
0 0 NC
6/7 for Comal.
GPIO52 internal pull Hi 8.2K to +3V
GPIO53 internal pull Hi 8.2K to +3V
GPIO54 internal pull Hi 8.2K to +3V
GPIO56 internal pull Hi 8.2K to +3V
GPIO58 internal pull Hi 8.2K to +3V
10-KΩ 5% pull-up to +3VS5
or 10-KΩ 5% pull-down
Temp Monitor Not Implemented
TEMP( 0 - 3 )
VIN ( 0 - 7 )
GPIO57 internal pull Hi 8.2K to +3V
FCH SPI ROM
EMI
AKE38FP0N01
2M
WINBOND
AKE38ZN0801
AMIC
2M
Vender
Socket
Size P/N
DFHS08FS023
4/19 For Comal.
Reserve for debug
Add GPIO for G-sensor LED control
ICT need TP2675 size
test point
SI , change power rail
from +3V to +3VS5
SI , Q23,Q41
change to
dual type MOS Q50
Dual
Dual
R276
10K/F_4
R276
10K/F_4
R510 *0_4/SR510 *0_4/S
TP47TP47
R503 *0_4/SR503 *0_4/S
R277
10K/F_4
R277
10K/F_4
Part 5 of 5
GROUND
HUDSON-M3
Hudson-M2-A13
U34D
Part 5 of 5
GROUND
HUDSON-M3
Hudson-M2-A13
U34D
VSSPL_SYS
H25
VSSXL
K25
VSSAN_HWM
N8
VSS_64
T18 VSS_63
T16 VSS_62
T11 VSS_61
R28 VSS_60
R25 VSS_59
R11 VSS_58
R4 VSS_57
P33 VSS_56
P31 VSS_55
P21 VSS_54
P20 VSS_53
P18 VSS_52
P12 VSS_51
N24 VSS_50
N23 VSS_49
N13 VSS_48
N11 VSS_47
N6 VSS_46
M25 VSS_45
M21 VSS_44
M16 VSS_43
M13 VSS_42
L21 VSS_41
L16 VSS_40
L15 VSS_39
L13 VSS_38
L12 VSS_37
L6 VSS_36
K28 VSS_35
K27 VSS_34
K16 VSS_33
K7 VSS_32
J32 VSS_31
J28 VSS_30
J13 VSS_29
J10 VSS_28
J9 VSS_27
J6 VSS_26
H29 VSS_25
H15 VSS_24
H12 VSS_23
G32 VSS_22
G16 VSS_21
G6 VSS_20
F29 VSS_19
F25 VSS_18
F23 VSS_17
F19 VSS_16
F17 VSS_15
F16 VSS_14
F13 VSS_13
F11 VSS_12
F9 VSS_11
F7 VSS_10
E29 VSS_9
E16 VSS_8
E12 VSS_7
E5 VSS_6
D13 VSS_5
D9 VSS_4
B13 VSS_3
B7 VSS_2
A33 VSS_1
A3
EFUSE R6
VSSIO_DAC N28
VSSANQ_DAC K33
VSSAN_DAC L28
VSSPL_DAC T21
VSS_128 AN33
VSS_127 AN28
VSS_126 AN18
VSS_125 AN1
VSS_124 AM25
VSS_123 AM21
VSS_122 AL18
VSS_121 AK25
VSS_120 AK21
VSS_119 AJ29
VSS_118 AJ28
VSS_117 AJ18
VSS_116 AH27
VSS_115 AH25
VSS_114 AH23
VSS_113 AH21
VSS_112 AH19
VSS_111 AH18
VSS_110 AH11
VSS_109 AH5
VSS_108 AG32
VSS_107 AG30
VSS_106 AF33
VSS_105 AF16
VSS_104 AF12
VSS_103 AF8
VSS_102 AE28
VSS_101 AE21
VSS_100 AE15
VSS_99 AE6
VSS_98 AD27
VSS_97 AC28
VSS_96 AC18
VSS_95 AC6
VSS_94 AB25
VSS_93 AA32
VSS_92 AA30
VSS_91 AA28
VSS_90 AA25
VSS_89 AA17
VSS_88 AA16
VSS_87 AA14
VSS_86 AA13
VSS_85 AA12
VSS_84 AA6
VSS_83 Y18
VSS_82 Y16
VSS_81 Y14
VSS_80 W28
VSS_79 W25
VSS_78 W6
VSS_77 W4
VSS_76 V18
VSS_75 V16
VSS_74 V11
VSS_73 U32
VSS_72 U30
VSS_71 U21
VSS_70 U20
VSS_69 U17
VSS_68 U14
VSS_67 U6
VSS_66 T27
VSS_65 T25
R446 10K/F_4R446 10K/F_4
R461 *10K/F_4R461 *10K/F_4
R439 10K/F_4R439 10K/F_4
R491*10K/F_4 R491*10K/F_4
R460 10K/F_4R460 10K/F_4
R317 100/F_4R317 100/F_4
R502 150/F_4R502 150/F_4
R457 10K/F_4R457 10K/F_4
R445 *10K/F_4R445 *10K/F_4
R471 0_4R471 0_4
U33
*MX25L1605DM2I-12G
U33
*MX25L1605DM2I-12G
CE#
1
SCK
6
SI
5
SO
2
WP#
3
VDD 8
VSS 4
HOLD# 7
R443 10K/F_4R443 10K/F_4
R288 0_4R288 0_4
R451 *10K/F_4R451 *10K/F_4
R459 *10K/F_4R459 *10K/F_4
R449 *10K/F_4R449 *10K/F_4
R294 *220/F_6R294 *220/F_6
R438 *10K/F_4R438 *10K/F_4
TP102TP102
R441 10K/F_4R441 10K/F_4
R504 150/F_4R504 150/F_4
C577
*0.1U/10V_4
C577
*0.1U/10V_4
R473
*10K/F_4
R473
*10K/F_4
R440 *10K/F_4R440 *10K/F_4
U23
*MC74VHC1G08DFT2G
U23
*MC74VHC1G08DFT2G
2
1
4
3 5
R442 *10K/F_4R442 *10K/F_4
TP41TP41
TP43TP43
R501 150/F_4R501 150/F_4
Q50B
2N7002DW-7-F
Q50B
2N7002DW-7-F
2
61
C880
*22P/50V_4
C880
*22P/50V_4
TP40TP40
TP96TP96
R313 1K/F_4R313 1K/F_4
R452 *10K/F_4R452 *10K/F_4
C881 *0.1U/10V_4C881 *0.1U/10V_4
R472 0_4R472 0_4
R280 *10K/F_4R280 *10K/F_4
R508
1K/F_4
R508
1K/F_4
R493 *0_4R493 *0_4
VGA
MAINLINK VGA
DAC GBE
LAN
HW
MONITOR
SPI
ROM
SERIAL
ATA
HUDSON-M3
Part 2 of 5
SD
CARD
Hudson-M2-A13
U34B
VGA
MAINLINK VGA
DAC GBE
LAN
HW
MONITOR
SPI
ROM
SERIAL
ATA
HUDSON-M3
Part 2 of 5
SD
CARD
Hudson-M2-A13
U34B
TEMPIN3/TALERT#/GPIO174
M6 TEMPIN2/GPIO173
K3 TEMPIN1/GPIO172
K5 TEMPIN0/GPIO171
K6
FANIN2/GPIO58
AL16 FANIN1/GPIO57
AN16 FANIN0/GPIO56
AK15
FANOUT2/GPIO54
AJ16 FANOUT1/GPIO53
AM15 FANOUT0/GPIO52
AH16
SATA_X2
AG21
SATA_X1
AF21
SATA_ACT#/GPIO67
AD22
SATA_CALRN
AF27 SATA_CALRP
AF28
NC13
AJ31 NC12
AJ33
NC11
AH31 NC10
AH33
NC9
AL33 NC8
AL31
NC7
AN31 NC6
AL29
SATA_RX5P
AM27 SATA_RX5N
AK27
SATA_TX5N
AL28 SATA_TX5P
AN29
SATA_RX4P
AH26 SATA_RX4N
AJ26
SATA_TX4N
AN26 SATA_TX4P
AL26
SATA_RX3P
AL24 SATA_RX3N
AN24
SATA_TX3N
AJ24 SATA_TX3P
AH24
SATA_RX2P
AK23 SATA_RX2N
AM23
SATA_TX2N
AH22 SATA_TX2P
AJ22
SATA_RX1P
AJ20 SATA_RX1N
AH20
SATA_TX1N
AL22 SATA_TX1P
AN22
SATA_RX0P
AN20 SATA_RX0N
AL20
SATA_TX0N
AM19 SATA_TX0P
AK19
NC5 L4
NC4 G27
NC3 A28
NC2 AH10
NC1 AG16
VIN7/GBE_LED3/GPIO182 M5
VIN6/GBE_STAT3/GPIO181 M1
VIN5/SCLK_1/GPIO180 P3
VIN4/SLOAD_1/GPIO179 P1
VIN3/SDATO_1/GPIO178 N4
VIN2/SDATI_1/GPIO177 L2
VIN1/GPIO176 M3
VIN0/GPIO175 N2
ML_VGA_HPD/GPIO229 C29
ML_VGA_L3N P28
ML_VGA_L3P P29
ML_VGA_L2N R30
ML_VGA_L2P R32
ML_VGA_L1N T28
ML_VGA_L1P T29
ML_VGA_L0N T33
ML_VGA_L0P T31
AUXCAL U28
AUX_VGA_CH_N V29
AUX_VGA_CH_P V28
VGA_DAC_RSET K31
VGA_DDC_SCL/GPO71 N32
VGA_DDC_SDA/GPO70 M33
VGA_VSYNC/GPO69 N30
VGA_HSYNC/GPO68 M28
VGA_BLUE M29
VGA_GREEN L32
VGA_RED L30
ROM_RST#/SPI_WP#/GPIO161 V1
SPI_CLK/GPIO162 V3
SPI_DO/GPIO163 V5
SPI_DI/GPIO164 V6
GBE_PHY_INTR W9
GBE_PHY_RST# AA7
GBE_PHY_PD AC2
GBE_TXCTL/TXEN AB9
GBE_TXD0 AD8
GBE_TXD1 AE8
GBE_TXD2 AG6
GBE_TXD3 AF9
GBE_TXCLK AB7
GBE_RXERR AD1
GBE_RXCTL/RXDV AG8
GBE_RXD0 AD7
GBE_RXD1 AE7
GBE_RXD2 AF7
GBE_RXD3 AH7
GBE_RXCLK AB8
GBE_MDIO W10
GBE_MDCK AD9
GBE_CRS AD3
GBE_COL AC4
SD_DATA3/GPIO80 AJ14
SD_DATA2/GPIO79 AH15
SD_DATA1/SDATO_2/GPIO78 AM13
SD_DATA0/SDATI_2/GPIO77 AK13
SD_WP/GPIO76 AH12
SD_CD#/GPIO75 AJ12
SD_CMD/SLOAD_2/GPIO74 AN14
SD_CLK/SCLK_2/GPIO73 AL14
SPI_CS1#/GPIO165 T6
R437 *10K/F_4R437 *10K/F_4
R456 *10K/F_4R456 *10K/F_4
Q50A
2N7002DW-7-F
Q50A
2N7002DW-7-F
5
34
R500
100K/F_4
R500
100K/F_4
R444 10K/F_4R444 10K/F_4
R486
10K/F_4
R486
10K/F_4
R311 *10K/F_4R311 *10K/F_4
R489 0_4R489 0_4
R509 *0_4/SR509 *0_4/S
R309
100K/F_4
R309
100K/F_4
R303 931/F_4R303 931/F_4
R506 *0_4R506 *0_4
R448 10K/F_4R448 10K/F_4
R281
10K/F_4
R281
10K/F_4
R455 10K/F_4R455 10K/F_4
R485
10K/F_4
R485
10K/F_4
R487 0_4R487 0_4
R314 715/F_4R314 715/F_4

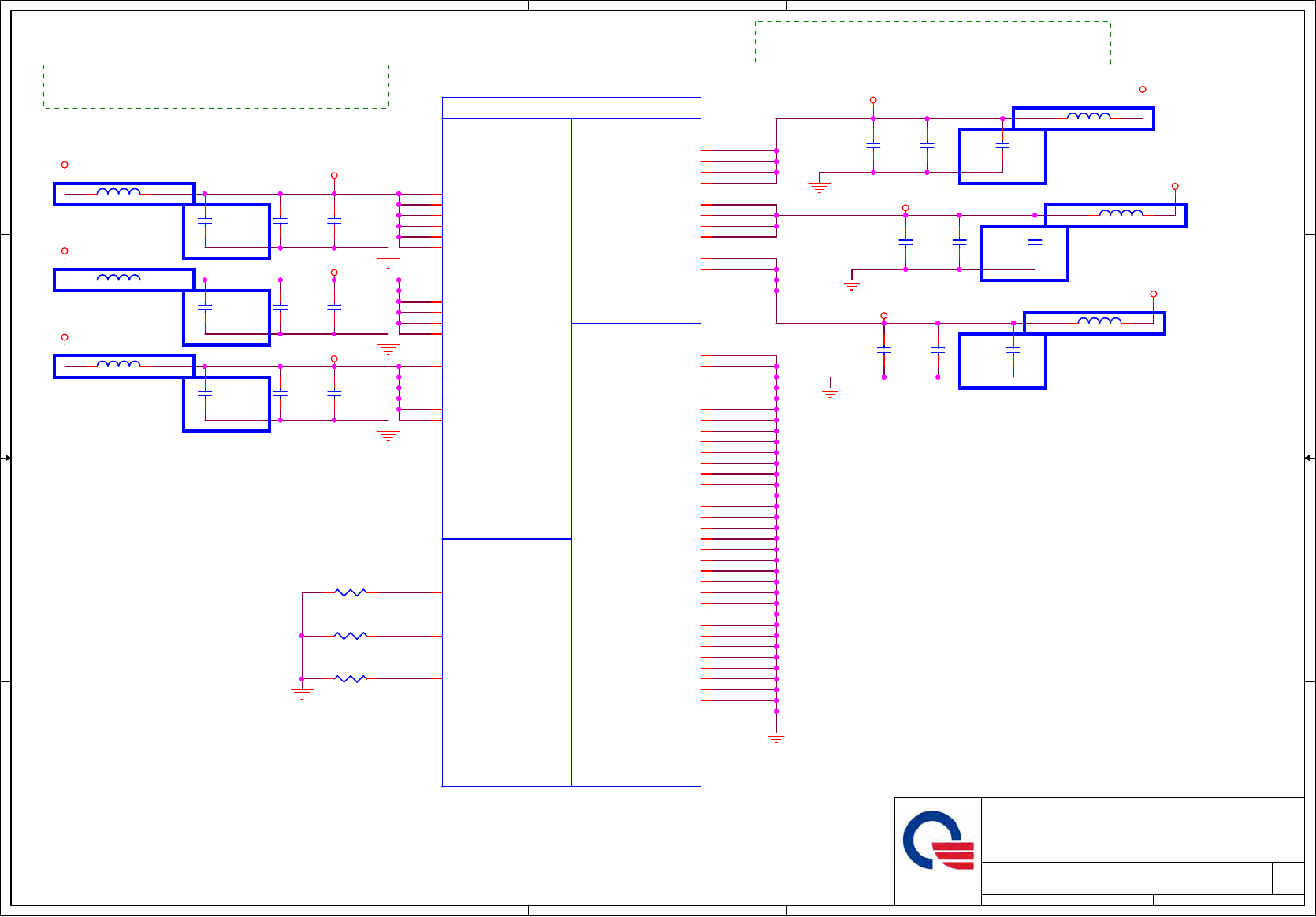

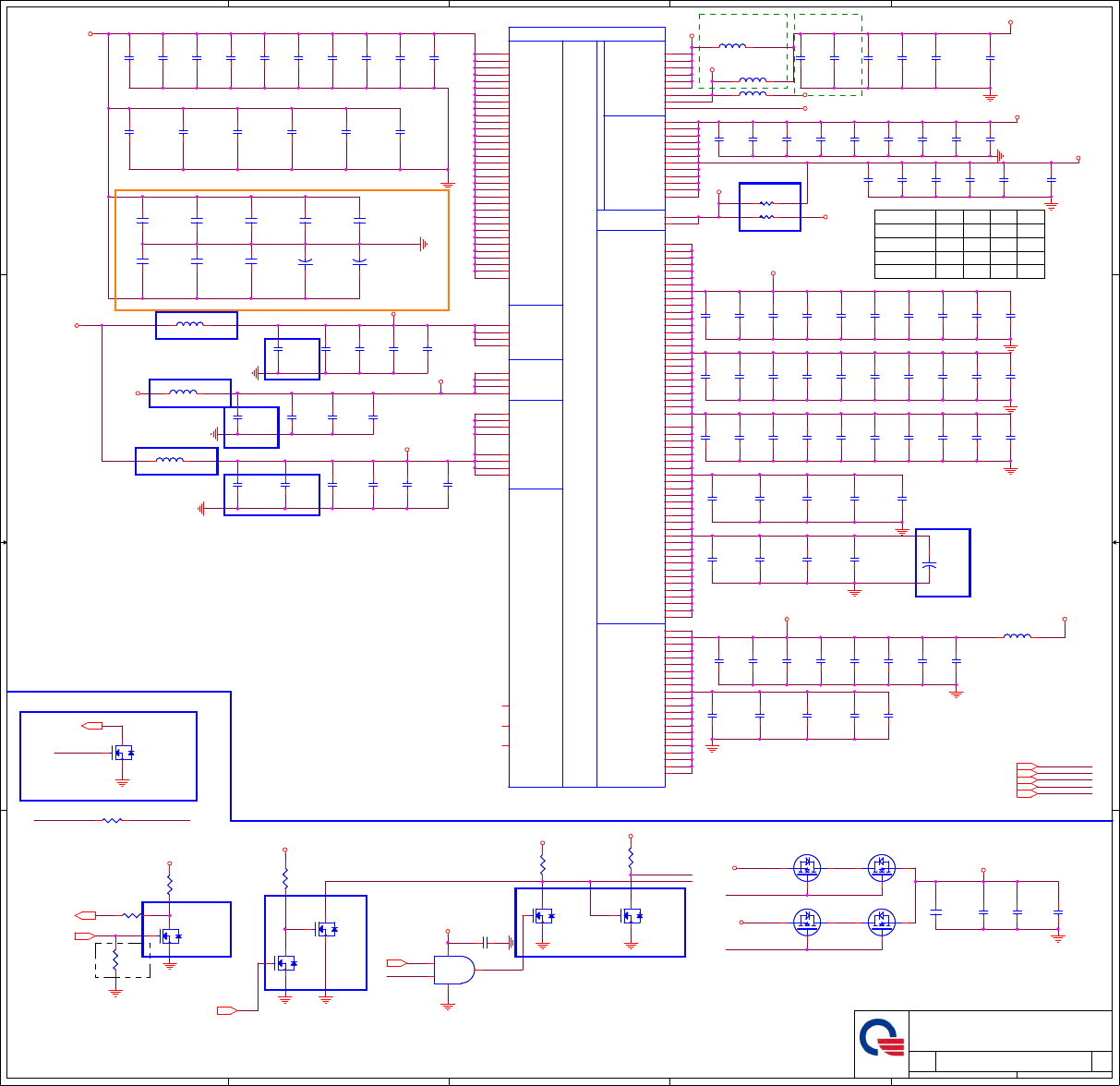

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+VDDXL_3.3V
+VDDCR_1.1V
+VDDPL_33_SYS
+VDDPL_33_DAC
+FCH_VDDPL_33_PCIE
+LDO_CAP
+FCH_VDDPL_33_SATA
+FCH_VDDAN_11_USB_S
+FCH_VDDCR_11_USB_S
+FCH_VDDAN_11_DAC
+FCH_VDDAN_33_DAC
+FCH_VGA_PWR_EN
VGA_POWER_DOWN
+FCH_VDDAN_11_ML
+VDDAN_11_MLDAC
+FCH_VDDPL_33_SSUSB_S
+FCH_VDDCR_11_SSUSB_S
+FCH_VDDAN_11_SSUSB_S_R
VGA_POWER_DOWN6
MAINON 33,34,36,40,41
MAINON33,34,36,40,41
+VDDPL_3.3V
+FCH_VDDAN_33_DAC_R
+FCH_VDDPL_33_SUSB_S
+3V
+3V
+1.1V_VDDCR
+1.1V
+1.1V_CKVDD
+1.1V_PCIE_VDDR
+1.1V_AVDD_SATA
+3VS5
+VDDIO_AZ
+VDDAN_3.3V_HWM
+VDDPL_1.1V
+1.1VS5
+3VS5
+1.1VS5
+1.1VS5
+VDDPL_1.1V
+1.1VS5
+FCH_VDDAN_33_DAC_R
+3V
+1.1V +FCH_VDDPL_33_MLDAC+FCH_VDDAN_33_DAC_R
+3V_AVDD_USB +FCH_VDDPL_33_SUSB_S
+VDDAN_3.3V_HWM
+3VS5
+VDDPL_3.3V+3V
+3.3V_VDDIO
+VDDIO_3.3V
+VDDIO_AZ
+3V
+FCH_VDDPL_33_MLDAC
+12VALW
+FCH_VDDAN_11_MLDAC
+FCH_VDDAN_11_MLDAC
+1.1V
+1.1V
+1.1VS5
+FCH_VDD_11_SSUSB_S
+3VS5 +FCH_VDDPL_33_SSUSB_S
+1.1V
+3V
+3VS5
+3V_AVDD_USB
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 POWER/GND
1A
Friday, November 11, 2011 9 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 POWER/GND
1A
Friday, November 11, 2011 9 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 POWER/GND
1A
Friday, November 11, 2011 9 44
Custom
20mA
20mA
30mA
14mA
VDDAN_11_CLK-- Internal clock
Generator I/O power
340mA
1007mA for M3
902mA for M2
VDDCR-- S/B CORE power
1088mA
VDDAN_11_PCIE --PCIE/UMI analog power
1337mA
59mA
VDDIO_33_S-- 3.3v S5 I/O power
187mA
VDDCR_1.1_S-- 1.1V S5 Core power
5mA
PLACE ALL THE DECOUPLING CAPS ON
THIS SHEET CLOSE TO SB AS POSSIBLE.
VGA_PD is
generated
from FCH
09
Trace width >=20 mil
TRACE WIDTH >=100mil
12mA
140mA
TRACE WIDTH >=15mil
TRACE WIDTH >=20mil
TRACE WIDTH >=15mil
11mA
TRACE WIDTH >=15mil
TRACE WIDTH >=30mil
TRACE WIDTH >=100mil
TRACE WIDTH >=50mil
TRACE WIDTH >=20mil
TRACE WIDTH >=15mil
12mA
70mA
VDDQ--3.3V I/O power
102mA
226mA
7mA
26mA
42mA
282mA
424mA
32 mA Max
233 mA Max
VDDXL_33_S-- 25MHZ XTAL IO power
VDDPL_11_SYS_S : System Clock Gen
PLLs analog power
VDDAN_33_HWM_S -- Hardware
monitor interface I/O power
VDDIO_AZ_S -- HD Audio
Interface I/O power
11mA
VDDAN_11_ML -- UMI 1.1V analog power
This circuit is
for switch DAC and
UMI analog power
NOTE : LDO_CAP
A11 stepping : C will
install 1nf cap
A12 stepping : C will
let it to NC
47mA
VDDAN_11_USB_S : USB PHY PLL analog power
VDDCR_11_USB_S : USB PHY core power
VDDPL_33_USB_S : USB PHY PLL analog power
VGA will power down
when CRT no insert
if support USB
3.0 wake up
should be
change pull hi
to S5 power
if support USB
3.0 wake up
should be
change pull hi
to S5 power
if support
Modem wake
up should be
change pull hi to
S5 power
VDDAN_11_SATA--SATA PHY analog/IO power
M2 chipset
need to
connect to GND
M3 remove
M3 chipset need
to stuff for
support USB3.0
M3 chipset need to stuff for support USB3.0
VDDAN_11_SSUSB_S : USB3.0 PHY PLL analog power
VDDCR_11_SSUSB_S : USB3.0 PHY core power
M2 chipset need to connect to GND
M3 remove
M3 chipset need
to stuff for
support USB3.0
Reserve for VDDAN_11_CL
leakage current issue
SI, add for
leakage issue
SI , reserve for leakage issue
SI , AMD SR
tool review
TRACE WIDTH >=50mil
VDDAN_33_USB_S : USB PHY I/O analog power
470mA
SI , AMD SR tool review
need one more 0.1u
SI2 , remove discharge circuit
Q26
AO3404
Q26
AO3404
3
2
1
C628
0.1U/10V_4
C628
0.1U/10V_4
USB
MAIN
LINK
GBE
LAN CLKGEN
I/O
USB
SS
SERIAL
ATA
PCI
EXPRESS
3.3V_S5 I/O CORE
S0
PCI/GPIO I/O
POWER
HUDSON-M3
Part 3 of 5
Hudson-M2-A13
U34C
USB
MAIN
LINK
GBE
LAN CLKGEN
I/O
USB
SS
SERIAL
ATA
PCI
EXPRESS
3.3V_S5 I/O CORE
S0
PCI/GPIO I/O
POWER
HUDSON-M3
Part 3 of 5
Hudson-M2-A13
U34C
VDDCR_11_SSUSB_S_4
M17 VDDCR_11_SSUSB_S_3
P17 VDDCR_11_SSUSB_S_2
N17 VDDCR_11_SSUSB_S_1
N16
VDDAN_11_SSUSB_S_5
P14 VDDAN_11_SSUSB_S_4
P13 VDDAN_11_SSUSB_S_3
N14 VDDAN_11_SSUSB_S_2
M14 VDDAN_11_SSUSB_S_1
P16
VDDCR_11_USB_S_2
T13 VDDCR_11_USB_S_1
T12
VDDAN_11_USB_S_2
U13 VDDAN_11_USB_S_1
U12
VDDAN_33_USB_S_12
M11 VDDAN_33_USB_S_11
N12 VDDAN_33_USB_S_10
M12 VDDAN_33_USB_S_9
N10 VDDAN_33_USB_S_8
N9 VDDAN_33_USB_S_7
M10 VDDAN_33_USB_S_6
M9 VDDAN_33_USB_S_5
K9 VDDAN_33_USB_S_4
K8 VDDAN_33_USB_S_3
J8 VDDAN_33_USB_S_2
H8 VDDAN_33_USB_S_1
G7
VDDIO_GBE_S_2
AA10 VDDIO_GBE_S_1
AA9
VDDCR_11_GBE_S_2
AA11 VDDCR_11_GBE_S_1
AB11
VDDIO_33_GBE_S
AB10
VDDAN_11_ML_4
V25 VDDAN_11_ML_3
V24 VDDAN_11_ML_2
V23 VDDAN_11_ML_1
Y22
VDDPL_11_DAC
V21
LDO_CAP
M31
VDDPL_33_SATA
AG28 VDDPL_33_PCIE
AH29 VDDPL_33_USB_S
D7 VDDPL_33_SSUSB_S
L18 VDDAN_33_DAC
T22 VDDPL_33_ML
U22 VDDPL_33_DAC
V22 VDDPL_33_SYS
H24
VDDIO_33_PCIGP_10
AB16 VDDIO_33_PCIGP_9
AB14 VDDIO_33_PCIGP_8
AB13 VDDIO_33_PCIGP_7
AB12 VDDIO_33_PCIGP_6
AC13 VDDIO_33_PCIGP_5
AG7 VDDIO_33_PCIGP_4
AD10 VDDIO_33_PCIGP_3
AE9 VDDIO_33_PCIGP_2
AB18 VDDIO_33_PCIGP_1
AB17
VDDIO_AZ_S AA4
VDDAN_33_HWM_S M8
VDDPL_11_SYS_S J24
VDDCR_11_S_2 M20
VDDCR_11_S_1 N20
VDDXL_33_S G24
VDDIO_33_S_8 W11
VDDIO_33_S_7 Y13
VDDIO_33_S_6 Y12
VDDIO_33_S_5 V13
VDDIO_33_S_4 V12
VDDIO_33_S_3 M18
VDDIO_33_S_2 L19
VDDIO_33_S_1 N18
VDDAN_11_SATA_10 AC19
VDDAN_11_SATA_9 AB20
VDDAN_11_SATA_8 AA18
VDDAN_11_SATA_7 AA20
VDDAN_11_SATA_6 AC21
VDDAN_11_SATA_5 AC22
VDDAN_11_SATA_3 AB22
VDDAN_11_SATA_2 AB21
VDDAN_11_SATA_4 Y20
VDDAN_11_SATA_1 AA21
VDDAN_11_PCIE_8 AG27
VDDAN_11_PCIE_7 AF26
VDDAN_11_PCIE_6 AA22
VDDAN_11_PCIE_5 AB23
VDDAN_11_PCIE_4 AD24
VDDAN_11_PCIE_3 AE25
VDDAN_11_PCIE_2 Y21
VDDAN_11_PCIE_1 AB24
VDDAN_11_CLK_8 P22
VDDAN_11_CLK_7 N22
VDDAN_11_CLK_6 N21
VDDAN_11_CLK_5 M22
VDDAN_11_CLK_4 L22
VDDAN_11_CLK_3 K24
VDDAN_11_CLK_2 J25
VDDAN_11_CLK_1 H26
VDDCR_11_9 Y17
VDDCR_11_8 V20
VDDCR_11_7 V17
VDDCR_11_6 V14
VDDCR_11_5 U18
VDDCR_11_4 U16
VDDCR_11_3 T20
VDDCR_11_2 T17
VDDCR_11_1 T14
L66
PBY160808T-221Y-N(220,2A)
L66
PBY160808T-221Y-N(220,2A)
C639
*0.1U/10V_4
C639
*0.1U/10V_4
2.2U/6.3V_4C572 2.2U/6.3V_4C572
C914
0.1U/10V_4
C914
0.1U/10V_4
C615
0.1U/10V_4
C615
0.1U/10V_4
C594
1U/6.3V_4
C594
1U/6.3V_4
C642
22U/6.3VS_8
C642
22U/6.3VS_8
R514 0_8R514 0_8
C888
10U/6.3V_8
C888
10U/6.3V_8
C886
1U/6.3V_4
C886
1U/6.3V_4
C634
0.1U/10V_4
C634
0.1U/10V_4
C916
22U/6.3VS_8
C916
22U/6.3VS_8
R477 *0_4/SR477 *0_4/S
C597
0.1U/10V_4
C597
0.1U/10V_4 C591
10U/6.3V_8
C591
10U/6.3V_8
C621
1U/6.3V_4
C621
1U/6.3V_4
Q25
AO3404
Q25
AO3404
3
2
1
L49
PBY160808T-221Y-N(220,2A)
L49
PBY160808T-221Y-N(220,2A)
C638
2.2U/6.3V_4
C638
2.2U/6.3V_4
L52
PBY160808T-221Y-N(220,2A)
L52
PBY160808T-221Y-N(220,2A)
C563
2.2U/6.3V_4
C563
2.2U/6.3V_4
C885
2.2U/6.3V_4
C885
2.2U/6.3V_4
C576
2.2U/6.3V_4
C576
2.2U/6.3V_4 C580
1U/6.3V_4
C580
1U/6.3V_4
L55
PBY160808T-221Y-N(220,2A)
L55
PBY160808T-221Y-N(220,2A)
L47
PBY160808T-221Y-N(220,2A)
L47
PBY160808T-221Y-N(220,2A)
C625
*0.1U/10V_4
C625
*0.1U/10V_4
C596
1U/6.3V_4
C596
1U/6.3V_4
C915
2.2U/6.3V_4
C915
2.2U/6.3V_4
C606
0.1U/10V_4
C606
0.1U/10V_4
C605
1U/6.3V_4
C605
1U/6.3V_4
C878
2.2U/6.3V_4
C878
2.2U/6.3V_4
C617
1U/6.3V_4
C617
1U/6.3V_4
L67
PBY160808T-221Y-N(220,2A)
L67
PBY160808T-221Y-N(220,2A)
C887
10U/6.3V_8
C887
10U/6.3V_8
C604
1U/6.3V_4
C604
1U/6.3V_4
R315
330K_6
R315
330K_6
1 2
R289 *0_4R289 *0_4
C629
0.1U/10V_4
C629
0.1U/10V_4
C569
1U/6.3V_4
C569
1U/6.3V_4
C622
0.1U/10V_4
C622
0.1U/10V_4
C570
22U/6.3VS_8
C570
22U/6.3VS_8 C590
1U/6.3V_4
C590
1U/6.3V_4
C630
1U/6.3V_4
C630
1U/6.3V_4
C583
10U/6.3V_8
C583
10U/6.3V_8
C600
22U/6.3VS_8
C600
22U/6.3VS_8
C607
0.1U/10V_4
C607
0.1U/10V_4
L48
PBY160808T-221Y-N(220,2A)
L48
PBY160808T-221Y-N(220,2A)
R511 *0_8/SR511 *0_8/S
C610
0.1U/10V_4
C610
0.1U/10V_4
C616
2.2U/6.3V_4
C616
2.2U/6.3V_4
R539 0_8R539 0_8
C584
1U/6.3V_4
C584
1U/6.3V_4
C893
0.1U/10V_4
C893
0.1U/10V_4
C574
0.1U/10V_4
C574
0.1U/10V_4
L54
PBY160808T-221Y-N(220,2A)
L54
PBY160808T-221Y-N(220,2A)
C631
4.7U/6.3V_6
C631
4.7U/6.3V_6
C589
0.1U/10V_4
C589
0.1U/10V_4
C613
0.1U/10V_4
C613
0.1U/10V_4
C603
1U/6.3V_4
C603
1U/6.3V_4
L53
PBY160808T-221Y-N(220,2A)
L53
PBY160808T-221Y-N(220,2A)
C567
1U/6.3V_4
C567
1U/6.3V_4
C579
0.1U/10V_4
C579
0.1U/10V_4
C640
2.2U/6.3V_4
C640
2.2U/6.3V_4
C614
0.1U/10V_4
C614
0.1U/10V_4
C620
0.1U/10V_4
C620
0.1U/10V_4
C609
0.1U/10V_4
C609
0.1U/10V_4 C608
2.2U/6.3V_4
C608
2.2U/6.3V_4
C633
2.2U/6.3V_6
C633
2.2U/6.3V_6
Q24
ME2N7002E
Q24
ME2N7002E
3
2
1
C618
1U/6.3V_4
C618
1U/6.3V_4
L68 PBY160808T-221Y-N(220,2A)L68 PBY160808T-221Y-N(220,2A)
C612
2.2U/6.3V_4
C612
2.2U/6.3V_4
C573
0.1U/10V_4
C573
0.1U/10V_4
C979 0.1U/10V_4C979 0.1U/10V_4
C593
*0.1U/10V_4
C593
*0.1U/10V_4
L45
BLM18PG181SN1D(180,1.5A)_6
L45
BLM18PG181SN1D(180,1.5A)_6
C587 0.1U/10V_4C587 0.1U/10V_4
C623
1U/6.3V_4
C623
1U/6.3V_4
R293 *0_8/SR293 *0_8/S
C575
1U/6.3V_4
C575
1U/6.3V_4
C601
1U/6.3V_4
C601
1U/6.3V_4
C586
0.1U/10V_4
C586
0.1U/10V_4
L70
PBY160808T-221Y-N(220,2A)
L70
PBY160808T-221Y-N(220,2A)
C598
1U/6.3V_4
C598
1U/6.3V_4
L50
PBY160808T-221Y-N(220,2A)
L50
PBY160808T-221Y-N(220,2A)
R300 *0_8/SR300 *0_8/S
C626
1U/6.3V_4
C626
1U/6.3V_4
L69
PBY160808T-221Y-N(220,2A)
L69
PBY160808T-221Y-N(220,2A)
C635 *1000P/50V_4C635 *1000P/50V_4
C901
2.2U/6.3V_4
C901
2.2U/6.3V_4
C611
1U/6.3V_4
C611
1U/6.3V_4
Q46 *AO3416Q46 *AO3416
3
2
1
C581
0.1U/10V_4
C581
0.1U/10V_4
C595
0.1U/10V_4
C595
0.1U/10V_4
C637
0.022U/25V_4
C637
0.022U/25V_4
2 1
C632
*0.1U/10V_4
C632
*0.1U/10V_4
C585
0.1U/10V_4
C585
0.1U/10V_4
C624
0.1U/10V_4
C624
0.1U/10V_4
C627
10U/6.3V_8
C627
10U/6.3V_8
C641
2.2U/6.3V_4
C641
2.2U/6.3V_4
C599
0.1U/10V_4
C599
0.1U/10V_4
C588
0.1U/10V_4
C588
0.1U/10V_4
C566
0.1U/10V_4
C566
0.1U/10V_4
R291 *0_4R291 *0_4
Q42
*AO3416
Q42
*AO3416
3
2
1
L71
PBY160808T-221Y-N(220,2A)
L71
PBY160808T-221Y-N(220,2A)
L72
BLM18PG181SN1D(180,1.5A)_6
L72
BLM18PG181SN1D(180,1.5A)_6
R282
2.2K_4
R282
2.2K_4
L56
BLM18PG181SN1D(180,1.5A)_6
L56
BLM18PG181SN1D(180,1.5A)_6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

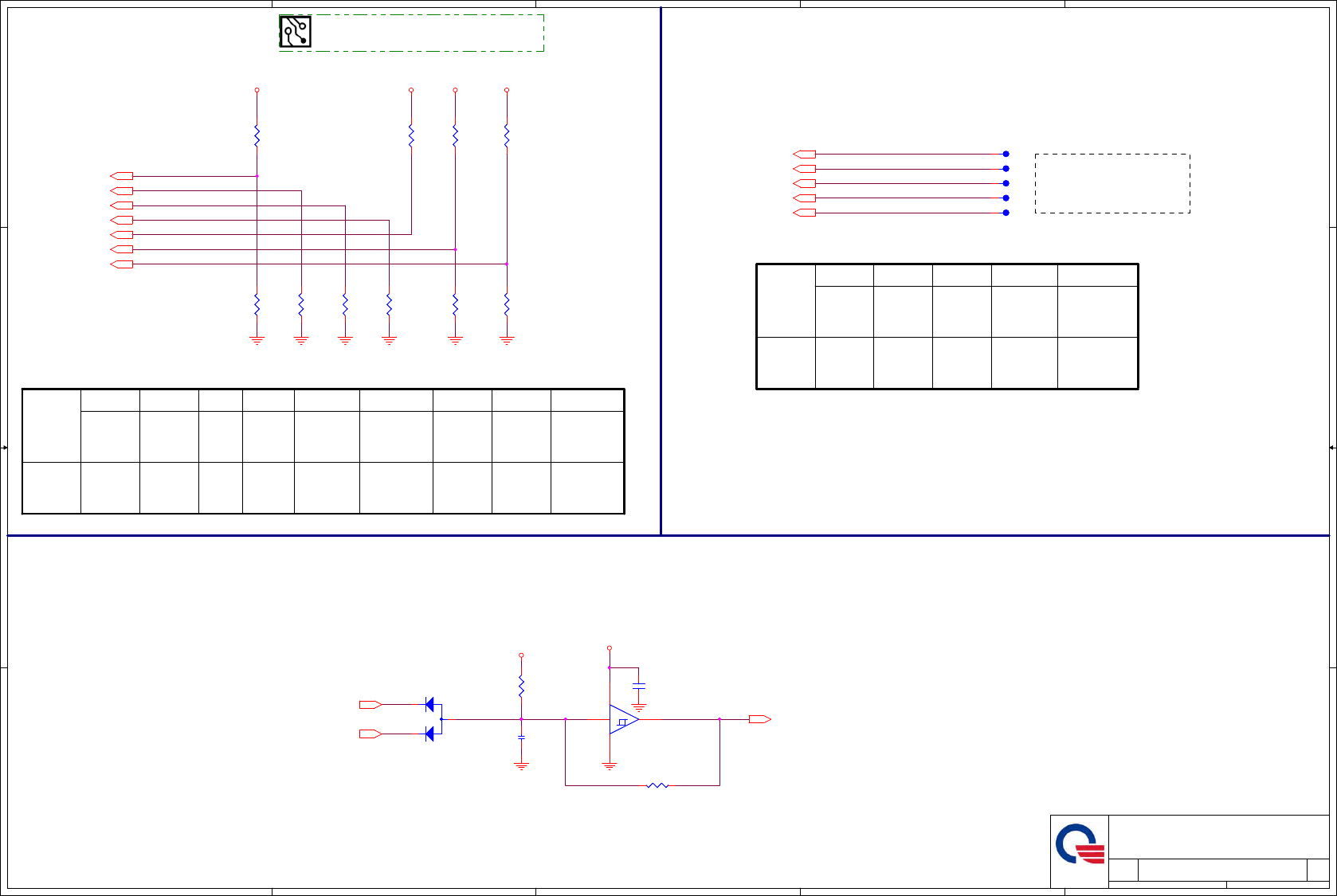

PCI_AD24
PCI_AD27
PCI_AD26
PCI_AD23
PCI_AD25
PCI_CLK1
PCI_CLK3
PCI_CLK4
LPC_CLK0
LPC_CLK1
EC_PWM2
CLK_RTC
PCI_AD267
PCI_AD277
PCI_AD237
PCI_AD247
PCI_AD257
FCH_PWRGD 6
PCI_CLK17
PCI_CLK37
PCI_CLK47
LPC_CLK07
LPC_CLK17
EC_PWM26
CLK_RTC7
ECPWROK4,18,33
CPU_VRM8380_PG38
+3V
+3V
+3V +3VS5 +3VS5 +3VS5
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 STRAP/PWRGD
1A
Friday, November 11, 2011 10 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 STRAP/PWRGD
1A
Friday, November 11, 2011 10 44
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Hudson-M3 STRAP/PWRGD
1A
Friday, November 11, 2011 10 44
Custom
PCI_AD25 PCI_AD24
USE EEPROM
PCIE STRAPS
USE DEFAULT
PCIE STRAPS
DEFAULT
ENABLE PCI
MEM BOOT
ENABLE ILA
AUTORUN
DISABLE ILA
AUTORUN
DEFAULT
USE FC
PLL
USE PCI
PLL
DEFAULT
BYPASS FC
PLL
PULL
HIGH
DEFAULT
BYPASS
PCI PLL
PCI_AD27 PCI_AD26
PULL
LOW
DISABLE PCI
MEM BOOT
DEFAULT
PCI_AD23
DEBUG STRAPS
FCH has 15K Internal Pull Up for PCI_AD[27:23]
--------
--------
LPC_CLK0
DEFAULT
EC_PWM2
PULL
LOW
PULL
HIGH
LPC_CLK1
CLKGEN
ENABLED
DEFAULT
CLKGEN
DISABLED
AMD internal EC
ENABLED
EC
DISABLED
CLK_RTCPCI_CLK1
--------
USE
DEBUG
STRAP
DEFAULT
FORCE
PCIE Gen1
ALLOW
PCIE Gen2
PCI_CLK3 PCI_CLK4
non_Fusion
CLOCK MODE
FUSION
CLOCK MODE
DEFAULT
IGNORE
DEBUG
STRAP
DEFAULT
REQUIRED STRAPS
--------
--------
--------
LPC ROM
DEFAULT
SPI ROM
S5 PLUS MODE
ENABLED
DEFAULT
S5 PLUS MODE
DISABLED
FCH PWRGD
10
STRAPS PINS
OVERLAP COMMON PADS WHERE
POSSIBLE FOR DUAL-OP RESISTORS.
remove reserve pull low resistor
reserve test point only.
R304
10K/F_4
R304
10K/F_4
TP53TP53
R488
10K/F_4
R488
10K/F_4
R305
10K/F_4
R305
10K/F_4 R297
*10K/F_4
R297
*10K/F_4
R275
*2.2K_4
R275
*2.2K_4
TP55TP55
R475
*10K_4
R475
*10K_4 R490
10K/F_4
R490
10K/F_4
C863
*2.2U/6.3V_6
C863
*2.2U/6.3V_6
TP54TP54
TP100TP100
R274
10K/F_4
R274
10K/F_4
R435
10K/F_4
R435
10K/F_4
D22 BAT54AD22 BAT54A
3
2
1
TP56TP56
C861
*0.1U/10V_4
C861
*0.1U/10V_4
U31
*74AUP1G17GW
U31
*74AUP1G17GW
2 4
3 5
R292
2.2K_4
R292
2.2K_4
R474
10K/F_4
R474
10K/F_4
R436 0_4R436 0_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ANX_PWM
FCH_LVDS_HPD
TRAVIS_DDC_CLKEDIDCLK
TRAVIS_DDC_DATAEDIDDATA
TXUOUT1+
TXLOUT1-
INT_eDP_TXP1
ANX_TDO
TXLOUT0-
ANX_TMS
TXUCLKOUT+
DPRX_HPD
TXUOUT1-
INT_eDP_TXN0
CFG_SCL
TRAVIS_DDC_DATA
TRAVIS_RST#
CLK_SEL
TXLCLKOUT-
ANX_TDI TXUOUT2+
INT_eDP_TXP0
R_BIAS
DPRX_HPD
TRAVIS_DDC_CLK
DISP_ON
TXLOUT2+
TXLCLKOUT+
TXUOUT0-
POWER_ON_RESET
TXUCLKOUT-
TXUOUT2-
TXLOUT2-
INT_eDP_TXN1
TXLOUT0+
LVDS_BLON
CFG_SDA
VADJ
TXLOUT1+
ANX_TCK TXUOUT0+
ANX_eDP_AUXP
ANX_eDP_AUXN
CLK_ANX_N
CLK_ANX_P
PWM_VADJ33
APU_BLPWM4
LVDS_BLON 23
DISP_ON 23
TXLCLKOUT+ 23
TXLCLKOUT- 23
TXLOUT2+ 23
TXLOUT2- 23
TXLOUT1+ 23
TXLOUT1- 23
TXLOUT0+ 23
TXLOUT0- 23
DPST_PWM 23INT_eDP_AUXN4 INT_eDP_AUXP4
INT_eDP_TXN14 INT_eDP_TXP14 INT_eDP_TXN04 INT_eDP_TXP04
FCH_LVDS_HPD4
EDIDDATA23
EDIDCLK23
TXUCLKOUT+ 23
TXUCLKOUT- 23
TXUOUT2+ 23
TXUOUT1+ 23
TXUOUT1- 23
TXUOUT0+ 23
TXUOUT0- 23
TXUOUT2- 23
LAN_PCIE_RST#7,29
CLK_ANX_N7 CLK_ANX_P7
+TRAVIS3.3V +TRAVIS1.2V +TRAVIS1.2V+TRAVIS3.3V
+TRAVIS3.3V
+TRAVIS3.3V
+3V
+TRAVIS3.3V
+TRAVIS3.3V
+TRAVIS1.2V
+3V
+1.2V
+3V
+3V+1.5V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ANX3110
1A
Custom
11 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ANX3110
1A
Custom
11 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ANX3110
1A
Custom
11 44Friday, November 11, 2011
11
TEST_EN : internal pull
low
1:scan test mode
0:normal mode
120mA 120mA100mA50mA
That is for debug
only,can let it to
NC
CLK_SEL:
Pull Hi for 100MHZ clk source input
Pull Low for 27MHZ crystal input
TRAVIS_RST#
+TRAVIS1.2V
+TRAVIS3.3V
10ms >=10ms
ANX3110 Power Up Sequence
DPRX_HPD :
It will transfer to
Hi when power enable
150mA
250mA
GPIO_1 & GPIO_2 can
let it to NC from
vendor review
GPIO_0 : Define VAR_BL &
BL_EN & DIGON H/W or S/W
control power up timming
Pull Hi for H/W mode
---chip have defined power
up timing
Pull Low for S/W mode --
APU through DPRX port to
program it
remove level shift
ANALOGIX ANX3110
PV change for brightness issue
TP68TP68
C57
0.01U/25V_4
C57
0.01U/25V_4
C41
0.01U/25V_4
C41
0.01U/25V_4
C60
0.01U/25V_4
C60
0.01U/25V_4
C50
0.1U/10V_4
C50
0.1U/10V_4
Q8
MMBT3904-7-F
Q8
MMBT3904-7-F
2
1 3
C52
0.01U/25V_4
C52
0.01U/25V_4
R41
*0_4
R41
*0_4
TP69TP69
C45
2.2U/6.3V_4
C45
2.2U/6.3V_4 C80
0.1U/10V_4
C80
0.1U/10V_4
R23 10K/F_4R23 10K/F_4
C81
0.1U/10V_4
C81
0.1U/10V_4
C63
2.2U/6.3V_4
C63
2.2U/6.3V_4 C86
0.1U/10V_4
C86
0.1U/10V_4
R38
10K/F_4
R38
10K/F_4
C54
2.2U/6.3V_4
C54
2.2U/6.3V_4
C460.1U/10V_4 C460.1U/10V_4
C87
0.1U/10V_4
C87
0.1U/10V_4
C42
0.1U/10V_4
C42
0.1U/10V_4
R51 *1M/F_4R51 *1M/F_4
R44 *4.7K_4R44 *4.7K_4
R45 *4.7K_4R45 *4.7K_4
R52
12K/F_4
R52
12K/F_4
U7
ANX3110
U7
ANX3110
AVDD33 25
LVDS_L3_N 28
LVDS_L3_P 29
OSC_OUT/100MHZ_N
30 OSC_IN/100MHZ_P
31
DVDD12 32
AVDD33 33
POR
34
LVDS_U0_N 35
LVDS_U0_P 36
LVDS_CLKL_N 26
LVDS_CLKL_P 27
AVDD12 1
AVSS
2
DPRX_LN0_P
3
DPRX_LN0_N
4
AVSS
5
DPRX_LN1_P
6
DPRX_LN1_N
7
AVDD33 8
DVDD12 9
CLK_SEL
10
TEST_EN
11
RESET_L
12
DVDD33 13
DIGON 14
BL_EN 15
GPIO_0
16
GPIO_1
17
GPIO_2
18
LVDS_L0_N 19
LVDS_L0_P 20
LVDS_L1_N 21
LVDS_L1_P 22
LVDS_L2_N 23
LVDS_L2_P 24
LVDS_U1_N 37
LVDS_U1_P 38
AVDD33 39
LVDS_U2_N 40
LVDS_U2_P 41
LVDS_CLKU_N 42
LVDS_CLKU_P 43
LVDS_U3_N 44
LVDS_U3_P 45
DVDD12 46
VAR_BL 47
CPU_VARY_BL
48
DDC_CLK 49
DDC_DATA 50
CFG_SCL 51
CFG_SDA 52
DVDD33 53
TDO
54
TD1
55
TCK
56 TMS
57
DPRX_HPD
58
DVDD12 59
DPRX_AUX_N
60 DPRX_AUX_P
61
AVSS
62
AVDD33 63
R_BIAS
64
GND
65
TP71TP71
R53 *0_8/SR53 *0_8/S
R37 1K/F_4R37 1K/F_4
R39
2.2k_4
R39
2.2k_4
C53
0.1U/10V_4
C53
0.1U/10V_4
TP70TP70
C84
0.01U/25V_4
C84
0.01U/25V_4
C88
2.2U/6.3V_4
C88
2.2U/6.3V_4
R68
1K/F_4
R68
1K/F_4
C62
0.1U/10V_4
C62
0.1U/10V_4
TP73TP73
R281M/F_4 R281M/F_4
R46
100K/F_4
R46
100K/F_4
R27 *0_4/SR27 *0_4/S
TP72TP72
C44
0.1U/10V_4
C44
0.1U/10V_4
C83 0.1U/10V_4C83 0.1U/10V_4
R24 *0_8/SR24 *0_8/S
C82 0.1U/10V_4C82 0.1U/10V_4
R69 0_4R69 0_4
R33 10K/F_4R33 10K/F_4
C61
0.1U/10V_4
C61
0.1U/10V_4
R29 47K_4R29 47K_4
R50 *1M/F_4R50 *1M/F_4
C85
100P/50V_4
C85
100P/50V_4

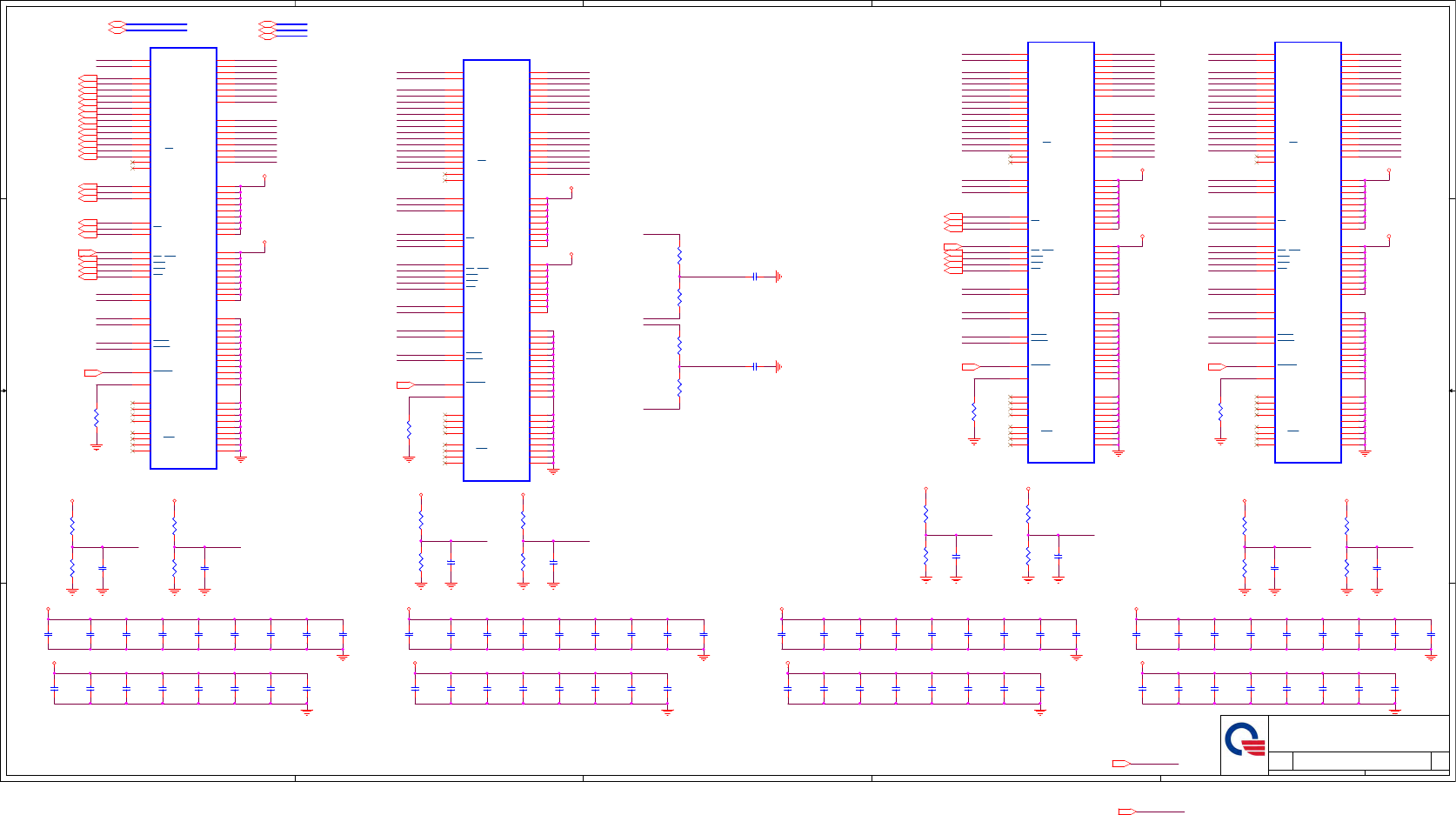

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D

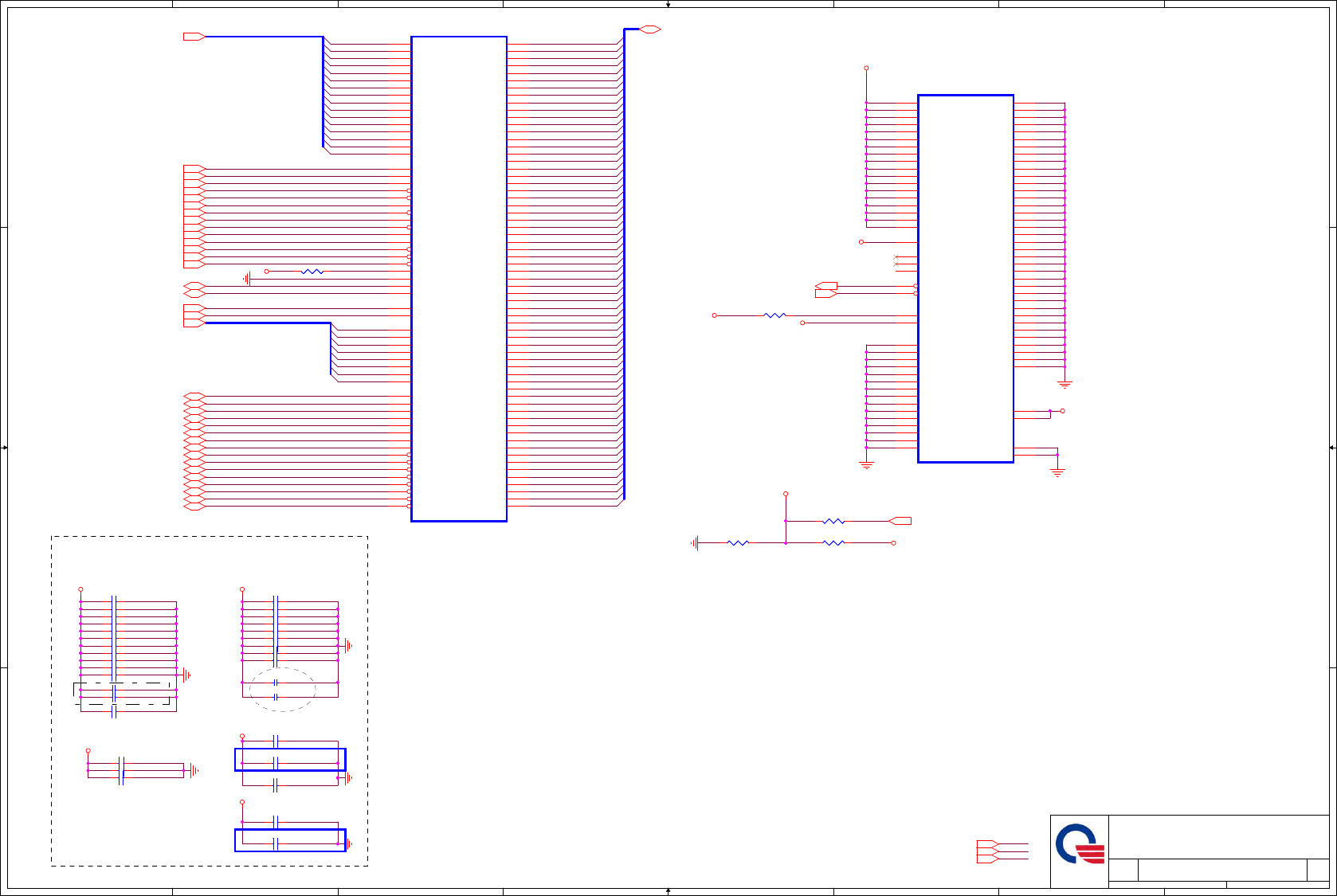

M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
DIMM0_SA0
DIMM0_SA1
+VREF_DQ0
+VREF_CA0
M_A_DQSP1
M_A_DQSP2
M_A_DQSP3
M_A_DQSP4
M_A_DQSP5
M_A_DQSP6
M_A_DQSP7
M_A_DQSP0
M_A_DQSN0
M_A_DQSN1
M_A_DQSN2
M_A_DQSN3
M_A_DQSN4
M_A_DQSN5
M_A_DQSN6
M_A_DQSN7
+VREF_DQ_L +VREF_DQ
M_A_A6
M_A_A5
M_A_A11
M_A_A13
M_A_A7
M_A_A0
M_A_A14
M_A_A1
M_A_A8
M_A_A4
M_A_A9
M_A_A3
M_A_A10
M_A_A2
M_A_A12
M_A_A15
M_A_DM3
M_A_A[15:0]3
M_A_BS#03 M_A_BS#13 M_A_BS#23 M_A_CS#03 M_A_CS#13 M_A_CLKP03 M_A_CLKN03 M_A_CLKP13 M_A_CLKN13 M_A_CKE03 M_A_CKE13 M_A_CAS#3 M_A_RAS#3 M_A_WE#3
M_A_DM[7:0]3
M_A_ODT03 M_A_ODT13
M_A_DQ[0..63] 3
CGCLK_SMB6,13 CGDAT_SMB6,13
+3V2,4,6,8,9,10,11,13,14,18,23,24,25,26,27,28,29,30,31,32,33,41,42,44
+1.5VSUS2,3,4,5,13,40,41,44
+0.75V_DDR_VTT13,40
M_A_RST#3 M_A_EVENT#3
M_A_DQSP03 M_A_DQSP13 M_A_DQSP23 M_A_DQSP33 M_A_DQSP43 M_A_DQSP53 M_A_DQSP63 M_A_DQSP73 M_A_DQSN03 M_A_DQSN13 M_A_DQSN23 M_A_DQSN33 M_A_DQSN43 M_A_DQSN53 M_A_DQSN63 M_A_DQSN73
DDR_VTTREF 3,13,40
+1.5VSUS
+3V
+0.75V_DDR_VTT
+1.5VSUS
+VREF_DQ
+3VS5
+1.5VSUS
+VREF_DQ
+1.5VSUS
+VREF_CA0
+VREF_CA0
+VREF_DQ0
+3V
+1.5VSUS
+VREF_CA0
+0.75V_DDR_VTT
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDR3 DIMM-0
1A
Custom
12 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDR3 DIMM-0
1A
Custom
12 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDR3 DIMM-0
1A
Custom
12 44Friday, November 11, 2011
12
for WiMAX
for WiMAX
Reserved for AMD suggest
H9.2mm
Place these Caps near So-Dimm0.
EMI
EMI
SI , change to 1000P
to meet ref design
C254 *100P/50V_4C254 *100P/50V_4
C126 *0.1U/10V_4C126 *0.1U/10V_4
C365 10U/6.3VS_6C365 10U/6.3VS_6
C92 10U/6.3VS_6C92 10U/6.3VS_6
C67 *0.047U/10V_4C67 *0.047U/10V_4
C237 150P/50V_4
C237 150P/50V_4
C153 0.1U/10V_4C153 0.1U/10V_4
R219
1K/F_4
R219
1K/F_4
C819 150P/50V_4C819 150P/50V_4
C205 150P/50V_4C205 150P/50V_4
C70 *10U/6.3V_8C70 *10U/6.3V_8
C68 1U/6.3V_4C68 1U/6.3V_4
+
-
U17
*OPA343NA/3K
+
-
U17
*OPA343NA/3K
3
41
52
R120 *1K_4R120 *1K_4
C91 *0.047U/10V_4C91 *0.047U/10V_4
C69 *10U/6.3V_8C69 *10U/6.3V_8
C66
*15P/50V_4 C66
*15P/50V_4
C221 0.1U/10V_4C221 0.1U/10V_4
R231 *0_6/SR231 *0_6/S
C347 10U/6.3VS_6C347 10U/6.3VS_6
C341 150P/50V_4C341 150P/50V_4
C480 1000P/50V_4C480 1000P/50V_4
C289 *100P/50V_4C289 *100P/50V_4
C493
*0.47U/6.3V_4
C493
*0.47U/6.3V_4
C65 1U/6.3V_4C65 1U/6.3V_4
C299 0.1U/10V_4C299 0.1U/10V_4
C206 150P/50V_4C206 150P/50V_4
R116 *0_4/SR116 *0_4/S
C472 *0.1U/10V_4C472 *0.1U/10V_4
R246 *0_4R246 *0_4
C236 0.1U/10V_4C236 0.1U/10V_4
R235 0_6R235 0_6
R237 *0_4R237 *0_4
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM6B
DDR3-DIMM2
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM6B
DDR3-DIMM2
VDD1
75
VDD2
76
VDD3
81
VDD4
82
VDD5
87
VDD6
88
VDD7
93
VDD8
94
VDD9
99
VDD10
100
VDD11
105
VDD12
106
VDD13
111
VDD14
112
VDD15
117
VDD16
118
VDD17
123
VDD18
124
VDDSPD
199
NC1
77
NC2
122
NCTEST
125
EVENT#
198
RESET#
30
VREF_DQ
1
VREF_CA
126
VSS1
2
VSS2
3
VSS3
8
VSS4
9
VSS5
13
VSS6
14
VSS7
19
VSS8
20
VSS9
25
VSS10
26
VSS11
31
VSS12
32
VSS13
37
VSS14
38
VSS15
43
VSS16 44
VSS17 48
VSS18 49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26 72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
VTT1 203
VTT2 204
VSS53 205
VSS54 206
C94 1U/6.3V_4C94 1U/6.3V_4
R238 *10_4R238 *10_4
1 2
C157 *0.047U/10V_4C157 *0.047U/10V_4
C123 *0.047U/10V_4C123 *0.047U/10V_4
C305 10U/6.3VS_6C305 10U/6.3VS_6
C270 0.1U/10V_4C270 0.1U/10V_4
C104
*15P/50V_4 C104
*15P/50V_4
R218
1K/F_4
R218
1K/F_4
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM6A
DDR3-DIMM2
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM6A
DDR3-DIMM2
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/AP
107
A11
84
A12/BC#
83
A13
119
A14
80
A15
78
BA0
109
BA1
108
BA2
79
S0#
114
S1#
121
CK0
101
CK0#
103
CK1
102
CK1#
104
CKE0
73
CKE1
74
CAS#
115
RAS#
110
WE#
113
SA0
197
SA1
201
SCL
202
SDA
200
ODT0
116
ODT1
120
DM0
11
DM1
28
DM2
46
DM3
63
DM4
136
DM5
153
DM6
170
DM7
187
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
137
DQS5
154
DQS6
171
DQS7
188
DQS#0
10
DQS#1
27
DQS#2
45
DQS#3
62
DQS#4
135
DQS#5
152
DQS#6
169
DQS#7
186
DQ0 5
DQ1 7
DQ2 15
DQ3 17
DQ4 4
DQ5 6
DQ6 16
DQ7 18
DQ8 21
DQ9 23
DQ10 33
DQ11 35
DQ12 22
DQ13 24
DQ14 34
DQ15 36
DQ16 39
DQ17 41
DQ18 51
DQ19 53
DQ20 40
DQ21 42
DQ22 50
DQ23 52
DQ24 57
DQ25 59
DQ26 67
DQ27 69
DQ28 56
DQ29 58
DQ30 68
DQ31 70
DQ32 129
DQ33 131
DQ34 141
DQ35 143
DQ36 130
DQ37 132
DQ38 140
DQ39 142
DQ40 147
DQ41 149
DQ42 157
DQ43 159
DQ44 146
DQ45 148
DQ46 158
DQ47 160
DQ48 163
DQ49 165
DQ50 175
DQ51 177
DQ52 164
DQ53 166
DQ54 174
DQ55 176
DQ56 181
DQ57 183
DQ58 191
DQ59 193
DQ60 180
DQ61 182
DQ62 192
DQ63 194
R245
*10K/F_4
R245
*10K/F_4
C309 0.1U/10V_4C309 0.1U/10V_4
C479 0.1U/10V_4C479 0.1U/10V_4
C261 10U/6.3VS_6C261 10U/6.3VS_6
R129 *1K_4R129 *1K_4
C165 1000P/50V_4C165 1000P/50V_4
C246 10U/6.3VS_6C246 10U/6.3VS_6
C396 150P/50V_4
C396 150P/50V_4
C276 10U/6.3VS_6C276 10U/6.3VS_6
C301 150P/50V_4
C301 150P/50V_4
C72 1U/6.3V_4C72 1U/6.3V_4
C114 2.2U/6.3V_4C114 2.2U/6.3V_4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
M_B_A4
DIMM1_SA1
M_B_DM2
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_A2
M_B_A3
M_B_DM3
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_A1 M_B_DQ0M_B_A0
M_B_DM4
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_A15
M_B_DQ28
M_B_DQ29
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_A14
M_B_DM5
M_B_DM1
M_B_DQ1
M_B_A13
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_A12
M_B_DM6
M_B_A11
M_B_DQ2
M_B_A10
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
M_B_DM7
M_B_A9
M_B_DQ3
M_B_A8
M_B_DM0
M_B_A7
M_B_A6
M_B_DQ4
DIMM1_SA0
M_B_A5
M_B_DQSP1
M_B_DQSP2
M_B_DQSP3
M_B_DQSP4
M_B_DQSP5
M_B_DQSP6
M_B_DQSP7
M_B_DQSN1
M_B_DQSN2
M_B_DQSN3
M_B_DQSN4
M_B_DQSN5
M_B_DQSN6
M_B_DQSP0
M_B_DQSN7
M_B_DQSN0
+VREF_DQ1
+VREF_CA1
M_B_A[15:0]3
M_B_BS#03 M_B_BS#13 M_B_BS#23 M_B_CS#03 M_B_CS#13 M_B_CLKP03 M_B_CLKN03 M_B_CLKP13 M_B_CLKN13 M_B_CKE03 M_B_CKE13 M_B_CAS#3 M_B_RAS#3 M_B_WE#3
M_B_DM[7:0]3
M_B_ODT03 M_B_ODT13
M_B_DQ[0..63] 3
CGCLK_SMB6,12 CGDAT_SMB6,12
+3V2,4,6,8,9,10,11,12,14,18,23,24,25,26,27,28,29,30,31,32,33,41,42,44
+1.5VSUS2,3,4,5,12,40,41,44
+0.75V_DDR_VTT12,40
M_B_DQSP03 M_B_DQSP13 M_B_DQSP23 M_B_DQSP33 M_B_DQSP43 M_B_DQSP53 M_B_DQSP63 M_B_DQSP73 M_B_DQSN03 M_B_DQSN13 M_B_DQSN23 M_B_DQSN33 M_B_DQSN43 M_B_DQSN53 M_B_DQSN63 M_B_DQSN73
M_B_RST#3 M_B_EVENT#3
DDR_VTTREF 3,12,40
+1.5VSUS
+3V
+0.75V_DDR_VTT
+3V
+VREF_DQ1
+1.5VSUS +0.75V_DDR_VTT
+VREF_CA1
+VREF_DQ
+1.5VSUS
+VREF_CA1
+VREF_CA1
+3V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDR3 DIMM-1
1A
Custom
13 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDR3 DIMM-1
1A
Custom
13 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDR3 DIMM-1
1A
Custom
13 44Friday, November 11, 2011
Place these Caps near So-Dimm1.
13
EMI request
H5.2mm
EMI
SI , change to 1000P
to meet ref design
C74 10U/6.3VS_6C74 10U/6.3VS_6C298 10U/6.3VS_6C298 10U/6.3VS_6
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM5A
DDR3-DIMM1
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM5A
DDR3-DIMM1
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/AP
107
A11
84
A12/BC#
83
A13
119
A14
80
A15
78
BA0
109
BA1
108
BA2
79
S0#
114
S1#
121
CK0
101
CK0#
103
CK1
102
CK1#
104
CKE0
73
CKE1
74
CAS#
115
RAS#
110
WE#
113
SA0
197
SA1
201
SCL
202
SDA
200
ODT0
116
ODT1
120
DM0
11
DM1
28
DM2
46
DM3
63
DM4
136
DM5
153
DM6
170
DM7
187
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
137
DQS5
154
DQS6
171
DQS7
188
DQS#0
10
DQS#1
27
DQS#2
45
DQS#3
62
DQS#4
135
DQS#5
152
DQS#6
169
DQS#7
186
DQ0 5
DQ1 7
DQ2 15
DQ3 17
DQ4 4
DQ5 6
DQ6 16
DQ7 18
DQ8 21
DQ9 23
DQ10 33
DQ11 35
DQ12 22
DQ13 24
DQ14 34
DQ15 36
DQ16 39
DQ17 41
DQ18 51
DQ19 53
DQ20 40
DQ21 42
DQ22 50
DQ23 52
DQ24 57
DQ25 59
DQ26 67
DQ27 69
DQ28 56
DQ29 58
DQ30 68
DQ31 70
DQ32 129
DQ33 131
DQ34 141
DQ35 143
DQ36 130
DQ37 132
DQ38 140
DQ39 142
DQ40 147
DQ41 149
DQ42 157
DQ43 159
DQ44 146
DQ45 148
DQ46 158
DQ47 160
DQ48 163
DQ49 165
DQ50 175
DQ51 177
DQ52 164
DQ53 166
DQ54 174
DQ55 176
DQ56 181
DQ57 183
DQ58 191
DQ59 193
DQ60 180
DQ61 182
DQ62 192
DQ63 194
R122 *1K_4R122 *1K_4
C274 10U/6.3VS_6C274 10U/6.3VS_6
C300 0.1U/10V_4C300 0.1U/10V_4
C102 *0.047U/10V_4C102 *0.047U/10V_4
R232 *0_6/SR232 *0_6/S
C105 2.2U/6.3V_4C105 2.2U/6.3V_4
C381 150P/50V_4C381 150P/50V_4
C199 0.1U/10V_4C199 0.1U/10V_4
C287 10U/6.3VS_6C287 10U/6.3VS_6
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM5B
DDR3-DIMM1
PC2100 DDR3 SDRAM SO-DIMM
(204P)
JDIM5B
DDR3-DIMM1
VDD1
75
VDD2
76
VDD3
81
VDD4
82
VDD5
87
VDD6
88
VDD7
93
VDD8
94
VDD9
99
VDD10
100
VDD11
105
VDD12
106
VDD13
111
VDD14
112
VDD15
117
VDD16
118
VDD17
123
VDD18
124
VDDSPD
199
NC1
77
NC2
122
NCTEST
125
EVENT#
198
RESET#
30
VREF_DQ
1
VREF_CA
126
VSS1
2
VSS2
3
VSS3
8
VSS4
9
VSS5
13
VSS6
14
VSS7
19
VSS8
20
VSS9
25
VSS10
26
VSS11
31
VSS12
32
VSS13
37
VSS14
38
VSS15
43
VSS16 44
VSS17 48
VSS18 49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26 72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
VTT1 203
VTT2 204
VSS53 205
VSS54 206
C71 *10U/6.3V_8C71 *10U/6.3V_8
C107 *0.047U/10V_4C107 *0.047U/10V_4
C73 10U/6.3VS_6C73 10U/6.3VS_6
C308 0.1U/10V_4C308 0.1U/10V_4
C470 0.1U/10V_4C470 0.1U/10V_4
C76 1U/6.3V_4C76 1U/6.3V_4C273 10U/6.3VS_6C273 10U/6.3VS_6
R136 *1K_4R136 *1K_4
C251 0.1U/10V_4C251 0.1U/10V_4
C75 0.1U/10V_4C75 0.1U/10V_4C220 150P/50V_4C220 150P/50V_4
C223 10U/6.3VS_6C223 10U/6.3VS_6
C169 *0.047U/10V_4C169 *0.047U/10V_4
C79 *0.047U/10V_4C79 *0.047U/10V_4
C103 1U/6.3V_4C103 1U/6.3V_4
C99 *0.1U/10V_4C99 *0.1U/10V_4
C101 0.1U/10V_4C101 0.1U/10V_4
C464 1000P/50V_4C464 1000P/50V_4
C188 1000P/50V_4C188 1000P/50V_4
C77 1U/6.3V_4C77 1U/6.3V_4
C384 0.1U/10V_4C384 0.1U/10V_4
R58 4.7K_4R58 4.7K_4
C322 0.1U/10V_4C322 0.1U/10V_4
C78 1U/6.3V_4C78 1U/6.3V_4
C321 10U/6.3VS_6C321 10U/6.3VS_6
C288 0.1U/10V_4C288 0.1U/10V_4
R113 *0_4/SR113 *0_4/S
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PCIE_CALRN
C_PEG_RXN2
C_PEG_RXP6
C_PEG_RXN1
C_PEG_RXP3
C_PEG_RXP2
C_PEG_RXP4
C_PEG_RXN7
C_PEG_RXN3
C_PEG_RXP7
C_PEG_RXN5
C_PEG_RXN6
C_PEG_RXP1
C_PEG_RXN4
C_PEG_RXP5
PEGX_RST#
+1.0V_VGA
+1.8V_VGADGPU_HIN_RST# PEGX_RST#
PCIE_CALRP
CLK_VGA_P
CLK_VGA_N
C_PEG_RXP0
C_PEG_RXN0
CLK_VGA_P7 CLK_VGA_N7
+1.0V_VGA16,18,19,44
+1.8V_VGA15,16,18,19,43
GPU_RST#7
VGA_RSTB6
PEG_TXN22 PEG_TXP22
PEG_TXN62 PEG_TXP62
PEG_TXN52
PEG_TXP42
PEG_TXP52
PEG_TXN42
PEG_TXN72 PEG_TXP72
PEG_TXN12
PEG_TXP02
PEG_TXP12
PEG_TXN02
PEG_TXN32 PEG_TXP32
PEG_RXP6 2
PEG_RXN6 2
PEG_RXP7 2
PEG_RXN7 2
PEG_RXP4 2
PEG_RXN4 2
PEG_RXP2 2
PEG_RXP3 2
PEG_RXN0 2
PEG_RXN2 2
PEG_RXP0 2
PEG_RXN3 2
PEG_RXN1 2
PEG_RXP1 2
PEG_RXP5 2
PEG_RXN5 2
+1.0V_VGA
+3V
+1.0V_VGA
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_PCIE_Interface
1A
Custom
14 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_PCIE_Interface
1A
Custom
14 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_PCIE_Interface
1A
Custom
14 44Monday, November 14, 2011
14
Chelsea Only
Do not install For Thames
Do not install for Chelsea
Install for Thames ONLY
Ra
Rb
Rc
Ra
Rb
Rc
Chelsea Thames
1.69K n/a
n/a 1.27K
1K
Install 2k for Thames
2K
R171 *1.69K/F_4R171 *1.69K/F_4
R173
100K_4
R173
100K_4
C439 0.1U/10V_4C439 0.1U/10V_4
C448 0.1U/10V_4C448 0.1U/10V_4
C406 0.1U/10V_4C406 0.1U/10V_4
C364 0.1U/10V_4C364 0.1U/10V_4
C425 0.1U/10V_4C425 0.1U/10V_4
C429 0.1U/10V_4C429 0.1U/10V_4
C327
0.1U/10V_4
C327
0.1U/10V_4
C409 0.1U/10V_4C409 0.1U/10V_4
C433 0.1U/10V_4C433 0.1U/10V_4
R1151K/F_4 R1151K/F_4 R170 2K/F_4R170 2K/F_4
C436 0.1U/10V_4C436 0.1U/10V_4
PART 1 0F 9
CALIBRATION
CLOCK
PCI EXPRESS INTERFACE
Thames XT_M2
U26A
PART 1 0F 9
CALIBRATION
CLOCK
PCI EXPRESS INTERFACE
Thames XT_M2
U26A
AA30
PERSTB
AH16
TEST_PG
AA36
PCIE_REFCLKN
AB35
PCIE_REFCLKP
E37
PCIE_RX15N
F35
PCIE_RX15P
F37
PCIE_RX14N
G38
PCIE_RX14P
G36
PCIE_RX13N
H35
PCIE_RX13P
H37
PCIE_RX12N
J38
PCIE_RX12P
J36
PCIE_RX11N
K35
PCIE_RX11P
K37
PCIE_RX10N
L38
PCIE_RX10P
L36
PCIE_RX9N
M35
PCIE_RX9P
M37
PCIE_RX8N
N38
PCIE_RX8P
N36
PCIE_RX7N
P35
PCIE_RX7P
P37
PCIE_RX6N
R38
PCIE_RX6P
R36
PCIE_RX5N
T35
PCIE_RX5P
T37
PCIE_RX4N
U38
PCIE_RX4P
U36
PCIE_RX3N
V35
PCIE_RX3P
V37
PCIE_RX2N
W38
PCIE_RX2P
W36
PCIE_RX1N
Y35
PCIE_RX1P
Y37
PCIE_RX0N
AA38
PCIE_RX0P
Y29
PCIE_CALR_RX
Y30
PCIE_CALR_TX
H32
PCIE_TX15N
H33
PCIE_TX15P
K29
PCIE_TX14N
K30
PCIE_TX14P
J32
PCIE_TX13N
J33
PCIE_TX13P
K32
PCIE_TX12N
K33
PCIE_TX12P
L29
PCIE_TX11N
L30
PCIE_TX11P
L32
PCIE_TX10N
L33
PCIE_TX10P
N29
PCIE_TX9N
N30
PCIE_TX9P
N32
PCIE_TX8N
N33
PCIE_TX8P
P29
PCIE_TX7N
P30
PCIE_TX7P
P32
PCIE_TX6N
P33
PCIE_TX6P
T29
PCIE_TX5N
T30
PCIE_TX5P
T32
PCIE_TX4N
T33
PCIE_TX4P
U29
PCIE_TX3N
U30
PCIE_TX3P
U32
PCIE_TX2N
U33
PCIE_TX2P
W32
PCIE_TX1N
W33
PCIE_TX1P
Y32
PCIE_TX0N
Y33
PCIE_TX0P
C419 0.1U/10V_4C419 0.1U/10V_4
C434 0.1U/10V_4C434 0.1U/10V_4
R172 1.27K/F_4R172 1.27K/F_4
C442 0.1U/10V_4C442 0.1U/10V_4
C348 0.1U/10V_4C348 0.1U/10V_4
R179 330_4R179 330_4
U13
MC74VHC1G08DFT2G
U13
MC74VHC1G08DFT2G
2
14
3 5
C404 0.1U/10V_4C404 0.1U/10V_4
C444 0.1U/10V_4C444 0.1U/10V_4
C410 0.1U/10V_4C410 0.1U/10V_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+1.8V_AVDD_Q
GPIO22
GPIO11
GPIO2
GPIO10
GPIO9
GPIO1
+1.8V_TSVDD
GFX_CORE_CNTRL1
GPIO8
+0.6V_VREFG
+VDDD1
HPD3
GPIO22
HDMI_HP2
TEMP_FAIL
GPIO12
GPIO13
GENERICC
GPIO0
GFX_CORE_CNTRL0
GPIO_23_CLKREQb
MEM_ID3
MEM_ID0
MEM_ID2
MEM_ID1
GPIO21
GPIO_23_CLKREQb
+1.8V_VGA
+1.0V_VGA
+3V_DELAY
TEMP_FAIL
GPIO5
GENLK_CLK
GENLK_VSYNC
VGA_ALERT
TESTEN
VSYNC_COM_R
HSYNC_COM_R
GPUT_CLK
GPUT_DATA
GPIO5
GFX_CORE_CNTRL2
GPIO28
DGPU_TMS
DGPU_TRSTB
DGPU_TDI
DGPU_TCK
DGPU_TDO
DGPU_TMS
DGPU_TDI
DGPU_TCK
DGPU_TRSTB
GFX_CORE_CNTRL0
GFX_CORE_CNTRL1
GFX_CORE_CNTRL2
GPIO017 GPIO117
GPIO817
GFX_CORE_CNTRL042
GFX_CORE_CNTRL142
GPIO217
GENERICC17
GPIO917
GPIO1117 GPIO1217 GPIO1317
GPIO2217
+1.8V_VGA16,18,19,43
+1.0V_VGA14,16,18,19,44
+3V_DELAY17,18,42
VGA_ALERT4
PX_EN18
GPU_HSYNC_COM 17
GPU_VSYNC_COM 17
GENLK_CLK17 GENLK_VSYNC17
GPIO2117
GPUT_DATA30 GPUT_CLK30
GFX_CORE_CNTRL242
GPIO2817
GPU_AC_BATT33
+1.8V_VGA
+1.8V_AVDD_Q
+VDDD1
+1.8V_VGA
+1.8V_VGA
+3V_DELAY
+3V_DELAY
+3V_DELAY
+3V_DELAY
+1.8V_VGA
+VDDD1
+1.8V_AVDD_Q
+1.8V_TSVDD
+3V_DELAY
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_Main & GND
1A
Custom
15 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_Main & GND
1A
Custom
15 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_Main & GND
1A
Custom
15 44Friday, November 11, 2011
15
1.8V(8mA TSVDD)
GPIO22(ROMCS#)
3-k external pull up is required
if an external BIOS ROM chip is used.
Must be unconnected if no external
BIOS ROM chip is used
Memory ID
Access to SMBBus ans SDA/SCL is mandatory on all designs
Add test points on SMBBus and SDA/SCL for debug
GPIO29, GPIO30 are NC on Thames
Thames INSTALL, do not install for Chelsea
PS_0 should be tied to GND on Thames
DAC1 Analog Power
AVDD : 1.8V @ 18mA
DAC1 Digital Power.
VDD1DI : 1.8V @ 117mA
Reserve for AMD debug only
Reserve for Power Play
64Mx16 *8, 900Mhz
0101
MEM_ID[3:0] Vendor Type Vendor P/N
0100
0001
0000
0111
0011
0110
0010
128Mx16 *8, 900Mhz
MT41J64M16JT-107G:G
128Mx16 *8, 900Mhz
Micron- G die
Samsung- G die
Hynix- D die
Samsung- C die K4W2G1646C-HC11
H5TQ2G63DFR-11C
Micron- D die MT41J128M16HA-107G:D
128Mx16 *8, 900Mhz K4W1G1646G-BC11
Hynix- D die H5TQ1G63DFR-11C64Mx16 *8, 900Mhz
64Mx16 *8, 900Mhz
GPIO20 GPIO15GPIO16
0
PWRCNTL
0.8V
0.75V
L
VGA CORE
M
1
0
PWRCNTL
0
1
1
PWRCNTL
0
1
0
0.9V
H
0.85V
Thames-XT
0
0
0
0
0 01
1.0V
0.875V
1 1
2 1 0
1000
1001
1010
1011
1100
1101
1110
1111
SI , change to short pad
SI , change to DNI
SI, update P/N for EOD issue
TP76TP76
C284
10U/6.3V_8
C284
10U/6.3V_8
SMBus
PART 2 0F 9
MLPS
BACO
DEBUG
THERMAL
DDC/AUX
DAC1
GENERAL PURPOSE I/O
I2C
MUTI GFX
DPD
DPC
DPB
DPA
Thames XT_M2
U26B
SMBus
PART 2 0F 9
MLPS
BACO
DEBUG
THERMAL
DDC/AUX
DAC1
GENERAL PURPOSE I/O
I2C
MUTI GFX
DPD
DPC
DPB
DPA
Thames XT_M2
U26B
AJ33
TSVSS
AJ32
TSVDD
AL31
TS_A
AK32
GPIO_28_FDO
AG29
DMINUS
AF29
DPLUS
AM24
JTAG_TDO
AL24
JTAG_TMS
AK23
JTAG_TCK
AN23
JTAG_TDI
AM23
JTAG_TRSTB
AD28
TESTEN
AL21
PX_EN
AH13
VREFG
AK24
HPD1
AC30
CEC_1
AH24
GENERICG_HPD6
AH26
GENERICF_HPD5
AJ24
GENERICE_HPD4
AK20
GENERICD
AJ20
GENERICC
AK19
GENERICB
AJ19
GENERICA
AG33
GPIO_30
AG32
GPIO_29
AN13
CLKREQB
AK13
GPIO_22_ROMCSB
AJ14
GPIO_21
AL13
GPIO_20_PWRCNTL_1
AM17
GPIO_19_CTF
AN14
GPIO_18_HPD3
AG30
GPIO_17_THERMAL_INT
AK14
GPIO_16
AM13
GPIO_15_PWRCNTL_0
AM14
GPIO_14_HPD2
AM16
GPIO_13
AL16
GPIO_12
AK16
GPIO_11
AJ16
GPIO_10_ROMSCK
AH15
GPIO_9_ROMSI
AJ13
GPIO_8_ROMSO
AK17
GPIO_7_BLON
AJ17
GPIO_6
AH17
GPIO_5_AC_BATT
AN16
GPIO_2
AH18
GPIO_1
AH20
GPIO_0
AJ26
SDA
AK26
SCL
AH23
SMBDATA
AJ23
SMBCLK
AP12
DVPDATA_23
AU12
DVPDATA_22
AW12
DVPDATA_21
AR12
DVPDATA_20
AT11
DVPDATA_19
AV11
DVPDATA_18
AP10
DVPDATA_17
AU10
DVPDATA_16
AW10
DVPDATA_15
AR10
DVPDATA_14
AT9
DVPDATA_13
AV9
DVPDATA_12
AN7
DVPDATA_11
AV7
DVPDATA_10
AT7
DVPDATA_9
AU6
DVPDATA_8
AW6
DVPDATA_7
AR6
DVPDATA_6
AU5
DVPDATA_5
AW5
DVPDATA_4
AP6
DVPDATA_3
AW3
DVPDATA_2
AU3
DVPDATA_1
AU1
DVPDATA_0
AR1
DVPCLK
AR3
DVPCNTL_2
AW8
DVPCNTL_1
AP8
DVPCNTL_0
AU8
DVPCNTL_MVP_1
AR8
DVPCNTL_MVP_0
AK21
SWAPLOCKB
AJ21
SWAPLOCKA
AC29
GENLK_VSYNC
AD29
GENLK_CLK
AJ31
DDCVGADATA
AJ30
DDCVGACLK
AK29
DDCDATA_AUX6N
AK30
DDCCLK_AUX6P
AM21
DDCDATA_AUX5N
AN21
DDCCLK_AUX5P
AM29
DDCDATA_AUX4N
AL29
DDCCLK_AUX4P
AM30
DDCDATA_AUX3N
AL30
DDCCLK_AUX3P
AM20
AUX2N
AN20
AUX2P
AL19
DDC2DATA
AM19
DDC2CLK
AL27
AUX1N
AM27
AUX1P
AN26
DDC1DATA
AM26
DDC1CLK
AD33
PS_3
AG31
PS_2
AD31
PS_1
AM34
PS_0
AF33
NC_TSVSSQ
AG21
NC#9
AA29
NC#8
AF32
NC#7
AD32
NC#6
AC32
NC#5
AD30
NC#4
AC31
NC#3
U13
NC#2
V13
NC#1
AC34
VSS1DI
AC33
VDD1DI
AE34
AVSSQ
AD34
AVDD
AB34
RSET
AC38
VSYNC
AC36
HSYNC
AE38
AVSSN#3
AF37
B
AD35
AVSSN#2
AE36
G
AD37
AVSSN#1
AD39
R
AR22
TX5M_DPD0N
AT23
TX5P_DPD0P
AV21
TX4M_DPD1N
AU22
TX4P_DPD1P
AR20
TX3M_DPD2N
AT21
TX3P_DPD2P
AT19
TXCDM_DPD3N
AU20
TXCDP_DPD3P
AR16
TX2M_DPC0N
AT17
TX2P_DPC0P
AV15
TX1M_DPC1N
AU16
TX1P_DPC1P
AR14
TX0M_DPC2N
AT15
TX0P_DPC2P
AV13
TXCCM_DPC3N
AU14
TXCCP_DPC3P
AU32
TX5M_DPB0N
AT33
TX5P_DPB0P
AT31
TX4M_DPB1N
AR32
TX4P_DPB1P
AU30
TX3M_DPB2N
AV31
TX3P_DPB2P
AT29
TXCBM_DPB3N
AR30
TXCBP_DPB3P
AR26
TX2M_DPA0N
AT27
TX2P_DPA0P
AV25
TX1M_DPA1N
AU26
TX1P_DPA1P
AR24
TX0M_DPA2N
AT25
TX0P_DPA2P
AV23
TXCAM_DPA3N
AU24
TXCAP_DPA3P
PART 6 0F 9
GND
Thames XT_M2
U26F
PART 6 0F 9
GND
Thames XT_M2
U26F
Y27
GND
Y24
GND
Y22
GND
Y20
GND
Y17
GND
Y15
GND
W6
GND
W2
GND
V26
GND
V23
GND
V21
GND
V18
GND
V16
GND
V11
GND
U6
GND
U27
GND
U24
GND
U22
GND
U20
GND
U2
GND
U17
GND
U15
GND
T26
GND
T23
GND
T21
GND
T18
GND
T16
GND
T13
GND
T11
GND
R6
GND
R27
GND
R24
GND
R22
GND
R20
GND
R2
GND
R17
GND
R15
GND
N6
GND
N26
GND
N23
GND
N21
GND
N2
GND
N18
GND
N16
GND
M24
GND
M22
GND
M17
GND
L6
GND
L24
GND
L22
GND
L2
GND
L17
GND
L11
GND
K7
GND
K14
GND
J8
GND
J6
GND
J27
GND
J2
GND
H9
GND
G6
GND
G2
GND
F9
GND
F7
GND
F33
GND
F31
GND
F29
GND
F27
GND
F25
GND
F23
GND
F21
GND
F19
GND
F17
GND
F15
GND
Y39
PCIE_VSS
Y34
PCIE_VSS
W34
PCIE_VSS
W31
PCIE_VSS
V39
PCIE_VSS
V34
PCIE_VSS
U34
PCIE_VSS
U31
PCIE_VSS
T39
PCIE_VSS
T34
PCIE_VSS
T31
PCIE_VSS
R34
PCIE_VSS
P39
PCIE_VSS
P34
PCIE_VSS
P31
PCIE_VSS
N34
PCIE_VSS
N31
PCIE_VSS
M39
PCIE_VSS
M34
PCIE_VSS
L34
PCIE_VSS
L31
PCIE_VSS
K39
PCIE_VSS
K34
PCIE_VSS
K31
PCIE_VSS
J34
PCIE_VSS
J31
PCIE_VSS
H39
PCIE_VSS
H34
PCIE_VSS
H31
PCIE_VSS
G34
PCIE_VSS
G33
PCIE_VSS
F39
PCIE_VSS
F34
PCIE_VSS
E39
PCIE_VSS
AB39
PCIE_VSS
AW39
VSS_MECH
AW1
VSS_MECH
A39
VSS_MECH
F13
GND
F11
GND
E5
GND
E35
GND
C39
GND
C1
GND
B9
GND
B7
GND
B33
GND
B31
GND
B29
GND
B27
GND
B25
GND
B23
GND
B21
GND
B19
GND
B17
GND
B15
GND
B13
GND
B11
GND
AR5
GND
AP9
GND
AP7
GND
AP11
GND
AN8
GND
AN6
GND
AN30
GND
AN2
GND
AN11
GND
AM9
GND
AM31
GND
AM11
GND
AL8
GND
AL6
GND
AL32
GND
AL26
GND
AL23
GND
AL20
GND
AL2
GND
AL17
GND
AL14
GND
AL11
GND
AK7
GND
AK31
GND
AK11
GND
AJ6
GND
AJ28
GND
AJ2
GND
AJ11
GND
AJ10
GND
AH21
GND
AG9
GND
AG6
GND
AG22
GND
AG20
GND
AG2
GND
AG17
GND
AF21
GND
AF18
GND
AF16
GND
AF10
GND
AE6
GND
AE2
GND
AD9
GND
AD27
GND
AD24
GND
AD22
GND
AD20
GND
AD17
GND
AD15
GND
AC6
GND
AC28
GND
AC26
GND
AC23
GND
AC21
GND
AC2
GND
AC18
GND
AC16
GND
AC13
GND
AC11
GND
AB27
GND
AB24
GND
AB22
GND
AB20
GND
AB17
GND
AB15
GND
AB12
GND
AA6
GND
AA28
GND
AA26
GND
AA23
GND
AA21
GND
AA2
GND
AA18
GND
AA16
GND
A37
GND
A3
GND
R146 10K/F_4R146 10K/F_4
C283
*10U/6.3VS_6
C283
*10U/6.3VS_6
R85 *3.01K/F_4R85 *3.01K/F_4
L26 *0_4/SL26 *0_4/S
TP11TP11
R144 10K/F_4R144 10K/F_4
TP77TP77
C249
0.1U/10V_4
C249
0.1U/10V_4
TP8TP8
TP12TP12
R138 *10K/F_4
R138 *10K/F_4
R127 4.7K_4R127 4.7K_4
TP9TP9
R123 4.7K_4R123 4.7K_4
R360 *10K/F_4R360 *10K/F_4
R121 *0_4R121 *0_4
TP14TP14
R374 499/F_4R374 499/F_4
R125 *10K/F_4
R125 *10K/F_4
R130 249/F_4R130 249/F_4
R114 *10K/F_4
R114 *10K/F_4
TP22TP22
L27
TI160808U121(120,2.5A)
L27
TI160808U121(120,2.5A)
R62 *3.01K/F_4R62 *3.01K/F_4
TP83TP83
R147 10K/F_4R147 10K/F_4
C198 0.1U/10V_4C198 0.1U/10V_4
TP15TP15
R61 *3.01K/F_4R61 *3.01K/F_4
R362 *10K/F_4R362 *10K/F_4
TP78TP78
C280
0.1U/10V_4
C280
0.1U/10V_4
R168 1K/F_4R168 1K/F_4
TP13TP13
L25 *0_4/SL25 *0_4/S
R361 10K/F_4R361 10K/F_4
R63 *3.01K/F_4R63 *3.01K/F_4
R128 499/F_4R128 499/F_4
TP82TP82
R141 4.7K_4R141 4.7K_4
TP79TP79
R166 *5.1K/F_4R166 *5.1K/F_4
R151 4.7K_4R151 4.7K_4
R363 10K/F_4
R363 10K/F_4
R143 10K/F_4R143 10K/F_4
C265
1U/6.3V_4
C265
1U/6.3V_4
TP81TP81
R133 10K/F_4R133 10K/F_4
R372 0_4R372 0_4
TP75TP75
C282
*10U/6.3VS_6
C282
*10U/6.3VS_6
TP7TP7
C281
1U/6.3V_4
C281
1U/6.3V_4
TP74TP74
TP80TP80
C269
1U/6.3V_4
C269
1U/6.3V_4
C264
0.1U/10V_4
C264
0.1U/10V_4
R378 0_4R378 0_4

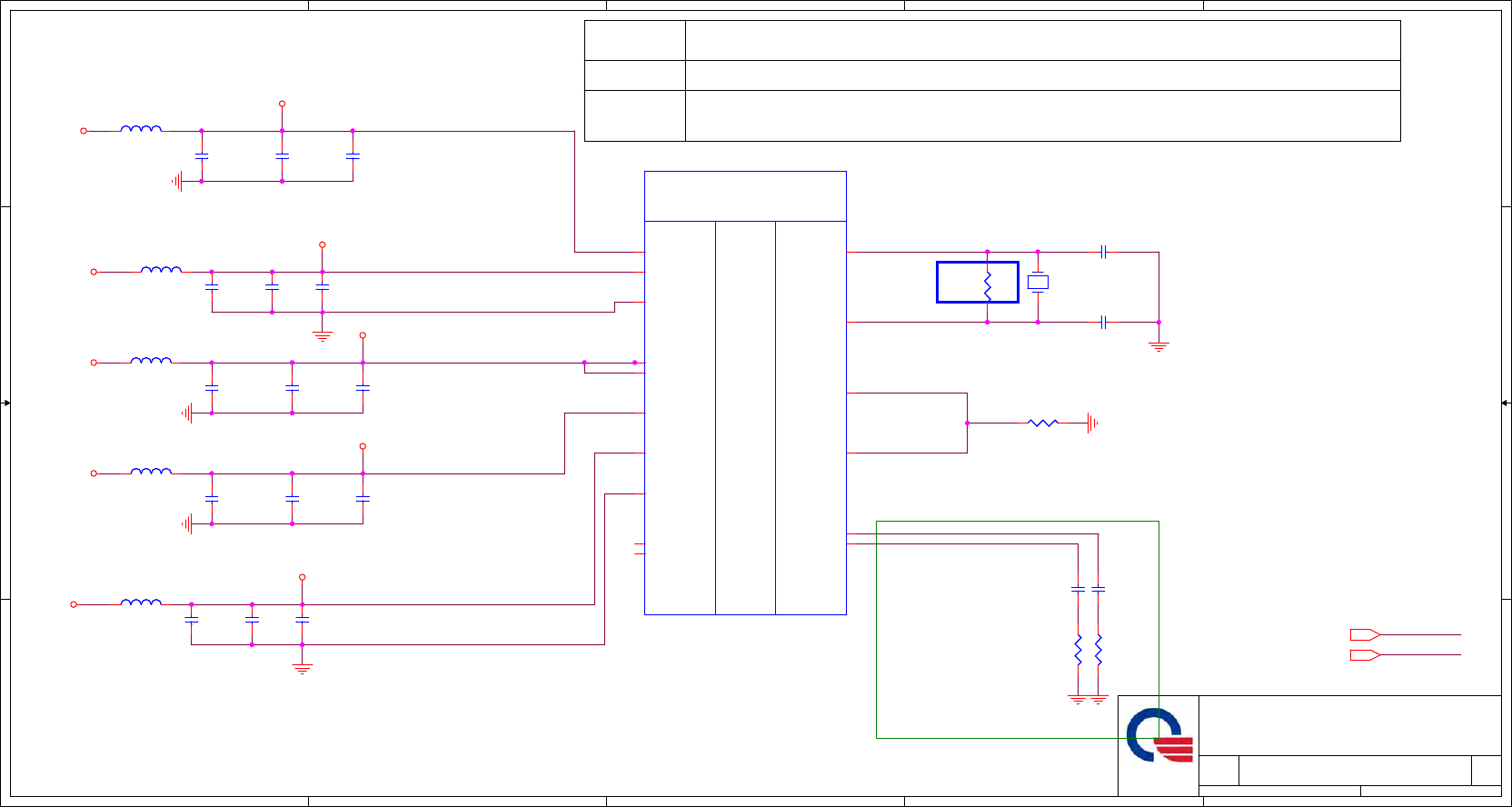

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+1.8V_DPLL_PVDD
+1.0V_DPLL_VDDC
DPLL_PVSS
+1.8V_MPLL_PVDD
+1.8V_SPLL_PVDD
+1.0V_SPLL_VDDC
SPLL_PVSS
CLKTESTA
CLKTESTB
EVGA-XTALI
EVGA-XTALO
+1.8V_VGA
+1.0V_VGA
+1.8V_VGA15,18,19,43
+1.0V_VGA14,18,19,44
+1.8V_VGA
+1.0V_VGA
+1.8V_VGA
+1.8V_VGA
+1.0V_VGA
+1.8V_DPLL_PVDD
+1.0V_DPLL_VDDC
+1.8V_MPLL_PVDD
+1.8V_SPLL_PVDD
+1.0V_SPLL_VDDC
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_XTAL
1A
Custom
16 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_XTAL
1A
Custom
16 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_XTAL
1A
Custom
16 44Monday, November 14, 2011
Display Phase Lock Loop Power
DPLL_PVDD : 1.8V @ 75mA
1.0V(125mA DPLL_VDDC)
DPLL_VDDC : 0.935V @ 140mA
MPLL_PVDD : 1.8V @ 150mA
SPLL_PVDD : 1.8V @ 75mA
1.0V(125mA DPLL_VDDC)
SPLL_VDDC : 0.935V @ 150mA
route 50ohms
single-ended/
100ohms diff and keep short
Debug only,
for clock observation,
if not needed, DNI
Memory Type
27-MHz (± 30 ppm) crystal connected to XTALIN/XTALOUT, or
27-MHz (1.8 V) oscillator connected to XTALIN.
GDDR5
DDR3
27-MHz (3.3 V) oscillator connected to XO_IN, and
100-MHz (3.3 V) oscillator connected to XO_IN2. (By default, this clock should not be
spread since internal spreading is used.)
16
SI , follow Thames design
C163
10U/6.3V_8
C163
10U/6.3V_8
C241
10U/6.3V_8
C241
10U/6.3V_8
C71222P/50V_4 C71222P/50V_4
R156 0_4R156 0_4
PART 9 0F 9
PLLS/XTAL
Thames XT_M2
U26I
PART 9 0F 9
PLLS/XTAL
Thames XT_M2
U26I
AF31
NC_XTAL_PVSS
AF30
NC_XTAL_PVDD
AN10
SPLL_PVSS
AN9
SPLL_VDDC
AM10
SPLL_PVDD
H8
MPLL_PVDD
H7
MPLL_PVDD
AN32
DPLL_PVSS
AN31
DPLL_VDDC
AM32
DPLL_PVDD
AL10
CLKTESTB
AK10
CLKTESTA
AW35
XO_IN2
AW34
XO_IN
AU34
XTALOUT
AV33
XTALIN
Y7
27MHZ
Y7
27MHZ
2 1
C477
0.1U/10V_4
C477
0.1U/10V_4
R135
*51.1/F_4
R135
*51.1/F_4
C168
1U/6.3V_4
C168
1U/6.3V_4
C487
10U/6.3V_8
C487
10U/6.3V_8
R124
*51.1/F_4
R124
*51.1/F_4
L36
BLM18PG471SN1D/1A_6
L36
BLM18PG471SN1D/1A_6
C717
22P/50V_4
C717
22P/50V_4
C214
0.1U/10V_4
C214
0.1U/10V_4
C230
*0.1U/10V_4
C230
*0.1U/10V_4
C233
1U/6.3V_4
C233
1U/6.3V_4
C256
1U/6.3V_4
C256
1U/6.3V_4 C257
0.1U/10V_4
C257
0.1U/10V_4
L21 BLM18PG471SN1D/1A_6L21 BLM18PG471SN1D/1A_6
C189
*0.1U/10V_4
C189
*0.1U/10V_4
C228
10U/6.3V_8
C228
10U/6.3V_8
R368
1M_6
R368
1M_6C215
1U/6.3V_4
C215
1U/6.3V_4
L20 BLM18PG471SN1D/1A_6L20 BLM18PG471SN1D/1A_6
C245
0.1U/10V_4
C245
0.1U/10V_4
L18BLM15BD121SN1D(120,300MA) L18BLM15BD121SN1D(120,300MA)
C179
0.1U/10V_4
C179
0.1U/10V_4
L24
BLM18PG471SN1D/1A_6
L24
BLM18PG471SN1D/1A_6
C213
10U/6.3V_8
C213
10U/6.3V_8
C471
1U/6.3V_4
C471
1U/6.3V_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

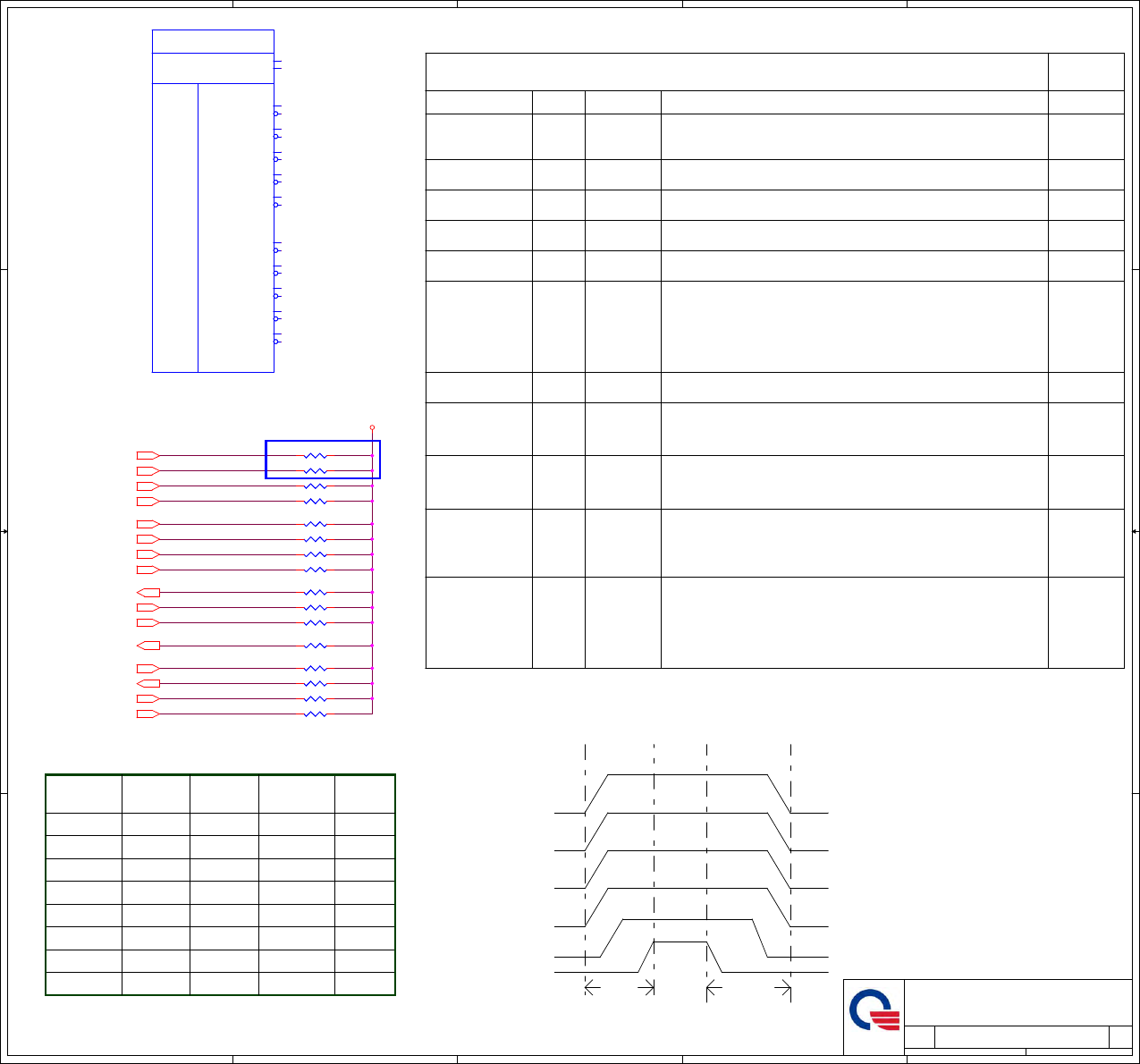

GPIO2
GPIO0
GPIO1
GPIO8
GPIO9
GPIO11
GPIO12
GPIO13
GPIO22
GENERICC15
GPIO215
GPIO015
GPIO815
GPIO115
GPIO2115
GPIO915
GPIO1315
GPIO1215
GPIO1115
GPIO2215
GENLK_VSYNC15
GPU_HSYNC_COM15
GPU_VSYNC_COM15
GENLK_CLK15
GPIO2815
+3V_DELAY
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_LVDS / STRAP
1A
Custom
17 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_LVDS / STRAP
1A
Custom
17 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_LVDS / STRAP
1A
Custom
17 44Friday, November 11, 2011
RESERVED
RESERVED
RESERVED
RESERVED
CEC_DIS
AUD[0]
AUD[1]
BIOS_ROM_EN
ROMIDCFG[2:0]
BIF_GEN3_EN_A
TX_PWRS_ENB
AUD_PORT_CONN_PINSTRAP[2]
AUD_PORT_CONN_PINSTRAP[1]
AUD_PORT_CONN_PINSTRAP[0]
TX_DEEMPH_EN
BIF_VGA DIS
PS_0[4]
GENLK_CLK
GENLK_VSYNC
GPIO21
PS_3[5]
PS_3[4]
PS_0[5]
NA
GPIO8
PS_1[3]
PS_1[2]
NA
NA
NA
GENERICC
NA
001 = 6 usable endpoints
011 = 4 usable endpoints
100 = 3 usable endpoints
000 = all endpoints are usable
010 = 5 usable endpoints
101 = 2 usable endpoints
Reserved
Reserved
0: Disabled
1: Enabled
Reserved
111 = 0 usable endpoints
110 = 1 usable endpoints
GPIO[13:11]
GPIO2
PS_2[4]
PS_2[3]
PS_1[4]
GPIO1
GPIO9
HSYNC
PS_1[1]
PS_1[5]
VSYNC
GPIO0
PS_0[3..1]
GPIO22
NA
NA
11 - Audio for both DP and HDMI
01 - Audio for DP only
00 - No audio function
support this feature.
Enable external BIOS ROM device
0: Disabled
1: Enabled
If GPIO22 = 1, defines ROM type
0: 50% Tx output swing
1: Full Tx output swing
Transmitter Power Savings Enable
0: VGA controller capacity enabled
VGA Control
1: GEN3 supported at power-on
0: GEN3 not supported at power-on
1: Tx de-emphasis enabled
0: Tx de-emphasis disabled
101 - 8Mbit M25P80 (ST)
10 - Audio for DP and HDMI if dongle is detected
HDMI must only be enabled on systems that are legally entitled. It is the
responsibility of the system designer to ensure that the system is entitled to
Enable CEC function. Reserved for Thames/Whistler/Seymour
Reserved (for Thames/Whistler/Seymour only)
IF THESE GPIOS ARE USEED, THEY MUST KEEP LOW AND NOT CONFLICT DURING RESET
STRAPS TO INDICATE THE NUMBER OF AUDIO CAPABLE DISPLAY OUTPUTS
NOTE: ALLOW FOR PULLUP PADS FOR THE RESERVED STRAPS BUT DO NOT INSTALL RESISTOR
101 - 4Mbit M25P40 (ST)
100 - 512Kbit Pm25LV512 (Chingis)
101 - 1Mbit Pm25LV010 (Chingis)
PCIE Transmitter De-emphasis Enable
Serial ROM type or Memory Aperture Size Select
If GPIO22 = 0, defines memory aperture size
100 - 512Kbit M25P05A (ST)
101 - 1Mbit M25P10A (ST)
101 - 2Mbit M25P20 (ST)
1: VGA controller capacity disabled (for multi-GPU)
PCIE Gen3 Enable (NOTE: RESERVED for Thames/Whistler/Seymour)
XXX
X
0
0
0
0
XXX
X
XX
0
1
X
X
1: Disable MLPS, enable GPIO PINSTRAP
STRAPS
ALLOW FOR PULLUP PADS FOR THESE STRAPS AND IF THESE GPIOS ARE USED,
MLPS_DISABLE
THEY MUST NOT CONFLICT DURING RESET
CONFIGURATION STRAPS -- SEE EACH DATABOOK FOR STRAP DETAILS
NA
MLPS
GPIO PIN
GPIO_28_FDO 0: Enable MLPS, disable GPIO PINSTRAP
DESCRIPTION OF DEFAULT SETTINGS
Enable MLPS, NA for Thames/Whistler/Seymour
X
Default Setting
GPIO21
0
64M
512M
0
1
Memory Aperture size
GPIO9 GPIO13 GPIO12 GPIO11
ROMIDCFG0ROMIDCFG1ROMIDCFG2
0
2G
1 1
1 1
11 0
128M
0
11 1
0
0
0
0
0
32M
1G
4G
0
BIOSROM
256M
0
0
0
0
It is a shared pin strap with CONFIG[2:0] if BIOS_ROM_EN is set to 0.
1 0 0
00
1
0
VDDC
VDDCI
+VGA_CORE
VDD_CT
VDDR4
VDDR3
VDDR1+1.5V_VGA
+1.8V_VGA
+3.3V_Delay
20ms20ms
+VGA_CORE
Power Up/Down Sequence
+1.8V_VGA
GPIO28
17
SI , default setting should be PU
from AMD SCH review result
R90 *10K_4R90 *10K_4
PART 7 0F 9
LVDS CONTROL
LVTMDP
Thames XT_M2
U26G
PART 7 0F 9
LVDS CONTROL
LVTMDP
Thames XT_M2
U26G
AP37
TXOUT_L3N
AN36
TXOUT_L3P
AR35
TXOUT_L2N_DPE0N
AP35
TXOUT_L2P_DPE0P
AU39
TXOUT_L1N_DPE1N
AR37
TXOUT_L1P_DPE1P
AU35
TXOUT_L0N_DPE2N
AW37
TXOUT_L0P_DPE2P
AR34
TXCLK_LN_DPE3N
AP34
TXCLK_LP_DPE3P
AG36
TXOUT_U3N
AF35
TXOUT_U3P
AH37
TXOUT_U2N_DPF0N
AG38
TXOUT_U2P_DPF0P
AJ36
TXOUT_U1N_DPF1N
AH35
TXOUT_U1P_DPF1P
AK37
TXOUT_U0N_DPF2N
AJ38
TXOUT_U0P_DPF2P
AL36
TXCLK_UN_DPF3N
AK35
TXCLK_UP_DPF3P
AJ27
DIGON
AK27
VARY_BL
R169 *10K_4R169 *10K_4
R99 *10K_4R99 *10K_4
R98 *10K_4R98 *10K_4
R154 10K_4R154 10K_4
R131 10K_4R131 10K_4
R385 *10K_4R385 *10K_4
R96 10K_4R96 10K_4
R134 10K_4R134 10K_4
R101 *10K_4R101 *10K_4
R126 *10K_4R126 *10K_4
R87 *10K_4R87 *10K_4
R97 *10K_4R97 *10K_4
R139 *10K_4R139 *10K_4
R100 *10K_4R100 *10K_4
R86 *10K_4R86 *10K_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PX_EN#
PX_EN##
PX_EN##
PX_EN#
BACO_EN
PX_MODE
PX_MODE PX_MODE1
+3V_VGA
+1.8V_VGA
+1.0V_VGA
+VGA_CORE
+1.5V_VGA
PX_EN
DGPU_PWROK7,33,42,43,44
ECPWROK4,10,33
+1.8V_VGA15,16,19,43 +1.0V_VGA14,16,19,44
+3V_VGA30,44 +VGA_CORE42
+1.5V_VGA20,21,22,44
PX_MODE144
PX_MODE42
PX_EN15
+1.5V_VGA
+1.8V_VGA
+1.8V_VDD_CT
+3V_VGA
+3V_DELAY
+VDDR4
+1.8V_VGA
+1.0V_VGA
+1.0V_VGA
+VDDCI
+5V
+1.0V_VGA
+VGA_CORE
+3V
+3V
BIF_VDDC
+VGA_CORE
+VGA_CORE
BIF_VDDC
+VGA_CORE
+5V
+PCIE_VDDR2
+PCIE_VDDR1
+1.8V_VGA
BIF_VDDC
+3V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_Power & BACO
1A
Custom
18 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_Power & BACO
1A
Custom
18 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_Power & BACO
1A
Custom
18 44Monday, November 14, 2011
Chelsea uninstall
Thames install
SI , add for voltage drop
Support BACO Mode
1. No BACO Support :BIF_VDDC shorts with VDDC (Install Ra)
PX_EN = 0, for Normal Operation
PX_EN = 1, for BACO MODE
2. BACO Support: Refer to the BACO reference
schematics/Application note for detail about BIF_VDDC Rail
if BACO is Supported (Uninstall Ra)
Note1.
VDDR1 , 1.5V @ 2A, GDDR5 900MHz
I/O power for the
memory interface.
VDDC_CT: 1.8V @250mA
VDDR3 : 3.3V @ 60mA
VDDR4 : 1.8V @ 300mA
PCIe I/O power.
PCIE_VDDR : 1.8V @ 200mA
PCIe Digital Power Supply
PCIE_VDDC : 0.935V @ 1.88A (GEN2.0)
PCIE_VDDC : 0.935V @ 2.5A (GEN3.0)
VDDCI 0.8-1.15V @ 6A
Ra
Rb
18
Rc
Chelsea uninstall
Thames install,
total 440mA
Rd
na
install
Ra Rb
installna
na na
Chelsea-non BACO install
installChelsea-BACO
Thames-non BACO
na
Thames-BACO
na
install
Rc Rd
na
install
na
install
na
Reserve for Drop
SI , change to 0805 size
Dual
Dual
SI , Q12,Q13 change to dual type MOS Q48
SI , Q20,Q38 change to dual type MOS Q62
Dual Dual
Dual
Dual
SI , Q39,Q40 change to dual type MOS Q20
SI , change to short pad
SI , change to DNI
C331
1U/6.3V_4
C331
1U/6.3V_4
C368
1U/6.3V_4
C368
1U/6.3V_4
C747
1U/6.3V_4
C747
1U/6.3V_4
C232
1U/6.3V_4
C232
1U/6.3V_4
C496
1U/6.3V_4
C496
1U/6.3V_4
+
C387
330u_2.5V_3528
+
C387
330u_2.5V_3528
12
C335
1U/6.3V_4
C335
1U/6.3V_4
C334
1U/6.3V_4
C334
1U/6.3V_4 C268
1U/6.3V_4
C268
1U/6.3V_4
C351
1U/6.3V_4
C351
1U/6.3V_4
C555
1U/6.3V_4
C555
1U/6.3V_4
C865
*22U/6.3VS_8
C865
*22U/6.3VS_8
C252
1U/6.3V_4
C252
1U/6.3V_4
C344
10U/6.3VS_6
C344
10U/6.3VS_6
C302
*10U/6.3VS_6
C302
*10U/6.3VS_6
L62 BLM15BD121SN1D(120,300MA)
L62 BLM15BD121SN1D(120,300MA) C754
1U/6.3V_4
C754
1U/6.3V_4
C799
22U/6.3VS_8
C799
22U/6.3VS_8
C820
10U/6.3VS_6
C820
10U/6.3VS_6
Q36
AO3416
Q36
AO3416
3
2
1
C333
1U/6.3V_4
C333
1U/6.3V_4
R411 *0_8
R411 *0_8
C537
*22U/6.3VS_8
C537
*22U/6.3VS_8
C340
10U/6.3VS_6
C340
10U/6.3VS_6
L23 *0_6/SL23 *0_6/S
C197
1U/6.3V_4
C197
1U/6.3V_4
C343
10U/6.3VS_6
C343
10U/6.3VS_6
C800
1U/6.3V_4
C800
1U/6.3V_4
C435
0.1U/10V_4
C435
0.1U/10V_4
C413
1U/6.3V_4
C413
1U/6.3V_4
C247
*10U/6.3VS_6
C247
*10U/6.3VS_6
C377
1U/6.3V_4
C377
1U/6.3V_4
C248
*10U/6.3VS_6
C248
*10U/6.3VS_6
C455
*22U/6.3VS_8
C455
*22U/6.3VS_8
C498
10U/6.3VS_6
C498
10U/6.3VS_6
C263
1U/6.3V_4
C263
1U/6.3V_4
C258
1U/6.3V_4
C258
1U/6.3V_4
C424
10U/6.3VS_6
C424
10U/6.3VS_6
C376
1U/6.3V_4
C376
1U/6.3V_4
C421
1U/6.3V_4
C421
1U/6.3V_4
C393
1U/6.3V_4
C393
1U/6.3V_4
C262
1U/6.3V_4
C262
1U/6.3V_4
DVP
PCIE
PART 5 0F 9
BACO
SENESE
VOLTAGE
CORE I/O
ISOLATED
TRANSLATION
LEVEL
I/O
MEM I/O
CORE
Thames XT_M2
U26E
DVP
PCIE
PART 5 0F 9
BACO
SENESE
VOLTAGE
CORE I/O
ISOLATED
TRANSLATION
LEVEL
I/O
MEM I/O
CORE
Thames XT_M2
U26E
AH29
FB_GND
AG28
FB_VDDCI
AF28
FB_VDDC
AG15
VDDR4
AG13
VDDR4
AG11
VDDR4
AF15
VDDR4
AF13
VDDR4
AF12
VDDR4
AF11
VDDR4
AD12
VDDR4
AG24
VDDR3
AG23
VDDR3
AF24
VDDR3
AF23
VDDR3
AG27
VDD_CT
AG26
VDD_CT
AF27
VDD_CT
AF26
VDD_CT
Y7
VDDR1
Y11
VDDR1
U7
VDDR1
U11
VDDR1
R11
VDDR1
P7
VDDR1
N11
VDDR1
M11
VDDR1
L7
VDDR1
L26
VDDR1
L23
VDDR1
L21
VDDR1
L16
VDDR1
L12
VDDR1
K8
VDDR1
K13
VDDR1
K11
VDDR1
J9
VDDR1
J7
VDDR1
H10
VDDR1
G29
VDDR1
G26
VDDR1
G23
VDDR1
G20
VDDR1
G17
VDDR1
G14
VDDR1
G11
VDDR1
AL9
VDDR1
AK8
VDDR1
AJ7
VDDR1
AG10
VDDR1
AF7
VDDR1
AD11
VDDR1
AC7
VDDR1
Y13
VDDCI
V15
VDDCI
T15
VDDCI
T12
VDDCI
R16
VDDCI
R13
VDDCI
R12
VDDCI
N22
VDDCI
N20
VDDCI
N17
VDDCI
N15
VDDCI
N13
VDDCI
M23
VDDCI
M18
VDDCI
M16
VDDCI
M15
VDDCI
AD16
VDDCI
AD13
VDDCI
AC15
VDDCI
AC12
VDDCI
AB13
VDDCI
AA13
VDDCI
Y28
VDDC
Y26
VDDC
Y23
VDDC
Y21
VDDC
Y18
VDDC
Y16
VDDC
V27
VDDC
V24
VDDC
V22
VDDC
V20
VDDC
V17
VDDC
U26
VDDC
U23
VDDC
U21
VDDC
U18
VDDC
U16
VDDC
T24
VDDC
T22
VDDC
T20
VDDC
T17
VDDC
R26
VDDC
R23
VDDC
R21
VDDC
R18
VDDC
N24
VDDC
M26
VDDC
AH28
VDDC
AH27
VDDC
AH22
VDDC
AG18
VDDC
AG16
VDDC
AF22
VDDC
AF20
VDDC
AF17
VDDC
AD26
VDDC
AD23
VDDC
AD21
VDDC
AD18
VDDC
AC27
VDDC
AC24
VDDC
AC22
VDDC
AC20
VDDC
AC17
VDDC
AB28
VDDC
AB26
VDDC
AB23
VDDC
AB21
VDDC
AB18
VDDC
AB16
VDDC
AA27
VDDC
AA24
VDDC
AA22
VDDC
AA20
VDDC
AA17
VDDC
AA15
VDDC
T27
BIF_VDDC
N27
BIF_VDDC
U28
PCIE_VDDC
T28
PCIE_VDDC
R28
PCIE_VDDC
N28
PCIE_VDDC
M28
PCIE_VDDC
L28
PCIE_VDDC
J30
PCIE_VDDC
J29
PCIE_VDDC
H30
PCIE_VDDC
H29
PCIE_VDDC
G31
PCIE_VDDC
G30
PCIE_VDDC
AB37
PCIE_PVDD
W29
NC_BIF_VDDC
V28
NC_BIF_VDDC
Y31
NC_PCIE_VDDR
W30
NC_PCIE_VDDR
AA34
NC_PCIE_VDDR
AA33
NC_PCIE_VDDR
AA32
NC_PCIE_VDDR
AA31
NC_PCIE_VDDR
C756
1U/6.3V_4
C756
1U/6.3V_4
C330
1U/6.3V_4
C330
1U/6.3V_4
C766
1U/6.3V_4
C766
1U/6.3V_4
C690
*22U/6.3VS_8
C690
*22U/6.3VS_8
L29 *0_4/SL29 *0_4/S
C375
1U/6.3V_4
C375
1U/6.3V_4
C328
0.1U/10V_4
C328
0.1U/10V_4
C395
1U/6.3V_4
C395
1U/6.3V_4
C294
0.1U/10V_4
C294
0.1U/10V_4
C336
1U/6.3V_4
C336
1U/6.3V_4
C417
1U/6.3V_4
C417
1U/6.3V_4
C202
10U/6.3VS_6
C202
10U/6.3VS_6
C200
10U/6.3VS_6
C200
10U/6.3VS_6
C218
1U/6.3V_4
C218
1U/6.3V_4
C416
1U/6.3V_4
C416
1U/6.3V_4
Q48B
2N7002DW-7-F
Q48B
2N7002DW-7-F
2
61
C383
1U/6.3V_4
C383
1U/6.3V_4
C295
1U/6.3V_4
C295
1U/6.3V_4
R410
1K_4
R410
1K_4
C378
1U/6.3V_4
C378
1U/6.3V_4
C391
1U/6.3V_4
C391
1U/6.3V_4
C374
1U/6.3V_4
C374
1U/6.3V_4
C369
1U/6.3V_4
C369
1U/6.3V_4
C394
1U/6.3V_4
C394
1U/6.3V_4
C412
1U/6.3V_4
C412
1U/6.3V_4
R400 *0_8
R400 *0_8
C372
1U/6.3V_4
C372
1U/6.3V_4
+
C767
*330u_2.5V_3528
+
C767
*330u_2.5V_3528
1 2
Q48A
2N7002DW-7-F
Q48A
2N7002DW-7-F
5
34
C296
1U/6.3V_4
C296
1U/6.3V_4
C227
1U/6.3V_4
C227
1U/6.3V_4
C753
1U/6.3V_4
C753
1U/6.3V_4
C240
10U/6.3VS_6
C240
10U/6.3VS_6
R409
1K_4
R409
1K_4
L31
UPB201212T-121Y-N(120,100M,5A)_8
L31
UPB201212T-121Y-N(120,100M,5A)_8
C370
1U/6.3V_4
C370
1U/6.3V_4
C326
1U/6.3V_4
C326
1U/6.3V_4
Q62B
2N7002DW-7-F
Q62B
2N7002DW-7-F
2
61
C212
10U/6.3VS_6
C212
10U/6.3VS_6
C431
10U/6.3VS_6
C431
10U/6.3VS_6
R74 0_4R74 0_4
C866
10U/6.3VS_6
C866
10U/6.3VS_6
R420
100K/F_4
R420
100K/F_4
Q52B
2N7002DW-7-F
Q52B
2N7002DW-7-F
2
61
C225
10U/6.3VS_6
C225
10U/6.3VS_6
C405
1U/6.3V_4
C405
1U/6.3V_4
C390
1U/6.3V_4
C390
1U/6.3V_4
C558
10U/6.3VS_6
C558
10U/6.3VS_6
R70
*10K_4
R70
*10K_4
Q62A
2N7002DW-7-F
Q62A
2N7002DW-7-F
5
34
C231
*10U/6.3VS_6
C231
*10U/6.3VS_6
C291
10U/6.3VS_6
C291
10U/6.3VS_6
Q19 AO3416
Q19 AO3416
3
2
1
C357
1U/6.3V_4
C357
1U/6.3V_4
+
C523
*330u_2.5V_3528
+
C523
*330u_2.5V_3528
1 2
C792
10U/6.3VS_6
C792
10U/6.3VS_6
C371
1U/6.3V_4
C371
1U/6.3V_4
C382
10U/6.3VS_6
C382
10U/6.3VS_6
C420
1U/6.3V_4
C420
1U/6.3V_4
Q37
AO3416
Q37
AO3416
3
2
1
C373
1U/6.3V_4
C373
1U/6.3V_4
C186
1U/6.3V_4
C186
1U/6.3V_4
C414
1U/6.3V_4
C414
1U/6.3V_4
R78
5.1K/F_4
R78
5.1K/F_4
C438
1U/6.3V_4
C438
1U/6.3V_4 C495
1U/6.3V_4
C495
1U/6.3V_4
C741
1U/6.3V_4
C741
1U/6.3V_4
C415
0.1U/10V_4
C415
0.1U/10V_4
C337
1U/6.3V_4
C337
1U/6.3V_4
C329
0.1U/10V_4
C329
0.1U/10V_4
C392
1U/6.3V_4
C392
1U/6.3V_4
C209
1U/6.3V_4
C209
1U/6.3V_4
C427
10U/6.3VS_6
C427
10U/6.3VS_6
C755
0.1U/10V_4
C755
0.1U/10V_4
R60 *0_4R60 *0_4
C411
1U/6.3V_4
C411
1U/6.3V_4
C422
0.1U/10V_4
C422
0.1U/10V_4
C752
10U/6.3VS_6
C752
10U/6.3VS_6
L22 *0_6/SL22 *0_6/S
C556
1U/6.3V_4
C556
1U/6.3V_4
C426
1U/6.3V_4
C426
1U/6.3V_4
C176
*22U/6.3VS_8
C176
*22U/6.3VS_8
C388
1U/6.3V_4
C388
1U/6.3V_4
C386
1U/6.3V_4
C386
1U/6.3V_4
C332
1U/6.3V_4
C332
1U/6.3V_4
C407
1U/6.3V_4
C407
1U/6.3V_4
Q52A
2N7002DW-7-F
Q52A
2N7002DW-7-F
5
34
C801
1U/6.3V_4
C801
1U/6.3V_4
L30
*BLM15BD121SN1D(120,300MA)
L30
*BLM15BD121SN1D(120,300MA)
C297
1U/6.3V_4
C297
1U/6.3V_4
C822
0.1U/10V_4
C822
0.1U/10V_4
L63
BLM15BD121SN1D(120,300MA)
L63
BLM15BD121SN1D(120,300MA)
C867
*22U/6.3VS_8
C867
*22U/6.3VS_8
U28 MC74VHC1G08DFT2GU28 MC74VHC1G08DFT2G
2
14
3 5
Q35
AO3416
Q35
AO3416
3
2
1
C324
10U/6.3VS_6
C324
10U/6.3VS_6
C253
10U/6.3VS_6
C253
10U/6.3VS_6
C389
1U/6.3V_4
C389
1U/6.3V_4
C524
*22U/6.3VS_8
C524
*22U/6.3VS_8
C181
1U/6.3V_4
C181
1U/6.3V_4
C243
1U/6.3V_4
C243
1U/6.3V_4
C751
10U/6.3VS_6
C751
10U/6.3VS_6
C432
10U/6.3VS_6
C432
10U/6.3VS_6
C864
1U/6.3V_4
C864
1U/6.3V_4
C749
*22U/6.3VS_8
C749
*22U/6.3VS_8
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+1.8V_VGA
+1.8V_VGA
+1.8V_VGA
DPAB_VDD18
DPCD_VDD18
DPEF_VDD18
+1.0V_VGA
+1.0V_VGA
+1.0V_VGA
DPAB_VDD10
DPCD_VDD10
DPEF_VDD10
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_DP Powers
1A
Custom
19 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_DP Powers
1A
Custom
19 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_DP Powers
1A
Custom
19 44Monday, November 14, 2011
For Thames a dedicated BEAD is required
for each DPAB_VDD18, DPCD_VDD18, DPEF_VDD18
For Thames a dedicated BEAD is required
for each DPAB_VDD10, DPCD_VDD10, DPEF_VDD10
DP/TMDS/LVDS Transmitter Power
0.935V@222mA per port
DP/TMDS/LVDS Transmitter Power
0.935V@222mA per port
DP/TMDS/LVDS Transmitter Power
0.935V@222mA per port
DP/TMDS/LVDS Transmitter Power
HDMI mode: 1.8V@237mA per port
DP mode: 1.8V@188mA per port
19
SI , change to
short pad
SI , change to DNI
SI , change to
short pad
SI , change to DNI
C728
1U/6.3V_4
C728
1U/6.3V_4
C722
0.1U/10V_4
C722
0.1U/10V_4
R365 150/F_4R365 150/F_4
L59 *0_4/SL59 *0_4/S
C706
1U/6.3V_4
C706
1U/6.3V_4
C278
1U/6.3V_4
C278
1U/6.3V_4
C733
0.1U/10V_4
C733
0.1U/10V_4
R150 150/F_4R150 150/F_4
C709
*10U/6.3VS_6
C709
*10U/6.3VS_6 C700
*10U/6.3VS_6
C700
*10U/6.3VS_6
L57 *0_4/SL57 *0_4/S
L61 *0_4/SL61 *0_4/S
L60*0_4/S L60*0_4/S
C714
0.1U/10V_4
C714
0.1U/10V_4
L28*0_4/S L28*0_4/S
C279
0.1U/10V_4
C279
0.1U/10V_4
C702
0.1U/10V_4
C702
0.1U/10V_4
C721
1U/6.3V_4
C721
1U/6.3V_4
C699
*10U/6.3VS_6
C699
*10U/6.3VS_6
PART 8 0F 9
CALIBRATION
DP_VDDR DP_VDDC
DP GND
Thames XT_M2
U26H
PART 8 0F 9
CALIBRATION
DP_VDDR DP_VDDC
DP GND
Thames XT_M2
U26H
AM39
DPEF_CALR
AW18
DPCD_CALR
AW28
DPAB_CALR
AL38
DP_VDDR
AM37
DP_VDDR
AG34
DP_VDDR
AF34
DP_VDDR
AJ34
DP_VDDR
AH34
DP_VDDR
AV19
DP_VDDR
AU18
DP_VDDR
AP23
DP_VDDR
AP22
DP_VDDR
AP21
DP_VDDR
AP20
DP_VDDR
AV29
DP_VDDR
AU28
DP_VDDR
AP26
DP_VDDR
AP25
DP_VDDR
AP24
DP_VDDR
AN24
DP_VDDR
AM35
DP_VSSR
AN38
DP_VSSR
AR18
DP_VSSR
AV17
DP_VSSR
AR28
DP_VSSR
AV27
DP_VSSR
AL34
DP_VSSR
AK39
DP_VSSR
AH39
DP_VSSR
AF39
DP_VSSR
AU37
DP_VSSR
AR39
DP_VSSR
AP39
DP_VSSR
AN34
DP_VSSR
AW22
DP_VSSR
AW20
DP_VSSR
AP19
DP_VSSR
AP18
DP_VSSR
AN19
DP_VSSR
AW16
DP_VSSR
AW14
DP_VSSR
AP17
DP_VSSR
AP16
DP_VSSR
AN17
DP_VSSR
AW32
DP_VSSR
AW30
DP_VSSR
AP30
DP_VSSR
AP29
DP_VSSR
AN29
DP_VSSR
AW26
DP_VSSR
AW24
DP_VSSR
AP28
DP_VSSR
AP27
DP_VSSR
AN27
DP_VSSR
AK34
DP_VDDC
AK33
DP_VDDC
AM33
DP_VDDC
AL33
DP_VDDC
AP15
DP_VDDC
AP14
DP_VDDC
AT13
DP_VDDC
AP13
DP_VDDC
AP33
DP_VDDC
AN33
DP_VDDC
AP32
DP_VDDC
AP31
DP_VDDC
L58*0_4/S L58*0_4/S
C732
*10U/6.3VS_6
C732
*10U/6.3VS_6
C708
1U/6.3V_4
C708
1U/6.3V_4
C711
1U/6.3V_4
C711
1U/6.3V_4
C277
*10U/6.3VS_6
C277
*10U/6.3VS_6
R377 150/F_4R377 150/F_4
C720
*10U/6.3VS_6
C720
*10U/6.3VS_6
C710
0.1U/10V_4
C710
0.1U/10V_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VMA_ODT1
VMA_BA1
VMA_BA0
VMA_CS1#
VMA_ODT0
VMA_WE1#
VMA_CLK0
VMA_CLK0#
VMA_CLK1
VMA_CLK1#
VMA_MA[13..0]
VMA_CKE0
VMA_WE0#
VMA_CAS1#
VMA_CS0#
VMA_RAS0#
VMA_RAS1#
VMA_CAS0#
VMA_CKE1
VMA_DQ44
VMA_DQ38
VMA_DQ36
VMA_DQ34
VMA_DQ28
VMA_DQ35
VMA_DQ42
VMA_DQ31
VMA_DQ30
VMA_DQ32
VMA_DQ39
VMA_DQ37
VMA_DQ22
VMA_DQ24
VMA_DQ29
VMA_DQ20
VMA_DQ23
VMA_DQ13
VMA_DQ15
VMA_DQ27
VMA_DQ21
VMA_DQ25
VMA_DQ26
VMA_DQ9
VMA_DQ18
VMA_DQ0
VMA_DQ12
VMA_DQ2
VMA_DQ11
VMA_DQ3
VMA_DQ16
VMA_DQ10
MVREFSA
VMA_DQ57
VMA_DQ58
VMA_DQ63
VMA_DQ56
VMA_DQ62
VMA_DQ59
VMA_DQ40
VMA_DQ47
VMA_DQ45
VMA_DQ60
VMA_DQ61
VMA_DQ33
VMA_DQ43
VMA_DQ41
VMA_DQ46
VMA_DQ8
VMA_DQ7
VMA_DQ14
VMA_DQ17
VMA_DQ5
VMA_DQ19
VMA_DQ1
VMA_DQ53
VMA_DQ51
VMA_DQ54
VMA_DQ4
VMA_DQ6
VMA_DQ48
VMA_DQ49
VMA_DQ55
VMA_DQ52
VMA_DQ50
VMA_BA2
VMA_DQ[63..0]
VMA_DM[7..0]
VMA_WDQS[7..0]
VMA_RDQS[7..0]
VMA_MA0
VMA_MA1
VMA_MA2
VMA_MA3
VMA_BA2
VMA_CLK0#
VMA_ODT1
VMA_ODT0
VMA_CAS1#
VMA_DM5
VMA_DM1
VMA_DM3
VMA_DM4
VMA_DM6
VMA_DM7
VMA_DM2
VMA_DM0
VMA_RAS1#
VMA_WDQS4
VMA_WDQS5
VMA_WDQS2
VMA_WDQS1
VMA_WDQS0
VMA_BA1
VMA_WDQS3
VMA_CS1#
VMA_WDQS7
VMA_WDQS6
VMA_RDQS6
VMA_RDQS7
VMA_RDQS0
VMA_RDQS1
VMA_RDQS2
VMA_CLK1#
VMA_CLK0
VMA_RDQS3
VMA_RDQS5
VMA_RDQS4
VMA_RAS0#
VMA_CAS0#
VMA_CLK1
VMA_BA0
VMA_CS0#
VMA_MA4
VMA_MA5
VMA_MA6
VMA_MA7
VMA_MA8
VMA_MA9
VMA_MA10
VMA_MA11
VMA_MA12
VMA_WE1#
VMA_CKE0
VMA_WE0#
VMA_CKE1
VMA_MA13
+1.5V_VGA
VMB_DQ0
VMB_DQ1
VMB_DQ2
VMB_DQ3
VMB_DQ4
VMB_DQ5
VMB_DQ6
VMB_DQ7
VMB_DQ8
VMB_DQ9
VMB_DQ10
VMB_DQ11
VMB_DQ12
VMB_DQ13
VMB_DQ14
VMB_DQ15
VMB_DQ16
VMB_DQ17
VMB_DQ18
VMB_DQ19
VMB_DQ20
VMB_DQ21
VMB_DQ22
VMB_DQ23
VMB_DQ24
VMB_DQ25
VMB_DQ26
VMB_DQ27
VMB_DQ28
VMB_DQ29
VMB_DQ30
VMB_DQ31
VMB_DQ32
VMB_DQ33
VMB_DQ34
VMB_DQ35
VMB_DQ36
VMB_DQ37
VMB_DQ38
VMB_DQ39
VMB_DQ40
VMB_DQ41
VMB_DQ42
VMB_DQ43
VMB_DQ44
VMB_DQ45
VMB_DQ46
VMB_DQ47
VMB_DQ48
VMB_DQ49
VMB_DQ50
VMB_DQ51
VMB_DQ52
VMB_DQ53
VMB_DQ54
VMB_DQ55
VMB_DQ56
VMB_DQ57
VMB_DQ58
VMB_DQ59
VMB_DQ60
VMB_DQ61
VMB_DQ62
VMB_DQ63
MVREFDA MVREFSB
MVREFDB
VMB_MA0
VMB_MA1
VMB_MA2
VMB_MA3
VMB_MA4
VMB_MA5
VMB_MA6
VMB_MA7
VMB_MA8
VMB_MA9
VMB_MA10
VMB_MA11
VMB_MA12
VMB_BA2
VMB_BA0
VMB_BA1
VMB_DM0
VMB_DM1
VMB_DM2
VMB_DM3
VMB_DM4
VMB_DM5
VMB_DM6
VMB_DM7
VMB_RDQS0
VMB_RDQS1
VMB_RDQS2
VMB_RDQS3
VMB_RDQS4
VMB_RDQS5
VMB_RDQS6
VMB_RDQS7
VMB_WDQS0
VMB_WDQS1
VMB_WDQS2
VMB_WDQS3
VMB_WDQS4
VMB_WDQS5
VMB_WDQS6
VMB_WDQS7
VMB_WE1#
VMB_CKE0
VMB_WE0#
VMB_CKE1
VMB_CLK0#
VMB_ODT1
VMB_ODT0
VMB_CAS1#
VMB_RAS1#
VMB_CS1#
VMB_CLK1#
VMB_CLK0
VMB_RAS0#
VMB_CAS0#
VMB_CLK1
VMB_CS0#
VMB_MA13
VMB_DQ[63..0]
VMB_DM[7..0]
VMB_WDQS[7..0]
VMB_RDQS[7..0]
VMB_BA2
VMB_ODT1
VMB_BA1
VMB_BA0
VMB_CS1#
VMB_ODT0
VMB_WE1#
VMB_CLK0
VMB_CLK0#
VMB_CLK1
VMB_CLK1#
VMB_MA[13..0]
VMB_CKE0
VMB_WE0#
VMB_CAS1#
VMB_CS0#
VMB_RAS0#
VMB_RAS1#
VMB_CAS0#
VMB_CKE1
DRAM_RST_MDRAM_RST
DRAM_RST
VMA_CLK021 VMA_CLK0#21
VMA_CLK121 VMA_CLK1#21
VMA_CS0#21
VMA_CS1#21
VMA_MA[13..0]21
VMA_BA021 VMA_BA121
VMA_ODT021 VMA_ODT121
VMA_RAS0#21 VMA_RAS1#21
VMA_CAS0#21 VMA_CAS1#21
VMA_WE0#21 VMA_WE1#21
VMA_CKE021 VMA_CKE121
VMA_BA221
VMA_DQ[63..0]21
VMA_DM[7..0]21
VMA_WDQS[7..0]21
VMA_RDQS[7..0]21
+1.5V_VGA18,21,22,44
VMB_CLK022 VMB_CLK0#22
VMB_CLK122 VMB_CLK1#22
VMB_CS0#22
VMB_CS1#22
VMB_MA[13..0]22
VMB_BA022 VMB_BA122
VMB_ODT022 VMB_ODT122
VMB_RAS0#22 VMB_RAS1#22
VMB_CAS0#22 VMB_CAS1#22
VMB_WE0#22 VMB_WE1#22
VMB_CKE022 VMB_CKE122
VMB_BA222
VMB_DQ[63..0]22
VMB_DM[7..0]22
VMB_WDQS[7..0]22
VMB_RDQS[7..0]22
DRAM_RST_M 21,22
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_MEM_Interface
1A
Custom
20 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_MEM_Interface
1A
Custom
20 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Chelsea_MEM_Interface
1A
Custom
20 44Friday, November 11, 2011
20
PLACE MVREFD DIVIDERS
AND CAPS CLOSE TO ASIC
Ra
Rb
Rc
Rd
Re
Rf
For Chelsea,
Uninstall Ra, Rb, Rc and Rd
For Thames
Install Ra Rb Rc Rd
install 240 Ohm for Re AND Rf
PLACE MVREFD DIVIDERS
AND CAPS CLOSE TO ASIC
C158
1U/6.3V_4
C158
1U/6.3V_4
R228
100/F_4
R228
100/F_4
R194 240/F_4R194 240/F_4
R157
4.99K/F_4
R157
4.99K/F_4
C476
1U/6.3V_4
C476
1U/6.3V_4
PART 4 0F 9
GDDR5/DDR3
MEMORY INTERFACE B
Thames XT_M2
U26D
PART 4 0F 9
GDDR5/DDR3
MEMORY INTERFACE B
Thames XT_M2
U26D
AA12
MVREFSB
Y12
MVREFDB
AP5
DQB1_31
AP1
DQB1_30
AP3
DQB1_29
AN4
DQB1_28
AM1
DQB1_27
AM6
DQB1_26
AL4
DQB1_25
AK1
DQB1_24
AM7
DQB1_23
AM8
DQB1_22
AL7
DQB1_21
AK9
DQB1_20
AG7
DQB1_19
AG8
DQB1_18
AF9
DQB1_17
AF8
DQB1_16
AK3
DQB1_15
AJ4
DQB1_14
AH6
DQB1_13
AH5
DQB1_12
AG4
DQB1_11
AF6
DQB1_10
AF3
DQB1_9
AF1
DQB1_8
AD5
DQB1_7
AD3
DQB1_6
AD1
DQB1_5
AD6
DQB1_4
AB3
DQB1_3
AB1
DQB1_2
AB6
DQB1_1
AA4
DQB1_0
Y5
DQB0_31
Y3
DQB0_30
Y1
DQB0_29
Y6
DQB0_28
V3
DQB0_27
V1
DQB0_26
V6
DQB0_25
U4
DQB0_24
T1
DQB0_23
T6
DQB0_22
R4
DQB0_21
P5
DQB0_20
P6
DQB0_19
N4
DQB0_18
M5
DQB0_17
M3
DQB0_16
M1
DQB0_15
M6
DQB0_14
L4
DQB0_13
K5
DQB0_12
K6
DQB0_11
J4
DQB0_10
H6
DQB0_9
H5
DQB0_8
G4
DQB0_7
F5
DQB0_6
F3
DQB0_5
F1
DQB0_4
E1
DQB0_3
E3
DQB0_2
C3
DQB0_1
C5
DQB0_0
AH11
DRAM_RST
V12
MAB1_9/RSVD
U12
MAB0_9/MAB_15
W8
MAB1_8/MAB_14
T8
MAB0_8/MAB_13
AB11
WEB1B
N10
WEB0B
AA11
CKEB1
U10
CKEB0
AC10
CSB1B_1
AD10
CSB1B_0
L10
CSB0B_1
P10
CSB0B_0
AA10
CASB1B
W10
CASB0B
Y10
RASB1B
T10
RASB0B
AD7
CLKB1B
AD8
CLKB1
L8
CLKB0B
L9
CLKB0
W7
ADBIB1/ODTB1
T7
ADBIB0/ODTB0
AM3
DDBIB1_3/QSB_7B
AJ8
DDBIB1_2/QSB_6B
AH3
DDBIB1_1/QSB_5B
AC4
DDBIB1_0/QSB_4B
W4
DDBIB0_3/QSB_3B
P1
DDBIB0_2/QSB_2B
K1
DDBIB0_1/QSB_1B
G7
DDBIB0_0/QSB_0B
AM5
EDCB1_3/QSB_7
AJ9
EDCB1_2/QSB_6
AH1
EDCB1_1/QSB_5
AB5
EDCB1_0/QSB_4
V5
EDCB0_3/QSB_3
P3
EDCB0_2/QSB_2
K3
EDCB0_1/QSB_1
F6
EDCB0_0/QSB_0
AK5
WCKB1B_1/DQMB_7
AK6
WCKB1_1/DQMB_6
AF5
WCKB1B_0/DQMB_5
AE4
WCKB1_0/DQMB_4
T5
WCKB0B_1/DQMB_3
T3
WCKB0_1/DQMB_2
H1
WCKB0B_0/DQMB_1
H3
WCKB0_0/DQMB_0
AA9
MAB1_7/BA1
Y8
MAB1_6/BA0
AA8
MAB1_5/BA2
AA7
MAB1_4/MAB_12
AC9
MAB1_3/MAB_11
AC8
MAB1_2/MAB_10
W9
MAB1_1/MAB_9
Y9
MAB1_0/MAB_8
U8
MAB0_7/MAB_7
U9
MAB0_6/MAB_6
N9
MAB0_5/MAB_5
N8
MAB0_4/MAB_4
N7
MAB0_3/MAB_3
P9
MAB0_2/MAB_2
T9
MAB0_1/MAB_1
P8
MAB0_0/MAB_0
R149 10_4R149 10_4
C490
1U/6.3V_4
C490
1U/6.3V_4
R196 240/F_4R196 240/F_4
R140 240/F_4R140 240/F_4
R106
100/F_4
R106
100/F_4
R234
40.2/F_4
R234
40.2/F_4
R89 240/F_4R89 240/F_4
R145 51/F_4R145 51/F_4
R198 240/F_4R198 240/F_4
R229
100/F_4
R229
100/F_4
R233
40.2/F_4
R233
40.2/F_4
PART 3 0F 9
GDDR5/DDR3
MEMORY INTERFACE A
Thames XT_M2
U26C
PART 3 0F 9
GDDR5/DDR3
MEMORY INTERFACE A
Thames XT_M2
U26C
AH12
MEM_CALRP2
M27
MEM_CALRP0
M12
NC_MEM_CALRP1
AG12
NC_MEM_CALRN2
N12
NC_MEM_CALRN1
L27
NC_MEM_CALRN0
L20
MVREFSA
L18
MVREFDA
A5
DQA1_31
E6
DQA1_30
C6
DQA1_29
A6
DQA1_28
E8
DQA1_27
C8
DQA1_26
A8
DQA1_25
G9
DQA1_24
K10
DQA1_23
K9
DQA1_22
G8
DQA1_21
G10
DQA1_20
H11
DQA1_19
J13
DQA1_18
H13
DQA1_17
G13
DQA1_16
C10
DQA1_15
A10
DQA1_14
F10
DQA1_13
D11
DQA1_12
A12
DQA1_11
F12
DQA1_10
D13
DQA1_9
F14
DQA1_8
E14
DQA1_7
D15
DQA1_6
F16
DQA1_5
A16
DQA1_4
D17
DQA1_3
F18
DQA1_2
A18
DQA1_1
C18
DQA1_0
E18
DQA0_31
D19
DQA0_30
F20
DQA0_29
A20
DQA0_28
D21
DQA0_27
F22
DQA0_26
A22
DQA0_25
C22
DQA0_24
E24
DQA0_23
A24
DQA0_22
C24
DQA0_21
F24
DQA0_20
A26
DQA0_19
C26
DQA0_18
F26
DQA0_17
D27
DQA0_16
E28
DQA0_15
A28
DQA0_14
C28
DQA0_13
F28
DQA0_12
A30
DQA0_11
C30
DQA0_10
F30
DQA0_9
D31
DQA0_8
E32
DQA0_7
F32
DQA0_6
D33
DQA0_5
G32
DQA0_4
E34
DQA0_3
A35
DQA0_2
C35
DQA0_1
C37
DQA0_0
M20
MAA1_9/RSVD
M21
MAA0_9/MAA_15
J19
MAA1_8/MAA_14
H23
MAA0_8/MAA_13
L15
WEA1B
K26
WEA0B
J20
CKEA1
K21
CKEA0
K16
CSA1B_1
M13
CSA1B_0
K27
CSA0B_1
K24
CSA0B_0
K17
CASA1B
K20
CASA0B
K19
RASA1B
K23
RASA0B
H14
CLKA1B
J14
CLKA1
G27
CLKA0B
H27
CLKA0
G19
ADBIA1/ODTA1
J21
ADBIA0/ODTA0
F8
DDBIA1_3/QSA_7B
J11
DDBIA1_2/QSA_6B
C12
DDBIA1_1/QSA_5B
C16
DDBIA1_0/QSA_4B
C20
DDBIA0_3/QSA_3B
E26
DDBIA0_2/QSA_2B
E30
DDBIA0_1/QSA_1B
A34
DDBIA0_0/QSA_0B
D7
EDCA1_3/QSA_7
J10
EDCA1_2/QSA_6
E12
EDCA1_1/QSA_5
E16
EDCA1_0/QSA_4
E20
EDCA0_3/QSA_3
D25
EDCA0_2/QSA_2
D29
EDCA0_1/QSA_1
C34
EDCA0_0/QSA_0
D9
WCKA1B_1/DQMA_7
E10
WCKA1_1/DQMA_6
A14
WCKA1B_0/DQMA_5
C14
WCKA1_0/DQMA_4
E22
WCKA0B_1/DQMA_3
D23
WCKA0_1/DQMA_2
C32
WCKA0B_0/DQMA_1
A32
WCKA0_0/DQMA_0
H17
MAA1_7/MAA_BA1
J17
MAA1_6/MAA_BA0
H16
MAA1_5/MAA_BA2
J16
MAA1_4/MAA_12
G16
MAA1_3/MAA_11
L13
MAA1_2/MAA_10
H20
MAA1_1/MAA_9
H19
MAA1_0/MAA_8
G21
MAA0_7/MAA_7
H21
MAA0_6/MAA_6
J26
MAA0_5/MAA_5
H26
MAA0_4/MAA_4
J24
MAA0_3/MAA_3
H24
MAA0_2/MAA_2
J23
MAA0_1/MAA_1
G24
MAA0_0/MAA_0
R216
100/F_4
R216
100/F_4
C272
120P/50V_4
C272
120P/50V_4
R105
40.2/F_4
R105
40.2/F_4
R195 240/F_4R195 240/F_4
R215
40.2/F_4
R215
40.2/F_4
C491
1U/6.3V_4
C491
1U/6.3V_4

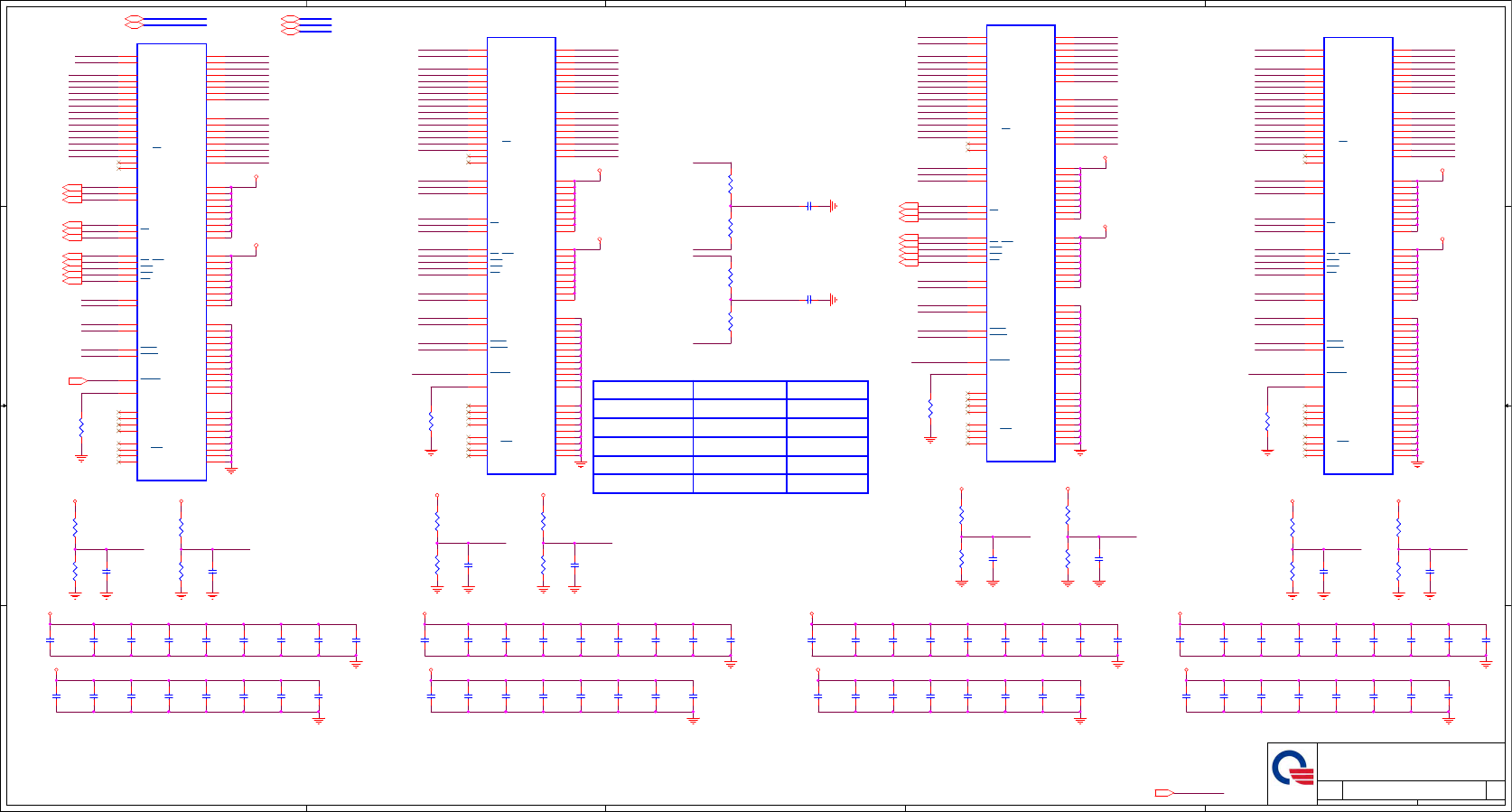

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VMA_BA0
VMA_BA1
VMA_BA2
VMA_ODT1
VMA_CLK1
VMA_CLK1#
VREFC_VMA4
VREFD_VMA4
VMA_CKE1
VMA_WE1#
VMA_CS1#
VMA_CAS1#
VMA_RAS1#
VMA_CKE0
VMA_WE0#
VREFC_VMA1
VREFD_VMA1
VMA_ODT0
VMA_CLK0
VMA_CLK0#
VMA_CS0#
DRAM_RST_M
VREFC_VMA3
VREFD_VMA3
VMA_MA11
VMA_MA9
VMA_MA10
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA1
VMA_MA2
VMA_MA0
VREFC_VMA2
VREFD_VMA2
VMA_MA12
VMA_ZQ1
VMA_CAS0#
VREFC_VMA1
VMA_CLK0_COMM
VMA_CLK0
VMA_CLK0#
VREFD_VMA1 VREFC_VMA2 VREFD_VMA2 VREFC_VMA3 VREFD_VMA3
VREFC_VMA4 VREFD_VMA4
VMA_MA11
VMA_MA9
VMA_MA10
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA1
VMA_MA2
VMA_MA0
VMA_MA12 VMA_MA11
VMA_MA9
VMA_MA10
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA1
VMA_MA2
VMA_MA0
VMA_MA12
VMA_BA0
VMA_BA1
VMA_BA2 VMA_BA0
VMA_BA1
VMA_BA2
VMA_RAS0#
DRAM_RST_M
DRAM_RST_M
VMA_ZQ2
VMA_ZQ3
VMA_ZQ4
VMA_CLK1_COMM
VMA_CLK1
VMA_CLK1#
VMA_MA[13..0]
VMA_MA11
VMA_MA9
VMA_MA10
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA1
VMA_MA2
VMA_MA0
VMA_MA12 VMA_MA13
VMA_MA13
VMA_MA13
VMA_MA13
+1.5V_VGA
VMA_DQ53
VMA_DQ49
VMA_DQ50
VMA_DQ55
VMA_DQ62
VMA_DQ48
VMA_DQ59
VMA_DQ56
VMA_DQ54
VMA_DQ61
VMA_DQ58
VMA_DQ63
VMA_DQ51
VMA_DQ52
VMA_DQ60
VMA_DQ57
VMA_DQ43
VMA_DQ32
VMA_DQ40
VMA_DQ37
VMA_DQ45
VMA_DQ34
VMA_DQ42
VMA_DQ39
VMA_DQ47
VMA_DQ36
VMA_DQ44
VMA_DQ33
VMA_DQ41
VMA_DQ38
VMA_DQ46
VMA_DQ35
VMA_DQ15
VMA_DQ31
VMA_DQ12
VMA_DQ28
VMA_DQ9
VMA_DQ25
VMA_DQ14
VMA_DQ30
VMA_DQ27
VMA_DQ8
VMA_DQ24
VMA_DQ11
VMA_DQ13
VMA_DQ29
VMA_DQ10
VMA_DQ26
VMA_DQ20
VMA_DQ1
VMA_DQ17
VMA_DQ6
VMA_DQ22
VMA_DQ3
VMA_DQ23
VMA_DQ19
VMA_DQ16
VMA_DQ5
VMA_DQ21
VMA_DQ2
VMA_DQ0
VMA_DQ18
VMA_DQ7
VMA_DQ4
VMA_DM2
VMA_DM0
VMA_RDQS2
VMA_RDQS0
VMA_WDQS2
VMA_WDQS0 VMA_WDQS1
VMA_DM3
VMA_DM1
VMA_RDQS3
VMA_RDQS1
VMA_WDQS3
VMA_DM5
VMA_DM4
VMA_RDQS5
VMA_RDQS4
VMA_WDQS5
VMA_WDQS4
VMA_DM6
VMA_DM7
VMA_RDQS6
VMA_RDQS7
VMA_WDQS6
VMA_WDQS7
VMA_WE0#20
VMA_ODT020 VMA_CS0#20 VMA_WE1#20
VMA_CS1#20 VMA_ODT120
VMA_CLK120 VMA_CLK1#20
VMA_CLK0#20 VMA_CLK020
VMA_CKE020
VMA_BA020 VMA_BA120 VMA_BA220
VMA_CKE120
VMA_CAS0#20
VMA_CAS1#20 VMA_RAS1#20
VMA_RAS0#20
DRAM_RST_M20,22
VMA_DQ[63..0]20
VMA_DM[7..0]20 VMA_WDQS[7..0]20 VMA_RDQS[7..0]20
VMA_MA[13..0]20
+1.5V_VGA18,20,22,44
+1.5V_VGA +1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA +1.5V_VGA
+1.5V_VGA
+1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA
+1.5V_VGA +1.5V_VGA
+1.5V_VGA
+1.5V_VGA +1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
VRAM-A (DDR3 BGA96)
3A
Custom
21 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
VRAM-A (DDR3 BGA96)
3A
Custom
21 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
VRAM-A (DDR3 BGA96)
3A
Custom
21 44Friday, November 11, 2011
21
Should be 240
Ohms +-1%
CHANNEL A: 256MB/512MB DDR3
AKD5MGWTW00
SAMSUNG G die
QCI PN
AKD5EGGT500
Hynix B(Vega)
Hynix D(Vega)
Micron G die
AKD5LZWTW02
AKD5EGSTL00
AKD5MGWTW07
B/S PN
AKD5EGGT502
AKD5LZWTW08
AKD5LZSTL10
AKD5MGWT508AKD5MGWT500SAMSUNG C die
Vendor
Should be 240
Ohms +-1%
Should be 240
Ohms +-1%
Should be 240
Ohms +-1%
C540
0.1U/10V_4
C540
0.1U/10V_4 C847
0.1U/10V_4
C847
0.1U/10V_4
C853
0.1U/10V_4
C853
0.1U/10V_4
C842
1U/6.3V_4
C842
1U/6.3V_4
C840
0.1U/10V_4
C840
0.1U/10V_4 C859
0.1U/10V_4
C859
0.1U/10V_4
C503
0.1U/10V_4
C503
0.1U/10V_4
100-BALL
SDRAM DDR3
U21
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U21
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
C549
1U/6.3V_4
C549
1U/6.3V_4 C528
1U/6.3V_4
C528
1U/6.3V_4
C837
0.1U/10V_4
C837
0.1U/10V_4
R433
4.99K/F_4
R433
4.99K/F_4
C519
1U/6.3V_4
C519
1U/6.3V_4
C850
0.1U/10V_4
C850
0.1U/10V_4 C844
0.1U/10V_4
C844
0.1U/10V_4
C521
1U/6.3V_4
C521
1U/6.3V_4 C855
1U/6.3V_4
C855
1U/6.3V_4
C511
0.1U/10V_4
C511
0.1U/10V_4
R257
4.99K/F_4
R257
4.99K/F_4
C551
1U/6.3V_4
C551
1U/6.3V_4
C824
1U/6.3V_4
C824
1U/6.3V_4
R253
243/F_4
R253
243/F_4
C839
1U/6.3V_4
C839
1U/6.3V_4 C505
1U/6.3V_4
C505
1U/6.3V_4 C852
1U/6.3V_4
C852
1U/6.3V_4
C862
10U/6.3VS_6
C862
10U/6.3VS_6
C520
1U/6.3V_4
C520
1U/6.3V_4 C533
1U/6.3V_4
C533
1U/6.3V_4
C535
0.1U/10V_4
C535
0.1U/10V_4 C526
0.1U/10V_4
C526
0.1U/10V_4
C834
1U/6.3V_4
C834
1U/6.3V_4
C832
0.01U/25V_4
C832
0.01U/25V_4
C522
1U/6.3V_4
C522
1U/6.3V_4 C554
10U/6.3VS_6
C554
10U/6.3VS_6 C857
1U/6.3V_4
C857
1U/6.3V_4
C843
0.1U/10V_4
C843
0.1U/10V_4
R425
56.2/F_4
R425
56.2/F_4
C860
1U/6.3V_4
C860
1U/6.3V_4
C531
0.1U/10V_4
C531
0.1U/10V_4
C836
0.1U/10V_4
C836
0.1U/10V_4
C550
0.1U/10V_4
C550
0.1U/10V_4 C506
0.1U/10V_4
C506
0.1U/10V_4
R423
4.99K/F_4
R423
4.99K/F_4
C552
1U/6.3V_4
C552
1U/6.3V_4
C530
0.01U/25V_4
C530
0.01U/25V_4
R422
4.99K/F_4
R422
4.99K/F_4
R427
4.99K/F_4
R427
4.99K/F_4
C548
0.1U/10V_4
C548
0.1U/10V_4 C513
0.1U/10V_4
C513
0.1U/10V_4
C838
0.1U/10V_4
C838
0.1U/10V_4
R264
56.2/F_4
R264
56.2/F_4
C846
1U/6.3V_4
C846
1U/6.3V_4
C536
0.1U/10V_4
C536
0.1U/10V_4
R434
4.99K/F_4
R434
4.99K/F_4
C825
1U/6.3V_4
C825
1U/6.3V_4
C525
0.1U/10V_4
C525
0.1U/10V_4
C508
0.1U/10V_4
C508
0.1U/10V_4
R421
4.99K/F_4
R421
4.99K/F_4
R265
56.2/F_4
R265
56.2/F_4
R431
4.99K/F_4
R431
4.99K/F_4
R424
243/F_4
R424
243/F_4
R258
4.99K/F_4
R258
4.99K/F_4
C553
0.1U/10V_4
C553
0.1U/10V_4
R255
4.99K/F_4
R255
4.99K/F_4
R428
56.2/F_4
R428
56.2/F_4
C541
0.1U/10V_4
C541
0.1U/10V_4 C828
0.1U/10V_4
C828
0.1U/10V_4
R261
4.99K/F_4
R261
4.99K/F_4
C514
1U/6.3V_4
C514
1U/6.3V_4
C841
0.1U/10V_4
C841
0.1U/10V_4
C845
1U/6.3V_4
C845
1U/6.3V_4
R252
4.99K/F_4
R252
4.99K/F_4
C829
1U/6.3V_4
C829
1U/6.3V_4
R430
4.99K/F_4
R430
4.99K/F_4
C512
0.1U/10V_4
C512
0.1U/10V_4
C499
1U/6.3V_4
C499
1U/6.3V_4
C831
0.1U/10V_4
C831
0.1U/10V_4
C858
0.1U/10V_4
C858
0.1U/10V_4
C830
0.1U/10V_4
C830
0.1U/10V_4
100-BALL
SDRAM DDR3
U29
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U29
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
C516
0.1U/10V_4
C516
0.1U/10V_4
R256
4.99K/F_4
R256
4.99K/F_4
C538
0.1U/10V_4
C538
0.1U/10V_4
R426
4.99K/F_4
R426
4.99K/F_4
C546
0.1U/10V_4
C546
0.1U/10V_4
C835
1U/6.3V_4
C835
1U/6.3V_4
C851
10U/6.3VS_6
C851
10U/6.3VS_6
C856
0.1U/10V_4
C856
0.1U/10V_4
R432
243/F_4
R432
243/F_4
C510
1U/6.3V_4
C510
1U/6.3V_4
C507
0.1U/10V_4
C507
0.1U/10V_4
C502
1U/6.3V_4
C502
1U/6.3V_4
C544
0.1U/10V_4
C544
0.1U/10V_4
R248
243/F_4
R248
243/F_4
C515
1U/6.3V_4
C515
1U/6.3V_4
100-BALL
SDRAM DDR3
U30
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U30
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
C826
1U/6.3V_4
C826
1U/6.3V_4
R429
4.99K/F_4
R429
4.99K/F_4
100-BALL
SDRAM DDR3
U22
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U22
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
C529
1U/6.3V_4
C529
1U/6.3V_4
C504
1U/6.3V_4
C504
1U/6.3V_4 C827
1U/6.3V_4
C827
1U/6.3V_4
C849
0.1U/10V_4
C849
0.1U/10V_4 C547
0.1U/10V_4
C547
0.1U/10V_4
C833
0.1U/10V_4
C833
0.1U/10V_4
C542
10U/6.3VS_6
C542
10U/6.3VS_6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VMB_ODT1
VMB_MA11
VMB_MA9
VMB_MA10
VMB_MA8
VMB_MA7
VMB_MA6
VMB_MA3
VMB_MA4
VMB_MA5
VMB_MA1
VMB_MA2
VMB_MA0
VREFC_VMB2
VREFD_VMB2
VMB_MA12
VMB_ZQ1
VMB_CAS0#
VMB_RAS0#
VMB_ZQ2
VMB_ZQ3 VMB_ZQ4
VMB_MA13
VMB_MA11
VMB_MA9
VMB_MA10
VMB_MA8
VMB_MA7
VMB_MA6
VMB_MA3
VMB_MA4
VMB_MA5
VMB_MA1
VMB_MA2
VMB_MA0
VMB_MA12
VMB_BA0
VMB_BA1
VMB_BA2
VMB_MA13
VMB_MA11
VMB_MA9
VMB_MA10
VMB_MA8
VMB_MA7
VMB_MA6
VMB_MA3
VMB_MA4
VMB_MA5
VMB_MA1
VMB_MA2
VMB_MA0
VMB_MA12
VMB_BA0
VMB_BA1
VMB_BA2
VMB_BA0
VMB_BA1
VMB_BA2
VMB_ODT1
VMB_CLK1
VMB_CLK1#
VREFC_VMB4
VREFD_VMB4
VMB_CKE1
VMB_WE1#
VMB_CS1#
VMB_CAS1#
VMB_RAS1#
VMB_ODT0 VMB_CKE0
VMB_WE0#
VREFC_VMB1
VREFD_VMB1
VMB_ODT0
VMB_CLK0
VMB_CLK0#
VMB_CS0#
VMB_MA13
VREFC_VMB3
VREFD_VMB3
VREFC_VMB4 VREFD_VMB4
VREFC_VMB2 VREFD_VMB2
VREFC_VMB1
+1.5V_VGA
VREFD_VMB1
VREFC_VMB3 VREFD_VMB3
VMB_CLK1_COMM
VMB_CLK1
VMB_CLK1#
VMB_CLK0_COMM
VMB_CLK0
VMB_CLK0#
+1.5V_VGA
VMB_MA[13..0]
VMB_DQ18
VMB_DQ23
VMB_DQ1
VMB_DQ20
VMB_DQ17
VMB_DQ4
VMB_DQ6
VMB_DQ7
VMB_DQ3
VMB_DQ22
VMB_DQ0
VMB_DQ19
VMB_DQ16
VMB_DQ5
VMB_DQ2
VMB_DQ21
VMB_DQ26
VMB_DQ15
VMB_DQ31
VMB_DQ12
VMB_DQ28
VMB_DQ9
VMB_DQ25
VMB_DQ14
VMB_DQ30
VMB_DQ27
VMB_DQ8
VMB_DQ24
VMB_DQ13
VMB_DQ11
VMB_DQ29
VMB_DQ10
VMB_DQ41
VMB_DQ58
VMB_DQ46
VMB_DQ43
VMB_DQ40
VMB_DQ56
VMB_DQ45
VMB_DQ42
VMB_DQ60
VMB_DQ57
VMB_DQ61
VMB_DQ63
VMB_DQ59
VMB_DQ62
VMB_DQ47
VMB_DQ44
VMB_DQ49
VMB_DQ54
VMB_DQ37
VMB_DQ51
VMB_DQ33
VMB_DQ48
VMB_DQ53
VMB_DQ36
VMB_DQ35
VMB_DQ38
VMB_DQ32
VMB_DQ55
VMB_DQ39
VMB_DQ52
VMB_DQ50
VMB_DQ34
VMB_WDQS0
VMB_RDQS2
VMB_DM0
VMB_WDQS2
VMB_RDQS0
VMB_DM2
VMB_RDQS1
VMB_WDQS3
VMB_WDQS1
VMB_DM3
VMB_DM1
VMB_RDQS3
VMB_RDQS5
VMB_WDQS5
VMB_RDQS7
VMB_WDQS7
VMB_DM7
VMB_DM5
VMB_RDQS6
VMB_WDQS6
VMB_DM4
VMB_RDQS4
VMB_WDQS4
VMB_DM6
VMB_ODT020
VMB_CKE120
VMB_CAS0#20 VMB_CAS1#20 VMB_RAS1#20
VMB_RAS0#20
VMB_WE0#20
VMB_CS0#20
VMB_WE1#20
VMB_CS1#20
VMB_CLK120 VMB_CLK1#20
VMB_CLK0#20 VMB_CLK020
VMB_CKE020
VMB_BA120
VMB_MA120 VMB_MA220 VMB_MA320 VMB_MA420
VMB_MA020
VMB_MA520 VMB_MA620 VMB_MA720 VMB_MA820 VMB_MA920 VMB_MA1020 VMB_MA1120 VMB_MA1220
VMB_BA220
VMB_BA020
VMB_ODT120
VMB_MA1320
+1.5V_VGA18,20,21,44
+1.5V_VGA18,20,21,44
VMB_DQ[63..0]20
VMB_DM[7..0]20 VMB_WDQS[7..0]20 VMB_RDQS[7..0]20
VMB_MA[13..0]20
DRAM_RST_M20,21
DRAM_RST_M20,21
DRAM_RST_M20,21 DRAM_RST_M20,21
+1.5V_VGA
+1.5V_VGA +1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA +1.5V_VGA
+1.5V_VGA+1.5V_VGA
+1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA
+1.5V_VGA +1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
+1.5V_VGA
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
VRAM-B (DDR3 BGA96)
3A
Custom
22 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
VRAM-B (DDR3 BGA96)
3A
Custom
22 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
VRAM-B (DDR3 BGA96)
3A
Custom
22 44Friday, November 11, 2011
Should be 240
Ohms +-1%
22
Should be 240
Ohms +-1%
CHANNEL B: 256MB/512MB DDR3
Should be 240
Ohms +-1%
Should be 240
Ohms +-1%
C814
0.1U/10V_4
C814
0.1U/10V_4
C810
1U/6.3V_4
C810
1U/6.3V_4 C785
1U/6.3V_4
C785
1U/6.3V_4
C319
1U/6.3V_4
C319
1U/6.3V_4
C735
0.1U/10V_4
C735
0.1U/10V_4
R389
4.99K/F_4
R389
4.99K/F_4
R176
4.99K/F_4
R176
4.99K/F_4
C816
1U/6.3V_4
C816
1U/6.3V_4 C292
1U/6.3V_4
C292
1U/6.3V_4
C692
1U/6.3V_4
C692
1U/6.3V_4
C811
1U/6.3V_4
C811
1U/6.3V_4
C696
0.01U/25V_4
C696
0.01U/25V_4
C178
10U/6.3VS_6
C178
10U/6.3VS_6 C320
1U/6.3V_4
C320
1U/6.3V_4
R390
4.99K/F_4
R390
4.99K/F_4
C174
0.1U/10V_4
C174
0.1U/10V_4
C774
0.1U/10V_4
C774
0.1U/10V_4
100-BALL
SDRAM DDR3
U12
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U12
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
R419
4.99K/F_4
R419
4.99K/F_4
C361
0.1U/10V_4
C361
0.1U/10V_4 C312
0.1U/10V_4
C312
0.1U/10V_4
C744
1U/6.3V_4
C744
1U/6.3V_4
R205
56.2/F_4
R205
56.2/F_4
C813
1U/6.3V_4
C813
1U/6.3V_4
C743
0.1U/10V_4
C743
0.1U/10V_4
C697
0.1U/10V_4
C697
0.1U/10V_4
C694
0.1U/10V_4
C694
0.1U/10V_4
R353
4.99K/F_4
R353
4.99K/F_4
C456
0.1U/10V_4
C456
0.1U/10V_4
R203
243/F_4
R203
243/F_4
R350
56.2/F_4
R350
56.2/F_4
C734
0.1U/10V_4
C734
0.1U/10V_4
100-BALL
SDRAM DDR3
U27
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U27
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
R181
4.99K/F_4
R181
4.99K/F_4
C740
0.1U/10V_4
C740
0.1U/10V_4
C716
1U/6.3V_4
C716
1U/6.3V_4
C358
0.1U/10V_4
C358
0.1U/10V_4
C693
0.1U/10V_4
C693
0.1U/10V_4
C317
0.1U/10V_4
C317
0.1U/10V_4 C172
0.1U/10V_4
C172
0.1U/10V_4
C173
0.1U/10V_4
C173
0.1U/10V_4
R118
4.99K/F_4
R118
4.99K/F_4
C698
0.1U/10V_4
C698
0.1U/10V_4
C809
0.1U/10V_4
C809
0.1U/10V_4
C314
1U/6.3V_4
C314
1U/6.3V_4
C460
0.1U/10V_4
C460
0.1U/10V_4
C742
1U/6.3V_4
C742
1U/6.3V_4
C761
0.1U/10V_4
C761
0.1U/10V_4 C713
0.1U/10V_4
C713
0.1U/10V_4
R386
4.99K/F_4
R386
4.99K/F_4
C222
0.1U/10V_4
C222
0.1U/10V_4
C462
0.1U/10V_4
C462
0.1U/10V_4 C719
0.1U/10V_4
C719
0.1U/10V_4
C457
0.1U/10V_4
C457
0.1U/10V_4
C695
1U/6.3V_4
C695
1U/6.3V_4
R388
243/F_4
R388
243/F_4
R201
4.99K/F_4
R201
4.99K/F_4
R119
4.99K/F_4
R119
4.99K/F_4
C793
0.1U/10V_4
C793
0.1U/10V_4 C316
0.1U/10V_4
C316
0.1U/10V_4 C718
0.1U/10V_4
C718
0.1U/10V_4
C469
10U/6.3VS_6
C469
10U/6.3VS_6
100-BALL
SDRAM DDR3
U15
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U15
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
C440
1U/6.3V_4
C440
1U/6.3V_4
100-BALL
SDRAM DDR3
U24
H5TQ2G63DFR-11C
100-BALL
SDRAM DDR3
U24
H5TQ2G63DFR-11C
WE
L4
RAS
J4
CAS
K4
CS /CS0
L3
CKE/CKE0
K10
CK
J8
CK
K8
DQSU
B8
BA0
M3
BA1
N9
A2
P4
A3
N3
A4
P9
A5
P3
A6
R9
A7
R3
A8
T9
A9
R4
A10/AP
L8
A11
R8
DQL0 E4
DQL1 F8
DQL2 F3
DQL3 F9
DQL4 H4
DQL5 H9
DQL6 G3
DQL7 H8
VSSQ#D2 D2
VSS#A10 A10
VSS#E2 E2
VSS#B4 B4
NC/ODT1
J2
VDD#B3 B3
VDD#D10 D10
VDDQ#A2 A2
VDDQ#A9 A9
VDDQ#C2 C2
VDDQ#C10 C10
NC/CS1
L2
NC/CE1
J10
VDDQ#E10 E10
ZQ/ZQ0
L9
RESET
T3
DQSL
F4
DMU
D4 DML
E8
VSSQ#B2 B2
VSSQ#B10 B10
VSSQ#D9 D9
VSSQ#E3 E3
DQSU
C8
VSSQ#E9 E9
DQSL
G4
VDDQ#F2 F2
VSSQ#F10 F10
VSSQ#G2 G2
VDDQ#H3 H3
VDDQ#H10 H10
VSSQ#G10 G10
VREFCA
M9
VSS#G9 G9
VDD#G8 G8
ODT/ODT0
K2
A0
N4
A1
P8
VDD#K3 K3
A12/BC
N8
VSS#J3 J3
VDD#K9 K9
DQU1 C4
DQU2 C9
DQU3 C3
DQU4 A8
DQU5 A3
DQU6 B9
DQU7 A4
DQU0 D8
A13
T4
A14
T8
A15/BA3
M8
BA2
M4
VREFDQ
H2
NC/ZQ1
L10
VDD#N2 N2
VDD#N10 N10
VDD#R2 R2
VDD#R10 R10
VSS#J9 J9
VSS#M2 M2
VSS#M10 M10
VSS#P2 P2
VSS#P10 P10
VSS#T2 T2
VSS#T10 T10
VDDQ#D3 D3
NC
A1
NC
T1
NC
A11
NC
T11
C175
0.1U/10V_4
C175
0.1U/10V_4
C353
1U/6.3V_4
C353
1U/6.3V_4
C356
1U/6.3V_4
C356
1U/6.3V_4 C180
1U/6.3V_4
C180
1U/6.3V_4
C461
1U/6.3V_4
C461
1U/6.3V_4
C354
0.1U/10V_4
C354
0.1U/10V_4
R352
243/F_4
R352
243/F_4
C730
1U/6.3V_4
C730
1U/6.3V_4
C355
0.1U/10V_4
C355
0.1U/10V_4
R384
4.99K/F_4
R384
4.99K/F_4
R177
243/F_4
R177
243/F_4
C817
1U/6.3V_4
C817
1U/6.3V_4 C745
1U/6.3V_4
C745
1U/6.3V_4
R202
4.99K/F_4
R202
4.99K/F_4
C318
0.1U/10V_4
C318
0.1U/10V_4
C359
1U/6.3V_4
C359
1U/6.3V_4
C812
0.1U/10V_4
C812
0.1U/10V_4
R351
56.2/F_4
R351
56.2/F_4
C760
1U/6.3V_4
C760
1U/6.3V_4
C808
0.1U/10V_4
C808
0.1U/10V_4
C762
0.1U/10V_4
C762
0.1U/10V_4
C475
1U/6.3V_4
C475
1U/6.3V_4
C360
1U/6.3V_4
C360
1U/6.3V_4
R175
4.99K/F_4
R175
4.99K/F_4
C458
0.01U/25V_4
C458
0.01U/25V_4
C815
1U/6.3V_4
C815
1U/6.3V_4
C459
0.1U/10V_4
C459
0.1U/10V_4
R354
4.99K/F_4
R354
4.99K/F_4
R204
56.2/F_4
R204
56.2/F_4
C428
1U/6.3V_4
C428
1U/6.3V_4 C315
1U/6.3V_4
C315
1U/6.3V_4 C748
10U/6.3VS_6
C748
10U/6.3VS_6
R418
4.99K/F_4
R418
4.99K/F_4
C724
0.1U/10V_4
C724
0.1U/10V_4
R180
4.99K/F_4
R180
4.99K/F_4
C362
1U/6.3V_4
C362
1U/6.3V_4 C171
1U/6.3V_4
C171
1U/6.3V_4
C363
1U/6.3V_4
C363
1U/6.3V_4
C759
0.1U/10V_4
C759
0.1U/10V_4
C446
10U/6.3VS_6
C446
10U/6.3VS_6
C313
0.1U/10V_4
C313
0.1U/10V_4

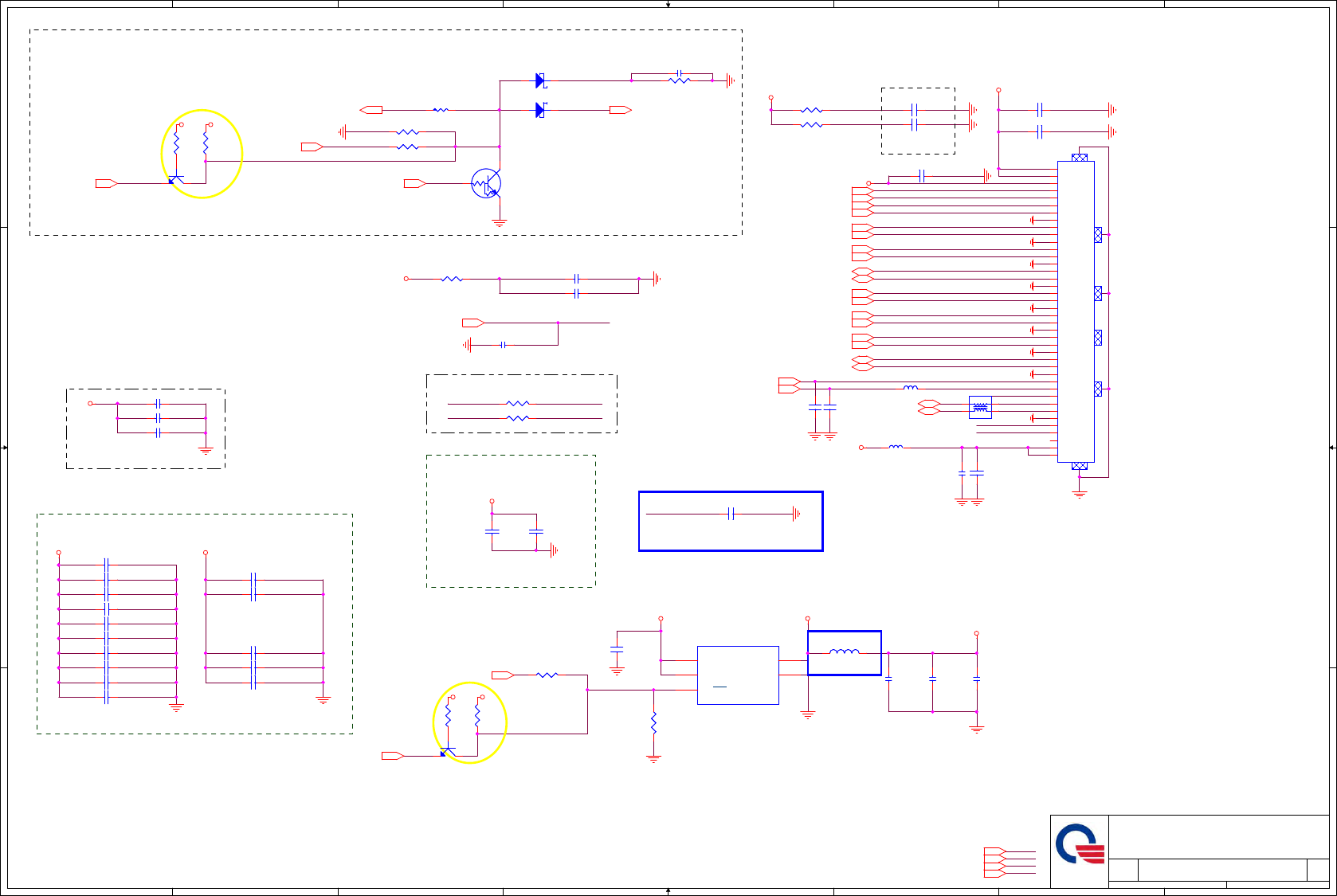

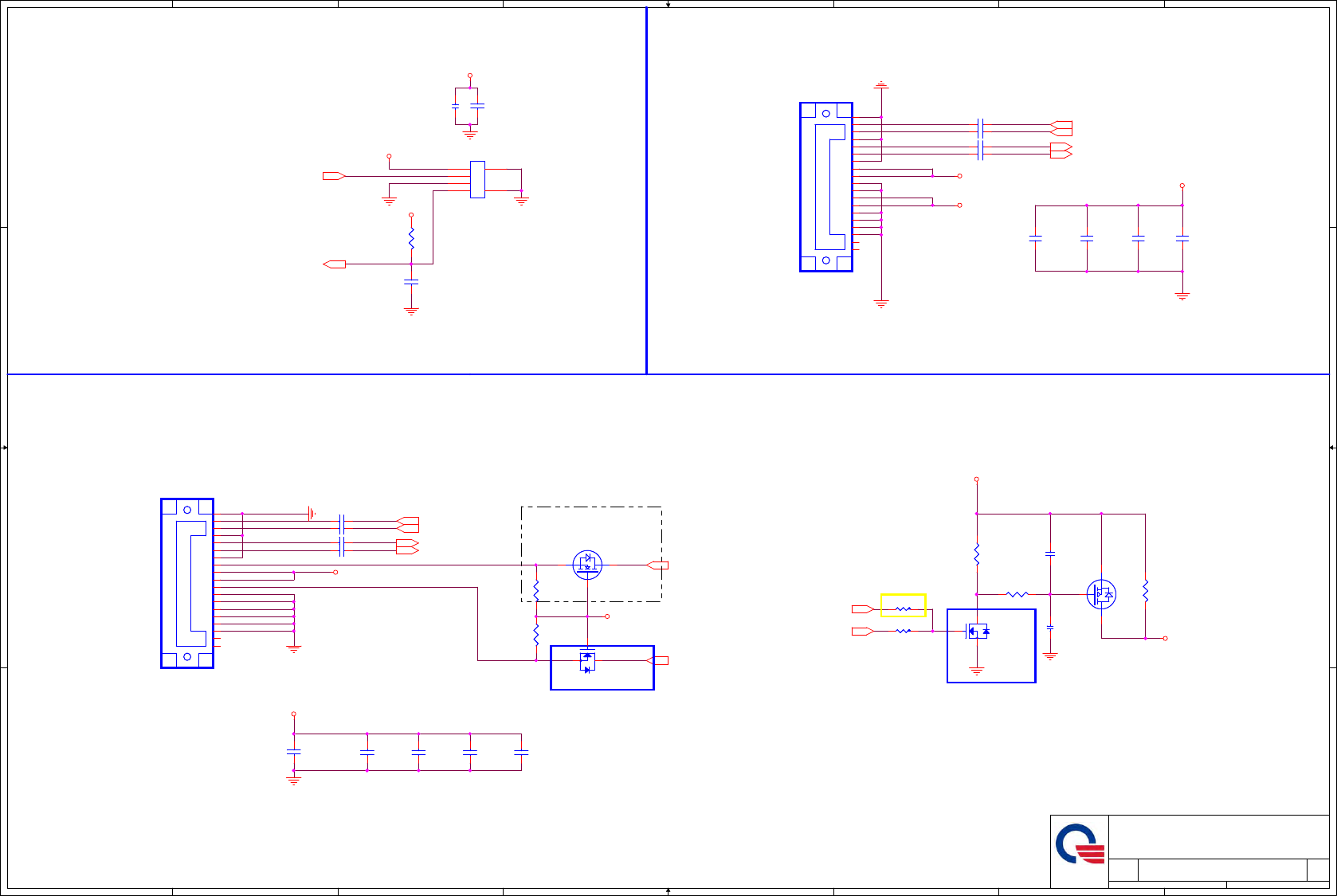

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
PN_BLON
EDIDCLK
EDIDDATA
DPST_PWM
BLON_CON
LVDS_BLON
TXLOUT2-
TXLOUT0-
TXUOUT0-
TXUCLKOUT+
TXLOUT1+
TXLOUT0+
TXLOUT2+
TXUCLKOUT-
TXUOUT0+
TXUOUT2+
TXUOUT2-
TXLCLKOUT-
TXUOUT1+
TXUOUT1-
TXLOUT1-
TXLCLKOUT+
DIGITAL_CLK_L
BLON_CON
DPST_PWM
+3V_CAM
+3V_CAMUSBP2-_R
USBP2+_R
EDIDDATA
EDIDCLK
USBP2- USBP2-_R
USBP2+ USBP2+_R
+VIN_BLIGHT
DISP_ON_L
BLON_CON
+3V2,4,6,8,9,10,11,12,13,14,18,24,25,26,27,28,29,30,31,32,33,41,42,44
+VIN34,35,36,37,39,40,41,42,44
+3VPCU4,7,30,33,34,35
+12VALW9,34,41,44
TXLCLKOUT+11
TXLOUT0+11
TXLCLKOUT-11
TXLOUT0-11
TXLOUT1+11 TXLOUT1-11
TXLOUT2+11 TXLOUT2-11
TXUCLKOUT+11 TXUCLKOUT-11
TXUOUT1+11 TXUOUT1-11
TXUOUT0+11 TXUOUT0-11
TXUOUT2+11 TXUOUT2-11
LCD_BK8 EDIDCLK11 EDIDDATA11
LVDS_BLON11
DISP_ON11
DPST_PWM11
DIGITAL_CLK27 DIGITAL_D127
USBP2-6 USBP2+6
APU_BLEN4
APU_DIGON4
HWPG 4,33,35,36,37,40
EMU_LID33
+VIN
+TRAVIS3.3V +3VLCD_CON
+3V
+TRAVIS3.3V
+VIN
+VIN +VIN
+3V
+3V+1.5V
+3V+1.5V
+3VLCD+3V
+3VLCD_CON
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
LCD CONN/LID/CAM
1A
Custom
23 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
LCD CONN/LID/CAM
1A
Custom
23 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
LCD CONN/LID/CAM
1A
Custom
23 44Friday, November 11, 2011
23
LID Switch
EMI
RF
follow L7 Location
EMI & RF
Coupling CAP.
EMI suggestion
EMI
SI , change to 0603 size
due to old part EOL
SI , EMI reserve for debug
C25
10U/6.3V_8
C25
10U/6.3V_8
2 1
C19
*4.7U/25V_8
C19
*4.7U/25V_8
C30 *150P/50V_4C30 *150P/50V_4
R12 100K/F_4R12 100K/F_4
C6 *0.047U/10V_4C6 *0.047U/10V_4
C22
0.1U/25V_4
C22
0.1U/25V_4
C49 *0.1U/25V_4C49 *0.1U/25V_4
R10 *0_4/SR10 *0_4/S
Q5
*MMBT3904-7-F
Q5
*MMBT3904-7-F
2
1 3
R8 2.2K_4R8 2.2K_4
R7 2.2K_4R7 2.2K_4
C664 *0.1U/25V_4C664 *0.1U/25V_4
C31 *150P/50V_4C31 *150P/50V_4
C23 *0.01U/25V_4C23 *0.01U/25V_4
R18
*2.2K_4
R18
*2.2K_4 R14
100K/F_4
R14
100K/F_4
R15 100K/F_4R15 100K/F_4
Q6
*MMBT3904-7-F
Q6
*MMBT3904-7-F
2
1 3
C646 *0.1U/25V_4C646 *0.1U/25V_4
R16
*2.2K_4
R16
*2.2K_4
C51 *0.1U/25V_4C51 *0.1U/25V_4
L11
TI160808U600_6
L11
TI160808U600_6
C662 *0.1U/25V_4C662 *0.1U/25V_4
L7
*WCM-2012-900T(400mA)
L7
*WCM-2012-900T(400mA)
1
4 3
2
C58 *0.1U/25V_4C58 *0.1U/25V_4
C971
*220P/50V_4
C971
*220P/50V_4
C488 *0.1U/25V_4C488 *0.1U/25V_4
R5 *0_4/SR5 *0_4/S
C15 *10P/50V_4C15 *10P/50V_4
C527 *0.1U/25V_4C527 *0.1U/25V_4
R9
*10K/F_4
R9
*10K/F_4
U5
IC(5P) G5243AT11U
U5
IC(5P) G5243AT11U
OUT 1
GND 2
ON/OFF
3
IN
4
IN
5
C32
220P/50V_4
C32
220P/50V_4
Q7
*PDTC144EV
Q7
*PDTC144EV
1 3
2
C16 *4.7U/6.3V_6C16 *4.7U/6.3V_6
C24 *150P/50V_4C24 *150P/50V_4
C39 *0.1U/25V_4C39 *0.1U/25V_4
C14 *10P/50V_4C14 *10P/50V_4
C10
0.01U/25V_4
C10
0.01U/25V_4
C38 *0.1U/25V_4C38 *0.1U/25V_4
C560 *0.1U/25V_4C560 *0.1U/25V_4
C33
0.1U/10V_4
C33
0.1U/10V_4
2 1
C13 1000P/50V_4C13 1000P/50V_4
C18
*10P/50V_4
C18
*10P/50V_4
C17 *0.047U/10V_4C17 *0.047U/10V_4
C26 22P/50V_4C26 22P/50V_4
D5 RB500V-40D5 RB500V-40
C645 *0.1U/25V_4C645 *0.1U/25V_4
C7
1U/6.3V_4
C7
1U/6.3V_4
CN5
GS12407-11141-9H-40P-R
CN5
GS12407-11141-9H-40P-R
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
G_0
G_1
G_4
G_5
31
32
33
34
35
36
37
38
39
40
G_2
G_3
C5
*10P/50V_4
C5
*10P/50V_4
R22
*10K/F_4
R22
*10K/F_4
C108 *0.1U/25V_4C108 *0.1U/25V_4
R11 0_4R11 0_4
D6 *RB501V-40D6 *RB501V-40
2 1
R17 1K/F_4R17 1K/F_4
R6 *0_4/SR6 *0_4/S
C55 *0.1U/25V_4C55 *0.1U/25V_4
C8 33P/50V_4C8 33P/50V_4
C34
0.01U/25V_4
C34
0.01U/25V_4
2 1
L6
SBK160808T-601Y-N/0.2A_6
L6
SBK160808T-601Y-N/0.2A_6
R13 *0_4/SR13 *0_4/S
L5
FBM2125 HM330-T/4A_8
L5
FBM2125 HM330-T/4A_8
C9
0.1U/25V_4
C9
0.1U/25V_4

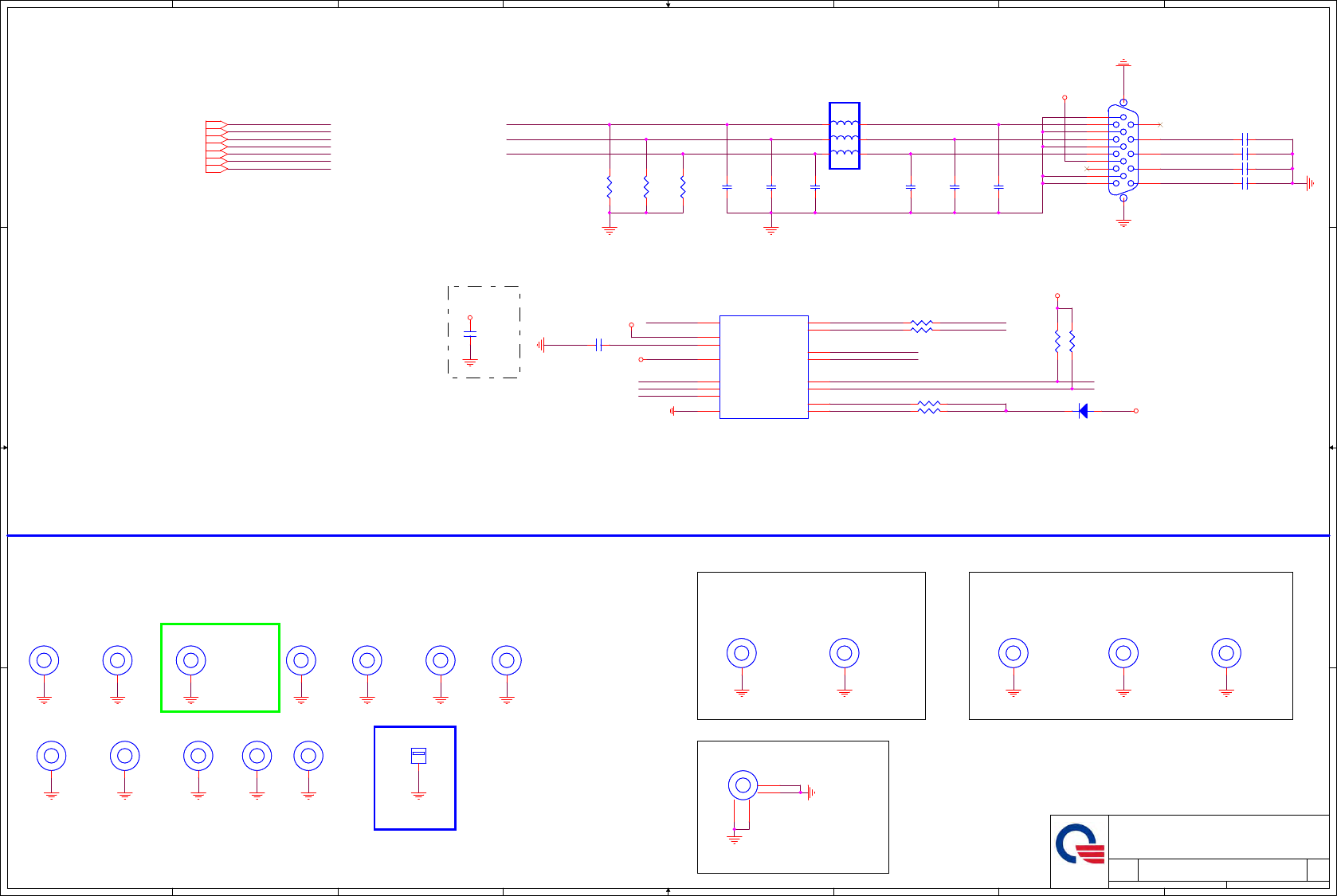

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
CRT_VSYNC1
CRT_HSYNC1
+5V_CRT2
CRT_BYP
CRT_B1
CRT_R1
CRT_G1
CRTVSYNC
CRTHSYNC
CRT_G_1
CRT_B_1
CRT_R_1
CRTDDCDAT2
CRTDDCCLK2
VSYNC_COM_1
HSYNC_COM_1
+5V_CRT2
DDCCLK_1
DDCDATA_1
CRTDDCDAT2
CRTHSYNC
CRTVSYNC
CRTDDCCLK2
CRT_B1
CRT_G1
CRT_R1
DDCCLK_1
DDCDATA_1
CRT_R_1
CRT_G_1
CRT_B_1
HSYNC_COM_1
VSYNC_COM_1
FCH_CRT_RED8 FCH_CRT_GRE8 FCH_CRT_BLU8
FCH_CRT_HSYNC8 FCH_CRT_VSYNC8 FCH_DDCCLK8 FCH_DDCDAT8
+3V
+5V
+5V_FUSE
+5V_FUSE
+3V
+5V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
CRT,Hole
1A
Custom
24 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
CRT,Hole
1A
Custom
24 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
CRT,Hole
1A
Custom
24 44Friday, November 11, 2011
EMI
CRT PORT
24
HOLE
EMI
VGA BKT
APU BKT
FCH NUT
SI , add for EMI
SI , change to 68 Ω for
Rise/Fall time issue
SI2 , update footprint
H6
*h-c354i150d110p2
H6
*h-c354i150d110p2
1
D7 RB501V-40D7 RB501V-40
21
R30
2.7K_4
R30
2.7K_4
H7
*H-C354I150D110P2
H7
*H-C354I150D110P2
1
R36 2.2K_4R36 2.2K_4
H19
*h-c354d354n
H19
*h-c354d354n
1
L8 BK1608LL680(0.2A,68)L8 BK1608LL680(0.2A,68)
R25
2.7K_4
R25
2.7K_4
H22
*SPAD-CXX-1
H22
*SPAD-CXX-1
1
H18
*H-C354I150D110P2
H18
*H-C354I150D110P2
1
C21 *470P/50V_4C21 *470P/50V_4
C20 *470P/50V_4C20 *470P/50V_4
R26 22_4R26 22_4
C12 10P/50V_4C12 10P/50V_4
H8
*H-C236I150D110P2
H8
*H-C236I150D110P2
1
H14
*H-C354I150D110P2
H14
*H-C354I150D110P2
1
L9 BK1608LL680(0.2A,68)L9 BK1608LL680(0.2A,68)
C43
0.1U/10V_4
C43
0.1U/10V_4
H17
*H-C197D110P2
H17
*H-C197D110P2
1
PAD2
*EMIPAD
PAD2
*EMIPAD
1
R20
150/F_4
R20
150/F_4
R35 2.2K_4R35 2.2K_4
R21
150/F_4
R21
150/F_4
H16
*H-C276I150D110P2
H16
*H-C276I150D110P2
1
H15
*H-C354I150D110P2
H15
*H-C354I150D110P2
1
CN14
CRT CONN
CN14
CRT CONN
15
14
13
12
111
2
3
4
5
6
7
8
9
10
1617
C40 0.22U/10V_4C40 0.22U/10V_4
U6
IP4772
U6
IP4772
VCC_SYNC
1
VCC_VIDEO
2
VIDEO_1
3
VIDEO_2
4
VCC_DDC
7
GND
6
BYP
8
VIDEO_3
5
SYNC_OUT2 16
SYNC_OUT1 14
SYNC_IN2 15
SYNC_IN1 13
DDC_IN1 10
DDC_IN2 11
DDC_OUT1 9
DDC_OUT2 12
H10
*H-O472X354I272X150D232X110P2
H10
*H-O472X354I272X150D232X110P2
1
H9
*H-TC248BC197D150P2
H9
*H-TC248BC197D150P2
1
H11 *intel-cpu-bkt2H11 *intel-cpu-bkt2
2
3
4
1
C37
5.6P/16V_4
C37
5.6P/16V_4
R19
150/F_4
R19
150/F_4
H21
H-TC354BC217I197D157P2
H21
H-TC354BC217I197D157P2
1
C11 10P/50V_4C11 10P/50V_4
C28
5.6P/16V_4
C28
5.6P/16V_4
C27
5.6P/16V_4
C27
5.6P/16V_4
R31 22_4R31 22_4
H13
*H-TC248BC197D150P2
H13
*H-TC248BC197D150P2
1
H5
*H-C354I150D110P2
H5
*H-C354I150D110P2
1
C35
5.6P/16V_4
C35
5.6P/16V_4
L10 BK1608LL680(0.2A,68)L10 BK1608LL680(0.2A,68)
C36
5.6P/16V_4
C36
5.6P/16V_4
H12
*H-TC248BC197D150P2
H12
*H-TC248BC197D150P2
1
H20
H-TC354BC217I197D157P2
H20
H-TC354BC217I197D157P2
1
C29
5.6P/16V_4
C29
5.6P/16V_4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
HDMI_SDATA
HDMI_DET HDMI_HPD_L
C_TX1_HDMI-
C_TX1_HDMI+
C_TX0_HDMI+
C_TX0_HDMI-
C_TXC_HDMI-
C_TXC_HDMI+
C_TX0_HDMI-
C_TXC_HDMI+
C_TX1_HDMI+
C_TXC_HDMI-
C_TX1_HDMI-
C_TX2_HDMI+
C_TX0_HDMI+
C_TX2_HDMI-
C_TX0_HDMI+
C_TXC_HDMI-
C_TX2_HDMI-
C_TX1_HDMI-
C_TX0_HDMI-
C_TX1_HDMI+
C_TX2_HDMI+
C_TXC_HDMI+
HDMI_DETHDMI_DET_R
HDMI_HPD_Q
C_TX2_HDMI+
C_TX2_HDMI-
HDMI_SCLK
HDMI_SDATA
HDMI_SCLK
HDMI_HPD_Q4
C_TX2_HDMI+4 C_TX2_HDMI-4 C_TX1_HDMI+4 C_TX1_HDMI-4 C_TX0_HDMI+4 C_TX0_HDMI-4
C_TXC_HDMI+4 C_TXC_HDMI-4
INT_HDMI_AUXN4
INT_HDMI_AUXP4
+5V_FUSE
+5V
+5V_FUSE
+5V
+5V
+3V
+5V_FUSE
+3V+3V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
HDMI CONN
1A
Custom
25 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
HDMI CONN
1A
Custom
25 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
HDMI CONN
1A
Custom
25 44Friday, November 11, 2011
25
1A
EMI
Close to HDMI Connector
HDMI PORT
HDMI HPD SENSE
Check list recommend 715 ohm
EMI
Cost down backup solution
of HDMI DDC Level Shift
SI , Q33,Q34 change to dual type MOS Q49
Dual
Dual
2KV ESD protection
SI,add for EMI issue
R373 715/F_4R373 715/F_4
R369 715/F_4R369 715/F_4
R364 715/F_4R364 715/F_4
R371 715/F_4R371 715/F_4
R132
200K/F_4
R132
200K/F_4
D16
RB501V-40
D16
RB501V-40
21
R379 715/F_4R379 715/F_4
R347
2K/F_4
R347
2K/F_4
R376 715/F_4R376 715/F_4
D17
RB501V-40
D17
RB501V-40
21
Q49B
2N7002KDW
Q49B
2N7002KDW
2
61
R160
100K/F_4
R160
100K/F_4
R375 100/F_4R375 100/F_4
C705 *0.1U/10V_4C705 *0.1U/10V_4
L19 0_6L19 0_6
C704
*0.1U/10V_4
C704
*0.1U/10V_4
R349
2K/F_4
R349
2K/F_4
Q49A
2N7002KDW
Q49A
2N7002KDW
5
34
C703
0.1U/10V_4
C703
0.1U/10V_4
R137 200K/F_4R137 200K/F_4
R370 100/F_4R370 100/F_4
R359
100K/F_4
R359
100K/F_4
C686*10P/50V_4 C686*10P/50V_4
R367 715/F_4R367 715/F_4
R380 100/F_4R380 100/F_4
F5 FUSE1.1A6V_POLYF5 FUSE1.1A6V_POLY
12
R358
4.7K_4
R358
4.7K_4
R164
1K/F_4
R164
1K/F_4
C688*10P/50V_4 C688*10P/50V_4
VC5
*AVLC5S_4
VC5
*AVLC5S_4
Q32
ME2N7002E
Q32
ME2N7002E
3
2
1
Q15
ME2N7002E
Q15
ME2N7002E
3
2
1
Q16
ME2N7002E
Q16
ME2N7002E
3
2
1
R381 715/F_4R381 715/F_4
CN19
HDMI CONN
DFHD19MR191
hdmi-2he1608-000111f-19p-ldv
CN19
HDMI CONN
DFHD19MR191
hdmi-2he1608-000111f-19p-ldv
D2+
1
D2-
3
D1 Shield 5
D0+
7
D0-
9
CK Shield 11
CE Remote 13
DDC CLK
15
GND 17
HP DET
19
D2 Shield 2
D1+
4
D1-
6
D0 Shield 8
CK+
10
CK-
12
DDC DATA
16
+5V
18
SHELL1 20
SHELL2 21
NC 14
SHELL3 22
SHELL4 23
R357
4.7K_4
R357
4.7K_4
C191
220P/50V_4
C191
220P/50V_4
R366 100/F_4R366 100/F_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SD_D2
+3V
SD_D1
CARD_PCIE_RST#
DV33_18
RREF
SD_D1_R
SD_CLK
CLK_PCIE_REQ2#_R
SD_CMD_R
SD_CLK_R
SD_CMD
SD_D0
DV12_S
SD_D0_R
SD_D3
SD_D2_R
SD_D3_R
AV12
SD_WP
PCIE_RXP0_CARD_C
PCIE_RXN0_CARD_C
CARD_PCIE_RST#
PCIE_CARD_CLKREQ# CLK_PCIE_REQ2#_R
SD_D3
SD_CMD
SD_CLK
SD_D1
SD_D0
SD_D2
SD_WP
SD_CD#
SD_CD#
DV33_18
CLK_PCIE_CARD_P7 CLK_PCIE_CARD_N7 PCIE_RXP0_CARD7
PCIE_TXN0_CARD7
PCIE_RXN0_CARD7
PCIE_TXP0_CARD7
CARD_PCIE_RST#7
PCIE_CARD_CLKREQ#6
+3VCARD
+3VCARD
+3VCARD
+3V
+3V
+5V
+1.1V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
RTS5219 & CR SOCKET &HOLE
1A
Custom
26 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
RTS5219 & CR SOCKET &HOLE
1A
Custom
26 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
RTS5219 & CR SOCKET &HOLE
1A
Custom
26 44Monday, November 14, 2011
26
CLOSE CONN
SD / MMC
CARD READER
Close to chip pin
Close to chip pin
SI , add R537 PU to
fix CR can't write issue
SI , PCIE port change
from port 2 to port 0
SI , EMI reserve for debug
SI,add C981 for EMI issue
C959
0.1U/10V_4
C959
0.1U/10V_4
R537 10K/F_4R537 10K/F_4
C928 *5.6P/16V_4C928 *5.6P/16V_4R522 0_4R522 0_4
C940 *5.6P/16V_4C940 *5.6P/16V_4
C938 *5.6P/16V_4C938 *5.6P/16V_4
C930 10P/50V_4C930 10P/50V_4
R523 0_4R523 0_4
C980 *2200P/50V_4C980 *2200P/50V_4
R521 0_4R521 0_4
C941
1U/10V_4
C941
1U/10V_4
C950
0.1U/10V_4
C950
0.1U/10V_4
R526 0_4R526 0_4
U37
RTS5229
U37
RTS5229
CLKREQ# 24
HSIP
1
HSIN
2
REFCLKP
3
REFCLKN
4
HSOP
5
HSON
6
AV12
7
RREF
8
3V3_IN
9
CARD_3V3
10
DV12_S
11
SP1
12
SP2 13
SP3 14
DV33_18 15
SP4 16
SP5 17
SP6 18
GPIO 19
SD_WP 20
SD_CD# 21
MS_INS# 22
PERST# 23
25 GND
C960
4.7U/6.3V_6
C960
4.7U/6.3V_6
C6474.7U/6.3V_6 C6474.7U/6.3V_6
C956
4.7U/6.3V_6
C956
4.7U/6.3V_6
C981 2200P/50V_4C981 2200P/50V_4
R536
6.2K/F_4
R536
6.2K/F_4
C962 0.1U/10V_4C962 0.1U/10V_4
R524 0_4R524 0_4
C650*0.1U/10V_4 C650*0.1U/10V_4
C982 *2200P/50V_4C982 *2200P/50V_4
R525 22_4R525 22_4
C943
10U/6.3V_8
C943
10U/6.3V_8
C927 *5.6P/16V_4C927 *5.6P/16V_4
C6520.1U/10V_4 C6520.1U/10V_4
C953
0.1U/10V_4
C953
0.1U/10V_4
CN12
CS1S-318-H-N
CN12
CS1S-318-H-N
DAT0
9
DAT2
1
DAT3
2
CMD
3
VDD
6
C/D
4
VSS1
5
CLK
7
VSS2
8
GND
12
DAT1
10
W/P
11
GND
13
GND
14
GND
15
C961 0.1U/10V_4C961 0.1U/10V_4
R535 *0_4/SR535 *0_4/S
A
A
B
B
C
C
D
D
E
E
1 1
+5V_AVDD
HD_SYNC
SENSE_A
AMP_BEEP
CAP-
SENSE_B
SENSE_A
CAP+
L_SPK-
HD_SDIN0
L_SPK+
ADC_VREG
ADC_V-
ADC_VREFFILT
ADC_CAP2
+3V_DVDD_CORE
ADC_EAPD#
HD_SDOUT
HD_BCLKHD_BCLK
AMP_BEEP_R2
R_SPK+
R_SPK-
L_SPK-
L_SPK+
HPOUT_R
HPOUT_L
AMP_BEEP_L
DMIC_CLK_R
DMIC0
ACZ_SDIN0BIT_CLK_AUDIO
ACZ_RST#_AUDIO
MIC_L
MIC_R
VREFOUT_C
R_SPK+_R
R_SPK-_R
L_SPK-_R
L_SPK+_R
SENSE_B
R_SPK+
R_SPK-
MUTE_LED_CNTL
+3V2,4,6,8,9,10,11,12,13,14,18,23,24,25,26,28,29,30,31,32,33,41,42,44
DIGITAL_D123 DIGITAL_CLK23
+5V8,18,24,25,26,30,31,32,41
VOLMUTE#33
HPOUT_L 28
HPOUT_R 28
SENSE_A 28
ACZ_SDOUT_AUDIO6
ACZ_SDIN06
BIT_CLK_AUDIO6
ACZ_SYNC_AUDIO6
ACZ_RST#_AUDIO6
ACZ_SPKR 6
MIC_R 28
MIC_L 28
VREFOUT_C 28
MUTE_LED_CNTL 30
AGND
+5V+4.75VAVDD
AGND
+5V
+4.75VAVDD
+3V
AGND
+3V
+5V
AGND
AGND
AGND +5V_AVDD
+5V_AVDD
AGND
AGND AGND AGND
+5V_AVDD
AGND
AGND
AGND
+3V
AGND
AGND
AGND AGND
+5V
+1.1VS5
+5VS5
+5V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Azalia 92HD80
1A
Custom
27 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Azalia 92HD80
1A
Custom
27 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Azalia 92HD80
1A
Custom
27 44Friday, November 11, 2011
27
TO Internal
Speakers
HDA Bus
Close to CODEC
>40mils trace
Close to CODEC
Close to CODEC
INT. SPEAKER
Vset=1.242V
R10453 close R10454
C10625 close C10629, and C10625
close Chip
>40mils trace
TO Headphone
jack
EMI Request
Close to CODEC
6/17
AGND SHIELD
AGND SHIELD
AGND SHIELD
TO Digital
MIC
Close to CODEC
Close to CODEC
FOR EMI
Check SB side and
vendor reply it
should reserve only
TO Audio Jack
MIC
Check layout
mount location
EMI
SI , add for EMI debug
SI, add Mute LED feature
SI , EMI change to 0.1u
SI , add for EMI issue
SI2 , reserve for EMI debug
L16 SBK160808T-221Y-N/0.2A_6L16 SBK160808T-221Y-N/0.2A_6
C926
0.1U/10V_4
C926
0.1U/10V_4
C109 220P/50V_4C109 220P/50V_4
R320 *0_8/SR320 *0_8/S
C975 2200P/50V_4C975 2200P/50V_4
C965 0.1u/10V_4C965 0.1u/10V_4
C917
10U/6.3VS_6
C917
10U/6.3VS_6
C966 0.1u/10V_4C966 0.1u/10V_4
R518 2.49K/F_4R518 2.49K/F_4
L73
*0_6/S
L73
*0_6/S
C934
0.1U/10V_4
C934
0.1U/10V_4
Digital
Analog
U35
92HD87
Digital
Analog
U35
92HD87
DVDD_LV
1
DMIC0/GPIO2
3DMIC_CLK/GPIO1
2
PORT_D_L- 35
PORT_D_L+ 34
PVDD 33
PORT_D_R+ 38
HDA_SDO
4
HDA_BITCLK
5
HDA_SDI
6
DVDD
7
HDA_SYNC
8
HDA_RST#
9
PVDD 39
EAPD
40
AVDD 32
AVSS
36
PORT_D_R- 37
AVSS
24
AVDD 21
VREG 31
VREFFILT 17
CAP2 18
HP0_PORT_A_L 22
VREFOUT_A_or_F 19
VREFOUT_C 20
HP0_PORT_A_R 23
CAP-
29
CAP+
30
SENSE_B 12
HP1_PORT_B_L 25
PORT_F_L 13
AVSS
27
PORT_F_R 14
PORT_C_L 15
PORT_C_R 16
PC_BEEP 10
HP1_PORT_B_R 26
SENSE_A 11
V- 28
DAP
41
C958
33P/50V_4
C958
33P/50V_4
C100 220P/50V_4C100 220P/50V_4
L13 SBK160808T-221Y-N/0.2A_6L13 SBK160808T-221Y-N/0.2A_6
R533
4.7K_4
R533
4.7K_4
C903
0.01U/25V_4
C903
0.01U/25V_4
C912
0.1U/10V_4
C912
0.1U/10V_4
C918
1U/6.3V_4
C918
1U/6.3V_4
C921
1U/6.3V_4
C921
1U/6.3V_4
R529 *0_4/SR529 *0_4/S
C935
0.1U/10V_4
C935
0.1U/10V_4
C954 10P/50V_4C954 10P/50V_4
L15 SBK160808T-221Y-N/0.2A_6L15 SBK160808T-221Y-N/0.2A_6
C939
10U/6.3VS_6
C939
10U/6.3VS_6
C972
2200P/50V_4
C972
2200P/50V_4
R528 *0_4/SR528 *0_4/S
C908
0.1U/10V_4
C908
0.1U/10V_4
C909
4.7U/6.3V_6
C909
4.7U/6.3V_6
12
Q44
2N7002
Q44
2N7002
3
2
1
C949
0.1U/10V_4
C949
0.1U/10V_4
R507
10K_4
R507
10K_4
D23 RB501V-40D23 RB501V-40
R531 33_4R531 33_4
C932
0.047U/10V_4
C932
0.047U/10V_4
C910
4.7U/6.3V_6
C910
4.7U/6.3V_6
12
R532 *0_4/SR532 *0_4/S
C951 0.1u/10V_4C951 0.1u/10V_4
C967 0.1u/10V_4C967 0.1u/10V_4
C936
1U/6.3V_4
C936
1U/6.3V_4
R527 100/F_4R527 100/F_4
C947
1U/6.3V_4
C947
1U/6.3V_4
C919 *1000P/50V_4C919 *1000P/50V_4
C931
10U/6.3VS_6
C931
10U/6.3VS_6
L14 SBK160808T-221Y-N/0.2A_6L14 SBK160808T-221Y-N/0.2A_6
C93 220P/50V_4C93 220P/50V_4
C976 2200P/50V_4C976 2200P/50V_4
R520 10K_4R520 10K_4
R517 100K/F_4R517 100K/F_4
C945 *10P/50V_4C945 *10P/50V_4
C925
10U/6.3VS_6
C925
10U/6.3VS_6
C946
0.01U/25V_4
C946
0.01U/25V_4
C948 10P/50V_4C948 10P/50V_4
C977
2200P/50V_4
C977
2200P/50V_4
C983
*1000P/50V_4
C983
*1000P/50V_4
C933
1U/6.3V_4
C933
1U/6.3V_4
R513
10K_4
R513
10K_4
C944 *10P/50V_4C944 *10P/50V_4
R534 10K_4R534 10K_4
C907
10U/6.3V_8
C907
10U/6.3V_8
C942
1U/6.3V_4
C942
1U/6.3V_4
C106 220P/50V_4C106 220P/50V_4
U36
TPS793475
U36
TPS793475
Vout
5
BYP
4
GND
2EN 3
Vin 1
C920
1U/6.3V_4
C920
1U/6.3V_4
C924 1000P/50V_4C924 1000P/50V_4
C964 0.1u/10V_4C964 0.1u/10V_4
R512 100K/F_4R512 100K/F_4
C911
0.1U/10V_4
C911
0.1U/10V_4
C957
33P/50V_4
C957
33P/50V_4
CN8
INT SPEAKER CONN
DFHD04MR142
3800-X04N-00X-4P-L
CN8
INT SPEAKER CONN
DFHD04MR142
3800-X04N-00X-4P-L
1
2
3
4
R530 *0_4/SR530 *0_4/S
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
+5V_USBP0
USBPW_ON#
SENSE_A
SENSE_A
MIC_R
MIC_L
MIC_R1
SENSE_MIC
MIC_L1
HPOUT_L
SENSE_PHONE
HPOUT_R
HPOUT_L1
HPOUT_R1
VREFOUT_C
USBP0+ USBP0+_R
USBP0-_RUSBP0-
USB30_TX1-_R
USBP11+_C
USBP11-_C
USB30_TX1+_R
USB30_TX1-_C
USB30_RX1+_C
USB30_TX1+_C
USB30_RX1-_C
+5V_USBP0
+5V_USBP0
USB30_TX2-_R
USBP12+_C
USBP12-_C
USB30_TX2+_R
USB30_TX2-_C
USB30_RX2+_C
USB30_TX2+_C
USB30_RX2-_C
USB30_RX1-_C
USB30_RX1+_C
USB30_TX1-_C
USB30_TX1+_C
USB30_TX2-_C
USB30_TX2+_C
USB30_RX2-_C
USB30_RX2+_C
USBP11-_C
USBP11+_C
USBP12-_C
USBP12+_C
PWRLED_RIGHT
SATA_LED#
USBP0-_R
USBPW_ON#
USBP0+_R
HPOUT_R2
HPOUT_L2
MIC_IN_L
MIC_IN_R
SENSE_PHONE
SENSE_MIC
USBPW_ON#33
USBP0-6 USBP0+6
SENSE_A 27
MIC_L27
MIC_R27
VREFOUT_C27
HPOUT_R27
HPOUT_L27
USBP11-6 USBP11+6
USB30_TX1-6 USB30_TX1+6
USB30_RX1+6 USB30_RX1-6
USBP12-6 USBP12+6
USB30_TX2-6 USB30_TX2+6
USB30_RX2+6 USB30_RX2-6
SATA_LED#8
PWRLED_RIGHT33
ACC_LED#8
+5V_USBP0+5VS5
+5VS5
AGND
AGND
AGND
AGND
AGND
+3V
AGND
AGND
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
USB/BT/Audio JacK
1A
Custom
28 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
USB/BT/Audio JacK
1A
Custom
28 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
USB/BT/Audio JacK
1A
Custom
28 44Monday, November 14, 2011
100 mils (Iout=2.5A)
28
1A
Right SIDE USBX1
EMI request
AGND SHIELD
AGND SHIELD
AGND SHIELD
Line out
MIC
Normal Open
Normal Open
9/14 SI for HW
EMI
USB3.0 X 2/USB2.0 COMBO
USB 3.0
1A USB 3.0
COMPONENT CHOICES:
The selection of ferrite beads can have a large effect on
THD+N, causing failures versus the WLP requirements.
At this time, IDT has verified three ferrite beads that will
meet the WLP performance requirements:
Murata: BLM18BD601SN1
TDK: MMZ1608Y601BTA
Taiyo Yuden: LF BK 1608HM601-T
EMI request
EMI
SI,add choke remove
R for EMI issue
SI,add choke remove
R for EMI issue
L46
BLM18BD601SN1D
L46
BLM18BD601SN1D
+
C854 100U/25V
+
C854 100U/25V
R278 3.9K/F_4R278 3.9K/F_4
C539 0.1U/10V_4C539 0.1U/10V_4
R267 0_4R267 0_4
C565 2.2U/6.3V_6C565 2.2U/6.3V_6
C561 *ADUC10S020R5C561 *ADUC10S020R5
1 2
CN6
USB BOARD
CN6
USB BOARD
1
2
3
4
5
6
7
8
9
10
11
12
C486 *ADUC10S020R5C486 *ADUC10S020R5
1 2
C602 1000P/50V_4C602 1000P/50V_4
C578 2.2U/6.3V_6C578 2.2U/6.3V_6
R269 *0_4R269 *0_4
VC8
*AVLC5S_4
VC8
*AVLC5S_4
L44
BLM18BD601SN1D
L44
BLM18BD601SN1D
C848
1000P/50V_4
C848
1000P/50V_4
C482 0.1U/10V_4C482 0.1U/10V_4
CN23 HP-JACK-BLACK
CN23 HP-JACK-BLACK
3
1
4
2
5
6
C592
0.1U/10V_4
C592
0.1U/10V_4
C47 1000P/50V_4C47 1000P/50V_4
C59 0.1U/10V_4C59 0.1U/10V_4
C532 *ADUC10S020R5C532 *ADUC10S020R5
1 2
VC7
*AVLC5S_4
VC7
*AVLC5S_4
C500 *ADUC10S020R5C500 *ADUC10S020R5
1 2
R302 16/F_4R302 16/F_4
C823
1000P/50V_4
C823
1000P/50V_4
C48 1000P/50V_4C48 1000P/50V_4
L43
BLM18BD601SN1D
L43
BLM18BD601SN1D
L35
WCM2012-90
L35
WCM2012-90
1
4 3
2
R299 *20K/F_4R299 *20K/F_4
R236 *0_4R236 *0_4
R34 *0_4R34 *0_4
C571 220P/50V_4C571 220P/50V_4
R247 0_4R247 0_4
C559 *ADUC10S020R5C559 *ADUC10S020R5
1 2
C636 1000P/50V_4C636 1000P/50V_4
L12 WCM2012-90L12 WCM2012-90
1
43
2
R32 *0_4R32 *0_4
CN24 HP-JACK-BLACK
CN24 HP-JACK-BLACK
3
1
4
2
5
6
C868 470P/50V_4C868 470P/50V_4
C478 0.1U/10V_4C478 0.1U/10V_4
R273 10K/F_4
R273 10K/F_4
R310 16/F_4R310 16/F_4
C871 0.1U/10V_4C871 0.1U/10V_4
C56 220P/50V_4C56 220P/50V_4
R268 *0_4R268 *0_4
C543 *ADUC10S020R5C543 *ADUC10S020R5
1 2
C497 *ADUC10S020R5C497 *ADUC10S020R5
1 2
R220 0_4R220 0_4
R271 0_4R271 0_4
L40
*WCM2012-90
L40
*WCM2012-90
1
4 3
2
R230 *0_4R230 *0_4
C545 *ADUC10S020R5C545 *ADUC10S020R5
1 2
R266 0_4R266 0_4
C619
0.1U/10V_4
C619
0.1U/10V_4
L37
*WCM2012-90
L37
*WCM2012-90
1
4 3
2
C870 0.1U/10V_4C870 0.1U/10V_4
U32
G547N2P81U
U32
G547N2P81U
GND
1EN
4
VIN1
2
VIN2
3
OC 5
OUT1 6
OUT3 8
OUT2 7
L51
BLM18BD601SN1D
L51
BLM18BD601SN1D
C474 *ADUC10S020R5C474 *ADUC10S020R5
1 2
R270 0_4R270 0_4
C564 1U/6.3V_4C564 1U/6.3V_4
VC10
*AVLC5S_4
VC10
*AVLC5S_4
C557 *ADUC10S020R5C557 *ADUC10S020R5
1 2
VC11
*AVLC5S_4
VC11
*AVLC5S_4
C869 470P/50V_4C869 470P/50V_4
VC9 *AVLC5S_4VC9 *AVLC5S_4
R308 *20K/F_4R308 *20K/F_4
C489 *ADUC10S020R5C489 *ADUC10S020R5
1 2
R285 20K/F_4R285 20K/F_4
C562 220P/50V_4C562 220P/50V_4
VBUS
D-
D+
GND
SSRX-
SSRX+
GND
SSTX-
SSTX+
CN21
USB3.0 CONN
VBUS
D-
D+
GND
SSRX-
SSRX+
GND
SSTX-
SSTX+
CN21
USB3.0 CONN
1
1
3
32
2
4
4
5
5
6
6
7
7
8
8
9
9
11
11
10
10
13
13
12
12
VC6 *AVLC5S_4VC6 *AVLC5S_4
L33
*WCM2012-90
L33
*WCM2012-90
1
4 3
2
R249 0_4R249 0_4
R221 0_4R221 0_4
C494 *ADUC10S020R5C494 *ADUC10S020R5
1 2
C534 0.1U/10V_4C534 0.1U/10V_4
R279 3.9K/F_4R279 3.9K/F_4
C883
1U/6.3V_4
C883
1U/6.3V_4
L41
WCM2012-90
L41
WCM2012-90
1
4 3
2
VBUS
D-
D+
GND
SSRX-
SSRX+
GND
SSTX-
SSTX+
CN22
USB3.0 CONN
VBUS
D-
D+
GND
SSRX-
SSRX+
GND
SSTX-
SSTX+
CN22
USB3.0 CONN
1
1
3
32
2
4
4
5
5
6
6
7
7
8
8
9
9
11
11
10
10
13
13
12
12
L42
*WCM2012-90
L42
*WCM2012-90
1
4 3
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ISOLATEB
LAN_GLED#LAN_GLINK100#
LAN_TX# LAN_YLED#
LAN_GLED#
LAN_GLED
LAN_MX1+
LAN_YLED
LAN_MX1-
LAN_YLED#
MDI1-
MDI0-
MDI0+
MDI1+
LAN_CLKRQ
CLK_PCIE_LANP
PCIE_RXP1_LAN_L
PCIE_TXP1_LAN
PCIE_TXN1_LAN
PCIE_RXN1_LAN_L
CLK_PCIE_LANN
PCIE_LAN_CLKREQ#
LAN_GLINK10#
LAN_ECS_SCL
ISOLATEB
LAN_PCIE_RST#
PCIE_WAKE#
LAN_GLINK100#
LANRSET
LAN_GPIOS
LAN_TX#
XTAL2
XTAL1
XTAL2
LAN_XTAL1 XTAL1
V_DAC1
V_DAC2
LAN_MCT1
LAN_MX0+
LAN_MX0-
MDI0+
MDI0-
LAN_MX1+
LAN_MX1-
MDI1-
MDI1+LAN_MCT0
LAN_MX0+
LAN_MX0-
PCIE_RXN1_LAN 7
PCIE_TXP1_LAN7 PCIE_TXN1_LAN7
CLK_PCIE_LANP7 CLK_PCIE_LANN7
PCIE_RXP1_LAN 7
PCIE_LAN_CLKREQ#6
LAN_PCIE_RST# 7,11
PCIE_WAKE# 6,32
+3V
+3V_LAN
+3VLANVCC
+1.05V_LAN +3V_LAN
+3V_LAN
+1.05V_LAN
+1.05V_LAN
+1.05V_LAN
+3V_LAN
+1.05V_LAN
+3V_LAN +3V_LAN
+1.05V_LAN
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
RTL 8105E/RJ45
1A
Custom
29 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
RTL 8105E/RJ45
1A
Custom
29 44Monday, November 14, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
RTL 8105E/RJ45
1A
Custom
29 44Monday, November 14, 2011
29
Link
if ISOLATEB pin
pull-low,the LAN
chip will not drive
it's PCI-E outputs
( excluding
PCIE_WAKE# pin )
>60mil
Power trace Layout
> 60mil
RJ45
GND VIA x 9 Pcs
IND SMD 4.7UH +-20% 680MA(CBC2518T4R7M)
CV-4707MZ00
For EMI 0 ~ 22 ohm
R73 1K/F_4R73 1K/F_4
C146
0.1U/10V_4
C146
0.1U/10V_4
C90
0.01U/100V_0603
C90
0.01U/100V_0603
C64
10P/3KV_1808
C64
10P/3KV_1808
R71 2.49K/F_4R71 2.49K/F_4
C789
*1000P/50V_4
C789
*1000P/50V_4
Y5
25MHz
Y5
25MHz
21
R107 *0_4/SR107 *0_4/S
R94
15K/F_4
R94
15K/F_4
1 2
R72
10_4
R72
10_4 C131
0.1U/10V_4
C131
0.1U/10V_4
C130
33P/50V_4
C130
33P/50V_4
C757 180P/50V_4C757 180P/50V_4
R391 330_4R391 330_4
C112
1U/6.3V_4
C112
1U/6.3V_4
C132
0.1U/10V_4
C132
0.1U/10V_4
U10
RTL8105E
U10
RTL8105E
MDIP0
1
MDIN0
2
AVDD10
3
MDIP1
4
MDIN1
5
AVDD10(NC)
6
MDIP2(NC)
7
MDIN2(NC)
8
AVDD10(NC)
9
MDIP3(NC)
10
MDIN3(NC)
11
AVDD33(NC)
12
RSET 46
AVDD33 48
AVDD33 47
AVDD33 42
DVDD10(NC) 41
LED0 40
CKXTAL2 44
GPO/SMBALERT 38
LED1/EESK 37
CKXTAL1 43
DVDD10
13
SMBCLK(NC)
14
SMBDATA(NC)
15
CLKREQB
16
HSIP
17
HSIN
18
REFCLK_P
19
REFCLK_N
20
EVDD10
21
HSOP
22
HSON
23
GND
24
VDDREG 35
VDDREG 34
ENSWREG 33
EEDI 32
REGOUT 36
LED3/EEDO 31
EECS 30
DVDD10 29
LANWAKEB 28
DVDD33 27
ISOLATEB 26
PERSTB 25
DVDD33 39
AVDD10 45
GND 49
C95
0.01U/25V_4
C95
0.01U/25V_4
C148
0.1U/10V_4
C148
0.1U/10V_4
C129
33P/50V_4
C129
33P/50V_4
CN20
RJ45_CONN
CN20
RJ45_CONN
LED_AMBER_P
11
LED_AMBER_N
12
RX1-
8
RX1+
7
RX0-
6
TX1+
4TX1-
5
RX0+
3
TX0-
2
TX0+
1
LED_WHITE_P
9
LED_WHITE_N
10
GND1 14
GND 13
C149
0.1U/10V_4
C149
0.1U/10V_4
C159
0.1U/10V_4
C159
0.1U/10V_4
C160 0.1U/10V_4C160 0.1U/10V_4
R4775_4 R4775_4
C797 180P/50V_4C797 180P/50V_4
C125
0.1U/10V_4
C125
0.1U/10V_4
C758 1000P/50V_4C758 1000P/50V_4
C791 1000P/50V_4C791 1000P/50V_4
R82 10K/F_4R82 10K/F_4
C115
0.1U/10V_4
C115
0.1U/10V_4
R405 330_4R405 330_4
C134
0.1U/10V_4
C134
0.1U/10V_4
R4875_4 R4875_4
C145
0.1U/10V_4
C145
0.1U/10V_4
C155
0.1U/10V_4
C155
0.1U/10V_4
C161 0.1U/10V_4C161 0.1U/10V_4
C779
180P/50V_4
C779
180P/50V_4
C127
0.1U/10V_4
C127
0.1U/10V_4
C764
*1000P/50V_4
C764
*1000P/50V_4
R104
1K_4
R104
1K_4
R80 10K/F_4R80 10K/F_4
C89
0.01U/100V_0603
C89
0.01U/100V_0603
U9
NS681684
U9
NS681684
TD+
1
TD-
3
CT
2
RD-
8
CT
7
RD+
6
TX+ 16
CMT 15
TX- 14
RX- 9
CT 10
RX+ 11
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
MY2
MY7
MY10
MY9
MY12
MX7
MY15
MY0
MX2
MY9
MY6
MY5
MX4
MY11
MY13
MY10
MY4
MY8
MY2
MY14
MX0
MY3
MX5
MX3
MX6
MY7
MX1
MY12
MY1
MY[0..17]
MX[0..7]
MY15
MY6
MY0
MY1
TPCLK
TPDATA
MY4
MY8
MY13 MY14
MY3
MY11
PWR_LED#
NBSWON1#
MY5
PWR_LED#
MY17
MY16
MY17
MY16
TPCLK-1
TPDATA-1
LID_EC#
WIRELESS_ON_R WIRELESS_OFF_R
CAPSLED#_R
MX5
MX3
MY14
MY7
MY10
MY12
MY3
MX7
MY9
MY11
MX1
MX4
MY16
MY6
MY15
MY8
MY0
MY1
MX6
MX0
MX2
MY5
MY2
MY13
MY4
MY17
WIRELESS_ON_R
MUTE_LED_CNTL_R
WIRELESS_OFF_R
SMB_ACC_CLK
SMB_ACC_DAT
SMB_ACC_CLK
SMB_ACC_DAT
TP_LED#
TP_LED#
SMB_ACC_CLK
SMB_ACC_DAT SMB_ACC_CLK
SMB_ACC_DAT
+3VPCU4,7,33,34,35
+3V2,4,6,8,9,10,11,12,13,14,18,23,24,25,26,27,28,29,31,32,33,41,42,44
+5V8,18,24,25,26,27,31,32,41
+3VSUS32,41
NBSWON1#33 PWR_LED#33
MX[0..7]33
MY[0..17]33
TPDATA33 TPCLK33
LID_EC#33
WIRELESS_ON33 WIRELESS_OFF33
GPUT_CLK15
GPUT_DATA15
SMB_ACC_CLK 33
SMB_ACC_DAT 33
TPLED#33
CAPSLED#33
MUTE_LED_CNTL27
SDA1 6
SCL1 6
+3VSUS
+3VSUS
+3VPCU
+3VPCU
+3VPCU
+3VPCU
+5V +5V
+3V
+3V
+3V_VGA +3VSUS
+5VS5
+3VSUS
+3V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
KB/SW/TP
1A
Custom
30 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
KB/SW/TP
1A
Custom
30 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
KB/SW/TP
1A
Custom
30 44Friday, November 11, 2011
KEYBOARD Con.
KEYBOARD PULL-UP
25 mils
close conn
100mA
1. +3VPCU(LIDSWITCH PWR)
2. +3VPCU(LIDSWITCH PWR)
3. LIDSWITCH
4.POWERON#
5. PWRLED#
POWER BOTTON CONNECT
30
TOUCH PAD Con.
change to +3VSUS
6. GND
SI , delete C120 for QB button drop
SI , contact to +3VPCU
SI , reserve for Lid
+3VPCU noise
SI , EMI reserve for debug
SI , mount for EMI
SI, add Mute LED feature
SI , delete G5 for space save
SI , Q21,Q22 change to dual type MOS Q51
Dual
Dual
2KV ESD protection
Dual
Dual
SI2 , HP request Image sensor
SMBUS reserve to FCH
SI2 , reserve for EMI
SI2 , for mute LED issue
Q64A *2N7002KDWQ64A *2N7002KDW
5
34
C133 220P/50V_4C133 220P/50V_4
Q51A 2N7002KDWQ51A 2N7002KDW
5
34
C147 220P/50V_4C147 220P/50V_4
C509 10P/50V_4C509 10P/50V_4
Q64B *2N7002KDWQ64B *2N7002KDW
2
61
C162 220P/50V_4C162 220P/50V_4
C122 1U/6.3V_4C122 1U/6.3V_4
C141 220P/50V_4C141 220P/50V_4
C150 220P/50V_4C150 220P/50V_4
C110 220P/50V_4C110 220P/50V_4
R142 *8.2K_4R142 *8.2K_4
CN11
TOUCH PAD CONN
DFFC08FR026
50503-0080n-001-8p-l
CN11
TOUCH PAD CONN
DFFC08FR026
50503-0080n-001-8p-l
6
5
4
3
2
1
7
8
C492 0.1U/10V_4C492 0.1U/10V_4
C973
*220P/50V_4
C973
*220P/50V_4
C143 220P/50V_4C143 220P/50V_4
CN9
KB CONN
CN9
KB CONN
26
26 25
25 24
24 23
23 22
22 21
21 20
20 19
19 18
18 17
17 16
16 15
15 14
14 13
13 12
12 11
11 10
10 9
98
87
76
65
54
43
32
21
1
27
27
28
28
29
29
30
30
31
31
32
32
R163 *200/F_6R163 *200/F_6
12
C124 220P/50V_4C124 220P/50V_4
C113 220P/50V_4C113 220P/50V_4
C978 *2200P/50V_4C978 *2200P/50V_4
C117 0.1U/10V_4C117 0.1U/10V_4
C138 220P/50V_4C138 220P/50V_4
C119 0.1U/10V_4C119 0.1U/10V_4
C170 220P/50V_4C170 220P/50V_4
C154 220P/50V_4C154 220P/50V_4
C118 0.1U/10V_4C118 0.1U/10V_4
C244 220P/50V_4C244 220P/50V_4
C963 *4.7U/6.3V_6C963 *4.7U/6.3V_6
R159
1K/F_4
R159
1K/F_4
C166 220P/50V_4C166 220P/50V_4
C136 220P/50V_4C136 220P/50V_4
C201 220P/50V_4C201 220P/50V_4
Q18
PDTC144EU
Q18
PDTC144EU
1 3
2
R161
1K/F_4
R161
1K/F_4
R262 4.7K_4R262 4.7K_4
Q51B 2N7002KDWQ51B 2N7002KDW
2
61
C501 10P/50V_4C501 10P/50V_4
R158 *200/F_6R158 *200/F_6
12
R251 4.7K_4R251 4.7K_4
C968
*220P/50V_4
C968
*220P/50V_4
CN7
PWR BTN CONN
CN7
PWR BTN CONN
1
2
3
4
5
6
C116 220P/50V_4C116 220P/50V_4
C128 220P/50V_4C128 220P/50V_4
R263 4.7K_4R263 4.7K_4
R541
10K/F_4
R541
10K/F_4
C182 220P/50V_4C182 220P/50V_4
L39 BLM18BA470SN1D/0.3A_6L39 BLM18BA470SN1D/0.3A_6
Q17
PDTC144EU
Q17
PDTC144EU
1 3
2
RP5
*10P8R-8.2K
RP5
*10P8R-8.2K
10
9
8
7 4
3
2
1
56
C121 0.1U/10V_4C121 0.1U/10V_4
C187 220P/50V_4C187 220P/50V_4 R152 200/F_6R152 200/F_6
12
C969
*220P/50V_4
C969
*220P/50V_4
C974
*220P/50V_4
C974
*220P/50V_4
R392
*10K/F_4
R392
*10K/F_4
C139 220P/50V_4C139 220P/50V_4
R254 4.7K_4R254 4.7K_4
R153 200/F_6R153 200/F_6
12
Q47
2N7002
Q47
2N7002
3
2
1
C144 220P/50V_4C144 220P/50V_4
C196 220P/50V_4C196 220P/50V_4
C970
*220P/50V_4
C970
*220P/50V_4
C219 220P/50V_4C219 220P/50V_4
RP6
*10P8R-8.2K
RP6
*10P8R-8.2K
10
9
8
7 4
3
2
1
56
C211 220P/50V_4C211 220P/50V_4
C235 220P/50V_4C235 220P/50V_4
R148 *8.2K_4R148 *8.2K_4
L38 BLM18BA470SN1D/0.3A_6L38 BLM18BA470SN1D/0.3A_6
C984
*220P/50V_4
C984
*220P/50V_4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
SATA_RXN0_C
SATA_RXP0_C
SATA_RXN1_C
SATA_RXP1_C
SATA_TXP0_C
SATA_TXN0_C
SATA_TXP1_C
SATA_TXN1_C
ZERO_ODD_DA#
ZERO_ODD_DP#
FAN1SIG
SATA_RXP1 8
SATA_RXN1 8
SATA_RXP0 8
SATA_RXN0 8
ODD_PWR8
ODD_PD33
ODD_DA#_FCH 6
ODD_PLUGIN# 6
SATA_TXP0 8
SATA_TXN0 8
SATA_TXP1 8
SATA_TXN1 8
FAN_PWM33
FAN1SIG33
+5V_ODD
+5V
+5V_ODD
+3V
+5V
+5V_ODD
+5V
+3V
+5V
+5V
+3V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
HDD/ODD/FAN
1A
Custom
31 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
HDD/ODD/FAN
1A
Custom
31 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
HDD/ODD/FAN
1A
Custom
31 44Friday, November 11, 2011
SATA ODD CONNECTOR
CPU FAN SATA HDD CONNECTOR
120 mils
Main HDD
High : ODD power on
Low : ODD power down
Bypass CAP close conn
31
SATA ODD
Reserve for AMD
DFHD04MR155
SI , Q28,Q43 change to dual type MOS Q63
Dual
Dual
R322
*10K/F_4
R322
*10K/F_4
R318 *0_4/SR318 *0_4/S
Q27
*ME2N7002E
Q27
*ME2N7002E
3
2
1
C668
0.1U/10V_4
C668
0.1U/10V_4
C894
10U/6.3V_8
C894
10U/6.3V_8
C929 0.01U/25V_4C929 0.01U/25V_4
C701
*0.1U/10V_4
C701
*0.1U/10V_4
C654 0.01U/25V_4C654 0.01U/25V_4
Q45
DMP2130L-7
Q45
DMP2130L-7
3
2
1
C952 0.01U/25V_4C952 0.01U/25V_4
C937 0.01U/25V_4C937 0.01U/25V_4
C913
0.1U/10V_4
C913
0.1U/10V_4
R519
*0_8
R519
*0_8
R515
1M/F_4
R515
1M/F_4
C659
0.1U/10V_4
C659
0.1U/10V_4
C653 0.01U/25V_4C653 0.01U/25V_4
19
1
CN25
SATA HDD(1ST)
DFHS13FS022
sata-ah534-00-13p-r
19
1
CN25
SATA HDD(1ST)
DFHS13FS022
sata-ah534-00-13p-r
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C923
1000P/50V_4
C923
1000P/50V_4
Q63A
2N7002DW-7-F
Q63A
2N7002DW-7-F
5
34
C906
4.7U/6.3V_6
C906
4.7U/6.3V_6
R321
*10K/F_4
R321
*10K/F_4
C657
10U/6.3V_8
C657
10U/6.3V_8
C955 0.01U/25V_4C955 0.01U/25V_4
C658
0.1U/10V_4
C658
0.1U/10V_4
C667
*2.2U/6.3V_6
C667
*2.2U/6.3V_6
C655 0.01U/25V_4C655 0.01U/25V_4
R356
4.7K/F_4
R356
4.7K/F_4
C651 0.01U/25V_4C651 0.01U/25V_4
C656
0.1U/10V_4
C656
0.1U/10V_4
C660
0.1U/10V_4
C660
0.1U/10V_4
19
1
CN13
SATA ODD
DFHS13FS022
sata-ah534-00-13p-r
19
1
CN13
SATA ODD
DFHS13FS022
sata-ah534-00-13p-r
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R516 10K/F_4R516 10K/F_4
Q63B 2N7002DW-7-FQ63B 2N7002DW-7-F
2
61
R319 *0_4R319 *0_4
C902
10U/6.3V_8
C902
10U/6.3V_8
CN17
FAN Connect
CN17
FAN Connect
1
2
3
46 6
55
C922
.027U/25V_6
C922
.027U/25V_6
2 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
BT_COMBO_EN_R#
MINI_PCIE_RST#
LFRAME#
LAD0
LAD1
LAD3
LAD2
MINICAR_PME#
MINI_PCIE_RST#
PCIE_TXN0_WLAN
MINICAR_PME#
CLK_WLAN_P
CLK_WLAN_N
PCIE_TXP0_WALN
PCIE_RXP0_WLAN
PCIE_RXN0_WLAN
CLK_33_DEBUG
CLK_33_DEBUG
+MINIEC_5V
ACCEL_INT
MBCLK2
MBDATA2
ACCEL_INT
RF_LINK#
RF_LINK#
MINI_BLED
ACCEL_MBDATA2
ACCEL_MBCLK2
ACCEL_MBDATA2
ACCEL_MBCLK2
+3V2,4,6,8,9,10,11,12,13,14,18,23,24,25,26,27,28,29,30,31,33,41,42,44
+5V8,18,24,25,26,27,30,31,41
+1.5V2,4,11,23,38,41
+3VPCU4,7,30,33,34,35
PCIE_RXN0_WLAN2 PCIE_RXP0_WLAN2
CLK_WLAN_N7CLK_WLAN_P7
RF_OFF# 8
PCIE_TXP0_WALN2 PCIE_TXN0_WLAN2
MINI_PCIE_RST# 7
RF_LINK# 33
PCIE_WAKE#6,29
BLUELED 33
BT_COMBO_EN#8
CLK_33_DEBUG7
LAD0 7,33
LAD1 7,33
LAD2 7,33
LFRAME# 7,33
LAD3 7,33
USBP8+ 6
USBP8- 6
PCIE_MINI_CLKREQ#6
EC_DEBUG133
BT_COMBO_OFF#6
ACCEL_INT7
MBDATA24,33
MBCLK24,33
+1.5V
+1.5V
+3VSUS
+3V
+3V
+5V
+3V
+3V
+3V
+3V
+3V
+3V +3V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
MINI PCIE & G-sensor
1A
Custom
32 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
MINI PCIE & G-sensor
1A
Custom
32 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
MINI PCIE & G-sensor
1A
Custom
32 44Friday, November 11, 2011
Mini PCI-E Card 1 WLAN
32
EMI
INTEL WLAN
CARD PIN 20
W_DISABLE#
have
internal
pull-up 110k
ohm
BT_DATA,BT_CHCLK,CLKREQ#
internal pull-DOWN 100k
ohm
EC debug pin
Accelerometer Sensor
SI, CN18 change to 11H
SI , add for EMI
Dual
Dual
SI2 , add for avoid leakage
from SUS power
R355 *10K/F_4R355 *10K/F_4
C665
0.01U/25V_4
C665
0.01U/25V_4
U14
HP3DC2TR
AL003DC2A00
U14
HP3DC2TR
AL003DC2A00
SCL
4GND 5
CS
8
INT2
9RESERVED 13
Vdd_IO
1
VDD
14
SDO
7
SDA
6
NC 2
INT1
11 RESERVED 10
NC 3
GND 12
RESERVED 15
RESERVED 16
R330 *4.7K_4R330 *4.7K_4
TP21TP21
C691
0.1U/10V_4
C691
0.1U/10V_4
R326 *0_4R326 *0_4
R538 4.7K_4R538 4.7K_4
Q31
*DTC144EUA
Q31
*DTC144EUA
13
2
C339 33P/50V_4C339 33P/50V_4
R540 4.7K_4R540 4.7K_4
R332 4.7K_4R332 4.7K_4 C666
10U/6.3VS_6
C666
10U/6.3VS_6
R331 4.7K_4R331 4.7K_4
C311
0.1U/10V_4
C311
0.1U/10V_4
R327 *0_4R327 *0_4
C670
0.1U/10V_4
C670
0.1U/10V_4
C367 33P/50V_4C367 33P/50V_4
Q65B2N7002DW-7-F Q65B2N7002DW-7-F
2
6 1
R348 *0_4R348 *0_4
R174 *0_4/SR174 *0_4/S
R167 *0_4/SR167 *0_4/S
CN18
MINI PCIE H=11
DFHS52FR099
MIPCI-C-1759513-52P-LDV-SMT
CN18
MINI PCIE H=11
DFHS52FR099
MIPCI-C-1759513-52P-LDV-SMT
Reserved
51
Reserved
49
Reserved
47
Reserved
45
Reserved
43
Reserved
41
Reserved
39
Reserved
37
GND
35
PETp0
33
PETn0
31
GND
29
GND
27
PERp0
25
PERn0
23
GND
21
Reserved
19
Reserved
17
GND
15
REFCLK+
13
REFCLK-
11
GND
9
CLKREQ#
7
BT_CHCLK
5
+3.3V 52
GND 50
+1.5V 48
LED_WPAN# 46
LED_WLAN# 44
LED_WWAN# 42
GND 40
USB_D+ 38
USB_D- 36
GND 34
SMB_DATA 32
SMB_CLK 30
+1.5V 28
GND 26
+3.3Vaux 24
PERST# 22
W_DISABLE# 20
GND 18
Reserved 16
+1.5V 6
BT_DATA
3
WAKE#
1
Reserved 14
Reserved 12
Reserved 10
Reserved 8
GND 4
+3.3V 2
R329 0_4R329 0_4
Q65A2N7002DW-7-F Q65A2N7002DW-7-F
5
3 4
C677 15P/50V_4C677 15P/50V_4
C366
0.1U/10V_4
C366
0.1U/10V_4
R328 *0_4R328 *0_4
D13 RB501V-40D13 RB501V-40
C663
0.1U/10V_4
C663
0.1U/10V_4
C687
10U/6.3VS_6
C687
10U/6.3VS_6 C672
0.1U/10V_4
C672
0.1U/10V_4
C303
22P/50V_4
C303
22P/50V_4
R337 51/F_4R337 51/F_4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
KBSMI#1
DNBSWON1#
SCI1#
3920_RST#
BIOS_CS#
BIOS_RD#
BIOS_WR#
BIOS_SPI_CLK_I
MBCLK
MBDATA
NBSWON1#
CLK_33M_KBC
AD_TYPE
MBDATA2
MBCLK2
RSMRST#
SPI_3P
SPI_7P
LID_EC#
SPI_7P
BIOS_CS#
BIOS_RD#
BIOS_WR#
BIOS_SPI_CLK_I
SPI_3P
BLUELED
TPLED#
BIOS_SPI_CLK
MBDATA
MBCLK
MBCLK2
MBDATA2
LAN_POWER
AD_TYPE
CLKRUN#
RSMRST#
CAPSLED#
VOLMUTE#
PWR_LED#
TPCLK
TPDATA
BIOS_RD#
BIOS_WR#
SYS_I
BIOS_CS#
ECPWROK
DNBSWON1#
MY17
MY16
H_PROCHOT#
RF_LINK#
GPIO42
TEMP_MBAT
LFRAME#
SERIRQ
SCI1#
LAD3
LAD2
LAD1
LAD0
MX2
MX1
MX0
3920_RST#
EC_A20GATE
MX7
MX6
MX5
MX4
MX3
MY5
MY4
MY3
MY2
MY1
MY0
MY10
MY9
KBC_P+3V
MY6
MY7
MY8
MY15
MY12
MY13
MY14
MY11
EC_RCIN#
AD_AIR
HWPG
MAINON
SUSON
VRON
KBSMI#1
PWM_VADJ
NBSWON1#
SUSC#
LID_EC#
ACIN
S5_ON
OSCI
EMU_LID
SUSB#
FAN1SIG
BIOS_SPI_CLK_I
GPIO42
GPU_AC_BATT
DGPU_PR_EN
PWRLED_RIGHT
EC_BIOS_SPI_CLK_I
EC_BIOS_CS#
BLUELED
EC_BIOS_WR#
EC_BIOS_RD#
HWPG
FAN1SIG
DGPU_PR_EN
+3VPCU_AC
+3VPCU_EC
SMB_ACC_DAT
SMB_ACC_CLK
OSCIO
AD_ID 34
+3VPCU4,7,30,34,35 +3V
2,4,6,8,9,10,11,12,13,14,18,23,24,25,26,27,28,29,30
,31,32,41,42,44
+5VPCU4,34,35,36
SIO_EXT_SMI# 6
SIO_EXT_SCI# 6
DNBSWON# 6
RSMRST# 6
EMU_LID23
EC_DEBUG132
LFRAME#7,32
SERIRQ7
LAD37,32 LAD27,32 LAD17,32 LAD07,32
MX230 MX130 MX030
EC_A20GATE6
MX630 MX530 MX430 MX330
MY230 MY130 MY030
MX730
MY630
MY430 MY530
MY330
MY1030
MY830 MY930
MY730
MY1430
MY1230 MY1330
MY1130
AD_AIR 34
MY1530
HWPG4,23,35,36,37,40
SUSB# 6
PWM_VADJ 11
EC_RCIN#6
SUSC# 6
CAPSLED# 30
CLKRUN# 7
SYS_I 34
KBC_RST#7
NBSWON1# 30
PCI_SERR# 7
CLK_33M_KBC7
VRON 37,38
ACIN 34,41
VOLMUTE# 27
S5_ON 35,36
LAN_POWER 41
MAINON 9,34,36,40,41
SUSON 40,41
ECPWROK 4,10,18
PWR_LED# 30
MBATLED0# 34
TEMP_MBAT 34
AC_LED_ON# 34
TPCLK30 TPDATA30
USBPW_ON#28
MY16 30
MY17 30
RF_LINK# 32
WIRELESS_OFF 30
WIRELESS_ON 30
FAN1SIG 31
ODD_PD 31
MBCLK 34
MBDATA 34
TPLED# 30
3920_RST#4
VGA_ON_SB 6
H_PROCHOT#4
VR2.5_ON36
MBCLK2 4,32
MBDATA2 4,32
LID_EC# 30
BATSHIP 34
FAN_PWM 31
GPU_AC_BATT15
DGPU_PWROK 7,18,42,43,44
DGPU_PR_EN42,43,44
PWRLED_RIGHT 28
EC_BIOS_SPI_CLK_I 8
EC_BIOS_CS# 8
BLUELED32
EC_BIOS_WR# 8
EC_BIOS_RD# 8
SMB_ACC_CLK 30
SMB_ACC_DAT 30
+3VPCU
+3VPCU
+3VPCU
+3VPCU
+3VPCU
+3VS5
+3VPCU
+3VS5
+3V
IT8518_AGND
+3V
IT8518_AGND
+3VPCU +3VPCU_EC+3VPCU_AC
+3VPCU
+3VPCU
+3VPCU
+3VS5
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
EC (KB3926)/ROM
1A
Custom
33 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
EC (KB3926)/ROM
1A
Custom
33 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
EC (KB3926)/ROM
1A
Custom
33 44Friday, November 11, 2011
Change to 1SS355 as Current loss
Change to RB500 as Current loss
33
TP place on top
lay for ICT
request
128K byte SPI EC ROM
Smart adapter Type check
4M SPI EC ROM
SIEMI
Platform model
SG/DIS
UMA
GPIO42
Low
High
adapter
90W
65W
Hi ==> DIS/SG
Adapter select
Low ==>UMA
+3VPCU CAP close to EC pin
from power button
for Battery
charge/discharge
for CPU themal
For GPU thermal
AKE39F-0800
AKE39ZN0Q02
AMIC
EON
4M
Vender
Socket
Size
DFHS08FS023
P/N
4M
ITE pin 100 , 104 , 106 default
can not pull up to +3VPCU it
will cause chip into test mode
For +VIN noise
500mA
Add TP SMBUS signal
Add G-sensor SMBUS signal
SI , drop QB button feature
SI , del QB button PU resistor R392
ICT need TP2675 size
test point
SI, remove NUMLED#
SI , add for EMI
SI2,change to +3VS5
for leakage issue
L65 SBK160808T-121Y-NL65 SBK160808T-121Y-N
R403 33_4R403 33_4
C794
220P/50V_4
C794
220P/50V_4
L64 SBK160808T-121Y-NL64 SBK160808T-121Y-N
TP91TP91
R417 10K/F_4R417 10K/F_4
C772 0.1U/10V_4C772 0.1U/10V_4
TP37TP37
R406 0_4R406 0_4
C783 0.1U/10V_4C783 0.1U/10V_4
C485 0.1U/10V_4C485 0.1U/10V_4
R185 0_4R185 0_4
TP90TP90
R394 470K_4R394 470K_4
C739
0.1U/10V_4
C739
0.1U/10V_4
KBMX
FLASH
WAKE UP
UART
A/D D/A
CLOCK
IT8518E/HX
LPC
PS/2
PWM
SM_BUS
GPIO
U16
IT8518E/HX
AJ085180F04
KBMX
FLASH
WAKE UP
UART
A/D D/A
CLOCK
IT8518E/HX
LPC
PS/2
PWM
SM_BUS
GPIO
U16
IT8518E/HX
AJ085180F04
WRST#
14
LPCCLK
13
LAD0
10
LAD1
9
LAD2
8
LAD3
7
LFRAME#
6
LPCPD#/WUI6/GPE6
17
SERIRQ
5
ECSMI#/GPD4
15
ECSCI#/GPD3
23
GA20/GPB5
126
KBRST#/GPB6
4
GPG0
106
FSCK
105
DSR0#/GPG6
104
FMISO
103
FMOSI
102
FSCE#
101
SSCE0#/GPG2
100
KSI0/STB#
58
KSI1/AFD#
59
KSI2/INIT#
60
KSI3/SLIN#
61
KSI4
62
KSI5
63
KSI6
64
KSI7
65
KSO0/PD0
36
KSO1/PD1
37
KSO2/PD2
38
KSO3/PD3
39
KSO4/PD4
40
KSO5/PD5
41
KSO6/PD6
42
KSO7/PD7
43
KSO8/ACK#
44
KSO9/BUSY
45
KSO10/PE
46
KSO11/ERR#
51
KSO12/SLCT
52
KSO13
53
KSO14
54
KSO15
55
VCC 11
VSTBY 26
VSTBY 50
VSTBY 92
VSTBY 114
VSTBY 127
VSTBY 121
VBAT 3
AVCC 74
SMCLK0/GPB3 110
SMCLK1/GPC1 115
SMDAT0/GPB4 111
SMDAT1/GPC2 116
PS2CLK0/TMB0/GPF0
85 PS2DAT0/TMB1/GPF1
86
PS2CLK1/DTR0#/GPF2
87
TMR0/WUI2/GPC4 120
TMR1/WUI3/GPC6 124
LPCRST#/WUI4/GPD2
22
WUI5/GPE5 35
PWRSW/GPE4 125
RI1#/WUI0/GPD0 18
RI2#/WUI1/GPD1 21
RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7 112
TXD/SOUT0/GPB1
109 RXD/SIN0/GPB0
108
TMA0/GPB2
123
PS2DAT1/RTS0#/GPF3
88
PS2CLK2/WUI20/GPF4
89 PS2DAT2/WUI21/GPF5
90
SMCLK2/WUI22/GPF6/PECI 117
SMDAT2/WUI23/GPF7 118
TACH0/GPD6 47
TACH1/TMA1/GPD7 48
PWM0/GPA0 24
PWM1/GPA1 25
PWM2/GPA2 28
PWM3/GPA3 29
PWM4/GPA4 30
PWM5/GPA5 31
PWM6/SSCK/GPA6 32
PWM7/GPA7 34
ADC0/GPI0 66
ADC1/GPI1 67
ADC2/GPI2 68
ADC3/GPI3 69
ADC4/WUI28/GPI4 70
ADC5/WUI29/GPI5 71
ADC6/WUI30/GPI6 72
ADC7/WUI31/GPI7 73
VSS
1
VCORE
12
VSS
27
VSS
49
VSS
122 VSS
113
AVSS
75
CK32KE
2CK32K
128
DAC3/GPJ3 79
DAC2/GPJ2 78
DAC1/GPJ1 77
DAC0/GPJ0 76
EGCS#/WUI26/GPE2 83
EGCLK/WUI27/GPE3 84
EGAD/WUI25/GPE1 82
GINT/CTS0#/GPD5
33
L80LLAT/W UI7/GPE7 20
L80HLAT/BAO/W UI24/GPE0 19
HMISO/GPH5/ID5 98
HMOSIGPH6/ID6 99
HSCE#/WUI19/GPH3/ID3 96
HSCK/GPH4/ID4 97
CRX1/WUI17/GPH1/SMCLK3/ID1 94
CTX1/W UI18/GPH2/SMDAT3/ID2 95
CLKRUN#/WUI16/GPH0/ID0 93
VSS
91
DAC5/RIG0#/GPJ5
81
DAC4/DCD0#/GPJ4
80
PWUREQ#/BBO/GPC7
16
GPC0
119
SBUSY/GPG1/ID7 107
KSO17/SMISO/GPC5 57
KSO16/SMOSI/GPC3 56
R404 *100K/F_4R404 *100K/F_4
R398 4.7K_4R398 4.7K_4
C484 *22P/50V_4C484 *22P/50V_4
R259
33_4
R259
33_4
U20
EN25Q32B-104HIP
AKE39ZN0Q02
SOIC8-8-1_27
U20
EN25Q32B-104HIP
AKE39ZN0Q02
SOIC8-8-1_27
CE#
1
SCK
6
SI
5
SO
2
WP#
3
VDD 8
VSS 4
HOLD# 7
R415 *47K_4R415 *47K_4
R397 4.7K_4R397 4.7K_4
C790 *0.1U/10V_4C790 *0.1U/10V_4
D20 RB501V-40D20 RB501V-40
21
TP92TP92
C737
100P/50V_4
C737
100P/50V_4
D21 RB501V-40D21 RB501V-40
21
C763 *0.1U/10V_4C763 *0.1U/10V_4
U19
*DFHS08FS023
SOIC8-6-1_27
U19
*DFHS08FS023
SOIC8-6-1_27
CE#
1
SCK
6
SI
5
SO
2
WP#
3
VDD 8
VSS 4
HOLD# 7
L32 BK1608HS121-TL32 BK1608HS121-T
C775
0.1U/10V_4
C775
0.1U/10V_4
C802 *0.1U/10V_4C802 *0.1U/10V_4
C483 *0.1U/10V_4C483 *0.1U/10V_4
R387 10K/F_4R387 10K/F_4
TP89TP89
D19 RB501V-40D19 RB501V-40
21
R193 0_4R193 0_4
R396 *10K/F_4R396 *10K/F_4
L34 BLM15AG700SS1_4L34 BLM15AG700SS1_4
C765 0.1U/10V_4C765 0.1U/10V_4
C804 0.1U/10V_4C804 0.1U/10V_4
R416
0_4
R416
0_4
C447
0.1U/10V_4
C447
0.1U/10V_4
C788 *0.1U/10V_4C788 *0.1U/10V_4
C780 0.1U/10V_4C780 0.1U/10V_4
C517
22P/50V_4
C517
22P/50V_4
R222 *100K/F_4R222 *100K/F_4
C518 0.1U/10V_4C518 0.1U/10V_4
R393 0_4R393 0_4
C803 100P/50V_4C803 100P/50V_4
D18
1SS355
D18
1SS355
2 1
C807 *10U/6.3V_8C807 *10U/6.3V_8
R260 10K/F_4R260 10K/F_4
R217
0_4
R217
0_4
R407 *8.2K_4R407 *8.2K_4
R383 100/F_4R383 100/F_4
R414 47K_4R414 47K_4
C795 15P/50V_4C795 15P/50V_4
R408 10K/F_4R408 10K/F_4
C806 0.1U/10V_4C806 0.1U/10V_4
R395 10K/F_4R395 10K/F_4
TP39TP39
C473*27P/50V_4 C473*27P/50V_4
C768 0.1U/10V_4C768 0.1U/10V_4
C481*27P/50V_4 C481*27P/50V_4
C798 0.1U/10V_4C798 0.1U/10V_4
C786 *0.1U/10V_4C786 *0.1U/10V_4
C805 0.1U/10V_4C805 0.1U/10V_4
C451
0.1U/10V_4
C451
0.1U/10V_4
R223 10K/F_4R223 10K/F_4
R399 4.7K_4R399 4.7K_4
C796 2.2U/6.3V_4C796 2.2U/6.3V_4
C784 *0.1U/10V_4C784 *0.1U/10V_4
R382
12K/F_4
R382
12K/F_4
R402 4.7K_4R402 4.7K_4
Y6 *32.768KHZ
Y6 *32.768KHZ
14
23
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
B_TEMP_MBAT
CSIP
CSINBQACN
AD_AIR
IDEA_G
MBATLED0#
8681LR
ACIN
BATDIS_G
BQIOUT
BQSRP
SMC
SMD
BATT+
BQSRN CSON
BQVCC
BQLODRV
BQB_2
BQPHASE
BQACP
BQB_1
MBCLK BQCLK
BQBATDRV
AC_LED_ON#
BQBATDRV
BQHIDRV
MBDATA BQDATA
BQCMSRC
BQACDRV
ACIN
CSOP
BATDIS_ID_DOD
TEMP_MBAT 33
SYS_I 33
+VAD_1 41
ACIN33,41
+VA
+5VPCU 4,35,36
+VH28 41
+BATCHG
AC_LED_ON# 33
MAINON9,33,36,40,41
+3VPCU 4,7,30,33,35
MBATLED0# 33
AD_AIR33
MBDATA33
MBCLK33
AD_ID 33
BATSHIP33
+3VPCU
+PRWSRC
+VIN
+BATCHG
+BATCHG
+VA_AC
+VAD
+VAD
+VA
+5VPCU
+12VALW
+5VPCU
+12VALW
REGN6V
+3VPCU
REGN6V
+VAD_1
REGN6V
+VA
+VA
+VAD
+VAD_1
+PRWSRC
+VA_AIR
+VAD
+BATCHG
+VAD
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Charger (BQ24728)
Custom
34 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Charger (BQ24728)
Custom
34 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Charger (BQ24728)
Custom
34 44Friday, November 11, 2011
1A
DC_JACK
90W
Place this cap
close to EC
Place this cap
close to EC
MIN. BATV=7.2V
ACDET=13V
To PWR LED
Place this ZVS close to
Diode away +VIN
Place this ZVS close to
Far-Far away +VIN
Place this cap
close to EC
Do Not add test pad on BATDIS_G signal
34
DB
DB
DB
DB
DB
DB DB,SI
SI
SI
SI
SI
SI-2
PC234
0.1U/25V_4
PC234
0.1U/25V_4
PC84
0.047U/25V_4
PC84
0.047U/25V_4
PR80
100K/F_4
PR80
100K/F_4
PR147 4.02K/F4PR147 4.02K/F4
PR48
12.4K/F_4
PR48
12.4K/F_4
PC253
4.7U/25V_8
PC253
4.7U/25V_8
PD17
P4SMAJ20A
PD17
P4SMAJ20A
21
EC16
1000P/50V_4
EC16
1000P/50V_4
PQ48
P0603BDG
PQ48
P0603BDG
1
4 3
PL8
80/5A
PL8
80/5A
Q1 Q2
PQ18
MMDT2907A
Q1 Q2
PQ18
MMDT2907A
3
2 1
65
4
EC14
10U/25V_8
EC14
10U/25V_8
PC140
2200P/50V_4
PC140
2200P/50V_4
PD13 RB501V-40PD13 RB501V-40
21
PR60 7.5/F_4PR60 7.5/F_4
PD9
PDZ5.6B
PD9
PDZ5.6B
2 1
PC90
0.1U/25V_4
PC90
0.1U/25V_4
PC243
10U/25V_8
PC243
10U/25V_8
PR20
2.43K/F_6
PR20
2.43K/F_6
PC117
1000P/50V_4
PC117
1000P/50V_4
PQ33
EMB20N03V
PQ33
EMB20N03V
3
5
2
4
16
7
8
PR261
0_6
PR261
0_6
PR100
1M/F_4
PR100
1M/F_4
PL19
80/5A
PL19
80/5A
PD5
1N4448WS-7-F
PD5
1N4448WS-7-F
21
PC250
2200P/50V_4
PC250
2200P/50V_4
PC75
1U/10V_4
PC75
1U/10V_4
PC80
0.47U/25V_6
PC80
0.47U/25V_6
PD18
P4SMAJ20A
PD18
P4SMAJ20A
2 1
PC21
0.1U/50V_6
PC21
0.1U/50V_6
CN16
DC-IN CONN
CN16
DC-IN CONN
GND 4
LED1
7
GND 3
AD_ID 5
VDD 2
VDD 1
LED2
8
GND
6
EC13
*10U/25V_8
EC13
*10U/25V_8
PC184
0.01U/25V_4
PC184
0.01U/25V_4
PQ8
PDTC144EU
PQ8
PDTC144EU
13
2
PR129
22_8
PR129
22_8
PR112
1M/F_4
PR112
1M/F_4
PC118
0.1U/25V_4
PC118
0.1U/25V_4
PC23
100P/50V_4
PC23
100P/50V_4
PU8
BQ24728
PU8
BQ24728
CMSRC
3
IOUT
7
ACP 2
ACN 1
REGN 16
SRN 12
SRP 13
BATDRV 11
ACDRV
4
LODRV 15
ACPRES
5
GND 23
ACDET
6
VCC
20
HIDRV 18
PHASE 19
BTST 17
SDA
8
SCL
9
GND 14
ILIM
10
GND 24
GND 22
GND 21
GND 25
PR246
*0_2/S
PR246
*0_2/S
PD8
PDZ5.6B
PD8
PDZ5.6B
2 1
PR34
*0_4/S
PR34
*0_4/S
PR124
RC1206-R010
PR124
RC1206-R010
21
PQ28
PDTC144EU
PQ28
PDTC144EU
1 3
2
PR101
1M/F_4
PR101
1M/F_4
EC6
10U/25V_8
EC6
10U/25V_8
PC255
*0.1U/25V_4
PC255
*0.1U/25V_4
PR125
*0_2/S
PR125
*0_2/S
PC38
*100P/50V_4
PC38
*100P/50V_4
PQ46
ME7835
PQ46
ME7835
6
4
3
2
15
7
8
PC81
0.1U/25V_4
PC81
0.1U/25V_4
PQ15
METR3904-G
PQ15
METR3904-G
2
1 3
PR17
*0_4/S
PR17
*0_4/S
PR69 10/F_4PR69 10/F_4
PD11
*1N4448WS-7-F
PD11
*1N4448WS-7-F
2 1
PR245
RC1206-R020
F3_2X1_65-2_8
PR245
RC1206-R020
F3_2X1_65-2_8
1 2
PR53
*100K/F_4
PR53
*100K/F_4
EC12
*10U/25V_8
EC12
*10U/25V_8
PR238
470_8
PR238
470_8
PR64
2.43K/F_6
PR64
2.43K/F_6
PL6
80/5A
PL6
80/5A
PR68
1M/F_4
PR68
1M/F_4
PC54
0.1U/25V_4
PC54
0.1U/25V_4
PC39
*100P/50V_4
PC39
*100P/50V_4
PR74
200K/F_4
PR74
200K/F_4
PQ11
*IMD2
PQ11
*IMD2
3
2
1 6
5
4
PQ49
PDTC144EU
PQ49
PDTC144EU
1 3
2
EC9
10U/25V_8
EC9
10U/25V_8
EC15
10U/25V_8
EC15
10U/25V_8
PL18
80/5A
PL18
80/5A
PC95
0.1U/25V_4
PC95
0.1U/25V_4
PR120
220K_4
PR120
220K_4
PR55
69.8K/F_4
PR55
69.8K/F_4
PC238
0.1U/25V_4
PC238
0.1U/25V_4
PR42
100K/F_4
PR42
100K/F_4
PR115
0_6
PR115
0_6
PC32
0.1U/25V_4
PC32
0.1U/25V_4
PC115
0.01U/25V_4
PC115
0.01U/25V_4
1 2
PR88
1M/F_4
PR88
1M/F_4
PR77
330_4
PR77
330_4
PQ14
PDTC144EU
PQ14
PDTC144EU
13
2
PR232
4.02K/F4
PR232
4.02K/F4
PC246
0.1U/25V_4
PC246
0.1U/25V_4
EC11
*10U/25V_8
EC11
*10U/25V_8
PR24
75K/F_4
PR24
75K/F_4
PQ9
2N7002K
PQ9
2N7002K
3
2
1
PC248
*0.1U/25V_4
PC248
*0.1U/25V_4
PD10
*1N4448WS-7-F
PD10
*1N4448WS-7-F
2 1
PQ47
2N7002K
PQ47
2N7002K
3
2
1
PQ31
EMB20N03V
PQ31
EMB20N03V
3
5
2
4
16
7
8
PD19
RB501V-40
PD19
RB501V-40
2 1
PC96
0.1U/25V_4
PC96
0.1U/25V_4
PR78
330_4
PR78
330_4
PQ16
2N7002K
PQ16
2N7002K
3
2
1
PD6
*1N4448WS-7-F
PD6
*1N4448WS-7-F
2 1
PC230
0.1U/25V_4
PC230
0.1U/25V_4
PR99
220K_4
PR99
220K_4
PR79
100K/F_4
PR79
100K/F_4
PR61
1M/F_4
PR61
1M/F_4
PR57
88.7K/F_4
PR57
88.7K/F_4
PR113
1K_6
PR113
1K_6
PC87
0.1U/25V_4
PC87
0.1U/25V_4
PC69
0.1U/25V_4
PC69
0.1U/25V_4
PC182
0.01U/25V_4
PC182
0.01U/25V_4
1 2
PR243
*0_2/S
PR243
*0_2/S
PR81
1M/F_4
PR81
1M/F_4
PR123
*0_2/S
PR123
*0_2/S
EC10
*10U/25V_8
EC10
*10U/25V_8
PR84
4.02K/F4
PR84
4.02K/F4
PR47
10/F_4
PR47
10/F_4
D
S
G
PQ27
AON6414AL
D
S
G
PQ27
AON6414AL
4
2
1
3
5
PC48
0.01U/25V_4
PC48
0.01U/25V_4
PC71
0.1U/25V_4
PC71
0.1U/25V_4
PC116
2200P/50V_4
PC116
2200P/50V_4
PQ13
2N7002K
PQ13
2N7002K
3
2
1
PC232
0.1U/50V_6
PC232
0.1U/50V_6
PR49
430K/F_4
PR49
430K/F_4
PC30
0.1U/25V_4
PC30
0.1U/25V_4
PC242
10U/25V_8
PC242
10U/25V_8
PR75
1K/F_4
PR75
1K/F_4
PC183
0.1U/10V_4
PC183
0.1U/10V_4
PR167
2.2_6
PR167
2.2_6
PD7
*1N4448WS-7-F
PD7
*1N4448WS-7-F
21
PL22
4.7uH
PL22
4.7uH
CN15
200275GR008G58BZL
DFAD08MR022
bat-bp02081-b82d5-7h-8p-l-v
CN15
200275GR008G58BZL
DFAD08MR022
bat-bp02081-b82d5-7h-8p-l-v
11
3
3
4
4
5
5
6
6
77
2
2
99
10 10
88
PC70
0.1U/25V_4
PC70
0.1U/25V_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
5V_LGATE1
5V_FB1
+5V_ALWP
3V_FB2
3V_UGATE2
5V_PHASE1
5V_UGATE1
+3.3V_ALWP
3V_LGATE2
3V_PHASE2
8205EN
5V_BST1
S5_ON
PGOOD
HWPG4,23,33,36,37,40
S5_ON 33,36
+5VPCU
+VIN_5VS5
+5VS5
+2VREF
+VIN
+3VS5
+3VPCU +5VPCU
+VIN_3VS5
+VIN
+3VS5
+VIN
+3VS5
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
3/5VPCU(TPS51123A)
1A
35 44Friday, November 11, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
3/5VPCU(TPS51123A)
1A
35 44Friday, November 11, 2011
Custom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
3/5VPCU(TPS51123A)
1A
35 44Friday, November 11, 2011
Custom
DC/DC +3VS5/+5VS5
+5 Volt +/- 5% +3.3 Volt +/- 5%
Peak current:6A
Countinue current:4A
OCP minimum:7.5A
Place these CAPs
close to FETs
Place these CAPs
close to FETs
Rds(on) 14m ohmRds(on) 14m ohm
Peak current:6A
Countinue current:4A
OCP minimum:7.5A
35
DB for prevent interference
DB
DB
DB DB
DB
DB
DB
PQ51
AON7702A
PQ51
AON7702A
3
5
2
4
16
7
8
PR95
*330K/F_4
PR95
*330K/F_4
PC52
0.01U/25V_4
PC52
0.01U/25V_4
1 2
EC8
68P/50V_4
EC8
68P/50V_4
PC53
1000P/50V_4
PC53
1000P/50V_4
12
PC47
0.01U/25V_4
PC47
0.01U/25V_4
1 2
PC50
0.1U/10V_4
PC50
0.1U/10V_4
PR70
2.2_6
PR70
2.2_6
PR25
10K/F_4
PR25
10K/F_4
PQ52
AON7702A
PQ52
AON7702A
3
5
2
4
16
7
8
PR23
6.8K/F_4
PR23
6.8K/F_4
+
PC257
330U/6.3V_6X5.8
+
PC257
330U/6.3V_6X5.8
12
PC82
0.1U/25V_4
PC82
0.1U/25V_4
PR30
*0_2/S
PR30
*0_2/S
PQ53
EMB20N03V
PQ53
EMB20N03V
3
5
2
4
16
7
8
PL24
2.2UH/8A
PL24
2.2UH/8A
PC103
2200P/50V_4
PC103
2200P/50V_4
PR22
10K/F_4
PR22
10K/F_4
PR97
*0_2/S
PR97
*0_2/S
PC56
0.1U/25V_4
PC56
0.1U/25V_4
PQ50
EMB20N03V
PQ50
EMB20N03V
3
5
2
4
16
7
8
PR93
0_4
PR93
0_4
PR26
15.4K/F_4
PR26
15.4K/F_4
PR247
*0_2/S
PR247
*0_2/S
PR110
10_8
PR110
10_8
PL7
*0_8/S
PL7
*0_8/S
PR240
2.2_6
PR240
2.2_6
PC65
0.1U/10V_4
PC65
0.1U/10V_4
PC237
4.7U/25V_8
PC237
4.7U/25V_8
PL25
2.2UH/8A
PL25
2.2UH/8A
PC240
2200P/50V_4
PC240
2200P/50V_4
PL10
*0_8/S
PL10
*0_8/S
EC7
68P/50V_4
EC7
68P/50V_4
PC76
*0.1U/10V_4
PC76
*0.1U/10V_4
PC15
1U/6.3V_4
PC15
1U/6.3V_4
PC252
0.1U/10V_4
PC252
0.1U/10V_4
PC49
0.1U/25V_4
PC49
0.1U/25V_4
PC88
4.7U/25V_8
PC88
4.7U/25V_8
PC60
1U/6.3V_4
PC60
1U/6.3V_4
12
PR63
2.2_6
PR63
2.2_6
+
PC256
330U/6.3V_6X5.8
+
PC256
330U/6.3V_6X5.8
12
PC104
0.1U/25V_4
PC104
0.1U/25V_4
PU7
TPS51123A
PU7
TPS51123A
REF 3
TONSEL 4
VREG5 17
EN0
13
VREG3 8
VIN 16
FB1
2
PGOOD
23
ENTRIP1
1
UGATE1
21
PHASE1
20
BOOT1
22
LGATE1
19
ENC
18
GND
15
LGATE2 12
BOOT2 9
PHASE2 11
UGATE2 10
ENTRIP2
6
SKIPSEL
14
FB2 5
OUT2 7
GND
25
VOUT1
24
PC239
2200P/50V_4
PC239
2200P/50V_4
PR27
80.6K/F_4
PR27
80.6K/F_4
PR241
2.2_6
PR241
2.2_6
PC93
4.7U/25V_8
PC93
4.7U/25V_8
PR248
*0_2/S
PR248
*0_2/S
PR21
90.9K/F_4
PR21
90.9K/F_4
PC79
0.1U/25V_4
PC79
0.1U/25V_4
PR52
10K/F_4
PR52
10K/F_4
PC51
1U/6.3V_4
PC51
1U/6.3V_4
12
PC99
2200P/50V_4
PC99
2200P/50V_4
PC89
0.1U/25V_4
PC89
0.1U/25V_4
PC106
0.1U/25V_4
PC106
0.1U/25V_4
PC258
0.1U/10V_4
PC258
0.1U/10V_4
PR94
*665K/F_4
PR94
*665K/F_4
PC94
4.7U/25V_8
PC94
4.7U/25V_8
PC74
10U/6.3V_6
PC74
10U/6.3V_6
PC33
1000P/50V_4
PC33
1000P/50V_4
12
PC26
10U/6.3V_6
PC26
10U/6.3V_6
PR51
0_4
PR51
0_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
RT8238VCC1.1V
RT8238DH1.1V
RT8238BST_1_1.1V
RT8238EN1.1V RT8238DL1.1V
RT8238BST1.1V
RT8238HWPG_S2A1.1V RT8238LX1.1V
RT8238ILIM1.1V
RT8238FB1.1V RT8238TON1.1V
3407VFB2.5V
3407SW2.5V
3407EN2.5V
HWPG4,23,33,35,37,40
MAINON9,33,34,40,41
VR2.5_ON33
S5_ON33,35
+VIN
+VIN_1.1V
+5VS5
+5VS5
+2.5V
+3VS5
+1.1VS5
+5VPCU
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.1VS5 (RT8228)/2.5V
1A
Custom
36 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.1VS5 (RT8228)/2.5V
1A
Custom
36 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.1VS5 (RT8228)/2.5V
1A
Custom
36 44Friday, November 11, 2011
36
Vo=0.5(R1+R2)/R2
RDSon=14m ohm
600 mils
+1.1V Volt +/- 5%
Countinue current:5A
Peak current: 6.5A
OCP minimum:7.5A
R1
R2
VO=(0.6(R1+R2)/R2)
Peak current:0.75A
Countinue current:0.3A
+2.5V +/- 5%
DB
DB
SI-2
PR177
0_6
PR177
0_6
PQ44
EMB20N03V
PQ44
EMB20N03V
3
5
2
4
16
7
8
PR222
0_4
PR222
0_4
PR154
100K/F_4
PR154
100K/F_4
PR155
*10K/F_4
PR155
*10K/F_4
PR224
100K/F_4
PR224
100K/F_4
PC211
0.1U/25V_4
PC211
0.1U/25V_4
PR220 0_4PR220 0_4
PC212
0.1U/25V_4
PC212
0.1U/25V_4
PR229
2.2_6
PR229
2.2_6
PC217
2200P/50V_4
PC217
2200P/50V_4
+
PC277
390U/2.5V_6X5.8ESR10
+
PC277
390U/2.5V_6X5.8ESR10
12
PR227
2.2_6
PR227
2.2_6
PC208
0.1U/25V_4
PC208
0.1U/25V_4
PC204
0.33U/6.3V_4
PC204
0.33U/6.3V_4
PC215
0.1U/10V_4
PC215
0.1U/10V_4
PC216
*4.7U/25V_8
PC216
*4.7U/25V_8
PR156
10K/F_4
PR156
10K/F_4
PR260
*0_2/S
PR260
*0_2/S
PR223
12K/F_4
PR223
12K/F_4
PR225
10K/F_4
PR225
10K/F_4
PC127
0.1U/10V_4
PC127
0.1U/10V_4
PR228
*10_6
PR228
*10_6
PC119
0.1U/10V_4
PC119
0.1U/10V_4
PR166
*0_2/S
PR166
*0_2/S
PC129
4.7U/6.3V_6
PC129
4.7U/6.3V_6
PR262
10_6
PR262
10_6
PC213
4.7U/25V_8
PC213
4.7U/25V_8
PU17
RT8228AZ
PU17
RT8228AZ
GND
12
FB
6
PGOOD
9
MODE
7
LGATE 1
VCC 5
CS
10
PHASE 2
UGATE 3
BOOST 4
EN
8
TON 11
PAD
13
PL30
2.2UH/8A
PL30
2.2UH/8A
PC205
*100P/50V_4
PC205
*100P/50V_4
PR226
360K/F_4
PR226
360K/F_4
PC210
2200P/50V_4
PC210
2200P/50V_4
PC128
10U/6.3V_8
PC128
10U/6.3V_8
PU11
AP3407A
PU11
AP3407A
GND 2
SW 5
EN
3
VIN 1
FB
4
PL14
*0_8/S
PL14
*0_8/S
PR153
316K/F_4
PR153
316K/F_4
PC206
1U/6.3V_4
PC206
1U/6.3V_4
PR221 10K/F_4PR221 10K/F_4
PL11
2.2uH/1.3A_2520
PL11
2.2uH/1.3A_2520
PQ45
AON7702A
PQ45
AON7702A
3
5
2
4
16
7
8
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
RT8238HWPG_S2APCH
RT8238VCCPCH
RT8238ENPCH
RT8238DHPCH
RT8238BST_1PCH
RT8238DLPCH
RT8238BSTPCH
RT8238LXPCH
RT8238ILIMPCH
RT8238FBPCH RT8238TONPCH
HWPG4,23,33,35,36,40
VRON33,38
VDDP_FB_H 4
+5VS5
+VIN
+5VS5
+1.2V_S2
+1.2V
+VIN_1.2V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.2V (RT8228)
1A
Custom
37 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.2V (RT8228)
1A
Custom
37 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.2V (RT8228)
1A
Custom
37 44Friday, November 11, 2011
37
Vo=0.5(R1+R2)/R2
RDSon=14m ohm
600 mils
OCP minimum:7.5A
+1.05V PCH Volt +/- 5%
Peak current:6A
Countinue current:4A
DB
DB
PC92
0.1U/25V_4
PC92
0.1U/25V_4
PC265
0.1U/10V_4
PC265
0.1U/10V_4
PR172 0_4PR172 0_4
PC108
*100P/50V_4
PC108
*100P/50V_4
PC109
1U/6.3V_4
PC109
1U/6.3V_4
PQ29
EMB20N03V
PQ29
EMB20N03V
3
5
2
4
16
7
8
PR139
0_4
PR139
0_4
PR134
10K/F_4
PR134
10K/F_4
PR138
*0_4
PR138
*0_4
PL23
2.2UH/8A
PL23
2.2UH/8A
PC122
*0.1U/10V_4
PC122
*0.1U/10V_4
PC249
2200P/50V_4
PC249
2200P/50V_4
PC134
2200P/50V_4
PC134
2200P/50V_4
PR157
0_4
PR157
0_4
PC111
*4.7U/25V_8
PC111
*4.7U/25V_8
+
PC263
390U/2.5V_6X5.8ESR10
+
PC263
390U/2.5V_6X5.8ESR10
12
PR140
14K/F_4
PR140
14K/F_4
PL9
*0_8/S
PL9
*0_8/S
PQ32
AON7702A
PQ32
AON7702A
3
5
2
4
16
7
8
PR137
10_6
PR137
10_6
PC121
0.1U/25V_4
PC121
0.1U/25V_4
PR148
2.2_6
PR148
2.2_6
PR249
*0_2/S
PR249
*0_2/S
PU10
RT8228AZ
PU10
RT8228AZ
GND
12
FB
6
PGOOD
9
MODE
7
LGATE 1
VCC 5
CS
10
PHASE 2
UGATE 3
BOOST 4
EN
8
TON 11
PAD
13
PR176
2.2_6
PR176
2.2_6
PC244
0.1U/25V_4
PC244
0.1U/25V_4
PR165 0_4PR165 0_4
PR174
360K/F_4
PR174
360K/F_4
PC251
4.7U/25V_8
PC251
4.7U/25V_8
PR173
100K/F_4
PR173
100K/F_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
6277EN
ISENS1_NB
SW1_B
6277VRHOT
ISENS3
ISENS2_NB
ISENS2
VSUMP
6277_PWMY
SW1
HG2
LG26277SVD
6277IMON
VRHOT
ISENS1
PGOOD_NB
FCCM_NB_1
6277RTN
6277PGOOD
LG1
6277FB
6277FB2
6277NTC
SW2_B
6277ISUMN
SW2
6277PWROK
6277VDDIO
HG1
COMP_NB
6277IMON_NB
VSEN_NB
VSUMP_NB
FB_NB
6277VSEN
6277COMP
ISUMN_NB
6277SVC
6277SVT
6277NTC_NB
ISENS1
VSUMP
VSUMNVSUMN_1
ISENS2
ISENS2
VSUMP
VSUMN
ISENS1
VSUMN_2
VSUMP_1
VSUMP_2
VSUMN_NBY
ISENS2_NB
ISENS1_NB
VSUMP_NB
VSUMN_NB
ISENS1_NB
VSUMN_NBY2
ISENS2_NB
VSUMP_NB
VSUMN_NB
VSUMP_NB_Y
VSUMP_NB_Y2
VSUMN_NB
VSUMN
PWM2_NB
6277_PWMY 39
HG1 39
LG1 39
SW2 39
SW1 39
HG2 39
LG2 39
PWM2_NB 39
CPU_SVT4
CPU_SVC2
CPU_SVD2
CPU_VDD0_RUN_FB_H 4
CPU_VDD0_RUN_FB_L 4
CPU_VDDNB_RUN_FB_H 4
CPU_VRM8380_PG 10
CPU_PWRGD_SVID_REG2
CPU_VRM8380_PG 10
VRHOT4
VRON33,37
VSUMN_139
VSUMP_139
VSUMN_239
VSUMP_239
VSUMN_NBY39
VSUMP_NB_Y39
VSUMN_NBY239
VSUMP_NB_Y239
FCCM_NB 39
+VCC_CORE
+5VS5
+VDDNB_CORE
+5VS5
+VIN_VCC_CORE
+1.5V
+1.5V
+1.5V
+1.5V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ISL6277
A
Custom
38 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ISL6277
A
Custom
38 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ISL6277
A
Custom
38 44Friday, November 11, 2011
PUT COLSE
TO VCORE
Inductor
PUT COLSE
TO VDDNB
Inductor
PUT COLSE
TO VCORE
HOT SPOT
PUT COLSE
TO VDDNB
HOT SPOT
38
Reserve for
ISL6277
version A
issue.
DB
DB
DB,SI
DB
SI
DB,SI
SI
SI
SI
SI
SI
SI SI
SI
SI
SI
SI
SI
SI
SI
SI-2
SI-2
SI-2
SI-2
SI-2
PR59
42.2K/F_4
PR59
42.2K/F_4
PR160
*1K/F_4
PR160
*1K/F_4
PC101
0.22U/10V_4
PC101
0.22U/10V_4
PR163
619/F_4
PR163
619/F_4
PR161
2.32K/F_4
PR161
2.32K/F_4
PC97
330P/50V_4
PC97
330P/50V_4
PR109 1_6PR109 1_6
PR39
*1K/F_4
PR39
*1K/F_4
PR28
0_4
PR28
0_4
PR141
10K/F_4
PR141
10K/F_4
PC25
100P/50V_4
PC25
100P/50V_4
PR233
10K/F_4 NTC
PR233
10K/F_4 NTC
12
PC100
100P/50V_4
PC100
100P/50V_4
PR6
10K/F_4
PR6
10K/F_4
PR92 0_4PR92 0_4
PR29
2.05K/F_4
PR29
2.05K/F_4
PR85
105K/F_4
PR85
105K/F_4
PC45 0.22U/25V_6PC45 0.22U/25V_6
PC6
0.1U/10V_4
PC6
0.1U/10V_4
PR114 0_4PR114 0_4
PC281
1000P/50V_4
PC281
1000P/50V_4
PR76
27.4K/F_4
PR76
27.4K/F_4
PR1440_4 PR1440_4
PR43
*32.4K/F_4
PR43
*32.4K/F_4
PR14
3.65K/F_4
PR14
3.65K/F_4
PC17
0.1U/10V_4
PC17
0.1U/10V_4
PR149
10K/F_4
PR149
10K/F_4
PR135 0_4PR135 0_4
PR13
10K/F_4
PR13
10K/F_4
PR136
3.65K/F_4
PR136
3.65K/F_4
PR132 0_4PR132 0_4
PC114
0.22U/10V_4
PC114
0.22U/10V_4
PC120
*0.1U/10V_4
PC120
*0.1U/10V_4
PC43
0.22U/10V_4
PC43
0.22U/10V_4
PC5
1000P/50V_4
PC5
1000P/50V_4
PR7
10K/F_4
PR7
10K/F_4
PR127
10K/F_4
PR127
10K/F_4
PR159
*1K/F_4
PR159
*1K/F_4
PC282
1000P/50V_4
PC282
1000P/50V_4
PC102
0.22U/10V_4
PC102
0.22U/10V_4
PR82
100K/F_4 NTC
PR82
100K/F_4 NTC
1 2
PC59
1000P/50V_4
PC59
1000P/50V_4
PR106 0_4PR106 0_4
PU9
ISL6277
PU9
ISL6277
ISUMN_NB 46
SVC
4
IMON
11
VR_HOT_L
5
SVD
6
ENABLE
9
VDDIO
7
IMON_NB
3
COMP
22
UGATE1 25
BOOT1 24
PGOOD
23
FCCM 41
BOOTX 36
PWM2_NB 40
PHASEX 38
LGATEX 39
UGATEX 37
VIN 35
VSEN
18
ISEN2
14
FB
21
ISUMN
17
ISEN1
15
LGATE1
27
COMP_NB 43
PGOOD_NB 42
GND
49
ISEN1_NB 48
PWROK
10
NTC
12
VDD 29
ISEN3
13
BOOT2 34
LGATE2 31
ISEN2_NB
1
RTN
19
PHASE2 32
PHASE1 26
PWMY 28
FB2
20
ISUMP
16
VDDP 30
UGATE2 33
FB_NB 44
ISUMP_NB 47
VSEN_NB 45
NTC_NB
2
SVT
8
PR107
*10K/F_4
PR107
*10K/F_4
PC9
330P/50V_4
PC9
330P/50V_4
PR118
105K/F_4
PR118
105K/F_4
PR50
499/F_4
PR50
499/F_4
PC18
390P/50V_4
PC18
390P/50V_4
PC113
0.033U/10V_4
PC113
0.033U/10V_4
PR169
*0_4/S
PR169
*0_4/S
PR11
3.01K/F_4
PR11
3.01K/F_4
PR171
301/F_4
PR171
301/F_4
PC63
0.22U/25V_6
PC63
0.22U/25V_6
PC110
390P/50V_4
PC110
390P/50V_4
PR12
10K/F_4
PR12
10K/F_4
PR8
1/F_4
PR8
1/F_4
PC42
0.1U/10V_4
PC42
0.1U/10V_4
PR145
2.05K/F_4
PR145
2.05K/F_4
PC20
*0.1U/10V_4
PC20
*0.1U/10V_4
PR15
*1K/F_4
PR15
*1K/F_4
PR126
18.2K/F_4
PR126
18.2K/F_4
PR128 0_4PR128 0_4
PR40
100/F_4
PR40
100/F_4
PR5
3.65K/F_4
PR5
3.65K/F_4
PR65
18.2K/F_4
PR65
18.2K/F_4
PR142
137K/F_4
PR142
137K/F_4
PR130
27.4K/F_4
PR130
27.4K/F_4
PR152
10K/F_4
PR152
10K/F_4
PC64 1U/6.3V_4PC64 1U/6.3V_4
PR119 0_4PR119 0_4
PR146
11.5K/F_4
PR146
11.5K/F_4
PR86
*1K/F_4
PR86
*1K/F_4
PC112
0.1U/10V_4
PC112
0.1U/10V_4
PC28
0.22U/10V_4
PC28
0.22U/10V_4
PR158
1/F_4
PR158
1/F_4
PR9
1/F_4
PR9
1/F_4
PC78 1U/6.3V_4PC78 1U/6.3V_4
PR131
*32.4K/F_4
PR131
*32.4K/F_4
PR214
100/F_4
PR214
100/F_4
PR56 1_6PR56 1_6
PR150
10K/F_4
PR150
10K/F_4
PC91
10P/50V_4
PC91
10P/50V_4
PC132
*470P/50V_4
PC132
*470P/50V_4
PC85
0.22U/25V_6
PC85
0.22U/25V_6
PR1430_4 PR1430_4
PR217
100K/F_4 NTC
PR217
100K/F_4 NTC
1 2
PC83
1000P/50V_4
PC83
1000P/50V_4
PR36
137K/F_4
PR36
137K/F_4
PR44
11.5K/F_4
PR44
11.5K/F_4
PR162
1/F_4
PR162
1/F_4
PR213
100/F_4
PR213
100/F_4
PR87 0_4PR87 0_4
PR151
3.65K/F_4
PR151
3.65K/F_4
PR54
0_4
PR54
0_4
PR255
10K/F_4 NTC
PR255
10K/F_4 NTC
12
PR10
301/F_4
PR10
301/F_4
PC98
0.01U/25V_4
PC98
0.01U/25V_4
12
PC10
*470P/50V_4
PC10
*470P/50V_4
PC130
1000P/50V_4
PC130
1000P/50V_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HG1
SW1
LG2
LG1
SW2
HG2
HG1_G
HG2_G
VSUMP_1
VSUMN_1
VSUMP_2
VSUMN_2
FCCM_NB
BOOTY
VSUMN_NBY
BOOTY2
SWNB2
HGNB2
LGNB2
VSUMP_NB_Y
SWNBYSWNBY
HNBY
VSUMN_NBY2
VSUMP_NB_Y2
SWNB2
LGNBY
HG138
SW138
LG138
HG238
SW238
LG238
VSUMN_1 38
VSUMP_1 38
VSUMN_2 38
VSUMP_2 38
VSUMP_NB_Y 38
6277_PWMY38
FCCM_NB38
PWM2_NB38
VSUMP_NB_Y2 38
VSUMN_NBY2 38
VSUMN_NBY 38
+VCC_CORE
+VCC_CORE
+VDDNB_CORE
+5VS5
+VIN_VCC_GT
+5VS5
+VIN
+VIN_VCC_CORE
+VIN_VCC_CORE
+VIN_VCC_GT +VIN
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ISL6208
1A
Custom
39 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ISL6208
1A
Custom
39 44Friday, November 11, 2011
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
ISL6208
1A
Custom
39 44Friday, November 11, 2011
CPU CORE Volt
Countinue current:36A
Peak current:50A
OCP minimum:60A
VDDNB Volt
Countinue current:25A
Peak current:33A
OCP minimum:40A
39
DB
DB
DB
DB
SI
SI
SI
SI
SI
SI
SI
SI
SI
SI
SI
SI
PR216
2.2_6
PR216
2.2_6
PC135
0.1U/10V_4
PC135
0.1U/10V_4
PC221
4.7U/25V_8
PC221
4.7U/25V_8
PC218
0.1U/25V_4
PC218
0.1U/25V_4
12
PC219
4.7U/25V_8
PC219
4.7U/25V_8
D1
D1
D1
G1
S2
S2
S2
G2
S1/D2
PQ41
FDMS7602S
D1
D1
D1
G1
S2
S2
S2
G2
S1/D2
PQ41
FDMS7602S
7
6
5
1
2
8
9
PC199
4.7U/25V_8
PC199
4.7U/25V_8
PC197
2200P/50V_4
PC197
2200P/50V_4
PR242
*0_2/S
PR242
*0_2/S
PC223
4.7U/25V_8
PC223
4.7U/25V_8
PC57
0.1U/25V_4
PC57
0.1U/25V_4
PL20
0.36uH
PL20
0.36uH
PC279
22U/6.3V_8
PC279
22U/6.3V_8
+
PC247
390U/2.5V_6X5.8ESR10
+
PC247
390U/2.5V_6X5.8ESR10
12
D1
D1
D1
G1
S2
S2
S2
G2
S1/D2
PQ40
FDMS7602S
D1
D1
D1
G1
S2
S2
S2
G2
S1/D2
PQ40
FDMS7602S
7
6
5
1
2
8
9
PC188
1U/6.3V_4
PC188
1U/6.3V_4
PR219
1_6
PR219
1_6
PC58
2200P/50V_4
PC58
2200P/50V_4
PR252
*0_2/S
PR252
*0_2/S
PC185
2200P/50V_4
PC185
2200P/50V_4
+
PC275
390U/2.5V_6X5.8ESR10
+
PC275
390U/2.5V_6X5.8ESR10
12
PC190
0.22U/25V_6
PC190
0.22U/25V_6
PC194
4.7U/25V_8
PC194
4.7U/25V_8
PC191
2200P/50V_4
PC191
2200P/50V_4
+
PC160
330U_2V_7343
+
PC160
330U_2V_7343
12
PL29
0.36uH/24A_7X7X3
PL29
0.36uH/24A_7X7X3
PR244
*0_2/S
PR244
*0_2/S
PC196
1U/6.3V_4
PC196
1U/6.3V_4
PL28
0.36uH/24A_7X7X3
PL28
0.36uH/24A_7X7X3
PR251
*0_2/S
PR251
*0_2/S
PC224
4.7U/25V_8
PC224
4.7U/25V_8
PC195
4.7U/25V_8
PC195
4.7U/25V_8
D
S
G
PQ23
TPCA8A10-H
D
S
G
PQ23
TPCA8A10-H
4
2
1
35
D
S
G
PQ19
TPCA8064-H
D
S
G
PQ19
TPCA8064-H
4
2
1
35
PR254
*0_2/S
PR254
*0_2/S
PR236
*0_2/S
PR236
*0_2/S
PC46
2200P/50V_4
PC46
2200P/50V_4
PC220
4.7U/25V_8
PC220
4.7U/25V_8
PR111
2.2_6
PR111
2.2_6
+
PC262
390U/2.5V_6X5.8ESR10
+
PC262
390U/2.5V_6X5.8ESR10
12
PR234
1_6
PR234
1_6
PC186
2200P/50V_4
PC186
2200P/50V_4
D
S
G
PQ20
TPCA8064-H
D
S
G
PQ20
TPCA8064-H
4
2
1
35
PL21
0.36uH
PL21
0.36uH
PR253
*0_2/S
PR253
*0_2/S
PR231
1_6
PR231
1_6
PC225
*4.7U/25V_8
PC225
*4.7U/25V_8
PU15
ISL6208BCRZ
PU15
ISL6208BCRZ
PWM
3
VCC
6
UGATE 1
FCCM
7
BOOT 2
PHASE 8
LGATE 5
GND
4PAD
9
PC226
4.7U/25V_8
PC226
4.7U/25V_8
PC200
4.7U/25V_8
PC200
4.7U/25V_8
+
PC259
470U/25V_EC_10H
+
PC259
470U/25V_EC_10H
12
PL15
*0_8/S
PL15
*0_8/S
+
PC274
330U_2V_7343
+
PC274
330U_2V_7343
12
3
D
S
G
PQ24
TPCA8A10-H
D
S
G
PQ24
TPCA8A10-H
4
2
1
35
PC278
22U/6.3V_8
PC278
22U/6.3V_8
+
PC267
*390U/2.5V_6X5.8ESR10
+
PC267
*390U/2.5V_6X5.8ESR10
12
PC55
0.1U/25V_4
PC55
0.1U/25V_4
PC192
0.1U/25V_4
PC192
0.1U/25V_4
PR235
*0_2/S
PR235
*0_2/S
PL13
*0_8/S
PL13
*0_8/S
PC187
0.22U/25V_6
PC187
0.22U/25V_6
PC66
2200P/50V_4
PC66
2200P/50V_4
PC193
0.1U/25V_4
PC193
0.1U/25V_4
PR215
2.2_6
PR215
2.2_6
PC222
*4.7U/25V_8
PC222
*4.7U/25V_8
+
PC280
*330U_2V_7343
+
PC280
*330U_2V_7343
12
PC44
2200P/50V_4
PC44
2200P/50V_4
+
PC276
390U/2.5V_6X5.8ESR10
+
PC276
390U/2.5V_6X5.8ESR10
12
PR89
2.2_6
PR89
2.2_6
+
PC260
390U/2.5V_6X5.8ESR10
+
PC260
390U/2.5V_6X5.8ESR10
12
PC198
0.1U/25V_4
PC198
0.1U/25V_4
PU16
ISL6208BCRZ
PU16
ISL6208BCRZ
PWM
3
VCC
6
UGATE 1
FCCM
7
BOOT 2
PHASE 8
LGATE 5
GND
4PAD
9
PR218
1_6
PR218
1_6
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
SUSON
1116LL
1116TONSET
1116DRVL
V5FILT
1116VBST
1116CS
1116DRVH
HWPG
1116_S5ON
51116PG51116PG
MAINON 1116_S3ON
SUSON33,41
DDR_VTTREF3,12,13
HWPG4,23,33,35,36,37
MAINON9,33,34,36,41
VDDIO_FB_H4
+VIN
+1.5VSUS
+1.5VSUS
+VIN_DDR
+5VS5
+0.75V_DDR_VTT
+VIN_DDR
+5VS5
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDRIII(G5616)
40 44Friday, November 11, 2011
1ACustom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDRIII(G5616)
40 44Friday, November 11, 2011
1ACustom
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
DDRIII(G5616)
40 44Friday, November 11, 2011
1ACustom
( VTT/2A )
( 3mA )
Peak current:12A
Countinue current:10A
OCP minimum 15A
+1.5V +/- 5%
Rds(on) 5m ohm
40
DB DB
DB
DB,SI
DB
DB
SI
SI
PC22
4.7U/25V_8
PC22
4.7U/25V_8
PC72
0.033U/10V_4
PC72
0.033U/10V_4
PR72
10.2K/F_4
PR72
10.2K/F_4
PL5
*0_8/S
PL5
*0_8/S
PR45 0_4PR45 0_4 PC7
1U/6.3V_4
PC7
1U/6.3V_4
D
S
G
PQ17
TPCA8A11-H
D
S
G
PQ17
TPCA8A11-H
4
2
1
35
PC86
2200P/50V_4
PC86
2200P/50V_4
PR62
10K/F_4
PR62
10K/F_4
PR58
2.2_6
PR58
2.2_6
PC31
4.7U/25V_8
PC31
4.7U/25V_8
PC11
2200P/50V_4
PC11
2200P/50V_4
EC5
68P/50V_4
EC5
68P/50V_4
PR31 0_4PR31 0_4
PL17
NIMS0603-R82M/13A
PL17
NIMS0603-R82M/13A
PR19
6.98K/F_4
PR19
6.98K/F_4
+
PC245
390U/2.5V_5X5.8ESR10
+
PC245
390U/2.5V_5X5.8ESR10
12
PU5
RT8207LGQW
PU5
RT8207LGQW
VBST 22
LGATE 19
VDD 14
CS_GND 17
VDDP 15
CS 16
PGND 18
TON
12
S3
10
FB
9
MODE 4
PHASE 20
VTTSNS
2
VTTGND
1
DEM 6
VTTREF
5
NC
7
VDDQSNS
8
UGATE 21
PGOOD
13
GND
3
S5
11
VTT
24 VLDOIN 23
GND
25
PC8
1U/6.3V_4
PC8
1U/6.3V_4
PR16
10_6
PR16
10_6
PC68
10U/6.3V_8
PC68
10U/6.3V_8
PC12
0.1U/25V_4
PC12
0.1U/25V_4
PC24
0.1U/25V_4
PC24
0.1U/25V_4
PR83
*10K/F_4
PR83
*10K/F_4
PR37
619K/F_4
PR37
619K/F_4
PC36
*0.1U/50V_6
PC36
*0.1U/50V_6
PC16
0.1U/25V_4
PC16
0.1U/25V_4
PQ10
EMB20N03V
PQ10
EMB20N03V
3
5
2
4
16
7
8
PC27
*0.1U/10V_4
PC27
*0.1U/10V_4
PR117
2.2_6
PR117
2.2_6
PR91
*0_4
PR91
*0_4
PC235
0.1U/10V_4
PC235
0.1U/10V_4
PR90
0_4
PR90
0_4
PD12
*RB501V-40
PD12
*RB501V-40
21
PR239
*0_2/S
PR239
*0_2/S
PC67
10U/6.3V_8
PC67
10U/6.3V_8
PR46 0_4PR46 0_4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
G5934DISC1
G5934VSENSE
G5934DISC4
G5934DISC2
G5934DISC3
MAIND3.3V
G5934CN
G5934CP
SUSD
MAINON
LAN_ON
G5934PG
MAINON
MAIND
LAN_POWER33
MAINON9,33,34,36,40
SUSON33,40
ACIN 33,34
+VAD_1 34
+12VALW 9,34,44
+1.5VSUS 2,3,4,5,12,13,40,44
+VIN 23,34,35,36,37,39,40,42,44
+5V 8,18,24,25,26,27,30,31,32
+1.5V 2,4,11,23,32,38
+5VS5 27,28,30,35,36,37,38,39,40,42,43
+3VLANVCC 29
+3VSUS 30,32
+3VS5 3,4,6,8,9,10,12,33,35,36,42,44
+1.8V
+VH28
+3V
+12VALW
+VAD_1
+5V
+5VS5
+3VLANVCC
+3VS5
+3VSUS
+5V
+3VSUS
+3V
+3VS5
+VIN
+3VLANVCC
+3VS5
+VH28
+VAD
+1.5V
+1.5V
+1.5VSUS
+1.1V
+1.1VS5
+1.1V
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Dis-charge IC (GS7502)
Custom
41 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Dis-charge IC (GS7502)
Custom
41 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
Dis-charge IC (GS7502)
Custom
41 44Friday, November 11, 2011
1A
5.2A
41
0.04A
5.1A
0.7A
2A
(4A )
DB
DB
DB
DB
PC124
*10U/6.3V_6
PC124
*10U/6.3V_6
PR164
22_6
PR164
22_6
D
S
G
PQ43
RJK0392DPA
D
S
G
PQ43
RJK0392DPA
4
2
1
35
PC268
0.1U/10V_4
PC268
0.1U/10V_4
PC214
0.1U/10V_4
PC214
0.1U/10V_4
PR256
*22_8
PR256
*22_8
PC126
0.1U/10V_4
PC126
0.1U/10V_4
PC137
0.1U/25V_4
PC137
0.1U/25V_4
PC142
2200P/50V_4
PC142
2200P/50V_4
PQ34
QM3002V
PQ34
QM3002V
3
6
5
2
4
1
PR257
*1M_4
PR257
*1M_4
PC131
0.47U/25V_6
PC131
0.47U/25V_6 PR175
0_4
PR175
0_4
PC107
2200P/50V_4
PC107
2200P/50V_4
PR195
0_6
PR195
0_6
PC269
0.1U/10V_4
PC269
0.1U/10V_4
PC145
*10U/6.3V_6
PC145
*10U/6.3V_6
PR259
*22_8
PR259
*22_8
PC125
0.1U/10V_4
PC125
0.1U/10V_4
PQ55
EMB20N03V
PQ55
EMB20N03V
352
4
1
PC202
0.1U/10V_4
PC202
0.1U/10V_4
PR193
0_6
PR193
0_6
PQ57
*2N7002K
PQ57
*2N7002K
3
2
1
PQ58
*2N7002K
PQ58
*2N7002K
3
2
1
PC123
1U/35V_6
PC123
1U/35V_6
PR170
*0_4
PR170
*0_4
PQ42
EMB20N03V
PQ42
EMB20N03V
352
4
1
PC203
*10U/6.3V_6
PC203
*10U/6.3V_6
PR194
0_6
PR194
0_6
PC152
1U/16V_4
PC152
1U/16V_4
PC161
2200P/50V_4
PC161
2200P/50V_4
PC270
*10U/6.3V_6
PC270
*10U/6.3V_6
PC138
0.1U/10V_4
PC138
0.1U/10V_4
PU12
GS7502Q3-R
PU12
GS7502Q3-R
ON2
2
DISC1
5
DRIVER4
12
CN 19
D_CAP 16
ON4
4
ON3
3
CP 18
DISC3 7
VSENSE 14
DISC2 6
DRIVER1
9
DISC4
8
REG 13
DRIVER3
11
VIN 20
ON1
1
VOUT 17
DRIVER2
10
PG 15
GND
21
PC261
0.1U/10V_4
PC261
0.1U/10V_4
PR179
750K/F_4
PR179
750K/F_4
PC136
0.1U/25V_4
PC136
0.1U/25V_4
PR258
*1M_4
PR258
*1M_4
PC143
0.1U/10V_4
PC143
0.1U/10V_4
PQ30
QM3002V
PQ30
QM3002V
3
6
5
2
4
1
PC254
0.1U/10V_4
PC254
0.1U/10V_4
PR185
100K/F_4
PR185
100K/F_4
PC207
*10U/6.3V_6
PC207
*10U/6.3V_6
PC266
2200P/50V_4
PC266
2200P/50V_4
PC209
0.1U/10V_4
PC209
0.1U/10V_4
PQ56
*2N7002K
PQ56
*2N7002K
3
2
1
PR188
0_6
PR188
0_6
PQ54
EMB20N03V
PQ54
EMB20N03V
352
4
1
PC264
*10U/6.3V_8
PC264
*10U/6.3V_8
PC201
0.1U/10V_4
PC201
0.1U/10V_4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
8232CS
8232FB 8232LGATE
8232PG
8232UGATE
8232REFIN
VSETD1
8232TON
8232UGATE
8232BOOT
8232VDD
8232G1
8232LGATE
8232PHASE
VSETD2
VSETS2
8232BOOT_1
8232G0
8232G2
VSETD0
VSETS1 8232EN
GFX_CORE_CNTRL115
GFX_CORE_CNTRL015
DGPU_PWROK7,18,33,43,44
DGPU_PR_EN33,43,44
GFX_CORE_CNTRL215
PX_MODE18
+VIN_VGA
+3VS5
+3V_DELAY
+VGA_CORE
+VIN
+3V_DELAY +5VS5
+5VS5+3V
+3V_DELAY
+2VREFO +VIN_VGA
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+VGACORE (RT8232AZ)
Custom
42 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+VGACORE (RT8232AZ)
Custom
42 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+VGACORE (RT8232AZ)
Custom
42 44Friday, November 11, 2011
1A
VGA Core
42
+VGACORE +/- 5%
600 mils
RDSon=3.5m ohm
OCP minimum 33A
Countinue current:20A
Peak current:23A
0
PWRCNTL0
(GPIO15)
0.8V
0.75V
L
V-CORE
M
1
0
PWRCNTL2
(GPIO16)
0
1
1
PWRCNTL1
(GPIO20)
0
1
0
0.9V
H
0.85V
Symour-XT
0
0
0
0
0 01
1.0V
0.875V
1 1
DB
DB
DB
DB
DB
DB
SI
SI
SI
PC147
4.7U/25V_8
PC147
4.7U/25V_8
+
PC272
390U/2.5V_6X5.8ESR10
+
PC272
390U/2.5V_6X5.8ESR10
12
PR190
2.2_6
PR190
2.2_6
PR192
10K/F_4
PR192
10K/F_4
PC163
100P/50V_4
PC163
100P/50V_4
PD15
*1N4448WS-7-F
PD15
*1N4448WS-7-F
21
PR196
2.2_6
PR196
2.2_6
PC133
0.1U/25V_4
PC133
0.1U/25V_4
PC176
0.1U/10V_4
PC176
0.1U/10V_4
+
PC179
*330U_2V_7343
+
PC179
*330U_2V_7343
12
PR182
*10K/F_4
PR182
*10K/F_4
PR186
56K/F_4
PR186
56K/F_4
PC146
4.7U/25V_8
PC146
4.7U/25V_8
+
PC271
390U/2.5V_6X5.8ESR10
+
PC271
390U/2.5V_6X5.8ESR10
12
PR191
49.9K/F_4
PR191
49.9K/F_4
PC148
4.7U/25V_8
PC148
4.7U/25V_8
PC159
0.22U/10V_4
PC159
0.22U/10V_4
PR197
30K/F_4
PR197
30K/F_4
PR250
*0_2/S
PR250
*0_2/S
PR201
9.09K/F_4
PR201
9.09K/F_4
PR181
*10K/F_4
PR181
*10K/F_4
PR189
0_4
PR189
0_4
PR200
2.05K/F_4
PR200
2.05K/F_4
PR202
1.87K/F_4
PR202
1.87K/F_4
PC155
0.1U/25V_4
PC155
0.1U/25V_4
D
S
G
PQ39
TPCA8064-H
D
S
G
PQ39
TPCA8064-H
4
2
1
35
PR203
3.3K/F_4
PR203
3.3K/F_4
PR187
0_4
PR187
0_4
D
S
G
PQ38
TPCA8A10-H
D
S
G
PQ38
TPCA8A10-H
4
2
1
35
PR178
12K/F_4
PR178
12K/F_4
PC162
4.7U/6.3V_6
PC162
4.7U/6.3V_6
+
PC273
390U/2.5V_6X5.8ESR10
+
PC273
390U/2.5V_6X5.8ESR10
12
PR184
*10K/F_4
PR184
*10K/F_4
PR198
10_6
PR198
10_6
PU13
RT8232AZ
PU13
RT8232AZ
REFO
4
VDD 12
FB 2
PGOOD 3
D1
9
D2
8
G0
19
LGATE 11
CS 16
PHASE 14
UGATE 15
BOOT 13
G1
18
EN/MODE 1
TON 20
PAD 21
S1
7
D0
10
S2
6
G2
17
REFIN
5
PC157
2200P/50V_4
PC157
2200P/50V_4
PC154
1U/6.3V_4
PC154
1U/6.3V_4
PC164
*4.7U/25V_8
PC164
*4.7U/25V_8
D
S
G
PQ36
TPCA8064-H
D
S
G
PQ36
TPCA8064-H
4
2
1
35
PL12
*0_8/S
PL12
*0_8/S
PR183
*10K/F_4
PR183
*10K/F_4
PC150
2200P/50V_4
PC150
2200P/50V_4
PR199
3.65K/F_4
PR199
3.65K/F_4
PD16
RB501V-40
PD16
RB501V-40
2 1
PC151
0.1U/25V_4
PC151
0.1U/25V_4
PL26
0.36U28A(ETQP4LR36AFC)
PL26
0.36U28A(ETQP4LR36AFC)
PR180
360K/F_4
PR180
360K/F_4
D
S
G
PQ37
TPCA8A10-H
D
S
G
PQ37
TPCA8A10-H
4
2
1
35
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
1.8_VFBJP
G5173COMP
G5173_PH
G5173SS
G5173RT
G5173EN
+5VPCU_1.8V
+1.8V_L
G5173-1.8_VFB
DGPU_PR_EN33,42,44
DGPU_PWROK7,18,33,42,44
+5VS5
+1.8V_VGA
+1.8V_L
+1.8V_VGA
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.8V_VGA (G5193)
Custom
43 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.8V_VGA (G5193)
Custom
43 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.8V_VGA (G5193)
Custom
43 44Friday, November 11, 2011
1A
43
Countinue current:2A
+1.8V +/- 5%
Peak current:3A
V0=0.827*(R1+R2)/R2
R1
R2
OCP minimum 4.5A
DB for prevent interference
DB
DB
PU6 G5193R41UPU6 G5193R41U
VSNS 6
VIN
16
VIN
2
BOOT 13
PWRGD
14
PH 11
VIN
1
PH 12
PH 10
EN
15
GND 3
COMP
7
RT/CLK
8
SS
9
GND 4
AGND 5
PAD
17 PAD
18 PAD
19 PAD
20 PAD
21 PAD
22
PC231
0.1U/10V_4
PC231
0.1U/10V_4
PR38
182K/F_4
PR38
182K/F_4
PC73
0.1U/10V_4
PC73
0.1U/10V_4
PJP5
*POWER_JP/S
PJP5
*POWER_JP/S
1 2
PR98
2.2_6
PR98
2.2_6
PR71
*2.2_6
PR71
*2.2_6
PC241
1U/6.3V_4
PC241
1U/6.3V_4
12
PC153
0.1U/10V_4
PC153
0.1U/10V_4
PC29
0.01U/25V_4
PC29
0.01U/25V_4
1 2
PL16
NIMS0603-1R0M/11A
PL16
NIMS0603-1R0M/11A
PC14
470P/50V_4
PC14
470P/50V_4
PC13
*100P/50V_4
PC13
*100P/50V_4
PR105
33K/F_4
PR105
33K/F_4
PR104
0_4
PR104
0_4
PC77
1U/6.3V_4
PC77
1U/6.3V_4
PR237
*POWER_JP/S
PR237
*POWER_JP/S
1 2
PC144
0.01U/25V_4
PC144
0.01U/25V_4
1 2
PC141
1U/6.3V_4
PC141
1U/6.3V_4
12
PR35
12K/F_4
PR35
12K/F_4
PC228
10U/6.3V_8
PC228
10U/6.3V_8
PR230
*0_2/S
PR230
*0_2/S
PR41
20K/F_4
PR41
20K/F_4
PC41
0.1U/10V_4
PC41
0.1U/10V_4
PC40
10U/6.3V_8
PC40
10U/6.3V_8
PC233
0.01U/25V_4
PC233
0.01U/25V_4
1 2
PC19
*82P/50V_4
PC19
*82P/50V_4
PC149
1000P/50V_4
PC149
1000P/50V_4
12
PC37
*2200P/50V_4
PC37
*2200P/50V_4
PC229
0.1U/10V_4
PC229
0.1U/10V_4
PC227
10U/6.3V_8
PC227
10U/6.3V_8
PC236
1000P/50V_4
PC236
1000P/50V_4
12
PR18
10.2K/F_4
PR18
10.2K/F_4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
3VGFX_ONG
3VGFX_OND
DGPU_PR_EN
DGPU_PR_EN
1.5V_ONG
1.5V_OND
PX_MODE1
1.0_VFBVGAJP
G5173COMP_1.0VGA
G5173_PH_1.0VGA
G5173SS_1.0VGA
G5173RT_1.0VGA
G5173EN_1.0VGA
+3VPCU_1.0VGA
G5173-1.0VFBVGA
PX_MODE1 18
+VIN 23,34,35,36,37,39,40,41,42
+3VS5 3,4,6,8,9,10,12,33,35,36,41,42
+3V 2,4,6,8,9,10,11,12,13,14,18,23,24,25,26,27,28,29,30,31,32,33,41,42
+5VS5 27,28,30,35,36,37,38,39,40,41,42,43
+1.5V_VGA 18,20,21,22
+12VALW 9,34,41
+1.5VSUS 2,3,4,5,12,13,40,41
+3V_VGA 18,30
DGPU_PWROK7,18,33,42,43
VGA_REQ6
DGPU_PR_EN33,42,43
+3V_VGA
+3VS5
+VIN
+12VALW
+3V_VGA
+1.5VSUS
+VIN
+1.5V_VGA +12VALW
+1.5V_VGA
+3V
+1.0V_VGA
+3VS5
+1.0V_VGA_S2
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.0V_VGA (G5193)
Custom
44 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.0V_VGA (G5193)
Custom
44 44Friday, November 11, 2011
1A
Size Document Number Rev
Date: Sheet of
Quanta Computer Inc.
PROJECT : R53
+1.0V_VGA (G5193)
Custom
44 44Friday, November 11, 2011
1A
44
0.06A
(5A )
Countinue current:2A
+1.0V/0.935V +/- 5%
Peak current:3A
V0=0.827*(R1+R2)/R2
R1
R2
OCP minimum 4.5A
2.15K CS22152FB0717W
CS21372FB1925W
R1 Value
1.37K0.935V
1.0V
Symour-XT R1 P/NVoltage level
DB
DB
DB
PR211
*0_2/S
PR211
*0_2/S
PC166
10U/6.3V_8
PC166
10U/6.3V_8
PC169
*10U/6.3V_6
PC169
*10U/6.3V_6
PQ22
*2N7002K
PQ22
*2N7002K
3
2
1
PQ5
*2N7002K
PQ5
*2N7002K
3
2
1
D
S
G
PQ35
RJK0392DPA
D
S
G
PQ35
RJK0392DPA
4
2
1
35
PU14 G5193R41UPU14 G5193R41U
VSNS 6
VIN
16
VIN
2
BOOT 13
PWRGD
14
PH 11
VIN
1
PH 12
PH 10
EN
15
GND 3
COMP
7
RT/CLK
8
SS
9
GND 4
AGND 5
PAD
17 PAD
18 PAD
19 PAD
20 PAD
21 PAD
22
PC158
0.1U/10V_4
PC158
0.1U/10V_4
PR206
2.15K/F_4
PR206
2.15K/F_4
PC173
470P/50V_4
PC173
470P/50V_4
PC156
0.01U/25V_4
PC156
0.01U/25V_4
PC34
0.01U/25V_4
PC34
0.01U/25V_4
PQ6
2N7002K
PQ6
2N7002K
3
2
1
PC177
*2200P/50V_4
PC177
*2200P/50V_4
PR116 33K/F_4PR116 33K/F_4
PR108
*22_8
PR108
*22_8
PQ25
PDTC144EU
PQ25
PDTC144EU
1 3
2
PC167
*82P/50V_4
PC167
*82P/50V_4
R40 0_4R40 0_4
PR207
10.2K/F_4
PR207
10.2K/F_4
PC170
1U/6.3V_4
PC170
1U/6.3V_4
PR73
*22_8
PR73
*22_8
PR66
1M/F_4
PR66
1M/F_4
PC168
*10U/6.3V_6
PC168
*10U/6.3V_6
PC165
0.1U/10V_4
PC165
0.1U/10V_4
PC62
*10U/6.3V_6
PC62
*10U/6.3V_6
PR212
*2.2_6
PR212
*2.2_6
PQ7
2N7002K
PQ7
2N7002K
3
2
1
PC171
*100P/50V_4
PC171
*100P/50V_4
PC178
10U/6.3V_8
PC178
10U/6.3V_8
PR210
182K/F_4
PR210
182K/F_4
PC172
0.1U/10V_4
PC172
0.1U/10V_4
PR122
1M/F_4
PR122
1M/F_4
PR67
0_4
PR67
0_4
PR121
1M/F_4
PR121
1M/F_4
PC175
0.1U/10V_4
PC175
0.1U/10V_4
PC189
0.1U/10V_4
PC189
0.1U/10V_4
PR32
1M/F_4
PR32
1M/F_4
PQ12
QM3002V
PQ12
QM3002V
3
6
5
2
4
1
PL27
MMD-05CZ-1R0M/7A
PL27
MMD-05CZ-1R0M/7A
PR205
0_4
PR205
0_4
PC35
0.1U/10V_4
PC35
0.1U/10V_4PR33
1M/F_4
PR33
1M/F_4
PJP6
*POWER_JP/S
PJP6
*POWER_JP/S
1 2
PR208
20K/F_4
PR208
20K/F_4
PC139
0.1U/10V_4
PC139
0.1U/10V_4
PR103
*0_8
PR103
*0_8
PR209
2.2_6
PR209
2.2_6
PR204
12K/F_4
PR204
12K/F_4
PC174
0.01U/25V_4
PC174
0.01U/25V_4
PC105
0.47U/6.3V_4
PC105
0.47U/6.3V_4
PC180
10U/6.3V_8
PC180
10U/6.3V_8
PC61
0.1U/10V_4
PC61
0.1U/10V_4
PQ26
2N7002K
PQ26
2N7002K
3
2
1
PR96
1M/F_4
PR96
1M/F_4
