Zd1 F Quanta Re Schematics

User Manual: Quanta ZD1 - Schematics. Free.

Open the PDF directly: View PDF .
Page Count: 38

www.RahasiaLaptop.com

D D

C C

B B

A A

Size Document Number Rev

Date: Sheet of

Block Diagram

138Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

Block Diagram

138Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

Block Diagram

138Wednesday, April 25, 2007

CRT

Azalia

PCI Bus

ODD (PATA)

R5C832/833

P18

P28

FSB

PCI-Express 16X Lan

MDC 1.5

TFT LCD Panel

P21,P30

X'TAL

32.768K

1394

+Cardreader

Controller

TVOUT

P19

P25

Speaker

P16

P28

PATA

Mini Card /

WLAN / 3G(TV)

X'TAL

14.318MHZ

CIR

IEEE 1394 Port

X'TAL

32.768KHZ

P24

Audio Amplifier

PCI-Express

533/667 MHz

X4 DMI interface

Fan Header

P24

USB Port x 4

LVDS

P31

EC (WPC8769LDG)

LPC

DDRII

SO-DIMM 0

SO-DIMM 1

Phone Jack

P22

Merom 479

uFCPGA

Line in

USB 2.0

P12,P13,P14,P15

Dual Channel DDR2

SELGO: SLG8SP512K05

P26

P5,P6,P7,P8,P9,P10,P11

HDD (SATA)

Thermal Sensor

ICH8M

P3,P4

Azalia Audio

Controller

ALC268&888

SPI ROM

MIC Jack

Crestline

WXGA

WSXGA+

WUXGA

Media Card Reader

Touch Pad

X'TAL24.576MHZ

P21USB7

CCD

10/100/1G LAN

P20

BROADCOM

X'TAL

25M

USB4 P21

Bluetooth

USB6

VGA/TV out

LVDS

P31

VGA

Connector

P20

Transformer

Int MIC

USB0~3

SATA0

667/800 Mhz

CPU

DVI

K/B COON.

P37

+1.2V/+1.25V/1.5V/2.5V

P32

P33

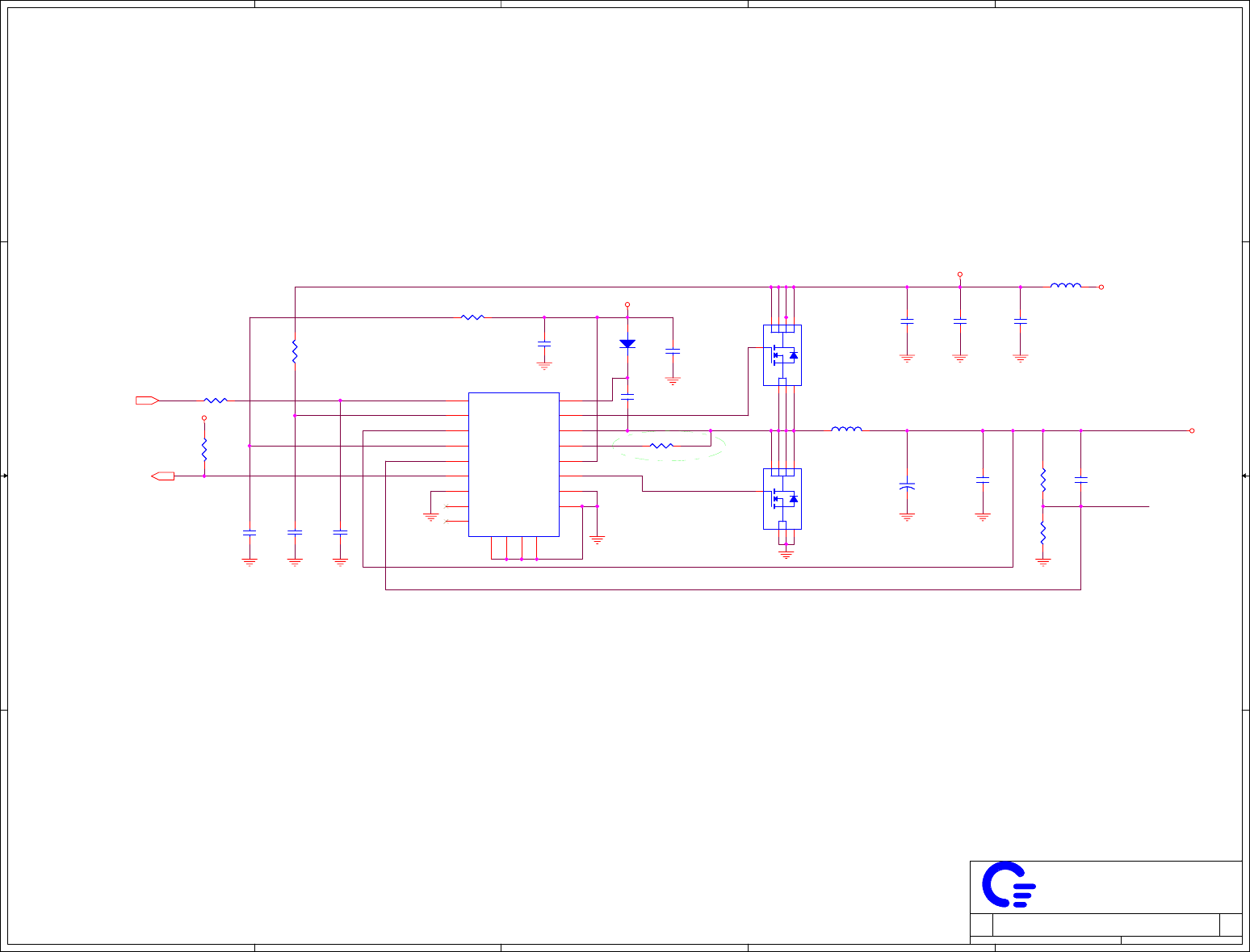

VCORE(ISL6262A)

P33

5V/3.3V (ISL6236)

P37

DISCHARGE

P35,36

+1.8V / +1.05V

CLOCK GENERATOR

SATA1

PCIE-6

MXM-NB8P-GS

( nVidia )

P17

P28

P21

P30

5787M

RJ45

P21

P27

P26

P27

P27 P27

P27P27 P26

BATTERYCHARGER

(ISL6251)

PCIE-1 PCIE-5

Robson

P29

New Card

P23

USB5

PCIE-4PCIE-2

ZD1(CHAPALA) SYSTEM BLOCK DIAGRAM

VRAM 256M

VRAM 512M

PM965

BOM MARK

EV@ EXT VGA

要打

IV@ INT VGA

要打

268@ AUDIO 268

要打

888@ AUDIO 888

要打

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

www.RahasiaLaptop.com

D D

C C

B B

A A

MCH_BSEL2

MCH_BSEL1

CGCLK_SMB

CGDAT_SMB

MCH_BSEL0

PCLK_DEBUG

FSC

CLKUSB_48

MCH_BSEL2

+3V_VDD_A

PCI_CLK_7412_R

CLK_PCIE_SATA_R

CLK_PCIE_SATA#_R

PECLK_VGA_R

PECLK_VGA#_R

PCLK_ICH_R

MCH_BSEL1

CG_XOUT

CLK_MCH_BCLK_R

CLK_MCH_BCLK#_R

PCI_CLK_SIO PCI_CLK_SIO_R

CLK_PCIE_ICH_R

CLK_PCIE_ICH#_R

CLK_CPU_BCLK#_R

CLK_CPU_BCLK_R

FSA

CGCLK_SMB

CGDAT_SMB

CG_XIN

CLK_PCIE_3GPLL_R

CLK_PCIE_3GPLL#_R

PCLK_MINI_R

CLK_PCIE_MINI1#_R

CLK_PCIE_MINI1_R

CLK_PCIE_NEW_C_R

CLK_PCIE_NEW_C#_R

PCLK_591_R

SATACLKREQ#_R

FSC

DREFCLK_R

DREFCLK#_R

CG_XOUT

CG_XIN

PCLK_ICHPCI_CLK_SIO

+1.25V_VDD

CLK_PCIE_LAN_R

CLK_PCIE_LAN#_R

PCIE_CLK_RBS#_R

PCIE_CLK_RBS_R

CLK_DREFSSCLK#_R

CLK_DREFSSCLK_R

VDD_A_REF

VDD_A_48

+3V_VDD_A

CLK_PCIE_TV#_R

CLK_PCIE_TV_R

14M_ICH

CPU_BSEL0<3>

CPU_BSEL2<3>

CPU_BSEL1<3>

MCH_BSEL0 <7>

MCH_BSEL1 <7>

MCH_BSEL2 <7>

PCLK_SMB<14,16,22,23>

PDAT_SMB<14,16,22,23>

CLK_PCIE_SATA# <12>

CLK_PCIE_SATA <12>

CLK_MXM# <17>

CLK_MXM <17>

PCLK_DEBUG<22,30>

PCLK_PCM<28>

14M_ICH<14>

CLK_MCH_BCLK <5>

CLK_MCH_BCLK# <5>

CLK_PCIE_ICH <13>

CLK_PCIE_ICH# <13>

CLK_CPU_BCLK <3>

CLK_CPU_BCLK# <3>

PCLK_ICH<13>

CLK_PCIE_MINI1 <22>

CLK_PCIE_MINI1# <22>

CLK_PCIE_NEW_C <23>

CLK_PCIE_NEW_C# <23>

PCLK_591<31>

SATACLKREQ#<14>

CLKUSB_48<14>

CLK_DREFCLK<7>

CLK_DREFCLK#<7>

CK_PWRGD <14>

PM_STPCPU# <14>

PM_STPPCI# <14>

CLK_PCIE_LAN# <20>

CLK_PCIE_LAN <20>

CLK_PCIE_3GPLL <7>

CLK_PCIE_3GPLL# <7>

PCIE_CLK_RBS# <29>

PCIE_CLK_RBS <29>

CLK_DREFSSCLK# <7>

CLK_DREFSSCLK <7>

CLK_PCIE_TV# <22>

CLK_PCIE_TV <22>

+1.05V

+3V

+3V+3V

+1.25V

Size Document Number Rev

Date: Sheet of

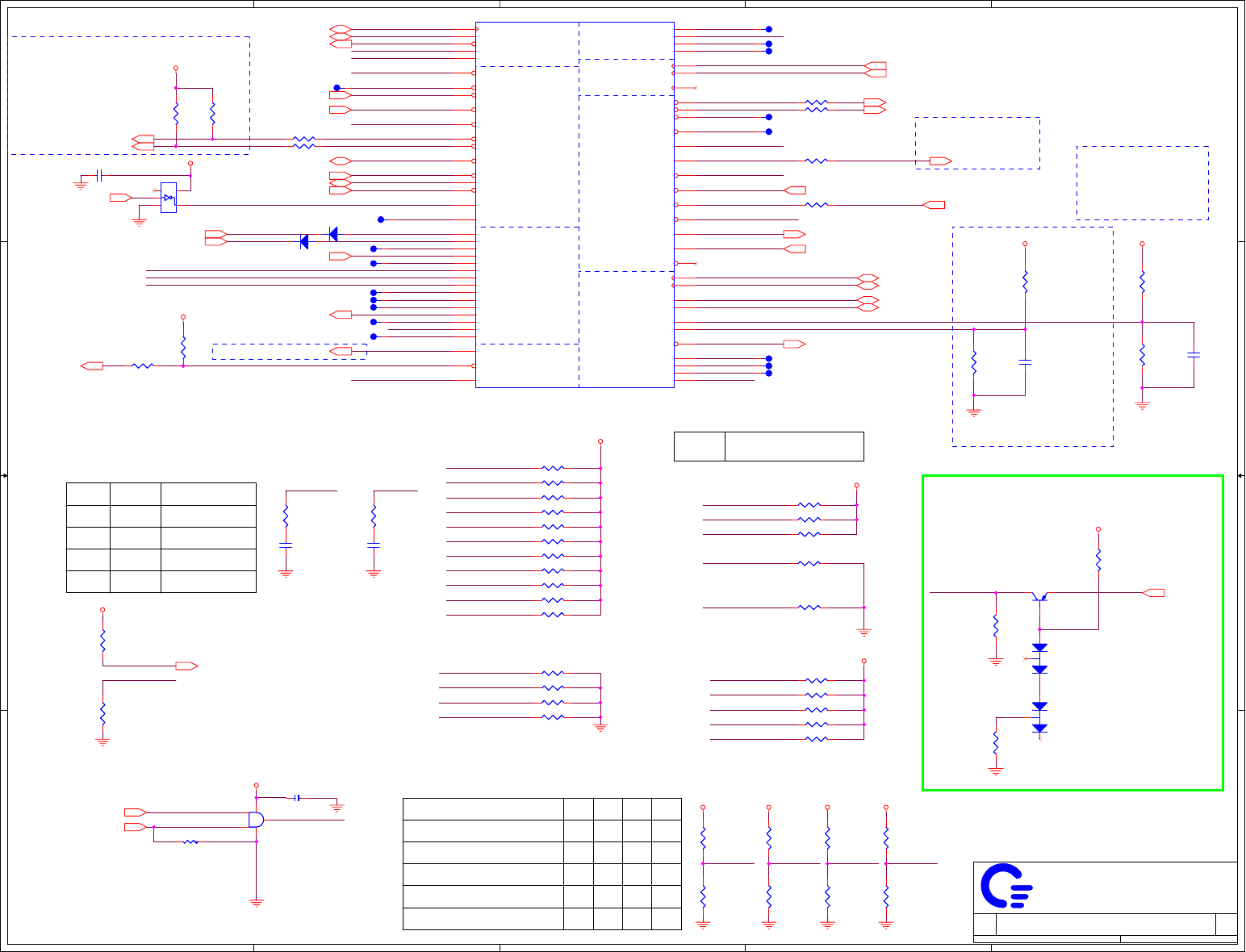

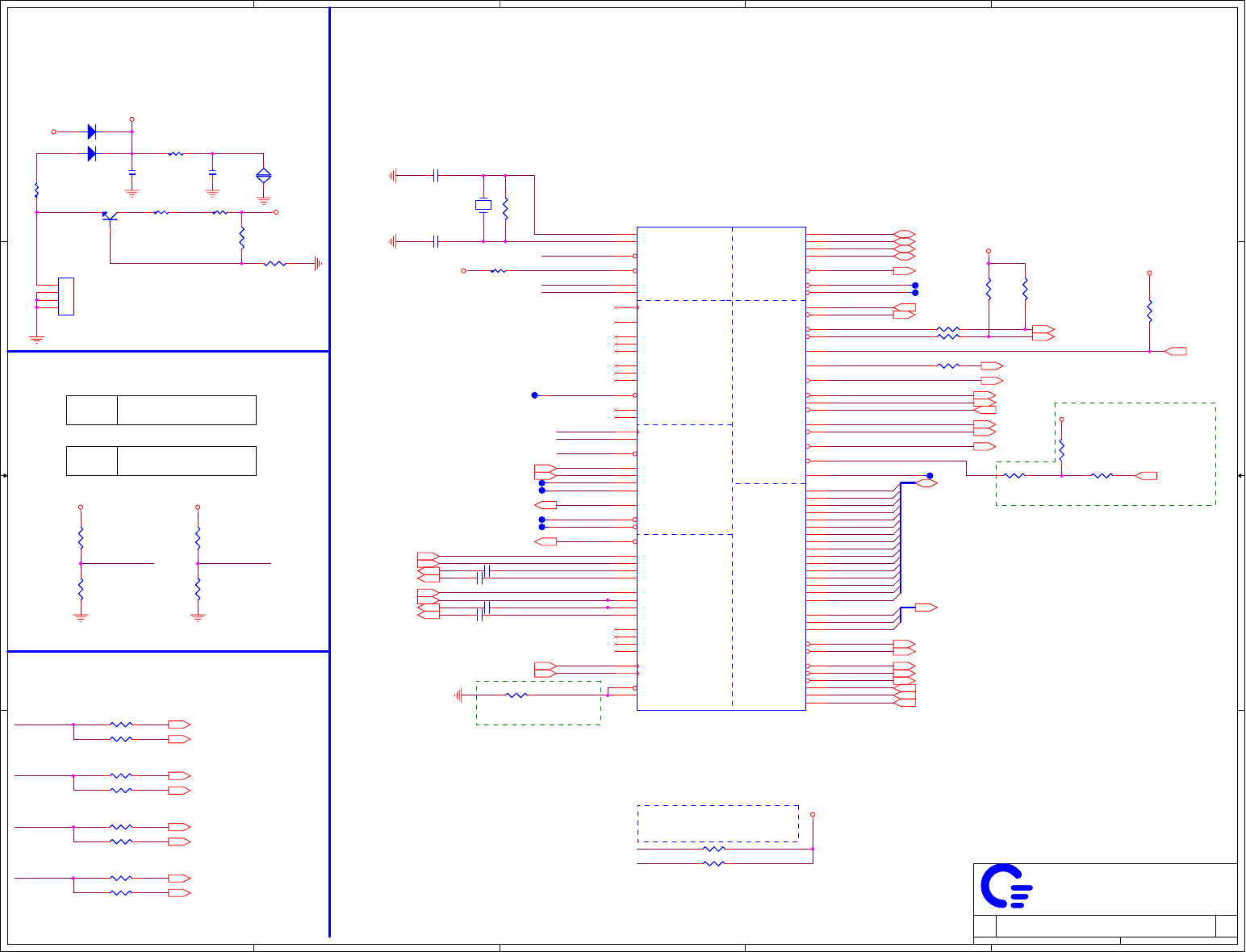

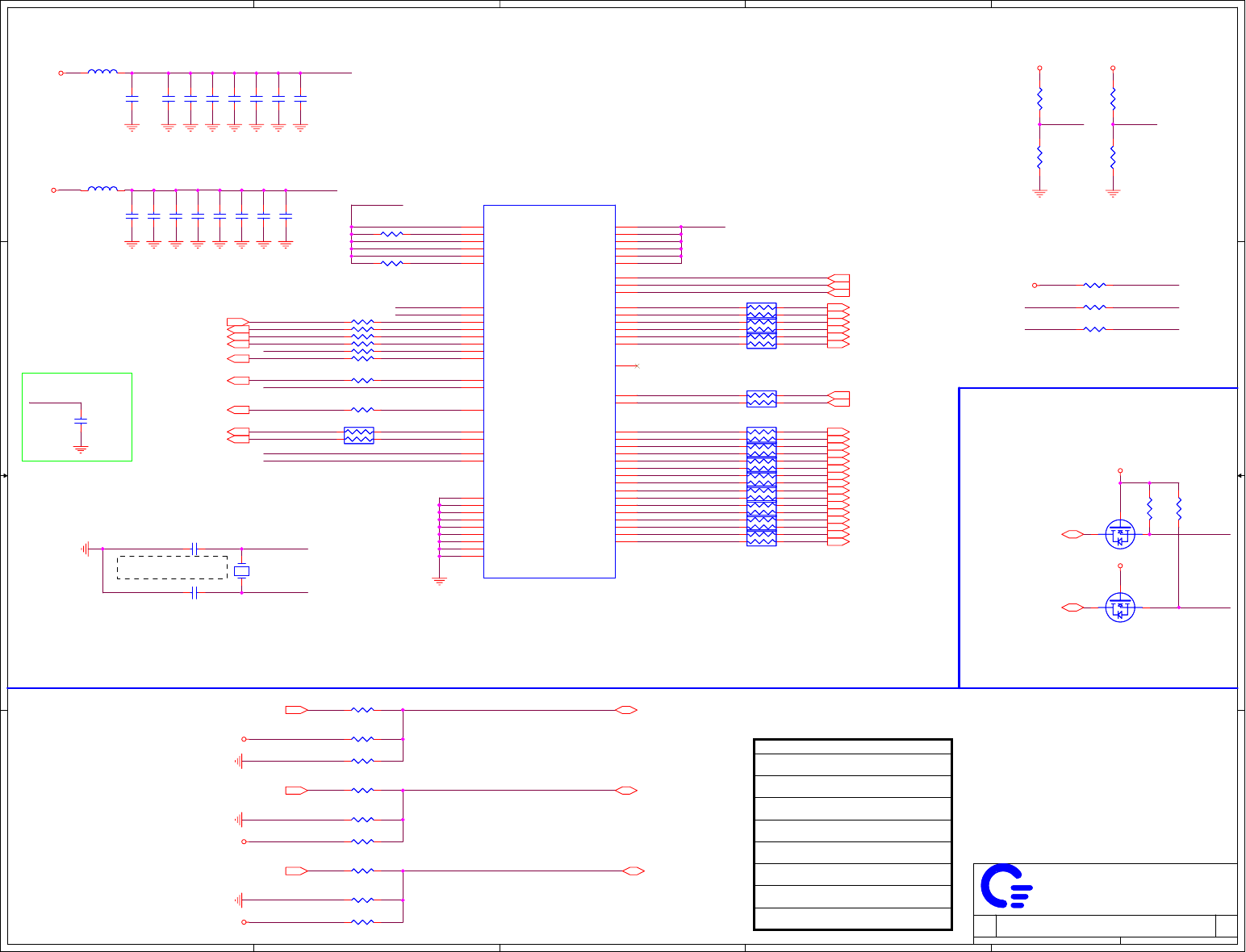

CLOCK GENERATOR CK505 W/REGULATOR

238Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CLOCK GENERATOR CK505 W/REGULATOR

238Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CLOCK GENERATOR CK505 W/REGULATOR

238Monday, May 07, 2007

Clock Generator

BSEL Frequency Select Table

CPU Clock select

Clock Gen I2C

133Mhz

166Mhz

200Mhz

400Mhz

Reserved

100Mhz

333Mhz

FSC FSB FSA Frequency

266Mhz0

XTAL length < 500mils

Main: ICS9LPRS365BGLFT:ALPRS365K13

SLG8SP512T: AL8SP512K05

Change list:

B-test

1.Change U31 P/N to ALPRS365K13 (ICS)

C: For EMI solution

R455 0_4R455 0_4

RP53 0X2RP53 0X2

C347

4.7U/10V

C347

4.7U/10V

RP47 0X2RP47 0X2

R435

*10K_4

R435

*10K_4

R432 33_4R432 33_4

R423 33_4R423 33_4

R439

10K_4

R439

10K_4

C362

.1U/10V_4

C362

.1U/10V_4

R425 0_4R425 0_4

R427 *0_4R427 *0_4

R433 10K_4R433 10K_4

C358

10U/6.3V

C358

10U/6.3V

R446 2.2K_4R446 2.2K_4

RP42 0X2RP42 0X2

R454 *1K_4R454 *1K_4

R456 *56_4R456 *56_4

R205

BKP1608HS181-T

R205

BKP1608HS181-T

RP45 IV@0X2RP45 IV@0X2

C350

.1U/10V_4

C350

.1U/10V_4

RP51 0X2RP51 0X2

R436 33_4R436 33_4

RP36 0X2RP36 0X2

R424 10K_4R424 10K_4

C563 33P/50V_4C563 33P/50V_4

R434 33_4R434 33_4

R447 33_4R447 33_4

C340

.1U/10V_4

C340

.1U/10V_4

R450 *1K_4R450 *1K_4

RP44 0X2RP44 0X2

Q27

RHU002N06

Q27

RHU002N06

R429

10K_4

R429

10K_4

C565 33P/50V_4C565 33P/50V_4

C352

.1U/10V_4

C352

.1U/10V_4

R430 475_4R430 475_4

C645

*30P/50V_4

C645

*30P/50V_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C372

.1U/10V_4

C372

.1U/10V_4

RP48 EV@0X2RP48 EV@0X2

C342

.1U/10V_4

C342

.1U/10V_4

R443

*10K_4

R443

*10K_4

RP50 0X2RP50 0X2

RP49 0X2RP49 0X2

R451 0_4R451 0_4

C359

.1U/10V_4

C359

.1U/10V_4

C375

.1U/10V_4

C375

.1U/10V_4

C360

.1U/10V_4

C360

.1U/10V_4

C345

.1U/10V_4

C345

.1U/10V_4

R444 33_4R444 33_4

PCI_0/CLKREQ_A#

VDD_PCI

PCI_1/CLKREQ_B#

PCI_2

PCI_3

^PCI_4/LCDCLK_SEL

PCIF_5/ITP_EN

VSS_PCI

VDD_48

USB_48MHz/FS_A

VSS_48

VDD_I/O 12

SRC_0/DOT_96

SRC_0#/DOT_96#

VSS_I/O

VDD_PLL3

LCDCLK/27M 17

LCDCLK#/27M_SS 18

VSS_PLL3

VDD_PLL3_I/O 20

SRC_2 21

SRC_2# 22

VSS_SRC_1

SRC_3/CLKREQ_C# 24

SRC_3#/CLKREQ_D# 25

VDD_SRC_I/O_1 26

SRC_4 27

SRC_4# 28

VSS_SRC_2

SRC_9 30

SRC_9# 31

SRC_11#/CLKREQ_G# 32

SCL

SDA

REF/FS_C/TEST_SEL

VDD_REF

XTAL_IN

60 XTAL_OUT

VSS_REF

FS_B/TEST_MODE

CKPWRGD/PD# 56

VDD_CPU

CPU_0 54

CPU_0# 53

VSS_CPU

CPU_1_MCH 51

CPU_1_MCH# 50

VDD_CPU_I/O 49

NC 48

SRC_8/CPU_ITP 47

SRC_8#/CPU_ITP# 46

VDD_SRC_I/O_3 45

SRC_7/CLKREQ_F# 44

SRC_7#/CLKREQ_E# 43

VSS_SRC_3

SRC_6 41

SRC_6# 40

VDD_SRC

PCI_STOP# 38

CPU_STOP# 37

VDD_SRC_I/O_2 36

SRC_10# 35

SRC_10 34

SRC_11/CLKREQ_H# 33

U31

ICS9LPRS365BGLFT

U31

ICS9LPRS365BGLFT

R220

BKP1608HS181-T

R220

BKP1608HS181-T

R207

10K_4

R207

10K_4

R426 *1K_4R426 *1K_4

C353

.1U/10V_4

C353

.1U/10V_4

R4310_4 R4310_4

C339

10U/6.3V

C339

10U/6.3V

R449 *0_4R449 *0_4

RP46 0X2RP46 0X2

RP52 0X2RP52 0X2

14.318MHz

RP43 IV@0X2RP43 IV@0X2

C355

4.7U/10V

C355

4.7U/10V

C349

.1U/10V_4

C349

.1U/10V_4

R428

10K_4

R428

10K_4

Q28

RHU002N06

Q28

RHU002N06

R440 33_4R440 33_4

R2060_4 R2060_4

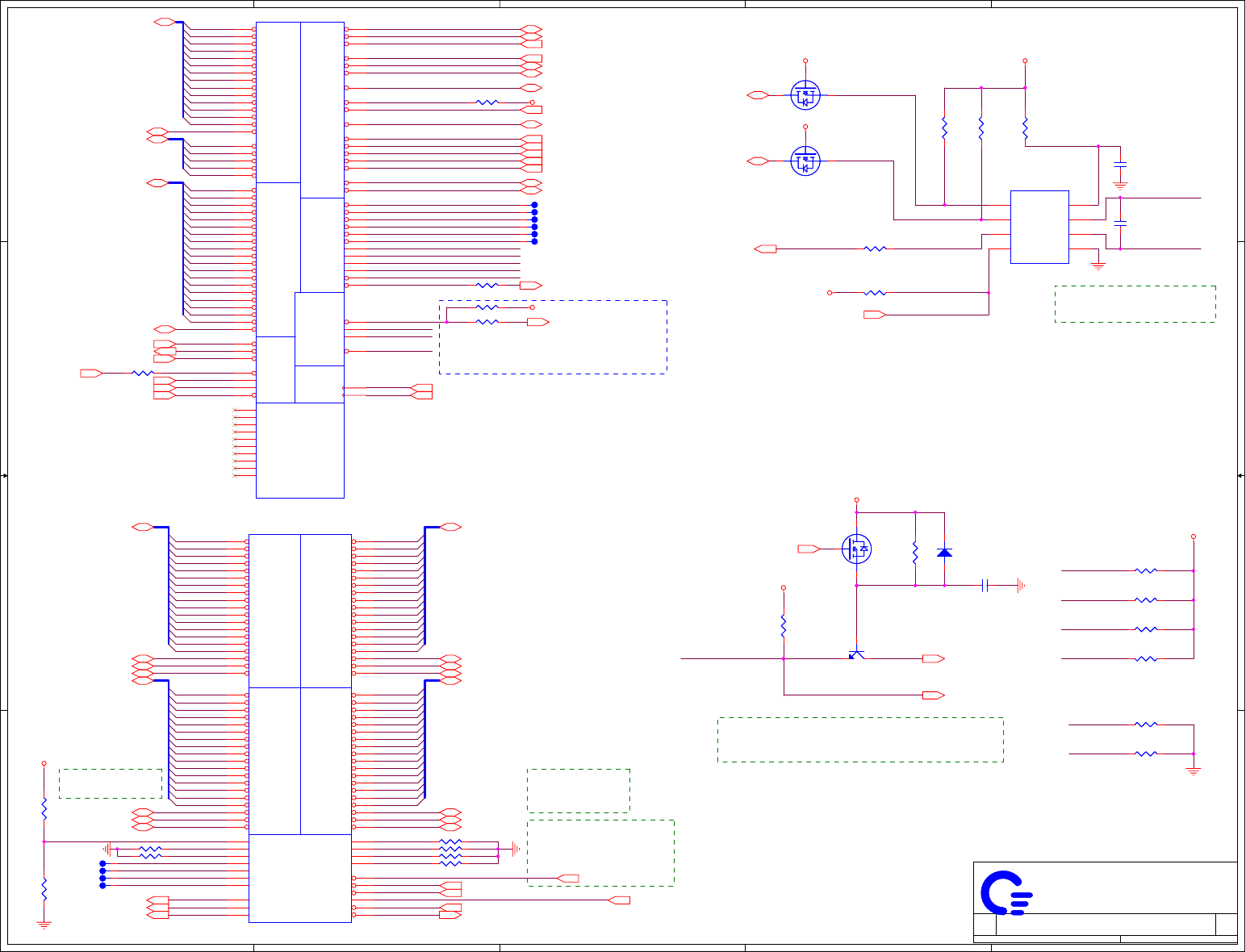

www.RahasiaLaptop.com

D D

C C

B B

A A

H_D#21

H_D#16

H_D#22

H_D#23

H_D#24

H_D#25

H_D#26

H_D#0

H_D#27

CPU_TEST6

H_D#28

H_D#29

H_D#30

H_D#31

H_D#1

H_D#2

H_PROCHOT_R#

H_THERMDC

XDP_BPM#0

H_D#3

H_D#4

H_D#5

H_D#6

H_D#7

XDP_TRST#

H_D#8

H_D#9

H_D#10

H_D#11

H_D#12

H_D#13

H_D#14

H_D#15

H_D#17

XDP_BPM#5

H_D#56

XDP_BPM#4

H_D#57

H_D#34

H_D#58

COMP0

H_D#59

H_D#35

H_D#32

COMP1

H_D#60

H_D#36

H_D#61

H_D#37

COMP2

H_D#62

XDP_BPM#3

XDP_BPM#2

H_D#38

COMP3

H_D#63

H_D#39

XDP_BPM#1

H_D#40

H_D#41

H_D#42

H_IERR#

H_THERMDA

H_D#43

XDP_TMS

XDP_TDO

XDP_TDI

XDP_TCK

H_D#44

H_D#45

H_D#46

H_D#47

H_D#48

H_D#49

H_D#50

H_D#51

H_D#52

H_D#53

H_D#54

H_D#55

H_D#33

XDP_TDO

CPU_TEST4

CPU_TEST1

H_A#4

H_A#19

H_A#22

H_A#3

H_A#5

H_REQ#1

H_REQ#2

H_A#17

H_A#20

H_A#21

H_A#24

H_A#25

H_A#28

H_A#29

H_A#6

H_A#7

H_REQ#0

H_REQ#3

H_REQ#4

H_A#18

H_A#23

H_A#26

H_A#27

H_A#30

H_A#31

H_STPCLK_R#

H_A#8

H_A#9

H_A#10

H_A#11

H_A#12

H_A#13

H_A#14

H_A#15

H_A#16

CPU_TEST2

XDP_BPM#5

XDP_TCK

XDP_TMS

XDP_TDI

XDP_TRST#

XDP_DBRESET#

PM_THRMTRIP#

H_A#32

H_A#33

H_A#34

H_A#35

H_GTLREF

CPU_TEST3

CPU_TEST5

H_D#18

H_D#19

H_D#20

LM86VCC

H_THERMDA

H_THERMDC

CPUFAN#_ON

SYS_RST# <14>

SYS_SHDN# <33>

PM_THRMTRIP# <7,12>

DELAY_VR_PWRGOOD<7,14,34>

H_A#[16:3]<5>

H_ADSTB0#<5>

H_REQ#[4:0]<5>

H_A#[35:17]<5>

H_ADSTB1#<5>

H_A20M#<12>

H_IGNNE#<12>

H_STPCLK#<12>

H_INTR<12>

H_NMI<12>

H_SMI#<12>

H_FERR#<12>

H_DSTBN#2 <5>

H_DSTBP#2 <5>

H_DINV#2 <5>

H_D#[47:32] <5>

H_D#[63:48] <5>

H_DSTBN#3 <5>

H_DSTBP#3 <5>

H_DINV#3 <5>

ICH_DPRSTP# <7,12,34>

H_DPSLP# <12>

H_DPWR# <5>

H_PWRGD <12>

H_CPUSLP# <5>

PSI# <34>

H_DSTBN#0<5>

H_DSTBP#0<5>

H_DINV#0<5>

H_D#[31:16]<5>

H_D#[15:0]<5>

H_DINV#1<5>

H_DSTBN#1<5>

H_DSTBP#1<5>

CPU_BSEL0<2>

CPU_BSEL1<2>

CPU_BSEL2<2>

H_ADS# <5>

H_BNR# <5>

H_DRDY# <5>

H_DBSY# <5>

H_BREQ#0 <5>

H_LOCK# <5>

H_HIT# <5>

H_HITM# <5>

H_BPRI# <5>

H_DEFER# <5>

H_INIT# <12>

H_CPURST# <5>

H_TRDY# <5>

CLK_CPU_BCLK# <2>

CLK_CPU_BCLK <2>

H_PROCHOT# <34>

H_RS#0 <5>

H_RS#1 <5>

H_RS#2 <5>

THERM_ALERT#<14,17>

CPUFAN#_ON<30>

MBDATA<31,32>

MBCLK<31,32>

+1.05V

+3V

Size Document Number Rev

Date: Sheet of

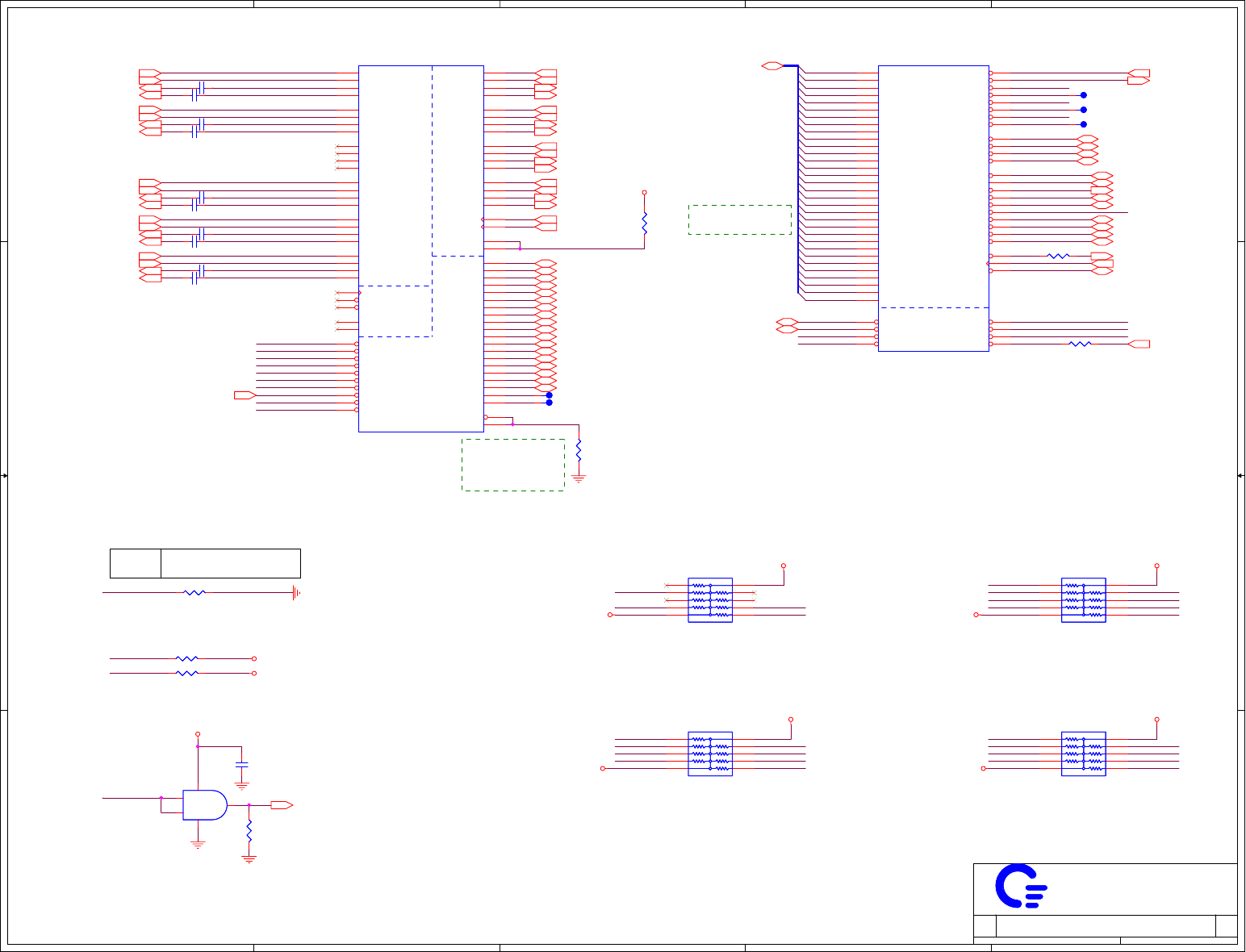

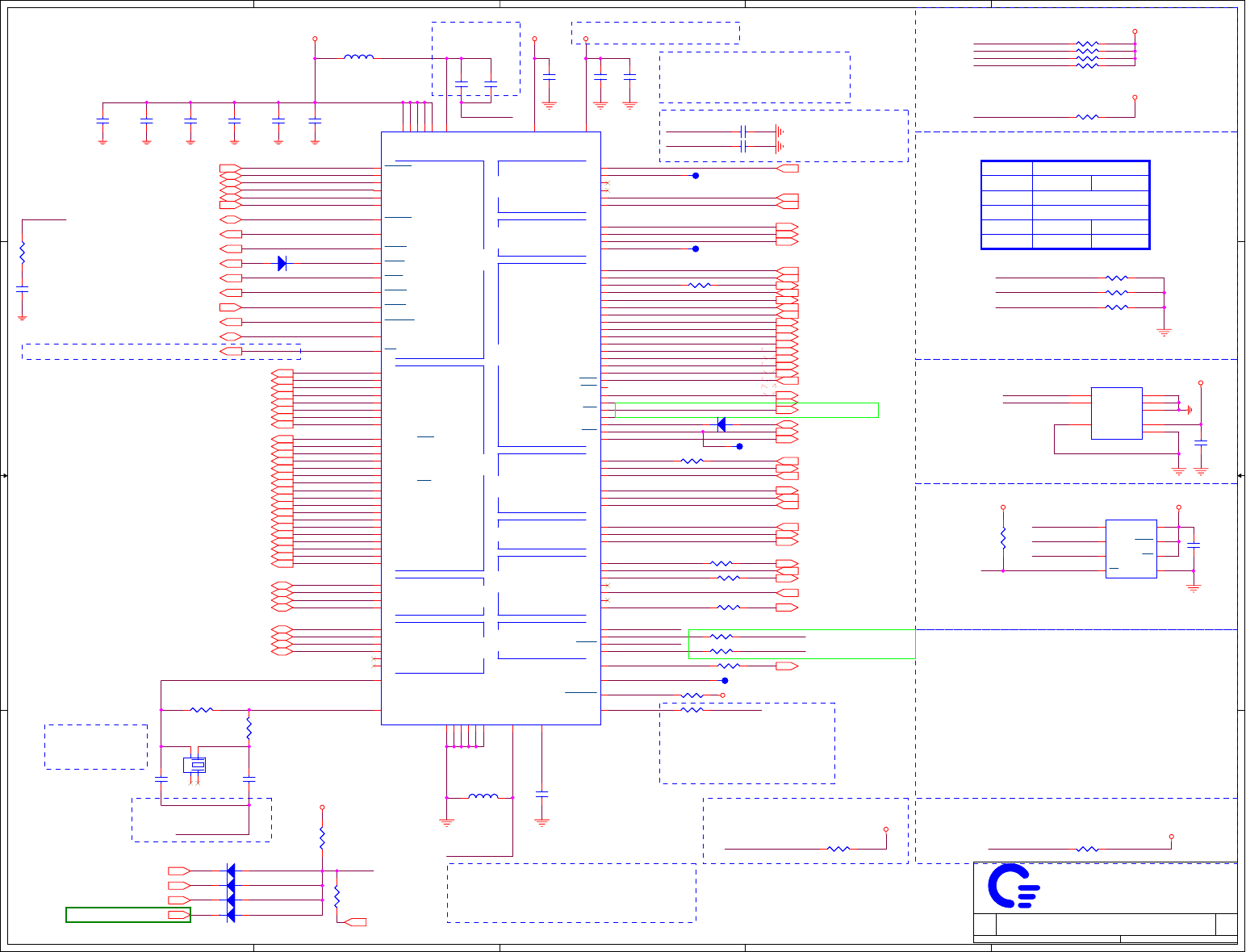

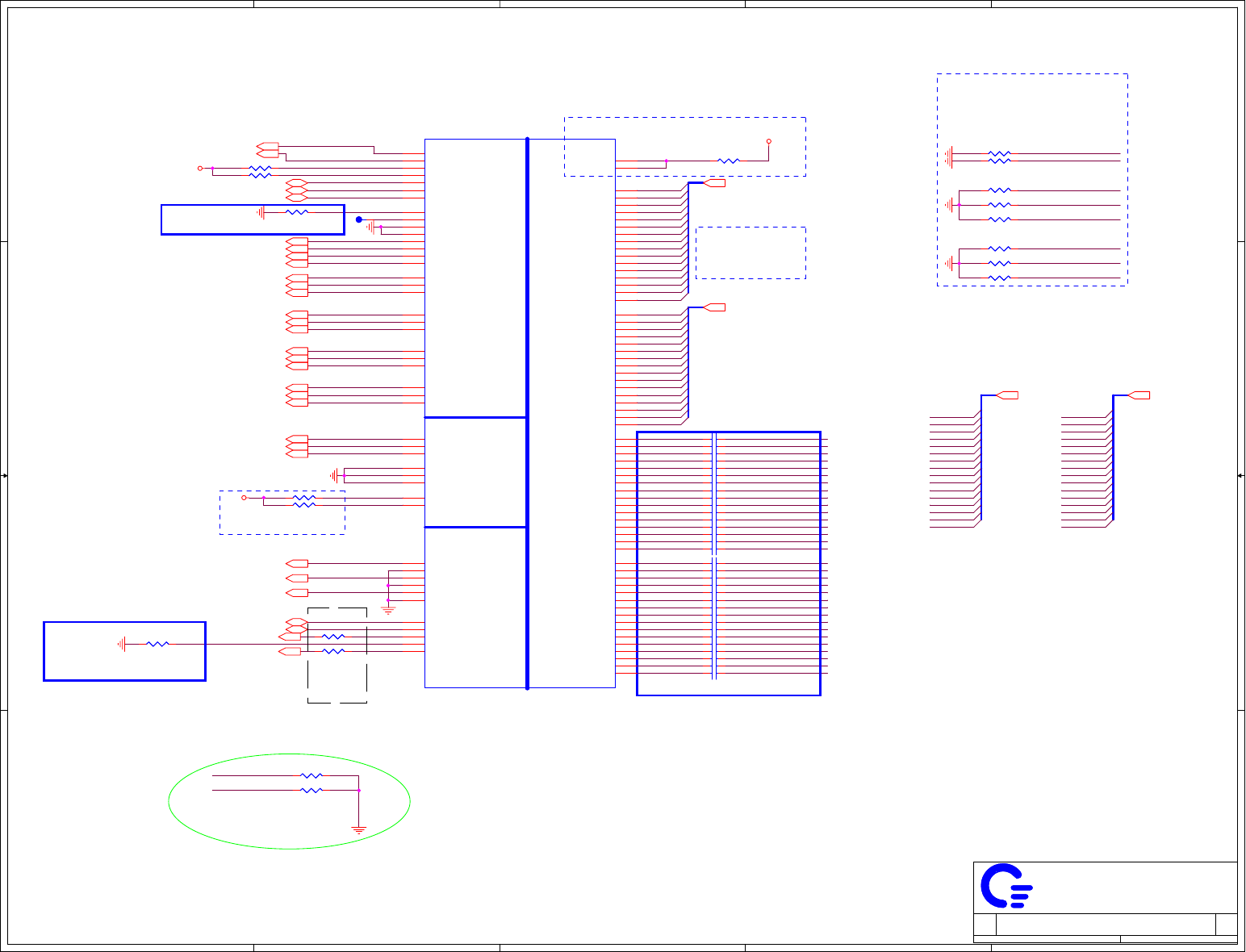

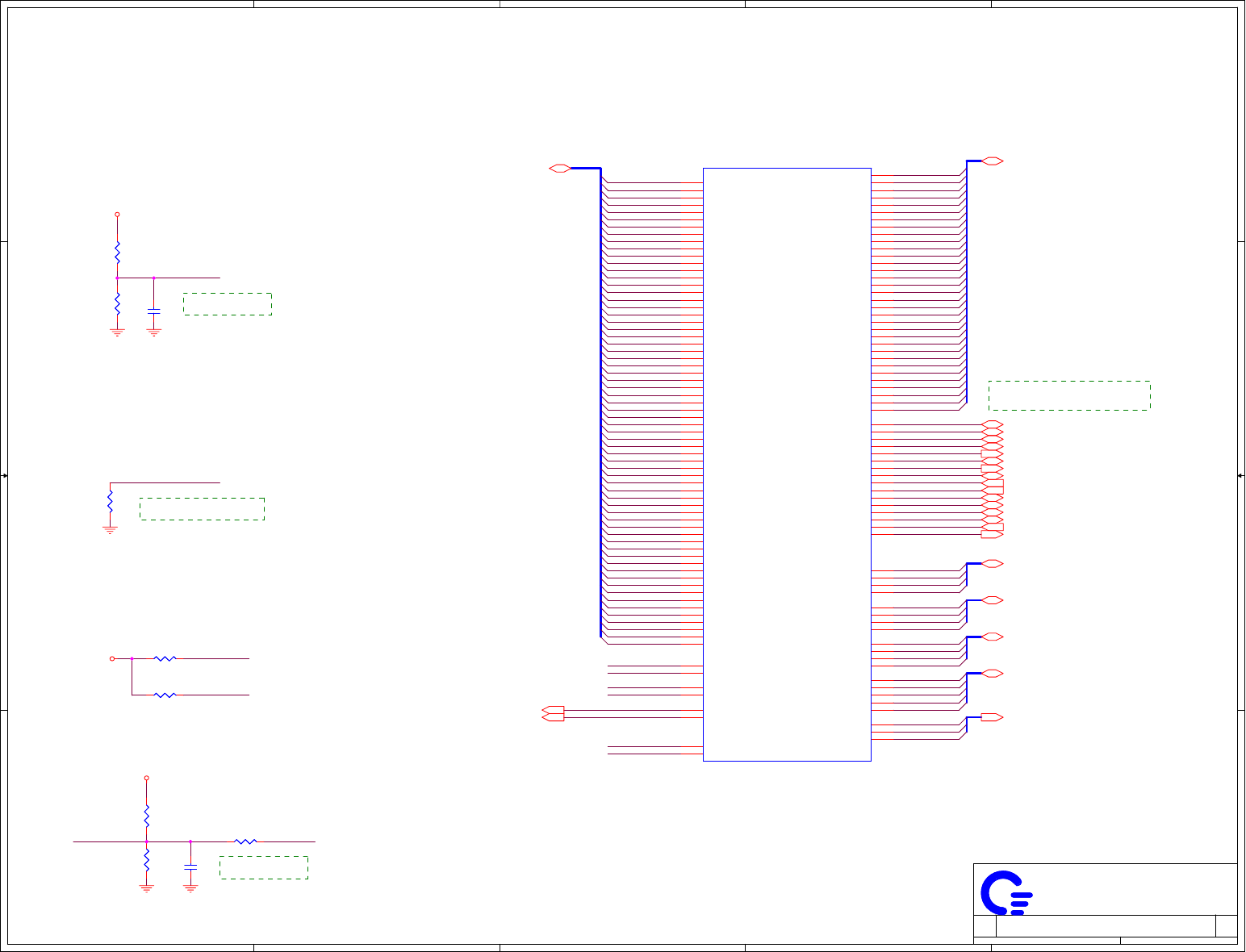

CPU(1 of 2)/FAN/Thermal

338Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CPU(1 of 2)/FAN/Thermal

338Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CPU(1 of 2)/FAN/Thermal

338Monday, May 07, 2007

CPU(HOST)

Layout note: L<0.5"

COMP0/2 Z=27.4ohm

COMP1/3 Z=54.9

Layout note: Z=55 ohm

H_GTLREF<0.5"

Layout Note: Thermal trip should connect to ICH8 & GMCH without T-ing

(ZS1 default NC)

Thermal Trip

Layout Note:Connect from

SB and daisy chain to CPU

CORE VR.Not use T

connect.(SB/VR/CPU/NB)

PU/PD (ITP700)

Default PU 56ohm if no use.

Serial R NC, If connect to power side PU 68ohm. Serial R 2.2K

Layout Note:Routing 10:10 mils and away

from noise source with ground gard

ADDRESS: 98H

CPU Thermal monitor

R355 56.2/F_4R355 56.2/F_4

T74T74

R358 0_4R358 0_4

R47 *54.9/F_4R47 *54.9/F_4

R357

200

R357

200

T6T6

R369 *1K_4R369 *1K_4

R366 54.9/F_4R366 54.9/F_4

R361

10K_4

R361

10K_4

C39 *1UC39 *1U

T73T73

R364

2K/F

R364

2K/F

R44 39/F_4R44 39/F_4

T10T10

A[10]#

A[11]#

A[12]#

A[13]#

A[14]#

A[15]#

A[16]#

A[17]#

A[18]#

A[19]#

A[20]#

A[21]#

A[22]#

A[23]#

A[24]#

A[25]#

A[26]#

A[27]#

A[28]#

A[29]#

A[3]#

A[30]#

A[31]#

RSVD[01]

RSVD[02]

RSVD[03]

RSVD[04]

RSVD[05]

RSVD[06]

RSVD[07]

RSVD[08]

D22

A[4]#

A[5]#

A[6]#

A[7]#

A[8]#

A[9]#

A20M#

ADS# H1

ADSTB[0]#

ADSTB[1]#

RSVD[09]

BCLK[0] A22

BCLK[1] A21

BNR# E2

BPM[0]# AD4

BPM[1]# AD3

BPM[2]# AD1

BPM[3]# AC4

BPRI# G5

BR0# F1

DBR# C20

DBSY# E1

DEFER# H5

DRDY# F21

FERR#

HIT# G6

HITM# E4

IERR# D20

IGNNE#

INIT# B3

LINT0

LINT1

LOCK# H4

PRDY# AC2

PREQ# AC1

PROCHOT# D21

REQ[0]#

REQ[1]#

REQ[2]#

REQ[3]#

REQ[4]#

RESET# C1

RS[0]# F3

RS[1]# F4

RS[2]# G3

SMI#

STPCLK#

TCK AC5

TDI AA6

TDO AB3

THERMTRIP# C7

THERMDA A24

THERMDC B25

TMS AB5

TRDY# G2

TRST# AB6

A[32]#

A[33]#

AA4

A[34]#

AB2

A[35]#

AA3

RSVD[10]

ADDR GROUP 0 ADDR GROUP 1

CONTROL

XDP/ITP SIGNALS

H CLK

THERMAL

RESERVED

ICH

U22A

Merom Ball-out Rev 1a

ADDR GROUP 0 ADDR GROUP 1

CONTROL

XDP/ITP SIGNALS

H CLK

THERMAL

RESERVED

ICH

U22A

Merom Ball-out Rev 1a

R46 680/F_4R46 680/F_4

FDV301N

R367 27.4/FR367 27.4/F

R54 27/F_4R54 27/F_4

1 3

MMBT3904

VCC 1

DXP 2

DXN 3

GND 5

SCLK

SDA

ALERT#

OVERT#

U24

MAX6657

U24

MAX6657

R45 54.9/F_4R45 54.9/F_4

T4T4

C518

2200P/50V_4

C518

2200P/50V_4

Q26

RHU002N06

Q26

RHU002N06

C517

.1U/10V_4

C517

.1U/10V_4

R42 150/F_4R42 150/F_4

T5T5

T3T3

R360

10K_4

R360

10K_4

*BAS316

R350 0_4R350 0_4

R82 *2.2K_4R82 *2.2K_4

T2T2

T7T7

R43 54.9/F_4R43 54.9/F_4

Q25

RHU002N06

Q25

RHU002N06

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

R363 *10K_4R363 *10K_4

T8T8

R101 *1K_4R101 *1K_4

R79 56.2/F_4R79 56.2/F_4

R55

*10K_4

R55

*10K_4

COMP[0] R26

COMP[1] U26

COMP[2] AA1

COMP[3] Y1

D[0]#

E22

D[1]#

F24

D[10]#

J24

D[11]#

J23

D[12]#

H22

D[13]#

F26

D[14]#

K22

D[15]#

H23

D[16]#

N22

D[17]#

K25

D[18]#

P26

D[19]#

R23

D[2]#

E26

D[20]#

L23

D[21]#

M24

D[22]#

L22

D[23]#

M23

D[24]#

P25

D[25]#

P23

D[26]#

P22

D[27]#

T24

D[28]#

R24

D[29]#

L25

D[3]#

G22

D[30]#

T25

D[31]#

N25

D[32]# Y22

D[33]# AB24

D[34]# V24

D[35]# V26

D[36]# V23

D[37]# T22

D[38]# U25

D[39]# U23

D[4]#

F23

D[40]# Y25

D[41]# W22

D[42]# Y23

D[43]# W24

D[44]# W25

D[45]# AA23

D[46]# AA24

D[47]# AB25

D[48]# AE24

D[49]# AD24

D[5]#

G25

D[50]# AA21

D[51]# AB22

D[52]# AB21

D[53]# AC26

D[54]# AD20

D[55]# AE22

D[56]# AF23

D[57]# AC25

D[58]# AE21

D[59]# AD21

D[6]#

E25

D[60]# AC22

D[61]# AD23

D[62]# AF22

D[63]# AC23

D[7]#

E23

D[8]#

K24

D[9]#

G24

TEST5

AF1

DINV[0]#

H25

DINV[1]#

N24

DINV[2]# U22

DINV[3]# AC20

DPRSTP# E5

DPSLP# B5

DPWR# D24

DSTBN[0]#

J26

DSTBN[1]#

L26

DSTBN[2]# Y26

DSTBN[3]# AE25

DSTBP[0]#

H26

DSTBP[1]#

M26

DSTBP[2]# AA26

DSTBP[3]# AF24

GTLREF

AD26

PSI# AE6

PWRGOOD D6

SLP# D7

TEST3

C24

BSEL[0]

B22

BSEL[1]

B23

BSEL[2]

C21

TEST2

D25

TEST4

AF26

TEST6

A26

TEST1

C23

DATA GRP 0 DATA GRP 1

DATA GRP 2DATA GRP 3

MISC

U22B

Merom Ball-out Rev 1a

DATA GRP 0 DATA GRP 1

DATA GRP 2DATA GRP 3

MISC

U22B

Merom Ball-out Rev 1a

R56

56.2/F_4

R56

56.2/F_4

R365

1K/F_4

R365

1K/F_4

R48 27.4/FR48 27.4/F

R362 *0_4R362 *0_4

www.RahasiaLaptop.com

D D

C C

B B

A A

+VCCA_PROC

H_VID0 <34>

H_VID1 <34>

H_VID2 <34>

H_VID3 <34>

H_VID4 <34>

H_VID5 <34>

H_VID6 <34>

VCCSENSE <34>

VSSSENSE <34>

VCC_CORE

+1.5V

+1.05V

Size Document Number Rev

Date: Sheet of

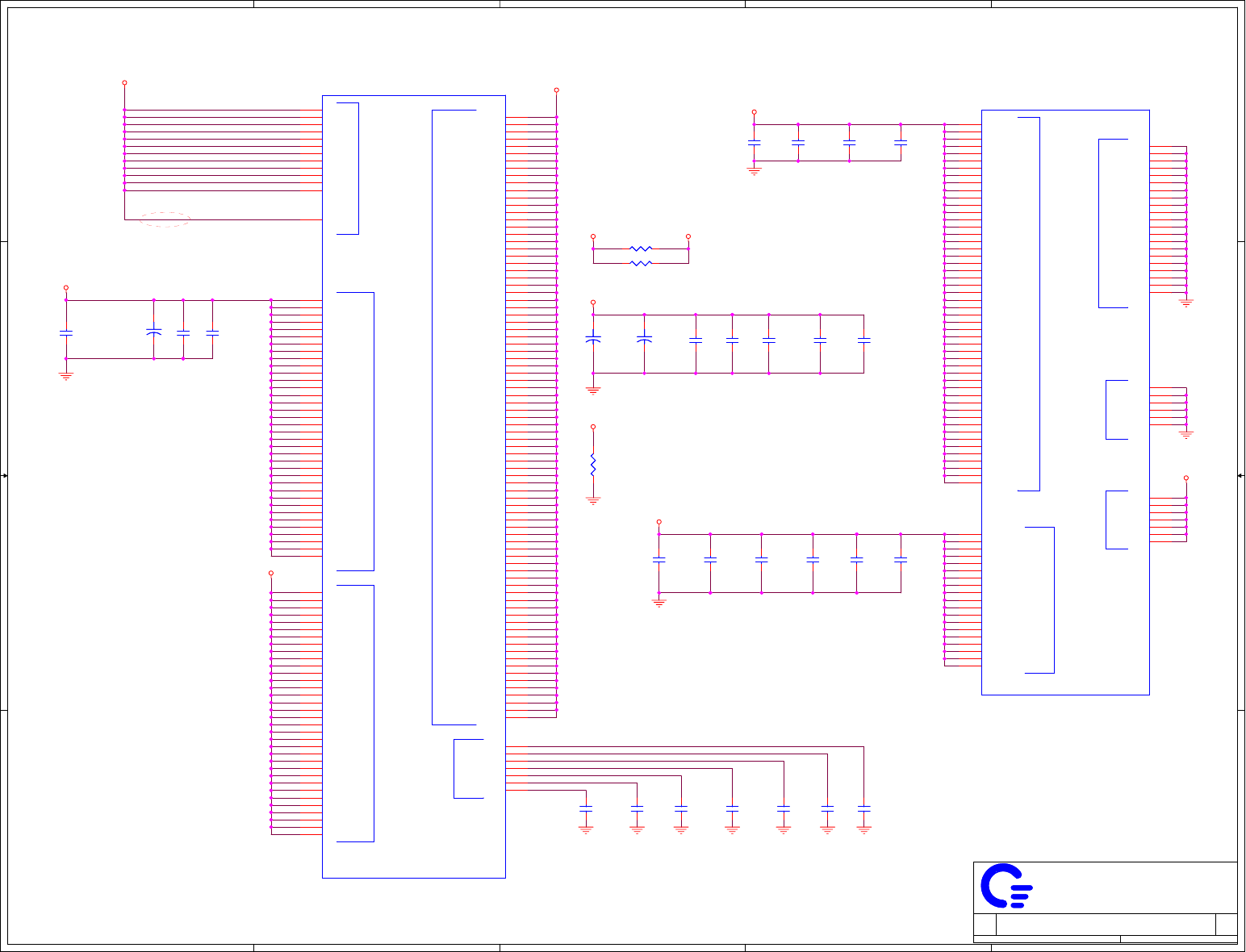

CPU(2 of 2)

438Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CPU(2 of 2)

438Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CPU(2 of 2)

438Monday, May 07, 2007

DESIGN GUIDE

CHANGE FROM 22UF *20 TO 10UF *32

CPU(Power)

<CRB>

.01U near to B26 ball

Option1:330U*6(ESR=1.5m ohm aggregate , ESL=0.8nH/6) and 22U*20(ESR=3mohm typ/20 , ESL=0.6nH/20)

Option2:330U*6(ESR=1.5m ohm aggregate , ESL=1.8nH/6) and 22U*32(ESR=3mohm typ/32 , ESL=0.6nH/32)

Routing 27.4ohm with 50mils spacing

PU/PD near to CPU 1"

ESR=12m ohm

<REV.NO. 0.5/REF.NO.19343>

Ivcc Max 52A

Ivccp Max 6A(VCCP supply before Vcc stable)

Max 2A(VCCP supply after Vcc stable)

Ivcca Max 130mA

0C Delete R75,R63 0104

C61

10U/6.3V_8

C61

10U/6.3V_8

C55

10U/6.3V_8

C55

10U/6.3V_8

C89

.1U/16V

C89

.1U/16V

C77

10U/6.3V_8

C77

10U/6.3V_8

VSS[082] P6

VSS[148] AE11

VSS[002]

VSS[003]

A11

VSS[004]

A14

VSS[005]

A16

VSS[006]

A19

VSS[007]

A23

VSS[008]

AF2

VSS[009]

VSS[010]

VSS[011]

B11

VSS[012]

B13

VSS[013]

B16

VSS[014]

B19

VSS[015]

B21

VSS[016]

B24

VSS[017]

VSS[018]

VSS[019]

C11

VSS[020]

C14

VSS[021]

C16

VSS[022]

C19

VSS[023]

VSS[024]

C22

VSS[025]

C25

VSS[026]

VSS[027]

VSS[028]

VSS[029]

D11

VSS[030]

D13

VSS[031]

D16

VSS[032]

D19

VSS[033]

D23

VSS[034]

D26

VSS[035]

VSS[036]

VSS[037]

VSS[038]

E11

VSS[039]

E14

VSS[040]

E16

VSS[041]

E19

VSS[042]

E21

VSS[043]

E24

VSS[044]

VSS[045]

VSS[046]

F11

VSS[047]

F13

VSS[048]

F16

VSS[049]

F19

VSS[050]

VSS[051]

F22

VSS[052]

F25

VSS[053]

VSS[054]

VSS[055]

G23

VSS[056]

G26

VSS[057]

VSS[058]

VSS[059]

H21

VSS[060]

H24

VSS[061]

VSS[062]

VSS[063]

J22

VSS[064]

J25

VSS[065]

VSS[066]

VSS[067]

K23

VSS[068]

K26

VSS[069]

VSS[070]

VSS[071]

L21

VSS[072]

L24

VSS[073]

VSS[074]

VSS[075]

M22

VSS[076]

M25

VSS[077]

VSS[078]

VSS[079]

N23

VSS[080]

N26

VSS[081]

P3 VSS[162] A25

VSS[161] AF21

VSS[160] AF19

VSS[159] AF16

VSS[158] AF13

VSS[157] AF11

VSS[156] AF8

VSS[155] AF6

VSS[154] A2

VSS[153] AE26

VSS[152] AE23

VSS[151] AE19

VSS[083] P21

VSS[084] P24

VSS[085] R2

VSS[086] R5

VSS[087] R22

VSS[088] R25

VSS[089] T1

VSS[090] T4

VSS[091] T23

VSS[092] T26

VSS[093] U3

VSS[094] U6

VSS[095] U21

VSS[096] U24

VSS[097] V2

VSS[098] V5

VSS[099] V22

VSS[100] V25

VSS[101] W1

VSS[102] W4

VSS[103] W23

VSS[104] W26

VSS[105] Y3

VSS[107] Y21

VSS[108] Y24

VSS[109] AA2

VSS[110] AA5

VSS[111] AA8

VSS[112] AA11

VSS[113] AA14

VSS[114] AA16

VSS[115] AA19

VSS[116] AA22

VSS[117] AA25

VSS[118] AB1

VSS[119] AB4

VSS[120] AB8

VSS[121] AB11

VSS[122] AB13

VSS[123] AB16

VSS[124] AB19

VSS[125] AB23

VSS[126] AB26

VSS[127] AC3

VSS[128] AC6

VSS[129] AC8

VSS[130] AC11

VSS[131] AC14

VSS[132] AC16

VSS[133] AC19

VSS[134] AC21

VSS[135] AC24

VSS[136] AD2

VSS[137] AD5

VSS[138] AD8

VSS[139] AD11

VSS[140] AD13

VSS[141] AD16

VSS[142] AD19

VSS[143] AD22

VSS[144] AD25

VSS[145] AE1

VSS[146] AE4

VSS[106] Y6

VSS[001]

VSS[149] AE14

VSS[150] AE16

VSS[147] AE8

VSS[163] AF25

U22D

Merom Ball-out Rev 1a

U22D

Merom Ball-out Rev 1a

C54

330U/2.5V_7

C54

330U/2.5V_7

C81

.1U/16V

C81

.1U/16V

C69

10U/6.3V_8

C69

10U/6.3V_8

C43

10U/6.3V_8

C43

10U/6.3V_8

C99

10U/6.3V_8

C99

10U/6.3V_8

C100

330U/2.5V_7

C100

330U/2.5V_7

C520

.01U/16V_4

C520

.01U/16V_4

C63

10U/6.3V_8

C63

10U/6.3V_8

C102

10U/6.3V_8

C102

10U/6.3V_8

C97

10U/6.3V_8

C97

10U/6.3V_8

C130

10U/10V_8

C130

10U/10V_8

C91

10U/6.3V_8

C91

10U/6.3V_8

C49

10U/6.3V_8

C49

10U/6.3V_8

C94

10U/6.3V_8

C94

10U/6.3V_8

C44

10U/6.3V_8

C44

10U/6.3V_8

R368 0R368 0

C46

10U/6.3V_8

C46

10U/6.3V_8

VCC[001]

VCC[002]

VCC[003]

A10

VCC[004]

A12

VCC[005]

A13

VCC[006]

A15

VCC[007]

A17

VCC[008]

A18

VCC[009]

A20

VCC[010]

VCC[011]

VCC[012]

B10

VCC[013]

B12

VCC[014]

B14

VCC[015]

B15

VCC[016]

B17

VCC[017]

B18

VCC[018]

B20

VCC[019]

VCC[020]

C10

VCC[021]

C12

VCC[022]

C13

VCC[023]

C15

VCC[024]

C17

VCC[025]

C18

VCC[026]

VCC[027]

D10

VCC[028]

D12

VCC[029]

D14

VCC[030]

D15

VCC[031]

D17

VCC[032]

D18

VCC[033]

VCC[034]

VCC[035]

E10

VCC[036]

E12

VCC[037]

E13

VCC[038]

E15

VCC[039]

E17

VCC[040]

E18

VCC[041]

E20

VCC[042]

VCC[043]

VCC[044]

F10

VCC[045]

F12

VCC[046]

F14

VCC[047]

F15

VCC[048]

F17

VCC[049]

F18

VCC[050]

F20

VCC[051]

AA7

VCC[052]

AA9

VCC[053]

AA10

VCC[054]

AA12

VCC[055]

AA13

VCC[056]

AA15

VCC[057]

AA17

VCC[058]

AA18

VCC[059]

AA20

VCC[060]

AB9

VCC[061]

AC10

VCC[062]

AB10

VCC[063]

AB12

VCC[064]

AB14

VCC[065]

AB15

VCC[066]

AB17

VCC[067]

AB18

VCC[068] AB20

VCC[069] AB7

VCC[070] AC7

VCC[071] AC9

VCC[072] AC12

VCC[073] AC13

VCC[074] AC15

VCC[075] AC17

VCC[076] AC18

VCC[077] AD7

VCC[078] AD9

VCC[079] AD10

VCC[080] AD12

VCC[081] AD14

VCC[082] AD15

VCC[083] AD17

VCC[084] AD18

VCC[085] AE9

VCC[086] AE10

VCC[087] AE12

VCC[088] AE13

VCC[089] AE15

VCC[090] AE17

VCC[091] AE18

VCC[092] AE20

VCC[093] AF9

VCC[094] AF10

VCC[095] AF12

VCC[096] AF14

VCC[097] AF15

VCC[098] AF17

VCC[099] AF18

VCC[100] AF20

VCCA[01] B26

VCCP[03] J6

VCCP[04] K6

VCCP[05] M6

VCCP[06] J21

VCCP[07] K21

VCCP[08] M21

VCCP[09] N21

VCCP[10] N6

VCCP[11] R21

VCCP[12] R6

VCCP[13] T21

VCCP[14] T6

VCCP[15] V21

VCCP[16] W21

VCCSENSE AF7

VID[0] AD6

VID[1] AF5

VID[2] AE5

VID[3] AF4

VID[4] AE3

VID[5] AF3

VID[6] AE2

VSSSENSE AE7

VCCA[02] C26

VCCP[01] G21

VCCP[02] V6

U22C

Merom Ball-out Rev 1a

U22C

Merom Ball-out Rev 1a

C56

10U/6.3V_8

C56

10U/6.3V_8

C80

10U/6.3V_8

C80

10U/6.3V_8

C93

10U/6.3V_8

C93

10U/6.3V_8

C45

.1U/16V

C45

.1U/16V

C47

10U/6.3V_8

C47

10U/6.3V_8

C42

10U/6.3V_8

C42

10U/6.3V_8

C51

10U/6.3V_8

C51

10U/6.3V_8

C86

10U/6.3V_8

C86

10U/6.3V_8

C57

10U/6.3V_8

C57

10U/6.3V_8

C76

.1U/16V

C76

.1U/16V

C83

10U/6.3V_8

C83

10U/6.3V_8

C52

10U/6.3V_8

C52

10U/6.3V_8

C84

10U/6.3V_8

C84

10U/6.3V_8

C75

.1U/16V

C75

.1U/16V

C90

10U/6.3V_8

C90

10U/6.3V_8

C48

10U/6.3V_8

C48

10U/6.3V_8

C82

.1U/16V

C82

.1U/16V

C53

10U/6.3V_8

C53

10U/6.3V_8

R62

100/F

R62

100/F

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C60

10U/6.3V_8

C60

10U/6.3V_8

C41

330U_7

C41

330U_7

C58

10U/6.3V_8

C58

10U/6.3V_8

R58

100/F

R58

100/F

C70

10U/6.3V_8

C70

10U/6.3V_8

C40

330U/2.5V_7

C40

330U/2.5V_7

C59

10U/6.3V_8

C59

10U/6.3V_8

www.RahasiaLaptop.com

D D

C C

B B

A A

H_RCOMP

H_SCOMP

H_SWING

H_RCOMP

H_SCOMP

H_SCOMP#

H_DINV#0

H_DINV#1

H_DINV#2

H_DINV#3

H_DSTBN#0

H_DSTBN#1

H_DSTBN#2

H_DSTBN#3

H_DSTBP#0

H_DSTBP#1

H_DSTBP#2

H_DSTBP#3

H_REQ#0

H_REQ#1

H_REQ#2

H_REQ#3

H_REQ#4

H_RS#0

H_RS#1

H_RS#2

H_SCOMP#

H_D#0

H_D#1

H_D#2

H_D#3

H_D#4

H_D#5

H_D#6

H_D#7

H_D#8

H_D#9

H_D#10

H_D#11

H_D#12

H_D#13

H_D#14

H_D#15

H_D#16

H_D#17

H_D#18

H_D#19

H_D#20

H_D#21

H_D#22

H_D#23

H_D#24

H_D#25

H_D#26

H_D#27

H_D#28

H_D#29

H_D#30

H_D#31

H_AVREF

H_D#32

H_D#33

H_D#34

H_D#35

H_D#36

H_D#37

H_D#38

H_D#39

H_D#40

H_D#41

H_D#42

H_D#43

H_D#44

H_D#45

H_D#46

H_D#47

H_D#48

H_D#49

H_D#50

H_D#51

H_D#52

H_D#53

H_D#54

H_D#55

H_D#56

H_D#57

H_D#58

H_D#59

H_D#60

H_D#61

H_D#62

H_D#63

H_DVREF

H_A#3

H_A#4

H_A#5

H_A#6

H_A#7

H_A#8

H_A#9

H_A#10

H_A#11

H_A#12

H_A#13

H_A#14

H_A#15

H_A#16

H_A#17

H_A#18

H_A#19

H_A#20

H_A#21

H_A#22

H_A#23

H_A#24

H_A#25

H_A#26

H_A#27

H_A#28

H_A#29

H_A#30

H_A#31

H_SWING

H_A#32

H_A#34

H_A#33

H_A#35

H_DVREFH_AVREF

H_D#[63:0]<3>

H_A#[35:3] <3>

H_DINV#[3:0] <3>

H_DSTBN#[3:0] <3>

H_DSTBP#[3:0] <3>

H_REQ#[4:0] <3>

H_RS#[2:0] <3>H_CPUSLP#<3>

H_TRDY# <3>

H_HIT# <3>

H_HITM# <3>

H_LOCK# <3>

H_ADS# <3>

H_ADSTB0# <3>

H_ADSTB1# <3>

H_BNR# <3>

H_BREQ#0 <3>

H_DBSY# <3>

H_DRDY# <3>

H_DPWR# <3>

H_BPRI# <3>

H_CPURST#<3>

H_DEFER# <3>

CLK_MCH_BCLK <2>

CLK_MCH_BCLK# <2>

+1.05V

Size Document Number Rev

Date: Sheet of

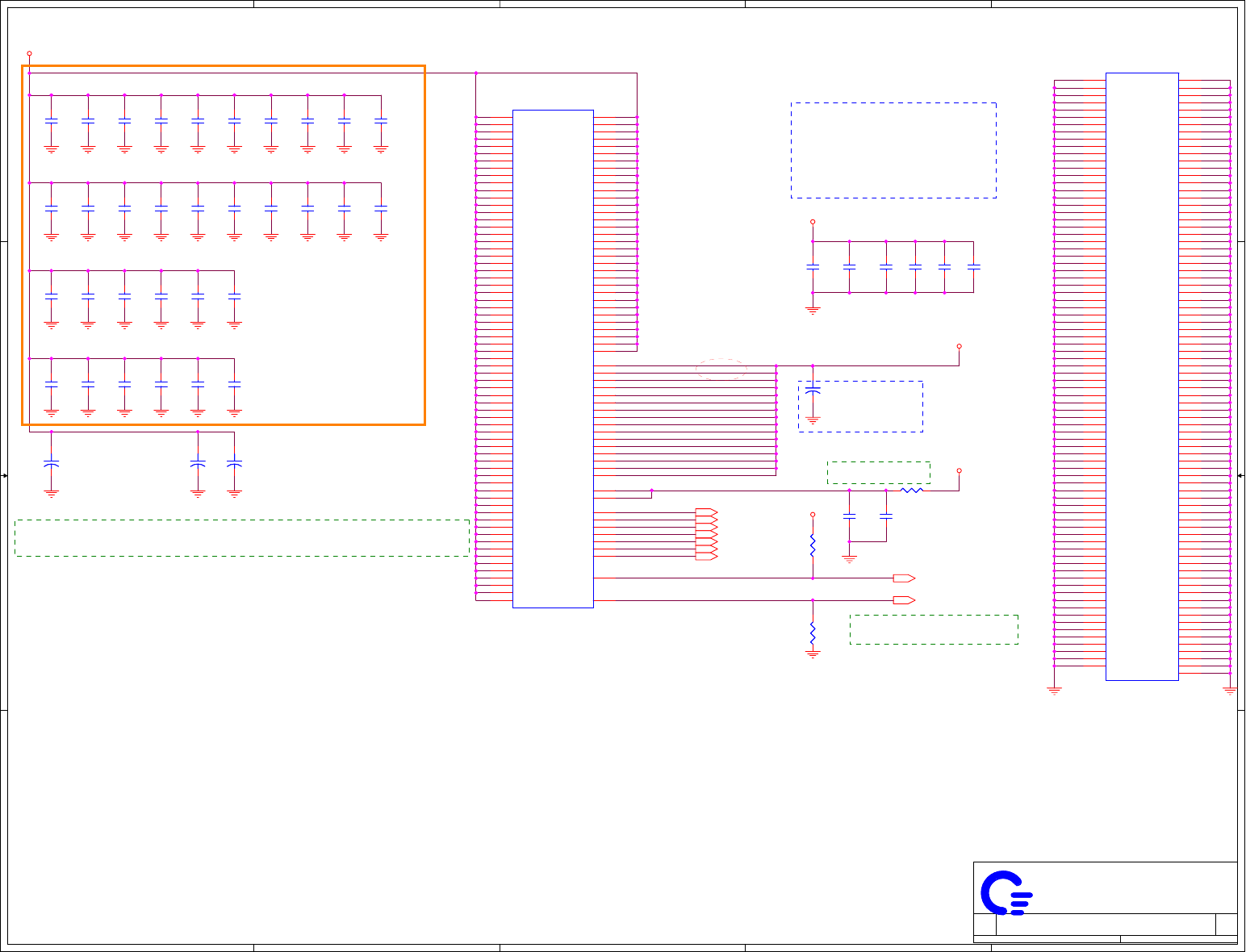

GMCH HOST(1/7)

538Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH HOST(1/7)

538Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH HOST(1/7)

538Monday, May 07, 2007

0.1U close to B9

0.1U close to B3

10:20 mils(Width:Spacing)

NB(HOST)

H_A#[35:32] are not supported in

Calero Interposer

Crestline support 36 bit address

R382

2K_4

R382

2K_4

R370

24.9_4

R370

24.9_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C153

.1U/10V_4

C153

.1U/10V_4

R111

54.9_4

R111

54.9_4

H_A#_10 G17

H_A#_11 C14

H_A#_12 K16

H_A#_13 B13

H_A#_14 L16

H_A#_15 J17

H_A#_16 B14

H_A#_17 K19

H_A#_18 P15

H_A#_19 R17

H_A#_20 B16

H_A#_21 H20

H_A#_22 L19

H_A#_23 D17

H_A#_24 M17

H_A#_25 N16

H_A#_26 J19

H_A#_27 B18

H_A#_28 E19

H_A#_29 B17

H_A#_3 J13

H_A#_30 B15

H_A#_31 E17

H_A#_4 B11

H_A#_5 C11

H_A#_6 M11

H_A#_7 C15

H_A#_8 F16

H_A#_9 L13

H_ADS# G12

H_ADSTB#_0 H17

H_ADSTB#_1 G20

H_BNR# C8

H_BPRI# E8

H_BREQ# F12

HPLL_CLK# AM7

H_CPURST#

HPLL_CLK AM5

H_D#_0

H_REQ#_2 A11

H_REQ#_3 H13

H_D#_1

H_D#_10

M10

H_D#_20

H_D#_30

H_D#_40

AB2

H_D#_50

AJ14

H_D#_60

AE5

H_D#_8

H_D#_9

H_DBSY# C10

H_D#_11

N12

H_D#_12

H_D#_13

H_D#_14

P13

H_D#_15

H_D#_16

H_D#_17

W10

H_D#_18

H_D#_19

H_D#_2

H_D#_21

H_D#_22

H_D#_23

H_D#_24

H_D#_25

H_D#_26

H_D#_27

H_D#_28

H_D#_29

H_D#_3

H_D#_31

H_D#_32

AD12

H_D#_33

AE3

H_D#_34

AD9

H_D#_35

AC9

H_D#_36

AC7

H_D#_37

AC14

H_D#_38

AD11

H_D#_39

AC11

H_D#_4

H_D#_41

AD7

H_D#_42

AB1

H_D#_43

H_D#_44

AC6

H_D#_45

AE2

H_D#_46

AC5

H_D#_47

AG3

H_D#_48

AJ9

H_D#_49

AH8

H_D#_5

H_D#_51

AE9

H_D#_52

AE11

H_D#_53

AH12

H_D#_54

AJ5

H_D#_55

AH5

H_D#_56

AJ6

H_D#_57

AE7

H_D#_58

AJ7

H_D#_59

AJ2

H_D#_6

H_D#_61

AJ3

H_D#_62

AH2

H_D#_63

AH13

H_D#_7

H_DEFER# D6

H_DINV#_0 K5

H_DINV#_1 L2

H_DINV#_2 AD13

H_DINV#_3 AE13

H_DPWR# H8

H_DRDY# K7

H_DSTBN#_0 M7

H_DSTBN#_1 K3

H_DSTBN#_2 AD2

H_DSTBN#_3 AH11

H_DSTBP#_0 L7

H_DSTBP#_1 K2

H_DSTBP#_2 AC2

H_DSTBP#_3 AJ10

H_SCOMP

H_AVREF

H_DVREF

H_TRDY# B7

H_HIT# E4

H_HITM# C6

H_LOCK# G10

H_REQ#_0 M14

H_REQ#_1 E13

H_REQ#_4 B12

H_A#_32 C18

H_A#_33 A19

H_A#_34 B19

H_A#_35 N19

H_SWING

H_CPUSLP#

H_RCOMP

H_RS#_0 E12

H_RS#_1 D7

H_RS#_2 D8

H_SCOMP#

HOST

U30A

CRESTLINE_1p0

HOST

U30A

CRESTLINE_1p0

R110

54.9_4

R110

54.9_4

R384 0_4R384 0_4

R378

100_4

R378

100_4

C530

.1U/10V_4

C530

.1U/10V_4

R383

1K_4

R383

1K_4

R376

221_4

R376

221_4

www.RahasiaLaptop.com

D D

C C

B B

A A

PEG_TXP3

PEG_TXP10

PEG_TXP14

PEG_TXP5

PEG_TXP2

PEG_TXP11

PEG_TXP15

PEG_TXP1

PEG_TXP9

PEG_TXP12

PEG_TXP7

PEG_TXP0

PEG_TXP4

PEG_TXP8

PEG_TXP13

PEG_TXP6

LVDS_IBG

EXP_A_COMPX

PEG_RXN0

PEG_RXN1

PEG_RXN2

PEG_RXN3

PEG_RXN4

PEG_RXN5

PEG_RXN6

PEG_RXN7

PEG_RXN8

PEG_RXN9

PEG_RXN10

INT_TV_Y/G

INT_TV_C/R

INT_TV_COMP

PEG_RXN13

PEG_RXN12

PEG_RXN11

PEG_RXN15

PEG_RXP0

PEG_RXN14

PEG_RXP2

PEG_RXP3

PEG_RXP4

PEG_RXP1

PEG_RXP5

PEG_RXP8

PEG_RXP6

PEG_RXP7

PEG_RXP9

PEG_RXP10

PEG_RXP11

PEG_RXP14

PEG_RXP13

PEG_RXP12

PEG_RXP15

HSYNC1

VSYNC1

INT_CRT_RED

INT_CRT_GRN

INT_CRT_BLU

INT_TV_C/R

INT_TV_Y/G

INT_TV_COMP

PEG_TXP1

PEG_TXP2

PEG_TXP6

PEG_TXP3

PEG_TXP9

PEG_TXP4

PEG_TXP5

PEG_TXP7

PEG_TXP12

PEG_TXP8

PEG_TXP14

PEG_TXP15

PEG_TXP10

PEG_TXP11

PEG_TXP13

C_PEG_TXN0

C_PEG_TXN1

C_PEG_TXN2

C_PEG_TXN3

C_PEG_TXN5

C_PEG_TXN4

C_PEG_TXN6

C_PEG_TXN7

C_PEG_TXN14

C_PEG_TXN9

C_PEG_TXN10

C_PEG_TXN12

C_PEG_TXN11

C_PEG_TXN13

C_PEG_TXN8

C_PEG_TXN15

C_PEG_TXP9

C_PEG_TXP10

C_PEG_TXP4

C_PEG_TXP14

C_PEG_TXP5

C_PEG_TXP1

C_PEG_TXP8

C_PEG_TXP3

C_PEG_TXP2

C_PEG_TXP12

C_PEG_TXP6

C_PEG_TXP13

C_PEG_TXP15

C_PEG_TXP7

C_PEG_TXP0

C_PEG_TXP11

PEG_TXN1

PEG_TXN0

PEG_TXN2

PEG_TXN4

PEG_TXN6

PEG_TXN5

PEG_TXN3

PEG_TXN14

PEG_TXN9

PEG_TXN8

PEG_TXN7

PEG_TXN13

PEG_TXN12

PEG_TXP0

PEG_TXN15

LVDS_VBG

INT_CRT_RED

HSYNC1

INT_CRT_GRN

INT_CRT_BLU

CRTIREF

VSYNC1

TV_DCONSEL_0

TV_DCONSEL_1

TV_DCONSEL_0

TV_DCONSEL_1

PEG_TXN7

PEG_TXN6

PEG_TXN12

PEG_TXN13PEG_TXN10

PEG_TXN9

PEG_TXN3

PEG_TXN0

PEG_TXN2

PEG_TXN1

PEG_TXN11

PEG_TXN4

PEG_TXN11

PEG_TXN10

PEG_TXN15

PEG_TXN14

PEG_TXN5

PEG_TXN8

PEG_TXN[15:0] <17> PEG_TXP[15:0] <17>

PEG_RXN[15:0] <17>

PEG_RXP[15:0] <17>

INT_CRT_RED<19>

INT_CRT_BLU<19>

INT_CRT_GRN<19>

INT_VSYNC<19>

INT_HSYNC<19>

INT_CRT_DDCCLK<19>

INT_CRT_DDCDAT<19>

INT_TV_C/R<19>

INT_TV_Y/G<19>

INT_TV_COMP<19>

INT_LVDS_DIGON<18>

INT_LVDS_EDIDCLK<18>

INT_LVDS_EDIDDATA<18>

INT_TXLCLKOUT+<18>

INT_TXLCLKOUT-<18>

INT_TXLOUT0-<18>

INT_TXLOUT0+<18>

INT_TXLOUT2-<18>

INT_TXLOUT2+<18>

INT_TXLOUT1-<18>

INT_TXLOUT1+<18>

INT_TXUCLKOUT+<18>

INT_TXUCLKOUT-<18>

INT_TXUOUT0-<18>

INT_TXUOUT0+<18>

INT_TXUOUT2-<18>

INT_TXUOUT2+<18>

INT_TXUOUT1-<18>

INT_TXUOUT1+<18>

INT_LVDS_BLON<23>

L_BKLT_CTRL<18>

+1.05_PEG

+3V

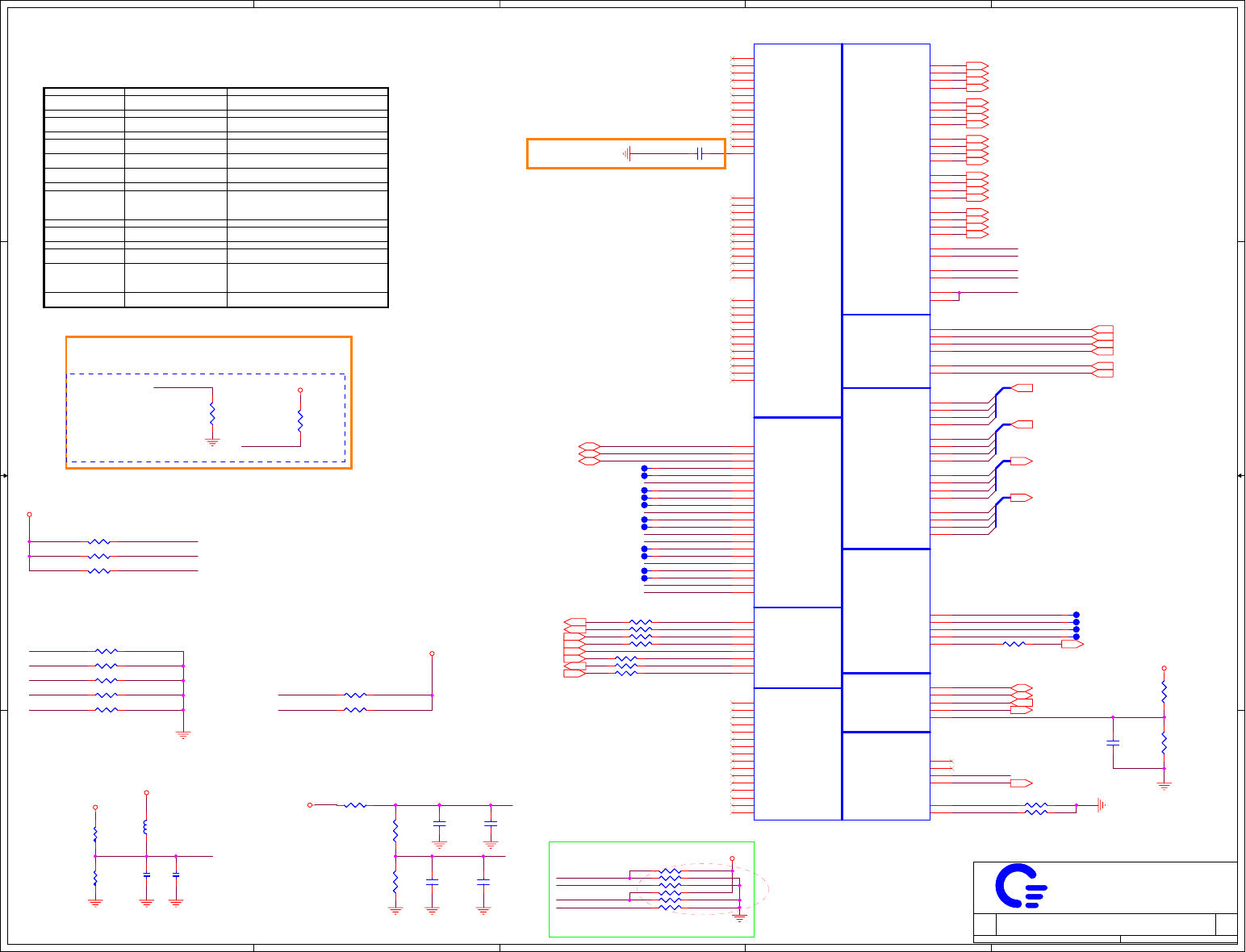

Size Document Number Rev

Date: Sheet of

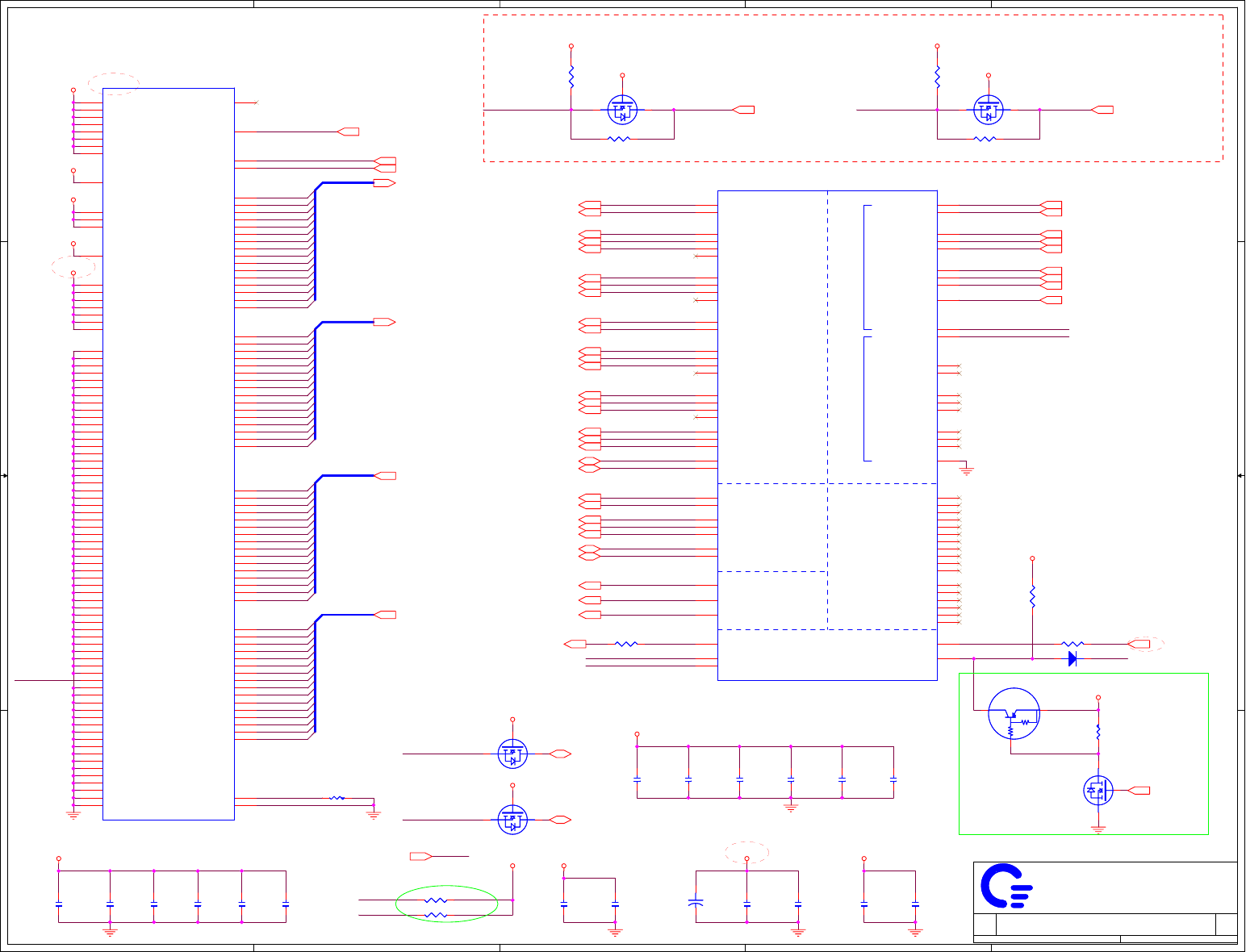

GMCH GRAPHICS(2/7)

638Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH GRAPHICS(2/7)

638Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH GRAPHICS(2/7)

638Monday, May 07, 2007

IV&EV Dis/Enable

setting

For Calero : 1.5K

For Cresstline:2.4K

For EV@

Connect to GND

CRT R/G/B

TV A/B/C

HSYNC/VSYNC

For IV@

Connect to 150ohm

CRT R/G/B

TV A/B/C

Connect to 39ohm

HSYNC/VSYNC

HSYNC/VSYNC

serial R

place close

to NB

IV&EV Dis/Enable setting

<FAE>

Flexible and safe

Vcc1_5 for Calero

Vcc1_25/Vcc1_05 for Crestline

IV&EV Dis/Enable setting

For Calero : 255

For Cresstline:1.3K/F

For external VGA:0 ohm

SDVO/PCIE/LVDS not

implement

16 lanes NC

<FAE>

If no use can be NC

INTEL FAE reuqest PD.

R397 0R397 0

C305 EV@.1U/10V_4C305 EV@.1U/10V_4

C314 EV@.1U/10V_4C314 EV@.1U/10V_4

C312 EV@.1U/10V_4C312 EV@.1U/10V_4

C328 EV@.1U/10V_4C328 EV@.1U/10V_4

T45T45

C326 EV@.1U/10V_4C326 EV@.1U/10V_4

C302 EV@.1U/10V_4C302 EV@.1U/10V_4

R406 10K_4R406 10K_4

R147 IV@150/F_4R147 IV@150/F_4

C322 EV@.1U/10V_4C322 EV@.1U/10V_4

C325 EV@.1U/10V_4C325 EV@.1U/10V_4

C320 EV@.1U/10V_4C320 EV@.1U/10V_4

R169 IV@39_4R169 IV@39_4

C329 EV@.1U/10V_4C329 EV@.1U/10V_4

C316 EV@.1U/10V_4C316 EV@.1U/10V_4

C307 EV@.1U/10V_4C307 EV@.1U/10V_4

R513 EV@0_4R513 EV@0_4

R155 IV@150/F_4R155 IV@150/F_4

C321 EV@.1U/10V_4C321 EV@.1U/10V_4

C324 EV@.1U/10V_4C324 EV@.1U/10V_4

R144 IV@150/F_4R144 IV@150/F_4

C304 EV@.1U/10V_4C304 EV@.1U/10V_4

C303 EV@.1U/10V_4C303 EV@.1U/10V_4

C309 EV@.1U/10V_4C309 EV@.1U/10V_4

R145 IV@150/F_4R145 IV@150/F_4

R200 *2.2K_4R200 *2.2K_4

C319 EV@.1U/10V_4C319 EV@.1U/10V_4

R166 EV@0_4R166 EV@0_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C313 EV@.1U/10V_4C313 EV@.1U/10V_4

C311 EV@.1U/10V_4C311 EV@.1U/10V_4

R148 IV@150/F_4R148 IV@150/F_4

C310 EV@.1U/10V_4C310 EV@.1U/10V_4

C306 EV@.1U/10V_4C306 EV@.1U/10V_4

R157 IV@150/F_4R157 IV@150/F_4

C331 EV@.1U/10V_4C331 EV@.1U/10V_4

R151 *2.2K_4R151 *2.2K_4

C301 EV@.1U/10V_4C301 EV@.1U/10V_4

C299 EV@.1U/10V_4C299 EV@.1U/10V_4

C308 EV@.1U/10V_4C308 EV@.1U/10V_4

R405 IV@39_4R405 IV@39_4

C315 EV@.1U/10V_4C315 EV@.1U/10V_4

C323 EV@.1U/10V_4C323 EV@.1U/10V_4

C327 EV@.1U/10V_4C327 EV@.1U/10V_4

R201 24.9/F_4R201 24.9/F_4

PEG_COMPI N43

PEG_COMPO M43

PEG_RX#_0 J51

PEG_RX#_1 L51

PEG_RX#_2 N47

PEG_RX#_3 T45

PEG_RX#_4 T50

PEG_RX#_5 U40

PEG_RX#_6 Y44

PEG_RX#_7 Y40

PEG_RX#_8 AB51

PEG_RX#_9 W49

PEG_RX#_10 AD44

PEG_RX#_11 AD40

PEG_RX#_12 AG46

PEG_RX#_13 AH49

PEG_RX#_14 AG45

PEG_RX#_15 AG41

PEG_RX_0 J50

PEG_RX_1 L50

PEG_RX_2 M47

PEG_RX_3 U44

PEG_RX_4 T49

PEG_RX_5 T41

PEG_RX_6 W45

PEG_RX_7 W41

PEG_RX_8 AB50

PEG_RX_9 Y48

PEG_RX_10 AC45

PEG_RX_11 AC41

PEG_RX_12 AH47

PEG_RX_13 AG49

PEG_RX_14 AH45

PEG_RX_15 AG42

PEG_TX#_0 N45

PEG_TX#_10 AC46

PEG_TX#_3 N51

PEG_TX#_4 R50

PEG_TX#_5 T42

PEG_TX#_6 Y43

PEG_TX#_7 W46

PEG_TX#_8 W38

PEG_TX#_9 AD39

PEG_TX#_1 U39

PEG_TX#_11 AC49

PEG_TX#_12 AC42

PEG_TX#_13 AH39

PEG_TX#_14 AE49

PEG_TX#_15 AH44

PEG_TX#_2 U47

PEG_TX_0 M45

PEG_TX_1 T38

PEG_TX_2 T46

PEG_TX_3 N50

PEG_TX_4 R51

PEG_TX_5 U43

PEG_TX_6 W42

PEG_TX_7 Y47

PEG_TX_8 Y39

PEG_TX_9 AC38

PEG_TX_10 AD47

PEG_TX_11 AC50

PEG_TX_12 AD43

PEG_TX_13 AG39

PEG_TX_14 AE50

PEG_TX_15 AH43

L_CTRL_CLK

E39

L_CTRL_DATA

E40

L_DDC_CLK

C37

L_DDC_DATA

D35

L_VDD_EN

K40

LVDS_IBG

L41

LVDS_VBG

L43

LVDS_VREFH

N41

LVDS_VREFL

N40

LVDSA_CLK#

D46

LVDSA_CLK

C45

LVDSA_DATA#_0

G51

LVDSA_DATA#_1

E51

LVDSA_DATA#_2

F49

LVDSA_DATA_1

E50

LVDSA_DATA_2

F48

LVDSB_CLK#

D44

LVDSB_CLK

E42

LVDSB_DATA#_0

G44

LVDSB_DATA#_1

B47

LVDSB_DATA#_2

B45

LVDSB_DATA_1

A47

LVDSB_DATA_2

A45

L_BKLT_EN

H39

TVA_DAC

E27

TVB_DAC

G27

TVC_DAC

K27

TVA_RTN

F27

TVB_RTN

J27

TVC_RTN

L27

CRT_BLUE

H32

CRT_BLUE#

G32

CRT_DDC_CLK

K33

CRT_DDC_DATA

G35

CRT_GREEN

K29

CRT_GREEN#

J29

CRT_HSYNC

F33

CRT_TVO_IREF

C32

CRT_RED

F29

CRT_RED#

E29

CRT_VSYNC

E33

LVDSA_DATA_0

G50

LVDSB_DATA_0

E44

L_BKLT_CTRL

J40

TV_DCONSEL_0

M35

TV_DCONSEL_1

P33

LVDS

PCI-EXPRESS GRAPHICS

TV VGA

U30C

CRESTLINE_1p0

LVDS

PCI-EXPRESS GRAPHICS

TV VGA

U30C

CRESTLINE_1p0

R413 10K_4R413 10K_4

R182 IV@2.4K_4R182 IV@2.4K_4

C317 EV@.1U/10V_4C317 EV@.1U/10V_4

C318 EV@.1U/10V_4C318 EV@.1U/10V_4

R514 EV@0_4R514 EV@0_4

R167 EV@0_4R167 EV@0_4

C300 EV@.1U/10V_4C300 EV@.1U/10V_4

www.RahasiaLaptop.com

D D

C C

B B

A A

PM_EXTTS#0_R

MCH_CFG_19

MCH_CFG_20

PM_DPRSLPVR_GMCH

MCH_CFG_20

CLK_MCH_OE#

PM_THRMTRIP#_GMCH

CLK_MCH_OE#

CLK_PCIE_3GPLL#

CLK_PCIE_3GPLL

CLK_DREFCLK#

CLK_DREFCLK

CLK_DREFSSCLK#

CLK_DREFSSCLK

M_RCOMP#

M_RCOMP

GMCH_TEST2

GMCH_TEST1

M_RCOMP#

M_RCOMP

RST_IN#_MCH

PM_EXTTS#1_R

PM_EXTTS#0

+SM_VREF_MCH

PM_EXTTS#1

PM_BMBUSY#_R

SM_RCOMP_VOH

SM_RCOMP_VOL

SM_RCOMP_VOH

SM_RCOMP_VOL

MCH_CFG_3

MCH_CFG_4

MCH_CFG_5

MCH_CFG_6

MCH_CFG_7

MCH_CFG_8

MCH_CFG_9

MCH_CFG_10

MCH_CFG_11

MCH_CFG_12

MCH_CFG_13

MCH_CFG_14

MCH_CFG_15

MCH_CFG_16

MCH_CFG_17

MCH_CFG_18

MCH_CFG_19

+1.25V_CL_VREF

ICH_DPRSTP#_R

DMI_TXN2

DMI_TXN3

DMI_TXP1

DMI_TXP2

DMI_TXP3

DMI_RXN2

DMI_RXN3

DMI_RXN0

DMI_RXN1

DMI_RXP3

DMI_RXP2

DMI_RXP1

DMI_RXP0

DMI_TXN0

DMI_TXN1

DMI_TXP0

MCH_CFG_13

MCH_CFG_16

MCH_CFG_9

MCH_CFG_5

MCH_CFG_12

+SM_VREF_MCH

MCH_GFX_VID_0

MCH_GFX_VID_1

MCH_GFX_VID_2

MCH_GFX_VID_3

CLK_DREFCLK

CLK_DREFCLK#

CLK_DREFSSCLK#

CLK_DREFSSCLK

DMI_RXP[3:0] <13>

DMI_TXP[3:0] <13>

DMI_TXN[3:0] <13>

DMI_RXN[3:0] <13>

M_CLK0 <16>

M_CLK1 <16>

M_CLK2 <16>

M_CLK#0 <16>

M_CLK3 <16>

M_CLK#1 <16>

M_CLK#2 <16>

M_CLK#3 <16>

M_CKE1 <16>

M_CKE0 <16>

M_CKE3 <16>

M_CKE2 <16>

M_CS#0 <16>

M_CS#1 <16>

M_CS#2 <16>

M_CS#3 <16>

M_ODT1 <16>

M_ODT0 <16>

M_ODT3 <16>

M_ODT2 <16>

PM_BMBUSY#<14>

PM_THRMTRIP#<3,12>

DELAY_VR_PWRGOOD<3,14,34>

PM_EXTTS#1<16>

MCH_BSEL0<2>

MCH_BSEL1<2>

MCH_BSEL2<2>

MCH_ICH_SYNC# <14>

CL_CLK0 <14>

CL_DATA0 <14>

CL_RST#0 <14>

ICH_DPRSTP#<3,12,34>

PLTRST#_NB<13>

PM_DPRSLPVR<14,34>

MPWROK <14,31>

CLK_DREFCLK# <2>

CLK_DREFSSCLK# <2>

CLK_DREFCLK <2>

CLK_DREFSSCLK <2>

CLK_PCIE_3GPLL# <2>

CLK_PCIE_3GPLL <2>

PM_EXTTS#0<16>

SUSB# <14,31>

+3V

+1.8VSUS

+3V

+1.25V

+1.8VSUS

+SMDDR_VREF

+1.25V

Size Document Number Rev

Date: Sheet of

GMCH (STRAPPING/OTHER 3/7)

738Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH (STRAPPING/OTHER 3/7)

738Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH (STRAPPING/OTHER 3/7)

738Monday, May 07, 2007

INTEL CRB

CRESSTLINE SHOULD USE 20OHM

<FAE>

80.6ohm

R Value select

For Calero : 80.6ohm

For Cresstline:20ohm

But check list use 80.6ohm

1 = SDVO Card Present

CFG16

CFG20

1 = Dynamic ODT Enable (Default)

10 = XOR Mode Enable

CFG[18:17]

SDVO/PCIe concurrent

1 = SDVO and PCIE x1 are operating

0 = Dynamic ODT disable

0 = Only SDVO or PCIE x1 is operation

(Default)

Strap Description

simultaneously via the PEG port

Pin Name

Reserved

00 = Clock gating disableXOR/ ALLZ/

Clock Un gating

0 = Reserved Lanes

1 = Normal operation (Default)

CFG[2:0]

DMI Lane Reversal

011 = FSB 667MHz

0 = No SDVO Card present (Default)

CFG7

DMI X2 Select

Reserved

11 = Normal Cperation (Default)

0 = Normal operation

1 = Reverse Lanes (Default)

1 = DMI X4 (Default)

FSB Frequency Select

CFG[4:3]

PCI Express Graphics

Lane Reversal

0 = Normal mode

1 = Low Power mode

Low Power PCI Express

1 = Mobile CPU (Default)

0 = Reserved

Reserved

CPU Strap

CFG8

CFG9

CFG[11:10] Reserved

CFG[13:12]

CFG5

CFG6

0 = DMI X2

Reserved

CFG[15:14]

010 = FSB 800MHz

SDVO Present

01 = ALL-Z Mode Enable

FSB Dynamic ODT

CFG19

SDVO_CTRLDATA

Configuration

Strapping table

All strap are sampled with respect to the leading edge of the GMCH power ok signal

CFG[17:3] have internal pull-up

CFG[18:19] have internal pull-down

Any CFG signal strapping option not list below should be left NC pin

INTEL CRB

ADD 0.1UF

INTEL FAE suggest PD for external graphics

0C Delete R410 and R408 0110

R130 *0_4R130 *0_4

C250

.01U/16V_4

C250

.01U/16V_4

R140 100_4R140 100_4

R184 0_4R184 0_4

R168 20K_4R168 20K_4

T30T30

T28T28

R420

392/F

R420

392/F

T32T32

R532 EV@0_4R532 EV@0_4

R137 *4.02K/F_4R137 *4.02K/F_4

R138 *4.02K/F_4R138 *4.02K/F_4

R149 10K_4R149 10K_4

T40T40

R177 0_4R177 0_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

R417

BK1608LL121

R417

BK1608LL121

R174 *4.02K/F_4R174 *4.02K/F_4

C143

.1U/10V_4

C143

.1U/10V_4

SM_CK_0 AV29

SM_CK_1 BB23

RSVD28

BF23

SM_CK_3 BA25

SM_CK#_0 AW30

SM_CK#_1 BA23

RSVD29

BG23

SM_CK#_3 AW25

SM_CKE_0 BE29

SM_CKE_1 AY32

SM_CKE_3 BD39

SM_CKE_4 BG37

SM_CS#_0 BG20

SM_CS#_1 BK16

SM_CS#_2 BG16

SM_CS#_3 BE13

RSVD32

BH39

SM_ODT_0 BH18

SM_ODT_1 BJ15

SM_ODT_2 BJ14

SM_ODT_3 BE16

SM_RCOMP BL15

SM_RCOMP# BK14

SM_VREF_0 AR49

SM_VREF_1 AW4

CFG_18

L32

CFG_19

N33

CFG_2

N24

CFG_0

P27

CFG_1

N27

CFG_20

L35

CFG_3

C21

CFG_4

C23

CFG_5

F23

CFG_6

N23

CFG_7

G23

CFG_8

J20

CFG_9

C20

CFG_10

R24

CFG_11

L23

CFG_12

J23

CFG_13

E23

CFG_14

E20

CFG_15

K23

CFG_16

M20

CFG_17

M24

PM_BM_BUSY#

G41

PM_EXT_TS#_0

L36

PM_EXT_TS#_1

J36

PWROK

AW49

RSTIN#

AV20

DPLL_REF_CLK B42

DPLL_REF_CLK# C42

DPLL_REF_SSCLK H48

DPLL_REF_SSCLK# H47

DMI_RXN_0 AN47

DMI_RXN_1 AJ38

DMI_RXN_2 AN42

DMI_RXN_3 AN46

DMI_RXP_0 AM47

DMI_RXP_1 AJ39

DMI_RXP_2 AN41

DMI_RXP_3 AN45

DMI_TXN_0 AJ46

DMI_TXN_1 AJ41

DMI_TXN_2 AM40

DMI_TXN_3 AM44

DMI_TXP_0 AJ47

DMI_TXP_1 AJ42

DMI_TXP_2 AM39

DMI_TXP_3 AM43

RSVD10

AR37

RSVD12

AL36 RSVD11

AM36

RSVD13

AM37

RSVD22

BJ20

RSVD23

BK22

RSVD24

BF19

RSVD25

BH20

RSVD26

BK18

PM_DPRSTP#

L39

SM_CK_4 AV23

SM_CK#_4 AW23

RSVD30

BC23

RSVD31

BD24

RSVD33

AW20

RSVD34

BK20

RSVD5

AR12

RSVD6

AR13

RSVD7

AM12

RSVD8

AN13

RSVD1

P36

RSVD2

P37

RSVD3

R35

RSVD4

N35

GFX_VID_0 E35

GFX_VID_1 A39

GFX_VID_2 C38

GFX_VID_3 B39

GFX_VR_EN E36

RSVD27

BJ18

SM_RCOMP_VOH BK31

SM_RCOMP_VOL BL31

THERMTRIP#

N20

DPRSLPVR

G36

RSVD9

J12

CL_CLK AM49

CL_DATA AK50

CL_PWROK AT43

CL_RST# AN49

CL_VREF AM50

RSVD35

C48

RSVD36

D47

RSVD37

B44

RSVD38

C44

RSVD21

B51

NC_1

BJ51

NC_2

BK51

NC_3

BK50

NC_4

BL50

NC_5

BL49

NC_6

BL3

NC_7

BL2

NC_8

BK1

NC_9

BJ1

NC_10

NC_11

NC_12

C51

NC_13

B50

NC_14

A50

NC_15

A49

SDVO_CTRL_CLK H35

SDVO_CTRL_DATA K36

CLK_REQ# G39

RSVD14

D20

ICH_SYNC# G40

RSVD20

H10

RSVD39

A35

RSVD40

B37

RSVD41

B36

RSVD42

B34

RSVD43

C34 PEG_CLK# K45

PEG_CLK K44

TEST_1 A37

NC_16

BK2 TEST_2 R32

MISC

DDR MUXING

CLK

DMI

CFGRSVD

GRAPHICS VID

U30B

CRESTLINE_1p0

MISC

DDR MUXING

CLK

DMI

CFGRSVD

GRAPHICS VID

U30B

CRESTLINE_1p0

R411 *4.7K_4R411 *4.7K_4

R422

1K/F_4

R422

1K/F_4

R395 10K_4R395 10K_4

T42T42

R418

*1K/F_4

R418

*1K/F_4

R150 0_4R150 0_4

R409 *4.7K_4R409 *4.7K_4

T43T43

T75T75

C241

.01U/16V_4

C241

.01U/16V_4

R533 EV@0_4R533 EV@0_4

T37T37

C295

.1U/10V_4

C295

.1U/10V_4

R139 *4.02K/F_4R139 *4.02K/F_4

R170 10K_4R170 10K_4

R401 0_4R401 0_4

R154 1K/F_4R154 1K/F_4

R165

3.01K/F_4

R165

3.01K/F_4

T44T44

C559

.1U/10V_4

C559

.1U/10V_4

R387

20/F_4

R387

20/F_4

R416

*1K/F_4

R416

*1K/F_4

C165 .1U/10V_4C165 .1U/10V_4

R163

1K/F_4

R163

1K/F_4

R127 *4.02K/F_4R127 *4.02K/F_4

T25T25

T41T41

C232

2.2U/6.3V

C232

2.2U/6.3V

R529 EV@0_4R529 EV@0_4

T27T27

R171 *4.02K/F_4R171 *4.02K/F_4

R129 *4.02K/F_4R129 *4.02K/F_4

R183 *0_4R183 *0_4

T24T24

C233

2.2U/6.3V

C233

2.2U/6.3V

R407 0_4R407 0_4

T34T34

R178 0_4R178 0_4

R531 EV@0_4R531 EV@0_4

R388

20/F_4

R388

20/F_4

T29T29

www.RahasiaLaptop.com

D D

C C

B B

A A

M_A_DQ1

M_A_DQ2

M_A_DQ3

M_A_DQ4

M_A_DQ5

M_A_DQ6

M_A_DQ7

M_A_DQ8

M_A_DQ9

M_A_DQ10

M_A_DQ11

M_A_DQ12

M_A_DQ13

M_A_DQ14

M_A_DQ15

M_A_DQ16

M_A_DQ17

M_A_DQ18

M_A_DQ19

M_A_DQ20

M_A_DQ21

M_A_DQ22

M_A_DQ23

M_A_DQ24

M_A_DQ25

M_A_DQ26

M_A_DQ27

M_A_DQ28

M_A_DQ29

M_A_DQ30

M_A_DQ31

M_A_DQ32

M_A_DQ33

M_A_DQ34

M_A_DQ35

M_A_DQ36

M_A_DQ37

M_A_DQ38

M_A_DQ39

M_A_DQ40

M_A_DQ41

M_A_DQ42

M_A_DQ43

M_A_DQ44

M_A_DQ45

M_A_DQ46

M_A_DQ47

M_A_DQ48

M_A_DQ49

M_A_DQ50

M_A_DQ51

M_A_DQ52

M_A_DQ53

M_A_DQ54

M_A_DQ55

M_A_DQ56

M_A_DQ57

M_A_DQ58

M_A_DQ59

M_A_DQ60

M_A_DQ61

M_A_DQ62

M_A_DQ63

M_A_DQ0

M_B_DQ38

M_B_DQ18

M_B_DQ58

M_B_DQ19

M_B_DQ39

M_B_DQ59

M_B_DQ20

M_B_DQ40

M_B_DQ1

M_B_DQ60

M_B_DQ21

M_B_DQ41

M_B_DQ61

M_B_DQ22

M_B_DQ42

M_B_DQ2

M_B_DQ62

M_B_DQ23

M_B_DQ43

M_B_DQ3

M_B_DQ63

M_B_DQ24

M_B_DQ44

M_B_DQ4

M_B_DQ25

M_B_DQ45

M_B_DQ5

M_B_DQ0

M_B_DQ26

M_B_DQ46

M_B_DQ6

M_B_DQ27

M_B_DQ47

M_B_DQ7

M_B_DQ28

M_B_DQ48

M_B_DQ8

M_B_DQ29

M_B_DQ9

M_B_DQ49

M_B_DQ30

M_B_DQ10

M_B_DQ50

TP_SA_RCVEN#

M_B_DQ31

M_B_DQ11

M_B_DQ51

M_B_DQ32

M_B_DQ12

M_B_DQ52

M_B_DQ33

M_B_DQ13

M_B_DQ53

M_B_DQ34

M_B_DQ14

M_A_DM0

M_B_DQ54

M_B_DQ35

M_B_DQ15

M_A_DM1

M_A_DM2

M_A_DM3

M_B_DQ55

M_B_DQ36

M_A_DM4

M_B_DQ16

M_B_DQ56

M_B_DQ37

M_B_DQ17

M_B_DQ57

M_A_DM5

M_A_DM6

M_A_DM7

M_A_DQS2

M_A_DQS1

M_A_DQS0

M_A_DQS4

M_A_DQS3

M_A_DQS5

M_A_DQS7

M_A_DQS6

M_A_DQS#0

M_A_DQS#3

M_A_DQS#2

M_A_DQS#1

M_A_DQS#5

M_A_DQS#4

M_A_DQS#6

M_A_DQS#7

M_A_A0

M_A_A1

M_A_A2

M_A_A3

M_A_A7

M_A_A5

M_A_A6

M_A_A4

M_A_A10

M_A_A11

M_A_A12

M_A_A8

M_A_A9

M_A_A13

M_B_A7

M_B_DQS#2

M_B_A8

M_B_DQS#3

M_B_A0

M_B_A9

M_B_DQS#4

M_B_A10

M_B_DQS#5

M_B_DM4

M_B_A11

M_B_DQS#6

TP_SB_RCVEN#

M_B_A12

M_B_DQS1

M_B_DQS#7

M_B_DM5

M_B_A13

M_B_DM6

M_B_DQS2

M_B_DM7

M_B_DM0

M_B_DQS3

M_B_A1

M_B_DQS4

M_B_DQS5

M_B_A2

M_B_DQS6

M_B_DM1

M_B_A3

M_B_DQS0

M_B_DQS7

M_B_A4

M_B_A5

M_B_DM2

M_B_DQS#1

M_B_DQS#0

M_B_A6

M_B_DM3

M_A_A14 M_B_A14

M_A_DQ[63:0]<16>

M_A_BS0 <16>

M_A_BS1 <16>

M_A_BS2 <16>

M_A_DM[7:0] <16>

M_A_DQS[7:0] <16>

M_A_DQS#[7:0] <16>

M_A_A[13:0] <16>

M_A_RAS# <16>

M_A_WE# <16>

M_A_CAS# <16>

M_B_DQ[63:0]<16>

M_B_BS0 <16>

M_B_BS1 <16>

M_B_BS2 <16>

M_B_DM[7:0] <16>

M_B_DQS[7:0] <16>

M_B_DQS#[7:0] <16>

M_B_A[13:0] <16>

M_B_RAS# <16>

M_B_WE# <16>

M_B_CAS# <16>

M_A_A14 <16> M_B_A14 <16>

Size Document Number Rev

Date: Sheet of

GMCH DDR(4/7)

838Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH DDR(4/7)

838Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

GMCH DDR(4/7)

838Monday, May 07, 2007

NB(Memory controller)

SB_DQ_0

AP49

SB_DQ_1

AR51

SB_DQ_10

BA49

SB_DQ_11

BE50

SB_DQ_12

BA51

SB_DQ_13

AY49

SB_DQ_14

BF50

SB_DQ_15

BF49

SB_DQ_16

BJ50

SB_DQ_17

BJ44

SB_DQ_18

BJ43

SB_DQ_19

BL43

SB_DQ_2

AW50

SB_DQ_20

BK47

SB_DQ_21

BK49

SB_DQ_22

BK43

SB_DQ_23

BK42

SB_DQ_24

BJ41

SB_DQ_25

BL41

SB_DQ_26

BJ37

SB_DQ_27

BJ36

SB_DQ_28

BK41

SB_DQ_29

BJ40

SB_DQ_3

AW51

SB_DQ_30

BL35

SB_DQ_31

BK37

SB_DQ_32

BK13

SB_DQ_33

BE11

SB_DQ_34

BK11

SB_DQ_35

BC11

SB_DQ_36

BC13

SB_DQ_37

BE12

SB_DQ_38

BC12

SB_DQ_39

BG12

SB_DQ_4

AN51

SB_DQ_40

BJ10

SB_DQ_41

BL9

SB_DQ_42

BK5

SB_DQ_43

BL5

SB_DQ_44

BK9

SB_DQ_45

BK10

SB_DQ_46

BJ8

SB_DQ_47

BJ6

SB_DQ_48

BF4

SB_DQ_49

BH5

SB_DQ_5

AN50

SB_DQ_50

BG1

SB_DQ_51

BC2

SB_DQ_52

BK3

SB_DQ_53

BE4

SB_DQ_54

BD3

SB_DQ_55

BJ2

SB_DQ_56

BA3

SB_DQ_57

BB3

SB_DQ_58

AR1

SB_DQ_59

AT3

SB_DQ_6

AV50

SB_DQ_60

AY2

SB_DQ_61

AY3

SB_DQ_62

AU2

SB_DQ_63

AT2

SB_DQ_7

AV49

SB_DQ_8

BA50

SB_DQ_9

BB50

SB_BS_0 AY17

SB_BS_1 BG18

SB_BS_2 BG36

SB_CAS# BE17

SB_DM_0 AR50

SB_DM_1 BD49

SB_DM_2 BK45

SB_DM_3 BL39

SB_DM_4 BH12

SB_DM_5 BJ7

SB_DM_6 BF3

SB_DM_7 AW2

SB_DQS_0 AT50

SB_DQS_1 BD50

SB_DQS_2 BK46

SB_DQS_3 BK39

SB_DQS_4 BJ12

SB_DQS_5 BL7

SB_DQS_6 BE2

SB_DQS_7 AV2

SB_DQS#_0 AU50

SB_DQS#_1 BC50

SB_DQS#_2 BL45

SB_DQS#_3 BK38

SB_DQS#_4 BK12

SB_DQS#_5 BK7

SB_DQS#_6 BF2

SB_DQS#_7 AV3

SB_MA_0 BC18

SB_MA_1 BG28

SB_MA_10 BG17

SB_MA_11 BE37

SB_MA_12 BA39

SB_MA_13 BG13

SB_MA_2 BG25

SB_MA_3 AW17

SB_MA_4 BF25

SB_MA_5 BE25

SB_MA_6 BA29

SB_MA_7 BC28

SB_MA_8 AY28

SB_MA_9 BD37

SB_RAS# AV16

SB_RCVEN# AY18

SB_WE# BC17

SB_MA_14 BE24

DDR SYSTEM MEMORY B

U30E

CRESTLINE_1p0

DDR SYSTEM MEMORY B

U30E

CRESTLINE_1p0

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

SA_DQ_0

AR43

SA_DQ_1

AW44

SA_DQ_10

BG47

SA_DQ_11

BJ45

SA_DQ_12

BB47

SA_DQ_13

BG50

SA_DQ_14

BH49

SA_DQ_15

BE45

SA_DQ_16

AW43

SA_DQ_17

BE44

SA_DQ_18

BG42

SA_DQ_19

BE40

SA_DQ_2

BA45

SA_DQ_20

BF44

SA_DQ_21

BH45

SA_DQ_22

BG40

SA_DQ_23

BF40

SA_DQ_24

AR40

SA_DQ_25

AW40

SA_DQ_26

AT39

SA_DQ_27

AW36

SA_DQ_28

AW41

SA_DQ_29

AY41

SA_DQ_3

AY46

SA_DQ_30

AV38

SA_DQ_31

AT38

SA_DQ_32

AV13

SA_DQ_33

AT13

SA_DQ_34

AW11

SA_DQ_35

AV11

SA_DQ_36

AU15

SA_DQ_37

AT11

SA_DQ_38

BA13

SA_DQ_39

BA11

SA_DQ_4

AR41

SA_DQ_40

BE10

SA_DQ_41

BD10

SA_DQ_42

BD8

SA_DQ_43

AY9

SA_DQ_44

BG10

SA_DQ_45

AW9

SA_DQ_46

BD7

SA_DQ_47

BB9

SA_DQ_48

BB5

SA_DQ_49

AY7

SA_DQ_5

AR45

SA_DQ_50

AT5

SA_DQ_51

AT7

SA_DQ_52

AY6

SA_DQ_53

BB7

SA_DQ_54

AR5

SA_DQ_55

AR8

SA_DQ_56

AR9

SA_DQ_57

AN3

SA_DQ_58

AM8

SA_DQ_59

AN10

SA_DQ_6

AT42

SA_DQ_60

AT9

SA_DQ_61

AN9

SA_DQ_62

AM9

SA_DQ_63

AN11

SA_DQ_7

AW47

SA_DQ_8

BB45

SA_DQ_9

BF48

SA_BS_0 BB19

SA_BS_1 BK19

SA_BS_2 BF29

SA_CAS# BL17

SA_DM_0 AT45

SA_DM_1 BD44

SA_DM_2 BD42

SA_DM_3 AW38

SA_DM_4 AW13

SA_DM_5 BG8

SA_DM_6 AY5

SA_DQS_0 AT46

SA_DQS_1 BE48

SA_DQS_2 BB43

SA_DQS_3 BC37

SA_DQS_4 BB16

SA_DQS_5 BH6

SA_DQS_6 BB2

SA_DQS_7 AP3

SA_DM_7 AN6

SA_DQS#_0 AT47

SA_DQS#_1 BD47

SA_DQS#_2 BC41

SA_DQS#_3 BA37

SA_DQS#_4 BA16

SA_DQS#_5 BH7

SA_DQS#_6 BC1

SA_DQS#_7 AP2

SA_MA_0 BJ19

SA_MA_1 BD20

SA_MA_10 BC19

SA_MA_11 BE28

SA_MA_12 BG30

SA_MA_13 BJ16

SA_MA_2 BK27

SA_MA_3 BH28

SA_MA_4 BL24

SA_MA_5 BK28

SA_MA_6 BJ27

SA_MA_7 BJ25

SA_MA_8 BL28

SA_MA_9 BA28

SA_RAS# BE18

SA_RCVEN# AY20

SA_WE# BA19

SA_MA_14 BJ29

DDR SYSTEM MEMORY A

U30D

CRESTLINE_1p0

DDR SYSTEM MEMORY A

U30D

CRESTLINE_1p0

T35T35

T26T26

www.RahasiaLaptop.com

D D

C C

B B

A A

VCCSM_LF7

VCCSM_LF6

VCCSM_LF5

VCCSM_LF4

VCCSM_LF3

VCCSM_LF2

VCCSM_LF1

+1.05V_AXG

+1.05V

+1.8VSUS

+1.05V

+1.05V_AXG

+1.05V

Size Document Number Rev

Date: Sheet of

GMCH Power-1(5/7)

938Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

GMCH Power-1(5/7)

938Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

GMCH Power-1(5/7)

938Wednesday, April 25, 2007

NB(Power-1)

0C Delete R156 0104

C151

.22U/6.3V_4

C151

.22U/6.3V_4

C243

.22U/6.3V_4

C243

.22U/6.3V_4

C263

.1U/10V_4

C263

.1U/10V_4

C235

.22U/6.3V_4

C235

.22U/6.3V_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C154

.1U/10V_4

C154

.1U/10V_4

C521

IV@330U_7

C521

IV@330U_7

VCC_5

AC32

VCC_6

AK32

VCC_7

AJ31

VCC_8

AJ28

VCC_9

AH32

VCC_10

AH31

VCC_11

AH29

VCC_12

AF32

VCC_2

AT34

VCC_4

AC31

VCC_SM_10

BA35

VCC_SM_20

BF33

VCC_SM_30

BJ34

VCC_SM_6

AW35

VCC_SM_7

AY35

VCC_SM_8

BA32

VCC_SM_9

BA33

VCC_SM_11

BB33

VCC_SM_12

BC32

VCC_SM_13

BC33

VCC_SM_14

BC35

VCC_SM_15

BD32

VCC_SM_16

BD35

VCC_SM_17

BE32

VCC_SM_18

BE33

VCC_SM_19

BE35

VCC_SM_2

AU33

VCC_SM_21

BF34

VCC_SM_22

BG32

VCC_SM_23

BG33

VCC_SM_24

BG35

VCC_SM_25

BH32

VCC_SM_26

BH34

VCC_SM_27

BH35

VCC_SM_28

BJ32

VCC_SM_29

BJ33

VCC_SM_3

AU35

VCC_SM_31

BK32

VCC_SM_32

BK33

VCC_SM_33

BK34

VCC_SM_34

BK35

VCC_AXG_NCTF_10 U17

VCC_AXG_NCTF_11 U19

VCC_AXG_NCTF_12 U20

VCC_AXG_NCTF_13 U21

VCC_AXG_NCTF_14 U23

VCC_AXG_NCTF_15 U26

VCC_AXG_NCTF_16 V16

VCC_AXG_NCTF_17 V17

VCC_AXG_NCTF_18 V19

VCC_AXG_NCTF_19 V20

VCC_AXG_NCTF_2 T18

VCC_AXG_NCTF_20 V21

VCC_AXG_NCTF_21 V23

VCC_AXG_NCTF_22 V24

VCC_AXG_NCTF_23 Y15

VCC_AXG_NCTF_24 Y16

VCC_AXG_NCTF_25 Y17

VCC_AXG_NCTF_26 Y19

VCC_AXG_NCTF_27 Y20

VCC_AXG_NCTF_28 Y21

VCC_AXG_NCTF_29 Y23

VCC_AXG_NCTF_3 T19

VCC_AXG_NCTF_30 Y24

VCC_AXG_NCTF_31 Y26

VCC_AXG_NCTF_32 Y28

VCC_AXG_NCTF_33 Y29

VCC_AXG_NCTF_34 AA16

VCC_AXG_NCTF_35 AA17

VCC_AXG_NCTF_36 AB16

VCC_AXG_NCTF_37 AB19

VCC_AXG_NCTF_38 AC16

VCC_AXG_NCTF_39 AC17

VCC_AXG_NCTF_4 T21

VCC_AXG_NCTF_40 AC19

VCC_AXG_NCTF_41 AD15

VCC_AXG_NCTF_42 AD16

VCC_AXG_NCTF_43 AD17

VCC_AXG_NCTF_44 AF16

VCC_AXG_NCTF_45 AF19

VCC_AXG_NCTF_46 AH15

VCC_AXG_NCTF_47 AH16

VCC_AXG_NCTF_48 AH17

VCC_AXG_NCTF_49 AH19

VCC_AXG_NCTF_5 T22

VCC_AXG_NCTF_50 AJ16

VCC_AXG_NCTF_51 AJ17

VCC_AXG_NCTF_52 AJ19

VCC_AXG_NCTF_53 AK16

VCC_AXG_NCTF_54 AK19

VCC_AXG_NCTF_55 AL16

VCC_AXG_NCTF_56 AL17

VCC_AXG_NCTF_57 AL19

VCC_AXG_NCTF_58 AL20

VCC_AXG_NCTF_59 AL21

VCC_AXG_NCTF_6 T23

VCC_AXG_NCTF_60 AL23

VCC_AXG_NCTF_61 AM15

VCC_AXG_NCTF_62 AM16

VCC_AXG_NCTF_63 AM19

VCC_AXG_NCTF_65 AM21

VCC_AXG_NCTF_66 AM23

VCC_AXG_NCTF_67 AP15

VCC_AXG_NCTF_68 AP16

VCC_AXG_NCTF_69 AP17

VCC_AXG_NCTF_7 T25

VCC_AXG_NCTF_70 AP19

VCC_AXG_NCTF_71 AP20

VCC_AXG_NCTF_72 AP21

VCC_AXG_NCTF_8 U15

VCC_AXG_NCTF_9 U16

VCC_SM_35

BL33

VCC_SM_4

AV33

VCC_SM_5

AW33

VCC_AXG_NCTF_1 T17

VCC_1

AT35

VCC_SM_1

AU32

VCC_AXG_1

R20

VCC_AXG_2

T14

VCC_AXG_3

W13

VCC_AXG_4

W14

VCC_AXG_5

Y12

VCC_AXG_6

AA20

VCC_AXG_7

AA23

VCC_AXG_8

AA26

VCC_AXG_9

AA28

VCC_AXG_10

AB21

VCC_AXG_11

AB24

VCC_AXG_12

AB29

VCC_AXG_13

AC20

VCC_AXG_14

AC21

VCC_AXG_15

AC23

VCC_AXG_16

AC24

VCC_AXG_17

AC26

VCC_AXG_18

AC28

VCC_AXG_19

AC29

VCC_AXG_20

AD20

VCC_AXG_21

AD23

VCC_AXG_22

AD24

VCC_AXG_23

AD28

VCC_AXG_24

AF21

VCC_AXG_25

AF26

VCC_AXG_27

AH20

VCC_AXG_28

AH21

VCC_AXG_29

AH23

VCC_AXG_30

AH24

VCC_AXG_NCTF_73 AP23

VCC_AXG_NCTF_74 AP24

VCC_AXG_NCTF_75 AR20

VCC_AXG_NCTF_76 AR21

VCC_AXG_NCTF_77 AR23

VCC_AXG_NCTF_78 AR24

VCC_AXG_NCTF_79 AR26

VCC_13

R30

VCC_AXG_31

AH26

VCC_AXG_33

AJ20

VCC_AXG_34

AN14

VCC_SM_LF1 AW45

VCC_SM_LF2 BC39

VCC_SM_LF3 BE39

VCC_SM_LF4 BD17

VCC_SM_LF5 BD4

VCC_SM_LF6 AW8

VCC_SM_LF7 AT6

VCC_AXG_26

AA31

VCC_AXG_32

AD31

VCC_3

AH28

VCC_AXG_NCTF_64 AM20

VCC_SM_36

AU30

VCC_AXG_NCTF_80 V26

VCC_AXG_NCTF_81 V28

VCC_AXG_NCTF_82 V29

VCC_AXG_NCTF_83 Y31

POWER

VCC CORE

VCC SMVCC GFX

VCC GFX NCTF

VCC SM LF

U30G

CRESTLINE_1p0

POWER

VCC CORE

VCC SMVCC GFX

VCC GFX NCTF

VCC SM LF

U30G

CRESTLINE_1p0

R152

EV@0_4

R152

EV@0_4

C174

IV@1U

C174

IV@1U

C171

.22U/6.3V_4

C171

.22U/6.3V_4

C522

IV@330U_7

C522

IV@330U_7

C156

.1U/10V_4

C156

.1U/10V_4

C214

.1U/10V_4

C214

.1U/10V_4

C257

1U/16V

C257

1U/16V

C262

.22U/6.3V_4

C262

.22U/6.3V_4

C247

10U/10V_8

C247

10U/10V_8

C185

IV@.1U_4

C185

IV@.1U_4

C291

1U/16V

C291

1U/16V

C254

.1U/10V_4

C254

.1U/10V_4

C172

IV@10U_8

C172

IV@10U_8

C252

.22U/6.3V_4

C252

.22U/6.3V_4

C238

10U/10V_8

C238

10U/10V_8

C249

10U/10V_8

C249

10U/10V_8

C201

IV@.1U_4

C201

IV@.1U_4

R118 IV@0_8R118 IV@0_8

C191

IV@.47U

C191

IV@.47U

C264

.47U/10V

C264

.47U/10V

C203

.1U/10V_4

C203

.1U/10V_4

C239

10U/10V_8

C239

10U/10V_8

VCC_NCTF_1

AB33

VCC_NCTF_20

AK37

VCC_NCTF_29

AP35

VCC_NCTF_42

U31

VCC_NCTF_9

AF33

VCC_NCTF_10

AF36

VCC_NCTF_11

AH33

VCC_NCTF_12

AH35

VCC_NCTF_13

AH36

VCC_NCTF_14

AH37

VCC_NCTF_15

AJ33

VCC_NCTF_17

AK33

VCC_NCTF_18

AK35

VCC_NCTF_19

AK36

VCC_NCTF_2

AB36

VCC_NCTF_24

AL33

VCC_NCTF_25

AL35

VCC_NCTF_3

AB37

VCC_NCTF_30

AP36

VCC_NCTF_31

AR35

VCC_NCTF_32

AR36

VCC_NCTF_38

T30

VCC_NCTF_39

T34

VCC_NCTF_40

T35

VCC_NCTF_41

U29

VCC_NCTF_4

AC33

VCC_NCTF_43

U32

VCC_NCTF_44

U33

VCC_NCTF_45

U35

VCC_NCTF_46

U36

VCC_NCTF_48

V33

VCC_NCTF_49

V36

VCC_NCTF_50

V37

VCC_NCTF_5

AC35

VCC_NCTF_6

AC36

VCC_NCTF_7

AD35

VSS_NCTF_1 T27

VSS_NCTF_2 T37

VSS_NCTF_3 U24

VSS_NCTF_4 U28

VSS_NCTF_5 V31

VSS_NCTF_6 V35

VSS_NCTF_8 AB17

VSS_NCTF_9 AB35

VSS_NCTF_10 AD19

VCC_NCTF_8

AD36

VSS_NCTF_7 AA19

VSS_NCTF_11 AD37

VSS_NCTF_12 AF17

VSS_NCTF_14 AK17

VSS_NCTF_16 AM24

VSS_NCTF_17 AP26

VSS_NCTF_19 AR15

VSS_NCTF_20 AR19

VSS_NCTF_21 AR28

VCC_NCTF_33

Y32

VCC_AXM_4 AK24

VCC_AXM_5 AK23

VCC_AXM_6 AJ26

VCC_AXM_7 AJ23

VCC_AXM_NCTF_1

AL24

VCC_AXM_NCTF_2

AL26

VCC_AXM_NCTF_3

AL28

VCC_AXM_NCTF_4

AM26

VCC_AXM_NCTF_5

AM28

VCC_AXM_NCTF_6

AM29

VCC_AXM_NCTF_7

AM31

VCC_AXM_NCTF_10

AP29

VCC_AXM_NCTF_11

AP31

VCC_AXM_NCTF_17

AR31

VCC_NCTF_34

Y33

VCC_NCTF_35

Y35

VCC_NCTF_36

Y36

VCC_NCTF_37

Y37 VSS_SCB1 A3

VSS_SCB2 B2

VSS_SCB3 C1

VSS_SCB4 BL1

VSS_SCB5 BL51

VSS_SCB6 A51

VCC_NCTF_26

AA33

VCC_NCTF_27

AA35

VCC_NCTF_28

AA36

VCC_NCTF_16

AJ35

VCC_NCTF_21

AD33

VSS_NCTF_13 AF35

VCC_NCTF_22

AJ36

VCC_AXM_3 AK29

VCC_AXM_NCTF_14

AL29

VCC_AXM_NCTF_15

AL31

VCC_AXM_NCTF_16

AL32

VSS_NCTF_15 AM17

VCC_AXM_NCTF_8

AM32

VCC_AXM_NCTF_9

AM33

VCC_NCTF_23

AM35

VSS_NCTF_18 AP28

VCC_AXM_NCTF_12

AP32

VCC_AXM_NCTF_13

AP33

VCC_AXM_NCTF_18

AR32

VCC_AXM_NCTF_19

AR33

VCC_AXM_2 AT31

VCC_AXM_1 AT33

VCC_NCTF_47

V32

POWER

VCC NCTF

VSS NCTF

VSS SCBVCC AXM

VCC AXM NCTF

U30F

CRESTLINE_1p0

POWER

VCC NCTF

VSS NCTF

VSS SCBVCC AXM

VCC AXM NCTF

U30F

CRESTLINE_1p0

C220

.1U/10V_4

C220

.1U/10V_4

R100 IV@0_8R100 IV@0_8

C552

330U/2V_7

C552

330U/2V_7

www.RahasiaLaptop.com

D D

C C

B B

A A

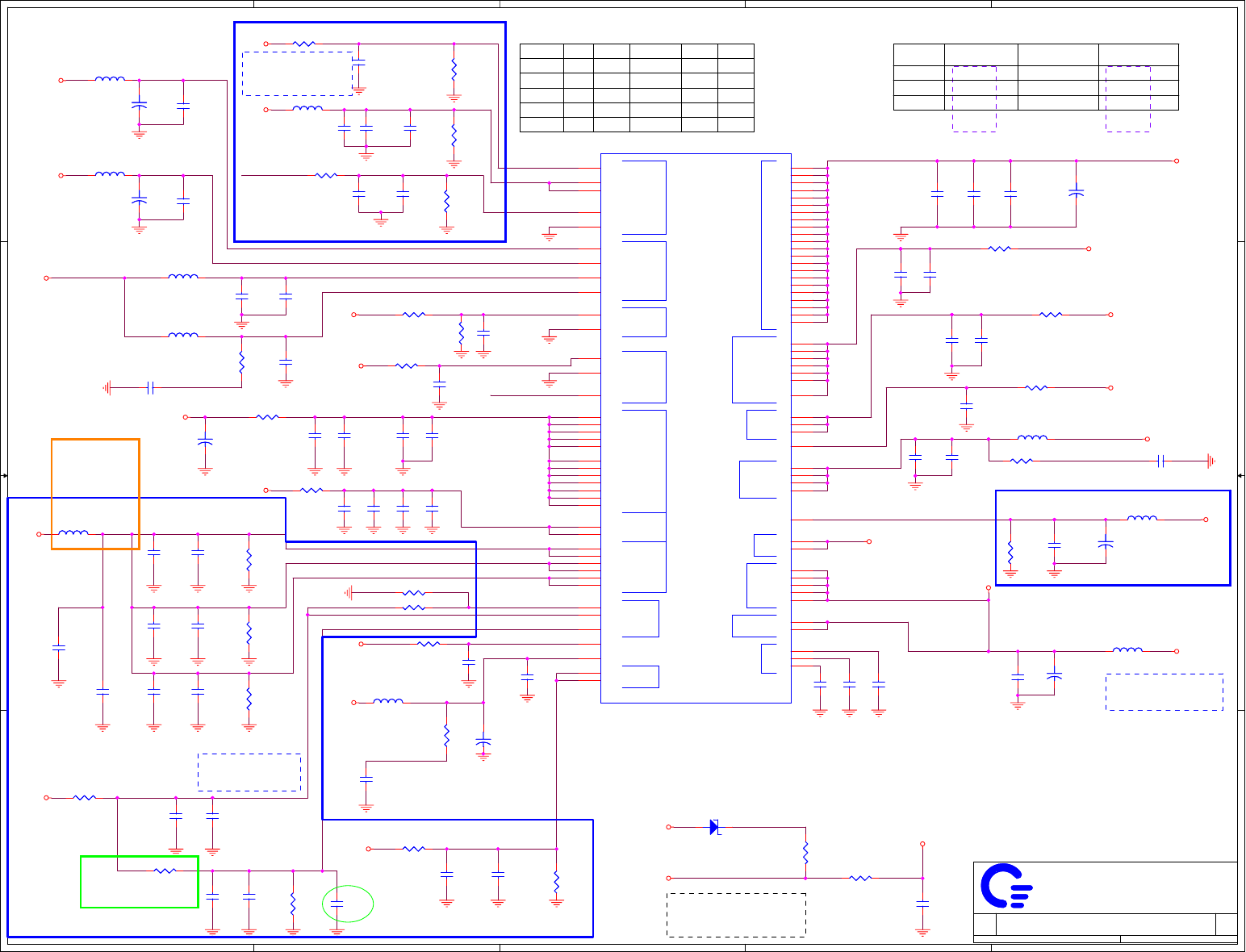

+1.25V_VCCA_DPLLB

+1.25VM_VCCA_MPLL

+3V_VCCA_PEG_BG

V1.25M_MPLL_RC

+1.25V_VCC_AXF

+1.25VM_VCCA_SM_CK

+1.8V_VCCD_LVDS

+3V_VCCA_CRT_DAC

+3V_VCCA_DAC_BG

+1.25VM_VCCA_HPLL

+1.5V_VCCD_QDAC

+V1.8_SMCK_RC

+1.25V_VCC_DMI

+1.25VM_AXD

+1.25VM_MCH_VCCD_HPLL

+3V_VCCSYNC

+1.5V_VCCD_CRT

+1.25V_VCCA_DPLLA

+1.5V_VCCD_TVDAC

+V1.25S_PEGPLL_FB

+1.8VSUS_VCC_SM_CK

+1.25VM_VCCA_SM

+1.8VSUS_VCC_TX_LVDS

+1.8VSUS_VCC_LVDS

+3V_TV_DAC

+1.25V_VCCD_PEG_PLL

+3V_TV_DAC

+1.05V_SD

+1.05V

+1.25V

+1.8VSUS

+3V_VCC_HV

+1.05V

+1.05_PEG

+3V

+1.25V

+3V

+1.5V

+1.25V

+1.8VSUS

+3V

+3V_VCC_HV

+1.25V

+1.8VSUS

+1.05V

Size Document Number Rev

Date: Sheet of

GMCH Power-2(6/7)

10 38Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

GMCH Power-2(6/7)

10 38Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

GMCH Power-2(6/7)

10 38Wednesday, April 25, 2007

3.3V

EXTERNAL

GND INTERNAL

GND

External VGA with EV@part,Internal VGA with IV@ part

IV&EV Dis/Enable setting

Signal

If SDVO Disable

LVDS Disable

If SDVO enable

LVDS Disable

VCCD_LVDS

VCCA_LVDS

VCCTX_LVDS

GND 1.8V1.5V

1.8V

1.5V

If SDVO enable

LVDS enable

1.8V

1.5V

1.8V

<FAE>

INT VGA disable

VCCSYNC connect to GND

<FAE>

VCC_RXR_DMI and VCC_PEG

connect to+1.05V

GND

1.5V

CRT/TV Disable/Enable guideline

Enable

VCCA_CRT

NB(Power-2)

3.3V

VCCD_CRT

3.3V

VCCDQ_CRT

Ball

3.3V

VCCA_A_TVO

<FAE>

INT VGA disable

VCCD_TVDAC still +1.5V

Enable

IV&EV Dis/Enable setting

3.3V

VCCA_B_TVO

LVDS Disable/Enable guideline

Disable

3.3VVCC_SYNC

GND

IV&EV Dis/Enable setting

Disable

VSSABG_DAC

GND

Ball

VCCA_C_TVO

GND

VCCD_TVO

CRB RECOMMEND

180OHM@100MHz

Rdc= 0.09OHM (max)

GND

External VGA with EV@part, Internal VGA with IV@ part

VCCABG_DAC GND

GND

<CRB>

+1.25V AND +1.25M shall be

+1.5V for Calero Interposer

GND

GND GND

GND

Change to

100 ohm Resistor

Use site for filter

cap with Gfx

enabled CS

C540

IV@22U_8

C540

IV@22U_8

R136

EV@0_4

R136

EV@0_4

R390 0R390 0

L48 IV@1UH_8L48 IV@1UH_8

C546

IV@22N_4

C546

IV@22N_4

C553

IV@220U_7

C553

IV@220U_7

R403

EV@0_4

R403

EV@0_4

R402 0R402 0

C138

.47U/6.3V_4

C138

.47U/6.3V_4

R172 IV@0R172 IV@0

R179 IV@0R179 IV@0

L46 1UH_8L46 1UH_8

C202

*22U_8

C202

*22U_8

R162

EV@0_4

R162

EV@0_4

C145

.1U/10V_4

C145

.1U/10V_4

L15 BKP1608HS181-TL15 BKP1608HS181-T

C198

IV@.1U_4

C198

IV@.1U_4

R414 IV@0R414 IV@0

R396 IV@0R396 IV@0

C137

.47U/10V

C137

.47U/10V

C270

IV@1000P_4

C270

IV@1000P_4

C547

*IV@22U_8

C547

*IV@22U_8

C334

220U/2.5V_7

C334

220U/2.5V_7

C539

*22U_8

C539

*22U_8

R421 0R421 0

C218

.1U/10V_4

C218

.1U/10V_4

C225

.1U/10V_4

C225

.1U/10V_4

R515

C560

.1U/10V_4

C560

.1U/10V_4

R146

EV@0_4

R146

EV@0_4

C182

10U/10V_8

C182

10U/10V_8

C144

2.2U/10V_8

C144

2.2U/10V_8

R153 IV@100R153 IV@100

L14 BKP1608HS181-TL14 BKP1608HS181-T

C532

.47U/6.3V_4

C532

.47U/6.3V_4

C265

*1U

C265

*1U

C253

*1U

C253

*1U

C543

IV@10U_8

C543

IV@10U_8

R404

EV@0_4

R404

EV@0_4

L22 91nHL22 91nH

C524

.47U/6.3V_4

C524

.47U/6.3V_4

C296

.1U/10V_4

C296

.1U/10V_4

L23 BKP1608HS181-TL23 BKP1608HS181-T

2 1

D41

PDZ5.6B

D41

PDZ5.6B

R185 0R185 0

C298

.1U/10V_4

C298

.1U/10V_4

C297

.1U/10V_4

C297

.1U/10V_4

C554

IV@1000P_4

C554

IV@1000P_4

C246

IV@.1U_4

C246

IV@.1U_4

C557

.1U/10V_4

C557

.1U/10V_4

R134 0R134 0

R412

EV@0_4

R412

EV@0_4

C538

22U/6.3V_8

C538

22U/6.3V_8

C200

IV@22N_4

C200

IV@22N_4

C330

2.2U/10V_8

C330

2.2U/10V_8

C269

.1U/10V_4

C269

.1U/10V_4

C227

IV@22N_4

C227

IV@22N_4

C279

IV@1U

C279

IV@1U

C237

IV@.1U_4

C237

IV@.1U_4

C173

4.7U/10V

C173

4.7U/10V

R106

0.5/F

R106

0.5/F

C136

.1U/10V_4

C136

.1U/10V_4

L21

IV@BKP1608HS181-T

L21

IV@BKP1608HS181-T

C219

IV@.1U_4

C219

IV@.1U_4

C544

IV@.1U_4

C544

IV@.1U_4

R164 IV@0R164 IV@0

R391 1/FR391 1/F

R181 0R181 0

C332

220U/2.5V_7

C332

220U/2.5V_7

C258

22U/6.3V_8

C258

22U/6.3V_8

C132 22U/6.3V_8C132 22U/6.3V_8

L50 10UH_8L50 10UH_8

C163

1U/16V

C163

1U/16V

C134

2.2U/10V_8

C134

2.2U/10V_8

R186

EV@0_4

R186

EV@0_4

R415 0_8R415 0_8

L47 IV@BKP1608HS181-TL47 IV@BKP1608HS181-T

C535

100U/10V_7

C535

100U/10V_7

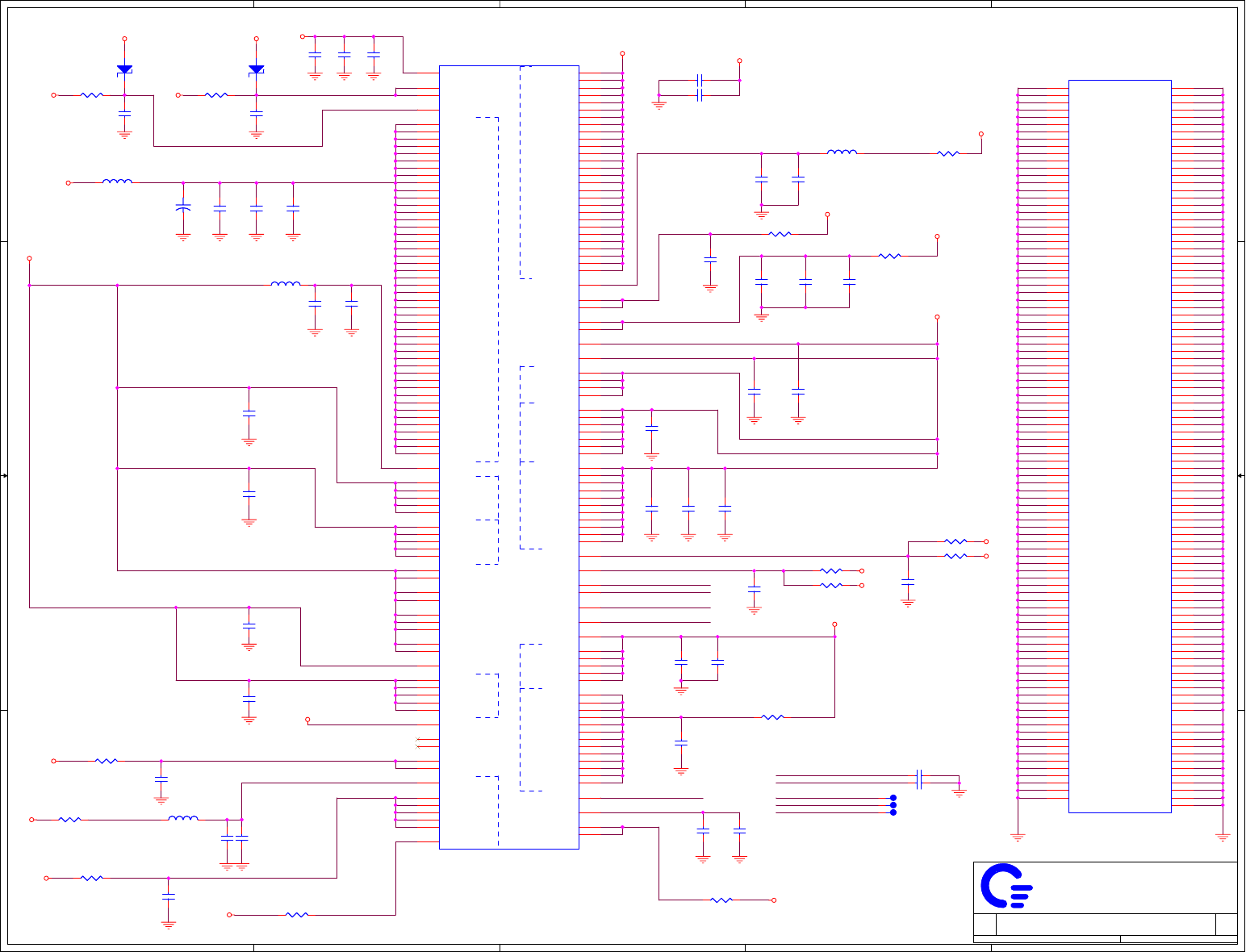

VTT_19 T2

VTT_20 R3

VTT_21 R2

VTT_22 R1

VCCD_CRT

M32

VCCA_PEG_BG

K50

VCCA_PEG_PLL

U51

VCCA_CRT_DAC_1

A33

VCCA_CRT_DAC_2

B33

VCCA_DPLLA

B49

VCCA_DPLLB

H49

VCCA_HPLL

AL2

VCCA_LVDS

A41

VCCA_MPLL

AM2

VCCA_TVA_DAC_1

C25

VCCA_TVA_DAC_2

B25

VCCA_TVB_DAC_1

C27

VCCA_TVB_DAC_2

B27

VCCA_TVC_DAC_1

B28

VCCA_TVC_DAC_2

A28

VCCD_PEG_PLL

U48

VTT_15 T7

VTT_16 T6

VTT_17 T5

VTT_18 T3

VTT_12 T11

VTT_13 T10

VTT_14 T9

VCCSYNC

J32

VCCD_HPLL

AN2

VTT_1 U13

VTT_2 U12

VTT_4 U9

VTT_5 U8

VTT_6 U7

VTT_7 U5

VTT_8 U3

VTT_9 U2

VTT_10 U1

VTT_11 T13

VTT_3 U11

VCCA_SM_CK_1

BC29

VCCA_SM_CK_2

BB29

VCCA_DAC_BG

A30

VCCD_TVDAC

L29

VTTLF1 A7

VTTLF2 F2

VTTLF3 AH1

VCC_RXR_DMI_1 AH50

VCC_RXR_DMI_2 AH51

VCC_SM_CK_1 BK24

VCC_SM_CK_2 BK23

VCC_SM_CK_3 BJ24

VCC_SM_CK_4 BJ23

VCCD_LVDS_1

J41

VCCD_QDAC

N28

VCC_AXD_2 AU28

VCC_AXD_3 AU24

VCC_AXD_5 AT25

VCC_AXF_1 B23

VCC_AXF_2 B21

VCC_AXF_3 A21

VCCA_SM_1

AW18

VCCA_SM_2

AV19

VCCA_SM_3

AU19

VCCA_SM_4

AU18

VCCA_SM_5

AU17

VCCA_SM_7

AT22

VCCA_SM_8

AT21

VCCA_SM_9

AT19

VCC_DMI AJ50

VCC_TX_LVDS A43

VSSA_DAC_BG

B32

VSSA_LVDS

B41

VSSA_PEG_BG

K49

VCC_HV_1 C40

VCC_HV_2 B40

VCC_PEG_1 AD51

VCCA_SM_10

AT18

VCCA_SM_11

AT17

VCCA_SM_NCTF_1

AR17

VCCA_SM_NCTF_2

AR16

VCCD_LVDS_2

H42

VCC_PEG_2 W50

VCC_PEG_3 W51

VCC_PEG_4 V49

VCC_PEG_5 V50

VCC_AXD_NCTF AR29

VCC_AXD_4 AT29

VCC_AXD_6 AT30

VCC_AXD_1 AT23

POWER

CRTPLLA PEGA SMTV

D TV/CRTLVDS

VTTLF

PEG SM CK AXD

AXF

VTT

DMI

A CK A LVDS

U30H

CRESTLINE_1p0

POWER

CRTPLLA PEGA SMTV

D TV/CRTLVDS

VTTLF

PEG SM CK AXD

AXF

VTT

DMI

A CK A LVDS

U30H

CRESTLINE_1p0

R187

EV@0_4

R187

EV@0_4

R173 EV@0_4R173 EV@0_4

R133

EV@0_4

R133

EV@0_4

C228

IV@22N_4

C228

IV@22N_4

C226

IV@.1U_4

C226

IV@.1U_4

L24 10UH_8L24 10UH_8

C215

IV@22N_4

C215

IV@22N_4

C338

470U/2V_7

C338

470U/2V_7

C135

22U/6.3V_8

C135

22U/6.3V_8

C245

IV@22N_4

C245

IV@22N_4

C555

*IV@10U_8

C555

*IV@10U_8

C229

IV@.1U_4

C229

IV@.1U_4

C192

.1U/10V_4

C192

.1U/10V_4

C541 22U/6.3V_8C541 22U/6.3V_8

R135

EV@0_4

R135

EV@0_4

C542

22U/6.3V_8

C542

22U/6.3V_8

R203

1/F_8

R203

1/F_8

C341

2.2U/10V_8

C341

2.2U/10V_8

C523

330U/2V_7

C523

330U/2V_7

C189

IV@1U

C189

IV@1U

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C142

.1U/10V_4

C142

.1U/10V_4

R105 0R105 0

C221

1U/16V

C221

1U/16V

C196

1U/16V

C196

1U/16V

C558

470U/2V_7

C558

470U/2V_7

R124 0R124 0

C217

22N/16V_4

C217

22N/16V_4

www.RahasiaLaptop.com

D D

C C

B B

A A

Size Document Number Rev

Date: Sheet of

GMCH Power-3(7/7)

11 38Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

GMCH Power-3(7/7)

11 38Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

GMCH Power-3(7/7)

11 38Wednesday, April 25, 2007

NB(Power-3)

0C Delete R142,R197,R198,R143 0104

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

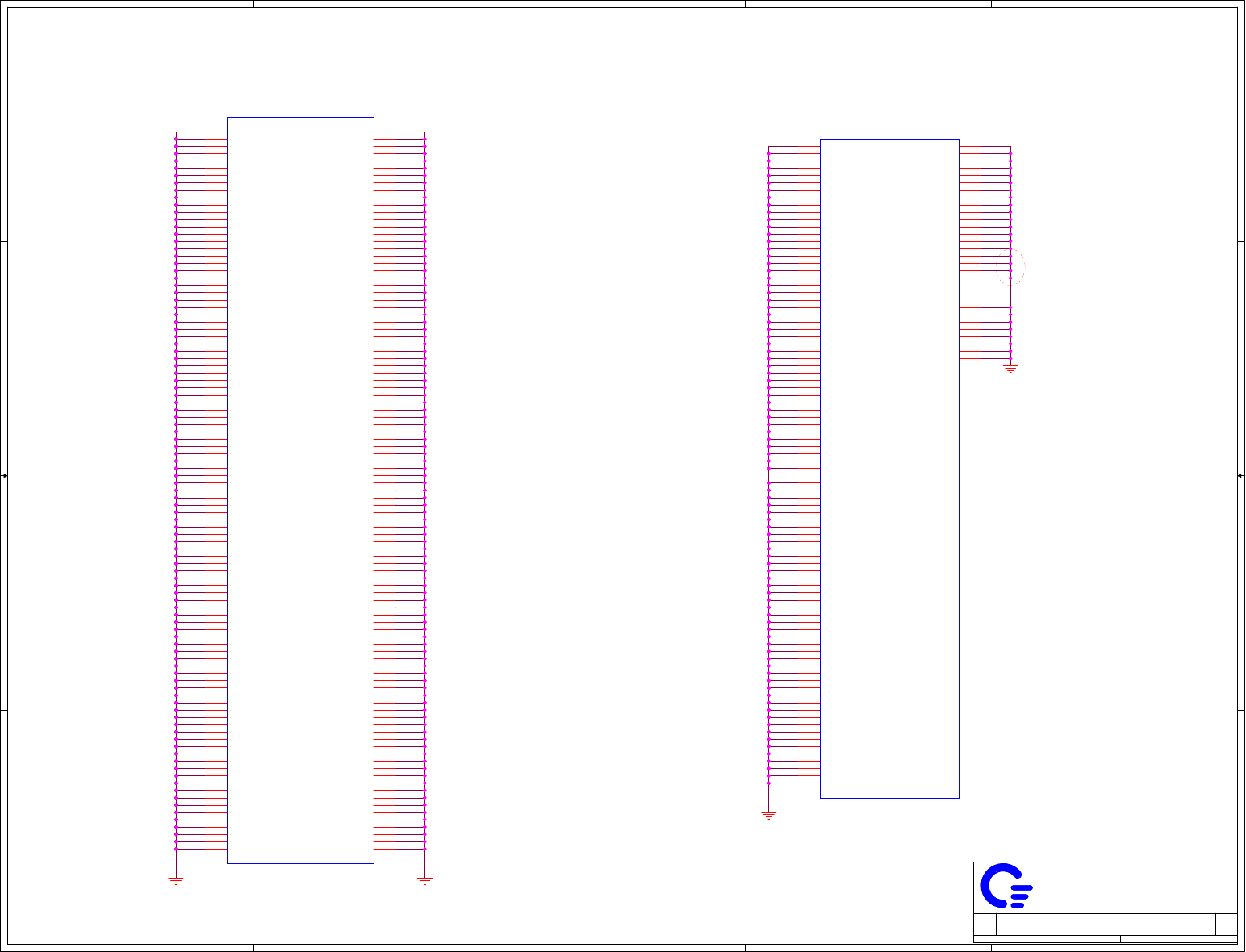

VSS_199

C46

VSS_200

C50

VSS_201

VSS_202

D13

VSS_203

D24

VSS_204

VSS_205

D32

VSS_206

D39

VSS_207

D45

VSS_208

D49

VSS_209

E10

VSS_210

E16

VSS_211

E24

VSS_212

E28

VSS_213

E32

VSS_214

E47

VSS_215

F19

VSS_216

F36

VSS_217

VSS_218

F40

VSS_219

F50

VSS_220

VSS_221

G13

VSS_222

G16

VSS_223

G19

VSS_224

G24

VSS_225

G28

VSS_226

G29

VSS_227

G33

VSS_228

G42

VSS_229

G45

VSS_230

G48

VSS_231

VSS_232

H24

VSS_233

H28

VSS_234

VSS_235

H45

VSS_236

J11

VSS_237

J16

VSS_238

VSS_239

J24

VSS_240

J28

VSS_241

J33

VSS_242

J35

VSS_243

J39

VSS_245

K12

VSS_246

K47

VSS_247

VSS_248

VSS_249

L17

VSS_250

L20

VSS_251

L24

VSS_252

L28

VSS_253

VSS_254

L33

VSS_255

L49

VSS_256

M28

VSS_257

M42

VSS_258

M46

VSS_259

M49

VSS_260

VSS_261

M50

VSS_262

VSS_263

N11

VSS_264

N14

VSS_265

N17

VSS_266

N29

VSS_267

N32

VSS_268

N36

VSS_269

N39

VSS_270

N44

VSS_271

N49

VSS_272

VSS_273

P19

VSS_274

VSS_275

P23

VSS_276

VSS_277

P50

VSS_278

R49

VSS_279

T39

VSS_280

T43

VSS_281

T47

VSS_282

U41

VSS_283

U45

VSS_284

U50

VSS_287 W11

VSS_288 W39

VSS_289 W43

VSS_290 W47

VSS_291 W5

VSS_292 W7

VSS_293 Y13

VSS_294 Y2

VSS_295 Y41

VSS_285

VSS_286

VSS_296 Y45

VSS_297 Y49

VSS_298 Y5

VSS_299 Y50

VSS_300 Y11

VSS_301 P29

VSS_302 T29

VSS_303 T31

VSS_304 T33

VSS_305 R28

VSS_306 AA32

VSS_307 AB32

VSS_308 AD32

VSS_309 AF28

VSS_310 AF29

VSS_311 AT27

VSS_312 AV25

VSS_313 H50

VSS

U30J

CRESTLINE_1p0

VSS

U30J

CRESTLINE_1p0

VSS_1

A13

VSS_198 C41

VSS_2

A15

VSS_3

A17

VSS_4

A24

VSS_5

AA21

VSS_6

AA24

VSS_7

AA29

VSS_8

AB20

VSS_9

AB23

VSS_10

AB26

VSS_11

AB28

VSS_12

AB31

VSS_13

AC10

VSS_14

AC13

VSS_15

AC3

VSS_16

AC39

VSS_17

AC43

VSS_19

AD1

VSS_20

AD21

VSS_21

AD26

VSS_22

AD29

VSS_23

AD3

VSS_24

AD41

VSS_25

AD45

VSS_26

AD49

VSS_27

AD5

VSS_28

AD50

VSS_29

AD8

VSS_30

AE10

VSS_31

AE14

VSS_32

AE6

VSS_33

AF20

VSS_34

AF23

VSS_35

AF24

VSS_36

AF31

VSS_37

AG2

VSS_38

AG38

VSS_39

AG43

VSS_40

AG47

VSS_41

AG50

VSS_42

AH3

VSS_43

AH40

VSS_44

AH41

VSS_45

AH7

VSS_46

AH9

VSS_47

AJ11

VSS_48

AJ13

VSS_49

AJ21

VSS_50

AJ24

VSS_51

AJ29

VSS_52

AJ32

VSS_53

AJ43

VSS_54

AJ45

VSS_55

AJ49

VSS_56

AK20

VSS_57

AK21

VSS_58

AK26

VSS_59

AK28

VSS_60

AK31

VSS_61

AK51

VSS_62

AL1

VSS_63

AM11

VSS_64

AM13

VSS_65

AM3

VSS_66

AM4

VSS_67

AM41

VSS_68

AM45

VSS_69

AN1

VSS_70

AN38

VSS_71

AN39

VSS_72

AN43

VSS_73

AN5

VSS_74

AN7

VSS_75

AP4

VSS_76

AP48

VSS_77

AP50

VSS_78

AR11

VSS_79

AR2

VSS_80

AR39

VSS_81

AR44

VSS_82

AR47

VSS_83

AR7

VSS_84

AT10

VSS_85

AT14

VSS_86

AT41

VSS_87

AT49

VSS_97

AW1

VSS_100 AW24

VSS_101 AW29

VSS_102 AW32

VSS_103 AW5

VSS_104 AW7

VSS_105 AY10

VSS_106 AY24

VSS_107 AY37

VSS_108 AY42

VSS_109 AY43

VSS_110 AY45

VSS_111 AY47

VSS_112 AY50

VSS_113 B10

VSS_114 B20

VSS_115 B24

VSS_116 B29

VSS_117 B30

VSS_118 B35

VSS_119 B38

VSS_120 B43

VSS_121 B46

VSS_122 B5

VSS_123 B8

VSS_124 BA1

VSS_125 BA17

VSS_126 BA18

VSS_127 BA2

VSS_128 BA24

VSS_129 BB12

VSS_130 BB25

VSS_131 BB40

VSS_132 BB44

VSS_133 BB49

VSS_134 BB8

VSS_135 BC16

VSS_136 BC24

VSS_137 BC25

VSS_138 BC36

VSS_139 BC40

VSS_140 BC51

VSS_141 BD13

VSS_142 BD2

VSS_143 BD28

VSS_144 BD45

VSS_145 BD48

VSS_146 BD5

VSS_147 BE1

VSS_148 BE19

VSS_149 BE23

VSS_150 BE30

VSS_151 BE42

VSS_152 BE51

VSS_153 BE8

VSS_154 BF12

VSS_155 BF16

VSS_156 BF36

VSS_157 BG19

VSS_158 BG2

VSS_159 BG24

VSS_160 BG29

VSS_161 BG39

VSS_162 BG48

VSS_163 BG5

VSS_164 BG51

VSS_165 BH17

VSS_166 BH30

VSS_167 BH44

VSS_168 BH46

VSS_169 BH8

VSS_170 BJ11

VSS_171 BJ13

VSS_172 BJ38

VSS_173 BJ4

VSS_174 BJ42

VSS_175 BJ46

VSS_176 BK15

VSS_177 BK17

VSS_178 BK25

VSS_179 BK29

VSS_88

AU1

VSS_89

AU23

VSS_90

AU29

VSS_91

AU3

VSS_92

AU36

VSS_93

AU49

VSS_94

AU51

VSS_95

AV39

VSS_96

AV48

VSS_99

AW16 VSS_98

AW12

VSS_180 BK36

VSS_182 BK44

VSS_184 BK8

VSS_186 BL13

VSS_188 BL22

VSS_18

AC47

VSS_191 C12

VSS_193 C19

VSS_195 C29

VSS_197 C36

VSS_181 BK40

VSS_183 BK6

VSS_185 BL11

VSS_187 BL19

VSS_189 BL37

VSS_190 BL47

VSS_192 C16

VSS_194 C28

VSS_196 C33

VSS

U30I

CRESTLINE_1p0

VSS

U30I

CRESTLINE_1p0

www.RahasiaLaptop.com

D D

C C

B B

A A

RCIN#

PDD0

PDD1

PDD2

PDD3

PDD4

PDD5

PDD6

PDD7

PDD10

PDD9

PDD8

PDD11

PDD12

PDD15

PDD14

PDD13

PDA0

PDA1

PDA2

ICH_INTVRMEN

GATEA20

SATA_BIAS

GPIO33#

ACZ_SYNC

ACZ_BCLK

ACZ_SDOUT

ACZ_SDIN2

ACZ_RST#

LAN100_SLP

CLK_32KX2

RCIN#

CLK_32KX1

ICH_INTRUDER#

RTC_RST#

ICH_GPIO23LAN100_SLP

H_PWRGD_R

LDRQ0#

GATEA20

H_DPRSTP#_R

H_DPSLP#_R

H_THERMTRIP_R

ACZ_SDIN3

SATA_LED#

GPIO34#

ICH_TP8

SATA_TXN0_C

SATA_TXP0_C

SATA_TXP1_C

R_3VRTC RTC_RST#

RTC_N02

ACZ_SDOUT

ACZ_SYNC

ACZ_BCLK

ACZ_RST#

ICH_GPIO13

RTC_N03

SATA_TXN1_C

PDCS1# <24>

PDCS3# <24>

PDA[2:0] <24>

PDD[15:0] <24>

PDIOR# <24>

PDIOW# <24>

PDDACK# <24>

IRQ14 <24>

PIORDY <24>

PDDREQ <24>

H_STPCLK# <3>

H_NMI <3>

H_INTR <3>

H_INIT# <3>

H_IGNNE# <3>

RCIN# <31>

H_SMI# <3>

PM_THRMTRIP# <3,7>

H_PWRGD <3>

LFRAME# <22,30,31>

GATEA20 <31>

H_A20M# <3>

ICH_DPRSTP# <3,7,34>

H_DPSLP# <3>

H_FERR# <3>

LAD0 <22,30,31>

LAD1 <22,30,31>

LAD2 <22,30,31>

LAD3 <22,30,31>

CLK_PCIE_SATA#<2>

CLK_PCIE_SATA<2>

SATA_RXN0<24>

SATA_RXP0<24>

SATA_TXN0<24>

SATA_TXP0<24>

SATA_LED#<30>

ACZ_SDIN0<26>

ACZ_SDIN1<26>

ACZ_SYNC_AUDIO <26>

ACZ_RST#_AUDIO <26,27>

BIT_CLK_AUDIO <26>

ACZ_SDOUT_AUDIO <26>

ACZ_SDOUT<14>

SATA_RXN1<24>

SATA_RXP1<24>

SATA_TXN1<24>

SATA_TXP1<24>

ACZ_SDOUT_MDC <26>

ACZ_SYNC_MDC <26>

BIT_CLK_MDC <26>

ACZ_RST#_MDC <26>

+3V

+VCCRTC

+1.05V

+VCCRTC

+5VPCU

+3VPCU

+VCCRTC

+VCCRTC +1.05V

Size Document Number Rev

Date: Sheet of

ICH8M HOST(1/4)

12 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ICH8M HOST(1/4)

12 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ICH8M HOST(1/4)

12 38Monday, May 07, 2007

LAN100_SLP Low = Internal VR disable

High = Internal VR enable(Default)

SB Strap

L<500mils

HDA

0810 UR FAE:

RCIN# DOESN'T NEED PU

Placement close SB L<2"

INTVRMEN Low = Internal VR disable

High = Internal VR enable(Default)

RTC

C499

1U/10V

C499

1U/10V

R487 33_4R487 33_4

C628 3900P/25V_4C628 3900P/25V_4

R480 0_4R480 0_4

R290 8.2K_4R290 8.2K_4

R252

332K/F

R252

332K/F

C629 3900P/25V_4C629 3900P/25V_4

R319

1K_4

R319

1K_4

C626 *3900P/25V_4C626 *3900P/25V_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

R331 1KR331 1K

R475

56.2/F_4

R475

56.2/F_4

R289 33_4R289 33_4

R498 *10K_4R498 *10K_4

R291 33_4R291 33_4

JP5

*RTC_RST

JP5

*RTC_RST

C448 18P/50V_4C448 18P/50V_4

R307 33_4R307 33_4

T83T83

R348 20K_4R348 20K_4

C506

1U/10V

C506

1U/10V

R502 33_4R502 33_4

CN39

RTC CONN

CN39

RTC CONN

T71T71

R260

*56.2/F_4

R260

*56.2/F_4

R503 33R503 33

R268

56.2/F_4

R268

56.2/F_4

R261 0_4R261 0_4

C627 *3900P/25V_4C627 *3900P/25V_4

R489 33R489 33

T69T69

R280

10M

R280

10M

RTCX1

AG25

RTCX2

AF24

INTVRMEN

AF25

INTRUDER#

AD22

GLAN_CLK

B24

LAN_RSTSYNC

D22

LAN_RXD0

C21

LAN_RXD1

B21

LAN_RXD2

C22

LAN_TXD0

D21

LAN_TXD1

E20

LAN_TXD2

C20

HDA_BIT_CLK

AJ16

HDA_SYNC

AJ15

HDA_RST#

AE14

HDA_SDIN0

AJ17

HDA_SDIN1

AH17

HDA_SDIN2

AH15

HDA_SDOUT

AE13

SATALED#

AF10

SATA0RXN

AF6

SATA0RXP

AF5

SATA0TXN

AH5

SATA0TXP

AH6

SATA1RXN

AG3

SATA1RXP

AG4

SATA1TXN

AJ4

SATA1TXP

AJ3

SATA_CLKN

AB7

SATA_CLKP

AC6

SATARBIAS#

AG1

SATARBIAS

AG2

DA0 AA4

DA1 AA1

DA2 AB3

DCS1# Y6

DCS3# Y5

DD0 V1

DD1 U2

DD2 V3

DD3 T1

DD4 V4

DD5 T5

DD6 AB2

DD7 T6

DD8 T3

DD9 R2

DD10 T4

DD11 V6

DD12 V5

DD13 U1

DD14 V2

DD15 U6

DDREQ W5

IORDY Y1

IDEIRQ Y3

DDACK# Y2

DIOW# W3

DIOR# W4

FWH0/LAD0 E5

FWH1/LAD1 F5

FWH2/LAD2 G8

FWH3/LAD3 F6

LDRQ0# G9

LDRQ1#/GPIO23 E6

FWH4/LFRAME# C4

A20GATE AF13

A20M# AG26

DPRSTP# AF26

DPSLP# AE26

FERR# AD24

CPUPWRGD/GPIO49 AG29

IGNNE# AF27

INIT# AE24

INTR AC20

RCIN# AH14

SMI# AG28

NMI AD23

STPCLK# AA24

THRMTRIP# AE27

RTCRST#

AF23

GLAN_DOCK#/GPIO13

AH21

GLAN_COMPO

C25 GLAN_COMPI

D25

HDA_SDIN3

AD13

SATA2TXN

AE4

SATA2RXN

AF2

SATA2TXP

AE3

SATA2RXP

AF1

TP8 AA23

HDA_DOCK_EN#/GPIO33

AE10

HDA_DOCK_RST#/GPIO34

AG14

LAN100_SLP

AD21

RTCLAN / GLAN

IHDA

SATA

IDE

LPCCPU

U34A

ICH8M REV 1.0

RTCLAN / GLAN

IHDA

SATA

IDE

LPCCPU

U34A

ICH8M REV 1.0

C461 10P/50V_4C461 10P/50V_4

T50T50

R258 24/FR258 24/F

T65T65

R259

332K/F

R259

332K/F

R264

*0_4

R264

*0_4

1 3

Q20

MMBT3904

Q20

MMBT3904

R267 *0_4R267 *0_4

R277 24.9/F_4R277 24.9/F_4

T59T59

R326 1.2KR326 1.2K

R314 150KR314 150K

R320

47K

R320

47K

R309 33_4R309 33_4

R263

*0_4

R263

*0_4

R255 0_4R255 0_4

T53T53

2 1

D27 RB500VD27 RB500V

R304 1M_4R304 1M_4

2 1

D28 RB500VD28 RB500V

2 1

32.768KHZ

T61T61

R254

*56.2/F_4

R254

*56.2/F_4

www.RahasiaLaptop.com

D D

C C

B B

A A

GLAN_TXP_SB

INTE#

USBOC#9

USBOC#8

USBP9+

USBP9-

REQ3#

INTH#

INTG#

AD3

AD1

AD28

AD26

AD24

AD20

AD18

INTD#

AD16

AD14

INTC#

AD12

AD10

AD8

AD6

AD4

AD2

INTB#

INTA#

AD31

AD22

AD0

AD29

AD27

AD25

AD23

AD21

AD19

AD17

AD15

AD30

AD13

AD11

AD9

AD7

AD5

TRDY#

GNT2#

SERR#

FRAME#

IRDY#

PERR#

LOCK#

STOP#

DEVSEL#

PCLK_ICH

INTF#

INTE#

REQ0#

GNT0#

REQ3#

REQ1#

GNT1#

PLT_RST-R#

GNT3#

USBOC#4

INTH#

INTA#

USBOC#3

INTD#

INTC#

INTB#

GNT3#

PLT_RST-R#

PCIE_TXN1_C

PCIE_TXP1_C

USBOC#5

NC_EN#

USBOC#6

USBOC#0

USBOC#1

USBOC#2

USBOC#3

USBOC#4

PCIE_TXN4_C

PCIE_TXP4_C

DMI_IRCOMP_R

USB_RBIAS_PN

USBOC#9

USBOC#8

PCIE_TXN5_C

PCIE_TXP5_C

GLAN_TXN_SB

REQ2#

PCIE_TXN2_C

PCIE_TXP2_C

DEVSEL#

STOP#

USBOC#5

NC_EN# USBOC#6

USBOC#0

FRAME#

INTG#

REQ2#

USBOC#2

USBOC#1

SERR#

REQ0#

IRDY#

PERR#

LOCK#

TRDY#

INTF#

REQ1#

PLTRST#_NB <7>

AD[0..31]<28>

CBE0# <28>

CBE1# <28>

CBE2# <28>

CBE3# <28>

IRDY# <28>

PAR <28>

PCIRST# <22,28>

DEVSEL# <28>

STOP# <28>

TRDY# <28>

FRAME# <28>

PCI_PME# <28>

PCLK_ICH <2>

CRT_SENSE# <19,31>

PLTRST# <14,17,20,22..24,29..31>

USBP0- <25>

USBP1- <22>

USBP4- <21>

USBP6- <22>

USBP7- <18>

USBP0+ <25>

USBP1+ <22>

USBP4+ <21>

USBP6+ <22>

USBP7+ <18>

DMI_RXN0 <7>

DMI_RXP0 <7>

DMI_RXN1 <7>

DMI_RXN2 <7>

DMI_RXN3 <7>

DMI_RXP1 <7>

DMI_RXP2 <7>

DMI_RXP3 <7>

CLK_PCIE_ICH# <2>

CLK_PCIE_ICH <2>

DMI_TXN0 <7>

DMI_TXP0 <7>

DMI_TXN1 <7>

DMI_TXN2 <7>

DMI_TXN3 <7>

DMI_TXP1 <7>

DMI_TXP2 <7>

DMI_TXP3 <7>

PCIE_RXN1<23>

PCIE_RXP1<23>

PCIE_TXN1<23>

PCIE_TXP1<23>

PCIE_RXP4<22>

PCIE_TXP4<22>

PCIE_RXN4<22>

PCIE_TXN4<22>

GLAN_RXP<20>

GLAN_TXP<20>

GLAN_RXN<20>

GLAN_TXN<20>

PCIE_RXP5<29>

PCIE_TXP5<29>

PCIE_RXN5<29>

PCIE_TXN5<29>

NC_EN#<23>

USBP5- <23>

USBP5+ <23>

REQ0# <28>

GNT0# <28>

INTA#<28>

USBP2- <25>

USBP3- <25>

USBP2+ <25>

USBP3+ <25>

USBP8- <22>

USBP8+ <22>

INTB#<28>

PERR# <28>

SERR# <28>

PCIE_RXN2<22>

PCIE_RXP2<22>

PCIE_TXN2<22>

PCIE_TXP2<22>

+3V_S5

+3V

+3V_S5

+1.5V

Size Document Number Rev

Date: Sheet of

ICH8M PCIE\PCI\USB(2/4)

13 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ICH8M PCIE\PCI\USB(2/4)

13 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ICH8M PCIE\PCI\USB(2/4)

13 38Monday, May 07, 2007

<CRB>

DMI_IRCOMP_R<500mils

A16 SWAP Override strap

PCI_GNT#3 Low = A16 swap override enabled

High = Default

<CRB>

1.USB_RBIAS_PN<500mils

2.Avoid routing next to

clock/high speed signals

SB-PCIE/USB/DMI SB-PCI

WLAN

NEW CARD

GLAN

ROBSON

USB

BLUETOOTH

NEW CARD

MINI PCIE

CCD

USB

3G CARD

TV CARD

C379 .1U/10V_4C379 .1U/10V_4

C612 .1U/10V_4C612 .1U/10V_4

C374 .1U/10V_4C374 .1U/10V_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

R295

100K

R295

100K

RP38

8.2KX8

RP38

8.2KX8

T51T51

C389 .1U/10V_4C389 .1U/10V_4

AD0

D20

AD1

E19

AD2

D19

AD3

A20

AD4

D17

AD5

A21

AD6

A19

AD7

C19

AD8

A18

AD9

B16

AD10

A12

AD11

E16

AD12

A14

AD13

G16

AD14

A15

AD15

AD16

C11

AD17

AD18

D11

AD19

B12

AD20

C12

AD21

D10

AD22

AD23

F13

AD24

E11

AD25

E13

AD26

E12

AD27

AD28

AD29

AD30

AD31

REQ0# A4

GNT0# D7

REQ1#/GPIO50 E18

GNT1#/GPIO51 C18

REQ2#/GPIO52 B19

GNT2#/GPIO53 F18

REQ3#/GPIO54 A11

GNT3#/GPIO55 C10

C/BE0# C17

C/BE1# E15

C/BE2# F16

C/BE3# E17

IRDY# C8

PAR D9

PCIRST# G6

DEVSEL# D16

PERR# A7

PLOCK# B7

SERR# F10

STOP# C16

TRDY# C9

FRAME# A17

PLTRST# AG24

PCICLK B10

PME# G7

PIRQA#

PIRQB#

PIRQC#

PIRQD#

A10 PIRQH#/GPIO5 B3

PIRQG#/GPIO4 F12

PIRQF#/GPIO3 G11

PIRQE#/GPIO2 F8

PCI

Interrupt I/F

U34B

ICH8M REV 1.0

PCI

Interrupt I/F

U34B

ICH8M REV 1.0

T47T47

3 5

U15

TC7SH08FU

U15

TC7SH08FU

C365 .1U/10V_4C365 .1U/10V_4

T58T58

R248 8.2K_4R248 8.2K_4

T57T57

R211 *0_4R211 *0_4

R217 *1K_4R217 *1K_4

C611 .1U/10V_4C611 .1U/10V_4

R226

22.6/F

R226

22.6/F

T48T48

R491 8.2K_4R491 8.2K_4

R481 0R481 0

C397 .1U/10V_4C397 .1U/10V_4

RP33

8.2KX8

RP33

8.2KX8

C385 .1U/10V_4C385 .1U/10V_4

PERN1

P27

PERP1

P26

PETN1

N29

PETP1

N28

PERN2

M27

PERP2

M26

PETN2

L29

PETP2

L28

PERN3

K27

PERP3

K26

PETN3

J29

PETP3

J28

PERN4

H27

PERP4

H26

PETN4

G29

PETP4

G28

PERN5

F27

PERP5

F26

PETN5

E29

PETP5

E28

PERN6/GLAN_RXN

D27

PERP6/GLAN_RXP

D26

PETN6/GLAN_TXN

C29

PETP6/GLAN_TXP

C28

DMI0RXN V27

DMI0RXP V26

DMI0TXN U29

DMI0TXP U28

DMI1RXN Y27

DMI1RXP Y26

DMI1TXN W29

DMI1TXP W28

DMI2RXN AB26

DMI2RXP AB25

DMI2TXN AA29

DMI2TXP AA28

DMI3RXN AD27

DMI3RXP AD26

DMI3TXN AC29

DMI3TXP AC28

DMI_CLKN T26

DMI_CLKP T25

DMI_ZCOMP Y23

DMI_IRCOMP Y24

OC0#

AJ19

OC1#/GPIO40

AG16

OC2#/GPIO41

AG15

OC3#/GPIO42

AE15

OC4#/GPIO43

AF15

OC5#/GPIO29

AG17

OC6#/GPIO30

AD12

OC7#/GPIO31

AJ18

USBP0N G3

USBP0P G2

USBP1N H5

USBP1P H4

USBP2N H2

USBP2P H1

USBP3N J3

USBP3P J2

USBP4N K5

USBP4P K4

USBP5N K2

USBP5P K1

USBP6N L3

USBP6P L2

USBP7N M5

USBP7P M4

USBRBIAS# F2

USBRBIAS F3

SPI_CLK

C23

SPI_CS0#

B23

SPI_CS1#

E22

SPI_MOSI

D23

SPI_MISO

F21

OC8#

AD14

OC9#

AH18

USBP8P M1

USBP8N M2

USBP9N N3

USBP9P N2

PCI-Express

Direct Media Interface

USB

SPI

U34D

ICH8M REV 1.0

PCI-Express

Direct Media Interface

USB

SPI

U34D

ICH8M REV 1.0

RP34

8.2KX8

RP34

8.2KX8

RP35

8.2KX8

RP35

8.2KX8

R474

24.9/F_4

R474

24.9/F_4

C457

.1U/10V_4

C457

.1U/10V_4

C405 .1U/10V_4C405 .1U/10V_4

C371 .1U/10V_4C371 .1U/10V_4

www.RahasiaLaptop.com

D D

C C

B B

A A

SYS_RST#

ICH_GPIO24

ICH_GPIO27

ICH_TP3

PM_LAN_ENABLE_R

SATACLKREQ#

CLKRUN#

ICH_PWROK

PWROK_EC

DELAY_VR_PWRGOOD

ICH_PWROK

SCI#

PCSPK

PM_RSMRST#_RTP7

LPC_PD#

PCSPK

PM_STPPCI_ICH#

PM_STPCPU_ICH#

BOARD_ID3

CLKRUN#

SMB_CLK_ME

SERIRQ

PCIE_WAKE#

PCLK_SMB

PDAT_SMB

SMB_DATA_ME

CL_RST#1

SMB_ALERT#

RI#

PM_LAN_ENABLE_R

ICH_GPIO28

PM_BATLOW#_R

SLP_S5#

SCI#

BOARD_ID1

DNBSWON#

14M_ICH

CLKUSB_48

SLP_S4#

PM_DPRSLPVR_R

SLP_S3#

ICH_PWROK

VR_PWRGD_CLKEN

ICH_GPIO48

CL_VREF0_SB

ICH_GPIO39

THERM_ALERT#

GPIO36

GPIO37

SATACLKREQ#

PM_BATLOW#_R

SMB_CLK_ME

SMB_DATA_ME

CL_RST#1

RI#

SMB_ALERT#

PDAT_SMB

PCLK_SMB

PCIE_WAKE#

CL_VREF1_SB

CLKUSB_48 14M_ICH

ICH_GPIO39

BOARD_ID2

BOARD_ID0

SERIRQ

MCH_ICH_SYNC#_R

BOARD_ID2BOARD_ID3 BOARD_ID0BOARD_ID1

ICH_TP3

ICH_GPIO7

ICH_GPIO9

SYS_RST#

ICH_GPIO12

ICH_GPIO10

ICH_GPIO14

VR_PWRGD_CLKEN

ICH_GPIO22

ICH_GPIO26

ICH_GPIO38

GPIO21

PM_RSMRST#_R

ICH_GPIO9

ICH_GPIO10

ICH_GPIO14

KBSMI#_ICH

LID591#_ICH

KBSMI#_ICH

LID591#_ICH

PWROK_EC<31>

DELAY_VR_PWRGOOD<3,7,34>

SUSB# <7,31>

SUSC# <31>

DNBSWON# <31>

14M_ICH <2>

CLKUSB_48 <2>

PM_DPRSLPVR <7,34>CLKRUN#<28,31>

SERIRQ<28,30,31>

PCIE_WAKE#<20,22,31>

THERM_ALERT#<3,17>

PCLK_SMB<2,16,22,23>

PDAT_SMB<2,16,22,23>

PM_BMBUSY#<7>

PM_STPPCI#<2>

PM_STPCPU#<2>

PCSPK<26>

SYS_RST#<3>

MCH_ICH_SYNC#<7>

CL_CLK0 <7>

CL_DATA0 <7>

CL_RST#0 <7>

CK_PWRGD <2>

SATACLKREQ#<2>

MPWROK <7,31>

CL_CLK1 <22>

CL_DATA1 <22>

PLTRST# <13,17,20,22..24,29..31>

SCI#<31>

VR_PWRGD_CK410#<34>

CL_RST#1<22>

ACZ_SDOUT <12>

RSMRST# <31>

LID591#<22,23,31>

KBSMI#<31>

+3V

+3V_S5

+3V

+3V+3V +3V+3V

+3V

+3V+3V_S5

+3V

+3VSUS

Size Document Number Rev

Date: Sheet of

ICH8M GPIO(3/4)

14 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ICH8M GPIO(3/4)

14 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ICH8M GPIO(3/4)

14 38Monday, May 07, 2007

SB-GPIO

If no use internal LAN MAC connect

LAN_RST# to PLTRST#

Use internal LAN MAC connect

LAN_RST# to RSMRST#

should go high no sooner than 10 ms

after both VccLAN3_3 and VccLAN1_5

have reached their nominal voltages.

<FAE>

Since your CPU VRM has no

DPRSTP# pin, connect

PM_DPRSLPVR to IMVP6 is correct

<FAE>

CRB STP_PCI# PU is no stuff.

CRB STP_CPU# always keeps high to

ensure ME alive in M1 state.

(CLK_MCH_BCLK/# must keep alive to

make ME work)

I think there will be update for this design,

I suggest you to keep PU and 0Ω

isolation resistors for this signal.

INTEL CRB SHOW IT

DISABLE LAN: STUFF

internal PD

No Reboot strap

HDA_SPKR Low = Default

High = No Reboot

000

Controller Link 1 VREF for IAMT support only

ID0ID1Board ID

ID2ID3

RSVD

Normal opration(Default)

Enter XOR Chain

XOR Chain Entrance Strap

ICH_RSV0 HDA_SDOUT Description

Set PCIE port config bit 1

FROM uR(EC)TO ICH8

INTEL FAE (08/17)

"Add RSMRST# isolation (important!!! See ww22 Santa Rosa MoW)"

R494 0_4R494 0_4

R265 1K_4R265 1K_4

T64T64

T85T85

R305 *10K_4R305 *10K_4

R257 *10K_4R257 *10K_4

C475.1U/10V_4 C475.1U/10V_4

R482

10K_4

R482

10K_4

U36

NC7SZ04

U36

NC7SZ04

R501 100/F_4R501 100/F_4

R262 2.2K_4R262 2.2K_4

R317

*10K_4

R317

*10K_4

R495

*1K_4

R495

*1K_4

T77T77

R269 10K_4R269 10K_4

R249 8.2K_4R249 8.2K_4

BAV99

R486

*10K_4

R486

*10K_4

T49T49

R500

*10K_4

R500

*10K_4

R250 10K_4R250 10K_4

D43BAS316 D43BAS316

T81T81

R287 10K_4R287 10K_4

R506

*10K_4

R506

*10K_4

R488 10K_4R488 10K_4

R303 100/F_4R303 100/F_4

R292 10K_4R292 10K_4

R64

2.2K_4

R64

2.2K_4

T63T63

R286

453/F_4

R286

453/F_4

R51

4.7K_4

R51

4.7K_4

3 1

MMBT3906

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

T79T79

C462

*10P_4

C462

*10P_4

R294

*33_4

R294

*33_4

C380

10P/50V_4

C380

10P/50V_4

R61

10K_4

R61

10K_4

BAV99

R251 8.2K_4R251 8.2K_4

R490 0_4R490 0_4

T80T80

R497 0_4R497 0_4

R499

10K_4

R499

10K_4

R483

10K_4

R483

10K_4

R522 10K_4R522 10K_4

R504

*10K_4

R504

*10K_4

T68T68

R519 10K_4R519 10K_4

R213

453/F_4

R213

453/F_4

T82T82

R299

3.24K/F

R299

3.24K/F

R534 10K_4R534 10K_4

R308

*10K_4

R308

*10K_4

C382

.1U/10V_4

C382

.1U/10V_4

R479 100K_4R479 100K_4

R266 10K_4R266 10K_4

R493 *0_4R493 *0_4

R293

10K_4

R293

10K_4

R288 100/F_4R288 100/F_4

U14

TC7SH08FU

U14

TC7SH08FU

T67T67

D42BAS316 D42BAS316

R492 100K_4R492 100K_4

T72T72

C458

.1U/10V_4

C458

.1U/10V_4

R210

3.24K/F

R210

3.24K/F

R505

*10K_4

R505

*10K_4

T66T66

SATA0GP/GPIO21 AJ12

SATA1GP/GPIO19 AJ10

SATA2GP/GPIO36 AF11

SATA3GP/GPIO37 AG11

SMBCLK

AJ26

SMBDATA

AD19

LINKALERT#

AG21

SMLINK0

AC17

SMLINK1

AE19

SUS_STAT#/LPCPD#

SYS_RESET#

AD15

BMBUSY#/GPIO0

AG12

TACH1/GPIO1

AJ8

TACH2/GPIO6

AJ9

TACH3/GPIO7

AH9

GPIO8

AE16

GPIO12

AC19

SMBALERT#/GPIO11

AG22

TACH0/GPIO17

AG8

GPIO18

AH12

SCLOCK/GPIO22

AG10

SATACLKREQ#/GPIO35

AG13

STP_PCI#/GPIO15

AE20

STP_CPU#/GPIO25

AG18

SLOAD/GPIO38

AF9

SDATAOUT0/GPIO39

AJ11

CLKRUN#/GPIO32

AH11

SDATAOUT1/GPIO48

AD10

WAKE#

AE17

SERIRQ

AF12

THRM#

AC13

VRMPWRGD

AJ20

CLK14 AG9

CLK48 G5

SUSCLK D3

SLP_S3# AG23

SLP_S4# AF21

SLP_S5# AD18

PWROK AE23

DPRSLPVR/GPIO16 AJ14

BATLOW# AE21

PWRBTN# C2

LAN_RST# AH20

RSMRST# AG27

RI#

AF17

S4_STATE#/GPIO26 AH27

QRT_STATE0/GPIO27

AH25

QRT_STATE1/GPIO28

AD16

TP7

AJ22

CK_PWRGD E1

CLPWROK E3

SLP_M# AJ25

GPIO20

AE11 CL_CLK0 F23

CL_CLK1 AE18

CL_DATA0 F22

CL_DATA1 AF19

CL_VREF0 D24

CL_VREF1 AH23

CL_RST# AJ23

ME_EC_ALERT/GPIO10 AJ24

WOL_EN/GPIO9 AG19

EC_ME_ALERT/GPIO14 AF22

MEM_LED/GPIO24 AJ27

SPKR

AD9

TP3

AJ21

MCH_SYNC#

AJ13

SATA

SMB

SYS

GPIO

Clocks

Power MGTController Link

MISC

U34C

ICH8M REV 1.0

SATA

SMB

SYS

GPIO

Clocks

Power MGTController Link

MISC

U34C

ICH8M REV 1.0

R306 0_4R306 0_4

T78T78

T84T84

R310 10K_4R310 10K_4

R256 10K_4R256 10K_4

R225

10_4

R225

10_4

R272 10K_4R272 10K_4

T70T70

T62T62

R496 2.2K_4R496 2.2K_4

R484 8.2K_4R484 8.2K_4

R520 10K_4R520 10K_4

R278 100K_4R278 100K_4

R485 10K_4R485 10K_4

R321

*1K

R321

*1K

.1U/16V_4C620 .1U/16V_4C620

www.RahasiaLaptop.com

D D

C C

B B

A A

+3V_1.5V_HDA_IO_ICH

+5VREF_SUS_SB

+1.25V_DMI

+3V_GLAN

+1.5V_GLAN

TP_VCCSUS1_05_ICH_2

TP_VCCSUS1_5_ICH_1

TP_VCCSUS1_5_ICH_2

TP_VCCSUS1_05_ICH_1

TP_VCCCL1_05_ICH

+1.5V_B

TP_VCCSUS1_05_ICH_2

+1.5V_GLANP

+1.5V_VCCGLANPLL

+1.5V_APLL

+3V_VCCLAN

TP_VCCSUS1_5_ICH_1

+VCCSUSHDA

+1.05V_V_CPU_IO

+1.5V_ICH

TP_VCCSUS1_5_ICH_2

VCCDMIPLL_ICH

TP_VCCCL1_05_ICH

+V3.3A_USB_ICH

TP_VCCSUS1_05_ICH_1

+V3.3M_ICH

VCCCL1_5_INT_ICH

+5VREF_SB

+1.05V

+1.5V

+1.25V

+1.05V

+3V

+3V_S5

+VCCRTC

+3V

+5V

+3V_S5

+5V_S5

+1.5V

+3V

+1.5V

+3V

+1.5V

+1.5V_S5

+1.5V

+3V

+3V_S5

Size Document Number Rev

Date: Sheet of

ICH8M Power(4/4)

15 38Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

ICH8M Power(4/4)

15 38Wednesday, April 25, 2007

Size Document Number Rev

Date: Sheet of

ICH8M Power(4/4)

15 38Wednesday, April 25, 2007

Can be connect to

+3V or +1.5V

Can be connect to

+3V_S5 or +1.5V_S5

Intel use 0.5UH inductor

C422

.1U/16V

C422

.1U/16V

C577

4.7U/10V

C577

4.7U/10V

R241 0_8R241 0_8

C455

10U/6.3V

C455

10U/6.3V

C392 .1U/16VC392 .1U/16V

R517 0R517 0

R243 0R243 0

R478 0_8R478 0_8

C436

.1U/10V_4

C436

.1U/10V_4

R247 *0R247 *0

C420

.1U/10V_4

C420

.1U/10V_4

C386

.1U/10V_4

C386

.1U/10V_4

C434

.1U/10V_4

C434

.1U/10V_4

C369

.1U/10V_4

C369

.1U/10V_4

C377

.1U/10V_4

C377

.1U/10V_4

C454 .1U/16VC454 .1U/16V

R516 0R516 0

C366

.022U/16V_4

C366

.022U/16V_4

C411

4.7U/10V

C411

4.7U/10V

C574

1U/16V

C574

1U/16V

L29

10UH_8

L29

10UH_8

C391

.1U/10V_4

C391

.1U/10V_4

R245 *0R245 *0

T60T60

L52 1UH_12L52 1UH_12

C427

1U/6.3V_4

C427

1U/6.3V_4

C367

.1U/10V_4

C367

.1U/10V_4

C456

1U/16V

C456

1U/16V

C429

.1U/10V_4

C429

.1U/10V_4

C413

10U/10V_8

C413

10U/10V_8

T54T54

C619

10U/10V_8

C619

10U/10V_8

D18

PDZ5.6B

D18

PDZ5.6B

L541UH_12 L541UH_12

L25

FBMJ2125HS420-T_8

L25

FBMJ2125HS420-T_8

C398 .1U/10V_4C398 .1U/10V_4

R452 0R452 0

C396 .1U/10V_4C396 .1U/10V_4

R228 0R228 0

VSS[001]

A23

VSS[002]

VSS[003]

AA2

VSS[004]

AA7

VSS[005]

A25

VSS[006]

AB1

VSS[007]

AB24

VSS[008]

AC11

VSS[009]

AC14

VSS[010]

AC25

VSS[011]

AC26

VSS[012]

AC27

VSS[013]

AD17

VSS[014]

AD20

VSS[015]

AD28

VSS[016]

AD29

VSS[017]

AD3

VSS[018]

AD4

VSS[019]

AD6

VSS[020]

AE1

VSS[021]

AE12

VSS[022]

AE2

VSS[023]

AE22

VSS[024]

AD1

VSS[025]

AE25

VSS[026]

AE5

VSS[027]

AE6

VSS[028]

AE9

VSS[029]

AF14

VSS[030]

AF16

VSS[031]

AF18

VSS[032]

AF3

VSS[033]

AF4

VSS[034]

AG5

VSS[035]

AG6

VSS[036]

AH10

VSS[037]

AH13

VSS[038]

AH16

VSS[039]

AH19

VSS[040]

AH2

VSS[041]

AF28

VSS[042]

AH22

VSS[043]

AH24

VSS[044]

AH26

VSS[045]

AH3

VSS[046]

AH4

VSS[047]

AH8

VSS[048]

AJ5

VSS[049]

B11

VSS[050]

B14

VSS[051]

B17

VSS[052]

VSS[053]

B20

VSS[054]

B22

VSS[055]

VSS[056]

C24

VSS[057]

C26

VSS[058]

C27

VSS[059]

VSS[060]

D12

VSS[061]

D15

VSS[062]

D18

VSS[063]

VSS[064]

VSS[065]

E21

VSS[066]

E24

VSS[067]

VSS[068]

VSS[069]

F15

VSS[070]

E23

VSS[071]

F28

VSS[072]

F29

VSS[073]

VSS[074]

VSS[075]

VSS[076]

G10

VSS[077]

G13

VSS[078]

G19

VSS[079]

G23

VSS[080]

G25

VSS[081]

G26

VSS[082]

G27

VSS[083]

H25

VSS[084]

H28

VSS[085]

H29

VSS[086]

VSS[087]

VSS[088]

VSS[089]

J25

VSS[090]

J26

VSS[091]

J27

VSS[092]

VSS[093]

VSS[094]

K23

VSS[095]

K28

VSS[096]

K29

VSS[097]

VSS[099] K7

VSS[100] L1

VSS[101] L13

VSS[102] L15

VSS[103] L26

VSS[104] L27

VSS[105] L4

VSS[106] L5

VSS[107] M12

VSS[108] M13

VSS[109] M14

VSS[110] M15

VSS[111] M16

VSS[112] M17

VSS[113] M23

VSS[114] M28

VSS[115] M29

VSS[116] M3

VSS[117] N1

VSS[118] N11

VSS[119] N12

VSS[120] N13

VSS[121] N14

VSS[122] N15

VSS[123] N16

VSS[124] N17

VSS[125] N18

VSS[126] N26

VSS[127] N27

VSS[128] N4

VSS[129] N5

VSS[130] N6

VSS[131] P12

VSS[132] P13

VSS[133] P14

VSS[134] P15

VSS[135] P16

VSS[136] P17

VSS[137] P23

VSS[138] P28

VSS[139] P29

VSS[140] R11

VSS[141] R12

VSS[142] R13

VSS[143] R14

VSS[144] R15

VSS[145] R16

VSS[146] R17

VSS[147] R18

VSS[148] R28

VSS[149] R4

VSS[150] T12

VSS[151] T13

VSS[152] T14

VSS[153] T15

VSS[154] T16

VSS[155] T17

VSS[156] T2

VSS[157] U12

VSS[158] U13

VSS[159] U14

VSS[160] U15

VSS[161] U16

VSS[162] U17

VSS[163] U23

VSS[164] U26

VSS[165] U27

VSS[166] U3

VSS[167] U5

VSS[168] V13

VSS[169] V15

VSS[170] V28

VSS[171] V29

VSS[172] W2

VSS[173] W26

VSS[174] W27

VSS[175] Y28

VSS[176] Y29

VSS[177] Y4

VSS[178] AB4

VSS_NCTF[01] A1

VSS_NCTF[02] A2

VSS_NCTF[03] A28

VSS_NCTF[04] A29

VSS_NCTF[05] AH1

VSS_NCTF[06] AH29

VSS_NCTF[07] AJ1

VSS_NCTF[08] AJ2

VSS_NCTF[09] AJ28

VSS_NCTF[10] AJ29

VSS_NCTF[11] B1

VSS_NCTF[12] B29

VSS[179] AB23

VSS[180] AB5

VSS[181] AB6

VSS[182] AD5

VSS[183] U4

VSS[098]

VSS[184] W24

U34E

ICH8M REV 1.0

U34E

ICH8M REV 1.0

C419

.1U/10V_4

C419

.1U/10V_4

C395

220U/2.5V_7

C395

220U/2.5V_7

C431

.1U/10V_4

C431

.1U/10V_4

R445 1_8R445 1_8

R244 100R244 100

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

D19

PDZ5.6B

D19

PDZ5.6B

C437

.1U/10V_4

C437

.1U/10V_4

C424

.1U/10V_4

C424

.1U/10V_4

V5REF[1]

A16

V5REF[2]

V5REF_SUS

VCC1_5_B[01]

AA25

VCC1_5_B[02]

AA26

VCC1_5_B[03]

AA27

VCC1_5_B[04]

AB27

VCC1_5_B[05]

AB28

VCC1_5_B[06]

AB29

VCC1_5_B[07]

D28

VCC1_5_B[08]

D29

VCC1_5_B[09]

E25

VCC1_5_B[10]

E26

VCC1_5_B[11]

E27

VCC1_5_B[12]

F24

VCC1_5_B[13]

F25

VCC1_5_B[14]

G24

VCC1_5_B[15]

H23

VCC1_5_B[16]

H24

VCC1_5_B[17]

J23

VCC1_5_B[18]

J24

VCC1_5_B[19]

K24

VCC1_5_B[20]

K25

VCC1_5_B[21]

L23

VCC1_5_B[22]

L24

VCC1_5_B[23]

L25

VCC1_5_B[24]

M24

VCC1_5_B[25]

M25

VCC1_5_B[26]

N23

VCC1_5_B[27]

N24

VCC1_5_B[28]

N25

VCC1_5_B[29]

P24

VCC1_5_B[30]

P25

VCC1_5_B[31]

R24

VCC1_5_B[32]

R25

VCC1_5_B[33]

R26

VCC1_5_B[34]

R27

VCC1_5_B[35]

T23

VCC1_5_B[36]

T24

VCC1_5_B[37]

T27

VCC1_5_B[38]

T28

VCC1_5_B[39]

T29

VCC1_5_B[40]

U24

VCC3_3[01] AF29

VCCDMIPLL R29

VCC1_5_A[01]

AE7

VCC1_5_A[02]

AF7

VCC1_5_A[03]

AG7

VCC1_5_A[04]

AH7

VCC1_5_A[05]

AJ7

VCCSATAPLL

AJ6

VCC3_3[02] AD2

VCC1_5_A[06]

AC1

VCC1_5_A[07]

AC2

VCC1_5_A[08]

AC3

VCC1_5_A[09]

AC4

VCC1_5_A[10]

AC5

VCCUSBPLL

VCCLAN1_05[1]

F17

VCCLAN1_05[2]

G18

VCC1_05[01] A13

VCC1_05[02] B13

VCC1_05[03] C13

VCC1_05[04] C14

VCC1_05[05] D14

VCC1_05[06] E14

VCC1_05[07] F14

VCC1_05[08] G14

VCC1_05[09] L11

VCC1_05[10] L12

VCC1_05[11] L14

VCC1_05[12] L16

VCC1_05[13] L17

VCC1_05[14] L18

VCC1_05[15] M11

VCC1_05[16] M18

VCC1_05[17] P11

VCC1_05[18] P18

VCC1_05[19] T11

VCC1_05[20] T18

VCCLAN3_3[1]

F19

VCCLAN3_3[2]

G20

VCCHDA AC12

VCCSUSHDA AD11

V_CPU_IO[1] AC23

V_CPU_IO[2] AC24

VCC3_3[07] AA3

VCC3_3[08] U7

VCC3_3[09] V7

VCC3_3[10] W1

VCC3_3[11] W6

VCC3_3[12] W7

VCC3_3[13] Y7

VCC3_3[15] B15

VCC3_3[16] B18

VCC3_3[17] B4

VCC3_3[18] B9

VCC3_3[19] C15

VCC3_3[20] D13

VCC3_3[21] D5

VCC3_3[22] E10

VCC3_3[23] E7

VCC3_3[24] F11

VCCRTC

AD25

VCCSUS3_3[02] AC18

VCCSUS3_3[03] AC21

VCCSUS3_3[04] AC22

VCCSUS3_3[05] AG20

VCCSUS3_3[06] AH28

VCCSUS3_3[07] P6

VCCSUS3_3[08] P7

VCCSUS3_3[09] C1

VCCSUS3_3[10] N7

VCCSUS3_3[11] P1

VCCSUS3_3[12] P2

VCCSUS3_3[13] P3

VCCSUS3_3[14] P4

VCCSUS3_3[15] P5

VCCSUS3_3[16] R1

VCCSUS3_3[17] R3

VCCSUS3_3[18] R5

VCC1_5_A[11]

AC10

VCC1_5_A[12]

AC9

VCC1_5_A[13]

AA5

VCC1_5_A[14]

AA6

VCC1_5_A[15]

G12

VCC1_5_A[16]

G17

VCCSUS1_05[1] J6

VCCSUS1_05[2] AF20

VCC1_5_A[20]

VCC1_5_A[21]

VCC1_5_A[22]

VCC1_5_A[23]

VCC1_5_A[24]

VCCSUS3_3[01] C3

VCC3_3[14] A8

VCC1_5_A[25]

W23

VCC1_05[22] U18

VCC1_05[27] V17

VCC1_05[25] V14

VCC1_05[23] V11

VCC1_05[21] U11

VCC1_05[28] V18

VCC1_05[26] V16

VCC1_05[24] V12

VCCGLAN1_5[4]

B27

VCCGLAN1_5[2]

A27

VCCGLAN1_5[5]

B28

VCCGLAN1_5[3]

B26

VCCGLAN1_5[1]

A26

VCCGLAN3_3

B25

VCCGLANPLL

A24

VCC3_3[06] AF8

VCC3_3[03] AC8

VCC3_3[05] AE8

VCC3_3[04] AD8

VCCSUS3_3[19] R6

VCC1_5_A[17]

VCCSUS1_5[1] AC16

VCC1_5_A[19]

AD7 VCC1_5_A[18]

AC7

VCCSUS1_5[2] J7

VCC_DMI[2] AE29

VCC_DMI[1] AE28

VCCCL1_05 G22

VCCCL3_3[2] G21

VCCCL3_3[1] F20

VCCCL1_5 A22

VCC1_5_B[45]

W25

VCC1_5_B[43]

V24

VCC1_5_B[41]

U25

VCC1_5_B[46]

Y25

VCC1_5_B[44]

V25

VCC1_5_B[42]

V23

CORE

VCCA3GP ATXARX

IDE

USB CORE

PCI

GLAN POWER

VCCP_COREVCCPSUSVCCPUSB

U34F

ICH8M REV 1.0

CORE

VCCA3GP ATXARX

IDE

USB CORE

PCI

GLAN POWER

VCCP_COREVCCPSUSVCCPUSB

U34F

ICH8M REV 1.0

C423

4.7U/10V

C423

4.7U/10V

C430

.1U/10V_4

C430

.1U/10V_4

C575

*.1U_4

C575

*.1U_4

C426

1U/16V

C426

1U/16V

C615

.01U/16V_4

C615

.01U/16V_4

C616

10U/6.3V

C616

10U/6.3V

C573

10U/6.3V

C573

10U/6.3V

C414

10U/10V_8

C414

10U/10V_8

C433

1U/16V

C433

1U/16V

C576

2.2U/6.3V

C576

2.2U/6.3V

T52T52

C388

2.2U/6.3V

C388

2.2U/6.3V

C378

.1U/10V_4

C378

.1U/10V_4

C403

.1U/10V_4

C403

.1U/10V_4

R471 1_8R471 1_8

R227 10R227 10

C368

.1U/10V_4

C368

.1U/10V_4

R209 0R209 0

R231 0R231 0

www.RahasiaLaptop.com

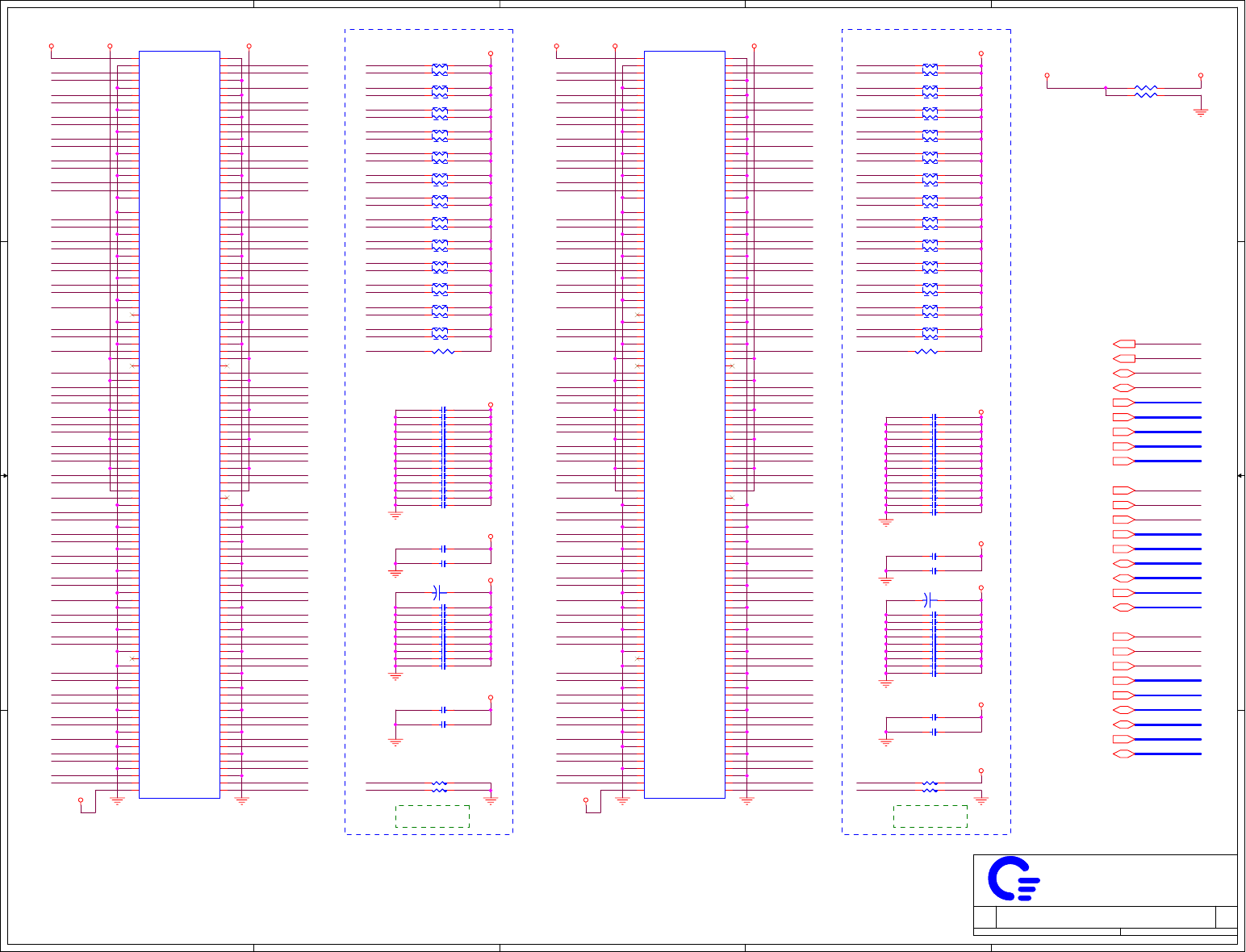

D D

C C

B B

A A

M_A_A1

M_A_DQ9

M_A_DQ28

M_A_DQ29

A_SA0

A_SA1

M_A_DQ55

M_A_DQ54

M_A_DQS1

M_A_DQS#1

M_A_DQS#3

M_A_DQS3

M_B_BS0

M_A_DQ60

M_A_A10

M_A_WE#

M_A_BS0

M_A_DQS7

M_A_DQS#7

M_A_CAS#

M_CS#1

M_A_DQ16

M_B_WE#

M_CKE1

M_A_DQ63

PM_EXTTS#1

M_A_DQS2

M_A_DQS#2

A_SA1

A_SA0

M_ODT1

M_A_DQ33

M_A_DQ25

M_A_DQ24

M_A_DM3

M_B_DQS[7:0]

M_B_A1

M_A_DQS4

M_A_DQS#4

M_A_DQ35

M_A_DQ34

M_CKE0

M_A_DQ40

M_A_DQ41

M_B_A13

PCLK_SMB

PDAT_SMB

M_A_DM5

M_A_BS2

M_A_A2

M_A_A7

M_A_A6

M_A_BS1

M_A_A13

M_B_A0

M_B_A4

M_CS#0 M_CS#2

M_A_A11

M_A_A7

M_A_DQ43

M_A_A6

M_B_DQS#[7:0]

M_B_RAS#

M_A_RAS#

M_B_CAS#

M_A_CAS#

M_A_A2

M_A_DQS6

M_A_DQS#6

M_A_A4

M_A_DQ51

M_A_A0

M_A_DQ50

M_A_DQ56

PM_EXTTS#0

M_A_BS1

M_A_RAS#

M_A_DM7

M_A_DQ4

M_A_DQ5

M_B_DQ50

M_B_DQS#4

M_B_DQ0

M_B_DM5

M_B_DQ48

M_B_DQS0

M_B_DQ32

M_B_A5

M_B_DQS1

M_B_DQS#0

M_B_DQS#2

M_B_DQ11

M_B_DQS2

M_B_A12

M_B_DQS#1

PDAT_SMB

M_B_DQS6

M_B_DQ10

M_B_DQ56

M_B_BS2

M_ODT3

M_B_WE#M_CS#0

M_B_DQ58

M_B_DM[7:0]

PCLK_SMB

M_B_DQ51

M_CS#3

M_B_DQ9

M_B_DQ59

M_B_DQ43

M_B_DQ26

M_B_BS0

M_B_DQ1

M_B_CAS#

M_B_A1

M_B_A3

M_B_A10

M_B_DQ49

M_B_A8

M_A_DQ6

M_A_DQ7

M_B_DQ8

M_B_A9

M_B_DQS4

M_B_DM7

M_B_DQS#6

M_CKE2

M_B_DQ57

M_B_DQ27

M_B_DM3

M_A_A13

M_A_DQ59

M_ODT0

M_A_DM0

PCLK_SMB

M_A_DQ36

M_A_DM[7:0]

PDAT_SMB

M_B_DQ46

M_A_DQS#[7:0]

M_A_BS[2:0]

M_CLK2

M_A_A[14:0]

M_CS#2

M_A_DQ[63:0]

M_B_DQ12

M_A_WE#

M_A_DQS[7:0]

M_B_A0

M_B_DQS#5

M_B_DM4

M_B_DM0

M_ODT2

M_B_DQ13

M_B_DQS5

M_CLK#3

M_B_A7

M_B_DQ62

B_SA1

M_CKE1

M_CKE0

M_B_A2

M_B_DQ6

M_B_DQ61

M_B_DQS#7

M_B_DQ21

M_B_A11

M_B_A4

M_B_DQS3

M_B_DQ5

M_B_DQ60

M_B_BS1

M_B_DQS#3

M_B_DQ63

M_B_DM6

M_A_DQ39

M_A_DQ38

M_CLK3

M_B_DQ52

M_B_A13

M_B_DM1

M_A_A9

M_B_DM2

M_B_DQS7

M_A_A12

M_B_RAS#

M_CKE3

M_B_DQ53

M_CLK#2

M_B_DQ4

M_B_DQ54

M_B_A6

B_SA0

M_B_DQ55

M_B_DQ7

M_A_DQ12

M_A_DQ13

M_A_DM4

M_A_A8

M_ODT3

M_A_DQ15

M_B_DQ[63:0]

M_A_DQ0

M_CLK0

M_CLK#0

M_A_DQ45

M_A_DQ44

M_A_DQ1

M_A_DM1

M_A_DQS5

M_A_DQS#5

M_CS#[3:0]

M_A_DQS#0

M_CLK#[3:0]

M_CKE[3:0]

M_ODT[3:0]

M_CLK[3:0]

M_B_BS[2:0]

M_A_DQ46

M_A_DQS0

M_A_DQ20

M_ODT1

M_A_DQ52

M_B_A[14:0]

M_A_DQ2

M_A_DM2

M_CLK#1

M_CLK1

M_A_DQ3

M_A_DM6

M_A_A3

M_A_A5

M_A_DQ8

PM_EXTTS#0

PM_EXTTS#1

M_A_A14

M_B_A14

M_A_DQ32

M_A_DQ42

M_A_DQ47

M_A_DQ48 M_A_DQ49

M_A_DQ53

M_A_DQ61

M_A_DQ37

M_A_DQ62

M_A_DQ58

M_A_DQ10

M_A_DQ14

M_A_DQ11

M_A_DQ17M_A_DQ21

M_A_DQ18M_A_DQ19

M_A_DQ22M_A_DQ23

M_A_DQ27

M_A_DQ26

M_A_DQ30

M_A_DQ31

M_B_DQ37

M_B_DQ33

M_A_DQ57

M_CS#1

M_A_A9

M_A_A0

M_A_A8

M_A_BS2

M_A_A1

M_A_A10

M_A_A11

M_A_A12

M_A_A5

M_A_A3

M_A_A4

M_A_BS0

M_A_CAS#

M_A_WE#

M_A_RAS#

M_ODT0

M_B_WE#

M_B_A7

M_B_A9

M_B_A11

M_B_A2

M_B_A3

M_B_A5

M_B_A6

M_CKE3

M_B_A8

M_B_A10

M_B_CAS#

M_B_RAS#

M_B_A12

M_B_BS1

M_B_BS2

M_CS#3

M_CKE2

M_ODT2

M_B_DQ38

M_B_DQ39

M_B_DQ34

M_B_DQ35

M_B_DQ44

M_B_DQ45

M_B_DQ40

M_B_DQ41

M_B_DQ14

M_B_DQ15

M_B_DQ16M_B_DQ17

M_B_DQ18M_B_DQ19

M_B_DQ2

M_B_DQ3

M_B_DQ20

M_B_DQ22M_B_DQ23

M_B_DQ25

M_B_DQ24 M_B_DQ28

M_B_DQ29

M_B_DQ30

M_B_DQ31

M_B_DQ36

M_B_DQ42

M_B_DQ47

B_SA1

B_SA0

M_B_DQS[7:0]<8>

M_B_DM[7:0]<8>

M_B_DQ[63:0]<8>

M_B_A[14:0]<8>

M_B_DQS#[7:0]<8>

M_B_BS[2:0]<8>

M_B_WE#<8>

M_B_RAS#<8>

M_B_CAS#<8>

M_A_BS[2:0]<8>

M_A_DQS#[7:0]<8>

M_A_A[14:0]<8>

M_ODT[3:0]<7>

M_CLK#[3:0]<7>

M_A_CAS#<8>

M_A_DQS[7:0]<8>

M_CLK[3:0]<7>

M_A_WE#<8>

PCLK_SMB<2,14,22,23>

M_CS#[3:0]<7>

M_A_DQ[63:0]<8>

M_A_RAS#<8>

M_CKE[3:0]<7>

PDAT_SMB<2,14,22,23>

M_A_DM[7:0]<8>

PM_EXTTS#0<7>

PM_EXTTS#1<7>

+1.8VSUS +1.8VSUS +1.8VSUS +1.8VSUS

+1.8VSUS

+SMDDR_VTERM

+1.8VSUS

+SMDDR_VREF+SMDDR_VREF

+SMDDR_VREF

+3V

+3V+3V

+SMDDR_VREF

+3V

+SMDDR_VTERM

+1.8VSUS

+3V

+SMDDR_VREF

Size Document Number Rev

Date: Sheet of

DDRII SO-DIMM

16 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

DDRII SO-DIMM

16 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

DDRII SO-DIMM

16 38Monday, May 07, 2007

Close to DIMM1Close to DIMM0

SO-DIMM0 SO-DIMM1

SMbus address A0 SMbus address A2

RP10 56X2_4RP10 56X2_4

RP29 56X2_4RP29 56X2_4

1U/10V_4C267 1U/10V_4C267

.1U/16V_4C231 .1U/16V_4C231

.1U/16V_4C261 .1U/16V_4C261

1U/10V_4C197 1U/10V_4C197

.1U/16V_4C273 .1U/16V_4C273

C519 330U/2.5V_7

.1U/16V_4C195 .1U/16V_4C195

RP9 56X2_4RP9 56X2_4

1U/10V_4C336 1U/10V_4C336

.1U/16V_4C183 .1U/16V_4C183

1U/10V_4C244 1U/10V_4C244

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

.1U/16V_4C272 .1U/16V_4C272

R175 56_4R175 56_4

.1U/16V_4C275 .1U/16V_4C275

.1U/16V_4C277 .1U/16V_4C277

RP19 56X2_4RP19 56X2_4

.1U/16V_4C224 .1U/16V_4C224

1U/10V_4C216 1U/10V_4C216

.1U/16V_4C268 .1U/16V_4C268

RP7 56X2_4RP7 56X2_4

RP30 56X2_4RP30 56X2_4

RP14 56X2_4RP14 56X2_4

RP18 56X2_4RP18 56X2_4

RP31 56X2_4RP31 56X2_4

1U/10V_4C122 1U/10V_4C122

.1U/16V_4C240 .1U/16V_4C240

R94 10K_4R94 10K_4

RP24 56X2_4RP24 56X2_4

RP28 56X2_4RP28 56X2_4

R99 10K_4R99 10K_4

.1U/16V_4C175 .1U/16V_4C175

VREF

VSS47

DQ0

DQ1

VSS37

DQS#0

DQS0

VSS48

DQ2

DQ3

VSS38

DQ8

DQ9

VSS49

DQS#1

DQS1

VSS39

DQ10

DQ11

VSS50

VSS18

DQ16

DQ17

VSS1

DQS#2

DQS2

VSS19

DQ18

DQ19

VSS22

DQ24

DQ25

VSS23

DM3

NC4

VSS9

DQ26

DQ27

VSS4

CKE0

VDD7

NC1

A16_BA2

VDD9

A12

VDD5

101

VDD10

103

A10/AP

105

BA0

107

WE#

109

VDD2

111

CAS#

113

S1#

115

VDD3

117

ODT1

119

VSS11

121

DQ32

123

DQ33

125

VSS26

127

DQS#4

129

DQS4

131

VSS2

133

DQ34

135

DQ35

137

VSS27

139

DQ40

141

DQ41

143

VSS46 2

DQ4 4

DQ5 6

VSS15 8

DM0 10

VSS5 12

DQ6 14

DQ7 16

VSS16 18

DQ12 20

DQ13 22

VSS17 24

DM1 26

VSS53 28

CK0 30

CK0# 32

VSS41 34

DQ14 36

DQ15 38

VSS54 40

VSS20 42

DQ20 44

DQ21 46

VSS6 48

NC3 50

DM2 52

VSS21 54

DQ22 56

DQ23 58

VSS24 60

DQ28 62

DQ29 64

VSS25 66

DQS#3 68

DQS3 70

VSS10 72

DQ30 74

DQ31 76

VSS8 78

CKE1 80

VDD8 82

A15 84

A14 86

VDD11 88

A11 90

A7 92

A6 94

VDD4 96

A4 98

A2 100

A0 102

VDD12 104

BA1 106

RAS# 108

S0# 110

VDD1 112

ODT0 114

A13 116

VDD6 118

NC2 120

VSS12 122

DQ36 124

DQ37 126

VSS28 128

DM4 130

VSS42 132

DQ38 134

DQ39 136

VSS55 138

DQ44 140

DQ45 142

VSS43 144

VSS29

145

DM5

147

VSS51

149

DQ42

151

DQ43

153

VSS40

155

DQ48

157

DQ49

159

VSS52

161

NCTEST

163

VSS30

165

DQS#6

167

DQS6

169

VSS31

171

DQ50

173

DQ51

175

DQ56

179

DQ57

181

VSS3

183

DM7

185

VSS34

187

DQ58

189

DQ59

191

VSS14

193

SDA

195

SCL

197

VDD(SPD)

199

DQS#5 146

DQS5 148

VSS56 150

DQ46 152

DQ47 154

VSS44 156

DQ52 158

DQ53 160

VSS57 162

CK1 164

CK1# 166

VSS45 168

DM6 170

VSS32 172

DQ54 174

DQ55 176

VSS35 178

DQ60 180

DQ61 182

VSS7 184

DQS#7 186

DQS7 188

VSS36 190

DQ62 192

DQ63 194

VSS13 196

SA0 198

SA1 200

VSS33

177

PC4800 DDR2 SDRAM

SO-DIMM (200P)

CN25

DDR2_SODIMM_H5.2_RVS

PC4800 DDR2 SDRAM

SO-DIMM (200P)

CN25

DDR2_SODIMM_H5.2_RVS

.1U/16V_4C251 .1U/16V_4C251

.1U/16V_4C125 .1U/16V_4C125

R180 56_4R180 56_4

R96 10K_4R96 10K_4

RP25 56X2_4RP25 56X2_4

1U/10V_4C266 1U/10V_4C266

R202 *1K_4R202 *1K_4

.1U/16V_4C178 .1U/16V_4C178

RP22 56X2_4RP22 56X2_4

.1U/16V_4C242 .1U/16V_4C242

.1U/16V_4C190 .1U/16V_4C190

RP32 56X2_4RP32 56X2_4

RP20 56X2_4RP20 56X2_4

.1U/16V_4C236 .1U/16V_4C236

.1U/16V_4C169 .1U/16V_4C169

.1U/16V_4C170 .1U/16V_4C170

RP26 56X2_4RP26 56X2_4

.1U/16V_4C278 .1U/16V_4C278

.1U/16V_4C271 .1U/16V_4C271

.1U/16V_4C176 .1U/16V_4C176

1U/10V_4C223 1U/10V_4C223

RP23 56X2_4RP23 56X2_4

.1U/16V_4C335 .1U/16V_4C335

1U/10V_4C194 1U/10V_4C194

R204 *1K_4R204 *1K_4

.1U/16V_4C177 .1U/16V_4C177

.1U/16V_4C248 .1U/16V_4C248

RP16 56X2_4RP16 56X2_4

.1U/16V_4C199 .1U/16V_4C199

.1U/16V_4C212 .1U/16V_4C212

RP27 56X2_4RP27 56X2_4

.1U/16V_4C255 .1U/16V_4C255

.1U/16V_4C276 .1U/16V_4C276

RP13 56X2_4RP13 56X2_4

1U/10V_4C184 1U/10V_4C184

.1U/16V_4C274 .1U/16V_4C274

.1U/16V_4C211 .1U/16V_4C211

RP8 56X2_4RP8 56X2_4

RP6 56X2_4RP6 56X2_4

.1U/16V_4C283 .1U/16V_4C283

1U/10V_4C259 1U/10V_4C259

RP17 56X2_4RP17 56X2_4

.1U/16V_4C230 .1U/16V_4C230

.1U/16V_4C234 .1U/16V_4C234

RP21 56X2_4RP21 56X2_4

C545 330U/2.5V_7

1U/10V_4C337 1U/10V_4C337

VREF

VSS47

DQ0

DQ1

VSS37

DQS#0

DQS0

VSS48

DQ2

DQ3

VSS38

DQ8

DQ9

VSS49

DQS#1

DQS1

VSS39

DQ10

DQ11

VSS50

VSS18

DQ16

DQ17

VSS1

DQS#2

DQS2

VSS19

DQ18

DQ19

VSS22

DQ24

DQ25

VSS23

DM3

NC4

VSS9

DQ26

DQ27

VSS4

CKE0

VDD7

NC1

A16_BA2

VDD9

A12

VDD5

101

VDD10

103

A10/AP

105

BA0

107

WE#

109

VDD2

111

CAS#

113

S1#

115

VDD3

117

ODT1

119

VSS11

121

DQ32

123

DQ33

125

VSS26

127

DQS#4

129

DQS4

131

VSS2

133

DQ34

135

DQ35

137

VSS27

139

DQ40

141

DQ41

143

VSS46 2

DQ4 4

DQ5 6

VSS15 8

DM0 10

VSS5 12

DQ6 14

DQ7 16

VSS16 18

DQ12 20

DQ13 22

VSS17 24

DM1 26

VSS53 28

CK0 30

CK0# 32

VSS41 34

DQ14 36

DQ15 38

VSS54 40

VSS20 42

DQ20 44

DQ21 46

VSS6 48

NC3 50

DM2 52

VSS21 54

DQ22 56

DQ23 58

VSS24 60

DQ28 62

DQ29 64

VSS25 66

DQS#3 68

DQS3 70

VSS10 72

DQ30 74

DQ31 76

VSS8 78

CKE1 80

VDD8 82

A15 84

A14 86

VDD11 88

A11 90

A7 92

A6 94

VDD4 96

A4 98

A2 100

A0 102

VDD12 104

BA1 106

RAS# 108

S0# 110

VDD1 112

ODT0 114

A13 116

VDD6 118

NC2 120

VSS12 122

DQ36 124

DQ37 126

VSS28 128

DM4 130

VSS42 132

DQ38 134

DQ39 136

VSS55 138

DQ44 140

DQ45 142

VSS43 144

VSS29

145

DM5

147

VSS51

149

DQ42

151

DQ43

153

VSS40

155

DQ48

157

DQ49

159

VSS52

161

NCTEST

163

VSS30

165

DQS#6

167

DQS6

169

VSS31

171

DQ50

173

DQ51

175

DQ56

179

DQ57

181

VSS3

183

DM7

185

VSS34

187

DQ58

189

DQ59

191

VSS14

193

SDA

195

SCL

197

VDD(SPD)

199

DQS#5 146

DQS5 148

VSS56 150

DQ46 152

DQ47 154

VSS44 156

DQ52 158

DQ53 160

VSS57 162

CK1 164

CK1# 166

VSS45 168

DM6 170

VSS32 172

DQ54 174

DQ55 176

VSS35 178

DQ60 180

DQ61 182

VSS7 184

DQS#7 186

DQS7 188

VSS36 190

DQ62 192

DQ63 194

VSS13 196

SA0 198

SA1 200

VSS33

177

PC4800 DDR2 SDRAM

SO-DIMM (200P)

CN24

DDR2_SODIMM_H9.2_RVS

PC4800 DDR2 SDRAM

SO-DIMM (200P)

CN24

DDR2_SODIMM_H9.2_RVS

.1U/16V_4C333 .1U/16V_4C333

R95 10K_4R95 10K_4

RP12 56X2_4RP12 56X2_4

1U/10V_4C127 1U/10V_4C127

.1U/16V_4C123 .1U/16V_4C123

.1U/16V_4C222 .1U/16V_4C222

.1U/16V_4C204 .1U/16V_4C204

RP15 56X2_4RP15 56X2_4

1U/10V_4C260 1U/10V_4C260

.1U/16V_4C187 .1U/16V_4C187

www.RahasiaLaptop.com

D D

C C

B B

A A

EV_LVDS_LCLK

EV_LVDS_UTX#2

EV_LVDS_LTX2

EV_LVDS_VDDEN

EV_LVDS_UTX#1

EV_LVDS_LCLK#

EV_LVDS_UTX0

EV_LVDS_DDCDAT

EV_LVDS_UTX2

EV_LVDS_LTX1

EV_LVDS_DDCCLK

EV_TV_C/R

EV_LVDS_UTX1

EV_TV_COMP

EV_TV_Y/G

EV_LVDS_UTX#0

EV_LVDS_LTX#1

EV_LVDS_BLON

EV_LVDS_LTX#2

EV_LVDS_LTX#0

EV_LVDS_LTX0

EV_LVDS_UCLK#

EV_LVDS_UCLK

EVPRSNT1#

PEG_RXP7

PEG_RXN15

PEG_RXN10

PEG_TXN13

PEG_TXN15

PEG_TXP2

PEG_TXN0

PEG_RXP13

EV_CRT_HSYNC

PEG_TXN4

EV_CRT_B

EV_CRT_G

EV_CRT_R

EV_CRT_DDCDAT

PEG_TXP6

PEG_TXN6

EV_CRT_VSYNC

EV_CRT_DDCCLK

PEG_RXN11

PEG_TXP11

PEG_TXP[15:0]

PEG_RXP10

PEG_RXP1

PEG_TXP13

PEG_RXN9

PEG_TXP8

PEG_TXN[15:0]

PEG_TXP0

PEG_TXN10

PEG_RXN2

PEG_TXP15

PEG_TXP7

PEG_RXN5

PEG_RXP4

PEG_TXN3

PEG_RXN6

PEG_RXP9

PEG_TXN12

PEG_RXP12

PEG_RXP14

PEG_TXP14

PEG_RXN4

PEG_TXN11

PEG_RXP0

PEG_RXP3

PEG_RXP6

PEG_RXN[15:0]

PEG_TXP12

PEG_RXN1

PEG_TXN2

PEG_TXP3

PEG_TXP9

PEG_TXN9

PEG_TXN14

PEG_RXP2

PEG_RXP11

PEG_RXN8

PEG_TXP4

PEG_RXP[15:0]

PEG_TXP1

PEG_TXN1

PEG_RXN12

PEG_RXN0

PEG_TXN8

PEG_RXN7

PEG_RXP15

PEG_RXN3

PEG_TXN5

PEG_TXP5

PEG_TXN7

PEG_RXP5

PEG_RXP8

PEG_TXP10

CLK_MXM

CLK_MXM#

PLTRST#

PEG_RXN14

PEG_RXN13

MXMCLK

MXMDATA

THERM#

HDMICLK-

HDMICLK+

HDMITX0N

HDMITX1N

HDMITX2N

HDMITX0P

HDMITX1P

HDMITX2P

HDMI_HP_A

EV_LVDS_BL_BRGHT

MXMCLK

MXMDATA

MXMCLK

MXMDATA

MXM_SPDIF_OUT

MXM_HDMI_DDCCLK_R

MXM_HDMI_DDCDATA_R

ACIN

MXM_PWROK

MXM_ACIN

MXM_HDMI_DDCDATAMXM_HDMI_DDCDATA_R MXM_HDMI_DDCCLK_R MXM_HDMI_DDCCLK

PLTRST# <13,14,20,22..24,29..31>

CLK_MXM# <2>

CLK_MXM <2>

PEG_RXN[15:0] <6>

PEG_RXP[15:0] <6>

PEG_TXP[15:0] <6>

PEG_TXN[15:0] <6>

EV_LVDS_UCLK#<18>

EV_LVDS_UCLK<18>

EV_LVDS_LCLK<18>

EV_LVDS_LCLK#<18>

EV_LVDS_VDDEN<18>

EV_LVDS_BLON<23>

EV_LVDS_DDCCLK<18>

EV_LVDS_DDCDAT<18>

EV_TV_COMP<19>

EV_TV_Y/G<19>

EV_TV_C/R<19>

EV_CRT_B<19>

EV_CRT_G<19>

EV_CRT_R<19>

EV_CRT_HSYNC<19>

EV_CRT_VSYNC<19>

EV_CRT_DDCCLK<19>

EV_CRT_DDCDAT<19>

EV_LVDS_UTX#0<18>

EV_LVDS_UTX#1<18>

EV_LVDS_UTX#2<18>

EV_LVDS_UTX0<18>

EV_LVDS_UTX2<18>

EV_LVDS_UTX1<18>

EV_LVDS_LTX#0<18>

EV_LVDS_LTX#1<18>

EV_LVDS_LTX#2<18>

EV_LVDS_LTX0<18>

EV_LVDS_LTX2<18>

EV_LVDS_LTX1<18>

THERM_ALERT#<3,14>

HDMICLK- <23>

HDMICLK+ <23>

HDMITX0N <23>

HDMITX1N <23>

HDMITX2N <23>

HDMITX0P <23>

HDMITX1P <23>

HDMITX2P <23>

HDMI_HP_A <23>

EV_LVDS_BL_BRGHT<18>

MXM_DATA <31>

MXM_CLK <31>

MXM_SPDIF_OUT<26>

PWROK_MXM <31>

ACIN <22,31,32>

MXM_HDMI_DDCDATA <23> MXM_HDMI_DDCCLK <23>

VIN

+5V

+3V

+2.5V

VIN

+2.5V

+3V

+5V

+3V

+1.8V_MXM

+3V

+3V+3V

+3V

Size Document Number Rev

Date: Sheet of

MXM

17 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

MXM

17 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

MXM

17 38Monday, May 07, 2007

4Amp

1.5Amp

0.5Amp

3.5Amp

change from 10k to 4.7k , NV suggestion. on 10/20

0C Change footprint 0103

0C Connect to EC 0104

0C Change power name from +1.8V to +1.8V_MXM

0108

0C Change power

name from +1.8V to

+1.8V_MXM 0108

Modify Rev:D

0F Modify 0425

R188 EV@0_4R188 EV@0_4

Q53

EV@2N7002E

Q53

EV@2N7002E

EV@.1U/25V_4

C290

EV@.1U/25V_4

C290

R410 0_4R410 0_4

EV@10U/10V_8

C284

EV@10U/10V_8

C284

EV@RHU002N06

EV@4.7U/25V_8

C289

EV@4.7U/25V_8

C289

*EV@.1u_4

C256

*EV@.1u_4

C256

EV@.1U/25V_4

C64

EV@.1U/25V_4

C64

EV@.1U/25V_4

C50

EV@.1U/25V_4

C50

C647

330U/2.5V_7

C647

330U/2.5V_7

EV@.1U/16V_4

C551

EV@.1U/16V_4

C551

R297 0_4R297 0_4

R541

*EV@10K_4

R541

*EV@10K_4

R196 EV@0_4R196 EV@0_4

R530

*10K_4

R530

*10K_4

EV@.1U/16V_4

C550

EV@.1U/16V_4

C550

RUNPWROK 16

DVI_A_HPD 205

DVI_A_CLK# 207

DVI_A_CLK 209

DVI_A_TX2# 213

DVI_A_TX2 215

DVI_A_TX1# 219

DVI_A_TX1 221

DVI_A_TX0# 225

DVI_A_TX0 227

DDCB_DAT 218

DDCB_CLK 220

DVI_B_HPD/GND 181

IGP/DVI_B_CLK 179

IGP_/DVI_B_TX2# 189

IGP_DVI_B_TX2 191

IGP/DVI_B_TX1# 195

IGP/DVI_B_TX1 197

IGP/DVI_B_TX0# 201

IGP/DVI_B_TX0 203

IGP/DVI_B_CLK# 177

IGP 147

IGP 149

IGP 151

IGP 159

IGP 161

IGP 163

IGP 165

IGP 167

IGP 169

IGP 171

IGP 173

RSVD 129

RSVD 131

RSVD 153

RSVD 155

RSVD 183

RSVD 185

LVDS_UCLK#

148

LVDS_UCLK

150

LVDS_UTX3#

154 LVDS_UTX2#

160 LVDS_UTX1#

166 LVDS_UTX0#

172

LVDS_PPEN

212

LVDS_BL_BRGHT

214 LVDS_BLEN

216

LVDS_UTX3

156 LVDS_UTX2

162 LVDS_UTX1

168 LVDS_UTX0

174

LVDS_LCLK#

178

LVDS_LCLK

180

LVDS_LTX3#

184 LVDS_LTX2#

190 LVDS_LTX1#

196 LVDS_LTX0#

202

LVDS_LTX3

186 LVDS_LTX2

192 LVDS_LTX1

198 LVDS_LTX0

204

VGA_RED

136

VGA_HSYNC

139

VGA_GREEN

140

VGA_VSYNC

141

VGA_BLUE

144

DDCA_CLK

143

DDCA_DAT

145

DDCC_DAT

208 DDCC_CLK

210

TV_C/HDTV_Pr

124

TV_Y/HDTV_Y/TV_CVBS

128

TV_CVBS/HDTV_Pb

132

SMB_DAT

133

SMB_CLK

135

THERM#

137

AC/BATT# 157

LVDS

DVI

DVI-ADVI-B

TVCRT

CN27B

EV@MXM CONNECTOR_2

LVDS

DVI

DVI-ADVI-B

TVCRT

CN27B

EV@MXM CONNECTOR_2

EV@.1U/16V_4

C286

EV@.1U/16V_4

C286

EV@4.7U/25V_8

C288

EV@4.7U/25V_8

C288

D44 *EV@BAS316D44 *EV@BAS316

R81 EV@4.7K_4R81 EV@4.7K_4

R63

*4.7K_4

R63

*4.7K_4

EV@10U/10V_8

C548

EV@10U/10V_8

C548

Q55 *EV@RHU002N06Q55 *EV@RHU002N06

EV@1U/10V_4

C280

EV@1U/10V_4

C280

EV@4.7U/25V_8

C287

EV@4.7U/25V_8

C287

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

EV@.1U/16V_4

C282

EV@.1U/16V_4

C282

EV@RHU002N06

*EV@.1u_4

C294

*EV@.1u_4

C294

R86 EV@4.7K_4R86 EV@4.7K_4

47K

10K

Q52

EV@DTA114YUA

47K

10K

Q52

EV@DTA114YUA

*EV@.1u_4

C562

*EV@.1u_4

C562

Q54 *EV@RHU002N06Q54 *EV@RHU002N06

EV@1U/10V_4

C549

EV@1U/10V_4

C549

R75

*4.7K_4

R75

*4.7K_4

R528 EV@0_4R528 EV@0_4

PWR_SRC

5VRUN

3V3RUN

226

3V3RUN

228

3V3RUN

230

2V5RUN

222

1V8RUN

GND

101

GND

104

GND

107

GND

110

GND

113

GND

116

GND

119

GND

126

GND

130

GND

134

GND

138

GND

142

GND

146

GND

152

GND

158

GND

164

GND

170

GND

175

GND

176

GND

182

GND

187

GND

188

GND

193

GND

194

GND

199

GND

200

GND

206

GND

211

GND

217

GND

223

GND

224

GND

229

CLK_REQ# 125

PEX_RST# 127

PEX_REFCLK# 121

PEX_REFCLK 123

PEX_RX15# 25

PEX_RX14# 31

PEX_RX13# 37

PEX_RX12# 43

PEX_RX11# 49

PEX_RX10# 55

PEX_RX9# 61

PEX_RX8# 67

PEX_RX7# 73

PEX_RX6# 79

PEX_RX5# 85

PEX_RX4# 91

PEX_RX3# 97

PEX_RX2# 103

PEX_RX1# 109

PEX_RX0# 115

PEX_RX15 27

PEX_RX14 33

PEX_RX13 39

PEX_RX12 45

PEX_RX11 51

PEX_RX10 57

PEX_RX9 63

PEX_RX8 69

PEX_RX7 75

PEX_RX6 81

PEX_RX5 87

PEX_RX4 93

PEX_RX3 99

PEX_RX2 105

PEX_RX1 111

PEX_RX0 117

PEX_TX15 30

PEX_TX15# 28

PEX_TX14# 34

PEX_TX13# 40

PEX_TX12# 46

PEX_TX11# 52

PEX_TX10# 58

PEX_TX9# 64

PEX_TX8# 70

PEX_TX7# 76

PEX_TX6# 82

PEX_TX5# 88

PEX_TX4# 94

PEX_TX3# 100

PEX_TX2# 106

PEX_TX1# 112

PEX_TX0# 118

PEX_TX14 36

PEX_TX13 42

PEX_TX12 48

PEX_TX11 54

PEX_TX10 60

PEX_TX9 66

PEX_TX8 72

PEX_TX7 78

PEX_TX6 84

PEX_TX5 90

PEX_TX4 96

PEX_TX3 102

PEX_TX2 108

PEX_TX1 114

PEX_TX0 120

PRSNT2# 26

PRSNT1# 122

CN27A

EV@MXM CONNECTOR_2

CN27A

EV@MXM CONNECTOR_2

*EV@.1u_4

C561

*EV@.1u_4

C561

www.RahasiaLaptop.com

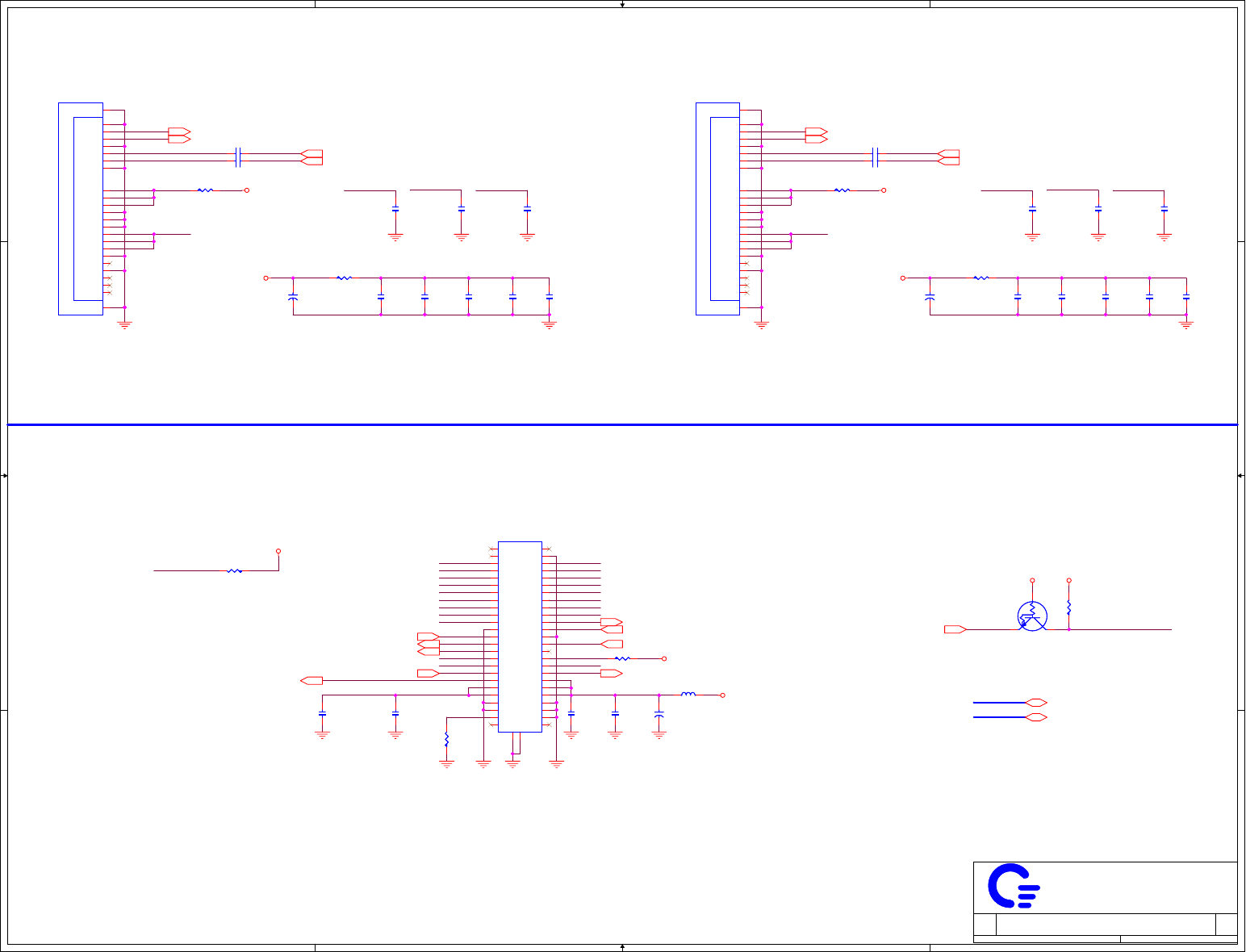

D D

C C

B B

A A

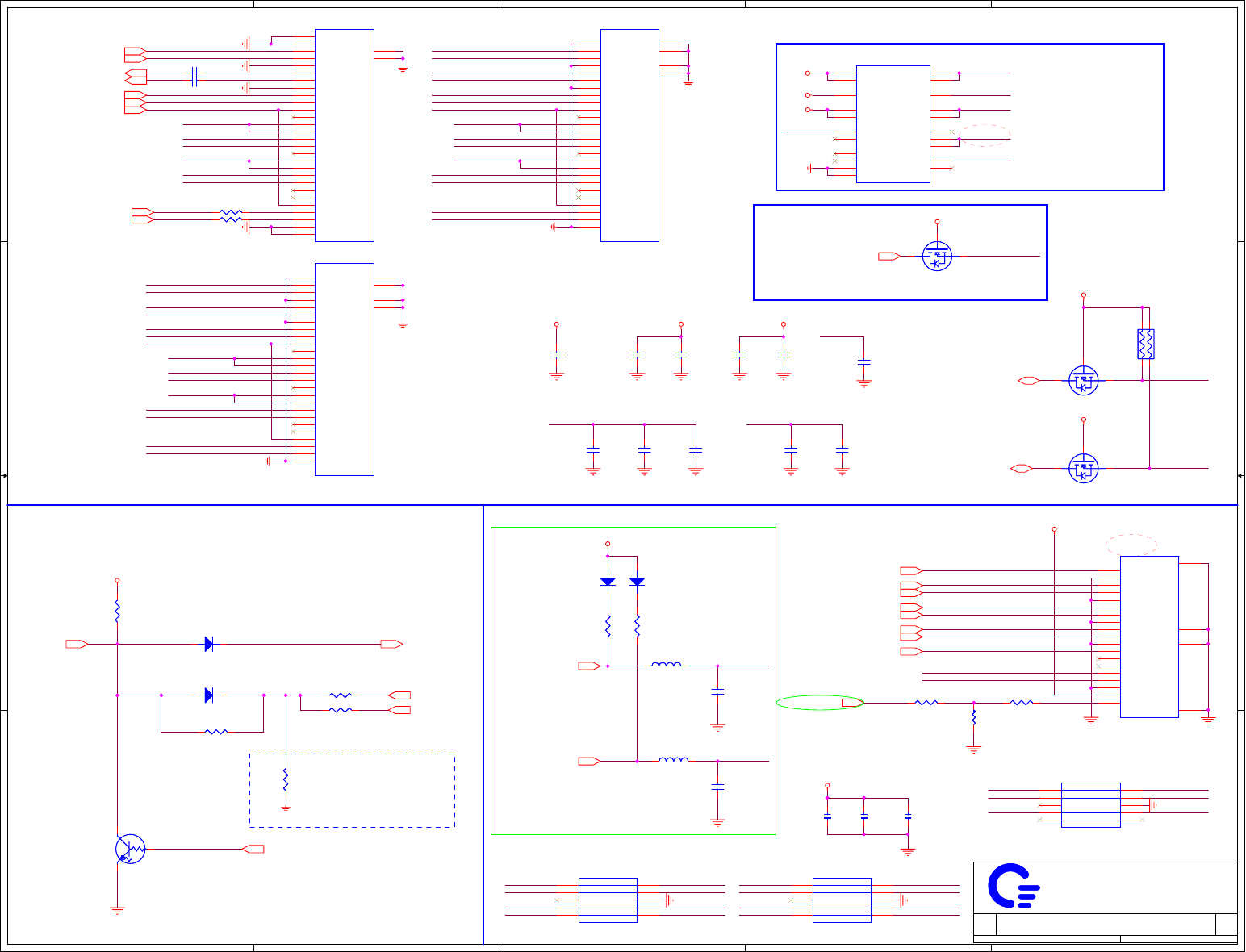

DISP_ON

LCDVCC_1 LCDVCC

TXLOUT1+

TXLCLKOUT+

TXUOUT2-

TXUOUT1+

TXUOUT1-

TXUOUT2+

TXUCLKOUT-

TXUCLKOUT+

TXUOUT0-

TXUOUT0+

TXLOUT2+

TXUOUT0+

TXLCLKOUT+

TXLOUT1+

TXLCLKOUT-

TXLOUT1-

LCD_EDIDDATA

TXLOUT1-

TXUOUT2+

TXUOUT2-

TXLOUT0-

TXUOUT0-

TXLOUT2-

LCD_EDIDCLK

TXLOUT0+

TXLCLKOUT-

TXLOUT0-

TXLOUT0+

TXLOUT2+

TXLOUT2-

TXUCLKOUT+

TXUCLKOUT-

LCD_EDIDCLK

LCD_EDIDDATA

USBP7-_R

LVDS_VADJ

USBP7+_R

TXUOUT1+

TXUOUT1-

LCDVCC

VIN INVCC0

INT_TXLCLKOUT- <6>

INT_TXLCLKOUT+ <6>

INT_TXLOUT0- <6>

INT_TXLOUT0+ <6>

INT_TXLOUT1- <6>

INT_TXLOUT1+ <6>

INT_TXLOUT2- <6>

INT_TXLOUT2+ <6>

INT_TXUOUT1- <6>

INT_TXUOUT1+ <6>

INT_TXUOUT2- <6>

INT_TXUOUT2+ <6>

INT_TXUCLKOUT- <6>

INT_TXUCLKOUT+ <6>

INT_TXUOUT0- <6>

INT_TXUOUT0+ <6>

EV_LVDS_LTX#1 <17>

EV_LVDS_LTX1 <17>

EV_LVDS_LTX#2 <17>

EV_LVDS_LTX2 <17>

EV_LVDS_LTX#0 <17>

EV_LVDS_LTX0 <17>

EV_LVDS_LCLK# <17>

EV_LVDS_LCLK <17>

EV_LVDS_UTX#1 <17>

EV_LVDS_UTX1 <17>

EV_LVDS_UTX#2 <17>

EV_LVDS_UTX2 <17>

EV_LVDS_UCLK# <17>

EV_LVDS_UCLK <17>

EV_LVDS_UTX#0 <17>

EV_LVDS_UTX0 <17>

EV_LVDS_DDCCLK<17>

EV_LVDS_DDCDAT<17>

INT_LVDS_EDIDCLK<6>

INT_LVDS_EDIDDATA<6>

EV_LVDS_VDDEN<17>

INT_LVDS_DIGON<6>

EC_L_BKLT_CTRL <31>

EV_LVDS_BL_BRGHT <17>

L_BKLT_CTRL <6>

USBP7+ <13>

USBP7- <13>

CCD_POWER <21>

DISPON<23>

+3V

VIN

+3V+5V

Size Document Number Rev

Date: Sheet of

LVDS

18 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

LVDS

18 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

LVDS

18 38Monday, May 07, 2007

Crestline suggest 100K

G73 suggest 10K(ZS1 Default)

(Need to confirm with Max)

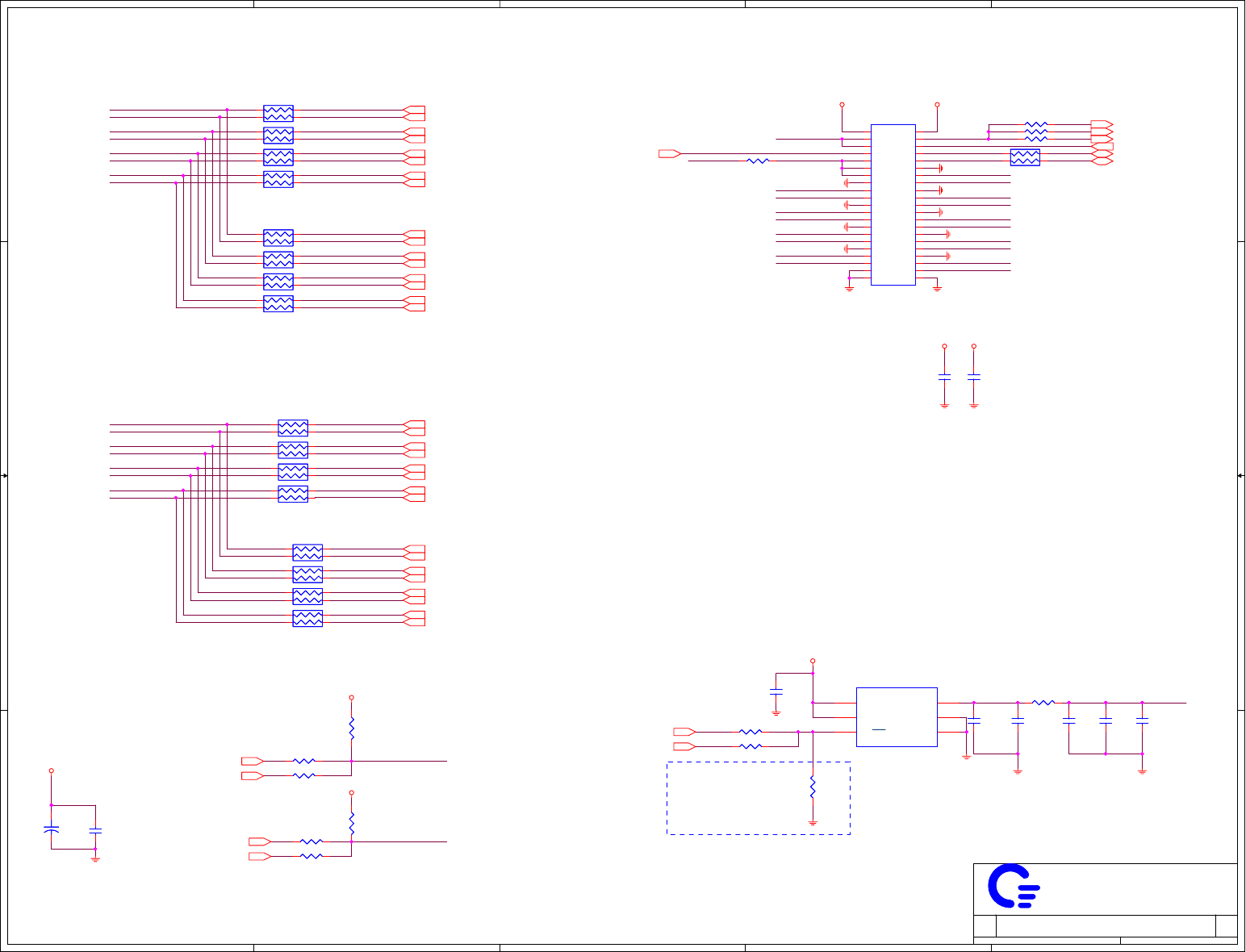

LVDS

RN15 IV@0X2RN15 IV@0X2

OUT 1

GND 2

ON/OFF

GND 5

AAT4280

RN4 IV@0X2RN4 IV@0X2

R10 0_8R10 0_8

C17

2.2U/10V_8

C17

2.2U/10V_8

C23

.1U/10V_4

C23

.1U/10V_4

RN11 EV@0X2RN11 EV@0X2

C16

2.2U/10V_8

C16

2.2U/10V_8

RN16 EV@0X2RN16 EV@0X2

RP1 0X2RP1 0X2

R394 EV@0_4R394 EV@0_4

1000P/50V_4

R14 IV@0_4R14 IV@0_4

R13 EV@0_4R13 EV@0_4

R7 *EV@0_4R7 *EV@0_4

R393

2.2K_4

R393

2.2K_4

R399

2.2K_4

R399

2.2K_4

41 42

CN1

ACES_88242-40XX_LVDS

CN1

ACES_88242-40XX_LVDS

RN3 EV@0X2RN3 EV@0X2

C12

1000P/50V_4

C12

1000P/50V_4

C22

1000P/X7R/50V_4

C22

1000P/X7R/50V_4

RN9 EV@0X2RN9 EV@0X2

RN14 EV@0X2RN14 EV@0X2

RN7 EV@0X2RN7 EV@0X2

RN5 EV@0X2RN5 EV@0X2

C21

*10U

C21

*10U

C13

.01U/16V_4

C13

.01U/16V_4

R9 0_8R9 0_8

R12

100K_4

R12

100K_4

R392 IV@0_4R392 IV@0_4

R6 *IV@0_4R6 *IV@0_4

C14

.1U/10V_4

C14

.1U/10V_4

RN12 IV@0X2RN12 IV@0X2

.1U/10V_4

R398 IV@0_4R398 IV@0_4

RN2 IV@0X2RN2 IV@0X2

RN6 IV@0X2RN6 IV@0X2

RN8 IV@0X2RN8 IV@0X2

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

RN1 EV@0X2RN1 EV@0X2

R5 0_4R5 0_4

R400 EV@0_4R400 EV@0_4

RN10 IV@0X2RN10 IV@0X2

RN17 IV@0X2RN17 IV@0X2

www.RahasiaLaptop.com

A A

B B

C C

D D

TV-COMP TV-CHROMA

TV-CHROMA

SYS_VGA_RED

SYS_VGA_GRN

SYS_VGA_BLU

VSYNC

HSYNC

CRTDCLK

CRTDDAT

TV-LUMA SYS_TV_Y/GSYS_TV_C/R

SYS_TV_COMPTV-COMP

SYS_TV_Y/G

SYS_TV_COMP

SYS_TV_C/R

CRT_G1

CRT_R1

CRT_B1 CRTHSYNC

CRTVSYNC

DDCDAT_1

CRTVDD3

DDCCLK_1

TV-LUMA

CRTVSYNC

DDCDAT_1

DDCCLK_1

CRTHSYNC

CRTVDD3

DDCDAT_1

CRTVDD3

CRT_HSYNC1

DDCCLK_1

CRT_VSYNC1CRTVDD3

HSYNC

VSYNC

CRTDDAT

CRTDCLK

CRT_BYP

SYS_VGA_BLU

SYS_VGA_RED

SYS_VGA_GRN

CRTVSYNC

CRTHSYNC

SYS_VGA_GRN

SYS_VGA_BLU

SYS_VGA_RED CRT_11

INT_HSYNC<6>

INT_VSYNC<6>

INT_CRT_DDCCLK<6>

INT_CRT_DDCDAT<6>

EV_CRT_HSYNC<17>

EV_CRT_VSYNC<17>

EV_CRT_DDCCLK<17>

EV_CRT_DDCDAT<17>

INT_CRT_RED<6>

EV_CRT_G<17>

EV_CRT_B<17>

EV_CRT_R<17>

INT_CRT_GRN<6>

INT_CRT_BLU<6>

INT_TV_COMP<6>

EV_TV_COMP<17>

EV_TV_Y/G<17>

INT_TV_C/R<6>

INT_TV_Y/G<6>

EV_TV_C/R<17>

CRT_SENSE# <13,31>

+3V +3V

+5V

+3V

+5V

+3V

Size Document Number Rev

Date: Sheet of

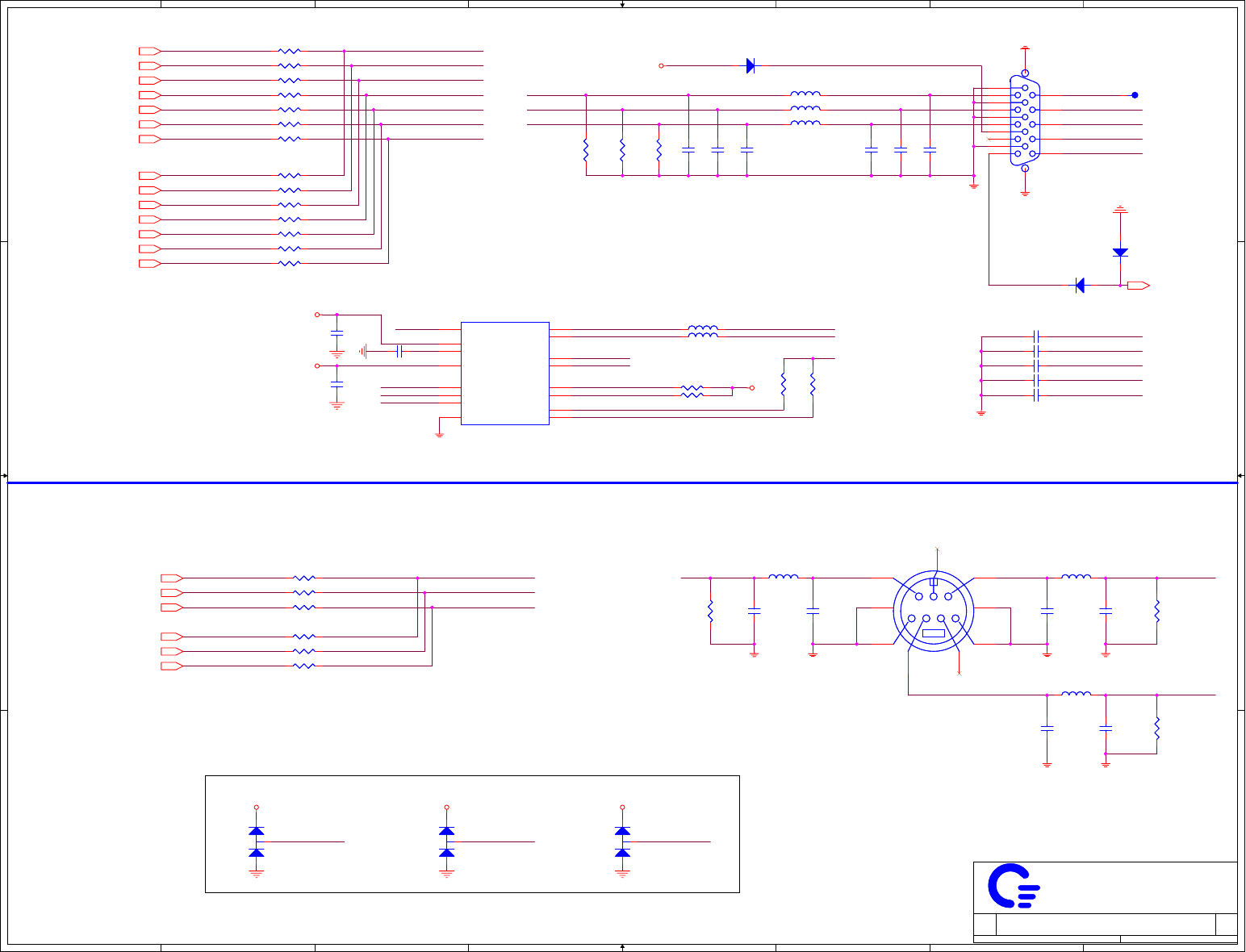

CRT/TVOUT

19 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CRT/TVOUT

19 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CRT/TVOUT

19 38Monday, May 07, 2007

CRT Select

TV Out (SVHS) MiniDIN 7-pin

CRT CONNECTOR AND ESD

D2C: NEW ADD FOR ESD

R21

2.7K_4

R21

2.7K_4

C28 .22U/25VC28 .22U/25V

R380 EV@0_4R380 EV@0_4

C29

.1U/10V_4

C29

.1U/10V_4

R373 EV@0_4R373 EV@0_4

D1 SSM14D1 SSM14

C26

10P/50V_4

C26

10P/50V_4

C18 *10P_4C18 *10P_4

R11

150/F_4

R11

150/F_4

C24 10P/50V_4C24 10P/50V_4

R379 IV@0_4R379 IV@0_4

L42 BLM18PG181SN1DL42 BLM18PG181SN1D

150/F_4

R19 IV@0_4R19 IV@0_4

R30 EV@0_4R30 EV@0_4

R22 2.7K_4R22 2.7K_4

D37

DA204U

D37

DA204U

L4 BLM18BA220SN1L4 BLM18BA220SN1

C531

6P/50V_4

C531

6P/50V_4

R25 EV@0_4R25 EV@0_4

R26

2.7K_4

R26

2.7K_4

C25

10P/50V_4

C25

10P/50V_4

R20 EV@0_4R20 EV@0_4

T1T1

C526

6P/50V_4

C526

6P/50V_4

C527

6P/50V_4

C527

6P/50V_4

C19

10P/50V_4

C19

10P/50V_4

C8 10P/50V_4C8 10P/50V_4

R31 IV@0_4R31 IV@0_4

R29 IV@0_4R29 IV@0_4

C15

10P/50V_4

C15

10P/50V_4

C11

10P/50V_4

C11

10P/50V_4

R372

150/F_4

R372

150/F_4

L41 BLM18PG181SN1DL41 BLM18PG181SN1D

R375

150/F_4

R375

150/F_4

C10 .1U/10V_4C10 .1U/10V_4

R15

150/F_4

R15

150/F_4

R32 EV@0_4R32 EV@0_4

R24 IV@0_4R24 IV@0_4

C533

6P/50V_4

C533

6P/50V_4

R381

150/F_4

R381

150/F_4

R35 EV@0_4R35 EV@0_4

R18 IV@0_4R18 IV@0_4

R27 IV@0_4R27 IV@0_4

111

1617

CN13

CRT

CN13

CRT

D36

DA204U

D36

DA204U

L2 BLM18BA220SN1L2 BLM18BA220SN1

R28 EV@0_4R28 EV@0_4

C20

10P/50V_4

C20

10P/50V_4

*MTW355

C9 *10P_4C9 *10P_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C30

.1U/10V_4

C30

.1U/10V_4

R377 EV@0_4R377 EV@0_4

R23 2.7K_4R23 2.7K_4

VCC_SYNC

VCC_VIDEO

VIDEO_1

VIDEO_2

VCC_DDC

GND

BYP

VIDEO_3

SYNC_OUT2 16

SYNC_OUT1 14

SYNC_IN2 15

SYNC_IN1 13

DDC_IN1 10

DDC_IN2 11

DDC_OUT1 9

DDC_OUT2 12

IP4772

R34 IV@0_4R34 IV@0_4

L5 BLM18BA220SN1L5 BLM18BA220SN1

C528

6P/50V_4

C528

6P/50V_4

C525

6P/50V_4

C525

6P/50V_4

R374 IV@0_4R374 IV@0_4

L3 BLM18BA220SN1L3 BLM18BA220SN1

L40 BLM18PG181SN1DL40 BLM18PG181SN1D

R17 EV@0_4R17 EV@0_4

CN22

TV_OUT

CN22

TV_OUT

D38

DA204U

D38

DA204U

L1 BLM18BA220SN1L1 BLM18BA220SN1

D2 MTW355D2 MTW355

R371 IV@0_4R371 IV@0_4

www.RahasiaLaptop.com

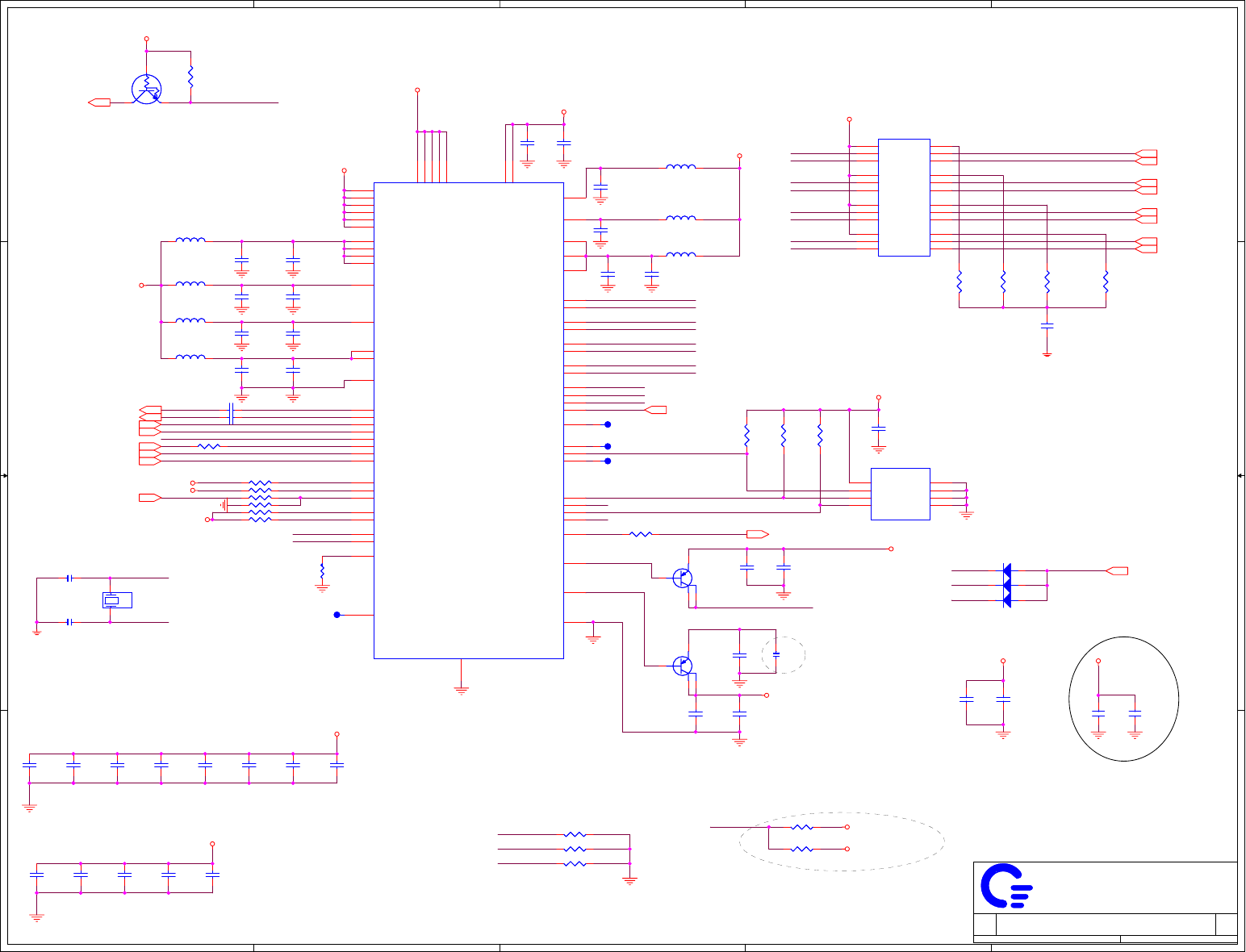

D D

C C

B B

A A

CLK_LAN_X2

CLK_LAN_X1

XTALVDD

1000#

LAN_ACTLED#

100#

LINKLED#

LAN REGCTL12

LAN REGCTL25

BCM_SDA

CS#

BCM_SCL

BIASVDD

BCM_WP

AVDD_F14

VAUX_25

LAN_REG1_2V

PCIE_SDS_VDD

AVDDL

GPHY_PLLVDD

PCIE_PLLVDD

PCIE_WAKE_R#

LAN_SMBD

LAN_SMBC

VMA_PRES

AUX_PRES

GLAN_TXN_5787

GLAN_TXP_5787

-LAN_RST

RDAC

CLK_LAN_X2

CLK_LAN_X1

BCM_SCL

CS#

TX3N

TX3P

TX2N

TX2P

TX1N

TX1P

TX0N

TX0P

TX3P

TX0N

TX0P

TX1N

TX3N

TX2N

TX2P

TX1P

X-TX2N

X-TX1P

X-TX3P

X-TX3N

X-TX1N

X-TX0P

X-TX0N

X-TX2P

LAN_LINKLED#

100#

1000#

LINKLED#

LAN_LOWPWR

LAN_ENERGYDET

PCIE_WAKE#<14,22,31>

CLK_PCIE_LAN#<2>

CLK_PCIE_LAN<2>

GLAN_TXP<13>

GLAN_TXN<13>

GLAN_RXP<13>

GLAN_RXN<13>

PLTRST#<13,14,17,22..24,29..31>

X-TX0P <21>

X-TX0N <21>

X-TX1P <21>

X-TX1N <21>

X-TX2P <21>

X-TX2N <21>

X-TX3P <21>

X-TX3N <21>

LAN_LINKLED# <21>

LAN_ACTLED# <21>

LAN_LOWPWR<31>

LAN_ENERGYDET <31>

+3V_S5

VAUX_25

+3V_S5

VAUX_12

VAUX_25

+3V_S5

VAUX_25

VAUX_12

+3V_S5

+3V

+3V_S5

VAUX_12

+3V_S5

+3V_S5VAUX_25

+3V_S5

Size Document Number Rev

Date: Sheet of

BCM5787 LAN/TRANSFORMER

20 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

BCM5787 LAN/TRANSFORMER

20 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

BCM5787 LAN/TRANSFORMER

20 38Monday, May 07, 2007

LAN

A1A: (9/1 BCM recommend)

in order to pull up C321/C51 and Q17 pin 3 to

3V_LAN rail.

Broadcom recommended cost down solution

VDDP+AVDD)

Close Transformer

L13 BLM11A601SL13 BLM11A601S

R83 4.7K_4R83 4.7K_4

TCT1

TCT2

TCT3

TCT4

TD1+

TD2+

TD1-

TD2-

TD3+

TD3-

TD4+

TD4-

MCT1 24

MX1+ 23

MX1- 22

MX4- 13

MX4+ 14

MCT4 15

MX3- 16

MX3+ 17

MCT3 18

MX2- 19

MX2+ 20

MCT2 21

U21

NS892402P

U21

NS892402P

R77 47KR77 47K

C108 27P/50V_4C108 27P/50V_4

T12T12

C36

1500P/2KV_1808

C36

1500P/2KV_1808

C109

.1U/16V_4

C109

.1U/16V_4

C114

.1U/16V_4

C114

.1U/16V_4

R40

75/F_4

R40

75/F_4

2 3

Q10

MMJT9435

Q10

MMJT9435

C88

.1U/16V_4

C88

.1U/16V_4

C141

10U/10V_8

C141

10U/10V_8

C112

.1U/16V_4

C112

.1U/16V_4

R97

4.7K_4

R97

4.7K_4

L9 BLM11A601SL9 BLM11A601S

C119

.1U/16V_4

C119

.1U/16V_4

L12 BLM11A601SL12 BLM11A601S

Q11

DTC144EUA

Q11

DTC144EUA

C120

.1U/16V_4

C120

.1U/16V_4

R88

4.7K_4

R88

4.7K_4

L11 BLM11A601SL11 BLM11A601S

R73 47KR73 47K

C133

2.2U/10V_8

C133

2.2U/10V_8

C101

.1U/16V_4

C101

.1U/16V_4

R91 0_4R91 0_4

T14T14

C104

.1U/16V_4

C104

.1U/16V_4

C67

.01U/16V_4

C67

.01U/16V_4

C116

.1U/16V_4

C116

.1U/16V_4

C107

.1U/16V_4

C107

.1U/16V_4

R66

1.21K

R66

1.21K

D9 BAS316D9 BAS316

R109 *1_12R109 *1_12

C92

.1U/16V_4

C92

.1U/16V_4

C140

10U/6.3V_8

C140

10U/6.3V_8

R85 *4.7K_4R85 *4.7K_4

C115

.1U/16V_4

C115

.1U/16V_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C98

.1U/16V_4

C98

.1U/16V_4

1 2

25MHZ

T13T13

C117

.1U/16V_4

C117

.1U/16V_4

C96

2.2U/10V_8

C96

2.2U/10V_8

C65

2.2U/10V_8

C65

2.2U/10V_8

R84 *4.7K_4R84 *4.7K_4

R71 1K_4R71 1K_4

C106

.1U/16V_4

C106

.1U/16V_4

C118

.1U/16V_4

C118

.1U/16V_4

D8 BAS316D8 BAS316

A0 1

A1 2

NC 3

GND 4

VCC

SCL

SDA

AT24C64

C73

.1U/16V_4

C73

.1U/16V_4

C71

.1U/16V_4

C71

.1U/16V_4

C131

.1U/16V_4

C131

.1U/16V_4

C87

2.2U/10V_8

C87

2.2U/10V_8

C111

.1U/16V_4

C111

.1U/16V_4

R38

75/F_4

R38

75/F_4

C78

2.2U/10V_8

C78

2.2U/10V_8

C110 27P/50V_4C110 27P/50V_4

R92

*4.7K_4

R92

*4.7K_4

C74

.1U/16V_4

C74

.1U/16V_4

C72

.1U/16V_4

C72

.1U/16V_4

L7 BLM11A601SL7 BLM11A601S

L10 BLM11A601SL10 BLM11A601S

R90 *4.7K_4R90 *4.7K_4

C68

2.2U/10V_8

C68

2.2U/10V_8

R37

75/F_4

R37

75/F_4

R598 0_4R598 0_4

VDDC

AVDDL

GPHY_PLLVDD

PCIE_PLLVDD

PCIE_VDD

PCIE_GND

PCIE_TXDP

PCIE_TXDN

PCIE_RXDP

PCIE_RXDN

WAKE#

PERST#

REFCLK+

REFCLK-

VAUXPRSNT

VMAINPRSNT

LOW_PWR

SMB_CLK

SMB_DATA

XTALO

XTALI

RDAC

NC(CLK_REQ#)

BIASVDD 36

XTALVDD 23

AVDD 38

AVDD 45

AVDD 52

TRD3- 49

TRD3+ 50

TRD2- 48

TRD2+ 47

TRD1- 42

TRD1+ 43

TRD0- 41

TRD0+ 40

LINKLED# 2

SPD100LED# 1

SPD1000LED# 67

TRAFFICLED# 66

GPIO2 8

UART_MODE 9

GPIO1_SERIALDI 7

GPIO0_SERIALDO 4

SCLK 65

SI 63

SO 64

CS# 62

NC/(ENERGY_DET) 59

REGCTL25 18

REGCTL12 14

REG_GND 16

VDDIO 6

VDDIO 15

VDDIO 19

VDDIO 56

VDDIO 61

VDDP 17

VDDP 68

GND

BCM5787M

10mm X 10mm

68-Pin QFN

BCM5787M

10mm X 10mm

68-Pin QFN

R70 1K_4R70 1K_4

C66

.01U/16V_4

C66

.01U/16V_4

C103 .1U/16V_4C103 .1U/16V_4

L8 BLM11A601SL8 BLM11A601S

R112 1.5_12R112 1.5_12

C113

2.2U/10V_8

C113

2.2U/10V_8

R107

4.7K_4

R107

4.7K_4

2 3

MMJT9435

C105 .1U/16V_4C105 .1U/16V_4

C85

.1U/16V_4

C85

.1U/16V_4

D7 BAS316D7 BAS316

R599 0_4R599 0_4

C124

.1U/16V_4

C124

.1U/16V_4

T11T11

C121

47U/6.3V_12

C121

47U/6.3V_12

C95

.1U/16V_4

C95

.1U/16V_4

C139

.1U/16V_4

C139

.1U/16V_4

R39

75/F_4

R39

75/F_4

www.RahasiaLaptop.com

A A

B B

C C

D D

BT_POWERBT_POWER_R

CCD_POWER

LAN_ACTLED#

TIPL

X-TX3N

X-TX0N

X-TX2P

X-TX3P

X-TX2N

X-TX1N

X-TX1P

X-TX0P

RINGL

+3V_LED2

+3V_LED1

LAN_LINKLED#

RINGL

TIPL

CIRR_X2

2ND_FAN_ON

USBP4+_R

BT_POWER

USBP4-_R

TV_FAN

CIRR_X2

CCD_POWERON <31>

BT_POWERON# <31>

CCD_POWER <18>

X-TX3P<20>

X-TX3N<20>

X-TX2N<20>

LAN_ACTLED#<20>

X-TX2P<20>

LAN_LINKLED#<20>

X-TX1N<20>

X-TX1P<20>

X-TX0N<20>

X-TX0P<20>

BT_LED<22>

USBP4-<13>

USBP4+<13>

TV_FAN<31>

CIRRX2 <31>

+3V

+3VSUS

+3V_S5

+5V

+5VPCU

+3VPCU +3VPCU

Size Document Number Rev

Date: Sheet of

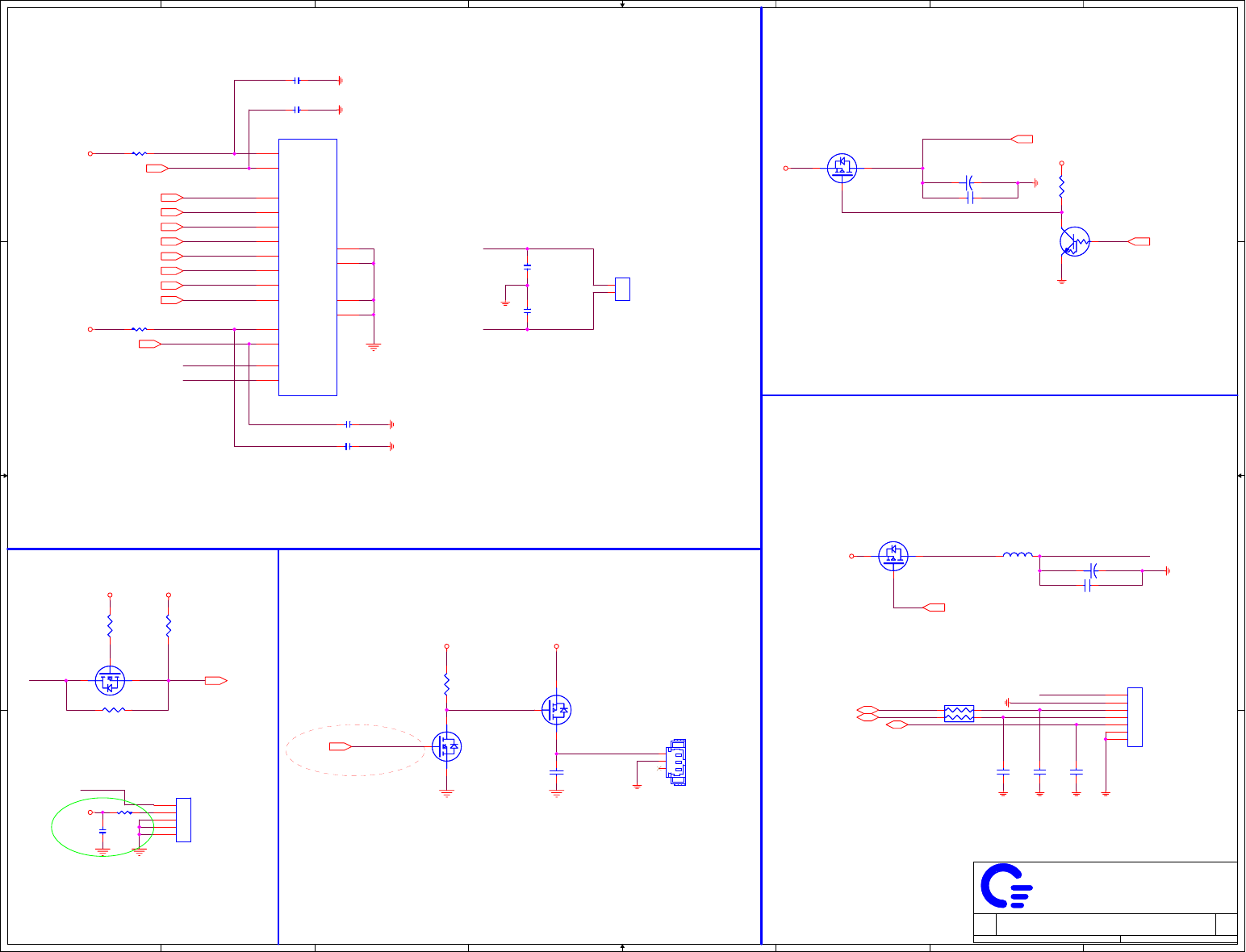

BT/CCD/RJ45-11/CIR/2nd FAN

21 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

BT/CCD/RJ45-11/CIR/2nd FAN

21 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

BT/CCD/RJ45-11/CIR/2nd FAN

21 38Monday, May 07, 2007

CAMERA MODULE CONNECTOR

BLUETOOTH MODULE CONNECTOR

CIR

RJ45-11

2nd FAN

BT_LED

0C Modify circuits 0104

Modify Rev:D

C646

4.7U/10V_8

C646

4.7U/10V_8

C467 1000P/X7R/50V_4C467 1000P/X7R/50V_4

1 3

DTC144EU

R197 47R197 47

AO3413

R586

*10K_4

R586

*10K_4

C35

470PF/3KV_1808

C35

470PF/3KV_1808

C32 1000P/X7R/50V_4C32 1000P/X7R/50V_4

L31 BK2125HS330_8L31 BK2125HS330_8

C1 2.2U/10V_8

CN3

FI-S2P-HF(JAE)

CN3

FI-S2P-HF(JAE)

C27 1000P/X7R/50V_4C27 1000P/X7R/50V_4

C635

*0.1U/X7R/50V

C635

*0.1U/X7R/50V

R587

*10K_4

R587

*10K_4

R36 220_4R36 220_4

R543

*10K_4

R543

*10K_4

C34

470PF/3KV_1808

C34

470PF/3KV_1808

C33 1000P/X7R/50V_4C33 1000P/X7R/50V_4

Q19

AO3413

Q19

AO3413

C464 2.2U/10V_8

CN12

Aces 88266-0500

CN12

Aces 88266-0500

Q34

*RHU002N06

Q34

*RHU002N06

C490

*22P_4

C490

*22P_4

C480

*22P_4

C480

*22P_4

R33 220_4R33 220_4

C31 1000P/X7R/50V_4C31 1000P/X7R/50V_4

RP39 0X2RP39 0X2R2190_4 R2190_4

CN31

*FAN_CON

CN31

*FAN_CON

C495

.01U/16V_4

C495

.01U/16V_4

4.7K_4

C2 1000P/50V_4C2 1000P/50V_4

U37

EVER_IRM-V038_TRI-P

U37

EVER_IRM-V038_TRI-P

Q33

*AO3413

Q33

*AO3413

Q31

*2N7002E

Q31

*2N7002E

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

LED1_YELP_Y

LED1_YELN_Y

RX2-

RX2+

RX1-

TX2+

TX2-

RX1+

TX1-

TX1+

LED2_P_A2

LED2_GRNN_A3

GND16 16

GND15 15

RING

TIP

GND17 17

GND18 18

CN14

FOXCONN_JM34F23-P2053

CN14

FOXCONN_JM34F23-P2053

www.RahasiaLaptop.com

A A

B B

C C

D D

RF_EN_RR

WL_LED#

USBP6-_R

USBP6+_R

PCIE_WAKE#_MINI-Card

KEDRON_GND_37

KEDRON_GND_43

CL_RST#0_CN

+3V_MINI-CARD

USBP8-_D

USBP8+_D

PLTRST#

PCLK_SMB_3G

PDAT_SMB_3G PDAT_SMB

PCLK_SMB

3G_LED# 3G MINI_LED#

UIM_CLK

UIM_PWR

UIM_DATA

UIM_RST

+3G_VDD

MY0

WL_LED

3G MINI_LED

AC_IN

UIM_VPP

UIM_CLK

UIM_RST

UIM_DATA

UIM_PWR

UIM_VPP

PCIE_TXP2

PCIE_TXN2

PCIE_RXP2

PCIE_RXN2

PCIE_TXP2

PCIE_TXN2

PCIE_RXP2

PCIE_RXN2

CLK_PCIE_TV

CLK_PCIE_TV#

CLK_PCIE_TV

CLK_PCIE_TV#

Audio Right

Audio Left

CVBS

S-Video-Y

S-Video-C

+3V_MINI-CARD

+3V_MC

LFRAME#_R

LAD3_R

LAD2_R

LAD1_R

LAD0_R

CL_CLK1_CN

CL_DATA1_CN

WL_LED

WL_LED#

3G MINI_LED

S-Video-C

S-Video-Y

CVBS

+5V_TV-CARD

+3V_MMB

TBDATA_R

TBCLK_R

MMB_A_KEY

MMB_MX0_E_KEY#

MMB_MY0

3G MINI_LED#

SUSLED#

PWRLED#

+5V_TV-CARD

Audio Left

Audio Right

S-Video-C

S-Video-Y

+3V_MINI-CARD

+3V_MC

NBSWON#

MX4_WL#

MX2_WWW#

MX1_EMAIL#

MX5_BT#

MX3_3G#

MY0

USBON#

USBP1+

USBP1-

USBP1+_R

USBP1-_R

CVBS

PCIE_WAKE#<14,20,31>

CLK_PCIE_MINI1#<2>

CLK_PCIE_MINI1<2>

PDAT_SMB <2,14,16,23>

PCLK_SMB <2,14,16,23>

PLTRST# <13,14,17,20,23,24,29..31>

PCIE_TXN4<13>

PCIE_TXP4<13>

PCIE_RXN4<13>

PCIE_RXP4<13>

USBP6+ <13>

USBP6- <13>

CL_DATA1<14>

CL_CLK1<14>

CL_RST#1<14>

RF_EN <31>

USBP8+ <13>

USBP8- <13>

3G_ON <31>

BT_LED<21>

MX3_3G#<30,31>

TV_KEY<31>

MX4_WL#<30,31>

MX2_WWW#<30,31>

MX1_EMAIL#<30,31>

MX5_BT#<30,31>

NUMLED<30>

NBSWON#<31>

CAPSLED<30>

IDE_LED<30>

PCIE_TXN2 <13>

PCIE_TXP2 <13>

PCIE_RXP2 <13>

PCIE_RXN2 <13>

CLK_PCIE_TV# <2>

CLK_PCIE_TV <2>

LID591#<14,23,31>

LFRAME# <12,30,31>

LAD3 <12,30,31>

LAD2 <12,30,31>

LAD1 <12,30,31>

LAD0 <12,30,31>

PCLK_DEBUG<2,30>

PCIRST#<13,28>

TB2DATA<31>

TB2CLK<31>

MY0<30,31>

MX0_E_KEY#<30,31>

A_KEY<31>

ACIN<17,31,32>

PWRLED#<30,31>

SUSLED#<30,31>

USBON#<25,31>

USBP1+<13>

USBP1-<13>

+3VSUS

+1.5V

+3G_VDD +3G_VDD

+3G_VDD

+3V

+3VSUS

+3V

+1.5V

+5V

+1.5V

+3V

+3VPCU+3VPCU

+5V_S5

+3VPCU

+5V_S5

Size Document Number Rev

Date: Sheet of

MINI PCI-E card/3G/TV/Media Key

22 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

MINI PCI-E card/3G/TV/Media Key

22 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

MINI PCI-E card/3G/TV/Media Key

22 38Monday, May 07, 2007

MINI-Card

3G/TV MINI CARD Media Key

Close near Mini-card connector

0C Change footprint 0103

0C delete net FAN_OT#

0103

Modify Rev:D

Close near CN30

EMI SOLUTION

Modify Rev:E

For ESD close to conn. side

C438

.1U/10V_4

C438

.1U/10V_4

L18 LZA10-2ACB104MTL18 LZA10-2ACB104MT

R510

150/F_4

R510

150/F_4

1 3

47K

10K

Q18

DTA114YUA

47K

10K

Q18

DTA114YUA

Reserved

GND

PETp0

PETn0

GND

PERp0

PERn0

GND

Reserved

GND

REFCLK+

REFCLK-

GND

CLKREQ#

Reserved

+3.3V 52

GND 50

+1.5V 48

LED_WPAN# 46

LED_WLAN# 44

LED_WWAN# 42

GND 40

USB_D+ 38

USB_D- 36

GND 34

SMB_DATA 32

SMB_CLK 30

+1.5V 28

GND 26

+3.3Vaux 24

PERST# 22

Reserved 20

GND 18

Reserved 16

+1.5V 6

Reserved

WAKE#

Reserved 14

Reserved 12

Reserved 10

Reserved 8

GND 4

+3.3V 2

CN19

Alltop_MINI CARD

CN19

Alltop_MINI CARD

C507

.1U/10V_4

C507

.1U/10V_4

R74 *0_4R74 *0_4

C421

.1U/10V_4

C421

.1U/10V_4

C637

1000P/X7R/50V_4

C637

1000P/X7R/50V_4

R52 0_4R52 0_4

R72 *0_4R72 *0_4

Q32

2N7002

Q32

2N7002

R539

0_4

R539

0_4

C428

.1U/10V_4

C428

.1U/10V_4

R525 0_4R525 0_4

RP37 0X2RP37 0X2

D48

DA204U

D48

DA204U

1 3

47K

10K

Q24

DTA114YUA

47K

10K

Q24

DTA114YUA

CN8

Aces 88501-0801

CN8

Aces 88501-0801

C62

10U/10V_8

C62

10U/10V_8

R512

150/F_4

R512

150/F_4

Reserved

GND

PETp0

PETn0

GND

PERp0

PERn0

GND

UIM_C4

UIM_C8

GND

REFCLK+

REFCLK-

GND

CLKREQ#

Reserved

+3.3V 52

GND 50

+1.5V 48

LED_WPAN# 46

LED_WLAN# 44

LED_WWAN# 42

GND 40

USB_D+ 38

USB_D- 36

GND 34

SMB_DATA 32

SMB_CLK 30

+1.5V 28

GND 26

+3.3Vaux 24

PERST# 22

W_DISABLE# 20

GND 18

UIM_VPP 16

+1.5V 6

Reserved

WAKE#

UIM_RST 14

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

GND 4

+3.3V 2

GND

CN34 MINIPCI EXP_Aces

R526 0_4R526 0_4

R270

0_4

R270

0_4

L59 FBJ3216HS800_12L59 FBJ3216HS800_12

R67 0R67 0

C442

10P/50V_4

C442

10P/50V_4

R65 0_4R65 0_4

CN5

Aces 88501-120N

CN5

Aces 88501-120N

RP40 0X2_4RP40 0X2_4

R477 0_4R477 0_4

R352

0_4

R352

0_4

C514

2.2U/10V_8

C514

2.2U/10V_8

*DTC144EU

R527 0_4R527 0_4

D45

DA204U

D45

DA204U

R511

150/F_4

R511

150/F_4

D46

DA204U

D46

DA204U

R53 0_4R53 0_4

R508

150/F_4

R508

150/F_4

L6 FBJ3216HS800_12L6 FBJ3216HS800_12

R59 *0R59 *0

D49

DA204U

D49

DA204U

RP4 0X2RP4 0X2

C213

.1U/10V_4

C213

.1U/10V_4

C193

2.2U/10V_8

C193

2.2U/10V_8

R49

*4.7K_4

R49

*4.7K_4

R509

150/F_4

R509

150/F_4

R60 0_4R60 0_4

L27 FBJ3216HS800_12L27 FBJ3216HS800_12

R536

D51

DA204U

D51

DA204U

R274 0_4R274 0_4

R50 0_4R50 0_4

R68 0_4R68 0_4

R80 *0_4R80 *0_4

C79

.1U/10V_4

C79

.1U/10V_4

C513

.1U/10V_4

C513

.1U/10V_4

D47

DA204U

D47

DA204U

R78 *0_4R78 *0_4

CN30

Aces_87212-1600L

CN30

Aces_87212-1600L

R57 0_4R57 0_4

R507

150/F_4

R507

150/F_4

R132

10K_4

R132

10K_4

CN4

Aces_88501-1601

CN4

Aces_88501-1601

C651

1000P/50V_4

C651

1000P/50V_4

R253 0_4R253 0_4

C383

4.7U/10V_8

C383

4.7U/10V_8

C432

4.7U/10V_8

C432

4.7U/10V_8

R76 *0_4R76 *0_4

Q35

AO3413

Q35

AO3413

D50

DA204U

D50

DA204U

R69 0_4R69 0_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

L19 LZA10-2ACB104MTL19 LZA10-2ACB104MT

R131

10K_4

R131

10K_4

R545

10K_4

R545

10K_4

www.RahasiaLaptop.com

D D

C C

B B

A A

DISPON

PERST#

+NEW_3VAUX

+NEW_1.5V+NEW_3V

USBP5+_R

USBP5-_R

+NEW_3V

+NEW_1.5V

NEW_SMDATA

NEW_SMCLK

PERN3

PERP3

NEW_SMCLK

NEW_SMDATA

HDMITX0P

HDMITX1P

HDMI_DDCDATA

HDMITX2P

HDMI_DDCCLK

HDMICLK-

HDMICLK+

HDMITX1N

HDMITX0N

HDMITX2N

+NEW_3VAUX

HDMITX2P HDMITX2P

HDMITX2N HDMITX2N

HDMITX1P

HDMITX1N

HDMITX1P

HDMITX1N

HDMITX0P

HDMITX0N

HDMI_HP_A

HDMITX0P

HDMITX0N

HDMI_HP_A

HDMICLK+

HDMI_DDCDATA

HDMICLK-

HDMI_DDCCLK HDMI_DDCCLK

HDMICLK-

HDMI_DDCDATA

HDMICLK+

HDMI_DDCDATA

HDMI_DDCCLK

HDMI_DDCDATA

NEW_SMDATA

NEW_SMCLK

CLK_PCIE_NEW_C

+NEW_3VAUX

CLK_PCIE_NEW_C#

PERST#

NC_EN#

PCIE_TXN1

PCIE_TXP1

PERP3

PERN3

USBP5+_R

USBP5-_R

+NEW_1.5V

+NEW_3V

+NEW_1.5V

+NEW_3V

USBP5-_R

USBP5+_R

PERST#

CLK_PCIE_NEW_C#

+NEW_3VAUX

CLK_PCIE_NEW_C

NEW_SMCLK

NEW_SMDATA

PCIE_TXP1

PCIE_TXN1

NC_EN#

PERP3

PERN3

PLTRST#_NEW

NC_EN#

PERST#

+NEW_3VAUX

+NEW_1.5V

+NEW_3V

HP_DET

EV_LVDS_BLON <17>

INT_LVDS_BLON <6>

EC_FPBACK# <31>

LID591# <14,22,31>

CLK_PCIE_NEW_C<2>

CLK_PCIE_NEW_C#<2>

PCIE_TXN1<13>

PCIE_TXP1<13>

PCIE_RXN1<13>

PCIE_RXP1<13>

USBP5+<13>

USBP5-<13>

PDAT_SMB<2,14,16,22>

PCLK_SMB<2,14,16,22>

NC_EN#<13>

DISPON<18>

HDMICLK-<17>

HDMITX2P<17>

HDMITX2N<17>

HDMITX1P<17>

HDMITX1N<17>

HDMITX0P<17>

HDMITX0N<17>

HDMICLK+<17>

HDMI_HP_A<17>

MXM_HDMI_DDCDATA<17>

MXM_HDMI_DDCCLK<17>

PLTRST#<13,14,17,20,22,24,29..31>

+3V

+1.5V+3V+3V_S5

+NEW_3V

+5V

+3V

+3V_S5

+1.5V

Size Document Number Rev

Date: Sheet of

NEW CARD/HDMI/LID

23 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

NEW CARD/HDMI/LID

23 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

NEW CARD/HDMI/LID

23 38Monday, May 07, 2007

LID SWITCH

New card NEW CARD'S POWER SWITCH

HDMI

HDMI monitor default have PU

to 5V.So ZY3 PD for level

change.And serial R for

current limited

NV suggestion near

HDMI connector

Crestline suggest 100K

G73 suggest 10K(ZS1 Default)

(Need confirm with Max)

REV:B MODIFY

RICOH : AL005538001

TI : AL002231001

1.3A

275mA

650mA

GMT : AL000577008

REV:B MODIFY

0C Connect to NC_EN# 0103

0C Change footprint 0103

L38

220R_100MHZ

L38

220R_100MHZ

C348

2.2U/10V_8

C348

2.2U/10V_8

R353

2K_4

R353

2K_4

Q30

2N7002E

Q30

2N7002E

C351

.1U/10V_4

C351

.1U/10V_4

.1U/16V_4

C631

.1U/16V_4

C631

VCC

566

GND 8

10 10

U26 *RClamp0514M_AGU26 *RClamp0514M_AG

D34

BAS316

D34

BAS316

R190 IV@0_4R190 IV@0_4

C579

2.2U/10V_8

C579

2.2U/10V_8

.1U/16V_4

C633

.1U/16V_4

C633

D11 BAS316D11 BAS316

R191

100K_4

R191

100K_4

C598

.1U/10V_4

C598

.1U/10V_4

R356

EV@10K_4

R356

EV@10K_4

C344

.1U/10V_4

C344

.1U/10V_4

C581

.1U/10V_4

C581

.1U/10V_4

R441 0_4R441 0_4

R442 0_4R442 0_4

R189 EV@0_4R189 EV@0_4

R359 EV@10K_4R359 EV@10K_4

R192 *1K_4R192 *1K_4

R194

100K_4

R194

100K_4

C357

.1U/10V_4

C357

.1U/10V_4

GND1

PETp0

PETn0

GND2

PERp0

PERn0

GND3

REFCLK+

REFCLK-

CPPE#

CLKREQ#

+3.3V1

+3.3V2

PERST#

+3.3VAUX

WAKE#

+1.5V1

+1.5V2

SMB_DATA

SMB_CLK

RESERVED1

RESERVED2

CPUSB#

USB_D+

USB_D-

GND4

GND29 29

GND30 30

GND27 27

GND28 28

CN44

*Taitwun_NEW CARD

CN44

*Taitwun_NEW CARD

Q29

2N7002E

Q29

2N7002E

L39

220R_100MHZ

L39

220R_100MHZ

C599

.1U/10V_4

C599

.1U/10V_4

C516

*.1U_4

C516

*.1U_4

C381C381

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

GND1

PETp0

PETn0

GND2

PERp0

PERn0

GND3

REFCLK+

REFCLK-

CPPE#

CLKREQ#

+3.3V1

+3.3V2

PERST#

+3.3VAUX

WAKE#

+1.5V1

+1.5V2

SMB_DATA

SMB_CLK

RESERVED1

RESERVED2

CPUSB#

USB_D+

USB_D-

GND4

GND29 29

GND30 30

GND27 27

GND28 28

CN43

FOX_EXPCARD

CN43

FOX_EXPCARD

C597

.1U/10V_4

C597

.1U/10V_4

VCC

566

GND 8

10 10

U25 *RClamp0514M_AGU25 *RClamp0514M_AG

C376C376

R354

2K_4

R354

2K_4

C354

.1U/10V_4

C354

.1U/10V_4

D10 BAS316D10 BAS316

C582

.1U/10V_4

C582

.1U/10V_4

VCC

566

GND 8

10 10

U27 *RClamp0514M_AGU27 *RClamp0514M_AG

RP41

10KX2_4

RP41

10KX2_4

1 3

Q12

DTC144EU

Q12

DTC144EU

C515

*.1U_4

C515

*.1U_4

GND1

PETp0

PETn0

GND2

PERp0

PERn0

GND3

REFCLK+

REFCLK-

CPPE#

CLKREQ#

+3.3V1

+3.3V2

PERST#

+3.3VAUX

WAKE#

+1.5V1

+1.5V2

SMB_DATA

SMB_CLK

RESERVED1

RESERVED2

CPUSB#

USB_D+

USB_D-

GND4

GND5

GND6

GND27 27

GND28 28

CN9

*Aces_NEW CARD

CN9

*Aces_NEW CARD

D35

BAS316

D35

BAS316

SHELL1 20

SHELL2 21

D2+

D2 Shield

D2-

D1+

D1 Shield

D1-

D0+

D0 Shield

D0-

CK+

CK Shield

CK-

CE Remote

DDC CLK

DDC DATA

GND

+5V

HP DET

GND 23

GND 22

CN21

HDMI CON

CN21

HDMI CON

R602 1K_4R602 1K_4

Q37

2N7002

Q37

2N7002

.1U/16V_4

C632

.1U/16V_4

C632

*SYSRST#

*SHDN#

20 *STBY# 1

3.3VIN

43.3VOUT 3

3.3VOUT 5

PERST# 8

GND

*CPUSB# 9

*CPPE# 10

1.5VOUT 13

1.5VOUT 11

1.5VIN

14 1.5VIN

AUXOUT 15

AUXIN

*RCLKEN

OC# 19

GNDPAD

U33

QFN-TPS2231RGP

U33

QFN-TPS2231RGP

www.RahasiaLaptop.com

A A

B B

C C

D D

HDDA5V

+3.3VSATA1

HDDA5V

+3.3VSATA1+3.3VSATA1 +3.3VSATA1

HDDB5V

+3.3VSATA2

HDDB5V

+3.3VSATA2+3.3VSATA2 +3.3VSATA2

RCSEL

PLTRST#

PDIAG#

IDERST#

IDELED#

IDERST#

PDD7

PDD5

PDD6

PDD2

PDD3

PDD1

PDD4

PDD0

PDD14

PDD12

PDD10

PDD9

PDD11

PDDREQ

PDD15

PDD13

PDD8

PDIOR#

PDA0

IRQ14

PIORDY

PDA1

PDCS1#

PDIOW#

PDA2

PDCS3#

PDDACK#

+5V_ODD

IDELED#

+5V_ODD

SATA_RXP1_C

SATA_RXN1_C

SATA_RXP0_C

SATA_RXN0_C

PDD[15..0] <12>

PDA[2..0] <12>

PDDREQ <12>

PDIOR# <12>

PDDACK# <12>

PDCS3# <12>

PDIOW#<12>

PIORDY<12>

IRQ14<12>

PDCS1#<12>

PLTRST#<13,14,17,20,22,23,29..31>

IDELED#<30>

SATA_TXN1 <12>

SATA_TXP1 <12>

SATA_RXN1 <12>

SATA_RXP1 <12>

SATA_TXN0 <12>

SATA_TXP0 <12>

SATA_RXN0 <12>

SATA_RXP0 <12>

+3V

+5V

+3V

+5V

+5V+3V

+5V

Size Document Number Rev

Date: Sheet of

SATA-HDD & PATA-ODD

24 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

SATA-HDD & PATA-ODD

24 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

SATA-HDD & PATA-ODD

24 38Monday, May 07, 2007

SATA HDD1 SATA HDD2

ODD (PATA)

Main

.1U/10V_4

C592

.1U/10V_4

C592

R193 10K_4R193 10K_4

C370 *.01U/25V_4C370 *.01U/25V_4

*.01U/16V_4

C418

*.01U/16V_4

C418

.1U/16V_4

C617

.1U/16V_4

C617

12V 22

12V 20

RSVD 18

5V 16

5V 14

GND 12

3.3V 10

3.3V 8

TXP 6

GND2 4

RXP 2

12V 21

GND 19

GND 17

5V 15

GND 13

GND 11

3.3V 9

GND3 7

TXN 5

RXN 3

GND1 1

GND23 23

GND24 24

CN32

C16654-122A4-L_Serial_ATA

CN32

C16654-122A4-L_Serial_ATA

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

CN28

SUYIN-ODDREV-800194MR050S110ZL

CN28

SUYIN-ODDREV-800194MR050S110ZL

.01U/16V_4

C607

.01U/16V_4

C607

1 3

Q13 DTC144EUQ13 DTC144EU

R476 0_8R476 0_8

C292

.1U/10V_4

C292

.1U/10V_4

*10U/10V_8

C425

*10U/10V_8

C425

R229 *0_8R229 *0_8

C361 *.01U/25V_4C361 *.01U/25V_4

R176

470_4

R176

470_4

C583 .01U/25V_4C583 .01U/25V_4

R195 *10K_4R195 *10K_4

C621

150U/6.3V_7343

C621

150U/6.3V_7343

12V 22

12V 20

RSVD 18

5V 16

5V 14

GND 12

3.3V 10

3.3V 8

TXP 6

GND2 4

RXP 2

12V 21

GND 19

GND 17

5V 15

GND 13

GND 11

3.3V 9

GND3 7

TXN 5

RXN 3

GND1 1

GND23 23

GND24 24

CN33

*C16654-122A4-L_Serial_ATA

CN33

*C16654-122A4-L_Serial_ATA

10U/10V_8

C614

10U/10V_8

C614

C439

*150U/6.3V_7343

C439

*150U/6.3V_7343

R246 *0_8R246 *0_8

*10U/10V_8

C401

*10U/10V_8

C401

.01U/16V_4

C606

.01U/16V_4

C606

R464 0_8R464 0_8

*.1U/16V_4

C417

*.1U/16V_4

C417

C556

150U/6.3V_7343

C556

150U/6.3V_7343

R199

10K_4

R199

10K_4

.1U/16V_4

C618

.1U/16V_4

C618

*.1U/16V_4

C415

*.1U/16V_4

C415

10U/10V_8

C595

10U/10V_8

C595

*.01U/16V_4

C416

*.01U/16V_4

C416

C293

1000P/X7R/50V_4

C293

1000P/X7R/50V_4

C285

.1U/10V_4

C285

.1U/10V_4

L49 0_8L49 0_8

C585 .01U/25V_4C585 .01U/25V_4

C281

.1U/10V_4

C281

.1U/10V_4

*10U/10V_8

C400

*10U/10V_8

C400

10U/10V_8

C601

10U/10V_8

C601

*.1U/10V_4

C390

*.1U/10V_4

C390

www.RahasiaLaptop.com

D D

C C

B B

A A

USBPWR1

USBP0+_R

USBP0-_R

USBPWR2

USBP3-_R

USBP3+_R

USBP2+_R

USBP2-_R

USBPWR2

USBON#<22,31>

USBP0+<13>

USBP0-<13>

USBP3-<13>

USBP3+<13>

USBP2+<13>

USBP2-<13>

+5V_S5

+5V_S5 +5V_S5

+5V_S5

Size Document Number Rev

Date: Sheet of

USB/HOLE

25 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

USB/HOLE

25 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

USB/HOLE

25 38Monday, May 07, 2007

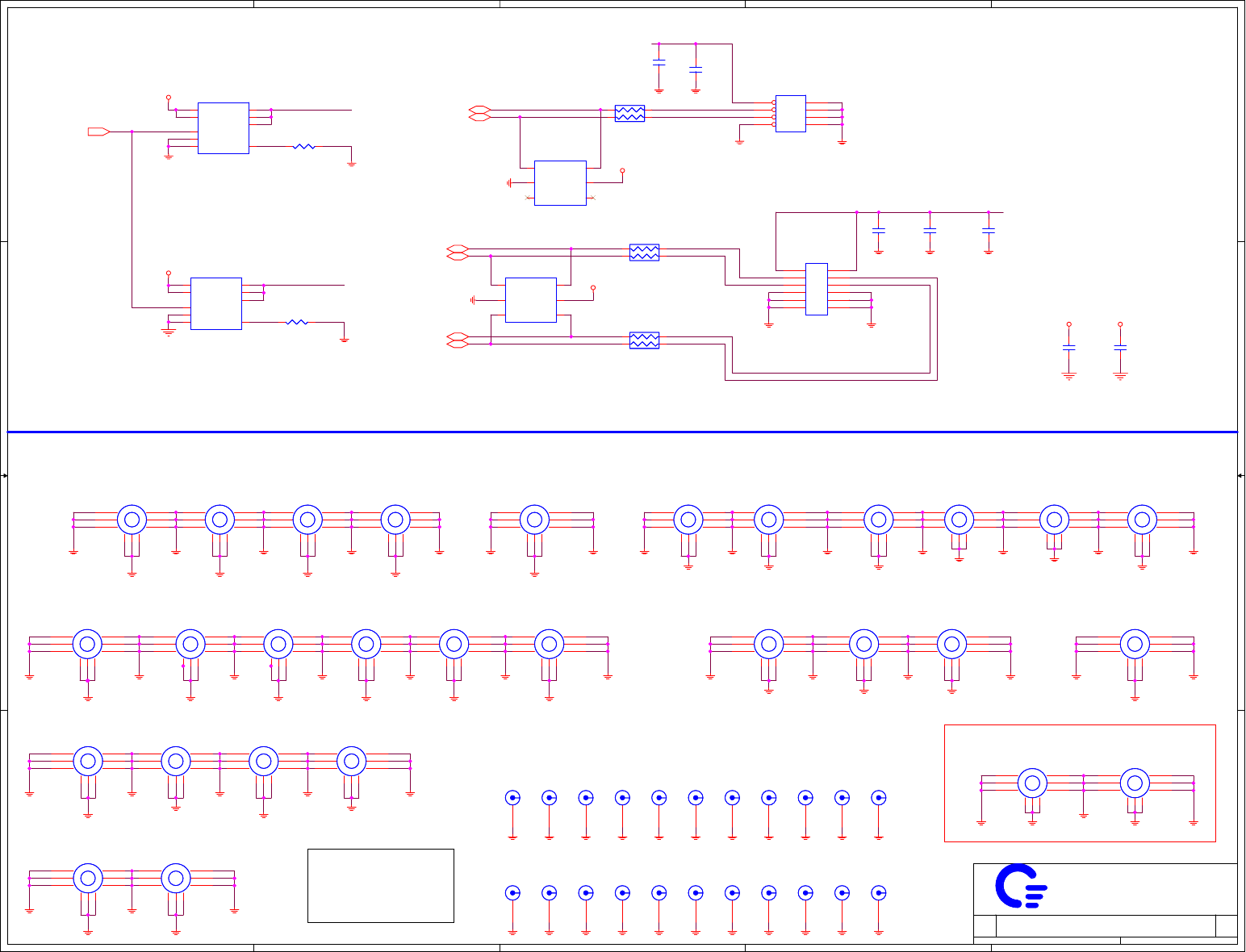

USB

Footprint error: PAD15 , PAD4 ,PAD16:

emipad97x87

EMI PAD

MINI CARD NUT

MXM NUT

CPU NUT

HOLES

MDC NUT

Modify Rev:E

IN1

OC# 5

EN#

4OUT1 6

GND

IN2

3OUT2 7

OUT3 8

GND-C

U28

TPS2061DGNR

U28

TPS2061DGNR

HOLE12

H-TC98BC197D59P2

HOLE12

H-TC98BC197D59P2

HOLE27

*H-TC256BC315D118P2-8

HOLE27

*H-TC256BC315D118P2-8

PAD11

EMIPAD

PAD11

EMIPAD

RP11 0X2_4RP11 0X2_4

C509

.1U/10V_4

C509

.1U/10V_4

HOLE18

H-C236D142P2-8

HOLE18

H-C236D142P2-8

PAD12

EMIPAD

PAD12

EMIPAD

PAD5

*EMIPAD

PAD5

*EMIPAD

HOLE24

H-TC98BC197D59P2

HOLE24

H-TC98BC197D59P2

C38

100U/6.3_3528

C38

100U/6.3_3528

C534

.1U/10V_4

C534

.1U/10V_4

9 10

11 12

CN18

Suyin_dual_usb

CN18

Suyin_dual_usb

HOLE21

*H-C236D142P2

HOLE21

*H-C236D142P2

PAD6

EMIPAD

PAD6

EMIPAD

VP 5

CH2

3CH3 4

CH1

CH4 6

U29

CM1293-04SO

U29

CM1293-04SO

R389 *6.34K/FR389 *6.34K/F

PAD13

EMIPAD

PAD13

EMIPAD

HOLE1

*H-TC354BC256D118P2-8

HOLE1

*H-TC354BC256D118P2-8

HOLE11

*H-TC256BC315D118P2-8

HOLE11

*H-TC256BC315D118P2-8

HOLE17

H-C236D142P2-8

HOLE17

H-C236D142P2-8

PAD21

EMIPAD

PAD21

EMIPAD

HOLE13

H-C236D142P2-8

HOLE13

H-C236D142P2-8

HOLE15

H-C236D142P2

HOLE15

H-C236D142P2

HOLE28

*H-TC256BC315D118P2-8

HOLE28

*H-TC256BC315D118P2-8

C508

100U/6.3_3528

C508

100U/6.3_3528

HOLE8

H-TC98BC197D59P2

HOLE8

H-TC98BC197D59P2

PAD14

EMIPAD

PAD14

EMIPAD

IN1

OC# 5

EN#

4OUT1 6

GND

IN2

3OUT2 7

OUT3 8

GND-C

G548A2P8U

HOLE20

*H-TC256BC315D118P2-8

HOLE20

*H-TC256BC315D118P2-8

RP3 0X2_4RP3 0X2_4

PAD1

EMIPAD

PAD1

EMIPAD

HOLE26

*H-TC256BC315D118P2-8

HOLE26

*H-TC256BC315D118P2-8

HOLE10

H-C236D142P2-8

HOLE10

H-C236D142P2-8

HOLE6

H-C236D142P2

HOLE6

H-C236D142P2

PAD16

EMIPAD

PAD16

EMIPAD

R41 *6.34K/FR41 *6.34K/F

PAD2

EMIPAD

PAD2

EMIPAD

C537

1000P/X7R/50V_4

C537

1000P/X7R/50V_4

HOLE7

H-C236D142P2

HOLE7

H-C236D142P2

VP 5

CH2

3CH3 4

CH1

CH4 6

U20

CM1293-04SO

U20

CM1293-04SO

HOLE14

H-C236D142P2-8

HOLE14

H-C236D142P2-8

PAD15

EMIPAD

PAD15

EMIPAD

HOLE4

H-TC197BC98D59P2-8

HOLE4

H-TC197BC98D59P2-8

HOLE19

*H-TC256BC217D118P2-8

HOLE19

*H-TC256BC217D118P2-8

PAD8

*EMIPAD

PAD8

*EMIPAD

PAD17

EMIPAD

PAD17

EMIPAD

PAD3

*EMIPAD

PAD3

*EMIPAD

HOLE23

H-TC98BC197D59P2

HOLE23

H-TC98BC197D59P2

PAD7

*EMIPAD

PAD7

*EMIPAD

PAD18

*EMIPAD

PAD18

*EMIPAD

RP2 0X2_4RP2 0X2_4

HOLE16

H-C236D142P2

HOLE16

H-C236D142P2

HOLE29

*H-TC236BC217D118P2-8

HOLE29

*H-TC236BC217D118P2-8

HOLE9

H-C236D142P2-8

HOLE9

H-C236D142P2-8

PAD4

EMIPAD

PAD4

EMIPAD

HOLE5

*H-TC256BC315D118P2-8

HOLE5

*H-TC256BC315D118P2-8

HOLE2

*H-TC256BC315D118P2-8

HOLE2

*H-TC256BC315D118P2-8

C536

100U/6.3_3528

C536

100U/6.3_3528

CN23

Alltop_USB

CN23

Alltop_USB

HOLE3

H-TC197BC98D59P2-8

HOLE3

H-TC197BC98D59P2-8

PAD22

EMIPAD

PAD22

EMIPAD

PAD9

EMIPAD

PAD9

EMIPAD

C37

1000P/X7R/50V_4

C37

1000P/X7R/50V_4

PAD19

*EMIPAD

PAD19

*EMIPAD

HOLE22

*H-TC256BC315D118P2-8

HOLE22

*H-TC256BC315D118P2-8

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

PAD10

EMIPAD

PAD10

EMIPAD

HOLE25

*H-TC256BC315D118P2-8

HOLE25

*H-TC256BC315D118P2-8

PAD20

*EMIPAD

PAD20

*EMIPAD

www.RahasiaLaptop.com

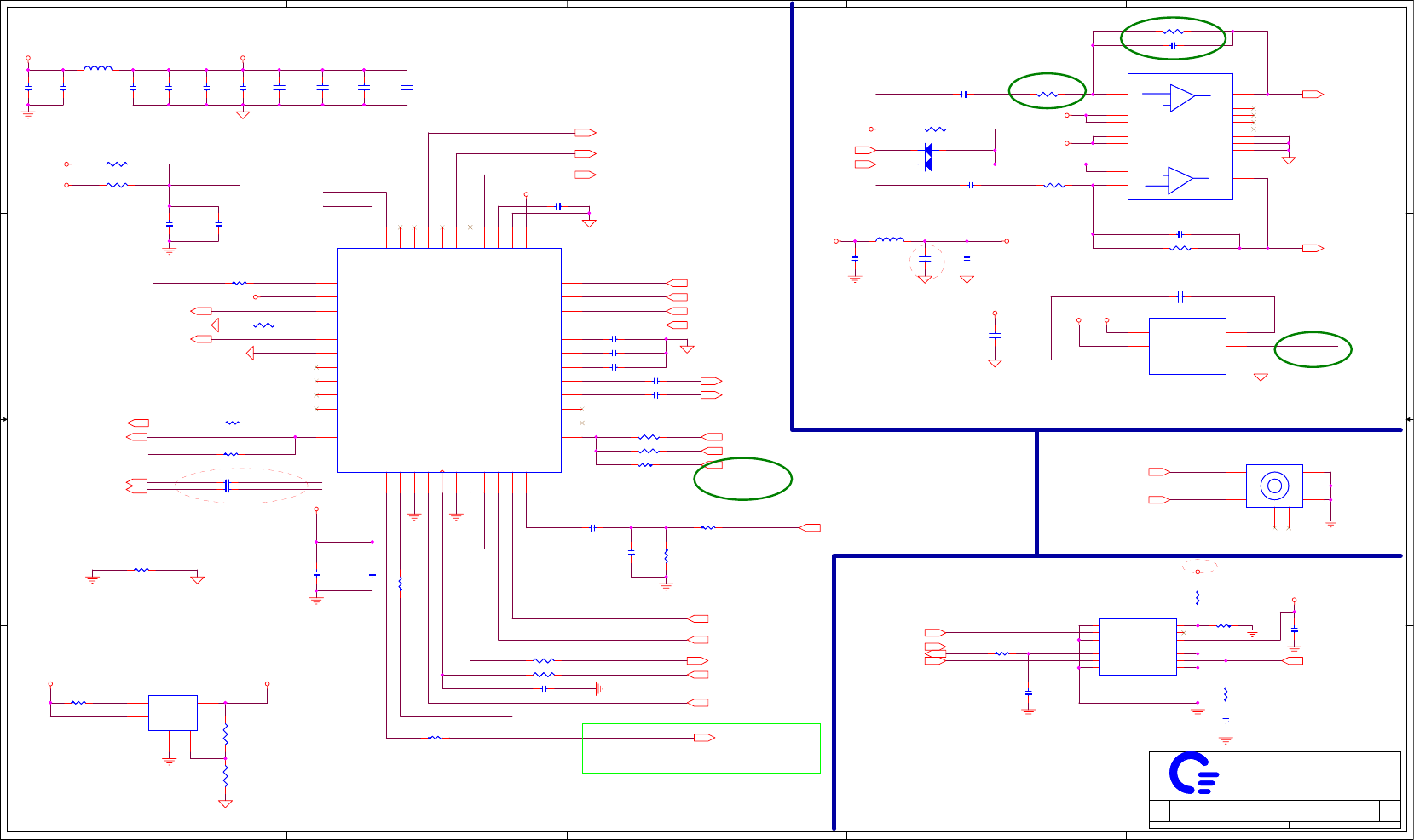

D D

C C

B B

A A

DIGVOL_DN

DIGVOL_UP

EAPD

MUTE_888

+AZA_VDD

MIC2-VREFO

MIC1-VREFO-L

MIC1-VREFO-R

FRONT-R

FRONT-L

+AZA_VDD

SURR-L

SURR-R

MIC1-R

MIC1-L

LINE1-L

LINE1-R

MIC2_INT_L

MIC2_INT_R

SENSEA

HPL

MDC_SDIN1

FRONT-R

PCSPKBEEP_1PCBEEP

EAPD

1412MUTE#

BIT_CLK268

FRONT-L

ACZ_SDIN268

HPR

ACZ_SYNC_MDC

ACZ_SDOUT_MDC

MONO_OUT_268

SPDIF_OUT

EAPD_268

SPDIF_OUT_888

MXM_SPDIF_OUT

1412MUTE#

MONO_OUT_L

MONO_OUT_R

SURR-L

SURR-R

MXM_SPDIF_OUT <17>

HPR <27>

HPL <27>

SURR-L<27>

SURR-R<27>

MIC1-R <27>

MIC1-L <27>

LINE1-R <27>

LINE1-L <27>

MIC1_JD <27>

LINEIN_JD <27>

EAPD<27>

MIC2_INTR1 <27>

MIC2_INTL1 <27>

MUTE#<27>

ACZ_SDOUT_AUDIO <12>

SPDIF_OUT<27>

LINE_JD <27>

ACZ_SDIN1<12>

ACZ_RST#_AUDIO <12,27>

ACZ_SYNC_AUDIO <12>

BIT_CLK_AUDIO <12>

MIC1-VREFO-R <27>

MIC2-VREFO <27>

MIC1-VREFO-L <27>

SECNTL<27>

ACZ_SDIN0 <12>

ACZ_SDOUT_MDC<12>

ACZ_SYNC_MDC<12>

ACZ_RST#_MDC<12> BIT_CLK_MDC <12>

PCSPK <14>

DIGVOL_UP<31>

DIGVOL_DN<31>

MONO_OUT_L<27>

MONO_OUT_R<27>

+5V_ADO

+NVDD

+3V

ADOGND ADOGND

ADOGND

+3V_AVDD

ADOGND ADOGND

+5V +5V_ADO

ADOGND

+NVDD

ADOGND

+5V_ADO

ADOGND

+3V_AVDD

ADOGND

+NVDD+3V_AVDD

+3V

+3V_AVDD

ADOGND

+5V +5V_ADO

+3V

+1.5V

+3V_S5

ADOGND

+3V_S5

Size Document Number Rev

Date: Sheet of

REALTEK ALC268&888/MDC/VR

26 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

REALTEK ALC268&888/MDC/VR

26 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

REALTEK ALC268&888/MDC/VR

26 38Monday, May 07, 2007

The pin2 of ALC888 define MXM_SPDIF_OUT

Gain = -(Rf/Ri)

CODEC(ALC268)

Change C19 to 4.7u

Vo=1.2*(R371+R372)/R371= 4.8V

Tied at one point only

under the codec or

near the codec

LINE OUT Amplifier

MDC

0C Change power from +3V

to +3v_S5 to slove wake on

ring issue 0111

0C Modify circuits for subwoofer 0111

0C Change size to 0603 0111

C451 22P/50V_4C451 22P/50V_4

R537

888@0_4

R537

888@0_4

C501

.1U/10V_4

C501

.1U/10V_4

C639 888@1U/16VC639 888@1U/16V

C450

.1U/10V_4

C450

.1U/10V_4

C489 .1U/10V_4C489 .1U/10V_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

R16

GND

AC_SDO

GND

AC_SYNC

AC_SDI

AC_RST#

RSV 2

RSV 4

3.3V 6

GND 8

GND 10

AC_BCLK 12

GND

15 GND 16

CN2

MDC

CN2

MDC

R538 268@0_4R538 268@0_4

4.7U/10V

C449

4.7U/10V

C449

C469

4.7U/10V_8

C469

4.7U/10V_8

L30 TI321611U480_1206L30 TI321611U480_1206

C640 888@1U/16VC640 888@1U/16V

R273 10K_4R273 10K_4

R346 20K/FR346 20K/F

D23 *MTW355D23 *MTW355

C444

10U/10V_8

C444

10U/10V_8

R301

*12K_4

R301

*12K_4

C440

100P-50V

C440

100P-50V

R347 10K/FR347 10K/F

R279

1K_4

R279

1K_4

C502 4.7U/10V_8C502 4.7U/10V_8

R312 10KR312 10K

1 2

L28

BLM11A601S

L28

BLM11A601S

C649

1000P/50V_4

C649

1000P/50V_4

R271 *0R271 *0

C463 47P/50V_4C463 47P/50V_4

R524 888@0_4R524 888@0_4

R523 268@0_4

C435

*4.7U/10V_8

C435

*4.7U/10V_8

C466 1U/16VC466 1U/16V

C474 1U/16VC474 1U/16V

C468

4.7U/6.3V

C468

4.7U/6.3V

10U/10V_8C477 10U/10V_8C477

R311 268@0_4R311 268@0_4

R296 100K_4R296 100K_4

R349 5.1K/FR349 5.1K/F

R324 10KR324 10K

DVDD1

DMIC-1/2/GPIO0

DMIC-3/4/GPIO3

DVSS1

SDATA-OUT

BIT-CLK

DVSS2

SDATA-IN

DVDD2

SYNC

RESET#

PCBEEP

Sense A 13

NC 14

NC 15

MIC2-L 16

MIC2-R 17

CD-L 18

CD-GND 19

CD-R 20

MIC1-L 21

MIC1-R 22

LINE1-L 23

LINE1-R 24

AVDD1 25

AVSS1 26

VREF 27

MIC1-VREFO-L 28

LINE1-VREFO 29

MIC2-VREFO 30

GPIO1 31

MIC1-VREFO-R 32

NC 33

Sense B 34

FRONT-L 35

FRONT-R 36

MONO-OUT

AVDD2

HP-OUT-L

JDREF

HP-OUT-R

AVSS2

DMIC-CLK

EAPD

SPDIFO

U19

Acer ALC268&888

U19

Acer ALC268&888

C650

10P/50V_4

C650

10P/50V_4

VOUT

/SHDN 5

C-

VIN

GND 4

C+ 6

U35

G5930

U35

G5930

C447

.1U/10V_4

C447

.1U/10V_4

C652

10P/50V_4

C652

10P/50V_4

*10P-50V_4

R313 10KR313 10K

C648

1000P/50V_4

C648

1000P/50V_4

SGND 2

NC4 14

PGND 13

INL

4OUTL 5

SVSS

SVDD

SHDNL#

PVDD

INR

NVDD

OUTR 7

NC1 9

NC2 11

NC3 12

SHDNR#

TPAD 17

U18

G1412

U18

G1412

.1U/10V_4

R282 22_4R282 22_4

C479

.1U/10V_4

C479

.1U/10V_4

C483 .1U/10V_4C483 .1U/10V_4

C441

.1U/10V_4

C441

.1U/10V_4

R276 0R276 0

R281 22_4R281 22_4

C453 1U/16VC453 1U/16V

R335 0R335 0

C452

.1U/10V_4

C452

.1U/10V_4

R275 *0R275 *0

R3 22_4R3 22_4

C630

4.7U/6.3V

C630

4.7U/6.3V

R4 *0

C487

.1U/10V_4

C487

.1U/10V_4

R325 10KR325 10K

2C1

VR1

VR_XRE094_NOBLE

VR1

VR_XRE094_NOBLE

C460 4.7U/6.3VC460 4.7U/6.3V

*22_4

10U/10V_8C465 10U/10V_8C465

C478 47P/50V_4C478 47P/50V_4

R302

*36K_4

R302

*36K_4

C443

10U/10V_8

C443

10U/10V_8

*10P-50V_4

R329 20K/FR329 20K/F

C481 .1U/10V_4C481 .1U/10V_4

ADJ

VEN

GND

VOUT 3

VIN

U16

*G961-18ADJTEU(SOT89-5)

U16

*G961-18ADJTEU(SOT89-5)

D24 MTW355D24 MTW355

www.RahasiaLaptop.com

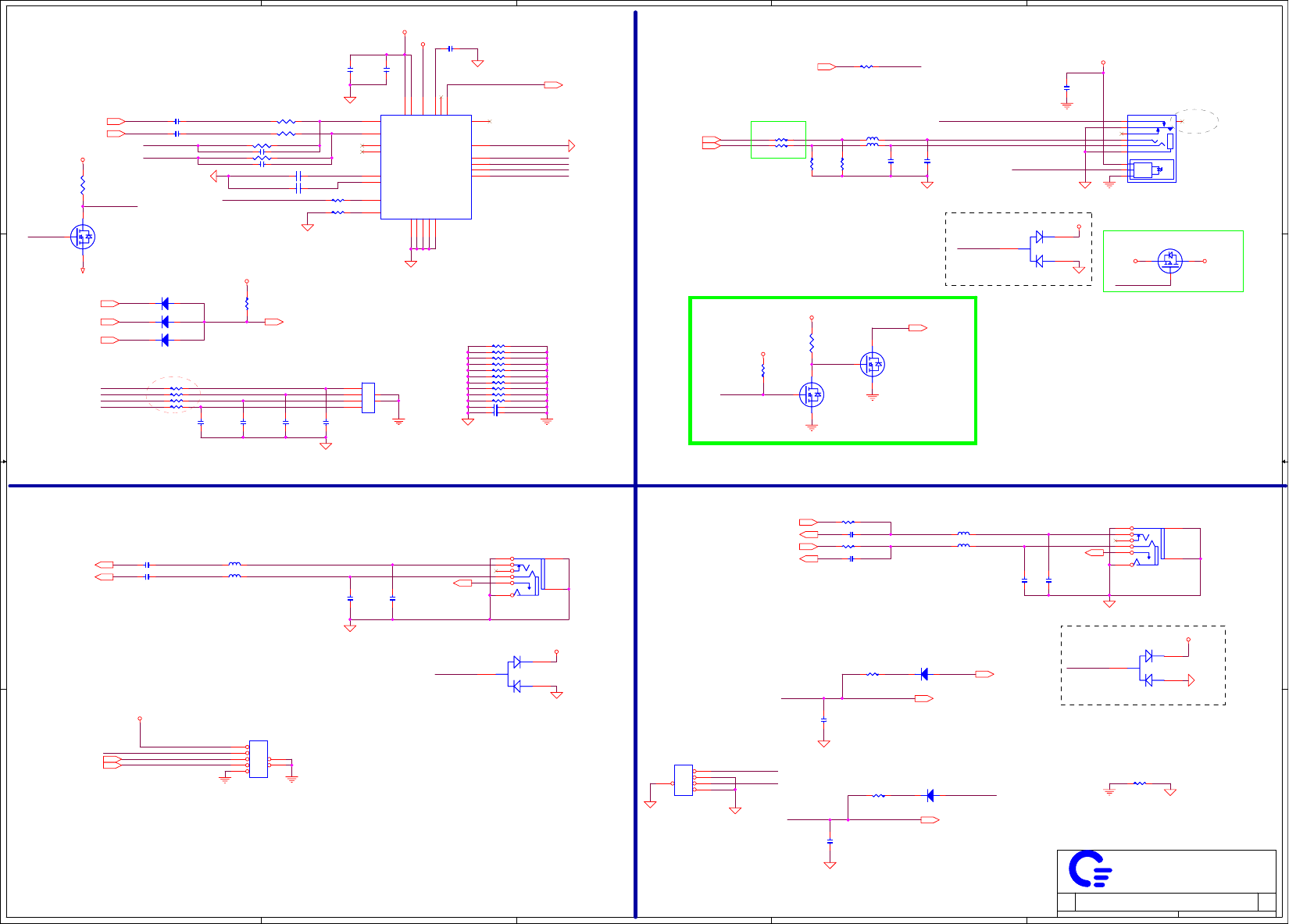

D D

C C

B B

A A

MIC1_JD

INSPKR-

INSPKL+

INSPKR+

INSPKL-

LINEINR_SYS

LINEINL_SYS

LINE1-R_1

MIC2_INTR1

LINE_JD

LINEOUT_JD

1441 MUTE

MIC2_INTL1

LINE1-L_1

LINEIN_JD

SECNTL

MUTE#

HPL_SYS

LINEOUT_JD

HPR_SYS

HPL

HPR

LINEOUT_JD

SPDIFO

LINEOUT_JD

SPDIFO

1441 MUTE

MUTE#

MIC2_INTR1

1441 MUTE

SURR-R-1

SURR-L-2

SURR-R-2

SURR-L-1

INSPKL+

INSPKR+

MIC1_L

MIC1_R1

MIC1_L1

MIC1_R

MIC2-VREFO

INSPKR+N

INSPKL+N

INSPKL-N

INSPKR-NINSPKR-

INSPKL+

INSPKR+

INSPKL-

MIC2_INTL1 <26>

MUTE# <26>EAPD<26>

AMP_MUTE#<31>

ACZ_RST#_AUDIO<12,26>

HPL<26>

HPR<26>

SPDIF_OUT<26>

SURR-L<26>

SURR-R<26>

MIC2_INTR1 <26>

MIC1-VREFO-R<26>

MIC1-VREFO-L<26>

MIC1-L<26>

MIC1_JD<26>

MIC1-R<26>

SECNTL <26>

MIC2-VREFO <26>

LINEIN_JD<26>

LINE1-L<26>

LINE1-R<26>

MONO_OUT_L<26>

LINE_JD <26>

MONO_OUT_R<26>

+3V_AVDD

ADOGND

+3V_AVDD

+3V_SPD+3V

ADOGND

ADOGNDADOGND

+5V_ADO

+3V_SPD

+5V_ADO

ADOGND

+5V_ADO

ADOGND

+5V_ADO

ADOGND

+5V

ADOGND

+5V

ADOGND

Size Document Number Rev

Date: Sheet of

AMP /AUDIO JACK CONN

27 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

AMP /AUDIO JACK CONN

27 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

AMP /AUDIO JACK CONN

27 38Monday, May 07, 2007

For ESD close to audio out connecter

EC MUTE

BLUE

Normal OPEN Jack

For ESD close to audio out connecter

Foxconn DFTJ10FR470 2FB5441-BKMC-7F

Singatron DFTJ10FR437 2SJ1371-0010A1

INT MIC array

Singatron DFTJ06FR741 2SJ-T351-S11

Foxconn DFTJ06FRA39 JA6233L-P3T4-7F

Alltop DFTJ06FR899 C12107-D06A9-L

Pin5 connect to Pin3 on Jack

Normal OPEN Jack

B1A: Add R588 & R591

BLACK

LINEOUT_JD:

HP not insert->H

HP insert->L

Gain = -(Rf/Ri)

Singatron DFTJ06FR732 2SJ-T351-S15

Foxconn DFTJ06FRA21 JA6233L-U3T4-7F

Alltop DFTJ06FR902 C12107-906A9-L

Speaker Amplifier SYSTEM LINE OUT/SPDIF

SYSTEM LINE IN/SUBWOOFER MIC

Normal OPEN Jack

SPEAKER

0C Change to 0 Ω0122

D2C: NEW ADD FOR ESD

R345 2.2K_4R345 2.2K_4

R283

10K_4

R283

10K_4

L35 BK1608LL121L35 BK1608LL121

C472 0C472 0

Q21

ME2347

Q21

ME2347

Q43 2N7002Q43 2N7002

C476 2.2U/10V_8C476 2.2U/10V_8

R341 75/F_4R341 75/F_4

R340

*1K_4

R340

*1K_4

R547 0R547 0

Q22

2N7002

Q22

2N7002

C625

47P/50V_4

C625

47P/50V_4

D29 MTW355D29 MTW355

R540 0R540 0

C493 2.2U/6.3VC493 2.2U/6.3V

C624

47P/50V_4

C624

47P/50V_4

L33 BK1608LL121L33 BK1608LL121

R548 0R548 0

C491

470P/50V_4

C491

470P/50V_4

CN41

2SJ-T351-S11

CN41

2SJ-T351-S11

C473

.1U/10V_4

C473

.1U/10V_4

CN42

2SJ-T351-S15

CN42

2SJ-T351-S15

C470 330P/25V_4C470 330P/25V_4

R337 0R337 0

D20 MTW355D20 MTW355

C622

47P/50V_4

C622

47P/50V_4

R549 0R549 0

R336 10KR336 10K

L32 BK1608LL121L32 BK1608LL121

R408 0R408 0

C505

470P/50V_4

C505

470P/50V_4

C446

.1U/10V_4

C446

.1U/10V_4

R595

10K_4

R595

10K_4

R298 0_4R298 0_4

C488

*22P-50V_4

C488

*22P-50V_4

R330 10KR330 10K

L36 BK1608LL121L36 BK1608LL121

CN35

85204-04001_SPEAKER-CON

CN35

85204-04001_SPEAKER-CON

C459 0C459 0

L56 0L56 0

R546 0R546 0

R284 0R284 0

CN16

SUBWOOFER

CN16

SUBWOOFER

C4454.7U/6.3V C4454.7U/6.3V

R343

*1K_4

R343

*1K_4

C623

47P/50V_4

C623

47P/50V_4

L58 0L58 0

C494 2.2U/10V_8C494 2.2U/10V_8

LIN2

LOUT+ 24

SECNTL 23

GND/HS

VOL 20

VDD3 14

IN1/IN2 13

LVDD 4

SHDN

RIN2

RIN1

CT 6

LBYPASS

3RBYPASS

ROUT+ 19

RVDD 15

NC 8

GND/HS

LOUT- 7

GND/HS

SE/BTL

ROUT- 12

LIN1

THRMPAD

U17

G1441

U17

G1441

R333 4.7K_4R333 4.7K_4

10U/10V_8C504 10U/10V_8C504

C484 330P/25V_4C484 330P/25V_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

L57 0L57 0

L34 BK1608LL121L34 BK1608LL121

C492

470P/50V_4

C492

470P/50V_4

R328

100K_4

R328

100K_4

R339 2.2K_4R339 2.2K_4

R550 0R550 0

L37 BK1608LL121L37 BK1608LL121

D31

DA204U

D31

DA204U

L55 0L55 0

D33

DA204U

D33

DA204U

C486

*22P-50V_4

C486

*22P-50V_4

CN11

85204-0200L_INT_MIC

CN11

85204-0200L_INT_MIC

R316 0_4R316 0_4

R594

22K_4

R594

22K_4

R551 0R551 0

C496

470P/50V_4

C496

470P/50V_4

C497 2.2U/6.3VC497 2.2U/6.3V

R285 0R285 0

C485

10U/10V_8

C485

10U/10V_8

D21 *MTW355D21 *MTW355

D22 MTW355D22 MTW355

10U/10V_8C503 10U/10V_8C503

R332 4.7K_4R332 4.7K_4

LED

Drive

CN40

2SJ1371-0010A1_SPDIF

LED

Drive

CN40

2SJ1371-0010A1_SPDIF

C4824.7U/6.3V C4824.7U/6.3V

C471 1U/16VC471 1U/16V

Q42 2N7002Q42 2N7002

C500

470P/50V_4

C500

470P/50V_4

D32

DA204U

D32

DA204U

R315 10KR315 10K

D30 MTW355D30 MTW355

R327 0_4R327 0_4

C498

470P/50V_4

C498

470P/50V_4

R342 75/F_4R342 75/F_4

R300 10KR300 10K

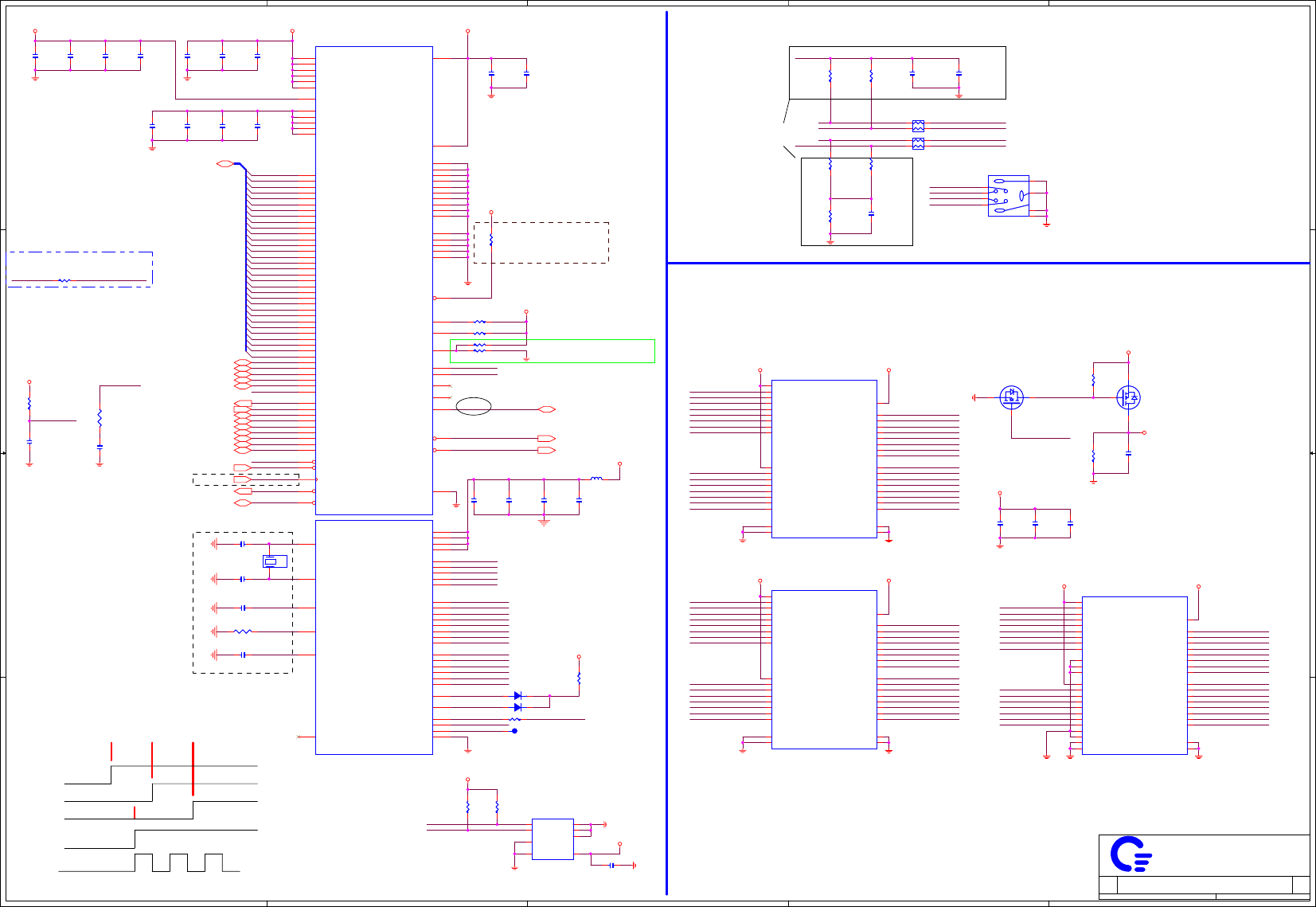

www.RahasiaLaptop.com

D D

C C

B B

A A

GRST#_832

AD28

AD11

AD24

AD27

AD31

AD3

AD6

AD9

AD23

AD8

AD14

AD17

AD2

AD4

AD20

AD26

AD12

AD29

AD5

AD18

AD13

AD1

AD7

AD25

AD10

AD16

AD30

AD15

AD19

AD21

AD22

MC_PWR_CTRL_0

MC_PWR_CTRL_0#

GRST#_832

TP_XD_LED#

PCM_IDSEL

IRDY#

FRAME#

TRDY#

XD_D5

XD_D0/MS_D0/SD_D0

XD_D1/MS_D1/SD_D1

PCIRST#

AD25

XD_CLE

XD_D2/MS_D2/SD_D2

CBE2#

XD_D1/MS_D1/SD_D1

SD_CDZ

XD_D3/MS_D3/SD_D3

PAR

XD_D2/MS_D2/SD_D2

XD_CDZ

XD_RE#/CLK

REQ0#

CLKRUN#

XD_CE#

XD_D6

XD_WPO#

XD_D3/MS_D3/SD_D3

XD_R/B#/SD_WP#XD_WE#/MS_BS/SD_CMD

XD_D0/MS_D0/SD_D0

CBE1#

STOP#

XD_D2/MS_D2/SD_D2

XD_D0/MS_D0/SD_D0

CBE3#

PCI_PME#

PCM_IDSEL

XD_ALE

MS_CDZ

GNT0#

XD_D4XD_D3/MS_D3/SD_D3

XD_D1/MS_D1/SD_D1

XD_D7

XD_WE#/MS_BS/SD_CMD

XD_RE#/CLK

XD_R/B#/SD_WP#

CBE0#

XD_WE#/MS_BS/SD_CMD

DEVSEL#

AD0

PCLK_PCM

MS_SD_CLK

PERR#

SERR#

SERIRQ

1394_AVCC

INTA#

INTB#

SDA_CARD

SCL_CARD

TPA0N

TPA0P

TPB0P

TPB0N

TPBIAS0

1394_COM

L1394_TPB0-

VREF_PWR

1394_XOUT

1394_XIN

REXT

FIL0_PWR

L1394_TPA0-

L1394_TPB0+

L1394_TPA0+

TPBIAS0

L1394_TPA0+

PCLK_PCM

VCC_ROUT_832

SCL_CARD

SDA_CARD

SD_CDZ

MS_CDZ

XD_CDZ

832_SUS#

XD_D5

XD_D2/MS_D2/SD_D2

XD_D4

XD_D7

XD_D0/MS_D0/SD_D0

XD_D3/MS_D3/SD_D3

XD_D1/MS_D1/SD_D1

XD_D6

XD_CE#

XD_CLE

XD_R/B#/SD_WP#

XD_ALE

XD_WPO#

XD_WE#/MS_BS/SD_CMD

XD_RE#/CLK

TPB0P

L1394_TPB0-

L1394_TPB0+

XD_WE#/MS_BS/SD_CMD

XD_D1/MS_D1/SD_D1

SD_CDZ

XD_D3/MS_D3/SD_D3

XD_RE#/CLK

XD_D2/MS_D2/SD_D2

XD_R/B#/SD_WP#

XD_D0/MS_D0/SD_D0

XD_D3/MS_D3/SD_D3

MS_CDZ

XD_D0/MS_D0/SD_D0

XD_D1/MS_D1/SD_D1

XD_RE#/CLK

XD_WE#/MS_BS/SD_CMD

XD_D2/MS_D2/SD_D2

XD_D5

XD_RE#/CLK

XD_WE#/MS_BS/SD_CMD

XD_D7

XD_WPO#

XD_D1/MS_D1/SD_D1

XD_D3/MS_D3/SD_D3

XD_CDZ

XD_D2/MS_D2/SD_D2

XD_D0/MS_D0/SD_D0

XD_D4

XD_R/B#/SD_WP#

XD_D6

XD_CLE

XD_ALE

XD_CE#

XD_WPO#

XD_D5

XD_D6

XD_R/B#/SD_WP#

XD_D0/MS_D0/SD_D0

XD_RE#/CLK

XD_CE#

XD_ALE

XD_D4

XD_D1/MS_D1/SD_D1

XD_D2/MS_D2/SD_D2

XD_WE#/MS_BS/SD_CMD

XD_D7

XD_CLE

XD_CDZ

XD_D3/MS_D3/SD_D3

XD_WE#/MS_BS/SD_CMD

XD_R/B#/SD_WP#

MS_CDZ

XD_D1/MS_D1/SD_D1

XD_D0/MS_D0/SD_D0

XD_RE#/CLK

SD_CDZ

XD_D3/MS_D3/SD_D3

XD_RE#/CLK

XD_D2/MS_D2/SD_D2

XD_D3/MS_D3/SD_D3

XD_D0/MS_D0/SD_D0

XD_D2/MS_D2/SD_D2

XD_WE#/MS_BS/SD_CMD

XD_D1/MS_D1/SD_D1

TPB0N

TPA0N

TPA0P

AD[31..0]<13>

CBE0#<13>

CBE3#<13>

CBE1#<13>

CBE2#<13>

REQ0#<13>

GNT0#<13>

FRAME#<13>

IRDY#<13>

TRDY#<13>

DEVSEL#<13>

STOP#<13>

PCIRST#<13,22>

PCLK_PCM<2>

PCI_PME#<13>

CLKRUN#<14,31>

PAR<13>

PERR#<13>

SERR#<13>

INTA# <13>

INTB# <13>

SERIRQ <14,30,31>

VCC_XD

+3V

VCC_XD

+3V

VCC_XD VCC_XD

+3V

VCC_XDVCC_XD

VCC_XD VCC_XD

Size Document Number Rev

Date: Sheet of

R5C832/833(5IN1/1394)

28 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

R5C832/833(5IN1/1394)

28 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

R5C832/833(5IN1/1394)

28 38Monday, May 07, 2007

30mil

When HWSPND# is

controlled by system, the

pull-up resistor(R755)

dose not need to apply.

> 100 ns

HWSPND#

5 IN 1 CARD READER

Ground guard

GUARD GND

PowerOnReset for VccCore

When GRESET# is controlled by system,

the pull-up resistor(R762) and

capacitor(C492) do not need to apply.

AD25

GNT2# INTA#,B#

REQ2#

>60 ns

Memory Card Power Supply

1394

COMMON MODE CHOKE

NEAR CONN.

AS CLOSE AS

POSSIBLE TO

R5C833

VCC

PRST#

> 1 ms

GRST#

PCLK(33MHz)

R760,U43,C505 : installed

* NOT Use EEPROM :

R760,U43,C505 : NOT installed

* Use EEPROM :

R759 : installed

R5C832 : AJ5C8320H26

R5C833 : AJ5C8330H05

R759 : NOT installed

* NOT Use EEPROM : PU

* Use EEPROM : PD

1000P/X7R/50V_4

C587

1000P/X7R/50V_4

C587

FW^22P/50V_4

C605

FW^22P/50V_4

C605

FW^270P/25V_4

C590

FW^270P/25V_4

C590

FW^.01U/16V_4

C602

FW^.01U/16V_4

C602

.1u/16V_4

C603

.1u/16V_4

C603

C578

*22p_4

C578

*22p_4

T76T76

R458 10K_4R458 10K_4

4.7U/10V

C591

4.7U/10V

C591 R461

FW^56.2/F_4

R461

FW^56.2/F_4

.01U/16V_4

C364

.01U/16V_4

C364

4.7U/10V

C564

4.7U/10V

C564

AVCC_PHY1 98

AVCC_PHY2 106

AVCC_PHY3 110

TPBIAS0 113

TPBN0 104

TPBP0 105

TPAN0 108

TPAP0 109

FIL0

REXT

101

VREF

100

MDIO00 80

MDIO13 90

MDIO03 77

MDIO04 76

MDIO05 75

MDIO06 74

MDIO07 73

MDIO08 88

MDIO09 84

MDIO10 82

MDIO11 81

MDIO12 93

MDIO01 79

MDIO02 78

MDIO14 91

MDIO15 89

MDIO16 92

MDIO17 87

MDIO18 85

MDIO19 83

AVCC_PHY4 112

RSV

IEEE1394/SD

U32A

R5C832T_V00

IEEE1394/SD

U32A

R5C832T_V00

.01U/16V_4

C410

.01U/16V_4

C410

R470 56.2/FR470 56.2/F

R466

FW^10K/F_4

R466

FW^10K/F_4

R465

FW^56.2/F_4

R465

FW^56.2/F_4

R230

*10K_4

R230

*10K_4

.01U/16V_4

C566

.01U/16V_4

C566

.01U/16V_4

C580

.01U/16V_4

C580

.01U/16V_4

C399

.01U/16V_4

C399

R463 10K_4R463 10K_4

4.7u/6.3V

C412

4.7u/6.3V

C412

SD-WP

(8)SD-DAT1

29 (7)SD-DAT0

(2)MS-BS

(5)SD-CLK

(3)MS-DATA1

20 (4)MS-DATA0

(4)SD-VCC

(5)MS-DATA2

(6)MS-INS

(7)MS-DATA3

(2)SD-CMD

(8)MS-SCLK

(9)MS-VCC

(1)SD-DAT3

11 (9)SD-DAT2

SD-CD

(19)XD-CD 34

(2)XD-R/B 1

(3)XD-RE 2

(4)XD-CE 3

(5)XD-CLE 4

(6)XD-ALE 5

(7)XD-WE 6

(8)XD-WP 7

(6)SD / (10)MS / (19)XD-GND

(10)XD-D0 8

(11)XD-D1 9

(12)XD-D2 26

(13)XD-D3 27

(14)XD-D4 28

(15)XD-D5 30

(16)XD-D6 31

(17)XD-D7 32

(18)XD-VCC 33

(3)SD / (1)MS / (9)XD-GND

13 GND1 37

GND2 38

CN36

*CARD_READER_PLASTREN-CM47-X-38P-L

CN36

*CARD_READER_PLASTREN-CM47-X-38P-L

FW^.01U/16V_4

C596

FW^.01U/16V_4

C596

R468

FW^5.1K/F_4

R468

FW^5.1K/F_4

2 1

D39 BAS316D39 BAS316

R467

FW^56.2/F_4

R467

FW^56.2/F_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

4.7U/10V

C594

4.7U/10V

C594

A0 1

A1 2

A2 3

GND

SDA

SCL

VCC 8

U12

*FW^24LC08

U12

*FW^24LC08

R457

*22_4

R457

*22_4

CN26

SUYIN_1394

38M030006-00

IEEE 1394 CONN 6POLE R/A 787956-1 DIP AMP

CN26

SUYIN_1394

38M030006-00

IEEE 1394 CONN 6POLE R/A 787956-1 DIP AMP

4.7U/10V

C570

4.7U/10V

C570

.22u/10V_4

C613

.22u/10V_4

C613

.01U/16V_4

C373

.01U/16V_4

C373

R472

10K_4

R472

10K_4

FW^22P/50V_4

C604

FW^22P/50V_4

C604

FW^.01U/16V_4

C588

FW^.01U/16V_4

C588

.47U/6.3V_4

C586

.47U/6.3V_4

C586

R234

*10K_4

R234

*10K_4

FW^.33U/10V

C584

FW^.33U/10V

C584

R208 150/F_4R208 150/F_4

.01U/16V_4

C571

.01U/16V_4

C571

R460 100K_4R460 100K_4

.47U/6.3V_4

C593

.47U/6.3V_4

C593

.01U/16V_4

C407

.01U/16V_4

C407

UDIO5 57

UDIO0/SRIRQ# 72

VCC_3V 67

INTA# 115

PME#

C/BE0#

45 C/BE1#

35 C/BE2#

21 C/BE3#

AD0

53 AD1

52 AD2

51 AD3

50 AD4

49 AD5

48 AD6

47 AD7

46 AD8

HWSPND# 69

AD9

43 AD10

42 AD11

40 AD12

39 AD13

38 AD14

37 AD15

36 AD16

19 AD17

18 AD18

17 AD19

15 AD20

14 AD21

12 AD22

11 AD23

9AD24

6AD25

5AD26

3AD27

2AD28

1AD29

127 AD30

126 AD31

125

GND1 4

VCC_PCI1

VCC_PCI2

VCC_ROUT1

PAR

REQ#

124

GNT#

123

SERR#

31 PERR#

30 STOP#

29 DEVSEL#

26 TRDY#

IDSEL

IRDY#

24 FRAME#

CLKRUN#

117

PCIRST#

119

PCICLK

121

GBRST#

GND2 13

GND3 22

GND4 28

VCC_ROUT2

VCC_MD 86

INTB# 116

UDIO4 59

UDIO3 65

AGND1 99

AGND3 103

AGND2 102

VCC_RIN

TEST 66

UDIO1 60

UDIO2 56

MSEN 58

XDEN 55

VCC_PCI3

VCC_PCI4

VCC_PCI5

VCC_PCI6

128

VCC_ROUT3

VCC_ROUT4

114

VCC_ROUT5

120

GND5 54

GND6 62

GND7 63

GND8 68

GND9 118

GND10 122

AGND4 107

AGND5 111

PCI / OTHER

U32B

R5C832T_V00

PCI / OTHER

U32B

R5C832T_V00

2 1

D40 BAS316D40 BAS316

R469

10K_4

R469

10K_4

.01U/16V_4

C409

.01U/16V_4

C409

L53

BK1608HS220_6_1A

L53

BK1608HS220_6_1A

SD-WP

SD-DAT1

34 SD-DAT0

MS-BS

SD-CLK

MS-DATA1

24 MS-DATA0

SD-VCC

MS-DATA2

MS-INS

MS-DATA3

SD-CMD

MS-SCLK

MS-VCC

SD-DAT3

11 SD-DAT2

SD-C/D

XD-CD 2

XD-R/B 3

XD-RE 4

XD-CE 5

XD-CLE 6

XD-ALE 7

XD-WE 8

XD-WP 13

XD-D0 23

XD-D1 27

XD-D2 30

XD-D3 32

XD-D4 33

XD-D5 35

XD-D6 36

XD-D7 37

XD-VCC 38

XG-GND1 1

XD-GND2 17

SD-VSS1

SD-VSS2

SD-GND

MS-VSS1

MS-VSS2

GND

CN38

*PROCONN-MXP038-A0-4010

CN38

*PROCONN-MXP038-A0-4010

R240

100K_4

R240

100K_4

Q17

ME2347

Q17

ME2347

R473

100K_4

R473

100K_4

.01U/16V_4

C572

.01U/16V_4

C572

SD-WP

(8)SD-DAT1

29 (7)SD-DAT0

(2)MS-BS

(5)SD-CLK

(3)MS-DATA1

20 (4)MS-DATA0

(4)SD-VCC

(5)MS-DATA2

(6)MS-INS

(7)MS-DATA3

(2)SD-CMD

(8)MS-SCLK

(9)MS-VCC

(1)SD-DAT3

11 (9)SD-DAT2

SD-CD

(19)XD-CD 34

(2)XD-R/B 1

(3)XD-RE 2

(4)XD-CE 3

(5)XD-CLE 4

(6)XD-ALE 5

(7)XD-WE 6

(8)XD-WP 7

(6)SD/(10)MS/(9)XD-GND

(10)XD-D0 8

(11)XD-D1 9

(12)XD-D2 26

(13)XD-D3 27

(14)XD-D4 28

(15)XD-D5 30

(16)XD-D6 31

(17)XD-D7 32

(18)XD-VCC 33

(3)SD/(1)MS/(1)XD-GND

13 SDIO-GND 37

SDIO-GND1 38

CN37

CARD_READER_TTN_R013-B10-XX-C

CN37

CARD_READER_TTN_R013-B10-XX-C

R462 *100K_4R462 *100K_4

.01U/16V_4

C610

.01U/16V_4

C610

R459

FW^56.2/F_4

R459

FW^56.2/F_4

1 2

RN13 FW^0_4P2RRN13 FW^0_4P2R

1 2

RN18 FW^0_4P2RRN18 FW^0_4P2R

Q16

2N7002

Q16

2N7002

R242

10K_4

R242

10K_4

1 2

FW^24.576MHz

.1u/16V_4

C589

.1u/16V_4

C589

*.1u/16V_4

C408

*.1u/16V_4

C408

www.RahasiaLaptop.com

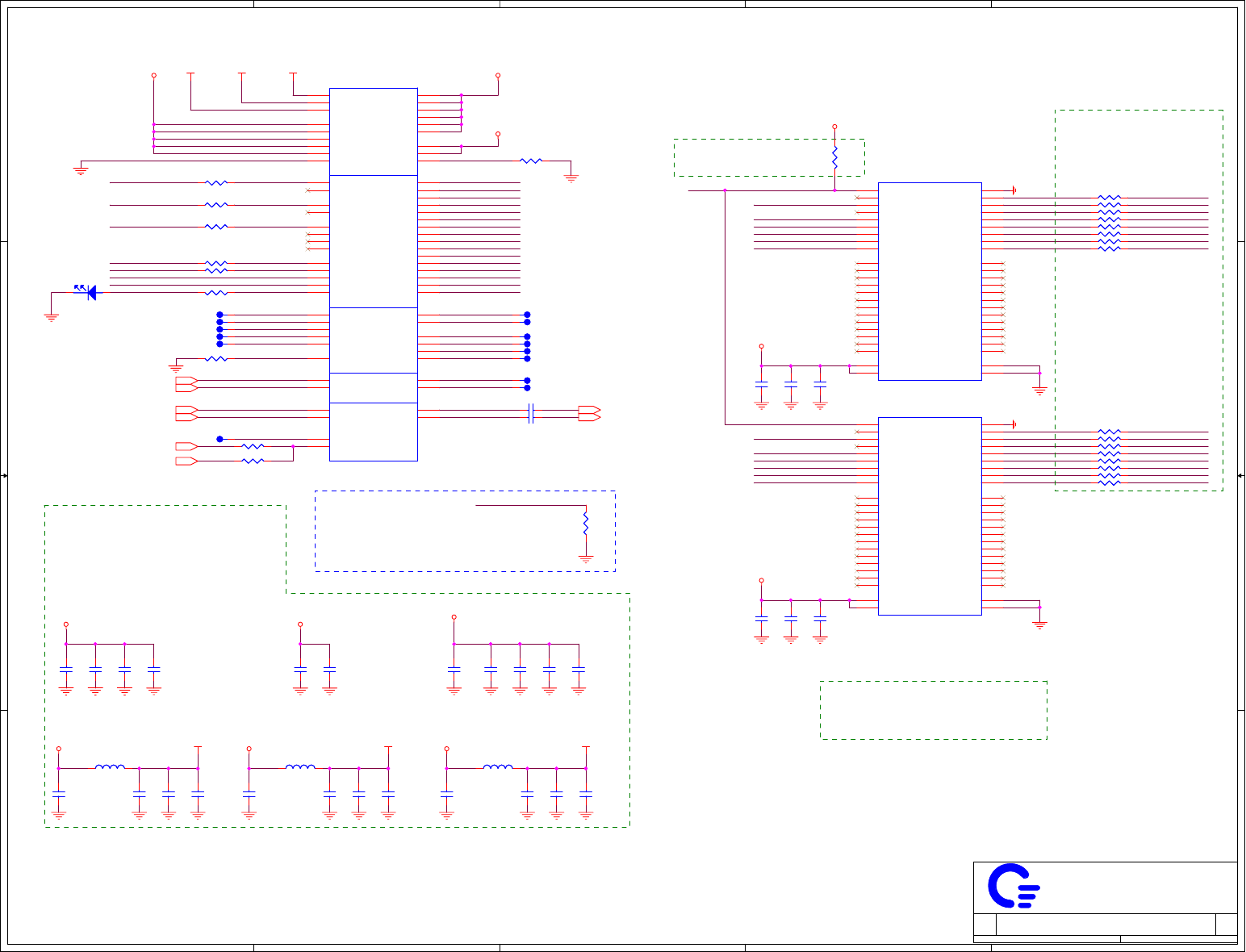

D D

C C

B B

A A

WE#[0]_R

NF_IO_09_R

NF_IO_13_R

NF_IO_15_R

NF_IO_14_R

NF_IO_12_R

NF_IO_11_R

NF_IO_10_R

NF_IO_08_R

ISET_RBS

CE#[0]_RBS

ALE_RBS

WP#_RBS

WE#[0]_RBS

RE#[0]_RBS

CLE_RBS

NF_IO_01

CE#[0]_RBS

TP_RBS_RSVD1

ALE_RBS

NF_IO_05

NF_IO_07

NF_IO_06

NF_IO_04

TP_RBS_RSVD9

CLE_RBS_R

TP_RBS_RSVD4

TP_RBS_RSVD11

ALE_RBS_R

WP#_RBS

WE#[0]_RBS

DIS_REG12

NF_IO_03

NF_IO_02

TXP_RBS_R

TP_RBS_RSVD8

RE#[0]_R

TP_RBS_RSVD2

NF_IO_01

NF_IO_05

NF_IO_07

NF_IO_06

NF_IO_04

NF_IO_03

NF_IO_02

READY_BUSY_RBS

NF_IO_00

TP_RBS_RSVD10

NF_IO_09

NF_IO_13

NF_IO_15

NF_IO_14

NF_IO_12

NF_IO_11

NF_IO_10

NF_IO_08

TP_RBS_RSVD5

TP_RBS_RSVD12

NF_IO_01_R

NF_IO_05_R

NF_IO_07_R

NF_IO_06_R

NF_IO_04_R

NF_IO_03_R

NF_IO_02_R

NF_IO_00_R

NF_IO_00

RE#[0]_RBS

TP_RBS_RSVD7

TP_RBS_RSVD0

READY_BUSY_RBS

CLRREQ#_RBS

TXN_RBS_R

CE#[0]_RBS

ALE_RBS

WP#_RBS

WE#[0]_RBS

RE#[0]_RBS

CLE_RBS

CE#[0]_R

TP_RBS_RSVD3

CLE_RBS

DISK_BUSY_R

NF_IO_09

NF_IO_13

NF_IO_15

NF_IO_14

NF_IO_12

NF_IO_11

NF_IO_10

NF_IO_08

TP_RBS_RSVD6

PCIE_RXP5 <13>

PCIE_RXN5 <13>

PCIE_TXP5<13>

PCIE_TXN5<13>

PCIE_CLK_RBS<2>

PCIE_CLK_RBS#<2>

PLTRST#<13,14,17,20,22..24,30,31>

RBS_RST#<31>

+3V +1.5V +1.5V

+3V

RBS_AVDDRBS_AVDDTRBS_AVDDL

+1.5V

+1.2V

+3V

RBS_AVDDT RBS_AVDDLRBS_AVDD

Size Document Number Rev

Date: Sheet of

ROBSON

29 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ROBSON

29 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ROBSON

29 38Monday, May 07, 2007

LAYOUT NOTE:

ANY VIA ADDED BENEATH THE NAND FLASH

NEEDS TO HAVE A SOLDERMASK ON IT.

PLACEMENT NOTE:

PLACE TERMINATION RESISTERS

AT 10% TO 25% DISTANCE FROM

NAND FLASH.

DIAMOND-LAKE ASIC

INTEL NAND FLASH

ROBSON

PLACE AS CLOSE AS POSSIBLE TO

DIAMOND-LAKE ASIC. STUFF: INDICATES A 2KB VIRTUAL PAGE. => 256MB

DESTUFF: INDIACTESS A 4KB VIRTUAL PAGE => 512MB & 1024MB

PLACE CLOSE TO NAND FALSH

C209

1U/6.3V_4

C209

1U/6.3V_4

T18T18

R161 33_4R161 33_4

T33T33

T23T23

LED1

*LED_G_LTST-C190KGKT

LED1

*LED_G_LTST-C190KGKT

R119 33_4R119 33_4

R93 33_4R93 33_4

C147

.1U/10V_4

C147

.1U/10V_4

C166

.01U/16V_4

C166

.01U/16V_4

C210

.1U/10V_4

C210

.1U/10V_4

R102 33_4R102 33_4

R104 33_4R104 33_4

R87 33_4R87 33_4

R123

*10K_4

R123

*10K_4

C152

.01U/16V_4

C152

.01U/16V_4

T31T31

L17

BK1608HS800-T

L17

BK1608HS800-T

T15T15

C206

1U/6.3V_4

C206

1U/6.3V_4

R128 33_4R128 33_4

R159 33_4R159 33_4

C181

1U/6.3V_4

C181

1U/6.3V_4

R115 33_4R115 33_4

T17T17

T38T38

T16T16

R121 33_4R121 33_4

C159

.01U/16V_4

C159

.01U/16V_4

C167

.1U/10V_4

C167

.1U/10V_4

R113 33_4R113 33_4

R103 33_4R103 33_4

C150

1U/6.3V_4

C150

1U/6.3V_4

T22T22

R116 33_4R116 33_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

T36T36

R114 33_4R114 33_4

C161

.1U/10V_4

C161

.1U/10V_4

C146

.1U/10V_4

C146

.1U/10V_4

R/B1#

NC24

CE1#

NC25

RE#

ALE

CLE

WE#

WP#

NC1

NC2

NC3

NC4

NC5

NC6

NC7

NC8

NC9

NC10

NC11

NC12

NC13

NC14 26

NC15 33

NC16 34

NC17 35

NC18 39

NC19 40

NC20 45

NC21 46

NC22 47

NC23 48

VCC1

VCC2

37 VSS1 13

VSS2 36

DNU1 20

DNU2 21

DNU3 22

PRE/VSS 38

I/O[0] 29

I/O[1] 30

I/O[2] 31

I/O[3] 32

I/O[4] 41

I/O[5] 42

I/O[6] 43

I/O[7] 44

FLASH(48P)512MB

TSOP48-ZS1

FLASH(48P)512MB

TSOP48-ZS1

C205

.1U/10V_4

C205

.1U/10V_4

C128

.01U/16V_4

C128

.01U/16V_4

R89 33_4R89 33_4

C180

.1U/10V_4

C180

.1U/10V_4

T20T20

C168

1U/6.3V_4

C168

1U/6.3V_4

R108 33_4R108 33_4

VDD1 3

VDD2 8

VDD3 13

VDD4 41

VDD5 45

VDD6 47

VDDR1 46

VDDR2 48

DIS_REG12 44

AVDD

AVDDT

AVDDL

VDDO1

VDDO2

VDDO3

VDDO4

VDDO5

NF_WE[0]#

NF_WE[1]#

NF_RE[0]#

NF_RE[1]#

NF_CE[0]#

NF_CE[1]#

NF_CE[2]#

NF_CE[3]#

NF_CLE

NF_ALE

NF_WP#

NF_RB

BUSY

NF_IO[0] 57

NF_IO[1] 59

NF_IO[2] 62

NF_IO[3] 64

NF_IO[4] 66

NF_IO[5] 68

NF_IO[6] 4

NF_IO[7] 6

NF_IO[8] 58

NF_IO[9] 60

NF_IO[10] 63

NF_IO[11] 65

NF_IO[12] 67

NF_IO[13] 1

NF_IO[14] 5

NF_IO[15] 7

RSVD[02]

RSVD[03]

RSVD[04]

RSVD[05]

RSVD[06]

RSVD[07] 31

RSVD[08] 32

RSVD[09] 28

RSVD[10] 21

RSVD[11] 20

RSVD[12] 34

ISET

CLKP

CLKN

CLKREQ#

PERST#

RXP

RXN

25 TXP 23

TXN 22

RSVD[00] 16

RSVD[01] 17

GND_PAD

POWER

NAND I/F

RESERVED

PCIE I/F

CLOCK

Diamond_Lake

QFN68-8X8-4-69P-ZS1

POWER

NAND I/F

RESERVED

PCIE I/F

CLOCK

Diamond_Lake

QFN68-8X8-4-69P-ZS1

T19T19

C207

.1U/10V_4

C207

.1U/10V_4

R160 1K_4R160 1K_4

C208

.01U/16V_4

C208

.01U/16V_4

R120

1K_4

R120

1K_4

C129

.1U/10V_4

C129

.1U/10V_4

L20

BK1608HS800-T

L20

BK1608HS800-T

T39T39

C188

.01U/16V_4

C188

.01U/16V_4

C160 .1U/10V_4C160 .1U/10V_4

R/B1#

NC24

CE1#

NC25

RE#

ALE

CLE

WE#

WP#

NC1

NC2

NC3

NC4

NC5

NC6

NC7

NC8

NC9

NC10

NC11

NC12

NC13

NC14 26

NC15 33

NC16 34

NC17 35

NC18 39

NC19 40

NC20 45

NC21 46

NC22 47

NC23 48

VCC1

VCC2

37 VSS1 13

VSS2 36

DNU1 20

DNU2 21

DNU3 22

PRE/VSS 38

I/O[0] 29

I/O[1] 30

I/O[2] 31

I/O[3] 32

I/O[4] 41

I/O[5] 42

I/O[6] 43

I/O[7] 44

FLASH(48P)512MB

TSOP48-ZS1

FLASH(48P)512MB

TSOP48-ZS1

C186

.1U/10V_4

C186

.1U/10V_4

R98 33_4R98 33_4

R600 0_4R600 0_4

R141 330_4R141 330_4

R158 33_4R158 33_4

R601 *0_4R601 *0_4

C157

1U/6.3V_4

C157

1U/6.3V_4

C164

.1U/10V_4

C164

.1U/10V_4

C179

.01U/16V_4

C179

.01U/16V_4

C155

1U/6.3V_4

C155

1U/6.3V_4

C149

.01U/16V_4

C149

.01U/16V_4

C158

.1U/10V_4

C158

.1U/10V_4

R125 33_4R125 33_4

C162 .1U/10V_4C162 .1U/10V_4

C126

1U/6.3V_4

C126

1U/6.3V_4

T21T21

R122 33_4R122 33_4

L16

BK1608HS800-T

L16

BK1608HS800-T

R117 1.4K/F_4R117 1.4K/F_4

C148

.1U/10V_4

C148

.1U/10V_4

R126 33_4R126 33_4

www.RahasiaLaptop.com

D D

C C

B B

A A

TH_FAN_POWERTH_FAN_POWER

IDE_LED

EC_SOUT_CR_DEBUG

EC_SWD_DEBUG

+TPVDD

TPCLK_R

TPDATA_R

MX0_E_KEY#

MY15

MY8

MY7

MX4_WL#

MX1_EMAIL#

MY0

MX2_WWW#

MY10

MY4

MY9

MY12

MY6

MX7

MY1

MY3

MY11

MX0_E_KEY#

MY2

MX5_BT#

MX3_3G#

MY5

MY14

MY13

MX6

MX2_WWW#

MX4_WL#

MY16

MY17

MX6

MX0_E_KEY#

MX1_EMAIL#

MX2_WWW#

MX3_3G#

MX4_WL#

MX5_BT#

MX6

MX7

MY17

MY16

MY15

MY14

MY13

MY12

MY11

MY10

MY9

MY8

MY7

MY6

MY5

MY4

MY3

MY2

MY1

MY0

MX7

MX5_BT#MX3_3G#

MX1_EMAIL#

NUMLED

NUMLED#

CAPSLED

CAPSLED#

LAD3

LAD1

LAD0

LAD2

LFRAME#

PLTRST#

SERIRQ

CPUFAN#

CPUFAN#_ON

FANSIG<31>

PWRLED# <22,31>

SUSLED# <22,31>

BATLED1# <31>

BATLED0# <31>

SATA_LED#<12>

IDELED#<24>

EC_SWD_DEBUG<31>

EC_SOUT_CR_DEBUG<31>

TBDATA<31>

TBCLK<31>

MX3_3G#<22,31>

MX7<31>

MY2<31>

MY12<31>

MY3<31>

MY0<22,31>

MY9<31>

MY5<31>

MY4<31>

MX5_BT#<22,31>

MY6<31>

MX2_WWW#<22,31>

MX0_E_KEY#<22,31>

MY1<31>

MY11<31>

MX6<31>

MX1_EMAIL#<22,31>

MY10<31>

MX4_WL#<22,31>

MY7<31>

MY8<31>

MY14<31>

MY13<31>

MY15<31>

MY16<31>

MY17<31>

IDE_LED <22>

NUMLED#<31>

NUMLED <22>

CAPSLED#<31>

CAPSLED <22>

PCLK_DEBUG<2,22>

LAD0<12,22,31>

LAD1<12,22,31>

LAD2<12,22,31>

LAD3<12,22,31>

LFRAME#<12,22,31>

PLTRST#<13,14,17,20,22..24,29,31>

SERIRQ<14,28,31>

CPUFAN#<31>

CPUFAN#_ON<3>

+3V

+3VPCU

+3V+3V +3V+3V +3VPCU

+5V

+3VSUS

+3V +3V

+5V

+5V +1.5V +3V

Size Document Number Rev

Date: Sheet of

FAN,LED,KB,DEBUG PORT,TP

30 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

FAN,LED,KB,DEBUG PORT,TP

30 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

FAN,LED,KB,DEBUG PORT,TP

30 38Monday, May 07, 2007

LED

INT K/B

FANPWR = 1.6*VSET

CPU FAN

DEBUG PORT

EC Debug Port

T/P

Reserve to debug

Reserved for LPC debug card

0C Add 0103

EMI solution

L45

BLM21P300S

L45

BLM21P300S

1 3

47K

10K

Q14

DTA114YUA

47K

10K

Q14

DTA114YUA

L43 LZA10-2ACB104MTL43 LZA10-2ACB104MT

/FON

VIN

2VO 3

VSET

GND 5

GND 6

GND 7

GND 8

U23

G995

U23

G995

T93T93

C643

1000P/50V_4

C643

1000P/50V_4

C644

1000P/50V_4

C644

1000P/50V_4

T89T89

R318

10K_4

R318

10K_4

R338 330_4R338 330_4

7 4

RP5

10KX8

RP5

10KX8

CN10

*ACES_88231-0400

CN10

*ACES_88231-0400

C638

2.2U/10V_8

C638

2.2U/10V_8

CN20

FAN_CON

CN20

FAN_CON

T90T90

C510

*.01U_4

C510

*.01U_4

T87T87

D25 BAS316D25 BAS316

R351

10K_4

R351

10K_4

D26 BAS316D26 BAS316

C641

1000P/50V_4

C641

1000P/50V_4

R322

10K_4

R322

10K_4

R344 330_4R344 330_4 .1U/16V_4C529 .1U/16V_4C529

R386

10K_4

R386

10K_4

1 3

47K

10K

Q15

DTA114YUA

47K

10K

Q15

DTA114YUA

LED3

LED_DUAL_LIGHT

LED3

LED_DUAL_LIGHT

R323

10K_4

R323

10K_4

R235

330_4

R235

330_4

CN6

Aces 88502-2641

CN6

Aces 88502-2641

L44 LZA10-2ACB104MTL44 LZA10-2ACB104MT 1

CN7

ACES_88058-0601

CN7

ACES_88058-0601

LED2

LED_DUAL_LIGHT

LED2

LED_DUAL_LIGHT

T91T91

R221

330_4

R221

330_4

C512

2.2U/10V_8

C512

2.2U/10V_8

T94T94

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

C642

1000P/50V_4

C642

1000P/50V_4

R334

330_4

R334

330_4

Q23

2N7002E

Q23

2N7002E

T92T92

C511

.01U/16V_4

C511

.01U/16V_4

R385

10K_4

R385

10K_4

T88T88

www.RahasiaLaptop.com

D D

C C

B B

A A

SOUT_CR_DEBUG

8768_32KX2

8768_32KX1

SOUT_CR_DEBUG

MX2_WWW#

MX4_WL#

MX0_E_KEY#

MX6

MX3_3G#

MX5_BT#

MX1_EMAIL#

8769AGND

PWROK_EC_uR

HWPG

MY16

MBCLK

MBDATA

PCLK_591

VREF_uR +A3VPCU

CRT_SENSE#

PLTRST#

VCC_POR#

RF_EN

MY0

RSMRST#_uR

HWPG

MBCLK

MBDATA

uR_TP_CLKOUT

SPI_SCK_uR_R

SPI_CS0#_uR

SPI_SDO_uR_R

SPI_SDI_uR

+A3VPCU

CCD_POWERON

MBCLK

MBDATA

8769AGND

RF_EN

DNBSWON#_uR

SPI_SCK_uR

SPI_SDO_uR

SPI_CS0#_uR

SPI_SDI_uR

SCI#_uR

VCORF_uR

8769AGND

PCLK_591

SWD_DEBUG

DIGVOL_UP

DIGVOL_DN

TEMP_ABAT

MY17

DA3_GPI97

TV_KEY

DIGVOL_UP

DIGVOL_DN

SPI_SDO_uR_R

SPI_SCK_uR_R

MXM_CLK

MXM_DATA

MXM_CLK

MXM_DATA

PWROK_MXM

TV_FAN

LAN_ENERGYDET

LAN_LOWPWR

MY12<30>

RCIN#<12>

MY13<30>

MY6<30>

MY15<30>

LFRAME#<12,22,30>

MY10<30>

MY9<30>

MY7<30>

MY1<30>

MY4<30>

KBSMI#<14>

SCI#<14>

MY5<30>

MY2<30>

MY11<30>

SERIRQ<14,28,30>

MY8<30>

PCLK_591<2>

SUSC# <14>

MY0<22,30>

MY14<30>

MY3<30>

LAD1<12,22,30>

LAD0<12,22,30>

LAD3<12,22,30>

LAD2<12,22,30>

HWPG_3/5VPCU<33>

HWPG_1.05V<35>

HWPG_1.8V<36>

CLKRUN#<14,28>

GATEA20<12>

MX2_WWW#<22,30>

MX4_WL#<22,30>

MX0_E_KEY#<22,30>

MX7<30>

MX6<30>

MX3_3G#<22,30>

MX5_BT#<22,30>

MX1_EMAIL#<22,30>

PLTRST#<13,14,17,20,22..24,29,30>

D/C# <32>

S5_ON <33,37>

BT_POWERON# <21>

DNBSWON# <14>

CCD_POWERON <21>

PWROK_EC <14>

RSMRST# <14>

SUSB# <7,14>

EC_FPBACK# <23>

SUSLED# <22,30>

USBON# <22,25>

MAINON <35..37>

AMP_MUTE# <27>

SUSON <36,37>

MBDATA<3,32>

MBCLK<3,32>

RF_EN <22>

CC-SET <32>

EC_SOUT_CR_DEBUG <30>

EC_SWD_DEBUG <30>

VRON <34>

CIRRX2 <21>

FANSIG <30>

TBCLK<30>

TBDATA<30>

MY16<30>

DIGVOL_UP <26>

DIGVOL_DN <26>

CAPSLED#<30>

NUMLED#<30>

MTEMP <32>

BATLED0# <30>

BATLED1# <30>

PWRLED# <22,30>

HWPG_CPUIO<37>

EC_L_BKLT_CTRL <18>

CPUFAN# <30>

CRT_SENSE# <13,19>

CELL-SET <32>

LID591# <14,22,23>

3G_ON <22>

MY17<30>

TB2CLK<22>

TB2DATA<22>

A_KEY<22>

TV_KEY <22>

ACIN <17,22,32>

NBSWON# <22>

MPWROK <7,14>

PCIE_WAKE# <14,20,22>

MXM_DATA<17>

MXM_CLK<17>

TV_FAN <21>

PWROK_MXM <17>

LAN_ENERGYDET <20>

LAN_LOWPWR <20>

RBS_RST# <29>

+3VPCU

+3V

+3VPCU +3V

+3VPCU

+3VPCU+3VPCU

+3V

+3VPCU

Size Document Number Rev

Date: Sheet of

PC8769L & FLASH

31 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

PC8769L & FLASH

31 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

PC8769L & FLASH

31 38Monday, May 07, 2007

1/13 Comfirm by vendor mail :

Disabled ('1') if using FWH device on LPC.

Enabled ('0') if using SPI flash for both system BIOS and EC firmware

1/13 Comfirm by vendor mail :

Connect to AGND

0~AVCC power for DA pin

power reference

INTERNAL KEYBOARD STRIP SET

08/10 FAE: ADD TP FOR DEBUG

08/10 FAE:

ADD ONE GAD PAD UNDER X'TAL,

AND KEEP CLEANCE.

BUTTON ON KEYBOARD MATRIX

1 1

I/O Address

164Eh

BADDR1-0

0 1

Data

SHBM=0: Enable shared memory with host BIOS

0 0

Index

1 0

CORE DEFINED

XOR TREE TEST MODE

164Fh

2Eh 2Fh

08/10 FAE:

0.1UF

ACER ID

SPI FLASH

1/13 Comfirm by vendor mail :

If the Southbridge enables 'Long Wait Abort' by default, the

flash device should be 50MHz (or faster)

1/13 Comfirm by vendor mail:

VBAT for keep PLL power let power up can quick.

If no VBAT will switch to VCCpower.

If PLL no power will cause boot time delay.

1/13 Vendor mail:

Dedicate cap for AVCC

1/13 Comfirm by vendor mail:

VDD must power up after VCC/AVCC

BADDR0

08/10 FAE: SMI DOESN'T NEED DIODE

BADDR1

CCD_POWERON ACITVE LO => HI

SHBM

I/O ADDRESS SETTING

SM BUS PU

08/14 FAE:

Please connect VREF(uRider pin104) to

+A3VPCU instead of +3VPCU.

0810 FAE:

CHECK X'TAL'S FOOTPRINT

CEECK RESULT: OK

08/10 FAE:

L83 CAN CHANGE FROM BEAD TO SHORT.

BUT, PLEASE PUT AGND & 32K CAP & AVCC CAP AT ONE POINT.

ZS1 STILL USE BEAD FOR SAFE.

GPIO PIN PU

11/23 Reduce switch

On/Off noise

12/4 Add 22 ohm for EMI

0C Add net 0104

0C Add net 0110

Modify Rev:D

C343

.1U/10V_4

C343

.1U/10V_4

R544 4.7K_4R544 4.7K_4

R597 22R597 22

R236 0_4R236 0_4

D14 BAS316D14 BAS316

R542 *0R542 *0

D15 BAS316D15 BAS316

C387

10U/10V_8

C387

10U/10V_8

R453 0_4R453 0_4

R237 *10K_4R237 *10K_4

T46T46

C567

.1U/10V_4

C567

.1U/10V_4

R518 4.7K_4R518 4.7K_4

C402

10U/10V_8

C402

10U/10V_8

R437 10K_4R437 10K_4

L51 BLM18AG601SN1L51 BLM18AG601SN1

C394

*10P_4

C394

*10P_4

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

D13 BAS316D13 BAS316

C609

.1U/10V_4

C609

.1U/10V_4

R238 0_4R238 0_4

A0 1

A1 2

A2 3

VCC 8

GND 4

SCL

SDA

24LC08

R419 *0R419 *0

C608

.1U/10V_4

C608

.1U/10V_4

R214

10K_4

R214

10K_4

C404

.1U/10V_4

C404

.1U/10V_4 C634 .1U/10V_4C634 .1U/10V_4

L26

HZ0603B601R-00

L26

HZ0603B601R-00

D12 BAS316D12 BAS316

R216

33K/F

R216

33K/F

R233

10K_4

R233

10K_4

C569

2.2U/10V_8

C569

2.2U/10V_8

D17 BAS316D17 BAS316

WP 3

VSS 4

SCK

HOLD 7

VDD 8

U11

W25X80VSSIG

U11

W25X80VSSIG

R239 10K_4R239 10K_4

C406

.1U/10V_4

C406

.1U/10V_4

R535 4.7K_4R535 4.7K_4

R448 4.7K_4R448 4.7K_4

T55T55

LAD3

LCLK

LFRAME

VDD 4

GND1

LDRQ/GPIO24/HGPIO01

LREST

CLKRUN/GPIO11/HGPIO02

SMI

PSCLK2/GPIO26

PSDAT2/GPIO27

PSCLK3/GPIO25

PSDAT3/GPIO12

GPIO34/CIRRX2 14

GPIO36 15

GPIO40 16

GPIO42/TCK 17

GND2

VCC1 19

GPIO43/TMS 20

GPIO44/TDI 21

GPIO45 22

GPIO46/TRST 23

GPO47/JEN0 24

GPIO50/TDO 25

GPIO51 26

GPIO52/RDY 27

GPIO53 28

ECSCI

CLKOUT/GPIO55 30

TA1/GPIO56 31

A_PWM0 32

KBSOUT17/GPIO57/HGPIO03

33 KBSOUT16/GPIO60

34 KBSOUT15/GPIO61/XOR_OUT

35 KBSOUT14/GPIO62

36 KBSOUT13/GPIO63

37 KBSOUT12/GPIO64

38 KBSOUT11

39 KBSOUT10

40 KBSOUT9

41 KBSOUT8

42 KBSOUT7

VCORF

GND3

VCC2 46

KBSOUT6/RDY

47 KBSOUT5/TDO

48 KBSOUT4

49 KBSOUT3/TDI

50 KBSOUT2/TMS

51 KBSOUT1/TCK

52 KBSOUT0/JENK

KBSIN0

KBSIN1

KBSIN2

KBSIN3

KBSIN4

KBSIN5

KBSIN6

KBSIN7

B_PWM0/GPIO13 62

TB1/GPIO14/HGPIO4 63

GPIO01 64

GPIO32 65

GPIO33 66

SCL2

SDA2

SDA1

69 SCL1

PSDAT1

71 PSCLK1

IRRX2_IRSL0/GPIO70 73

IRTX/GPIO71 74

IRRX1/GPIO72 75

VCC3 76

32KX1/32KCLKIN

GND4

32KX2

VBAT 80

SWD/GPIO66 81

SPI_SCK/GPIO75 82

SPI_DO/GPO76/SHBM 83

SPI_DI/GPIO77 84

VCC_POR 85

F_SDI 86

F_SDO 87

VCC4 88

GND5

F_CS0 90

GPIO81 91

F_SCK 92

GPIO06/HGPIO06 93

GPIO07/HGPIP07 94

GPIO03 95

AD5/GPIO04 96

AD0/GPI90 97

AD1/GPI91 98

AD2/GPI92 99

AD3/GPI93 100

DA0/GPI94 101

AVCC 102

AGND

103

VREF 104

DA1/GPI95 105

DA2/GPI96 106

DA3/GPI97 107

AD4/GPIO05 108

GPIO30 109

GPO82/HGPIO00/TRIS 110

SOUT_CR/GPO83/BADDR1 111

GPO84/HGPIO01/BADDR0 112

SIN_CR/CIRRX/GPIO87 113

CIRTX/GPIO16/HGPIO04 114

VCC5 115

GND6

116

TA2/GPIO20 117

A_PWM1/GPIO21 118

GPIO23 119

GPIO31 120

GA20

121

KBRST

122

PWUREQ

123

LPCPD/GPIO10/HGPIO00

124

SERIRQ

125

LAD0

126

LAD1

127

LAD2

128

LPC

SMB

PS/2

A/D

D/A

GPIO

SPI

FIU

TIMER

U10

WPC8769LDG

LPC

SMB

PS/2

A/D

D/A

GPIO

SPI

FIU

TIMER

U10

WPC8769LDG

R521

0_4

R521

0_4

R596 22R596 22

R218 10K_4R218 10K_4

C636 .1U/10V_4C636 .1U/10V_4

R224 4.7K_4R224 4.7K_4

C356

5.6P/50V_4

C356

5.6P/50V_4

R222 0R222 0

4 1

32.768KHZ

R223 4.7K_4R223 4.7K_4

C600

.1U/10V_4

C600

.1U/10V_4

C384

.1U/10V_4

C384

.1U/10V_4

T56T56

T86T86

C393

.1U/10V_4

C393

.1U/10V_4

C346

1U/16V

C346

1U/16V

R438 4.7K_4R438 4.7K_4

D16 BAS316D16 BAS316

R212 20MR212 20M

R232

*22_4

R232

*22_4

R215 0_4R215 0_4

C363

5.6P/50V_4

C363

5.6P/50V_4

C568

.1U/10V_4

C568

.1U/10V_4

www.RahasiaLaptop.com

D D

C C

B B

A A

ICMNT

CSON

BAT-V

MBDATA

MTEMP

MBAT+

ACIN_1

BAT-V

ISL6251_VDD

CSON

6251VCOMP2

ISL6251_LGATE

CSIP

6251CELLS_2

CSIN_1

VREF

6251B_2

6251VCOMP1

ISL6251_PHASE

6251LR

DCIN

ISL6251_VDD

6251ACSET

6251EN

VA3

VREF

6251CELLS_1

6251B_1

ISL6251_VDDP

VADJ

CSOP

ISL6251_UGATE

6251ICOMP

CSOP

ACLIM

CSIN

CC-SET <31>

CELL-SET<31>

ACIN<17,22,31>

D/C# <31>

MBDATA <3,31>

MTEMP <31>

MBCLK <3,31>

VIN

+3VPCU

Size Document Number Rev

Date: Sheet of

ISL6251 CHARGER

CCustom

32 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ISL6251 CHARGER

CCustom

32 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ISL6251 CHARGER

CCustom

32 38Monday, May 07, 2007

R2=adapter current sense resistnece

Vaclm=((33//152)/(33//152+19.6//152))*Vref

Float = 4.2V / CELL

CELL-SET = Hi ----> Cells = VDD ---->4S

CELL-SET = Low ----> Cells = GND ---->3S

CURRNT LIMIT POINT =(90w/19v)*0.85= 4.026A

LIM = (1/R2)*(((0.05/VREF=2.39)VACLM)+0.050)

4.026A=(1/0.02)((0.05/2.365)Vaclm+0.05)

10mil

PR87

130K/F

PR87

130K/F

PC3

.01U/50V_6

PC3

.01U/50V_6

PR91

*514K/F

PR91

*514K/F

1 2

PR81

0.03_3720

PR81

0.03_3720

PR167 20PR167 20

PQ34

2N7002E

PQ34

2N7002E

PR2

100_4

PR2

100_4

PC102

.01U/50V_6

PC102

.01U/50V_6

PR11

33K

PR11

33K

PC87

.1U/X7R/50V_8

PC87

.1U/X7R/50V_8

PR13

6.8K/F

PR13

6.8K/F

PC85

.1U/X7R/50V_8

PC85

.1U/X7R/50V_8

1 2

PF2

LITTLE-7A-1206

PF2

LITTLE-7A-1206

1 6

PQ2

IMD2AT108

PQ2

IMD2AT108

2 1

PD2

ZD3.6V

PD2

ZD3.6V

2 1

PD1

ZD3.6V

PD1

ZD3.6V

CELLS

ICM

CHLIM

CSIP 19

CSIN 20

VDDP 15

VRFE

CSON

CSOP

ICOMP

VCOMP

LGATE 14

ACPRN

ACLIM 10

VADJ 11

GND 12

PGND 13

ACSET

DCIN

VDD 1

UGATE 17

PHASE 18

BOOT 16

PU1

ISL6251A

PU1

ISL6251A

PR5

PL10

HI0805R800R-00_8

PL10

HI0805R800R-00_8

PR111

100K/F

PR111

100K/F

PC90 10U/X6S/25V_1206PC90 10U/X6S/25V_1206

PC97

0.1U/X7R/25V_8

PC97

0.1U/X7R/25V_8

1 2

PR82

0.02_3720

PR82

0.02_3720

PR86

10K/F

PR86

10K/F

PR6

10K

PR6

10K

PC154

2200P/50V_6

PC154

2200P/50V_6

PC82

.1U/X7R/50V_8

PC82

.1U/X7R/50V_8

PQ32

SUD45P03-15

PQ32

SUD45P03-15

PC92

0.1U/X7R/25V_8

PC92

0.1U/X7R/25V_8

PR100

19.6K/F

PR100

19.6K/F

PR158

*100K/F

PR158

*100K/F

PC86

100P/NPO/50V_6

PC86

100P/NPO/50V_6

CN15

SUYIN_BATTERY

CN15

SUYIN_BATTERY

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

PL11

SIL104R-100PF

PL11

SIL104R-100PF

PQ35

2N7002E

PQ35

2N7002E

1 2

PC8

47n/X7R/25V_6

PC8

47n/X7R/25V_6

PR16

*100_4

PR16

*100_4

PC1

47P/NPO/50V_6

PC1

47P/NPO/50V_6

PR14 10K/FPR14 10K/F

PC96

100P/NPO/50V_6

PC96

100P/NPO/50V_6

PC7

0.1U/X7R/50V_6

PC7

0.1U/X7R/50V_6

PC9

0.1U/X7R/50V_6

PC9

0.1U/X7R/50V_6

PD10

RB500V

PD10

RB500V

PC153

2200P/50V_6

PC153

2200P/50V_6

PC93 .1U/X7R/50V_8PC93 .1U/X7R/50V_8

1 2

PC6 4.7U/X5R/10V_8PC6 4.7U/X5R/10V_8

PD9

PDS1040S-13

PD9

PDS1040S-13

1 2

PF1

LITTLE-7A-1206

PF1

LITTLE-7A-1206

PR102

33K/F

PR102

33K/F

PC91

10U/X6S/25V_1206

PC91

10U/X6S/25V_1206

PC83

0.1U/X7R/50V_6

PC83

0.1U/X7R/50V_6

PD3

RB500V

PD3

RB500V

PR166

PR8

220K/F

PR8

220K/F

PL9

HI0805R800R-00_8

PL9

HI0805R800R-00_8

PJ1

POWER_JACK

PJ1

POWER_JACK

PR1

100_4

PR1

100_4

PR85

*514K/F

PR85

*514K/F

PC152

2200P/50V_6

PC152

2200P/50V_6

PR110

10K/F

PR110

10K/F

PR4 20/FPR4 20/F

PR157 100K/FPR157 100K/F

PC101

100P/NPO/50V_6

PC101

100P/NPO/50V_6

1 2

PC12 2.2U/X5R/10V_8PC12 2.2U/X5R/10V_8

PR105

100K/F

PR105

100K/F

PQ1

2N7002E

PQ1

2N7002E

PR83 2.7PR83 2.7

PC11

0.1U/X7R/25V_8

PC11

0.1U/X7R/25V_8

PR92

10K/F

PR92

10K/F

PR90

4.7

PR90

4.7

PL8

HI0805R800R-00_8

PL8

HI0805R800R-00_8

PC89

.01U/50V_6

PC89

.01U/50V_6

PR7 0PR7 0

PC2

47P/NPO/50V_6

PC2

47P/NPO/50V_6

PC151

2200P/50V_6

PC151

2200P/50V_6

PR9

220K/F

PR9

220K/F

PL12

HI0805R800R-00_8

PL12

HI0805R800R-00_8

D1S1/D2

PQ29

FDS6900AS

D1S1/D2

PQ29

FDS6900AS

PC95

6.8N/X7R/50V_6

PC95

6.8N/X7R/50V_6

PC94

10U/X6S/25V_1206

PC94

10U/X6S/25V_1206

PR10

10K/F

PR10

10K/F

2 1

PD4

ZD12V

PD4

ZD12V

PC84

.1U/X7R/50V_8

PC84

.1U/X7R/50V_8

PR12

10K/F

PR12

10K/F

PL13

HI0805R800R-00_8

PL13

HI0805R800R-00_8

PC13

*3300P/X7R-50V_6

PC13

*3300P/X7R-50V_6

PQ31

SUD45P03-15

PQ31

SUD45P03-15

PR15 10K/FPR15 10K/F

www.RahasiaLaptop.com

D D

C C

B B

A A

S5D

3V_DH

3V_DL

3V5V_EN

3V_DH

3V_DL

5V_LX

5V_DH

5V_DL

+5VPCU

+15V_ALWP

3V_LX

DDPWRGD_R

MAIND

SUSD

DDPWRGD_R

SUSD

MAIND

3V5V_EN

DDPWRGD_R

3V5V_EN

S5D

SYS_SHDN#<3>

S5_ON <31,37>

MAIND <36,37>

SUSD <37>

HWPG_3/5VPCU <31>

VIN VIN

15V

+5VPCU

+3VPCU

ISL6236_3V

+5V_S5

+5V

+5VPCU+5VPCU +3VPCU

+3V +3V_S5

+3VPCU

+3VSUS

VIN 15V

Size Document Number Rev

Date: Sheet of

ISL6251 CHARGER

BCustom

33 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ISL6251 CHARGER

BCustom

33 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

ISL6251 CHARGER

BCustom

33 38Monday, May 07, 2007

modify 0103 2007

Iocp==OCP-(Delta IL/2)=10-(6/2)=7A

Vth=7A*15mOhm=105mV

R(Ilim)=(105mV*10)/5uA

~210K

OCP:10A

Delta IL(ripple current)=(Vin-Vout)*Vout/(L*f*Vin)

=(19-5)*5/(1.5u*0.4M*19)

~6A L(ripple current)

=(19-3.3)*3.3/(2.5u*0.5M*19)

~2.18A

OCP:6.25A

Iocp=6.25-(2.18/2)=5.16A

Vth=5.16A*28mOhm=145mV

R(Ilim)=(145mV*10)/5uA

~294K

OCP: 10A

OCP : 6.25A

Add on 9/27

PR143

*0_4

PR143

*0_4

PC143

10U/X6S/25V_1206

PC143

10U/X6S/25V_1206 PC141

0.1U/X7R/50V_6

PC141

0.1U/X7R/50V_6

PC77

0.1U/X7R/50V_6

PC77

0.1U/X7R/50V_6

PQ16

FDC653N_NL

PQ16

FDC653N_NL

PC64

0.1U/X7R/50V_6

PC64

0.1U/X7R/50V_6

1 2

PR75

1/F

PR75

1/F

PQ17

FDC653N_NL

PQ17

FDC653N_NL

PL5

HI0805R800R-00_8

PL5

HI0805R800R-00_8

PC60

0.1U/X7R/50V_6

PC60

0.1U/X7R/50V_6

1 2

PR151 210K/F_4PR151 210K/F_4

PR160

PC80

2200P/X7R/50V_6

PC80

2200P/X7R/50V_6

PC146

0.1U/X7R/50V_6

PC146

0.1U/X7R/50V_6

PR76

39K/F_4

PR76

39K/F_4

PC59

0.1U/X7R/50V_6

PC59

0.1U/X7R/50V_6

PC72

2200P/X7R/50V_6

PC72

2200P/X7R/50V_6

REF 1

TON 2

VCC 3

ONLDO 4

RTC 5

VIN 6

LDO 7

LDOREFIN 8

BYP

OUT1

FB1

ILIM1

PGOOD1

EN1

DH1

LX1

BST1

DL1

VDD

SECFB

GND

PGND

DL2

BST2

LX2 25

DH2 26

EN2 27

PGOOD2 28

SKIP# 29

OUT2 30

ILIM2 31

REFIN2 32

PAD

33 PAD

34 PAD

PAD

36 PAD

PU7

ISL6236

PU7

ISL6236

PC76

330U/6.3V_6X5.7

PC76

330U/6.3V_6X5.7

PC137

0.1U/X7R/50V_6

PC137

0.1U/X7R/50V_6

PQ44

2N7002E

PQ44

2N7002E

PC68

0.1U/X7R/50V_6

PC68

0.1U/X7R/50V_6

PC136

0.1U/X7R/50V_6

PC136

0.1U/X7R/50V_6

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

PR68

22_8

PR68

22_8

PC75

0.1U/X7R/50V_6

PC75

0.1U/X7R/50V_6

1 2

PR146

0_4

PR146

0_4

PC62

0.1U/X7R/50V_6

PC62

0.1U/X7R/50V_6

PC58

0.1U/X7R/50V_6

PC58

0.1U/X7R/50V_6

PR149

PC63

0.1U/X7R/50V_6

PC63

0.1U/X7R/50V_6

1 2

PR70

290K/F_4

PR70

290K/F_4

PQ18

FDC653N_NL

PQ18

FDC653N_NL

PL20

HI0805R800R-00_8

PL20

HI0805R800R-00_8

PC70

0.1U/X7R/50V_6

PC70

0.1U/X7R/50V_6

PD6

CHN217

PD6

CHN217

PC66

1U/16V_6

PC66

1U/16V_6

PC73

0.1U/X7R/50V_6

PC73

0.1U/X7R/50V_6

PC65

0.1U/X7R/50V_6

PC65

0.1U/X7R/50V_6

3 6

PQ27

FDS6690AS

PQ27

FDS6690AS

PR145

39K/F_4

PR145

39K/F_4

PC140

0.1U/X7R/50V_6

PC140

0.1U/X7R/50V_6

1 2

PR69

200K/F_4

PR69

200K/F_4

PR144

0_4

PR144

0_4

PQ26

FDC653N_NL

PQ26

FDC653N_NL

D1 S1/D2

PQ23

FDS6900AS

D1 S1/D2

PQ23

FDS6900AS

1 2

PR141

*0_4

PR141

*0_4

PD8

BAT54-7-F

PD8

BAT54-7-F

PD7

CHN217

PD7

CHN217

PC74

10U/X6S/25V_1206

PC74

10U/X6S/25V_1206

PR150 0PR150 0

1 2

PC138

4.7U/X5R/10V_8

PC138

4.7U/X5R/10V_8

3 6

PQ25

FDS8884

PQ25

FDS8884

PR142

390K_4

PR142

390K_4

PR139

0_4

PR139

0_4

PR147

PR140

0_4

PR140

0_4

PR78 0PR78 0

1 2

PR148

*0_4

PR148

*0_4

1 2

PR152

1/F

PR152

1/F

3 6

PQ41

FDS8884

PQ41

FDS8884

PL18

HI0805R800R-00_8

PL18

HI0805R800R-00_8

PL6

2.5uH_7.5A

PL6

2.5uH_7.5A

PC135

1U/16V_6

PC135

1U/16V_6

PR159

PL7

1.5uH_10A

PL7

1.5uH_10A

PC79

0.1U/X7R/50V_6

PC79

0.1U/X7R/50V_6

PC144

10U/X6S/25V_1206

PC144

10U/X6S/25V_1206

1 3

PQ43

PDTC143TT

PQ43

PDTC143TT

PC81

0.1U/X7R/50V_6

PC81

0.1U/X7R/50V_6

PC145

10U/X6S/25V_1206

PC145

10U/X6S/25V_1206

PC61

0.1U/X7R/50V_6

PC61

0.1U/X7R/50V_6

1 2

PC139

.01U/25V_6

PC139

.01U/25V_6

PC67

0.1U/X7R/50V_6

PC67

0.1U/X7R/50V_6

PC78

330U/6.3V_6X5.7

PC78

330U/6.3V_6X5.7

PR138

150K/F_4

PR138

150K/F_4

PC142

0.1U/X7R/50V_6

PC142

0.1U/X7R/50V_6

PR153

www.RahasiaLaptop.com

D D

C C

B B

A A

ISEN2

PSI#_1PSI#

H_VID0

VR_ON

H_VID2

H_VID1

ISEN1

VSUM

6262_PH2

ISEN2

6262_LG2

PGD_IN

6262_UG1

CLKEN#

6262_UG2

6262_PH1

ISL6262_VO

VSUM

H_VID5

H_VID6

H_VID4

H_VID3

VSUM

DPRSLPVR

H_VID6

ISEN1

H_VID0H_VID3 H_VID2H_VID5 H_VID4 H_VID1

PSI#

DPRSLPVR

PSI#_1

6262_LG1

PGD_INPWR_MON

VCCSENSE <4>

VSSSENSE <4>

H_VID1<4>

H_VID5<4>

H_VID6<4>

H_VID2<4>

H_VID4<4>

H_VID3<4>

H_VID0<4>

PSI#<3>

H_PROCHOT#<3>

ICH_DPRSTP#<3,7,12>

PM_DPRSLPVR<7,14>

VR_PWRGD_CK410#<14>

DELAY_VR_PWRGOOD <3,7,14>

VRON<31>

VIN_6262

VCC_CORE

+3VSUS

+3V

VIN

+1.05V

VIN_6262

+5V_S5

Size Document Number Rev

Date: Sheet of

CPU CORE(ISL6262)

CCustom

34 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CPU CORE(ISL6262)

CCustom

34 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

CPU CORE(ISL6262)

CCustom

34 38Monday, May 07, 2007

ED8-B -0623-390p to330p

ED8-B -0623-33nf to 68nf

ED8-B -0623-3.9k to 3.48k

Panasonic

ERT-J0EV474J

Parallel

Merom: VCC_CORE/ 44A

Yonah: VCC_CORE/ 36A

Throttling temp.

105 degree C

Close to Phase 1 Inductor

Panasonic

ERT-J1VR103J

Close to Phase 1 Inductor

ED8-B -0623-add

for ISL6262A

PR125

PR97

PR24

4.02K/F_4

PR24

4.02K/F_4

PR28

2.7K/F_4

PR28

2.7K/F_4

PR27

11K/F_4

PR27

11K/F_4

PQ36

AOL1412

PQ36

AOL1412

PR20

PR19

10_4

PR19

10_4

PR129 3.65K/FPR129 3.65K/F

PR117 1K/F_4PR117 1K/F_4

PC5

10U/X6S/25V_1206

PC5

10U/X6S/25V_1206

PC100 0.1U/X7R/50V_6PC100 0.1U/X7R/50V_6

1 2

PC104

4.7U/X6S/25V_8

PC104

4.7U/X6S/25V_8

PR23 *0_4PR23 *0_4

PR119

3.48K/F_4

PR119

3.48K/F_4

PR109

470K_4 NTC

PR109

470K_4 NTC

PC120

330U/2V_7

PC120

330U/2V_7

1 2

PC16

.01U/16V_4

PC16

.01U/16V_4

PR89

PR88

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

PC160

*2200P/100V_6

PC160

*2200P/100V_6

PR18 499/F_4PR18 499/F_4

PQ33

AOL1412

PQ33

AOL1412

PR113 6.81K/F_4PR113 6.81K/F_4

1 2

PR107 2.2PR107 2.2

PR32 3.65K/FPR32 3.65K/F

PC110

.01U/16V_4

PC110

.01U/16V_4

PR30 1/FPR30 1/F

PC14

0.1U/X7R/50V_6

PC14

0.1U/X7R/50V_6

PC106

0.22U/X5R/25V_8

PC106

0.22U/X5R/25V_8

PC19

0.22U/X5R/25V_6

PC19

0.22U/X5R/25V_6

1 2

PR164

*2.2

PR164

*2.2

PR124

PR29 *0PR29 *0

PL1

HI0805R800R-00_8

PL1

HI0805R800R-00_8

PC116

0.22U/X5R/25V_6

PC116

0.22U/X5R/25V_6

1 2

PC107

1000P/X7R/50V_6

PC107

1000P/X7R/50V_6

PR101 147K/FPR101 147K/F

PR26 0_4PR26 0_4

PR93

PR106 0_4PR106 0_4

PR108

*10K/F_4

PR108

*10K/F_4

PQ37

AOL1414

PQ37

AOL1414

1 2

PC111

.01U/16V_4

PC111

.01U/16V_4

PC117

180P/NPO/50V_4

PC117

180P/NPO/50V_4

PC157

*2200P/100V_6

PC157

*2200P/100V_6

PQ30

AOL1414

PQ30

AOL1414

1 2

PR162

*2.2

PR162

*2.2

PR21

1.91K/F_4

PR21

1.91K/F_4

PC155

2200P/50V_6

PC155

2200P/50V_6

PC10

0.1U/X7R/50V_6

PC10

0.1U/X7R/50V_6

PC156

*2200P/50V_6

PC156

*2200P/50V_6

PR96

PR127 1/FPR127 1/F

PC103

0.22U/X5R/25V_8

PC103

0.22U/X5R/25V_8

PC158

2200P/50V_6

PC158

2200P/50V_6

PR122 0_4PR122 0_4

PC15

220P/X7R/50V_4

PC15

220P/X7R/50V_4

PR128 10K/FPR128 10K/F

PR120

10/F

PR120

10/F

PR118

1K/F_4

PR118

1K/F_4

PC115

0.22U/X5R/25V_6

PC115

0.22U/X5R/25V_6

PC108

0.1U/X7R/50V_6

PC108

0.1U/X7R/50V_6

PC114

0.1U/X7R/50V_6

PC114

0.1U/X7R/50V_6

PR25 97.6K/F_4PR25 97.6K/F_4

PC88

470U/25V_10*10.2

PC88

470U/25V_10*10.2

1 2

PC21

1U/X7R/25V_8

PC21

1U/X7R/25V_8

VCC 22

PGOOD 1

VID4

VID3

VID2

VID1

VID0

VID5

UGATE2 27

DFB

PHASE2 28

NC 25

PGND2 29

VO 18

ISEN2 23

VR_ON

NTC

VSEN

CLK_EN#

COMP

OCSET 8

SOFT

VDIFF

RTN

3V3 48

VID6

VR_TT#

DROOP

RBIAS

ISEN1 24

PSI#

PGD_IN

BOOT2 26

DPRSTP#

GND

GND_T

VIN 20

DPRSLPVR

VSUM 19

BOOT1 36

PHASE1 34

UGATE1 35

PGND1 33

LGATE1 32

PVCC 31

LGATE2 30

FB2

PU8

ISL6262A

PU8

ISL6262A

1 2

PL14 0.36uHPL14 0.36uH

PR112 13.3K/F_4PR112 13.3K/F_4

PC112

10U/X6S/25V_1206

PC112

10U/X6S/25V_1206

PR114 0_8PR114 0_8

PL2

HI0805R800R-00_8

PL2

HI0805R800R-00_8

PC20

0.22U/X7R/10V_6

PC20

0.22U/X7R/10V_6

PR126 *0PR126 *0

1 2

PL15 0.36uHPL15 0.36uH

PR94

PC99

*330U/2V_7

PC99

*330U/2V_7

PR99

1 2

PR116 2.2PR116 2.2

PC18

470P/X7R-50V_4

PC18

470P/X7R-50V_4

PC105

1000P/X7R/50V_4

PC105

1000P/X7R/50V_4

PC17

0.022U/X7R/50V_6

PC17

0.022U/X7R/50V_6

PC22

68N/X7R/25V_6

PC22

68N/X7R/25V_6

PR121

10/F

PR121

10/F

PC159

*2200P/50V_6

PC159

*2200P/50V_6

PR123

1K/F_4

PR123

1K/F_4

PR104 0_4PR104 0_4

PC118

10U/X6S/25V_1206

PC118

10U/X6S/25V_1206

PC119

330U/2V_7

PC119

330U/2V_7

1 2

PC113

.01U/16V_4

PC113

.01U/16V_4

1 2

PR161

*2.2

PR161

*2.2

PC4 10U/X6S/25V_1206PC4 10U/X6S/25V_1206

PR115

255/F_4

PR115

255/F_4

PR22 4.99K/F

PR31 10K/FPR31 10K/F

1 2

PC109

1000P/X7R/50V_6

PC109

1000P/X7R/50V_6

PR84

10K _6 NTC

PR84

10K _6 NTC

PR17 0_4PR17 0_4

1 2

PR163

*2.2

PR163

*2.2

PR103 0_4PR103 0_4

PR98

PR95

www.RahasiaLaptop.com

A A

B B

C C

D D

1.5V_FB

DH-1.5V

DL-1.5V

MAINON<31,36,37>

HWPG_1.05V<31>

+5V_S5

VIN

+3V

VIN-1.5V

+1.05V

Size Document Number Rev

Date: Sheet of

VTT +1.05V

35 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

VTT +1.05V

35 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

VTT +1.05V

35 38Monday, May 07, 2007

16A

VOUT=(1+R2/R3)*0.5

Rdson*Iocp=PR55*10u Rdson=15m ohm

PC55

10U/X6S/25V_1206

PC55

10U/X6S/25V_1206

PC52

33P/NPO/50V_6

PC52

33P/NPO/50V_6

PL4

HI0805R800R-00_8

PL4

HI0805R800R-00_8

PR54

10K/F

PR54

10K/F

PC57

10U/X6S/25V_1206

PC57

10U/X6S/25V_1206

PC56

.1U/X7R/50V_8

PC56

.1U/X7R/50V_8

PC49

4.7U/Y5V/10V_8

PC49

4.7U/Y5V/10V_8

PC44

10U/Y5U/10V_8

PC44

10U/Y5U/10V_8

PR57 47KPR57 47K

PC47

560U/2.5V_6X5.7

PC47

560U/2.5V_6X5.7

PL3

1R5UH-3.8mR

PL3

1R5UH-3.8mR

PC48

0.1U/X7R/50V_6

PC48

0.1U/X7R/50V_6

EN/PSV

VIN

VOUT

VCCA

FBK

PGOOD

VSSA

6PGND 7

DL 8

VDDP 9

ILIM 10

LX 11

DH 12

BST 13

5TPAD 17

GND

PU6

SC411MLTRT

PU6

SC411MLTRT

PR53

PC53

0.1U/50V_6

PC53

0.1U/50V_6

PC51

.1U/X7R/50V_8

PC51

.1U/X7R/50V_8

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

PR56

11K/F

PR56

11K/F

PR58

3 6

PQ45

FDS8884

PQ45

FDS8884

PC54

1000P/X7R/50V_6

PC54

1000P/X7R/50V_6

PR55 13.3K/FPR55 13.3K/F

PC50

*.1U_6

PC50

*.1U_6

PR136

*10K

PR136

*10K

PD5

SW1010C

PD5

SW1010C

3 6

PQ46

FDS6690AS

PQ46

FDS6690AS

www.RahasiaLaptop.com

D D

C C

B B

A A

5VIN

+3VPCU

DIS_MODE

+1.8VSUS

S5_1.8V

S3_1.8VDIS_MODE

MAIND<33,37>

HWPG_1.8V <31>

MAINON <31,35,37>

SUSON <31,37>

+3VPCU

+5VPCU

+1.8V

+1.8VSUS

+SMDDR_VTERM

+1.8VSUS

VIN

+SMDDR_VREF

+1.8V_MXM

Size Document Number Rev

Date: Sheet of

DDR 1.8V(TPS51116)

36 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

DDR 1.8V(TPS51116)

36 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

DDR 1.8V(TPS51116)

36 38Monday, May 07, 2007

MAX Current 3.5A

FOR DDR II

MAX Current 10A

PC161 ,PL19 & PC162 near CN27

(10u*PR35)/Rdson+Delta_I/2=Iocp

R1=(100*Vout-R2)K

if tune Vout PR38 un-mount, PR156 PR165 mount

LL 18

DRVL 17

VLDOIN

VTT

VTTGND

VBST 20

DRVH 19

PGND 16

CS 15

V5IN 14

PGOOD 13

S5 12

S3 11

COMP

VDDSNS

VTTREF

MODE

GND

VDDQSET

VTTSNS

GND

PU9

TPS51116

PU9

TPS51116 PC24

10U/X6S/25V_1206

PC24

10U/X6S/25V_1206

PC125

0.1U/X7R/50V_6

PC125

0.1U/X7R/50V_6

3 6

PQ4

FDS6690AS

PQ4

FDS6690AS

PC128

4.7U/X5R/6.3V_6

PC128

4.7U/X5R/6.3V_6

PC126

2200P/X7R/50V_6

PC126

2200P/X7R/50V_6

PC162

0.01u/16v_6

PC162

0.01u/16v_6

PC23

10U/X5R/10V_8

PC23

10U/X5R/10V_8

PC121

*2200P/50V_6

PC121

*2200P/50V_6

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

PR132

100K/F

PR132

100K/F

PC131

10U/X6S/25V_1206

PC131

10U/X6S/25V_1206

PR130

*2.2/F

PR130

*2.2/F

PR131 0PR131 0

PR35

14K/F

PR35

14K/F

PC161

0.01u/16v_6

PC161

0.01u/16v_6

PR135

PL17

HI0805R800R-00_8

PL17

HI0805R800R-00_8

PC123

560U/2.5V_6X5.7

PC123

560U/2.5V_6X5.7

3 6

PQ39

FDS8884

PQ39

FDS8884

PR38

PR156

110k

PR156

110k

PC25

*2200P/50V_6

PC25

*2200P/50V_6

PR33

*2.2/F

PR33

*2.2/F

PR134 0PR134 0

PR37

PC130

10U/X6S/25V_1206

PC130

10U/X6S/25V_1206

PL19

HI0805R800R-10_6

PL19

HI0805R800R-10_6

PQ38

FDC653N_NL

PQ38

FDC653N_NL

PC124

10U/X6S/25V_1206

PC124

10U/X6S/25V_1206

PL16

1R5UH-3.8mR

PL16

1R5UH-3.8mR

PR165

76.8k

PR165

76.8k

PC129

0.033U/50V_6

PC129

0.033U/50V_6

PC32

*1000P/50V_6

PC32

*1000P/50V_6

PC29 0.1U/X7R/50V_6PC29 0.1U/X7R/50V_6

PR41 0PR41 0

PC127

10U/X6S/25V_1206

PC127

10U/X6S/25V_1206

PR40 *0PR40 *0

3 6

PQ3

*FDS6690AS

PQ3

*FDS6690AS

PR133 0PR133 0

PC122

*0.47U/10V_6

PC122

*0.47U/10V_6

www.RahasiaLaptop.com

D D

C C

B B

A A

MAINON

9338DRV

9338ENMAINON

RUN_ON_G

SUSDSUS_ON_G

MAINON

VTT-ADJ

MAINON

MAIND

+1.5V <4,10,13,15,22,23,26,29,30>

HWPG_CPUIO<31>

MAINON<31,35,36>

SUSON<31,36>

SUSD <33>

MAIND <33,36>

S5_ON<31,33>

+1.25V

+5V

+1.8VSUS

+5VPCU

+1.5V

+3V

+1.8VSUS

+1.05V

VIN +5V+2.5V +3V +SMDDR_VTERM +1.5V

+3VSUS 15V+SMDDR_VREF

VIN +1.8VSUS

+3VSUS

+2.5V

+1.25V

+1.8VSUS

+5V

+1.2V

+1.5V_S5

+3VPCU

15V

+1.8V_MXM

Size Document Number Rev

Date: Sheet of

Discharge (1.5V/2.5V)

37 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

Discharge (1.5V/2.5V)

37 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

Discharge (1.5V/2.5V)

37 38Monday, May 07, 2007

Vout =0.8(1+R1/R2)

=1.2V

REV:3A MODIFY

Vout1 = (1+Rg/Rh)*0.5

0.8V

0.5A

Vout=0.8*[1+(R1/R2)]

0.8V R1

Vout =0.8(1+R1/R2)

=1.25V

Add by power on 10/19

200mA

PR79

PR47

34K/F

PR47

34K/F

PQ19

2N7002E

PQ19

2N7002E

PR36

*17.4K/F

PR36

*17.4K/F

PR80

1 2

PC147

*1U/X7R-25V_8

PC147

*1U/X7R-25V_8

PC45

*560U/2.5V_6X5.7

PC45

*560U/2.5V_6X5.7

PR60

PR73

PC38

10U/X5R/6.3V_6

PC38

10U/X5R/6.3V_6

PR61

PQ21

2N7002E

PQ21

2N7002E

PR46

19.6K/F

PR46

19.6K/F

PC26

10U/Y5U/10V_8

PC26

10U/Y5U/10V_8

1 3

PQ28

DTC144EU

PQ28

DTC144EU

PGOOD 1

VPP

VEN

VIN

VO 6

NC 5

GND

ADJ

GND

PU3

*G966

PU3

*G966

PC37

22U/Y5U/6.3V_8

PC37

22U/Y5U/6.3V_8

PQ8

2N7002E

PQ8

2N7002E

PC69

*2200p_4

PC69

*2200p_4

PR34

0/F_6

PR34

0/F_6

PQ20

2N7002E

PQ20

2N7002E

PC71

*2200p_4

PC71

*2200p_4

PR71

PQ13

2N7002E

PQ13

2N7002E

PC40

10U/Y5U/10V_8

PC40

10U/Y5U/10V_8

PR74

PR42

*34K/F

PR42

*34K/F

PR77

VCC

GND

PGD

ADJ 5

DRV 6

PU5

G9338 ADJ

PU5

G9338 ADJ

1 2

PC148

*1U/X7R-25V_8

PC148

*1U/X7R-25V_8

PR63

PR59

PQ14

2N7002E

PQ14

2N7002E

VIN

GND

3BP 4

VOUT 5

PU10 *AT5206G-1.5V

SOT23-5-2_8-95

PU10 *AT5206G-1.5V

SOT23-5-2_8-95

2VO2 6

VO1 5

VIN2

GND1 8

GND0

VIN1

ADJ

GND2 9

PU2

AT818

PU2

AT818

PGOOD 1

VPP

VEN

VIN

VO 6

NC 5

GND

ADJ

GND

PU4

G966

PU4

G966

PR66

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

1 3

PQ9

DTC144EU

PQ9

DTC144EU

PQ10

2N7002E

PQ10

2N7002E

PR44

634K/F_4

PR44

634K/F_4

PC30

*10U/Y5U/10V_8

PC30

*10U/Y5U/10V_8

PQ22

2N7002E

PQ22

2N7002E

PQ40

2N7002E

PQ40

2N7002E

PR64

1 2

PR43

294K/F_4

PR43

294K/F_4

PR45

10K/F

PR45

10K/F

PC132

560U/2.5V_6X5.7

PC132

560U/2.5V_6X5.7

PR39

*10K/F

PR39

*10K/F

PC35

0.1U/X7R/50V_6

PC35

0.1U/X7R/50V_6

PR137

*0.1U/Y5V/16V_4

PC31

*0.1U/Y5V/16V_4

PC31

PR50

20K/F

PR50

20K/F

PR154

*0_4

PR154

*0_4

0.1U/X7R/50V/_6

PC41

0.1U/X7R/50V/_6

PC41

PC134

10U/X5R/6.3V_6

PC134

10U/X5R/6.3V_6

0.1U/X7R/50V_6

PC133

0.1U/X7R/50V_6

PC133

0.01U/X7R/50V_6

PC46

0.01U/X7R/50V_6

PC46

PR65

PC42

10U/X5R/6.3V_6

PC42

10U/X5R/6.3V_6

PQ15

2N7002E

PQ15

2N7002E

PR72

PC149

*470P/X7R-50V_4

PC149

*470P/X7R-50V_4

*0.1U/Y5V/16V_4

PC33

*0.1U/Y5V/16V_4

PC33

PR155

*0_4

PR155

*0_4

0.1U/X7R/50V_6

PC36

0.1U/X7R/50V_6

PC36

PQ11

2N7002E

PQ11

2N7002E

0.1U/X7R/50V_6

PC39

0.1U/X7R/50V_6

PC39

PC28

0.1U/X7R/50V_6

PC28

0.1U/X7R/50V_6

PC27

1U/16V_6

PC27

1U/16V_6

PR49 0_4PR49 0_4

PR48 100K_4PR48 100K_4

PC34

*10U/X5R/6.3V_6

PC34

*10U/X5R/6.3V_6

PR51

10K/F

PR51

10K/F

PR52

PR67

PQ5 FDS8884PQ5 FDS8884

PQ12

2N7002E

PQ12

2N7002E

PC150

*10U/X6S-25V_1206

PC150

*10U/X6S-25V_1206

0.1U/X7R/50V_6

PC43

0.1U/X7R/50V_6

PC43

PR62

PQ24

2N7002E

PQ24

2N7002E

www.RahasiaLaptop.com

D D

C C

B B

A A

Size Document Number Rev

Date: Sheet of

Change list

38 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

Change list

38 38Monday, May 07, 2007

Size Document Number Rev

Date: Sheet of

Change list

38 38Monday, May 07, 2007

REV FROM To

CHANGE LIST

PART NUMBER:

2007/ 2/15

DRAWING BY: REVISON:

APPROVED BY:PROJECT MODEL : ZD1

ZY3

FIRST RELEASED: E200610-3793 (PCB: DA0ZD1MB6A0)

Model

ZD1 MB

DOC NO.

MODEL

DATE:

Page10 : Depop R153 & pop L23 for system can not boot

2A1A

1A 2A

Page14 : U36 package didn't math footprint, change P/N.

Page26 : Remove R275, install R276; remove R4, install R16; Change R245, R247 power source from +1.5V_S5/+1.5V to +3V_S5/+3V ,

Follow customer request modem change support to +3VSUS.

Page22 : MMB(CN8) PIN define error.

Page22 : TV card change support to +1.5V.

Page18 : Install R5, depop R7,: Follow customer request use EC to control backlight ON/OFF function.

Page14 : GPIO10: Reserve PU, 10K +> It is GPO and OD;

GPIO14: Reserve PD, 10K => It is GPI as AC present and active high;

Page31 : AEC pin24 is multi function pin, when EC power up, pin17 will change to JTAG/TCK function not GPIO.

So,need to change from pin24 (GPIO47) to pin27 (GPIO52).

Page6 : TV_DCONSEL[0:1], UMA =>NC, External VGA tie to GND.

Page31 : 2nd FAN change design

Page19 : Floating CN13.16 & CN13.17 ,CN14.15 & CN14.16 for ESD test

Page23 : New card power SW (location: U33) change same as ZO1

Page31 : add 2 capacity 0.1uF(C634,C636) in DIGVOL_UP / DIGVOL_DN pins

Page28 : SD card can not be detected , U32(ES2) sample will fix this issue.

Page07 : DPLL_REF_CLK, DPLL_REF_CLK#, DPLL_REF_SSCLK and DPLL_REF_SSCLK#. To GND

Page28 : MMC card can not be detected , U32(ES2) sample will fix this issue.

Page14 : The CLPWROK pin of ICH8 connect with HWPG signal

Page22 : change CN7 pin definition for T/P no function.

Page24 : change CN8 pin definition MMB no function.

Page14 : The signal of KBSMI#_ICH add diode , and it PU to +3V_S5

The signal of LID591#_ICH add diode , and it PU to +3V_S5 for ICH8 electric leakage issue.

Page16 : Modify SMbus address A2 , The signal of B_SA1 need to PU and B_SA0 need to PD

Page36 : Add PI filter to reduce the power ripple of +1.8V.

Page17 : Adding (Q52 & R541 & Q53) extra circuitry to prevent power leakage from system into MXM

Page21 : Change power of CIR from +3VPCU and +5VPCU.

Page 2 : Add C645 for EMI solution

2B 3A

Page31 : Follow customer request 2nd FAN is controlled by EC

Page26 : add 2 capacity 1uF(C639,C640) for subwoofer

Page26 : Co-layout ALC268 and 888S

Page26 : Change subwoofer from 4pin to 5pin connector.

Page22: Power/B connector add two LED control signal and change to 16 pin from 14-pin for meet ACER LED spec .

Page22: Q35 change to AO3413 form DTA114 for increase LED driving power.

Page23: BL_ON pull up resistor from 10kohm to 100Khom(R194 ).+3V pull up will cause power on leakage on BL_ON signal due to our

VGA have 10kohm pull low.

Page30 : add capacity 2.2uF(C638)

Page19 : Connect CRT of CN13.16 & 17 to GND for ESD

Page17 : Add capacity 330uF(C647) & Remove R541

Page22 & 25: Combine USB/B (CN17) and TV/B(CN30) connector, Connector change to 16 pin. and +5_S5 from 1pin to 2pin.

Page25 : Connect HOLE 28 & 29 to GND for ESD

Page32~37 : Update power circuit

Page37 : Remove 1.2V circuit

Page26 : Add 1000pF and 10pF total 4 PCS Location: C648 , C649, C650, C652 (between +5V_ADOand AGND).

Page22 : CN8.8 remove +5V & R540 & connect to +3V (K)

Page27 : Modify and ADD. AGND bridge (R337,R284,C459 and C472 = 0 Ohm).

Page34 : Remove PR161, PR163, PC156, PC159

Page22 : Add D45~D51 for ESD

Page28 : Change CN36.37 & 38 ,CN37.37 & 38 ,CN38.42 & 43 from ADOGND and GND.

Page32 : PD9 Change footprint

Page25 : Add EMI Spring

Page27 : Add GND & AGND bridge (R546,R540,R408)

Page22 : Modify pin define (TV/B(CN30) connector)

FPage23 & 17 : HDMI circuits modify: Add level-shifter for MXM_HDMI_DDCCLK and MXM_HDMI_DDCDATA.( Location: Q54 ,Q55 , R75, R63,

R297, R410 & R602) .

Quanta Computer Inc.

PROJECT : ZD1

Quanta Computer Inc.

PROJECT : ZD1

Zd1 F Quanta Re Schematics

Navigation menu

Versions of this User Manual:

Views

Navigation
