RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0
User Manual: [1.6MB] Manual Library - Yamaha - United States
Open the PDF directly: View PDF
.
Page Count: 11
![Page 1 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-1.png)

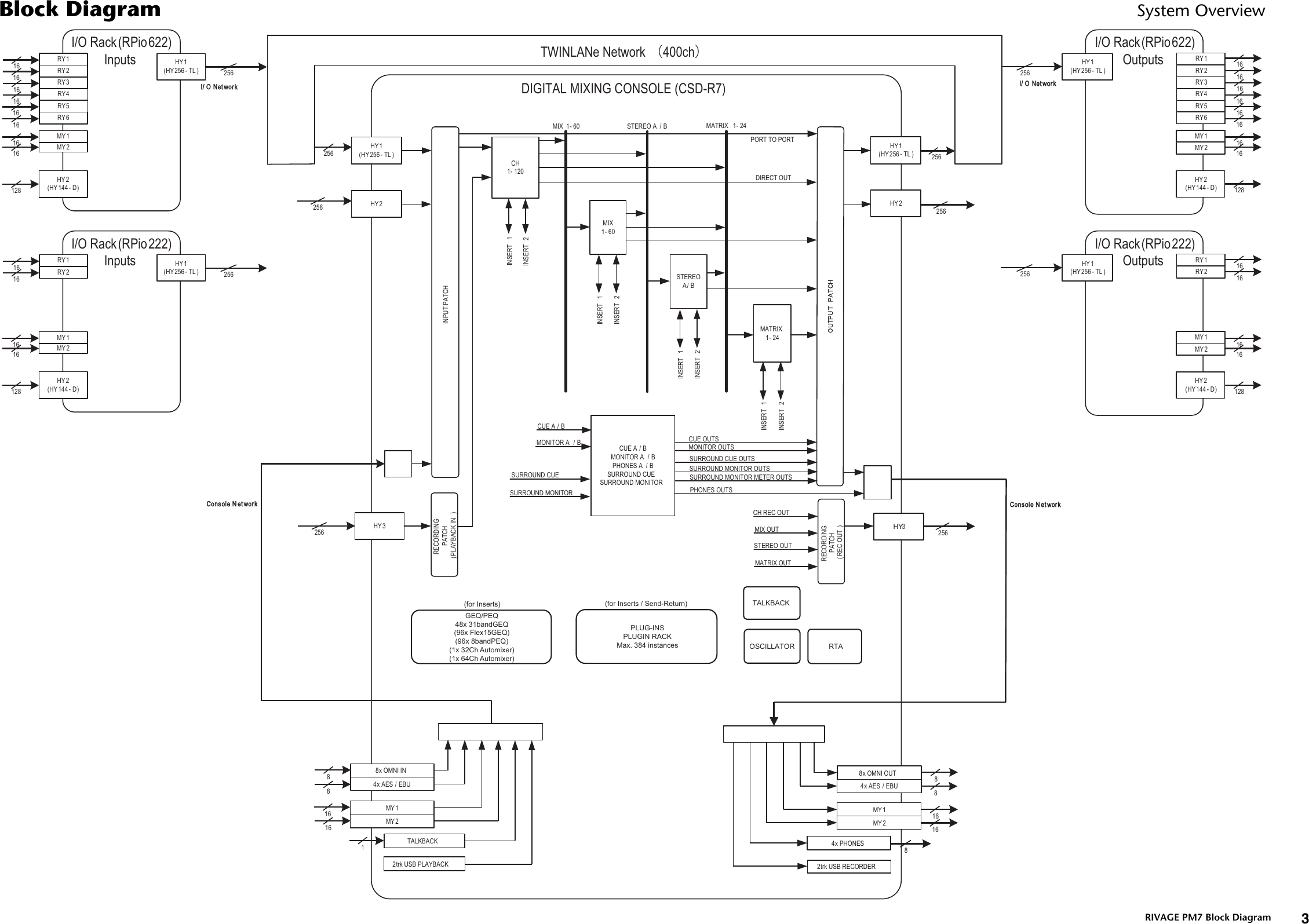

![Page 2 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-2.png)

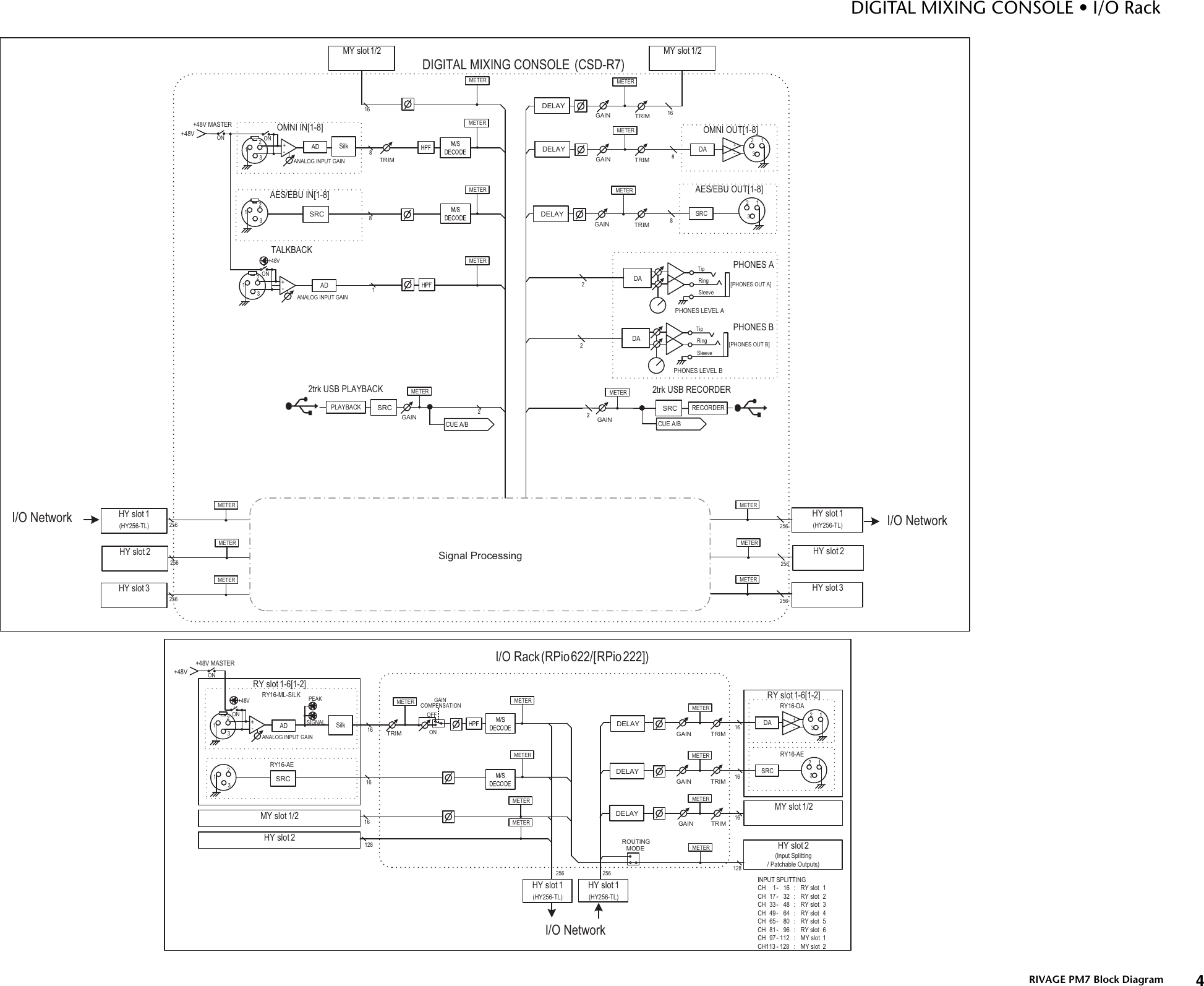

![Page 3 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-3.png)

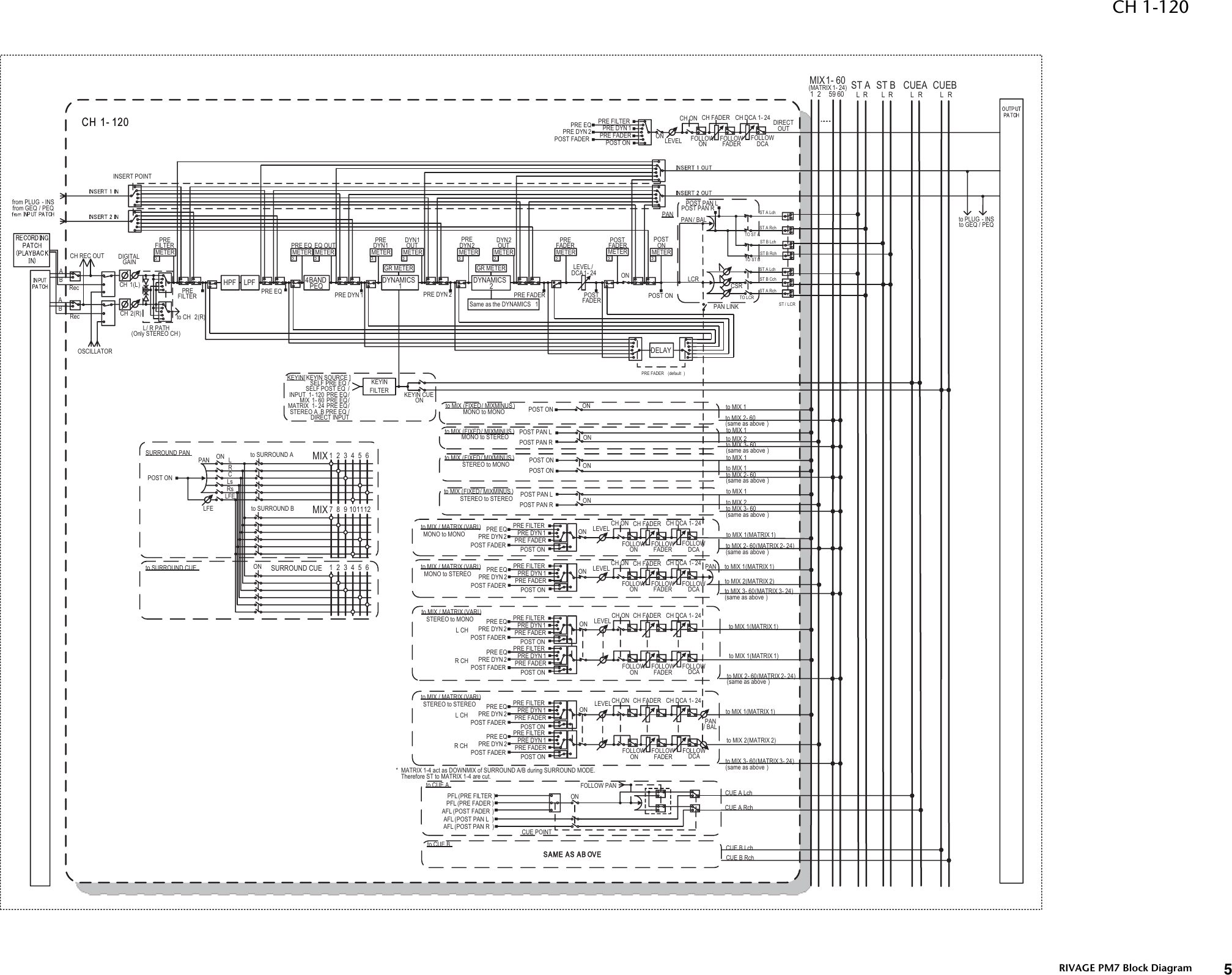

![Page 4 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-4.png)

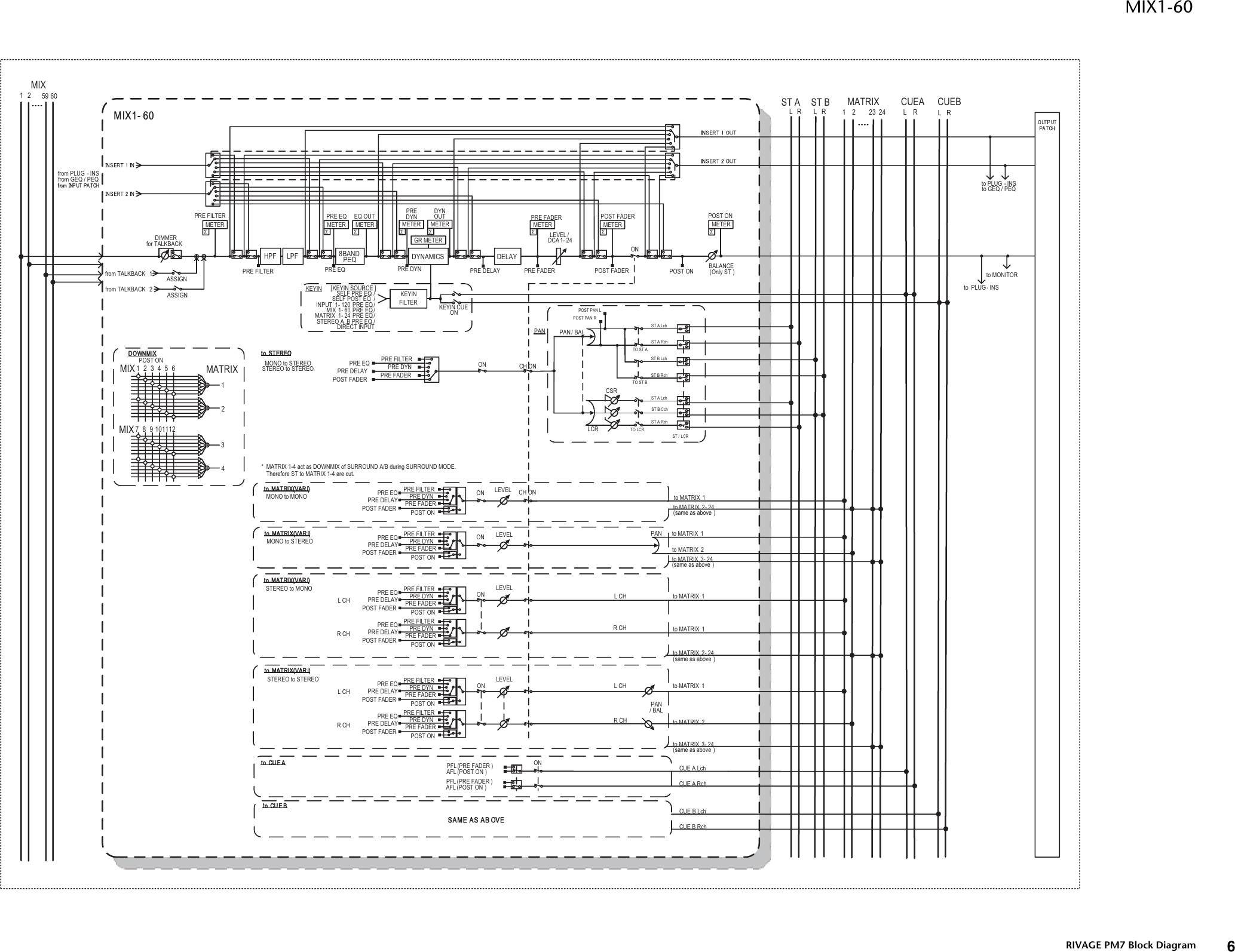

![Page 5 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-5.png)

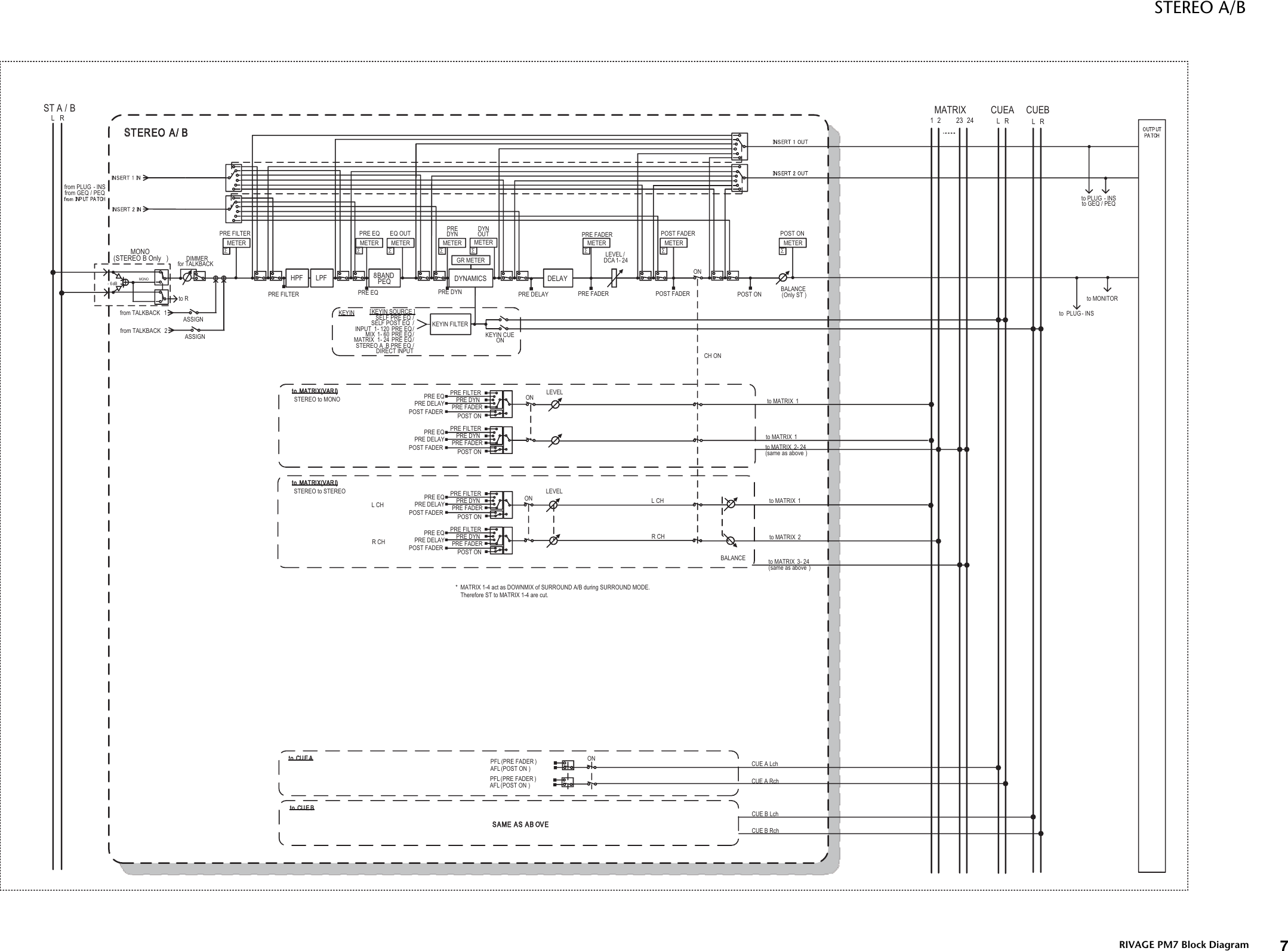

![Page 6 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-6.png)

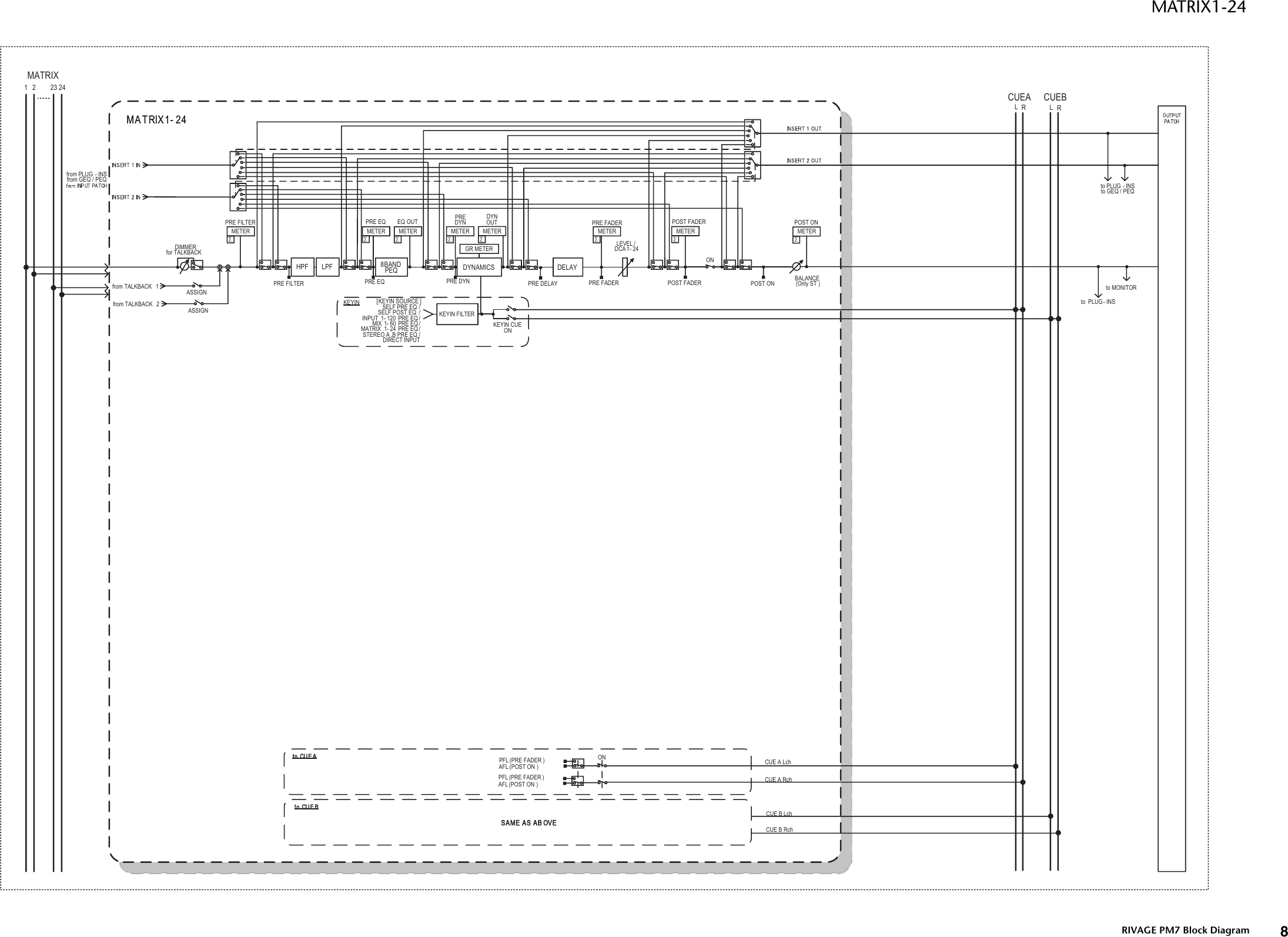

![Page 7 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-7.png)

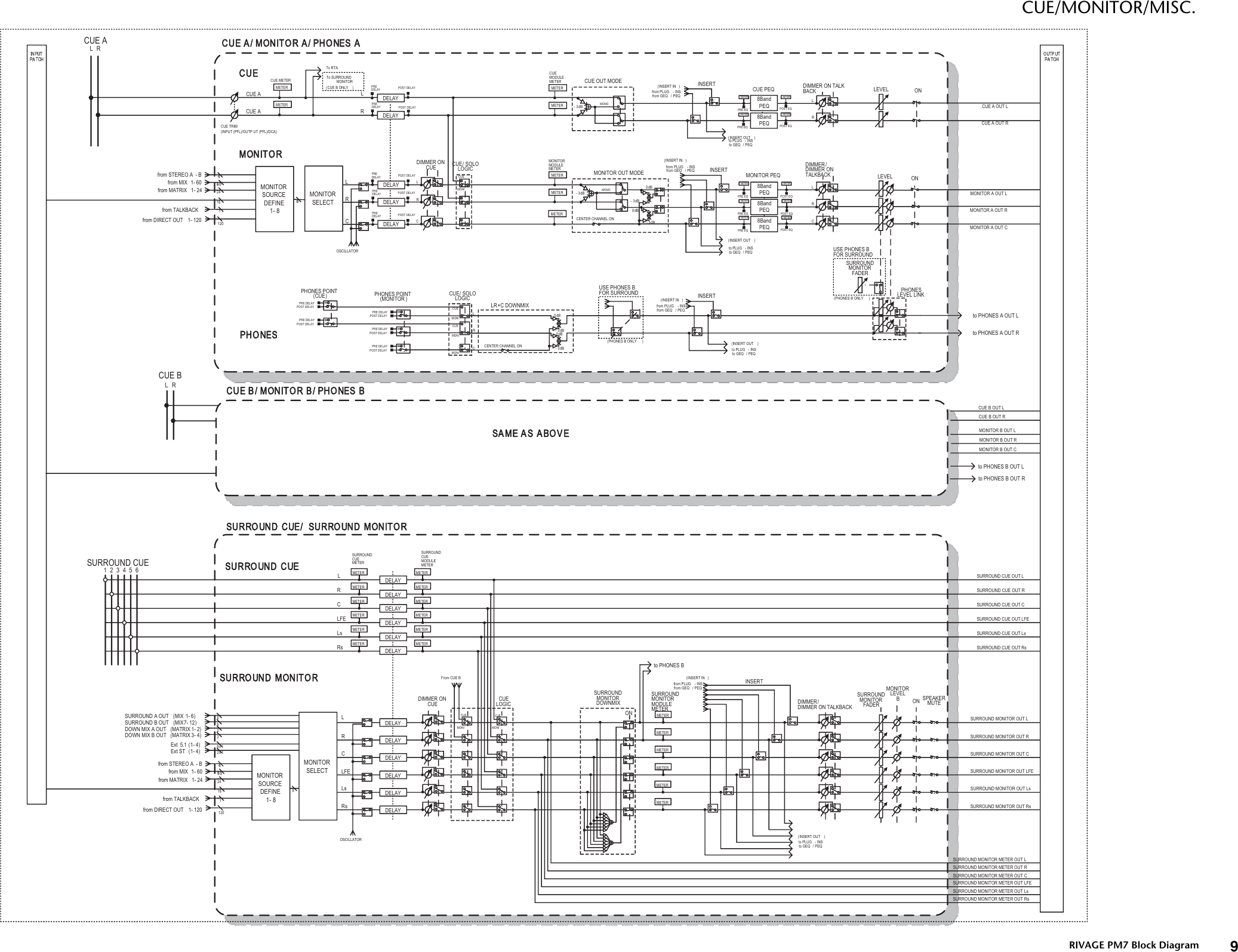

![Page 8 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-8.png)

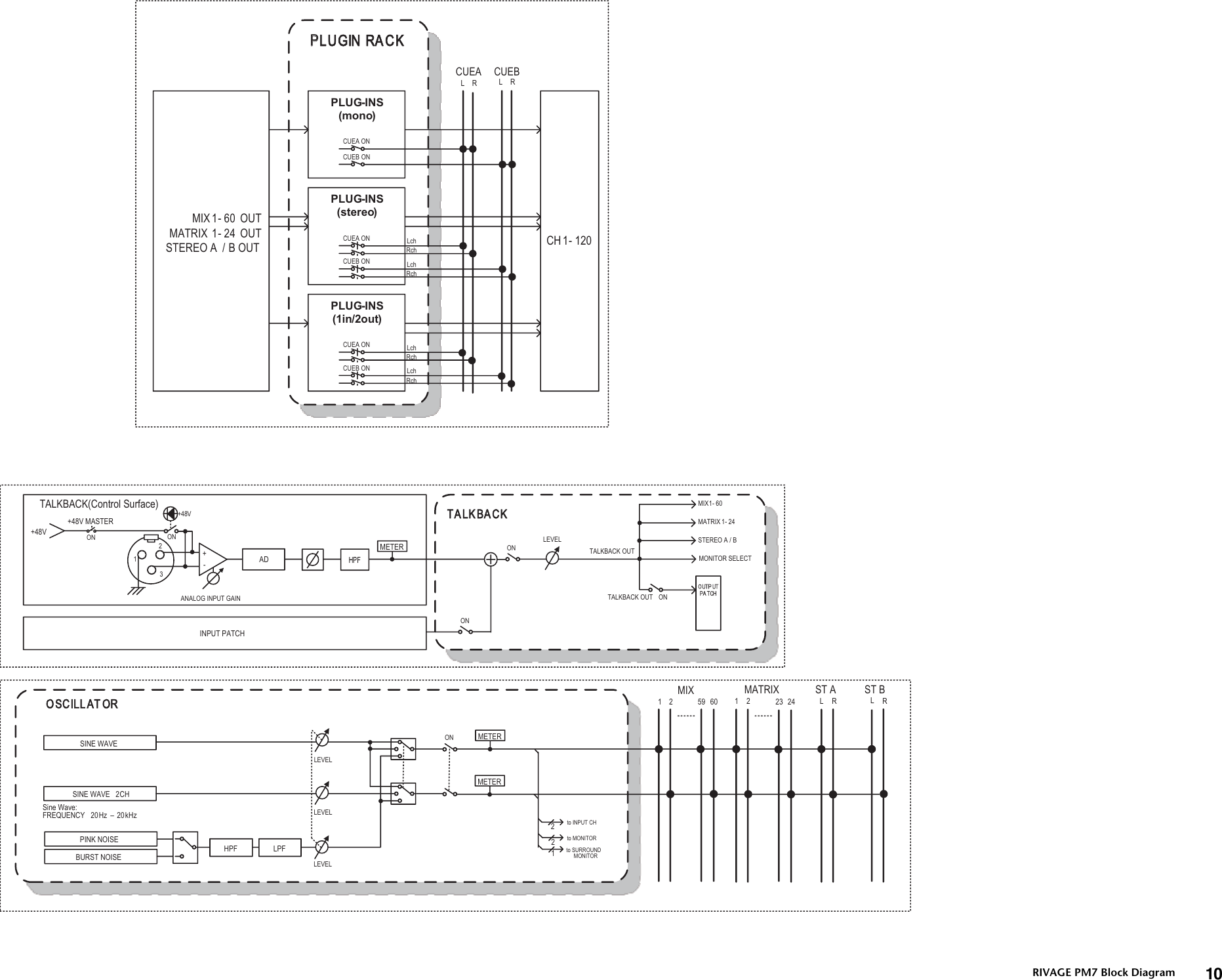

![Page 9 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-9.png)

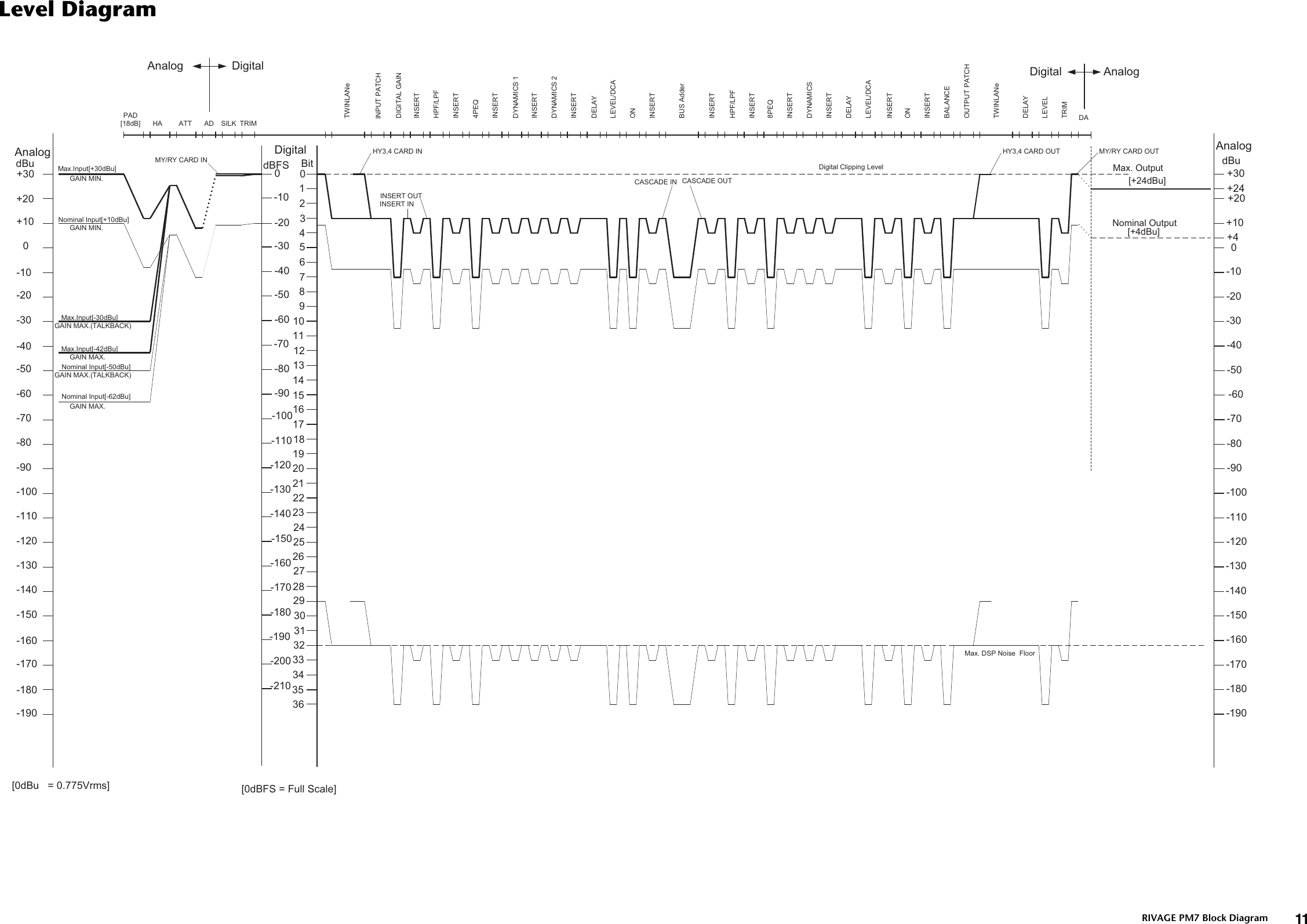

![Page 10 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-10.png)

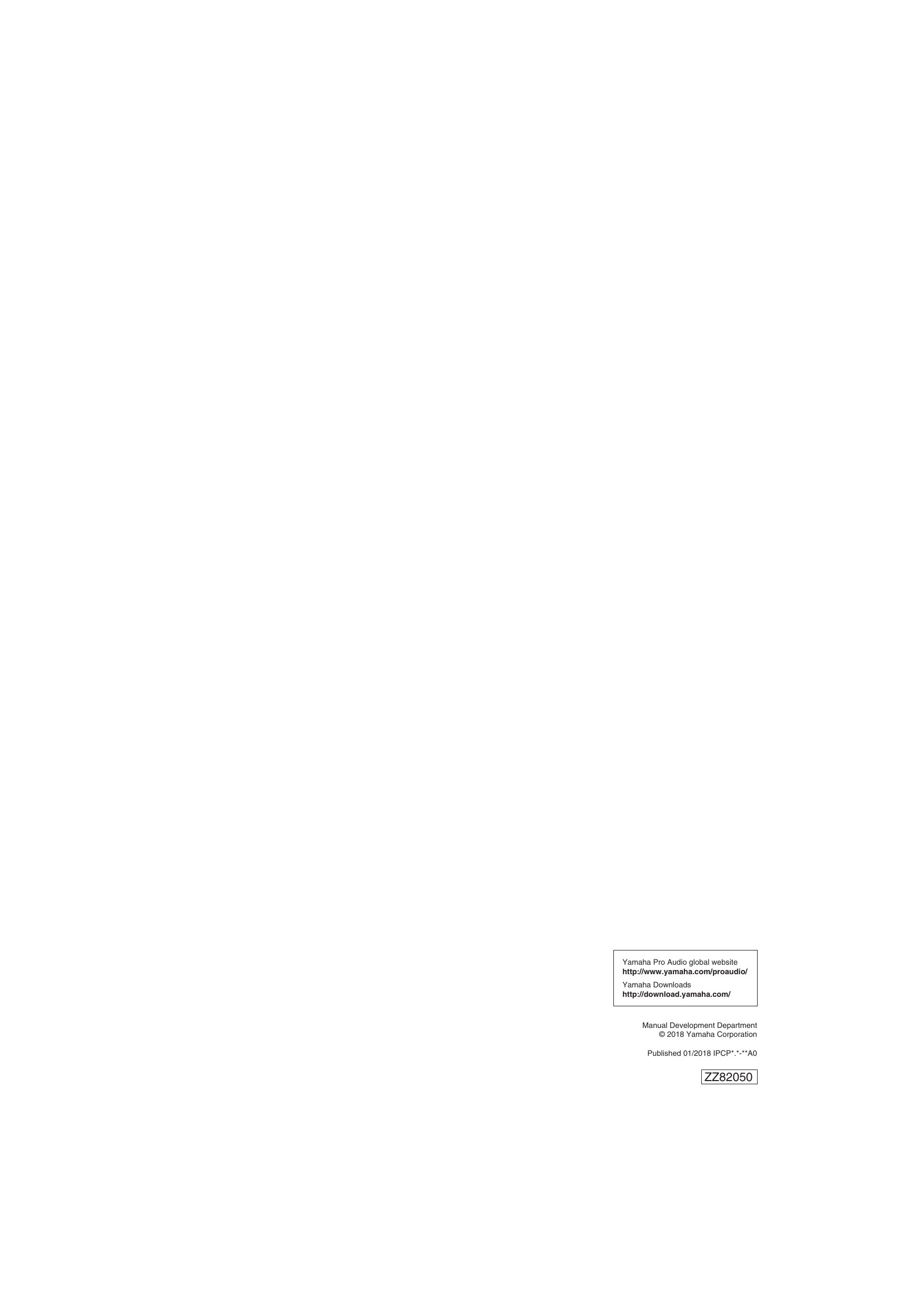

![Page 11 of 11 - RIVAGE PM7 Block Diagram [1.6MB] Blockdiagram A0](https://usermanual.wiki/Document/rivagepm7blockdiagrama0.243262534-User-Guide-Page-11.png)
