Application Report
SLUA621 – September 2011
1
Thermistor Selection Guide for Texas Instruments
Advanced Fuel Gauges
Teruyuki Iida – Team Leader of Design and Engineering Group Ceramics Plant, Mitsubishi Materials Corporation Keisuke
Kumano – Manager of Sales Development Group, Mitsubishi Materials Corporation.
Keith Keller – Power Management Analog Field Applications, Texas Instruments
ABSTRACT
Accurate temperature measurement of Lithium-ion battery cell is essential for proper
safety and operation of your battery design. This application note discusses the use of
several different types of thermistors with Texas Instruments (TI) advanced battery fuel
gauges with reference to application note literature number: SLUA398. Mitsubishi
Materials Corporation (MMTL) offers various Thermistors to accommodate each cell type.
Precise temperature testing was run by MMTL using TI standard Evaluation Modules
(EVM) for three different types of Thermistors discussed in more detail below. The “B
Value” of each type of Thermistor is calculated and shown along with physical size and a
picture of each device.
For TI’s 2-4s cell battery configuration products (bq20z**), the temperature coefficient for
each Thermistor is calculated using polynomial models discussed in TI Literature #
SLUA398. These values are shown in section 4 below.
(** tested with bq20z40, bq20z45, bq20z60, bq20z65, bq20z70, bq20z75, bq20z80, bq20z90, bq20z95 series of gauges)
For some of TI’s 1s cell configuration battery fuel gauge (bq27***), the temperature
coefficients are not programmable and the data sheet states the use of Semitec 103AT or
equivalent. Fortunately designers have many more choices as all the thermistors reviewed
in this application note are within +/-1ºC measurement over the temperature range of 0ºC
to 80ºC, and better than -1.7ºC from -20 ºC to 80ºC temperature range.
(*** tested with bq27410, bq27500, bq27501, bq27505, bq27510, bq27520-G1, bq27541 series of gauges)
1 Introduction
This report is an application note discussing thermistor temperature accuracy using TI
advance fuel gauge battery management IC’s. Calculating method of temperature
coefficients and measurement results of Mitsubishi Materials Corporation Thermistors is
discussed in detail.
SLUA621
2 Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges
2 Calculation of B Values for Three different Types of Thermistors
Thermistor characteristics of three different types of MMTL Thermistors are shown in Table 1.
The characteristic of a thermistor is defined by the resistance at 25ºC (R25) and Beta (B) Value
characteristics as temperature coefficient (B25/50 or B25/85). The B Value is determined by
following formula:
Where:
R: resistance at absolute temperature T (K)
R0: resistance at absolute temperature T0 (K)
B: B Value
*T (K) = t (ºC) +273.15
Table 1. Characteristics of Three Different Types of Thermistors based on Beta Value
B Value
No. Resistance(R25)
B25/85 B25/50 Manufacturer
TH1 3486K 3450K±1%
TH2 3416K 3392K±1%
TH3 3413K 3370K±1%
MMTL
TI Reference
10KΩ±1%
3435K±1% 3392K －
2-2 MMTL Thermistor lineup
Below Table 2 list three different types of Thermistors based on the characteristic Beta Value for
different MMTL Thermistor part number.
Table 2. Part number of MMTL Thermistor based on Beta (B) Value Characteristic
B Value Characters
Type TH1 TH2 TH3
BN25-3H103F ✔
BN35-3H103F ✔
RH16-3H103F ✔
CH25-3H103F ✔
BM22-3H103F ✔
BM38-3H103F ✔
BF05-3I103F ✔
BH30-3H103F ✔
THF5-3I103F ✔
TH05-3H103F ✔
TH03-3H103F ✔
⎟
⎟
⎠
⎞
⎜
⎜
⎝
⎛−=
00
11
/ln TTR
R
B
SLUA621
Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges 3

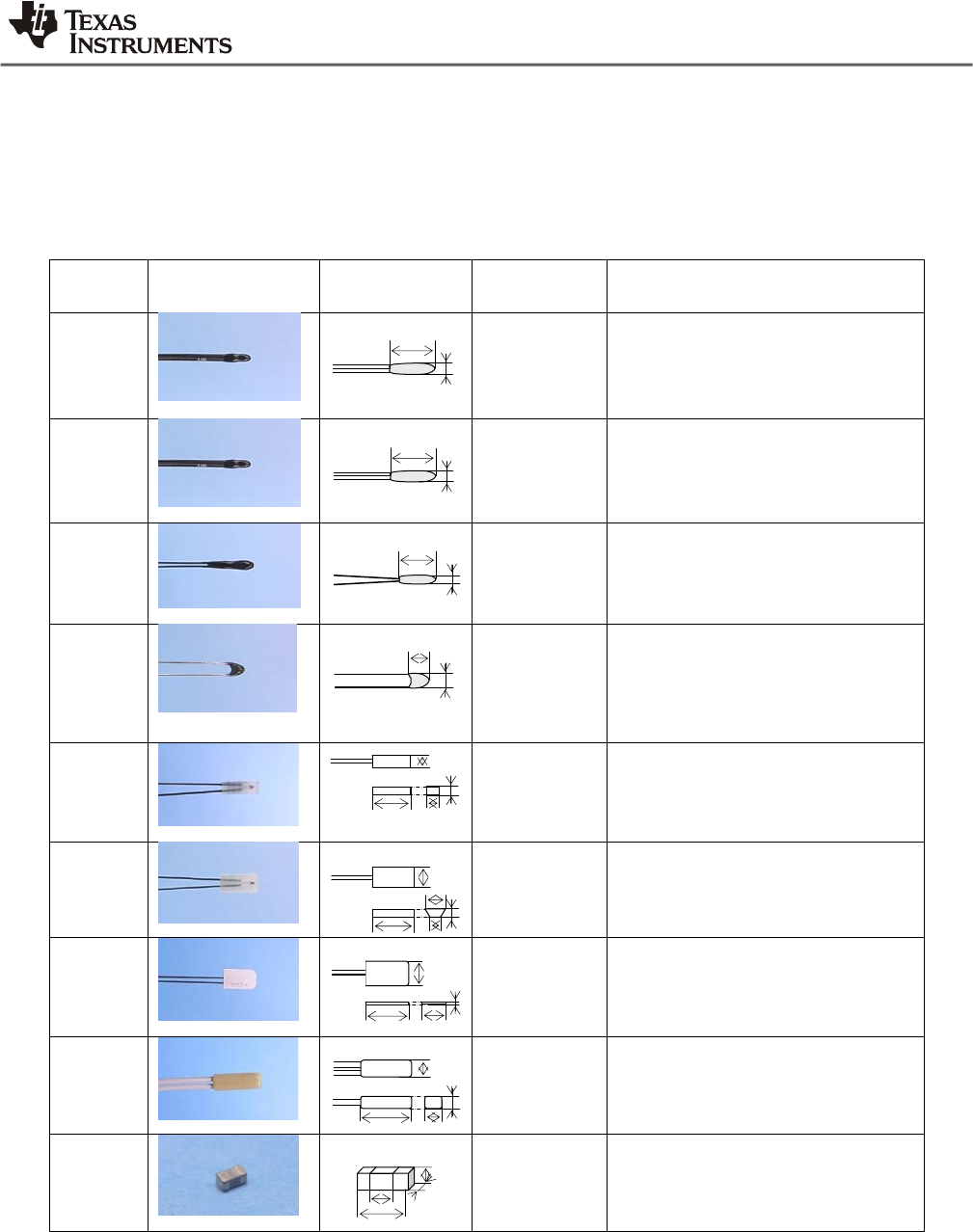

3 Shape and Dimension for MMTL Thermistor
Table 3 shows the physical dimensions and appearance for different series of MMTL
Thermistors.
Table 3. Appearance, Dimensions and B Values for MMLT Thermistor Lineup
Series Appearance Dimensions B Value
B25/50 Remark
BN25
3450K±1% Epoxy resin
BN35
3450K±1% Epoxy resin
RH16
3450K±1% Epoxy resin
CH25
3450K±1% Epoxy resin
BM22
3450K±1% Thermoplastic resin
BM38
3450K±1% Thermoplastic resin
BF05
3392K±1% Film type
BH30
3370K±1% Thermoplastic resin
THF5
3392K±1% Chip Thermistor
12max
Φ3.3max
7max
Φ1.8max
4max
3.5max
2.2
1.5
7.0 2.2
3.8
1.5
7.5 2.1
3.8
4.5
0.5
8.0 4.5
3.1
2.2
9.3 3.1
10max
Φ2.5max
0.35
1.00
0.50
0.2min
SLUA621
4 Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges

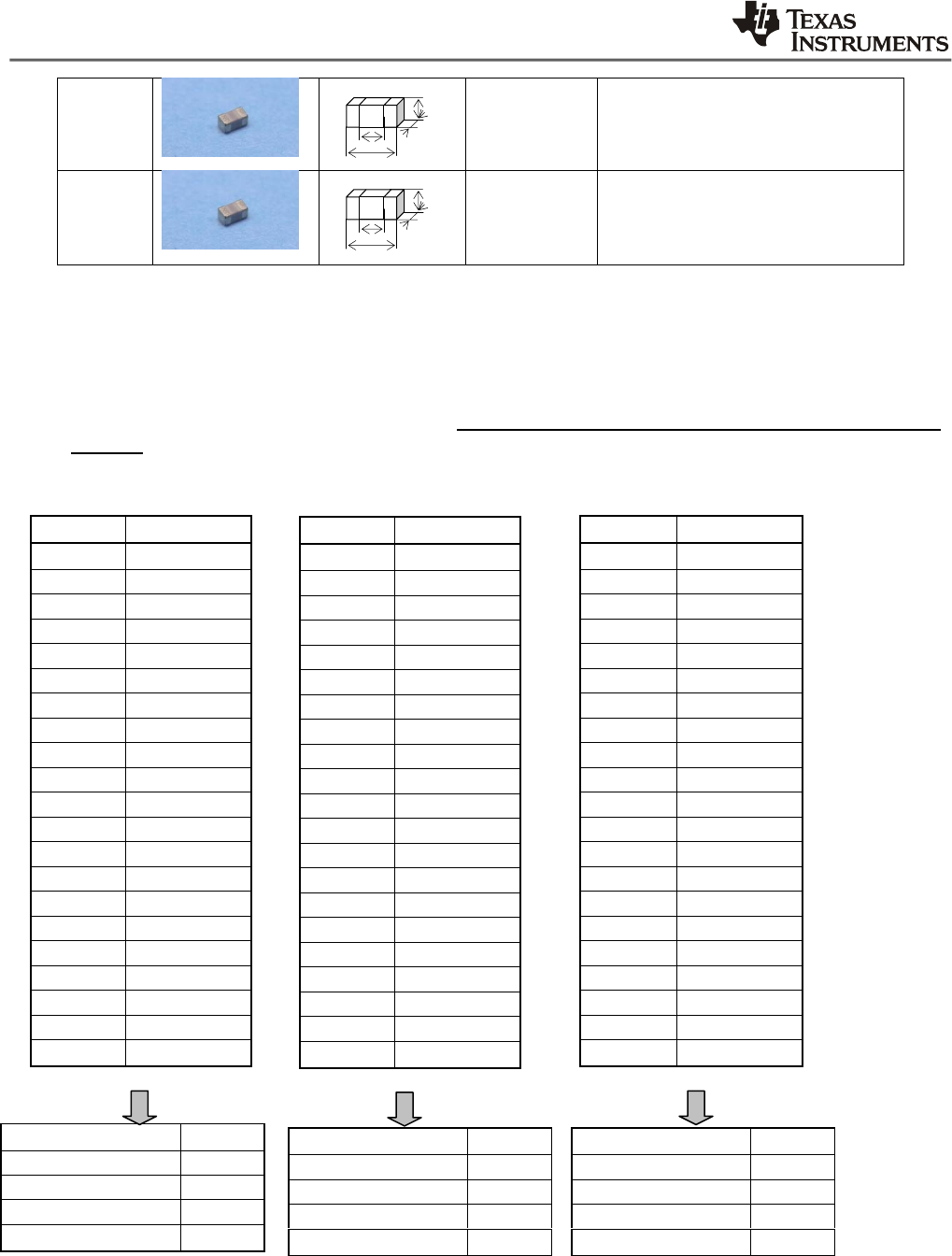

TH05
3370K±1% Chip Thermistor
TH03
3370K±1% Chip Thermistor
4 Calculating method of temperature coefficients by SLUA398
Coefficient calculator
R-T data for each Thermistor was entered into the Thermistor Coefficient Calculator
Spreadsheet and calculated suitable temperature coefficients for polynomial models as below.
Details are available in Application Report Thermistor Coefficient Calculator for TI Advance Fuel
Gauges. – TI Literature number SLUA398.
TH1 TH2 TH3
0.50
1.00
0.50
0.2min
0.30
0.60
0.30
0.1min
Temp °C Resistance
-20 74890
-15 57980
-10 45310
-5 35720
0 28380
5 22720
10 18320
15 14880
20 12160
25 10000
30 8272
35 6881
40 5754
45 4837
50 4085
55 3466
60 2955
65 2530
70 2174
75 1876
80 1624
Temp °C Resistance
-20 70300
-15 55230
-10 43640
-5 34690
0 27750
5 22340
10 18110
15 14770
20 12120
25 10000
30 8299
35 6924
40 5807
45 4895
50 4147
55 3531
60 3020
65 2593
70 2236
75 1935
80 1682
Temp °C Resistance
-20 64790
-15 51790
-10 41570
-5 33530
0 27110
5 21990
10 17920
15 14680
20 12090
25 10000
30 8314
35 6946
40 5832
45 4921
50 4171
55 3551
60 3036
65 2606
70 2245
75 1942
80 1686
Polynomial coefficients Value
A0=ExtCoef4 4024
A1=ExtCoef3 -7842
A2=ExtCoef2 22292
A3=ExtCoef1 -29950
Polynomial coefficients Value
A0=ExtCoef4 4037
A1=ExtCoef3 -7889
A2=ExtCoef2 22269
A3=ExtCoef1 -29960
Polynomial coefficients Value
A0=ExtCoef4 4034
A1=ExtCoef3 -7827
A2=ExtCoef2 22104
A3=ExtCoef1 -30092
SLUA621
Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges 5
5 Measurement Conditions and Results
5-1 Evaluation Module (EVM) Measurements
MMTL performed temperature test measurements with three of TI battery management EVM
listed in table 4. On each of these EVMs, each of the three different types of Thermistors (based
on Beta Value described in section 3) was tested. The test conditions were as follows:
• Temperature range ： -20ºC to 80ºC (with 5ºC increments)
• Accuracy of temperature measurement ： ±0.01ºC
• Standard EVM modules thermistor was swapped out with TH1, TH2, TH3 type Thermistor
shown in section 3.
Table 4. Tested Texas Instruments Evaluation Modules with Thermistors
bq20z45 EVM (for 2, 3 or 4 cells) See Table 5 and 7 below
bq20z75 EVM (for 2, 3 or 4 cells) See Table 6 and 8 below
bq27541 EVM (for single cell) See Table 9 below

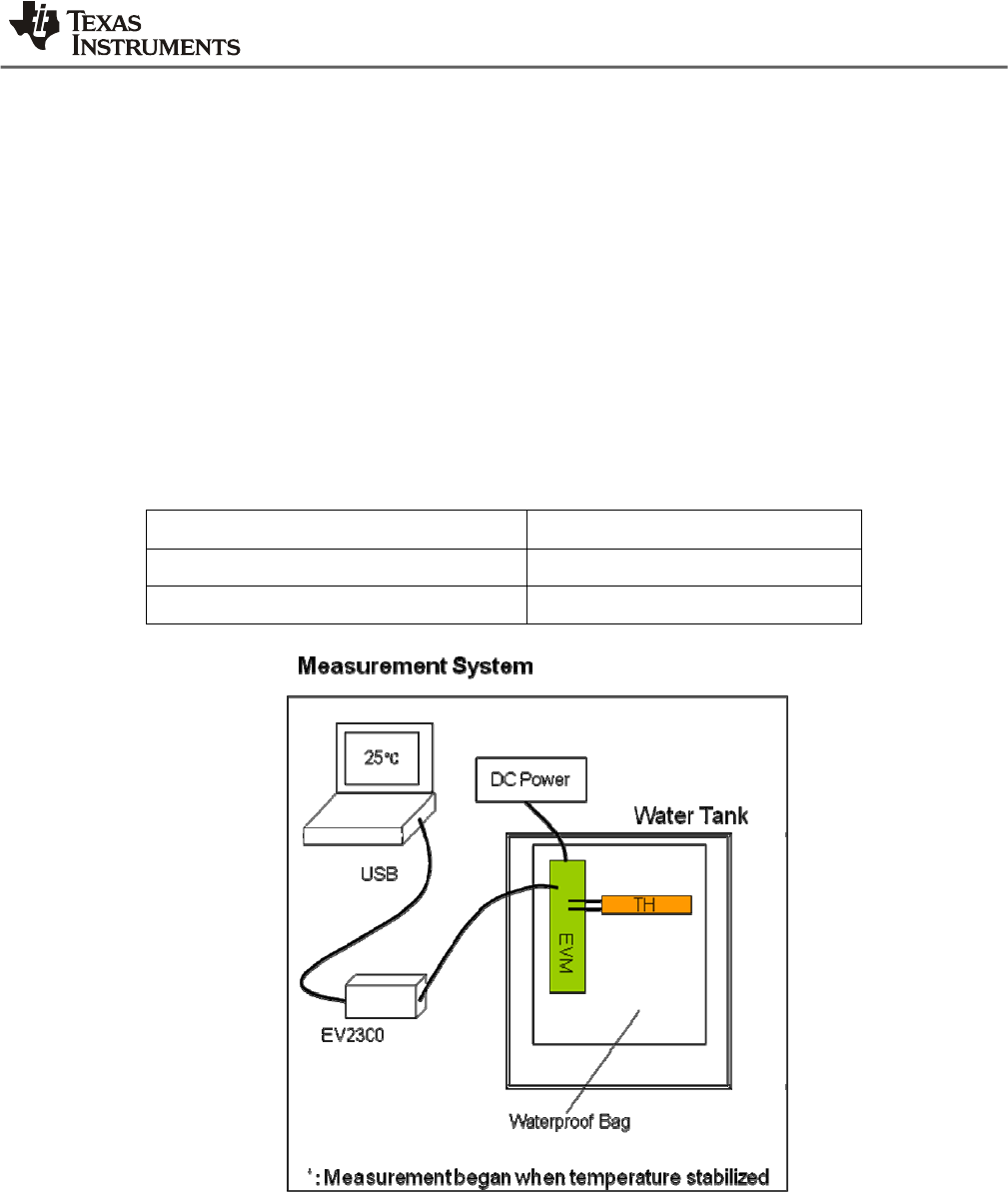

Figure 1. Test setup for MMTL Thermistor Testing with TI Evaluation Module
SLUA621
6 Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges
5-2 Comparison of temperature measurement accuracy
The following tables compare the temperature measurement accuracy of MMTL Thermistors to
the TI Reference Thermistor.
(1) Using SLUA398, MMTL was able to calculate suitable coefficients for MMTL Thermistors
(TH1, TH2, and TH3) to fine tune the temperature measurement for the bq20z45 (Table 5) and
bq20z75 (Table 6) evaluation modules. See the suitable coefficients below for each Thermistor.
TH1 suitable coefficient Ext Coef ： [1, 2, 3, 4] = [-29950, 22292, -7842, 402.4]
TH2 suitable coefficient Ext Coef ： [1, 2, 3, 4] = [-29960, 22269, -7889, 403.7]
TH3 suitable coefficient Ext Coef ： [1, 2, 3, 4] = [-30092, 22104, -7827, 403.4]
(2) Default temperature coefficients were used for all Thermistors to measure EVM Modules for
bq20z45 (Table 7) and bq20z75 (Table 8).
Default coefficient Ext Coef ： [1, 2, 3, 4] = [-28285, 20848, -7537, 401.2]
(3) Default temperature coefficients were used for all Thermistors to measure EVM Modules for
bq27541 (Table 9).
SLUA621
Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges 7
5-3 Temperature Difference Data for TH1, TH2 and TH3 type MMTL Thermistors

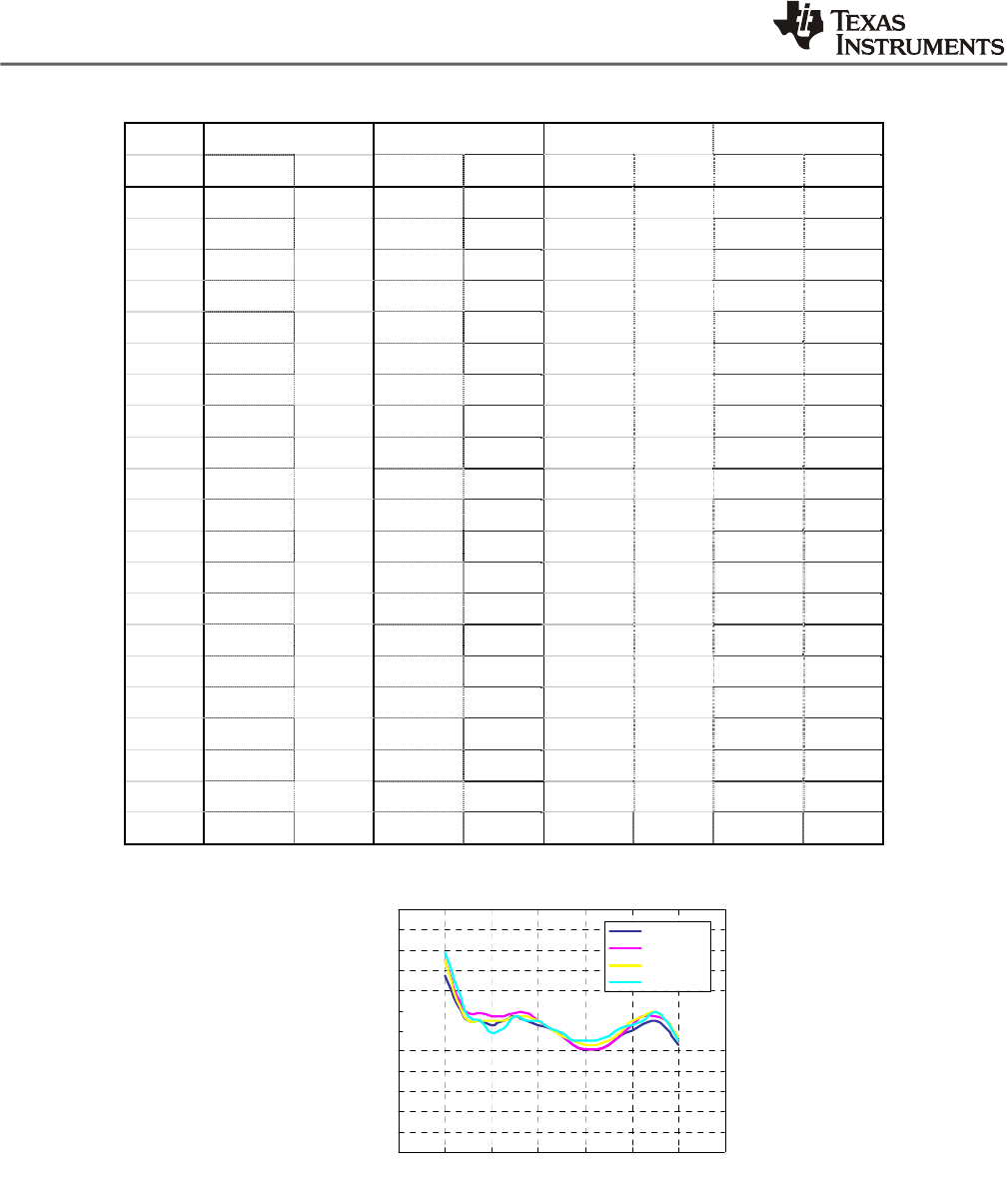

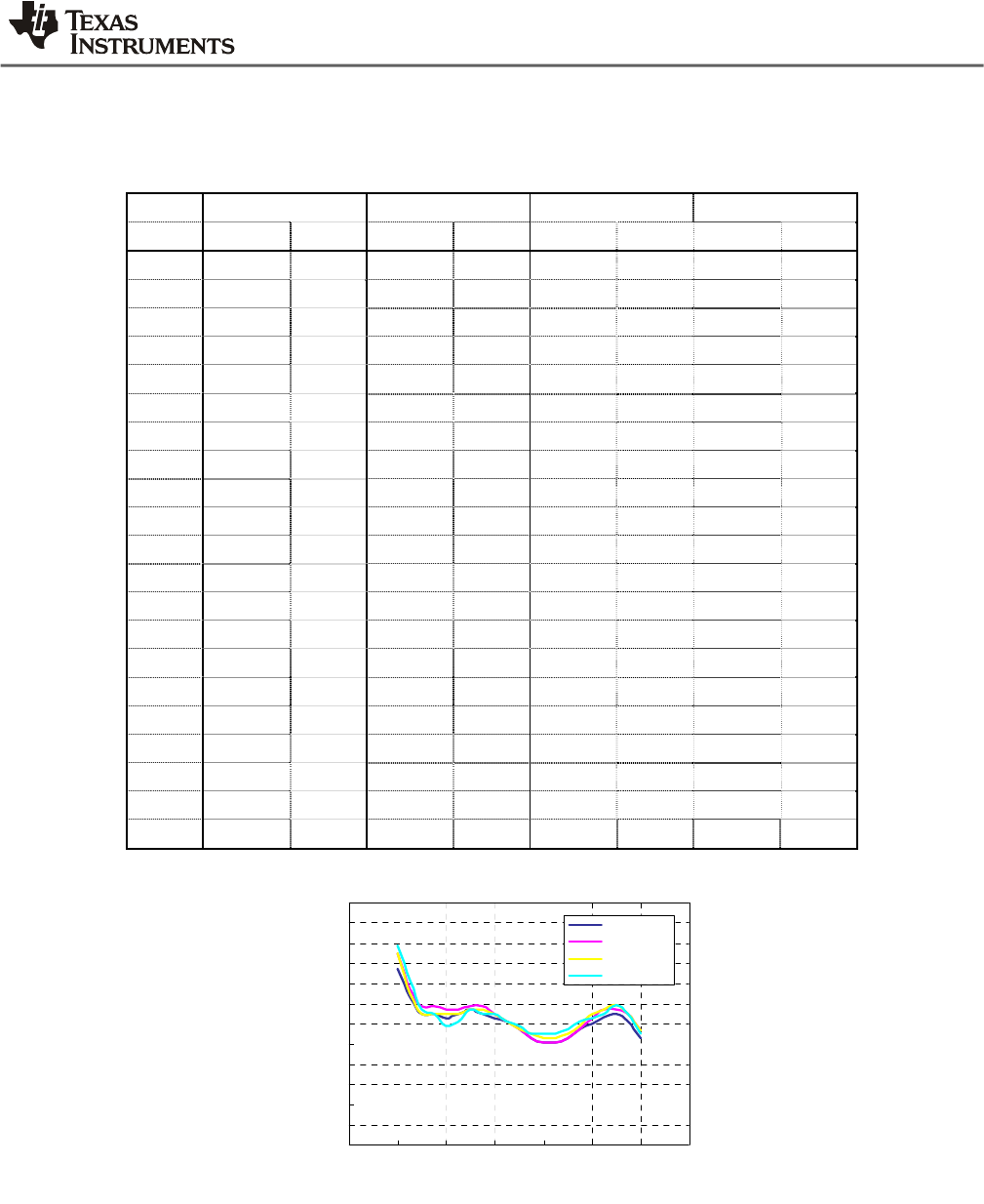

Table 5. bq20z45 EVM collected data (Suitable coefficients)
Temp. Reference TH1 TH2 TH3
[℃] Temp. ΔT Temp. ΔT Temp. ΔT Temp. ΔT
-20 -18.45 1.55 -18.15 1.85 -18.05 1.95 -18.05 1.95
-15 -14.25 0.75 -14.05 0.95 -14.15 0.85 -13.95 1.05
-10 -9.65 0.35 -9.45 0.55 -9.65 0.35 -9.55 0.45
-5 -4.85 0.15 -4.65 0.35 -4.95 0.05 -4.75 0.25
0 0.25 0.25 0.35 0.35 0.25 0.25 0.15 0.15
5 5.35 0.35 5.45 0.45 5.35 0.35 5.25 0.25
10 10.35 0.35 10.55 0.55 10.35 0.35 10.35 0.35
15 15.35 0.35 15.45 0.45 15.35 0.35 15.35 0.35
20 20.25 0.25 20.35 0.35 20.25 0.25 20.25 0.25
25 25.05 0.05 25.05 0.05 25.05 0.05 25.05 0.05
30 29.85 -0.15 29.85 -0.15 29.85 -0.15 29.95 -0.05
35 34.65 -0.35 34.65 -0.35 34.75 -0.25 34.85 -0.15
40 39.65 -0.35 39.65 -0.35 39.65 -0.35 39.75 -0.25
45 44.65 -0.35 44.65 -0.35 44.75 -0.25 44.85 -0.15
50 49.65 -0.35 49.85 -0.15 49.85 -0.15 49.85 -0.15
55 54.85 -0.15 54.95 -0.05 55.05 0.05 55.15 0.15
60 60.05 0.05 60.15 0.15 60.25 0.25 60.25 0.25
65 65.25 0.25 65.35 0.35 65.45 0.45 65.45 0.45
70 70.25 0.25 70.45 0.45 70.45 0.45 70.45 0.45
75 75.15 0.15 75.35 0.35 75.35 0.35 75.35 0.35
80 79.75 -0.25 79.95 -0.05 79.85 -0.15 79.85 -0.15
bq20z75 EV M
-3.0
-2.5
-2.0
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-40 -20 0 20 40 60 80 100
Tem p. [℃ ]
Tem p. m e asu re m e n t e rro r [℃]
Reference
TH1
TH2
TH3
Figure 2. Plotted Temperature Readings from TI bq20z45 EVM
with Optimized Coefficients
Note: All Thermistors performed equivalently
SLUA621
8 Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges

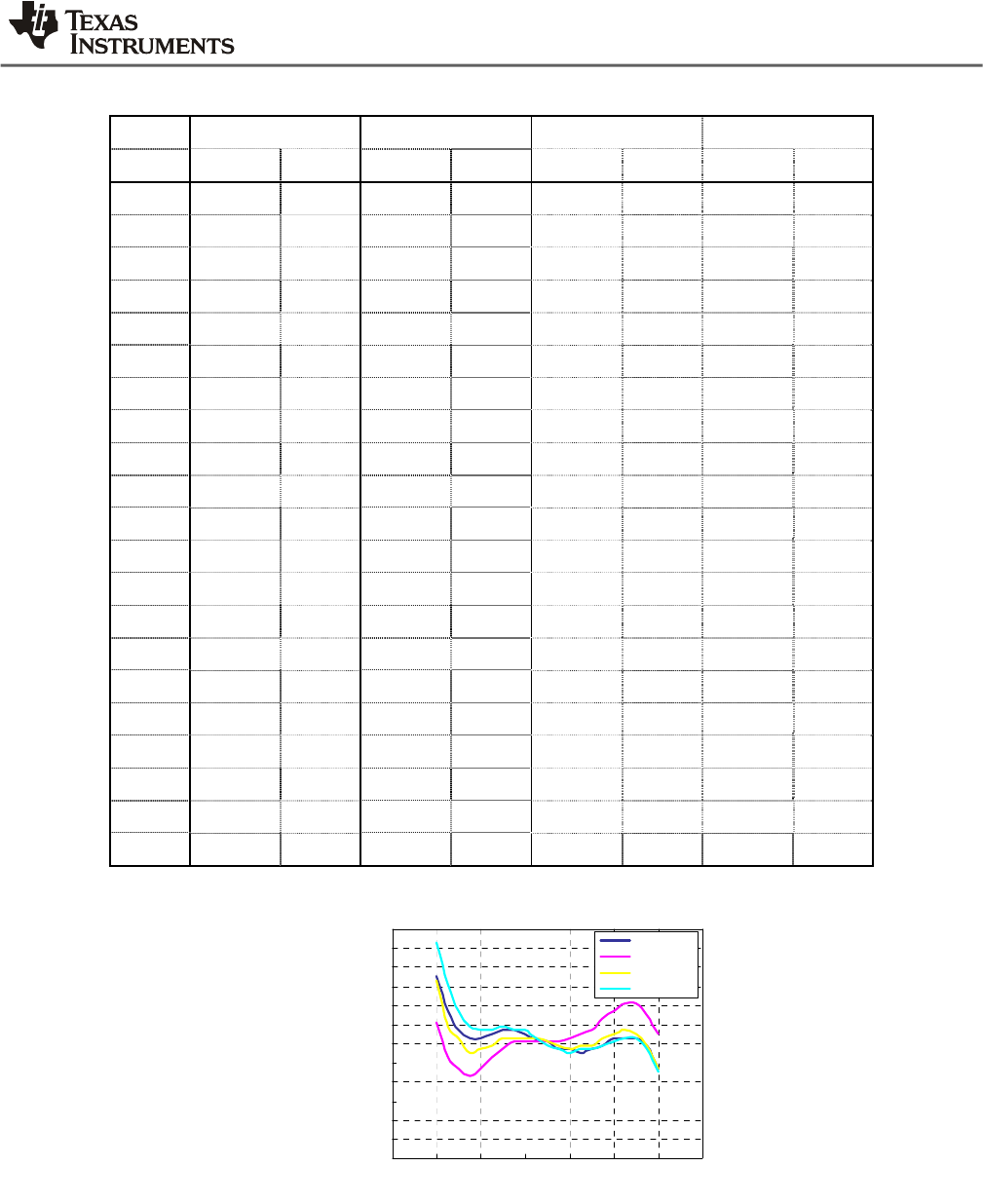

Table 6. bq20z75 EVM collected data (Suitable coefficients)
Temp. Reference TH1 TH2 TH3
[℃] Temp. ΔT Temp. ΔT Temp. ΔT Temp. ΔT
-20 -18.65 1.35 -18.25 1.75 -18.25 1.75 -18.05 1.95
-15 -14.35 0.65 -14.15 0.85 -14.25 0.75 -13.95 1.05
-10 -9.75 0.25 -9.55 0.45 -9.75 0.25 -9.65 0.35
-5 -4.75 0.25 -4.55 0.45 -4.75 0.25 -4.75 0.25
0 0.15 0.15 0.35 0.35 0.25 0.25 -0.05 -0.05
5 5.25 0.25 5.35 0.35 5.25 0.25 5.05 0.05
10 10.35 0.35 10.45 0.45 10.35 0.35 10.35 0.35
15 15.25 0.25 15.45 0.45 15.35 0.35 15.25 0.25
20 20.15 0.15 20.25 0.25 20.25 0.25 20.25 0.25
25 25.05 0.05 25.05 0.05 25.05 0.05 25.05 0.05
30 29.85 -0.15 29.85 -0.15 29.85 -0.15 29.95 -0.05
35 34.65 -0.35 34.65 -0.35 34.75 -0.25 34.75 -0.25
40 39.55 -0.45 39.55 -0.45 39.65 -0.35 39.75 -0.25
45 44.55 -0.45 44.55 -0.45 44.65 -0.35 44.75 -0.25
50 49.65 -0.35 49.65 -0.35 49.75 -0.25 49.85 -0.15
55 54.85 -0.15 54.85 -0.15 54.95 -0.05 55.05 0.05
60 60.01 0.01 60.15 0.15 60.25 0.25 60.15 0.15
65 65.15 0.15 65.35 0.35 65.35 0.35 65.25 0.25
70 70.25 0.25 70.35 0.35 70.45 0.45 70.45 0.45
75 75.05 0.05 75.25 0.25 75.25 0.25 75.25 0.25
80 79.65 -0.35 79.85 -0.15 79.85 -0.15 79.75 -0.25
bq20z75 EVM
-3.0
-2.5
-2.0
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-40 -20 0 20 40 60 80 100
Tem
p
.
[
℃
]
Tem p. m e asu re m e n t e rro r [℃ ]
Reference
TH1
TH2
TH3
Figure 3. Plotted Temperature Readings from TI bq20z75 EVM
with Optimized Coefficients
Note: All Thermistors performed equivalently
SLUA621
Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges 9

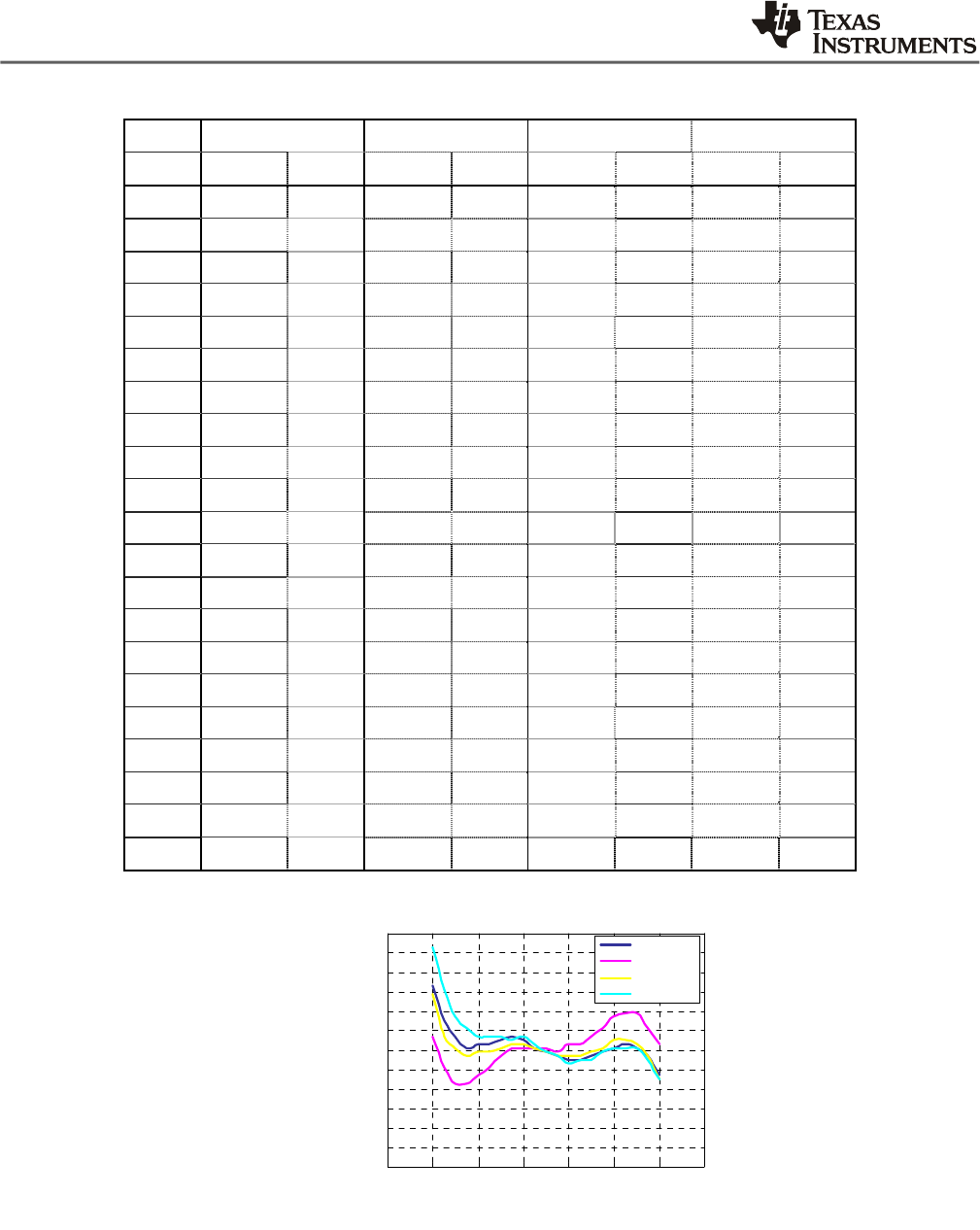

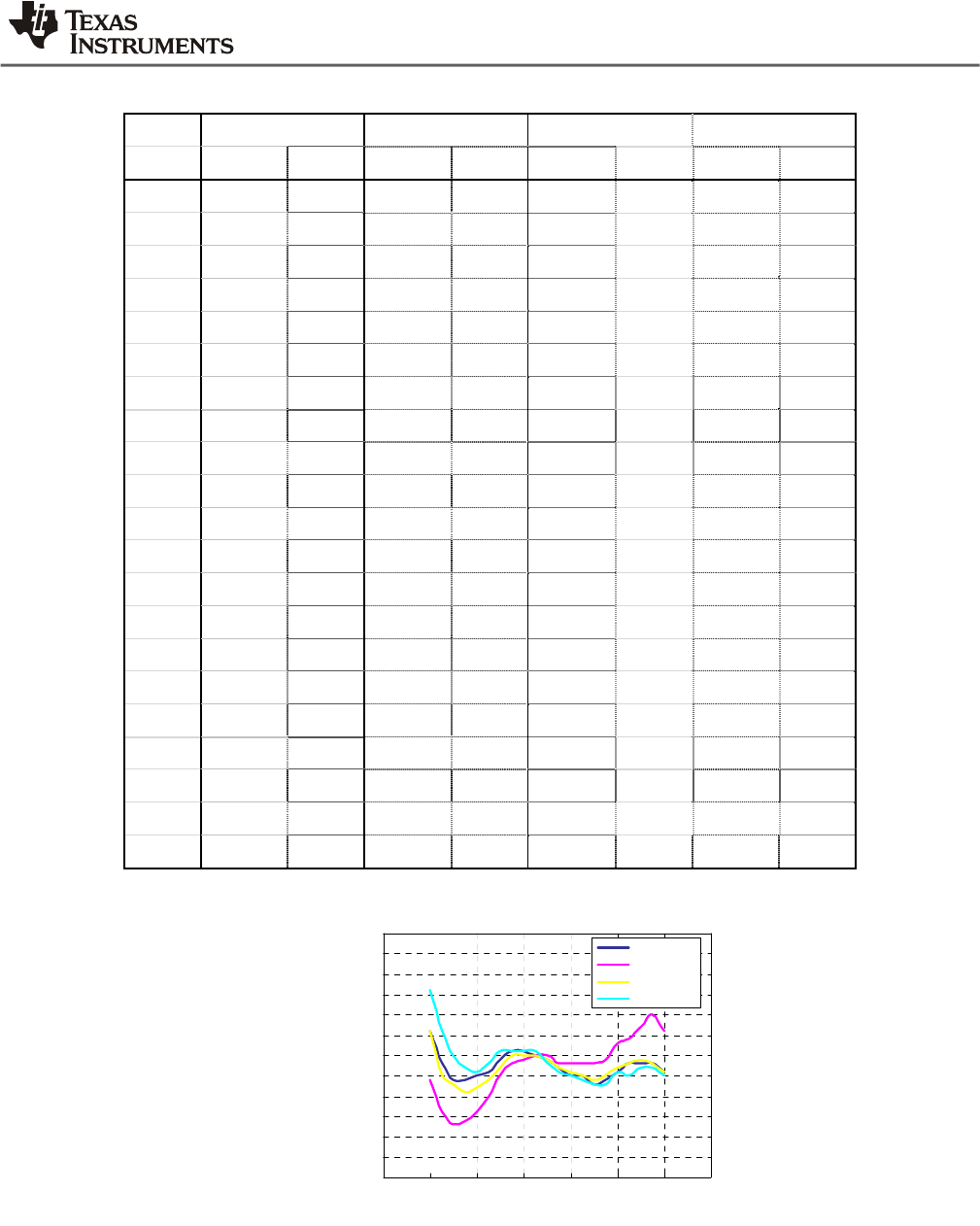

Table 7. bq20z45 EVM collected data (Suitable coefficients)
Temp. Reference TH1 TH2 TH3
[℃] Temp. ΔT Temp. ΔT Temp. ΔT Temp. ΔT
-20 -18.45 1.55 -19.45 0.55 -18.35 1.65 -17.35 2.65
-15 -14.25 0.75 -15.35 -0.35 -14.55 0.45 -13.45 1.55
-10 -9.65 0.35
-10.65 -0.65 -9.85 0.15 -9.15 0.85
-5 -4.85 0.15 -5.85 -0.85 -5.25 -0.25 -4.55 0.45
0 0.25 0.25
-0.65 -0.65 -0.15 -0.15 0.35 0.35
5 5.35 0.35 4.65 -0.35 4.95 -0.05 5.35 0.35
10 10.35 0.35 9.85 -0.15 10.15 0.15 10.45 0.45
15 15.35 0.35 15.05 0.05 15.15 0.15 15.35 0.35
20 20.25 0.25 20.05 0.05 20.15 0.15 20.35 0.35
25 25.05 0.05 25.05 0.05 25.15 0.15 25.15 0.15
30 29.85 -0.15 30.05 0.05 30.05 0.05 29.95 -0.05
35 34.65 -0.35 35.05 0.05 34.95 -0.05 34.85 -0.15
40 39.65 -0.35 40.15 0.15 39.85 -0.15 39.75 -0.25
45 44.65 -0.35 45.25 0.25 44.95 -0.05 44.85 -0.15
50 49.65 -0.35 50.35 0.35 49.95 -0.05 49.85 -0.15
55 54.85 -0.15 55.65 0.65 55.15 0.15 54.95 -0.05
60 60.05 0.05 60.85 0.85 60.25 0.25 60.05 0.05
65 65.25 0.25 66.05 1.05 65.35 0.35 65.15 0.15
70 70.25 0.25 71.05 1.05 70.25 0.25 70.15 0.15
75 75.15 0.15 75.75 0.75 74.95 -0.05 74.85 -0.15
80 79.75 -0.25 80.25 0.25 79.35 -0.65 79.25 -0.75
bq20z45 EVM (Default C o e f.)
-3.0
-2.5
-2.0
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-40 -20 0 20 40 60 80 100
Tem
p
.
[
℃
]
Tem p. m e asu re m e n t e rro r [℃ ]
Reference
TH1
TH2
TH3
Figure 4. Plotted Temperature Readings from TI bq20z45 EVM
Using Non-optimized Temperature Coefficients
SLUA621
10 Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges
Table 8. bq20z75 EVM collected data (Default coefficients)
Temp. Reference TH1 TH2 TH3
[℃] Temp. ΔT Temp. ΔT Temp. ΔT Temp. ΔT
-20 -18.45 1.55 -19.65 0.35 -18.55 1.45 -17.35 2.65
-15 -14.25 0.75 -15.45 -0.45 -14.65 0.35 -13.45 1.55
-10 -9.65 0.35
-10.85 -0.85 -9.95 0.05 -9.15 0.85
-5 -4.85 0.15 -5.85 -0.85 -5.15 -0.15 -4.45 0.55
0 0.25 0.25
-0.65 -0.65 -0.05 -0.05 0.35 0.35
5 5.35 0.35 4.55 -0.45 4.95 -0.05 5.35 0.35
10 10.35 0.35 9.85 -0.15 10.05 0.05 10.35 0.35
15 15.35 0.35 15.05 0.05 15.15 0.15 15.25 0.25
20 20.25 0.25 20.05 0.05 20.15 0.15 20.35 0.35
25 25.05 0.05 25.05 0.05 25.05 0.05 25.15 0.15
30 29.85 -0.15 30.05 0.05 29.95 -0.05 29.95 -0.05
35 34.65 -0.35 34.95 -0.05 34.85 -0.15 34.85 -0.15
40 39.65 -0.35 40.15 0.15 39.85 -0.15 39.65 -0.35
45 44.65 -0.35 45.15 0.15 44.85 -0.15 44.75 -0.25
50 49.65 -0.35 50.35 0.35 49.95 -0.05 49.75 -0.25
55 54.85 -0.15 55.55 0.55 55.05 0.05 54.95 -0.05
60 60.05 0.05 60.85 0.85 60.25 0.25 60.05 0.05
65 65.25 0.25 65.95 0.95 65.25 0.25 65.05 0.05
70 70.25 0.25 70.95 0.95 70.15 0.15 70.05 0.05
75 75.15 0.15 75.55 0.55 74.85 -0.15 74.75 -0.25
80 79.75 -0.25 80.15 0.15 79.25 -0.75 79.25 -0.75
bq20z75 EVM (Default C o e f.)
-3.0
-2.5
-2.0
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-40 -20 0 20 40 60 80 100
Tem p. [℃ ]
Tem p. m e asu re m e n t e rro r [℃]
Reference
TH1
TH2
TH3
Figure 5. Plotted Temperature Readings from TI bq20z75 EVM
Using Non-optimized Temperature Coefficients
SLUA621
Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges 11
Table 9. bq27541 Evaluation Module Collected Data (Default coefficients)
Temp. Reference TH1 TH2 TH3
[℃] Temp. ΔT Temp. ΔT Temp. ΔT Temp. ΔT
-20 -19.40 0.60 -20.60 -0.60 -19.40 0.60 -18.40 1.60
-15 -15.20 -0.20 -16.40 -1.40 -15.50 -0.50 -14.40 0.60
-10 -10.60 -0.60 -11.70 -1.70 -10.70 -0.70 -10.00 0.00
-5 -5.60 -0.60 -6.60 -1.60 -5.90 -0.90 -5.30 -0.30
0 -0.50 -0.50 -1.40 -1.40 -0.80 -0.80 -0.40 -0.40
5 4.60 -0.40 4.00 -1.00 4.40 -0.60 4.80 -0.20
10 9.90 -0.10 9.50 -0.50 9.70 -0.30 10.10 0.10
15 15.10 0.10 14.80 -0.20 15.00 0.00 15.10 0.10
20 20.10 0.10 19.90 -0.10 20.00 0.00 20.10 0.10
25 25.00 0.00 25.00 0.00 25.00 0.00 25.10 0.10
30 29.90 -0.10 30.00 0.00 29.90 -0.10 29.80 -0.20
35 34.70 -0.30 34.80 -0.20 34.70 -0.30 34.60 -0.40
40 39.50 -0.50 39.80 -0.20 39.60 -0.40 39.50 -0.50
45 44.50 -0.50 44.80 -0.20 44.50 -0.50 44.40 -0.60
50 49.30 -0.70 49.80 -0.20 49.40 -0.60 49.30 -0.70
55 54.40 -0.60 54.90 -0.10 54.50 -0.50 54.30 -0.70
60 59.60 -0.40 60.30 0.30 59.70 -0.30 59.60 -0.40
65 64.80 -0.20 65.40 0.40 64.80 -0.20 64.50 -0.50
70 69.80 -0.20 70.70 0.70 69.90 -0.10 69.70 -0.30
75 74.80 -0.20 76.00 1.00 74.80 -0.20 74.70 -0.30
80 79.60 -0.40 80.60 0.60 79.60 -0.40 79.50 -0.50
bq27541 EVM
-3.0
-2.5
-2.0
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-40 -20 0 20 40 60 80 100
Tem
p
.
[
℃
]
Tem p. m e a s u re m e n t e rro r [℃ ]
Reference
TH1
TH2
TH3
Figure 6. Plotted Temperature Readings from TI bq27541 EVM
Using Default Temperature Coefficients.
SLUA621
12 Thermistor Selection Guide for Texas Instruments Advanced Fuel Gauges
From Figure 6 results, note TH2 and TH3 Type Thermistor performed equivalent to reference
Thermistor (within +/-1ºC measurement over the temperature range of -15ºC to 80 ºC). TH1
type Thermistors are within +/-1℃ measurement over the temperature range of 5ºC to 80 ºC,
and better than -2 ºC error from -20ºC to 5ºC temperature range.
6 Conclusion
This application note shows temperature measurement data for three different types of MMTL
Thermistors based on different Beta Values characteristics. From this data we find that all three
Thermistors types tested (TH1, TH2 and TH3) achieved similar temperature measurement
results as TI reference Thermistor.
For the bq20z## products with new Thermistor coefficients calculated based on SLUA398, from
figures 3 and 4 we see that temperature measurement is essentially identical.
For some bq27### single cell gas gauge products, default Thermistor coefficients must be used
as coefficients are not programmable. From this data we see that TH2 and TH3 type
Thermistors performed equivalent to reference Thermistor (within+/-1ºC measurement over the
temperature range of -15ºC to 80ºC). TH1 type Thermistor is within +/-1ºC measurement over
the temperature range of 5ºC to 80ºC, and better than -2ºC error from -20ºC to 5ºC temperature
range.
Therefore, the battery pack designer can comfortably design in any of the Thermistors reviewed
in this application note.
For more information on calculating thermistor coefficients, see the application note:
http://www.ti.com/lit/an/slua398/slua398.pdf
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic."Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products Applications
Audio www.ti.com/audio Communications and Telecom www.ti.com/communications
Amplifiers amplifier.ti.com Computers and Peripherals www.ti.com/computers
Data Converters dataconverter.ti.com Consumer Electronics www.ti.com/consumer-apps
DLP®Products www.dlp.com Energy and Lighting www.ti.com/energy
DSP dsp.ti.com Industrial www.ti.com/industrial
Clocks and Timers www.ti.com/clocks Medical www.ti.com/medical
Interface interface.ti.com Security www.ti.com/security
Logic logic.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense
Power Mgmt power.ti.com Transportation and Automotive www.ti.com/automotive
Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video
RFID www.ti-rfid.com
OMAP Mobile Processors www.ti.com/omap
Wireless Connectivity www.ti.com/wirelessconnectivity
TI E2E Community Home Page e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright ©2011, Texas Instruments Incorporated
