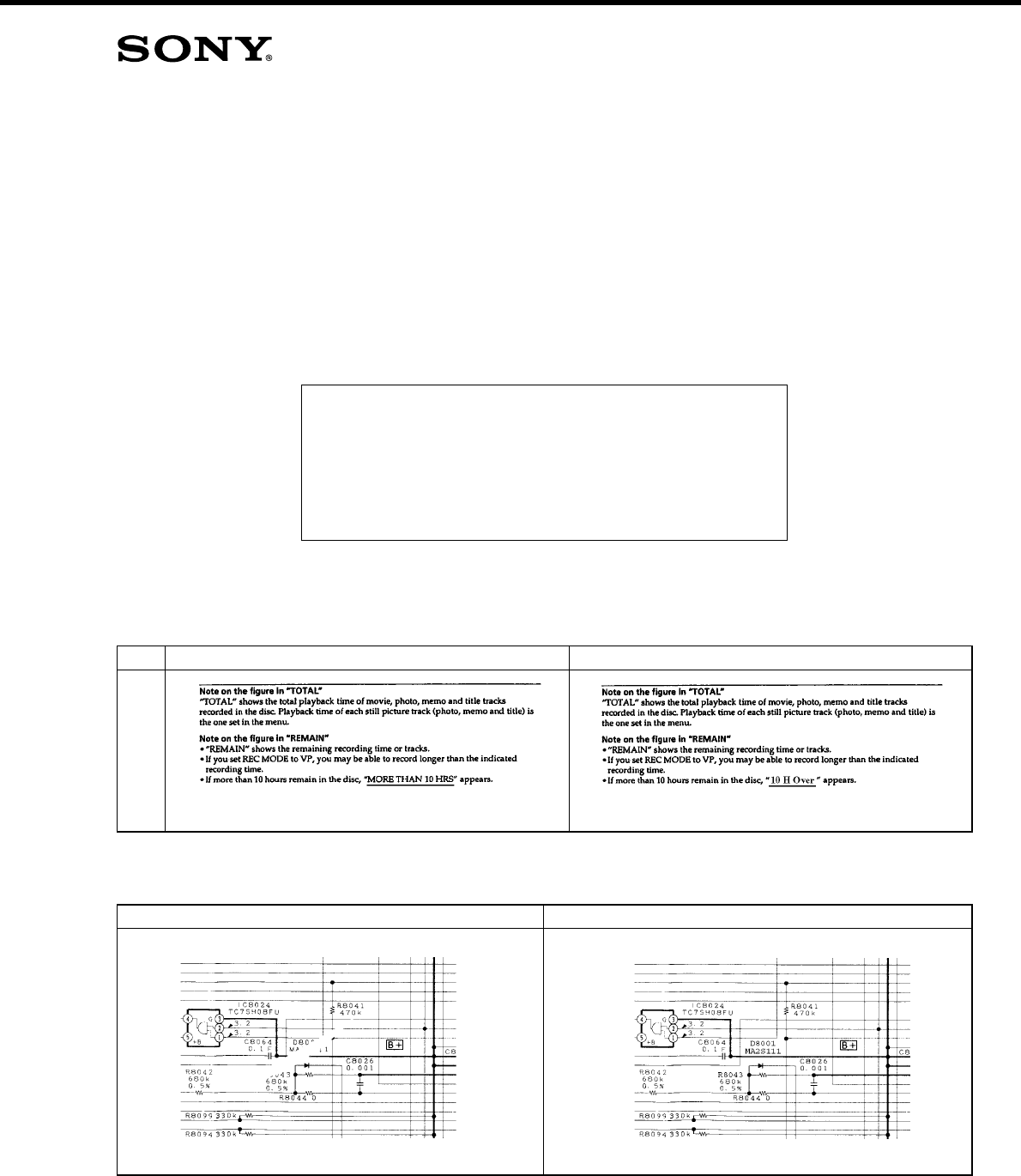

MICROFILM
SERVICE MANUAL
Ver 1.3 2000. 08

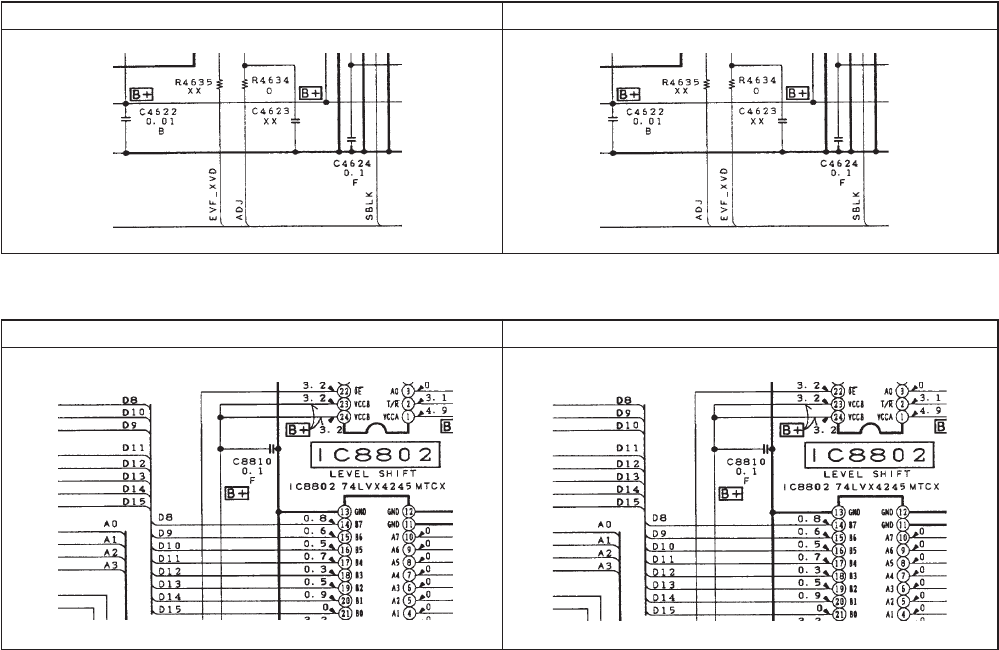

With SUPPLEMENT-1
(9-927-635-81)
With SUPPLEMENT-2
(9-927-635-82)
With SUPPLEMENT-3
(9-927-635-83)
MINIDISC AV RECORDER
US Model
Canadian Model
E Model

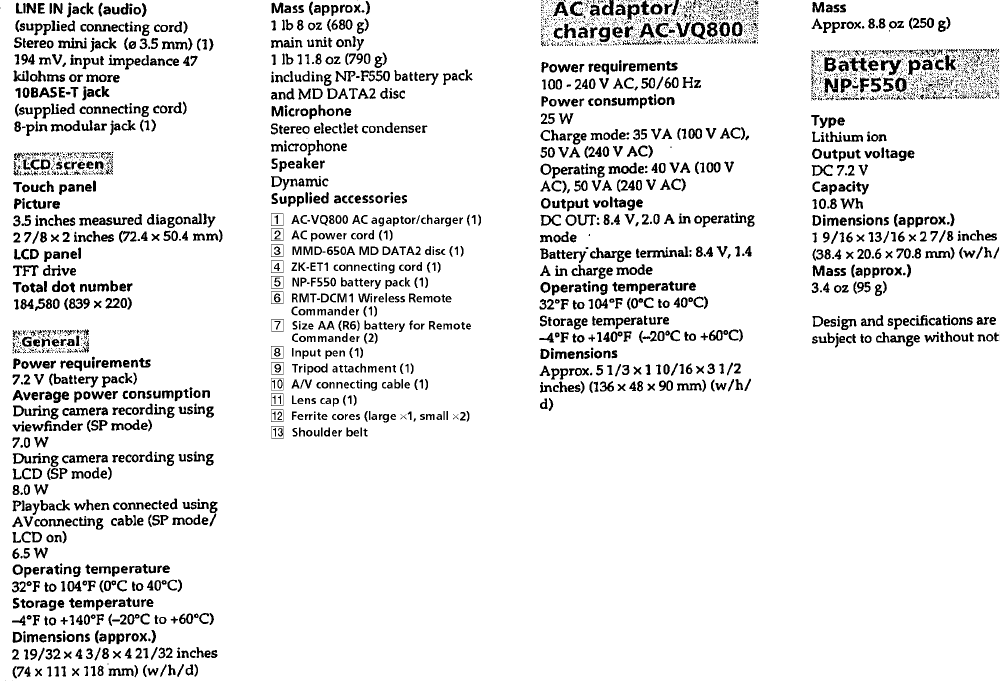

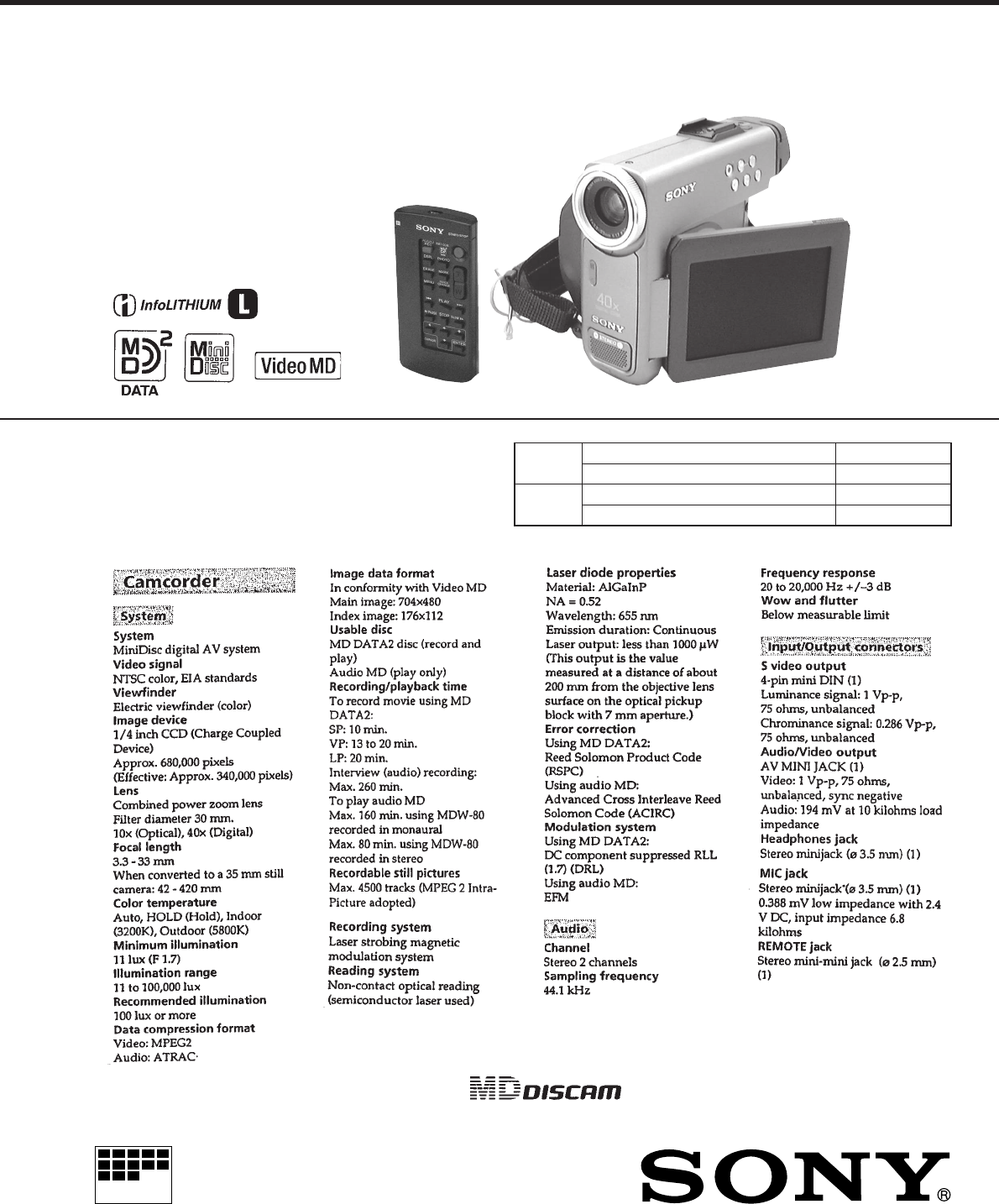

SPECIFICATIONS
DCM-M1
Model Name Using Similar Mechanism NEW
Mechanism Type CT-DCMM1-164
Model Name Using Similar Mechanism NEW
Mechanism Type MT-DCMM1-163
MD
Section
Lens
Section
– Continued on next page –
– 2 –
1. Check the area of your repair for unsoldered or poorly-sol-
dered connections. Check the entire board surface for solder
splashes and bridges.
2. Check the interboard wiring to ensure that no wires are
“pinched” or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transis-
tors, that were installed during a previous repair. Point them
out to the customer and recommend their replacement.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
4. Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recom-
mend their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C
during repairing.
• Do not touch the soldering iron on the same conductor of
the circuit board (within 3 times).
• Be careful not to apply force on the conductor when sol-
dering or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
– 3 –
SERVICE NOTE ................................................ 4
1. GENERAL
Getting Started ...................................................................... 1-1
Recording – Basics ............................................................... 1-5
Playback – Basics ................................................................. 1-7
Advanced Recording Operations .......................................... 1-8
Advanced Playback Operations ............................................ 1-11
Editing ................................................................................... 1-14

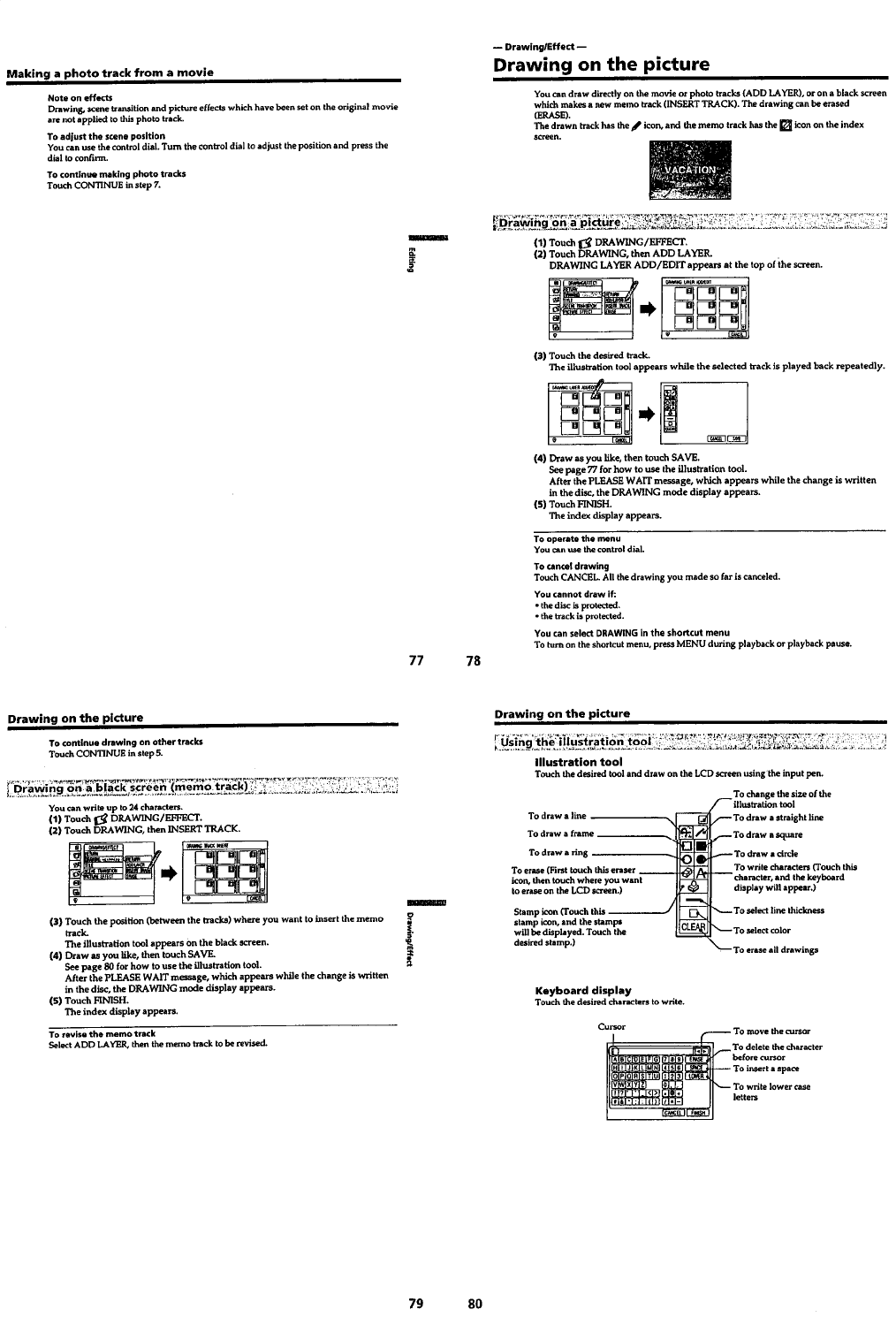

Drawing/Effect ....................................................................... 1-19
Customing Your Camcorder .................................................. 1-21
Using with Other Equipment ................................................. 1-23
Additional Information............................................................ 1-26

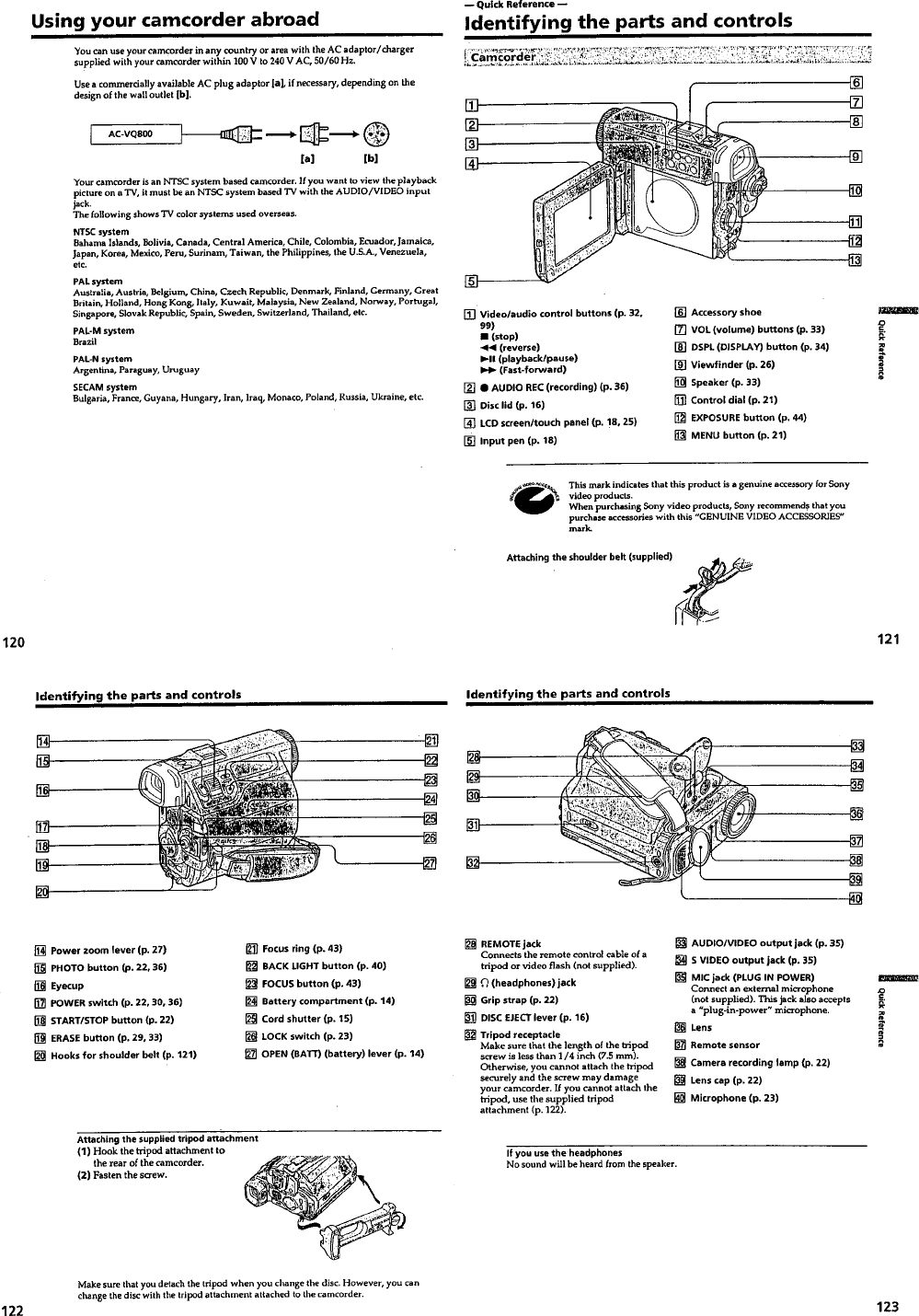

Quick Reference .................................................................... 1-28
2. DISASSEMBLY
2-1. Main Control Switch Unit ............................................. 2-3
2-2. Cabinet (R) Section ..................................................... 2-3
2-3. Zoom Switch Unit ........................................................ 2-3

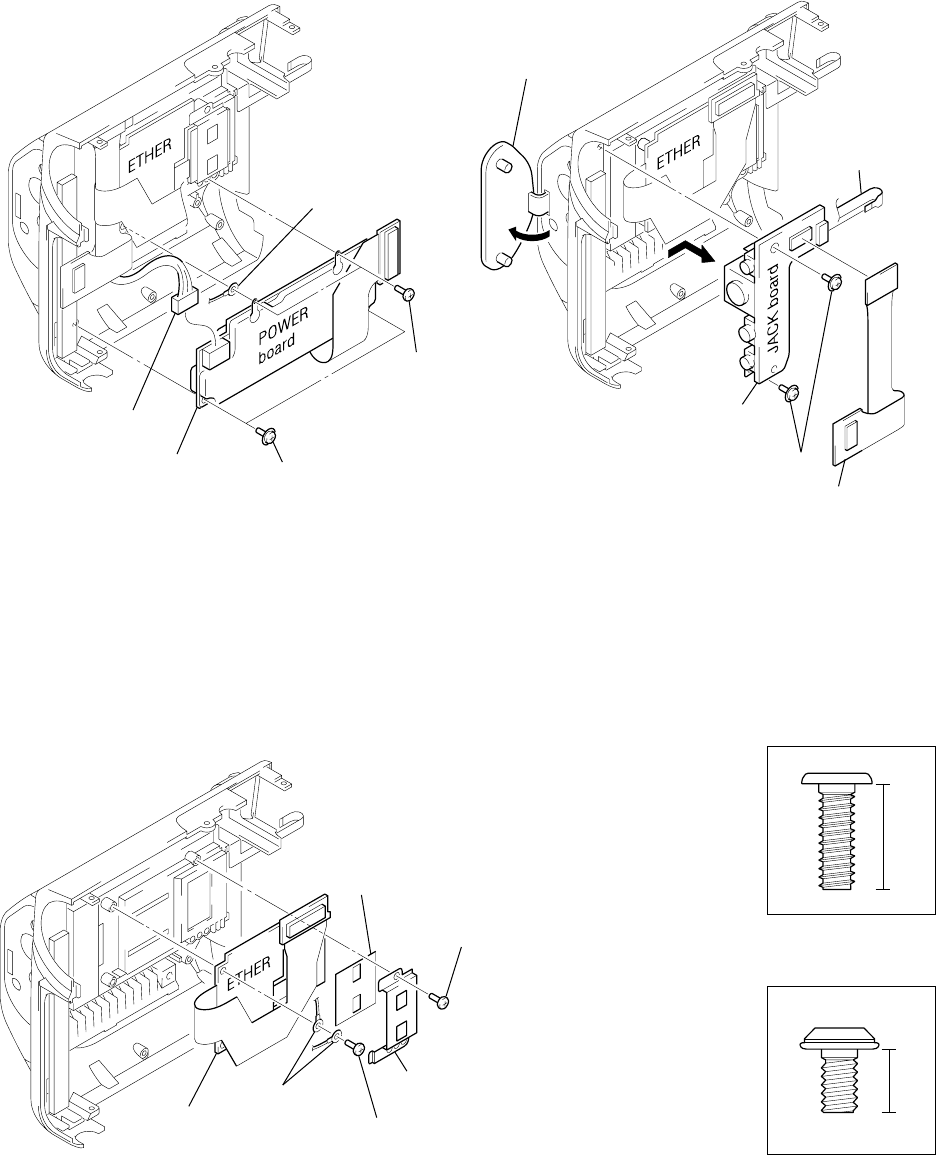

2-4. Power Board ................................................................ 2-4
2-5. Ether Board ................................................................. 2-4
2-6. Jack Board ................................................................... 2-4
2-7. Remote Terminal Unit .................................................. 2-5
2-8. Battery Case Assembly ............................................... 2-5
2-9. Microphone Block ........................................................ 2-5
2-10. Main Board .................................................................. 2-6
2-11. Lens Block (CT-DCMM1-164) ..................................... 2-6
2-12. Hinge Cover................................................................. 2-6

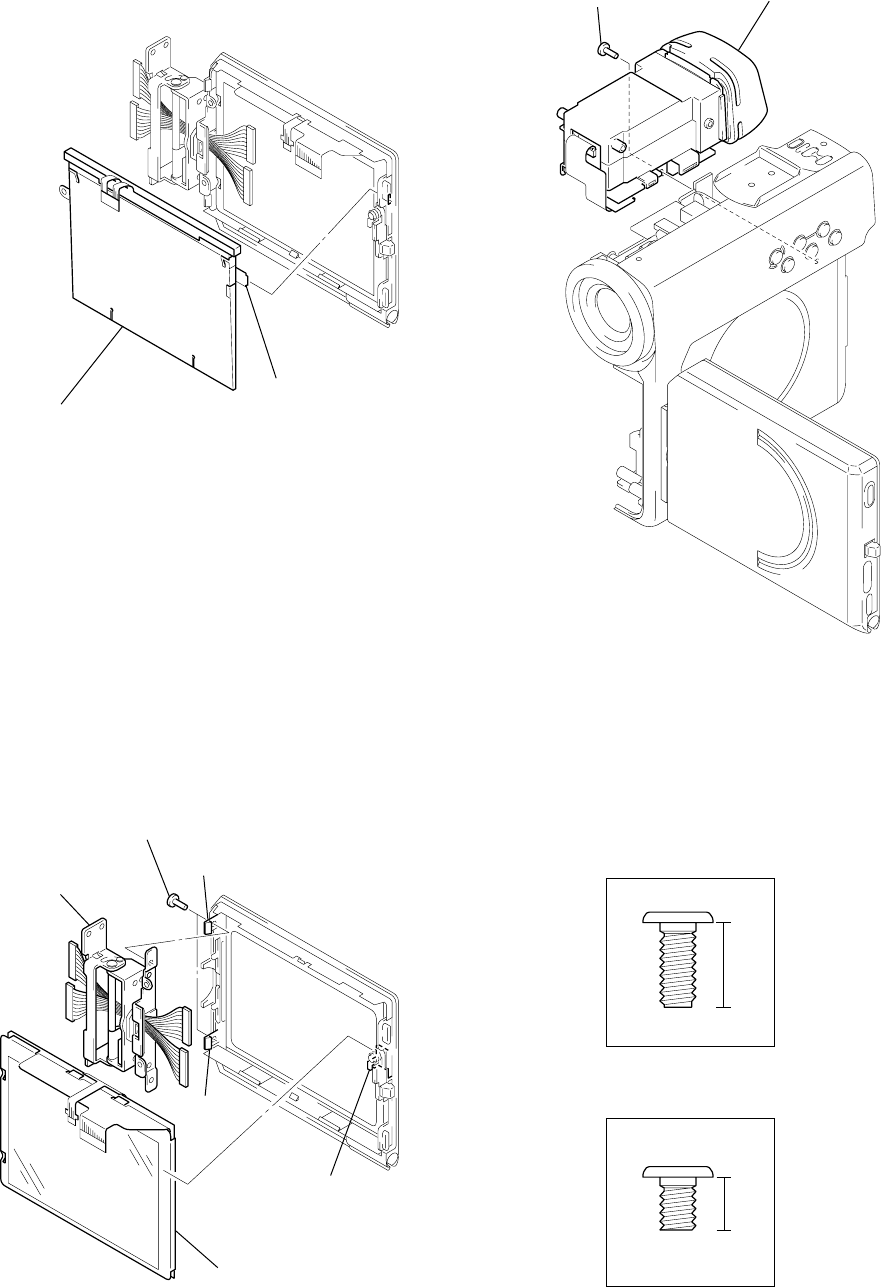

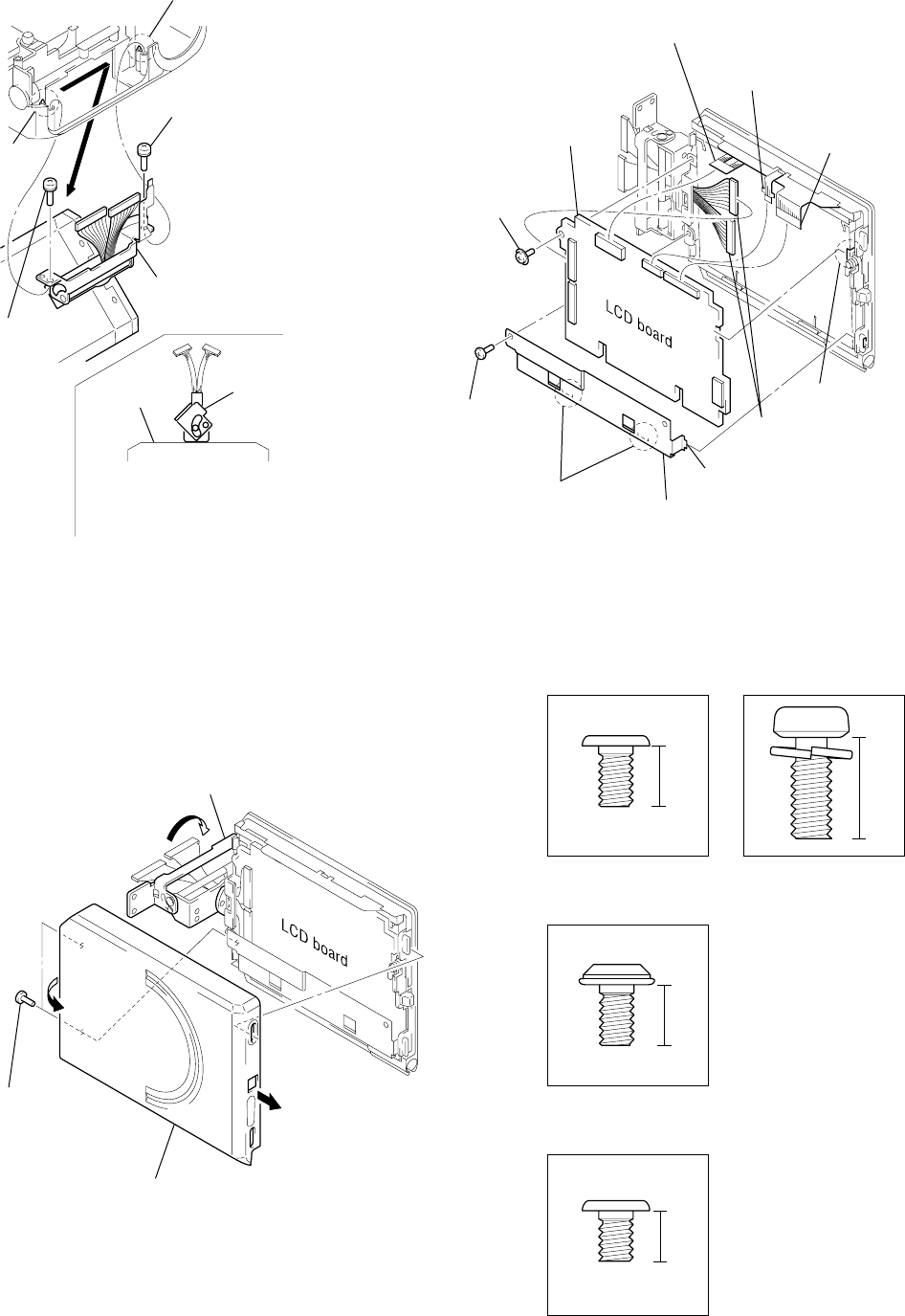

2-13. LCD Block.................................................................... 2-7
2-14. LCD Cabinet Assembly (U) ......................................... 2-7
2-15. LCD Board ................................................................... 2-7
2-16. Fluorescent Tube ......................................................... 2-8
2-17. Touch Panel, LCD Module (LCD4301) ....................... 2-8
2-18. EVF Block .................................................................... 2-8
2-19. VF Board ..................................................................... 2-9
2-20. VF Lens Assembly ...................................................... 2-9
2-21. BL Board...................................................................... 2-9
2-22. Upper Panel Assembly ................................................ 2-9

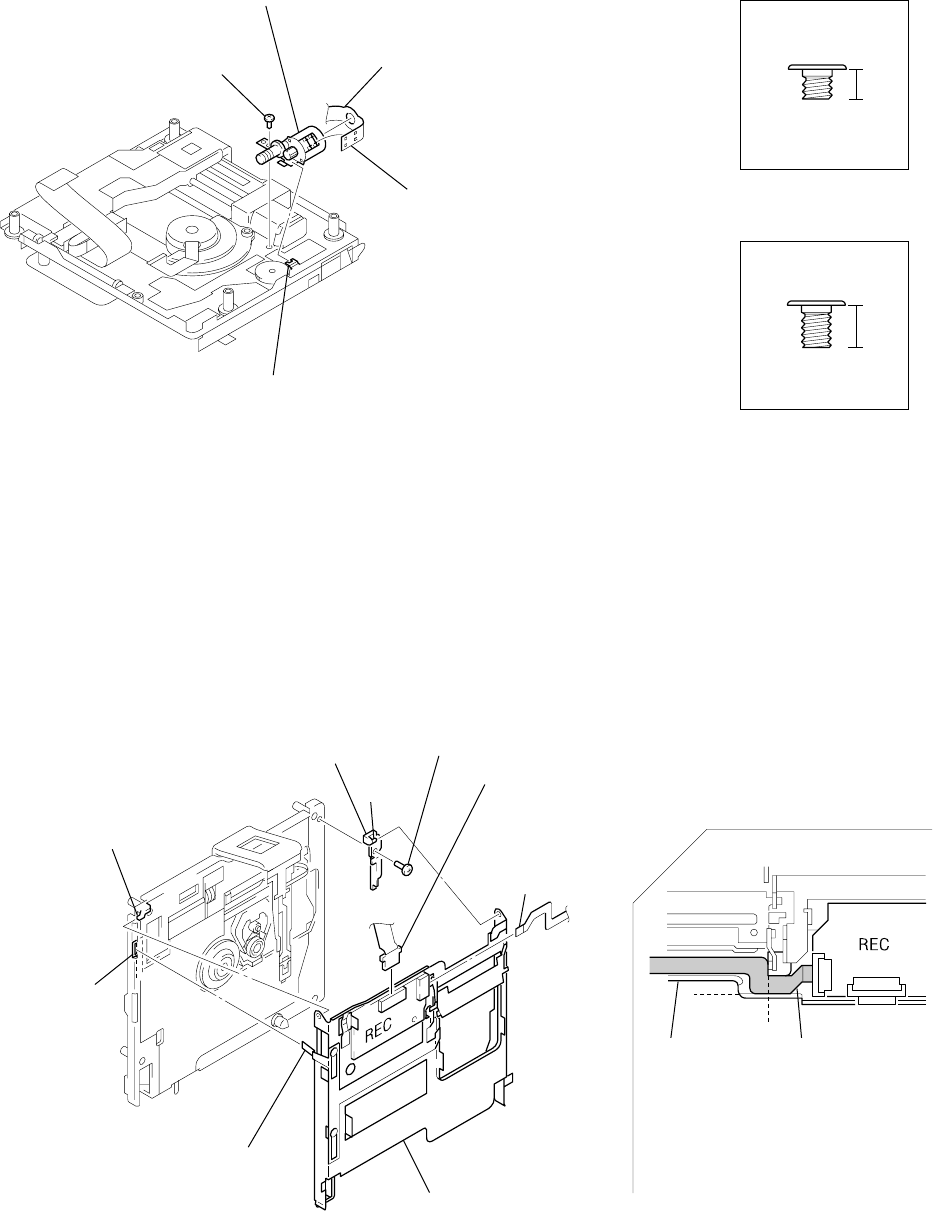

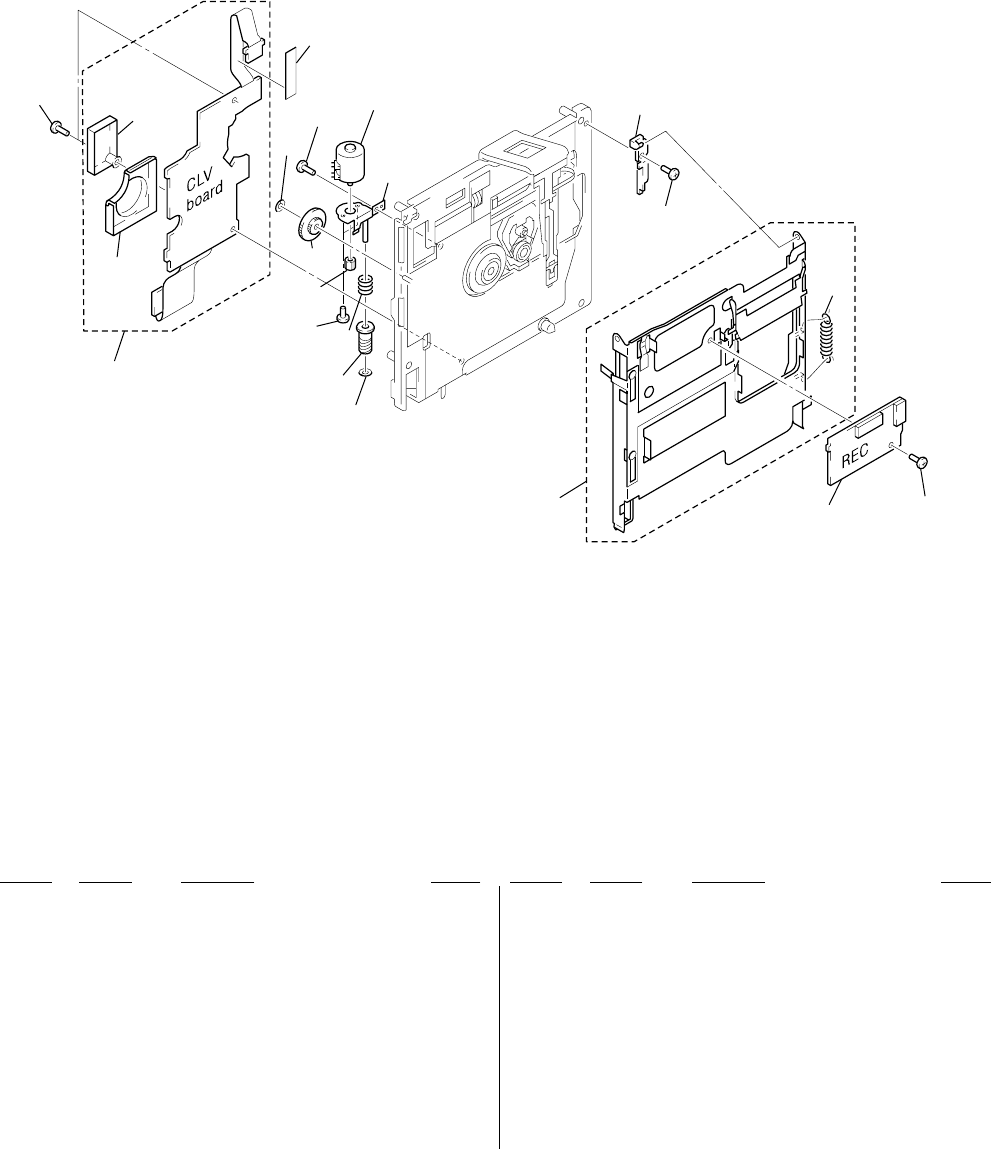

2-23. Mechanism Deck (MT-DCMM1-163)........................... 2-10
2-24. CLV Board ................................................................... 2-10
2-25. Stepper Block Assembly (M5811)............................... 2-11
2-26. Holder Assembly ......................................................... 2-11

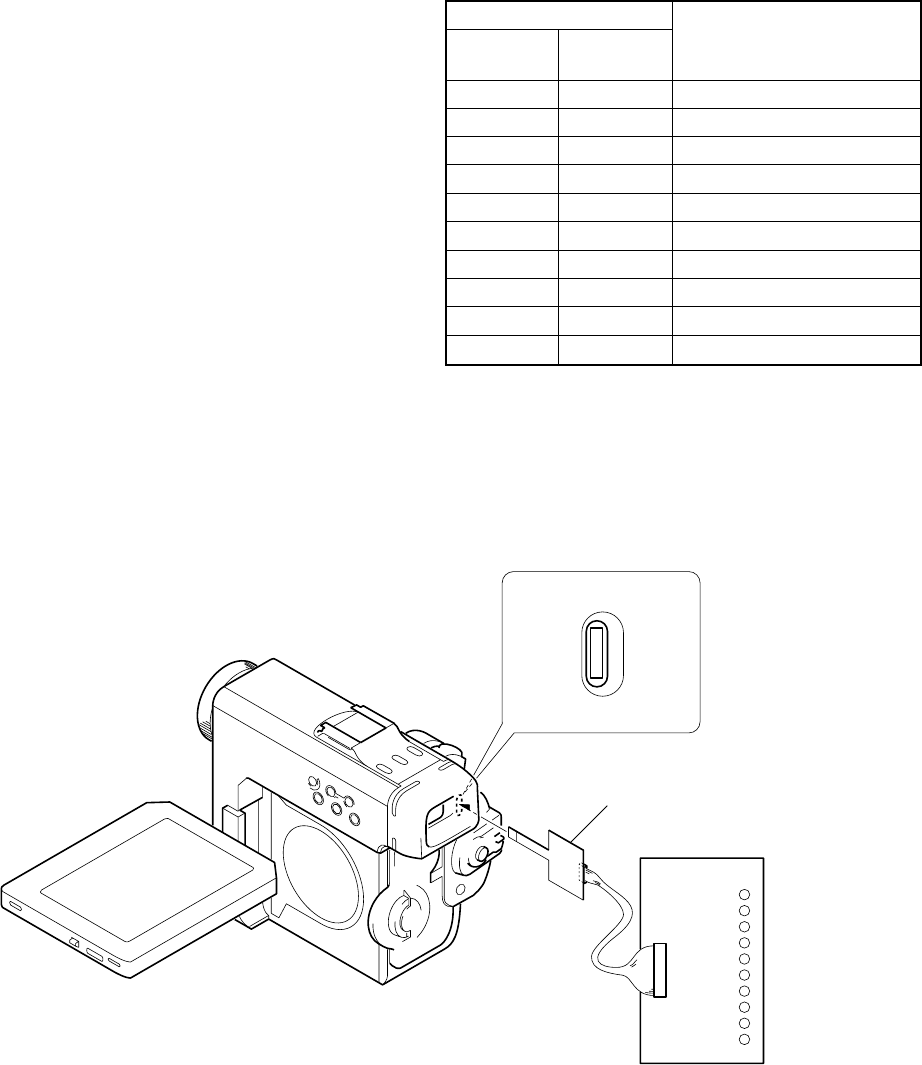

2-27. Service Position........................................................... 2-12

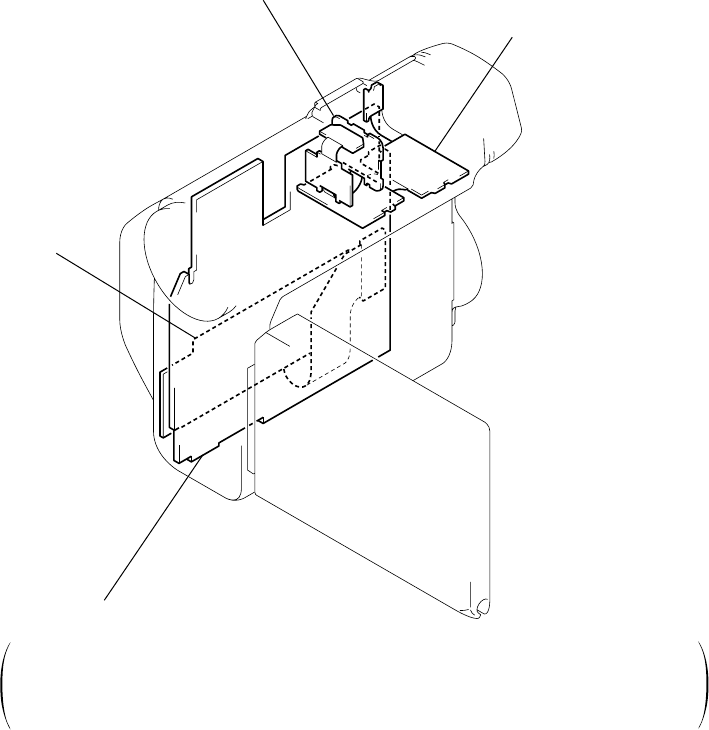

2-28. Circuit Boards Location ............................................... 2-14

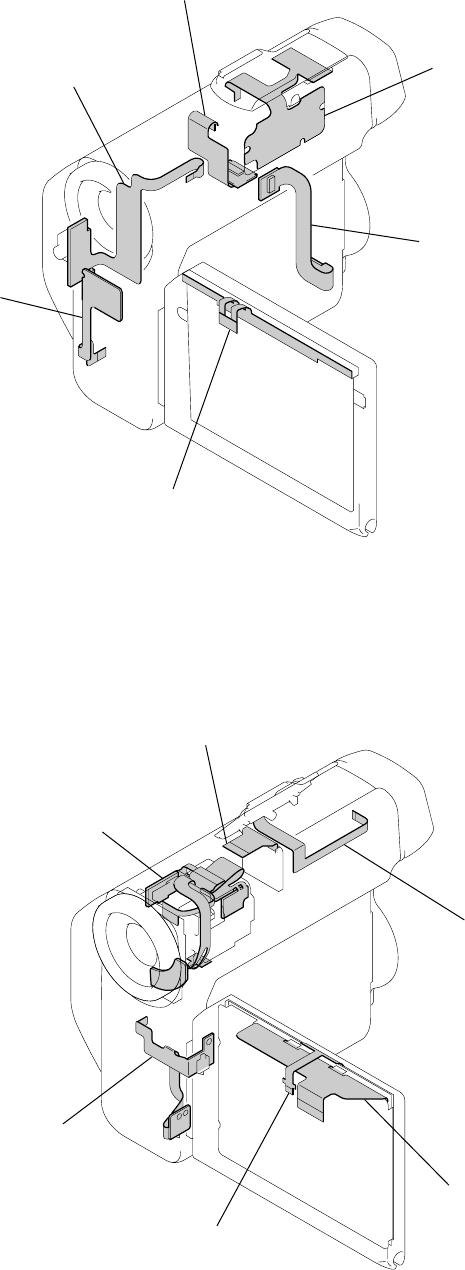

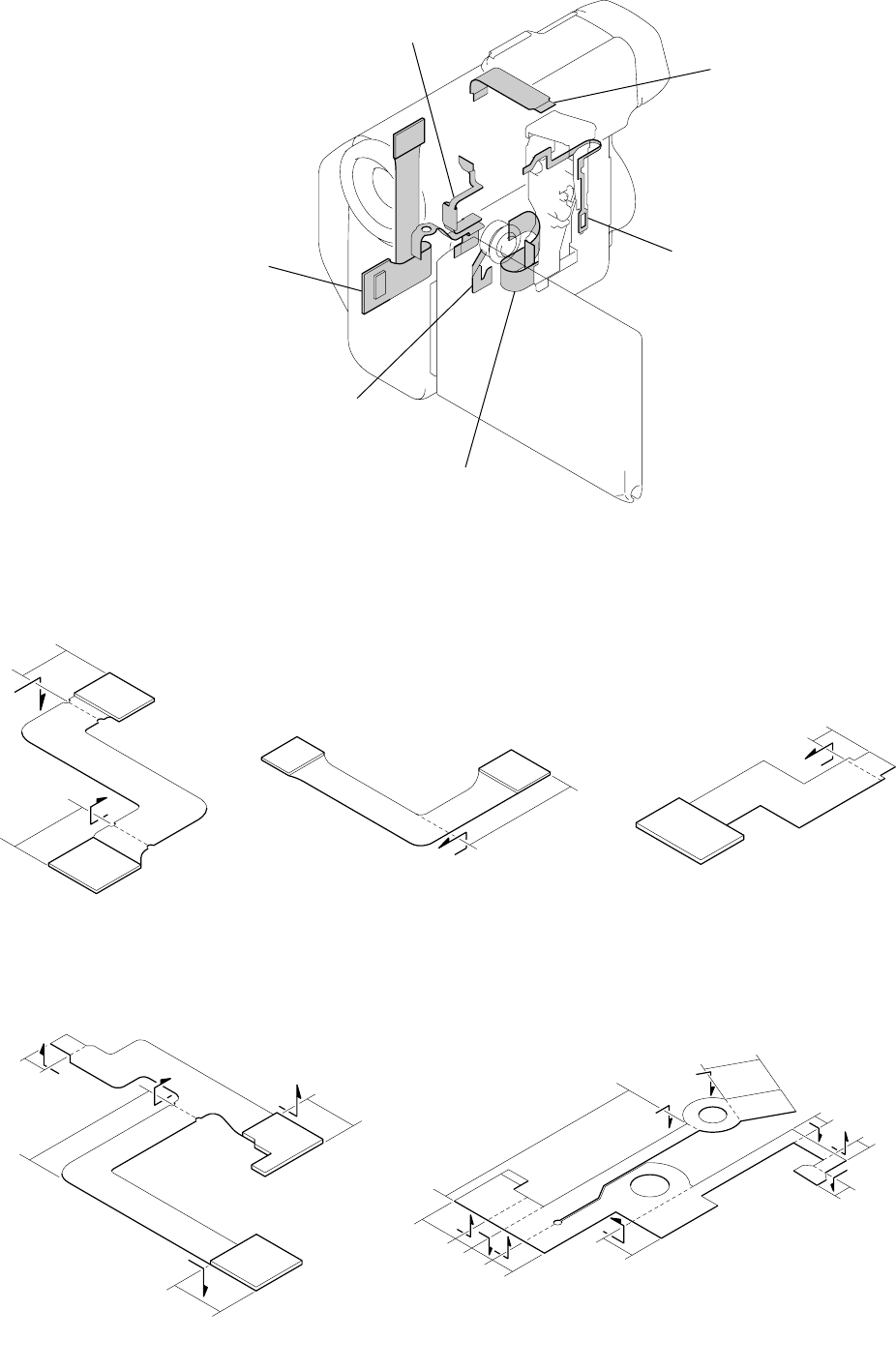

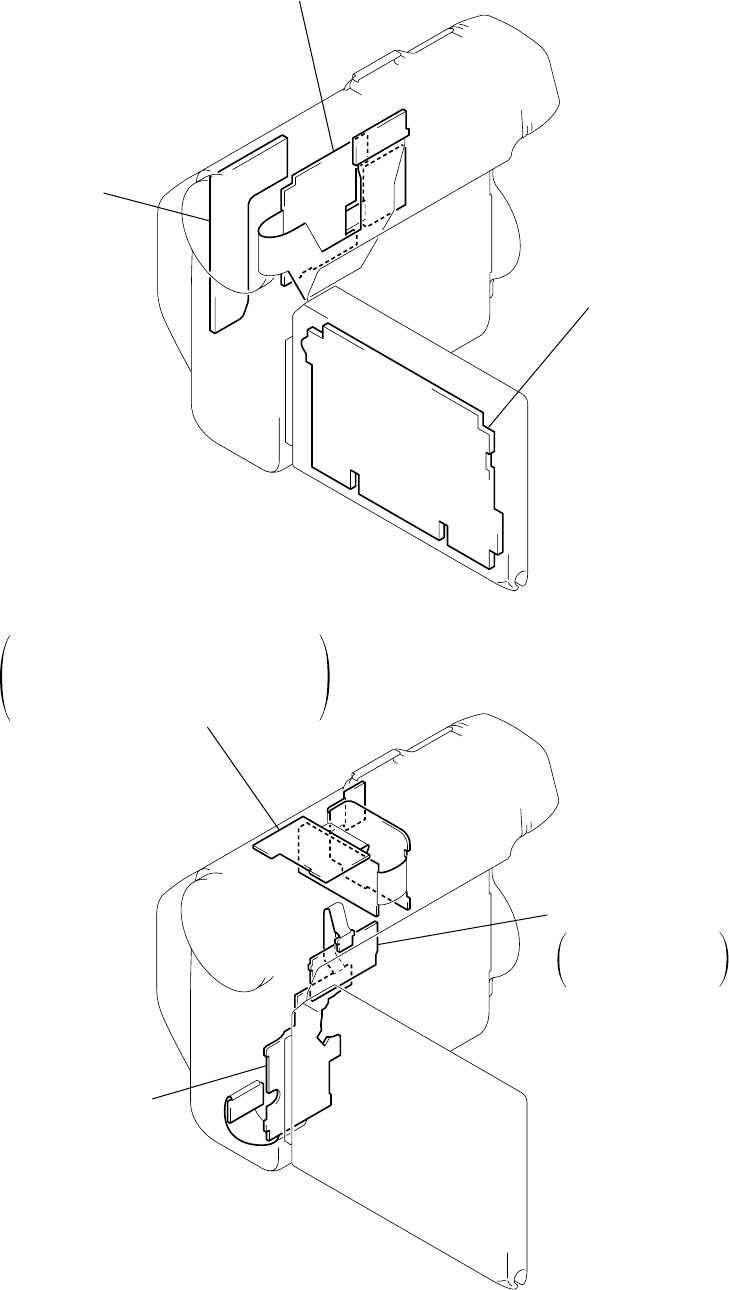

2-29. Flexible Boards Location ............................................. 2-16

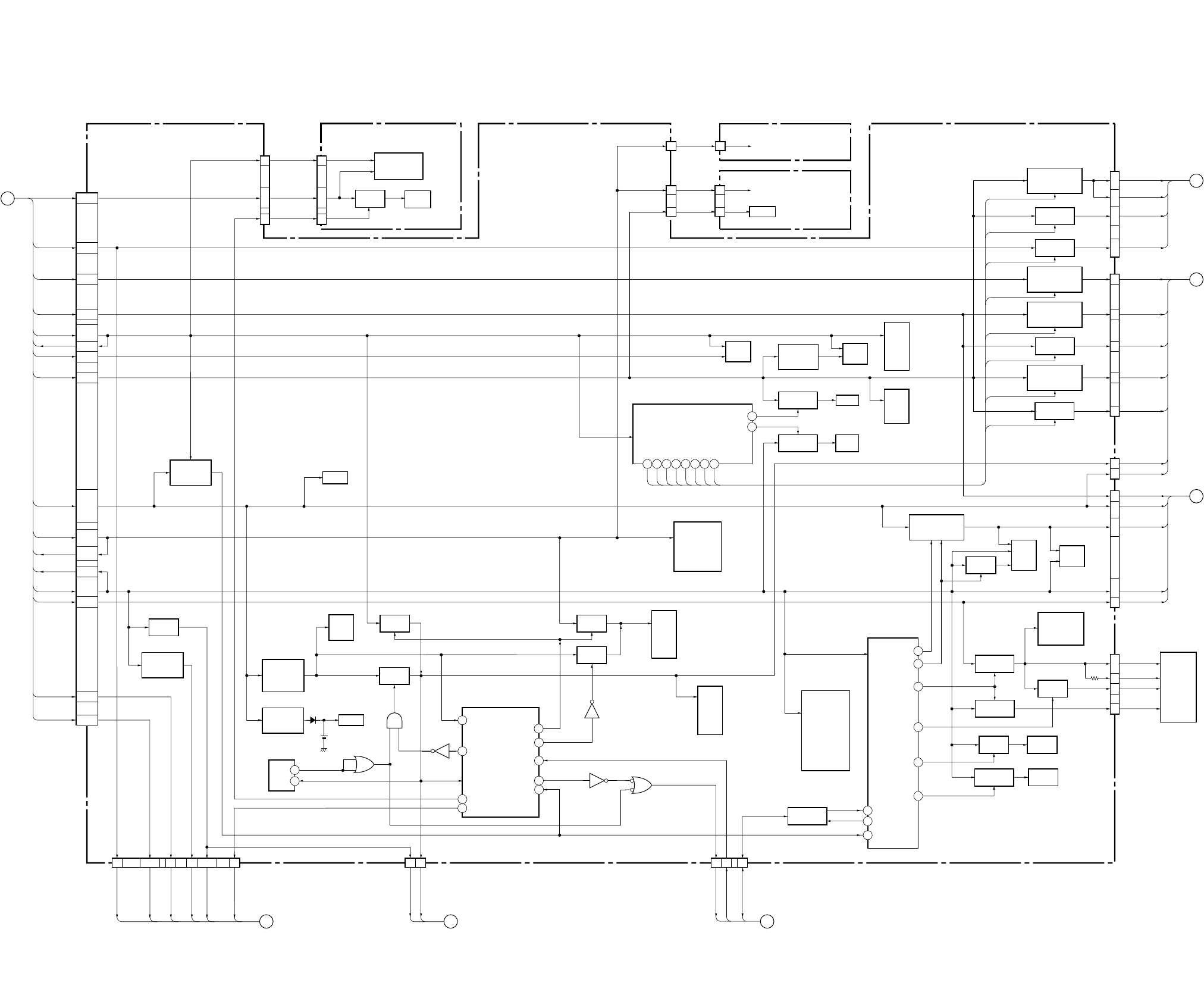

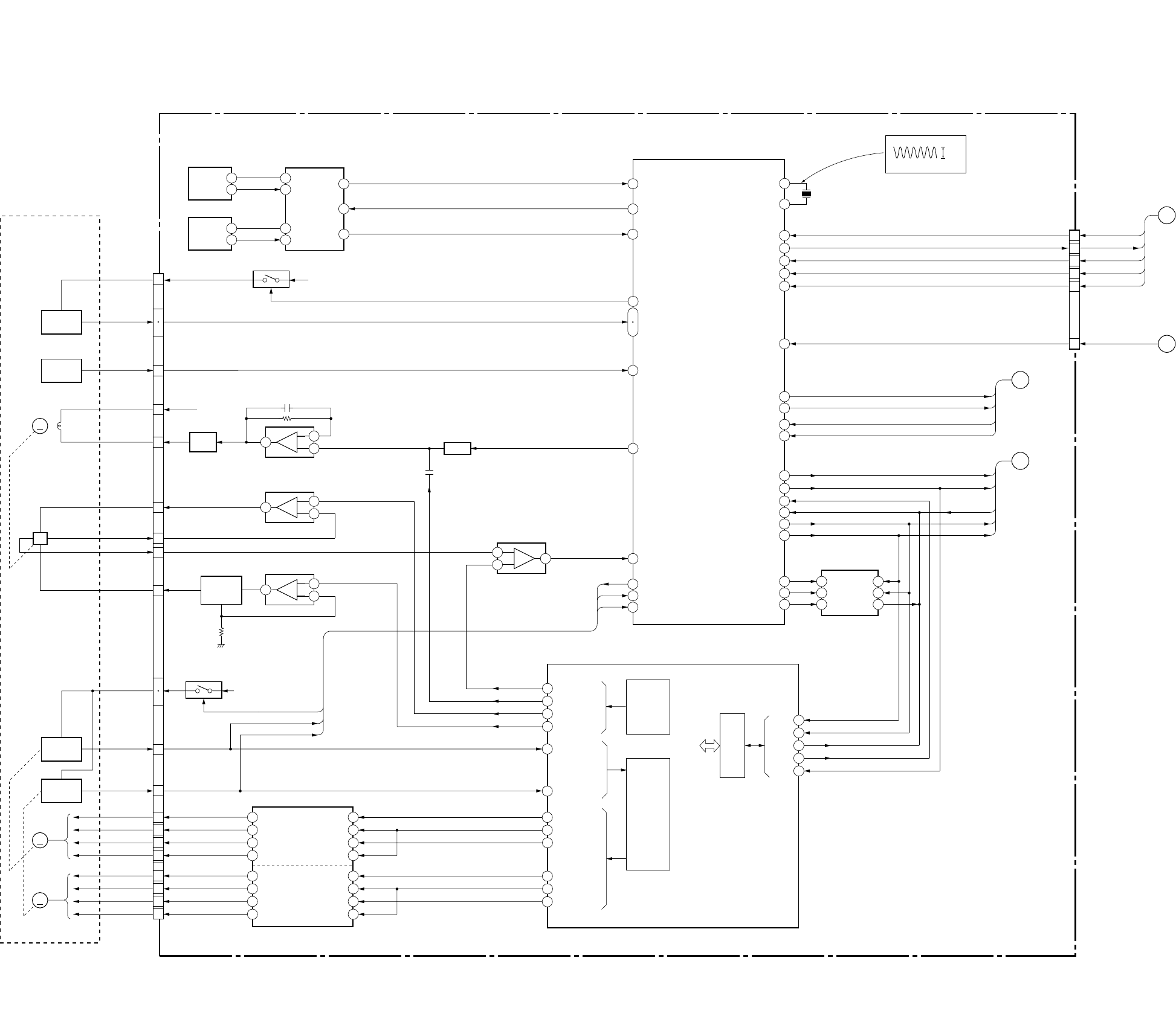

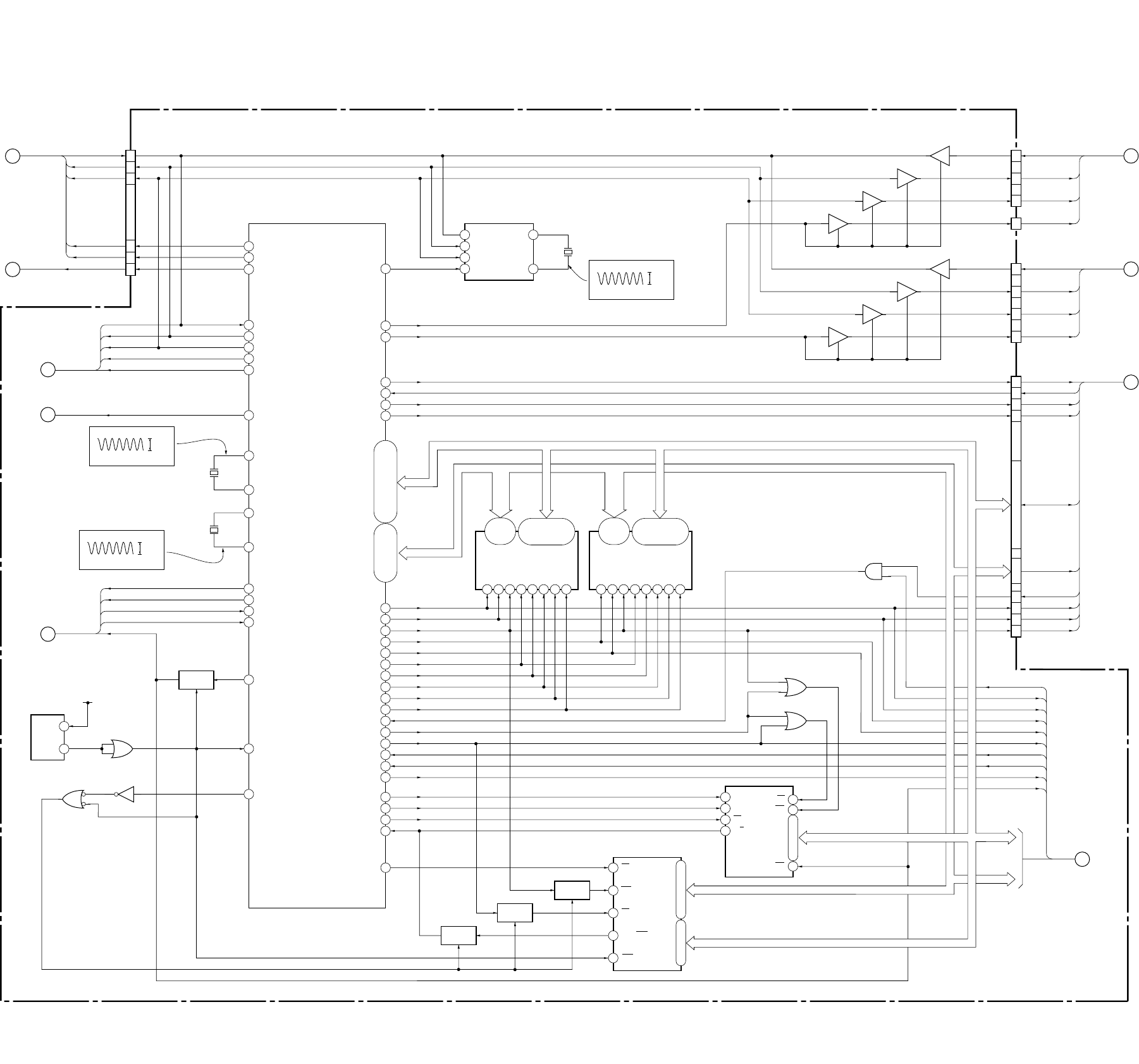

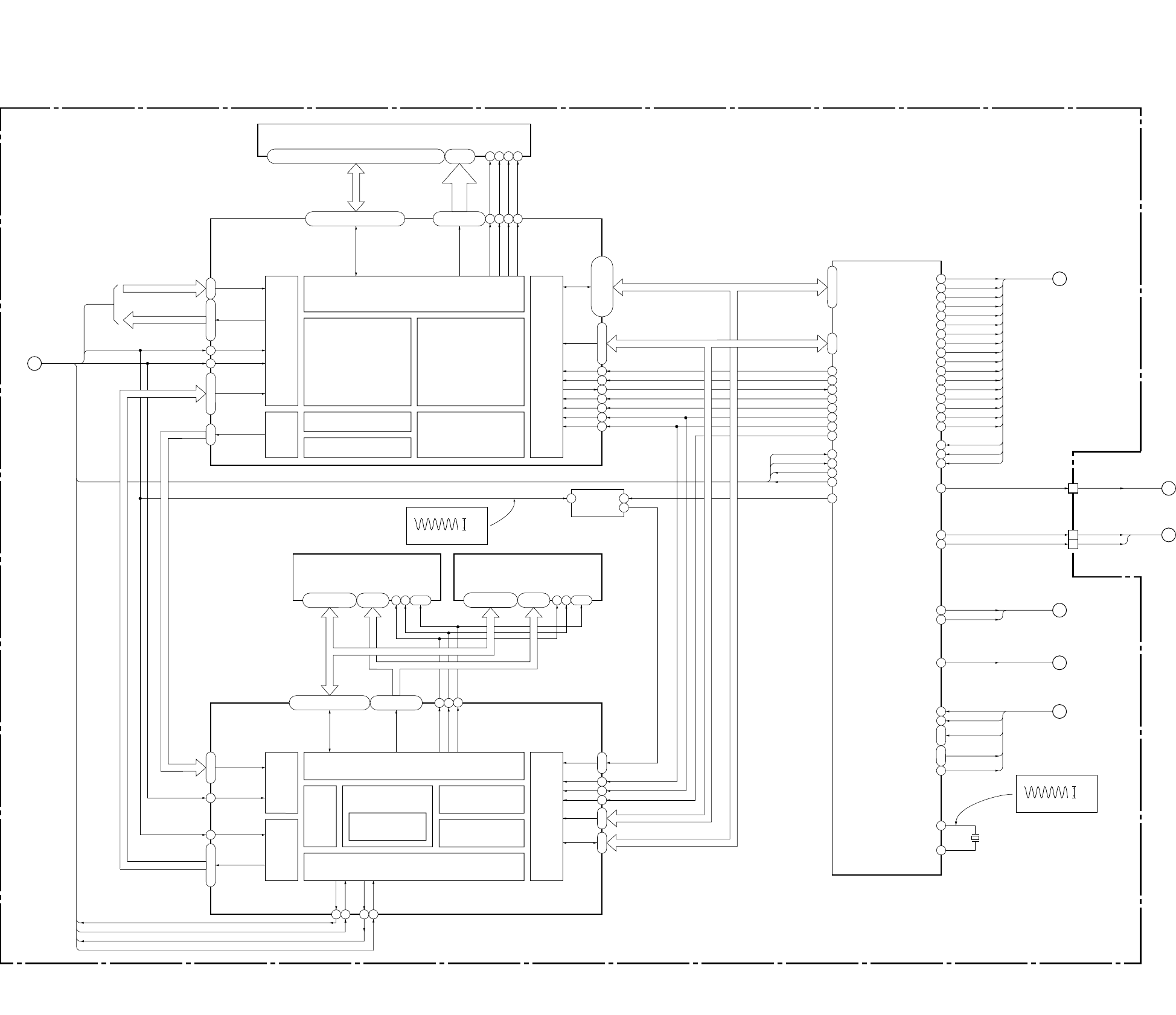

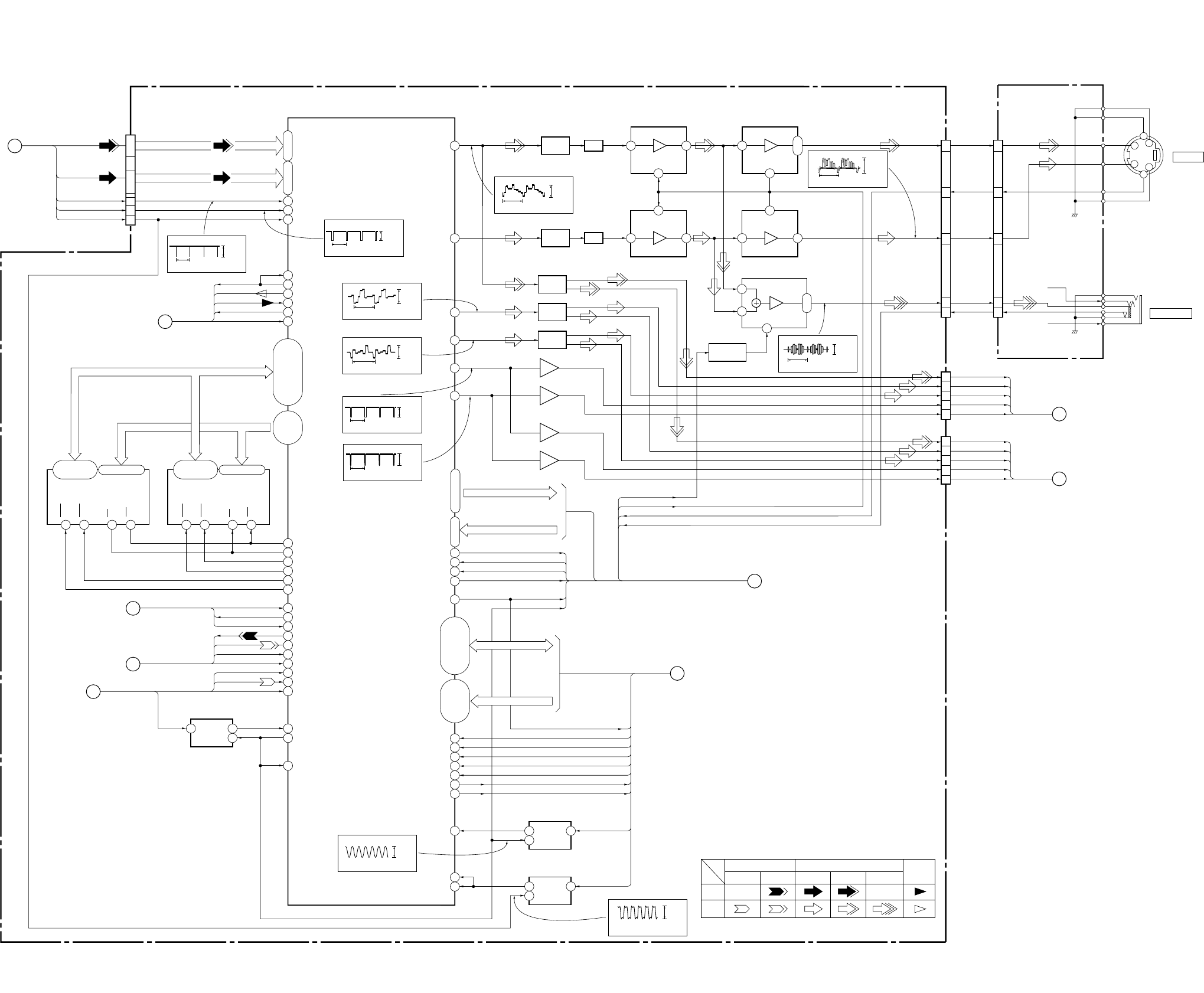

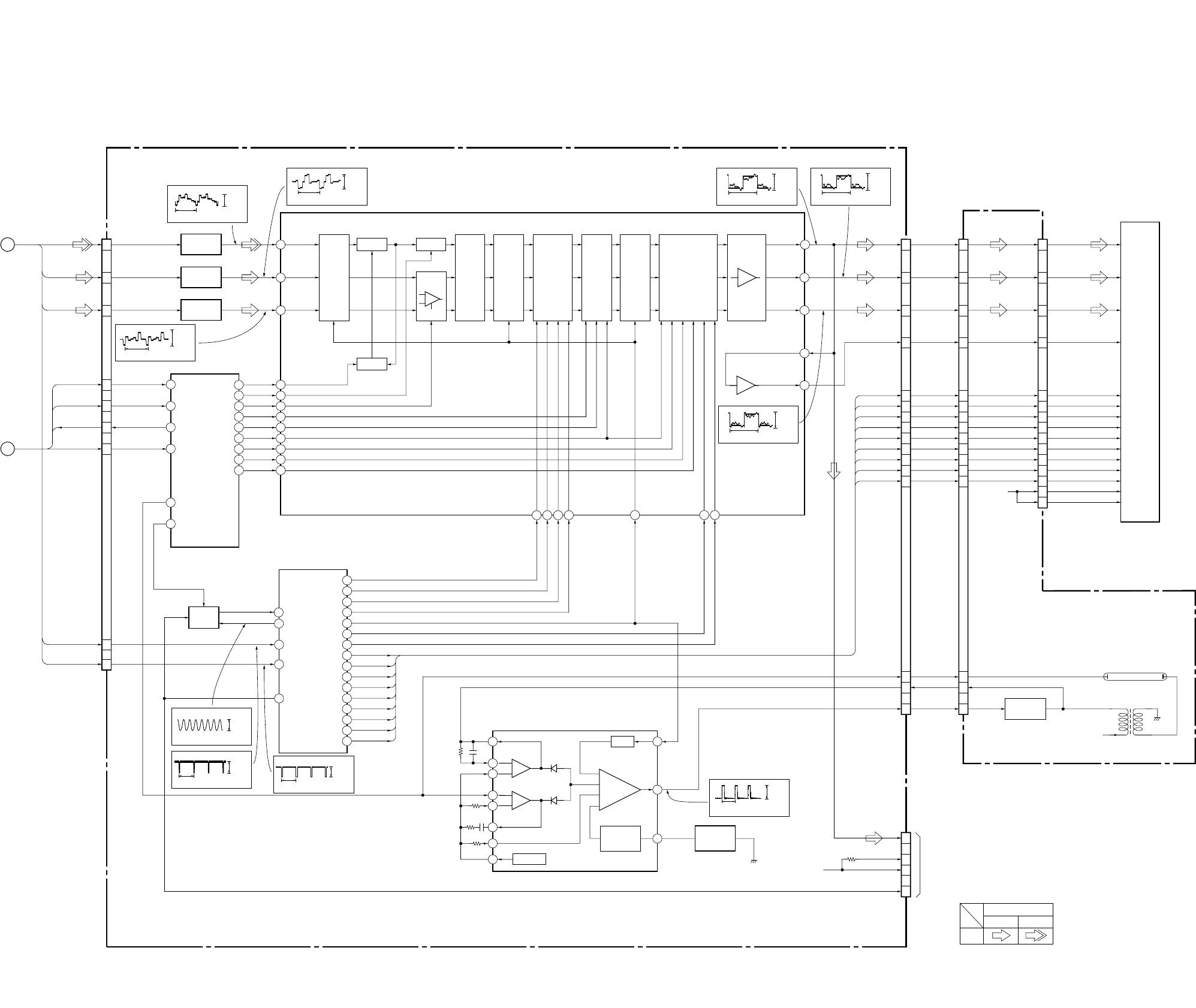

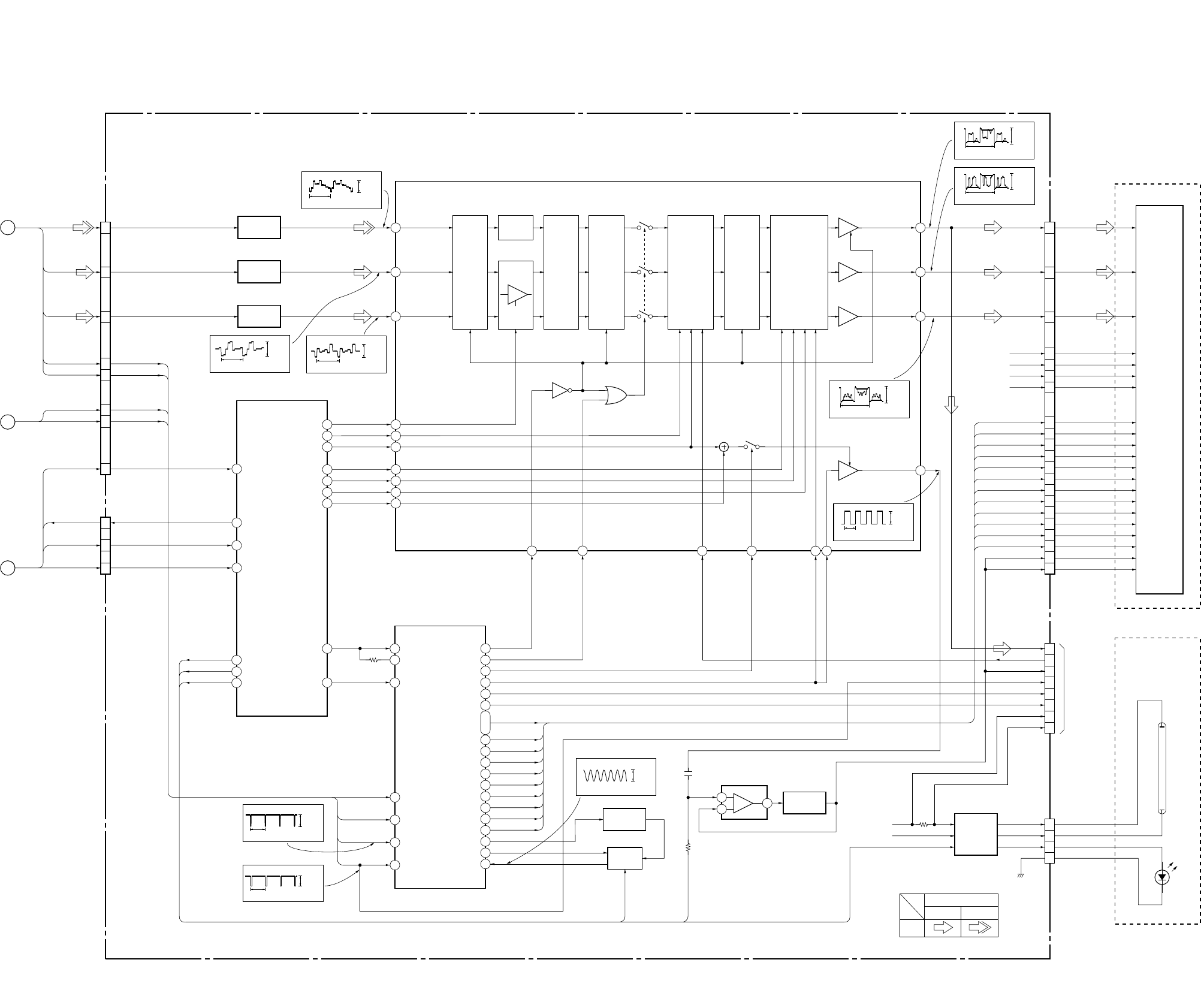

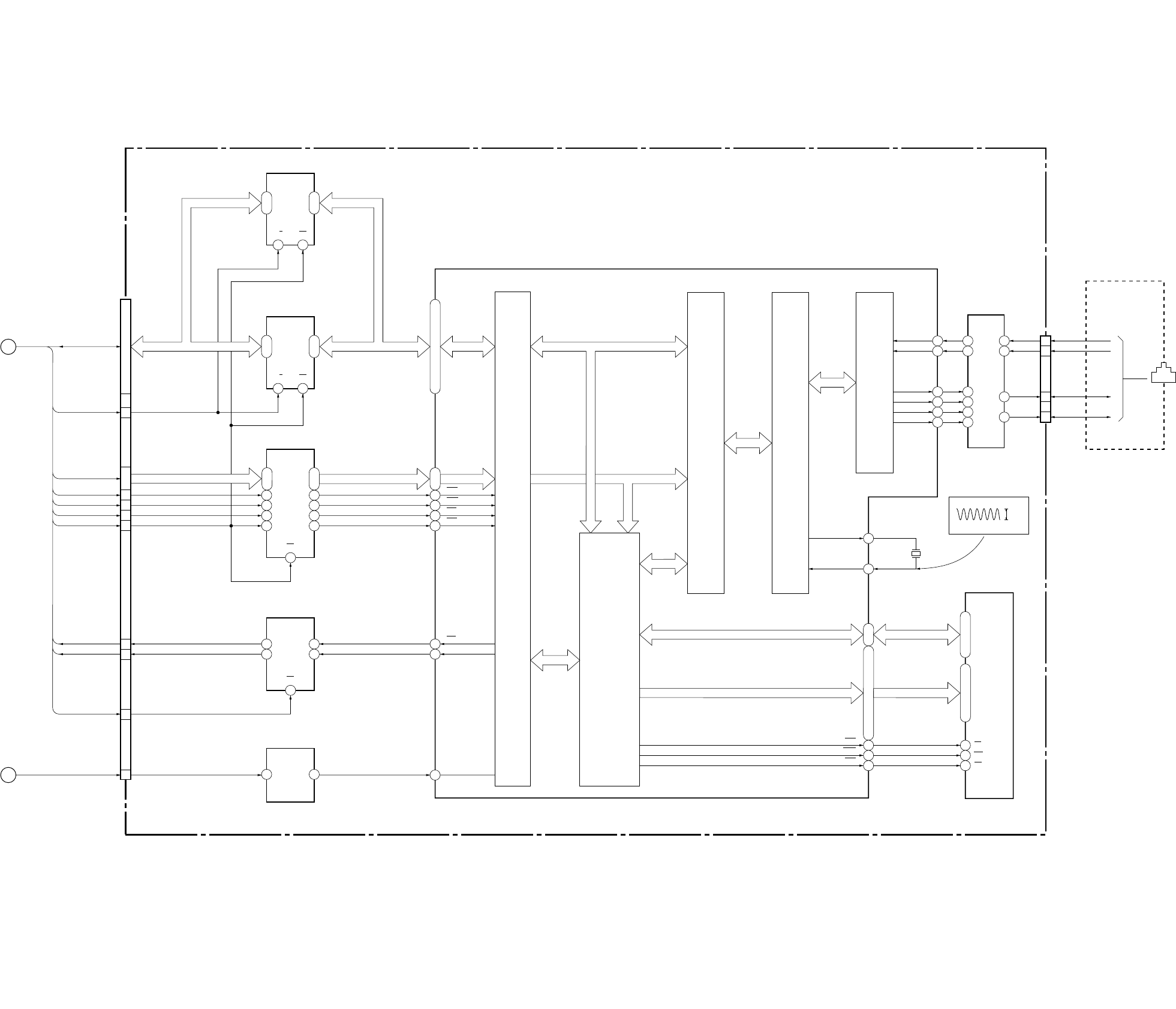

3. BLOCK DIAGRAMS

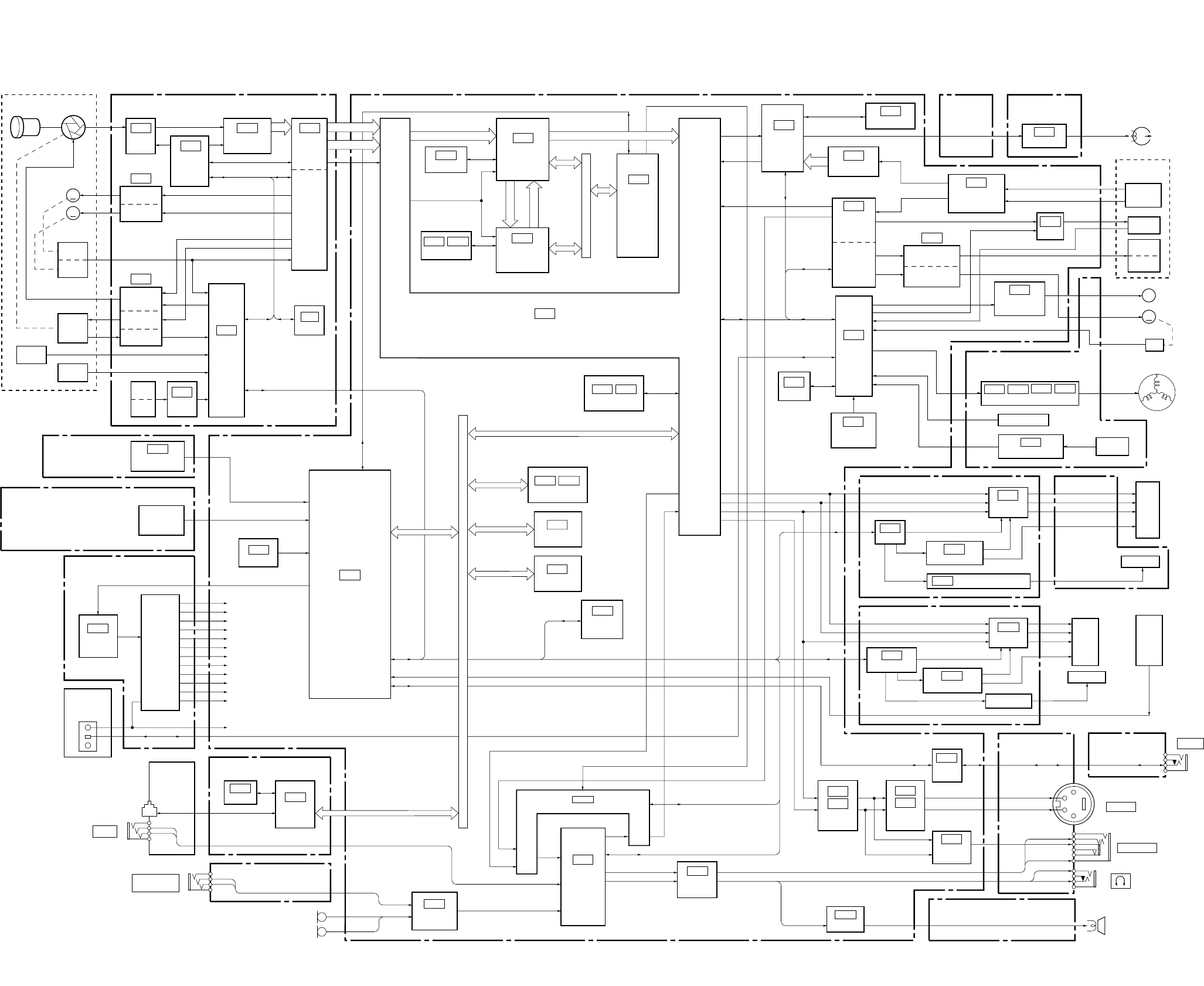

3-1. Overall Block Diagram................................................. 3-1
3-2. Camera Signal Process Block Diagram ...................... 3-3
3-3. Camera Control Block Diagram .................................. 3-5
3-4. A/V Data Control, Video Out Block Diagram .............. 3-7
3-5. MPEG Encode Block Diagram .................................... 3-9
3-6. MD Signal Process Block Diagram ............................. 3-11
3-7. MD Servo Block Diagram ............................................ 3-13
3-8. System Control Block Diagram ................................... 3-15

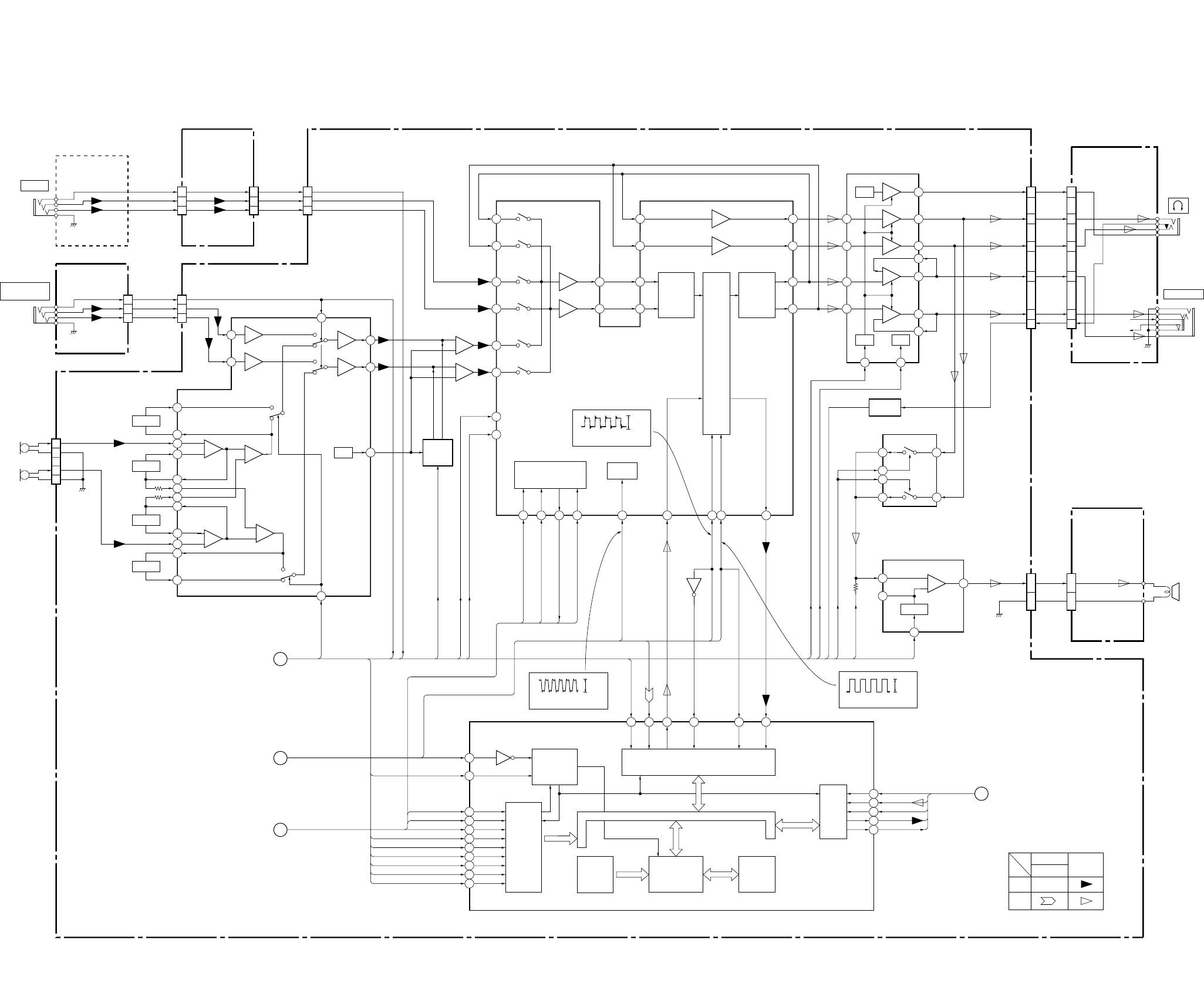

3-9. Audio Block Diagram ................................................... 3-17
3-10. LCD Block Diagram ..................................................... 3-19
3-11. EVF Block Diagram ..................................................... 3-21
3-12. Mode Control Block Diagram ...................................... 3-23
3-13. Ether Interface Block Diagram .................................... 3-25
3-14. Power 1 Block Diagram ............................................... 3-27
3-15. Power 2 Block Diagram ............................................... 3-29
3-16. Power 3 Block Diagram ............................................... 3-31

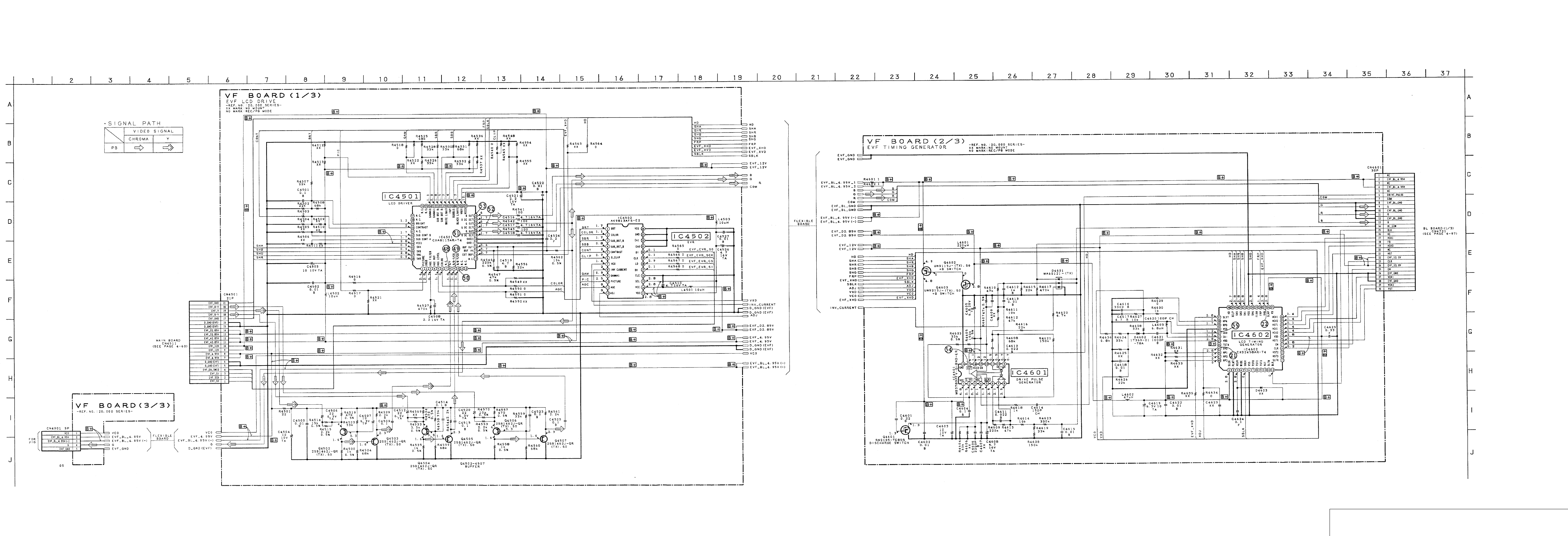

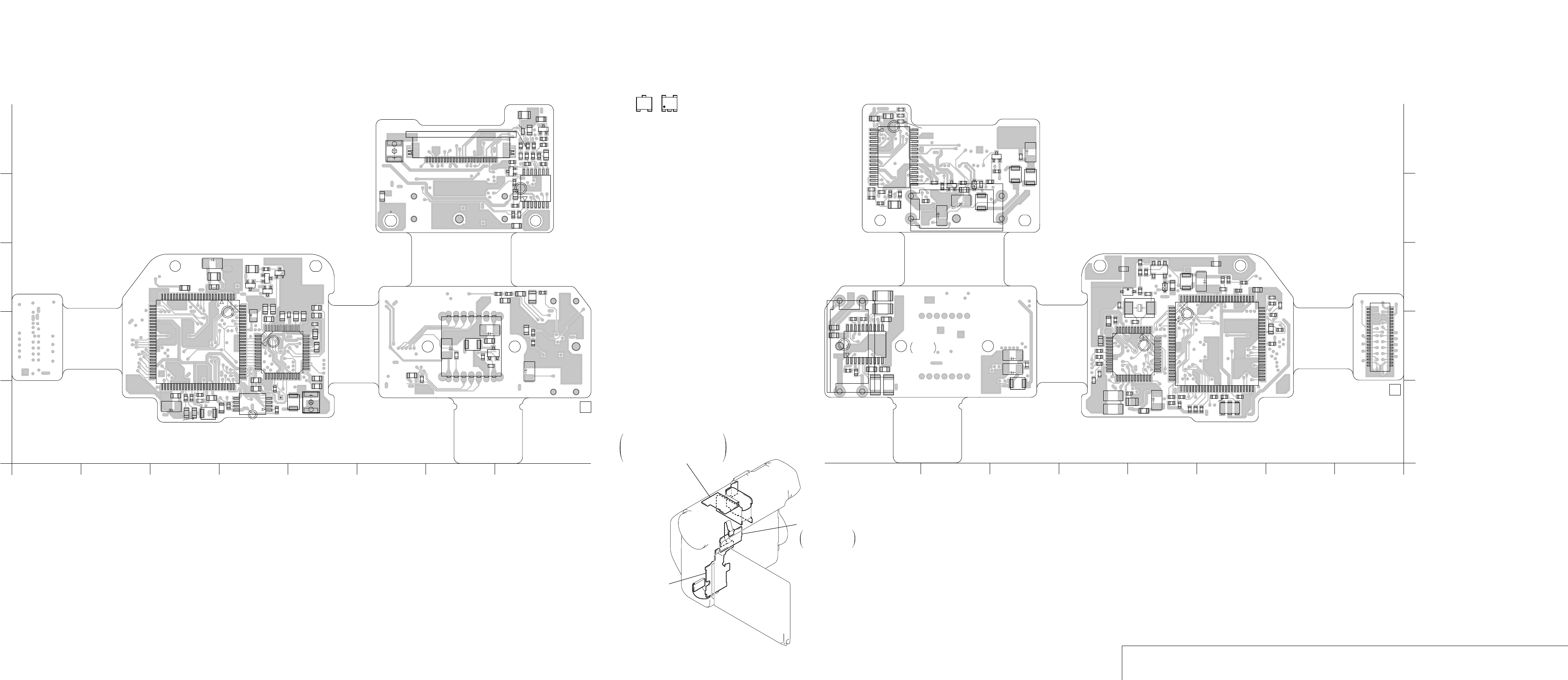

4. PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS

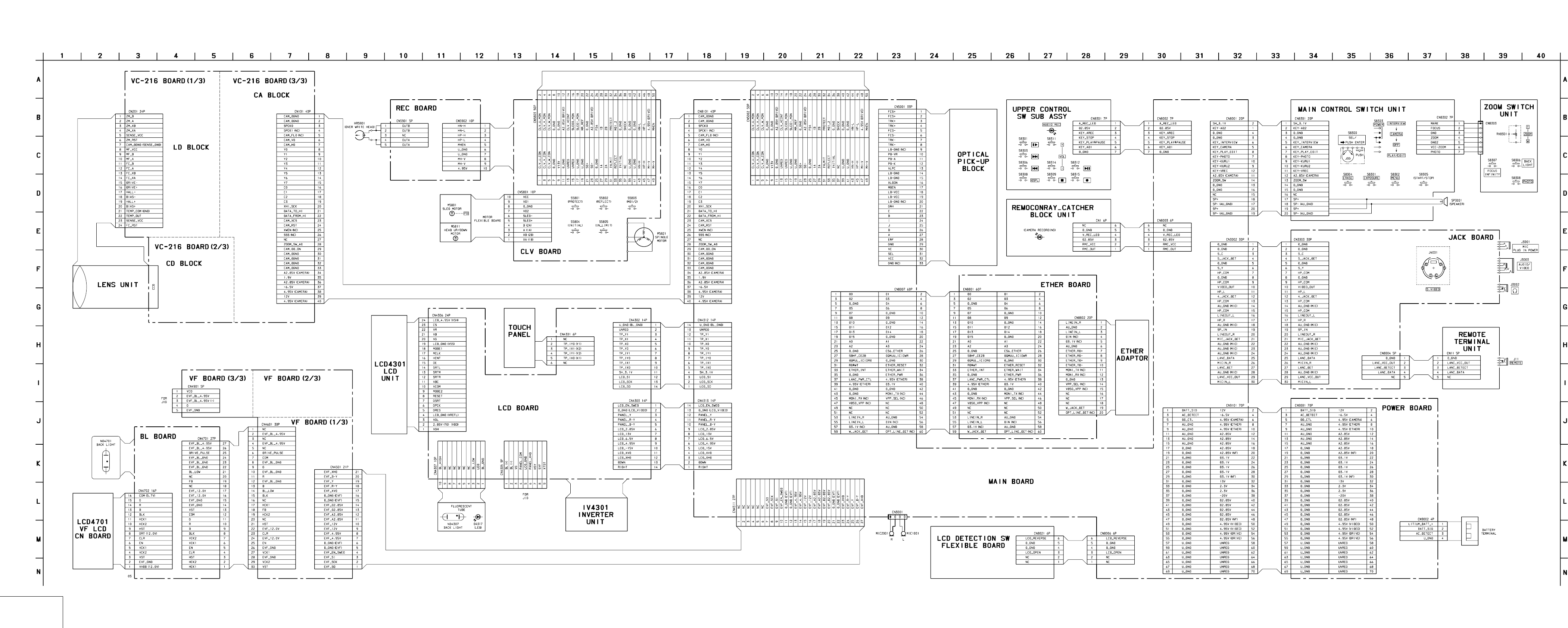

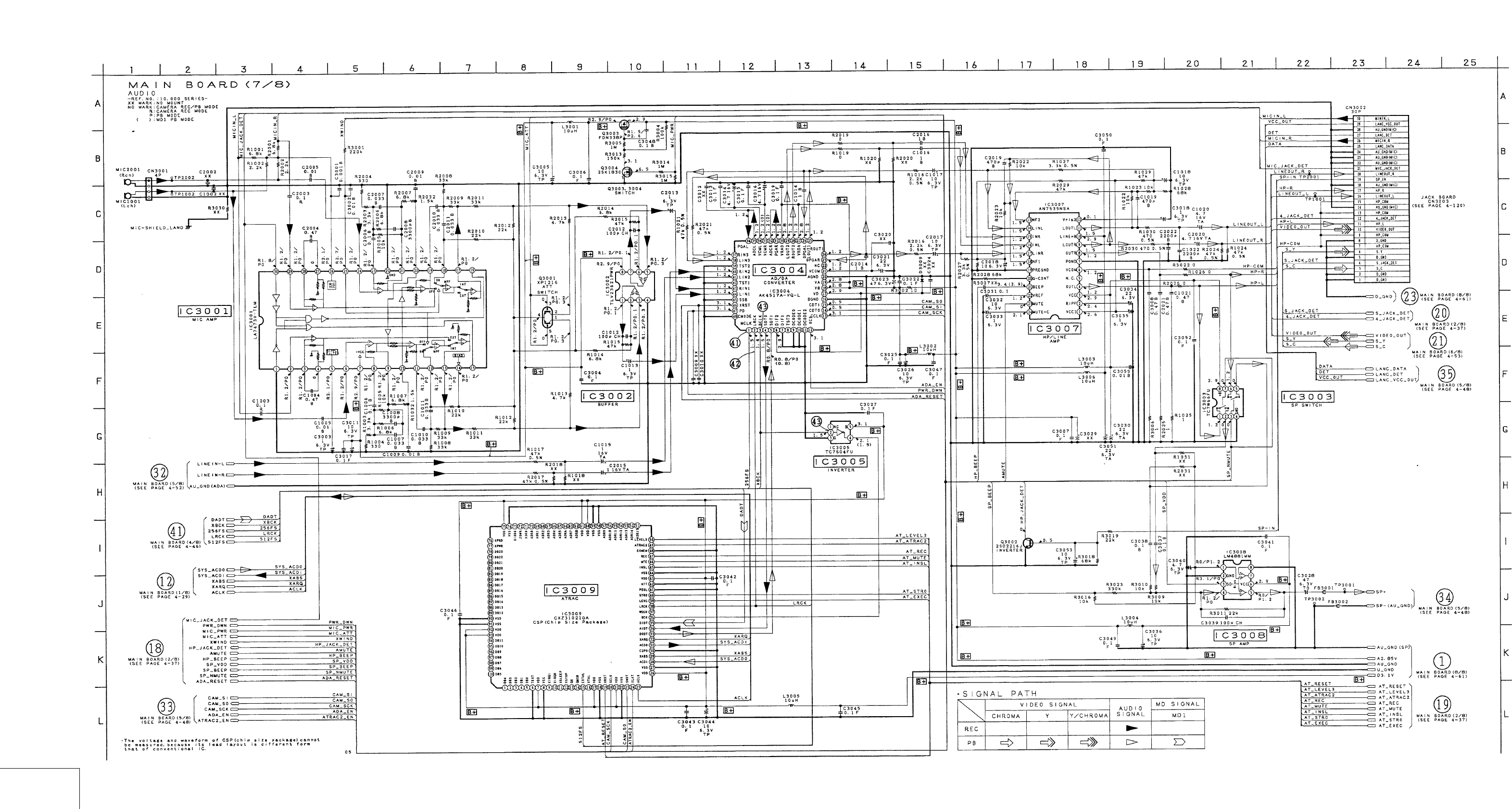

4-1. Frame Schematic Diagram.......................................... 4-5

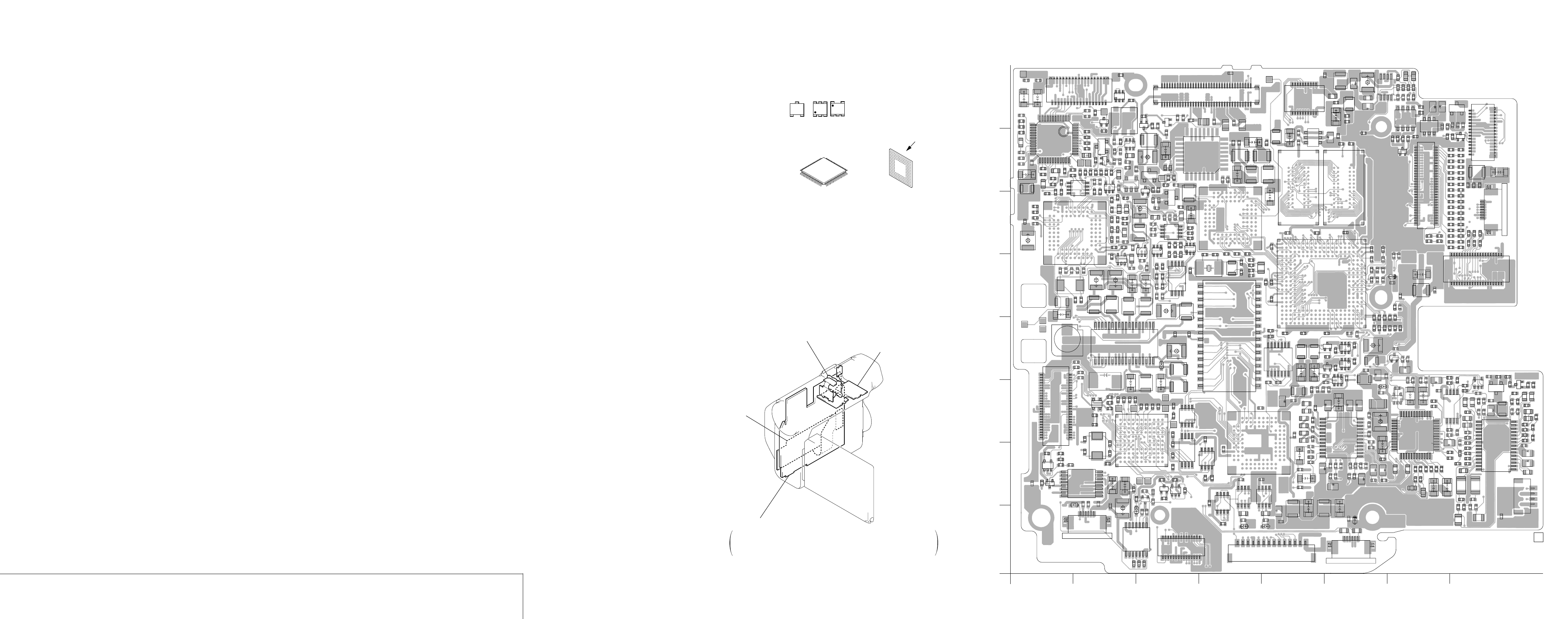

4-2. Printed Wiring Boards and Schematic Diagrams ....... 4-9
VC-216 Printed Wiring Board...................................... 4-9

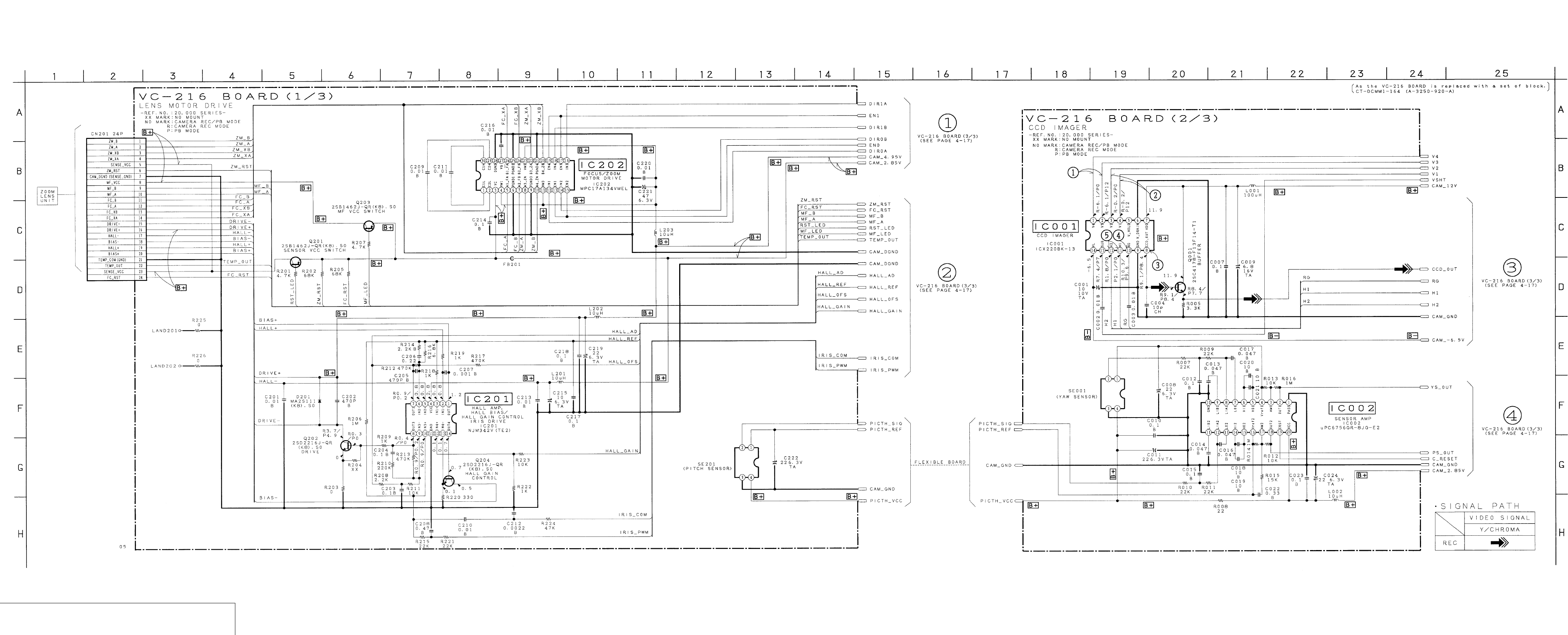

VC-216 (LENS MOTOR DRIVE, CCD IMAGER)
Schematic Diagram ..................................................... 4-13
VC-216 (CAMERA SIGNAL PROCESS)
Schematic Diagram ..................................................... 4-17

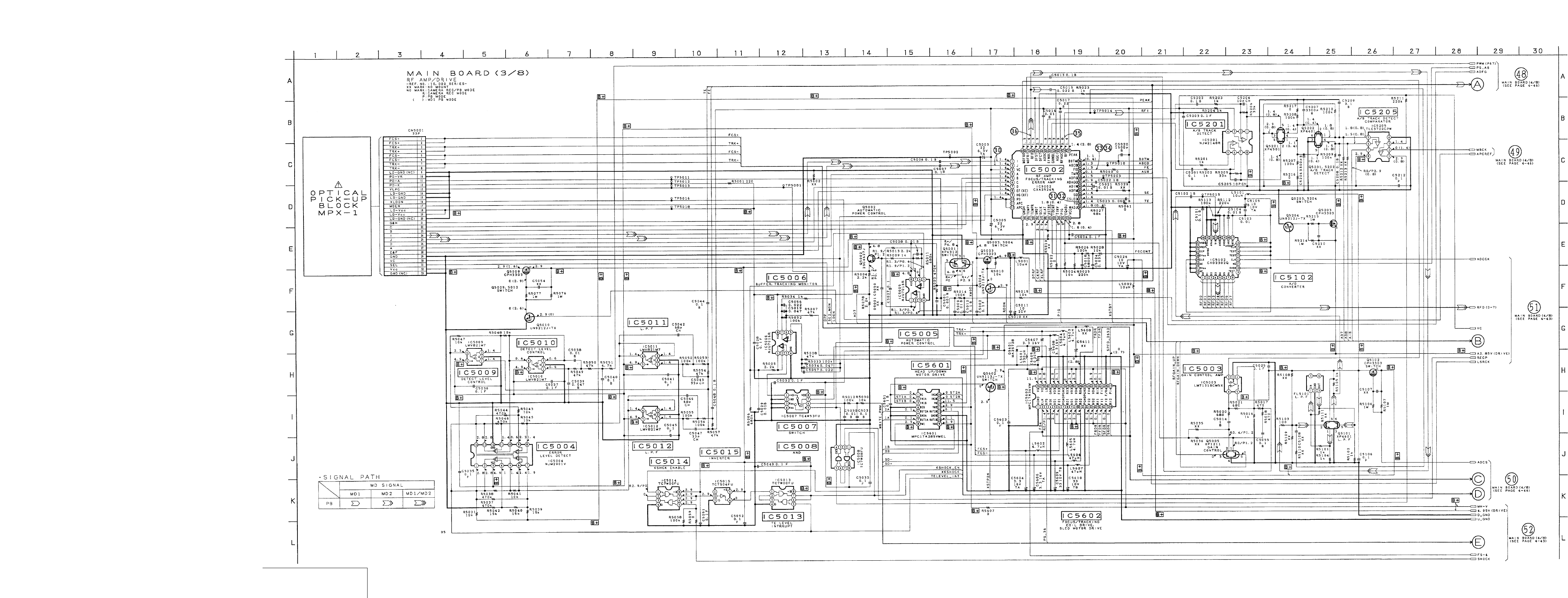

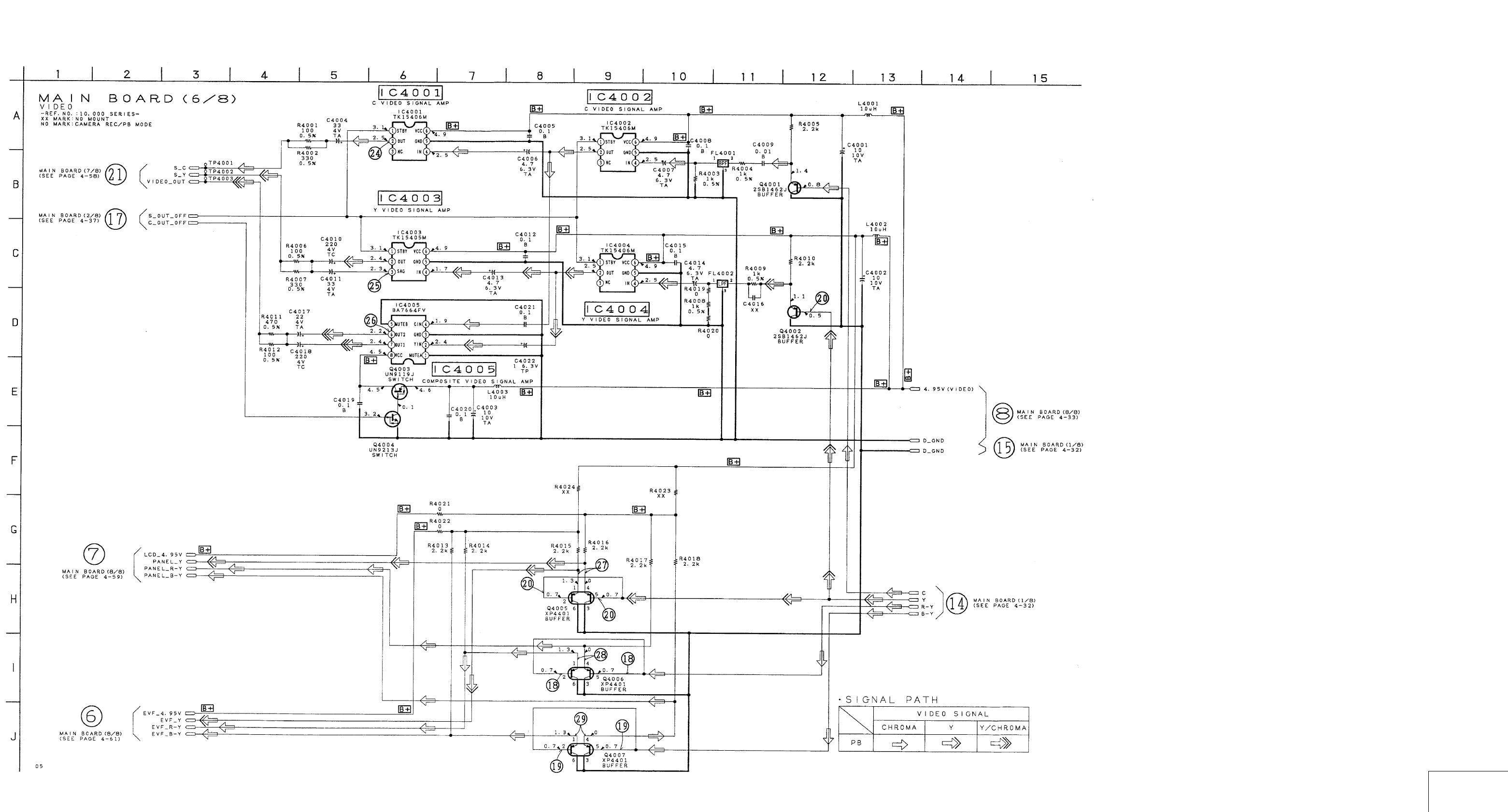

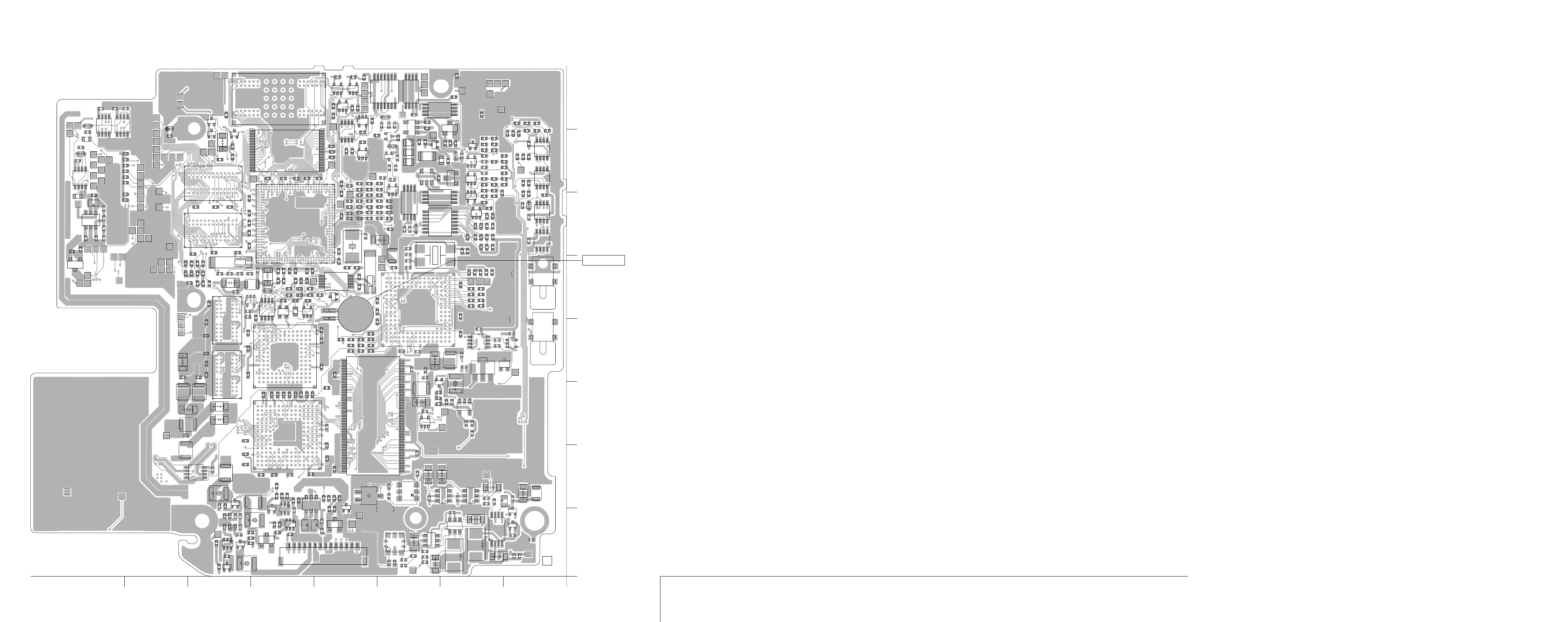

MAIN Printed Wiring Board ......................................... 4-21
MAIN (AUDIO/VIDEO DATA CONTROL)
Schematic Diagram ..................................................... 4-29
MAIN (MPEG ENCODER/DECODER)
Schematic Diagram ..................................................... 4-33
MAIN (RF AMP/DRIVE) Schematic Diagram ............. 4-39
MAIN (DIGITAL SIGNAL PROCESSOR)
Schematic Diagram ..................................................... 4-43
MAIN (SYSTEM CONTROL) Schematic Diagram ..... 4-48
MAIN (VIDEO) Schematic Diagram ............................ 4-53
MAIN (AUDIO) Schematic Diagram ............................ 4-56

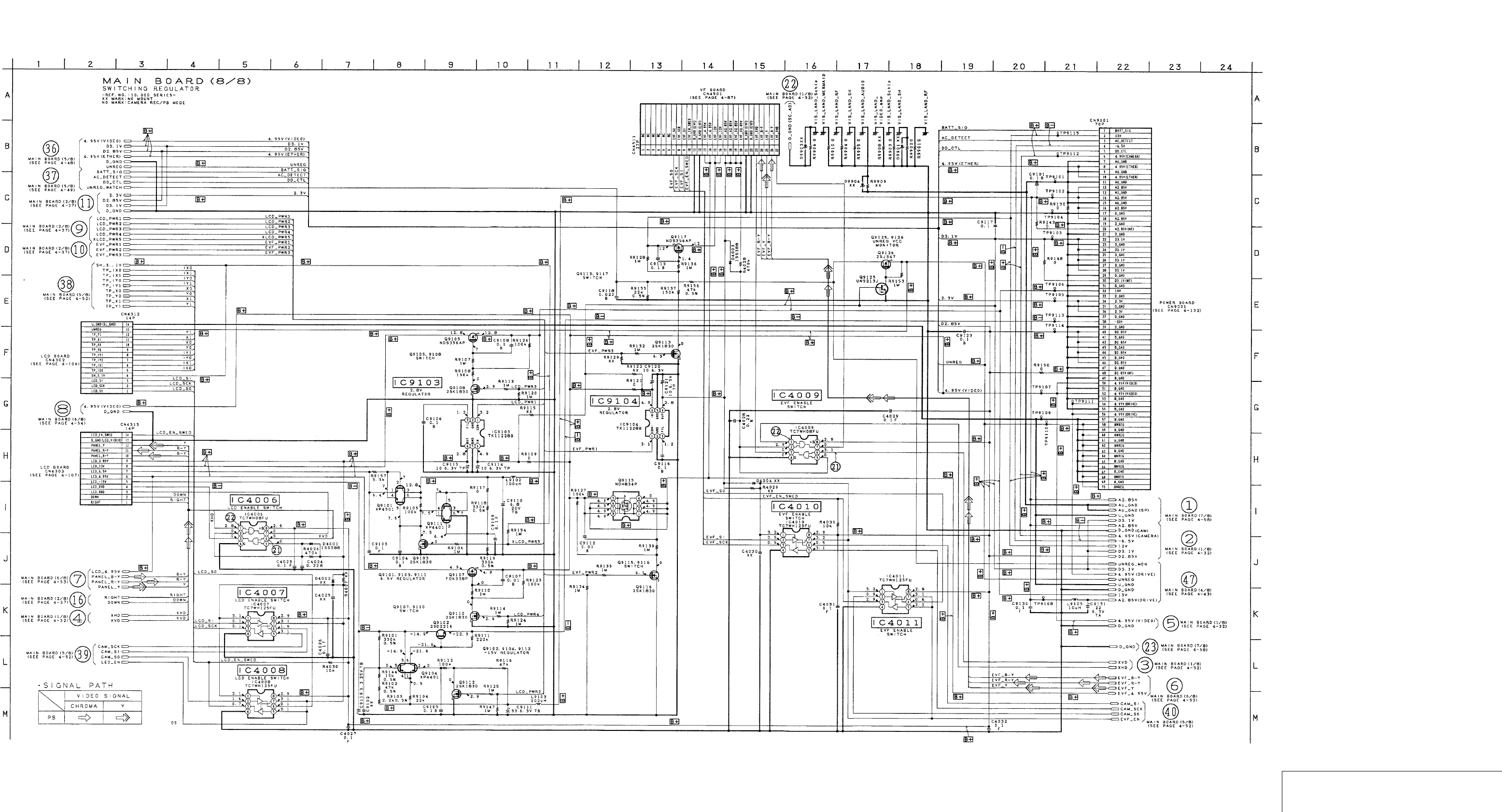

MAIN (SWITCHING REGULATOR)
Schematic Diagram ..................................................... 4-59

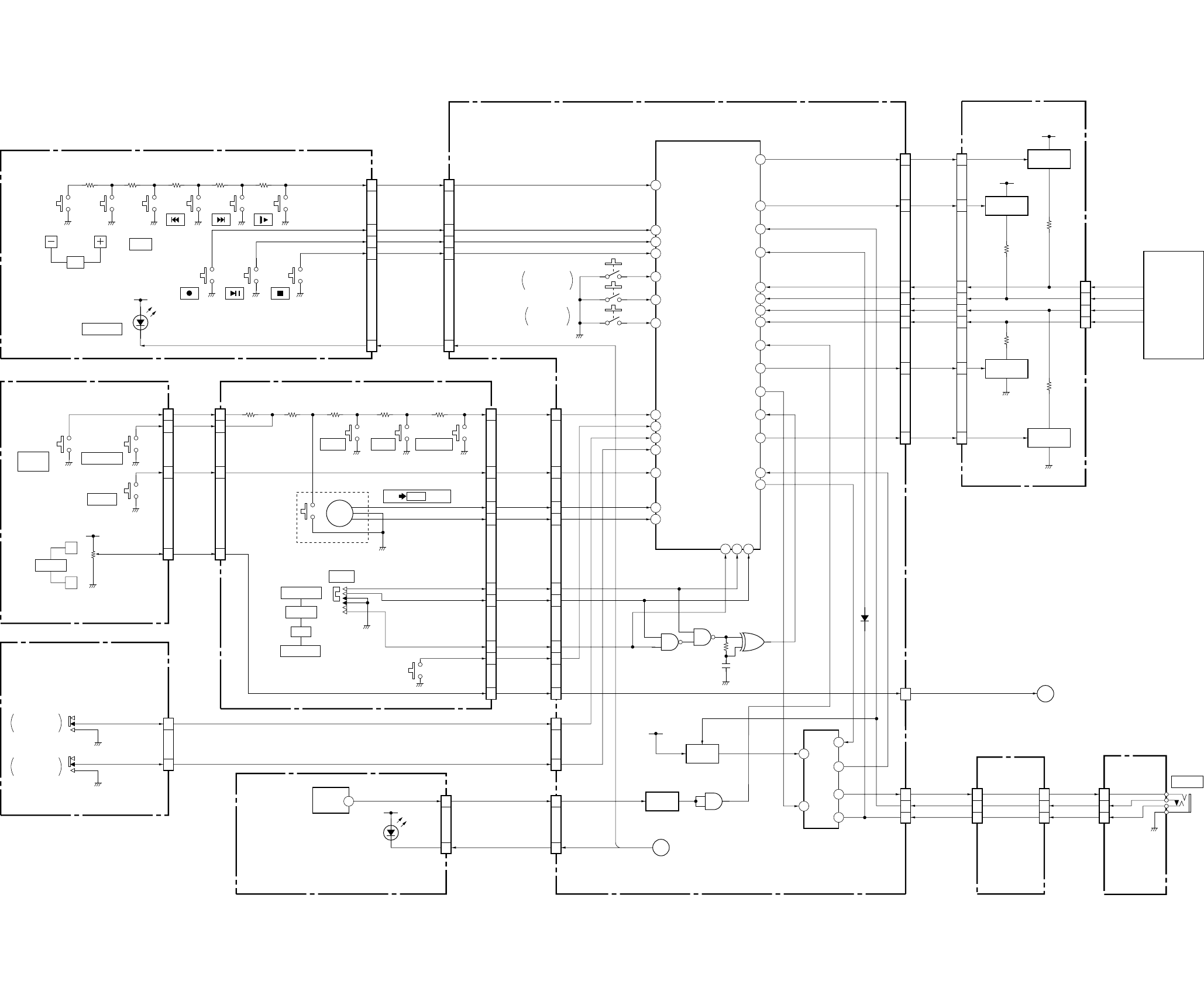

MAIN CONTROL SWITCH UNIT, ZOOM SWITCH
UNIT Schematic Diagram ........................................... 4-62

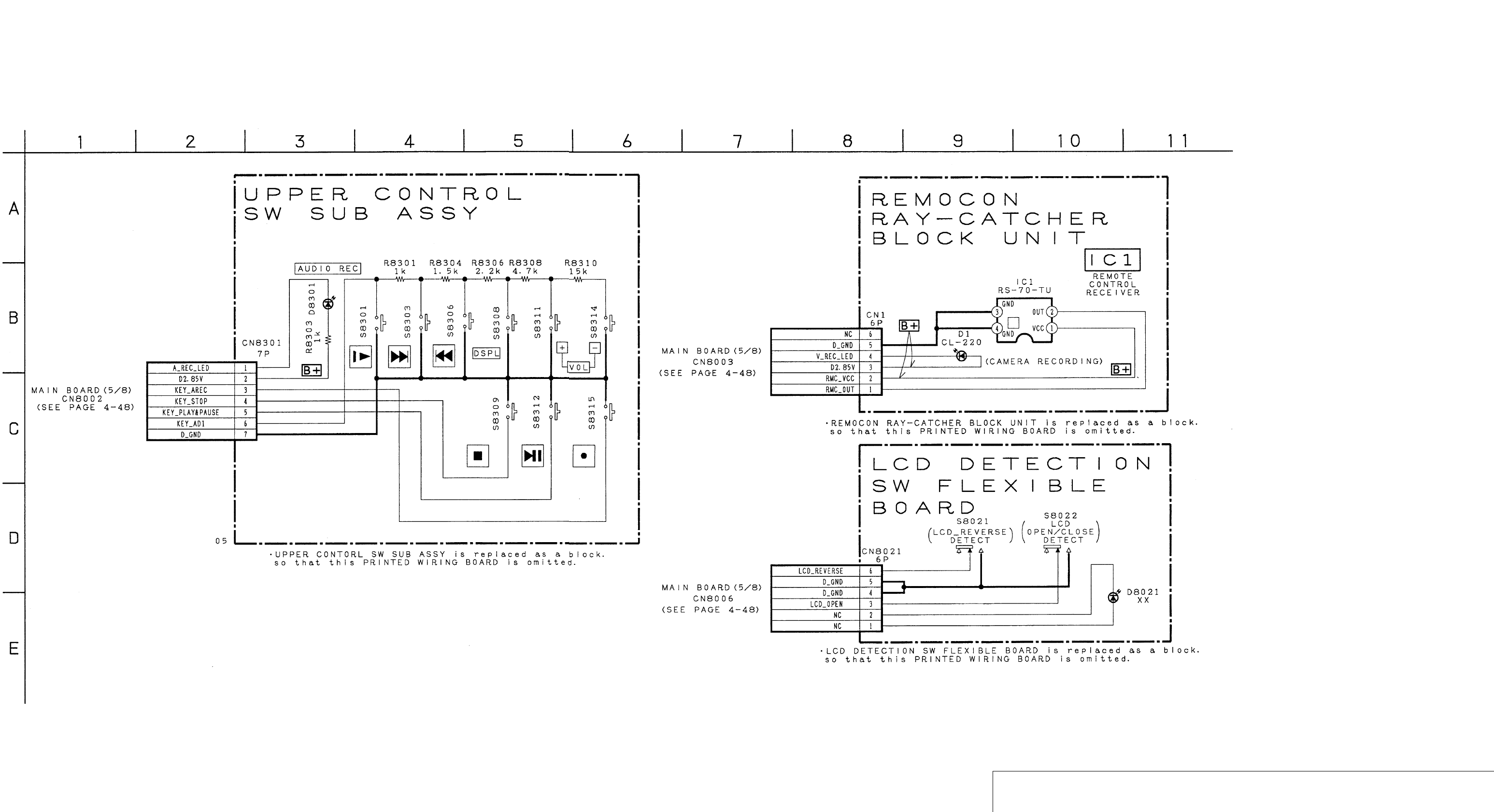

UPPER CONTROL SW SUB ASSY,
REMOCON RAY-CATCHER BLOCK UNIT,
LCD DETECTION SW FLEXIBLE Board
Schematic Diagram ..................................................... 4-65

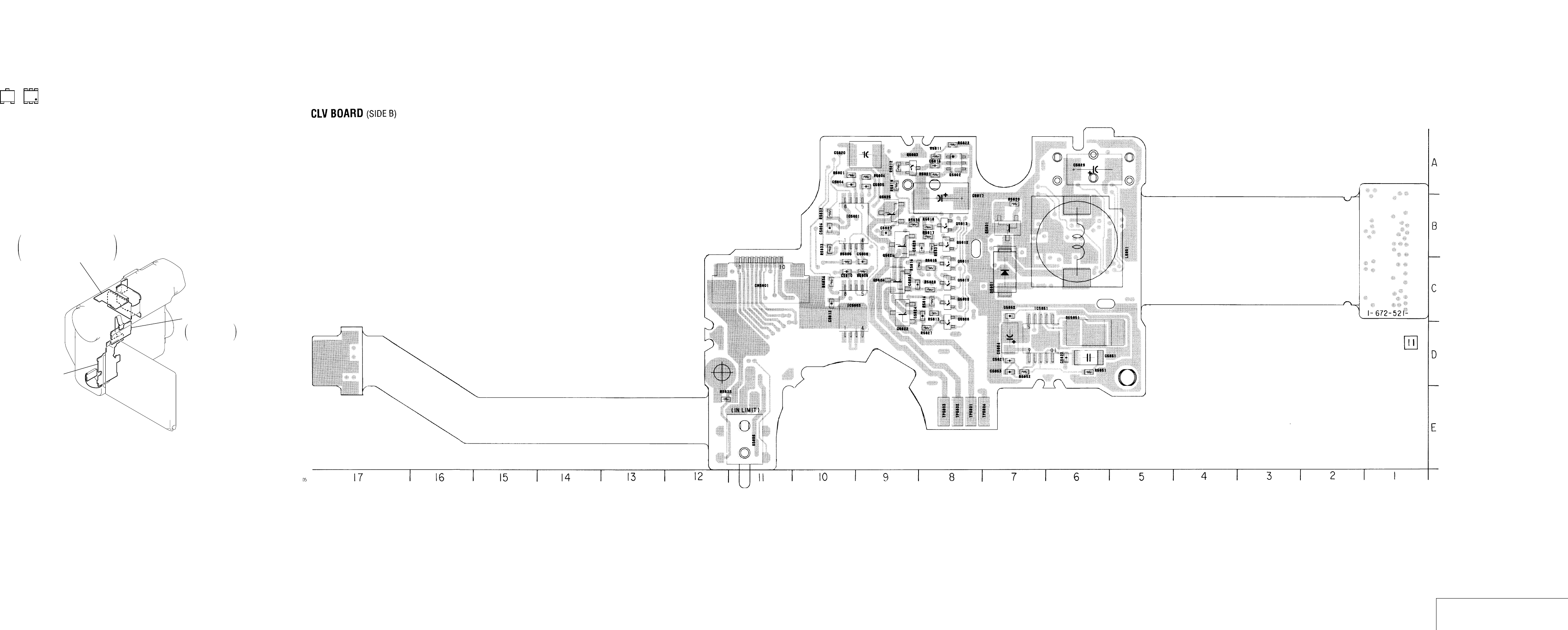

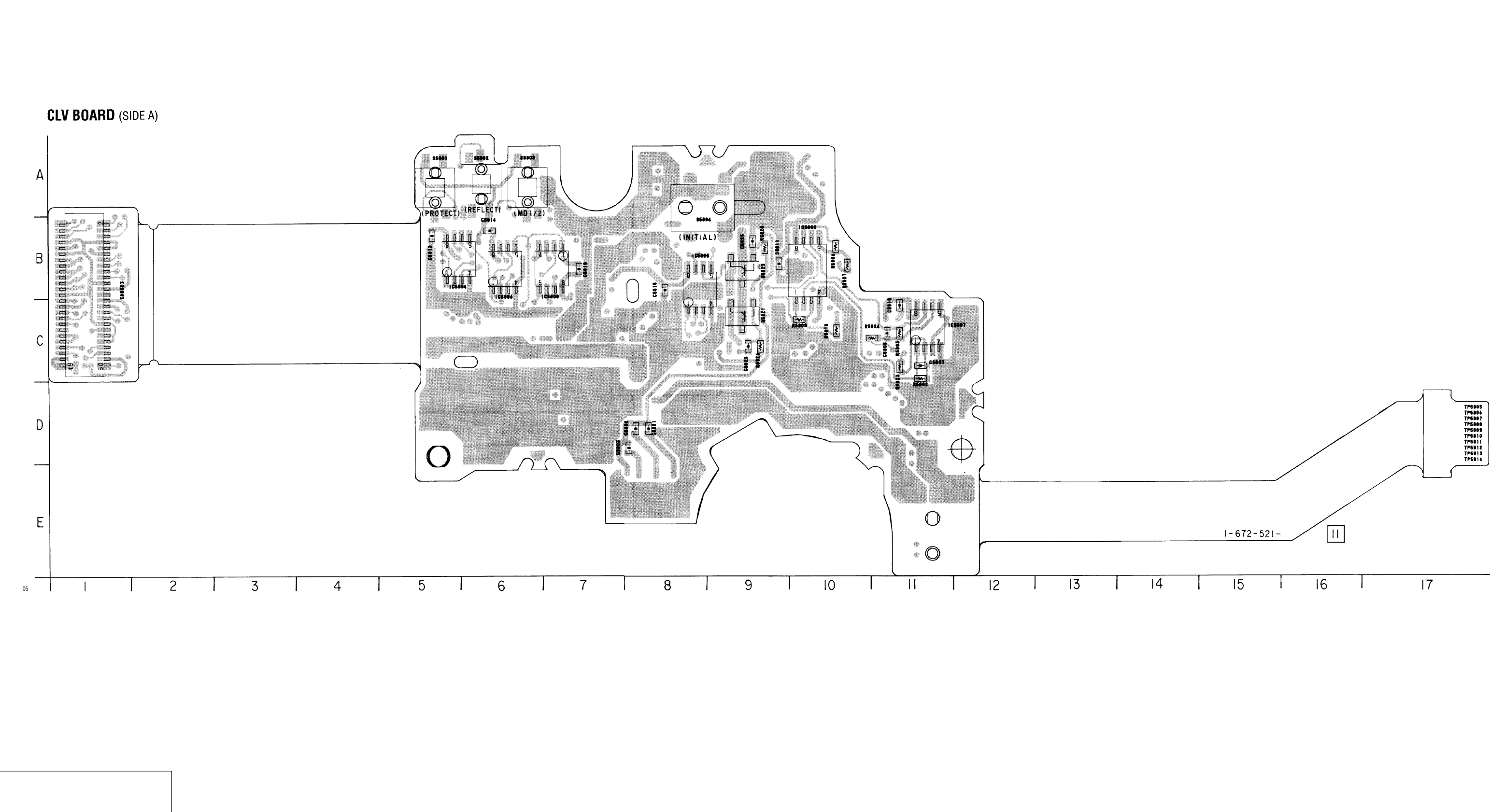

CLV Printed Wiring Board ........................................... 4-68

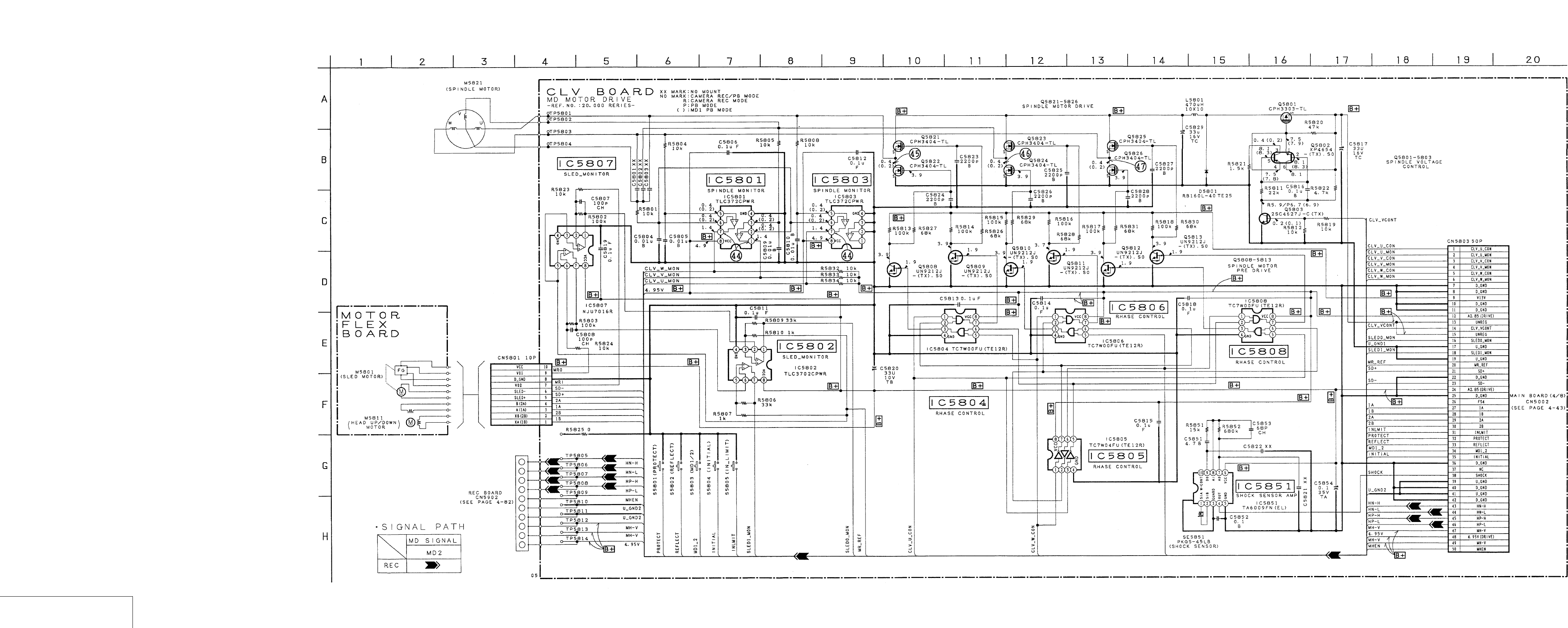

CLV Schematic Diagram ............................................. 4-75

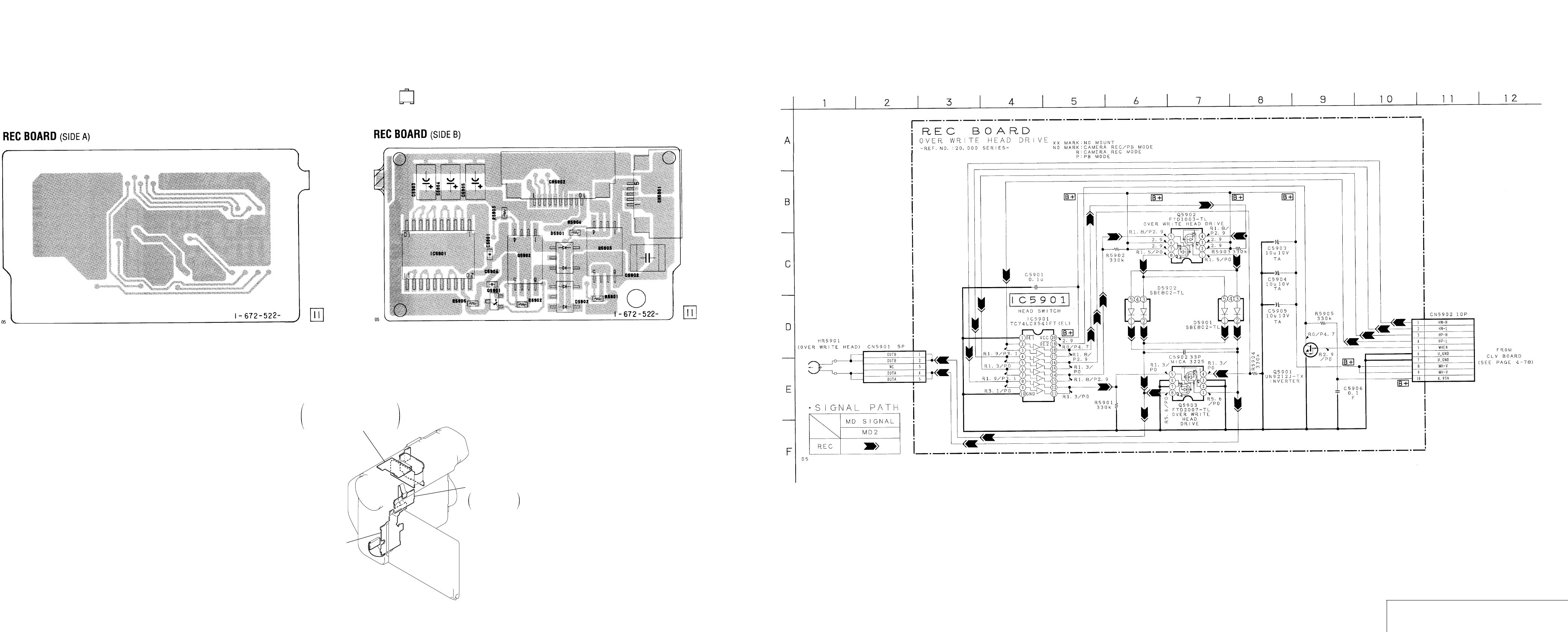

REC Printed Wiring Board and
Schematic Diagram ..................................................... 4-79
VF Printed Wiring Board ............................................. 4-83
VF Schematic Diagram ............................................... 4-87
BL Printed Wiring Board ............................................. 4-93

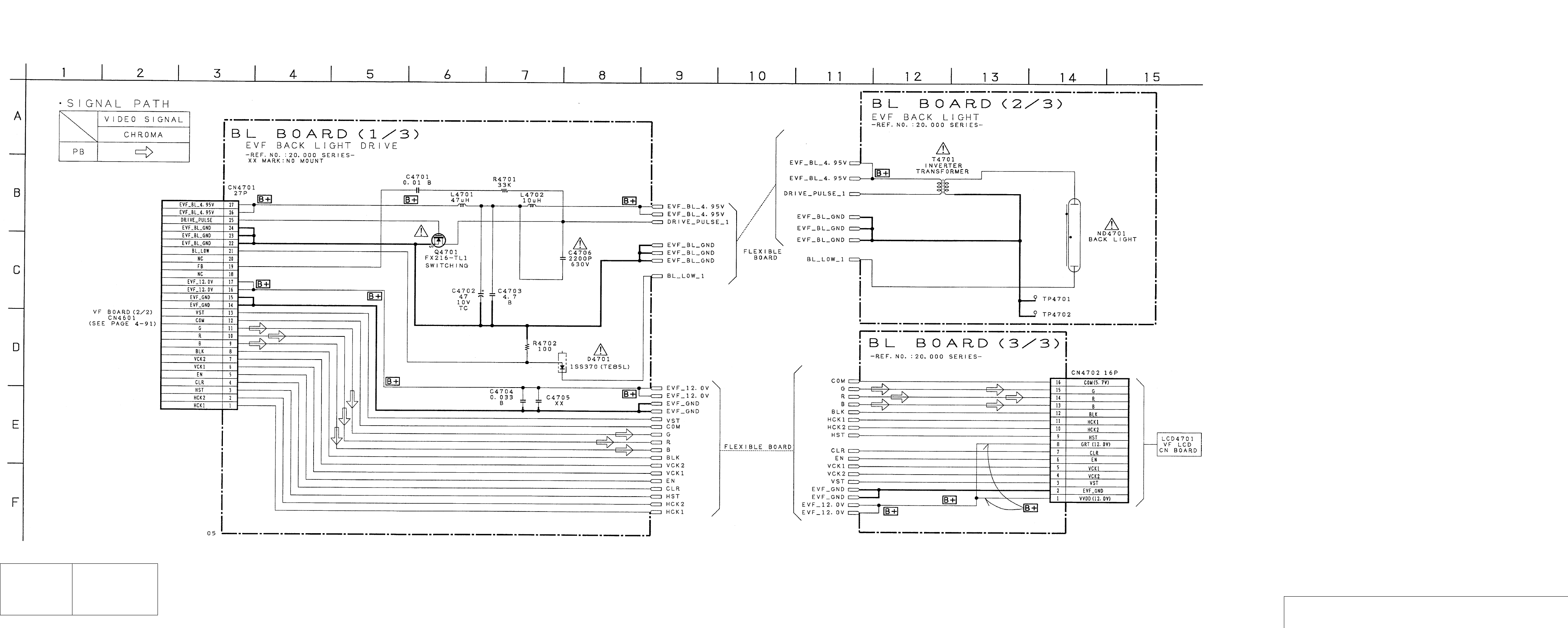

BL Schematic Diagram ............................................... 4-97

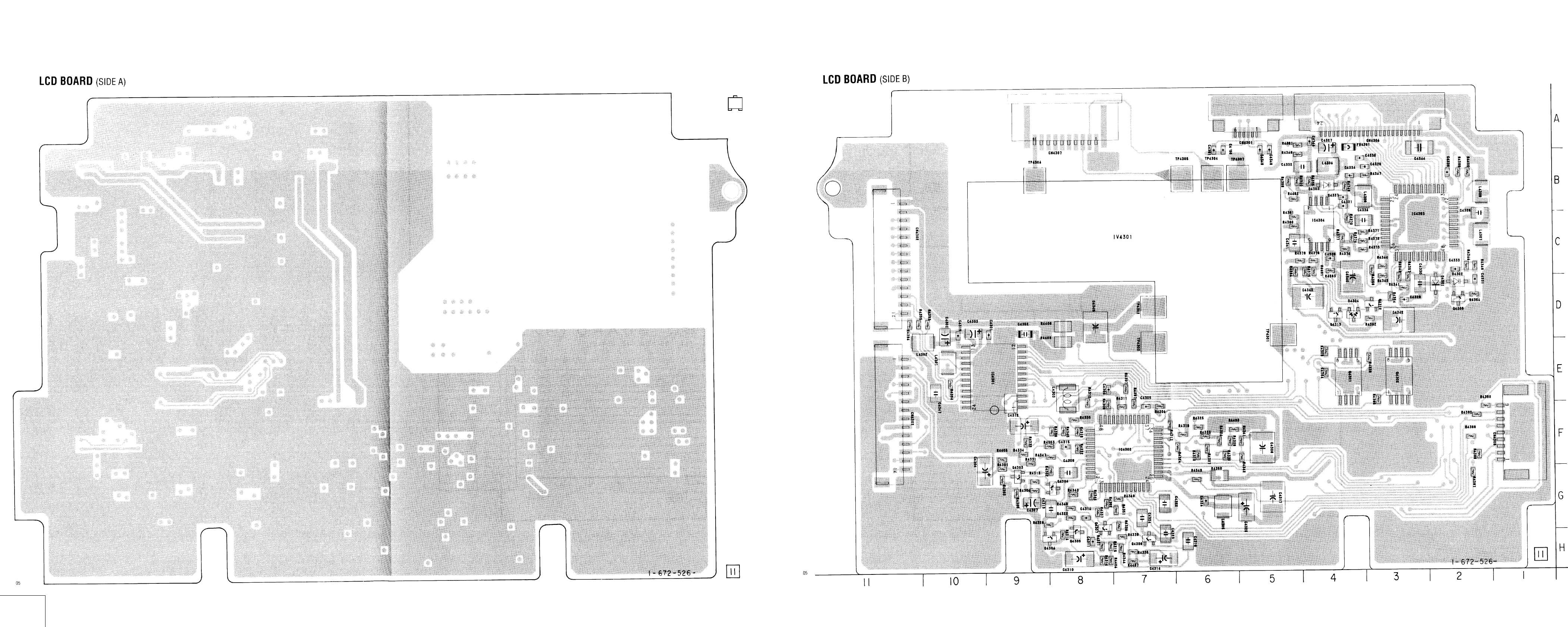

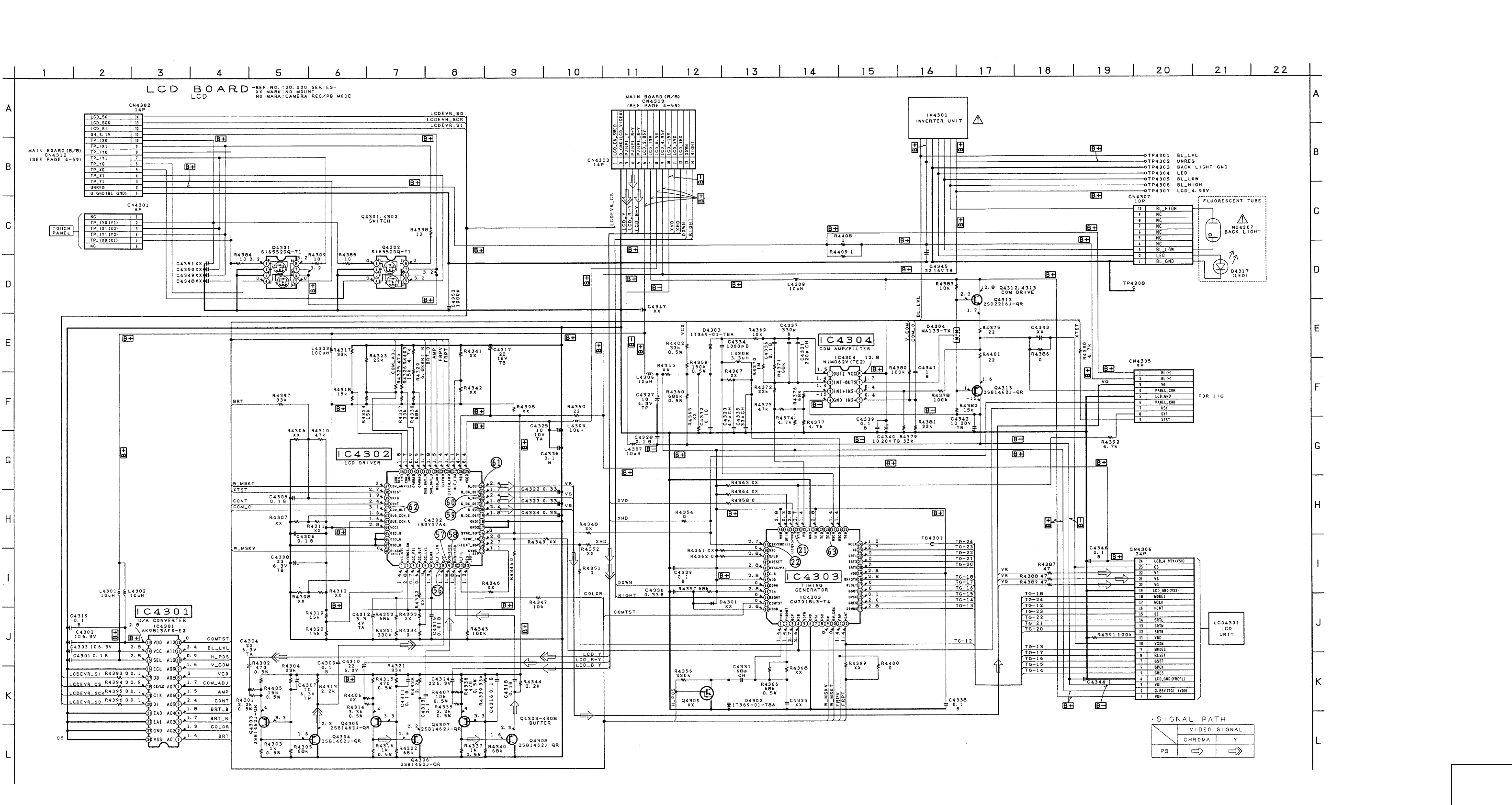

LCD Printed Wiring Board ........................................... 4-101

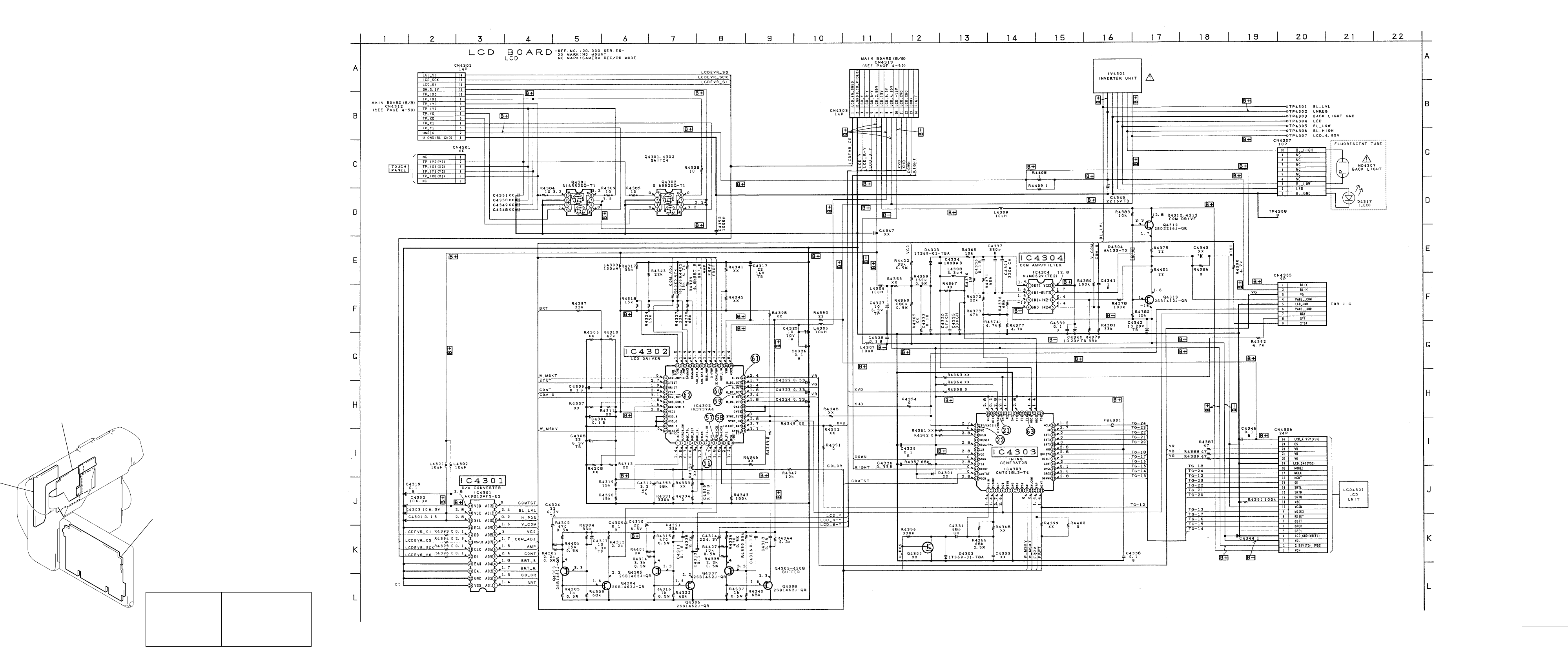

LCD Schematic Diagram............................................. 4-106

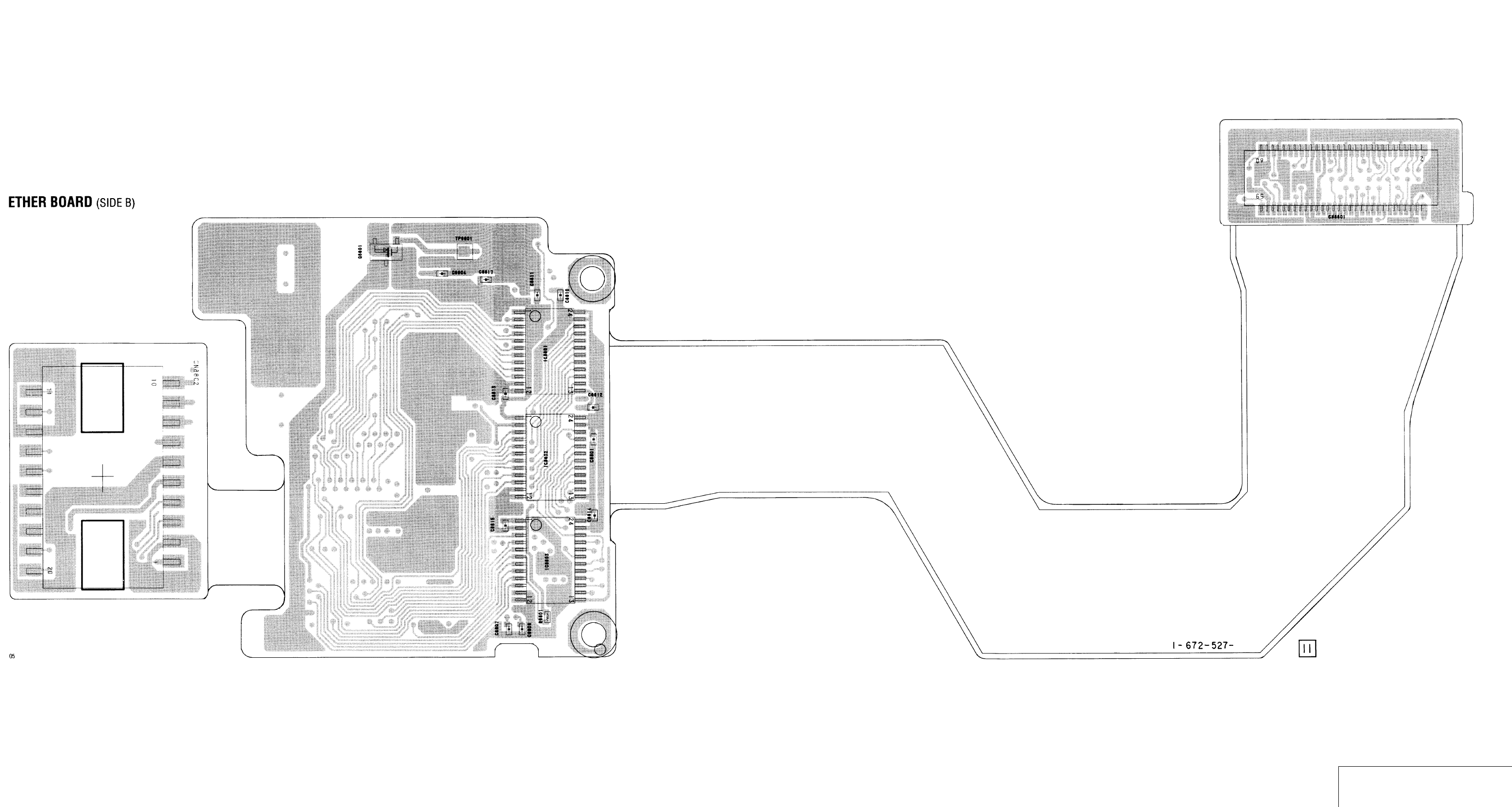

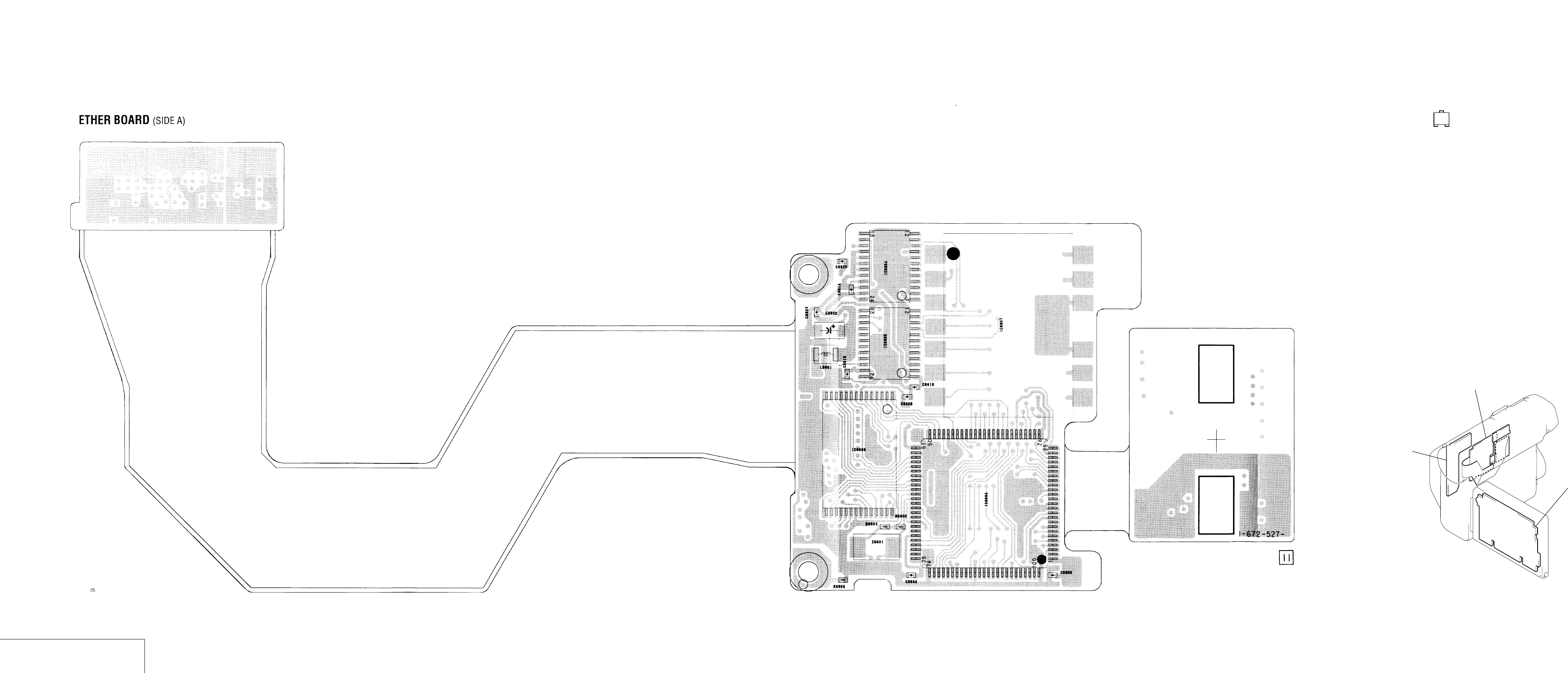

ETHER Printed Wiring Board...................................... 4-109

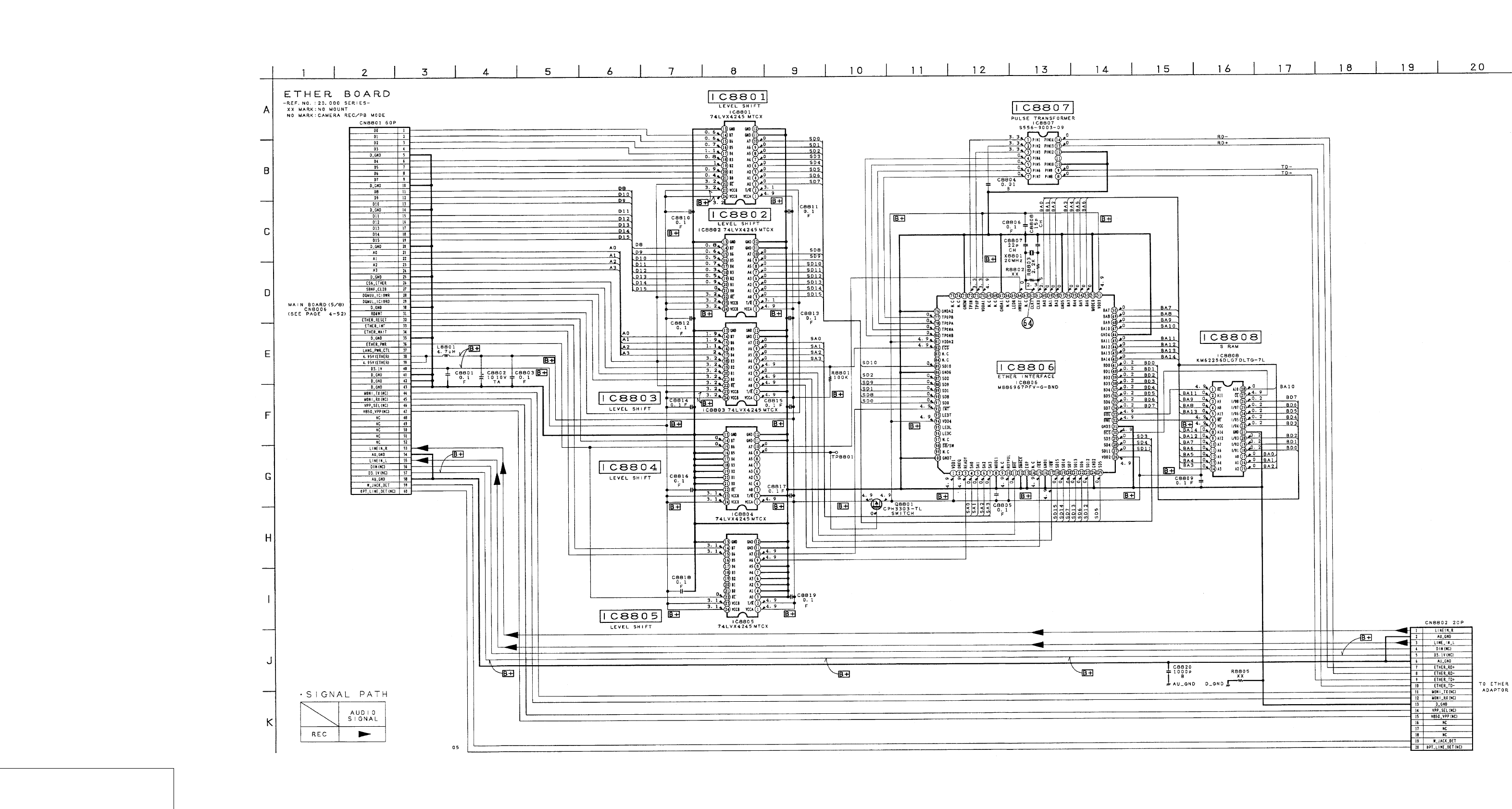

ETHER Schematic Diagram........................................ 4-116

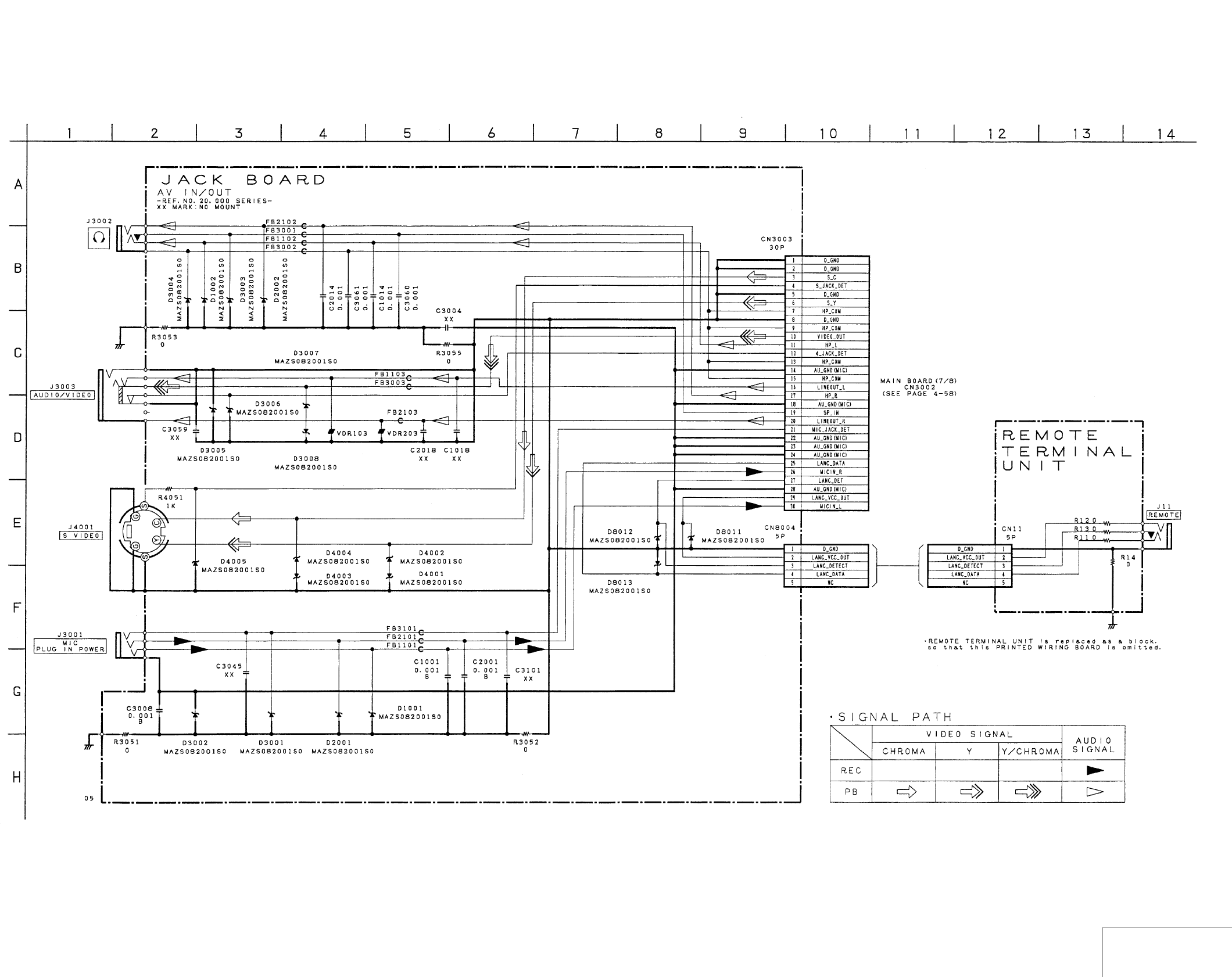

JACK Schematic Diagram ........................................... 4-119

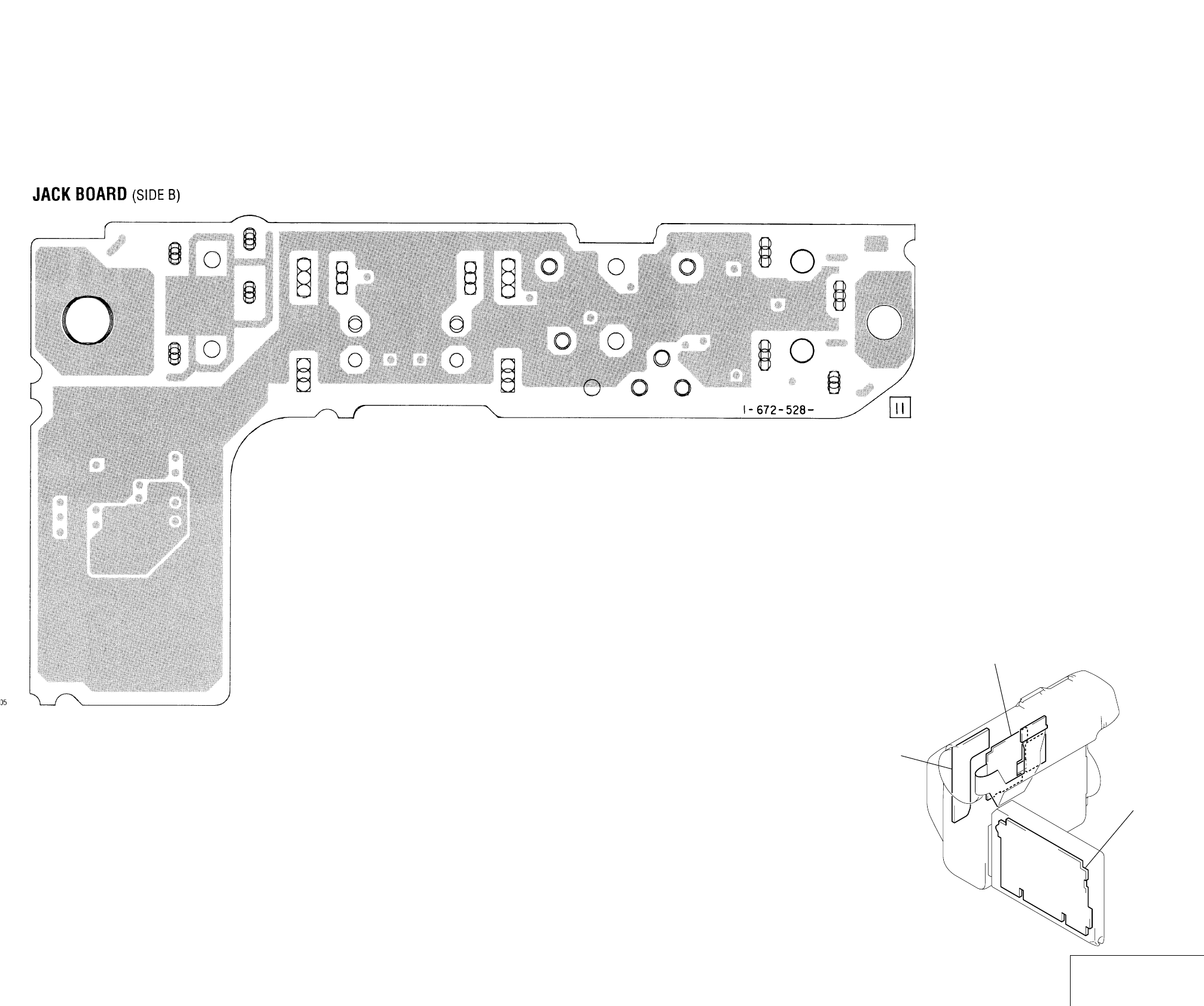

JACK Printed Wiring Board ......................................... 4-121

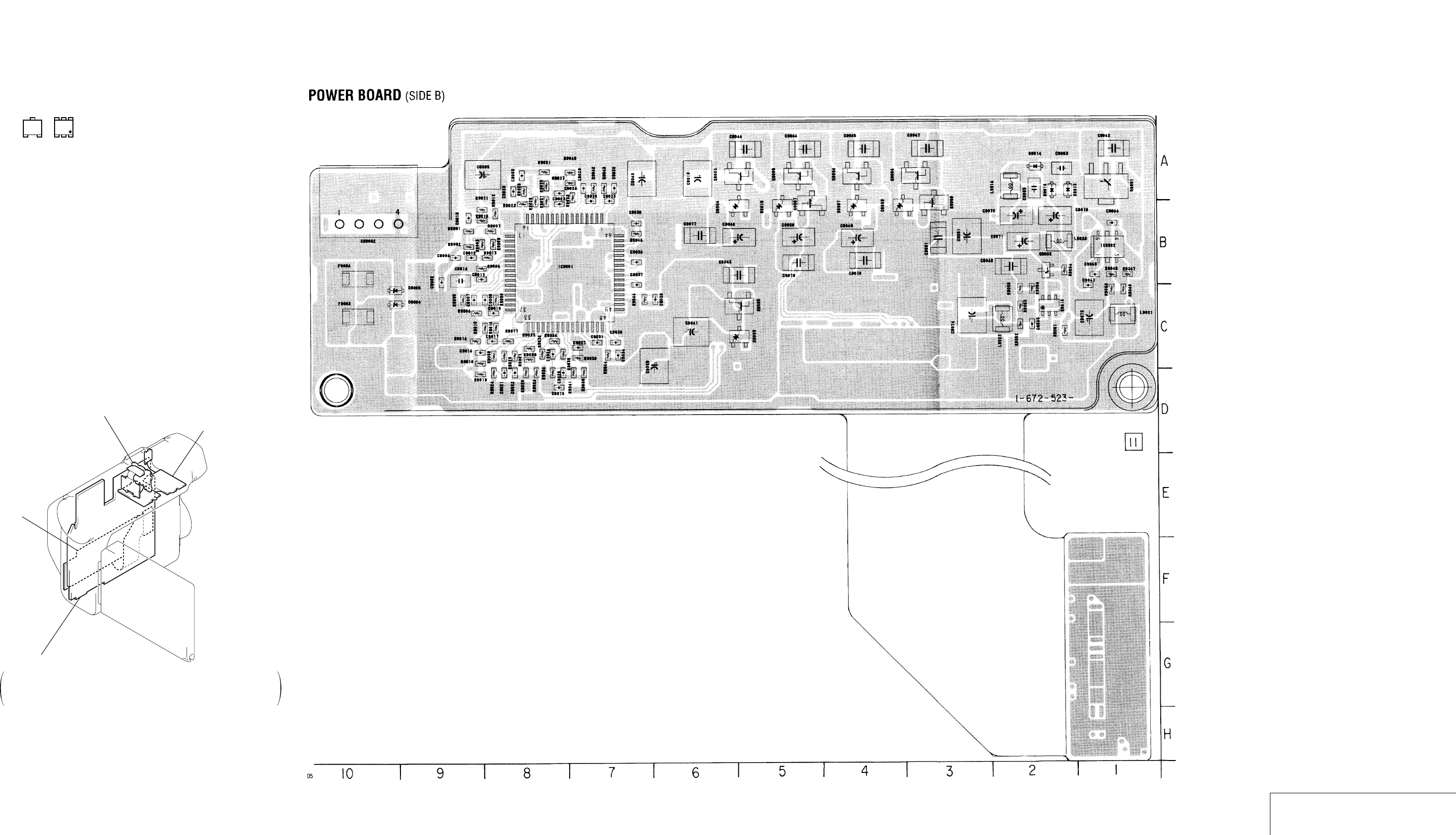

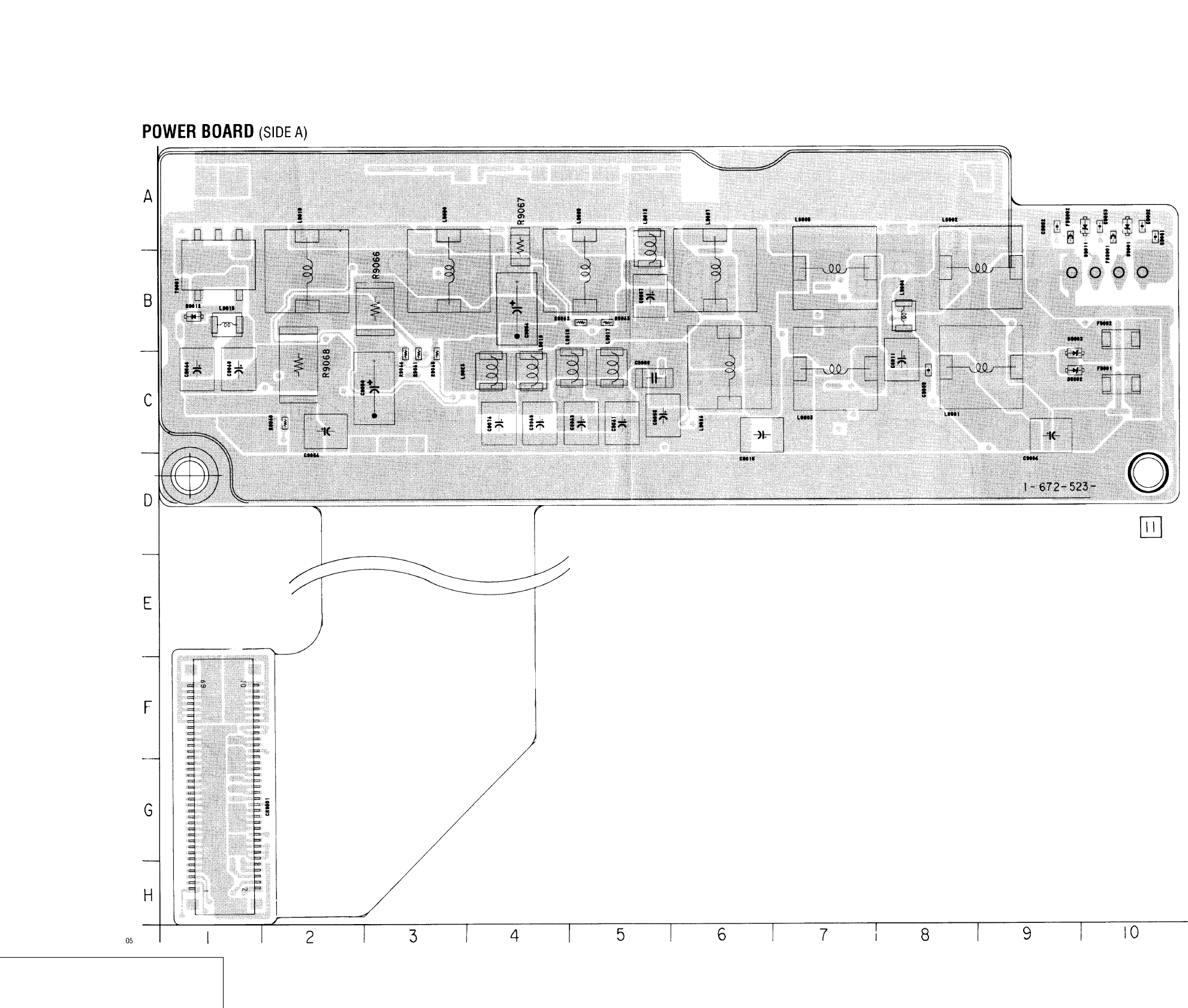

POWER Printed Wiring Board .................................... 4-125

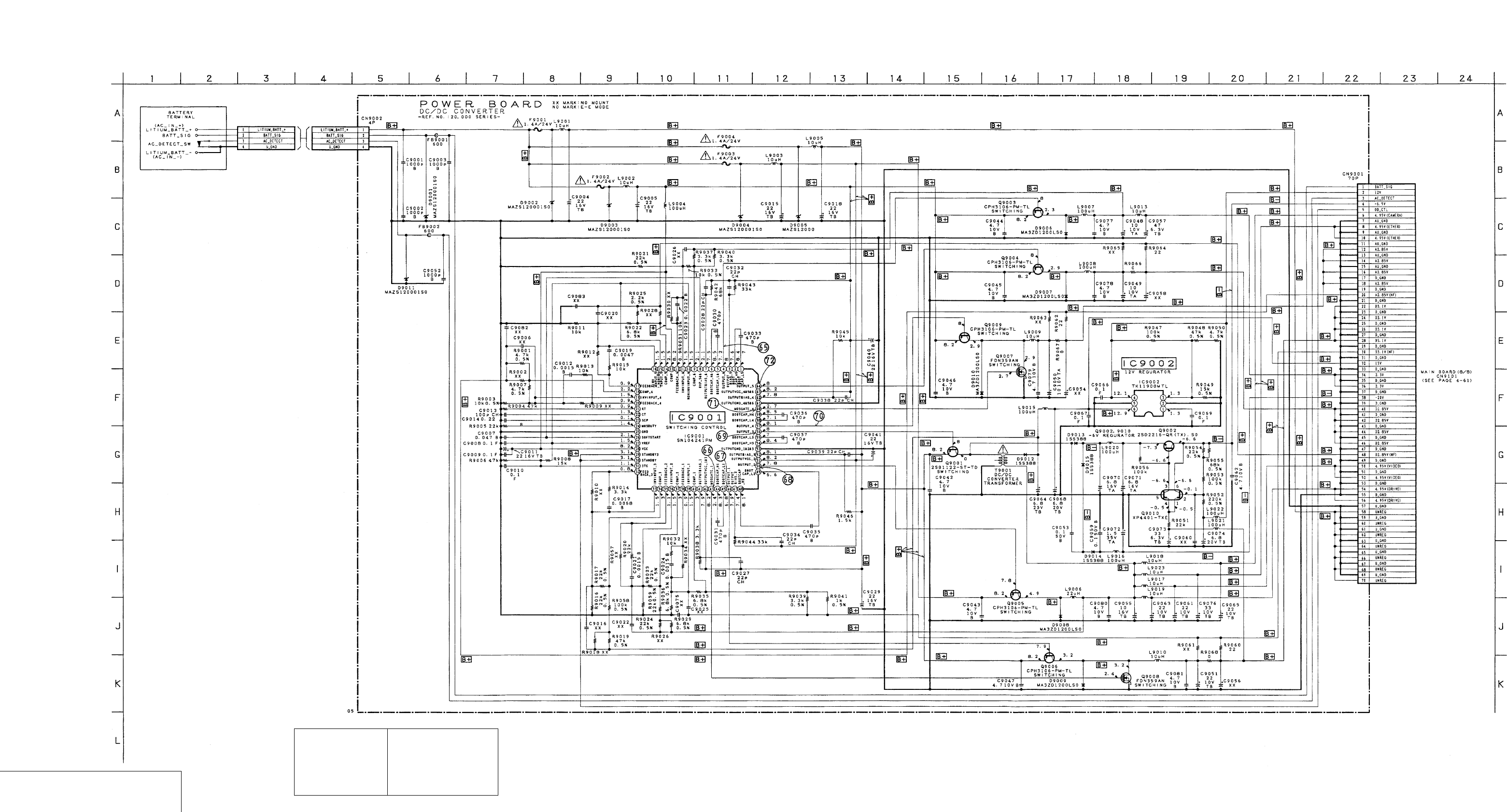

POWER Schematic Diagram ...................................... 4-130

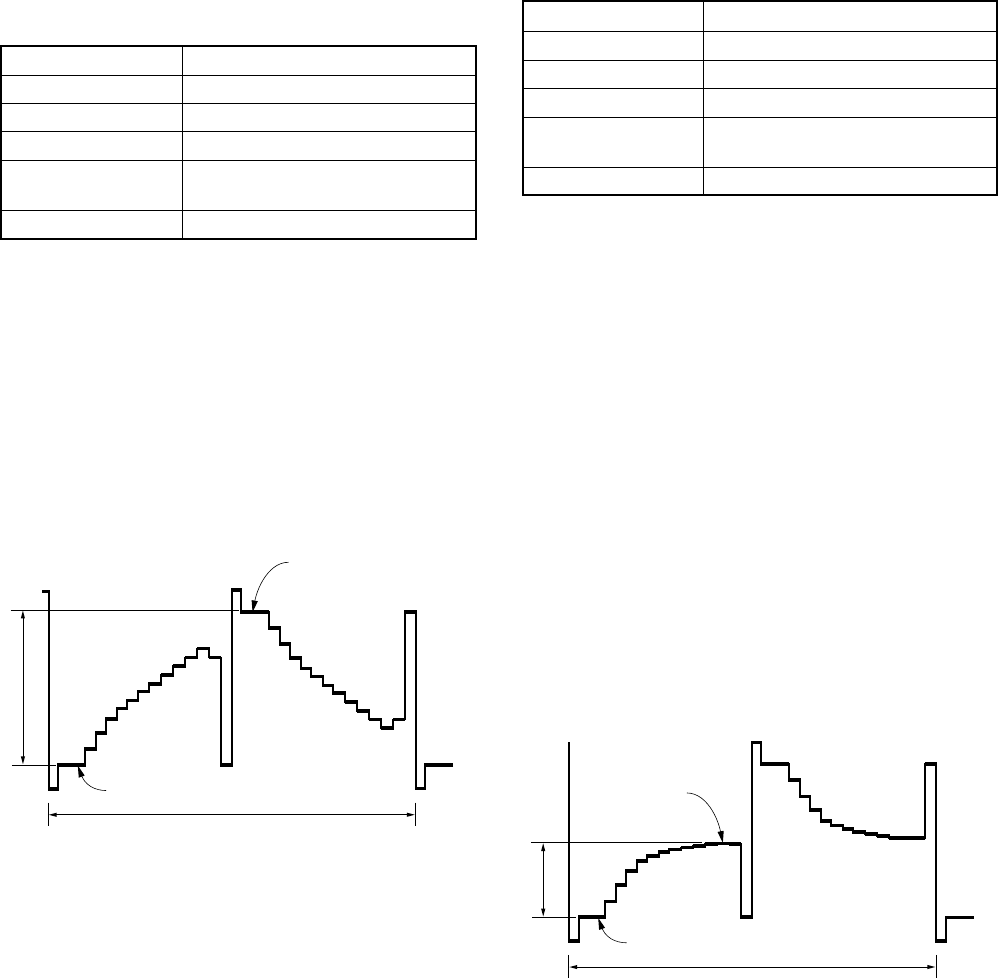

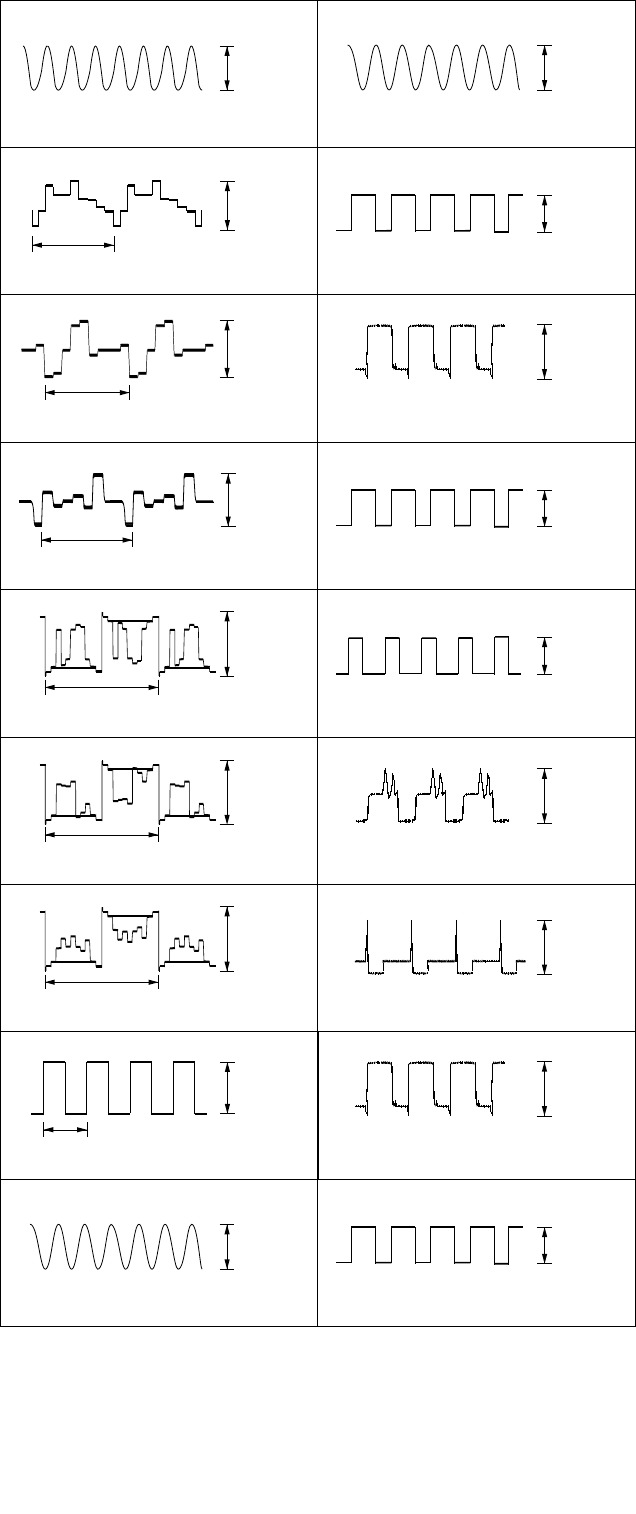

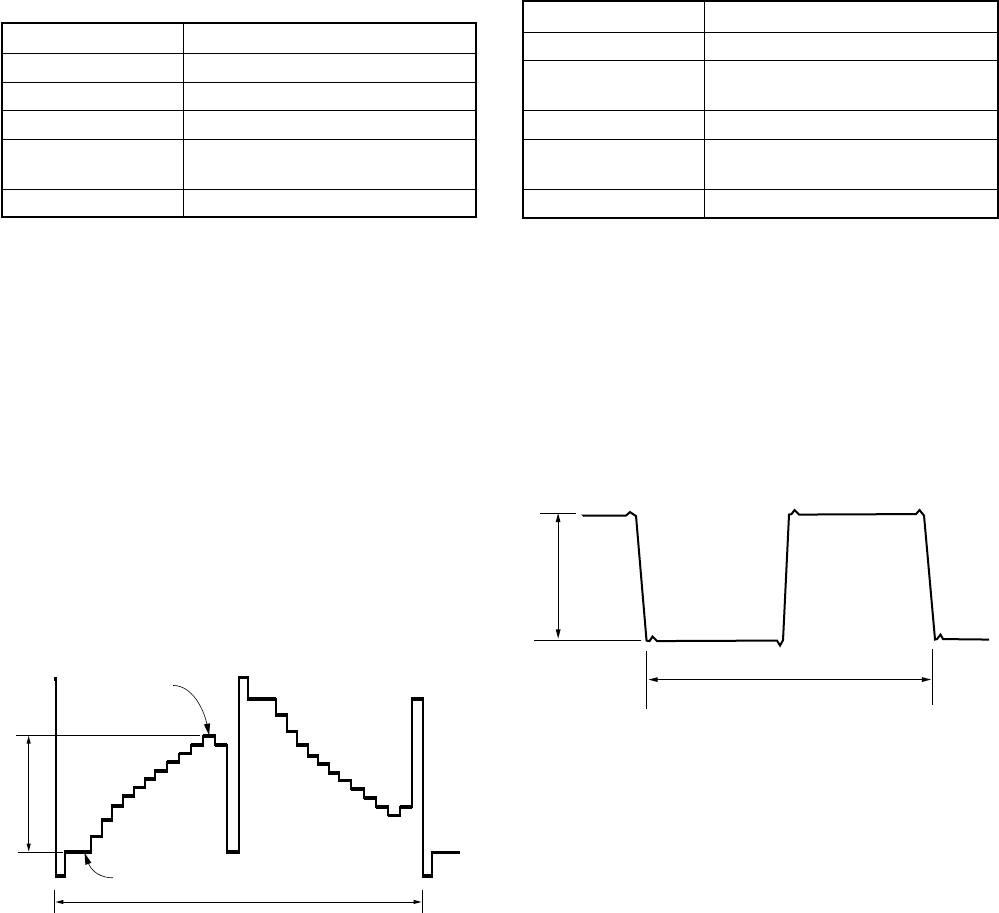

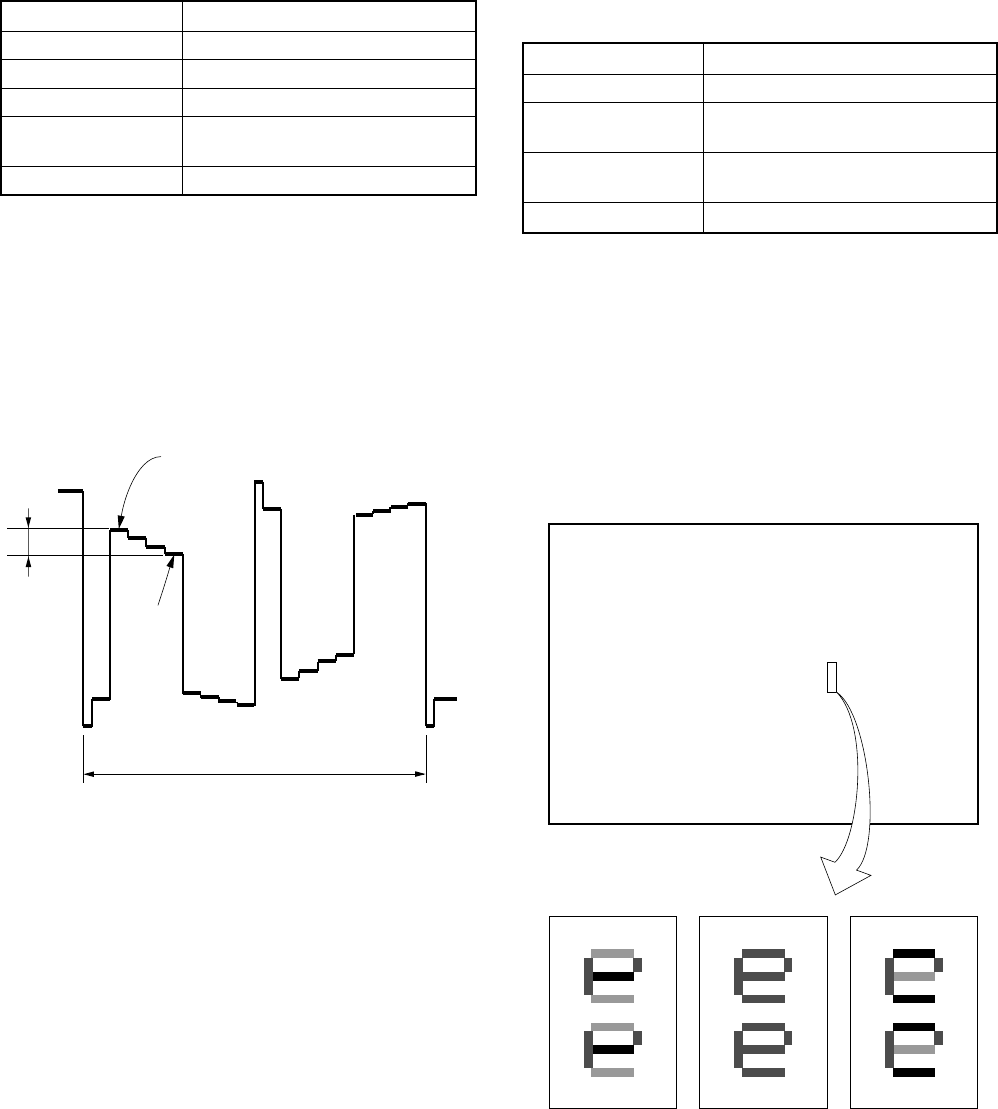

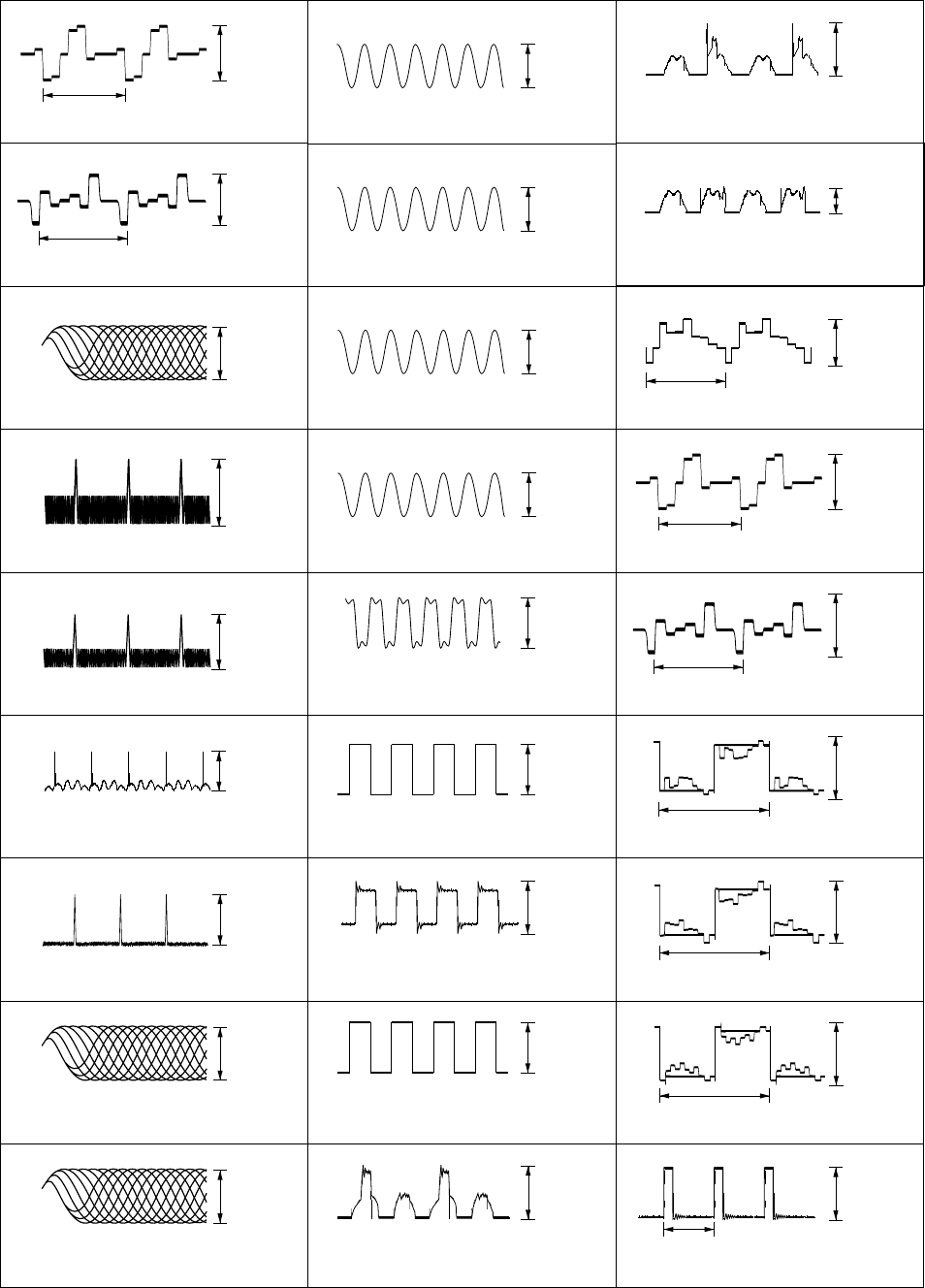

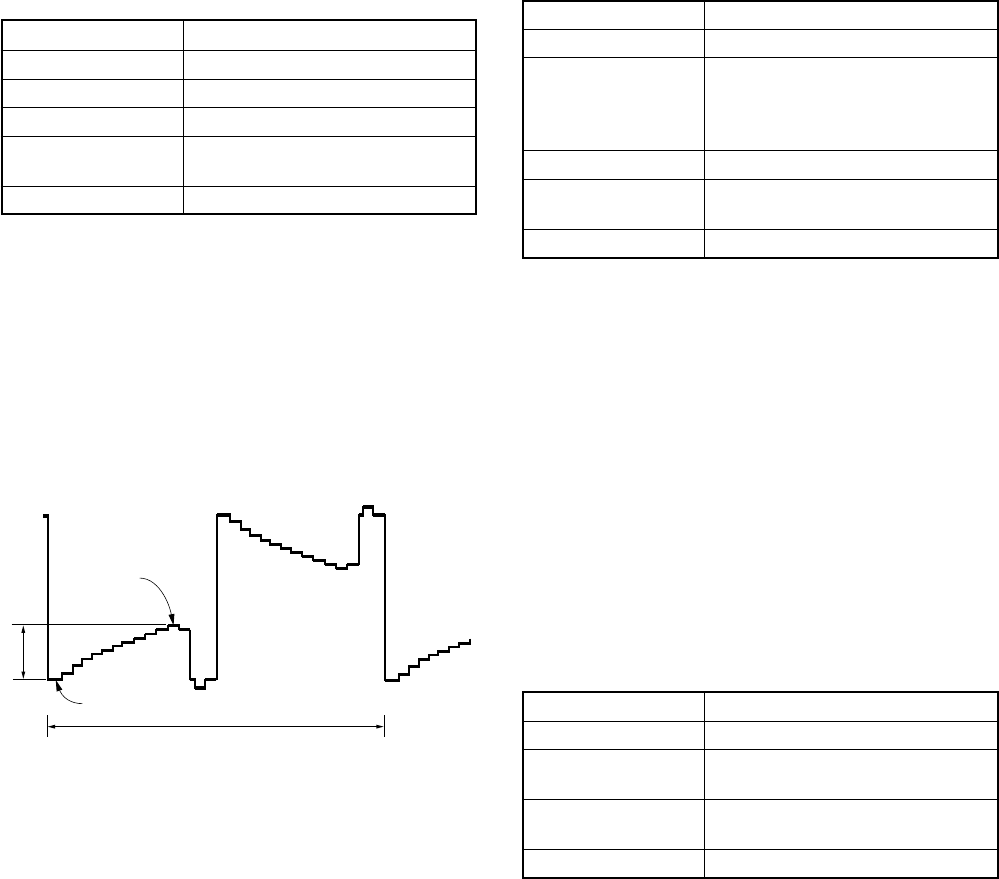

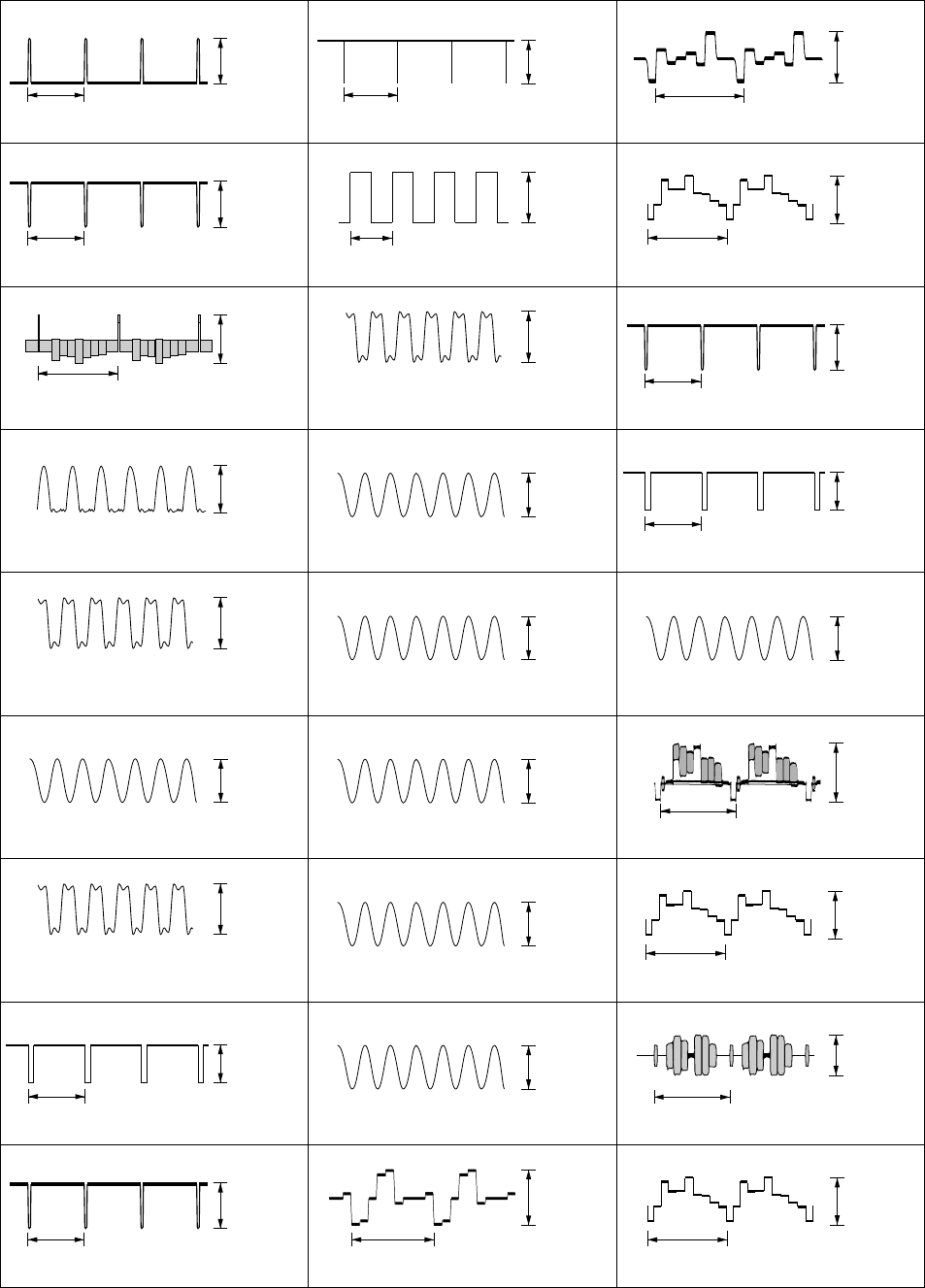

4-3. Waveforms ................................................................... 4-133

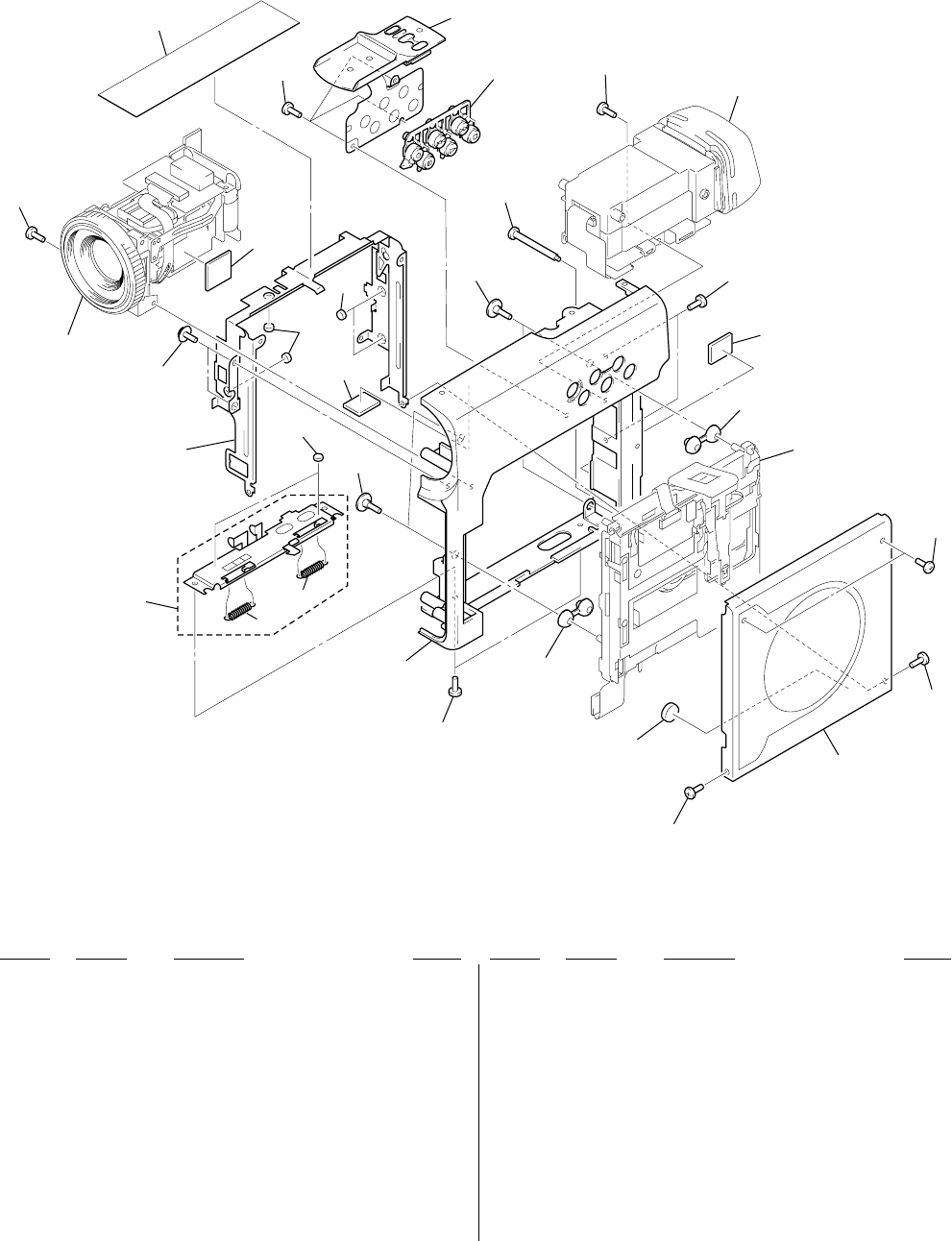

5. EXPLODED VIEWS

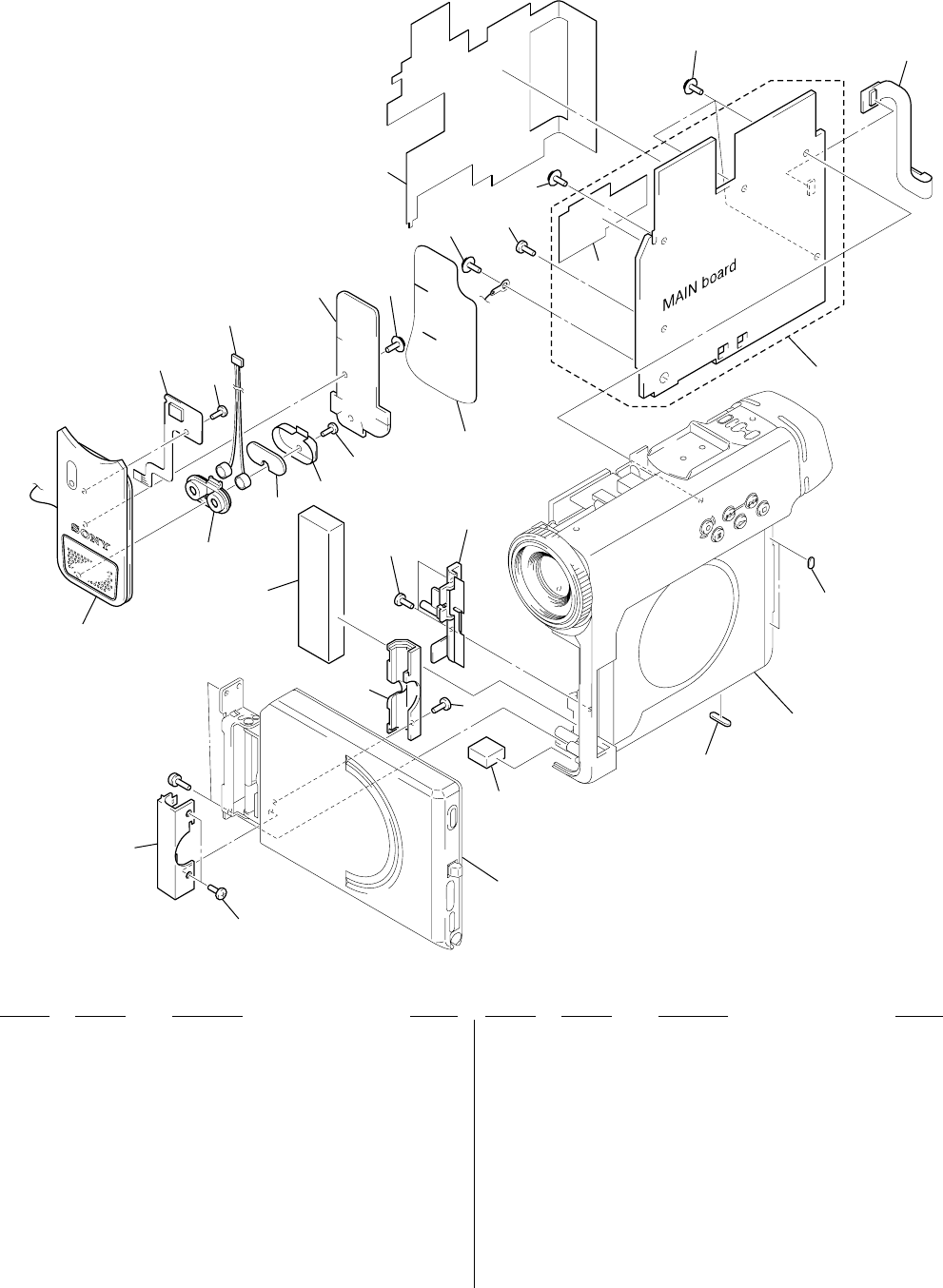

5-1. Main Section................................................................ 5-1
5-2. Cabinet (R) Section ..................................................... 5-2
5-3. Microphone Block Section .......................................... 5-3
5-4. Cabinet (L) Section ..................................................... 5-4

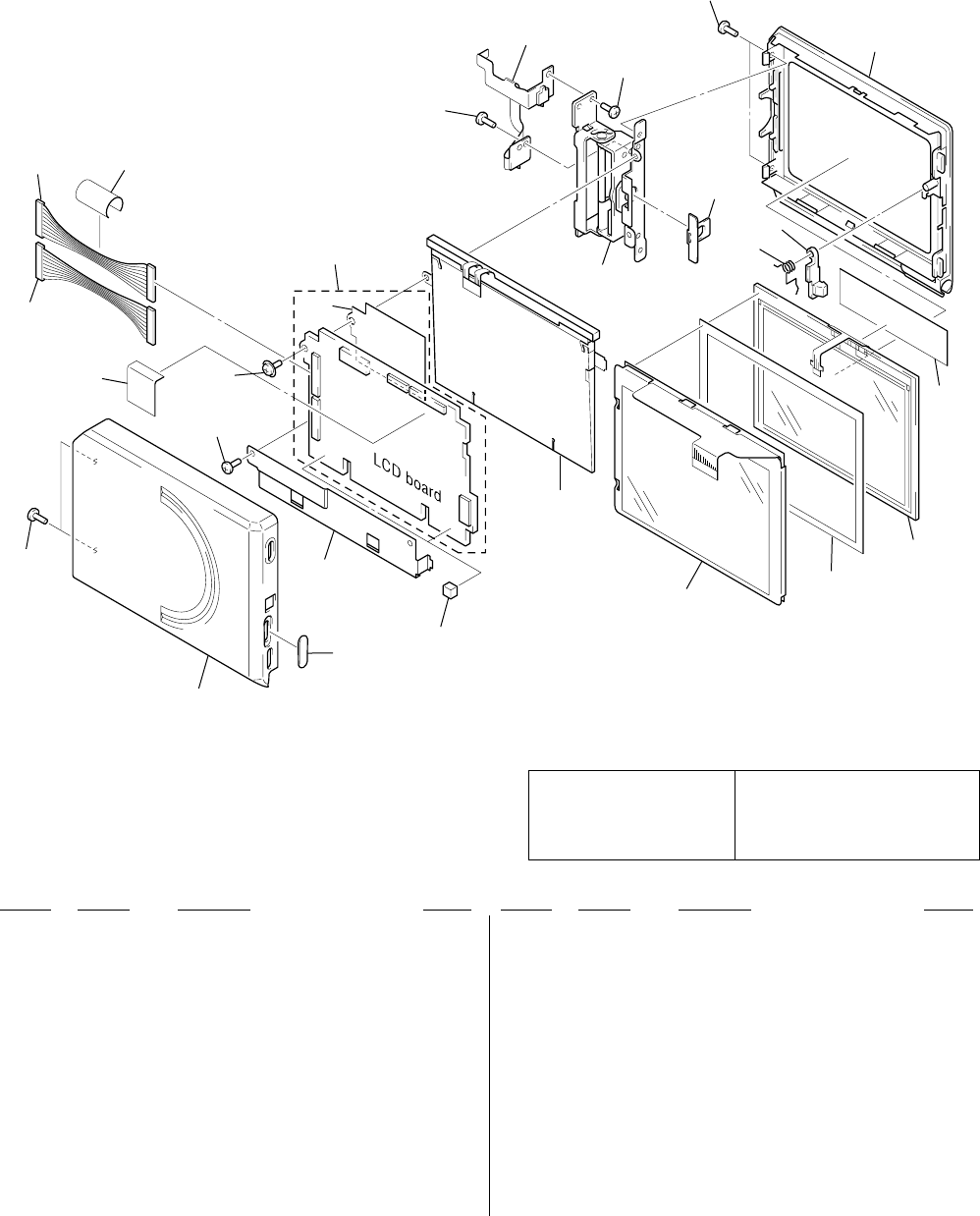

5-5. LCD Block Section ...................................................... 5-5

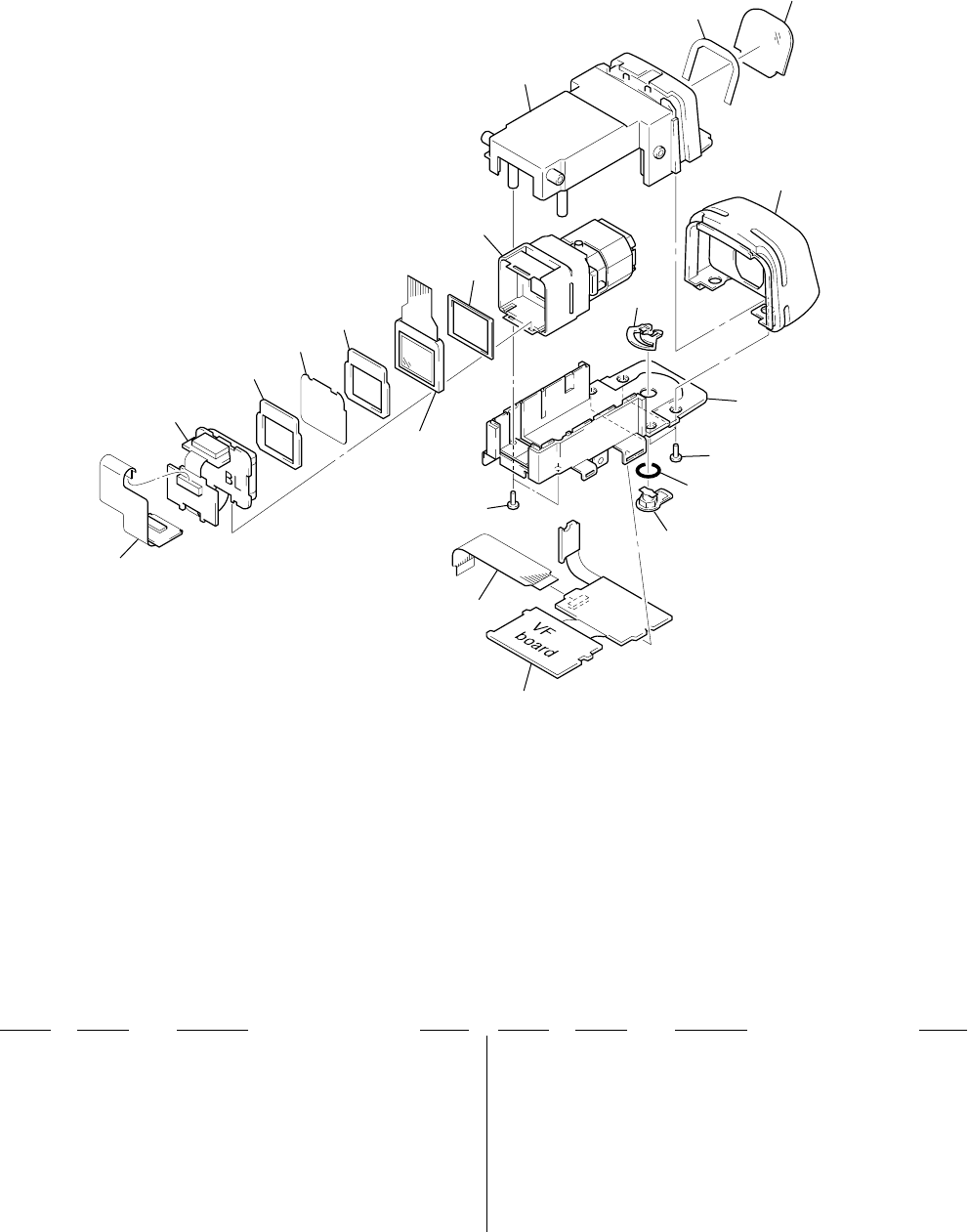

5-6. EVF Block Section....................................................... 5-6

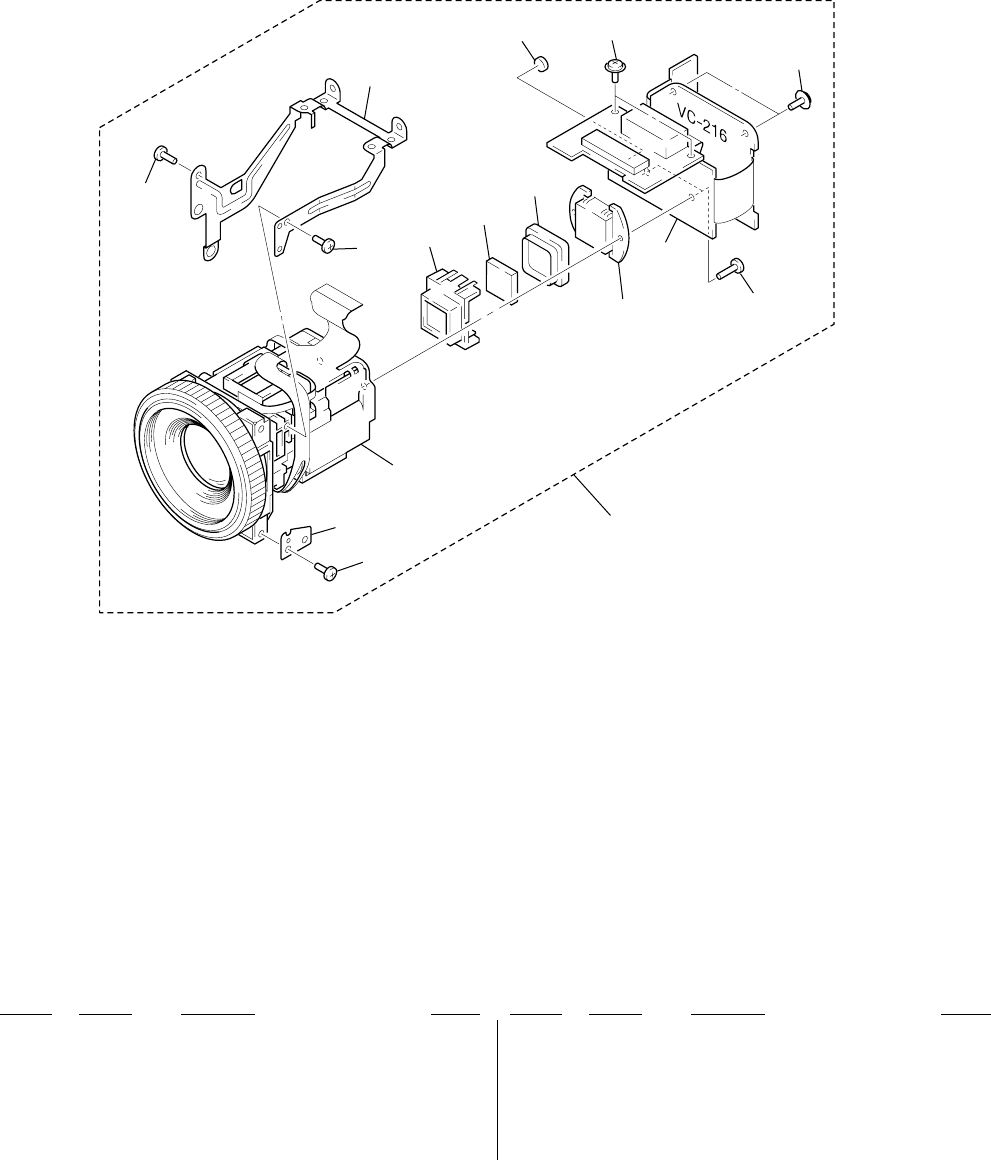

5-7. Lens Block Section (CT-DCMM1-164) ........................ 5-7

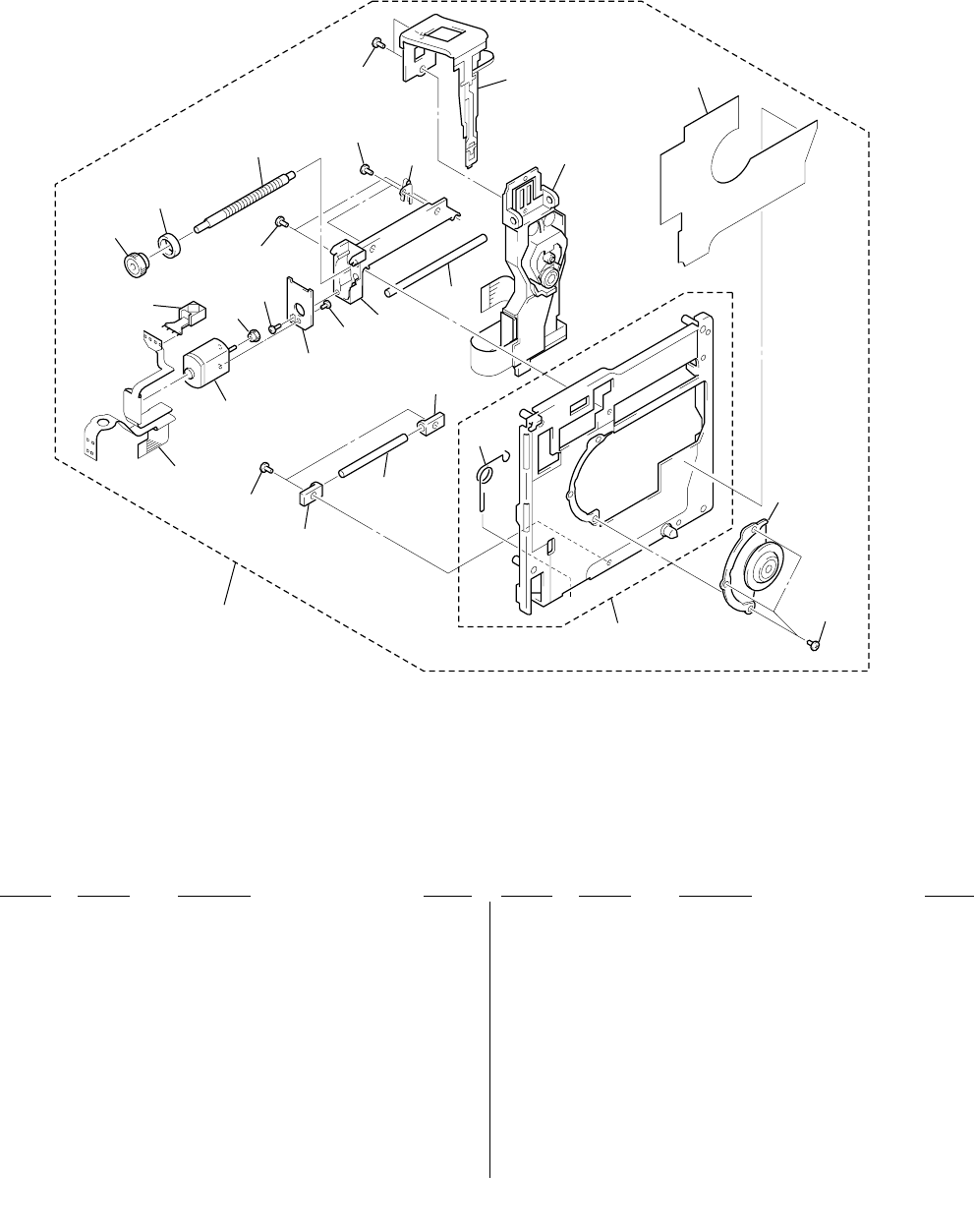

5-8. Mechanism Deck Section-1
(MT-DCMM1-163) ........................................................ 5-8
5-9. Mechanism Deck Section-2
(MT-DCMM1-163) ........................................................ 5-9
6. ELECTRICAL PARTS LIST ............................. 6-1
TABLE OF CONTENTS
Section Title Page Section Title Page
*The color reproduction frame is shown after the page
of ELECTRICAL PARTS LIST.
– 4 –

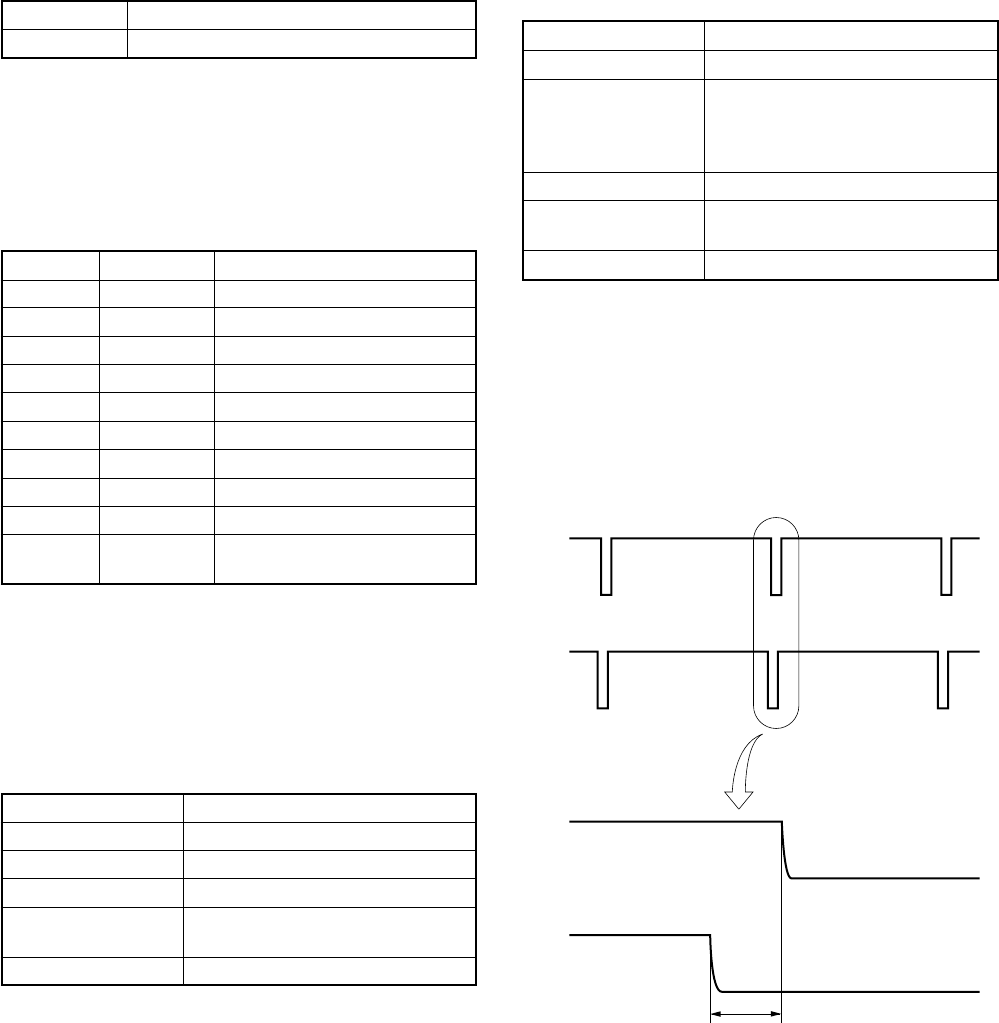

SERVICE NOTE

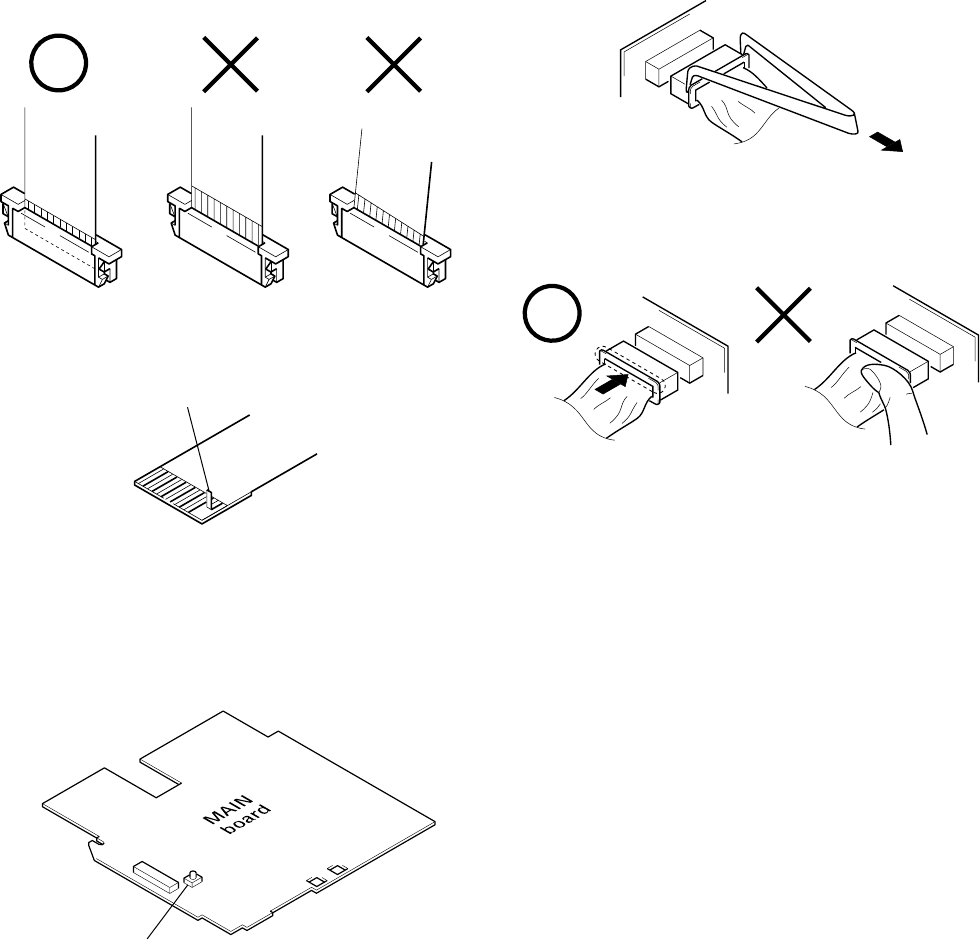

•NOTE FOR REPAIR
Make sure that the flat cable and flexible board are not cracked of
bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
When remove a connector, don’t pull at wire of connector.
Be in danger of the snapping of a wire.
Cut and remove the part of gilt
which comes off at the point.
(Take care that there are some
pieces of gilt left inside)
When installing a connector, don’t press down at wire of connector.
Be in danger of the snapping of a wire.
• When repairing this device with the power on, if you remove
the MAIN board or open the upper panel assy, this device stops
working.
In this case, you can work without the device stopping by fas-
tening the hook of the open/close detect switch (S8003) on the
MAIN Board with tape.
S8003
1-1

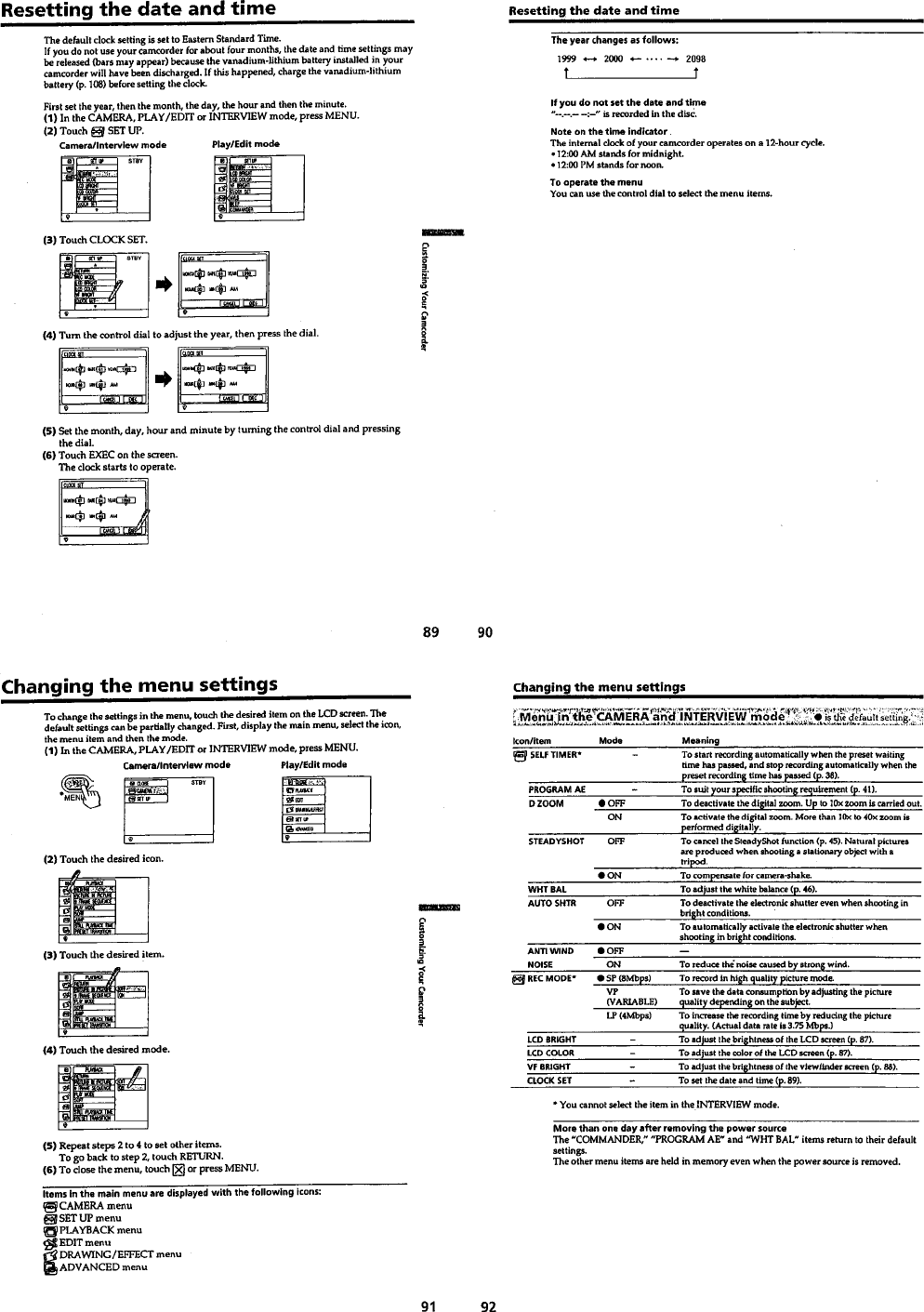

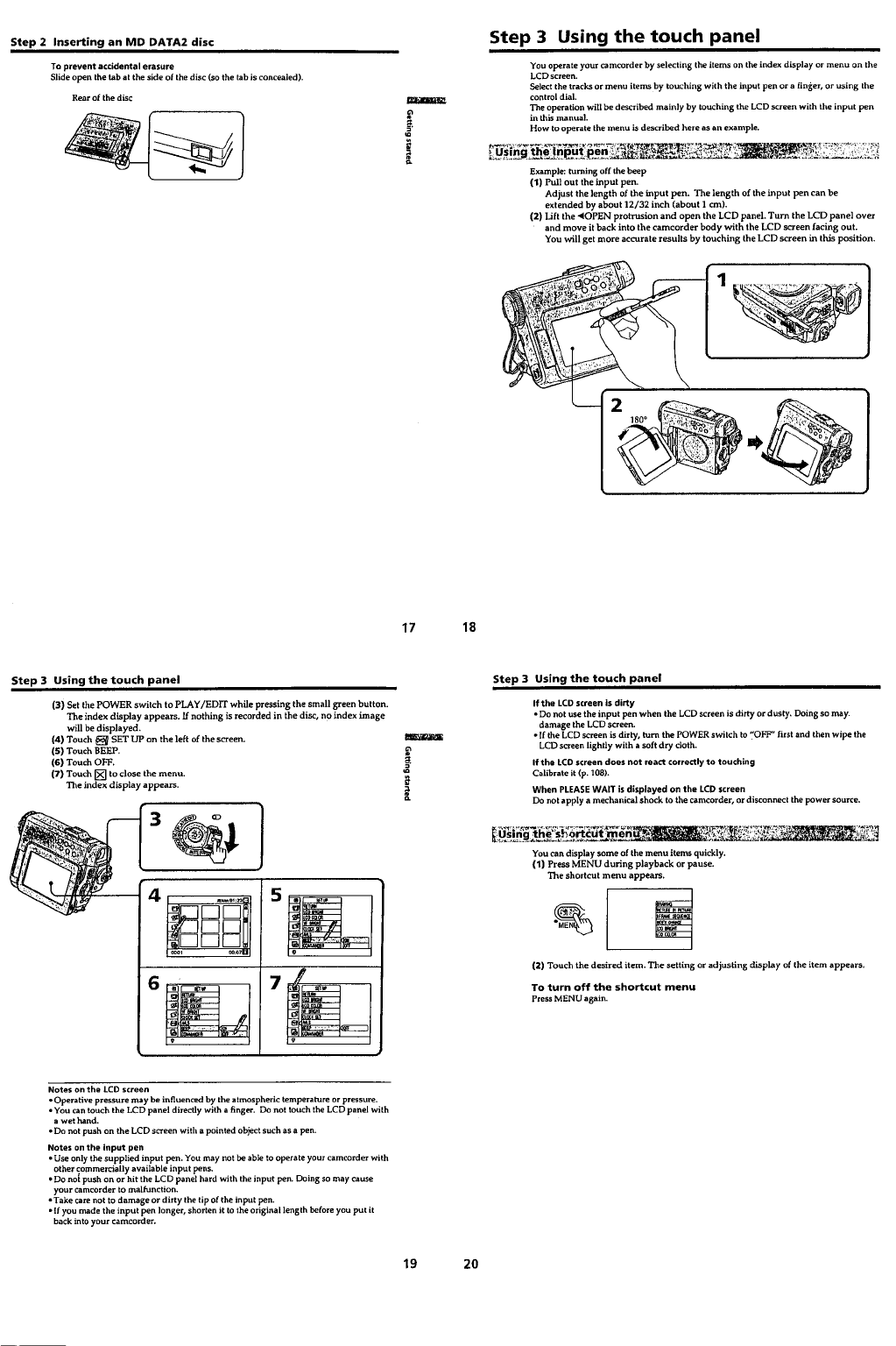

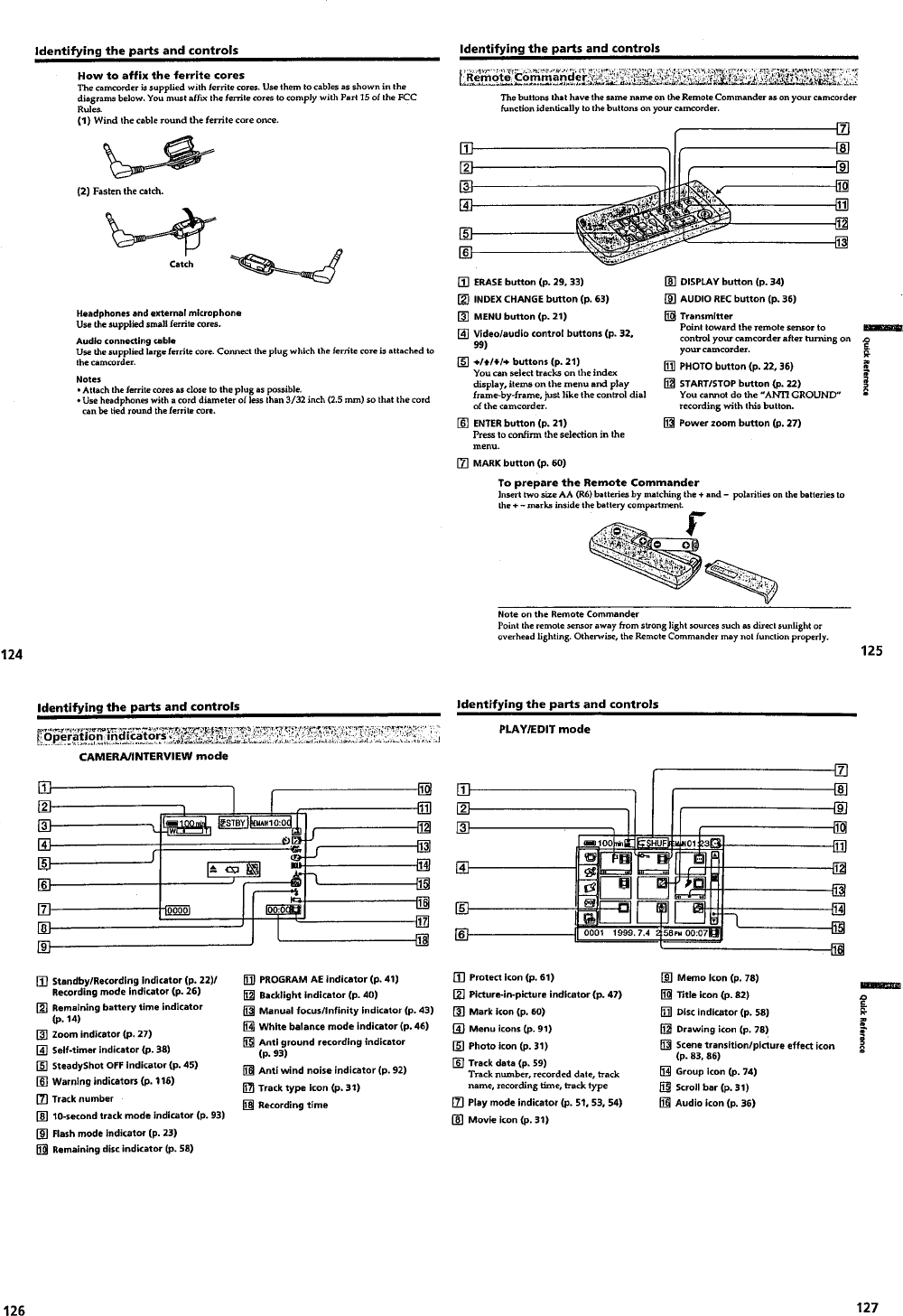

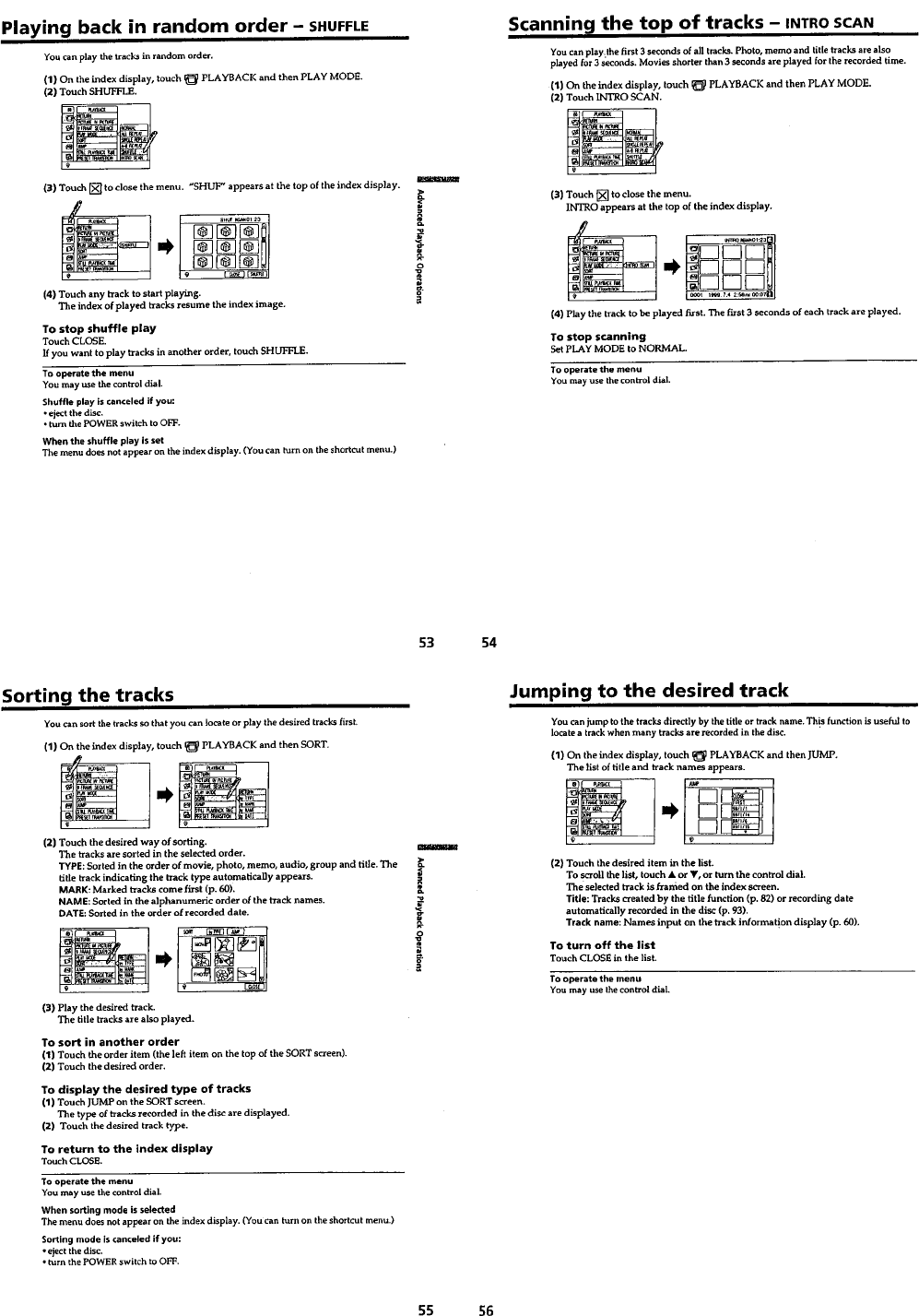

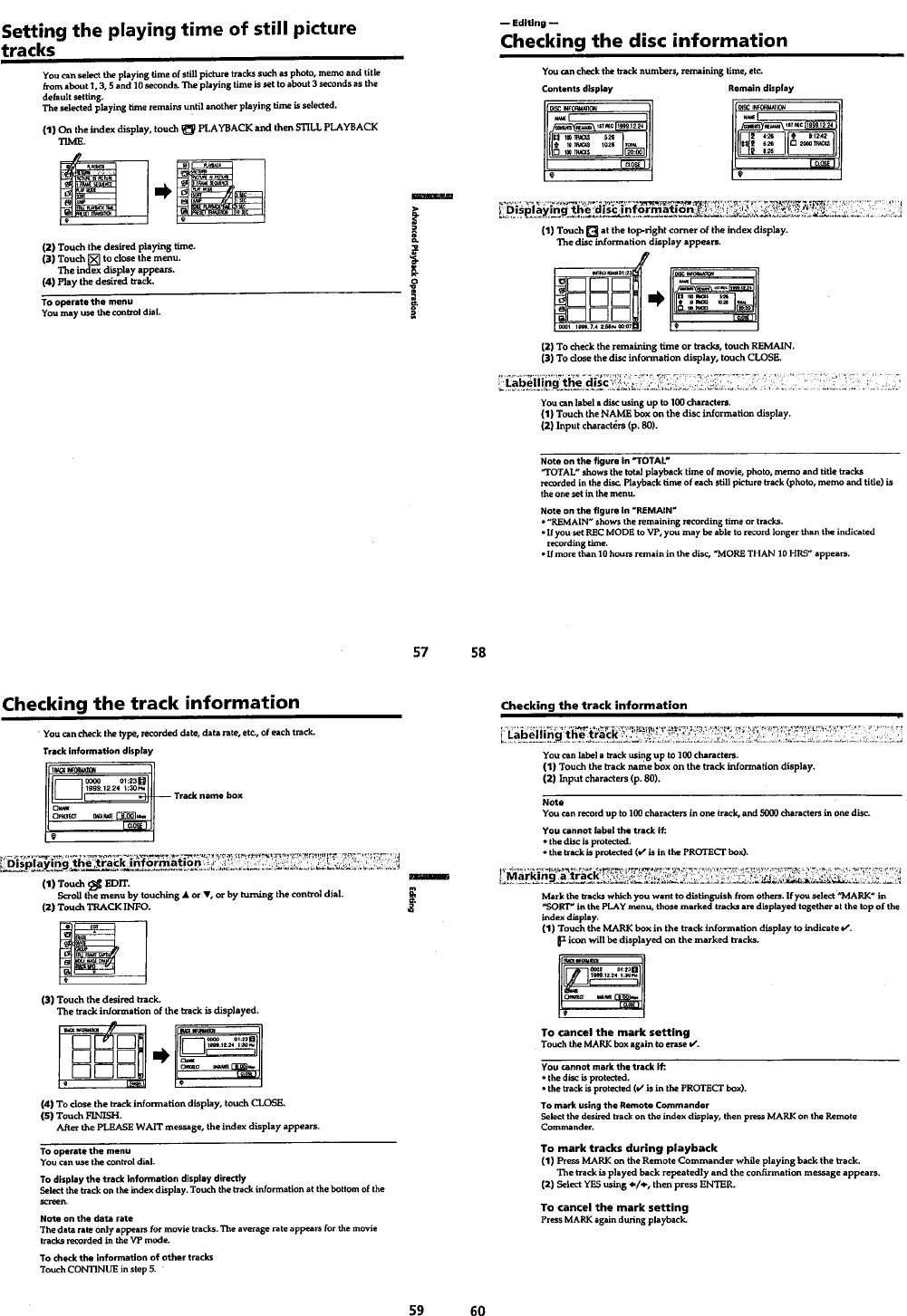

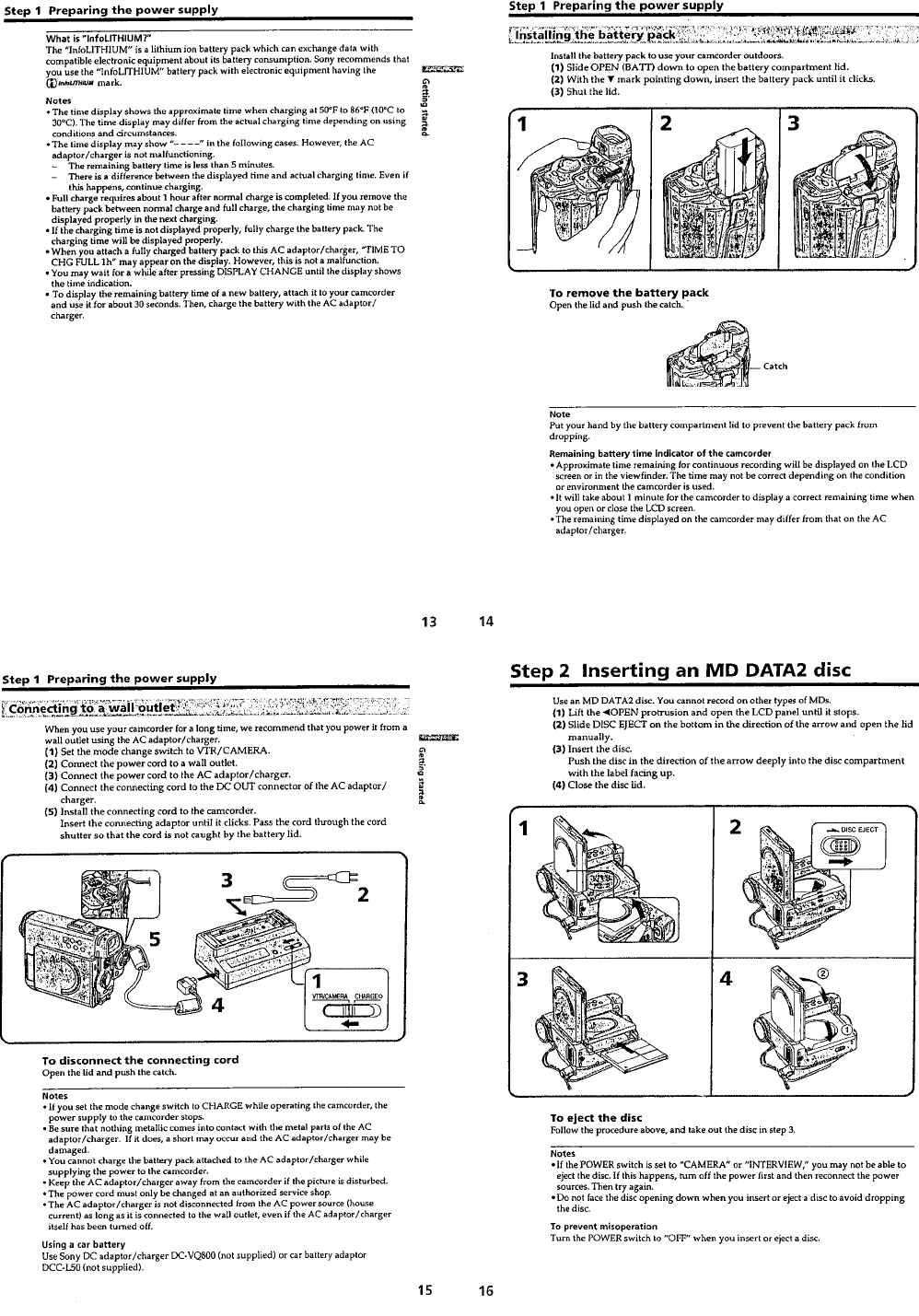

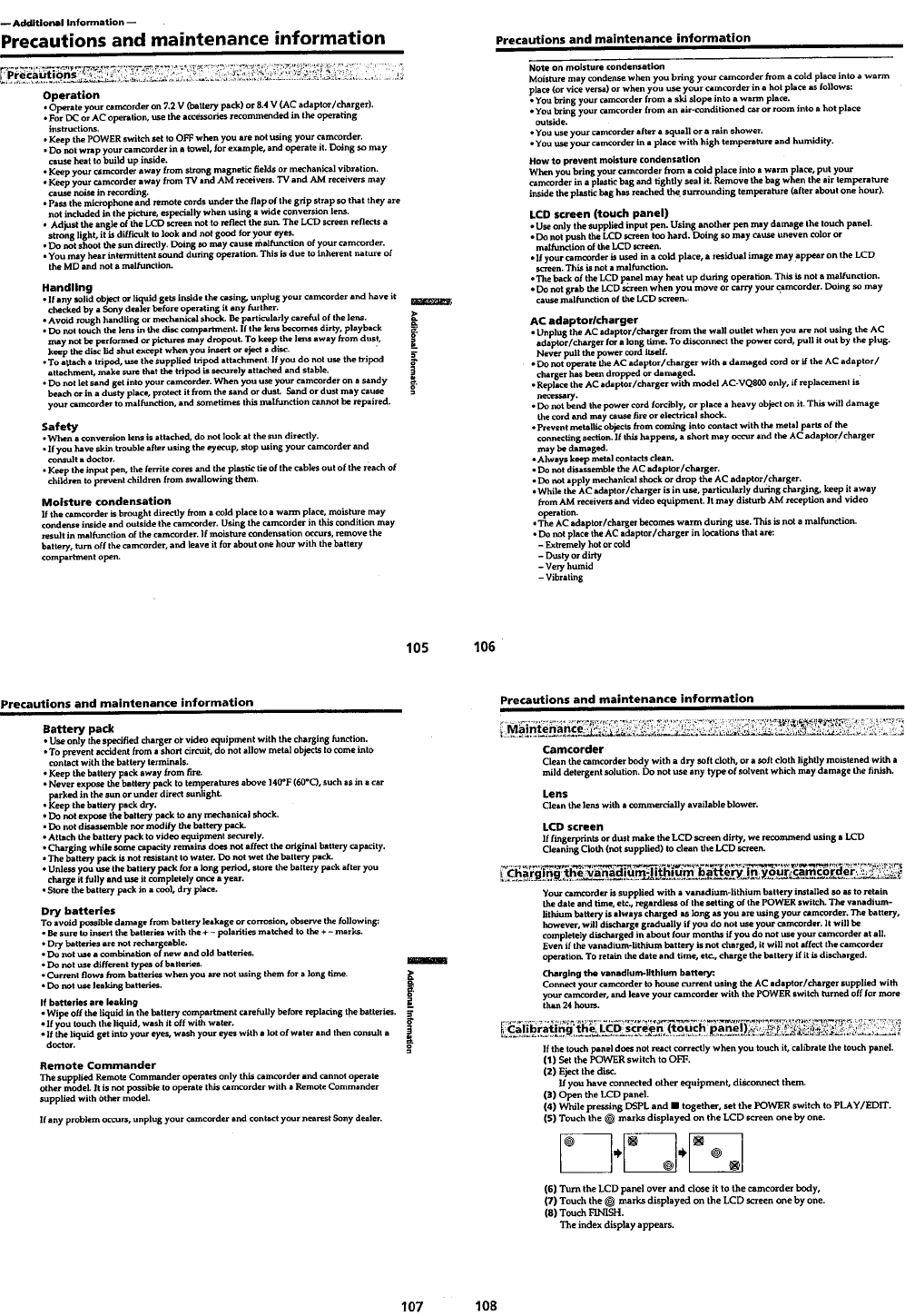

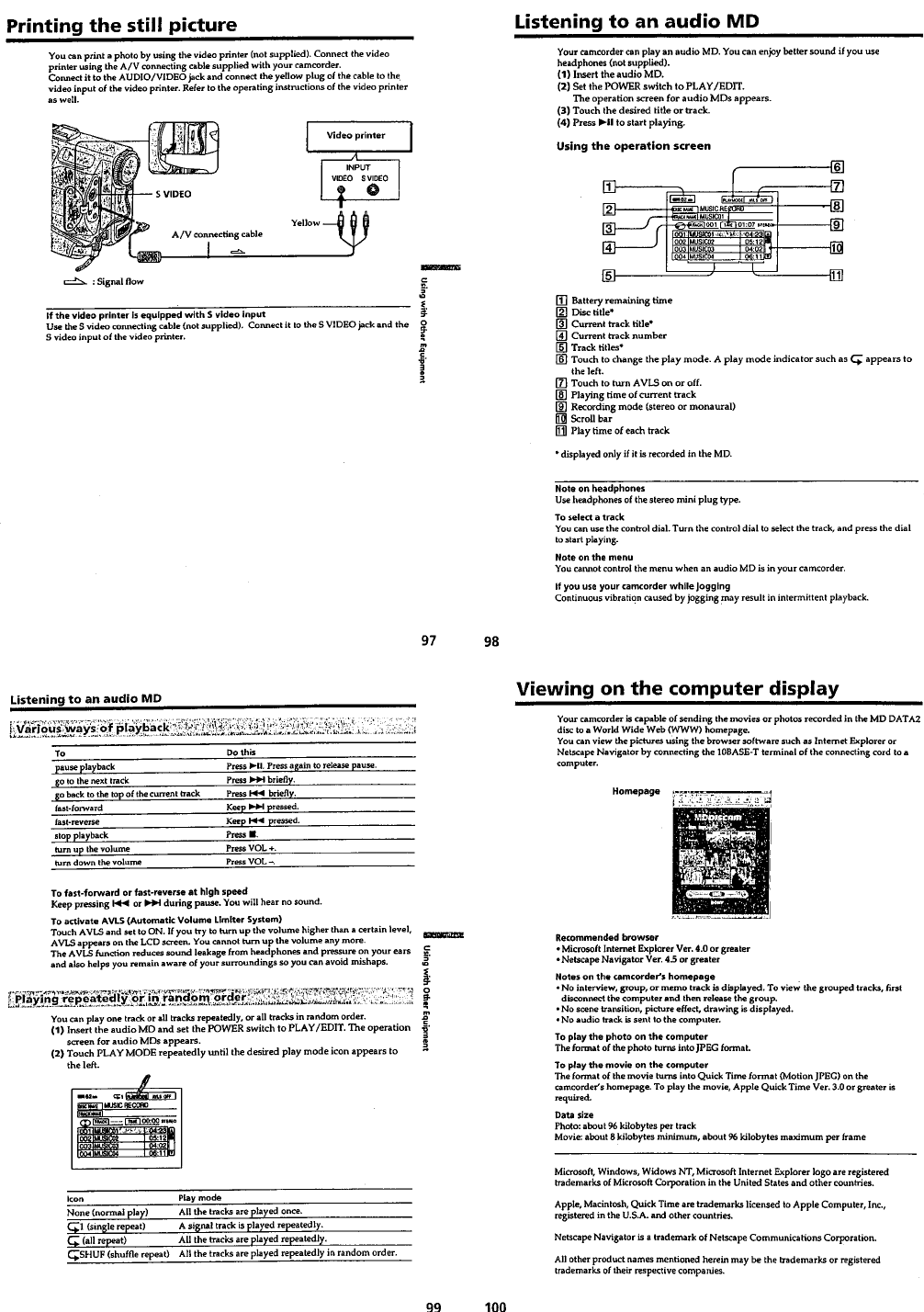

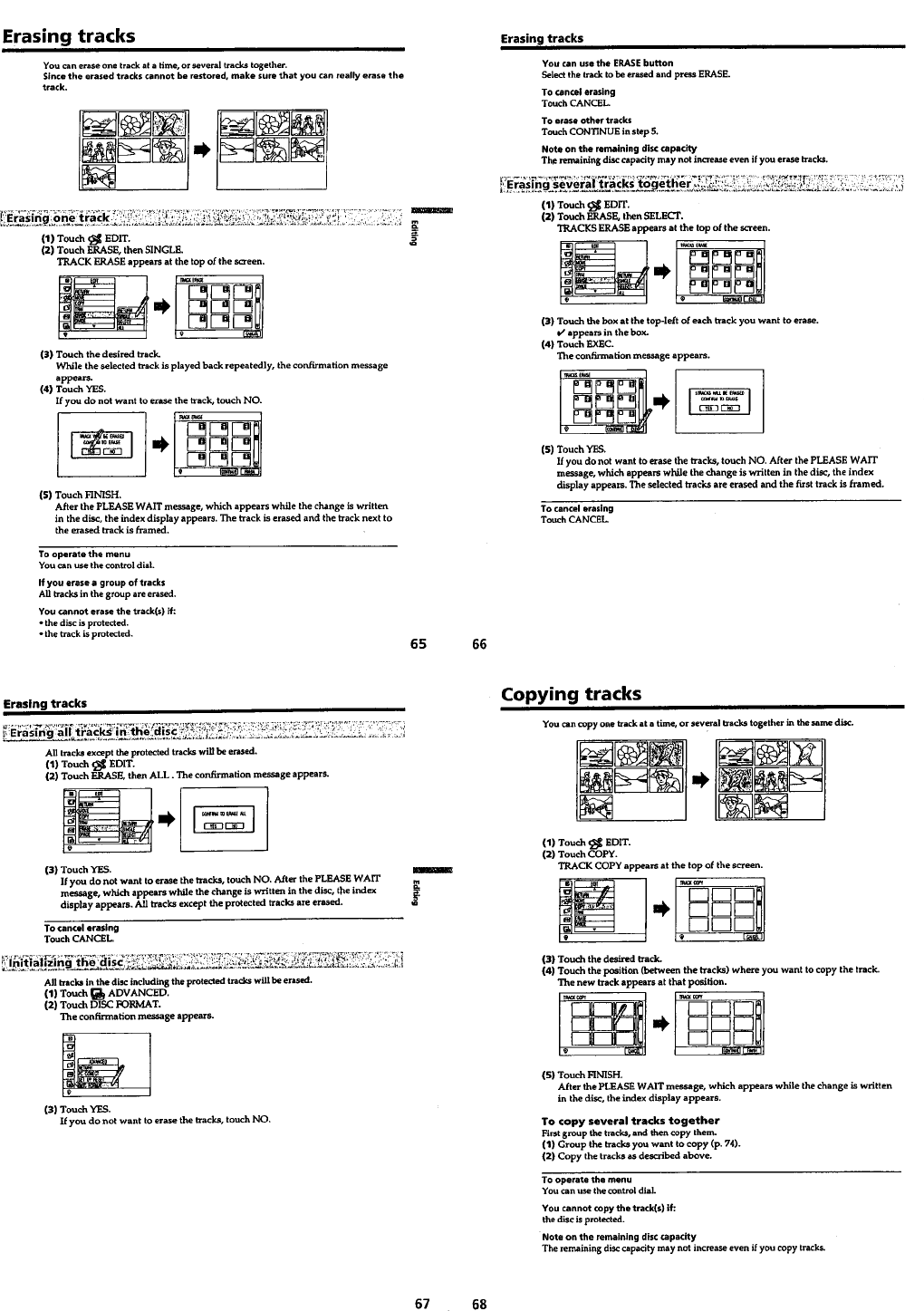

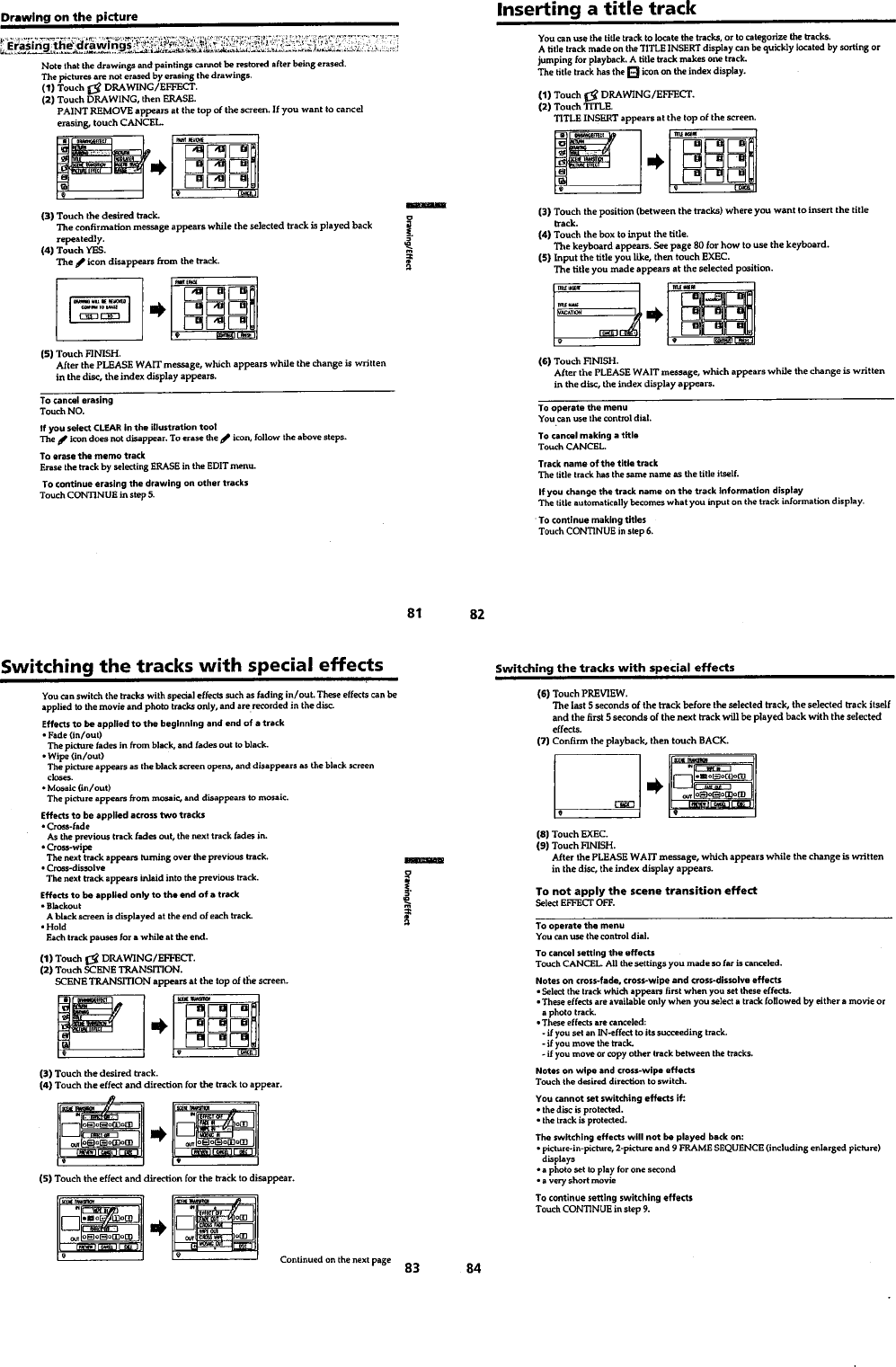

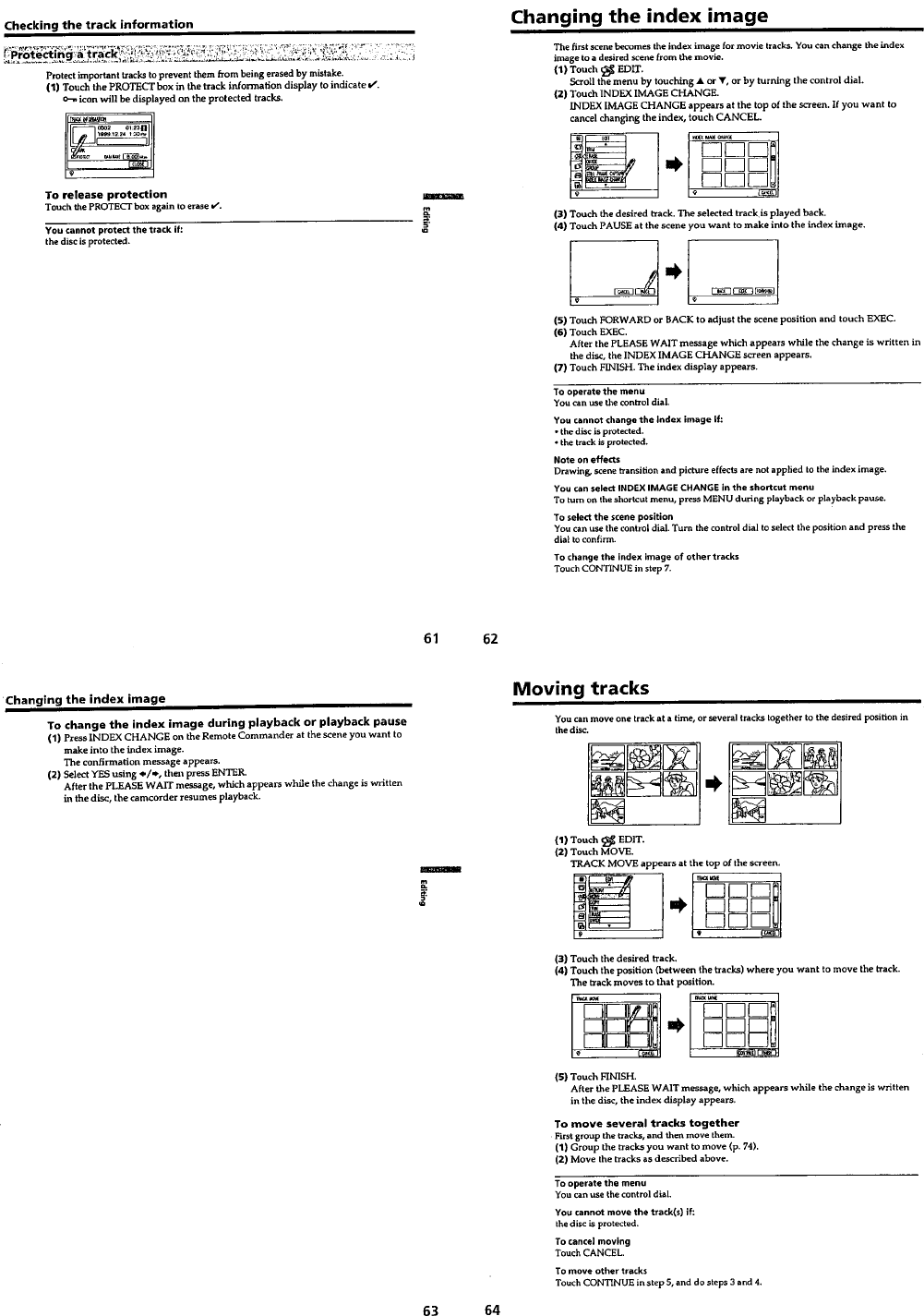

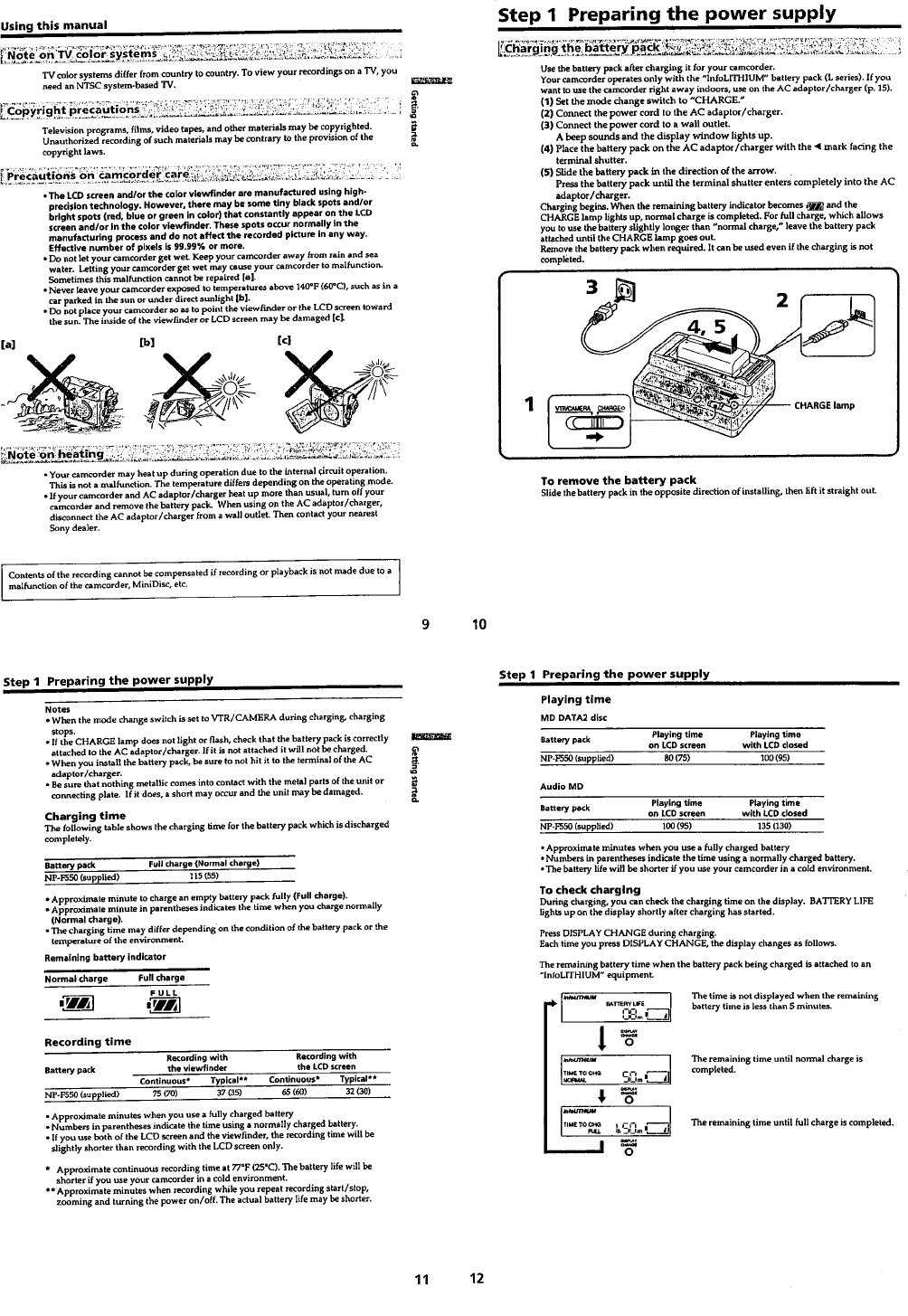

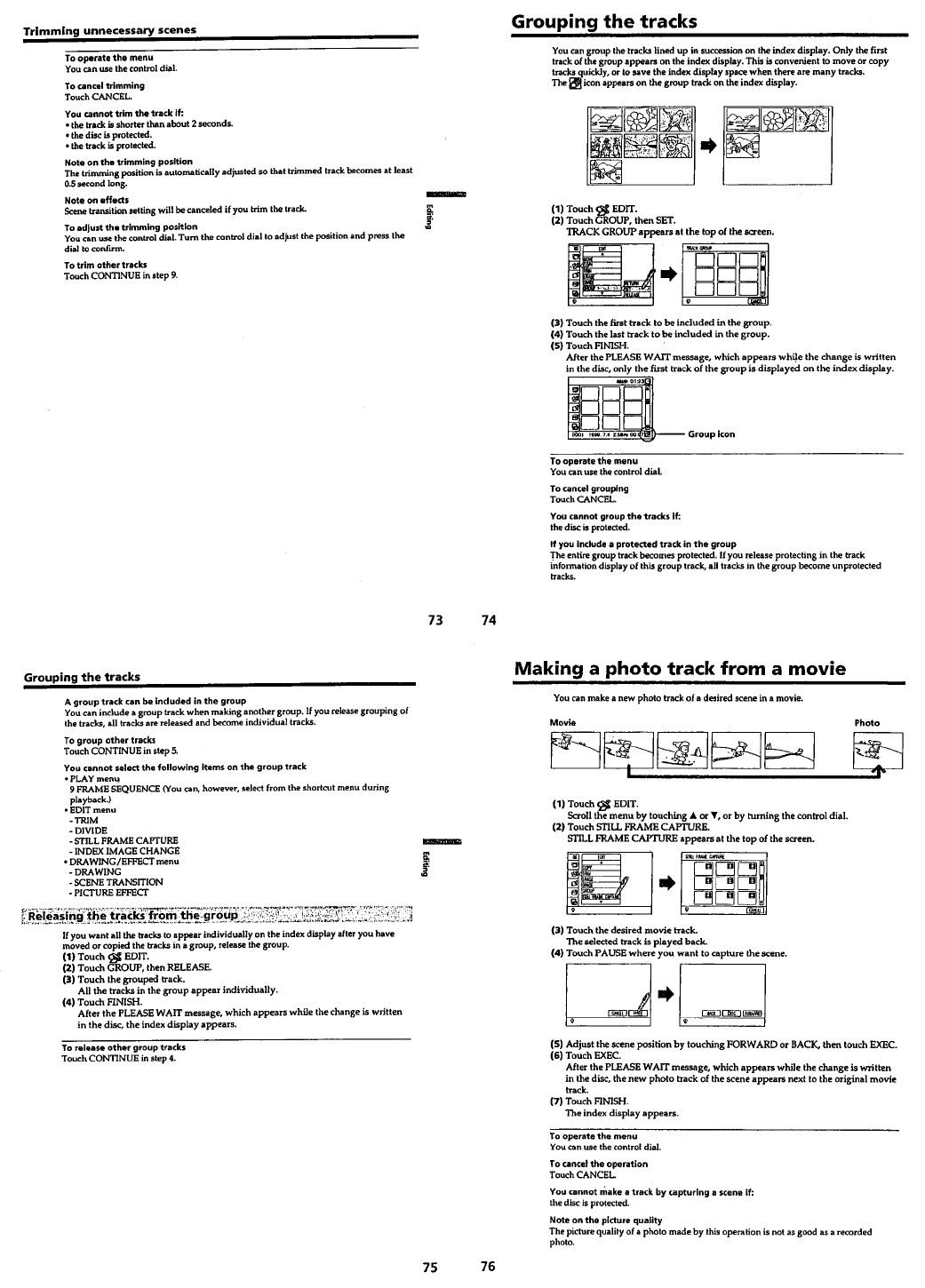

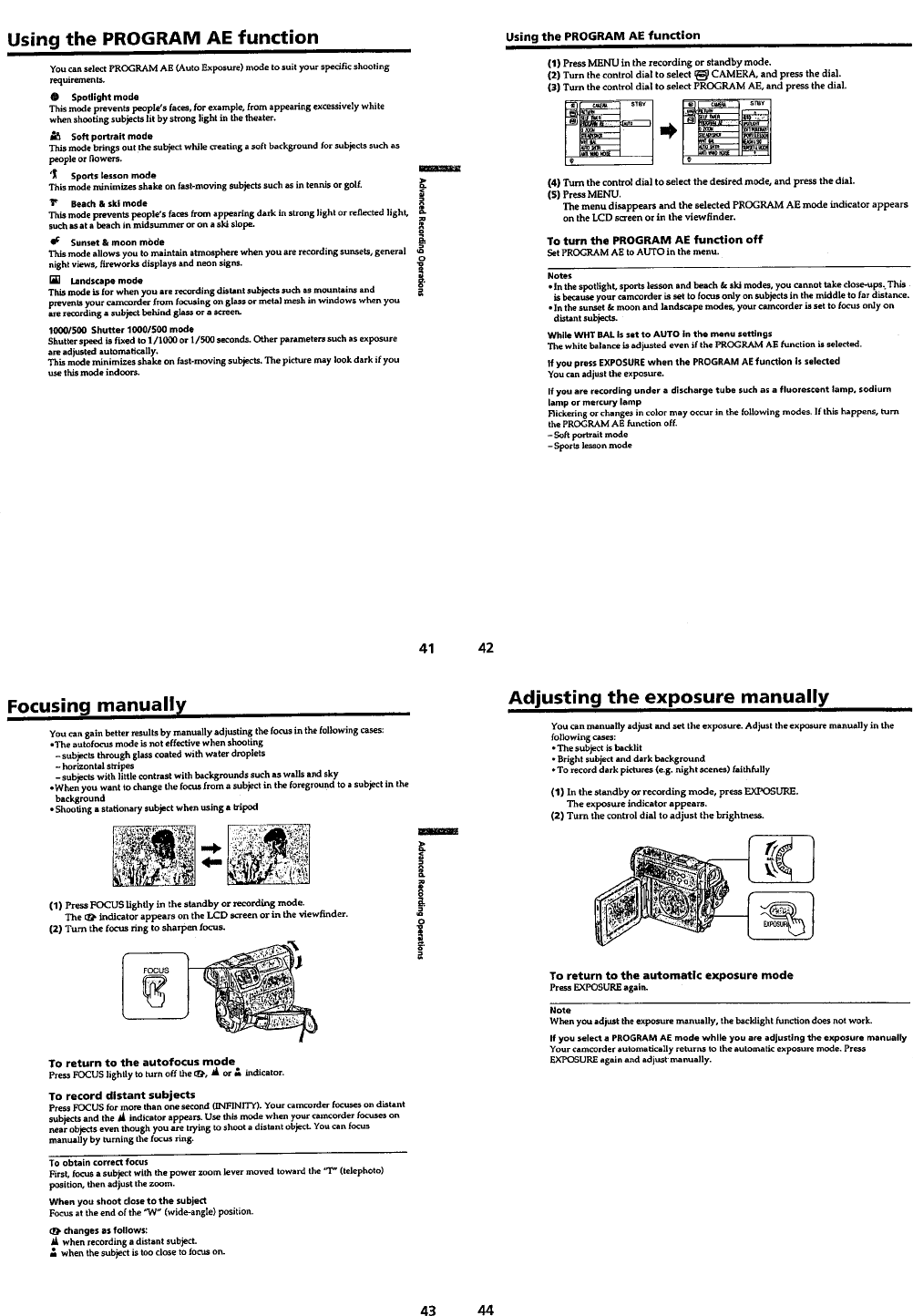

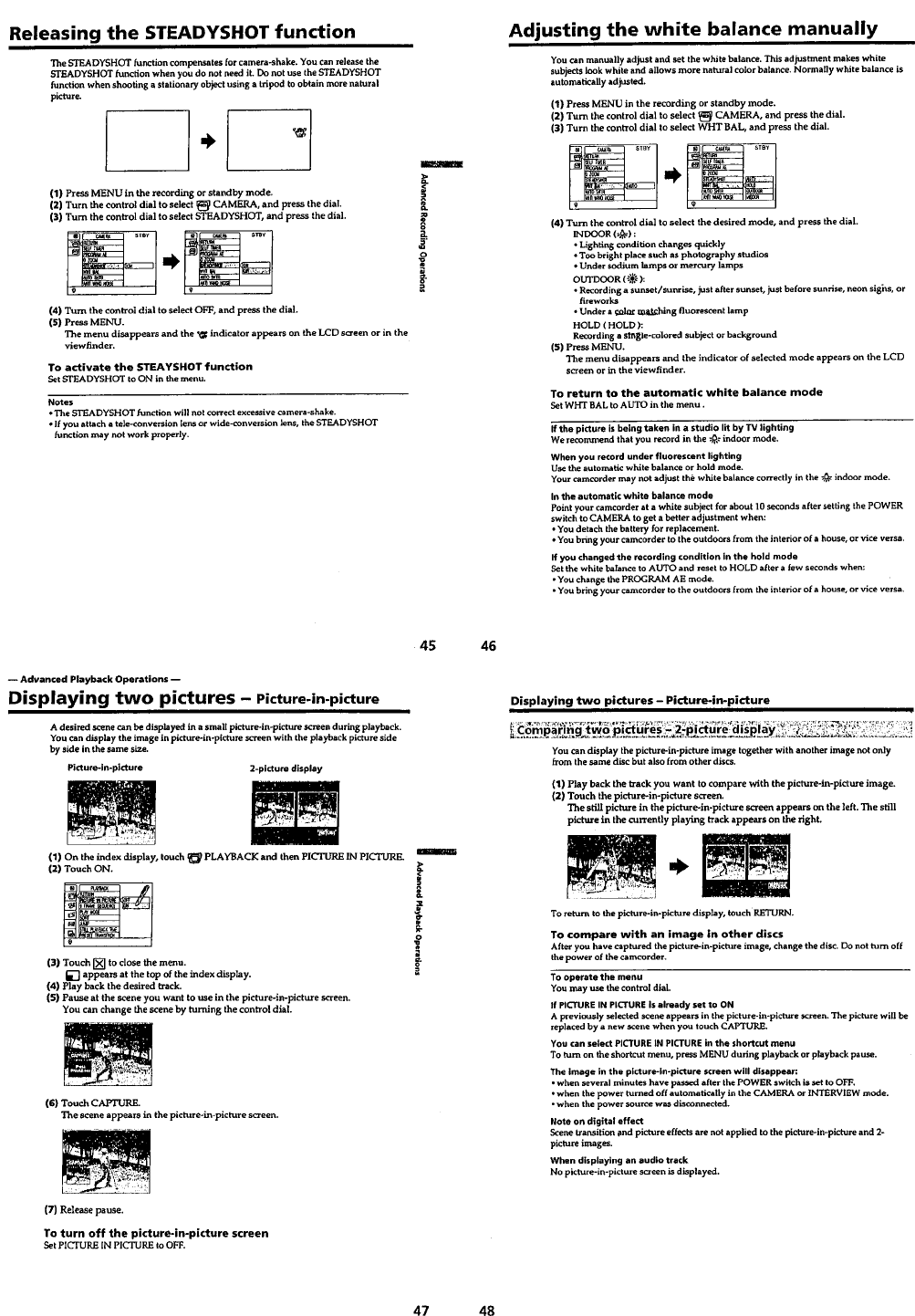

SECTION 1
GENERAL

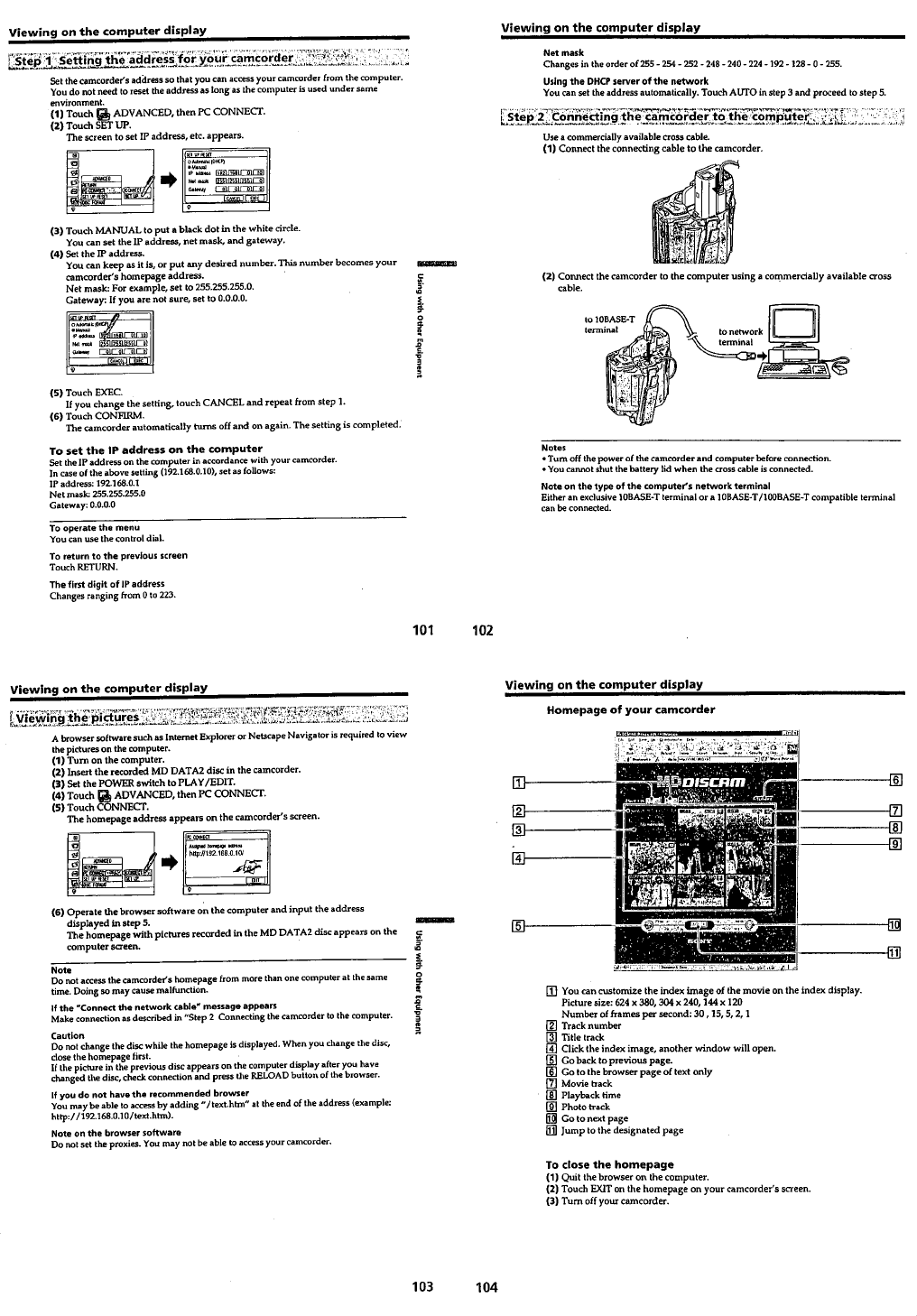

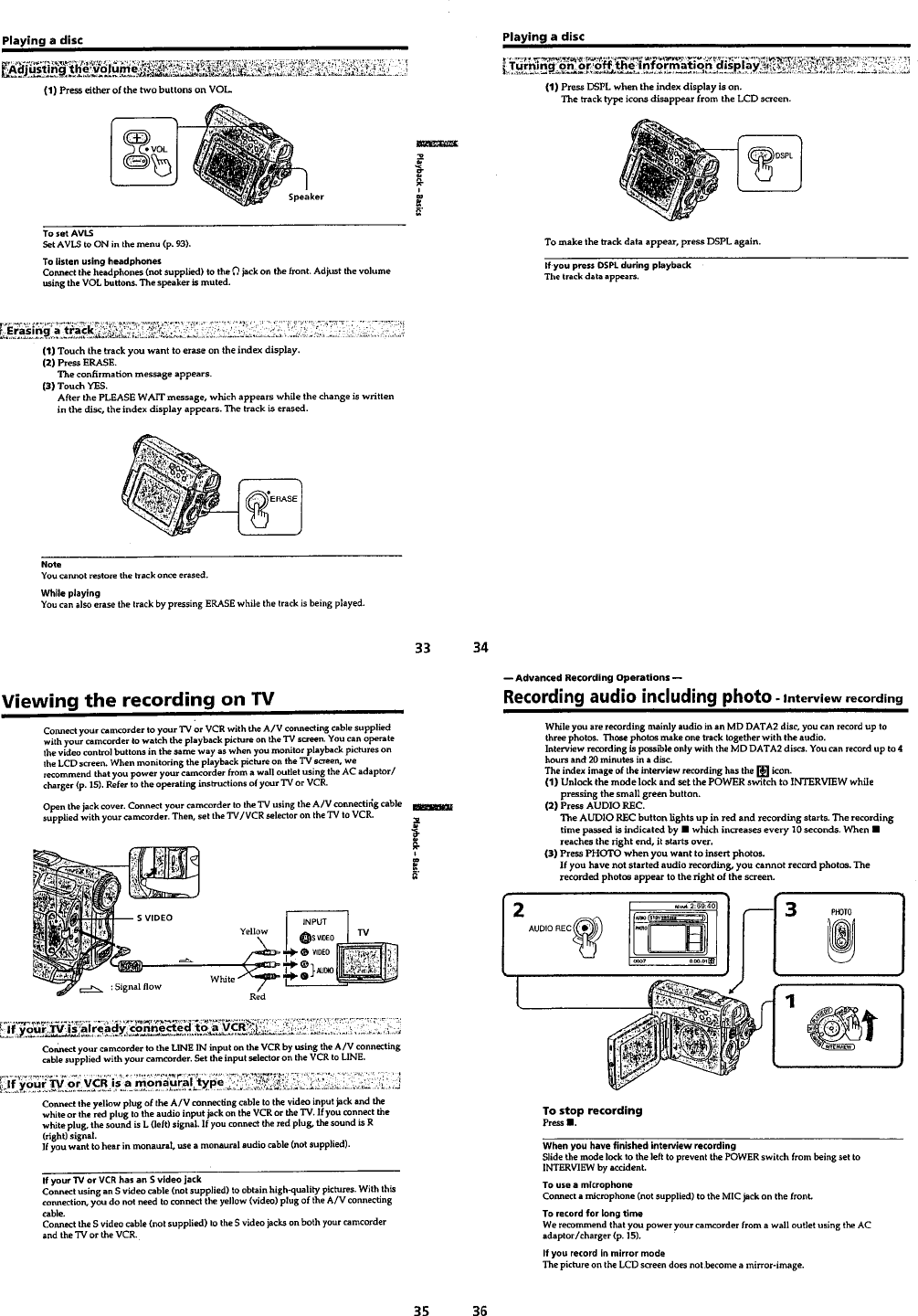

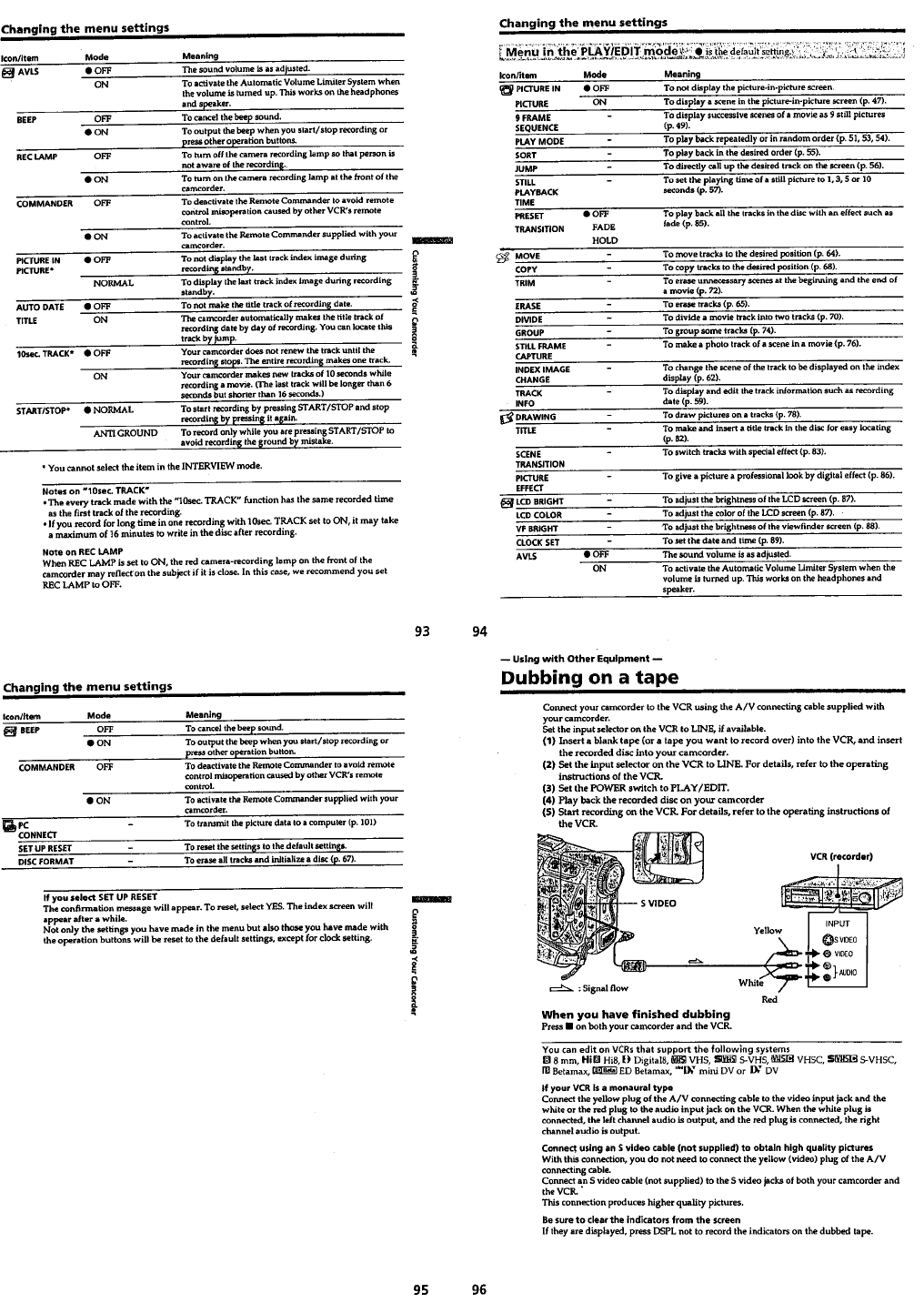

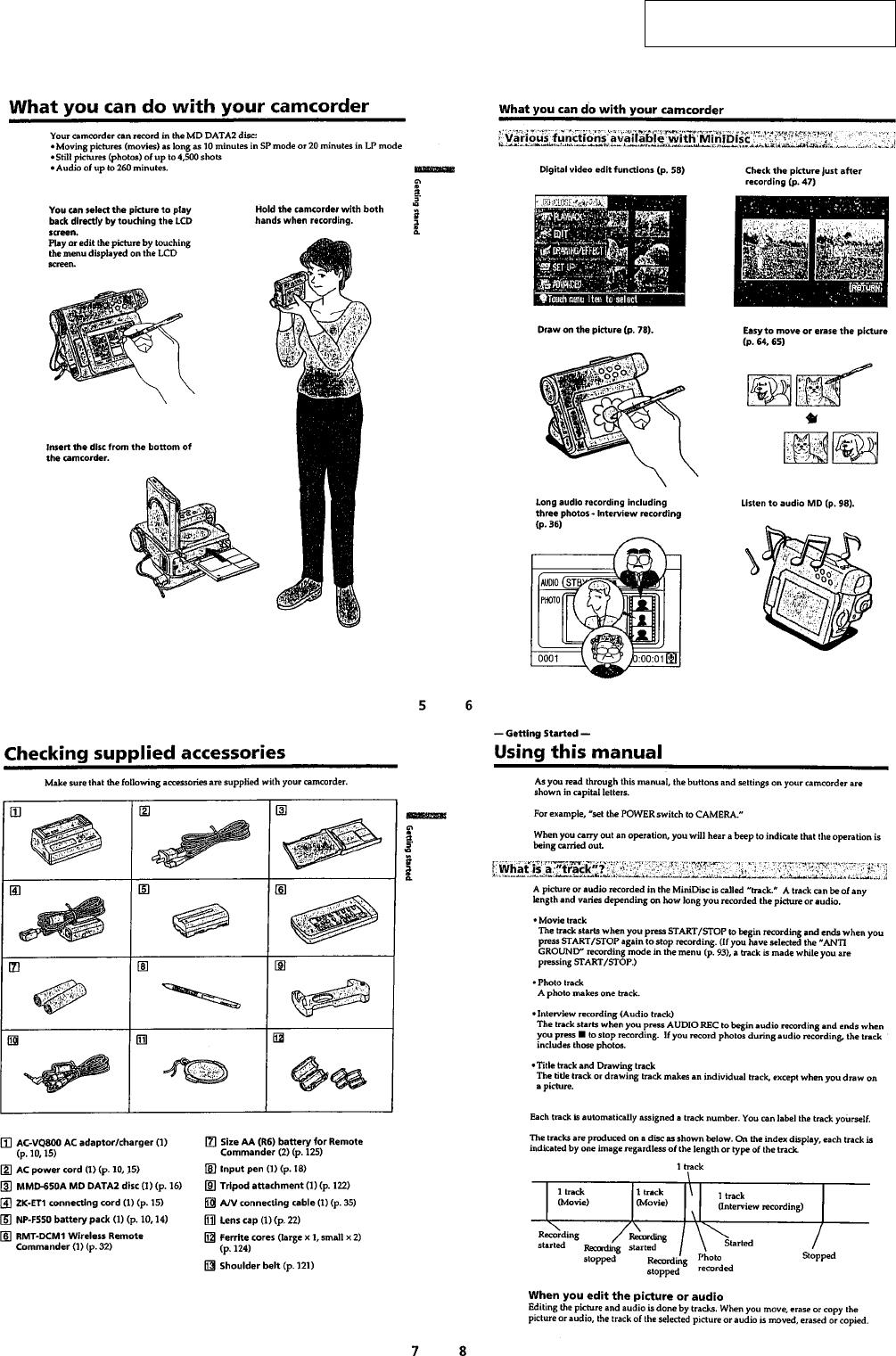

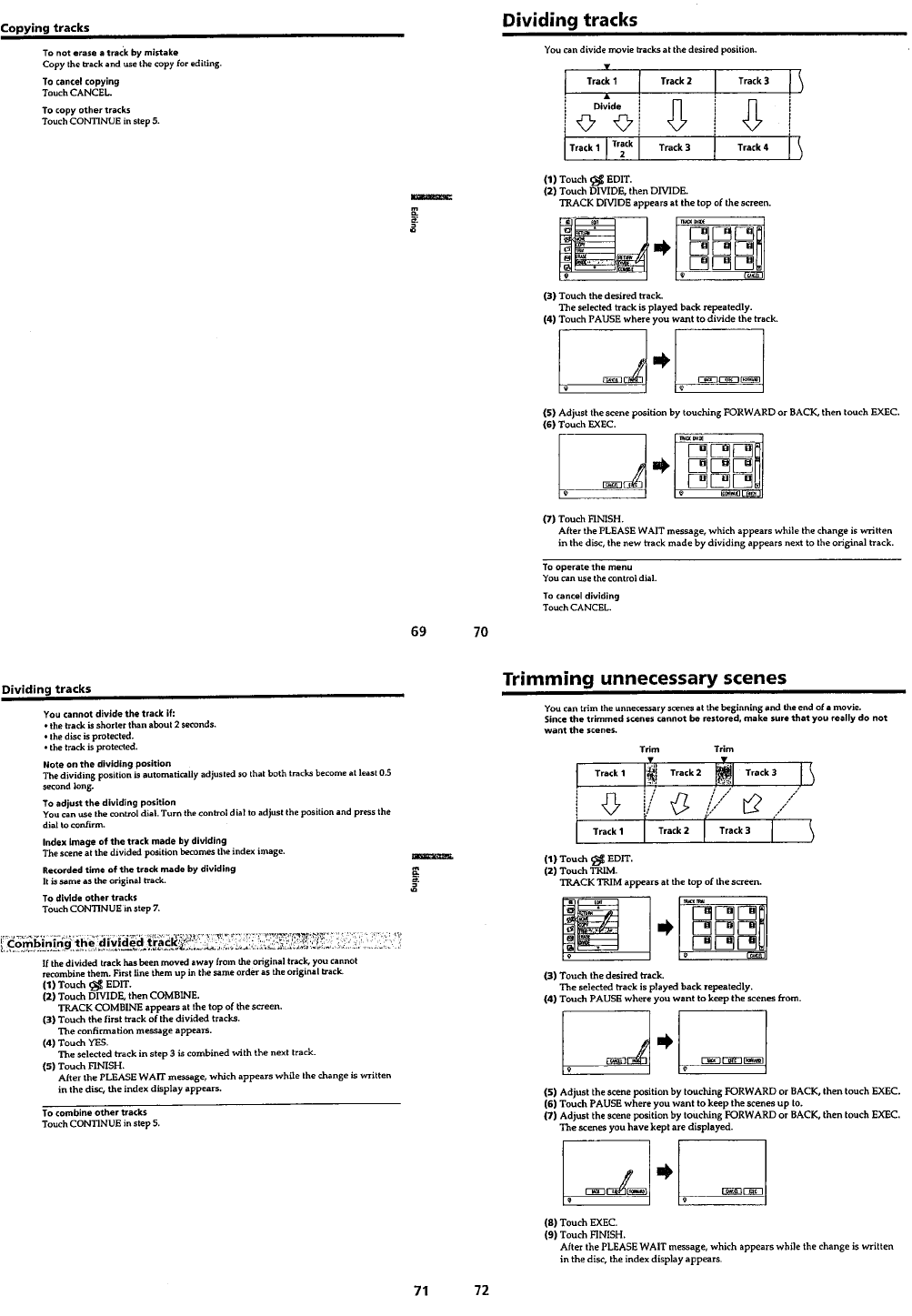

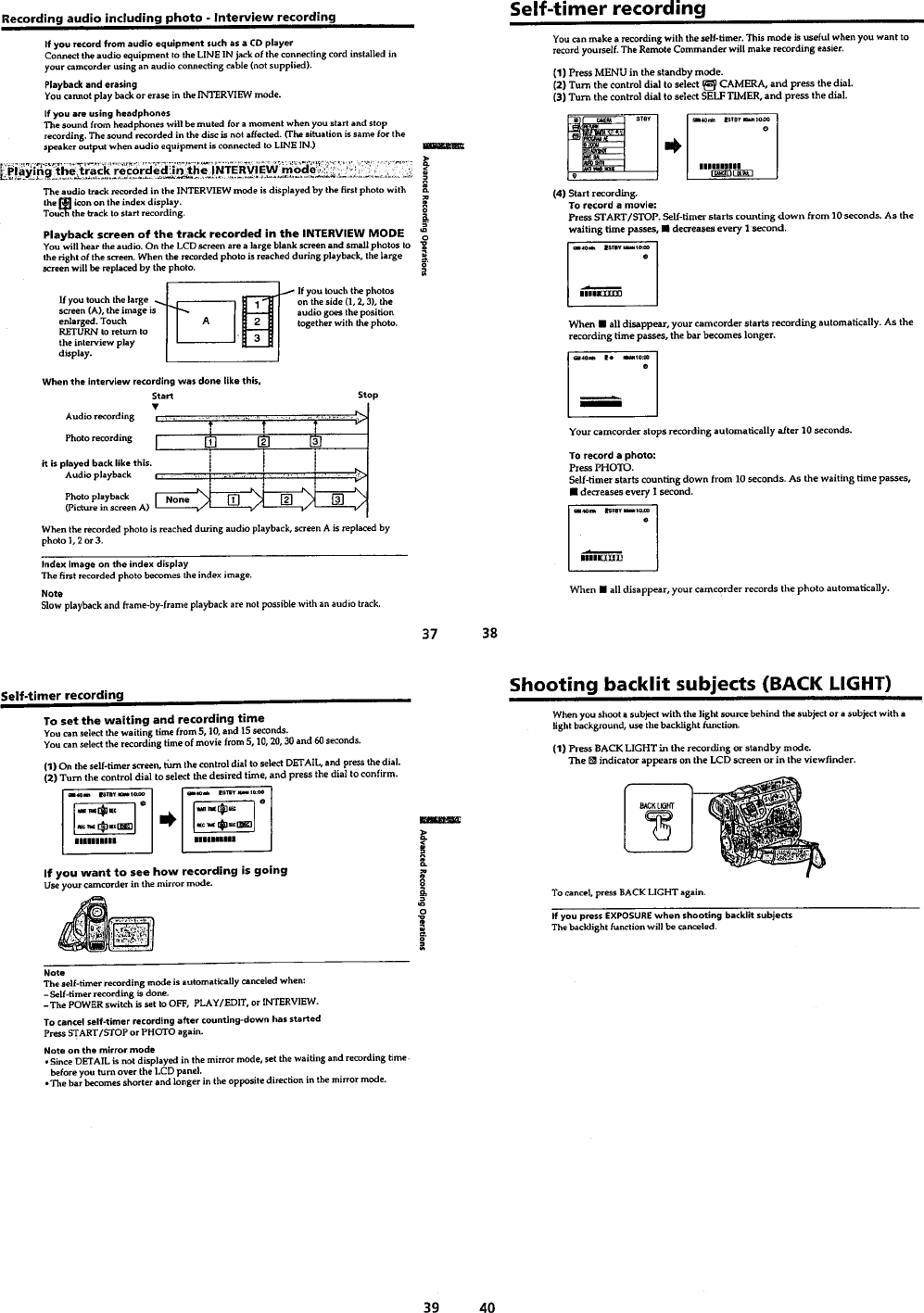

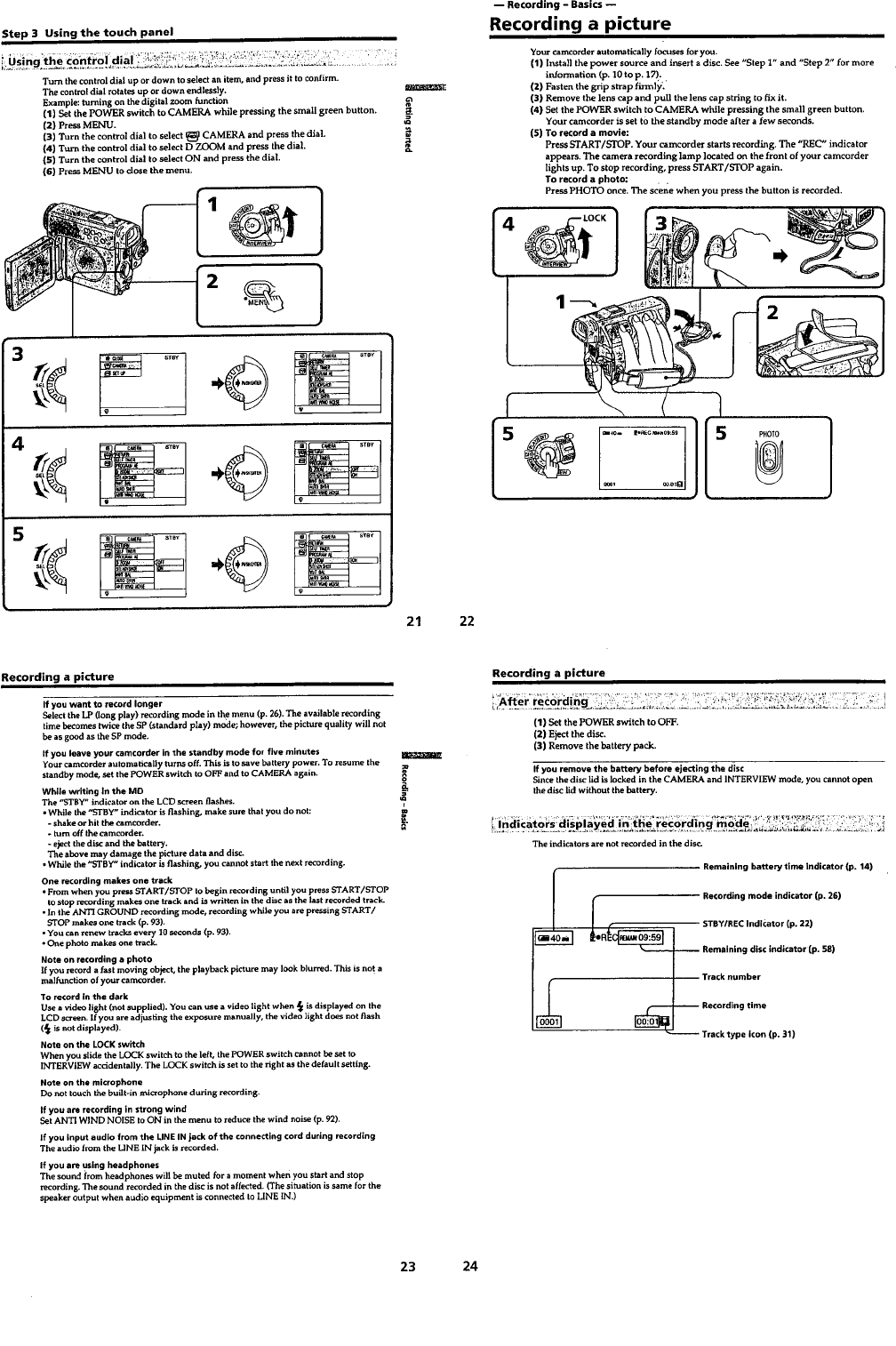

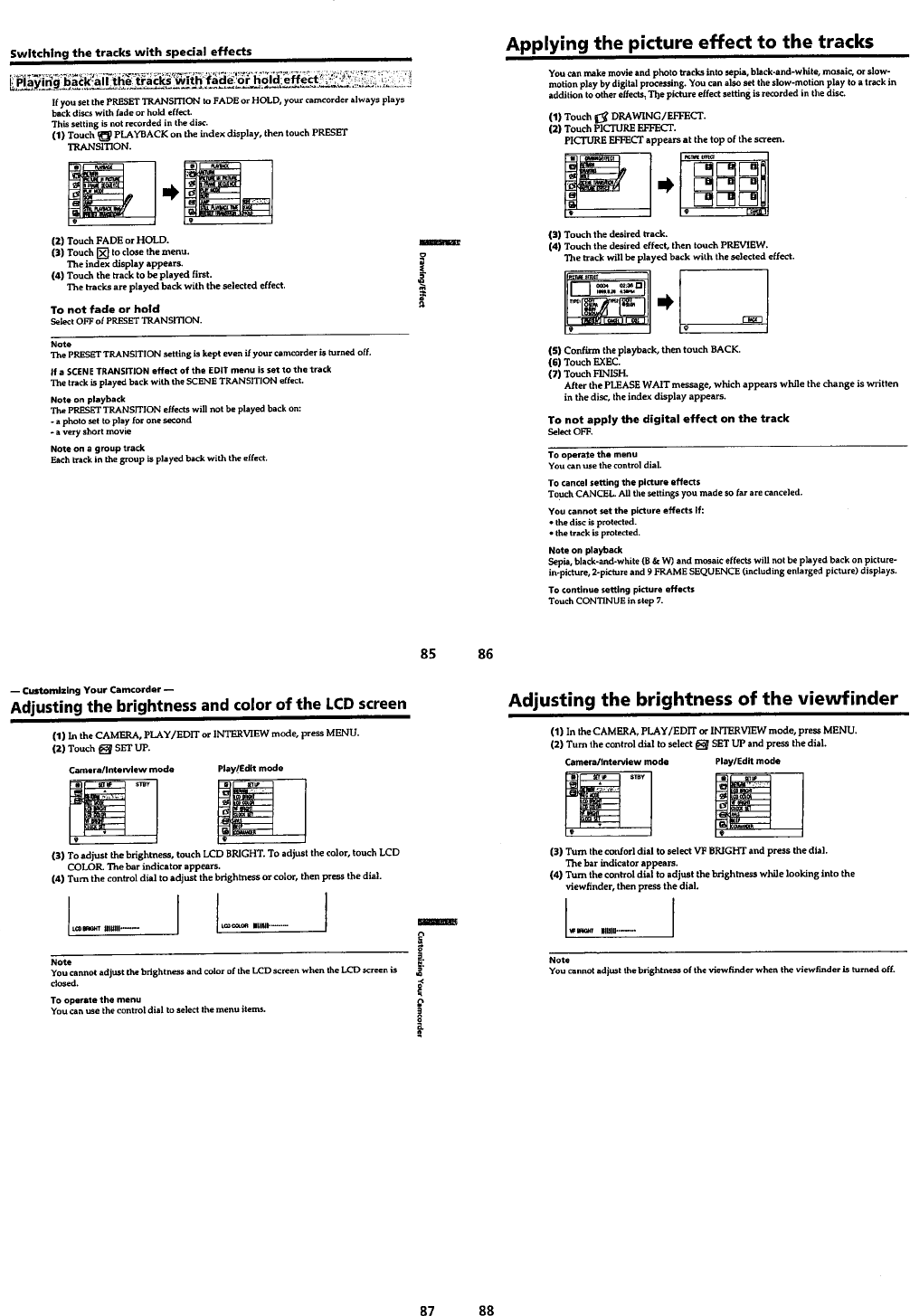

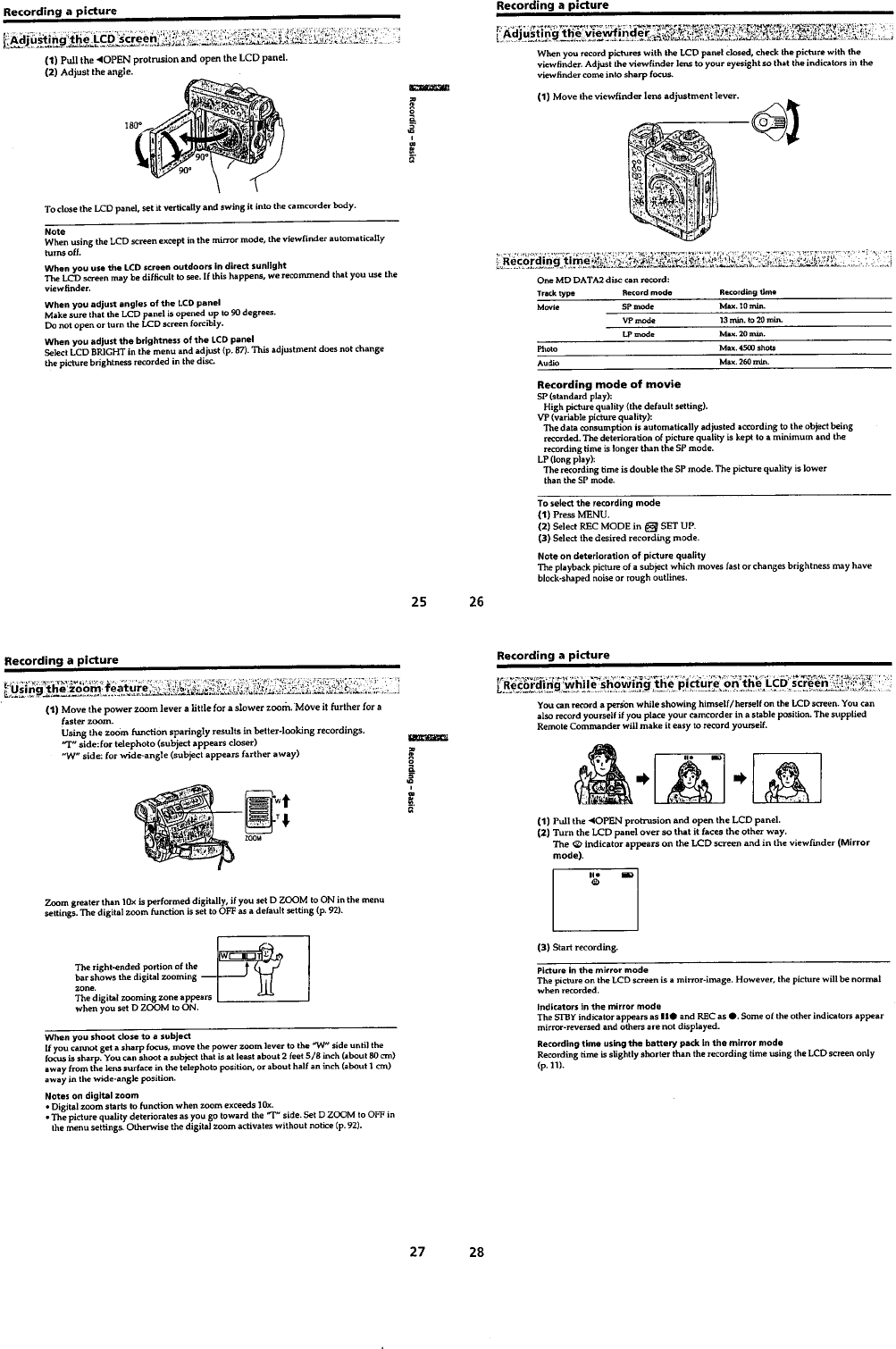

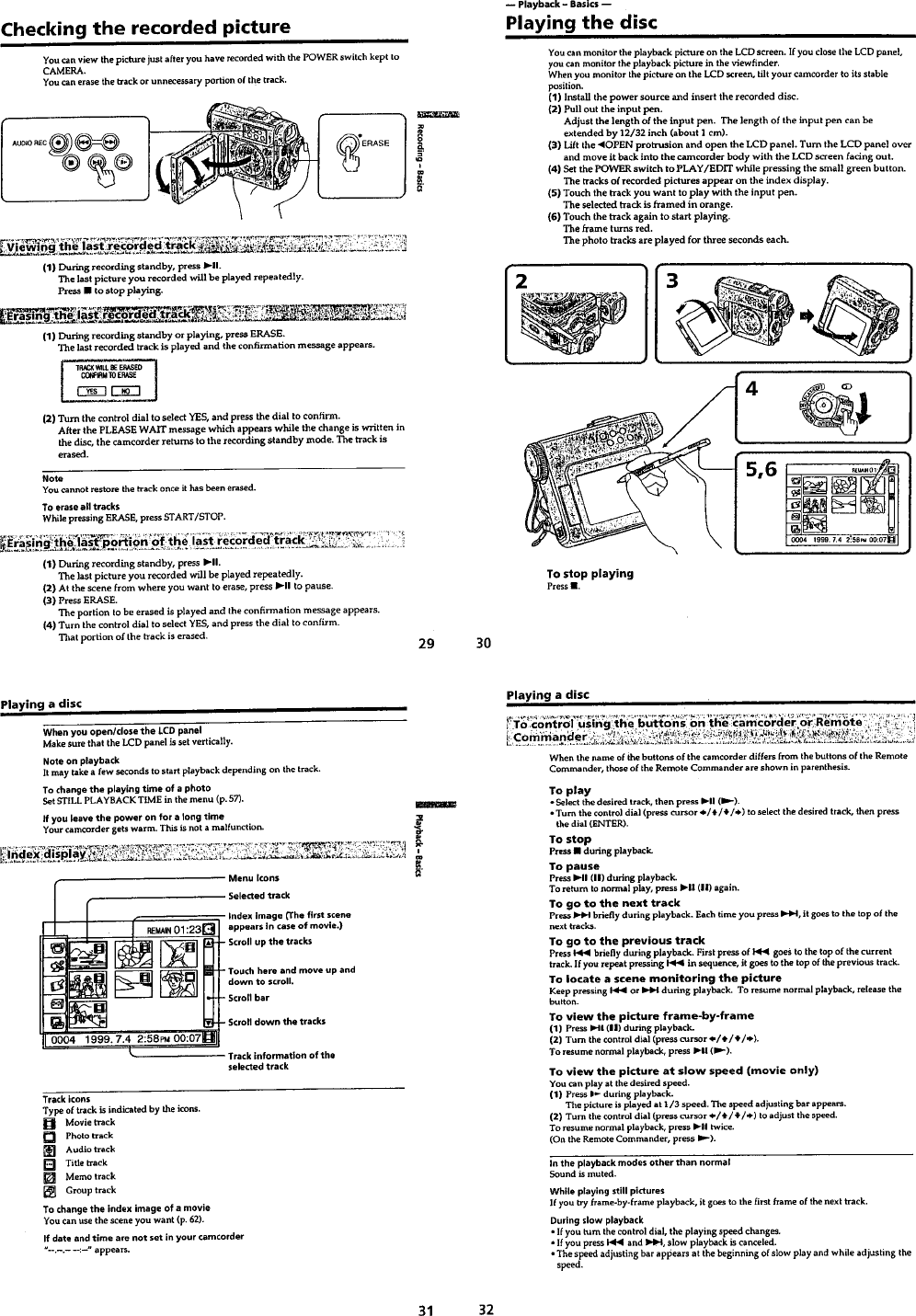

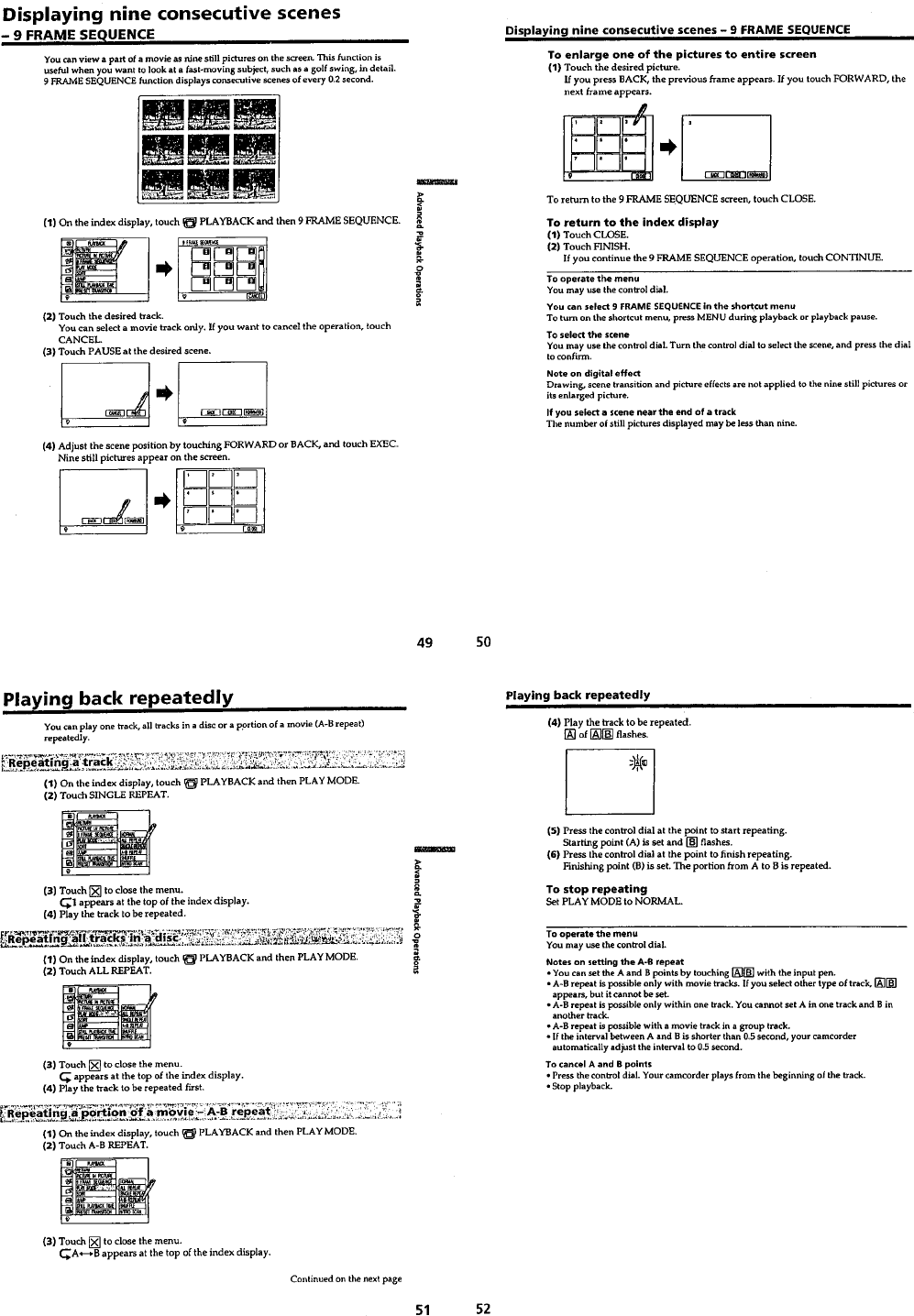

This section is extracted from in-
struction manual. (3-866-152-11)
DCM-M1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1-23
1-24
1-25
1-26
1-27
1-28

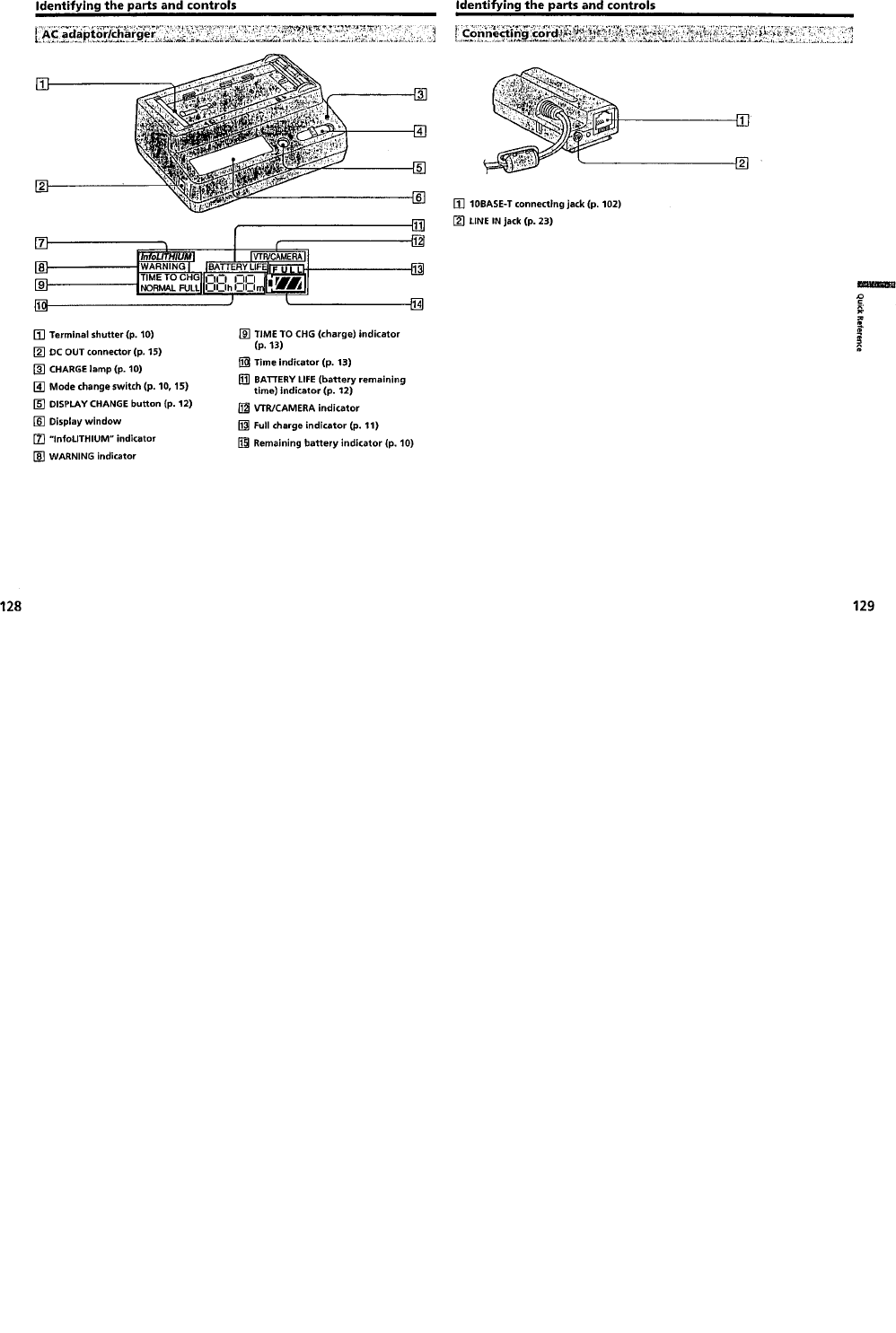

1-29
1-30
1-30 E

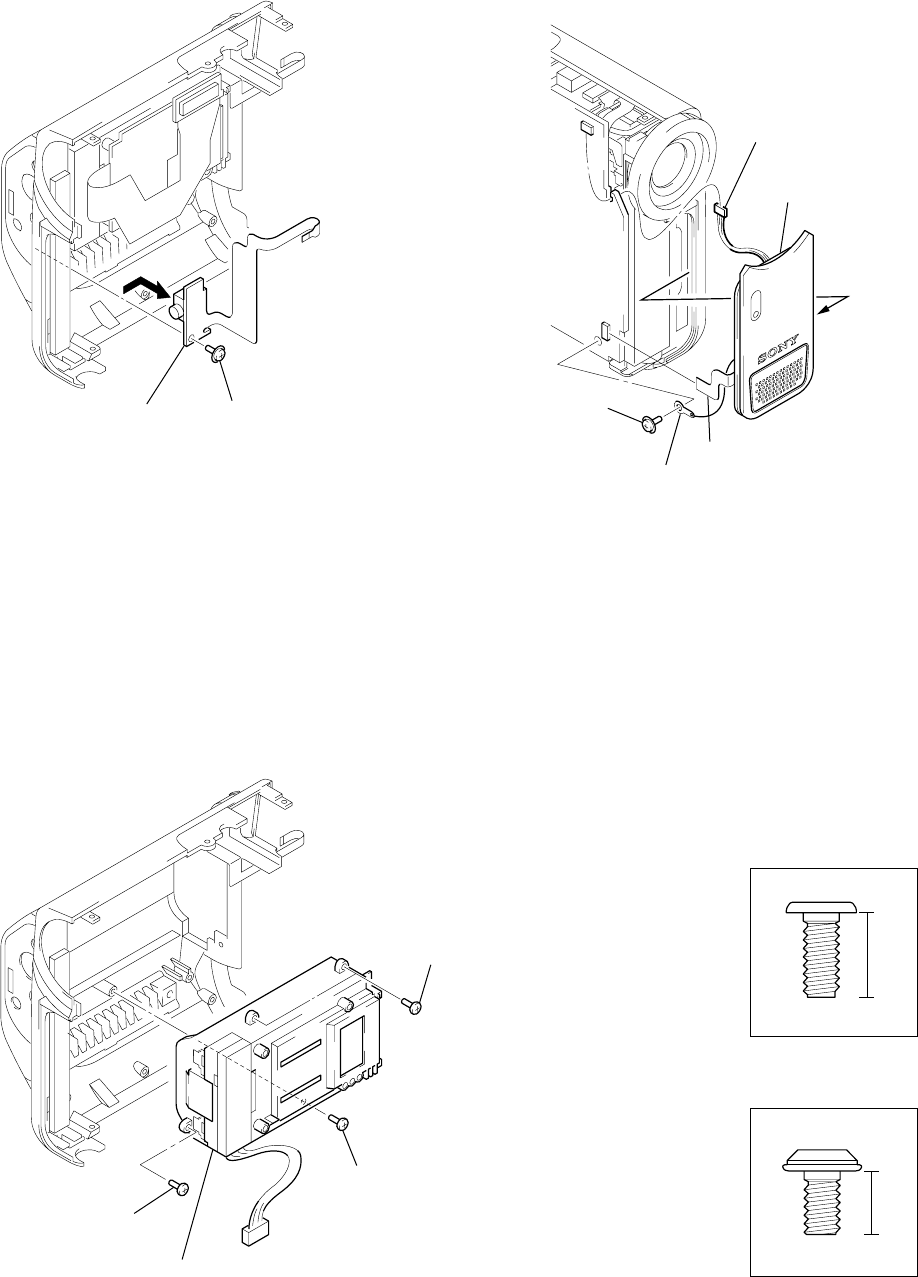

2-1
SECTION 2

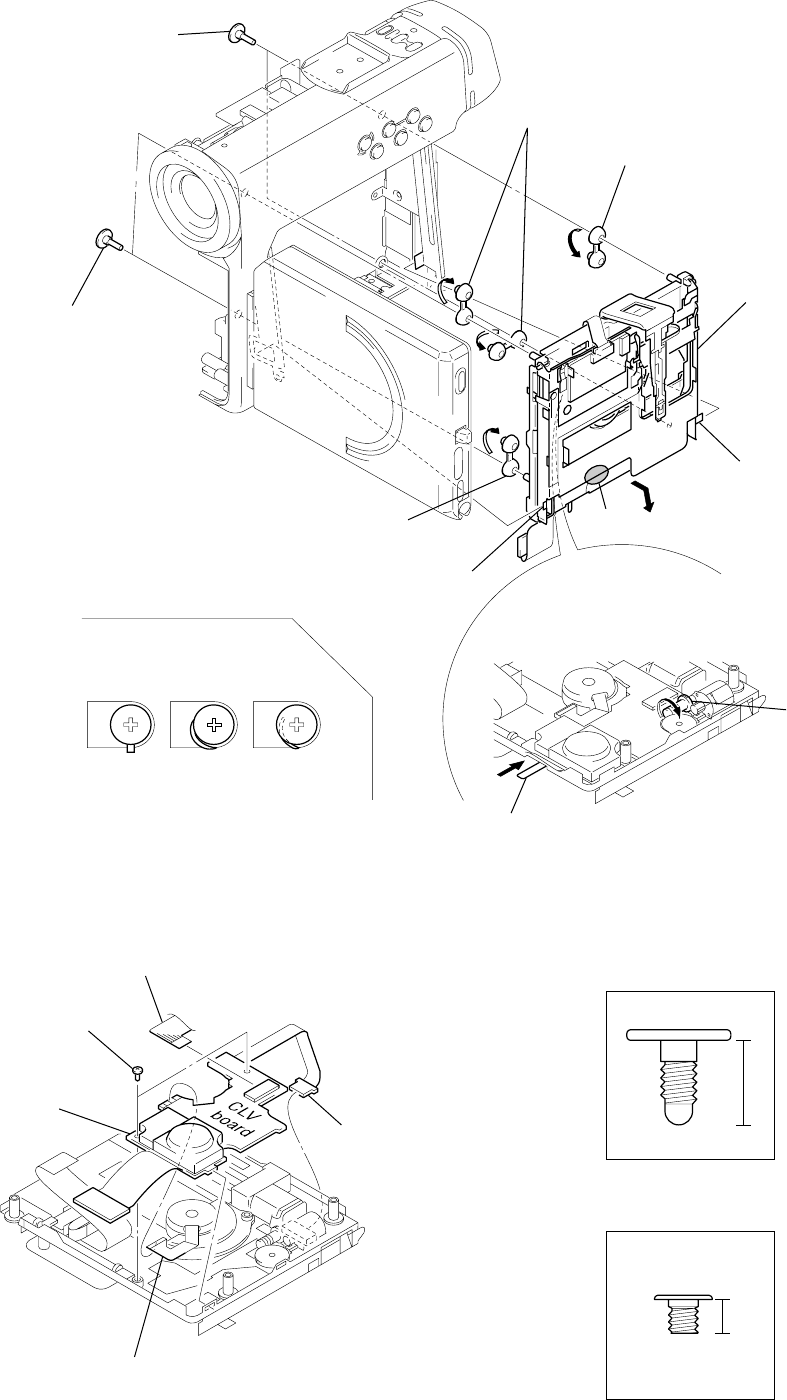

DISASSEMBLY

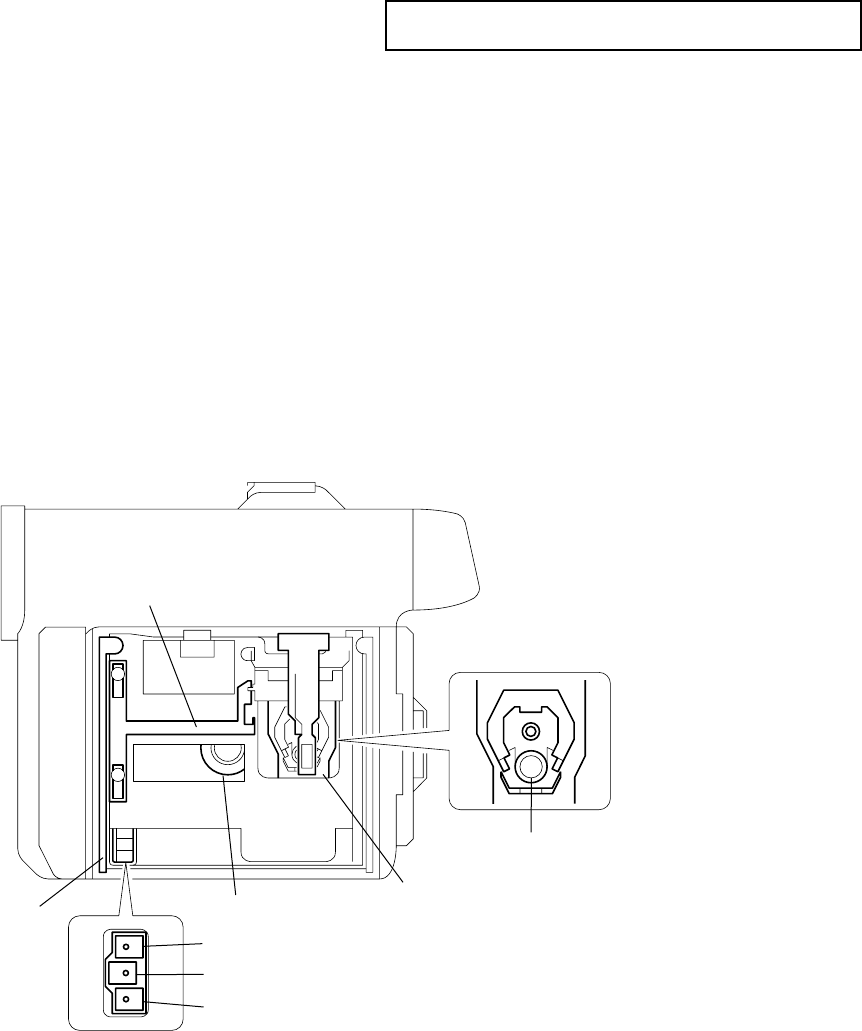

•This set can be disassembled in the order shown below.
DCM-M1
Holder Assembly
(Page 2-11)
Main Control Switch Unit
(Page 2-3)
DCM-M1
Cabinet (R) Section
(Page 2-3)
Zoom Switch Unit
(Page 2-3) Microphone Unit
(Page 2-5)
EVF Block
(Page 2-8)
Upper Panel Assembly
(Page 2-9)
VF Board
(Page 2-9)
BL Board
(Page 2-9)
VF Lens Assembly
(Page 2-9)
CLV Board
(Page 2-10)
Ether Board
(Page 2-4)
Power Board
(Page 2-4)
Jack Board
(Page 2-4) Main Board
(Page 2-6)
Remote Terminal Unit
(Page 2-5) Lens Block (CT-DCMM1-164)
(Page 2-6)
Mechanism Deck (MT-DCMM1-163)
(Page 2-10)
Stepper Block Assembly (M5811)
(Page 2-11)
Hinge Cover
(Page 2-6)
LCD Block
(Page 2-7)
LCD Cabinet Assembly (U)
(Page 2-7)
Touch Panel, LCD Module (LCD4301)
(Page 2-8)
Fluorescent Tube
(Page 2-8)
LCD Board
(Page 2-7)
Battery Case Assembly
(Page 2-5)
2-2
S1 S2 S3 S4
S5 S6 S7 S8
S9 S10 S11 S12
S13 S14 S15 S16
2
2
4
2.5
53
5
3
2
4.5 44
4.5 3.5
1.6 1.3

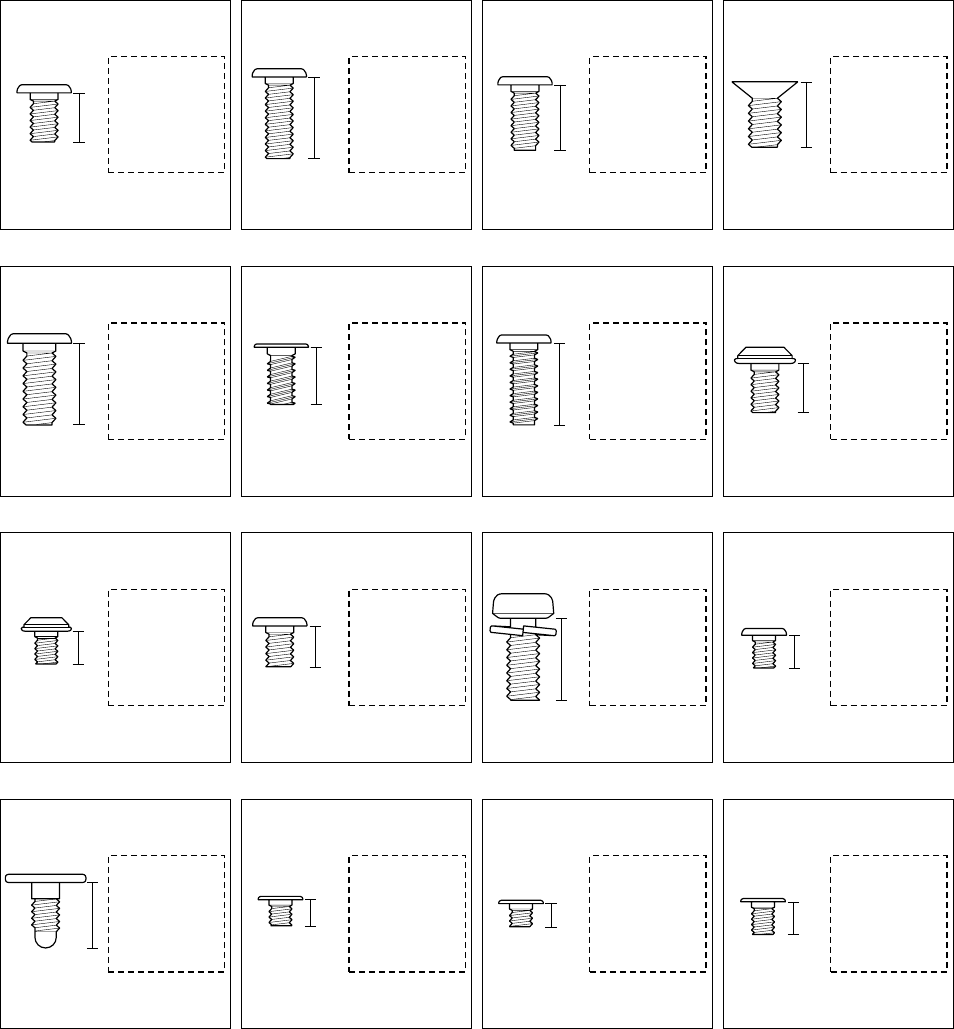

PAPER BOX FOR SCREW
We suggest to make a photo copy of this page before removing the set,
put cellophane tape (adhesive tape) in each dotted-line frame for each screw.
You can replace these screws without any mistakes after this preparation.
(If you use OHP sheet or something similar, you can use it repeatedly.)
unit: mm
2-3
Note: Follow the disassembly procedure in the numerical order given.
2-1. MAIN CONTROL SWITCH UNIT 2-3. ZOOM SWITCH UNIT
3Two screws (S1)
(M1.7 × 3)
5Two screws (S3)
(M1.7 × 4)
4Screw (S2)
(M1.7 × 4.5)
8Flexible board
(zoom switch unit)
7Translation
flexible board
2Screw (S1)
(M1.7 × 3)
1Open the LCD panel.
6Main control switch unit
2-2. CABINET (R) SECTION
3Screw (S5)
(M2.0 × 4.5)
8Translation
flexible (jack)
board (CN3002)
4Screw (S1)
(M1.7 × 3)
7Cabinet (R)
section
9Flexible board
(ether board)
(CN8007)
0Flexible board
(power board)
(CN9101)
5Screw (S1)
(M1.7 × 3)
2Bracket
(shoe)
1Two screws (S4)
(K2 × 4)
6Screw (S3)
(M1.7 × 4)
2Zoom switch unit
1Screw (S6)
(M1.7)
4.5
3.5
3
4
4.5
4
S1 S4
S2 S5
S3 S6
2-4
2-6. JACK BOARD2-4. POWER BOARD
2-5. ETHER BOARD
3Earth lug
1Connector
4Two screws (S8)
(M1.7)
5POWER board
2Two screws (S7)
(M1.7 × 5)
1Screw (S7)
(M1.7 × 5)
3Insulating
sheet
4Screw (S7)
(M1.7 × 5)
2Bracket
(ether board)
5Two earth lugs
6ETHER board
3Flexible board
(remote terminal unit)
(CN8004)
2Translation flexible
(jack) board
(CN3003)
4Two screws (S8)
(M1.7)
5Remove the JACK board
in the direction of the arrow.
1Open the jack cover.
5
3
S7
S8
2-5
2-7. REMOTE TERMINAL UNIT 2-9. MICROPHONE BLOCK
2-8. BATTERY CASE ASSEMBLY
ETHER
1Screw (S8)
(M1.7)
2Remove the remote
terminal unit in the
direction of the arrow.
1Two screws (S3)
(M1.7 × 4)
2Screw (S3)
(M1.7 × 4)
4Battery case assembly
3Screw (S3)
(M1.7 × 4)
1Connector
(CN3001)
5Microphone block
2Flexible board
(remocon ray-catcher block unit)
(CN8003)
4Lug
3Screw (S8)
(M1.7)
4
3
S3
S8
2-6
2-10. MAIN BOARD 2-12. HINGE COVER
2-11. LENS BLOCK
(CT-DCMM1-164)
0Three screws
(S9)
(M1.4 × 2)
4Flexible board
(OP block)
(CN5011)
9Screw (S8)
(M1.7)
8Screw (S7)
(M1.7 × 5)
5Flexible board
(CLV board)
(CN5002)
6Connector
(yellow)
(CN4312)
qs Connector
(gray)
(CN4313)
qa MAIN board
3VF flexible board
(CN4511)
2Flexible board
(upper control switch unit)
(CN8002) 1Flexible board
(VC-216 board)
(CN8101)
7LCD detection sw
flexible board
(CN8006)
1Acostic isolation (S)
material
2Screw (S1)
(M1.7 × 3)
3Lens block (CT-DCMM1-164)
6Two screws (S10)
(M1.7 × 2.5)
7Blind plate
assembly
8Screw (S1)
(M1.7 × 3)
2Two screws (S1)
(M1.7 × 3)
1Open the LCD panel
and turn it 90°.
3Two claws
5Hinge cover
(front)
9Hinge cover
(rear)
4Claw
32
2.5
5
3
S8
S7 S10
S9S1
2-7
2-13. LCD BLOCK 2-15. LCD BOARD
2-14. LCD CABINET ASSEMBLY (U)
3Screw (S11)
(PS2 × 5)
LCD panel Hinge assembly
1Set the LCD panel and
hinge assembly to a state
of the figure.
6Remove the LCD block
in the direction of the arrow.
2Screw (S11)
(PS2 × 5)
4Boss
5Boss
2Two screws (S1)
(M1.7 × 3)
A
B
3Remove the LCD cabinet assembly (U)
in the direction of the arrows A-B.
1Turn the hinge assembly.
1Screw (S10)
(M1.7 × 2.5)
9Screw (S8)
(M1.7)
qa LCD board
8Flexible board
(fluorescent tube)
(CN4307) 7Flexible board
(touch panel)
(CN4301)
6Flexible board
(LCD)
(CN4306)
0claw
5Two connectors
(CN4302, 4303)
3Claw
4LCD frame
2Two claws
3
3
2.5
5
S10
S8
S1 S11
2-8
2-16. FLUORESCENT TUBE 2-18. EVF BLOCK
2-17. TOUCH PANEL, LCD MODULE (LCD4301)
1Claw
2Fluorescent tube
6Touch panel,
LCD module (LCD4301)
5Claw
3Claw
2Claw
1Two screws (S10)
(M1.7 × 2.5)
4Hinge assembly
1Screw (S3)
(M1.7 × 4) 2EVF block
2.5
4
S3
S10
2-9

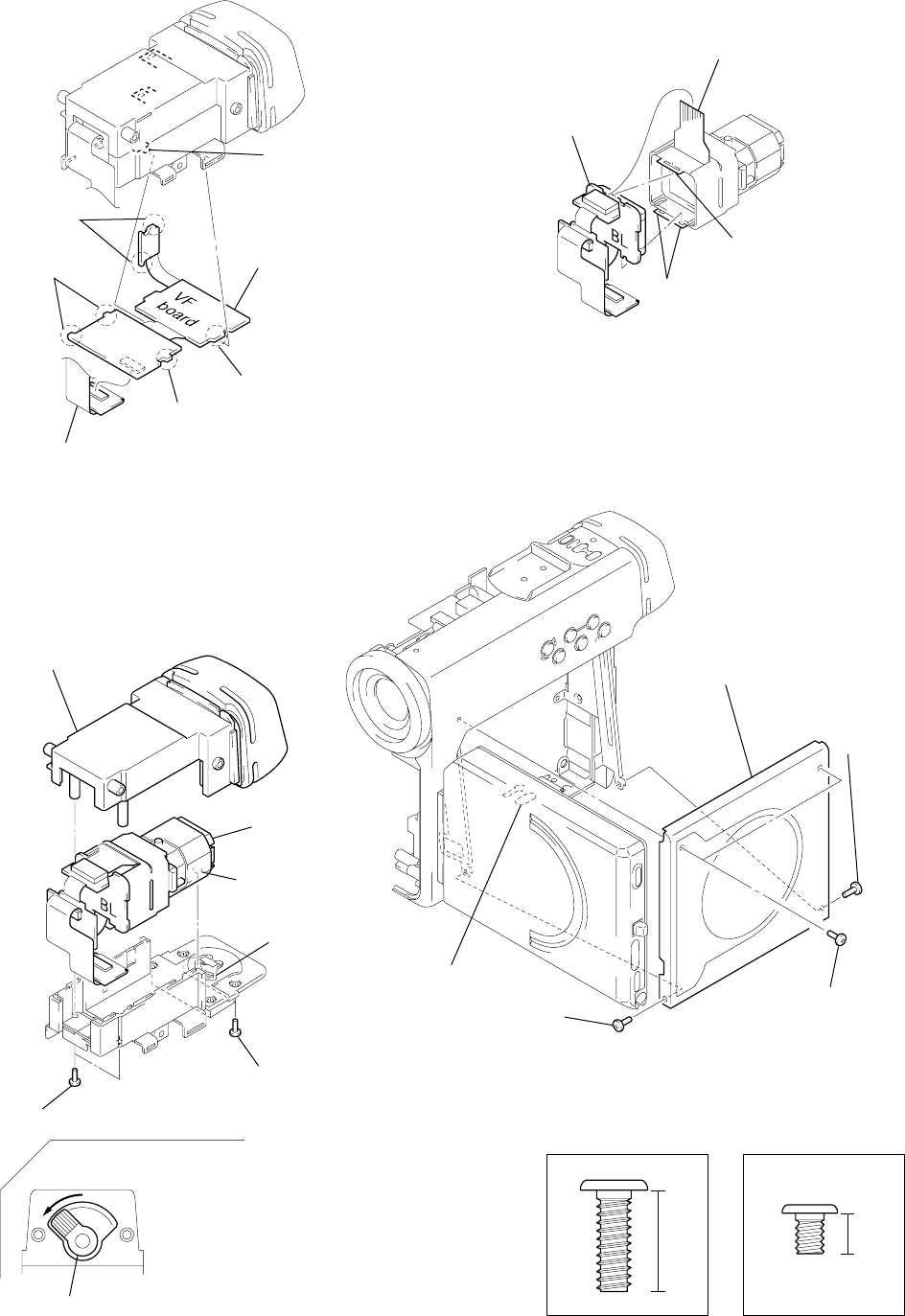

2-19. VF BOARD 2-21. BL BOARD
2-20. VF LENS ASSEMBLY
2-22. UPPER PANEL ASSEMBLY
5Claw
1VF/LCD Flexible board
(CN4601)
3Claw
6Two claws
2Two claws
7VF board
4Claw
2Two screws (S7)
(M1.7 × 5)
1Two screws (S7)
(M1.7 × 5)
Visibility adjustment
arm
Shaft
4VF lens
assembly
Note : When installing VF lens assembly,
move the visibility adjustment knob
in the direction of the arrow and
connect shaft of VF lens assembly
with visibility adjustment arm.
Visibility adjustment knob
3EVF cabinet (upper)
1Flexible board
(LCX024AK-5)
(CN4702)
4BL board
2Claw
3Two claws
52
S7 S12
5Upper panel assembly
1Set on eject position.
2Screw
(S12)
(M1.4 × 2)
4Two screws (S12)
(M1.4 × 2)
3Screw (S12)
(M1.4 × 2)
2-10
2-23. MECHANISM DECK
(MT-DCMM1-163)
2-24. CLV BOARD
3Two screws (S13)
(damper)
OK NG NG
Note : When installing damper (MD),
put it together in the figure.
4Damper (MD)
7Claw
1Rotate the worm gear in the direction
of the arrow A and move the torsion
spring (limitter) in the direction of the arrow B.
Worm gear
A
B
Torsion spring (limitter)
8Claw
9Hold the part maked A in the
figure trying not to touch either
over write head or OP.
Pulling the mechanism deck
(MT-DCMM1-163) toward you,
pull out it to the disc slot side.
6Damper (MD)
5Two dampers (MD)
2Two screws (S13)
(damper)
A
4Two screws (S14)
(M1.4)
2Motor flexible board
(CN5801)
5CLV board
1Flexible board
(CN5902)
3Remove the solders of the spindle
motor flexible board.
1.6
4
S13
S14
2-11
2-25. STEPPER BLOCK ASSEMBLY (M5811)
2-26. HOLDER ASSEMBLY
3Screw (S15)
(M1.4)
5Stepper block assembly
(M5811)
2Motor flexible board
1Remove solders of
motor flexible board.
4Claw
1.3
2
S15
S16
6Shaft
Lever (rack)
Note : When installing holder
assembly, connect lever
(cam) with lever (rack). 7Holder assembly
Holder assembly Flexible board
(over write head)
Note : When connecting flexible board
(over write head), put it together
in the figure.
4Holder guide
5Shaft
3Screw (S16)
(M1.4)
1Flexible board (CLV board)
(CN5902)
2Flexible board
(over write head)
(CN5901)
2-12

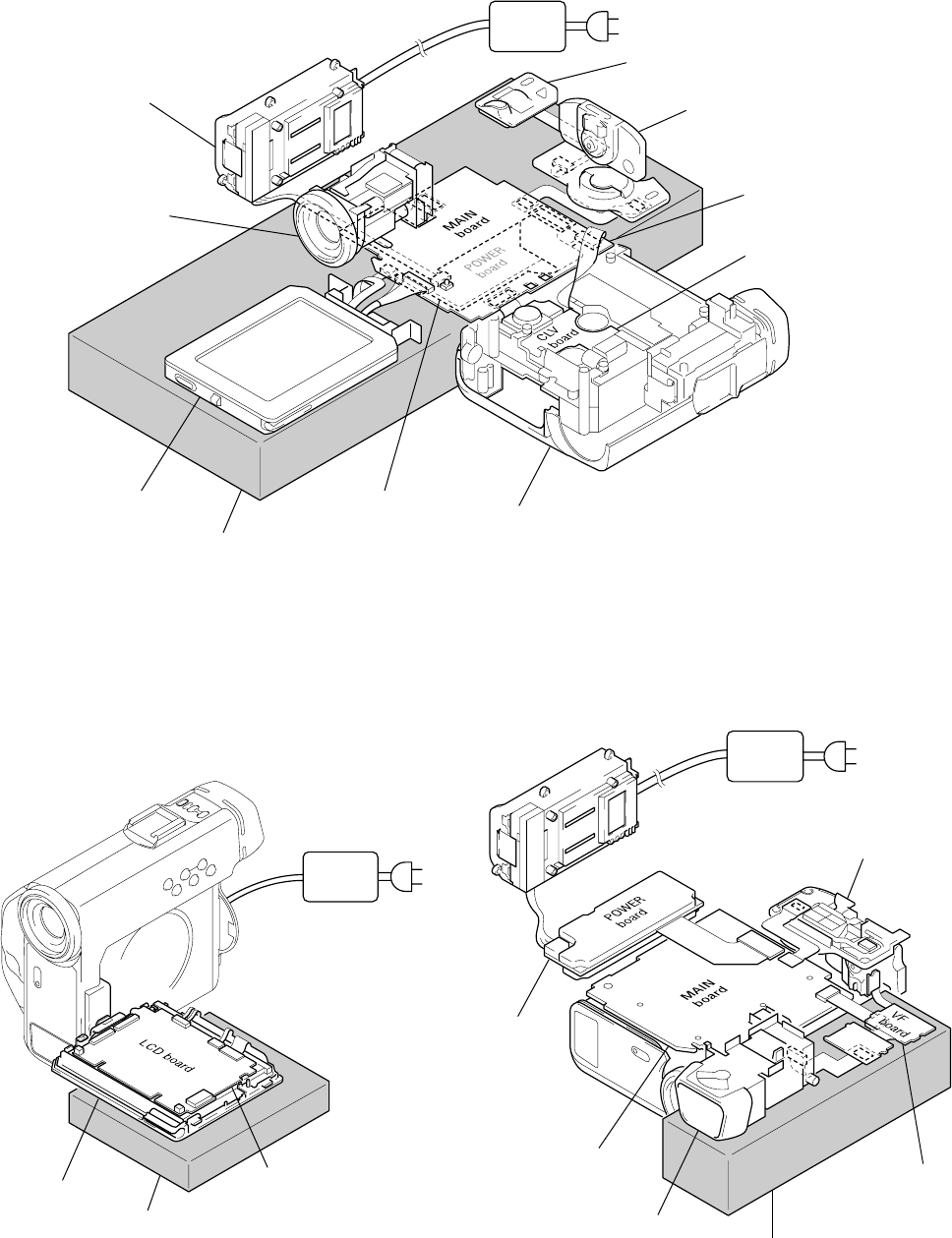

2-27. SERVICE POSITION
Preparation: Refer to previous section “DISASSEMBLY”, and connect as shown in the figure after each part has been removed.
MAIN BOARD, CLV BOARD
LCD BOARD VF BOARD
Battry case assembly
Lens block
AC adaptor
(AC-VQ800)
AC in
Zoom switch unit
Main control switch unit
MAIN board
CLV board
Cabinet (L) block
POWER board
LCD block Note : Put an insulating sheet
between MAIN board and
POWER board.
Stand
LCD block LCD board
AC adaptor
(AC-VQ800)
AC in
Stand
POWER board
MAIN board
EVF block
VF board
AC adaptor
(AC-VQ800)
AC in
Main control switch unit
Stand
2-13
MEMO
2-14
2-28. CIRCUIT BOARDS LOCATION
POWER board
(DC/DC CONVERTER)
BL board
(EVF BACK LIGHT) VF board
(EVF)
MAIN board
AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER,
RF AMP/DRIVE, DIGITAL SIGNAL PROCESSOR,
SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR
2-15
JACK board
(AV IN/OUT)
ETHER board
(ETHER INTERFACE)
LCD board
(LCD)
VC-216 board
LENS MOTOR DRIVE,
CCD IMAGER,
CAMERA SIGNAL PROCESS
REC board
OVER WRITE
HEAD DRIVE
CLV board
(MD MOTOR DRIVE)
2-16
2-29. FLEXIBLE BOARDS LOCATION
Remote terminal unit
Remocon ray-catcher
block unit
Fluorescent tube
1Translation flexible board
Upper control switch unit
3VF/LCD flexible board
4LCD detection sw
flexible board
Touch panel
LCD module (LCD4301)
Zoom switch unit
LCD module (LCD4701)
Lens device
2-17
OP block
Spindle motor
(M5821)
2Translation flexible
(jack) board
5Motor flexible board
VF flexible board
Over write head (HR5901)
10
10
38
15
5
22
5
11
9356
5
26
3
3
4
10
1 Translation flexible board 2 Translation flexible (jack) board 3 VF/LCD flexible board
4 LCD detection sw flexible board 5 Motor flexible board
2-17 E
unit: mm

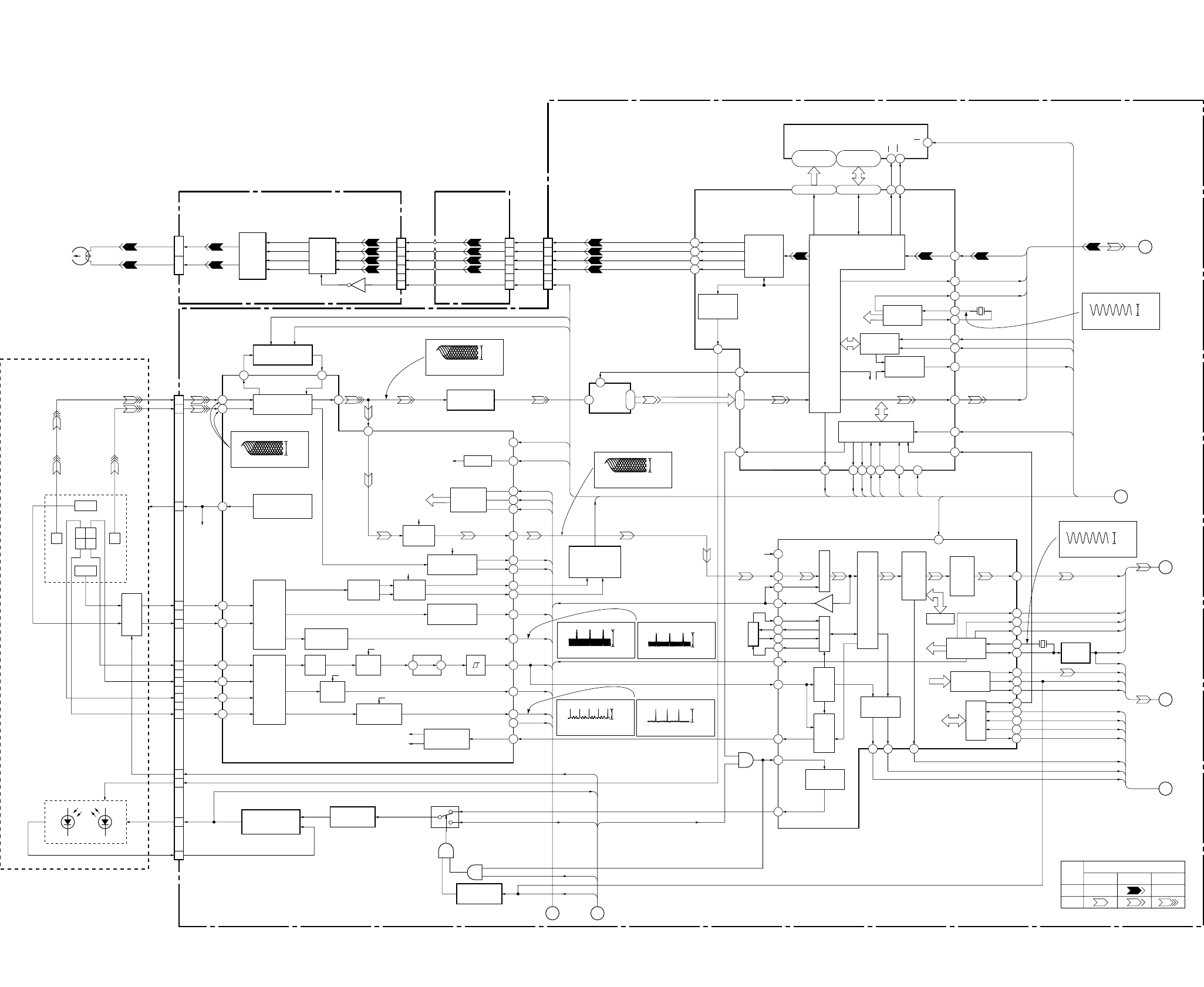

DCM-M1
ZOOM LENS
ZOOM LENS UNIT
IRIS METER
M
M903
ZOOM MOTOR
M902
FOCUS MOTOR
CCD
IMAGER
IC001 CCD OUT
EEP ROM
IC103
ZOOM MOTOR
DRIVE
FOCUS MOTOR
DRIVE
IC202
S/H,AGC,
A/D CONVERTER
IC102 D0-D9 Y0-Y7
C0-C3
MEC0-MEC7
MVP0-MVP7
ENDT0-ENDT7
SYS MVP0-SYS MVP7
MPEG2
ENCODER
IC8601
64M SDRAM
IC8602
16M EDO DRAM
IC8702 IC8703
64M SDRAM
IC8002 IC8003
1M EEPROM
IC8004
64M FLASH
IC8005
RESET
IC8009
MPEG2
VIDEO
PROCESSOR
IC8701
PARALLEL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
SERIAL BUS
CAMERA
Y/C
PROCESS
IRIS/
FOCUS/
ZOOM
CONTROL
IC105
MD2 DIGITAL
SIGNAL
PROCESSOR
IC5403
A/D CONVERTER
IC5102
MD1 DIGITAL
SIGNAL
PROCESSOR
DIGITAL
SERVO
SIGNAL
PROCESSOR
IC5301
MDTI
DDI V IN
RFI
D0-D7
DDO HN-H/L,HP-H/L OUT A/B
RF AMP
FOCUS/TRACKING
ERROR AMP
IC5002
RFO
MNT0
DADT
I,J
RF
HEAD UP/DOWN
MOTOR DRIVE
IC5601
PHASE CONTROL
IC5804 IC5805 IC5806 IC5808
TEMPERATURE
SENSOR
IC5406
C
Y
C
Y
C
Y
C
Y
VIDEO LINE-L
LINE-R
HP-R
HP-L
SP+
LINE OUT L/R
HP OUT L/R
L/R OUT1
L/R IN1
LINE IN L/R
MIC IN L/R
MIC R
MIC L
MIC R
MIC L
LINE R
LINE L
L/R IN2
SDTO
ACDO
ACDO
ACDI
SDTI
ACDI
DIDT
L/R OUT2
HP OUT L/R
C
Y
B-Y
R-Y
Y
B-Y
R-Y
Y
B-Y
R-Y
G
B
R
G
B
R
SHOCK SENSOR AMP
IC5851
LCD DRIVER
IC4501
TIMING GENERATOR
IC4602
EVR
IC4502
Y/C VIDEO
SIGNAL AMP
IC4002
IC4004
HP/LINE
AMP
IC3007
SP AMP
IC3008
AD/DA
CONVERTER
IC3004
ATRAC
IC3009
Y/C VIDEO
SIGNAL AMP
IC4001
IC4003
COMPOSITE
VIDEO AMP
IC4005
LANC
DRIVER
IC8027
MIC AMP
IC3001
SRAM
IC8808
ETHER
INTERFACE
IC8806
DRIVE PULSE GENERATOR
BACK LIGHT
IC4601
SHOCK
SENSOR
DETECT SWITCH
SE5851
DRIVE
CONTROL
IC5404
FOCUS/TRACKING
COIL DRIVE
SLED MOTOR
DRIVE
IC5602
IC5007
HEAD SWITCH
DETECTOR
OPTICAL PICK-UP
BLOCK
HR5901
OVER WRITE HEAD
IC5901
TIMING
GENERATOR
IC101
M
IRIS DRIVE
HALL AMP
HALL BIAS/
GAIN CONTROL
IC201
SENSOR
AMP
REMOTE CONTROL
RECEIVER
FUNCTION KEY
&
JOG
IC002
IC1
REAL TIME
CLOCK
IC8008
SWITCHING
CONTROL SWITCHING
&
REGULATOR
UNREG
BATT SIG
D3.1V
4.95V (DRIVE)
4.95V (VIDEO)
4.95V (ETHER)
4.95V (CAMERA)
12V
13V
–6.5V
–20V
A2.85V
D2.85V
2.3V
IC9001
ZOOM
SENSOR
FOCUS
SENSOR
MF
BLOCK
THERMAL
SENSOR
YAW
SENSOR
SE001
SE201 PITCH
SENSOR
HALL
SENSOR
CAMERA
CONTROL
IC106
REC BOARD
(SEE PAGE 4-79)
CLV BOARD
(1/2)
(SEE PAGE 4-75)
CLV BOARD (2/2)
(SEE PAGE 4-75)
VF BOARD
(SEE PAGE 4-87)
LCD BOARD
(SEE PAGE 4-106)
JACK BOARD (2/2)
(SEE PAGE 4-119)
JACK BOARD (1/2)
(SEE PAGE 4-119)
REMOTE TERMINAL
UNIT
(SEE PAGE 4-119)
MAIN CONTROL SWITCH UNIT (2/2)
(SEE PAGE 4-62)
BL BOARD
(SEE PAGE 4-97)
VC-216 BOARD
(SEE PAGE 4-13, 17)
MAIN BOARD
(SEE PAGE 4-29 to 59)
LCD DRIVER
IC4302
TIMING GENERATOR
IC4303
D/A CONVERTER
IC4301
INVERTER UNIT
IV4301
BACK LIGHT
FOCUS
COIL
LASER
DIODE
SWITCH
TRACKING
COIL
M5801
SLED MOTOR
M
M5811
HEAD UP/DOWN
MOTOR
M5821
SPINDLE MOTOR
M
FG
J3003
AUDIO/VIDEO
J4001
S. VIDEO
J3002
J11
REMOTE
J3001
MIC
PLUG IN POWER
MIC2001
MIC1001
R CH
L CH
ETHER
ADAPTER
BATTERY
TERMINAL
LINE IN
10BASE-T
ETHER BOARD
(SEE PAGE 4-109)
REMOCON RAY-
CATCHER BLOCK UNIT
(SEE PAGE 4-65)
MAIN CONTROL SWITCH UNIT (1/2),
ZOOM SWITCH UNIT
(SEE PAGE 4-62)
UPPER CONTROL SW SUB ASSY,
LCD DETECTION SW,
FLEXIBLE BOARD
(SEE PAGE 4-65)
POWER BOARD
(SEE PAGE 4-130)
SP3001
(SPEAKER)
+
–
MPEG2
RATE
CONTROL
&
SYSTEM
CONTROL
IC8501
LCD
PANEL
LCD
PANEL
TOUCH
PANEL
PARALLEL BUS
AUDIO & VIDEO
DATA CONTROL
IC8101
64M EDO DRAM
IC8102 IC8103
SYSTEM CONTROL
IC8001
NV-RAM
IC5405
1M FAST SDRAM
IC5501
05
3-1 3-2

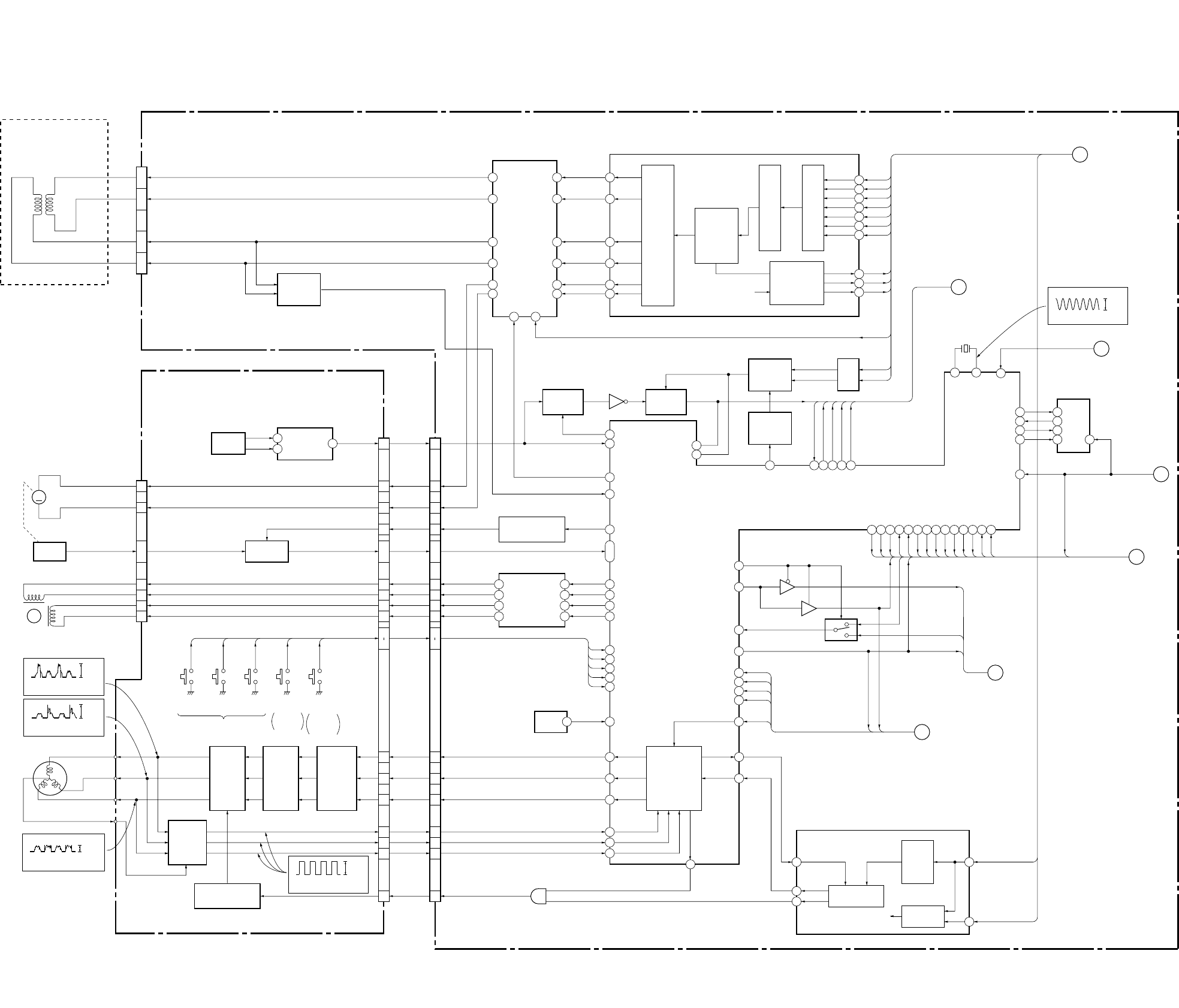

3-1. OVERALL BLOCK DIAGRAM
SECTION 3
BLOCK DIAGRAMS
DCM-M1
TIMING GENERATOR
IC101
XSHD
CLPDM
XSHP
ZSG1
PBLK
AVD
ZV1
VGAT
VCK (CL)
CK
OSCO
OSCI
DSGAT
ID
SSK
AHD
SSO
SSI
SEN
RST
CAM SCK
CAM SI
CAM SO
CS CAM
CAM RST
V1
V2
V3
VSHT
V4
H1
RG
H2
CCD IMAGER
IC001
V3
V1
V2
V4
CCD OUT
RG
H2
SUB
X101
36MHz
S/HAGC
CDS
D0
I
D9
A/D
CONVERTER
TIMING
CDS, AGC, A/D CONVERTER
IC102
PGA CONT 2
PGA CONT 1
AGC THROUGH
STBY
CAM VD
CAM FLD
CLPDM
CAMERA Y/C PROCESS
IC105 (1/2)
30
29
2
I
11
23
22 16 18 4021
AGC CONT 1
AGC CONT 2
PBLK
19
HDO
VDO
FLDO
40
I
37
CO 0
I
CO 3
YO 0
I
YO 7
TGVD
77
TGHD
FRQ
6
OSC ADJ
IC104
ID
PBLK
ZV1
VGAT
ZSG1
TGVD
TGHD
ID
PBLK
ZV1
VGAT
ZSG1
CLPOB
78
89
I
80
AD 0
I
AD 9
BUFFER
Q001
4
3
2
1
10
H1 11
12
13
8
33
26
25
28
31
22
21
18
35 4039
38
37
44
48
42
4
5
7
12
36
41
45
34
2
16
15
1
CLPOB 20
26
27
76
75
72
73
71
74
3
2
CHCK
69
CAMERA
Y/C
PROCESS
53
MCKO 63
VCK 65
52
51
50
I
47
45
I
42
CN101 (1/2)
29
3
7
6
8
I
15
16
I
19
Y0-Y7
C0-C3
CAM HD
CAM VD
SPCKO
CAM DD ON
VC-216 BOARD (1/2)
(SEE PAGE 4-13, 17)
2
A
1
05
TO A/V DATA CONTROL,
VIDEO OUT
(SEE PAGE 3-7)
TO SYSTEM CONTROL
(SEE PAGE 3-15)
TO CAMERA
CONTROL
(SEE PAGE 3-6)
TO CAMERA CONTROL
(SEE PAGE 3-6)
B
CHROMA
REC
Y
VIDEO SIGNAL
SIGNAL PATH
Y/CHROMA
18MHz
13.5MHz
REC/PB
H
7 Vp-p
REC/PB
2.24 Vp-p
H
REC/PB
7 Vp-p
H
36 MHz
REC/PB
1 Vp-p
18 MHz
REC/PB
3.28 Vp-p
16.33 MHz
18 MHz
REC/PB
3.12 Vp-p
REC/PB
3.84 Vp-p
H
REC/PB
3.04 Vp-p
V
REC/PB
2.88 Vp-p
2V
REC/PB
2.96 Vp-p
13.5 MHz
REC/PB
Approx.
3.4 Vp-p
H
REC/PB
3.04 Vp-p
V
REC/PB
2.88 Vp-p
3-3 3-4

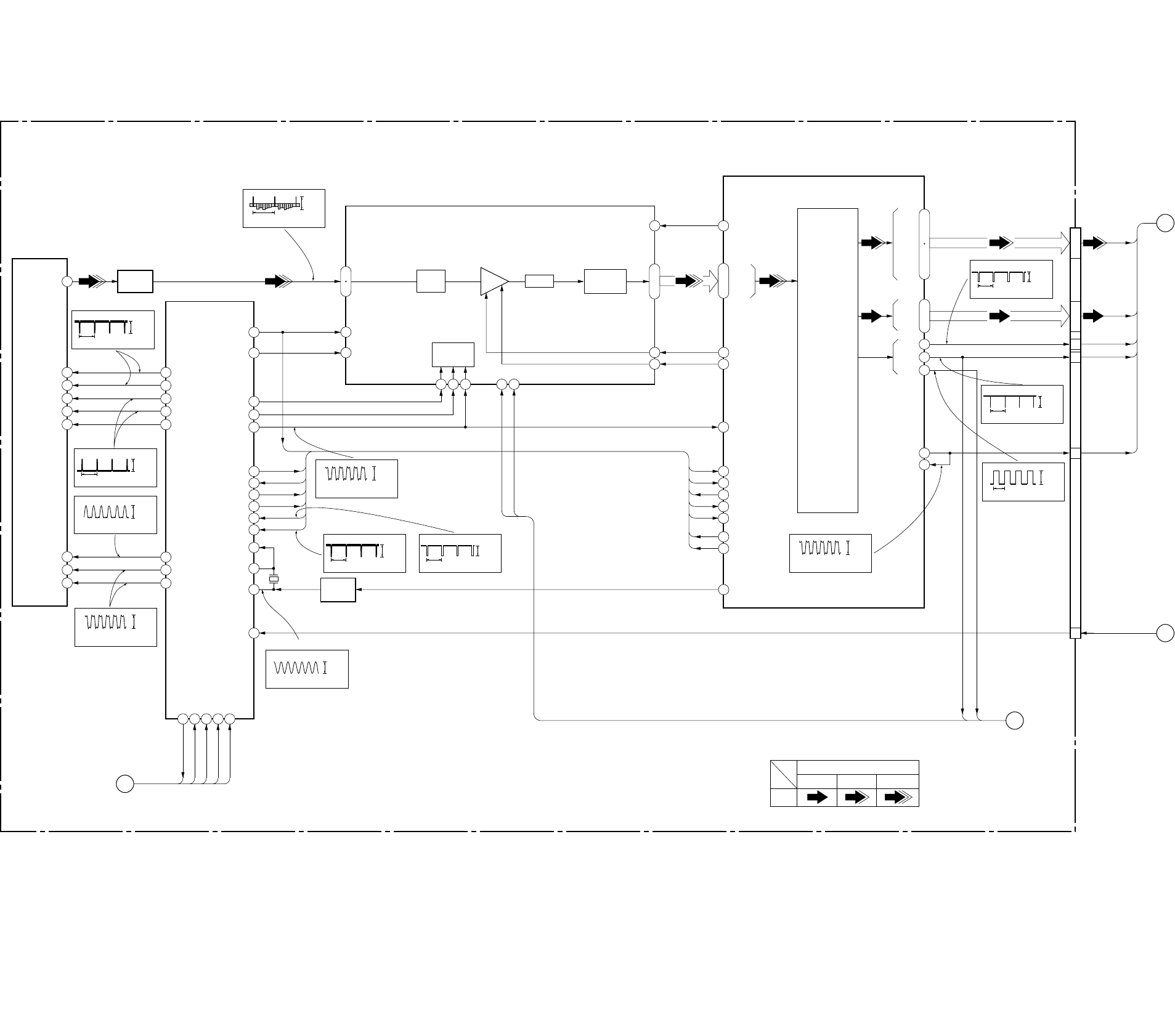

3-2. CAMERA SIGNAL PROCESS BLOCK DIAGRAM
DCM-M1
CAMERA CONTROL
IC106
74
43
72
XTAL
EXTAL
LENS RST LED
C RESET
ZOOM RST SENSOR
YAW AD
PITCH AD
IRIS PWM
LENS THERMAL A/D
HALL AD
FOCUS RST SENSOR
LENS RST LED
ZOOM RST SENSOR
FOCUS RST SENSOR
XRST CAM
ZOOM SW AD
STBY GCAM
VD
FLD
XCS EEPROM SCK
DI
DO
XCS
RSTXWEN EEPROM
X102
20MHz
40
41
3
51
AGC THROUGH
STBY
CN101 (2/2)
CAM VD
CAM FLD
AGC THROUGH
4
56
27
28
1
6
2
3
4BUSYBUSY EEPROM 31 7
EEPROM
IC103
CAM SI
CAM SO
CAM SCK
80
XRST CAM 38
XCS CAM 59
HI SI 60
HI SO 61
HI SCK 62
A3 ZA
A2.85V (CAMERA)
B3 ZA
A4 ZB
IN3
EN3
B4 ZB
IN4
EN4
18
19
8
22
10
20
A1 FA
B1 FA
A2 FB
IN1
EN1
B2 FB
05
12
13
IN2
EN2
14
15
5
26
7
24
ZOOM
MOTOR
DRIVE
IC202 (1/2)
FOCUS
MOTOR
DRIVE
IC202 (2/2)
16
17
ZM A
M903
ZOOM
MOTOR
M902
FOCUS
MOTOR
FC RST
ZM RST
BIAS –
HALL –
HALL +
BIAS +
DRIVE –
IRIS
METER DRIVE +
TEMP OUT
CN201
SENSE VCC
ZM XA
ZM B
ZM XB
FC A
FC XA
FC B
FC XB
M
M
M
FOCUS
SENSOR
ZOOM
SENSOR
–
+
HALL GAIN CONTROL
IC201 (3/4)
HALL GAIN
CONTROL
Q204
SENSOR VCC
SWITCH
Q201
HALL BIAS CONTROL
IC201 (2/4)
IRIS DRIVE
IC201 (1/4)
HALL ANP
IC201 (4/4)
HALL AD
12
13
14
–
+
3
+
–
10
8
–
+
67
SE201
SENSOR AMP
IC002
MF VCC SWITCH
Q203
SE001
YAW
SENSOR
PITCH
SENSOR
4.95V
(CAMERA)
9
LPF
DRIVE
Q202
12
16
19
18
8
42
2
4
2
4
16
7
19
73
85
20
2
CS CAM 98
SOFT V
CAM RST
CAM SI
CAM SO
CAM SCK
CS CAM
11
33
34
35
MF LED
17
MF A
30
22 MF B
ZOOM LENS
UNIT
VC-216 BOARD (2/2)
(SEE PAGE 4-13 to 17)
2
1
16
22
15
24
6
5
23
19
18
17
20
2
3
12
14
4
1
11
13
H
5
Vref 1
LIA 1 OUT 1
CRST
OUT 2
Vref 2
LIA 2
10
9
A2.85V (CAMERA)
MF VCC
THERMAL
SENSOR
8
MF A, MF B
MF
BLOCK
24
23
22
21
20
28
FOCUS/
ZOOM
MOTOR
DIR0A
DIR1A
DIR0B
EN1
SENS 0
SENS 1
DIR1B
EN0
HALL OFFSET
IRIS
13
HALL GAIN
12
HALL REF
11
95
96
99
98
100
IRIS COM
91
93
94
97
XSCK
SO
SI
SYS V
XCLR
SIO
EACH
BLOCK
26
28
27
29
30
XHI SCK
DATA TO HI
DATA FROM HI
XCS CAM
XRST CAM
ZOOM SW AD TO MODE CONTROL
(SEE PAGE 3-24)
TO CAMERA SIGNAL
PROCESS
(SEE PAGE 3-4)
TO CAMERA SIGNAL
PROCESS
(SEE PAGE 3-3)
TO SYSTEM CONTROL
(SEE PAGE 3-15)
C
D
1
2
IRIS,
FOCUS/ZOOM
IC105 (2/2)
20 MHz
REC/PB
1.22 Vp-p
3-5 3-6
3-3. CAMERA CONTROL BLOCK DIAGRAM
DCM-M1
MAIN BOARD (1/7)
(SEE PAGE 4-29, 48, 53, 59)
CN8101 (1/3)
Y0 – Y7
C0 – C3
CAM_VD
CAM_HD
SPCKO 7
3
6
IO0
111
110
112
71 IN
STBY
Y VIDEO SIGNAL AMP
IC4004
Y VIDEO SIGNAL AMP
IC4003
OUT
4
1
IO1 72
IO3 84
EXVD
EXHD
VCLK
191
XABS
XARQ
190
ACDI
192
ACDO
194
RCK4
195
188 ACLK
XABS
XARQ
SYS_ACDI
SYS_ACDO
ACLK
C0/CIM0
AUDIO & VIDEO DATA CONTROL
IC8101
ID/CIN1
ADC8/CIN2
ADC9/CIN3
8
ı
15
16
ı
19
89
•
91
•
101
•
109
92
ı
98
•
100
ADC0/YIN0
ı
ADC7/YIN7
136
–
140
•
142
–
147
•
149
–
153
•
155
–
158
•
160
–
163
•
165
–
169
•
171
–
173
174
–
176
•
178
–
184
•
186
•
187
2
–
5
•
7
–
10
•
41
–
44
•
46
–
49 19
–
24
•
27
–
32
37 38 13 14
2
–
5
•
7
–
10
•
41
–
44
•
46
–
49
37 38 13 14
LCAS
UCAS
WE
RAS
LCAS
UCAS
WE
RAS
19
–
24
•
27
–
32
SA0 – SA11
SA0 – SA11
SD16 – SD31
SD0 – SD15
DATA BUS
ADDRESS BUS
64M
EDO DRAM
IC8102
64M
EDO DRAM
IC8103
TO AUDIO
(SEE PAGE 3-18)
209
DSYNC
DCLK
203 MBCK
128 PLL OUT
212
222
211
123
MCLK
207
DDI
206
DDO
205
RCLK
189
SCLK
196
SCLK_SYS
SO
197
SI
198
MDTI
200
RAS
130
DWE
129
CAS0
135
CAS1
134
CAS2
132
CAS3
131
MLRCK
DSYNC
DCLK
DDI
DDO
SO
TO MD SERVO
(SEE PAGE 3-14)
TO MD SIGNAL
PROCESS
(SEE PAGE 3-12)
TO MD SIGNAL
PROCESS
(SEE PAGE 3-12)
SI
MDTI
MLRCK 202
512FS
1D
MBCK 2
X1CK 3
X1Q

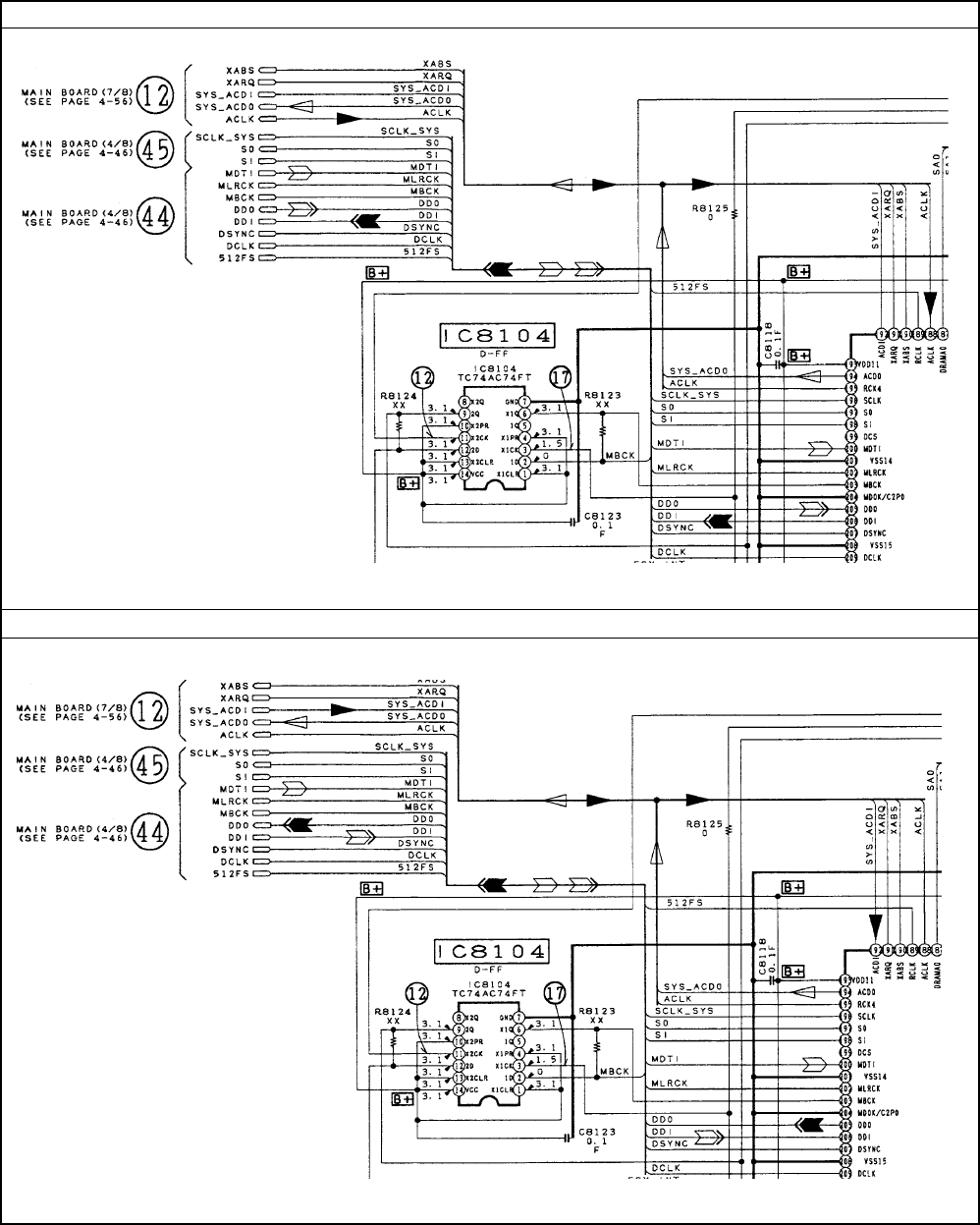

D-FF
IC8104 (1/2)
6
2
BUFFER
Q4002 LPF
FL4002
IN
STBY
OUT
SAG
4
1
2
•
3
IN
STBY
C VIDEO SIGNAL AMP
IC4002 C VIDEO SIGNAL AMP
IC4001
COMPOSITE VIDEO
SIGNAL AMP
IC4005
OUT
4
1
2
BUFFER
Q4001 BPF
FL4001
BUFFER
Q4006
IN
STBY
OUT
4 2
1
VCC
8
Y IN
C IN
4
2
OUT1, 2
BUFFER
Q4005
IO2 83 BUFFER
Q4007
IC4006
IC4006
IC4009
IC4009
17
63
17
63
VHD 66
VVD 67
6
4
CN3002
(1/4)
3
10
12
6
4
CN3003
(1/4)
J4001
3
10
12
12
11
10
3
CN4313
(1/3)
4_JACK_DET
VIDEO OUT
S_C
S_JACK_DET
S_Y
4
SWITCH
Q4002, 4004
6
•
7
25
24
26
CN4511
(1/2)
23
27
PANEL_Y
LINE OUT R
LINE OUT L
PANEL_R-Y
PANEL_B-Y
LCD_XHD
LCD_XVD
EVF_Y
EVF_R-Y
EVF_B-Y
EVF_XHD
EVF_XVD
Y
C
S
G
G
S
S. VIDEO
J3003 (1/2)
AUDIO/VIDEO
JACK BOARD (1/4)
(SEE PAGE 4-119)
2Q
92D
D-FF
IC8104 (2/2)
12
RST
TRST
XCS
220
XINT
219
XWAIT
218
XWE0
217
XWE1
215
XWE2
214
XWE3
213
210
XRD
HANDI
FSY
HANDO
BITI
BITO
HANDO
HANDI
FSY_INT
MCLK_BUFF
SYS_BITI
SYS_BITO
S_JACK_DET
4_JACK_DET
S_OUT_OFF
C_OUT_OFF
32
33
34
36
X2CK
11
1Q
51D
D-FF
IC8020 (1/2)
2
X1CK
3
DRAMD0
ı
DRAMD31
2
–
4
•
224
–
227
•
229
–
233
•
235
–
240
•
242
–
248
•
250
–
256
5
–
8
•
10
–
15
•
17
–
23
•
25
–
29
•
31
DATA0
ı
DATA31
ADDR1
ı
ADDR23
DRAMA0
ı
DRAMA11
A0
ı
A11
DQ1
ı
DQ16
A0
ı
A11
DQ1
ı
DQ16
FSY_INT
TO SYSTEM CONTROL
(SEE PAGE 3-16)
SYSCHIP_INT
DEV_RESET
CPU_CS4_100
SYS_WAIT
DQMLL_WE0
RD
DQMUU_ICIOWR
DQMUL_ICIORD
DQMLU_WE1
54
•
52
ı
46
37
ı
41
•
43
ı
45
MEC0
ı
MEC7
MVP0
ı
MVP7
SYS_MVP0 – SYS_MVP7
MEC0 – MEC7
A0 – A23
D0 – D31
05
A
TO CAMERA SIGNAL
PROCESS
(SEE PAGE 3-4)
3
4
5
6
8
TO MPEG ENCODE
(SEE PAGE 3-9)
7
TO LCD
(SEE PAGE 3-19)
E
TO EVF
(SEE PAGE 3-21)
F
CHROMA Y
VIDEO SIGNAL AUDIO
SIGNAL
Y/CHROMAMD1
REC
PB
MD2
MD SIGNAL
SIGNAL PATH
V
REC/PB
2.88 Vp-p H
REC/PB
3.04 Vp-p
13.5 MHz
REC/PB
Approx.
3.4 Vp-p
3.1 Vp-p
V
REC/PB
H
REC/PB
3.6 Vp-p
H
REC/PB
2.32 Vp-p
H
REC/PB
360 mVp-p
H
REC/PB
1.48 Vp-p
27 MHz
REC/PB
3.52 Vp-p
H
REC/PB
700 mVp-p
H
REC/PB
1.12 Vp-p
3-7 3-8
3-4. A/V DATA CONTROL, VIDEO OUT BLOCK DIAGRAM
DCM-M1
19
20
47
48
49
50
51
52
110
111
104
105
107
53
7
8
88
89
90
23 32
1
2
78
79
58
59
22
71
33
6
64
63
91
40
•
43
RXDO
•
RX_SYS
39
•
40
TXDO
•
TX_SYS
ADA_REST TO AUDIO
(SEE PAGE 3-17)
AT_REST
AT_EXEC
AT_STRO
AT_INSL
AT_MUTE
AT_REC
AT_ATRAC2
AT_LEVEL3
SP_BEEP
HP_BEEP
SP_NMUTE
AMUTE
SP_VDD
PWR_DWN
MIC_ATT
XWIND
MIC_JACK_DET
HP_JACK_DET
W_JACK_DET
ADA_REST
MPEG2 RATE CONTRL
&
SYSTEM CONTROL
IC8501
AT_REST
AT_EXEC
AT_STRO
AT_INSL
AT_MUTE
AT_REC
AT_ATRAC2
AT_LEVEL3
4
80
1
87
98
94
95
97
MEC_RESET
CLK_OUT
XIMB
BS
XCS1
XRD
XWR
XCS2
5
12
9
MVP_RESEM
2D
11 X2CK
2Q
4JACK_DET
S_JACK_DET
C_OUT_OFF
S_OUT_OFF
4JACK_DET
S_JACK_DET
C_OUT_OFF
S_OUT_OFF
SP_BEEP
HP_BEEP
SP_NMUTE
AMUTE
SP_VDD
PWR_DWN
MIC_ATT
XWIND
MIC_JACK_DET
HP_JACK_DET
W_JACK_DET
ETHER_RESET
CN8007
(1/3)
CN4313
(2/3)
ETHER_RESET
DEV_RESET
RATE_RTS
RATE_TX
RATE_RX
RATE_CTS
XRESET
RATE_RTS
RATE_CTS
X1
X2
X8501
6.6MHz
9
TO SYSTEM CONTROL
(SEE PAGE 3-15)
12
TO MODE CONTROL
(SEE PAGE 3-24)
10
TO MD SERVO
(SEE PAGE 3-14)
11
G
V_REC_LED V_REC_LED
A_REC_LED A_REC_LED
RIGHT RIGHT TO LCD
(SEE PAGE 3-19)
TO ETHER
INTERFACE
(SEE PAGE 3-25)
H
DOWN
DRV_RESET DRV_RESET
DOWN
173
59 58 57 84
17 18 19 68
62
170
164
168
166
167
XRST
A0 – A5
MB DATA
PROCESSOR
MOTION
ESTIMATION
ADAPTIVE PREFILTER
CHROMA POSTFILTER
DRAM INTERFACE
ENCODE SEQUENCE
CONTROL
HOST INTERFACE
VIDEO
INTERFACE
MB DATA
INTERFACE
D0-D15
XWE
CAS
RAS
SCLK
64M SDRAM
IC8602
MPEG2 ENCODER
IC8601
MPEG2 VIDEO PROCESSOR
IC8701
VE0 – VE7
VDD0 – VDD7
FSY
VDI0 – VDI7
ENDT0 – ENDT7
CLK
FSY_INT
MCLK_BUFF
WE
CAS
PAS
CLK
2
•
4
•
5
•
7
•
8
•
10
•
11
•
13
•
31
•
33
•
34
•
36
•
37
•
39
•
40
•
42
•
45
•
47
•
48
•
50
•
51
•
53
•
54
•
56
•
74
•
76
•
77
•
79
•
80
•
82
•
83
•
85
1
–
4
•
6
–
8
•
10
•
11
•
13
–
16
•
18
•
19
•
21
–
28
•
30
–
32
•
44
–
38
•
40
41
–
43
•
45
–
48
•
50
–
55
22
–
27
•
60
–
66
850D0 – 850D15 850D0 – 850D15
850A1 – 850A6
DRE0 – DRE31
DR0 – DR31
BA0, BA1,
ADE0 – ADE9
BA0, BA1,
AD0 – AD9
850A0 – 850A6
PLLI(FN)
XIMB
BS
XCS
XRD
XWR
106
103
101
102
127
l
134
•
136
l
143
137
•
138
•
140
–
143
•
145
–
148
•
150
–
153
•
155
•
156
157
•
158
•
160
l
163
119
l
125
D0
l
D15
A0
l
A6
HOST INTERFACE
MB DATA
INTERFACE
POSTFILTER
VIDEO
INTERFACE
DRAM INTERFACE
16M EDO DRAM
IC8702
16M EDO DRAM
IC8703
D-FF
IC8020(2/2)
VARIABLE LENGTH
CODING
ENCODER
BIT STREAM MANAGER
ENDT0 – ENDT7
FSY
CLK
SYS_BITI
05
SYS_BITO
HANDO
HANDI
VOUT0 – VOUT7
LOCAL
DECODER VARIABLE LENGTH
DECODING
DQ0
l
DQ31
A0
l
A12
103
•
104
•
106
l
111
94
l
99
•
101
l
102
113
l
120
128
l
135
122
175
MEC0 – MEC7
SYS_MVP0 – SYS_MVP7
TO A/V DATA CONTROL,
VIDEO OUT
(SEE PAGE 3-8)
7
92
63 61 62
106
112
107 108
1
110
17 18
91
90
111
•
118
84
l
89
75
l
82
RST
TRST
XWR
XRD
XCS
A0 – A5
D0 – D7
12
–
14
•
16
–
19
•
21
–
24
•
26
–
36
•
38
–
43
•
45
–
48
2
–
5
•
7
–
10
•
41
–
44
•
46
–
49
21
–
24
•
27
–
32
49
•
50
•
52
–
57
•
59
•
60
RD0 – RD31
RA0 – RA9
XWE
BITO
BITI
HANDO
HANDI
RAS
CAS
VD0 – VD31
MVP0 – MVP7
ENDT0 – ENDT7
VA0 – VA9
VD0 – VD15
VA0 – VA9
VD16 – VD31
VA0 – VA9
WRITE
RAS
34
•
35
I/O1
l
I/O16
A0
l
A9
UCAS
•
LCAS
17 18
WRITE
RAS
34
•
35
UCAS
•
LCAS
850D0 – 850D7
850A0 – 850A5
DATA BUS
ADDRESS BUS
2
l
9
•
11
65
l
68
•
70
l
73
MAIN BOARD (2/7)
(SEE PAGE 4-33, 59)
2
–
5
•
7
–
10
•
41
–
44
•
46
–
49
21
–
24
•
27
–
32
I/O1
l
I/O16
A0
l
A9
6.6 MHz
REC/PB
1.12 Vp-p
27 MHz
REC/PB
3.52 Vp-p
3-9 3-10
3-5. MPEG ENCODE BLOCK DIAGRAM
DCM-M1
MONITOR
CONTROL
CLOCK
GENERATOR
MAGNETIC
HEAD
DRIVE
SIGNAL
GENERATOR
CPU
INTERFACE
MNT0
OSCI X5403 70.54MHz
OSCO
MNT2
SQSY
XINT
DQSY
SRDT
SWDT
SCLK
XLAT
SENS
APCREF
RECP
IC5303
FOCNT
ADFG
FS4FS4
FILO
CLTV
PCO
FILI
ASYOASYO
ASYI
RFI
VCVC
A_B
SI
SCLK SV
XLAT SV
SENS
MNT1
LRCK
DADT
XRST
FS256
XBCK
MDTI
512FS
MLRCK
MBCK
LRCK
DADT
256FS
XBCK
XINT
DQSY
SQSY
6
17
16
15
5
BUFFER
IC5302
24
10
67
55
52
51
59
58
61
60
78
13
83
25
26
27
1
2
16
17
3
8
5
6
7
9
1211
ATRAC
ENCODER/
DECODER
HEAD
SWITCH
IC5901
OVER
WRITE
HEAD
DRIVE
Q5902,
5903
LASER
CLOCK
GENERATOR
A/D
CONVERTER
IC5102
SHOEH PROOF
MEMORY
CONTROLLER
DRAM
PLL
FILTER
COMPARATOR
14
SUBCODE
PROCESSOR
PWM
GENERATOR
SPINDLE
SERVO
ADIP
DECODER
90
79
EFM/ACIRIC
ENCODER/DECODER
MON5(HP-L)
CLK
LSRCK
MHEN
ADCCK
RECP
MON4(HP-H)
MON3(HN-L)
MON2(HN-H)
HP-L
MHEN
RFGAIN UP
RFGAIN DOWN
HP-H
HN-L
HN-H
CN5002
(1/2)
CN5803
(1/2)
CN5902
CN5901
5
6
7
8
37
12
VIN
21
89
41
HP-L
MHEN
Q5901
HP-H
HN-L
HN-H
OUT B
HR5901
OVER WRITE HEAD
OUT A 2, 3
6, 7
4, 5
8, 9
17, 18
13, 14
15, 16
11, 12
1
l
8
ADRF0
l
ADRF7
RAMADR0
l
RAMADR16
RAMDAT0
l
RAMDAT17
87
l
80
D0
l
D7
43
44
31
29
28
40
39
19
42
36
96
1817 32 33 34 35
CLOCK
GENERATOR
SYNC
GENERATOR
SYNC
SELECTOR
SERIAL COMMAND
INTERFACE
MD1 DIGITAL SIGNAL PROCESSOR
IC5301(1/2)
MD2 DIGITAL SIGNAL PROCESSOR
IC5403(1/2)
1M FAST SRAM
IC5501
XBISY
XOE
XWE
A0
l
A16
I/O1
l
I/O8
OE
WE
DIN
REFCK
DSYNC
DDO
DCLK
X5301 22.5792MHz
OSCI
OSCO
EDEN
EDIEN
XSCSY
EDEN
EDIEN
XSCSY
TO/FROM
ADIP D OUT DDI
MD1X2 MD1X2
SRDTEX
XCLR
IOBUSY
XEMG
SRDT
SWDT
SCLK
XLAT
DRV
RESET
XLAT
DDX
DRV RESET
MAIN DATA SIGNAL
PROCESSING
56
–
62
•
64
–
73
1
–
4
•
13
–
21
•
29
–
32
6
•
7
•
10
•
11
•
22
•
23
•
26
•
27
46
–
50
•
53
–
55 74 75
28 12
5
CS SRAM CS
43
44
45
46
50
43
44
45
46
50
1
2
3
4
5
CLV BOARD(1/2)
(SEE PAGE 4-75)
MAIN BOARD (3/7)
(SEE PAGE 4-39, 43)
REC BOARD
(SEE PAGE 4-79)
1
•
2
4
•
5
19
40
461
48 47
2
8
9
4
5
6
7
27
16
17
18
38
37
36
42
41
28
26
32
35
34
33
20
XSTBY
PIG
PIG
RFO
MOFRO
CN5001
I
24
25
3VCVC
VC
J
I
J
MOFRI
AGCI
RF AMP
FOCUS/TRACKING
ERROR AMP
IC5002
SWDT
COMMAND
SCLK
XLAT
DTRF
CKRF
XLRF
RF
EQ
PEAK
BOTM
EFWBL
GHWBL
SE
TE
ADFG
ABCD
FE
TEMP AUX1
FOCNT
DPP
AD7
WRITE PWM I GAIN
XKSHOCK
J GAIN
WBL
EQ
MODE
SERIAL
COMAND
DECODER
A/B TRACK
DETECT
IC5201, 5205(2/2)
Q5201, 5202
CENTER VOLTAGE
GENERATOR
(FOR BIAS)
AUTOMATIC
POWER CONTROL
IC5005, Q5002
RF AGC
& EQ
RF AMP
GAIN CONTROL AMP
IC5003, Q5005
L. P. F.
FL5101, Q5101
WBL
WBL
ADFM ADIN
B.P.F.
WBL
AMP
AMP
WBL
PEAK & BOTTOM
HOLD
SLED ERROR
AMP
TRACKING
ERROR AMP
ADDER/
SUBTRACTER
AT
AMP B.P.F
I-V
AMP
PIG
EF(XE)
HG(XF)
E&F
G&H
A
B
C
D
A
B
C
D
ABCD
AMP PIG
IC5007
IC5008
17
6
5
3
56 2
1
7
FOCUS ERROR
AMP
BUFFER
IC5006(1/2)
COMPARATOR
IC5205(1/2)
V-I
CONVERTER
29 30
30
DETECTOR
28
21
27
23
22
26
31
SEL
XLDON
VLPC
PD-A
05
16
13
LASER
DIODE
11
13 14
G&H
E&F
IC
D
B
AJ
LD
PD
OPTICAL PICK-UP BLOCK (1/2)
4
1
2
MD1
REC
PB
MD2
MD SIGNAL
SIGNAL PATH
MD1/MD2
100
19
TO A/V DATA CONTROL,
VIDEO OUT
(SE PAGE 3-7)
TO MD SERVO
(SE PAGE 3-14)
TO MD SERVO
(SE PAGE 3-14)
TO MD SERVO
(SE PAGE 3-14)
TO AUDIO
(SE PAGE 3-17)
TO A/V DATA
CONTROL,
VIDEO OUT
(SE PAGE 3-7)
TO MD SERVO
(SE PAGE 3-14)
200 ns
PB (MD1)
Approx.
324 mVp-p
100 ns
PB (MD2)
Approx.
360 mVp-p
200 ns
PB (MD1)
Approx.
712 mVp-p
PB (MD2)
100 ns
Approx.
280 mVp-p
200 ns
PB (MD1)
Approx.
200 mVp-p
22.5792 MHz
REC/PB
980 mVp-p
70.54 MHz
REC/PB
320 mVp-p
PB
Approx.
1.54 Vp-p
: MD1
Approx.
1.86 Vp-p
: MD2
PB
200 ns: MD1
100 ns: MD2
200 ns: MD1
100 ns: MD2
Approx.
1.22 Vp-p
: MD1
Approx.
880 mVp-p
: MD2
3-11 3-12
3-6. MD SIGNAL PROCESS BLOCK DIAGRAM
DCM-M1
1
•
2
5
•
6
3
•
4
7
•
8
616
FO1 FFDR PEAK
TO MD SIGNAL PROCESS
(SEE PAGE 3-11)
TO MD SIGNAL PROCESS
(SEE PAGE 3-11)
TO MD SIGNAL PROCESS
(SEE PAGE 3-12)
TO A/V DATA CONTROL,
VIDEO OUT
(SEE PAGE 3-7)
TO MD SIGNAL PROCESS
(SEE PAGE 3-12)
TO SYSTEM CONTROL
(SEE PAGE 3-15)
TO MPEG ENCODE
(SEE PAGE 3-10)
BOTM
ABCD
FE
AUX1
SE
TE
XLRF
FROM CPU
INTERFACE
CKRF
DTRF
FS4
FE
X5401
16.9344MHz
NV-RAM
IC5405
TE
XKSHOCK
FRDR
TFDR
TRDR
SFDR
SRDR
FOCUS/TRACKING COIL DRIVE,
SLED MOTOR DRIVE
IC5602
DIGITAL SERVO SIGNAL PROCESSOR
IC5301 (2/2)
2-AXIS DEVICE FCS+
CN5001
FCS–
TRK+
TRK–
(FOCUS)
(TRACKING)
FI1
815
RO1 RI1
31 21
FO3 FI3
29 22
RO3 RI3
13 17
FO2 FI2
11 18
88
65
66
73
74
80
81
82
64
63
62
89
86
85
92
91
3 2
RO2
XPS CLK
RI2
TRACKING
MONITOR
IC5006 (2/2)
DIGITAL
SERVO
SIGNAL
PROCESS
PWM GENERATOR
A/D CONVERTER
ANALOG MUX
AUTO
SEQUENCER
L.P.F.
IC5011,
5012
ERROR LEVEL
DETECT
IC5004
DETECT LEVEL
CONTROL
IC5009,5010
PWM (P67)
A/D
DPP
WRITE PWM
I gain0
J gain0
AD7
DPP
WRITE PWM
I GAIN
J GAIN
TELEVEL
INTRRUPT
IC5013
KSHOCK
ENABLE
IC5014
68
38
712 39 57 59
XOUT
19
XIN
20
86
85
61
6
41
53
54
55
56
95
96
97
98
45
432
33
27
99
70
65
64
63
67
18 26 28 48 49 66 71 81 82 83 87 93
9
72
73
74
75
1713
46
40
94
94
98
97
47
42
43
44
88
31
38
21
23
20
27
28
29
1
3
5
2
4
6
14
30
16
•
18
36
•
37
31
35
38
5
6
3
1
4
2
21
23
20
27
4
162
7
5
1
6
7
53
1
2
28
29
1
3
5
2
4
6
14
30
16
•
18
7
•
9
31
35
SHOCK
SENSOR
SE5851
SHOCK SENSOR AMP
IC5851
HEAD UP/DOWN MOTOR DRIVE
IC5601 SYS_SEL
MHEN
PIG
XSTBY
SI
SCLK SV
XSCSY
IOBUSY
SWDT
SCLK_SYS
SRDT
SCLK
RFGAIN_UP
RFGAIN_DOWN
MD1X2
XLAT_DDX
SRAM_CS
SO
SI
EDEN
EDIEN
XEMG
A_B
NV_DI
NV_DO
NV_CLK
NV_CS
RESET
30
SYS_CS
DI
DO
SK
DRV RESET
DRV REQ
DRV RESET
CS PI
SCLK
SRDT
SWDT
XLAT SV
SENS
XINT
DQSY
CLV_W_MON
CLV_V_MON
CLV_U_MON
CLV_W_CON
CLV_V_CON
CLV_U_CON
TEMP MON
INITIAL
MD1_MD2
REFLECT
PROTECT
INLMIT
ST2B
ST2A
ST1B
ST1A
SLED2_MON
SLED1_MON
MR_ADJ
SE2_MON
PS_36
SHOCK
KSHOCK EN
XKSHOCK
TELEVEL INT
SQSY
CLV_VCON
SPRD
CLV_BRAKE_EN
S5801
PROTECT
XB (2B)
B (2A)
U
V
W
05
COM
XA (1B)
A (1A)
VO1, VO2
SLED–
SLED+
CN5801
M5801
SLED MOTOR
M5811
HEAD UP/DOWN
MOTOR
M5821
SPINDLE MOTOR
PROTECT
REFLECT
MD 1_2
INITIAL
INLMIT
SIA
SIB OUT
14
2
M
M
FG SLED MONITOR
IC5802, 5807
REFERENCE VOLTAGE
GENERATOR
IC5401
SPINDLE VOLTAGE
CONTROL
Q5801-5803
OUT 1A IN 1A
OUT 1B IN 1B
OUT 2A IN 2A
OUT 2B IN 2B
2
3
16
15
7
10
5
12
S5802
REFLECT
(DISK TYPE JUDGMENT)
S5803
MD 1/2
S5804
INITIAL
S5805
IN LIMIT
HEAD
UP/DOWN
OPTICAL
PICK-UP
POSITION
100
OUT
TEMPERATURE
SENSOR
IC5406
DIGITAL SERVO SIGNAL PROCESSOR
IC5403 (2/2)
READ DATA SELECT
IC5408
SCLK SELECT
IC5407
IC5015
SHOCK
CN5803
(2/2)
CN5002
(2/2)
SLED0_MON
SLED1_MON
SD+
SD–
MR_REF
1A
1B
2A
2B
CLV_U_CON
CLV_V_CON
CLV_W_CON
CLV_VCONT
CLV_U_MON
CLV_V_MON
CLV_W_MON
4
SPINDLE
MOTOR
DRIVE
Q5821-5826
PHASE
CONTROL
IC5804-5806,
5808
SPINDLE
MOTOR
PRE-DRIVE
Q5808-5813
SPINDLE
MONITOR
IC5801, 5803
SPINDLE
CONTROL
SPINDLE DRIVE
SIGNAL SLECTOR
IC5402
90
92
INTERVAL
COUNTER
TO SERIAL COMMAND
INTERFACE
ADIP
DECODER
&
SPINDLE
SERVO
ADFGADIPFM
SPFDEX
SPRD
SPRD
ASYORFEX
3
4
2
1 7
CLV BOARD (2/2)
(SEE PAGE 4-68)
DRIVE CONTROL
IC5404
MAIN BOARD (4/7)
(SEE PAGE 4-39, 43)
OPTICAL PIC-UP BLOCK
(2/2)
13
14
11
19
15
4
17
Approx.23.6 ms: MD1
Approx.14.8 ms: MD2
REC/PB
Approx.
1 Vp-p
: MD1
Approx.
1.32 Vp-p
: MD2
Approx.
1.38 Vp-p
: MD1
Approx.
1.68 Vp-p
: MD2
Approx.23.6 ms: MD1
Approx.14.8 ms: MD2
REC/PB
Approx.
560 mVp-p
: MD1
Approx.
780 mVp-p
: MD2
Approx.23.6 ms: MD1
Approx.14.8 ms: MD2
REC/PB
Approx.12 ms: MD1
Approx.7.5 ms: MD2
REC/PB
3 Vp-p
16.934 MHz
REC/PB
1.58 Vp-p
3-13 3-14
3-7. MD SERVO BLOCK DIAGRAM
DCM-M1
MAIN BOARD (5/7)
(SEE PAGE 4-48, 59)
CLE
UDQM
X8001
32kHz
RFAL TIME CLOCK
IC8008
SYSTEM CONTROL
IC8001
CLOCK_EN
OSC OUT
OSC IN
DQMUU_ICIOWR
RD/WT
DQMUL_ICIORD
3
2
4
7
8
9
92
93
2
ALE
3
43
41
15
UDQM
39
/WE
16
/CE
19
/CAS
17
/RAS
18
CKE
37
CLK
38
VOUT 3
VCC 4
91
CN8101
(2/3)
21
20
24
22
29
23
DATA_TO_HI
XHI_SCK
DATA_FROM_HI
CAM_XCS
CAM_RST
CAM_DD_ON
LCD_SI
LCD_SCK
LCD_SO
LCD_EN_SWED
IC8007
IC8025
IC8006
TO CAMERA CONTROL
(SEE PAGE 3-6)
TO AUDIO
(SEE PAGE 3-17)
167 CAM ENABLE
186 CAM PWR
184 CAM RESET
171
182
LCD_EN 103
EVF_EN 107
165
164
189
SO
SCLK
SI
CE
190
CAM_SI
CAM_SCK
CAM_SO
ATRAC2_EN
ADA_EN
CAM_SI
CAM_SCK
CAM_SO
ATRAC2_EN
ADA_EN
DRV_REQ 169 DRV_REQ
155 XTAL
156 EXTAL
XTAL2
EXTAL2
168
170
174
176
RATE_TX
RATE_RTS
RATE_RX
RATE_CTS
DEV_RESET
RATE_TX
RATE_RTS
RATE_RX
RATE_CTS
177 DEV_RESET
193 XRESET
185 DRV_PWR
X8002
32KHz
4
5
X8003
9.8304MHz
SWITCH
Q8005
SWITCH
Q8013
SWITCH
Q8014
RESET
IC8009
IC8010
SH_3.1V
IC8023
6
4
2
2
4
1
1
2
IC8013
05
CN4312
(1/2)
3
14
2
1
TO LCD
(SEE PAGE 3-19)
IC4007
2
6
1
IC4008
26
1
IC4008
53
7
IC4007
53
7
EVF_SI
EVF_SCK
EVF_SO
EVF_EN_SWED
CN4511
(2/2)
CN4313 (3/3)
9
10
8
7
IC4010
2
6
1
IC4011
26
1
IC4011
53
7
IC4010
53
7
ETHER_PWR
SBHE_CE2B
CN8007
(2/3)
36
27
ETHER_INT
33
CS6_ETHER
ETHER_WAIT
SYS_WAIT
SYSCHIP_INT
FSY_INT
CPU_CS4_100
DEV_RESET
A0 – A3
D0 – D15
DQMUL_ICIORD
DQMUU_ICIOWR
RD & WT
DQMUL_ICIORD
DQMUU_ICIOWR
DQMLL_WE0
DQMLU_WE1
RD
26
DQMLU_WE1
CS3_SDRAM
DQMLL_WE0
90
99
98
96
89
ETHER_PWR 94
ETHER_INT 138
SBHE_CE2B 104
CS6_ETHER 102
13
–
18
•
20
•
22
–
26
•
28
•
30
–
32
•
34
•
36
–
44
•
46
•
48
–
52
53
–
56
•
58
•
60
–
68
•
70
•
72
–
78
•
80
•
82
20
–
26
•
29
–
35
2
•
4
•
5
•
7
•
8
•
10
•
11
•
13
•
42
•
44
•
45
•
47
•
48
•
50
•
51
•
53
A0
ı
A13
DQ0
ı
DQ15
UDQM
15
UDQM
39
/WE
16
/CE
19
/CAS
17
/RAS
18
CKE
37
CLK
38
20
–
26
•
29
–
35
2
•
4
•
5
•
7
•
8
•
10
•
11
•
13
•
42
•
44
•
45
•
47
•
48
•
50
•
51
•
53
A0
ı
A13
DQ0
ı
DQ15
CAS 108
RAS3L 106
CKE 105
KIO 162
123
137
139
100
WAIT
CS2_FLASH
88
RD
SYSCHIP_INT
FSY_INT
CS4_SYSCHIP
110
CLE
112
ALE
113
CE
191
RDY_BUSY
CSO_ROM
2
14
2
1
4
1
24
28
29
34
31
A2 – A13,
A22, A23
A2 – A13,
A22, A23
D16 – D31
D0 – D15
64M SDRAM
IC8002 64M SDRAM
IC8003
64M FLASH
IC8005
DATA BUS
ADDRESS BUS
DATA BUS
ADDRESS BUS
D0–D15
A0 – A3
D0 – D31D0 – D7
A0 – A23
D0 – D7
A0 – A16
1
ı
4
•
6
ı
9
•
11
ı
13
•
15
ı
19
21
ı
24
42
4
5
18
ı
21
•
24
ı
27
I/O-0
ı
I/O-7
RE
WE
WP
CE
R/B
30
32
9
1M EEPROM
IC8004
21
ı
23
•
25
ı
29
I/O-0
ı
I/O-7
A0
ı
A6
A0
ı
A23
D0
ı
D31
OE
5WE
CE
RDY/BAO
6RES
SWITCH
Q8012
1
ı
4
•
7
•
10
ı
20
•
31
C
TO CAMERA SIGNAL PROCESS
(SEE PAGE 3-4)
B
18
TO MD SERVO
(SEE PAGE 3-14)
19
TO MPEG ENCODE
(SEE PAGE 3-10)
12
I
TO EVF
(SEE PAGE 3-21)
J
TO ETHER INTERFACE
(SEE PAGE 3-25)
K
TO A/V DATA CONTROL,
VIDEO OUT
(SEE PAGE 3-8)
8
32.768 kHz
REC/PB
408 mVp-p
9.8304 MHz
REC/PB
1.1 Vp-p
qg
32.768 kHz
REC/PB
1.5 Vp-p
qh
3-15 3-16
3-8. SYSTEM CONTROL BLOCK DIAGRAM
DCM-M1
MAIN BOARD (6/7)
(SEE PAGE 4-48, 56) JACK BOARD (3/4)
(SEE PAGE 4-119 )
MAIN CONTROL
SWITCH UNIT
(1/2)
(SEE PAGE 4-62)
ETHER BOARD
(1/2)
(SEE PAGE 4-109)
JACK BOARD (2/4)
(SEE PAGE 4-119)
ETHER ADAPTER
(1/2)
1
CN8802
(1/2)
3
53
CN8801
(1/2)
55
53
CN8007 (3/3)
55
19 59 59
LINE_R
W_JACK_DET W_JACK_DET
LINE_L
LINEIN_R
LINEIN_L
21
CN3003 (2/4) CN3002 (2/4)
30
26
MICIN_R
MICIN_L
EXT
INT
EXT
INT 2
31
6
57
21
30
26
MIC_JACK_DET
MIC2001
MIC1001
R CH
L CH
CN3001
XWIND
29
2
18
19
17
13
14
44
43
41
40
36
31
38
37
+
–+
–
+
–
+
–
+
–
+
–+
–
HPF
HPF
FILTER
BIAS
FILTER
24
23
11
12
8
6
21
20
10
9
1
4
2
3
ON
OFF
OFF
ON
RIN3
LIN3
RIN2 ADCR
ADCL
LIN2
PGAR
PGAL
IC3002
RIN1
LIN1
XRST
PD
35
32
OPGAL
26
OPGAR
23
L
OUT1
R
OUT1
LOUT2 29
ROUT2 28 INR
15 OUTR 8
VCOM
OUTL
LOUTR
NF1
4
NF2
LOUTL
INL
16
LINR
LINL
47
XCS
CCLK
CDTO
CDTI
MCLK
SDTI
12 13 14 15 1
BCLK
3
LCLK
2
SDTO
46
25
24
AD
CONVERTER
DA
CONVERTER
CONTROL
REGISTER
I/F
CLOCK
DIVIDER
6
18
13
9
11
17
14
VREF
MUTE
SD BIAS
BEEP
MUTE BEEP
23 21
2
7
INVERTER
Q3002
SP SWITCH
IC3003
MIC AMP
IC3001
SP AMP
IC3008
3
5 6
3
1
45
1
AD/DA CONVERTER
IC3004
HP/LINE AMP
IC3007
15
17
CN3002 (3/4)
11
20
16
19
15
17
CN3003 (3/4)
11
20
16
19
HP_COM
HP_R
VIDEO OUT
4 JACK DET
HP_L
LINEOUT-L
LINEOUT-R
SP_IN
SP+
CN8001
(1/2) CN8301 (1/2)
SP–
18
•
20
17
•
19
SP3001
(SPEAKER)
17
•
19
18
•
20
ACLK
SHOCK
PROOF
I/F
MICRO
COMPUTER
I/F
AUDIO I/F
IC3005
2
4
ACDI
XABS
ACDO
XARQ
ACLK
SYS_ACDO
XABS
SYS_ACDI
XARQ
32
31
29
28
25
SCLK
XRST
EXTAL
SWDT
XLAT
LEXC
STRO
MTE
REC
ATRAC2
LEVEL3
CAM_SCK
AT_RESET
512FS
TO MPEG ENCODE
(SEE PAGE 3-10)
CAM_SO
ATRAC2_EN
AT_EXEC
AT_STRO
AT_MUTE
AT_REC
AT_ATRAC2
AT_LEVEL3
20
23
24
39
40
46
47
49
50
15
19
DSP CORE DATA
RAM & ROM
PROGRAM
ROM
CLOCK
GENERATOR
RESET
CIRCUITR
33
35
45 36 38 34
5 4
AMUTE
HP_BEEP
HP_JACK_DET
SP_NMUTE
XBCK
AT_INSL
LRCK
JNSL
DIDT
DODT
BCK
LRCK
AIDT
CAM_SO
CAM_SI
CAM_SCK
ADA_EN
256FS
MIC_JACK_DET
W_JACK_DET
MIC_ATT
ADA_RESET
PWR_DWN
DADT
SP_BEEP
SP_VDD
05
ATRAC
IC3009
J3003 (2/2)
AUDIO/VIDEO
LINE IN
J3001
MIC
PLUG IN POWER
25
AUDIO
I/F
CONTROL
ATT
SWITCH
Q3001
9
TO MD SIGNAL PROCESS
(SEE PAGE 3-12) 16
TO SYSTEM CONTROL
(SEE PAGE 3-15) 18
TO A/V DATA CONTROL,
VIDEO OUT
(SEE PAGE 3-7)
3
AUDIO
SIGNAL
MD1
REC
PB
MD SIGNAL
SIGNAL PATH
J3002
30
11.2896 MHz 44.1 kHz
2..8224 MHz
REC/PB
3.84 Vp-p
REC/PB
4.24 Vp-p
REC/PB
4.32 Vp-p
3-17 3-18
3-9. AUDIO BLOCK DIAGRAM
DCM-M1
LCD BOARD (1/2)
(SEE PAGE 4-106)
UNREG
LCD_4.95V
BL_LVL
CLK
DI
A10
A12
19
17
20
A02
A05
A01
XHD
XVD
DOWN
RIGHT
LCD_XHD
LCD_XVD
PANEL_B-Y
PANEL_R-Y
PANEL_Y
DOWN
RIGHT
LCD_EN_SWED
LCD_SI
LCD_SCK
LCD_SO
A06
A04
A03
A07
2
5
1
6
4
3
7
6
40
39
30
31
32
35
G/Y
COM_AMP
COLOR
EXT_BGP
BLACK IN
VCO
V_COM
XTEST
COM_AMP
FRP
COM_FRP
CONT
BRIGHT
RGB_AMP
SUB_BRT_B
SUB_BRT_R
8
R/R-Y/CR
9
B/B-Y/CB
10
G_OUT 22
R_OUT 20
B_OUT 24
COM_OUT 41
14 48
12
A11
8
A09
9
A08
BL_LVL
V_COM
VCO 11
DO
10
47
1
2
DOWN
BGP
SW
3
9
SW_COM
FRP
10
11
HDB
SYF
MCLK
4
33
PD 32
OSCO 26
OSCI 27
24
OE 23
44
PHOIN
PHOOUT
COMTST
TG-20, TG-21, TG-22
TG-24
TG-23
TG-18
TG-17
TG-16
TG-15
TG-14
TG-13
TG-12
3
4
5
14
14
CN4303
20
CN4306
BUFFER
Q4303, 4304
BUFFER
Q4305, 4306
BUFFER
Q4307, 4308
CLAMP MATRIX
CLAMP
GCA CLAMPGAMMA INV
38 37 29 28
18 CS/LD
RIGHTO 18
RESET 17
GSRT 16
GPCK 15
GRES 14
DOWNO 13
HCNT 12
RIGHT
46
QVD/XVD
34
CSY/XHD
DOWN
05
RIGHT
XVD
XHD 37
22
ı
20
SRT1
ı
SRT3
FILTER
IC4304 (1/2)
COM DRIVE
Q4312, 4313
INVERTER
UNIT
IV4301
VCO
+
–
67
5
CN4302 (1/2)
CN4307
D4317
(LED)
CN4305
FLUORESCENT
TUBE
ND4307
BACK LIGHT
D/A CONVERTER
IC4301
TIMING GENERATOR
IC4303
COM AMP
IC4304 (2/2)
LCD DRIVER
IC4302
VGL
LCD_4.95V (VSH)
VG
VR
VB
VGH
2.85V (TG) (VDO)
HCNT
OE
MODE1
MCLK
SRTR
MODE2
SRTL
SRTM
GPCK
GRES
CS
VCOM
RESET
GSRT
LED
BL_GND
BL_HIGH
BL_LOW
HSY
SYF
BL (+)
BL (–)
PANEL_COM
XTST
VG
PANEL_XHD
LCD_–15V
LCD_4.95V
LCD_13V
LCD_2.85V
FOR JIG
LCD
PANEL
LCD UNIT
LCD4301
11
12
13
1
12
13
22
21
1
2
3
24
18
17
16
15
14
13
12
9
8
7
6
5
23
10
3
9
4
6
7
8
1
2
10
3
2
1
TG-18
TG-24
TG-12
TG-23
TG-22
TG-21
TG-20
TG-13
TG-17
TG-16
TG-15
TG-14
H
TO MPEG ENCODE
(SEE PAGE 3-10)
E
TO A/V DATA CONTROL,
VIDEO OUT
(SEE PAGE 3-8)
I
TO SYSTEM CONTROL
(SEE PAGE 3-16)
CHROMA Y
VIDEO SIGNAL
PB
SIGNAL PATH
H
REC/PB
560 mVp-p
H
REC/PB
220mVp-p
H
REC/PB
236 mVp-p
3.1 Vp-p
V
REC/PB
H
REC/PB
3.6 Vp-p
REC/PB
3.12 Vp-p
15.4 MHz
2H
REC/PB
4 Vp-p
2H
REC/PB
4 Vp-p
REC/PB
2H
4 Vp-p
2H
REC/PB
1.26 Vp-p
3-19 3-20
3-10. LCD BLOCK DIAGRAM
DCM-M1
VF BOARD
(SEE PAGE 4-87)
EVF_B-Y
EVF_SO
EVF_SCK
EVF_SI
EVF_EN_SWED
EVF_R-Y
EVF_Y G/Y
8
R/R-Y/CR
9
B/B-Y/CB
10
G OUT 22
R OUT
BLK
HCK1
20
B OUT 24
CN4501 CN4601
BUFFER
Q4502, 4503
SWITCHING
Q4701
BUFFER
Q4504, 4505
BUFFER
Q4506, 4507
CLAMP MATRIX CLAMP GAMMA CLAMPS/H
PICTUREAGC
GCA INV
F
TO A/V DATA CONTROL,
VIDEO OUT
(SEE PAGE 3-8)
INV CURRENT
VCO
8
18
7
AGC
COLOR
CONTRAST
BRT
D_CLIP
SUB_BRT_B
11
10
2
5
1
6
4
5
1
6
40
39
27
31 SUB BRT B
SUB_BRT_R 332 SUB BRT R
AGC LEVEL
COLOR
GAMMA1 933 GAMMA1
CONTRAST
BRIGHT
BLACK LIMIT
LD
19 CLK
17 DO
20 DI
EVR
IC4502
41
42
XHD
SH1
SH3
SH0
32
34
30
SH2
XCLP
38
35
SBLK
FRP
5
28
BLK 12
CLR 16
27
CKI
CKO
39 RPD
CLR
BLK
EN
VST
VCK2
VCK1
HST
HCK2
HCK1
EN 17
VST1 18
VCK2 20
VCK1 21
HST1 22
HCK2 23
HCK1 24
XVD
45
EVF_XVD
EVF_XHD
LCD TIMING GENERATOR
IC4602
DRIVE PULSE GENERATOR
IC4601
LCD DRIVER
IC4501
VCO
BUF IN 15
BUF OUT 16
EXT BGP
14
RGB BLK
28
FRP
29
SHR
48
SHG
47
SHB
46
SHA
45
+
–
15
+
–
9
SHORT
CIRCUIT
PROTECTION
DISCHARGE
SWITCH
Q4601
9
11
13
7
15
17
6
HCK2 19
HST 21
CLR 23
EN 25
VCK1 27
VCK2 29
VST
BLK
HCK1
HCK2
HST
CLR
EN
VCK1
VCK2
VST
BLK
HCK1
HCK2
HST
CLR
EN
VCK1
VCK2
VST
BL_LOW
COM
B
R
G
COM (5.7V)
B
R
G
VF LCD
CN BOARD
LCD4701
BACK LIGHT
ND4701
T4701
EVF_BL_4.95V
FB
DRIVE_PULSE
CN4901
EVF_4.95V (–)
EVF_4.95V EVF_4.95V
VCO
G
FOR JIG
30
18
14
19
18
20
1
21
2
3
4
17
CN4701
11
10
9
12
8
1
25
2
3
4
5
6
7
13
19
21
CN4702
15
14
13
16
12
11
10
9
7
6
5
4
3
1EVF_12V
8
VVDD (12V)
GRT (12V)
4
3
2
1
AGC DET
8
7
6 4
5
10
11
2
12
2.5V REG
OSC
BL BOARD
(SEE PAGE 4-97)
05
J
TO SYSTEM CONTROL
(SEE PAGE 3-16)
CHROMA Y
VIDEO SIGNAL
PB
SIGNAL PATH
500 mVp-p
H
REC/PB
208 mVp-p
H
REC/PB
2H
REC/PB
204 mVp-p
REC/PB
2.16 Vp-p
11 MHz
3.1 Vp-p
V
REC/PB H
REC/PB
3.6 Vp-p
H
12 Vp-p
2H
REC/PB
8 Vp-p
2H
8 Vp-p
2H
REC/PB
8 Vp-p
3-21 3-22
3-11. EVF BLOCK DIAGRAM
DCM-M1
UPPER CONTROL SW SUB ASSY
(SEE PAGE 4-65)
MAIN CONTROL SWITCH UNIT (2/2) (SEE PAGE 4-62)
ZOOM SWITCH UNIT
(SEE PAGE 4-62)
REMOCON RAY-CATCHER
BLOCK UNIT
(SEE PAGE 4-65)
MAIN BOARD (7/7)
(SEE PAGE 4-29, 48, 56, 59)
LCD BOARD (2/2)
(SEE PAGE 4-106)
JACK BOARD
(4/4)
(SEE PAGE 4-119)
REMOTE
TERMINAL
UNIT
(SEE PAGE 4-119)
LCD DETECTION SW FLEXIBLE BOARD
(SEE PAGE 4-65)
LCD OPEN
LCD REVERSE
KEY VREC
201
KEY AREC
10
KEY PLAY/PAUSE
11
8
127
EVER 5V
8
PCONT 4
DOUT 10
L DC 14
LOUT 11
D IN
12
KEY PHOTO
KEY KURU1
KEY KURU2
9
OUT
KEY AD1
143 KEY STOP
188 KEY EJECT
141 OPEN/CLOSE
142 HALF LOCK
202
128
129
130
133135131
ETHER STB
KEY PLAY EDIT
KEY INTERVIEW
KEY CAMERA
116
LANC OUT 192
TP Y0 120
MULTI_WAKE 187
LANC IN 115
TP X0 119
RMC IN 159
TP IX0 203
KEY AD2
CN8301
S8314 S8311
S8304 S8302 S8301
S8308 S8306 S8303 S8301
S8315
D2.85V
D8301
S8312 S8309
S8307 S8306
A2.85V
RV8301
W
T
DSPL
BACK LIGHT
S8308
FOCUS
INFINITY
AUDIO REC
S8303
ERASE EXPOSURE
MENU
VOL
6
3
5
4
1
CN8303
2
1
7
4
CN8302
2
1
7
4
CN8301 (2/2)
2
8
13
9
10
5
6
7
11
CN8001 (2/2)
1
7
14
10
9
6
5
8
12
CN8002
S8001
S8003
S8002
KEY AD1
KEY AREC
KEY PLAY & PAUSE
KEY STOP
FOCUS
MARK
KEY AD2
KEY PHOTO
KEY KURU1
KEY KURU2
KEY INTERVIEW
KEY PLAY EDIT
KEY VREC
ZOOM SW ZOOM SW AD
KEY CAMERA
ZOOM
A REC LED A REC LED
6
3
5
4
1
ZOOM
3
6
LCD OPEN
LCD REVERSE
LCD OPEN
LCD REVERSE
JOG
CN8021
05
4
1
V REC LED V REC LED
RMC OUT
CN1
4
1
CN8003
REMOTE CONTROL
RECEIVER
IC1
3
6
CN8006
S8021
LCD REVERSE
DETECT
S8022
LCD
OPEN/CLOSE
DETECT
S8001, 8003
OPEN/CLOSE
DETECT
S8002
HALF LOCK
DETECT
D2.85V
D1
(CAMERA RECORDING)
2
S8305
(START/STOP)
BUFFER
Q8006
SWITCH
Q8011
TP IY0 206
TP IX1 204
TP IY1 207
LANC WAKE 12
LANC DETECT 140
TP X1 117
TP Y1 118
CN4312 (2/2)
CN4301
TP Y1
TP X1
TP IY1
TP IX1
TP IY0
TP IX0
TP IY1
TOUCH
PANEL
TP IX1
TP IY0
TP IX0
TP X0
TP Y0
12
11
9
8
6
7
5
10
CN4302 (2/2)
3
4
6
7
9
8
10
5
IC8015
IC8026
SH3.1V
IC8016
11
24
4
7
2
1
2
3
5
6
SYSTEM CONTROL
IC8001
LANC DRIVER
IC8027
REMOTE
J11
25
27
29
CN3002
(4/4)
28
CN8101 (3/3)
25
27
29
4
3
2
CN3003
(4/4) CN8004 LANC VCC OUT
LANC DETECT
LANC DATA
LANC VCC OUT
LANC DET
LANC DATA 4
3
2
CN11
SWITCH
Q4301 (1/2)
SWITCH
Q4302 (1/2)
SWITCH
Q4301 (2/2)
SWITCH
Q4302 (2/2)
SH3.1V
SH3.1V
5
4
2
3
10 TO MPEG ENCODE
(SEE PAGE 3-10)
DTO CAMERA CONTROL
(SEE PAGE 3-6)
SEL/ PUSH ENTER
S8300
PLAY/EDIT
OFF
CAMERA
INTERVIEW
POWER
3-23 3-24
3-12. MODE CONTROL BLOCK DIAGRAM
DCM-M1
3
1
13
14
78
9
6
5
4
71
72
77
78
79
80
61
62
7
8
9
10
TPIP
PULSE TRANSFORMER
IC8807
CN8802
(2/2)
ETHER INTERFACE
IC8806
SRAM
IC8808
RD+
10BASE-T
ETHER ADAPTER
(2/2)
TPIN
TPOPA
IO BASE-T TRANSCEIVER
ENCODER/DECODER
DETA LINK CONTROLLER
BUFFER MANAGER
SYSTEM INTERFACE
TPOPB
TPONA
TPONB
CLKO
CLKI
CE
OE
WE
BCS
BOE
BWE
34
l
41
42
l
45
•
47
l
50
•
53
56
•
58
l
60
2
l
5
•
8
l
17
•
28
18
l
20
•
22
l
26
I/O1
l
I/O8
A0
l
A14
X8801
20MHZ
BD0 – BD7BD0 – BD7DATA BUS
BA0 – BA14ADDRESS BUS BD0 – BA14
30
32
33
27
6
1
RD–
TD+
TD–
DATA BUS
ADDRESS BUS
18
I
23
•
25
•
27
I
29
•
85
•
87
I
91
SD0 – SD15
SD8 – SD15
SA0 – SA3
BHE
SA0 – SA3 4
I
7
3
I
10
14
I
21
B0
I
B7
A0
I
A7
11
17
15
82
5
4
3
6
A2
A1
A0
A3
B2
B1
B0
B3
19
20
21
18
92
3
64
222
LEVEL SHIFT
IC8801
T/R OE
3
I
10
14
I
21
B0
I
B7
A0
I
A7
222
LEVEL SHIFT
IC8802
T/R OE
7
I
10
B4
I
B7
A4
I
A7
22
LEVEL SHIFT
IC8803
LEVEL SHIFT
IC8805
CN8801 (2/2)
TO SYSTEM CONTROL
(SEE PAGE 3-16)
DO – D15
RD&WT
A0 – A3
SBHE_CE2B
CS6_ETHER
ETHER_INT
ETHER_WAIT
ETHER_PWR
ETHER_RESET
DQMUL_ICIORD
DQMUU_ICIOWR
OE
10
9
A7
A6
B7
B6
14
LEVEL SHIFT
IC8804
10A7B7
22
OE
D8 – D15
D0 – D7 SD0 – SD7
A0 – A3 14
I
17
27
28
29
26
21
I
24
15
33
34
36
14
32
31
1
I
4
•
6
I
9
•
11
I
13
•
15
I
19
ECS
IOR
READY
HWRST
INT
IOW
K
ETHER BOARD (2/2)
(SEE PAGE 4-109)
TO MPEG ENCODE
(SEE PAGE 3-10)
G
05
20 MHz
REC/PB
1.28 Vp-p
3-25 3-26
3-13. ETHER INTERFACE BLOCK DIAGRAM
DCM-M1
4.95V (CAMERA)
BATTERY TERMINAL POWER BOARD
(SEE PAGE 4-130)
VREF
SWITCHING CONTROL
IC9001
OUTPUT_6
11
INVINPUT_6
10
NONINVINPUT_6
51
42
STANDBY3
STANDBY
COMP
VCC
OUTPUT
VCCC_4&5&6
OUTPUT
VCC_1&3
OUTPUT
VCC_2
63
F9001 L9001
F9002 L9002
F9004 L9005
F9003 L9003
L9004
L9007
CN9002
2
3
1
4
BATT_SIG
AC_DETECT
U_GND
LITIUM BATT_+
BATT_SIG
AC_DETECT_SW
LITIUM_BATT_+
(AC_IN_+)
LITIUM_BATT_ –
(AC_IN_ –)
13
•
28
29
•
30
PWM
COMP
OUTPUT
CIRCUIT
ERROR
AMP
64
OUTPUT_5
16
INVINPUT_5
15
NONINVINPUT_5
PWM
COMP
OUTPUT
CIRCUIT
ERROR
AMP
19
INVINPUT_4
57
OUTPUT_4
60
MOSGATE_4
PWM
COMP
OUTPUT
CIRCUIT
ERROR
AMP
56
OUTPUT_3
PWM
COMP
OUTPUT
CIRCUIT
ERROR
AMP 33
INVINPUT_3
50
OUTPUT_2
46
OUTPUT_1
43
MOSGATE_1
PWM
COMP
OUTPUT
CIRCUIT
ERROR
AMP 36
6 4
3
INVINPUT_2
SWITCHING
Q9003
UNREG
39
INVINPUT_1
PWM
COMP
OUTPUT
CIRCUIT
ERROR
AMP
TIMER
&
LATCH
OSC
05
27
4
L9013 2.3V
D2.85V
L9008
SWITCHING
Q9004
SWITCHING
Q9001
L9006
SWITCHING
Q9005
SWITCHING
Q9006
L9015
L9022
L9021
L9020
L9016 –20V
13V
T9001
12V REGULATOR
IC9002
4.95V (CAMERA)
IN OUT
FB
4.95V (ETHER)
4.95V (VIDEO)
4.95V (DRIVE)
L9018
L9023
L9017
L9010 D3.1V
SWITCHING
Q9009
SWITCHING
Q9007
–6.5V REGULATOR
Q9002, 9010
SWITCHING
Q9008
L9009 A2.85V
L9019
1
3
5
48
CN9001
TO MAIN BOARD
CN9101 (2/2)
(SEE PAGE 3-30)
20
38
4
32
2
6
50
•
52
54
•
56
30
2.3V
UNREG
DD_CTL
AC_DETECT
BATT_SIG
D2.85V
D2.85V (NF)
A2.85V
A2.85V (NF)
–20V
–6.5V
13V
12V
4.95V (ETHER)
4.95V (VIDEO)
4.95V (DRIVE)
D3.1V
D3.1V (NF)
34
•
36
58
•
60
•
62
•
64
•
66
•
68
•
70
40
•
42
•
44
•
46
12
•
14
•
16
•
18
22
•
24
•
26
•
28
8
•
10
L
TO MAIN BOARD
CN9101 (1/2)
(SEE PAGE 3-29)
M
470 kHz
REC/PB
2.88 Vp-p
470 kHz
REC/PB
5.44 Vp-p
470 kHz
REC/PB
940 mVp-p
470 kHz
REC/PB
840 mVp-p
470 kHz
REC/PB
1.44 Vp-p
470 kHz
REC/PB
800 mVp-p
470 kHz
REC/PB
840mVp-p
470 kHz
REC/PB
5.52 Vp-p
3-27 3-28

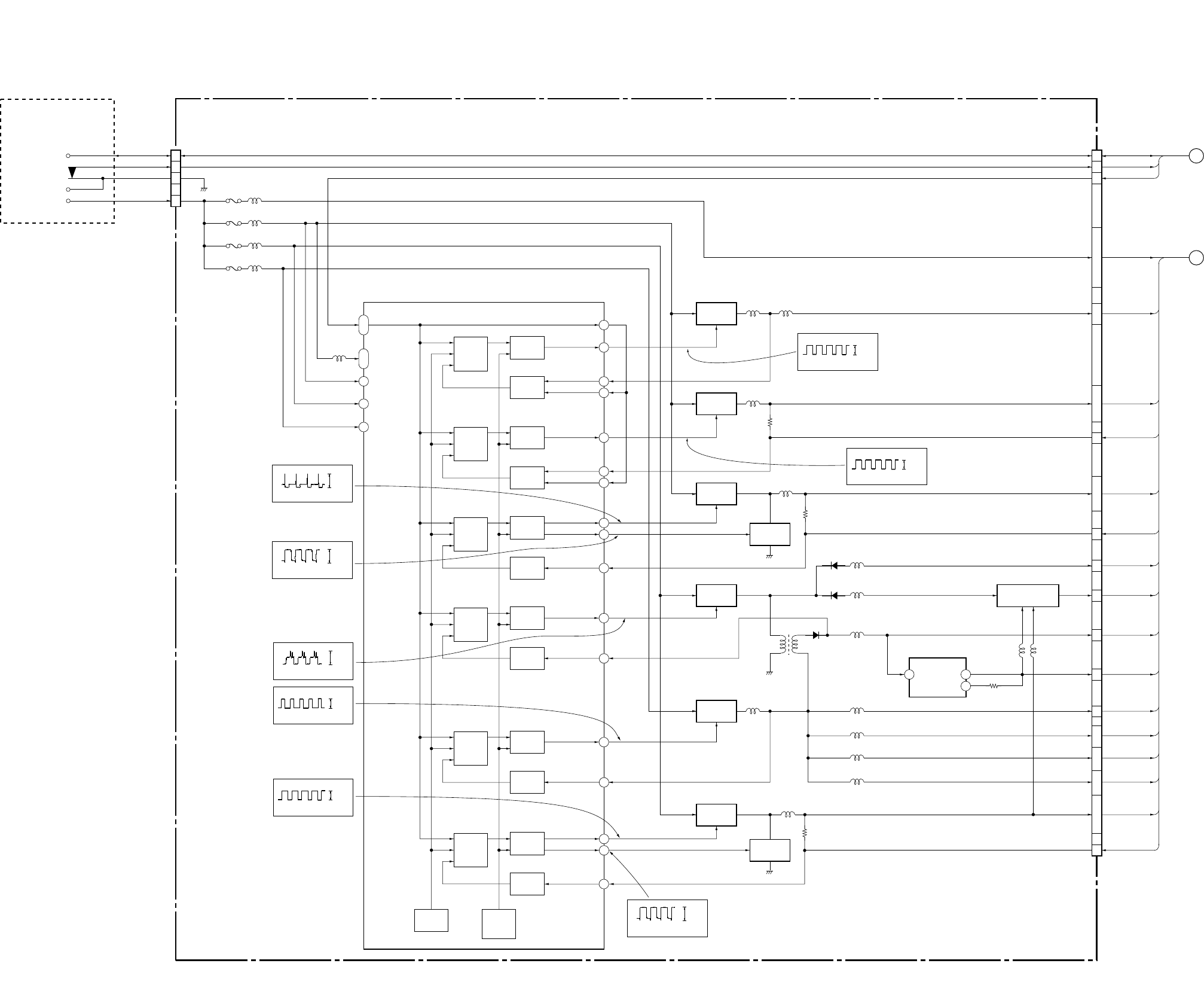

3-14. POWER 1 BLOCK DIAGRAM
DCM-M1
MAIN BOARD
(SEE PAGE 4-29 to 59)
ETHER BOARD (SEE PAGE 4-109) UPPER CONTROL
SW SUB ASSY
(SEE PAGE 4-65)
REMOCON RAY
–CATCHER
BLOCK UNIT
(SEE PAGE 4-65)
SWITCH
Q4003, 4004
MPEG2 RATE CONTROL & SYSTEM CONTROL
IC8501
IC8601 IC8101
IC3005
IC3009
IC5303
IC5403
IC8020
IC8104
IC4001
IC4002
IC4003
IC4004
IC5004
IC5005
IC5006
IC5009
3.1V
REGULATOR
IC8202
–15V
REGULATOR
Q9102, 9104, 9112
6.5V
REGULATOR
Q9101, 9103, 9111
2.8V
REGULATOR
IC9103
DC-DC CONVERTER
Q5601, 5603
IC5603
SWITCH
Q9115, 9116
SWITCH
Q9113, 9117
DRIVE CONTROL
IC5404
SWITCH
Q9105, 9108
SWITCH
Q9107, 9110
SWITCH
Q5003, 5004
BUFFER
Q8009, 8010
SWITCH
Q5009, 5010
SWITCH
Q5602
SWITCH
Q5102
IC5003
IC5102
IC5201
IC5205
SWITCH
Q5001
SWITCH
Q5203, 5204
IC5602
IC8027
IC5601
SWITCH
Q3003, 3004
IC3001
IC3002
C CUT OFF
XLCD PWR5
LCD PWR4
LCD PWR3
LCD PWR2
LCD PWR1
EVF PWR3
EVF PWR2
EVF PWR1
MIC PWR
101
112
SYSTEM CONTROL
IC8001
RESET
IC8009
MAIN PWR
SDRAM PWR
AC DETECT
DRV PWR
178
DD WATCH
200
180
151
185
199
186
94
179
1413121110848586
EVF PWR3
EVF PWR2
EVF PWR1
XLCD PWR5
LCD PWR2
LCD PWR3
LCD PWR1
2.8V
REGULATOR
IC9104
IC4006
IC4007
IC4008
IC4009
IC4010
IC4011
IC8012
IC8013
IC8602
IC8701
IC8702
IC8703
IC3003
IC3004
IC3007
IC3008
IC5002
IC5007
IC5008
IC5013
IC5014
IC5015
IC5301
IC5302
IC5401
IC5402
IC5405
IC5406
IC5407
IC5408
IC5501
XSTPON
ADCS
89
DRV REG 16
84
PS A_B 62
LDON
A2.85V
12V
CN8007 CN8801
4.95V (ETHER)
D3.1V
ETHER PWR
CN9101 (1/2)
4.95V (ETHER)
4.95V (VIDEO)
12V
–20V
13V
D3.1V (NF)
D3.1V
2.3V
UNREG
D2.85V
D2.85V (NF)
A2.85V (NF)
A2.85V
4.95V (DRIVE)
–6.5V
4.95V
(CAMERA)
–20V
13V
D3.1V
2.3V
4.95V (VIDEO)
UNREG
D2.85V
A2.85V
4.95V (DRIVE)
SH 3.1V
IC8023
IC8023
CAM PWR
UNREG WATCH
XCPU PWR
ETHER PWR
4
VCC
3
OUT
IC8024
IC8023
IC8010 53
4
2
2
4
1
1
62
1
7
2
14
U8001
IC8013
UNREG
SH 3.1V
4.95V (VIDEO)
13V
–20V
12V
4.95V (DRIVE)
14
XMOD 15
INFOBATT SI
5
INFOBATT SO
29
UNREG MON
BATT SIG
AC DETECT
DD CTL
CAM DD ON
A2.85V (CAMERA)
A2.85V (CAMERA)
1.9V
–6.5V
4.95V (CAMERA)
12V
3
IC8002
IC8003
IC8005
IC8006
IC8007
IC8014
IC8010
IC8023
IC8024
IC8004
IC8013
IC8015
IC8016
IC8025
IC8026
SWITCH
Q8007
SWITCH
Q8008
SWITCH
Q8004
SWITCH
Q8003
PROTECT
Q9122
3.2V
REGULATOR
IC8012,
Q8001, 8002
3.2V
REGULATOR
IC8011
1.9V
REGULATOR
IC9102
UNREG VCC
MONITOR
Q9125, 9126
CN4511
EVF A2.85V
EVF D2.85V
EVF 4.95V
EVF 12V
LCD –15V
LCD 6.5V
LCD 13V
LCD 2.85V
LCD 4.95V
SH 3.1V
UNREG
13V
UNREG
MH-V
A2.85V (DRIVE)
4.95V (DRIVE)
LD-VCC
PD-K
MDEN
VCC
CN4313
CN4312
CN5002
CN5001
7
8
9
6
48
12
17
32
17
•
18
13
•
14
15
•
16
47
•
49
12
•
24
18
•
19
9
13
•
15
5
4
13
CN9101 (2/2)CN8101
05
13529353739
RMC VCC
D2.85V
D2.85V
D2.85V
D2.85V
CN8002
CN8003
CN8301
CN1
2
3
2
2
34 • 3638 • 40
22 • 24 •
26 • 28
40 • 42 •
44 • 46
58 • 60 •
62 • 64 •
66 • 68 •
70
12 • 14 •
16 • 18
2
38
32
30
8 • 10
34 • 36
50 • 52
4
6
20
48
54 • 56
SH 3.1V
CN8001
211
IC4005
IC8008
LCD PWR4
40
38
•
39
36
IC8801
IC8802
IC8803
IC8806
IC8808
IC1
40
38
•
39
36
SWITCH
Q8801
3
2
IC5010
IC5011
IC5012
OPTICAL
PICK-UP
BLOCK
19
•
20
M
TO POWER BOARD
CN9001
(SEE PAGE 3-28)
N
TO VC-216 BOARD
CN101
(SEE PAGE 3-31) O
TO MAIN CONTROL SWITCH UNIT
CN8301
(SEE PAGE 3-31) L
TO POWER BOARD
CN9001
(SEE PAGE 3-28)
P
TO VF BOARD
CN4501
(SEE PAGE 3-32)
Q
TO LCD BOARD
CN4302, CN4303
(SEE PAGE 3-32)
R
TO CLV BOARD
CN5803
(SEE PAGE 3-32)
IC8804
IC8805
3-29 3-30
3-15. POWER 2 BLOCK DIAGRAM
DCM-M1
VF BOARD
(SEE PAGE 4-87)
BL BOARD
(SEE PAGE 4-97)
IC4502
IC4602
IC4501
IC4601
INVERTER TRANS
T4701
05
CN4501
CN4901
CN4601 CN4701
CN4702
EVF A2.85V
EVF D2.85V
EVF 12V
EVF 4.95V
EVF 12V
GRT (12V)
VVDD (12V)
FOR JIG
EVF BL 4.95V
EVF 4.95V
13
•
14
9
•
10
7
•
8
2
•
3
22
•
24
2
•
4
16
•
17
26
•
27
1
8
11
•
12
SWITCH
Q4602, 4603
VF LCD
CN BOARD
LCD4701
BACK LIGHT
ND4701
CLV BOARD
(SEE PAGE 4-75)
REC BOARD
(SEE PAGE 4-79)
CN5803
CN5801
CN5902
A2.85V (DRIVE)
A2.85VSL
A2.85V
MH-V
4.95V (DRIVE)
MH-V
4.95V
VCC
24
9
13
•
15
47
•
49
10
8
•
9
48
12
IC5801
IC5803
IC5901
IC5802
IC5807
IC5851
IC5804
IC5805
IC5806
IC5808
LCD BOARD
(SEE PAGE 4-106)
IC4302
IC4301
IC4303
IC4304
INVERTER UNIT
IV4301
CN4303
CN4305
CN4307
CN4306
LCD 6.5V
LCD 4.95V
UNREG
SH 3.1V SH 3.1V
LCD 2.85V
LCD –15V
LCD 13V
LCD 4.95V (VSH)
BL HIGH
2.85V (TG) (VDD)
VGL
FOR JIG
VGH
BL
9
6
7
1
•
2
10
1
2
24
UNREG
13V
UNREG
13V
4.95V
8
CN4302
11
210
LCD
PANEL
BACK
LIGHT
3
VC-216 BOARD
(SEE PAGE 4-13, 17)
IC104
IC202
CN101
TO MAIN BOARD
CN8101
(SEE PAGE 3-29)
CN201
–6.5V
CAM DD ON
12V
1.9V
A2.85V (CAMERA)
4.95V (CAMERA)
MF VCC
SENSE VCC FOCUS/
ZOOM
SENSOR
39
38
•
40
34
•
36
35 IC105
IC101
SWITCH
Q203
SWITCH
Q201
IC001
SWITCH
Q103,104
SWITCH
Q102
SWITCH
Q101
IC002
IC102
IC103
IC201
SE001
SE201
MF
BLOCK
37
29
10
MAIN CONTROL
SWITCH UNIT
(SEE PAGE 4-62)
ZOOM
SWITCH UNIT
(SEE PAGE 4-62)
CN8301 CN8302 CN8303
A2.85V (CAMERA)
SH 3.1V
VCC-ZOOM
12 66
1SH 3.1V
VCC-ZOOM
CAMERA MICON
IC106
LENS RST LED 16
MF LED 17
8
5
•
23
N
TO MAIN BOARD
CN8001
(SEE PAGE 3-29)
O
TO MAIN BOARD
CN4511
(SEE PAGE 3-30)
P
TO MAIN BOARD
CN4312, CN4313
(SEE PAGE 3-30)
Q
TO MAIN BOARD
CN5002
(SEE PAGE 3-30)
R
MOTOR FLEXIBLE BOARD
3-31 3-32 E
3-16. POWER 3 BLOCK DIAGRAM
DCM-M1
4-1 4-2
DCM-M1
(For printed wiring boards)
•b: Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
• Through hole is omitted.
• Circled numbers refer to waveforms.
• There are few cases that the part printed on diagram
isn’t mounted in this model.
• Chip parts.
• Lead Layouts
When indicating parts by reference number, please
include the board name.
(For schematic diagrams)
• All capacitors are in µF unless otherwise noted. pF : µ
µF. 50 V or less are not indicated except for electrolytics
and tantalums.
• Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum
capacitor, Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A2520
• Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
• Parts with ★ differ according to the model/destination.
Refer to the mount table for each function.
• All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
• Signal name
XEDIT → EDIT PB/XREC → PB/REC
•2: non flammable resistor
•1: fusible resistor
•C: panel designation
•U: B+ Line
•V: B– Line
•C: adjustment for repair.
• Circled numbers refer to waveforms.
Yellow
AABBA=B

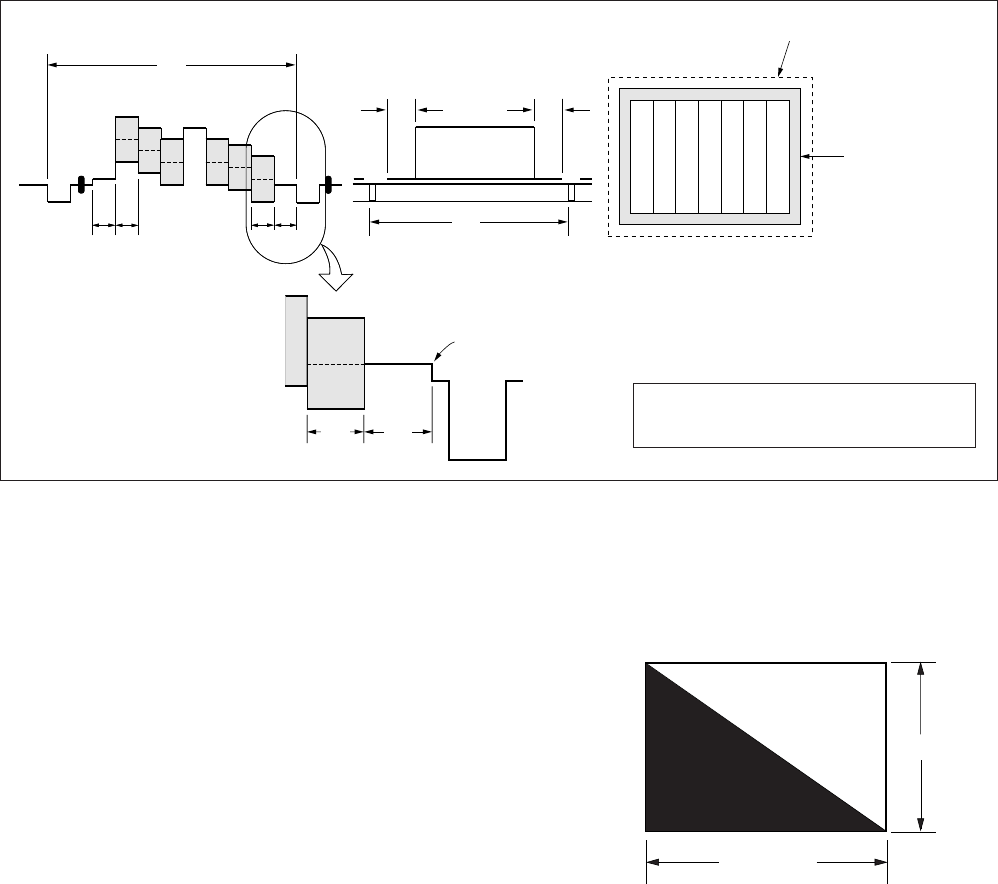

Fig. a (Video output terminal output waveform)
Fig.b (Picture on monitor TV)
Color bar chart
picture frame
Monitor TV
picture frame
H
Cyan
Green
White
Magenta
Red
Blue
Yellow
Cyan
Green
White
Magenta
Red
Blue
THIS NOTE IS COMMON FOR WIRING BOARDS AND SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block)
21
3
21
3
21
3
345
21
123
654
EB
C
31
5
5
2
46
123
54
Transistor Diode
SECTION 4
PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
surfac
e
Lead layout of conventional IC
(Measuring conditions voltage and waveform)
MD1 PB :
•Voltages are dc between measurement point.
•Readings are taken when playing CD reference disc.
MD2 REC/PB :
•Voltages and waveforms are measured between the
measurement points and ground when camera shoots
color bar chart of pattern box. They are reference values
and reference waveforms.
(VOM of DC 10 MΩ input impedance is used)
•Voltage values change depending upon input impedance
of VOM used.)

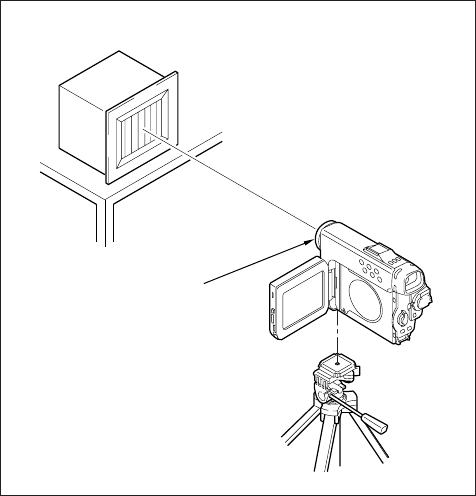

1. Connection
2. Adjust the distance so that the output waveform of Fig.
a and the Fig. b can be obtain.
CSP (chip size package)
Kinds of capacitor
Temperature characteristics
External dimensions (mm)
•The voltage and waveform of CSP (chip size package) can-
not be measured, because its lead layout is different form
that of conventional IC.
L
Front side of the lens
L = About 90 cm
Pattern box
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
DCM-M1
4-5 4-6 4-7 4-8
4-1. FRAME SCHEMATIC DIAGRAM
FRAME
DCM-M1
4-9 4-10 4-11
4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
VC-216 (LENS MOTOR DRIVE, CCD IMAGER, CAMERA SIGNAL PROCESS) PRINTED WIRING BOARD
– Ref. No.: VC-216 board; 20,000 series –
VC-216 BOARD (SIDE A)
C001 D-7
C002 D-7
C003 D-6
C004 D-7
C007 D-7
C008 D-8
C009 D-7
C012 D-8
C015 C-8
C016 C-8
C022 C-8
C108 E-5
C109 D-5
C110 D-6
C111 C-5
C112 D-5
C113 D-5
C114 D-5
C115 D-5
C116 E-5
C118 D-5
C120 D-5
C123 D-4
C124 C-4
C125 D-4
C126 C-4
C127 D-4
C128 D-4
C129 C-3
C130 C-3
C131 E-3
C132 E-3
C133 E-3
C134 E-3
C135 E-3
C142 C-4
C143 E-3
C203 A-8
C204 A-8
C207 B-8
C208 A-8
C210 A-8
C212 A-8
C217 B-8
C221 A-6
CN201 A-7
FB103 E-4
FB104 E-4
FB105 C-3
IC102 D-4
IC103 E-4
IC105 D-3
IC201 B-8
L001 D-7
L101 E-5
L103 E-3
Q001 D-7
Q101 C-4
Q102 C-4
Q103 C-4
Q104 C-4
Q202 A-8
Q204 A-8
R005 D-7
R007 D-8
R009 D-8
R010 C-8
R011 C-8
R015 C-8
R107 E-4
R115 E-4
R116 E-4
R118 E-3
R119 E-3
R123 E-3
R135 C-4
R138 C-3
R203 A-8
R206 A-8
R208 A-8
R209 A-8
R210 A-8
R211 A-8
R213 A-8
R215 A-8
R218 B-8
R219 B-8
R220 A-8
R221 A-8
R222 B-8
R224 A-8
R225 B-6
R226 B-8
SE001 D-8
SE201 B-7
LENS MOTOR DRIVE, CCD IMAGER, CAMERA SIGNAL PROCESS
VC-216
4-12
VC-216 BOARD (SIDE B)
C010 D-8
C011 D-6
C013 D-8
C014 D-8
C017 D-8
C018 C-8
C019 C-8
C020 E-8
C021 E-8
C023 D-8
C024 D-6
C101 E-5
C102 E-5
C103 D-5
C104 E-4
C105 E-5
C106 D-5
C107 E-4
C117 D-4
C119 C-5
C121 C-4
C136 C-3
C137 C-3
C138 C-3
C139 C-2
C140 C-2
C141 D-2
C201 B-8
C202 B-7
C205 B-8
C206 B-8
C209 A-8
C211 A-8
C213 A-6
C214 A-8
C215 A-6
C216 A-8
C218 B-7
C219 B-7
C220 B-7
C222 B-7
CN101 D-1
D101 C-4
D201 B-7
FB101 E-4
FB102 D-5
FB201 A-8
IC002 D-8
IC101 D-4
IC104 C-4
IC106 D-3
IC202 A-8
L002 E-6
L104 C-4
L201 B-6
L202 B-7
L203 B-6
Q201 A-6
Q203 B-7
R008 D-6
R012 D-8
R013 D-8
R014 D-8
R016 D-8
R101 D-5
R102 D-5
R103 D-5
R104 E-4
R105 D-5
R106 C-4
R108 C-4
R109 C-4
R110 E-4
R111 E-4
R112 E-4
R113 E-4
R117 C-4
R120 E-4
R121 E-4
R122 E-3
R124 E-3
R125 C-3
R126 E-3
R127 E-3
R128 C-3
R129 C-3
R130 C-3
R131 D-2
R132 C-2
R133 D-2
R134 D-2
R136 C-3
R137 C-5
R201 B-7
R202 B-7
R205 A-6
R207 B-7
R212 B-8
R214 B-8
R216 B-8
R217 B-8
R223 B-7
X101 C-4
X102 E-3
• For Printed Wiring Board.
•There are few cases that the part isn't mounted in this model
is printed on this diagram.
•Chip transistor
321
45
EB
C
VC-216 board
LENS MOTOR DRIVE,
CCD IMAGER,
CAMERA SIGNAL PROCESS
REC board
OVER WRITE
HEAD DRIVE
CLV board
(MD MOTOR DRIVE)
24 1
8
7
14
1
BB
C221
R225
LND201
CN201
R222
R220
R221
R224
R211
R213
R209
R204
C204 Q202
C210
R208
R215 R210
R203
C208
C212 C203
R218
R226
R015
R011
R010
R007R009
C012
C008
C002
C001
C123
C124
C127
R118
R123
R119 L103
C133
C131 FB103
C143
C132
C134
C135
R135
Q101
Q102
Q103
Q104
C111
C115
IC102
IC103
IC105
C116
C142
C129
R138
C130
FB105
C122
C120
C118
C112
C114
C109
R115
C108
L101
R116
FB104
R107
C113
C126
C128
C125
C003
R005
C015
C016
C009
Q001
C007
C004
C110
L001
C022
C217
Q204
R206
C207
R219
LND202
IC201
BB
1
18
54
48 37
36
25
24
13
12
75 76
51
50
26
25 1
100
A
B
C
D
E
1234567 8
05
VC-216 BOARD
(SIDE A)
IC001 7
1
14 8
1-673-650-
11
FB201
R217
C222
L202
L201
L203
R214
R207
C202
C213
C215
D201
1
15
16
30
IC202
C209
C211
C205 C201
C206
C019
C018
C014
C010
C023
C013 C024
C011
R102
R106
R114 R128
R132
R133
R134
R131
R130
R137
R136
C136 C138
C139
C141
C121
R104 R110
R111
R112
R120
R121
R113 R124
R126
R127
X102
FB101
C117
D101
C101
C102
C104
C107
X101
IC101
IC106
IC104
LND102
LND101
L002
C020
R008
R101
R103
R105
R122
R108
R125
R117
C137
R129
C140
CN101
L104
D102
R109
C106
C119
FB102
C105
C103
C021
R012
R016
R013
C017
R014
IC002
R212
R223
R216
C214
C216
R202 R201
R205
C220
C218
C219
Q203
Q201
1120
110
100
1
1
76
75
51
5026
25
48
37
3625
24
13
12
40
391
2
A
B
C
D
E
87654321
05
VC-216 BOARD (SIDE B)
SE001
SE001
YAW
SENSOR
SE201
(PITCH SENSOR)
1-673-650-
11
31
54
DCM-M1
4-13
4-14 4-15 4-16
VC-216 (LENS MOTOR DRIVE, CCD IMAGER) SCHEMATIC DIAGRAM • See page 4-9 for VC-216 printed wiring board. • See page 4-133 for waveforms.
LENS MOTOR DRIVE, CCD IMAGER
VC-216 (1/3) VC-216 (2/3)
DCM-M1
4-17 4-18 4-19
VC-216 (CAMERA SIGNAL PROCESS) SCHEMATIC DIAGRAM • See page 4-9 for VC-216 printed wiring board. • See page 4-133 for waveforms.
CAMERA SIGNAL PROCESS
VC-216 (3/3)
DCM-M1
DCM-M1

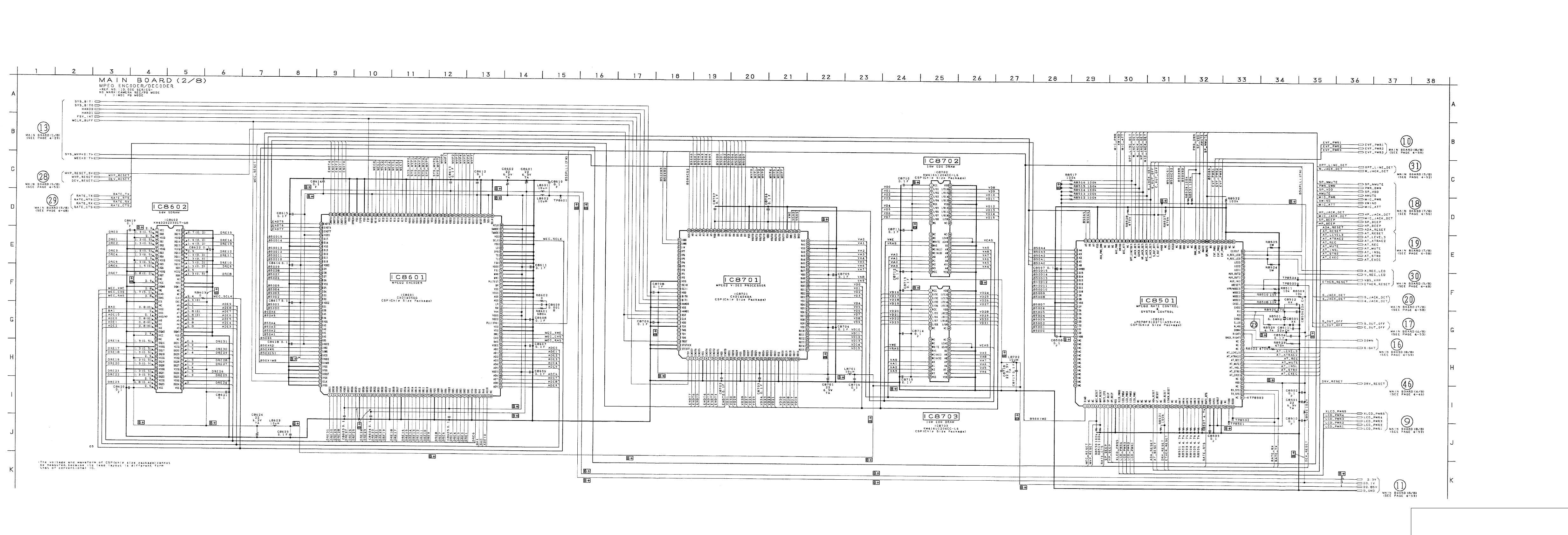

MAIN (AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER, RF AMP/DRIVE, DIGITAL SIGNAL PROCESSOR,
SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR) PRINTED WIRING BOARD
– Ref. No.: MAIN board; 10,000 series –
AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER, RF AMP/DRIVE, DIGITAL
SIGNAL PROCESSOR, SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR
MAIN
4-21
• For Printed Wiring Board.
•There are few cases that the part isn't mounted in this model
is printed on this diagram.
•Chip transistor
•Lead Layouts
345
21
EB
C
31
5
5
2
46
4-23 4-24
MAIN BOARD (SIDE A)
C1003 G-8
C1004 G-8
C1005 H-8
C1006 F-8
C1007 F-8
C1008 F-8
C1009 F-8
C1010 F-8
C1011 F-8
C1012 F-7
C1013 G-7
C1014 G-7
C1015 F-7
C1016 G-7
C1017 G-6
C1018 G-6
C1019 G-6
C1020 G-5
C1021 F-5
C1022 G-5
C2003 G-8
C2004 G-8
C2005 H-8
C2006 G-8
C2007 F-8
C2008 F-8
C2009 F-8
C2010 F-8
C2011 F-8
C2012 F-7
C2013 F-7
C2014 G-7
C2015 F-7
C2016 G-7
C2017 G-6
C2018 G-6
C2019 F-6
C2020 G-5
C2021 F-5
C2022 G-5
C3001 G-8
C3002 G-8
C3003 G-8
C3004 F-7
C3005 F-8
C3006 F-8
C3007 H-5
C3008 F-5
C3011 G-8
C3013 G-7
C3014 G-7
C3015 G-7
C3016 G-7
C3017 G-8
C3018 G-5
C3019 G-7
C3021 G-6
C3022 F-6
C3023 F-6
C3025 E-6
C3026 E-6
C3027 F-7
C3028 A-6
C3030 H-5
C3031 F-6
C3032 F-6
C3033 F-6
C3034 F-6
C3035 F-6
C3036 A-6
C3037 A-7
C3038 A-7
C3039 A-7
C3040 A-6
C3041 A-7
C3042 G-4
C3043 F-4
C3044 F-5
C3045 F-5
C3046 F-5
C3047 E-6
C3049 A-5
C3050 G-6
C3051 H-6
C3053 E-7
C3055 F-5
C4001 E-5
C4002 E-5
C4023 G-4
C4024 H-5
C4026 G-4
C4027 G-4
C5001 C-2
C5002 B-2
C5003 A-1
C5004 B-1
C5005 A-1
C5006 A-2
C5007 A-2
C5008 B-2
C5009 B-1
C5011 C-3
C5012 C-1
C5013 B-2
C5014 B-2
C5015 B-2
C5016 B-2
C5017 B-2
C5018 A-1
C5020 B-1
C5021 B-1
C5022 B-1
C5023 B-1
C5024 B-1
C5025 B-2
C5026 B-1
C5027 B-2
C5055 B-2
C5101 B-3
C5102 B-2
C5103 B-3
C5104 B-3
C5105 B-3
C5106 B-2
C5201 C-3
C5202 C-3
C5203 C-3
C5204 C-3
C5205 C-3
C5206 D-3
C5207 C-3
C5208 D-3
C5209 D-3
C5212 D-3
C5301 C-1
C5302 D-1
C5303 C-1
C5304 C-1
C5305 C-1
C5306 C-2
C5307 D-2
C5308 C-2
C5309 D-2
C5310 C-2
C5311 D-2
C5312 C-2
C5313 C-2
C5314 C-2
C5315 C-2
C5316 C-2
C5317 C-2
C5318 D-2
C5319 C-2
C5401 G-1
C5402 G-1
C5403 G-1
C5404 F-3
C5405 F-2
C5406 F-2
C5407 G-4
C5408 F-2
C5409 G-2
C5410 F-2
C5411 G-2
C5412 G-3
C5413 F-3
C5414 C-3
C5415 F-3
C5417 D-4
C5418 D-4
C5420 B-3
C5421 D-4
C5424 D-4
C5501 C-3
C5503 E-3
C5601 G-1
C5603 E-3
C5604 D-3
C5605 E-3
C5606 D-2
C5607 F-2
C5608 F-3
C5609 D-2
C5610 D-2
C5614 F-2
C8035 B-3
C8069 B-4
C8070 B-4
C8071 G-3
C8072 G-3
C8073 G-2
C8074 G-2
C8075 H-2
C8076 H-3
C8077 G-2
C8078 H-2
C8079 G-2
C8101 D-7
C8102 E-5
C8103 E-5
C8104 E-6
C8105 E-6
C8106 D-7
C8107 E-6
C8108 E-6
C8109 E-7
C8110 E-6
C8111 C-6
C8112 B-6
C8113 B-5
C8114 D-7
C8115 C-6
C8116 C-5
C8117 C-5
C8118 C-5
C8119 D-5
C8120 D-5
C8121 A-6
C8123 E-5
C8126 E-6
C8127 D-7
C8128 A-6
C8129 B-5
C8130 C-5
C8204 B-5
C8208 B-5
C8211 B-6
C9101 A-4
C9112 B-7
C9113 A-8
C9116 A-7
C9117 A-4
C9118 B-3
C9120 A-7
C9121 A-7
C9122 B-8
C9123 A-4
C9128 B-8
C9129 B-8
C9130 B-4
C9131 B-4
CN3001 G-8
CN3002 H-3
CN4312 H-5
CN4511 B-8
CN5001 A-2
CN5002 F-1
CN8001 A-5
CN8002 C-8
CN8003 H-2
CN8006 H-6
CN8007 B-7
CN8101 D-8
CN9101 A-4
D4001 H-5
D5601 E-3
D8005 H-3
FB3001 A-6
FB3002 A-6
FB8001 B-8
FB8002 B-8
FB8003 B-8
FB8004 B-8
FB8005 B-8
FB8006 B-8
FB8007 B-8
FB8008 C-8
FB8009 C-8
FB8010 C-8
FB8011 C-8
FB8012 C-8
FB8013 C-8
FB8014 C-8
FB8015 C-8
FB8016 C-8
FB8017 C-8
FB8018 C-8
FB8019 C-7
FB8020 C-7
FB8021 H-6
FB8022 H-6
FL5101 A-2
IC3001 G-8
IC3002 F-8
IC3004 F-7
IC3005 F-7
IC3007 F-6
IC3008 A-6
IC3009 G-4
IC4006 G-5
IC4007 G-4
IC4008 G-4
IC5002 B-1
IC5003 B-2
IC5005 B-2
IC5102 B-4
IC5201 C-3
IC5205 D-3
IC5301 C-2
IC5302 D-2
IC5303 C-3
IC5401 G-1
IC5403 C-4
IC5404 F-3
IC5405 G-3
IC5406 F-2
IC5407 G-4
IC5408 F-3
IC5501 E-4
IC5601 G-2
IC5602 E-2
IC8026 G-3
IC8027 H-3
IC8101 D-5
IC8102 B-6
IC8103 B-5
IC8104 E-5
IC8202 B-5
IC9104 A-7
L3001 F-8
L3002 E-6
L3003 H-5
L3004 A-6
L3005 F-5
L3006 H-5
L4001 E-5
L4002 E-5
L5001 C-3
L5002 B-1
L5101 B-3
L5301 D-1
L5401 D-4
L5402 C-3
L5403 D-4
L5601 E-3
L5602 D-3
L5603 F-3
L5604 F-3
L5605 D-2
L5606 D-2
L5607 D-2
L5610 E-1
L8003 B-4
L8004 B-4
L8101 D-7
L8102 A-6
L8103 E-6
L8104 B-5
L8202 B-5
L9104 B-8
L9105 B-4
Q3004 F-8
Q3001 F-8
Q3002 E-7
Q3003 F-8
Q4001 E-6
Q4002 E-6
Q4005 E-6
Q4006 E-6
Q4007 F-6
Q5001 A-2
Q5002 A-2
Q5003 B-2
Q5004 B-2
Q5005 B-2
Q5101 B-2
Q5102 C-3
Q5201 C-3
Q5202 C-3
Q5203 B-3
Q5204 B-3
Q5602 G-1
Q8006 G-3
Q8011 G-3
Q9113 B-8
Q9115 A-7
Q9116 B-7
Q9117 A-8
Q9125 A-3
Q9126 A-3
R1001 G-8
R1002 H-8
R1003 F-8
R1004 F-8
R1005 F-8
R1006 F-8
R1007 F-8
R1008 F-8
R1009 F-8
R1010 F-8
R1011 F-8
R1012 F-8
R1013 F-8
R1014 F-8
R1015 F-7
R1016 G-6
R1017 F-7
R1019 G-7
R1021 G-7
R1022 G-6
R1023 G-6
R1024 G-5
R1025 F-5
R1026 F-5
R1027 G-6
R1028 G-6
R1029 G-6
R1030 G-5
R1032 F-8
R2001 G-8
R2002 H-8
R2003 G-8
R2004 G-8
R2005 F-8
R2006 F-8
R2007 G-8
R2008 F-8
R2009 F-8
R2010 F-8
R2011 F-8
R2012 F-8
R2013 F-8
R2014 F-8
R2015 E-7
R2016 G-6
R2017 F-7
R2019 G-7
R2021 G-7
R2022 G-6
R2023 G-6
R2024 G-5
R2025 F-5
R2026 F-5
R2027 G-6
R2028 G-6
R2029 G-6
R2030 G-5
R2032 G-8
R3001 G-8
R3002 F-6
R3004 E-8
R3005 E-8
R3006 F-5
R3009 A-7
R3010 A-7
R3011 A-7
R3013 F-8
R3014 F-8
R3015 F-8
R3016 A-7
R3018 E-7
R3019 E-7
R3022 F-5
R3023 A-7
R4005 E-6
R4010 E-6
R4013 E-6
R4014 E-6
R4015 E-6
R4016 E-6
R4017 E-6
R4018 F-6
R4021 F-5
R4022 F-6
R4026 H-5
R4030 H-4
R5001 A-1
R5003 C-2
R5004 A-2
R5009 B-2
R5010 B-2
R5011 B-2
R5013 B-1
R5014 C-1
R5015 C-1
R5016 B-2
R5017 B-2
R5018 B-2
R5020 B-2
R5021 B-2
R5022 B-1
R5023 B-2
R5024 B-1
R5025 A-1
R5026 B-1
R5027 B-1
R5028 B-1
R5060 B-1
R5061 B-1
R5101 B-2
R5102 B-2
R5103 B-2
R5104 B-2
R5105 B-2
R5106 C-3
R5107 C-3
R5112 B-3
R5113 B-3
R5201 C-3
R5202 C-3
R5203 C-3
R5204 C-3
R5205 C-3
R5206 C-3
R5207 D-3
R5208 C-3
R5209 D-3
R5210 D-3
R5211 D-3
R5214 B-3
R5215 B-3
R5216 D-3
R5217 C-3
R5301 C-1
R5302 C-1
R5303 C-2
R5304 C-2
R5305 C-2
R5306 C-2
R5307 C-2
R5308 D-3
R5309 C-2
R5310 D-2
R5311 C-2
R5312 C-2
R5313 D-2
R5314 C-2
R5316 D-1
R5318 D-1
R5401 G-1
R5402 G-1
R5403 F-3
R5404 F-3
R5405 F-2
R5406 F-3
R5407 F-2
R5408 G-3
R5409 F-2
R5410 F-2
R5411 F-2
R5412 F-2
R5413 F-4
R5414 G-4
R5416 D-4
R5417 D-4
R5418 G-3
R5419 D-4
R5420 D-4
R5421 G-2
R5422 G-2
R5423 B-4
R5424 F-3
R5425 D-4
R5426 E-2
R5427 E-2
R5428 E-2
R5429 E-2
R8063 B-8
R8064 B-8
R8065 B-8
R8066 B-8
R8067 B-8
R8068 B-8
R8069 B-8
R8070 C-8
R8071 C-8
R8072 C-8
R8073 C-8
R8074 C-8
R8075 C-8
R8076 C-8
R8077 C-8
R8078 C-8
R8079 C-8
R8080 C-8
R8081 C-7
R8082 C-7
R8098 G-2
R8101 D-7
R8102 E-7
R8103 E-7
R8104 E-7
R8105 E-6
R8106 E-7
R8107 E-6
R8108 E-6
R8109 D-6
R8110 D-6
R8111 C-8
R8112 D-6
R8113 C-8
R8114 D-6
R8115 C-8
R8116 D-6
R8117 C-8
R8118 D-6
R8119 C-8
R8120 D-6
R8121 C-8
R8122 D-6
R8125 D-5
R8126 F-5
R8127 E-6
R8129 D-7
R8130 D-7
R8208 B-6
R8908 G-3
R8909 G-2
R8910 H-2
R8912 G-3
R8915 B-3
R8919 A-3
R8921 A-6
R8931 H-3
R8932 H-3
R8933 G-3
R8934 H-3
R8935 G-3
R8936 G-3
R8937 G-3
R9121 A-7
R9127 B-7
R9128 A-8
R9129 B-7
R9130 A-4
R9132 B-8
R9134 B-7
R9135 B-7
R9136 A-8
R9137 A-7
R9139 B-7
R9143 A-4
R9148 A-4
R9150 A-3
R9153 A-3
R9155 A-3
R9156 A-3
R9904 A-2
R9905 B-6
R9906 D-7
R9910 G-1
X5301 D-1
X5401 G-2
X5403 D-4
POWER board
(DC/DC CONVERTER)
BL board
(EVF BACK LIGHT) VF board
(EVF)
MAIN board
AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER,
RF AMP/DRIVE, DIGITAL SIGNAL PROCESSOR,
SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR
4-22
surfac
e
Lead layout of conventional IC CSP (chip size package)
R9130
R1010
R1012
R2012 R2009
R2008
R2010
R2014
R1017
R1018
R2017
R2018
R4013
R4022
R4024
R4023
R4021
R2026R3022R1026
R4017 R4016
R4015
R8105
R8107
R8108
R8106
R8102
R3019
R3018
R8103
C8106 C8114
C8127
R8104
R8101
R8116
R8118
R8122
R8120 R8110
R8129
R8130
R8111
R8113
R8117 R8119
C9128
C9116
C3041
C3039
R3010
R3009 C3038
C3037
C9112
C8211
C3036
C3049
C8204
C8129
C8069
C9101
C9117
C9118
C5103
C5105
C5104
Q9125
Q5003 TP5001
TP5010 TP5014
Q5004
C9130
C9131
C8130
R5423
R9143
R9148
R8920
R8919
R9156
R9155
R5415
C8208
C8113
C3028
L3004
L8202
L8104
L9105
L8102
C8121
C9121
C9120
R9137
R3023
R8204
R3016
R2031
R1031
R3011
R9129
R9127
R9139
R9135
R9132
R9128
C9113
R9136
R9131
C9129
R8115
R8121
R8109 C8111
C8122
R8114
R8112
R8127
R4014
R1009
R3013
R3014
R3015
Q3004
L3001
R1008
1
1
4
1
13
4
5
4
58
1
1
1
1716
1
14
58
8
54
1
1
14
58
1
1
1
2
13
45
30
29
14 16
4
58 14
58
14
58
14
58
58
14
3619
18
32
7
8
30
36
37
48 16
12
12
14
13
13
24
24
25
15
IC3001
CN3001
IC3004
IC3007
IC8104
IC5501
IC8101
IC8103
IC8202
CN8001
CN9101
IC5102
FL5101
CN5001
IC5002
IC8102
IC5205
IC5403
IC5201
IC5003
IC5602
IC5301
IC5005
IC5408
IC5405
1
16
7
814
89
161
IC8027
IC5601
IC5407
IC8026 IC4006
IC3009
IC5404
CN4312
CN3002
CN8003
CN5002
IC4007
IC4008
IC3002
IC3005
1
12
5049
3
4
12
34
5
IC5401
IC5406
13
45
13
45
IC5302
IC5303
1
169
54
16
17
9
8
1
3225
24
45
8
1
1
23
2
70
232
133
1
34
6
220
19
59 60
39
40
26 27
12
1
1
1
8
8
5
5
4
4
64
3
1
1
1
7
2
2
CN8101
CN8007
IC9104
Q9115
IC3008
CN8002
CN4511
R9910
R5421R5422
R8909
R8098
R8936
R8933R8912
R5414
R5408 R5418
R5403
R5406
R5404
R5411
R5407
R5405
R5412
R5424
R5413
R8934
R8932
R8910
R8931
C8076
C5601
C8073
C8077
C5412 C5404 C5413
C5608
D5601
C5607
L5603
C5415
C8071
C5407
C3042
C3029
C3030
C3051
D9904
R9909 R1029
R2028
R2029
R1028
R1022
R2020
R1020
R2003
R1014
R2032
R2002
R3030
R1002
R1019
R2019
R1023
R1027
R2027
R2023
C3018
C1018
C3050
C1019
C1017
C2017
C2014
C3019
C3012
C3013
C3015
C1014
C1016
C1005 C1002
C2002
C3016
C3014
C2003
C1006
C2011
C2010
C1015
C2015
C3025
C3026
C3023
C3021
C3022
C3033
C3032
C3034
C3055
C4001
C4002
C8110
C8109
C8107 C8108
C2020
C3046
C3044
C3035
C3031R3007
C3005
R1003
R1004
C1010
C1011
C1003
L3003
L3006
CN8006
FB8021
C2018
FB8022
C4027
C8075
X5401
C5410
L5610
R5318
R5317
R5316
R5315
R5310
L5607
L5001
L5402
L5401
L5403
L4001
L4002
L5606
L5605
L5602
L5608
C5309
C5610
C5609
C5318
C5606
C5416
C5212C5208C5209R5211
R5308
R5312 R5311 R5304
R5106
R5201
R5204
R5215
R5214
R5112
R5113
C5312 C5306
R5309 C5316 C5310
C5203
C5202
C5414
C5308
C5107
C5011
Q5102
R5306 R5303
C5025
C5210
C5014
C5010
C5055
C5027
C5009
C5023
C5301
C5001
C5008
C5002
C5024
C5004
C5005
C5003
R5102
R5101
R5004
R5014
R5015
R5301
R5060
R5103
R5010
R5020
R5021
R5016
R5017
R5018
R5003
R5011
R5104
R5213R5209R5210
R5313
R5207 R5208
R5216 R5217
R5212
C5604
C5319
C5206 C5207
C5417C5418
C8118
C8119C8120
R8125
C5315
C5603
C5503
C5307
C5409
C8079
D8005
C8078
Q5602
C5403 C5401
C5408
C5405
C5406
C5614
C5411
C8074
L5604
L5601
C5605
C5611
C5311
C5313
Q5202
Q5201
X5403
C5314
R5307
Q5204
Q5203
Q5005
R5205
R5202
R5203
R5206
R5420 R5419 R5425 R5416
R8124
R5417
R5107
C5205 C5204
C5423
C5422
C5424
C8123
C8102 C8103 C8104 C8105
R9906
R8081
R8082
R8080
L9104
Q9117
Q9116
Q9113
R8079
R8078
R8077
R8076
R8075
R8074
R8073
R8072
C9122
R8071
R8070
R8069
R8068
R8067
R8066
R8065
R8064
R8063
R9134
R9905
R8208
R8921
R8922
C8112
C8128
C8070
R9150
R5111
R9904
R5105
R9153
R5009
R5029
R5027
R5061
R5023
R5002
R5019
R5025
R5028
R5022
R5024
R5026
R5001
TP5002
R5013
C5007
C5018
C5006
C5013
C5016
C5015
C5017
C5020
C5021
C5012
C5022
C5026
C5305
C5304
C5303
R5302
L5002
Q9126
Q5001
Q5101
Q5002
C9123
C8035
C5106
C5102
L8003
L5101
L8004
FB3002
TP8047
FB3001
C3040 R9122
R9121
FB8018
FB8017
FB8016
FB8015
FB8014
FB8013
FB8012
FB8011
FB8010
FB8009
FB8008
FB8007
FB8006
FB8005
FB8004
FB8003
FB8002
FB8001
FB8019
FB8020
D9903
C5421
C5201
C5101 C5420
C5501
R5305
TP5015
C5317
R5319
R5314
TP5401 TP5403
TP5424
TP5404
TP5422TP5421
TP5408
TP5407
TP5409
TP5423
R8935
R8908 C8072
R8937
R4030 R4027 R4026
R2024 R1030
R1024
R1016 R2016
C2016
C2004
C3001
C1004
C3003
C3011
C1007
C1009
C2009
C2012
C3010
C3053
C3009
C3004
C2013
C1008
C3006
C3017
C3002
C1012
C3027
C3020
C2019 C2006
C2008
C2007
C1013
R2004
R1021
R1015
R2021
R2001
R2006
R1006
R2011
R3004
R2015
R3002
R1025
L3005
Q4001
R3006
R2025
R2030
L3002
L8103
C3024
C3047
C8126
C8101
C8115C8116C8117
L8101
C1021
C3045
C3043
C3008
C2021
C2022
C1022
Q4006
Q4005
Q3002
Q4002
Q4007 D3009
R2022
R4018R8126 R8123
R4010
R4005
R8128
C3048 R3005
R1013
R2013
R1011
Q3003
Q3001
R1005
R1032
R1007
R3001
R2005
R2007
R1001
C2005
C4025 C4024
C1020
C3007
C4026 C4023
D4002 D4001
Q8011
Q8006
C5402
R5402
R5401
R5410
R5428
C5302
X5301
L5301
R5426
R5429
R5427
R5409
D8004
12 1
13
24
25 36
37
48
54
3
1
A
B
C
D
E
F
G
H
1234567 8
05
MAIN BOARD (SIDE A)
1-672-520-
11
DCM-M1
4-25 4-26
DCM-M1
AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER, RF AMP/DRIVE, DIGITAL
SIGNAL PROCESSOR, SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR
MAIN
4-27
MAIN BOARD (SIDE B)
C3048 E-8
C3052 G-6
C4003 G-1
C4004 G-2
C4005 G-2
C4006 G-2
C4007 G-3
C4008 G-3
C4009 G-3
C4010 H-2
C4011 H-3
C4012 H-2
C4013 H-2
C4014 H-3
C4015 H-3
C4017 H-2
C4018 H-2
C4019 H-1
C4020 G-1
C4021 G-2
C4022 G-1
C4028 C-8
C4029 B-8
C4031 A-8
C4032 A-8
C5019 B-1
C5028 B-1
C5029 B-1
C5030 B-1
C5031 C-1
C5032 C-1
C5033 C-1
C5034 A-1
C5035 C-2
C5036 C-2
C5037 C-2
C5038 C-2
C5039 B-2
C5040 C-2
C5041 B-2
C5042 B-2
C5043 B-1
C5044 B-1
C5045 B-2
C5046 B-2
C5047 B-1
C5048 B-1
C5049 C-1
C5051 E-2
C5052 E-1
C5056 B-1
C5057 A-1
C5419 F-3
C5602 F-2
C5615 F-3
C8001 D-6
C8002 C-6
C8003 D-6
C8004 C-6
C8005 C-6
C8006 C-6
C8007 C-6
C8008 C-6
C8009 B-5
C8010 B-5
C8011 B-5
C8012 B-4
C8013 B-4
C8014 C-4
C8015 C-4
C8016 C-3
C8017 C-3
C8018 C-4
C8019 C-4
C8020 C-4
C8021 D-4
C8022 C-3
C8023 D-5
C8024 D-5
C8025 D-5
C8026 D-5
C8027 D-5
C8028 D-5
C8029 D-5
C8030 D-5
C8031 D-5
C8032 A-3
C8033 A-3
C8034 B-5
C8036 B-3
C8037 D-6
C8038 B-3
C8039 C-6
C8040 C-6
C8041 C-6
C8042 C-6
C8043 B-6
C8044 C-6
C8045 B-6
C8046 A-4
C8047 A-4
C8048 A-4
C8049 A-6
C8050 A-4
C8051 B-4
C8052 A-4
C8053 A-4
C8055 B-3
C8056 B-3
C8057 B-4
C8059 B-4
C8062 A-3
C8063 D-4
C8064 D-6
C8065 B-3
C8067 D-6
C8068 D-4
C8080 B-3
C8081 A-3
C8501 E-3
C8502 E-3
C8503 D-2
C8504 E-3
C8506 C-2
C8507 E-3
C8508 D-2
C8510 E-2
C8511 D-3
C8601 F-6
C8602 F-6
C8603 G-4
C8604 G-4
C8605 F-4
C8606 F-5
C8607 F-5
C8608 F-5
C8609 F-5
C8610 F-7
C8611 F-5
C8612 F-6
C8613 G-6
C8614 G-6
C8615 G-5
C8616 G-5
C8617 G-5
C8618 G-5
C8619 E-4
C8620 G-4
C8621 G-3
C8622 E-3
C8623 E-3
C8624 F-3
C8701 E-7
C8702 F-5
C8703 F-5
C8704 E-4
C8705 E-4
C8706 E-4
C8707 E-6
C8708 E-6
C8709 E-6
C8710 D-6
C8711 E-6
C8712 E-6
C8713 E-6
C8714 E-6
C8715 E-6
C8716 E-6
C8717 E-7
C8718 F-6
C9103 H-5
C9104 H-5
C9105 H-6
C9106 G-5
C9107 H-5
C9108 H-4
C9109 G-5
C9110 H-5
C9111 G-6
C9114 H-4
C9115 H-5
C9119 H-6
C9126 C-8
C9127 C-8
C9132 C-8
C9133 C-8
CN4313 H-4
D4003 B-8
D5602 E-1
D8001 D-5
D8002 B-2
D8003 B-3
D8006 C-3
D8007 A-3
FL4001 G-3
FL4002 H-3
IC3003 G-6
IC4001 G-2
IC4002 G-2
IC4003 H-2
IC4004 H-3
IC4005 H-2
IC4009 B-8
IC4010 A-8
IC4011 A-8
IC5004 C-2
IC5006 B-1
IC5007 B-1
IC5008 C-1
IC5009 C-2
IC5010 C-2
IC5011 B-2
IC5012 B-2
IC5013 C-1
IC5014 E-2
IC5015 E-1
IC5402 F-3
IC5603 F-2
IC8001 C-5
IC8002 C-6
IC8003 B-6
IC8004 B-5
IC8005 A-5
IC8006 A-4
IC8007 A-4
IC8008 D-4
IC8009 D-5
IC8010 D-5
IC8011 A-3
IC8012 B-3
IC8013 A-4
IC8015 B-4
IC8016 B-4
IC8020 A-3
IC8023 D-5
IC8024 D-5
IC8025 B-3
IC8501 D-3
IC8601 F-5
IC8602 F-4
IC8701 E-5
IC8702 E-6
IC8703 E-6
IC9102 C-8
IC9103 G-5
L4003 G-1
L8001 D-5
L8002 D-3
L8501 E-2
L8601 G-7
L8602 F-6
L8603 F-3
L8701 F-6
L8702 F-7
L9102 G-5
L9103 G-6
Q4003 H-1
Q4004 H-1
Q5009 A-2
Q5010 B-2
Q5601 E-2
Q5603 F-3
Q8001 B-3
Q8002 B-2
Q8003 C-3
Q8004 C-2
Q8005 D-4
Q8007 A-3
Q8008 A-3
Q8009 B-3
Q8010 B-3
Q8012 B-6
Q8013 A-6
Q8014 B-6
Q9101 H-5
Q9102 H-6
Q9103 H-5
Q9104 H-6
Q9105 H-4
Q9107 H-5
Q9108 G-4
Q9110 H-6
Q9111 H-5
Q9112 G-6
Q9122 D-8
R4001 G-2
R4002 G-2
R4003 G-3
R4004 G-3
R4006 H-3
R4007 H-3
R4008 H-3
R4009 H-3
R4011 H-1
R4012 H-1
R4019 H-3
R4020 H-3
R4028 B-8
R4031 A-7
R5005 B-1
R5006 B-1
R5007 B-1
R5008 B-1
R5012 B-1
R5030 C-1
R5031 C-2
R5032 B-1
R5033 A-1
R5034 B-1
R5037 C-2
R5038 C-2
R5039 C-2
R5040 C-2
R5041 C-2
R5042 C-2
R5043 C-2
R5044 C-2
R5045 C-2
R5046 C-2
R5047 C-2
R5048 C-2
R5049 B-2
R5050 B-2
R5051 C-2
R5052 B-2
R5053 B-2
R5054 B-1
R5055 B-2
R5056 B-2
R5057 B-1
R5058 E-2
R5059 E-2
R5076 B-2
R5077 B-2
R5078 A-2
R5601 F-2
R5602 F-2
R5603 F-2
R5604 F-2
R5605 F-3
R5606 F-3
R5607 E-2
R8001 D-6
R8002 D-6
R8003 D-6
R8004 D-6
R8005 D-7
R8006 D-6
R8007 D-6
R8008 D-7
R8009 D-6
R8010 D-6
R8011 D-6
R8012 C-3
R8013 C-3
R8015 B-4
R8016 B-4
R8017 C-4
R8018 C-4
R8019 C-4
R8020 C-4
R8021 C-4
R8022 B-4
R8023 B-4
R8024 C-4
R8025 C-4
R8026 C-3
R8027 C-3
R8028 B-3
R8029 C-3
R8030 C-4
R8031 C-4
R8032 C-3
R8033 C-3
R8034 C-4
R8035 C-4
R8036 B-7
R8037 C-4
R8038 D-5
R8039 B-4
R8040 B-3
R8041 D-5
R8042 D-5
R8043 D-5
R8044 D-5
R8045 D-5
R8046 C-7
R8047 D-5
R8048 B-3
R8049 B-3
R8050 B-2
R8051 B-3
R8052 B-2
R8053 B-4
R8055 B-3
R8056 B-3
R8057 B-4
R8058 B-4
R8061 A-2
R8062 B-7
R8083 D-5
R8084 A-4
R8085 B-7
R8086 B-7
R8087 B-7
R8088 D-4
R8089 D-5
R8090 D-5
R8091 B-7
R8092 C-7
R8093 D-5
R8094 D-5
R8095 D-5
R8096 D-5
R8097 B-3
R8099 D-6
R8501 D-2
R8502 D-2
R8503 D-2
R8504 D-2
R8505 D-2
R8506 D-2
R8507 D-2
R8508 D-2
R8509 D-2
R8510 D-2
R8511 D-3
R8512 E-4
R8513 E-4
R8514 E-4
R8515 E-4
R8516 E-4
R8517 E-4
R8519 E-4
R8520 C-3
R8521 D-2
R8522 D-2
R8523 D-2
R8524 D-3
R8525 E-4
R8526 E-4
R8527 E-4
R8528 E-4
R8529 D-3
R8530 E-2
R8531 D-3
R8532 E-3
R8601 F-5
R8602 F-5
R8603 F-4
R8901 B-4
R8902 B-6
R8903 B-6
R8904 D-6
R8906 C-4
R8911 C-3
R8913 D-5
R8914 C-3
R8916 B-3
R8917 A-3
R8918 A-3
R9101 H-6
R9102 H-6
R9103 H-6
R9104 H-6
R9105 H-5
R9106 G-5
R9107 H-4
R9108 G-4
R9109 H-4
R9110 H-5
R9111 H-6
R9112 H-6
R9113 G-4
R9114 H-6
R9116 H-6
R9117 H-5
R9118 G-5
R9119 G-5
R9120 G-4
R9123 H-5
R9124 H-6
R9125 G-6
R9126 G-4
R9140 C-8
R9144 H-6
R9147 G-6
R9152 C-8
R9154 G-5
R9157 H-5
R9159 C-8
R9161 C-8
R9901 A-2
R9902 B-7
R9903 D-6
S8001 D-1
S8002 E-1
S8003 G-4
U8001 D-4
X8001 D-4
X8002 D-6
X8003 C-4
X8501 D-3
TP5018
TP5013
TP5012
TP5011
TP9114
TP9110
TP9103
TP9109
TP9104
TP9111
TP9106
TP9105
TP8042
TP9107
TP9108
TP5016
C5057
R5008R5007R5032
C5028
C5056
C5019
C5108
R5109
R5108
Q5010
R5035
R5036
R5110
R5053 R5054
C5044C5041
C5042
C5029
C5031
C5050
C8512
C8503
C8508
C5035
C8080
L8002
C8020
C8025
C8026
C8027
C8028
X8003
Q8005
C8068
C8023
C8024
C8002 C8005 C8006 C8007 C8008
C8043 C8049
R8903 R8902
C8066
C8030
X8001
D8006
C8506
C5033C5049
S8001
U8001
S8002
C5030 R5034
R9901
R5006
R5076
R5077
R8056
R8055
R8051
C8036
C5054
C8082
R5078
R8050
Q8002
Q8001
Q8009
C8081
C8057
TP8044
C8053
C8048 C8052
C8050
C8055
C8019
R8907
R8047
R8083
R8041
R8038
R8043R8042
R8044
R8006
C8710
C8711
C8701
L8702
IC3003
L8701
L9103
C3052
C9109
C9104
R9105
R9119
C9106
C8620
C4009
C4008
C4005
C4021
R4012
R4011
C4022
C4020
C4003
L4003
C4010
C4018
C4011
IC4004
IC4002 IC4001
C4014
C4007
C8621
C4006
C4016
R4009
R4004
R4003
S8003 FL4001
C8603 C8604 C8605
C9115
C9114
R9147
R9154R9106
R9117 R9118
R9109 R9115
R9107
C9108 R9126
R9108
R9113
R9120
R9101
R9116
R9112
R9124
C9105
C9102
R9104
R9103
R9102
R9114
R9125
L8601
C8714C8715
R8007 R8009 R8004
R8001
R8003
R8005
R8002
R8010
R8008
R8011
R8913
R8906
TP8045
C8014 C8013
C8056 R8917
R8058
R8918
R8084
R8054
IC8011
R8052
R8916
D8002
R5005
R5030
R5051
R5048R5043R5031
R5042
R8510
IC5015
R8504
TP8502
S8001
TP8503
TP8501
R8505
R8502
R8501
R8503
R8506
R8507
R8521
R5607
R5605
R5606
C5615
C8623
C8507
R8532R8515
R8512R8527
R8525
R8519
R8603
R8526
R8517
R8516
R8514
R8513
R8528
C8624
C5419 TP5417
TP5414
TP5402
Q5601
Q5603
L8603
D5602
TP5405
R5058
R5059
C5051
C5052
R8509
R8508
R8523
R8522
R8530
C8510
C5602
C8501
C8502
C8622
C8705
C8619
C8606
C8607
C8611
C8709 C8708 C8707
C8702
C8609
C8608
C8703
R8602
R8601
C8704
C8706
C8504
R8531 R8524
C5613
R5602
R5603
R5604
R5601
L8501
R5040
R5039
R5037
R5038
R5041
R8914
R5044
R5046
R5045
R5047
D5001
R5012
IC5006
IC5007
C5032
IC5008
TP5003
C5043
C5048
R5057
R5050
R5049
R5055
R5056
R5052
C5047
C5046
C5045
C5036
C5037
IC5009
C5040C5038
C5039
C5034R5033
R8061
Q5009
5
5
4
4
1
1
8
8
5
41
8
IC5013
1
85
4
IC8501
IC8004
IC8001
IC8002
X8002
IC8003
IC8005
32
17
1
16
Q8007
C8033
C8062
C8047
C8046
C8054
D8003
C8032
C8038
R8915
TP8018
C8065
C8016C8017C8018C8015
R8040
R8097R8022R8015
R8053
R8034
R8088
R8090
R8089
R8045
R8093
R8096
R8095
D8001
R8094
R8099
L8001
R8905R8904
R9903
TP8020
C8029
C8004
C8012C8011C8010C8009C8034
C8045
Q8012
Q8013
Q8014
TP8019
TP8039
TP8043
TP8021
TP8024
TP8022
TP8040
TP8031
TP8023
TP8032 TP8025
TP8012
TP8034
TP8015
TP8017
TP8035
TP8009
TP8013
TP8027TP8026
TP8028
TP8029 TP8109
TP8107
TP8106
TP8108
TP8601
TP1002
TP2002
TP8101
TP8102
TP8103
TP8111
TP8110TP8113
TP8114TP9112
TP9116
TP8007
TP8008
TP8006
TP8005
TP8001TP8003
TP8002
TP8004
TP8104
TP8105
TP9115
TP8112
TP8033
TP8036
TP8011
TP8010
TP8016
TP8014
TP8038
TP807
TP8030
TP8041
TP9102
TP3002
TP3001
D9901
R9902
R4031C4032C4031
C4030
C4029
C4028 C9132
C9133
Q9122
C9127
D4004
D4003
R8036
R8046
R8092
R9140R9152R9158R9160
R9159
R9161
C9126
R8086
R8091
R8062
R8085
R8087
R4029
R4028
TP9101
C8031
C8003
C8039
C8040
C8041C8044C8042
C8001
C8712
C8713
C8718
C8610
L8602
L9102
C8602
C8601
C8612
C8613
C8614
C9111
TP9113
C8615 C8616
C9107
C8617 C8618
C9103
C9119
C9110
R9111
Q9112
Q9103
Q9107
Q9111 Q9108
R4019
R4008
R4007
R4006
R4002
R9908
TP4003
R4001
C4015
C4012
C4004
C4019
Q4003
Q4004
TP4001
C4017
C4013
IC4003
R4020
TP1001
TP2001
TP4002
FL4002
Q9105
Q9101
R9144
R9157
R9123
R9110
Q9104 Q9110
Q9102
C8716C8717
C8067
C8064
C8037
R8018
R8017
TP8046
R8016
R8037
R8021
R8031
R8025
R8023
R8019
R8020
R8030
R8024
R8028
R8029
R8013
R8033
R8027
R8048
R8057
R8049
IC8012
Q8008
Q8010
IC8025
IC8016
IC8013
IC8007 IC8006
IC8014 D8007
IC8015
C8059
R8039
C8051
R8901
8
8
5
5
5
4
4
4
1
1
IC8020
1
1
14 8
8
7
IC5004
Q8004
R8520
C8505
C8063
C8021
C8022
C8511
R8529R8511
R8911
R8012
R8032
R8026
R8035
TP8504
TP8505
X8501
IC5010
IC5012
IC5011
Q8003
14
87
1
1
1
4
4
5
5
8
8
IC8008
IC8010IC8009
U8001
5
110
6
IC8023
IC8024
IC8601
IC8701
IC8602
IC8702
IC8703
1
85
4
186
44
43
IC5014
IC5402
IC5603
4
18
5
IC4011
1
85
4
IC4010
1
85
4
IC4009
IC9102
1
13
46
85
4
IC9103
CN4313
4
31
6
IC4005
5
41
8
1
1
1
1
5
5
5
5
4
4
4
4
3
3
3
3
1
54
3
1
54
3
1
54
31
54
3
1
54
3
1
5
4
3
13
45
5
1
1
2
3
3
4
4
1
45
8
114
1
3
4
6
1
3
4
61
3
4
6
13
46
15
54
31
43
K
A
13
45
4
51
3
54
31
OPEN/CLOSE
DETECT
S8002
HALF LOCK
DETECT
S8003
OPEN/CLOSE
DETECT
(LITHIUM SECONDARY BATTERY)
A
B
C
D
E
F
G
H
8 7654321
05
MAIN BOARD (SIDE B)
1-672-520- 11

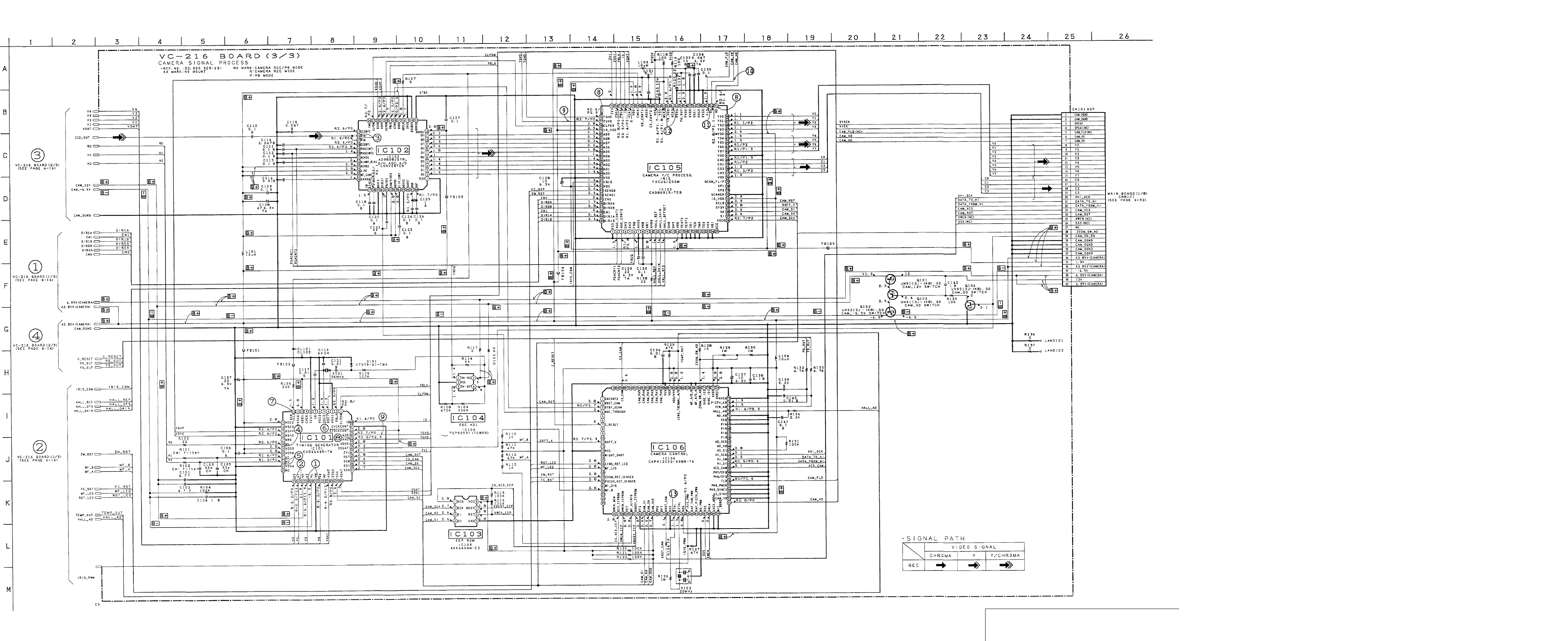

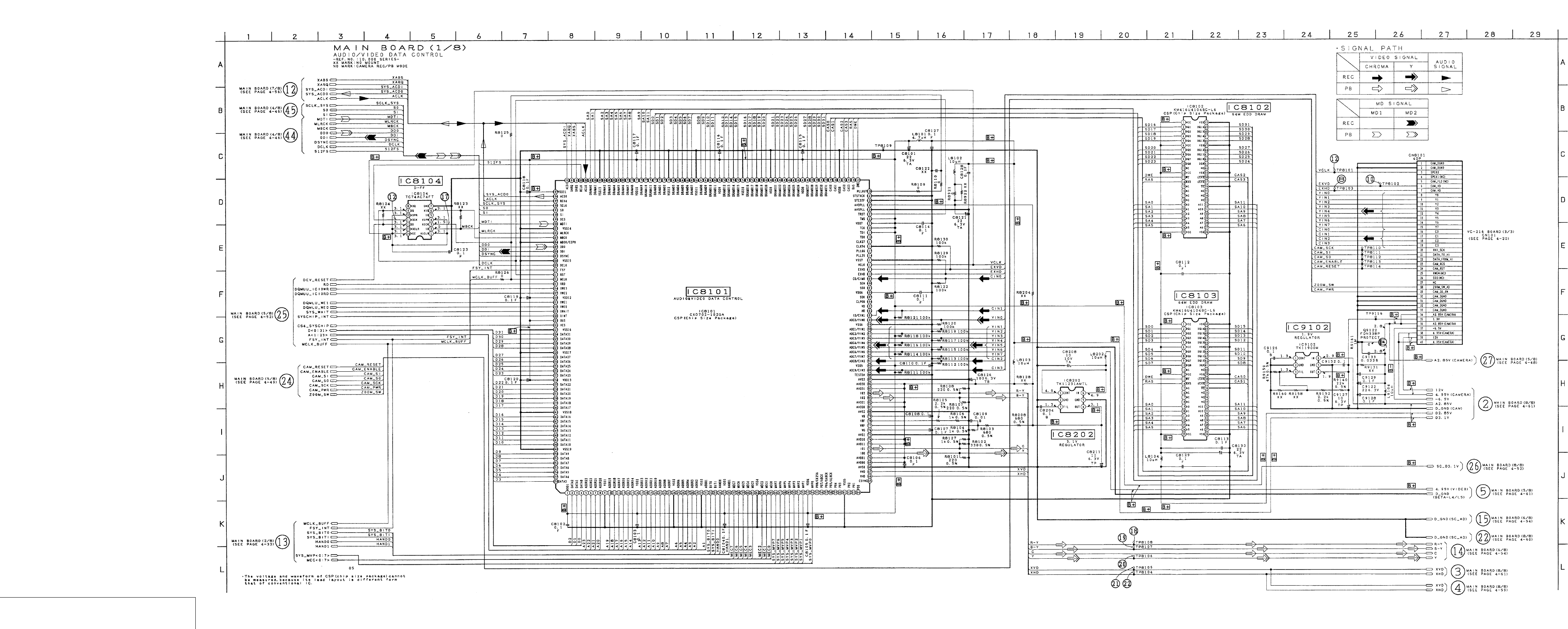

DCM-M1 MAIN (AUDIO/VIDEO DATA CONTROL) SCHEMATIC DIAGRAM • See page 4-21 for MAIN printed wiring board. • See page 4-133 for waveforms.
AUDIO/VIDEO DATA CONTROL
MAIN (1/8)
4-29
4-30 4-31 4-32
DCM-M1
4-37
4-36
MPEG ENCODER/DECODER
MAIN (2/8)

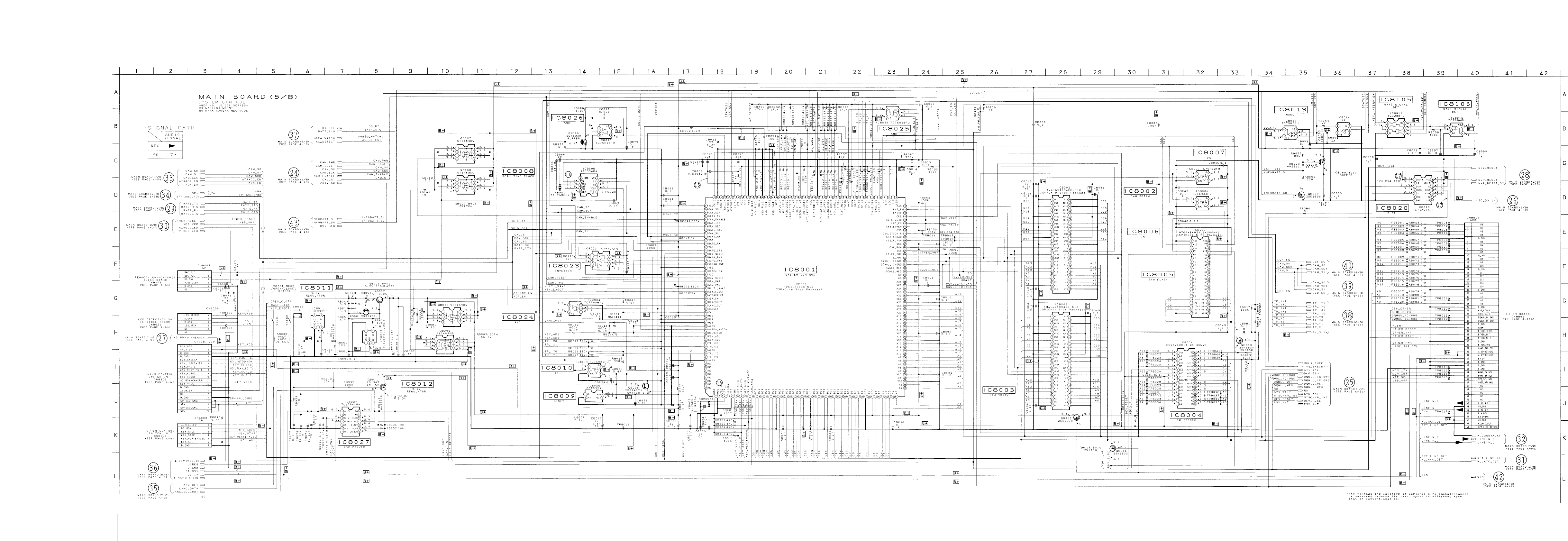

MAIN (MPEG ENCODER/DECODER) SCHEMATIC DIAGRAM • See page 4-21 for MAIN printed wiring board. • See page 4-133 for waveforms.
4-33 4-34 4-35
DCM-M1
4-39 4-40 4-41 4-42

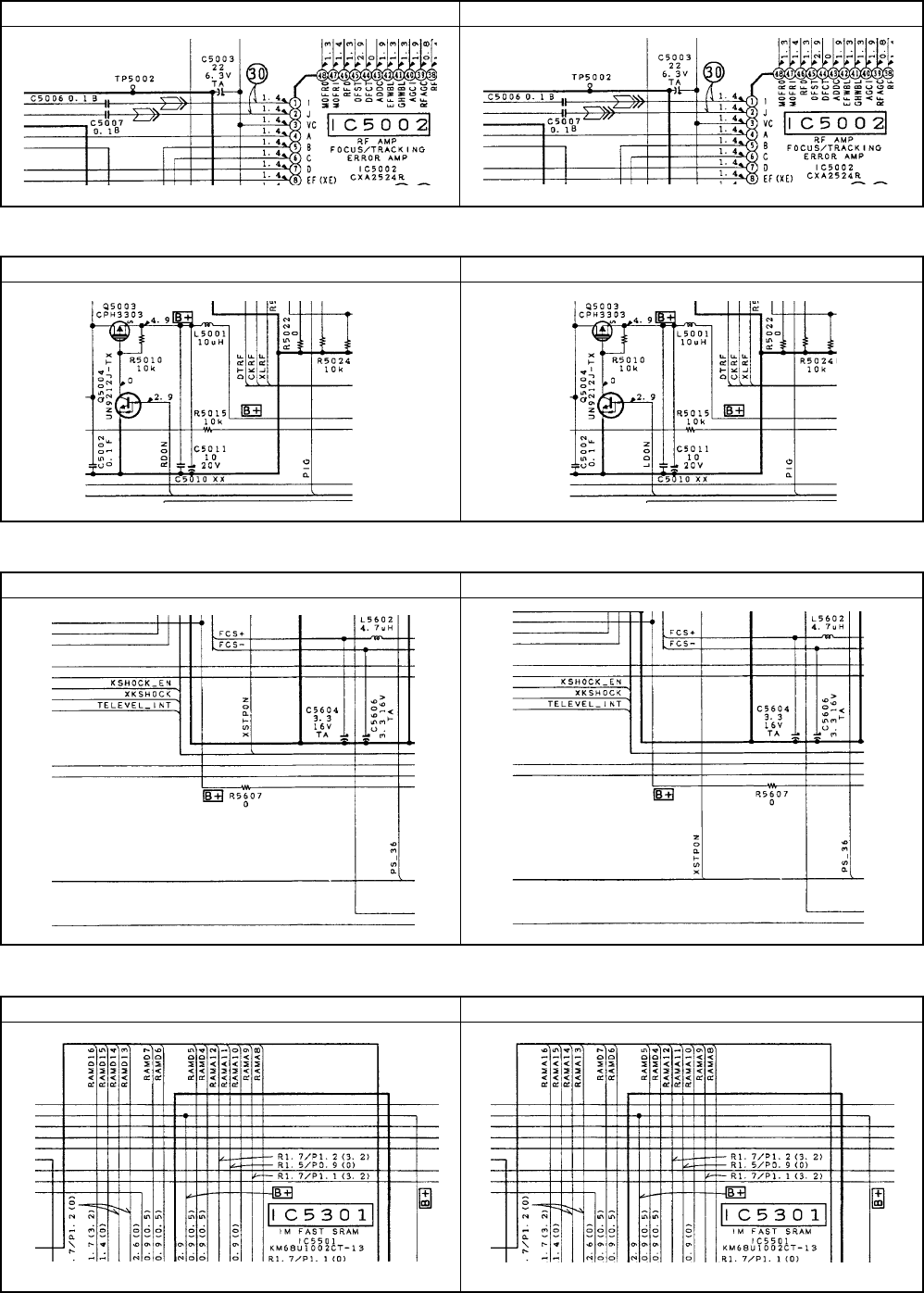

MAIN (RF AMP/DRIVE) SCHEMATIC DIAGRAM •See page 4-21 for MAIN printed wiring board. •See page 4-134 for waveforms.
DCM-M1
RF AMP/DRIVE
MAIN (3/8)
DCM-M1

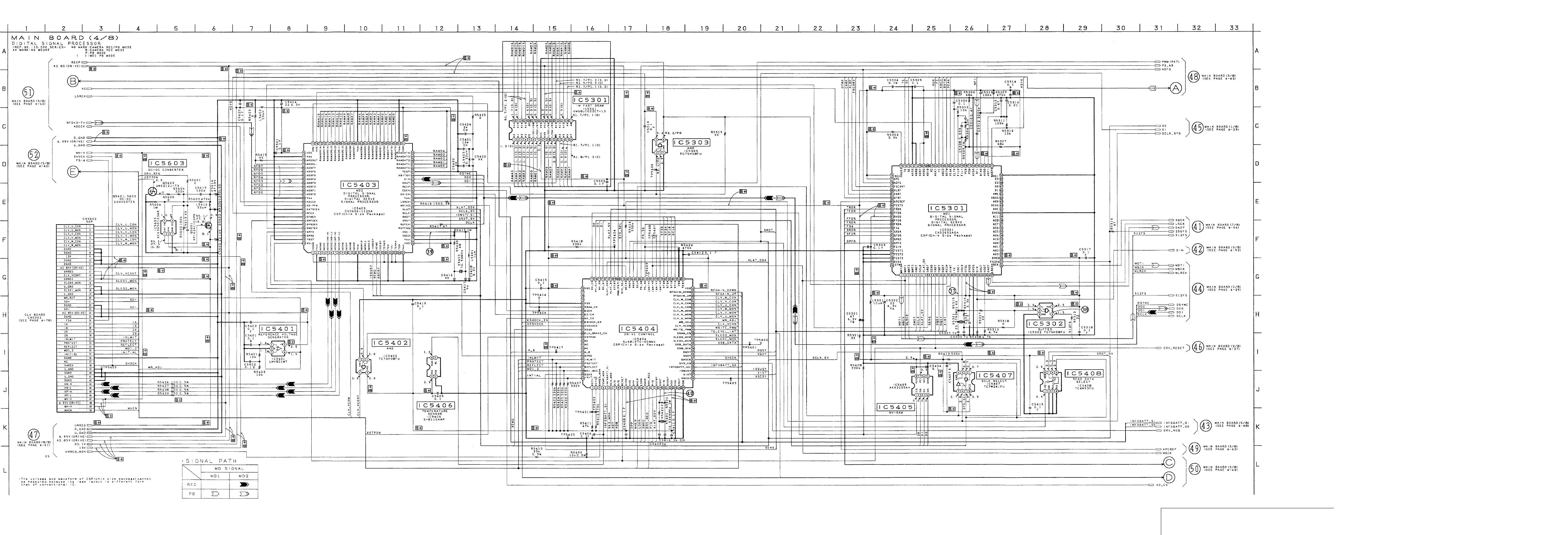

MAIN (DIGITAL SIGNAL PROCESSOR) SCHEMATIC DIAGRAM •See page 4-21 for MAIN printed wiring board. •See page 4-134 for waveforms.
4-43 4-44 4-45
DCM-M1
DIGITAL SIGNAL PROCESSOR
MAIN (4/8)
4-46
DCM-M1
SYSTEM CONTROL
MAIN (5/8)
4-48
4-49 4-50 4-51 4-52
MAIN (SYSTEM CONTROL) SCHEMATIC DIAGRAM • See page 4-21 for MAIN printed wiring board. • See page 4-133 for waveforms.
DCM-M1
4-554-53 4-54
VIDEO
MAIN (6/8)
MAIN (VIDEO) SCHEMATIC DIAGRAM • See page 4-21 for MAIN printed wiring board. • See pages 4-133, 134 for waveforms.
DCM-M1
4-56 4-57
AUDIO
MAIN (7/8) 4-58
MAIN (AUDIO) SCHEMATIC DIAGRAM •See page 4-21 for MAIN printed wiring board. •See page 4-134 for waveforms.
DCM-M1
4-614-59 4-60
SWITCHING REGULATOR
MAIN (8/8)
MAIN (SWITCHING REGULATOR) SCHEMATIC DIAGRAM •See page 4-21 for MAIN printed wiring board. •See page 4-133 for waveforms.
DCM-M1
4-62
4-63
MAIN CONTROL SWITCH UNIT, ZOOM SWITCH UNIT
4-64
MAIN CONTROL SWITCH UNIT, ZOOM SWITCH UNIT SCHEMATIC DIAGRAM
DCM-M1
4-65 4-66
4-67
UPPER CONTROL SW SUB ASSY, REMOCON RAY-CATCHER
BLOCK UNIT, LCD DETECTION SW FLEXIBLE BOARD
UPPER CONTROL SW SUB ASSY, REMOCON RAY-CATCHER BLOCK UNIT,
LCD DETECTION SW FLEXIBLE BOARD SCHEMATIC DIAGRAM
DCM-M1
4-68 4-69 4-70
CLV (MD MOTOR DRIVE) PRINTED WIRING BOARD
– Ref. No.: CLV board; 20,000 series –
CLV BOARD (SIDE A)
C5807 C-11
C5808 C-11
C5811 B-9
C5813 B-5
C5814 A-6
C5815 B-8
C5818 B-7
C5819 B-11
C5823 C-9
C5825 B-9
IC5802 B-10
IC5804 B-6
IC5805 B-8
IC5806 B-6
IC5807 C-11
IC5808 B-7
Q5821 C-9
Q5823 B-9
R5802 C-11
R5803 C-11
R5806 B-10
R5807 B-10
R5809 C-10
R5810 C-10
R5823 C-11
R5824 C-11
R5826 C-9
R5828 B-9
S5801 A-5
S5802 A-6
S5803 A-6
S5804 A-9
MD MOTOR DRIVE
CLV
DCM-M1
4-744-71 4-72 4-73
CLV BOARD (SIDE B)
C5804 A-10
C5805 A-9
C5806 B-10
C5809 C-9
C5810 C-10
C5812 C-10
C5816 A-8
C5817 B-8
C5820 A-9
C5824 C-8
C5826 C-9
C5827 B-9
C5828 B-9
C5829 A-6
C5851 D-6
C5852 C-7
C5853 D-7
C5854 D-7
CN5801 C-11
CN5803 B-1
D5801 C-7
IC5801 B-10
IC5802
IC5803 C-10
IC5851 D-7
L5801 B-6
Q5801 B-7
Q5802 A-8
Q5803 A-9
Q5808 D-8
Q5809 C-8
Q5810 C-8
Q5811 C-8
Q5812 B-8
Q5813 B-8
Q5822 C-9
Q5824 C-9
Q5825 B-9
Q5826 B-9
R5801 A-10
R5804 A-9
R5805 C-10
R5808 C-9
R5811 A-8
R5812 A-9
R5813 C-8
R5814 C-8
R5815 C-8
R5816 C-9
R5817 B-8
R5818 B-8
R5819 A-9
R5820 B-7
R5821 A-8
R5822 A-8
R5825 E-12
R5827 D-8
R5829 C-8
R5830 B-9
R5831 B-8
R5832 B-10
R5833 B-10
R5834 C-10
R5851 D-6
R5852 D-7
S5805 E-11
SE5851 D-6
• For Printed Wiring Board.
• There are few cases that the part isn't mounted in this model
is printed on this diagram.
• Chip transistor
VC-216 board
LENS MOTOR DRIVE,
CCD IMAGER,
CAMERA SIGNAL PROCESS
REC board
OVER WRITE
HEAD DRIVE
CLV board
(MD MOTOR DRIVE)
123
654
EB
C
MD MOTOR DRIVE
CLV
DCM-M1
4-75 4-76 4-77 4-78

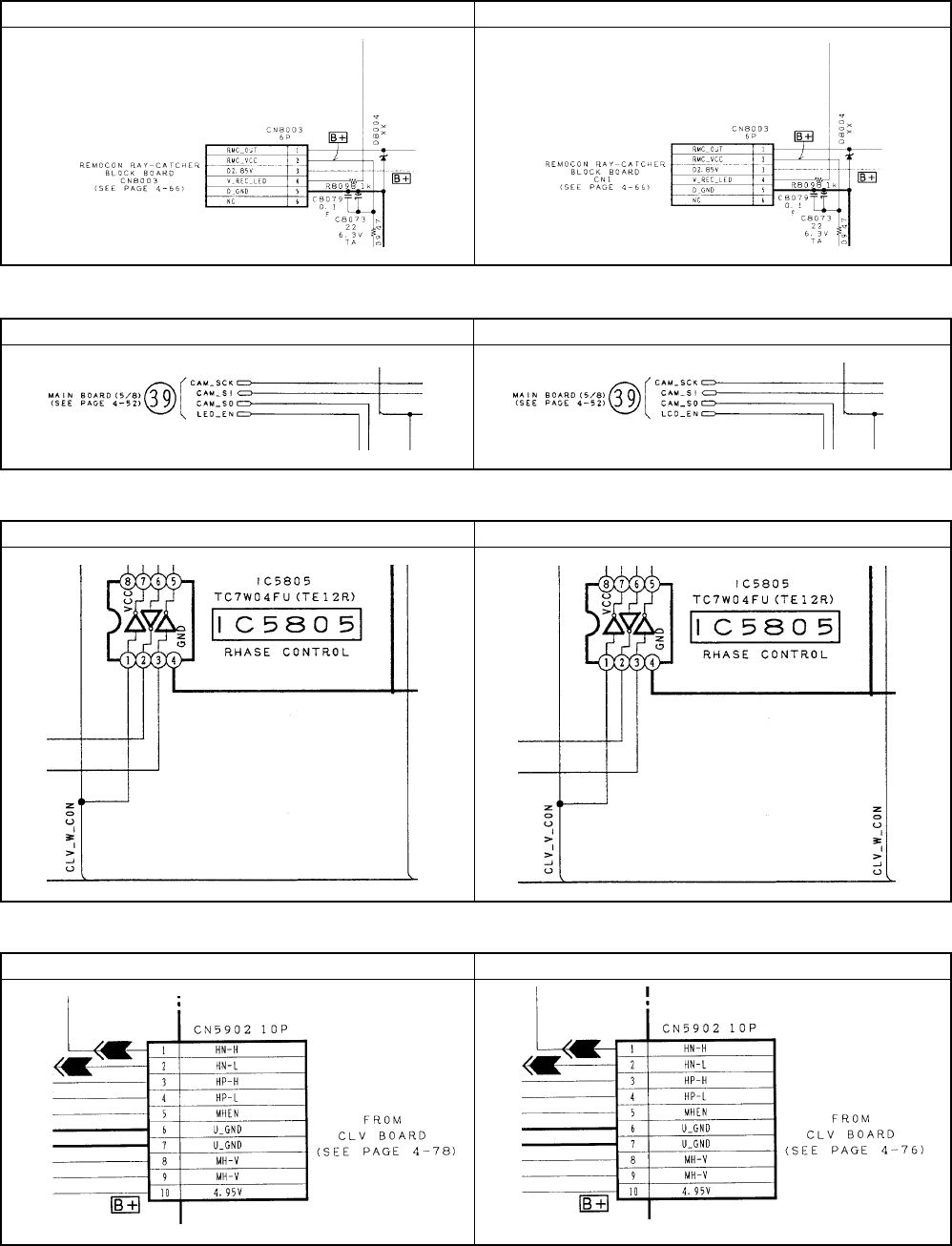

CLV (MD MOTOR DRIVE) SCHEMATIC DIAGRAM •See page 4-68 for CLV printed wiring board. •See page 4-134 for waveforms.
MD MOTOR DRIVE
CLV
DCM-M1
4-824-79 4-80 4-81
• For Printed Wiring Board.
•There are few cases that the part isn't mounted in this model
is printed on this diagram.
•Chip transistor
VC-216 board
LENS MOTOR DRIVE,
CCD IMAGER,
CAMERA SIGNAL PROCESS
REC board
OVER WRITE
HEAD DRIVE
CLV board
(MD MOTOR DRIVE)
OVER WRITE HEAD DRIVE
REC
REC (OVER WRITE HEAD DRIVE) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM
– Ref. No.: REC board; 20,000 series –
EB
C
DCM-M1
VF (EVF) PRINTED WIRING BOARD
– Ref. No.: VF board; 20,000 series –• For Printed Wiring Board.
•There are few cases that the part isn't mounted in this model
is printed on this diagram.
•Chip transistor
POWER board
(DC/DC CONVERTER)
BL board
(EVF BACK LIGHT) VF board
(EVF)
MAIN board
AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER,
RF AMP/DRIVE, DIGITAL SIGNAL PROCESSOR,
SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR
VF BOARD (SIDE A)
C4502 F-4
C4503 F-3
C4504 E-1
C4505 E-1
C4506 F-1
C4507 F-1
C4508 F-2
C4510 H-4
C4512 F-1
C4514 G-1
C4516 H-3
C4517 H-3
C4518 H-3
C4519 H-2
C4520 G-1
C4521 H-4
C4522 G-4
C4523 H-1
C4524 H-2
C4526 E-4
C4527 E-4
C4612 A-4
C4618 C-2
C4620 B-2
C4624 A-3
C4625 A-1
IC4501 G-3
IC4602 A-2
L4501 H-5
L4502 F-3
Q4502 F-1
Q4503 F-1
Q4504 F-1
Q4505 G-1
Q4506 G-1
Q4507 H-1
R4501 E-2
R4516 F-2
R4517 F-2
R4518 G-5
R4525 F-4
R4528 F-4
R4530 G-4
R4531 G-4
R4540 G-4
R4564 G-2
R4565 G-4
R4566 G-4
R4567 G-4
R4568 G-5
R4604 B-4
R4607 B-5
R4615 A-4
R4617 A-4
R4618 B-4
R4629 B-1
R4630 C-2
R4634 C-2
4-83 4-84 4-85 4-86
EVF
VF
EB
C
VF BOARD (SIDE B)
C4501 F-3
C4509 F-1
C4515 G-1
C4525 H-1
C4601 C-5
C4602 C-5
C4603 C-4
C4604 C-4
C4605 A-5
C4606 C-4
C4608 C-4
C4610 B-4
C4611 B-4
C4613 A-4
C4614 C-4
C4615 C-4
C4616 C-1
C4617 C-2
C4619 B-3
C4621 B-2
C4622 C-3
CN4501 F-4
CN4601 A-2
CN4901 H-7
D4601 A-3
D4602 C-2
IC4502 G-4
IC4601 B-4
L4503 F-4
L4601 B-3
L4602 B-3
L4603 B-1
Q4601 C-5
Q4602 A-3
Q4603 A-3
R4502 F-4
R4503 F-3
R4507 F-4
R4508 F-3
R4514 E-1
R4515 E-1
R4519 F-1
R4520 F-1
R4523 F-1
R4524 F-1
R4526 G-3
R4527 G-2
R4529 F-1
R4532 G-3
R4533 F-1
R4534 F-1
R4535 G-1
R4538 F-1
R4539 G-1
R4541 G-3
R4542 H-3
R4543 G-3
R4544 G-1
R4546 H-3
R4547 H-3
R4550 G-2
R4551 G-2
R4553 G-1
R4556 G-3
R4557 G-1
R4558 G-1
R4559 G-1
R4560 G-1
R4561 G-1
R4562 H-2
R4570 G-1
R4601 C-3
R4602 C-3
R4603 B-4
R4605 B-4
R4608 B-4
R4609 B-4
R4610 A-4
R4611 A-4
R4612 A-4
R4613 B-4
R4614 B-4
R4616 B-4
R4619 C-4
R4620 C-4
R4621 B-4
R4622 A-3
R4623 C-4
R4624 B-2
R4626 C-3
R4627 C-1
R4628 C-2
R4636 B-3
DCM-M1
4-91
4-90
EVF LCD DRIVE, EVF TIMING GENERATOR
VF
VF (EVF LCD DRIVE, EVF TIMING GENERATOR) SCHEMATIC DIAGRAM • See pages 4-133, 134, 135 for waveforms.
4-87 4-88 4-89
DCM-M1
4-93 4-94 4-95 4-96
DCM-M1
EVF BACK LIGHT
BL
BL (EVF BACK LIGHT) PRINTED WIRING BOARD
– Ref. No.: BL board; 20,000 series – • For Printed Wiring Board.
• There are few cases that the part isn't mounted in this model
is printed on this diagram.
• Chip transistor
POWER board
(DC/DC CONVERTER)
BL board
(EVF BACK LIGHT) VF board
(EVF)
MAIN board
AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER,
RF AMP/DRIVE, DIGITAL SIGNAL PROCESSOR,
SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR
EB
C
DCM-M1
4-97 4-98 4-99
4-100
BL (EVF BACK LIGHT DRIVE, EVF BACK LIGHT) SCHEMATIC DIAGRAM
EVF BACK LIGHT DRIVE, EVF BACK LIGHT
BL
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
DCM-M1
4-101 4-102 4-103 4-104
LCD
LCD
LCD (LCD) PRINTED WIRING BOARD
– Ref. No.: LCD board; 20,000 series – • For Printed Wiring Board.
•There are few cases that the part isn't mounted in this model
is printed on this diagram.
•Chip transistor
EB
C
DCM-M1
4-1084-105 4-106 4-107
LCD
LCD
LCD BOARD (SIDE B)
C4301 D-9
C4302 D-10
C4303 D-10
C4304 G-10
C4305 F-7
C4306 E-8
C4307 G-9
C4308 F-5
C4309 G-8
C4310 H-8
C4311 H-8
C4312 F-9
C4313 G-8
C4314 H-7
C4315 F-8
C4316 G-8
C4317 G-5
C4318 H-6
C4319 D-10
C4320 B-3
C4321 B-4
C4322 G-7
C4323 H-7
C4324 G-7
C4325 G-5
C4326 G-6
C4327 A-4
C4328 C-2
C4329 D-3
C4330 D-3
C4331 D-2
C4332 B-4
C4334 B-4
C4335 B-4
C4336 C-3
C4337 B-4
C4338 B-2
C4339 C-4
C4340 D-4
C4341 C-5
C4342 D-3
C4344 A-3
C4345 D-8
C4346 A-4
C4352 D-9
CN4301 A-5
CN4302 C-11
CN4303 F-11
CN4305 F-1
CN4306 A-3
CN4307 A-8
D4302 D-2
D4303 B-4
D4304 D-4
FB4301 A-4
IC4301 E-9
IC4302 F-7
IC4303 C-3
IC4304 C-4
L4301 E-10
L4302 E-10
L4303 E-8
L4305 G-6
L4306 B-4
L4307 C-2
L4308 B-3
L4309 B-2
Q4301 E-4
Q4302 E-3
Q4303 G-9
Q4304 G-8
Q4305 H-8
Q4306 H-9
Q4307 G-8
Q4308 H-7
Q4312 D-3
Q4313 D-4
R4301 F-9
R4302 G-8
R4303 G-9
R4304 G-9
R4305 G-9
R4309 E-4
R4310 F-6
R4313 G-9
R4314 H-8
R4315 H-8
R4316 H-8
R4317 F-7
R4318 F-6
R4319 F-8
R4320 F-8
R4321 H-8
R4322 G-8
R4323 F-6
R4324 F-6
R4325 F-6
R4326 F-6
R4327 F-6
R4328 G-9
R4329 F-6
R4330 F-6
R4331 F-9
R4334 F-9
R4335 H-7
R4336 G-7
R4337 G-8
R4338 E-3
R4339 H-7
R4340 G-8
R4343 G-8
R4344 H-7
R4345 F-8
R4347 F-8
R4350 G-6
R4351 G-7
R4353 F-8
R4354 D-3
R4356 D-2
R4357 D-3
R4358 C-3
R4359 B-5
R4360 B-5
R4362 D-3
R4366 C-2
R4369 B-4
R4370 C-4
R4371 C-4
R4372 C-4
R4373 C-4
R4374 C-4
R4375 C-4
R4376 C-4
R4377 C-4
R4378 C-4
R4379 C-5
R4380 C-5
R4381 C-5
R4382 D-3
R4383 C-4
R4384 E-4
R4385 E-3
R4386 C-5
R4387 G-2
R4388 F-2
R4389 F-2
R4390 F-2
R4391 A-5
R4392 F-2
R4393 D-10
R4394 E-10
R4395 D-11
R4396 D-11
R4397 E-7
R4400 B-2
R4401 C-4
R4402 B-5
R4403 F-6
R4405 F-9
R4407 H-7
R4408 D-8
R4409 E-8
LCD (LCD) SCHEMATIC DIAGRAM • See page 4-135 for waveforms.
JACK board
(AV IN/OUT)
ETHER board
(ETHER INTERFACE)
LCD board
(LCD)
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
DCM-M1
ETHER (ETHER INTERFACE) PRINTED WIRING BOARD
– Ref. No.: ETHER board; 20,000 series –• For Printed Wiring Board.
•There are few cases that the part isn't mounted in this model
is printed on this diagram.
•Chip transistor
4-109 4-110 4-111 4-112
ETHER INTERFACE
ETHER
EB
C
JACK board
(AV IN/OUT)
ETHER board
(ETHER INTERFACE)
LCD board
(LCD)
DCM-M1
4-1154-113 4-114
ETHER INTERFACE
ETHER
DCM-M1
4-116 4-117
ETHER INTERFACE
ETHER 4-118
ETHER (ETHER INTERFACE) SCHEMATIC DIAGRAM • See page 4-109 for printed wiring board. • See page 4-135 for waveforms.
DCM-M1
4-119 4-120
AV IN/OUT
JACK
JACK (AV IN/OUT) SCHEMATIC DIAGRAM • See page 4-121 for printed wiring board.
DCM-M1
4-121

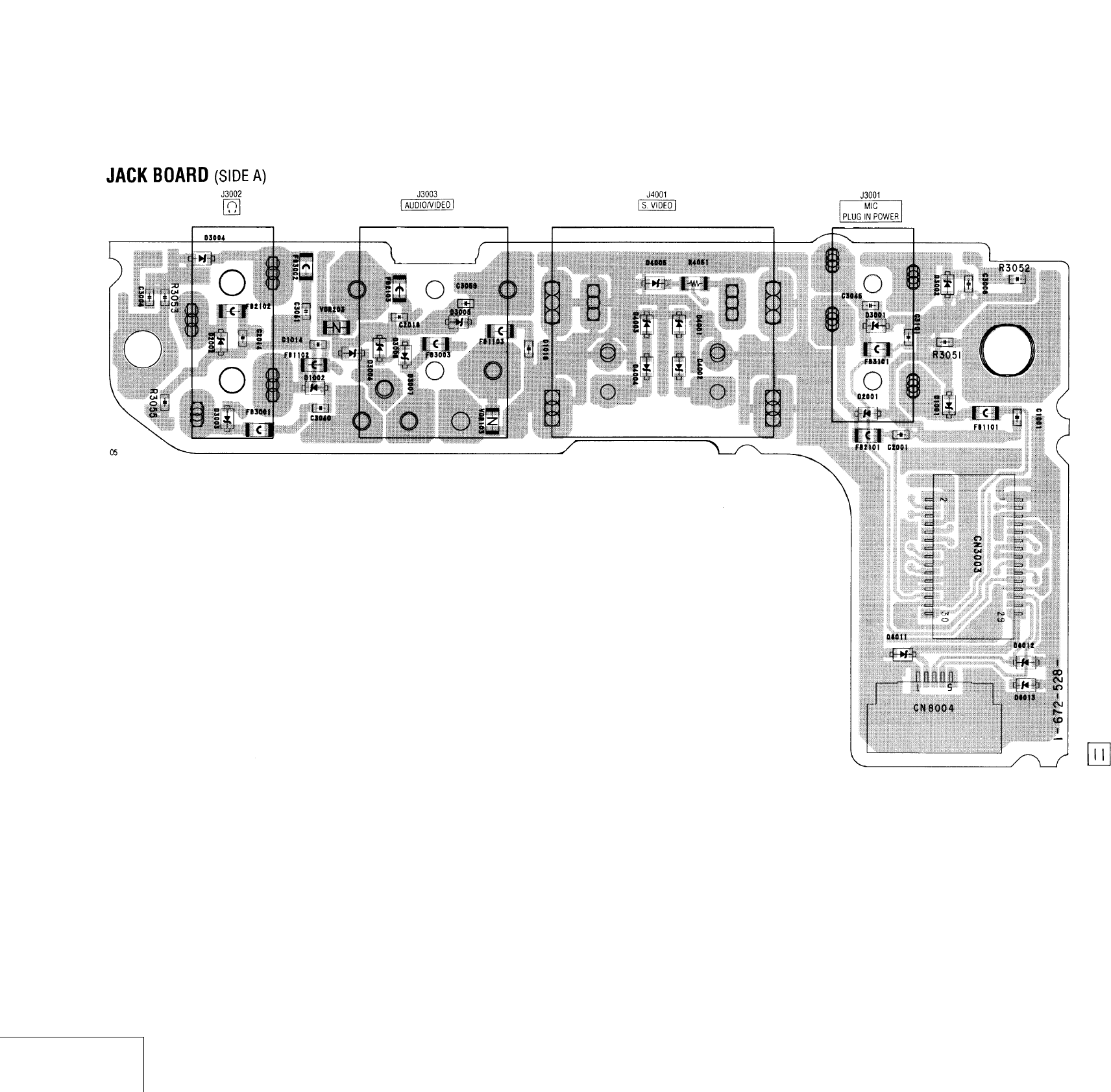

JACK (AV IN/OUT) PRINTED WIRING BOARD
– Ref. No.: JACK board; 20,000 series –
4-122
AV IN/OUT
JACK
DCM-M1
4-123 4-124
AV IN/OUT
JACK
• For Printed Wiring Board.
• There are few cases that the part isn't mounted in this model
is printed on this diagram.
JACK board
(AV IN/OUT)
ETHER board
(ETHER INTERFACE)
LCD board
(LCD)
DCM-M1
4-125
POWER (DC/DC CONVERTER) PRINTED WIRING BOARD
– Ref. No.: POWER board; 20,000 series –
4-126
DC/DC CONVERTER
POWER
POWER BOARD
(SIDE A)
C9001 A-10
C9002 A-10
C9003 A-10
C9004 C-9
C9009 C-8
C9011 C-8
C9015 C-6
C9052 A-9
C9055 C-5
C9057 C-5
C9061 C-5
C9063 C-5
C9064 C-1
C9065 C-4
C9068 C-1
C9076 C-4
C9080 C-5
CN9001 G-1
D9001 A-10
D9002 C-9
D9003 C-9
D9011 A-10
D9012 B-1
F9001 C-10
F9002 B-10
FB9001 A-10
FB9002 A-9
L9001 C-9
L9002 B-9
L9003 C-7
L9004 B-8
L9005 B-7
L9006 C-6
L9007 B-6
L9008 B-3
L9009 B-5
L9010 B-2
L9013 A-5
L9015 B-1
L9017 C-5
L9018 C-4
L9019 C-5
L9023 C-4
R9060 C-2
R9062 B-5
R9064 C-3
R9066 B-3
R9067 A-4
R9068 C-2
T9001 B-1
DCM-M1
4-1294-127 4-128
• For Printed Wiring Board.
• There are few cases that the part isn't mounted in this model
is printed on this diagram.
• Chip transistor
DC/DC CONVERTER
POWER
123
654
EB
C
POWER board
(DC/DC CONVERTER)
BL board
(EVF BACK LIGHT) VF board
(EVF)
MAIN board
AUDIO/VIDEO DATA CONTROL, MPEG ENCODER/DECODER,
RF AMP/DRIVE, DIGITAL SIGNAL PROCESSOR,
SYSTEM CONTROL, VIDEO, AUDIO, SWITCHING REGULATOR
DCM-M1
4-130 4-131
DC/DC CONVERTER
POWER 4-132
POWER (DC/DC CONVERTER) SCHEMATIC DIAGRAM •See page 4-125 for printed wiring board. •See page 4-135 for waveforms.
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
4-133
DCM-M1
4-3. WAVEFORMS
REC/PB
2.24 Vp-p
6
REC/PB
H
H
7 Vp-p
1
REC/PB
7 Vp-p
2
H
36 MHz
REC/PB
1 Vp-p
3
18 MHz
REC/PB
3.28 Vp-p
4
16.33 MHz
18 MHz
REC/PB
3.12 Vp-p
5
REC/PB
3.84 Vp-p
7
H
REC/PB
3.04 Vp-p
8
V
REC/PB
2.88 Vp-p
9
V
REC/PB
2.88 Vp-p
0
2V
REC/PB
2.96 Vp-p
qa
13.5 MHz
REC/PB
Approx.
3.4 Vp-p
qs
20 MHz
REC/PB
1.22 Vp-p
qd
32.768 kHz
REC/PB
408 mVp-p
qf
9.8304 MHz
REC/PB
1.1 Vp-p
qg
32.768 kHz
REC/PB
1.5 Vp-p
qh
27 MHz
REC/PB
3.52 Vp-p
qj
H
REC/PB
700 mVp-p
qk
H
H
REC/PB
360 mVp-p
3.1 Vp-p
ql
REC/PB
1.12 Vp-p
w;
V
REC/PB
wa
H
REC/PB
3.6 Vp-p
ws
6.6 MHz
REC/PB
1.12 Vp-p
wd
H
REC/PB
2.32 Vp-p
wf
H
H
H
REC/PB
2.04 Vp-p
wg
REC/PB
1.48 Vp-p
wh
REC/PB
1.1 Vp-p
wj
4-134
DCM-M1
PB (MD2)
REC/PB
H
H
680 mVp-p
REC/PB
368 mVp-p
200 ns
100 ns
PB (MD1)
Approx.
712 mVp-p
Approx.
280 mVp-p
PB
Approx.
1.54 Vp-p
: MD1
Approx.
1.86 Vp-p
: MD2
PB
200 ns: MD1
100 ns: MD2
200 ns: MD1
100 ns: MD2
Approx.
1.22 Vp-p
: MD1
Approx.
880 mVp-p
: MD2
200 ns
PB (MD1)
Approx.
324 mVp-p
100 ns
PB (MD2)
Approx.
360 mVp-p
200 ns
PB (MD1)
Approx.
200 mVp-p
22.5792 MHz
REC/PB
980 mVp-p
22.5792 MHz
REC/PB
3.4 Vp-p
70.54 MHz
REC/PB
320 mVp-p
16.934 MHz
REC/PB
1.58 Vp-p
11.2896 MHz
44.1 kHz
2..8224 MHz
REC/PB
3.84 Vp-p
REC/PB
4.24 Vp-p
Approx.12 ms: MD1
Approx.7.5 ms: MD2
Approx.23.6 ms: MD1
Approx.14.8 ms: MD2
REC/PB
3 Vp-p
REC/PB
4.32 Vp-p
Approx.
1.38 Vp-p
: MD1
Approx.
1.68 Vp-p
: MD2
Approx.
560 mVp-p
: MD1
Approx.
780 mVp-p
: MD2
REC/PB
Approx.
1 Vp-p
: MD1
Approx.
1.32 Vp-p
: MD2
500 mVp-p
208 mVp-p
Approx.23.6 ms: MD1
Approx.14.8 ms: MD2
REC/PB
Approx.23.6 ms: MD1
Approx.14.8 ms: MD2
REC/PB
H
REC/PB
H
REC/PB
2H
2H
REC/PB
REC/PB
204 mVp-p
2H
2H
REC/PB
8 Vp-p
REC/PB
8 Vp-p
8 Vp-p
H
REC/PB
12 Vp-p
wk ej
ek
el
r;
ra
rs
rd
rf
rg
rh
rj
rk
rl
t;
ta
ts
td
tf
ef
eg
eh
wl
e;
ea
es
ed
4-135
DCM-M1
REC/PB
REC/PB
H
2.16 Vp-p
REC/PB
560 mVp-p
H
H
2H
2H
2H
2H
REC/PB
220mVp-p
4 Vp-p
REC/PB
1.26 Vp-p
REC/PB
3.12 Vp-p
REC/PB
236 mVp-p
REC/PB
4 Vp-p
REC/PB
4 Vp-p
20 MHz
11 MHz
REC/PB
1.28 Vp-p
15.4 MHz
tg yf
470 kHz
REC/PB
800 mVp-p
yg
470 kHz
REC/PB
5.52 Vp-p
yh
470 kHz
REC/PB
940 mVp-p
yj
470 kHz
REC/PB
840 mVp-p
yk
470 kHz
REC/PB
1.44 Vp-p
yl
470 kHz
REC/PB
2.88 Vp-p
u;
470 kHz
REC/PB
5.44 Vp-p
ua
470 kHz
REC/PB
840mVp-p
us
ya
ys
yd
th
tj
tk
tl
y;
4-135E
5-1
SECTION 5
EXPLODED VIEWS
DCM-M1
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
5-1. MAIN SECTION
13
12
11
10
2
9
7
6
4
5
8
cabinet (R) section
14
2
15
16
15
#1
17
2
2
1
3
18
2
1
19
20
1 4-223-679-23 SCREW (2.0), MI (M2.0X4.5)
2 4-223-676-15 SCREW (1.7), MI (M1.7X3)
3 3-977-650-01 SCREW, TRIPOD
4 4-218-461-11 SCREW (M1.7)
5 4-216-024-01 COVER, JACK
6 4-216-022-01 BRACKET, BELT
7 4-216-023-01 SHAFT (BELT FRONT)
8 4-218-462-01 BELT, GRIP
9 4-221-110-01 BRACKET
10 4-216-036-01 BRACKET (REAR), BELT
11 4-216-049-01 SHAFT (BRACKET REAR)
12 4-219-035-01 SCREW
13 X-4951-294-1 CAP ASSY, LENS
14 1-418-201-21 SWITCH UNIT, MAIN CONTROL
15 4-223-676-23 SCREW (1.7), MI (M1.7X4)
16 4-223-676-31 SCREW (1.7), MI (M1.7X4.5)
17 4-220-888-01 BRACKET (SHOE)
18 X-4950-890-1 PEN ASSY, TOUCH
19 1-418-732-21 REMOTE COMMANDER (RMT-DCM1)
20 3-742-854-01 LID, BATTERY (for RMT-DCM1)
5-2

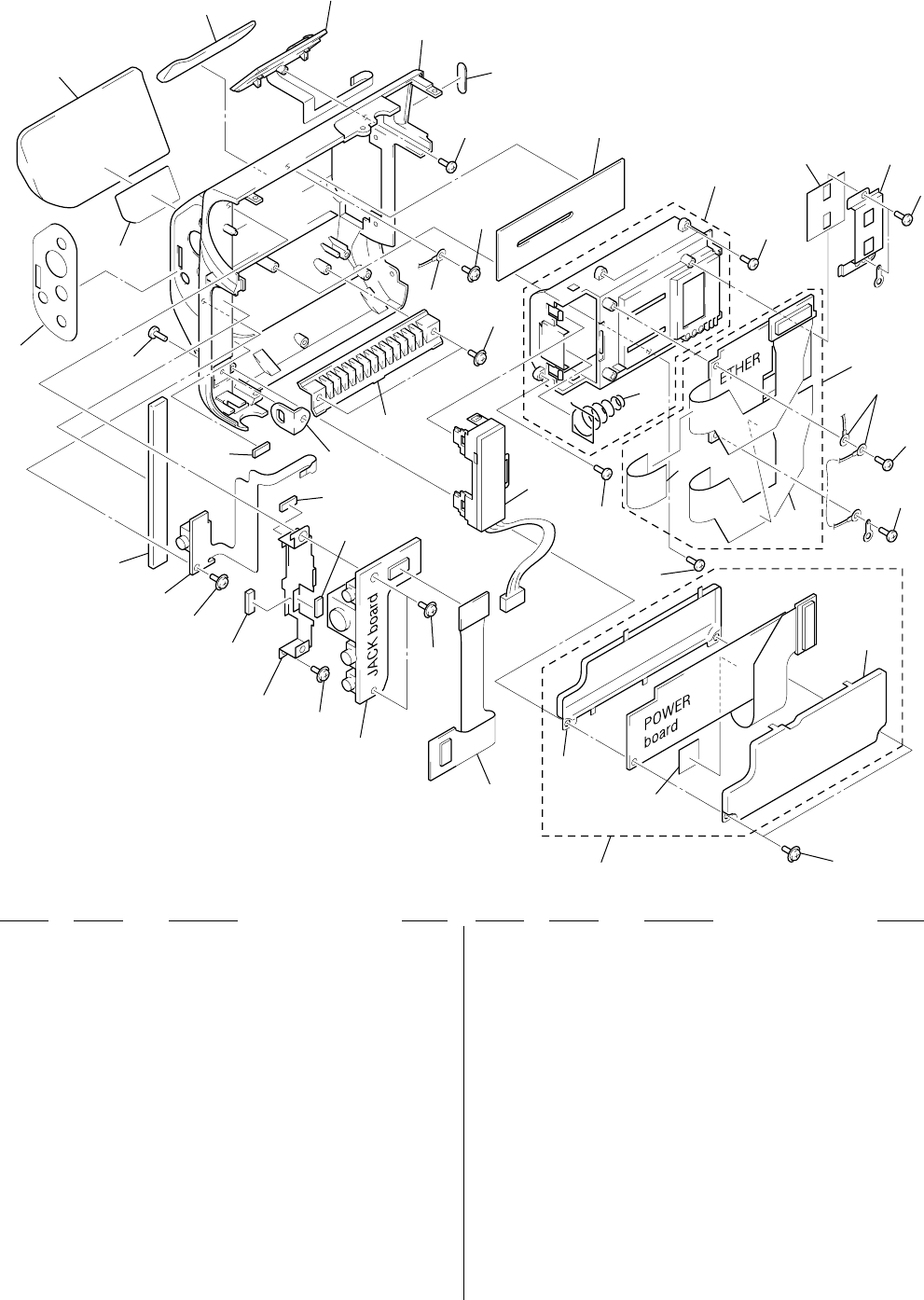

5-2. CABINET (R) SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
67
68 69
70
71
72 73
51
51
not supplied
not supplied
not supplied
78
59
77
63
59
59
64
65
66
62
61
51
60
58 51
57
51
56
55
54
52 51
53
77
74
74
#2
76
81
77
74
80
79
75
#2
82
83
51 4-218-461-01 SCREW (M1.7)
52 A-3321-881-A POWER BOARD, COMPLETE
*53 4-216-028-01 CASE (REAR), SHIELD
54 3-043-103-01 CUSHION (SHIELD)
*55 4-216-027-01 CASE (FRONT), SHIELD
56 1-672-513-11 TRANSLATION FLEXIBLE (JACK) BOARD
57 A-3321-883-A JACK BOARD, COMPLETE
58 4-216-025-01 BRACKET (JACK)
59 4-224-946-01 SPACER (JACK)
60 4-224-945-01 SPACER (REMOTE TERMINAL)
61 1-418-563-11 TERMINAL UNIT, REMOTE
*62 4-220-720-01 MATERIAL, ACOUSTIC ISOLATION (M)
63 4-216-021-01 BRACKET (FRONT), BELT
64 4-223-676-15 SCREW (1.7), MI (M1.7X3)
65 4-225-467-01 SEAL (JACK. ENGLISH)
66 3-043-483-01 SHEET (GRIP RUBBER), ADHESIVE
67 3-043-015-01 RUBBER, GRIP
68 3-043-016-01 RUBBER, GRIP
69 1-418-202-21 SWITCH UNIT, ZOOM
70 X-3378-880-1 CABINET (R) SUB ASSY
71 4-216-052-01 BLIND (EVF), ADJUSTMENT
72 4-984-017-21 SCREW (1.7), TAPPING
73 4-215-993-01 SHEET, BT
74 3-713-791-01 SCREW (M1.7X5), TAPPING, P2
75 X-4950-899-1 CASE ASSY, BATTERY
76 3-972-819-01 SPRING, BATTERY
77 4-223-676-23 SCREW (1.7), MI (M1.7X4)
78 1-694-497-11 TERMINAL BOARD, BATTERY
79 4-219-034-01 SHEET, INSULATING
80 4-215-995-01 BRACKET (ETHER PC BOARD)
81 A-3323-174-A ETHER BOARD, COMPLETE
82 3-043-261-01 SHEET, COPY
83 3-044-616-01 SHEET, SHIELD
5-3
5-3. MICROPHONE BLOCK SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
108
109
113
110 111
105
114 111
101
102
#3
LCD block section
103
102
104
117
115 116
107
106
124
116
#2
123
cabinet (L) section
120
122
119
116
118
not supplied
112
121
101 4-216-044-01 COVER (FRONT), HINGE
102 4-223-676-15 SCREW (1.7), MI (M1.7X3)
*103 4-220-721-01 MATERIAL, ACOUSTIC ISOLATION (S)
104 4-216-045-01 COVER (REAR), HINGE
*105 4-220-719-01 MATERIAL, ACOUSTIC ISOLATION (L)
106 X-4950-891-1 PLATE ASSY, BLIND
107 4-223-676-09 SCREW (1.7), MI (M1.7X2.5)
108 X-4950-897-1 BASE ASSY, MICROPHONE
109 4-216-018-01 RUBBER, MICROPHONE
110 1-418-564-11 RAY-CATCHER BLOCK UNIT, REMOCON
111 4-984-017-21 SCREW (1.7), TAPPING
112 1-418-192-11 MICROPHONE UNIT
113 4-220-639-01 ABSORBENT (GEL), ACOUSTIC
114 4-216-019-01 COVER, BASE
115 3-043-171-01 SHEET (MICROPHONE)
116 4-218-461-01 SCREW (M1.7)
117 4-220-640-01 ABSORBENT (SHEET), ACOUSTIC
118 3-713-791-01 SCREW (M1.7X5), TAPPING, P2
119 3-335-797-01 SCREW (M1.4X2), TOOTHED LOCK
120 A-3323-422-A MAIN BOARD, COMPLETE
121 3-044-612-01 SHEET, SHIELD (IC3009)
122 1-672-514-11 TRANSLATION FLEXIBLE BOARD
123 4-215-975-21 CUSHION (PANEL)
124 3-043-102-01 FOOT (L), RUBBER
5-4
5-4. CABINET (L) SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
167
155
166
168
165
CT-DCMM1-164
164
164
163
161
162
157 158
159
160
156
155
154
153
152
151
152
152
154
MT-DCMM1-163
173
168
160
172
171
EVF block section
170
169
151 X-3378-420-1 PANEL ASSY, UPPER
152 4-218-229-19 SCREW (1.4), MI (M1.4X2)
153 3-320-382-11 FOOT, RUBBER
154 4-218-458-01 DAMPER (MD)
155 4-223-676-15 SCREW (1.7), MI (M1.7X3)
156 X-3378-881-1 CABINET (FRONT) ASSY
157 X-4950-893-1 CHASSIS (F) ASSY
158 4-995-402-01 SPRING (LOCK), TENSION
159 3-914-116-01 SPRING (R), TENSION
160 4-215-976-01 SCREW (DAMPER)
161 4-215-989-21 CUSHION (MD)
162 X-4950-894-1 CHASSIS (M) ASSY
163 3-837-971-01 CUSHION
164 4-215-989-01 CUSHION (MD)
165 4-218-461-01 SCREW (M1.7)
166 4-220-349-01 CUSHION (CAMERA)
167 4-216-053-01 CUSHION (CABINET)
168 4-223-676-09 SCREW (1.7), MI (M1.7X2.5)
169 X-3378-951-1 CONTROL SW SUB ASSY, UPPER
170 X-4950-892-1 BUTTON ASSY, AUDIO CONTROL
171 4-223-676-23 SCREW (1.7), MI (M1.7X4)
172 4-221-112-01 SHAFT
173 3-842-935-01 CUSHION
5-5
5-5. LCD BLOCK SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
208 209
207
223
206
205
203
201
202 212
204
211
210
205
215
205
214
218
216
217
219
220
213
221
222
LCD4301
224
201 X-3378-952-1 CABINET ASSY (U), LCD
202 4-216-051-01 BLIND (LCD), ADJUSTMENT
203 4-223-676-15 SCREW (1.7), MI (M1.7X3)
*204 4-216-034-01 FRAME, LCD
205 4-223-676-09 SCREW (1.7), MI (M1.7X2.5)
206 4-218-461-01 SCREW (M1.7)
207 1-959-252-11 HARNESS (GLAY)
208 1-959-251-11 HARNESS (YELLOW)
209 4-220-687-01 TAPE (LCD), HARNESS BLIND
210 A-3323-169-A LCD BOARD, COMPLETE
211 4-220-440-01 SHEET (LCD), SHIELD
212 4-926-578-01 PLATE (P), RUBBER
0213 1-517-843-11 FLUORESCENT TUBE
214 X-4950-896-1 HINGE ASSY
215 1-672-355-11 LCD DETECTION SW FLEXIBLE BOARD
216 4-223-676-07 SCREW (1.7), MI (M1.7X2)
217 4-216-041-01 CABINET (O), LCD
218 3-051-046-01 SLEEVE, HARNESS
219 4-216-047-01 SPRING (LOCK), TORSION
220 4-216-043-01 LOCK, LCD
221 1-803-445-11 PANEL, TOUCH
222 4-218-463-01 SPACER (LCD)
223 3-042-678-01 SHEET (LCD), ELECTROSTATIC
224 3-042-688-01 SHEET (LCD FLEXIBLE RETAINER)
LCD4301 1-803-033-21 INDICATOR MODULE, LIQUID CRYSTAL
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
5-6
5-6. EVF BLOCK SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
251
252
253
254 253
LCD4701
263
255
267
266
265
264
263
262
261
260
257
258 259
256
251 1-672-356-11 VF/LCD FLEXIBLE BOARD
252 A-3321-877-A BL BORAD, COMPLETE
253 3-989-416-01 CUSHION (458), LCD
254 3-988-563-01 ILLUMINATOR (458), BL
255 3-960-302-11 CUSHION (1), LCD
256 X-3948-473-1 LENS ASSY (458), VF
257 4-216-042-01 CABINET (UPPER), EVF
258 3-988-565-01 SHEET, VF COVER ADHESIVE
259 3-988-564-01 COVER, VF
260 4-216-039-01 CUP, EYE
261 4-218-460-01 ARM, VISIBILITY ADJUSTMENT
262 4-216-040-01 CABINET (LOWER), EVF
263 3-713-791-01 SCREW (M1.7X5), TAPPING, P2
264 3-950-044-01 RING, O
265 4-218-459-01 KNOB, VISIBILITY ADJUSTMENT
266 A-3321-879-A VF BORAD, COMPLETE
267 1-672-357-11 VF FLEXIBLE BOARD
LCD4701 8-753-023-89 LCX024AK-5
5-7
5-7. LENS BLOCK SECTION
(CT-DCMM1-164)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
305 306
307
302
308
302
309 310
310
311
not supplied
(IC001)
304
303
302
301
not
supplied
301 A-3250-920-A CT-DCMM1-164
302 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
*303 4-215-973-01 BRACKET, LENS FRAME
304 8-848-732-01 DEVICE, LENS (LSV-620B)
305 3-963-467-11 ADAPTOR (FH), CCD FITTING
306 1-758-202-21 FILTER BLOCK, OPTICAL
307 3-961-192-01 RUBBER (FH), SEAL
*308 4-215-974-01 BRACKET, LENS BLOCK
309 4-215-989-21 CUSHION (MD)
310 3-335-797-01 SCREW (M1.4X2), TOOTHED LOCK
311 3-318-203-11 SCREW (B1.7X6), TAPPING
5-8
5-8. MECHANISM DECK SECTION-1
(MT-DCMM1-163)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
351 3-349-825-41 SCREW
352 A-3321-863-A REC BOARD, COMPLETE
353 X-4951-230-1 HOLDER ASSY
354 4-217-955-01 SPRING (POWER TENSION), TENSION
355 4-963-883-41 SCREW (M1.4), PRECISION PAN
356 4-217-946-01 GUIDE, HOLDER
357 3-315-414-41 WASHER
358 4-217-950-01 GEAR, WORM
359 4-217-957-01 SPRING (WORM GEAR), COIL
360 4-996-249-01 SCREW (M1.2X1.2)
361 4-217-944-01 GEAR (STEPPER)
362 4-217-948-01 GEAR (WORM WHEEL)
363 X-4951-231-1 HOLDER (STEPPER) ASSY
364 3-338-645-31 WASHER (0.8-2.5)
365 4-963-883-01 SCREW (M1.4), PRECISION PAN
366 4-217-958-01 SHEET, ADHESIVE
367 A-3323-163-A CLV BOARD, COMPLETE
*368 4-217-952-01 SHIELD (A)
*369 4-217-953-01 SHIELD (B)
370 4-963-883-21 SCREW (M1.4), PRECISION PAN
M5811 1-698-543-21 MOTOR (STEPPING)
370
366
369
368
364
365
367
362
361
360 359
358
357
M5811
363
356
355
354
353 352 351
5-9
5-9. MECHANISM DECK SECTION-2
(MT-DCMM1-163)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
401 X-4952-432-1 SERVICE ASSY, OP
402 4-963-883-21 SCREW (M1.4), PRECISION PAN
403 X-4951-229-1 CHASSIS ASSY
404 4-995-585-01 SPRING (LIMITTER), TORSION
405 4-963-897-01 HOLDER (GUIDE SHAFT)
*406 4-217-956-01 SHAFT (SUB GUIDE)
407 3-704-197-33 SCREW (M1.4X3.0), LOCKING
408 1-675-950-11 MOTOR FLEXIBLE BOARD
409 1-418-191-11 SENSOR, MR
410 4-217-928-01 GEAR (A)
411 4-217-954-01 SCREW (M1.4X4), TAPPING
*412 4-217-943-01 BRACKET, MOTOR
413 3-704-246-01 SCREW (P 1.4X1.6)
414 4-217-941-01 BRACKET (LEAD SCREW)
*415 4-217-949-01 SHAFT (MAIN GUIDE)
416 4-217-927-01 GEAR (B)
417 1-452-997-11 ENCODER, MAGNET
*418 4-217-942-01 SCREW, LEAD
419 4-963-883-81 SCREW (M1.4), PRECISION PAN
420 4-963-883-41 SCREW (M1.4), PRECISION PAN
421 4-217-947-01 SPRING, THRUST
422 4-955-841-11 SCREW
423 4-217-951-01 COVER, MD
416
417
418
419
409 411
410
412
413 414
not supplied
(M5801)
408
407
405
406
405
415
401
404
403 402
not supplied
(M5821)
not
supplied
423
not supplied
(HR5901)
420 421
422
5-9 E
6-1
SECTION 6
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BL CLV
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
A-3321-877-A BL BOARD, COMPLETE
*******************
(Ref. No.: 20,000 Series)
< CAPACITOR >
C4701 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C4702 1-113-642-11 TANTALUM CHIP 47uF 20% 10V
C4703 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C4704 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
0C4706 1-115-464-91 CERAMIC CHIP 0.0022uF 10% 630V
< CONNECTOR >
CN4701 1-784-421-11 CONNECTOR, FFC/FPC (ZIF) 27P
CN4702 1-691-354-21 CONNECTOR, FFC/FPC (ZIF) 16P
< DIODE >
0D4701 8-719-056-49 DIODE 1SS370 (TE85L)
< COIL >
L4701 1-410-389-31 INDUCTOR CHIP 47uH
L4702 1-414-398-11 INDUCTOR 10uH
< FLUORESCENT INDICATOR >
0ND4701 1-517-758-11 TUBE, FLUORESCENT (0.55 INCH)
<TRANSISTOR >
0Q4701 8-729-039-24 TRANSISTOR FX216-TL1
< RESISTOR >
R4701 1-218-883-11 METAL CHIP 33K 0.5% 1/16W
R4702 1-216-809-11 METAL CHIP 100 5% 1/16W
< TRANSFORMER >
0T4701 1-426-848-51 TRANSFORMER, INVERTER
************************************************************
A-3323-163-A CLV BOARD, COMPLETE
*********************
(Ref. No.: 20,000 Series)
*4-217-952-01 SHIELD (A)
*4-217-953-01 SHIELD (B)
< CAPACITOR >
C5804 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5805 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5806 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5807 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C5808 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C5809 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5810 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5811 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5812 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5813 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5814 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5815 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5816 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5817 1-113-991-11 TANTALUM CHIP 33uF 20% 16V
C5818 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5819 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5820 1-113-682-11 TANTALUM CHIP 33uF 20% 10V
C5823 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C5824 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C5825 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C5826 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C5827 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C5828 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C5829 1-113-991-11 TANTALUM CHIP 33uF 20% 16V
C5851 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C5852 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5853 1-164-870-11 CERAMIC CHIP 68PF 5% 16V
C5854 1-135-070-00 TANTALUM CHIP 0.1uF 10% 35V
< CONNECTOR >
*CN5801 1-778-158-21 CONNECTOR, FFC/FPC (ZIF) 10P
CN5803 1-778-592-21 CONNECTOR, BOARD TO BOARD 50P
< DIODE >
D5801 8-719-048-98 DIODE RB160L-40TE25
< IC >
IC5801 8-759-358-40 IC TLC372CPW-E20
IC5802 8-759-572-35 IC TLC3702CPWR
IC5803 8-759-358-40 IC TLC372CPW-E20
IC5804 8-759-082-55 IC TC7W00FU
IC5805 8-759-082-57 IC TC7W04FU
DCM-M1
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-2
CLV ETHER
IC5806 8-759-082-55 IC TC7W00FU
IC5807 8-759-572-28 IC NJU7016R
IC5808 8-759-082-55 IC TC7W00FU
IC5851 8-759-572-54 IC TA6009FN (EL)
< COIL >
L5801 1-416-928-21 INDUCTOR 470uH
< TRANSISTOR >
Q5801 8-729-047-36 TRANSISTOR CPH3303-TL
Q5802 8-729-046-70 TRANSISTOR XP4654- (TX).SO
Q5803 8-729-037-89 TRANSISTOR 2SC4627J-C (TX).SO
Q5808 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5809 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5810 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5811 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5812 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5813 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5821 8-729-044-26 TRANSISTOR CPH3404-TL
Q5822 8-729-044-26 TRANSISTOR CPH3404-TL
Q5823 8-729-044-26 TRANSISTOR CPH3404-TL
Q5824 8-729-044-26 TRANSISTOR CPH3404-TL
Q5825 8-729-044-26 TRANSISTOR CPH3404-TL
Q5826 8-729-044-26 TRANSISTOR CPH3404-TL
< RESISTOR >
R5801 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5802 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5803 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5804 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5805 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5806 1-218-971-11 RES, CHIP 33K 5% 1/16W
R5807 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5808 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5809 1-218-971-11 RES, CHIP 33K 5% 1/16W
R5810 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5811 1-218-969-11 RES, CHIP 22K 5% 1/16W
R5812 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5813 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5814 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5815 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5816 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5817 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5818 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5819 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5820 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5821 1-218-955-11 RES, CHIP 1.5K 5% 1/16W
R5822 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R5823 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5824 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5825 1-218-990-11 SHORT 0
R5826 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5827 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5828 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5829 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5830 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5831 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5832 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5833 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5834 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5851 1-218-967-11 RES, CHIP 15K 5% 1/16W
R5852 1-218-987-11 RES, CHIP 680K 5% 1/16W
< SWITCH >
S5801 1-692-847-21 SWITCH, PUSH (1 KEY) (PROTECT)
S5802 1-692-377-31 SWITCH, PUSH (1 KEY) (REFLECT)
S5803 1-692-377-31 SWITCH, PUSH (1 KEY) (MD1/2)
S5804 1-572-467-61 SWITCH, PUSH (1 KEY) (INITIAL)
S5805 1-572-467-61 SWITCH, PUSH (1 KEY) (IN LIMIT)
< SENSOR >
SE5851 1-418-203-21 SENSOR, SHOCK (SHOCK SENSOR)
************************************************************
A-3323-174-A ETHER BOARD, COMPLETE
***********************
(Ref. No.: 20,000 Series)
3-043-261-01 SHEET, COPY
3-044-616-01 SHEET, SHIELD
< CAPACITOR >
C8801 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8802 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C8803 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8804 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C8805 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8806 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8807 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C8808 1-164-854-11 CERAMIC CHIP 15PF 5% 16V
C8809 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8810 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8811 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8812 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8813 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8814 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8815 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8816 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8817 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8818 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8819 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8820 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
< CONNECTOR >
CN8801 1-778-598-21 CONNECTOR, BOARD TO BOARD 60P
CN8802 1-537-439-41 TARMINAL BOARD, CONNECTOR 20P
< IC/FILTER >
IC8801 8-759-573-34 IC 74LVX4245MTCX
IC8802 8-759-573-34 IC 74LVX4245MTCX
IC8803 8-759-573-34 IC 74LVX4245MTCX
IC8804 8-759-573-34 IC 74LVX4245MTCX
IC8805 8-759-573-34 IC 74LVX4245MTCX
IC8806 8-759-572-50 IC MB86967PFV-G-BND
IC8807 1-803-453-11 FILTER MODULE, PCMCIA
IC8808 8-759-573-35 IC KM62256DLTG-7L
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-3
ETHER JACK LCD
< COIL >
L8801 1-414-753-91 INDUCTOR 4.7uH
< TRANSISTOR >
Q8801 8-729-047-36 TRANSISTOR CPH3303-TL
< RESISTOR >
R8801 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8803 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
< VIBRATOR >
X8801 1-781-265-21 VIBRATOR, CRYSTAL (20MHz)
************************************************************
A-3321-883-A JACK BOARD, COMPLETE
**********************
(Ref. No.: 20,000 Series)
< CAPACITOR >
C1001 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C1014 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C2001 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C2014 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C3008 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C3060 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C3061 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
< CONNECTOR >
CN3003 1-778-596-21 CONNECTOR, BOARD TO BOARD 30P
CN8004 1-778-711-11 CONNECTOR, FFC/FPC (ZIF) 5P
< DIODE >
D1001 8-719-074-62 DIODE MAZS082001SO
D1002 8-719-074-62 DIODE MAZS082001SO
D2001 8-719-074-62 DIODE MAZS082001SO
D2002 8-719-074-62 DIODE MAZS082001SO
D3001 8-719-074-62 DIODE MAZS082001SO
D3002 8-719-074-62 DIODE MAZS082001SO
D3003 8-719-074-62 DIODE MAZS082001SO
D3004 8-719-074-62 DIODE MAZS082001SO
D3005 8-719-074-62 DIODE MAZS082001SO
D3006 8-719-074-62 DIODE MAZS082001SO
D3007 8-719-074-62 DIODE MAZS082001SO
D3008 8-719-074-62 DIODE MAZS082001SO
D4001 8-719-074-62 DIODE MAZS082001SO
D4002 8-719-074-62 DIODE MAZS082001SO
D4003 8-719-074-62 DIODE MAZS082001SO
D4004 8-719-074-62 DIODE MAZS082001SO
D4005 8-719-074-62 DIODE MAZS082001SO
D8011 8-719-074-62 DIODE MAZS082001SO
D8012 8-719-074-62 DIODE MAZS082001SO
D8013 8-719-074-62 DIODE MAZS082001SO
< FERRITE BEAD >
FB1101 1-469-637-21 FERRITE 0uH
FB1102 1-469-637-21 FERRITE 0uH
FB1103 1-469-637-21 FERRITE 0uH
FB2101 1-469-637-21 FERRITE 0uH
FB2102 1-469-637-21 FERRITE 0uH
FB2103 1-469-637-21 FERRITE 0uH
FB3001 1-469-637-21 FERRITE 0uH
FB3002 1-469-637-21 FERRITE 0uH
FB3003 1-469-637-21 FERRITE 0uH
FB3101 1-469-637-21 FERRITE 0uH
< JACK/CONNECTOR >
J3001 1-779-881-21 JACK (MIC)
J3002 1-569-950-21 JACK (i)
J3003 1-778-040-11 JACK, SMALL TYPE (AUDIO/VIDEO)
J4001 1-779-870-11 CONNECTOR (ROUND TYPE) 4P (S. VIDEO)
< RESISTOR >
R3051 1-218-990-11 SHORT 0
R3052 1-218-990-11 SHORT 0
R3053 1-218-990-11 SHORT 0
R3055 1-218-990-11 SHORT 0
R4051 1-216-821-11 METAL CHIP 1K 5% 1/16W
< VARISTOR >
VDR103 1-801-923-11 VARISTOR, CHIP
VDR203 1-801-923-11 VARISTOR, CHIP
************************************************************
A-3323-169-A LCD BOARD, COMPLETE
*********************
(Ref. No.: 20,000 Series)
4-220-440-01 SHEET (LCD), SHIELD
< CAPACITOR >
C4301 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4302 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C4303 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C4304 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C4305 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4306 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4307 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C4308 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V
C4309 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C4310 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C4311 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4312 1-135-180-21 TANTALUM CHIP 3.3uF 20% 6.3V
C4313 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C4314 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C4315 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4316 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4317 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C4318 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C4319 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4320 1-164-866-11 CERAMIC CHIP 47PF 5% 16V
C4321 1-164-882-11 CERAMIC CHIP 220PF 5% 16V
C4322 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C4323 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C4324 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C4325 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C4326 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-4
C4327 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C4328 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C4329 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4330 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C4331 1-164-870-11 CERAMIC CHIP 68PF 5% 16V
C4332 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C4334 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C4335 1-164-862-11 CERAMIC CHIP 33PF 5% 16V
C4336 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C4337 1-164-934-11 CERAMIC CHIP 330PF 10% 16V
C4338 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4339 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4340 1-113-985-11 TANTALUM CHIP 10uF 20% 20V
C4341 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C4342 1-113-985-11 TANTALUM CHIP 10uF 20% 20V
C4344 1-107-682-11 CERAMIC CHIP 1uF 10% 16V
C4345 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C4346 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4352 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
< CONNECTOR >
*CN4301 1-778-154-21 CONNECTOR, FFC/FPC (ZIF) 6P
*CN4302 1-785-283-41 PIN, CONNECTOR (PC BOARD) 14P
CN4303 1-785-283-21 PIN, CONNECTOR (PC BOARD) 14P
CN4305 1-764-708-21 CONNECTOR, FFC/FPC (LIF) 9P
*CN4306 1-778-172-11 CONNECTOR, FFC/FPC (ZIF) 24P
*CN4307 1-569-352-11 HOUSING, CONNECTOR 10P
< DIODE >
D4302 8-713-102-80 DIODE 1T369-01-T8A
D4303 8-713-102-80 DIODE 1T369-01-T8A
D4304 8-719-421-69 DIODE MA133
< FERRITE BEAD >
FB4301 1-414-445-11 FERRITE 0uH
< IC >
IC4301 8-759-596-12 IC AK9813AFS-E2
IC4302 8-759-539-27 IC IR3Y37A4
IC4303 8-759-524-61 IC CM7018L3-T4
IC4304 8-759-327-01 IC NJM062V (TE2)
< COIL >
L4301 1-414-754-11 INDUCTOR 10uH
L4302 1-414-754-11 INDUCTOR 10uH
L4303 1-414-404-41 INDUCTOR 100uH
L4305 1-414-754-11 INDUCTOR 10uH
L4306 1-414-754-11 INDUCTOR 10uH
L4307 1-414-754-11 INDUCTOR 10uH
L4308 1-412-945-11 INDUCTOR 3.3uH
L4309 1-414-754-11 INDUCTOR 10uH
< TRANSISTOR >
Q4301 8-729-044-38 TRANSISTOR SI6552DQ-T1
Q4302 8-729-044-38 TRANSISTOR SI6552DQ-T1
Q4303 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4304 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4305 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4306 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4307 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4308 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4312 8-729-037-52 TRANSISTOR 2SD2216J-QR (TX).SO
Q4313 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
< RESISTOR >
R4301 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R4302 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R4303 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4304 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4305 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4309 1-218-929-11 RES, CHIP 10 5% 1/16W
R4310 1-218-973-11 RES, CHIP 47K 5% 1/16W
R4313 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4314 1-218-849-11 METAL CHIP 3.3K 0.5% 1/16W
R4315 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R4316 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4317 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4318 1-218-967-11 RES, CHIP 15K 5% 1/16W
R4319 1-218-967-11 RES, CHIP 15K 5% 1/16W
R4320 1-218-967-11 RES, CHIP 15K 5% 1/16W
R4321 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4322 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4323 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4324 1-218-967-11 RES, CHIP 15K 5% 1/16W
R4325 1-218-973-11 RES, CHIP 47K 5% 1/16W
R4326 1-218-967-11 RES, CHIP 15K 5% 1/16W
R4327 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4328 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4329 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R4330 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4331 1-218-983-11 RES, CHIP 330K 5% 1/16W
R4334 1-218-990-11 SHORT 0
R4335 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R4336 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R4337 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4338 1-218-929-11 RES, CHIP 10 5% 1/16W
R4339 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4340 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4343 1-218-977-11 RES, CHIP 100K 5% 1/16W
R4344 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4345 1-218-990-11 SHORT 0
R4347 1-218-965-11 RES, CHIP 10K 5% 1/16W
R4350 1-216-009-91 RES, CHIP 22 5% 1/10W
R4351 1-218-990-11 SHORT 0
R4353 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4354 1-218-990-11 SHORT 0
R4356 1-218-983-11 RES, CHIP 330K 5% 1/16W
R4357 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4358 1-218-990-11 SHORT 0
R4359 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R4360 1-208-955-11 METAL CHIP 680K 0.5% 1/16W
R4362 1-218-990-11 SHORT 0
R4366 1-208-931-11 METAL CHIP 68K 0.5% 1/16W
R4369 1-218-965-11 RES, CHIP 10K 5% 1/16W
R4370 1-218-989-11 RES, CHIP 1M 5% 1/16W
LCD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-5
R4371 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4372 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4373 1-218-973-11 RES, CHIP 47K 5% 1/16W
R4374 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R4375 1-218-933-11 RES, CHIP 22 5% 1/16W
R4376 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4377 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R4378 1-218-977-11 RES, CHIP 100K 5% 1/16W
R4379 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4380 1-218-977-11 RES, CHIP 100K 5% 1/16W
R4381 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4382 1-218-967-11 RES, CHIP 15K 5% 1/16W
R4383 1-218-965-11 RES, CHIP 10K 5% 1/16W
R4384 1-218-929-11 RES, CHIP 10 5% 1/16W
R4385 1-218-929-11 RES, CHIP 10 5% 1/16W
R4386 1-218-990-11 SHORT 0
R4387 1-218-937-11 RES, CHIP 47 5% 1/16W
R4388 1-218-937-11 RES, CHIP 47 5% 1/16W
R4389 1-218-937-11 RES, CHIP 47 5% 1/16W
R4390 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R4391 1-218-977-11 RES, CHIP 100K 5% 1/16W
R4392 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R4393 1-218-990-11 SHORT 0
R4394 1-218-990-11 SHORT 0
R4395 1-218-990-11 SHORT 0
R4396 1-218-990-11 SHORT 0
R4397 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4400 1-218-990-11 SHORT 0
R4401 1-218-933-11 RES, CHIP 22 5% 1/16W
R4402 1-208-719-11 METAL CHIP 33K 0.5% 1/16W
R4403 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R4405 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R4407 1-208-707-11 METAL CHIP 10K 0.5% 1/16W
R4408 1-217-671-11 METAL CHIP 1 5% 1/10W
R4409 1-217-671-11 METAL CHIP 1 5% 1/10W
************************************************************
A-3323-422-A MAIN BOARD, COMPLETE
*********************
(Ref. No.: 10,000 Series)
< CAPACITOR >
C1003 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V
C1004 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C1005 1-164-480-11 CERAMIC CHIP 0.01uF 10% 50V
C1006 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1007 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C1008 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C1009 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C1010 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C1011 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C1012 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C1013 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V
C1014 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C1015 1-135-177-21 TANTALUM CHIP 1uF 20% 20V
C1016 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C1017 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C1018 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C1019 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C1020 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C1021 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C1022 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C2003 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V
C2004 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C2005 1-164-480-11 CERAMIC CHIP 0.01uF 10% 50V
C2006 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2007 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C2008 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C2009 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C2010 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C2011 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C2012 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C2013 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V
C2014 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C2015 1-135-177-21 TANTALUM CHIP 1uF 20% 20V
C2016 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C2017 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C2018 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C2019 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C2020 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C2021 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C2022 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C3001 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C3002 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C3003 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V
C3004 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3005 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C3006 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3007 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3008 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C3011 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C3013 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3014 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C3015 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3016 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C3017 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3018 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V
C3019 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3021 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C3022 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3023 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V
C3025 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3026 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C3027 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3028 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V
C3030 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C3031 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C3032 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C3033 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V
C3034 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C3035 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V
C3036 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C3037 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C3038 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C3039 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C3040 1-125-926-91 TANTALUM CHIP 4.7uF 20% 6.3V
C3041 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
LCD MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-6
C3042 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3043 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3044 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C3045 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3046 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3047 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3048 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C3049 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3050 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3051 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C3052 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C3053 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C3055 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4001 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C4002 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C4003 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C4004 1-119-749-11 TANTALUM CHIP 33uF 20% 4V
C4005 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4006 1-135-181-21 TANTALUM CHIP 4.7uF 20% 6.3V
C4007 1-135-181-21 TANTALUM CHIP 4.7uF 20% 6.3V
C4008 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4009 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4010 1-125-899-11 TANTALUM CHIP 220uF 20% 4V
C4011 1-119-749-11 TANTALUM CHIP 33uF 20% 4V
C4012 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4013 1-135-181-21 TANTALUM CHIP 4.7uF 20% 6.3V
C4014 1-135-181-21 TANTALUM CHIP 4.7uF 20% 6.3V
C4015 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4017 1-104-847-11 TANTALUM CHIP 22uF 20% 4V
C4018 1-125-899-11 TANTALUM CHIP 220uF 20% 4V
C4019 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4020 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4021 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4022 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V
C4023 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C4024 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C4026 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C4027 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C4028 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C4029 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C4031 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C4032 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5001 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C5002 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5003 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C5004 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5005 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C5006 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5007 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5008 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5009 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5011 1-113-985-11 TANTALUM CHIP 10uF 20% 20V
C5012 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5013 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5014 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C5015 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C5016 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5017 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C5018 1-164-942-11 CERAMIC CHIP 0.0068uF 10% 16V
C5019 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V
C5020 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 16V
C5021 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5022 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C5023 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
C5024 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C5025 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5026 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C5027 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5028 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5029 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5030 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5031 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5032 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5033 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5034 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V
C5035 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5036 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5037 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5038 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5039 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V
C5040 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5041 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5042 1-164-870-11 CERAMIC CHIP 68PF 5% 16V
C5043 1-164-862-11 CERAMIC CHIP 33PF 5% 16V
C5044 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5045 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5046 1-164-870-11 CERAMIC CHIP 68PF 5% 16V
C5047 1-164-862-11 CERAMIC CHIP 33PF 5% 16V
C5048 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5049 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5051 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5052 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5055 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5056 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C5057 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C5101 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5102 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C5103 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5104 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5105 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C5106 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5201 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C5202 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C5203 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5204 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V
C5205 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V
C5206 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V
C5207 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V
C5208 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5209 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5212 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5301 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V
C5302 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C5303 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5304 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-7
C5305 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5306 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5307 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 16V
C5308 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C5309 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 16V
C5310 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C5311 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5312 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C5313 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C5314 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5315 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C5316 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5317 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5318 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5319 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5401 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5402 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5403 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5404 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5405 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5406 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5407 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5408 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5409 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 16V
C5410 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 16V
C5411 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5412 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5413 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5414 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C5415 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5417 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 16V
C5418 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C5419 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5420 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5421 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V
C5424 1-164-842-11 CERAMIC CHIP 2PF 0.25PF 16V
C5501 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5503 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5601 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5602 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C5603 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5604 1-104-912-11 TANTALUM CHIP 3.3uF 20% 16V
C5605 1-113-985-11 TANTALUM CHIP 10uF 20% 20V
C5606 1-104-912-11 TANTALUM CHIP 3.3uF 20% 16V
C5607 1-104-912-11 TANTALUM CHIP 3.3uF 20% 16V
C5608 1-104-912-11 TANTALUM CHIP 3.3uF 20% 16V
C5609 1-113-682-11 TANTALUM CHIP 33uF 20% 10V
C5610 1-113-682-11 TANTALUM CHIP 33uF 20% 10V
C5614 1-113-642-11 TANTALUM CHIP 47uF 20% 10V
C5615 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C8001 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8002 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8003 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 16V
C8004 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 16V
C8005 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8006 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8007 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8008 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8009 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8010 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8011 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8012 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8013 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8014 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8015 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8016 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C8017 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C8018 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8019 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8020 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C8021 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C8022 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8023 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8024 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8025 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8026 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C8027 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8028 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8029 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8030 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C8031 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8032 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8033 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8034 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8035 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C8036 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8037 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8038 1-115-565-11 CERAMIC CHIP 2.2uF 10% 10V
C8039 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8040 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8041 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8042 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8043 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8044 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8045 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8046 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8047 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8048 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8049 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8050 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8051 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8052 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8053 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C8055 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8056 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8057 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8059 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8062 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8063 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8064 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8065 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8067 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8068 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 16V
C8069 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8070 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-8
C8071 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C8072 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8073 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8074 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C8075 1-113-985-11 TANTALUM CHIP 10uF 20% 20V
C8076 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V
C8077 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8078 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8079 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8080 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8081 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8101 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8102 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8103 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8104 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8105 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8106 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8107 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8108 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8109 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C8110 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8111 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8112 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8113 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8114 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8115 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8116 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8117 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8118 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8119 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8120 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8121 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8123 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8126 1-128-964-91 TANTALUM CHIP 100uF 20% 6.3V
C8127 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8128 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8129 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8130 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8204 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8208 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C8211 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C8501 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8502 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8503 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8504 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8506 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C8507 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8508 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8510 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8511 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C8601 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8602 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8603 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8604 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8605 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8606 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8607 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8608 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8609 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C8610 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8611 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8612 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8613 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8614 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8615 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8616 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8617 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8618 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8619 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8620 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8621 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8622 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8623 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8624 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8701 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C8702 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8703 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8704 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8705 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8706 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8707 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8708 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8709 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8710 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8711 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8712 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8713 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8714 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8715 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8716 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8717 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C8718 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C9101 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C9103 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9104 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C9105 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C9106 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C9107 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C9108 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C9109 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9110 1-104-916-11 TANTALUM CHIP 6.8uF 20% 20V
C9111 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V
C9112 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C9113 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C9114 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C9115 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C9116 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C9117 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C9118 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C9119 1-135-213-21 TANTALUM CHIP 3.3uF 20% 25V
C9120 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C9121 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C9122 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C9123 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C9126 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-9
C9127 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C9128 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9129 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9130 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9131 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C9132 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9133 1-127-772-11 CERAMIC CHIP 0.033uF 10% 16V
< CONNECTOR >
CN3001 1-778-507-21 PIN, CONNECTOR (PC BOARD) 4P
CN3002 1-778-591-21 CONNECTOR, BOARD TO BOARD 30P
*CN4312 1-785-283-41 PIN, CONNECTOR (PC BOARD) 14P
CN4313 1-785-283-21 PIN, CONNECTOR (PC BOARD) 14P
CN4511 1-784-651-11 CONNECTOR, FFC/FPC (ZIF) 27P
CN5001 1-784-422-11 CONNECTOR, FFC/FPC (ZIF) 33P
CN5002 1-778-597-21 CONNECTOR, BOARD TO BOARD 50P
CN8001 1-778-595-21 CONNECTOR, BOARD TO BOARD 20P
CN8002 1-573-916-11 CONNECTOR, FFC/FPC (ZIF) 7P
CN8003 1-573-915-11 CONNECTOR, FFC/FPC (ZIF) 6P
CN8006 1-573-915-11 CONNECTOR, FFC/FPC (ZIF) 6P
CN8007 1-778-593-21 CONNECTOR, BOARD TO BOARD 60P
CN8101 1-778-803-11 CONNECTOR, BOARD TO BOARD 40P
*CN9101 1-785-481-41 CONNECTOR, BOARD TO BOARD 70P
< DIODE >
D4001 8-719-056-48 DIODE 1SS388 (TPL3)
D4003 8-719-056-48 DIODE 1SS388 (TPL3)
D5601 8-719-046-85 DIODE MA2S728
D5602 8-719-067-36 DIODE MA3ZD1200LS0
D8001 8-719-046-91 DIODE MA2S111
D8002 8-719-046-85 DIODE MA2S728
D8003 8-719-046-91 DIODE MA2S111
D8005 8-719-046-85 DIODE MA2S728
D8006 8-719-056-48 DIODE 1SS388 (TPL3)
D8007 8-719-056-48 DIODE 1SS388 (TPL3)
< FERRITE BEAD >
*FB3001 1-469-092-11 FERRITE 0uH
*FB3002 1-469-092-11 FERRITE 0uH
FB8001 1-469-638-21 FERRITE 0uH
FB8002 1-469-638-21 FERRITE 0uH
FB8003 1-469-638-21 FERRITE 0uH
FB8004 1-469-638-21 FERRITE 0uH
FB8005 1-469-638-21 FERRITE 0uH
FB8006 1-469-638-21 FERRITE 0uH
FB8007 1-469-638-21 FERRITE 0uH
FB8008 1-469-638-21 FERRITE 0uH
FB8009 1-469-638-21 FERRITE 0uH
FB8010 1-469-638-21 FERRITE 0uH
FB8011 1-469-638-21 FERRITE 0uH
FB8012 1-469-638-21 FERRITE 0uH
FB8013 1-469-638-21 FERRITE 0uH
FB8014 1-469-638-21 FERRITE 0uH
FB8015 1-469-638-21 FERRITE 0uH
FB8016 1-469-638-21 FERRITE 0uH
FB8017 1-469-638-21 FERRITE 0uH
FB8018 1-469-638-21 FERRITE 0uH
FB8019 1-469-638-21 FERRITE 0uH
FB8020 1-469-638-21 FERRITE 0uH
FB8021 1-469-637-21 FERRITE 0uH
FB8022 1-469-637-21 FERRITE 0uH
< FILTER >
FL4001 1-233-732-21 FILTER, BAND PASS
FL4002 1-233-733-21 FILTER, LOW PASS
FL5101 1-234-255-21 FILTER, LOW PASS
< IC >
IC3001 8-759-380-80 IC LA7473V-TLM
IC3002 8-759-536-71 IC TLV23621PWR
IC3003 8-759-488-29 IC TC7W66FU (TE12R)
IC3004 8-759-584-59 IC AK4517A-VQ-L
IC3005 8-759-058-58 IC TC7S04FU (TE85R)
IC3007 8-759-584-58 IC AN7535NSA-E1
IC3008 8-759-649-95 IC LM4881MMX
IC3009 8-752-397-21 IC CXZ31021GA
IC4001 8-759-571-31 IC TK15406M-1TL
IC4002 8-759-571-31 IC TK15406M-1TL
IC4003 8-759-571-32 IC TK15405M-1TL
IC4004 8-759-571-31 IC TK15406M-1TL
IC4005 8-759-540-53 IC BA7664FV-E2
IC4006 8-759-566-06 IC TC7WH08FU (TE12R)
IC4007 8-759-497-44 IC TC7WH125FU (TE12R)
IC4008 8-759-497-44 IC TC7WH125FU (TE12R)
IC4009 8-759-566-06 IC TC7WH08FU (TE12R)
IC4010 8-759-497-44 IC TC7WH125FU (TE12R)
IC4011 8-759-497-44 IC TC7WH125FU (TE12R)
IC5002 8-752-081-97 IC CXA2524R
IC5003 8-759-449-58 IC LM7131BCM5X
IC5004 8-759-273-87 IC NJM2901V (TE2)
IC5005 8-759-572-28 IC NJU7016R
IC5006 8-759-572-28 IC NJU7016R
IC5007 8-759-082-61 IC TC4W53FU
IC5008 8-759-082-58 IC TC7W08FU
IC5009 8-759-572-34 IC LMV821M7X
IC5010 8-759-572-34 IC LMV821M7X
IC5011 8-759-572-34 IC LMV821M7X
IC5012 8-759-572-34 IC LMV821M7X
IC5013 8-759-082-55 IC TC7W00FU
IC5014 8-759-082-55 IC TC7W00FU
IC5015 8-759-058-58 IC TC7S04FU (TE85R)
IC5102 8-752-371-18 IC CXD2302Q
IC5201 8-759-572-38 IC NJM2140R
IC5205 8-759-572-35 IC TLC3702CPWR
IC5301 8-752-397-34 IC CXD2652AGA
IC5302 8-759-196-96 IC TC7SH08FU-TE85R
IC5303 8-759-196-96 IC TC7SH08FU-TE85R
IC5401 8-759-572-34 IC LMV821M7X
IC5402 8-759-196-96 IC TC7SH08FU-TE85R
IC5403 8-752-390-38 IC CXD606-112GA
IC5404 8-759-676-88 IC RU6815TC-DCMM1
IC5405 8-759-449-23 IC AK93C55AV-L
IC5406 8-759-559-93 IC S-8110ANP-DSB-T2
IC5407 8-759-443-08 IC TC7W241FU-TE12R
IC5408 8-759-082-61 IC TC4W53FU
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-10
IC5501 8-759-572-37 IC KM68V1002AT-12
IC5601 8-759-482-07 IC MPC17A28SVMEL
IC5602 8-759-460-34 IC MPC17A36VMEL
IC5603 8-759-578-53 IC XC6365D103MR
IC8001 8-759-572-52 IC HD6417709BT80A
IC8002 8-759-572-70 IC KM416S4034CC-C10
IC8003 8-759-572-70 IC KM416S4034CC-C10
IC8004 8-759-676-89 IC HN58V1001T-25-DCMM1
IC8005 1-803-635-11 IC WTGA-EKM29U64000-K1
IC8006 8-759-196-97 IC TC7SH32FU-TE85R
IC8007 8-759-196-97 IC TC7SH32FU-TE85R
IC8008 8-759-560-17 IC RS5C348A-E2
IC8009 8-759-578-13 IC PST9329UL
IC8010 8-759-196-97 IC TC7SH32FU-TE85R
IC8011 8-759-573-16 IC S-81232SG-Q4-T1
IC8012 8-759-656-85 IC XC62EP3202MR
IC8013 8-759-058-54 IC TC7S00FU (TE85R)
IC8015 8-759-082-55 IC TC7W00FU
IC8016 8-759-195-81 IC TC7S86FU
IC8020 8-759-523-11 IC TC74AC74FT (EL)
IC8023 8-759-531-92 IC TC7WH04FU (TE12R)
IC8024 8-759-196-96 IC TC7SH08FU-TE85R
IC8025 8-759-196-96 IC TC7SH08FU-TE85R
IC8026 8-759-196-96 IC TC7SH08FU-TE85R
IC8027 8-759-642-45 IC TL1596CPW-ELM2000
IC8101 8-752-396-85 IC CXD702-102GA
IC8102 8-759-572-71 IC KM416U4104BC-L6
IC8103 8-759-572-71 IC KM416U4104BC-L6
IC8104 8-759-523-11 IC TC74AC74FT (EL)
IC8202 8-759-325-27 IC TK11231AMTL
IC8501 8-759-653-48 IC uPD70F3102AF1-33-FA1
IC8601 8-752-396-81 IC CXD1405GG
IC8602 8-759-596-11 IC KM432S2030CT-G8
IC8701 8-752-394-48 IC CXD1404GA
IC8702 8-759-572-69 IC KM416U1204CC-L6
IC8703 8-759-572-69 IC KM416U1204CC-L6
IC9102 8-759-252-41 IC TK11900MTL
IC9103 8-759-426-83 IC TK11228BMCL
IC9104 8-759-426-83 IC TK11228BMCL
< COIL >
L3001 1-414-754-11 INDUCTOR 10uH
L3002 1-414-754-11 INDUCTOR 10uH
L3003 1-414-398-11 INDUCTOR 10uH
L3004 1-414-398-11 INDUCTOR 10uH
L3005 1-414-754-11 INDUCTOR 10uH
L3006 1-414-398-11 INDUCTOR 10uH
L4001 1-414-754-11 INDUCTOR 10uH
L4002 1-414-754-11 INDUCTOR 10uH
L4003 1-414-754-11 INDUCTOR 10uH
L5001 1-414-398-11 INDUCTOR 10uH
L5002 1-414-754-11 INDUCTOR 10uH
L5101 1-414-398-11 INDUCTOR 10uH
L5301 1-414-754-11 INDUCTOR 10uH
L5401 1-412-939-11 INDUCTOR 1uH
L5402 1-414-398-11 INDUCTOR 10uH
L5403 1-410-985-42 INDUCTOR CHIP 0.22uH
L5601 1-414-407-41 INDUCTOR 330uH
L5602 1-412-056-11 INDUCTOR 4.7uH
L5603 1-412-056-11 INDUCTOR 4.7uH
L5604 1-412-056-11 INDUCTOR 4.7uH
L5605 1-412-056-11 INDUCTOR 4.7uH
L5606 1-410-389-31 INDUCTOR CHIP 47uH
L5607 1-410-389-31 INDUCTOR CHIP 47uH
L5610 1-416-346-11 INDUCTOR 33uH
L8001 1-414-754-11 INDUCTOR 10uH
L8002 1-414-754-11 INDUCTOR 10uH
L8003 1-414-398-11 INDUCTOR 10uH
L8004 1-414-394-41 INDUCTOR 2.2uH
L8101 1-412-028-11 INDUCTOR CHIP 4.7uH
L8102 1-414-754-11 INDUCTOR 10uH
L8103 1-414-754-11 INDUCTOR 10uH
L8104 1-414-398-11 INDUCTOR 10uH
L8202 1-414-754-11 INDUCTOR 10uH
L8501 1-469-367-21 INDUCTOR 10uH
L8601 1-414-398-11 INDUCTOR 10uH
L8602 1-414-398-11 INDUCTOR 10uH
L8603 1-414-398-11 INDUCTOR 10uH
L8701 1-469-367-21 INDUCTOR 10uH
L8702 1-414-398-11 INDUCTOR 10uH
L9102 1-414-404-41 INDUCTOR 100uH
L9103 1-414-404-41 INDUCTOR 100uH
L9104 1-414-398-11 INDUCTOR 10uH
L9105 1-414-398-11 INDUCTOR 10uH
< TRANSISTOR >
Q3001 8-759-426-37 TRANSISTOR MC68HC05G6PB-
SC430917PB
Q3002 8-729-037-52 TRANSISTOR 2SD2216J-QR (TX).SO
Q3003 8-729-047-37 TRANSISTOR FDN338P
Q3004 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q4001 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4002 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4003 8-729-037-67 TRANSISTOR UN9119J- (TX).SO
Q4004 8-729-037-74 TRANSISTOR UN9213J- (TX).SO
Q4005 8-729-427-70 TRANSISTOR XP4401
Q4006 8-729-427-70 TRANSISTOR XP4401
Q4007 8-729-427-70 TRANSISTOR XP4401
Q5001 8-729-429-50 TRANSISTOR XP4312
Q5002 8-729-037-89 TRANSISTOR 2SC4627J-C (TX).SO
Q5003 8-729-047-36 TRANSISTOR CPH3303-TL
Q5004 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5005 8-729-426-22 TRANSISTOR XP1211
Q5009 8-729-047-36 TRANSISTOR CPH3303-TL
Q5010 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5101 8-729-427-74 TRANSISTOR XP4601
Q5102 8-729-047-36 TRANSISTOR CPH3303-TL
Q5201 8-729-427-72 TRANSISTOR XP4501
Q5202 8-729-427-70 TRANSISTOR XP4401
Q5203 8-729-047-36 TRANSISTOR CPH3303-TL
Q5204 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5601 8-729-047-90 TRANSISTOR XP162A11C0PR
Q5602 8-729-037-61 TRANSISTOR UN9113J- (TX).SO
Q5603 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q8001 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-11
Q8002 8-729-043-94 TRANSISTOR CPH3106-PM-TL
Q8003 8-729-044-20 TRANSISTOR SI6463DQ-T1
Q8004 8-729-044-20 TRANSISTOR SI6463DQ-T1
Q8005 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q8006 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q8007 8-729-044-20 TRANSISTOR SI6463DQ-T1
Q8008 8-729-044-20 TRANSISTOR SI6463DQ-T1
Q8009 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q8010 8-729-032-62 TRANSISTOR 2SJ347-TE85L
Q8011 8-729-032-62 TRANSISTOR 2SJ347-TE85L
Q8012 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q8013 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q8014 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q9101 8-729-427-72 TRANSISTOR XP4501
Q9102 8-729-037-52 TRANSISTOR 2SD2216J-QR (TX).SO
Q9103 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q9104 8-729-427-70 TRANSISTOR XP4401
Q9105 8-729-041-23 TRANSISTOR NDS356AP
Q9107 8-729-047-37 TRANSISTOR FDN338P
Q9108 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q9110 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q9111 8-729-427-70 TRANSISTOR XP4401
Q9112 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q9113 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q9115 8-729-042-82 TRANSISTOR NDH834P
Q9116 8-729-047-68 TRANSISTOR SSM3K03FE (TPL3)
Q9117 8-729-041-23 TRANSISTOR NDS356AP
Q9122 8-729-047-37 TRANSISTOR FDN338P
Q9125 8-729-037-74 TRANSISTOR UN9213J- (TX).SO
Q9126 8-729-032-62 TRANSISTOR 2SJ347-TE85L
< RESISTOR >
R1001 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R1002 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R1003 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R1004 1-218-947-11 RES, CHIP 330 5% 1/16W
R1005 1-218-965-11 RES, CHIP 10K 5% 1/16W
R1006 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R1007 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R1008 1-218-971-11 RES, CHIP 33K 5% 1/16W
R1009 1-218-971-11 RES, CHIP 33K 5% 1/16W
R1010 1-218-969-11 RES, CHIP 22K 5% 1/16W
R1011 1-218-971-11 RES, CHIP 33K 5% 1/16W
R1012 1-218-969-11 RES, CHIP 22K 5% 1/16W
R1013 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R1014 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R1015 1-218-973-11 RES, CHIP 47K 5% 1/16W
R1016 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R1017 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R1019 1-218-990-11 SHORT 0
R1021 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R1022 1-218-965-11 RES, CHIP 10K 5% 1/16W
R1023 1-218-965-11 RES, CHIP 10K 5% 1/16W
R1024 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R1025 1-218-446-11 METAL CHIP 1 5% 1/16W
R1026 1-218-990-11 SHORT 0
R1027 1-218-849-11 METAL CHIP 3.3K 0.5% 1/16W
R1028 1-218-975-11 RES, CHIP 68K 5% 1/16W
R1029 1-218-973-11 RES, CHIP 47K 5% 1/16W
R1030 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R1032 1-218-955-11 RES, CHIP 1.5K 5% 1/16W
R2001 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R2002 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R2003 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R2004 1-218-947-11 RES, CHIP 330 5% 1/16W
R2005 1-218-965-11 RES, CHIP 10K 5% 1/16W
R2006 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R2007 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R2008 1-218-971-11 RES, CHIP 33K 5% 1/16W
R2009 1-218-971-11 RES, CHIP 33K 5% 1/16W
R2010 1-218-969-11 RES, CHIP 22K 5% 1/16W
R2011 1-218-971-11 RES, CHIP 33K 5% 1/16W
R2012 1-218-969-11 RES, CHIP 22K 5% 1/16W
R2013 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R2014 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R2015 1-218-973-11 RES, CHIP 47K 5% 1/16W
R2016 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R2017 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R2019 1-218-990-11 SHORT 0
R2021 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R2022 1-218-965-11 RES, CHIP 10K 5% 1/16W
R2023 1-218-965-11 RES, CHIP 10K 5% 1/16W
R2024 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R2025 1-218-446-11 METAL CHIP 1 5% 1/16W
R2026 1-218-990-11 SHORT 0
R2027 1-218-849-11 METAL CHIP 3.3K 0.5% 1/16W
R2028 1-218-975-11 RES, CHIP 68K 5% 1/16W
R2029 1-218-973-11 RES, CHIP 47K 5% 1/16W
R2030 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R2032 1-218-955-11 RES, CHIP 1.5K 5% 1/16W
R3001 1-218-981-11 RES, CHIP 220K 5% 1/16W
R3002 1-216-150-91 RES, CHIP 10 5% 1/8W
R3004 1-218-977-11 RES, CHIP 100K 5% 1/16W
R3005 1-218-989-11 RES, CHIP 1M 5% 1/16W
R3006 1-218-446-11 METAL CHIP 1 5% 1/16W
R3009 1-218-965-11 RES, CHIP 10K 5% 1/16W
R3010 1-218-965-11 RES, CHIP 10K 5% 1/16W
R3011 1-218-969-11 RES, CHIP 22K 5% 1/16W
R3013 1-218-979-11 RES, CHIP 150K 5% 1/16W
R3014 1-218-989-11 RES, CHIP 1M 5% 1/16W
R3015 1-218-989-11 RES, CHIP 1M 5% 1/16W
R3016 1-218-965-11 RES, CHIP 10K 5% 1/16W
R3018 1-218-975-11 RES, CHIP 68K 5% 1/16W
R3019 1-218-969-11 RES, CHIP 22K 5% 1/16W
R3022 1-218-990-11 SHORT 0
R3023 1-218-983-11 RES, CHIP 330K 5% 1/16W
R4001 1-218-941-11 METAL CHIP 100 0.5% 1/16W
R4002 1-208-671-11 METAL CHIP 330 0.5% 1/16W
R4003 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4004 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4005 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4006 1-218-941-11 METAL CHIP 100 0.5% 1/16W
R4007 1-208-671-11 METAL CHIP 330 0.5% 1/16W
R4008 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4009 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-12
R4010 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4011 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R4012 1-218-941-11 METAL CHIP 100 0.5% 1/16W
R4013 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4014 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4015 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4016 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4017 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4018 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4019 1-218-990-11 SHORT 0
R4020 1-218-990-11 SHORT 0
R4021 1-218-990-11 SHORT 0
R4022 1-218-990-11 SHORT 0
R4026 1-218-985-11 RES, CHIP 470K 5% 1/16W
R4028 1-218-985-11 RES, CHIP 470K 5% 1/16W
R4030 1-218-965-11 RES, CHIP 10K 5% 1/16W
R4031 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5001 1-218-945-11 RES, CHIP 220 5% 1/16W
R5003 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5004 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R5005 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R5006 1-218-987-11 RES, CHIP 680K 5% 1/16W
R5007 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5008 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5009 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5010 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5011 1-218-987-11 RES, CHIP 680K 5% 1/16W
R5012 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5013 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R5014 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5015 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5016 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5017 1-218-949-11 RES, CHIP 470 5% 1/16W
R5018 1-218-949-11 RES, CHIP 470 5% 1/16W
R5020 1-218-951-11 RES, CHIP 680 5% 1/16W
R5021 1-218-951-11 RES, CHIP 680 5% 1/16W
R5022 1-218-990-11 SHORT 0
R5023 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5024 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5025 1-218-981-11 RES, CHIP 220K 5% 1/16W
R5026 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5027 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5028 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5030 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5031 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5032 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5033 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5034 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5037 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5038 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5039 1-218-967-11 RES, CHIP 15K 5% 1/16W
R5040 1-218-967-11 RES, CHIP 15K 5% 1/16W
R5041 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5042 1-218-967-11 RES, CHIP 15K 5% 1/16W
R5043 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5044 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5045 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5046 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5047 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5048 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5049 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5050 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5051 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R5052 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5053 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5054 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5055 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5056 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5057 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5058 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5059 1-218-990-11 SHORT 0
R5060 1-218-990-11 SHORT 0
R5061 1-218-990-11 SHORT 0
R5076 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5077 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5078 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R5101 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5102 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5103 1-218-941-11 RES, CHIP 100 5% 1/16W
R5104 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5105 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5106 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5107 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5112 1-218-981-11 RES, CHIP 220K 5% 1/16W
R5113 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5201 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5202 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5203 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5204 1-218-953-11 RES, CHIP 1K 5% 1/16W
R5205 1-218-971-11 RES, CHIP 33K 5% 1/16W
R5206 1-218-971-11 RES, CHIP 33K 5% 1/16W
R5207 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5208 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5209 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5210 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5211 1-218-981-11 RES, CHIP 220K 5% 1/16W
R5214 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5215 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5216 1-218-990-11 SHORT 0 5% 1/16W
R5217 1-218-990-11 SHORT 0 5% 1/16W
R5301 1-218-935-11 RES, CHIP 33 5% 1/16W
R5302 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R5303 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5304 1-218-971-11 RES, CHIP 33K 5% 1/16W
R5305 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5306 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5307 1-218-975-11 RES, CHIP 68K 5% 1/16W
R5308 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R5309 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5310 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R5311 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5312 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5313 1-216-801-11 METAL CHIP 22 5% 1/16W
R5314 1-218-937-11 RES, CHIP 47 5% 1/16W
R5316 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-13
R5318 1-218-990-11 SHORT 0
R5401 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5402 1-218-965-11 RES, CHIP 10K 5% 1/16W
R5403 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5404 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5405 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5406 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5407 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5408 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5409 1-208-707-11 METAL CHIP 10K 0.5% 1/16W
R5410 1-208-719-11 METAL CHIP 33K 0.5% 1/16W
R5411 1-218-973-11 RES, CHIP 47K 5% 1/16W
R5412 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5413 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5414 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5416 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R5417 1-218-937-11 RES, CHIP 47 5% 1/16W
R5418 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5419 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5420 1-218-939-11 RES, CHIP 68 5% 1/16W
R5421 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5422 1-218-990-11 SHORT 0
R5423 1-218-990-11 SHORT 0
R5424 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5425 1-218-990-11 SHORT 0
R5426 1-218-941-11 METAL CHIP 100 0.5% 1/16W
R5427 1-218-941-11 METAL CHIP 100 0.5% 1/16W
R5428 1-218-941-11 METAL CHIP 100 0.5% 1/16W
R5429 1-218-941-11 METAL CHIP 100 0.5% 1/16W
R5601 1-218-990-11 SHORT 0
R5602 1-218-977-11 RES, CHIP 100K 5% 1/16W
R5603 1-218-985-11 RES, CHIP 470K 5% 1/16W
R5604 1-218-989-11 RES, CHIP 1M 5% 1/16W
R5605 1-218-990-11 SHORT 0
R5606 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5607 1-218-990-11 SHORT 0
R8001 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8002 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8003 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8004 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8005 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8006 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8007 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8008 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8009 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8010 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8011 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8012 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8013 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8015 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8016 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8017 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8018 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8019 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8020 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8021 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8022 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8023 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8024 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8025 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8026 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8027 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8028 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8029 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8030 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8031 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8032 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8033 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8034 1-218-941-11 RES, CHIP 100 5% 1/16W
R8035 1-218-941-11 RES, CHIP 100 5% 1/16W
R8036 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8037 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8038 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8039 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8040 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8041 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8042 1-208-955-11 METAL CHIP 680K 0.5% 1/16W
R8043 1-208-955-11 METAL CHIP 680K 0.5% 1/16W
R8044 1-218-990-11 SHORT 0
R8045 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8046 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8047 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8048 1-216-304-11 METAL CHIP 3.3 5% 1/10W
R8049 1-216-304-11 METAL CHIP 3.3 5% 1/10W
R8050 1-218-941-11 RES, CHIP 100 5% 1/16W
R8051 1-218-973-11 RES, CHIP 47K 5% 1/16W
R8052 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8053 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8055 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8056 1-218-945-11 RES, CHIP 220 5% 1/16W
R8057 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8058 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8061 1-218-989-11 RES, CHIP 1M 5% 1/16W
R8062 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8063 1-218-990-11 SHORT 0
R8064 1-218-990-11 SHORT 0
R8065 1-218-990-11 SHORT 0
R8066 1-218-990-11 SHORT 0
R8067 1-218-990-11 SHORT 0
R8068 1-218-990-11 SHORT 0
R8069 1-218-990-11 SHORT 0
R8070 1-218-990-11 SHORT 0
R8071 1-218-990-11 SHORT 0
R8072 1-218-990-11 SHORT 0
R8073 1-218-990-11 SHORT 0
R8074 1-218-990-11 SHORT 0
R8075 1-218-990-11 SHORT 0
R8076 1-218-990-11 SHORT 0
R8077 1-218-990-11 SHORT 0
R8078 1-218-990-11 SHORT 0
R8079 1-218-990-11 SHORT 0
R8080 1-218-990-11 SHORT 0
R8081 1-218-990-11 SHORT 0
R8082 1-218-990-11 SHORT 0
R8083 1-218-977-11 RES, CHIP 100K 5% 1/16W
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-14
R8084 1-218-990-11 SHORT 0
R8085 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8086 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8087 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8088 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8089 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8090 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8091 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8092 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8093 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8094 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8095 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8096 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8097 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8098 1-218-953-11 RES, CHIP 1K 5% 1/16W
R8099 1-218-983-11 RES, CHIP 330K 5% 1/16W
R8101 1-218-945-11 METAL CHIP 220 0.5% 1/16W
R8102 1-208-671-11 METAL CHIP 330 0.5% 1/16W
R8103 1-208-679-11 METAL CHIP 680 0.5% 1/16W
R8104 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R8105 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R8106 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R8107 1-218-945-11 METAL CHIP 220 0.5% 1/16W
R8108 1-218-945-11 METAL CHIP 220 0.5% 1/16W
R8109 1-218-990-11 SHORT 0
R8110 1-218-990-11 SHORT 0
R8111 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8112 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8113 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8114 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8115 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8116 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8117 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8118 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8119 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8120 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8121 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8122 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8125 1-218-990-11 SHORT 0
R8126 1-218-990-11 SHORT 0
R8127 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R8129 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8130 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8208 1-208-679-11 METAL CHIP 680 0.5% 1/16W
R8501 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8502 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8503 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8504 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8505 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8506 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8507 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8508 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8509 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8510 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8511 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8512 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8513 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8514 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8515 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8516 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8517 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8519 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8520 1-218-949-11 RES, CHIP 470 5% 1/16W
R8521 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8522 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8523 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8524 1-218-989-11 RES, CHIP 1M 5% 1/16W
R8525 1-218-989-11 RES, CHIP 1M 5% 1/16W
R8526 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8527 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8528 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8529 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R8530 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8531 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8532 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8601 1-218-987-11 RES, CHIP 680K 5% 1/16W
R8602 1-218-990-11 SHORT 0
R8603 1-218-990-11 SHORT 0
R8901 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8902 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8903 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8904 1-218-990-11 SHORT 0
R8906 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R8908 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8909 1-218-937-11 RES, CHIP 47 5% 1/16W
R8910 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R8911 1-218-985-11 RES, CHIP 470K 5% 1/16W
R8912 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8913 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8914 1-218-989-11 RES, CHIP 1M 5% 1/16W
R8915 1-216-304-11 METAL CHIP 3.3 5% 1/10W
R8916 1-218-949-11 RES, CHIP 470 5% 1/16W
R8917 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8918 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8919 1-218-990-11 SHORT 0
R8921 1-218-990-11 SHORT 0
R8931 1-218-967-11 RES, CHIP 15K 5% 1/16W
R8932 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8933 1-218-989-11 RES, CHIP 1M 5% 1/16W
R8934 1-218-965-11 RES, CHIP 10K 5% 1/16W
R8935 1-218-977-11 RES, CHIP 100K 5% 1/16W
R8936 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R8937 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9101 1-208-947-11 METAL CHIP 330K 0.5% 1/16W
R9102 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9103 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9104 1-218-969-11 RES, CHIP 22K 5% 1/16W
R9105 1-218-977-11 RES, CHIP 100K 5% 1/16W
R9106 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9107 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9108 1-218-979-11 RES, CHIP 150K 5% 1/16W
R9109 1-218-990-11 SHORT 0
R9110 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9111 1-218-981-11 RES, CHIP 220K 5% 1/16W
R9112 1-218-977-11 RES, CHIP 100K 5% 1/16W
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-15
MAIN POWER
R9113 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9114 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9116 1-218-973-11 RES, CHIP 47K 5% 1/16W
R9117 1-218-990-11 SHORT 0
R9118 1-208-947-11 METAL CHIP 330K 0.5% 1/16W
R9119 1-208-947-11 METAL CHIP 330K 0.5% 1/16W
R9120 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9121 1-218-990-11 SHORT 0
R9123 1-218-977-11 RES, CHIP 100K 5% 1/16W
R9124 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9125 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9126 1-218-977-11 RES, CHIP 100K 5% 1/16W
R9127 1-218-977-11 RES, CHIP 100K 5% 1/16W
R9128 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9129 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9130 1-218-990-11 SHORT 0
R9132 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9134 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9135 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9136 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9137 1-218-979-11 RES, CHIP 150K 5% 1/16W
R9139 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9140 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9143 1-218-990-11 SHORT 0
R9144 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R9147 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9148 1-218-990-11 SHORT 0
R9150 1-218-990-11 SHORT 0
R9152 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9153 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9154 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9155 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9156 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9157 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R9159 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9161 1-218-989-11 RES, CHIP 1M 5% 1/16W
R9901 1-218-990-11 SHORT 0
R9902 1-218-990-11 SHORT 0
R9903 1-218-990-11 SHORT 0
R9904 1-218-990-11 SHORT 0
R9905 1-218-990-11 SHORT 0
R9906 1-218-990-11 SHORT 0
R9910 1-218-990-11 SHORT 0
< SWITCH >
S8001 1-572-467-61 SWITCH, PUSH (1 KEY)
(OPEN/CLOSE DETECT)
S8002 1-572-467-61 SWITCH, PUSH (1 KEY) (HALF LOCK DETECT)
S8003 1-762-805-21 SWITCH, PUSH (1 KEY)
(OPEN CLOSE DETECT)
< BATTERY >
U8001 1-528-834-11 BATTERY, LITHIUM SECONDARY
< VIBRATOR >
X5301 1-767-498-11 OSCILLATOR, CRYSTAL (22.5792MHz)
X5401 1-767-124-11 VIBRATOR, CRYSTAL (16.9344MHz)
X5403 1-781-247-21 VIBRATOR, CRYSTAL (70.54MHz)
X8001 1-767-994-41 VIBRATOR, CRYSTAL (32.768kHz)
X8002 1-767-994-22 VIBRATOR, CRYSTAL (32.768kHz)
X8003 1-781-259-21 VIBRATOR, CRYSTAL (9.8304MHz)
X8501 1-781-260-21 VIBRATOR, CRYSTAL (6.6MHz)
************************************************************
A-3321-881-A POWER BOARD, COMPLETE
***********************
(Ref. No.: 20,000 Series)
3-043-103-01 CUSHION (SHIELD)
*4-216-027-01 CASE (FRONT), SHIELD
*4-216-028-01 CASE (REAR), SHIELD
< CAPACITOR >
C9001 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C9002 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C9003 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C9004 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9005 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9007 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V
C9008 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9009 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9010 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9011 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9012 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 16V
C9013 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C9014 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V
C9015 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9017 1-164-942-11 CERAMIC CHIP 0.0068uF 10% 16V
C9018 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9019 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V
C9021 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 16V
C9023 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C9024 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 16V
C9027 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C9028 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C9029 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9030 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C9031 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C9032 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C9033 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C9034 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C9035 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C9036 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C9037 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C9038 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C9039 1-164-858-11 CERAMIC CHIP 22PF 5% 16V
C9040 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9041 1-119-751-11 TANTALUM CHIP 22uF 20% 16V
C9042 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9043 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9044 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9045 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9046 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9047 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9048 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C9049 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-16
C9050 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C9051 1-104-852-11 TANTALUM CHIP 22uF 20% 10V
C9052 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C9053 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C9055 1-104-913-11 TANTALUM CHIP 10uF 20% 16V
C9057 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V
C9059 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C9061 1-104-852-11 TANTALUM CHIP 22uF 20% 10V
C9062 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9063 1-104-852-11 TANTALUM CHIP 22uF 20% 10V
C9064 1-104-916-11 TANTALUM CHIP 6.8uF 20% 20V
C9065 1-104-852-11 TANTALUM CHIP 22uF 20% 10V
C9066 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9067 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9068 1-104-916-11 TANTALUM CHIP 6.8uF 20% 20V
C9069 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C9070 1-113-994-11 TANTALUM CHIP 6.8uF 20% 16V
C9071 1-113-994-11 TANTALUM CHIP 6.8uF 20% 16V
C9072 1-113-984-11 TANTALUM CHIP 1.5uF 20% 35V
C9073 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V
C9074 1-104-916-11 TANTALUM CHIP 6.8uF 20% 20V
C9076 1-113-682-11 TANTALUM CHIP 33uF 20% 10V
C9077 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9078 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9079 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9080 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C9081 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
< CONNECTOR >
CN9001 1-785-482-41 CONNECTOR, BOARD TO BOARD 70P
*CN9002 1-695-106-11 PIN, CONNECTOR (PC BOARD) 4P
< DIODE >
D9001 8-719-074-63 DIODE MAZS120001SO
D9002 8-719-074-63 DIODE MAZS120001SO
D9003 8-719-074-63 DIODE MAZS120001SO
D9004 8-719-074-63 DIODE MAZS120001SO
D9005 8-719-074-63 DIODE MAZS120001SO
D9006 8-719-067-36 DIODE MA3ZD1200LS0
D9007 8-719-067-36 DIODE MA3ZD1200LS0
D9008 8-719-067-36 DIODE MA3ZD1200LS0
D9009 8-719-067-36 DIODE MA3ZD1200LS0
D9010 8-719-067-36 DIODE MA3ZD1200LS0
D9011 8-719-074-63 DIODE MAZS120001SO
D9012 8-719-056-48 DIODE 1SS388 (TPL3)
D9013 8-719-056-48 DIODE 1SS388 (TPL3)
D9014 8-719-056-48 DIODE 1SS388 (TPL3)
D9015 8-719-056-48 DIODE 1SS388 (TPL3)
< FUSE >
0F9001 1-533-760-21 FUSE (SMD) (1.4A/24V)
0F9002 1-533-760-21 FUSE (SMD) (1.4A/24V)
0F9003 1-533-760-21 FUSE (SMD) (1.4A/24V)
0F9004 1-533-760-21 FUSE (SMD) (1.4A/24V)
< FERRITE BEAD >
*FB9001 1-469-230-21 FERRITE 0uH
*FB9002 1-469-230-21 FERRITE 0uH
< IC >
IC9001 8-759-596-54 IC SN104241PM-TEB
IC9002 8-759-252-41 IC TK11900MTL
< COIL >
L9001 1-409-529-41 INDUCTOR 10uH
L9002 1-409-529-41 INDUCTOR 10uH
L9003 1-409-529-41 INDUCTOR 10uH
L9004 1-414-757-11 INDUCTOR 100uH
L9005 1-409-529-41 INDUCTOR 10uH
L9006 1-424-674-11 INDUCTOR 22uH
L9007 1-409-535-41 INDUCTOR 100uH
L9008 1-409-535-41 INDUCTOR 100uH
L9009 1-409-529-41 INDUCTOR 10uH
L9010 1-409-529-41 INDUCTOR 10uH
L9013 1-469-367-21 INDUCTOR 10uH
L9015 1-414-757-11 INDUCTOR 100uH
L9016 1-414-757-11 INDUCTOR 100uH
L9017 1-469-367-21 INDUCTOR 10uH
L9018 1-469-367-21 INDUCTOR 10uH
L9019 1-469-367-21 INDUCTOR 10uH
L9020 1-414-757-11 INDUCTOR 100uH
L9021 1-414-757-11 INDUCTOR 100uH
L9022 1-414-757-11 INDUCTOR 100uH
L9023 1-469-367-21 INDUCTOR 10uH
< TRANSISTOR >
Q9001 8-729-804-41 TRANSISTOR 2SB1122-S
Q9002 8-729-037-52 TRANSISTOR 2SD2216J-QR (TX).SO
Q9003 8-729-043-94 TRANSISTOR CPH3106-PM-TL
Q9004 8-729-043-94 TRANSISTOR CPH3106-PM-TL
Q9005 8-729-043-94 TRANSISTOR CPH3106-PM-TL
Q9006 8-729-043-94 TRANSISTOR CPH3106-PM-TL
Q9007 8-729-047-38 TRANSISTOR FDN359AN
Q9008 8-729-047-38 TRANSISTOR FDN359AN
Q9009 8-729-043-94 TRANSISTOR CPH3106-PM-TL
Q9010 8-729-427-70 TRANSISTOR XP4401
< RESISTOR >
R9001 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R9003 1-208-707-11 METAL CHIP 10K 0.5% 1/16W
R9004 1-218-973-11 RES, CHIP 47K 5% 1/16W
R9005 1-218-969-11 RES, CHIP 22K 5% 1/16W
R9006 1-218-973-11 RES, CHIP 47K 5% 1/16W
R9007 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R9008 1-218-967-11 RES, CHIP 15K 5% 1/16W
R9011 1-218-965-11 RES, CHIP 10K 5% 1/16W
R9013 1-218-965-11 RES, CHIP 10K 5% 1/16W
R9014 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R9015 1-218-965-11 RES, CHIP 10K 5% 1/16W
R9016 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9017 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9019 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9020 1-218-969-11 RES, CHIP 22K 5% 1/16W
R9021 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9022 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R9023 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9024 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
POWER
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-17
R9025 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9029 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R9031 1-218-965-11 RES, CHIP 10K 5% 1/16W
R9032 1-218-965-11 RES, CHIP 10K 5% 1/16W
R9033 1-208-707-11 METAL CHIP 10K 0.5% 1/16W
R9035 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R9036 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R9037 1-218-849-11 METAL CHIP 3.3K 0.5% 1/16W
R9038 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R9039 1-218-849-11 METAL CHIP 3.3K 0.5% 1/16W
R9040 1-218-849-11 METAL CHIP 3.3K 0.5% 1/16W
R9041 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R9042 1-218-975-11 RES, CHIP 68K 5% 1/16W
R9043 1-218-971-11 RES, CHIP 33K 5% 1/16W
R9044 1-218-971-11 RES, CHIP 33K 5% 1/16W
R9045 1-218-965-11 RES, CHIP 10K 5% 1/16W
R9046 1-218-955-11 RES, CHIP 1.5K 5% 1/16W
R9047 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9048 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9049 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R9050 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R9051 1-218-969-11 RES, CHIP 22K 5% 1/16W
R9052 1-208-943-11 METAL CHIP 220K 0.5% 1/16W
R9053 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9054 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9055 1-208-931-11 METAL CHIP 68K 0.5% 1/16W
R9056 1-218-977-11 RES, CHIP 100K 5% 1/16W
R9058 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9059 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R9060 1-218-933-11 RES, CHIP 22 5% 1/16W
R9062 1-218-933-11 RES, CHIP 22 5% 1/16W
R9064 1-218-933-11 RES, CHIP 22 5% 1/16W
R9066 1-219-365-11 SHORT 0
R9067 1-216-296-91 SHORT 0
R9068 1-211-950-11 SHORT 0
< TRANSFORMER >
0T9001 1-433-623-21 TRANSFORMER, CONVERTER
************************************************************
A-3321-863-A REC BOARD, COMPLETE
*********************
(Ref. No.: 20,000 Series)
< CAPACITOR >
C5901 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C5902 1-117-177-91 CAP-CHIP 33PF 5% 500V
C5903 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C5904 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C5905 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C5906 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
< CONNECTOR >
CN5901 1-778-711-11 CONNECTOR, FFC/FPC (ZIF) 5P
*CN5902 1-778-158-21 CONNECTOR, FFC/FPC (ZIF) 10P
< DIODE >
D5901 8-719-073-16 DIODE SBE802-TL
D5902 8-719-073-16 DIODE SBE802-TL
< IC >
IC5901 8-759-475-53 IC TC74LCX541FT (EL)
< TRANSISTOR >
Q5901 8-729-037-73 TRANSISTOR UN9212J- (TX).SO
Q5902 8-729-047-35 TRANSISTOR FTD1003-TL
Q5903 8-729-047-82 TRANSISTOR FTD2007-TL
< RESISTOR >
R5901 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5902 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5903 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5904 1-218-983-11 RES, CHIP 330K 5% 1/16W
R5905 1-218-983-11 RES, CHIP 330K 5% 1/16W
************************************************************
VC-216 BOARD, COMPLETE
***********************
(Ref. No.: 20,000 Series)
< CAPACITOR >
C001 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C002 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C003 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C004 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V
C007 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C008 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C009 1-113-994-11 TANTALUM CHIP 6.8uF 20% 16V
C010 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C011 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C012 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C013 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C014 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C015 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C016 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C017 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C018 1-125-817-11 CERAMIC CHIP 10uF 10% 6.3V
C019 1-125-817-11 CERAMIC CHIP 10uF 10% 6.3V
C020 1-125-817-11 CERAMIC CHIP 10uF 10% 6.3V
C021 1-125-817-11 CERAMIC CHIP 10uF 10% 6.3V
C022 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C023 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C024 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C101 1-164-506-11 CERAMIC CHIP 4.7uF 0% 16V
C102 1-164-506-11 CERAMIC CHIP 4.7uF 0% 16V
C103 1-164-862-11 CERAMIC CHIP 33PF 5% 16V
C104 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C105 1-164-862-11 CERAMIC CHIP 33PF 5% 16V
C106 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C107 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C108 1-125-839-91 TANTALUM CHIP 47uF 20% 6.3V
C109 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C110 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C111 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
POWER REC VC-216
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-18
C112 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C113 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C114 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C115 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C116 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C117 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C118 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C119 1-164-846-11 CERAMIC CHIP 6PF 0.5PF 16V
C120 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C121 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C123 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C124 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C125 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C126 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C127 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C128 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C129 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C130 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C131 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C132 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C133 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C134 1-117-920-11 TANTALUM CHIP 10uF 20% 6.3V
C135 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C136 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C137 1-117-920-11 TANTALUM CHIP 10uF 20% 6.3V
C138 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C139 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C140 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C141 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C142 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C143 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V
C201 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C202 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V
C203 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C204 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C205 1-164-935-11 CERAMIC CHIP 470PF 10% 16V
C206 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V
C207 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C208 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C209 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C210 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C211 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C212 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C213 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C214 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C215 1-117-920-11 TANTALUM CHIP 10uF 20% 6.3V
C216 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C217 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C218 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C219 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C220 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C221 1-125-839-91 TANTALUM CHIP 47uF 20% 6.3V
C222 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
< CONNECTOR >
CN101 1-778-804-11 CONNECTOR, BOARD TO BOARD 40P
CN201 1-766-354-21 CONNECTOR, FFC/FPC 24P
< DIODE >
D101 8-713-103-84 DIODE 1T379-01-T8A
D201 8-719-056-23 DIODE MA2S111- (K8).SO
< FERRITE BEAD >
FB101 1-414-228-11 FERRITE 0uH
FB102 1-500-284-21 FERRITE 0uH
FB103 1-414-228-11 FERRITE 0uH
FB104 1-414-228-11 FERRITE 0uH
FB105 1-414-228-11 FERRITE 0uH
FB201 1-414-228-11 FERRITE 0uH
< IC >
IC002 8-759-489-19 IC uPC6756GR-8JG-E2
IC101 8-752-386-72 IC CXD2444R
IC102 8-759-570-81 IC AD9808AJSTRL
IC103 8-759-445-93 IC AK6440AM-E2
IC104 8-759-387-31 IC TC75S55F (TE85R)
IC105 8-759-497-43 IC CXD8691R-TEB
IC106 8-752-904-85 IC CXP912032-098R-T6
IC201 8-759-444-87 IC NJM324V (TE2)
IC202 8-759-492-31 IC MPC17A134VMEL
< COIL >
L001 1-414-757-11 INDUCTOR 100uH
L002 1-414-754-11 INDUCTOR 10uH
L101 1-414-754-11 INDUCTOR 10uH
L103 1-414-754-11 INDUCTOR 10uH
L104 1-414-754-11 INDUCTOR 10uH
L201 1-414-754-11 INDUCTOR 10uH
L202 1-414-754-11 INDUCTOR 10uH
L203 1-414-754-11 INDUCTOR 10uH
< TRANSISTOR >
Q001 8-729-117-73 TRANSISTOR 2SC4178-F14
Q101 8-729-037-61 TRANSISTOR UN9113J- (TX).SO
Q102 8-729-037-74 TRANSISTOR UN9213J- (TX).SO
Q103 8-729-037-61 TRANSISTOR UN9113J- (TX).SO
Q104 8-729-037-74 TRANSISTOR UN9213J- (TX).SO
Q201 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q202 8-729-037-52 TRANSISTOR 2SD2216J-QR (TX).SO
Q203 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q204 8-729-037-52 TRANSISTOR 2SD2216J-QR (TX).SO
< RESISTOR/FILTER>
R005 1-218-959-11 RES, CHIP 3.3K 5% 1/16W
R007 1-218-969-11 RES, CHIP 22K 5% 1/16W
R008 1-218-933-11 RES, CHIP 22 5% 1/16W
R009 1-218-969-11 RES, CHIP 22K 5% 1/16W
R010 1-218-969-11 RES, CHIP 22K 5% 1/16W
R011 1-218-969-11 RES, CHIP 22K 5% 1/16W
R012 1-218-965-11 RES, CHIP 10K 5% 1/16W
R013 1-218-965-11 RES, CHIP 10K 5% 1/16W
R014 1-218-989-11 RES, CHIP 1M 5% 1/16W
R015 1-218-967-11 RES, CHIP 15K 5% 1/16W
R016 1-218-989-11 RES, CHIP 1M 5% 1/16W
R101 1-469-537-21 FILTER 0uH
VC-216
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-19
VC-216 VF
R102 1-469-537-21 FILTER 0uH
R103 1-218-933-11 RES, CHIP 22 5% 1/16W
R104 1-218-977-11 RES, CHIP 100K 5% 1/16W
R105 1-218-945-11 RES, CHIP 220 5% 1/16W
R106 1-218-977-11 RES, CHIP 100K 5% 1/16W
R107 1-218-990-11 SHORT 0
R108 1-218-985-11 RES, CHIP 470K 5% 1/16W
R109 1-218-983-11 RES, CHIP 330K 5% 1/16W
R110 1-218-953-11 RES, CHIP 1K 5% 1/16W
R111 1-218-973-11 RES, CHIP 47K 5% 1/16W
R112 1-218-973-11 RES, CHIP 47K 5% 1/16W
R113 1-218-953-11 RES, CHIP 1K 5% 1/16W
R115 1-218-977-11 RES, CHIP 100K 5% 1/16W
R116 1-218-977-11 RES, CHIP 100K 5% 1/16W
R117 1-216-864-11 METAL CHIP 0 5% 1/16W
R118 1-218-941-11 RES, CHIP 100 5% 1/16W
R119 1-218-941-11 RES, CHIP 100 5% 1/16W
R120 1-218-977-11 RES, CHIP 100K 5% 1/16W
R121 1-218-977-11 RES, CHIP 100K 5% 1/16W
R122 1-218-977-11 RES, CHIP 100K 5% 1/16W
R123 1-218-933-11 RES, CHIP 22 5% 1/16W
R124 1-218-953-11 RES, CHIP 1K 5% 1/16W
R125 1-218-973-11 RES, CHIP 47K 5% 1/16W
R126 1-218-989-11 RES, CHIP 1M 5% 1/16W
R127 1-218-973-11 RES, CHIP 47K 5% 1/16W
R128 1-218-953-11 RES, CHIP 1K 5% 1/16W
R129 1-218-989-11 RES, CHIP 1M 5% 1/16W
R130 1-218-989-11 RES, CHIP 1M 5% 1/16W
R131 1-218-977-11 RES, CHIP 100K 5% 1/16W
R132 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R133 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R134 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R135 1-218-965-11 RES, CHIP 10K 5% 1/16W
R136 1-216-864-11 METAL CHIP 0 5% 1/16W
R137 1-216-864-11 METAL CHIP 0 5% 1/16W
R138 1-216-009-91 RES, CHIP 22 5% 1/10W
R201 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R202 1-218-975-11 RES, CHIP 68K 5% 1/16W
R203 1-216-864-11 METAL CHIP 0 5% 1/16W
R205 1-218-975-11 RES, CHIP 68K 5% 1/16W
R206 1-218-989-11 RES, CHIP 1M 5% 1/16W
R207 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
R208 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R209 1-218-953-11 RES, CHIP 1K 5% 1/16W
R210 1-218-981-11 RES, CHIP 220K 5% 1/16W
R211 1-218-965-11 RES, CHIP 10K 5% 1/16W
R212 1-218-985-11 RES, CHIP 470K 5% 1/16W
R213 1-218-985-11 RES, CHIP 470K 5% 1/16W
R214 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R215 1-218-969-11 RES, CHIP 22K 5% 1/16W
R216 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
R217 1-218-985-11 RES, CHIP 470K 5% 1/16W
R218 1-218-953-11 RES, CHIP 1K 5% 1/16W
R219 1-218-953-11 RES, CHIP 1K 5% 1/16W
R220 1-218-947-11 RES, CHIP 330 5% 1/16W
R221 1-218-969-11 RES, CHIP 22K 5% 1/16W
R222 1-218-953-11 RES, CHIP 1K 5% 1/16W
R223 1-218-965-11 RES, CHIP 10K 5% 1/16W
R224 1-218-973-11 RES, CHIP 47K 5% 1/16W
R225 1-216-864-11 METAL CHIP 0 5% 1/16W
R226 1-216-864-11 METAL CHIP 0 5% 1/16W
< SENSOR >
SE001 1-803-042-41 SENSOR, ANGULAR VELOCITY (YAW SENSOR)
SE201 1-803-042-31 SENSOR, ANGULAR VELOCITY
(PITCH SENSOR)
< VIBRATOR >
X101 1-767-203-21 VIBRATOR, CRYSTAL (36MHz)
X102 1-767-980-21 VIBRATOR, CERAMIC (20MHz)
************************************************************
A-3321-879-A VF BOARD, COMPLETE
*******************
(Ref. No.: 20,000 Series)
< CAPACITOR >
C4501 1-125-777-11 CERAMIC CHIP 0.1uF 10% 6.3V
C4502 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4503 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C4504 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C4505 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4506 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C4507 1-117-919-11 TANTALUM CHIP 10uF 20% 6.3V
C4508 1-135-179-21 TANTALUM CHIP 2.2uF 20% 16V
C4509 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4510 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C4512 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C4514 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4515 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4516 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C4517 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C4518 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C4519 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
C4520 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V
C4521 1-135-179-21 TANTALUM CHIP 2.2uF 20% 16V
C4522 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4523 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4524 1-164-505-11 CERAMIC CHIP 2.2uF 0% 16V
C4525 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4526 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C4527 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4601 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C4602 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4603 1-104-851-11 TANTALUM CHIP 10uF 20% 10V
C4604 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C4605 1-104-916-11 TANTALUM CHIP 6.8uF 20% 20V
C4606 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V
C4608 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V
C4610 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C4611 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C4612 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C4613 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4614 1-164-878-11 CERAMIC CHIP 150PF 5% 16V
C4615 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4616 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V
C4617 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-20
C4618 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4619 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V
C4620 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C4621 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C4622 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C4624 1-107-820-11 CERAMIC CHIP 0.1uF 0% 16V
C4625 1-165-112-11 CERAMIC CHIP 0.33uF 0% 16V
< CONNECTOR >
CN4501 1-784-420-11 CONNECTOR, FFC/FPC (ZIF) 21P
CN4601 1-778-596-21 CONNECTOR, BOARD TO BOARD 30P
CN4901 1-764-704-21 CONNECTOR, FFC/FPC (LIF) 5P
< DIODE >
D4601 8-719-043-70 DIODE MA6S121- (TX)
D4602 8-713-102-80 DIODE 1T369-01-T8A
< IC >
IC4501 8-759-546-65 IC CXA8115AR-T4
IC4502 8-759-596-12 IC AK9813AFS-E2
IC4601 8-759-097-75 IC MB3789PFV-G-BND
IC4602 8-752-392-33 IC CXD2458AR
< COIL >
L4501 1-414-754-11 INDUCTOR 10uH
L4502 1-414-754-11 INDUCTOR 10uH
L4503 1-414-754-11 INDUCTOR 10uH
L4601 1-414-406-41 INDUCTOR 220uH
L4602 1-414-756-11 INDUCTOR 47uH
L4603 1-412-949-21 INDUCTOR 6.8uH
< TRANSISTOR >
Q4502 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4503 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4504 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4505 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4506 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4507 8-729-037-53 TRANSISTOR 2SB1462J-QR (TX).SO
Q4601 8-729-013-73 TRANSISTOR RN2105-TE85R
Q4602 8-729-037-61 TRANSISTOR UN9113J- (TX).SO
Q4603 8-729-037-74 TRANSISTOR UN9213J- (TX).SO
< RESISTOR >
R4501 1-216-009-91 RES, CHIP 22 5% 1/10W
R4502 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4503 1-218-990-11 SHORT 0
R4507 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4508 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4514 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R4515 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R4516 1-218-990-11 SHORT 0
R4517 1-218-990-11 SHORT 0
R4518 1-218-990-11 SHORT 0
R4519 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R4520 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4523 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4524 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4525 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4526 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4527 1-218-985-11 RES, CHIP 470K 5% 1/16W
R4528 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4529 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4530 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4531 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4532 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4533 1-218-849-11 METAL CHIP 3.3K 0.5% 1/16W
R4534 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R4535 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4538 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4539 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4540 1-218-990-11 SHORT 0
R4541 1-218-941-11 RES, CHIP 100 5% 1/16W
R4542 1-218-941-11 RES, CHIP 100 5% 1/16W
R4543 1-218-941-11 RES, CHIP 100 5% 1/16W
R4544 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4546 1-218-903-11 METAL CHIP 220K 0.5% 1/16W
R4547 1-218-887-11 METAL CHIP 47K 0.5% 1/16W
R4550 1-218-990-11 SHORT 0
R4551 1-218-990-11 SHORT 0
R4553 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R4556 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4557 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R4558 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R4559 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4560 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4561 1-218-957-11 RES, CHIP 2.2K 5% 1/16W
R4562 1-218-875-11 METAL CHIP 15K 0.5% 1/16W
R4564 1-218-990-11 SHORT 0
R4565 1-218-990-11 SHORT 0
R4566 1-218-990-11 SHORT 0
R4567 1-218-990-11 SHORT 0
R4568 1-218-990-11 SHORT 0
R4570 1-208-707-11 METAL CHIP 10K 0.5% 1/16W
R4601 1-217-671-11 METAL CHIP 1 5% 1/10W
R4602 1-217-671-11 METAL CHIP 1 5% 1/10W
R4603 1-208-719-11 METAL CHIP 33K 0.5% 1/16W
R4604 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4605 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R4607 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R4608 1-218-975-11 RES, CHIP 68K 5% 1/16W
R4609 1-218-981-11 RES, CHIP 220K 5% 1/16W
R4610 1-218-973-11 RES, CHIP 47K 5% 1/16W
R4611 1-218-965-11 RES, CHIP 10K 5% 1/16W
R4612 1-218-973-11 RES, CHIP 47K 5% 1/16W
R4613 1-218-973-11 RES, CHIP 47K 5% 1/16W
R4614 1-218-965-11 RES, CHIP 10K 5% 1/16W
R4615 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4616 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4617 1-218-985-11 RES, CHIP 470K 5% 1/16W
R4618 1-218-953-11 RES, CHIP 1K 5% 1/16W
R4619 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4620 1-218-979-11 RES, CHIP 150K 5% 1/16W
R4621 1-218-979-11 RES, CHIP 150K 5% 1/16W
R4622 1-218-961-11 RES, CHIP 4.7K 5% 1/16W
VF
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-21
R4623 1-218-983-11 RES, CHIP 330K 5% 1/16W
R4624 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4626 1-218-969-11 RES, CHIP 22K 5% 1/16W
R4627 1-218-965-11 RES, CHIP 10K 5% 1/16W
R4628 1-218-971-11 RES, CHIP 33K 5% 1/16W
R4629 1-218-990-11 SHORT 0
R4630 1-218-953-11 RES, CHIP 1K 5% 1/16W
R4634 1-218-990-11 SHORT 0
R4636 1-218-963-11 RES, CHIP 6.8K 5% 1/16W
************************************************************
MISCELLANEOUS
***************
14 1-418-201-21 SWITCH UNIT, MAIN CONTROL
56 1-672-513-11 TRANSLATION FLEXIBLE (JACK) BOARD
61 1-418-563-11 TERMINAL UNIT, REMOTE
69 1-418-202-21 SWITCH UNIT, ZOOM
78 1-694-497-11 TERMINAL BOARD, BATTERY
110 1-418-564-11 RAY-CATCHER BLOCK UNIT,REMOCON
112 1-418-192-11 MICROPHONE UNIT
122 1-672-514-11 TRANSLATION FLEXIBLE BOARD
169 X-3378-951-1 CONTROL SW SUB ASSY, UPPER
207 1-959-252-11 HARNESS (GLAY)
208 1-959-251-11 HARNESS (YELLOW)
0213 1-517-843-11 FLUORESCENT TUBE
215 1-672-355-11 LCD DETECTION SW FLEXIBLE BOARD
221 1-803-445-11 PANEL, TOUCH
251 1-672-356-11 VF/LCD FLEXIBLE BOARD
267 1-672-357-11 VF FLEXIBLE BOARD
304 8-848-732-01 DEVICE, LENS (LSV-620B)
306 1-758-202-21 FILTER BLOCK, OPTICAL
408 1-675-950-11 MOTOR FLEXIBLE BOARD
409 1-418-191-11 SENSOR, MR
417 1-452-997-11 ENCODER, MAGNET
M5811 1-698-543-21 MOTOR (STEPPING)
LCD4301 1-803-033-21 INDICATOR MODULE, LIQUID CRYSTAL
LCD4701 8-753-023-89 LCX024AK-5
************************************************************
**************
HARDWARE LIST
**************
#1 7-621-591-00 SCREW +K 2X4
#2 7-623-505-01 LUG, 2
#3 7-628-253-15 SCREW +PS 2X5
************************************************************
6-21 E
VF
ACCESSORIES & PACKING MATERIALS
*******************************
01-418-327-21 CHARGER, AC ADAPTOR (AC-VQ800)
1-418-732-21 REMOTE COMMANDER (RMT-DCM1)
1-543-793-11 FILTER, CLAMP (FERRITE CORE) (SMALL)
1-543-798-11 FILTER, CLAMP (FERRITE CORE) (LARGE)
1-765-080-11 CORD, CONNECTION (STEREO AV) (1.5m)
01-790-107-22 CORD, POWER
1-790-351-11 CORD, CONNECTION (ZK-ET1) (1.8m)
3-742-854-01 LID, BATTERY (for RMT-DCM1)
3-866-152-11 MANUAL, INSTRUCTION (ENGLISH)
3-866-152-21 MANUAL, INSTRUCTION (FRENCH) (Canadian)
3-987-015-01 BELT (S), SHOULDER
4-220-941-01 ATTACHMENT (TRIPOD)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
✄
✄
< PARTS REFERENCE SHEET >
You can find the parts position of mount locations applying to MAIN board of a set.
DCM-M1
IC5002
IC5404
IC8101
IC3004
IC8004
IC8601
IC8501
A
B
C
D
E
F
G
H
1234567 8
87654321
F
G
H
A
B
C
D
E
SIDE A
SIDE B
MAIN DCM–M1
MAIN DCM–M1
– 254 –
DCM-M1
Sony Corporation
Personal Audio Division Company
9-927-635-11 1999L05044-1
Printed in Japan C 1999. 12
Published by General Engineering Dept.
SERVICE MANUAL
DCM-M1
SUPPLEMENT-1
File this supplement with the service manual.
Subject:
1. Change of General
2. Correction of Schematic Diagram
3. Change of repair parts
4. Addition of the note about a special tool for ICs.
5. Addition of the instruction manual for Argentina
model.
US Model
Canadian Model
E Model
1. Change of General
! : Indicates changed portion.
Page Before Change After Change
1-14
$$
2. Correction of Schematic Diagram
Page 4-49 to 4-50. Location G to H, 14 to 16.
Incorrect Correct
2000. 03
– 2 –
Sony Corporation
Personal Audio Division Company
9-927-635-81 2000C05044-1D
Printed in Japan C 2000. 3
Published by General Engineering Dept.
3. Change of repair parts (Section 5 Exploded Views/Section 6 Electrical Parts List)
! : Indicates changed portion.
Page Before Change After Change
Ref. No. Part No. Description Remark
A-3323-172-A POWER BOARD ASSY
A-3323-173-A JACK BOARD ASSY
A-3323-170-A BL BOARD ASSY
A-3323-171-A VF BOARD ASSY
312 A-3328-667-A CCD BLOCK ASSY
Ref. No. Part No. Description Remark
A-3321-881-A POWER BOARD, COMPLETE
A-3321-883-A JACK BOARD, COMPLETE
A-3321-877-A BL BOARD, COMPLETE
A-3321-879-A VF BOARD, COMPLETE
not supplied (IC001)
Page IC Page IC
Ref. No. Part No. Description Remark
@IC8005 1-803-635-11 IC WTGA-EKM29U64000-K1
@IC8101 8-752-396-85 IC CXD702-102GA
@IC8102 8-759-572-71 IC KM416U4104BC-L6
@IC8103 8-759-572-71 IC KM416U4104BC-L6
@IC8501 8-759-653-48 IC uPD70F3102F1-33-FA1
@IC8601 8-752-396-81 IC CXD1405GG
@IC8701 8-752-394-48 IC CXD1404GA
Ref. No. Part No. Description Remark
@IC3009 8-752-397-21 IC CXZ31021GA
@IC5301 8-752-397-34 IC CXD2652AGA
@IC5403 8-752-390-38 IC CXD606-112GA
@IC5404 8-759-676-88 IC RU6815TC-DCMM1
@IC8001 8-759-572-52 IC HD6417709BT80A
@IC8002 8-759-572-70 IC KM416S4034CC-C10
@IC8003 8-759-572-70 IC KM416S4034CC-C10
6-9
5-2 Ref No. 52/6-15
5-2 Ref No. 57/6-3
5-6 Ref No. 252/6-1
5-6 Ref No. 266/6-19
5-7
4. Additional of the note about a special tool for ICs. (Electrical Parts List MAIN Board)
Note: @ Replacement of the following ICs used in this set requires a special tool.
Therefore, it cannot be replaced.
6-10
6-10
5. Additional of the instruction manual for Argentina model.
Page ACCESSORIES & PACKING MATERIALS
Ref. No. Part No. Description Remark
3-866-152-31 MANUAL, INSTRUCTION (SPANISH) (Argentina)6-21
306
307
309 310
310
311
not supplied
(IC001)
not
supplied
306
307
309 310
310
311
312
not supplied
(IC001)
not
supplied
$
$
SERVICE MANUAL
DCM-M1
SUPPLEMENT-2
File this supplement with the service manual.
Subject:
• Addition of Section 7 Adjustments
• Correction of Schematic Diagrams
US Model
Canadian Model
E Model
2000. 05
– 2 –
MAIN BOARD IC8005 (Flash) zz
MAIN BOARD IC5405 (NV-RAM) z
VF BOARD IC4502 (D/A CONV.(EVR)) z
LCD BOARD IC4301 (D/A CONV.(EVR)) z
Mecha. Deck Block z
Touch Panel z
*1
LCD Block LCD4301 (LCD Panel) zz
EVF Block LCD4701 (LCD Panel) z
• Adjustment items required at the replacement of main parts and boards
Adjust the items marked with z in the following table when main parts were replaced.
7. ADJUSTMENTS
For the adjustment of this set, the test mode and the firmware data writing are provided.
In the test mode, various adjustment, setting, and checking can be made. Also, the firmware data writing is executed when the Main board
itself, or the Flash Memory (IC8005) or MPEG Control (IC8501) on the Main board is replaced.
TABLE OF CONTENTS
7-1. Test Mode ...................................................................... 3
1-1. Outline of Test Mode ..................................................... 3
1-2. EVF System Adjustment ............................................... 5
1-3. LCD System Adjustment ............................................... 8
1-4. Servo System Adjustment ............................................. 13
1-5. MAC Address Setting .................................................... 16
1-6. Touch Panel Adjustment ............................................... 20
1-7. Other Checking ............................................................. 21
7-2. Firmware Data Writing Method ..................................... 23
2-1. Preparation .................................................................... 23
2-2. Writing to Flash Memory (IC8005)................................ 26
2-3. Writing to MPEG Control (IC8501) ............................... 26
Replacement parts
Adjustment items
Table.7-1
*1
Note: When LCD panel in the LCD block was replaced, first perform the LCD system adjustment, and then the touch panel position
alignment.
EVF System
Adjustment LCD System
Adjustment Servo System
Adjustment MAC Address
Setting
Touch Panel
Position
Alignment
– 3 –
7-1. Test Mode
1-1. Outline of Test Mode
In the Test mode, this set allows you to adjust the LCD, EVF,
servo, and touch panel and also to set MAC address.
1-1-1. Equipment Used
In performing the LCD, EVF, and servo adjustment, use the fol-
lowing measuring instruments.
EVF and LCD system adjustment
• Oscilloscope
Dual-trace oscilloscope, band over 30MHz, and delay mode
(Use 10:1 probe unless otherwise specified)
• Frequency counter
• Digital voltmeter
• Adjusting monitor jig
Part code: J-2053-017-A
Servo system adjustment
• MD1 High reflectance pre-mastered disc (TDYS-1)
Part code: 4-963-646-01
• MD1 MO disc
Commercially available SONY MD1 MO disc
(already recorded)
• MD2 MO disc
Commercially available SONY MD2 MO disc
1-1-2. How to Enter the Test Mode
In the normal mode, set the POWER switch to “CAMERA”.
While pressing u key on the set, press >, >, ., .,
e, E, e, E, y, y keys on the set in this order.
The Test Mode screen (Fig.7-1-1) appears on the LCD and the
Test mode becomes active.
Fig.7-1-1
1-1-3. How to Exit from the Test Mode
Turn the power off.
Note: In the Test mode, the POWER switch is inactive and there-
fore disconnect AC adapter to turn the power off.
TEST MODE
Camera
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No. 1–00–00
1-1-4. Description of Test Mode Screen
Fig.7-1-2
1) Version display field
The versions of respective programs that compose the set are
displayed.
ITON ............ Version of set program
Drive ............. Version of drive program
JAVA APP ..... Version of JAVA application
JAVA OS....... Date when JAVA OS was released
BOOT ........... Version of BOOT program
IPL................ Version of IPL program
RATE CTL ... Version of V850 (IC8501 on Main board)
program
2) Test mode item number display field
Fig.7-1-3
Current Test mode item number is used.
The Test mode items are composed of a major item, medium
item, and minor item.
The number displayed in blue is currently active item.
3) Test mode item name display field
Fig.7-1-4
Major item, medium item, and minor item of current test mode
item are displayed respectively.
TEST MODE
Drive
0790
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
Function code change
4–01–01
Offset
: 6C0 DATA : 00 00 00 30 00 00 00 00
Version display field
Test mode item
number display field
Adjustment data and
adjustment status display field Special data
display field
Test mode item name
display field
Ite
m
No. 4–01–01
Major item number
Minor item number
Medium item number
Drive
Function code change
Offset
Minor item name
Major item name Medium
item name
– 4 –
4) Adjustment data and adjustment status display field
For the items in which there are adjustment data, the data be-
ing adjusted is displayed.In the EVF and LCD adjustment, if
data are written, the characters are displayed in violet. At the
white balance adjustment in the EVR and LCD adjustment,
“R” or “B” in small size is displayed on the side of data.
Also, for automatic adjustment items such as servo auto ad-
justment among the items in which there is no adjustment data,
“Adjusting”, “OK”, or “NG” is displayed.
5) Special data display field
Only the minor item for Drive and Servo adjustment is dis-
played. RAM value of address on the drive side is periodically
read and displayed.
1-1-5. Key Operation in Test Mode
In the Test mode, use the keys on the set for operation.
1. Change or setting of test mode items
• Movement over active item numbers (u, x keys)
Fig.7-1-5
Use u key when setting active item number and moving
to lower level, or use x key when canceling current item
and moving to higher level.
• Change of active item number (>, ., u keys)
Use > key to raise active item number, or . key to
lower it. For a minor item of Drive and Servo adjustment,
use u key to change the item number.
• Execution or cancellation of active item (y, x keys)
For automatic adjustment items such as servo auto adjust-
ment, pressing y key executes automatic adjustment. To
cancel automatic adjustment, press x key.
2. Change or writing of adjustment data
For the items of LCD and EVF adjustment in which there are
adjustment data, the data can be changed or written by a key
operation.
• Change of adjustment data (e, E keys)
Use e key to increase the adjustment data, or E key to
reduce it.
• Writing of adjustment data (y key)
Pressing y key causes the adjustment data to be written to
nonvolatile memory.
At this time, the displayed adjustment data characters
changes to violet in color. (Unless this operation is per-
formed, new adjustment data are not stored in nonvolatile
memory)
3. Switching of screen display
The LCD and EVF adjustment contains the items that require
the screen display to be switched to the test signal screen.
• Color bar display method (MENU key)
When major item is in the LCD state (item number: 3), press
the MENU key, and the screen display will be switched to
the color bar display.
To return to the test mode screen, press the MENU key once
more.
• 10-step gradation pattern display method (DSPL key)
Press the DSPL key, and the screen display will be switched
as shown below. (Except Drive and Servo items)
• 10-step gradation pattern setting method (MENU key)
When major item is in the EVF state (item number: 2) and
the 10-step gradation pattern screen is displayed, press the
MENU key, and the screen will be switched to the 10-step
gradation pattern (green) display. Pressing the MENU key
once more causes the screen to be switched to the 10-step
gradation pattern (white/black) display. If this setting is not
made, the 10-step gradation pattern screen is switched to
the camera-through screen.
1-1-6. Test Mode Configuration
The Test mode (major item) is composed of the following items.
Camera (item number: 1) ... Not used.
EVF (item number: 2) ........ Use for EVF system adjustment.
LCD (item number: 3)........ Use for LCD system adjustment.
Drive (item number: 4)....... Use for checking if an error
occurredin Servo system adjust-
ment.
Audio (item number: 5) ..... Not used.
Power (item number: 6) ..... Not used.
Other (item number: 7) ...... Use for touch panel adjustment,
MAC address setting, or other
checking.
Servo (item number: 8) ...... Use for Servo system adjustment.
Ite
m
No. 4–01–01
u key moving
x key moving
Test mode screen
10-step gradation pattern screen
(Set in “EVF” item)
Camera-through screen
– 5 –
[Connector for adjustment]
The measurement points for EVF adjustment are concentrated on
the CN4901 on the VF board. Connect a measuring instrument to
it via adjusting monitor jig (J-2503-017-A).
The following table lists the pin No. and signal name of CN4901.
Pin No.
VF board Adjustment Signal name
CN4901 monitor jig
5 A EVF_GND
4B G
3 C EVF_BL_4.95V (–)
2 D EVF_BL_4.95V
1 E VCO
–FNC
–GNC
–HNC
–INC
–JNC
Table.7-1-1
1-2. EVF System Adjustment
Note 1: The backlight (fluorescent tube) is driven with high volt-
age AC power. Accordingly, do not touch the backlight
holder; otherwise you could receive an electric shock.
Note 2: Take extreme care not to destroy the LCD unit by static
electricity, when replacing it.
Note 3: On the Menu screen, set the “Finder Brightness” to the
center.
Note 4: Once the 10-step gradation pattern (white/black) has been
set, it is held until the power is turned off. Therefore, it
is not necessarily set every time in successive adjust-
ment.
[Adjustment steps]
The EVF adjustment, as a rule, should be performed following the
steps given below.
Only for the “Backlight Consumed Current Adjustment”, the or-
der may be changed.
1. EVF Adjustment Data Initializing
2. VCO Adjustment
3. Brightness Adjustment
4. Contrast Adjustment
5. Backlight Consumed Current Adjustment
6. White Balance Adjustment
Fig.7-1-6
Use the connector with EVF labeling.
VF board CN4901
1
5
A
B
C
D
E
F
G
H
I
J
Adjusting monitor jig
(J-2503-017-A)
– 6 –
1. EVF Adjustment Data Initializing
Item number 2-03-01
Screen display Test mode screen
Adjusting method
1) Select the item number “2-03-01”.
2) Press y key to execute the adjustment data initializing.
Check that “OK!” is displayed on the test mode screen.
3) Move to the item number “2-01-ss”, and check that the ad-
justment data of each minor item is initial value. (See the fol-
lowing table)
Item No. Initial Data Minor item name
2-1-1 83 VCO adjustment
2-1-2 90 BRIGHT adjustment
2-1-3 B5 CONTRAST adjustment
2-1-4 B8 Back Light adjustment
2-1-5 R data: 97 White balance adjustment
B data: 57
Table.7-1-2
Note: To switch between R data and B data of “White Balance
Adjustment”, press u key. After checking the data, move
to other item with R data kept displayed.
2. VCO Adjustment
Set free running frequency of VCO.
Item number 2-01-01
Screen display Arbitrary
Measurement point Adjusting monitor jig E pin (VCO)
Measuring instrument Oscilloscope (DC range)
Adjustment data 83
initial value
Adjustment value A = 1.80 ± 0.05 V
Adjusting method
1) Select the item number “2-01-01”.
2) Check the GND level of oscilloscope.
3) Using e and E keys, change the adjustment data so that the
VCO output voltage (A) satisfies the adjustment value.
4) Press y key to write the adjustment data.
Fig.7-1-7
H
A
GND level
(0Vdc)
3. Brightness Adjustment
Set the VIDEO signal level that drives the LCD (of EVF) to proper
value.
If deviated, the EVF screen will be unclear, black blurring, or white
blurring.
Item number 2-01-02
Screen display Arbitrary
Measurement point Adjusting monitor jig B pin (G)
Measuring instrument Oscilloscope
Adjustment data 90
initial value
Adjustment value A = 7.1 ± 0.1 Vp-p
Adjusting method
1) Select the item number “2-01-02”.
2) Using e and E keys, change the adjustment data so that the
voltage (A) between pedestal of inverted waveform and ped-
estal of non-inverted waveform satisfies the adjustment value.
3) Press y key to write the adjustment data.
Fig.7-1-8
2H
Pedestal
Pedestal
A
– 7 –
4. Contrast Adjustment
Set the VIDEO signal level that drives the LCD to proper value.
If deviated, the EVF screen will be unclear, black blurring, or white
blurring.
Item number 2-01-03
Screen display 10-step gradation pattern (white/black)
Measurement point Adjusting monitor jig B pin (G)
Measuring instrument Oscilloscope
Adjustment data B5
initial value
Adjustment value A = 2.1 ± 0.1 Vp-p
Adjusting method
1) Set the 10-step gradation pattern (white/black).
2) Select the item number “2-01-03”.
3) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the EVF screen.
4) Using e and E keys, change the adjustment data so that the
voltage (A) between pedestal (0 IRE) and 100 IRE satisfies
the adjustment value.
5) Press y key to write the adjustment data.
6) Press the DSPL key to return the EVF screen to the test mode
screen.
Fig.7-1-9
5. Backlight Consumed Current Adjustment
Set the brightness of backlight.
If deviated, the picture will be too dark or too bright.
Item number 2-01-04
Screen display 10-step gradation pattern (white/black)
Measurement point + probe: Adjusting monitor jig D pin
(BL+)
– probe: Adjusting monitor jig C pin
(BL–)
Measuring instrument Digital voltmeter
Adjustment data B8
initial value
Adjustment value A = 21.0 ± 1.0 mV
Note: After turning on the power, wait for more than 30 seconds,
and then start the adjustment.
Adjusting method
1) Set the 10-step gradation pattern (white/black).
2) Select the item number “2-01-04”.
3) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the EVF screen.
4) Using e and E keys, change the adjustment data so that po-
tential difference (A) between adjusting monitor jig D pin
(BL+) and C pin (BL–) satisfies the adjustment value.
5) Press y key to write the adjustment data.
6) Press the DSPL key to return the EVF screen to the test mode
screen.
A
100 IRE
Pedestal(0 IRE)
2H
6. White Balance Adjustment
Adjust the white balance properly.
If deviated, the color reproducibility of EVF screen will be poor.
Item number 2-01-05
Screen display 10-step gradation pattern (white/black)
Measurement point Check on the EVF screen
Measuring instrument
Adjustment data R data: 97
initial value B data: 57
Adjustment value EVF screen must not be colored
Note: To switch between R data and B data, press u key.
After the adjustment finished, move to other item with R
data kept displayed.
Adjusting method
1) Set the 10-step gradation pattern (white/black).
2) Select the item number “2-01-05”.
3) Set the adjustment data to initial value (R data:97, B data:57).
Note: Each time the data is set, press y key to write data to
nonvolatile memory.
4) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the EVF screen.
5) Check that the EVF screen is not colored.
If colored, change the adjustment data by using e and E keys
so that the EVF screen is not colored.
Note: Each time the data is set, press y key to write data to
nonvolatile memory.
6) Press the DSPL key to return the EVF screen to the test mode
screen.
– 8 –
[Connector for adjustment]
The measurement points for LCD adjustment are concentrated on
the CN4305 on the LCD board.
Connect a measuring instrument to it via adjusting monitor jig
(J-2503-017-A).
The following table lists the pin No. and signal name of CN4305.
Use the connector with LCD labeling.
Pin No.
LCD board Adjustment Signal name
CN4305 monitor jig
9 A XTST
8 B SYF
7 C HSY
6 D PANEL_XHD
5 E GND
4 F PANEL_COM
3G VG
2 H BL (+)
1 I BL (–)
–JNC
Table.7-1-3
LCD board CN4305
91
Use the connector
with LCD labeling.
Adjusting monitor jig
(J-2503-017-A)
A
B
C
D
E
F
G
H
I
J
Fig.7-1-10
1-3. LCD System Adjustment
Note 1: The backlight (fluorescent tube) is driven with high volt-
age AC power. Accordingly, do not touch the backlight
holder; otherwise you could receive an electric shock.
Note 2: Take extreme care not to destroy the LCD unit by static
electricity, when replacing it.
Note 3: On the Menu screen, set the “Panel Brightness” and
“Panel Color Density” to the center.
Note 4: Once the 10-step gradation pattern (white/black) has been
set, it is held until the power is turned off. Therefore, it
is not necessarily set every time in successive adjust-
ment.
[Adjustment steps]
The LCD adjustment, as a rule, should be performed following
the steps given below.
Only for the “Backlight Consumed Current Adjustment”, the or-
der may be changed.
1. LCD Adjustment Data Initializing
2. VCO Adjustment
3. Horizontal Position Adjustment
4. RGB D Range Adjustment
5. Brightness Adjustment
6. Contrast Adjustment
7. V-COM Level Adjustment
8. Color Adjustment
9. V-COM Adjustment
10. Backlight Consumed Current Adjustment
11. White Balance Adjustment
– 9 –
1. LCD Adjustment Data Initializing
Item number 3-03-01
Screen display Test mode screen
Adjusting method
1) Select item number “3-03-01”.
2) Press y key to execute the adjustment data initializing.
Check that “OK!” is displayed on the test mode screen.
3) Move to the item number “3-01-ss”, and check that the ad-
justment data of each minor item is initial value. (See the fol-
lowing table)
Item No. Initial Data Minor item name
3-1-1 BF VCO adjustment
3-1-2 5D Flat Position adjustment
3-1-3 80 RGB D-range adjustment
3-1-4 7C BRIGHT adjustment
3-1-5 D5 CONTRAST adjustment
3-1-6 A8 V-COM level adjustment
3-1-7 76 COLOR adjustment
3-1-8 9C V-COM adjustment
3-1-9 B6 Back Light adjustment
3-1-A R data: 95 White balance adjustment
B data: 70
Table.7-1-4
Note: To switch between R data and B data of “White Balance
Adjustment”, press u key. After checking the data, move
to other item with R data kept displayed.
2. VCO Adjustment
Set free running frequency of VCO.
Item number 3-01-01
Screen display Arbitrary
Measurement point Adjusting monitor jig C pin (HSY)
Measuring instrument Frequency counter
Adjustment data BF
initial value
Adjustment value f = 15734 ± 30 Hz
Adjusting method
1) Select the item number “3-01-01”.
2) Connect the adjusting monitor jig B pin (SYF) and E pin
(GND).
3) Using e and E keys, change the adjustment data so that the
VCO frequency (f) satisfies the adjustment value.
4) Press y key to write the adjustment data.
5) Disconnect the adjusting monitor jig B pin (SYF) and E pin
(GND).
3. Horizontal Position Adjustment
Adjust the display position on LCD panel properly.
Item number 3-01-02
Screen display Color bar
Measurement point CH1: Adjusting monitor jig D pin
(PANEL XHD)
CH2: Adjusting monitor jig C pin
(HSY)
Measuring instrument Oscilloscope
Adjustment data 5D
initial value
Adjustment value T = 0.65 ± 0.1 µsec
Adjusting method
1) Select the item number “3-01-02”.
2) Press the MENU key to display color bar on the LCD screen.
3) Using e and E keys, change the adjustment data so that the
falling time difference (T) between PANEL XHD signal and
HSY signal satisfies the adjustment value.
4) Press y key to write the adjustment data.
5) Press the MENU key to return the LCD screen to the test mode
screen.
Fig.7-1-11
CH1
CH2
CH1
CH2
T
enlargement
– 10 –
5. Brightness Adjustment
Set the VIDEO signal level that drives the LCD to proper value.
If deviated, the LCD screen will be unclear, black blurring, or white
blurring.
Item number 3-01-04
Screen display 10-step gradation pattern (white/black)
Measurement point Adjusting monitor jig G pin (VG)
Measuring instrument Oscilloscope
Adjustment data 7C
initial value
Adjustment value A = 1.40 ± 0.05 Vp-p
Note: This is the tracking adjustment in relation to “6. Contrast
Adjustment”.
Adjusting method
1) Select major item number “2” (EVF), and set the 10-step gra-
dation pattern (white/black).
2) Select the item number “3-01-04”.
3) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the LCD screen.
4) Connect the adjusting monitor jig A pin (XTST) and E pin
(GND).
5) Using e and E keys, change the adjustment data so that the
voltage (A) between pedestal (0 IRE) and GAMMA1 limiter
level satisfies the adjustment value.
6) Press y key to write the adjustment data.
7) Disconnect the adjusting monitor jig A pin (XTST) and E
pin (GND).
8) Press the DSPL key to return the LCD screen to the test mode
screen.
9) Check that the adjustment value of “Contrast Adjustment” is
satisfied.
If not satisfied, perform “Contrast Adjustment”.
Fig.7-1-13
Pedestal(0 IRE)
GAMMA1
limiter level
A
2H
4. RGB D Range Adjustment
Set the D range of RGB decoder driver step-wise output that drives
the
LCD to proper value.
If deviated, the LCD screen will be black blurring or white blur-
ring.
Item number 3-01-03
Screen display 10-step gradation pattern (white/black)
Measurement point Adjusting monitor jig G pin (VG)
Measuring instrument Oscilloscope
Adjustment data 80
initial value
Adjustment value A = 3.00 ± 0.05 Vp-p
Adjusting method
1) Select major item number “2” (EVF), and set the 10-step gra-
dation pattern (white/black).
2) Select the item number “3-01-03”.
3) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the LCD screen.
4) Using e and E keys, change the adjustment data so that the
voltage (A) between pedestal of inverted waveform and ped-
estal of non-inverted waveform satisfies the adjustment value.
5) Press y key to write the adjustment data.
6) Press the DSPL key to return the LCD screen to the test mode
screen.
Fig.7-1-12
2H
Pedestal
Pedestal
A
– 11 –
6. Contrast Adjustment
Set the VIDEO signal level that drives the LCD to proper value.
If deviated, the LCD screen will be unclear, black blurring, or white
blurring.
Item number 3-01-05
Screen display 10-step gradation pattern (white/black)
Measurement point Adjusting monitor jig G pin (VG)
Measuring instrument Oscilloscope
Adjustment data D5
initial value
Adjustment value A = 2.54 ± 0.05 Vp-p
Note: This is the tracking adjustment in relation to “5. Bright-
ness Adjustment”.
Adjusting method
1) Select major item number “2” (EVF), and set the 10-step gra-
dation pattern (white/black).
2) Select the item number “3-01-05”.
3) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the LCD screen.
4) Using e and E keys, change the adjustment data so that the
voltage (A) between pedestal (0 IRE) and 100 IRE satisfies
the adjustment value.
5) Press y key to write the adjustment data.
6) Press the DSPL key to return the LCD screen to the test mode
screen.
7) Check that the adjustment value of “Brightness Adjustment”
is satisfied.
If not satisfied, perform “Brightness Adjustment”.
Fig.7-1-14
Pedestal(0 IRE)
100 IRE
A
2H
7. V-COM Level Adjustment
Set common electrode drive signal level of the LCD panel to proper
value.
Item number 3-01-06
Screen display 10-step gradation pattern (white/black)
Measurement point Adjusting monitor jig F pin
(PANEL COM)
Measuring instrument Oscilloscope
Adjustment data A8
initial value
Adjustment value A = 4.95 ± 0.05 Vp-p
Adjusting method
1) Select major item number “2” (EVF), and set the 10-step gra-
dation pattern (white/black).
2) Select the item number “3-01-06”.
3) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the LCD screen.
4) Using e and E keys, change the adjustment data so that the
V-COM signal level satisfies the adjustment value.
5) Press y key to write the adjustment data.
6) Press the DSPL key to return the LCD screen to the test mode
screen.
Fig.7-1-15
A
2H
– 12 –
9. V-COM Adjustment
Set DC bias of common electrode drive signals for the LCD panel
to proper value.
If deviated, the LCD screen will be unstable where flickering or
vertical streaks appear.
Item number 3-01-08
Screen display Test mode screen
Measurement point Check on LCD screen
Measuring instrument
Adjustment data 9C
initial value
Adjustment value Fig. 7-1-17
Note: This adjustment must be performed after performing
“Brightness Adjustment” and “Contrast Adjustment”.
Adjusting method
1) Select the item number “3-01-08”.
2) Set the adjustment data to initial value (9C).
3) Check that the density of character “e” on the LCD screen is
same (see Fig. 7-1-17). If different, change the adjustment data
by using e and E keys so as to attain the same density of
character “e”.
4) Press y key to write the adjustment data.
Fig.7-1-17
TEST MODE
LCD Panel
9C
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
V–COM adjst
3–01–08
Adust
NG
OK
enlargement
NG
8. Color Adjustment
Set the color density to the specified value.
If deviated, the color will be too dark or too light.
Item number 3-01-07
Screen display Color bar
Measurement point Adjusting monitor jig G pin (VG)
Measuring instrument Oscilloscope
Adjustment data 76
initial value
Adjustment value A = 0.15 ± 0.05 Vp-p
Adjusting method
1) Select the item number “3-01-07”.
2) Press the MENU key to display color bar on the LCD screen.
3) Using e and E keys, change the adjustment data so that a
difference (A) between white signal level and green signal level
satisfies the adjustment value.
4) Press y key to write the adjustment data.
5) Press the MENU key to return the LCD screen to the test mode
screen.
Fig.7-1-16
Green
White
A
2H
– 13 –
10. Backlight Consumed Current Adjustment
Set the brightness of backlight.
If deviated, the picture will be too dark or too bright.
Item number 3-01-09
Screen display Color bar
Measurement point + probe: Adjusting monitor jig I pin
(BL+)
_ probe: Adjusting monitor jig H pin
(BL–)
Measuring instrument Digital voltmeter
Adjustment data B6
initial value
Adjustment value A = 66.0 ± 1.0 mV
Note: Use AC adapter whenever performing this adjustment.
After turning on the power, wait for more than 30 seconds,
and then start the adjustment.
Adjusting method
1) Select the item number “3-01-09”.
2) Press the MENU key to display color bar on the LCD screen.
3) Using e and E keys, change the adjustment data so that po-
tential difference (A) between adjusting monitor jig I pin
(BL+) and H pin (BL–) satisfies the adjustment value.
4) Press y key to write the adjustment data.
5) Press the MENU key to return the LCD screen to the test mode
screen.
11. White Balance Adjustment
Adjust the white balance properly.
If deviated, the color reproducibility of LCD screen will be poor.
Item number 3-01-0A
Screen display 10-step gradation pattern (white/black)
Measurement point Check on the LCD screen
Measuring instrument
Adjustment data R data: 95
initial value B data: 70
Adjustment value LCD screen must not be colored
Note: To switch between R data and B data, press u key.
After the adjustment finished, move to other item with R
data kept displayed.
Adjusting method
1) Select major item number “2” (EVF), and set the 10-step gra-
dation pattern (white/black).
2) Select the item number “3-01-0A”.
3) Set the adjustment data to initial value (R data:95, B data:70).
Note: Each time the data is set, press y key to write data to
nonvolatile memory.
4) Press the DSPL key to display the 10-step gradation pattern
(white/black) on the LCD screen.
5) Check that the LCD screen is not colored.
If colored, change the adjustment data by using e and E keys
so that the LCD screen is not colored.
Note: Each time the data is set, press y key to write data to
nonvolatile memory.
6) Press the DSPL key to return the LCD screen to the test mode
screen.
1-4. Servo System Adjustment
1. Servo Auto Adjustment
The servo auto adjustment is executed automatically so that the
adjustment data of the servo system meets the optical pick-up block
in that set.
The servo auto adjustment checks the type of inserted disc and
executes automatically the adjustment that meets the inserted disc.
If the optical pick-up block or IC5405 on the Main board was
replaced, perform the servo auto adjustment with the following
three types of discs respectively.
•MD1 High reflectance pre-mastered disc (TDYS-1)
Part code: 4-963-646-01
•MD1 MO disc
Commercially available SONY MD1 MO disc (already recorded)
•MD2 MO disc
Commercially available SONY MD2 MO disc
Adjusting method
1) Select the item number “8-01-01”.
2) Insert the desired type of disc to be adjusted.
3) Press y key to execute the servo auto adjustment. (Auto ad-
justment will start and “Now Adjusting ... ss” will be dis-
played in the adjustment status display field.)
Note: Place the set horizontally and perform adjustment un-
der stable condition.
Fig.7-1-18
4) At the completion of adjustment, the adjustment result will be
displayed in the adjustment status display field.
Note: If an error occurs during adjustment, you can check
the item name where the error occurred. (Refer to
“Faulty item checking method”.)
Fig.7-1-19
5) Remove the disc inserted in step 2).
TEST MODE
Servo
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
All Adjust START
Now Adjusting . . .
ss
8–01–01
Servo Common
: 6C0 DATA : 00 00 00 30 00 00 00 00
Adjustment status display field
NG
OK!
NG.
ss
ss
•In case of successful adjustment
•In case of NG adjustment
A
– 14 –
Faulty item checking method
1) From the adjustment status display screen at “NG” (Fig.7-1-
19), read a 2-digit number at part “A”.
Example: On the following screen, if adjustment finished, “78” is
displayed.
Fig.7-1-20
2) Move over major item to Drive (item number: 4).
3) Set medium item number to higher digit of the number read in
step 1).
Example: If the read number is “78”, medium item number is 7.
4) Set minor item number to lower digit of the number read in
step 1).
At this time, the medium item name and minor item name on
the screen indicate the adjustment item names where an error
occurred during servo auto adjustment.
Example: If the read number is “78”, minor item number is 8.
Fig.7-1-21
Then, from the medium item name and minor item name, you
can confirm that a fault occurred in “MD1 GRV F-BIAS
(ADIP)” item of the “MD1 GRV adj”.
TEST MODE
Servo
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
All Adjust START
8–01–01
Servo Common
: 6C0 DATA : 00 00 00 30 00 00 00 00
NG
NG. 78
ss
TEST MODE
Drive
0790
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
MD1 GRV F-BIAS (ADIP)
4–07–08
MD1 GRV adj
: 6C0 DATA : 00 00 00 30 00 00 00 00
– 15 –
2. Mecha. Deck Block Primary Check
The following parts of the mecha. deck block can be checked in a
simple check.
•Laser diode
•Focus coil
•Spindle motor
•Disc type check switch
•Sled motor
•Tracking coil
•INITIAL SW
•HEAD UP/DOWN motor
•INITIAL SW
Note: To check the operation of mecha. deck block, remove the
Upper Panel Assembly. (See 2. Removal on page 2-9)
Checking method
1) In the normal mode, set the POWER switch to “CAMERA”.
2) Check that “DISC LID IS OPEN” is displayed on the LCD
screen.
3) Press the part A to check that the part B lights in red and
moves up and down. (Laser diode check, Focus coil check)
Also, check that the spindle motor rotates at this time. (Spindle
motor check)
Note: If the part A is released once and then pressed again, the
operation restarts though the operation time is short.
MD1/MD2
PIT/GRV
PROTECT SW
Spindle Motor OPTICAL PICK-UP block
B
C
A
D
X
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emis-
sion, observe from more than 30 cm away from the objective lens.
Fig.7-1-22
– 16 –
4) Operating the keys on the set, enter the Test mode.
5) Select the item “7-02-01” and press u key to activate the
Switch Check mode.
Note: When the Switch Check mode becomes active, the
screen as shown in Fig.7-1-23 appears.
Fig.7-1-23
6) Press each switch at part C to check that the mecha. deck
switch status display on the LCD screen changes as listed be-
low. (Disc type check switch)
Switch name When not pressed When pressed
MD1/MD2 MD2 MD1
PIT/GRV GRV PIT
PROTECT SW ON OFF
Table 7-1-5
7) Check that the Optical Pick-up block moves outward when
> key is pressed, or it moves inward when . key is
pressed. (Sled motor check)
8) At this time, check that the part B also moves in the same
direction as the direction in which the Optical Pick-up block
moves. (Tracking coil check)
9) Check that when the Optical Pick-up block moves inward as
far as it will go, the IN LIMIT SW status display on the LCD
screen is “ON” and when it moves outward, the switch be-
comes “OFF”. (IN LIMIT SW check)
10) Check that the part D moves in arrow direction when y key
is pressed, and it returns to original position when y key is
pressed once more. (HEAD UP/DOWN motor check)
11) At this time, check that each time the y key is pressed, the
INITIAL SW status display on the LCD screen changes over
between “ON” and “OFF”. (INITIAL SW check)
12) Turn the power off.
Note: Disconnect the AC adapter to turn the power off, be-
cause the POWER switch is inactive in the Test mode.
SW CHECK MODE
REVERSE/CLOSE
COVER CLOSE
OFFEJECT SW
IN LIMIT SW
INITIAL SW
MD1/MD2
PIT/GRV
PROTECT SW
OFF
OFF
MD2
GRV
ON
LCD
Mecha. deck switch status display
Set switch status display
LCD switch status display
1-5. MAC Address Setting
The MAC address must be unique in the world.
On this set, hexadecimal MAC address is set for every serial num-
ber of the set.
1. How to Get MAC Address
1) Read the lower 5 digits of serial No. and add “291903 (deci-
mal)” to it, which is assumed to be D1.
D1 = “Lower 5 digits of serial No.” + 291903
Example: If the lower 5 digits of serial No. is “03574”
D1 = 3574 + 291903 = 295477
2) From Table 7-1-6, obtain D2 and H1 that correspond to D1
Example: If D1 = 295477
D2 = 295477 – 262144 = 33333
H1 = 04
D1 (decimal) D2 (decimal) H1 (hexadecimal)
327679 or less D1-262144 04
327680 or more D1-327680 05
Table 7-1-6
3) From Table 7-1-7, obtain maximum decimal number not ex-
ceeding D2, which is assumed to be D3.
Example: If D2 = 33333
D3 = 33280
4) From Table 7-1-7, obtain hexadecimal number that corresponds
to D3, and the higher 2 digits of that number is assumed to be
H3.
Example: If D3 = 33280
H3 = 82
5) Obtain a difference between D2 and D3, which assumed to be
D4. (0 ≤ D4 ≤ 255)
D4 = D2 – D3
Example: If D2 = 33333 and D3 = 33280,
D4 = 33333 – 33280 = 53
6) From Table 7-1-8, convert D4 into hexadecimal number to ob-
tain H4.
Example: If D4 = 53
H4 = 35
7) The MAC address is “08:00:46:H1:H3:H4”. (08, 00, 46 are fixed
values)
Example: If H1 = 04, H3 = 82 and H4 = 35
08:00:46:04:82:35
– 17 –
Note: D3: Decimal
H3: Hexadecimal
Table 7-1-7
D3H3D3H3D3
0 0000 8192 2000 16384 4000 24576 6000 32768 8000 40960 A000 49152 C000 57344 E000
256 0100 8448 2100 16640 4100 24832 6100 33024 8100 41216 A100 49408 C100 57600 E100
512 0200 8704 2200 16896 4200 25088 6200 33280 8200 41472 A200 49664 C200 57856 E200
768 0300 8960 2300 17152 4300 25344 6300 33536 8300 41728 A300 49920 C300 58112 E300
1024 0400 9216 2400 17408 4400 25600 6400 33792 8400 41984 A400 50176 C400 58368 E400
1280 0500 9472 2500 17664 4500 25856 6500 34048 8500 42240 A500 50432 C500 58624 E500
1536 0600 9728 2600 17920 4600 26112 6600 34304 8600 42496 A600 50688 C600 58880 E600
1792 0700 9984 2700 18176 4700 26368 6700 34560 8700 42752 A700 50944 C700 59136 E700
2048 0800 10240 2800 18432 4800 26624 6800 34816 8800 43008 A800 51200 C800 59392 E800
2304 0900 10496 2900 18688 4900 26880 6900 35072 8900 43264 A900 51456 C900 59648 E900
2560 0A00 10752 2A00 18944 4A00 27136 6A00 35328 8A00 43520 AA00 51712 CA00 59904 EA00
2816 0B00 11008 2B00 19200 4B00 27392 6B00 35584 8B00 43776 AB00 51968 CB00 60160 EB00
3072 0C00 11264 2C00 19456 4C00 27648 6C00 35840 8C00 44032 AC00 52224 CC00 60416 EC00
3328 0D00 11520 2D00 19712 4D00 27904 6D00 36096 8D00 44288 AD00 52480 CD00 60672 ED00
3584 0E00 11776 2E00 19968 4E00 28160 6E00 36352 8E00 44544 AE00 52736 CE00 60928 EE00
3840 0F00 12032 2F00 20224 4F00 28416 6F00 36608 8F00 44800 AF00 52992 CF00 61184 EF00
4096 1000 12288 3000 20480 5000 28672 7000 36864 9000 45056 B000 53248 D000 61440 F000
4352 1100 12544 3100 20736 5100 28928 7100 37120 9100 45312 B100 53504 D100 61696 F100
4608 1200 12800 3200 20992 5200 29184 7200 37376 9200 45568 B200 53760 D200 61952 F200
4864 1300 13056 3300 21248 5300 29440 7300 37632 9300 45824 B300 54016 D300 62208 F300
5120 1400 13312 3400 21504 5400 29696 7400 37888 9400 46080 B400 54272 D400 62464 F400
5376 1500 13568 3500 21760 5500 29952 7500 38144 9500 46336 B500 54528 D500 62720 F500
5632 1600 13824 3600 22016 5600 30208 7600 38400 9600 46592 B600 54784 D600 62976 F600
5888 1700 14080 3700 22272 5700 30464 7700 38656 9700 46848 B700 55040 D700 63232 F700
6144 1800 14336 3800 22528 5800 30720 7800 38912 9800 47104 B800 55296 D800 63488 F800
6400 1900 14592 3900 22784 5900 30976 7900 39168 9900 47360 B900 55552 D900 63744 F900
6656 1A00 14848 3A00 23040 5A00 31232 7A00 39424 9A00 47616 BA00 55808 DA00 64000 FA00
6912 1B00 15104 3B00 23296 5B00 31488 7B00 39680 9B00 47872 BB00 56064 DB00 64256 FB00
7168 1C00 15360 3C00 23552 5C00 31744 7C00 39936 9C00 48128 BC00 56320 DC00 64512 FC00
7424 1D00 15616 3D00 23808 5D00 32000 7D00 40192 9D00 48384 BD00 56576 DD00 64768 FD00
7680 1E00 15872 3E00 24064 5E00 32256 7E00 40448 9E00 48640 BE00 56832 DE00 65024 FE00
7936 1F00 16128 3F00 24320 5F00 32512 7F00 40704 9F00 48896 BF00 57088 DF00 65280 FF00
H3D3H3D3H3D3H3D3H3D3H3
– 18 –
Table 7-1-8
Hexadecimal-decimal Conversion Table
Lower digit of
hexadecimal
Upper digit
of hexadecimal
0123456789A
(A)
B
(b)
C
(c)
D
(d)
E
(E)
F
(F)
0
1
2
3
4
5
6
7
8
9
A (A)
B (b)
C (c)
D (d)
E (E)
F (F)
0123456789101112131415
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
64 65 66 67 68 69 70 71 72 73 74 77 76 77 78 79
80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95
96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111
112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127
128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143
144 145 146 147 148 149 150 151 152 153 154 155 156 157 158
174
159
175160 161 162 163 164 165 166 167 168 169 170 171 172 173
177
176 178 179 180 181 182 183 184 185 186 187 188 189 190 191
192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207
208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223
224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239
240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255
0
1
Example: If decimal number is “53”, the higher digit 1 of hexadecimal number is “3”
and the lower digit 2 is “5”, and thus “35” is the hexadecimal number to be obtained.
0
2
– 19 –
2. MAC Address Setting Method
1) Select the item number “7-01-01”.
2) Press u key to activate the MAC Address Set mode.
(When the MAC Address Set mode becomes active, the MAC
address is displayed as shown in Fig.7-1-24)
Fig.7-1-24
3) Operating the keys on the set, set the MAC address.
Note: Set the address values at three places on the right side.
Three address values on the left side are fixed values
and not changeable.
•Key operation
> or u key ...... Moves the cursor to the right.
. key ................. Moves the cursor to the left.
e key ..................... Increases address value at the cursor position.
E key ..................... Decreases address value at the cursor position.
x key ...................... Releases the MAC Address Set mode.
y key .................... Writes MAC address.
4) Press y key to write the MAC address.
Note: Even if the y key is pressed, the screen does not
change. Unless this key is pressed, the set MAC address
is not stored in nonvolatile memory.
Also, the MAC address writing can be done only once
after the power was turned on. To set the MAC address
once more, the power must be turned off, and on again.
TEST MODE
Other
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
IPL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
MAC
Address Write
7–01–01
Adjust
MAC
08 : 00 : 46 :
ss
:
ss
:
ss
MAC
08 : 00 : 46 :
ss
:
ss
:
ss
Moves the cursor by > or u key
Moves the cursor by . key
– 20 –
1-6. Touch Panel Adjustment
1. Touch Panel Position Alignment
The touch panel position alignment should be made in both cases
where the LCD screen is opened, and it is closed.
In touching the screen, use the input pen attached.
Adjusting method
1) Select the item number “7-01-02”.
2) Press u key to activate the Touch Panel Position Alignment
mode.
(The screen display will be as shown in Fig.7-1-25)
3) Touch the center of mark displayed at the upper left of LCD
screen.
(The screen display switches to the one shown in Fig.7-1-26)
4) Touch the center of mark displayed at the lower right of LCD
screen.
(The screen display switches to the one shown in Fig.7-1-27)
5) Touch the center of mark displayed in the center of LCD screen.
6) The touch panel position alignment finishes, and the adjust-
ment result is displayed.
• If alignment is successful ........... “OK!”
• If alignment failed ...................... “NG!”
7) If the touch panel alignment is to be made once more by chang-
ing the direction of the LCD, press u key to display the screen
shown in Fig.7-1-25, and then perform adjustment after step
3).
Note: If the alignment failed, perform the touch panel posi-
tion alignment again without changing the LCD direc-
tion.
8) At successful completion of the alignment in both cases where
the LCD is opened and closed, press x key to release the Touch
Panel Position Alignment mode.
2. Touch Panel Simple Check
Checking method
1) Select the item number “7-01-03”.
2) Check that “OK” is displayed when you touch the LCD screen.
Fig.7-1-25
Fig.7-1-26
Fig.7-1-27
Fig.7-1-28
Touch Panel
Please
Touch
Touch Panel
Please
Touch
Touch Panel
Please
Touch
Touch Panel
NG!
Please
Touch
Touch Panel
OK!
Please
Touch
• In case of NG adjustment
• In case of successful adjustment
– 21 –
1-7. Other Checking
1. Switch Check
In the Switch Check mode, even pressing the x key cannot re-
lease the Switch Check mode. To exit from this mode, turn the
power off.
Checking method
1) Select the item number “7-02-01”.
2) Press u key to activate the Switch Check mode.
(The screen display becomes as shown in Fig.7-1-29, and the
detection status of each switch on the set, LCD switch, and
mecha. deck switch is displayed)
Fig.7-1-29
3) Check that each switch is detected normally.
(See Table below. For the mecha. deck switch, see “Mecha.
Deck Block Simple Check”)
•SET switch
Display Condition
COVER OPEN Disc lid is OPEN
CLOSE Disc lid is CLOSE
EJCT SW ON DISC EJECT switch ON
OFF DISC EJECT switch OFF
•LCD switch
Display LCD panel Condition
LCD NORMAL/CLOSE NORMAL/CLOSE
NORMAL/OPEN NORMAL/OPEN
REVERS/CLOSE REVERSE/CLOSE
REVERS/OPEN REVERSE/OPEN
•MECHANISM DECK switch
Display Remark
IN LIMIT SW Condition of OPTICAL PIC-UP in limit
switch
INITIAL SW Condition of REC HEAD initial position
detect switch
MD1/MD2 Condition of MD1/MD2 detect switch
PIT/GRV Condition of REFLECT switch
PROTECT Condition of PROTECT detect switch
SW CHECK MODE
REVERSE/CLOSE
COVER CLOSE
OFFEJECT SW
IN LIMIT SW
INITIAL SW
MD1/MD2
PIT/GRV
PROTECT SW
OFF
OFF
MD2
GRV
ON
LCD
Mecha. deck switch status display
LCD switch status display
Set switch status display
2.Key Check
In the Key Check mode, even pressing the x key cannot release
the Key Check mode. To exit from this mode, turn the power off.
Checking method
1) Select the item number “7-02-01”.
2) Press u key to activate the Switch Check mode.
3) From the Switch Check mode, press u key to activate the
Key Check mode. (The screen display becomes as shown in
Fig.7-1-30)
Fig.7-1-30
4) Check that the POWER switch detection status displayed at
part A is normal. (See Table below)
Display Condition
PLAY/EDIT MODE PLAY/EDIT position
MODE OFF OFF position
Camera MODE CAMERA position
Interview MODE INTERVIEW position
5) Check that a numeric value displayed at part B decreases if
the control dial is rotated clockwise, or increases if counter-
clockwise.
KEY CHECK MODE
ssssss
000
PLAY/EDIT MODE
A Power switch status display
C control dial status display
B Set key status display
– 22 –
6) Check that the name associated with the pressed key is dis-
played at part C if a key on the set is pressed. (See Table
below)
Display Key name
PLAY u (PLAY/PAUSE)
STOP x (STOP)
FF > (FF)
REW . (REW)
SLOW y (SLOW)
A REC AUDIO REC
V REC (VIDEO REC)
PON ENTER
ERASE ERASE
MENU MENU
BRIGHT EXPOSURE
DISPLAY DSPL
VOLUME + e (VOL +)
VOLUME –E (VOL –)
PHOTO PHOTO
MARK BACK LIGHT
FORCUS FORCUS
7) Check that the “KEY CHECK MODE” characters on the screen
change to green in color if all keys on the set are pressed.
3. Adjustment Condition Check
In the Adjustment Condition Check mode, current conditions of
servo auto adjustment, MAC address setting, and touch panel po-
sition alignment can
be checked.
1) Select the item number “7-02-05”.
2) Press u key to activate the Adjustment Condition Check
mode.
(When the Adjustment Condition Check mode becomes ac-
tive, the screen changes as shown in Fig.7-1-31, and current
adjustment conditions are displayed)
Fig.7-1-31
•escription of display
OK ........... Adjustment successfully completed
NG ........... Adjustment failed (or not adjusted yet)
–............... Not adjusted yet (Servo auto adjustment only)
•Key operation
x key....... Releases the Adjustment Condition Check mode
y key ..... Initializes the Adjustment Condition Check mode
If y key is pressed, the condition display of servo auto adjust-
ment will be all “–”, and that of MAC address setting and touch
panel position alignment will be “NG”. (Fig.7-1-31)
Note: The adjustment data are not initialized even if the Adjust-
ment Condition Check mode is initialized.
4. Set Value Initializing
Each set value on the set can be initialized to the factory setting.
Initializing method
1) Select the item number “7-02-06”.
2) Press y key, and “OK” will be displayed on the screen and
each set value will be initialized to the factory setting.
Adjust Condition
OK
NG
MD1
--
OK
MO CD
Correct a location of Touch Panel
Write MAC address
MD2 OK NG
Condition display of servo auto adjustment
Condition display of MAC address setting
Condition display of
touch panel position alignment
– 23 –
7-2. Firmware Data Writing Method
Write the data by the method given below, when the Main board
or the Flash Memory (IC8005) and MPEG Control (IC8501)
mounted on the MAIN board were replaced.
2-1. Preparation
1. Measuring Equipment
To write the data, use measuring equipment listed below:
1) Personal computer (Windows95/98 installed)
2) Hyper Terminal (Communication software attached to the Win-
dows)
3) Firmware Writer Ether Flash BB(U)
Part code: J-2503-019-A
4) MPEG RATE CONTROL
Part code: J-2503-020-s
5) RS-232C Cable D-Sub 9pin (Female) (Cross cable type)
6) Regulated power supply
7) AC Adaptor/Charger (AC-VQ800)
2. Connection
1) Disconnect the CN8801 of ETHER board from the CN8007
of MAIN board, and connect the Ether Flash BB instead.
Note: Be careful of the connection direction when connecting
the Ether Flash BB.
2) Connect the CN7 of Ether Flash BB and the personal com-
puter with the RS-232C Cable (Cross cable type).
Fig.7-2-1
*1 Regulated power supply
(15 Vdc)
TP5002
GND TP8047
TEST
Test pins
MAIN BOARD
POWER BOARD
Cabinet (R)
AC adaptor/charger
(AC-VQ800)
Ether Flash BB
RS-232C Cable
(Cross cable Type)
21
CN3
CN6 CN7
*1 Use the regulated power supply and
MPEG RATE CONTROL when
MPEG Control (IC8501) was replaced.
CN8007
Personal computer
to RS-232C
*1 MPEG RATE CONTROL
– 24 –
3. Hyper Terminal Setting
1) Double-click [Hypertrm.exe] in the Hyper Terminal folder of
the personal computer.
2) On the [Connection Description] screen, enter the name “DCM-
M1” and select the icon, and then click [OK].
Fig.7-2-2
Select [Direct to Com1] for the Connect using: and click [OK].
If Com1 port has been used, select [Direct to Com2].
Fig.7-2-3
3) On the [Port Settings] screen, set the following and click [OK].
Bits per second: 57600
Data bits: 8
Parity: None
Stop bit: 1
Flow control: Xon/Xoff
Fig.7-2-4
4) From the File on the menu bar, click the Properties to select
the Settings screen.
Next, click [ASCII Setup] on the Settings screen.
Fig.7-2-5
– 25 –
5) On the [ASCII Setup] screen, set the following and click [OK].
[ASCII Sending]
Line delay: [2] milliseconds
[ASCII Receiving]
[Append line feeds to incoming line ends]: [√] marking
[Wrap lines that exceed terminal width]: [√] marking
Next, on the [Settings] screen, click [OK] once more.
Fig.7-2-6
4. Setting of the Set
After the Hyper Terminal setting finished, check that the prompt
appears on the screen, and then perform a setting to the set through
the steps given below.
1) Set the POWER switch to PLAY/EDIT.
Note: Setting the POWER switch to CAMERA/INTERVIEW al-
lows the Auto Power OFF function to operate, thus caus-
ing the power to be turned off during measurement. There-
fore, be sure to set it to PLAY/EDIT.
2) Short the test pins TP8047 (TEST) and TP5002 (GND) with
tweezers, etc.
3) From the AC Adaptor, turn the power on.
4) Remove tweezers to release the test pins.
5) Check that the following message is displayed on the screen.
Board Check Monitor ver1.XXX
5. Exit Hyper Terminal
From the File on the menu bar, click the “Exit Hyper Terminal”.
On the following screen, click [Yes] to finish the Hyper Terminal.
Fig.7-2-7
– 26 –
2-2. Writing to Flash Memory (IC8005)
Note 1: When the writing to the Flash Memory (IC8005) was
executed, perform the following:
• MAC Address Setting (See Test Mode page 16)
• Touch Panel Adjustment (See Test Mode page 20)
Note 2: Hyper Terminal setting must already be finished.
Note 3: on typical screen display indicates input characters.
1) Perform a setting to the set. (See page 25)
2) Make “Board Check Monitor ver1.XXX” displayed on the
screen, enter “WT” for the prompt and press the [Enter] key.
3) Data writing to the Flash Memory starts, and the progress sta-
tus is displayed on the screen as shown below. After about one
minute, [WT>OK] is displayed and the writing finishes.
Board Check Monitor ver1.XXX
> WT
Formatting FLASH file... src=1 ,dst=0
Format done.
Copying file: MDCX_ITRON
@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@
Copying file: MDCX_JAPP
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@
Copying file: MDCX_JAVA
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@
Copying file: MDCX_FTPBT
@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@@@@@@@@@@@@@@@@@@
Copying file: MDCX_FTPD
@@@@@@@@
Copying file: MDCX_WKSCR
@@@@@
Copying file: MDCX_JDICS
@@@@@@@@@@@@@@@@
Copying file: MDCX_EFFECT
@
Copying file: MDCX_SLEEP
@
Copying file: MDCX_VERSION
@
Copying 2nd partition...
End of WT.
WT>OK
Fig.7-2-8 Typical screen display
4) Exit the Hyper Terminal. (See page 25)
2-3. Writing to MPEG Control (IC8501)
Note 1: Hyper Terminal setting must already be finished.
Note 2: on typical screen display indicates input characters.
1) Insert MPEG RATE CONTROL disc into the drive A.
2) Perform a setting to the set. (See page 25)
3) Apply +15Vdc to the CN6 of Ether Flash BB.
4) Make “Board Check Monitor ver1.XXX” displayed on the
screen, enter “V” for the prompt and press the [Enter] key.
5) After [V850E>] is displayed, enter “R” and press the [Enter]
key.
6) Again, after [V850E>] is displayed, enter “L” and press the
[Enter] key.
7) From the Transfer on the menu bar, click [Send Text File] to
display the [Send Text File] screen.
Fig. 7-2-9
Select [3 1/2 Floppy (A:)] for the Look in, and [All files (*.*)]
for the File type.
Click the “Rom_1000.hex” displayed on the screen to high-
light, and click [Open].
The data are then sent and displayed on the screen.
8) After [V850E>] is displayed, enter “A” and press the [Enter]
key.
The Flash Data writing starts, and the following is displayed:
[Program to V850 flash memory finished] Then, [V850E>] is
displayed as a prompt.
9) Enter “Q” to quit the data writing.
10) Exit the Hyper Terminal. (See page 25)
Note 3: Disconnect the +15Vdc applied to the CN6 of Ether Flash
BB in prior to disconnection of the power supply from
the AC Adaptor.
– 27 –
Board Check Monitor ver1.XXX
> V
<< V850E Flash Writer menu V0.203 >>
A ........................... V850E Auto sequence
(Erase, Program,Verify)
R ........................... V850E Device reset
P ........................... V850E Program mode on
I ............................ Initialize parameter
L ........................... Load Motlora S format file
W .......................... Write all flash memory
E ........................... Erase all flash memory (without PreWrite)
C<CMD [prm]> ... Send V850E command
Q ........................... Quit V850 menu
V850E> R
V850E RESET,Vpp=7.8V
V850E> L
S0086262322E6F75747B
S2080000008007C00AA6
S254000130E00F40005C1A630F0100E10F40005C1A630F0
100E087600180FF684BC0FF58F1D20DC0
BF58F1243779860656010064577986005FDAF0465F0000E0
076001230F0100441AE10F2000230F01
00441AE107FF
~ an omission ~
S21500DB5C0000000000000000000000000000000000B3
S804000AC031
V850E> A
V850E RESET,Vpp=7.8V
V850E PROGRAM MODE .... FAILED
V850E PROGRAM MODE .... READY
FREQ SET COMMAND OK
ERASE SET COMMAND OK
WRITE SET COMMAND OK
BAUDRATE SET COMMAND
baudrate 76800bps OK
WRITEBACK SET COMMAND OK
Initialize OK!
WRITE ALL 0
.............................................. OK
ALL ERASE
Waiting ... OK
RESET COMMAND
OK
ALL BLANK CHECK
Waiting ... OK
WRITE START
.............................................. OK
ALL VERIFY
.............................................. OK
Program to V850 flash memory finished.
V850E RESET,Vpp=7.8V
V850E> Q
>
Fig.7-2-10 Typical screen display
– 28 –
• Correction of Schematic Diagrams
! : Indicates changed portion.
MAIN BOARD (1/8) (Page 4-29 to 4-30. Location A to E, 1 to 8)
Incorrect
Correct
$
#
#
#
%
!
$
#
#
#
%
!
– 29 –
MAIN BOARD (3/8) (Page 4-32. Location E, 28)
Incorrect Correct
MAIN BOARD (3/8) (Page 4-32. Location J, 27 to 29)
Incorrect Correct
MAIN BOARD (3/8) (Page 4-39. Location C to E, 1 to 4)
Incorrect Correct
MAIN BOARD (3/8) (Page 4-39 to 40. Location E, 8 to 10)
Incorrect Correct
MAIN BOARD (3/8) (Page 4-40. Location C to E, 11 to 14)
Incorrect Correct
$
^
^
^^
^
$
#$
^
^
%
%
$
^
^
^^
^
$
#$
^
^
%
%
– 30 –
MAIN BOARD (3/8) (Page 4-40. Location C, 15 to 19)
Incorrect Correct
$
MAIN BOARD (3/8) (Page 4-40. Location F to G, 17 to 18)
Incorrect Correct
%
MAIN BOARD (3/8) (Page 4-40. Location J to L, 15 to 18)
Incorrect Correct
$
MAIN BOARD (4/8) (Page 4-44. Location A to B, 14 to 17)
Incorrect Correct
%
@
$#
#
$
%
^
^
$
$
#
#
– 31 –
MAIN BOARD (4/8) (Page 4-44. Location D to E, 14 to 16)
Incorrect Correct
MAIN BOARD (4/8) (Page 4-44 to 45. Location J to L, 17 to 19)
Incorrect Correct
MAIN BOARD (4/8) (Page 4-45. Location H to J, 24 to 27)
Incorrect Correct
MAIN BOARD (4/8) (Page 4-46. Location G to H, 30 to 33)
Incorrect Correct
%
%
^
%
#
%
%
#
%
#
– 32 –
MAIN BOARD (5/8) (Page 4-48. Location F to G, 1 to 4)
Incorrect Correct
MAIN BOARD (8/8) (Page 4-59. Location L, 1 to 4)
Incorrect Correct
CLV BOARD (Page 4-77. Location G to H, 12 to 14)
Incorrect Correct
REC BOARD (Page 4-82. Location D to E, 10 to 12)
Incorrect Correct
#
#
#
%
#
#
#
#
%
#
DCM-M1
– 33 – – 34 – – 35 – LCD
LCD
• Signal Paths were Missing in Service Manual.
LCD (LCD) SCHEMATIC DIAGRAM (Page 4-106 to 4-108)
– 38 –
Sony Corporation
Audio Entertainment Group
9-927-635-82 2000E05035-1
Printed in Japan C 2000. 5
Published by PE General Engineering Dept.
ETHER BOARD (Page 4-116. Location D, 1 to 3)
Incorrect Correct
#
DCM-M1
#
SERVICE MANUAL
2000. 08
DCM-M1
SUPPLEMENT-3
File this supplement with the service manual.
Subject:
• Addition of Section 7 Camera Section Adjustment
• Correction of Schematic Diagrams
US Model
Canadian Model
E Model
– 2 –
7-3. CAMERA SECTION ADJUSTMENT
TABLE OF CONTENTS
3-1. Preparation before Adjustment .................................. 3
3-1-1. Service Tools List ........................................................ 3
3-1-2. Preparation .................................................................. 4
3-1-3. Precautions ................................................................. 5
3-2. Operation during Adjustment ........................................ 6
3-2-1. How to Enter the Test Mode ........................................ 6
3-2-2. How to Exit from the Test Mode .................................. 6
3-2-3. Description of Test Mode Screen ................................ 6
3-2-4. Key Operation in Test Mode ........................................ 7
3-3. Camera System Adjustment ........................................ 8
1. Zoom Center Adjustment ................................................ 8
2. Hall Adjustment ............................................................... 8
3. Flange Back Adjustment (Using flange back
adjusting chart subject more than 500 m away) ............. 9
4. Flange Back Adjustment (Using mini pattern box) ......... 11
5. Flange Back Check ......................................................... 12
6. Optical Axis Adjustment .................................................. 13
7. AGC Gain Calibration Adjustment .................................. 15
8. Color Reproduction Adjustment ...................................... 16
9. Max. Gain Adjustment ..................................................... 17
10. Auto White Balance & LV Reference Data Acquisition ... 18
11. Auto White Balance Adjustment ..................................... 18
12. Auto White Balance Check.............................................. 19
• Main Parts
The following parts can be supplied as main parts of the camera block in this set.
1) Camera Block (General Assembly including 2), 3) mentioned below and minor parts) .... (A-3250-920-A)
2) Zoom Lens (LSV-620B) ....................................................................................................... (8-848-732-01)
3) CCD Block Assembly ........................................................................................................... (A-3328-667-A)
* Further, there are small parts such as brackets and screws. See the Parts Price List.
* The Camera Process Board (VC-216 Board) alone is not supplied.
• Adjustment Items Required When Main Parts are Replaced
When the main parts were replaced, the adjustments marked with “z” in the following table are required.
Replacement Parts Camera Block Zoom Lens (LSV-620B) CCD Block Ass’y
Camera Block (A-3250-920-A) (8-848-732-01) (A-3328-667-A)
Zoom Center Adjustment (Note 1) z
Hall Adjustment z
Flange Back Adjustment zz(Note 2)
Optical Axis Adjustment zz
AGC Gain Calibration Adjustment z
Color Reproduction Adjustment z
Max Gain Adjustment z
Auto White Balance & z
LV Reference Data Acquisition
Auto White Balance Adjustment z
Table 7-3-1
Note 1: Also, if the Zoom Switch Unit (1-418-202-21) was replaced, perform the Zoom Center Adjustment.
Note 2: Check the flange back, and if deviated, adjust it.
– 3 –
3-1. Preparation before Adjustment
3-1-1. Service Tools List
• Oscilloscope • Color Monitor • Vectorscope
• Regulated Power Supply • Digital Voltmeter
Ref. No. Name Part Code Usage
J-1 Filter for color temperature correction (C14) J-6080-058-A Auto white balance adj./check
White balance adj./check
J-2 ND filter 1.0 J-6080-808-A White balance check
ND filter 0.3 J-6080-818-A White balance check
J-3 Pattern box PTB-450 J-6082-200-A
J-4 Color chart for pattern box J-6020-250-A
J-5 Siemens star chart J-6080-875-A Flange back check
J-6 Clear chart for pattern box J-6080-621-A
J-7 Mini pattern box J-6082-353-B Flange back adjustment
J-8 Camera base J-6082-384-A Flange back adjustment
J-1 J-2 J-3 J-4 J-5
J-6 J-7 J-8
Fig. 7-3-1
– 4 –
3-1-2. Preparation
Note 1: See “DISASSEMBLY” for removing the cabinet and each
board.
Note 2: The lens block and each board need not be separated, if
only the adjustment is performed.
Note 3: For the power supply, use exclusive AC adapter.
Fig. 7-3-2
Pattern box
Front side of the lens
about 1.5m
– 5 –
3-1-3. Precautions
1. Switch setting
Set the switches to the following positions respectively and per-
form the adjustment without loading a disc, unless otherwise speci-
fied.
1. POWER switch ...................................................... CAMERA
2. DIGITAL ZOOM (MENU screen) ........................ OFF
3. STEADY SHOT (MENU screen) ......................... OFF
4. FOCUS ................................................................... MANUAL
5. PROGRAM AE (MENU screen)........................... AUTO
6. PICTURE EFFECT (MENU screen) .................... OFF
7. WHITE BALANCE (MENU screen).................... AUTO
8. AUTO SHUTTER (MENU screen) ...................... OFF
H
A=B
C=D
AB B
CD
A
Enlargement
V
Electronic beam scanning frame
CRT picture frame
BA
Difference in level
Yellow
Cyan
Green
White
Magenta
Red
Blue
Yellow
Cyan
Green
White
Magenta
Red
Blue
Color bar chart (Color reproduction adjustment frame)
Fig. a
(VIDEO terminal of A/V jack
output waveform)
Fig. b (monitor TV picture)
Adjust the camera zoom and direction to
obtain the output waveform shown in Fig. a
and the monitor TV display shown in Fig. b.
2. Order of Adjustments
Basically carry out adjustments in the order given.
Fig. 7-3-3
3. Subjects
1) Color bar chart (Color reproduction adjustment frame)
When performing adjustments using the color bar chart, adjust
the picture frame as shown in Fig. 7-3-3. (Color reproduction
adjustment frame)
2) Clear chart (Color reproduction adjustment frame)
Remove the color bar chart from the pattern box and insert a
clear chart in its place. (Do not perform zoom operations during
this time)
3) Chart for flange back adjustment
Join together a piece of white A0 size paper (1189 mm × 841
mm) and a piece of black paper to make the chart shown in
Fig. 7-3-4.
Note: Use a non-reflecting and non-glazing vellum paper. The
size must be A0 or larger and the joint between the white
and black paper must not have any undulations.
Black
White
841 mm
1189 mm
Fig. 7-3-4
– 6 –
3-2. Operation during Adjustment
In adjusting the camera, execute the service mode in the Test Mode.
Note: For the adjustment items that must be checked with the color
monitor, first connect the VIDEO OUT to the monitor, and
then set the Test Mode.
(If connected later, no video signal will be outputted.)
3-2-1. How to Enter the Test Mode
In the normal mode, set the POWER switch to “CAMERA”.
While pressing u key on the set, press >, >, ., .,
e, E, e, E, y, y keys on the set in this order.
The Test Mode screen (Fig. 7-3-5) appears on the LCD and the
Test mode becomes active.
Fig. 7-3-5
3-2-2. How to Exit from the Test Mode
Turn the power off.
Note: In the Test mode, the POWER switch is inactive and there-
fore disconnect AC adapter to turn the power off.
3-2-3. Description of Test Mode Screen
Fig. 7-3-6
TEST MODE
Camera
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
1–00–00
TEST MODE
Camera
made by MD dep.
I
TRON
Ver.
s
.
sss
D
rive
Ver.
s
.
sss
JAVA APP Ver.
ssssssss
JAVA OS Ver.
ssssssss
BOOT Ver.
s
.
sss
I
PL Ver.
s
.
sss
RATE CTL Ver.
s
.
sss
Ite
m
No.
Service mode
1–02–01
06–00–00
Adjust
Camera register
display field
Test mode item name
display field
Test mode item No.
display field
Version display field
1) Version display field
The versions of respective programs that compose the set are
displayed.
ITON ............ Version of set program
Drive ............. Version of drive program
JAVA APP..... Version of JAVA application
JAVA OS....... Date when JAVA OS was released
BOOT ........... Version of BOOT program
IPL ................ Version of IPL program
RATE CTL ... Version of V850 (IC8501 on Main board)
program
2) Test mode item number display field
Fig. 7-3-7
Current Test mode item number is used.
The Test mode items are composed of a major item, medium
item, and minor item.
The number displayed in blue is currently active item.
3) Test mode item name display field
Fig. 7-3-8
Major item name, medium item name, and minor item name of
current test mode are displayed respectively.
4) Camera register display field
Fig. 7-3-9
The register state (page/address/data) in the camera block is dis-
played. Also, active item at present is underlined with a red cur-
sor.
Ite
m
No. 1–02–01
Major item number
Minor item number
Medium item number
Camera
Service mode
Adjust
Major item name Medium
item name
Minor item name
06–00–00
Page
Address
Data
Cursor
– 7 –
3-2-4. Key Operation in Test Mode
In the Test mode, use the keys on the set for operation.
For adjusting the camera, execute the test mode item “1-02-01”
(major item: Camera, medium item: Adjust, and minor item: Ser-
vice mode) to select the Service mode and perform adjustment
while writing data to the camera register.
1. Change or setting of test mode item
• Movement over active item numbers (u, x keys)
Fig. 7-3-10
Use u key when setting active item number and moving
to lower level, or use x key when canceling current item
and moving to higher level.
• Change of active item number (> . keys)
Use > key to raise active item number, or . key to
lower it.
• Execution or cancellation of item (u, x keys)
If the test mode item “1-02-01” (major item: Camera, me-
dium item: Adjust, and minor item: Service mode) was set,
pressing the u key causes the register state to be displayed
in the cameral register display field, and the Service mode
to be active. To cancel this item, press the x key.
Ite
m
No. 1–02–01
x key Moveing
u key Moveing
2. Change or writing of camera register
(Operation in Service mode)
• Cursor movement (., > keys)
Fig. 7-3-11
Pressing the . key or > key causes the cursor to be
moved as shown above.
Note: If page is “01”, the cursor will stand still at the page
position.
• Page change (e, E keys)
When the cursor is in page position, pressing the e key in-
creases the page, or the E key decreases the page. There are
15 pages, 01 to 0F.
• Address change (e, E keys)
When the cursor is in address position, pressing the e key
increases the address, or the E key decreases the address.
Also, pressing the u key increases the higher order digit
of 00-FF.
There are 256 addresses, 00 to FF.
• Data change (e, E keys)
When the cursor is in data position, pressing the e key in-
creases the data, or the E key decreases the data.
Also, pressing the u key increases the higher order digit
of 00-FF.
There are 256 data, 00 to FF.
• Data writing (y key)
To write data to the nonvolatile memory, press the y key.
(Unless this operation is performed, new data are not stored
in the nonvolatile memory.)
3. Switching of screen display
The camera adjustment contains the items to be adjusted with the
camera-through screen.
• Camera-through screen display method (DSPL key)
Press the DSPL key, and the screen display will be switched
as shown below.
06–00–00
Moves the cursor by . key
Moves the cursor by > key
Test mode screen
10-step gradation pattern screen
(Camera-through screen, if not set in “EVF” item)
Camera-through screen
– 8 –
3-3. Camera System Adjustment
1. Zoom Center Adjustment
Adjust the center voltage of Zoom control to the center of microcomputer A/D value.
If deviated, zooming will be executed even with the Zoom control in center position.
Adjusting method
Steps Page Address Data Work Description
1 06 50 Read the displayed data (D50).
20F 5D D
50 Set the data read in step 1, and press the y key.
2. Hall Adjustment
To detect the lens iris position, adjust the gain and offset of the amplifier.
If deviated, the iris will oscillate or the white balance between indoor and outdoor will be disordered.
Note: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Adjusting method
Steps Page Address Data Work Description
1 06 02 Check that the data is “00”.
2 06 94 8A Press the y key.
3 06 95 17 Press the y key.
406 01 6DPress the y key.
(Hall is adjusted, and the data are automatically entered to page: F, address: 1E, 1F, 70.)
5 06 02 Check that the data becomes “01”. (Note)
6 06 01 00 Press the y key.
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 01 00 Press the y key.
2 06 94 00 Press the y key.
3 06 95 00 Press the y key.
Subject Arbitrary
Measurement point Display data of page: 06, address: 50
Adjustment page 0F
Adjustment address 5D
Note: Do not touch the Zoom lever during adjustment.
(The Zoom lever must be in center position.)
Subject Arbitrary
Adjustment page 0F
Adjustment address 1E, 1F, 70
– 9 –
3. Flange Back Adjustment (Using flange back adjusting chart subject more than 500 m away)
The flange back adjustment of the inner focus lens is carried out automatically.
If deviated, auto focus and manual focus will be disordered.
Flange back adjustment (1)
Note: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Adjusting method
Steps Page Address Data Work Description
1With the zoom lens at TELE end and WIDE end respectively, check that the center of the
shot image screen concurs with the center of flange back adjusting chart.
2 06 02 Check that the data is “00”.
3 06 01 13 Press the y key.
406 01 15 Press the y key.
(The flange back adjustment is carried out, and the data are automatically entered to
page: F, address: 24 – 29 and 36 – 3D.)
5 06 02 Check that the data becomes “01”. (Note)
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 01 00 Press the y key.
2 Perform “Flange back adjustment (2)”.
Subject
Flange back adjusting chart
(Located at 2.00 m position from lens front surface)
(Luminance: 350 (50 lux)
Measurement point Check operation on monitor TV
Measuring instrument (Camera-through screen)
Adjustment page 0F
Adjustment address 24 – 29, 36 – 3D
– 10 –
Flange back adjustment (2)
Note: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Adjusting method
Steps Page Address Data Work Description
1With the zoom lens at TELE end, shoot the subject distant over 500 m (such as a building
having clear contrast).
(At this time, the subjects distant below 500 m must not be displayed on the screen.)
2 06 02 Check that the data is “00”.
3 06 01 13 Press the y key.
4 Cover the lens with ND filter, and adjust so as to get the optimum image.
506 01 29 Press the y key.
(The flange back adjustment is carried out, and the data are automatically entered to
page: F, address: 24 – 29 and 36 – 3D.)
6 06 02 Check that the data becomes “01”. (Note)
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 01 00 Press the y key.
2 Perform “Flange Back Check”.
Subject Subject more than 500 m away
(which should be clear contrast such as a building)
Measurement point Check operation on monitor TV
Measuring instrument (Camera-through screen)
Adjustment page 0F
Adjustment address 24 – 29, 36 – 3D
– 11 –
4. Flange Back Adjustment (Using mini pattern box)
The flange back adjustment of the inner focus lens is carried out automatically.
If deviated, auto focus and manual focus will be disordered.
Note 1: Darker Siemens star chart
Note 2: The mini pattern box is used for the flange back adjustment only.
For other adjustments, use the pattern box (PTB-450).
Note 3: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Preparation for adjustment
Install the mini pattern box as shown below.
Note 4: The attachment is not used.
Adjusting method
Steps Page Address Data Work Description
1 Install the mini pattern box so that it is located within 3 cm from the lens front surface.
2 Adjust the height of mini pattern box.
3Check that the output voltage of regulated power supply is the specified voltage
± 0.01 Vdc.
4With the zoom lens at TELE end and WIDE end respectively, check that the center of the
shot image screen concurs with the center of Siemens star frame.
5 06 02 Check that the data is “00”.
6 06 01 13 Press the y key.
706 01 27 Press the y key.
(The flange back adjustment is carried out, and the data are automatically entered to
page: F, address: 24 – 29 and 36 – 3D.)
8 06 02 Check that the data becomes “01”. (Note 3)
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 01 00 Press the y key.
2 Perform “Flange Back Check”.
Subject Mini pattern box with ND filter
Siemens star chart (Note 1)
Measurement point Check operation on monitor TV
Measuring instrument (Camera-through screen)
Adjustment page 0F
Adjustment address 24 – 29, 36 – 3D
Mini pattern box
Within 3 cm
Set
Camera
base
Red (+)
Black (–)
Yellow (SENS +)
White (SENS –)
Black (GND)
No connection
Regulated power supply
Specified voltage ( 0.01 Vdc)
Output current over 3.5 A
Fig. 7-3-12
Specified voltage: Variable depending on the mini pattern box.
Therefore, set the voltage given on the sheet
attached to the mini pattern box.
– 12 –
5. Flange Back Check
Switch setting
1) DIGITAL ZOOM (Menu screen) ....... OFF
2) STEADY SHOT (Menu screen) ......... OFF
3) FOCUS ................................................ AUTO
Note: When Auto Focus is ON, whether the focus is in order or disordered can be judged from the data displayed on page 01.
1) Select page: 06, address: 04, and set data: 0F, then press the y key.
2) The focusing condition can be confirmed from the data displayed on page 01.
01-00-XX Odd number : Focus is in order.
Even number: Focus is disordered.
Checking method
Steps Page Address Data Work Description
1Place the Siemens star at 2.0 m forward position from the lens front surface. As the iris is
in open state, lower the luminance of Siemens star to the extent that noise does not appear
on the monitor TV.
2 Shoot the Siemens star with the zoom at TELE end.
3 Check that the focus is in order. (Note)
4 06 21 10 Press the y key.
5 Shoot the Siemens star with the zoom at WIDE end.
6 Check on the monitor screen that the focus is in order.
Processing after completion of check
Steps Page Address Data Work Description
1 06 21 00 Press the y key.
2 06 04 00 Press the y key.
Subject Siemens star (reflection type)
(Located at 2.00 m position from lens front surface)
(Luminance: about 200 lux)
Measurement point Check on monitor TV
Measuring instrument (Camera-through screen)
Adjustment value Focus must be in order at TELE end and WIDE end
– 13 –
6. Optical Axis Adjustment
Correct the deviation of optical axis between lens and CCD imager.
If deviated, the center of screen will be shifted when the zoom is moved from TELE end to WIDE end.
Switch setting
1) DIGITAL ZOOM (Menu screen) ....... OFF
2) STEADY SHOT (Menu screen) ......... OFF
Preparation for adjustment:
Stick the optical axis deviation specification frame to the monitor screen. At this time, make the monitor center and the specification frame
center concurrent.
Subject Siemens star (reflection type)
Measurement point Check on monitor TV
Measuring instrument (Camera-through screen)
Adjustment page 0F
Adjustment address 43
0
180
90
67.5
22.5
337.5
292.5
247.5
202.5 157.5
112.5
8
4
5
71
62
3
270
Fig. 7-3-13
– 14 –
Adjusting method
Steps Page Address Data Work Description
1 06 40 02 Press the y key.
2 06 41 01 Press the y key.
3 0F 43 00 Press the y key.
4 Place the Siemens star at 2.0 m forward position from the lens front surface.
5 Shoot the Siemens star with the zoom at TELE end.
6Adjusting the lens direction, make the center of Siemens star and the center of optical axis
deviation specification frame (monitor screen) concurrent.
7 Shoot the Siemens star with the zoom at WIDE end.
8
On the monitor TV, check which area of the optical axis deviation specification frame the
center of Siemens star enters.
At this time, measure the center deviation “L1” (distance between center of Siemens star
and center of optical axis deviation specification frame).
Read correction data (D43) according to the area in the following table.
9
10 0F 43 D43 Set the read correction data, and press the y key.
11 Shoot the Siemens star with the zoom at TELE end.
12 Adjusting the lens direction, make the center of Siemens star and the center of optical axis
deviation specification frame concurrent.
13 Shoot the Siemens star with the zoom at WIDE end.
14 Measure the center deviation “L2” (distance between center of Siemens star and center of
optical axis deviation specification frame).
15 0F 43 Compare L1 and L2 to make sure that L2 is smaller than L1.
If larger, set data: 00 and press the y key.
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 40 00 Press the y key.
2 06 41 00 Press the y key.
Area Deviation phase Correction data
1 22.6° – 67.5° 01
2 67.6° – 112.5° 02
3 112.6° – 157.5° 03
4 157.6° – 202.5° 04
5 202.6° – 247.5° 05
6 247.6° – 292.5° 06
7 292.6° – 337.5° 07
8 337.6° – 22.5° 08
– 15 –
7. AGC Gain Calibration Adjustment
Note: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Switch setting
1) DIGITAL ZOOM (Menu screen) ....... OFF
2) STEADY SHOT (Menu screen) ......... OFF
Adjusting method
Steps Page Address Data Work Description
1 06 02 Check that the data is “00”.
2 0F 6E 08 Press the y key.
306 01 71 Press the y key.
(The AGC gain calibration adjustment is carried out, and the data are automatically
entered to page: E, address: 3A – 3D.)
4 06 02 Check that the data becomes “01”. (Note)
Processing after completion of adjustment
Steps Page Address Data Work Description
1 0F 6E FF Press the y key.
2 06 01 00 Press the y key.
Subject Clear chart (PTB-450)
(Color reproduction adjusting frame)
Adjustment page 0E
Adjustment address 3A – 3D
– 16 –
8 Color Reproduction Adjustment
Adjust the primary color separation matrix factor so that colors are reproduced correctly.
If deviated, colors are not reproduced correctly.
Adjusting method
Steps Page Address Data Work Description
1 06 00 01 Press the y key.
2 06 01 3D Press the y key.
3 0F 16 37 Press the y key.
4Adjusting the GAIN and PHASE of the vectorscope, adjust the burst luminance point to
the burst position of the color reproduction adjusting frame.
5 0F 5E 29 Press the y key.
2E
60F 30
44
45
Processing after completion of adjustment
Steps Page Address Data Work Description
1 0F 5E 2E Press the y key.
2 0F 16 33 Press the y key.
3 06 00 00 Press the y key.
4 06 01 00 Press the y key.
Subject Color bar chart (PTB-450)
(Color reproduction adjusting frame)
Measuring point VIDEO terminal of VIDEO/AUDIO terminals
(Camera-through screen)
Measuring instrument Vectorscope
Adjustment page 0F
Adjustment address 2E, 30, 44, 45
Adjustment value All color luminance points must fall in respective
color reproduction frame
Change the data so that each color luminance point falls within each color reproducible
area.
Note: Each time the data is changed, press the y key.
Unless this key is pressed, new data is not written.
R-Y
B-Y
R
B
G
MG
YE
CY
Burst position
Fig. 7-3-14
– 17 –
9. Max. Gain Adjustment
Set the lowest subject illuminance.
If deviated, necessary video level will not be got in low illuminance environment.
Note: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Switch setting
1) STEADY SHOT (Menu screen) ......... OFF
Adjusting method
Steps Page Address Data Work Description
1 06 02 Check that the data is “00”.
2 06 96 00 Press the y key.
3 06 97 27 Press the y key.
406 01 6FPress the y key.
(The max. gain adjustment is carried out, and the data is automatically entered to
page: F, address: 2C.)
506 02 Check that the data becomes “01”. (Note)
It may take much time (several sec to ten and several sec).
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 96 00 Press the y key.
2 06 97 00 Press the y key.
3 06 01 00 Press the y key.
Subject Clear chart (PTB-450)
(Color reproduction adjusting frame)
Adjustment page 0F
Adjustment address 2C
– 18 –
10. Auto White Balance & LV Reference Data Acquisition
Note 1: Color Reproduction Adjustment must be already finished.
Note 2: The auto white balance & LV reference data acquisition is available only once after the power is turned on. Turn the power off,
then on again if the data acquisition is retried.
Note 3: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Adjusting method
Steps Page Address Data Work Description
1 06 02 Check that the data is “00”.
2 06 01 11 Press the y key.
306 01 0DPress the y key.
(The auto white balance & LV reference data acquisition is carried out, and the data are
automatically entered to page: F, address: 20 – 23, 3E, 3F.)
4 06 02 Check that the data becomes “01”. (Note 3)
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 01 00 Press the y key.
2 Perform “Auto White Balance Adjustment”.
11. Auto White Balance Adjustment
Adjust auto white balance so that correct data are outputted.
If deviated, color reproduction in the auto white balance mode will be reduced.
Note 1: “Auto White Balance & LV Reference Data Acquisition” must be already finished.
Note 2: The auto white balance adjustment is available only once after the power is turned on. Turn the power off, then on again if the
adjustment is retried.
Note 3: For the data display, the data at the time when address was set is displayed, and it is not updated.
Check data variation while repeating address change and resetting (change address from “02” to “01”, and then return it to “02”).
Adjusting method
Steps Page Address Data Work Description
1 Cover the lens with the color temperature correction filter C14.
2 06 02 Check that the data is “00”.
3 06 01 83 Press the y key.
406 01 81 Press the y key.
(The auto white balance adjustment is carried out, and the data are automatically entered
to page: F, address: 34, 35.)
5 06 02 Check that the data becomes “01”. (Note 3)
Processing after completion of adjustment
Steps Page Address Data Work Description
1 06 01 00 Press the y key.
Subject Clear chart (PTB-450)
(Color reproduction adjusting frame)
Adjustment page 0F
Adjustment address 20 – 23, 3E, 3F
Subject Clear chart (PTB-450)
(Color reproduction adjusting frame)
Filter Color temperature correction filter C14
Measurement point Displayed data on page: 01
Adjustment page 0F
Adjustment address 34, 35
– 19 –
12. Auto White Balance Check
Checking method
Steps Page Address Data Work Description
1 Check that the lens is not covered with any filter.
2 06 01 0F Press the y key.
3 Check that the center of white luminance point is within a circle shown in Fig. 7-3-15 (A).
4 06 01 23 Press the y key.
5 Cover the lens with C14 filter.
6 Check that the center of white luminance point falls within a circle shown in Fig. 7-3-15 (B).
7 Remove the C14 filter, and cover the lens with ND filter 1.3 (1.0 + 0.3).
8After making sure that the white luminance point pull-in motion finished, remove the ND
filter 1.3.
9 Check that the center of white luminance point falls within a circle shown in Fig. 7-3-15 (C).
Processing after completion of check
Steps Page Address Data Work Description
1 06 01 00 Press the y key.
Subject Clear chart (PTB-450)
(Color reproduction adjusting frame)
Filter Color temperature correction filter C14
ND filter 1.0 and 0.3
Measurement point VIDEO terminal of VIDEO/AUDIO terminals
(Camera-through screen)
Measuring instrument Vectorscope
Adjustment value Fig. 7-3-15 (A) – (C)
Fig. 7-3-15 (A) Fig. 7-3-15 (B) Fig. 7-3-15 (C)
R-Y
B-Y
2 mm
2 mm
R-Y
B-Y
3 mm
3 mm
2 mm
1 mm
R-Y
B-Y
0.5 mm
1 mm
3 mm
3 mm
– 20 –
Incorrect Correct
• Correction of Schematic Diagrams
! : Indicates changed portion.
MAIN BOARD (4/8) (Page 4-44. Location B to C, 14 to 16)
^
^
Incorrect Correct
MAIN BOARD (5/8) (Page 4-52. Location A to B, 37 to 39)
^ ^
^^
Incorrect Correct
MAIN BOARD (6/8) (Page 4-53. Location A to E, 5 to 8)
#
%
#
%
– 21 –
Incorrect Correct
VF BOARD (2/3) (Page 4-90. Location I to J, 30 to 32)
Incorrect Correct
ETHER BOARD (Page 4-117. Location B to D, 6 to 9)
%^%^
#
%
#
%
– 22 –
FOR CAMERA OPTICAL AXIS ADJUSTMENT
0
180
90
67.5
22.5
337.5
292.5
247.5
202.5 157.5
112.5
8
4
5
71
62
3
270
✄
– 23 –
✄
✄
DCM-M1
FOR CAMERA COLOR REPRODUCTION ADJUSTMENT
Take a copy of CAMERA COLOR
REPRODUCTION FRAME with a
clear sheet for use.
R-Y
B-Y
R
B
G
MG
YE
CY
Sony Corporation
Audio Entertainment Group
9-927-635-83 2000H05035-1
Printed in Japan C 2000. 8
Published by General Engineering Dept.
CDM-M1

Navigation menu
