S&S X-RAY PRODUCTS
INC
S&S X-Ray Products Inc.
1101 Linwood Street
Brooklyn NY 11208
718-649-8500
800-347-XRAY
www.ssxray.com
Motorized Viewers
Mammography Illuminators
X-Ray Accessories Supplies
A -1
800 /347-XRAY
www.ssxray.com

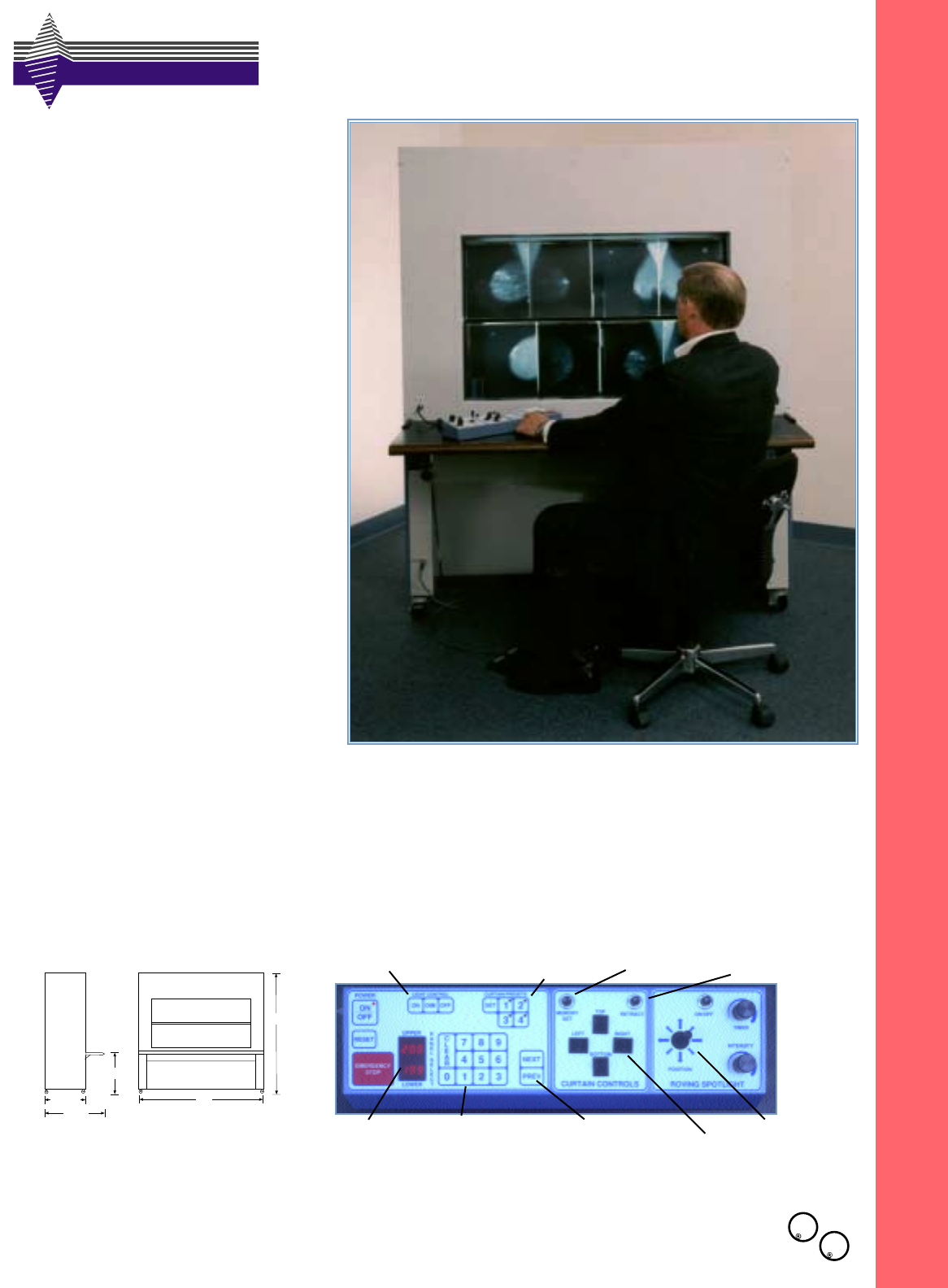

MOTORIZED VIEWERS
MAMMOGRAPHIC VERTICAL VIEWER
MV800
Base: 2.5” Casters
Finish: Attractive durable baked on polyester, in light grey with blue sides. Shelf is finished in matching blue laminate with Oak bullnose trim.
Electrical: 118 volts, 60HZ AC, 1 phase, total amperage draw with all lights on and motor running-10 amps. For 220 volts, 50 HZ or other volt-
ages, consult factory for details.
Approx. Weight: 840 Lbs.
28.37"
44.5"
30.25"
57"
71.187"
LED READOUT
(FRAME NUMBER IDENTIFICATION)
AUTOMATIC SHUT
OFF TIMER
POSITIONING JOY STICK
CURTAIN MEMORY CURTAIN AUTO RETRACT
SPOT LIGHT INTEN-
SITY
CONTROL
PANEL SELECTORS PREVIOUS/NEXT BUTTON
LIGHT INTENSITY CONTROL CURTAIN PRESETS
CURTAIN POSITIONING
Here is our top of the line mammography
motorized viewer, which features intuitive
use, no obstructing strings, and exceeds
all ACR requirements for mammography!
Four independent curtains can easily be indi-
vidually positioned by the technologist when the
films are placed on the viewer (using the manu-
al curtain controls or one of four programmable
curtain presets), and their position stored into
the frame-specific memory with the push of a
button. When the particular “frame” is accessed
by the radiologist, the shades will automatical-
ly go to the position previously set, providing
optimal frame-specific shading for all films on
the viewer. The unit is designed with the comfort
of the radiologist in mind, with extra leg room, a
large work desk and easily accessible utility out-
lets.
Variable intensity illumination is standard,
ranging from 100% down to 60% in increments
of 10%. This allows the radiologist to select the
proper level of illumination for a specific type of
film, change the intensity for other films, and
easily and precisely return to this original level.
High frequency energy efficient electronic bal-
lasts provide for flicker-free, reduced eyestrain
viewing.
An optional variable intensity bright spot per-
mits highlighting and focusing in on extra dense
areas of the film. It can be moved to any location
on the lower tier. The spotlight has been pro-
grammed to automatically find the non-shaded
area when turned on. The positioning joystick
can be used to move the spotlight to the precise
location desired.
The vertical transport belt features exceptionally quiet and smooth operation. The MV800 has 200 frames and can hold 800
20x30cm films (or 1200 18x24cm films). There are no strings to distract or obscure the viewing of films.
This viewer is ideal for sequential interpretation of film, and automatically centers the next set of films.The standard auto-index-
ing feature rapidly accesses a selected film (moving at a speed greater than one frame per second). Any film can be viewed in
the upper or lower tier position. Previous/Next buttons or the standard dual foot switch can be used to move the transport belt
and quickly center the adjacent films. Angulated viewing of 50cuts glare.
To conserve energy, the units feature auto-shutoff when there is inactivity for 30 minutes. There is also the ability to program secu-
rity codes into the machine to limit access to films loaded into the viewer.
MEMBRANE TOUCH PAD CONTROLS
PROGRAMMABLE SHADES WITH INDIVIDUAL PANEL SPECIFIC MEMORY
Dimensions
U
L
C
U
L
S&S
X- R AY PRODUCTS
INC
.

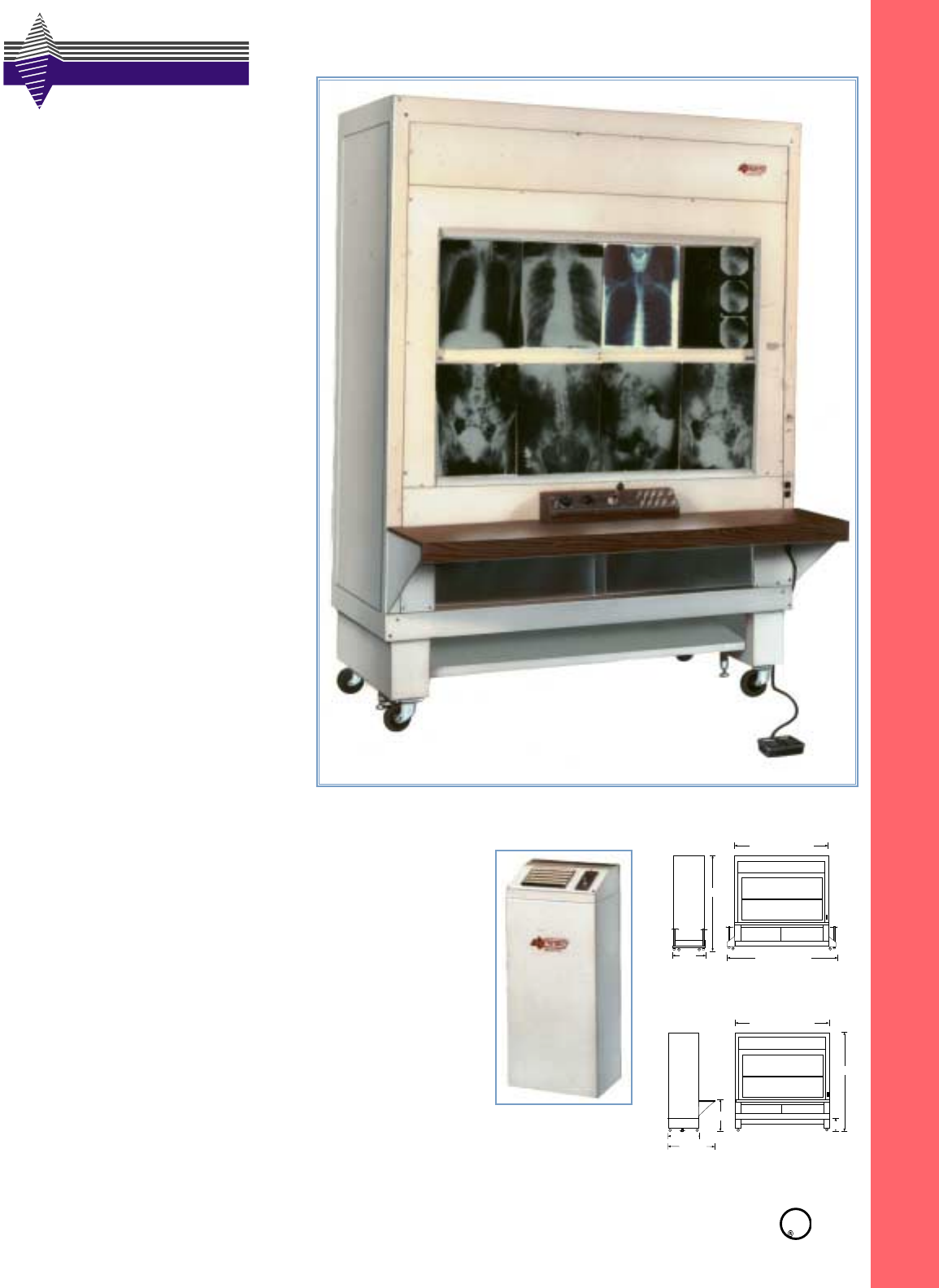

This versatile vertical belt automatic viewer is ideal for sequential interpretation of films.The viewers feature advanced microprocessor con-
trol technology, smooth and quiet operation, and film viewing without obstructing strings! The standard auto-indexing feature rapidly accesses a
selected frame (moving at a speed greater than one frame per second) and automatically centers the film in the proper viewing position.
Variable intensity illumination, ranging from 100% down to 60% in
increments of 10%, allows the radiologist to select the proper level of illu-
mination for a specific type of film, change the intensity for other films,
and easily and precisely return to the original
level. High frequency energy efficient electronic
ballasts provide flicker free reduced eyestrain
viewing.
The combination of a microprocessor and a
coffee resistant membrane touch pad con-
trol insures years of trouble free use. The ver-
tical transport belt features exceptionally
quiet operation, and is designed to prevent film
loss or damage while in the viewer. Angulated
viewing of 50cuts glare. The belt can accom-
modate any size film up to 14”x17”. Mix or match your film sizes
with equal security of film retention. Films slide easily and
securely into narrow plastic grips on each frame. There are no
strings to distract or obscure the viewing of films. The durable plas-
tic film grips minimize the space between the top and bottom tier for
ease of comparison.
Eight 14”x17” films can be viewed simultaneously. The units hold 220
or 400 14”x17” films (greater quantity with smaller films).
The C and CS models have full manual and programmable shut-
ter capability allowing for proper collimation to any film format.
When films are loaded into the viewer, the shade locations can be
easily set manually (or through the use of one of four programmable
presets) and programmed into the frame-specific memory with the
touch of a button. The curtain memory can be easily individually set
for each frame on the machine, so that when the radiologist calls up
a specific frame, the curtains move automatically to their preset
location for that particular set of films (Manual movement of the cur-
tains can easily be used to fine tune the curtain locations). Optional
customized belts are available and recommended (for C and CS models only) for mixing film formats, and in particular for mammographic films.
The customized belt enables the simultaneous display and full shading of 3 years of screening 18x24cm mammographic studies!
A joystick-controlled variable intensity moving bright spot can be quickly positioned anywhere on the lower tier to add the extra brightness needed to
read dense film. When the bright spot is activated it rapidly locates the non-shaded region on the viewing surface, then turns on. Care was taken in the
design of the control pad and in the programming of the unit so that all functions are intuitive to the user, and easily and quickly learned and assimilated.
To conserve energy, the units feature auto-shutoff when there is inactivity for 30 minutes. There is also the ability to program security codes into
the machine to limit access to films loaded into the viewer.
The C and CS models with fully programmable motorized shades (with frame specific memory in addition to programmable memory pre-
sets) easily exceed the proposed ACR requirements for mammography.

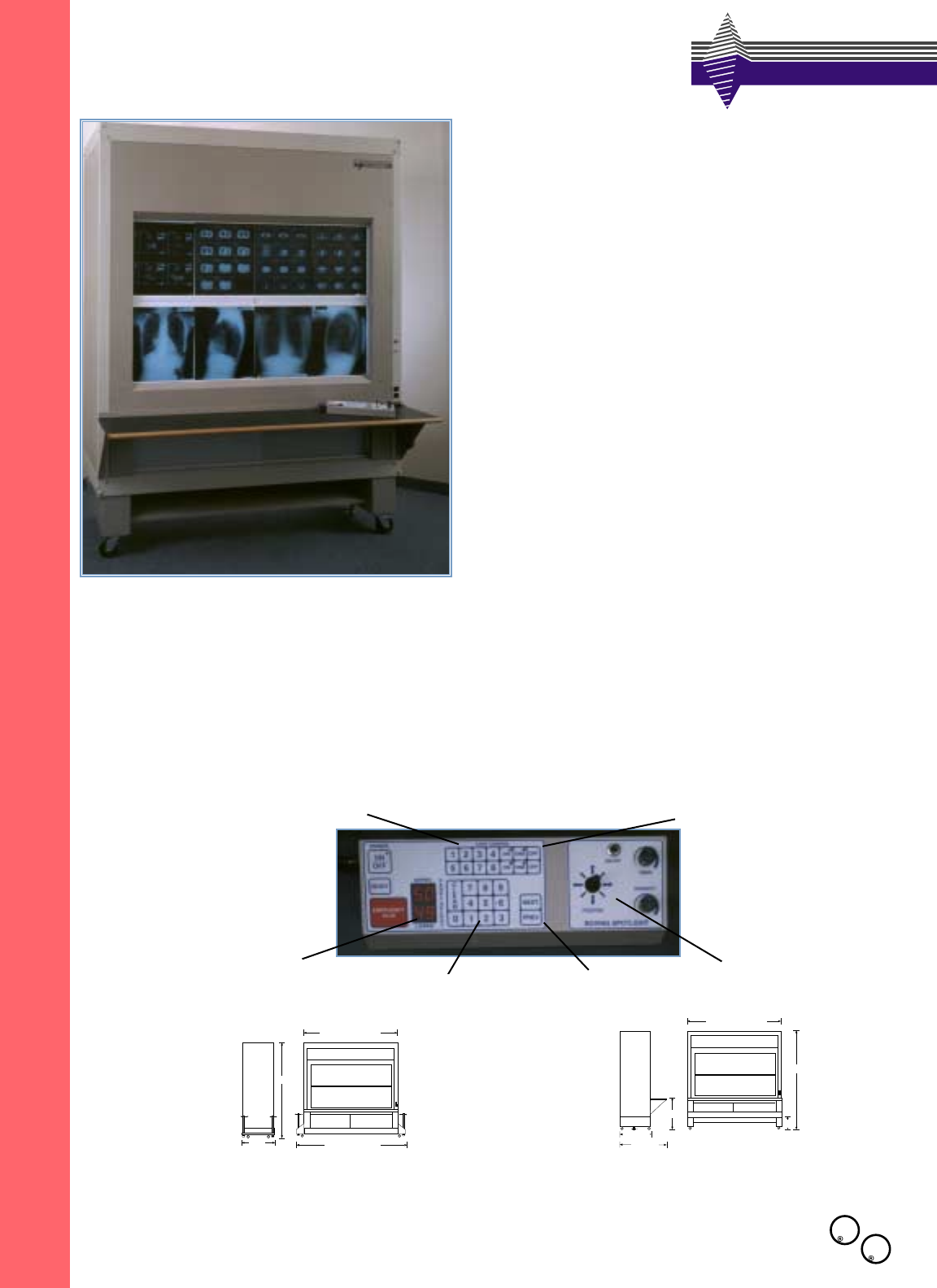

MOTORIZED VIEWERS
IDEAL FOR THE FULL SPECTRUM OF GENERAL RADIOLOGY
A - 2
OPTIONS: MV220-2 FOOT SWITCH - Hands free selection of frames (scan frames either forward or back).
MOTORIZED CURTAINS: FULL SHUTTER CAPABILITY Four curtains adjust independently for any opening size or loca-
tion. Curtain memory can be set individually for automatic collimation of each frame.
CUSTOMIZED BELTS: (C &CS models only) Design your belt to fit your needs - consult factory.
ROVING SPOTLIGHT: (Bottom Tier Only) Spotlight can be positioned anywhere on the lower tier with the touch of the joy-
stick. Roving spotlight is programmed to coordinate with automatic collimation of shutters and will automatically move to the
open area when activated. To allow the bright spot to move, the standard internal dividers are removed.
Base: 2.5” Swiveling Casters
Finish: Attractive durable baked on polyester, in light grey with blue sides. Shelf is finished in blue laminatewith Oak bullnose trim.
Electrical: 118 volts, 60HZ AC, 1 phase, total amperage draw with all lights on and motor running-10 amps.
Approx. Weight: MV220 - 1140 Lbs., MV400 - 1190 Lbs.
MV220 or MV400 - VERTICAL VIEWER
MV220C or MV400C - VIEWER W/ MOTORIZED CURTAINS
MV220S or MV400S - VIEWER W/ ROVING SPOTLIGHT
MV220CS or MV400CS - VIEWER W/CURTAINS AND SPOTLIGHT
VERTICAL VIEWER MV220 / MV400
AUTOMATIC SHUT OFF TIMER
POSITIONING JOY STICK
SPOT LIGHT INTENSITY CON-
TROL
LIGHT INTENSITY CONTROL
MEMBRANE TOUCH PAD CONTROLS
PANEL SELECTORS PREVIOUS/NEXT BUTTONS
LED READOUT (FRAME NUMBER IDENTIFICATION)
27.5"
43.5"
30"
69.125"
78"
Lighting: MV220, MV220S, MV400, MV400S: 4 - 15 Watt Daylight fluorescent vertical bulbs per section. MV220C, MV220CS, MV400C, MV400CS 14 - 60
Watt Daylight fluorescent horizontal bulbs per viewer.
Dimensions
(Shown for the MV200CS/MV400CS)
CURTAIN POSITIONING
CURTAIN PRESETS CURTAIN MEMORY CURTAIN AUTO RETRACT
U
L
C
U
L
800 /347-XRAY
www.ssxray.com
S&S
X- R AY PRODUCTS
INC
.
A - 3
MOTORIZED VIEWERS

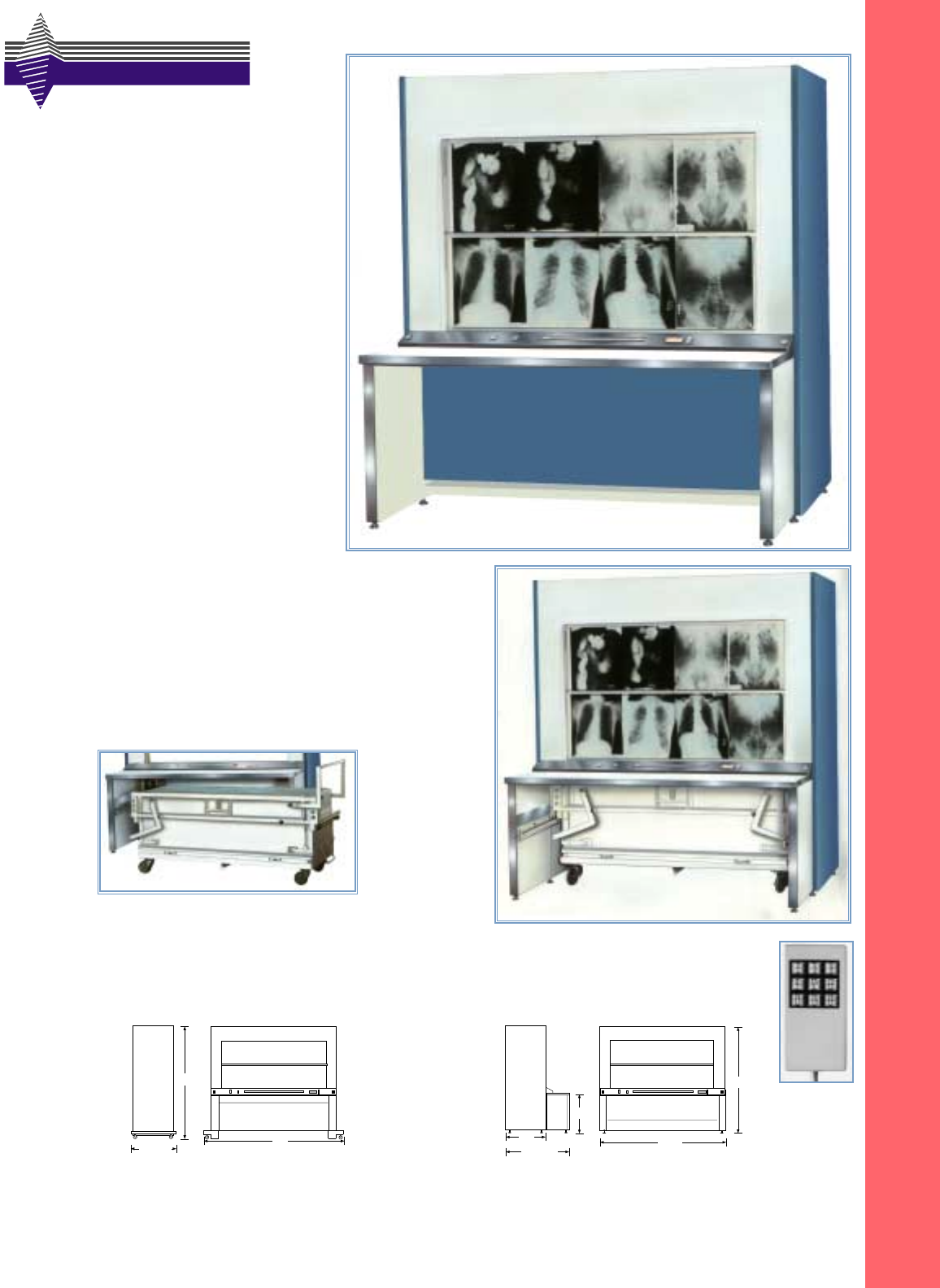

MV112A / MV112B
Base: Leveling legs
Finish: Attractive durable baked on polyester, in light grey with blue sides. Shelf is finished in white laminate./ Approvals : ETL
Electrical: 118 volts, 60HZ AC, 1 phase, total amperage draw with all lights on and motor running-10 amps. For 220 volts, 50 HZ or other volt-
ages, consult factory for details.
Approx. Weight: MV112A - 1800 lbs. MV112B - 1500 lbs.

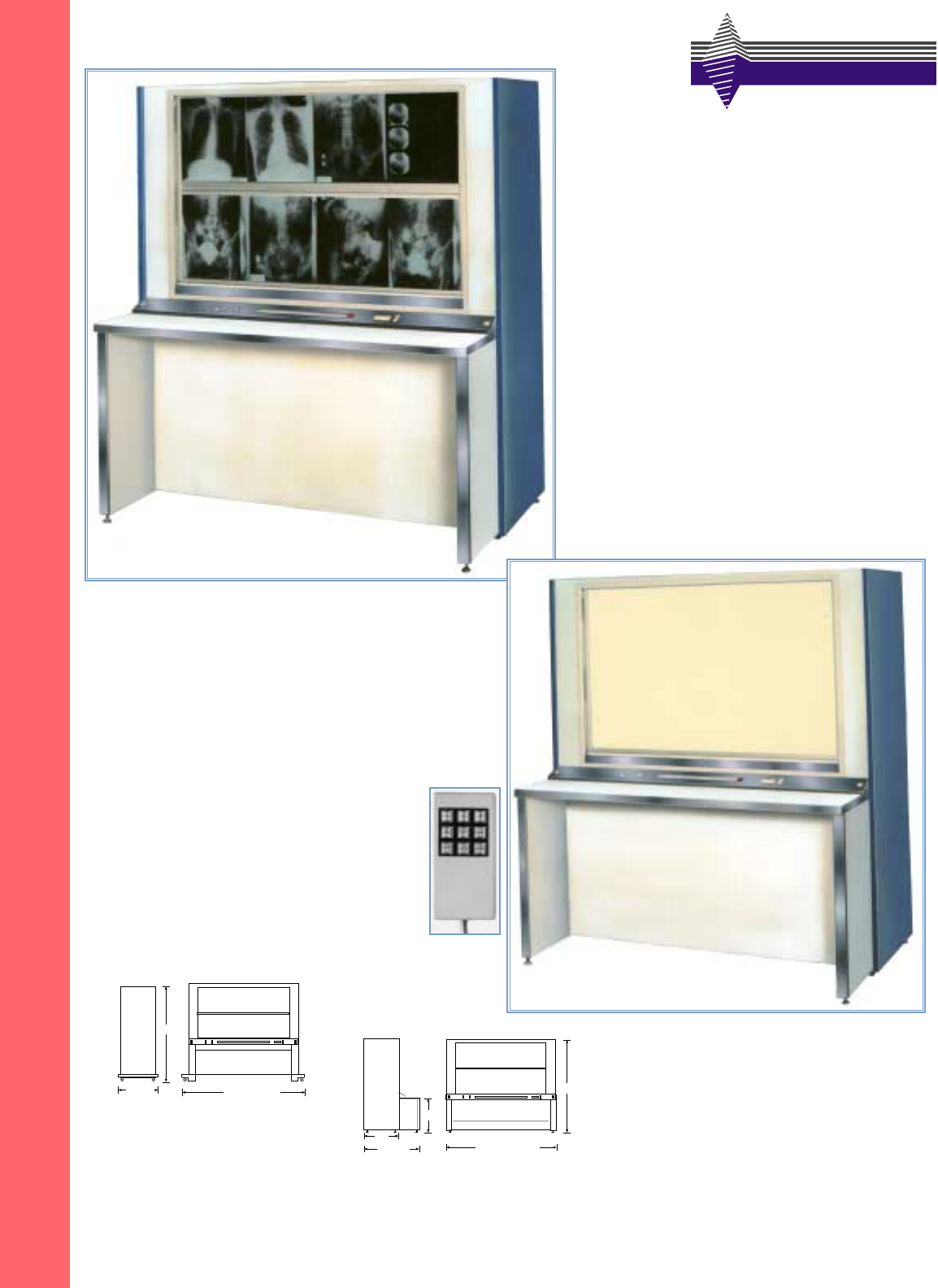

MV112A - Mobile magazine holding 28 frames can be preloaded
and easily rolled from viewer to the viewer. (Additional maga-
zines are available, increasing the viewing capacity of the
MV112A)
MV112B - Fixed magazine of 28 viewing frames
MV112AM MOBILE MAGAZINE for the MV112A - collapsible han-
dles and pivot wheels make it extremely easy to move

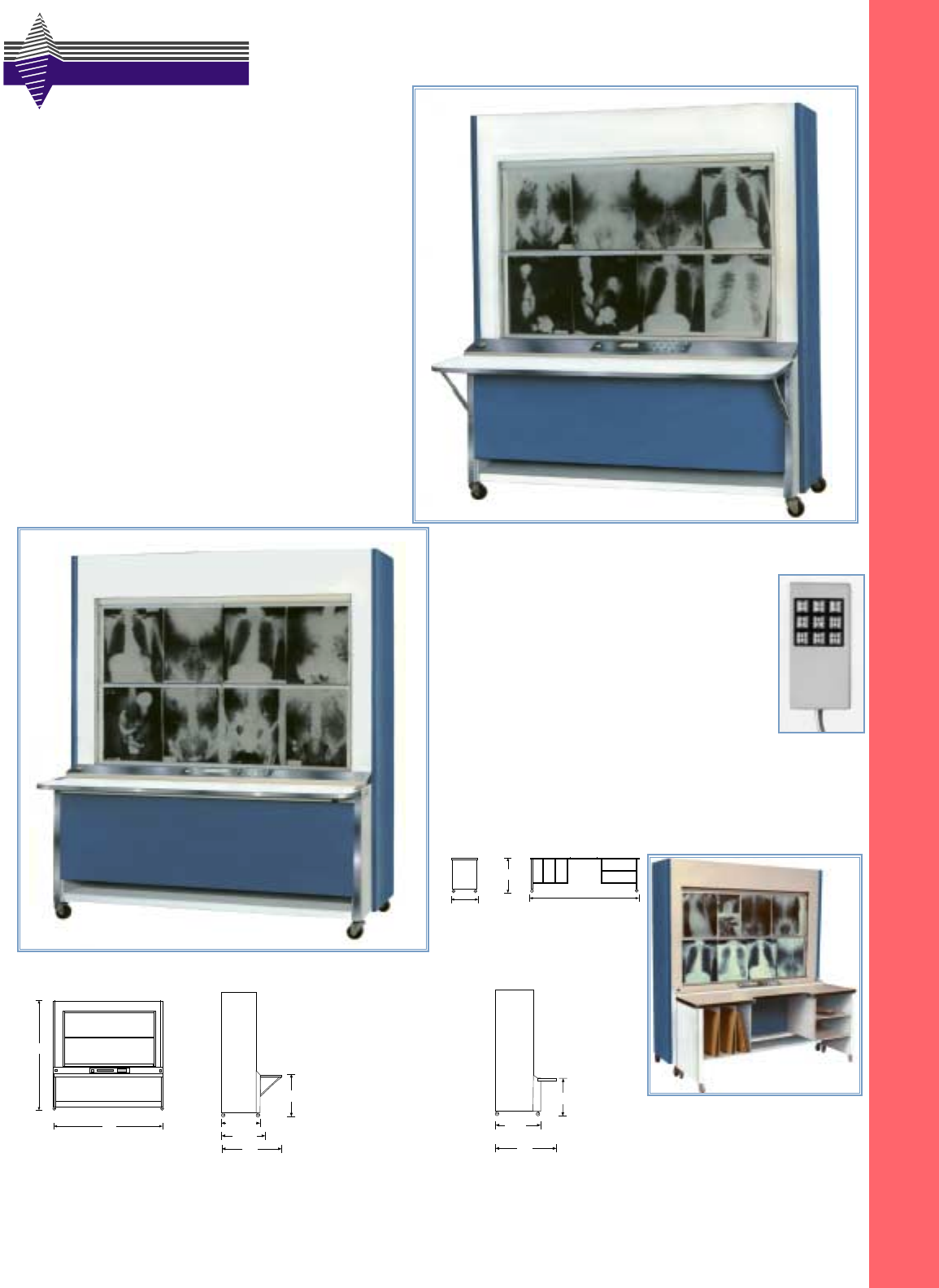

The MV112 series are true random access motor-
ized viewers. These are ideal for departments
where any study on the viewer may have to be
rapidly accessed at any time. Desired frames are
selected in pairs by lighted, numbered push but-
tons and are automatically brought into the view-
ing area in seconds. For closer study, at a touch
of a switch, the upper viewing panel is moved to
the lower viewing area and the illumination in the
upper section is automatically turned off.
The random access design of this unit allows
you to reach any frame in 12 seconds or less.
View 814”x17” films simultaneously. This unit
holds 112 14”x17” films on 28 durable plexiglas
panels (greater quantity with smaller films). Three
thin adjustable nylon cords hold small film secure-
ly in place without obstructing the view. Top and
bottom film grips secure 14”x17” films.
The controls are located on the central console.
There are 27 lighted push button panel selector
switches, 8 push button switches to control light-
ing in each viewing area, 3 viewing mode switch-
es for illumination (on/off/individual), 2 Panel con-
trol switches, one master power switch, and 2 util-
ity outlets.
MV112B - frames stored within the viewer
28 .75"
79"
86"
Available Option:
Hand Held Random Access Remote Control: (MV112RC) This solid state electronic remote control is ideal for
use in lectures, conferences and teaching sessions. This unique hand held unit allows the selecting and changing of frames while retaining
full freedom of movement for the operator and an unobstructed view of the subject films for the members of the viewing audience. Must be
factory installed. Installed Dimensions
Shipping Dimensions (on shipping dollies)
28"
45.625"
30"
78"
72.5"
MV112A - with mobile magazine
800 /347-XRAY
www.ssxray.com
S&S
X- R AY PRODUCTS
INC
.
A - 4
MOTORIZED VIEWERS
MV216 / MV324 / MV1436
Base: Leveling legs
Finish: Attractive durable baked on polyester, in light grey with blue sides. Shelf is finished in white laminate./ Approvals : ETL
Electrical: 118 volts, 60HZ AC, 1 phase, total amperage draw with all lights on and motor running- 10 amps - MV216, MV1436; 13 amps - MV324.
For 220 volts, 50 HZ or other voltages, consult factory for details.
Approx. Weight: MV216 - 1600 lbs MV324 - 1900 lbs. MV1436 - 1500 lbs.
The MV216, MV324 and MV1436 are our larger capacity
true random access motorized viewers.These viewers
are ideal for high volume applications, where short
access times to any film on the motorized viewer is
required.The random access feature minimizes the dis-
ruption of clinician consultations, with rapid non-
sequential retrieval of any film on the viewer, and quick
return to the film being interpreted. Standard on these
viewers is automatic frame select (with push button
controls), Individual lighting per viewing section, and
durable plexiglas panels with film grips. Each panel fea-
tures adjustable thin nylon cords hold film securely in
place without obstructing vision.
Controls (MV216 - MV324):Located on the central console are the
push button panel selector buttons, individual light control buttons, mas-
ter power switch, viewing mode switches and 2 utility outlets.
MV216 and MV324
Desired frames are selected by lighted, numbered push
buttons and are automatically brought into the viewing
area in seconds. For closer study, at a touch of a switch,
the upper viewing tier is moved to the lower viewing area
and the illumination in the upper section is automatically
turned off. The MV216 holds 216 14”x17” (27 frames per
unit), and displays eight 14”x17” films simultaneously.
The MV324 holds 324 14”x17” (27 frames per unit), and
displays twelve 14”x17” films simultaneously.
The MV1436 is designed specifically for the viewing of 14”x36”
film. It holds 108 14”x36” (27 frames per unit) and displays four
14”x36” films simultaneously. The MV1436 has four divided
viewing areas with individually controlled lighting.
Installed Dimensions
Shipping Dimensions (on shipping dollies)
28"
45.625"
37"
81"
MV216 = 72.5"
MV1436 = 72.5"
MV324 = 100.5"
Available Option:
Hand Held Random
Access Remote Control: (MV216RC, MV324RC
or MV1436RC) This solid state electronic remote
control is ideal for use in lectures, conferences and
teaching sessions. This unique hand held unit
allows the selecting and changing of frames while
retaining full freedom of movement for the operator
and an unobstructed view of the subject films for the
members of the viewing audience. Must be factory
installed.
Controls (MV1436):Located on the central console are
27 push button panel selector buttons, 4 individual light
control buttons, master power switch and 2 utility outlets.
800 /347-XRAY
www.ssxray.com
S&S
X- R AY PRODUCTS
INC
.
MOTORIZED VIEWERS
A - 5
MINI MOBILE MOTORIZED VIEWERS
MV48 / MV72
Base: 4” Ball Bearing Casters
Finish: Attractive durable baked on polyester, in light grey with blue sides. Shelf is finished in white laminate./ Approvals : ETL
Electrical: 118 volts, 60HZ AC, 1 phase, total amperage draw with all lights on and motor running - 10 amps. For 220 volts, 50 HZ or other volt-
ages, consult factory for details.
Approx. Weight: MV48 - 850lbs. MV72 - 900 lbs.
70"
79"
Ship. dimension w/out shelf Ship. dimension w/out shelf
Installed dimension with optional 48AC shelf
The MV48 and MV72 are designed for use in smaller
departments and offices which do not require higher
capacity viewers or where floor space is at a premium.
Mobile and spacesaving these random access viewers
reach any frame in 7 seconds or less. The MV48 has a
film capacity of 48 14”x17” (greater with smaller films) and
has 12 frames per unit. The MV72 has a film capacity of 72
14”x17” (greater with smaller films), and has 18 frames per
unit. Both motorized viewers display 8 14”x17” films
simultaneously. Desired frames are selected in pairs by
lighted, numbered push buttons and are automatically
brought into the viewing area in seconds. Both models
have individual lighting per viewing section, and durable
plexiglas panels with film grips. Adjustable thin nylon cords
hold films securely in place without obstructing vision).
The MV48 and MV72 can be easily moved from room to
room and plug into any standard electrical outlet. They
are frequently placed in ICU’s to provide on the spot review
of patient’s past and present films. No special installation is
required.
MV72 This removable laminated shelf comes as standard with this unit.
20.75"
24.5"
30"
34"
24"
34"
30"
Ship. dimension with optional 48AC shelf
Installed dimension with shelf
MV48 MV72
Motorized Viewer Work Desk: (MV48AB or MC72AB) A handsome,
convenient and useful addition to a motorized viewer, this sturdy desk is
designed with a contoured formica top and divided storage sections for
film, records, etc. The desk is constructed of heavy gauge steel with a
1.25” thick white formica laminated top, edged in black vinyl. All steel
parts are finished with a durable baked on polyester, in light gray.
MV48=17.875"
MV72=20.125"
MV48=68.5"
MV72=68.5"
MV810-170=63"
30"
Available Options:
Hand Held Random Access Remote Control: (MV48RC
or MV72RC) This solid state electronic remote control is ideal
for use in lectures, conferences and teaching sessions. This
unique hand held unit allows the selecting and changing of
frames while retaining full freedom of movement for the oper-
ator and an unobstructed view of the subject films for the
members of the viewing audience. Must be factory installed.
MV48 with MV48AB work table
MV48 shown with optional folding shelf (MV48AC) Controls: Located on
the central console are the push button panel selector buttons, individual
light control switches, master power switch, and two utility outlets.
800 /347-XRAY
www.ssxray.com
S&S
X- R AY PRODUCTS
INC
.
A - 6
MOTORIZED VIEWERS
MV200QT / MV300QT
MV200QTT / MV300QTT (with bright spot)
These viewers are our major upgrade to our MV200A, the viewer
which set the standard worldwide for reliability and durability! The
sequential access MV200QT and MV300QT are designed to main-
tain the tradition of being the proven workhorses of radiology
departments worldwide. They maintain the long-lasting heavy duty
design and construction of the MV200A but now incorporate micro-
processor controls,brighter variable intensity illumination, new
unobtrusive membrane switches, and have been made quieter! The
advanced microprocessor controller and new DC motors provide
exceptionally smooth and precise frame transport, and the maximum
transport time to reach any frame on the machine has been reduced
by 15%! Push button frame selection using a membrane keypad is
standard as well as an up-down twin foot switch! Previous/Next but-
tons quickly center the adjacent films.
The MV200QT and MV300QT feature 50 durable plexiglass panels
which are transported sequentially around the viewer. These plexi-
glass panels have top and bottom film grips. The MV200QT holds 200
14”x17” films (50 frames per unit) and displays 8 14”x17” films simul-
taneously. The MV300QT holds 300 14”x17” films (50 frames per unit)
and displays 12 14”x17” films simultaneously. The panels utilize film
retention strings to keep the films securely in place.
High frequency, energy efficient electronic ballasts provide for
brighter, uniform flicker-free film illumination. Also standard is the
ability to dim these ballasts in increments of 10% from 100% down to 60% of maximum illumination to achieve the proper viewing
conditions for a specific type of film. Both the MV200QT and the MV 300QT also feature automatic shutoff when inactive after a
programmable time period to conserve energy! There is also the ability to program security codes into the machine to limit
access to films loaded into the viewer.
The MV 200TT and MV300TT include a joystick-controlled variable intensity moving bright spot.The bright spot can be positioned
anywhere on the viewing surface to provide high intensity illumination to interpret dense areas on radiographs. The moving bright
spot is 3.5” in diameter and uses a Halogen lamp in a focused, thermostatically protected lens housing. A dimmer control, built into
the switch console, controls lamp intensity. (The moving bright spot must be factory installed and cannot be added in the field. To
allow the spotlight to move between viewing areas, the standard internal dividers are removed. Although control of lamps in each
viewing section remains, light spillover between viewing areas may occur.)
Base: Ball Bearing Casters
Finish: Attractive durable baked on polyester, in sliprock grey framed in off white. Shelf is black with oak trim.
Electrical: 118 volts, 60HZ AC, 1 phase, total amperage draw with all lights on and motor running - MV200QT: 12 amps., MV300QT 15 amps. For
220 volts, 50 HZ or other voltages, consult factory for details.
Approx. Weight: MV200QT - 1850 lbs. MV300QT - 2200 lbs.
LIGHTING CONTROLS FOR INDIVIDUAL VIEWING AREAS
AUTOMATIC SHUT OFF TIMER
POSITIONING JOY STICK
SPOT LIGHT INTENSITY CONTROL
LIGHT INTENSITY CONTROL
MEMBRANE TOUCH PAD CONTROLS
MV200QT= 71.5"
MV300QT = 99.5"
29"
82"
MV200QT= 91"
MV300QT= 119"
Shipping Dimensions
(on shipping dollies)
PANEL SELECTORS PREVIOUS/NEXT
BUTTONS
LED READOUT
(FRAME NUMBER IDENTIFICATION)
28.562"
43.562"
93.562"
MV200QT = 71.5"
MV300QT= 99.5"
14"
30"
Installed
Dimensions
U
L
C
U
L
800 /347-XRAY
www.ssxray.com
S&S
X- R AY PRODUCTS
INC
.
A - 7
MOTORIZED VIEWERS
MV200A / MV300A
The MV200A and the MV300A are the
viewers that set the standard worldwide for
reliability and durability! They are the
proven workhorses of radiology depart-
ments worldwide. Vertical movement, of
viewing panels, is controlled by an up-down
footswitch.
Two level illumination per divided 14”x17”
viewing section is controlled by three way
toggle switches located on the switch con-
sole. A master switch for each tier is also
supplied. Normal illumination is brighter
than most conventional viewers and addi-
tional illumination for darker films is avail-
able at a flip of a switch.
The MV200A and MV300A feature 50
durable plexiglass panels which are trans-
ported sequentially around the viewer.
These plexiglass panels have top and bot-
tom film grips. The MV200A holds 200
14”x17” films (50 frames per unit) and dis-
plays 8 14”x17” films simultaneously. The
MV300A holds 300 14”x17” films (50 frames
per unit) and displays 12 14”x17” films
simultaneously. These motorized viewers
can reach any of the fifty panels in a maxi-
mum time of one minute or approximately
2.5 seconds per panel. The panels utilize
film retention strings to keep the films
securely in place.
Base: Ball Bearing Casters
Finish: Attractive durable baked on polyester, in light grey with a wood grain formica shelf.
Electrical: 118 volts, 60HZ AC, 1 phase. Two 3 conductor grounded power connections in rear. Separate lines for motor and lamp circuits should
be provided to avoid lamp flicker. Motor: 1/2HP, 9 amps. Lighting: - MV200A: 10 amps., MV300A 15 amps. For 220 volts, 50 HZ or other voltages,
consult factory for details.
Approx. Weight: MV200A- 1850 lbs. MV300A - 2200 lbs.
MV200QT= 71.5"
MV300QT = 99.5"
29"
82"
MV200QT= 91"
MV300QT= 119"
Shipping Dimensions
(on shipping dollies)
28.562"
43.562"
93.562"
MV200QT = 71.5"
MV300QT= 99.5"
14"
30"
Installed
Dimensions
Available Options:
Joystick-controlled variable intensity moving bright spot.:The
MV200T (for the MV200A) and the MV300T (for the MV300A) bright
spot can be positioned anywhere on the viewing surface to provide high
intensity illumination to interpret dense areas on radiographs. The mov-
ing bright spot is 3.5” in diameter and uses a Halogen lamp in a focused,
thermostatically protected lens housing. A dimmer control, built into the
switch console, controls lamp intensity. (The moving bright spot must be
factory installed and cannot be added in the field. To allow the spotlight
to move between viewing areas, the standard internal dividers are
removed. Although control of lamps in each viewing section remains,
light spillover between viewing areas may occur.)
Automatic Controller: Model # MV200C is an automatic 50 push-but-
ton control system. At the push of a numbered button, the MV200C will
select the desired panel, move it in the fastest direction (forward or
reverse) to the proper viewing position where it will automatically stop.
MV200A 71.5”
MV300A 99.5”
MV200A 71.5”
MV300A 99.5”
MV200A with MV200T (Joystick controlled Moving Bright Spot)
U
L
C
800 /347-XRAY
www.ssxray.com
S&S
X- R AY PRODUCTS
INC
.
B - 1

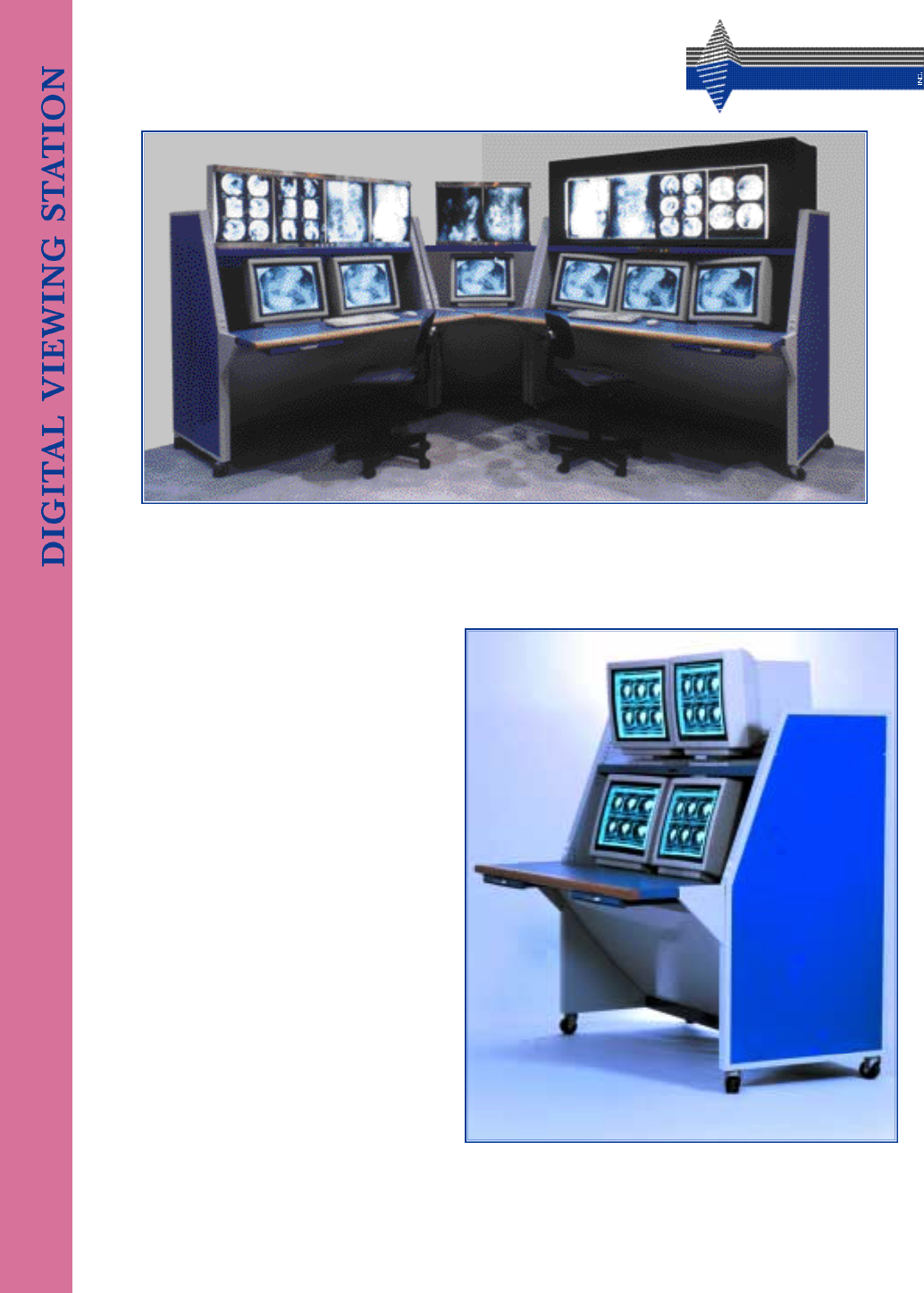

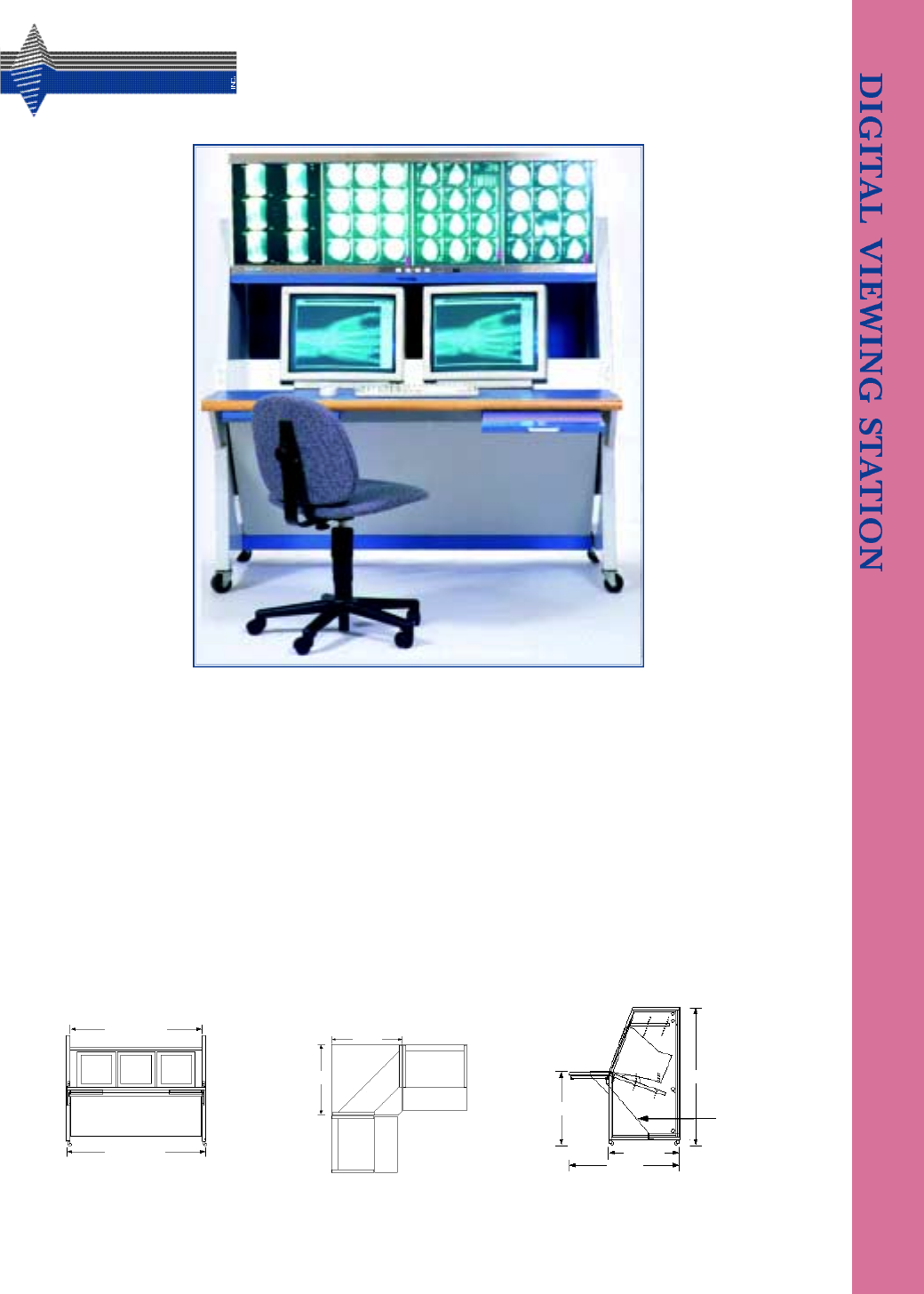

DIGITAL VIEWING STATION
The Digital Viewing Station (DVS) is designed to help your department convert to new digital formats while still main -
taining the presence of existing film technologies, and eliminates the need for custom carpentry. You can easily place all
the digital imaging devices in your current reading area on the DVS and cross reference film and digital images on one
work station. Designed to improve radiologist’s
viewing comfort and efficiency this functional work-
station provides a large work surface with pull out
writing shelf, abundant legroom, easy access to two
additional power outlets on each side (for laptop,
dictation equipment or Bright Spot illuminator[see
pg. 16])while its small footprint efficiently utilizes
department floor space.
The adjustable top shelf is designed to hold up to a
6 bank illuminator (from the S&S 4000 Series), can
accommodate a RADX single bank tabletop motor-
ized viewer or can be used for monitors and periph-
erals. The top shelf is fully adjustable vertically to
minimize the space between viewing surfaces.
The lower shelf is designed to hold computer mon-
itors and peripherals at 00or 200angulation, and is
fully adjustable vertically to ideally position the
lower monitors.
The bottom support holds computer hardware and
cabling. The optional hinged bottom front cover
(DVS-Bx) hides the computer hardware and cabling
without diminishing leg room.

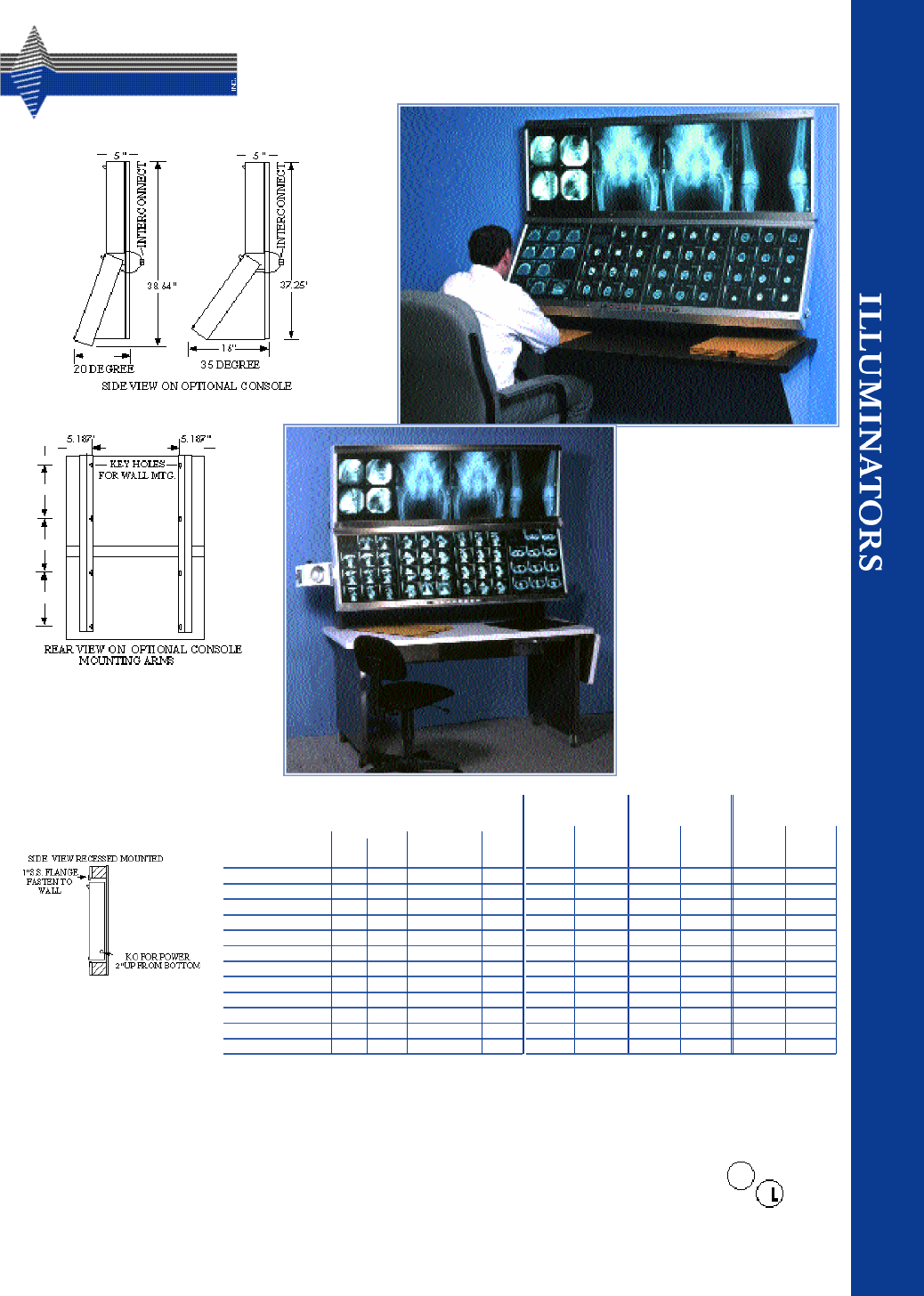

The body of the Digital Viewing Station is con-
structed of cold rolled steel with a baked enamel fin-
ish. The work desk is covered with formica and has
an oak bullnose front for durability. The DVS
comes with adjustable leveling legs. Optional heavy
duty casters are available for mobility.
DVS Corner Module: DVS-CC fills a corner space and mates with a DVS station on each side. The modular design allows tailoring
the Digital Viewing Station to suit available space and include all the features needed to maximize productivity.
Model DVS-2 shown with optional casters
DVS-4 with RADX single bank motorized viewer
DVS-CC with a 4000 22
DVS-2 with a 400024
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 2
DIGITAL VIEWING STATION
DV S-2 57”
DV S-3 69”
DV S-4 93”
DV S-2 61”
DV S-3 73”
DV S-4 97”
31.28”
46.4”
29.656”
58.5”48.7”
48.7”
DVS- CC CORNER MODULE
MODEL# DESCRIPTION
DVS-2 Holds up to 2 monitors on the center shelf, and single to 4 bank illuminator on the top shelf
DVS-3 Holds up to 3 monitors on the center shelf, and single to 5 bank illuminator on the top shelf
DVS-4 Holds up to 4 monitors on the center shelf, and single to 6 bank illuminator on the top shelf
DVS-CC Corner Module holds 1 monitor on the center shelf, and a 1 or2 bank illuminator on the top shelf
DVS-Bx Optional hinged bottom front cover for digital viewing station
DVS-C Optional set of 4 heavy duty casters for digital viewing station
Recommended Illuminator Series :
MODEL# DESCRIPTION
400021 1 bank illuminator with autoswitches for DVS- CC
400022 2 bank illuminator with autoswitches for DVS- CC
400024 4 bank illuminator with autoswitches for DVS-2
400025 5 bank illuminator with autoswitches for DVS-3
400026 6 bank illuminator with autoswitches for DVS-4
DVS-Bx Optional hinged
cover (hides computer hard-
ware and cabling)
Shown with optional
casters. Reduce height
3” without casters
DVS-2 with a 400024 four bank illuminator
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
US Patent #5980004
B - 3

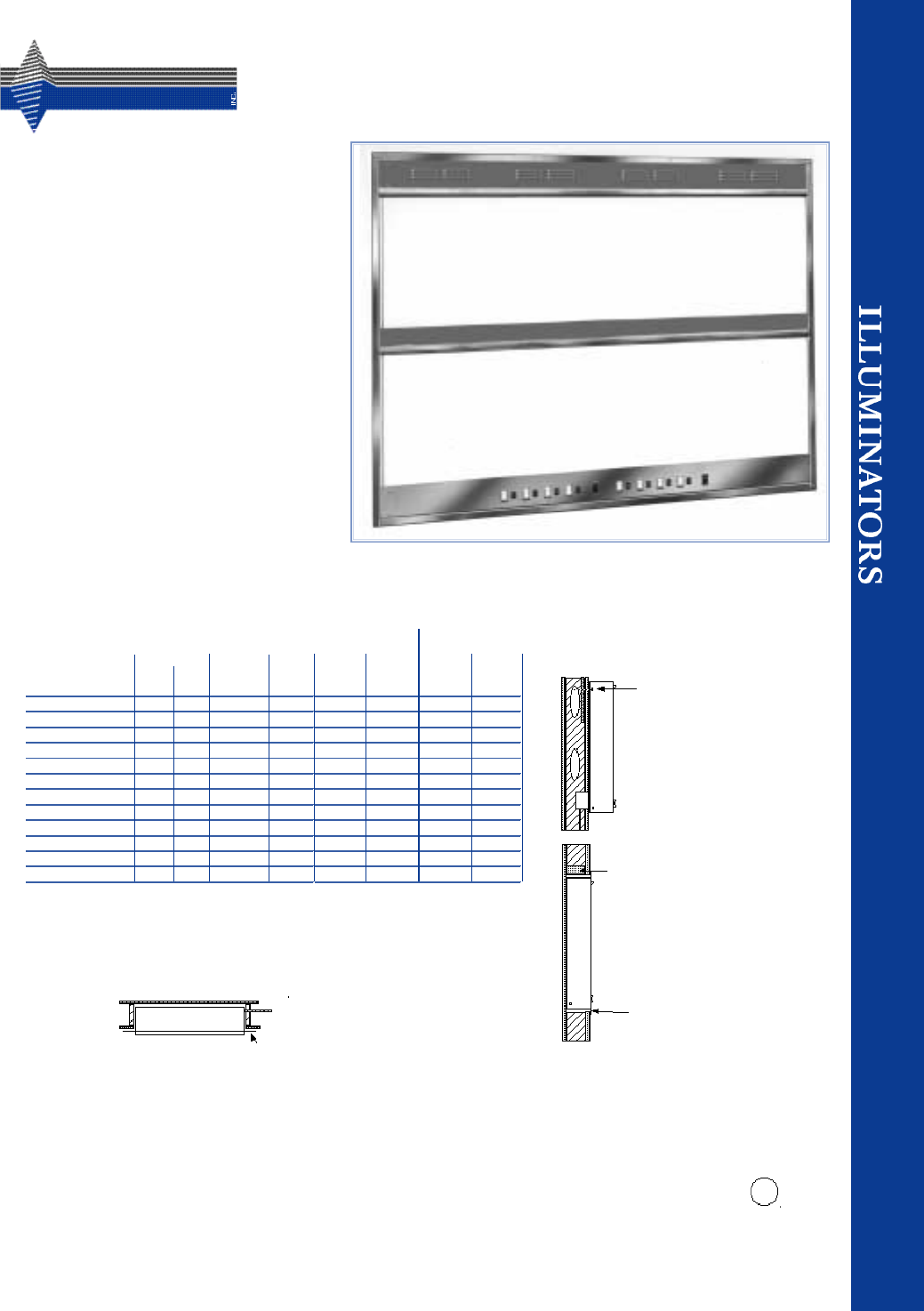

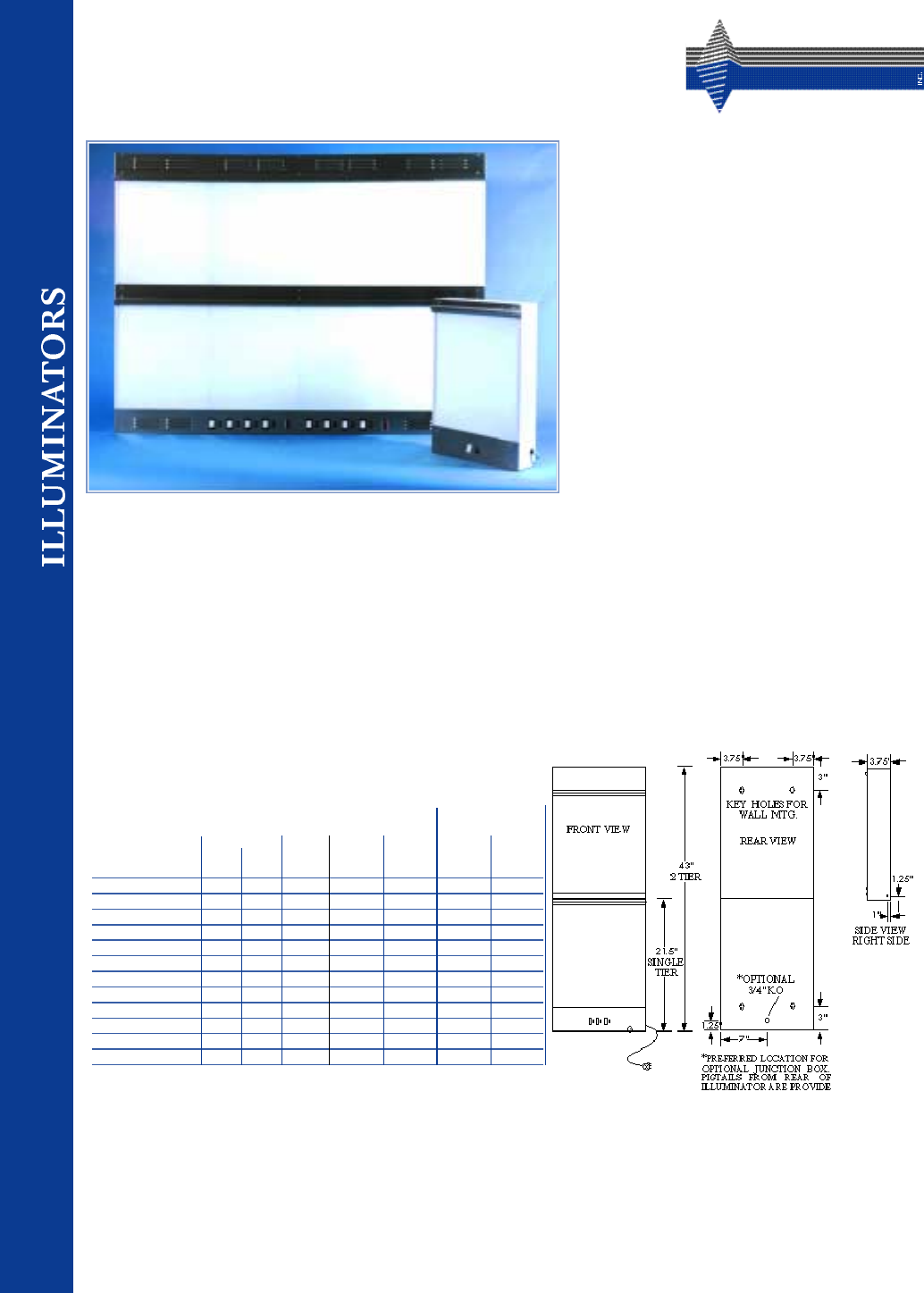

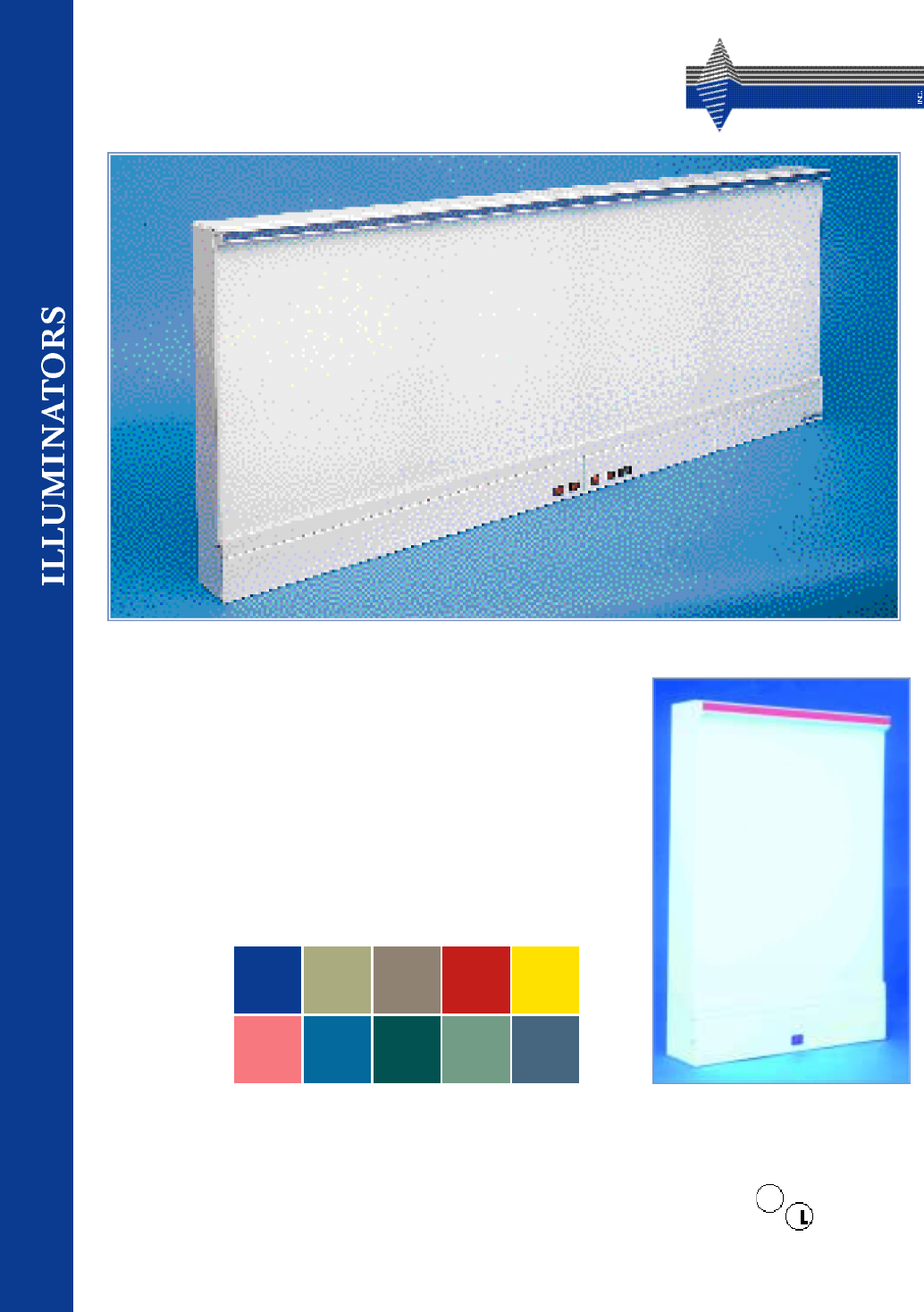

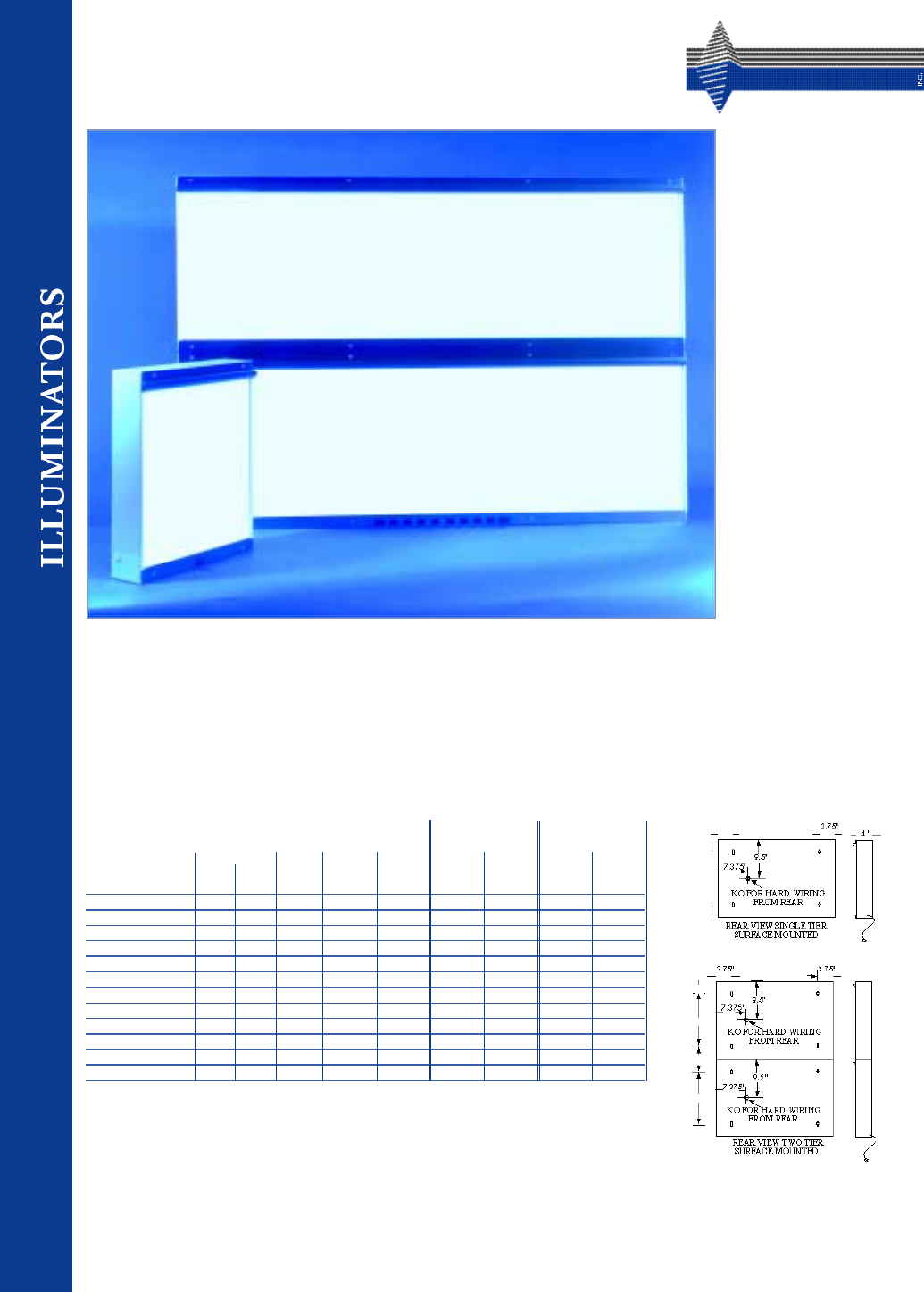

The C h a m e l e o n I l l u m i n a t o r S e r i e s combines a slim, sleek appearance (33
/8” depth),
with color-customizable trim. This cost efficient illuminator is designed to accentuate the
warm, professional appearance of your reading room or consultation area. The units can
be highlighted with trim in a choice of ten colors, polished stainless steel or primed strip (the
latter can be easily painted to color coordinate within a facility). Constructed of durable
steel with a white powder-coat finish, this series is available in 2 lamps, 3 lamps and 4
lamps per viewing area models.
Trigger start ballasts, separated viewing sections, centered cluster switches, one piece plex-
iglass fronts and continuous gravity film grips are standard with this series. A bottom ledge
film support coupled with the continuous film grip guarantees maximum freedom for
viewing small or large films. Each section is individually controlled by rocker switches
mounted at the bottom center of the illuminator. Master switches are provided on units of
three banks or more. The Chameleon Illuminator can also be incorporated into a corner
module.
Finish: White Baked Enamel
Electrical: Viewers operate on 120 volt, 60 Hz. 2 Lamp Series: .47 amps per section, 3 Lamp series: .61 amps per section, 4 Lamp series: 1.0 amps
per section. Surface mounting models are supplied with a 6’ three conductor line cord (see diagram for wiring locations). Recessed models come with BX
connectors. For special voltages consult factory.
✶Optional Items: Modular Mobile system (pg B-23), mobile stand, console arms, angulated viewing system (pg B-25) corner modules (pg B-24), hospi-
tal grade plugs (pg B-30).
CHAMELEON SERIES
Blends With Any Déc o r
Four Bank Surface Mounted Model (101204)
Trim Colors
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
S&S Blue Sandstone
Beige
Sliprock
Grey
Target
Red
Dusty
Rose
Agean
Blue
Caribbean
Teal
Winter
Spruce
Blue
Ridge
Buttercup
Yellow
B - 4

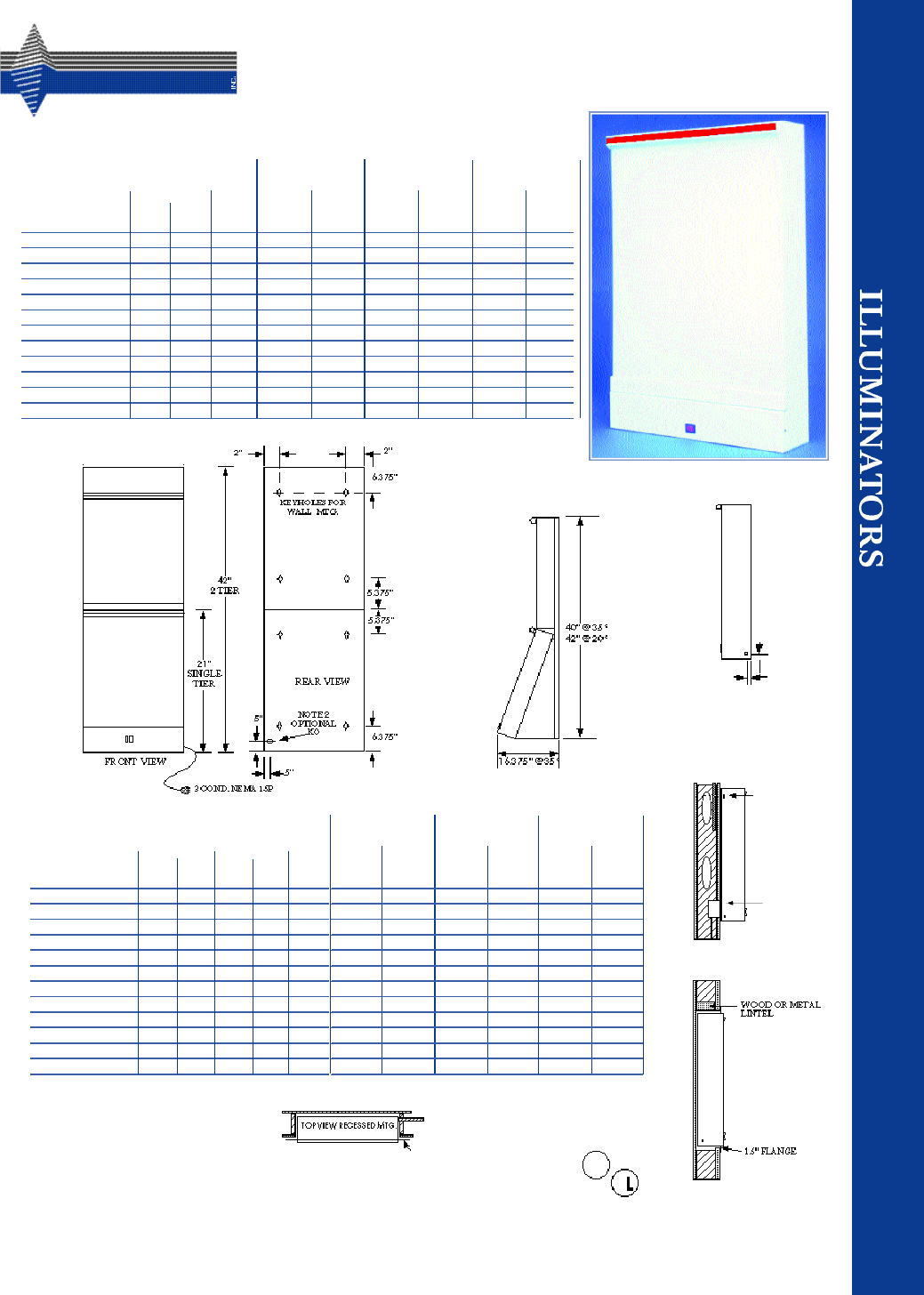

CHAMELEON SERIES
101 SERIES
TWO LAM P 101 SERIES
FOUR LAMP
Single Bank 14”x17” 14” 21” 14 . 2 5” 21 . 2 5 ” 23 lbs
T w o Bank 28”x17” 28” 21” 28.2 5” 21 . 2 5 ”46 lbs
Th r e e Bank 42”x17” 42” 21” 42. 2 5 ”21 . 2 5 ”69 lbs
F o u r Bank 56”x17” 56” 21” 56. 2 5 ”21 . 2 5 ” 90 lbs
F i v e Bank 70”x17” 70” 21” 70. 2 5 ”21 . 2 5 ” 113 lbs
S i x Bank 84”x17” 84” 21” 84. 2 5 ”21 . 2 5 ” 136 lbs
1 over 1 2 x 14”x17” 14” 42” 14. 2 5 ”42 . 2 5” 46 lbs
2 over 2 2 x 28”x17” 28” 42” 28. 2 5 ”42 . 2 5” 92 lbs
3 over 3 2 x 42”x17” 42” 42” 42. 2 5 ”42 . 2 5” 138 lbs
4 over 4 2 x 56”x17” 56” 42” 56. 2 5 ”42 . 2 5” 180 lbs
5 over 5 2 x 70”x17” 70” 42” 70. 2 5 ”42 . 2 5” 226 lbs
6 over 6 2 x 84”x17” 84” 42” 84. 2 5 ”42 . 2 5” 272 lbs
VIEWING AREA
TWO TIER
RECESSED MODELS
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX STANDARD
SWITCHES
STAN DARD
SWI TCH E S
AUTO
SWITCHES
AUTO
SWITCHES
101 SERIES
THREE LAMP
WALL OPENING
STAN DARD
SWI TCH E S
AUTO
SWITCHES
101241 101261 1013 41 101361 101441 1014 61
101242 101262 1013 42 101362 101442 1014 62
101243 10126 3 1013 43 10136 3 101443 1014 6 3
101244 10126 4 1013 44 10136 4 101444 1014 6 4
101245 101265 1013 45 101365 101445 1014 65
10124 6 101266 1013 4 6 101366 10144 6 1014 66
1012 51 101271 101351 101371 101451 1014 71
1012 52 101272 101352 101372 101452 1014 72
1012 53 101273 101353 101373 101453 1014 73
1012 54 101274 101354 101374 101454 1014 74
1012 55 101275 101355 101375 101455 1014 75
1012 56 101276 101356 101376 101456 1014 76
Single Bank 14”x17” 14” 21” 23 lbs 101201 101221 101301 101321 101401 101421
T w o Bank 28”x17” 28” 21” 46 lbs 101202 101222 1013 0 2 10132 2 10140 2 10142 2
Th r e e Bank 42”x17” 42” 21” 69 lbs 101203 101223 1013 0 3 10132 3 10140 3 10142 3
F o u r Bank 56”x17” 56” 21” 90 lbs 101204 101224 1013 0 4 101324 10140 4 101424
F i v e Bank 70”x17” 70” 21” 113 lbs 101205 101225 1013 05 10132 5 101405 10142 5
S i x Bank 84”x17” 84” 21” 136 lbs 101206 101226 1013 0 6 101326 10140 6 101426
1 over 1 2 x 14”x17” 14” 42” 46 lbs 101211 1012 31 101311 101331 101411 101431
2 over 2 2 x 28”x17” 28” 42” 92 lbs 101212 1012 32 101312 101332 101412 101432
3 over 3 2 x 42”x17” 42” 42” 138 lbs 101213 1012 3 3 101313 10133 3 101413 10143 3
4 over 4 2 x 56”x17” 56” 42” 180 lbs 101214 1012 3 4 101314 10133 4 101414 10143 4
5 over 5 2 x 70”x17” 70” 42” 226 lbs 101215 1012 35 101 315 1013 35 101415 1014 35
6 over 6 2 x 84”x17” 84” 42” 272 lbs 101216 1012 36 101 316 1013 36 101416 1014 3 6
101 S E RIES
THREE LAMP
VIEWING AREA
STAN DARD
SWITCHES
STANDARD
SWI TCH E S
AUTO
SWITCHES
AUTO
SWITCHES
TWO TIER
SURFACE MOUNTED MODELS
101 SERIES
TWO LAMP
WIDTH H GT SHIP WT
EXTERIOR DIM APPROX
101 SERIES
FOUR LAMP
STANDARD
SWITCHES
AUTO
SWITCHES
WIDTH HGT
ALL MEASURE MENTS ARE ±1
/16 ”

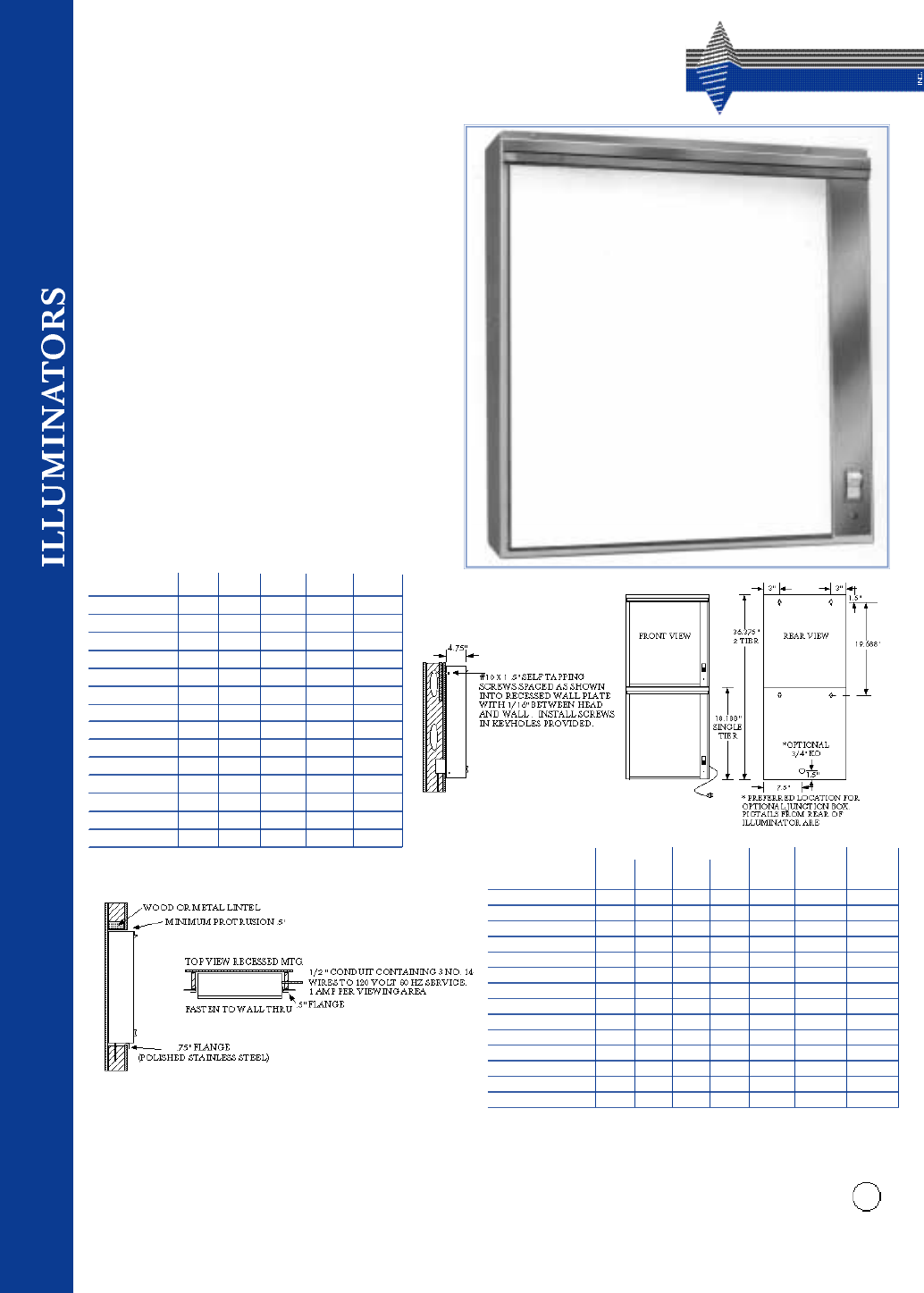

1/2” CONDUIT C ONTAIN-
ING 3 NO. 14 WIRES TO 120
VOLT 60 HZ S ERVICE. .
1.5” FLANGE
FASTEN TO WALL THRU
HOLES IN FLANGE (WHITE BAKE D ENAMEL)
SIDE VIEW
RIGHT SIDE
SIDE VIEW
CONSOLE
MOUNTING
#10 X 1.5” SELF TAP-
PING SCREWS
SPACED AS
SHOWN INTO
RECESSED WALL
PLATE WITH 1/16”
BETWE EN HEAD
AND WALL.
INSTALL SCREWS
IN KEYHOLES
PROVIDED.
PREFERRED
LOCATION FOR
OPTIONAL
JUNCTION BOX.
PIGTAILS FROM
REAR OF ILLU-
MINATOR ARE
PROVIDED ON
REQUEST.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 5
148004 / 149004

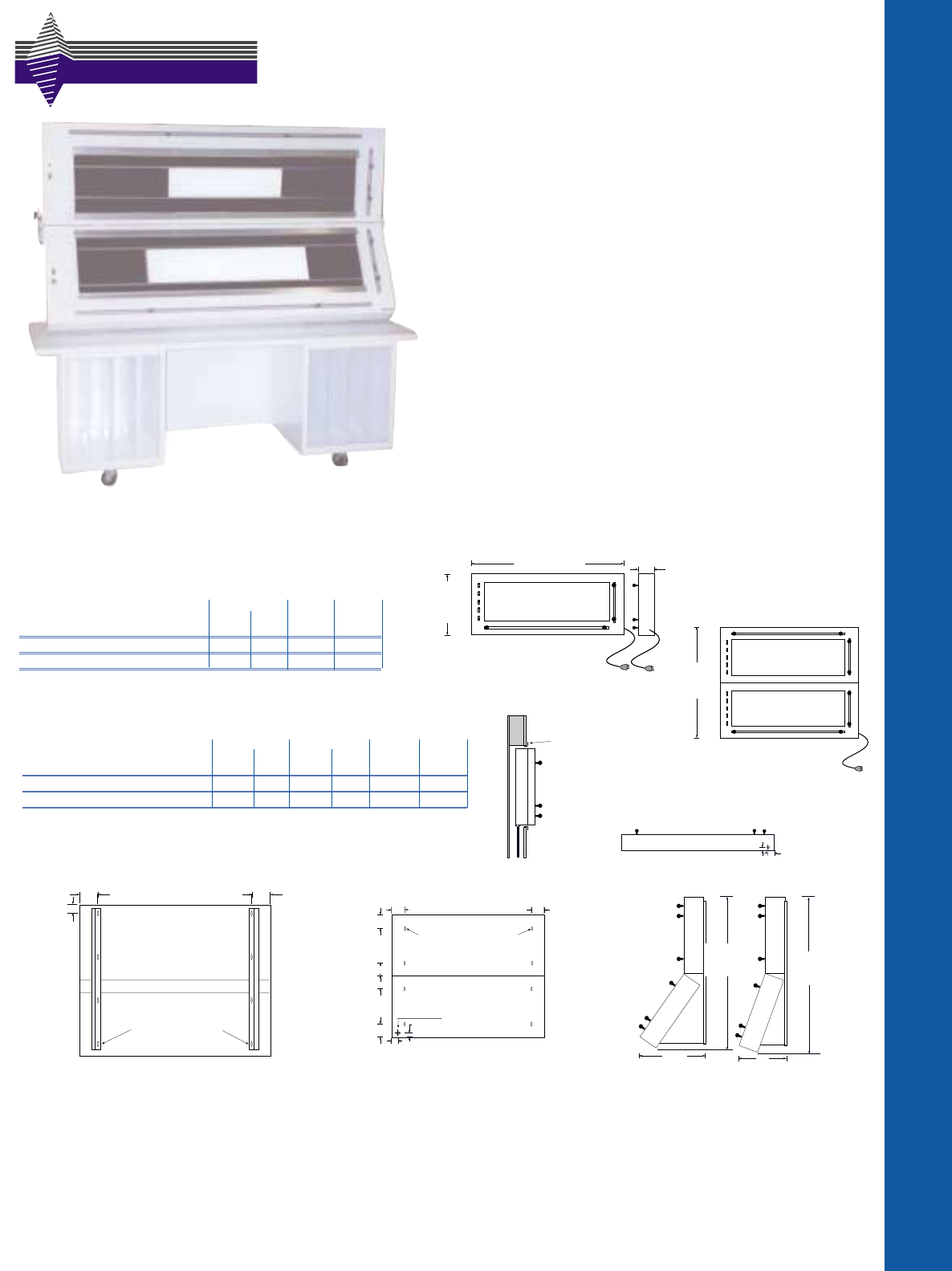

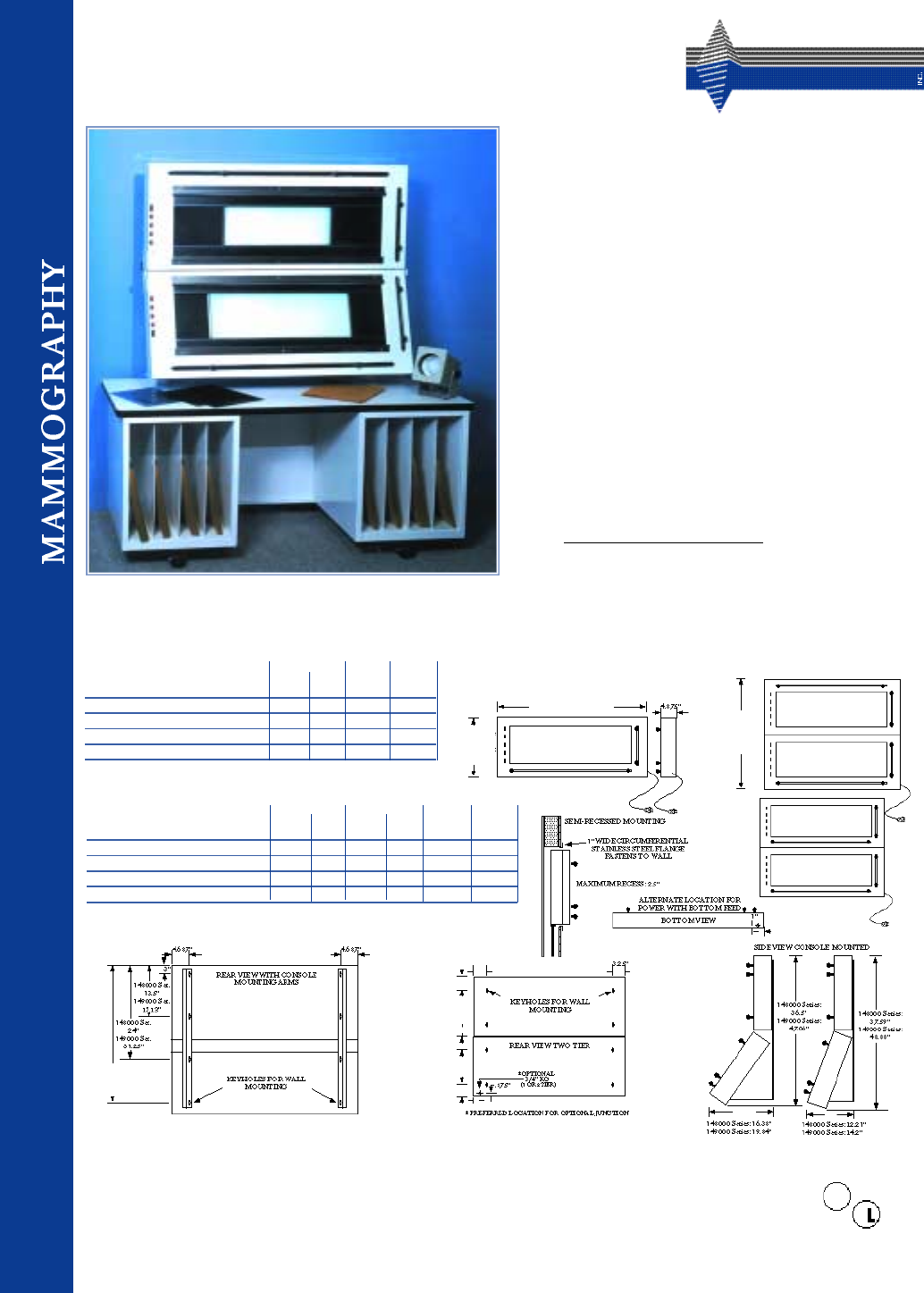

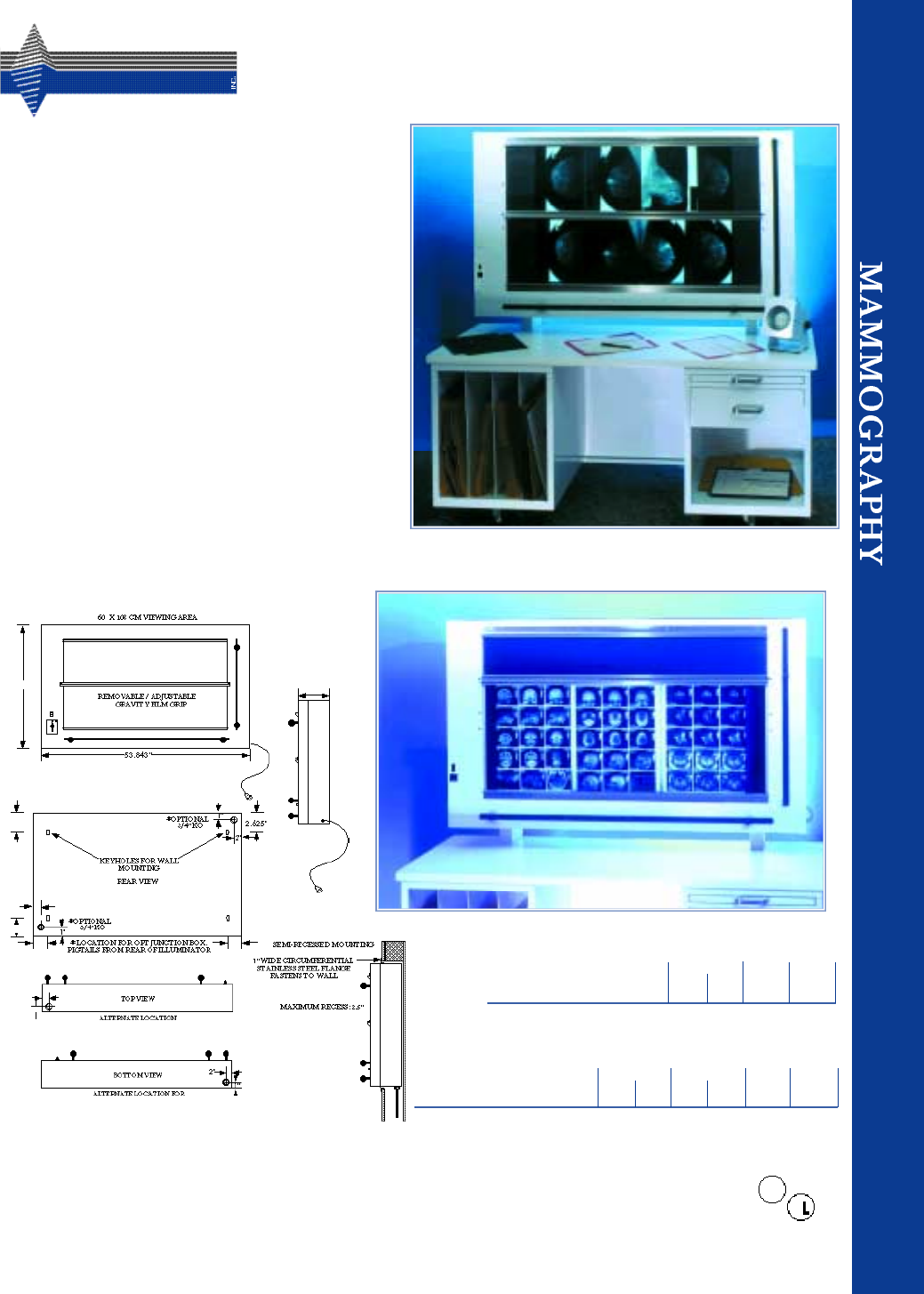

PRECISION MAMMOGRAPHY SERIES
Here is the illuminator built to meet the demands of the discrimi -
nating radiologist! Four individually controlled counterbal-
anced curtains per tier (on the top, bottom, left and right sides
of the viewing screen) allow the user to collimate down to the
exact size opening needed to block out excess light (curtains can
close completely!), and optimize the radiologist’s ability to discern
minimal changes in density on the mammographic study. This
series exceeds ACR requirements. Special high output elec-
tronic ballasts and four fluorescent bulbs per section give an
extremely bright and flicker-free illuminated surface. Lighting is
individually controlled per viewing section. The 148004 series has
a viewing area of 96x30cm per tier (view 4 - 24x30cm or 6-
18x24cm films), the 149004 series has a viewing area of 56”x17”
per tier (view 6 - 24x30cm, 8 - 18x24cm or 4 - 14”x17” films).
Film grips are provided on the top and bottom of the viewing area for
optimum film handling. The compact design of this illuminator requires a
minimum amount of wall space. Easy access to the inside of the front of
the illuminator allows for fast lamp changes.
To enhance this series further a number of options are offered (see
below). These options, such as Two Level (normal and high)
Illumination (high is the standard illumination on these viewers -
Standard (high) lighting in the 149004 series may be too bright for normal
chest radiographs.), Optional Configuration of the horizontal curtain
control (for the 149014 only)*, Console Arms and Angulated Viewing
System must be specified at time of order. They need to be factory
installed and cannot be added at a later date.
*On the 149014, the standard configuration has slide control knobs for
the top bank on the top of the top bank. When wall mounted, these top
knobs may be as high as 78” (6.5’) from the floor, which is too high for the
altitude-challenged professional. For this purpose, we recommend the
optional configuration (which does increase the spacing between top and
bottom films by 4”) - see diagram below.
Finish: White baked enamel (on cold rolled steel).
Electrical: Viewers operate on 120 volt, 60 Hz; Amps AC per viewing area: 148004 SERIES - .57 149004 SERIES - .65. Surface mounting models are supplied
with a 6’ three conductor line cord (see diagram for wiring locations). Semi-recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: Modular Mobile System (pg B-23), Angulated viewing system (pg B-25), hospital grade plugs, console arms, 68H custom formica shelf & 68HB
wall mounting bracket (pg B-30). When ordering Two Level Illumination, place “HL” after the catalog number of the model chosen.
TWO TIER
SEMI-RECESSED MODELS
APPROX. CATALOG
NO.
WALL OPENING
WIDTH HGT
DEPTH OF VIEWER - 4.875
(4x)24x30cm or (5x)18x24cm 46.125” 18.5” 100 lbs 148004
(4x)14”x17”or (5x)24x30cm or (7x)18x24cm 64.312” 24.328” 165 lbs 149004
(8x)24x30cm or (10x)18x24cm 46.125” 37.125” 180 lbs 14 8 014
(8x)14”x17”or (10x)24x30cm or (14x)18x24cm 64.312” 48.75” 320 lbs 149014
VIEWING AREA
(MAXIMUM FILM CONFIGURATION)
TWO TIER
SURFACE MODELS
WIDTH HGTSHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.

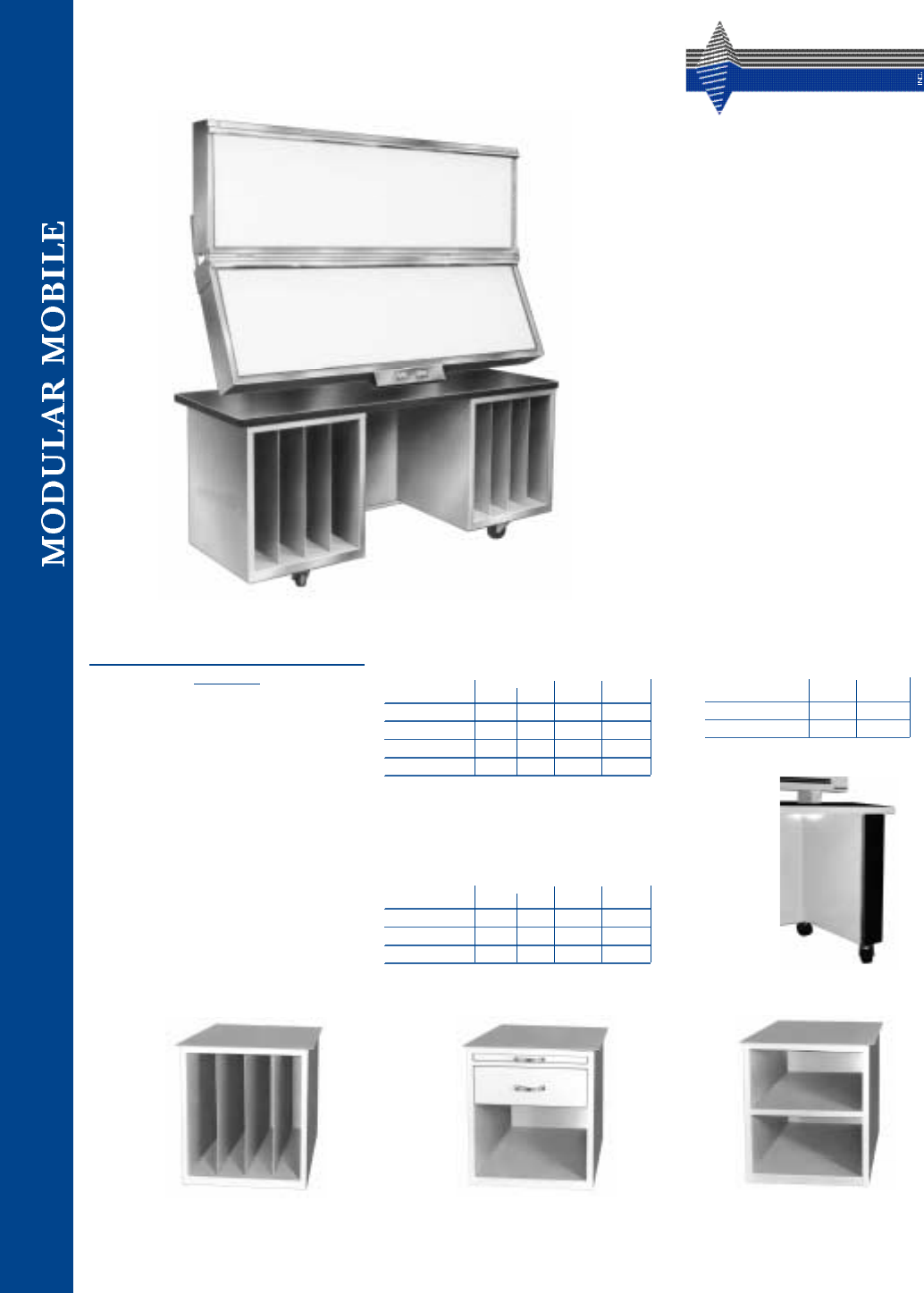

Two Tier (148014) shown on Modular mobile System (with 168004 - formica top; two
168010 - bases with vertical partitions and 168039 - mounting arms-adj. 00to 350)
STANDARD
CONFIGURATION
OPTIONAL
CONFIGURATION
for 149014 only
148004 Series
37.13”
149004 Series
48.75”
148004 Series
18. 5 ”
149004 Series
24.33”
148004 Series 46.13”
149004 Series 64.31”
MAXIMUM RECESS - 2.5” IN WALL
V IEW ING ARE A
(MAXIMUM FILM CON FIGURATION)
EXTERIOR DIM
WIDTH HGT SHIP WT
(4x)24x30cm or (5x)18x24cm 46.125” 18.5” 46.375” 18.75” 100 lbs 148044
(4x)14”x17”or (5x)24x30cmor (7x)18x24cm 64.312” 24.328” 64.562” 24.578” 165 lbs 149044
(8x)24x30cm or (10x)18x24cm 46.125” 37.125” 46.375” 37.375 180 lbs 148054
(8x)14”x17”or (10x)24x30cm or(14x)18x24cm 64.312” 48.75” 64.562” 49” 320 lbs 149054
ALL MEA SUREMENTS ARE ±1
/1 6 ”
For mammography viewers without shades see page B-21.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 6
149005/149055
PRECISION MAMMOGRAPHY
This quality illuminator is designed for the ease of comparison of
sequential mammographic studies. Extraneous light is quickly
and accurately collimated out using our unique, counterbalanced
manual shades (which can close completely). High output, energy
efficient, electronic ballasts minimize noise and eliminate the
need for annoying fans. Nine F40/D865 daylight fluorescent
bulbs and variable intensity lighting, ranging from 100% down to
60% in increments of 10%, allow the radiologist to select an optimal
level of illumination for a specific type of film, change the inten-
sity for other films, and easily and precisely return to this origi-
nal level. The combination of four independently operated
shades for precise collimation with minimal penumbra, and
extremely bright and uniform variable intensity illumination,
maximize the radiologists ability to uncover important subtle
changes on mammograms. This illuminator exceeds ACR
requirements.
The unique design of this illuminator also allows its customiza-
tion for different format films. Four film grips, with an
adjustable center film grip, permit customized film placement on
the uniformly illuminated surface. Adjustment of this center
film grip allows the viewing of up to eight 24x30cm or twelve
18x24cm films with no extraneous light to hinder reading. By
repositioning the center film grip three 14”x17” films can be read.
For mammography viewers without shades see page B-21.
Consult factory for other configurations.
Finish: White baked enamel (on cold rolled steel). /
Electrical: Viewers operate on 120 volt, 60 Hz; 2.7 Amps AC. Surface mount models are supplied with a 6’ three conductor line cord (see diagram for
wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: Modular Mobile System (pg B-23), hospital grade plugs, 68H custom formica shelf & 68HB wall mounting bracket (pg B-30).
MAXIMUM RECESS - 2.5” IN WALL
(3x)14”x17”or (8x)24x30cm or (12x)18x24cm 53.843” 31.812” 54.093” 32.062” 182 lbs 149055
VIEWING AREA
(MAXIMUM FILM CONFIGURATION)
SEMI-RECESSED MODELS
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
WALL OPENING
WIDTH HGT
DEPTH OF VIEWER - 4.875
(3x)14”x17”or (8x)24x30cm or (12x)18x24cm 53.843” 31.812” 180 lbs 149005
VIEWING AREA
(MAXIMUM FILM CONFIGURATION)
SURFACE MODEL
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Configured for viewing 24x30cm film. Shown on Modular mobile System (with 168004
- formica top; 168011- base with pull out shelf; 168010 - base with vertical partitions
and 168040 - mounting arms)
Configured for viewing 14”x17” film
ALL MEASUREMENTS ARE ±1
/16 ”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
149006
PRECISION MAMMOGRAPHY
MAMMOGRAPHY
8 0 0 /347-XRAY
INC
.
S&S
X-RAY PRODUCTS
w w w .ssxr ay .com
148000 Series:46.13"
149000 Series:64.31" 4.875"
148000 Series:
18.5"
149000 Series:
24.33"
REAR VIEW TWO TIER
KEYHOLES FOR WALL
MOUNTING
*OPTIONAL
3/4" KO
* PREFERRED LOCATION FOR OPTIONAL JUNCTION
BOX. PIGTAILS FROM REAR OF ILLUMINATOR ARE
PROVIDED ON REQUEST.
(1 OR 2 TIER)
3.25" 3.25"
3.25"
3.25"
3.25"
3.25"
2"
.875"
SIDE VIEW CONSOLE MOUNTED
148000 Series:12.21"
149000 Series:14.2"
35 DEGREE 20 DEGREE
148000 Series:
37.59"
149000 Series:
48.88"
148000 Series:
36.5"
149000 Series:
47.06"
148000 Series:16.38"
149000 Series:19.84"
BOTTOM VIEW
ALTERNATE LOCATION FOR
POWER WITH BOTTOM FEED
1"
2"
TWO TIER
SEMI-RECESSED MODELS
APPROX. CATALOG
NO.
WALL OPENING
WIDTH HGT
DEPTH OF VIEWER - 4.875
(6x)24x30cm or (8x)18x24cm 68.5” 19.156” 140 lbs 149006
(12x)24x30cm or (16x)18x24cm 68.5” 38.5” 240 lbs 149016
VIEWING AREA
(MAXIMUM FILM CONFIGURATION)
TWO TIER
SURFACE MODELS
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
148000 Series:
37.13"
149000 Series:
48.75"
SEMI-RECESSED MOUNTING
MAXIMUM RECESS: 2.5"
1" WIDE CIRCUMFERENTIAL
STAINLESS STEEL FLANGE
FASTENS TO WALL
149016 and
14 9 0 5 6
38.5”
149006 and
14 9 0 4 6
19 . 156 ”
68.5”
MAXIMUM RECESS - 2.5” IN WALL
VIEWING AREA
(MAXIMUM FILM CONFIGURATION)
EXTERIOR DIM
WIDTH HGT SHIP WT
(6x)24x30cm or (8x)18x24cm 68.5” 19.156” 68.75” 19.4” 140 lbs 149046
(12x)24x30cm or (16x)18x24cm 68.5” 38.5” 68.75” 38.75 240 lbs 149056
REAR VIEW WITH CONSOLE
MOUNTING ARMS
KEYHOLES FOR WALL
MOUNTING
4.687" 4.687"
3"
148000 Ser.
34.5"
149000 Ser.
45.36"
148000 Ser.
24"
149000 Ser.
31.25"
148000 Ser.
13.5"
149000 Ser.
17.13"
ALL MEASUREMENTS ARE ±1
/16 ”
TWO TIER

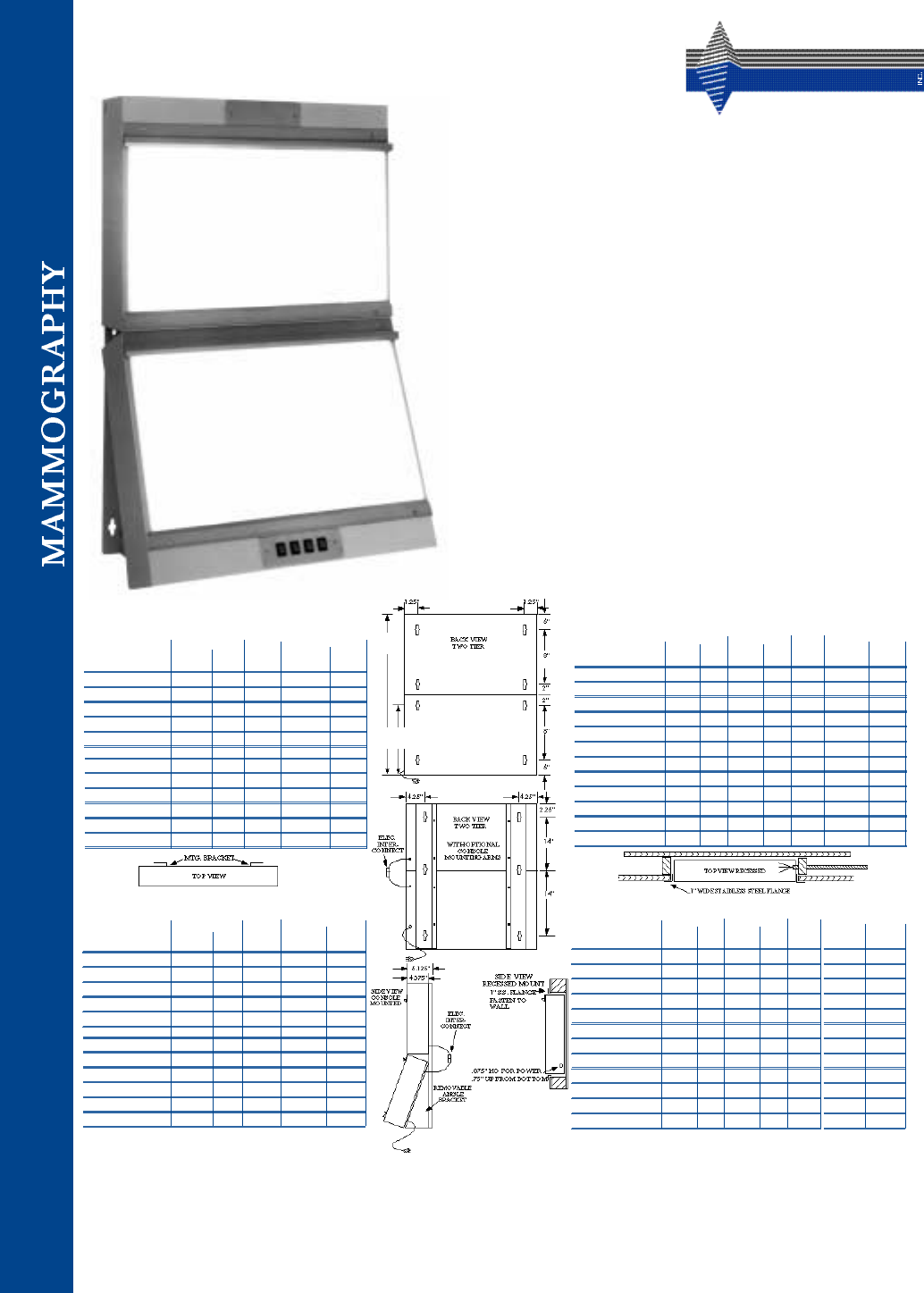

Our latest addition to the Precision Mammography series of illuminators
is designed for the simultaneous viewing of 6 24 x 30 cm mammography
films in a single tier unit (or 6 over 6 in a double tier unit). Extraneous
light is collimated with 4 independent, individually counterbalanced
shades. The unit features variable intensity illumination, ranging from
100% down to 60% in increments of 10%. This quantum setup allows
the radiologist to select an optimal level of illumination for a specific film
technique, change the intensity to view other films, and easily and pre-
cisely return to the previous level of illumination. It easily exceeds the
ACR requirements for light output.
Four independent manual curtains (Counterbalanced for
ease of movement)
Variable intensity, extra bright illumination
Flicker-Free high output electronic ballasts for eye comfort
Gravity film grips
Available in surface or semi-recessed models
Energy efficient
No noisy fans required
Generates minimal heat
Meets ACR requirements
Two Tier (149016) shown on Modular mobile System (with 168005 - formica top;
two 168010 - bases with vertical partitions and 168039 - mounting arms-adj. 00to
350)
S & S X-Ray Products, Inc. 1101 Linwood Street Brooklyn, NY 11208
718-649-8500 Fax: 718-257-0219 Toll Free: 800-347-XRAY
37.78” 38.9”
16 . 94 ” 12 . 4 4 ”
Finish: White baked enamel (on cold rolled steel).
Electrical: Viewers operate on 120 volt, 60 Hz; 1.6 Amps AC. Surface mount models are supplied with a 6’ three conductor line cord (see diagram for
wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: Modular Mobile System, console arms, angulated viewing system, 68H custom formica shelf & 68HB wall mounting bracket, hospital
grade plugs
3.75”
5.25”
5.25”
3.75”
5.25”
5.25”
2.625”
2.625”
B - 7

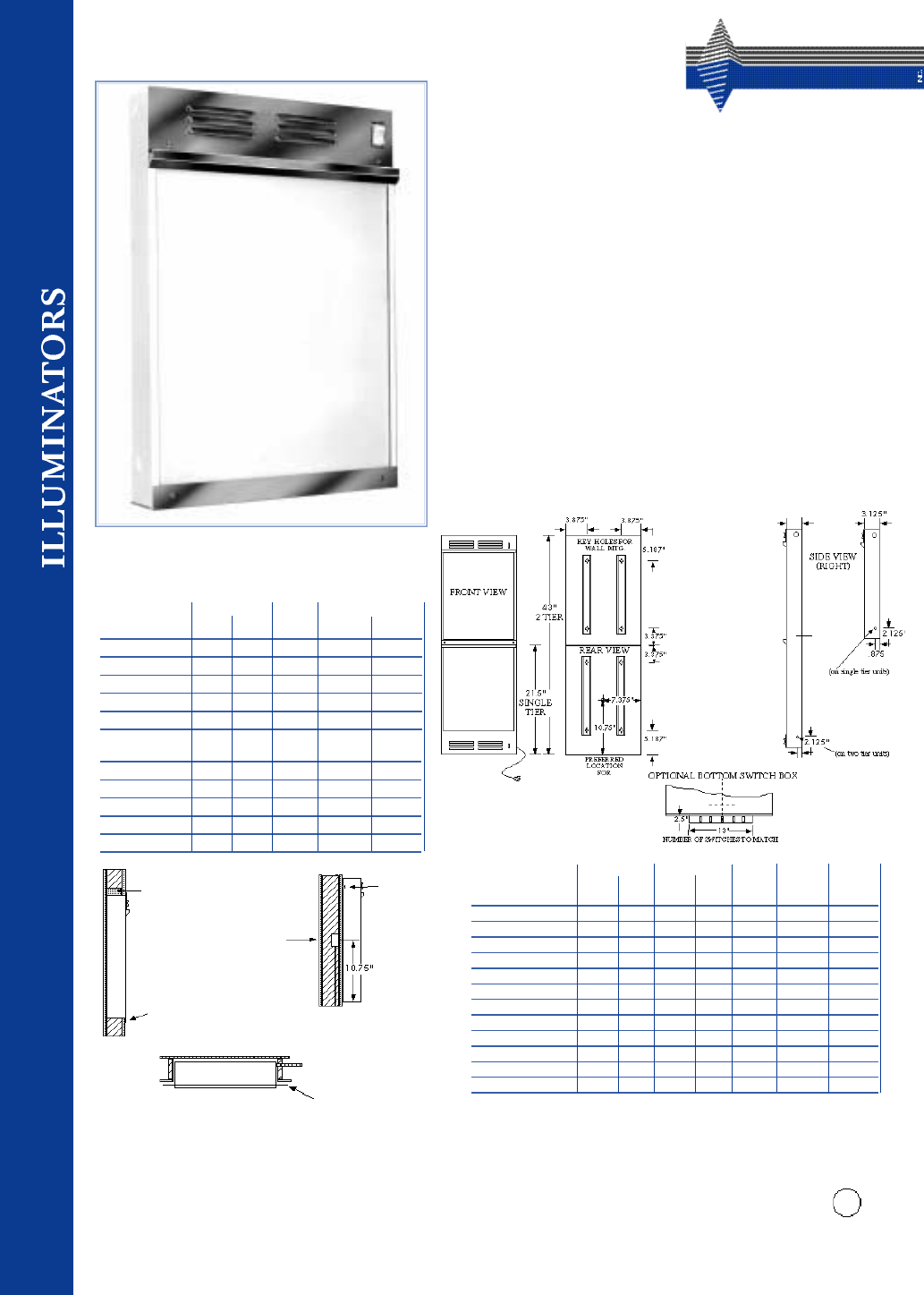

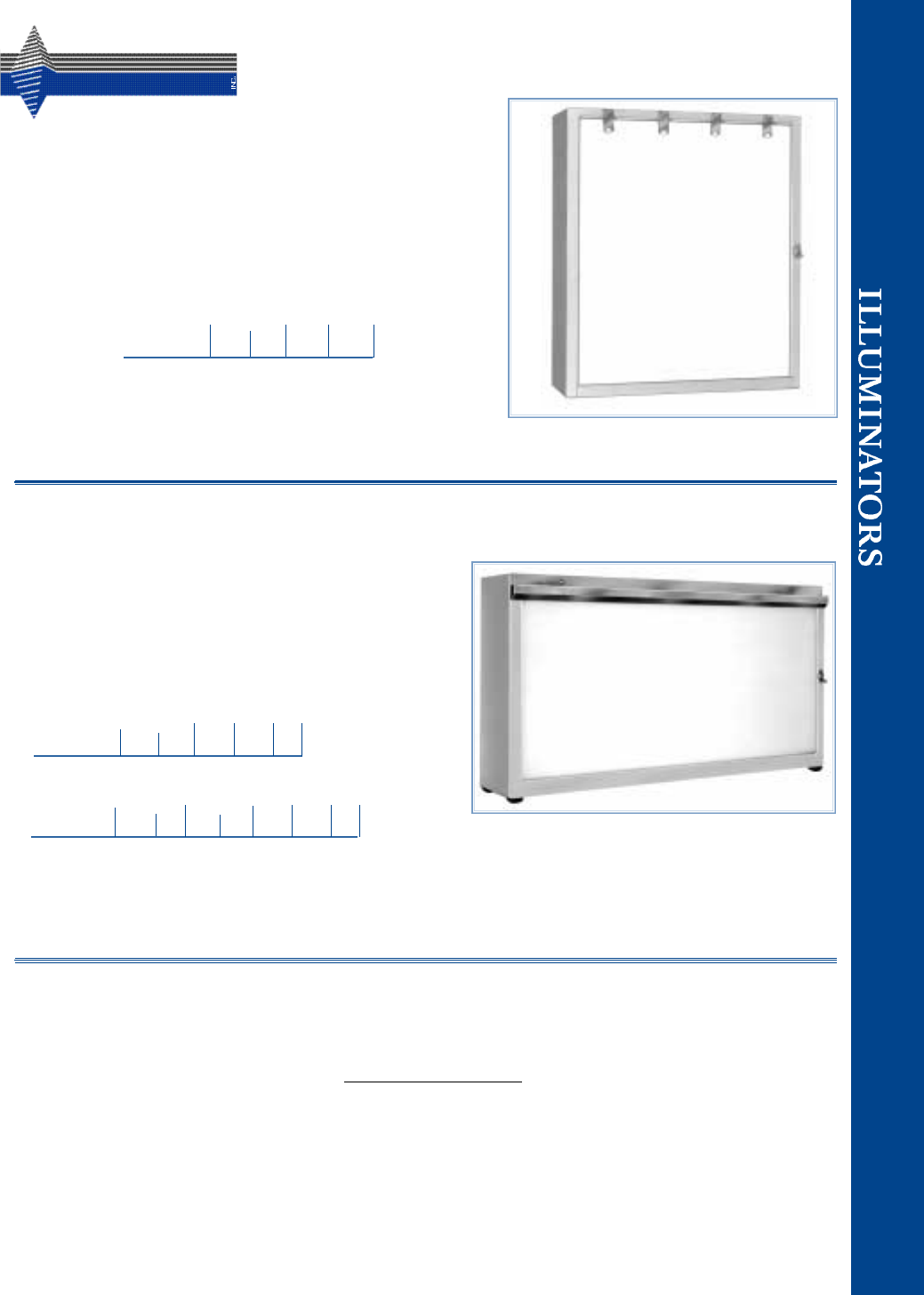

2000 / 3000 / 4000 SERIES
SURFACE OR RECESSED
Single Bank 14”x17” 14.75” 19.156” 23lbs 200001 200021 300001 3 0 0 0 21 4 0 0 0 01 4 0 0 0 21
T w o Bank 28”x17” 28.75” 19.156” 39lbs 200002 200022 300002 3 0 0 0 22 4 0 0 0 0 24 0 0 0 2 2
Th r e e Bank 42”x17” 42.75” 19.156” 50lbs 200003 200023 300003 3 0 0 0 23 4 0 0 0 0 34 0 0 0 2 3
F o u r Bank 56”x17” 56.75” 19.156” 70lbs 200004 200024 300004 3 0 0 0 24 4 0 0 0 0 44 0 0 0 24
F i v e Bank 70”x17” 70.75” 19.156” 98lbs 200005 200025 300005 3 0 0 0 25 4 0 0 0 05 4 0 0 0 2 5
S i x Bank 84”x17” 84.75” 19.156” 115lbs 200006 200026 300006 3 0 0 0 26 4 0 0 0 0 64 0 0 0 26
1 over 1 2 x 14”x17” 14.75” 38.312” 60lbs 200011 2 0 0 0 31 3 0 0 011 3 0 0 0 31 4 0 0 011 4 0 0 0 31
2 over 2 2 x 28”x17” 28.75” 38.312” 100lbs 200012 2 0 0 0 32 3 0 0 012 3 0 0 0 32 4 0 0 012 4 0 0 0 32
3 over 3 2 x 42”x17” 42.75” 38.312” 130lbs 200013 2 0 0 0 33 3 0 0 013 3 0 0 0 33 4 0 0 013 4 0 0 0 3 3
4 over 4 2 x 56”x17” 56.75” 38.312” 180lbs 200014 2 0 0 0 34 3 0 0 014 3 0 0 0 34 4 0 0 014 4 0 0 0 3 4
5 over 5 2 x 70”x17” 70.75” 38.312” 230lbs 200015 2 0 0 0 35 3 0 0 015 3 0 0 0 35 4 0 0 015 4 0 0 0 35
6 over 6 2 x 84”x17” 84.75” 38.312” 290lbs 200016 2 0 0 0 36 3 0 0 016 3 0 0 0 36 4 0 0 016 4 0 0 0 36
3000 SERIES
THREE LAMP
VIEWING AREA
STANDARD
SWITCHES
STANDARD
SWITCHES
AUTO
SWITCHES
AUTO
SWITCHES
TWO TIER
DESK OR SURFACE MOUNTED MODELS
2000 SERIES
TWO LAMP
DEPTH OF VIEWE RS: 4”
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX.

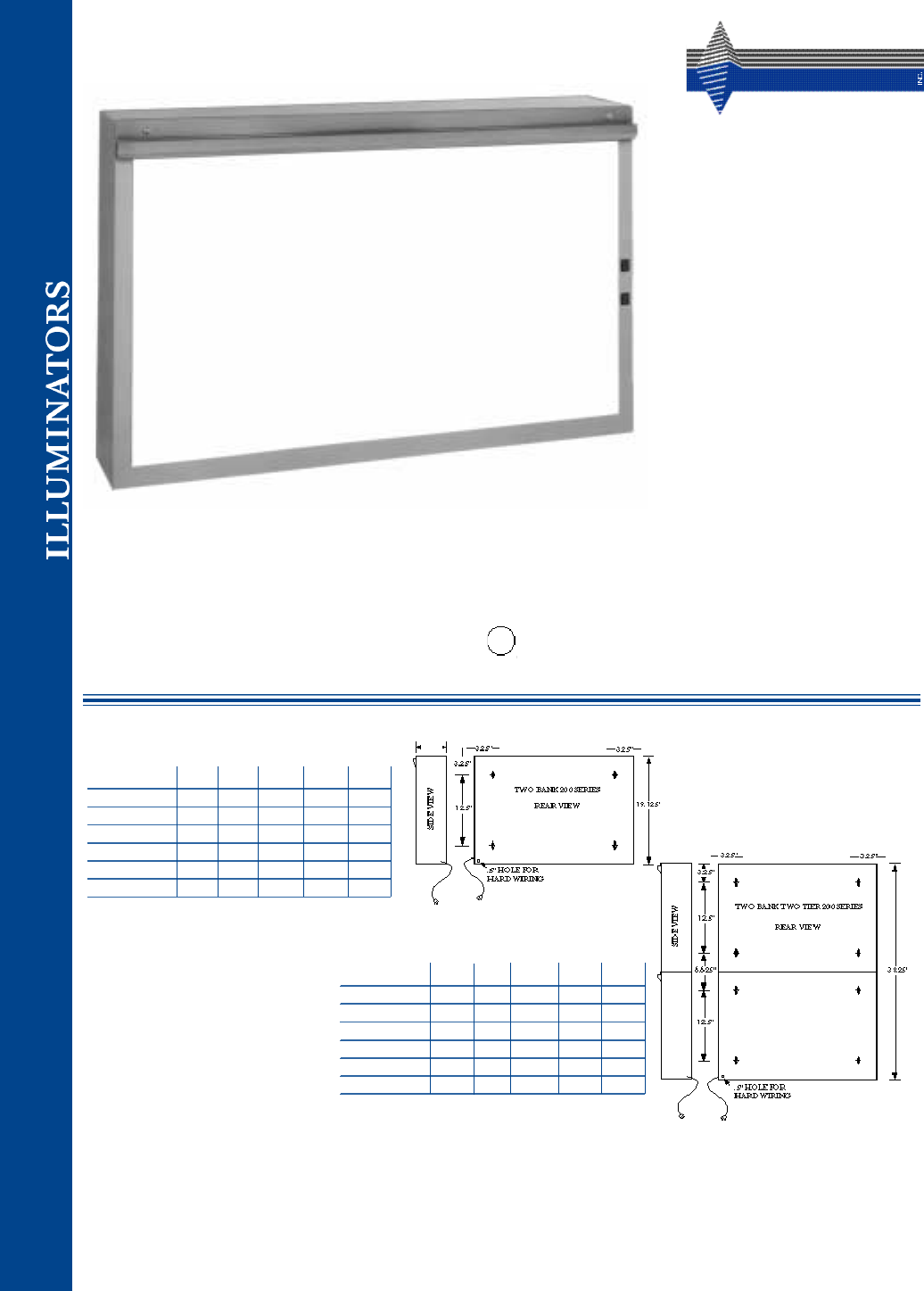

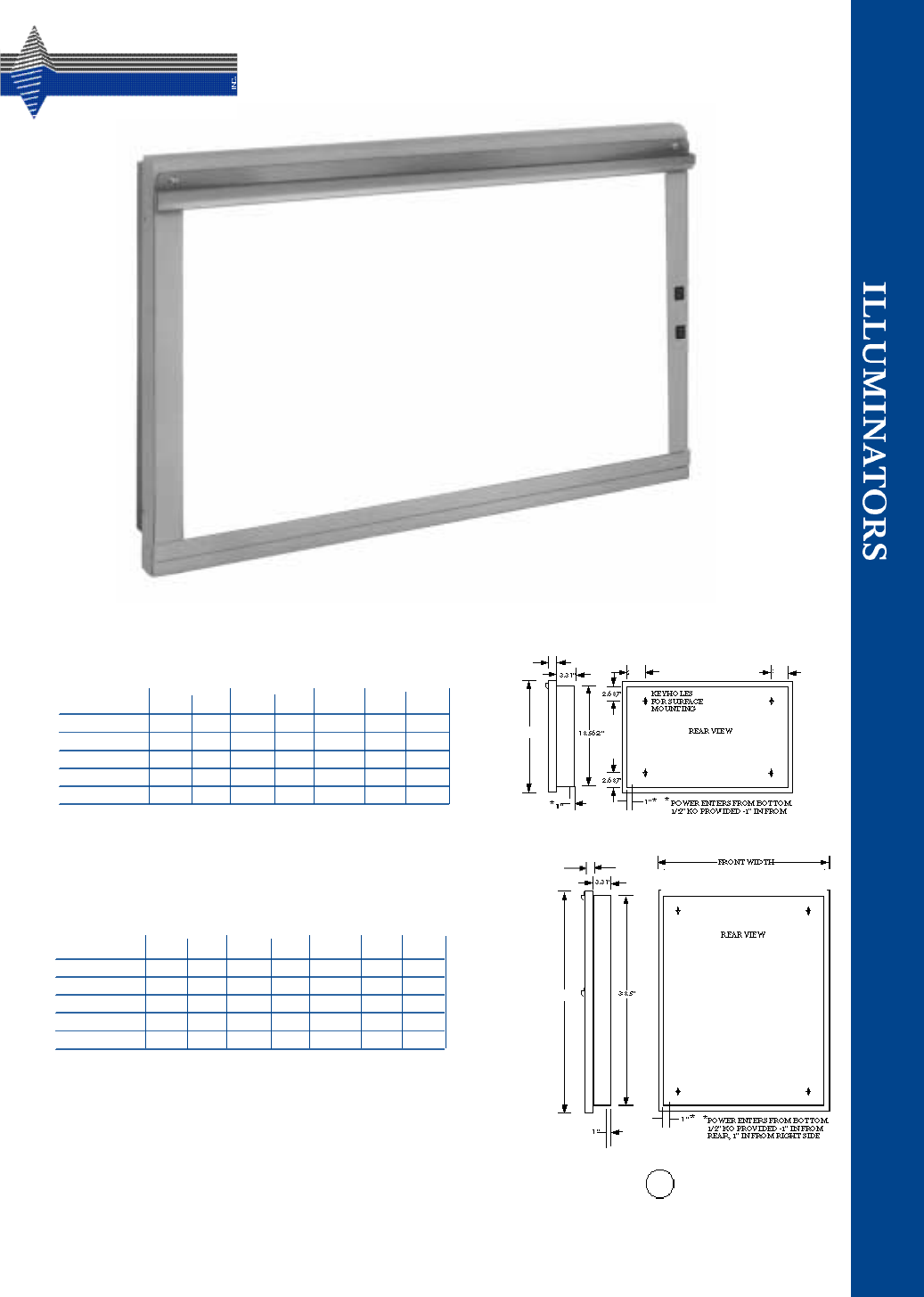

The 2000/3000/4000/ Series
Illuminators incorporate the
most popular illuminator fea-
tures, and maintain our high
quality standards. Trigger start
ballasts, internal dividers,
centered cluster switches, one
piece plexiglass fronts and
continuous stainless steel
gravity grips are supplied as
standard with these illumina-
tors. The special design of the
2000/3000/4000 series mini-
mizes the space between the
bottom of the viewing area
and the bottom of the illumi-
nator, leaving room under-
neath the illuminator for the
ever present stack of x-ray
studies.
The 4000 Illuminator
Series provides exceptional-
ly bright lighting with four
F15T8/D 15 watt daylight flu-
orescent tubes per 14 ” x 17 ”
viewing area.
The 3000 Illuminator Series has three F15T8/D 15 watt daylight fluorescent tubes per 14”x17” viewing area.
The 2000 Illuminator Series has two F15T8/D 15 watt daylight fluorescent tubes per 14”x17” viewing area.
Abottom ledge film support coupled with the continuous stainless steel gravity grip guarantees maximum freedom for viewing small
or large films. Each section is individually controlled by rocker switches mounted at the bottom center of the illuminator. Master switches
are provided on units of three banks or more.
The illuminator is fabricated of steel with unibody construction and is designed to eliminate light leakage from seams and edges. Recessed
models have welded recessing flanges and BX connector. Optional stainless steel recessing flanges are available upon request at the time
of order.
4000 SERIES
FOUR LAMP
STAN DA RD
SWITCHES
AUTO
SWITCHES
ALL MEASUREMENTS ARE ±1
/16 ”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
4000 SERIES
FOUR LAMP
B - 8
2000 / 3000 / 4000 SERIES
Single Bank 14”x17” 14.75” 19.156” 15 . 2 5” 19 . 656 ”23lbs
T w o Bank 28”x17” 28.75” 19.156” 29. 2 5” 19 . 656 ”39lbs
Th r e e Bank 42”x17” 42.75” 19.156” 43. 2 5 ”19 . 656 ”50lbs
F o u r Bank 56”x17” 56.75” 19.156” 57. 2 5 ”19 . 656 ”70lbs
F i v e Bank 70”x17” 70.75” 19.156” 71. 2 5 ”19 . 656 ”98lbs
S i x Bank 84”x17” 84.75” 19.156” 85. 2 5 ”19 . 656 ” 115 lb s
1 over 1 2 x 14”x17” 14.75” 38.312” 15. 2 5 ”38 . 812” 60 lbs
2 over 2 2 x 28”x17” 28.75” 38.312” 29. 2 5 ”38 . 812” 100lbs
3 over 3 2 x 42”x17” 42.75” 38.312” 43. 2 5 ”38 . 812” 130 lbs
4 over 4 2 x 56”x17” 56.75” 38.312” 57. 2 5 ”38 . 812” 180 lbs
5 over 5 2 x 70”x17” 70.75” 38.312” 71. 2 5 ”38 . 812 ” 230 lbs
6 over 6 2 x 84”x17” 84.75” 38.312” 85. 2 5 ”38 . 812” 290 lbs
VIEWING AREA
TWO TIER
RECESSED MODELS
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX STANDARD
SWITCHES
STAN DARD
SWI TCH E S
AUTO
SWITC HES
AUTO
SWITCHES
3000 SERIES
THREE LAMP
2000 SERIES
TWO LAM P
WALL OPENING
Finish: White Baked Enamel, Stainless Steel Trim (welded on recessing flanges are white baked enamel)
Electrical: Viewers operate on 120 volt, 60 Hz. 2000 Series: .47 amps per section, 3000 series: .61 amps per section, 4000 series: 1.0 amps per section.
Surface mounting models are supplied with a 6’ three conductor line cord (see diagram for wiring locations). Recessed models come with BX connectors.
For special voltages consult factory.
✶Optional Items: Modular Mobile system (pg B-23), mobile stand, console arms, angulated viewing system (pg B-25) corner modules (pg B-24), hospital
grade plugs (pg B-30).
STANDARD
SWITCHES
AUTO
SWITCHES
2 0 0 0 412 0 0 0 61 3 0 0 0 413 0 0 0 61 4 0 0 0 414 0 0 0 61
2 0 0 0 422 0 0 0 62 3 0 0 0 423 0 0 0 62 4 0 0 0 424 0 0 0 62
2 0 0 0 432 0 0 0 63 3 0 0 0 433 0 0 0 63 4 0 0 0 434 0 0 0 6 3
2 0 0 0 44 2 0 0 0 64 3 0 0 0 44 3 0 0 0 64 4 0 0 0 44 4 0 0 0 6 4
2 0 0 0 452 0 0 0 65 3 0 0 0 453 0 0 0 65 4 0 0 0 454 0 0 0 65
2 0 0 0 4620 0 0 66 3 0 0 0 463 0 0 0 66 4 0 0 0 4 64 0 0 0 66
2 0 0 051 2 0 0 071 300051 3 0 0 071 4 0 0 051 4 0 0 071
2 0 0 052 2 0 0 072 300052 3 0 0 072 4 0 0 052 4 0 0 072
2 0 0 053 2 0 0 073 300053 3 0 0 073 4 0 0 053 4 0 0 073
2 0 0 054 2 0 0 074 300054 3 0 0 074 4 0 0 054 4 0 0 074
2 0 0 055 2 0 0 075 300055 3 0 0 075 4 0 0 055 4 0 0 075
2 0 0 056 2 0 0 076 300056 3 0 0 076 4 0 0 056 4 0 0 076
Surface mount: 200014 - Shown with 140103
Mobile Stand, 140110 pull-out shelf, 140111 shal -
low drawer, 140112 hinged recorder shelf, 188SM
side mounted Bright Spot, and 140279 Angulated
Viewing System
ALL MEASUREMENTS ARE ±1
/1 6 ”
WIDTH HGT
Surface mount: 400014 - Shown with
140272 Console Arms on custom made
shelf and brackets.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 9
2X SERIES / 4X HI - LOW
The 2X Series and the 4X Hi-Low Series Illuminators
are our top of the line illuminators. Their classic look is
matched with superior light distribution.Available
for surface or recessed mounting in sizes from one to
six banks wide and one or two tiers high, they can be
combined with our Modular Mobile System, Mobile
Stand, Console Arms, Angulated Viewing System, or
Corner Modules to form a state of the art viewing sta-
tion.
Low leakage instant on ballasts, internal dividers (to pre-
vent light “spill over”), centered cluster switches, option -
al film activated switches, one piece plexiglass fronts and
continuous stainless steel gravity film grips are supplied as
standard with this series. A master on/off switch is also
supplied for each tier of three or more banks.
Each tier of the illuminator is of one piece heavy duty
steel construction. Professionally welded and ground
seams on this viewbox provide exceptional rigidity and
strength. Distracting light leakage has been eliminated.
Recessed models come complete with recessing flanges (in white baked enamel) permanently welded to the case. Holes are provided in
the flange for ease of mounting.
The 4X Hi-Low Illuminator Series has a unique four tube dual brightness system which provides two levels of light intensity. Each 14”x17”
viewing area has four F15T8/D fluorescent tubes, two low leakage thermally protected ballasts and specially designed reflectors. On the low
setting light distribution is far superior to conventional two tube viewers. When additional illumination is required a touch of a switch
increases the light output of the four lamps to their maximum brightness. Each viewing section is controlled by an on/off rocker switch
and a Hi-Lo brightness selector switch. A master on/off switch is also supplied for each tier of three or more banks. All Switches are
grouped together and mounted in the center of the front panel on the bottom tier.
Single Bank 14”x17” 14.75” 21.5” 30lbs 2X0041 2X0001 4X0041 4 X 0 0 01
T w o Bank 28”x17” 28.75” 21.5” 60lbs 2X0042 2X0002 4X0042 4X0002
Th r e e Bank 42”x17” 42.75” 21.5” 90lbs 2X0043 2X0003 4X0043 4X0003
F o u r Bank 56”x17” 56.75” 21.5” 120lbs 2X0044 2X0004 4X0044 4X0004
F i v e Bank 70”x17” 70.75” 21.5” 150lbs 2X0045 2X0005 4X0045 4X0005
S i x Bank 84”x17” 84.75” 21.5” 160lbs 2X0046 2X0006 4X0046 4X0006
1 over 1 2 x 14”x17” 14.75” 43” 60lbs 2 X 0 0 51 2 X 0 0 11 4 X 0 051 4 X 0 011
2 over 2 2 x 28”x17” 28.75” 43” 120lbs 2X0052 2 X 0 012 4 X 0 052 4 X 0 012
3 over 3 2 x 42”x17” 42.75” 43” 180lbs 2X 0 053 2 X 0 01 3 4 X 0 053 4 X 0 013
4 over 4 2 x 56”x17” 56.75” 43” 240lbs 2X0054 2 X 0 014 4 X 0 054 4 X 0 014
5 over 5 2 x 70”x17” 70.75” 43” 300lbs 2X0055 2X 0 015 4 X 0 055 4 X 0 015
6 over 6 2 x 84”x17” 84.75” 43” 360lbs 2X0056 2 X 0 016 4 X 0 056 4 X 0 016
4X SERIES
FOUR LAMP
VIEWING AREA
STANDARD
SWITCHES
STAN DAR D
SWITCHES
AUTO
SWI TCH E S
AUTO
SWITCHES
TWO TIER
DESK OR SURFACE MOUNTED MODELS
2X SERIES
TWO LAMP
DEPTH OF VIEWE RS: 3.75”
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX.
Desk or Surface Mount
ALL MEASURE MENTS ARE ±1
/1 6 ”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 10
2X SERIES / 4X HI - LOW
Finish: White Baked Enamel, Stainless Steel Trim (recessing flanges are white baked enamel)
Electrical: Viewers operate on 120 volt, 60 Hz, 1.6 Amps AC per viewing area. Surface mounting models are supplied with a 6’ three conductor line
cord (see diagram for wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: Modular Mobile system (pg. B-23), mobile stand, console arms, angulated viewing system ( pg. B-25), hinge kits and corner modules
( pg. B-24), hospital grade plugs (pg. B-30).
The 2X Illuminator Series provides bright uni-
form lighting with two F15T8/D fluorescent tubes in
each 14”x17” viewing area, and specially designed
reflectors. Low leakage thermally protected ballasts
provide instant flicker free starting. Each viewing
area is controlled by an on/off rocker switch. A mas-
ter on/off switch is also supplied for each tier of 3 or
more banks and all switches are grouped together
and mounted in the center of the front panel on the
bottom tier.
Single Bank 14”x17” 14.75” 21.5” 15 ” X 21 . 75 ”30lbs
T w o Bank 28”x17” 28.75” 21.5” 29”X 21 . 75 ”60lbs
Th r e e Bank 42”x17” 42.75” 21.5” 43”X 21 . 75 ”90lbs
F o u r Bank 56”x17” 56.75” 21.5” 57”X 21 . 75 ”120lbs
F i v e Bank 70”x17” 70.75” 21.5” 71”X 21 . 75 ”150lbs
S i x Bank 84”x17” 84.75” 21.5” 85”X 21 . 75 ”160lbs
1 over 1 2 x 14”x17” 14.75” 43” 15 ” X 43 . 2 5 ”60lbs
2 over 2 2 x 28”x17” 28.75” 43” 29”X 43 . 2 5 ”120lbs
3 over 3 2 x 42”x17” 42.75” 43” 43”X 43 . 2 5 ”180lbs
4 over 4 2 x 56”x17” 56.75” 43” 57”X 43 . 2 5 ”240lbs
5 over 5 2 x 70”x17” 70.75” 43” 71”X 43 . 2 5 ”300lbs
6 over 6 2 x 84”x17” 84.75” 43” 85”X 43 . 2 5 ”360lbs
VIEWING AREA
TWO TIER
RECESSED MODELS
DEPTH OF VIEWE RS: 3.75”
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX.
2 X 0 0 61 2 X 0 0 21 4 X 0 0 61 4 X 0 0 21
2X0062 2X0022 4X0062 4X0022
2 X 0 0 6 3 2X0023 4X0063 4X0023
2X0064 2X0024 4X0064 4X0024
2X0065 2X0025 4X0065 4X0025
2X0066 2X0026 4X0066 4X0026
2 X 0 0 7 1 2 X 0 0 3 1 4 X 0 0 7 1 4 X 0 0 31
2 X 0 072 2 X 0 0 32 4X0072 4X0032
2 X 0 073 2 X 0 0 3 3 4X0073 4X0033
2X0074 2X0034 4 X 0 074 4X0034
2X0075 2 X 0 0 35 4X0075 4X0035
2X0076 2 X 0 0 36 4 X 0 076 4X0036
STANDARD
SWI TCH E S
STAN DA RD
SWI TCH E S
AUTO
SWITCHES
AUTO
SWITCHES
4X SERIES
FOUR LAMP
2X SERIES
TWO LAMP
WA L L
OPENING
# 10 X 1.5” SELF TA PPING
SCREWS SPACED AS SHOWN
INTO RECESSED WALL PLATE
WITH 1/16” BETWEEN HEAD
AND WALL. I NSTALL SCREWS
IN KEY H OLES PROVI DED.
WOOD OR METAL LINTE L
1” FLANGE
(WHITE BAKED ENAMEL)
1/2” CONDUIT CON TA INING 3 NO. 14
WIRES TO 120 VOLT 60 HZ SERVICE. 1.6
AMPS PER VIEWING AREA.
1” FLANGE
FASTEN TO WALL THRU
HOLES IN FLAN GE
TOP VIEW RECESSED MTG.
ALL MEASUREMENTS ARE ±1
/1 6 ”
Recessed Mount: 4X0034
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
DELUXE 470 SERIES
B - 11
An exceptionally bright illuminator ideal for installations that
require minimum projection the Deluxe 470 is only 3.125” deep.
Each 14”x17” viewing area is illuminated by four F15T8/D 15
watt daylight fluorescent bulbs and is controlled by its own indi-
vidual on/off rocker switch. All units are supplied with internal
dividers to prevent light spillover. Panoramic reflectors (without
dividers) can be provided upon request (at time of order). A
gravity film grip, extending the full width of the illuminator, holds
the top of the film firmly in place, while a film retainer ledge
supports film at the bottom of the viewing area. Each tier has a
one piece plexiglass viewing panel.
The 470 Deluxe series is constructed of 18 gauge cold rolled
steel. Multiple bank units incorporate unibody construction, not
a series of single units bolted together. Each tier has steel chan-
nel reinforcement of the rear section. Recessed models come
complete with recessing flanges, finished in white baked enam-
el, permanently welded to the case. Holes are provided in the
flange for ease of mounting.
Finish: Interiors, backs and sides are finished in white baked enamel. Fronts are polished stainless steel.
Electrical: Viewers operate on 120 volt, 60 Hz, 1.06 Amps AC per viewing area. Surface mounting models are supplied with a 6’ three conductor line
cord (see diagram for wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: hospital grade plugs, switch boxes, 68H custom formica shelf & 68HB wall mounting bracket (pg. B-30) Modular Mobile system
(pg. B-23), mobile stand , console arms, angulated viewing system (pg. B-25), hinge kits and corner modules ( pg. B-24).
SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 3.125”
SingleBank 14”x17” 14.75” 21.5” 25 lbs 106010 106110
Tw o Bank 28”x17” 28.75” 21.5” 50 lbs 106020 106120
ThreeBank 42”x17” 42.75” 21.5” 75 lbs 106030 106130
Four Bank 56”x17” 56.75” 21.5” 100 lbs 106040 106140
Five Bank 70”x17” 70.75” 21.5” 125 lbs 1060150 106150
Six Bank 84”x17” 84.75” 21.5” 150 lbs 106060 106160
VIEWING AREA WIDTH HGT SHIP WT
EXTERIOR DIM APPROX.
CATALOG NO.
1 over 1 2x 14”x17” 14.75” 43.125” 50 lbs 107010 107110
2 over 2 2 x 28”x17” 28.75” 43.125” 100 lbs 107020 107120
3 over 3 2x 42”x17” 42.75” 43.125” 150 lbs 107030 107130
4 over 4 2x 56”x17” 56.75” 43.125” 200 lbs 107040 107140
5 over 5 2x 70”x17” 70.75” 43.125” 250 lbs 107050 107150
6 over 6 2x 84”x17” 84.75” 43.125” 300 lbs 107060 107160
TWO TIER
STANDARD
SWITCHES
AUTO
SWITCHES
Single Bank 14”x17” 14.75” 21.5” 15 ”21 . 75 ” 25 lbs
T w o Bank 28”x17” 28.75” 21.5” 29 ”21 . 75 ”50 lbs
Th r e e Bank 42”x17” 42.75” 21.5” 43 ”21 . 75 ”75 lbs
F o u r Bank 56”x17” 56.75” 21.5” 57 ”21 . 75 ” 100 lbs
F i v e Bank 70”x17” 70.75” 21.5” 71 ”21 . 75 ” 125 lbs
S i x Bank 84”x17” 84.75” 21.5” 85 ”21 . 75 ” 150 lbs
1 over 1 2 x 14”x17” 14.75” 43.125” 15 ”43 . 375 ”50 lbs
2 over 2 2 x 28”x17” 28.75” 43.125” 29 ”43 . 375 ” 100 lbs
3 over 3 2 x 42”x17” 42.75” 43.125” 43 ”43 . 375 ” 150 lbs
4 over 4 2 x 56”x17” 56.75” 43.125” 57 ”43 . 375 ” 200 lbs
5 over 5 2 x 70”x17” 70.75” 43.125” 71 ”43 . 375 ” 250 lbs
6 over 6 2 x 84”x17” 84.75” 43.125” 85 ”43 . 375 ” 300 lbs
VIEWING AREA
TWO TIER
RECESSED MODELS
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX.
10 6210 10 6 310
10 62 2 010 6 32 0
10 62 3 010 6 3 3 0
10 624 010 6 3 4 0
10 62 50 10 6 350
10 626 010 6 36 0
107210 107310
1072 2 0 10732 0
1072 3 0 1073 3 0
10724 0 1073 4 0
1072 50 107350
10726 0 10736 0
STAN DAR D
SWI TCH E S
AUTO
SWITCHES
WALL OPENI NG
WIDTH HGT
#10 X 1.5” SELF TAP-
PING SCREWS
SPACED AS SHOWN
INTO RECESSE D
WALL PLATE WITH
1/16” BETWEEN HEAD
AND WALL. INSTALL
SCREWS IN KEY -
HOLES PROVI DED.
WOOD OR METAL
LINTEL
1” FLANGE
(WHITE BAKED ENAMEL)
1/2” CONDUIT C ONTAINING 3 NO. 1 4
WIRES TO 120 VOLT 60 HZ SERVICE.
.66 AMPS PER VIEWI NG AREA.
1” FLANGE
PREFERRED
LOCATION FOR
OPTIONAL
JUNCTION BOX.
PIGTAILS FROM
REAR OF ILLU-
MINATOR ARE
PROVIDED ON
REQUEST.
TOP VIEW RECESSED MTG.
FASTEN TO WALL THRU
HOLES IN FLANGE
CATALOG NO.
ALL MEASUREMENTS ARE ±1
/1 6 ”
STANDARD LOCA-
TION OF LI NE
CORD ON S UR-
FACE MOUNT AND
BX CONNECTOR
ON RECESSED
MOUNT
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 12
STREAMLINER III
SURFACE OR RECESSED
This sleek, slim technically advanced illuminator series fits into
any decor. Each 14”x17” viewing area is illuminated by three
F15T8/D 15 watt daylight fluorescent bulbs. A unique metalized
mylar reflector produces bright uniform light distribution. All units in
the series are supplied with hi-power factor low leakage ballasts which
provide instant-on operation. Illuminators come with internal
dividers between each 14”x17” viewing section to prevent light
spillover. Panoramic (uninterrupted) reflectors are available upon
request at time of order.
The Streamliner series is constructed of 18 gauge cold rolled steel.
Multiple bank units are constructed of a single housing, not a series of sin-
gle units bolted together. A gravity film grip, extending the full width
of the illuminator, holds the top of the film firmly in place, while a
film retainer ledge supports film at the bottom of the viewing area.
Recessed models come complete with recessing flanges permanent-
ly mounted to the case. Holes are provided in the flange for ease of
mounting.
SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 3.125”
SingleBank 14”x17” 14” 22” 22 lbs 143001 143021
Tw o Bank 28”x17” 28” 22” 39 lbs 143002 143022
ThreeBank 42”x17” 42” 22” 55 lbs 143003 143023
Four Bank 56”x17” 56” 22” 70 lbs 143004 143024
Five Bank 70”x17” 70” 22” 135 lbs 143005 143025
Six Bank 84”x17” 84” 22” 145 lbs 143006 143026
Eight Bank 112”X17” 112” 22” 178 lbs 143008 143028
VIEWING AREA WIDTH HGT SHIP WT
EXTERIOR DIM APPROX.
CATALOG NO.
1 over 1 2x 14”x17” 14” 44” 43 lbs 143011 143031
2 over 2 2 x 28”x17” 28” 44” 112 lbs 143012 143032
3 over 3 2x 42”x17” 42” 44” 143 lbs 143013 143033
4 over 4 2x 56”x17” 56” 44” 187 lbs 143014 143034
5 over 5 2x 70”x17” 70” 44” 234 lbs 143015 143035
6 over 6 2x 84”x17” 84” 44” 243 lbs 143016 143036
8 over 8 2x 112”X17” 112” 44” 349 lbs 143018 143038
Single Bank 14”x17” 14” 22” 14 . 5 ”2 2 . 5 ”28 lbs
T w o Bank 28”x17” 28” 22” 28 . 5 ”2 2 . 5 ”67 lbs
Th r e e Bank 42”x17” 42” 22” 42 . 5 ”2 2 . 5 ” 88 lbs
F o u r Bank 56”x17” 56” 22” 56 . 5 ”2 2 . 5 ” 113 lbs
F i v e Bank 70”x17” 70” 22” 70 . 5 ”2 2 . 5 ” 140 lbs
S i x Bank 84”x17” 84” 22” 8 4 . 5 ”2 2 . 5 ” 150 lbs
Eight Bank 112”x17” 112” 22” 112 . 5 ”2 2 . 5 ” 188 lbs
1 over 1 2 x 14”x17” 14” 44” 14 . 5 ”44 . 5 ”65 lbs
2 over 2 2 x 28”x17” 28” 44” 28 . 5 ”44 . 5 ” 116 lbs
3 over 3 2 x 42”x17” 42” 44” 42 . 5 ”44 . 5 ” 155 lbs
4 over 4 2 x 56”x17” 56” 44” 56 . 5 ”44 . 5 ” 191 lbs
5 over 5 2 x 70”x17” 70” 44” 70 . 5 ”44 . 5 ” 237 lbs
6 over 6 2 x 84”x17” 84” 44” 8 4 . 5 ”44 . 5 ” 246 lbs
8 over 8 2 x 112”x17” 112” 44” 112 . 5 ”44 . 5” 369 lbs
VIEWING AREA
TWO TIER
RECESSED MODELS
WIDTH HGT SHIP WT
EXTERIOR DIM APPROX.
143 0 41143 0 61
143042 143062
143 0 43 143063
143044 143064
143045 143065
143046 143066
143048 143068
143 051 143 071
143 052 143 072
143 053 143 073
143054 143 074
143055 143 075
143056 143 076
143058 143 078
STANDARD
SWI TC H E S
AUTO
SWI TCH E S
WALL OPENING
TWO TIER
STANDAR D
SWI TCH E S
AUTO
SWITCHES
WIDTH HGT
Finish: White baked enamel (on cold rolled steel).
Electrical: Viewers operate on 120 volt, 60 Hz, .61 Amps AC per viewing area. Surface mounting models are supplied with a 6’ three conductor line
cord (see diagram for wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: hospital grade plugs, switch boxes, 68H custom formica shelf & 68HB wall mounting bracket (pg. B-30) Modular Mobile system (pg.
B-23), mobile stand, console arms, angulated viewing system ( pg. B-25), hinge kits and corner modules ( pg. B-24).
#10 X 1.5” SELF TAP-
PING SCREWS
SPACED AS S HOWN
INTO RECESSED
WALL PLATE WITH
1/16”BETWEEN
HEAD AND WALL.
INSTALL SCREWS
IN KEYHOLES PRO-
VIDED.
WOOD
OR METAL LINTEL
1.5” FLANGE
(WHITE BAKED ENAMEL)
1/2” CONDUIT C ONTAINING
3 NO. 14 WIRES TO 120 VOLT
60 HZ SE RVICE. .66 AMPS P ER
VIEWING AREA.
1.5” FLANGE
PREFERRED
LOCATI ON FOR
OPTIONAL
JUNCTION
BOX. PIGTAILS
FROM REAR O F
ILLUMINATOR
ARE PROVIDED
ON REQUEST.
STANDARD LOCATION OF
LINE CORD ON S URFACE
MOUNT AND BX C ON-
NECTOR ON RECESSED
MOUNT
1.5”
TOP VIEW RECESSED MTG.
SIDE VIEW
RIGHT SIDE
ALL MEASUREME NTS ARE ±1
/1 6 ”
Surface Mount: 143001
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 13
CIRCULITE SERIES
Designed for optimum viewing at an economy price,
the Circulite illuminator is housed in an attractive, stylish
case constructed of 18 gauge cold rolled steel. Multiple
bank units are constructed of a single housing, not a series
of single units bolted together. A gravity film grip, extend-
ing the full width of the illuminator, holds the top of the
film firmly in place, while a film retainer ledge supports
film at the bottom of the viewing area. Each viewing area
is controlled by a rocker switch which is mounted in the
stainless steel trim at the right front of the illuminator.
Each 14”x17” viewing area is illuminated by one 32 watt
daylight circline fluorescent lamp. Dividers are installed to
prevent light spillover. When specified (at time of order)
illuminators can be supplied without dividers for
panoramic illumination.
Recessed models are supplied with stainless steel recessing
flanges and BX connector. The recessing flanges are pro-
vided loose (not attached to the illuminator) to allow for
partial recessing in thin walls.
SURFACE MOUNTED MODELS
DEPTH OF VIEWERS: 4.75”
SingleBank 14”x17” 16.812” 18.187” 23 lbs 140001 140021
Tw o Bank 28”x17” 30.812” 18.187” 35 lbs 140002 140022
ThreeBank 42”x17” 44.812” 18.187” 43 lbs 140003 140023
Four Bank 56”x17” 58.812” 18.187” 66 lbs 140004 140024
Five Bank 70”x17” 72.812” 18.187” 110 lbs 140005 140025
Six Bank 84”x17” 86.812” 18.187” 129 lbs 140006 140026
Eight Bank 112”X17” 114.812” 18.187” 165 lbs 140008 140028
VIEWING AREA WIDTH H GT SHIP WT
EXTERIOR DIM APPROX.
CATALOG NO.
1 over 1 2x 14”x17” 16.812” 36.375” 45 lbs 140011 140031
2 over 2 2 x 28”x17” 30.812” 36.375” 94 lbs 140012 140032
3 over 3 2x 42”x17” 44.812” 36.375” 132 lbs 140013 140033
4 over 4 2x 56”x17” 58.812” 36.375” 164 lbs 140014 140034
5 over 5 2x 70”x17” 72.812” 36.375” 202 lbs 140015 140035
6 over 6 2x 84”x17” 86.812” 36.375” 233 lbs 140016 140036
8 over 8 2x 112”X17” 114.812” 36.375” 291 lbs 140018 140038
Single Bank 14”x17” 16.812” 18.187” 17 ”18 . 5 ”29 lbs
T w o Bank 28”x17” 30.812” 18.187” 31 ”18 . 5 ”37 lbs
Th r e e Bank 42”x17” 44.812” 18.187” 45 ”18 . 5 ”52 lbs
F o u r Bank 56”x17” 58.812” 18.187” 59 ”18 . 5 ”68 lbs
F i v e Bank 70”x17” 72.812” 18.187” 73 ”18 . 5 ” 113 lbs
S i x Bank 84”x17” 86.812” 18.187” 87 ”18 . 5 ” 144 lbs
Eight Bank 112”x17” 114.812” 18.187” 115 ”18 . 5 ” 170 lbs
1 over 1 2 x 14”x17” 16.812” 36.375” 17 ”36 . 687 ”47 lbs
2 over 2 2 x 28”x17” 30.812” 36.375” 31 ”36 . 687 ” 113 lbs
3 over 3 2 x 42”x17” 44.812” 36.375” 45 ”36 . 687 ” 135 lbs
4 over 4 2 x 56”x17” 58.812” 36.375” 59 ”36 . 687 ” 168 lbs
5 over 5 2 x 70”x17” 72.812” 36.375” 73 ”36 . 687 ” 205 lbs
6 over 6 2 x 84”x17” 86.812” 36.375” 87 ”36 . 687 ” 236 lbs
8 over 8 2 x 112”x17” 114.812” 36.375” 115 ”36 . 687” 306 lbs
VIEWING AREA
TWO TIER
RECESSED MODELS
WIDT H HGT SHIP WT
EXTERIOR DIM APPROX.
140041 140061
140042 140062
140043 140063
140044 140064
140045 140065
140046 140066
140048 140068
140051 140071
140052 140072
140053 140073
140054 140074
140055 140075
140056 140076
140058 140078
STANDARD
SWITCHES
AUTO
SWITCHES
WALL OPENING
TWO TIER
STANDARD
SWI TCH ES
AUTO
SWITCHES
WIDTH HGT
Finish: White Baked Enamel, Stainless Steel Trim (recessing flanges are polished stainless steel)
Electrical: Viewers operate on 120 volt, 60 Hz, .7 Amps AC per viewing area. Surface mounting models are supplied with a 6’ three conductor line
cord (see diagram for wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: Modular Mobile system (pg B-23), mobile stand, console arms, angulated viewing system (pg B-25), corner modules (pg B-24),
switch boxes, hospital grade plugs (pg B-30).
CATALOG NO.
ALL MEASUREMENTS ARE ±1
/1 6 ”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY PR O D U C T S
w w w. s s x ra y. c o m
B - 14

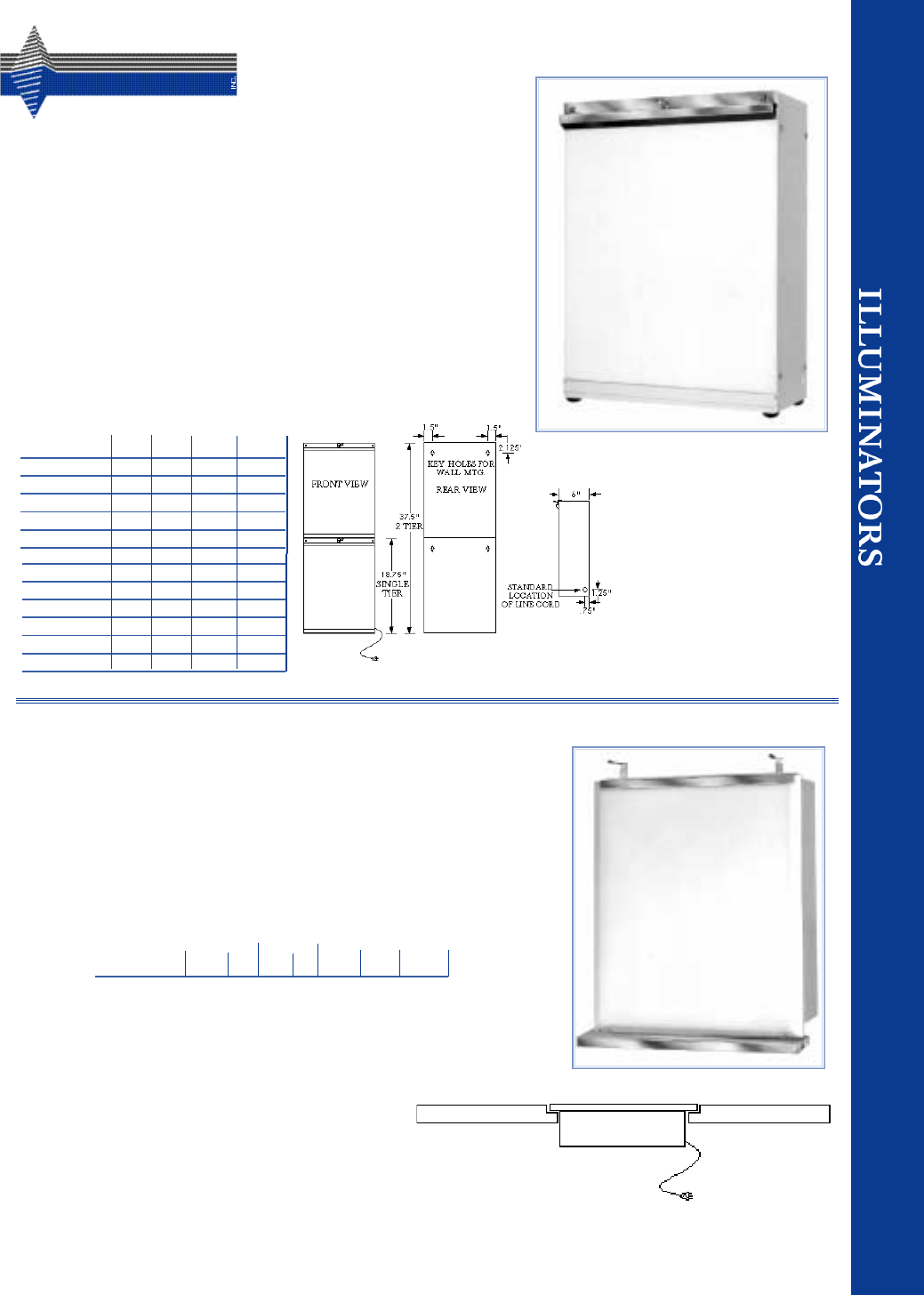

460 THIN LINE SERIES
Ideal for desk top or wall mounting,the 460 Thin Line Series (where thin line
refers to the width of the side walls of this illuminator) is equipped with rubber feet
properly balanced to sit safely on a desk. The key holed back makes it extremely
simple to mount on a wall. Preheat ballasts, one piece plexiglass fronts and stain-
less steel gravity grips are supplied as standard with this series. A bottom ledge film
support coupled with the stainless steel gravity grip guarantees maximum freedom
for viewing small or large films. Each section is individually controlled by an
on/off switch mounted on the top front center of each section. Each 14”x17” view-
ing section is illuminated by two F15T8/D daylight fluorescent bulbs.
Thin side walls allow banking with minimum interruption between viewing sec-
tions.
Finish: Light Grey Baked Enamel
Electrical: Viewers operate on 120
volt, 60 Hz, .75 Amps AC per view-
ing area. Supplied with a 6’ three
conductor line cord (see diagram for
wiring locations). For special volt-
ages consult factory.
✶Optional Items: Trigger start
ballast, automatic switches, dual
intensity illumination (pg B-17 ),
switch boxes, hospital grade plugs
(pg B-30),handles for carrying (for
one or two bank illuminator) consult
factory.
SURFACE AND DESK MOUNT
DEPTH OF VIEWE RS: 6”
SingleBank 14”x17” 14” 18.75” 21lbs 460A
Tw o Bank 28”x17” 28” 18.75” 42lbs 460D2
ThreeBank 42”x17” 42” 18.75” 60lbs 460D3
Four Bank 56”x17” 56” 18.75” 80lbs 460D4
Five Bank 70”x17” 70” 18.75” 125lbs 460D5
Six Bank 84”x17” 84” 18.75” 140lbs 460D6
VIEWING AREA WIDTH HGT SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
1 over 1 2x 14”x17” 14” 37.5” 62lbs 460E1
2 over 2 2 x 28”x17” 28” 37.5” 104lbs 460E2
3 over 3 2x 42”x17” 42” 37.5” 140lbs 460E3
4 over 4 2x 56”x17” 56” 37.5” 180lbs 460E4
5 over 5 2x 70”x17” 70” 37.5” 230lbs 460E5
6 over 6 2x 84”x17” 84” 37.5” 260lbs 460E6
TWO TIER
Specially designed for viewing wet film or flat mounting in a counter top. The
body of the illuminator is constructed of either stainless steel or painted steel.
When wall mounting for wet film use, the plexiglass front extends .5” beyond the sides and
bottom of the illuminator. Two hanger hooks are supplied for wet film viewing. For flat
mounting (recessing into a counter top) the oversized plexiglass is recessed flush with
the counter top to allow for ease of marking film and viewing film without loss of valu-
able counter space. Two F15T8/D daylight fluorescent bulbs and built in reflectors
produce bright uniform illumination.
Finish: Light Grey baked enamel or polished stainless steel
Electrical: Viewers operate on 120 volt, 60 Hz, .75 Amps AC per
viewing area. Supplied with a 6’ three conductor line cord. For special
voltages consult factory
.
✶Optional Item:Drip Tray (cat. # 404) approx. ship. weight 2 Lbs.
Single Bank 14”x17” 15.5” 18.5” 16.5” 19” 19lbs 202A 202S
EXTERIOR DIM APPROX.
CATALOG NO.
BAKED
ENAMEL
STAI N LE SS
STE E L
VIEWING AREA WIDTH HGT WI DTH H GT SHI P WT
PLEXI.DIM.
DEPTH OF VIEWE RS: 5.5”
Counter Top
WET FILM OR COUNTER TOP RECESSED VIEWER
202A shown with optional Drip Tray
ALL MEASUREMENTS ARE ±1
/16 ”
ALL MEASUREMENTS ARE ±1
/1 6 ”
Counter Top
202A
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 15

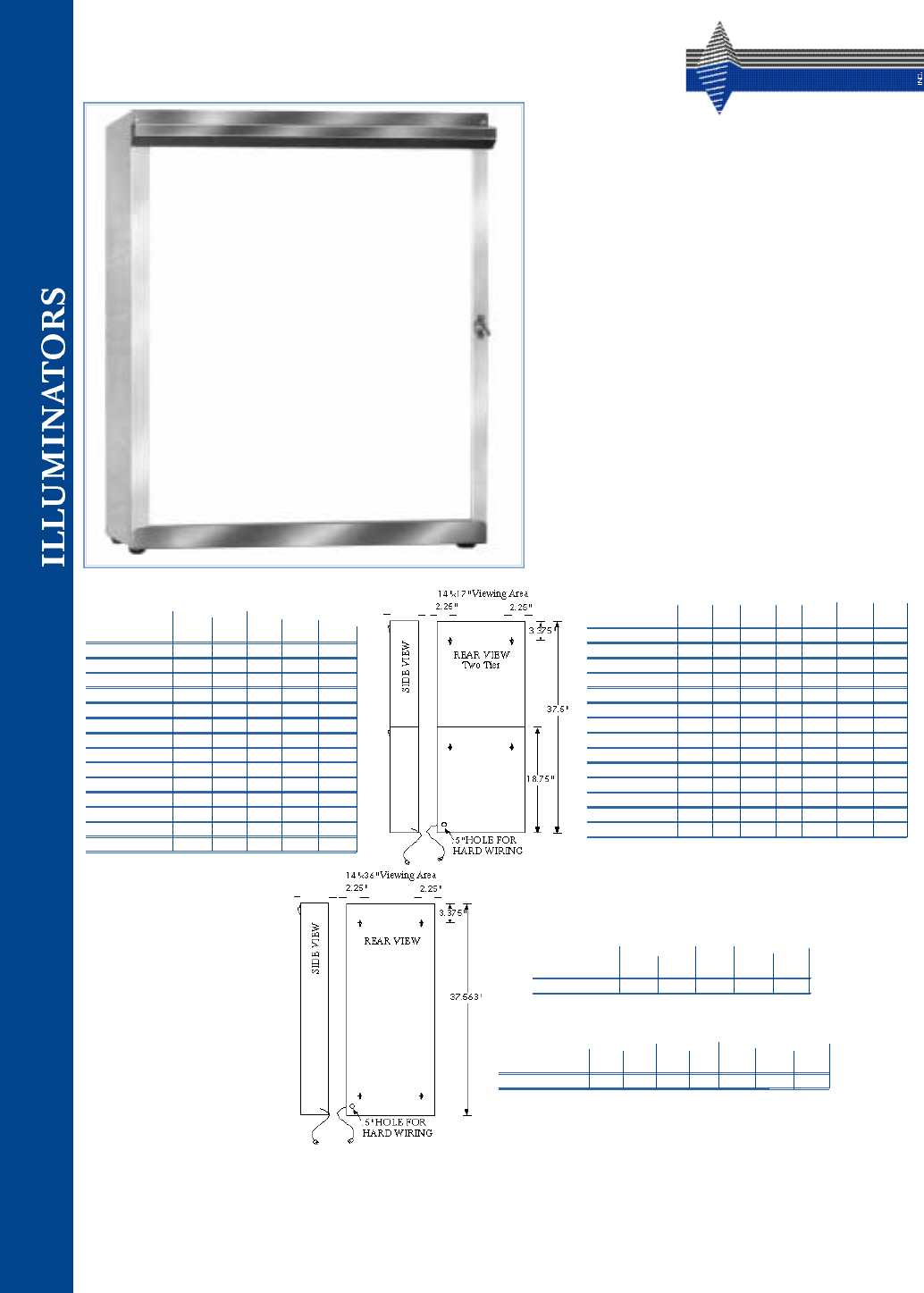

VUELITE SERIES (ALL ALUMINUM)
14” x 17” OR 14” x 36”
Each tier of the Vuelite is constructed of an overall aluminum
housing with internal dividers between each viewing section to
prevent light spillover. All models are supplied with two
F15T8/D daylight fluorescent bulbs per viewing section, giving
uniform illumination, an on/off rocker switch, a one piece
plexiglass viewing panel and a one piece full width gravity grip
film holder.Surface models come with rubber feet properly
balanced to sit safely on a desk.
Recessed models are supplied with stainless steel recessing
flanges and BX connector. The recessing flanges are not weld-
ed to the illuminator to allow for partial recessing in thin walls.
Finish: Anodized brushed aluminum
Electrical: Viewers operate on 120 volt, 60 Hz, .75 Amps AC per viewing area. Supplied with a 6’ three conductor line cord (see diagram for wiring loca-
tions). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: automatic switches (pg. B-17) switch boxes, hospital grade plugs (pg B-30).
14”x17” SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 5”
SingleBank 14”x17” 15.563” 18.75” 20lbs 145001 145021
Tw o Bank 28”x17” 29.563” 18.75” 40 lbs 145002 145022
Three Bank 42”x17” 43.563” 18.75” 60lbs 145003 145023
Four Bank 56”x17” 57.563” 18.75” 80 lbs 145004 145024
Five Bank 70”x17” 71.563” 18.75” 100lbs 145005 145025
Six Bank 84”x17” 85.563” 18.75” 120lbs 145006 145026
Eight Bank 112”X17” 113.563” 18.75” 160lbs 145008 145028
EXTERIOR DIM APPROX.
CATALOG NO.
1 over 1 2x 14”x17” 15.563” 37.5” 50lbs 145011 145031
2 over 2 2 x 28”x17” 29.563” 37.5” 90lbs 145012 145032
3 over 3 2x 42”x17” 43.563” 37.5” 140lbs 145013 145033
4 over 4 2x 56”x17” 57.563” 37.5” 180lbs 145014 145034
5 over 5 2x 70”x17” 71.563” 37.5” 230lbs 145015 145035
6 over 6 2x 84”x17” 85.563” 37.5” 280lbs 145016 145036
8 over 8 2x 112”x17” 113.563” 37.5” 380 lbs 145018 145038
TWO TIER
STANDARD AUTO
VIEWING AREA WIDTH H GT SHI P WT SWITCH SWITCH Single Bank 14”x17” 15.563” 18.75” 15.875” 19” 20 lbs
T w o Bank 28”x17” 29.563” 18.75” 29 . 875 ”19” 40lbs
Th r e e Bank 42”x17” 43.563” 18.75” 43.875” 19” 60lbs
F o u r Bank 56”x17” 57.563” 18.75” 57.875” 19” 80lbs
F i v e Bank 70”x17” 71.563” 18.75” 71.875” 19” 100lbs
S i x Bank 84”x17” 85.563” 18.75” 85.875” 19” 120lbs
Eight Bank 112”x17” 113.563” 18.75” 113.875” 19” 160 l b s
1 over 1 2 x 14”x17” 15.563” 37.75” 15.875” 37. 75 ”50lbs
2 over 2 2 x 28”x17” 29.563” 37.75” 29.875” 37. 75 ”90lbs
3 over 3 2 x 42”x17” 43.563” 37.75” 43.875” 37. 75 ”140lbs
4 over 4 2 x 56”x17” 57.563” 37.75” 57.875” 37. 75 ”180lbs
5 over 5 2 x 70”x17” 71.563” 37.75” 71.875” 37. 75 ”230lbs
6 over 6 2 x 84”x17” 85.563” 37.75” 85.875” 37. 75 ”280lbs
8 over 8 2 x 112”x17” 113.563” 37.75” 113.875” 37. 75” 380lbs
TWO TIER
145041 145061
145042 145062
145043 145063
145044 145064
145045 145065
145046 145066
145048 145068
145051 145071
145052 145072
145053 145073
145054 145074
145055 145075
145056 145076
145058 145078
14”x17” RECESSED MODELS
EXTERIOR DI M APPROX.
CATALOG NO.
STANDARD AUTO
VIEWING AREA WIDTH HGT WI DTH H GT SHI P WT SWITCH SWITCH
WALL OPENING
14”x36” SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 5”
SingleBank 14”x36” 15.563” 37.563” 40lbs 145101 145121
Two Bank 28”x36” 29.563” 37.563” 75lbs 145102 145122
EXTERIOR DIM APPROX STANDARD
VIEWING AREA WIDTH HGT SHIP WT SWITCH SWITCH
Single Bank 14”x36” 15.563” 37.563” 15.813” 37.813” 40 lbs
Two Bank 28”x36” 29.563” 37.563” 29.813” 37.813” 75lbs
145111 145161
145112 145162
14”x36” REC ESSED MODELS
EXTERIOR DI M APPROX. STANDARD
VIEWING AREA WIDTH H GT WI DTH H GT SHI P WT SWITCH SWITCH
WA L L O P E N I N G
ALL MEASUREMENTS ARE ±1
/1 6 ”
CATALOG NO.
AUTO
CATALOG NO.
AUTO
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 16

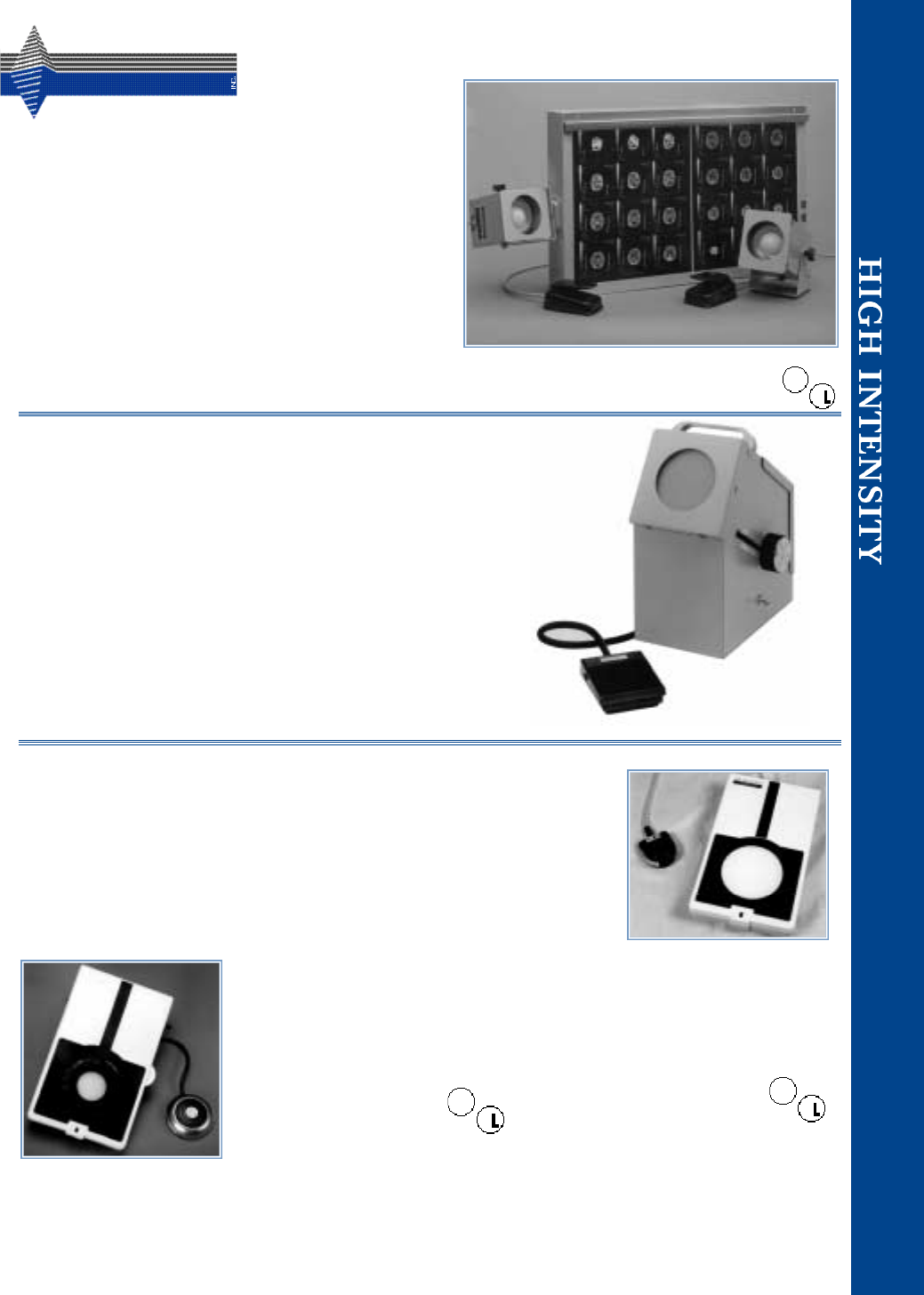

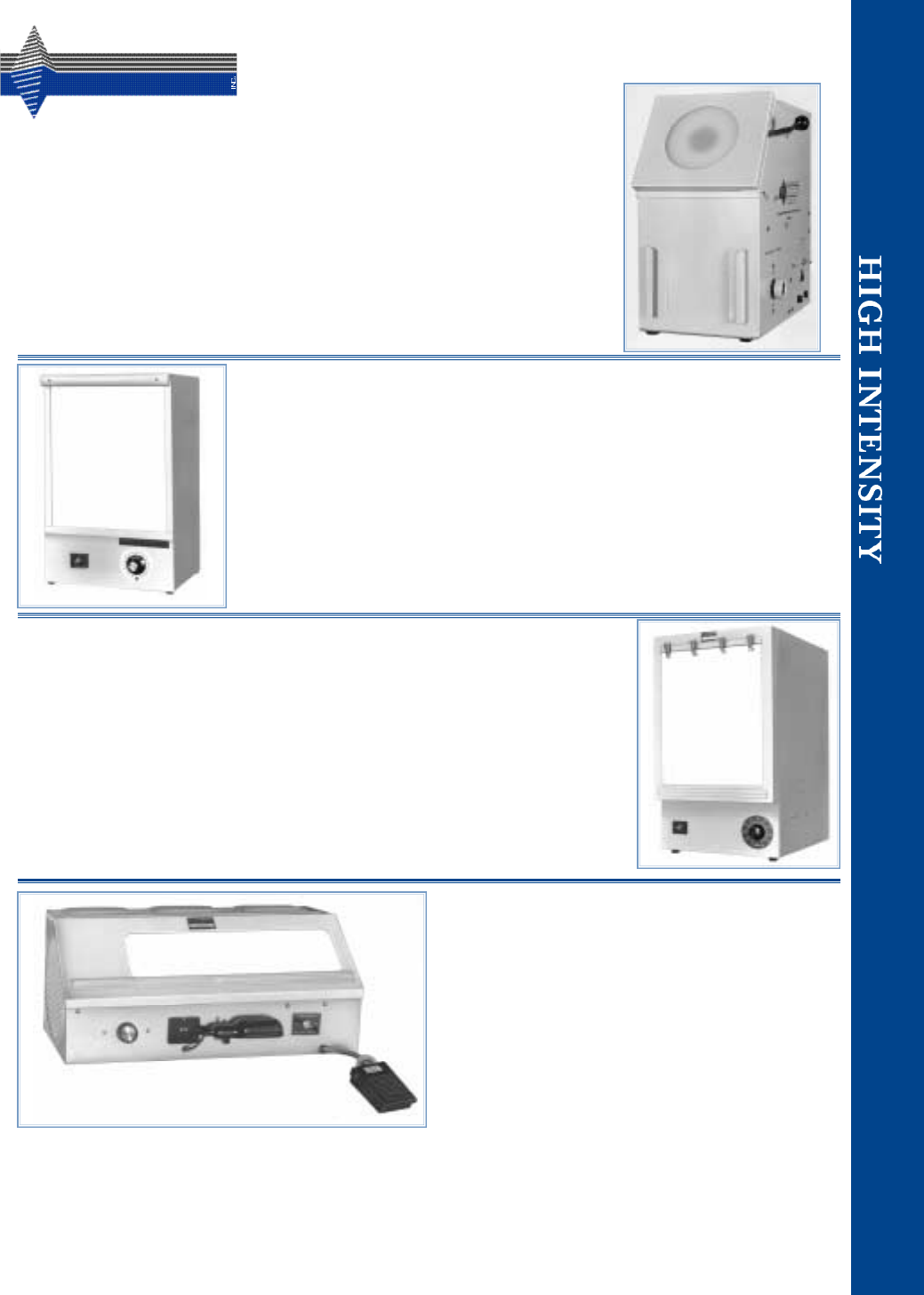

183 MINI BRIGHT SPOT
188 - BRIGHT SPOT SERIES
The standard for radiology departments nationwide! These superior
high intensity illuminators with variable intensity illumination,rheostat foot
switch controls and swivel base .A best seller! A unique, low cost, bright
spot illuminator series for viewing dense film.
188:The Bright Spot lamp housing adjusts for easy viewing, the base has
key holes for wall mounting and plastic non-marring feet to stand on a desk.
188SM:A 188 with a special bracket that permits attachment to either side
of a non- recessed illuminator and swivels in any direction.
Both the 188 and the 188SM come with a rheostat foot switch to vary the
brightness of the special high intensity bulb which is surrounded by a pol-
ished aluminum reflector.
188SM- Side Mount Bright Spot mounted on a 222 - 188- Bright Spot on desk
Finish: Light gray baked enamel (on cold rolled steel).
Electrical: Viewers operate on 120 volt, 60 Hz, .7 Amps AC. Supplied with a 6’ three conductor line cord. For special voltages consult factory.
EXTERIOR DIMENSIONS: 6” Wide 7.5” High 6.75” Deep
approx. shipping weight 9 lbs.
EXTERIOR DIMENSIONS:
8” Wide 13” Long 2.75” High
Afocused 75 watt Halogen lamp, mounted on a unique sliding stage,
enables adjustment of the spot size of this extremely bright illuminator. The
Mini Bright Spot comes with with a variable brightness control and an on/off
foot switch. There is a three inch diameter viewing area. A handle is provided
for ease of mobility.
Finish: Light Grey baked enamel (on cold rolled steel)
Electrical: Viewers operate on 120 volt, 60 Hz, .1 Amp AC. Supplied with a 6’ three conductor line cord. For special voltages consult factory.
EXTERIOR DIMENSIONS: 5.5” Wide 10” High 8.5” Deep
approx. shipping weight 18 lbs.
COOLBRITE SERIES
The CoolBrite is a unique high intensity illuminator designed for viewing dense film areas.
Using a specially designed lamp and electronics, the CoolBrite produces very high lumi-
nance, 18,000 cd/m2candela per sq. meter),without the undesirable heat that is ch a r a c t e r i s-
tic of incandescent “hot lights”. Measuring 8” wide , 13” long and 2.75” high these illumina-
tors are extremely portable and can be placed on a desktop, mounted on a wall, or attach e d
to an articulated instrument- mounting arm for optimum convenience. Both foot switch and
film activated switches are standard. There is a built in automatic shut off to protect viewer
and film.
Luminance: Approx. 18,000 cd/m2
Aperture: 4.4” Diameter
Power: 117 VAC ± 10%, 50/60 Hz, .75 amp
Weight: 4.88 Lbs.
Luminance: Approx. 18,000 cd/m2
Aperture: 0.7”-4.4” Diameter
Power: 117 VAC ± 10%, 50/60 Hz, .75 amp
Weight: 5.2 Lbs.
CB-3
HIGH INTENSITY
CB-4
HIGH INTENSITY WITH
ADJUSTABLE IRIS
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
This is the illuminator of choice for
the finest hospitals in the U.S. Its
53
/8” depth allows for maximum
light diffusion resulting in excellent
uniformity. Each 14”x17” viewing area
is illuminated by two F15T8/D 15 watt
daylight fluorescent bulbs. On/Off
rocker switches are mounted on the
right front side of the illuminator.
Internal sectional dividers (which pro-
duce a sharp demarcation between each
14”x17” viewing area and prevent light
spillover) are standard. Panoramic illu-
mination - no internal dividers - is avail-
able upon request at time of order. A
gravity film grip, extending the full
width of the illuminator, holds the top
of the film firmly in place, while a film
retainer ledge supports film at the bot-
tom of the viewing area.
Both Surface and Recessed Mounted
Models are available in one or two tier
configurations. Every illuminator in this
series is manufactured of heavy gauge
steel which is formed and welded into a single integral housing giving it strength and durability and eliminating light leakage around the
housing.
Housings for surface mounted models are fabricated of cold rolled steel or stainless steel. Recessed model housings are cold rolled steel with either a stain-
less steel or cold rolled steel front frame mounted to the illuminator housing. They are self trimming and do not require additional recessing trims or rough-
in boxes.
B - 17
200 SERIES SURFACE & RECESSED
Finish: Polished stainless steel or light gray baked enamel (on cold rolled steel). (in standard configurations)
✶Optional Items: hospital grade plugs, film clips, switch boxes, 68H custom formica shelf & 68HB wall mounting bracket -For ordering information see page B-30
Modular mobile system (pg. B-23), angulated viewing system (pg B-25), mobile stand (pg B-25), hinge kits and corner modules (B-24).See below for more options!
TWO TIER SURFACE MOUNTED MODELS
ONE TIER SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 5.375”
SingleBank 14”x17” 16.25” 19.125” 23lbs 208 208ST
Tw o Bank 28”x17” 30.312” 19.125” 43lbs 222 222ST
ThreeBank 42”x17” 44.375” 19.125” 60lbs 223 223ST
Four Bank 56”x17” 58.375” 19.125” 80lbs 224 224ST
Five Bank 70”x17” 72.437” 19.125” 120lbs 225 225ST
Six Bank 84”x17” 86.375” 19.125” 140lbs 226 226ST
Eight Bank 112”X17” 114.375” 19.125” 185lbs 228 228ST
VIEWING AREA WIDTH H GT SHIP WT
BAKED
ENAMEL
FINISH
STAI NLESS
STE EL
FINISH
EXTERIOR DIM APPROX.
CATALOG NO.
DEPTH OF VIEWE RS: 5.375”
1 over 1 2x 14”x17” 16.25” 38.25” 60lbs 231 231ST
2 over 2 2 x 28”x17” 30.312” 38.25” 100lbs 232 232ST
3 over 3 2x 42”x17” 44.375” 38.25” 140lbs 233 233ST
4 over 4 2x 56”x17” 58.375” 38.25” 180lbs 234 234ST
5 over 5 2x 70”x17” 72.437” 38.25” 220lbs 229 229ST
6 over 6 2x 84”x17” 86.375” 38.25” 260lbs 230 230ST
8 over 8 2x 112”X17” 114.375” 38.25” 340lbs 235 235ST
VIEWING AREA WIDTH HGT SHI P WT
BAK ED
ENAMEL
FINISH
STAI NLESS
STEE L
FINISH
EXTERIOR DIM APPROX.
CATALOG NO.
Electrical: Supplied with a 6’ three con-
ductor cord. 120 volts, 60 HZ AC, .75
Amps per section. Consult factory for other
voltages.
Two Bank surface Mounted Model (222ST)
200 SERIES SURFACE MODEL S
ALL MEASUREMENTS ARE ±1
/16 ”
The following options MUST BEFACTORY INSTALLED (specify option when ordering):
AUTOMATIC SWITCHES (FILM ACTIVATED AUTO SWITCH)Automatic switches turn on or off as film is inserted or withdrawn from the film grips. Included
with this option are trigger start ballasts for flicker free illumination and a special three way switch for choice of automatic or manual operating modes.
CATALOG # 199A (order one per viewing section)
TRIGGER START BALLASTS Special ballast provides flicker free illumination. CATALO G # 199 (order one per viewing section)
DOUBLE INTENSITY ILLU MINATION Two additional bulbs/section increase light output. CATALOG # 197 (order one per viewing section)
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 18
240 SERIES RECESSED
ONE BANK REC ESSED MODELS
SURFACE DEPTH OF VIEWERS:1.5”
SingleBank 14”x17” 17.0” 20” 15.75” 18.812” 21lbs 240GT 240ST
Tw o Bank 28”x17” 31.25” 20” 29.812” 18.812” 42lbs 242GT 242ST
ThreeBank 42”x17” 45.25” 20” 44.0” 18.812” 63lbs 243GT 243ST
Four Bank 56”x17” 59.25” 20” 58.062” 18.812” 84lbs 244GT 244ST
Five Bank 70”x17” 73.25” 20” 72.125” 18.812” 105lbs 245GT 245ST
Six Bank 84”x17” 87.375” 20” 85.563” 18.812” 126lbs 241GT 241ST
VIEWING AREA WIDTH HGT SHIP WT
BAKED
ENAMEL
FINISH
STAINLESS
STE E L
FINISH
FRONT APPROX.
CATALOG NO.
W I DT H HGT
WALL OPENI NG
RECESSED DEPTH OF VIEWE RS: 3.312”
TWO TIER REC ESSED MODELS
SURFACE DEPTH OF VIEWE RS:1.5”
1 over 1 2x 14”x17” 17.0” 39.875” 15.75” 38.75” 43lbs 2402GT 2402ST
2 over 2 2 x 28”x17” 31.25” 39.875” 29.812” 38.75” 84lbs 2422GT 2422ST
3 over 3 2x 42”x17” 45.25” 39.875” 44.0” 38.75” 127lbs 246GT 246ST
4 over 4 2x 56”x17” 59.25” 39.875” 58.062” 38.75” 169lbs 248GT 248ST
5 over 5 2x 70”x17” 73.25” 39.875” 72.125” 38.75” 211lbs 247GT 247ST
6 over 6 2x 84”x17” 87.375” 39.875” 85.563” 38.75” 253lbs 249GT 249ST
VIEWING AREA WIDTH H GT SHIP WT
BAKED
ENAMEL
FINISH
STAINLESS
STE EL
FINISH
FRONT APPROX.
CATALOG NO.
WIDTH HGT
WALL OPENI NG
RECESSED DEPTH OF VIEWE RS: 3.312”
Electrical: Supplied with a 6’ three conductor cord. When BX connector is required add X
after catalog number120 volts, 60HZ AC, .75 Amps per section. Consult factory for other volt-
ages.
2.75” 2.75”
ALL MEASUREMENTS ARE ±1
/16 ”
20”
39.875”
Two Bank Recessed Mounted Model (242ST)
1.5”
(in standard configurations)
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
Two styles of mobile illuminator bases have been
created specifically for the 200 Series Console
Style or Tilting Illuminators. The Desk Style
Mobile Base is designed for easy, convenient
reading while sitting. The Hi-Style base is ideal
for lectures and conferences as well as general
viewing when standing. Both bases are designed
for strength, rigidity and convenience. Bases are
mounted on ball bearing swivel casters for ease of
mobility even on carpet. The length of these
bases is matched to the number of banks of illu-
minators desired.
B - 19
200 SERIES CONSOLE STYLE
Finish: Mobile Bases : light grey baked enamel. Illuminators: light grey baked enamel with Stainless Steel front or light grey baked enamel (on cold rolled steel).
Electrical: Supplied with a 6’ three conductor cord. 120 volts, 60H Z AC. Consult factory for other voltages.
✶Optional Items: Trigger start ballasts, automatic switches, double intensity illumination (pg. B-17) - hospital grade plugs, film clips and switch boxes - For ordering informa-
tion see page B-30 ✶Optional Desk Base Items: 207B Storage Drawer and 207C Pull-out Writing Shelf.
200 SERIES CONSOLE STYLE ILLU MINATOR ON
H I - S T Y L E B A S E
available in single or two tier configurations, from two to
six banks wide - fixed 3 50angulated viewing
Tw o Bank 28”x17” 32.75” 150lbs 220A 220AS
Three Bank 42”x17” 46.75” 200lbs 220B 220BS
Four Bank 56”x17” 60.75” 250 lbs 220C 220CS
Five Bank 70”x17” 74.75” 300lbs 220D 220DS
Six Bank 84”x17” 88.75” 350lbs 220E 220ES
VIEWING AREA WIDTH SHI P WT
BAKED
ENAMEL
FINISH
STAINLESS
STE EL
FRONT
EXTERIOR APPROX.
CATALOG NO.
2 over 2 2 x 28”x17” 32.75” 190lbs 220F 220FS
3 over 3 2x 42”x17” 46.75” 260lbs 220G 220GS
4 over 4 2x 56”x17” 60.75” 330lbs 220K 220KS
5 over 5 2x 70”x17” 74.75” 400lbs 220H 220HS
6 over 6 2x 84”x17” 88.75” 470lbs 220J 220JS
TWO TIER
DEPTH OF BA SE: 19”
HEIGHT OF BASE: 36”
200 SERIES CONSOLE STYLE ILLU MINATOR ON
DESK BA SE
available in single or two tier configurations, from
four to six banks wide - fixed 350angulated viewing
Four Bank 56”x17” 60.75” 255lbs 220P 220PS
Five Bank 70”x17” 74.75” 305lbs 220Q 220QS
Six Bank 84”x17” 88.75” 355lbs 220R 220RS
VIEWING AREA WIDTH SHIP WT
BAKED
ENAMEL
FINISH
STAINLESS
STE E L
FRONT
EXTERIOR APPROX.
CATALOG NO.
4 over 4 2x 56”x17” 60.75” 335lbs 220 220S
5 over 5 2x 70”x17” 74.75” 405lbs 220M 220MS
6 over 6 2x 84”x17” 88.75” 475lbs 220L 220LS
TWO TIER
DEPTH OF BASE: 19”
HEIGHT OF BA SE: 25.5”
ALL MEASUREMENTS ARE ±1
/1 6 ”
200 SERIES MOBILE ILLUMINATORS
This special mounting of the 200 series was designed for better
viewing, comparison and marking of films. On two tier units the
lower tier is tilted at either 200or 35 0from the vertical (the
upper tier remains vertical). This arrangement facilitates handling
of the films and is ideal for comfortable seated viewing. The con-
sole may be placed on a desk or table or it can be fastened to a
wall quickly with keyholes provided on rear of viewer. Specify
desired angle when placing order. Units chosen in the baked enamel
finish or all stainless steel finish use the Surface Mounted Models
of the 200 Series. The 239 series with baked enamel body and
stainless steel front utilizes the recessed models of the 200 Series.
BAKED E NAMEL /STAINLESS
STEEL FINISH
BAKED ENAMEL WITH STAINLESS
STEEL FRONT
200 SE RIES ON C ONSOLE
ARMS
CONSOLE STYLE
Tw o Bank 28”x17” 30.312” 60lbs 237A 237SA 239A 31.25
Three Bank 42”x17” 44.375” 80lbs 237B 237SB 239B 45.25
Four Bank 56”x17” 58.375” 100lbs 237 237S 239C 59.25
Five Bank 70”x17” 72.437” 120lbs 237C 237SC 239D 73.25
Six Bank 84”x17” 86.375” 140lbs 237D 237SD 239E 87.375
Eight Bank 112”X17” 114.375” 180lbs 237E 237SE
VIEWING AREA WIDTH SHIP WT
BAKED
ENAMEL
FINISH
STAI NLESS
STEEL
FINISH
EXTERIOR APPROX.
CATALOG NO.
2 over 2 2x 28”x17” 30.312” 100lbs 238A 238SA 239G 31.25
3 over 3 2x 42”x17” 44.375” 140 lbs 238B 238SB 239H 45.25
4 over 4 2x 56”x17” 58.375” 180lbs 238 238S 239 59.25
5 over 5 2x 70”x17” 72.437” 220lbs 238C 238SC 239J 73.25
6 over 6 2x 84”x17” 86.375” 240lbs 238D 238SD 239K 87.375
TWO TIER
CATALOG
NO.
EXTERIOR
WIDTH
STAINLESS
STEEL FRONT
The Hi-Style Base is 36” high and 19”
deep. The lower shelf is 12” above the
floor.
The Desk Style Base is 25” high and
19” deep. A shelf in each of the two side
compartments can be used for film or
utility storage.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 20

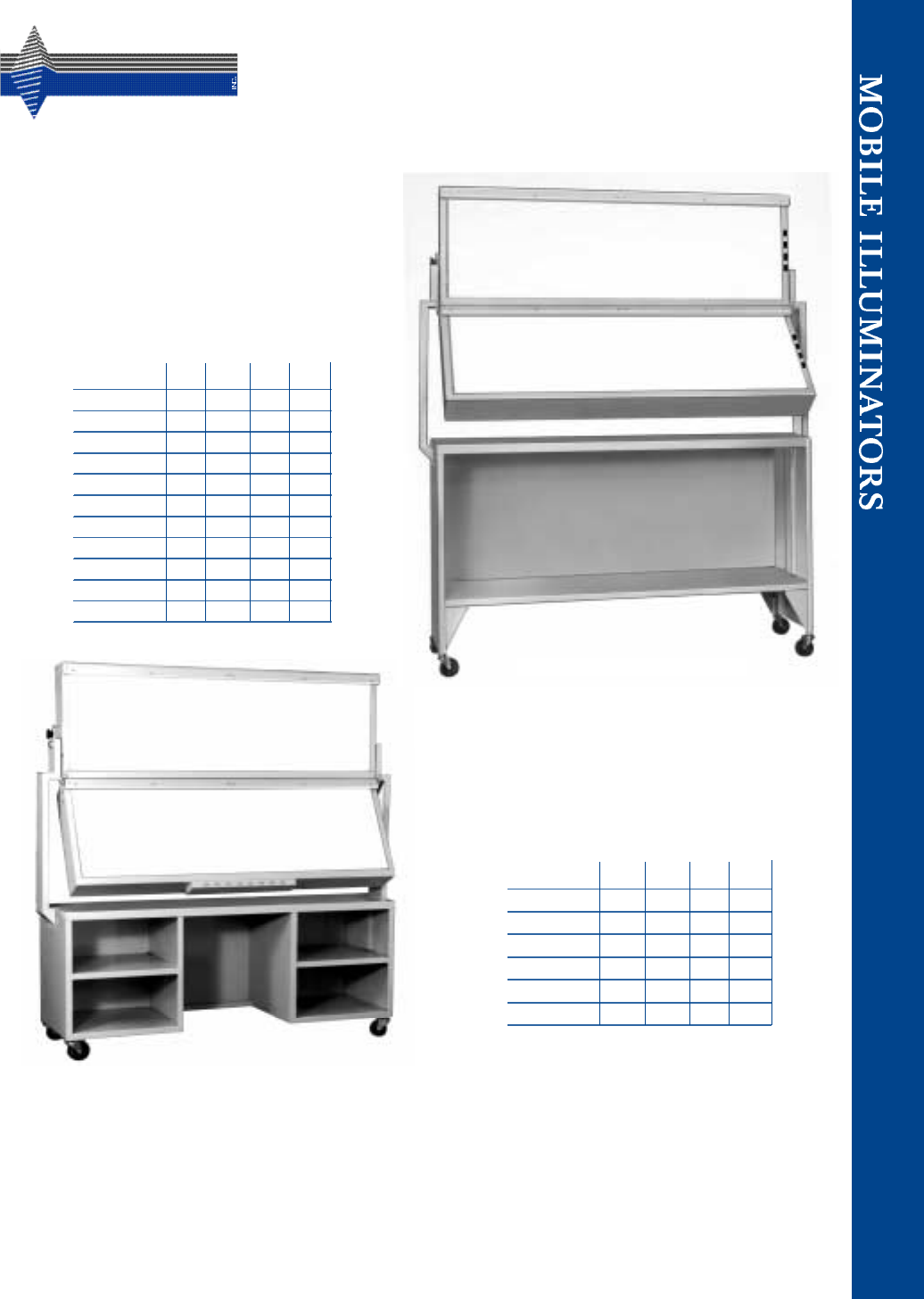

200 SERIES TILTING MOBILE
ILLUMINATORS
200 SERIES TILTING ILLU MINATOR ON
DESK BASE
available in single or two tier configurations,
from four to six banks wide
Full Range Tilting - 150, 300, 450, 600
TILTING ILLUM. on DESK BASE
Four Bank 56”x17” 65.375” 205 lbs 218 218S
Five Bank 70”x17” 79.375” 295 lbs 218A 218AS
Six Bank 84”x17” 93.375” 345 lbs 218B 218BS
4 over 4 2x 56”x17” 65.375” 325 lbs 219 216S
5 over 5 2x 70”x17” 79.375” 395 lbs 219C 219CS
6 over 6 2x 84”x17” 93.375” 465 lbs 219D 219DS
VIEWING AREA WIDTH SHIP WT
BAKED
ENAMEL
FIN ISH
STAI N LE SS
STEEL
FRONT
EXTERIOR APPROX.
CATALO G NO.
TWO TIER
DEPTH OF BA SE: 19”
HEIGHT OF BASE: 25.5”
A uniquely designed arm bolted to the Hi-Style Base and Desk Base allows the 200 Series Illuminator full range tilting ability.The illu-
minator can be locked in a vertical or an angled position. Two tier models have an additional pivot in the center to allow the lower tier to
tilt upwards and lock at 150, 300, 450or 600while the upper tier
remains vertical, or the top and bottom tiers can be tilted as a
unit and locked in the 150, 300, 450positions.
219 with lower tier tilted at a 300angle
217 with lower tier tilted at a 300angle
Finish: Mobile Bases : light grey baked enamel.
Illuminators: light grey baked enamel with Stainless Steel front or light grey baked enamel (on cold rolled steel).
Electrical: Supplied with a 6’ three conductor cord. 120 volts, 60HZ AC. Consult factory for other voltages.
✶Optional Items: Trigger start ballasts, automatic switches, double intensity illumination (pg. B-17) - hospital grade plugs, film clips and switch boxes - For
ordering information see page B-30
✶Optional Desk Base Items: 207B Storage Drawer and 207C Pull-out Writing Shelf.
200 SERIES TI LTING ILLU MINATOR ON
HI-STYLE BASE
available in single or two tier configurations,
from two to six banks wide
Full Range Tilting - 150, 300, 450, 600
TILTING ILLUM. on HI-STYLE BASE
Tw o Bank 28”x17” 37.375” 100 lbs 212 212S
ThreeBank 42”x17” 51.375” 150 lbs 213 213S
Four Bank 56”x17” 65.375” 200 lbs 214 214S
Five Bank 70”x17” 79.375” 290 lbs 214A 214AS
Six Bank 84”x17” 93.375” 340 lbs 214B 214BS
Eight Bank 112”x17” 121.375” 440 lbs 214C 214CS
2 over 2 2 x 28”x17” 37.375” 180 lbs 215 215S
3 over 3 2x 42”x17” 51.375” 250 lbs 216 216S
4 over 4 2x 56”x17” 65.375” 320 lbs 217 217S
5 over 5 2x 70”x17” 79.375” 390 lbs 217C 217CS
6 over 6 2x 84”x17” 93.375” 460 lbs 217D 217DS
VIEWING AREA WIDTH SHIP WT
BAKED
ENAME L
FIN ISH
STAI N LES S
STEEL
FRONT
EXTERIOR APPROX
CATALOG NO.
TWO TIER
DEPTH OF BA SE: 19”
HEIGHT OF BASE: 36”
ALL MEASURE MENTS ARE ±1
/16 ”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 21
24 x 30cm and 18 x 24cm
MAMMOGRAPHY SERIES
Specially designed for viewing 24x30cm (146000 Series) or 18x24cm
(147000 Series) film, these series of illuminators feature very bright and
even lighting in each viewing panel. The 146000 series has three
F14T8/D daylight fluorescent bulbs per viewing section and the 147000 has
two F14T8/D bulbs per section. Both series use electronic ballasts to pro-
duce flicker free lighting. Each section is individually controlled by an on/off
rocker switch, thus allowing the person reading the film to reduce periph-
eral glare by simply switching off the sections not in use. To further reduce
glare and prevent light spillover, the illuminators are provided with divid-
ed sections.
Each tier is constructed of heavy duty steel, with a continuous gravity grip
to hold the film firmly in place, and a one piece plexiglass viewing panel.
On multiple bank and two tier units switches are grouped together and
mounted in the center of the bottom front panel of the bottom tier.
Recessed models are supplied with stainless steel recessing flanges and BX
connector.
Light output exceeds ACR requirements.
For mammography viewers with curtains see pages B-5 and B-6.
Finish: Light gray baked enamel (on cold rolled steel).
Electrical: Viewers operate on 120 volt, 60 Hz AC; 146000 SERIES - .8 Amps 147000 SERIES - .6 Amps per viewing area Surface mounting models are sup-
plied with a 6’ three conductor line cord (see diagram for wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: Console Arms (pg B-25), Film Activated Switches (pg B-17), hospital grade plugs, 68H custom formica shelf & 68HB wall mounting bracket
(pg B-30) .
146012 shown with optional Console Arms at 20
0
angle (140272-20)
24x30cm SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 4.375”
SingleBank 24x30cm 10.437” 16” 21 lbs 146001 146021
Tw o Bank 48x30cm 19.875” 16” 42lbs 146002 146022
Three Bank 72x30cm 29.312” 16” 63lbs 146003 146023
Four Bank 96x30cm 38.750” 16” 84lbs 146004 146024
Five Bank 120x30cm 48.187” 16” 105lbs 146005 146025
Six Bank 144x30cm 57.625” 16” 126lbs 146006 146026
EXTERIOR DIM APPROX
CATALOG NO.
1 over 1 2x 24x30cm 10.437” 32” 42lbs 146011 146031
2 over 2 2 x 48x30cm 19.875” 32” 84lbs 146012 146032
3 over 3 2x 72x30cm 29.312” 32” 126lbs 146013 146033
4 over 4 2x 96x30cm 38.750” 32” 168lbs 146014 146034
5 over 5 2x 120x30cm 48.187” 32” 210lbs 146015 146035
6 over 6 2x 144x30cm 57.625” 32” 252lbs 146016 146036
TWO TIER
STANDARD AUTO
VIEWING AREA WIDTH HGT SHIP WT SWITCH SWITCH Single Bank 24x30cm 10.437” 16” 10.687” 16.25” 21lbs
T w o Bank 48x30cm 19.875” 16” 20.125” 16.25” 42lbs
Th r e e Bank 72x30cm 29.312” 16” 29.562” 16.25” 63lbs
F o u r Bank 96x30cm 38.750” 16” 39.000” 16.25” 84lbs
F i v e Bank 120x30cm 48.187” 16” 48.437” 16.25” 105lbs
S i x Bank 144x30cm 57.625” 16” 57.875” 16.25” 126lbs
1 over 1 2 x 24x30cm 10.437” 32” 10.687” 32 . 2 5 ”42lbs
2 over 2 2 x 48x30cm 19.875” 32” 20.125” 32 . 2 5 ”84lbs
3 over 3 2 x 72x30cm 29.312” 32” 29.562” 32 . 2 5 ”126lbs
4 over 4 2 x 96x30cm 38.750” 32” 39.000” 32 . 2 5 ”168lbs
5 over 5 2 x120x30cm 48.187” 32” 48.437” 32 . 2 5 ”210lbs
6 over 6 2 x144x30cm 57.625” 32” 57.875” 32 . 2 5 ”252lbs
TWO TIER
146041 146061
146042 146062
146043 146063
146044 146064
146045 146065
146046 146066
146051 146071
146052 146072
146053 146073
146054 146074
146055 146075
146056 146076
24x30cm RECESSED MODELS
EXTERIOR DI M APP ROX
CATALOG NO.
STANDARD AUTO
VIEWING AREA WI DTH H GT WIDTH H GT SHIP SWITCH SWITCH
WALL OPENING
18x24cm SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 4.375”
SingleBank 18x24cm 8” 16” 17lbs 147001 147021
Tw o Bank 36x24cm 15.094” 16” 34lbs 147002 147022
Three Bank 54x24cm 22.187” 16” 51lbs 147003 147023
Four Bank 72x24cm 29.281” 16” 68lbs 147004 147024
Five Bank 90x24cm 36.375” 16” 85lbs 147005 147025
Six Bank 108x24cm 43.468” 16” 102lbs 147006 147026
EXTERIOR DIM APPROX CATALOG NO.
1 over 1 2x 18x24cm 8” 32” 34lbs 147011 147031
2 over 2 2 x 36x24cm 15.094” 32” 68lbs 147012 147032
3 over 3 2x 54x24cm 22.187” 32” 102lbs 147013 147033
4 over 4 2x 72x24cm 29.181” 32” 136lbs 147014 147034
5 over 5 2x 90x24cm 36.375” 32” 170lbs 147015 147035
6 over 6 2x 108x24cm 43.468” 32” 204lbs 147016 147036
TWO TIER
STAN DAR D AUTO
VIEWING AREA WIDTH HGT SHIP WT SWITCH SWITCH Single Bank 18x24cm 8” 16” 8.250” 16.25” 17 lbs
T w o Bank 36x24cm 15.094” 16” 15.343” 16.25” 34lbs
Th r e e Bank 54x24cm 22.187” 16” 22.437” 16.25” 51lbs
F o u r Bank 72x24cm 29.281” 16” 29.531” 16.25” 68lbs
F i v e Bank 90x24cm 36.375” 16” 36.625” 16.25” 85lbs
S i x Bank 108x24cm 43.468” 16” 43.718” 16.25” 102lbs
1 over 1 2 x 18x24cm 8” 32” 8.250” 32 . 2 5 ”34lbs
2 over 2 2 x 36x24cm 15.094” 32” 15.343” 32 . 2 5 ”68lbs
3 over 3 2 x 54x24cm 22.187” 32” 22.437” 32 . 2 5 ”102lbs
4 over 4 2 x 72x24cm 29.181” 32” 29.531” 32 . 2 5 ”136lbs
5 over 5 2 x 90x24cm 36.375” 32” 36.625” 32 . 2 5 ”170lbs
6 over 6 2 x 108x24cm 43.468” 32” 43.718” 32 . 2 5 ”204lbs
TWO TIER
147041 147061
147042 147062
147043 147063
147044 147064
147045 147065
147046 147066
147051 147071
147052 147072
147053 147073
147054 147074
147055 147075
147056 147076
18x24cm RECESSED MODELS
EXTERIOR DI M AP P R OX
CATALOG NO.
STANDARD AUTO
VIEWING AREA WIDTH HGT WIDTH HGT S HIP SWITCH SWITCH
WALL OPEN ING
ALL MEASUREMENTS ARE ±1
/1 6 ”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY PR O D U C T S
w w w. s s x ra y. c o m
B - 22
14” X 36” SURFACE OR RECESSED
Constructed of heavy gauge cold rolled steel with four F60T12/D daylight fluorescent bulbs per viewing area
and internal sectional dividers, these illuminators are ideal for Spine films. An on/off rocker switch is
centered on the right front of each viewing area. A gravity film grip, extending the full width of the illumi -
nator, holds the top of the film firmly in place, while a film retainer ledge supports film at the bottom of the
viewing area. Three film clips spaced along the sides keep film from buckling. Recessed models are sup-
plied with stainless steel recessing flanges and BX connector. The recessing flanges are provided loose (not
attached to the illuminator) to allow for partial recessing in thin walls.
Finish: Light gray baked enamel (on cold rolled steel)
Electrical: Viewers operate on 120 volt, 60 Hz, 2.5 Amps AC per viewing area. Supplied with a 6’ three conductor line cord
(see diagram for wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: Modular Mobile System (pg B-23), Hospital grade plugs, switch boxes, 68H custom formica shelf & 68HB
wall mounting bracket (pg B-30)
SURFACE MOUNTED MODELS
DEPTH OF VIEWERS:5.75”
SingleBank 14”x51” 16.375” 60.5” 95lbs 101710
Two Bank 28”x51” 30.375” 60.5” 160lbs 101720
Three Bank 42”x51” 44.375” 60.5” 240lbs 101730
Four Bank 56”x51” 58.375” 60.5” 320 lbs 101740
EXTERIOR DIM APPROX. CATALOG
NO.VIEWING AREA WIDTH H GT SHIP WT
Single Bank 14”x51” 16.375” 60.5” 16.625” 60.75” 95lbs 101760
Two Bank 28”x51” 30.375” 60.5” 30.625” 60.75” 160lbs 101770
Three Bank 42”x51” 44.375” 60.5” 44.625” 60.75” 240lbs 101780
Four Bank 56”x51” 58.375” 60.5” 58.625” 60.75” 320lbs 101790
RECESSED MODELS
EXTERIOR DIM APPROX.
VIEWING AREA WIDTH HGT WI DTH HGT SHIP WT
WALL OPENING CATALOG
NO.
Ideal for Orthopedic films, each 14”x36” viewing area
is illuminated by two F30T12/D 30 watt daylight fluo-
rescent bulbs. An On/Off rocker switch is centered on
the top front of each viewing area. Internal sectional
dividers (which produce a sharp demarcation between
each 14”x36” viewing area and prevent light spillover)
are standard. A gravity film grip, extending the full
width of the illuminator, holds the top of the film firmly
in place, while a film retainer ledge supports film at the
bottom of the viewing area. Four film clips spaced along
the sides can be used for smaller films. Every
illuminator in this series is manufactured of
heavy gauge cold rolled steel.Recessed models
are supplied with stainless steel recessing
flanges and BX connector. The recessing
flanges are provided loose (not attached to the
illuminator) to allow for partial recessing in
thin walls.
14” X 51” SURFACE OR RECESSED
Create a unique mobile unit using the 200 series High Style Base (2 to 6 bank widths) or Desk Base (4 to 6 bank widths). Use
only 14”x 36” illuminators or mix with two tier 200 Series Illuminators (double intensity option recommended) (see page B-19)
ALL MEASUREMENTS ARE ±1
/1 6 ”
ALL MEASUREMENTS ARE ±1
/1 6 ”
SURFACE MOUNTED MODELS
DEPTH OF VIEWERS: 5.25”
SingleBank 14”x36” 15.625” 38.375” 36lbs 101600
Two Bank 28”x36” 29.625” 38.375” 65lbs 101610
Three Bank 42”x36” 43.625” 38.375” 120lbs 101620
Four Bank 56”x36” 57.625” 38.375” 155lbs 101630
EXTERIOR DIM APPROX. CATALO G
NO.
VIEWING AREA WI DTH HGT SHIP WT
Single Bank 14”x36” 15.625” 38.375” 15.875” 38.625” 40 lbs 101640
Two Bank 28”x36” 29.625” 38.375” 29.875” 38.625” 69lbs 101650
Three Bank 42”x36” 43.625” 38.375” 43.875” 38.625” 125lbs 101660
Four Bank 56”x36” 57.625” 38.375” 57.875” 38.625” 160lbs 101670
RECESSED MODELS
EXTERIOR DIM APPROX.
VIEWING AREA WIDTH H GT WI DTH H GT SHIP WT
WALL OPENING CATALO G
NO.
✶Option: AUTOMATIC SWITCHES (FILM ACTIVATED AUTO SWITCH)Automatic switches turn
on or off as film is inserted or withdrawn from the film grips. A special three way switch is includ-
ed with this option for choice of automatic or manual operating modes.
Finish: Light gray baked enamel (on cold rolled Electrical: Viewers operate on 120 volt, 60 Hz, .65 Amps AC per viewing area. Supplied with a 6’
three conductor line cord (see diagram for wiring locations). Recessed models come with BX connectors. For special voltages consult factory.
✶Optional Items: High Style Base, Desk Base (B-19), Hospital grade plugs, switch boxes, 68H custom formica shelf & 68HB wall mounting bracket,
and hinge kits. For ordering info. see page B-30
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 23
MODULAR MOBILE
ILLUMINATOR SYSTEM
Select the components that best suit
your requirements and customize your
own mobile illuminator. Designed with
features suggested by radiologists to make
film viewing easier and more convenient,
the Modular Mobile System allows you the
choice of illuminator, mobile bases
and mounting arms.
Base modules and mounting arms are con-
structed of heavy gauge steel and finished
in light gray baked enamel. Tops are made
of wood with a choice of walnut grain or
white formica laminate.
Mounting arms for one tier units (168038)
fix the illuminators in a vertical position.
Mounting arms for two tier units (168039)
allow the lower tier to be adjusted from verti -
cal to an angle of 350. [If ordering the 149005
Mammography Illuminator 168040 arms
will be needed.]
Base consoles are 24” deep and 27” high.
The height of the bases can be increased to
36” by ordering 168020 leg extensions.
The length of the formica top is deter-
mined by the size of the illuminator cho-
sen. If choosing a three bank illuminator
(or if only one of the base consoles is
desired) a straight leg with casters (168013)
is available.
FORMICA TOP (C)
LENGTH DEPTH
APPROX. CAT.NO.
200 series (234) shown with 168039 arms at a 20
0
angle, walnut grain formica top (1680 04), two bases w/ vertical partitions (168010 )
TO ORDER A MODULAR MOBILE
SYSTEM
SELECT:
1 - ILLUM INATOR STYLE:choose from the fol-
lowing series -
200, 2000, 4000, 2X, 4X,
CIRCULITE, CHAM ELEON,
STREAMLI NER III,
DELUXE 470 OR
PRECISION MAMMOGRAPHY SERIES
2 - NUMBER OF VIEWING AREAS
3 - MOUNTI NG ARMS (A)
4 - TWO BASE CONSOLES (B)
5 - FORMICA TOP (in white or walnut) (C)
If you have any questions our engineering department
will be happy to assist you at 1-800-347-XRAY.
Three Bank Wide 48” 24” 50 lbs 168003
Four Bank Wide 60” 24” 75 lbs 168004
Five Bank Wide 74” 24” 115 lbs 168005
S ix Bank Wide 88” 24” 155 lbs 168006
Eight Bank Wide 116” 24” 195 lbs 168008
EXTERIOR DIM
SHIP WT WHITE OR
WALNUT
DESCRIPTION
BASE CONSOLES (B)
LENGTH DEPTH
APPROX. CAT.NO.
W/Vertical Partitions 19” 24” 75 lbs 168010
W / S h e lf & D r a w e r 19” 24” 75 lbs 168011
W/Horiz. Shelf 19” 24” 75 lbs 168012
Straight Leg 19” 24” 50 lbs 168013
EXTERIOR DIM
SHIP WT
DESCRIPTION
MOUNTING ARMS (A)
APPROX. CAT.NO.
F o r Single Ti e r I l l u m . 60 lbs 168038
For Two Tier Illum. 70 lbs 168039
For 149 0 05 I l l u m . 70 lbs 168040
SHIP WTDESCRIPTION
Base With
Vertical
Partitions
(168010)
Base With
Writing
Shelf and
Drawer
(168011)
Base With
One
Horizontal
Shelf
(168012)
Straight Leg
(168013)
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 24
CORNER MODULES
For a sharp professional appearance in your reading room our Corner Modules are
designed to maximize usable space in a reading room while creating an attractive
functional reading station. They can be custom configured to suit the users requirements,
and are able to be wall mounted or desk mounted. The Corner Module fills a corner space
and mates with a two tier illuminator on each side (see choice of illuminators below)
to form an attractive custom designed wall unit. The bottom tier can be fixed at a 200or
350angle for ease of viewing. The Corner Module can hold a single bank two tier, a two
bank two tier, single bank on top and a Bright Spot below or a single on top and a
solid filler in the bottom tier.
Corner Modules are constructed of cold rolled steel and are finished to match the illu-
minators selected.
✶Optional Items: 68H custom formica shelf & 68HB wall mounting bracket (pg B-30)
Wall mounted Corner Module (140278) shown with 200 series illuminators
(234, 231 and 232), Console Arms at 200angle (140272-20)
TO ORDER A CORNER MODULE
please SUBMIT A ROUGH SKETCH with room
dimensions showing the location and style
of illuminator chosen, the number of view-
ing sections, the angle of the console arms
and what you wish built into the corner
module. If you have any questions our engineer -
ing department will be happy to assist you at 1-
800-347-XRAY. (If optional switch boxes are
ordered special interconnects may be
required for electrical hook-up between illu-
minators (cat.# 140280 - see page B-30)
SELECT:
1 - ILLUMINATOR STYLE:choose from the
following series -
200, 2000, 4000, 2X, 4X, CIRCULITE,
CHAMELEON, STREAMLI NER III
OR DELUXE 470
2 - NUMBER OF VIEWING AREAS
3 - ANGLE OF CONSOLE ARMS
4 - DESIGN OF CORNER MODULE
5 - DESK OR WALL MOUNT
CATALOG #140278 (Corner Module only)
HINGED CONNECTORS
This unique hinge permits mounting of illuminators in a
semi-circular side by side arrangement. The hinge pro-
vides flexibility to gracefully span room corners or to set
the illuminator sections to almost any desired position.
The heavy duty full length hinges are factory installed
on any combination of illuminators. (Angulated systems
[i.e. console arms] cannot be used with hinged connec-
tors).
To order please submit a sketch, with room dimen-
sions, showing the location of the illuminators and
hinges. If optional switch boxes are ordered special
interconnects (cat.# 140280 - see page B-30) may be required for electrical hook-up between illuminators.
CATALO G #140276 SHIP. WT16 LBS
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 25

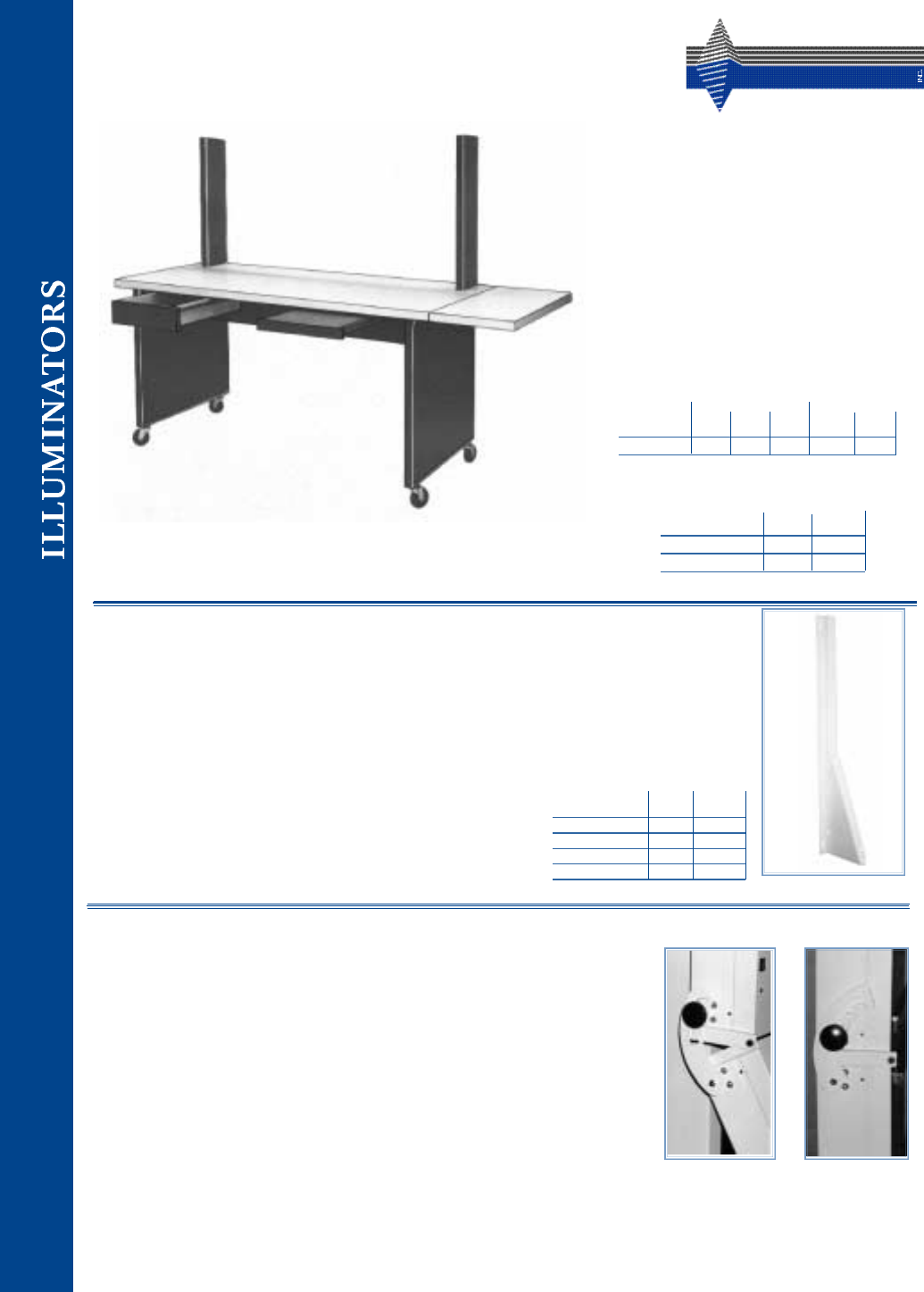

FOUR BANK MOBILE STAND
This sturdy attractive mobile stand is designed to
be used with the following models of one and two
tier four bank illuminators:
200, 2000, 4000, 2X, 4X, CIRCULITE,
CHAMELEON, STREAMLI NER III, OR DELUXE 470
The base and illuminator mounting arms are made
of heavy gauge steel (finished in brown baked
enamel) for strength and stability.
The 1.25” thick wooden top is laminated with
white formica for durability. The entire unit is
mounted on 3” swivel casters for ease of mobility.
Shown with optional Pull-out Shelf (140110), Shallow Drawer (140111), and Hinged Recorder Shelf (140112).
Optional Items APPROX. CAT.NO.
P u l l - o u t S h e l f 2 0 l b s 1 4 0 11 0
Shallow Drawer 20 lbs 140111
Hinged Recorder Shelf 40 lbs 140112
SHIP WT
DESCRIPTION
FOUR BANK MOBILE STAND
HGT D EPTH WIDTH
APPROX. CAT.NO.
Single Ti e r 29.25” 25.25” 59.625” 100 lbs 140100
Two T i e r 29.25” 25.25” 59.625” 100 lbs 140103
EXTERIOR DIM
SHIP WT
DESCRIPTION
CONSOLE ARMS
FIXED ANGLE VIEWING
Console Arms add the convenience and comfort of angulated viewing (fixed at either a 200or 350angle) to
the following single and two tier wall mount illuminators:
2000, 4000, 2X, 4X, CIRCULITE, CHAMELEON, STREAMLI NER III,
DELUXE 470 OR PRECISION MAMMOGRAPHY SERIES
ADJUSTABLE
ANGLED VIEWING
(Angulated viewing system)
Adjust the viewing angle (of the lower tier) of a two tier illuminator from 00to 350to meet
your specific needs. Special lock knobs make it easy to adjust the angle of the lower tier to
afford maximum comfort while reading films.
For use with the following wall mount illuminators:
200, 2000, 4000, 2X, 4X, CIRCULITE, CHAMELEON, STREAMLI NER III,
DELUXE 470 OR PRECISION MAMMOGRAPHY SERIES
Made of heavy gauge steel and finished in baked enamel to match the illuminators chosen.
CATALO G # 140279
SHIP. WT7LBS
MUST BEFACTORY INSTALLED
Single Tier 200Angle 20 lbs 140271-20
Single Tier 350Angle 20 lbs 140271-35
Two Tier 200A n g l e 25 lbs 140272-20
Two Tier 350A n g l e 25 lbs 140272-35
TWO TIER
SHIP WT
APPROX. CATALOG
NO.
CONSOLE ARMS
Shown:
Rear Mount Console Arms
They are available in rear mount, side mount and desk mount configu-
rations. Configuration needs to be specified at time of illuminator order
(to enable factory modifications of illuminator wiring).
Console Arms are made of heavy gauge steel and finished in baked
enamel to match the illuminators chosen.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 26
Three number 2 - 500 watt photoflood bulbs provide extremely bright even illumination for
viewing industrial films. Heat is dissipated by a powerful blower, with a removable fiberglass dust
filter, and a heat absorbing glass filter. An on/off toggle switch and a continuous stepless electronic control
provide variable intensity lighting. The 14”x17” viewing surface is white translucent plexiglass.
Four lift up film clips across the top edge of the viewer hold film firmly in place.
EXTERIOR DIMENSIONS: 16.5” Wide / 27.5” High / 20” Deep
approx. shipping weight 127 lbs.
Finish: Light gray baked enamel (on cold rolled steel)
Electrical: Viewers operate on 120 volt, 60 Hz, 186 - 3.5 Amp AC 189 - 15 Amp AC. Supplied with a 6’ three
conductor line cord.
Ten 15 watt fluorescent bulbs mounted in a special reflector system produce an extremely bright even
illumination for viewing industrial films. The three position toggle switch allows you to choose
full brightness, activate the electronic intensity control or turn the unit off. The stepless electronic
variable intensity control gives full range of illumination. A stainless steel gravity grip extending the full
width of the 14”x17” plexiglass viewing panel holds the film firmly in place.
EXTERIOR DIMENSIONS: 15.5” Wide / 24.25” High /10” Deep
approx. shipping weight 52 lbs.
Finish: Light Gray baked enamel (on cold rolled steel)
Electrical: Viewers operate on 120 volt, 60 Hz, 5 Amp AC. Supplied with a 6’ three conductor line cord. For
special voltages consult factory.
EXTERIOR DIMENSIONS: 9” Wide 18” High 14” Deep
approx. shipping weight: 185 - 29 lbs 185I - 30 lbs.
Asix inch diameter superbright, superior high intensity, viewing area for reading indus-
trial films. These viewers come with an on/off foot switch and a set of steel masks to reduce the
size of the viewing area. A variable intensity electronic control allows you to adjust the brightness of
the 500 watt photoflood bulb. These illuminators are power air cooled.
The model 185 I, in addition to the above, has an adjustable iris which cones down the viewers
light source for reading smaller film areas.
Finish: Light Grey baked enamel (on cold rolled steel)
Electrical: Viewers operate on 120 volt, 60 Hz, 9 Amp AC. Supplied with a 6’ three conductor line cord. For special voltages consult factory.
EXTERIOR DIMENSIONS: 24” Wide 10” High 10” Deep approx. shipping weight: 35 lbs.
Designed for industrial radiography. Four number 1
photoflood bulbs provide 1000 watts of brightness. An internal
heat absorbing glass protects film from heat damage. The cooling
system utilizes a power driven air supply with replaceable air fil-
ters. The electronic brightness control and a built in low light
level writing light are mounted at the front of the viewer. This illu-
minator comes with an on/ off foot switch and a set of four steel
masks for reading 4.5”x10”, 3.5”x17”, 3.5”x10” or 70mm film.
186 HIGH INTENSITY
FLUORESCENT
189 HIGH INTENSITY
PHOTOFLOOD
185 AND 185I HIGH INTENSITY
187A 4.5” x 17”
HIGH INTENSITY
Finish: Light gray baked enamel (on cold rolled steel)
Electrical: Viewers operate on 120 volt, 60 Hz, 186 - 3.5 Amp AC 189 - 15 Amp AC. Supplied with a 6’ three
conductor line cord.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 27

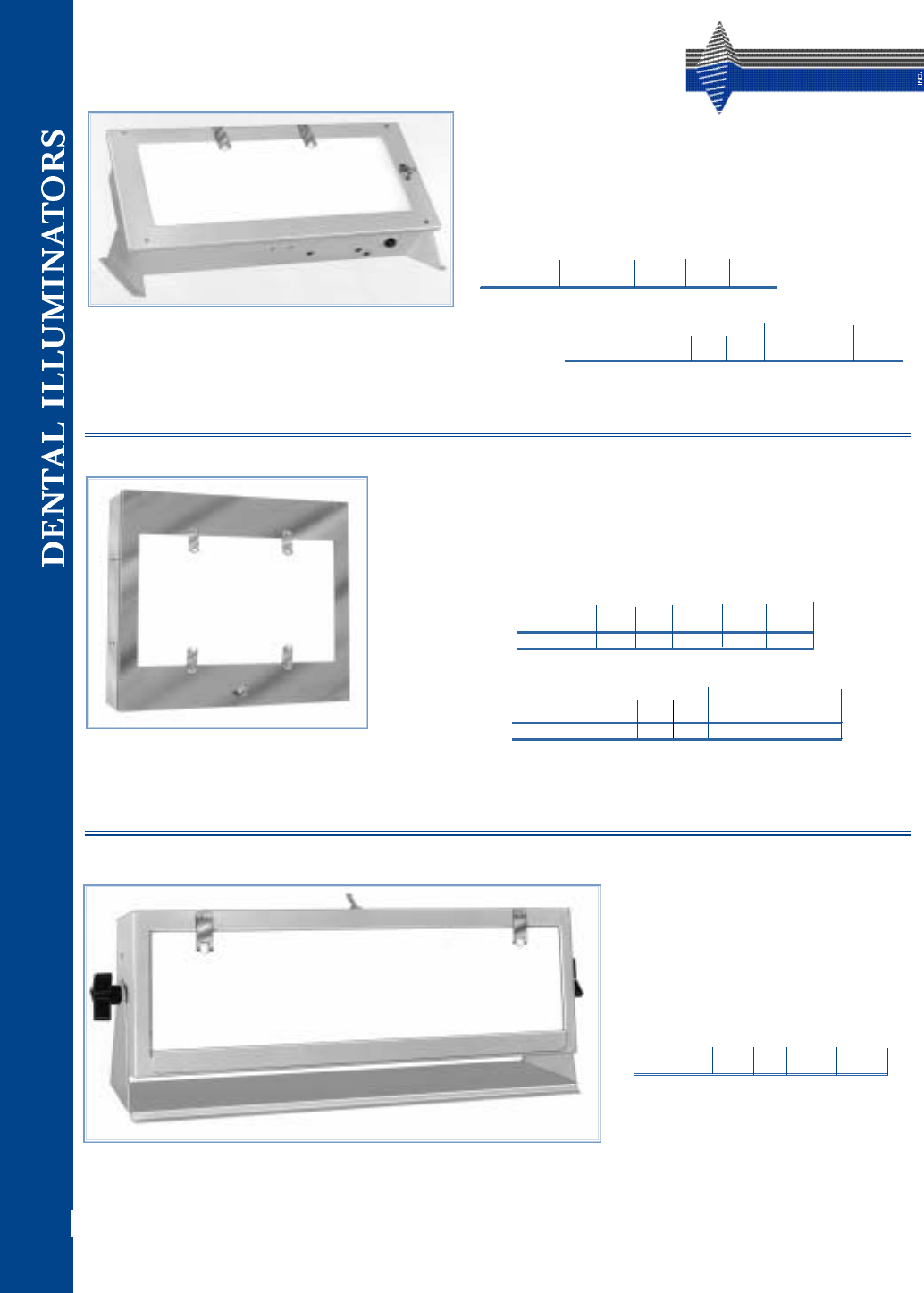

DENTAL SINGLE MOUNT
ILLUMINATOR
Finish: White baked enamel or stainless steel fronts
Electrical: Viewers operate on 120 volt, 60 Hz, .75 Amps AC per viewing area. Supplied with a 6’ three conductor line cord.
The finest Dental Film Illuminator available. Designed to accom-
modate oblong films in a 4.5”x13” viewing area. Two stainless steel roller
clips are mounted at the top to hold film firmly. One F14T8/D 14 watt
fluorescent bulb provides illumination thru the plexiglass viewing panel.
Units are available for wall, desk, or recessed mounting.
Finish: White baked enamel or polished stainless steel fronts
Electrical: Viewers operate on 120 volt, 60 Hz, .75 Amps AC per viewing area. Supplied with a 6’ three conductor line cord.
Finish: White baked enamel
Electrical: Viewers operate on 120 volt, 60 Hz, .75 Amps AC per viewing area. Supplied with a 6’ three conductor line cord.
An inexpensive yet excellent viewer for reading
strip or mounted film up to 4.5”x17”. Viewers
are mounted in a swivel base and can be set on
a desk or mounted on a wall. Two F15T8/D 15
watt fluorescent bulbs produce bright even light
thru a plexiglass viewing panel.
4 . 5 ” x 13 ” 15.25” 5.875” 3.25” 8 lbs 250 250S
RECESS DIM
WALL OPENI NG APPROX.
CATALOG NO.
BAKED
ENAMEL
STAI NLESS
STEELVIEWING AREA WIDTH H GT D EPTH SHIP WT
SURFACE MOUNTED MODELS
4.5”x13” 16.25” 7” 8 lbs 250A 250B
APPROX.
VIEWING AREA WI DTH HGT SHIP WT
RECESSED MODELS
CATALOG NO.
BAKED
ENAMEL
STAINLESS
STE E L
Solid, quality construction separates us from our competitors. Ideal for large mount
dental film or viewing two sets of film at one time. Two F14T8/D 14 watt fluorescent bulbs
and one piece plexiglass panel provide optimal viewing. Two stainless steel roller clips
at the top of the viewer and two at the bottom hold film firmly in place. Wall, desk or
recessed models.
8 ” x 13 ” 15.375” 13.375” 3.625” 10 lbs 2 52 253
10 ” x 12 ” 15.375” 13.375” 3.625” 14 lbs 2 52 A 253A
RECESS DIM
WALL OPENING APPROX.
CATALOG NO.
BAKED
ENAMEL
STAI NLESS
STEELVIEWING AREA WI DTH HGT D EPTH SH IP WT
RECESSED MODELS
DENTAL TWIN MOUNT ILLUMINATOR
4.5” X 17” ILLUMINATOR
ALL MEASUREMENTS ARE ±1
/1 6 ”
ALL MEASUREMENTS ARE ±1
/1 6 ”
ALL MEASUREMENTS ARE ±1
/1 6 ”
DEPTH OF VIEWE RS: 5.25”
EXTERIOR DIM
SURFACE MOUNTED & DESK MODELS
8”x13” 15.125” 13.125” 10 lbs 251 253S
10”x12” 15.125” 13.125” 14 lbs 251A 251B
APPROX.
VIEWING AREA WIDTH HGT SHIP WT
CATALOG NO.
BAKED
ENAMEL
STAINLESS
STE E L
DEPTH OF VIEWE RS: 3.25”
EXTERIOR DIM
SURFACE MOUNTED MODELS
4.5”x17” 18.5” 8” 15 lbs 184
APPROX.
VIEWING AREA WI DTH H GT SHIP WT CATALOG
NO.
DEPTH OF VIEWE RS: 5.25”
EXTERIOR DIM
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 28
ECONOMY ILLUMINATOR
Although this illuminator has a budget price it is made with the same care found
in higher priced models. It is constructed of heavy gauge steel and comes with an
on/off switch, plexiglass viewing panel, four stainless steel spring action film clips and
a film retainer ledge. The 14”x17” viewing area is illuminated by two F15T8/D
daylight fluorescent bulbs.
Finish: Light Grey baked enamel
Electrical: Viewers operate on 120 volt, 60 Hz, .75 Amps AC per viewing area. Supplied with a 6’ three conductor line cord. For special voltages consult
factory.
DEPTH OF VIEWE RS: 5.375”
SingleBank 14”x17” 15.625” 18.25” 16lbs 200
EXTERIOR DIM APPROX. CATALOG
NO.
VIEWING AREA WI DTH HGTSHIP WT
Finish: Light Grey baked enamel
Electrical: Viewers operate on 120 volt, 60 Hz, .75 Amps AC per viewing area. Supplied with a 6’ three conductor line cord. For special voltages consult
factory.
Designed to view three 8”x10” or two 10”x12” films at one time, this supe-
rior illuminator with built in reflectors and two F20T12/D daylight fluo-
rescent bulbs produces bright even illumination. Surface and Recessed
models are all steel construction with your choice of Gravity Film Grips or
Spring Film Clip Holders.
SURFACE MOUNTED MODELS
DEPTH OF VIEWE RS: 5.25”
SingleBank 12”x24” 24.625” 13.5” 25lbs 254T 254
EXTERIOR D IM APPROX CATALOG NO.
GRAVITY
VIEWING AREA WIDTH HGT S HIP WT GRIP CLI P
Single Bank 12”x24” 24.625” 13.5” 24.875” 13.75” 26 lbs 254RT 254R
RECESSED MODELS
EXTERIOR D IM APPROX
CATALOG NO.
GRAVITY
VIEWING AREA WIDTH HGT WIDTH HGTSHIP WTGRIP CLIP
WALL OPENING
FILM
FILM
12” X 24” ILLUMINATORS
ALL MEASUREMENTS ARE ±1
/1 6 ”
ALL MEASUREMENTS ARE ±1
/1 6 ”
NEED HELP IN SEL ECT ING THE RIGHT IL L UMINATOR FOR YO UR
A PPL ICAT ION? CALL US AT 800 - 347 - XRAYA ND WE’LL BE HAPPY TO
A SSIST YO U !
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 29
TWO TIER
single bank
single tier
two bank
single tier
three bank
single tier four bank
single tier
five bank
single tier
six bank
single tier
eight bank
single tier
single bank
two tier two bank
two tier
2 over 2 3 over 3
three bank
two tier
four bank
two tier
4 over 4
five bank
two tier
5 over 5
six bank
two tier
eight bank
two tier
6 over 6 8 over 8
1over1
SINGLE TIER
Standard cords are 6’ - 3 conductor NEMA 5 - 15P line cord.
Standard cord position: Lower right hand side when facing unit.
Standard Electrical: 120volts 60Hz AC
Sw i t ch type and position vary depending on models ch o s e n .
All multiple bank units (up thru 6 bank) have one piece continuous plexiglass
8 bank units have two pieces of PlexiglasT M e a ch four banks long.
Optional cluster switches are available for all multiple bank single or two tier illuminators. (see page B-30 for details)
GENERAL INFORMATION 8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
B - 30

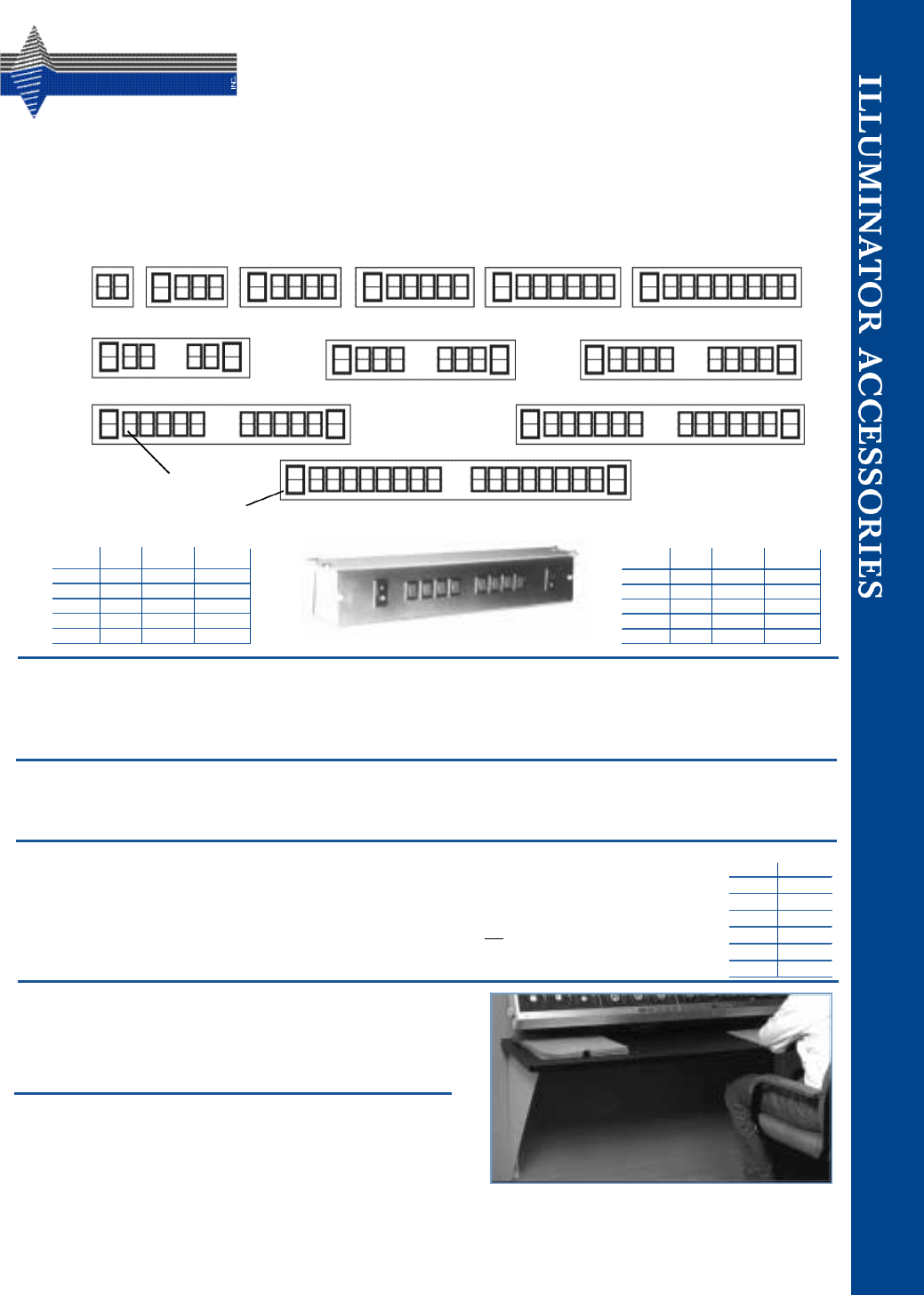

OPTIONAL
ILLUMINATOR ACCESSORIES
CLUSTER SWITCH BOXES :Controls individual lighting in viewing sections from one central location. The Switch boxes are mount-
ed on the bottom center of the illuminator (unless otherwise specified when ordering). For Illuminators three bank and larger switch boxes
have a master switch for each tier and individual switches for each section. Note: Not UL listed in all applications.
MUST BEFACTORY INSTALLED (specify option when ordering)
1195 A
2195 B
3195 C
4195 D
5195 E
6195 F
8195 G
# OF VIEWING
SECTIONS CATALO G #
NOTE: Illuminators supplied with this option are not explosion proof.
SINGLE
TIER
TWO
TIER
STANDARD CONFIGURATION OF OPTIONAL CLUSTER SWITCH BOXES
8 over 8
6 over 6
2 Bank 3 Bank
5 over 5
4 over 43 over 3
2 over 2
4 Bank 5 Bank 6 Bank 8 Bank
140084
140083
140082
140082-2
140085 140086 140087
140083-2 140084-2
140087-2
140085-2 140086-2
Master Switch
Individual Lighting Controls
BRACKET FOR 68H:Optional bracket for mounting 68H custom shelves.
CATALOG #68HB Consult factory for quantity needed
SHELVES FOR SURFACE MOUNTED ILLUMINATORS:Custom built
3/4” thick formica shelf.
CATALOG # 68H Specify length and depth when ordering.
OPERATING ROOM OPTION:Testing and selection of ballasts with the lowest possible leakage to ground. Ideal
for use with ground fault detection systems.
HOSPITAL GRADE PLUGS:Satisfies local electrical codes requiring a line plug that is designed for high abuse hospital environment.
CATA LO G # 140281
ELECTRICAL INTERCONNECT:Multiconductor cable with male and female plug terminations for electrically interconnecting special
custom illuminator arrangements (i.e. for use with corner modules or hinge kit units)
Catalog # 140280 MUST BEFACTORY INSTALLED (specify option when ordering)
2 Bank 5 lbs 140082 140092
3 Bank 5 lbs 140083 140093
4 Bank 5 lbs 140084 140094
5 Bank 5 lbs 140085 140095
6 Bank 5 lbs 140086 140096
8 Bank 5 lbs 140087 140097
CATALOG NO.
APPROX
SHIP WT
VIEWING
AREA STAN DARD REMOTE
(W/8’ CABLE)
2 over 2 8 lbs 140082-2 140092-2
3 over 3 8 lbs 140083-2 140093-2
4 over 4 8 lbs 140084-2 140094-2
5 over 5 8 lbs 140085-2 140095-2
6 over 6 8 lbs 140086-2 140096-2
8 over 8 16 lbs 140087-2 140097-2
CATALOG NO.
APPROX
SHIP WT
VIEWI NG
AREA STANDARD REMOTE
(W/8’ CABLE)
# 68H
# 68H B
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
C - 1

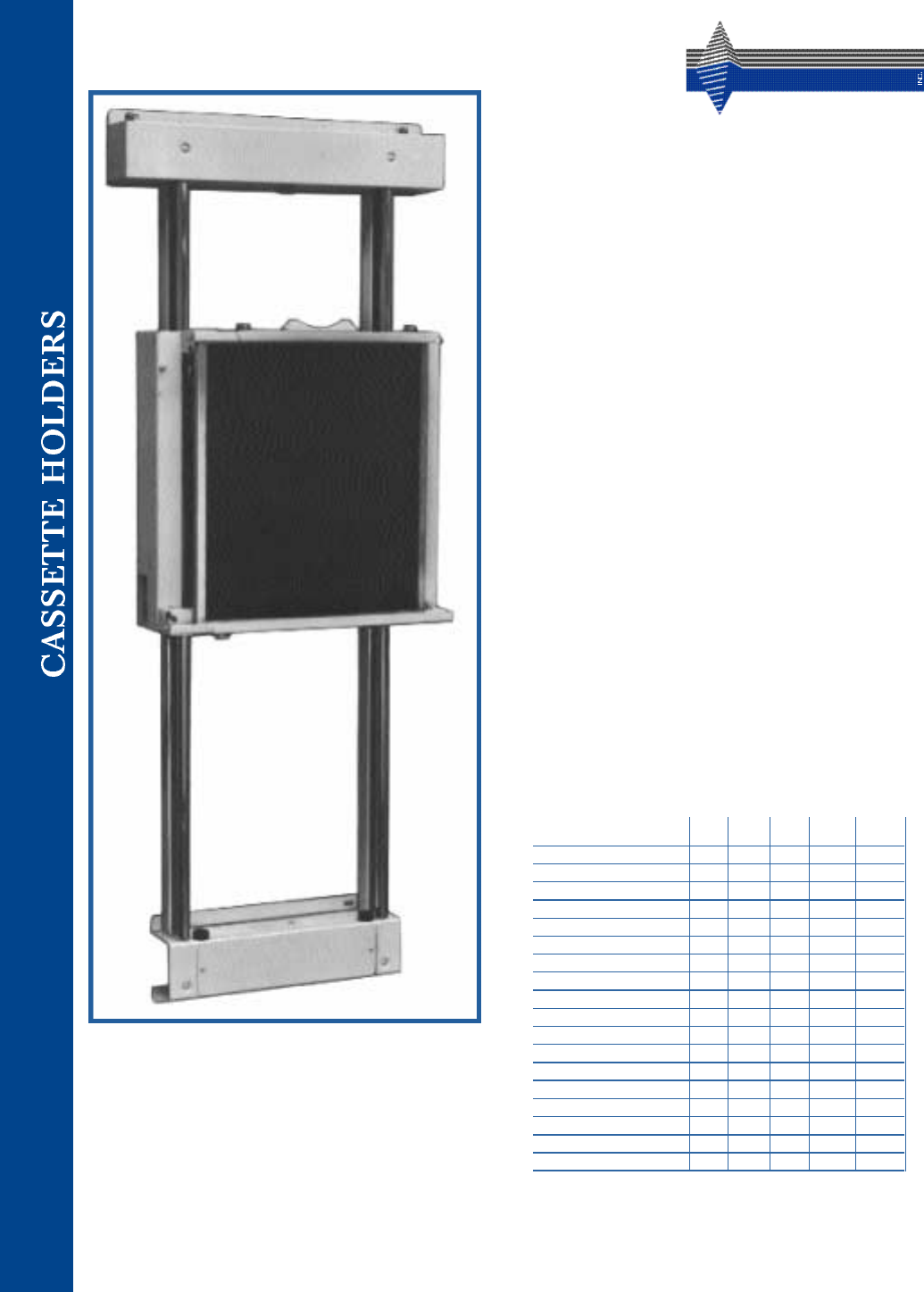

PBL WALL CASSETTE HOLDERS
SOLID STATE INTE RFACE LOGIC
COUNTERBALANCED - ONE HAND OPERATION
3 OR 4 SIZE FORMATS
LEFT OR R IGHT HAND L OAD
32”, 44” OR 56” TRAVEL
These certified wall cassette holders are designed for the heavy
duty use of a large hospital but priced to satisfy the small radiol-
ogy department. Built-in PBL compatibility is automatic and
instantaneous. The unique S&S flipper design makes changing
cassette sizes nearly effortless.
Sturdy box girder construction, nylon bearings, dual lock sys-
tem, constant torque counterbalances and chrome plated steel
tubes give these cassette holders their unique quality.
These cassette holders are easy to use. A cassette simply slides
into the track, and it’s ready. Height can be adjusted from either
the right or left side with one hand; the counterbalances do the
work. Cassette sizes can easily be changed by lifting one of the
flippers and sliding in a new cassette. As the cassette slides into
place, it passes across several ball activated microswitches in the
bottom track.
Each cassette size sets up its own circuit path and, in conjunction
with a built-in solid state interface, sets the collimator for the cas-
sette in use. [Important Note: CASSETTE HOLDERS ARE SUPPLIED
COMPLETE WITH INTERFACE LOGIC FOR MOST TYPES OF COLLIMA -
TORS. WHEN ORDERING PLEASE SPECIFY NAME AND TYPE OF COLLI -
MATOR BEING USED.] No exposure will be permitted if the cassette
is not fully inserted or if an unauthorized size is inserted.
Adjustable grid channels are provided to allow use of a 14”x17”
(15”x18” OD) stationary grid.
Finish: light grey baked enamel.
DEPTH : 7.25”
14x17” 17x14” 10x12” 32” 21” 61” 60 lbs 222210
14x17” 17x14” 10x12” 8x10” 32” 21” 61” 62 lbs 222450
14x17” 17x14” 8x10” 32” 21” 61” 54 lbs 222410
14x17” 17x14” 10x12” 44” 21” 73” 67 lbs 222220
14x17” 17x14” 10x12” 8x10” 44” 21” 73” 67 lbs 222470
14x17” 17x14” 8x10” 44” 21” 73” 65 lbs 222430
14x17” 17x14” 10x12” 56” 21” 85” 76 lbs 222221
14x17” 17x14” 10x12” 8x10” 56” 21” 85” 76 lbs 222471
14x17” 17x14” 8x10” 56” 21” 85” 76 lbs 222431
14x17” 17x14” 10x12” 32” 21” 61” 62 lbs 222230
14x17” 17x14” 10x12 8x10” 32” 21” 61” 60 lbs 222460
14x17” 17x14” 8x10” 32” 21” 61” 54 lbs 222420
14x17” 17x14” 10x12” 44” 21” 73” 65 lbs 222240
14x17” 17x14” 10x12, 8x10” 44” 21” 73” 67 lbs 222480
14x17” 17x14” 8x10” 44” 21” 73” 65 lbs 222440
14x17” 17x14” 10x12” 56” 21” 85” 76 lbs 222241
14x17” 17x14” 10x12” 8x10” 56” 21” 85” 76 lbs 222481
14x17” 17x14” 8x10” 56” 21” 85” 76 lbs 222441
WIDTH HGT SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
RIGHT HAND L OADING
CASSETTE FORMAT
TRAVEL
LEFT HAND LOADING
PBL WALL CASSETTE HOLDER
This cassette holder is certified equipment. It can be
used in certified or non-certified installations when
installer complies with appropriate regulations.
MAXIMUM OPENING FOR GRID - .312”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
C - 2
WALL CASSETTE HOLDERS
FOR USE WITH NON-PBL SYSTEMS ✶
EXTRA HEAVY DUTY
COUNTERBALANCED - ONE HAND OPERATION
ADJUSTABLE F OR CASSETTE SIZES UP TO 14”x17” OR 14”x36”
LOAD FROM EITHER SIDE
These Extra Heavy Duty deluxe cassette holders are designed to
accommodate any size cassette up to 14”x17”(222070) or 14”x36”
(222070M)
Simple, durable and cost effective, these wall cassette holders are
certified for use in general purpose x-ray rooms that do not have
PBL (positive bean limitation) capability.
Heavy duty box girder construction is used for the cassette hold-
er carriages and the top wall mounting bracket.
Heavy gauge chrome plated steel tubes provide a smooth non-
binding surface for the nylon carriage bearings. Constant torque
counterbalancing springs allow effortless vertical movement. The
dual locking system enables the operator to adjust the vertical
positioning of the cassette carriage with one hand from either side
of the patient.
Both models are equipped with adjustable grid channels to accept
a stationary grid.
The 222070 has a maximum vertical travel of 47” when a 14”x17”
cassette is used and the 222070M has a maximum vertical travel
of 28” when a 14”x36” cassette is used.
✶Important Note:
REGULATIONS REQUIRE THAT THESE CASSETTE HOLDERS BE REMOVED
FROM SERVICE SHOULD PBL BE ADDED TO SYSTEM AT A LATER DATE.
5x7” thru 14 x 17 ” 47” 21” 72” 6” 70 lbs 222070
5x7” thru 14 x 36 ” 28” 21” 72” 6” 70 lbs 222070M
WIDTH HGT D EPTH SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
WALL MODEL EXTRA HEAVY DUTY CASSETTE HOLDER
Finish: light grey baked enamel with chrome plated steel tubes.
MAXIMUM OPENING FOR GRID - .312”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
C - 3

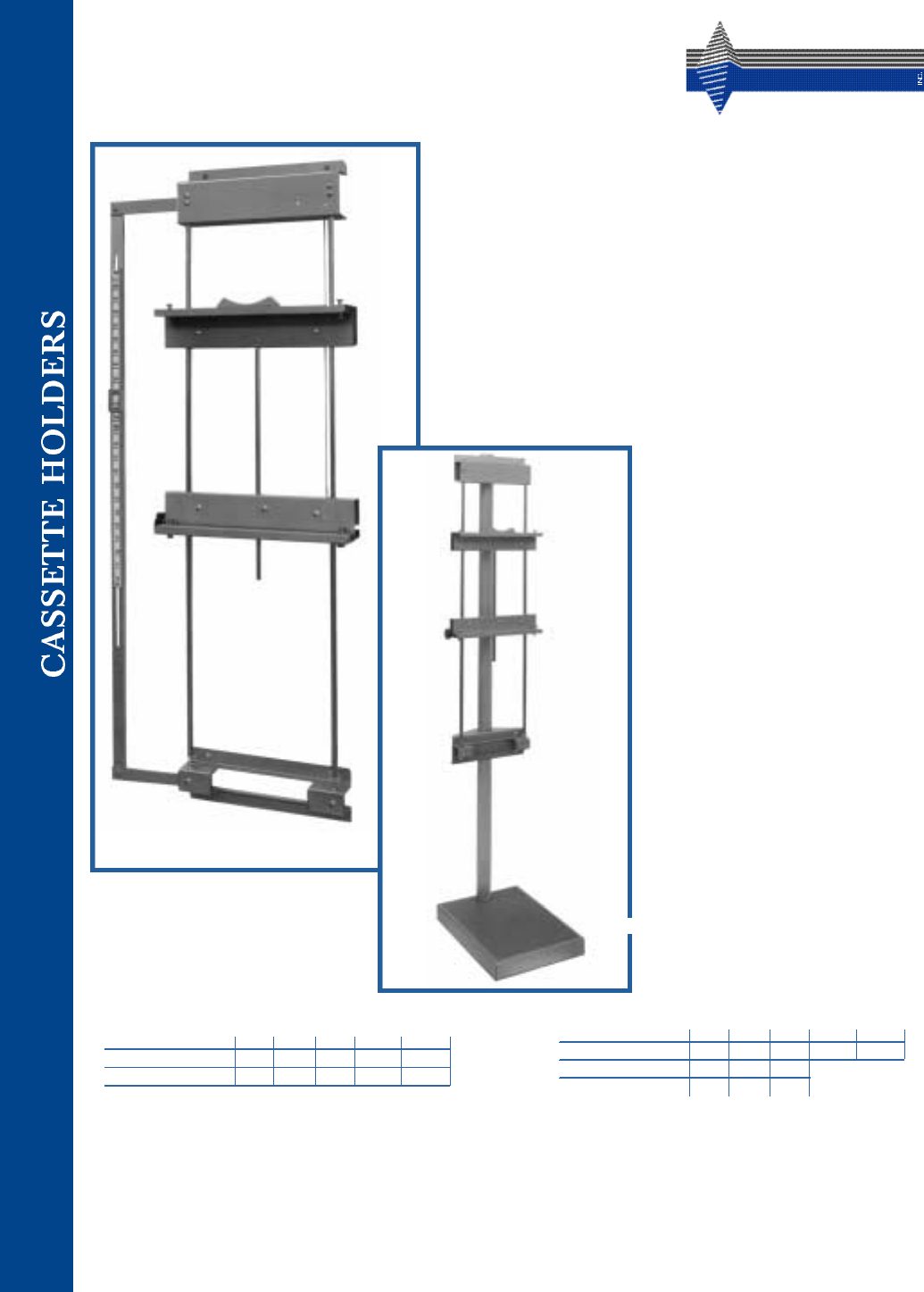

WALL & FLOOR
CASSETTE HOLDERS
FOR USE WITH NON-PBL SYSTEMS ✶
COUNTERBALANCED - ONE HAND OPERATION
CHOICE OF WALL OR FLOOR MODELS
ADJUSTABLE FOR ALL CASSETTE SIZES
LOAD FROM EITHER SIDE
Here are simple, cost effective wall cassette holders certified for use in
general purpose x-ray rooms that do not have PBL (Positive Beam
Limitations) capability.
These counterbalanced, effortless all steel cassette holders are designed
for ease of movement and finger tip adjustments. All models are supplied
with a chin rest and a positive locking system.
Models 130A and 132 are adjustable to accept cassette sizes from 5”x7”
up to 14”x17”. The model 131A will accept all sizes up to 14”x36”. All
models also have independent adjustable grid channels.
The Floor Model Cassette Ho l d e r
(model 132) uses model 130A mounted to a
sturdy chrome plated steel vertical column
and secured to a base constructed of heavy
gauge steel with a non-slip rubber top. The
base measures 14”W. x 19”L. x 2.5” H. The
overall height of the complete unit is 73”.
✶Important Note:
RE GULATIONS RE QUIRE TH AT TH ESE C A S-
SETTE HOLDERS BE REMOVED FROM SERVICE
SHOULD PBL BE ADDED TO SYSTEM AT A
LATER DATE.
DEPTH: 5”
5x7” thru 14 x 17 ” 22” 14.5” 47” 15 lbs 130A
5x7” thru 14 x 17 ” 33” 14.5” 66” 24 lbs 131A
WIDTH HGT SHIP WT
EXTERIOR D IM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
WALL MODEL CASSETTE HOLDER
Finish: light grey baked enamel with chrome plated steel tubes.
Optional Items: 133: A convenient height scale to assist in aligning X-Ray tube to cassette. (for model 130A only) (approx. ship. wt. 6 lbs.)
5x7” thru 14 x 17 ” 22” 14.5” 47” 70 lbs. 132
B a se Dim. 19.25” 13.75” 2.5”
WIDTH HGT SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
FLOOR MODEL CASSETTE HOLDER
DEPTH WIDTH HGT
OVERALL H EIGHT:73”
No. 130A Shown with option 133
No. 132 Floor Model Cassette Holder
MAXIMUM OPENING FOR GRID - .562”
MAXIMUM OPENING FOR GRID - .562”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY PR O D U C T S
w w w. s s x ra y. c o m
C - 4

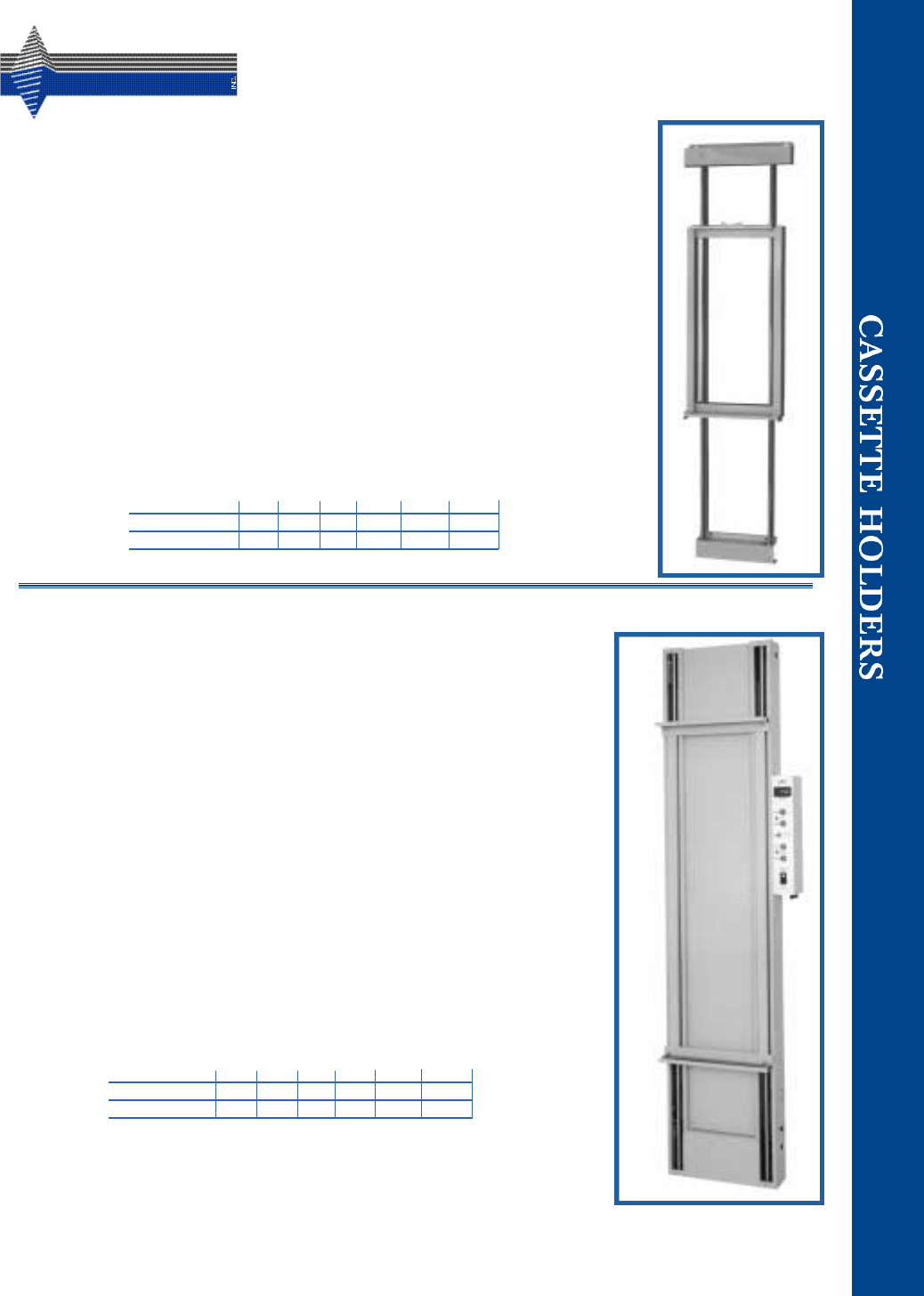

14”x36” HEAVY DUTY WALL
CASSETTE HOLDERS
CERTIFIED FOR USE WITH ALL X-RAY SYSTEMS
EXTRA HEAVY DUTY CONSTRUCTION
COUNTERBALANCED - DUAL LOCK SYSTEM
24” OR 38” TRAVEL
LOAD FROM EITHER SIDE
Designed specifically for 14”x36” cassettes, this heavy duty cassette holder is unequaled in construc-
tion and performance. Heavy duty box girder construction is used for the cassette holder carriage and
the top and bottom wall mounting brackets. Heavy gauge chrome plated steel tubes provide a smooth
non-binding surface for the nylon carriage rollers.
Constant torque counterbalancing springs allow effortless vertical movement. The dual locking system
enables the operator to adjust vertical positioning of the cassette carriage with one hand from either
side of the patient. Adjustable grid channels are provided to accept a stationary grid.
Two lengths of travel are available. The standard length is 24”. For weight bearing studies we manu-
facture the 38” extended travel model.
Finish: light grey baked enamel.
14 ” x 36 ” 24” 21” 71” 7.25” 80 lbs 222080
14 ” x 36 ” 38” 21” 85” 7.25” 90 lbs 222090
WIDTH HGT D EPTH SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
EFFORTLESS POSITIONING OF HEAVY CASSETTES
TWO SPEED MOTOR
ELECTRONIC DIGITAL HEIGHT SCALE
AVAILABLE FOR 14” x 51” OR 14” x 36” CASSETTES
LOAD FROM EITHER SIDE
Effortless positioning of the cassette in this motorized cassette holder is achieved by simply press-
ing the buttons that operate the two-speed motor to raise or lower it. The high speed permits fast
positioning, the low speed allows fine adjustment. At a point three inches from the floor it stops
to enable the operator to set the lower speed to continue to the floor slowly to avoid collisions.
This allows an image to be taken from the floor up. The extra long travel achieves a maximum
height of 83” above the floor.
This unique cassette holder is equipped with an electronic digital height scale, which is switchable
between inches and centimeters, to further simplify its use.
Finish: light grey baked enamel.
14 ” x 51 ” 83” 21.125” 83” 7 230 lbs 222110
14 ” x 36 ” 83” 21.125” 83” 7 230 lbs 222120
WIDTH HGT DEPTH S HIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
MOTORIZED CASSETTE HOLDERS
Optional Items: 474-1451 Cassette Adapter: Allows a 222110
(14”x51”Cassette Holder) to accept a 14”x36” cassette - see page C - 7
WALL MODEL EXTRA HEAVY DUTY CASSETTE HOLDER
MOTORIZED CASSETTE HOLDER
MAXIMUM OPENING FOR GRID - .25”
MAXIMUM OPENING FOR GRID - 312”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
C - 5

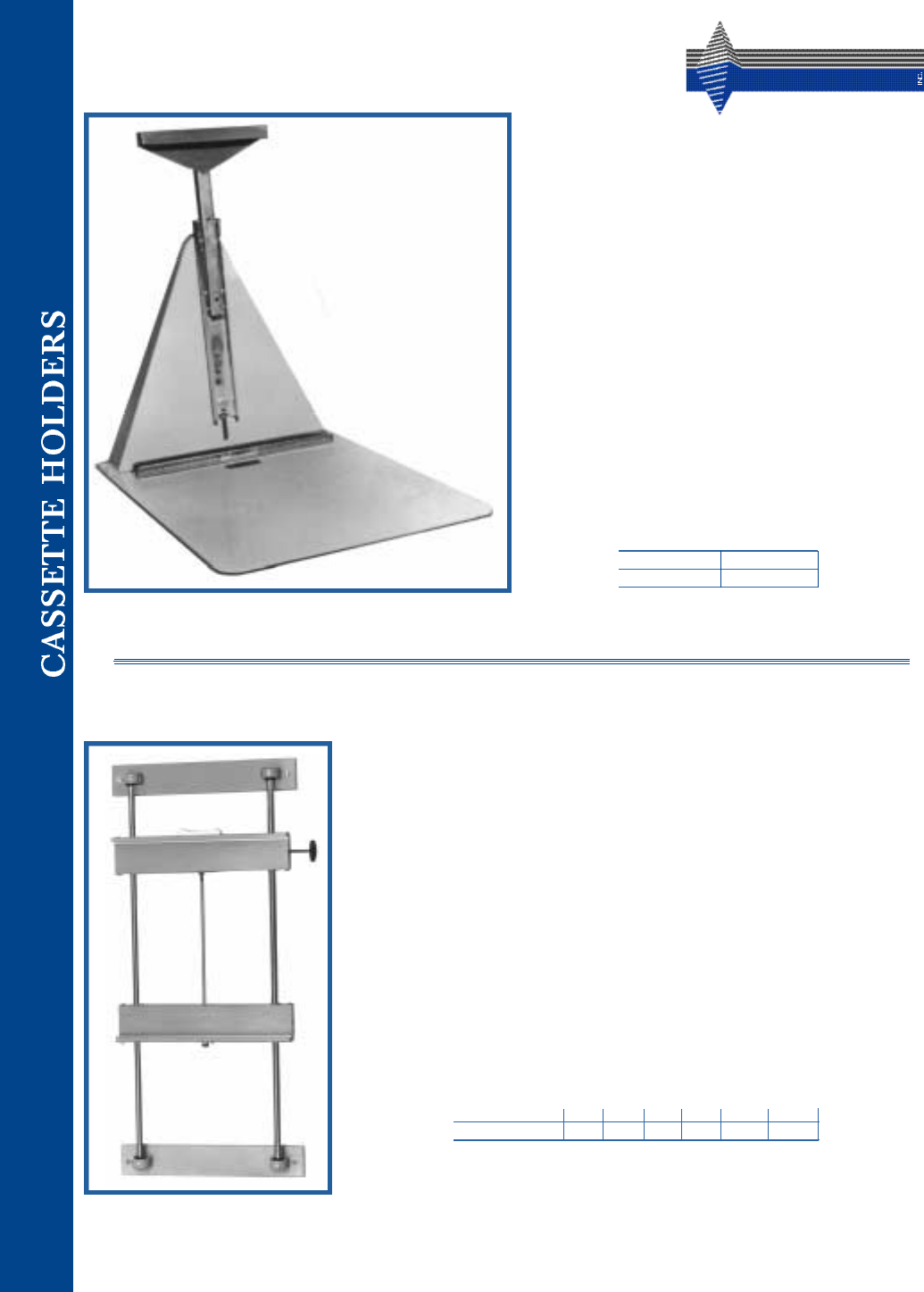

X-ALMOR WALL CASSETTE HOLDERS
FOR USE WITH NON-PBL SYSTEMS ✶
ADJUSTABLE FOR CASSETTES UP TO 14” x 17”
COUNTERBALANCED - ONE HAND O PERATION
LOAD FROM EITHER SIDE
Model 425 is an adjustable wall cassette holder that will accept all cassette sizes up to
14”x17”. Contoured chin rest, grid channels, counterbalanced vertical travel and a positive
locking knob are standard features in the model.
Sturdy all metal construction includes cast aluminum wall mounting brackets, stainless
steel vertical travel rods and a heavy gauge steel cassette carriage.
✶Important Note:
REGULATIONSREQUIRETHATTHESECASSETTEHOLDERSBEREMOVEDFROMSERVICESHOULD
PBL BE ADDED TO SYSTEM AT A LATER DATE.
Up to 14 ” x 17 ” 19.5” 17” 37” 5.5” 18 lbs 425
WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
Finish: light grey baked enamel.
Optional Item: Cat. No. 605: Five foot stainless steel rods for additional travel.
WALL MODEL CASSETTE HOLDER
MAXIMUM OPENING FOR G RID - .187”
X-ALMOR TABLE TOP
CASSETTE HOLDER
DESIGNED FOR CROSS TABLE WORK
LIGHT IN WE IGHT
STURDY CONSTRUCTION
EASY TO USE
These strong table top holders are ideal for myelograms, skulls,
AP-PA pelvic x-ray exams, and other cross-table examinations.
The 490 will accept any size cassette thru 14”x17”x.75” thick.
The 490EW has extra wide 1” channels for use with a stationary
grid.
Both models have top stainless steel cassette channel guides that
lift vertically to allow easy removal or insertion of cassettes.
Stability is provided by the large aluminum base (12”x18”) and
sturdy design.
Finish: light grey baked enamel.
10 lbs 49 0
10 lbs 490EW
APPROX SHIP WT CATALOG NO.
TABLE TOP CASSETTE HOLDER
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
C - 6

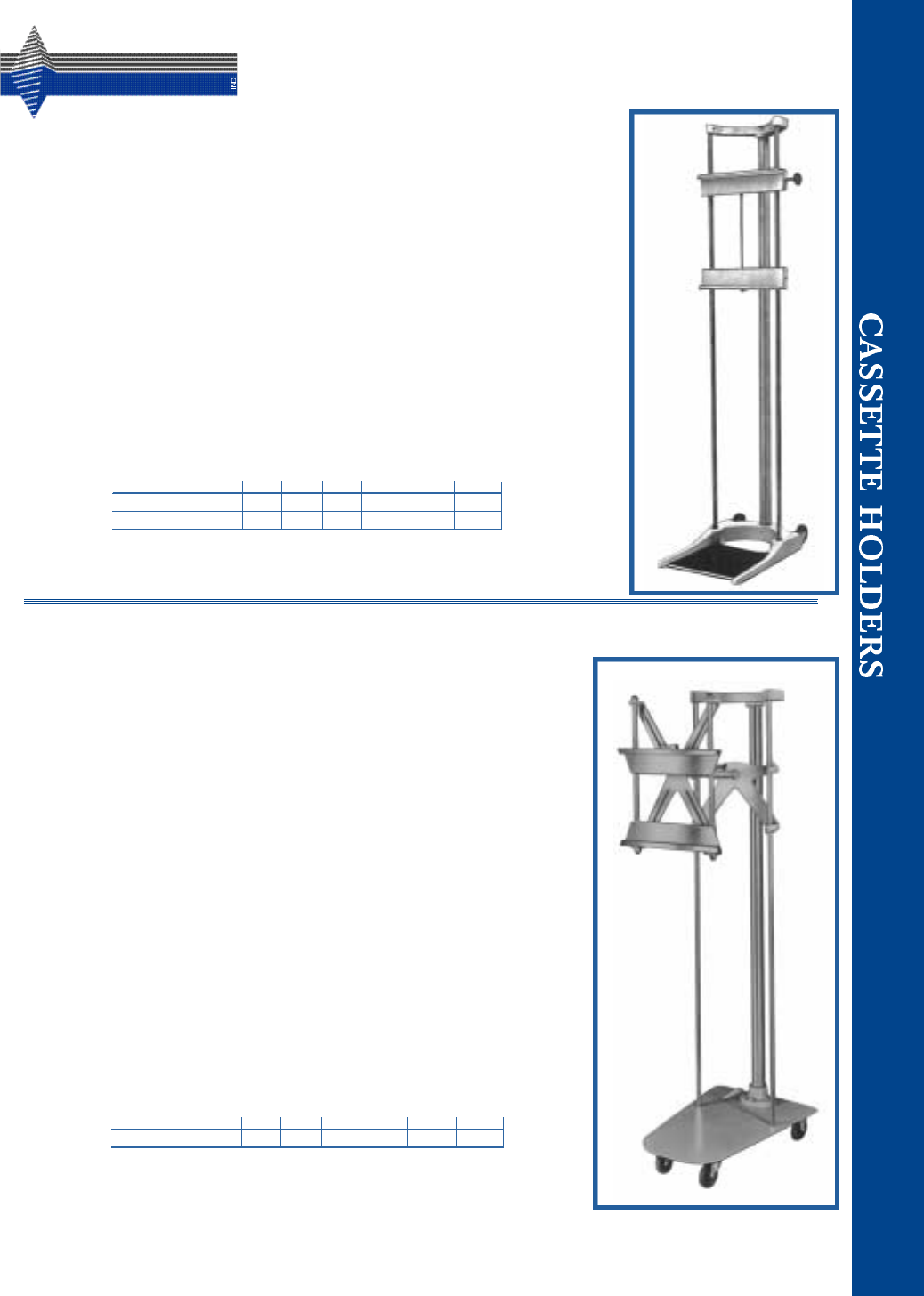

X-ALMOR MOBILE FLOOR STAND
CASSETTE HOLDER
IDEAL FOR PORTABLE X-RAYS
COUNTERBALANCED - ONE HAND O PERATION
ADJUSTABLE FOR MOST CASSETTE SIZES
These mobile floor stand cassette holders are ideally suited for use with portable X-Ray units. The
475 cassette holder will accommodate all cassette sizes from eight to seventeen inches in either direc-
tion. The 475M is designed to accept all cassette sizes up to a 14”x36”.
The sturdy floor stand is constructed of heavy gauge steel with a cast aluminum top and base. Wheels
mounted to the rear of the base provide complete mobility when the stand is tilted backwards.
Leveling screws are provided to assure firm floor contact for complete stability when unit is in use.
Features include: a chin rest, vertical counterbalancing, adjustable cassette channels, vertical lock,
stainless steel vertical travel rods and grid channels for a stationary grid.
Finish: light grey baked enamel.
8 x 10” thru 14 x 17 ” 42” 15” 69.75” 22.75” 110 lbs 475
8 x 10” thru 14 x 36 ” 23” 15” 69.75” 22.75” 110 lbs 475M
WIDTH H GT OF BAS E SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
MOBILE FLOOR STAND CAS SETTE HOLDER
MAXIMUM OPENING FOR GRID - .187”
HOLDS CASSETTES IN ANY POSITION
MULTIPLE APPLICATIONS
COUNTERBALANCED - ONE HAND O PERATION
ADJUSTABLE FOR MOST CASSETTE SIZES (UP TO 14x17”)
LOAD FROM EITHER SIDE
The 480 mobile tilting cassette holder is designed to go anywhere and hold a cassette in any posi-
tion.
Features include: 58” vertical counterbalanced travel, 1800tilt capability, 3600rotation, telescopes
to a forward extension of 22”, accepts cassette sizes up to 14”x17”, chin rest, a positive locking sys-
tem and channels for a stationary grid.
The mobile stand is constructed of heavy gauge steel with a cast aluminum body and stainless steel
vertical travel rods. The base which measures 16.5” wide and 24” deep is mounted on a set of hard
rubber casters which provide complete mobility. A brake system on the rear casters allows the
holder to be locked after positioning.
Finish: light grey baked enamel.
8 x 10” t hru 14 x 17 ” 58” 16.5” 64.5” 24” 129 lbs 480
WIDTH HGT OF BAS E SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT TRAVEL
MOBILE TILTING FLOOR STAND CASSETTE HOLDER
MAXIMUM OPENING FOR GRID - .187”
X-ALMOR MOBILE TILTING CASSETTE HOLDER
DEPTH
DEPTH
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
C - 7

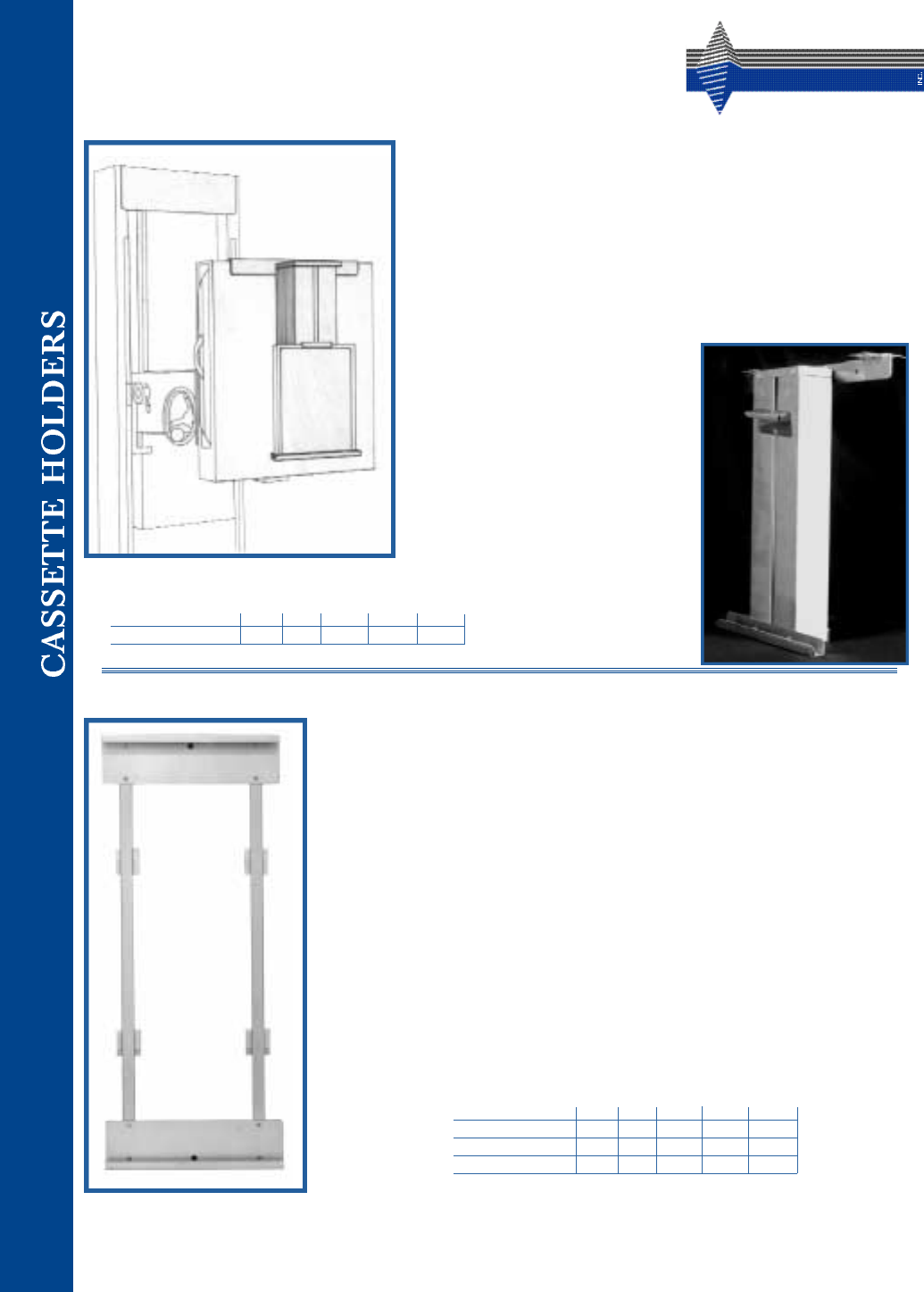

X-ALMOR PORTABLE HANG ON
CASSETTE HOLDER
FOR USE WITH NON PBL SYSTEMS ✶
FITS MOST WALL MOUNTED BUCKYS
ALL STAINLESS STEEL CONSTRUCTION
ADJUSTABLE FOR MOST CASSETTE SIZES
LOAD FROM EITH ER SIDE
The 460 portable hang on cassette holder will fit most vertical wall mounted
buckys. With the Hang On Cassette Holder positioned on the front panel of the
bucky, non-bucky exposures can be made.
To use simply hang the top mounting bracket of the holder over the top of the
bucky. There is no need for tools or fasteners of any kind. With the holder in posi-
tion on the front panel of the bucky, the top cassette channel lifts vertically to
allow easy removal or insertion of 8”x10” to
14 ” x 17”cassettes. If required, permanently
mounted grid channels will accommodate a sta-
tionary grid. The entire unit is constructed of
polished stainless steel.
SPECIFY DEPTH OF BUCKY WHEN ORDERING
The 460 Hang on adapter is to be used only as a
portable device.
✶Important Note:
RE GULATIONS RE QUIRE TH AT THES E C A SSETTE
HOLDERS BE REMOVED FROM SERVICE SHOULD
PBL BE ADDED TO SYSTEM AT A LATER DATE.
Finish: polished stainless steel.
8 x 10” t hru 14 x 17 ” 18” 20.75” 4.375” 10 lbs 460
WIDTH H GT D EPTH SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE FORMAT
460 PORTABLE HANG ON CASSETTE HOLDER
X-ALMOR 14”X36” ADAPTER SERIES
PORTABLE
CONVERTS MOST CASSETTE HOLDERS
ALUMINUM/STEEL CONSTRUCTION
GRID CHANNELS
LOAD FROM EITHER SIDE
This series enables your present cassette holder (or bucky) to accept a 14”x36” cassette and grid.
The 474 is constructed of aluminum upright supports with glides which will fit most cassette hold-
ers. Simply set your holder for a 14”x17” cassette and slide the adapter into your holder as you
would a cassette. Grid channels which will accept a 14”x36” stationary grid of .187” maximum
thickness are built into the adapter.
The 474-1451 is the same as above but adapts our 222110 motorized 14”x51” cassette holder to
accept 14”x36” cassette and grid.
The 474M is constructed of aluminum with steel brackets for hanging on to the front of a 14”x17”
bucky.
SPECIFY DEPTH OF BUCKY WHEN ORDERING.
Finish: white.
14 x 17” Casse tte Holder 15” 37.5” 3.25 12 lbs 474
14 x 51” Cass e tte Holder 15” 37.5” 3.25 15 lbs 474-1451
14 x 17” Bucky 15” 37.5” ADJ 12 lbs 474M
WIDTH H GT D EPTH SHIP WT
EXTERIOR DIMENSIONS APPROX. CATALOG
NO.
FOR
14”x36” ADAPTER
MAXIMUM OPENING FOR GRID - .187”
No. 474
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY PR O D U C T S
w w w. s s x ra y. c o m
C - 8

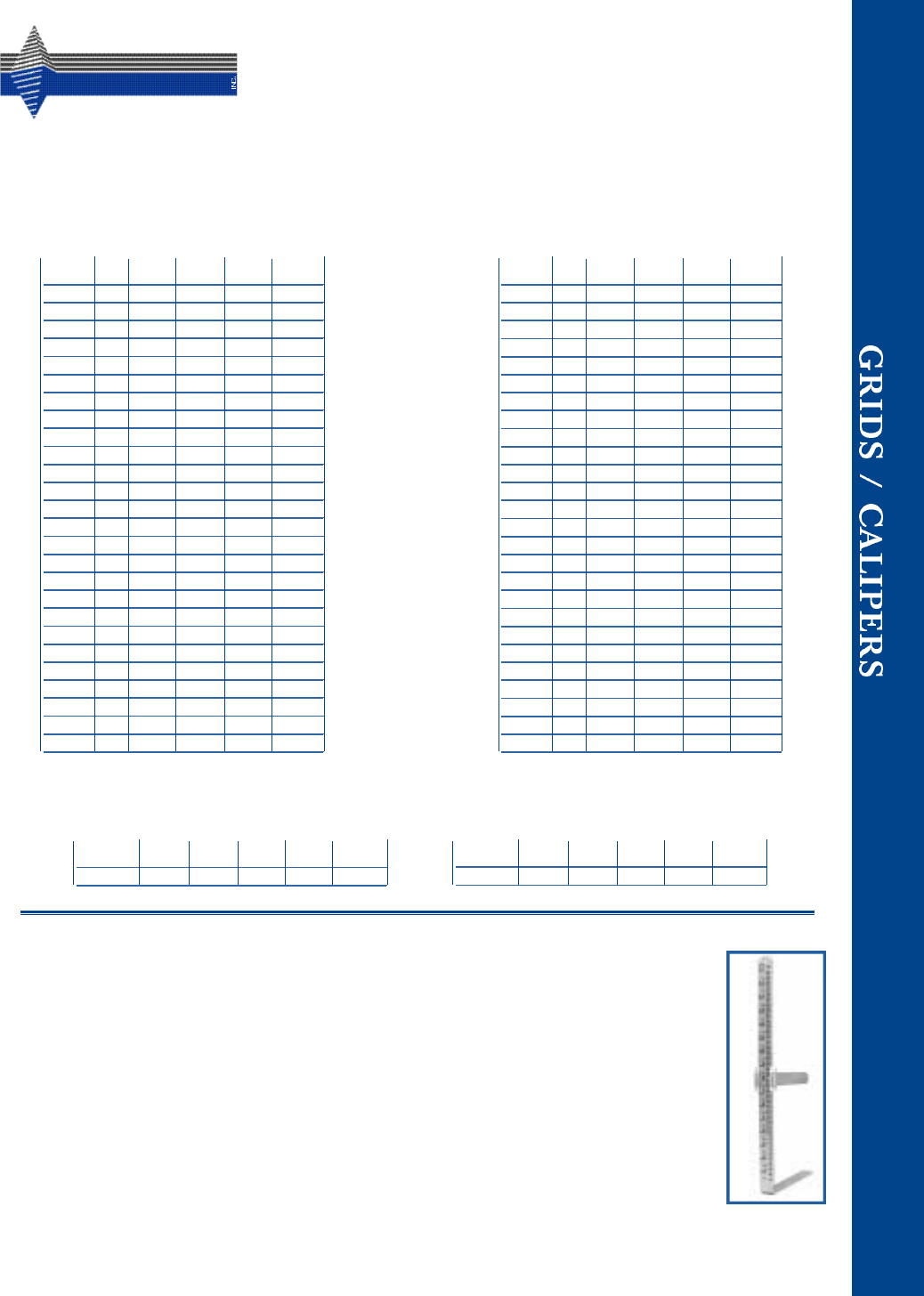

ALUMINUM INTERSPACED GRIDS
DELUXE CALIPERS
Deluxe Calipers feature smooth sliding pointer assemblies to facilitate adjustments during thickness measurements. Two pointers
clearly indicate readings. A unique friction assembly design provides non-slip firm holding action to set and retain measurement.
Bold easy to read black embossed caliper scale is calibrated in both inches and centimeters. The 16 9 Breads from 0” to16” and
0cm to 40cm. Sturdy 3
/16” aluminum construction provides the strength needed to withstand frequent use and hard wear.
The larger model (16 9 C) features a specially designed base that can easily slip under a patient who is lying flat on a table and
reads from 0” to 24” and 0cm to 61 c m .
SMOOTH SLI DE POINTER ASSEMBLY
UNIQUE NON-SLIP D ESIGN
EASY TO READ INCH/CENTIMETER SCALE
HEAVY DUTY ALUMINUM CONSTRUCTION
169B - Heavy Duty Calipers approx. shipping Wt. - 2 lbs.
169C - Extra Large Calipers approx. shipping Wt. - 4 lbs.
8”x10” 6:1 356121 356122 356123 356124
10”x12” 6:1 356321 356322 356323 356324
11”x14” 6:1 356421 356422 356423 356424
14”x14” 6:1 356521 356522 356523 356524
14”x17” 6:1 356621 356622 356623 356624
14”x36” 6:1 356721 356722 356723 356724
8”x10” 8:1 356131 356132 356133 356134
10”x12” 8:1 356331 356332 356333 356334
11”x14” 8:1 356431 356432 356433 356434
14”x14” 8:1 356531 356532 356533 356534
14”x17” 8:1 356631 356632 356633 356634
14”x36” 8:1 356731 356732 356733 356734
8”x10” 10:1 356141 356142 356143 356144
10”x12” 10:1 356341 356342 356343 356344
11”x14” 10:1 356441 356442 356443 356444
14”x14” 10:1 356541 356542 356543 356544
14”x17” 10:1 356641 356642 356643 356644
14”x36” 10:1 356741 356742 356743 356744
8”x10” 12:1 356151 356152 356153 356154
10”x12” 12:1 356351 356352 356353 356354
11”x14” 12:1 356451 356452 356453 356454
14”x14” 12:1 356551 356552 356553 356554
14”x17” 12:1 356651 356652 356653 356654
14”x36” 12:1 356751 356752 356753 356754
PROVIDES EXCELLENT DIAGNOSTIC CLARITY
WIDE SELECTION OF TYP ES, RATIOS AND F OCAL RANGES
SUPERIOR CONSTRUCTION AND ALI GNMENT
FOR STATIONARY OR BUCKY APPLICATION
The finest materials, quality craftsmanship and superior construction combine to make these grids one of the finest grid products
available. Select from 85 lines or 103 lines per inch models with a choice of focal ranges and ratios.
85 LINE STATIONARY GRIDS
FILM SIZE RATIO
26-32”
FOCUS
34-44”
FOCUS
48-72”
FOCUS
PARALLEL
FOCUS
8”x10” 6:1 357121 357122 357123 357124
10”x12” 6:1 357321 357322 357323 357324
11”x14” 6:1 357421 357422 357423 357424
14”x14” 6:1 357521 357522 357523 357524
14”x17” 6:1 357621 357622 357623 357624
14”x36” 6:1 357721 357722 357723 357724
8”x10” 8:1 357131 357132 357133 357134
10”x12” 8:1 357331 357332 357333 357334
11”x14” 8:1 357431 357432 357433 357434
14”x14” 8:1 357531 357532 357533 357534
14”x17” 8:1 357631 357632 357633 357634
14”x36” 8:1 357731 357732 357733 357734
8”x10” 10:1 357141 357142 357143 357144
10”x12” 10:1 357341 357342 357343 357344
11”x14” 10:1 357441 357442 357443 357444
14”x14” 10:1 357541 357542 357543 357544
14”x17” 10:1 357641 357642 357643 357644
14”x36” 10:1 357741 357742 357743 357744
8”x10” 12:1 357151 357152 357153 357154
10”x12” 12:1 357351 357352 357353 357354
11”x14” 12:1 357451 357452 357453 357454
14”x14” 12:1 357551 357552 357553 357554
14”x17” 12:1 357651 357652 357653 357654
14”x36” 12:1 357751 357752 357753 357754
103 LINE STATIONARY GRIDS
FILM SIZE RATIO
26-32”
FOCU S
34-44”
FOCUS
48-72”
FOCUS
PARALLEL
FOCUS
Overall dimensions of above grids are one inch greater than film size. Lead strips run parallel to long dimension.
17.25”x17.75” 358001 358002 358003 358004
17.25”x18.875” 358005 358006 358007 358008
85 LINE BUCKY GRIDS
OV E R AL L
DIM.
8:1
RATIO
10:1
RATIO
12 : 1
RATIO
FOCAL
RANGE
6:1
RATIO
Specify on order 17.25”x17.75” 359001 359002 359003 359004
17.25”x18.875” 359005 359006 359007 359008
103 LINE BUCKY GRIDS
OVE RALL
DIM.
8:1
RATIO
10:1
RATIO
12 : 1
RATIO
FOCAL
RANGE
6:1
RATIO
Lead strips run parallel to short dimension of Bucky Grids.
Specify on order
Specify on order
Specify on order
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
D - 1
EMERGENCY CARTS
The EMC1 Emergency Cart has been designed for quick and easy maneuverabili-
ty, from its lightweight aluminum frame to the casters that roll comfortably over car-
peted as well as non-carpeted floors. Perimeter bumpers protect the cart from dam-
age. The molded ABS plastic top ensures long-lasting wear and is easy to clean,
while the raised lip and sides contain spills and serve as cart handles. The EMC1
provides maximum storage capacity via two 3-inch drawers, one 6-inch drawer and
two 9-inch drawers. Full-extension drawer slides ensure that all the contents of each
drawer are visible and accessible. Drawer contents can be organized to fit your
needs with aluminum and plastic dividers. Dividers for 6” or 9” drawers can be
arranged to create up to nine compartments per drawer.
EMERGENCY FEATURES:
Standard defibrillator swing -arm can be rotated a full 3600to expose the Emergency
Cart’s work surface for other instruments. Because the arm is internally mounted,
cart stability is maintained even when a defibrillator is in use.
The I.V. pole is secured internally for strength and stability. The pole’s height is
adjustable for maximum flexibility.
The oxygen tank bracket is mounted within the recessed side to eliminate interference
with connections and to protect the tank from damage as the cart is moved about.
Cardiac board slides easily out of brackets on the back of the cart for fast removal.
The proof-of-entry flap accommodates a variety of breakaway security seals, thus
allowing quick access to cart contents.
A braking caster ensures that the Emergency Cart won’t shift during procedures.
LIGHTWEIGHT ALUMINUM CONSTRUCTION
PROOF-OF-ENTRY SEAL
INTERNALLY MOUNTED DEFIBRILLATOR SWING-ARM AND I.V. POLE
CARDIAC BOARD AND BRACKET
UTILITY CARTS
EMC1- I.V. Pole, Oxygen tank bracket, Defibrillator swing arm, Four 5”
Casters (one with brake and one with locking swivel).
Drawers:
2 - 3”deep with one divider set,
1 - 6” and 2 - 9” deep with 1 set of dividers.
Overall cart size: 271
/2”W.x22”D.x421
/2”H.
Approx. shipping wt. 210 lbs.
Finish: Agean Blue
The UC1 is a versatile Utility Cart that can serve in several capacities, such as supplies cabinet, treat-
ment cart, bedside cart, or procedures support. The cart’s compact design allows it to be placed in
tight spots, yet its large drawers provide ample storage capacity. Cart contents are secured with a
barrel lock.
The UC1 provides maximum storage capacity via one 3-inch drawer, two 6-inch drawers and one
9-inch drawer. Full-extension drawer slides ensure that all the contents of each drawer are visible
and accessible. Drawer contents can be organized to fit your needs with plastic divider sets.
A protective bumper around the base ensures the UC1 won’t damage other equipment, while its
steel frame promises years of durable use. The molded ABS plastic top provides long lasting wear.
A raised lip ensures that spills are contained on the top for quick clean up. The 4” casters include
two directional locks for enhanced maneuverability.
Finish: Sandstone Beige
UC1- Four 4” Casters (two locking).
SMALL FOOTPRINT WITH MAXIMUM STORAGE CAPACITY
SERVES M ULTIPLE USES
FULL-ACCESS DRAWERS
DURABLE STE EL BODY
Shown for EMC1 - 3” deep drawer with 2 ver-
tical aluminum and 5 adjustable plastic
dividers. Vertical plastic dividers are used for
the UC1
3” deep drawer accepts
standard exchange trays.
Shown for EMC1 - 2 vertical and 2 horizontal aluminum
dividers for 6” and 9” deep drawers. Create up to 9 com-
partments per drawer. Plastic dividers are used for the UC1
Drawers:
1 - 3”deep with a divider set,
2 - 6” and 1 - 9” deep with with 1 set of
dividers.
Overall cart size: 251
/2”W.x181
/2”D.x34”H
Approx. shipping wt. 140 lbs.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY PR O D U C T S
w w w. s s x ra y. c o m
D - 2

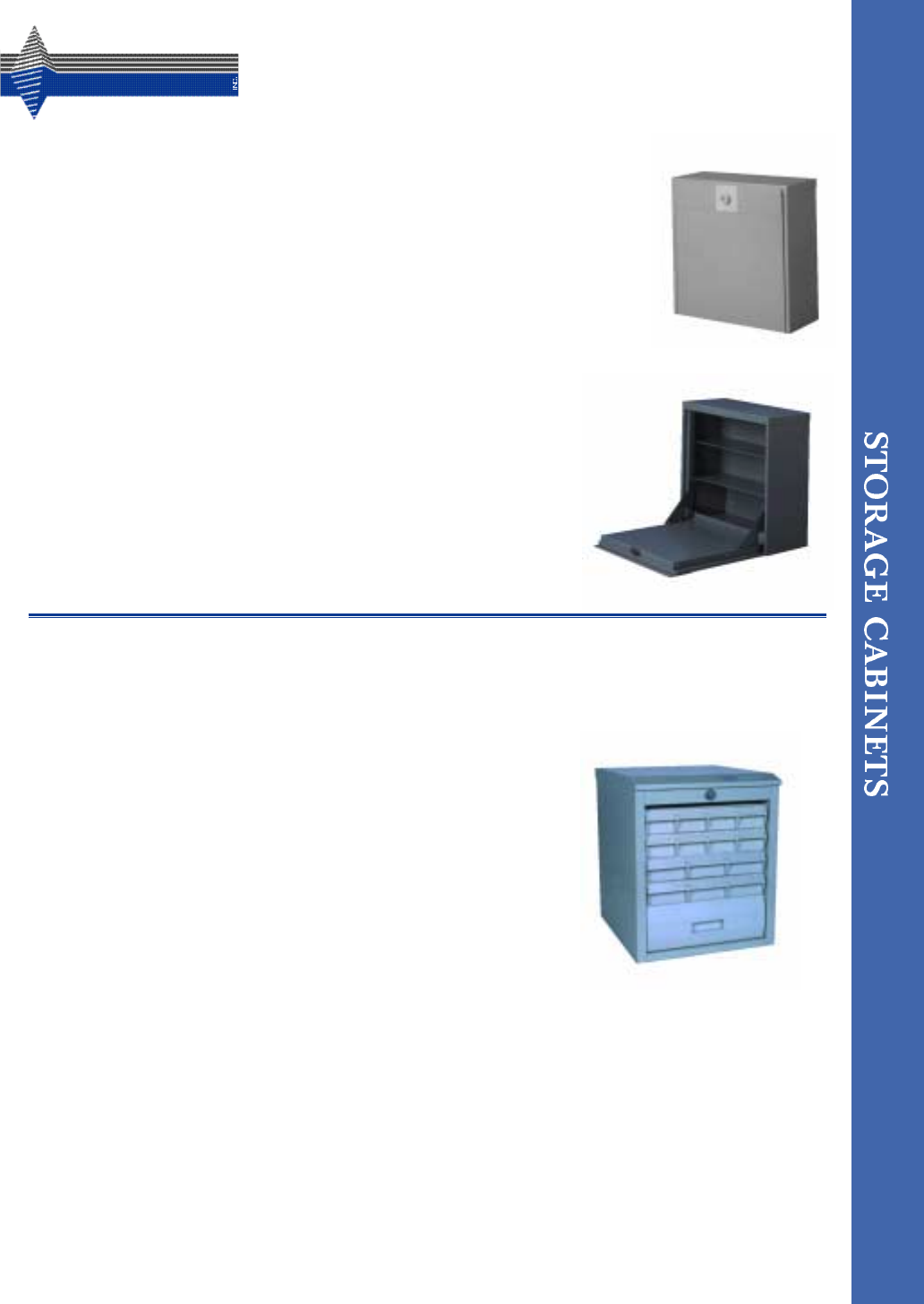

WALL-MOUNTED CONTRAST
CABINETS
SMALL FOOTPRINT
SECURES CONTENTS
VERSATILE USE
Finish: Sandstone Beige
CONTRAST & PHARMACEUTICAL
TABLETOP CABINETS
SPACE-SAVER
CONTENTS SECURED
Model CM10 Wall-Mounted Contrast Cabinet keeps contrast media accessible yet secure, while
also saving valuable space in the radiology suite.
The cabinet has two fixed metal shelves to hold contrast media supplies. A latch-lock provides
reliable security. When the cabinet is open, the door can be used as a sturdy work surface.
The durable steel construction and powder-coated finish ensure years of service. With its com-
pact design, the Contrast Cabinet can be attached to any wall without interfering in department
activities.
With its small footprint, the CM20 and the CM30 Tabletop Cabinets can be conve-
niently placed in the examination room. Contents are secured via a key-lock system
(CM20) or an electronic locking feature (CM30) that eliminates the need for keys.
Made of aluminum and steel with a powder-coated finish, these Tabletop Cabinets
resist the dings and scratches caused by everyday use.
The cabinets contain one 6-inch storage drawer for large supplies and two cassettes.
One cassette contains eight 4.125 inch wide drawers and one cassette contains six 5.5
inch wide drawers for medications and small supplies. The cassettes and drawers are
removable for quick exchange at the pharmacy. Drawer contents can be organized
with the divider sets: a six piece steel set for the storage drawers plus a pack of 100
dividers per cassette.
The CM30 with electronic locking system eliminates the need for keys. Cabinet contents
are accessed through up to two entry codes. Codes can be programmed to any num-
ber between three and eight digits. The Cabinet can be programmed to re-lock
between six seconds and one hour. A key lock is also incorporated into the cabinet
for system override.
CM10- Wall-Mounted Contrast Cabinet
Overall size: 17”W.x71
/8”D.x171/4”H.
Approx. shipping wt. 45 lbs.
Shown: CM30- with electronic lock
Overall size: 195
/8”W.x227
/8”D.x237
/8”H.
Approx. shipping wt. 65 lbs.
Finish: Sandstone Beige
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
D - 3

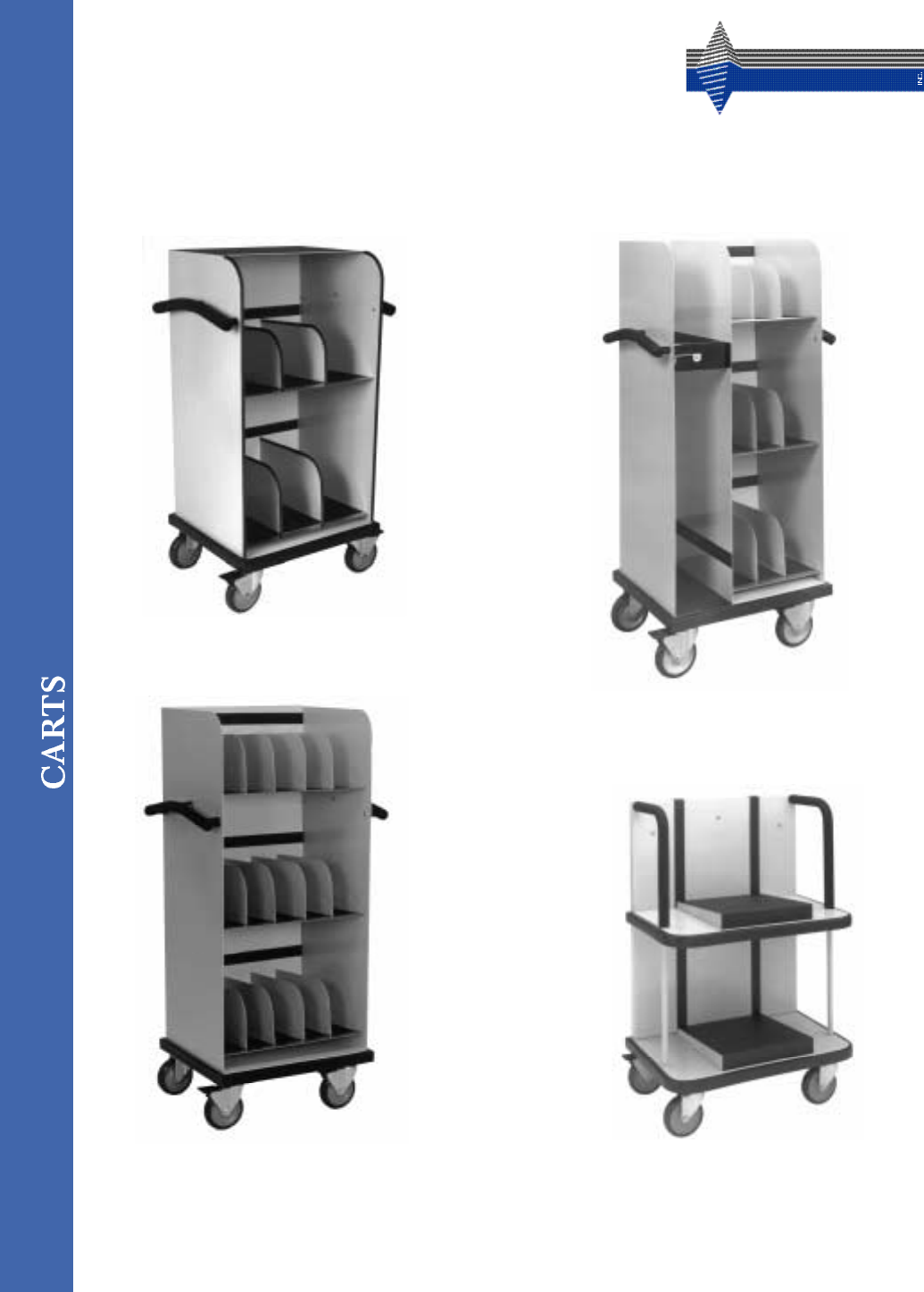

MOBILE CASSETTE & FILM CARTS
CONTOURED PADDED HANDLES
BACK SLOPED SHELVES
These cassette and film carts are designed to withstand the demands of busy radiology departments. Made of cold rolled steel, with high
quality 5” polyurethane locking swivel casters, these sturdy carts are easy to maneuver.
Back sloped shelves, surfaced in non-marring plastic, prevent cassettes, film and envelopes from sliding off the cart. Full perimeter bumpers
protect walls and equipment from damage. The contoured padded handles on both sides of the cart make travel in any direction easy.
CFC 10 - 3 Compartments per shelf - Dividers are approx. 6.5” apart, the bottom
storage area is 19” high, the top storage area is 15.5” high and the top shelf is
20”x13.5”.
Overall cart size: 25”W.x18.5D.”x42.5H. approx. shipping wt. 128 lbs.
Finish: light grey baked enamel.
CFC 12 - 5 Compartments per shelf - Dividers are approx. 4” apart, the bottom
and middle storage areas are 15.75” high.
Overall cart size: 25”W.x18.5”D.x50.75H. approx. shipping wt. 170 lbs.
CFC 14 - Designed for heavy 14x36” or 14x51” cassettes. - 3 Compartments per
shelf - Dividers are approx. 4.25” apart, the bottom and middle storage areas are 16”
high. The long compartment, which is 7” wide, is designed for 14”x36” or 14”x51”
cassettes. A hinged latch lock gate prevents cassettes from falling out.
Overall cart size: 25”W.x18.5D.”x50.5H. approx. shipping wt. 150lbs.
CFC 16 -Film reading cart. 2 shelf cart with back-sloped shelves is designed to
stack films horizontally to allow easy accessibility to envelope markings for identi-
fying films quickly. The bottom storage ares is 16” high, the top storage area is 15”
high. There is a padded handle across the back of the unit for easy moving.
Overall cart size: 26.75”W.x16.75”D.x40”H. approx. shipping wt. 86 lbs.
FULL PERIMETER BUMPER
LOCKING SWIVEL CASTERS
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
D - 4

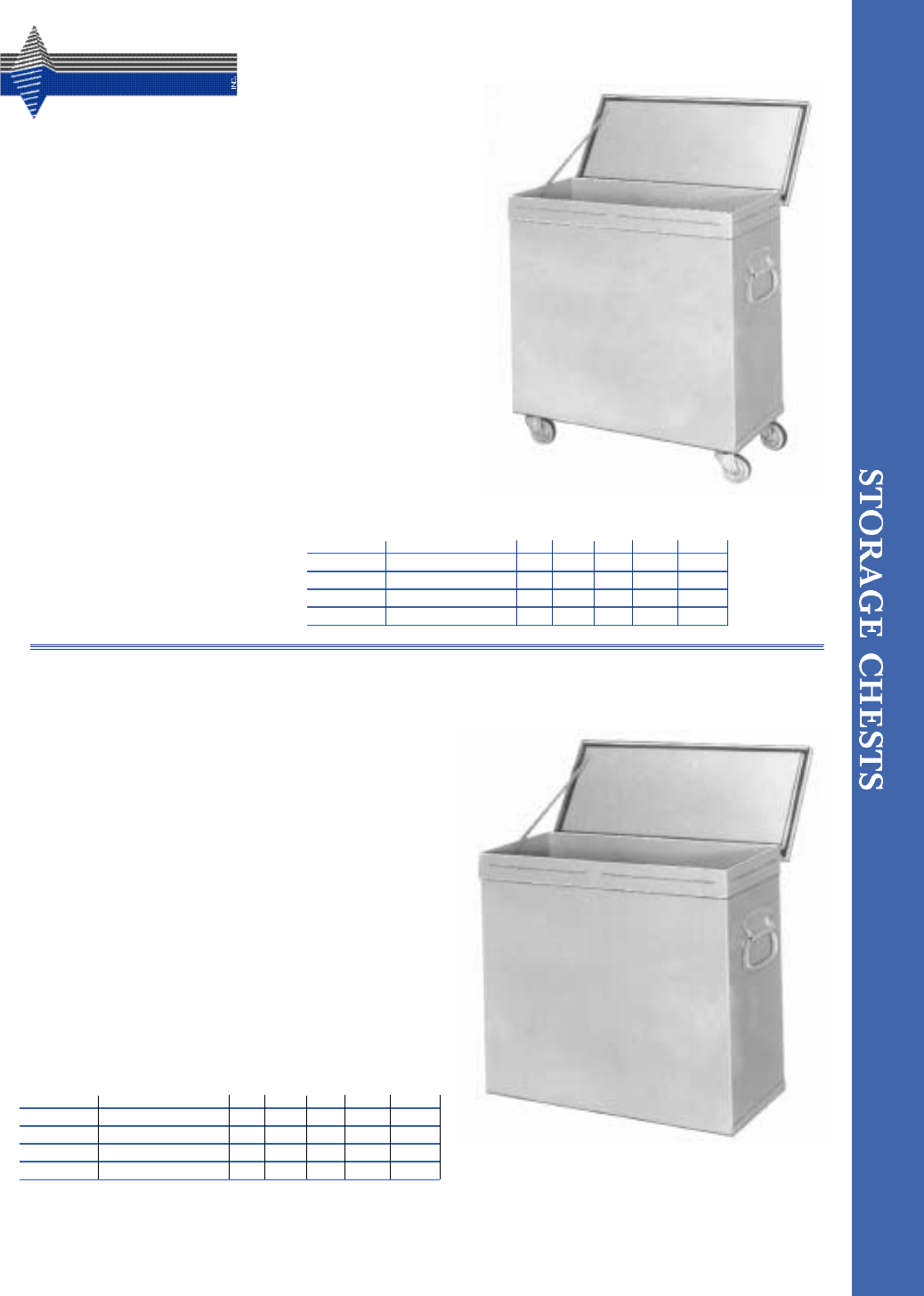

LEAD LINED STORAGE CHEST
LEAD LINED
DOUBLE WALL CONSTRUCTION
FOUR SIZES
MOBILE OR STATIONARY MODELS
Featuring rigid double steel construction with a 1
/1 6 ” lead liner between
each wall, the unique design of these chests makes it impossible for
the lead liner to sag or shift. The liner is formed into the cover so that
when closed, positive x-ray protection is assured. The cover is mount-
ed on a full length, heavy duty piano hinge for lasting service. There
are three handles on the chest, one welded to the lid and one on each
end. Heavy duty double race ball bearing casters provide ease of
mobility.
550,550A and 551 are designed to hold cassettes up to 14”x17”.
553 is specifically designed for spot film cassettes and is partitioned
into two compartments.
The 553A is an optional high base with casters, designed specif-
ically for the 553, to eliminate stooping and bending. The base
with casters is 13.5” high bring the height of the chest to a com-
fortable 28.5”. Approx. ship. weight: 25Lbs.
Finish: light grey baked enamel.
Up to 14x17” Medium capacity w/casters 8” 19” 16” 90 lbs 550
Up to 14x17” Large capacity w/casters 11.25” 19” 16” 120 lbs 550A
Up to 14x17” Extra large capacity w/casters 15” 19” 16” 147 lbs 551
Spot Film Medium capacity 12” 13.5” 9” 53 lbs 553
LENGTH DEPTH SHIP WT
INTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE SIZE DESCRIPTION WIDTH
LEAD LINED STORAGE CHEST
ALL STEEL CONSTRUCTION
14”x17” AND 14”x36” MODELS
MOBILE OR STATIONARY MODELS
Constructed of 1
/8 ” thick welded steel plate, these sturdy chests offer
economical x-ray protection in many situations. The cover is mount-
ed on a heavy gauge full length piano hinge and overlaps the walls
of the chest to provide all around protection. There are three han-
dles, one welded to the lid and one on each end of the chest. Mobile
models have 2” double race ball bearing casters.
552 and 552A are designed to hold cassettes up to 14”x17”.
552C and 552D are designed to hold cassettes up to 14”x36”.
552A- Stationary all steel Storage Chest.
Finish: light grey baked enamel.
Up to 14x17” With Casters 8” 19” 16.5” 50 lbs 552
Up to 14x17” Stationary 8” 19” 16.5” 50 lbs 552A
Up to 14x36” With Casters 8” 36” 16.5” 100 lbs 552C
Up to 14x36” Stationary 8” 36” 16.5” 100 lbs 552D
LENGTH HEIGHT SH IP WT
INTERIOR DIM. APPROX. CATALOG
NO.
CASSETTE SIZE DESCRIPTION WIDTH
ALL STEEL STORAGE CHEST
ALL STEEL STORAGE CHEST
550- Mobile lead lined medium capacity chest.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
D - 5

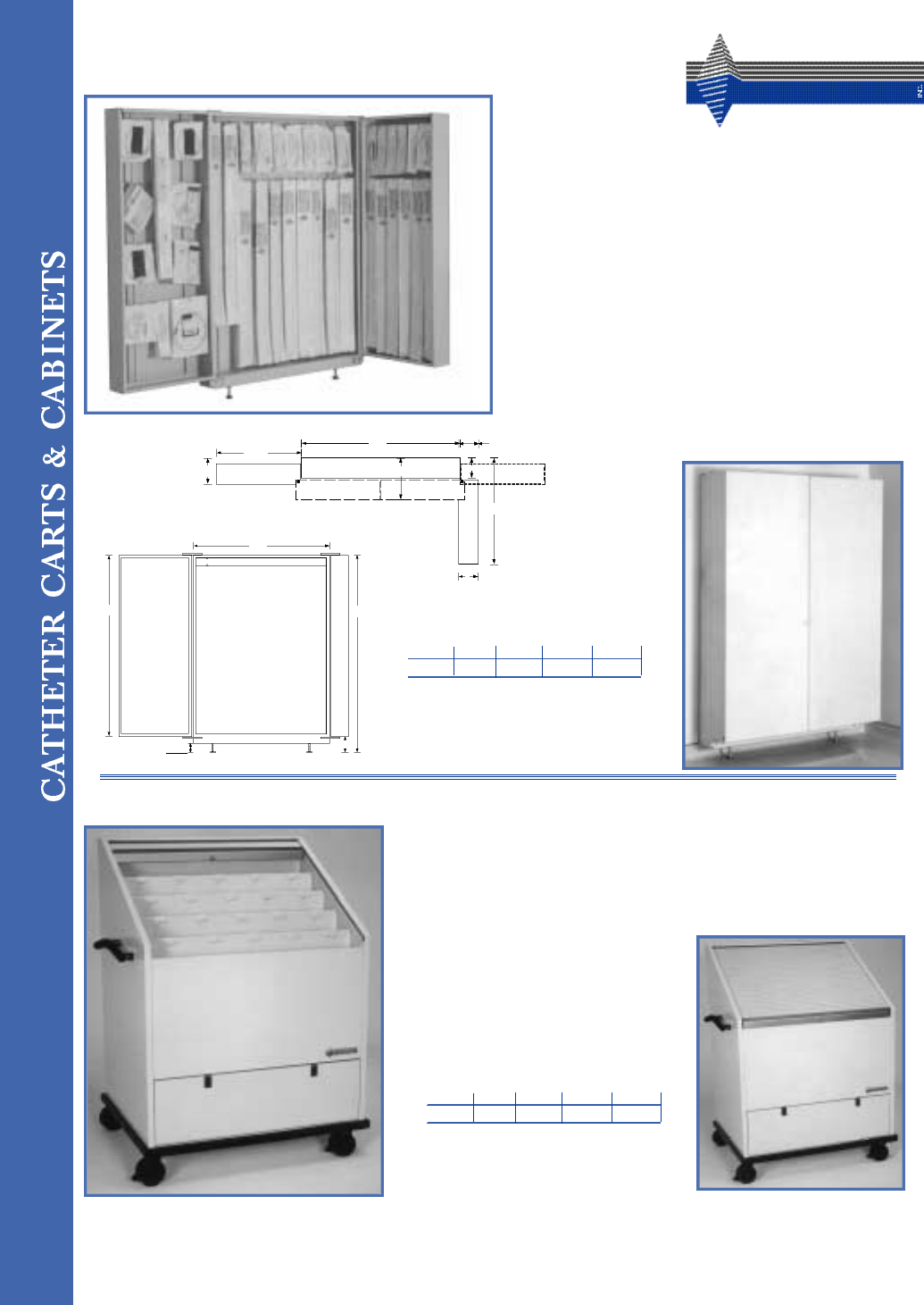

WALL MOUNT CATHETER CABINET
MAXIMUM CATHETER STORAGE FOR ALL SIZES & TYPES
STORES CATHETER LENGTHS UP TO 60”
FULLY ADJUSTABLE HORIZONTAL SPACING
VERTICAL SPACING ADJUSTABLE IN 2” INCREMENTS
HOLDS UP TO 24 CATHETERS PER HOOK
For optimal storage and organization the CC100 Cath cabinet
maintains an orderly, dust-free, accessible environment for cardiac
and interventional sterile catheters. It was engineered to hold the
maximum number of catheters using a minimum of floor space,
while maintaining easy access to the entire inventory. The cabinet
is all-steel construction for durability. Center storage area is 48”
across and each door gives 24” additional storage space.
99” 70” 7.25 350 lbs CC100
WIDTH HGT SHIP WT
EXTERIOR DIM.
(DOORS OPENED) APPROX. CATALOG
NO.
DEPTH
WALL MOUNT CATHETER CABINET
25.5”
48”
6”
6”
31 . 5 ”
12.25”
6.5”
7.25”
Doors Closed
Door Open
Along a Wall
Door Opened halfway to
fit into a Corner
Catheter Cabinet Top View
MOBILE CATHETER CART
Strong steel fabrication and a durable polyester finish make the CC105 ideal for
portable catheter storage. The CC105 stores up to 400-4” wide catheter packages on
moveable, positionable hangers to gain maximum storage capacity for the package
widths you choose. The lockable, roll-up top keeps catheters dust-free and secure, and
the smooth-rolling heavy duty casters make this cart easy to maneuver in tight quar-
ters. Cushioned handles and bumper guards
provide added protection for both the catheter
cart and its environment.
41” 51” 29.75 271 lbs CC105
WIDTH HGT SHIP WT
EXTERIOR DIM. APPROX. CATALOG
NO.
DEPTH
MOBILE CATHETER CART
Fully Opened
70”
64”
48”
6”
3.5”
2.5” Area for Fastening to Studs
Adjustable Legs for Leveling
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
D - 6

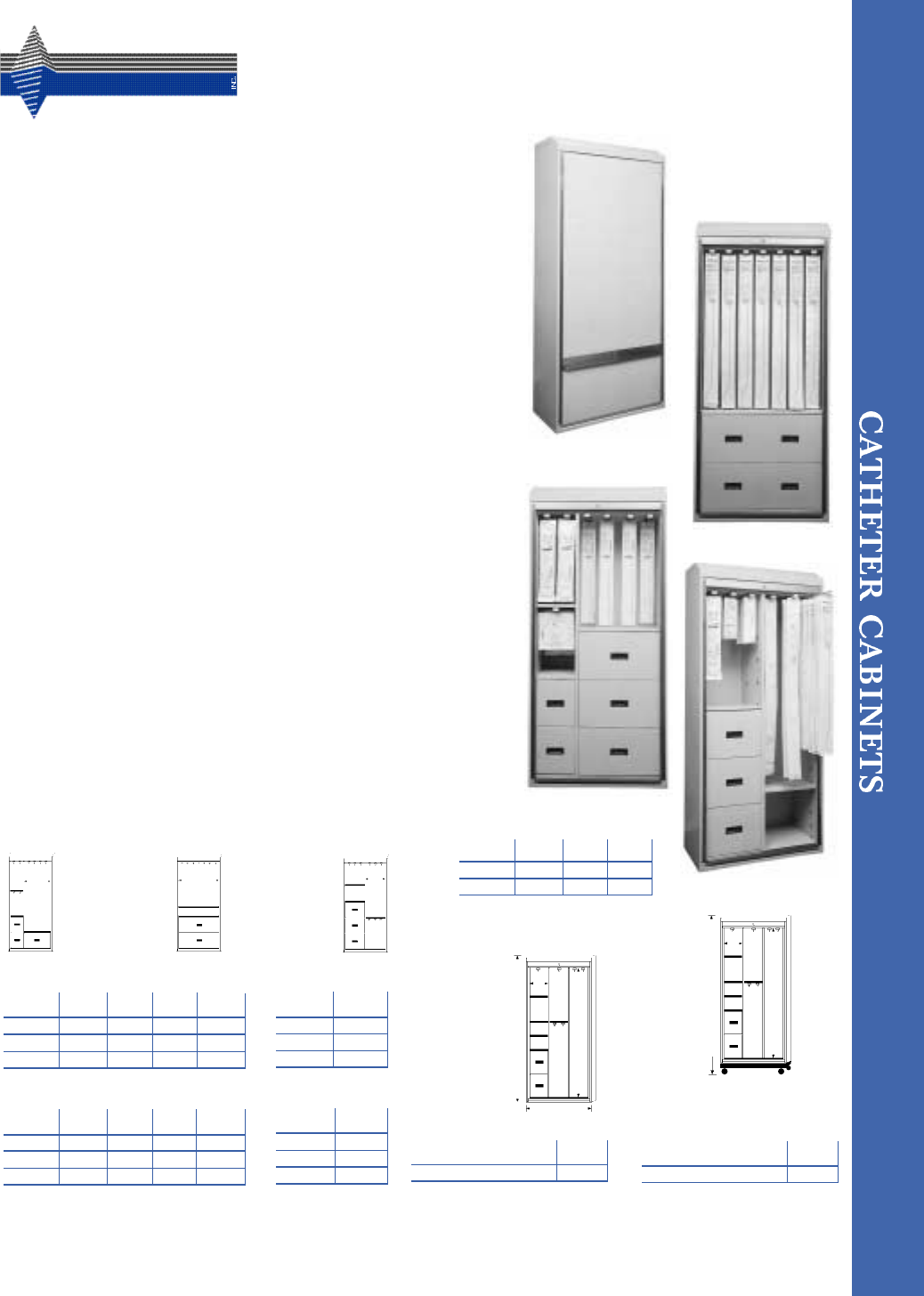

MODULAR
CATHETER CABINETS
MOBILE MODULAR
CATH CABINET
S
# 755M - 18.5” DEEP
LENGTH WIDTH
INTERIOR DIM. CATALOG
NO.DEPTH
DRAWERS for 755 or 755M
1
/3D r a w e r 15.75” 9.625” 10.5” 755001
1
/2D r a w e r 15.75” 15.5” 10.5” 755002
2
/3D r a w e r 15.75” 21.5” 10.5” 755003
Full Drawer 15.75” 33.125” 10.5” 755004
LENGTH WIDTH
INTERIOR DIM. CATALOG
NO.DEPTH
DRAWERS for 756
1
/3D r a w e r 21.5” 9.625” 10.5” 756001
1
/2D r a w e r 21.5” 15.5” 10.5” 756002
2
/3D r a w e r 21.5” 21.5” 10.5” 756003
Full Drawer 21.5” 33.125” 10.5” 756004
CATALOG
NO.
SHELVES for 755 or 755M
1
/3S h e lf 755005
1
/2S h e lf 755006
2
/3S h e lf 755007
F u l l S h e l f 7 5 5 0 0 8
CATALOG
NO.
HOOK SLIDES
5 Hook for 755 &755M ( 18.5” Deep) 755009
6 Hook for 756 (23” Deep) 756009
CATALOG
NO.
SHELVES for 756
1
/3S h e lf 756005
1
/2S h e lf 756006
2
/3S h e lf 756007
F u l l S h e l f 7 5 6 0 0 8
CATALOG
NO.
VERTICAL DIVIDERS
for 755 & 755M (18.5” Deep) 755010
for 756 (23” Deep) 756010
This protective hospital-grade cabinet has been optimized for the functional storage of
catheters in cardiac cath labs, invasive radiology suites, and the operating room envi-
ronment. Durable heavy gauge welded steel construction, the use of high quality ball-
bearing drawer slides, and the efficiency of its modular design assure long-lasting,
trouble-free use. Counterbalanced locking roll-top doors provide for catheter security,
and create an ideal dust-free environment for storage.
The inside of the cabinet is customizable to meet the requirements of individual
departments. The cabinet has the option of mounting vertical dividers, drawers,
shelves, and hook-slides in multiple locations.
Catheters are stored on mobile hooks attached to an easy-gliding ball-bearing slide,
which allows non-obstructed access to all catheters in the cabinet. Pulling the slide for-
ward brings catheters stored in the back of the cabinet to the front for easy identifica-
tion and retrieval. The cabinet facilitates vertical hanging of catheters in sterile pack-
ages up to 72” long. There are five hooks per slide in model 755 and 755M (the 181
/2”
deep cabinets), six hooks per slide in model 756 (the 23” deep cabinet), and each hook
can accommodate up to 15 catheters (more depending on thickness). With multiple
slides at different levels, cabinet capacity is maximized.
The large capacity drawers are steel-constructed, feature an integrated pull latch, and
are mounted on full extension high quality ball-bearing drawer slides for extra-smooth
motion when fully loaded. The 101
/2” drawer depth is ideal for boxed catheters/wires,
or other items awkward to hang. A variety of drawer widths are manufactured to fit
the different cabinet configurations.
Shelves, available in different lengths, can be placed at intervals within the cabinet.
Hook-slides can be attached to the underside of the shelf.
Vertical dividers can be incorporated to customize this cabinet to store both long and
short catheters while efficiently maximizing useful storage space. These can be posi-
tioned to divide the cabinet into storage areas of 1
/3+2
/3,1
/2+1
/2,or 1
/3+1
/3+1
/3.
These dividers are permanently bolted into place at the factory.
The counterbalanced rolling doors come down from the top and up from the bottom
of the cabinet, to lock at a comfortable height. They retract into the cabinet for full
access to all contents. Counterbalancing springs assure easy, trouble-free door motion.
Model 755M mobile catheter cabinets are mounted on 3” heavy-duty casters and have
padded rubber handles on both sides for easy movement.
Identification tags allow you to label each slide and drawer for quick and easy catheter
retrieval.
Our customer service department will be happy to assist you in designing a cabinet to
fit your needs.
34.312” 16.625”
22.5”
1
/3+1
/3+1
/3
10.875”
38.125”
73.75”
85.5”
1
/3 +2
/31
/2+1
/2
# 755 - 18.5” DEEP #756 - 23” DEEP
1
/3+1
/3+1
/3
10.875”
65.5”
83”
Model 755M Base w/rub-
ber bumper: Width - 39.5 -
Depth - 24.75
HEIGHT WI DTH
EXTERIOR DIM.
CATALOG
NO. DEPTH
755 85.5” 38.125” 18.5”
756 85.5” 38.125” 23”
755 M 83”* 39.5”* 24.75”*
*includes base with rubber bumper
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
E - 1

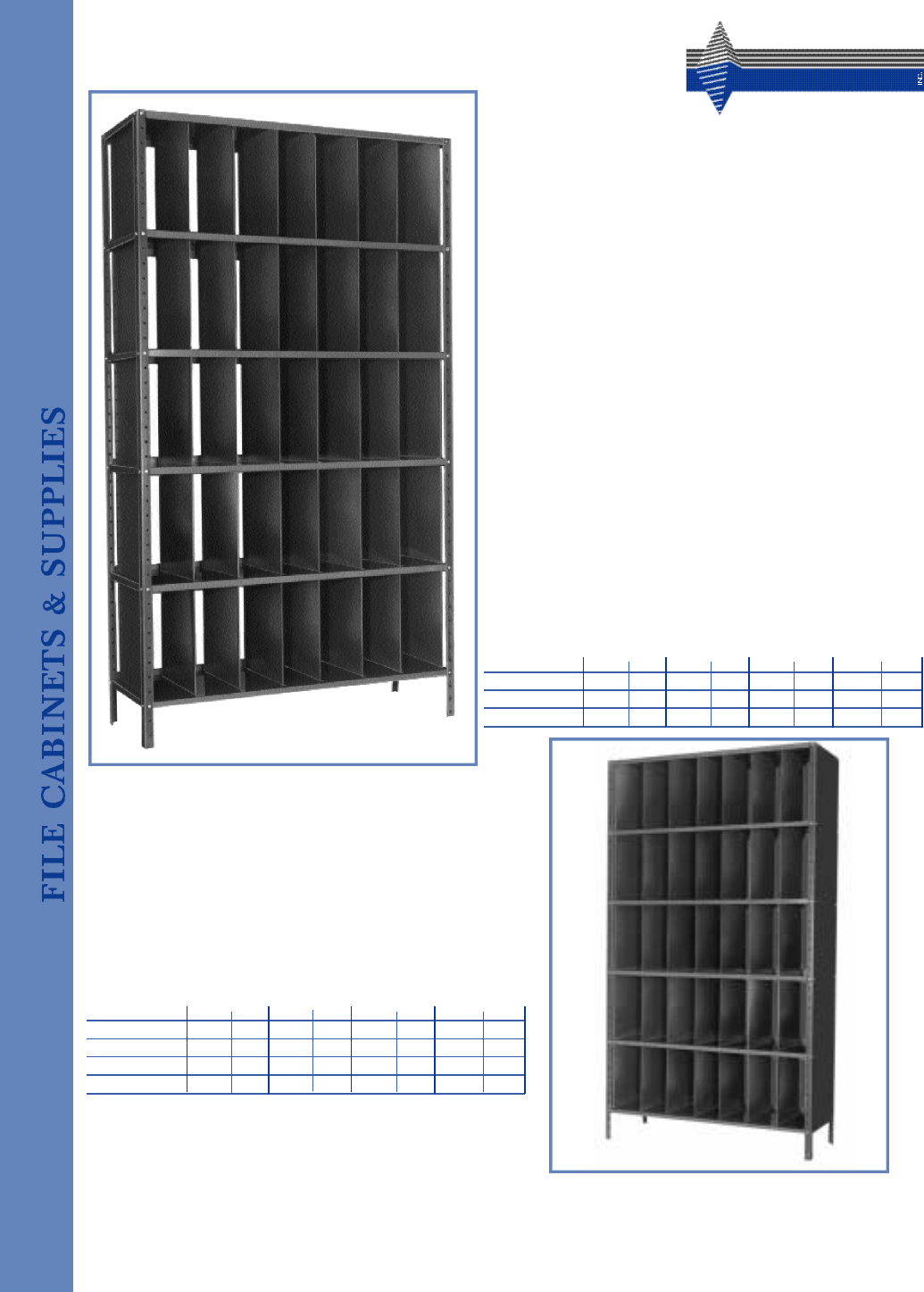

OPEN STEEL SHELVING
File x-ray envelopes the most convenient way - vertically - in units 18”
deep, designed specifically to store 14”x17” film. Choose from 3, 4, 5
or 6 shelf high units. Each shelf has a back stop to retain the envelopes,
vertical dividers to subdivide filing compartments and two end fillers
located at the inner edges of the corner posts to eliminate a filing trap
common to ordinary shelving.
Shelves are constructed of 19 gauge steel formed and reinforced for
extra strength. Corner posts are 12x1.25” gauge tough rail steel. The
bottom shelf is 6” above the floor but can be shortened upon request
at time of order. Units may be placed side by side or back to back,
however each unit is a complete assembly in itself. No extra parts are
required. All necessary hardware and braces are included. Units are
shipped knocked down and are easy to assemble.
24” units have four dividers to create three compartments per shelf.
36” units have six dividers to create five compartments per shelf.
48” units have eight dividers to create seven compartments per shelf.
Finish: Battleship gray baked enamel (on cold rolled steel).
✶Optional Items:
865Q - Additional partitions - approx. ship wt. 3 lbs
865-11 - Closed bottoms - approx. ship wt. 22 lbs
861 - Index guides (see page E - 6) - approx. ship wt. 5 lbs
CHOICE OF TWE LVE SIZES
RIGID ALL STEEL CONSTRUCTION
CONVENIENT FOR ACTIVE AND I NACTIVE FILES
LOW COST
OPEN STEEL SHELVING
DEPTH : 18”
24” 3 Compartments 865J 90 lbs 865G 110 lbs 865A 130 lbs 865D 150 lbs
36” 5 Compartments 865K 115 lbs 865H 140 lbs 865 175 lbs 865E 214 lbs
48” 7 Compartments 865L 130 lbs 865I160 lbs 865C 205 lbs 865F 250 lbs
WIDTH
3SHELF
55” HIGH
APPROX
SHIP WT
865C 48” Seven Compartment Five Shelf Unit
Backs and sides are available to provide full enclosure of the open
steel shelving. (Please note: There is an additional packing charge for
the backs and sides.
4SHELF
71” HIGH
APPROX
SHI P WT
5SHELF
87” HIGH
APPROX
SHIP WT
6SHELF
103” HIGH
APPROX
SHIP WT
BACKS AND S IDES
BACKS
24” 3 Compartments 865-23 12 lbs 865-29 20 lbs 865-20 20 lbs 865-26 25 lbs
36” 5 Compartments 865-24 20 lbs 865-30 25 lbs 865-21 30 lbs 865-27 35 lbs
48” 7 Compartments 865-25 25 lbs 865-31 30 lbs 865-22 40 lbs 865-28 30 lbs
SIDES 865-42 15 lbs 865-43 15 lbs 865-40 20 lbs 865-41 20 lbs
WIDTH
3SHELF
55” HIGH
APPROX
SHIP WT
4SHELF
71” HIGH
APPROX
SHIP WT
5SHELF
87” HIGH
APPROX
SHIP WT
6SHELF
103” HIGH
APPROX
SHIP WT
865C Unit with 8 65-22 Back and 865-40 Sides
CAT N O CAT NO CAT NO CAT NO
CAT N O CAT N O CAT NO CAT NO
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
E - 2

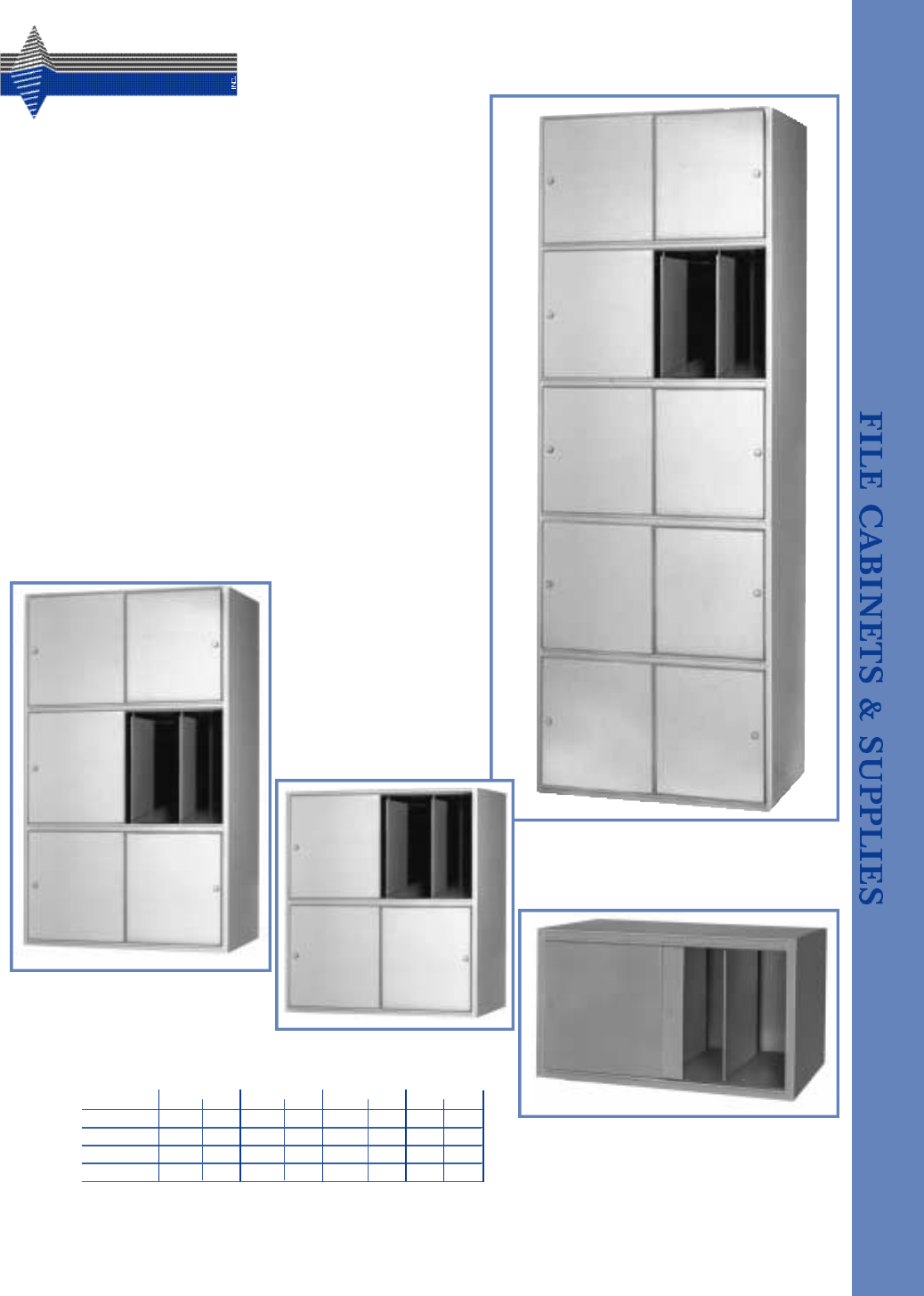

VERTIFILES
Vertifile cabinets are constructed of heavy gauge cold rolled steel. Each shelf
section is reinforced. The inner and outer walls of the sides are welded
together for additional strength. The specially designed inner wall eliminates
the possibility of a film corner trap. Doors slide smoothly in steel tracks.
Three heavy duty partitions are provided for each shelf. Partitions can be
installed in any of eleven positions on each shelf without the need for tools.
Choose from 1, 2, 3 or 5 shelf models designed for storing 14”x17” film.
Locking doors are also available.
Inside dimensions of each shelf: 183/8” deep and 153/8” high.
ALL STEEL WELDED REINFORCED CONSTRUCTION
ADJUSTABLE PARTITIONS
STACKABLE
SLIDING DOOR CLOSURE
AVAILABLE WITH LOCKS
VERTIFILES
DEPTH : 19.75”
1 851 60 lbs 851D 54 lbs 851L 60 lbs 29” 17.25”
2 852 110 lbs 852D 98 lbs 852L 110 lbs 29” 33.5”
3 853 163 lbs 853D 147 lbs 853L 163 lbs 29” 49.75”
5 855 285 lbs 855D 240 lbs 855L 285 lbs 29” 82.25”
NO. OF S HELVES
WITH
DOORS
APPROX
SHIP WT
WITHOUT
DOORS
APPROX
SHIP WT
W/LOCKS
& DOORS
APPROX
SHI P WT WIDTH HEIGHT
Finish: Light gray baked enamel (on cold rolled steel).
✶Optional Items:
856 - Additional partitions - approx. ship wt. 4 lbs
857 - 5” floor base - approx. ship wt. 15 lbs
861 - Index guides (see page E - 6) - approx. ship wt. 5 lbs
EXTERIOR DIM
855 Five shelf Vertifile with doors
851 One shelf Vertifile with doors
852 Two shelf Vertifile with doors
853 Three shelf Vertifile with doors
CAT N O CAT NO CAT N O
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
E - 3

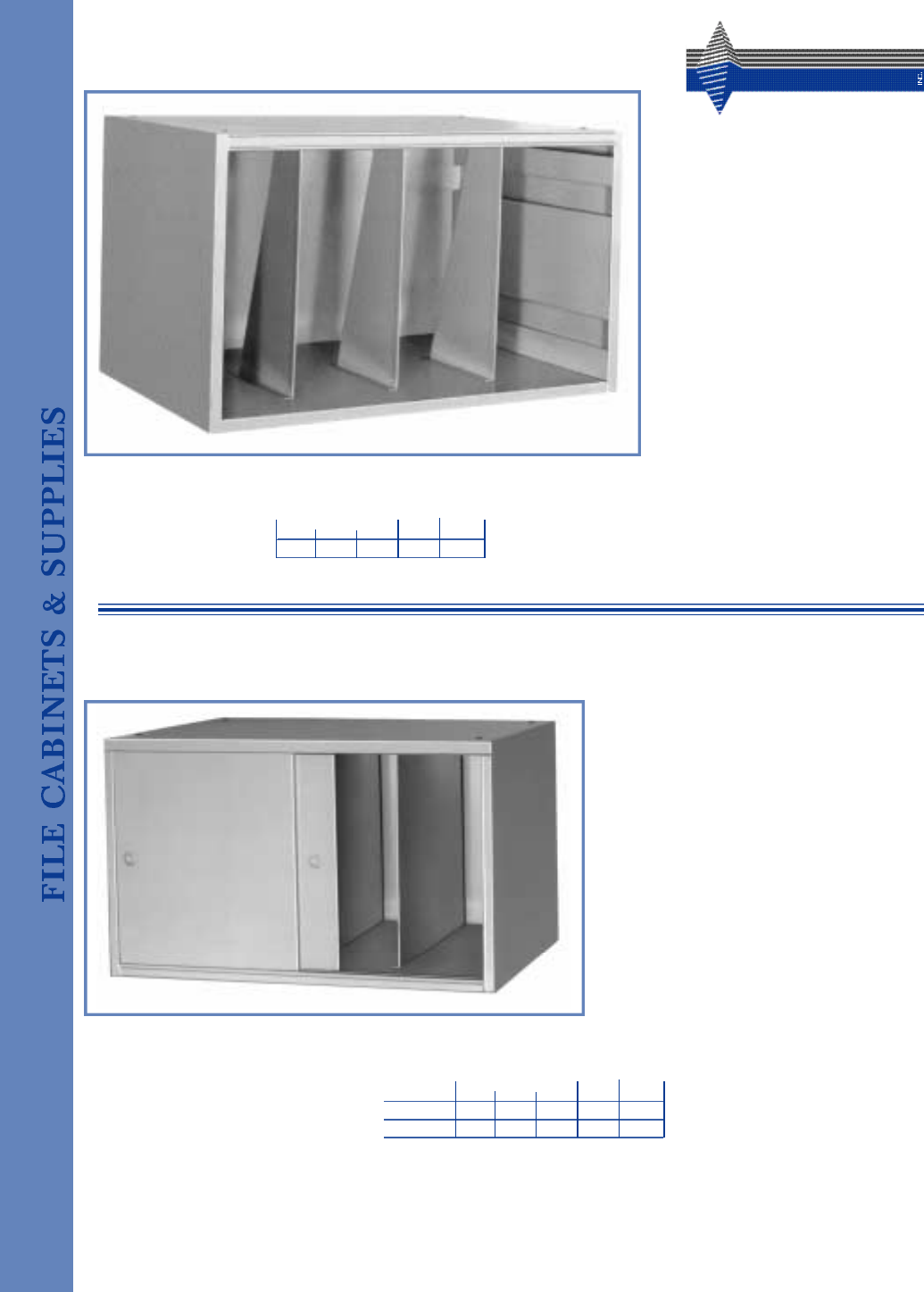

ECONOMY OPEN SHELF VERTIFILE
This open shelf Vertifile can be stacked one
upon the other as well as side by side and
back to back. Each section is shipped com-
plete and set up. No assembly is required.
Four screws through matching holes in tops
and bottoms of all cabinets secure the units
together after stacking. Partitions are fixed
and not adjustable.
Inside dimensions of each shelf: 191/2”
deep and 161/16” high. Approximate dis-
tance between partitions: 71/4”
LOWER COST, CONVENIENT
DOUBLE WALL FLUSH DESIGN
STACKABLE
ALL STEEL CONSTRUCTION
Finish:Light gray baked enamel (on cold rolled
steel).
✶Optional Items:
857 - 5” floor base - approx. ship wt. 15 lbs
861 - Index guides (see page E - 6) - approx. ship
wt. 5 lbs
ECONOMY OPEN S HELF VERTIFILE
29” 19.75” 17.25” 48 lbs 841
APPROX
SHIP WT
WIDTH DEPTH
EXTERIOR DIM
HEIGHT
CATALOG
NO
FIXED PARTITION VERTIFILES
Models 851S and 851SD Vertifile cabinets are con-
structed of heavy gauge cold rolled steel. The inner
and outer walls of the sides are welded together for
additional strength. The specially designed inner wall
eliminates the possibility of a film corner trap. Doors
slide smoothly in steel tracks. The partitions are fixed
and are not adjustable. Single units can be stacked one
upon the other.
Inside dimensions of each shelf: 187
/8” deep and 161/8”
high. Approximate distance between partitions: 63/4”
FIXED PARTITION VERTIFILES
With Doors 29” 19.75” 17.25” 54 lbs 851S
Without Doors 29” 19.75” 17.25” 44 lbs 851SD
APPROX
SHIP WT
WIDTH DEPTH
Finish:Light gray baked enamel (on cold rolled steel).
✶Optional Items:
857 - 5” floor base - approx. ship wt. 15 lbs
861 - Index guides (see page E - 6) - approx. ship wt. 5 lbs
EXTERIOR D IM
HEIGHT
CATA LOG
NO
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
E - 4

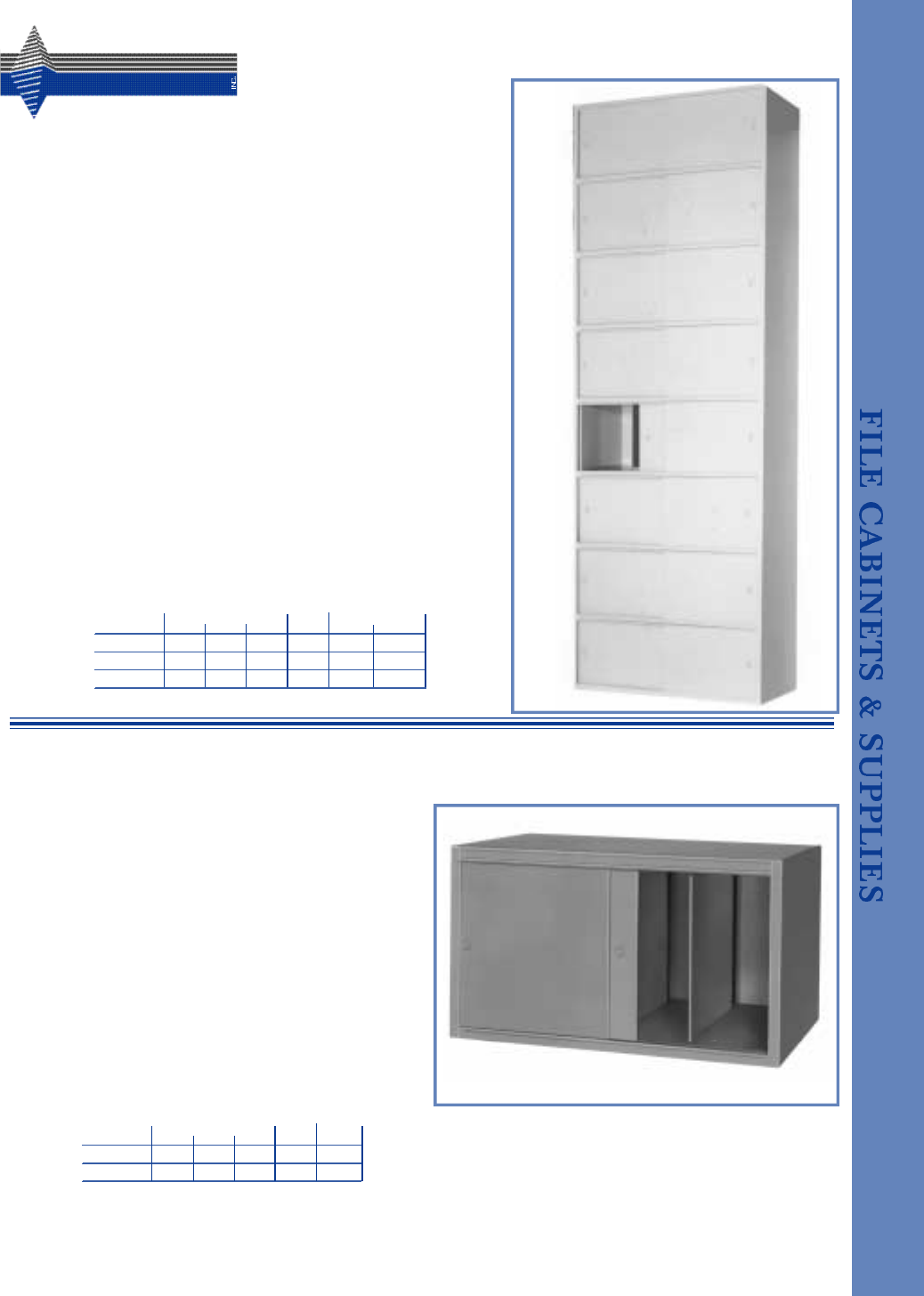

LETTER SIZE VERTIFILE
EXTRA WIDE ONE SHELF VERTIFILE
This special wider Vertifile comes complete with three partitions and
two doors. Two pairs of interlocking clips in the rear of the cabinet
allows stacking of units.
Inside dimensions of each shelf: 183/16” deep and 151/2” high.
FIXED PARTITION VERTIFILES
With Doors 31.375” 19.375” 17.875” 65 lbs 850
Without Doors 31.375” 19.375” 17.875” 59 lbs 850D
APPROX
SHIP WT
WIDTH DEPTH
Finish:Light gray baked enamel (on cold rolled steel).
✶Optional Items:
862 - Additional partitions - approx. ship wt. 4 lbs
857A - 5” floor base - approx. ship wt. 15 lbs
861 - Index guides (see page E - 6) - approx. ship wt. 5 lbs
EXTERIOR DIM
HEIGHT
CATALOG
NO
WIDER - MORE FILM STORAGE
ALL STEEL WELDED CONSTRUCTION
STACKABLE
ADJUSTABLE PARTITIONS
SLIDING DOOR CLOSURE
The letter size Vertifile will double the capacity of any filing area over that
obtained using conventional drawer files. Filing is simpler, faster and more
economical. Safer to use, these files can be loaded to suit the filing system,
files will never tip over. Anyone who has had the experience of using
Vertifiles for X-Rays will appreciate its great advantages for small format
18x24cm mammography film, letters, records files and 8 x 10 film. Two
doors and three adjustable partitions are furnished for each shelf.
Inside dimensions of each shelf: 281/4” wide, 123/4” deep and 93
/4” high.
IDEAL FOR 18 X 24 CM MAM MOGRAPHY FILM STORAGE
CHOICE OF TH REE SIZES
ADJUSTABLE PARTITIONS
SLIDING DOOR CLOSURE
ALL STEEL WELDED REINFORCED CONSTRUCTION
Finish:Light gray baked enamel (on cold rolled steel).
✶Optional Items:
859 - Additional partitions - approx. ship wt. 3 lbs
860 - 5” floor base - approx. ship wt. 15 lbs
LETTER SIZE VERTIFILES
3 Shelf 30” 14” 33.25” 101 lbs 858B 858BD
5 Shelf 30” 14” 54.75” 160 lbs 858A 858AD
8 Shelf 30” 14” 87” 250 lbs 858 858D
APPROX
SHIP WT
WIDTH DEPTH
EXTERIOR D IM
HEIGHT
CATALOG N O
DOORS NO D OORS
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
E - 5

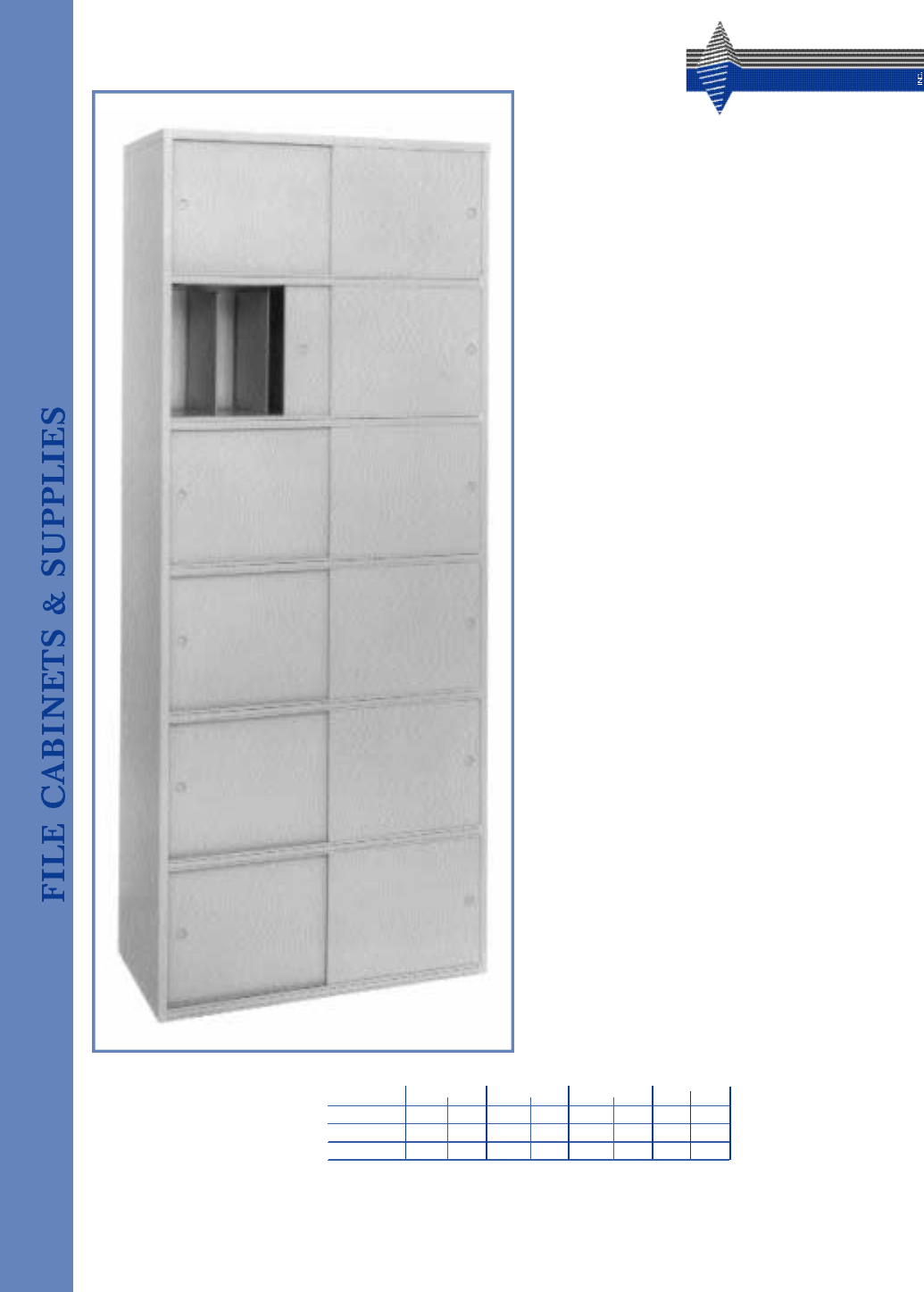

SMALL SIZE VERTIFILE
Especially designed to accommodate mammographs, this
vertifile will double the capacity of any filing area over that
obtained using conventional drawer files. Filing is simpler,
faster, more economical and safer. Stability and resistance
to tipping is designed into this cabinet. Two doors and three
adjustable partitions are furnished for each shelf. Inside
dimensions of each shelf: 28.25 wide, 12.875 deep and
11.25 high.
IDEAL FOR 24 X 30 CM or 18 X 24 CM FILM STORAGE
CHOICE OF TH REE SIZES
ADJUSTABLE PARTITIONS
SLIDING DOOR CLOSURE
AVAILABLE WITH LOCKS
ALL STEEL WELDED REINFORCED CONSTRUCTION
SMALL SIZE VERTIFILES
DEPTH : 14”
1 871 35 lbs 871D 30 lbs 871L 32 lbs 30” 13.25”
3 873 95 lbs 873D 90 lbs 873L 95 lbs 30” 37.75”
6 876 190 lbs 876D 175 lbs 876L 190 lbs 30” 74.5”
NO. OF S HELVES
WITH
DOORS
APPROX
SHIP WT
WITHOUT
DOORS
APPROX
SHIP WT
W/LOCKS
& DOORS
APPROX
SHIP WT WI DTH HEIGHT
Finish: Light gray baked enamel (on cold rolled steel).
✶Optional Items:
859A - Additional partitions - approx. ship wt. 3 lbs
860 - 5” floor base - approx. ship wt. 15 lbs
EXTERIOR DIM
A SMALL SIZE VERTIFILE
CUSTOM DESIGNED
TO ACCOMMODATE MAM MOGRAPHS
CAT NO
CAT N O CAT NO
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
E - 6

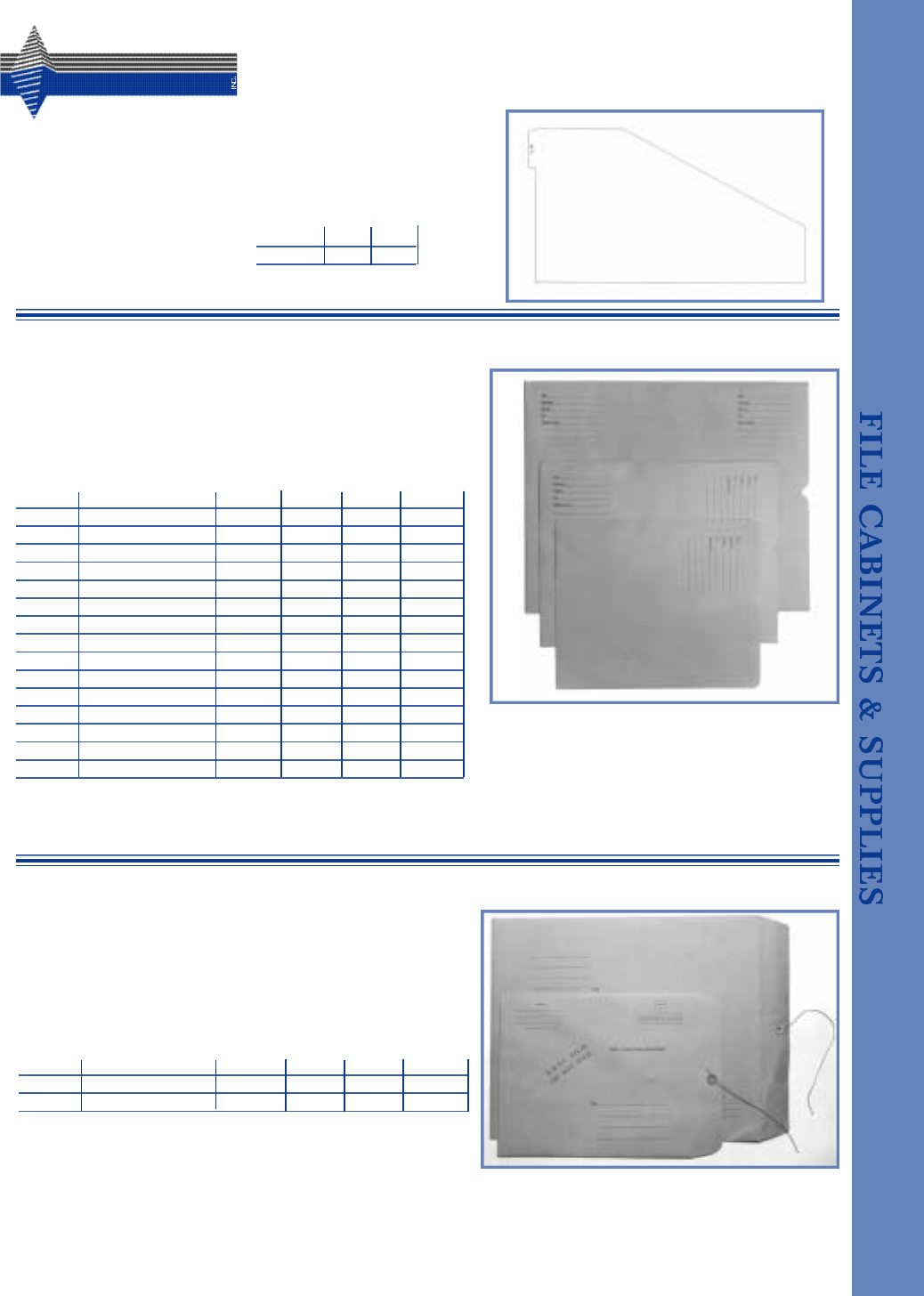

Designed specifically to fit all our Open Steel Shelving and Vertifiles (except
Letter Size and Small Vertifiles), these index guides are the final touch to fil-
ing ease.
Sold in sets of 25 only. INDEX GUIDES
Set of 25 5 lbs 861
APPROX
SHIP WT
CATALOG
NO
INDEX GUIDES
X-RAY MAILING ENVELOPES
Envelopes are quality gold kraft, unless otherwise
noted. Catalog numbers with “S” have standard
imprint. Catalog numbers with”B” are blank -
unprinted. Custom imprinting is available with a
minimum order of 25,000 of the same envelope
(not an assortment of envelopes).
All envelopes are supplied in carton lots only.
X-RAY FILING ENVELOPES
4.5”x10” Blank 28 Lb Gold 1000 20 lbs B33
4.5”x17” Blank 32 Lb Gold 1000 33 lbs B14
5”x7” Standard Imprint 28 Lb Gold 2000 27 lbs S2
7”x17” Standard Imprint 32 Lb Gold 1000 53 lbs S3
7”x17” Blank 32 Lb Gold 1000 53 lbs B17
8”x10” Standard Imprint 28 Lb Gold 1000 31 lbs S4
10”x12” Standard Imprint 28 Lb Gold 1000 44 lbs S5
11”x14” Standard Imprint 28 Lb Gold 500 27 lbs S18
14”x17” Standard Imprint 28 Lb Gold 500 43 lbs S13
14”x17” Standard Imprint 32 Lb Gold 500 50 lbs S6
14”x17” Blank 32 Lb Gold 500 50 lbs B21
14”x17” Standard Imprint 32 Lb Red 500 50 lbs S15
14”x17” Standard Imprint 32 Lb Green 500 50 lbs S16
14”x17” Standard Imprint 32 Lb Grey 500 50 lbs S17
14”x17”x1” Expansion Envelope 40 Lb Gold 100 15 lbs S14
FILM SIZE DESCRIPTION
CATALOG
NO
BLANK OR IMPRINTED
OPENING ON SHORT DIMENSION
EXPANSION TYPE AVAILABLE
CUSTOM IMPRINTING AVAILABLE
ENV.
KRAFT WT
QTY.
PER CTN
APPROX
SHIP WT
Envelopes are quality 32 lb. gold kraft.
All envelopes are supplied in carton lots only.
X-RAY MAILING ENV ELOPES
10”x12” String / with Cardboard 32 Lb Gold 50 8 lbs S7
14”x17” String / with Cardboard 32 Lb Gold 50 17 lbs S11
FILM SIZE DESCRIPTION
CATALOG
NO
ENV.
KRAFT WT
QTY.
PER CTN
APPROX
SHIP WT
X-RAY FILING ENVELOPES
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
F - 1
DELUXE PROTECTOPANELS ®
Deluxe Protectopanels ®complement the finest X-Ray room
furnishings and equipment. Installation is simple, clean and
fast. Upon request components can be finished in primer
paint only for on the job color matching. Panels are non-stock,
custom built to suit each individual size requirement.
Panels are heavy gauge steel internally reinforced and sound
insulated. A lead liner of 1
/16” (1.55mm) minimum thickness is
centered and rigidly supported between the steel bracing
forming a 2” thick wall. Deluxe panels are 84” high.
A lead glass window can be factory installed in any panel of
18” or wider. Unless otherwise requested the center height of
the window will be 60”. Optional lead glass windows have a
lead equivalency of 1.7mm.
Our engineers, aided by your drawing and specifications, will
provide you with a custom designed protection barrier to
accentuate the appearance and functionality of your radiolo-
gy suite.
The standard panels listed below are pricing guides, for cost
estimation purposes. Prices will be based on the next size up
panel if an in-between size is needed.
DELUXE PROTECTOPANELS ®
6”x84” Deluxe Standard Panel 50 lbs 560P
12”x84” Deluxe Standard Panel 100 lbs 560A
18”x84” Deluxe Standard Panel 150 lbs 560B
24”x84” Deluxe Standard Panel 200 lbs 560C
30”x84” Deluxe Standard Panel 250 lbs 560D
36”x84” Deluxe Standard Panel 300 lbs 560J
Corner (any angle) Built into Panel 560K
10”x12” Lead Glass Window (installed) 560G
13”x17” Lead Glass Window (installed) 560R
12”x16” Lead Glass Window (installed) 560S
24”x36” Lead Glass Window (installed) 560T
16”x20” Lead Glass Window (installed) 560U
12”x12” Lead Glass Window (installed) 560V
Wall Channel (Unleaded) 10 lbs 560H
Wall Channel (Leaded) 15 lbs 560M
Wall Brace (Specify Length) 10 lbs 560L
DESCRIPTION
APPROX
SHIP WT
CATALOG
NO
Finish: Light gray baked enamel, or if requested, primer paint only,
for you to custom finish on the job.
CUSTOM BUILT
ALL STEEL AND LEAD CONSTRUCTION
CUSTOM SIZE PANELS
INTERNALLY REINFORCED
CHOICE OF WI NDOW SIZES
TO ORDER:
Provide a rough floor plan sketch including overall size,
angles, location of windows and any other special require-
ment.
Panels are 2” thick - be sure to specify whether sizes were mea-
sured on the outside or the inside of the booth. We will assume
that outside measurements are used unless otherwise specified.
For estimating costs: add up components from the list below (use
next larger size standard panel(s) for estimate.)
OPT. WINDOW
Specify Size & Location
OPT. WALL BRACE
Specify Length
SPECIFY
ANGLE
OPT. WALL CHANNEL
Sample Construction Detail
Panels are 2” thick, 84” high and
lined with 1
/16” lead
SPECIFY OVERALL SIZE
2” Overlap
560K (Corner)
PANEL SIZE
Panel size is measured to the center of the overlap or finished end (on
outside of booth).
PROVIDE A FLOOR PLAN WITH YOUR ORDER
Custom-made Deluxe Protectopanels are non-returnable.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
F - 2

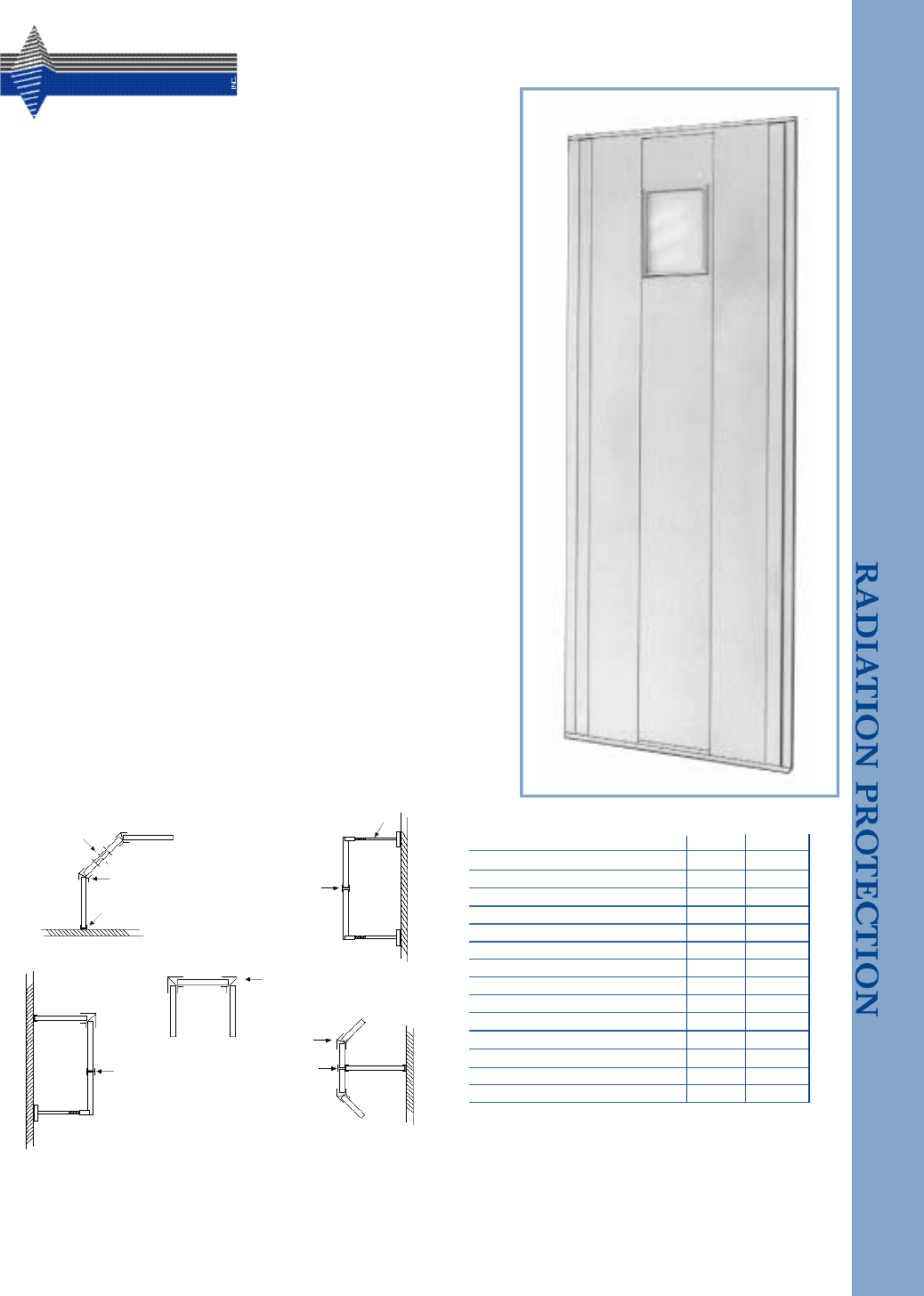

RIBBED PROTECTOPANELS ®
Extremely versatile design makes it possible to adapt these panels for use in
virtually every X-Ray installation. These exclusive S&S Ribbed
Protectopanels®offer maximum economy. The unique designs of the panels
and couplings are protected by U.S. Patents.
Joints and corners are quickly made with the patented overlapping double
leaded “H” connectors. Installation is easy; after the floor channels and
optional wall brace (559L) are set in place the panels and couplings are
inserted and the entire assembly is enclosed by the top channel. Only the
floor and top channels are custom made for the job.
Panels are available in five different widths all 84” tall, 7/8” thick. An
optional 8”x10” or 10”x12” lead glass window (1.7mm lead equivalency) is
available for panels 24” or wider. The window is centered in the panel with
its center 60” above the floor. A lead liner of 1
/16” (1.55mm) minimum thick-
ness is centered between the two steel walls of our unique ribbed design for
strength and rigidity.
RIBBED CONSTRUCTION
DESIGN VERSATILITY
ECONOMICAL
ALL STEEL AND LEAD CONSTRUCTION
CHOICE OF WI NDOW SIZES
RIBBED PROTECTOPANELS ®
12”x84” Ribbed Protectopanel®75 lbs 559E
18”x84” Ribbed Protectopanel®100 lbs 559A
24”x84” Ribbed Protectopanel®130 lbs 559B
30”x84” Ribbed Protectopanel®180 lbs 559C
36”x84” Ribbed Protectopanel®205 lbs 559D
8”x10” Window (installed) - in panel 24” or wider 559G
10”x12” Window (installed) - in panel 30” or 36” 560G
Corner Connector (specify 300, 450, 600or 900) 20 lbs 559J
Straight Connector 20 lbs 559K
Wall Brace (Specify Length) 10 lbs 559L
Floor to Ceiling Support 10 lbs 559LA
Wall Channel for Ribbed Protectopanel®10 lbs 559M
2” Leaded Wall Channel 15 lbs 559ML
3 Way “T” Coupling 20 lbs 559T
DESCRIPTION
APPROX
SHIP WT
CATALOG
NO
Finish: Light gray baked enamel
TO ORDER:
Provide a rough floor plan sketch including overall layout, location of
optional window if desired, angles and sizes of panels and attach to order.We
will assume that outside measurements are used unless otherwise specified.
Sample of Possible Floor plans
OPT. WINDOW
Specify Size & Location
OPT. WALL BRACE
Specify Length
559L
SPECIFY
ANGLE
OPT. WALL CHANNEL
559M
Panels are 7/8” thick, 84” high and
lined with 1
/16” lead
559K
(Straight Connector)
559J (Corner Connector)
559J (Corner Connector)
PROVIDE A FLOOR PLAN WITH YOUR ORDER
559T
(3 Way Coupling)
559K
(Straight Connector)
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
F - 3

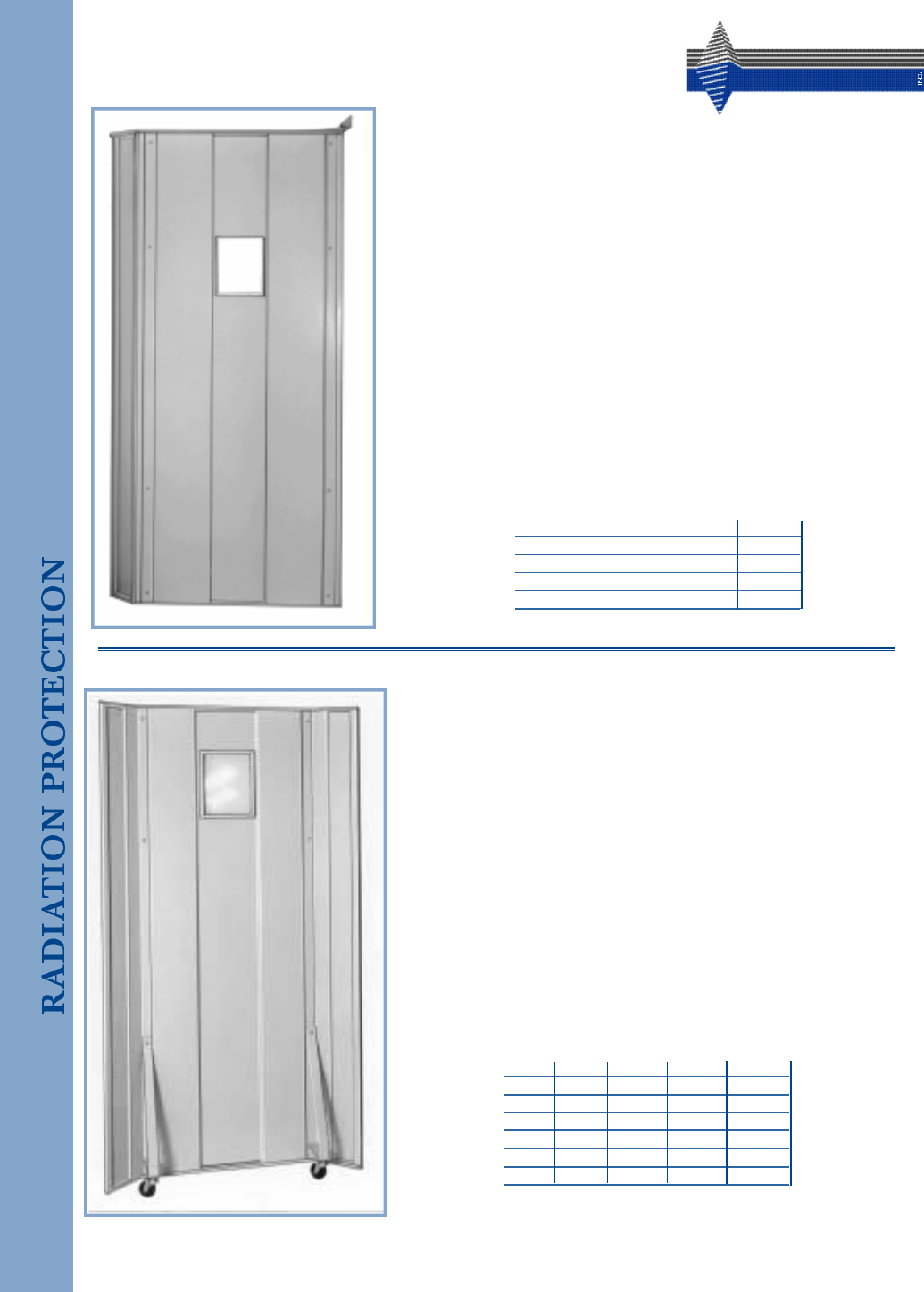

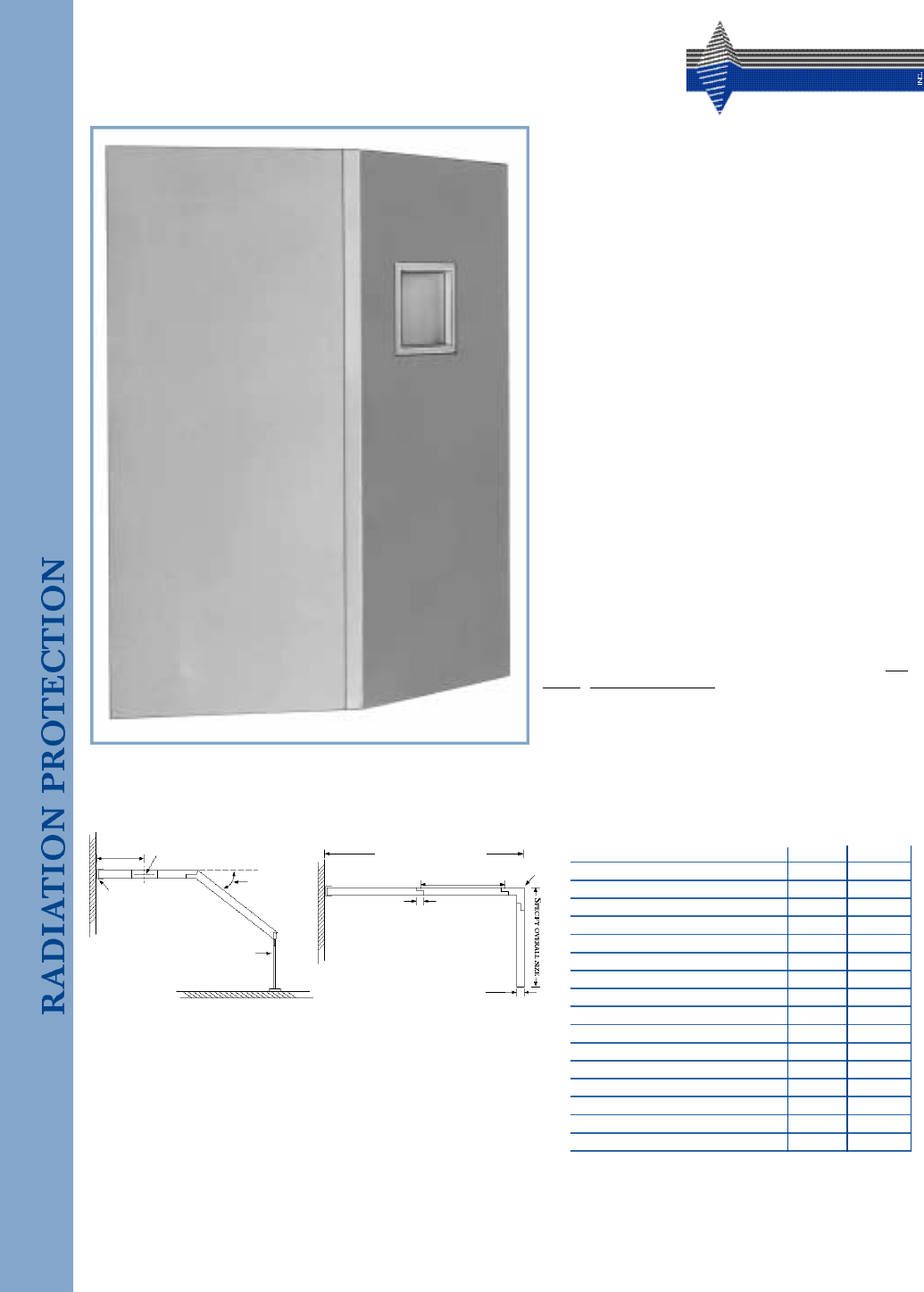

RIBBED READY MADE BOOTH
Specially designed to provide a complete control booth at an economical price,
this unit includes a main panel (available in three different widths all 84” tall,
and 7/8” thick) with a built in 8”x10” or 10”x12” lead glass window (1.7mm,
minimum, lead equivalency), a 7” lead wing set at a 450angle, a top channel
with provision for mounting to a wall and a bottom channel.
The window is centered in the panel with its center 60” above the floor. A lead
liner of 1
/16” (1.55mm) minimum thickness is centered between the two steel
walls of our unique ribbed design. When ordering please specify left or right wing.
Position of wing is determined from the inside of the booth.
READY MADE BOOTH
24” Panel 8”x10”Window 185 lbs 557A
30” Panel 8”x10”Window 235 lbs 557B
36” Panel 8”x10”Window 360 lbs 557C
36” Panel 10”x12”Window 365 lbs 557C10
DESCRIPTION
APPROX
SHIP WT
CATALOG
NO
Finish: Light gray baked enamel
RIBBED CONSTRUCTION for strength and rigidity
BUILT IN WI NDOW
CHOICE OF LEFT OR RIGHT WI NG
ALL STEEL, LEAD LI NED
CHOICE OF S IZES
RIBBED MOBILE DOUBLE WING SCREEN
Wrap around protection is provided by two 7” wings mounted on each side
of a ribbed center panel and mounted on heavy duty ball bearing casters.
The 8”x10” built in lead glass window*(1.7mm, minimum, lead equivalency)
is centered in the panel with its center 60” above the floor. A lead liner of 1
/16”
(1.55mm) minimum thickness is centered between the two steel walls of our
unique ribbed design for strength and rigidity.
*A built in 10”x12” lead glass window is available on special order. Consult
factory for details.
MOBILE DOUBLE WING SCREEN
72” 24” 38” 175 lbs 554WA
72” 30” 44” 200 lbs 554WB
72” 36” 50” 225 lbs 554WBC
84” 24” 38” 245 lbs 554WTA
84” 30” 44” 260 lbs 554WTB
84” 36” 50” 285 lbs 554WTC
HEIGHT WIDTH WI DTH
APPROX
SHIP WT
CATALOG
NO
Finish: Light gray baked enamel
INCREASED PROTECTION WITH WRAP AROU ND DESIGN
HEAVY DUTY BALL BEARING CASTERS
ALL STEEL, LEAD LI NED RIBBED CONSTRUCTION
BUILT IN 8” x 10” LEAD GLASS WINDOW
CHOICE OF H EIGHTS
OVERALL
PANEL
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
F - 4

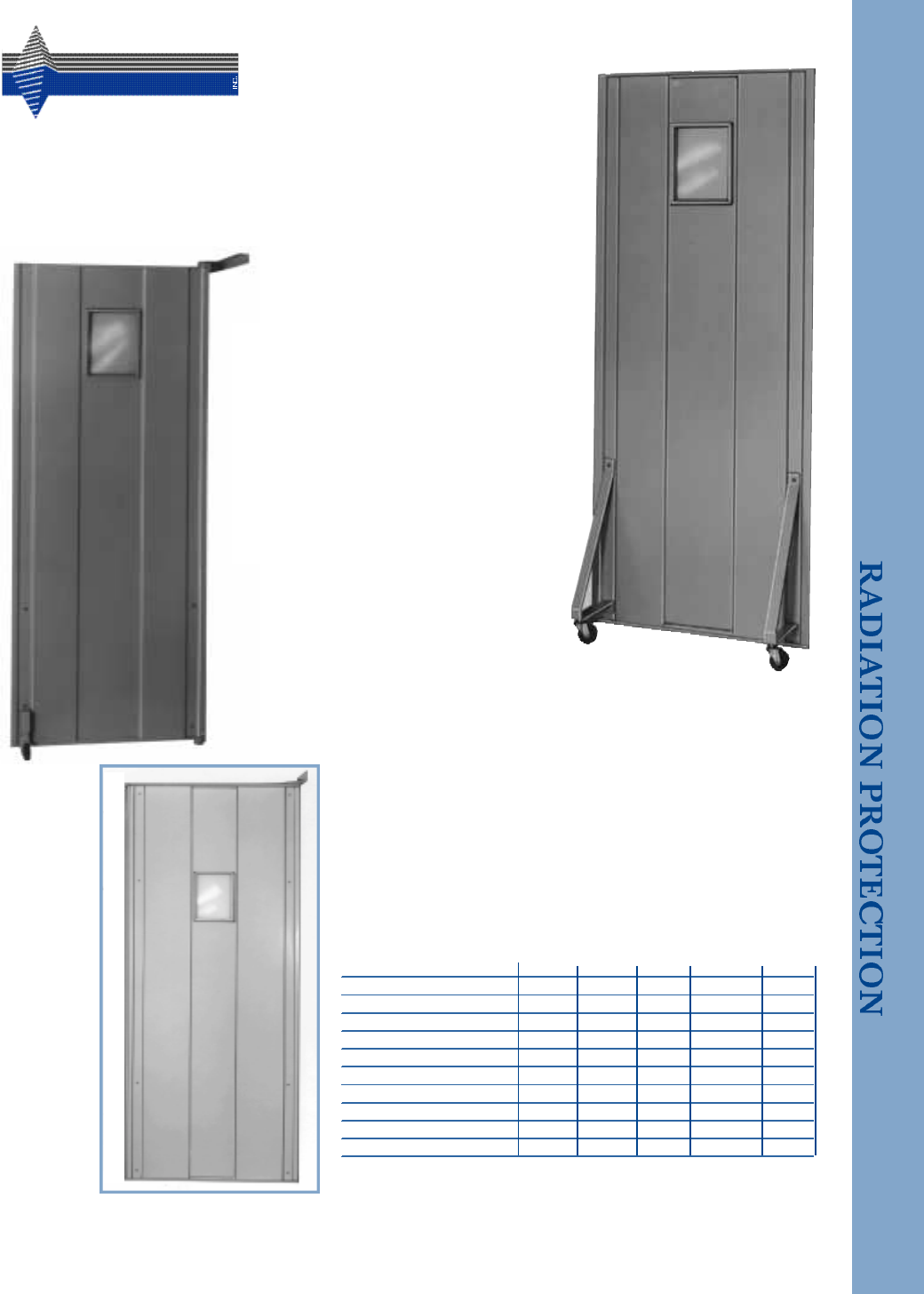

RIBBED PROTECTIVE SCREENS
Mobile: Stability and ease of movement are assured by the 3
/16” thick steel
legs, with ball bearing casters.
Deluxe Mobile: Same as above but with window trim and all outer edge
trim finished in polished stainless steel.
Stationary: For use in a fixed position. Screens are supplied with a bottom
channel for fastening to the floor and a top channel with a wall mounting
bracket set at 900(unless otherwise specified).
Hinged: A unique pivot design allows the screen to swing aside when not in
use. A ball bearing pivot assembly is built into the top and bottom of the
screen. A 16” wall bracket retains the top pivot. The bottom pivot is fastened
directly to the floor.
RIBBED CONSTRUCTION for strength and rigidity
BUILT IN LEAD GLASS WINDOW
ALL STEEL, LEAD LI NED
CHOICE OF SIZES
MOBILE, STAT IONA RY OR HINGED
Finish: Light gray baked enamel
RIBBED PROTECTIVE S CREENS
24”x72” 8”x10” 115 lbs 554N 555N 554NS 554NH
30”x72” 8”x10” 140 lbs 554 555 554S 554H
36”x72” 8”x10” 185 lbs 554A 555A 554AS 554AH
24”x84” 8”x10” 130 lbs 554G 555G 554GS 554GH
30”x84” 8”x10” 190 lbs 554B 555B 554BS 554BH
36”x84” 8”x10” 210 lbs 554J 555J 554JS 554JH
36”x72” 10”x12” 190 lbs 554A10 555A10 554AS10 554AH10
30”x84” 10”x12” 195 lbs 554B10 555B10 554BS10 554BH10
36”x84” 10”x12” 215 lbs 554J10 555J10 554JS10 554JH10
SCREEN SIZE WI NDOW SIZE
APPROX
SHIP WT MOBILE DE L UX E STATIONARY HINGED
CATA LOG NUMBERS
All of the screens below are constructed of our
unique ribbed design for strength and rigidity. A lead
liner of 1
/16” (1.55mm) minimum thickness is centered
between two steel walls for a total thickness of 7
/8”.
Each screen has a built in 8”x10” or 10”x12” lead
glass window (1.7mm. minimum, lead equivalency).
The window is centered in the panel with its center
60” above the floor.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
F - 5

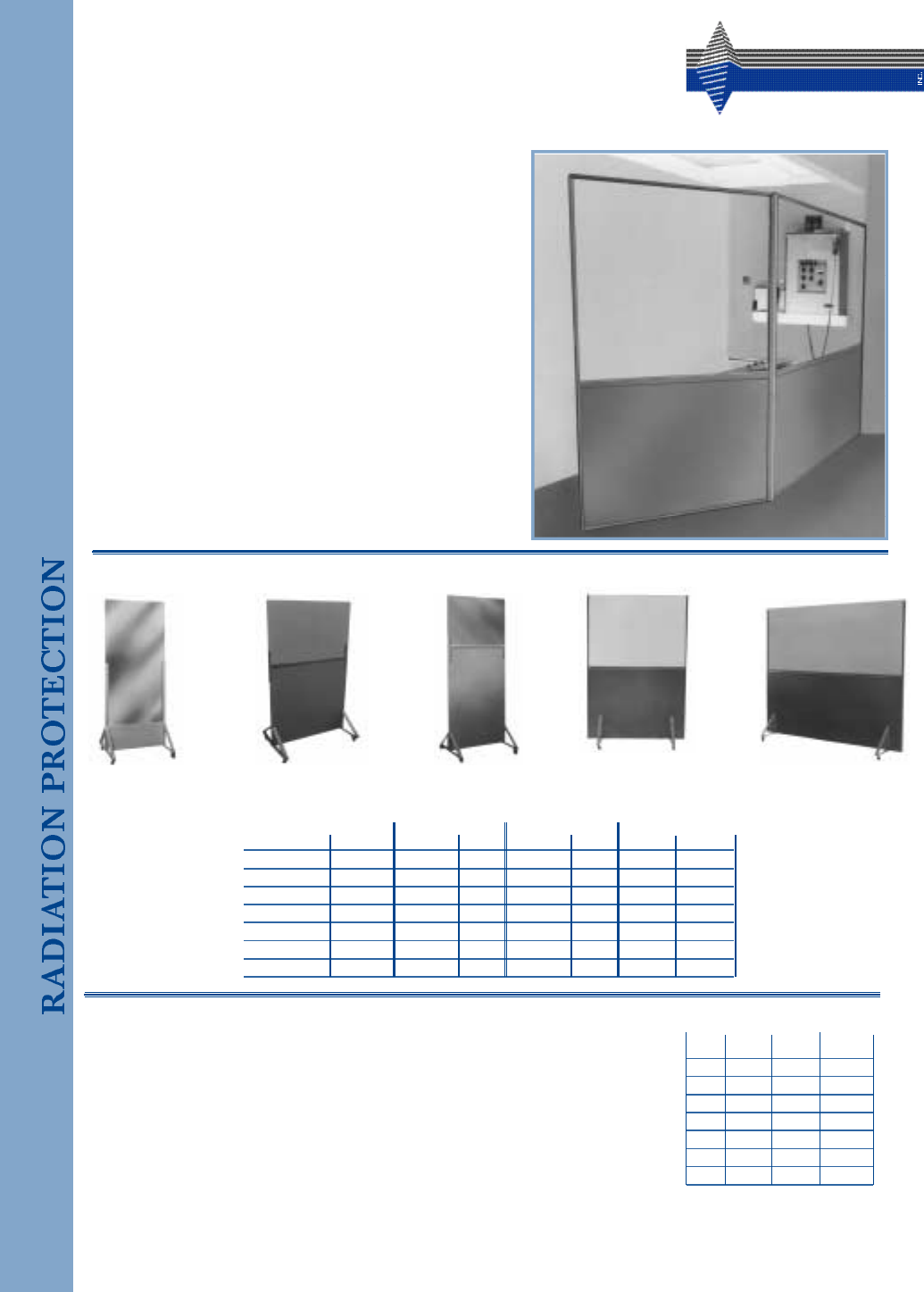

CLEAR-Pb®LEAD-PLASTIC MODULAR
RADIATION BARRIERS
UNPARALLELED, DISTORTION - FREE VISIBILITY
MODULAR BARRIER COMPONENTS - SIMPLE, QUICK, ON-SITE I NSTALLATION
CHOICE OF LEAD E QUIVALENCY (0.3 TO 2.0 mm)
ATTRACTIVE, SPACE-SAVING, DECORATOR LOOK
SHATTER RESISTANCE
WALLS ONLY 1.5” THICK
IDEAL FOR SMALL OR LARGE FACILITIES
The versatility of Clear-Pb allows you to create panoramic viewing areas
that comfort the patient and provide personnel with a clear, unobstructed
view of the patient and the equipment. Made from a unique, transparent
plastic that contains 30% lead by weight, it is rugged and shatter-resistant,
an innovative combination of attractive, modern shielding and effective
radiation protection.
Clear-Pb Lead-Plastic Modular Barriers are available in lead-equivalen-
cies from 0.3 to 2.0mm and are fabricated from large, continuous panels
up to 6’ x 8’ (larger sizes are available on special order). They can be eas-
ily changed, rearranged, added to or taken away from.
Enhance the appearance of an X-Ray, CT or special procedures room
with these “decorator look” competitively-priced modules that are easy to
handle for fast, on-site assembly and installation.
Our Clear-Pb product specialist can assist you with ideas, recom-
mendations, floor plans, room layouts and prices.
MOBILE BARRIER SPEC IFICATIONS
Regular 72”Hx30”W 24”Hx30”W 0.5mm 48”Hx30”W .08mm 142 lbs SS56-603
Jumbo 75”Hx30”W 60”Hx30”W 0.5mm 12”Hx30”W - 113 lbs SS56-604
Deluxe 74”Hx 48”W 36”Hx48”W 0.5mm 36”Hx48”W .08mm 230 lbs SS56-616
Deluxe 74”Hx48”W 36”Hx48”W 1.0mm 36”Hx48”W 1.5mm 312 lbs SS56-617
Ultra 74”Hx72”W 36”Hx 72”W 0.5mm 36”Hx72”W 0.8mm 334 lbs SS56-618
Ultra 74”Hx72”W 36”Hx 72”W 1.0mm 36”Hx72”W 1.5mm 409 lbs SS56-619
Nuclear Medicine 58”Hx36”W 24”Hx36”W .8mm 34”Hx36”W 1.5mm 170 lbs SS56-602
APPROX
SHIP WT
LEAD
EQUIV
CATALOG
NO
CLEAR-Pb®MOBILE SCREENS
Smooth rolling Mobile Barriers combine unrestricted, distortion-free visibility and easy mobility in an attractive, effective radiation pro-
tection shield. Barriers are available in a variety of sizes for shielding one, two or more people. Consult factory for pricing.
MODEL
LEAD
EQUIV
OPAQUE
PAN EL
WINDOW
PAN E L
OVERALL
SIZE
HALF FILM BLOCKER
4” 10” 5 lbs 139L
5” 12” 5 lbs 140L
5.5” 14” 6 lbs 141L
7” 17” 7 lbs 142L
5” 8” 5 lbs 139C
6” 10” 5 lbs 140C
7” 11” 6 lbs 141C
8.5” 14” 8 lbs 142C
WIDTH H GT SHIP WT
APPROX. CATALOG
NO.
HALF FILM BLOCKERS
Blockers are made from .125” thick lead vinyl material which has a lead equivalent
of 1.0mm. Available in sizes to block one half of a cassette front so that two expo-
sures can be made on a single sheet of film.
SS56-603
SS56-604
SS56-616
SS56-617
SS56-618 SS56-619
SS56-602
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
F - 6

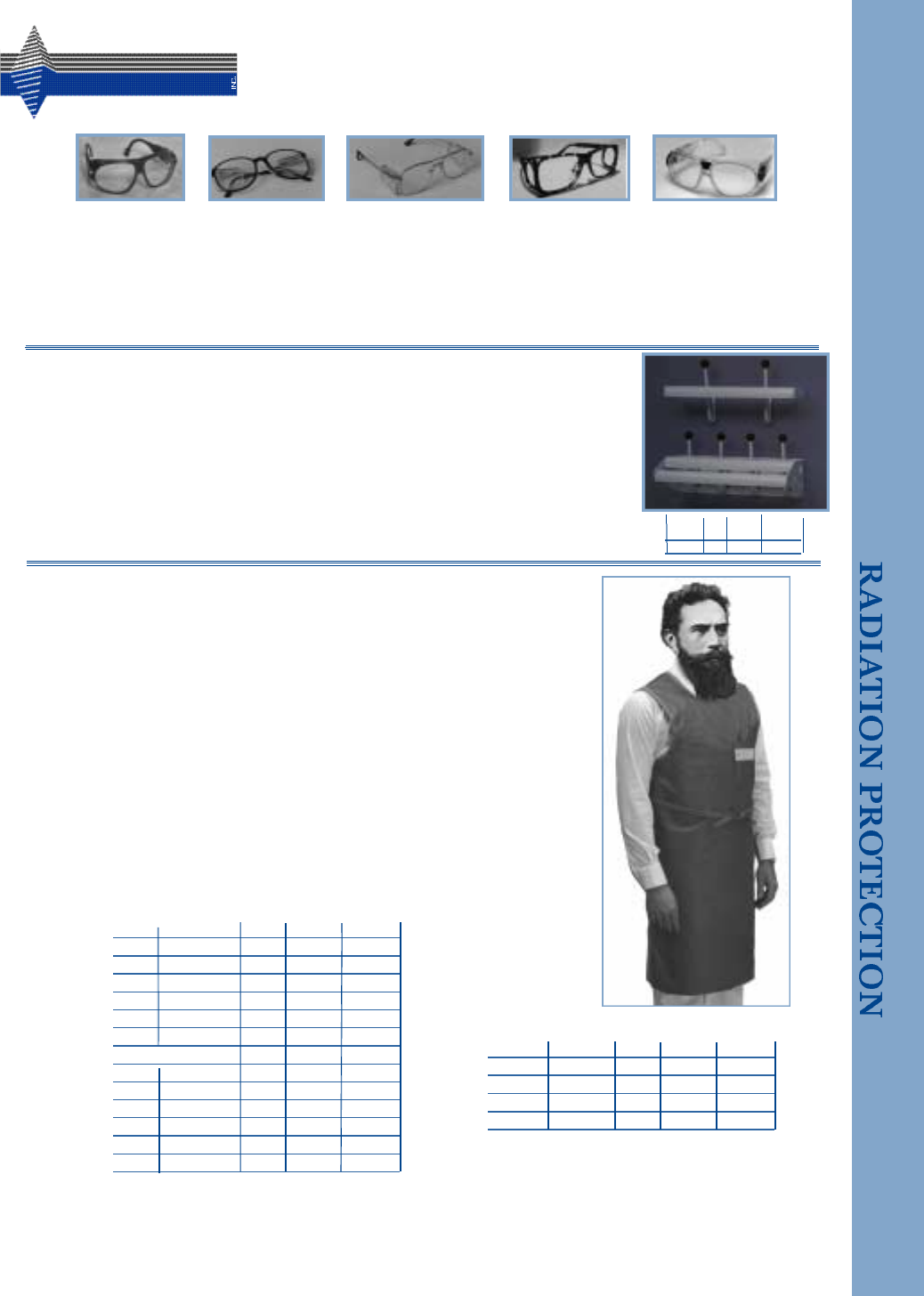

RADIATION PROTECTIVE EYEWEAR
TUF-GUARD PROTECTIVE SHIELDS
Half Apron 24”x30” .5mm 8 lbs 330300
Gonad 9”x9”x9” .5mm 5 lbs 330310
Diaper 14”x20” .5mm 5 lbs 330320
Thyroid 23”Long .5mm 4 lbs 330330
APPROX
SHIP WT
LEAD
EQUIV
CATALOG
NO
TYPE DIM.
This radiation protective eyewear can effectively eliminate approximately 90% of scatter radiation danger to the eye. These high quali-
ty contemporary frames offer the best protection available while being lightweight and comfortable.
Choose a variety of styles designed to reduce the chance of radiation induced injury, while being comfortable enough to make wearing
them a pleasure. Select from the variety of side shield styles for maximum protection and safety.
The lenses meet or exceed the standards for optical clarity, visible light transmission, power and prism correction.
All lenses are made from Schott RS-520 (SF-6) leaded glass - the industry standard for radiation shielding glass.
For a full brochure of all glasses offered please contact factory.
EYE PROTECTION FROM S CATTER RADIATION
TUF-GUARD PROTECTIVE
APRONS AND SHIELDS
TESTED CERTIFIED PROTECTION REGISTERED
DURABLE CHOICE OF STYLES
S&S Tu f -Guard products consist of multilayers of lead vinyl enclosed in an outer covering of a special
formulated PVC plastic, reinforced with a high strength nylon cloth. Outer edges are bound with a strong
woven cotton webbing. Each roll of lead vinyl that is used in the manufacture of Tu f -Guard is tested and
certified for its protective value. Tu f -Guard products are tear resistant, stain resistant, water resistant and
flame resistant.
E a ch S&S Tu f -Guard product is designed and cut to provide ease of movement and even weight distri-
bution. Every Tu f -Guard protective product is recorded by its own individual serial number.
Aprons are custom tailored with a choice of styles and sizes. Choice of lead protection is also available.
All aprons are supplied with a breast pocket to hold pens, glasses, etc. Built in to the front of the pock e t
is a clear plastic name holder which allows insertion of the users name.
TUF-GUARD APRONS
Petite 20”x32” .5mm 9 lbs 330010
Standard 24”x38” .5mm 10 lbs 330020
Long 24”x42” .5mm 11 lbs 330030
Petite 20”x32” .25mm 7 lbs 330050
Standard 24”x38” .25mm 8 lbs 330060
Long 24”x42” .25mm 9 lbs 330070
Petite 20”x32” .5mm 9 lbs 330110
Standard 24”x38” .5mm 10 lbs 330120
Long 24”x42” .5mm 11 lbs 330130
Petite 20”x32” .25mm 7 lbs 330210
Standard 24”x38” .25mm 8 lbs 330220
Long 24”x42” .25mm 9 lbs 330230
VELCRO CLOSURE APPROX
SHIP WT
LEAD
EQUIV
CATALOG
NO
TIE STRAP C LOSURE
SIZE DIMENSIONS
ALL APRONS ARE N ON-RETURNABLE
FOR USE BY:
CATHETERIZATION LAB ELECTROPHYSIOLOGY ENDOSCOPY RAD IOLOGY
UROLOGIC PROCEDURES ORTHOPEDIC SURGERY VETERINARIANS
APRON AND GLOVE RACKS
Protect lead lined gloves and x-ray protective aprons from damage by using these sturdy heavy duty metal apron
and glove rack s .
The apron is stored on the gracefully curved front bar which is designed to eliminate the danger of cracking or
tearing the apron.
Gloves are stored on steel vertical supports with phenolic balls that holds them in an upright open position to facil-
itate ventilation and prevent cracking of the lead material.
Finish: light gray baked enamel.
547 - Large Apron and Glove Rack Holds 4 Gloves and 2 aprons approx. shipping Wt. - 20 lbs.
548 - Apron and Glove Rack Holds 2 Gloves and 1 aprons approx. shipping Wt. - 7 lbs. 27” 2” 9” 548
27” 13.5” 10.75” 547
WIDTH HGT DEPTH CAT. NO
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 1

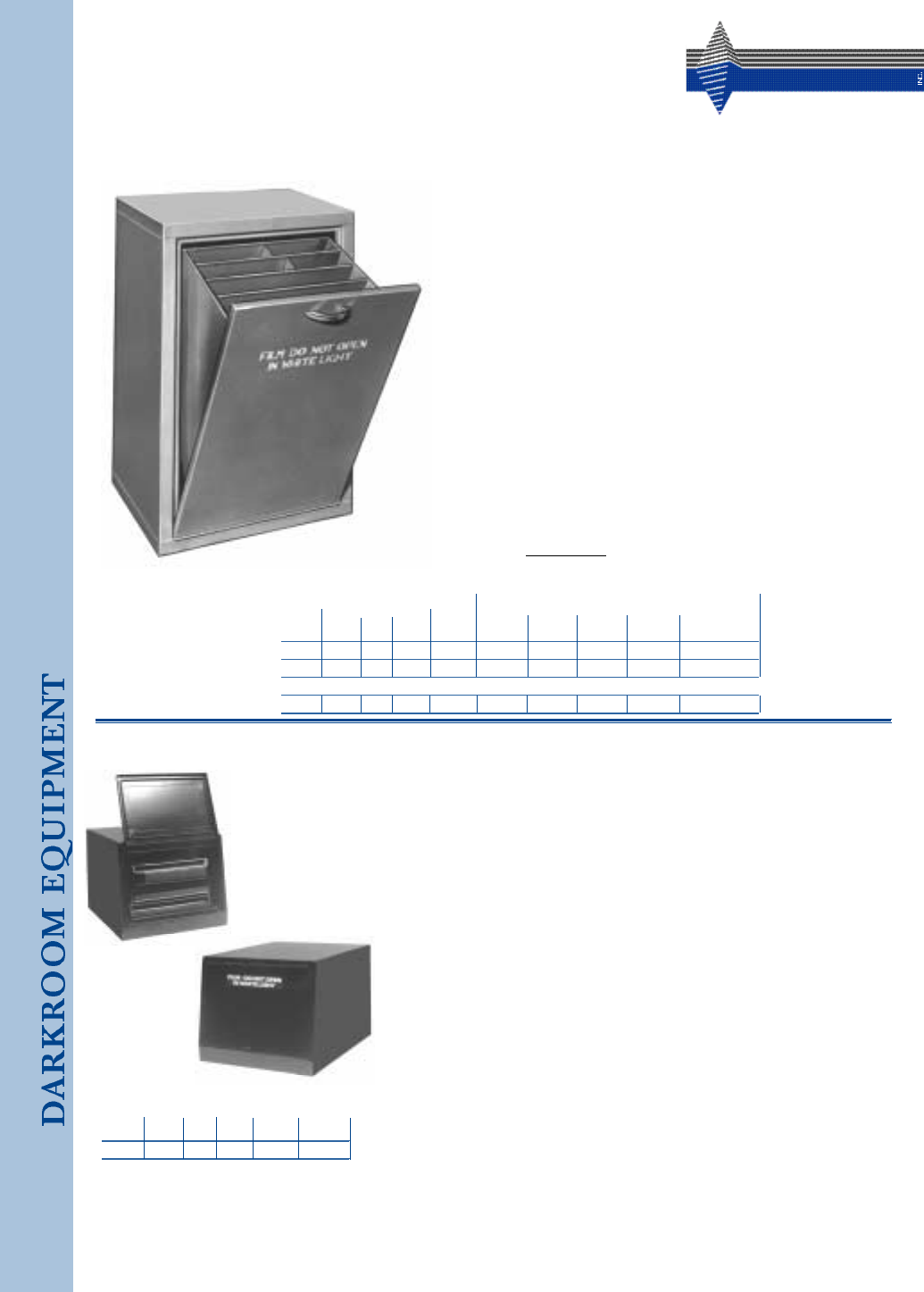

FILM LOADING BINS
These loading bins eliminate the problem of fogging film due to improp-
er storage. A deep double steel light trap around the door gives maxi-
mum protection and assures film safety. Bins have a stainless steel full
width hinge to insure trouble free action. All corners and seams are
welded for strength, guaranteeing no light leakage that can fog film.
The interior of the hinged bin is divided into five or six compartments,
each capable of holding up to 14”x17” films. Each bin comes with inserts
to accommodate smaller film sizes and can be arranged to suit any film
assortment.
With the optional built in light limit switch 127R installed in a film load-
ing bin and wired to the room lighting, the lights will automatically be
turned off whenever the loading bin is opened.
The 125X Film Loading Bin was designed for areas where space is lim-
ited, measuring only 18.375” wide.
The 129 Film Loading Bin is lined with .031” lead.
ALL STEEL CONSTRUCTION / WELDED SEAMS AND CORNERS
DOUBLE STEEL LIGHT TRAP
FULL WIDTH STAINLESS STEEL DOOR H INGE
SIZES AND TYP ES TO MEET MOST REQUIREMENTS
TABLE TOP FILM LOADING BINS
ALL STEEL CONSTRUCTION / WELDED SEAMS AND CORNERS
SMALL AND C OMPACT
IDEAL FOR MAM MOGRAPHY Model# 128 holds 24x30cm and smaller
Model# 128A holds 14”x17” and smaller
FULL WIDTH BLACK ENAMEL DOOR H INGE
BUILT TO LAST
Finish: Black baked enamel.
✶Optional Items: Room Light Control 127A
FILM LOADING BINS
5 22.5” 33” 15” 90 lbs 125 125B 126 126B 125 & 68R
6 22.5” 33” 15” 90 lbs 125K 125KB 125KT 125KTB 125K & 68R
5 18.375” 33” 12.5” 75 lbs 125X 125XB 125XT 125XTB 125X & 68RX
5 22.5” 33” 15” 130 lbs 129 129B 129T 129BT 129 & 68R
NO. OF
COMPART. WI DTH HGT DEPTH SH IP WT
EXTERIOR DIM APPROX.
CATA LOG NUMBERS
BIN W/15”
DEEP BASE
LOADING
BIN
BIN W/15”
DEEP TOP
BIN W/TOP
& BASE
BIN W/ BASE TO
MATCH TO 21.5”CAB
.031” LEAD LINED
Choose the Film Loading Bin most appropriate to your needs and design a darkroom by
selecting any combination of cabinets from either the 15” Compact Darkroom Bench
Cabinets (see page G-9) or the Heavy Duty 21.5” Deluxe Darkroom Bench Cabinets (see
page G-7). See chart below for the proper base to use with the 21.5” bench cabinet.
Bases add 3.5” to the height of a bin, tops add 1”, and top and base add 4.5” to the total
height of a bin.
Finish: All Bins and Bases: Standard finish - light gray baked enamel. Formica tops are white.
✶Optional Items: Room Light Control 127R
These small, space saving counter top Film Loading Bins are ideal for any darkroom. The
level top can be used as an alternate work surface to minimize loss of counter space. The
128 is designed specifically to hold 24x30cm and 18x24cm (or smaller) films making it a
must for the mammography darkroom. The 128A holds 14”x17” (or smaller) film and will
complement any darkroom where space is limited. A deep double steel light trap around
the door gives maximum protection and assures film safety. All corners and seams are
welded for strength guaranteeing no light leakage that can fog film. The door has a full
width hinge to insure trouble free action for the life of the cabinet.
The interior of the 128 is divided into two compartments by a welded shelf and is finished
in black baked enamel. Each compartment holds up to two full boxes of film. The interior
of the 128A has five compartments (each capable of holding one box of 14”x17” film).
An optional built in light limit switch is available for either the 128 or the 128A. With the
127A Light Limit Switch installed in the Film Loading Bin and wired to the room lighting,
the lights will automatically be turned off whenever the bin is opened.
TABLE TOP FILM LOADING BINS
2 13” 10.75” 15” 25 lbs 128
5 17.5” 13.25” 20.75” 40 lbs 128A
NO. OF
COMPART. WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM AP PROX. CATALOG
NO.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m

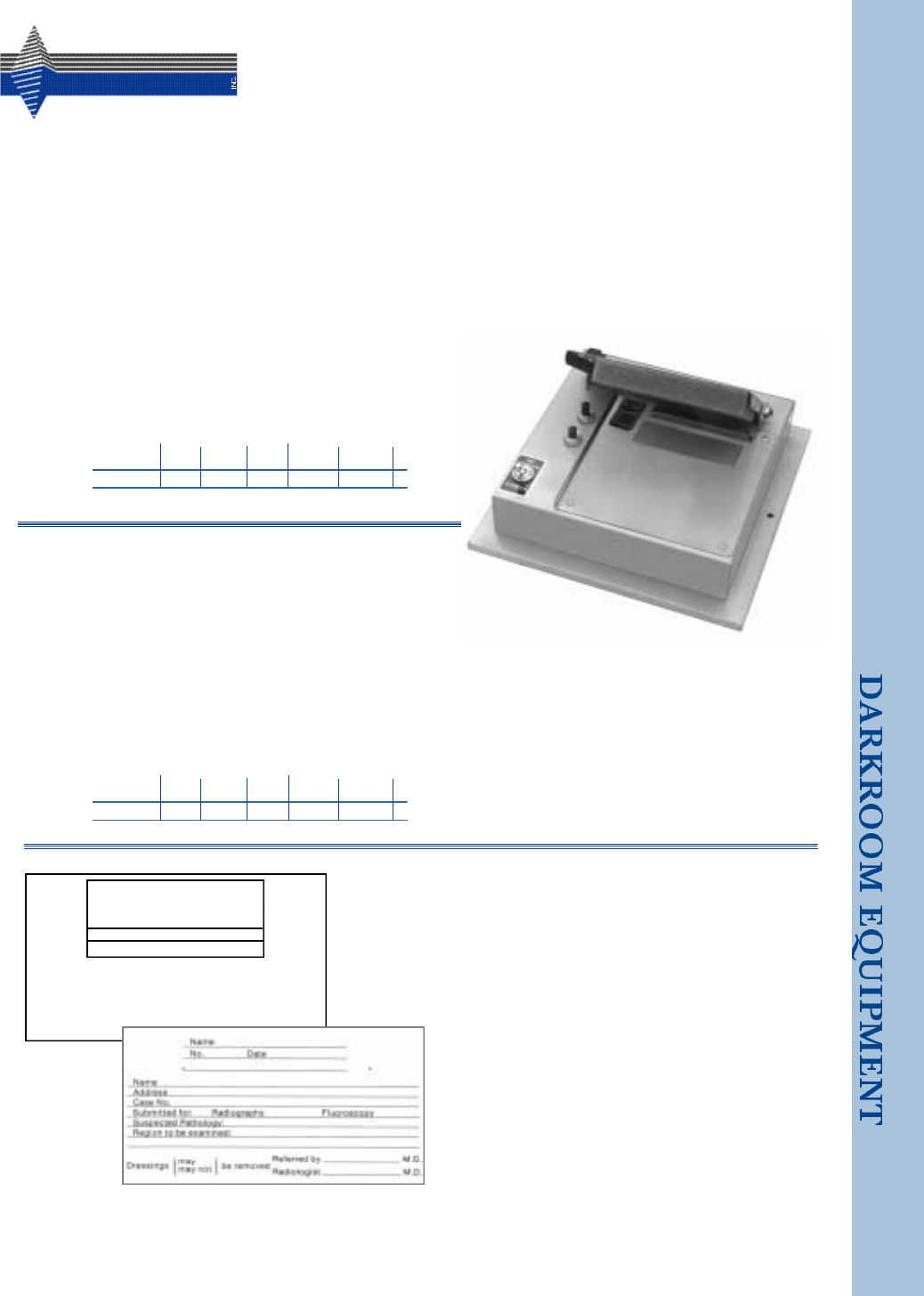

FILM IDENTIFICATION PRINTERS
AND CARDS
AUTOMATIC I.D. PRINTER
Table Top 8” 8” 2.5” 5 lbs 144
Recessed 10” 10” 2.5” 6 lbs 144X
DESCRIPTION WIDTH LENGTH DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
AUTOMATIC or MANUAL MODELS
TABLE TOP or RECESSED MODELS
CLEAR, SHARP IDENTIFICATION
AUTOMATIC I.D. PRINTERS
MANUAL I.D. PRINTER
Table Top 8” 8” 2.5” 5 lbs 143
Recessed 10” 10” 2.5” 6 lbs 143X
DESCRIPTION WIDTH LENGTH DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
MANUAL I.D. PRINTERS
Available for use with the above printers are special 3” x 5” translu-
cent cards which will assure clear, sharp transfer of information
onto the X-Ray film. Cards are available with a standard imprint
format or a custom personalized two line imprint.
Identification cards are available in multiples of 500 only. No
partial carton orders.
Custom personalized imprints are available with a minimum
order of 1000 (for over 1000 order must be in multiples of 500).
For personalized imprint a sample card or written order is required.
143C - Identification Cards, 500 per CTN
IDENTIFICATION CARDS
G - 2
Exposure in these models is not automatically timed. The duration of the expo-
sure is determined by the amount of time the printer door is held in the down
position. The printer is constructed of a heavy duty all steel body, a Stainless
Steel door with a foam rubber contact pad and a Stainless Steel face plate with
guide rails for perfect positioning. Stainless Steel parts are polished to a satin
finish, steel parts are finished in light gray baked enamel. Recessed model has
a baked enamel flange for recessing into a counter top.
The automatic timing circuit and capacitor discharge system built into the
Automatic I.D. Printer consistently provides sharp, clear patient data on every
X-Ray film. The printer is constructed of a heavy duty all steel body, a Stainless
Steel door with a foam rubber contact pad and a Stainless Steel face plate with
guide rails for perfect positioning. Stainless Steel parts are polished to a satin
finish, steel parts are finished in light gray baked enamel. Recessed model has
a baked enamel flange for recessing into a counter top.
AUTOMATIC I.D. PRINTERS OPERATE ON 118 volts 60HZ AC. Other voltages
available on special order.
J. Smith M.D.
100 Park Ave. New York, N.Y. 10010
Patient
No. Date
Exam.
Custom personalized imprint
143C
Identification Card
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 3

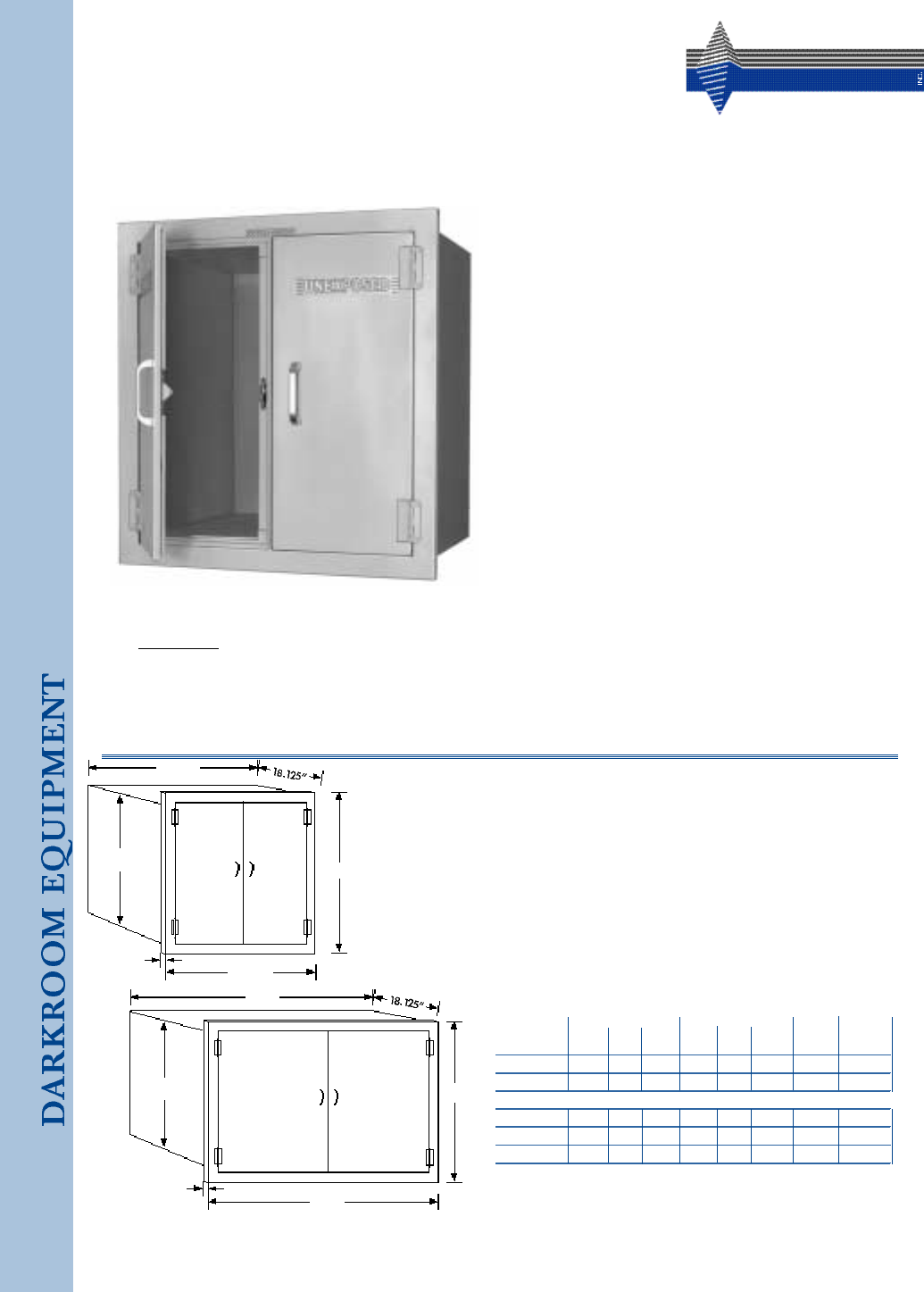

CASSETTE TRANSFER CABINETS
(PASS BOXES)
The Pass Box (Cassette Transfer Cabinet) allows cassettes to be
transferred to and from the darkroom without the worry of light or
radiation entering. Extra heavy duty construction with double light
and radiation traps, 2” x 3” hinges (welded to the doors) and weld-
ed metal reinforcing produce a superior cabinet designed to stand
up to the abuse of a busy department.
These cabinets (except for the manual models) feature automatic
interlocking doors. Opening one door automatically locks the oppo-
site door. Exposed and unexposed compartments are independent-
ly controlled, permitting simultaneous use of both compartments
from the opposite side. The interlock mechanism not only locks the
door opposite the open door but also keeps the doors shut when
both are closed. Optional Automatic Signal Lights (see below) light
up to indicate the presence of cassettes within the cabinet.
Cabinets are available with or without lead lining. Lead liner (1/16”
or 1/8” thick) is completely wrapped around the cassette compart-
ments into the wall flange. The door lead overlaps the cabinet lead
liner for complete radiation protection. The cabinet lead is cut with
a minimum of joints and each joint is overlapped.
The welded, reinforced, double sheet metal construction, durable
hinges and unique locking system produce a cabinet designed to
give long trouble free service.
Finish: Standard finish - light gray baked enamel.
✶Optional Items: Catalog no. 889 -Automatic Signal Lights, mounted on the front and back of the cabinet automat-
ically light up to indicate the presence of a cassette within the Transfer Cabinet. The weight of the cassette on a floating
bottom inside the compartment actuates a switch to turn signal lights on. An amber safelight filter is included for the dark-
room side.
Rough-In Frames,Opposing Wall Flanges see page G-5
Shown: 887A
AUTO-INTERLOCK 4 DOOR TRANSFER CABINET
.062” Lead Lined 22.375” 24.187” 18.125” 24.375” 26.187” .75” 240 lbs 887A
.125” Lead Lined 22.375” 24.187” 18.125” 24.375” 26.187” .75” 315 lbs 887AX
Unlined 22.375” 24.187” 18.125” 24.375” 26.187” .75” 187 lbs 887B
.062” Lead Lined 35.5” 24.187” 18.125” 37.5” 26.187” .75” 350 lbs 887H
.125” Lead Lined 35.5” 24.187” 18.125” 37.5” 26.187” .75” 425 lbs 887HX
Unlined 35.5” 24.187” 18.125” 37.5” 26.187” .75” 260 lbs 887J
DESCRIPTION WI DTH HGT DEPTH SHIP WT
CAB. EXT. DIM APPROX. CATALO G
NO.
Two independent compartments are created by an upright light-tight
wall between the doors. Opening the right side door automatically seals
the opposing door on the back of the cabinet. Opening the left does the
same for that side. The interior measurements of each compartment of
models 887A, 887AX and 887B are 8.375” wide, 20” high and 16.75”
deep. The interior measurements of each compartment of models
887H, 887HX and 887J are 14.937” wide, 20” high and 16.75” deep.
DOUBLE WALL WELDED SEAM CONSTRUCTION
BUILT FOR LONG SERVICE
18 & 20 G AUGE HEAVY DUTY STEEL
VOICE PASSAGE WITHOUT LIGHT LEAKAGE
AVAILABLE WITH OR WITHOUT LEAD LINING
REPLACEABLE INTE RLOCK M ECHANISM
FLANGE EXT. DIM
WIDTH HGT DEPTH
LARGE CABINET
AUTOMATIC INTERLOCK
4 DOOR TRANSFER CABINETS
✶Optional Items: See above
22.375”
26.187”
24.375”
24. 187”
.75”
35.5”
26.187”
37.5”
24.187”
.75”
EXPOSED UNEXPOSED
EXPOSED UNEXPOSED
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 4

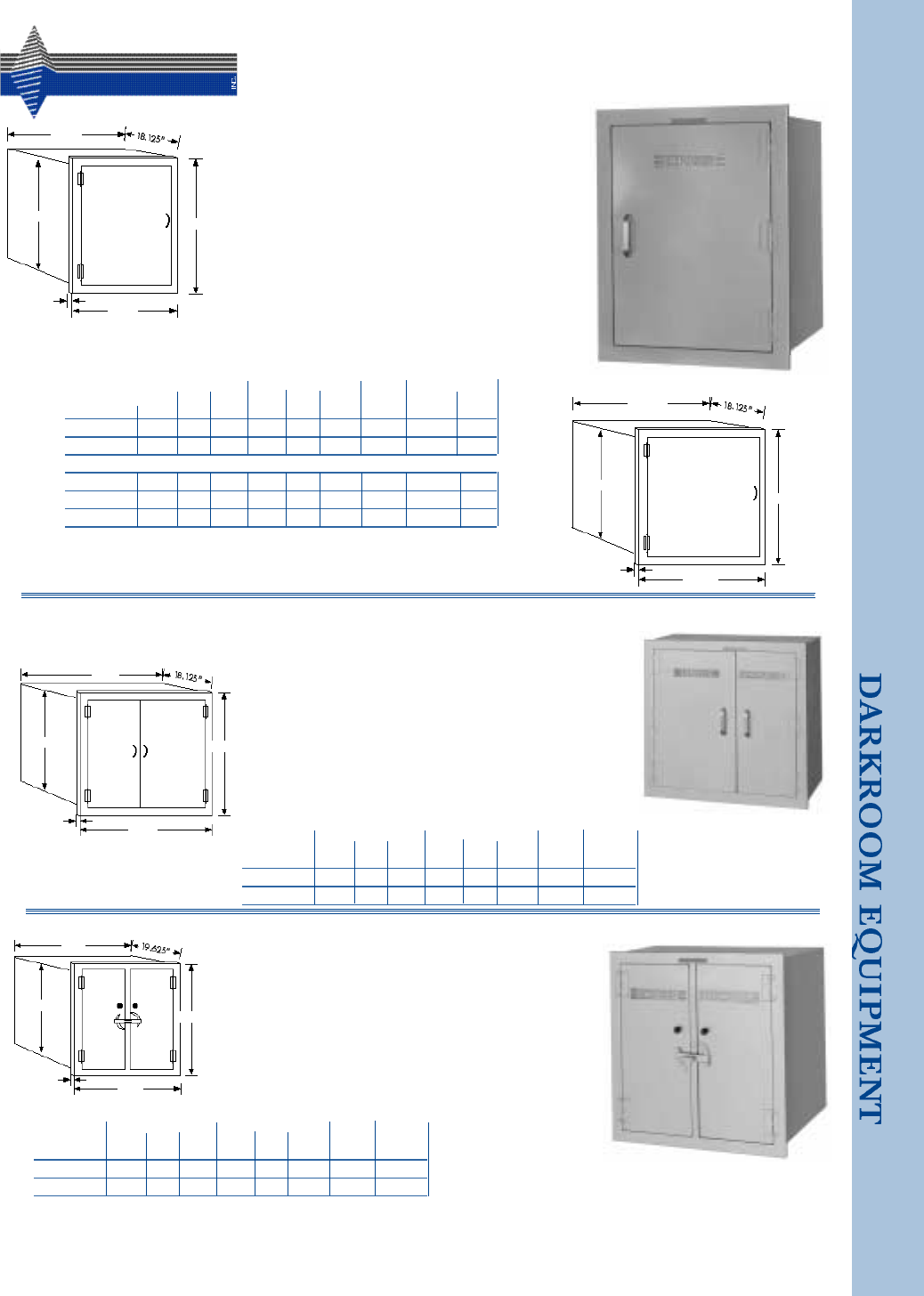

AUTOMATIC INTERLOCK
TWO DOOR TRANSFER CABINETS
18.25”
26. 187”
20.25”
24. 187”
.75”
22.375”
26.187”
24.375”
24.187”
.75”
21 ”
23.5”
22.5”
22”
1”
EXPOSED UNEXPOSED
25.75”
26.187”
27.75”
24.187”
.75”
EXPOSED UNEXPOSED
AUTO-INTERLOCK 2 D OOR TRANSFER CABINET
.062” Lead Lined 18.25” 24.187” 18.125” 20.25” 26.187” .75” 200 lbs 887P 887PL
.125” Lead Lined 18.25” 24.187” 18.125” 20.25” 26.187” .75” 275 lbs 887PX 887PXL
Unlined 18.25” 24.187” 18.125” 20.25” 26.187” .75” 150 lbs 887R 887RL
.062” Lead Lined 22.375” 24.187” 18.125” 24.375” 26.187” .75” 275 lbs 887T 887TL
.125” Lead Lined 22.375” 24.187” 18.125” 24.375” 26.187” .75” 350 lbs 887TX 887TXL
Unlined 22.375” 24.187” 18.125” 24.375” 26.187” .75” 225 lbs 887W 887WL
DESCRIPTION WI DTH HGT DEPTH SHIP WT
CAB. EXT. DIM APPROX. CATALOG NO.
The same unique heavy duty construction as described on
page G-3 is used in these two door, single compartment
models. The smaller of these models can be used when
space is limited or for one-way transfer. The larger can
accommodate cassettes stacked vertically with a center par-
tition. Opening the door on one side of the cabinet auto-
matically seals the opposing door on the back of the cabinet.
Right or left hand doors with hinges on the right and left
sides, respectively, are available. The interior measurements
of models 887P, 887PX and 887R are 14.625” wide, 20” high
and 16.75” deep. The interior measurements of models
887T, 887TX and 887W are 18.75” wide, 20” high and
16.75” deep.
FLANGE EXT. DIM
WIDTH HGT DEPTH
LARGE CABINET
.062” Lead Lined 25.75” 24.187” 18.125” 27.75” 26.187” .75” 350 lbs 887M
.125” Lead Lined 25.75” 24.187” 18.125” 27.75” 26.187” .75” 425 lbs 887MX
Unlined 25.75” 24.187” 18.125” 27.75” 26.187” .75” 300 lbs 887N
DESCRIPTION WI DTH HGT DEPTH SHIP WT
CAB. EXT. DIM APPROX. CATALO G
NO.
FLANGE EXT. DIM
WIDTH HGT DEPTH
AUTO-INTERLOCK - UNEQUAL COMPARTMENT 4 DOOR
TRANSFER CABINET
MANUAL INT ERLOCK 4 DOOR TRANSFER CABINET
.062” Lead Lined 21” 22” 19.625” 22.5” 23.5” 1” 200 lbs 888A
.125” Lead Lined 21” 22” 19.625” 22.5” 23.5” 1” 275 lbs 888AX
Unlined 21” 22” 19.625” 22.5” 23.5” 1” 150 lbs 888B
DESCRIPTION WI DTH HGT DEPTH SHIP WT
CAB. EXT. DIM APPROX. CATALO G
NO.
Special design makes additional space available for unex-
posed cassettes to meet peak load periods. Design and con-
struction are the same as described on page G-3. The inte-
rior measurement of the smaller compartment is 8” wide:
the larger compartment is 12.5” wide and subdivided with
a center partition into two 6.25” wide units. Both compart-
ments are 20” high and 16.75” deep.
FLANGE EXT. DIM
WIDTH HGT DEPTH
MANUAL INTERLOCK 4 DOOR TRANSFER CABINET
A twist of the bronze T handle releases both doors and auto-
matically locks the opposite side. Interlocking occurs before
doors are released to assure light tightness. A simplified trouble
free cam actuated interlock assures long service. With the
exception of the locking system, these units have the same
unique heavy duty construction described on page G-3 The
interior of each inner compartment measures 8” wide, 19.25”
high and 17.5” deep.
✶Optional Items: Automatic Signal Lights, page G-3: Rough-In Frames: Opposing Wall
Flanges, page G-5
✶Optional Items: Automatic Signal Lights, page G-3: Rough-
In Frames: Opposing Wall Flanges , page G-5
✶Optional Items: Automatic Signal Lights, page G-3: Rough-
In Frames: Opposing Wall Flanges,, page G-5
RT. HAND LT. HAN D
SMALL CABINET
AUTO-INTERLOCK - U NEQUAL COMPARTMENT4 DOOR TRANSFER CABINET
Shown: 887P Right Hand Door
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 5

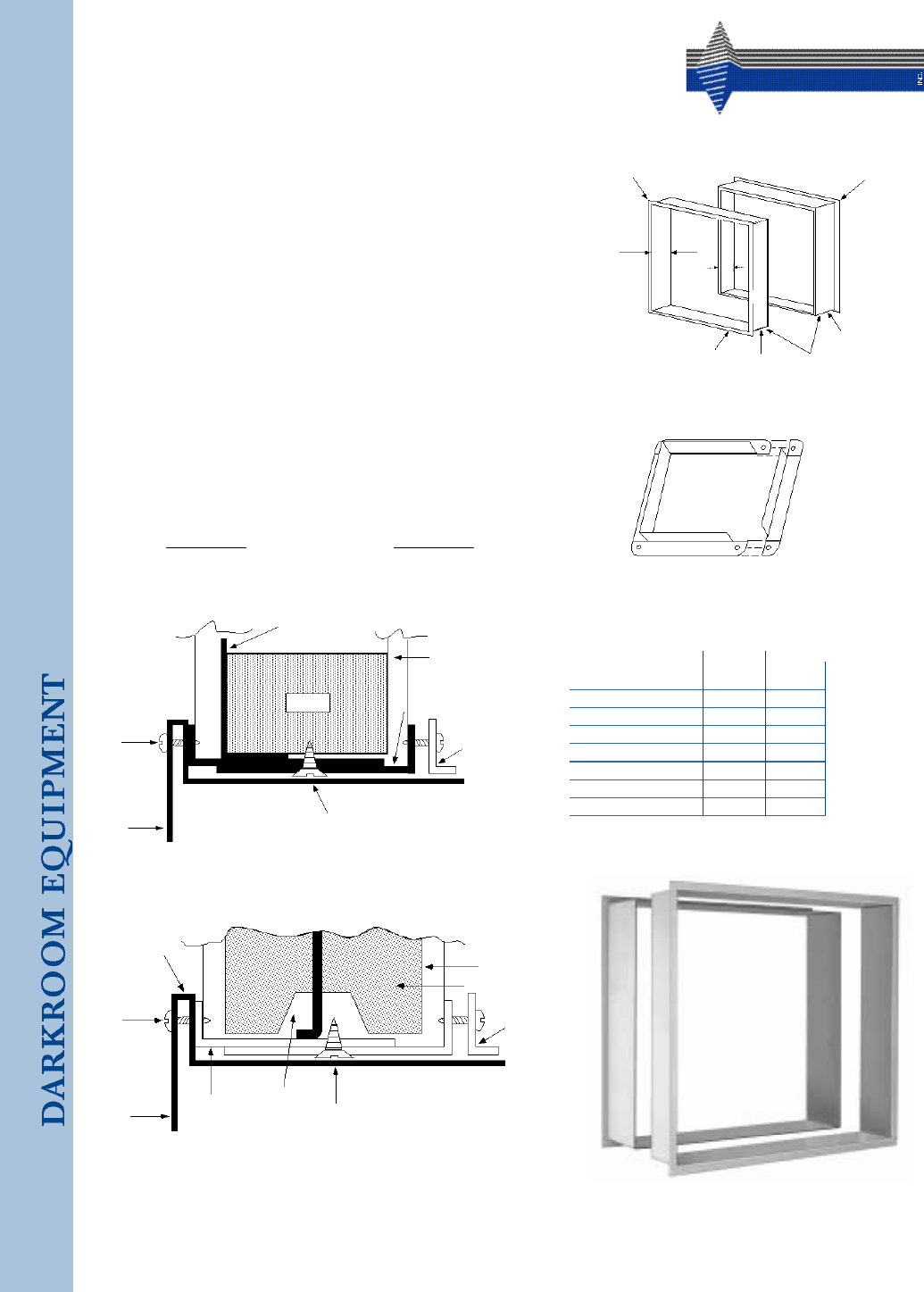

ROUGH-IN FRAMES
OPPOSING WALL FLANGES
INSTALLATION DETAILS
When installing Transfer Cabinets it is advisable to use Rough-In Frames. Rough-
In Frames can be installed during construction avoiding the problems of damage or
dirt during construction and permitting Transfer Cabinets to be removed or
exchanged any time in the future. Rough-In frames are 16 gauge cold rolled steel
and welded for strength and rigidity.
The outer frame of the telescoping set is 1/2” larger than the Transfer
Cabinet for which it is intended. Wall openings should be provided to accept this
outer frame.
Finish: Standard finish - light gray baked enamel. Optional finish - S&S Blue.
The optional Opposing Wall Flange is 18 gauge cold rolled steel and designed to
match the Transfer Cabinet size. Its use provides a more finished appearance at the
wall in the back of the cabinet.
Outer
Frame
4.437”
5.5”
Rough-In Frames
Fasten Cassette Transfer
Cabinet flange to outer frame
flange
Two telescoping frames -
outer frame is .5” larger
than Transfer Cabinet.
Inner Frame
.75” Flange all
around
.75” Flange all
around
Four Piece Construction
Opposing Wall Flange
ROUGH-IN F RAMES AND OPPOSING WALL FLANGES
8 87A, 887 A X, 887 B 887C 887D
8 87H, 887HX, 887 J 887K 887DH
8 87 P, 887PX , 887 R 887S 887DP
8 87PL , 887PXL, 887 R L 887S 887DP
8 87 T, 887 TX, 887 W 887C 887D
8 87 T L, 887 T XL, 887 W L 887C 887D
8 87M, 887MX, 887 N 887U 887DU
888A, 888AX, 888B 888C 888D
FOR USE WITH TRANS. CAB.
MODEL
CATALOG NO.
Approx. Ship. Wt. 16 lbs
Approx. Ship. Wt. 5 lbs
ROUGH-IN
FRAME
OPP. WALL
FLANGE
Cross Section - Stud Wall
STUD
Lead Lining
Plaster
Rough-In Frame
Opposing Wall
Flange
Drill holes in frame as required.
Cassette
Transfer Cabinet
Drill holes in
cabinet frame
& rough-in
frame.
Screws are not
supplied.
Drill and tap holes in frame as
required.
Cassette
Transfer Cabinet
Drill and tap
holes in cabi-
net frame &
rough-in
frame.
Screws are not
supplied.
Plaster
Lead lined cinder block
Opposing Wall Flange
Cross Section - Masonry Wall
Lead
Rough-In Frame Grout
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 6

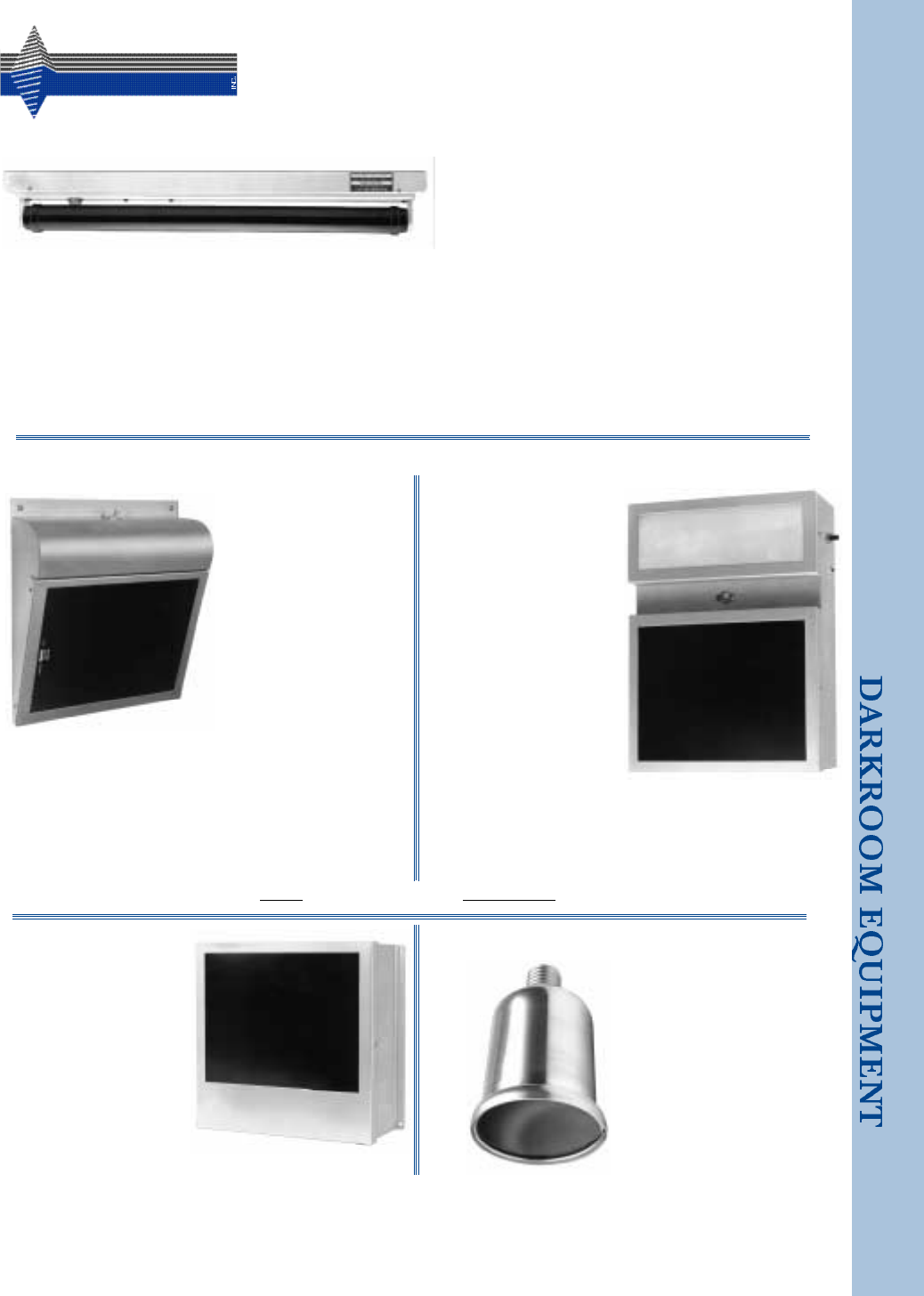

SAFELIGHTS
BRIGHTER LIGHTING
REUSABLE FILTER
The unique combination of the reusable slip-on polycarbonate
filter sleeve and a fluorescent bulb produce more visible light in
the safe range than conventional safelights. High Vi s i o n
Safelights are safe for use with all blue or green sensitive X-Ray
film. Safelights must be mounted a minimum distance of 4 feet
from film.
You save filter replacement costs when changing the fluorescent
bulb because, unlike some safelights, the High Vision Safelight
filter is reusable and does not need to be replaced with the bulb.
The safelight has a pull string on-off switch and comes with a six
foot 3-conductor grounded cord set. Safelights operate on 118
volts 60 HZ AC .5 AMPS.
HIGH VISION SAFELIGHT
WIDTH HGT DEPTH
15 Watt 21.5” 1.5” 3.75”
20 Watt 25.5” 1.5” 3.75”
FLUORESCENT
ECONOMICAL
PRODUCES MORE USABLE LIGHT IN THE SAFE RANGE
THAN CONVENTIONAL SAFELIGHTS
Finish: Baked on White Enamel.
302 - Superlight, Baked Enamel Finish, S&S 6B Filter
302K - Superlight, Baked Enamel Finish, GBX-2 Filter
CHOICE OF F ILTERS: S&S 6B for Blue sensitive film or KODAK GBX-2 for Blue or Green sensitive film
This ultrathin, tapered 8”x10”
safelight is scientifically
designed to direct light where
it is most needed. It is con-
structed of extra heavy gauge
steel and electrically welded
in the corners. Only safelights
made this more costly way
can assure permanent light
tightness. Tapered design
adds both beauty and utility
to this superior safelight.
Comes with a six foot 3-con-
ductor grounded cord set.
SUPERLIGHT
WIDTH HGT DEPTH
10.25” 11” 3.25”
215040 - High Vision 15 Watt (18” long bulb)
approx. shipping Wt. - 5 lbs.
215050 - High Vision 20 Watt (24” long bulb)
approx. shipping Wt. - 7 lbs.
SAFELIGHTS OPERATE ON 118 VOLTS 60HZ AC .
Finish: light gray baked enamel.
approx. shipping Wt. - 7 lbs.
301 - Combination, S&S 6B Filter
300 - Combination, GBX-2 Filter
Only 3.75” deep, this two com-
partment all welded safelight
features an 8”x10” safelight and
a 4”x10” illuminator. The all
steel welded housing perma-
nently prevents any light leak-
age. Exceptionally shallow
depth will allow convenient
placement without obstruction.
The safelight switch is mounted
in the front and the illuminator
switch is mounted on the side
to avoid any chance of acciden-
tal lighting. Comes with a six
foot 3-conductor grounded
cord set.
COMBINATION
WIDTH HGT D EPTH
10.25” 14.25” 3.75”
Finish: light gray baked enamel.
approx. shipping Wt. - 11 lbs.
300A - Economical, S&S 6B Filter
A sturdy economical steel
safelight with an 8”x10” filter.
It can be mounted on a wall
or the tank backboard, or it
can stand on a shelf. Comes
with a six foot 3-conductor
grounded cord set.
ECONOMICAL
WIDTH HGT D EPTH
10.25” 10.25” 3.5”
Finish: light gray baked enamel.
approx. shipping Wt. - 9 lbs.
300B -
Circular, S&S 6B Filter
A compact, low cost 3.5”
round safelight that
screws into any standard
light fixture.
CIRCULAR 3.5” SAFELIGHT
Finish: Brushed Aluminum.
approx. shipping Wt. -
2 lbs.
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 7

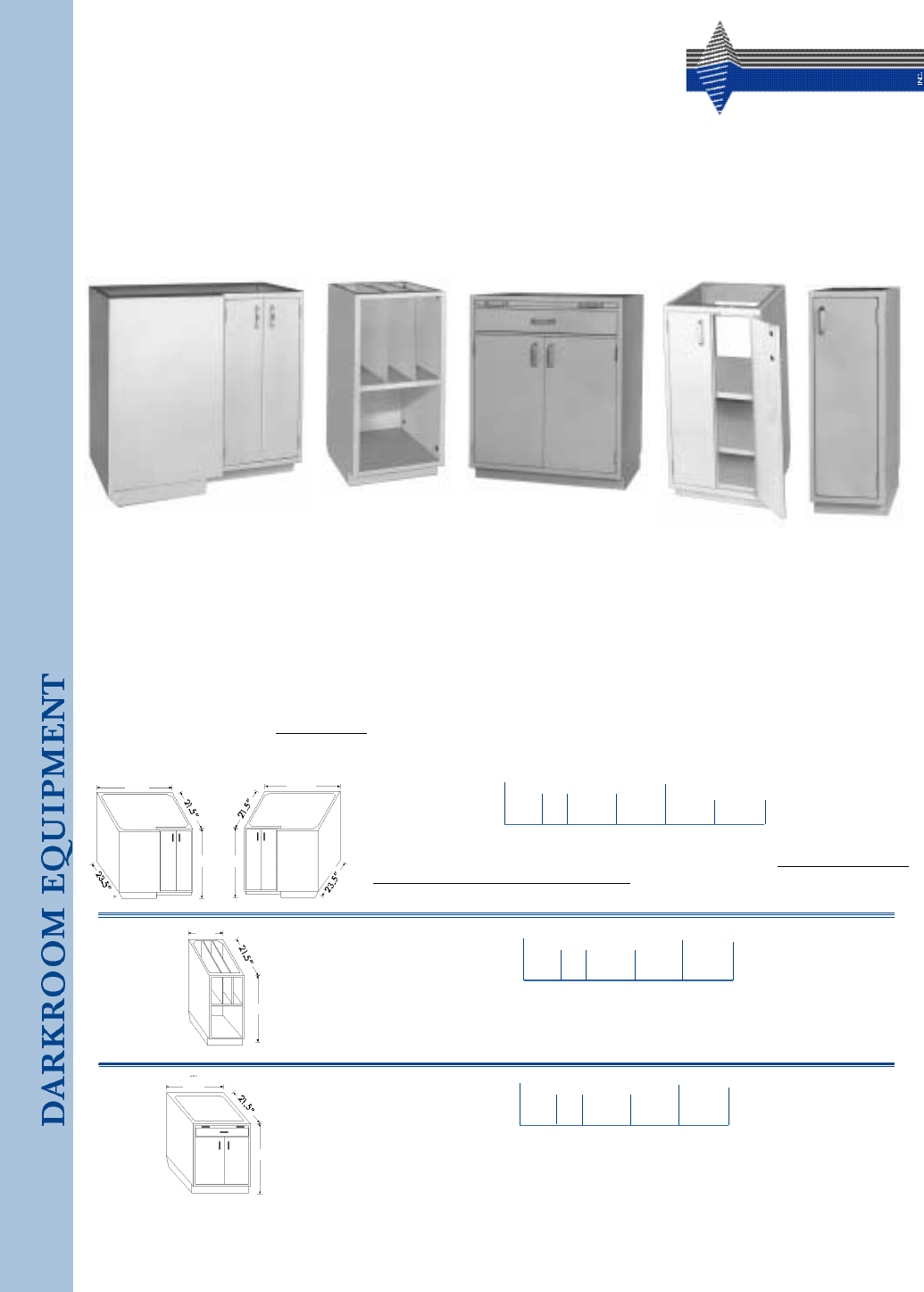

HEAVY DUTY 21.5” DELUXE
DARKROOM BENCH CABINETS
Deluxe darkroom cabinets are made of formed and welded cold rolled steel. Cabinet tops are open and perforated for easy installa-
tion of optional formica covered cabinet tops. All inner side walls of these double walled cabinets have holes to facilitate side by side
mounting. Each cabinet can stand independently or in combination with with any other cabinet in this series. All deluxe cabinets have
built in bases. Choose from any combination cabinets below and add in any Film Loading Bin to make a complete darkroom work sta-
tion. See page G-1 to select the appropriate bin and base.
Optional 68H Formica Counter Tops; 68T Counter Top End Support; 68TA Wall Scribe Strips; 68TB Filler and 68TC Corner Filler
Finish: All Bins and Bases: Standard finish - light gray baked enamel. Formica tops are white.
CORNER CABINET
39.5” 37” 21.5” 23.5 95 lbs 68C
WIDTH HGT DEPTH DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
DOUBLE WALL CONSTRUCTION / WELD ED SEAMS AND CORNERS / 18 GAUGE HEAVY DUTY STEEL
MODULAR DESIGN FOR CUSTOM INSTALLATION
BUILT IN BAS ES
CUSTOM FORMICA TOPS AVAILABLE
CAB.W/DOOR CORNER CAB
Shown: 68C, 68M, 68Z, 68S, and 68P
39. 5”
37”
Abut to
Next
Cabinet
Side
to
Wall
39. 5”
37” Abut to
Next
Cabinet
Side
to
Wall
Left Hand Model Right Hand Model
Corner Cabinets are designed to fill in the corner of an “L” shaped room layout. Double
doors open and permit storage on two full depth adjustable shelves. A sketch is required
with order showing location of cabinet to determine left or right model.
CASSETTE CABINET
18” 37” 21.5” 75 lbs 68M
WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Cassette Cabinets store cassettes on edge in the upper three compartments. The lower
compartment is for general utility.
37”
18 ”
WORK B ENCH UTILITY CABINET
30” 37” 21.5” 165 lbs 68Z
WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Work Bench Utility Cabinets: A complete workbench and utility cabinet with full size
pullout shelf, drawer with ball bearing suspension and double doors that open to permit
storage on two full depth adjustable shelves. All steel construction.
37”
30”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 8

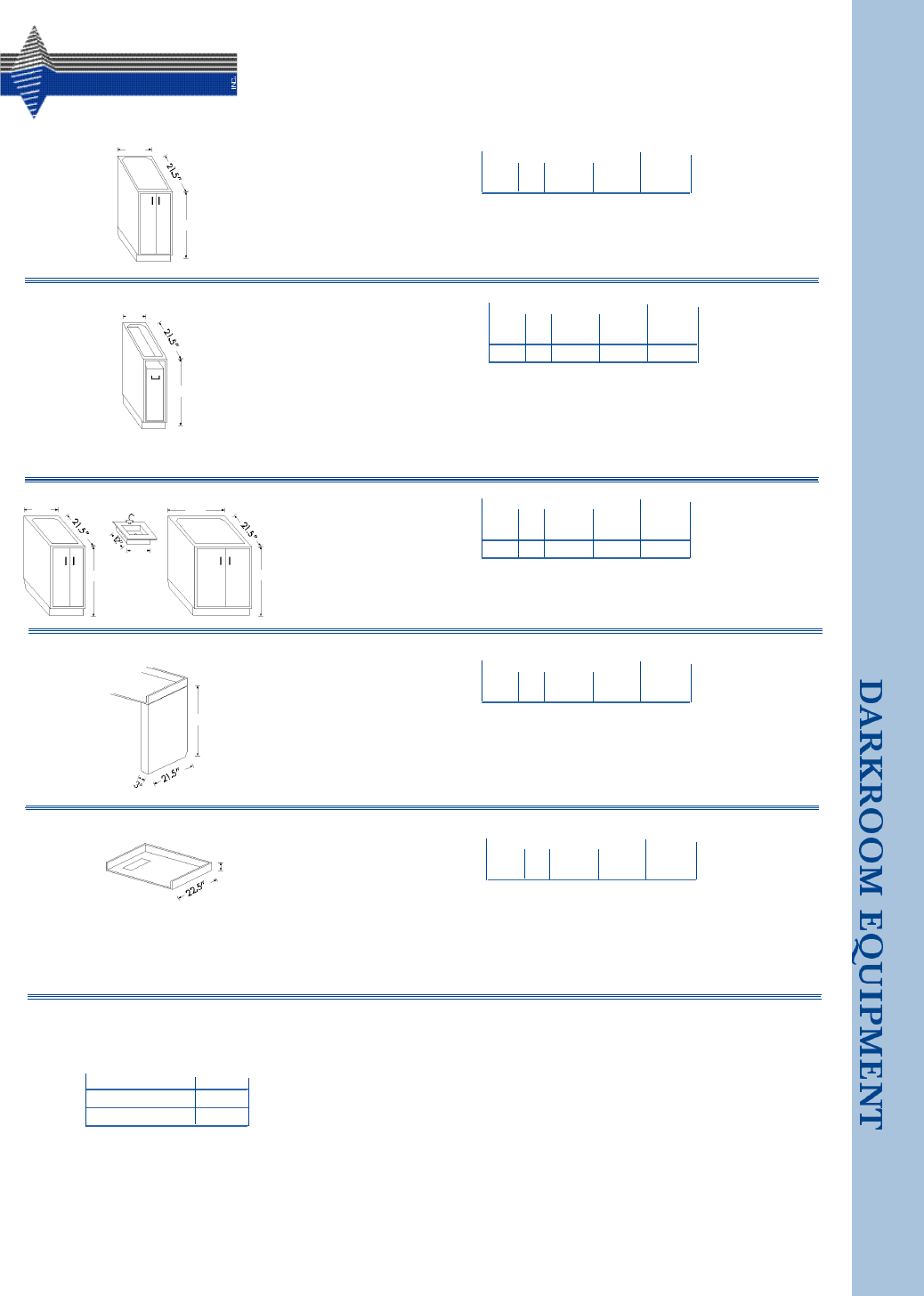

HEAVY DUTY 21.5” DELUXE
DARKROOM BENCH CABINETS
37”
12 ”
37”
WASTE BIN / IDENTIFIER CABINET
12” 37” 21.5” 75 lbs 68P
12” 37” 21.5” 75 lbs 68PX
WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
68P: Deposit waste through a cutout in the counter top. All steel construction. Inner
steel waste bin has a lift handle for easy removable.
68PX: Designed to have a film identification printer recessed into the counter top and
cabinet of this unit. All steel construction.
SINK CABINET
18” 37” 21.5” 77 lbs 68S
30” 37” 21.5” 95 lbs 68SW
WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Sink Cabinets come with a stainless steel sink complete with drain, tail piece, faucets
and spigot. Double doors open and permit storage on two full depth adjustable
shelves. All steel construction.
37”
37”
30”
18 ”
12 ”
UTILITY CAB INET
18” 37” 21.5” 77 lbs 68N
WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Utility Cabinets: Double doors open and permit storage on two full depth adjustable
shelves. All steel construction.
37”
18 ”
FORMICA COUNTER TOP
To Order 4.5” 21.5” Custom 68H
L ENGTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Formica Counter Tops are custom made for all types of darkrooms and loading
benches. Usual construction includes white formica on .75” chipboard with a 4.5” high
backsplash and end returns. 22.5” depth allows for a 1” overhang at the front of the
cabinet. Custom cut outs are made for waste bins, ID printers, etc. When ordering,
please provide a drawing or sketch.
CABINET END SUPPORT
3” 37” 21.5” 30 lbs 68T
WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Cabinet End Support: This all steel leg is available to support the formica top
beyond the end of a cabinet when a longer counter top is desired.
4.5”
FINISHING FIL L ER PIE CES
Wall Scribe Strip 68TA
Cabinet Filler 68TB
Corner Filler 68TC
CATALOG
NO. Custom made fillers, scribe strips or corners are available to complete each installa-
tion. Made to match cabinet profile, they are designed to close any spaces between
cabinets or a cabinet and a wall for a finished smooth look. The Corner Filler can be
used in a corner as an alternative to a corner cabinet.
Contact factory for engineering assistance.
68S 68SW
Waste Bin / Identifier Cabinet:
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 9
15” COMPACT DARKROOM BENCH
CABINETS
Designed expressly for the X-Ray department, these steel cabinets form the perfect work station for any large or small darkroom, film
loading station, etc. While occupying a minimum of floor space, they will hold all of the film, cassettes and utility items used by the X-
Ray department. The compact design and low cost make them the ideal choice for most X-Ray installations.
Choose from any combination of the six cabinets below and add in any Film Loading Bin (page G-1) and Drier (page G-14) to make a
complete darkroom work station.
Optional formica tops and all steel bases are available for each unit. For a finished, built-in look, a custom formica One Piece Top (with
back splash [118G] or without back splash [118F]) and/or One Piece steel Custom Base [118B] are available for any combination of units.
MIX AND MATCH COMBINATION
ONLY 15” DEEP
Finish: All Bins and Bases: Standard finish - light gray baked enamel. Formica tops are white.
THREE COMPARTMENT CASSETTE STORAGE CABINET
Cassette Cabinet 11” 33” 15” 35 lbs 160
W/Base 11” 36.5” 15” 50 lbs 160B
W/Top 11” 34” 15” 45 lbs 160T
W/Base &Top 11” 37.5” 15” 60 lbs 160BT
DESCRIPTION WIDTH HGT DEPTH SH IP WT
EXTERIOR DIM APPROX. CATALOG
NO.
FOUR COMPARTMENT CASSETTE STORAGE CABINET
Cassette Cabinet 16” 33” 15” 50 lbs 161
W/Base 16” 36.5” 15” 65 lbs 161B
W/Top 16” 34” 15” 60 lbs 161T
W/Base &Top 16” 37.5” 15” 75 lbs 161BT
DESCRIPTION WIDTH HGT DEPTH SHIP WT
EXTERIOR D IM AP PROX. CATALOG
NO.
OPEN FRONT UTILITY CABINET
Cabinet 29” 33” 15” 50 lbs 890
W/Base 29” 36.5” 15” 65 lbs 890B
W/Top 29” 34” 15” 60 lbs 890T
W/Base &Top 29” 37.5” 15” 75 lbs 890BT
DESCRIPTION WIDTH HGT D EPTH SHIP WT
EXTERIOR DIM AP PROX. CATALOG
NO.
DOUBLE DOOR , TWO SHELF CABINET
Cabinet 29” 33” 15” 60 lbs 891
W/Base 29” 36.5” 15” 75 lbs 891B
W/Top 29” 34” 15” 70 lbs 891T
W/Base &Top 29” 37.5” 15” 85 lbs 891BT
DESCRIPTION WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
TWO SHELF UTILITY CABINET
Cabinet 16” 33” 15” 50 lbs 893
W/Base 16” 36.5” 15” 65 lbs 893B
W/Top 16” 34” 15” 60 lbs 893T
W/Base &Top 16” 37.5” 15” 75 lbs 893BT
DESCRIPTION WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
WASTE BIN CABINET
Cabinet 16” 33” 15” 65 lbs 894
W/Base 16” 36.5” 15” 80 lbs 894B
W/Top 16” 34” 15” 75 lbs 894T
W/Base &Top 16” 37.5” 15” 90 lbs 894BT
DESCRIPTION WIDTH HGT DEPTH SHIP WT
EXTERIOR DIM AP PROX. CATALOG
NO.
COMPACT DESIGN - LOW COST
20 GAUGE ALL STEEL CONSTRUCTION
✶Optional Items: Custom one piece Steel Base - 118B; Custom one piece Flat Formica Top - 118F; Custom one piece Formica Top with Back
Splash - 118G; Counter Top End Support - 115; Factory Assembled and Crated for One Piece Installation - 118P; Film Dryer see page G-14
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 10
DELUXE WALL CABINETS
Ideal for large or small darkrooms, Deluxe Wall
Cabinets provide additional storage space without
using valuable floor space. They are the perfect mate
to either the 15” Compact Darkroom Be n ch
Cabinets or Heavy Duty 21.5” Deluxe Darkroom
Bench Cabinets. All inner side walls of these double
walled cabinets have holes to facilitate side by side
mounting. Choose from any combination of wall
cabinets below and add in any Cassette Transfer
Cabinet (page G-3, 4) to make a complete darkroom
work station.
WALL CASSETTE CABINET
3 Compartment 18” 22” 16” 40 lbs 159
4 Compartment 24” 22” 16” 51 lbs 158
DESCRIPTION WI DTH H EIGHT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Two sizes of Wall Cassette Cabinets are available, 18” wide with three com-
partments and 24” wide with four compartments. Both cabinets are all steel
double wall construction with keyholes provided in the rear for easy hanging
and holes in the inner side walls to facilitate bolting units side by side.
WALL UTILITY CABINET
18” 22” 16” 44 lbs 157
WIDTH H EIGHT DEPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Wall Utility Cabinets are all steel double wall construction with keyholes provid-
ed in the rear for easy hanging and holes in the inner side walls to facilitate bolting
units side by side. Double doors, door catch and two adjustable shelves come with
this cabinet.
Finish: Standard finish - light gray baked enamel. Formica tops
are white.
DOUBLE WALL WELDED SEAM CONSTRUCTION
ATTRACTIVE WALL MOUNTED UNITS
18 GAUGE HEAVY DUTY STEEL
MODULAR DESIGN FOR CUSTOM I NSTALLATION
SAVES F LOOR SPACE
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 11
DARKROOM ACCESSORIES
5 GALLON DEVELOPING TANK
Constructed of type 316 stainless steel, Heliarc welded, passivated (chemically treated to resist
corrosion) and polished to a satin finish, this tank is designed and built to provide trouble free ser-
vice. Two removable 5 gallon insert tanks and a tank drain with plastic stand pipe are supplied
with each tank.
✶Optional Items:
98C - Stainless Steel Base approx. shipping Wt. - 15 lbs.
98D - Enamel Steel Base approx. shipping Wt. - 16 lbs.
(Enamel Steel Bases are constructed of heavy cold rolled steel and finished in light gray baked
enamel. Base raises tank height to 37”.)
98E - Stainless Steel Overall Tank Cover approx. shipping Wt. - 5 lbs.
98F - 5 Gallon Insert Tank Cover approx. shipping Wt. - 2 lbs.
POLISHED STAINLESS STEEL
HELIARC WELD ED
PASSIVATED
LONG LI FE
98A - Stainless Steel Tank with two 5 gallon insert tanks ( base not included)
19”x17”x22.5” deep Approx. shipping Wt. - 47 lbs.
All Stainless Steel. Rod is welded
to perforated bottom plate for
hanging. Electro-polished finished.
175 - Stainless Steel So l u t i o n
Agitators
approx. shipping Wt. -7 lbs.
Minimum order of 2
DIAL THERMOMETERS
Constructed entirely of Stainless Steel. Easy reading 1.75” diameter dial. Stem is 6” long and .125” in diam-
eter. Thermometer can be hooked onto the insert or ordered with a plastic float.
837 - Dial Thermometer
837C - Dial Thermometer with Float
THERMOMETERS
DARK ROOM TIMER
For accurate timing of intervals up
to 30 minutes. An adjustable stop
makes it easy to set repeated time
intervals. Operation is simple: set-
ting the timer winds the mechanism,
a gong signals the end of the time
period. Dial glows in the dark for
easy reading.
839A - Darkroom Timer approx.
shipping Wt. -3 lbs.
DIGITAL HAND-HELD THERMOMETERS
A battery powered hand-held thermometer with LED readout. Comes equipped with one detachable immersion probe. ±.5% accuracy.
Range: 32 - 2300F/0 - 1100C
SS07-402 - Digital Thermometer
SS07-403 -Extra Immersion Probe
Shown: 98A Stainless Steel Tank with 98C Stainless Base
SOLUTION AGITATORS
FLOATING GLASS THERMOMETER
A sensitive X-Ray Thermometer enclosed in a glass case, weighted so that the thermometer floats upright.
Easy to read scale marked at 680F. Eye at top allows thermometer to be hung.
838- Floating Glass Thermometer
Minimum order of 6
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 12
LIGHT LOUVERS
LIGHTPROOF LOUVERS
12” 12” 3.75” 13 lbs 965A
12” 18” 3.75” 20 lbs 965B
12” 24” 3.75” 24 lbs 965C
24” 24” 3.75” 45 lbs 965D
WIDTH H EIGHT D EPTH SHIP WT
EXTERIOR DIM APPROX. CATALOG
NO.
Darkroom and fluoroscopic rooms require these louvers to obtain fresh air without
light. Louvers are made of steel finished with a non-reflecting black baked enamel.
They are 1.375” thick and can be built into a wall or door. Available in four stock
sizes.
170 - Baked Enamel Hanger Storage Rack approx. shipping Wt. - 4 lbs.
170S - Stainless Steel Hanger Storage Rack approx. shipping Wt. - 4 lbs.
DEVELOPING HANGERS
HANGER STORAGE RACK
25 HANGER CAPACITY
DEVELOPING HANGERS
5” x 7” 2 lbs 805
8” x 10” 2 lbs 808
10” x 12” 2 lbs 810
11” x 14” 2 lbs 811
14” x 17” 2 lbs 814
7” x 17” 2 lbs 815
14” x 36” 5 lbs 836
FI LM SIZE SHIP WT
APPROX. CATALOG
NO.
These durable stainless steel hangers are passivated and electropolished. The upper
clips and cross bar springs provide tension to keep the film flat without tearing. The
two bottom clips hold the film at the lowest possible position at the bottom of the
tank. 14”x36” hangers are designed to have the film looped around the bottom of
the hanger and clipped at the top in order to fit a standard 5 gallon tank.
There is a nominal packing charge if ordering less than twelve hangers (mixed sizes
acceptable).
Each rack holds up to 25 assorted sizes of hangers and is easily mounted on any dark
room wall.
WIDTH HGT DEPTH
15.625” 5.5” 10”
Finish: Stainless Steel units are polished to a satin finish. Baked Enamel units: light gray .
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 13
QUICKDRY - FILM DRYERS
BAKED ENAMEL FINISH
Right Hand 119
Left Hand 119L
Double Door 119D
DESCRIPTION CATALOG
NO
✶Optional Items: 120T: Built in Heavy Duty Timer
12 FILM CAPACITY
THERMOSTATICALLY CONTROLLED
STAINLESS STEEL or BAKED ENAMEL
AVAILABLE WITH AUTOMATIC TIMER
CHOICE OF LEFT HAND DOOR or RIGHT HAND D OOR
or SPLIT DOUBLE DOORS
Finish: Stainless Steel units are polished to a satin finish. Baked Enamel units: light gray .
The QUICKDRY Dryer can be placed on the floor or on a table. It will economi-
cally deliver clean, warm air for fast drying and is thermostatically controlled to
prevent dangerous overheating. The air recirculating system keeps heat inside the
dryer and speeds drying in any weather. A heavy duty timer (120T) is also avail-
able.
The cabinet is cold rolled steel with a baked enamel finish or polished Stainless
Steel. The hanger rack is constructed of heavy Stainless Steel and will hold twelve
14”x17” hangers. The bottom is covered by a removable Drip Tray. Doors are rein-
forced and available in your choice of right hand opening, left hand opening, or
split double doors. Right hand units have hinges located on the right side of the
door and the door opens from left to right. Left hand units have hinges on the left
side of the door and open from right to left.
ALL DRYERS OPERATE ON 118volts 60HZ-AC 6AMPS. Other voltages available on
special order.
12 HANGER CAPACITY FOLD AWAY TRAY
EASY WALL MOUNTING
The Folding Drying Rack, constructed entirely of polished Stainless Steel, holds twelve
14”x17” hangers. A solid Stainless Steel back protects the wall at all times and the 20” x
17” tray can be folded up against the back for extra convenience when not in use. It can
be mounted quickly and easily in any location. The rack is 23” high, 20” wide and 17”
deep with the tray in the open position.
FILM DRYING RACKS
174A - Folding Drying Rack approx. shipping Wt. - 13 lbs.
FOLDING DRYING RACK
WIDTH HGT DEPTH
19.75” 2” 2”
A drying rack of polished Stainless Steel. Holds 12 developing
hangers at an angle for quick drainage. Holes provided for easy
wall mounting.
172 - Wall Drying Rack approx. shipping Wt. - 2 lbs.
WALL DRYING RACK
approx. shipping Wt. - 67 lbs.
WIDTH HGT DEPTH
23” 33.5” 17.75”
STAINLESS STEEL FINISH
Right Hand 119S
Left Hand 119LS
Double Door 119DS
DESCRIPTION CATALOG
NO
Shown: 119 Right Hand Door
WIDTH HGT DEPTH
20” 23” 17”
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m
G - 14
FILM DRYERS
This is the small dryer with large dryer features. Scientific air circulation design
creates fast drying at high efficiency. Cabinets of polished Stainless Steel or cold
rolled steel are available both in twelve and fifteen film capacities.
Film hangers fit into specially slotted holders that keep them separated and verti-
cal at all times. All interior parts are made of Stainless Steel. The drawer opens its
full width on ball bearing extension slides. The Stainless Steel drip pan moves with
the drawer and is always under the wet film.
The drying system includes a heavy duty motor and fan plus a thermostatically
controlled 750 watt sealed heating unit separately controlled but interlocked so
that the heater will not function without the fan. A heavy duty timer (120T) is also
available. The air system recirculates the same heated air many times, thereby
obtaining additional drying without additional heat and reducing the heat exhaust-
ed into the darkroom, so that normal ventilation is usually sufficient without addi-
tional ducts. A pre-set thermostat prevents overheating.
Cabinets are constructed of heavy gauge material welded together for strength.
ALL DRYERS OPERATE ON 118 volts 60HZ AC 6AMPS. Other voltages available on
special order.
With or without optional base these dryers can be matched with other 15” cabinets
(see page G-9).
✶Optional Items:
Base: Designed to raise the dryer 3.5” to provide toe kick space and
match 15” Darkroom Cabinets with bases.
Top: Formica Dryer Tops are .75” thick and provide a non-marring work
surface.
120T: Built in Heavy Duty Timer
WIDTH HGT DEPTH
With Base 36.5” High
22.5” 33” 15”
THERMOSTATICALLY CONTROLLED
12 or 15 F ILM CAPACITY
STAINLESS STEEL or BAKED ENAMEL
AVAILABLE WITH FORMICA TOPS
AVAILABLE WITH AUTOMATIC TIMER
HIGH EFFICIENCY
Finish: Stainless Steel units are polished to a satin finish. Baked Enamel units: Standard fin-
ish - light gray baked enamel. Optional Formica Tops are white.
12 Film Dryer
WIDTH HGT D EPTH
22.5” 33” 24”
15 Film Dryer
FILM D RYER - BAKED ENAMEL FINISH
12 FILM DRYER
Dryer 73 lbs 120
Dryer W/ Bas e 73 lbs 120B
Dryer W/ Top 80 lbs 121A
Dryer W/ Top & Base 92 lbs 121AB
15 FILM DRYER
Dryer 100 lbs 150
Dryer W/ Bas e 115 lbs 150B
Dryer W/ Top 110 lbs 151A
Dryer W/ Top & Base 125 lbs 151B
DESCRIPTION CATALOG
NO
SHIP WT
APPROX.
FILM DRYER - STAINLESS STEEL FINISH
12 FILM DRYER
Dryer 73 lbs 120S
Dryer W/ Base 85 lbs 120SB
Dryer W/ Top 80 lbs 121AS
Dryer W/ Top & Bas e 92 lbs 121ASB
15 FILM DRYER
Dryer 100 lbs 150S
Dryer W/ Base 115 lbs 150SB
Dryer W/ Top 110 lbs 151S
Dryer W/ Top & Bas e 125 lbs 151SB
DESCRIPTION CATALOG
NO
SHIP WT
APPROX.
With Base 36.5” High
8 0 0 / 3 4 7 - X R AY
S
&
S
X- R AY P R O D U C T S
w w w. s s x ra y. c o m

Navigation menu
