UltraHoist Drawworks System
UH SG-1060-6000-DDW

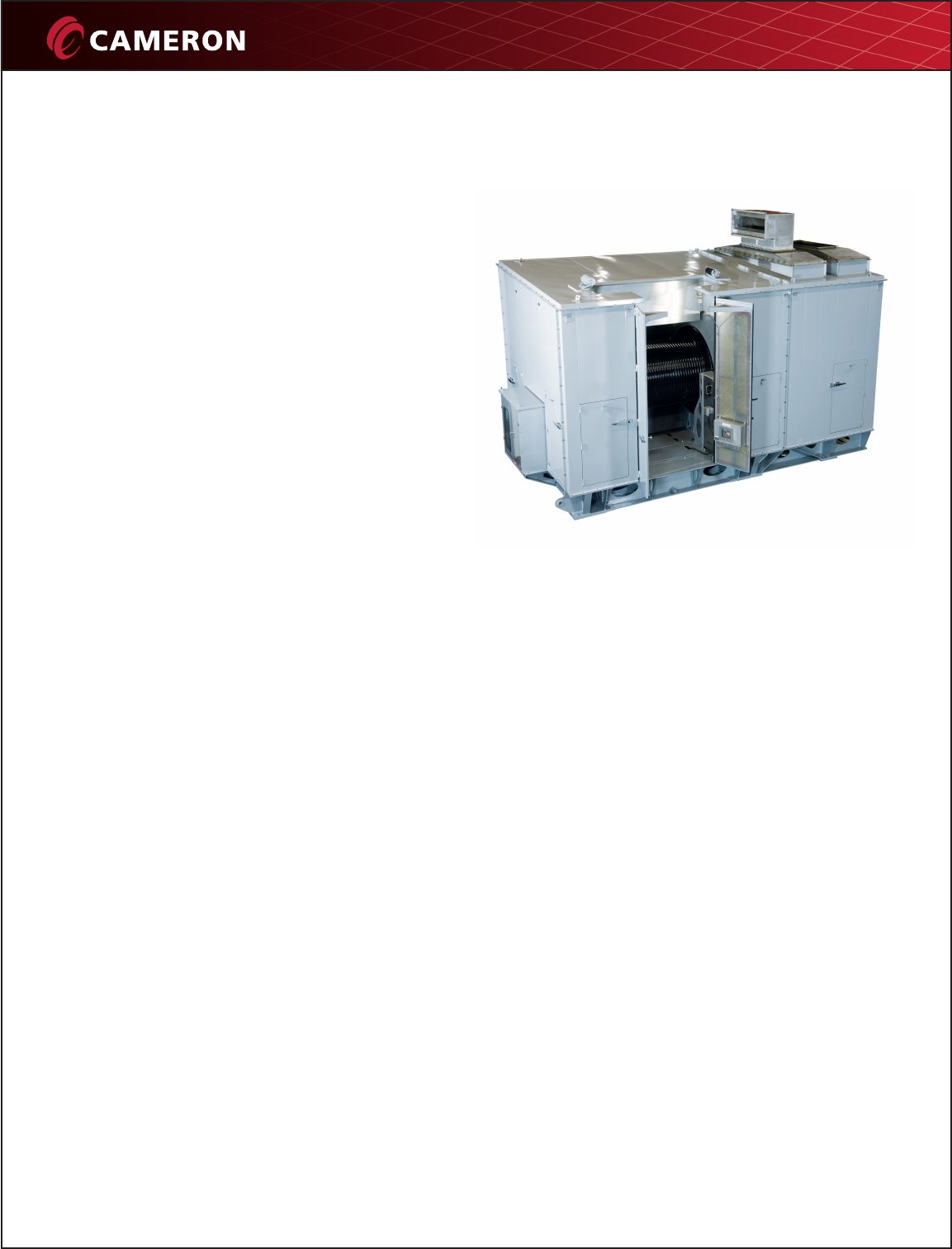

Cameron’s UltraHoistTM drawworks deliver efficient
hoisting and lowering during drilling, tripping and
handling operations. All UltraHoist drawworks are AC
and gear-driven.
The UltraHoist 1060-6000 is a fully-integrated drawworks
system, designed to be able to hoist and lower defined
loads during tripping and drilling modes. The UltraHoist
is designed for offshore installation and is centered on
maintaining personnel safety and increasing equipment
service life and long-term optimal performance through
component selection and system design.
Main Features
• Lebus grooved drum for 2” drill line – complete with
kickback rollers and easily removable guards
• Easily removable cable anchor
• Control system interfaces with the Zone Management
System via the C-NET network to enable communication
with other system PLC such as the anti-collision system
• Custom PLC software ensures smooth and natural
operations for the driller
• Built-in, self-diagnostic functions automatically warn for
service and overhaul of main components
• Onboard HPU systems for brakes and lubrications fitted
with dual pumps and motors
• Internal gearbox uses a keyless design to avoid stress
configurations
• Sound enclosure for noise reduction
Safety Features
• Fail-safe braking system comprised of two brake discs,
one at each side of the drum, and two calipers with
brake pads acting on each disc
• Braking capacity of the emergency brakes equal to 200%
of maximum line pull
• Automatic brake monitoring system, including brake slip
detection, drum creep detection and drum
response detection
• Two separately fused emergency shutdown circuits
• Integrated crown and floor saver provides full control of
the various braking systems
© 2013 Cameron | UltraHoist is a trademark of Cameron. | 07/13 AD00586DRL
4601 Westway Park Blvd.
Houston, TX 77041
USA
Tel 1 713 939 2211
Andøyfaret 3
N-4623 Kristiansand S.
Norway
Tel 47 380 00 570
drilling@c-a-m.com | www.c-a-m.com
Technical Specifications SI Imperial (US)
Power rating maximum drawworks duty 4480 kW 6000 hp
Maximum wire pull on 16 lines 961 tonnes 1060 tons
Maximum fast line pull 809 k∙N 182 kips
Maximum block speed with 16 lines (at max
motor working speed of 2500 rpm) 1.06 m/sec 343 ft/min
Drum size (diameter x length) 1270 mm x 2440 mm 50” x 96”
Design API 7K drilling equipment, DNV-OS-E101 drilling plant
Any third-party approval is available upon request
Area classification Zone 1, IIB, T3
Scope of Supply Options
Drawworks skid Foundation bolts
Drum and drum support Lifting spreader bar
Dual brake disks and calipers Operator’s control panel
Single-speed gearbox AC drives
AC motors
Blower skid for air cooling of AC motors
HPU for lube oil system
HPU for brake control system
UltraHoist control system includes PLC with software as needed for
safe and reliable control and monitoring of all drawworks functions
Local control panel (for cut-and-slip operations)
Block reset sensors
Floor/crown saver sensors
Sound enclosure
User manuals/documentation
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
00 200 400 600 800 1000 1200
Block speed (m/sec)
Hook load (tons)

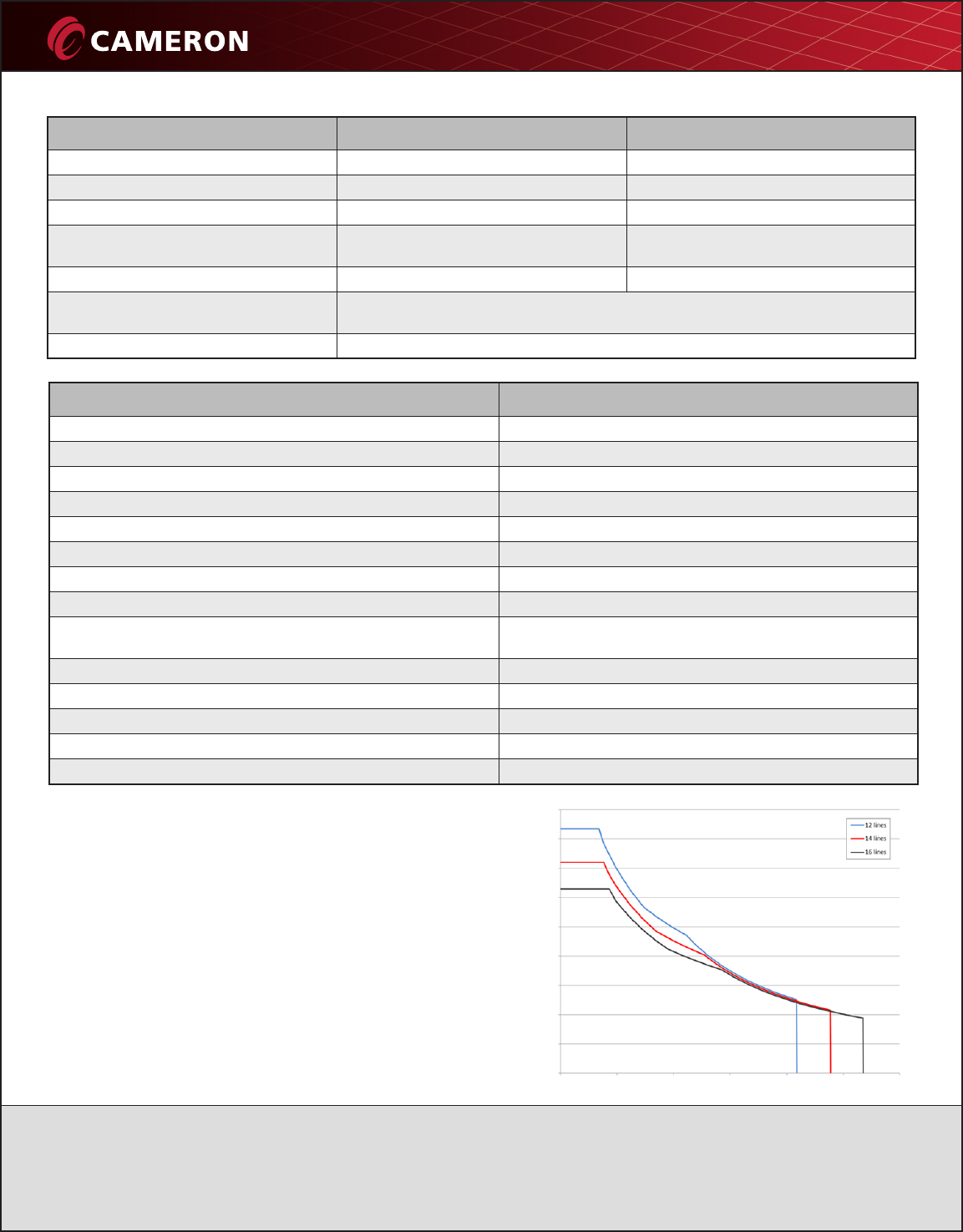

Hook Load and Speed Chart
* Calculations based on layer 4
** Maximum speed limited to 3000 rpm at layer 2
