WT7525
PC POWER SUPPLY SUPERVISOR
Data Sheet
REV. 0.40 Preliminary release
February 21, 2005
The information in this document is subject to change without notice.
Weltrend Semiconductor, Inc. All Rights Reserved.
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 2
GENERAL DESCRIPTION
The WT7525 provides protection circuits, power good output (PGO), fault protection latch (FPOB),
and a protection detector function (PSONB) control. It can minimize external components of switching
power supply systems in personal computer.
The Over / Under Voltage Detector (OVD / UVD) monitors V33, V5, V12A, V12B and V12C input
voltage level. The Over Current Detector (OCD) monitor IS33, IS5, IS12A, IS12B and IS12C input
current sense. When OVD or UVD or OCD detect the fault voltage level, the FPOB is latched HIGH and
PGO go low. The latch can be reset by PSONB go HIGH. There is 3.5 ms delay time for PSONB turn
off FPOB.
When OVD and UVD and OCD detect the right voltage level, the power good output (PGO) will be
issue.
FEATURES
• The Over/Under Voltage Detector (OVD / UVD) monitors V33, V5, V12A, V12B and V12C input
voltage.
• The Over Current Detector (OCD) monitors IS33, IS5, IS12A, IS12B and IS12C input current sense.
• Both of the power good output (PGO) and fault protection latch (FPOB) are Open Drain Output.
• 75 / 300 ms time delay for UVD.
• 300 ms time delay for PGO.
• 38 ms for PSONB input signal De–bounce.
• 73 us for PGI/OVD/UVD internal signal De–glitches.
• 1.2 ms for OCD internal signal De–glitches.
• 3.5 ms time delay for PSONB turn-off FPOB.
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 3

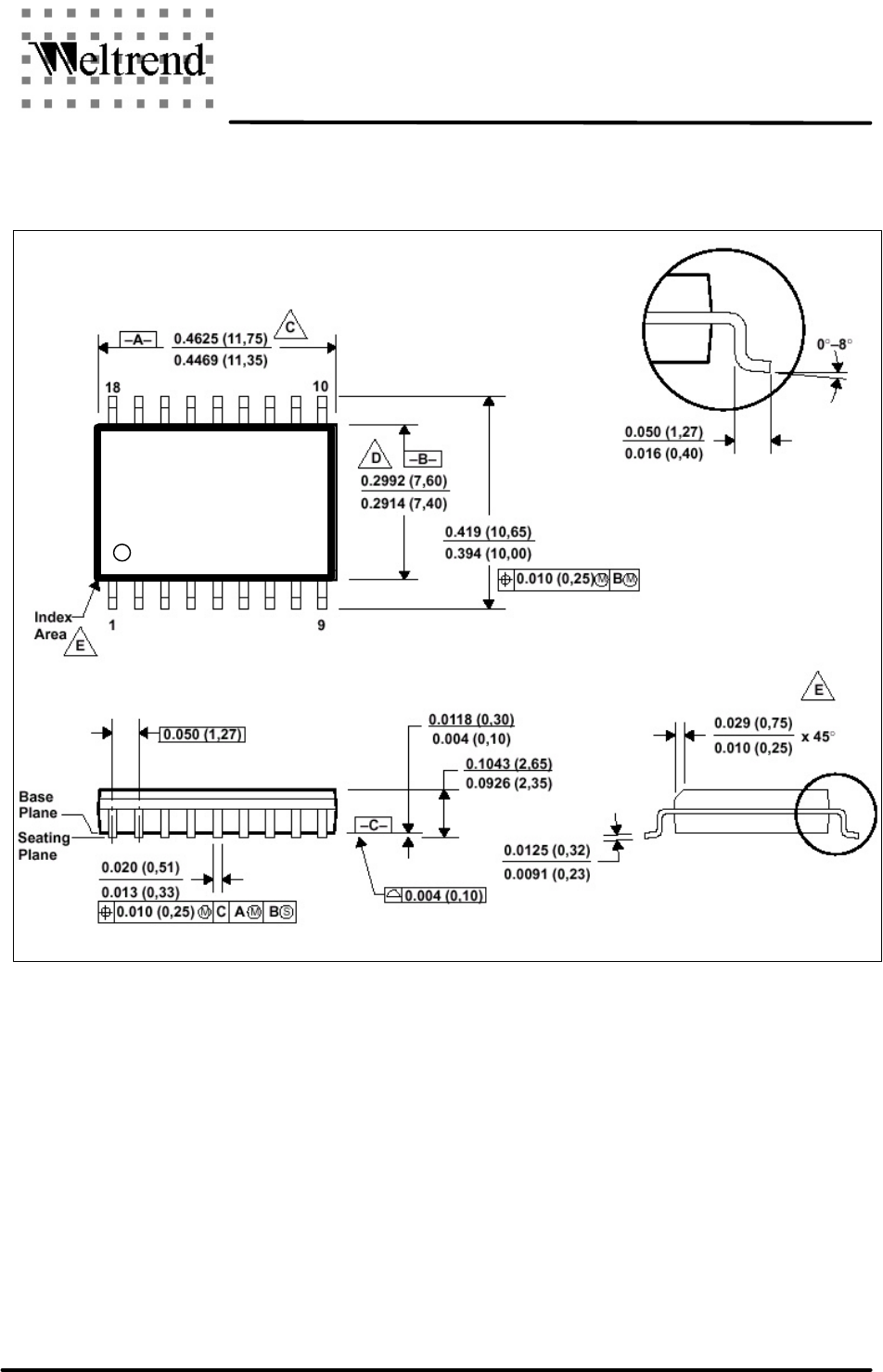

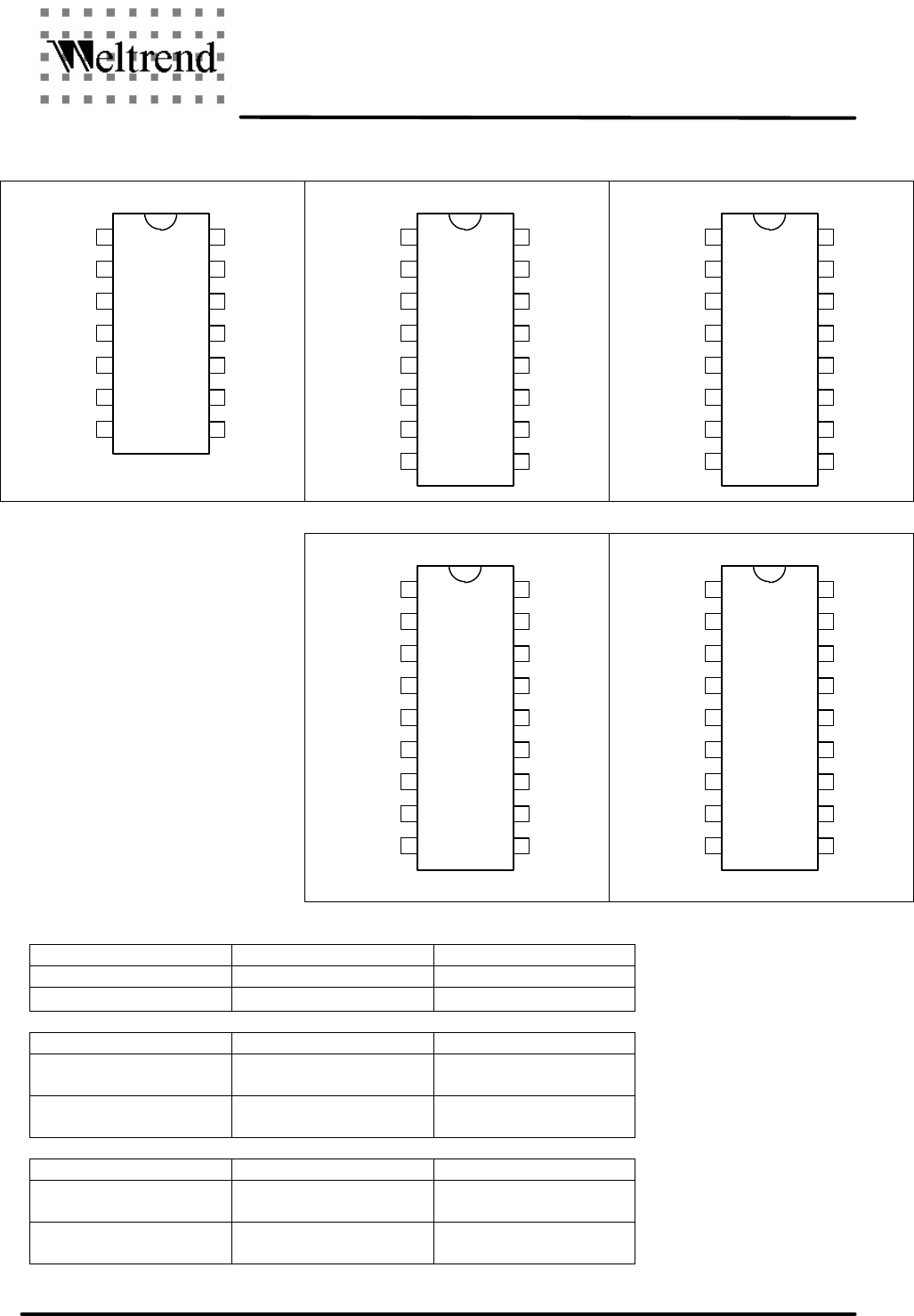

PIN ASSIGNMENT AND PACKAGE TYPE
ORDERING INFORMATION
PACKAGE 14–Pin Plastic DIP 14–Pin Plastic SOP
WT7525–N140 WT7525–S140
Lead–Free（Pb） WT7525–N140 Pb WT7525–S140 Pb
PACKAGE 16–Pin Plastic DIP 16–Pin Plastic SOP
WT7525–N160
WT7525–N161 WT7525–S160
WT7525–S161
Lead–Free（Pb） WT7525–N160 Pb
WT7525–N161 Pb WT7525–S160 Pb
WT7525–S161 Pb
PACKAGE 18–Pin Plastic DIP 18–Pin Plastic SOP
WT7525–N180
WT7525–N181 WT7525–S180
WT7525–S181
Lead–Free（Pb） WT7525–N180 Pb
WT7525–N181 Pb WT7525–S180 Pb
WT7525–S181 Pb
※ The Top-Side Marking would be added a dot（●）in the right side for lead-free package.
PGI
GND
FPOB
I12
A
RI
NC
V12B
PGO
VCC
V5
V33
V12A
I33
I5
I12B
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
WT7525
-
160
PGI
GND
FPOB
I12
AB
RI
V12B
PGO
VCC
V5
V33
V12A
I33
I5
14
13
12
11
10
9
8
1
2
3
4
5
6
7
WT7525
-
140
PGI
GND
FPOB
I12
A
RI
I5
V12B
PGO
VCC
V5
V33
NC
V12A
I33
I12B
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
WT7525
-
161
PGI
GND
FPOB
I12
A
RI
I
5
V12B
V12C
PGO
VCC
V5
V33
NC
V12A
I33
I12B
I12C
18
17
16
15
14
13
12
11
10
1
2
3
4
5
6
7
8
9
WT7525
-
181
PG
I
GND
FPOB
I12
A
RI
NC
V12B
V12C
PGO
VCC
V5
V33
V12A
I33
I5
I12B
I12C
18
17
16
15
14
13
12
11
10
1
2
3
4
5
6
7
8
9
WT7525
-
180
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 4
PIN DESCRIPTION
Pin Name TYPE Description
PGI I Power good input signal pin
GND P Ground
FPOB O Fault protection output pin, open drain output
PSONB I On/Off switch input
I12A I 12VA over current protection sense input
I12AB I 12VA / 12VB over current protection sense input (only for 140)
RI I Current sense adjust input
V12B I 12VB over/under voltage input pin
V12C I 12VC over/under voltage input pin
I12C I 12VC over current protection sense input
I12B I 12VB over current protection sense input
I5 I 5V over current protection sense input
I33 I 3.3V over current protection sense input
V12A I 12VA over/under voltage input pin
V33 I 3.3V over/under voltage input pin
V5 I 5V over/under voltage input pin
VCC I Power supply
PGO O Power good output signal pin, open drain output
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 5

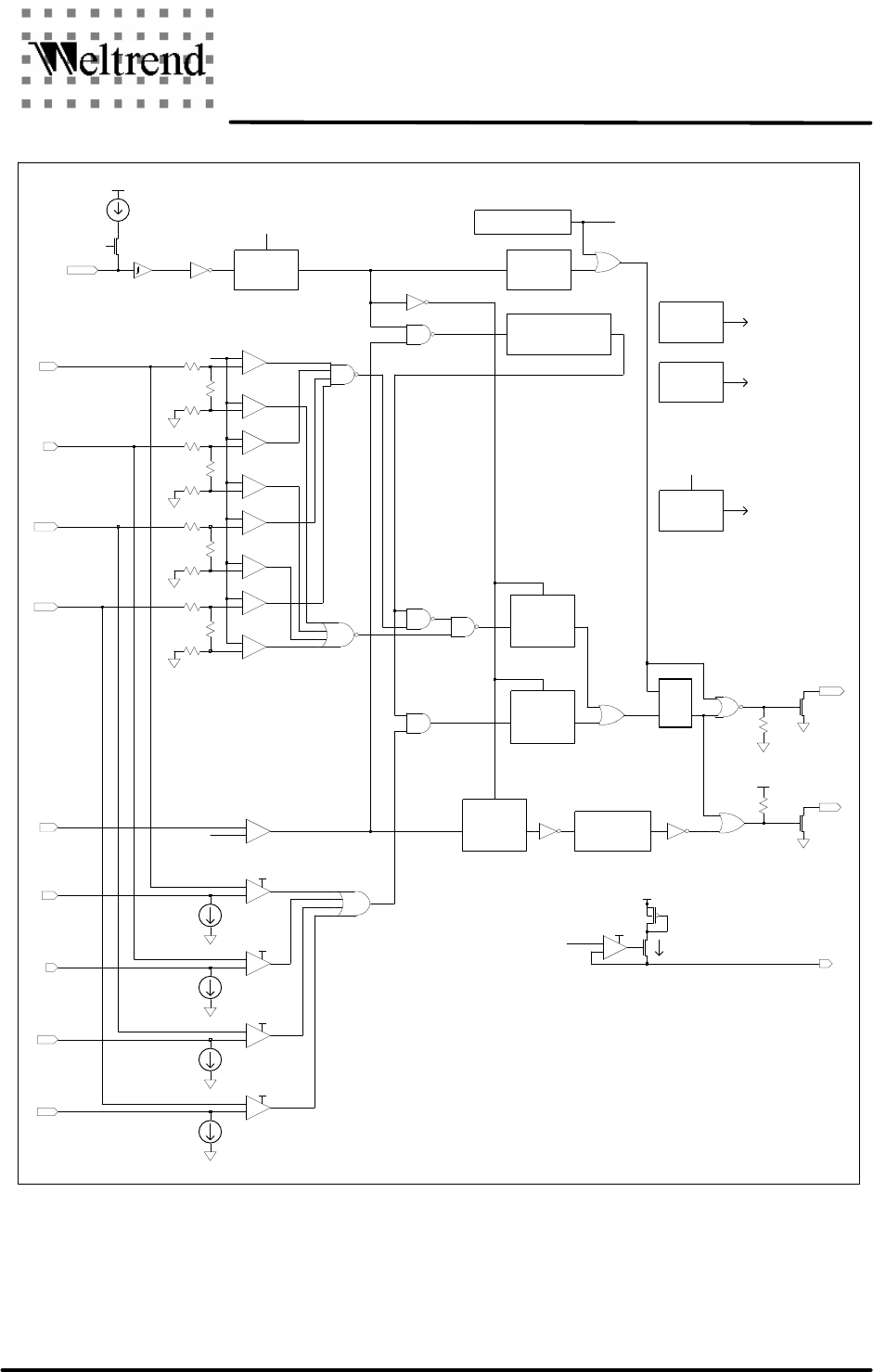

BLOCK DIAGRAM
WT7525-140
R
SQ
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
VCC
VCCI
PSONB
V33
V5
V12A
V12B
FPOB
PGO
PGI
I33
RI
I5
I12AB
WT7525C-140 BLOCK DIAGRAM
1.2ms
delay
75ms / 300ms
clr
3.5ms
Power On Reset
clr delay
PWR
clr
debounce
clr
73us
debounce
VREF = 1.2V UN
1.2V ~ 1.8V
300ms
clr
clr
73us
debounce delay
38ms
IREF * 8
IREF * 8
IREF * 8
V12A
V12A
V12A
V12A
VREF = 1.2V
VREF = 1.2V
V12A
IREF=VREF / RI
V12A
UN
OV
Power
Reference
Internal
Bandgap
OSC
PWR
CLK
VCCI = 3.6V
VREF = 1.2V
PWR
debounce
UN
UN
OV
UN
OV
OV
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 6
WT7525-160 / 161
R
SQ
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
VCC
VCCI
PSONB
V33
V5
V12A
V12B
FPOB
PGO
PGI
I33
RI
I5
I12A
I12B
1.2ms
WT7525C-160 BLOCK DIAGRAM
IREF * 8
IREF * 8
delay
75ms / 300ms
clr
3.5ms
Power On Reset
clr delay
PWR
clr
debounce
clr
73us
debounce
VREF = 1.2V UN
1.2V ~ 1.8V
300ms
clr
clr
73us
debounce delay
38ms
IREF * 8
IREF * 8
V12A
V12A
V12A
V12A
VREF = 1.2V
VREF = 1.2V
V12A
IREF=VREF / RI
V12A
UN
OV
Power
Reference
Internal
Bandgap
OSC
PWR
CLK
VCCI = 3.6V
VREF = 1.2V
PWR
debounce
UN
UN
OV
UN
OV
OV
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 7

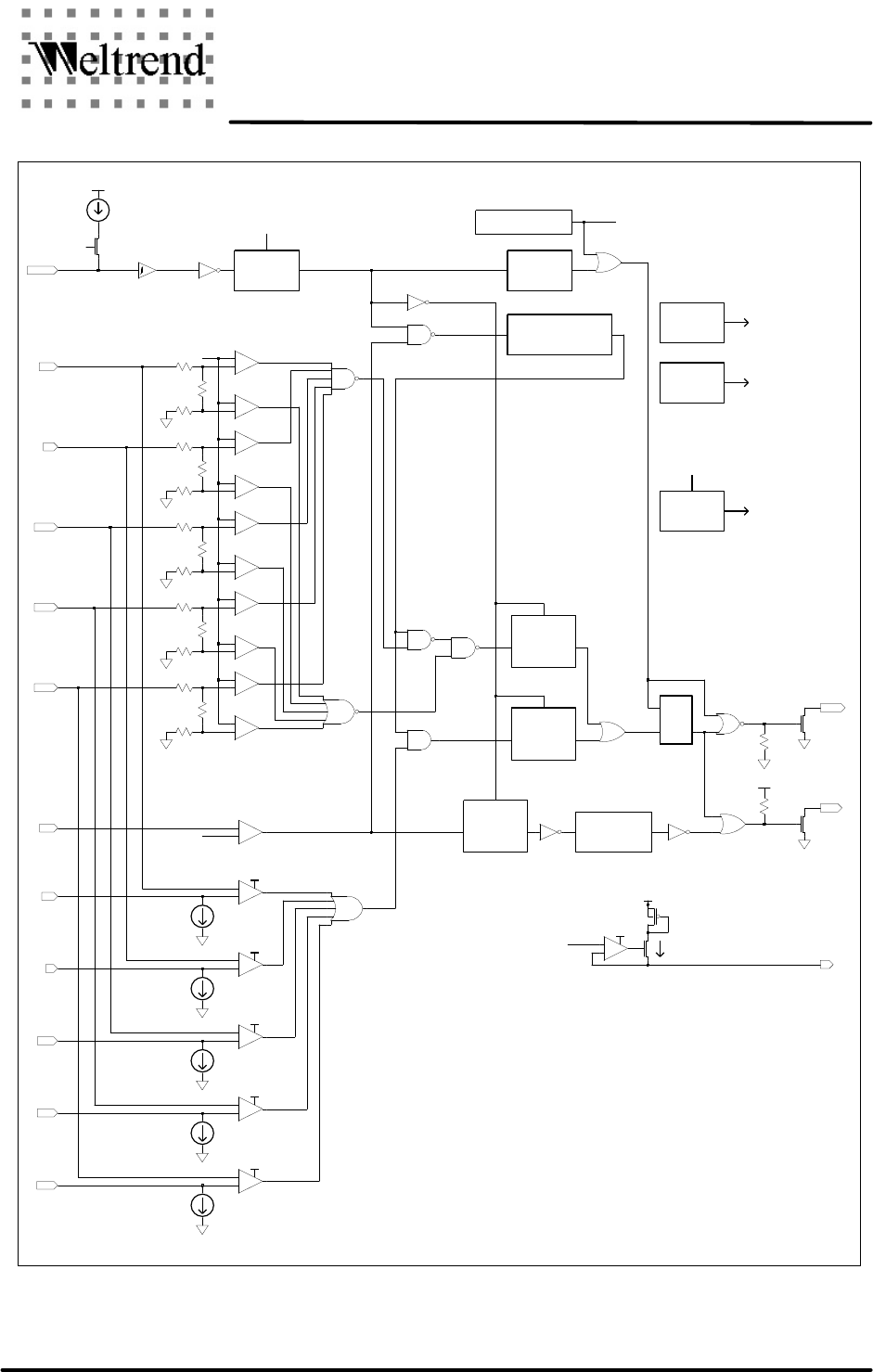

WT7525-180 / 181
R
SQ
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
VCC
VCCI
PSONB
V33
V5
V12A
V12B
V12C
FPOB
PGO
PGI
I33
RI
I5
I12A
I12B
I12C
clr
73us
debounce
1.2ms
clr
debounce
38ms
PWR
debounce
UN
OV
UN
OV
V12A
IREF * 8
V12A
IREF * 8
IREF * 8
VREF = 1.2V UN
1.2V ~ 1.8V
IREF * 8
IREF * 8
V12A
V12A
V12A
VREF = 1.2V UN
UN
OV
UN
OV
OV
WT7525C-180 BLOCK DIAGRAM
delay
75ms / 300ms
clr
3.5ms
Power On Reset
clr delay
PWR
300ms
clr
clr
73us
debounce delay
VREF = 1.2V
V12A
IREF=VREF / RI
V12A
Power
Reference
Internal
Bandgap
OSC
PWR
CLK
VCCI = 3.6V
VREF = 1.2V
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 8
ABSOLUTE MAXIMUM RATINGS
Parameter Min. Max. Unit
Supply voltage, VCC, V12A –0.3 16 V
PGI, PSONB –0.3 VCC + 0.3（Max. 7V）
V
V5, V33, I5, I33 –0.3 V12A + 0.3（Max. 7V）
V
Input voltage V12B, I12A, I12B, I12AB
V12C, I12C –0.3 V12A + 0.3（Max. 16V）
V
PGO –0.3 7 V
Output voltage FPOB –0.3 16 V
Operating temperature -40 125 ℃
Storage temperature -55 150 ℃
*Note: Stresses above those listed may cause permanent damage to the devices
RECOMMENDED OPERATING CONDITIONS
Parameter Conditions Min.
Typ.
Max.
Unit
Supply voltage, VCC 4 12 15 V
PGI, PSONB, V5, V33 7 V
Input voltage V12A, V12B, V12C 15 V
PGO 7 V
Output voltage FPOB 15 V
FPOB 0.3V 10 mA
Output sink current PGO 0.3V 10 mA
Supply voltage rising time
1 ms
Output current for RI RI 10 65 uA
ELECTRICAL CHARACTERISTICS, at Ta=25°C and VCC=5V.
Over Voltage Detection
Parameter Condition Min. Typ. Max.
Unit
V33 3.7 3.9 4.1 V
V5 5.7 6.1 6.2 V
Over voltage threshold
V12ABC 13.3 13.8 14.3 V
ILEAKAGE Leakage current (FPOB) V(FPOB) = 5V 5 uA
VOL Low level output voltage (FPOB) Isink =10mA 0.3 V
PGI and PGO Parameter Condition Min. Typ. Max.
Unit
V33 2.55 2.69 2.83 V
V5 4.1 4.3 4.47 V
Under voltage threshold
V12ABC 9.5 10 10.5 V
Input threshold voltage(PGI) 1.16 1.20 1.24 V
ILEAKAGE Leakage current(PGO) PGO = 5V 5 uA
VOL Low level output voltage(PGO) Isink =10mA 0.3 V
Offset Voltage of OCP comparators –6 6 mV
PSONB
Parameter Condition Min. Typ. Max.
Unit
Input pull-up current PSONB= 0V 150 uA
High-level input voltage 1.8 V
Low-level input voltage 1.2 V
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 9
TOTAL DEVICE
Parameter Condition Min. Typ. Max.
Unit
Icc Supply current PDON _N= 5V 1 mA
Vcc start-up voltage 3.6 V
Vcc stop voltage after start-up 2.0 V
SWITCHING CHARACTERISTICS, Vcc=5V
Parameter Condition Min. Typ. Max.
Unit
tdb1 De-bounce time (PSONB) 24 38 52 mS
tdelay1 Delay time (PGI to PGO) 200 300 400 mS
tdb2 De-bounce time (PSONB) 24 38 52 mS
tg1 De-glitch time for PGI 47 73 100 uS
tg2 De-glitch time for OVD / UVD 47 73 100 uS
tg3 De-glitch time for OCD 0.8 1.2 1.5 mS
tdelay2 PSONB to FPOB delay time tdb2+2.0
tdb2+3.5
tdb2+5.0
mS
after
FPOB go low &
PGI > 1.2V 49 75 100 mS tdelay3 Internal UVD/OCD delay time
after
FPOB go low &
PGI < 1.2V 200 300 400 mS

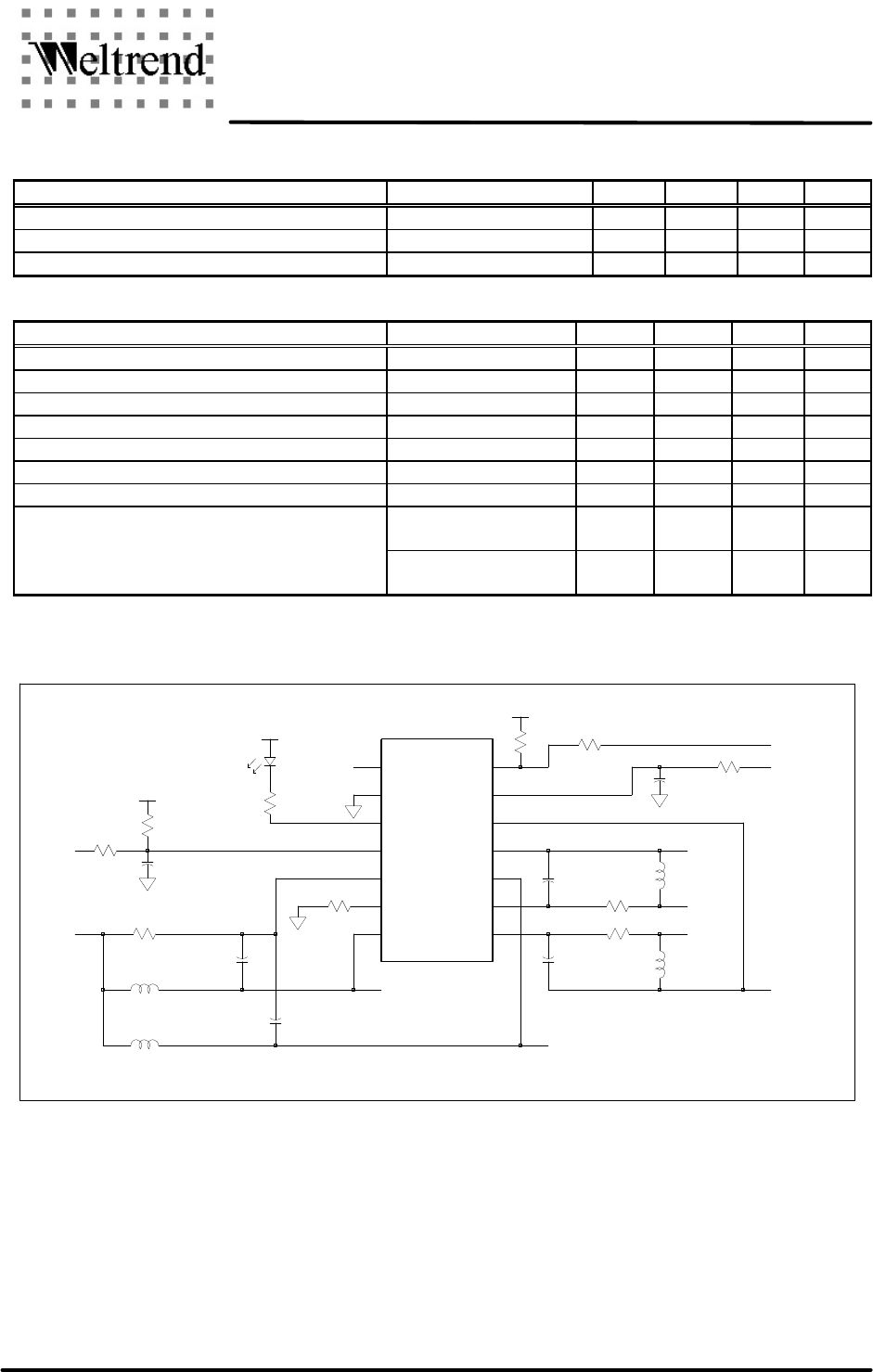

APPLICATION CIRCUIT
I33
I5
PGI
PSONB
V12A
V33
VCC
VSFPOB
GND
I12AB
PGO
RI
V12B
R3, 1%
PGO
R4=100
+5VSB
0.01uF
R5=300
10K
+5VSB
PSONB
+12VA
22uF
+12VB
22uF
+5V
R1, 1%
22uF
+3.3V
22uF
R2, 1%30K, 1%
PGI
+5VSB
+5V
1K
NOTE1：The series resistor R5 at PSONB can not be omitted. （R0 = 300Ω is suggested）
NOTE2：The series resistor R4 = 100Ω at PGO is suggested.
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 10

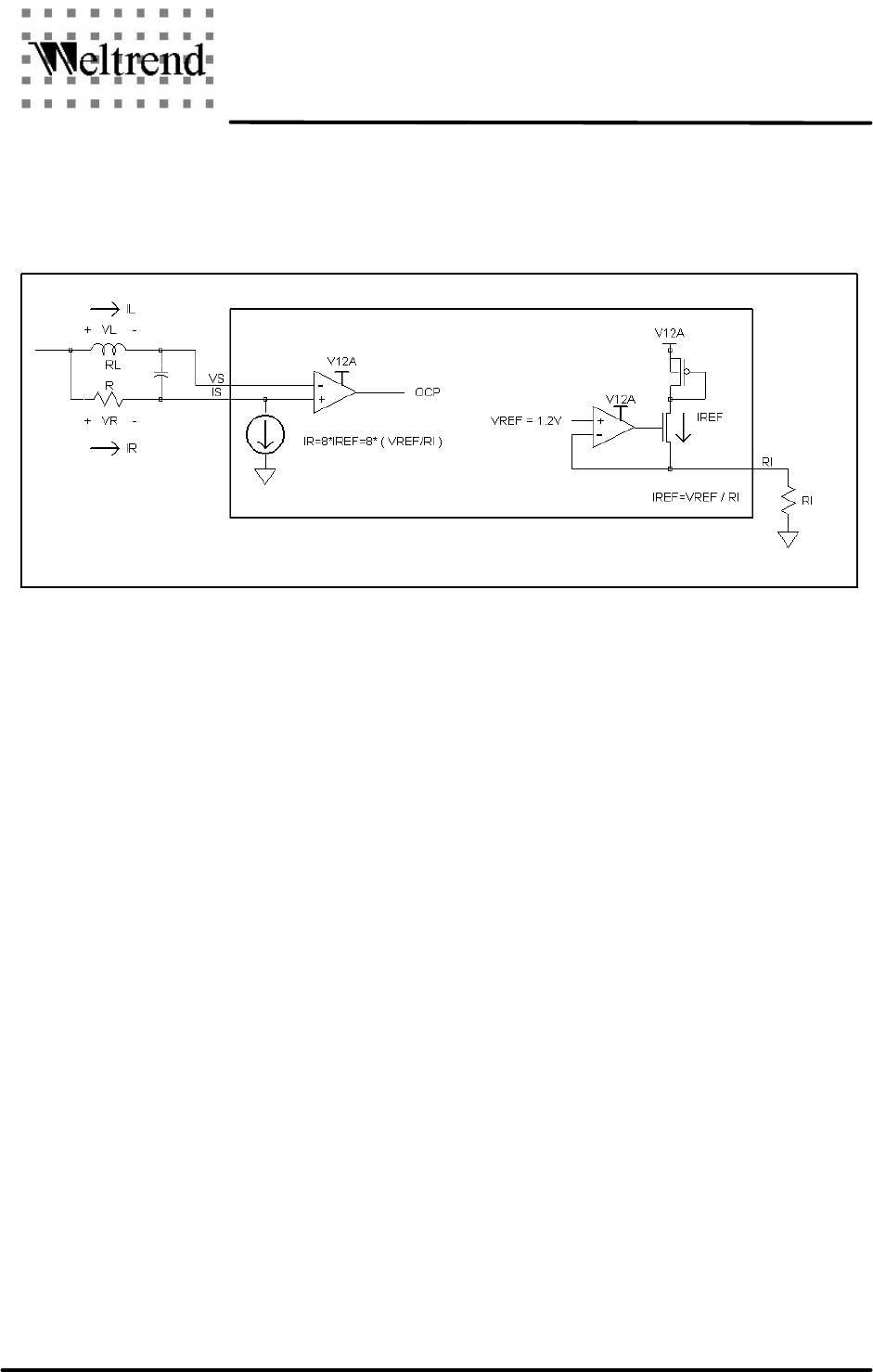

APPLICATION NOTE
When the current cross inductor raised, inductor voltage raised.
And when inductor voltage exceeded resistor voltage, the OCP active.
We can setup OCP point by the following equation
Let VR = VL
R * IR = RL * IL
∵ IR = 8 * IREF
R * (8 * VREF / RI) = RL * IL
R = (RL * IL) / (8 * VREF / RI) ––––– (1)
And the capacitor C is used to avoide power on fail or dynamic load fail. We suggest C > 1uF.
EX：How to select the resistor of R? Assume RI=30KΩ, RL=5mΩ, OCP IL=20A。
Sol：R = ( IL * RL ) / ( 8 * IREF )
= ( 20A * 5mΩ) / { 8 * ( 1.2V / 30KΩ)}
= 312.5Ω
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 11

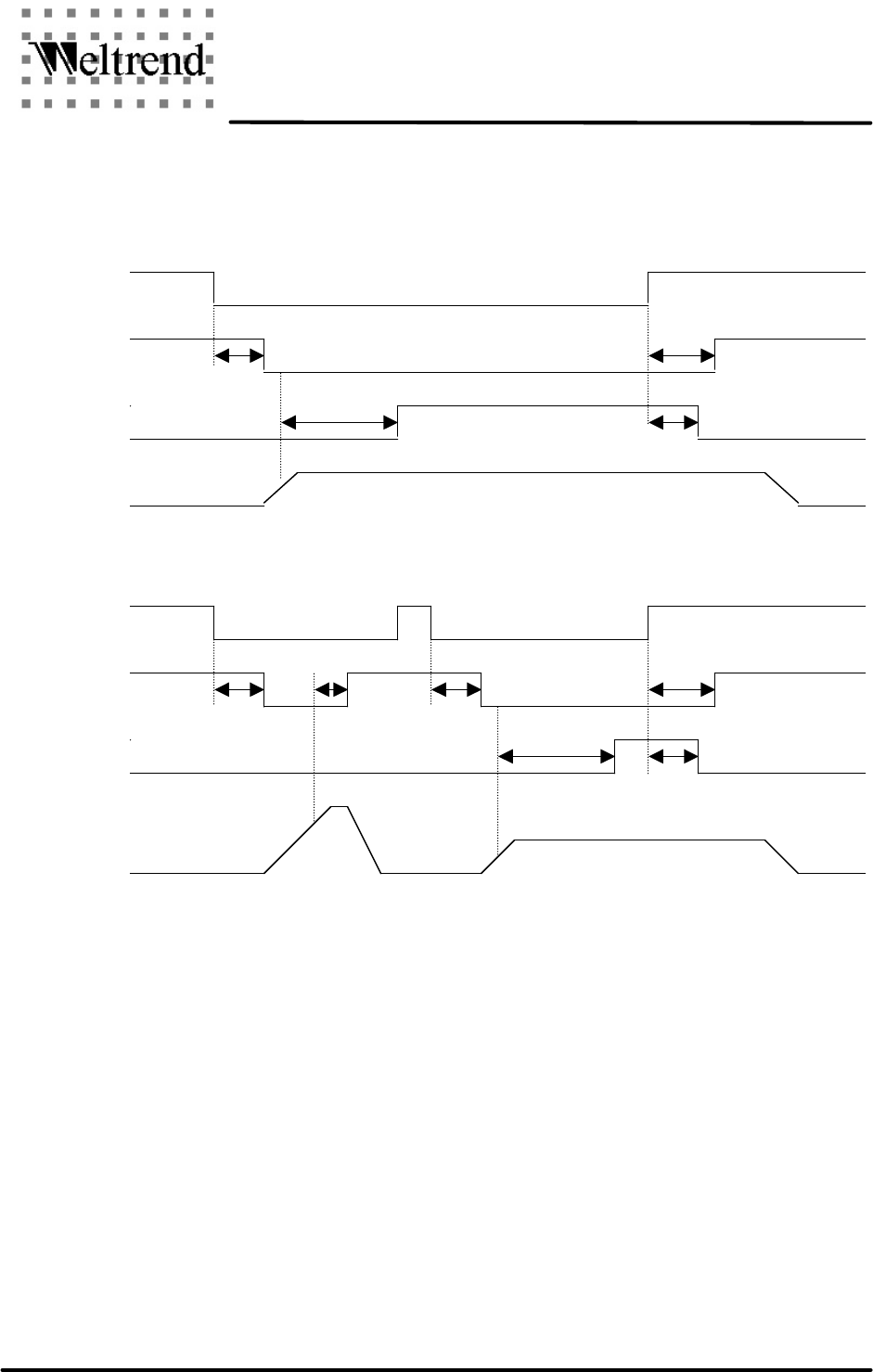

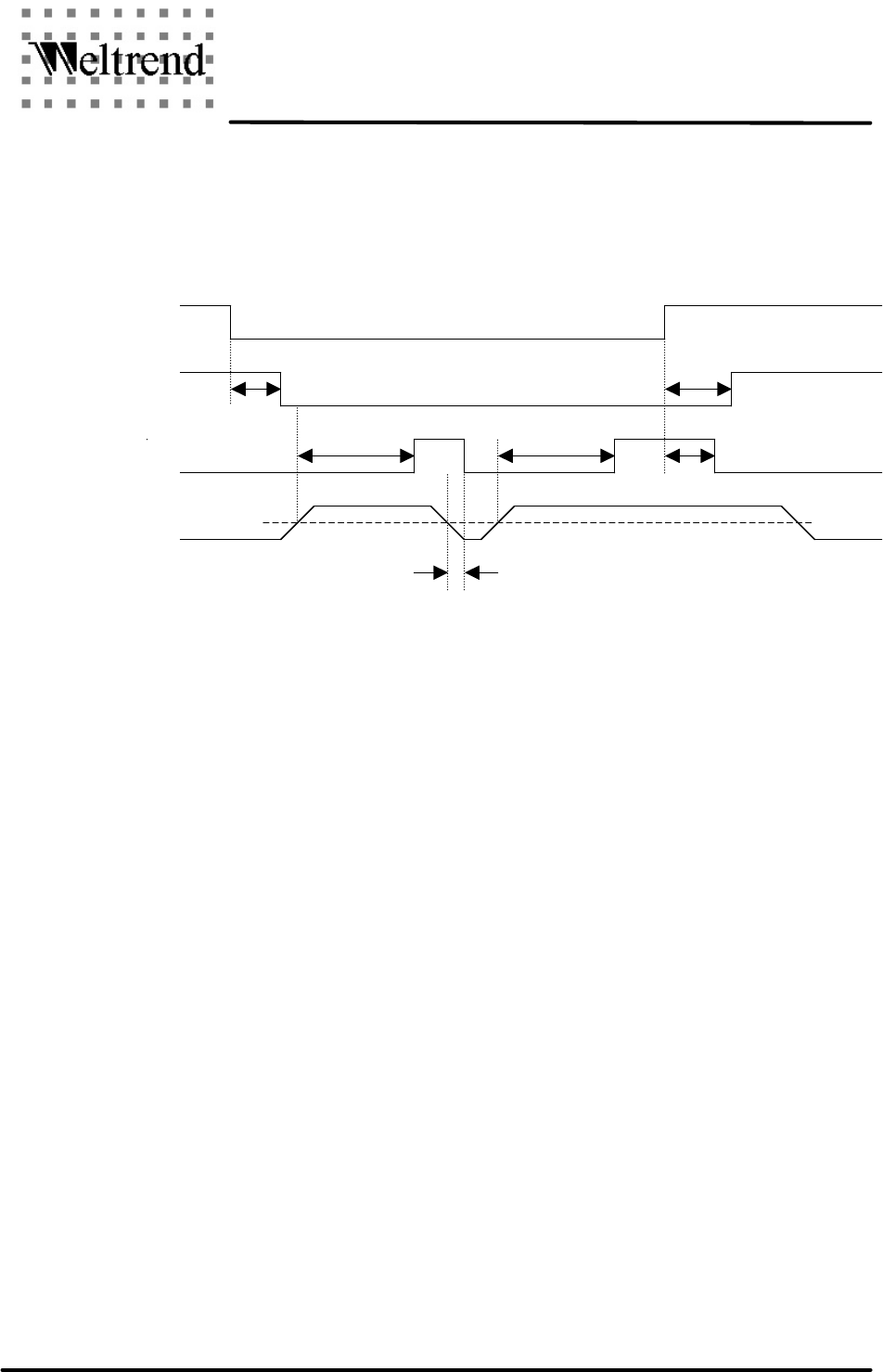

APPLICATION TIMMING
1.) PGI (UNDER_VOLTAGE)：
PSONB
FPOB
PGO
PGI
t
db1
t
delay1
+t
g1
t
db2
t
delay2
t
delay1
+t
g1
t
g1
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 12

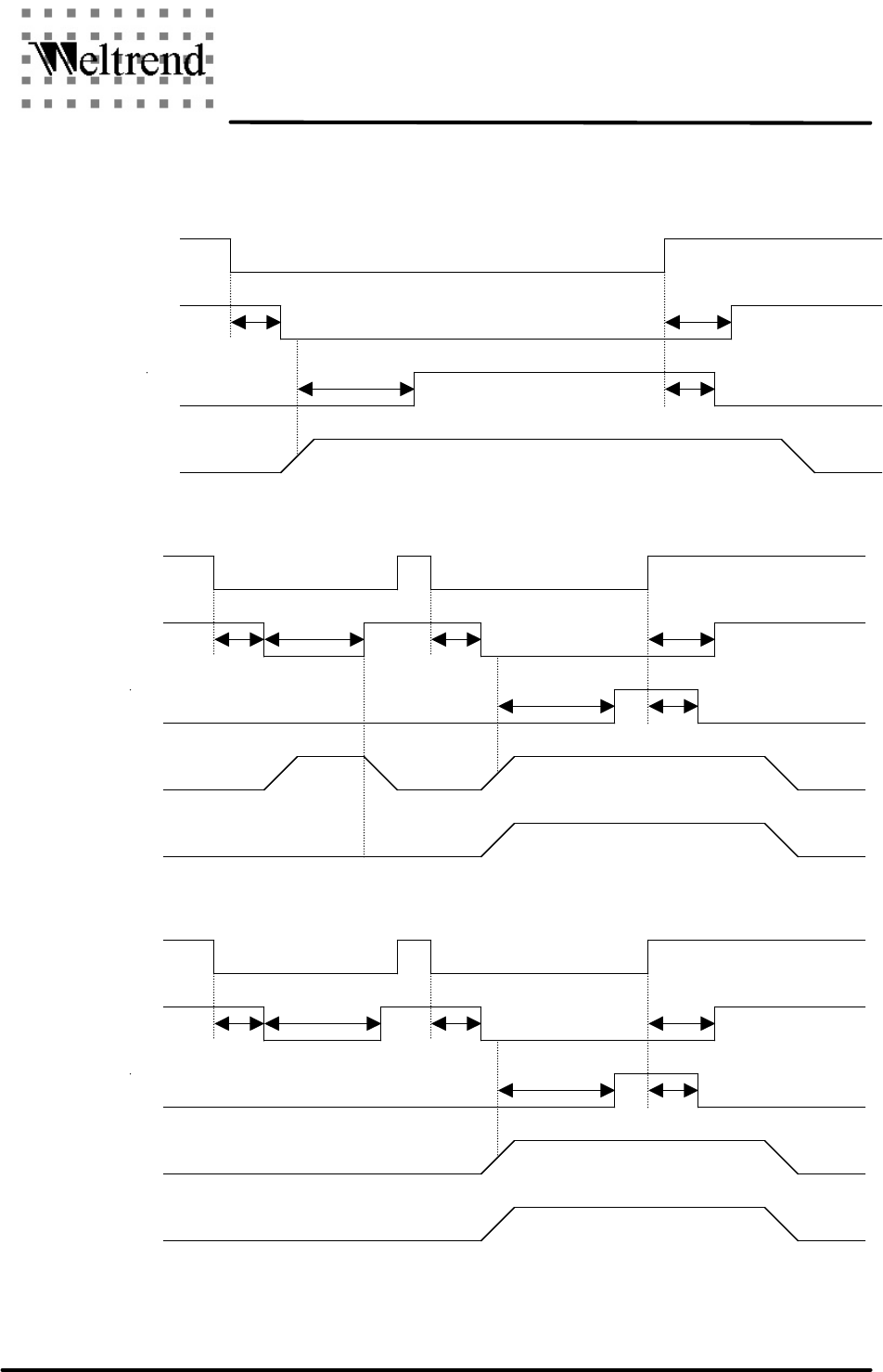

2.) V33, V5, V12 (UNDER_VOLTAGE) or IS33，IS5，IS12 (OVER_CURRENT)：
PSONB
FPOB
PGO
V33/V5/V12
IS33/IS5/IS12
t
db1
t
delay1
+t
g1
t
db2
t
delay2
t
db1
t
delay1
+t
g1
t
db2
t
delay2
t
delay3
+t
g2/
t
g3
t
db1
PSONB
FPOB
PGO
PGI
V33/V5/V12
IS33/IS5/IS12
t
delay3
=300mS
PSONB
FPOB
PGO
PGI
V33/V5/V12
IS33/IS5/IS12
t
db1
t
delay1
+t
g1
t
db2
t
delay2
t
delay3
+t
g2 /
t
g3
t
db1
t
delay3
=
75
mS
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 13
3.) V33, V5, V12 (OVER_VOLTAGE)：
PSONB
FPOB
PGO
V33/V5/V12
t
db1
t
delay1
+t
g1
t
db2
t
delay2
PSONB
FPOB
PGO
V33/V5/V12
t
db1
t
delay1
+t
g1
t
db2
t
delay2
t
g2
t
db1
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 14
MECHANICAL INFORMATION

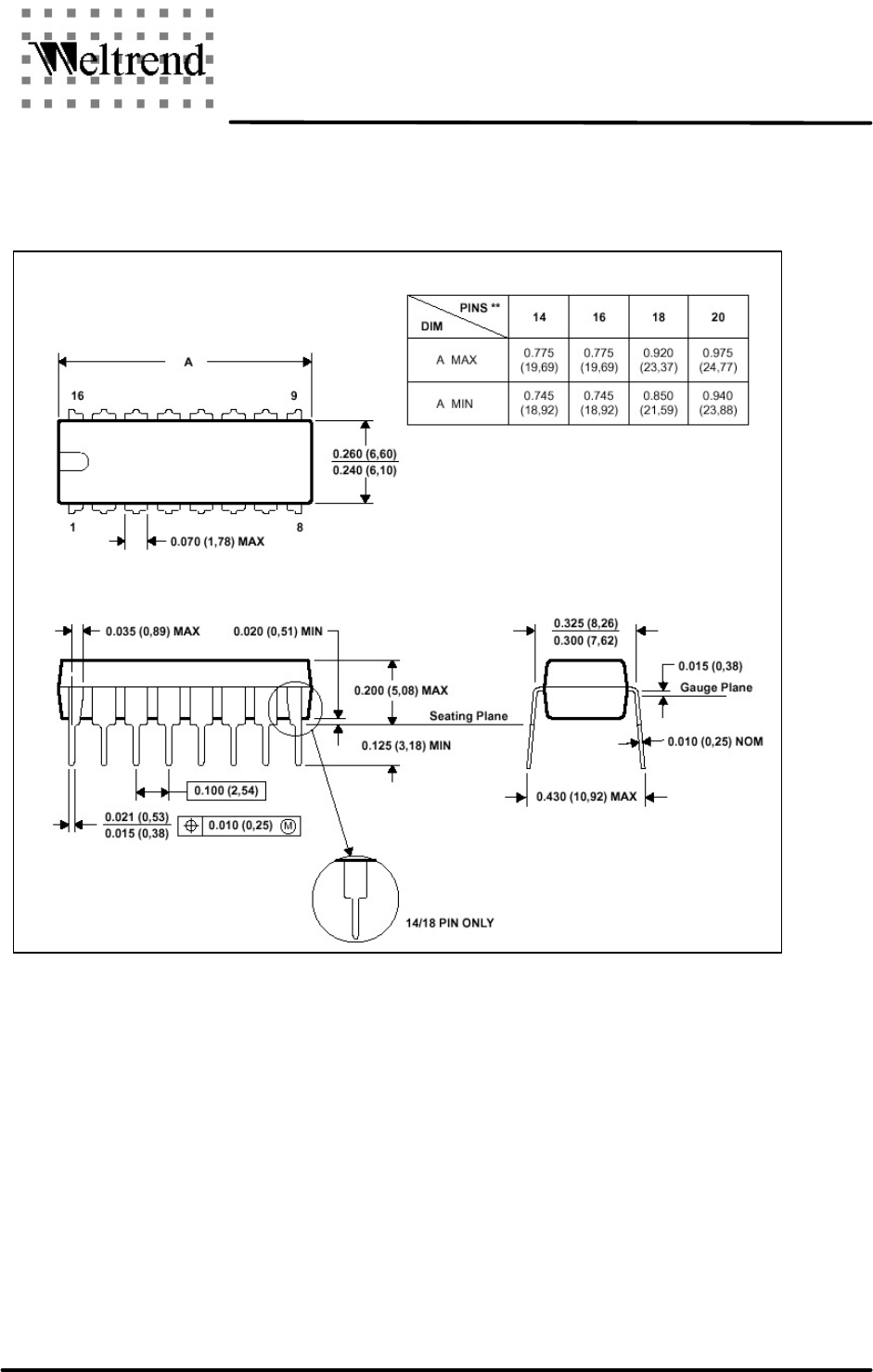

PLASTIC DUAL–IN–LINE 14 / 16 / 18 PACKAGE
NOTE 1：All linear dimensions are in inches（millimeters）.
NOTE 2：This drawing is subject to change without notice.
NOTE 3：Falls within JEDEC MS–001
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 15

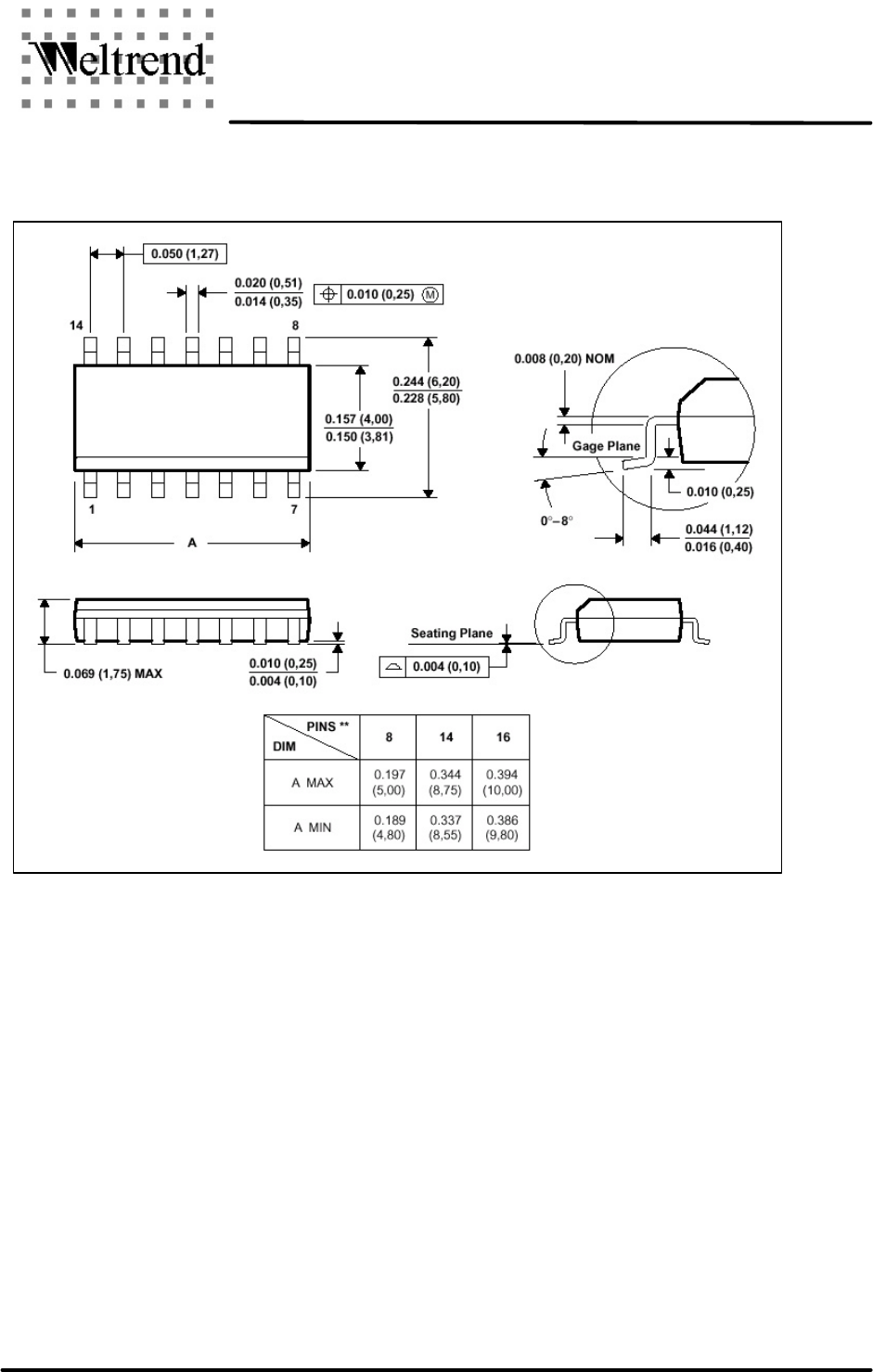

PLASTIC SMALL–OUTLINE 14 / 16 PACKAGE
NOTE 1：All linear dimensions are in inches（millimeters）.
NOTE 2：This drawing is subject to change without notice.
NOTE 3：Falls within JEDEC MS–012
WT7525 Preliminary release
Rev. 0.40
Weltrend Semiconductor, Inc.
Page 16
PLASTIC SMALL–OUTLINE 18 PACKAGE
NOTE 1：All linear dimensions are in inches（millimeters）.
NOTE 2：This drawing is subject to change without notice.
NOTE 3：Falls within JEDEC MS–013 AB
NOTE 4：Body length dimensions A does not include mold flash, protrusions or gate burrs. Mold flash,
protrusions and gate burrs shall not exceed 0.006in ( 0.15mm ) per side.
NOTE 5：Body width dimensions B does not include inter–lead flash or protrusions. Inter–lead flash and
protrusions shall not exceed 0.010in ( 0.25mm ) per side.
www.s-manuals.com

Navigation menu
