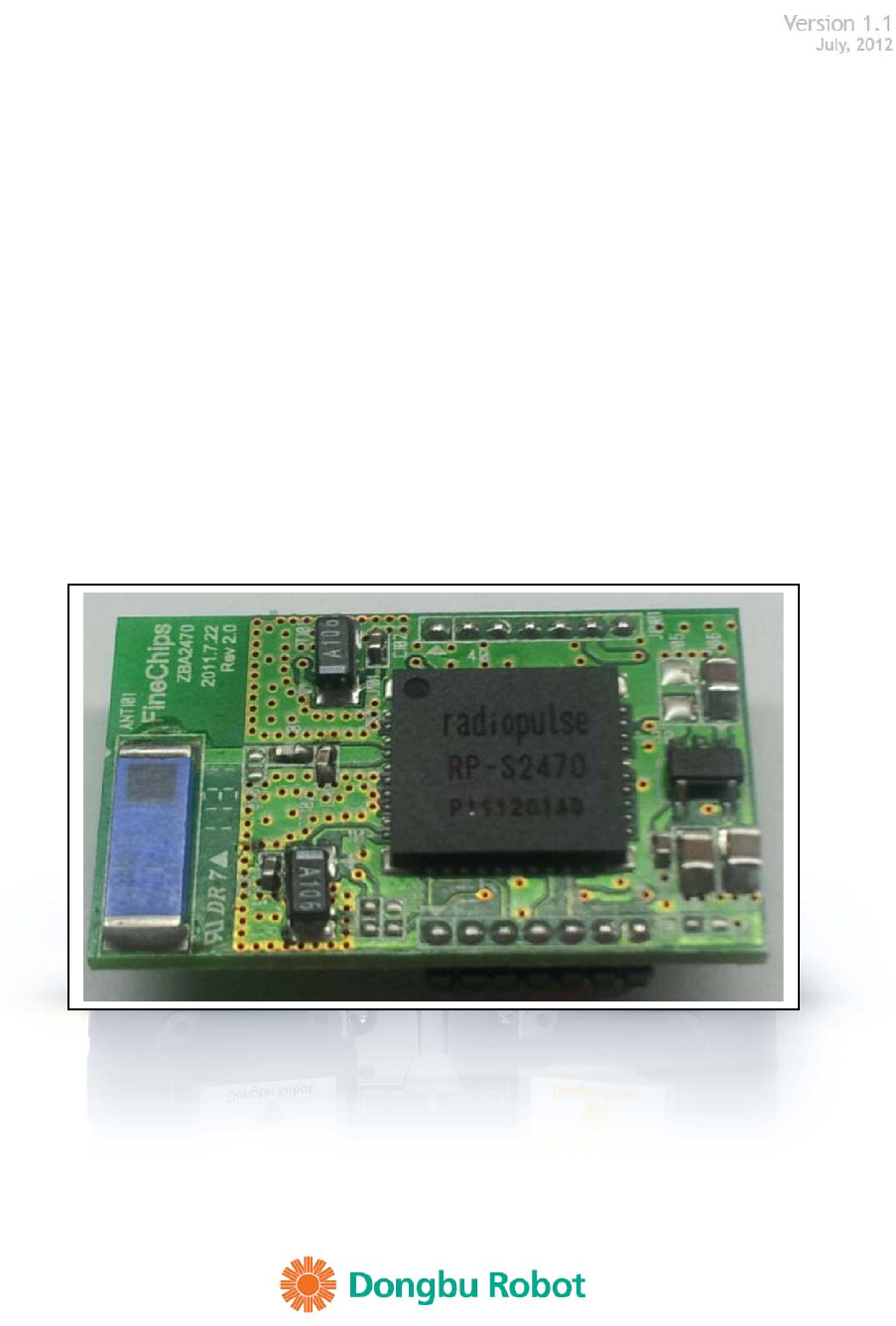

Dongbu Robot DRI-0007 ZIGBEE MODULE User Manual OEM INTEGRATOR MANUAL DRI 0007

Dongbu Robot Co., Ltd. ZIGBEE MODULE OEM INTEGRATOR MANUAL DRI 0007

Contents

OEM User Manual

DRI-0007
Zigbee Module
User Manual

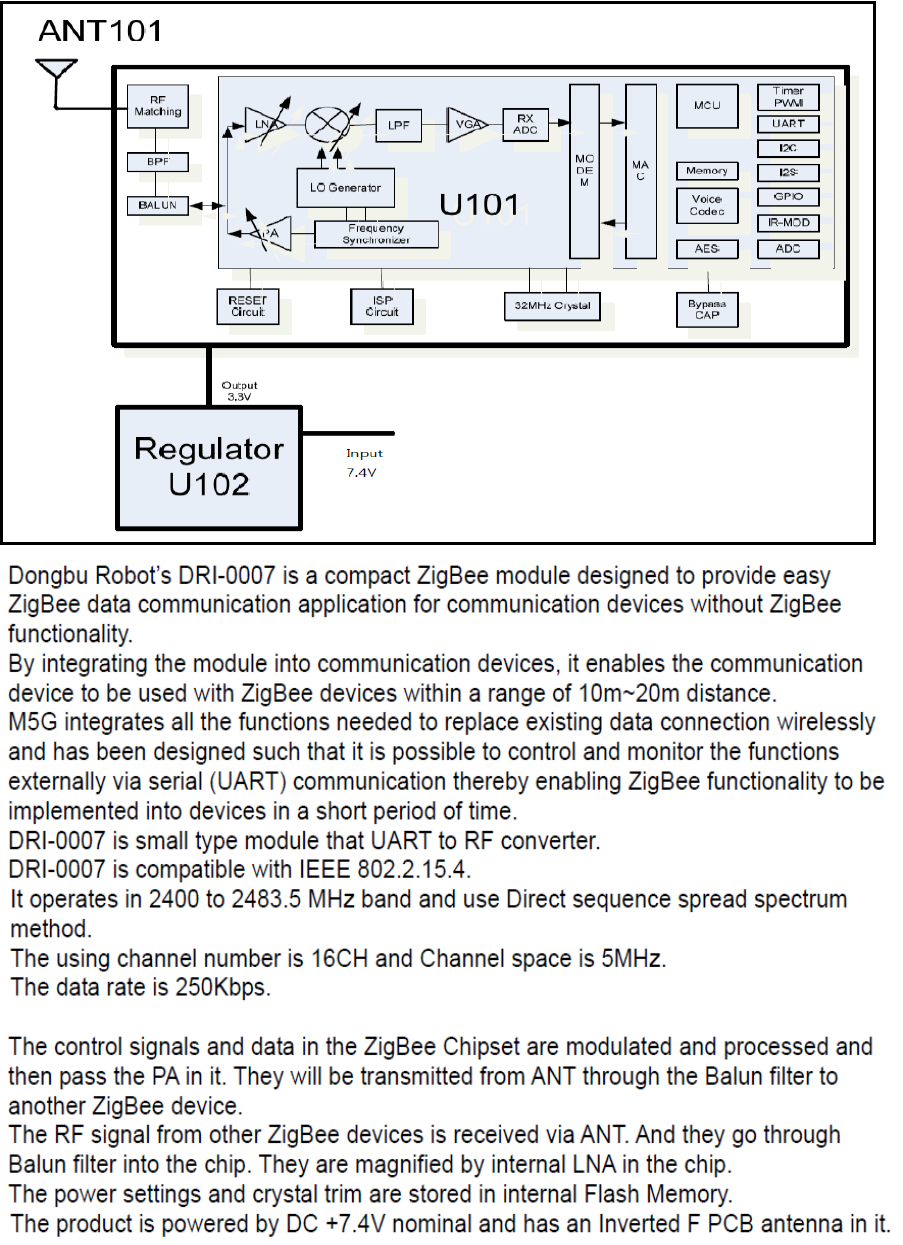

Block Diagram & Operational description

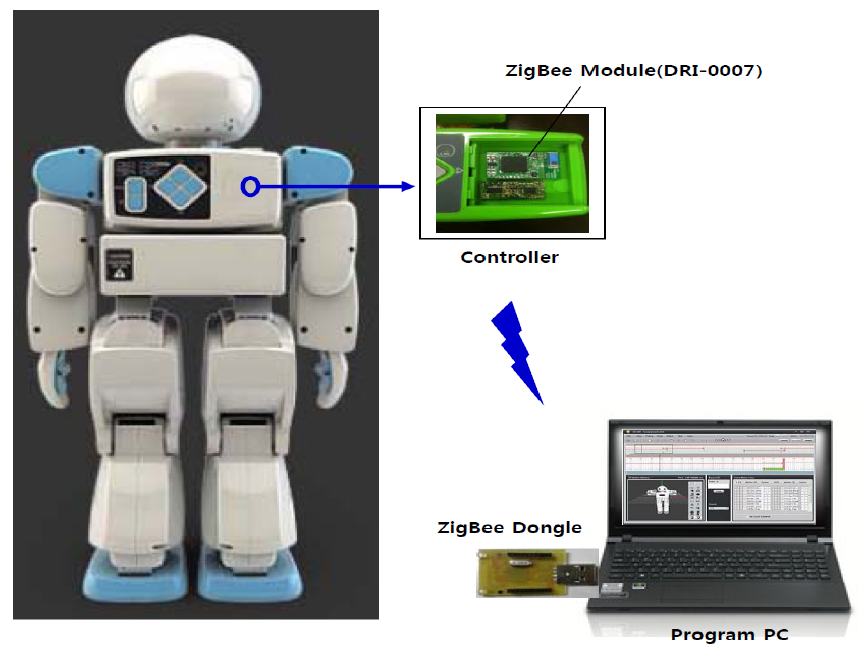

The ZigBee module(DRI-0007) is installed Controller inside case.
Robot-motion come into action wireless data communication through
ZigBee module and ZigBee dongle.
The ZigBee module and dongle is duplex transceiver and is cotrolled by
program PC.
The function of program PC have robot’ state reading and checking.
Also through wireless communication, come into action robot-motion
and motor driving.

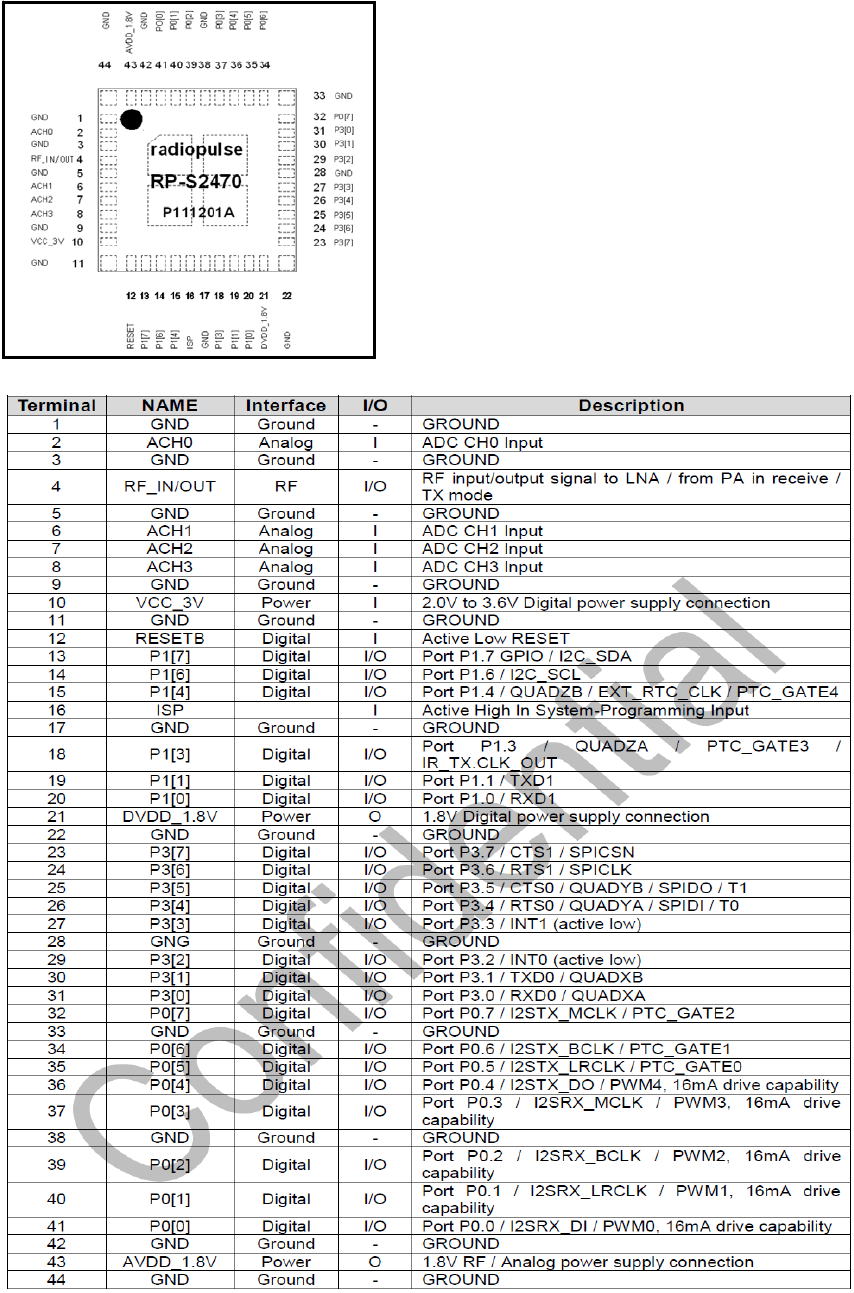

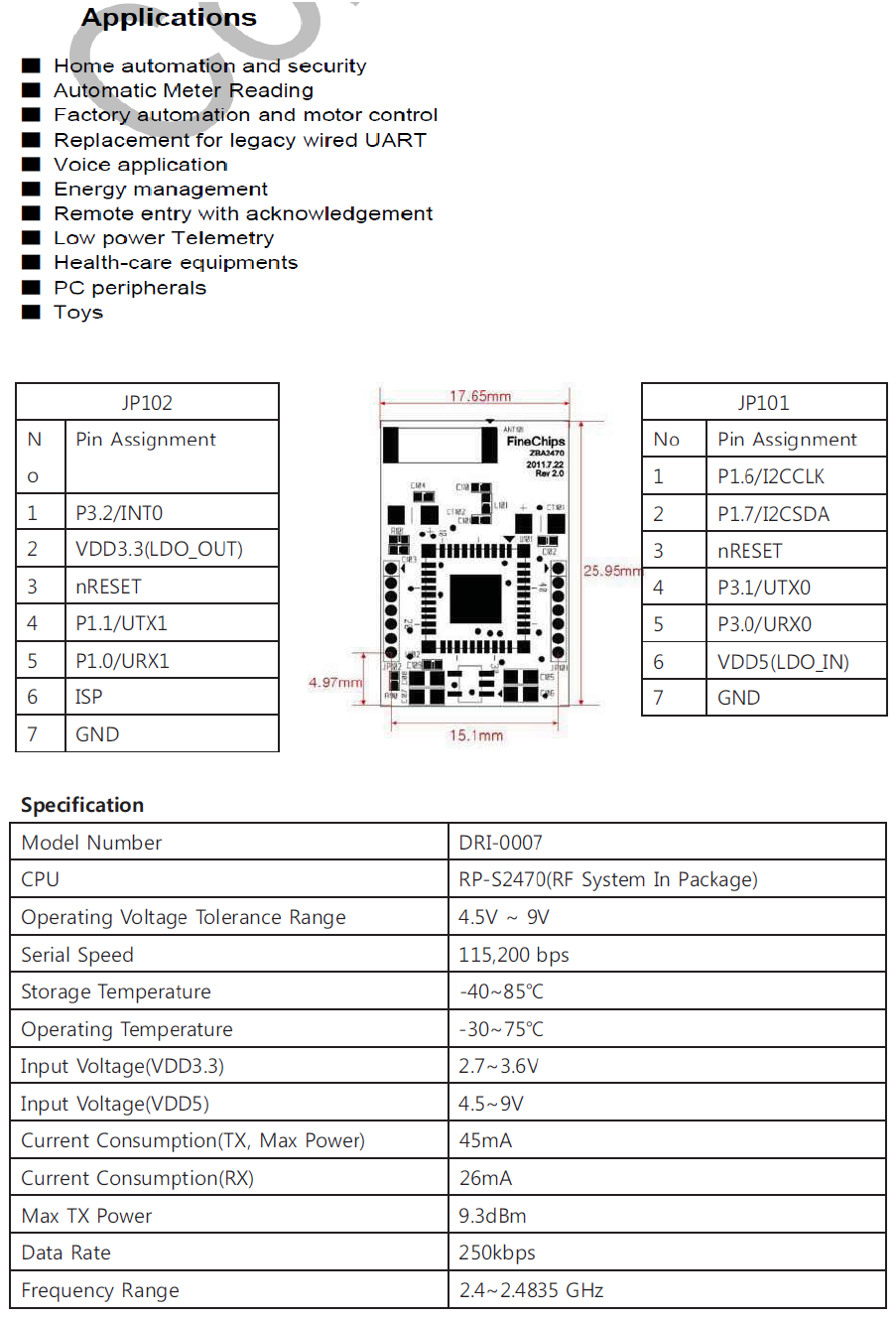

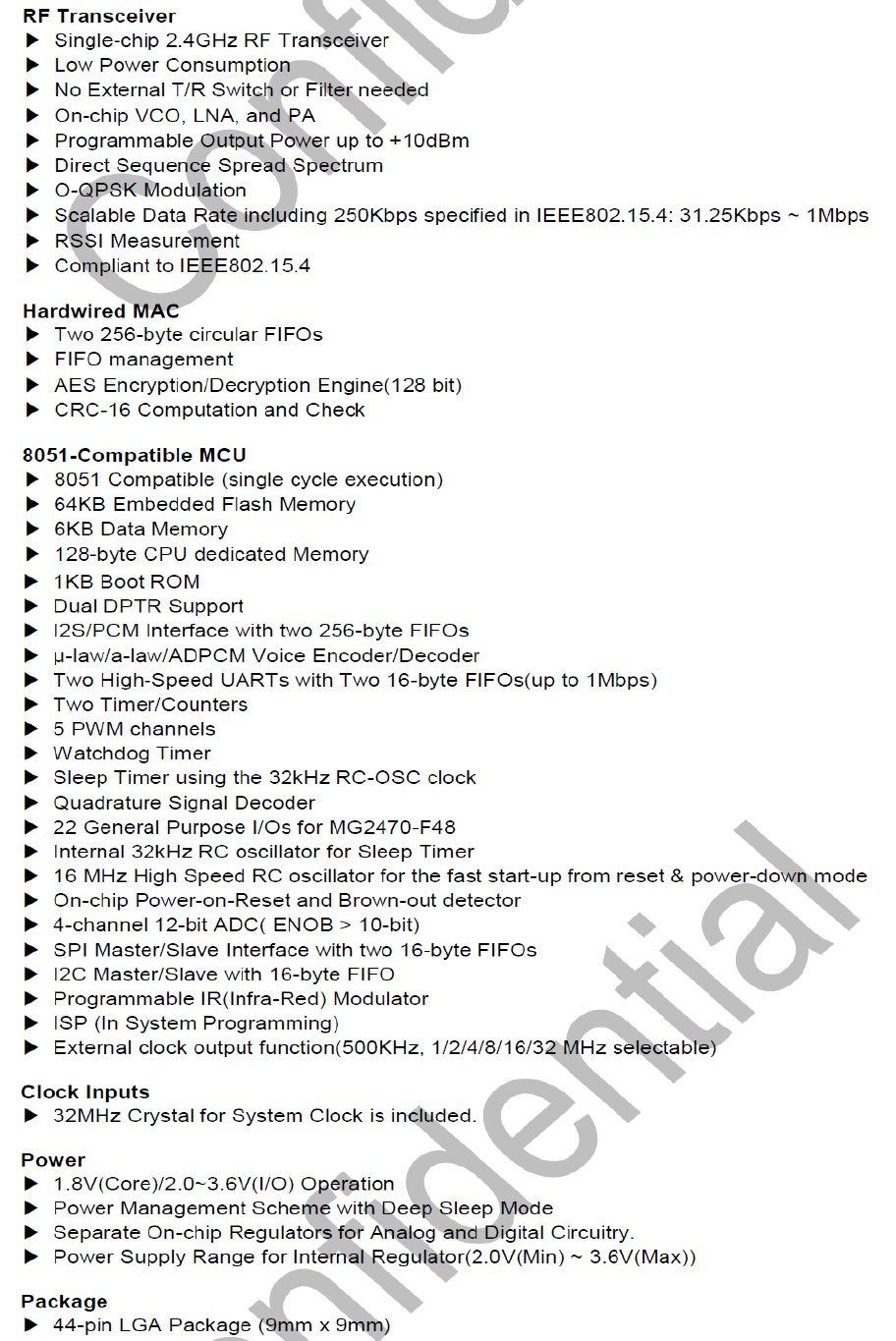

ZigBee Chipset(RP-S2470) Pin Description

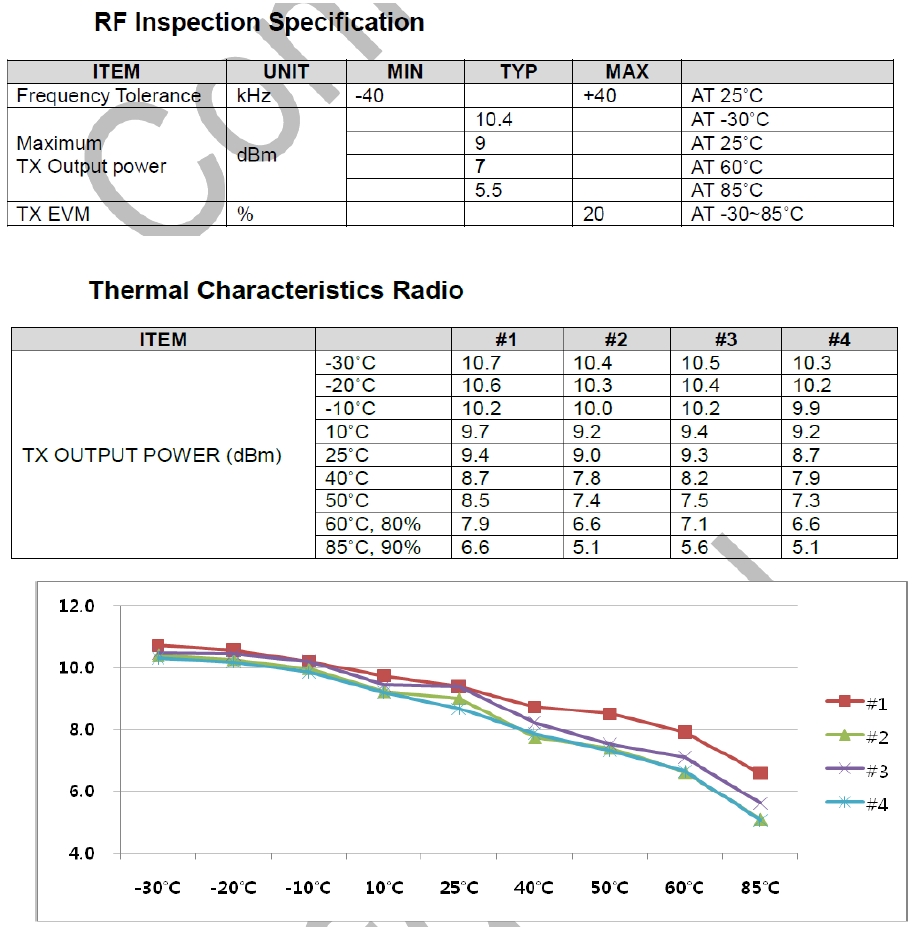

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC Compliance information
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.This
transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible
for the FCC compliance requirement of the end product, which integrates this
module.
20cm minimum distance has to be able to be maintained between the antenna and
the users for the host this module is integrated into. Under such configuration, the
FCC radiation exposure limits set forth for an population/uncontrolled environment
can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at
least 20cm separation with the antenna while this end product is installed and
operated. The end user has to be informed that the FCC radio-frequency exposure
guidelines for an uncontrolled environment can be satisfied. The end user has to
also be informed that any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is
required to be available in the users manual: This device complies with Part 15 of
FCC rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept any interference
received,
Label and manual requirements for the End Product
For an end product using the DRI-0007 there must be a label containing, at least, the
following information. FCC ID certification number for model : DRI-0007
This device contains FCC ID : QXNDRI-0007
The label must be affixed on an exterior surface of the end product such that it will
be visible upon inspection in
compliance with the modular approval guidelines developed by the FCC Where the
DRI-0007 will be installed in final products larger than 8cm × 10cm following
statements has to be placed ONTO the device .
"Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation."
Assure compliance
The use of the modular transmitter is only approved to be used inside Dongbu Robot
Co.,Ltd. equipment. We assure the compliance of the end product when it is
assembled inside Dongbu Robot Co.,Ltd. equipment.
Caution
Modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Antenna
This device shall only be used with the tested antenna that is integral CHIP antenna.
RF exposure compliance
Module rf radiation exposure is compliant and does not use any other antenna. But
will only use the chip antenna. Must be operated with a minimum distance of 20cm
between the works.
Warranty & Service
‣ Warranty and Repair service
- Dongbu Robot Co., Ltd.. warrants to the original consumer or other end user that
this product,DRI-0007, is free from defects in materials and workmanship for a
period of 1 year from the date of purchase.
※ Note Warranty/non-warranty repair fees do not include any shipping charges.
‣ The damages(defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component.
- Product’s inspection requirement.
- Adding certain functions or extension of system.
- Fault by User’s misuse against the product’s manual.
CONTACT INFORMATION
Manufacturer Address : #235, Singal-ri, Jiksan-eup, Seobuk-gu, Cheonan-si, Chungcheongnam-do,
Korea To locate in-country Dongbu Robot Co., Ltd., distributors of the Zigbee Module please refer to
the Dongbu Robot Co., Ltd. Website http://www. www. dongbu.com These distributor(s) represent
local contacts for this product.
CORPORATE HEADQUARTERS:
Dongbu Robot Co., Ltd.
#235, Singal-ri, Jiksan-eup, Seobuk-gu, Cheonan-si, Chungcheongnam-do, Korea
Tel: +82-41-590-1700
Fax: +82-41-590-1702
Web: http:// www. dongbu.com
