Dongbu Robot DRI-0007 ZIGBEE MODULE User Manual
Dongbu Robot Co., Ltd. ZIGBEE MODULE Users Manual
Contents
- 1. OEM User Manual
- 2. User Manual

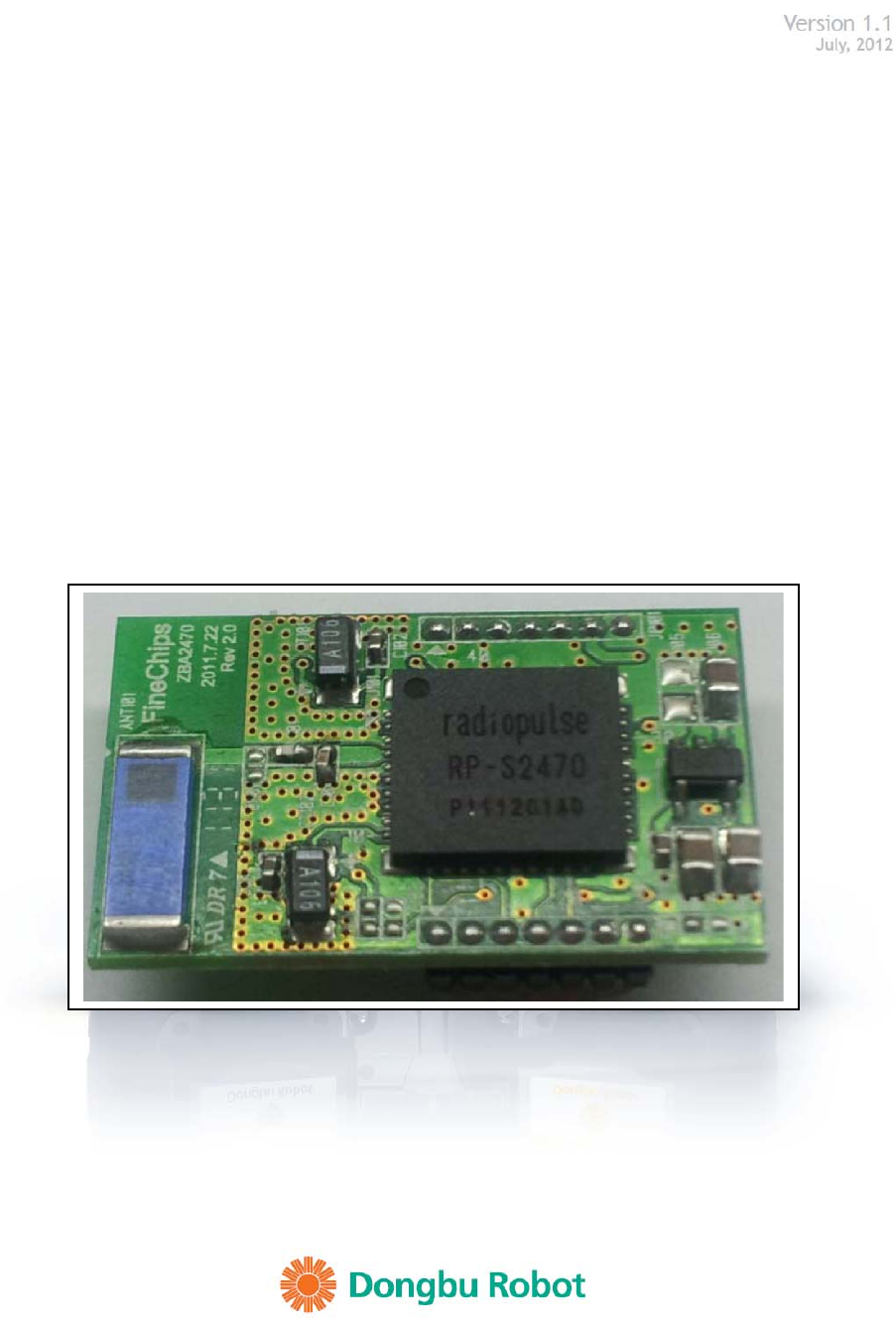

User Manual
DRI-0007
Zigbee Module
User Manual

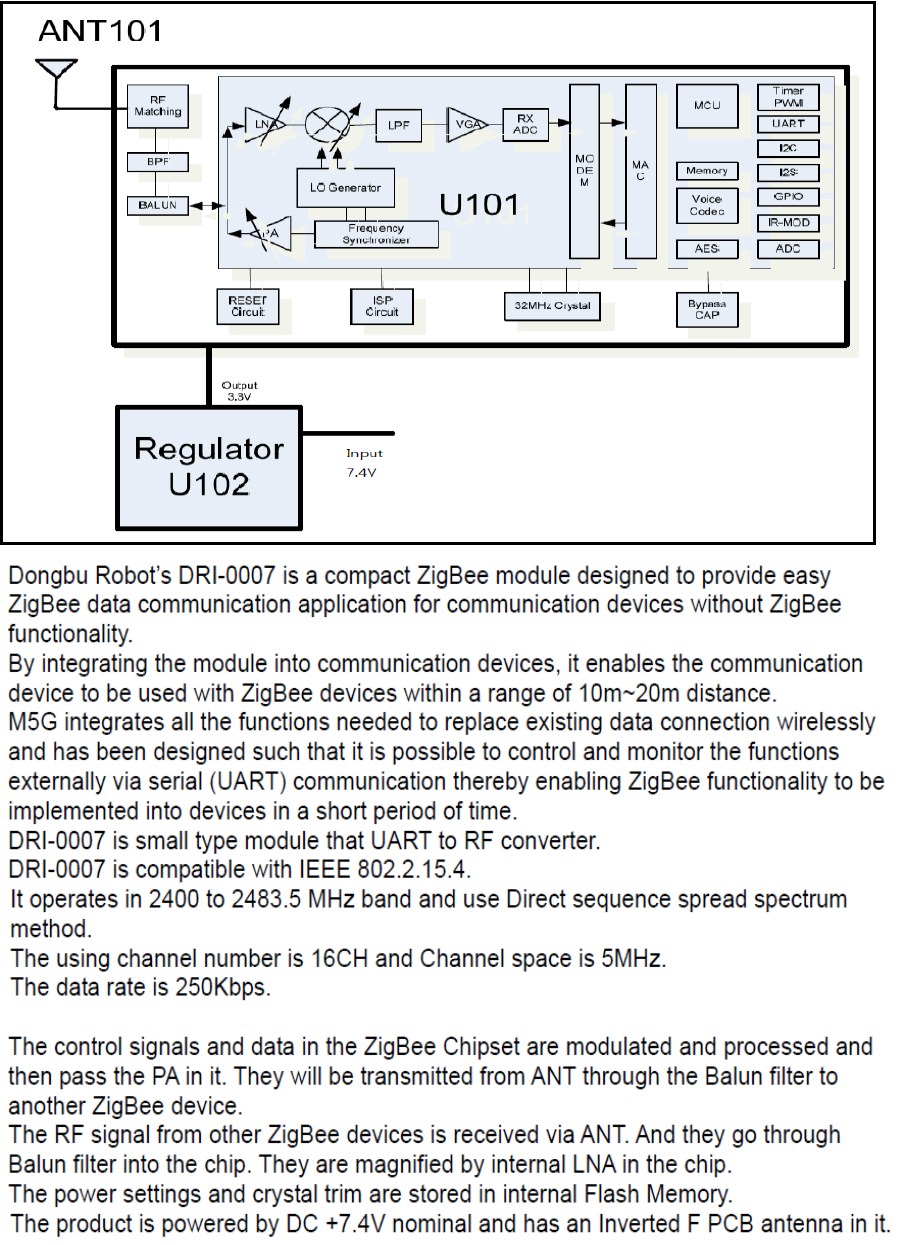

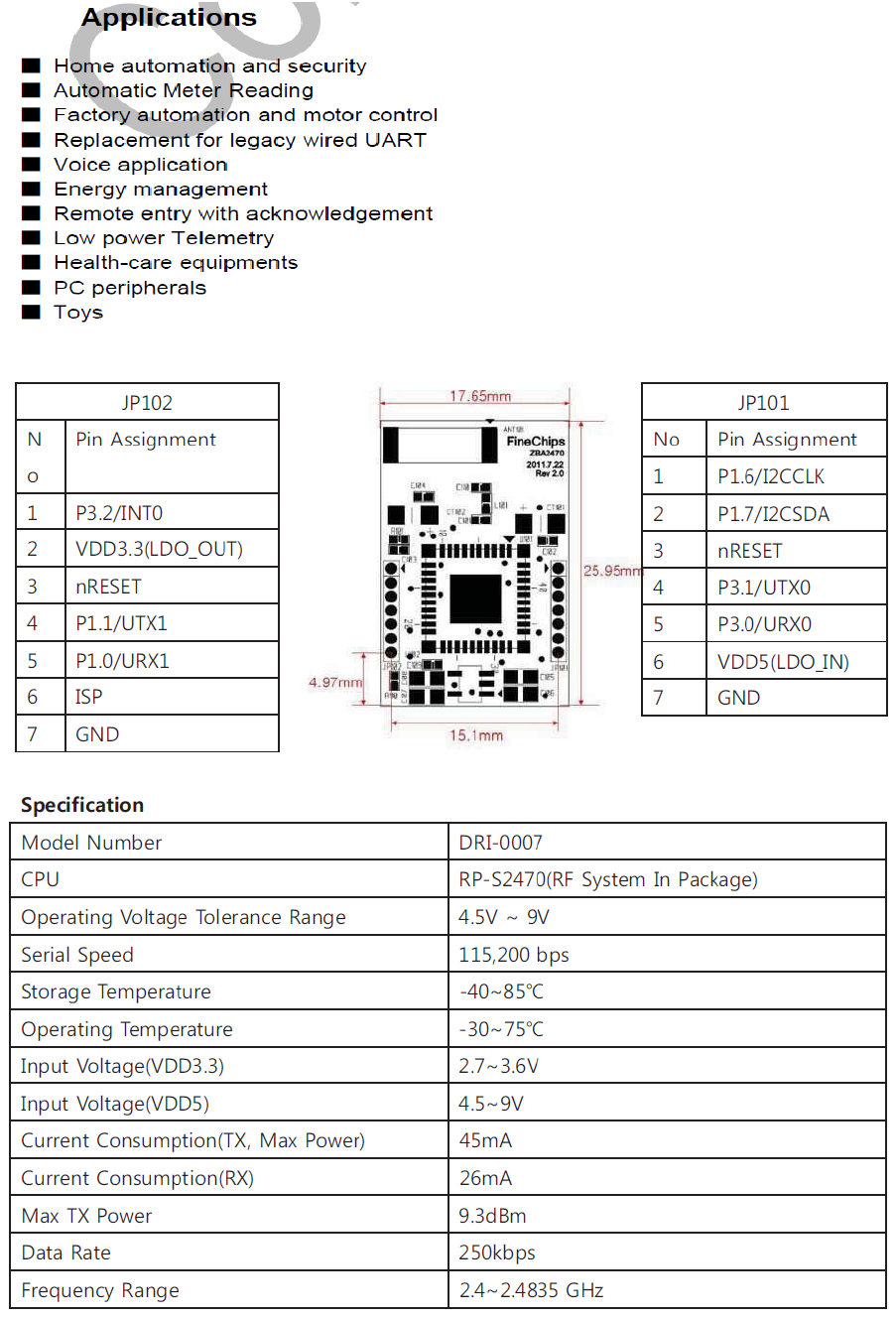

Block Diagram & Operational description

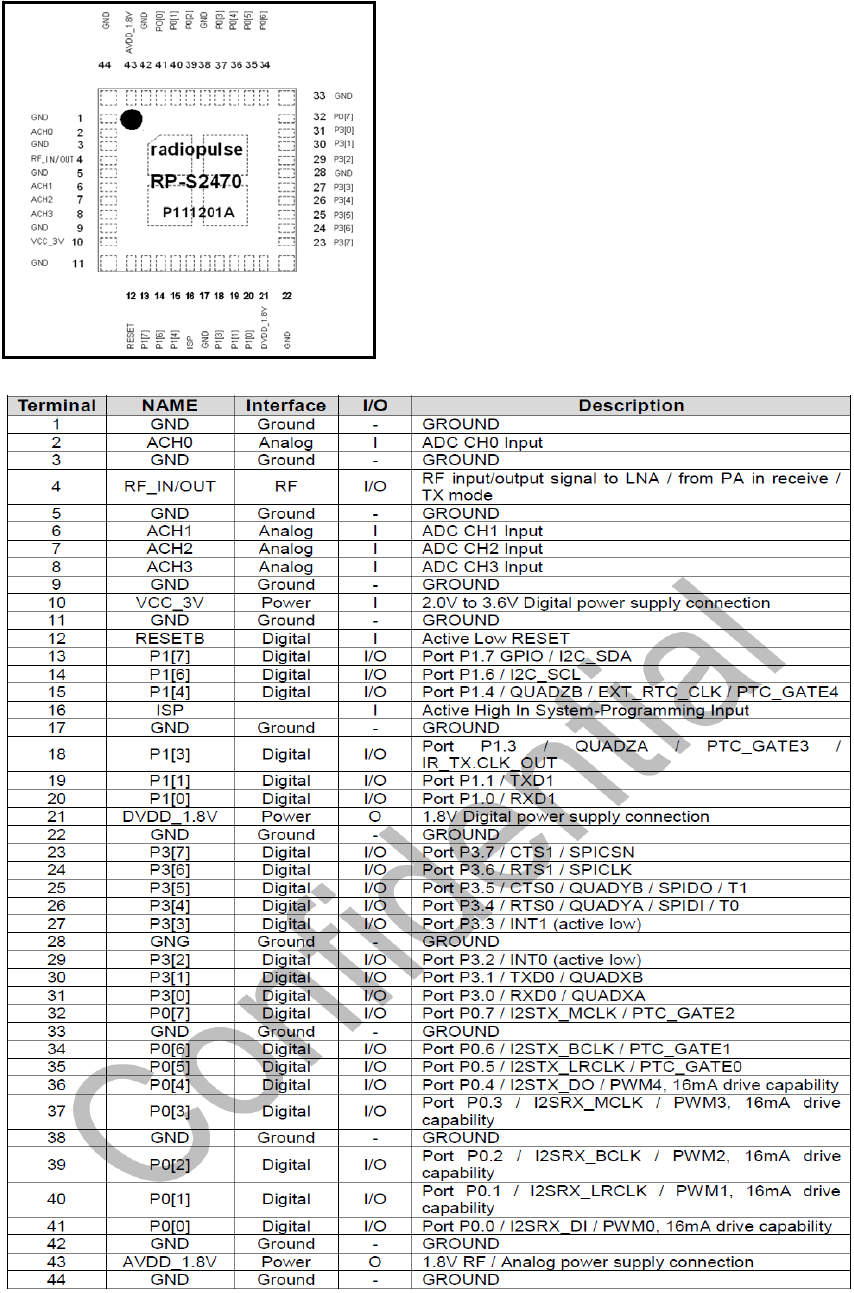

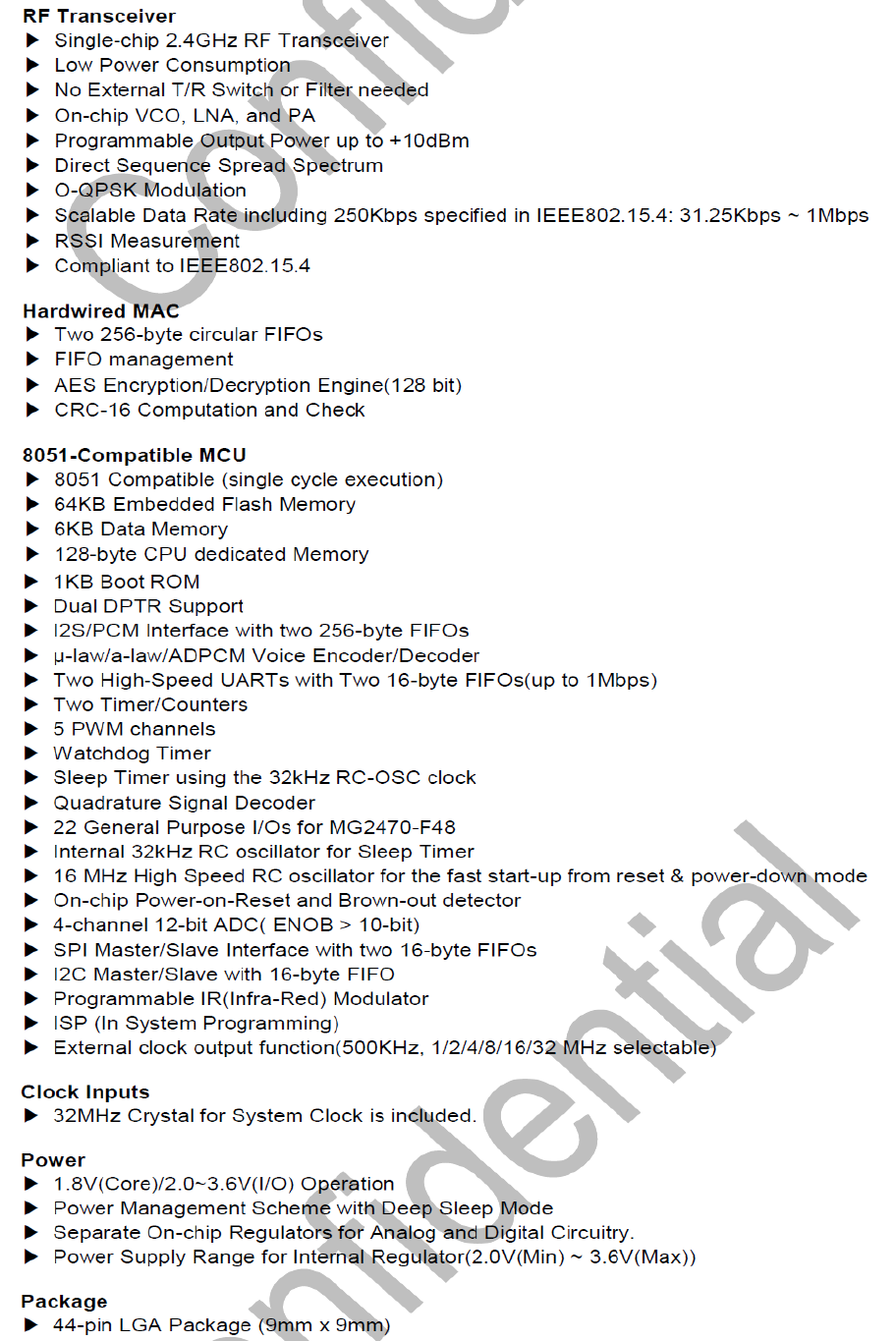

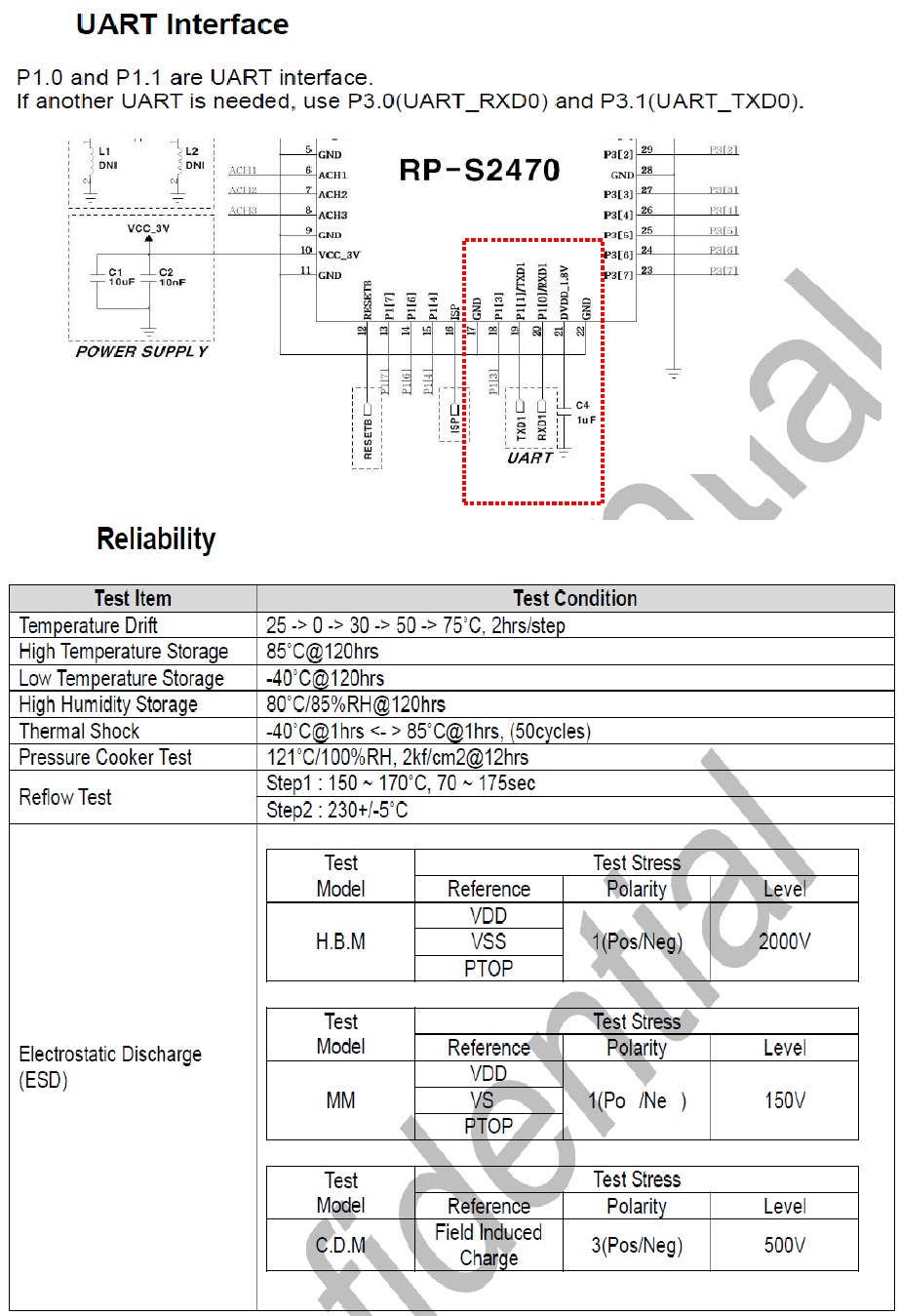

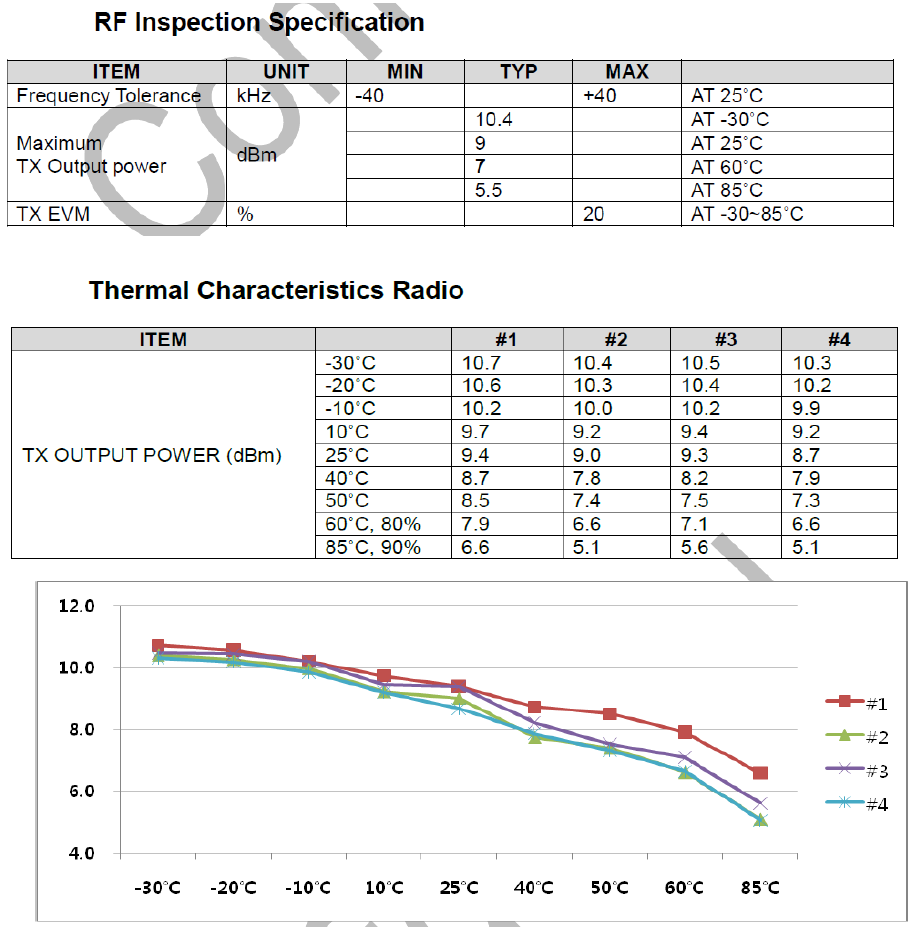

ZigBee Chipset(RP-S2470) Pin Description
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
European CE notice to users and product statements
This product is CE marked according to the provisions of the R&TTE
Directive(99/5/EC). Hereby, Dongbu Robot Co., Ltd. declares that this
product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
For further information, please contact http:// www. dongbu.com
Dongbu Robot Co., Ltd.
#235, Singal-ri, Jiksan-eup, Seobuk-gu, Cheonan-si, Chungcheongnam-do,
Korea
Tel: +82-41-590-1700 / Fax: +82-41-590-1702
URL: www. dongbu.com
CONTACT INFORMATION
Manufacturer Address : #235, Singal-ri, Jiksan-eup, Seobuk-gu, Cheonan-si, Chungcheongnam-do, Korea
To locate in-country Dongbu Robot Co., Ltd., distributors of the Zigbee Module
please refer to the Dongbu Robot Co., Ltd. Website http://www. www. dongbu.com
These distributor(s) represent local contacts for this product.
CORPORATE HEADQUARTERS:
Dongbu Robot Co., Ltd.
#235, Singal-ri, Jiksan-eup, Seobuk-gu, Cheonan-si, Chungcheongnam-do, Korea
Tel: +82-41-590-1700
Fax: +82-41-590-1702
Web: http:// www. dongbu.com
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is Subject to the following two condition: (1) this device may not cause interference
,and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
EUROPEAN UNION “DECLARATION OF CONFORMITY”
DECLARATION OF CONFORMITY
Dongbu Robot Co., Ltd.
#235, Singal-ri, Jiksan-eup, Seobuk-gu, Cheonan-si, Chungcheongnam-do, Korea
declare under our sole responsibility that the product(s)
Zigbee Module – DRI-0007
to which this declaration relate(s) is in conformance with the following standards:
EN 301 489-1 V1.9.2:2011
EN 301 489-17 V2.2.1 :2012
EN60950-1:2006
EN 300 328 V1.8.1:2012
following the provisions of the 1999/5/EC Directives.
