Dongguan Taide BT117 Bluetooth Speaker User Manual
Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Users Manual
user manual
ENGLISH
Dear user,
Thank you very much for choosing BT117 Bluetooth Portable Speaker. Please read this user manual carefully in order to
operate this device correctly and bring its excellent performance.
I. NOTICE
Please store and use this product at normal temperature;
DO NOT expose this product to rain or damp;
DO NOT disassemble, repair and modify this product;
DO NOT toss this product and prevent it from falling and being damaged;
As it is inbuilt with lithium battery, DO NOT cast or place it in fire to avoid danger!
II. KIND REMINDER
1. To prolong the speaker‘s life span and for your physical and mental health, please don't listen to music under big
volume for a long time to avoid hearing damage.
2. When something wrong with the speaker, please immediately shut off the power switch, plug off the USB, to prevent
the speaker and other parts are damaged.
3. Power shortage will affect Bluetooth distance or Bluetooth easy to disconnect, please charge in time.

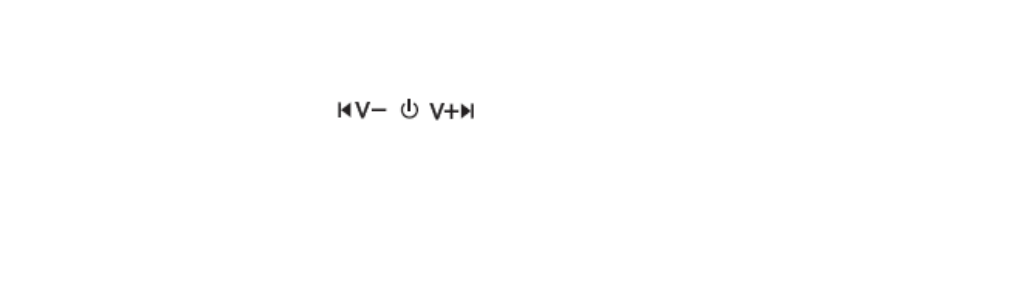

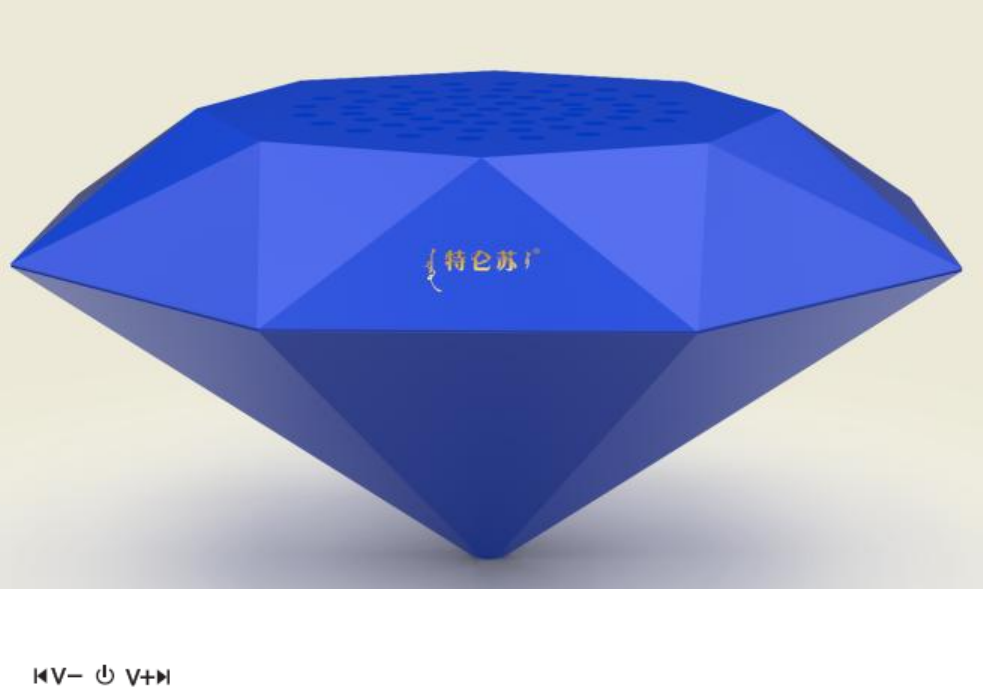

III. OVERVIEW
“/ / ”
Click “pause” during playing and click “play” when it is paused.
Long press left to previous track, Short press left to volume down.
Long press right to next track,, Short press right to volume up.
IV. SPECIFICATION
Model: BT117
Bluetooth specification: Bluetooth V2.1+EDR
Transmission distance : ≦ 10M
( It varied when the environmental factors and the connected Bluetooth devices are different )
USB charging voltage: DC 5V/500mAh
Built-in battery: Lithium battery, 300mAh
Output power: 3W
Frequency response: 90Hz-20KHz
Sensitivity: 80db±2db
S/N ratio: ≥ 76dB
V. PACKING LIST
1. Speaker * 1
2. USB cable * 1
3. User manual * 1
VI. FUNCTION DESCRIPTION
BLUETOOTH OPERATION
1. Turn on the speaker. The green indicator light will flash to detect Bluetooth enabled devices near you. The green
indicator light will go out if no Bluetooth device is detected within 5 minutes.
2. Pair the speaker with the desired Bluetooth device.
3. Play/pause as desired by pressing. / /
CHARGING THE SPEAKER
The speaker has a built-in Lithium battery. The battery is rechargeable and provides approx 2.5-hour continuous operation
when fully charged.
Use the micro-USB cable to charge the speaker. The red indicator light will illuminate. The red indicator light will go out
when the speaker is fully charged.
VII. COMPATIBILITY
Device equipped with BLUETOOTH 2.1 or higher version (for details please refer to the relevant agreements, general
specification), such as the IPAD, IPHONE (the second generation and IPHONE with updated IPHONE 3.1 software),
IPOD TOUCH, MAC with Bluetooth, and most of smart phone or computer support Bluetooth.
Bluetooth 2.1 including agreements as：A2DP, AVRCP, HFP.
VIII. TROUBLESHOOTING
PROBLEM
TROUBLESHOOTING
Failure in connection and
pairing for many times
1. Inspect whether the speaker is in the status of searching, or, restart the
machine.
2. The surrounding Bluetooth equipments are plentiful, which causes the
difficulty in searching. So, please close the other Bluetooth equipments.
The sound is small or
distorted
1. Inspect the volume of the Bluetooth equipment and adjust the volume.
2. The power of battery is insufficient, please charge it.
Discontinuous music
See whether the effective connection distance of sound is exceeded, or,
whether there is obstacle between the speaker and the Bluetooth equipment.
The indicator for Bluetooth
mode is not on
1. It indicates that the power of the battery is not sufficient. Please try again
after charging it.
2. Restart the machine.
Hints: Another trouble, please consult the dealer or an experienced IT technician for help.
PHENOMENON
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
