Dolphin® 7200
VehicleBase™
Charging/Communications
Cradle
Features & Benefits

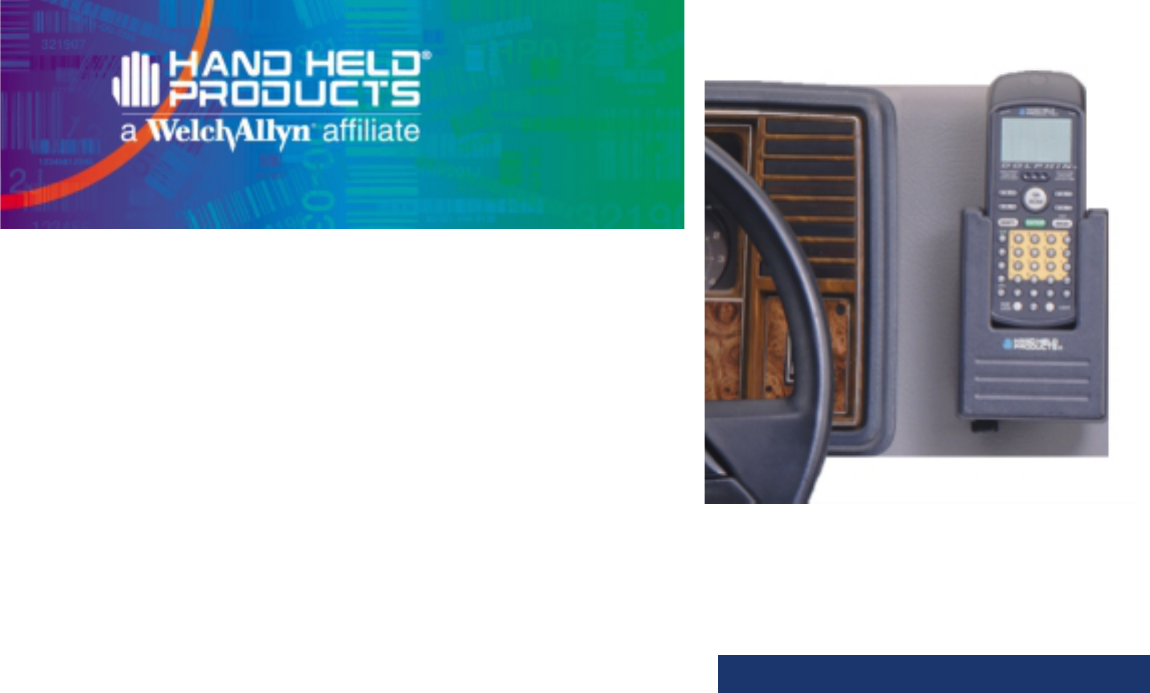

The VehicleBase™ is a compact, secure battery charger and
holder for the Dolphin® 7200 computer. It holds Dolphin se-
curely and releases it easily and quickly using one hand. In
addition, VehicleBase recharges the Dolphin battery continu-
ously without overcharging.
Using standard external Wireless Wide Area Network mo-
dems, VehicleBase can be used to transmit mission critical
data between a Dolphin and a central computer. Data can also
be transmitted via popular network types such as GSM,
Mobitex™, DataTAC™, CDPD, or wireless dial-up.
VehicleBase communicates with Dolphin via “Infrared Commu-
nications Port”. Inputs and Outputs serial data stream via
standard 9-pin RS232 port.
The VehicleBase is powered by a cigarette lighter adapter for
12 Volts automotive systems and portable applications or by
direct connection through a power conditioning module for 12
and 24 Volts automotive systems.
VehicleBase installs easily with four screws to the dashboard,
floor, cab wall or pedestal 4-way. An adjustable mounting
bracket reduces vibration and expands driver viewing options.
VehicleBase meets J1455 standard for vibration tolerance.
Compact, Secure Holder/Battery Charger
Enables 2-way Wireless Data Communication
Two Power Options
Communicates Via Infrared to RS232 Serial
Port
Easy and Secure Mounting
Made for Extreme Environments
Operates from -4 to 166°F (-20 to 70°C) and is
CE approved. Infrared port uploads/downloads
data without breakable mechanical couplings.
Expands Mobile Capabilities
Migrate from “batch” to wireless. Connect to
portable printers. Add third party GPS. Monitor
vehicle systems.
Worldwide Offices
Offices Serving North America
Skaneateles Falls, NY
Tel: (315) 685-8945
Fax: (315) 685-3172
Charlotte, NC
Tel: (704) 537-1444
Fax: (704) 532-4191
Offices Serving Europe, Middle
East, and Africa
Europe
Tel: Int +31 (0) 40 24 24 486
Fax: Int +31 (0) 40 24 25 672
United Kingdom
Tel: Int +44 (0) 1 925 240055
Fax: Int +44 (0) 1 925 631280
France
Tel: Int +33 (0) 1 461 04111
Fax: Int +33 (0) 1 461 04120
Germany
Tel: Int +49 (0) 7 477 151377
Fax: Int +49 (0) 7 477 151378
Offices Serving Asia and the
Pacific Rim
Hong Kong
Tel: Int +852 2511 3050/2511 3132
Fax: Int +852 2511 3557
Japan
Tel: Int +813 52127392
Fax: Int +813 32617372
Offices Serving Latin America
Naples, Florida
Tel: (941) 263-7600
Fax: (941) 263-9689
Web Site Address www.handheld.com
Welch Allyn Data Collection, Inc. and Hand Held Products, Inc. (“Hand Held Products”) 1999-2000, Hand Held Products. All rights reserved. Printed in the U.S.A.
Due to Hand Held Products’ continuing product improvement programs, specifications and features herein are subject to change without notice.
7200VB/SS Rev A
Dolpin® 7200 VehicleBase™
Physical Characteristics
Size: 3.98 x 6.4 x 2.3 in. (101 x 162 x 58 mm)
Weight: 16 oz. (454 g)
Environmental
Temperature
Operating: -4 to 166°F (-20 to 70°C)
Storage: -4 to 166°F (-20 to 70°C)
Data Outputs
Data Upload/Download: Infrared Port Data Communications up to 115K baud
RS232 Port Data Communications: up to 115K baud
Power Inputs: 450 milli-amps @ 12 Volts
250 milli-amps @ 24 Volts
Recharging Rate: 5.5 hours for 1200mAh NiMH battery
Data Communication Port:
RS232 serial interface female
Connecting Cable Required: DB9 male
Agency Approvals
Vibration Tolerance: SAE Standard J1455 (Sections 4.9 &4.10)
Safety-Approved: CE
Mobitex is a trademark of RAM Broadcasting. DataTAC is a trademark of Motorola, Inc.
