Doodle Labs NM-DB-3 Wi-Fi Radio Transceiver User Manual
Doodle Labs (SG) Pte Ltd Wi-Fi Radio Transceiver
User Manual
NM-DB-3

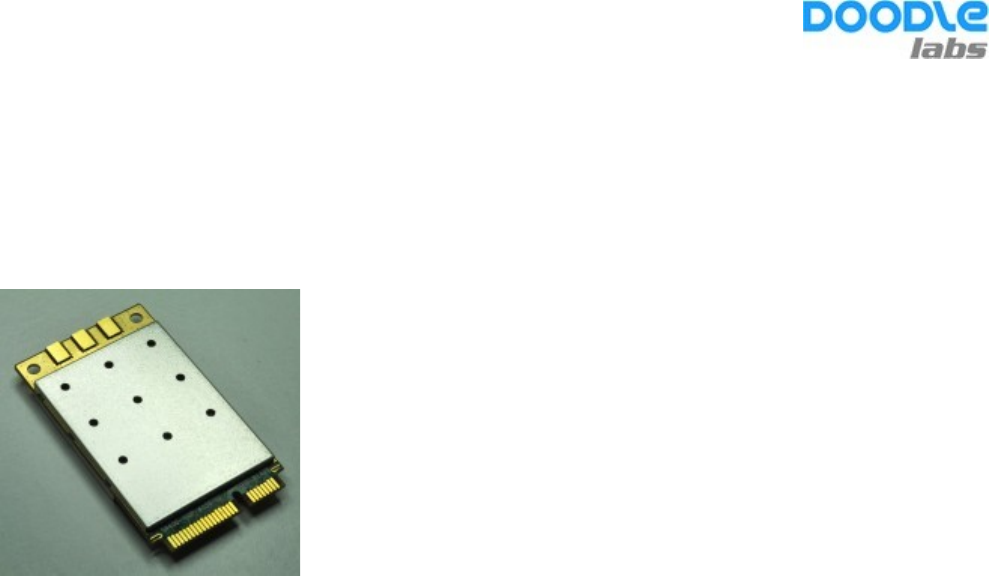

Rugged/Military grade 2.4/5 GHz 3x3 MIMO Wi-Fi® Radio Transceivers
Features
Qualcomm-Atheros AR9590-AR1B Chipset with Extended Temperature Range
Up to 450 Mbps Throughput with 3x3 MIMO Technology
Calibrated High Power 2.4 GHz and 5 GHz operation for Extended Range
802.11 Dynamic Frequency Selection (DFS) in AP and Client mode
Supported Ath9k Linux Driver
MiniPCIE Interface
User Manual
TECHNICAL SPECIFICATIONS
Model No. NM-DB-3
MAC Chipset
Qualcomm Atheros
QCA9590-AR1B with Extended Temperature range for Outdoor and
Rugged models)
Software Support Linux Drivers
ath9k
Center Frequency Range
5.180 GHz ~ 5.825 GHz
2.412 GHz ~ 2.462 GHz
This varies by the regulatory domain
Channel Bandwidth* 20, 40 MHz channels
Radio Modulation (Dynamic
Link Adaptation)
BPSK, QPSK, 16 QAM, and 64 QAM (5.x GHz)
CCK, BPSK, QPSK, 16 QAM, and 64 QAM (2.4 GHz)
Data Rates Supported
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps (5.x GHz)
802.11n: MCS0-23 (5.x and 2.4 GHz)
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps (2.4 GHz)
802.11n version 2.0
Capabilities
802.11 dynamic frequency selection (DFS) as an AP and Client
802.11n and b/g Beam Forming
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), Maximal
ratio combining (MRC), Cyclic shift diversity (CSD), Frame
aggregation, block ACK, 802.11e compatible bursting, Spatial
multiplexing, cyclic-delay diversity (CDD), low-density parity check
(LDPC), Space Time Block Code (STBC)
Phy data rates up to 450 Mbps (40 MHz channel)
Operating Modes AP, STA and Adhoc modes to implement Point to Point, Point to multi
Point
MAC Protocol TDD with Carrier Sense Multiple Access with Collision Avoidance
(CSMA/CA)
Wireless Error Correction FEC, ARQ
Wireless Data Security 128 bit AES, WEP, TKIP and WAPI hardware encryption. Support for
IEEE 802.11d, e, h, i, k, r, v, w and time stamp standards
FIPS Certification Loop back mode to facilitate FIPS AES certification, Small packet size
(96 bytes) in AES encryption at full packet rate
Tx/Rx
Specification
Radio
Modulation Coding Rate Max Tx Power Rx Sensitivity
(Typ)
5 GHz (20 MHz Channel)
802.11a, STBC BPSK 1/2 25.18 -96
802.11n, STBC 64 QAM 3/4 25.09 -81
MIMO BPSK 1/2 25.09 -93
MIMO 16 QAM 3/4 25.09 -83
MIMO 64 QAM 5/6 25.09 -72
5 GHz (40 MHz Channel)
MIMO BPSK 1/2 22.93 -90
MIMO 16 QAM 3/4 22.93 -79
MIMO 64 QAM 5/6 22.93 -69
2.4 GHz (20 MHz Channel)
802.11b, STBC 1 Mbps CCK 27.32 -100
802.11g, STBC 64 QAM 3/4 27.16 -80
802.11n, MIMO BPSK 1/2 26.84 -92
802.11n, MIMO 16 QAM 3/4 26.84 -82
802.11n, MIMO 64 QAM 5/6 26.84 -72
2.4 GHz (40 MHz Channel)
802.11n, MIMO BPSK 1/2 26.94 -90
802.11n, MIMO 16 QAM 3/4 26.94 -79
802.11n, MIMO 64 QAM 5/6 26.94 -70
Note 1 It is advantageous to use the smallest Channel Bandwidth that can support the Throughput
requirements. Smaller bandwidths provide more channels to choose and help avoid interference
issues. The system’s SNR is higher at smaller Channel Bandwidths and Range is longer.
Note 2 Max allowed Tx power depends on the regulatory domain
Antenna Signal Strength -35 to -85 dBm (Recommended), Absolute Maximum=+12 dBm
Antenna port isolation for
concurrent operation
Up to +10 dBm signal strength for 5 GHz signal without degrading 2.4
GHz operation
Up to +5 dBm signal strength for 2.4 GHz signal without degrading 5.x
GHz operation
Integrated Antenna Port
Protection >20 KV (Human Body Model)
Receiver LNA Gain >10 dB
Receiver Adjacent Channel
Rejection (ACR) >18 dB @ 11a, 6 Mbps (Typ)
Receiver Alternate Channel
Rejection (ALCR) >35 dB @ 11a, 6 Mbps (Typ)
Receive chain Noise Figure +6 dB
Transmitter Adjacent Channel
Leakage power Ratio (ACLR) 45 dB (Fc ± ChBW)
Transmitter Spurious
Emission Suppression -40 dBc
RF Power control In 0.5 dBm steps. Accuracy of power calibration loop ±2 dBm. Each
transceiver individually calibrated and tested.
RF Hardware Disable (RF
Kill) Pin 20 of miniPCI-E interface. (Required for FAA compliance)
Control for External Power
Amp Available as an optional configuration
Spectral Analysis 8 bit resolution spectral FFTs available for software analysis
PHYSICAL, ENVIRONMENTAL AND OTHER SPECIFICATIONS
Antenna Ports 3 Ports (50 Ohms) with MMCX connectors.
Host Interface miniPCI-Express 1.2 Standard
Host CPU Board Any CPU board with Industry standard miniPCI-Express interface with
minimum 6 mm connector height
Operating Voltage 3.3 Volts from miniPCI-Express connector
Power Consumption
5.3W @ Max power, in continuous data transfer mode on all chains
3.75W @ 25 dBm power, in continuous data transfer mode on all
chains
2.5W @ 20 dBm power (ETSI max), in continuous data transfer mode
on all chains
0.9W in continuous data receive mode
250 mW in Sleep mode
Shield case temperature
range (Operating)
-40°C to +80°C
The System’s thermal design should ensure that the transceiver’s case
temperature is maintained within these specifications.
Humidity (Operating) 0% – 95% (Non-condensing)
Dimensions 30 x 50 x 7 mm, 14 grams
Mechanical drawing and 3D-CAD files available upon request
Regulatory Requirements
Designed and Verified to meet various regulatory requirements. Formal
testing and approval is required based on the Integrator’s particular
host platform and antenna type. The Integrator is also responsible for
obtaining all required regulatory approvals in target markets for the
finished product.
FCC ID 2AG87NM-DB-3
CE/ETSI Q3 2016
Industry Canada (IC) Q3 2016
RoHS/WEEE Compliance Yes. 100% Recyclable/Biodegradable packaging
