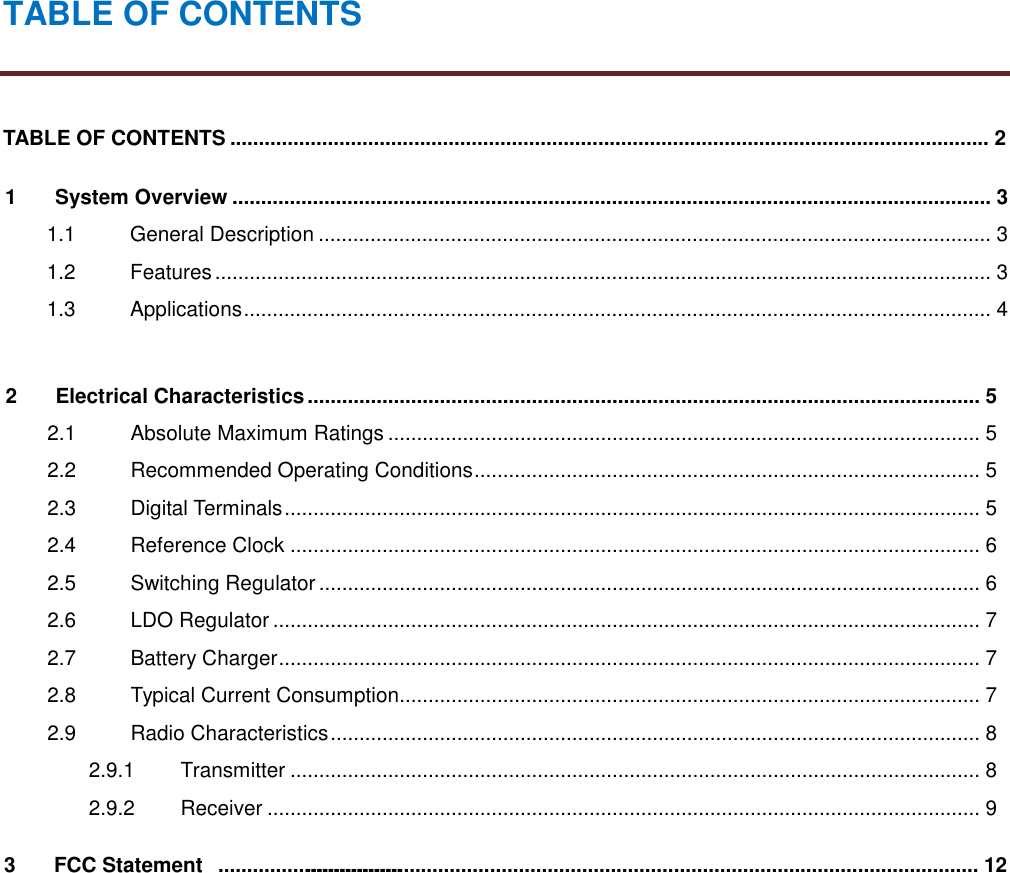

TABLE OF CONTENTSTABLE OF CONTENTS .................................................................................................................................... 21 System Overview .................................................................................................................................... 31.1 General Description ..................................................................................................................... 31.2 Features....................................................................................................................................... 31.3 Applications.................................................................................................................................. 42 Electrical Characteristics ..................................................................................................................... 52.1 Absolute Maximum Ratings ....................................................................................................... 52.2 Recommended Operating Conditions........................................................................................ 52.3 Digital Terminals......................................................................................................................... 52.4 Reference Clock ........................................................................................................................ 62.5 Switching Regulator ................................................................................................................... 62.6 LDO Regulator ........................................................................................................................... 72.7 Battery Charger.......................................................................................................................... 72.8 Typical Current Consumption..................................................................................................... 72.9 Radio Characteristics................................................................................................................. 82.9.1 Transmitter ........................................................................................................................ 82.9.2 Receiver ............................................................................................................................ 93 FCC Statement ..................................................................................................................... 12................................

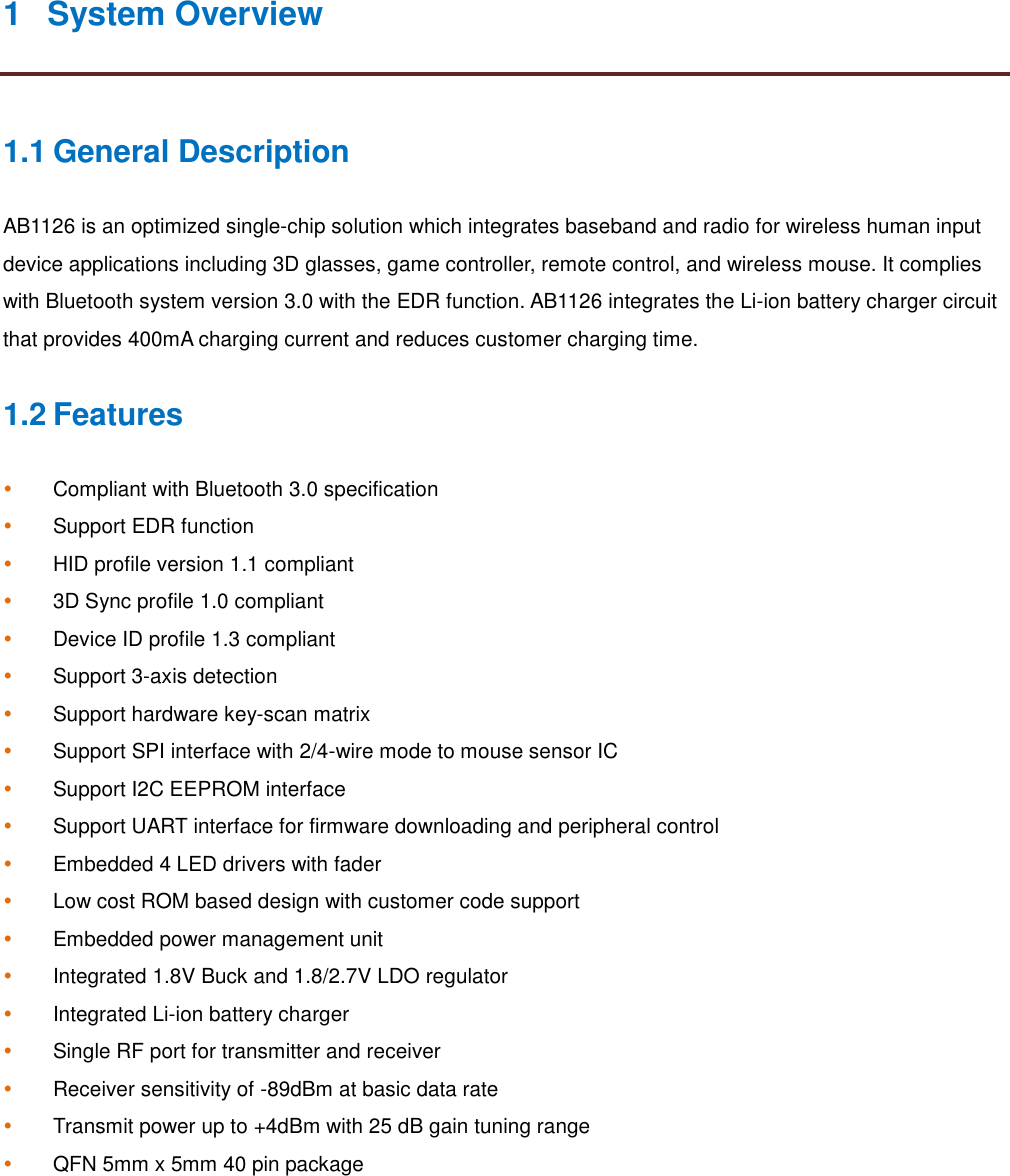

1 System Overview1.1 General DescriptionAB1126 is an optimized single-chip solution which integrates baseband and radio for wireless human inputdevice applications including 3D glasses, game controller, remote control, and wireless mouse. It complieswith Bluetooth system version 3.0 with the EDR function. AB1126 integrates the Li-ion battery charger circuitthat provides 400mA charging current and reduces customer charging time.1.2 FeaturesCompliant with Bluetooth 3.0 specificationSupport EDR functionHID profile version 1.1 compliant3D Sync profile 1.0 compliantDevice ID profile 1.3 compliantSupport 3-axis detectionSupport hardware key-scan matrixSupport SPI interface with 2/4-wire mode to mouse sensor ICSupport I2C EEPROM interfaceSupport UART interface for firmware downloading and peripheral controlEmbedded 4 LED drivers with faderLow cost ROM based design with customer code supportEmbedded power management unitIntegrated 1.8V Buck and 1.8/2.7V LDO regulatorIntegrated Li-ion battery chargerSingle RF port for transmitter and receiverReceiver sensitivity of -89dBm at basic data rateTransmit power up to +4dBm with 25 dB gain tuning rangeQFN 5mm x 5mm 40 pin package

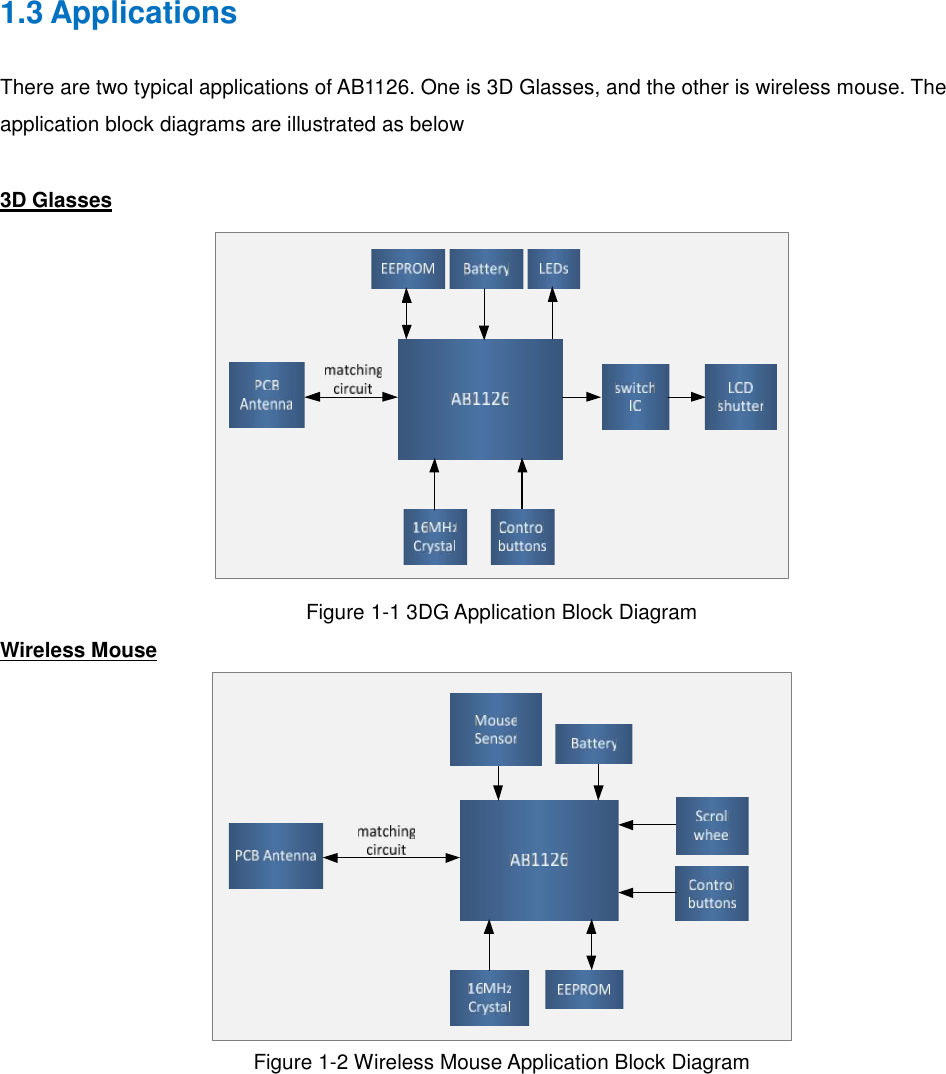

1.3 ApplicationsThere are two typical applications of AB1126. One is 3D Glasses, and the other is wireless mouse. Theapplication block diagrams are illustrated as below3D GlassesFigure 1-1 3DG Application Block DiagramWireless MouseFigure 1-2 Wireless Mouse Application Block Diagram

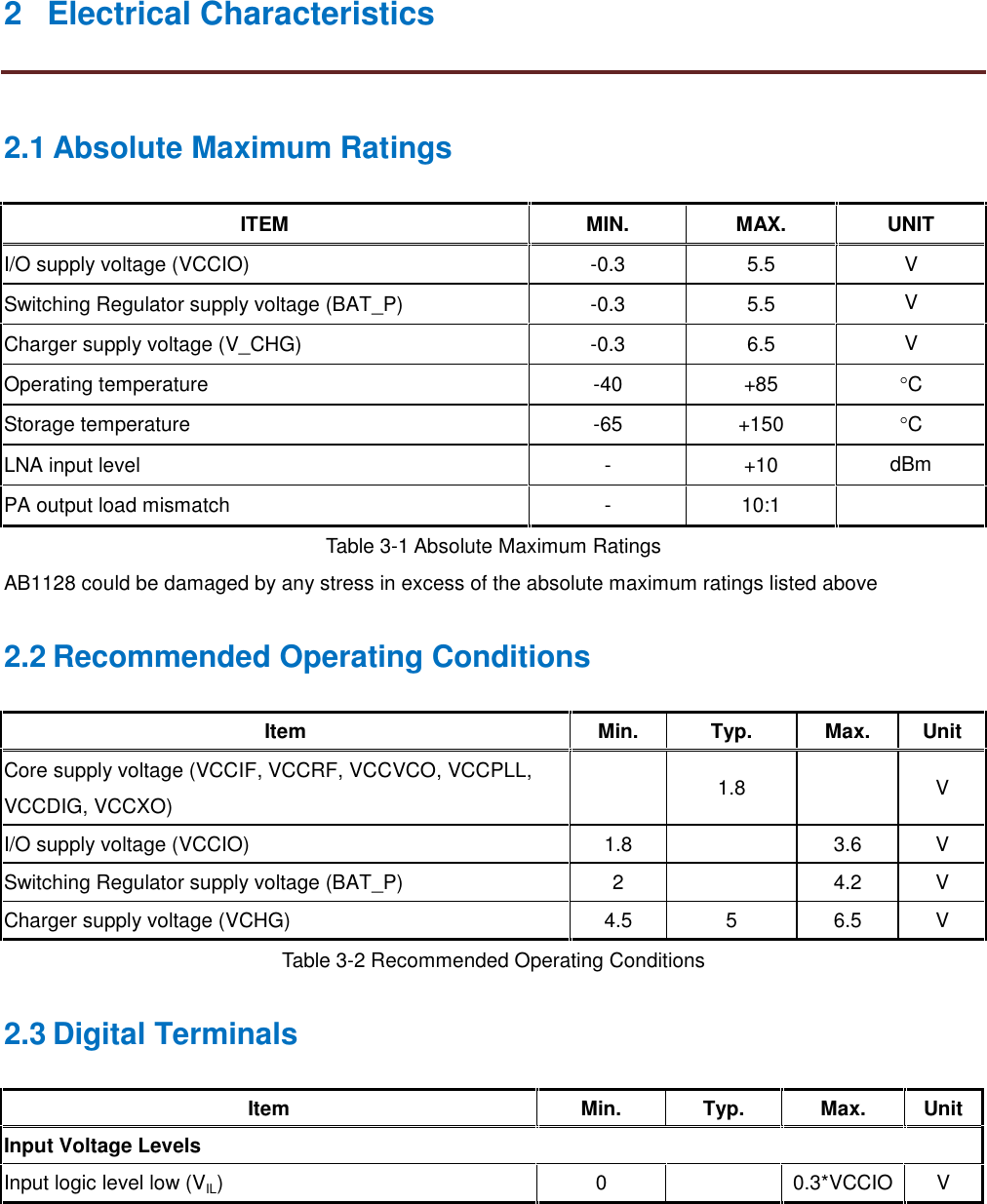

2 Electrical Characteristics2.1 Absolute Maximum RatingsITEMMIN.MAX.UNITI/O supply voltage (VCCIO)-0.35.5VSwitching Regulator supply voltage (BAT_P)-0.35.5VCharger supply voltage (V_CHG)-0.36.5VOperating temperature-40+85CStorage temperature-65+150CLNA input level-+10dBmPA output load mismatch-10:1Table 3-1 Absolute Maximum RatingsAB1128 could be damaged by any stress in excess of the absolute maximum ratings listed above2.2 Recommended Operating ConditionsItemMin.Typ.Max.UnitCore supply voltage (VCCIF, VCCRF, VCCVCO, VCCPLL,VCCDIG, VCCXO)1.8VI/O supply voltage (VCCIO)1.83.6VSwitching Regulator supply voltage (BAT_P)24.2VCharger supply voltage (VCHG)4.556.5VTable 3-2 Recommended Operating Conditions2.3 Digital TerminalsItemMin.Typ.Max.UnitInput Voltage LevelsInput logic level low (VIL)00.3*VCCIOV

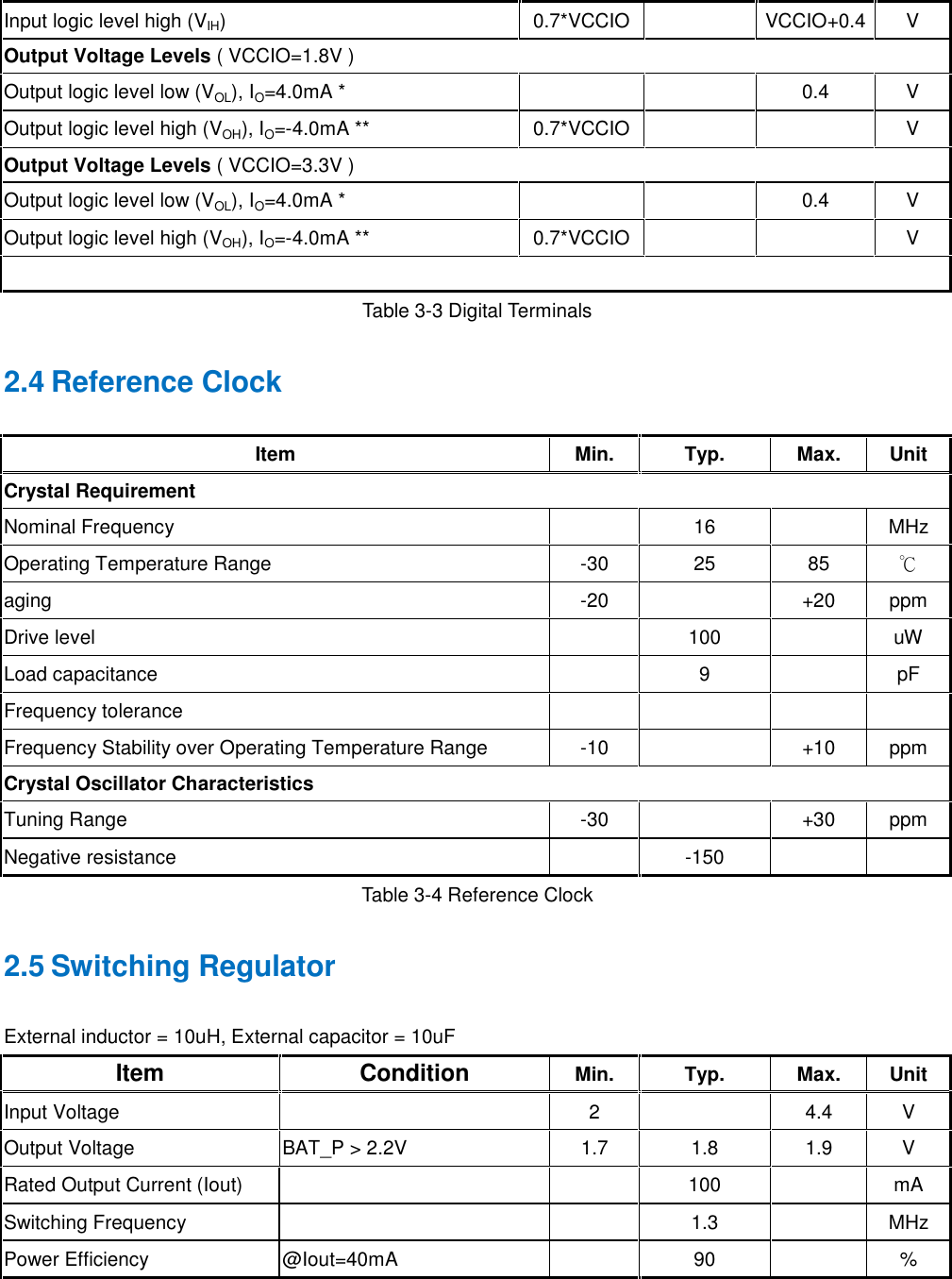

Input logic level high (VIH)0.7*VCCIOVCCIO+0.4VOutput Voltage Levels ( VCCIO=1.8V )Output logic level low (VOL), IO=4.0mA *0.4VOutput logic level high (VOH), IO=-4.0mA **0.7*VCCIOVOutput Voltage Levels ( VCCIO=3.3V )Output logic level low (VOL), IO=4.0mA *0.4VOutput logic level high (VOH), IO=-4.0mA **0.7*VCCIOVTable 3-3 Digital Terminals2.4 Reference ClockItemMin.Typ.Max.UnitCrystal RequirementNominal Frequency16MHzOperating Temperature Range-302585℃aging-20+20ppmDrive level100uWLoad capacitance9pFFrequency toleranceFrequency Stability over Operating Temperature Range-10+10ppmCrystal Oscillator CharacteristicsTuning Range-30+30ppmNegative resistance-150ΩTable 3-4 Reference Clock2.5 Switching RegulatorExternal inductor = 10uH, External capacitor = 10uFItemConditionMin.Typ.Max.UnitInput Voltage24.4VOutput VoltageBAT_P > 2.2V1.71.81.9VRated Output Current (Iout)100mASwitching Frequency1.3MHzPower Efficiency@Iout=40mA90%

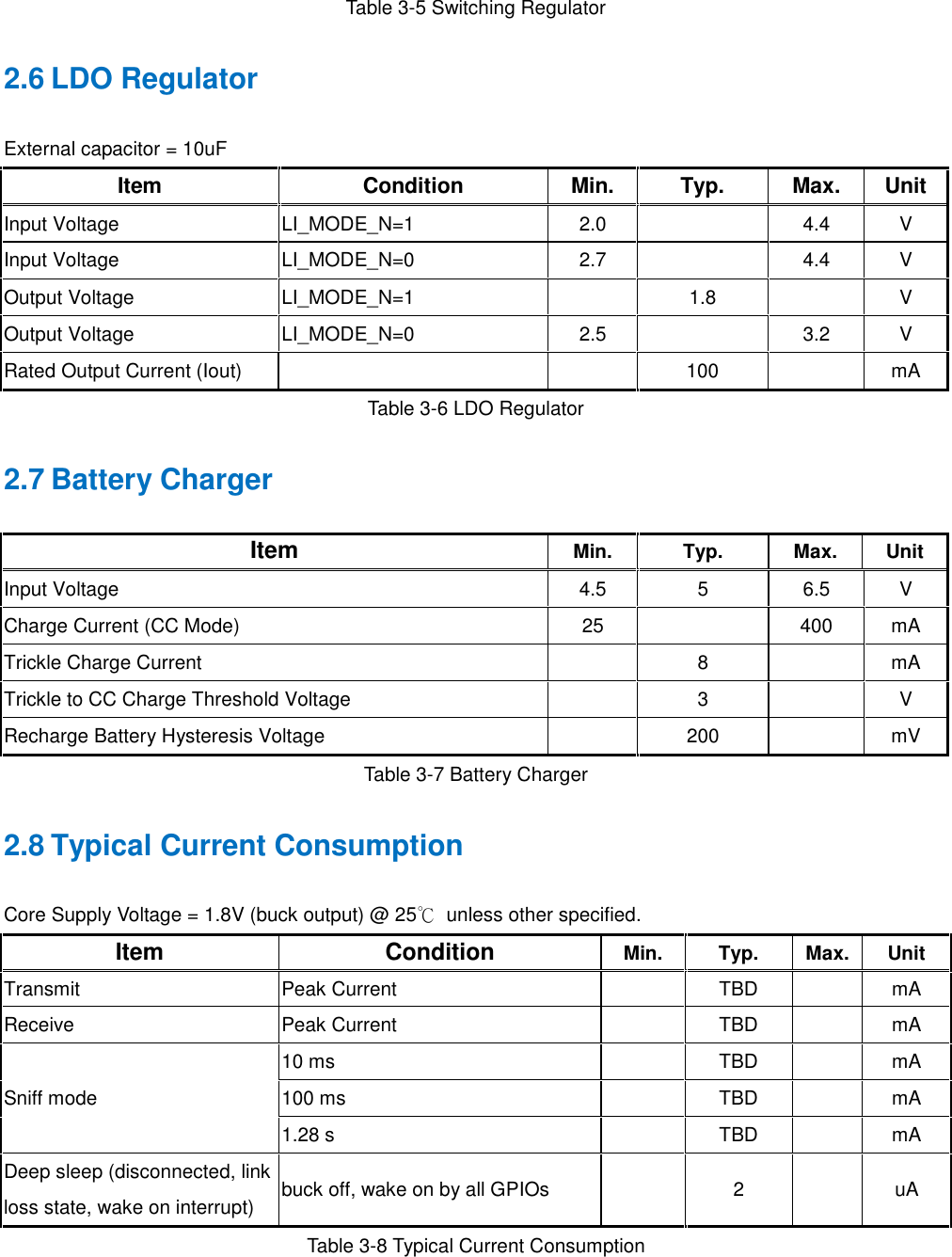

Table 3-5 Switching Regulator2.6 LDO RegulatorExternal capacitor = 10uFItemConditionMin.Typ.Max.UnitInput VoltageLI_MODE_N=12.04.4VInput VoltageLI_MODE_N=02.74.4VOutput VoltageLI_MODE_N=11.8VOutput VoltageLI_MODE_N=02.53.2VRated Output Current (Iout)100mATable 3-6 LDO Regulator2.7 Battery ChargerItemMin.Typ.Max.UnitInput Voltage4.556.5VCharge Current (CC Mode)25400mATrickle Charge Current8mATrickle to CC Charge Threshold Voltage3VRecharge Battery Hysteresis Voltage200mVTable 3-7 Battery Charger2.8 Typical Current ConsumptionCore Supply Voltage = 1.8V (buck output) @ 25℃  unless other specified.ItemConditionMin.Typ.Max.UnitTransmitPeak CurrentTBDmAReceivePeak CurrentTBDmA10 msTBDmA100 msTBDmASniff mode1.28 sTBDmADeep sleep (disconnected, linkloss state, wake on interrupt)buck off, wake on by all GPIOs2uATable 3-8 Typical Current Consumption

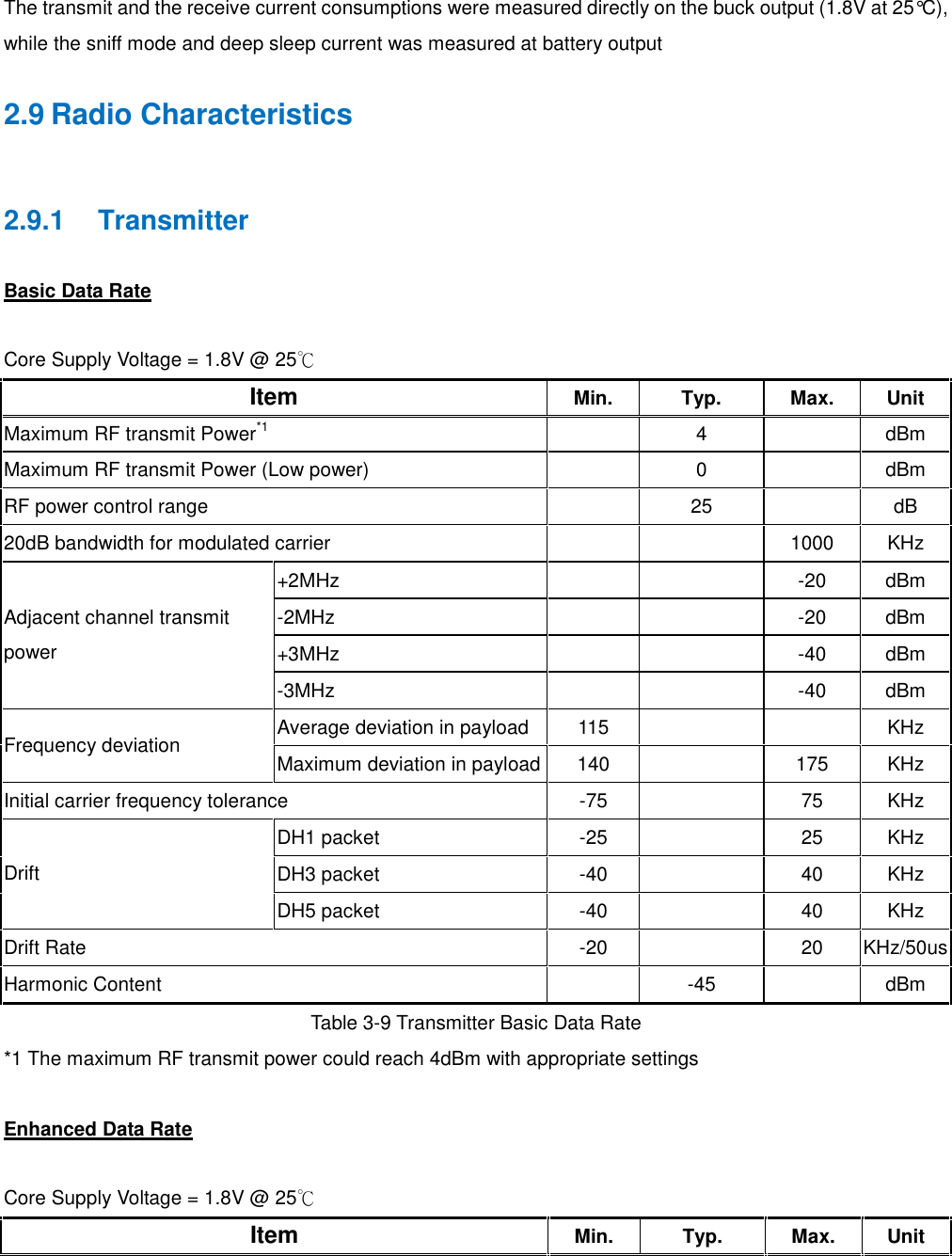

The transmit and the receive current consumptions were measured directly on the buck output (1.8V at 25°C),while the sniff mode and deep sleep current was measured at battery output2.9 Radio Characteristics2.9.1 TransmitterBasic Data RateCore Supply Voltage = 1.8V @ 25℃ItemMin.Typ.Max.UnitMaximum RF transmit Power*14dBmMaximum RF transmit Power (Low power)0dBmRF power control range25dB20dB bandwidth for modulated carrier1000KHz+2MHz-20dBm-2MHz-20dBm+3MHz-40dBmAdjacent channel transmitpower-3MHz-40dBmAverage deviation in payload115KHzFrequency deviationMaximum deviation in payload140175KHzInitial carrier frequency tolerance-7575KHzDH1 packet-2525KHzDH3 packet-4040KHzDriftDH5 packet-4040KHzDrift Rate-2020KHz/50usHarmonic Content-45dBmTable 3-9 Transmitter Basic Data Rate*1 The maximum RF transmit power could reach 4dBm with appropriate settingsEnhanced Data RateCore Supply Voltage = 1.8V @ 25℃ItemMin.Typ.Max.Unit

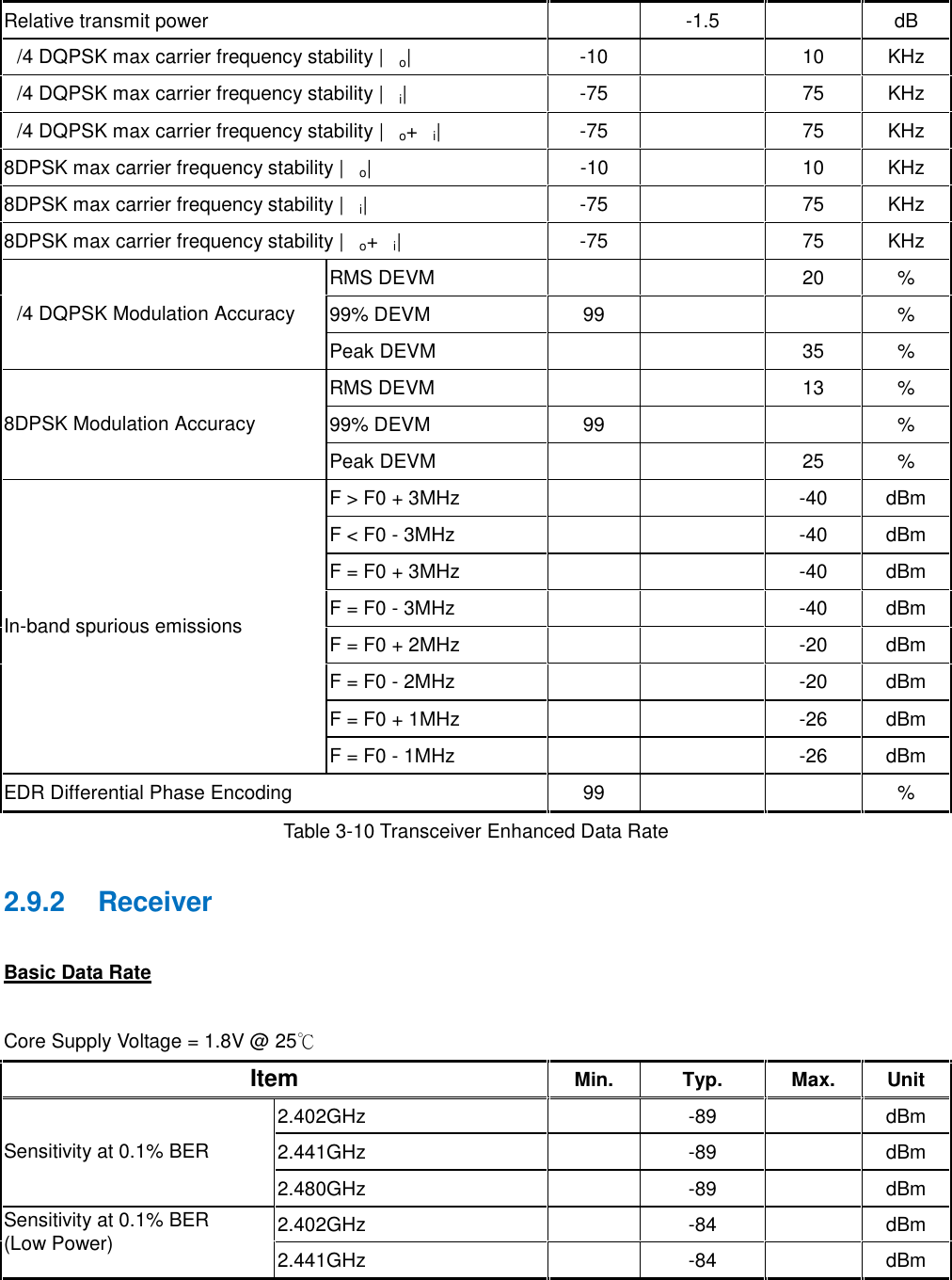

Relative transmit power-1.5dBπ/4 DQPSK max carrier frequency stability |ωo|-1010KHzπ/4 DQPSK max carrier frequency stability |ωi|-7575KHzπ/4 DQPSK max carrier frequency stability |ωo+ωi|-7575KHz8DPSK max carrier frequency stability |ωo|-1010KHz8DPSK max carrier frequency stability |ωi|-7575KHz8DPSK max carrier frequency stability |ωo+ωi|-7575KHzRMS DEVM20%99% DEVM99%π/4 DQPSK Modulation AccuracyPeak DEVM35%RMS DEVM13%99% DEVM99%8DPSK Modulation AccuracyPeak DEVM25%F > F0 + 3MHz-40dBmF < F0 - 3MHz-40dBmF = F0 + 3MHz-40dBmF = F0 - 3MHz-40dBmF = F0 + 2MHz-20dBmF = F0 - 2MHz-20dBmF = F0 + 1MHz-26dBmIn-band spurious emissionsF = F0 - 1MHz-26dBmEDR Differential Phase Encoding99%Table 3-10 Transceiver Enhanced Data Rate2.9.2 ReceiverBasic Data RateCore Supply Voltage = 1.8V @ 25℃ItemMin.Typ.Max.Unit2.402GHz-89dBm2.441GHz-89dBmSensitivity at 0.1% BER2.480GHz-89dBm2.402GHz-84dBmSensitivity at 0.1% BER(Low Power)2.441GHz-84dBm

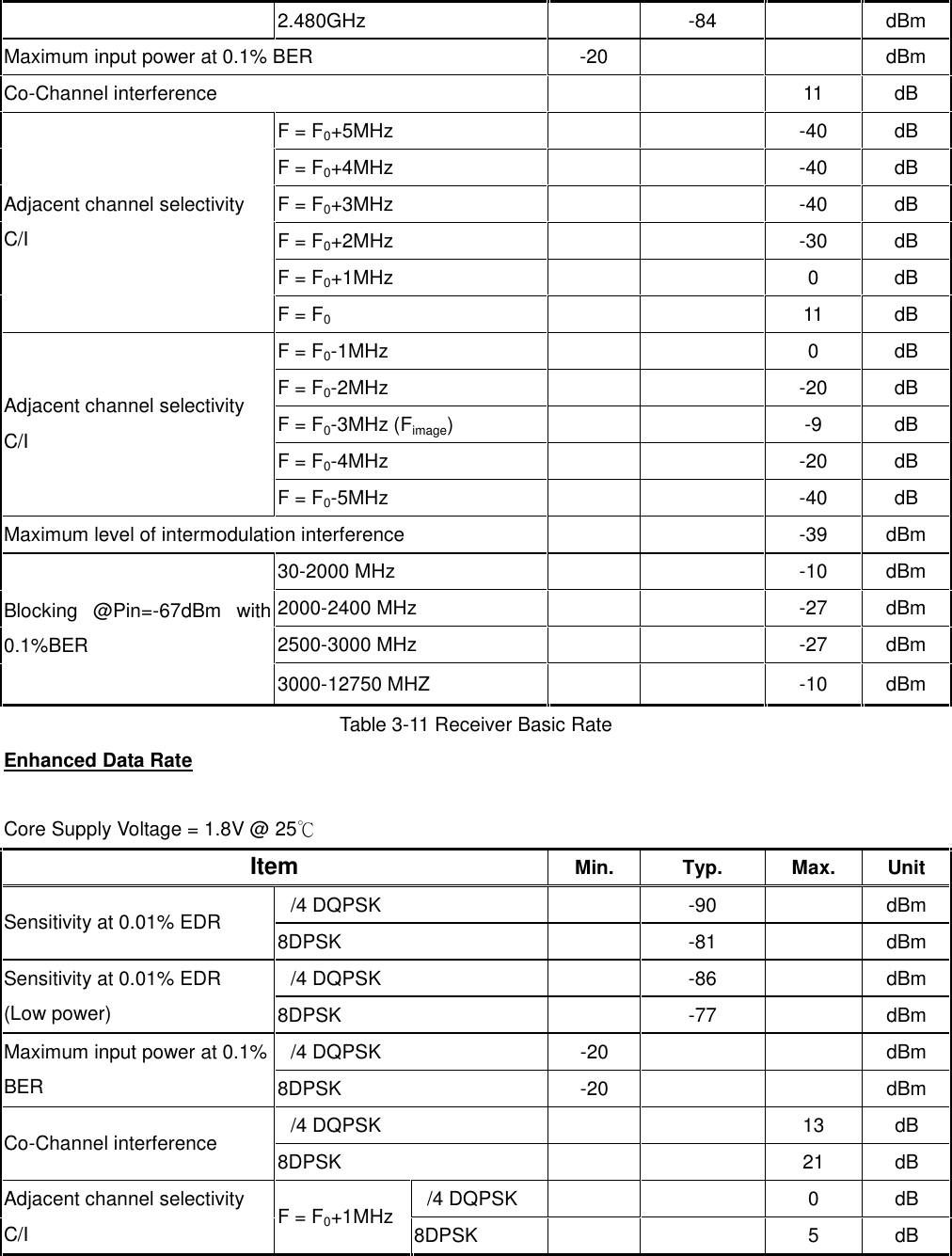

2.480GHz-84dBmMaximum input power at 0.1% BER-20dBmCo-Channel interference11dBF = F0+5MHz-40dBF = F0+4MHz-40dBF = F0+3MHz-40dBF = F0+2MHz-30dBF = F0+1MHz0dBAdjacent channel selectivityC/IF = F011dBF = F0-1MHz0dBF = F0-2MHz-20dBF = F0-3MHz (Fimage)-9dBF = F0-4MHz-20dBAdjacent channel selectivityC/IF = F0-5MHz-40dBMaximum level of intermodulation interference-39dBm30-2000 MHz-10dBm2000-2400 MHz-27dBm2500-3000 MHz-27dBmBlocking  @Pin=-67dBm  with0.1%BER3000-12750 MHZ-10dBmTable 3-11 Receiver Basic RateEnhanced Data RateCore Supply Voltage = 1.8V @ 25℃ItemMin.Typ.Max.Unitπ/4 DQPSK-90dBmSensitivity at 0.01% EDR8DPSK-81dBmπ/4 DQPSK-86dBmSensitivity at 0.01% EDR(Low power)8DPSK-77dBmπ/4 DQPSK-20dBmMaximum input power at 0.1%BER8DPSK-20dBmπ/4 DQPSK13dBCo-Channel interference8DPSK21dBπ/4 DQPSK0dBAdjacent channel selectivityC/IF = F0+1MHz8DPSK5dB

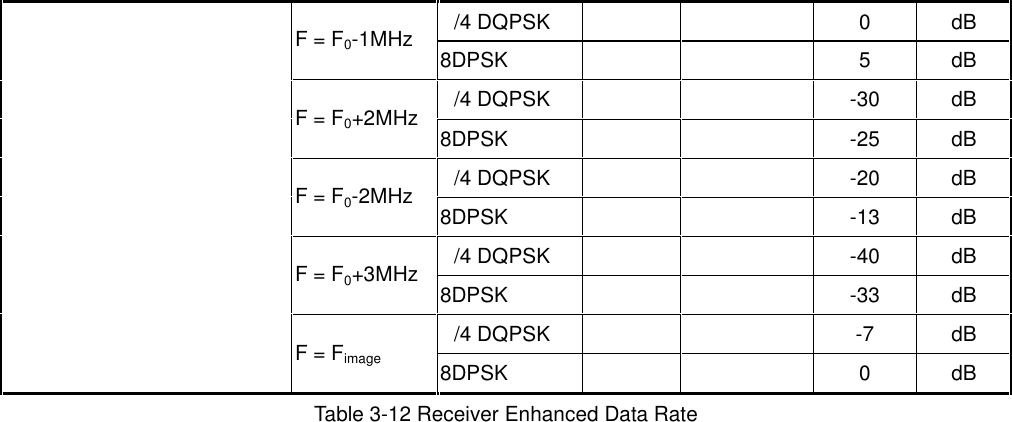

π/4 DQPSK0dBF = F0-1MHz8DPSK5dBπ/4 DQPSK-30dBF = F0+2MHz8DPSK-25dBπ/4 DQPSK-20dBF = F0-2MHz8DPSK-13dBπ/4 DQPSK-40dBF = F0+3MHz8DPSK-33dBπ/4 DQPSK-7dBF = Fimage8DPSK0dBTable 3-12 Receiver Enhanced Data Rate

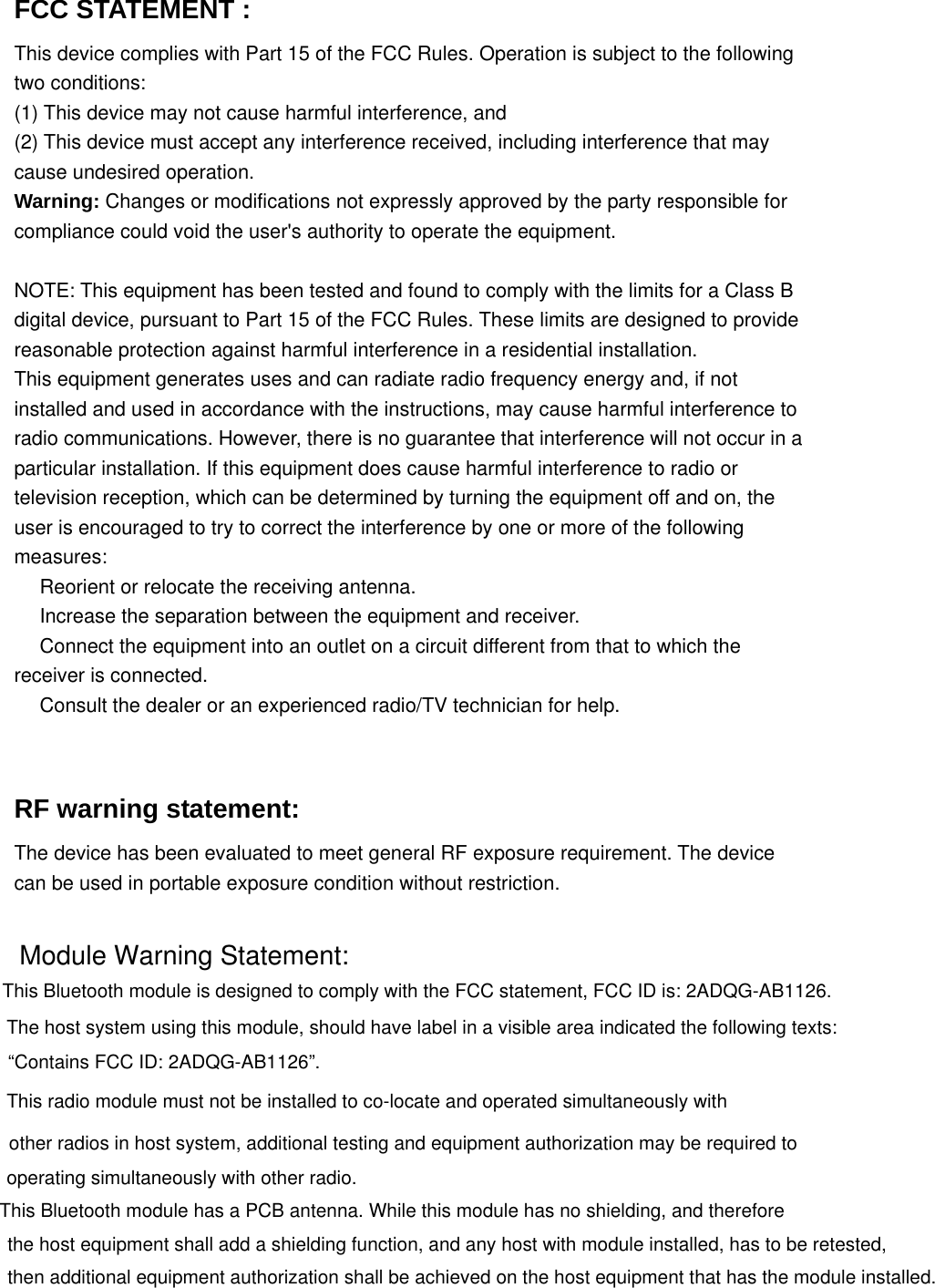

FCC STATEMENT :   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving an tenna.  Increase the separation between the equipment and receiver.   Connect the equipment into an outlet on a circuit different from that to which the  receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.    RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Module Warning Statement: This Bluetooth module is designed to comply with the FCC statement, FCC ID is: 2ADQG-AB1126. The host system using this module, should have label in a visible area indicated the following texts: “Contains FCC ID: 2ADQG-AB1126”. This radio module must not be installed to co-locate and operated simultaneously with other radios in host system, additional testing and equipment authorization may be required to operating simultaneously with other radio.This Bluetooth module has a PCB antenna. While this module has no shielding, and therefore the host equipment shall add a shielding function, and any host with module installed, has to be retested, then additional equipment authorization shall be achieved on the host equipment that has the module installed.
