1. Introduction ........................................................................................................... 1
2. Package Content .................................................................................................. 2
3. Panel Explanation ................................................................................................. 3
4. Hardware Installation ........................................................................................... 5
5. Software Configuration ........................................................................................ 6
6. Customer Service ................................................................................................ 11
1
1
1.
.
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
Vigor2952 is a broadband router with dual-WAN interface. It provides
policy-based load-balance, fail-over and BoD (Bandwidth on Demand), also it
integrates IP layer QoS, NAT session/bandwidth management to help users
control works well with large bandwidth.
By adopting hardware-based VPN platform, hardware encryption of AES/DES/3DS
and hardware key hash of SHA-1/MD5, the router increases the performance of
VPN greatly, and offers several protocols (such as IPSec/PPTP/L2TP) with up to
100 VPN tunnels.
The object-originated design used in SPI (Stateful Packet Inspection) firewall
allows users to set firewall policy with ease. CSM (Content Security Management)
provides users control and management in IM (Instant Messenger) and P2P (Peer
to Peer) more efficiency than before. By the way, DoS/DDoS prevention and
URL/Web content filter strengthen the security outside and control inside.
Vigor2952 series supports USB interface for connecting USB printer to share
printing function, 3G/4G USB modem for network connection, or connectivity for
network FTP service.
2
2
2.
.
P
Pa
ac
ck
ka
ag
ge
e
C
Co
on
nt
te
en
nt
t

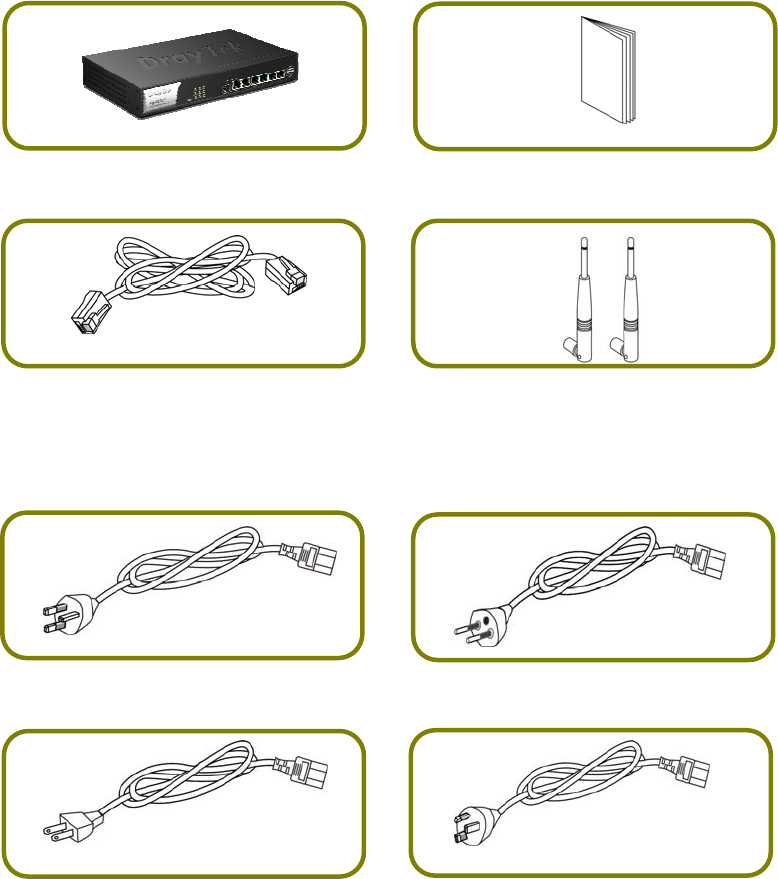

Take a look at the package content. If there is anything missed or damaged,
please contact DrayTek or dealer immediately.
Vigor Router Quick Start Guide
RJ-45 Cat-5 Ethernet Cable Antenna (for “n” model)
The type of the power adapter depends on the country that the router will be
installed. * The maximum power consumption is 17-23 Watt.
UK-type Power Cord EU-type Power Cord
USA/Taiwan-type Power Cord AU/NZ-type Power Cord
3
3
3.
.
P
Pa
an
ne
el
l
E
Ex
xp
pl
la
an
na
at
ti
io
on
n

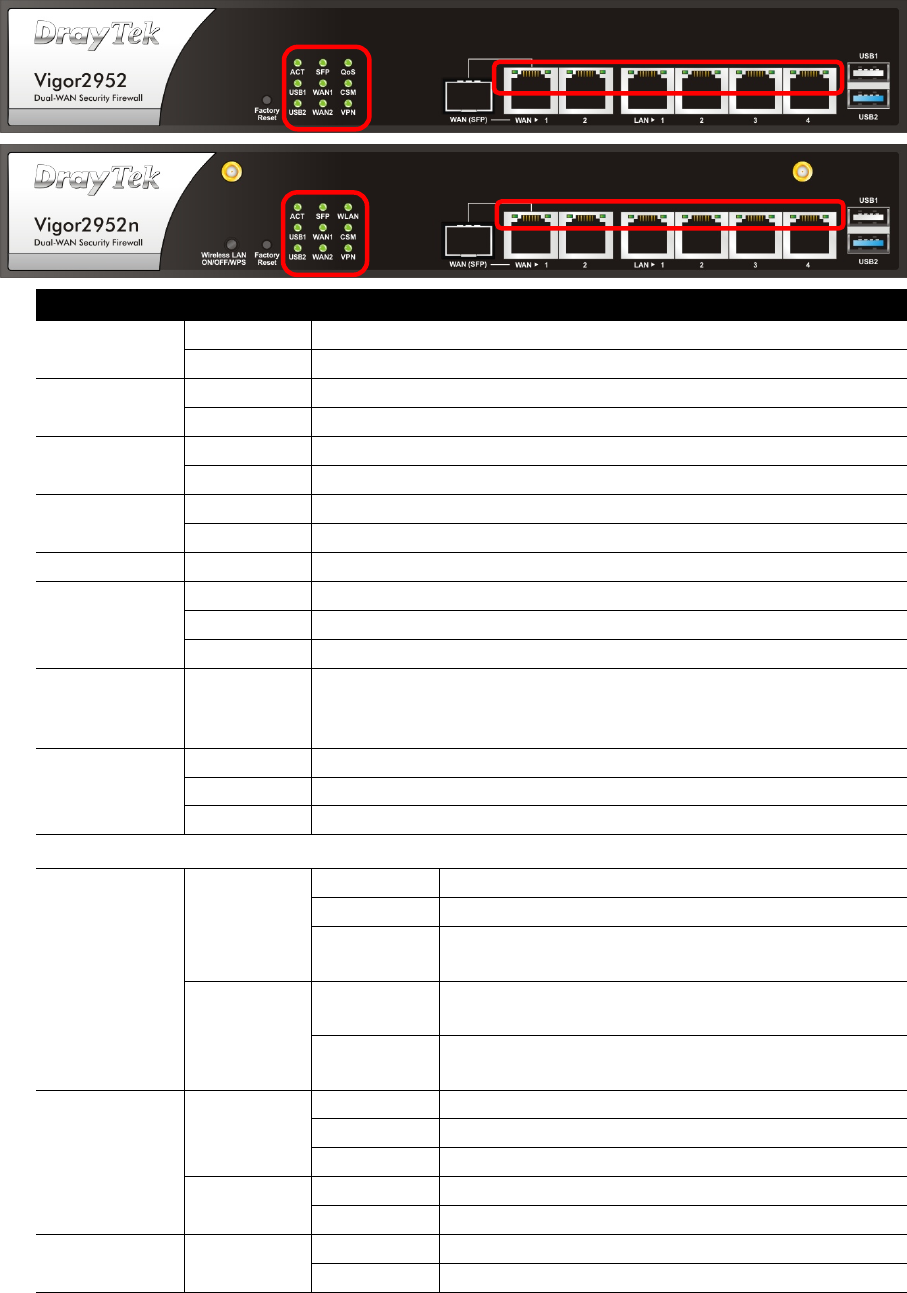

LED Status Explanation
ACT
(Activity) Blinking The router is powered on and running normally.
Off The router is powered off.
USB1~USB2 On A USB device is connected and active.
Blinking The data is transmitting.
SFP On No fiber line connected.
Off File line connected.
WAN1~WAN2 On The WAN connection is ready.
Blinking It will blink while transmitting data.
QoS On The QoS function is active.
WLAN On Wireless access point is ready.
Blinking Ethernet packets are transmitting over wireless LAN.
Off The WLAN function is inactive.
CSM On The profile of CSM (Content Security Management) for
IM/P2P application is enabled from Firewall >> General
Setup. (Such profile is established under CSM menu).
VPN On VPN tunnel is up and down.
Off VPN services are disabled.
Blinking Traffic is passing through VPN tunnel.
LED on Connector
WAN1
or
Fiber WAN
Left LED
(Green) On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting through WAN1 or
Fiber WAN.
Right LED
(Green) On The WAN1/Fiber port is connected with
1000Mbps.
Off The WAN1/Fiber port is connected with
10/100Mbps.
WAN2 Left LED
(Green) On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
Right LED
(Green) On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps.
LAN1~LAN4 Left LED
(Green) On The port is connected.
Off The port is disconnected.
4
Blinking The data is transmitting.
Right LED
(Green) On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps.

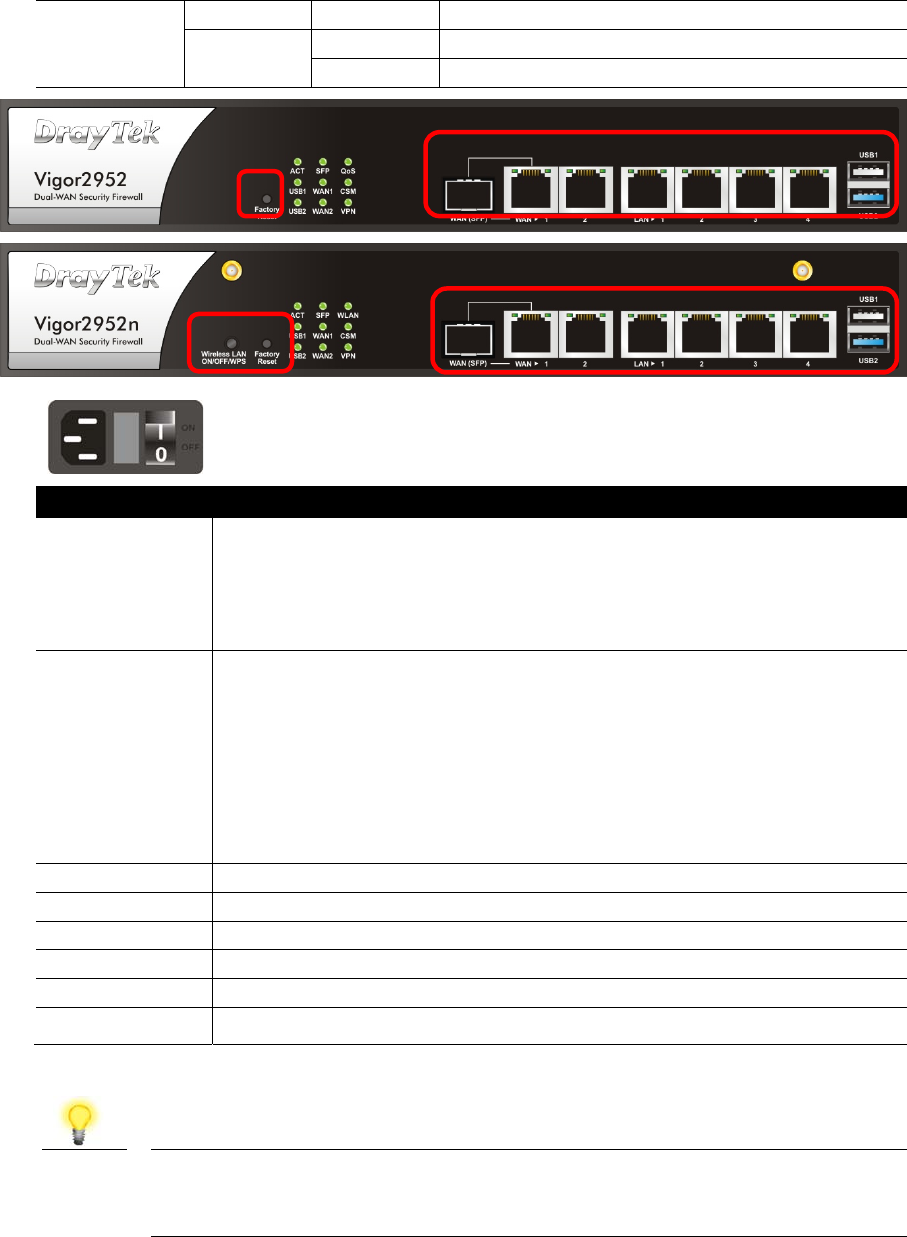

Interface Description
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the ACT LED begins to
blink rapidly than usual, release the button. Then the router will
restart with the factory default configuration.
Wireless LAN
ON/OFF/WPS WLAN On - Press the button and release it within 2 seconds. When
the wireless function is ready, the green LED will be on.
WLAN Off - Press the button and release it within 2 seconds to turn
off the WLAN function. When the wireless function is not ready, the
LED will be off.
WPS - When WPS function is enabled by web user interface, press
this button for more than 2 seconds to wait for client’s device making
network connection through WPS.
Fiber Connector for accessing the Internet.
WAN1~WAN2 Connector for remote networked devices.
LAN1~LAN4 Connectors for local networked devices.
USB1~USB2 Connector for a USB device (for 3G/4G USB Modem or printer).
PWR Connector for a power cord.
ON/OFF Power Switch.
Note Vigor router will use either Fiber WAN or WAN1 for Internet connection. If
both Fiber WAN and WAN1 are connected at the same time, Fiber WAN will
be the first choice.
5
4
4.
.
H
Ha
ar
rd
dw
wa
ar
re
e
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
This section will guide you to install the router through hardware connection and
configure the router’s settings through web browser.
Before starting to configure the router (taking Vigor2952n for example), you
have to connect your devices correctly.

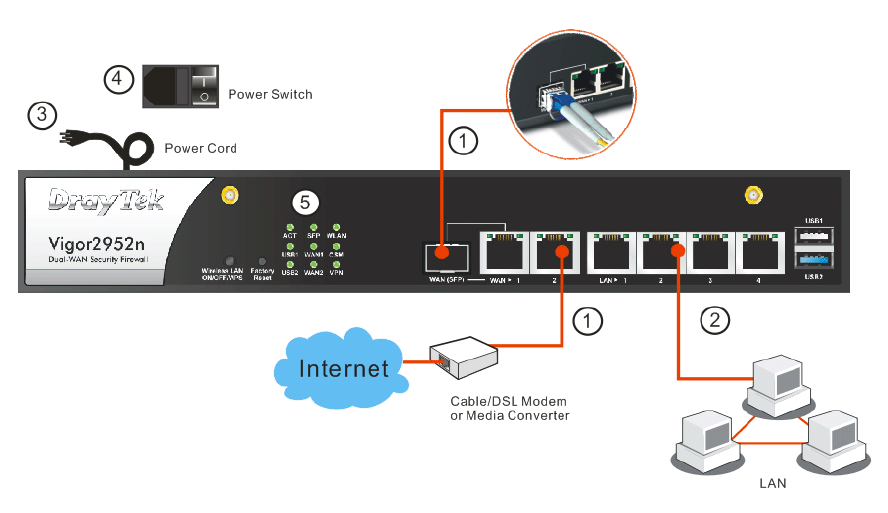

1. Connect a cable Modem/DSL Modem/Media Converter (depends on your
requirement) to any WAN port of router with Ethernet cable (RJ-45). Or,
connect the fiber cable to the WAN (SFP) port of router.
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the
router and the other end of the cable (RJ-45) into the Ethernet port on your
computer (that device also can connect to other computers to form a small
area network).
3. Connect the power cord to the router’s power port on the rear panel, and
the other side into a wall outlet.
4. Power on the device by pressing down the power switch on the rear panel.
5. The system starts to initiate. After completing the system test, the ACT LED
will light up and start blinking. The WAN1/WAN2/LAN connector LED (Left
or Right) will light up according to the network card feature (1000 or 100) of
the device that it connected.
If Fiber connection is used, check if SFP LED lights up or not.
(For the detailed information of LED status, please refer to section 3. Panel
Explanation)
6
5
5.
.
S
So
of
ft
tw
wa
ar
re
e
C
Co
on
nf
fi
ig
gu
ur
ra
at
ti
io
on
n
To access Internet, please finish basic configuration after completing the
hardware installation.
The Quick Start Wizard is designed for you to easily set up your router for
Internet access. You can directly access the Quick Start Wizard via Web
Configurator.
1. Make sure your PC connects to the router correctly.
Note You may either simply set up your computer to get IP dynamically
from the router or set up the IP address of the computer to be the
same subnet as the default IP address of Vigor router
192.168.1.1. For the detailed information, please refer to the
later section - Trouble Shooting of the guide.

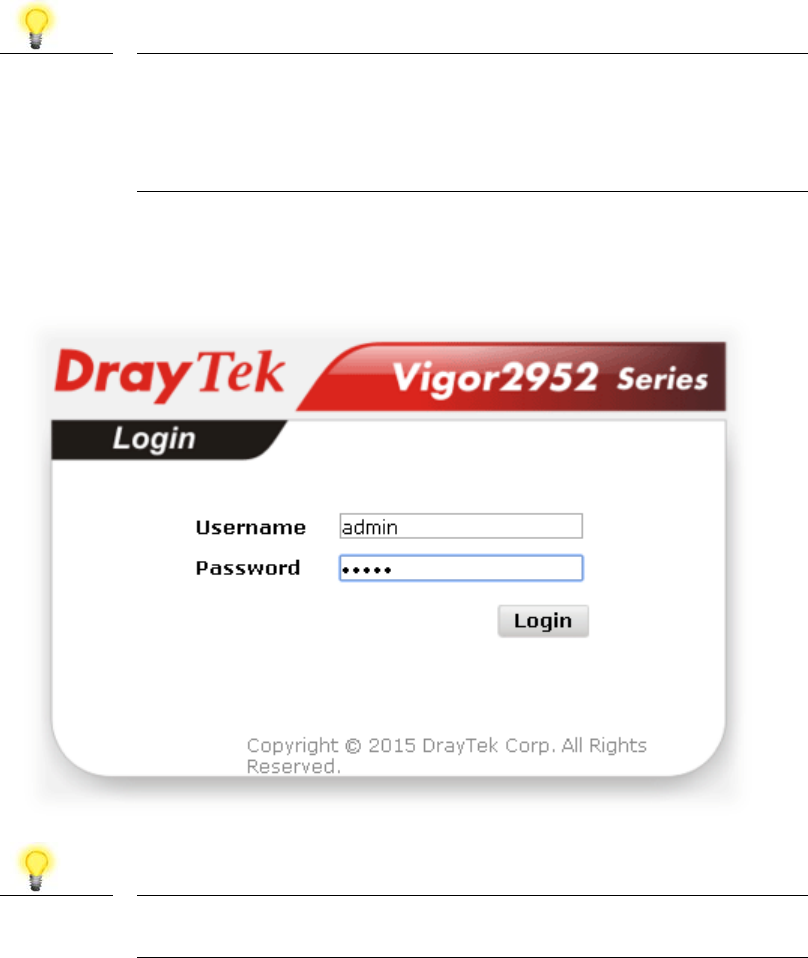

2. Open a web browser on your PC and type http://192.168.1.1. A pop-up
window will open to ask for username and password. Please type
“admin/admin” as the Username/Password and click Login.
Note If you fail to access to the web configuration, please go to
“Trouble Shooting” for detecting and solving your problem.
7

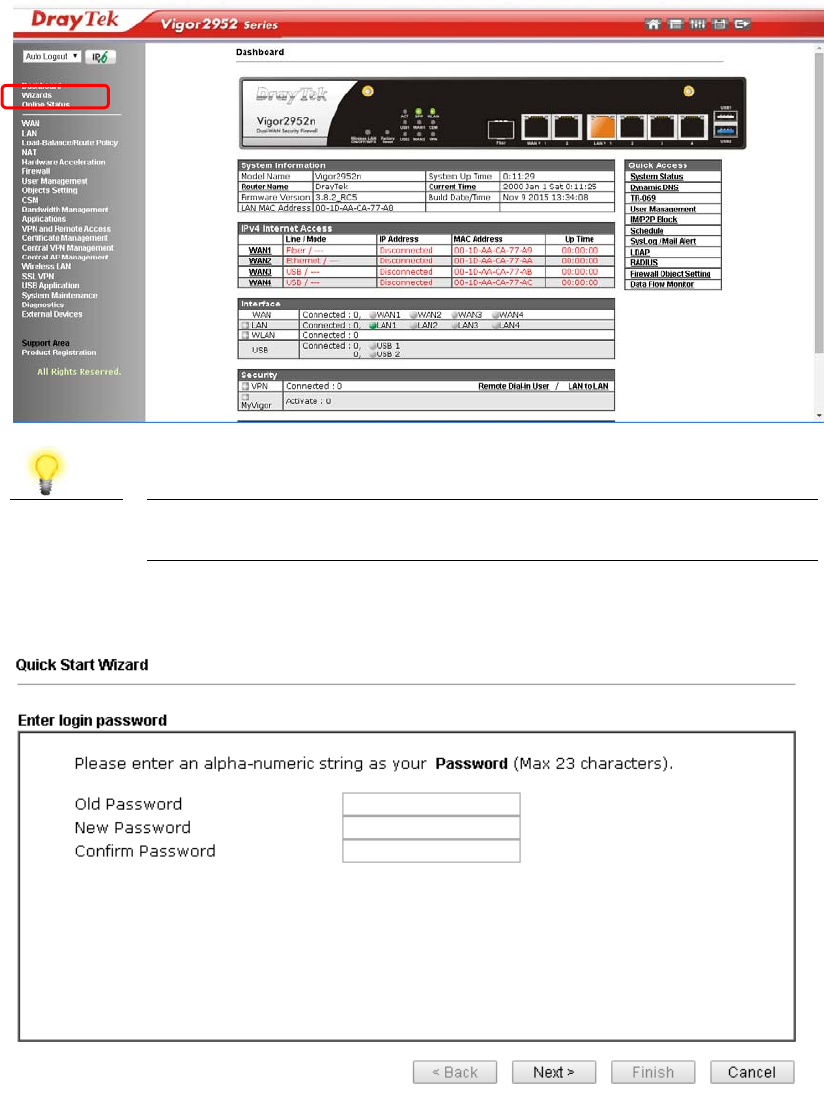

3. Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard.
Note The home page will change slightly in accordance with the router
you have.
4. Enter the login password on the field of New Password and retype it on the
field of Confirm Password. Then click Next to continue.
8

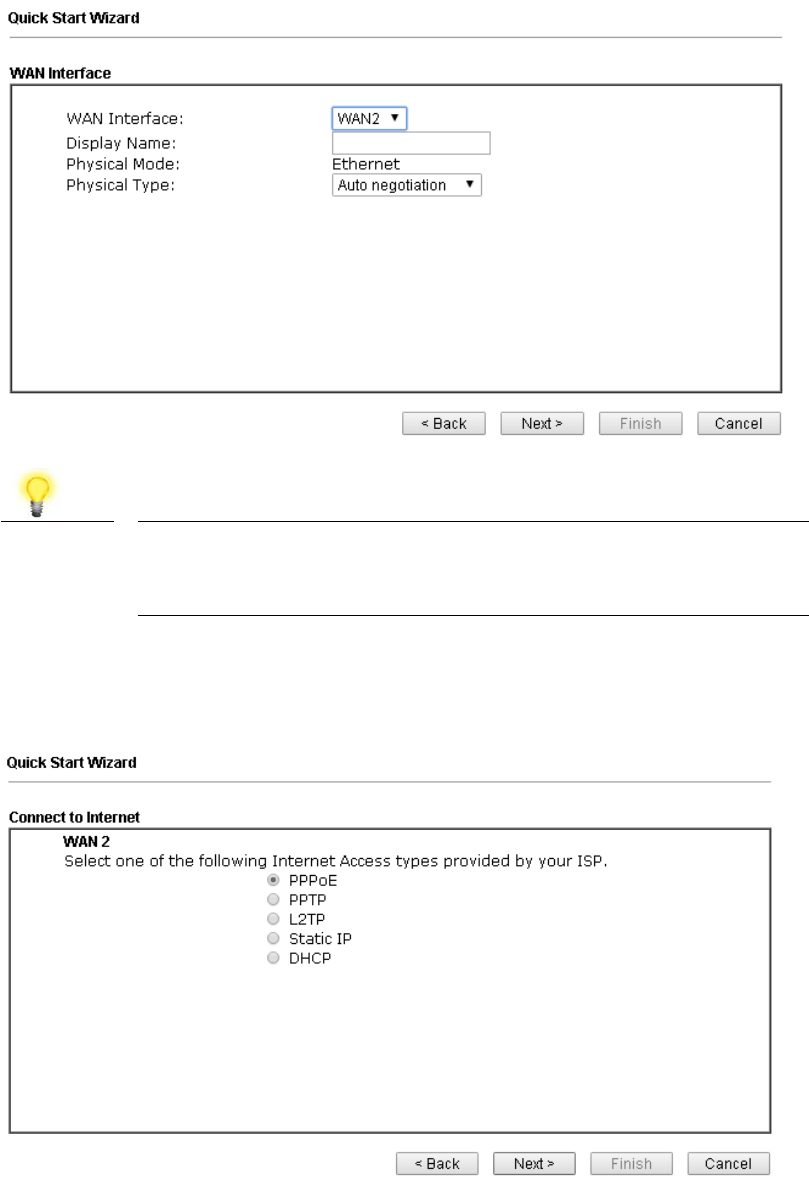

5. On the next page as shown below, please select the WAN interface (WAN 1
to WAN4) that you use. If Fiber interface is used, please choose WAN1. If
Ethernet interface is used, please choose WAN2. If USB interface is used,
choose WAN3 or WAN4. Here we take WAN2 as an example. Then, click Next
for next step.
Note There are four WAN selections available for you to choose. In
which WAN3 /WAN4 is selected for 3G/4G USB modem
connection.
6. On the next page as shown below, please select the appropriate protocol
according to the information from your ISP. For example, you should
select PPPoE mode if the ISP provides you PPPoE interface. Then click Next
for next step.
9

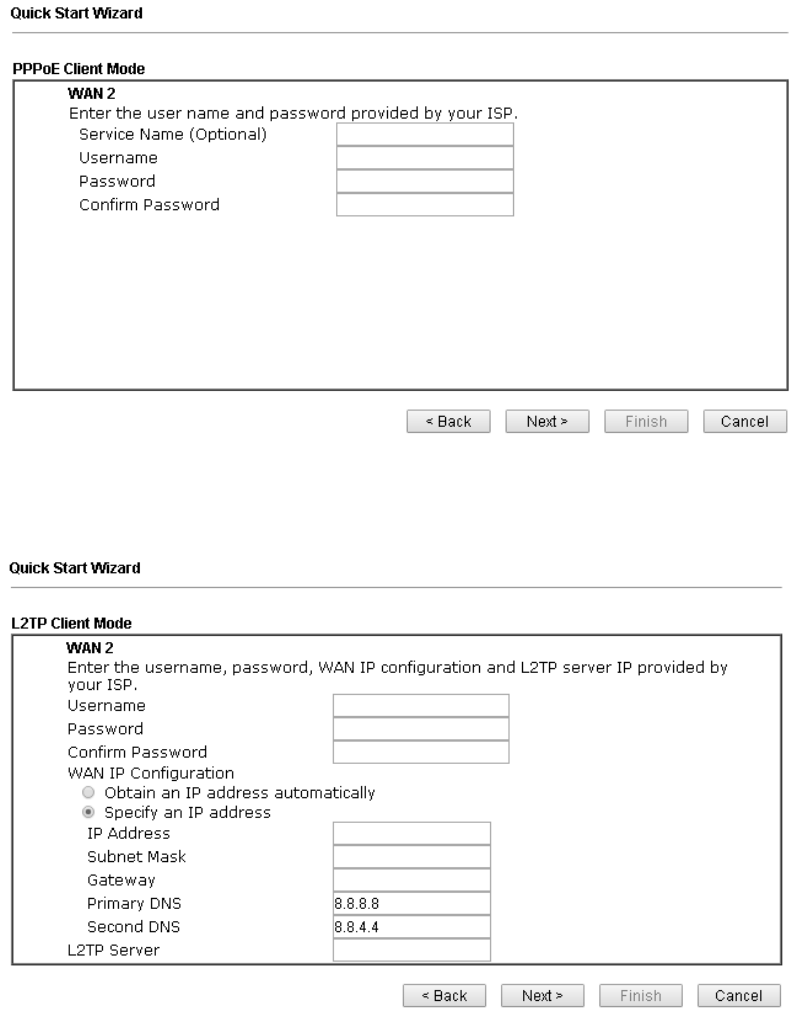

PPPoE: If you click PPPoE as the protocol, after clicking Next, you will get
the following web page. Please manually enter the Username/Password
provided by your ISP. Then click Next.
PPTP/L2TP: if you click PPTP/L2TP, you will get the following page. Please
type in all the information originally provided by your ISP. Then click Next
for next step.
10
Static IP: if you click Static IP, you will get the following page. Please type in
the IP address information originally provided by your ISP. Then click Next
for next step.
DHCP: if you click DHCP, you will get the following page. Simply click Next
to continue.
11

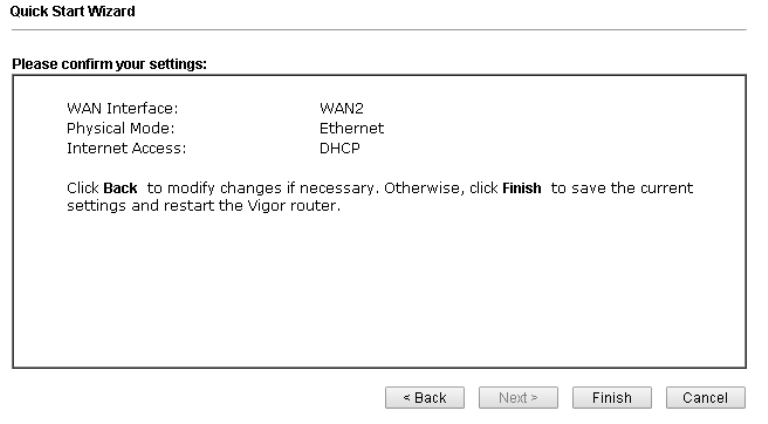

7. Now you can see the following screen. It indicates that the setup is complete.
Different types of connection modes will have different summary. Click
Finish and then restart the router. Afterward, you will enjoy surfing on the
Internet.
6
6.
.
C
Cu
us
st
to
om
me
er
r
S
Se
er
rv
vi
ic
ce
e
If the router cannot work correctly after trying many efforts, please contact your
dealer/DrayTek for further help right away. For any questions, please feel free
to send e-mail to support@draytek.com.
