User Manual

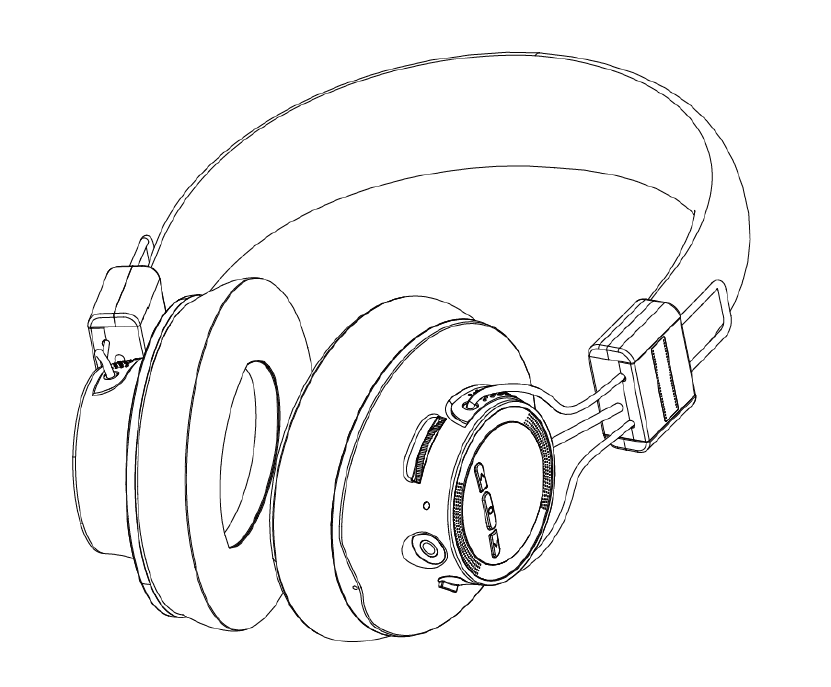

LinkWitz Bluetooth Wired/Wireless Stereo Headphones
Model: HB-01
USER MANUAL
Thank you for purchasing this Bluetooth headphone.
Please read the instructions and warnings carefully before use to ensure safe and satisfactory
enjoyment of this product.
Important safety information
Adjust the headphone sound to the proper volume. Loud sound may damage your ears.
Don’t turn the volume so high that you can’t hear what’s around you.
Use carefully or temporarily discontinue use in potentially hazardous situations.
Do not use the headphone while riding a bicycle, motor bike, or while driving a car. The use of
headphones in this way may create a traffic hazard and is illegal in many areas.
No exposure to fire or toss the headphone into a fire. It will probably cause an accident.
Don't disassemble the headset any if you are not an expert.
Place out of reach of small children to prevent accidental ingestion of small parts.
Warning
This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or
moisture.
To prevent a fire hazard, do not place any naked flame sources (such as lighted candle) on the
equipment.

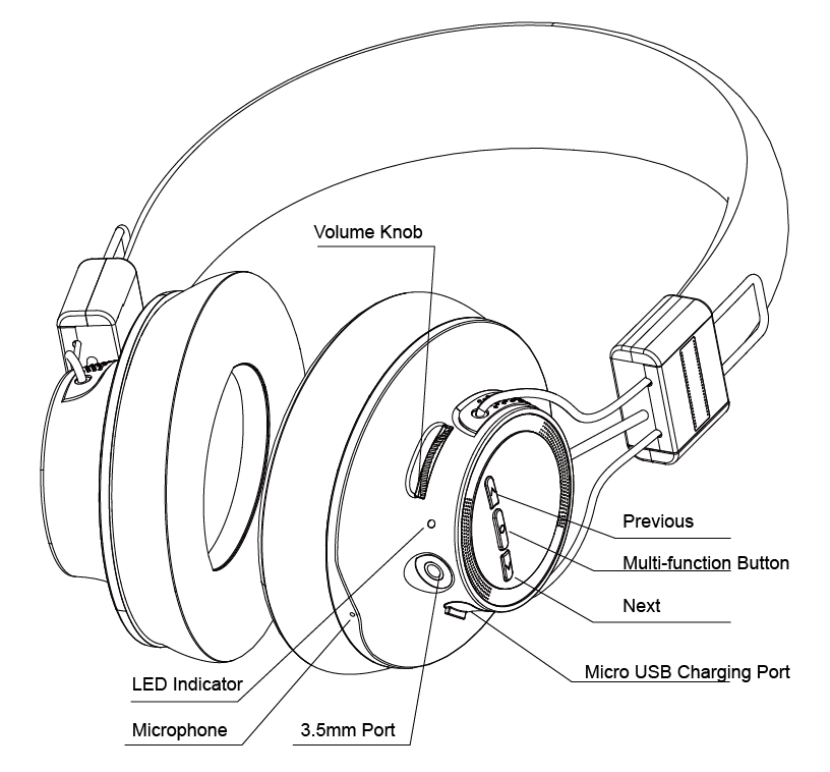

Description of the appliance

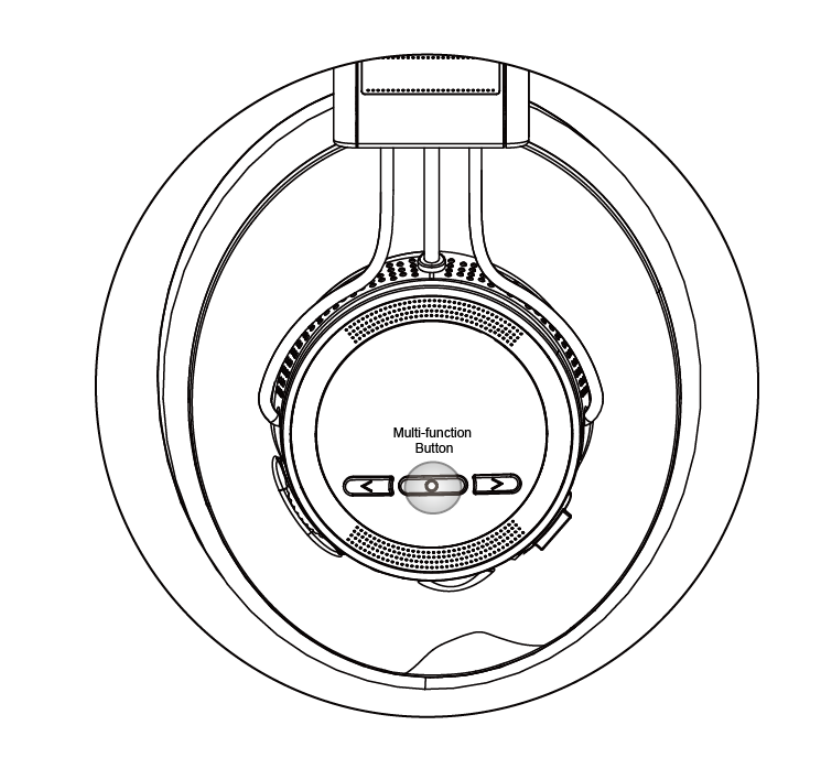

Power on / off
1. In the power-off state, long-press the “Multi-function Button” for 3 seconds
until the indicator flashes alternately red and blue, and the prompt of the
headphone sounds. At this time, the headphone is turned on.
2. In the power-on state, long-press the “Multi-function Button” for 3 seconds,
and the prompt of the headphone sounds. At this time, the headphone is
turned off, and the indicator goes out.
Bluetooth pairing steps:
1. Please control the distance between Bluetooth headphone and mobile
phone (or other devices used for connection) to be within 1 m, the closer it is,
the better effect will be;
2. In the power-off state, long-press the “Multi-function Button” for 3 seconds,
and then the prompt of the headphone sounds. At this time, the indicator
flashes alternately red and blue, and the headphone is turned on;
3. Turn on the Bluetooth search function of the mobile phone or other
required connection device, and the mobile phone will prompt that the device
has been found;
4. Select “HB-01” (For some mobile phones, it needs to enter “0000” as the
pairing password, the Bluetooth headphone will automatically connect to the
mobile phone, and the blue light will flash.)
Connect headphones to two mobile phones
1. After successfully pairing with a mobile phone, turn off the Bluetooth of the
first mobile phone, long-press the “Multi-function Button” of the headphone for
3 seconds, and turn off the headphone;
2. Pair with the second mobile phone according to the step of pairing with the
first mobile phone;
3. Turn on the Bluetooth of the first mobile phone and select “HB-01” to
complete the pairing with the two mobile phones.
Notes:
A. When the paired device is in Bluetooth on state and within the connection
range, it can be automatically connected back to the last connected device
only by turning on “HB-01”. If it cannot be connected back, please open the
Bluetooth menu of the Bluetooth device and click on the connected “HB-01” to
connect back.
B. If the pairing time exceeds 5 minutes, the headphone will automatically
shut down; Back to the effective distance within 3 minutes beyond the effective
connection range can automatically connect back to the last connected device;
C. When two mobile phones are connected at the same time, the two phones
cannot play music at the same time. It needs to suspend the playing music of
one phone before the other phone can continue to play music. Both phones
can carry out Bluetooth call function, and the remaining power of Bluetooth
headphone can be displayed on iPhone.
Connect and hang up the phone
Answering:
When there is an incoming call after the mobile phone is connected to the
headphone, the headphone will prompt. Press the “Multi-function Button” once
to answer the incoming call; Or use your phone to answer the call directly.
Hanging up:
When your phone is busy, you can press the “Multi-function Button” of the
headphone once to hang up the call. Or hang up your phone directly.
Refusing to answer:
When you hear an incoming call, the headphone will prompt. At this time,
press the “Multi-function Button” for 2 seconds to refuse the call. Or use your
phone to refuse to answer the call.
Recall the last number:
Double-click the “Multi-function Button” to dial the last number the phone
dialed.
Power prompt:
When the “HB-01” Bluetooth headphone is low in power, there will be a “Beep”
warning tone, and the red light of the indicator will flash rapidly at this time.
Play / pause
While the headphone is playing music, click the “Multi-function Button” to
pause the music playing. Click “Multi-function Button” again to resume music
playback.

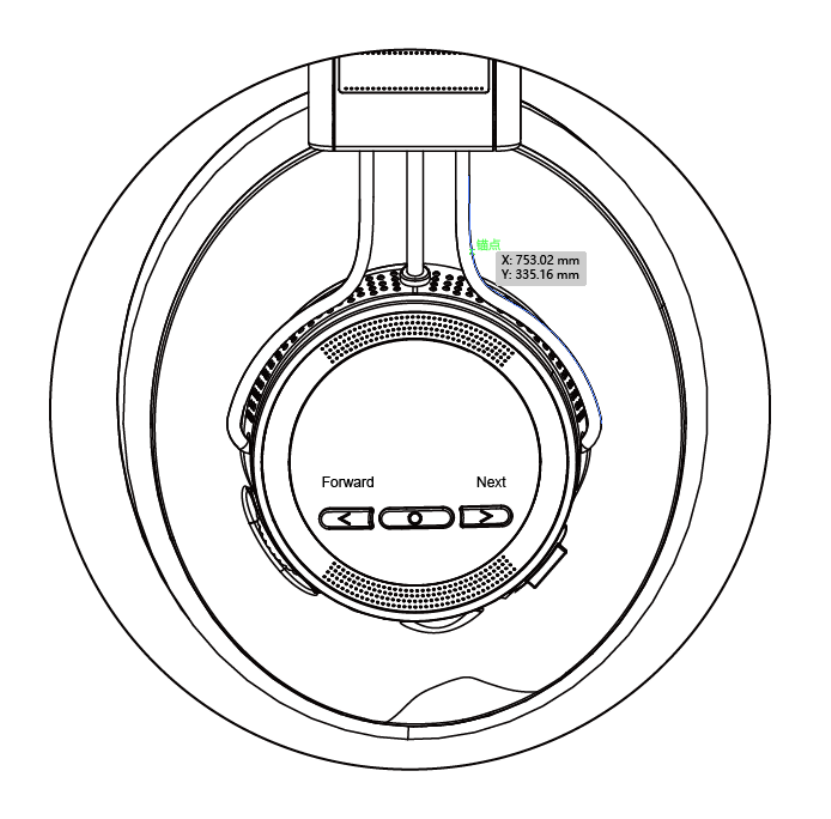

Skip Songs
When playing music, click “<” to select the previous music; Click “>” to select
the next music.

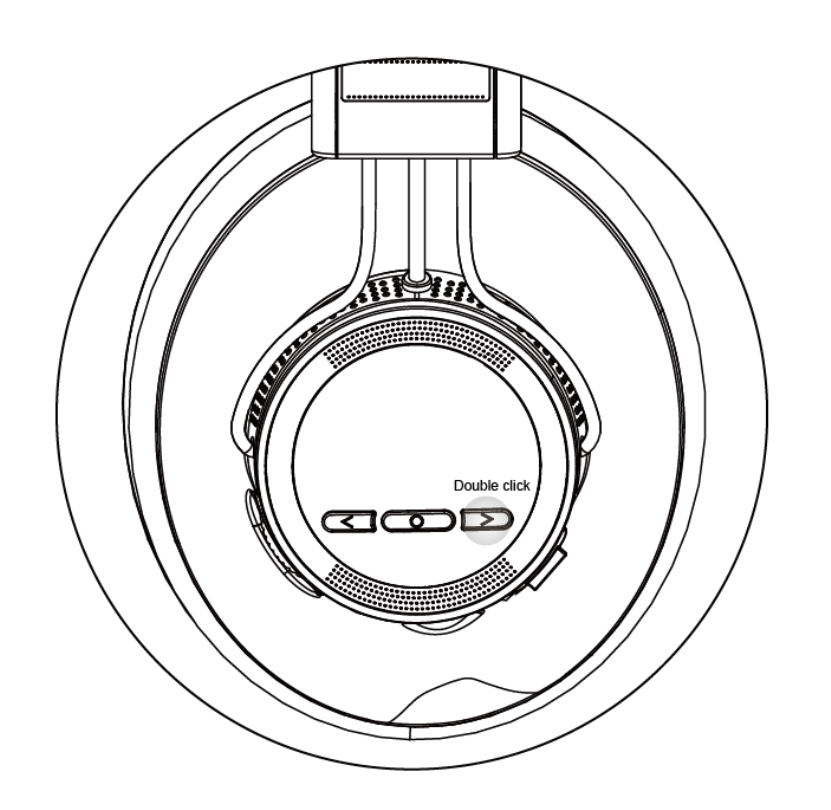

Activate the Siri function of iOS
When the HB-01 Bluetooth headphone is linked to iOS Apple Bluetooth device,
double-click the “>” to activate or awaken the Siri function.
Volume up / down
When playing music, push the “Volume Knob” clockwise to increase the
volume. Push the “Volume Knob” counterclockwise to lower the volume.
Restore factory setting:
When charging in the power-off state, long-press the “Multi-function Button”,
and the blue indicator flashes twice to restore the factory settings.
Product parameters:
Bluetooth version
V4.1
Support Bluetooth protocol
HFP, HSP, AVRCP, A2DP
Bluetooth operating frequency
2.402-2.480 GHz
Receiving sensitivity
-80dBm
Bluetooth distance
≥ 10 M
Long-time standby
300 hours
Call duration
About 27 hours
Play duration
About 24 hours
Charging duration
About 3.5 hours
Troubleshooting
Problem
Remedy
Power won’t turn on
Recharge the wireless headphones
The batteries will not charge
Confirm that computer is ON.
Confirm that computer is not in power-saving mode.
Confirm that accessory micro-USB cable is securely
connected to both the wireless headphone and computer.
Can’t perform pairing
Place the wireless headphones and Bluetooth device
closely together when performing pairing
Can’t perform Bluetooth connection
Confirm that power is turned on for both wireless
headphones and Bluetooth device.
Confirm that Bluetooth function is turned ON in the device
you are connecting to
No sound when playing music
Confirm that power is turned on for both wireless
headphones and Bluetooth device.
Confirm that connection with Bluetooth device is set for
profile A2DP.
Confirm that the connected music playback device is set
for PLAY.
Confirm that sound volume controls on both wireless
headphones and music playback device are set to
appropriate levels.
Sound is distorted when playing music
Check that no other devices utilizing the 2.4GHz
wavelength are nearby, and that no obstructions black
the signal path.
Can’t use the hands-free operation
Confirm that wireless headphones and Bluetooth device
are connected using the profile HFP or HSP. If
connection that to the Bluetooth device is in profile A2DP,
it may be necessary to change connection profiles
(depending on the specifications of the Bluetooth device).
Communication distance is short, sound is
garbled.
Check that no other devices utilizing the 2.4GHz
wavelength (including microwave ovens, wireless radios,
etc.) are nearby. and that no obstructions block the signal
path.
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
