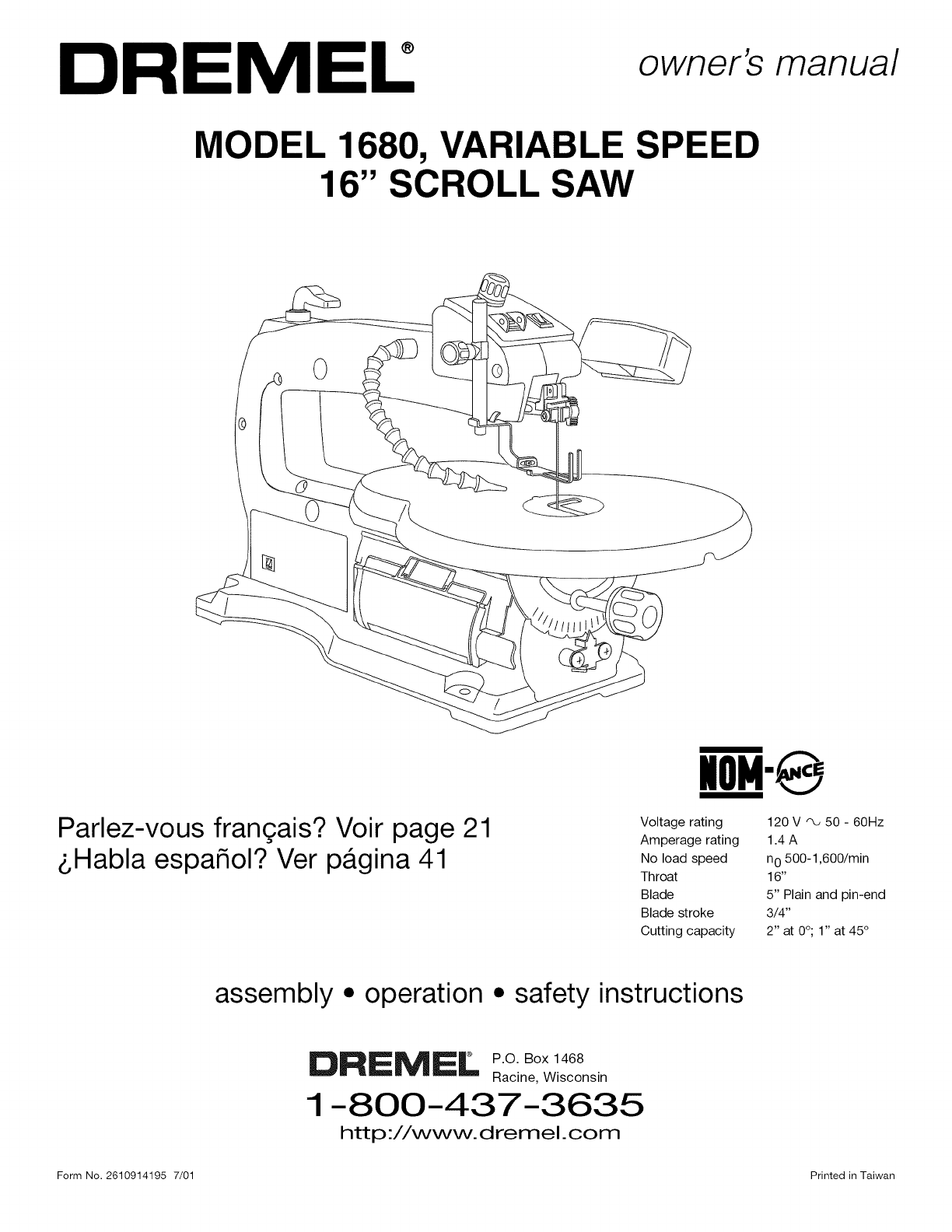

DREMEE owner's manual

MODEL 1680, VARIABLE SPEED

16" SCROLL SAW

Parlez-vous frangais? Voir page

&Habla espaSol? Ver pagina 41

21 Voltage rating

Amperage rating

No load speed

Throat

Blade

Blade stroke

Cutting capacity

120 V _ 50 -60Hz

1.4A

n O 500-1,600/min

16"

5" Plain and pin-end

3/4"

2" at 0°; 1" at 45 °

assembly • operation • safety instructions

OREMEL P.O. Box 1468

Racine, Wisconsin

1 -800-437-3635

http://www.dremel.com

Form No. 2610914195 7/01 Printed in Taiwan

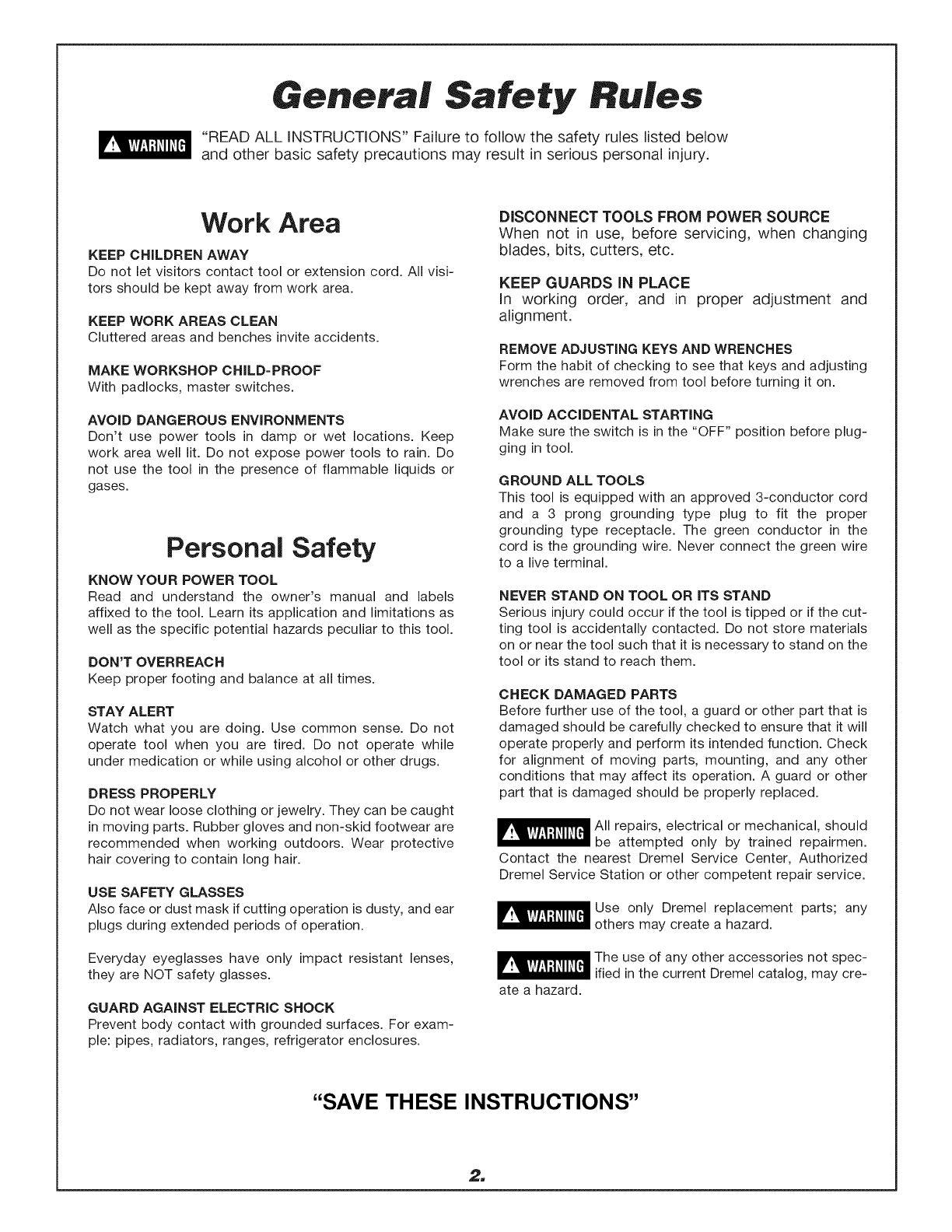

General Safety Rules

"READ ALL INSTRUCTIONS" Failure to follow the safety rules listed below

and other basic safety precautions may result in serious personal injury.

Work Area

KEEP CHILDREN AWAY

Do not let visitors contact tool or extension cord. All visi-

tors should be kept away from work area.

KEEP WORK AREAS CLEAN

Cluttered areas and benches invite accidents.

MAKE WORKSHOP CHILD-PROOF

With padlocks, master switches.

AVOID DANGEROUS ENVIRONMENTS

Don't use power tools in damp or wet locations. Keep

work area well lit. Do not expose power tools to rain. Do

not use the tool in the presence of flammable liquids or

gases.

Personal Safety

KNOW YOUR POWER TOOL

Read and understand the owner's manual and labels

affixed to the tool. Learn its application and limitations as

well as the specific potential hazards peculiar to this tool.

DON'T OVERREACH

Keep proper footing and balance at all times.

STAY ALERT

Watch what you are doing. Use common sense. Do not

operate tool when you are tired. Do not operate while

under medication or while using alcohol or other drugs.

DRESS PROPERLY

Do not wear loose clothing or jewelry. They can be caught

in moving parts. Rubber gloves and non-skid footwear are

recommended when working outdoors. Wear protective

hair covering to contain long hair.

USE SAFETY GLASSES

Also face or dust mask if cutting operation is dusty, and ear

plugs during extended periods of operation.

Everyday eyeglasses have only impact resistant lenses,

they are NOT safety glasses.

GUARD AGAINST ELECTRIC SHOCK

Prevent body contact with grounded surfaces. For exam-

ple: pipes, radiators, ranges, refrigerator enclosures.

DISCONNECT TOOLS FROM POWER SOURCE

When not in use, before servicing, when changing

blades, bits, cutters, etc.

KEEP GUARDS IN PLACE

In working order, and in proper adjustment and

alignment.

REMOVE ADJUSTING KEYS AND WRENCHES

Form the habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

AVOID ACCIDENTAL STARTING

Make sure the switch is in the "OFF" position before plug-

ging in tool.

GROUND ALL TOOLS

This tool is equipped with an approved 3-conductor cord

and a 3 prong grounding type plug to fit the proper

grounding type receptacle. The green conductor in the

cord is the grounding wire. Never connect the green wire

to a live terminal.

NEVER STAND ON TOOL OR ITS STAND

Serious injury could occur if the tool is tipped or if the cut-

ting tool is accidentally contacted. Do not store materials

on or near the tool such that it is necessary to stand on the

tool or its stand to reach them.

CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part that is

damaged should be carefully checked to ensure that it will

operate properly and perform its intended function. Check

for alignment of moving parts, mounting, and any other

conditions that may affect its operation. A guard or other

part that is damaged should be properly replaced.

All repairs, electrical or mechanical, should

be attempted only by trained repairmen.

Contact the nearest Dremel Service Center, Authorized

Dremel Service Station or other competent repair service.

ate a hazard.

Use only Dremel replacement parts; any

others may create a hazard.

The use of any other accessories not spec-

ified in the current Dremel catalog, may cre-

"SAVE THESE INSTRUCTIONS"

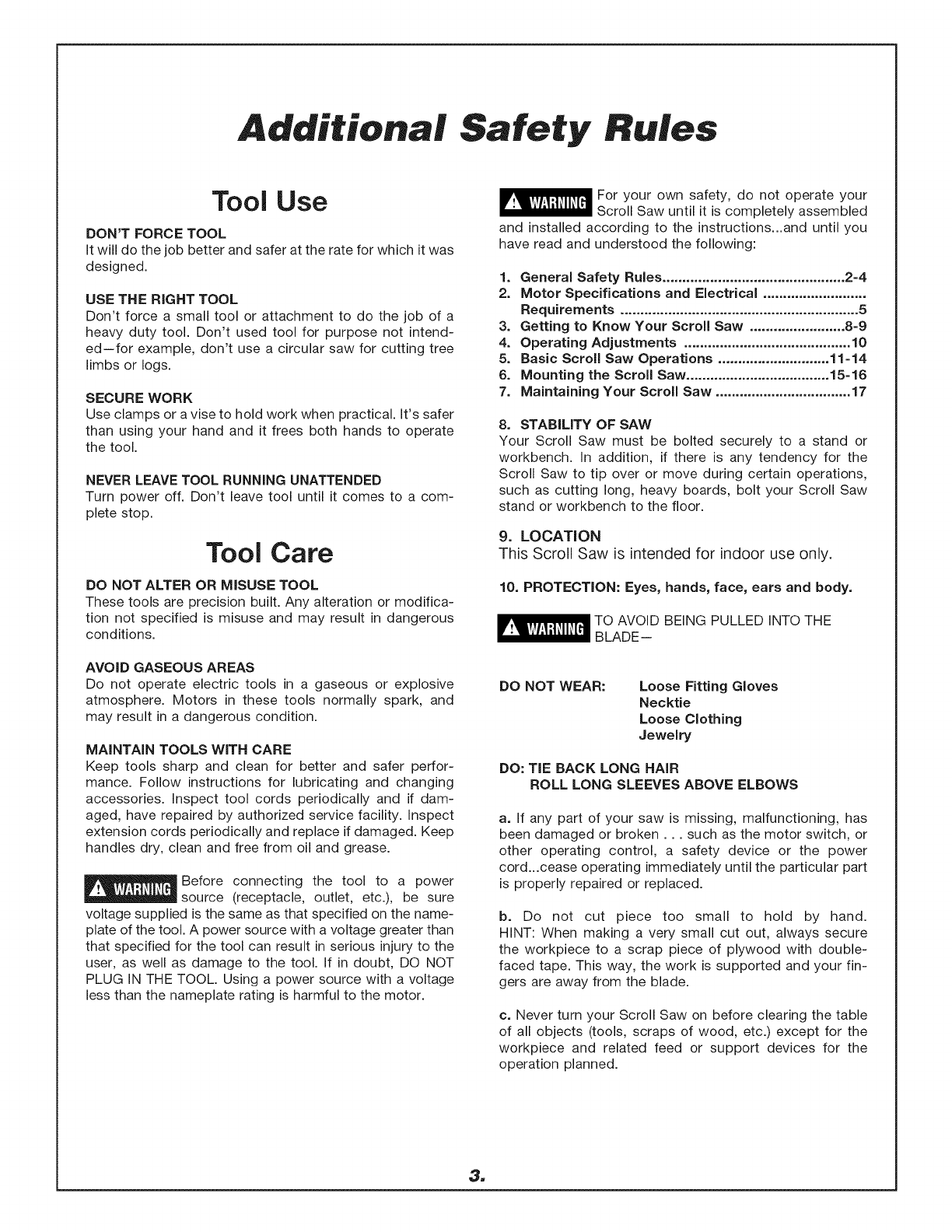

Tool Use

DON'T FORCE TOOL

It will do the job better and safer at the rate for which it was

designed.

USE THE RIGHT TOOL

Don't force a small tool or attachment to do the job of a

heavy duty tool. Don't used tool for purpose not intend-

ed-for example, don't use a circular saw for cutting tree

limbs or logs.

SECURE WORK

Use clamps or a vise to hold work when practical. It's safer

than using your hand and it frees both hands to operate

the tool.

NEVER LEAVE TOOL RUNNING UNATTENDED

Turn power off. Don't leave tool until it comes to a com-

plete stop.

Tool Care

DO NOT ALTER OR MISUSE TOOL

These tools are precision built. Any alteration or modifica-

tion not specified is misuse and may result in dangerous

conditions.

AVOID GASEOUS AREAS

Do not operate electric tools in a gaseous or explosive

atmosphere. Motors in these tools normally spark, and

may result in a dangerous condition.

MAiNTAiN TOOLS WiTH CARE

Keep tools sharp and clean for better and safer perfor-

mance. Follow instructions for lubricating and changing

accessories. Inspect tool cords periodically and if dam-

aged, have repaired by authorized service facility. Inspect

extension cords periodically and replace if damaged. Keep

handles dry, clean and free from oil and grease.

Before connecting the tool to a power

(receptacle, outlet, etc.), be sure

voltage supplied is the same as that specified on the name-

plate of the tool. A power source with a voltage greater than

that specified for the tool can result in serious injury to the

user, as well as damage to the tool. If in doubt, DO NOT

PLUG IN THE TOOL. Using a power source with a voltage

less than the nameplate rating is harmful to the motor.

For your own safety, do not operate your

Scroll Saw until it is completely assembled

and installed according to the instructions...and until you

have read and understood the following:

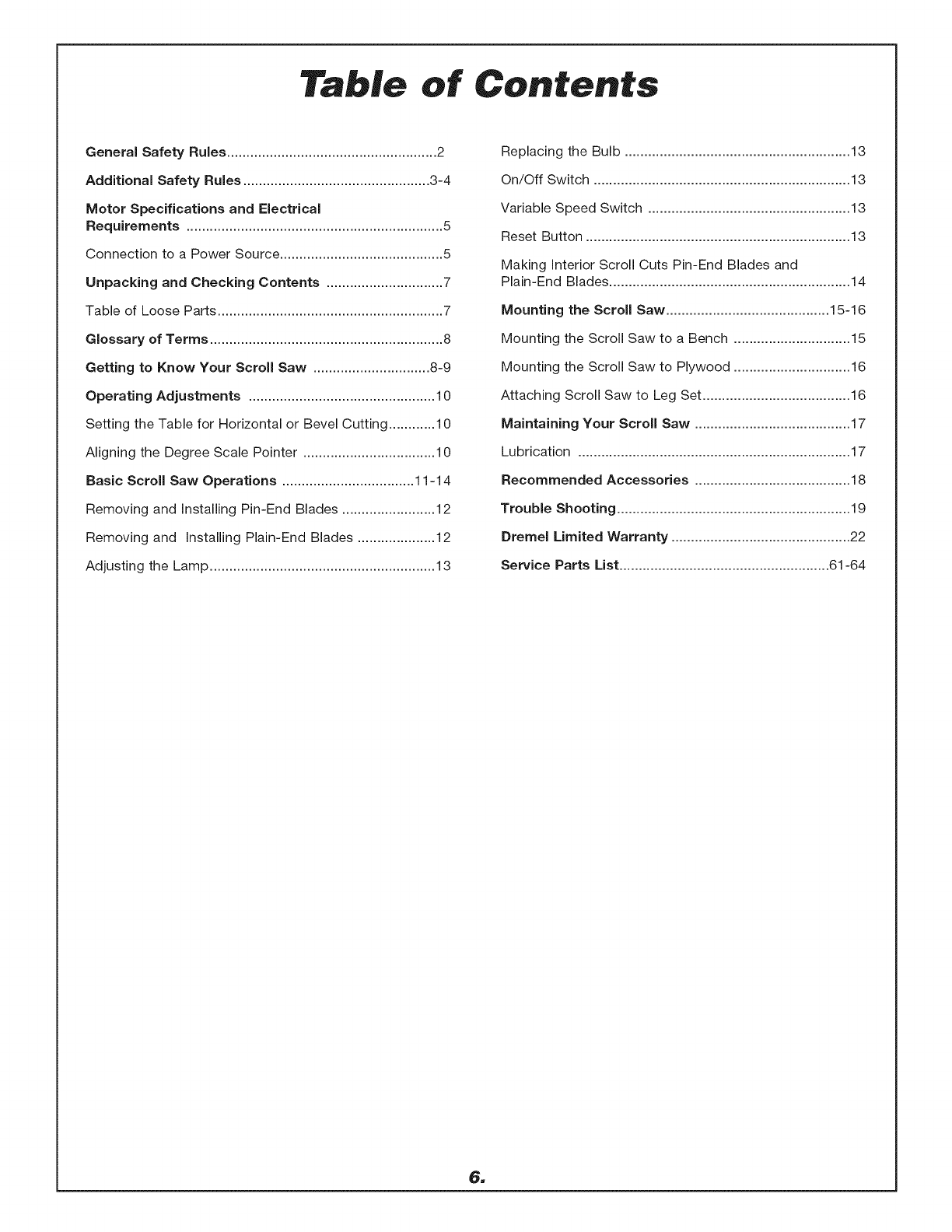

1. General Safety Rules .............................................. 2=4

2. Motor Specifications and Electrical ..........................

Requirements ............................................................ 5

3. Getting to Know Your Scroll Saw ........................ 8-9

4. Operating Adjustments .......................................... 10

5. Basic Scroll Saw Operations ............................ 11=14

6. Mounting the Scroll Saw .................................... 15-16

7. Maintaining Your Scroll Saw .................................. 17

8. STABILITY OF SAW

Your Scroll Saw must be bolted securely to a stand or

workbench. In addition, if there is any tendency for the

Scroll Saw to tip over or move during certain operations,

such as cutting long, heavy boards, bolt your Scroll Saw

stand or workbench to the floor.

9. LOCATION

This Scroll Saw is intended for indoor use only.

10. PROTECTION: Eyes, hands, face, ears and body.

TO AVOID BEING PULLED INTO THE

BLADE--

DO NOT WEAR: Loose Fitting Gloves

Necktie

Loose Clothing

Jewelry

DO: TiE BACK LONG HAiR

ROLL LONG SLEEVES ABOVE ELBOWS

a. If any part of your saw is missing, malfunctioning, has

been damaged or broken.., such as the motor switch, or

other operating control, a safety device or the power

cord...cease operating immediately until the particular part

is properly repaired or replaced.

b. Do not cut piece too small to hold by hand.

HINT: When making a very small cut out, always secure

the workpiece to a scrap piece of plywood with double-

faced tape. This way, the work is supported and your fin-

gers are away from the blade.

c. Never turn your Scroll Saw on before clearing the table

of all objects (tools, scraps of wood, etc.) except for the

workpiece and related feed or support devices for the

operation planned.

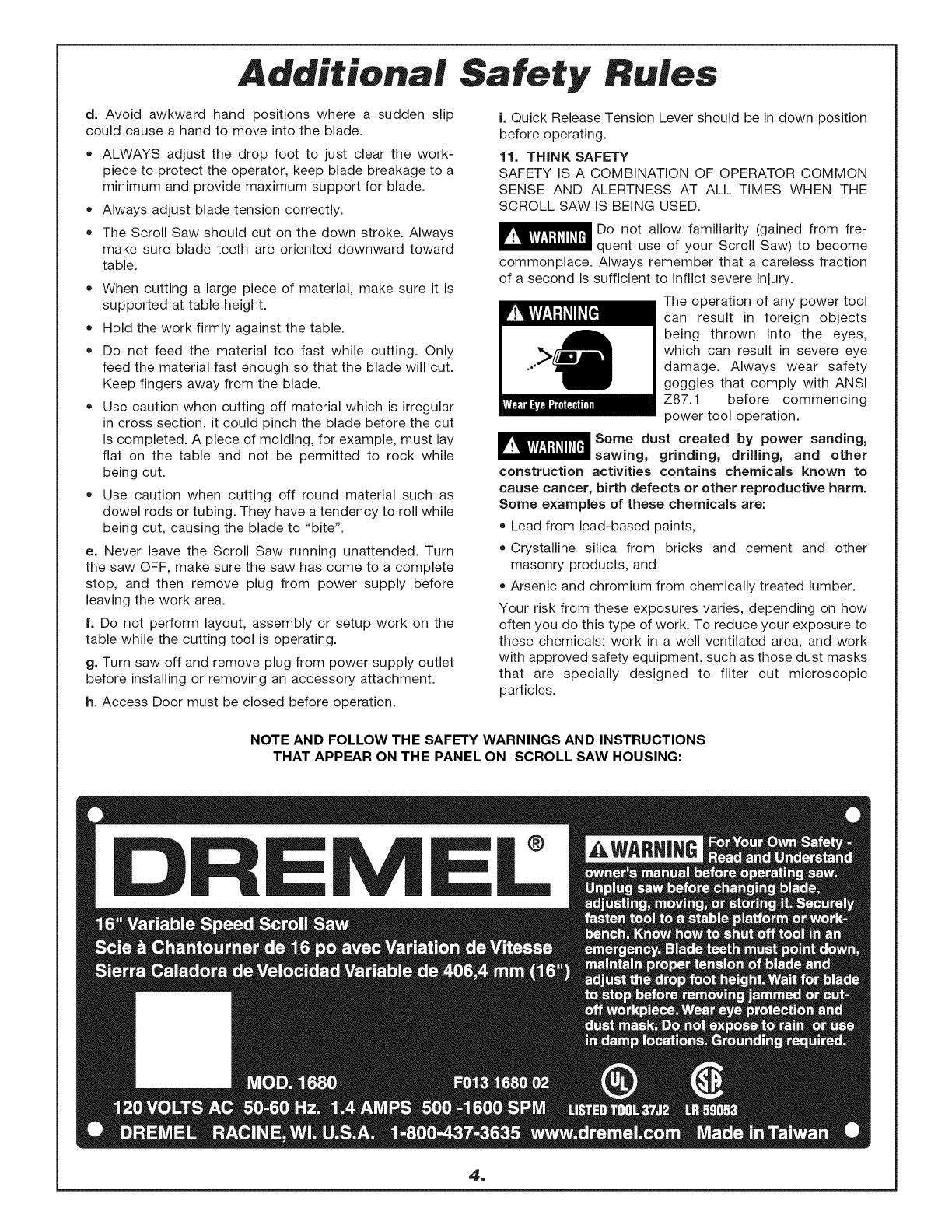

d. Avoid awkward hand positions where a sudden slip

could cause a hand to move into the blade.

•ALWAYS adjust the drop foot to just clear the work-

piece to protect the operator, keep blade breakage to a

minimum and provide maximum support for blade.

•Always adjust blade tension correctly.

•The Scroll Saw should cut on the down stroke. Always

make sure blade teeth are oriented downward toward

table.

•When cutting a large piece of material, make sure it is

supported at table height.

•Hold the work firmly against the table.

•Do not feed the material too fast while cutting. Only

feed the material fast enough so that the blade will cut.

Keep fingers away from the blade.

•Use caution when cutting off material which is irregular

in cross section, it could pinch the blade before the cut

is completed. A piece of molding, for example, must lay

flat on the table and not be permitted to rock while

being cut.

•Use caution when cutting off round material such as

dowel rods or tubing. They have a tendency to roll while

being cut, causing the blade to "bite".

e. Never leave the Scroll Saw running unattended. Turn

the saw OFF, make sure the saw has come to a complete

stop, and then remove plug from power supply before

leaving the work area.

f. Do not perform layout, assembly or setup work on the

table while the cutting tool is operating.

g. Turn saw off and remove plug from power supply outlet

before installing or removing an accessory attachment.

h. Access Door must be closed before operation.

i. Quick Release Tension Lever should be in down position

before operating.

11. THINK SAFETY

SAFETY iS A COMBINATION OF OPERATOR COMMON

SENSE AND ALERTNESS AT ALL TIMES WHEN THE

SCROLL SAW IS BEING USED.

Do not allow familiarity (gained from fre-

quent use of your Scroll Saw) to become

commonplace. Always remember that a careless fraction

of a second is sufficient to inflict severe injury.

The operation of any power tool

can result in foreign objects

_,Q being thrown into the eyes,

which can result in severe eye

.." damage. Always wear safety

goggles that comply with ANSi

Z87.1 before commencing

power tool operation.

Some dust created by power sanding,

sawing, grinding, drilling, and other

construction activities contains chemicals known to

cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

•Lead from lead-based paints,

•Crystalline silica from bricks and cement and other

masonry products, and

•Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how

often you do this type of work. To reduce your exposure to

these chemicals: work in a well ventilated area, and work

with approved safety equipment, such as those dust masks

that are specially designed to filter out microscopic

particles.

NOTE AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS

THAT APPEAR ON THE PANEL ON SCROLL SAW HOUSING:

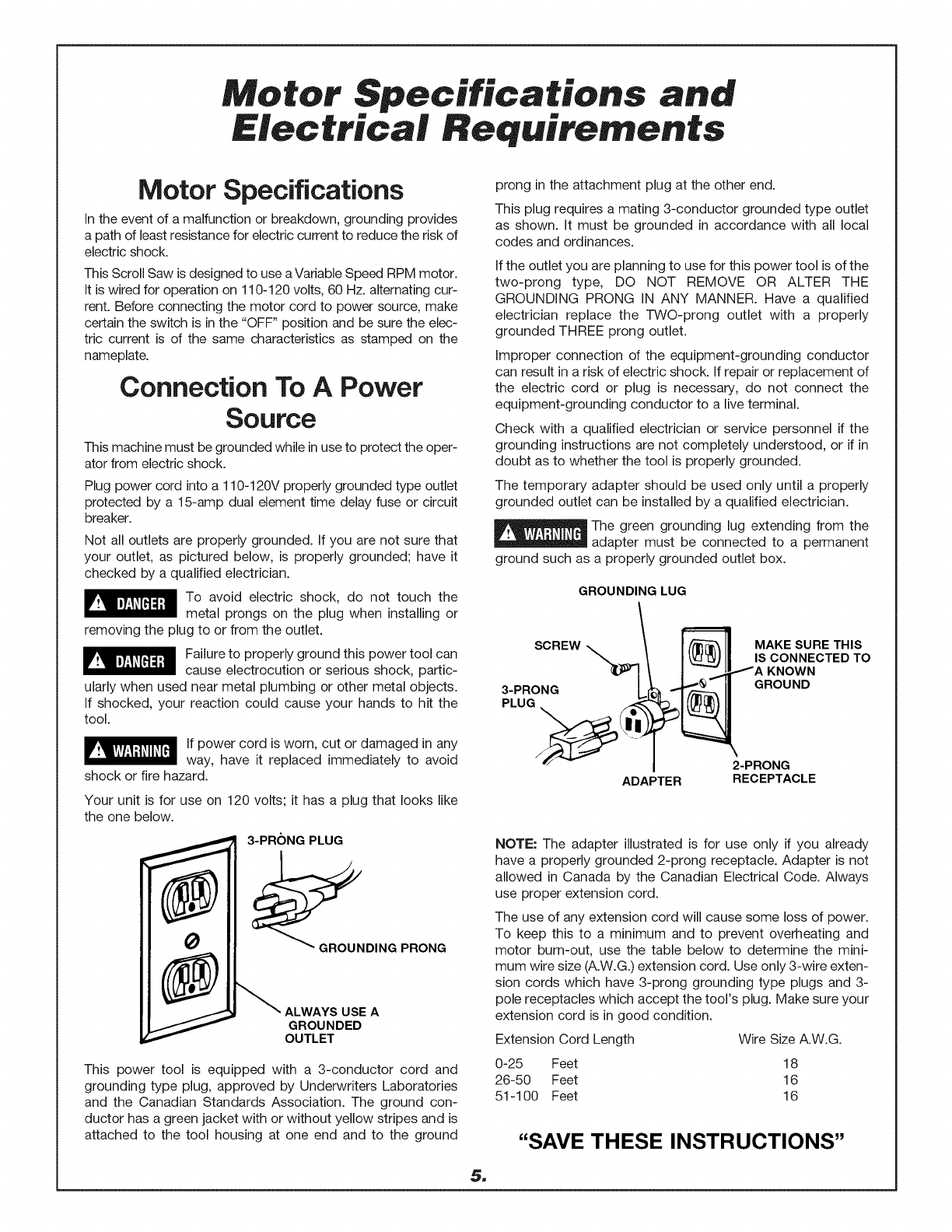

Motor Specifications and

Electrical Requirements

Motor Specifications

In the event of a malfunction or breakdown, grounding provides

a path of least resistance for electric current to reduce the risk of

electric shock.

This Scroll Saw is designed to use a Variable Speed RPM motor.

It is wired for operation on 110-120 volts, 60 Hz. alternating cur-

rent. Before connecting the motor cord to power source, make

certain the switch is in the "OFF" position and be sure the elec-

tric current is of the same characteristics as stamped on the

nameplate.

Connection To A Power

Source

This machine must be grounded while in use to protect the oper-

ator from electric shock.

Plug power cord into a 110-120V properly grounded type outlet

protected by a 15-amp dual element time delay fuse or circuit

breaker.

Not all outlets are properly grounded. If you are not sure that

your outlet, as pictured below, is properly grounded; have it

checked by a qualified electrician.

To avoid electric shock, do not touch the

metal prongs on the plug when installing or

removing the plug to or from the outlet.

Failure to properly ground this power tool can

cause electrocution or serious shock, partic-

ularly when used near metal plumbing or other metal objects.

If shocked, your reaction could cause your hands to hit the

tool.

If power cord is worn, cut or damaged in any

way, have it replaced immediately to avoid

shock or fire hazard.

Your unit is for use on 120 volts; it has a plug that looks like

the one below.

3-PRONG PLU_NDING PRONG

ALWAYS USE A

GROUNDED

OUTLET

This power tool is equipped with a 3-conductor cord and

grounding type plug, approved by Underwriters Laboratories

and the Canadian Standards Association. The ground con-

ductor has a green jacket with or without yellow stripes and is

attached to the tool housing at one end and to the ground

prong in the attachment plug at the other end.

This plug requires a mating 3-conductor grounded type outlet

as shown. It must be grounded in accordance with all local

codes and ordinances.

If the outlet you are planning to use for this power tool is of the

two-prong type, DO NOT REMOVE OR ALTER THE

GROUNDING PRONG IN ANY MANNER. Have a qualified

electrician replace the TWO-prong outlet with a properly

grounded THREE prong outlet.

improper connection of the equipment-grounding conductor

can result in a risk of electric shock. If repair or replacement of

the electric cord or plug is necessary, do not connect the

equipment-grounding conductor to a live terminal.

Check with a qualified electrician or service personnel if the

grounding instructions are not completely understood, or if in

doubt as to whether the tool is properly grounded.

The temporary adapter should be used only until a properly

grounded outlet can be installed by a qualified electrician.

The green grounding lug extending from the

adapter must be connected to a permanent

ground such as a properly grounded outlet box.

GROUNDING LUG

SCREW _! __

ADAPTER

MAKE SURE THIS

IS CONNECTED TO

IA KNOWN

GROUND

2-PRONG

RECEPTACLE

NOTE: The adapter illustrated is for use only if you already

have a properly grounded 2-prong receptacle. Adapter is not

allowed in Canada by the Canadian Electrical Code. Always

use proper extension cord.

The use of any extension cord will cause some loss of power.

To keep this to a minimum and to prevent overheating and

motor burn-out, use the table below to determine the mini-

mum wire size (A.W.G.) extension cord. Use only 3-wire exten-

sion cords which have 3-prong grounding type plugs and 3-

pole receptacles which accept the tool's plug. Make sure your

extension cord is in good condition.

Extension Cord Length Wire Size A.W.G.

0-25 Feet 18

26-50 Feet 16

51-100 Feet 16

"SAVE THESE INSTRUCTIONS"

Table of Contents

General Safety Rules ...................................................... 2

Additional Safety Rules ................................................ 3-4

Motor Specifications and Electrical

Requirements .................................................................. 5

Connection to a Power Source .......................................... 5

Unpacking and Checking Contents .............................. 7

Table of Loose Parts .......................................................... 7

Glossary of Terms ............................................................ 8

Getting to Know Your Scroll Saw .............................. 8-9

Operating Adjustments ................................................ 10

Setting the Table for Horizontal or Bevel Cutting ............ 10

Aligning the Degree Scale Pointer .................................. 10

Basic Scroll Saw Operations .................................. 11-14

Removing and Installing Pin-End Blades ........................ 12

Removing and Installing Plain-End Blades .................... 12

Adjusting the Lamp .......................................................... 13

Replacing the Bulb .......................................................... 13

On/Off Switch .................................................................. 13

Variable Speed Switch .................................................... 13

Reset Button .................................................................... 13

Making Interior Scroll Cuts Pin-End Blades and

Plain-End Blades .............................................................. 14

Mounting the Scroll Saw .......................................... 15-16

Mounting the Scroll Saw to a Bench .............................. 15

Mounting the Scroll Saw to Plywood .............................. 16

Attaching Scroll Saw to Leg Set ...................................... 16

Maintaining Your Scroll Saw ........................................ 17

Lubrication ...................................................................... 17

Recommended Accessories ........................................ 18

Trouble Shooting ............................................................ 19

Dremel Limited Warranty .............................................. 22

Service Parts List ...................................................... 61-64

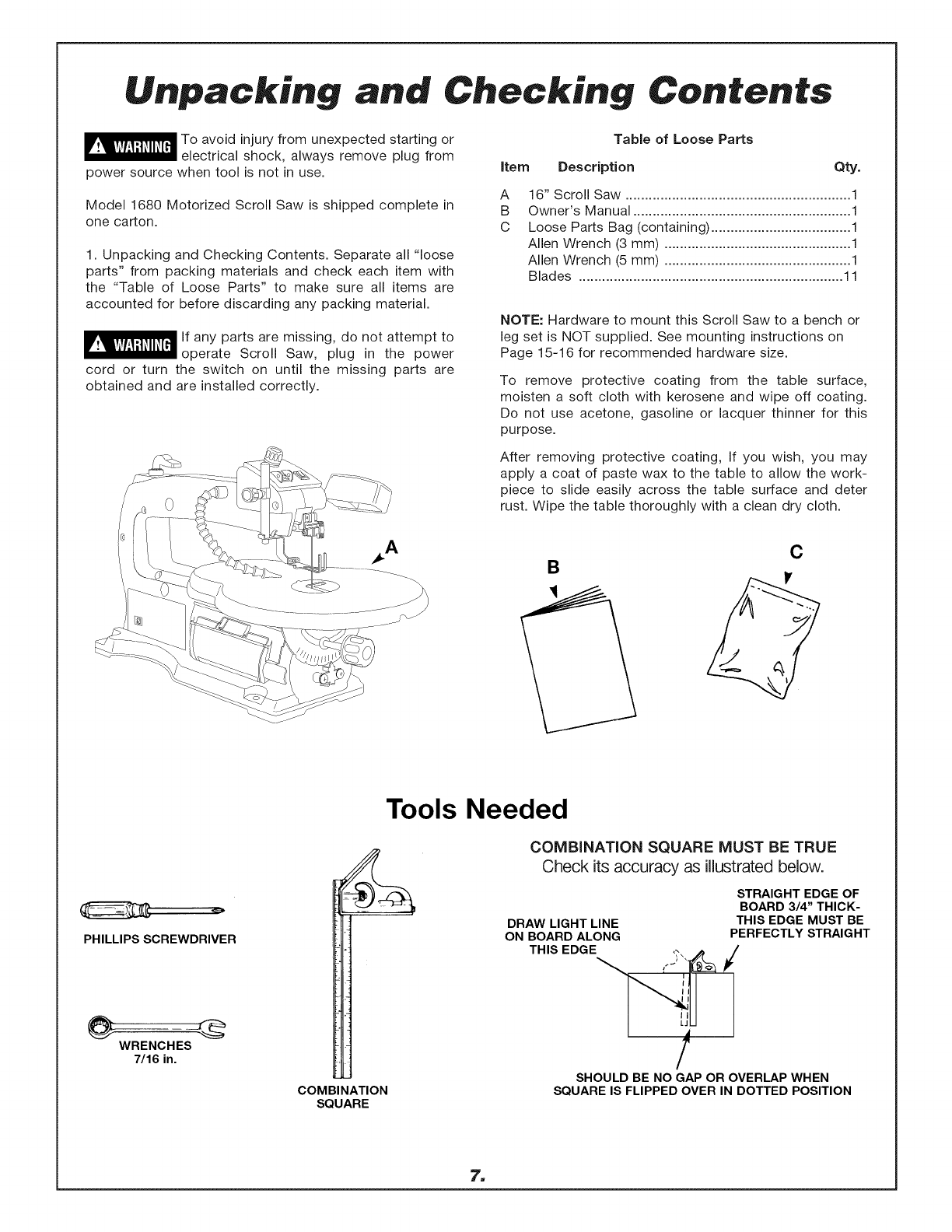

Unpacking and Checking Contents

To avoid injury from unexpected starting or

electrical shock, always remove plug from

power source when tool is not in use.

Table of Loose Parts

Item Description Qty.

Model 1680 Motorized Scroll Saw is shipped complete in B

one carton. C

1. Unpacking and Checking Contents. Separate all "loose

parts" from packing materials and check each item with

the "Table of Loose Parts" to make sure all items are

accounted for before discarding any packing material.

If any parts are missing, do not attempt to

operate Scroll Saw, plug in the power

cord or turn the switch on until the missing parts are

obtained and are installed correctly.

16" Scroll Saw .......................................................... 1

Owner's Manual ........................................................ 1

Loose Parts Bag (containing) .................................... 1

Allen Wrench (3 mm) ................................................ 1

Allen Wrench (5 mm) ................................................ 1

Blades .................................................................... 11

NOTE: Hardware to mount this Scroll Saw to a bench or

leg set is NOT supplied. See mounting instructions on

Page 15-16 for recommended hardware size.

To remove protective coating from the table surface,

moisten a soft cloth with kerosene and wipe off coating.

Do not use acetone, gasoline or lacquer thinner for this

purpose.

After removing protective coating, If you wish, you may

apply a coat of paste wax to the table to allow the work-

piece to slide easily across the table surface and deter

rust. Wipe the table thoroughly with a clean dry cloth.

PHILLIPS SCREWDRIVER

WRENCHES

7/16 in.

COMBINATION

SQUARE

Tools Needed

COMBINATION SQUARE MUST BE TRUE

Check its accuracy as illustrated below.

STRAIGHT EDGE OF

BOARD 3/4" THICK-

DRAW LIGHT LINE THIS EDGE MUST BE

ON BOARD ALONG PERFECTLY STRAIGHT

THIS EDGE .3"']_ /

SHOULD BE NO GAP OR OVERLAP WHEN

SQUARE IS FLIPPED OVER IN DOTTED POSITION

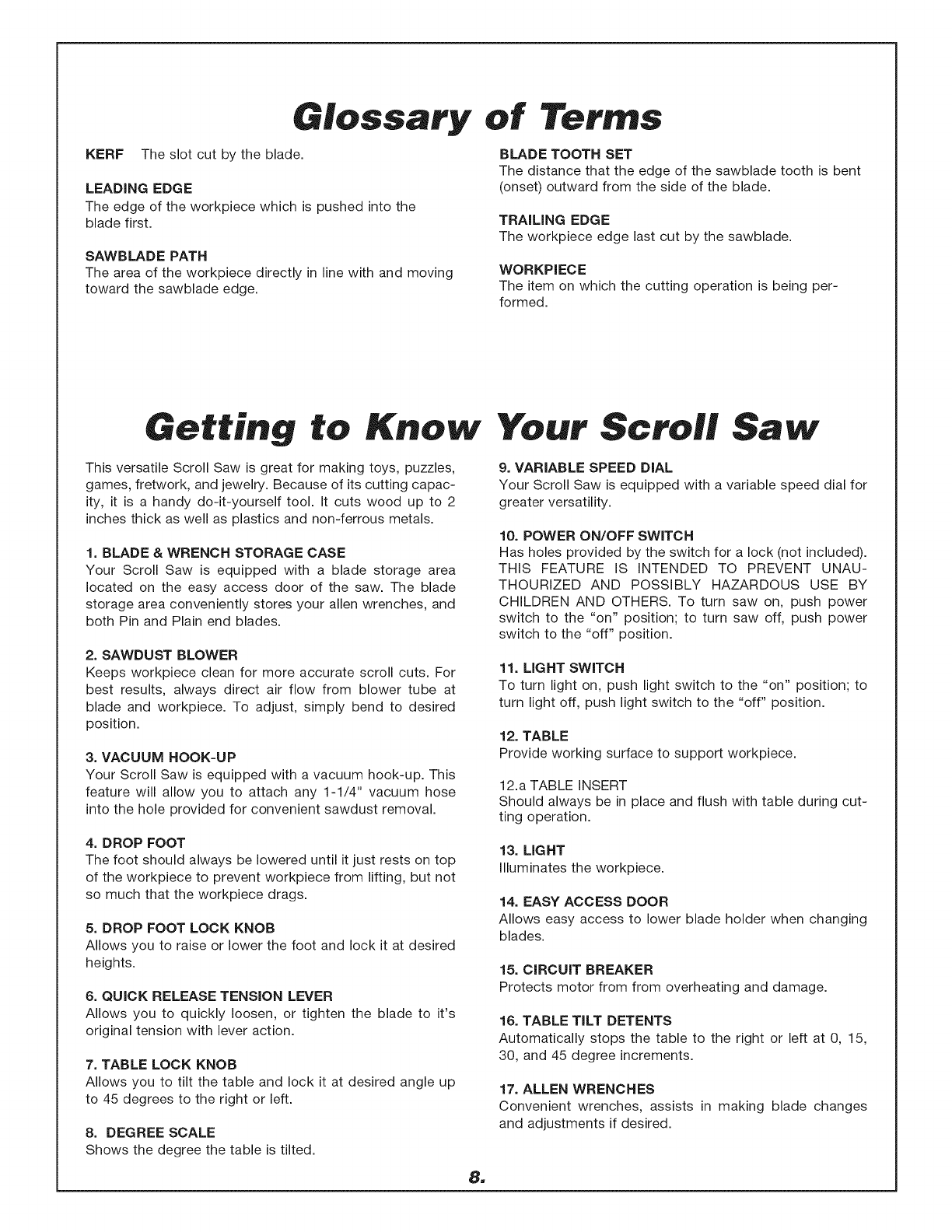

Glossary

KERF The slot cut by the blade.

LEADING EDGE

The edge of the workpiece which is pushed into the

blade first.

SAWBLADE PATH

The area of the workpiece directly in line with and moving

toward the sawblade edge.

of Terms

BLADE TOOTH SET

The distance that the edge of the sawblade tooth is bent

(onset) outward from the side of the blade.

TRAILING EDGE

The workpiece edge last cut by the sawblade.

WORKPIECE

The item on which the cutting operation is being per-

formed.

This versatile Scroll Saw is great for making toys, puzzles,

games, fretwork, and jewelry. Because of its cutting capac-

ity, it is a handy do-it-yourself tool. It cuts wood up to 2

inches thick as well as plastics and non-ferrous metals.

1. BLADE & WRENCH STORAGE CASE

Your Scroll Saw is equipped with a blade storage area

located on the easy access door of the saw. The blade

storage area conveniently stores your allen wrenches, and

both Pin and Plain end blades.

2. SAWDUST BLOWER

Keeps workpiece clean for more accurate scroll cuts. For

best results, always direct air flow from blower tube at

blade and workpiece. To adjust, simply bend to desired

position.

3. VACUUM HOOK-UP

Your Scroll Saw is equipped with a vacuum hook-up. This

feature will allow you to attach any 1-1/4" vacuum hose

into the hole provided for convenient sawdust removal.

4. DROP FOOT

The foot should always be lowered until it just rests on top

of the workpiece to prevent workpiece from lifting, but not

so much that the workpiece drags.

5. DROP FOOT LOCK KNOB

Allows you to raise or lower the foot and lock it at desired

heights.

6. QUICK RELEASE TENSION LEVER

Allows you to quickly loosen, or tighten the blade to it's

original tension with lever action.

7. TABLE LOCK KNOB

Allows you to tilt the table and lock it at desired angle up

to 45 degrees to the right or left.

8. DEGREE SCALE

Shows the degree the table is tilted.

9. VARIABLE SPEED DIAL

Your Scroll Saw is equipped with a variable speed dial for

greater versatility.

10. POWER ON/OFF SWITCH

Has holes provided by the switch for a lock (not included).

THIS FEATURE IS INTENDED TO PREVENT UNAU-

THOURIZED AND POSSIBLY HAZARDOUS USE BY

CHILDREN AND OTHERS. To turn saw on, push power

switch to the "on" position; to turn saw off, push power

switch to the "off" position.

11. LIGHT SWITCH

To turn light on, push light switch to the "on" position; to

turn light off, push light switch to the "off" position.

12. TABLE

Provide working surface to support workpiece.

12.a TABLE iNSERT

Should always be in place and flush with table during cut-

ting operation.

13. LIGHT

Illuminates the workpiece.

14. EASY ACCESS DOOR

Allows easy access to lower blade holder when changing

blades.

15. CIRCUIT BREAKER

Protects motor from from overheating and damage.

16. TABLE TILT DETENTS

Automatically stops the table to the right or left at 0, 15,

30, and 45 degree increments.

17. ALLEN WRENCHES

Convenient wrenches, assists in making blade changes

and adjustments if desired.

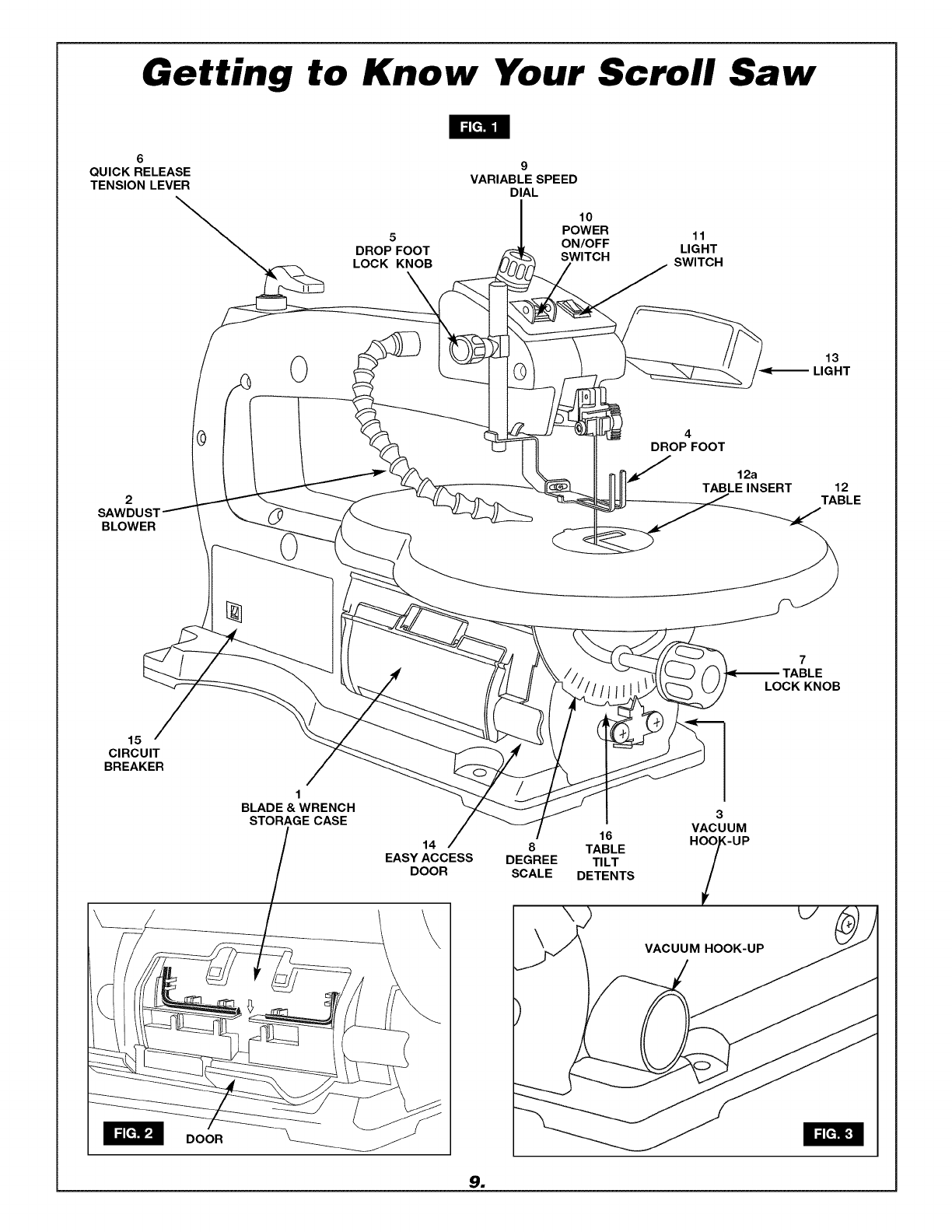

Getting to Know Your Scroll Saw

I=[_i

QUICK RELEASE 9

TENSION LEVER VARIABLE SPEED

DIAL

5 11

DROP FOOT LIGHT

LOCK KNOB SWITCH

POWER

ON/OFF

SWITCH

LIGHT

BLOWER

DROPFOOT

12a

TABLE INSERT 12

TABLE

LOCK KNOB

CIRCUIT

BREAKER

BLADE & WRENCH

STORAGE CASE

EASY ACCESS

DOOR

DEGREE

SCALE

TABLE

TILT

DETENTS

VACUUM

HOJ-UP

VACUUM HOOK-UP

DOOR

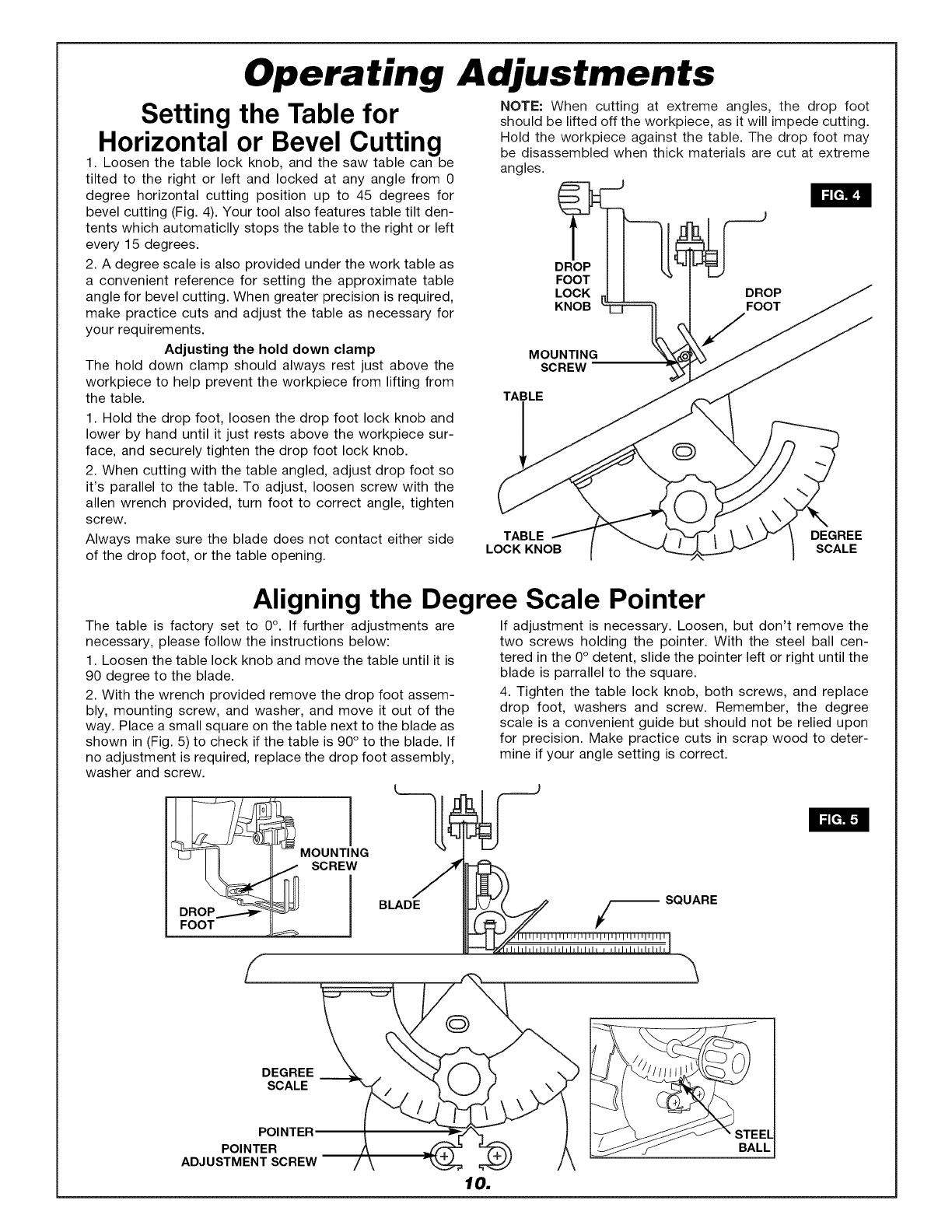

Operating Adjustments

Setting the Table for

Horizontal or Bevel Cutting

1. Loosen the table lock knob, and the saw table can be

tilted to the right or left and locked at any angle from 0

degree horizontal cutting position up to 45 degrees for

bevel cutting (Fig. 4). Your tool also features table tilt den-

tents which automaticlly stops the table to the right or left

every 15 degrees.

2. A degree scale is also provided under the work table as

a convenient reference for setting the approximate table

angle for bevel cutting. When greater precision is required,

make practice cuts and adjust the table as necessary for

your requirements.

Adjusting the hold down clamp

The hold down clamp should always rest just above the

workpiece to help prevent the workpiece from lifting from

the table.

NOTE: When cutting at extreme angles, the drop foot

should be lifted off the workpiece, as it will impede cutting.

Hold the workpiece against the table. The drop foot may

be disassembled when thick materials are cut at extreme

angles.

DROP

FOOT

LOCK DROP

KNOB FOOT

MOUNTING

SCREW

TABLE

1. Hold the drop foot, loosen the drop foot lock knob and

lower by hand until it just rests above the workpiece sur-

face, and securely tighten the drop foot lock knob.

2. When cutting with the table angled, adjust drop foot so

it's parallel to the table. To adjust, loosen screw with the

allen wrench provided, turn foot to correct angle, tighten

screw.

Always make sure the blade does not contact either side

of the drop foot, or the table opening.

TABLE DEGREE

LOCK KNOB SCALE

Aligning the Degree Scale Pointer

The table is factory set to 0°. If further adjustments are

necessary, please follow the instructions below:

1. Loosen the table lock knob and move the table until it is

90 degree to the blade.

2. With the wrench provided remove the drop foot assem-

bly, mounting screw, and washer, and move it out of the

way. Place a small square on the table next to the blade as

shown in (Fig. 5) to check if the table is 90 ° to the blade. If

no adjustment is required, replace the drop foot assembly,

washer and screw.

If adjustment is necessary. Loosen, but don't remove the

two screws holding the pointer. With the steel ball cen-

tered in the 0° detent, slide the pointer left or right until the

blade is parrallel to the square.

4. Tighten the table lock knob, both screws, and replace

drop foot, washers and screw. Remember, the degree

scale is a convenient guide but should not be relied upon

for precision. Make practice cuts in scrap wood to deter-

mine if your angle setting is correct.

FOOT

_MOUNTILG

SCREW

BLADE SQUARE

DEGREE

SCALE

POINTER

ADJUSTMENT SCREW

10.

[EL

BALL

Basic Scroll Saw Operations

Follow these instructions for operating your Scroll Saw to

get the best results and to minimize the likelihood of per-

sonal injury.

AND 5.

ALWAYS OBSERVE THE SAFETY PRE-

CAUTIONS HERE AND ON PAGES 2, 3, 4,

1. Protection: Eyes, Hands, Face, Ears and Body

TO AVOID BEING PULLED INTO THE

BLADE--

DO NOT WEAR: Loose Fitting Gloves

Necktie

Loose Clothing

Jewelry

DO: TIE BACK LONG HAIR

ROLL LONG SLEEVES ABOVE

ELBOWS

The saw does not cut wood by itself. You allow the saw

to cut wood by guiding the wood into the blade as it

moves.

The blade teeth cut ONLY on the down stroke.

The drop foot should always be lowered until it just rests

on top of the workpiece.

You must feed the wood into the blade slowly because

the teeth of the blade are very small and they can only

remove wood when they are on the down stroke. The

blade will flex backwards when applying feed pressure.

Too much feed pressure will cause blade breakage.

There is a learning curve for each person who wants to

use this saw. During that period of time it is expected that

some blades will break until you learn how to use the saw

and receive the greatest benefit from the blades.

Best results are achieved when cutting wood less than

one inch thick.

•When cutting wood thicker than one inch the user must

feed the wood very slowly into the blade, increase blade

tension and take extra care not to bend or twist the blade

while cutting in order to maximize blade life.

•Teeth on Scroll Saw blades wear out and as such must be

replaced frequently for best cutting results. Scroll Saw

blades generally stay sharp for 1/2 hour to 2 hours of cut-

ting.

•To get accurate cuts be prepared to compensate for the

blade's tendency to follow the wood grain as you are cut-

ting.

•When choosing a blade to use with your Scroll Saw

consider the following carefully:

•Choose a blade that allows at least three (3) teeth to be in

contact with the workpiece at all times.

•Very fine, narrow blades should be used to scroll cut in thin

wood (1/4 inch thick or less).

•To cut thicker wood, use wider blades with fewer teeth per

inch.

•Most blade packages state the size or thickness of wood

which that blade is intended to cut, and the radius (size of

curve) which can be cut with that blade.

•Wider blades can't cut curves as tight or small as thin-

ner blades.

This saw uses 5 inch long, Pin or Plain-End type blades

only (See Accessories on page 18).

Blades wear faster when (1) cutting plywood, which is

very abrasive, (2) when sawing wood which is thicker

than the 3/4 inch blade stroke, and (3) when sawing

hardwood, or when side pressure is placed on the

blade.

11.

Basic Scroll Saw

Blades

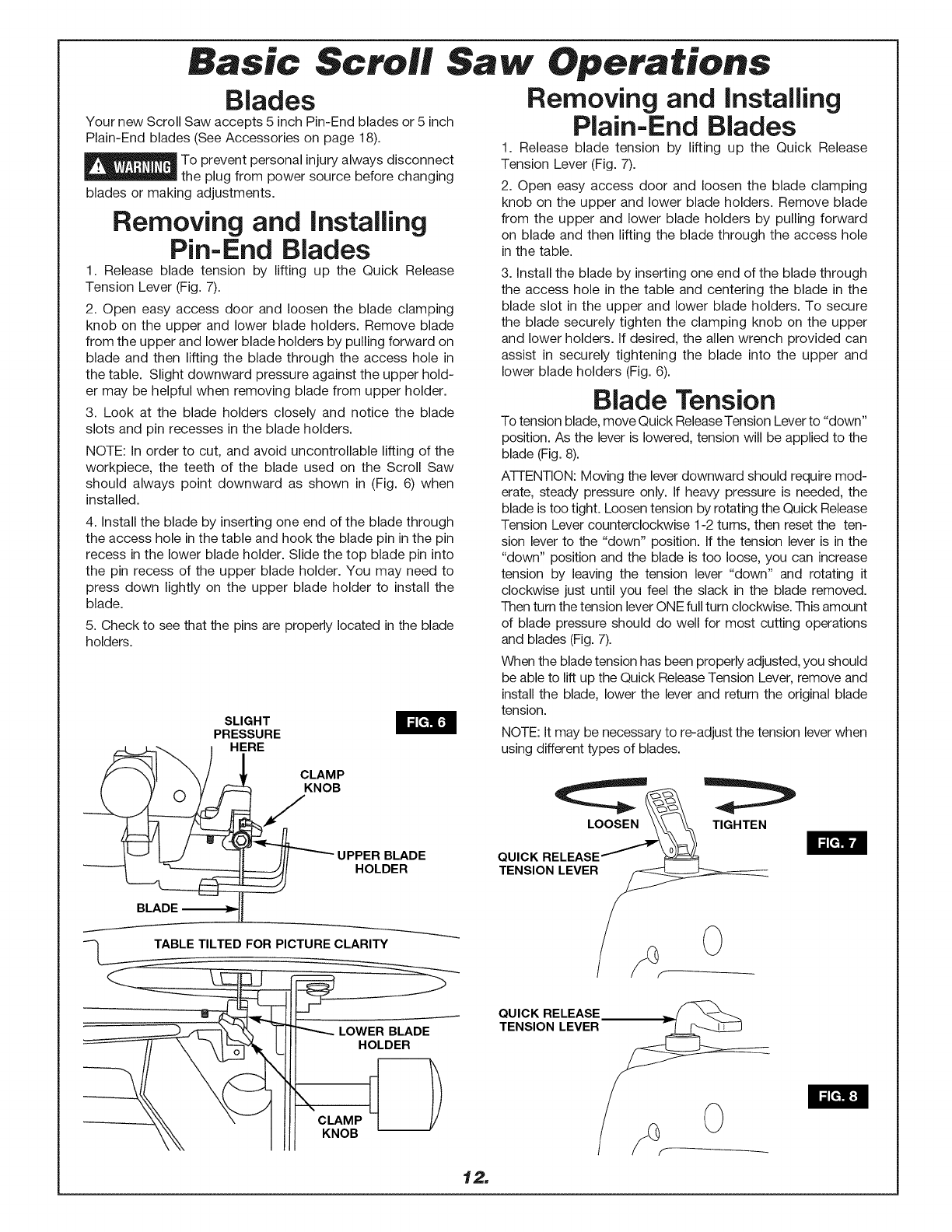

Your new Scroll Saw accepts 5 inch Pin-End blades or 5 inch

Plain-End blades (See Accessories on page 18).

To prevent personal injury always disconnect

the plug from power source before changing

blades or making adjustments.

Removing and Installing

Pin-End Blades

1. Release blade tension by lifting up the Quick Release

Tension Lever (Fig. 7).

2. Open easy access door and loosen the blade clamping

knob on the upper and lower blade holders. Remove blade

from the upper and lower blade holders by pulling forward on

blade and then lifting the blade through the access hole in

the table. Slight downward pressure against the upper hold-

er may be helpful when removing blade from upper holder.

3. Look at the blade holders closely and notice the blade

slots and pin recesses in the blade holders.

NOTE: In order to cut, and avoid uncontrollable lifting of the

workpiece, the teeth of the blade used on the Scroll Saw

should always point downward as shown in (Fig. 6) when

installed.

4. Install the blade by inserting one end of the blade through

the access hole in the table and hook the blade pin in the pin

recess in the lower blade holder. Slide the top blade pin into

the pin recess of the upper blade holder. You may need to

press down lightly on the upper blade holder to install the

blade.

5. Check to see that the pins are properly located in the blade

holders.

Operations

Removing and Installing

Plain-End Blades

1. Release blade tension by lifting up the Quick Release

Tension Lever (Fig. 7).

2. Open easy access door and loosen the blade clamping

knob on the upper and lower blade holders. Remove blade

from the upper and lower blade holders by pulling forward

on blade and then lifting the blade through the access hole

in the table.

3. Install the blade by inserting one end of the blade through

the access hole in the table and centering the blade in the

blade slot in the upper and lower blade holders. To secure

the blade securely tighten the clamping knob on the upper

and lower holders. If desired, the allen wrench provided can

assist in securely tightening the blade into the upper and

lower blade holders (Fig. 6).

Blade Tension

To tension blade, move Quick Release Tension Lever to "down"

position. As the lever is lowered, tension will be applied to the

blade (Fig. 8).

ATTENTION: Moving the lever downward should require mod-

erate, steady pressure only. If heaw pressure is needed, the

blade is too tight. Loosen tension by rotating the Quick Release

Tension Lever counterclockwise 1-2 turns, then reset the ten-

sion lever to the "down" position. If the tension lever is in the

"down" position and the blade is too loose, you can increase

tension by leaving the tension lever "down" and rotating it

clockwise just until you feel the slack in the blade removed.

Then turn the tension lever ONE full turn clockwise. This amount

of blade pressure should do well for most cutting operations

and blades (Fig. 7).

I=[,_1[,I

SLIGHT

PRESSURE

HERE

C_AMP

NOB

___ UPPER BLADE

HOLDER

BLADE _I(

I=[._'_lr4

ABLE TILTED FOR PICTURE CLARITY

When the blade tension has been properly adjusted, you should

be able to lift up the Quick Release Tension Lever, remove and

install the blade, lower the lever and return the original blade

tension.

NOTE: It may be necessary to re-adjust the tension lever when

using different types of blades.

LOOSEN TIGHTEN

QUICK RELEASE

TENSION LEVER

LOWER BLADE

HOLDER

I=[_ E=]

CLAMP

KNOB

12.

QUICK RELEASE

TENSION LEVER

asic Scroll Saw

Adjusting the Lamp

1. Position the lamp as needed to illiminate the workpiece.

2. Loosen lock knob, slide lamp to desired position and

tighten lock knob (Fig. 9).

Note: Lamp shade angle is fixed and cannot be adjusted.

OUTER

SHADE

COVER

Operations

LOCK KNOB

Replacing the Bulb

1. Use only a (25 watt maximum), candelabra base bulb.

Turn the light switch off and unplug the saw.

2. Remove the shade screw and the outer shade cover.

3. Slide the inner shade off the bulb socket.

4. Replace bulb and reassemble the shades (Fig. 9).

Note: Additional bulbs are available through Customer

Service.

1=1[._1[_3

INNER

SHADE

SHADESCREW

1. To turn

(Fig. 10).

ON/OFF Switch

power ON or OFF push the power switch

Variable Speed Switch

1.Your saw is equipped with a variable speed dial.

The blade stroke rate may be adjusted by simply rotating

the dial (Fig. 10).

To increase speed, rotate dial clockwise.

To reduce speed, rotate dial counterclockwise.

I=1[._1k"l[0]

Reset Button

Your saw features a reset button that protects the motor

from overheating and damage (Fig. 11).

1. If the switch pops, turn the power ON/Off switch to the

off position.

2. Unplug the cord from the power source and allow the

saw to cool down.

3. Return reset button to its original position.

POWER

ON/OFF

SWITCH

B_LB

VARIABLE

SPEED DIAL

LIGHT

ISWITCH

RESET

BUTTON

13.

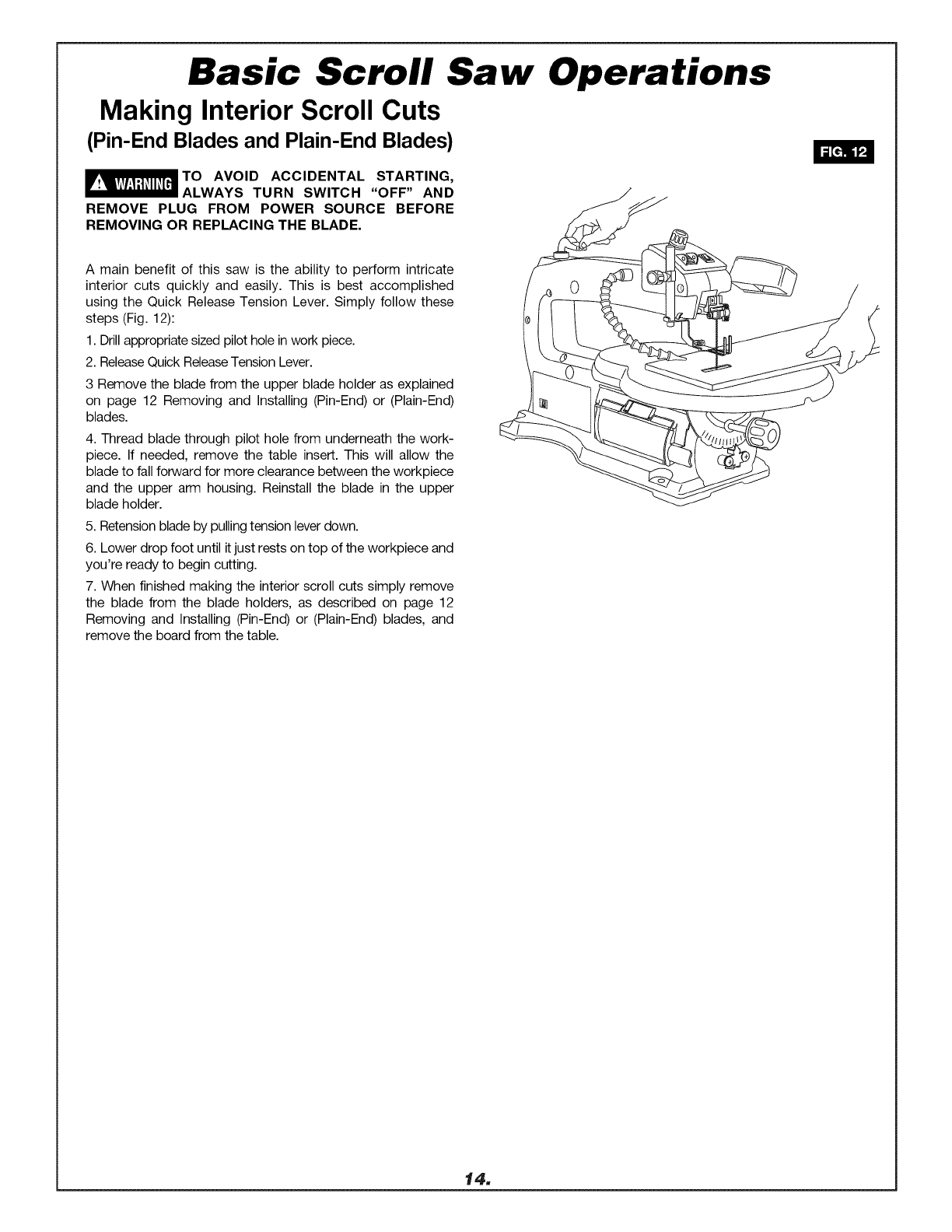

Basic Scroll Saw Operations

Making Interior Scroll Cuts

(Pin-End Blades and Plain-End Blades)

TO AVOID ACCIDENTAL STARTING,

ALWAYS TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE BEFORE

REMOVING OR REPLACING THE BLADE.

A main benefit of this saw is the ability to perform intricate

interior cuts quickly and easily. This is best accomplished

using the Quick Release Tension Lever. Simply follow these

steps (Fig. 12):

1. Drillappropriate sized pilot hole in work piece.

2. Release Quick ReleaseTension Lever.

3 Remove the blade from the upper blade holder as explained

on page 12 Removing and Installing (Pin-End) or (Plain-End)

blades.

4. Thread blade through pilot hole from underneath the work-

piece. If needed, remove the table insert. This will allow the

blade to fall forward for more clearance between the workpiece

and the upper arm housing. Reinstall the blade in the upper

blade holder.

5. Retension blade by pulling tension lever down.

6. Lower drop foot until it just rests on top of the workpiece and

you're ready to begin cutting.

7. When finished making the interior scroll cuts simply remove

the blade from the blade holders, as described on page 12

Removing and Installing (Pin-End) or (Plain-End) blades, and

remove the board from the table.

14.

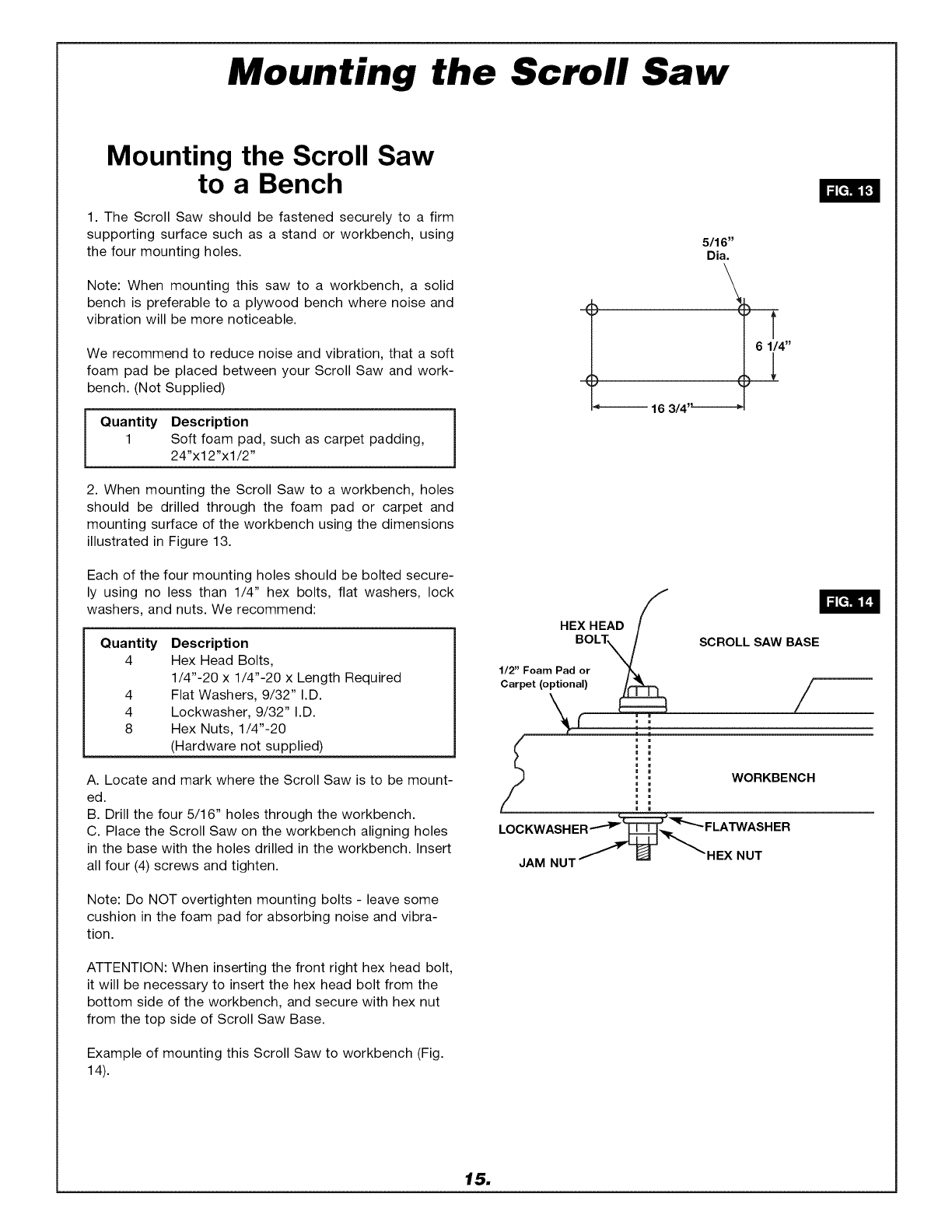

Mounting the Scroll Saw

to a Bench

1. The Scroll Saw should be fastened securely to a firm

supporting surface such as a stand or workbench, using

the four mounting holes.

Note: When mounting this saw to a workbench, a solid

bench is preferable to a plywood bench where noise and

vibration will be more noticeable.

We recommend to reduce noise and vibration, that a soft

foam pad be placed between your Scroll Saw and work-

bench. (Not Supplied)

Quantity Description

1 Soft foam pad, such as carpet padding,

24"xl 2"xl/2" ]

2. When mounting the Scroll Saw to a workbench, holes

should be drilled through the foam pad or carpet and

mounting surface of the workbench using the dimensions

illustrated in Figure 13.

Each of the four mounting holes should be bolted secure-

ly using no less than 1/4" hex bolts, flat washers, lock

washers, and nuts. We recommend: I;1[0 iE!

Quantity

Description

Hex Head Bolts,

1/4"-20 x 1/4"-20 x Length Required

Flat Washers, 9/32" I.D.

Lockwasher, 9/32" I.D.

Hex Nuts, 1/4"-20

(Hardware not supplied)

A. Locate and mark where the Scroll Saw is to be mount-

ed.

B. Drill the four 5/16" holes through the workbench.

C. Place the Scroll Saw on the workbench aligning holes

in the base with the holes drilled in the workbench. Insert

all four (4) screws and tighten.

Note: Do NOT overtighten mounting bolts - leave some

cushion in the foam pad for absorbing noise and vibra-

tion.

ATTENTION: When inserting the front right hex head bolt,

it will be necessary to insert the hex head bolt from the

bottom side of the workbench, and secure with hex nut

from the top side of Scroll Saw Base.

Example of mounting this Scroll Saw to workbench (Fig.

14).

5/16"

Dia.

61/4"

HEX HEAD /f

1/2" Foam PadBo_LTxL SCROLL SAW BASE

Carpet (optional) _/

(_ WORKBENCH

LOCKWASHER""a__________ FLATWASHER

JAM NUT /V>A "HEX NUT

15.

Mounting the Scroll Saw

I_i[_lqi t,,l

Mounting the Scroll Saw to

Plywood

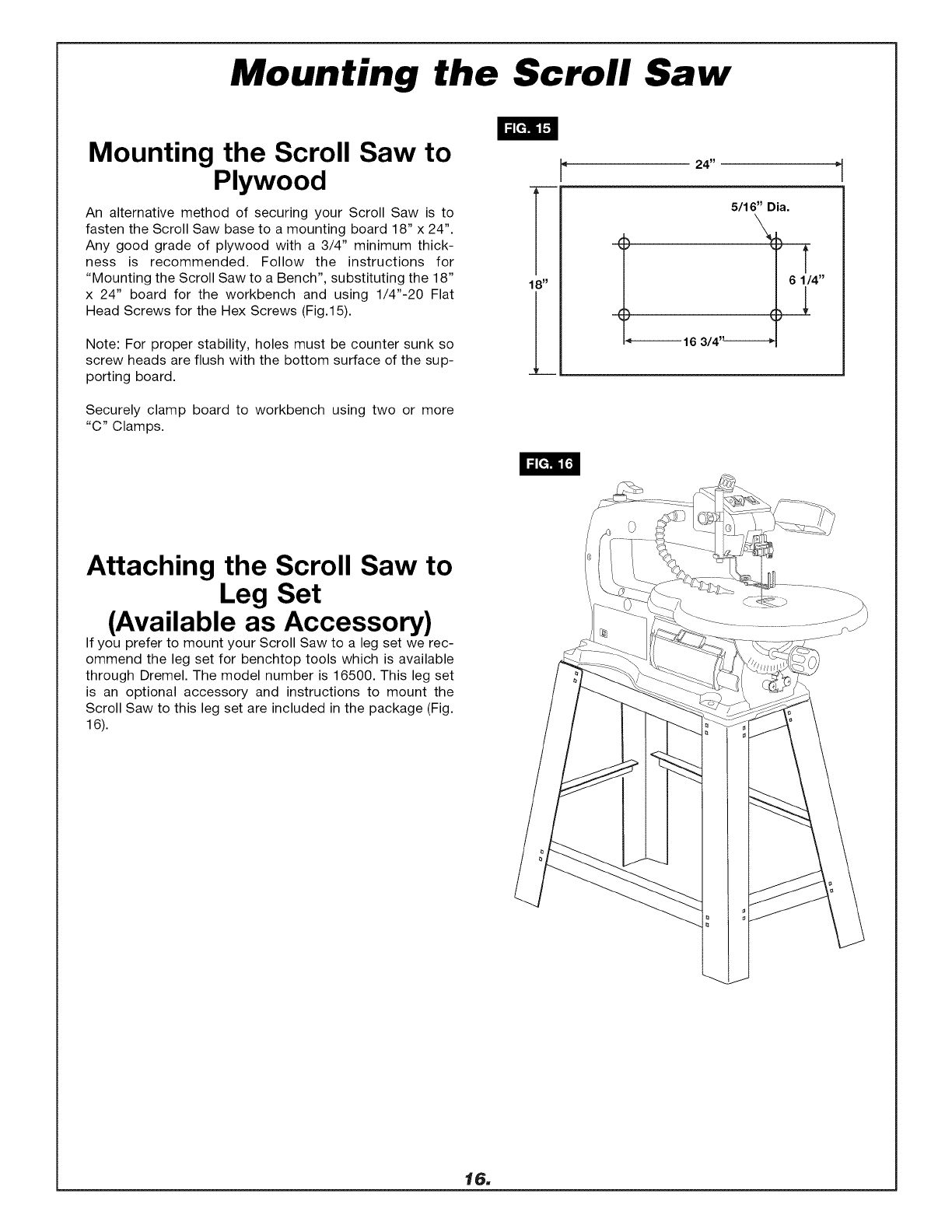

An alternative method of securing your Scroll Saw is to

fasten the Scroll Saw base to a mounting board 18" x 24".

Any good grade of plywood with a 3/4" minimum thick-

ness is recommended. Follow the instructions for

"Mounting the Scroll Saw to a Bench", substituting the 18"

x 24" board for the workbench and using 1/4"-20 Flat

Head Screws for the Hex Screws (Fig.15).

Note: For proper stability, holes must be counter sunk so

screw heads are flush with the bottom surface of the sup-

porting board.

Securely clamp board to workbench using two or more

"C" Clamps.

18"

24"

5/16" Dia.

3/4,L------

61/4"

I=[_ H,I

Attaching the Scroll Saw to

Leg Set

(Available as Accessory)

If you prefer to mount your Scroll Saw to a leg set we rec-

ommend the leg set for benchtop tools which is available

through Dremel. The model number is 16500. This leg set

is an optional accessory and instructions to mount the

Scroll Saw to this leg set are included in the package (Fig.

16).

16.

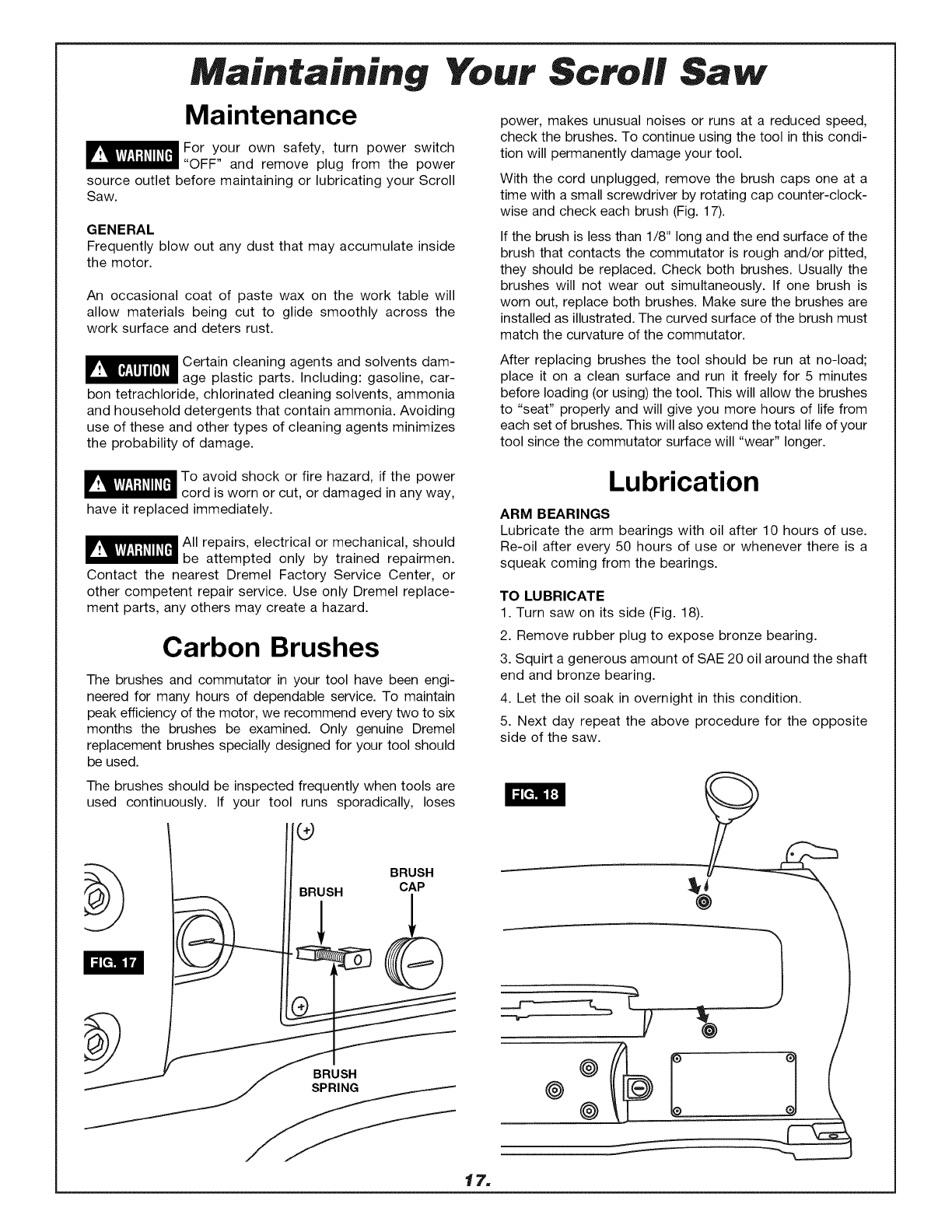

Maintaining Your Scroll Saw

Maintenance

For your own safety, turn power switch

"OFF" and remove plug from the power

source outlet before maintaining or lubricating your Scroll

Saw.

GENERAL

Frequently blow out any dust that may accumulate inside

the motor.

An occasional coat of paste wax on the work table will

allow materials being cut to glide smoothly across the

work surface and deters rust.

power, makes unusual noises or runs at a reduced speed,

check the brushes. To continue using the tool in this condi-

tion will permanently damage your tool.

With the cord unplugged, remove the brush caps one at a

time with a small screwdriver by rotating cap counter-clock-

wise and check each brush (Fig. 17).

If the brush is less than 1/8" long and the end surface of the

brush that contacts the commutator is rough and/or pitted,

they should be replaced. Check both brushes. Usually the

brushes will not wear out simultaneously. If one brush is

worn out, replace both brushes. Make sure the brushes are

installed as illustrated. The curved surface of the brush must

match the curvature of the commutator.

Certain cleaning agents and solvents dam-

age plastic parts. Including: gasoline, car-

bon tetrachloride, chlorinated cleaning solvents, ammonia

and household detergents that contain ammonia. Avoiding

use of these and other types of cleaning agents minimizes

the probability of damage.

After replacing brushes the tool should be run at no-load;

place it on a clean surface and run it freely for 5 minutes

before loading (or using) the tool. This will allow the brushes

to "seat" properly and will give you more hours of life from

each set of brushes. This will also extend the total life of your

tool since the commutator surface will "wear" longer.

To avoid shock or fire hazard, if the power

cord is worn or cut, or damaged in any way,

have it replaced immediately.

All repairs, electrical or mechanical, should

be attempted only by trained repairmen.

Contact the nearest Dremel Factory Service Center, or

other competent repair service. Use only Dremel replace-

ment parts, any others may create a hazard.

Carbon Brushes

The brushes and commutator in your tool have been engi-

neered for many hours of dependable service. To maintain

peak efficiency of the motor, we recommend every two to six

months the brushes be examined. Only genuine Dremel

replacement brushes specially designed for your tool should

be used.

The brushes should be inspected frequently when tools are I=1[_li[:]

used continuously.

I_1[_5kJ

If your tool runs sporadically, loses

BRUSH

BRUSH CAP

Lubrication

ARM BEARINGS

Lubricate the arm bearings with oil after 10 hours of use.

Re-oil after every 50 hours of use or whenever there is a

squeak coming from the bearings.

TO LUBRICATE

1. Turn saw on its side (Fig. 18).

2. Remove rubber plug to expose bronze bearing.

3. Squirt a generous amount of SAE 20 oil around the shaft

end and bronze bearing.

4. Let the oil soak in overnight in this condition.

5. Next day repeat the above procedure for the opposite

side of the saw.

17.

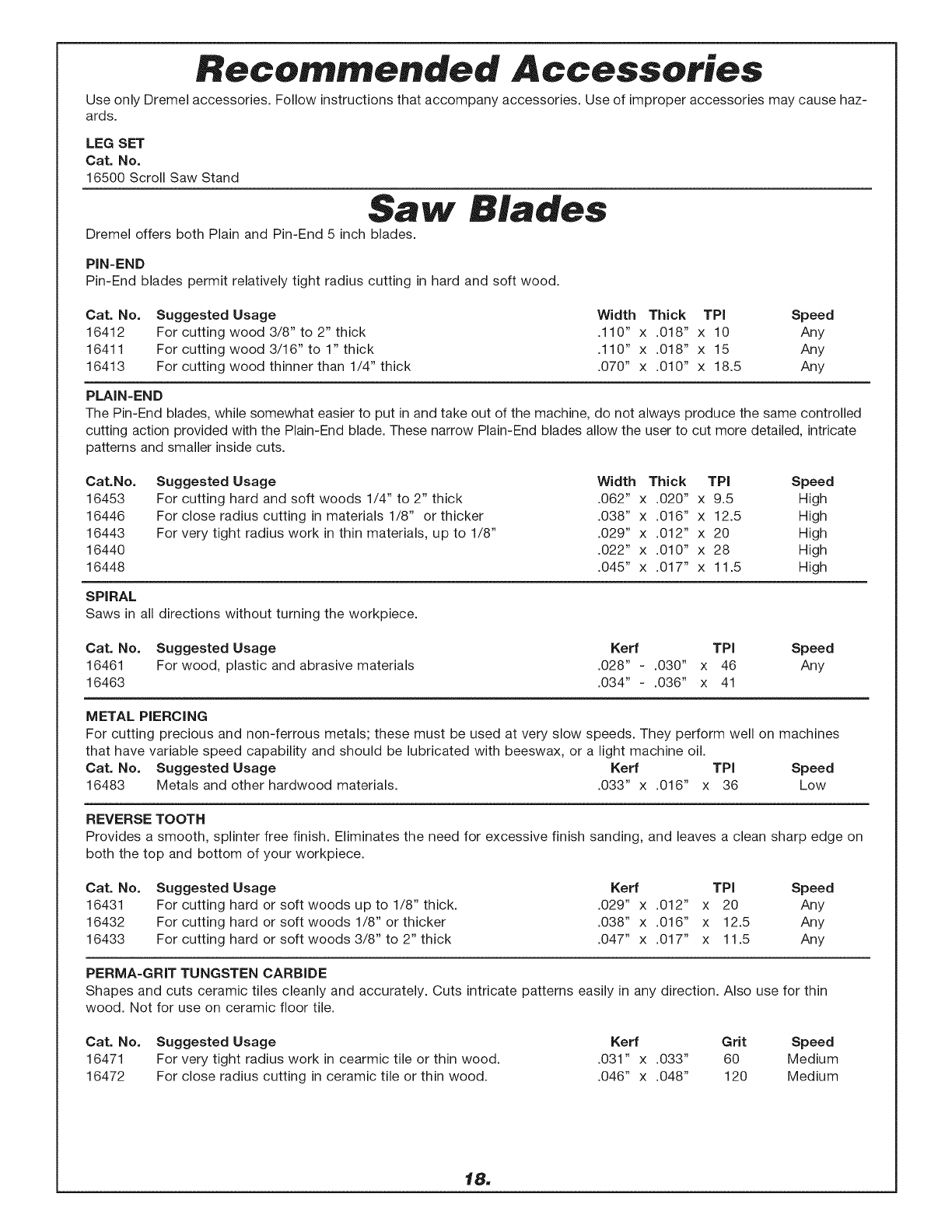

ecornrnended Accessories

Use only Dremel accessories. Follow instructions that accompany accessories. Use of improper accessories may cause haz-

ards.

LEG SET

Cat. No.

16500 Scroll Saw Stand

Saw Blades

Dremel offers both Plain and Pin-End 5 inch blades.

PIN-END

Pin-End blades permit relatively tight radius cutting in hard and soft wood.

Cat. No. Suggested Usage Width Thick TPI Speed

16412 For cutting wood 3/8" to 2" thick .110" x .018" x 10 Any

16411 For cutting wood 3/16" to 1"thick .110" x .018" x 15 Any

16413 For cutting wood thinner than 1/4" thick .070" x .010" x 18.5 Any

PLAIN-END

The Pin-End blades, while somewhat easier to put in and take out of the machine, do not always produce the same controlled

cutting action provided with the Plain-End blade. These narrow Plain-End blades allow the user to cut more detailed, intricate

patterns and smaller inside cuts.

Cat.No. Suggested Usage Width Thick TPI Speed

16453 For cutting hard and soft woods 1/4" to 2" thick .062" x .020" x 9.5 High

16446 For close radius cutting in materials 1/8" or thicker .038" x .016" x 12.5 High

16443 For very tight radius work in thin materials, up to 1/8" .029" x .012" x 20 High

16440 .022" x .010" x 28 High

16448 .045" x .017" x 11.5 High

SPIRAL

Saws in all directions without turning the workpiece.

Cat. No. Suggested Usage

16461 For wood, plastic and abrasive materials

16463

Kerr TPI Speed

.028" - .030" x 46 Any

.034" - .036" x 41

METAL PIERCING

For cutting precious and non-ferrous metals; these must be used at very slow speeds. They perform well on machines

that have variable speed capability and should be lubricated with beeswax, or a light machine oil.

Cat. No. Suggested Usage Kerr TPI Speed

16483 Metals and other hardwood materials. .033" x .016" x 36 Low

REVERSE TOOTH

Provides a smooth, splinter free finish. Eliminates the need for excessive finish sanding, and leaves a clean sharp edge on

both the top and bottom of your workpiece.

Cat. No. Suggested Usage Kerr TPI Speed

16431 For cutting hard or soft woods up to 1/8" thick. .029" x .012" x 20 Any

16432 For cutting hard or soft woods 1/8" or thicker .038" x .016" x 12.5 Any

16433 For cutting hard or soft woods 3/8" to 2" thick .047" x .017" x 11.5 Any

PERMA-GRIT TUNGSTEN CARBIDE

Shapes and cuts ceramic tiles cleanly and accurately. Cuts intricate patterns easily in any direction. Also use for thin

wood. Not for use on ceramic floor tile.

Cat. No. Suggested Usage

16471 For very tight radius work in cearmic tile or thin wood.

16472 For close radius cutting in ceramic tile or thin wood.

Kerr Grit Speed

.031" x .033" 60 Medium

.046" x .048" 120 Medium

18.

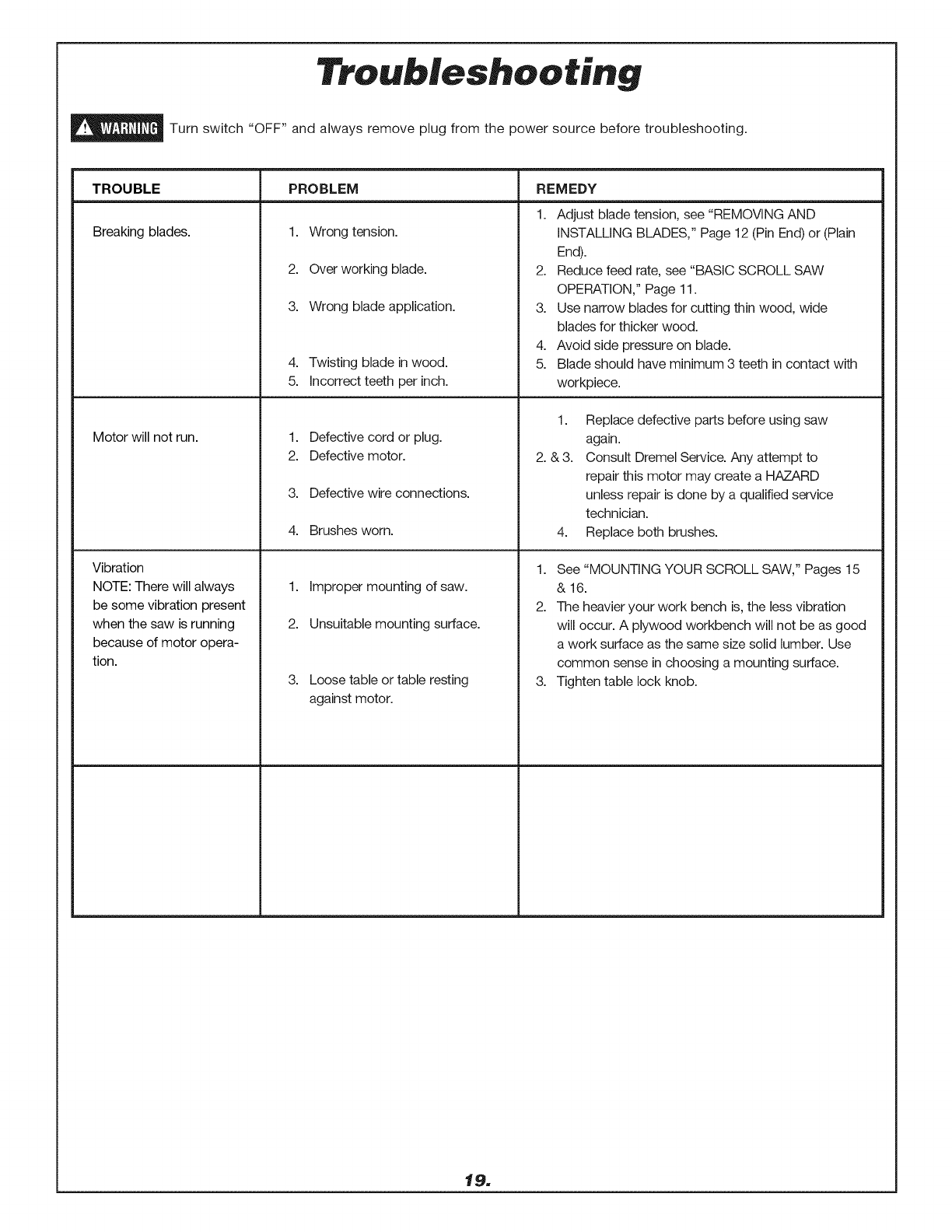

Troubleshooting

Turn switch "OFF" and always remove plug from the power source before troubleshooting.

TROUBLE

Breaking blades.

Motor will not run.

Vibration

NOTE: There will always

be some vibration present

when the saw is running

because of motor opera-

tion.

PROBLEM

1. Wrong tension.

2. Over working blade.

3. Wrong blade application.

4. Twisting blade inwood.

5. incorrectteeth per inch.

1. Defective cord or plug.

2. Defective motor.

3. Defective wire connections.

4. Brushes worn.

1. Improper mounting of saw.

2. Unsuitable mounting surface.

REMEDY

1. Adjust blade tension, see "REMOVING AND

INSTALLING BLADES," Page 12 (Pin End) or (Plain

End).

2. Reduce feed rate, see "BASIC SCROLL SAW

OPERATION," Page 11.

3. Use narrow blades for cutting thin wood, wide

blades for thicker wood.

4. Avoid side pressure on blade.

5. Blade should have minimum 3 teeth in contact with

workpiece.

1. Replace defective parts before using saw

again.

2. & 3. Consult Dremel Service. Any attempt to

repair this motor may create a HAZARD

unless repair is done by a qualified service

technician.

4. Replace both brushes.

1. See "MOUNTING YOUR SCROLL SAW," Pages 15

&16.

2. The heavier your work bench is, the less vibration

will occur. A plywood workbench will not be as good

a work surface as the same size solid lumber. Use

common sense in choosing a mounting surface.

3. Loose table or table resting 3. Tighten table lock knob.

against motor.

19.

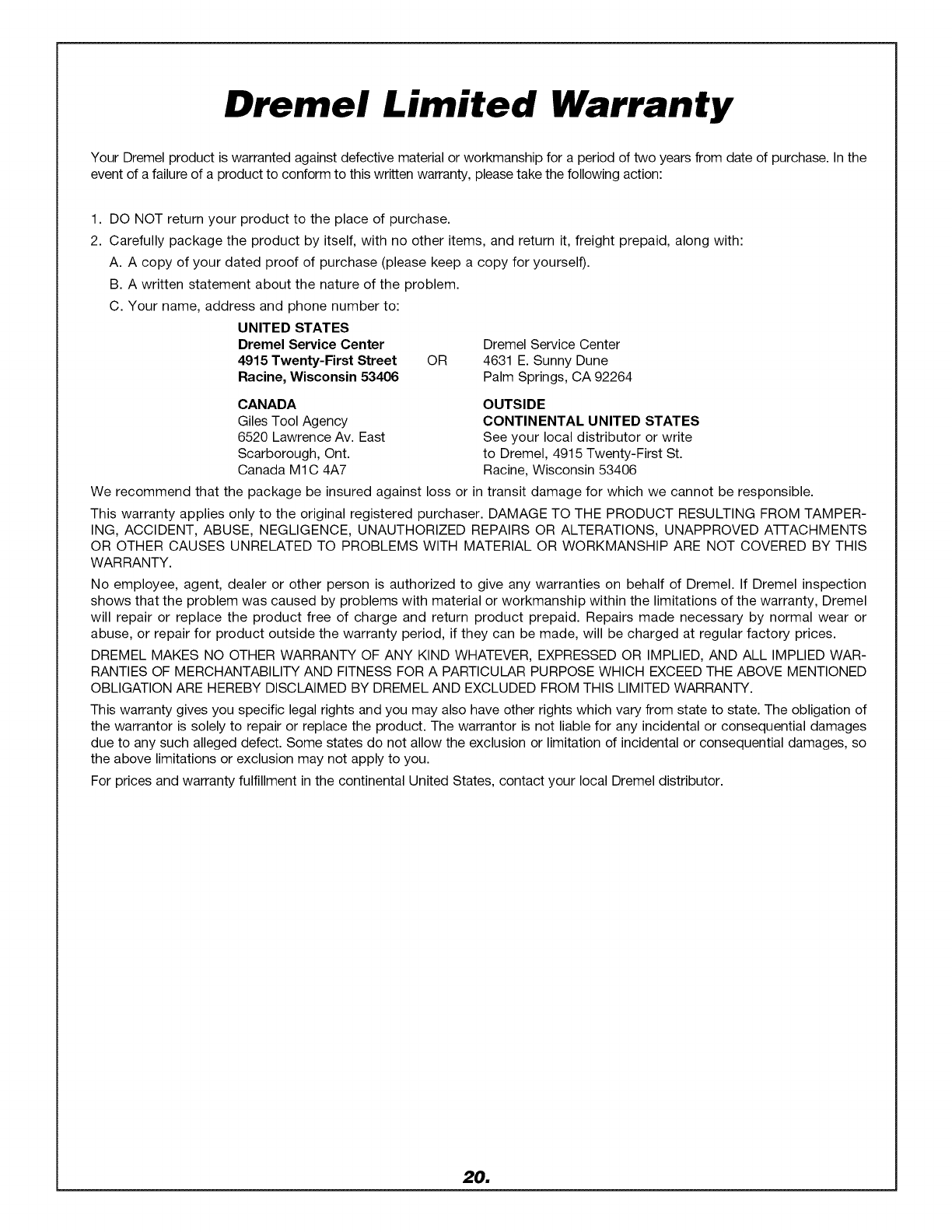

Dremel Limited Warranty

Your Dremel product is warranted against defective material or workmanship for a period of two years from date of purchase. In the

event of a failure of a product to conform to this written warranty, please take the following action:

1. DO NOT return your product to the place of purchase.

2. Carefully package the product by itself, with no other items, and return it, freight prepaid, along with:

A. A copy of your dated proof of purchase (please keep a copy for yourself).

B. A written statement about the nature of the problem.

C. Your name, address and phone number to:

UNITED STATES

Dremel Service Center Dremel Service Center

4915 Twenty-First Street OR 4631 E. Sunny Dune

Racine, Wisconsin 53406 Palm Springs, CA 92264

CANADA OUTSIDE

Giles Tool Agency CONTINENTAL UNITED STATES

6520 Lawrence Av. East See your local distributor or write

Scarborough, Ont. to Dremel, 4915 Twenty-First St.

Canada M1C 4A7 Racine, Wisconsin 53406

We recommend that the package be insured against loss or in transit damage for which we cannot be responsible.

This warranty applies only to the original registered purchaser. DAMAGE TO THE PRODUCT RESULTING FROM TAMPER-

ING, ACCIDENT, ABUSE, NEGLIGENCE, UNAUTHORIZED REPAIRS OR ALTERATIONS, UNAPPROVED A-FI-ACHMENTS

OR OTHER CAUSES UNRELATED TO PROBLEMS WITH MATERIAL OR WORKMANSHIP ARE NOT COVERED BY THIS

WARRANTY.

No employee, agent, dealer or other person is authorized to give any warranties on behalf of Dremel. If Dremel inspection

shows that the problem was caused by problems with material or workmanship within the limitations of the warranty, Dremel

will repair or replace the product free of charge and return product prepaid. Repairs made necessary by normal wear or

abuse, or repair for product outside the warranty period, if they can be made, will be charged at regular factory prices.

DREMEL MAKES NO OTHER WARRANTY OF ANY KIND WHATEVER, EXPRESSED OR IMPLIED, AND ALL IMPLIED WAR-

RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE ABOVE MENTIONED

OBLIGATION ARE HEREBY DISCLAIMED BY DREMEL AND EXCLUDED FROM THIS LIMITED WARRANTY.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. The obligation of

the warrantor is solely to repair or replace the product. The warrantor is not liable for any incidental or consequential damages

due to any such alleged defect. Some states do not allow the exclusion or limitation of incidental or consequential damages, so

the above limitations or exclusion may not apply to you.

For prices and warranty fulfillment in the continental United States, contact your local Dremel distributor.

20.

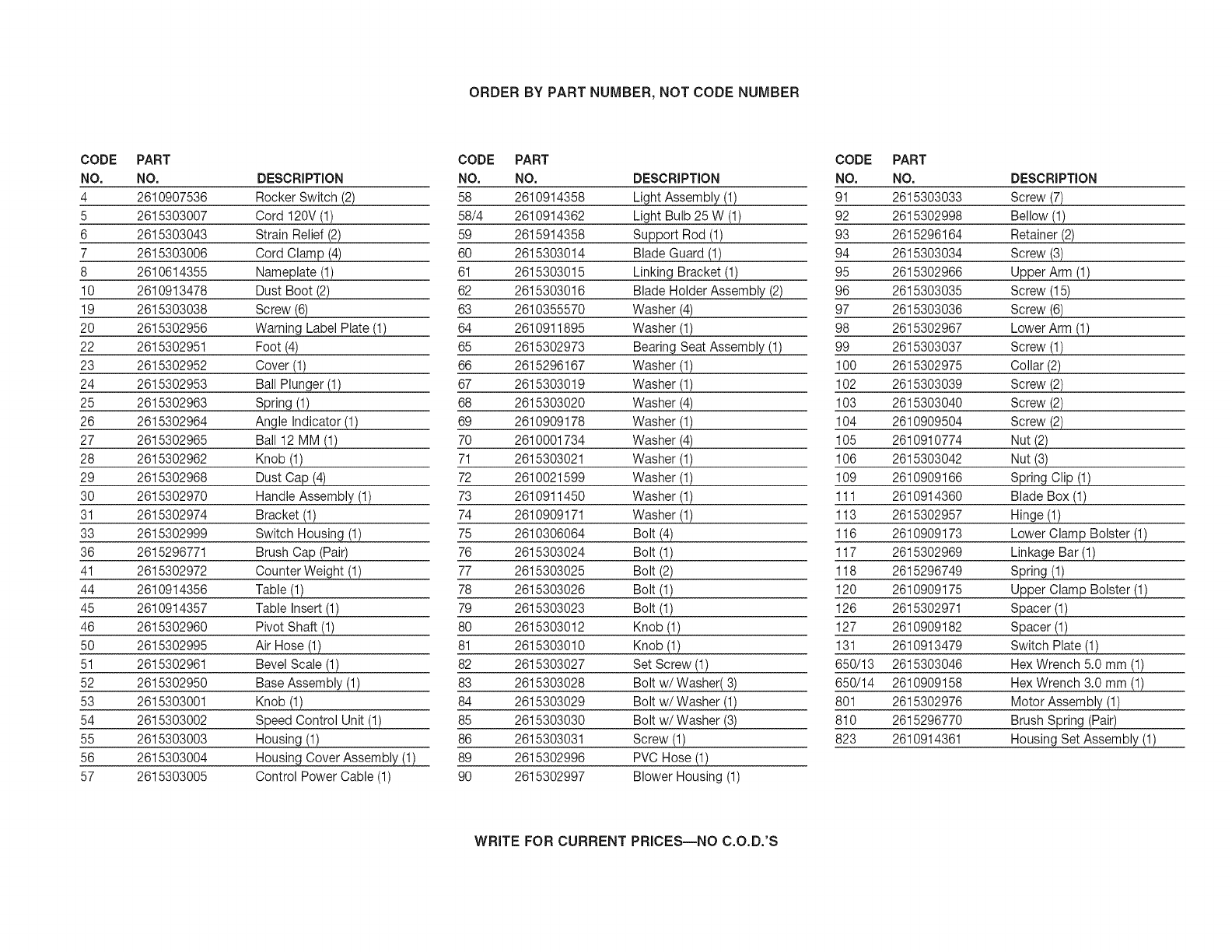

ORDER BY PART NUMBER, NOT CODE NUMBER

CODE

NO.

PART

NO.

2610907536

2615303007

2615303043

2615303006

2610614355

2610913478

2615303038

2615302956

2615302951

2615302952

2615302953

2615302963

2615302964

2615302965

2615302962

2615302968

2615302970

2615302974

2615302999

2615296771

2615302972

2610914356

2610914357

2615302960

2615302995

2615302961

2615302950

2615303001

2615303002

2615303003

2615303004

2615303005

CODE

DESCRIPTION NO.

Rocker Switch (2) 58

Cord 120V (1) 58/4

Strain Relief (2) 59

Cord Clamp (4) 60

Nameplate (1) 61

Dust Boot (2) 62

Screw (6) 63

Warning Label Plate (1) 64

Foot (4) 65

Cover (1) 66

Ball Plunger (1) 67

Spring (1) 68

Angle Indicator (1) 69

Ball 12 MM (1) 70

Knob (1) 71

Dust Cap (4) 72

Handle Assembly (1) 73

Bracket (1) 74

Switch Housing (1) 75

Brush Cap (Pair) 76

Counter Weight (1) 77

Table (1) 78

Table Insert (1) 79

Pivot Shaft (1) 80

Air Hose (1) 81

Bevel Scale (1) 82

Base Assembly (1) 83

Knob (1) 84

Speed Control Unit (1) 85

Housing (1) 86

Housing Cover Assembly (1) . 89

Control Power Cable (1) 90

PART CODE

NO. DESCRIPTION NO.

2610914358 Light Assembly (1) 91

2610914362 Light Bulb 25 W (1) 92

2615914358 Support Rod (1) 93

2615303014 Blade Guard (1) 94

2615303015 Linking Bracket (1) 95

2615303016 Blade Holder Assembly (2) __ 96

2610355570 Washer (4) 97

2610911895 Washer (1) 98

2615302973 Bearing Seat Assembly (1) __ 99

2615296167 Washer (1) 100

2615303019 Washer (1) 102

2615303020 Washer (4) 103

2610909178 Washer (1) 104

2610001734 Washer (4) 105

2615303021 Washer (1) 106

2610021599 Washer (1) 109

2610911450 Washer/1) 111

2610909171 Washer (1) 113

2610306064 Bolt (4) 116

2615303024 Bolt (1) 117

2615303025 Bolt (2) 118

2615303026 Bolt (1) 120

2615303023 Bolt (1) 126

2615303012 Knob (1) 127

2615303010 Knob (1) 131

2615303027 Set Screw (1) 650/13

2615303028 Bolt w/Washer(3) 650/14

2615303029 Bolt w/Washer (1) 801

2615303030 Bolt w/Washer (3) 810

2615303031 Screw (1) 823

2615302996 PVC Hose (1)

2615302997 Blower Housing (1)

PART

NO.

2615303033

2615302998

2615296164

2615303034

2615302966

2615303035

2615303036

2615302967

2615303037

2615302975

2615303039

2615303040

2610909504

2610910774

2615303042

2610909166

2610914360

2615302957

2610909173

2615302969

2615296749

2610909175

2615302971

2610909182

2610913479

2615303046

2610909158

2615302976

2615296770

2610914361

DESCRIPTION

Screw (7)

Bellow (1)

Retainer (2)

Screw (3)

Upper Arm (1)

Screw (15)

Screw (6)

Lower Arm (1)

Screw (1)

Collar (2)

Screw (2)

Nut (2)

Nut (3)

Spring Clip (1)

Blade Box (1)

Hinge (1)

Lower Clamp Bolster (1)

Linkage Bar (1)

Spring (1)

Upper Clamp Bolster (1)

Spacer (1)

Switch Plate (1)

Hex Wrench 5.0 mm (1)

Hex Wrench 3.0 mm (1)

Motor Assembly (1)

Brush Spring (Pair)

Housing Set Assembly (1) __

WRITE FOR CURRENT PRICES--NO C.O.D.'S

Dremel 1680 User Manual SCROLL SAW Manuals And Guides L0902530

DREMEL Saw Scroll Manual L0902530 DREMEL Saw Scroll Owner's Manual, DREMEL Saw Scroll installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
