User Manual
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 1/9
Model Name : BLP-A04-NR06
Document No. : EP01-15-003
Draft review Approval
Distributor : .
Product Specification
Original
General
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 2/9
Revision History
No. Date PAGE Contents
1 15.03.18 all First edition
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 3/9
Overview
1.1 Product overview
PS/SC mode is used for this RFID card reader. (SO14443 TYPE-A) This reader adopts ARM7 of
STMicroelectronics.
1.2 Product specification
ITEM Specifications Remark
CPU STM32F072C8U6
Cortes-M3(ARMv7), 32bit RISC
Program Memory 64KByte FLASH
Data Memory 16KByte SRAM
DISPLAY Status LED *2
Communication MINI USB
Card Type ISO-14443 A
Input voltage Mini USB Power(5V, 200mA over)
1.3 RF PART Specifications
ITEM SIC9410 Specification Remark
RF 13.56MHz
Card communication
speed
106,212,424,847 Kbps
Subcarrier 847 KHz
Using voltage 5V, 3.3V
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 4/9
2 Exterior Specifications

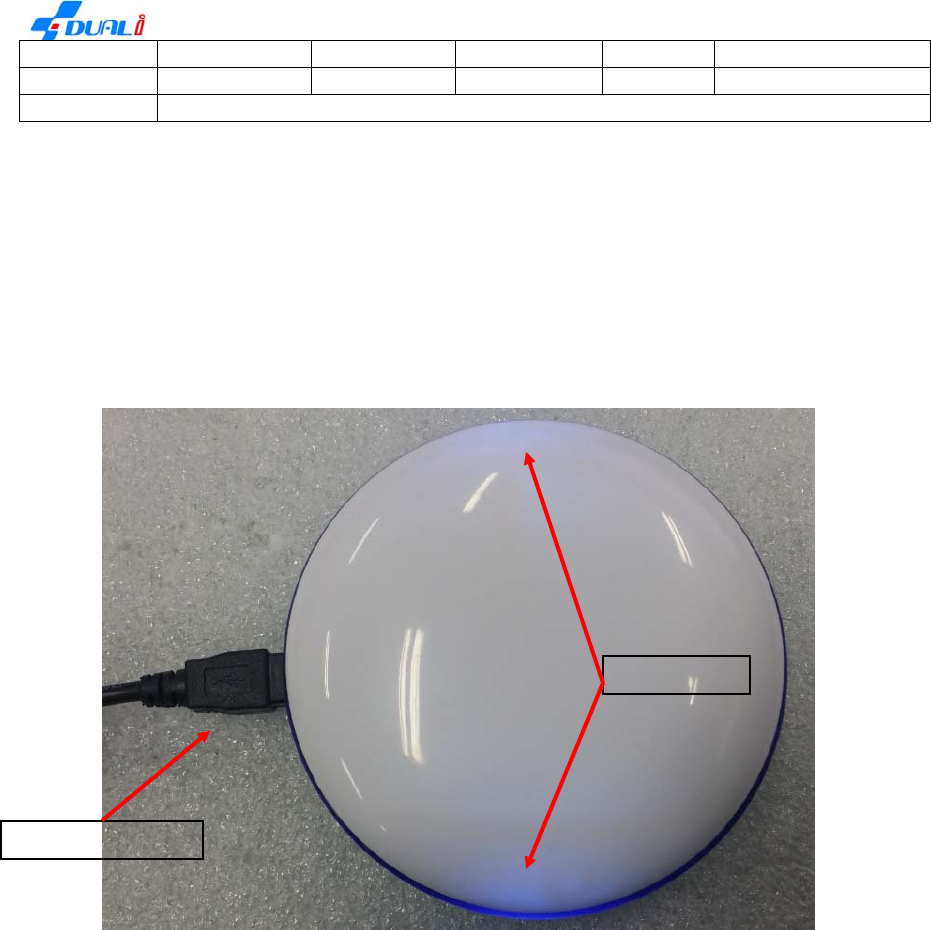

2.1 Exterior of device
2.2 Size of device
- 90(W) *90(H) * 26(D) mm
MINI USB
BLUE LED
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 5/9
3 Electric specifications
3.1 Power supply
- Use USB power (5V 200mA)
3.2 Current consumption
- Basic current consumption: 5V, 150mA under
- Maximum current consumption: 5V, 200mA under (Reding or writing card)
3.3 USB communication specification
- USB 2.0 FULL SPEED
- Communication speed: Up to 12Mbps
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 6/9
4 Function specification
4.1 Card Reading
- TYPE A Tag: Card reading should be available within up to 2.5 cm.
There should be no dead zone
- Once you tag the card on the reader, you can see that the LED of the
reader gets brighter.
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 7/9
5 Environmental characteristic
5.1 Use environment.
- Use temperature: 0 ~ 60 ℃
- Use humidity : 30 ~ 90 % (relative humidity)
5.2 Storage Environment
- storage temperature: 0 ~ 60 ℃
- storage humidity : 30 ~ 90 % (relative humidity)
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 8/9
6 Caution
z As equipment designed for indoor use, this unit should refrain from outdoor
use in direct sunlight.
z Basically this reader works only with USB. Connecting the reader directly to
PC is recommended, rather than Using USB hub.
z To maximize the card read range, make sure that there is no metallic
material near the reader. If the device is opened or the antenna is out of
the position, card reading range can be shortened or it’s not available to
read the card.
Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0
Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha
Title Product Specifications
DUALi Inc. 9/9
7 Certification
This product must be certified to KC, FCC and CE standard as a wireless
communication device at a frequency of 13.56MHz
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.

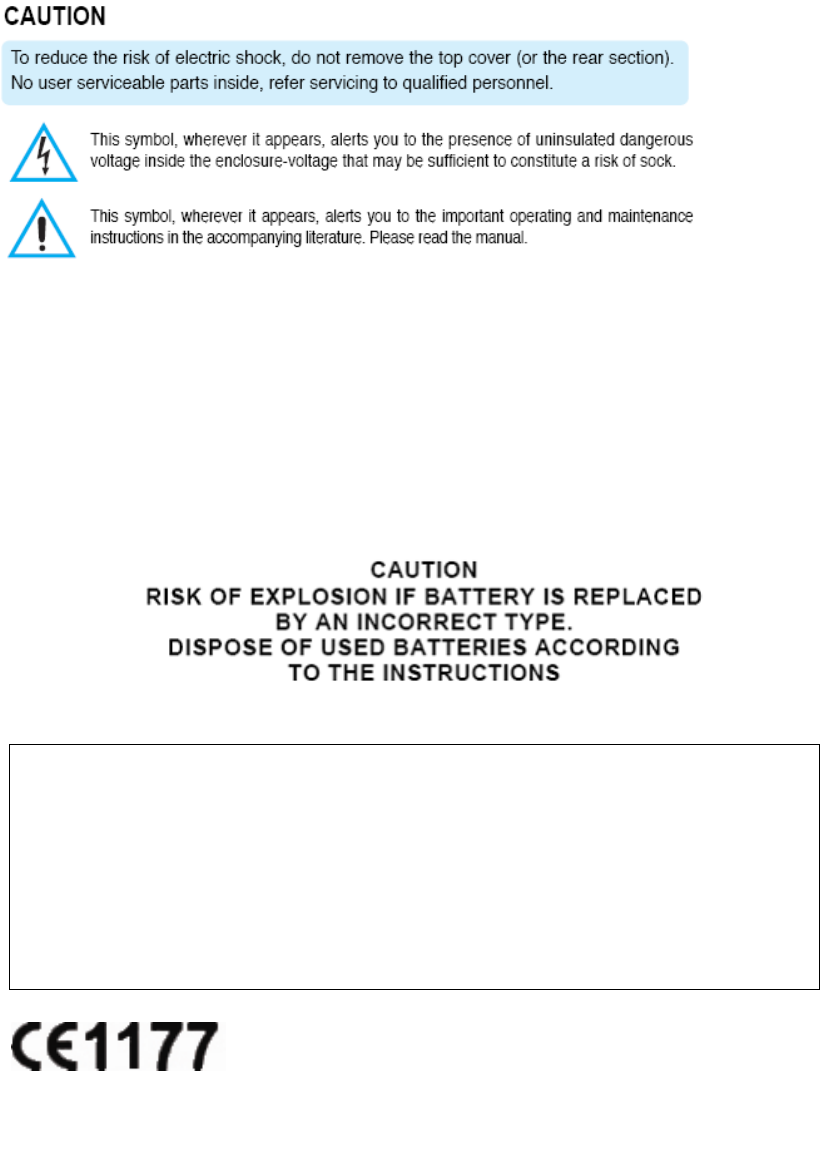

Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
European CE notice to users and product statements
This product is CE marked according to the provisions of the R&TTE
Directive(99/5/EC). Hereby, DUALi Inc. declares that this product is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
For further information, please contact http:// www.duali.com
DUALi Inc.
864-3, Gwanyang-Dong, Anyang-si, Gyeonggi-Do, Korea
Tel: +82-31-213-0074/ Fax: +82-31-213-0078/ e-mail: hotsunny@duali.com
URL: http:// www.duali.com
EUROPEAN UNION “DECLARATION OF CONFORMITY”
DECLARATION OF CONFORMITY
DUALi Inc.
1-309 Innoplex, 306 Sinwon-ro, Yeongtong-gu, Suwon, Gyeonggi-do, Korea
declare under our sole responsibility that the product(s)
Smart Card Reader
to which this declaration relate(s) is in conformance with the following standards:
EN 301 489-1 V1.9.2 :2011
EN 301 489-3 V1.6.1 :2013
EN60950-1 :2006
EN 300 330-1 V1.8.1 :2014
EN 300 330-2 V1.6.1 :2014
following the provisions of the 1999/5/EC Directives.
