DynaScan Technology XBP202 Digital Transmission System User Manual

DynaScan Technology Corp. Digital Transmission System

User Manual

User Manual For Android Control board with wireless module Product: Control Board Model No.: XBP202

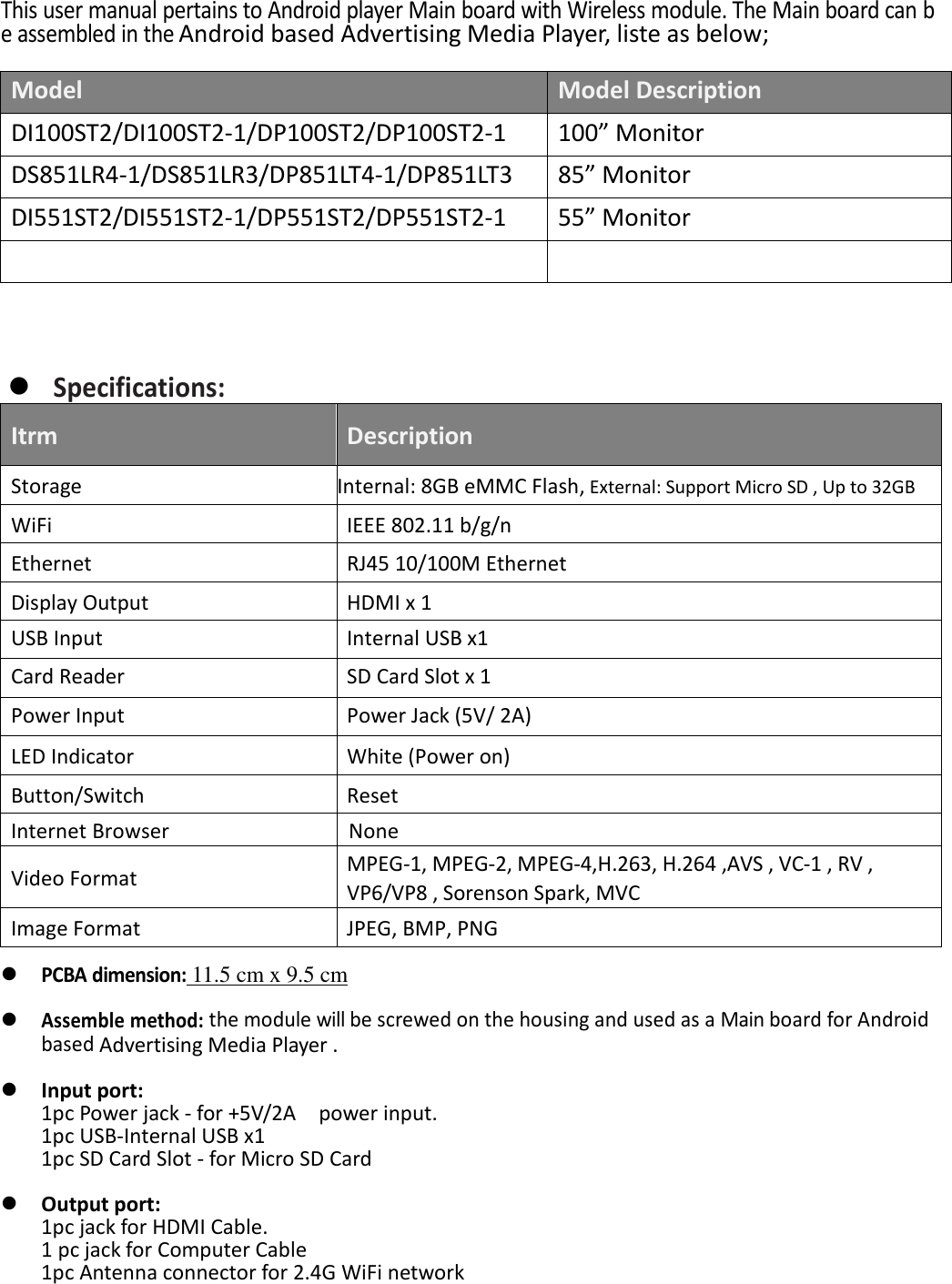

This user manual pertains to Android player Main board with Wireless module. The Main board can be assembled in the Android based Advertising Media Player, liste as below; Model Model Description DI100ST2/DI100ST2-1/DP100ST2/DP100ST2-1 100” Monitor DS851LR4-1/DS851LR3/DP851LT4-1/DP851LT3 85” Monitor DI551ST2/DI551ST2-1/DP551ST2/DP551ST2-1 55” Monitor  Specifications: Itrm Description Storage Internal: 8GB eMMC Flash, External: Support Micro SD , Up to 32GB WiFi IEEE 802.11 b/g/n Ethernet RJ45 10/100M Ethernet Display Output HDMI x 1 USB Input Internal USB x1 Card Reader SD Card Slot x 1 Power Input Power Jack (5V/ 2A) LED Indicator White (Power on) Button/Switch Reset Internet Browser None Video Format MPEG‐1, MPEG‐2, MPEG‐4,H.263, H.264 ,AVS , VC‐1 , RV , VP6/VP8 , Sorenson Spark, MVC Image Format JPEG, BMP, PNG  PCBA dimension: 11.5 cm x 9.5 cm  Assemble method: the module will be screwed on the housing and used as a Main board for Android based Advertising Media Player .  Input port: 1pc Power jack - for +5V/2A power input. 1pc USB-Internal USB x1 1pc SD Card Slot - for Micro SD Card  Output port: 1pc jack for HDMI Cable. 1 pc jack for Computer Cable 1pc Antenna connector for 2.4G WiFi network
7.WIFI

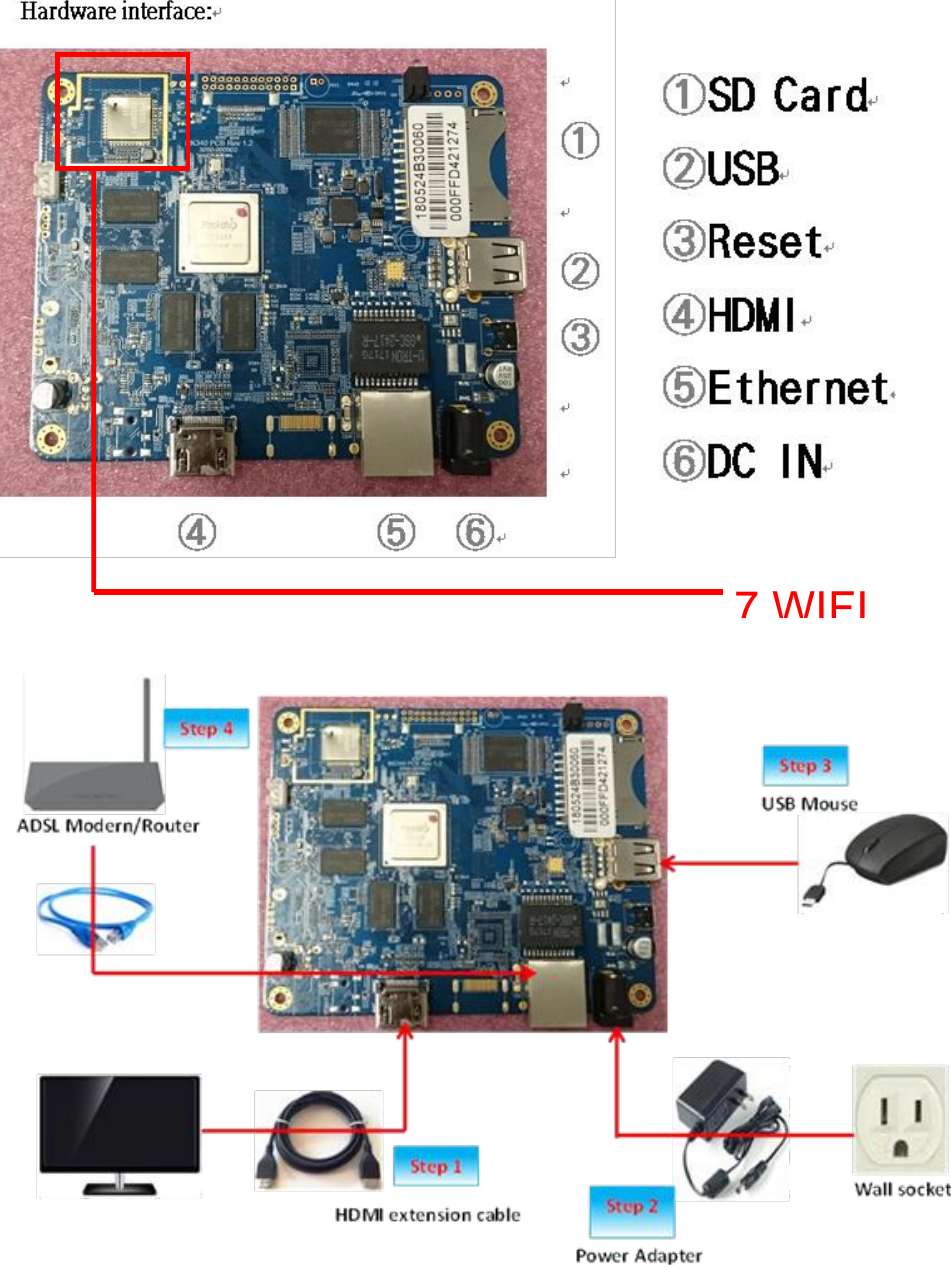

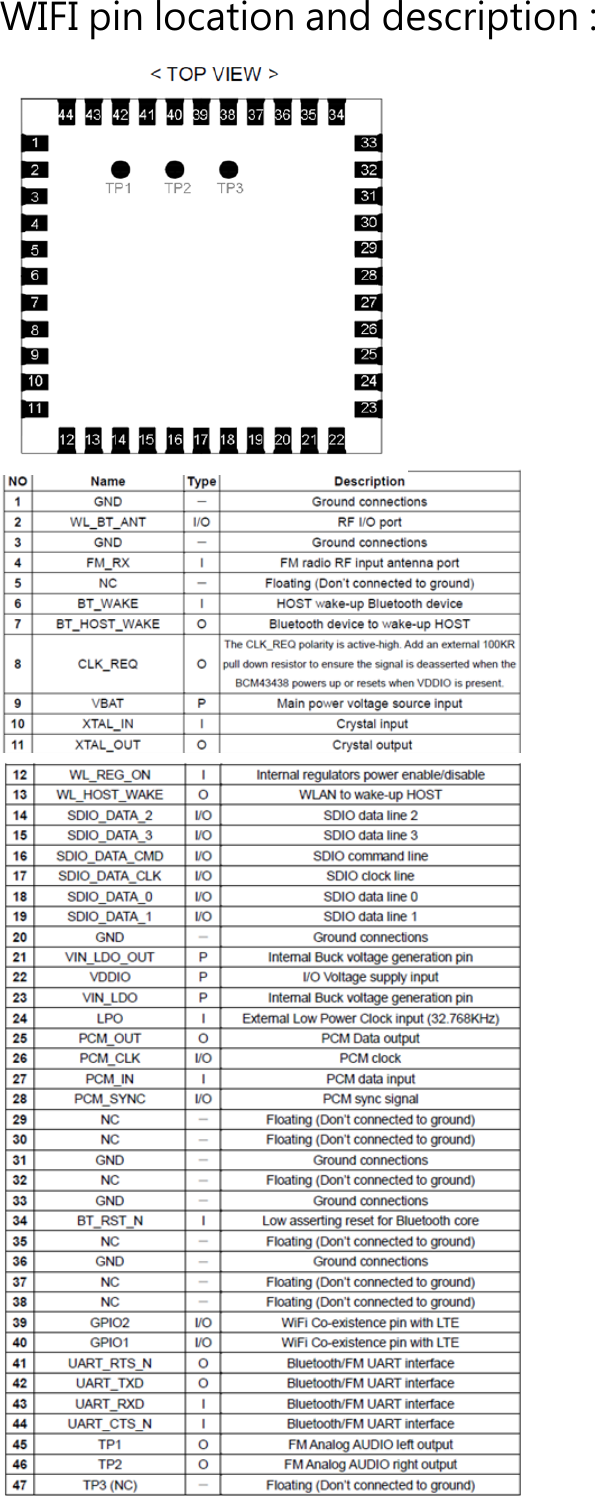

WIFI pin location and description :
FCC Statement: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. End Product Labeling : This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: 2AKWYXBP202

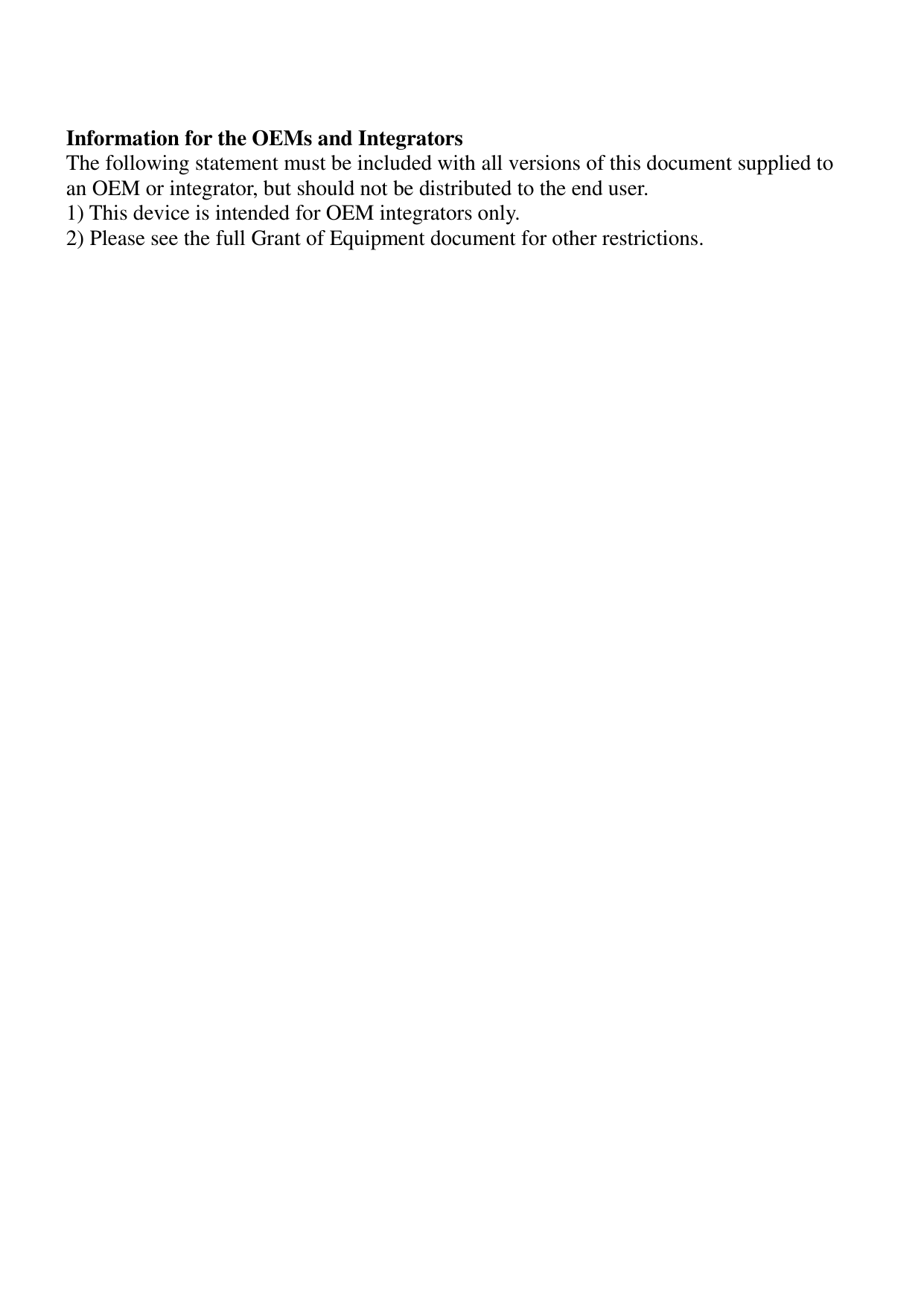

Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions.
