DynaScan Technology XBP202 Digital Transmission System User Manual
DynaScan Technology Corp. Digital Transmission System
Contents
User Manual
User
Manual
For
Android
Control
board
with
wireless
module
Product:
Control Board
Model No.:
XBP202
This user manual pertains to Android player Main board with Wireless module. The Main board can b
e assembled in the
Android based Advertising Media Player, liste as below;
Model
Model Description
DI100ST2/DI100ST2-1/DP100ST2/DP100ST2-1
100” Monitor
DS851LR4-1/DS851LR3/DP851LT4-1/DP851LT3
85” Monitor
DI551ST2/DI551ST2-1/DP551ST2/DP551ST2-1
55” Monitor
Specifications:
Itrm
Description
Storage
Internal: 8GB eMMC Flash, External: Support Micro SD , Up to 32GB
WiFi
IEEE 802.11 b/g/n
Ethernet
RJ45 10/100M Ethernet
Display Output
HDMI x 1
USB Input
Internal USB x1
Card Reader
SD Card Slot x 1
Power Input
Power Jack (5V/ 2A)
LED Indicator
White (Power on)
Button/Switch
Reset
Internet Browser
None
Video Format
MPEG‐1, MPEG‐2, MPEG‐4,H.263, H.264 ,AVS , VC‐1 , RV ,
VP6/VP8 , Sorenson Spark, MVC
Image Format
JPEG, BMP, PNG
PCBA
dimension:
11.5 cm x 9.5 cm
Assemble
method:
the module will be screwed on the housing and used as a Main board for Android
based
Advertising Media Player .

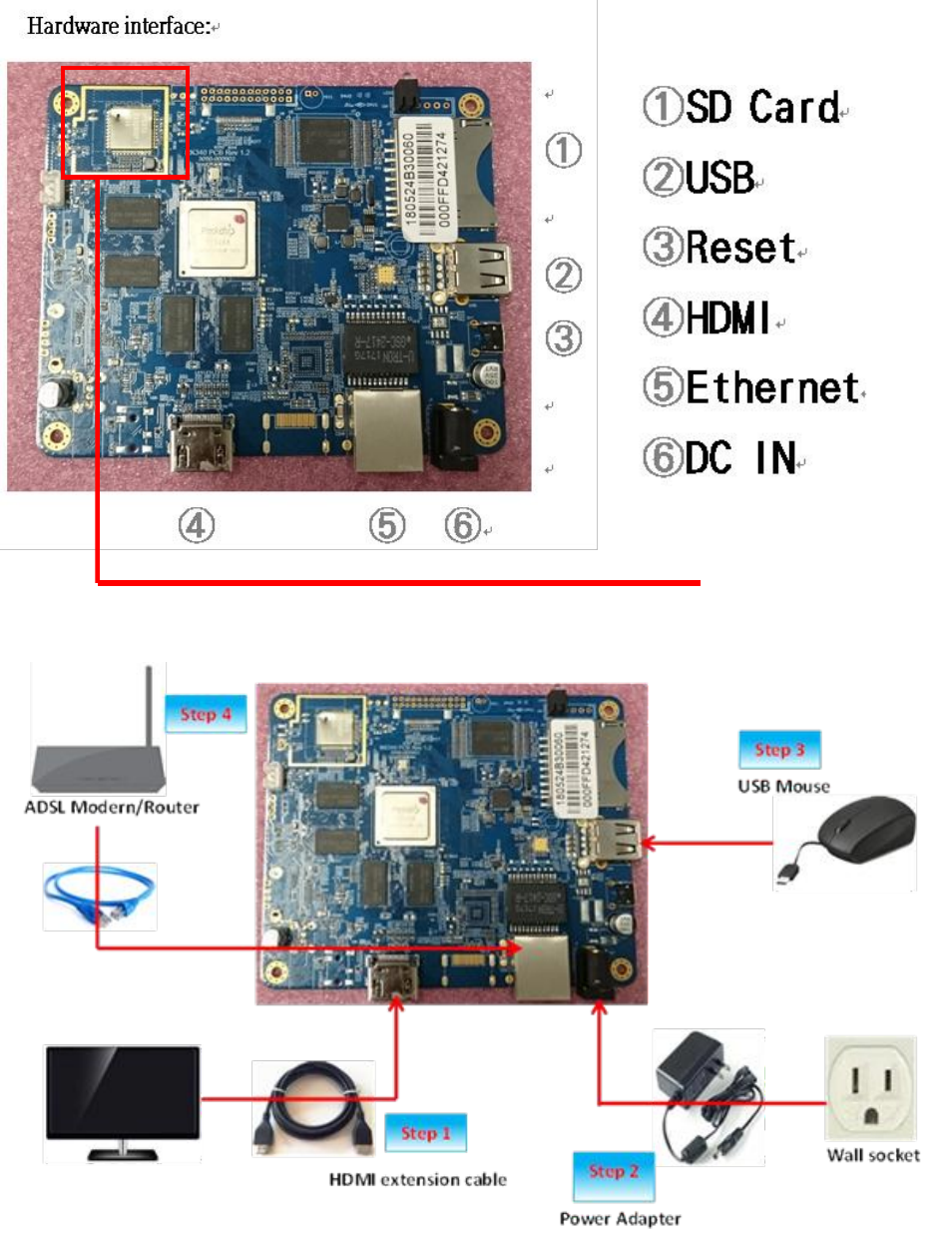

Input port:
1pc Power jack - for +5V/2A power input.
1pc USB-Internal USB x1
1pc SD Card Slot - for Micro SD Card
Output port:
1pc jack for HDMI Cable.
1 pc jack for Computer Cable
1pc Antenna connector for 2.4G WiFi network
7.WIFI

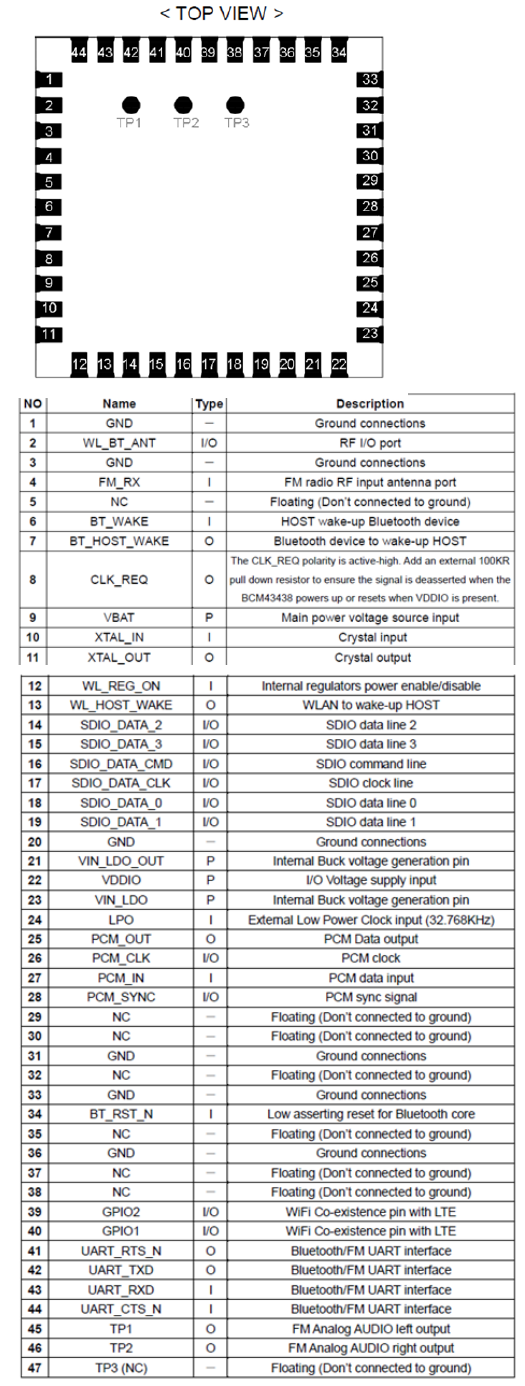

WIFI pin location and description :
