Toshiba Corporation Bluetooth SD Card Product Specification

Contents

Product Specification

Confidential
Bluetooth™ SD card User's Manual R ev. 1.1 (April 26, 2001) 1
Bluetooth™ SD card
User's Manual
Rev. 1.2 (May 16, 2001)
TOSHIBA CORPORATION
Digital Media Network Company
Confidential
Bluetooth™ SD card User's Manual Rev. 1.1 (April 26, 2001) 2
Revision History
Revision Date Comments
1.0 2001-04-25 Initial Revision
1.1 2001-04-26 Page5: Added Mode name (Palm™Bluetooth™Card) and Model
No.(SD-BT00P) for OEM
1.2 2001-05-16 Page3: Added a sentence in “Feature” section.
Confidential
Bluetooth™ SD card User's Manual Rev. 1.1 (April 26, 2001) 3
Feature
Bluetooth™ SD card is an ultra small and thin card with has built-in antenna and SD/IO interface
compliant with SDIO-spec issue by SD Association. Also, as data transmitter/receiver ,CSR’s
BlueCore01, which covers Baseband protocol and Link manager protocol, is incorporated into this card
to enable any kind of devices which incorporate SDIO-spec SD card slot and the driver software for
Bluetooth™ SD card to communicate with each other through this card.
Bluetooth™ SD card can be used with any kind of devices which have SDIO card slot and software for
Bluetooth SD card, i.e. PDAs, portable PCs, desktop PCs, digital still cameras, cellular phones.

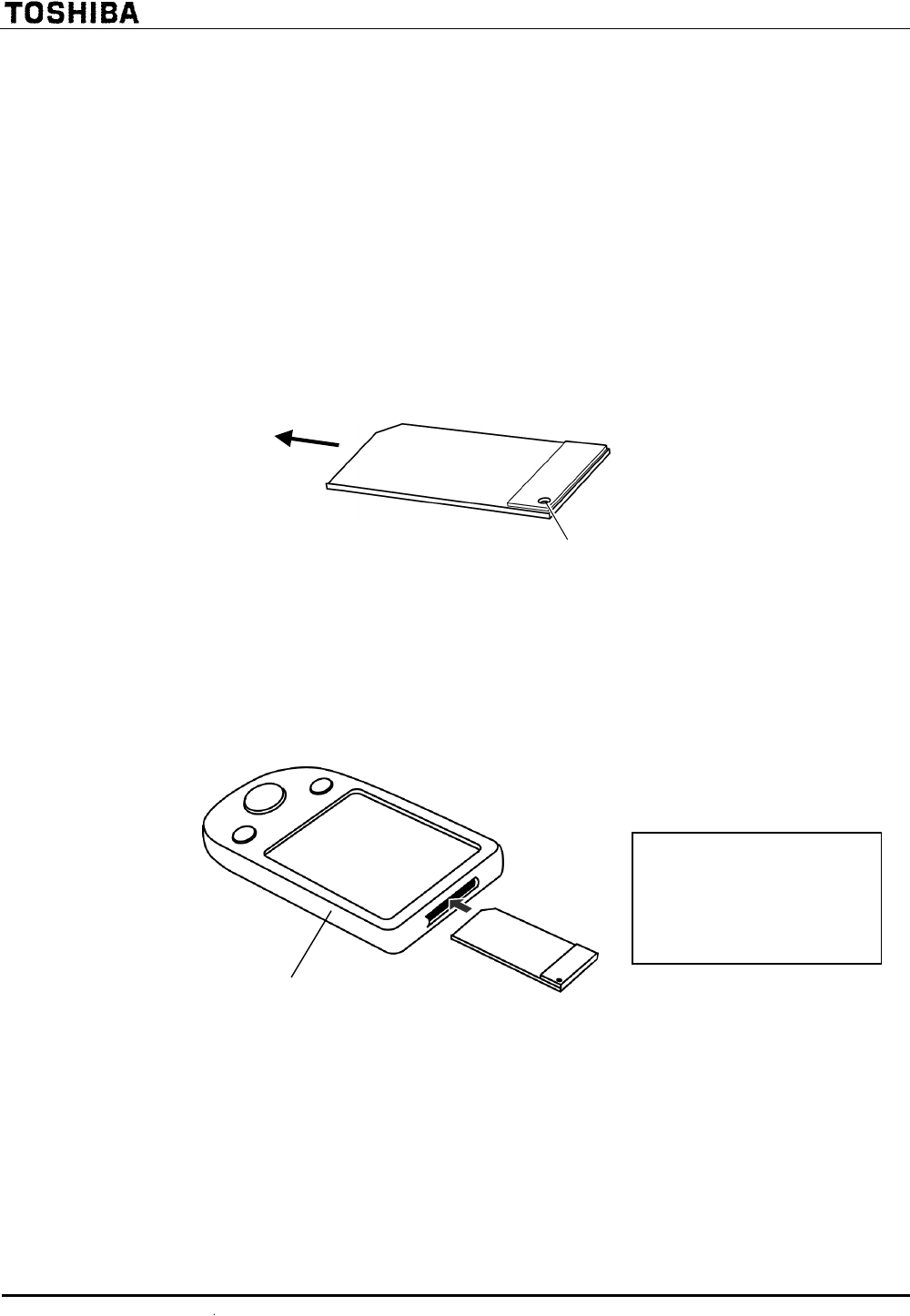

Appearance
Direction of insertion
Indication lamp (green)
It lights on during communication.
Installation
When inserting this card into SD card slot, check the form of the connector and insert it surely.
PDA supporting the SD/IO Card
• Connect the Bluetooth™ SD Card to a PDA.
This drawing is an example.
As for the position where the
Bluetooth™ SD card is
connected, refer to the User’s
Manual of PDA.
Confidential
Bluetooth™ SD card User's Manual Rev. 1.1 (April 26, 2001) 4

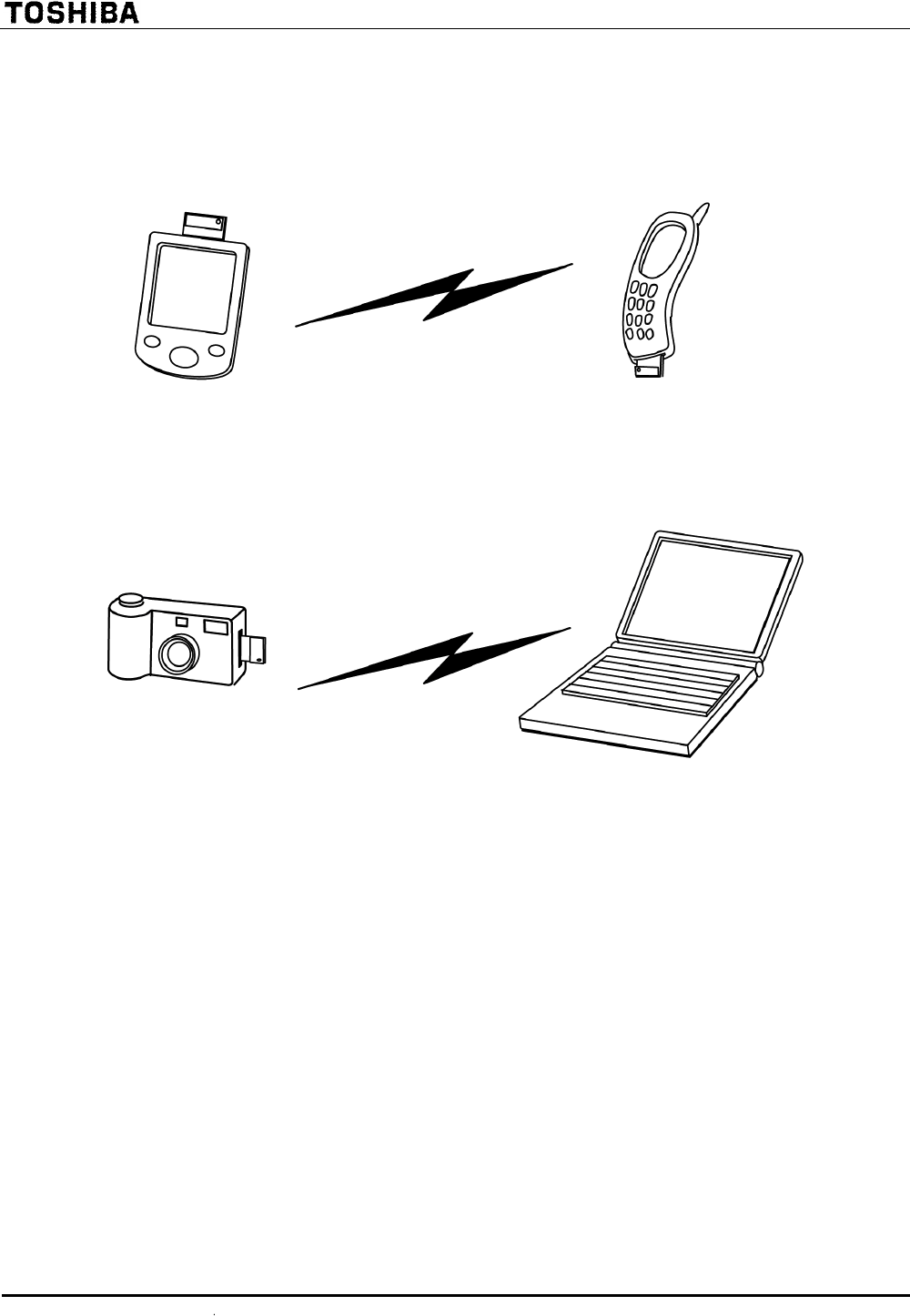

What you can do with the Bluetooth™ SD Card
(1) Mobile communication with cellular phones
PDA Cellular phone
(2) Data communication between digital still cameras and PCs
Digital still camera
PC with Bluetooth
Confidential
Bluetooth™ SD card User's Manual Rev. 1.1 (April 26, 2001) 5
Specifications
Model name BluetoothTM SD Card *1
Palm™ Bluetooth™ Card *1
Model No. SD-BT00A, SD-BT00U, SD-BT00P *1
Bluetooth™
specification Bluetooth™ Ver.1.0b*2 + critical errata
Specification of
electric Operating voltage : 3.1 to 3.6V
At initializing the card, the voltage of 1.6V to 3.6V is
supplied and some parts of SD-IO controller operate.
Ripple voltage :
50mVp-p or less
RF specification In conformity with Bluetooth radio specification
Transmission electric power class : Power class 3
[ maximum output : 1mW (0dBm)]
Sensitivity of receiving : –70dBm
Power management: No
Dimension 49mm-high x 24mm-wide x 2.1mm-thick
A part of protrusion is 2.8mm-thick.
Indication
function LED : green (It lights during communication.)
No light can be selected on by user.
*1 : SD-BT00A, SD-BT00U (for Toshiba product)
SD-BT00P ( for OEM product )
There is no difference among product with the number in hardware and firmware.
*2 : Bluetooth Special Interest Group, Document No. 1.C.47/1.0B, December 1, 1999
Confidential
Bluetooth™ SD card User's Manual Rev. 1.1 (April 26, 2001) 6
Ohme, April 25 , 2001
Place, Date Sign Hiroshi Hamada
